MakeTriggers Class Reference

Write triggers on disk. More...

#include <MakeTriggers.h>

Inheritance diagram for MakeTriggers:

[legend]

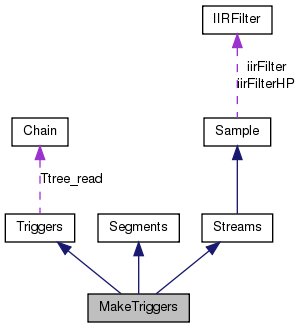

Collaboration diagram for MakeTriggers:

[legend]

List of all members.

Public Member Functions
bool	InitUserMetaData (vector< string > aMusername, vector< string > aMusertype)
	Initializes the user-defined meta-data fields.
void	Reset (void)
	Resets all.
void	SetMprocessname (const string aMprocessname)
	Set the process name for the meta-data field 'Mprocessname'.
bool	SetOutputDirectory (const string aOutDir)
	Sets a new output directory to save trigger files.
void	SetProcessVersion (const string aVersion)
	Sets the version for this process.
bool	SetUserMetaData (const string aMusername, const string aMuservalue)
	Set user-defined meta-data.
bool	SetUserMetaData (const string aMusername, const int aMuservalue)
	Set user-defined meta-data.
bool	SetUserMetaData (const string aMusername, const double aMuservalue)
	Set user-defined meta-data.
string	Write (const string aFileName="default", const string aSubDir="", const string aWriteMode="RECREATE", const bool aWriteMeta=true)
	Writes triggers on disk.
Constructors and destructors

	MakeTriggers (const string aOutDir, const string aStreamName, const string aFileFormat="root", const int aVerbose=0)
	Constructor of the MakeTriggers class.
virtual	~MakeTriggers (void)
	Destructor of the MakeTriggers class.
Protected Attributes
vector< string >	FileFormat
	output file formats
double *	Mdvar
	user metatree var - double
double	Mend
	meta end time
double	Mfmax
	meta maximum fend
double	Mfmin
	meta minimum fstart
int *	Mivar
	user metatree var - int
string	Mprocessname
	meta process name
string	Mprocessuser
	meta user name
string	Mprocessversion
	meta process version
double	Mqmax
	meta maximum Q
double	Mqmin
	meta minimum Q
double	Msnrmax
	meta maximum SNR
double	Msnrmin
	meta minimum SNR
double	Mstart
	meta start time
string	Mstreamname
	meta stream name
string *	Msvar
	user metatree var - string
TTree *	Mtree
	metadata tree
vector< string >	Musername
	user metadata name
vector< string >	Musertype
	user metadata type
string	OutDir
	output directory

Detailed Description

Write triggers on disk.

This class was designed to write triggers in a ROOT tree following the GWOLLUM convention for triggers (some other output formats are also available). When triggers are produced by some external algorithms, the MakeTriggers class can be used to manage output triggers, to save them and to perform some basic operations (like clustering).

The user is responsible to fill both the Segments and the Triggers structure from which this class inherits. In particular, one must make sure that the segments and the triggers match the GWOLLUM convention for triggers.

Author:: Florent Robinet

Constructor & Destructor Documentation

MakeTriggers::MakeTriggers	(	const string	aOutDir,
		const string	aStreamName,
		const string	aFileFormat = `"root"`,
		const int	aVerbose = `0`
	)

Constructor of the MakeTriggers class.

The different structures are initialized: the input stream, the trigger tree, the segments, the cluster tree and the metadata tree.

The trigger files are saved in the directory 'aOutDir'. The base name for the trigger files is the stream name. The file name is completed by the timing of the triggers contained in the file. The output file format is set with 'aFileFormat'. The verbosity level, set by 'aVerbose', follows the GWOLLUM convention for verbosity.

Supported file formats:

"root" (default): ROOT format
"txt": text file with columns
"xml": sngl_burst table following the LIGO conventions

To save the triggers in several different formats, enter a string containing all the desired formats (e.g. "rootxml").

It should be noted that saving triggers in another format than ROOT is a dead-end for GWOLLUM. Indeed, GWOLLUM is entirely based on ROOT, therefore, GWOLLUM routines can only read and process triggers if they are saved in a ROOT format. For this reason, the user is strongly encouraged to save triggers in a ROOT format.

Parameters:

	aOutDir	output directory
	aStreamName	stream name
	aFileFormat	output file formats
	aVerbose	verbosity level

MakeTriggers::~MakeTriggers ( void ) [virtual]

Destructor of the MakeTriggers class.

Member Function Documentation

bool MakeTriggers::InitUserMetaData	(	vector< string >	aMusername,
		vector< string >	aMusertype
	)

Initializes the user-defined meta-data fields.

'aMusername' should be a non-empty vector with the list of meta-data names. 'aMuservalue' should be a vector with the list of meta-data types (same size as aMusername). Supported types: "d" for double, "i" for int, "s" for string. Default values are -1 for double and int types and "none" for string type.

Parameters:

	aMusername	vector of metadata names
	aMusertype	vector of metadata types (i/d/s)

void MakeTriggers::Reset ( void )

Resets all.

the memory is cleaned up:

triggers/clusters (Triggers::ResetTriggers())
segments
metadata

Reimplemented from Segments.

void MakeTriggers::SetMprocessname ( const string aMprocessname ) [inline]

Set the process name for the meta-data field 'Mprocessname'.

See GWOLLUM convention. By default Mprocessname = "none".

Parameters:

aMprocessname

process name

bool MakeTriggers::SetOutputDirectory ( const string aOutDir ) [inline]

Sets a new output directory to save trigger files.

The new directory must exist.

Parameters:

aOutDir

new output directory

void MakeTriggers::SetProcessVersion ( const string aVersion ) [inline]

Sets the version for this process.

Parameters:

aUserName

user name

bool MakeTriggers::SetUserMetaData	(	const string	aMusername,
		const string	aMuservalue
	)

Set user-defined meta-data.

Set the meta-data named 'aMusername' with the value 'aMuservalue'.

Parameters:

	aMusername	metadata name
	aMuservalue	metadata value

bool MakeTriggers::SetUserMetaData	(	const string	aMusername,
		const int	aMuservalue
	)

Set user-defined meta-data.

Set the meta-data named 'aMusername' with the value 'aMuservalue'.

Parameters:

	aMusername	metadata name
	aMuservalue	metadata value

bool MakeTriggers::SetUserMetaData	(	const string	aMusername,
		const double	aMuservalue
	)

Set user-defined meta-data.

Set the meta-data named 'aMusername' with the value 'aMuservalue'.

Parameters:

	aMusername	metadata name
	aMuservalue	metadata value

string MakeTriggers::Write	(	const string	aFileName = `"default"`,
		const string	aSubDir = `""`,
		const string	aWriteMode = `"RECREATE"`,
		const bool	aWriteMeta = `true`
	)

Writes triggers on disk.

This function writes all the triggers added until now in the output file as well as the segment and metadata trees. The MakeTriggers object is then completely reset (see Triggers::ResetTriggers()).

The output file path is returned. "none" is returned if this function fails in some way.

Note that for the XML and TXT formats, if triggers were clustered, only clusters are saved. For the ROOT format, only triggers are saved.

The optional argument 'aFileName' is used to bypass the file naming convention of GWOLLUM. With this option, the trigger file will be given a new name: [aFileName].[format]

For ROOT files, it is possible to write triggers in a sub-directory. Use the optional argument 'aSubDir'. Only in this case, the trigger file can be updated when adding several directories. To do this, use aWriteMode="UPDATE".

Parameters:

	aFileName	new base name for ouput file
	aSubDir	ROOT sub-directory name to write the triggers (only for ROOT format)
	aWriteMode	write mode: "RECREATE" or "UPDATE" (only with sub-directories)
	aWriteMeta	flag to write (or not) the metadata tree

Member Data Documentation

vector<string> MakeTriggers::FileFormat [protected]

output file formats

double* MakeTriggers::Mdvar [protected]

user metatree var - double

double MakeTriggers::Mend [protected]

meta end time

double MakeTriggers::Mfmax [protected]

meta maximum fend

double MakeTriggers::Mfmin [protected]

meta minimum fstart

int* MakeTriggers::Mivar [protected]

user metatree var - int

string MakeTriggers::Mprocessname [protected]

meta process name

string MakeTriggers::Mprocessuser [protected]

meta user name

string MakeTriggers::Mprocessversion [protected]

meta process version

double MakeTriggers::Mqmax [protected]

meta maximum Q

double MakeTriggers::Mqmin [protected]

meta minimum Q

double MakeTriggers::Msnrmax [protected]

meta maximum SNR

double MakeTriggers::Msnrmin [protected]

meta minimum SNR

double MakeTriggers::Mstart [protected]

meta start time

string MakeTriggers::Mstreamname [protected]

meta stream name

string* MakeTriggers::Msvar [protected]

user metatree var - string

TTree* MakeTriggers::Mtree [protected]

metadata tree

vector<string> MakeTriggers::Musername [protected]

user metadata name

vector<string> MakeTriggers::Musertype [protected]

user metadata type

string MakeTriggers::OutDir [protected]

output directory

The documentation for this class was generated from the following files:

/afs/in2p3.fr/throng/virgo/virgoDev/SoftFlorent/GWOLLUM/v2r1/src/Triggers/MakeTriggers.h
/afs/in2p3.fr/throng/virgo/virgoDev/SoftFlorent/GWOLLUM/v2r1/src/Triggers/MakeTriggers.cc
