InjEct Class Reference

Inject signals in a data stream. More...

#include <InjEct.h>

Inheritance diagram for InjEct:

[legend]

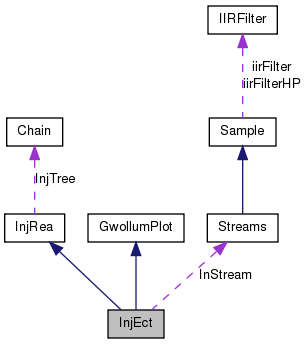

Collaboration diagram for InjEct:

[legend]

List of all members.

Public Member Functions
bool	Inject (const int aDataSize, double *aData, const double aTimeStart)
	Injects in a data vector.
bool	PlotInjection (const int aInjIndex)
	Plots a given injection waveforms.
Constructors and destructors
	InjEct (Streams *aStream, const string aPattern, const int aVerbose=0)
	Constructor of the InjEct class.
virtual	~InjEct ()
	Destructor of the InjEct class.

---

Detailed Description

Inject signals in a data stream.

Author:

Florent Robinet

---

Constructor & Destructor Documentation

InjEct::InjEct	(	Streams *	aStream,
		const string	aPattern,
		const int	aVerbose = 0
	)

Constructor of the InjEct class.

Injections listed in the ROOT files designated by a file pattern are loaded. It is important that the injection files were generated using the InjGen class. Injection files in the pattern must be time-sorted and with no overlap.

The input stream, in which injections will be made, must be a LV detector and have a working sampling frequency larger than 16Hz.

Parameters:

	aStream	input data stream in which to inject
	aPattern	injection file pattern
	aVerbose	verbosity level

InjEct::~InjEct

(

void

)

[virtual]

Destructor of the InjEct class.

---

Member Function Documentation

bool InjEct::Inject	(	const int	aDataSize,
		double *	aData,
		const double	aTimeStart
	)

Injects in a data vector.

Parameters:

	aDataSize	input vector size
	aData	pointer to input data vector (time-domain)
	aTimeStart	GPS time of first sample

bool InjEct::PlotInjection

(

const int

aInjIndex

)

Plots a given injection waveforms.

3 waveforms are plotted:

• h+ (geocentric time)
• hx (geocentric time)
• hdet projected in the detector (local time)

  Parameters:

  aInjIndex

  injection index

---

The documentation for this class was generated from the following files:

• /afs/in2p3.fr/throng/virgo/virgoDev/SoftFlorent/GWOLLUM/v2r1/src/Inject/InjEct.h
• /afs/in2p3.fr/throng/virgo/virgoDev/SoftFlorent/GWOLLUM/v2r1/src/Inject/InjEct.cc
