UPV Report

Note: these plots includes the triggers used in the VetoPerf report: the selection can be different from the one used for UPV.

Veto performance

V0 (171): V1:Sc_IB_IMC_Tra_0 [click here to expand/hide] [link to here]

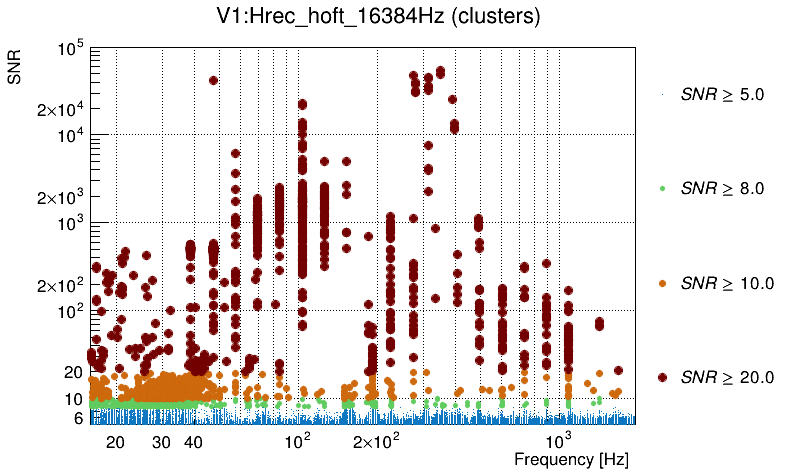

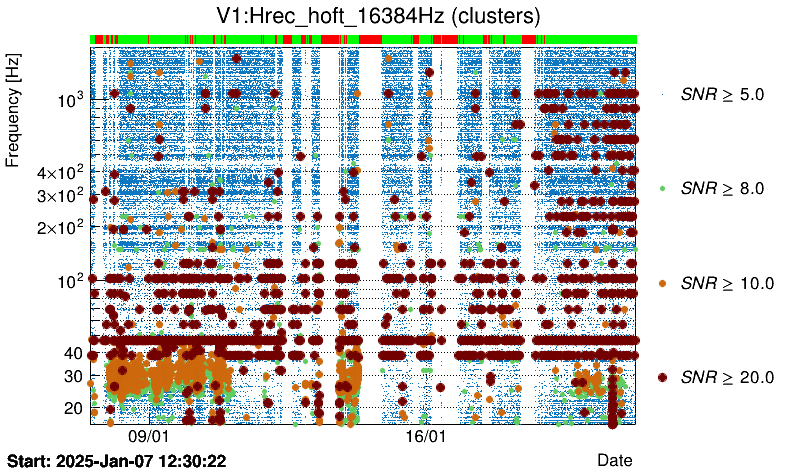

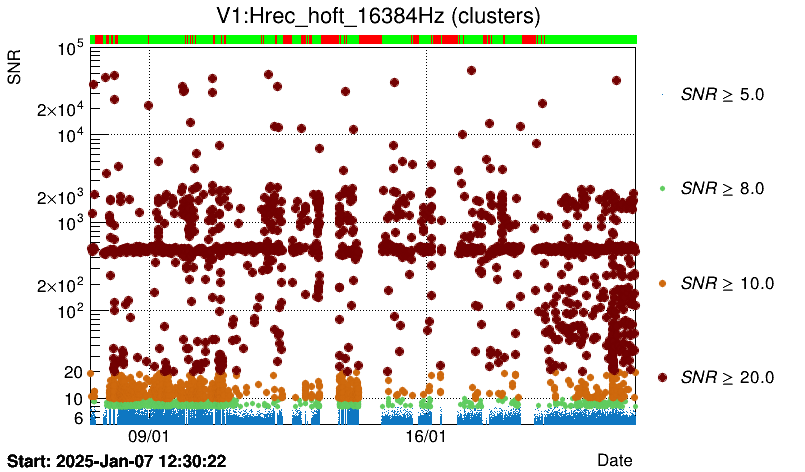

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_IMC_Tra
Number of active clusters:	130555
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1378 (1.055 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	171

V1 (157): V1:Sc_IB_INJ_RFC_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_INJ_RFC_PWR
Number of active clusters:	74039
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	545 (0.736 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	157

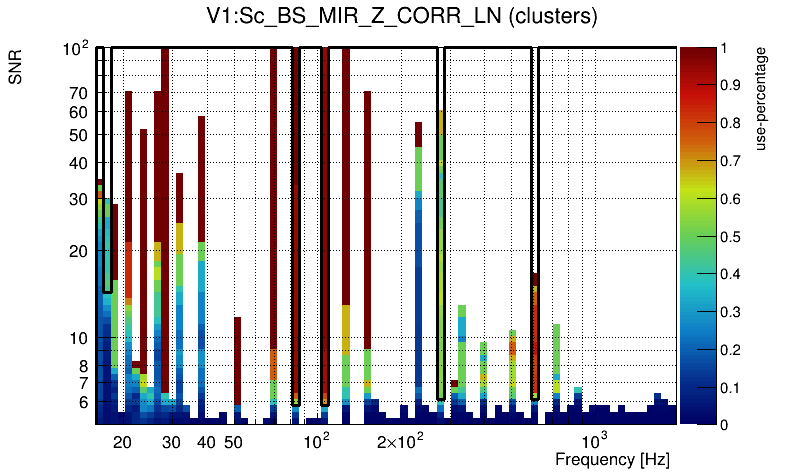

V2 (91): V1:Sc_BS_MIR_Z_CORR_LN_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_Z_CORR_LN
Number of active clusters:	77695
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	680 (0.875 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	91

V3 (91): V1:Sc_BS_MIR_Z_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_Z_CORR
Number of active clusters:	77694
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	680 (0.875 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	91

V4 (91): V1:Sc_BS_MIR_LSC_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_LSC_CORR
Number of active clusters:	78494
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	680 (0.866 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	91

V5 (81): V1:Sc_BS_MIR_VOUT_UR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_VOUT_UR
Number of active clusters:	77526
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	659 (0.850 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	81

V6 (81): V1:Sc_BS_MIR_VOUT_UL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_VOUT_UL
Number of active clusters:	77795
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	668 (0.859 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	81

V7 (81): V1:Sc_BS_MIR_VOUT_DR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_VOUT_DR
Number of active clusters:	77823
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	668 (0.858 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	81

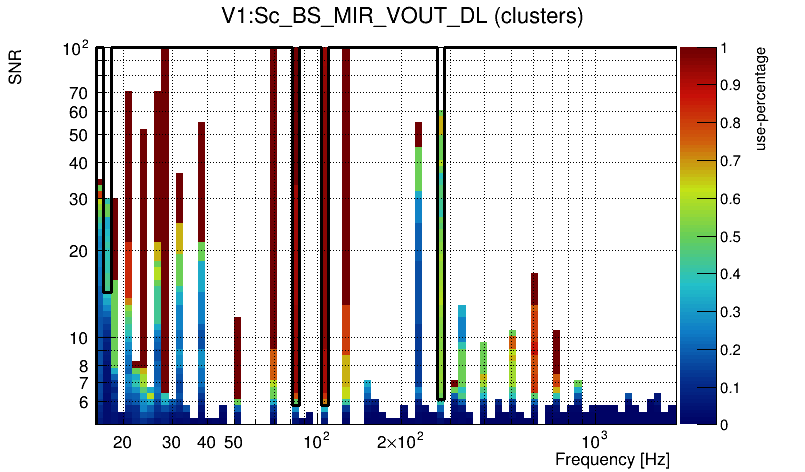

V8 (80): V1:Sc_BS_MIR_VOUT_DL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_VOUT_DL
Number of active clusters:	77485
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	656 (0.847 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	80

V9 (66): V1:Sc_BS_MAR_Z_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MAR_Z_CORR
Number of active clusters:	101912
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	891 (0.874 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	66

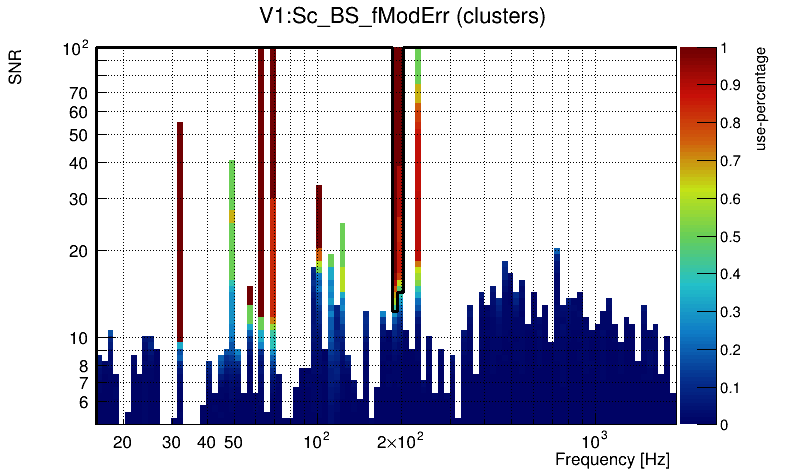

V10 (35): V1:Sc_BS_fModErr_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_fModErr
Number of active clusters:	968172
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	3710 (0.383 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	35

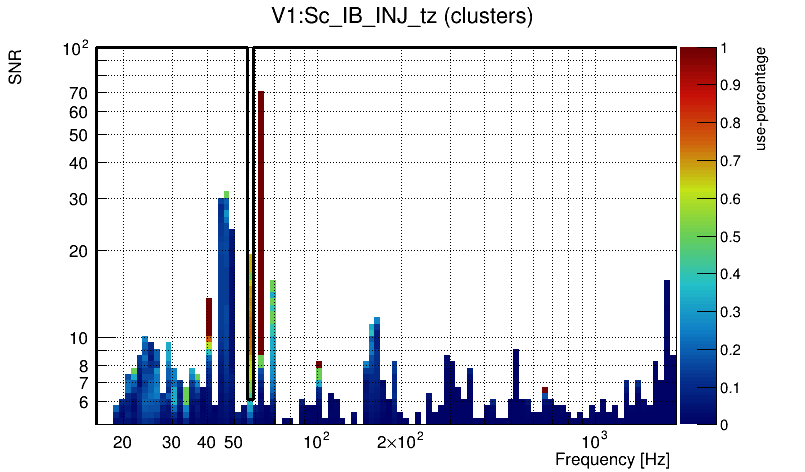

V11 (32): V1:Sc_IB_INJ_tz_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_INJ_tz
Number of active clusters:	350247
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1853 (0.529 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	32

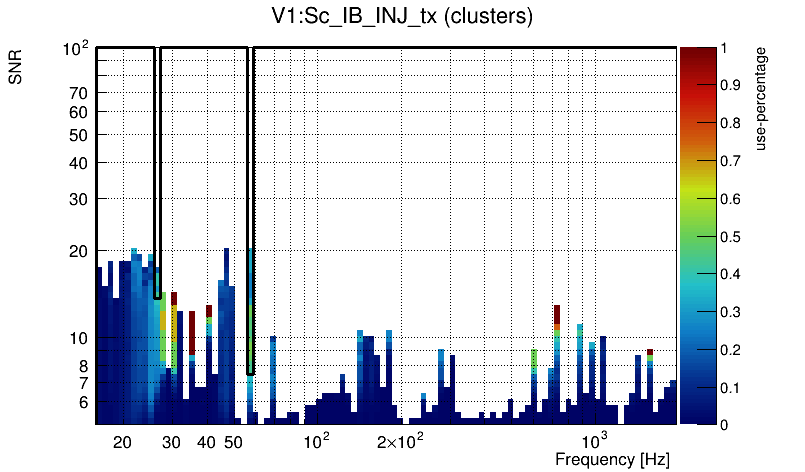

V12 (25): V1:Sc_IB_INJ_tx_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_INJ_tx
Number of active clusters:	251251
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1779 (0.708 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	25

V13 (24): V1:Sc_IB_MAR_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TX_CORR
Number of active clusters:	781411
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	3315 (0.424 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	24

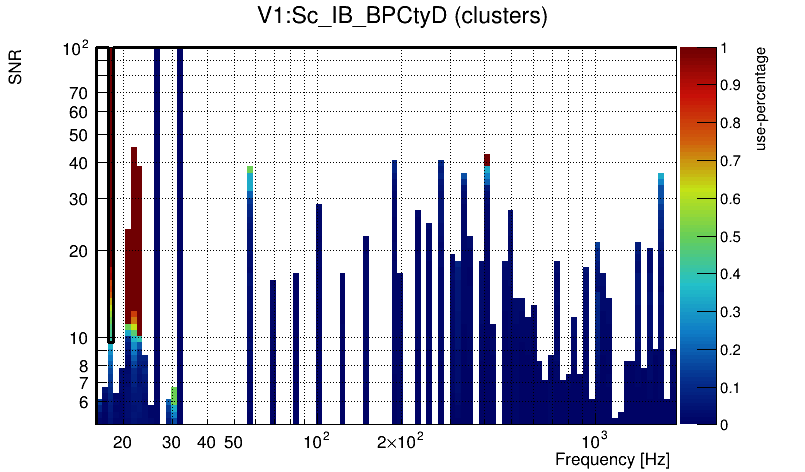

V14 (19): V1:Sc_IB_BPCtyD_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	1861
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BPCtyD
Number of active clusters:	155471
Source livetime:	263120.000 s = 31.869 % of requested segments

Coincidence:
Coincident livetime:	261427.000 s
	= 31.664 % of requested segments
	= 31.819 % of target segments
	= 99.357 % of source segments
Number of source clusters involved in a coinc:	705 (0.453 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	19

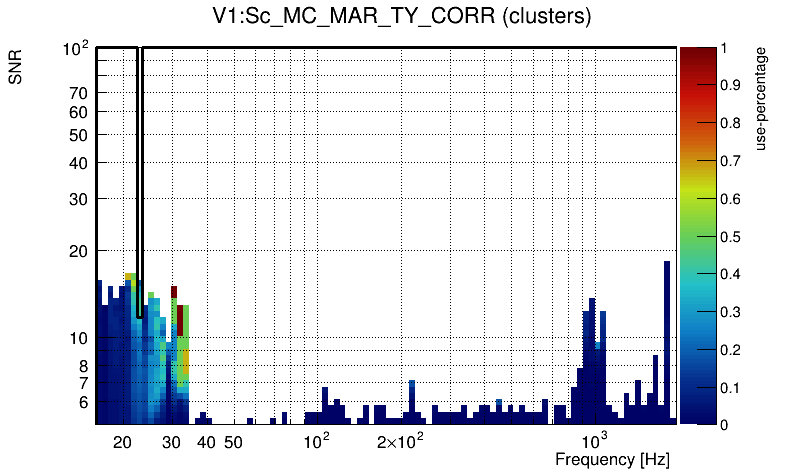

V15 (18): V1:Sc_MC_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5901
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_TY_CORR
Number of active clusters:	608424
Source livetime:	824730.000 s = 99.891 % of requested segments

Coincidence:
Coincident livetime:	820896.000 s
	= 99.427 % of requested segments
	= 99.912 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	2788 (0.458 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	18

V16 (18): V1:Sc_MC_INJ_ty_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_INJ_ty
Number of active clusters:	125310
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1049 (0.837 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	18

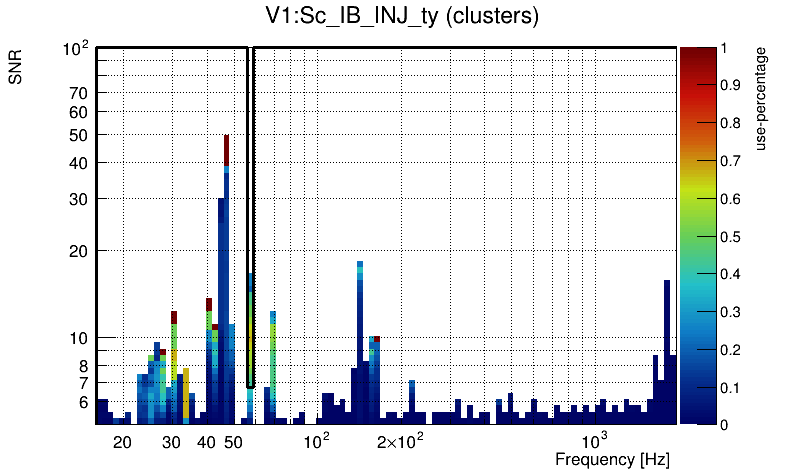

V17 (16): V1:Sc_IB_INJ_ty_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_INJ_ty
Number of active clusters:	333797
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1703 (0.510 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	16

V18 (15): V1:Sc_BS_MIR_TX_AA_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	1283
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_TX_AA
Number of active clusters:	457253
Source livetime:	471443.000 s = 57.101 % of requested segments

Coincidence:
Coincident livetime:	470963.000 s
	= 57.043 % of requested segments
	= 57.322 % of target segments
	= 99.898 % of source segments
Number of source clusters involved in a coinc:	887 (0.194 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	15

V19 (11): V1:Sc_MC_AAOn_p_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_AAOn_p
Number of active clusters:	308911
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1726 (0.559 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	11

V20 (11): V1:Sc_IB_MC_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MC_TX
Number of active clusters:	308847
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1726 (0.559 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	11

V21 (0): V1:Sc_MC_MIR_PSDTI_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTI_Y2
Number of active clusters:	75248
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	419 (0.557 %)

Veto:
Number of source clusters used to veto target clusters:	0

V22 (0): V1:Sc_MC_MIR_PSDTI_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTI_Y1
Number of active clusters:	75489
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	375 (0.497 %)

Veto:
Number of source clusters used to veto target clusters:	0

V23 (0): V1:Sc_MC_MIR_PSDTI_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTI_X2
Number of active clusters:	75922
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	409 (0.539 %)

Veto:
Number of source clusters used to veto target clusters:	0

V24 (0): V1:Sc_MC_MIR_PSDTI_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTI_X1
Number of active clusters:	75170
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	381 (0.507 %)

Veto:
Number of source clusters used to veto target clusters:	0

V25 (0): V1:Sc_MC_MIR_PSDTI_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTI_PWR
Number of active clusters:	77387
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	417 (0.539 %)

Veto:
Number of source clusters used to veto target clusters:	0

V26 (0): V1:Sc_MC_MIR_PSDTF_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTF_Y2
Number of active clusters:	74106
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	407 (0.549 %)

Veto:
Number of source clusters used to veto target clusters:	0

V27 (0): V1:Sc_MC_MIR_PSDTF_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTF_Y1
Number of active clusters:	73674
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	404 (0.548 %)

Veto:
Number of source clusters used to veto target clusters:	0

V28 (0): V1:Sc_MC_MIR_PSDTF_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5896
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTF_X2
Number of active clusters:	0
Source livetime:	820770.000 s = 99.411 % of requested segments

Coincidence:
Coincident livetime:	816936.000 s
	= 98.947 % of requested segments
	= 99.430 % of target segments
	= 99.533 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V29 (0): V1:Sc_MC_MIR_PSDTF_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTF_X1
Number of active clusters:	73249
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	374 (0.511 %)

Veto:
Number of source clusters used to veto target clusters:	0

V30 (0): V1:Sc_MC_MIR_PSDTF_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDTF_PWR
Number of active clusters:	72243
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	403 (0.558 %)

Veto:
Number of source clusters used to veto target clusters:	0

V31 (0): V1:Sc_MC_MIR_PSDI_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDI_Y2
Number of active clusters:	166357
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	632 (0.380 %)

Veto:
Number of source clusters used to veto target clusters:	0

V32 (0): V1:Sc_MC_MIR_PSDI_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDI_Y1
Number of active clusters:	76937
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	400 (0.520 %)

Veto:
Number of source clusters used to veto target clusters:	0

V33 (0): V1:Sc_MC_MIR_PSDI_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDI_X2
Number of active clusters:	119782
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	514 (0.429 %)

Veto:
Number of source clusters used to veto target clusters:	0

V34 (0): V1:Sc_MC_MIR_PSDI_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDI_X1
Number of active clusters:	75637
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	362 (0.479 %)

Veto:
Number of source clusters used to veto target clusters:	0

V35 (0): V1:Sc_MC_MIR_PSDI_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDI_PWR
Number of active clusters:	171444
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	685 (0.400 %)

Veto:
Number of source clusters used to veto target clusters:	0

V36 (0): V1:Sc_MC_MIR_PSDF_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDF_Y2
Number of active clusters:	71137
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	362 (0.509 %)

Veto:
Number of source clusters used to veto target clusters:	0

V37 (0): V1:Sc_MC_MIR_PSDF_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDF_Y1
Number of active clusters:	72307
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	378 (0.523 %)

Veto:
Number of source clusters used to veto target clusters:	0

V38 (0): V1:Sc_MC_MIR_PSDF_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDF_X2
Number of active clusters:	72808
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	410 (0.563 %)

Veto:
Number of source clusters used to veto target clusters:	0

V39 (0): V1:Sc_MC_MIR_PSDF_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDF_X1
Number of active clusters:	73228
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	389 (0.531 %)

Veto:
Number of source clusters used to veto target clusters:	0

V40 (0): V1:Sc_MC_MIR_PSDF_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_PSDF_PWR
Number of active clusters:	71724
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	381 (0.531 %)

Veto:
Number of source clusters used to veto target clusters:	0

V41 (0): V1:Sc_MC_MIR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MIR_COIL_FLAG
Number of active clusters:	0
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V42 (0): V1:Sc_MC_MAR_Z_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_Z_CORR
Number of active clusters:	0
Source livetime:	824970.000 s = 99.920 % of requested segments

Coincidence:
Coincident livetime:	821136.000 s
	= 99.456 % of requested segments
	= 99.942 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V43 (0): V1:Sc_MC_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5901
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_TZ_CORR
Number of active clusters:	312338
Source livetime:	824730.000 s = 99.891 % of requested segments

Coincidence:
Coincident livetime:	820896.000 s
	= 99.427 % of requested segments
	= 99.912 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1511 (0.484 %)

Veto:
Number of source clusters used to veto target clusters:	0

V44 (0): V1:Sc_MC_MAR_TY_CTRL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5901
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_TY_CTRL
Number of active clusters:	0
Source livetime:	824730.000 s = 99.891 % of requested segments

Coincidence:
Coincident livetime:	820896.000 s
	= 99.427 % of requested segments
	= 99.912 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V45 (0): V1:Sc_MC_MAR_TX_CTRL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5901
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_TX_CTRL
Number of active clusters:	0
Source livetime:	824730.000 s = 99.891 % of requested segments

Coincidence:
Coincident livetime:	820896.000 s
	= 99.427 % of requested segments
	= 99.912 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V46 (0): V1:Sc_MC_MAR_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_TX_CORR
Number of active clusters:	305425
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1714 (0.561 %)

Veto:
Number of source clusters used to veto target clusters:	0

V47 (0): V1:Sc_MC_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_MAR_COIL_FLAG
Number of active clusters:	0
Source livetime:	825090.000 s = 99.935 % of requested segments

Coincidence:
Coincident livetime:	821256.000 s
	= 99.470 % of requested segments
	= 99.956 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V48 (0): V1:Sc_MC_INJ_ty_p_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_INJ_ty_p
Number of active clusters:	309019
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1726 (0.559 %)

Veto:
Number of source clusters used to veto target clusters:	0

V49 (0): V1:Sc_MC_INJ_tx_p_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_INJ_tx_p
Number of active clusters:	309018
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1726 (0.559 %)

Veto:
Number of source clusters used to veto target clusters:	0

V50 (0): V1:Sc_MC_INJ_tx_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_INJ_tx
Number of active clusters:	308636
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1715 (0.556 %)

Veto:
Number of source clusters used to veto target clusters:	0

V51 (0): V1:Sc_MC_AAsw_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3924
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_MC_AAsw
Number of active clusters:	0
Source livetime:	554481.000 s = 67.159 % of requested segments

Coincidence:
Coincident livetime:	552644.000 s
	= 66.936 % of requested segments
	= 67.263 % of target segments
	= 99.669 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V52 (0): V1:Sc_IB_noise_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_noise
Number of active clusters:	445539
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1577 (0.354 %)

Veto:
Number of source clusters used to veto target clusters:	0

V53 (0): V1:Sc_IB_MAR_TZ_PM_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TZ_PM
Number of active clusters:	163590
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	798 (0.488 %)

Veto:
Number of source clusters used to veto target clusters:	0

V54 (0): V1:Sc_IB_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TZ_CORR
Number of active clusters:	2175275
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	5588 (0.257 %)

Veto:
Number of source clusters used to veto target clusters:	0

V55 (0): V1:Sc_IB_MAR_TZ_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TZ
Number of active clusters:	95149
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	450 (0.473 %)

Veto:
Number of source clusters used to veto target clusters:	0

V56 (0): V1:Sc_IB_MAR_TY_T_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TY_T
Number of active clusters:	98237
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	443 (0.451 %)

Veto:
Number of source clusters used to veto target clusters:	0

V57 (0): V1:Sc_IB_MAR_TY_PM_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TY_PM
Number of active clusters:	121634
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	470 (0.386 %)

Veto:
Number of source clusters used to veto target clusters:	0

V58 (0): V1:Sc_IB_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TY_CORR
Number of active clusters:	247987
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	1330 (0.536 %)

Veto:
Number of source clusters used to veto target clusters:	0

V59 (0): V1:Sc_IB_MAR_TX_PM_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_TX_PM
Number of active clusters:	218438
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	750 (0.343 %)

Veto:
Number of source clusters used to veto target clusters:	0

V60 (0): V1:Sc_IB_MAR_PSDT_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_PSDT_Y2
Number of active clusters:	101831
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	451 (0.443 %)

Veto:
Number of source clusters used to veto target clusters:	0

V61 (0): V1:Sc_IB_MAR_PSDT_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_PSDT_Y1
Number of active clusters:	96735
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	407 (0.421 %)

Veto:
Number of source clusters used to veto target clusters:	0

V62 (0): V1:Sc_IB_MAR_PSDT_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_PSDT_X2
Number of active clusters:	108541
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	481 (0.443 %)

Veto:
Number of source clusters used to veto target clusters:	0

V63 (0): V1:Sc_IB_MAR_PSDT_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_PSDT_X1
Number of active clusters:	105429
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	460 (0.436 %)

Veto:
Number of source clusters used to veto target clusters:	0

V64 (0): V1:Sc_IB_MAR_PSDT_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_PSDT_PWR
Number of active clusters:	112420
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	477 (0.424 %)

Veto:
Number of source clusters used to veto target clusters:	0

V65 (0): V1:Sc_IB_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_MAR_COIL_FLAG
Number of active clusters:	0
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V66 (0): V1:Sc_IB_BPCtxD_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	1507
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BPCtxD
Number of active clusters:	129878
Source livetime:	218699.000 s = 26.489 % of requested segments

Coincidence:
Coincident livetime:	217623.000 s
	= 26.358 % of requested segments
	= 26.487 % of target segments
	= 99.508 % of source segments
Number of source clusters involved in a coinc:	563 (0.433 %)

Veto:
Number of source clusters used to veto target clusters:	0

V67 (0): V1:Sc_IB_BENCH_Z_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_Z
Number of active clusters:	75857
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	350 (0.461 %)

Veto:
Number of source clusters used to veto target clusters:	0

V68 (0): V1:Sc_IB_BENCH_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_TY
Number of active clusters:	81579
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	394 (0.483 %)

Veto:
Number of source clusters used to veto target clusters:	0

V69 (0): V1:Sc_IB_BENCH_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_TX
Number of active clusters:	76708
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	337 (0.439 %)

Veto:
Number of source clusters used to veto target clusters:	0

V70 (0): V1:Sc_IB_BENCH_PSDI_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDI_Y2
Number of active clusters:	75692
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	387 (0.511 %)

Veto:
Number of source clusters used to veto target clusters:	0

V71 (0): V1:Sc_IB_BENCH_PSDI_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDI_Y1
Number of active clusters:	77295
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	319 (0.413 %)

Veto:
Number of source clusters used to veto target clusters:	0

V72 (0): V1:Sc_IB_BENCH_PSDI_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDI_X2
Number of active clusters:	74887
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	365 (0.487 %)

Veto:
Number of source clusters used to veto target clusters:	0

V73 (0): V1:Sc_IB_BENCH_PSDI_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDI_X1
Number of active clusters:	73171
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	338 (0.462 %)

Veto:
Number of source clusters used to veto target clusters:	0

V74 (0): V1:Sc_IB_BENCH_PSDI_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDI_PWR
Number of active clusters:	111136
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	521 (0.469 %)

Veto:
Number of source clusters used to veto target clusters:	0

V75 (0): V1:Sc_IB_BENCH_PSDF_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDF_Y2
Number of active clusters:	76895
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	340 (0.442 %)

Veto:
Number of source clusters used to veto target clusters:	0

V76 (0): V1:Sc_IB_BENCH_PSDF_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDF_Y1
Number of active clusters:	74430
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	359 (0.482 %)

Veto:
Number of source clusters used to veto target clusters:	0

V77 (0): V1:Sc_IB_BENCH_PSDF_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDF_X2
Number of active clusters:	81272
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	368 (0.453 %)

Veto:
Number of source clusters used to veto target clusters:	0

V78 (0): V1:Sc_IB_BENCH_PSDF_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDF_X1
Number of active clusters:	74046
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	340 (0.459 %)

Veto:
Number of source clusters used to veto target clusters:	0

V79 (0): V1:Sc_IB_BENCH_PSDF_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_BENCH_PSDF_PWR
Number of active clusters:	110823
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	491 (0.443 %)

Veto:
Number of source clusters used to veto target clusters:	0

V80 (0): V1:Sc_IB_AAsw_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_IB_AAsw
Number of active clusters:	0
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V81 (0): V1:Sc_BS_noise_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_noise
Number of active clusters:	0
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V82 (0): V1:Sc_BS_MIR_Z_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_Z
Number of active clusters:	72850
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	339 (0.465 %)

Veto:
Number of source clusters used to veto target clusters:	0

V83 (0): V1:Sc_BS_MIR_TY_AA_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	423
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_TY_AA
Number of active clusters:	201223
Source livetime:	208913.000 s = 25.303 % of requested segments

Coincidence:
Coincident livetime:	208913.000 s
	= 25.303 % of requested segments
	= 25.427 % of target segments
	= 100.000 % of source segments
Number of source clusters involved in a coinc:	266 (0.132 %)

Veto:
Number of source clusters used to veto target clusters:	0

V84 (0): V1:Sc_BS_MIR_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_TY
Number of active clusters:	72665
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	327 (0.450 %)

Veto:
Number of source clusters used to veto target clusters:	0

V85 (0): V1:Sc_BS_MIR_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_TX
Number of active clusters:	73888
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	341 (0.462 %)

Veto:
Number of source clusters used to veto target clusters:	0

V86 (0): V1:Sc_BS_MIR_PSDI_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDI_Y2
Number of active clusters:	73775
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	340 (0.461 %)

Veto:
Number of source clusters used to veto target clusters:	0

V87 (0): V1:Sc_BS_MIR_PSDI_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDI_X2
Number of active clusters:	73050
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	350 (0.479 %)

Veto:
Number of source clusters used to veto target clusters:	0

V88 (0): V1:Sc_BS_MIR_PSDI_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDI_PWR
Number of active clusters:	73418
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	319 (0.434 %)

Veto:
Number of source clusters used to veto target clusters:	0

V89 (0): V1:Sc_BS_MIR_PSDF_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDF_Y2
Number of active clusters:	73870
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	333 (0.451 %)

Veto:
Number of source clusters used to veto target clusters:	0

V90 (0): V1:Sc_BS_MIR_PSDF_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDF_Y1
Number of active clusters:	73265
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	382 (0.521 %)

Veto:
Number of source clusters used to veto target clusters:	0

V91 (0): V1:Sc_BS_MIR_PSDF_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDF_X2
Number of active clusters:	72603
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	316 (0.435 %)

Veto:
Number of source clusters used to veto target clusters:	0

V92 (0): V1:Sc_BS_MIR_PSDF_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDF_X1
Number of active clusters:	73003
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	369 (0.505 %)

Veto:
Number of source clusters used to veto target clusters:	0

V93 (0): V1:Sc_BS_MIR_PSDF_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_PSDF_PWR
Number of active clusters:	73519
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	322 (0.438 %)

Veto:
Number of source clusters used to veto target clusters:	0

V94 (0): V1:Sc_BS_MIR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MIR_COIL_FLAG
Number of active clusters:	0
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V95 (0): V1:Sc_BS_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MAR_TZ_CORR
Number of active clusters:	89781
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	450 (0.501 %)

Veto:
Number of source clusters used to veto target clusters:	0

V96 (0): V1:Sc_BS_MAR_TZ_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MAR_TZ
Number of active clusters:	79693
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	398 (0.499 %)

Veto:
Number of source clusters used to veto target clusters:	0

V97 (0): V1:Sc_BS_MAR_TY_T_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MAR_TY_T
Number of active clusters:	78808
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	374 (0.475 %)

Veto:
Number of source clusters used to veto target clusters:	0

V98 (0): V1:Sc_BS_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MAR_TY_CORR
Number of active clusters:	73523
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	333 (0.453 %)

Veto:
Number of source clusters used to veto target clusters:	0

V99 (0): V1:Sc_BS_MAR_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	5904
Target livetime:	821616.000 s = 99.514 % of requested segments

Source:	V1:Sc_BS_MAR_TY
Number of active clusters:	72551
Source livetime:	825210.000 s = 99.949 % of requested segments

Coincidence:
Coincident livetime:	821376.000 s
	= 99.485 % of requested segments
	= 99.971 % of target segments
	= 99.535 % of source segments
Number of source clusters involved in a coinc:	339 (0.467 %)

Veto:
Number of source clusters used to veto target clusters:	0

UPV version:	3.2.0: documentation gitlab repository
UPV run by:	unknown
UPV processing time:	1 h, 57 min, 35 s
Processing Date:	Thu Feb 13 11:46:37 2025 (UTC)
Requested start:	1420288240 → Tue Jan 7 12:30:22 2025 (UTC)
Requested stop:	1421478029 → Tue Jan 21 07:00:11 2025 (UTC)
Requested livetime:	825629 sec → 9.556 days
Requested segments:	upv.insegments.txt
Summary text file:	upv.summary.txt
Number of source channels:	100 (out of 100)

Configuration:	upv.parameters.txt
Target SNR selection:	SNR > 7.000
Target frequency selection:	16.000 Hz < f < 1956.764 Hz
Coincidence time window:	δt = 1.000 s
Veto definition:	use-percentage > 0.400 (per frequency bin)
	number of used source clusters > 10 (per frequency bin)

UPV analysis over V1:Hrec_hoft_16384Hz

Summary

Parameters

Target = V1:Hrec_hoft_16384Hz

Veto performance

V0 (171): V1:Sc_IB_IMC_Tra_0 [click here to expand/hide] [link to here]

V1 (157): V1:Sc_IB_INJ_RFC_PWR_0 [click here to expand/hide] [link to here]

V2 (91): V1:Sc_BS_MIR_Z_CORR_LN_0 [click here to expand/hide] [link to here]

V3 (91): V1:Sc_BS_MIR_Z_CORR_0 [click here to expand/hide] [link to here]

V4 (91): V1:Sc_BS_MIR_LSC_CORR_0 [click here to expand/hide] [link to here]

V5 (81): V1:Sc_BS_MIR_VOUT_UR_0 [click here to expand/hide] [link to here]

V6 (81): V1:Sc_BS_MIR_VOUT_UL_0 [click here to expand/hide] [link to here]

V7 (81): V1:Sc_BS_MIR_VOUT_DR_0 [click here to expand/hide] [link to here]

V8 (80): V1:Sc_BS_MIR_VOUT_DL_0 [click here to expand/hide] [link to here]

V9 (66): V1:Sc_BS_MAR_Z_CORR_0 [click here to expand/hide] [link to here]

V10 (35): V1:Sc_BS_fModErr_0 [click here to expand/hide] [link to here]

V11 (32): V1:Sc_IB_INJ_tz_0 [click here to expand/hide] [link to here]

V12 (25): V1:Sc_IB_INJ_tx_0 [click here to expand/hide] [link to here]

V13 (24): V1:Sc_IB_MAR_TX_CORR_0 [click here to expand/hide] [link to here]

V14 (19): V1:Sc_IB_BPCtyD_0 [click here to expand/hide] [link to here]

V15 (18): V1:Sc_MC_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

V16 (18): V1:Sc_MC_INJ_ty_0 [click here to expand/hide] [link to here]

V17 (16): V1:Sc_IB_INJ_ty_0 [click here to expand/hide] [link to here]

V18 (15): V1:Sc_BS_MIR_TX_AA_0 [click here to expand/hide] [link to here]

V19 (11): V1:Sc_MC_AAOn_p_0 [click here to expand/hide] [link to here]

V20 (11): V1:Sc_IB_MC_TX_0 [click here to expand/hide] [link to here]

V21 (0): V1:Sc_MC_MIR_PSDTI_Y2_0 [click here to expand/hide] [link to here]

V22 (0): V1:Sc_MC_MIR_PSDTI_Y1_0 [click here to expand/hide] [link to here]

V23 (0): V1:Sc_MC_MIR_PSDTI_X2_0 [click here to expand/hide] [link to here]

V24 (0): V1:Sc_MC_MIR_PSDTI_X1_0 [click here to expand/hide] [link to here]

V25 (0): V1:Sc_MC_MIR_PSDTI_PWR_0 [click here to expand/hide] [link to here]

V26 (0): V1:Sc_MC_MIR_PSDTF_Y2_0 [click here to expand/hide] [link to here]

V27 (0): V1:Sc_MC_MIR_PSDTF_Y1_0 [click here to expand/hide] [link to here]

V28 (0): V1:Sc_MC_MIR_PSDTF_X2_0 [click here to expand/hide] [link to here]

V29 (0): V1:Sc_MC_MIR_PSDTF_X1_0 [click here to expand/hide] [link to here]

V30 (0): V1:Sc_MC_MIR_PSDTF_PWR_0 [click here to expand/hide] [link to here]

V31 (0): V1:Sc_MC_MIR_PSDI_Y2_0 [click here to expand/hide] [link to here]

V32 (0): V1:Sc_MC_MIR_PSDI_Y1_0 [click here to expand/hide] [link to here]

V33 (0): V1:Sc_MC_MIR_PSDI_X2_0 [click here to expand/hide] [link to here]

V34 (0): V1:Sc_MC_MIR_PSDI_X1_0 [click here to expand/hide] [link to here]

V35 (0): V1:Sc_MC_MIR_PSDI_PWR_0 [click here to expand/hide] [link to here]

V36 (0): V1:Sc_MC_MIR_PSDF_Y2_0 [click here to expand/hide] [link to here]

V37 (0): V1:Sc_MC_MIR_PSDF_Y1_0 [click here to expand/hide] [link to here]

V38 (0): V1:Sc_MC_MIR_PSDF_X2_0 [click here to expand/hide] [link to here]

V39 (0): V1:Sc_MC_MIR_PSDF_X1_0 [click here to expand/hide] [link to here]

V40 (0): V1:Sc_MC_MIR_PSDF_PWR_0 [click here to expand/hide] [link to here]

V41 (0): V1:Sc_MC_MIR_COIL_FLAG_0 [click here to expand/hide] [link to here]

V42 (0): V1:Sc_MC_MAR_Z_CORR_0 [click here to expand/hide] [link to here]

V43 (0): V1:Sc_MC_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

V44 (0): V1:Sc_MC_MAR_TY_CTRL_0 [click here to expand/hide] [link to here]

V45 (0): V1:Sc_MC_MAR_TX_CTRL_0 [click here to expand/hide] [link to here]

V46 (0): V1:Sc_MC_MAR_TX_CORR_0 [click here to expand/hide] [link to here]

V47 (0): V1:Sc_MC_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

V48 (0): V1:Sc_MC_INJ_ty_p_0 [click here to expand/hide] [link to here]

V49 (0): V1:Sc_MC_INJ_tx_p_0 [click here to expand/hide] [link to here]

V50 (0): V1:Sc_MC_INJ_tx_0 [click here to expand/hide] [link to here]

V51 (0): V1:Sc_MC_AAsw_0 [click here to expand/hide] [link to here]

V52 (0): V1:Sc_IB_noise_0 [click here to expand/hide] [link to here]

V53 (0): V1:Sc_IB_MAR_TZ_PM_0 [click here to expand/hide] [link to here]

V54 (0): V1:Sc_IB_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

V55 (0): V1:Sc_IB_MAR_TZ_0 [click here to expand/hide] [link to here]

V56 (0): V1:Sc_IB_MAR_TY_T_0 [click here to expand/hide] [link to here]

V57 (0): V1:Sc_IB_MAR_TY_PM_0 [click here to expand/hide] [link to here]

V58 (0): V1:Sc_IB_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

V59 (0): V1:Sc_IB_MAR_TX_PM_0 [click here to expand/hide] [link to here]

V60 (0): V1:Sc_IB_MAR_PSDT_Y2_0 [click here to expand/hide] [link to here]

V61 (0): V1:Sc_IB_MAR_PSDT_Y1_0 [click here to expand/hide] [link to here]

V62 (0): V1:Sc_IB_MAR_PSDT_X2_0 [click here to expand/hide] [link to here]

V63 (0): V1:Sc_IB_MAR_PSDT_X1_0 [click here to expand/hide] [link to here]

V64 (0): V1:Sc_IB_MAR_PSDT_PWR_0 [click here to expand/hide] [link to here]

V65 (0): V1:Sc_IB_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

V66 (0): V1:Sc_IB_BPCtxD_0 [click here to expand/hide] [link to here]

V67 (0): V1:Sc_IB_BENCH_Z_0 [click here to expand/hide] [link to here]

V68 (0): V1:Sc_IB_BENCH_TY_0 [click here to expand/hide] [link to here]

V69 (0): V1:Sc_IB_BENCH_TX_0 [click here to expand/hide] [link to here]

V70 (0): V1:Sc_IB_BENCH_PSDI_Y2_0 [click here to expand/hide] [link to here]

V71 (0): V1:Sc_IB_BENCH_PSDI_Y1_0 [click here to expand/hide] [link to here]

V72 (0): V1:Sc_IB_BENCH_PSDI_X2_0 [click here to expand/hide] [link to here]

V73 (0): V1:Sc_IB_BENCH_PSDI_X1_0 [click here to expand/hide] [link to here]

V74 (0): V1:Sc_IB_BENCH_PSDI_PWR_0 [click here to expand/hide] [link to here]
