UPV Report

Note: these plots includes the triggers used in the VetoPerf report: the selection can be different from the one used for UPV.

Veto performance

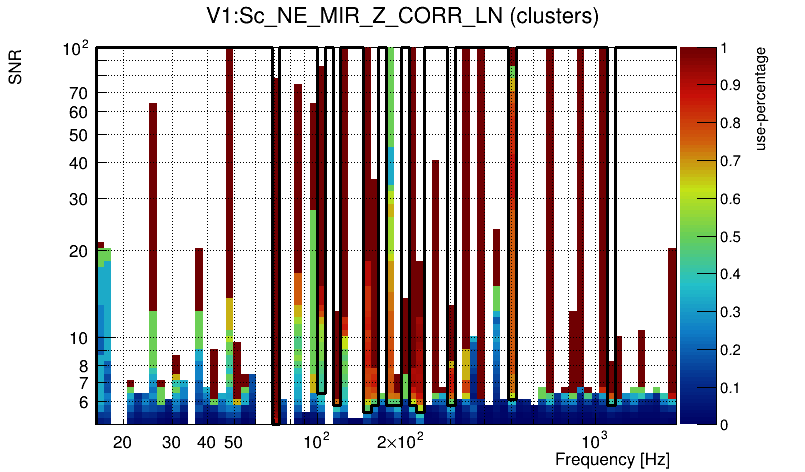

V0 (994): V1:Sc_NE_MIR_Z_CORR_LN_0 [click here to expand/hide] [link to here]

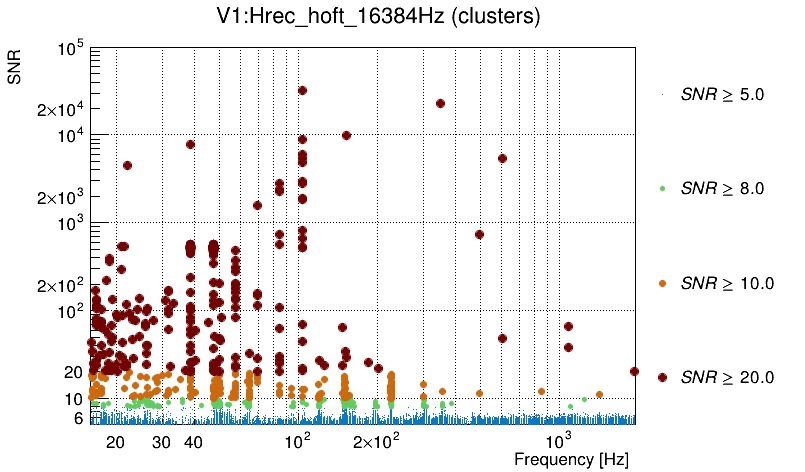

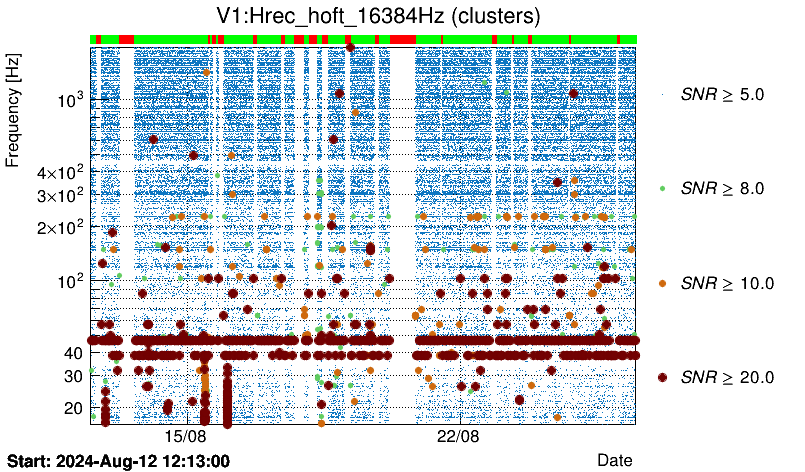

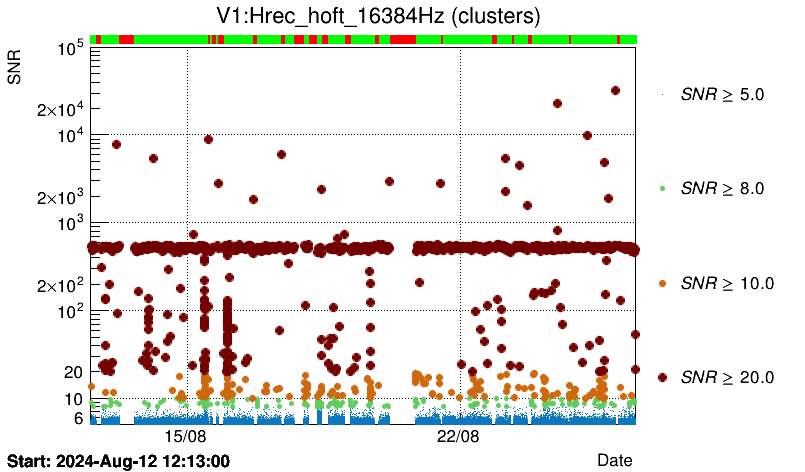

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_Z_CORR_LN
Number of active clusters:	73984
Source livetime:	949796.000 s = 99.957 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1822 (2.463 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	994

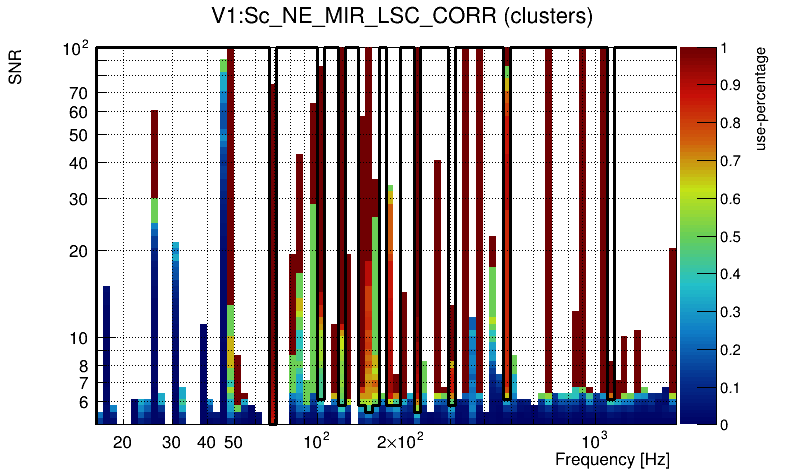

V1 (989): V1:Sc_NE_MIR_LSC_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_LSC_CORR
Number of active clusters:	81774
Source livetime:	949796.000 s = 99.957 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1831 (2.239 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	989

V2 (987): V1:Sc_NE_MIR_VOUT_UR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_VOUT_UR
Number of active clusters:	74712
Source livetime:	949796.000 s = 99.957 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1794 (2.401 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	987

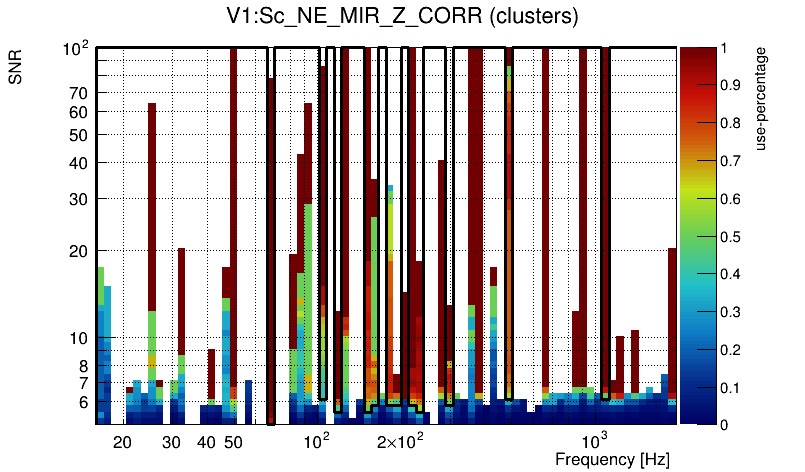

V3 (980): V1:Sc_NE_MIR_Z_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_Z_CORR
Number of active clusters:	75808
Source livetime:	949796.000 s = 99.957 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1811 (2.389 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	980

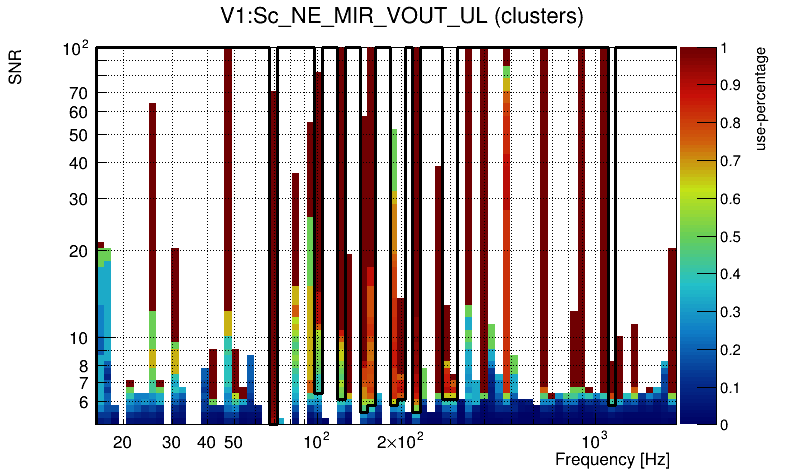

V4 (964): V1:Sc_NE_MIR_VOUT_UL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_VOUT_UL
Number of active clusters:	74395
Source livetime:	949796.000 s = 99.957 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1808 (2.430 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	964

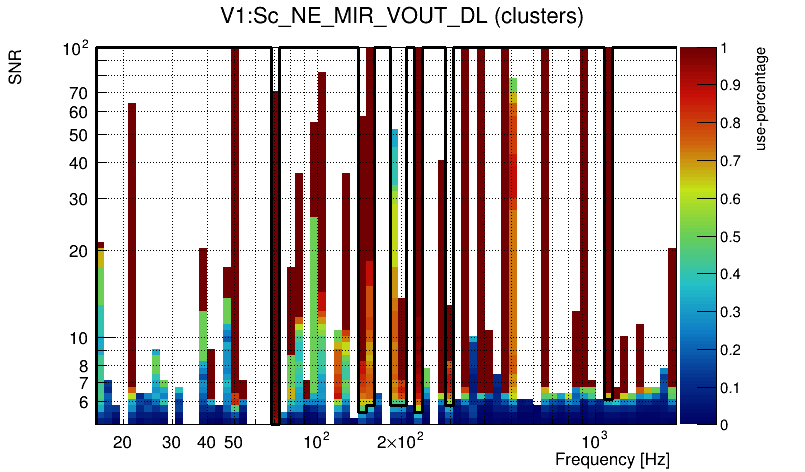

V5 (910): V1:Sc_NE_MIR_VOUT_DL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_VOUT_DL
Number of active clusters:	70285
Source livetime:	893565.000 s = 94.039 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1738 (2.473 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	910

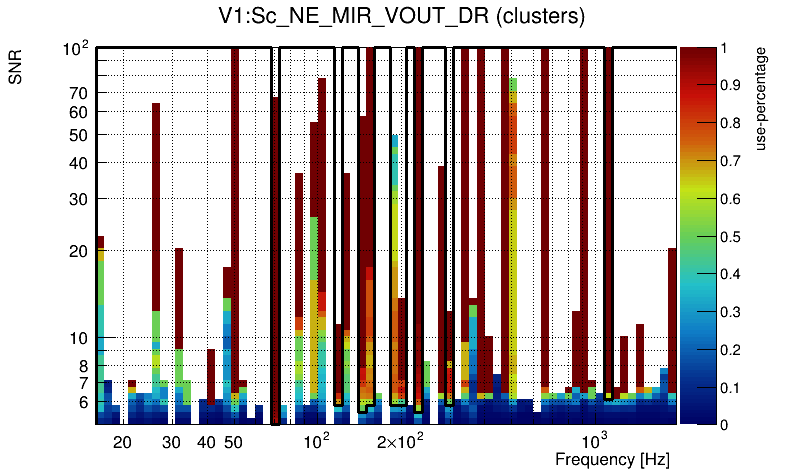

V6 (909): V1:Sc_NE_MIR_VOUT_DR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_VOUT_DR
Number of active clusters:	70340
Source livetime:	893565.000 s = 94.039 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	1734 (2.465 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	909

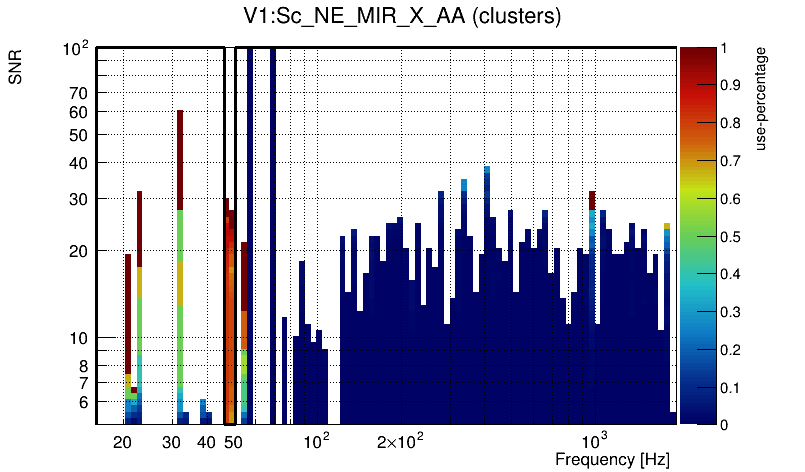

V7 (326): V1:Sc_NE_MIR_X_AA_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	2954
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_X_AA
Number of active clusters:	1097960
Source livetime:	814325.000 s = 85.700 % of requested segments

Coincidence:
Coincident livetime:	814303.000 s
	= 85.697 % of requested segments
	= 85.715 % of target segments
	= 99.997 % of source segments
Number of source clusters involved in a coinc:	1831 (0.167 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	326

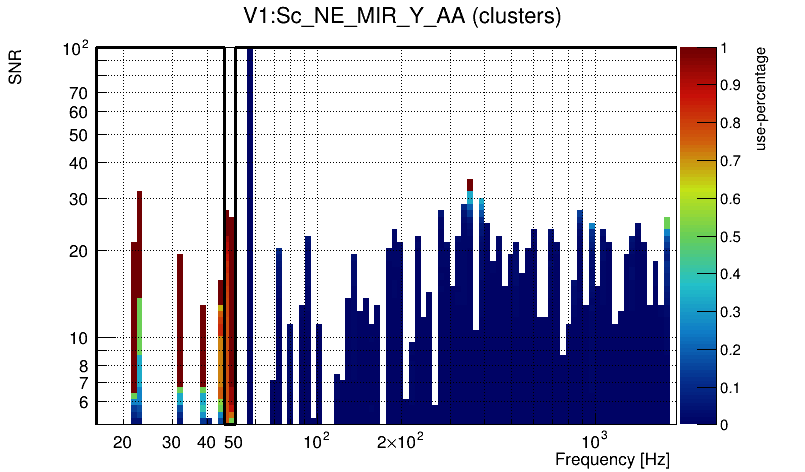

V8 (251): V1:Sc_NE_MIR_Y_AA_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	2441
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_Y_AA
Number of active clusters:	744549
Source livetime:	663704.000 s = 69.848 % of requested segments

Coincidence:
Coincident livetime:	663682.000 s
	= 69.846 % of requested segments
	= 69.860 % of target segments
	= 99.997 % of source segments
Number of source clusters involved in a coinc:	1291 (0.173 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	251

V9 (154): V1:Sc_MC_RFC_Err_Post_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_RFC_Err_Post
Number of active clusters:	150662
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	431 (0.286 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	154

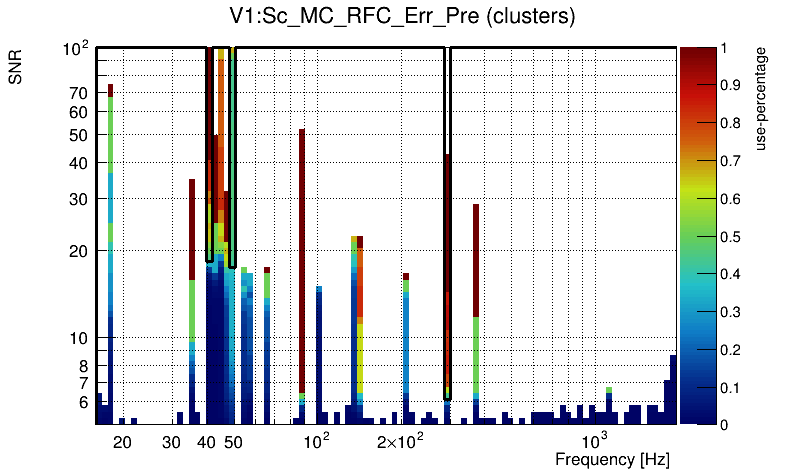

V10 (153): V1:Sc_MC_RFC_Err_Pre_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_RFC_Err_Pre
Number of active clusters:	150288
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	428 (0.285 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	153

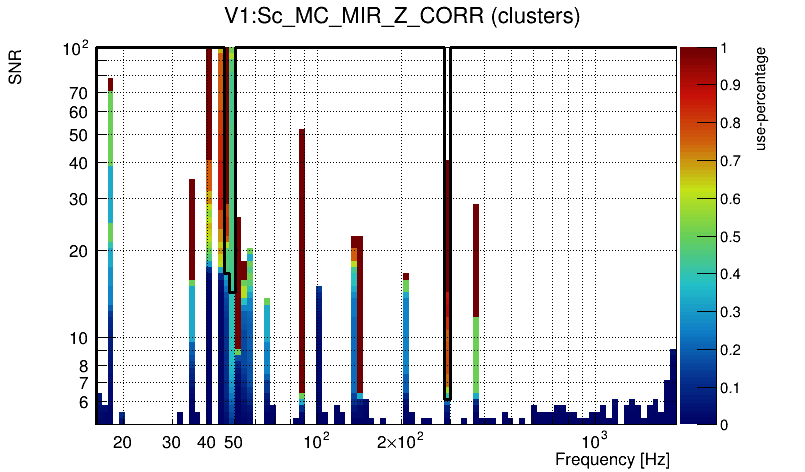

V11 (153): V1:Sc_MC_MIR_Z_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_MIR_Z_CORR
Number of active clusters:	158057
Source livetime:	949790.000 s = 99.956 % of requested segments

Coincidence:
Coincident livetime:	949674.000 s
	= 99.944 % of requested segments
	= 99.964 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	418 (0.264 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	153

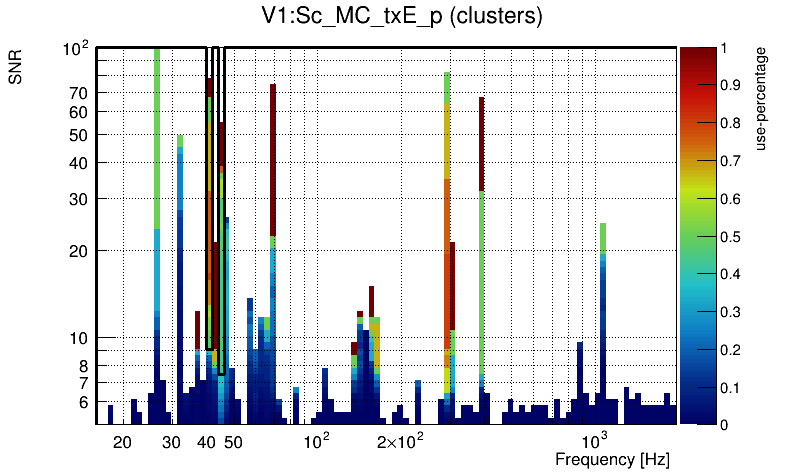

V12 (126): V1:Sc_MC_txE_p_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_txE_p
Number of active clusters:	464884
Source livetime:	949790.000 s = 99.956 % of requested segments

Coincidence:
Coincident livetime:	949674.000 s
	= 99.944 % of requested segments
	= 99.964 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	862 (0.185 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	126

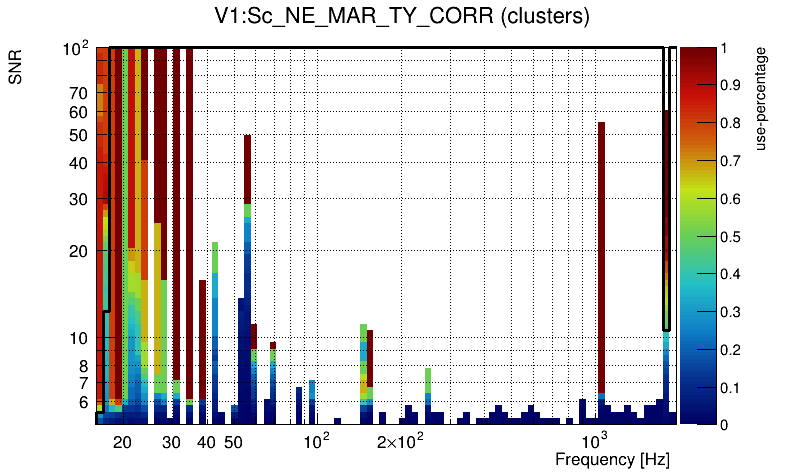

V13 (60): V1:Sc_NE_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TY_CORR
Number of active clusters:	87830
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	302 (0.344 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	60

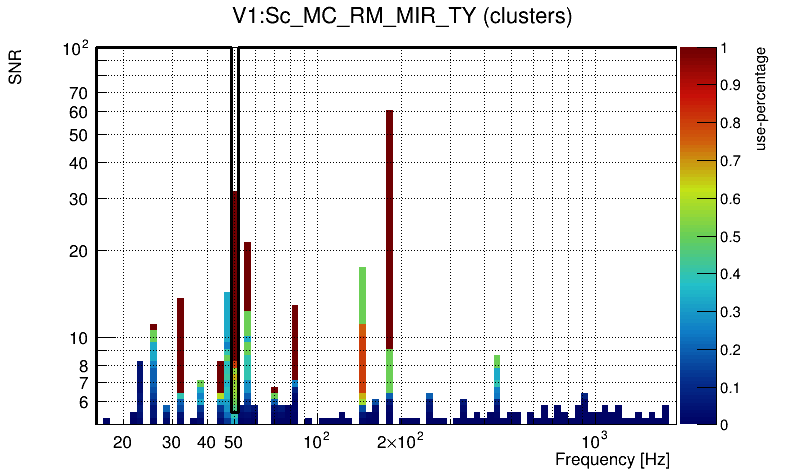

V14 (39): V1:Sc_MC_RM_MIR_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_RM_MIR_TY
Number of active clusters:	83823
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	242 (0.289 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	39

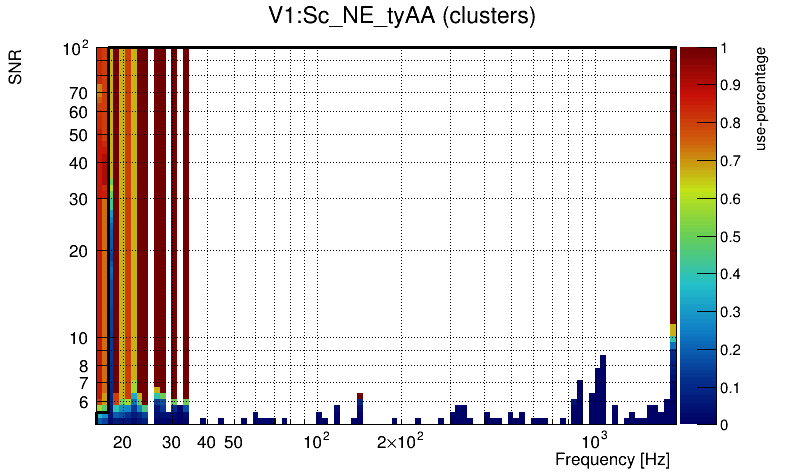

V15 (23): V1:Sc_NE_tyAA_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_tyAA
Number of active clusters:	756320
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	1032 (0.136 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	23

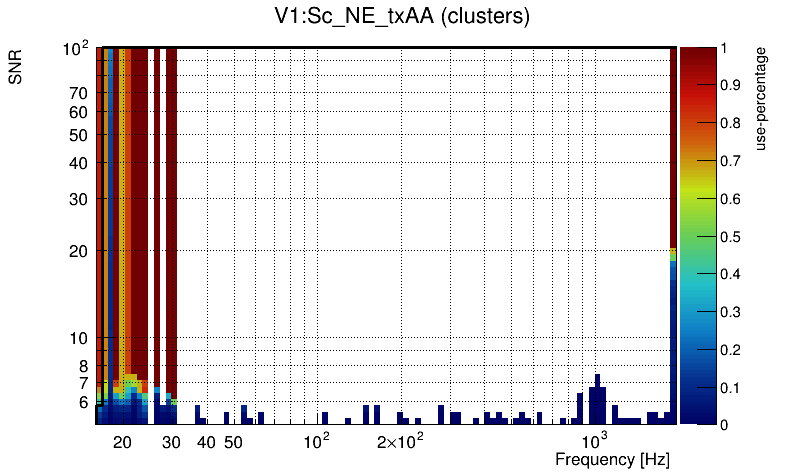

V16 (13): V1:Sc_NE_txAA_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_txAA
Number of active clusters:	627133
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	870 (0.139 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	13

V17 (0): V1:Sc_NI_MAR_PSDT_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_PSDT_PWR
Number of active clusters:	136795
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	223 (0.163 %)

Veto:
Number of source clusters used to veto target clusters:	0

V18 (0): V1:Sc_NI_MAR_PSDM_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_PSDM_Y2
Number of active clusters:	93800
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	178 (0.190 %)

Veto:
Number of source clusters used to veto target clusters:	0

V19 (0): V1:Sc_NI_MAR_PSDM_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_PSDM_Y1
Number of active clusters:	88255
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	169 (0.191 %)

Veto:
Number of source clusters used to veto target clusters:	0

V20 (0): V1:Sc_NI_MAR_PSDM_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_PSDM_X2
Number of active clusters:	95591
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	194 (0.203 %)

Veto:
Number of source clusters used to veto target clusters:	0

V21 (0): V1:Sc_NI_MAR_PSDM_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_PSDM_X1
Number of active clusters:	90359
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	178 (0.197 %)

Veto:
Number of source clusters used to veto target clusters:	0

V22 (0): V1:Sc_NI_MAR_PSDM_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_PSDM_PWR
Number of active clusters:	137348
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	224 (0.163 %)

Veto:
Number of source clusters used to veto target clusters:	0

V23 (0): V1:Sc_NI_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_MAR_COIL_FLAG
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V24 (0): V1:Sc_NI_LOCK_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_LOCK_FLAG
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V25 (0): V1:Sc_NI_F7_Z_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_Z
Number of active clusters:	121418
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	178 (0.147 %)

Veto:
Number of source clusters used to veto target clusters:	0

V26 (0): V1:Sc_NI_F7_Y_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_Y
Number of active clusters:	91319
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	131 (0.143 %)

Veto:
Number of source clusters used to veto target clusters:	0

V27 (0): V1:Sc_NI_F7_X_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_X
Number of active clusters:	129651
Source livetime:	949790.000 s = 99.956 % of requested segments

Coincidence:
Coincident livetime:	949674.000 s
	= 99.944 % of requested segments
	= 99.964 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	190 (0.147 %)

Veto:
Number of source clusters used to veto target clusters:	0

V28 (0): V1:Sc_NI_F7_TZ_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_TZ_CORR
Number of active clusters:	3021361
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3527 (0.117 %)

Veto:
Number of source clusters used to veto target clusters:	0

V29 (0): V1:Sc_NI_F7_TZ_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_TZ
Number of active clusters:	94983
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	134 (0.141 %)

Veto:
Number of source clusters used to veto target clusters:	0

V30 (0): V1:Sc_NI_F7_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_TY_CORR
Number of active clusters:	1716446
Source livetime:	949790.000 s = 99.956 % of requested segments

Coincidence:
Coincident livetime:	949674.000 s
	= 99.944 % of requested segments
	= 99.964 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	1890 (0.110 %)

Veto:
Number of source clusters used to veto target clusters:	0

V31 (0): V1:Sc_NI_F7_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_TY
Number of active clusters:	123804
Source livetime:	949790.000 s = 99.956 % of requested segments

Coincidence:
Coincident livetime:	949674.000 s
	= 99.944 % of requested segments
	= 99.964 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	180 (0.145 %)

Veto:
Number of source clusters used to veto target clusters:	0

V32 (0): V1:Sc_NI_F7_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_TX_CORR
Number of active clusters:	2956948
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3518 (0.119 %)

Veto:
Number of source clusters used to veto target clusters:	0

V33 (0): V1:Sc_NI_F7_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_TX
Number of active clusters:	95709
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	142 (0.148 %)

Veto:
Number of source clusters used to veto target clusters:	0

V34 (0): V1:Sc_NI_F7_LVDT_V3_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_LVDT_V3
Number of active clusters:	107603
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	145 (0.135 %)

Veto:
Number of source clusters used to veto target clusters:	0

V35 (0): V1:Sc_NI_F7_LVDT_V2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_LVDT_V2
Number of active clusters:	102277
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	170 (0.166 %)

Veto:
Number of source clusters used to veto target clusters:	0

V36 (0): V1:Sc_NI_F7_LVDT_V1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_LVDT_V1
Number of active clusters:	101185
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	127 (0.126 %)

Veto:
Number of source clusters used to veto target clusters:	0

V37 (0): V1:Sc_NI_F7_LVDT_H3_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_LVDT_H3
Number of active clusters:	113347
Source livetime:	949790.000 s = 99.956 % of requested segments

Coincidence:
Coincident livetime:	949674.000 s
	= 99.944 % of requested segments
	= 99.964 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	168 (0.148 %)

Veto:
Number of source clusters used to veto target clusters:	0

V38 (0): V1:Sc_NI_F7_LVDT_H2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_LVDT_H2
Number of active clusters:	133783
Source livetime:	949650.000 s = 99.941 % of requested segments

Coincidence:
Coincident livetime:	949534.000 s
	= 99.929 % of requested segments
	= 99.949 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	189 (0.141 %)

Veto:
Number of source clusters used to veto target clusters:	0

V39 (0): V1:Sc_NI_F7_LVDT_H1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_LVDT_H1
Number of active clusters:	118430
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	187 (0.158 %)

Veto:
Number of source clusters used to veto target clusters:	0

V40 (0): V1:Sc_NI_F7_COIL_V3_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_COIL_V3
Number of active clusters:	2979478
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3553 (0.119 %)

Veto:
Number of source clusters used to veto target clusters:	0

V41 (0): V1:Sc_NI_F7_COIL_V2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_COIL_V2
Number of active clusters:	2989955
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3513 (0.117 %)

Veto:
Number of source clusters used to veto target clusters:	0

V42 (0): V1:Sc_NI_F7_COIL_V1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_COIL_V1
Number of active clusters:	3034020
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3534 (0.116 %)

Veto:
Number of source clusters used to veto target clusters:	0

V43 (0): V1:Sc_NI_F7_COIL_H3_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_COIL_H3
Number of active clusters:	1392792
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	1614 (0.116 %)

Veto:
Number of source clusters used to veto target clusters:	0

V44 (0): V1:Sc_NI_F7_COIL_H2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_COIL_H2
Number of active clusters:	1392792
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	1614 (0.116 %)

Veto:
Number of source clusters used to veto target clusters:	0

V45 (0): V1:Sc_NI_F7_COIL_H1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NI_F7_COIL_H1
Number of active clusters:	1392792
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	1614 (0.116 %)

Veto:
Number of source clusters used to veto target clusters:	0

V46 (0): V1:Sc_NE_noise_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_noise
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V47 (0): V1:Sc_NE_NA_Cty_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_NA_Cty
Number of active clusters:	91667
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	160 (0.175 %)

Veto:
Number of source clusters used to veto target clusters:	0

V48 (0): V1:Sc_NE_NA_Ctx_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_NA_Ctx
Number of active clusters:	94789
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	158 (0.167 %)

Veto:
Number of source clusters used to veto target clusters:	0

V49 (0): V1:Sc_NE_MIR_Z_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_Z
Number of active clusters:	86714
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	137 (0.158 %)

Veto:
Number of source clusters used to veto target clusters:	0

V50 (0): V1:Sc_NE_MIR_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_TY
Number of active clusters:	87543
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	132 (0.151 %)

Veto:
Number of source clusters used to veto target clusters:	0

V51 (0): V1:Sc_NE_MIR_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_TX
Number of active clusters:	87119
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	133 (0.153 %)

Veto:
Number of source clusters used to veto target clusters:	0

V52 (0): V1:Sc_NE_MIR_PSDI_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDI_Y2
Number of active clusters:	86731
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	145 (0.167 %)

Veto:
Number of source clusters used to veto target clusters:	0

V53 (0): V1:Sc_NE_MIR_PSDI_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDI_X2
Number of active clusters:	86462
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	148 (0.171 %)

Veto:
Number of source clusters used to veto target clusters:	0

V54 (0): V1:Sc_NE_MIR_PSDI_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDI_PWR
Number of active clusters:	87978
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	134 (0.152 %)

Veto:
Number of source clusters used to veto target clusters:	0

V55 (0): V1:Sc_NE_MIR_PSDF_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDF_Y2
Number of active clusters:	87194
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	128 (0.147 %)

Veto:
Number of source clusters used to veto target clusters:	0

V56 (0): V1:Sc_NE_MIR_PSDF_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDF_Y1
Number of active clusters:	90633
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	138 (0.152 %)

Veto:
Number of source clusters used to veto target clusters:	0

V57 (0): V1:Sc_NE_MIR_PSDF_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDF_X2
Number of active clusters:	87595
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	129 (0.147 %)

Veto:
Number of source clusters used to veto target clusters:	0

V58 (0): V1:Sc_NE_MIR_PSDF_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDF_X1
Number of active clusters:	88392
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	128 (0.145 %)

Veto:
Number of source clusters used to veto target clusters:	0

V59 (0): V1:Sc_NE_MIR_PSDF_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_PSDF_PWR
Number of active clusters:	106932
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	154 (0.144 %)

Veto:
Number of source clusters used to veto target clusters:	0

V60 (0): V1:Sc_NE_MIR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3535
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MIR_COIL_FLAG
Number of active clusters:	0
Source livetime:	949688.000 s = 99.945 % of requested segments

Coincidence:
Coincident livetime:	949666.000 s
	= 99.943 % of requested segments
	= 99.963 % of target segments
	= 99.998 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V61 (0): V1:Sc_NE_MAR_Y_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_Y_CORR
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V62 (0): V1:Sc_NE_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TZ_CORR
Number of active clusters:	2754943
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	2609 (0.095 %)

Veto:
Number of source clusters used to veto target clusters:	0

V63 (0): V1:Sc_NE_MAR_TZ_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TZ
Number of active clusters:	108479
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	186 (0.171 %)

Veto:
Number of source clusters used to veto target clusters:	0

V64 (0): V1:Sc_NE_MAR_TY_T_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TY_T
Number of active clusters:	108493
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	183 (0.169 %)

Veto:
Number of source clusters used to veto target clusters:	0

V65 (0): V1:Sc_NE_MAR_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TY
Number of active clusters:	104434
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	183 (0.175 %)

Veto:
Number of source clusters used to veto target clusters:	0

V66 (0): V1:Sc_NE_MAR_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3511
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TX_CORR
Number of active clusters:	107139
Source livetime:	949650.000 s = 99.941 % of requested segments

Coincidence:
Coincident livetime:	949534.000 s
	= 99.929 % of requested segments
	= 99.949 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	298 (0.278 %)

Veto:
Number of source clusters used to veto target clusters:	0

V67 (0): V1:Sc_NE_MAR_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_TX
Number of active clusters:	138828
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	230 (0.166 %)

Veto:
Number of source clusters used to veto target clusters:	0

V68 (0): V1:Sc_NE_MAR_PSDT_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDT_Y2
Number of active clusters:	108497
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	186 (0.171 %)

Veto:
Number of source clusters used to veto target clusters:	0

V69 (0): V1:Sc_NE_MAR_PSDT_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDT_Y1
Number of active clusters:	102765
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	155 (0.151 %)

Veto:
Number of source clusters used to veto target clusters:	0

V70 (0): V1:Sc_NE_MAR_PSDT_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDT_X1
Number of active clusters:	104269
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	165 (0.158 %)

Veto:
Number of source clusters used to veto target clusters:	0

V71 (0): V1:Sc_NE_MAR_PSDT_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDT_PWR
Number of active clusters:	110242
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	188 (0.171 %)

Veto:
Number of source clusters used to veto target clusters:	0

V72 (0): V1:Sc_NE_MAR_PSDM_Y2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDM_Y2
Number of active clusters:	136075
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	220 (0.162 %)

Veto:
Number of source clusters used to veto target clusters:	0

V73 (0): V1:Sc_NE_MAR_PSDM_Y1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDM_Y1
Number of active clusters:	126730
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	201 (0.159 %)

Veto:
Number of source clusters used to veto target clusters:	0

V74 (0): V1:Sc_NE_MAR_PSDM_X2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDM_X2
Number of active clusters:	104524
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	179 (0.171 %)

Veto:
Number of source clusters used to veto target clusters:	0

V75 (0): V1:Sc_NE_MAR_PSDM_X1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDM_X1
Number of active clusters:	97913
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	169 (0.173 %)

Veto:
Number of source clusters used to veto target clusters:	0

V76 (0): V1:Sc_NE_MAR_PSDM_PWR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_PSDM_PWR
Number of active clusters:	107354
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	168 (0.156 %)

Veto:
Number of source clusters used to veto target clusters:	0

V77 (0): V1:Sc_NE_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_MAR_COIL_FLAG
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V78 (0): V1:Sc_NE_F7_Z_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_Z_CORR
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V79 (0): V1:Sc_NE_F7_Z_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_Z
Number of active clusters:	108735
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	198 (0.182 %)

Veto:
Number of source clusters used to veto target clusters:	0

V80 (0): V1:Sc_NE_F7_Y_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_Y
Number of active clusters:	92370
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	163 (0.176 %)

Veto:
Number of source clusters used to veto target clusters:	0

V81 (0): V1:Sc_NE_F7_X_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_X
Number of active clusters:	107048
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	207 (0.193 %)

Veto:
Number of source clusters used to veto target clusters:	0

V82 (0): V1:Sc_NE_F7_TZ_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3358
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_TZ_CORR
Number of active clusters:	2914564
Source livetime:	892939.000 s = 93.973 % of requested segments

Coincidence:
Coincident livetime:	892823.000 s
	= 93.961 % of requested segments
	= 93.980 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3467 (0.119 %)

Veto:
Number of source clusters used to veto target clusters:	0

V83 (0): V1:Sc_NE_F7_TZ_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_TZ
Number of active clusters:	94328
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	169 (0.179 %)

Veto:
Number of source clusters used to veto target clusters:	0

V84 (0): V1:Sc_NE_F7_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_TY_CORR
Number of active clusters:	267014
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	401 (0.150 %)

Veto:
Number of source clusters used to veto target clusters:	0

V85 (0): V1:Sc_NE_F7_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_TY
Number of active clusters:	108012
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	179 (0.166 %)

Veto:
Number of source clusters used to veto target clusters:	0

V86 (0): V1:Sc_NE_F7_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3358
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_TX_CORR
Number of active clusters:	2933517
Source livetime:	892939.000 s = 93.973 % of requested segments

Coincidence:
Coincident livetime:	892823.000 s
	= 93.961 % of requested segments
	= 93.980 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	3501 (0.119 %)

Veto:
Number of source clusters used to veto target clusters:	0

V87 (0): V1:Sc_NE_F7_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_TX
Number of active clusters:	93343
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	162 (0.174 %)

Veto:
Number of source clusters used to veto target clusters:	0

V88 (0): V1:Sc_NE_F7_LVDT_V3_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_LVDT_V3
Number of active clusters:	99143
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	168 (0.169 %)

Veto:
Number of source clusters used to veto target clusters:	0

V89 (0): V1:Sc_NE_F7_LVDT_V2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_LVDT_V2
Number of active clusters:	112604
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	160 (0.142 %)

Veto:
Number of source clusters used to veto target clusters:	0

V90 (0): V1:Sc_NE_F7_LVDT_V1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_LVDT_V1
Number of active clusters:	96979
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	150 (0.155 %)

Veto:
Number of source clusters used to veto target clusters:	0

V91 (0): V1:Sc_NE_F7_LVDT_H3_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_LVDT_H3
Number of active clusters:	98063
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	137 (0.140 %)

Veto:
Number of source clusters used to veto target clusters:	0

V92 (0): V1:Sc_NE_F7_LVDT_H2_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_LVDT_H2
Number of active clusters:	119570
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	168 (0.141 %)

Veto:
Number of source clusters used to veto target clusters:	0

V93 (0): V1:Sc_NE_F7_LVDT_H1_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_F7_LVDT_H1
Number of active clusters:	116531
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	213 (0.183 %)

Veto:
Number of source clusters used to veto target clusters:	0

V94 (0): V1:Sc_NE_ErrPost_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_NE_ErrPost
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V95 (0): V1:Sc_MC_noise_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_noise
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V96 (0): V1:Sc_MC_SSFS_ON_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_SSFS_ON
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V97 (0): V1:Sc_MC_RM_TZ_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_RM_TZ
Number of active clusters:	85774
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	133 (0.155 %)

Veto:
Number of source clusters used to veto target clusters:	0

V98 (0): V1:Sc_MC_RM_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_RM_TY
Number of active clusters:	90858
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	167 (0.184 %)

Veto:
Number of source clusters used to veto target clusters:	0

V99 (0): V1:Sc_MC_RFC_On_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:Sc_MC_RFC_On
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

UPV version:	3.2.0: documentation gitlab repository
UPV run by:	unknown
UPV processing time:	2 h, 32 min, 44 s
Processing Date:	Fri Feb 21 14:34:10 2025 (UTC)
Requested start:	1407499998 → Mon Aug 12 12:13:00 2024 (UTC)
Requested stop:	1408708852 → Mon Aug 26 12:00:34 2024 (UTC)
Requested livetime:	950208 sec → 10.998 days
Requested segments:	upv.insegments.txt
Summary text file:	upv.summary.txt
Number of source channels:	100 (out of 100)

Configuration:	upv.parameters.txt
Target SNR selection:	SNR > 6.000
Target frequency selection:	16.000 Hz < f < 1956.764 Hz
Coincidence time window:	δt = 1.000 s
Veto definition:	use-percentage > 0.400 (per frequency bin)
	number of used source clusters > 10 (per frequency bin)

UPV analysis over V1:Hrec_hoft_16384Hz

Summary

Parameters

Target = V1:Hrec_hoft_16384Hz

Veto performance

V0 (994): V1:Sc_NE_MIR_Z_CORR_LN_0 [click here to expand/hide] [link to here]

V1 (989): V1:Sc_NE_MIR_LSC_CORR_0 [click here to expand/hide] [link to here]

V2 (987): V1:Sc_NE_MIR_VOUT_UR_0 [click here to expand/hide] [link to here]

V3 (980): V1:Sc_NE_MIR_Z_CORR_0 [click here to expand/hide] [link to here]

V4 (964): V1:Sc_NE_MIR_VOUT_UL_0 [click here to expand/hide] [link to here]

V5 (910): V1:Sc_NE_MIR_VOUT_DL_0 [click here to expand/hide] [link to here]

V6 (909): V1:Sc_NE_MIR_VOUT_DR_0 [click here to expand/hide] [link to here]

V7 (326): V1:Sc_NE_MIR_X_AA_0 [click here to expand/hide] [link to here]

V8 (251): V1:Sc_NE_MIR_Y_AA_0 [click here to expand/hide] [link to here]

V9 (154): V1:Sc_MC_RFC_Err_Post_0 [click here to expand/hide] [link to here]

V10 (153): V1:Sc_MC_RFC_Err_Pre_0 [click here to expand/hide] [link to here]

V11 (153): V1:Sc_MC_MIR_Z_CORR_0 [click here to expand/hide] [link to here]

V12 (126): V1:Sc_MC_txE_p_0 [click here to expand/hide] [link to here]

V13 (60): V1:Sc_NE_MAR_TY_CORR_0 [click here to expand/hide] [link to here]

V14 (39): V1:Sc_MC_RM_MIR_TY_0 [click here to expand/hide] [link to here]

V15 (23): V1:Sc_NE_tyAA_0 [click here to expand/hide] [link to here]

V16 (13): V1:Sc_NE_txAA_0 [click here to expand/hide] [link to here]

V17 (0): V1:Sc_NI_MAR_PSDT_PWR_0 [click here to expand/hide] [link to here]

V18 (0): V1:Sc_NI_MAR_PSDM_Y2_0 [click here to expand/hide] [link to here]

V19 (0): V1:Sc_NI_MAR_PSDM_Y1_0 [click here to expand/hide] [link to here]

V20 (0): V1:Sc_NI_MAR_PSDM_X2_0 [click here to expand/hide] [link to here]

V21 (0): V1:Sc_NI_MAR_PSDM_X1_0 [click here to expand/hide] [link to here]

V22 (0): V1:Sc_NI_MAR_PSDM_PWR_0 [click here to expand/hide] [link to here]

V23 (0): V1:Sc_NI_MAR_COIL_FLAG_0 [click here to expand/hide] [link to here]

V24 (0): V1:Sc_NI_LOCK_FLAG_0 [click here to expand/hide] [link to here]

V25 (0): V1:Sc_NI_F7_Z_0 [click here to expand/hide] [link to here]

V26 (0): V1:Sc_NI_F7_Y_0 [click here to expand/hide] [link to here]

V27 (0): V1:Sc_NI_F7_X_0 [click here to expand/hide] [link to here]

V28 (0): V1:Sc_NI_F7_TZ_CORR_0 [click here to expand/hide] [link to here]

V29 (0): V1:Sc_NI_F7_TZ_0 [click here to expand/hide] [link to here]

V30 (0): V1:Sc_NI_F7_TY_CORR_0 [click here to expand/hide] [link to here]

V31 (0): V1:Sc_NI_F7_TY_0 [click here to expand/hide] [link to here]

V32 (0): V1:Sc_NI_F7_TX_CORR_0 [click here to expand/hide] [link to here]

V33 (0): V1:Sc_NI_F7_TX_0 [click here to expand/hide] [link to here]

V34 (0): V1:Sc_NI_F7_LVDT_V3_0 [click here to expand/hide] [link to here]

V35 (0): V1:Sc_NI_F7_LVDT_V2_0 [click here to expand/hide] [link to here]

V36 (0): V1:Sc_NI_F7_LVDT_V1_0 [click here to expand/hide] [link to here]

V37 (0): V1:Sc_NI_F7_LVDT_H3_0 [click here to expand/hide] [link to here]

V38 (0): V1:Sc_NI_F7_LVDT_H2_0 [click here to expand/hide] [link to here]

V39 (0): V1:Sc_NI_F7_LVDT_H1_0 [click here to expand/hide] [link to here]

V40 (0): V1:Sc_NI_F7_COIL_V3_0 [click here to expand/hide] [link to here]

V41 (0): V1:Sc_NI_F7_COIL_V2_0 [click here to expand/hide] [link to here]

V42 (0): V1:Sc_NI_F7_COIL_V1_0 [click here to expand/hide] [link to here]

V43 (0): V1:Sc_NI_F7_COIL_H3_0 [click here to expand/hide] [link to here]

V44 (0): V1:Sc_NI_F7_COIL_H2_0 [click here to expand/hide] [link to here]

V45 (0): V1:Sc_NI_F7_COIL_H1_0 [click here to expand/hide] [link to here]

V46 (0): V1:Sc_NE_noise_0 [click here to expand/hide] [link to here]

V47 (0): V1:Sc_NE_NA_Cty_0 [click here to expand/hide] [link to here]

V48 (0): V1:Sc_NE_NA_Ctx_0 [click here to expand/hide] [link to here]

V49 (0): V1:Sc_NE_MIR_Z_0 [click here to expand/hide] [link to here]

V50 (0): V1:Sc_NE_MIR_TY_0 [click here to expand/hide] [link to here]

V51 (0): V1:Sc_NE_MIR_TX_0 [click here to expand/hide] [link to here]

V52 (0): V1:Sc_NE_MIR_PSDI_Y2_0 [click here to expand/hide] [link to here]

V53 (0): V1:Sc_NE_MIR_PSDI_X2_0 [click here to expand/hide] [link to here]

V54 (0): V1:Sc_NE_MIR_PSDI_PWR_0 [click here to expand/hide] [link to here]

V55 (0): V1:Sc_NE_MIR_PSDF_Y2_0 [click here to expand/hide] [link to here]

V56 (0): V1:Sc_NE_MIR_PSDF_Y1_0 [click here to expand/hide] [link to here]

V57 (0): V1:Sc_NE_MIR_PSDF_X2_0 [click here to expand/hide] [link to here]

V58 (0): V1:Sc_NE_MIR_PSDF_X1_0 [click here to expand/hide] [link to here]

V59 (0): V1:Sc_NE_MIR_PSDF_PWR_0 [click here to expand/hide] [link to here]

V60 (0): V1:Sc_NE_MIR_COIL_FLAG_0 [click here to expand/hide] [link to here]

V61 (0): V1:Sc_NE_MAR_Y_CORR_0 [click here to expand/hide] [link to here]

V62 (0): V1:Sc_NE_MAR_TZ_CORR_0 [click here to expand/hide] [link to here]

V63 (0): V1:Sc_NE_MAR_TZ_0 [click here to expand/hide] [link to here]

V64 (0): V1:Sc_NE_MAR_TY_T_0 [click here to expand/hide] [link to here]

V65 (0): V1:Sc_NE_MAR_TY_0 [click here to expand/hide] [link to here]

V66 (0): V1:Sc_NE_MAR_TX_CORR_0 [click here to expand/hide] [link to here]

V67 (0): V1:Sc_NE_MAR_TX_0 [click here to expand/hide] [link to here]

V68 (0): V1:Sc_NE_MAR_PSDT_Y2_0 [click here to expand/hide] [link to here]

V69 (0): V1:Sc_NE_MAR_PSDT_Y1_0 [click here to expand/hide] [link to here]

V70 (0): V1:Sc_NE_MAR_PSDT_X1_0 [click here to expand/hide] [link to here]

V71 (0): V1:Sc_NE_MAR_PSDT_PWR_0 [click here to expand/hide] [link to here]

V72 (0): V1:Sc_NE_MAR_PSDM_Y2_0 [click here to expand/hide] [link to here]

V73 (0): V1:Sc_NE_MAR_PSDM_Y1_0 [click here to expand/hide] [link to here]

V74 (0): V1:Sc_NE_MAR_PSDM_X2_0 [click here to expand/hide] [link to here]
