UPV Report

Note: these plots includes the triggers used in the VetoPerf report: the selection can be different from the one used for UPV.

Veto performance

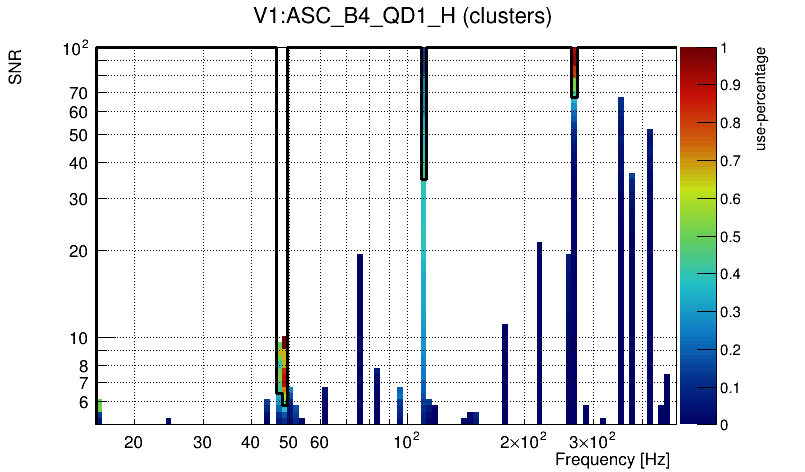

V0 (73): V1:ASC_B4_QD1_H_0 [click here to expand/hide] [link to here]

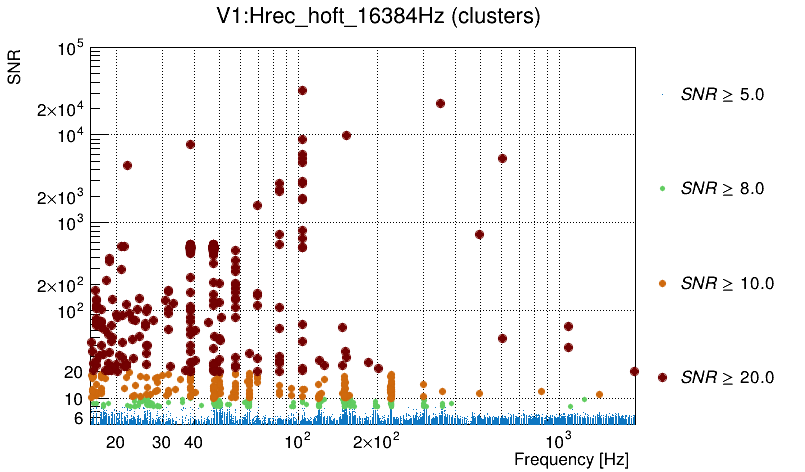

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_H
Number of active clusters:	541764
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	929 (0.171 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	73

V1 (52): V1:ASC_B7B8_QD1_SUM_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7B8_QD1_SUM_H
Number of active clusters:	29215
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	125 (0.428 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	52

V2 (34): V1:ASC_B7_QD2_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD2_Sum
Number of active clusters:	31221
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	113 (0.362 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	34

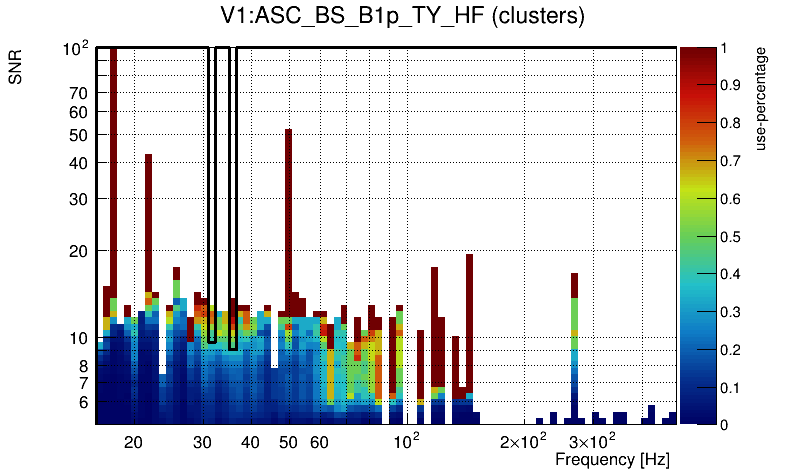

V3 (33): V1:ASC_BS_B1p_TY_HF_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_B1p_TY_HF
Number of active clusters:	80984
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	656 (0.810 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	33

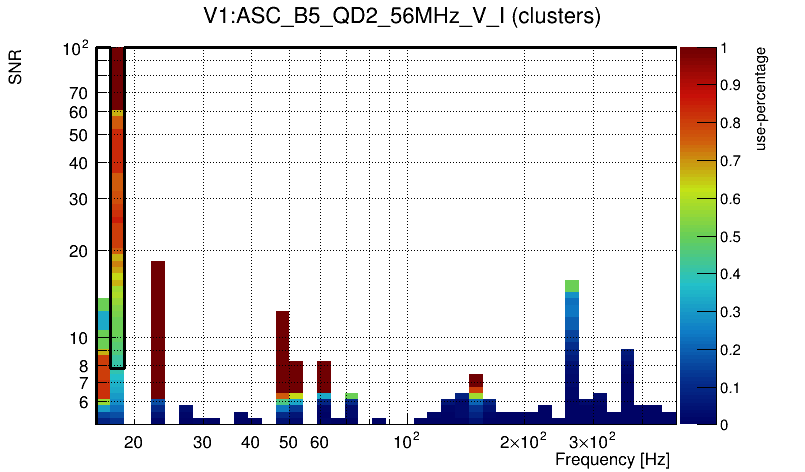

V4 (29): V1:ASC_B5_QD2_56MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_56MHz_V_I
Number of active clusters:	39406
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	215 (0.546 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	29

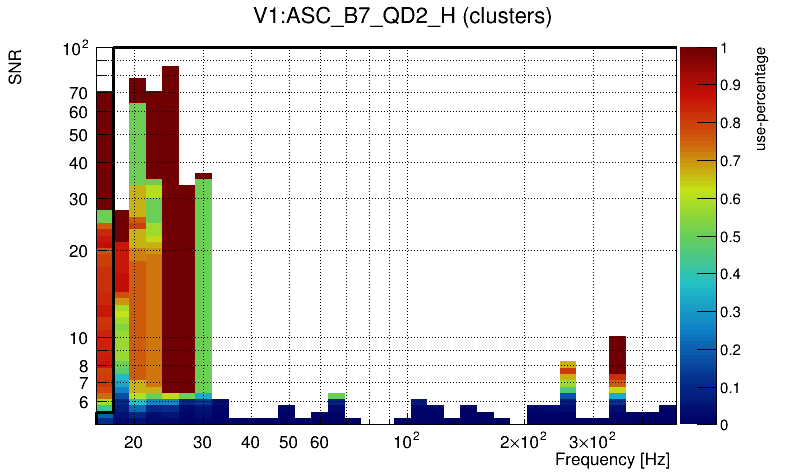

V5 (24): V1:ASC_B7_QD2_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD2_H
Number of active clusters:	32304
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	156 (0.483 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	24

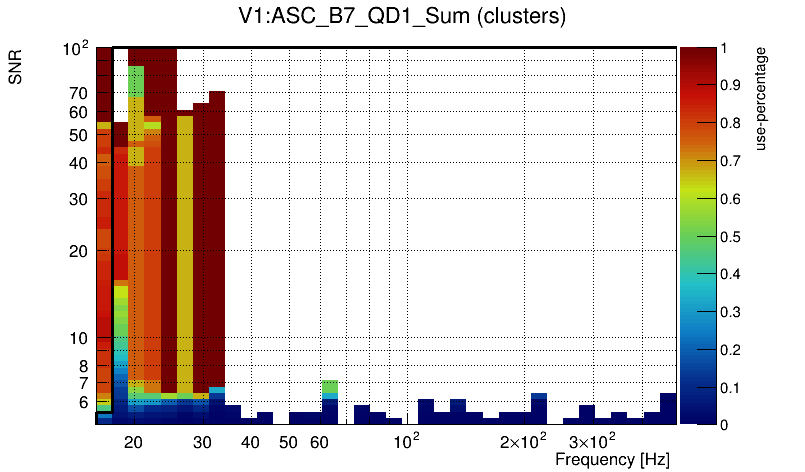

V6 (23): V1:ASC_B7_QD1_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD1_Sum
Number of active clusters:	33479
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	128 (0.382 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	23

V7 (22): V1:ASC_B7_QD1_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD1_V
Number of active clusters:	33541
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	141 (0.420 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	22

V8 (21): V1:ASC_B7_QD2_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD2_V
Number of active clusters:	36248
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	141 (0.389 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	21

V9 (20): V1:ASC_B7_QD1_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD1_H
Number of active clusters:	41374
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	135 (0.326 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	20

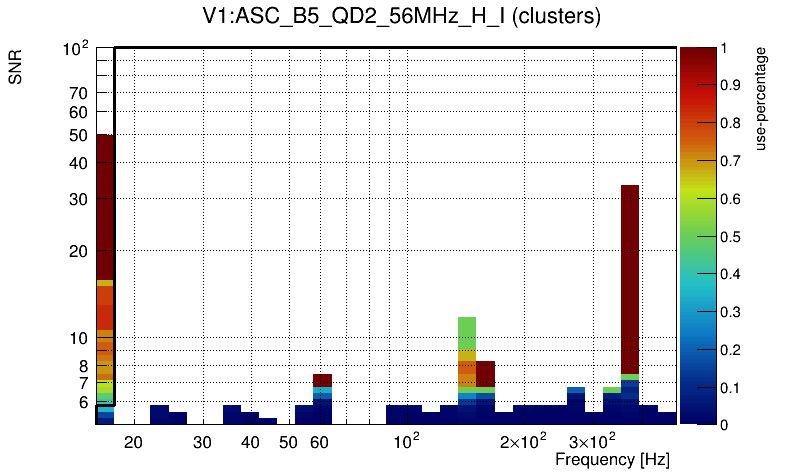

V10 (13): V1:ASC_B5_QD2_56MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_56MHz_H_I
Number of active clusters:	29978
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	111 (0.370 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	13

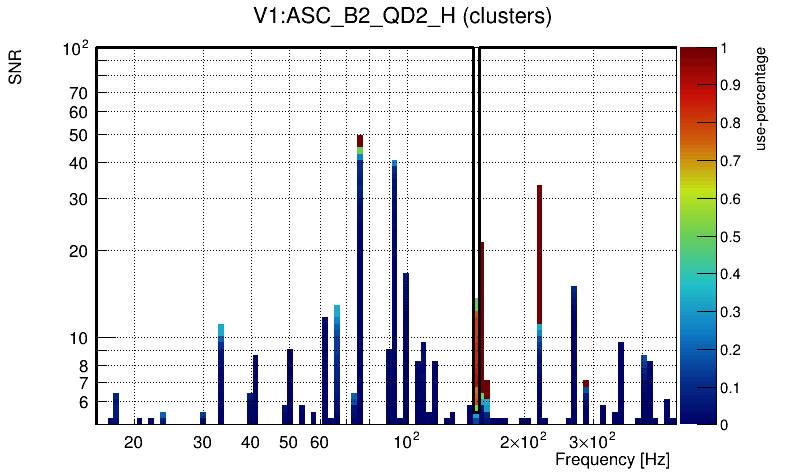

V11 (12): V1:ASC_B2_QD2_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_H
Number of active clusters:	107679
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	353 (0.328 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	12

V12 (12): V1:ASC_B2_QD2_8MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_8MHz_V_I
Number of active clusters:	24107
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	60 (0.249 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	12

V13 (11): V1:ASC_BS_B1p_TX_HF_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_B1p_TX_HF
Number of active clusters:	203386
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	682 (0.335 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	11

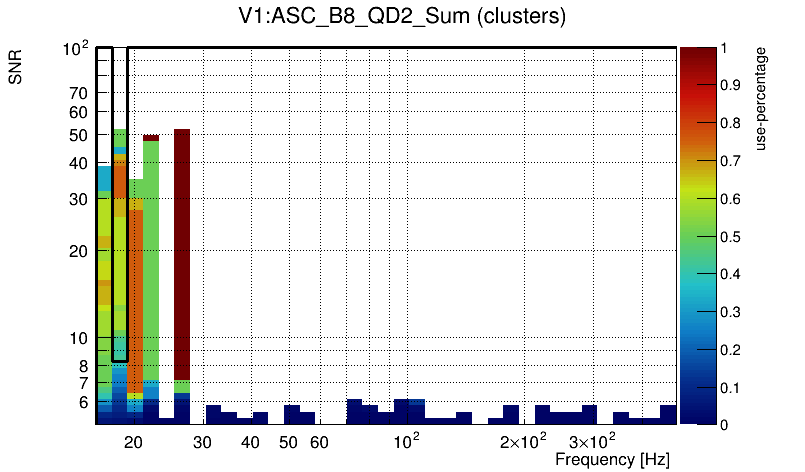

V14 (11): V1:ASC_B8_QD2_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B8_QD2_Sum
Number of active clusters:	34431
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	101 (0.293 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	11

V15 (11): V1:ASC_B4_QD2_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_Sum
Number of active clusters:	34829
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	160 (0.459 %)
Use-percentage

Veto:
Veto recipe:	recipe file
Number of source clusters used to veto target clusters:	11

V16 (0): V1:ASC_BS_TX_IN_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_TX_IN
Number of active clusters:	103429
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	325 (0.314 %)

Veto:
Number of source clusters used to veto target clusters:	0

V17 (0): V1:ASC_BS_TX_ERR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_TX_ERR
Number of active clusters:	104361
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	328 (0.314 %)

Veto:
Number of source clusters used to veto target clusters:	0

V18 (0): V1:ASC_BS_TX_ENBL_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_TX_ENBL
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V19 (0): V1:ASC_BS_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_TX_CORR
Number of active clusters:	142520
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	368 (0.258 %)

Veto:
Number of source clusters used to veto target clusters:	0

V20 (0): V1:ASC_BS_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_TX
Number of active clusters:	104527
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	328 (0.314 %)

Veto:
Number of source clusters used to veto target clusters:	0

V21 (0): V1:ASC_BS_DOF_TY_NOISE_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_DOF_TY_NOISE
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V22 (0): V1:ASC_BS_DOF_TY_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_DOF_TY_CORR
Number of active clusters:	24549
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	36 (0.147 %)

Veto:
Number of source clusters used to veto target clusters:	0

V23 (0): V1:ASC_BS_DOF_TX_NOISE_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_DOF_TX_NOISE
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V24 (0): V1:ASC_BS_DOF_TX_CORR_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_DOF_TX_CORR
Number of active clusters:	105947
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	328 (0.310 %)

Veto:
Number of source clusters used to veto target clusters:	0

V25 (0): V1:ASC_BS_BL_B4_6MHz_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_BL_B4_6MHz_TY
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V26 (0): V1:ASC_BS_BL_B4_6MHz_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_BL_B4_6MHz_TX
Number of active clusters:	81019
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	281 (0.347 %)

Veto:
Number of source clusters used to veto target clusters:	0

V27 (0): V1:ASC_BS_BL_B1p_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_BL_B1p_TY
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V28 (0): V1:ASC_BS_BL_B1p_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_BL_B1p_TX
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V29 (0): V1:ASC_BS_BL_B1p_56MHz_TY_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_BL_B1p_56MHz_TY
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V30 (0): V1:ASC_BS_BL_B1p_56MHz_TX_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_BL_B1p_56MHz_TX
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V31 (0): V1:ASC_BS_B4_6MHz_TY_HF_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_B4_6MHz_TY_HF
Number of active clusters:	60471
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	213 (0.352 %)

Veto:
Number of source clusters used to veto target clusters:	0

V32 (0): V1:ASC_BS_B4_6MHz_TX_HF_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_B4_6MHz_TX_HF
Number of active clusters:	55994
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	233 (0.416 %)

Veto:
Number of source clusters used to veto target clusters:	0

V33 (0): V1:ASC_BS_B1p_56MHz_TY_HF_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_B1p_56MHz_TY_HF
Number of active clusters:	24083
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	51 (0.212 %)

Veto:
Number of source clusters used to veto target clusters:	0

V34 (0): V1:ASC_BS_B1p_56MHz_TX_HF_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_BS_B1p_56MHz_TX_HF
Number of active clusters:	24581
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	76 (0.309 %)

Veto:
Number of source clusters used to veto target clusters:	0

V35 (0): V1:ASC_B8_QD2_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B8_QD2_V
Number of active clusters:	41802
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	170 (0.407 %)

Veto:
Number of source clusters used to veto target clusters:	0

V36 (0): V1:ASC_B8_QD2_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B8_QD2_H
Number of active clusters:	39829
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	124 (0.311 %)

Veto:
Number of source clusters used to veto target clusters:	0

V37 (0): V1:ASC_B8_QD1_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B8_QD1_V
Number of active clusters:	100511
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	504 (0.501 %)

Veto:
Number of source clusters used to veto target clusters:	0

V38 (0): V1:ASC_B8_QD1_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B8_QD1_Sum
Number of active clusters:	36069
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	110 (0.305 %)

Veto:
Number of source clusters used to veto target clusters:	0

V39 (0): V1:ASC_B8_QD1_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B8_QD1_H
Number of active clusters:	30358
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	91 (0.300 %)

Veto:
Number of source clusters used to veto target clusters:	0

V40 (0): V1:ASC_B7_QD_V_select_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD_V_select
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V41 (0): V1:ASC_B7_QD_H_select_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD_H_select
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V42 (0): V1:ASC_B7_QD2_V_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD2_V_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V43 (0): V1:ASC_B7_QD2_H_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD2_H_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V44 (0): V1:ASC_B7_QD1_V_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD1_V_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V45 (0): V1:ASC_B7_QD1_H_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7_QD1_H_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V46 (0): V1:ASC_B7B8_QD1_SUM_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B7B8_QD1_SUM_V
Number of active clusters:	100850
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	519 (0.515 %)

Veto:
Number of source clusters used to veto target clusters:	0

V47 (0): V1:ASC_B5_QD2_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_V
Number of active clusters:	81678
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	187 (0.229 %)

Veto:
Number of source clusters used to veto target clusters:	0

V48 (0): V1:ASC_B5_QD2_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_Sum
Number of active clusters:	996660
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	1311 (0.132 %)

Veto:
Number of source clusters used to veto target clusters:	0

V49 (0): V1:ASC_B5_QD2_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_H
Number of active clusters:	222998
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	528 (0.237 %)

Veto:
Number of source clusters used to veto target clusters:	0

V50 (0): V1:ASC_B5_QD2_56MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_56MHz_V_Q
Number of active clusters:	44774
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	111 (0.248 %)

Veto:
Number of source clusters used to veto target clusters:	0

V51 (0): V1:ASC_B5_QD2_56MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD2_56MHz_H_Q
Number of active clusters:	33473
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	102 (0.305 %)

Veto:
Number of source clusters used to veto target clusters:	0

V52 (0): V1:ASC_B5_QD1_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_V
Number of active clusters:	643336
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	991 (0.154 %)

Veto:
Number of source clusters used to veto target clusters:	0

V53 (0): V1:ASC_B5_QD1_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_Sum
Number of active clusters:	75266
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	145 (0.193 %)

Veto:
Number of source clusters used to veto target clusters:	0

V54 (0): V1:ASC_B5_QD1_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_H
Number of active clusters:	308473
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	714 (0.231 %)

Veto:
Number of source clusters used to veto target clusters:	0

V55 (0): V1:ASC_B5_QD1_56MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_56MHz_V_Q
Number of active clusters:	39090
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	170 (0.435 %)

Veto:
Number of source clusters used to veto target clusters:	0

V56 (0): V1:ASC_B5_QD1_56MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_56MHz_V_I
Number of active clusters:	29499
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	102 (0.346 %)

Veto:
Number of source clusters used to veto target clusters:	0

V57 (0): V1:ASC_B5_QD1_56MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_56MHz_H_Q
Number of active clusters:	46652
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	166 (0.356 %)

Veto:
Number of source clusters used to veto target clusters:	0

V58 (0): V1:ASC_B5_QD1_56MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B5_QD1_56MHz_H_I
Number of active clusters:	29381
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	60 (0.204 %)

Veto:
Number of source clusters used to veto target clusters:	0

V59 (0): V1:ASC_B4_QD_V_select_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD_V_select
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V60 (0): V1:ASC_B4_QD_H_select_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD_H_select
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V61 (0): V1:ASC_B4_QD_6MHz_V_select_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD_6MHz_V_select
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V62 (0): V1:ASC_B4_QD_6MHz_H_select_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD_6MHz_H_select
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V63 (0): V1:ASC_B4_QD2_V_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_V_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V64 (0): V1:ASC_B4_QD2_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_V
Number of active clusters:	108462
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	280 (0.258 %)

Veto:
Number of source clusters used to veto target clusters:	0

V65 (0): V1:ASC_B4_QD2_H_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_H_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V66 (0): V1:ASC_B4_QD2_H_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_H
Number of active clusters:	57639
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	222 (0.385 %)

Veto:
Number of source clusters used to veto target clusters:	0

V67 (0): V1:ASC_B4_QD2_6MHz_V_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_6MHz_V_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V68 (0): V1:ASC_B4_QD2_6MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_6MHz_V_Q
Number of active clusters:	24119
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	46 (0.191 %)

Veto:
Number of source clusters used to veto target clusters:	0

V69 (0): V1:ASC_B4_QD2_6MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_6MHz_V_I
Number of active clusters:	48855
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	147 (0.301 %)

Veto:
Number of source clusters used to veto target clusters:	0

V70 (0): V1:ASC_B4_QD2_6MHz_H_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_6MHz_H_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V71 (0): V1:ASC_B4_QD2_6MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_6MHz_H_Q
Number of active clusters:	24236
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	41 (0.169 %)

Veto:
Number of source clusters used to veto target clusters:	0

V72 (0): V1:ASC_B4_QD2_6MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_6MHz_H_I
Number of active clusters:	167434
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	379 (0.226 %)

Veto:
Number of source clusters used to veto target clusters:	0

V73 (0): V1:ASC_B4_QD2_56MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_56MHz_V_Q
Number of active clusters:	29082
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	73 (0.251 %)

Veto:
Number of source clusters used to veto target clusters:	0

V74 (0): V1:ASC_B4_QD2_56MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_56MHz_V_I
Number of active clusters:	26444
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	70 (0.265 %)

Veto:
Number of source clusters used to veto target clusters:	0

V75 (0): V1:ASC_B4_QD2_56MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_56MHz_H_Q
Number of active clusters:	27816
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	88 (0.316 %)

Veto:
Number of source clusters used to veto target clusters:	0

V76 (0): V1:ASC_B4_QD2_56MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD2_56MHz_H_I
Number of active clusters:	35670
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	131 (0.367 %)

Veto:
Number of source clusters used to veto target clusters:	0

V77 (0): V1:ASC_B4_QD1_V_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_V_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V78 (0): V1:ASC_B4_QD1_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3379
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_V
Number of active clusters:	218491
Source livetime:	893659.000 s = 94.049 % of requested segments

Coincidence:
Coincident livetime:	893543.000 s
	= 94.037 % of requested segments
	= 94.056 % of target segments
	= 99.987 % of source segments
Number of source clusters involved in a coinc:	488 (0.223 %)

Veto:
Number of source clusters used to veto target clusters:	0

V79 (0): V1:ASC_B4_QD1_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_Sum
Number of active clusters:	48384
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	233 (0.482 %)

Veto:
Number of source clusters used to veto target clusters:	0

V80 (0): V1:ASC_B4_QD1_H_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_H_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V81 (0): V1:ASC_B4_QD1_6MHz_V_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_6MHz_V_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V82 (0): V1:ASC_B4_QD1_6MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_6MHz_V_Q
Number of active clusters:	26308
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	70 (0.266 %)

Veto:
Number of source clusters used to veto target clusters:	0

V83 (0): V1:ASC_B4_QD1_6MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_6MHz_V_I
Number of active clusters:	174466
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	422 (0.242 %)

Veto:
Number of source clusters used to veto target clusters:	0

V84 (0): V1:ASC_B4_QD1_6MHz_H_scale_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_6MHz_H_scale
Number of active clusters:	0
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	0 (-nan %)

Veto:
Number of source clusters used to veto target clusters:	0

V85 (0): V1:ASC_B4_QD1_6MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_6MHz_H_Q
Number of active clusters:	24317
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	51 (0.210 %)

Veto:
Number of source clusters used to veto target clusters:	0

V86 (0): V1:ASC_B4_QD1_6MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_6MHz_H_I
Number of active clusters:	188914
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	406 (0.215 %)

Veto:
Number of source clusters used to veto target clusters:	0

V87 (0): V1:ASC_B4_QD1_56MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_56MHz_V_Q
Number of active clusters:	40851
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	173 (0.423 %)

Veto:
Number of source clusters used to veto target clusters:	0

V88 (0): V1:ASC_B4_QD1_56MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_56MHz_V_I
Number of active clusters:	91868
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	410 (0.446 %)

Veto:
Number of source clusters used to veto target clusters:	0

V89 (0): V1:ASC_B4_QD1_56MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_56MHz_H_Q
Number of active clusters:	35064
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	118 (0.337 %)

Veto:
Number of source clusters used to veto target clusters:	0

V90 (0): V1:ASC_B4_QD1_56MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B4_QD1_56MHz_H_I
Number of active clusters:	39473
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	134 (0.339 %)

Veto:
Number of source clusters used to veto target clusters:	0

V91 (0): V1:ASC_B2_QD2_V_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_V
Number of active clusters:	50838
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	148 (0.291 %)

Veto:
Number of source clusters used to veto target clusters:	0

V92 (0): V1:ASC_B2_QD2_Sum_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_Sum
Number of active clusters:	415094
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	716 (0.172 %)

Veto:
Number of source clusters used to veto target clusters:	0

V93 (0): V1:ASC_B2_QD2_8MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_8MHz_V_Q
Number of active clusters:	24200
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	35 (0.145 %)

Veto:
Number of source clusters used to veto target clusters:	0

V94 (0): V1:ASC_B2_QD2_8MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_8MHz_H_Q
Number of active clusters:	24387
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	37 (0.152 %)

Veto:
Number of source clusters used to veto target clusters:	0

V95 (0): V1:ASC_B2_QD2_8MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_8MHz_H_I
Number of active clusters:	24597
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	50 (0.203 %)

Veto:
Number of source clusters used to veto target clusters:	0

V96 (0): V1:ASC_B2_QD2_6MHz_V_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_6MHz_V_Q
Number of active clusters:	24210
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	43 (0.178 %)

Veto:
Number of source clusters used to veto target clusters:	0

V97 (0): V1:ASC_B2_QD2_6MHz_V_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_6MHz_V_I
Number of active clusters:	40134
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	114 (0.284 %)

Veto:
Number of source clusters used to veto target clusters:	0

V98 (0): V1:ASC_B2_QD2_6MHz_H_Q_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_6MHz_H_Q
Number of active clusters:	24374
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	66 (0.271 %)

Veto:
Number of source clusters used to veto target clusters:	0

V99 (0): V1:ASC_B2_QD2_6MHz_H_I_0 [click here to expand/hide] [link to here]

Target:	V1:Hrec_hoft_16384Hz
Number of active clusters:	3537
Target livetime:	950014.000 s = 99.980 % of requested segments

Source:	V1:ASC_B2_QD2_6MHz_H_I
Number of active clusters:	132492
Source livetime:	949890.000 s = 99.967 % of requested segments

Coincidence:
Coincident livetime:	949774.000 s
	= 99.954 % of requested segments
	= 99.975 % of target segments
	= 99.988 % of source segments
Number of source clusters involved in a coinc:	309 (0.233 %)

Veto:
Number of source clusters used to veto target clusters:	0

UPV version:	3.2.0: documentation gitlab repository
UPV run by:	unknown
UPV processing time:	0 h, 19 min, 26 s
Processing Date:	Fri Feb 21 12:20:49 2025 (UTC)
Requested start:	1407499998 → Mon Aug 12 12:13:00 2024 (UTC)
Requested stop:	1408708852 → Mon Aug 26 12:00:34 2024 (UTC)
Requested livetime:	950208 sec → 10.998 days
Requested segments:	upv.insegments.txt
Summary text file:	upv.summary.txt
Number of source channels:	100 (out of 100)

Configuration:	upv.parameters.txt
Target SNR selection:	SNR > 6.000
Target frequency selection:	16.000 Hz < f < 1956.764 Hz
Coincidence time window:	δt = 1.000 s
Veto definition:	use-percentage > 0.400 (per frequency bin)
	number of used source clusters > 10 (per frequency bin)

UPV analysis over V1:Hrec_hoft_16384Hz

Summary

Parameters

Target = V1:Hrec_hoft_16384Hz

Veto performance

V0 (73): V1:ASC_B4_QD1_H_0 [click here to expand/hide] [link to here]

V1 (52): V1:ASC_B7B8_QD1_SUM_H_0 [click here to expand/hide] [link to here]

V2 (34): V1:ASC_B7_QD2_Sum_0 [click here to expand/hide] [link to here]

V3 (33): V1:ASC_BS_B1p_TY_HF_0 [click here to expand/hide] [link to here]

V4 (29): V1:ASC_B5_QD2_56MHz_V_I_0 [click here to expand/hide] [link to here]

V5 (24): V1:ASC_B7_QD2_H_0 [click here to expand/hide] [link to here]

V6 (23): V1:ASC_B7_QD1_Sum_0 [click here to expand/hide] [link to here]

V7 (22): V1:ASC_B7_QD1_V_0 [click here to expand/hide] [link to here]

V8 (21): V1:ASC_B7_QD2_V_0 [click here to expand/hide] [link to here]

V9 (20): V1:ASC_B7_QD1_H_0 [click here to expand/hide] [link to here]

V10 (13): V1:ASC_B5_QD2_56MHz_H_I_0 [click here to expand/hide] [link to here]

V11 (12): V1:ASC_B2_QD2_H_0 [click here to expand/hide] [link to here]

V12 (12): V1:ASC_B2_QD2_8MHz_V_I_0 [click here to expand/hide] [link to here]

V13 (11): V1:ASC_BS_B1p_TX_HF_0 [click here to expand/hide] [link to here]

V14 (11): V1:ASC_B8_QD2_Sum_0 [click here to expand/hide] [link to here]

V15 (11): V1:ASC_B4_QD2_Sum_0 [click here to expand/hide] [link to here]

V16 (0): V1:ASC_BS_TX_IN_0 [click here to expand/hide] [link to here]

V17 (0): V1:ASC_BS_TX_ERR_0 [click here to expand/hide] [link to here]

V18 (0): V1:ASC_BS_TX_ENBL_0 [click here to expand/hide] [link to here]

V19 (0): V1:ASC_BS_TX_CORR_0 [click here to expand/hide] [link to here]

V20 (0): V1:ASC_BS_TX_0 [click here to expand/hide] [link to here]

V21 (0): V1:ASC_BS_DOF_TY_NOISE_0 [click here to expand/hide] [link to here]

V22 (0): V1:ASC_BS_DOF_TY_CORR_0 [click here to expand/hide] [link to here]

V23 (0): V1:ASC_BS_DOF_TX_NOISE_0 [click here to expand/hide] [link to here]

V24 (0): V1:ASC_BS_DOF_TX_CORR_0 [click here to expand/hide] [link to here]

V25 (0): V1:ASC_BS_BL_B4_6MHz_TY_0 [click here to expand/hide] [link to here]

V26 (0): V1:ASC_BS_BL_B4_6MHz_TX_0 [click here to expand/hide] [link to here]

V27 (0): V1:ASC_BS_BL_B1p_TY_0 [click here to expand/hide] [link to here]

V28 (0): V1:ASC_BS_BL_B1p_TX_0 [click here to expand/hide] [link to here]

V29 (0): V1:ASC_BS_BL_B1p_56MHz_TY_0 [click here to expand/hide] [link to here]

V30 (0): V1:ASC_BS_BL_B1p_56MHz_TX_0 [click here to expand/hide] [link to here]

V31 (0): V1:ASC_BS_B4_6MHz_TY_HF_0 [click here to expand/hide] [link to here]

V32 (0): V1:ASC_BS_B4_6MHz_TX_HF_0 [click here to expand/hide] [link to here]

V33 (0): V1:ASC_BS_B1p_56MHz_TY_HF_0 [click here to expand/hide] [link to here]

V34 (0): V1:ASC_BS_B1p_56MHz_TX_HF_0 [click here to expand/hide] [link to here]

V35 (0): V1:ASC_B8_QD2_V_0 [click here to expand/hide] [link to here]

V36 (0): V1:ASC_B8_QD2_H_0 [click here to expand/hide] [link to here]

V37 (0): V1:ASC_B8_QD1_V_0 [click here to expand/hide] [link to here]

V38 (0): V1:ASC_B8_QD1_Sum_0 [click here to expand/hide] [link to here]

V39 (0): V1:ASC_B8_QD1_H_0 [click here to expand/hide] [link to here]

V40 (0): V1:ASC_B7_QD_V_select_0 [click here to expand/hide] [link to here]

V41 (0): V1:ASC_B7_QD_H_select_0 [click here to expand/hide] [link to here]

V42 (0): V1:ASC_B7_QD2_V_scale_0 [click here to expand/hide] [link to here]

V43 (0): V1:ASC_B7_QD2_H_scale_0 [click here to expand/hide] [link to here]

V44 (0): V1:ASC_B7_QD1_V_scale_0 [click here to expand/hide] [link to here]

V45 (0): V1:ASC_B7_QD1_H_scale_0 [click here to expand/hide] [link to here]

V46 (0): V1:ASC_B7B8_QD1_SUM_V_0 [click here to expand/hide] [link to here]

V47 (0): V1:ASC_B5_QD2_V_0 [click here to expand/hide] [link to here]

V48 (0): V1:ASC_B5_QD2_Sum_0 [click here to expand/hide] [link to here]

V49 (0): V1:ASC_B5_QD2_H_0 [click here to expand/hide] [link to here]

V50 (0): V1:ASC_B5_QD2_56MHz_V_Q_0 [click here to expand/hide] [link to here]

V51 (0): V1:ASC_B5_QD2_56MHz_H_Q_0 [click here to expand/hide] [link to here]

V52 (0): V1:ASC_B5_QD1_V_0 [click here to expand/hide] [link to here]

V53 (0): V1:ASC_B5_QD1_Sum_0 [click here to expand/hide] [link to here]

V54 (0): V1:ASC_B5_QD1_H_0 [click here to expand/hide] [link to here]

V55 (0): V1:ASC_B5_QD1_56MHz_V_Q_0 [click here to expand/hide] [link to here]

V56 (0): V1:ASC_B5_QD1_56MHz_V_I_0 [click here to expand/hide] [link to here]

V57 (0): V1:ASC_B5_QD1_56MHz_H_Q_0 [click here to expand/hide] [link to here]

V58 (0): V1:ASC_B5_QD1_56MHz_H_I_0 [click here to expand/hide] [link to here]

V59 (0): V1:ASC_B4_QD_V_select_0 [click here to expand/hide] [link to here]

V60 (0): V1:ASC_B4_QD_H_select_0 [click here to expand/hide] [link to here]

V61 (0): V1:ASC_B4_QD_6MHz_V_select_0 [click here to expand/hide] [link to here]

V62 (0): V1:ASC_B4_QD_6MHz_H_select_0 [click here to expand/hide] [link to here]

V63 (0): V1:ASC_B4_QD2_V_scale_0 [click here to expand/hide] [link to here]

V64 (0): V1:ASC_B4_QD2_V_0 [click here to expand/hide] [link to here]

V65 (0): V1:ASC_B4_QD2_H_scale_0 [click here to expand/hide] [link to here]

V66 (0): V1:ASC_B4_QD2_H_0 [click here to expand/hide] [link to here]

V67 (0): V1:ASC_B4_QD2_6MHz_V_scale_0 [click here to expand/hide] [link to here]

V68 (0): V1:ASC_B4_QD2_6MHz_V_Q_0 [click here to expand/hide] [link to here]

V69 (0): V1:ASC_B4_QD2_6MHz_V_I_0 [click here to expand/hide] [link to here]

V70 (0): V1:ASC_B4_QD2_6MHz_H_scale_0 [click here to expand/hide] [link to here]

V71 (0): V1:ASC_B4_QD2_6MHz_H_Q_0 [click here to expand/hide] [link to here]

V72 (0): V1:ASC_B4_QD2_6MHz_H_I_0 [click here to expand/hide] [link to here]

V73 (0): V1:ASC_B4_QD2_56MHz_V_Q_0 [click here to expand/hide] [link to here]

V74 (0): V1:ASC_B4_QD2_56MHz_V_I_0 [click here to expand/hide] [link to here]
