| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Sat Sep 5 09:32:16 2026 UTC |
| Ox option file: | ox_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:DCS-CALIB_STRAIN_C01, L1:DCS-CALIB_STRAIN_C01 |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 16 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.012204 s |
| Number of time-delay bins in a cross-correlation map: | 40960 |
| Number of slices in a cross-correlation map: | 225 |
| Number of time-delay bins in a slice: | 182 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Sky position: | RA = 210.911 deg, DEC = 54.3117 deg, ± -1 deg (ALL-SKY) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| List of input Ox files: | ox_file_list.txt (799 files) |
| Analysis result file: | ox_results-0.root |
| Slice selected for the the fakeground: | slice index=8 (4.62109 s), time lag = 0 s |

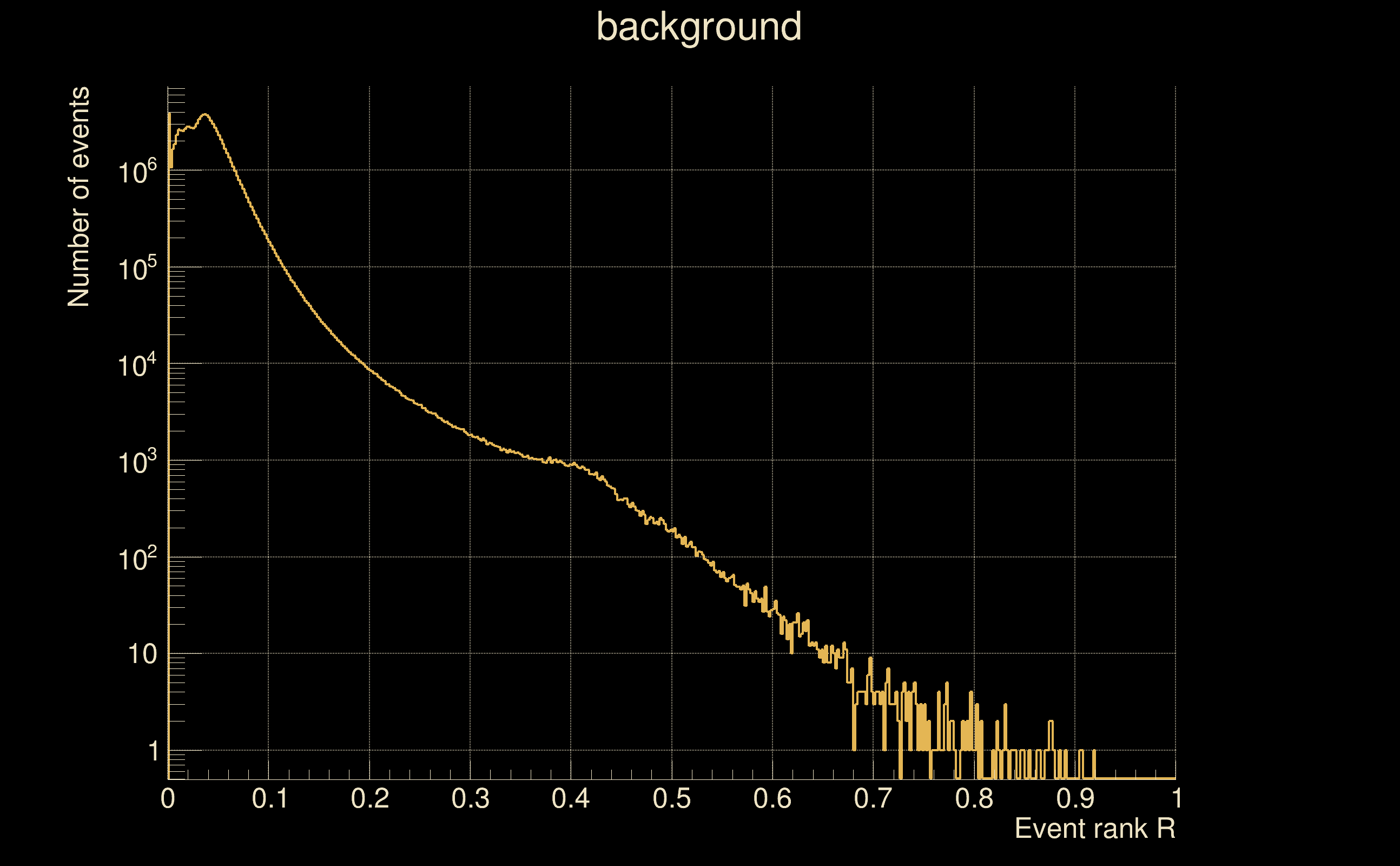

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 427086 | 427086 | 95240178 | |
| Start Date (detector 0) | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | |
| End Date (detector 0) | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | |
| Start GPS (detector 0) | 1262304003 | 1262304003 | 1262304003 | |
| End GPS (detector 0) | 1265759996 | 1265759996 | 1265759996 | |
| Used livetime (detector 0) | 2.13955e+06 s | 2.13955e+06 s | 2.13955e+06 s | |
| Start Date (detector 1) | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | |
| End Date (detector 1) | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | |
| Start GPS (detector 1) | 1262304003 | 1262304003 | 1262304003 | |
| End GPS (detector 1) | 1265759996 | 1265759996 | 1265759996 | |
| Used livetime (detector 1) | 2.13955e+06 s | 2.13955e+06 s | 2.13955e+06 s | |
| Cumulative livetime | 4270860 s | 4270860 s | 952401780 s | |
| 0 years, 49 days, 10 hours, 21 min, 0 s | 0 years, 49 days, 10 hours, 21 min, 0 s | 30 years, 65 days, 4 hours, 3 min, 0 s |
|
|

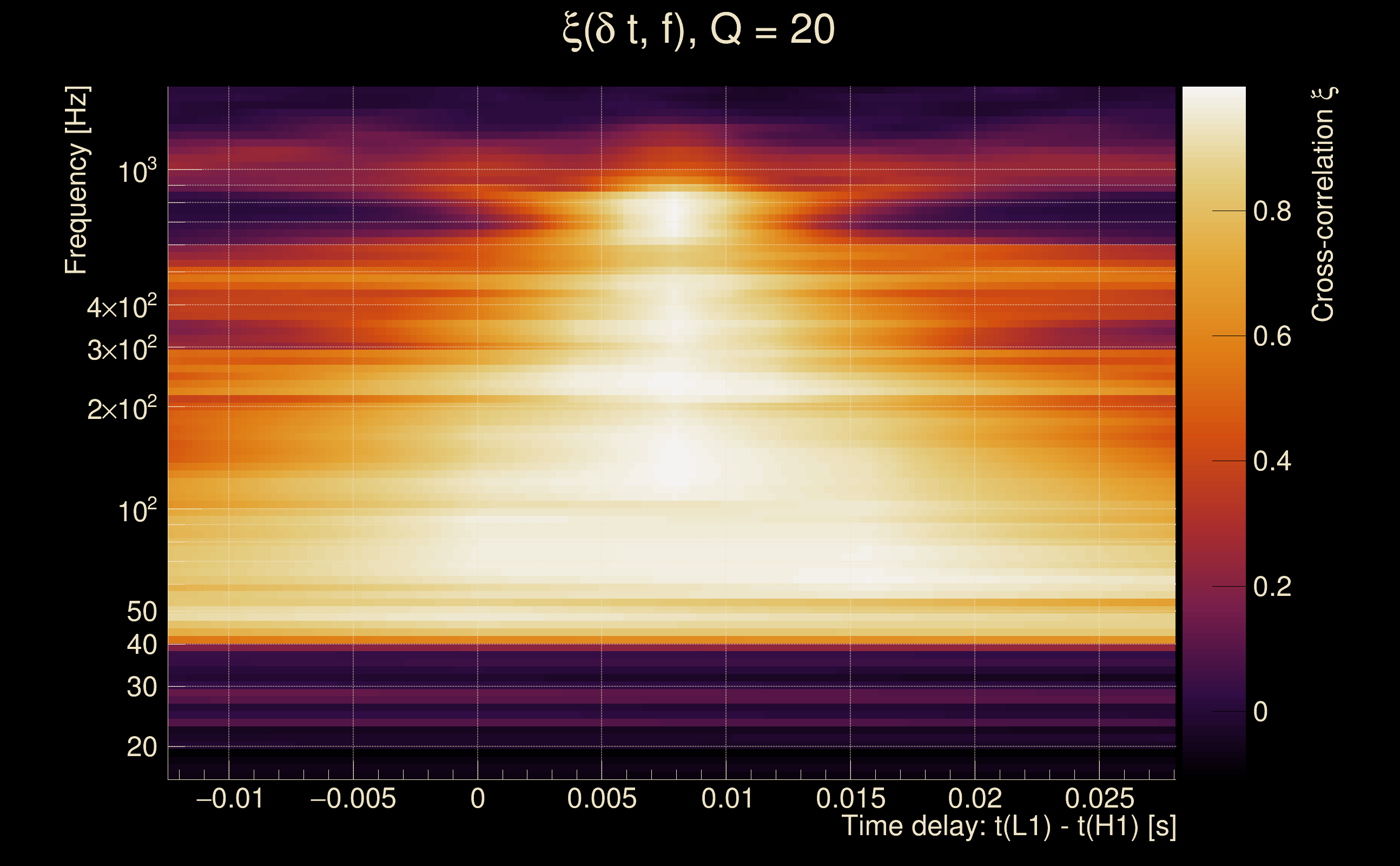

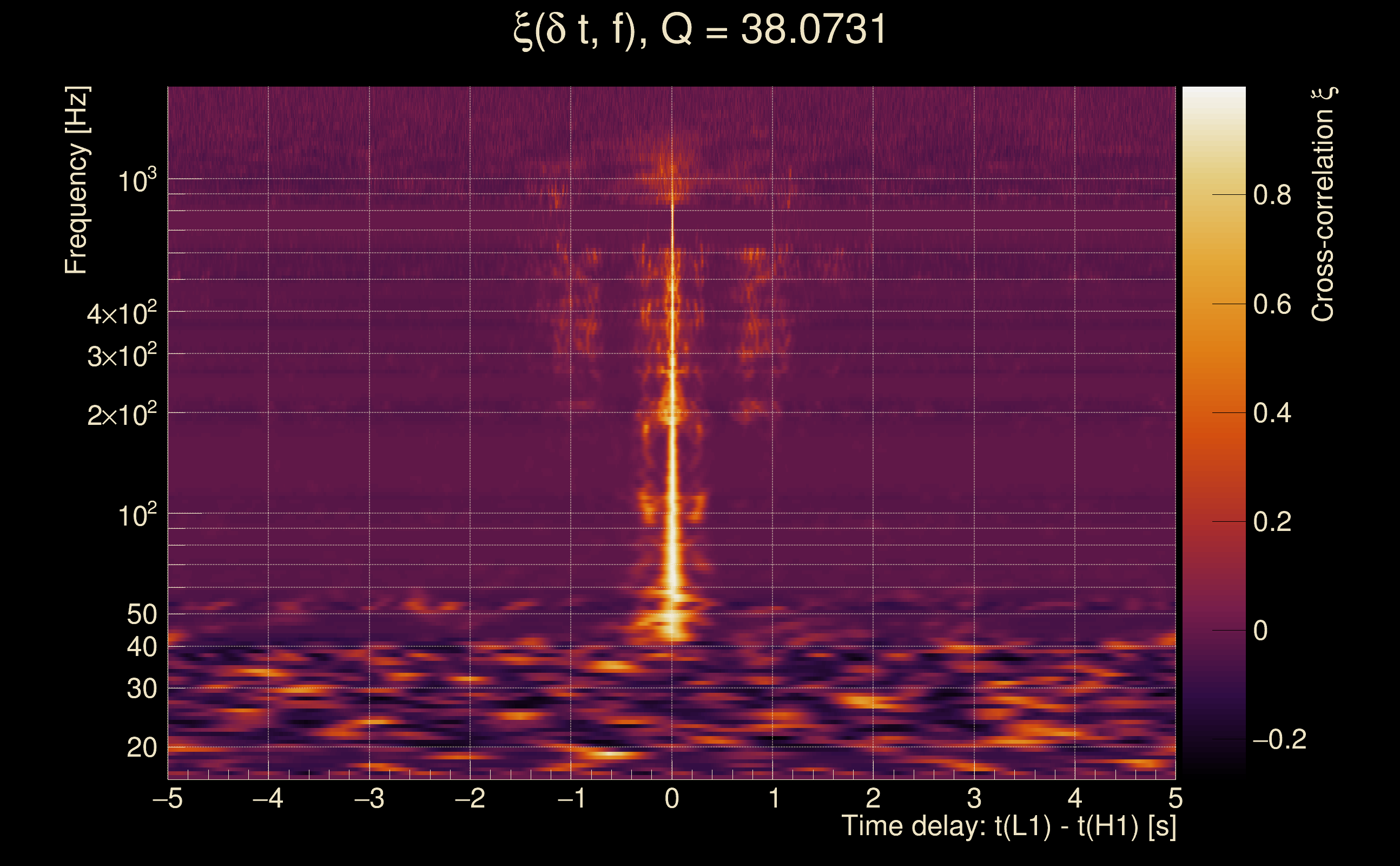

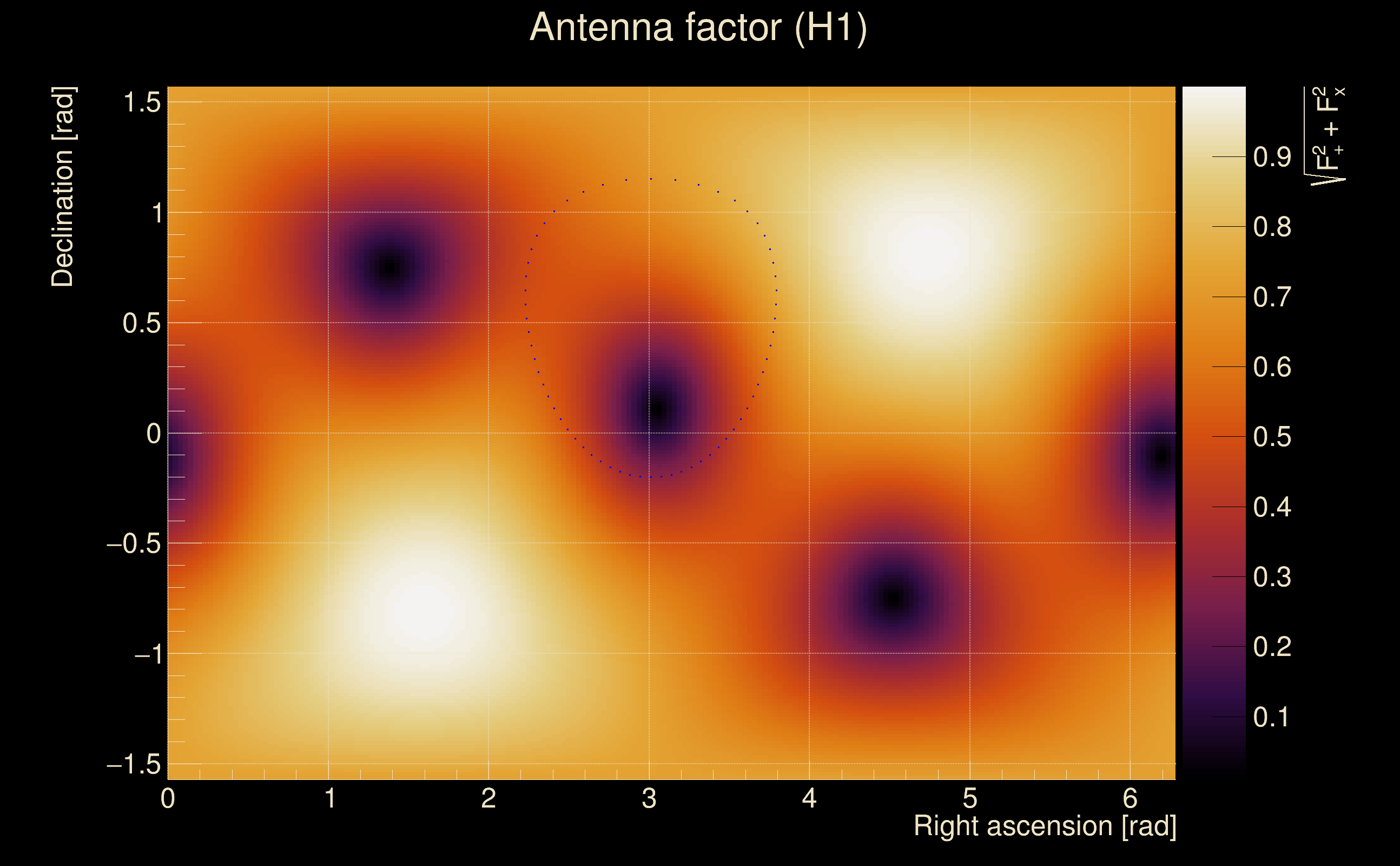

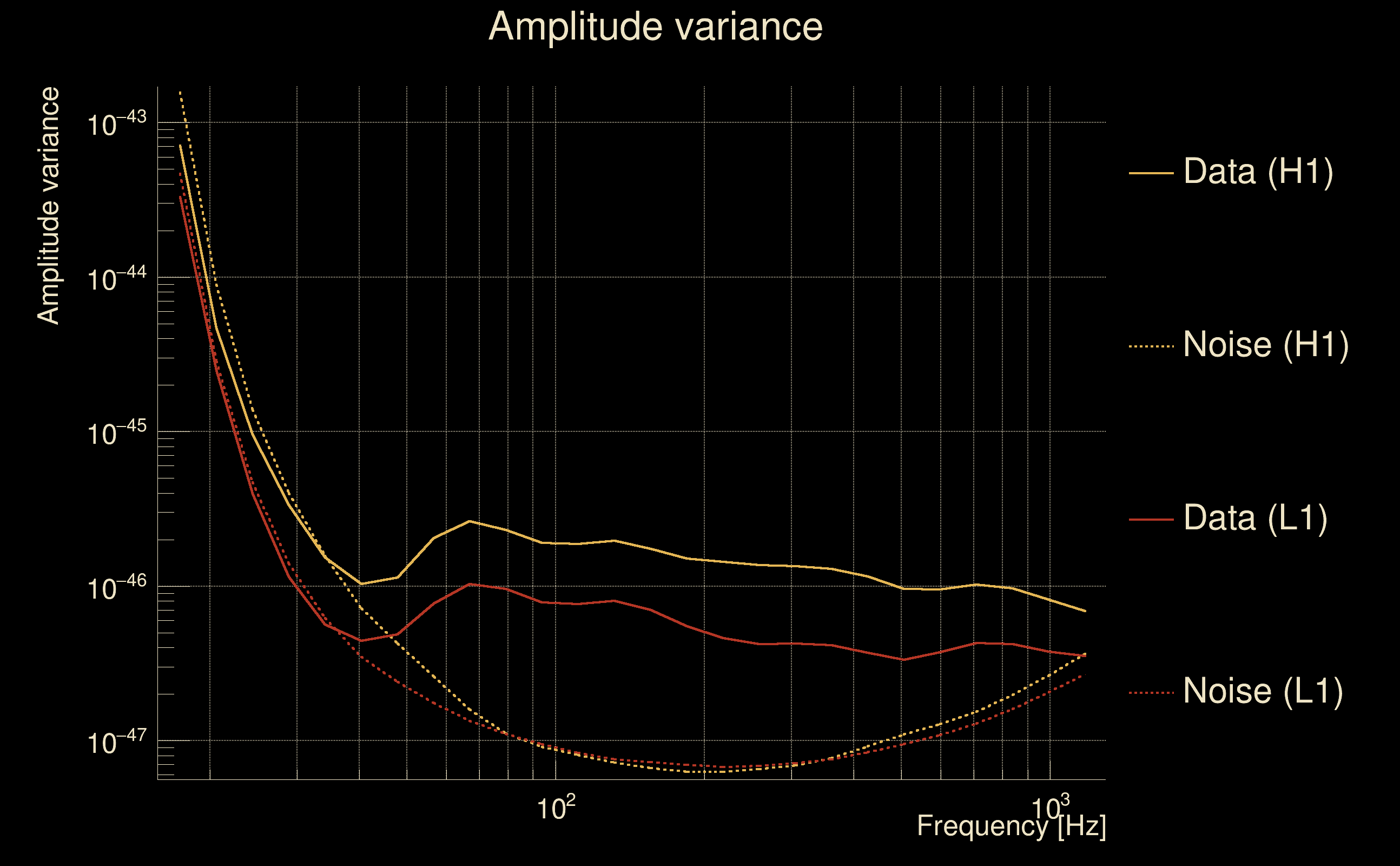

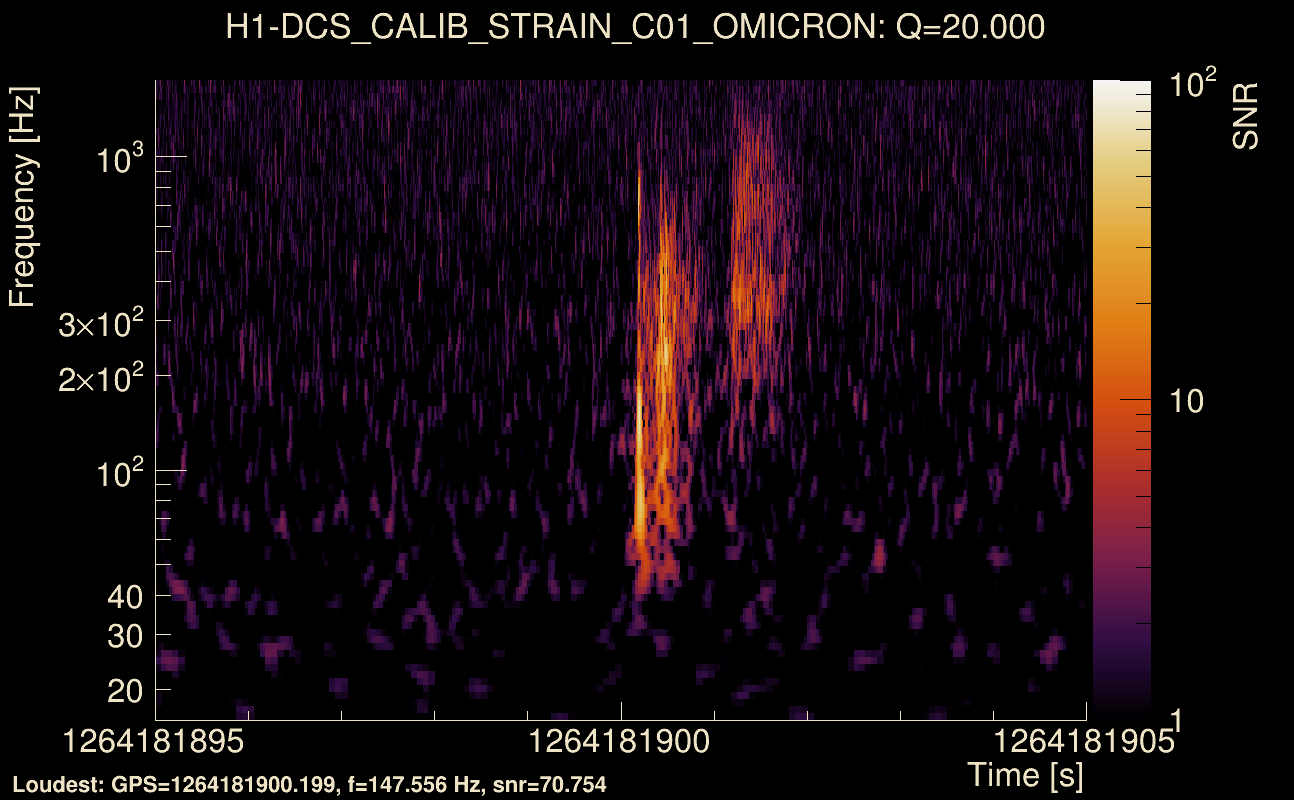

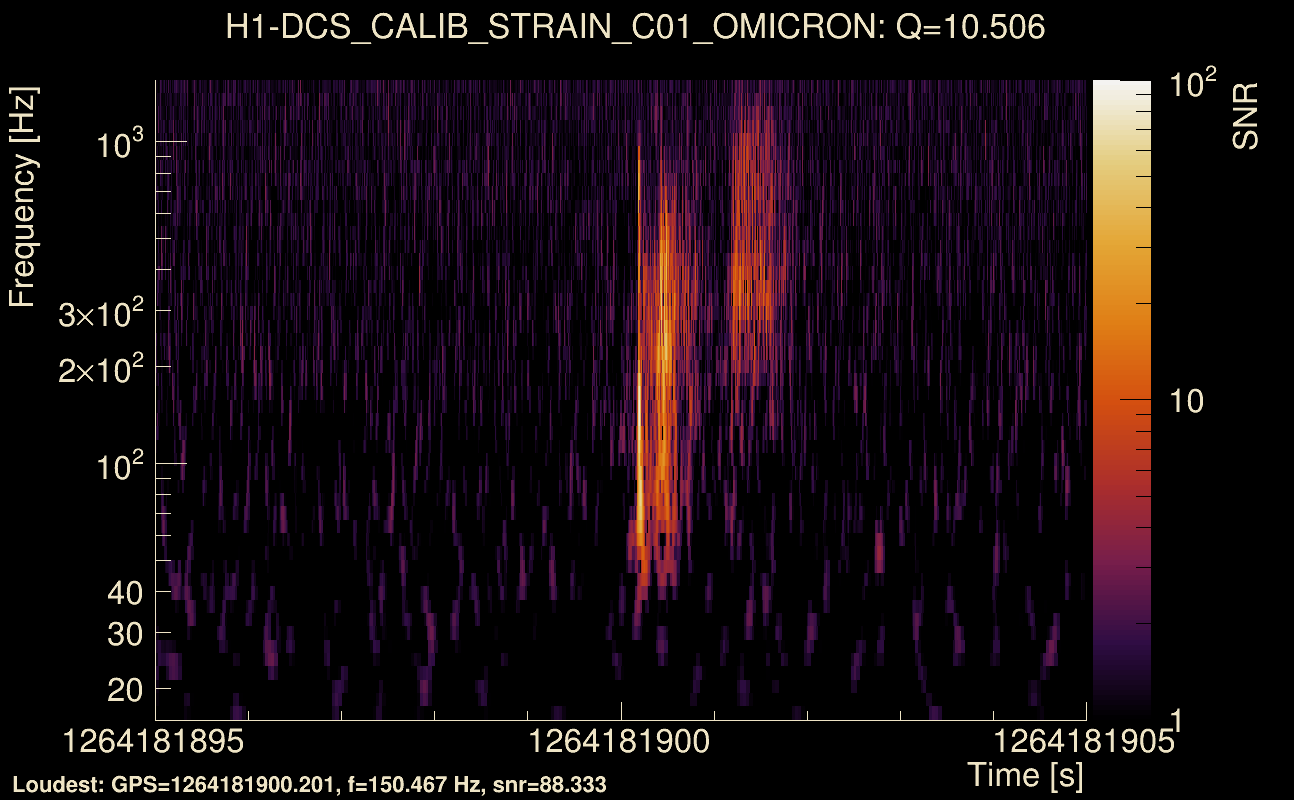

| Event time t(H1): | GPS = 1264181895 (Mon Jan 27 17:37:57 2020 ) → GPS = 1264181905 (Mon Jan 27 17:38:07 2020 ) |
| Event time t(L1): | GPS = 1264181895 (Mon Jan 27 17:38:07 2020 ) → GPS = 1264181905 (Mon Jan 27 17:38:07 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264181892 → GPS = 1264181908 |
| Omicron analysis time window (L1): | GPS = 1264181892 → GPS = 1264181908 |
| Time delay between detectors t(L1) - t(H1): | 0.00780672 s (slice index = 112 / 225), δt_gw = 0.00780672 s |
| Time delay uncertainty: | 8.25797e-05 s |
| Frequency: | 209.458 Hz |
| Ξ: | 0.978458 ± 0.00822699 (variance = 6.76834e-05): Q0: 0.98133, Q1: 0.983711, Q2: 0.968877, Q3: 0.965727, Q4: 0.963786 |
| Rank: | R_X = 0.978458 |
| Log of amplitude ratio (L1/H1): | -0.597314, variance = 0.00883985 (L1/H1: -0.574733, variance = 0.0107994, H1/L1: 0.687115, variance = 0.0481582) |
| Amplitude ratio (L1/H1): | 0.550288 ⋇ 1.09858 (L1/H1: 0.562855 ⋇ 1.10951, H1/L1: 1.98797 ⋇ 1.24539) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.643483 |

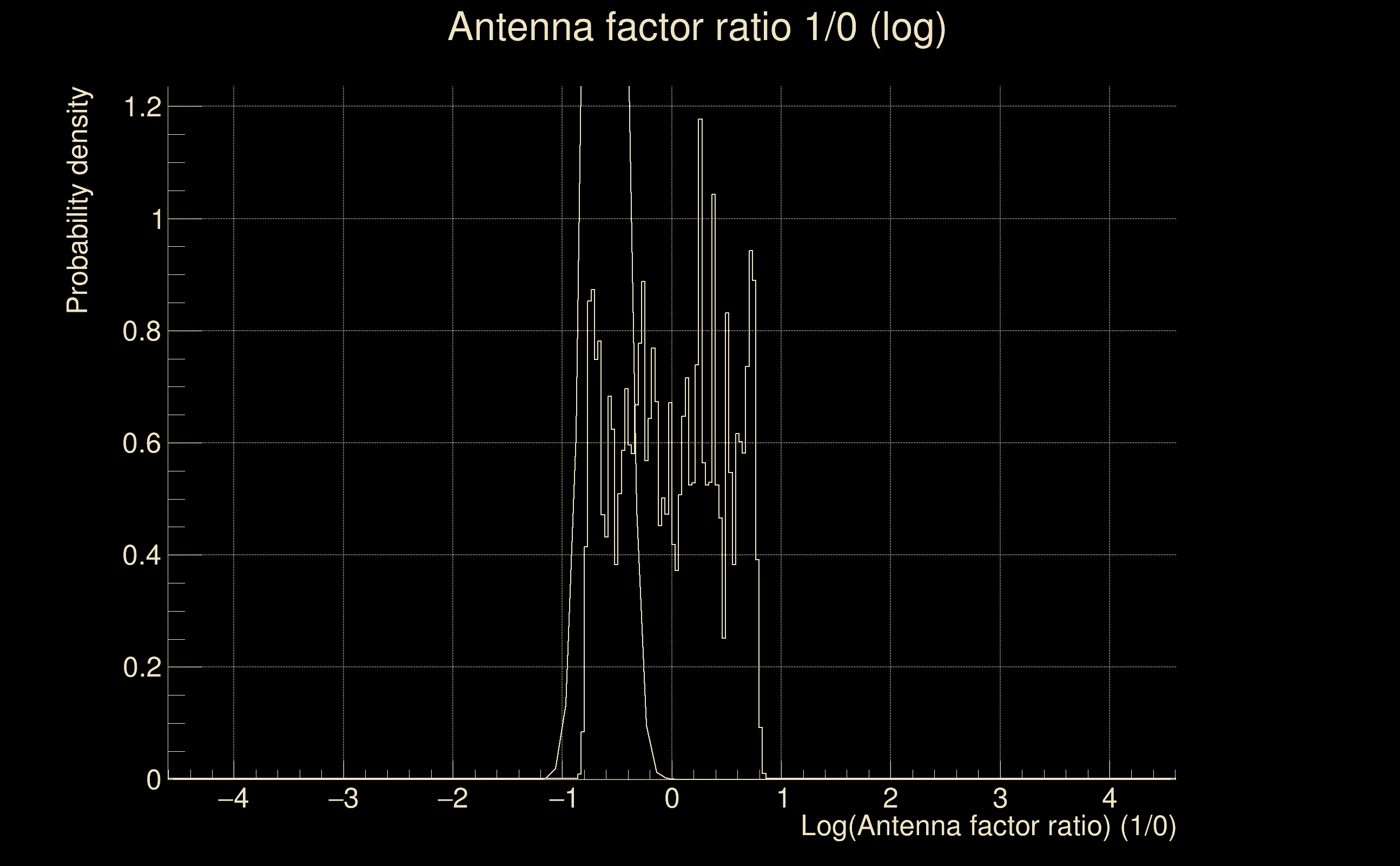

| Antenna factor probability: | 0.297377 |
| Sky position probability: | 1 (expected δt_gw = 0.00779236 s) |
| Number of rejected frequency rows: | Q0: 8 / 26, Q1: 19 / 48, Q2: 44 / 92, Q3: 90 / 176, Q4: 186 / 338 |
| Maximum signal-to-noise ratio: | H1: 96.7281, L1: 48.5042 |
| SNR variance: | H1: 0.488511, L1: 0.22199 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

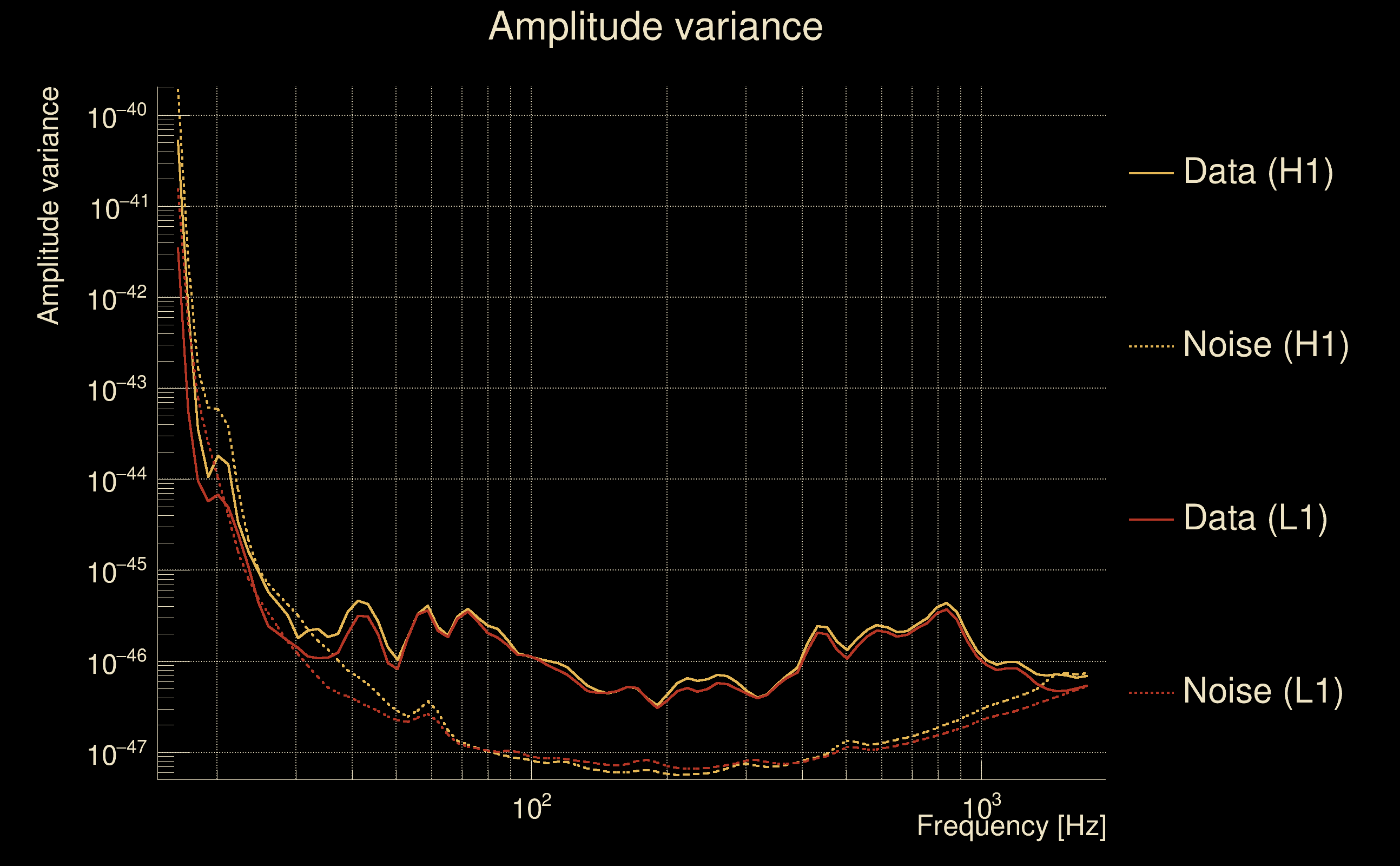

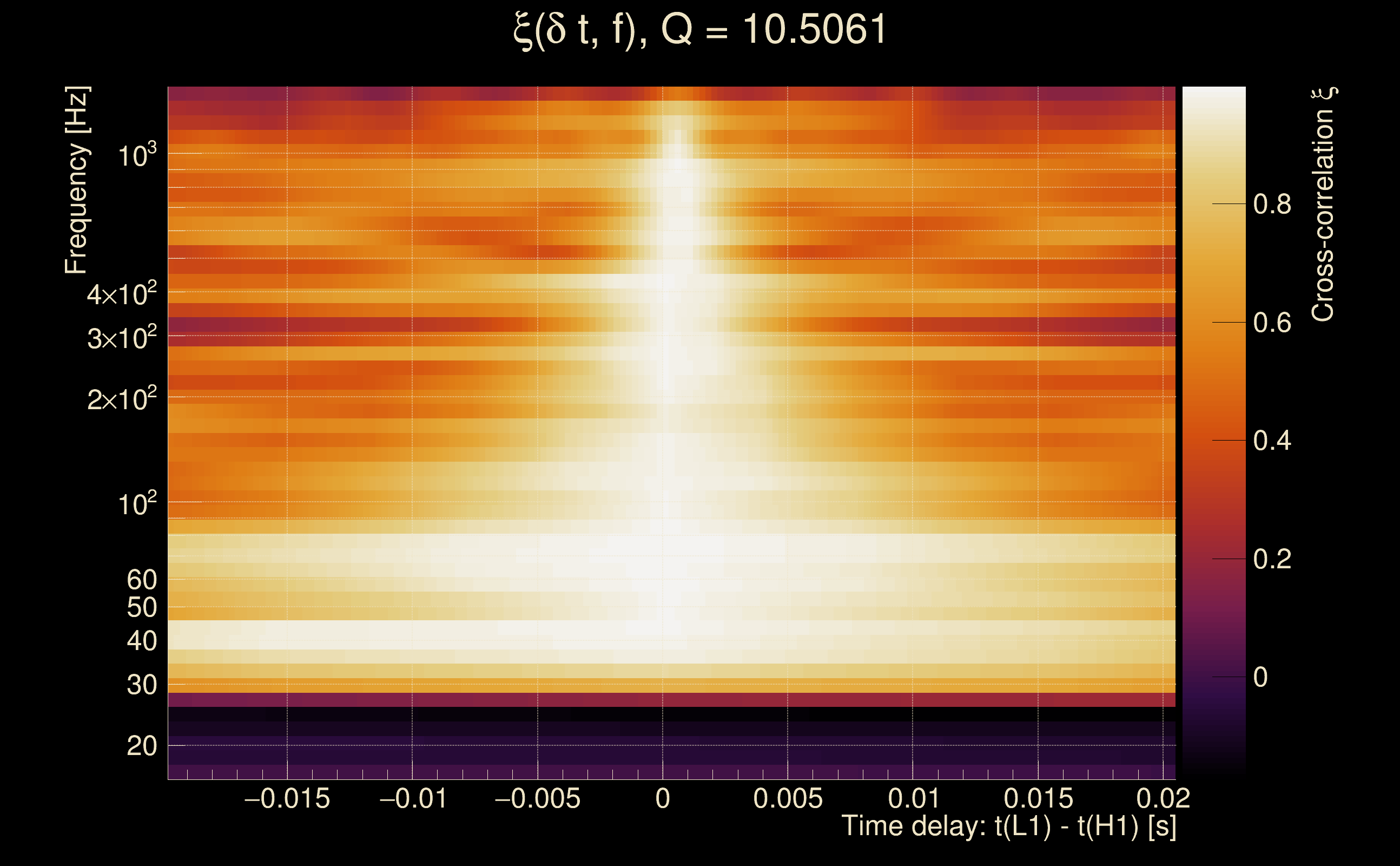

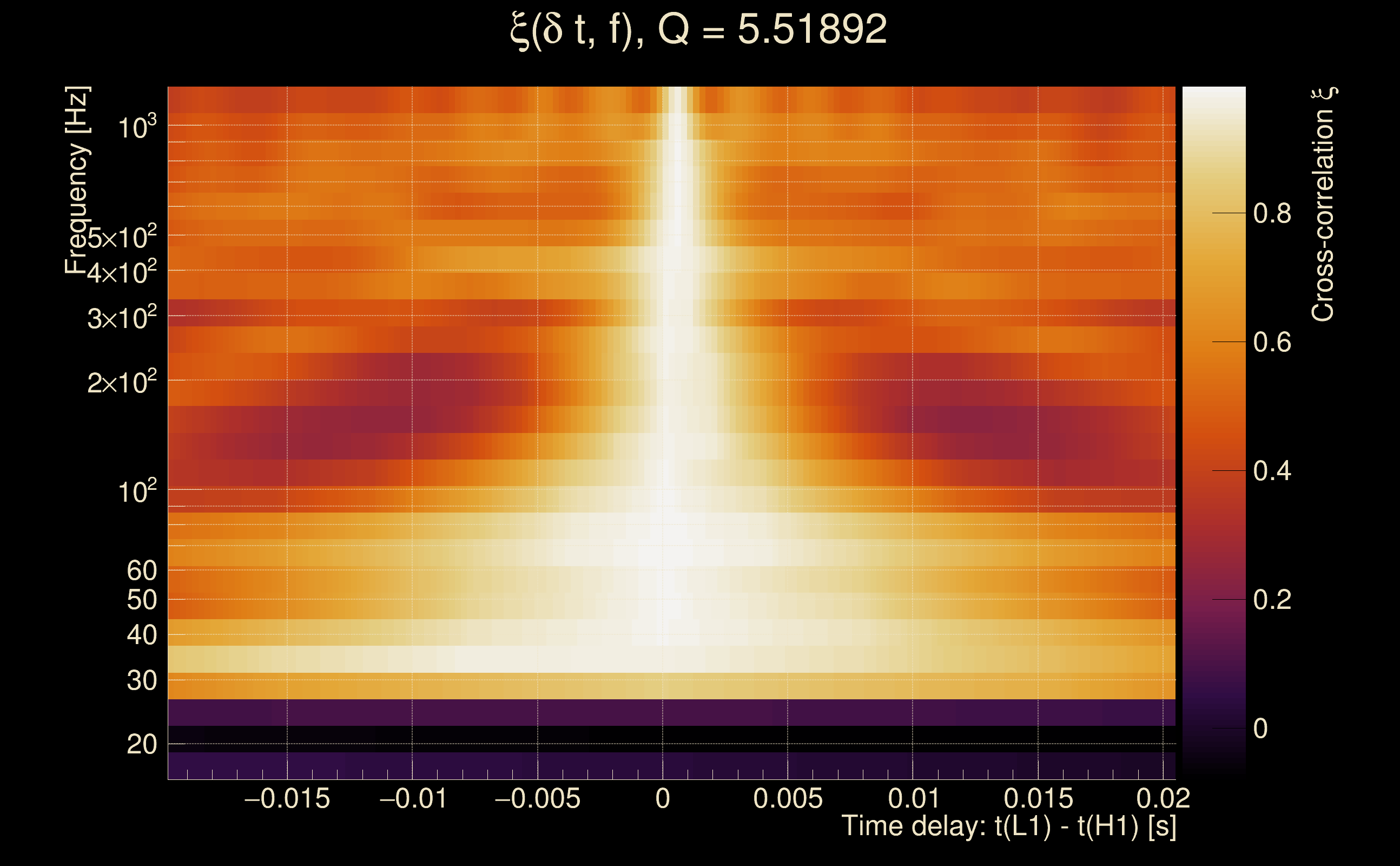

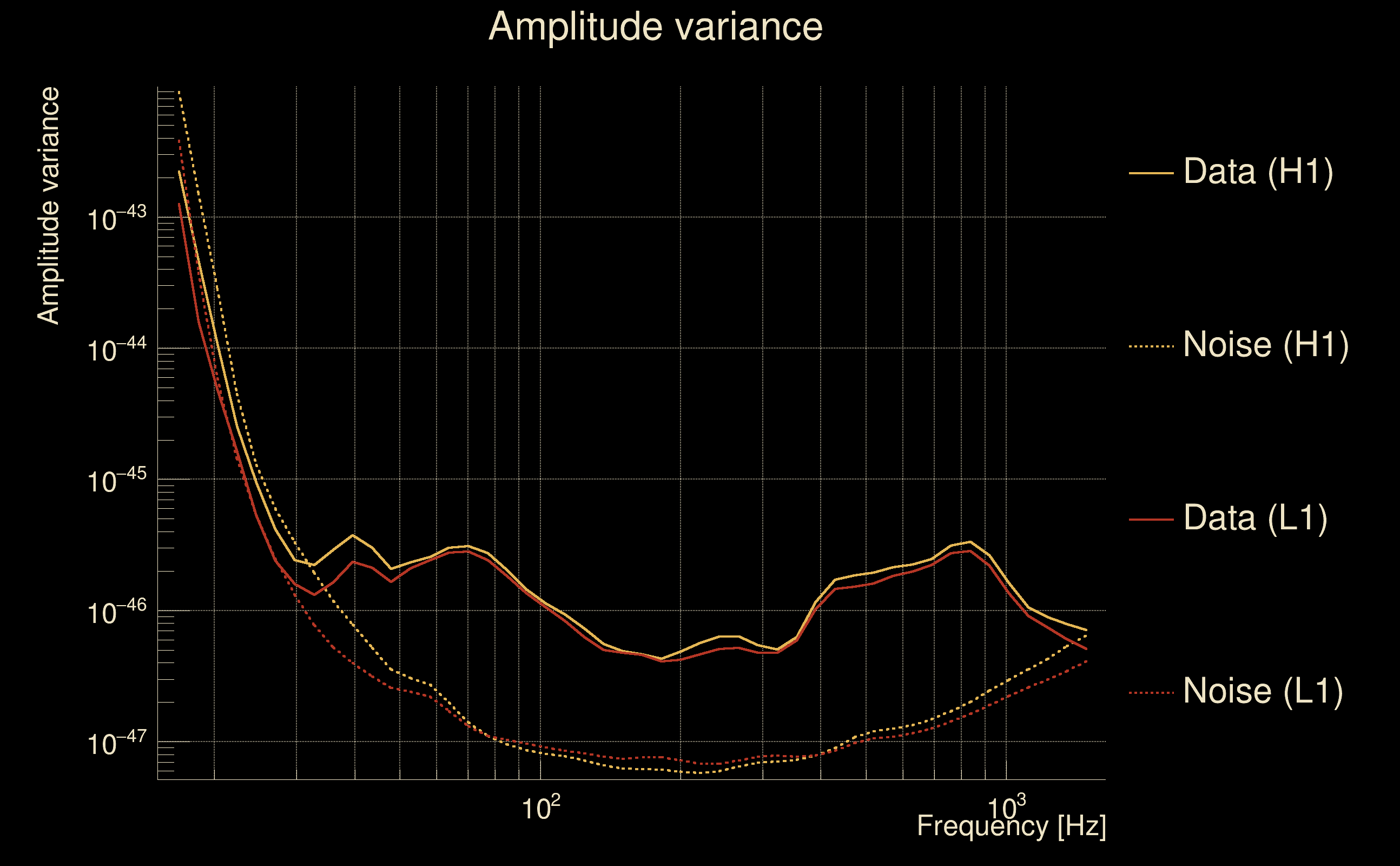

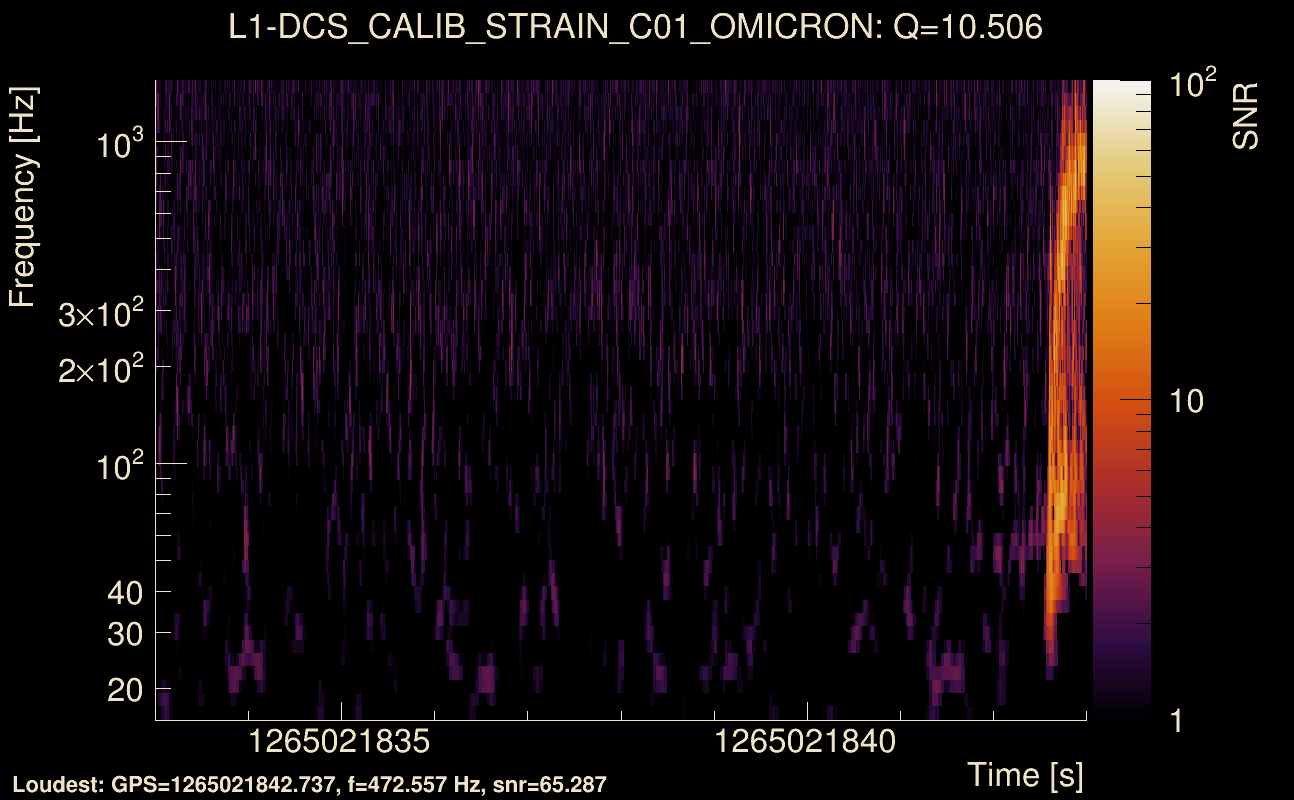

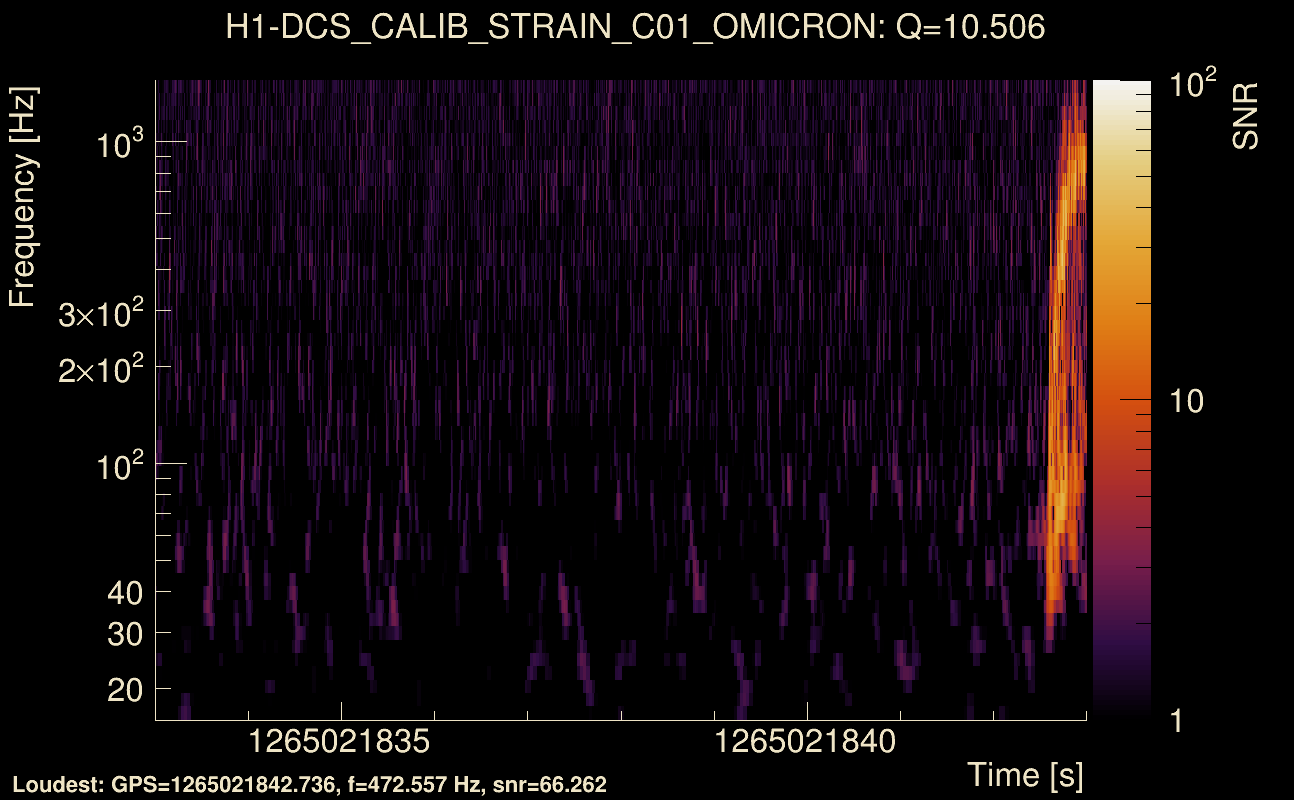

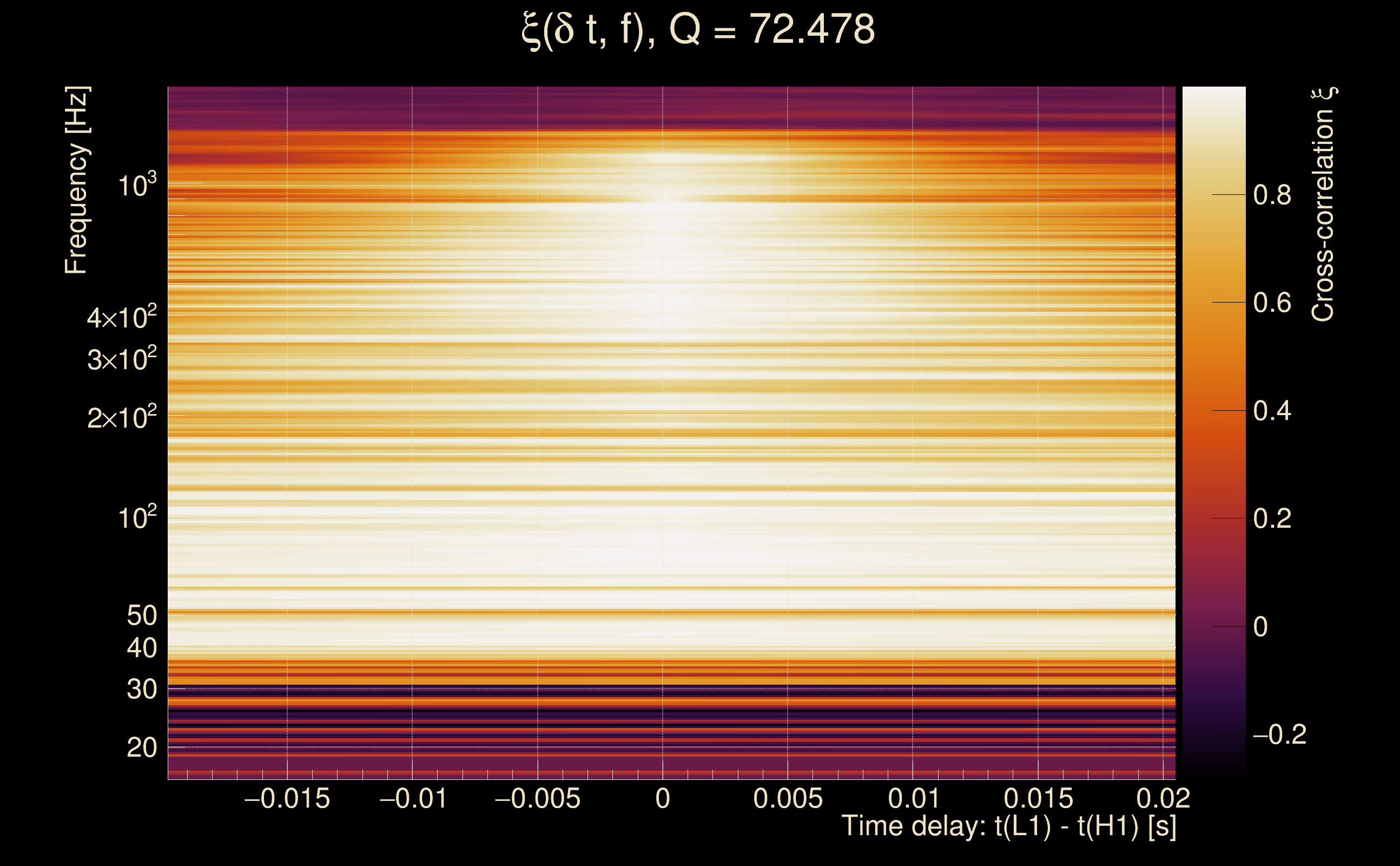

| Event time t(H1): | GPS = 1265021833 (Thu Feb 6 10:56:55 2020 ) → GPS = 1265021843 (Thu Feb 6 10:57:05 2020 ) |
| Event time t(L1): | GPS = 1265021833 (Thu Feb 6 10:57:05 2020 ) → GPS = 1265021843 (Thu Feb 6 10:57:05 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265021830 → GPS = 1265021846 |
| Omicron analysis time window (L1): | GPS = 1265021830 → GPS = 1265021846 |
| Time delay between detectors t(L1) - t(H1): | 0.000430731 s (slice index = 112 / 225), δt_gw = 0.000430731 s |
| Time delay uncertainty: | 4.85655e-05 s |
| Frequency: | 217.721 Hz |
| Ξ: | 0.976014 ± 0.0107272 (variance = 0.000115073): Q0: 0.984224, Q1: 0.970364, Q2: 0.971027, Q3: 0.963544, Q4: 0.951339 |
| Rank: | R_X = 0.976014 |
| Log of amplitude ratio (L1/H1): | -0.0751488, variance = 0.00153118 (L1/H1: -0.0795604, variance = 0.00297704, H1/L1: 0.0703133, variance = 0.00315071) |
| Amplitude ratio (L1/H1): | 0.927605 ⋇ 1.03991 (L1/H1: 0.923522 ⋇ 1.05608, H1/L1: 1.07284 ⋇ 1.05774) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.905966 |
| Antenna factor probability: | 0.672009 |
| Sky position probability: | 1 (expected δt_gw = 0.00045056 s) |
| Number of rejected frequency rows: | Q0: 4 / 26, Q1: 7 / 48, Q2: 17 / 92, Q3: 35 / 176, Q4: 86 / 338 |
| Maximum signal-to-noise ratio: | H1: 84.833, L1: 81.029 |
| SNR variance: | H1: 0.454665, L1: 0.50624 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

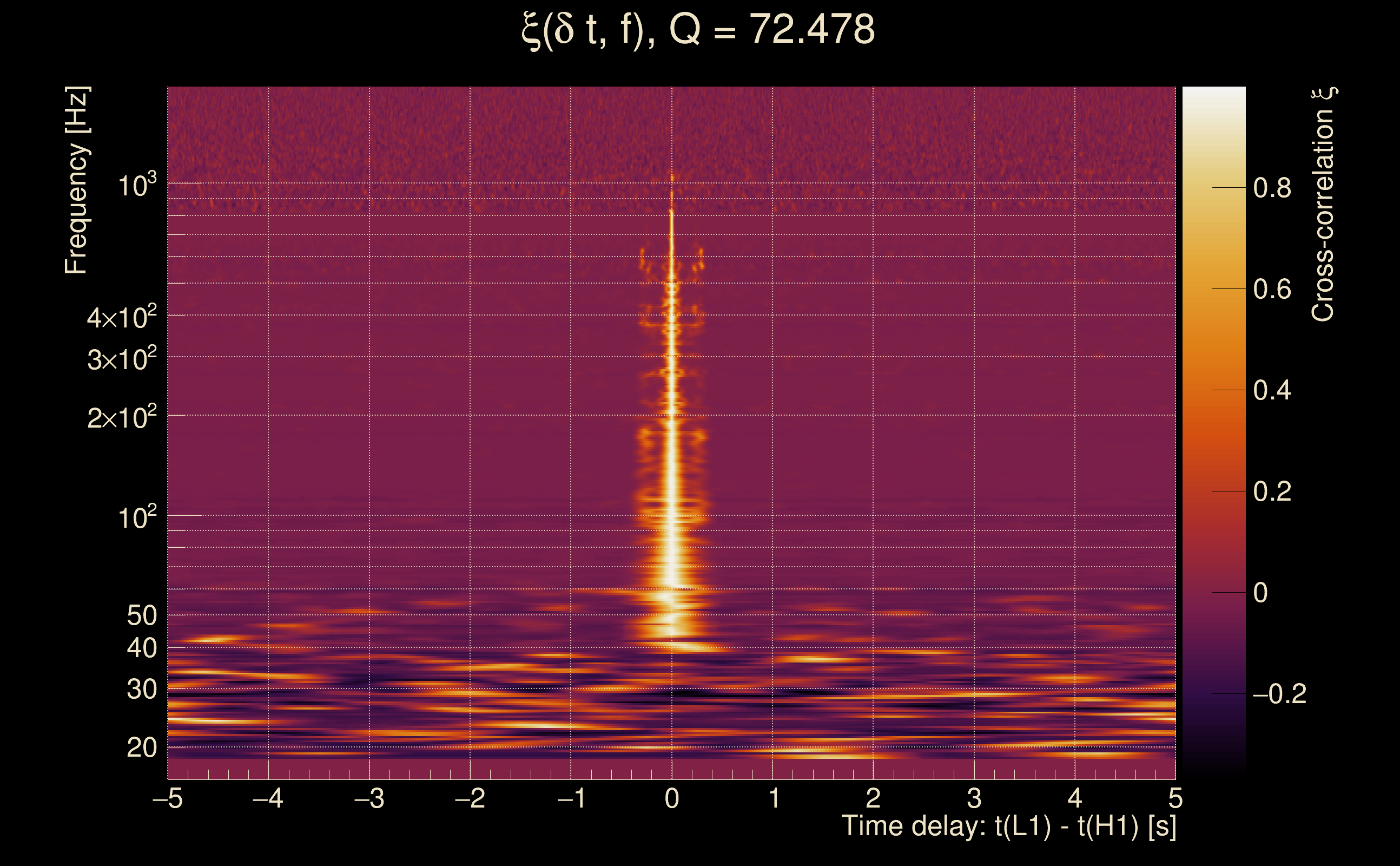

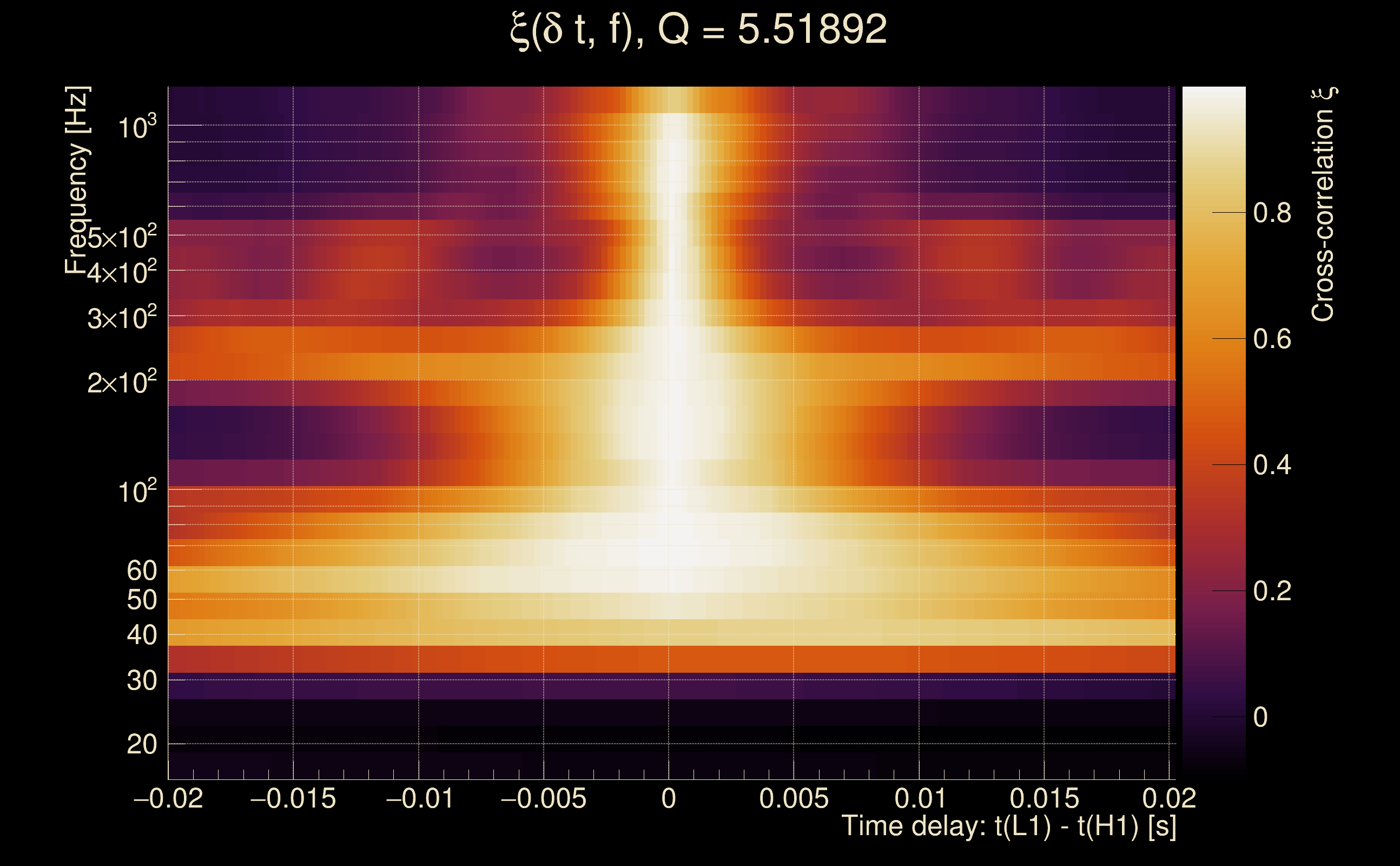

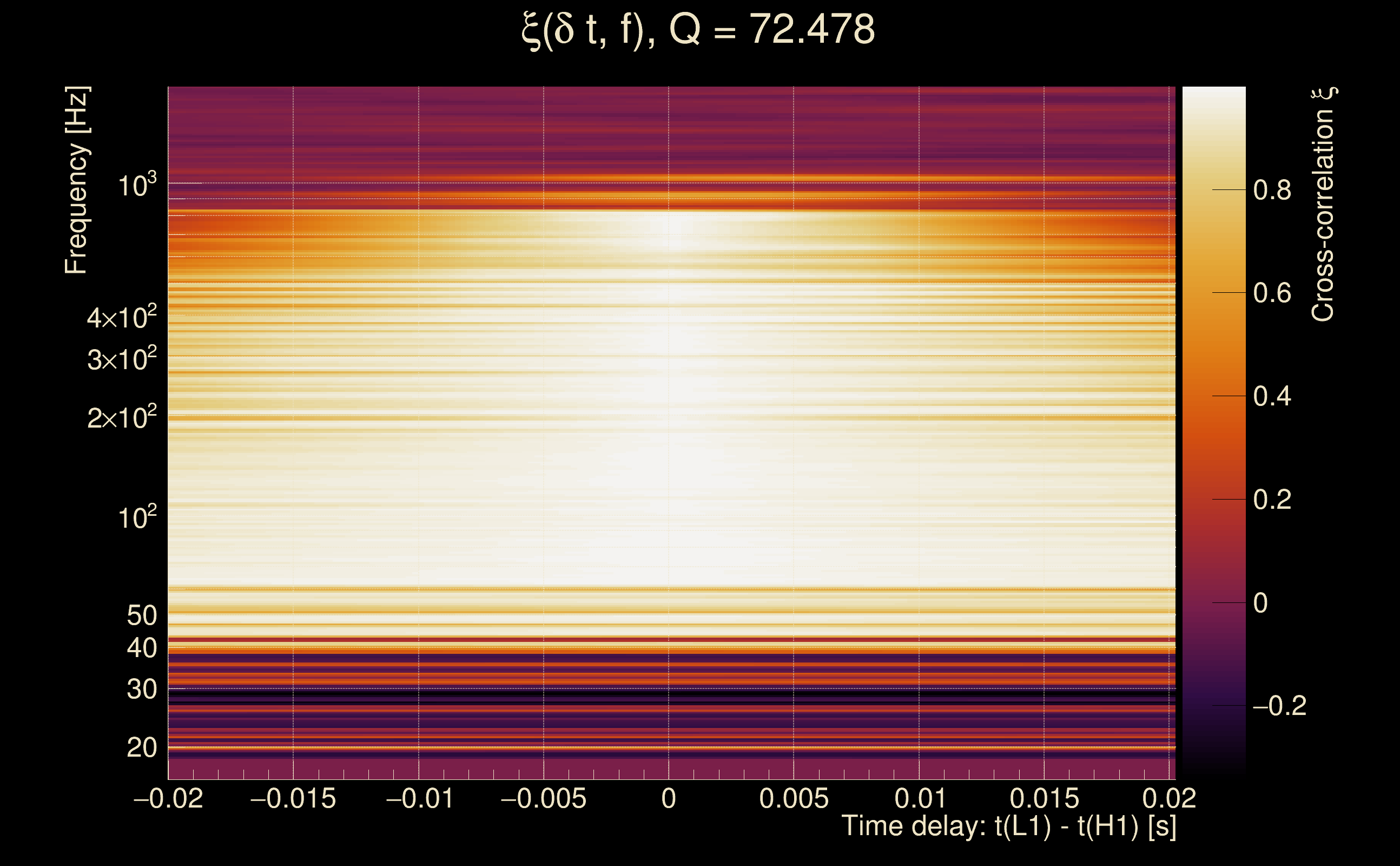

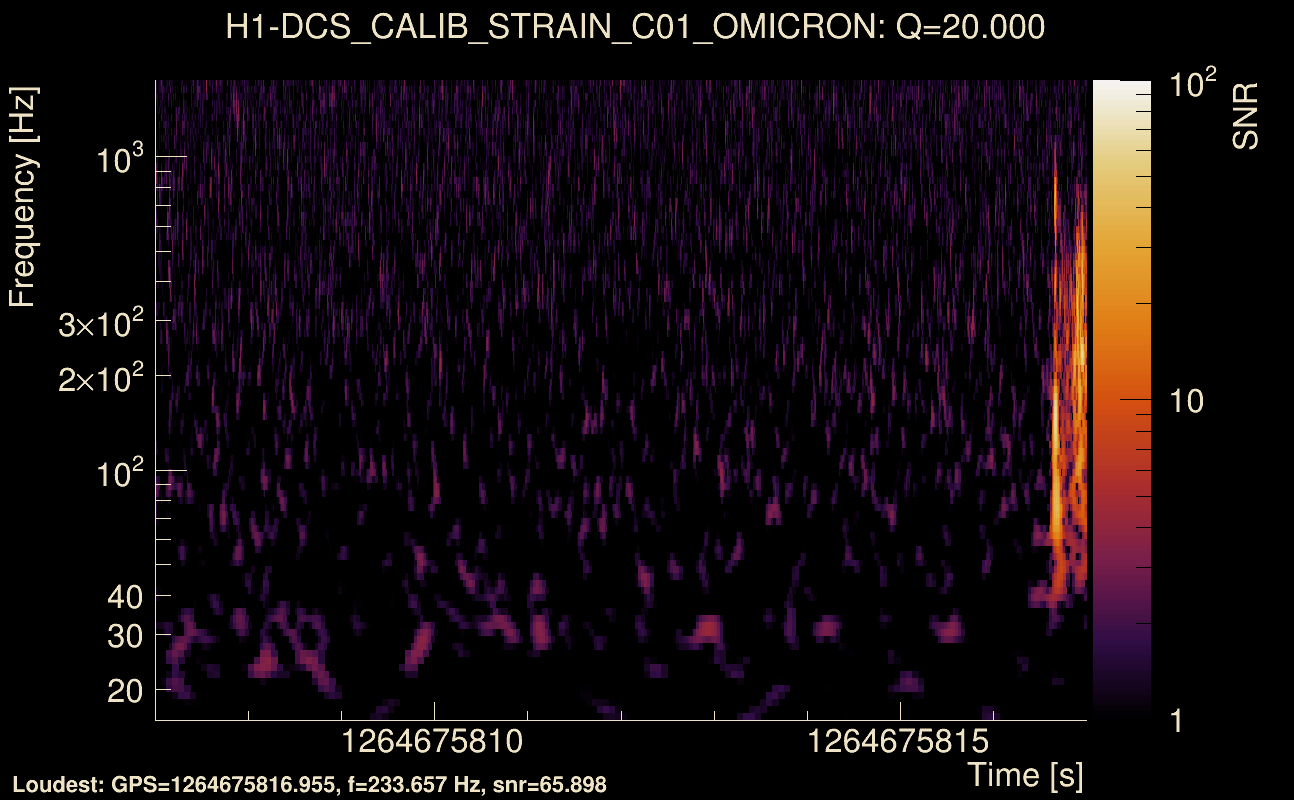

| Event time t(H1): | GPS = 1264675807 (Sun Feb 2 10:49:49 2020 ) → GPS = 1264675817 (Sun Feb 2 10:49:59 2020 ) |
| Event time t(L1): | GPS = 1264675807 (Sun Feb 2 10:49:59 2020 ) → GPS = 1264675817 (Sun Feb 2 10:49:59 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264675804 → GPS = 1264675820 |
| Omicron analysis time window (L1): | GPS = 1264675804 → GPS = 1264675820 |
| Time delay between detectors t(L1) - t(H1): | 4.60909e-05 s (slice index = 112 / 225), δt_gw = 4.60909e-05 s |
| Time delay uncertainty: | 5.57766e-05 s |
| Frequency: | 204.577 Hz |
| Ξ: | 0.975316 ± 0.00617328 (variance = 3.81094e-05): Q0: 0.970283, Q1: 0.983338, Q2: 0.981262, Q3: 0.972586, Q4: 0.967669 |
| Rank: | R_X = 0.975316 |
| Log of amplitude ratio (L1/H1): | -0.00828194, variance = 0.00126891 (L1/H1: -0.0118738, variance = 0.00232442, H1/L1: 0.00456911, variance = 0.00276439) |
| Amplitude ratio (L1/H1): | 0.991752 ⋇ 1.03626 (L1/H1: 0.988196 ⋇ 1.04939, H1/L1: 1.00458 ⋇ 1.05398) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.91844 |

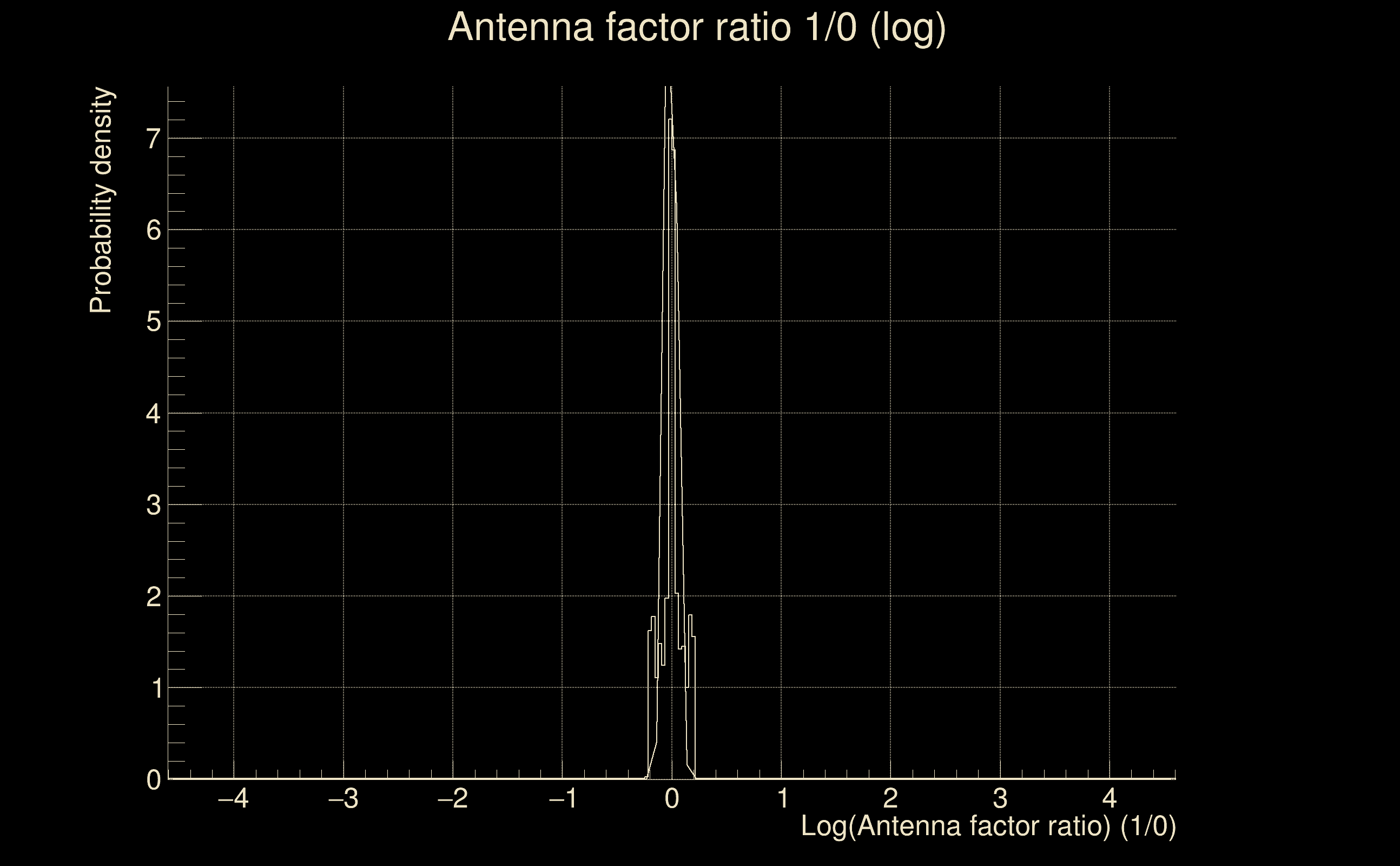

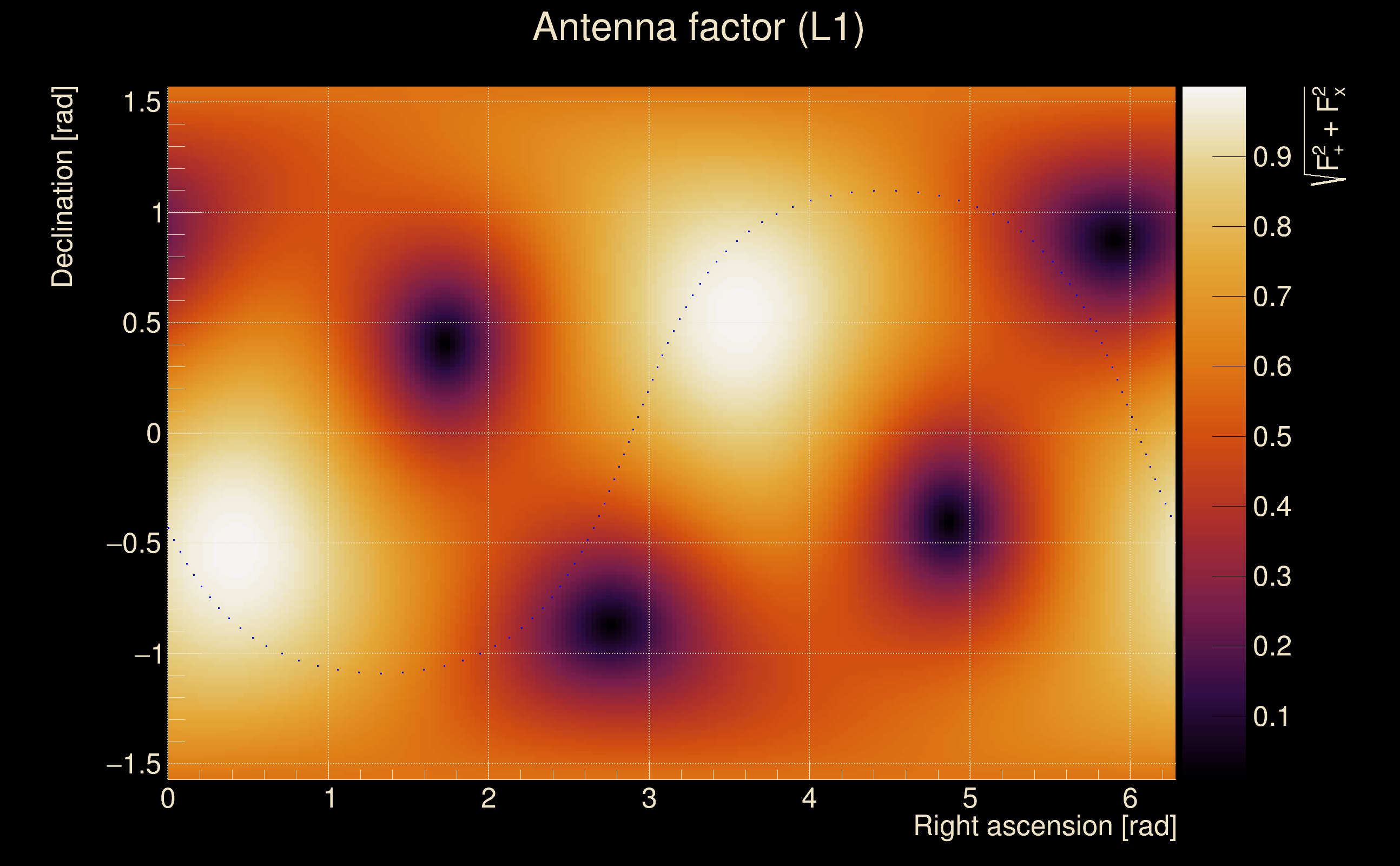

| Antenna factor probability: | 0.664759 |
| Sky position probability: | 1 (expected δt_gw = 6.54803e-05 s) |
| Number of rejected frequency rows: | Q0: 4 / 26, Q1: 14 / 48, Q2: 30 / 92, Q3: 61 / 176, Q4: 123 / 338 |
| Maximum signal-to-noise ratio: | H1: 88.4993, L1: 87.0458 |
| SNR variance: | H1: 0.489241, L1: 0.51059 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

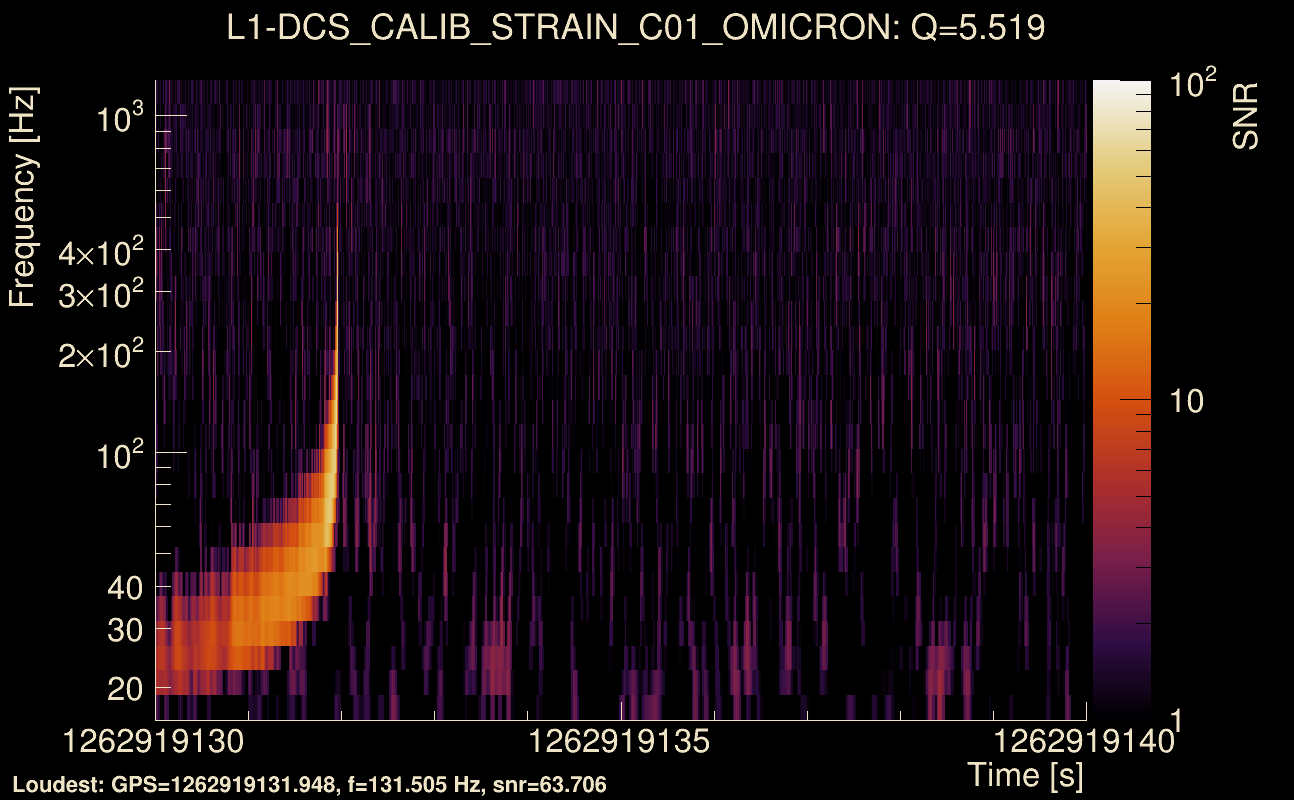

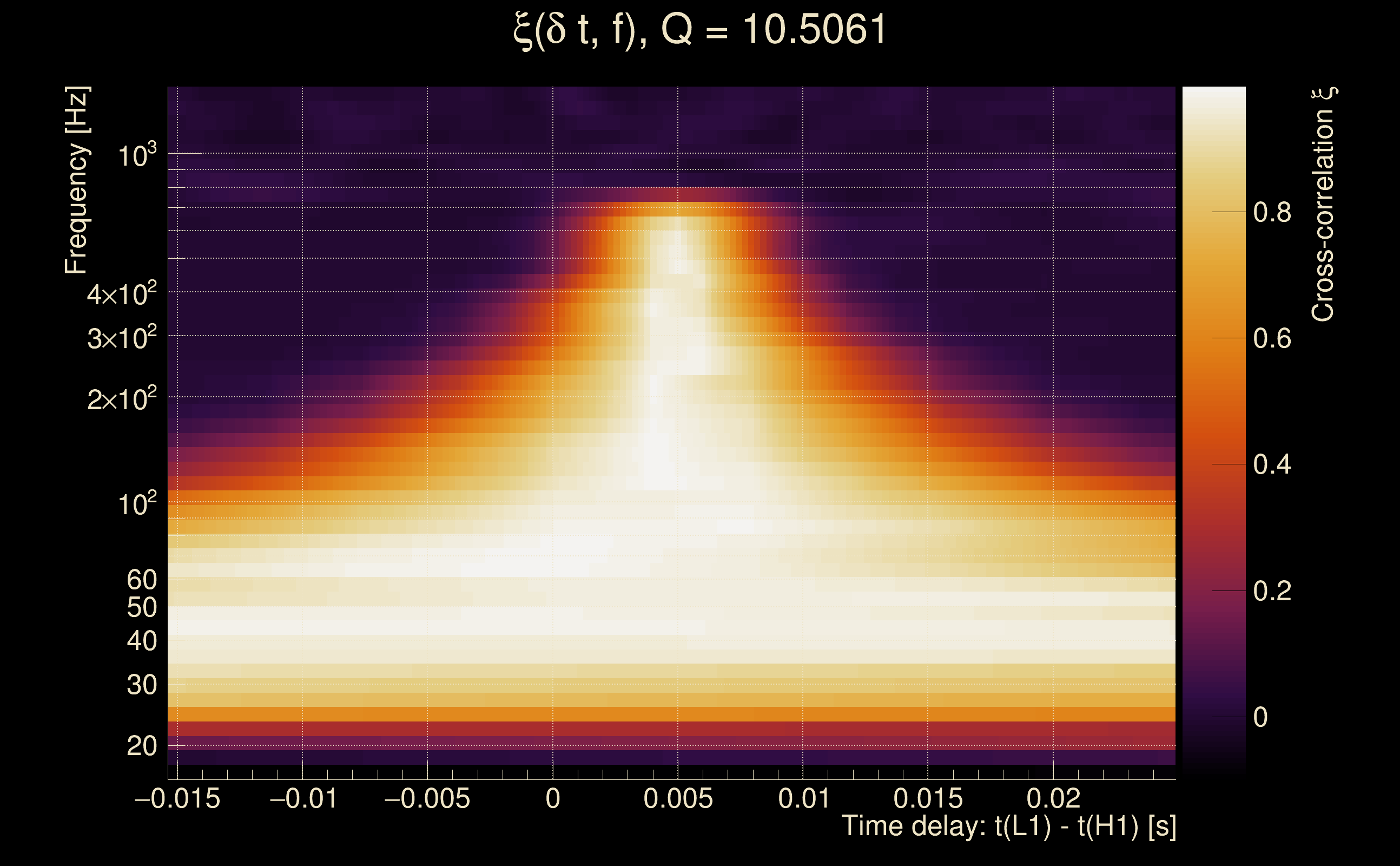

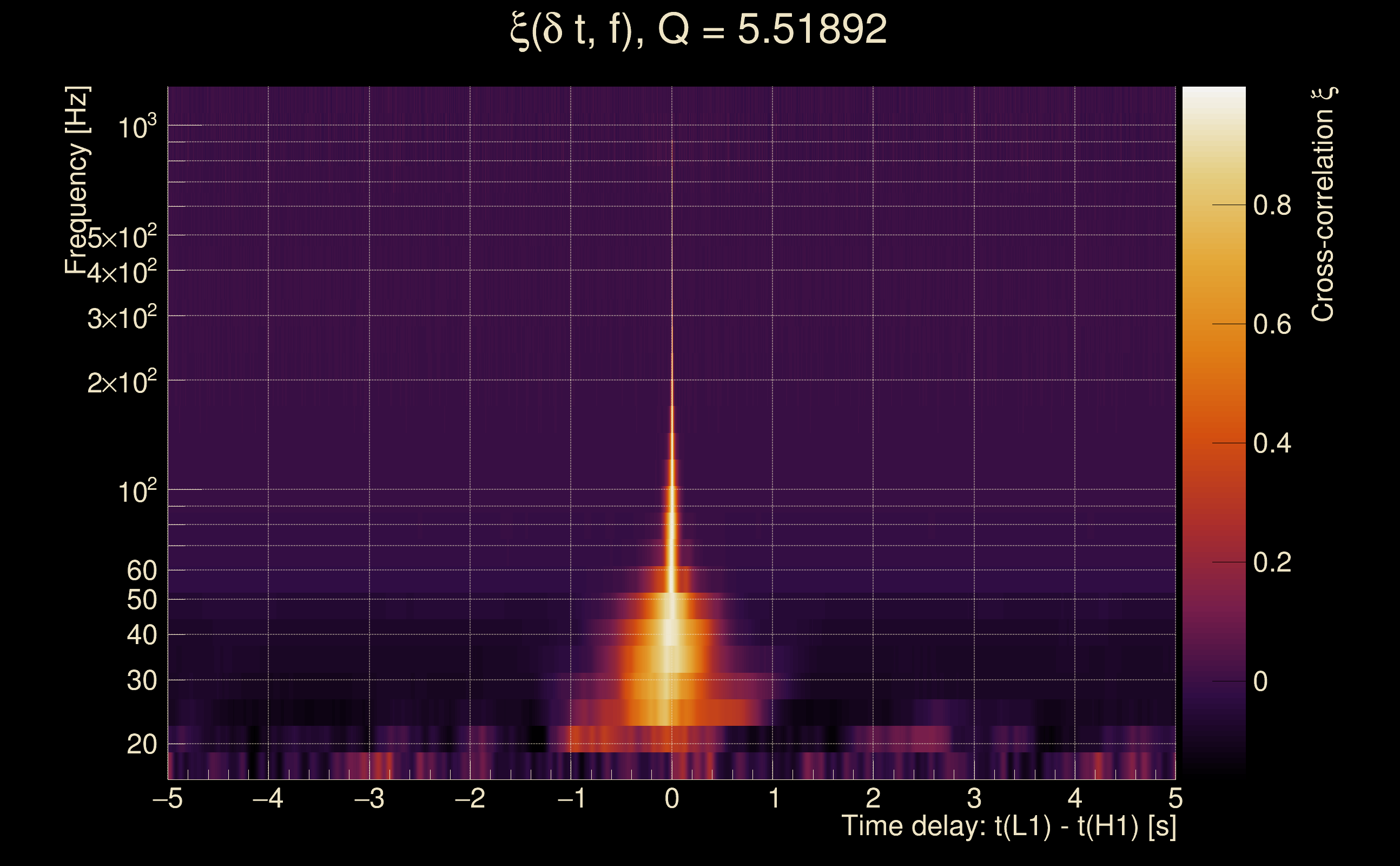

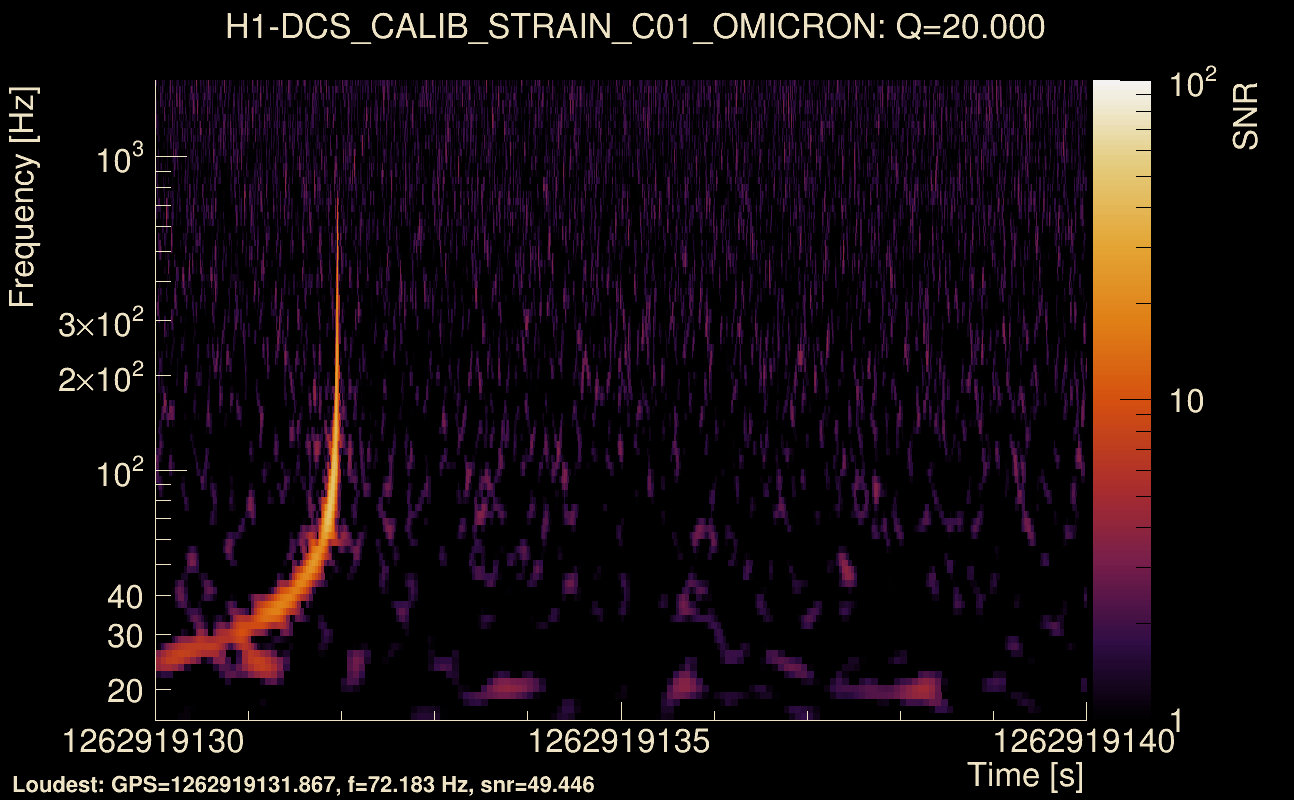

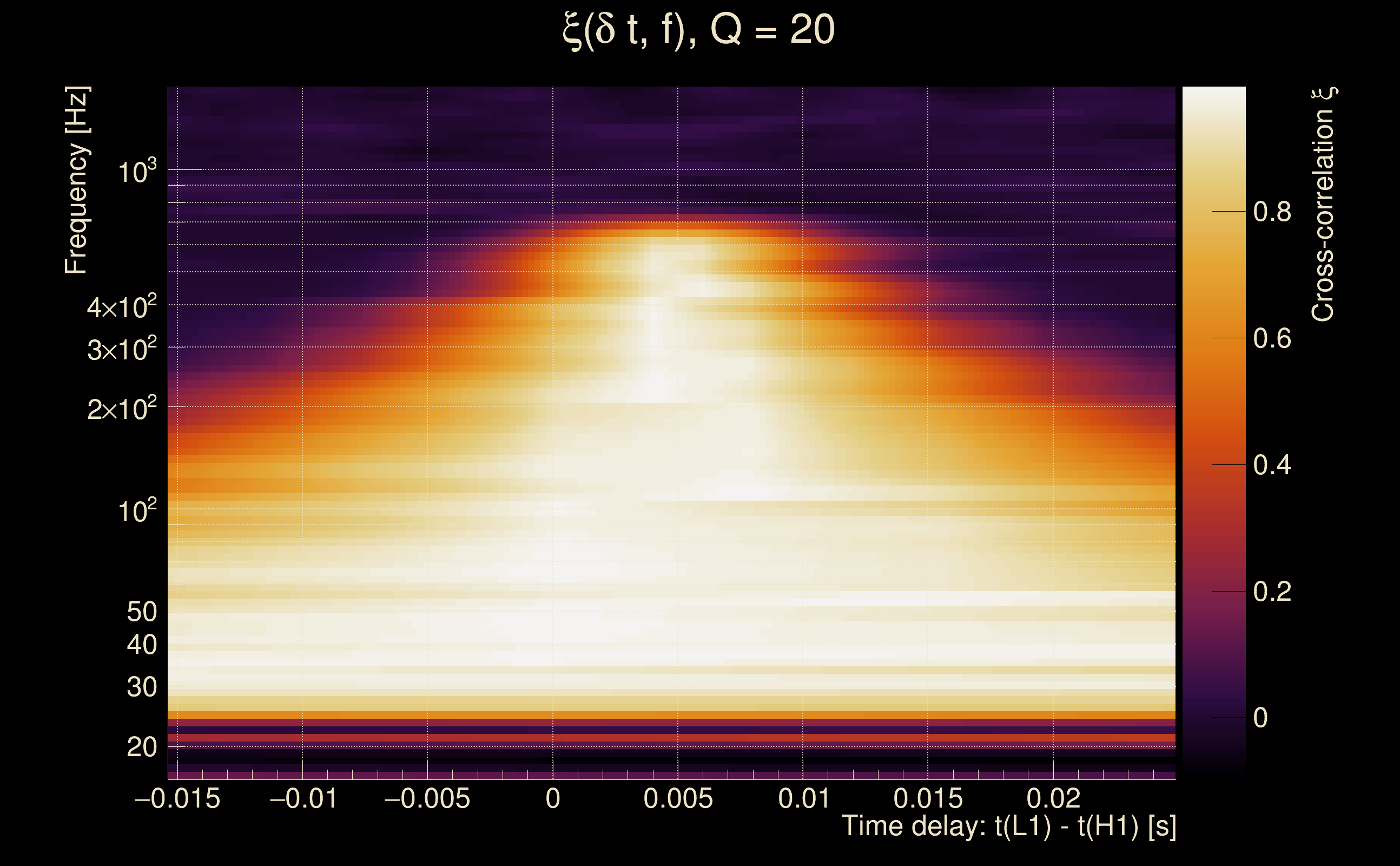

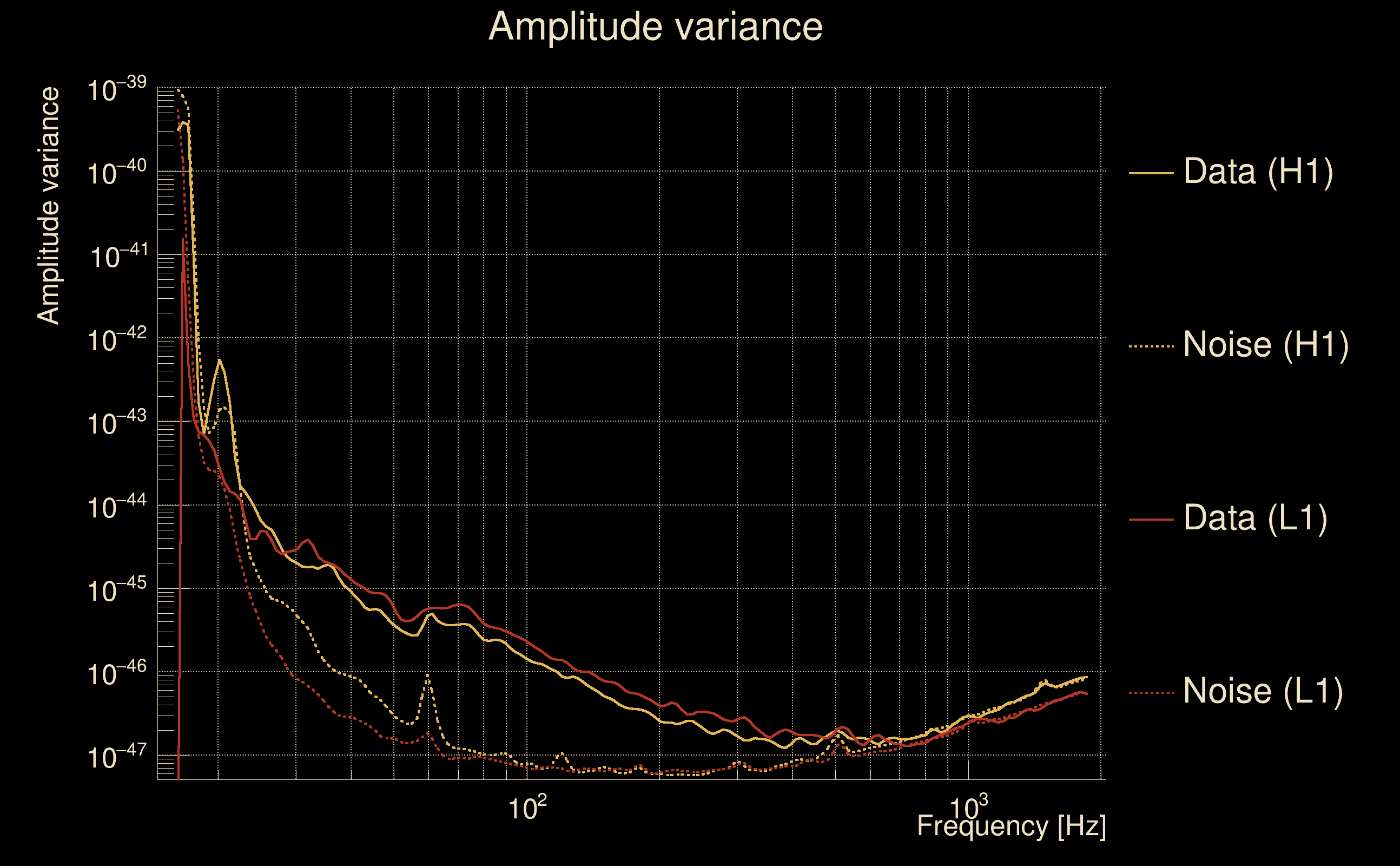

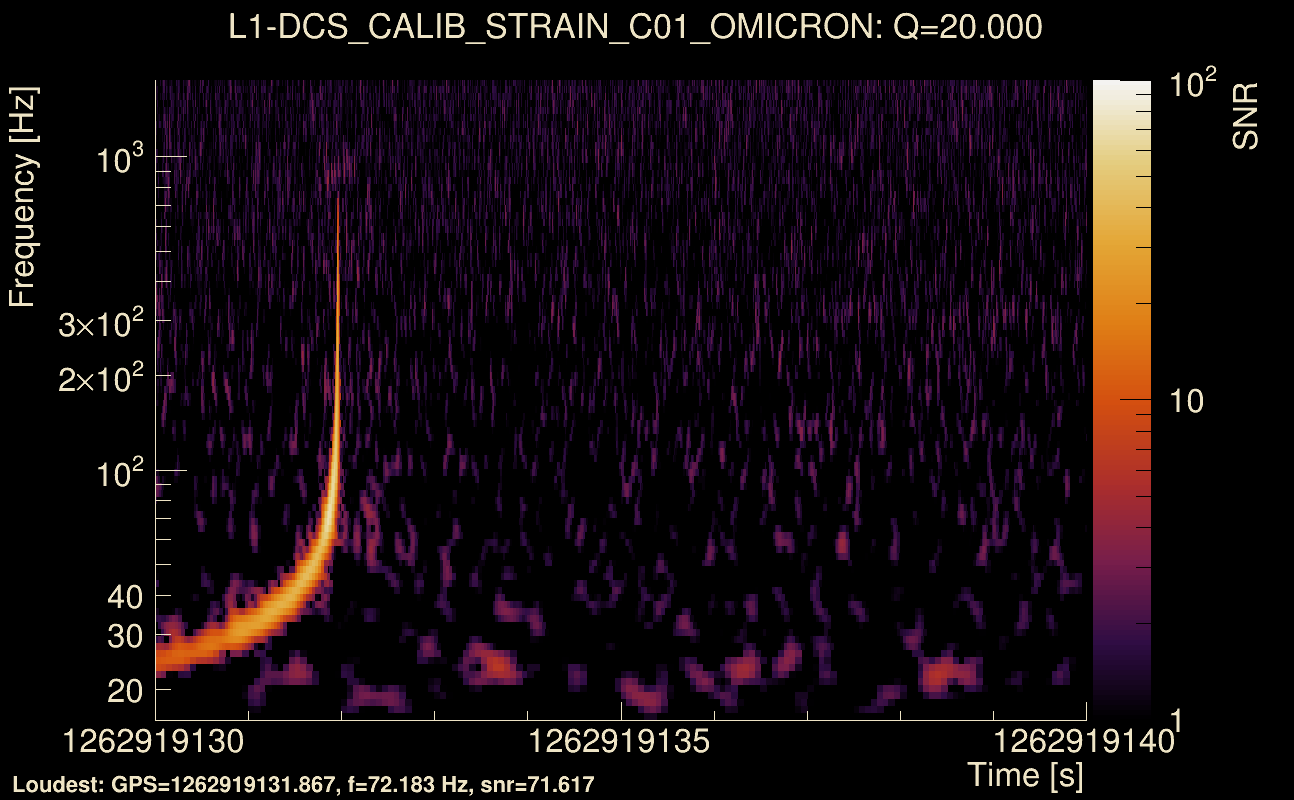

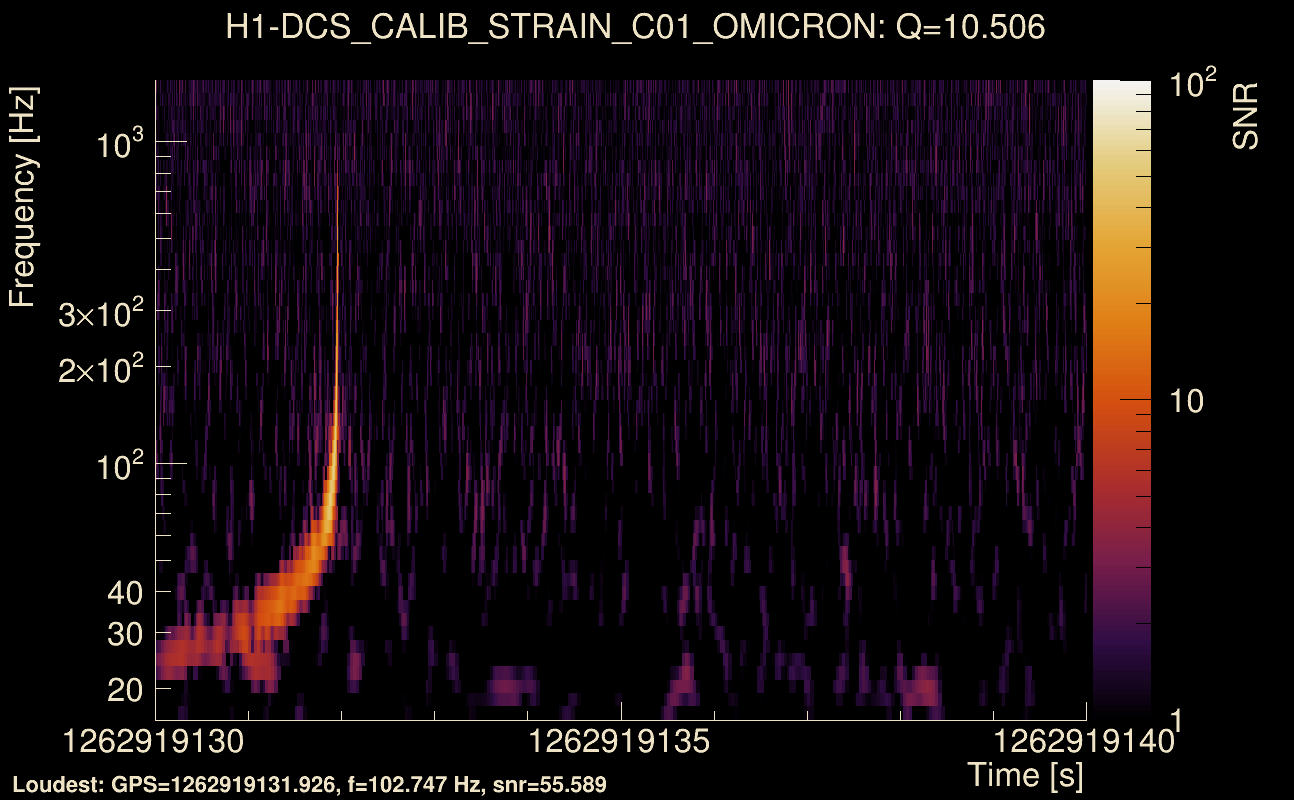

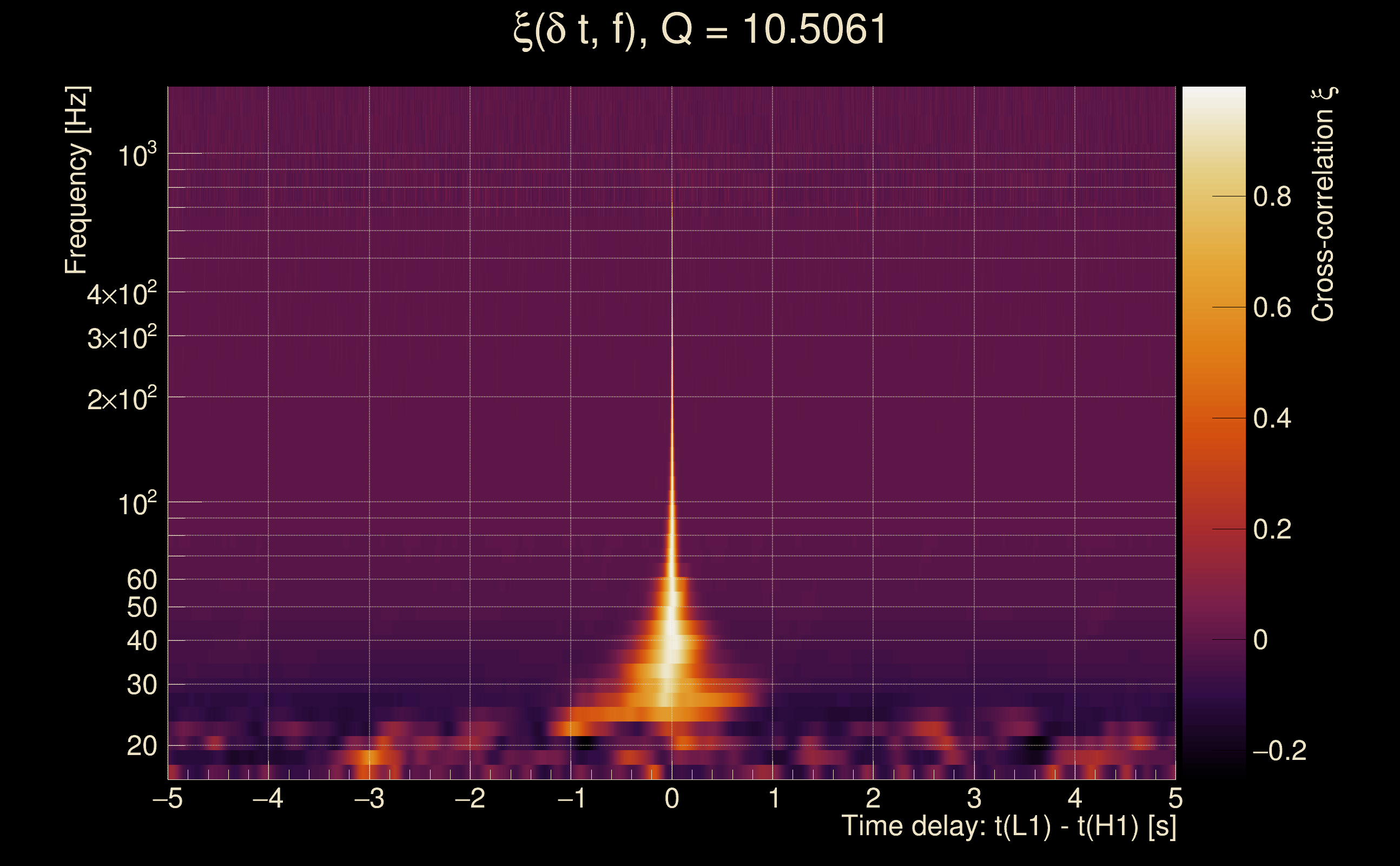

| Event time t(H1): | GPS = 1262919130 (Mon Jan 13 02:51:52 2020 ) → GPS = 1262919140 (Mon Jan 13 02:52:02 2020 ) |
| Event time t(L1): | GPS = 1262919130 (Mon Jan 13 02:52:02 2020 ) → GPS = 1262919140 (Mon Jan 13 02:52:02 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262919127 → GPS = 1262919143 |
| Omicron analysis time window (L1): | GPS = 1262919127 → GPS = 1262919143 |
| Time delay between detectors t(L1) - t(H1): | 0.00480573 s (slice index = 112 / 225), δt_gw = 0.00480573 s |
| Time delay uncertainty: | 9.85742e-05 s |
| Frequency: | 149.534 Hz |
| Ξ: | 0.974946 ± 0.00842563 (variance = 7.09912e-05): Q0: 0.981266, Q1: 0.975655, Q2: 0.962311, Q3: 0.959729, Q4: 0.963444 |
| Rank: | R_X = 0.974946 |
| Log of amplitude ratio (L1/H1): | 0.230117, variance = 0.00620641 (L1/H1: 0.210062, variance = 0.0234152, H1/L1: -0.242122, variance = 0.00747019) |
| Amplitude ratio (L1/H1): | 1.25875 ⋇ 1.08197 (L1/H1: 1.23376 ⋇ 1.16535, H1/L1: 0.78496 ⋇ 1.09028) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.855251 |
| Antenna factor probability: | 0.50403 |
| Sky position probability: | 1 (expected δt_gw = 0.00412644 s) |
| Number of rejected frequency rows: | Q0: 9 / 26, Q1: 19 / 48, Q2: 30 / 92, Q3: 49 / 176, Q4: 115 / 338 |
| Maximum signal-to-noise ratio: | H1: 55.4367, L1: 71.6502 |
| SNR variance: | H1: 3.42198, L1: 8.26851 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

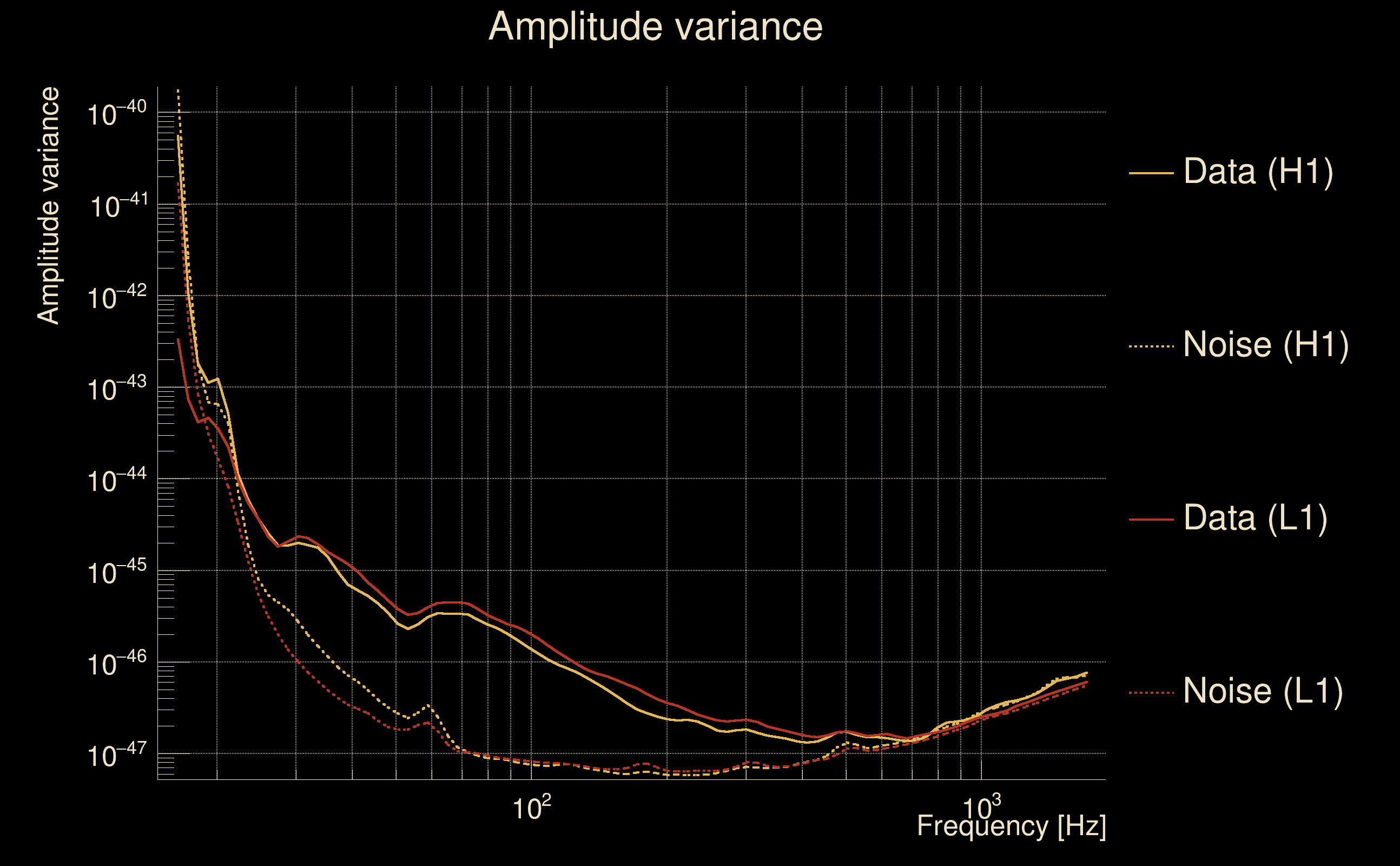

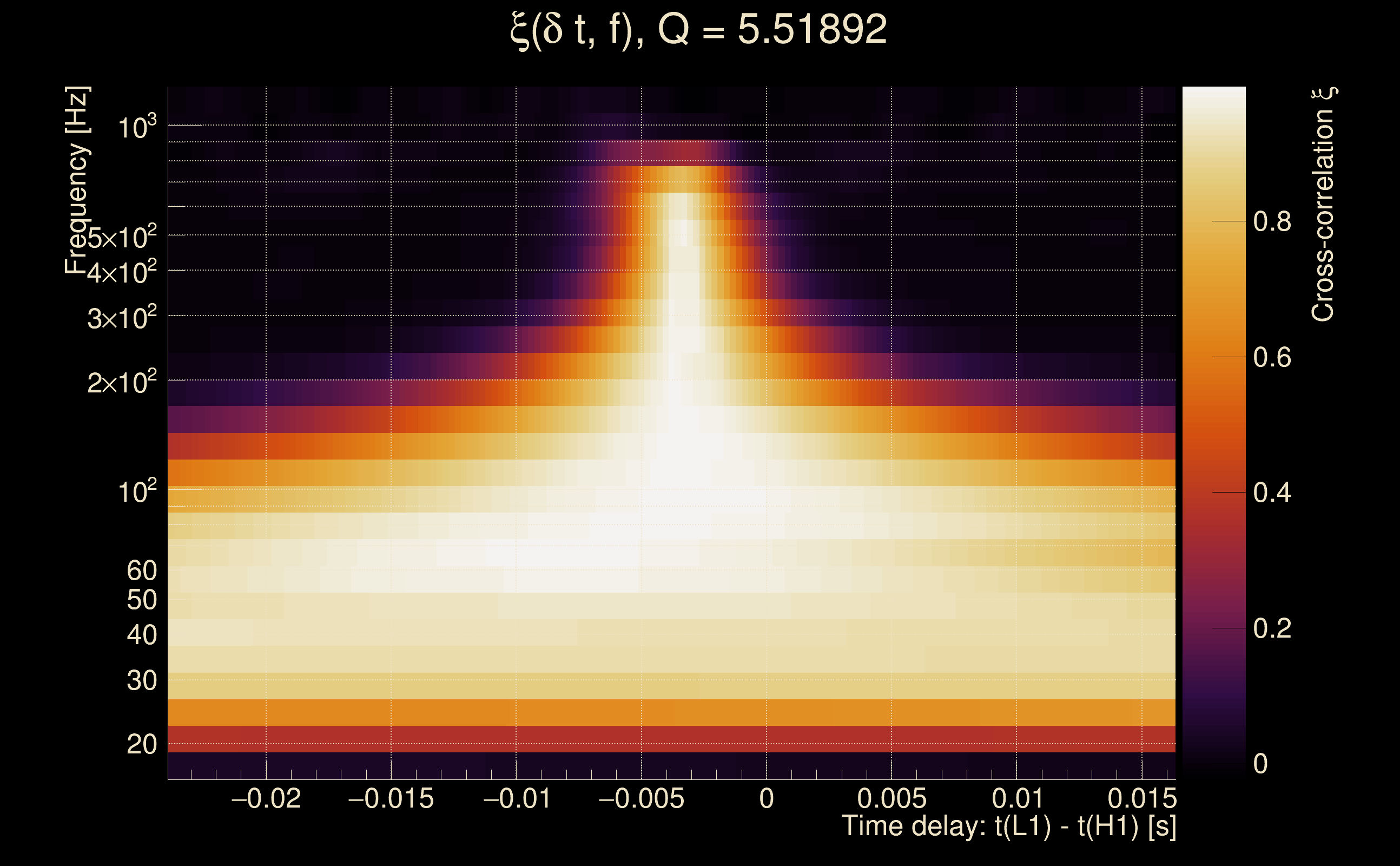

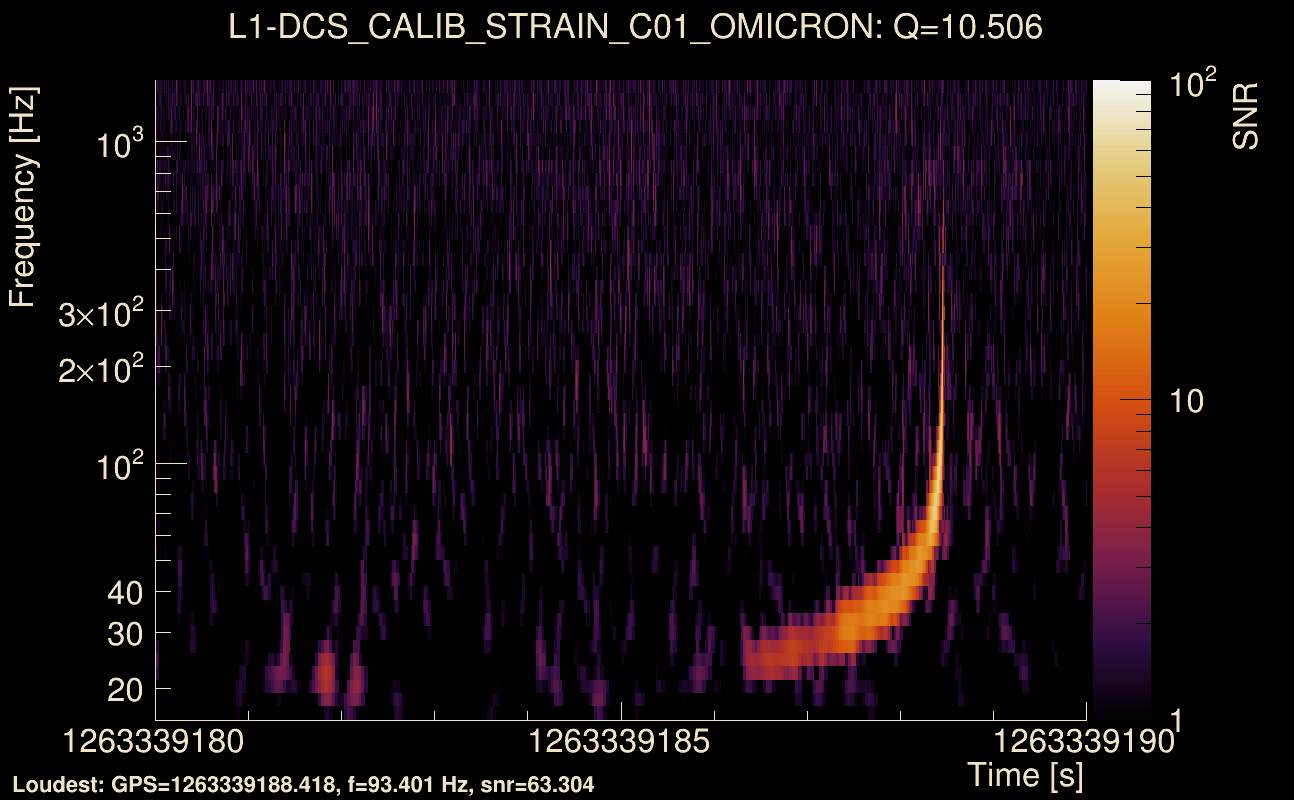

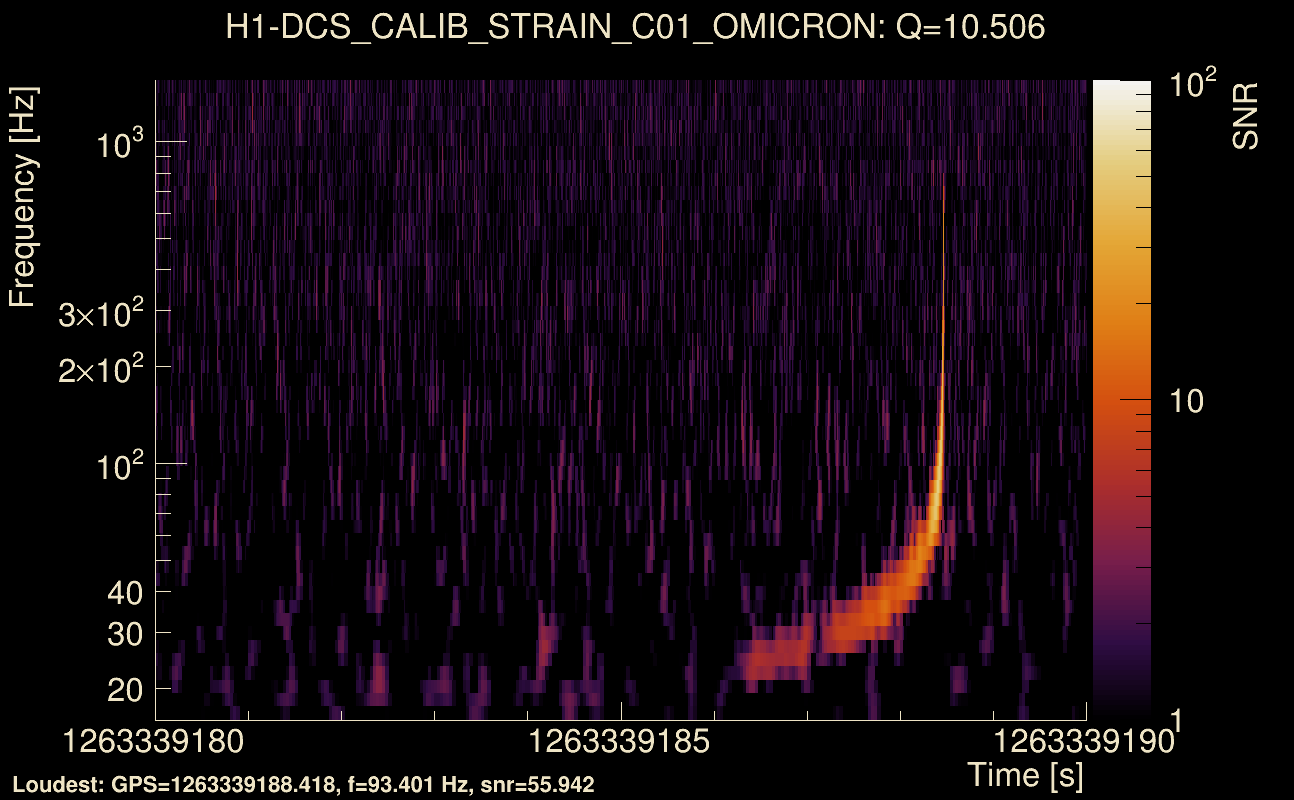

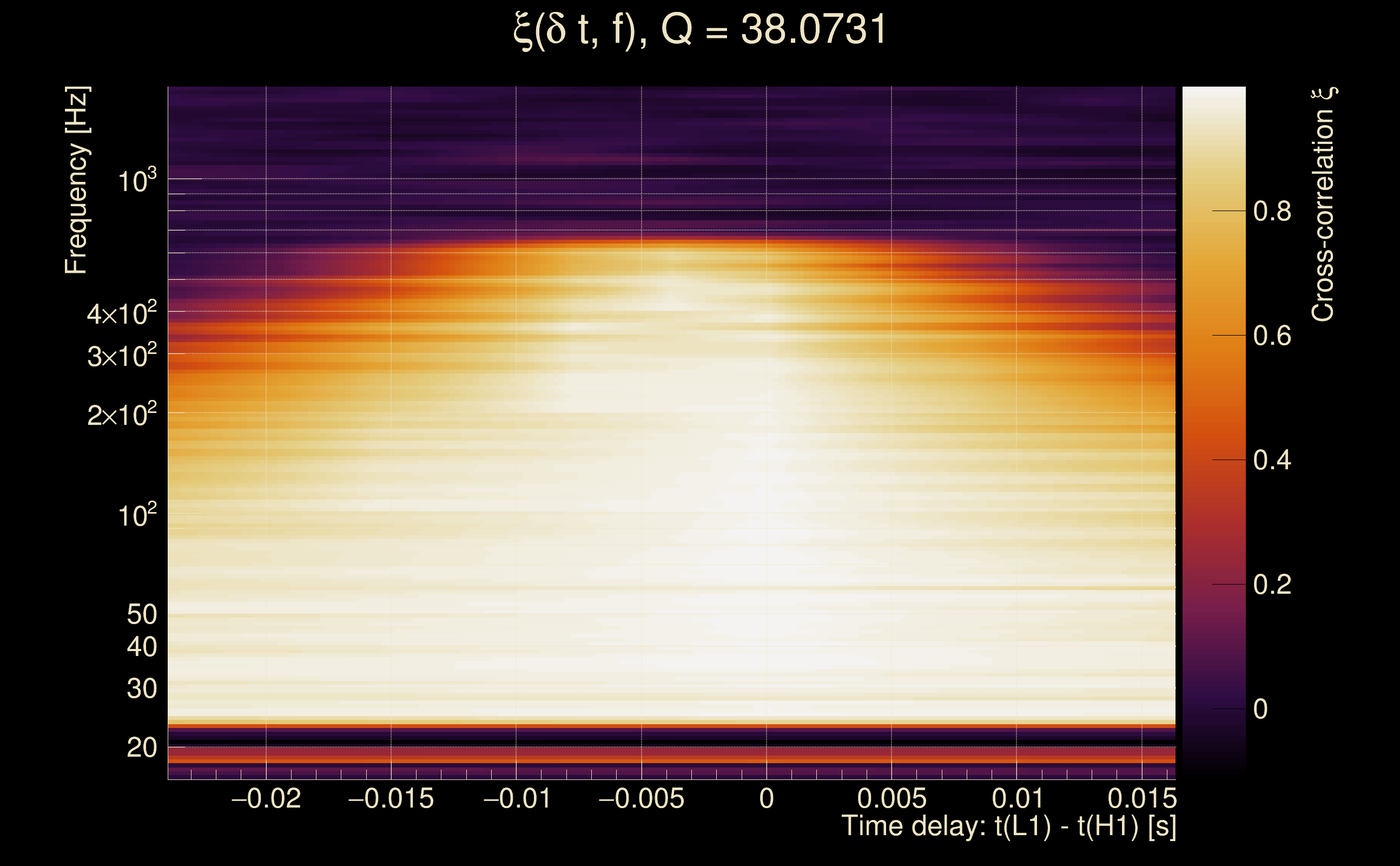

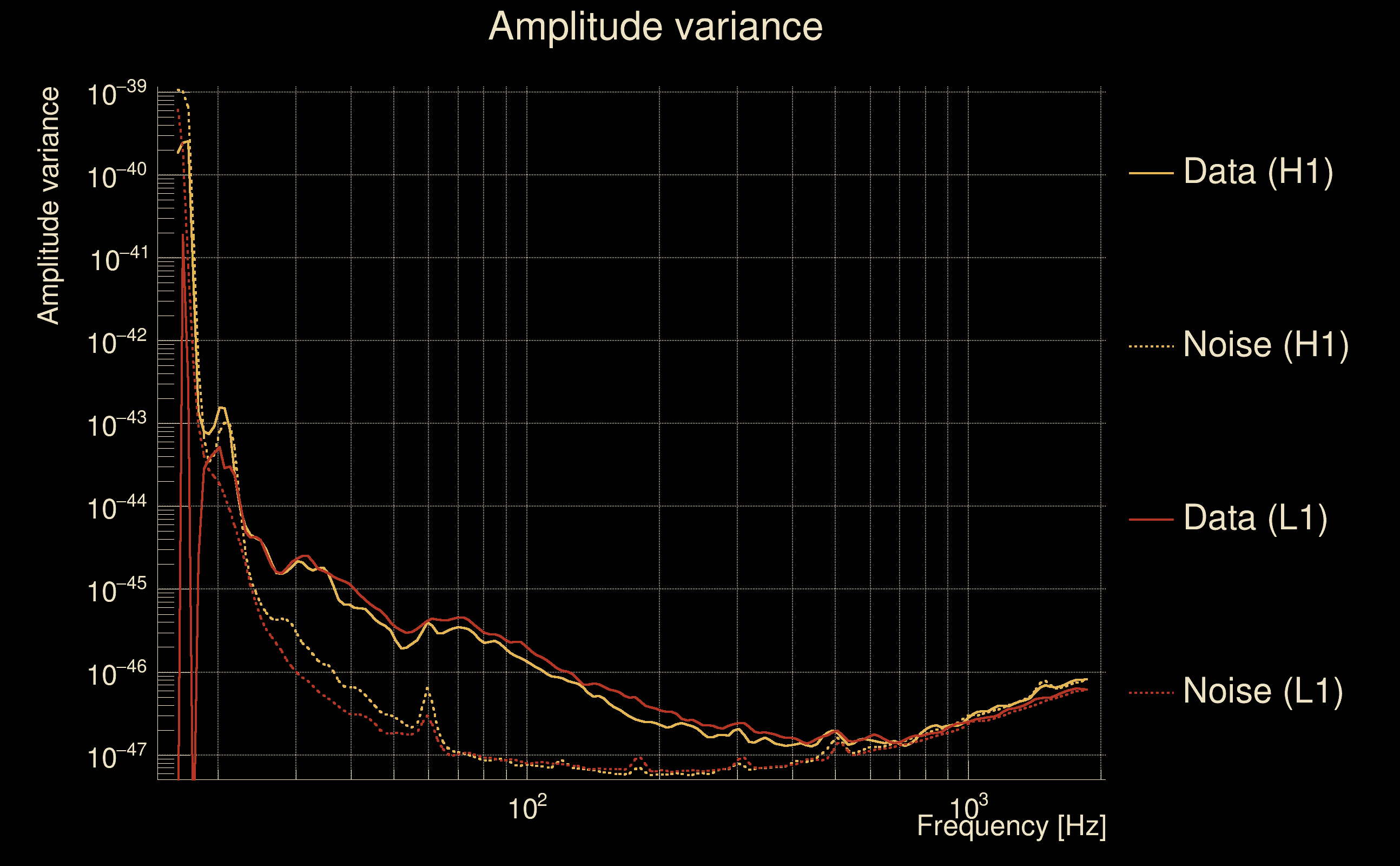

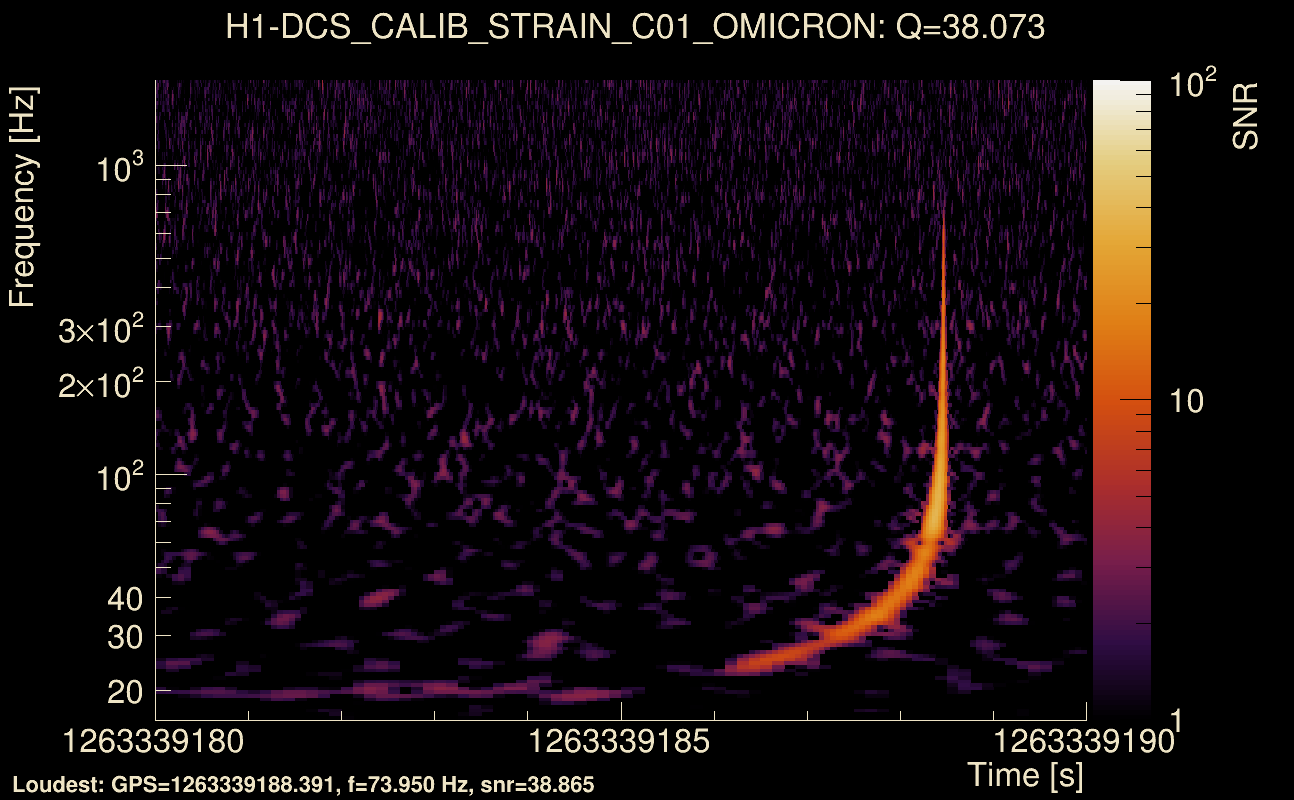

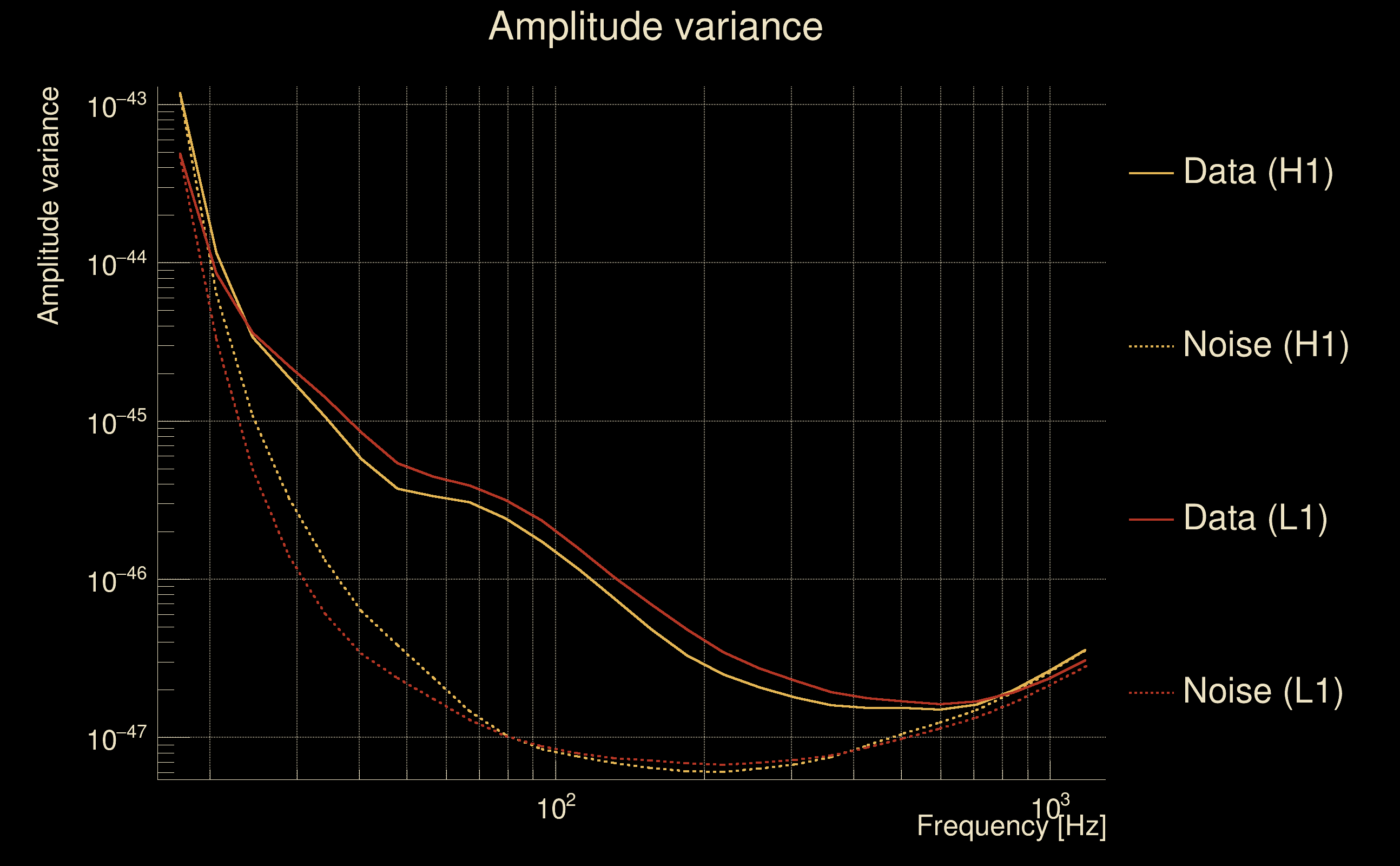

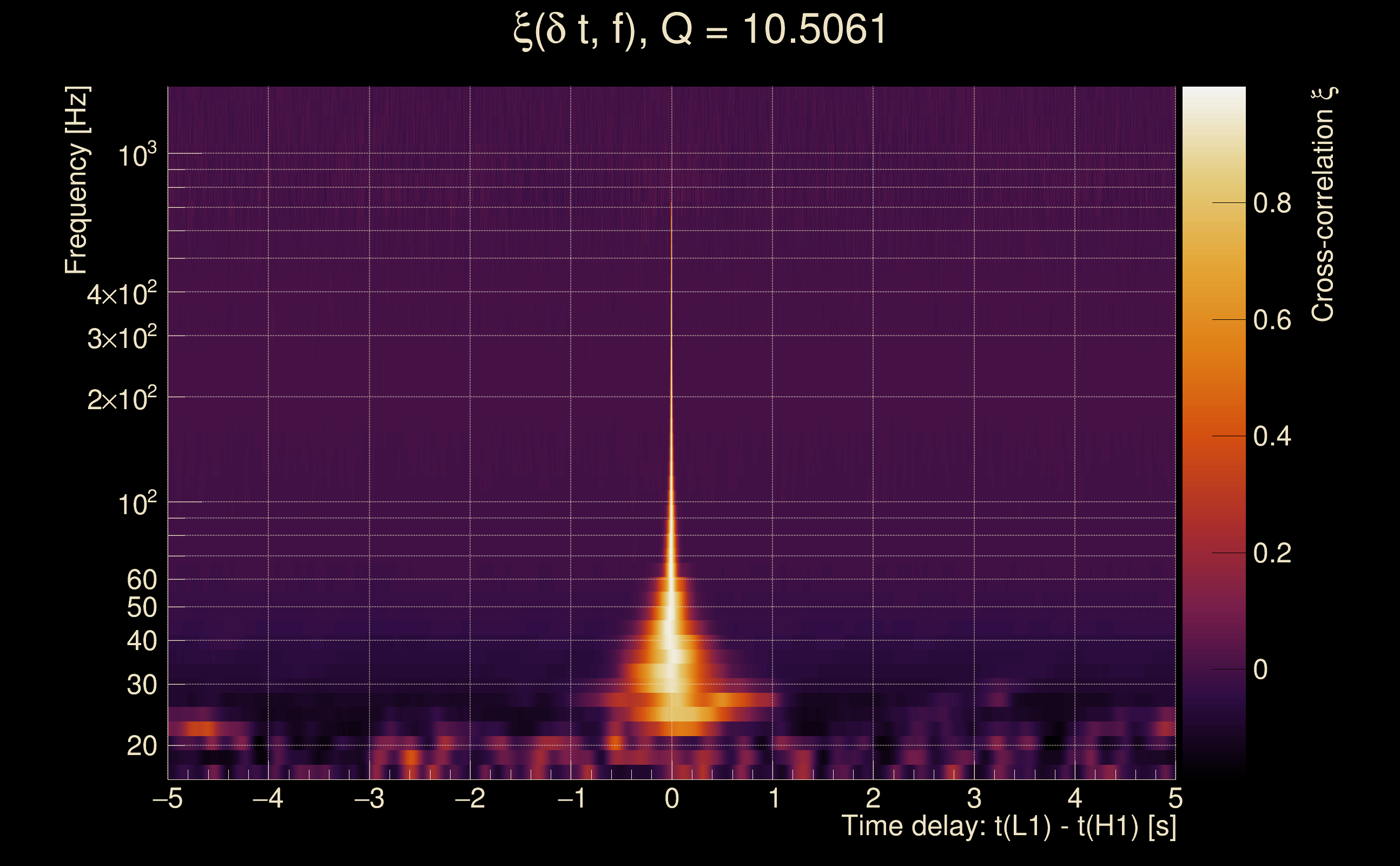

| Event time t(H1): | GPS = 1263339180 (Fri Jan 17 23:32:42 2020 ) → GPS = 1263339190 (Fri Jan 17 23:32:52 2020 ) |
| Event time t(L1): | GPS = 1263339180 (Fri Jan 17 23:32:52 2020 ) → GPS = 1263339190 (Fri Jan 17 23:32:52 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263339177 → GPS = 1263339193 |
| Omicron analysis time window (L1): | GPS = 1263339177 → GPS = 1263339193 |
| Time delay between detectors t(L1) - t(H1): | -0.0036945 s (slice index = 112 / 225), δt_gw = -0.0036945 s |
| Time delay uncertainty: | 9.91803e-05 s |
| Frequency: | 148.319 Hz |
| Ξ: | 0.974008 ± 0.0065955 (variance = 4.35007e-05): Q0: 0.973404, Q1: 0.980248, Q2: 0.972279, Q3: 0.965036, Q4: 0.961499 |
| Rank: | R_X = 0.974008 |
| Log of amplitude ratio (L1/H1): | 0.16492, variance = 0.0033592 (L1/H1: 0.147846, variance = 0.00553591, H1/L1: -0.177433, variance = 0.00711371) |
| Amplitude ratio (L1/H1): | 1.1793 ⋇ 1.05967 (L1/H1: 1.15933 ⋇ 1.07724, H1/L1: 0.837417 ⋇ 1.088) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.792501 |
| Antenna factor probability: | 0.451054 |
| Sky position probability: | 1 (expected δt_gw = 0.00766975 s) |
| Number of rejected frequency rows: | Q0: 9 / 26, Q1: 18 / 48, Q2: 30 / 92, Q3: 44 / 176, Q4: 103 / 338 |
| Maximum signal-to-noise ratio: | H1: 55.056, L1: 64.3131 |
| SNR variance: | H1: 0.520486, L1: 0.558618 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

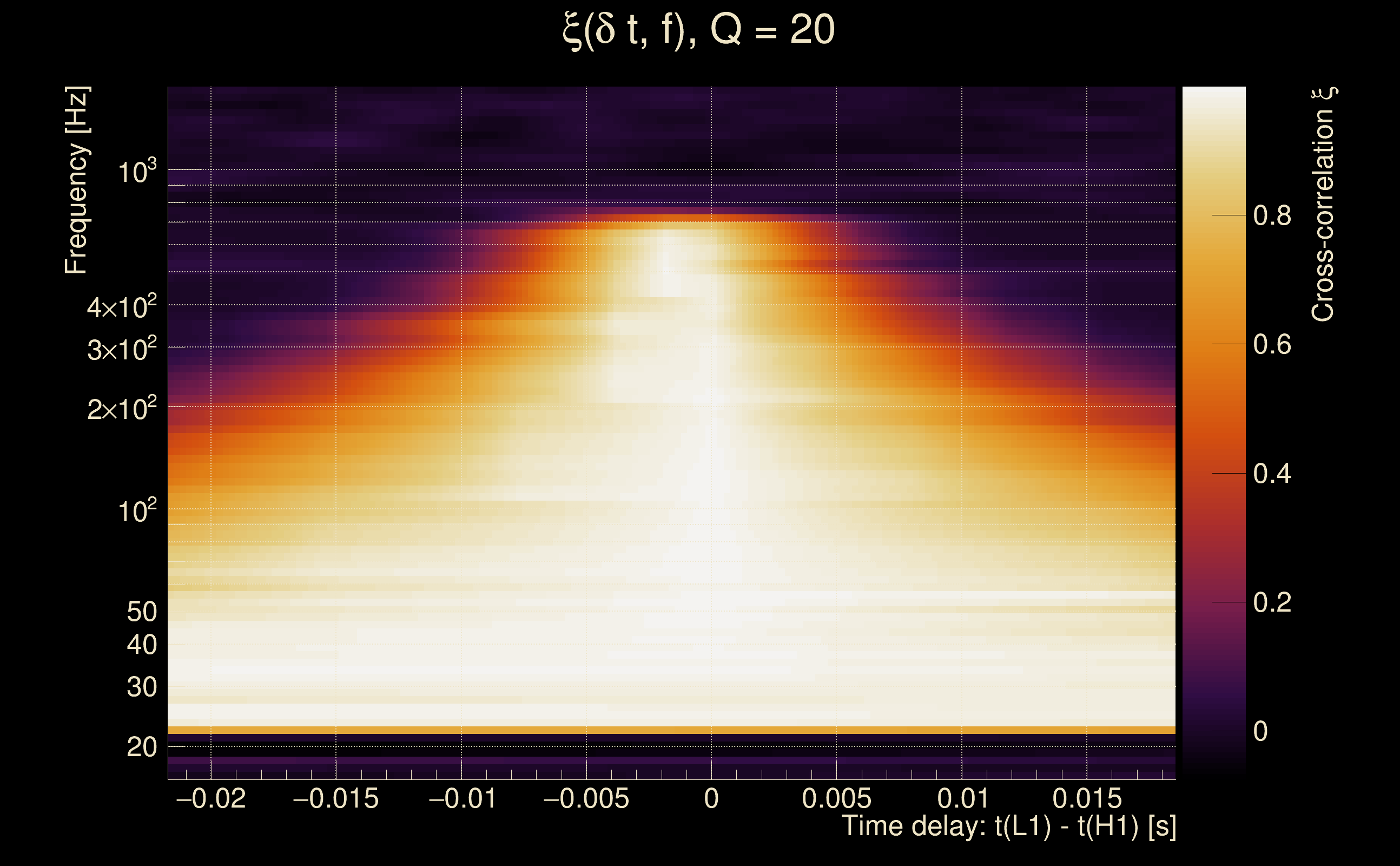

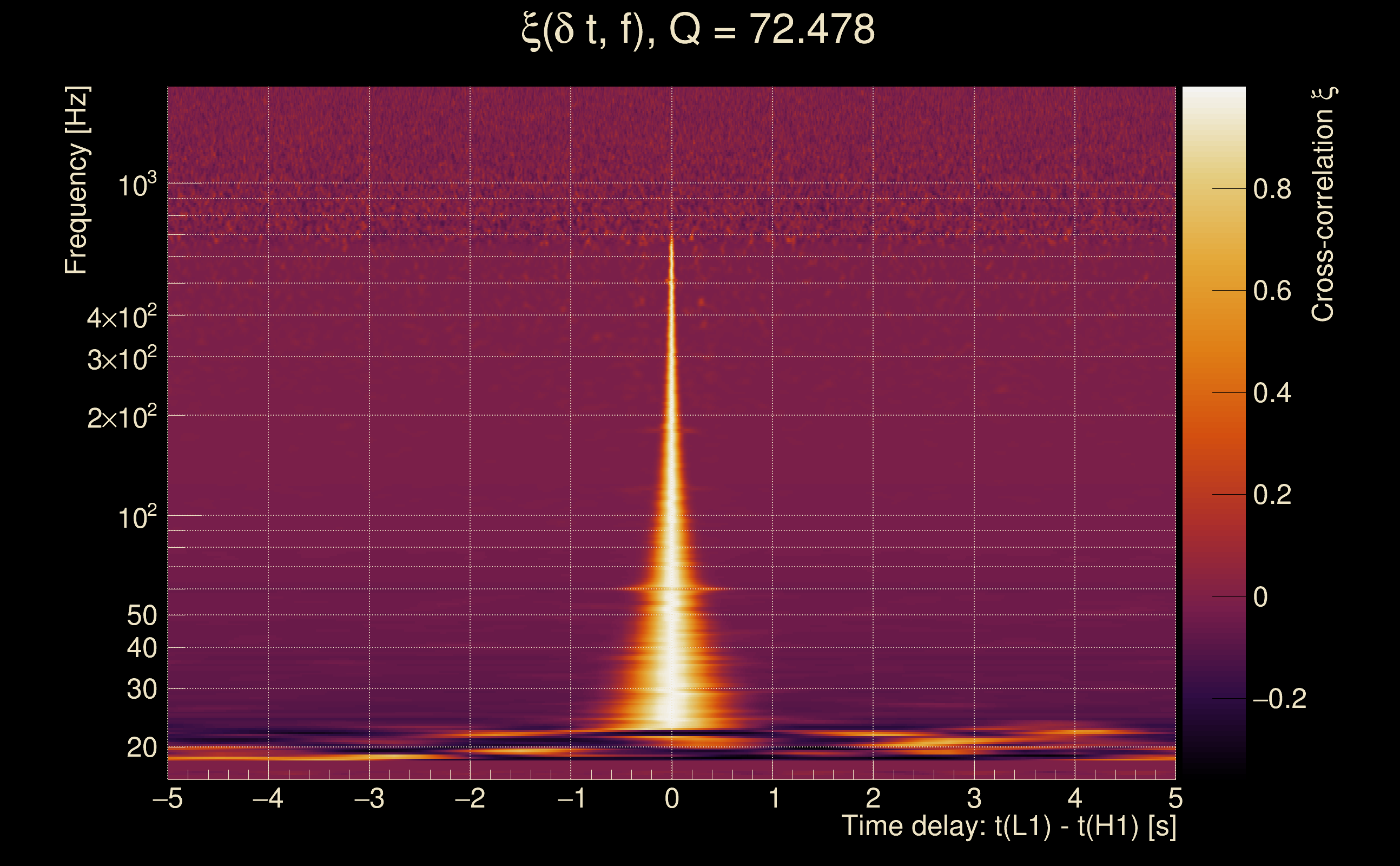

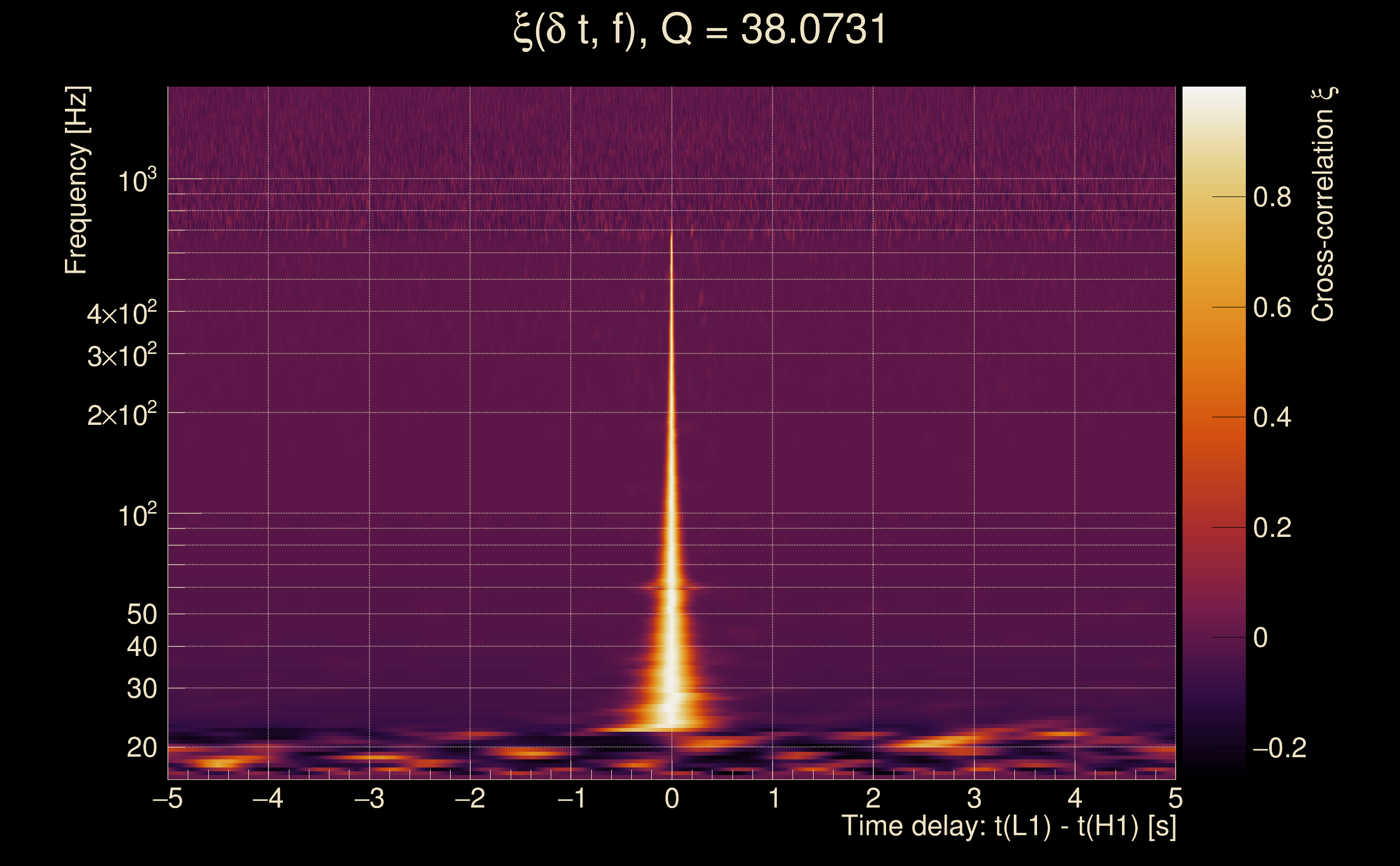

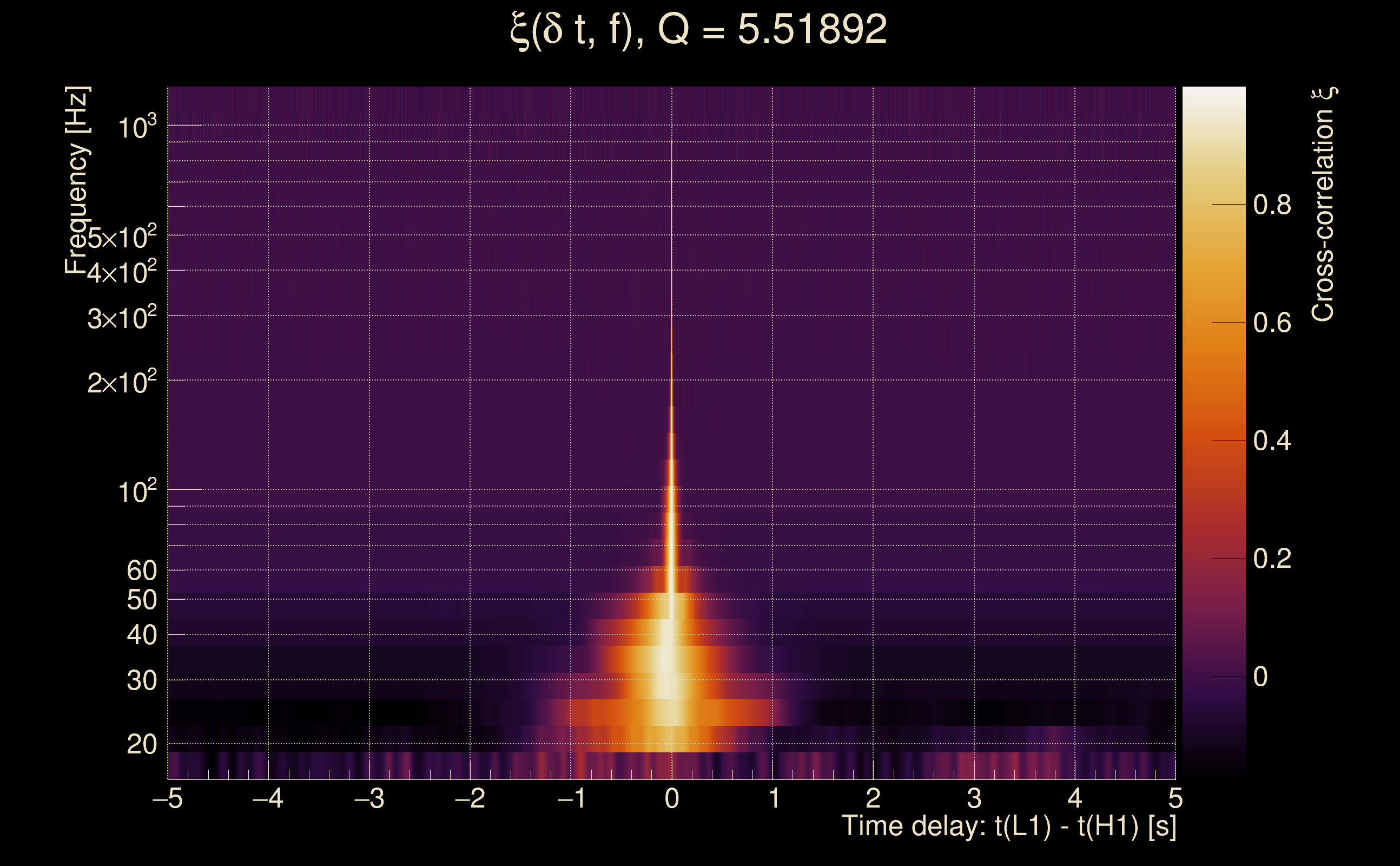

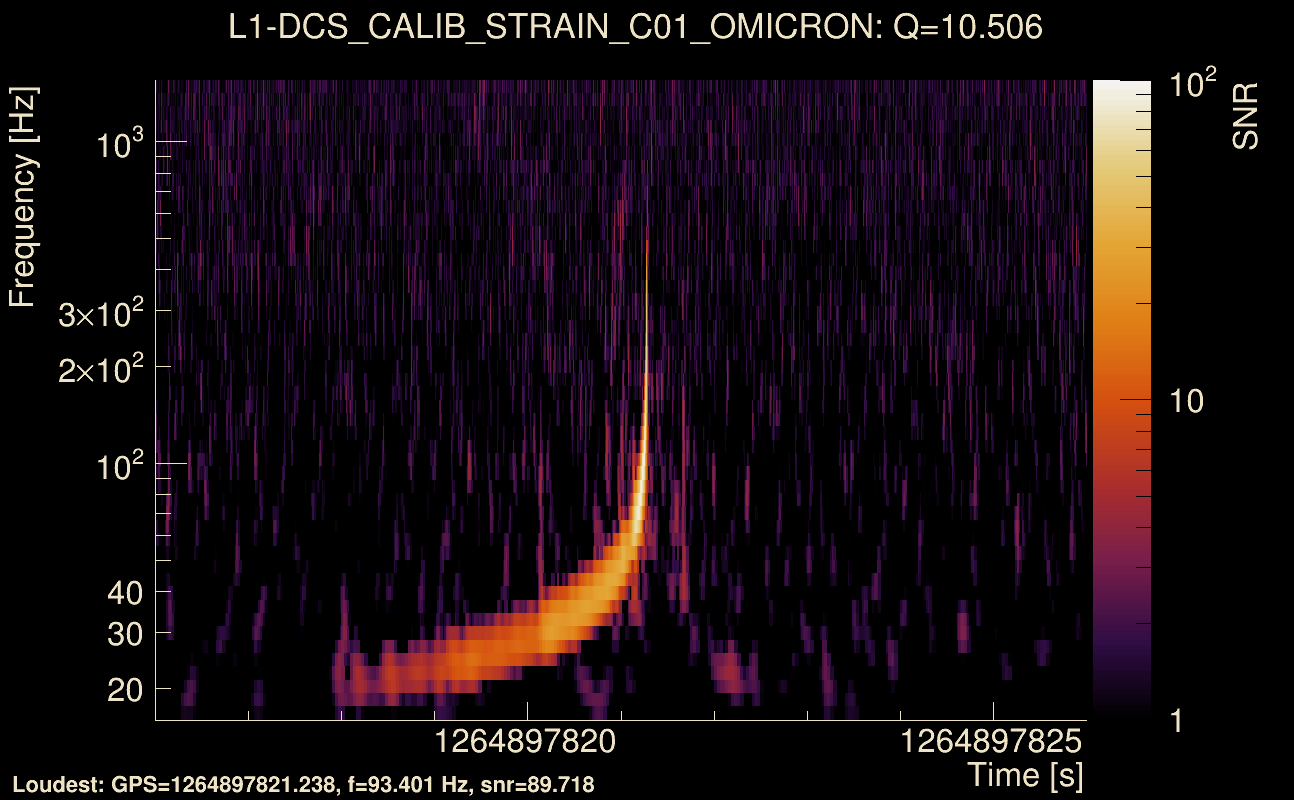

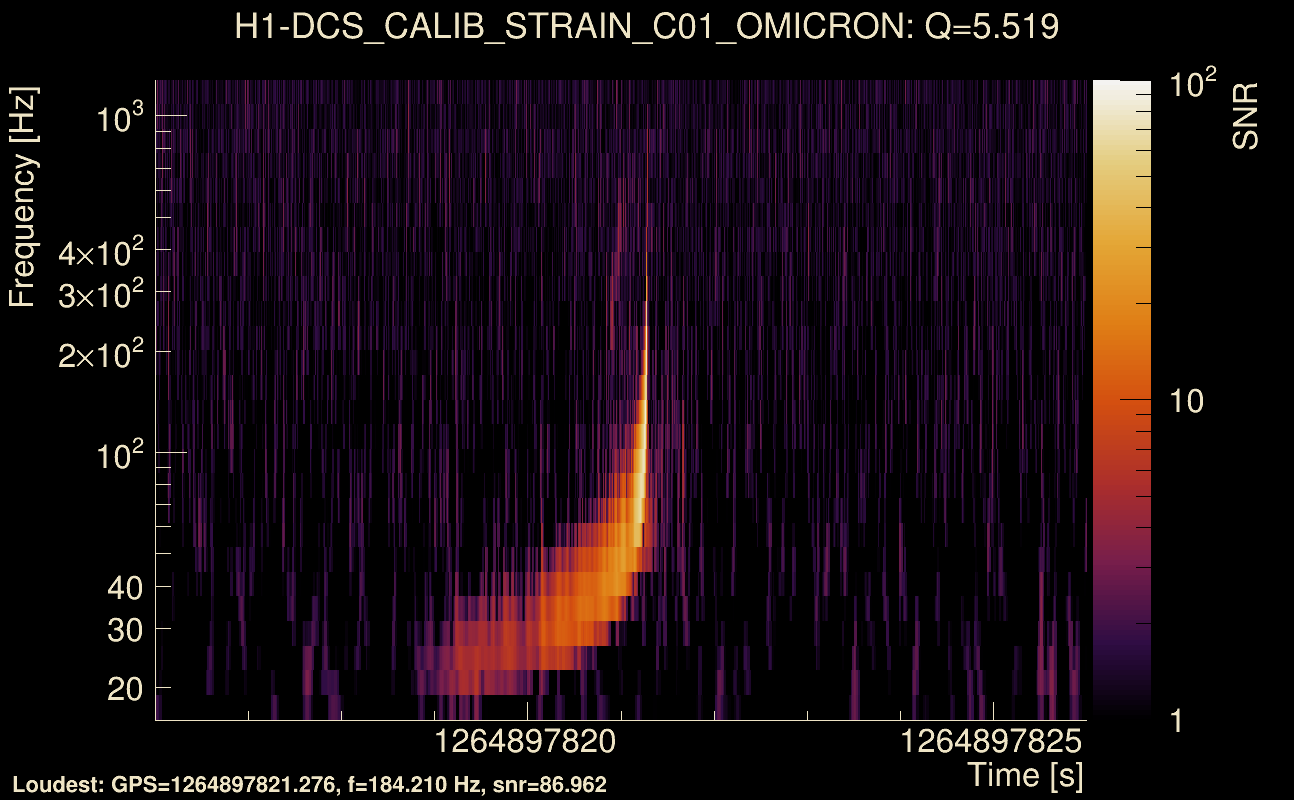

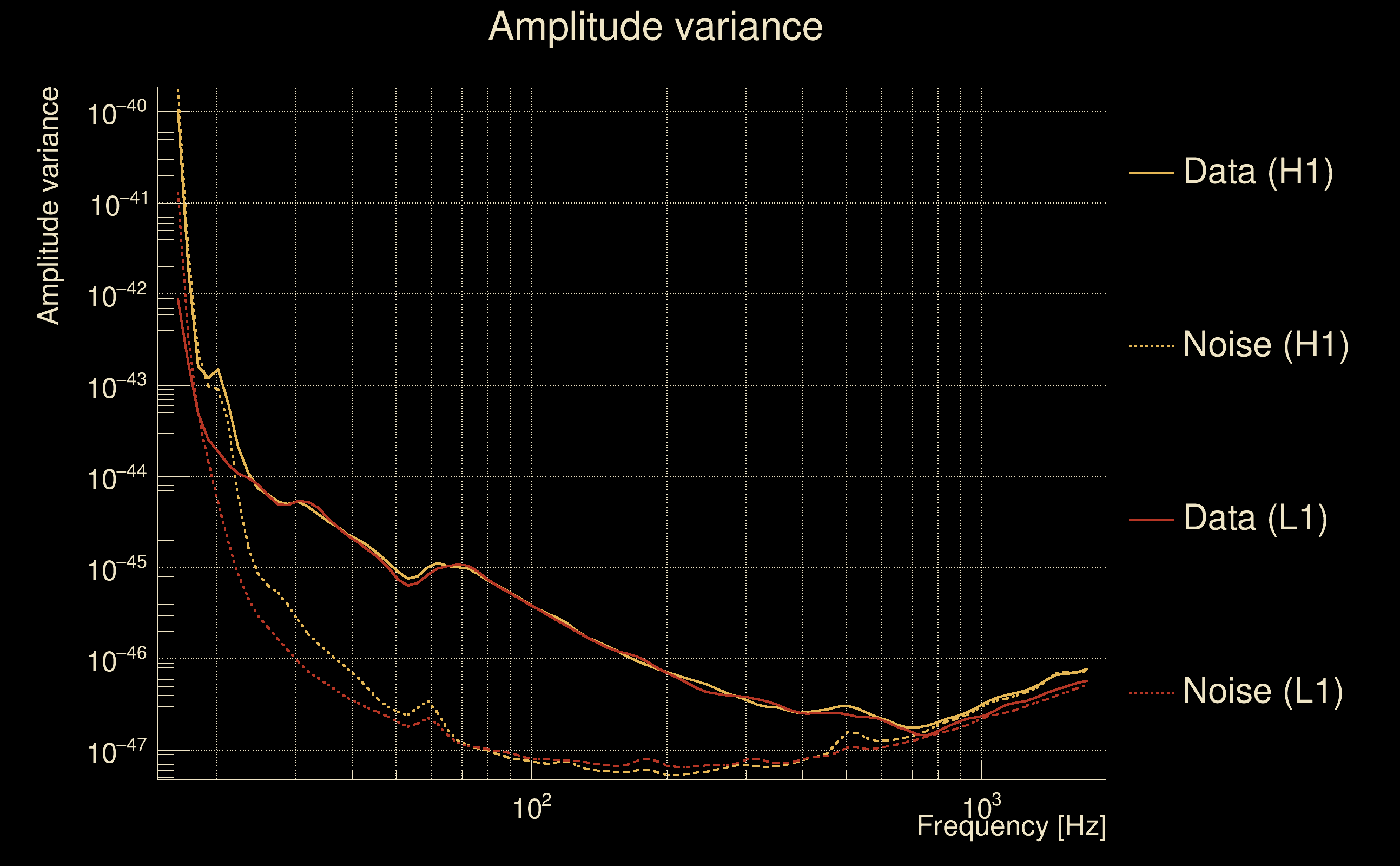

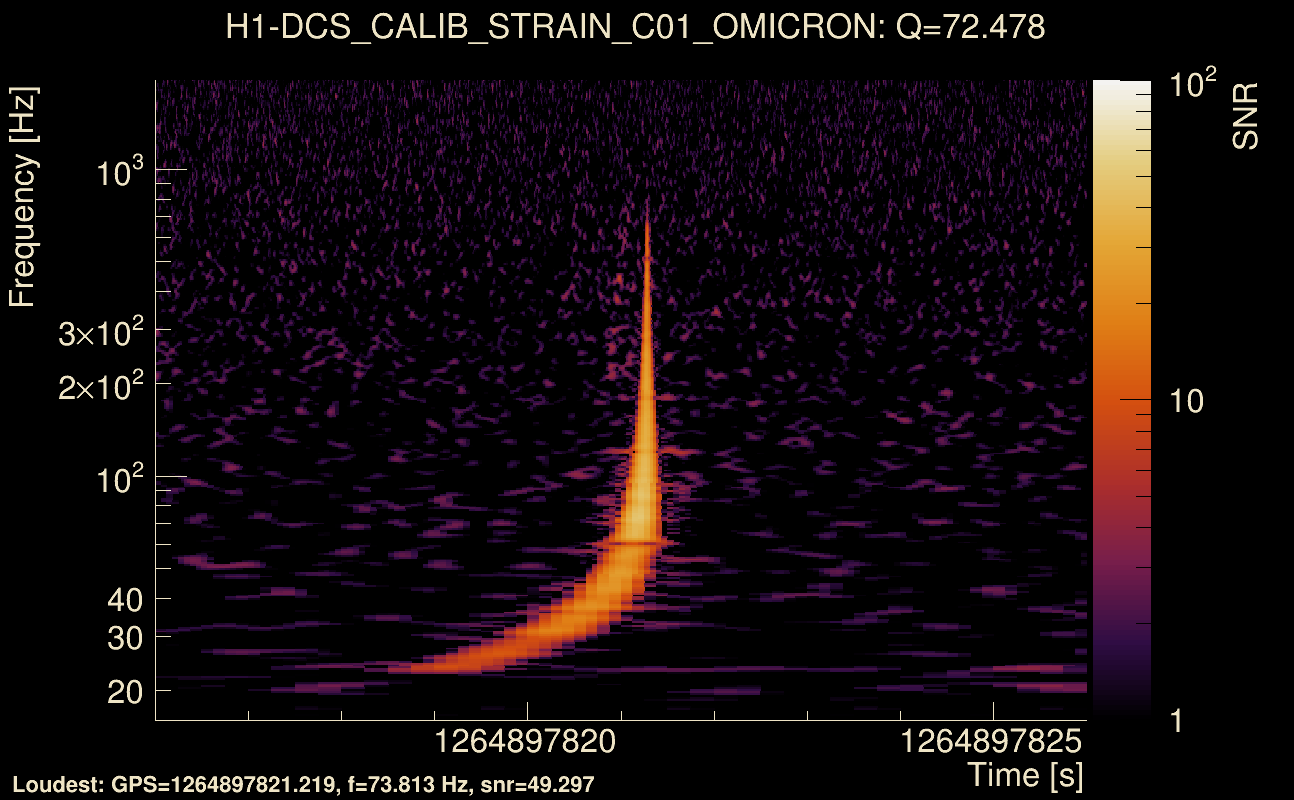

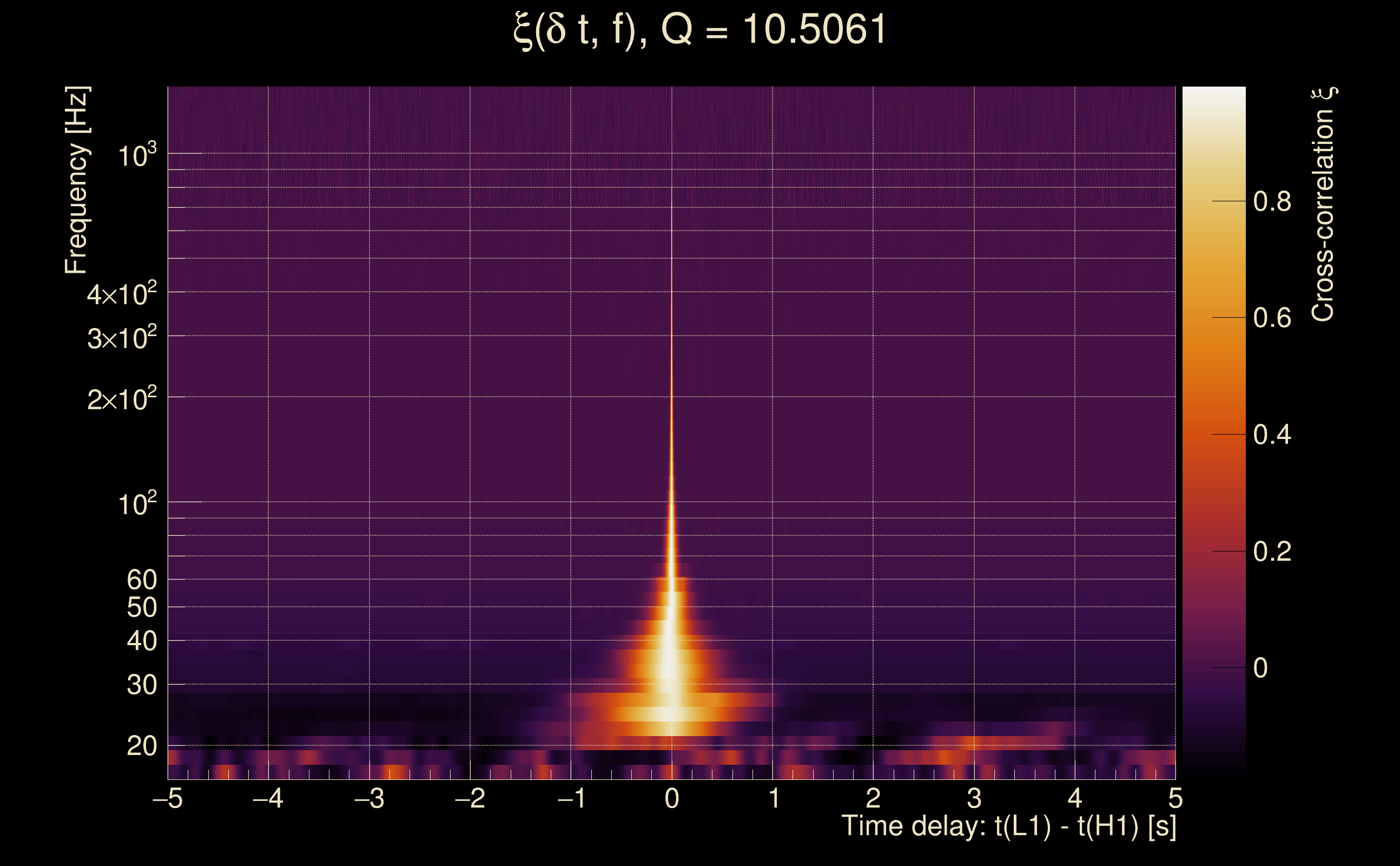

| Event time t(H1): | GPS = 1264897816 (Wed Feb 5 00:29:58 2020 ) → GPS = 1264897826 (Wed Feb 5 00:30:08 2020 ) |
| Event time t(L1): | GPS = 1264897816 (Wed Feb 5 00:30:08 2020 ) → GPS = 1264897826 (Wed Feb 5 00:30:08 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264897813 → GPS = 1264897829 |
| Omicron analysis time window (L1): | GPS = 1264897813 → GPS = 1264897829 |
| Time delay between detectors t(L1) - t(H1): | -0.00150543 s (slice index = 112 / 225), δt_gw = -0.00150543 s |
| Time delay uncertainty: | 8.22057e-05 s |
| Frequency: | 143.307 Hz |
| Ξ: | 0.973481 ± 0.00467452 (variance = 2.18511e-05): Q0: 0.972994, Q1: 0.968643, Q2: 0.978852, Q3: 0.981663, Q4: 0.978442 |
| Rank: | R_X = 0.973481 |
| Log of amplitude ratio (L1/H1): | -0.00391442, variance = 0.00173943 (L1/H1: -0.0152286, variance = 0.00350306, H1/L1: -0.00680145, variance = 0.00345228) |
| Amplitude ratio (L1/H1): | 0.996093 ⋇ 1.04259 (L1/H1: 0.984887 ⋇ 1.06097, H1/L1: 0.993222 ⋇ 1.06052) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.791662 |
| Antenna factor probability: | 0.75316 |
| Sky position probability: | 1 (expected δt_gw = 0.00527212 s) |
| Number of rejected frequency rows: | Q0: 6 / 26, Q1: 11 / 48, Q2: 15 / 92, Q3: 33 / 176, Q4: 71 / 338 |
| Maximum signal-to-noise ratio: | H1: 90.4721, L1: 92.9635 |
| SNR variance: | H1: 2.46782, L1: 5.32358 |

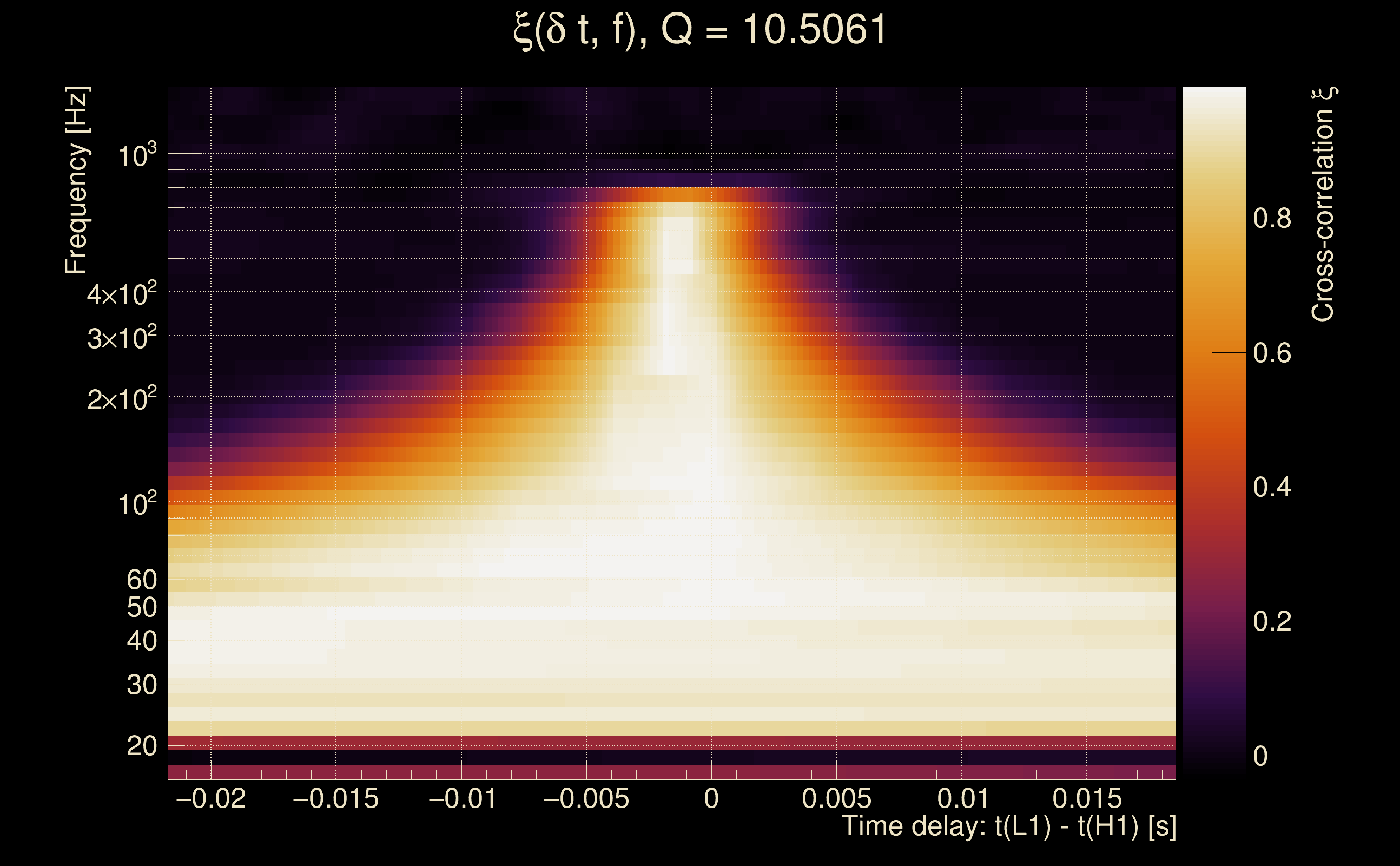

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

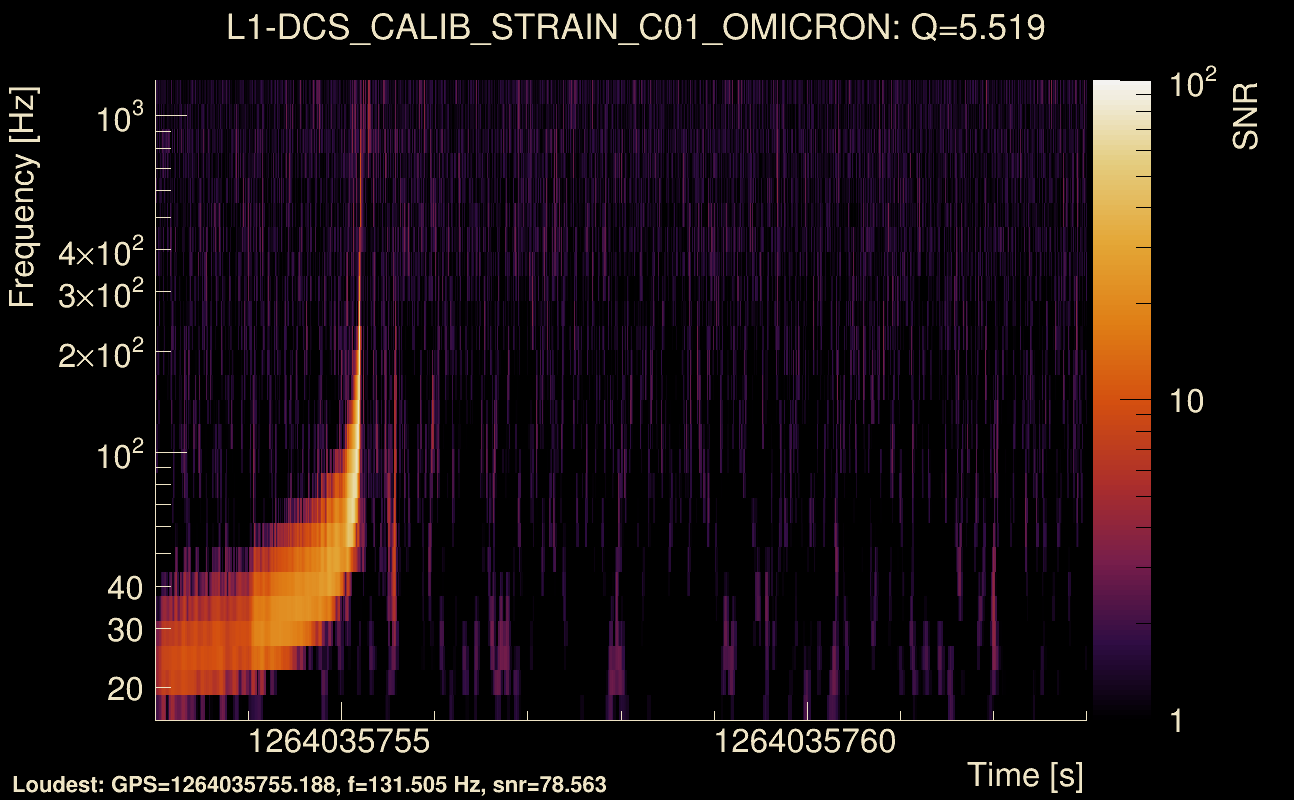

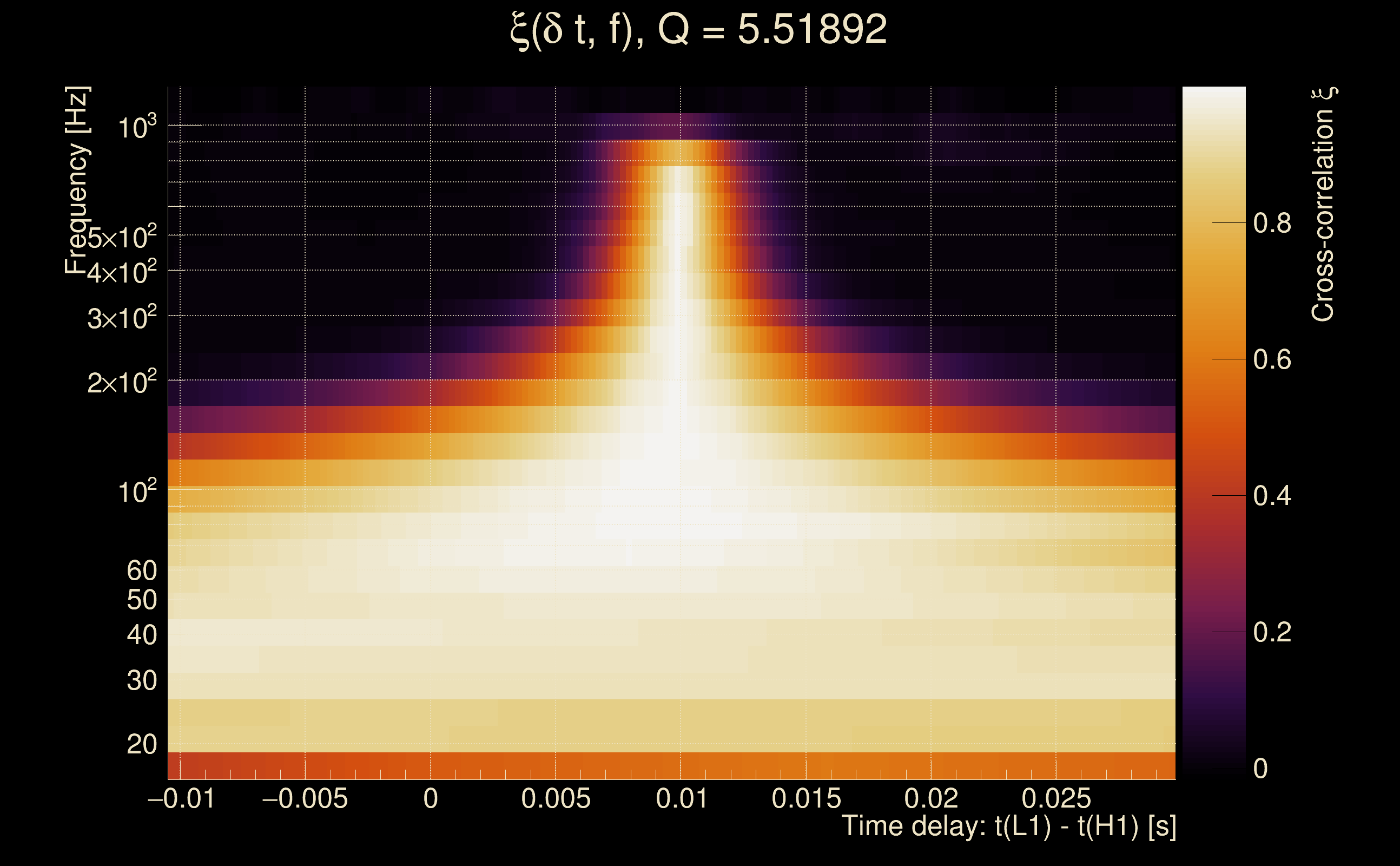

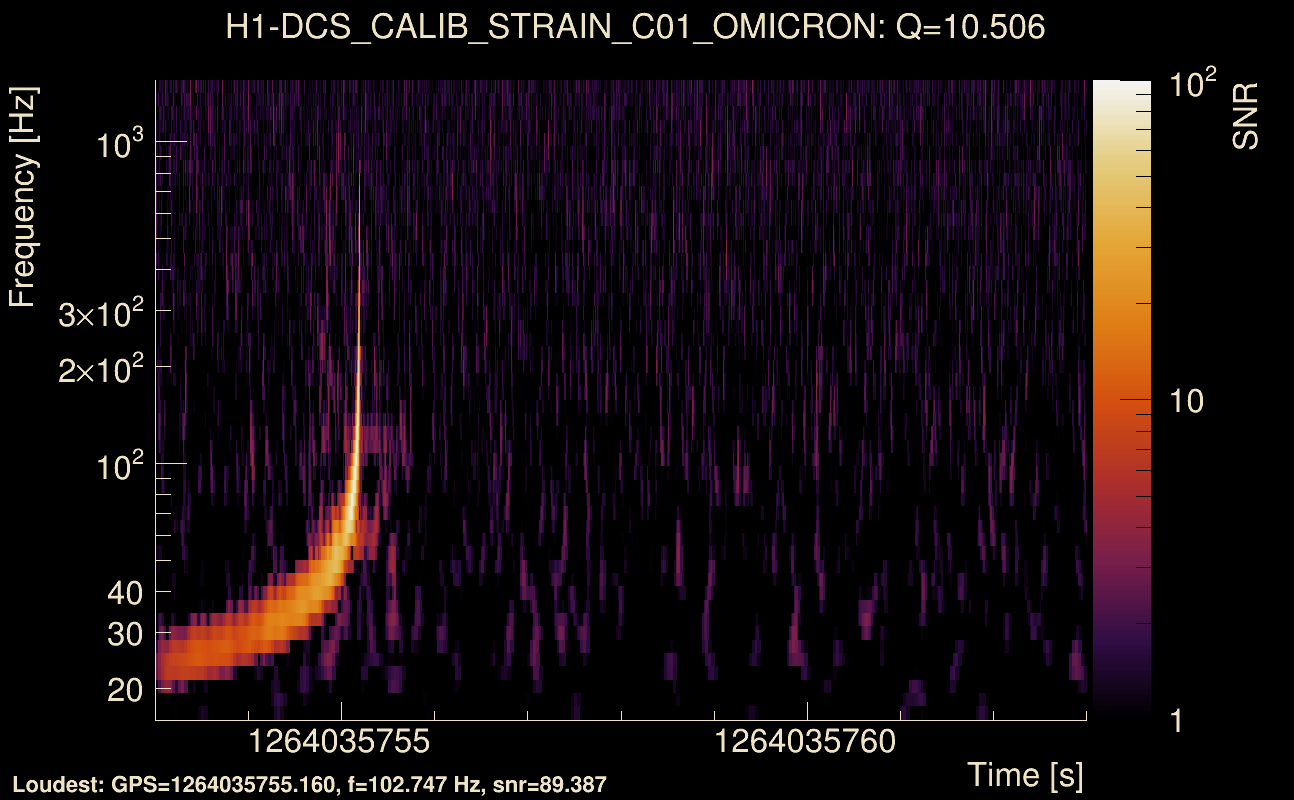

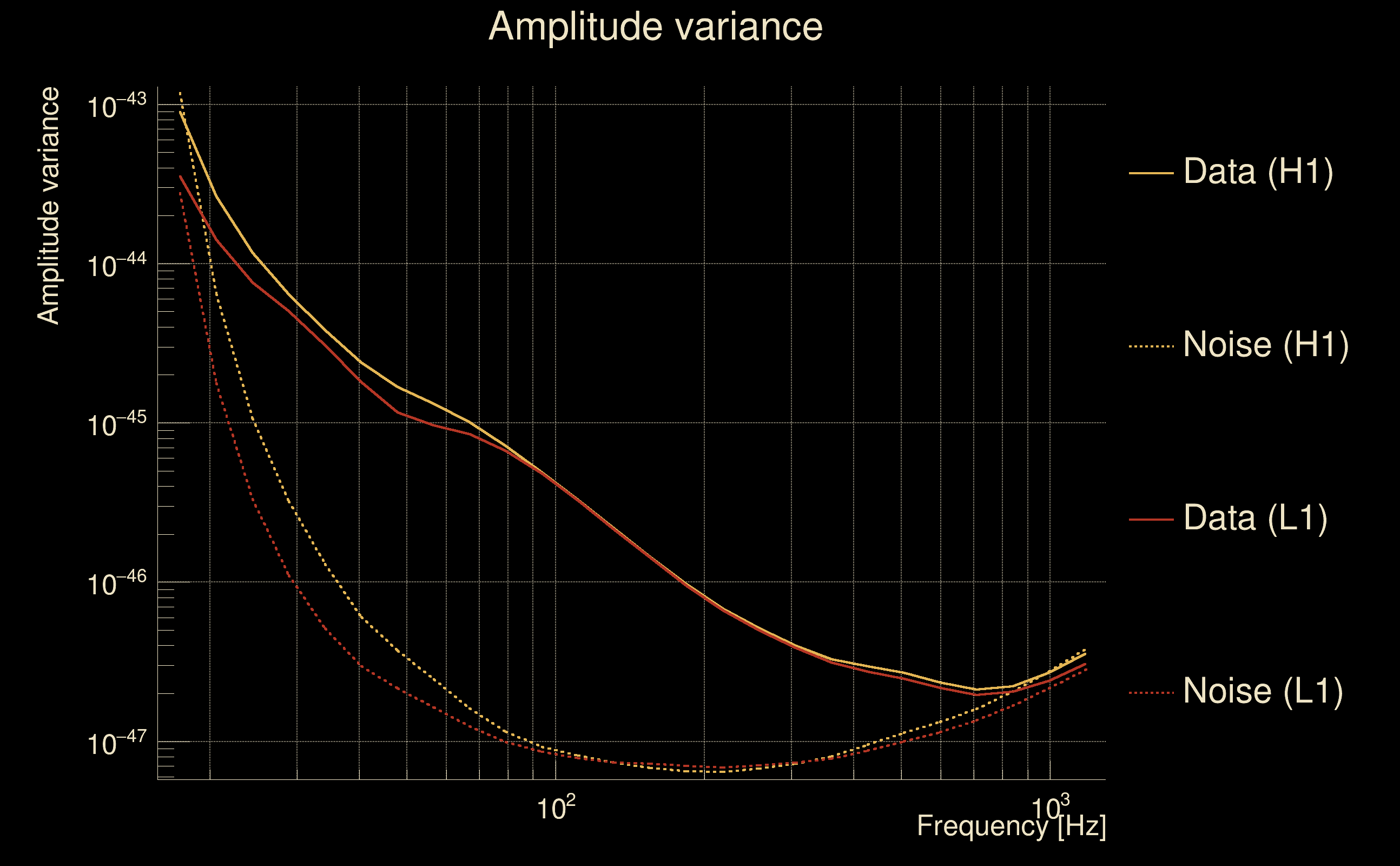

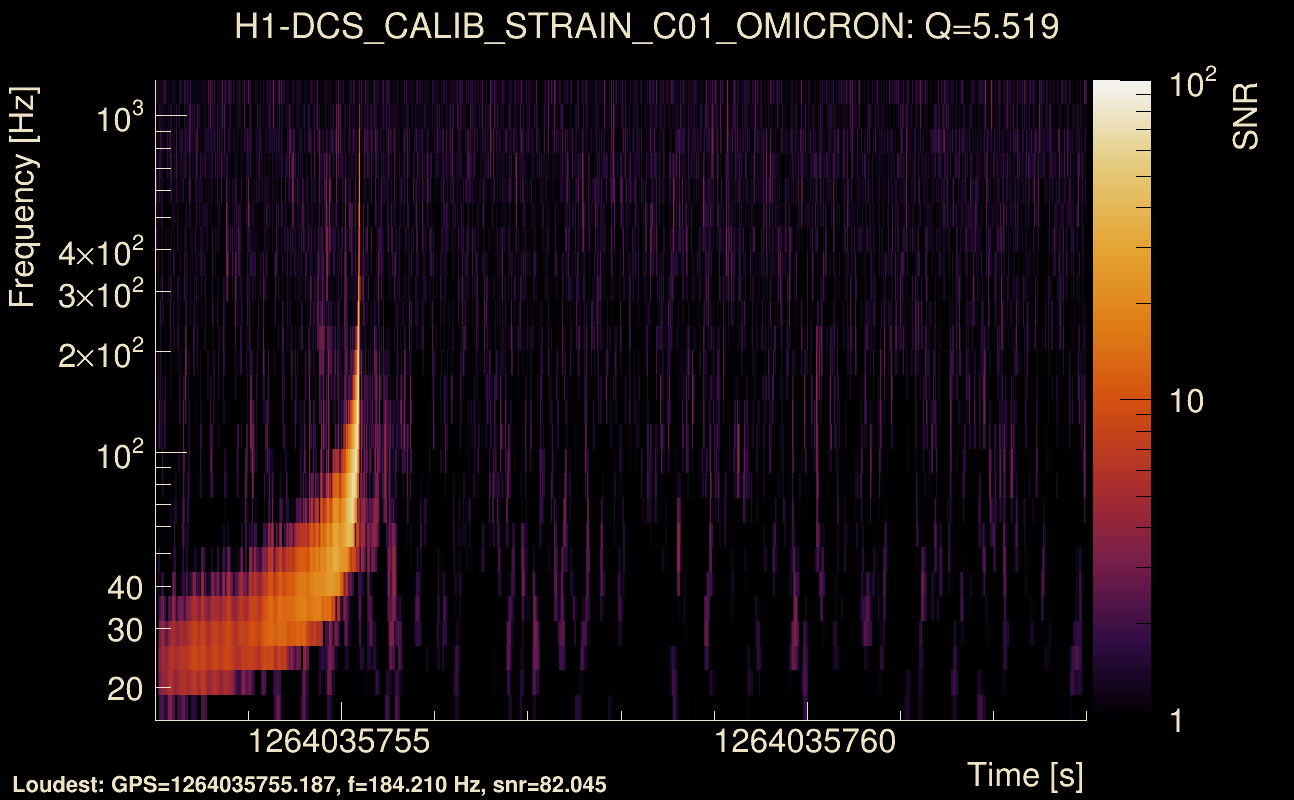

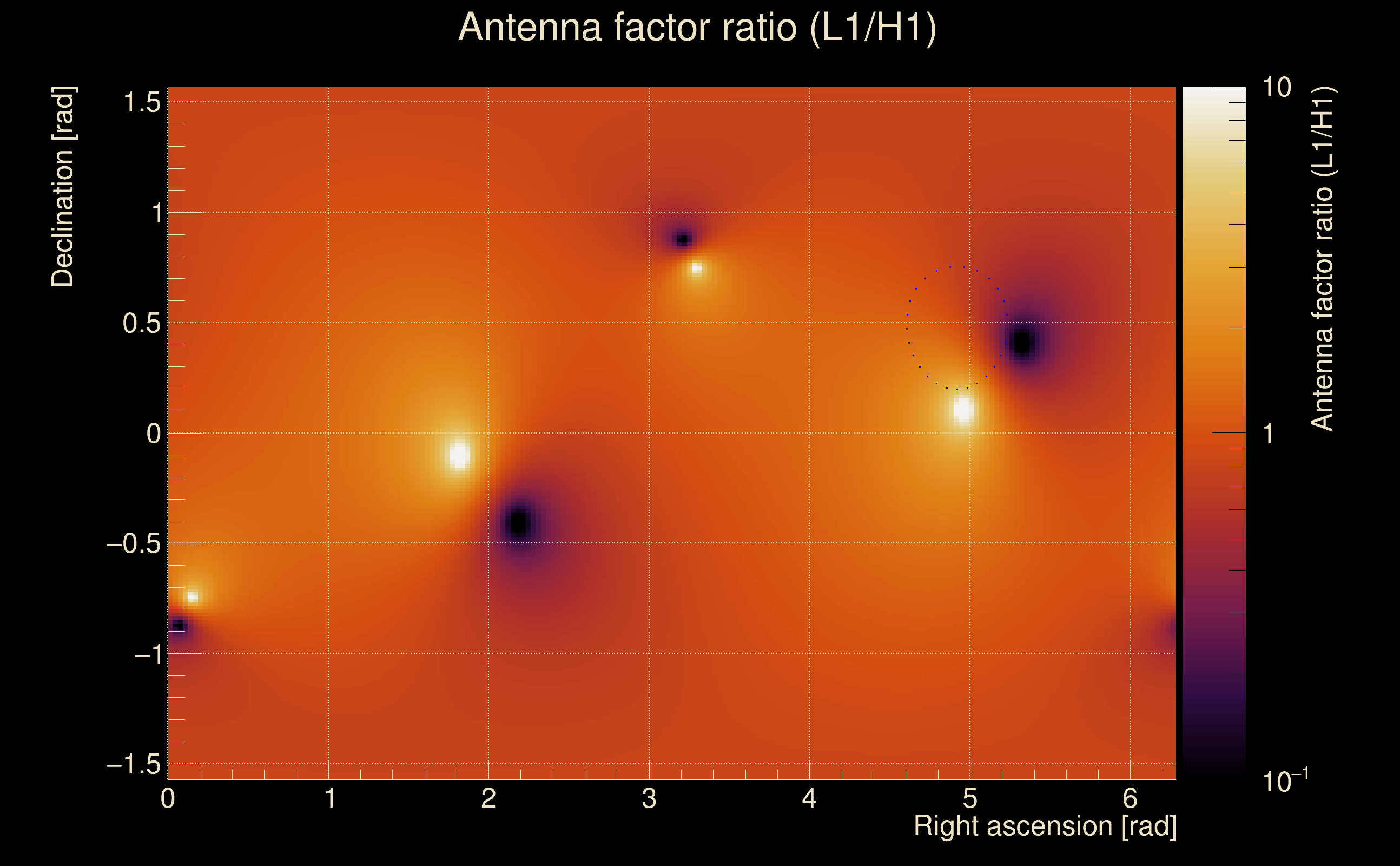

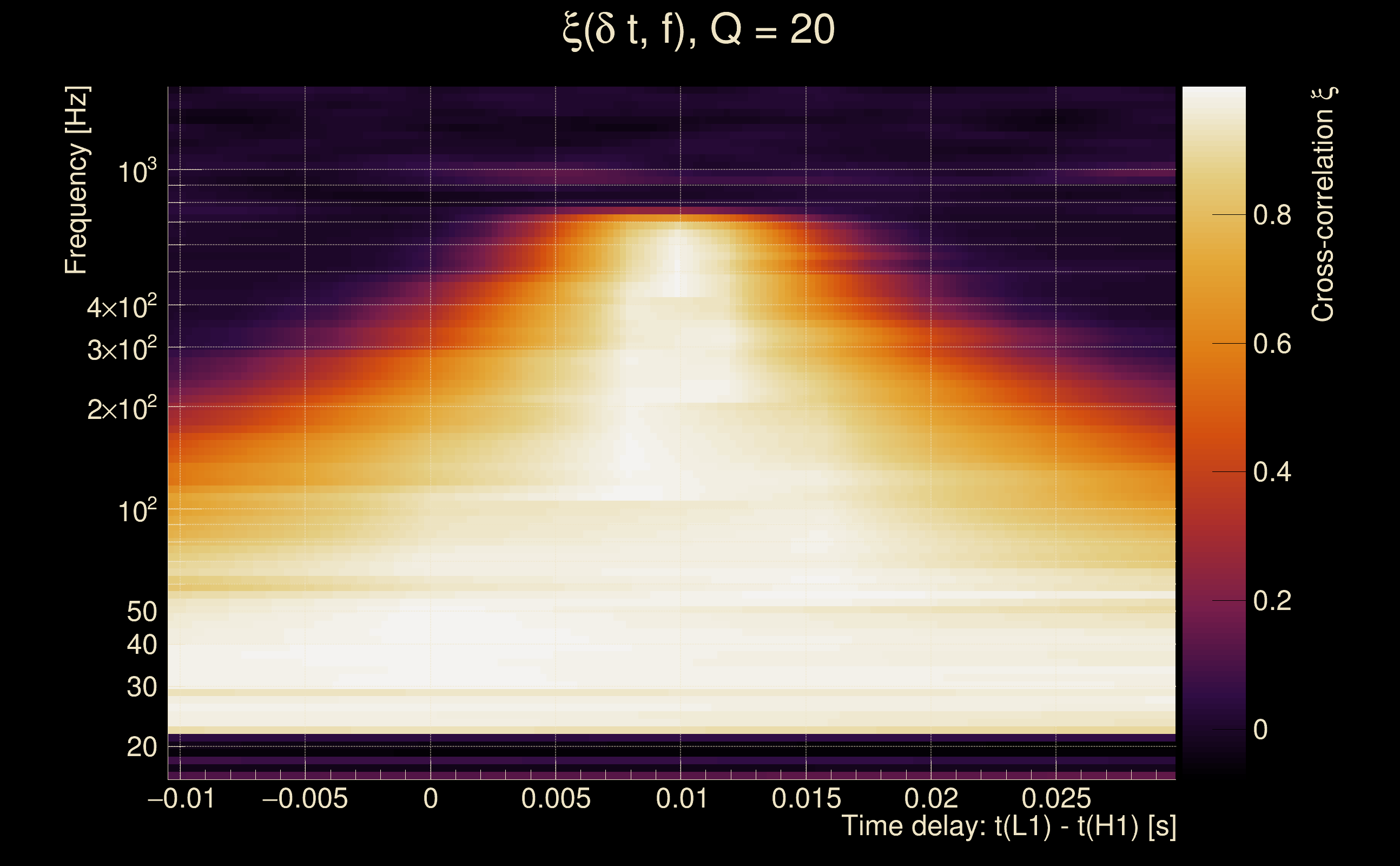

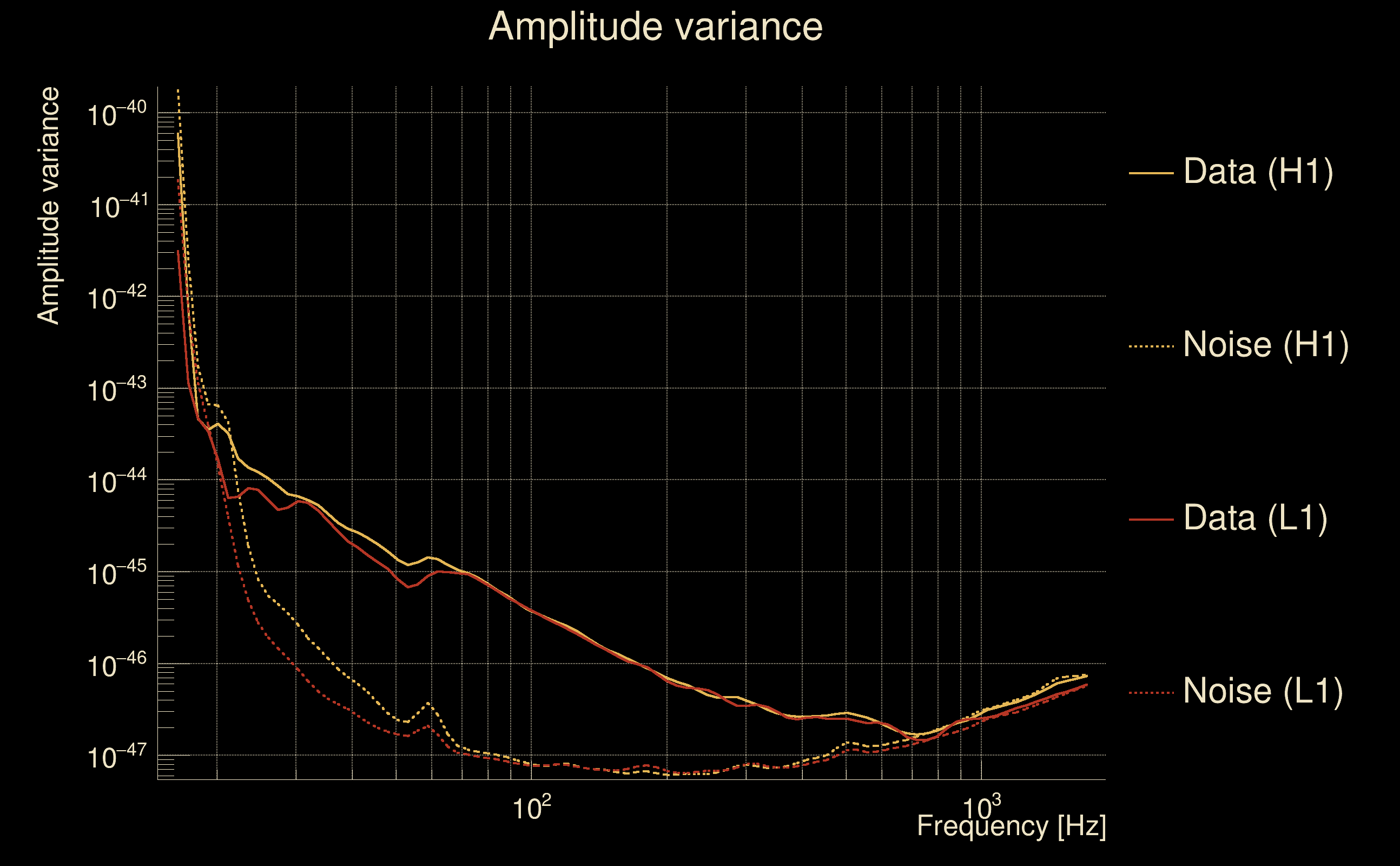

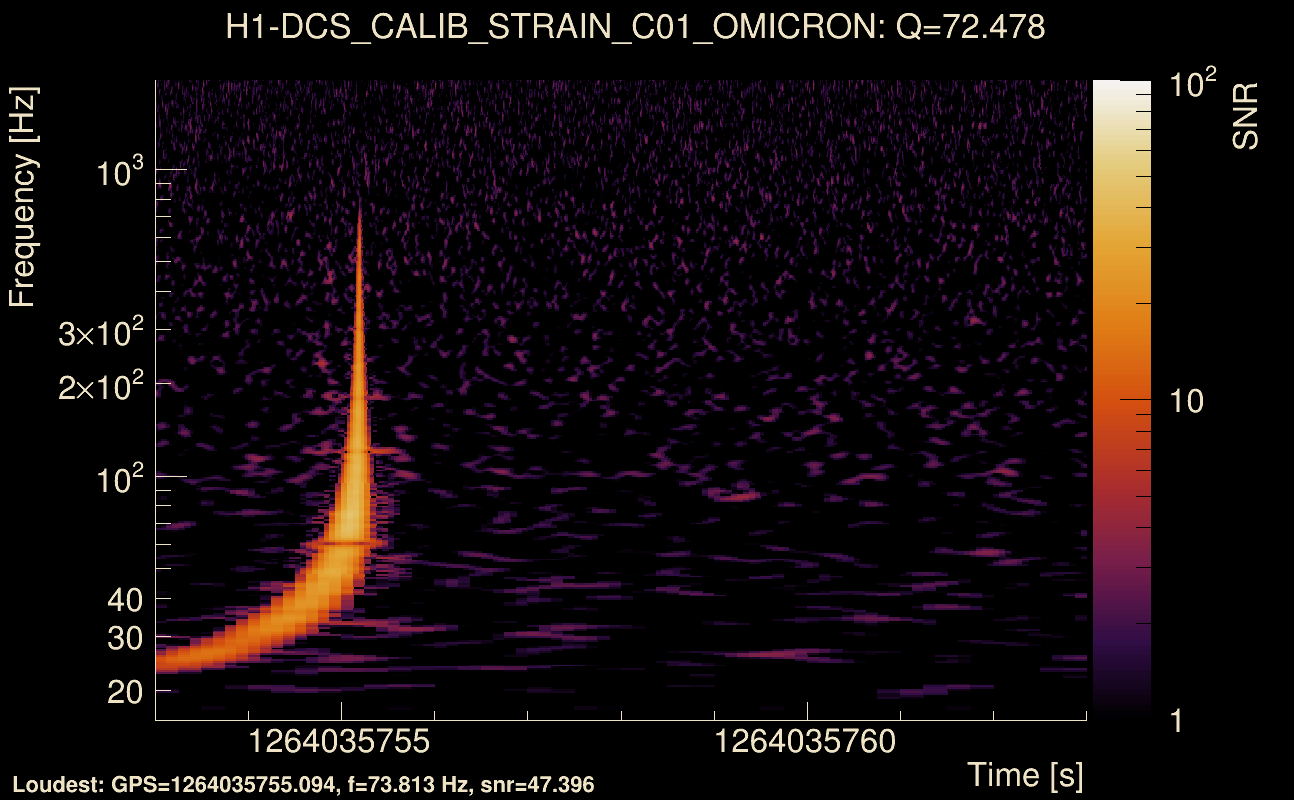

| Event time t(H1): | GPS = 1264035753 (Sun Jan 26 01:02:15 2020 ) → GPS = 1264035763 (Sun Jan 26 01:02:25 2020 ) |
| Event time t(L1): | GPS = 1264035753 (Sun Jan 26 01:02:25 2020 ) → GPS = 1264035763 (Sun Jan 26 01:02:25 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264035750 → GPS = 1264035766 |
| Omicron analysis time window (L1): | GPS = 1264035750 → GPS = 1264035766 |
| Time delay between detectors t(L1) - t(H1): | 0.00962944 s (slice index = 112 / 225), δt_gw = 0.00962944 s |
| Time delay uncertainty: | 8.12526e-05 s |
| Frequency: | 137.33 Hz |
| Ξ: | 0.973309 ± 0.00164526 (variance = 2.70687e-06): Q0: 0.971427, Q1: 0.974695, Q2: 0.975798, Q3: 0.974789, Q4: 0.976016 |
| Rank: | R_X = 0.973309 |
| Log of amplitude ratio (L1/H1): | -0.0859733, variance = 0.00427602 (L1/H1: -0.0909551, variance = 0.00827229, H1/L1: 0.0813822, variance = 0.00876336) |
| Amplitude ratio (L1/H1): | 0.917619 ⋇ 1.06758 (L1/H1: 0.913059 ⋇ 1.09522, H1/L1: 1.08479 ⋇ 1.09813) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.941532 |

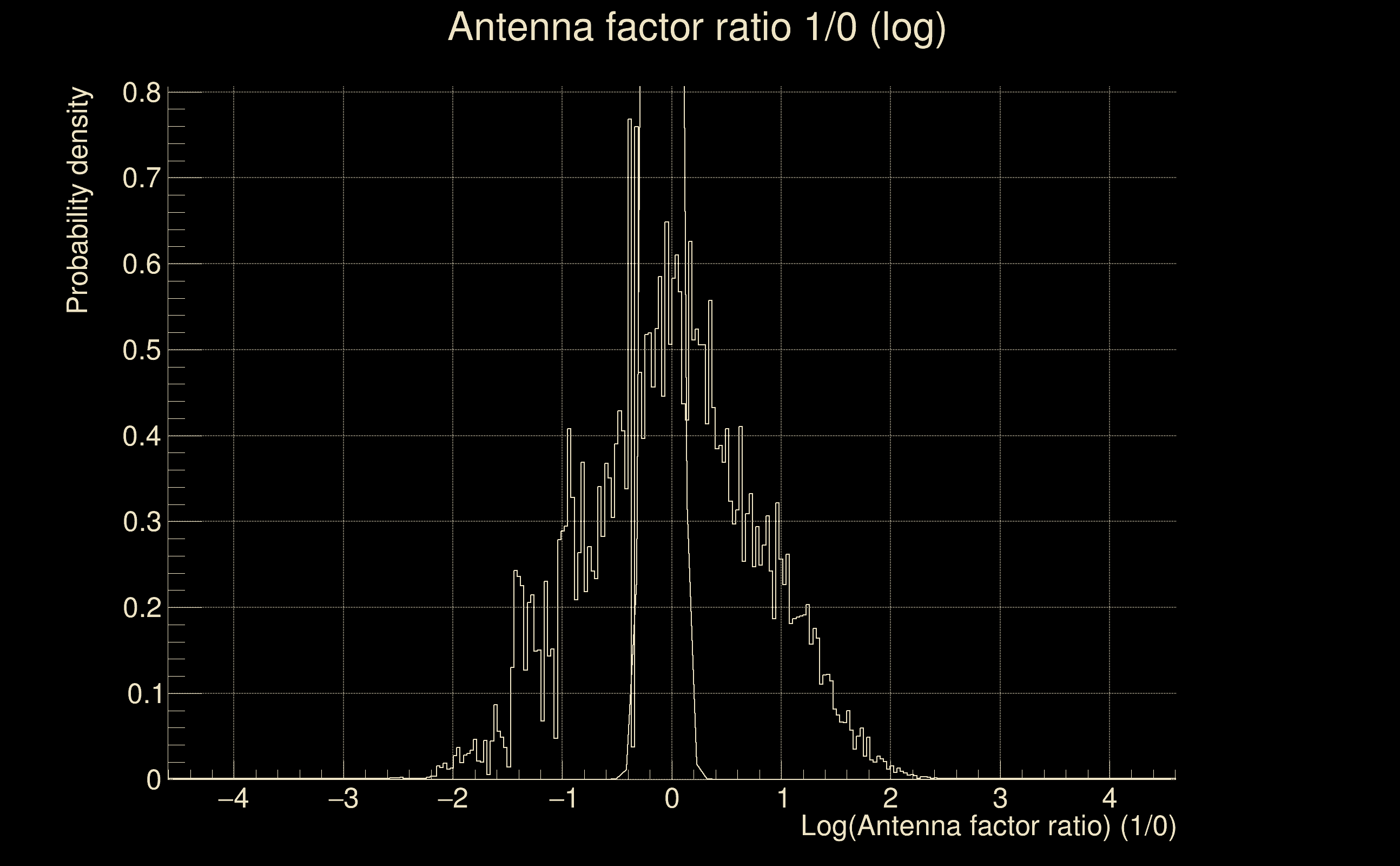

| Antenna factor probability: | 0.200486 |
| Sky position probability: | 1 (expected δt_gw = 0.00542392 s) |
| Number of rejected frequency rows: | Q0: 3 / 26, Q1: 14 / 48, Q2: 39 / 92, Q3: 67 / 176, Q4: 138 / 338 |
| Maximum signal-to-noise ratio: | H1: 89.0385, L1: 92.7488 |
| SNR variance: | H1: 10.223, L1: 13.8783 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

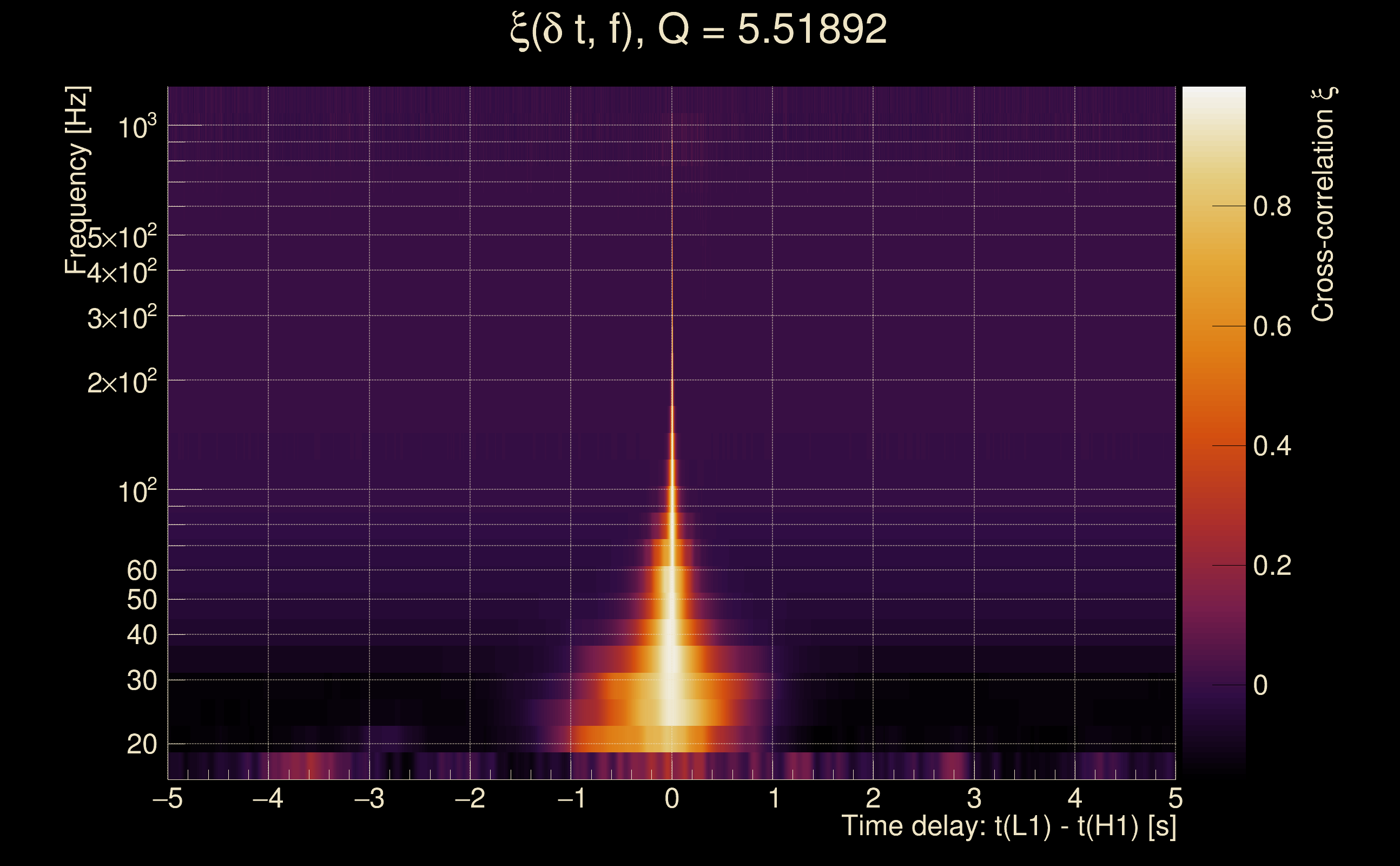

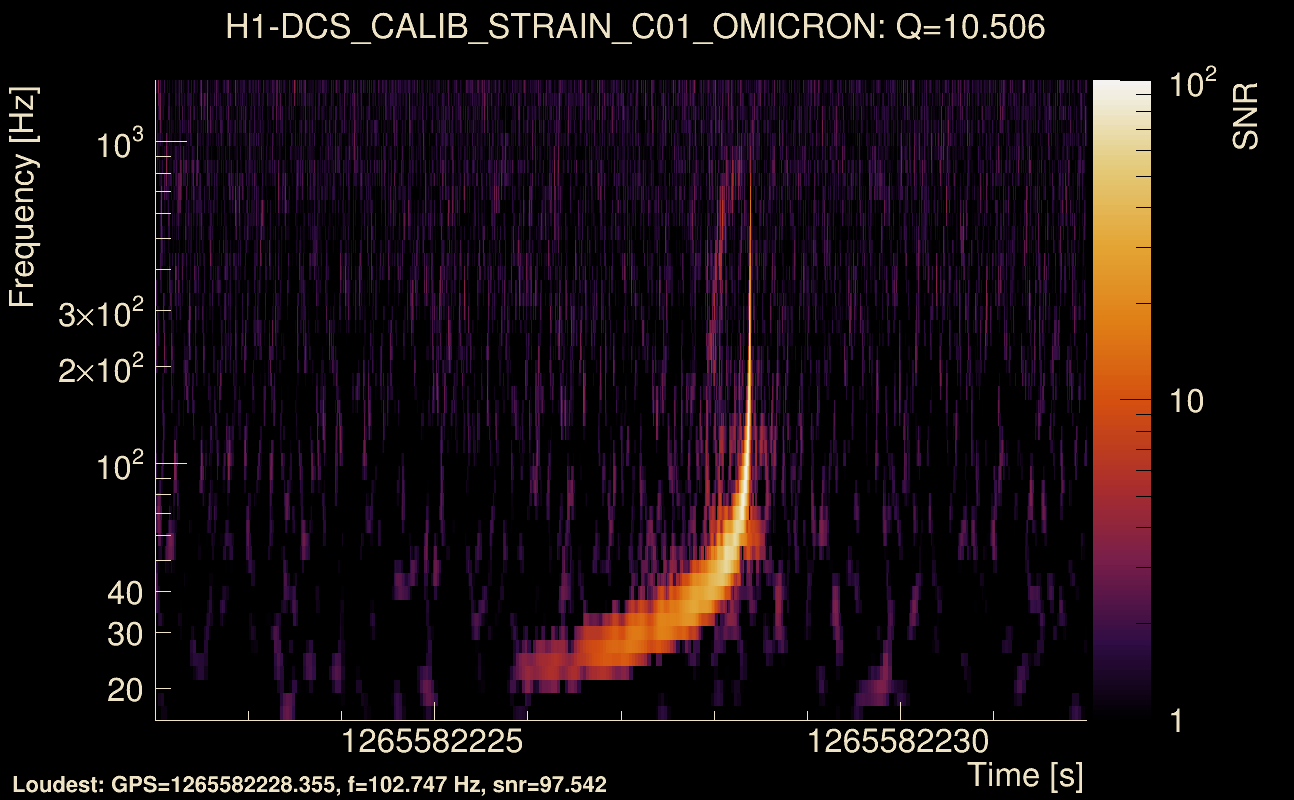

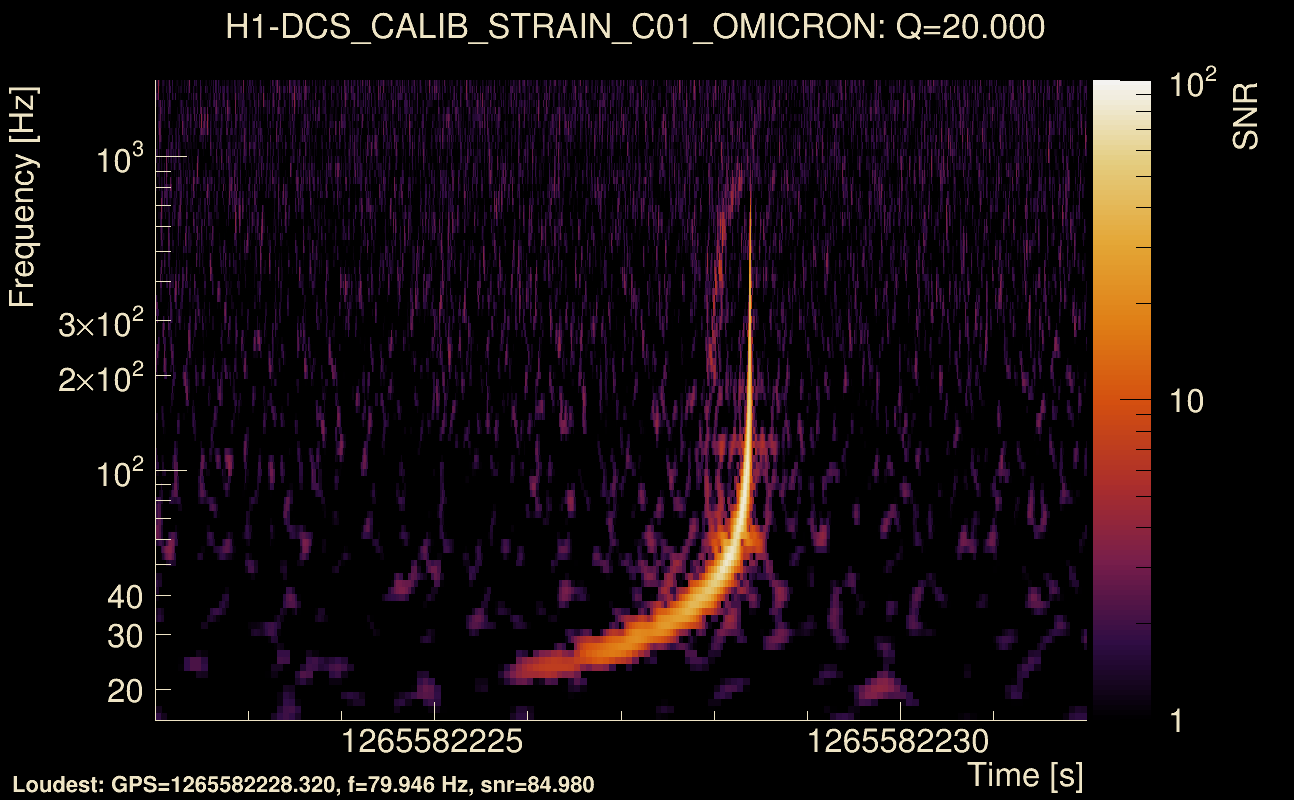

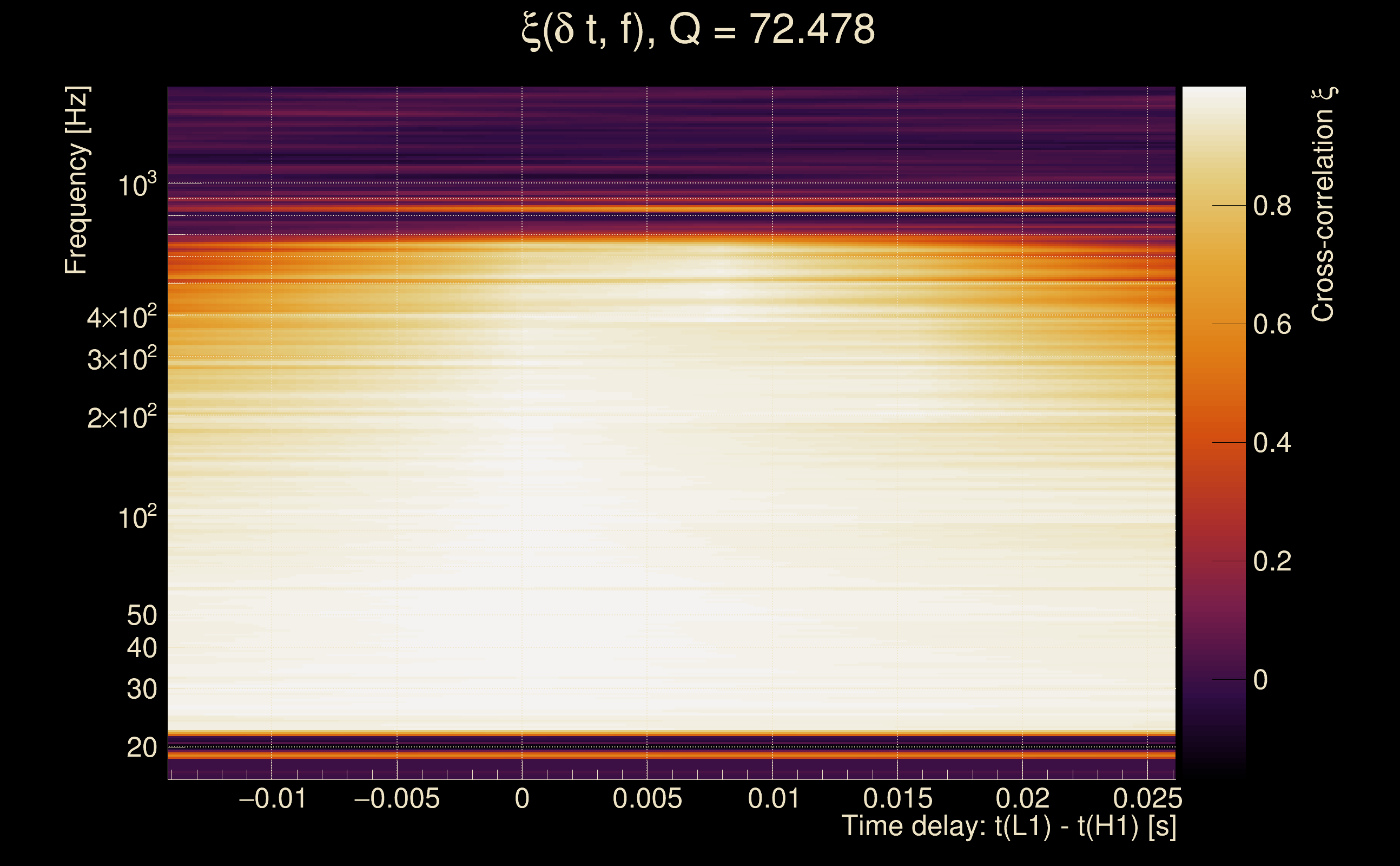

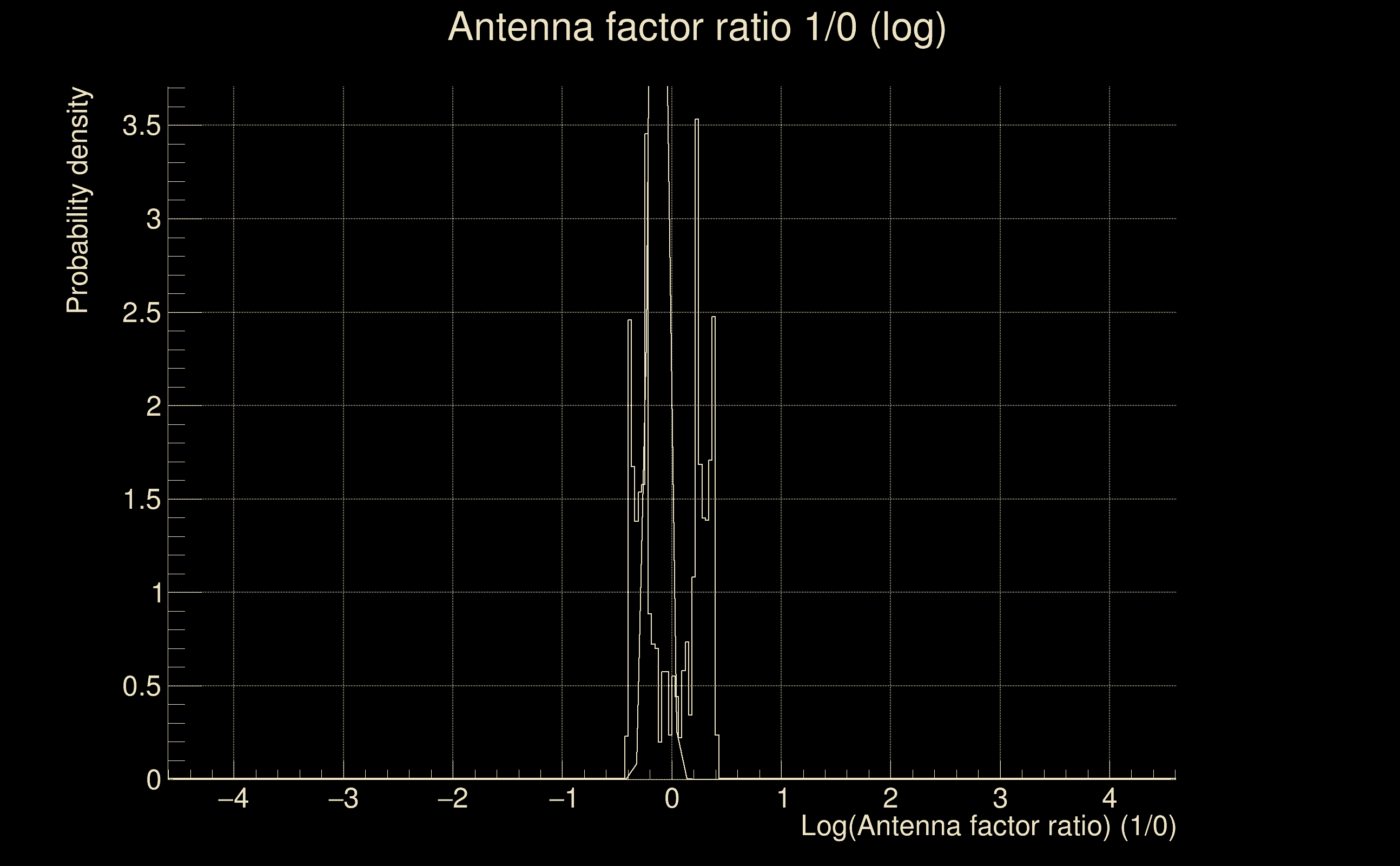

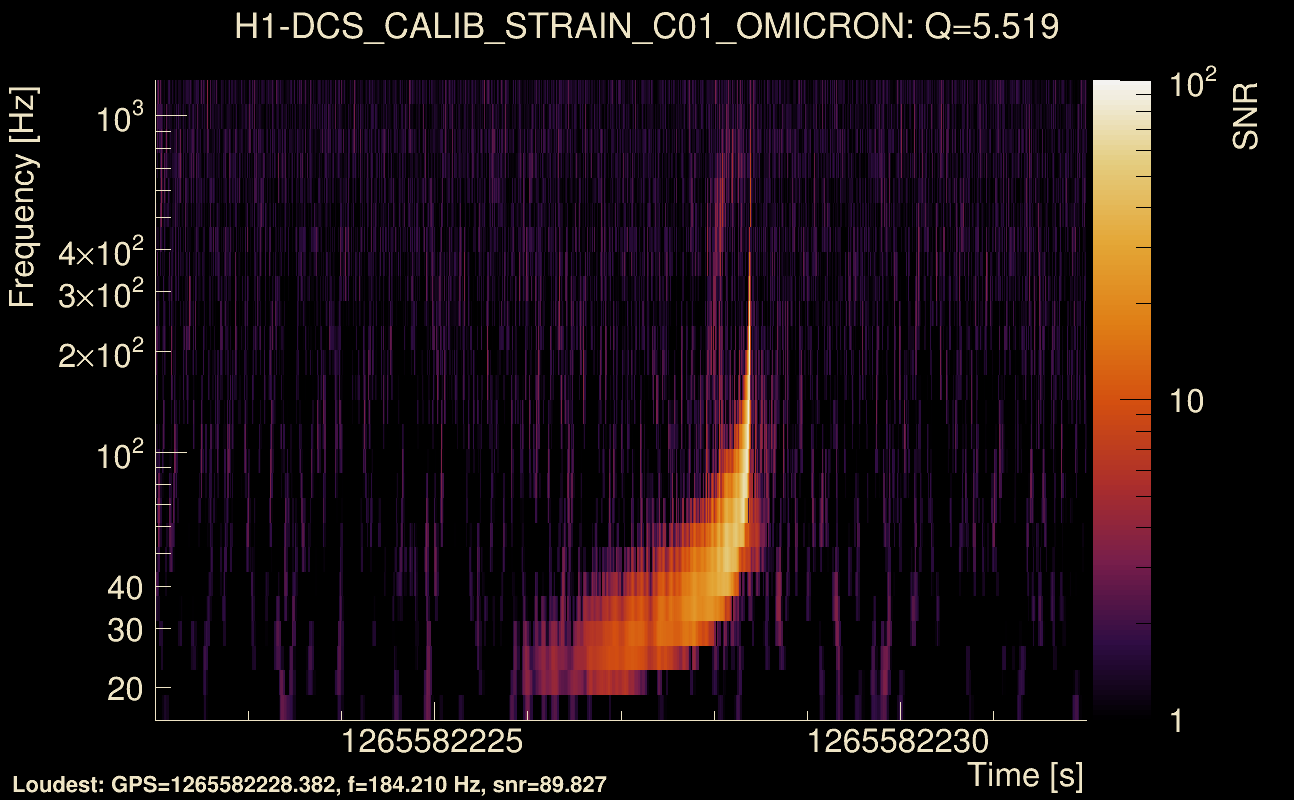

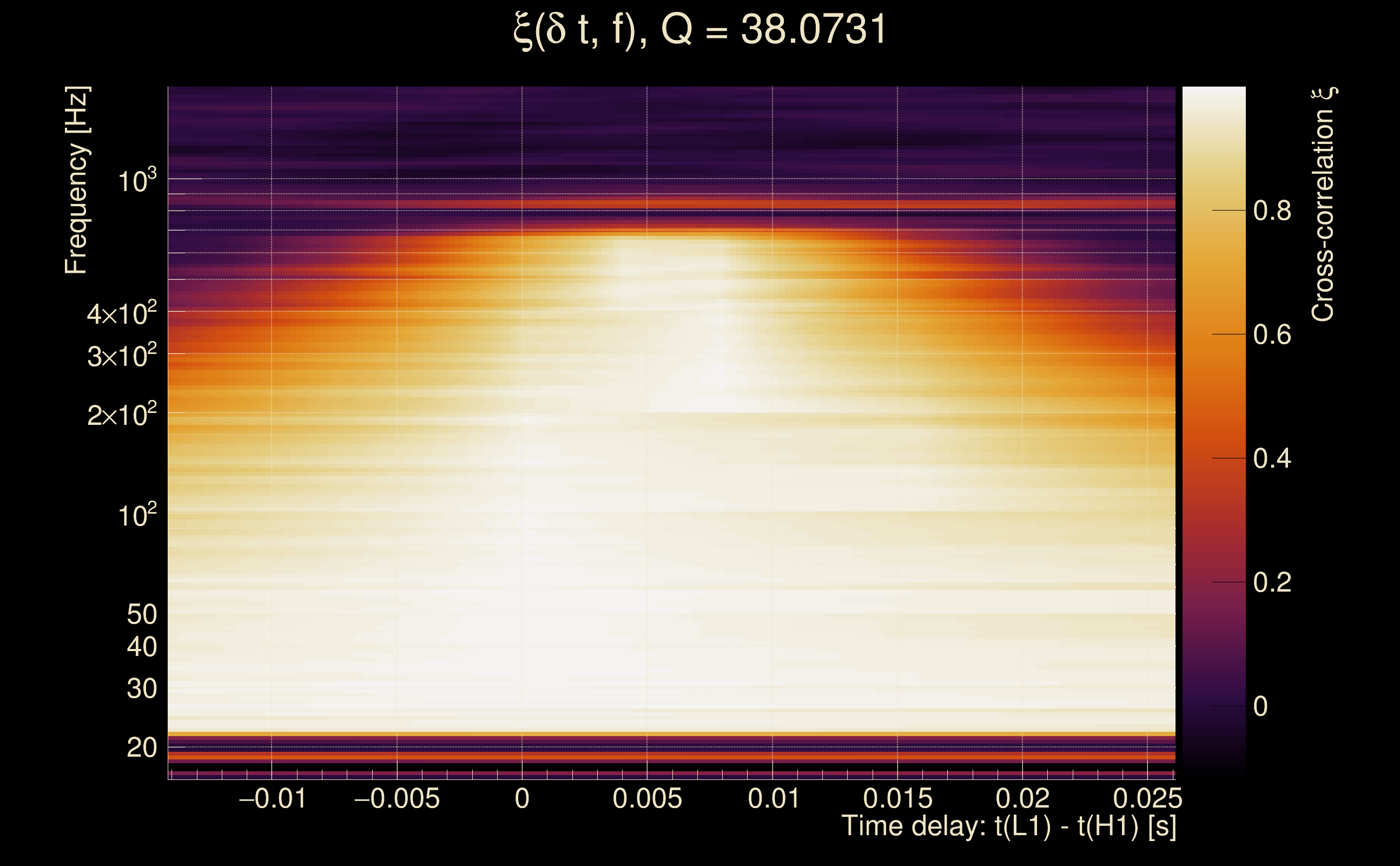

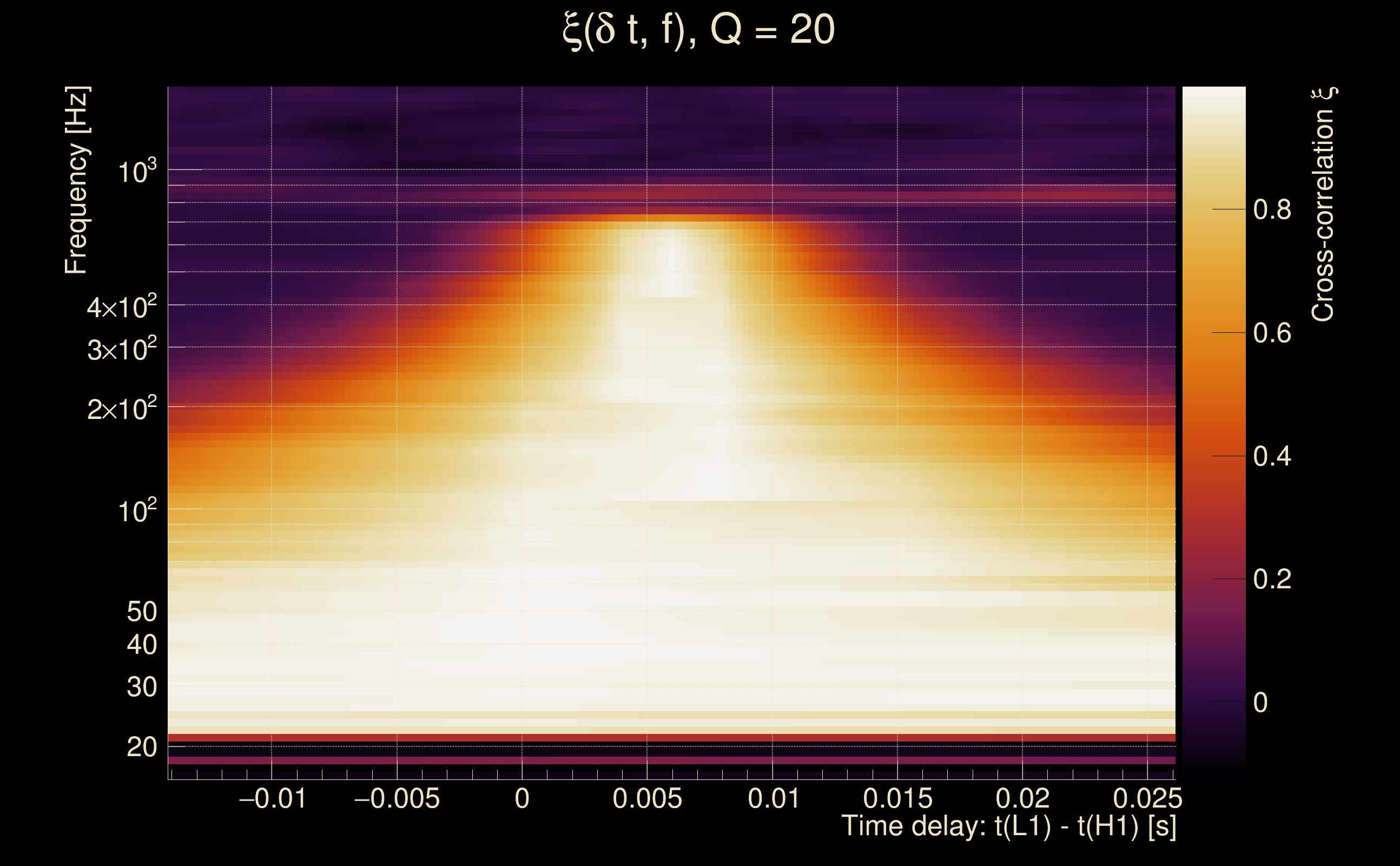

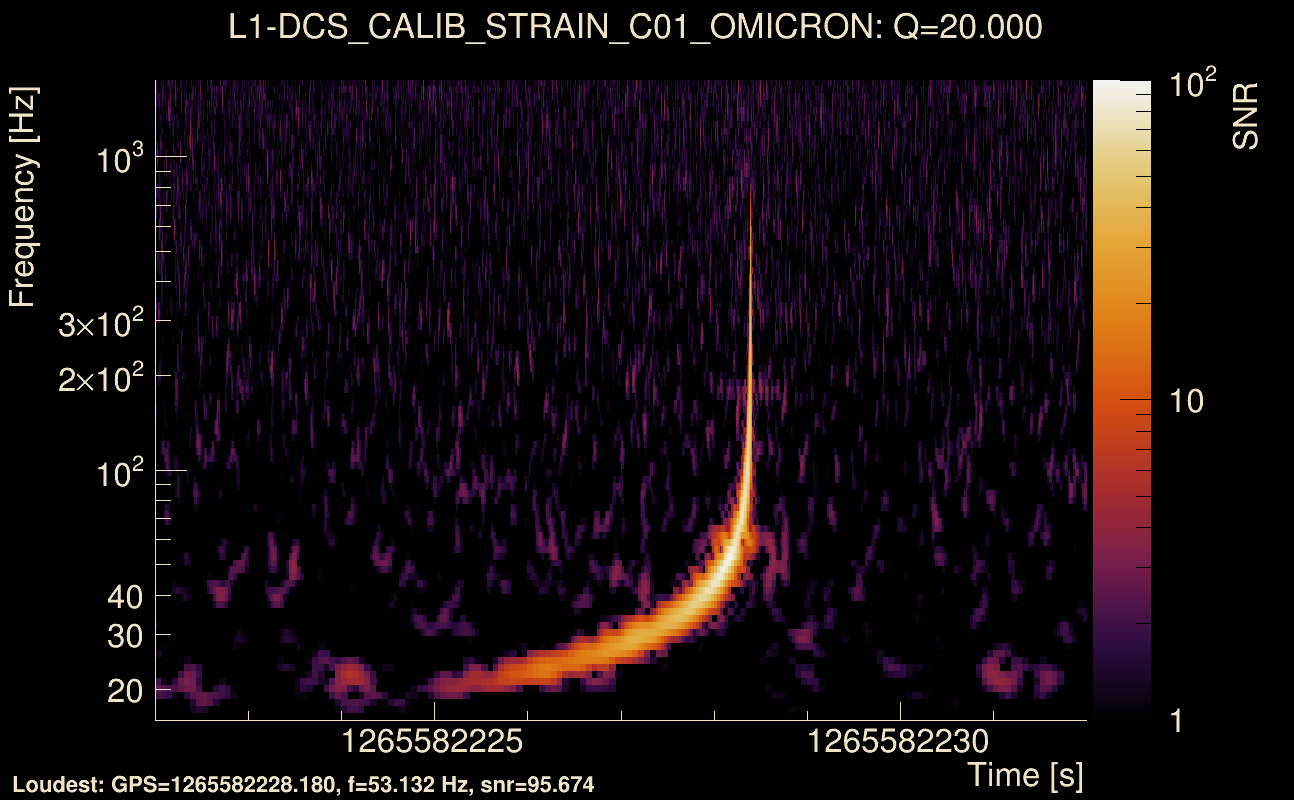

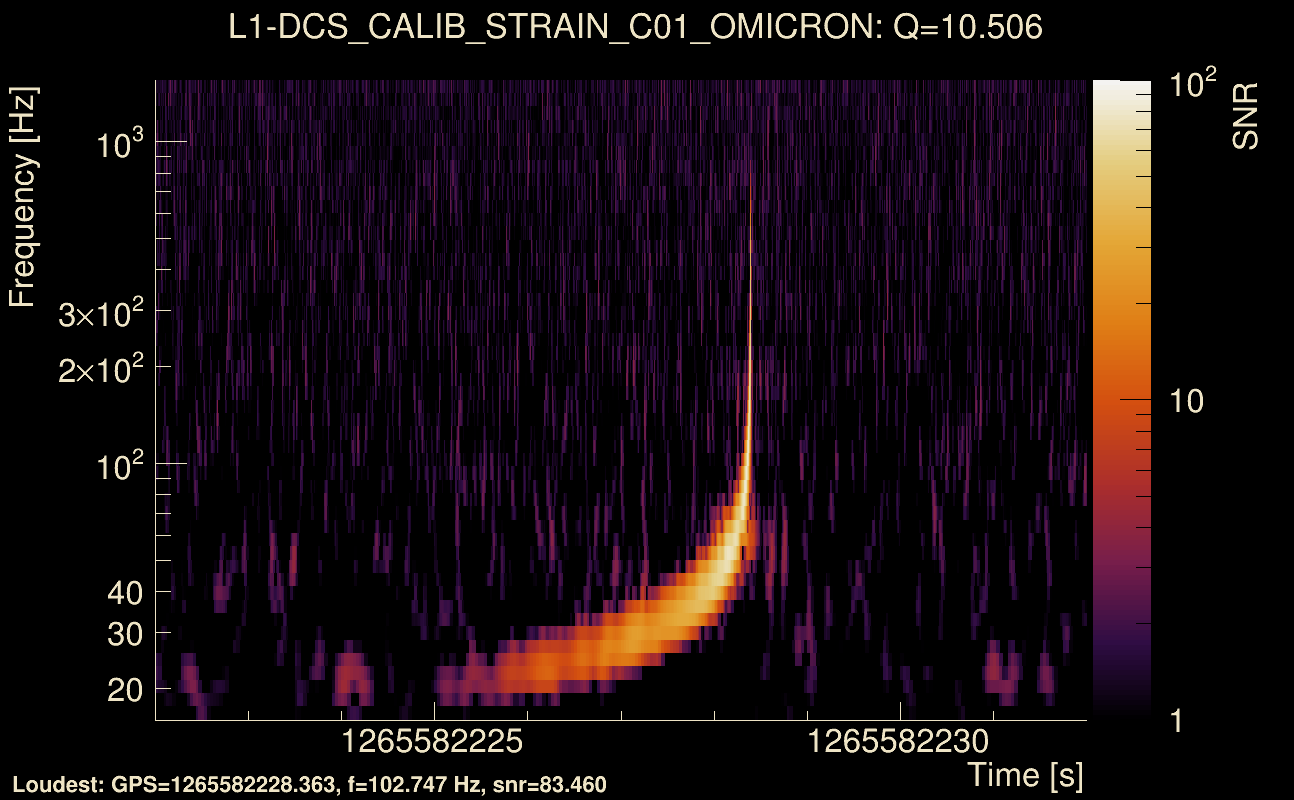

| Event time t(H1): | GPS = 1265582222 (Wed Feb 12 22:36:44 2020 ) → GPS = 1265582232 (Wed Feb 12 22:36:54 2020 ) |
| Event time t(L1): | GPS = 1265582222 (Wed Feb 12 22:36:54 2020 ) → GPS = 1265582232 (Wed Feb 12 22:36:54 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265582219 → GPS = 1265582235 |
| Omicron analysis time window (L1): | GPS = 1265582219 → GPS = 1265582235 |
| Time delay between detectors t(L1) - t(H1): | 0.00588957 s (slice index = 112 / 225), δt_gw = 0.00588957 s |
| Time delay uncertainty: | 7.94067e-05 s |
| Frequency: | 146.126 Hz |
| Ξ: | 0.972813 ± 0.00201508 (variance = 4.06056e-06): Q0: 0.973242, Q1: 0.973282, Q2: 0.969135, Q3: 0.975337, Q4: 0.97259 |
| Rank: | R_X = 0.972813 |
| Log of amplitude ratio (L1/H1): | -0.125903, variance = 0.0020946 (L1/H1: -0.141833, variance = 0.00446875, H1/L1: 0.108594, variance = 0.00384345) |
| Amplitude ratio (L1/H1): | 0.8817 ⋇ 1.04683 (L1/H1: 0.867766 ⋇ 1.06913, H1/L1: 1.11471 ⋇ 1.06396) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.71542 |
| Antenna factor probability: | 0.243696 |
| Sky position probability: | 1 (expected δt_gw = 0.00691016 s) |
| Number of rejected frequency rows: | Q0: 6 / 26, Q1: 12 / 48, Q2: 24 / 92, Q3: 45 / 176, Q4: 85 / 338 |
| Maximum signal-to-noise ratio: | H1: 99.4016, L1: 95.36 |
| SNR variance: | H1: 0.875709, L1: 1.82681 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1263246418 (Thu Jan 16 21:46:40 2020 ) → GPS = 1263246428 (Thu Jan 16 21:46:50 2020 ) |
| Event time t(L1): | GPS = 1263246418 (Thu Jan 16 21:46:50 2020 ) → GPS = 1263246428 (Thu Jan 16 21:46:50 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263246415 → GPS = 1263246431 |
| Omicron analysis time window (L1): | GPS = 1263246415 → GPS = 1263246431 |
| Time delay between detectors t(L1) - t(H1): | 0.00883278 s (slice index = 112 / 225), δt_gw = 0.00883278 s |
| Time delay uncertainty: | 6.57614e-05 s |
| Frequency: | 229.221 Hz |
| Ξ: | 0.972758 ± 0.0157692 (variance = 0.000248669): Q0: 0.980596, Q1: 0.976265, Q2: 0.960868, Q3: 0.946214, Q4: 0.940809 |
| Rank: | R_X = 0.972758 |
| Log of amplitude ratio (L1/H1): | -0.255873, variance = 0.00426328 (L1/H1: -0.259643, variance = 0.00409474, H1/L1: 0.25008, variance = 0.017761) |
| Amplitude ratio (L1/H1): | 0.77424 ⋇ 1.06747 (L1/H1: 0.771327 ⋇ 1.06608, H1/L1: 1.28413 ⋇ 1.14256) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.948423 |
| Antenna factor probability: | 0.186346 |
| Sky position probability: | 1 (expected δt_gw = 0.00878571 s) |
| Number of rejected frequency rows: | Q0: 8 / 26, Q1: 17 / 48, Q2: 43 / 92, Q3: 94 / 176, Q4: 181 / 338 |
| Maximum signal-to-noise ratio: | H1: 62.7872, L1: 50.6553 |
| SNR variance: | H1: 0.498641, L1: 0.538835 |
| Event time t(H1): | GPS = 1265023968 (Thu Feb 6 11:32:30 2020 ) → GPS = 1265023978 (Thu Feb 6 11:32:40 2020 ) |
| Event time t(L1): | GPS = 1265023968 (Thu Feb 6 11:32:40 2020 ) → GPS = 1265023978 (Thu Feb 6 11:32:40 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265023965 → GPS = 1265023981 |
| Omicron analysis time window (L1): | GPS = 1265023965 → GPS = 1265023981 |
| Time delay between detectors t(L1) - t(H1): | 0.000985589 s (slice index = 112 / 225), δt_gw = 0.000985589 s |
| Time delay uncertainty: | 6.51241e-05 s |
| Frequency: | 208.409 Hz |
| Ξ: | 0.97235 ± 0.00833218 (variance = 6.94251e-05): Q0: 0.977971, Q1: 0.974245, Q2: 0.959629, Q3: 0.957429, Q4: 0.961322 |
| Rank: | R_X = 0.97235 |
| Log of amplitude ratio (L1/H1): | -0.147626, variance = 0.00262137 (L1/H1: -0.149637, variance = 0.00463098, H1/L1: 0.144705, variance = 0.00599659) |
| Amplitude ratio (L1/H1): | 0.862754 ⋇ 1.05253 (L1/H1: 0.861021 ⋇ 1.07042, H1/L1: 1.1557 ⋇ 1.08051) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.961842 |
| Antenna factor probability: | 0.473652 |
| Sky position probability: | 1 (expected δt_gw = 0.00111444 s) |
| Number of rejected frequency rows: | Q0: 7 / 26, Q1: 16 / 48, Q2: 33 / 92, Q3: 66 / 176, Q4: 151 / 338 |
| Maximum signal-to-noise ratio: | H1: 74.1762, L1: 61.5443 |
| SNR variance: | H1: 0.496489, L1: 0.537469 |
| Event time t(H1): | GPS = 1263978162 (Sat Jan 25 09:02:24 2020 ) → GPS = 1263978172 (Sat Jan 25 09:02:34 2020 ) |
| Event time t(L1): | GPS = 1263978162 (Sat Jan 25 09:02:34 2020 ) → GPS = 1263978172 (Sat Jan 25 09:02:34 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263978159 → GPS = 1263978175 |
| Omicron analysis time window (L1): | GPS = 1263978159 → GPS = 1263978175 |
| Time delay between detectors t(L1) - t(H1): | 4.62194 s (slice index = 8 / 225), δt_gw = 0.000849476 s |
| Time delay uncertainty: | 0.000436669 s |
| Frequency: | 92.8671 Hz |
| Ξ: | 0.721302 ± 0.0729117 (variance = 0.00531612): Q0: 0.70725, Q1: 0.791825, Q2: 0.712911, Q3: 0.651729, Q4: 0.571818 |
| Rank: | R_X = 0.721302 |
| Log of amplitude ratio (L1/H1): | -1.76586, variance = 0.71294 (L1/H1: -1.91099, variance = 0.807287, H1/L1: -0.319369, variance = 1.7224) |
| Amplitude ratio (L1/H1): | 0.171039 ⋇ 2.32648 (L1/H1: 0.147934 ⋇ 2.4559, H1/L1: 0.726608 ⋇ 3.71509) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.160826 |
| Antenna factor probability: | 0.999938 |
| Sky position probability: | 1 (expected δt_gw = -0.00137929 s) |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 43 / 48, Q2: 71 / 92, Q3: 144 / 176, Q4: 298 / 338 |
| Maximum signal-to-noise ratio: | H1: 56.1578, L1: 14.8151 |
| SNR variance: | H1: 0.550807, L1: 0.642414 |
| Event time t(H1): | GPS = 1264798952 (Mon Feb 3 21:02:14 2020 ) → GPS = 1264798962 (Mon Feb 3 21:02:24 2020 ) |
| Event time t(L1): | GPS = 1264798952 (Mon Feb 3 21:02:24 2020 ) → GPS = 1264798962 (Mon Feb 3 21:02:24 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264798949 → GPS = 1264798965 |
| Omicron analysis time window (L1): | GPS = 1264798949 → GPS = 1264798965 |
| Time delay between detectors t(L1) - t(H1): | 4.61979 s (slice index = 8 / 225), δt_gw = -0.00130737 s |
| Time delay uncertainty: | 0.000812617 s |
| Frequency: | 79.2002 Hz |
| Ξ: | 0.670547 ± 0.114347 (variance = 0.0130753): Q0: 0.524274, Q1: 0.824632, Q2: 0.822951, Q3: 0.732065, Q4: 0.809035 |
| Rank: | R_X = 0.670547 |
| Log of amplitude ratio (L1/H1): | -0.0853213, variance = 0.0477162 (L1/H1: -0.516612, variance = 0.0827841, H1/L1: -0.638273, variance = 0.109117) |
| Amplitude ratio (L1/H1): | 0.918217 ⋇ 1.24413 (L1/H1: 0.596538 ⋇ 1.33339, H1/L1: 0.528204 ⋇ 1.39143) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00838087 |
| Antenna factor probability: | 0.987101 |
| Sky position probability: | 1 (expected δt_gw = 0.00861754 s) |
| Number of rejected frequency rows: | Q0: 25 / 26, Q1: 46 / 48, Q2: 88 / 92, Q3: 165 / 176, Q4: 308 / 338 |
| Maximum signal-to-noise ratio: | H1: 73.9363, L1: 57.0814 |
| SNR variance: | H1: 2.82655, L1: 0.624226 |
| Event time t(H1): | GPS = 1263897693 (Fri Jan 24 10:41:15 2020 ) → GPS = 1263897703 (Fri Jan 24 10:41:25 2020 ) |
| Event time t(L1): | GPS = 1263897693 (Fri Jan 24 10:41:25 2020 ) → GPS = 1263897703 (Fri Jan 24 10:41:25 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263897690 → GPS = 1263897706 |
| Omicron analysis time window (L1): | GPS = 1263897690 → GPS = 1263897706 |
| Time delay between detectors t(L1) - t(H1): | 4.61536 s (slice index = 8 / 225), δt_gw = -0.00573329 s |
| Time delay uncertainty: | 0.00163004 s |
| Frequency: | 28.3642 Hz |
| Ξ: | 0.60361 ± 0.177411 (variance = 0.0314748): Q0: 0.45462, Q1: 0.640819, Q2: 0.816053, Q3: 0.901563, Q4: 0.92577 |
| Rank: | R_X = 0.60361 |
| Log of amplitude ratio (L1/H1): | -2.94639, variance = 1.29617 (L1/H1: -2.98829, variance = 1.34614, H1/L1: 0.754959, variance = 0.207627) |
| Amplitude ratio (L1/H1): | 0.0525289 ⋇ 3.12206 (L1/H1: 0.0503733 ⋇ 3.19067, H1/L1: 2.12752 ⋇ 1.57722) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0731836 |
| Antenna factor probability: | 0.940182 |
| Sky position probability: | 1 (expected δt_gw = -0.000570137 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 45 / 48, Q2: 88 / 92, Q3: 170 / 176, Q4: 334 / 338 |
| Maximum signal-to-noise ratio: | H1: 90.1556, L1: 12.4666 |
| SNR variance: | H1: 5.97502, L1: 0.972238 |
| Event time t(H1): | GPS = 1263706344 (Wed Jan 22 05:32:06 2020 ) → GPS = 1263706354 (Wed Jan 22 05:32:16 2020 ) |
| Event time t(L1): | GPS = 1263706344 (Wed Jan 22 05:32:16 2020 ) → GPS = 1263706354 (Wed Jan 22 05:32:16 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263706341 → GPS = 1263706357 |
| Omicron analysis time window (L1): | GPS = 1263706341 → GPS = 1263706357 |
| Time delay between detectors t(L1) - t(H1): | 4.6272 s (slice index = 8 / 225), δt_gw = 0.00610799 s |
| Time delay uncertainty: | 0.00335769 s |
| Frequency: | 33.0769 Hz |
| Ξ: | 0.580751 ± 0.169438 (variance = 0.0287091): Q0: 0.645408, Q1: 0.324742, Q2: 0.673325, Q3: 0.82514, Q4: 0.733498 |
| Rank: | R_X = 0.580751 |
| Log of amplitude ratio (L1/H1): | 0.919178, variance = 0.29824 (L1/H1: 0.423104, variance = 0.56087, H1/L1: -0.940171, variance = 0.323012) |
| Amplitude ratio (L1/H1): | 2.50723 ⋇ 1.72653 (L1/H1: 1.52669 ⋇ 2.1147, H1/L1: 0.390561 ⋇ 1.76534) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.582331 |
| Antenna factor probability: | 0.963611 |
| Sky position probability: | 1 (expected δt_gw = 8.0555e-05 s) |
| Number of rejected frequency rows: | Q0: 25 / 26, Q1: 47 / 48, Q2: 86 / 92, Q3: 172 / 176, Q4: 324 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.55572, L1: 27.007 |
| SNR variance: | H1: 0.518007, L1: 0.899087 |
| Event time t(H1): | GPS = 1262401729 (Tue Jan 7 03:08:31 2020 ) → GPS = 1262401739 (Tue Jan 7 03:08:41 2020 ) |
| Event time t(L1): | GPS = 1262401729 (Tue Jan 7 03:08:41 2020 ) → GPS = 1262401739 (Tue Jan 7 03:08:41 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262401726 → GPS = 1262401742 |
| Omicron analysis time window (L1): | GPS = 1262401726 → GPS = 1262401742 |
| Time delay between detectors t(L1) - t(H1): | 4.62683 s (slice index = 8 / 225), δt_gw = 0.00573571 s |
| Time delay uncertainty: | 8.48944e-05 s |
| Frequency: | 36.0225 Hz |
| Ξ: | 0.578987 ± 0.081546 (variance = 0.00664976): Q0: 0.647366, Q1: 0.432983, Q2: 0.579959, Q3: 0.661425, Q4: 0.556267 |
| Rank: | R_X = 0.578987 |
| Log of amplitude ratio (L1/H1): | -3.13626, variance = 0.434706 (L1/H1: -3.18329, variance = 0.473366, H1/L1: 2.11777, variance = 1.13111) |
| Amplitude ratio (L1/H1): | 0.0434449 ⋇ 1.93348 (L1/H1: 0.041449 ⋇ 1.98976, H1/L1: 8.31255 ⋇ 2.89659) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.400238 |
| Antenna factor probability: | 2.30783e-209 |
| Sky position probability: | 1 (expected δt_gw = 0.00428342 s) |
| Number of rejected frequency rows: | Q0: 18 / 26, Q1: 42 / 48, Q2: 86 / 92, Q3: 156 / 176, Q4: 312 / 338 |
| Maximum signal-to-noise ratio: | H1: 60.4661, L1: 12.9933 |
| SNR variance: | H1: 11.4019, L1: 0.509418 |
| Detection threshold: | R > 0.887449 |
| False-alarm rate above that detection threshold: | 4.19991e-09 |
| Alternative threshold at 1/1000 yrs: | R > 0.919 |
| Alternative threshold at 1/100 yrs: | R > 0.919 |
| Alternative threshold at 1/10 yrs: | R > 0.892958 |
| Alternative threshold at 1/1 yr: | R > 0.807804 |
| Alternative threshold at 1/1 d: | R > 0.454816 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |

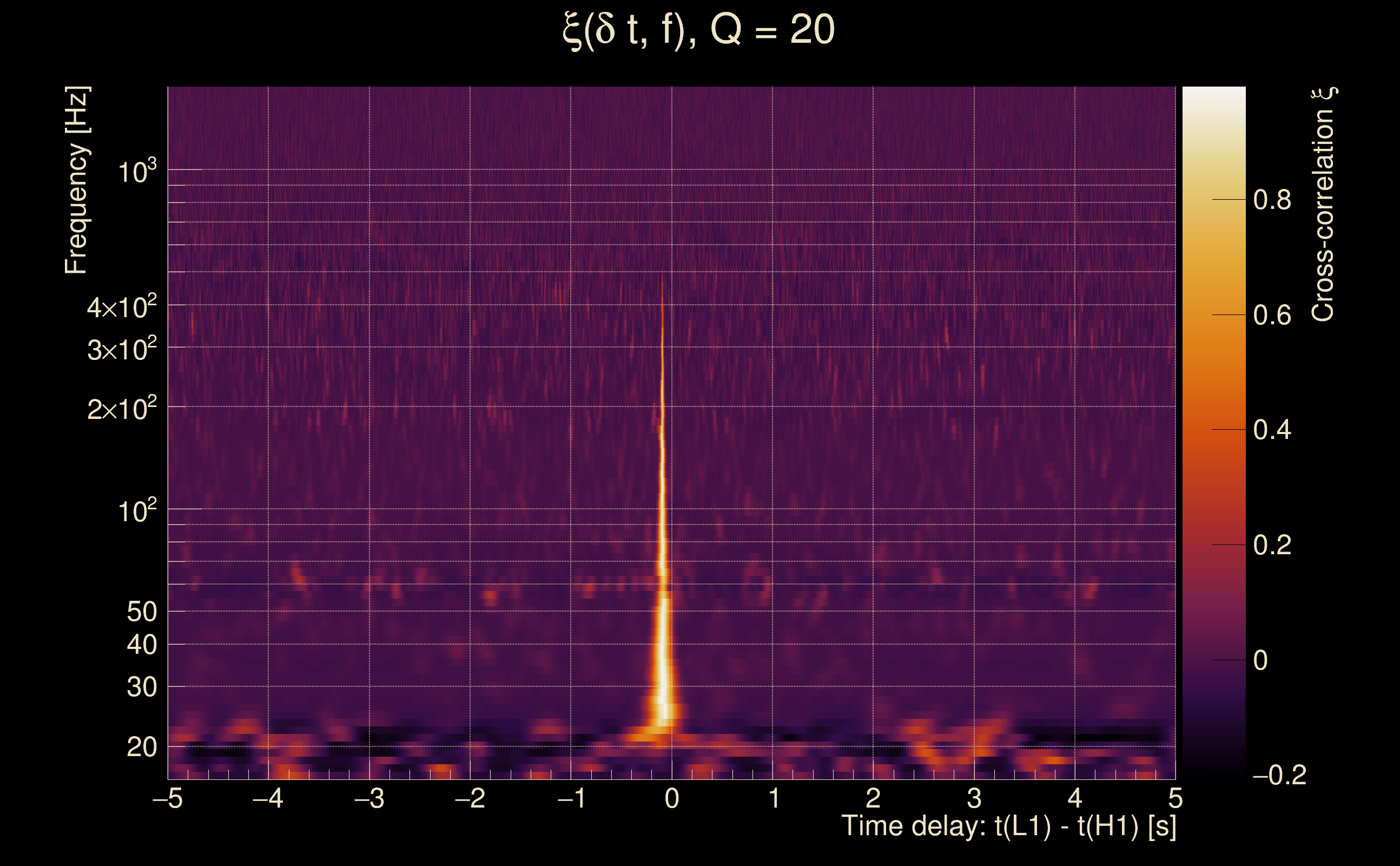

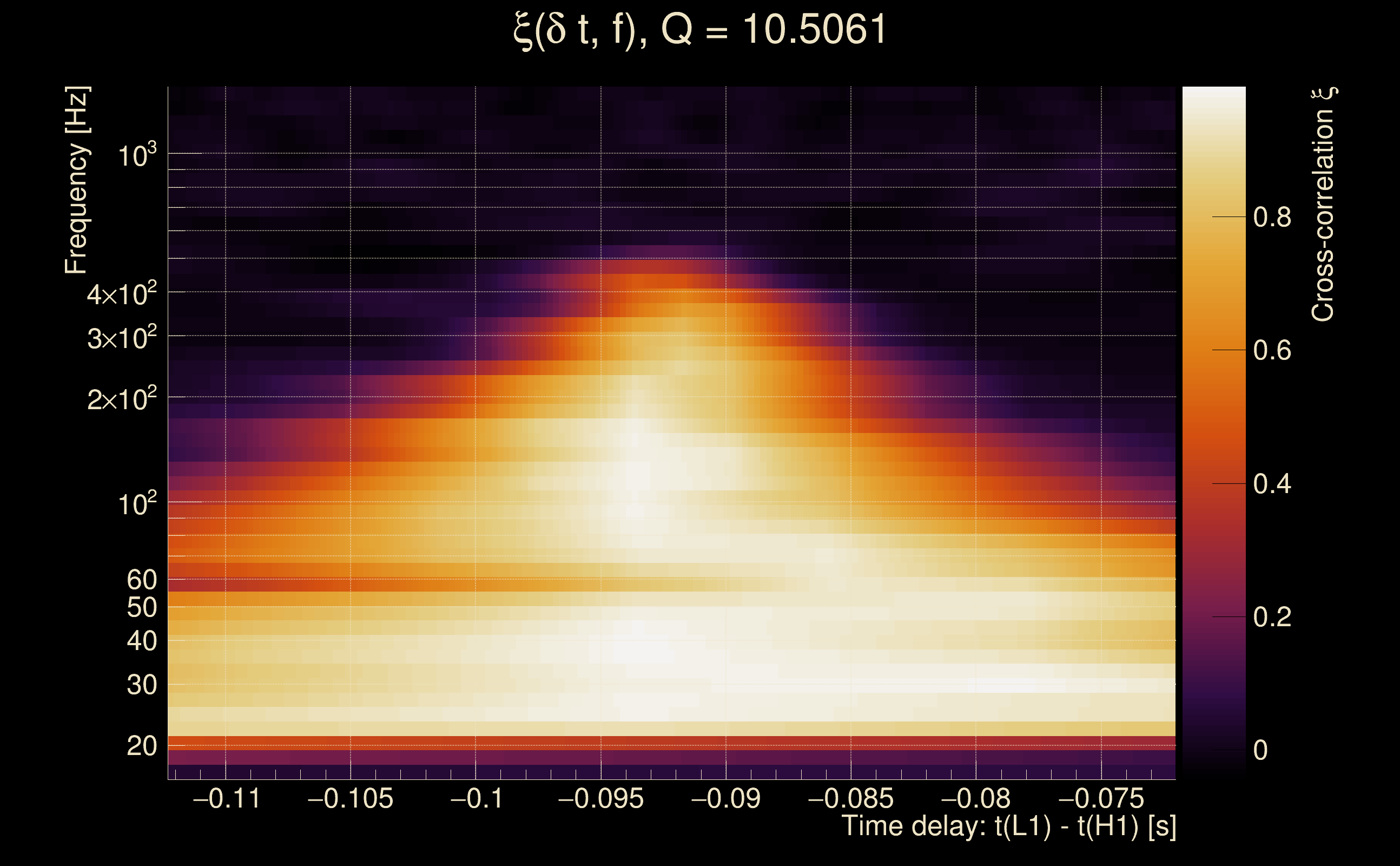

| Event time t(H1): | GPS = 1265541828 (Wed Feb 12 11:23:30 2020 ) → GPS = 1265541838 (Wed Feb 12 11:23:40 2020 ) |
| Event time t(L1): | GPS = 1265541828 (Wed Feb 12 11:23:40 2020 ) → GPS = 1265541838 (Wed Feb 12 11:23:40 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265541825 → GPS = 1265541841 |
| Omicron analysis time window (L1): | GPS = 1265541825 → GPS = 1265541841 |
| Time delay between detectors t(L1) - t(H1): | -0.0921734 s (slice index = 114 / 225), δt_gw = -0.00330618 s |
| Time delay uncertainty: | 0.000139272 s |
| Frequency: | 98.8758 Hz |
| Ξ: | 0.918287 ± 0.0621691 (variance = 0.003865): Q0: 0.940779, Q1: 0.935806, Q2: 0.883835, Q3: 0.842805, Q4: 0.774069 |
| Rank: | R_X = 0.918287 |
| Log of amplitude ratio (L1/H1): | -0.44826, variance = 0.0884324 (L1/H1: -0.53953, variance = 0.128051, H1/L1: 0.351221, variance = 0.23169) |
| Amplitude ratio (L1/H1): | 0.638739 ⋇ 1.34632 (L1/H1: 0.583022 ⋇ 1.43024, H1/L1: 1.4208 ⋇ 1.61824) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.75355 |
| Antenna factor probability: | 0.957046 |
| Sky position probability: | 1 (expected δt_gw = 0.00140591 s) |
| Number of rejected frequency rows: | Q0: 5 / 26, Q1: 14 / 48, Q2: 30 / 92, Q3: 114 / 176, Q4: 269 / 338 |
| Maximum signal-to-noise ratio: | H1: 28.7408, L1: 27.8735 |
| SNR variance: | H1: 248.377, L1: 0.978099 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

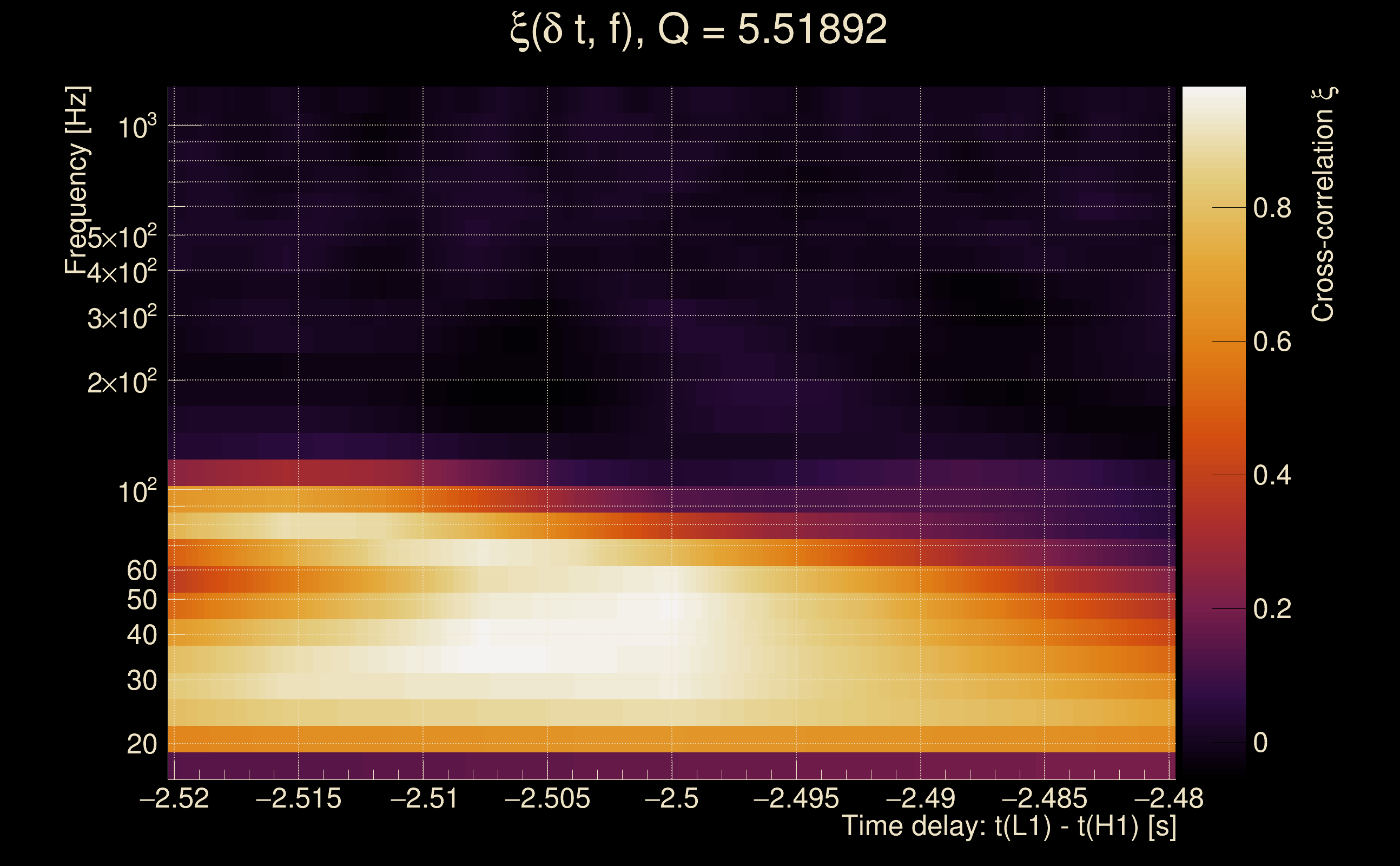

| Event time t(H1): | GPS = 1262696724 (Fri Jan 10 13:05:06 2020 ) → GPS = 1262696734 (Fri Jan 10 13:05:16 2020 ) |
| Event time t(L1): | GPS = 1262696724 (Fri Jan 10 13:05:16 2020 ) → GPS = 1262696734 (Fri Jan 10 13:05:16 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262696721 → GPS = 1262696737 |
| Omicron analysis time window (L1): | GPS = 1262696721 → GPS = 1262696737 |
| Time delay between detectors t(L1) - t(H1): | -2.5 s (slice index = 168 / 225), δt_gw = -0.0117188 s |
| Time delay uncertainty: | 0.00163668 s |
| Frequency: | 37.9949 Hz |
| Ξ: | 0.907038 ± 0.0100721 (variance = 0.000101447): Q0: 0.899783, Q1: 0.914225, Q2: 0.921971, Q3: 0.908209, Q4: 0.893623 |
| Rank: | R_X = 0.907038 |
| Log of amplitude ratio (L1/H1): | -1.36417, variance = 0.207491 (L1/H1: -1.50736, variance = 0.385447, H1/L1: 1.04035, variance = 0.235832) |
| Amplitude ratio (L1/H1): | 0.255592 ⋇ 1.57698 (L1/H1: 0.221493 ⋇ 1.8605, H1/L1: 2.83021 ⋇ 1.62519) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.55352 |
| Antenna factor probability: | 0.497954 |
| Sky position probability: | 1 (expected δt_gw = 0.000853098 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 36 / 48, Q2: 70 / 92, Q3: 146 / 176, Q4: 292 / 338 |
| Maximum signal-to-noise ratio: | H1: 30.9826, L1: 20.6024 |
| SNR variance: | H1: 2.63678, L1: 1.67743 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

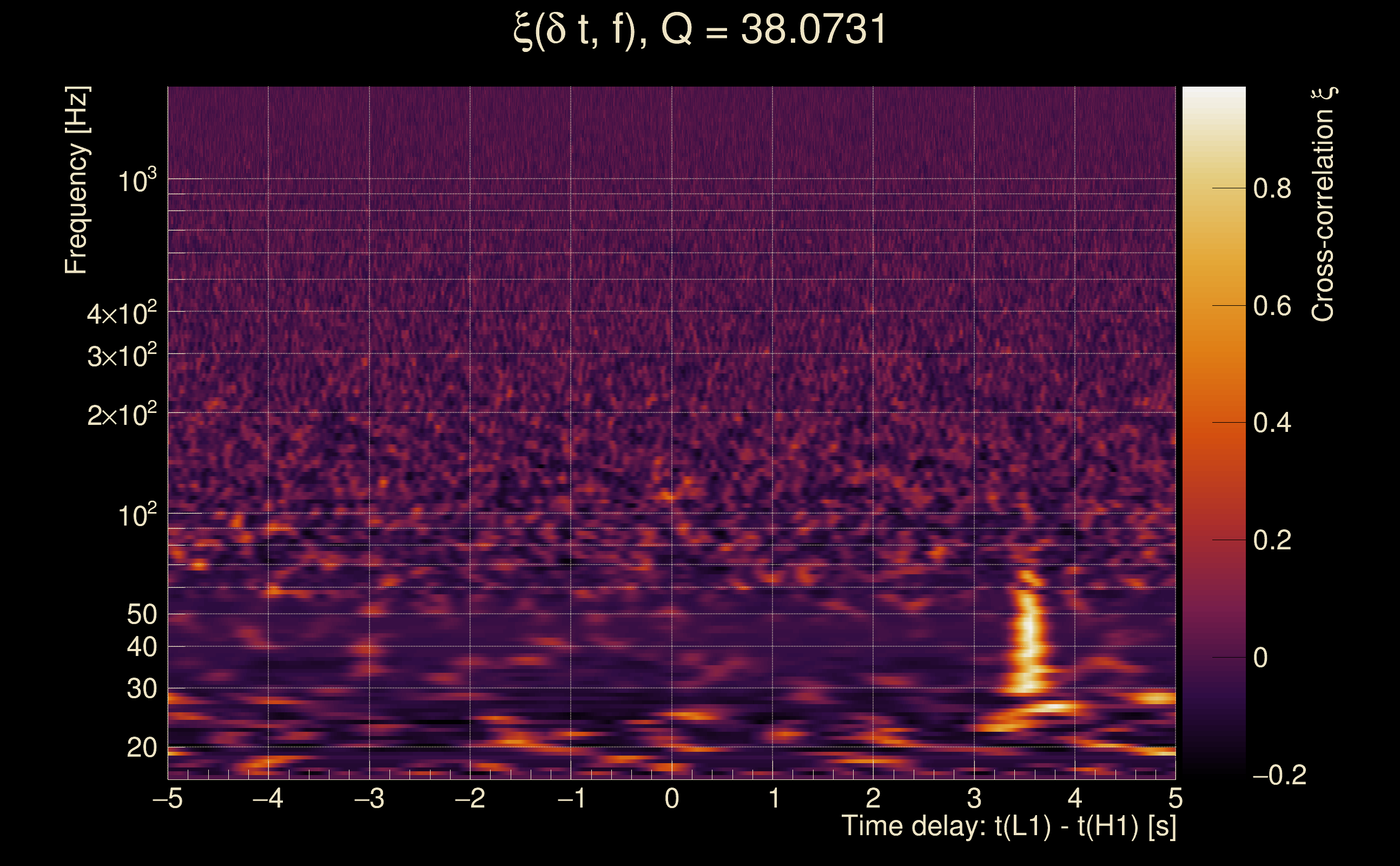

| Event time t(H1): | GPS = 1264942734 (Wed Feb 5 12:58:36 2020 ) → GPS = 1264942744 (Wed Feb 5 12:58:46 2020 ) |
| Event time t(L1): | GPS = 1264942734 (Wed Feb 5 12:58:46 2020 ) → GPS = 1264942744 (Wed Feb 5 12:58:46 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264942731 → GPS = 1264942747 |
| Omicron analysis time window (L1): | GPS = 1264942731 → GPS = 1264942747 |
| Time delay between detectors t(L1) - t(H1): | 3.55318 s (slice index = 32 / 225), δt_gw = -0.00150816 s |
| Time delay uncertainty: | 0.000967912 s |
| Frequency: | 43.8288 Hz |
| Ξ: | 0.905632 ± 0.0997088 (variance = 0.00994184): Q0: 0.921194, Q1: 0.910654, Q2: 0.918552, Q3: 0.884252, Q4: 0.661543 |
| Rank: | R_X = 0.905632 |
| Log of amplitude ratio (L1/H1): | -0.596795, variance = 0.114985 (L1/H1: -0.585717, variance = 0.272086, H1/L1: 0.611028, variance = 0.151136) |
| Amplitude ratio (L1/H1): | 0.550573 ⋇ 1.40368 (L1/H1: 0.556707 ⋇ 1.68475, H1/L1: 1.84232 ⋇ 1.47515) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.968965 |
| Antenna factor probability: | 0.975729 |
| Sky position probability: | 1 (expected δt_gw = 0.00285954 s) |
| Number of rejected frequency rows: | Q0: 19 / 26, Q1: 36 / 48, Q2: 80 / 92, Q3: 155 / 176, Q4: 324 / 338 |
| Maximum signal-to-noise ratio: | H1: 17.1742, L1: 15.1521 |
| SNR variance: | H1: 0.48374, L1: 0.582942 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

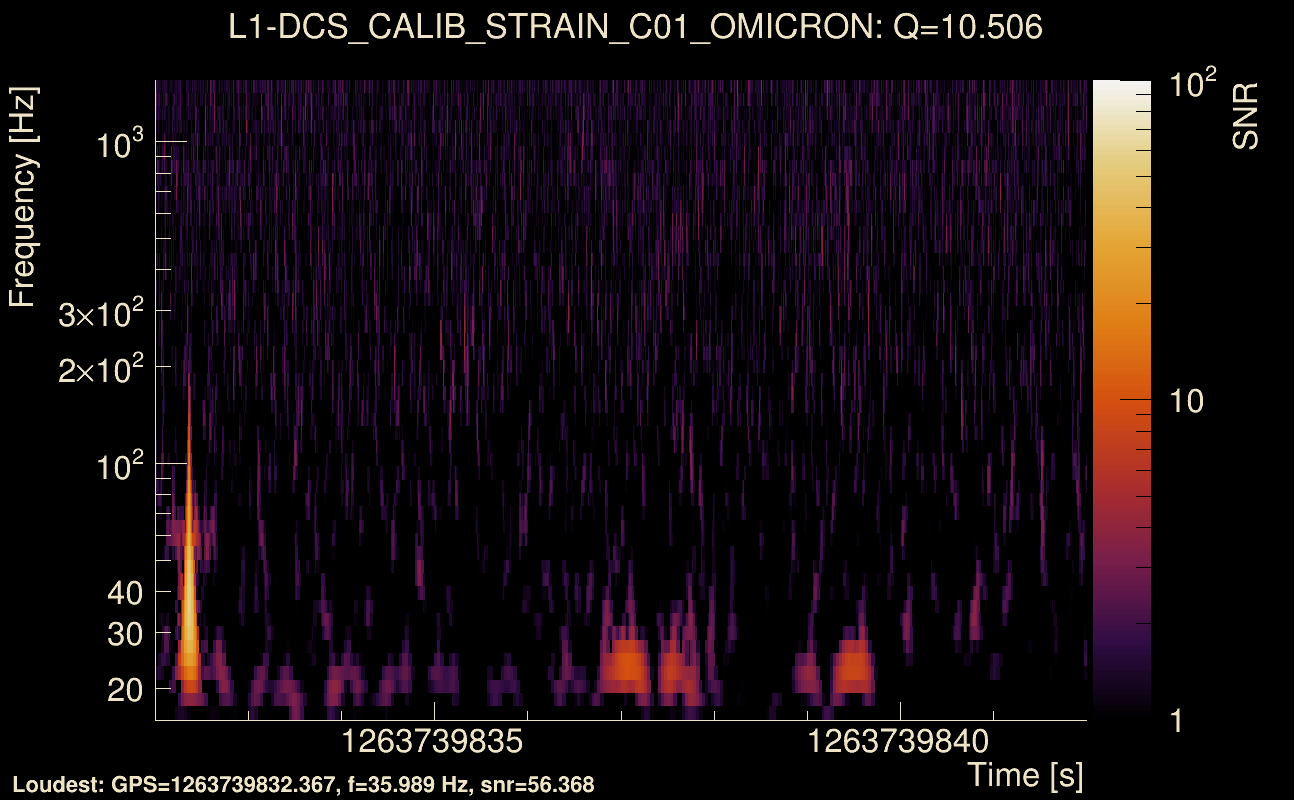

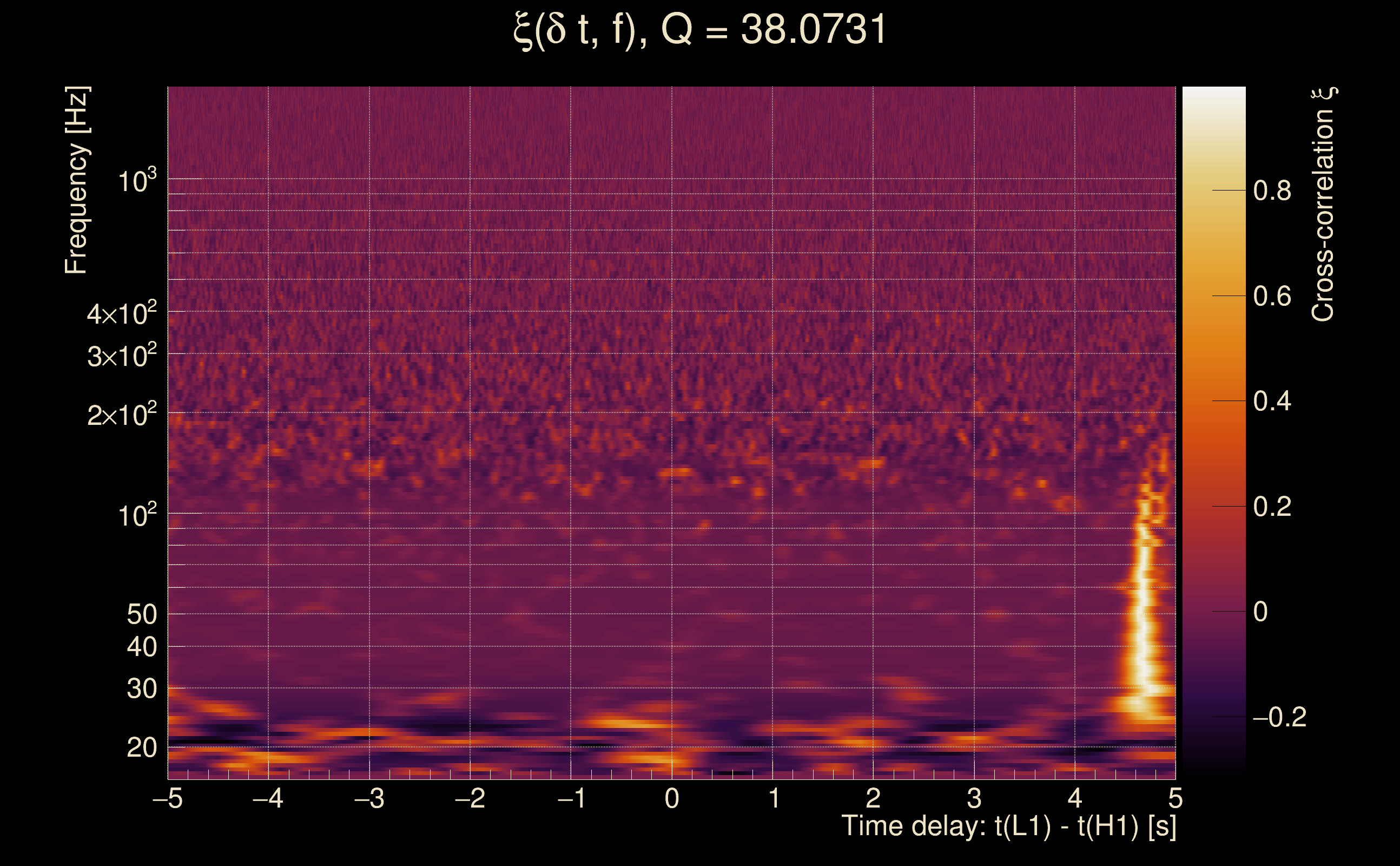

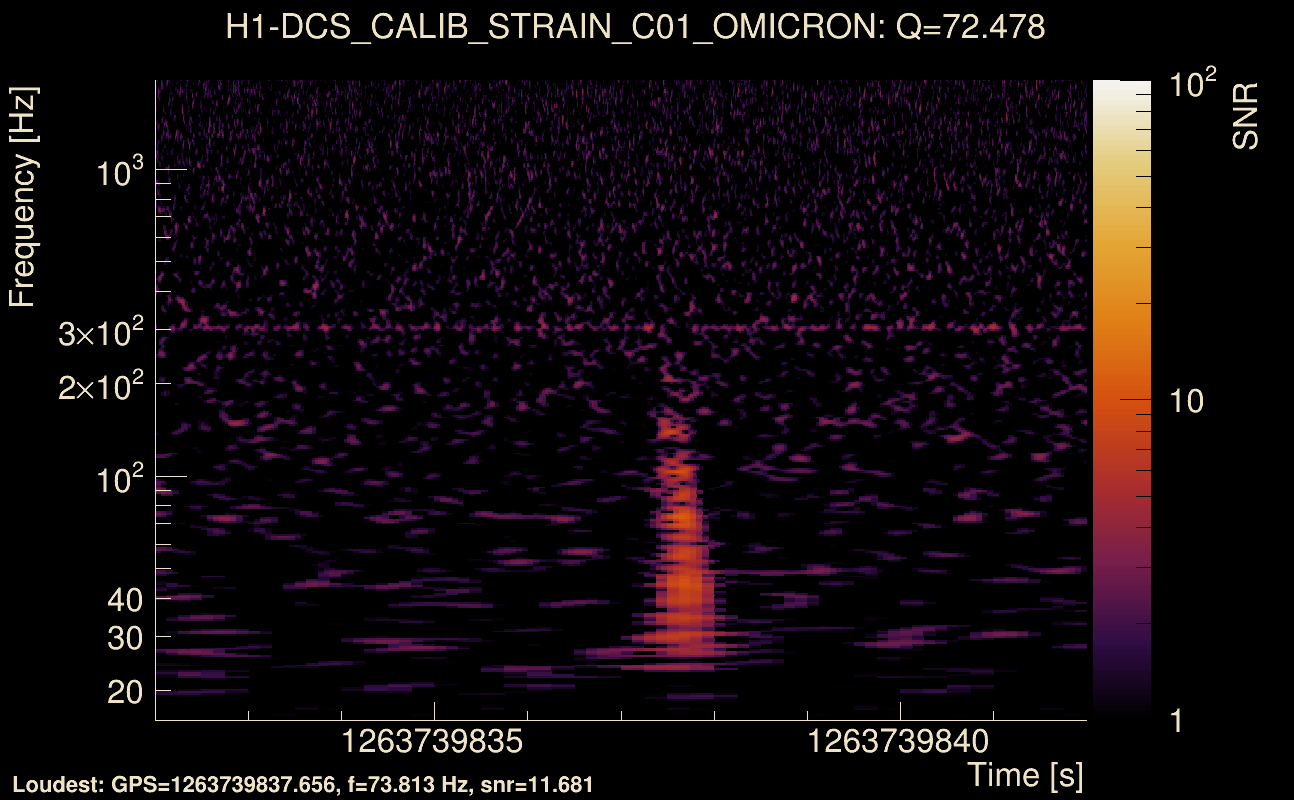

| Event time t(H1): | GPS = 1263739832 (Wed Jan 22 14:50:14 2020 ) → GPS = 1263739842 (Wed Jan 22 14:50:24 2020 ) |
| Event time t(L1): | GPS = 1263739832 (Wed Jan 22 14:50:24 2020 ) → GPS = 1263739842 (Wed Jan 22 14:50:24 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263739829 → GPS = 1263739845 |
| Omicron analysis time window (L1): | GPS = 1263739829 → GPS = 1263739845 |
| Time delay between detectors t(L1) - t(H1): | 4.66719 s (slice index = 7 / 225), δt_gw = 0.00166367 s |
| Time delay uncertainty: | 0.000475942 s |
| Frequency: | 54.9392 Hz |
| Ξ: | 0.891225 ± 0.0898488 (variance = 0.00807281): Q0: 0.896198, Q1: 0.9074, Q2: 0.915118, Q3: 0.864932, Q4: 0.675392 |
| Rank: | R_X = 0.891225 |
| Log of amplitude ratio (L1/H1): | 0.773358, variance = 0.051778 (L1/H1: 0.475699, variance = 0.161043, H1/L1: -0.809979, variance = 0.0628644) |
| Amplitude ratio (L1/H1): | 2.16703 ⋇ 1.25552 (L1/H1: 1.60914 ⋇ 1.49377, H1/L1: 0.444868 ⋇ 1.28496) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.479914 |
| Antenna factor probability: | 0.213825 |
| Sky position probability: | 1 (expected δt_gw = 0.0041403 s) |
| Number of rejected frequency rows: | Q0: 13 / 26, Q1: 32 / 48, Q2: 70 / 92, Q3: 163 / 176, Q4: 331 / 338 |
| Maximum signal-to-noise ratio: | H1: 25.1521, L1: 71.709 |
| SNR variance: | H1: 0.485923, L1: 3.82807 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1263695332 (Wed Jan 22 02:28:34 2020 ) → GPS = 1263695342 (Wed Jan 22 02:28:44 2020 ) |
| Event time t(L1): | GPS = 1263695332 (Wed Jan 22 02:28:44 2020 ) → GPS = 1263695342 (Wed Jan 22 02:28:44 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263695329 → GPS = 1263695345 |
| Omicron analysis time window (L1): | GPS = 1263695329 → GPS = 1263695345 |
| Time delay between detectors t(L1) - t(H1): | -1.9977 s (slice index = 157 / 225), δt_gw = 0.00180773 s |
| Time delay uncertainty: | 0.0008254 s |
| Frequency: | 38.5118 Hz |
| Ξ: | 0.885714 ± 0.0225599 (variance = 0.000508947): Q0: 0.890776, Q1: 0.884769, Q2: 0.88915, Q3: 0.877185, Q4: 0.830312 |
| Rank: | R_X = 0.885714 |
| Log of amplitude ratio (L1/H1): | -0.93265, variance = 0.0910182 (L1/H1: -0.896468, variance = 0.109276, H1/L1: 1.07799, variance = 0.527635) |
| Amplitude ratio (L1/H1): | 0.39351 ⋇ 1.35214 (L1/H1: 0.408008 ⋇ 1.39176, H1/L1: 2.93877 ⋇ 2.06759) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.820072 |
| Antenna factor probability: | 0.421742 |
| Sky position probability: | 1 (expected δt_gw = 0.00385229 s) |
| Number of rejected frequency rows: | Q0: 20 / 26, Q1: 43 / 48, Q2: 77 / 92, Q3: 155 / 176, Q4: 306 / 338 |
| Maximum signal-to-noise ratio: | H1: 21.3372, L1: 10.6461 |
| SNR variance: | H1: 0.724474, L1: 0.547482 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1264825442 (Tue Feb 4 04:23:44 2020 ) → GPS = 1264825452 (Tue Feb 4 04:23:54 2020 ) |
| Event time t(L1): | GPS = 1264825442 (Tue Feb 4 04:23:54 2020 ) → GPS = 1264825452 (Tue Feb 4 04:23:54 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264825439 → GPS = 1264825455 |
| Omicron analysis time window (L1): | GPS = 1264825439 → GPS = 1264825455 |
| Time delay between detectors t(L1) - t(H1): | -0.626646 s (slice index = 126 / 225), δt_gw = -0.00457565 s |
| Time delay uncertainty: | 0.00018493 s |
| Frequency: | 80.8413 Hz |
| Ξ: | 0.879558 ± 0.0260607 (variance = 0.00067916): Q0: 0.861067, Q1: 0.899839, Q2: 0.910579, Q3: 0.891483, Q4: 0.840265 |
| Rank: | R_X = 0.879558 |
| Log of amplitude ratio (L1/H1): | 0.995609, variance = 1.21005 (L1/H1: -0.740966, variance = 2.32119, H1/L1: -1.47514, variance = 1.79361) |
| Amplitude ratio (L1/H1): | 2.70637 ⋇ 3.00424 (L1/H1: 0.476653 ⋇ 4.58846, H1/L1: 0.228746 ⋇ 3.8162) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.274619 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = 0.000369517 s) |
| Number of rejected frequency rows: | Q0: 15 / 26, Q1: 34 / 48, Q2: 71 / 92, Q3: 145 / 176, Q4: 290 / 338 |
| Maximum signal-to-noise ratio: | H1: 36.1126, L1: 68.7221 |
| SNR variance: | H1: 0.485, L1: 0.525332 |
| Event time t(H1): | GPS = 1264990939 (Thu Feb 6 02:22:01 2020 ) → GPS = 1264990949 (Thu Feb 6 02:22:11 2020 ) |
| Event time t(L1): | GPS = 1264990939 (Thu Feb 6 02:22:11 2020 ) → GPS = 1264990949 (Thu Feb 6 02:22:11 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264990936 → GPS = 1264990952 |
| Omicron analysis time window (L1): | GPS = 1264990936 → GPS = 1264990952 |
| Time delay between detectors t(L1) - t(H1): | 4.44724 s (slice index = 12 / 225), δt_gw = 0.0038807 s |
| Time delay uncertainty: | 0.000260432 s |
| Frequency: | 53.3161 Hz |
| Ξ: | 0.877968 ± 0.0214617 (variance = 0.000460603): Q0: 0.888863, Q1: 0.878521, Q2: 0.836816, Q3: 0.893125, Q4: 0.85453 |
| Rank: | R_X = 0.877968 |
| Log of amplitude ratio (L1/H1): | -0.686364, variance = 0.0470097 (L1/H1: -0.881756, variance = 0.122674, H1/L1: 0.418883, variance = 0.0339218) |
| Amplitude ratio (L1/H1): | 0.503403 ⋇ 1.24212 (L1/H1: 0.414055 ⋇ 1.41942, H1/L1: 1.52026 ⋇ 1.20223) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.242125 |
| Antenna factor probability: | 0.464232 |
| Sky position probability: | 1 (expected δt_gw = 0.00266899 s) |
| Number of rejected frequency rows: | Q0: 11 / 26, Q1: 24 / 48, Q2: 52 / 92, Q3: 121 / 176, Q4: 291 / 338 |
| Maximum signal-to-noise ratio: | H1: 62.095, L1: 53.0719 |
| SNR variance: | H1: 3.82793, L1: 0.613534 |
| Event time t(H1): | GPS = 1262679990 (Fri Jan 10 08:26:12 2020 ) → GPS = 1262680000 (Fri Jan 10 08:26:22 2020 ) |
| Event time t(L1): | GPS = 1262679990 (Fri Jan 10 08:26:22 2020 ) → GPS = 1262680000 (Fri Jan 10 08:26:22 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262679987 → GPS = 1262680003 |
| Omicron analysis time window (L1): | GPS = 1262679987 → GPS = 1262680003 |
| Time delay between detectors t(L1) - t(H1): | 4.30504 s (slice index = 15 / 225), δt_gw = -0.0050154 s |
| Time delay uncertainty: | 0.00102873 s |
| Frequency: | 43.5782 Hz |
| Ξ: | 0.87646 ± 0.0759244 (variance = 0.00576451): Q0: 0.885507, Q1: 0.911761, Q2: 0.87068, Q3: 0.785795, Q4: 0.70564 |
| Rank: | R_X = 0.87646 |
| Log of amplitude ratio (L1/H1): | -0.113182, variance = 0.331018 (L1/H1: -0.679064, variance = 0.420625, H1/L1: -0.532747, variance = 0.969952) |
| Amplitude ratio (L1/H1): | 0.892989 ⋇ 1.77774 (L1/H1: 0.507092 ⋇ 1.91278, H1/L1: 0.58699 ⋇ 2.67744) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.304123 |
| Antenna factor probability: | 0.999667 |
| Sky position probability: | 1 (expected δt_gw = -0.00131879 s) |
| Number of rejected frequency rows: | Q0: 19 / 26, Q1: 39 / 48, Q2: 78 / 92, Q3: 149 / 176, Q4: 313 / 338 |
| Maximum signal-to-noise ratio: | H1: 36.4204, L1: 34.0891 |
| SNR variance: | H1: 1.02281, L1: 0.540444 |
| Event time t(H1): | GPS = 1265686863 (Fri Feb 14 03:40:45 2020 ) → GPS = 1265686873 (Fri Feb 14 03:40:55 2020 ) |
| Event time t(L1): | GPS = 1265686863 (Fri Feb 14 03:40:55 2020 ) → GPS = 1265686873 (Fri Feb 14 03:40:55 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265686860 → GPS = 1265686876 |
| Omicron analysis time window (L1): | GPS = 1265686860 → GPS = 1265686876 |
| Time delay between detectors t(L1) - t(H1): | 3.28175 s (slice index = 38 / 225), δt_gw = -0.00633605 s |
| Time delay uncertainty: | 0.00037791 s |
| Frequency: | 72.6696 Hz |
| Ξ: | 0.87519 ± 0.137933 (variance = 0.0190256): Q0: 0.882112, Q1: 0.8713, Q2: 0.922852, Q3: 0.917075, Q4: 0.557048 |
| Rank: | R_X = 0.87519 |
| Log of amplitude ratio (L1/H1): | -1.812, variance = 0.394325 (L1/H1: -1.94744, variance = 0.488903, H1/L1: 0.842671, variance = 1.19433) |
| Amplitude ratio (L1/H1): | 0.163328 ⋇ 1.87377 (L1/H1: 0.142639 ⋇ 2.01217, H1/L1: 2.32256 ⋇ 2.98277) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.394476 |
| Antenna factor probability: | 0.52706 |
| Sky position probability: | 1 (expected δt_gw = 0.000433423 s) |
| Number of rejected frequency rows: | Q0: 24 / 26, Q1: 43 / 48, Q2: 79 / 92, Q3: 144 / 176, Q4: 305 / 338 |
| Maximum signal-to-noise ratio: | H1: 93.1193, L1: 34.8082 |
| SNR variance: | H1: 6.62661, L1: 1.24019 |
| Event time t(H1): | GPS = 1262612302 (Thu Jan 9 13:38:04 2020 ) → GPS = 1262612312 (Thu Jan 9 13:38:14 2020 ) |
| Event time t(L1): | GPS = 1262612302 (Thu Jan 9 13:38:14 2020 ) → GPS = 1262612312 (Thu Jan 9 13:38:14 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262612299 → GPS = 1262612315 |
| Omicron analysis time window (L1): | GPS = 1262612299 → GPS = 1262612315 |
| Time delay between detectors t(L1) - t(H1): | 1.15265 s (slice index = 86 / 225), δt_gw = -0.00262093 s |
| Time delay uncertainty: | 0.000622329 s |
| Frequency: | 46.0393 Hz |
| Ξ: | 0.874413 ± 0.159122 (variance = 0.0253199): Q0: 0.89968, Q1: 0.876326, Q2: 0.922275, Q3: 0.804772, Q4: 0.490367 |
| Rank: | R_X = 0.874413 |
| Log of amplitude ratio (L1/H1): | -2.31272, variance = 0.0301996 (L1/H1: -2.31603, variance = 0.0318136, H1/L1: 2.19389, variance = 0.114147) |
| Amplitude ratio (L1/H1): | 0.0989913 ⋇ 1.18979 (L1/H1: 0.0986649 ⋇ 1.19526, H1/L1: 8.97003 ⋇ 1.40194) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.749202 |
| Antenna factor probability: | 0.00188055 |
| Sky position probability: | 1 (expected δt_gw = 0.0014239 s) |
| Number of rejected frequency rows: | Q0: 17 / 26, Q1: 33 / 48, Q2: 77 / 92, Q3: 165 / 176, Q4: 334 / 338 |
| Maximum signal-to-noise ratio: | H1: 99.508, L1: 16.5897 |
| SNR variance: | H1: 0.499417, L1: 0.498548 |
| Event time t(H1): | GPS = 1265686858 (Fri Feb 14 03:40:40 2020 ) → GPS = 1265686868 (Fri Feb 14 03:40:50 2020 ) |
| Event time t(L1): | GPS = 1265686858 (Fri Feb 14 03:40:50 2020 ) → GPS = 1265686868 (Fri Feb 14 03:40:50 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265686855 → GPS = 1265686871 |
| Omicron analysis time window (L1): | GPS = 1265686855 → GPS = 1265686871 |
| Time delay between detectors t(L1) - t(H1): | 3.28692 s (slice index = 38 / 225), δt_gw = -0.00116657 s |
| Time delay uncertainty: | 0.000356682 s |
| Frequency: | 72.6892 Hz |
| Ξ: | 0.872979 ± 0.143794 (variance = 0.0206768): Q0: 0.883258, Q1: 0.878516, Q2: 0.895794, Q3: 0.915358, Q4: 0.53516 |
| Rank: | R_X = 0.872979 |
| Log of amplitude ratio (L1/H1): | -1.8076, variance = 0.433378 (L1/H1: -1.9856, variance = 0.521237, H1/L1: 0.508295, variance = 2.07898) |
| Amplitude ratio (L1/H1): | 0.164047 ⋇ 1.93153 (L1/H1: 0.137298 ⋇ 2.05848, H1/L1: 1.66245 ⋇ 4.22859) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.359589 |
| Antenna factor probability: | 0.91232 |
| Sky position probability: | 1 (expected δt_gw = 0.000434885 s) |
| Number of rejected frequency rows: | Q0: 24 / 26, Q1: 42 / 48, Q2: 74 / 92, Q3: 145 / 176, Q4: 307 / 338 |
| Maximum signal-to-noise ratio: | H1: 94.8805, L1: 35.1184 |
| SNR variance: | H1: 0.498434, L1: 0.8543 |
| Event time t(H1): | GPS = 1264722858 (Sun Feb 2 23:54:00 2020 ) → GPS = 1264722868 (Sun Feb 2 23:54:10 2020 ) |
| Event time t(L1): | GPS = 1264722858 (Sun Feb 2 23:54:10 2020 ) → GPS = 1264722868 (Sun Feb 2 23:54:10 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264722855 → GPS = 1264722871 |
| Omicron analysis time window (L1): | GPS = 1264722855 → GPS = 1264722871 |
| Time delay between detectors t(L1) - t(H1): | -1.73732 s (slice index = 151 / 225), δt_gw = -0.00440608 s |
| Time delay uncertainty: | 0.000102853 s |
| Frequency: | 301.103 Hz |
| Ξ: | 0.870356 ± 0.0342086 (variance = 0.00117023): Q0: 0.890835, Q1: 0.851464, Q2: 0.877034, Q3: 0.827028, Q4: 0.795823 |
| Rank: | R_X = 0.870356 |
| Log of amplitude ratio (L1/H1): | -0.86695, variance = 0.0373498 (L1/H1: -0.897954, variance = 0.0429621, H1/L1: 0.569305, variance = 0.237237) |
| Amplitude ratio (L1/H1): | 0.420231 ⋇ 1.2132 (L1/H1: 0.407402 ⋇ 1.23032, H1/L1: 1.76704 ⋇ 1.62754) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.534686 |
| Antenna factor probability: | 0.049371 |
| Sky position probability: | 1 (expected δt_gw = 0.00618849 s) |
| Number of rejected frequency rows: | Q0: 16 / 26, Q1: 34 / 48, Q2: 66 / 92, Q3: 135 / 176, Q4: 285 / 338 |
| Maximum signal-to-noise ratio: | H1: 91.9413, L1: 29.6739 |
| SNR variance: | H1: 3.76488, L1: 2.40215 |
| Event time t(H1): | GPS = 1264858181 (Tue Feb 4 13:29:23 2020 ) → GPS = 1264858191 (Tue Feb 4 13:29:33 2020 ) |
| Event time t(L1): | GPS = 1264858181 (Tue Feb 4 13:29:33 2020 ) → GPS = 1264858191 (Tue Feb 4 13:29:33 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264858178 → GPS = 1264858194 |
| Omicron analysis time window (L1): | GPS = 1264858178 → GPS = 1264858194 |
| Time delay between detectors t(L1) - t(H1): | -3.15227 s (slice index = 183 / 225), δt_gw = 0.0025103 s |
| Time delay uncertainty: | 0.000141416 s |
| Frequency: | 170.381 Hz |
| Ξ: | 0.864611 ± 0.0226455 (variance = 0.000512819): Q0: 0.838686, Q1: 0.88195, Q2: 0.897285, Q3: 0.897133, Q4: 0.89704 |
| Rank: | R_X = 0.864611 |
| Log of amplitude ratio (L1/H1): | -0.386948, variance = 0.0771882 (L1/H1: -0.344494, variance = 0.0988434, H1/L1: 0.534198, variance = 0.35212) |
| Amplitude ratio (L1/H1): | 0.679127 ⋇ 1.32026 (L1/H1: 0.708579 ⋇ 1.36943, H1/L1: 1.70608 ⋇ 1.81013) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.777566 |
| Antenna factor probability: | 0.947664 |
| Sky position probability: | 1 (expected δt_gw = 0.00346544 s) |
| Number of rejected frequency rows: | Q0: 10 / 26, Q1: 25 / 48, Q2: 56 / 92, Q3: 117 / 176, Q4: 257 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.9871, L1: 23.6189 |
| SNR variance: | H1: 0.81894, L1: 0.894839 |
| Event time t(H1): | GPS = 1263844553 (Thu Jan 23 19:55:35 2020 ) → GPS = 1263844563 (Thu Jan 23 19:55:45 2020 ) |
| Event time t(L1): | GPS = 1263844553 (Thu Jan 23 19:55:45 2020 ) → GPS = 1263844563 (Thu Jan 23 19:55:45 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263844550 → GPS = 1263844566 |
| Omicron analysis time window (L1): | GPS = 1263844550 → GPS = 1263844566 |
| Time delay between detectors t(L1) - t(H1): | 2.44336 s (slice index = 57 / 225), δt_gw = -0.00048863 s |
| Time delay uncertainty: | 0.000129309 s |
| Frequency: | 212.973 Hz |
| Ξ: | 0.862399 ± 0.0131564 (variance = 0.00017309): Q0: 0.860958, Q1: 0.87927, Q2: 0.848091, Q3: 0.847771, Q4: 0.842989 |
| Rank: | R_X = 0.862399 |
| Log of amplitude ratio (L1/H1): | 0.343052, variance = 0.216402 (L1/H1: -0.168124, variance = 0.152962, H1/L1: -1.06007, variance = 0.94831) |
| Amplitude ratio (L1/H1): | 1.40924 ⋇ 1.59232 (L1/H1: 0.845249 ⋇ 1.47861, H1/L1: 0.346431 ⋇ 2.64802) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.241855 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = 0.00887 s) |
| Number of rejected frequency rows: | Q0: 12 / 26, Q1: 24 / 48, Q2: 48 / 92, Q3: 112 / 176, Q4: 250 / 338 |
| Maximum signal-to-noise ratio: | H1: 54.4872, L1: 46.0059 |
| SNR variance: | H1: 0.514418, L1: 2.24517 |
| Event time t(H1): | GPS = 1265458702 (Tue Feb 11 12:18:04 2020 ) → GPS = 1265458712 (Tue Feb 11 12:18:14 2020 ) |
| Event time t(L1): | GPS = 1265458702 (Tue Feb 11 12:18:14 2020 ) → GPS = 1265458712 (Tue Feb 11 12:18:14 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265458699 → GPS = 1265458715 |
| Omicron analysis time window (L1): | GPS = 1265458699 → GPS = 1265458715 |
| Time delay between detectors t(L1) - t(H1): | -3.91693 s (slice index = 200 / 225), δt_gw = -0.00677486 s |
| Time delay uncertainty: | 0.000132558 s |
| Frequency: | 116.243 Hz |
| Ξ: | 0.855824 ± 0.0268367 (variance = 0.000720206): Q0: 0.848361, Q1: 0.883859, Q2: 0.855786, Q3: 0.831193, Q4: 0.802876 |
| Rank: | R_X = 0.855824 |
| Log of amplitude ratio (L1/H1): | -1.74313, variance = 0.179514 (L1/H1: -1.82138, variance = 0.195375, H1/L1: 0.473613, variance = 1.82962) |
| Amplitude ratio (L1/H1): | 0.174973 ⋇ 1.52759 (L1/H1: 0.161802 ⋇ 1.55584, H1/L1: 1.60579 ⋇ 3.86759) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.343579 |
| Antenna factor probability: | 0.0800729 |
| Sky position probability: | 1 (expected δt_gw = 0.00248288 s) |
| Number of rejected frequency rows: | Q0: 10 / 26, Q1: 21 / 48, Q2: 49 / 92, Q3: 107 / 176, Q4: 277 / 338 |
| Maximum signal-to-noise ratio: | H1: 98.0441, L1: 24.3423 |
| SNR variance: | H1: 1.75162, L1: 0.7357 |
| Event time t(H1): | GPS = 1262373134 (Mon Jan 6 19:11:56 2020 ) → GPS = 1262373144 (Mon Jan 6 19:12:06 2020 ) |
| Event time t(L1): | GPS = 1262373134 (Mon Jan 6 19:12:06 2020 ) → GPS = 1262373144 (Mon Jan 6 19:12:06 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262373131 → GPS = 1262373147 |
| Omicron analysis time window (L1): | GPS = 1262373131 → GPS = 1262373147 |
| Time delay between detectors t(L1) - t(H1): | 0.13826 s (slice index = 109 / 225), δt_gw = 0.00495915 s |
| Time delay uncertainty: | 0.00023911 s |
| Frequency: | 32.2777 Hz |
| Ξ: | 0.849332 ± 0.0465572 (variance = 0.00216757): Q0: 0.897123, Q1: 0.827278, Q2: 0.778295, Q3: 0.780104, Q4: 0.777285 |
| Rank: | R_X = 0.849332 |
| Log of amplitude ratio (L1/H1): | 0.0632362, variance = 0.0417026 (L1/H1: -0.121762, variance = 0.0816569, H1/L1: -0.166942, variance = 0.0759023) |
| Amplitude ratio (L1/H1): | 1.06528 ⋇ 1.22656 (L1/H1: 0.885359 ⋇ 1.33077, H1/L1: 0.846249 ⋇ 1.31719) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.467025 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = 0.00794854 s) |
| Number of rejected frequency rows: | Q0: 22 / 26, Q1: 42 / 48, Q2: 81 / 92, Q3: 159 / 176, Q4: 312 / 338 |
| Maximum signal-to-noise ratio: | H1: 37.9019, L1: 50.6224 |
| SNR variance: | H1: 0.734559, L1: 7.32435 |
| Event time t(H1): | GPS = 1264825447 (Tue Feb 4 04:23:49 2020 ) → GPS = 1264825457 (Tue Feb 4 04:23:59 2020 ) |
| Event time t(L1): | GPS = 1264825447 (Tue Feb 4 04:23:59 2020 ) → GPS = 1264825457 (Tue Feb 4 04:23:59 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264825444 → GPS = 1264825460 |
| Omicron analysis time window (L1): | GPS = 1264825444 → GPS = 1264825460 |
| Time delay between detectors t(L1) - t(H1): | -0.624071 s (slice index = 126 / 225), δt_gw = -0.00200056 s |
| Time delay uncertainty: | 0.000231548 s |
| Frequency: | 83.3944 Hz |
| Ξ: | 0.846434 ± 0.0240565 (variance = 0.000578717): Q0: 0.849511, Q1: 0.857254, Q2: 0.816216, Q3: 0.865759, Q4: 0.804134 |
| Rank: | R_X = 0.846434 |
| Log of amplitude ratio (L1/H1): | 1.07901, variance = 0.552064 (L1/H1: -0.508454, variance = 1.2561, H1/L1: -1.52027, variance = 0.804576) |
| Amplitude ratio (L1/H1): | 2.94177 ⋇ 2.10225 (L1/H1: 0.601425 ⋇ 3.06718, H1/L1: 0.218653 ⋇ 2.45219) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.157583 |
| Antenna factor probability: | 0.99888 |
| Sky position probability: | 1 (expected δt_gw = 0.000368073 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 34 / 48, Q2: 68 / 92, Q3: 141 / 176, Q4: 277 / 338 |
| Maximum signal-to-noise ratio: | H1: 35.628, L1: 67.5766 |
| SNR variance: | H1: 0.882314, L1: 3.88407 |
| Event time t(H1): | GPS = 1262374518 (Mon Jan 6 19:35:00 2020 ) → GPS = 1262374528 (Mon Jan 6 19:35:10 2020 ) |
| Event time t(L1): | GPS = 1262374518 (Mon Jan 6 19:35:10 2020 ) → GPS = 1262374528 (Mon Jan 6 19:35:10 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262374515 → GPS = 1262374531 |
| Omicron analysis time window (L1): | GPS = 1262374515 → GPS = 1262374531 |
| Time delay between detectors t(L1) - t(H1): | -2.00005 s (slice index = 157 / 225), δt_gw = -0.000538925 s |
| Time delay uncertainty: | 0.00189859 s |
| Frequency: | 32.4019 Hz |
| Ξ: | 0.841685 ± 0.0323405 (variance = 0.0010459): Q0: 0.867446, Q1: 0.787193, Q2: 0.87174, Q3: 0.824073, Q4: 0.813912 |
| Rank: | R_X = 0.841685 |
| Log of amplitude ratio (L1/H1): | -0.325632, variance = 0.142629 (L1/H1: -0.535759, variance = 0.464422, H1/L1: 0.1135, variance = 0.102644) |
| Amplitude ratio (L1/H1): | 0.722071 ⋇ 1.45887 (L1/H1: 0.585225 ⋇ 1.97681, H1/L1: 1.12019 ⋇ 1.37765) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.574974 |
| Antenna factor probability: | 0.994757 |
| Sky position probability: | 1 (expected δt_gw = 0.00823162 s) |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 46 / 48, Q2: 82 / 92, Q3: 163 / 176, Q4: 306 / 338 |
| Maximum signal-to-noise ratio: | H1: 31.6998, L1: 31.5497 |
| SNR variance: | H1: 2.51514, L1: 0.410761 |
| Event time t(H1): | GPS = 1264502890 (Fri Jan 31 10:47:52 2020 ) → GPS = 1264502900 (Fri Jan 31 10:48:02 2020 ) |
| Event time t(L1): | GPS = 1264502890 (Fri Jan 31 10:48:02 2020 ) → GPS = 1264502900 (Fri Jan 31 10:48:02 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264502887 → GPS = 1264502903 |
| Omicron analysis time window (L1): | GPS = 1264502887 → GPS = 1264502903 |
| Time delay between detectors t(L1) - t(H1): | -4.934 s (slice index = 223 / 225), δt_gw = -0.0018736 s |
| Time delay uncertainty: | 0.00115693 s |
| Frequency: | 35.2144 Hz |
| Ξ: | 0.838188 ± 0.127705 (variance = 0.0163084): Q0: 0.857508, Q1: 0.862116, Q2: 0.8383, Q3: 0.783155, Q4: 0.523818 |
| Rank: | R_X = 0.838188 |
| Log of amplitude ratio (L1/H1): | -3.13823, variance = 0.295305 (L1/H1: -3.14776, variance = 0.305258, H1/L1: 2.57278, variance = 0.291645) |
| Amplitude ratio (L1/H1): | 0.0433593 ⋇ 1.72188 (L1/H1: 0.0429481 ⋇ 1.73759, H1/L1: 13.1022 ⋇ 1.71608) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.456741 |
| Antenna factor probability: | 0.00159702 |
| Sky position probability: | 1 (expected δt_gw = -8.906e-05 s) |
| Number of rejected frequency rows: | Q0: 15 / 26, Q1: 35 / 48, Q2: 75 / 92, Q3: 163 / 176, Q4: 332 / 338 |
| Maximum signal-to-noise ratio: | H1: 89.8161, L1: 11.659 |
| SNR variance: | H1: 9.70265, L1: 0.505742 |
| Event time t(H1): | GPS = 1264722853 (Sun Feb 2 23:53:55 2020 ) → GPS = 1264722863 (Sun Feb 2 23:54:05 2020 ) |
| Event time t(L1): | GPS = 1264722853 (Sun Feb 2 23:54:05 2020 ) → GPS = 1264722863 (Sun Feb 2 23:54:05 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264722850 → GPS = 1264722866 |
| Omicron analysis time window (L1): | GPS = 1264722850 → GPS = 1264722866 |
| Time delay between detectors t(L1) - t(H1): | -1.73692 s (slice index = 151 / 225), δt_gw = -0.00400698 s |
| Time delay uncertainty: | 9.55009e-05 s |
| Frequency: | 306.326 Hz |
| Ξ: | 0.837984 ± 0.0379476 (variance = 0.00144002): Q0: 0.859425, Q1: 0.823729, Q2: 0.837632, Q3: 0.791081, Q4: 0.751004 |
| Rank: | R_X = 0.837984 |
| Log of amplitude ratio (L1/H1): | -0.844098, variance = 0.0428351 (L1/H1: -0.906245, variance = 0.0459321, H1/L1: 0.291933, variance = 0.559516) |
| Amplitude ratio (L1/H1): | 0.429945 ⋇ 1.22994 (L1/H1: 0.404039 ⋇ 1.23902, H1/L1: 1.33901 ⋇ 2.11279) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.429822 |
| Antenna factor probability: | 0.121946 |
| Sky position probability: | 1 (expected δt_gw = 0.00619016 s) |
| Number of rejected frequency rows: | Q0: 14 / 26, Q1: 30 / 48, Q2: 60 / 92, Q3: 124 / 176, Q4: 274 / 338 |
| Maximum signal-to-noise ratio: | H1: 92.2988, L1: 30.965 |
| SNR variance: | H1: 0.734474, L1: 2.14778 |
| Number of injections (total/valid/detected): | 8748 / 8717 / 1124 |
| List of missed injections: | ./CBC_BBH10_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | 31.2602 |
| Injection amplitude at 10% detection efficiency: | 13.0941 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Number of injections (total/valid/detected): | 8749 / 8716 / 491 |
| List of missed injections: | ./SG235Q3_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | 3.25964e-22 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Number of injections (total/valid/detected): | 17498 / 17433 / 2453 |
| List of missed injections: | ./CCSN_OBE20_35_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | 13.3224 |
| Injection amplitude at 10% detection efficiency: | 4.95789 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Number of injections (total/valid/detected): | 17497 / 17433 / 1615 |
| List of missed injections: | ./CCSN_POW18_S18_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | 7.76797 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
