| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Aug 31 13:56:16 2026 UTC |
| Ox option file: | ox_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:DCS-CALIB_STRAIN_C01, L1:DCS-CALIB_STRAIN_C01 |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 16 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.012204 s |
| Number of time-delay bins in a cross-correlation map: | 40960 |
| Number of slices in a cross-correlation map: | 225 |
| Number of time-delay bins in a slice: | 182 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Sky position: | RA = 210.911 deg, DEC = 54.3117 deg, ± -1 deg (ALL-SKY) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |

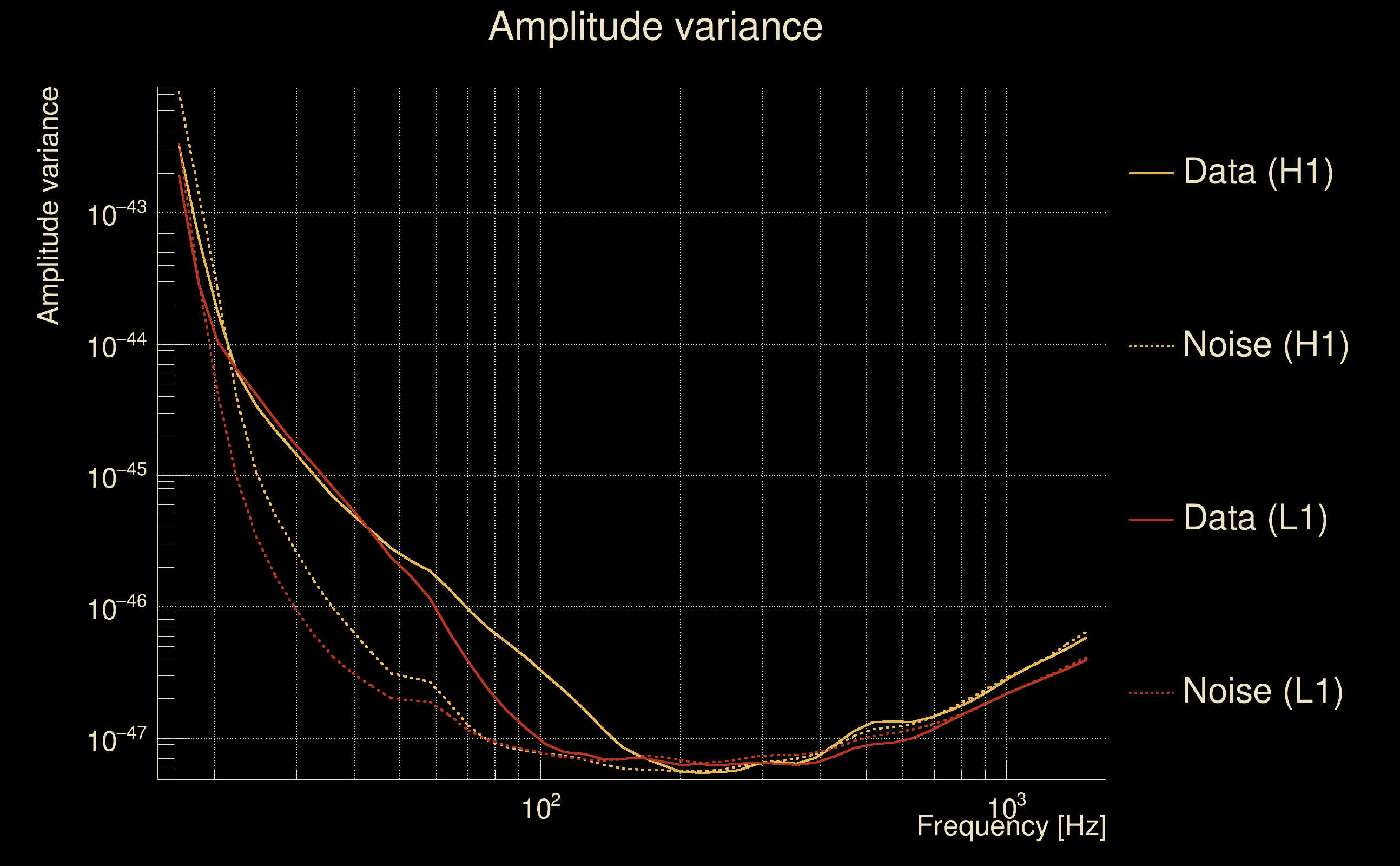

| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| List of input Ox files: | ox_file_list.txt (5594 files) |
| Analysis result file: | ox_results-0.root |
| Slice selected for the the fakeground: | slice index=161 (-12.1772 s), time lag = -10 s |

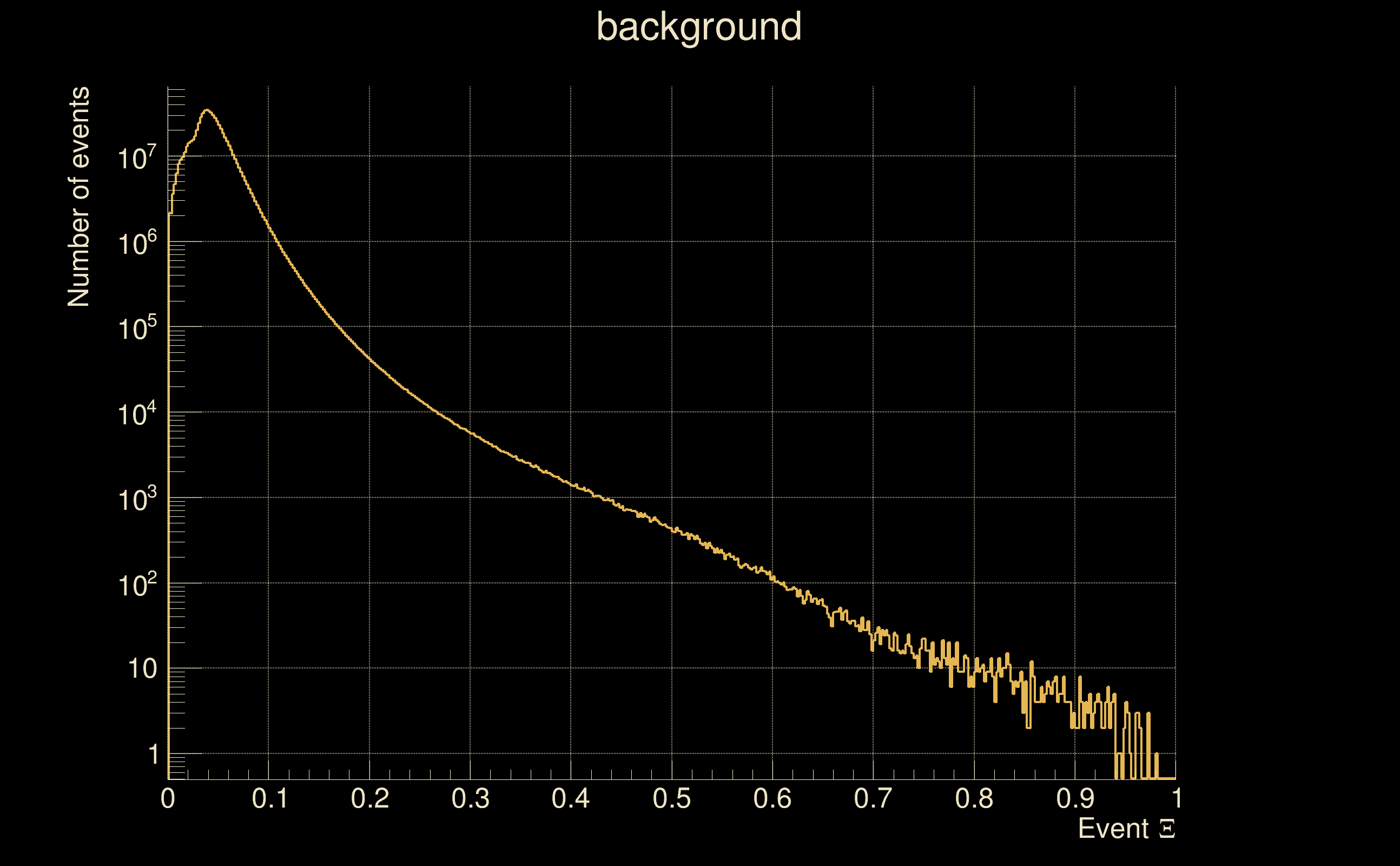

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 427086 | 427080 | 671800209 | |
| Start Date (detector 0) | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:55 2020 UTC | |
| End Date (detector 0) | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | |
| Start GPS (detector 0) | 1262304003 | 1262304003 | 1262304013 | |
| End GPS (detector 0) | 1265759996 | 1265759996 | 1265759996 | |
| Used livetime (detector 0) | 2.13955e+06 s | 2.13952e+06 s | 2.14359e+06 s | |
| Start Date (detector 1) | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | Sun Jan 5 23:59:45 2020 UTC | |
| End Date (detector 1) | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:38 2020 UTC | Fri Feb 14 23:59:28 2020 UTC | |
| Start GPS (detector 1) | 1262304003 | 1262304003 | 1262304003 | |
| End GPS (detector 1) | 1265759996 | 1265759996 | 1265759986 | |
| Used livetime (detector 1) | 2.13955e+06 s | 2.13952e+06 s | 2.14688e+06 s | |
| Cumulative livetime | 4270860 s | 4270800 s | 6718002090 s | |
| 0 years, 49 days, 10 hours, 21 min, 0 s | 0 years, 49 days, 10 hours, 20 min, 0 s | 212 years, 321 days, 15 hours, 41 min, 30 s |
![]() |
![]() |

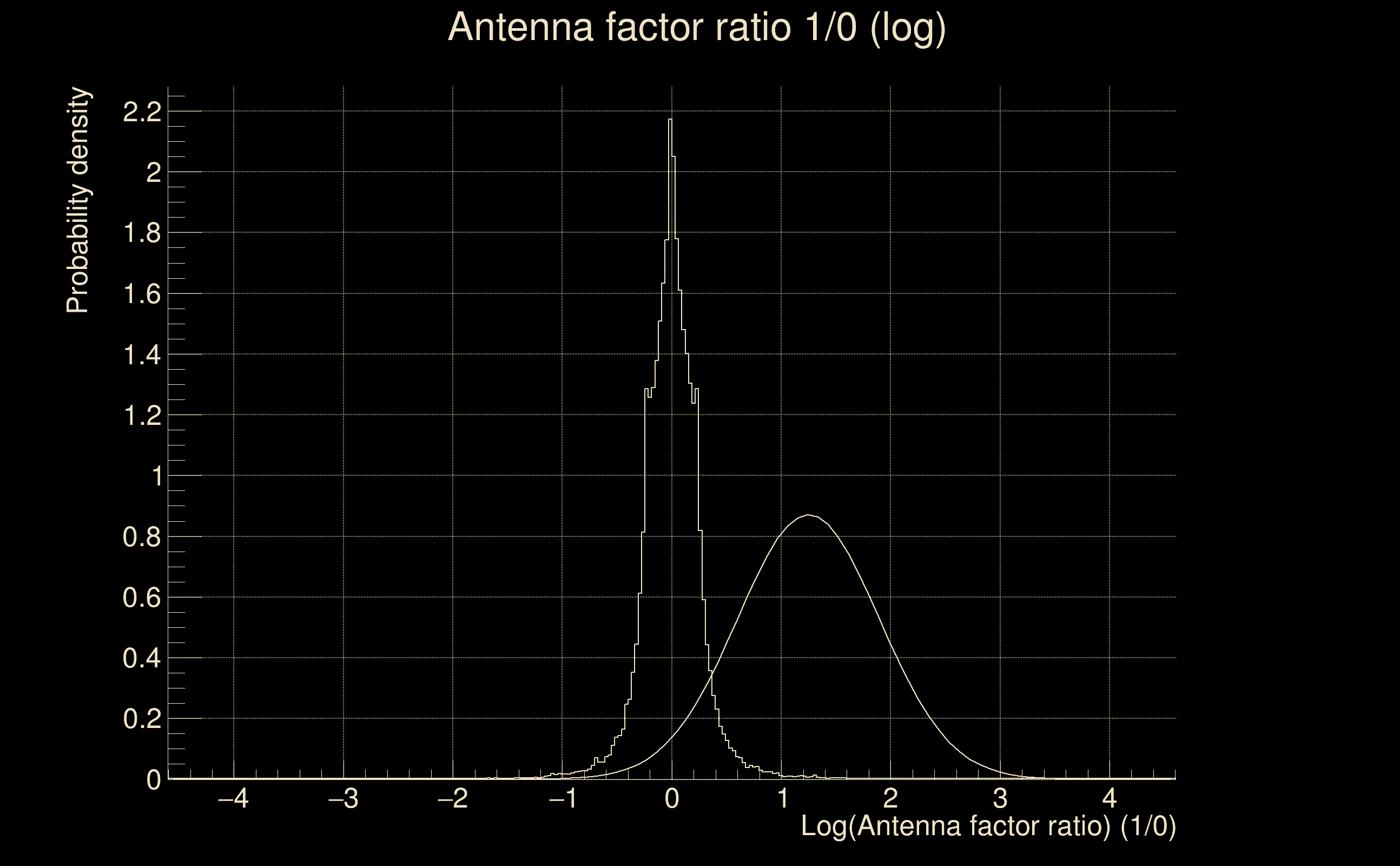

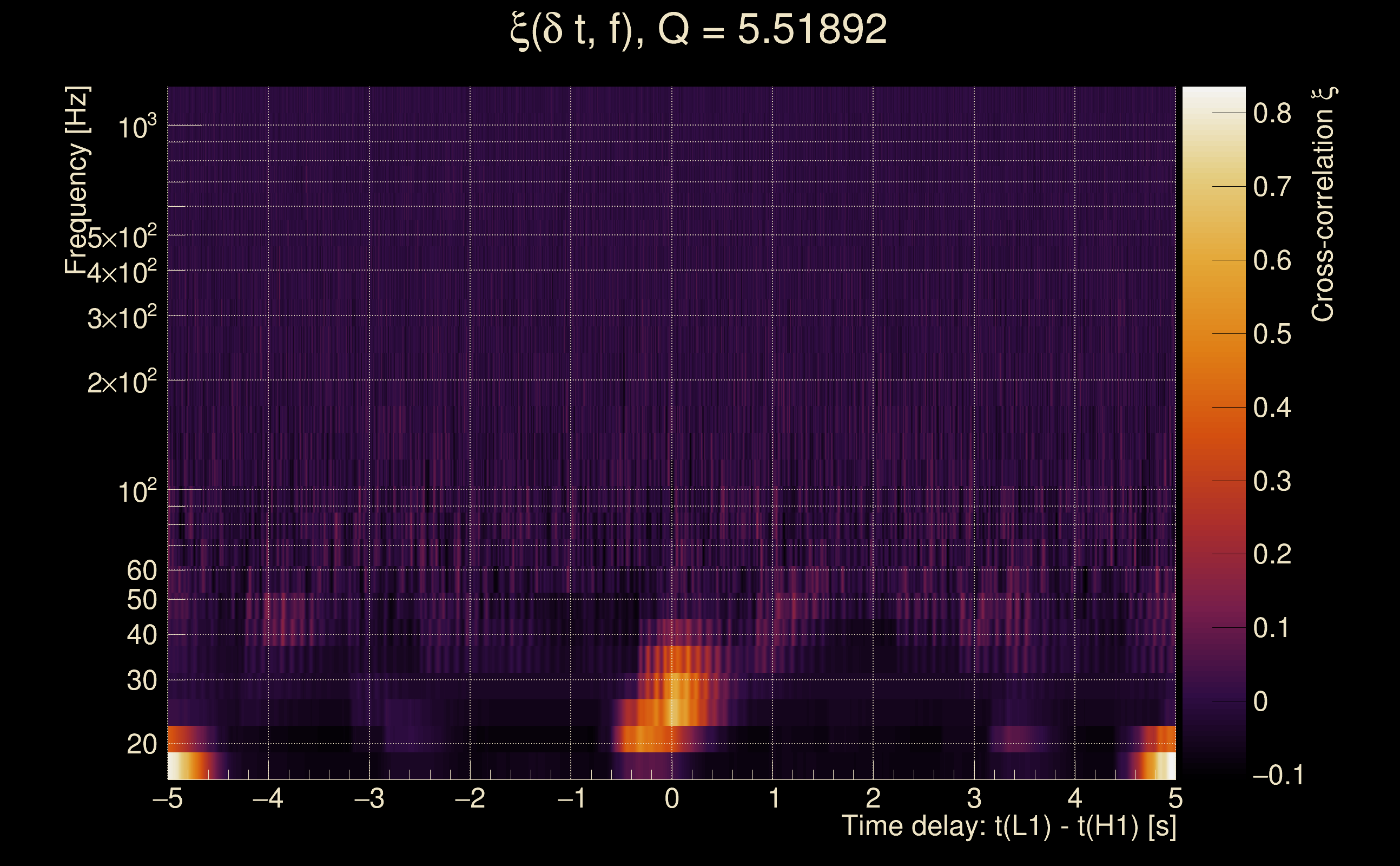

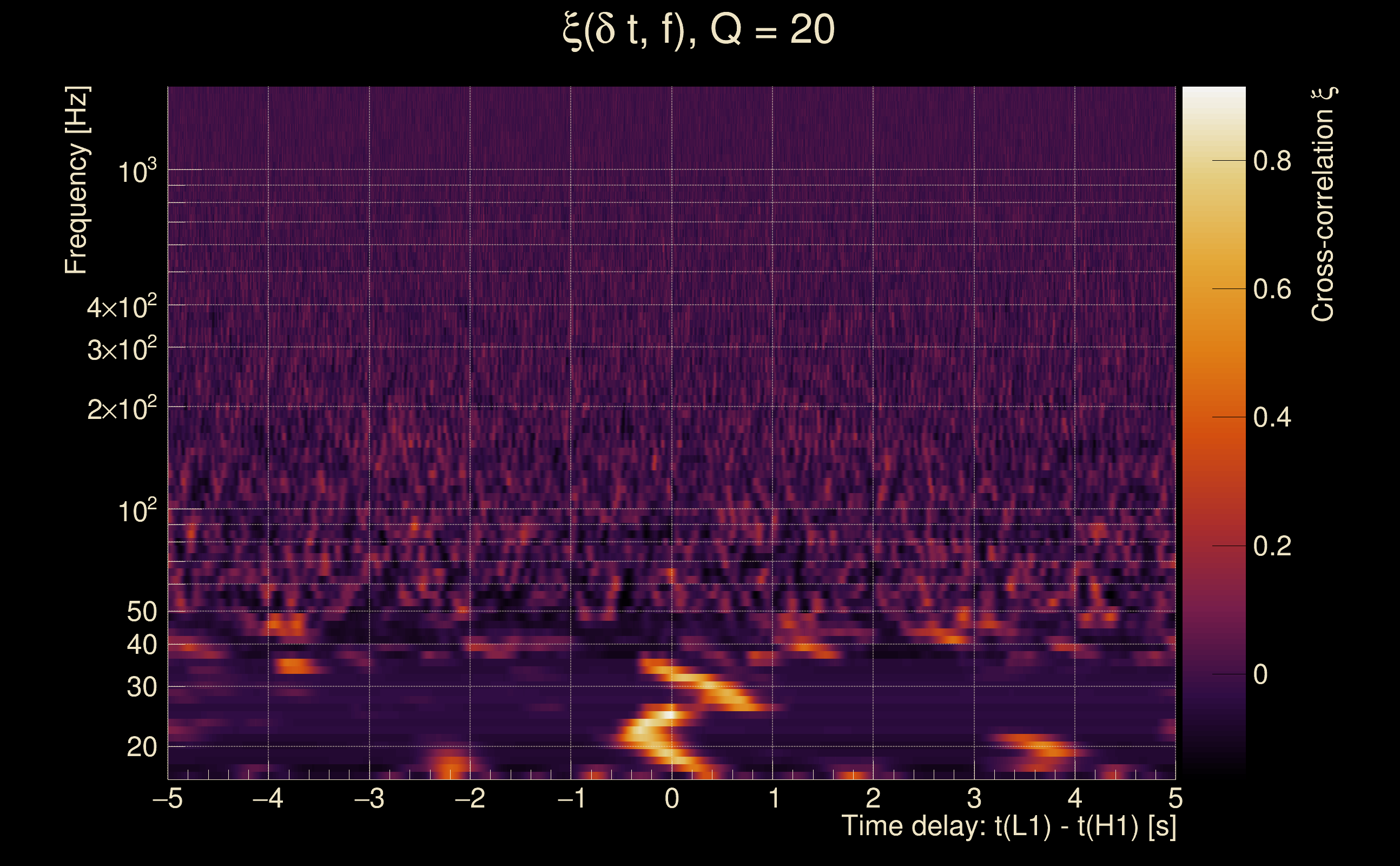

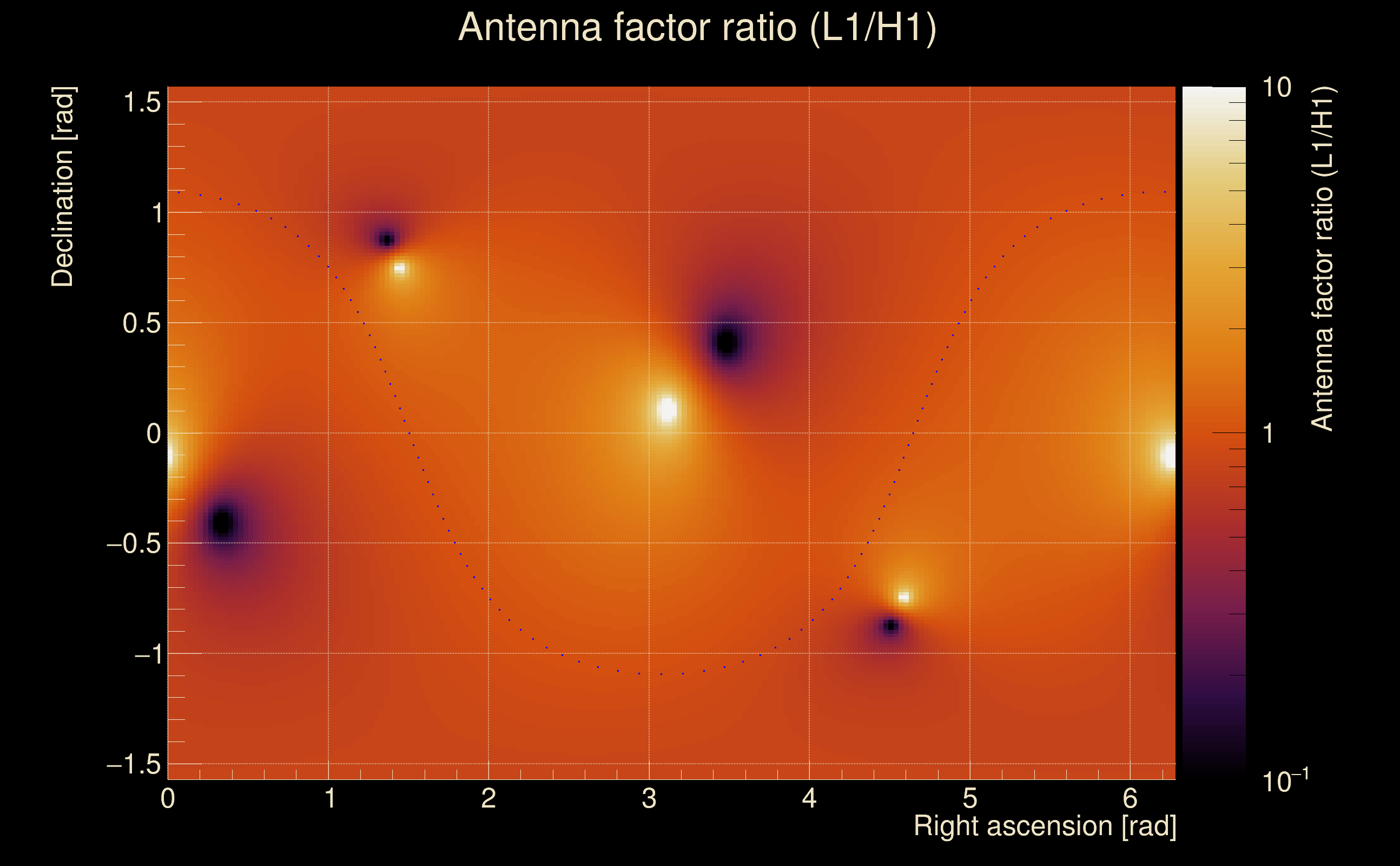

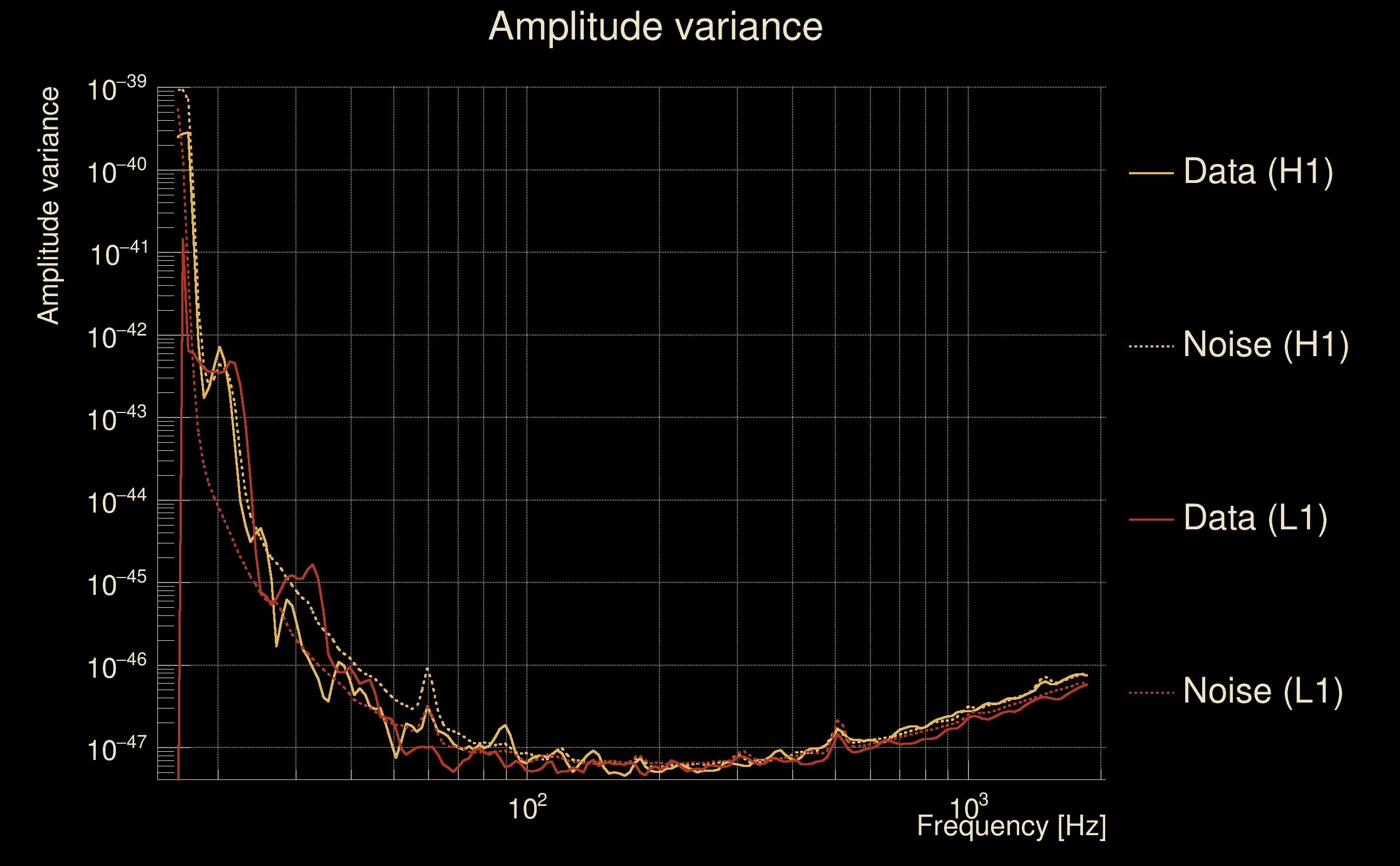

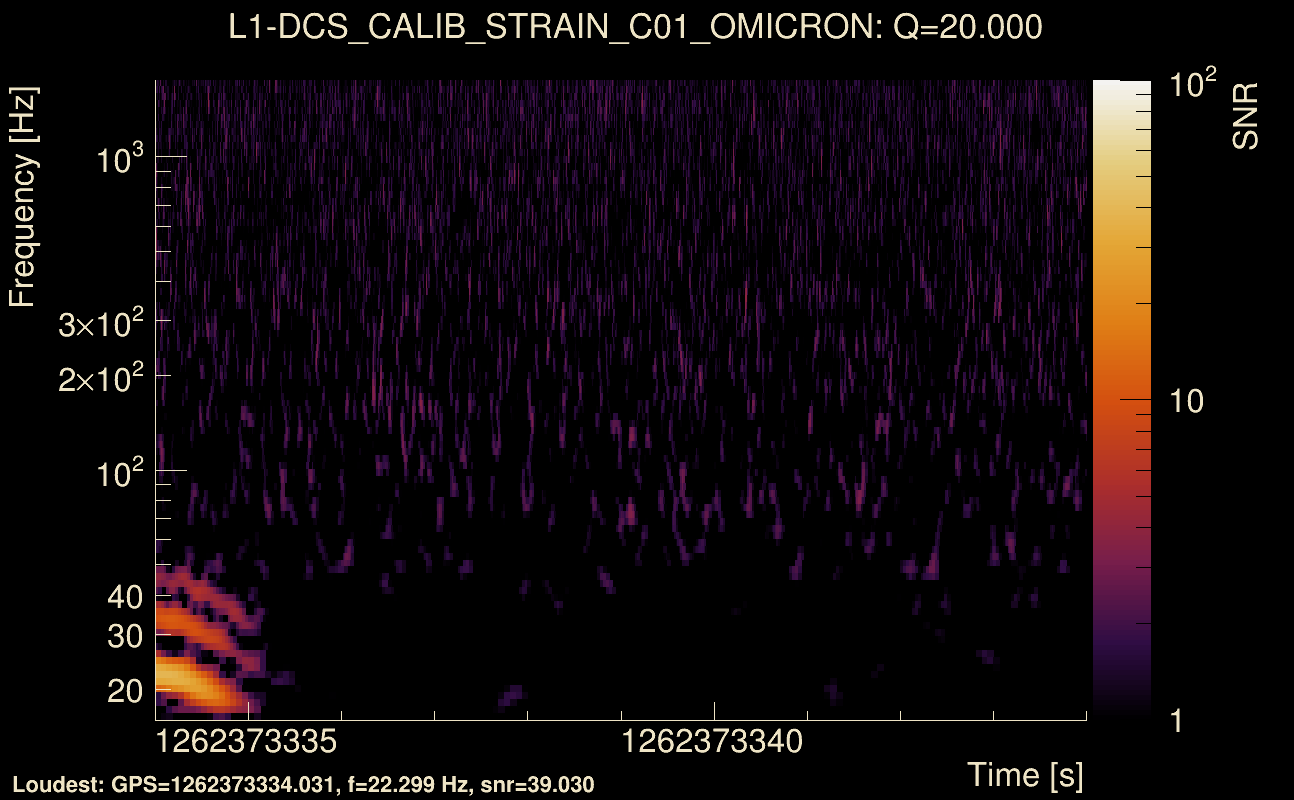

| Event time t(H1): | GPS = 1262373334 (Mon Jan 6 19:15:16 2020 ) → GPS = 1262373344 (Mon Jan 6 19:15:26 2020 ) |
| Event time t(L1): | GPS = 1262373334 (Mon Jan 6 19:15:26 2020 ) → GPS = 1262373344 (Mon Jan 6 19:15:26 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262373331 → GPS = 1262373347 |
| Omicron analysis time window (L1): | GPS = 1262373331 → GPS = 1262373347 |
| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 112 / 225), δt_gw = 0 s |
| Time delay uncertainty: | 0.00427845 s |
| Frequency: | 25.3527 Hz |
| Ξ: | 0.740162 ± 0.116132 (variance = 0.0134867): Q0: 0.619761, Q1: 0.882836, Q2: 0.918264, Q3: 0.722429, Q4: 0.680429 |
| Rank: | R_X = 0.740162 |
| Log of amplitude ratio (L1/H1): | 1.24274, variance = 0.20255 (L1/H1: 0.885255, variance = 0.91457, H1/L1: -1.25465, variance = 0.215261) |
| Amplitude ratio (L1/H1): | 3.46508 ⋇ 1.5684 (L1/H1: 2.4236 ⋇ 2.60213, H1/L1: 0.285175 ⋇ 1.59036) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.728197 |

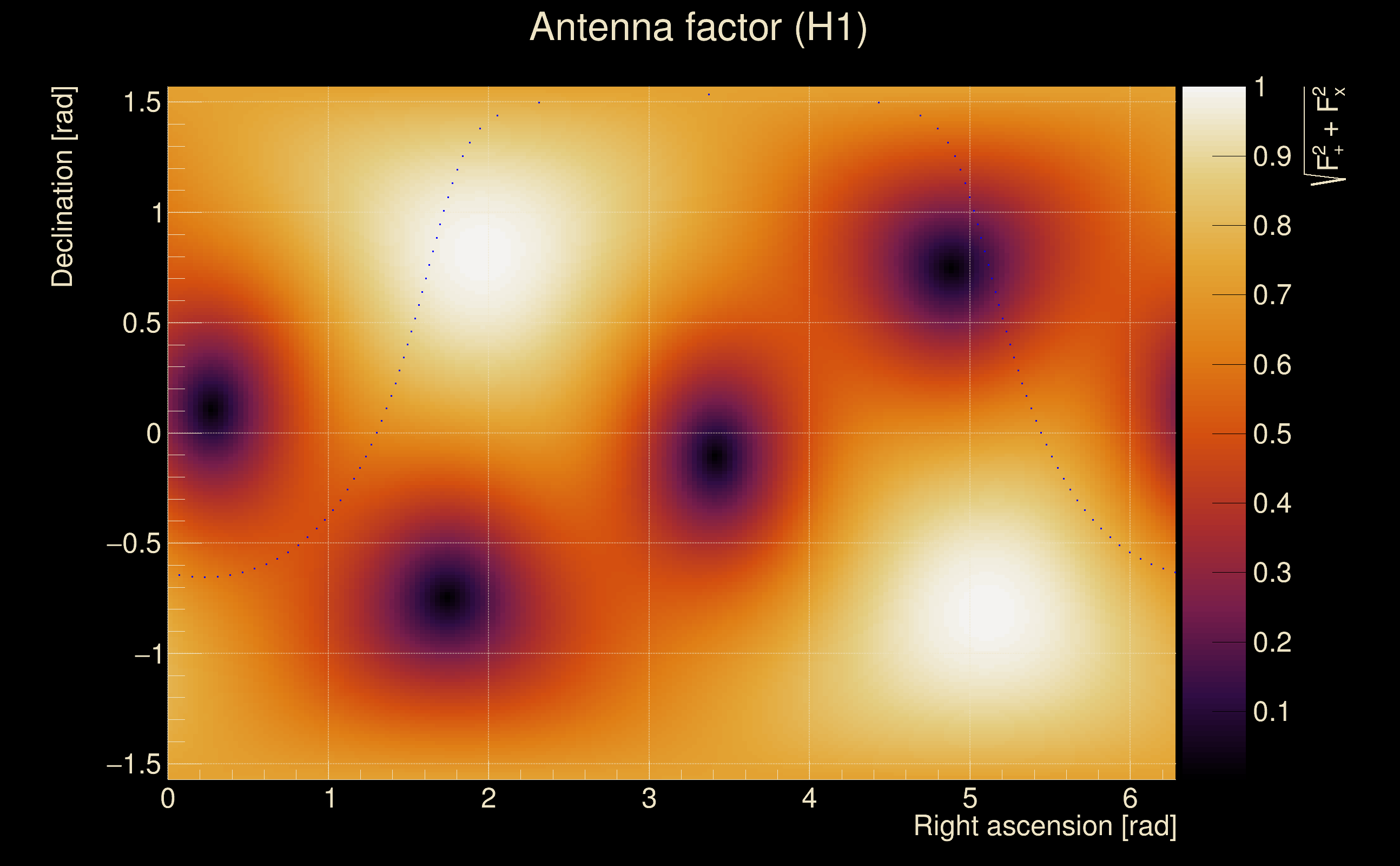

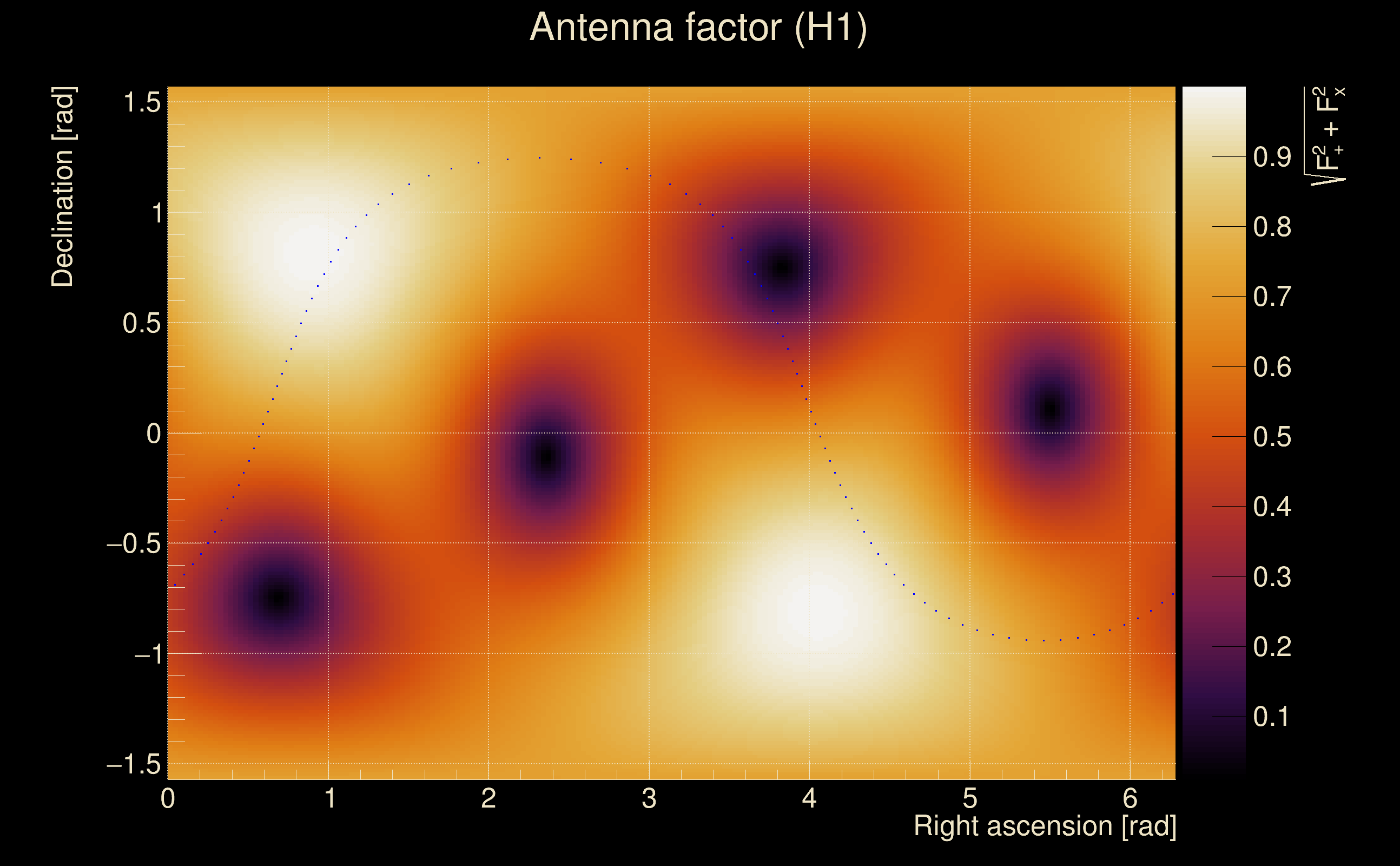

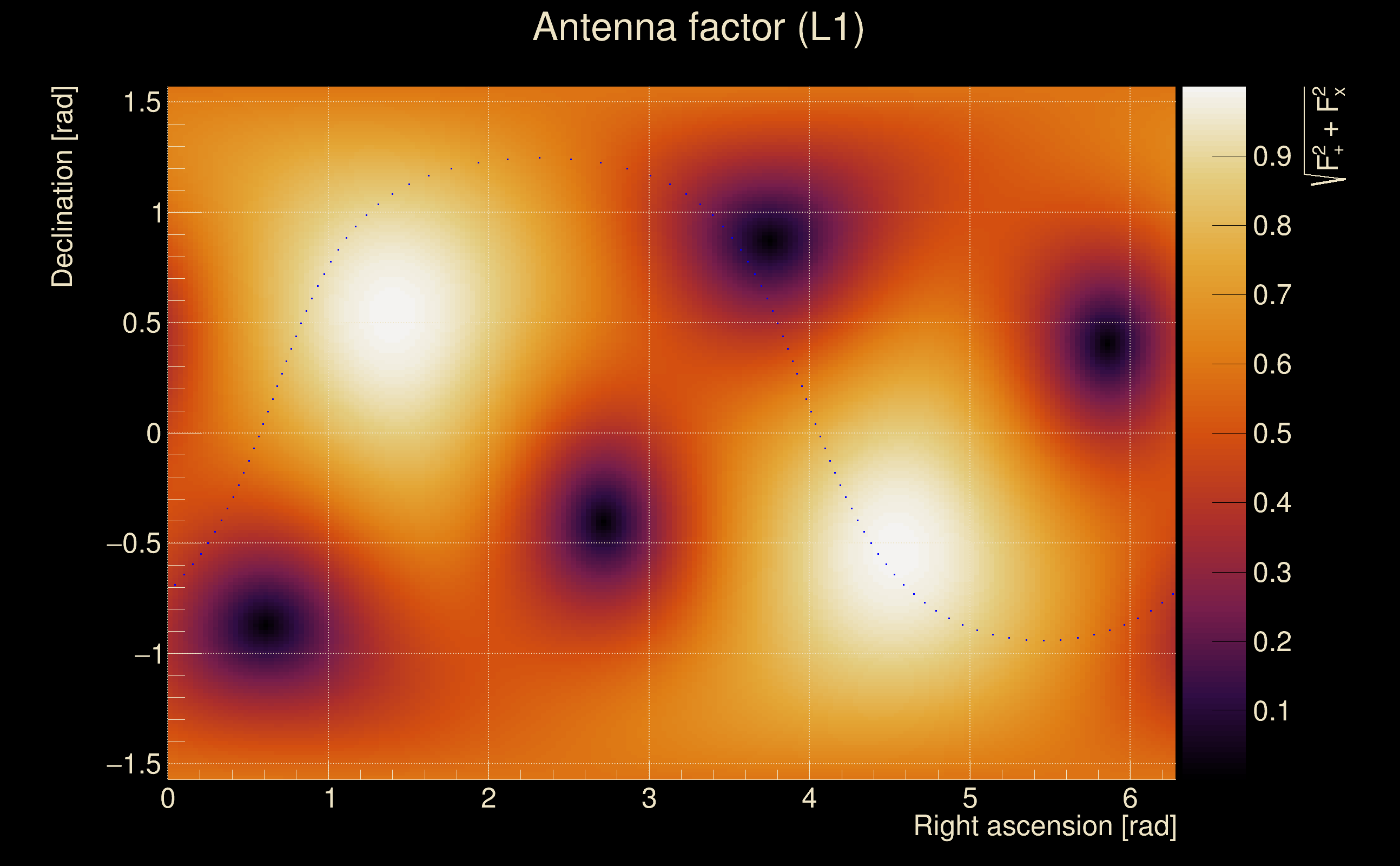

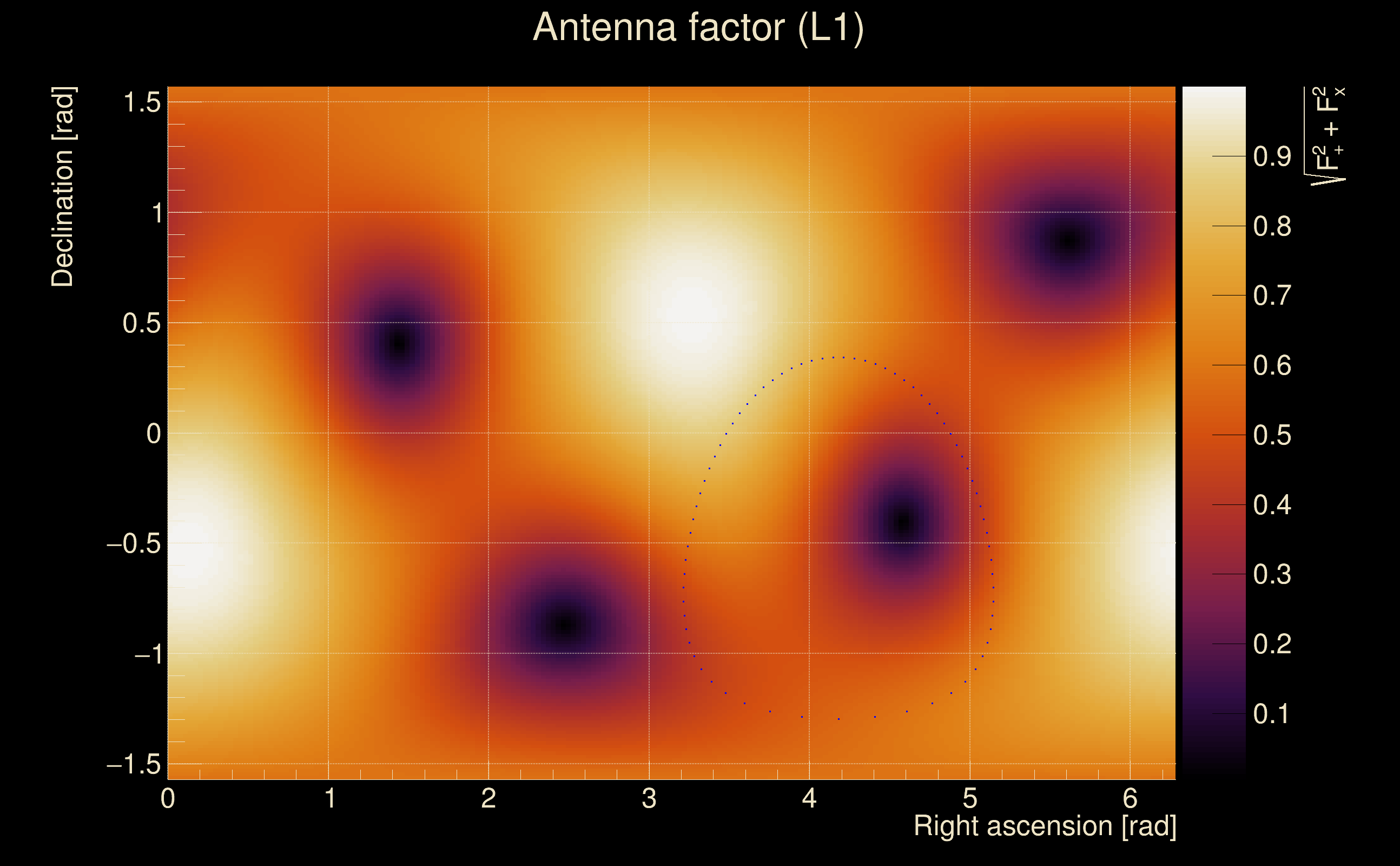

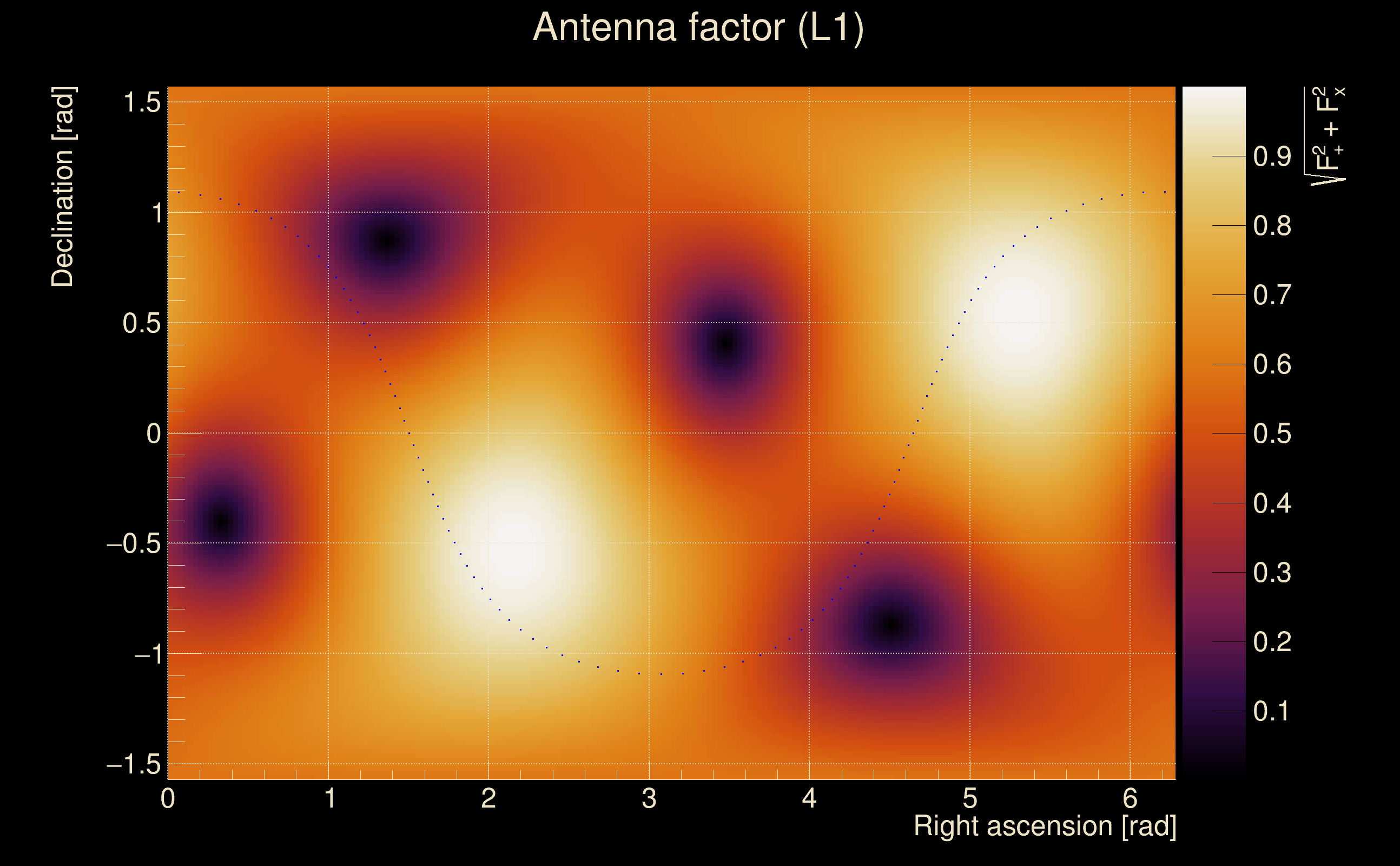

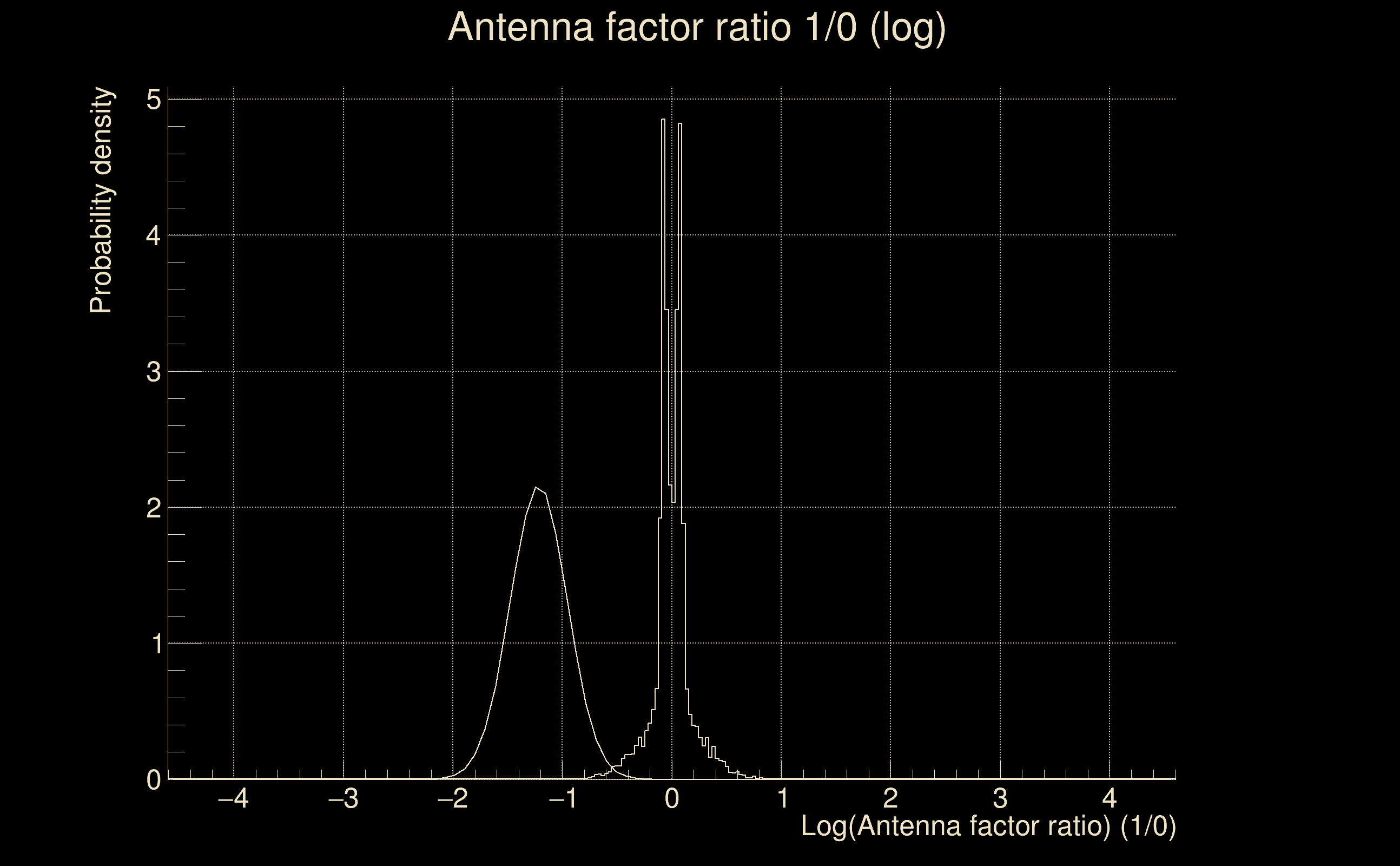

| Antenna factor probability: | 0.680316 |
| Sky position probability: | 1 (expected δt_gw = 0.00799217 s) |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 46 / 48, Q2: 91 / 92, Q3: 171 / 176, Q4: 327 / 338 |
| Maximum signal-to-noise ratio: | H1: 7.66354, L1: 41.9785 |
| SNR variance: | H1: 0.529906, L1: 7.02156 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

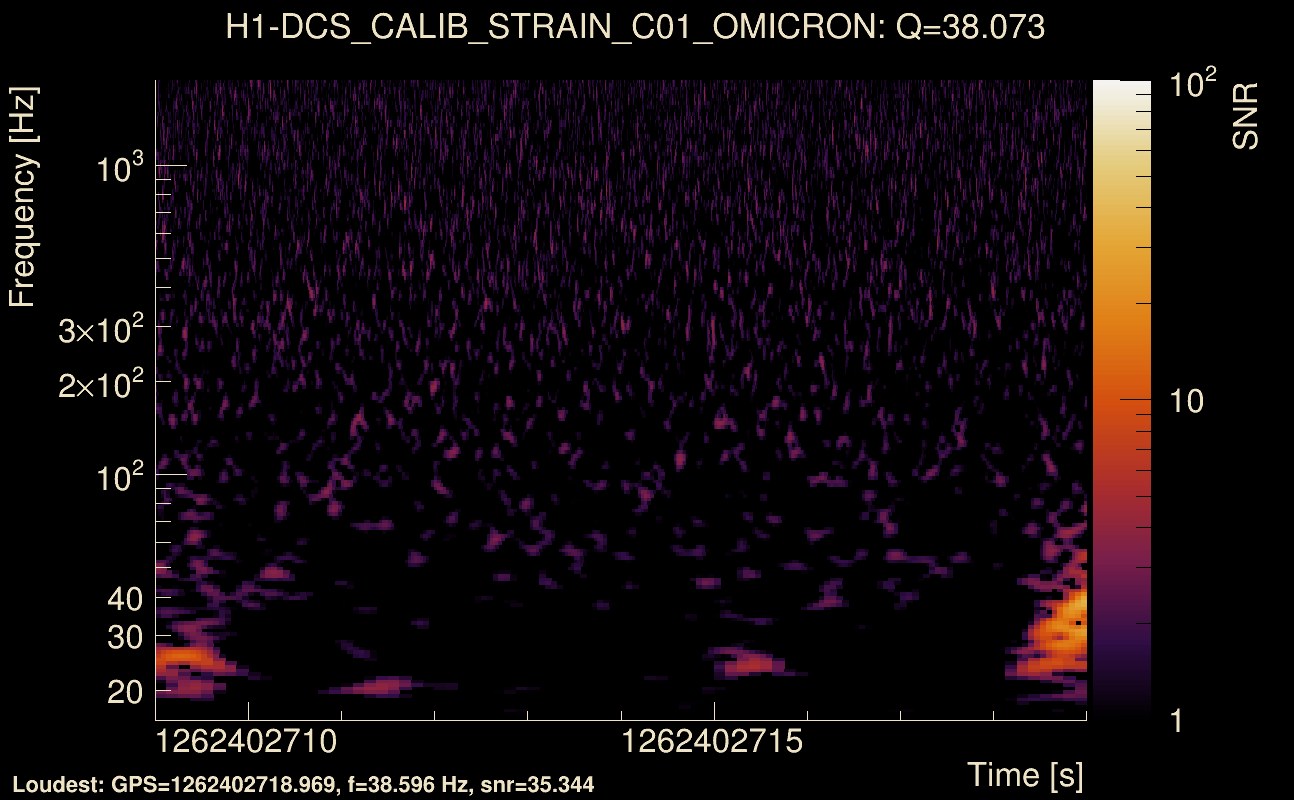

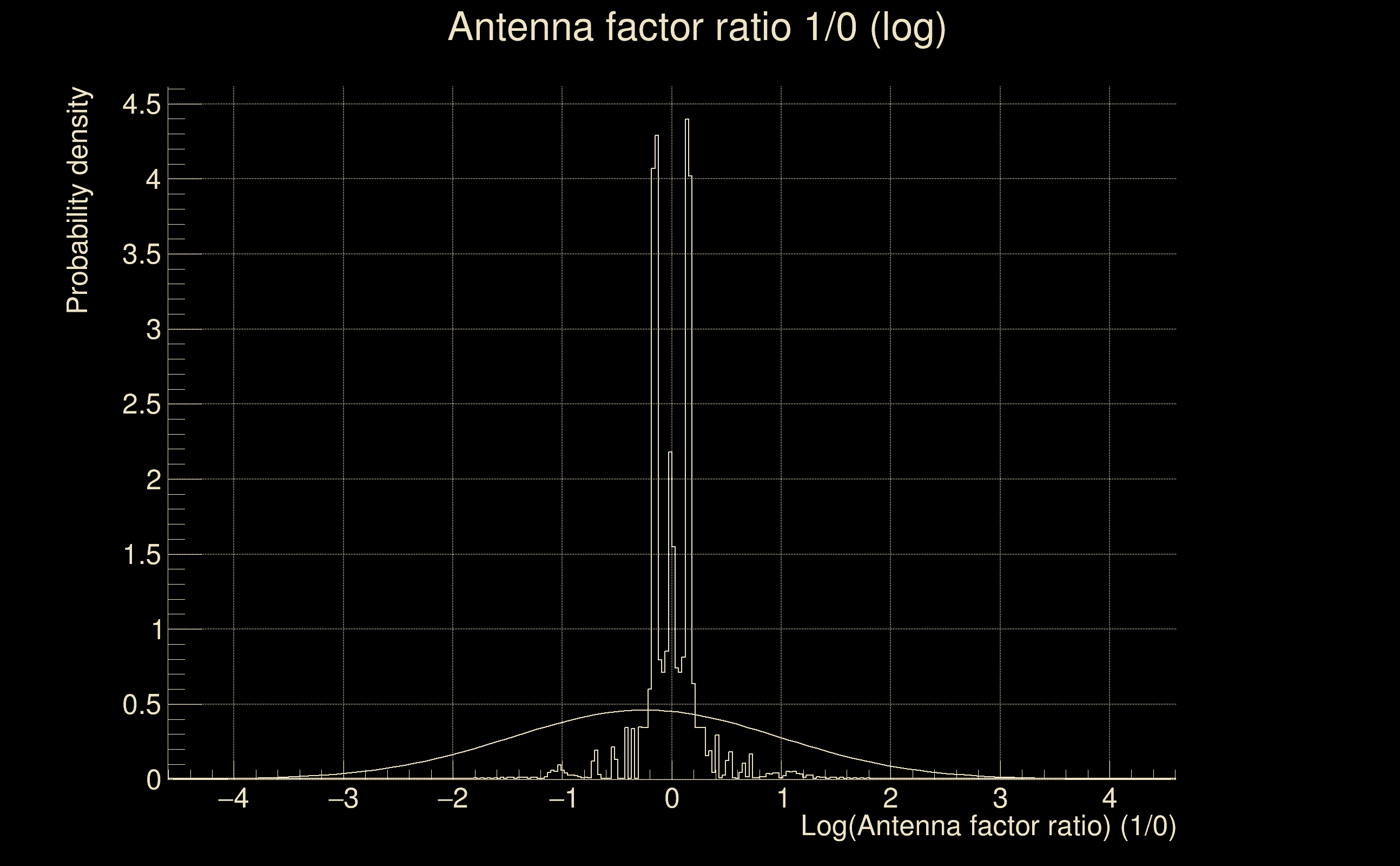

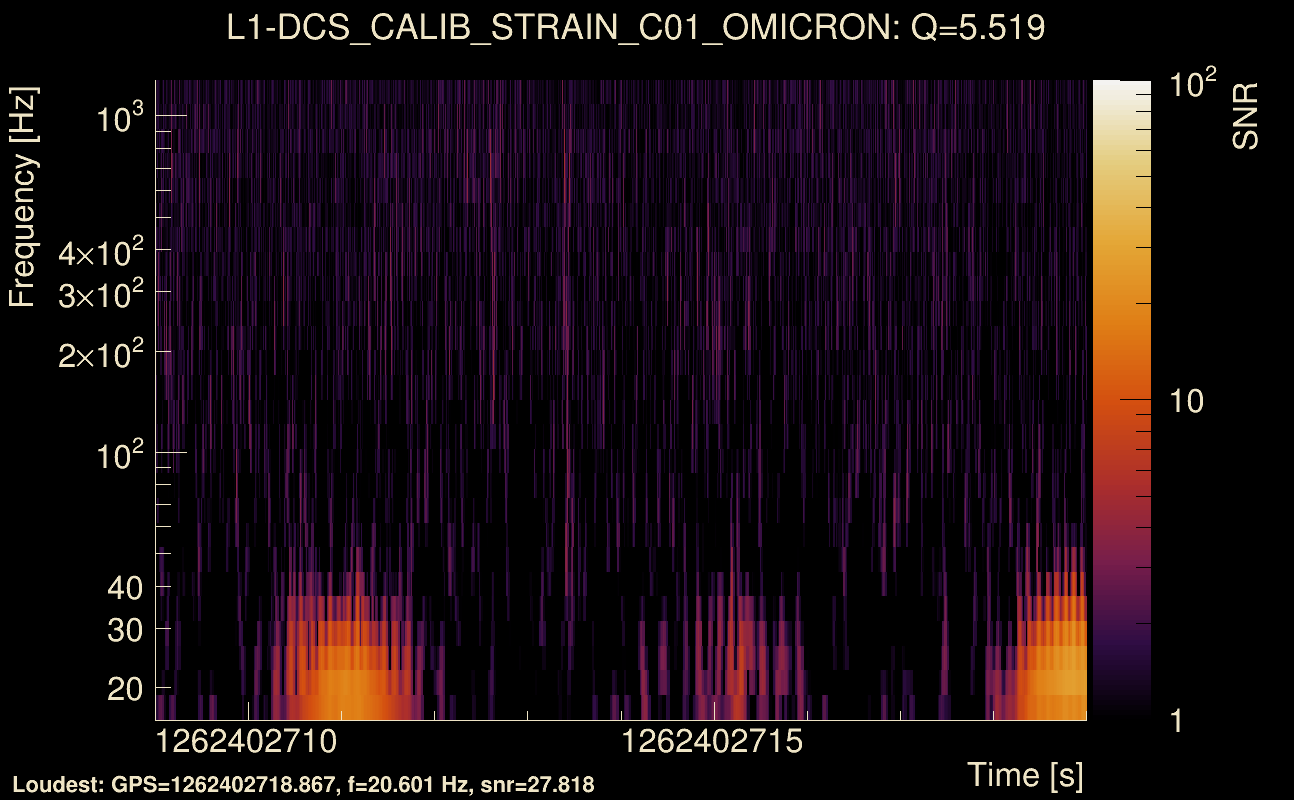

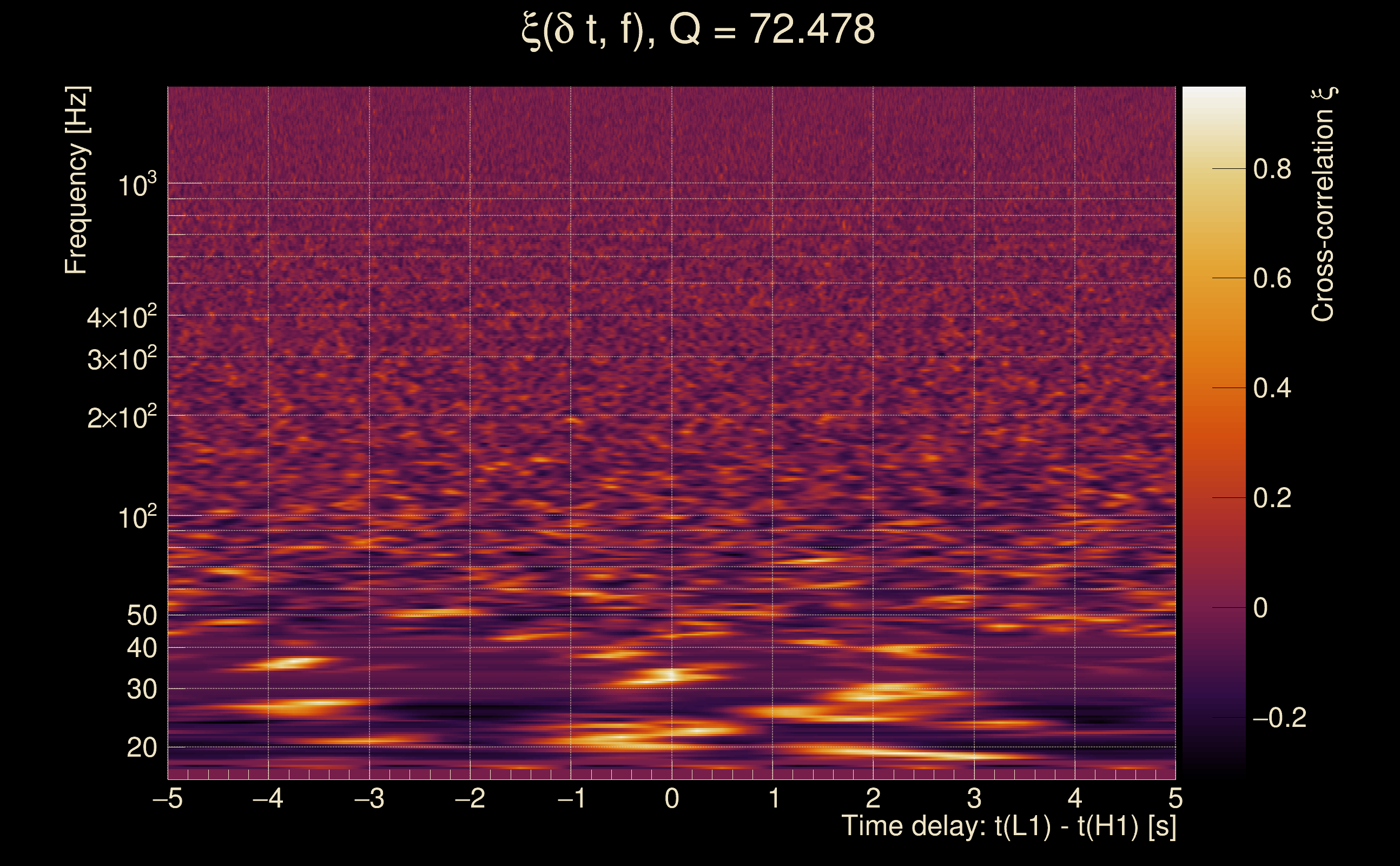

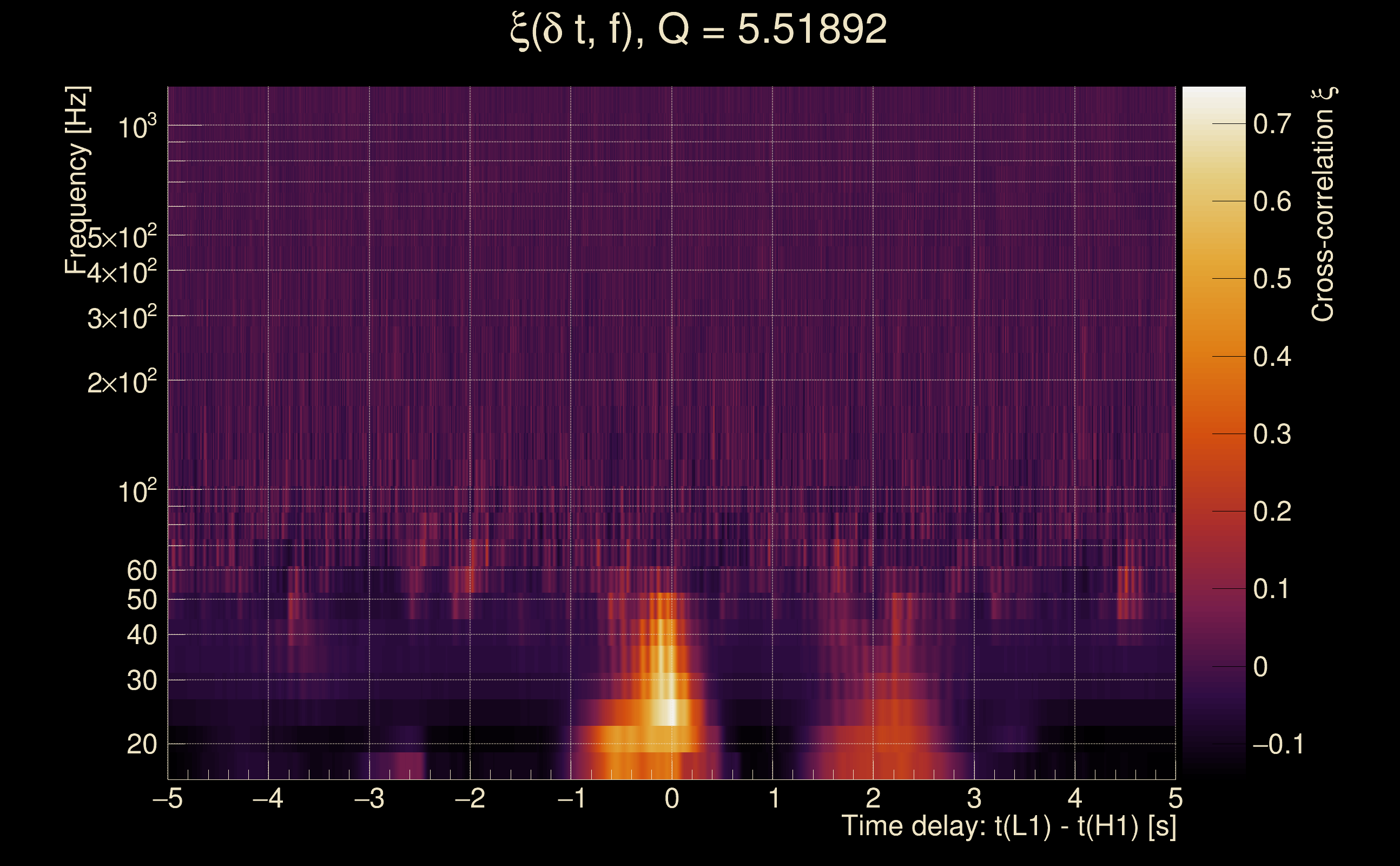

| Event time t(H1): | GPS = 1262402709 (Tue Jan 7 03:24:51 2020 ) → GPS = 1262402719 (Tue Jan 7 03:25:01 2020 ) |
| Event time t(L1): | GPS = 1262402709 (Tue Jan 7 03:25:01 2020 ) → GPS = 1262402719 (Tue Jan 7 03:25:01 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262402706 → GPS = 1262402722 |
| Omicron analysis time window (L1): | GPS = 1262402706 → GPS = 1262402722 |
| Time delay between detectors t(L1) - t(H1): | -0.00311367 s (slice index = 112 / 225), δt_gw = -0.00311367 s |
| Time delay uncertainty: | 0.000146583 s |
| Frequency: | 39.5033 Hz |
| Ξ: | 0.671315 ± 0.053888 (variance = 0.00290391): Q0: 0.639662, Q1: 0.724021, Q2: 0.641289, Q3: 0.691677, Q4: 0.782882 |
| Rank: | R_X = 0.671315 |
| Log of amplitude ratio (L1/H1): | -0.716808, variance = 0.352281 (L1/H1: -1.56707, variance = 0.188673, H1/L1: -0.144498, variance = 1.23388) |
| Amplitude ratio (L1/H1): | 0.488309 ⋇ 1.81037 (L1/H1: 0.208656 ⋇ 1.54398, H1/L1: 0.865457 ⋇ 3.03679) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.15128 |

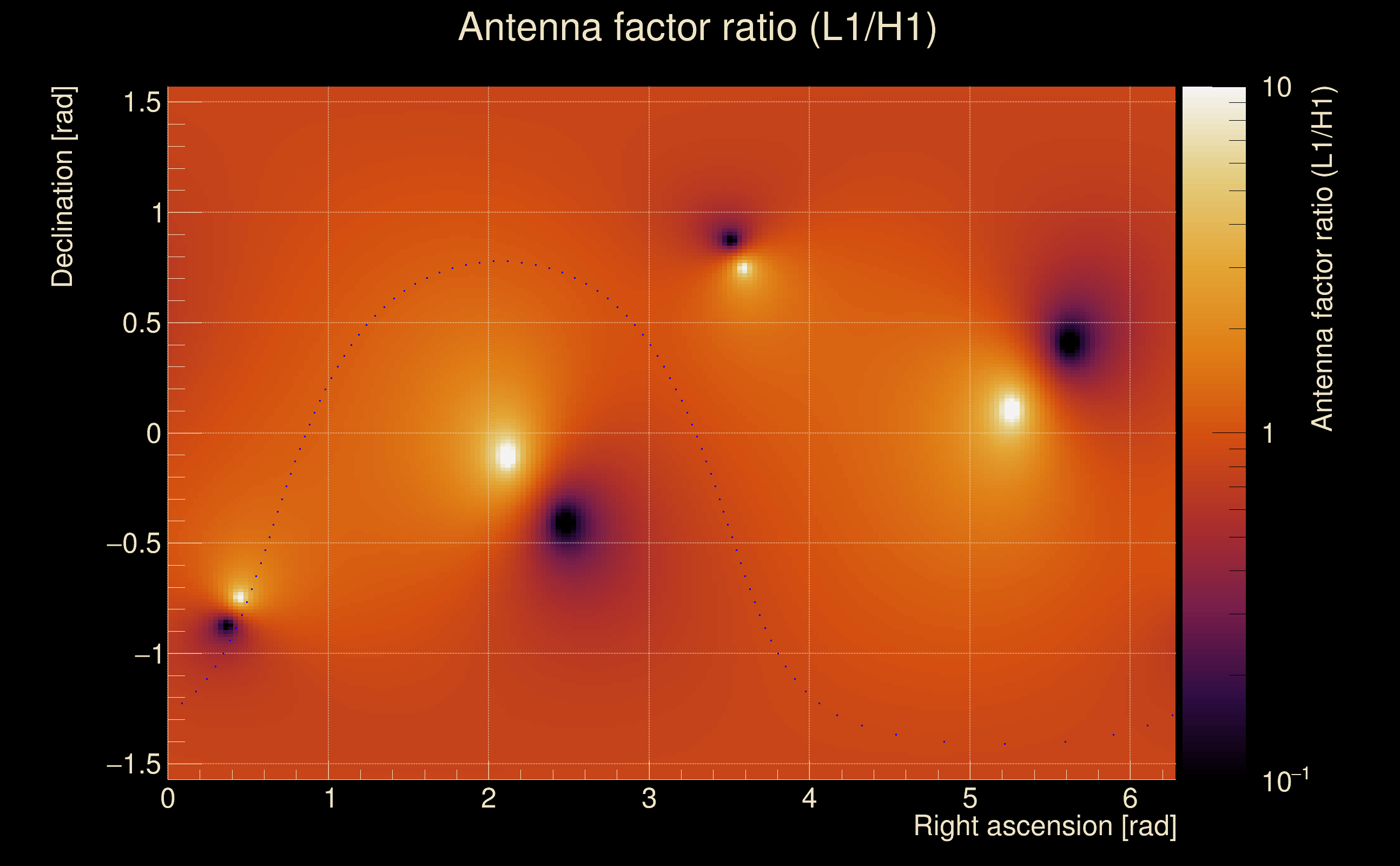

| Antenna factor probability: | 0.986247 |
| Sky position probability: | 1 (expected δt_gw = 0.00391346 s) |
| Number of rejected frequency rows: | Q0: 20 / 26, Q1: 43 / 48, Q2: 85 / 92, Q3: 161 / 176, Q4: 321 / 338 |
| Maximum signal-to-noise ratio: | H1: 27.5334, L1: 27.3563 |
| SNR variance: | H1: 0.786779, L1: 1.60971 |

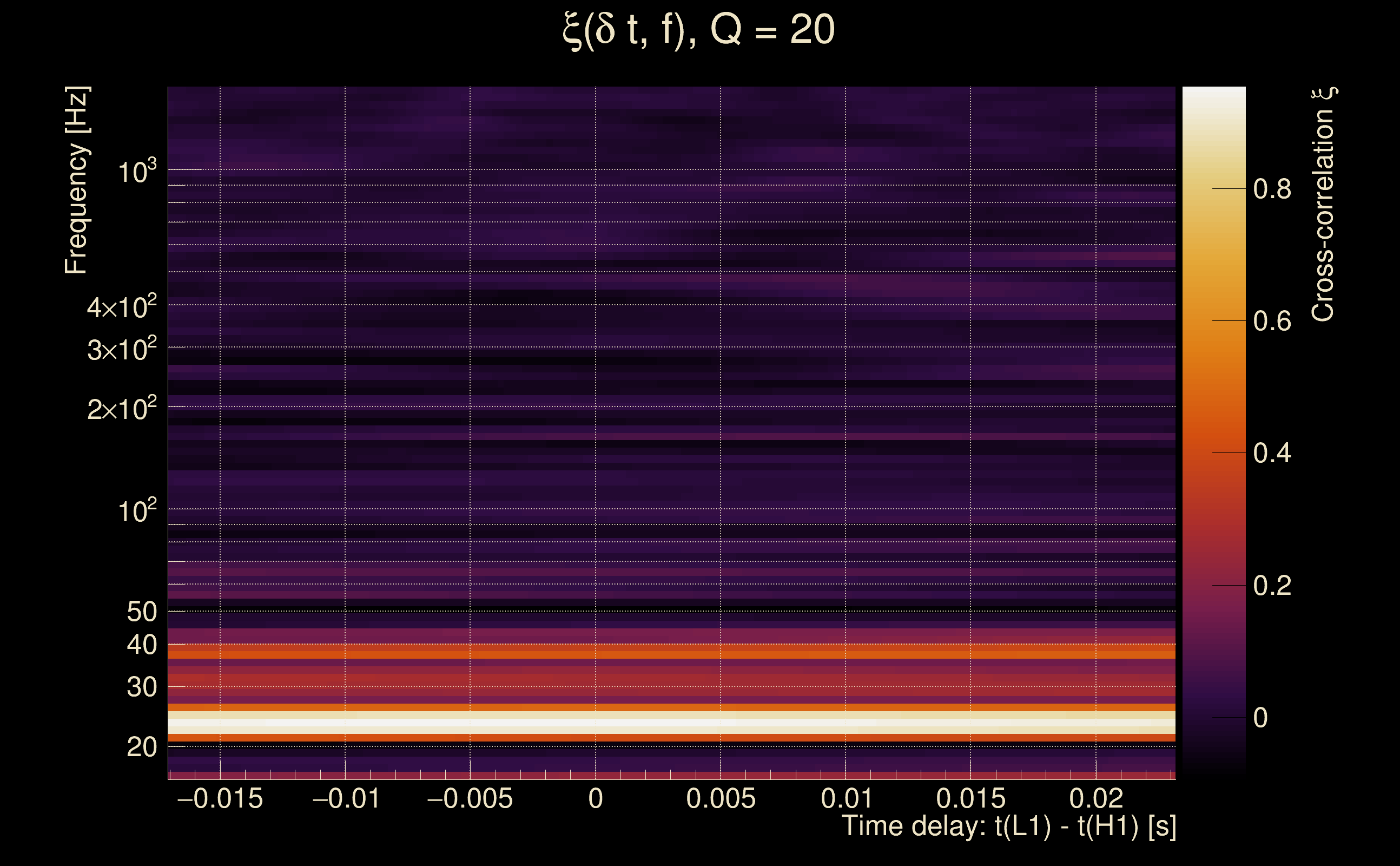

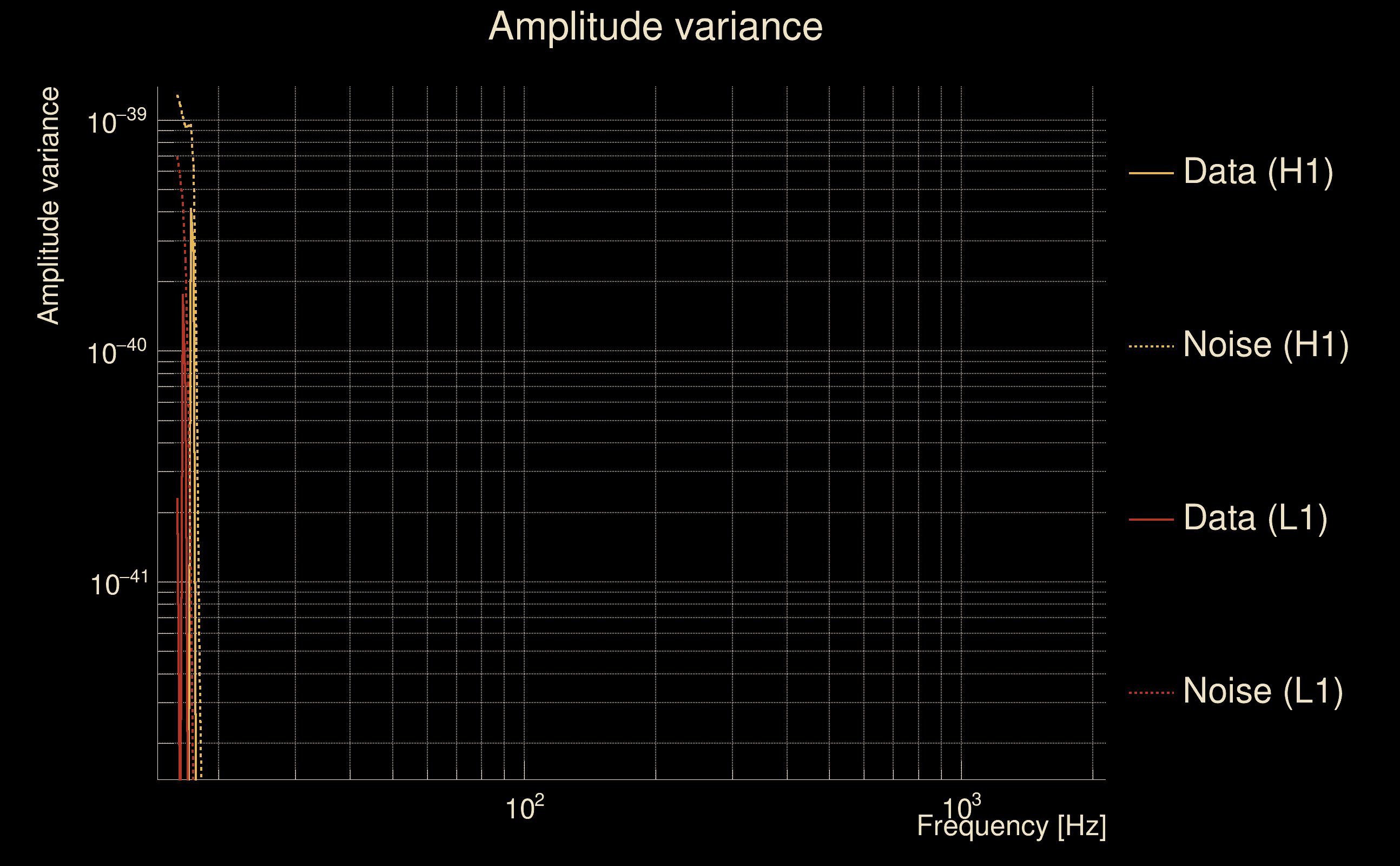

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

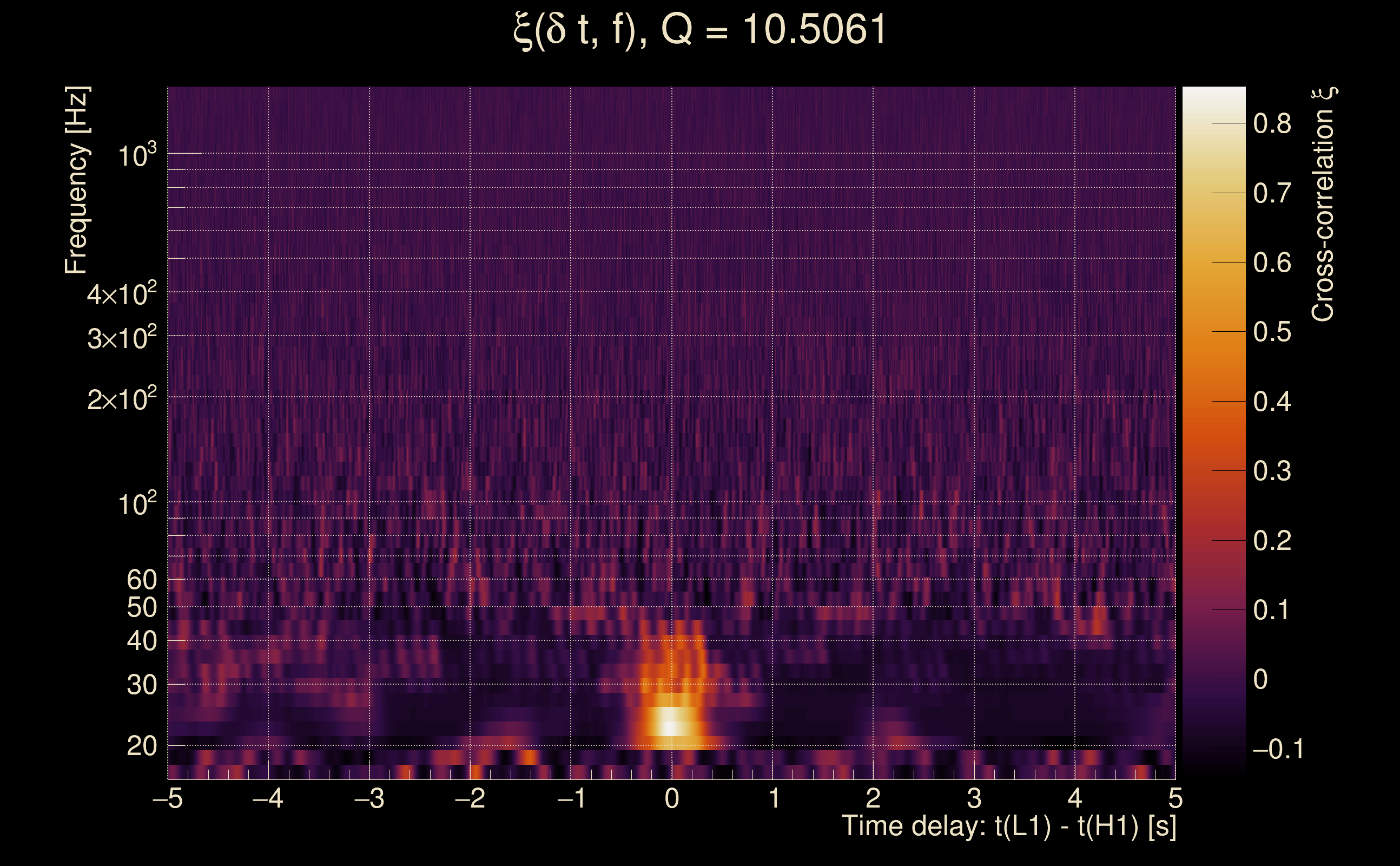

| Event time t(H1): | GPS = 1262366086 (Mon Jan 6 17:14:28 2020 ) → GPS = 1262366096 (Mon Jan 6 17:14:38 2020 ) |
| Event time t(L1): | GPS = 1262366086 (Mon Jan 6 17:14:38 2020 ) → GPS = 1262366096 (Mon Jan 6 17:14:38 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262366083 → GPS = 1262366099 |
| Omicron analysis time window (L1): | GPS = 1262366083 → GPS = 1262366099 |

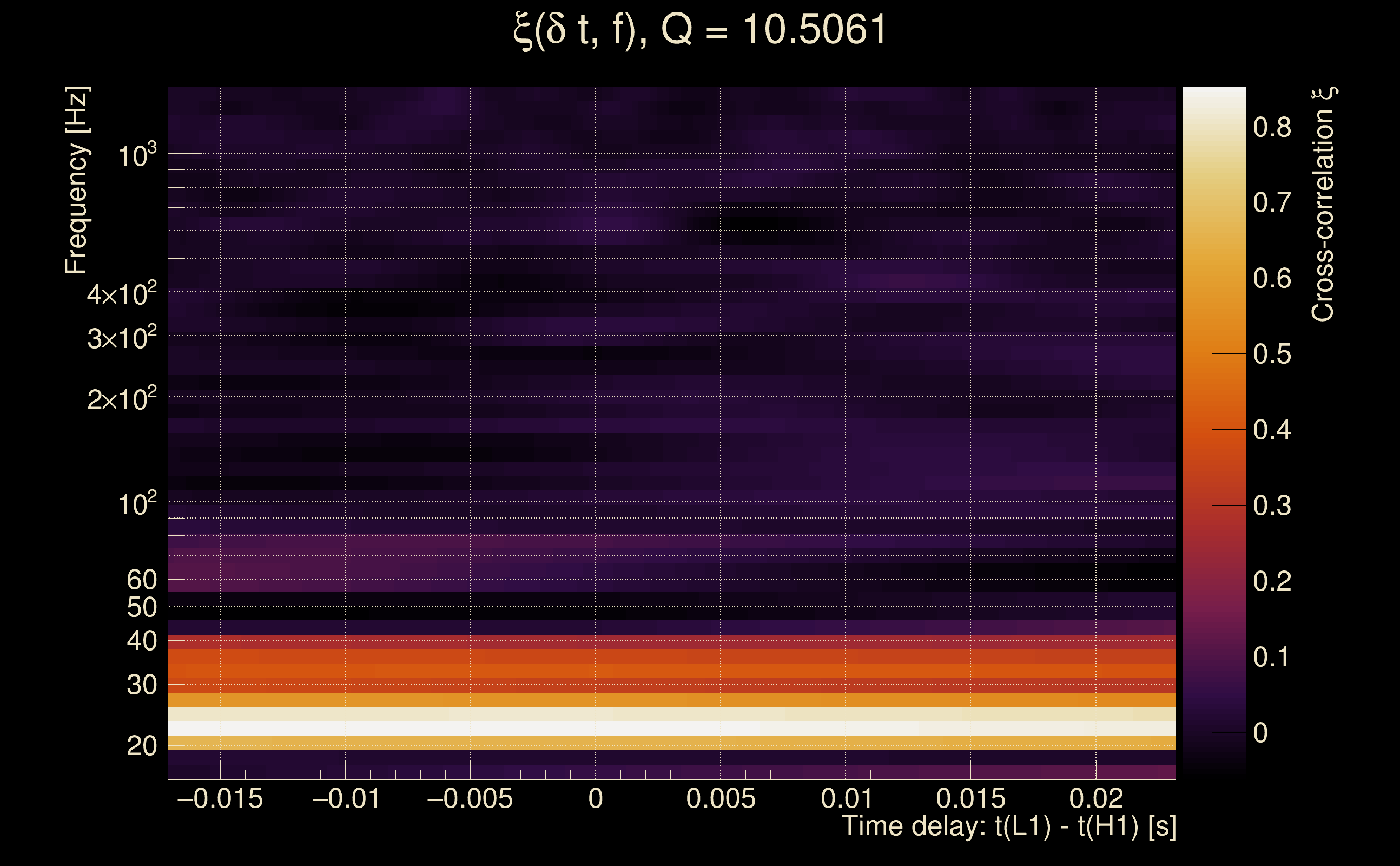

| Time delay between detectors t(L1) - t(H1): | 0.00299071 s (slice index = 112 / 225), δt_gw = 0.00299071 s |
| Time delay uncertainty: | 7.34311e-05 s |
| Frequency: | 36.4392 Hz |
| Ξ: | 0.653918 ± 0.0858262 (variance = 0.00736615): Q0: 0.591871, Q1: 0.649686, Q2: 0.845651, Q3: 0.717343, Q4: 0.664096 |
| Rank: | R_X = 0.653918 |
| Log of amplitude ratio (L1/H1): | -2.0753, variance = 0.0675218 (L1/H1: -2.11269, variance = 0.0711009, H1/L1: 1.70073, variance = 1.0613) |
| Amplitude ratio (L1/H1): | 0.125518 ⋇ 1.29673 (L1/H1: 0.120913 ⋇ 1.30558, H1/L1: 5.47797 ⋇ 2.80161) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.698668 |
| Antenna factor probability: | 0.00931758 |
| Sky position probability: | 1 (expected δt_gw = 0.00591719 s) |
| Number of rejected frequency rows: | Q0: 18 / 26, Q1: 36 / 48, Q2: 82 / 92, Q3: 157 / 176, Q4: 313 / 338 |
| Maximum signal-to-noise ratio: | H1: 24.956, L1: 7.88396 |
| SNR variance: | H1: 1.38362, L1: 0.662077 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

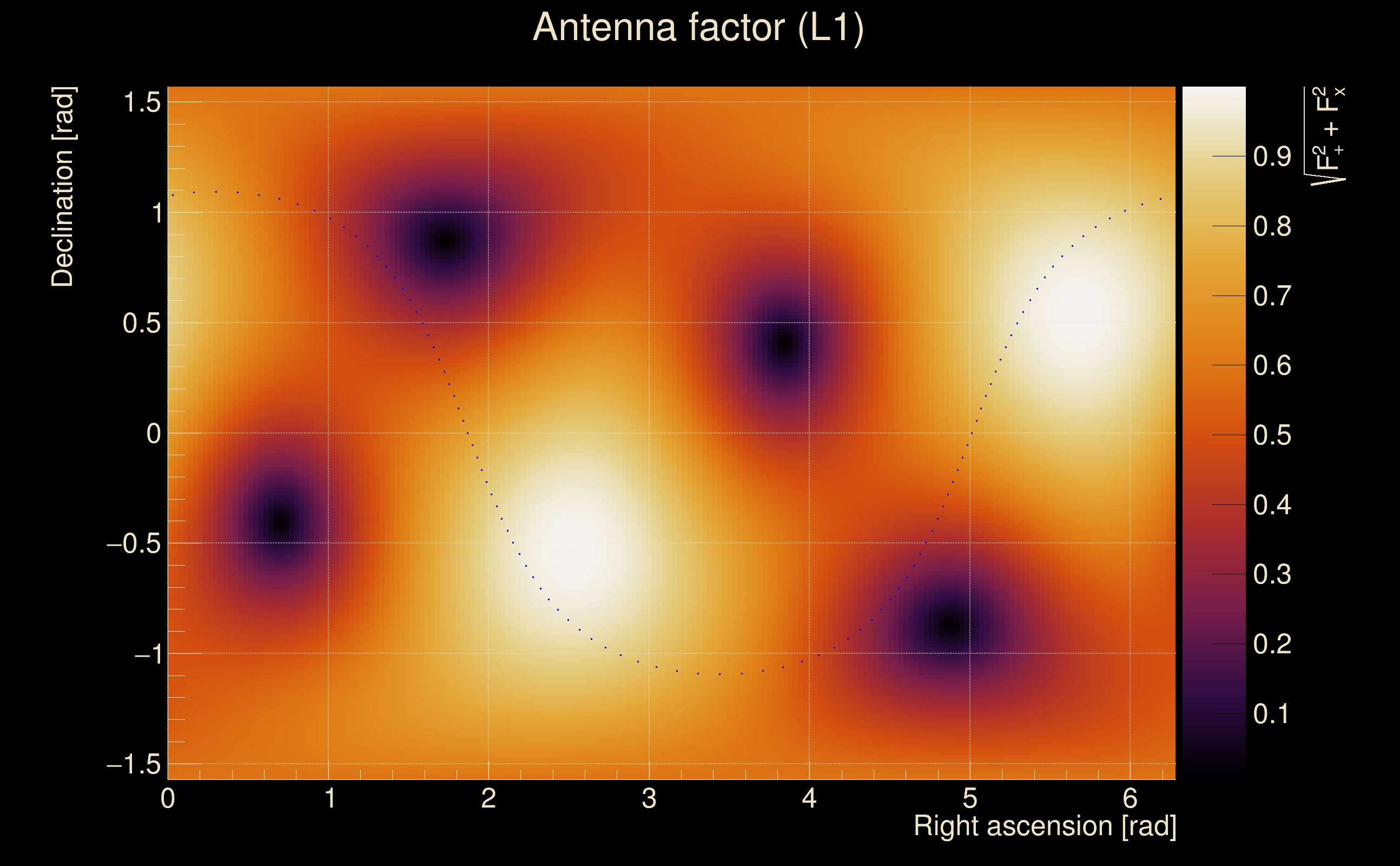

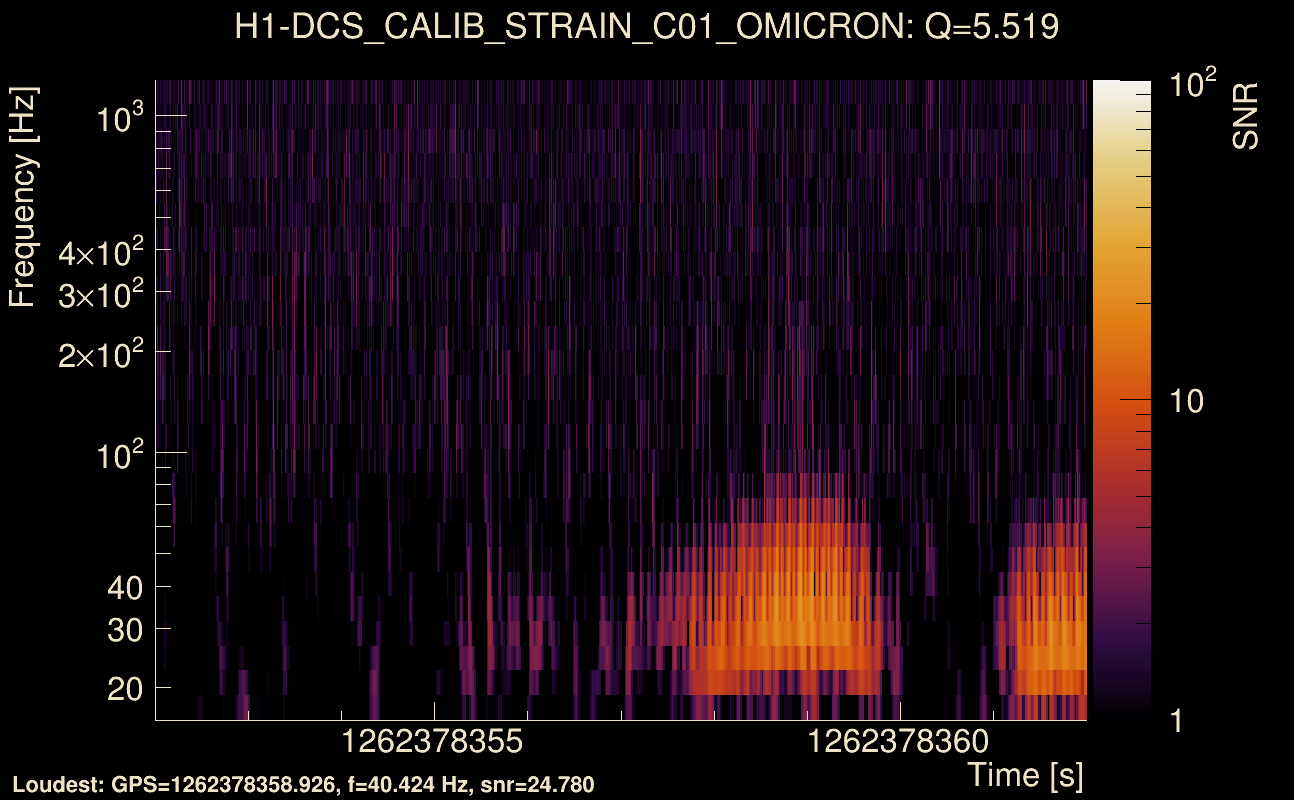

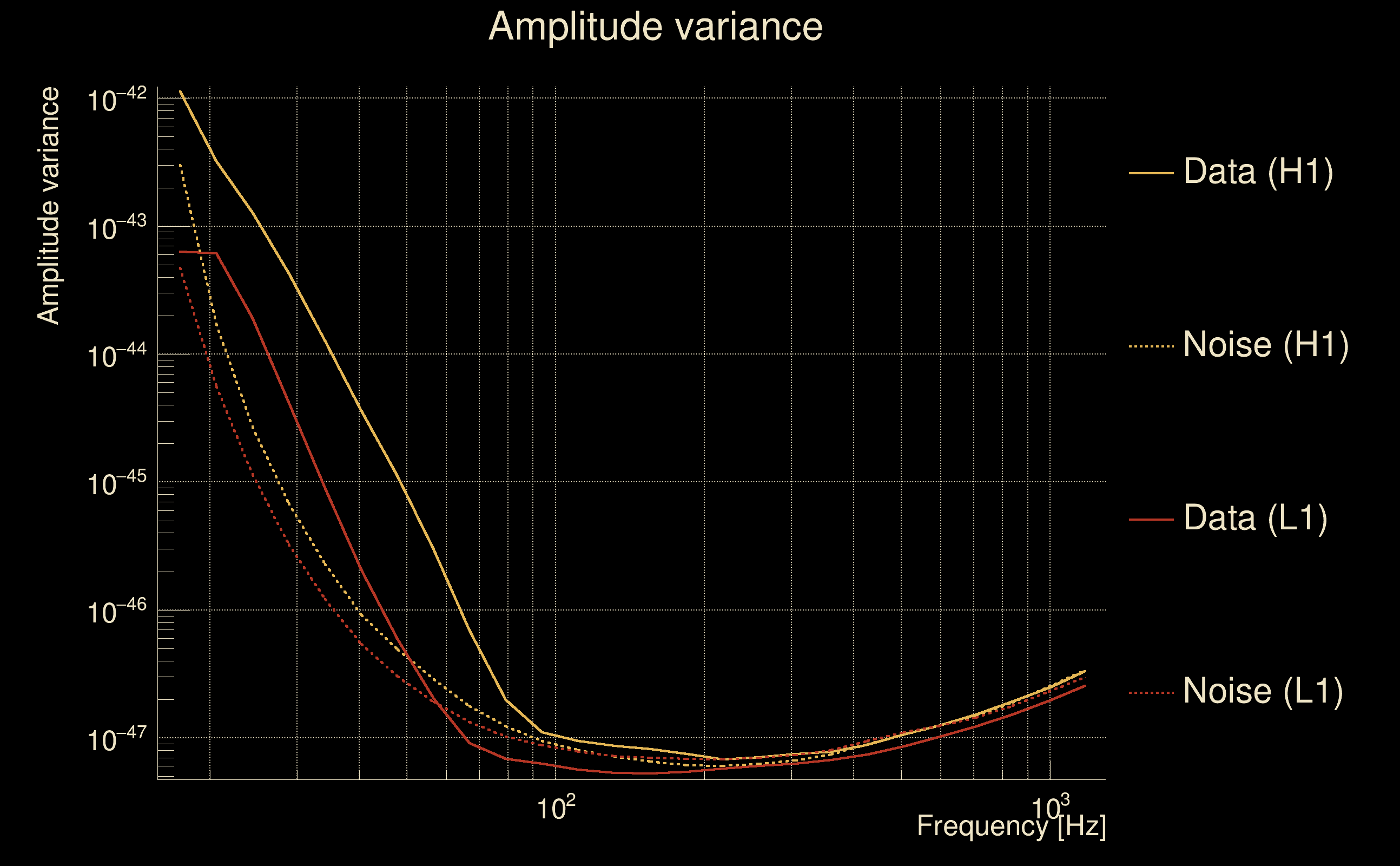

| Event time t(H1): | GPS = 1262378352 (Mon Jan 6 20:38:54 2020 ) → GPS = 1262378362 (Mon Jan 6 20:39:04 2020 ) |
| Event time t(L1): | GPS = 1262378352 (Mon Jan 6 20:39:04 2020 ) → GPS = 1262378362 (Mon Jan 6 20:39:04 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262378349 → GPS = 1262378365 |
| Omicron analysis time window (L1): | GPS = 1262378349 → GPS = 1262378365 |
| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 112 / 225), δt_gw = 0 s |
| Time delay uncertainty: | 0.0027464 s |
| Frequency: | 29.0405 Hz |
| Ξ: | 0.624974 ± 0.114821 (variance = 0.0131839): Q0: 0.622543, Q1: 0.676886, Q2: 0.681, Q3: 0.368682, Q4: 0.577393 |
| Rank: | R_X = 0.624974 |
| Log of amplitude ratio (L1/H1): | -1.40725, variance = 0.205798 (L1/H1: -1.90206, variance = 0.434575, H1/L1: 0.463501, variance = 0.158589) |
| Amplitude ratio (L1/H1): | 0.244815 ⋇ 1.57405 (L1/H1: 0.149261 ⋇ 1.93329, H1/L1: 1.58963 ⋇ 1.48919) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0617844 |
| Antenna factor probability: | 0.36214 |
| Sky position probability: | 1 (expected δt_gw = 0.00876935 s) |
| Number of rejected frequency rows: | Q0: 22 / 26, Q1: 43 / 48, Q2: 85 / 92, Q3: 160 / 176, Q4: 315 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.8302, L1: 31.7368 |
| SNR variance: | H1: 2.78998, L1: 0.4259 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1264316108 (Wed Jan 29 06:54:50 2020 ) → GPS = 1264316118 (Wed Jan 29 06:55:00 2020 ) |
| Event time t(L1): | GPS = 1264316108 (Wed Jan 29 06:55:00 2020 ) → GPS = 1264316118 (Wed Jan 29 06:55:00 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264316105 → GPS = 1264316121 |
| Omicron analysis time window (L1): | GPS = 1264316105 → GPS = 1264316121 |
| Time delay between detectors t(L1) - t(H1): | 0.00425929 s (slice index = 112 / 225), δt_gw = 0.00425929 s |
| Time delay uncertainty: | 0.000257602 s |
| Frequency: | 113.498 Hz |
| Ξ: | 0.617941 ± 0.0782543 (variance = 0.00612374): Q0: 0.663518, Q1: 0.644485, Q2: 0.511204, Q3: 0.463187, Q4: 0.527871 |
| Rank: | R_X = 0.617941 |
| Log of amplitude ratio (L1/H1): | 0.605697, variance = 0.170754 (L1/H1: 0.0118393, variance = 0.491563, H1/L1: -0.845446, variance = 0.256338) |
| Amplitude ratio (L1/H1): | 1.83253 ⋇ 1.51168 (L1/H1: 1.01191 ⋇ 2.016, H1/L1: 0.429366 ⋇ 1.65914) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.335088 |
| Antenna factor probability: | 0.999809 |
| Sky position probability: | 1 (expected δt_gw = -0.00121682 s) |
| Number of rejected frequency rows: | Q0: 13 / 26, Q1: 28 / 48, Q2: 65 / 92, Q3: 151 / 176, Q4: 316 / 338 |
| Maximum signal-to-noise ratio: | H1: 9.47737, L1: 14.916 |
| SNR variance: | H1: 0.485732, L1: 0.56838 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

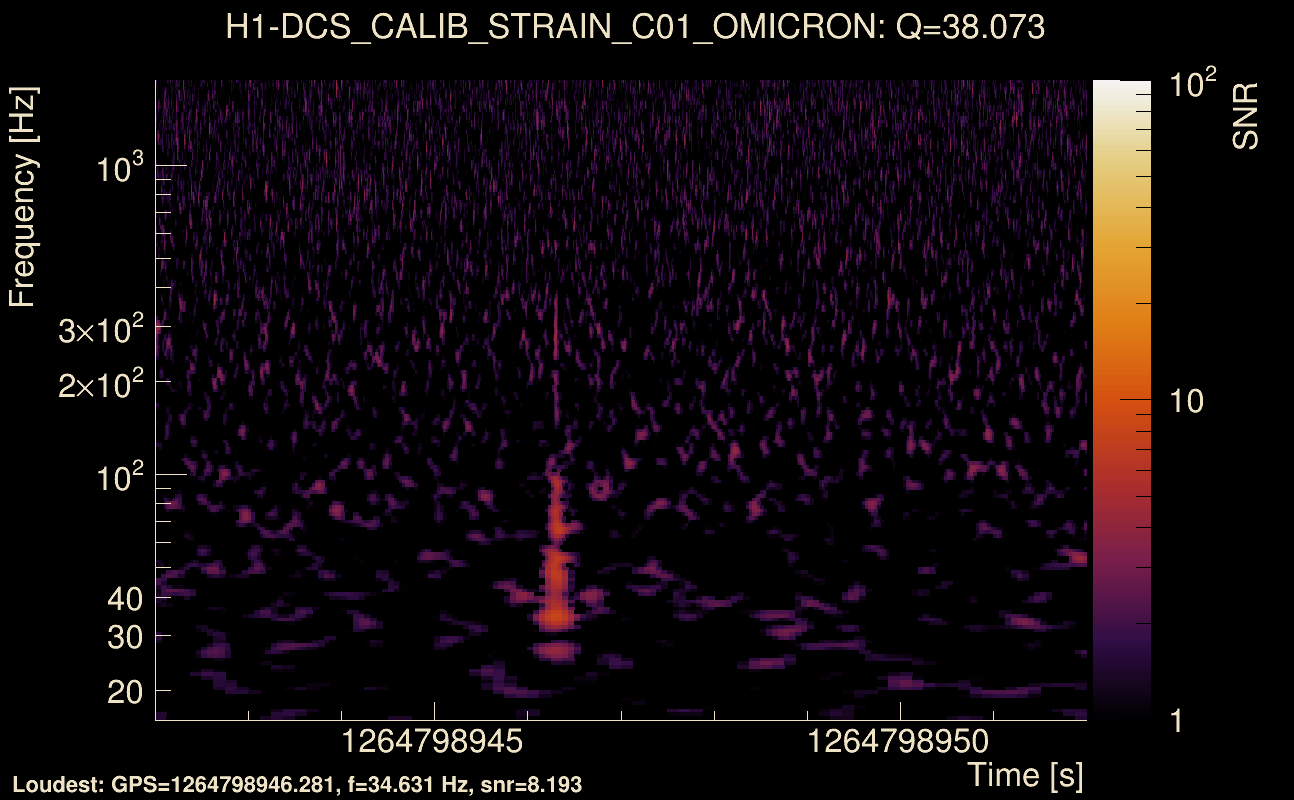

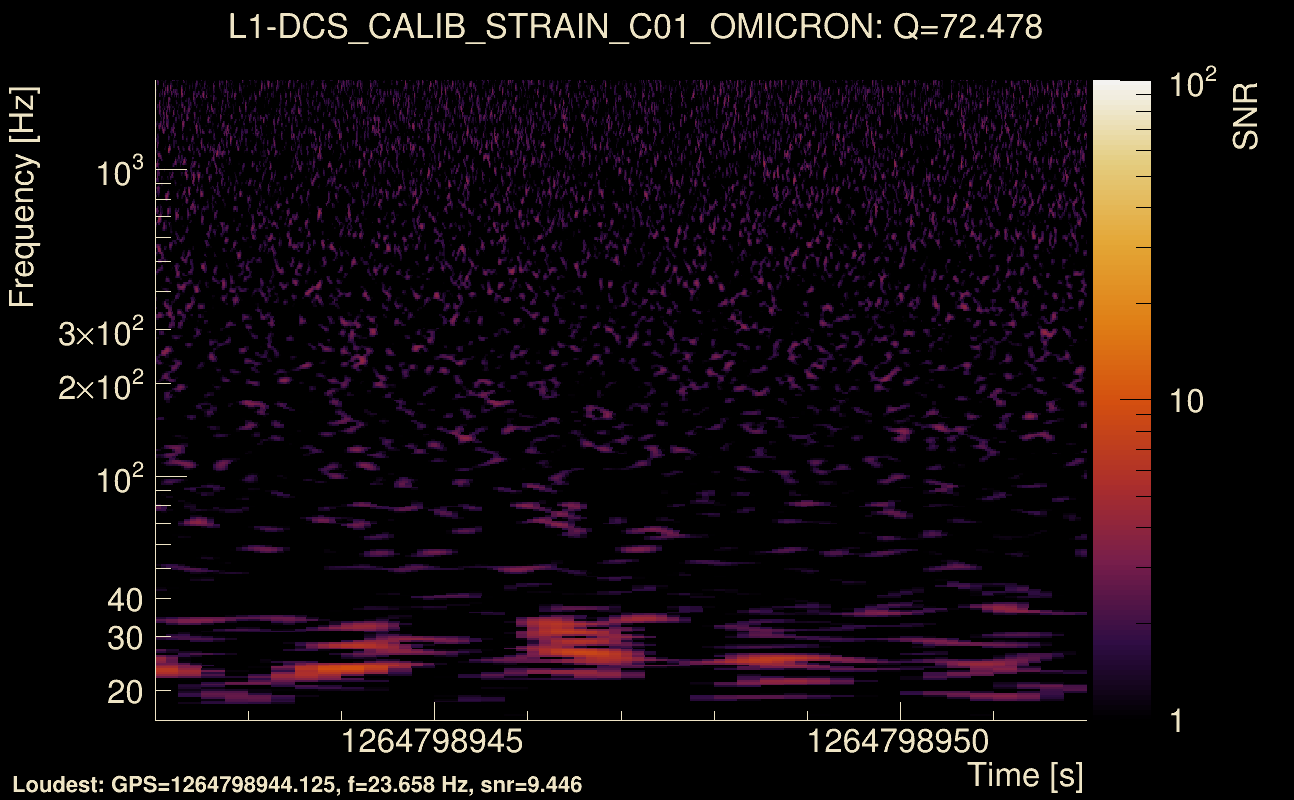

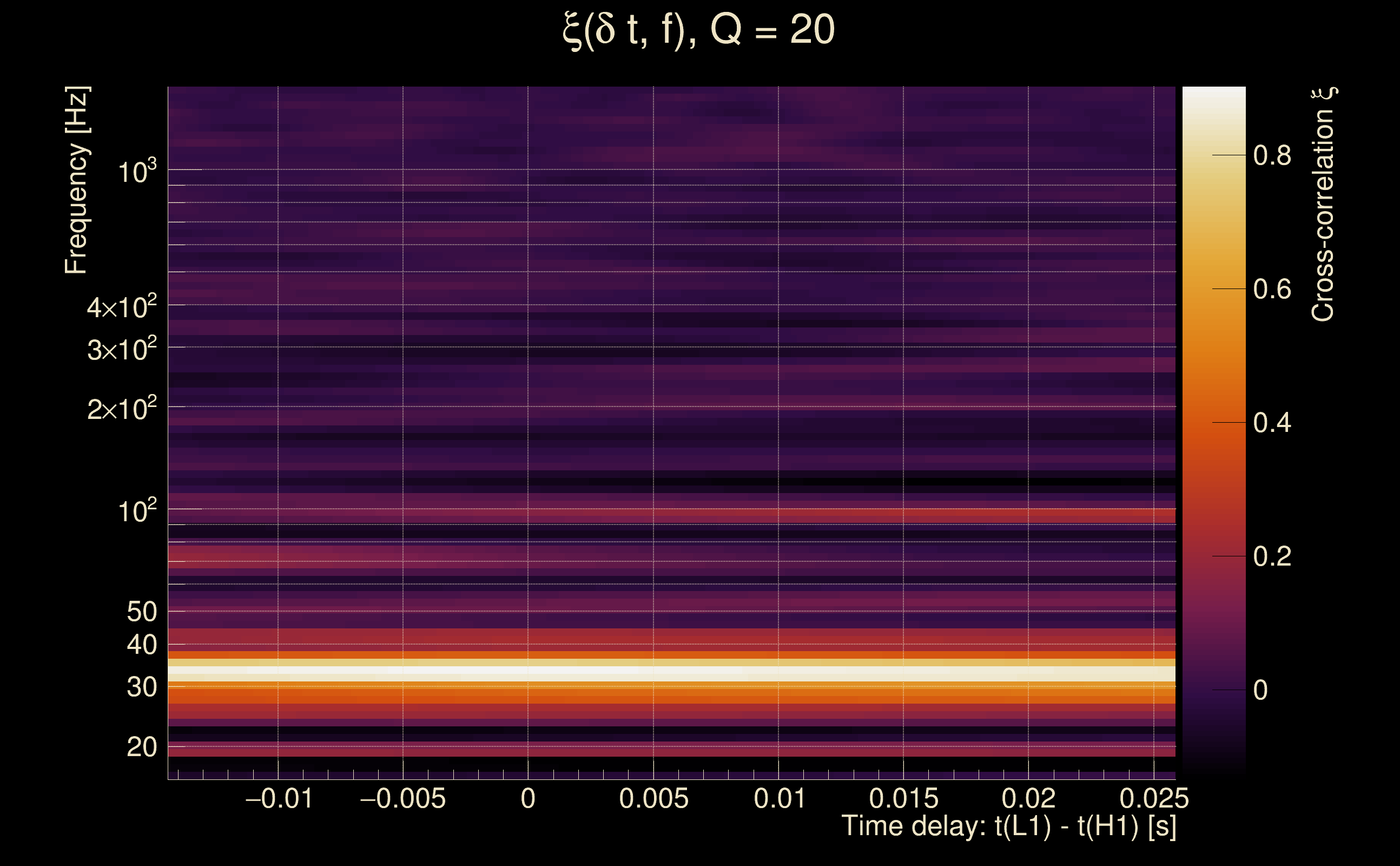

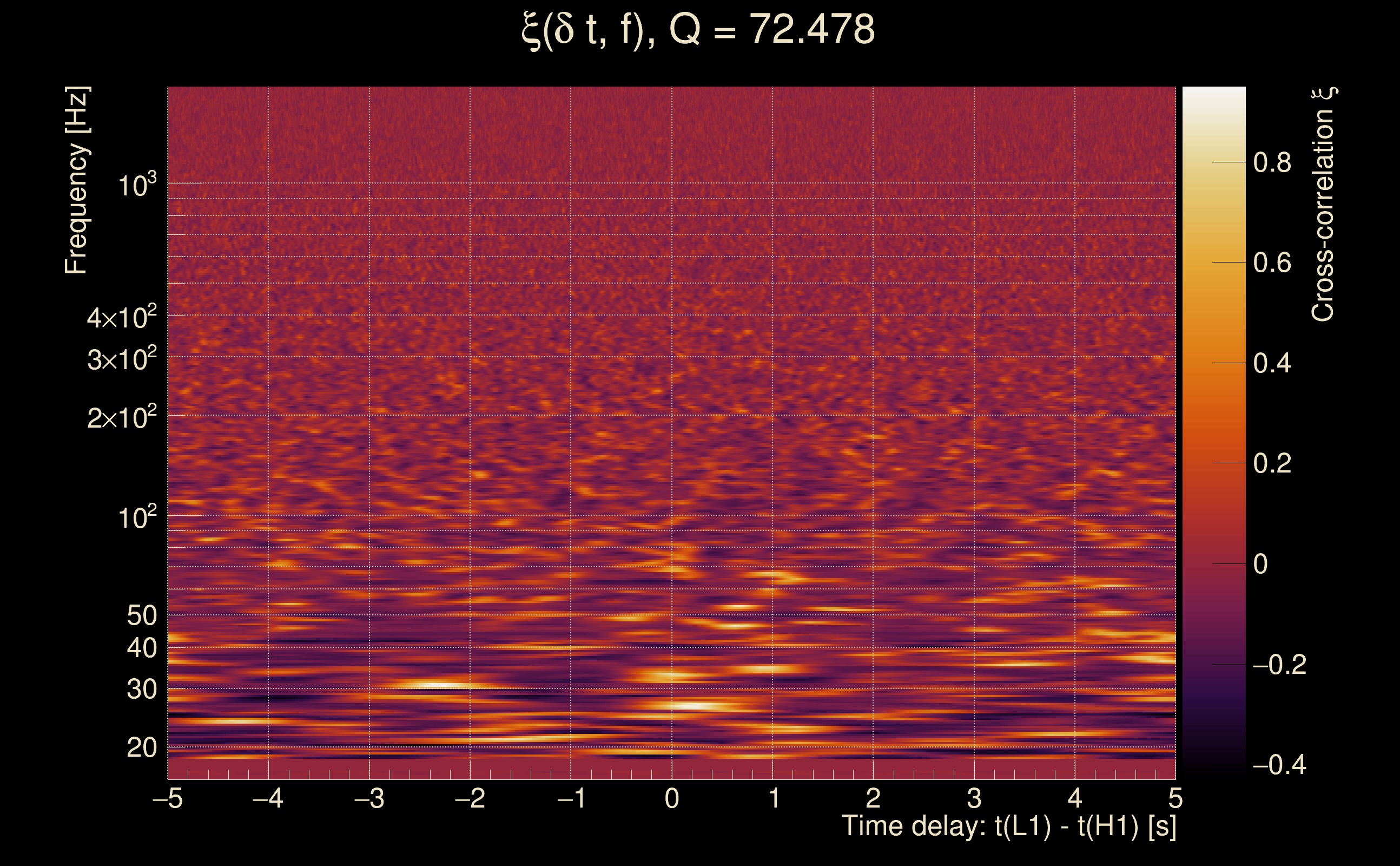

| Event time t(H1): | GPS = 1264798942 (Mon Feb 3 21:02:04 2020 ) → GPS = 1264798952 (Mon Feb 3 21:02:14 2020 ) |
| Event time t(L1): | GPS = 1264798942 (Mon Feb 3 21:02:14 2020 ) → GPS = 1264798952 (Mon Feb 3 21:02:14 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264798939 → GPS = 1264798955 |
| Omicron analysis time window (L1): | GPS = 1264798939 → GPS = 1264798955 |
| Time delay between detectors t(L1) - t(H1): | 0.00574399 s (slice index = 112 / 225), δt_gw = 0.00574399 s |
| Time delay uncertainty: | 0.000123967 s |
| Frequency: | 49.6287 Hz |
| Ξ: | 0.607507 ± 0.045396 (variance = 0.0020608): Q0: 0.643026, Q1: 0.562415, Q2: 0.616915, Q3: 0.563178, Q4: 0.513842 |
| Rank: | R_X = 0.607507 |
| Log of amplitude ratio (L1/H1): | -0.691245, variance = 0.292638 (L1/H1: -1.37094, variance = 0.481635, H1/L1: -0.713456, variance = 0.694981) |
| Amplitude ratio (L1/H1): | 0.500952 ⋇ 1.71766 (L1/H1: 0.253867 ⋇ 2.0017, H1/L1: 0.489948 ⋇ 2.30172) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0546558 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = 0.00861882 s) |
| Number of rejected frequency rows: | Q0: 19 / 26, Q1: 38 / 48, Q2: 71 / 92, Q3: 150 / 176, Q4: 307 / 338 |
| Maximum signal-to-noise ratio: | H1: 15.0217, L1: 10.4493 |
| SNR variance: | H1: 0.640994, L1: 0.987571 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

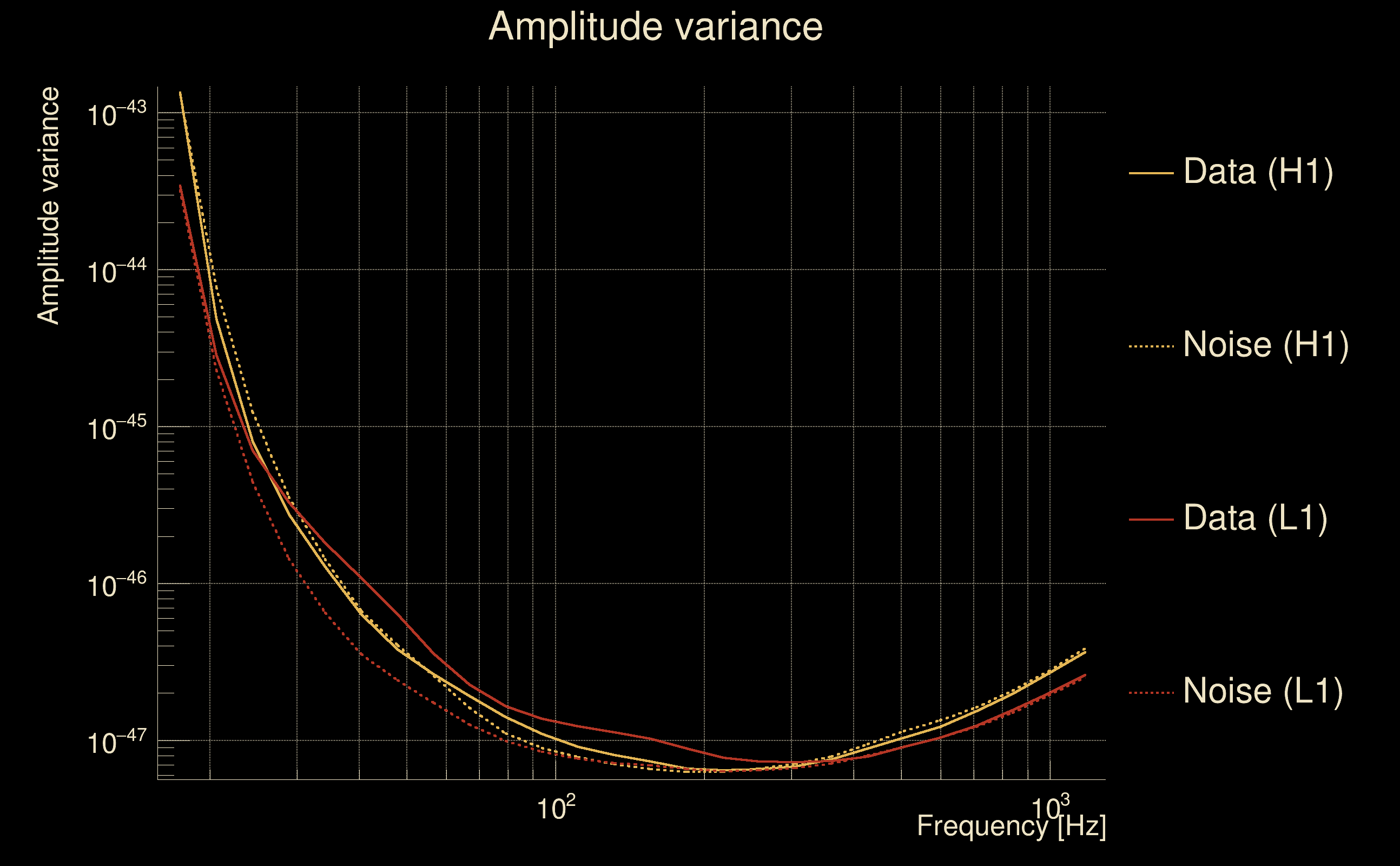

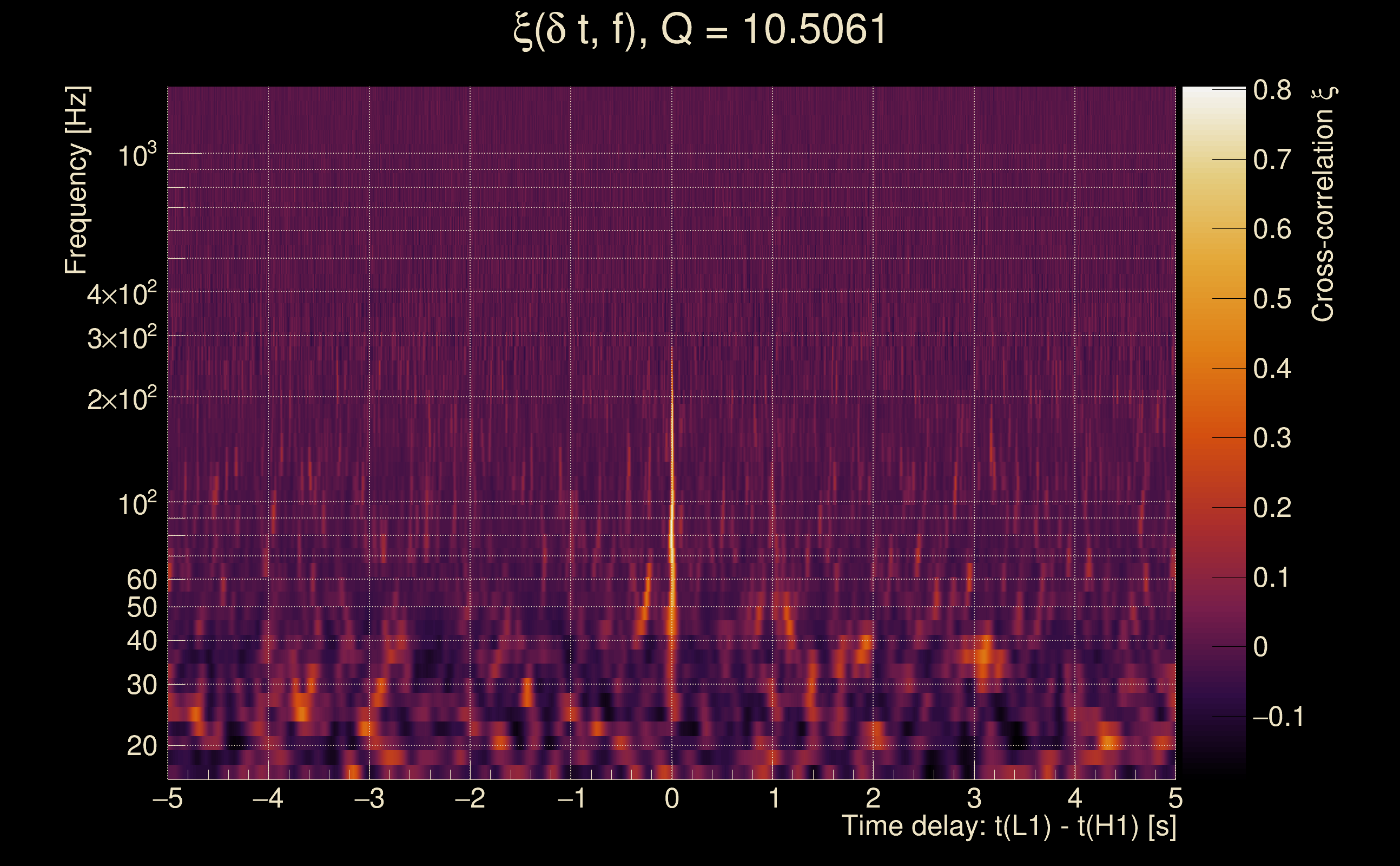

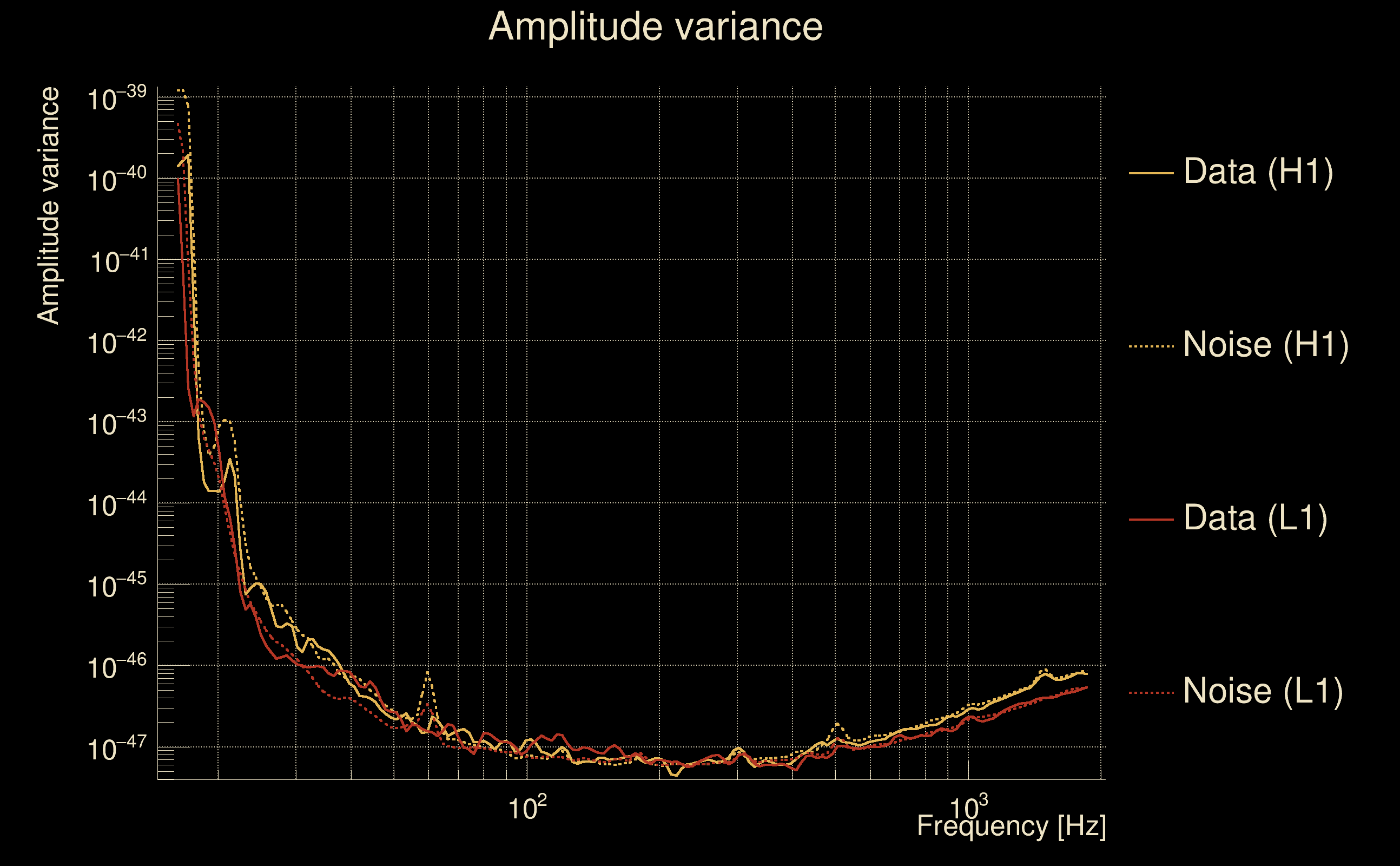

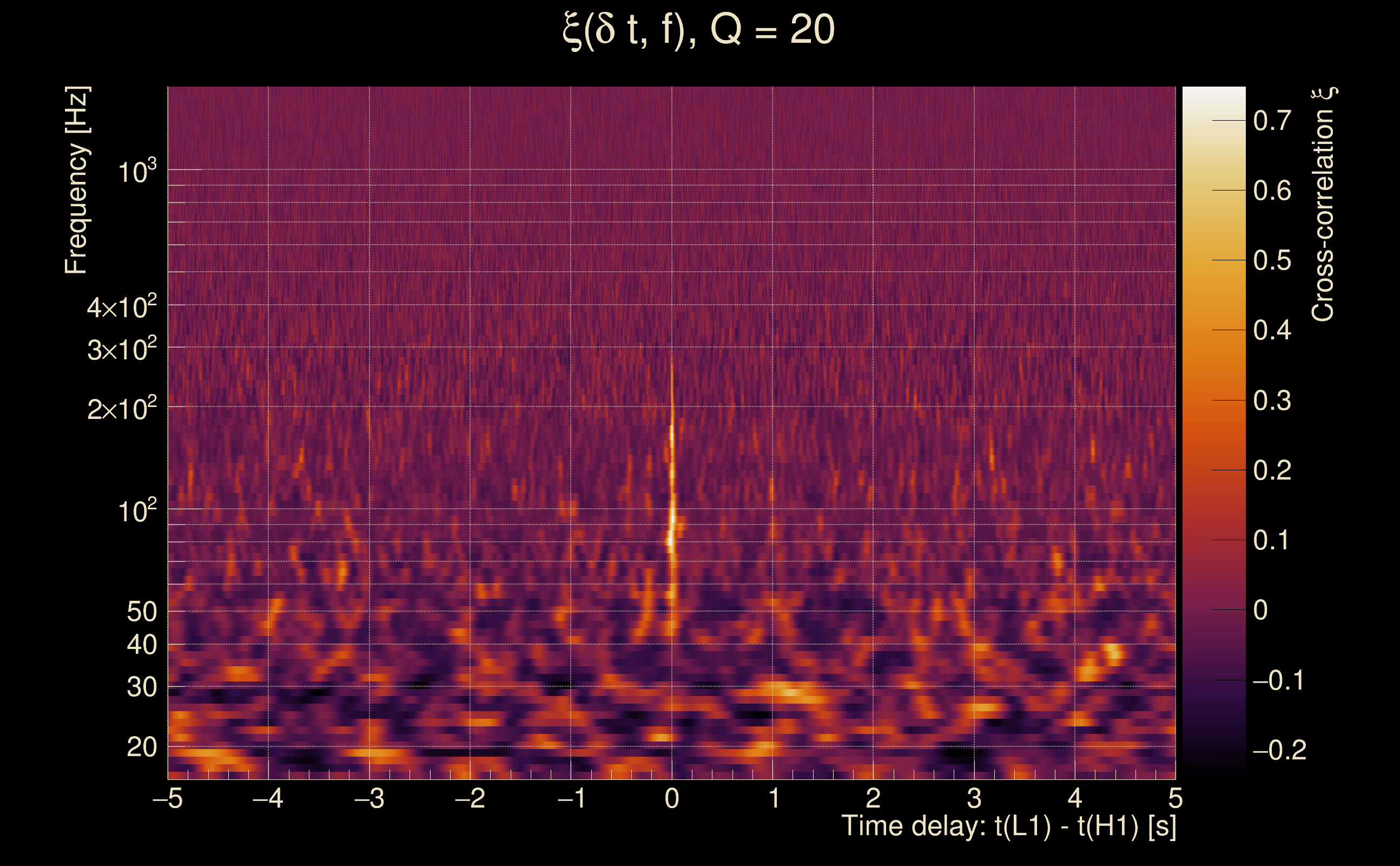

| Event time t(H1): | GPS = 1264316113 (Wed Jan 29 06:54:55 2020 ) → GPS = 1264316123 (Wed Jan 29 06:55:05 2020 ) |
| Event time t(L1): | GPS = 1264316113 (Wed Jan 29 06:55:05 2020 ) → GPS = 1264316123 (Wed Jan 29 06:55:05 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264316110 → GPS = 1264316126 |
| Omicron analysis time window (L1): | GPS = 1264316110 → GPS = 1264316126 |
| Time delay between detectors t(L1) - t(H1): | 0.00368192 s (slice index = 112 / 225), δt_gw = 0.00368192 s |
| Time delay uncertainty: | 0.000233728 s |
| Frequency: | 119.475 Hz |
| Ξ: | 0.60686 ± 0.0812299 (variance = 0.00659829): Q0: 0.657221, Q1: 0.62959, Q2: 0.482582, Q3: 0.495943, Q4: 0.46169 |
| Rank: | R_X = 0.60686 |
| Log of amplitude ratio (L1/H1): | 1.06994, variance = 0.293243 (L1/H1: 0.130592, variance = 0.30709, H1/L1: -1.45556, variance = 0.531672) |
| Amplitude ratio (L1/H1): | 2.91521 ⋇ 1.71862 (L1/H1: 1.1395 ⋇ 1.74047, H1/L1: 0.233269 ⋇ 2.07334) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.147973 |
| Antenna factor probability: | 0.982637 |
| Sky position probability: | 1 (expected δt_gw = -0.0012174 s) |
| Number of rejected frequency rows: | Q0: 12 / 26, Q1: 26 / 48, Q2: 63 / 92, Q3: 147 / 176, Q4: 302 / 338 |
| Maximum signal-to-noise ratio: | H1: 9.44477, L1: 14.7409 |
| SNR variance: | H1: 0.51341, L1: 0.672708 |

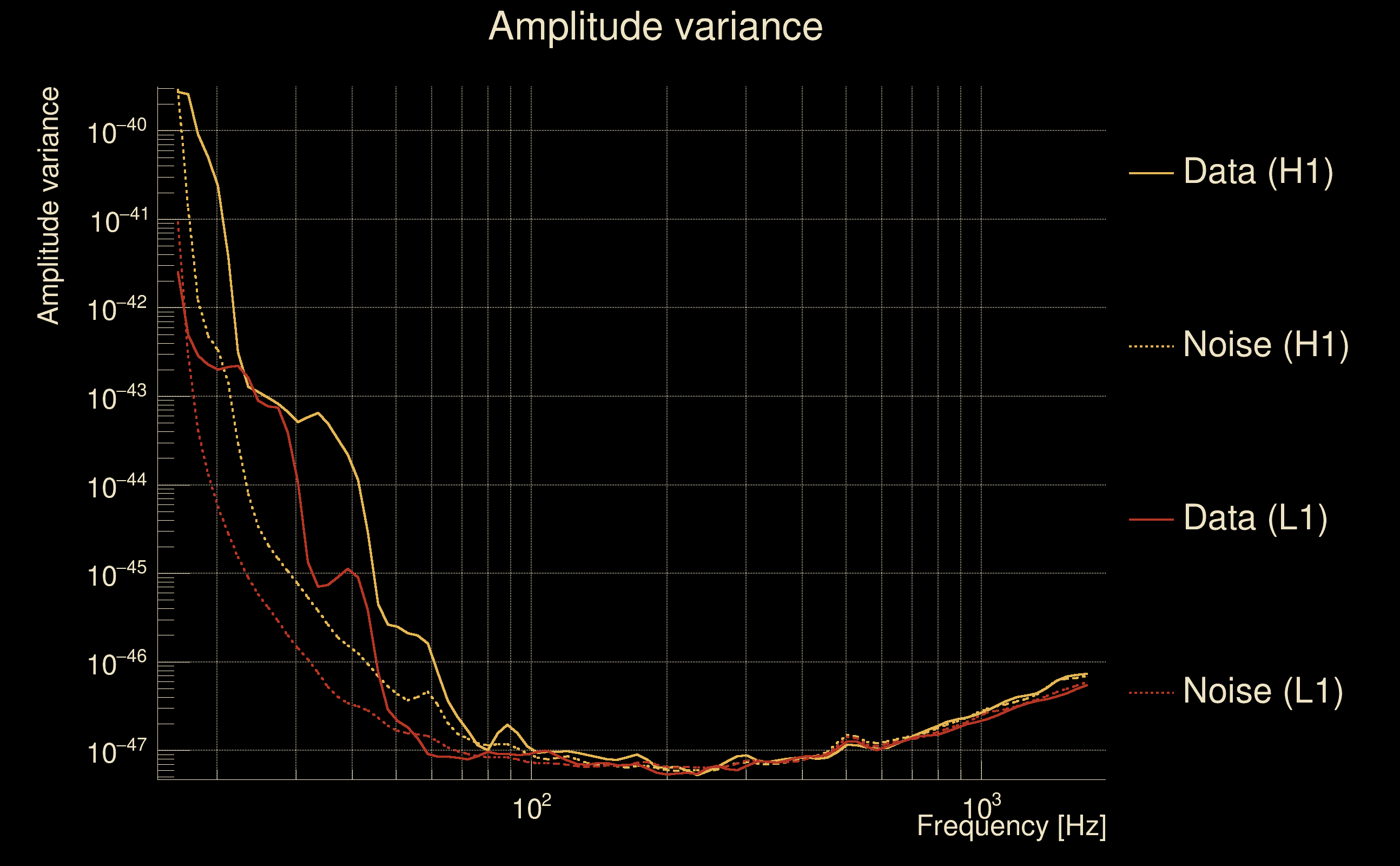

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

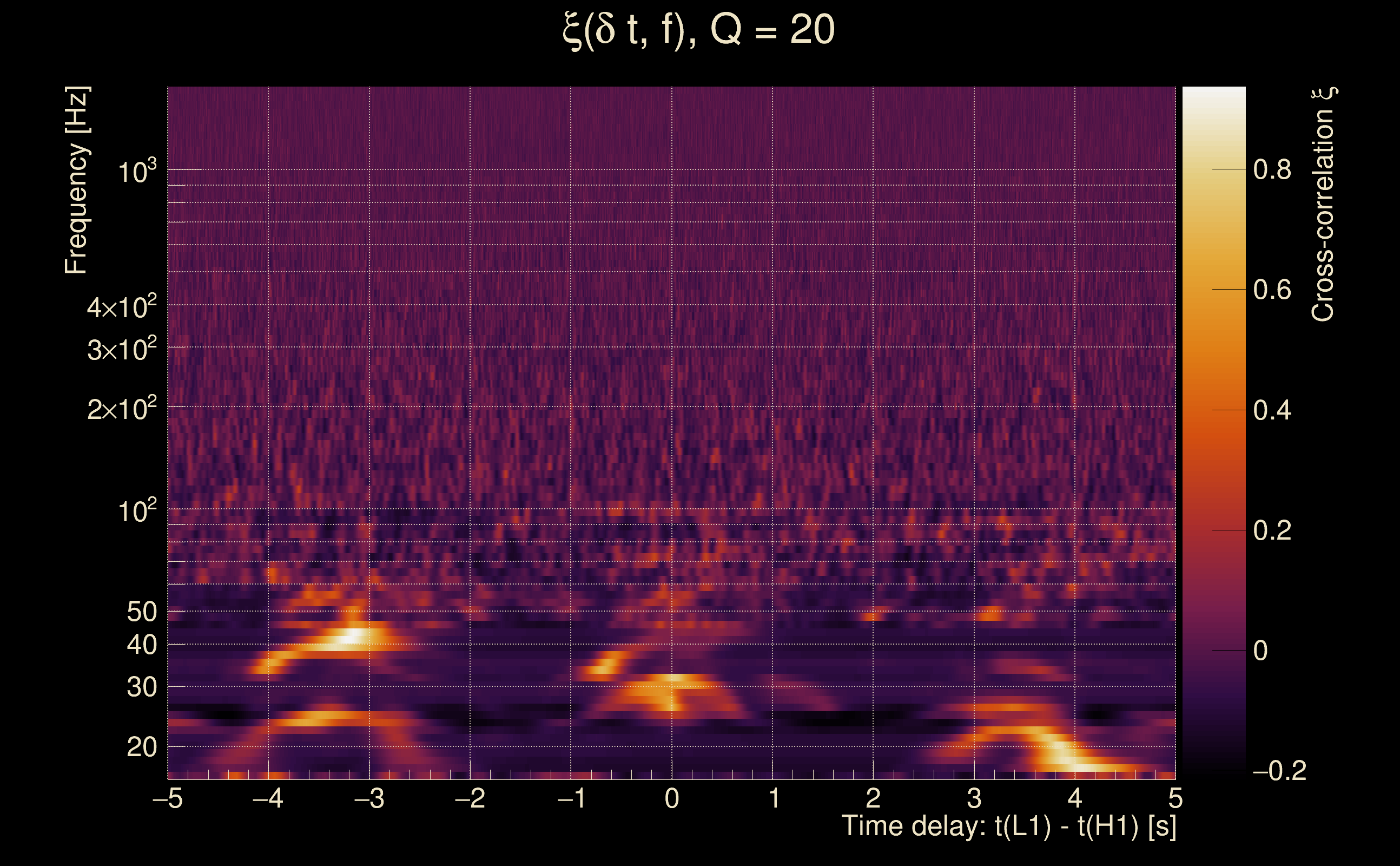

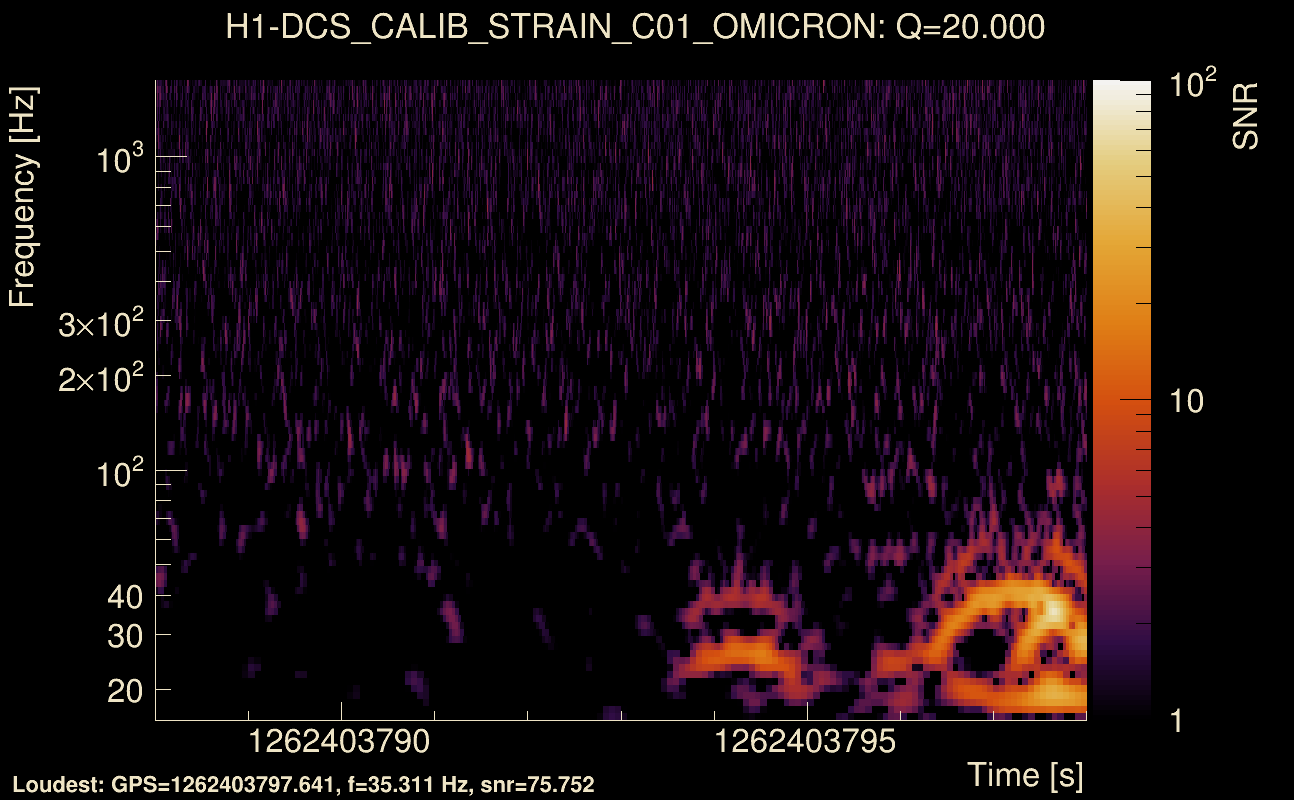

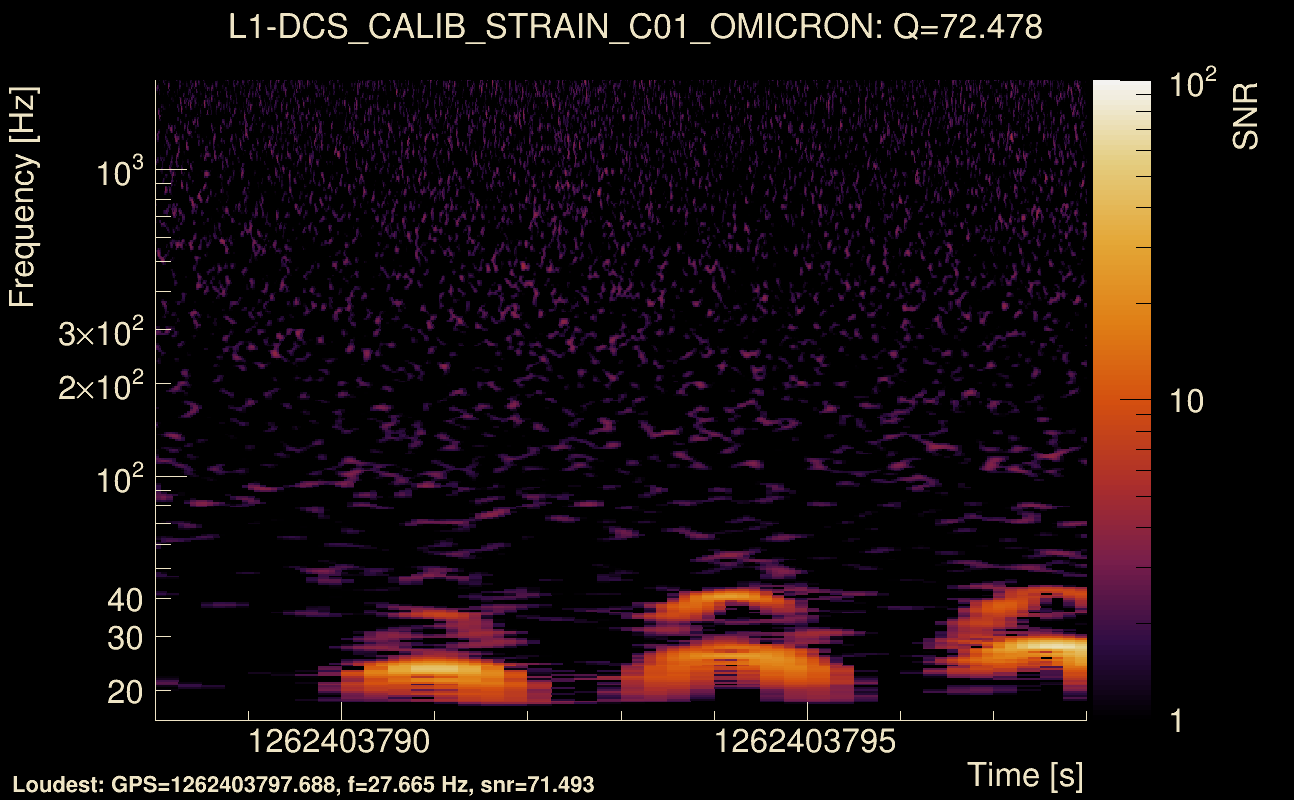

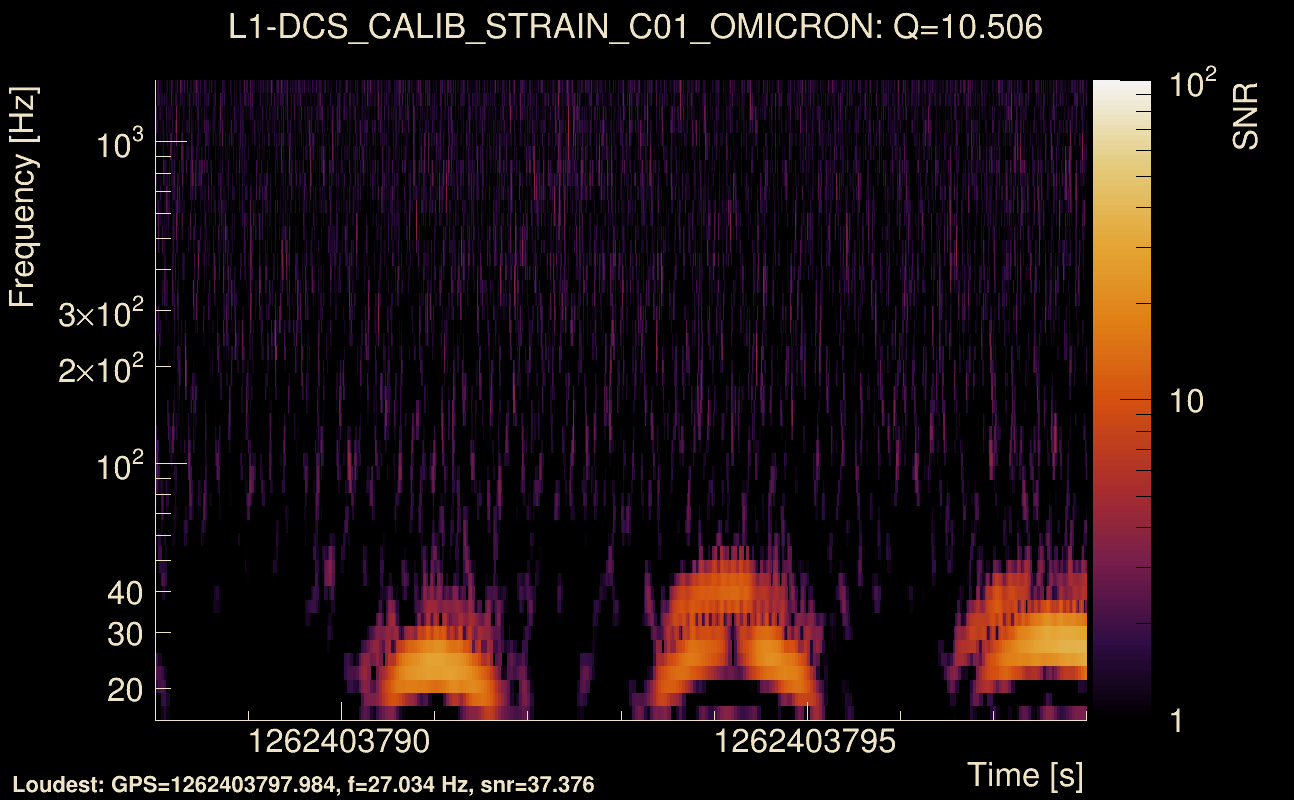

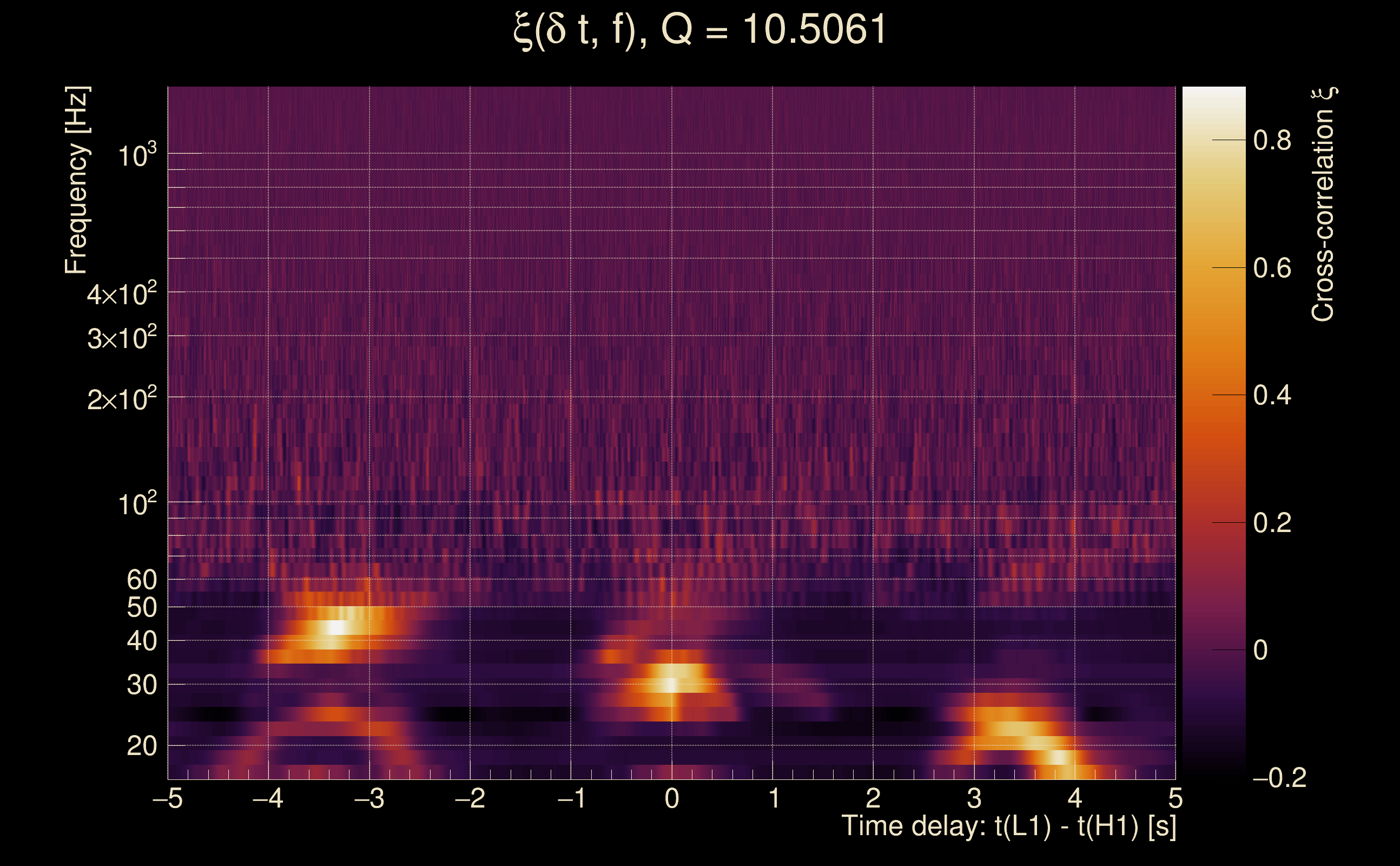

| Event time t(H1): | GPS = 1262403788 (Tue Jan 7 03:42:50 2020 ) → GPS = 1262403798 (Tue Jan 7 03:43:00 2020 ) |
| Event time t(L1): | GPS = 1262403788 (Tue Jan 7 03:43:00 2020 ) → GPS = 1262403798 (Tue Jan 7 03:43:00 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262403785 → GPS = 1262403801 |
| Omicron analysis time window (L1): | GPS = 1262403785 → GPS = 1262403801 |
| Time delay between detectors t(L1) - t(H1): | 0.00410137 s (slice index = 112 / 225), δt_gw = 0.00410137 s |
| Time delay uncertainty: | 0.00156986 s |
| Frequency: | 30.9158 Hz |
| Ξ: | 0.591325 ± 0.0641259 (variance = 0.00411213): Q0: 0.515245, Q1: 0.701707, Q2: 0.597752, Q3: 0.655792, Q4: 0.655664 |
| Rank: | R_X = 0.591325 |
| Log of amplitude ratio (L1/H1): | -0.786207, variance = 0.337439 (L1/H1: -1.52927, variance = 0.990706, H1/L1: -0.0929015, variance = 0.221507) |
| Amplitude ratio (L1/H1): | 0.455569 ⋇ 1.78764 (L1/H1: 0.216693 ⋇ 2.70565, H1/L1: 0.911283 ⋇ 1.60103) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.140655 |
| Antenna factor probability: | 0.996468 |
| Sky position probability: | 1 (expected δt_gw = 0.0035051 s) |
| Number of rejected frequency rows: | Q0: 20 / 26, Q1: 43 / 48, Q2: 86 / 92, Q3: 168 / 176, Q4: 325 / 338 |
| Maximum signal-to-noise ratio: | H1: 83.7914, L1: 77.0356 |
| SNR variance: | H1: 1.08552, L1: 5.62365 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1262939963 (Mon Jan 13 08:39:05 2020 ) → GPS = 1262939973 (Mon Jan 13 08:39:15 2020 ) |
| Event time t(L1): | GPS = 1262939963 (Mon Jan 13 08:39:15 2020 ) → GPS = 1262939973 (Mon Jan 13 08:39:15 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262939960 → GPS = 1262939976 |
| Omicron analysis time window (L1): | GPS = 1262939960 → GPS = 1262939976 |
| Time delay between detectors t(L1) - t(H1): | -0.00239887 s (slice index = 112 / 225), δt_gw = -0.00239887 s |
| Time delay uncertainty: | 0.00197396 s |
| Frequency: | 34.1548 Hz |
| Ξ: | 0.564772 ± 0.107756 (variance = 0.0116113): Q0: 0.548511, Q1: 0.580332, Q2: 0.48652, Q3: 0.643726, Q4: 0.802451 |
| Rank: | R_X = 0.564772 |
| Log of amplitude ratio (L1/H1): | 0.00151074, variance = 0.328779 (L1/H1: -1.52137, variance = 0.727824, H1/L1: -0.438918, variance = 0.484725) |
| Amplitude ratio (L1/H1): | 1.00151 ⋇ 1.77428 (L1/H1: 0.218412 ⋇ 2.34697, H1/L1: 0.644733 ⋇ 2.00616) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0750418 |
| Antenna factor probability: | 0.998138 |
| Sky position probability: | 1 (expected δt_gw = -0.00142043 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 44 / 48, Q2: 89 / 92, Q3: 165 / 176, Q4: 327 / 338 |
| Maximum signal-to-noise ratio: | H1: 9.07913, L1: 16.9408 |
| SNR variance: | H1: 0.640198, L1: 0.66717 |
| Event time t(H1): | GPS = 1262378482 (Mon Jan 6 20:41:04 2020 ) → GPS = 1262378492 (Mon Jan 6 20:41:14 2020 ) |
| Event time t(L1): | GPS = 1262378482 (Mon Jan 6 20:41:14 2020 ) → GPS = 1262378492 (Mon Jan 6 20:41:14 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262378479 → GPS = 1262378495 |
| Omicron analysis time window (L1): | GPS = 1262378479 → GPS = 1262378495 |
| Time delay between detectors t(L1) - t(H1): | 0.00297721 s (slice index = 112 / 225), δt_gw = 0.00297721 s |
| Time delay uncertainty: | 0.00155096 s |
| Frequency: | 32.9739 Hz |
| Ξ: | 0.562597 ± 0.227124 (variance = 0.0515852): Q0: 0.641717, Q1: 0.662306, Q2: 0.0637613, Q3: 0.583916, Q4: 0.623646 |
| Rank: | R_X = 0.562597 |
| Log of amplitude ratio (L1/H1): | 1.37672, variance = 0.113385 (L1/H1: 0.43929, variance = 0.798855, H1/L1: -1.62774, variance = 0.124958) |
| Amplitude ratio (L1/H1): | 3.9619 ⋇ 1.40036 (L1/H1: 1.55161 ⋇ 2.44437, H1/L1: 0.196373 ⋇ 1.42404) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.216278 |
| Antenna factor probability: | 0.0386048 |
| Sky position probability: | 1 (expected δt_gw = 0.00878087 s) |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 47 / 48, Q2: 89 / 92, Q3: 167 / 176, Q4: 331 / 338 |
| Maximum signal-to-noise ratio: | H1: 25.4087, L1: 49.1021 |
| SNR variance: | H1: 0.499571, L1: 4.06759 |
| Event time t(H1): | GPS = 1262403323 (Tue Jan 7 03:35:05 2020 ) → GPS = 1262403333 (Tue Jan 7 03:35:15 2020 ) |
| Event time t(L1): | GPS = 1262403313 (Tue Jan 7 03:35:15 2020 ) → GPS = 1262403323 (Tue Jan 7 03:35:05 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262403320 → GPS = 1262403336 |
| Omicron analysis time window (L1): | GPS = 1262403310 → GPS = 1262403326 |
| Time delay between detectors t(L1) - t(H1): | -12.1773 s (slice index = 161 / 225), δt_gw = -7.79745e-05 s |
| Time delay uncertainty: | 0.000771258 s |
| Frequency: | 31.8269 Hz |
| Ξ: | 0.601407 ± 0.298526 (variance = 0.0891176): Q0: 0.808942, Q1: 0.656807, Q2: 0.11732, Q3: 0.177629, Q4: 0.105691 |
| Rank: | R_X = 0.601407 |
| Log of amplitude ratio (L1/H1): | -1.37117, variance = 0.28311 (L1/H1: -1.76204, variance = 0.200689, H1/L1: 1.23618, variance = 0.488483) |
| Amplitude ratio (L1/H1): | 0.253811 ⋇ 1.70247 (L1/H1: 0.171694 ⋇ 1.56515, H1/L1: 3.44244 ⋇ 2.01157) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.526445 |
| Antenna factor probability: | 0.962471 |
| Sky position probability: | 1 (expected δt_gw = 0.00368106 s) |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 44 / 48, Q2: 85 / 92, Q3: 168 / 176, Q4: 328 / 338 |
| Maximum signal-to-noise ratio: | H1: 10.3841, L1: 17.6702 |
| SNR variance: | H1: 0.501426, L1: 0.577219 |

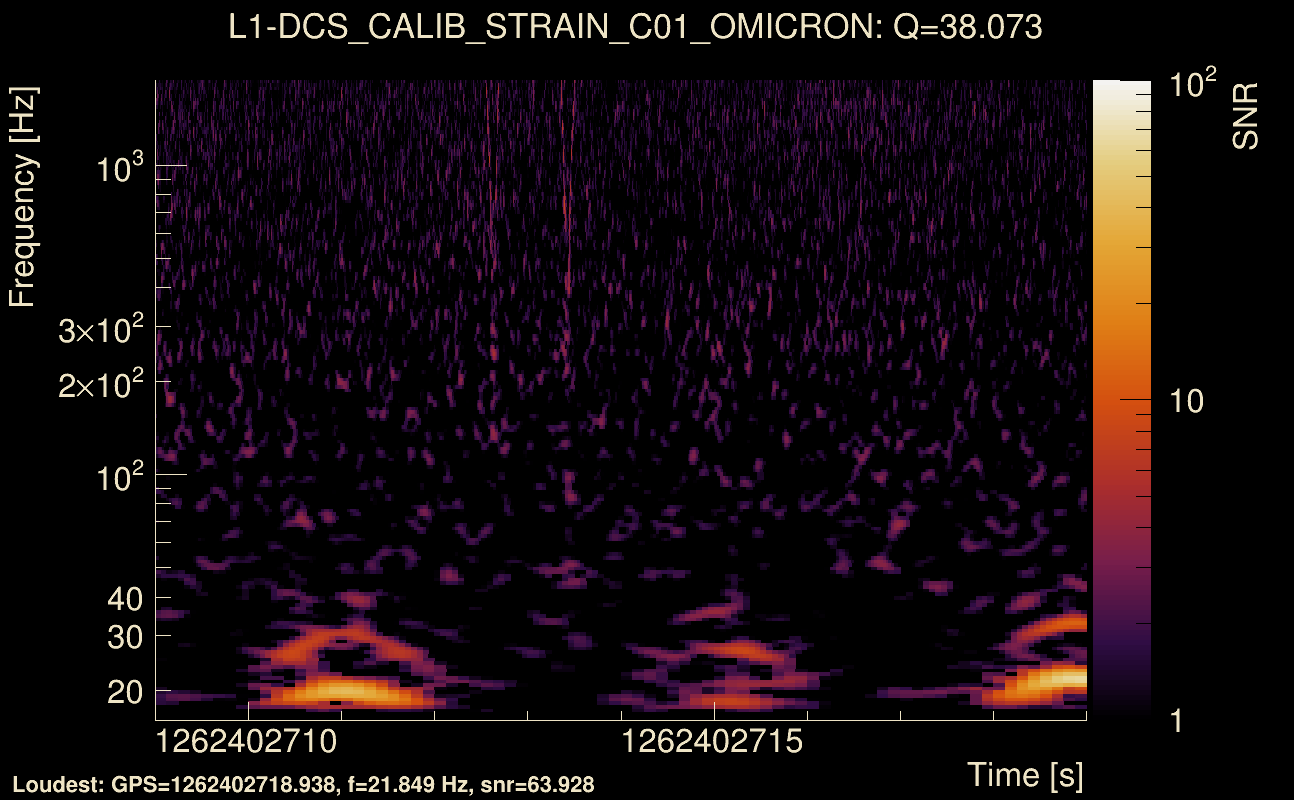

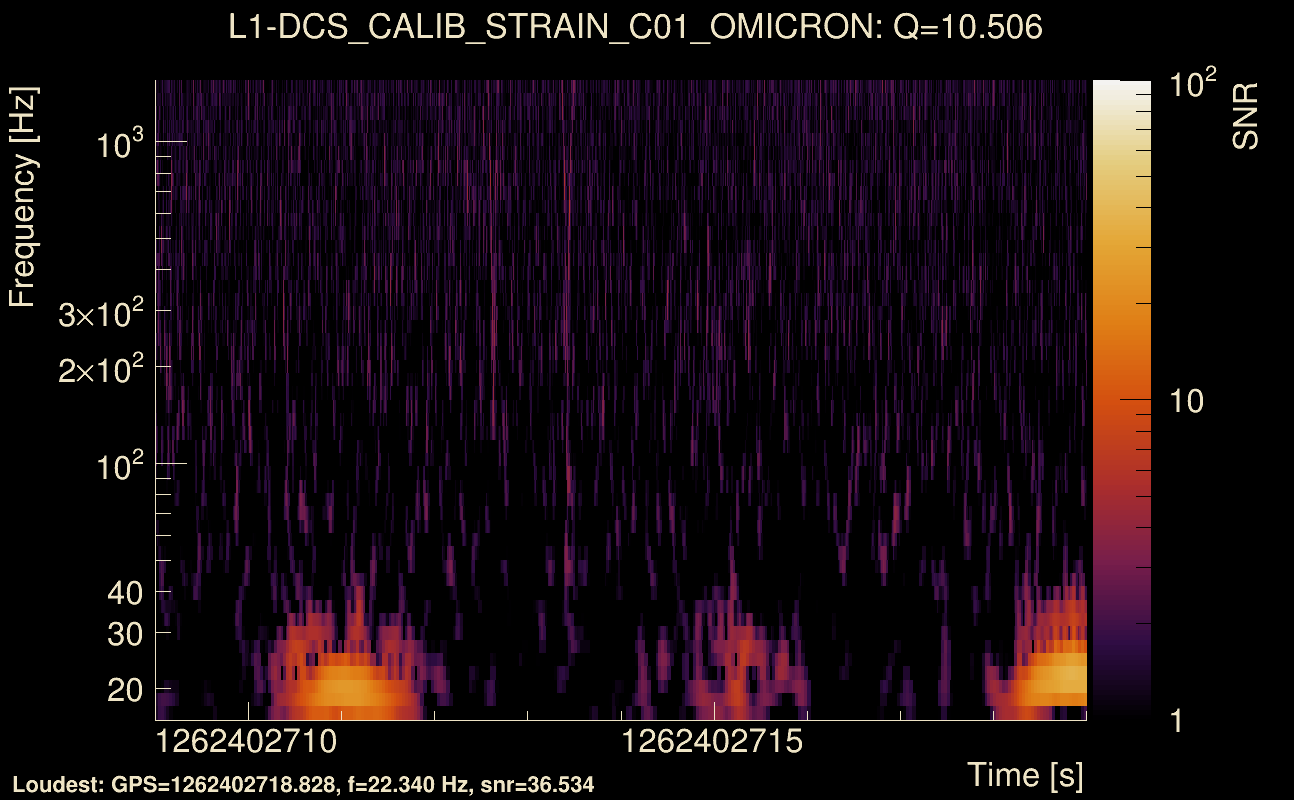

| Event time t(H1): | GPS = 1262402724 (Tue Jan 7 03:25:06 2020 ) → GPS = 1262402734 (Tue Jan 7 03:25:16 2020 ) |
| Event time t(L1): | GPS = 1262402714 (Tue Jan 7 03:25:16 2020 ) → GPS = 1262402724 (Tue Jan 7 03:25:06 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262402721 → GPS = 1262402737 |
| Omicron analysis time window (L1): | GPS = 1262402711 → GPS = 1262402727 |
| Time delay between detectors t(L1) - t(H1): | -12.1783 s (slice index = 161 / 225), δt_gw = -0.00110056 s |
| Time delay uncertainty: | 0.000347994 s |
| Frequency: | 59.1918 Hz |
| Ξ: | 0.577332 ± 0.231043 (variance = 0.0533807): Q0: 0.606375, Q1: 0.754326, Q2: 0.441898, Q3: 0.0623472, Q4: 0.440011 |
| Rank: | R_X = 0.577332 |
| Log of amplitude ratio (L1/H1): | -1.36305, variance = 0.282837 (L1/H1: -1.71123, variance = 0.0486497, H1/L1: 1.04284, variance = 1.00112) |
| Amplitude ratio (L1/H1): | 0.25588 ⋇ 1.70203 (L1/H1: 0.180644 ⋇ 1.24678, H1/L1: 2.83727 ⋇ 2.7198) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.514175 |
| Antenna factor probability: | 0.940719 |
| Sky position probability: | 1 (expected δt_gw = 0.00390778 s) |
| Number of rejected frequency rows: | Q0: 22 / 26, Q1: 42 / 48, Q2: 84 / 92, Q3: 164 / 176, Q4: 324 / 338 |
| Maximum signal-to-noise ratio: | H1: 29.4657, L1: 30.726 |
| SNR variance: | H1: 12.0422, L1: 1.46391 |
| Event time t(H1): | GPS = 1263998330 (Sat Jan 25 14:38:32 2020 ) → GPS = 1263998340 (Sat Jan 25 14:38:42 2020 ) |
| Event time t(L1): | GPS = 1263998320 (Sat Jan 25 14:38:42 2020 ) → GPS = 1263998330 (Sat Jan 25 14:38:32 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263998327 → GPS = 1263998343 |
| Omicron analysis time window (L1): | GPS = 1263998317 → GPS = 1263998333 |
| Time delay between detectors t(L1) - t(H1): | -12.1761 s (slice index = 161 / 225), δt_gw = 0.00110953 s |
| Time delay uncertainty: | 0.000639445 s |
| Frequency: | 49.671 Hz |
| Ξ: | 0.557075 ± 0.097024 (variance = 0.00941366): Q0: 0.599779, Q1: 0.61878, Q2: 0.382804, Q3: 0.447618, Q4: 0.417875 |
| Rank: | R_X = 0.557075 |
| Log of amplitude ratio (L1/H1): | -1.91302, variance = 0.497255 (L1/H1: -1.98517, variance = 0.53844, H1/L1: 0.159088, variance = 0.333875) |
| Amplitude ratio (L1/H1): | 0.147633 ⋇ 2.02418 (L1/H1: 0.137357 ⋇ 2.08295, H1/L1: 1.17244 ⋇ 1.78215) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0505633 |
| Antenna factor probability: | 0.92982 |
| Sky position probability: | 1 (expected δt_gw = 0.00414246 s) |
| Number of rejected frequency rows: | Q0: 17 / 26, Q1: 38 / 48, Q2: 80 / 92, Q3: 160 / 176, Q4: 326 / 338 |
| Maximum signal-to-noise ratio: | H1: 40.6322, L1: 8.24085 |
| SNR variance: | H1: 0.961912, L1: 0.617291 |
| Event time t(H1): | GPS = 1262379242 (Mon Jan 6 20:53:44 2020 ) → GPS = 1262379252 (Mon Jan 6 20:53:54 2020 ) |
| Event time t(L1): | GPS = 1262379232 (Mon Jan 6 20:53:54 2020 ) → GPS = 1262379242 (Mon Jan 6 20:53:44 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262379239 → GPS = 1262379255 |
| Omicron analysis time window (L1): | GPS = 1262379229 → GPS = 1262379245 |
| Time delay between detectors t(L1) - t(H1): | -12.17 s (slice index = 161 / 225), δt_gw = 0.0072222 s |
| Time delay uncertainty: | 0.000807279 s |
| Frequency: | 34.5808 Hz |
| Ξ: | 0.550373 ± 0.180756 (variance = 0.0326728): Q0: 0.519429, Q1: 0.549159, Q2: 0.710928, Q3: 0.64586, Q4: 0.187953 |
| Rank: | R_X = 0.550373 |
| Log of amplitude ratio (L1/H1): | 0.455938, variance = 0.370029 (L1/H1: -0.821559, variance = 0.195043, H1/L1: -0.554498, variance = 0.428168) |
| Amplitude ratio (L1/H1): | 1.57765 ⋇ 1.83731 (L1/H1: 0.439745 ⋇ 1.55525, H1/L1: 0.57436 ⋇ 1.92388) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0813184 |
| Antenna factor probability: | 0.997908 |
| Sky position probability: | 1 (expected δt_gw = 0.00883911 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 43 / 48, Q2: 84 / 92, Q3: 168 / 176, Q4: 335 / 338 |
| Maximum signal-to-noise ratio: | H1: 13.0239, L1: 46.8888 |
| SNR variance: | H1: 0.882985, L1: 0.662914 |
| Event time t(H1): | GPS = 1262843476 (Sun Jan 12 05:50:58 2020 ) → GPS = 1262843486 (Sun Jan 12 05:51:08 2020 ) |
| Event time t(L1): | GPS = 1262843466 (Sun Jan 12 05:51:08 2020 ) → GPS = 1262843476 (Sun Jan 12 05:50:58 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262843473 → GPS = 1262843489 |
| Omicron analysis time window (L1): | GPS = 1262843463 → GPS = 1262843479 |
| Time delay between detectors t(L1) - t(H1): | -12.1775 s (slice index = 161 / 225), δt_gw = -0.000252497 s |
| Time delay uncertainty: | 0.000183147 s |
| Frequency: | 49.3168 Hz |
| Ξ: | 0.54611 ± 0.159552 (variance = 0.0254568): Q0: 0.559063, Q1: 0.67442, Q2: 0.421724, Q3: 0.405937, Q4: 0.200379 |
| Rank: | R_X = 0.54611 |
| Log of amplitude ratio (L1/H1): | -3.77462, variance = 0.952677 (L1/H1: -3.78802, variance = 0.961132, H1/L1: 0.767469, variance = 2.52907) |
| Amplitude ratio (L1/H1): | 0.0229458 ⋇ 2.65396 (L1/H1: 0.0226405 ⋇ 2.66545, H1/L1: 2.15431 ⋇ 4.90525) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.105918 |
| Antenna factor probability: | 9.31079e-26 |
| Sky position probability: | 1 (expected δt_gw = 0.000425242 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 39 / 48, Q2: 75 / 92, Q3: 153 / 176, Q4: 310 / 338 |
| Maximum signal-to-noise ratio: | H1: 80.6372, L1: 5.38164 |
| SNR variance: | H1: 3.21219, L1: 0.502312 |
| Detection threshold: | R > 0.888796 |
| False-alarm rate above that detection threshold: | 3.06669e-09 |
| Alternative threshold at 1/1000 yrs: | R > 0.973 |
| Alternative threshold at 1/100 yrs: | R > 0.939625 |
| Alternative threshold at 1/10 yrs: | R > 0.888796 |
| Alternative threshold at 1/1 yr: | R > 0.758033 |
| Alternative threshold at 1/1 d: | R > 0.348865 |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1265102663 (Fri Feb 7 09:24:05 2020 ) → GPS = 1265102673 (Fri Feb 7 09:24:15 2020 ) |
| Event time t(L1): | GPS = 1265102693 (Fri Feb 7 09:24:15 2020 ) → GPS = 1265102703 (Fri Feb 7 09:24:45 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265102660 → GPS = 1265102676 |
| Omicron analysis time window (L1): | GPS = 1265102690 → GPS = 1265102706 |
| Time delay between detectors t(L1) - t(H1): | 30.4375 s (slice index = 102 / 225), δt_gw = -0.00683594 s |
| Time delay uncertainty: | 0.00465885 s |
| Frequency: | 41.0667 Hz |
| Ξ: | 0.973702 ± 0.0275925 (variance = 0.000761349): Q0: 0.975466, Q1: 0.981175, Q2: 0.979819, Q3: 0.95694, Q4: 0.907872 |
| Rank: | R_X = 0.973702 |
| Log of amplitude ratio (L1/H1): | -0.0346766, variance = 0.0476754 (L1/H1: -0.21366, variance = 0.206463, H1/L1: -0.0794065, variance = 0.0439406) |
| Amplitude ratio (L1/H1): | 0.965918 ⋇ 1.24402 (L1/H1: 0.807623 ⋇ 1.5752, H1/L1: 0.923664 ⋇ 1.23321) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.558103 |
| Antenna factor probability: | 0.905942 |
| Sky position probability: | 1 (expected δt_gw = -0.000831336 s) |
| Number of rejected frequency rows: | Q0: 24 / 26, Q1: 45 / 48, Q2: 77 / 92, Q3: 131 / 176, Q4: 287 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.3165, L1: 54.2562 |
| SNR variance: | H1: 1.48697, L1: 2.40567 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1263322749 (Fri Jan 17 18:58:51 2020 ) → GPS = 1263322759 (Fri Jan 17 18:59:01 2020 ) |
| Event time t(L1): | GPS = 1263322779 (Fri Jan 17 18:59:01 2020 ) → GPS = 1263322789 (Fri Jan 17 18:59:31 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263322746 → GPS = 1263322762 |
| Omicron analysis time window (L1): | GPS = 1263322776 → GPS = 1263322792 |
| Time delay between detectors t(L1) - t(H1): | 34.7035 s (slice index = 6 / 225), δt_gw = -0.00643027 s |
| Time delay uncertainty: | 0.000113854 s |
| Frequency: | 145.829 Hz |
| Ξ: | 0.938555 ± 0.0104793 (variance = 0.000109815): Q0: 0.940433, Q1: 0.942496, Q2: 0.935452, Q3: 0.930552, Q4: 0.913167 |
| Rank: | R_X = 0.938555 |
| Log of amplitude ratio (L1/H1): | 0.68995, variance = 0.298021 (L1/H1: 0.315558, variance = 0.103789, H1/L1: -0.792324, variance = 0.475527) |
| Amplitude ratio (L1/H1): | 1.99362 ⋇ 1.72618 (L1/H1: 1.37102 ⋇ 1.38011, H1/L1: 0.452791 ⋇ 1.99289) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.531056 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = 0.00830966 s) |
| Number of rejected frequency rows: | Q0: 8 / 26, Q1: 17 / 48, Q2: 36 / 92, Q3: 89 / 176, Q4: 237 / 338 |
| Maximum signal-to-noise ratio: | H1: 44.136, L1: 84.4037 |
| SNR variance: | H1: 0.533431, L1: 2.08909 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

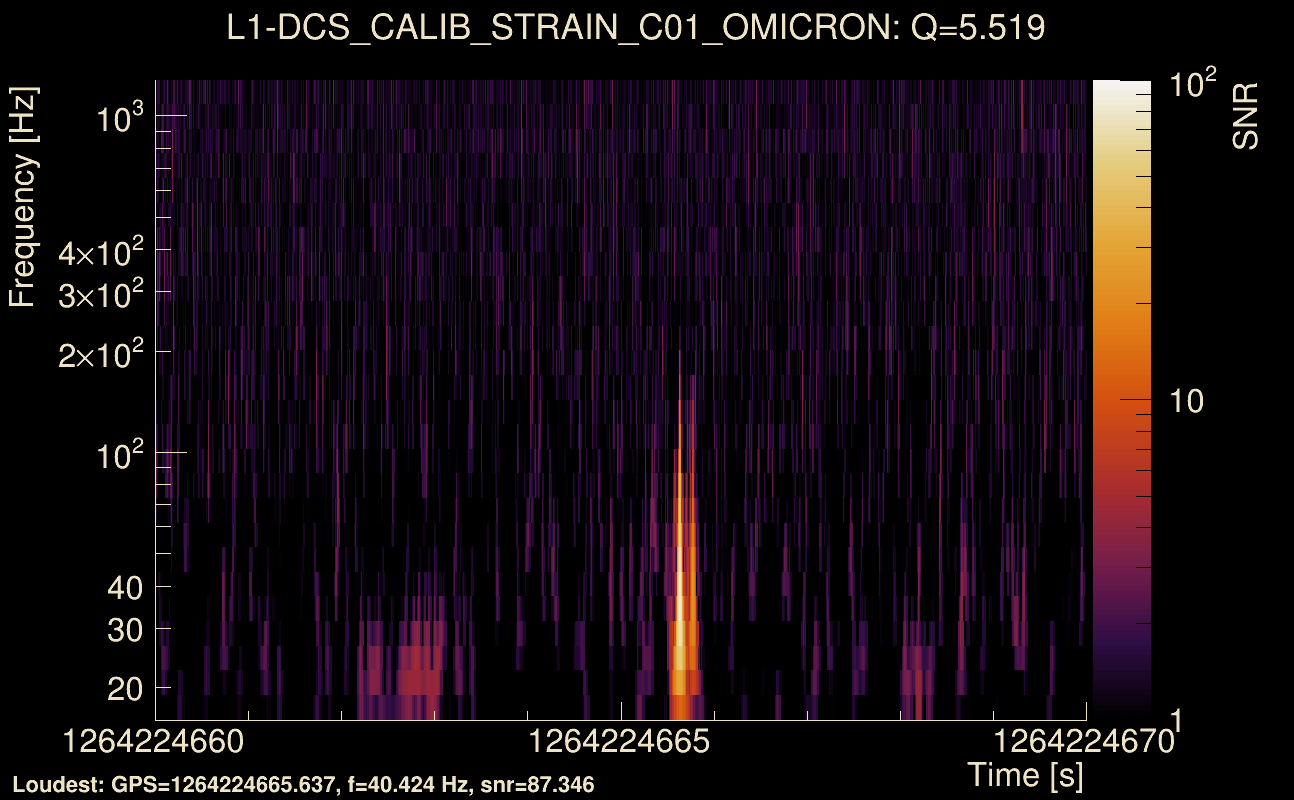

| Event time t(H1): | GPS = 1264224655 (Tue Jan 28 05:30:37 2020 ) → GPS = 1264224665 (Tue Jan 28 05:30:47 2020 ) |
| Event time t(L1): | GPS = 1264224665 (Tue Jan 28 05:30:47 2020 ) → GPS = 1264224675 (Tue Jan 28 05:30:57 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264224652 → GPS = 1264224668 |
| Omicron analysis time window (L1): | GPS = 1264224662 → GPS = 1264224678 |
| Time delay between detectors t(L1) - t(H1): | 8.71771 s (slice index = 141 / 225), δt_gw = 0.00628672 s |
| Time delay uncertainty: | 0.000329977 s |
| Frequency: | 73.3072 Hz |
| Ξ: | 0.938244 ± 0.0514324 (variance = 0.00264529): Q0: 0.942612, Q1: 0.939168, Q2: 0.957121, Q3: 0.932874, Q4: 0.815912 |
| Rank: | R_X = 0.938244 |
| Log of amplitude ratio (L1/H1): | 0.492891, variance = 0.272032 (L1/H1: -0.210256, variance = 1.35596, H1/L1: -0.929156, variance = 0.192334) |
| Amplitude ratio (L1/H1): | 1.63704 ⋇ 1.68466 (L1/H1: 0.810377 ⋇ 3.20418, H1/L1: 0.394887 ⋇ 1.55047) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.359823 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = -0.000259137 s) |
| Number of rejected frequency rows: | Q0: 13 / 26, Q1: 24 / 48, Q2: 57 / 92, Q3: 136 / 176, Q4: 314 / 338 |
| Maximum signal-to-noise ratio: | H1: 68.8913, L1: 87.4606 |
| SNR variance: | H1: 1.5621, L1: 6.23126 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

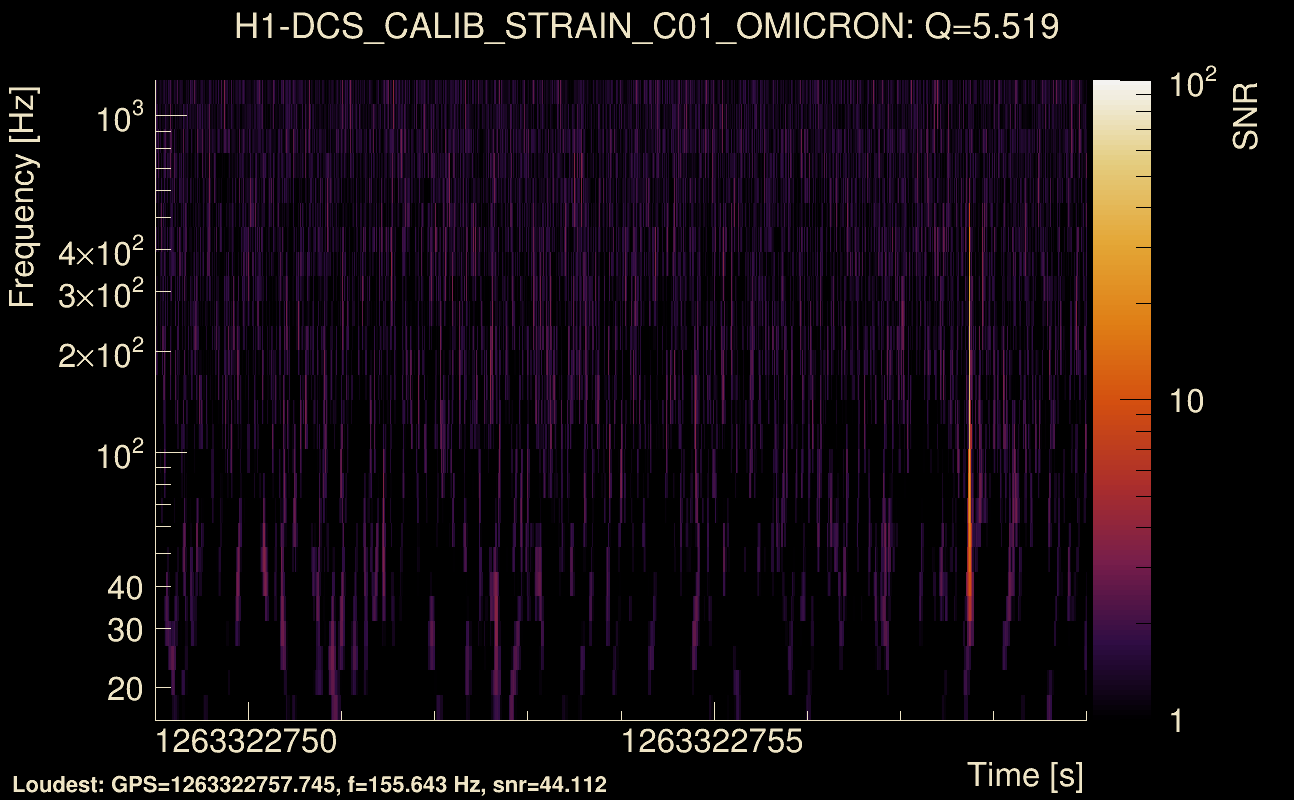

| Event time t(H1): | GPS = 1263322754 (Fri Jan 17 18:58:56 2020 ) → GPS = 1263322764 (Fri Jan 17 18:59:06 2020 ) |
| Event time t(L1): | GPS = 1263322774 (Fri Jan 17 18:59:06 2020 ) → GPS = 1263322784 (Fri Jan 17 18:59:26 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263322751 → GPS = 1263322767 |
| Omicron analysis time window (L1): | GPS = 1263322771 → GPS = 1263322787 |
| Time delay between detectors t(L1) - t(H1): | 24.7033 s (slice index = 6 / 225), δt_gw = -0.00663595 s |
| Time delay uncertainty: | 0.000116514 s |
| Frequency: | 143.693 Hz |
| Ξ: | 0.937909 ± 0.0125957 (variance = 0.000158652): Q0: 0.941307, Q1: 0.940942, Q2: 0.931896, Q3: 0.931519, Q4: 0.906742 |
| Rank: | R_X = 0.937909 |
| Log of amplitude ratio (L1/H1): | 0.691536, variance = 0.266268 (L1/H1: 0.321776, variance = 0.0822423, H1/L1: -0.790122, variance = 0.421334) |
| Amplitude ratio (L1/H1): | 1.99678 ⋇ 1.67533 (L1/H1: 1.37958 ⋇ 1.33213, H1/L1: 0.453789 ⋇ 1.91382) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.509264 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = 0.00831055 s) |
| Number of rejected frequency rows: | Q0: 8 / 26, Q1: 17 / 48, Q2: 38 / 92, Q3: 88 / 176, Q4: 235 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.9666, L1: 85.1484 |
| SNR variance: | H1: 0.962928, L1: 0.671517 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1264990934 (Thu Feb 6 02:21:56 2020 ) → GPS = 1264990944 (Thu Feb 6 02:22:06 2020 ) |
| Event time t(L1): | GPS = 1264990964 (Thu Feb 6 02:22:06 2020 ) → GPS = 1264990974 (Thu Feb 6 02:22:36 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264990931 → GPS = 1264990947 |
| Omicron analysis time window (L1): | GPS = 1264990961 → GPS = 1264990977 |
| Time delay between detectors t(L1) - t(H1): | 29.9127 s (slice index = 114 / 225), δt_gw = 0.00152941 s |
| Time delay uncertainty: | 0.000410744 s |
| Frequency: | 46.6301 Hz |
| Ξ: | 0.936446 ± 0.339383 (variance = 0.115181): Q0: 0.984968, Q1: 0.975847, Q2: 0.944391, Q3: 0.882208, Q4: 0.103182 |
| Rank: | R_X = 0.936446 |
| Log of amplitude ratio (L1/H1): | -1.20732, variance = 0.0329305 (L1/H1: -1.22095, variance = 0.0499371, H1/L1: 1.15356, variance = 0.028201) |
| Amplitude ratio (L1/H1): | 0.298999 ⋇ 1.19898 (L1/H1: 0.29495 ⋇ 1.2504, H1/L1: 3.16946 ⋇ 1.18286) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.809497 |
| Antenna factor probability: | 0.00434422 |
| Sky position probability: | 1 (expected δt_gw = 0.00267084 s) |
| Number of rejected frequency rows: | Q0: 19 / 26, Q1: 35 / 48, Q2: 67 / 92, Q3: 159 / 176, Q4: 323 / 338 |
| Maximum signal-to-noise ratio: | H1: 62.5875, L1: 31.5183 |
| SNR variance: | H1: 0.493393, L1: 0.531736 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1264990939 (Thu Feb 6 02:22:01 2020 ) → GPS = 1264990949 (Thu Feb 6 02:22:11 2020 ) |
| Event time t(L1): | GPS = 1264990969 (Thu Feb 6 02:22:11 2020 ) → GPS = 1264990979 (Thu Feb 6 02:22:41 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264990936 → GPS = 1264990952 |
| Omicron analysis time window (L1): | GPS = 1264990966 → GPS = 1264990982 |
| Time delay between detectors t(L1) - t(H1): | 29.9127 s (slice index = 114 / 225), δt_gw = 0.00151731 s |
| Time delay uncertainty: | 0.000366515 s |
| Frequency: | 46.4298 Hz |
| Ξ: | 0.936038 ± 0.333873 (variance = 0.111471): Q0: 0.98519, Q1: 0.973206, Q2: 0.941684, Q3: 0.88332, Q4: 0.11584 |
| Rank: | R_X = 0.936038 |
| Log of amplitude ratio (L1/H1): | -1.21139, variance = 0.0325078 (L1/H1: -1.22887, variance = 0.0477168, H1/L1: 1.14358, variance = 0.0559172) |
| Amplitude ratio (L1/H1): | 0.297784 ⋇ 1.19758 (L1/H1: 0.292622 ⋇ 1.24414, H1/L1: 3.13797 ⋇ 1.26677) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.79104 |
| Antenna factor probability: | 0.00326407 |
| Sky position probability: | 1 (expected δt_gw = 0.00266899 s) |
| Number of rejected frequency rows: | Q0: 19 / 26, Q1: 33 / 48, Q2: 65 / 92, Q3: 160 / 176, Q4: 330 / 338 |
| Maximum signal-to-noise ratio: | H1: 62.027, L1: 31.498 |
| SNR variance: | H1: 3.84743, L1: 1.11346 |

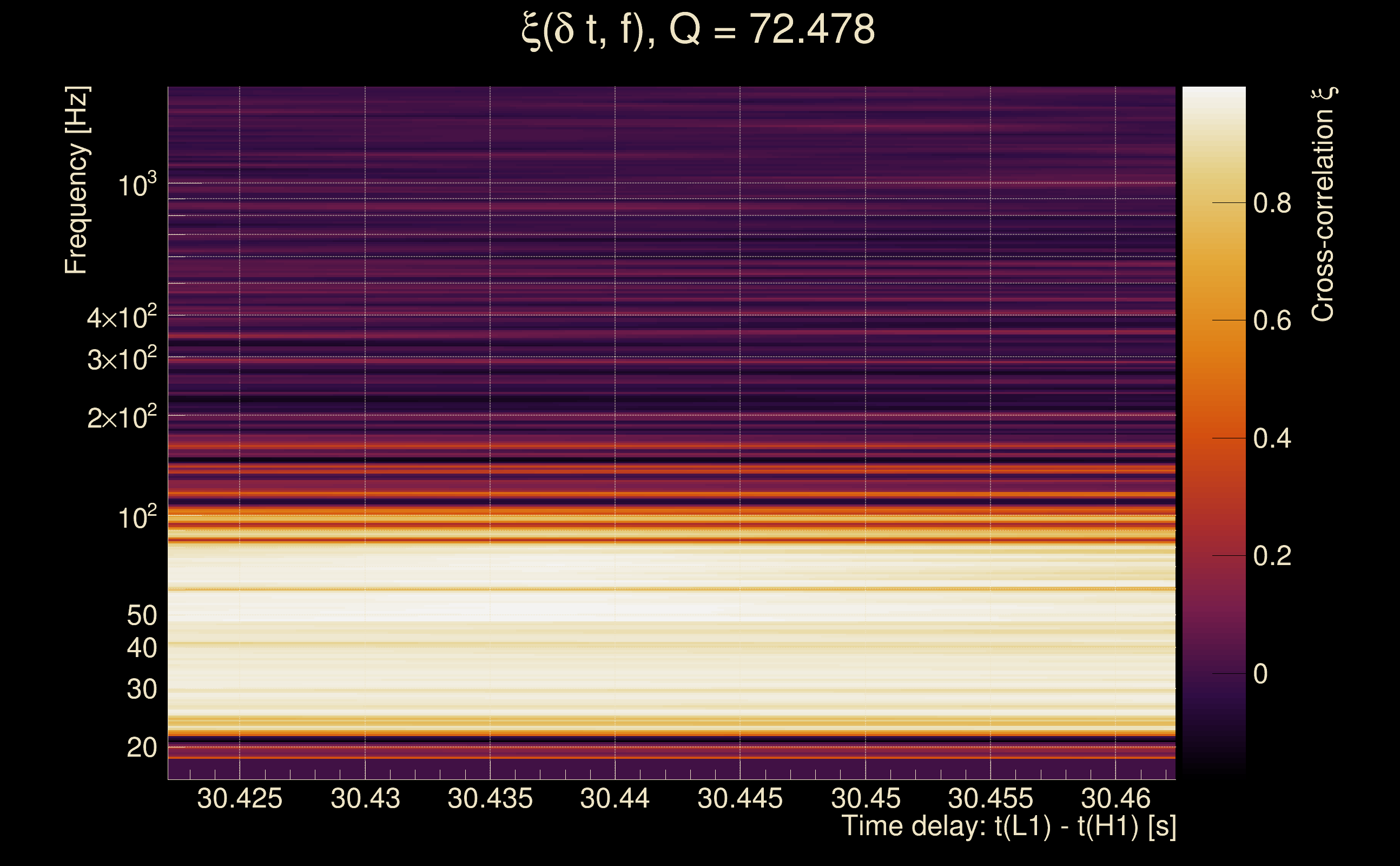

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1265102658 (Fri Feb 7 09:24:00 2020 ) → GPS = 1265102668 (Fri Feb 7 09:24:10 2020 ) |
| Event time t(L1): | GPS = 1265102688 (Fri Feb 7 09:24:10 2020 ) → GPS = 1265102698 (Fri Feb 7 09:24:40 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265102655 → GPS = 1265102671 |
| Omicron analysis time window (L1): | GPS = 1265102685 → GPS = 1265102701 |
| Time delay between detectors t(L1) - t(H1): | 30.4422 s (slice index = 102 / 225), δt_gw = -0.00217754 s |
| Time delay uncertainty: | 0.000390095 s |
| Frequency: | 42.1997 Hz |
| Ξ: | 0.934299 ± 0.028741 (variance = 0.000826046): Q0: 0.91069, Q1: 0.955497, Q2: 0.975563, Q3: 0.954937, Q4: 0.900699 |
| Rank: | R_X = 0.934299 |
| Log of amplitude ratio (L1/H1): | -0.0317812, variance = 0.0443208 (L1/H1: -0.209233, variance = 0.190464, H1/L1: -0.0808362, variance = 0.0417145) |
| Amplitude ratio (L1/H1): | 0.968719 ⋇ 1.23433 (L1/H1: 0.811206 ⋇ 1.54716, H1/L1: 0.922345 ⋇ 1.22659) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.54718 |
| Antenna factor probability: | 0.956797 |
| Sky position probability: | 1 (expected δt_gw = -0.000832241 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 44 / 48, Q2: 76 / 92, Q3: 126 / 176, Q4: 283 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.5543, L1: 54.6724 |
| SNR variance: | H1: 0.501091, L1: 0.551649 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1264224650 (Tue Jan 28 05:30:32 2020 ) → GPS = 1264224660 (Tue Jan 28 05:30:42 2020 ) |
| Event time t(L1): | GPS = 1264224660 (Tue Jan 28 05:30:42 2020 ) → GPS = 1264224670 (Tue Jan 28 05:30:52 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264224647 → GPS = 1264224663 |
| Omicron analysis time window (L1): | GPS = 1264224657 → GPS = 1264224673 |
| Time delay between detectors t(L1) - t(H1): | 8.71768 s (slice index = 141 / 225), δt_gw = 0.00625076 s |
| Time delay uncertainty: | 0.000312343 s |
| Frequency: | 73.6912 Hz |
| Ξ: | 0.933968 ± 0.037739 (variance = 0.00142423): Q0: 0.933994, Q1: 0.93426, Q2: 0.959542, Q3: 0.928237, Q4: 0.848621 |
| Rank: | R_X = 0.933968 |
| Log of amplitude ratio (L1/H1): | 0.271698, variance = 0.535518 (L1/H1: -0.793648, variance = 3.17232, H1/L1: -0.927972, variance = 0.194683) |
| Amplitude ratio (L1/H1): | 1.31219 ⋇ 2.0788 (L1/H1: 0.452192 ⋇ 5.93638, H1/L1: 0.395355 ⋇ 1.55462) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.348119 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = -0.000257925 s) |
| Number of rejected frequency rows: | Q0: 10 / 26, Q1: 21 / 48, Q2: 53 / 92, Q3: 136 / 176, Q4: 321 / 338 |
| Maximum signal-to-noise ratio: | H1: 69.2921, L1: 88.2849 |
| SNR variance: | H1: 0.518451, L1: 0.604867 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1262696719 (Fri Jan 10 13:05:01 2020 ) → GPS = 1262696729 (Fri Jan 10 13:05:11 2020 ) |
| Event time t(L1): | GPS = 1262696729 (Fri Jan 10 13:05:11 2020 ) → GPS = 1262696739 (Fri Jan 10 13:05:21 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262696716 → GPS = 1262696732 |
| Omicron analysis time window (L1): | GPS = 1262696726 → GPS = 1262696742 |
| Time delay between detectors t(L1) - t(H1): | 7.5 s (slice index = 168 / 225), δt_gw = -0.0117187 s |
| Time delay uncertainty: | 0.0016396 s |
| Frequency: | 38.0703 Hz |
| Ξ: | 0.933694 ± 0.0211246 (variance = 0.000446248): Q0: 0.923328, Q1: 0.954779, Q2: 0.946621, Q3: 0.922151, Q4: 0.894656 |
| Rank: | R_X = 0.933694 |
| Log of amplitude ratio (L1/H1): | -1.16479, variance = 0.0996978 (L1/H1: -1.23174, variance = 0.16077, H1/L1: 1.01609, variance = 0.241309) |
| Amplitude ratio (L1/H1): | 0.311989 ⋇ 1.37129 (L1/H1: 0.291784 ⋇ 1.49326, H1/L1: 2.76238 ⋇ 1.63433) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.733788 |
| Antenna factor probability: | 0.357015 |
| Sky position probability: | 1 (expected δt_gw = 0.000851523 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 37 / 48, Q2: 71 / 92, Q3: 142 / 176, Q4: 284 / 338 |
| Maximum signal-to-noise ratio: | H1: 32.1717, L1: 21.5883 |
| SNR variance: | H1: 0.496573, L1: 0.677972 |
| Event time t(H1): | GPS = 1263978277 (Sat Jan 25 09:04:19 2020 ) → GPS = 1263978287 (Sat Jan 25 09:04:29 2020 ) |
| Event time t(L1): | GPS = 1263978297 (Sat Jan 25 09:04:29 2020 ) → GPS = 1263978307 (Sat Jan 25 09:04:49 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263978274 → GPS = 1263978290 |
| Omicron analysis time window (L1): | GPS = 1263978294 → GPS = 1263978310 |
| Time delay between detectors t(L1) - t(H1): | 17.1679 s (slice index = 176 / 225), δt_gw = 0.0116245 s |
| Time delay uncertainty: | 8.61125e-05 s |
| Frequency: | 307.866 Hz |
| Ξ: | 0.924573 ± 0.0819471 (variance = 0.00671532): Q0: 0.972051, Q1: 0.930868, Q2: 0.863213, Q3: 0.78362, Q4: 0.759151 |
| Rank: | R_X = 0.924573 |
| Log of amplitude ratio (L1/H1): | -0.413465, variance = 0.082951 (L1/H1: -0.605225, variance = 0.0868574, H1/L1: -0.0642918, variance = 0.472036) |
| Amplitude ratio (L1/H1): | 0.661354 ⋇ 1.33377 (L1/H1: 0.545951 ⋇ 1.34274, H1/L1: 0.937731 ⋇ 1.98784) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.370485 |
| Antenna factor probability: | 1 |
| Sky position probability: | 1 (expected δt_gw = -0.00137132 s) |
| Number of rejected frequency rows: | Q0: 16 / 26, Q1: 25 / 48, Q2: 58 / 92, Q3: 128 / 176, Q4: 272 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.3863, L1: 27.487 |
| SNR variance: | H1: 0.479972, L1: 0.628185 |
| Event time t(H1): | GPS = 1264485965 (Fri Jan 31 06:05:47 2020 ) → GPS = 1264485975 (Fri Jan 31 06:05:57 2020 ) |
| Event time t(L1): | GPS = 1264485945 (Fri Jan 31 06:05:57 2020 ) → GPS = 1264485955 (Fri Jan 31 06:05:37 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264485962 → GPS = 1264485978 |
| Omicron analysis time window (L1): | GPS = 1264485942 → GPS = 1264485958 |
| Time delay between detectors t(L1) - t(H1): | -24.4046 s (slice index = 211 / 225), δt_gw = -0.00566175 s |
| Time delay uncertainty: | 0.000188889 s |
| Frequency: | 64.8012 Hz |
| Ξ: | 0.924427 ± 0.140487 (variance = 0.0197367): Q0: 0.967283, Q1: 0.894732, Q2: 0.941779, Q3: 0.889506, Q4: 0.579724 |
| Rank: | R_X = 0.924427 |
| Log of amplitude ratio (L1/H1): | -0.750755, variance = 0.148225 (L1/H1: -0.934167, variance = 0.234485, H1/L1: 0.243119, variance = 0.307935) |
| Amplitude ratio (L1/H1): | 0.47201 ⋇ 1.46961 (L1/H1: 0.392913 ⋇ 1.62293, H1/L1: 1.27522 ⋇ 1.7418) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.348091 |
| Antenna factor probability: | 0.997154 |
| Sky position probability: | 1 (expected δt_gw = -0.000853532 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 37 / 48, Q2: 59 / 92, Q3: 131 / 176, Q4: 315 / 338 |
| Maximum signal-to-noise ratio: | H1: 48.4364, L1: 29.1145 |
| SNR variance: | H1: 0.460603, L1: 1.13929 |
| Event time t(H1): | GPS = 1263978282 (Sat Jan 25 09:04:24 2020 ) → GPS = 1263978292 (Sat Jan 25 09:04:34 2020 ) |
| Event time t(L1): | GPS = 1263978302 (Sat Jan 25 09:04:34 2020 ) → GPS = 1263978312 (Sat Jan 25 09:04:54 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263978279 → GPS = 1263978295 |
| Omicron analysis time window (L1): | GPS = 1263978299 → GPS = 1263978315 |
| Time delay between detectors t(L1) - t(H1): | 17.1678 s (slice index = 176 / 225), δt_gw = 0.0115851 s |
| Time delay uncertainty: | 8.47354e-05 s |
| Frequency: | 308.824 Hz |
| Ξ: | 0.920541 ± 0.084219 (variance = 0.00709284): Q0: 0.970627, Q1: 0.926787, Q2: 0.857658, Q3: 0.75852, Q4: 0.767629 |
| Rank: | R_X = 0.920541 |
| Log of amplitude ratio (L1/H1): | -0.442187, variance = 0.0626268 (L1/H1: -0.58842, variance = 0.0764291, H1/L1: 0.076181, variance = 0.289659) |
| Amplitude ratio (L1/H1): | 0.642629 ⋇ 1.28435 (L1/H1: 0.555204 ⋇ 1.31845, H1/L1: 1.07916 ⋇ 1.71292) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.397217 |
| Antenna factor probability: | 0.999994 |
| Sky position probability: | 1 (expected δt_gw = -0.00137096 s) |
| Number of rejected frequency rows: | Q0: 16 / 26, Q1: 25 / 48, Q2: 55 / 92, Q3: 120 / 176, Q4: 273 / 338 |
| Maximum signal-to-noise ratio: | H1: 43.1481, L1: 27.2734 |
| SNR variance: | H1: 1.06137, L1: 1.09603 |
| Event time t(H1): | GPS = 1264485970 (Fri Jan 31 06:05:52 2020 ) → GPS = 1264485980 (Fri Jan 31 06:06:02 2020 ) |
| Event time t(L1): | GPS = 1264485940 (Fri Jan 31 06:06:02 2020 ) → GPS = 1264485950 (Fri Jan 31 06:05:32 2020 ) |
| Omicron analysis time window (H1): | GPS = 1264485967 → GPS = 1264485983 |
| Omicron analysis time window (L1): | GPS = 1264485937 → GPS = 1264485953 |
| Time delay between detectors t(L1) - t(H1): | -34.402 s (slice index = 211 / 225), δt_gw = -0.00305133 s |
| Time delay uncertainty: | 0.000302708 s |
| Frequency: | 61.3288 Hz |
| Ξ: | 0.918594 ± 0.154414 (variance = 0.0238437): Q0: 0.965522, Q1: 0.882354, Q2: 0.940511, Q3: 0.888401, Q4: 0.541188 |
| Rank: | R_X = 0.918594 |
| Log of amplitude ratio (L1/H1): | -0.730375, variance = 0.149044 (L1/H1: -0.943637, variance = 0.240258, H1/L1: 0.154751, variance = 0.289094) |
| Amplitude ratio (L1/H1): | 0.481728 ⋇ 1.47118 (L1/H1: 0.38921 ⋇ 1.63258, H1/L1: 1.16737 ⋇ 1.71202) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.27824 |
| Antenna factor probability: | 0.95208 |
| Sky position probability: | 1 (expected δt_gw = -0.000854422 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 35 / 48, Q2: 57 / 92, Q3: 138 / 176, Q4: 308 / 338 |
| Maximum signal-to-noise ratio: | H1: 48.2112, L1: 29.3451 |
| SNR variance: | H1: 1.3692, L1: 0.538233 |
| Event time t(H1): | GPS = 1265541828 (Wed Feb 12 11:23:30 2020 ) → GPS = 1265541838 (Wed Feb 12 11:23:40 2020 ) |
| Event time t(L1): | GPS = 1265541828 (Wed Feb 12 11:23:40 2020 ) → GPS = 1265541838 (Wed Feb 12 11:23:40 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265541825 → GPS = 1265541841 |
| Omicron analysis time window (L1): | GPS = 1265541825 → GPS = 1265541841 |
| Time delay between detectors t(L1) - t(H1): | -0.092176 s (slice index = 114 / 225), δt_gw = -0.00330881 s |
| Time delay uncertainty: | 0.000138742 s |
| Frequency: | 99.0473 Hz |
| Ξ: | 0.917972 ± 0.0627046 (variance = 0.00393187): Q0: 0.941002, Q1: 0.935064, Q2: 0.882921, Q3: 0.842362, Q4: 0.7722 |
| Rank: | R_X = 0.917972 |
| Log of amplitude ratio (L1/H1): | -0.442838, variance = 0.0900399 (L1/H1: -0.53302, variance = 0.128683, H1/L1: 0.347608, variance = 0.237109) |
| Amplitude ratio (L1/H1): | 0.642211 ⋇ 1.34995 (L1/H1: 0.58683 ⋇ 1.4315, H1/L1: 1.41568 ⋇ 1.62733) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.759176 |
| Antenna factor probability: | 0.957975 |
| Sky position probability: | 1 (expected δt_gw = 0.00140591 s) |
| Number of rejected frequency rows: | Q0: 5 / 26, Q1: 13 / 48, Q2: 29 / 92, Q3: 113 / 176, Q4: 270 / 338 |
| Maximum signal-to-noise ratio: | H1: 28.6379, L1: 27.8686 |
| SNR variance: | H1: 248.282, L1: 0.978567 |
| Event time t(H1): | GPS = 1263259008 (Fri Jan 17 01:16:30 2020 ) → GPS = 1263259018 (Fri Jan 17 01:16:40 2020 ) |
| Event time t(L1): | GPS = 1263258998 (Fri Jan 17 01:16:40 2020 ) → GPS = 1263259008 (Fri Jan 17 01:16:30 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263259005 → GPS = 1263259021 |
| Omicron analysis time window (L1): | GPS = 1263258995 → GPS = 1263259011 |
| Time delay between detectors t(L1) - t(H1): | -5.30017 s (slice index = 6 / 225), δt_gw = -0.010126 s |
| Time delay uncertainty: | 7.30107e-05 s |
| Frequency: | 191.831 Hz |
| Ξ: | 0.915434 ± 0.0155522 (variance = 0.000241872): Q0: 0.931834, Q1: 0.902955, Q2: 0.902654, Q3: 0.885141, Q4: 0.895224 |
| Rank: | R_X = 0.915434 |
| Log of amplitude ratio (L1/H1): | -0.857197, variance = 0.121931 (L1/H1: -0.991817, variance = 0.109209, H1/L1: 0.40821, variance = 1.07677) |
| Amplitude ratio (L1/H1): | 0.42435 ⋇ 1.41791 (L1/H1: 0.370902 ⋇ 1.39162, H1/L1: 1.50412 ⋇ 2.82265) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.592029 |
| Antenna factor probability: | 0.841529 |
| Sky position probability: | 1 (expected δt_gw = 0.00586977 s) |
| Number of rejected frequency rows: | Q0: 6 / 26, Q1: 15 / 48, Q2: 37 / 92, Q3: 94 / 176, Q4: 241 / 338 |
| Maximum signal-to-noise ratio: | H1: 73.2887, L1: 40.1305 |
| SNR variance: | H1: 0.491983, L1: 0.858494 |
| Event time t(H1): | GPS = 1263259013 (Fri Jan 17 01:16:35 2020 ) → GPS = 1263259023 (Fri Jan 17 01:16:45 2020 ) |
| Event time t(L1): | GPS = 1263258993 (Fri Jan 17 01:16:45 2020 ) → GPS = 1263259003 (Fri Jan 17 01:16:25 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263259010 → GPS = 1263259026 |
| Omicron analysis time window (L1): | GPS = 1263258990 → GPS = 1263259006 |
| Time delay between detectors t(L1) - t(H1): | -15.3001 s (slice index = 6 / 225), δt_gw = -0.0100222 s |
| Time delay uncertainty: | 7.2574e-05 s |
| Frequency: | 190.587 Hz |
| Ξ: | 0.914685 ± 0.0148478 (variance = 0.000220457): Q0: 0.930392, Q1: 0.903422, Q2: 0.900804, Q3: 0.885204, Q4: 0.897411 |
| Rank: | R_X = 0.914685 |
| Log of amplitude ratio (L1/H1): | -0.876939, variance = 0.113473 (L1/H1: -1.00104, variance = 0.120659, H1/L1: 0.470855, variance = 0.779167) |
| Amplitude ratio (L1/H1): | 0.416055 ⋇ 1.40054 (L1/H1: 0.367499 ⋇ 1.41533, H1/L1: 1.60136 ⋇ 2.41743) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.576222 |
| Antenna factor probability: | 0.691422 |
| Sky position probability: | 1 (expected δt_gw = 0.00586805 s) |
| Number of rejected frequency rows: | Q0: 6 / 26, Q1: 15 / 48, Q2: 36 / 92, Q3: 95 / 176, Q4: 240 / 338 |
| Maximum signal-to-noise ratio: | H1: 72.8739, L1: 40.2851 |
| SNR variance: | H1: 2.08668, L1: 0.534204 |
| Event time t(H1): | GPS = 1265117198 (Fri Feb 7 13:26:20 2020 ) → GPS = 1265117208 (Fri Feb 7 13:26:30 2020 ) |
| Event time t(L1): | GPS = 1265117168 (Fri Feb 7 13:26:30 2020 ) → GPS = 1265117178 (Fri Feb 7 13:26:00 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265117195 → GPS = 1265117211 |
| Omicron analysis time window (L1): | GPS = 1265117165 → GPS = 1265117181 |
| Time delay between detectors t(L1) - t(H1): | -31.1086 s (slice index = 137 / 225), δt_gw = 0.00224261 s |
| Time delay uncertainty: | 8.85544e-05 s |
| Frequency: | 174.028 Hz |
| Ξ: | 0.913863 ± 0.0473016 (variance = 0.00223744): Q0: 0.920987, Q1: 0.916604, Q2: 0.926694, Q3: 0.890556, Q4: 0.799577 |
| Rank: | R_X = 0.913863 |
| Log of amplitude ratio (L1/H1): | 0.35897, variance = 0.0619367 (L1/H1: 0.223149, variance = 0.0890919, H1/L1: -0.408915, variance = 0.103817) |
| Amplitude ratio (L1/H1): | 1.43185 ⋇ 1.28258 (L1/H1: 1.25001 ⋇ 1.34781, H1/L1: 0.66437 ⋇ 1.38017) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.67233 |
| Antenna factor probability: | 0.945014 |
| Sky position probability: | 1 (expected δt_gw = 0.00366396 s) |
| Number of rejected frequency rows: | Q0: 4 / 26, Q1: 14 / 48, Q2: 36 / 92, Q3: 104 / 176, Q4: 248 / 338 |
| Maximum signal-to-noise ratio: | H1: 31.078, L1: 51.2491 |
| SNR variance: | H1: 0.782456, L1: 1.12381 |
| Event time t(H1): | GPS = 1265117193 (Fri Feb 7 13:26:15 2020 ) → GPS = 1265117203 (Fri Feb 7 13:26:25 2020 ) |
| Event time t(L1): | GPS = 1265117163 (Fri Feb 7 13:26:25 2020 ) → GPS = 1265117173 (Fri Feb 7 13:25:55 2020 ) |
| Omicron analysis time window (H1): | GPS = 1265117190 → GPS = 1265117206 |
| Omicron analysis time window (L1): | GPS = 1265117160 → GPS = 1265117176 |
| Time delay between detectors t(L1) - t(H1): | -31.1084 s (slice index = 137 / 225), δt_gw = 0.00241165 s |
| Time delay uncertainty: | 9.27912e-05 s |
| Frequency: | 175.217 Hz |
| Ξ: | 0.913426 ± 0.0437594 (variance = 0.00191489): Q0: 0.921503, Q1: 0.913768, Q2: 0.924465, Q3: 0.891647, Q4: 0.807286 |
| Rank: | R_X = 0.913426 |
| Log of amplitude ratio (L1/H1): | 0.346974, variance = 0.0538353 (L1/H1: 0.148735, variance = 0.0885114, H1/L1: -0.41976, variance = 0.0886932) |
| Amplitude ratio (L1/H1): | 1.41478 ⋇ 1.26115 (L1/H1: 1.16037 ⋇ 1.3465, H1/L1: 0.657204 ⋇ 1.34691) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.519685 |
| Antenna factor probability: | 0.928712 |
| Sky position probability: | 1 (expected δt_gw = 0.00366207 s) |
| Number of rejected frequency rows: | Q0: 6 / 26, Q1: 15 / 48, Q2: 40 / 92, Q3: 106 / 176, Q4: 257 / 338 |
| Maximum signal-to-noise ratio: | H1: 31.2169, L1: 51.5182 |
| SNR variance: | H1: 0.501111, L1: 0.524967 |
| Event time t(H1): | GPS = 1263173593 (Thu Jan 16 01:32:55 2020 ) → GPS = 1263173603 (Thu Jan 16 01:33:05 2020 ) |
| Event time t(L1): | GPS = 1263173573 (Thu Jan 16 01:33:05 2020 ) → GPS = 1263173583 (Thu Jan 16 01:32:45 2020 ) |
| Omicron analysis time window (H1): | GPS = 1263173590 → GPS = 1263173606 |
| Omicron analysis time window (L1): | GPS = 1263173570 → GPS = 1263173586 |
| Time delay between detectors t(L1) - t(H1): | -21.6091 s (slice index = 148 / 225), δt_gw = -0.00945692 s |
| Time delay uncertainty: | 0.000330585 s |
| Frequency: | 66.776 Hz |
| Ξ: | 0.912739 ± 0.137733 (variance = 0.0189704): Q0: 0.940628, Q1: 0.937996, Q2: 0.906992, Q3: 0.818227, Q4: 0.574951 |
| Rank: | R_X = 0.912739 |
| Log of amplitude ratio (L1/H1): | 0.519755, variance = 0.0975297 (L1/H1: -0.276223, variance = 0.714908, H1/L1: -0.743735, variance = 0.103533) |
| Amplitude ratio (L1/H1): | 1.68162 ⋇ 1.36656 (L1/H1: 0.758644 ⋇ 2.32919, H1/L1: 0.475335 ⋇ 1.37956) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.259562 |
| Antenna factor probability: | 0.66102 |
| Sky position probability: | 1 (expected δt_gw = 0.00560839 s) |
| Number of rejected frequency rows: | Q0: 12 / 26, Q1: 28 / 48, Q2: 61 / 92, Q3: 148 / 176, Q4: 324 / 338 |
| Maximum signal-to-noise ratio: | H1: 35.8169, L1: 67.5202 |
| SNR variance: | H1: 1.05609, L1: 3.42009 |
| Event time t(H1): | GPS = 1262696724 (Fri Jan 10 13:05:06 2020 ) → GPS = 1262696734 (Fri Jan 10 13:05:16 2020 ) |
| Event time t(L1): | GPS = 1262696724 (Fri Jan 10 13:05:16 2020 ) → GPS = 1262696734 (Fri Jan 10 13:05:16 2020 ) |
| Omicron analysis time window (H1): | GPS = 1262696721 → GPS = 1262696737 |
| Omicron analysis time window (L1): | GPS = 1262696721 → GPS = 1262696737 |
| Time delay between detectors t(L1) - t(H1): | -2.5 s (slice index = 168 / 225), δt_gw = -0.0117188 s |
| Time delay uncertainty: | 0.00163638 s |
| Frequency: | 38.1883 Hz |
| Ξ: | 0.904938 ± 0.0132425 (variance = 0.000175365): Q0: 0.899875, Q1: 0.913446, Q2: 0.917698, Q3: 0.896343, Q4: 0.880464 |
| Rank: | R_X = 0.904938 |
| Log of amplitude ratio (L1/H1): | -1.32663, variance = 0.209413 (L1/H1: -1.50142, variance = 0.394763, H1/L1: 0.944637, variance = 0.239467) |
| Amplitude ratio (L1/H1): | 0.26537 ⋇ 1.5803 (L1/H1: 0.222813 ⋇ 1.87442, H1/L1: 2.57188 ⋇ 1.63126) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.484465 |
| Antenna factor probability: | 0.521096 |
| Sky position probability: | 1 (expected δt_gw = 0.000853098 s) |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 36 / 48, Q2: 71 / 92, Q3: 142 / 176, Q4: 288 / 338 |
| Maximum signal-to-noise ratio: | H1: 31.9485, L1: 21.6111 |
| SNR variance: | H1: 1.2464, L1: 0.463542 |
| florent.robinet@ijclab.in2p3.fr |
