Sequence report

Table of contents

• Satellite sequence
• Telescope MXT
  • Camera (MXT/MXT_cam)
  • Source (MXT/MXT_GRB091020)

Satellite sequence [click here to expand/hide]

Telescope MXT [click here to expand/hide]

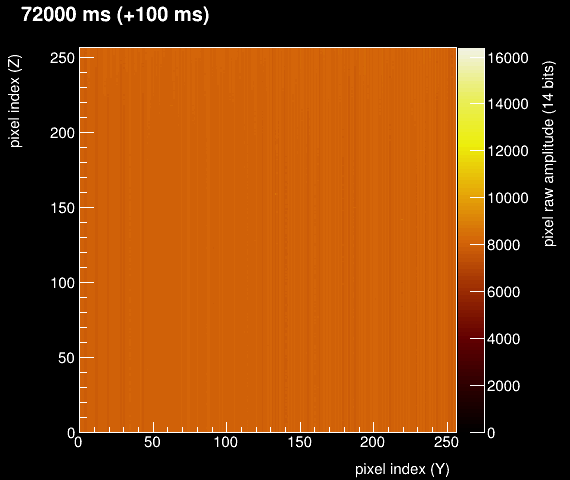

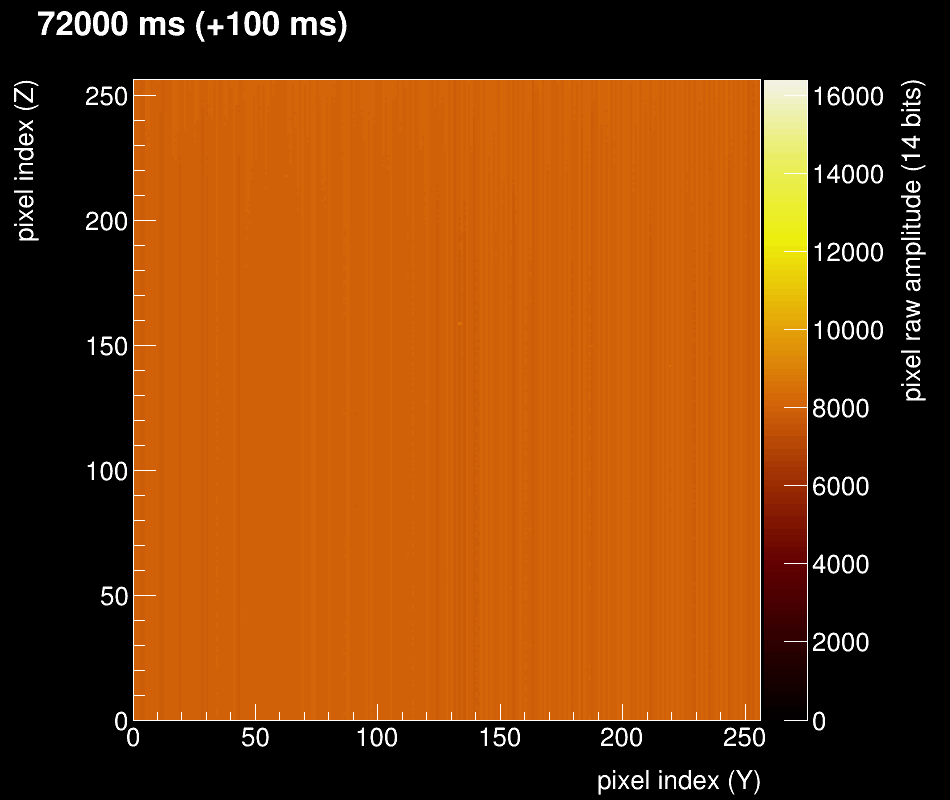

Telescope flight sequence: show plot Focal length: 1137 mm Point spread function: show plot Number of astrophysical sources: 1 Camera (MXT/MXT_cam) Number of pictures: 9000 Number of pixels*: 256(Y) x 256(Z) Physical size*: 0.45(X) mm x 19.2(Y) mm x 19.2(Z) mm Pixel amplitude range*: 0 → 16384 (14 bits) Photon resolution*: 0.09(Y) pixels x 0.09(Z) pixels Camera integration time*: 100 ms Picture sequence: show animation Picture sequence (>4σ): show animation Dark noise sequence: show animation (mean), show animation (std. dev.) Read noise sequence: show animation (mean), show animation (std. dev.) Gain map: show plot *Dynamical property. Only the property associated to the first picture is reported. Source (MXT/MXT_GRB091020) Source type: PHOTONS Telescope response: show acceptance / show effective area Source time range: 0ms → 1e+09 ms Source position (spherical)*: θ'=1.56752 rad, φ'=0.00371755 rad, cos(cone angle)=1 Source position (radec)*: ra=0.213 deg, dec=0.188 deg Source astro-particles: Flux / Rate Number of astro-particles: 3323 Astro-particle distributions: Time / Energy / Incoming direction *Dynamical property. Only the source starting parameter is reported.
