| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Mar 24 17:56:50 2025 UTC |
| Ox option file: | Test_rvarCut1_240325_forAFreconstruction_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 16 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| List of input Ox files: | Test_rvarCut1_240325_forAFreconstruction_file_list.txt (792 files) |
| Analysis result file: | Test_rvarCut1_240325_forAFreconstruction_results-0.root |
| Slice selected for the the fakeground: | slice index=17 (-5.814 s), time lag = -20 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 13761 | 13757 | 32813479 | |
| Start Date (detector 0) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:55:14 2023 UTC | |
| End Date (detector 0) | Sun Sep 3 05:05:52 2023 UTC | Sun Sep 3 05:05:52 2023 UTC | Sun Sep 3 05:05:52 2023 UTC | |
| Start GPS (detector 0) | 1377665712 | 1377665712 | 1377665732 | |
| End GPS (detector 0) | 1377752770 | 1377752770 | 1377752770 | |
| Used livetime (detector 0) | 69165 s | 69145 s | 69165 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | |
| End Date (detector 1) | Sun Sep 3 05:05:52 2023 UTC | Sun Sep 3 05:06:42 2023 UTC | Sun Sep 3 05:05:32 2023 UTC | |
| Start GPS (detector 1) | 1377665712 | 1377665712 | 1377665712 | |
| End GPS (detector 1) | 1377752770 | 1377752820 | 1377752750 | |
| Used livetime (detector 1) | 69165 s | 69145 s | 70285 s | |
| Cumulative livetime | 137610 s | 137570 s | 328134790 s | |
| 0 years, 1 days, 14 hours, 13 min, 30 s | 0 years, 1 days, 14 hours, 12 min, 50 s | 10 years, 145 days, 20 hours, 33 min, 10 s |
|
| Detection threshold: | R > 0.166495 |
| False-alarm rate above that detection threshold: | 2.56049e-08 |
 |
 |
 |

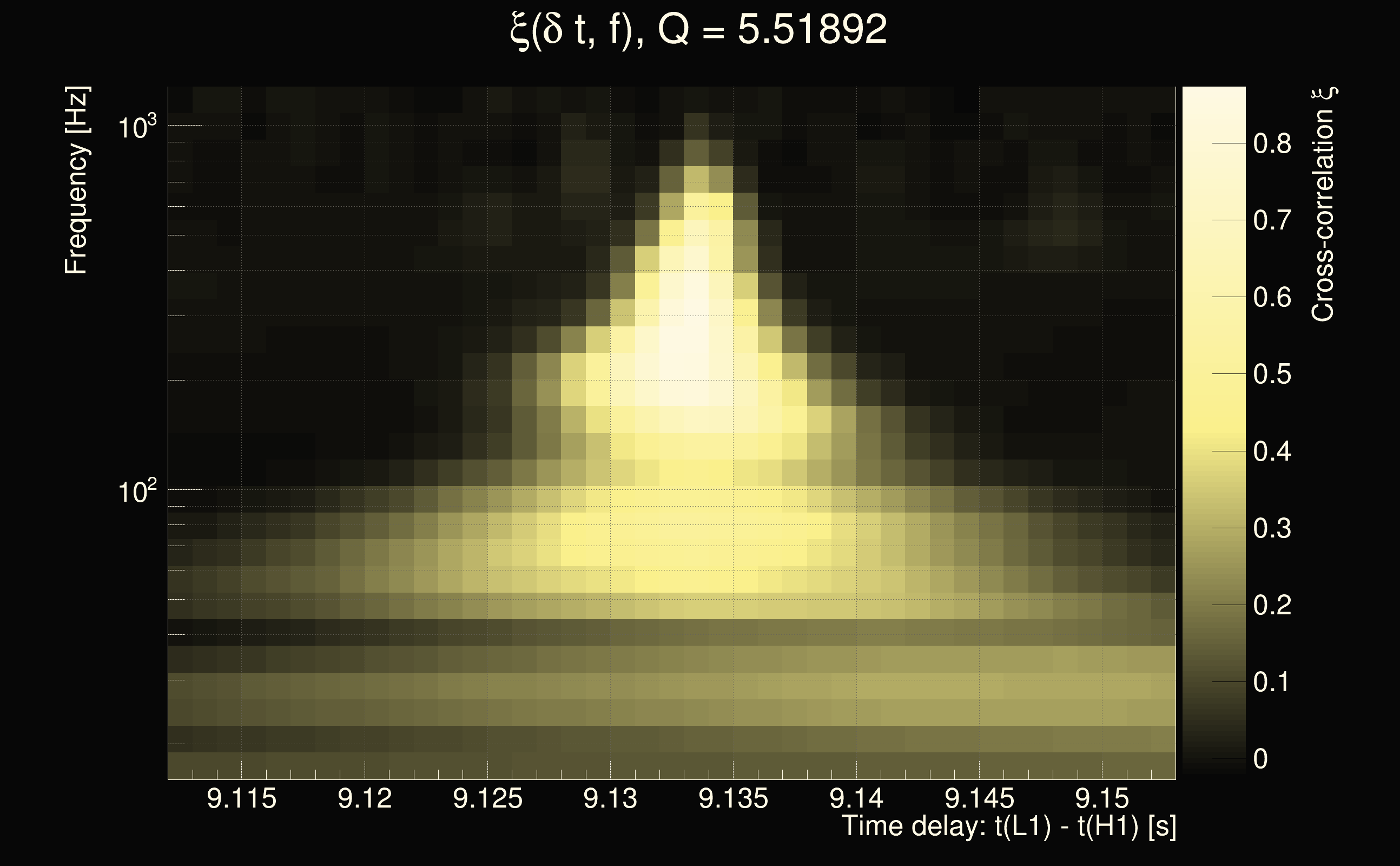

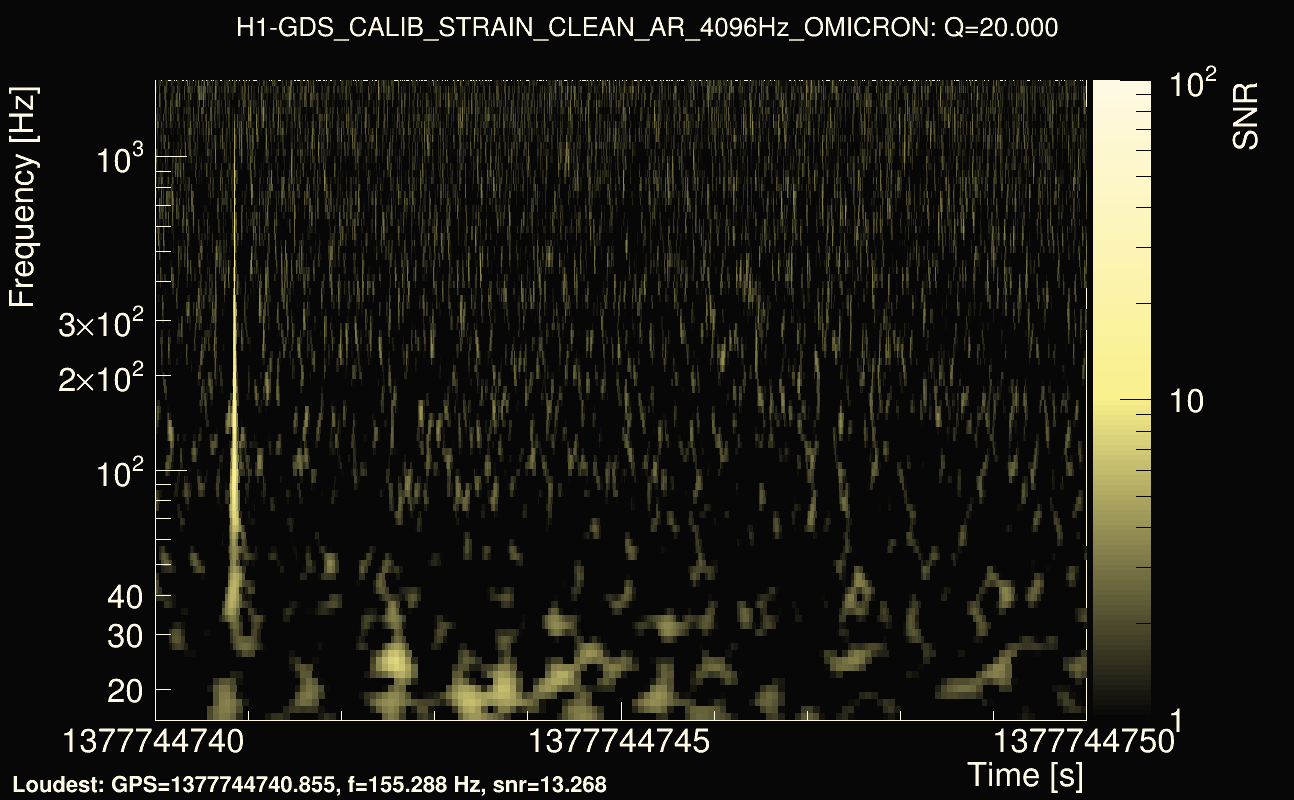

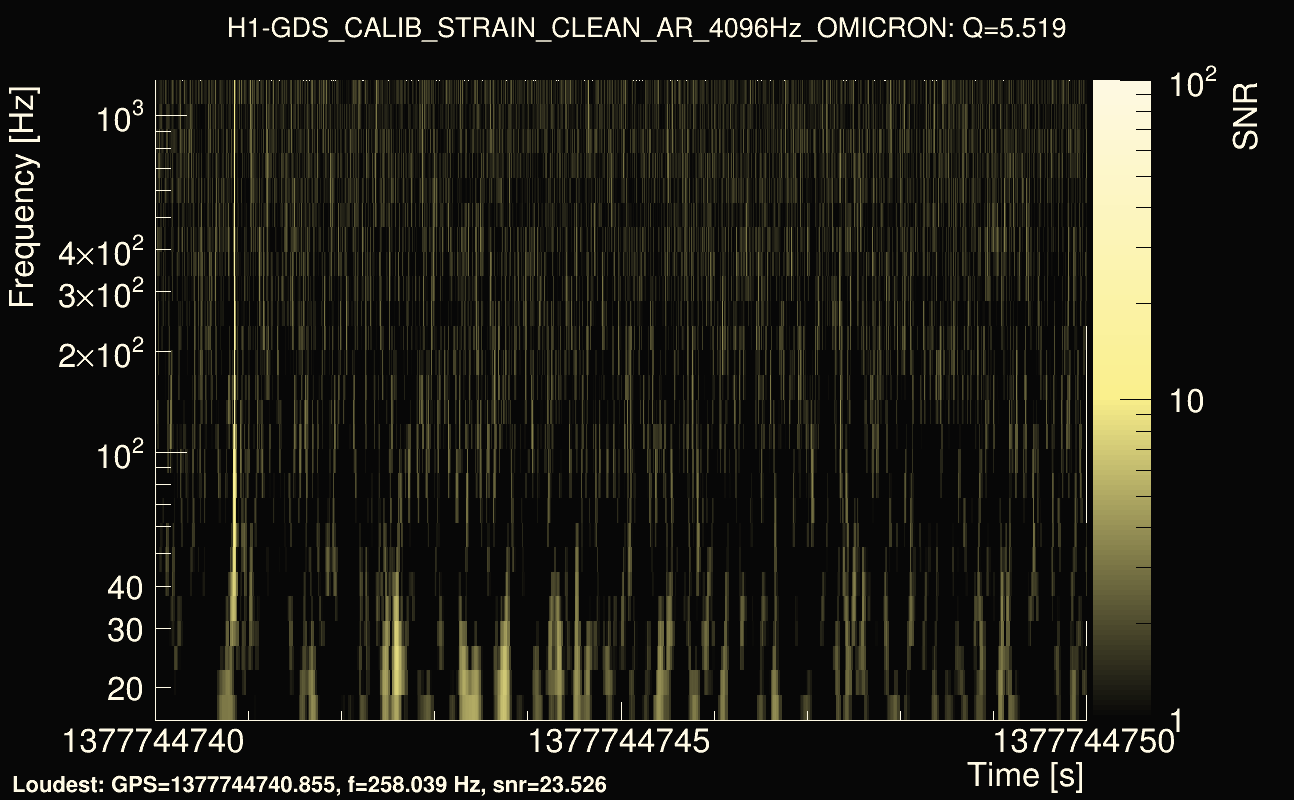

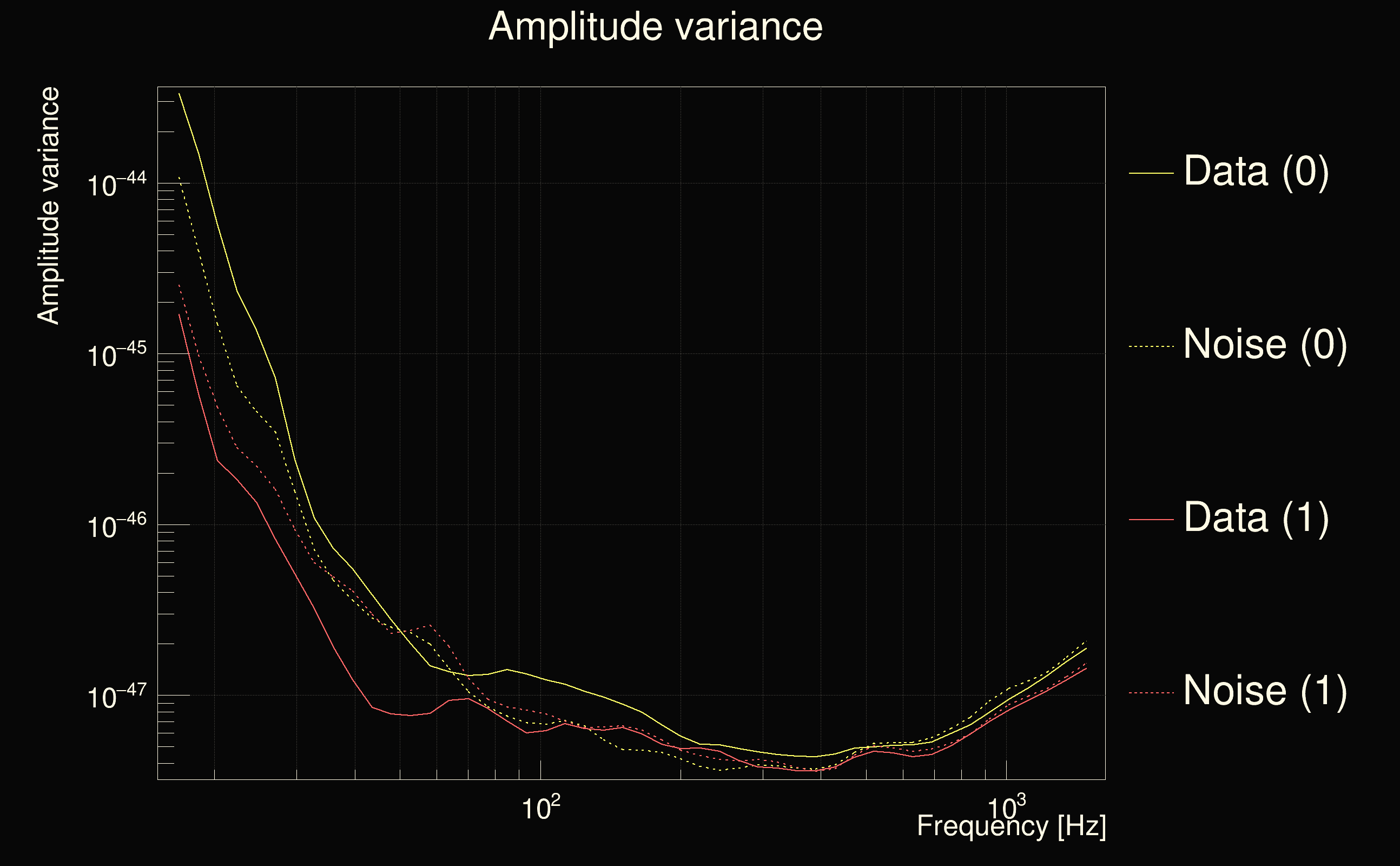

| Event time t(H1): | GPS = 1377744740 (Sun Sep 3 02:52:02 2023 ) → GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) |
| Event time t(L1): | GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) → GPS = 1377744760 (Sun Sep 3 02:52:22 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744737 → GPS = 1377744753 |
| Omicron analysis time window (L1): | GPS = 1377744747 → GPS = 1377744763 |

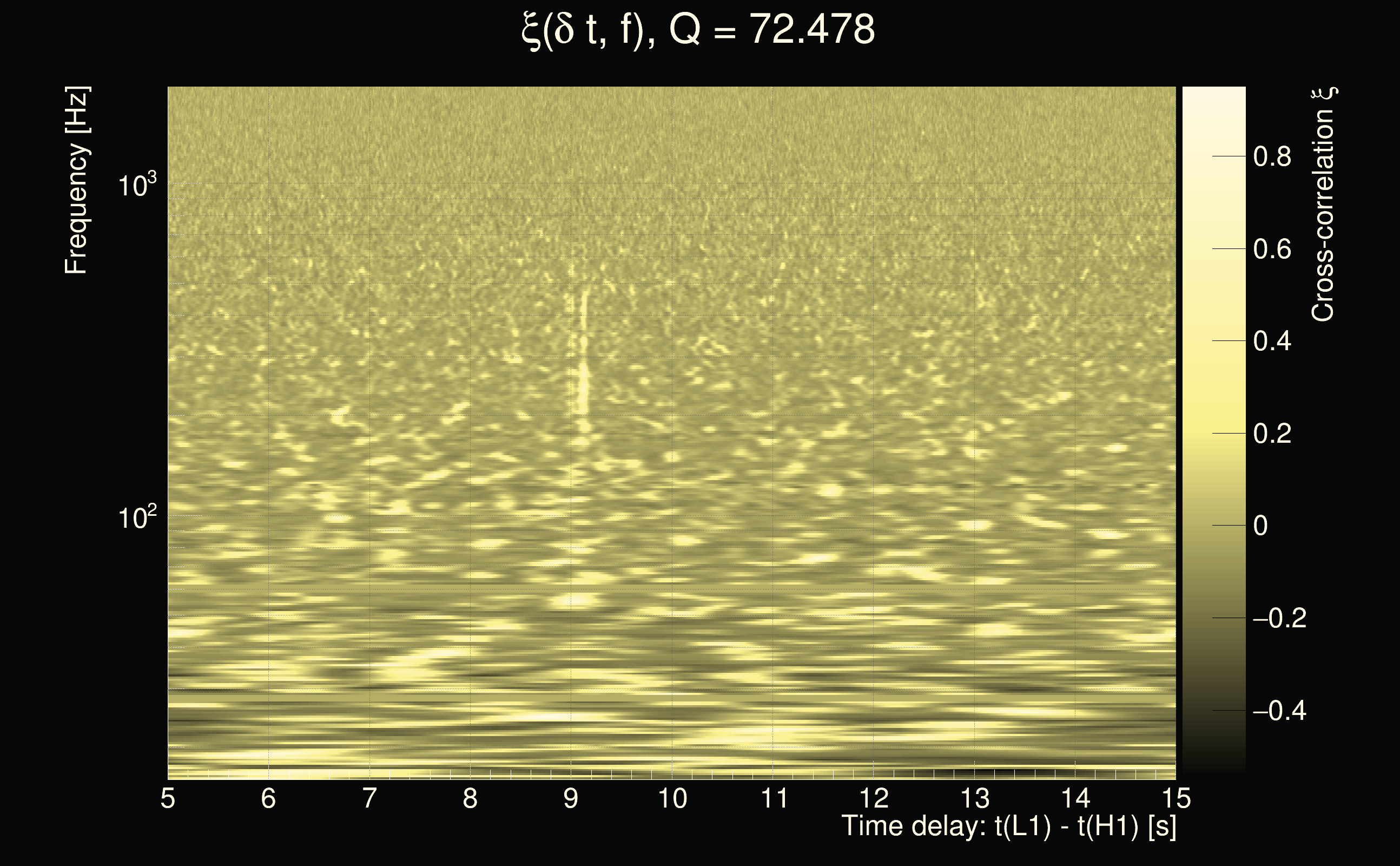

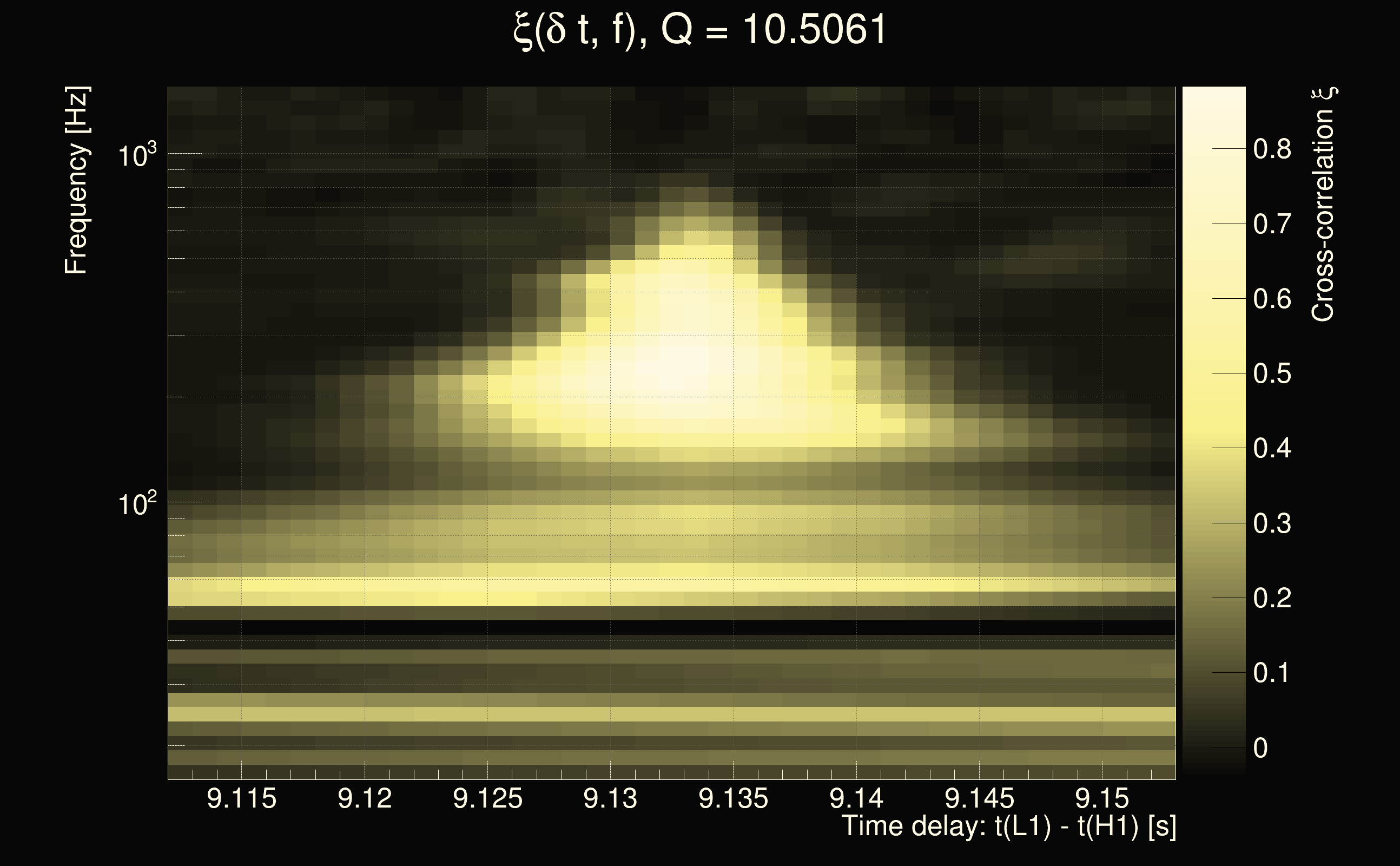

| Time delay between detectors t(L1) - t(H1): | 9.13286 s (slice index = 127 / 217), δt_gw = 0.00685919 s |
| Time delay uncertainty: | 0.000133934s |
| Frequency: | 271.773 Hz |
| Ξ: | 0.332096 |
| Rank: | R_A = 0.332096 |
| Amplitude ratio: | 1.21212 (H1: 0.334587±0.309208, L1: 3.42263±15.5799) |
| Antenna factor ratio (min/max): | 0.544897 / 1.83871 |
| Number of rejected frequency rows: | Q0: 12 / 26, Q1: 24 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 24.1795, L1: 15.2346 |

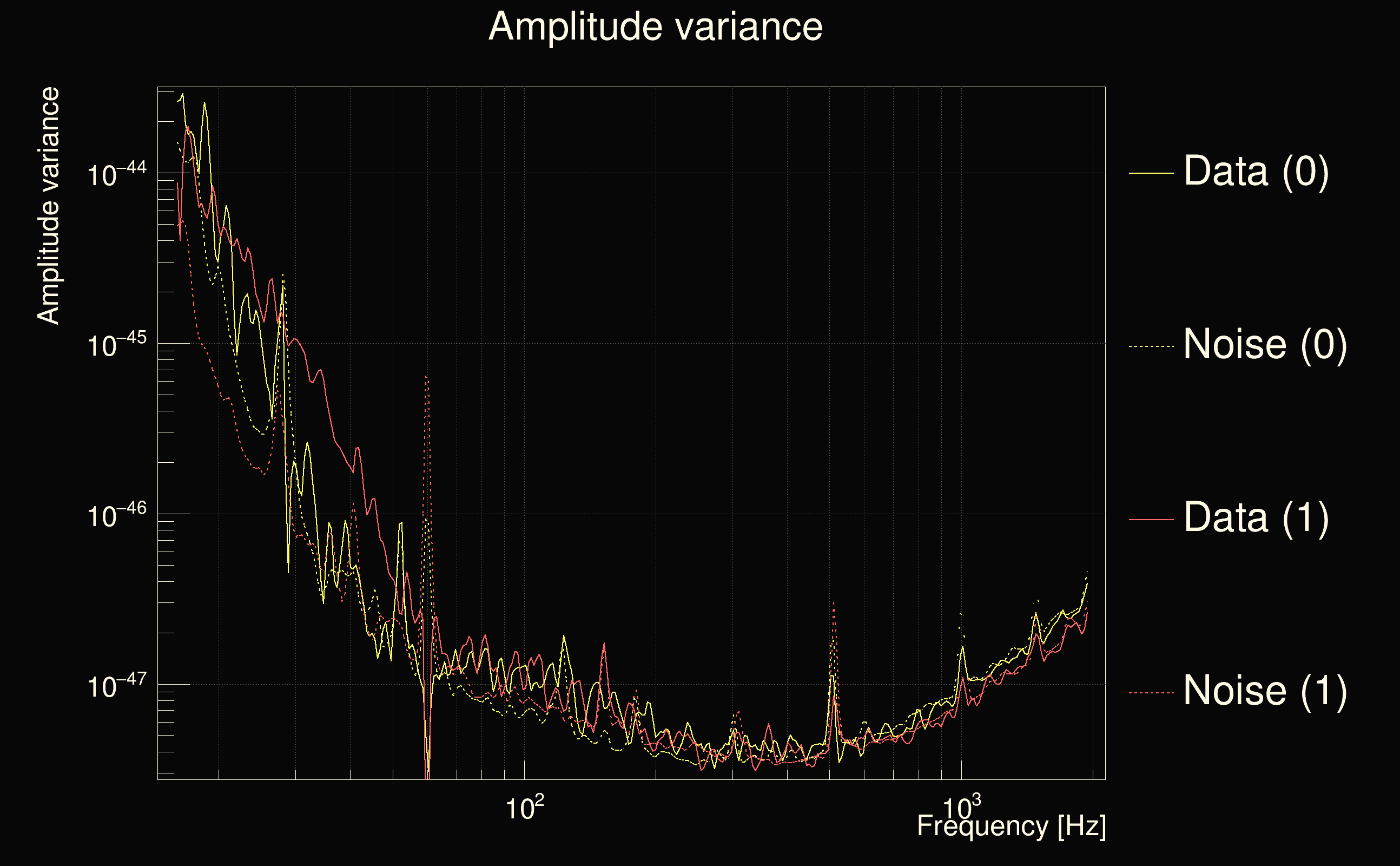

| SNR variance: | H1: 0.789746, L1: 0.525429 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

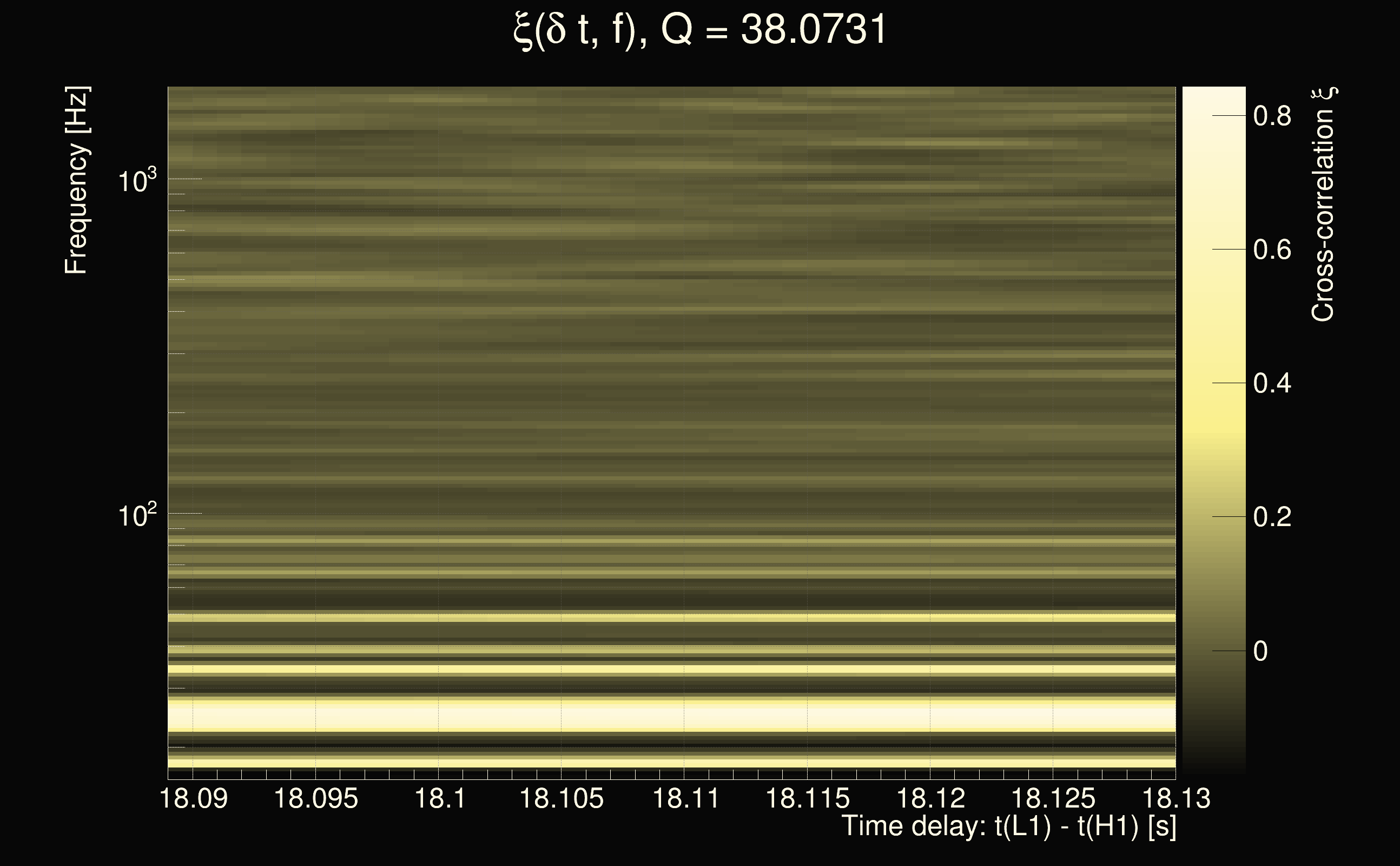

| Event time t(H1): | GPS = 1377744740 (Sun Sep 3 02:52:02 2023 ) → GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) |
| Event time t(L1): | GPS = 1377744760 (Sun Sep 3 02:52:12 2023 ) → GPS = 1377744770 (Sun Sep 3 02:52:32 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744737 → GPS = 1377744753 |
| Omicron analysis time window (L1): | GPS = 1377744757 → GPS = 1377744773 |
| Time delay between detectors t(L1) - t(H1): | 18.1234 s (slice index = 149 / 217), δt_gw = 0.00942053 s |
| Time delay uncertainty: | 0.000182247s |
| Frequency: | 67.891 Hz |
| Ξ: | 0.223122 |
| Rank: | R_A = 0.223122 |
| Amplitude ratio: | 3.38799 (H1: 1.09438±1.57407, L1: 4.07854±2.91502) |
| Antenna factor ratio (min/max): | 0.0285408 / 22.4981 |
| Number of rejected frequency rows: | Q0: 13 / 26, Q1: 36 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 24.1795, L1: 44.0666 |
| SNR variance: | H1: 0.789746, L1: 2.15975 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

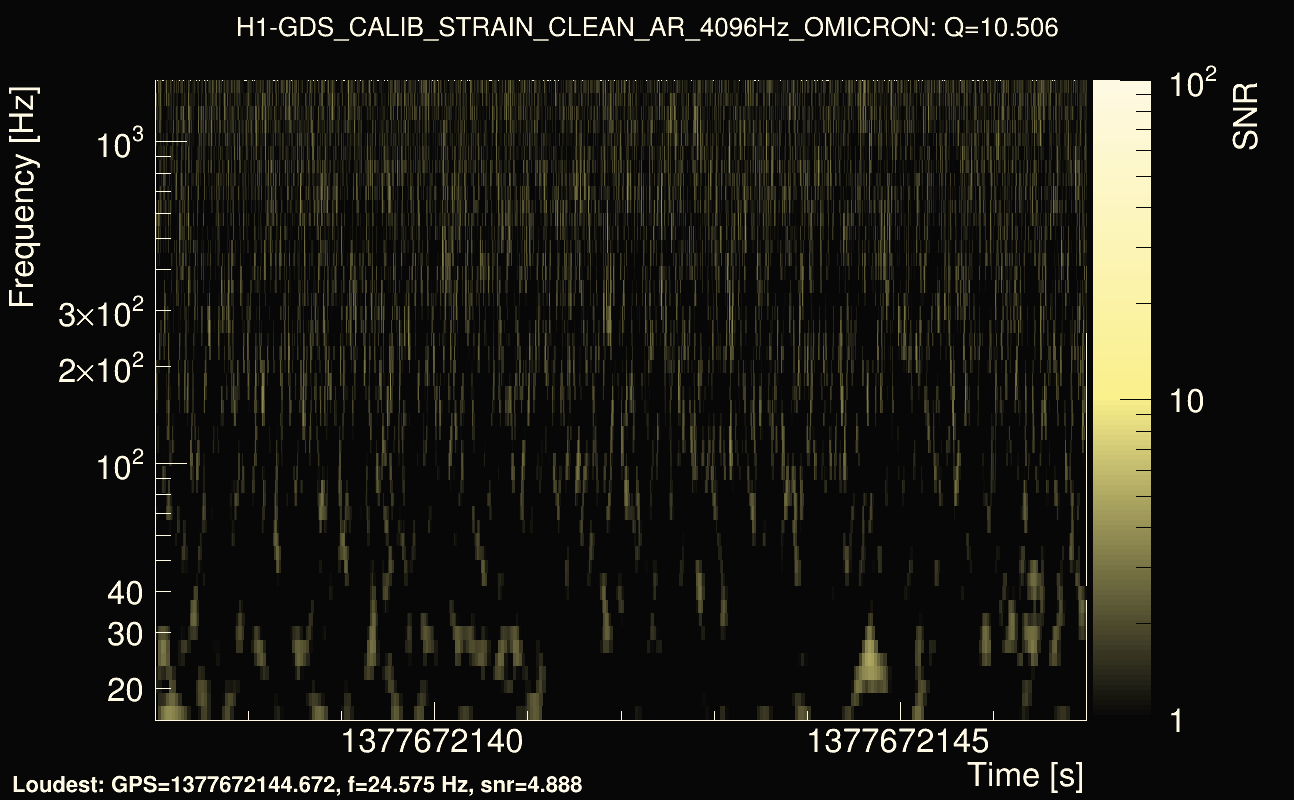

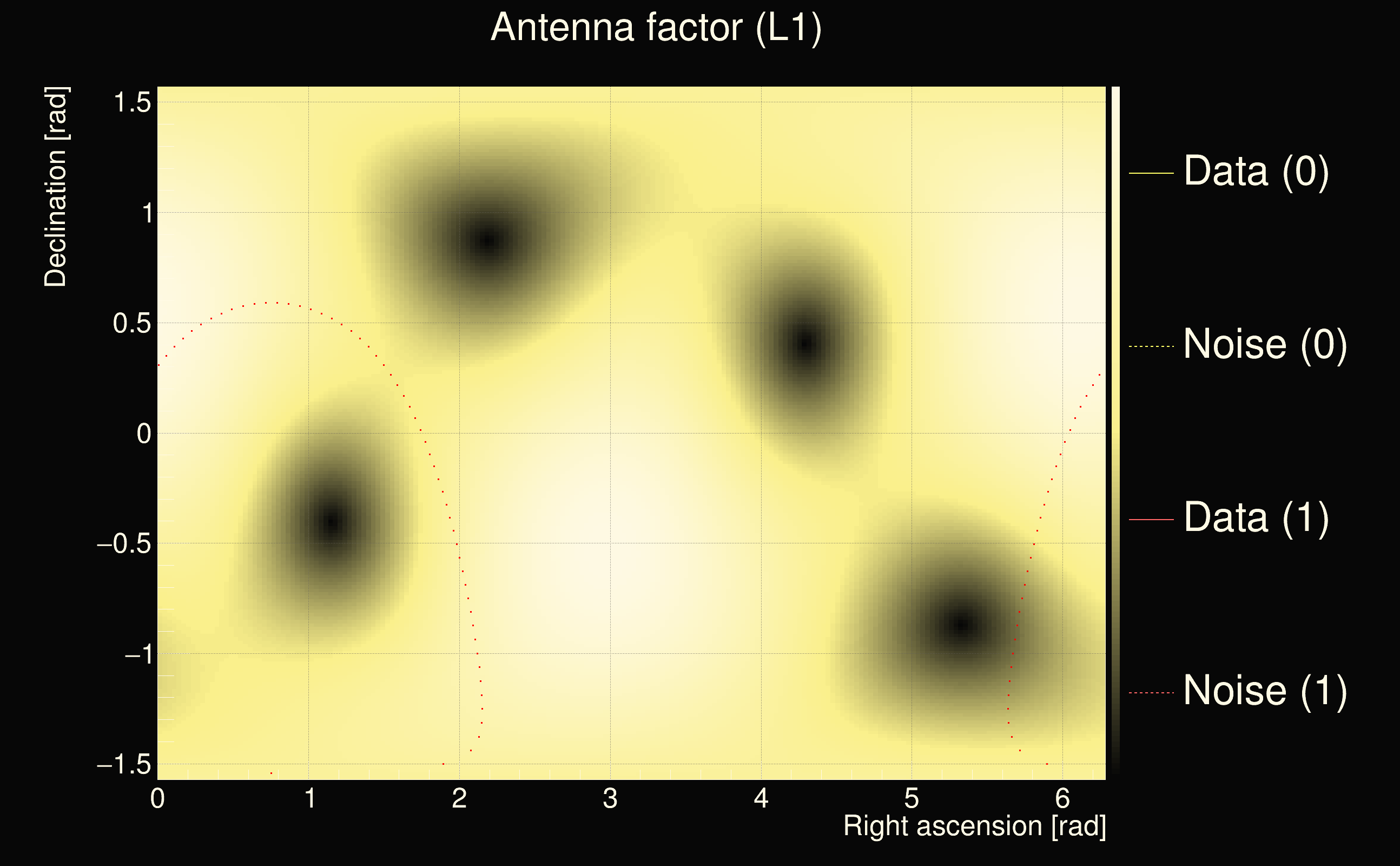

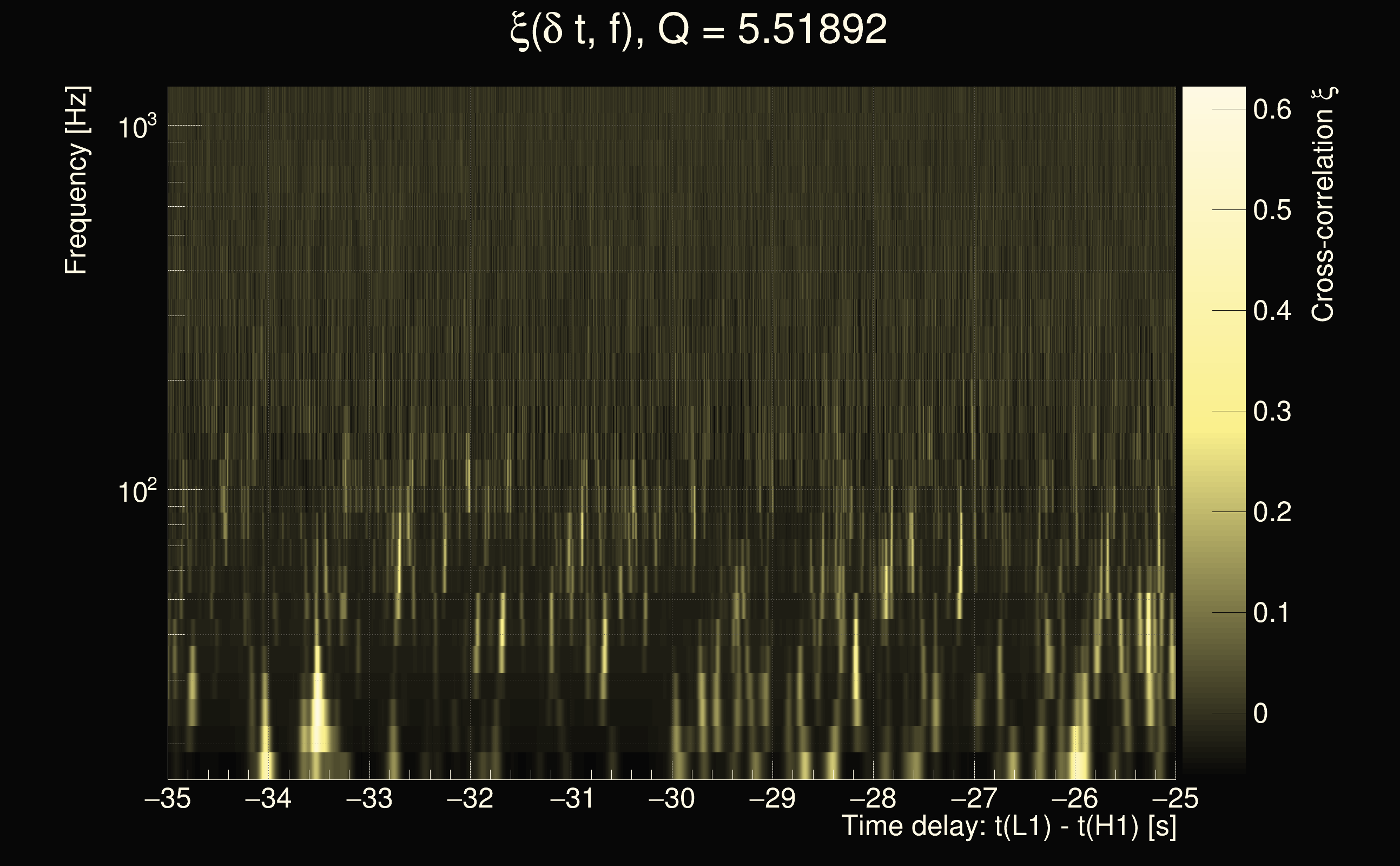

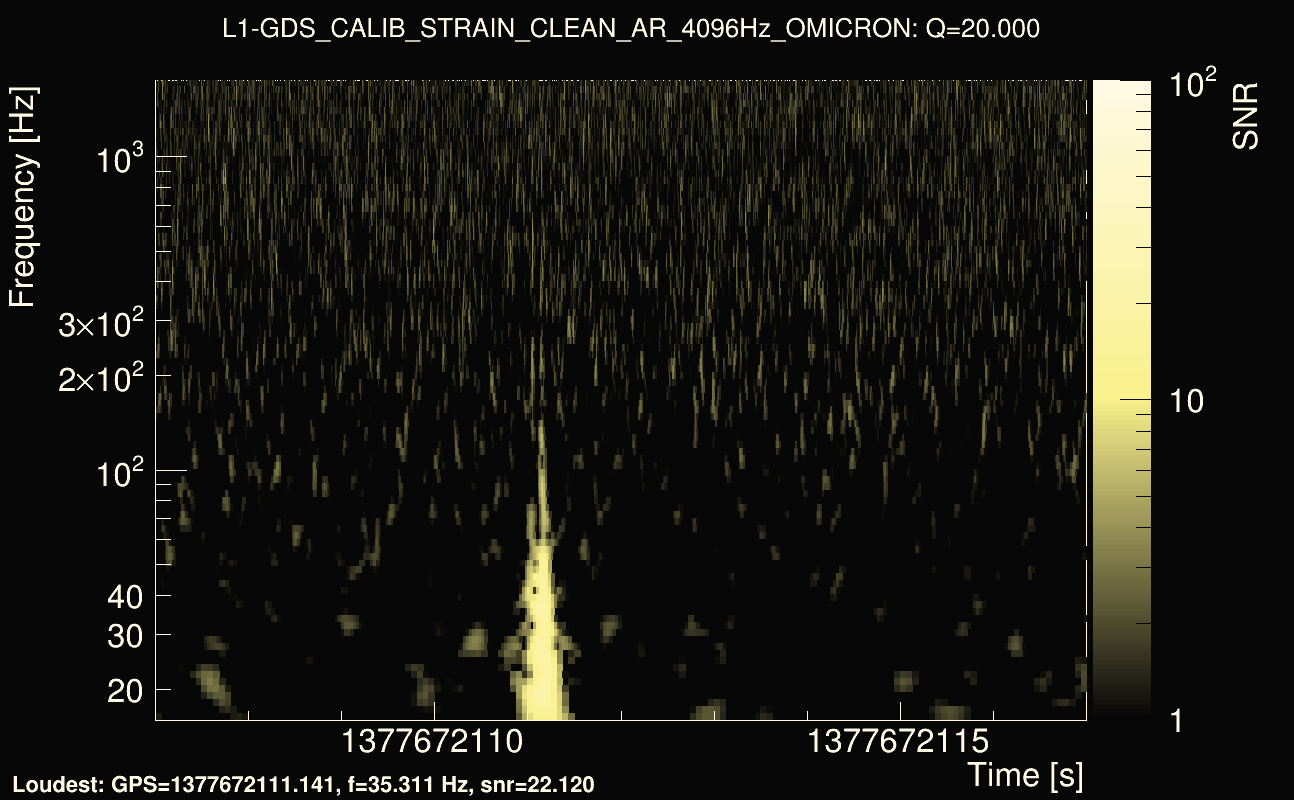

| Event time t(H1): | GPS = 1377672137 (Sat Sep 2 06:41:59 2023 ) → GPS = 1377672147 (Sat Sep 2 06:42:09 2023 ) |

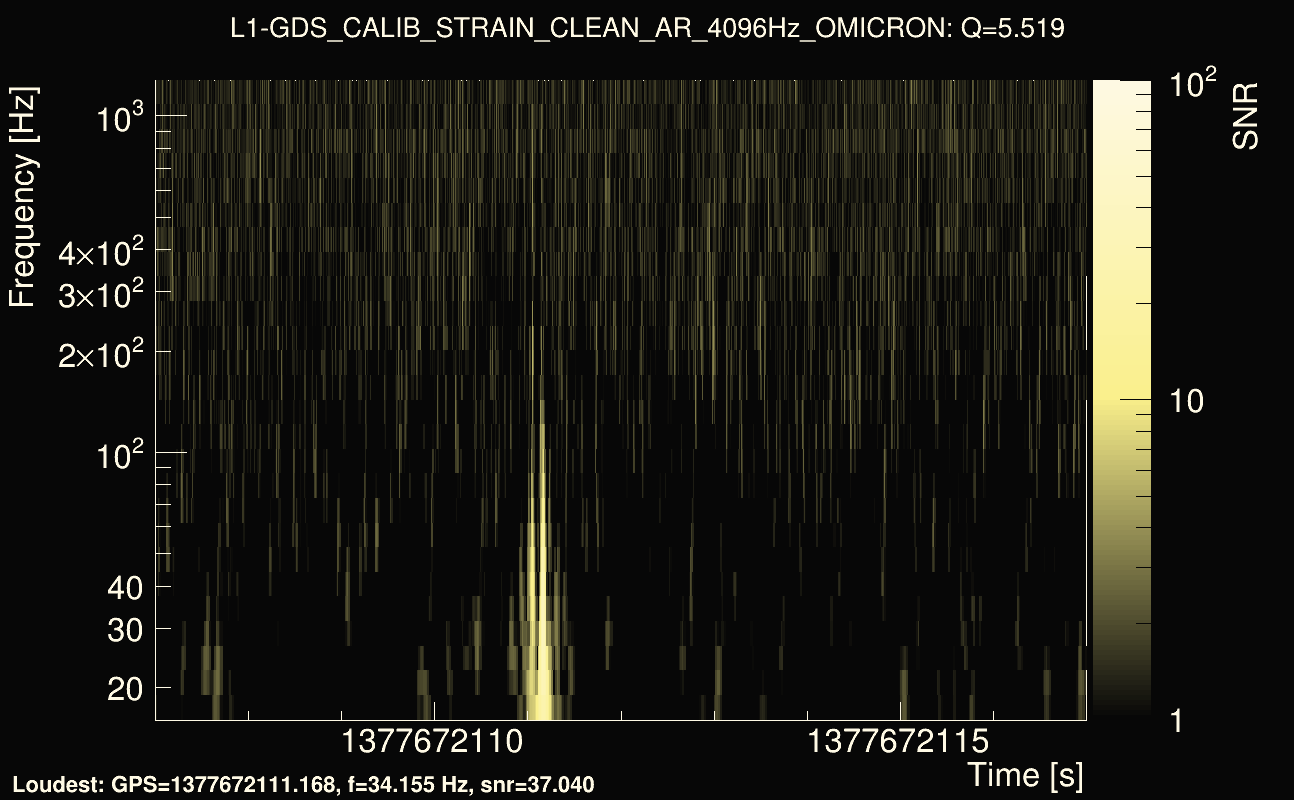

| Event time t(L1): | GPS = 1377672107 (Sat Sep 2 06:42:09 2023 ) → GPS = 1377672117 (Sat Sep 2 06:41:39 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377672134 → GPS = 1377672150 |
| Omicron analysis time window (L1): | GPS = 1377672104 → GPS = 1377672120 |

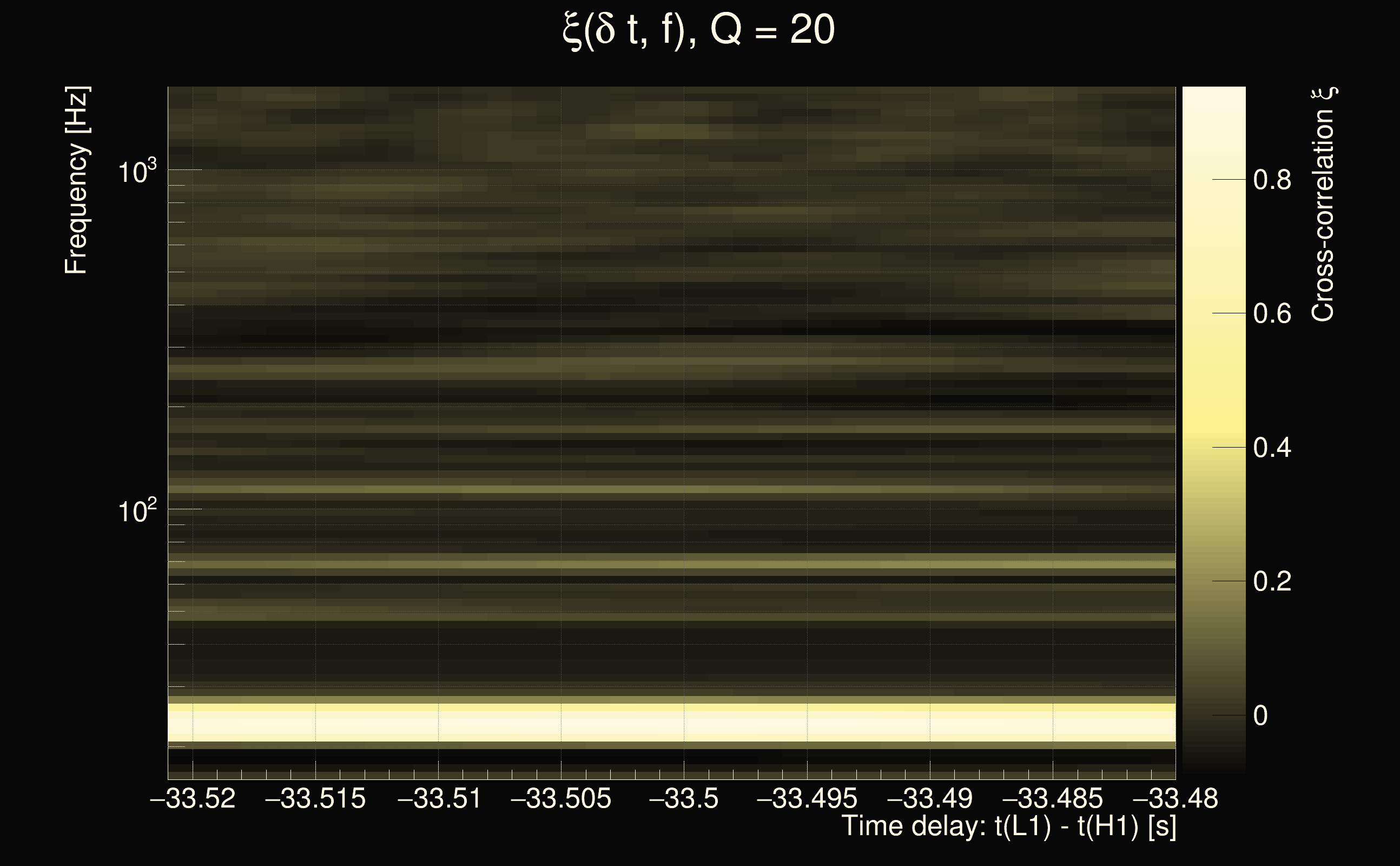

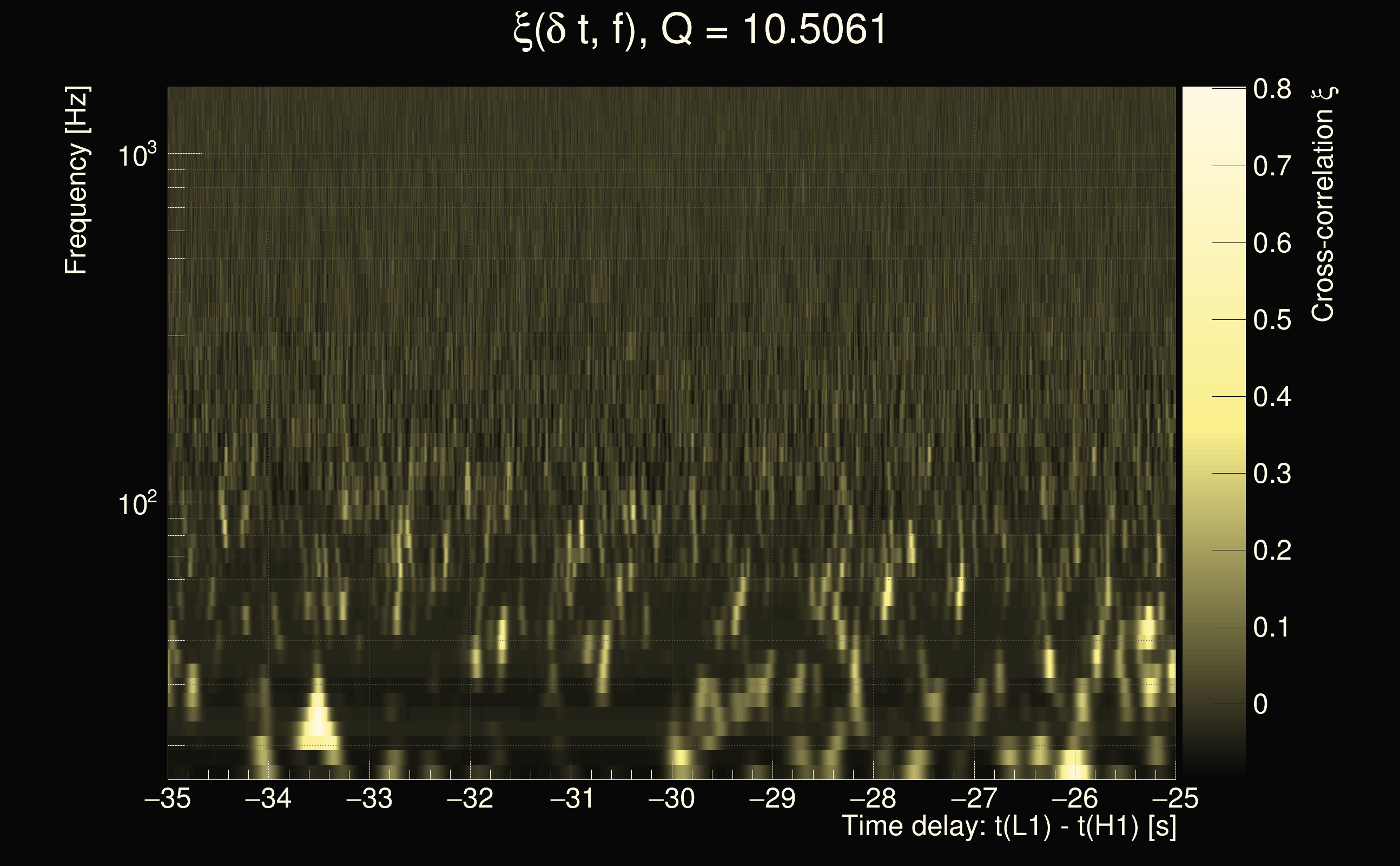

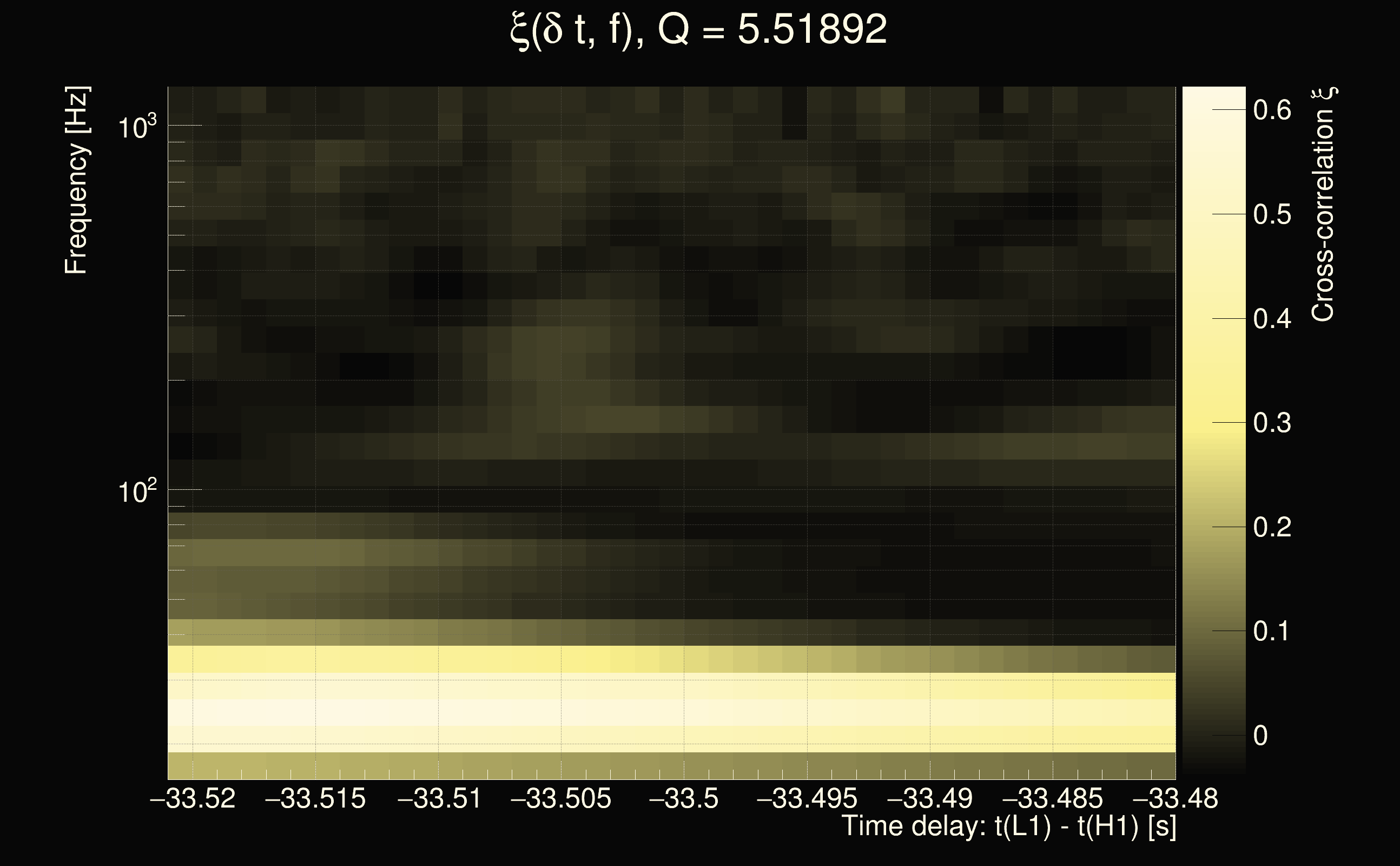

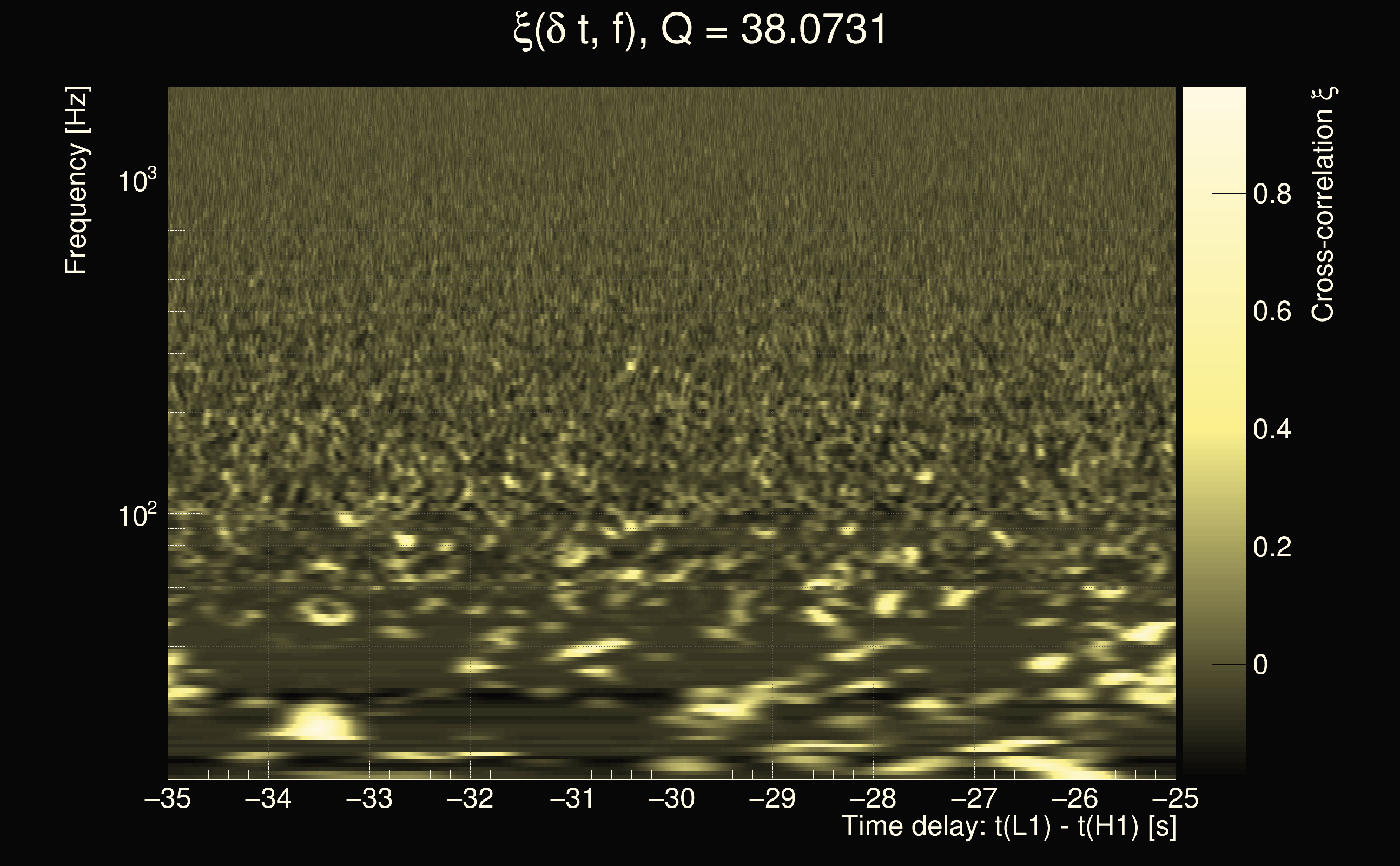

| Time delay between detectors t(L1) - t(H1): | -33.5008 s (slice index = 184 / 217), δt_gw = -0.00483925 s |
| Time delay uncertainty: | 0.000987471s |
| Frequency: | 66.752 Hz |
| Ξ: | 0.196557 |
| Rank: | R_A = 0.196557 |
| Amplitude ratio: | 3.83015 (H1: 2.88445±2.68121, L1: 3.84291±1.9801) |
| Antenna factor ratio (min/max): | 0.0333197 / 16.9696 |
| Number of rejected frequency rows: | Q0: 25 / 26, Q1: 43 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.49643, L1: 47.3153 |

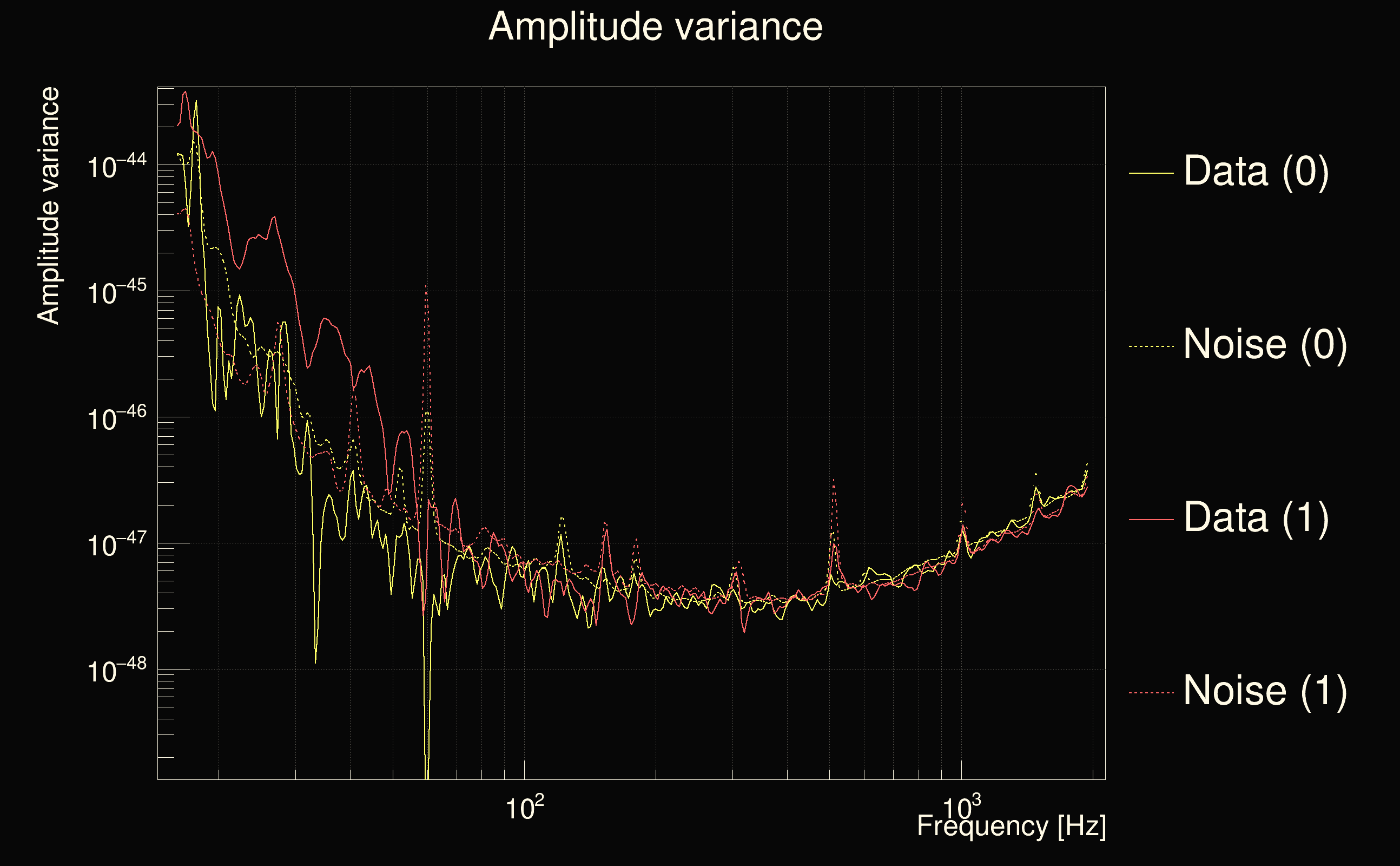

| SNR variance: | H1: 0.498741, L1: 2.60257 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

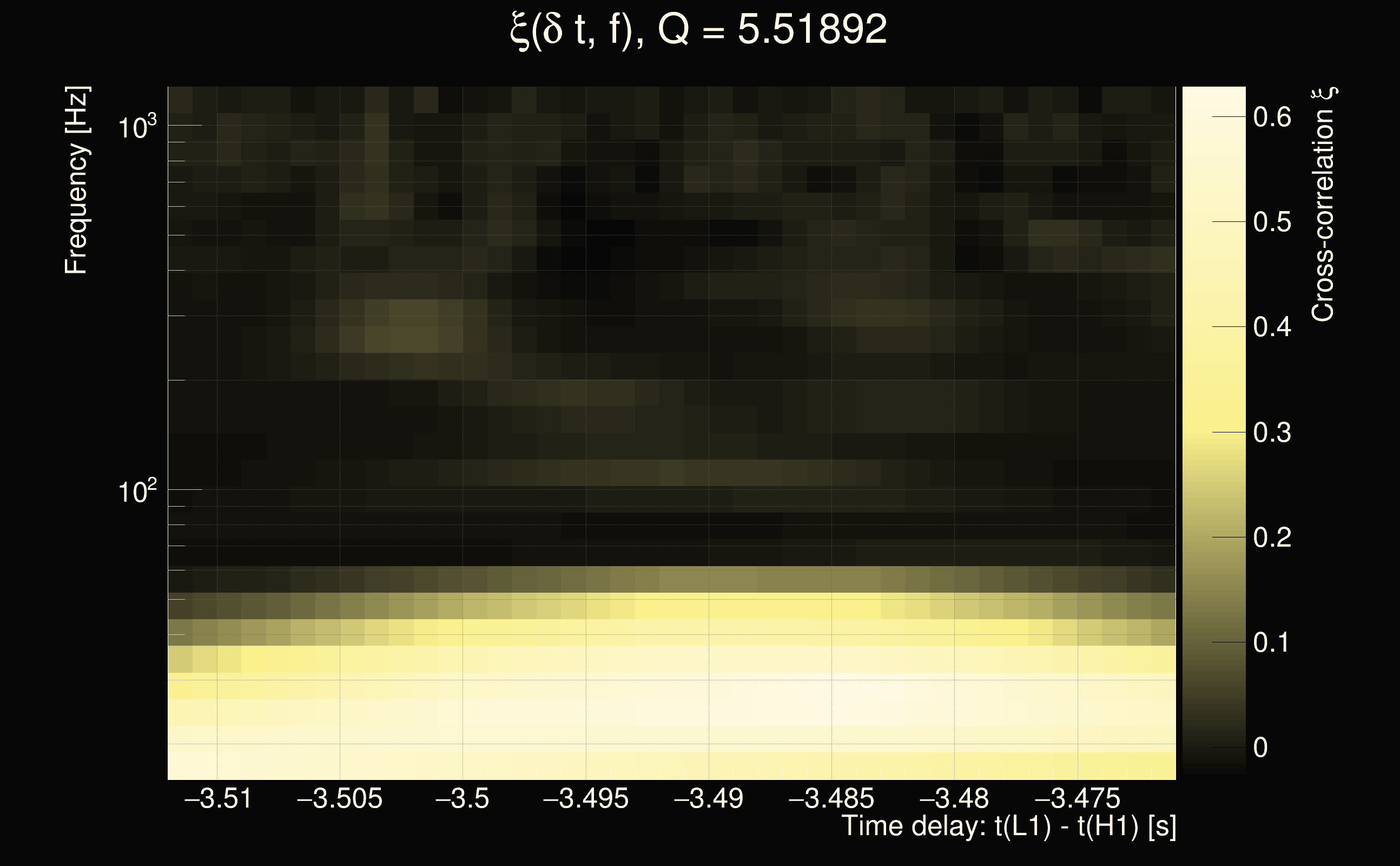

| Event time t(H1): | GPS = 1377716617 (Sat Sep 2 19:03:19 2023 ) → GPS = 1377716627 (Sat Sep 2 19:03:29 2023 ) |
| Event time t(L1): | GPS = 1377716617 (Sat Sep 2 19:03:29 2023 ) → GPS = 1377716627 (Sat Sep 2 19:03:29 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377716614 → GPS = 1377716630 |
| Omicron analysis time window (L1): | GPS = 1377716614 → GPS = 1377716630 |
| Time delay between detectors t(L1) - t(H1): | -3.49108 s (slice index = 184 / 217), δt_gw = 0.00492319 s |
| Time delay uncertainty: | 0.00416103s |
| Frequency: | 43.3738 Hz |
| Ξ: | 0.1841 |
| Rank: | R_A = 0.1841 |
| Amplitude ratio: | 11.8027 (H1: 4.27402±5.62247, L1: 11.8244±17.5948) |

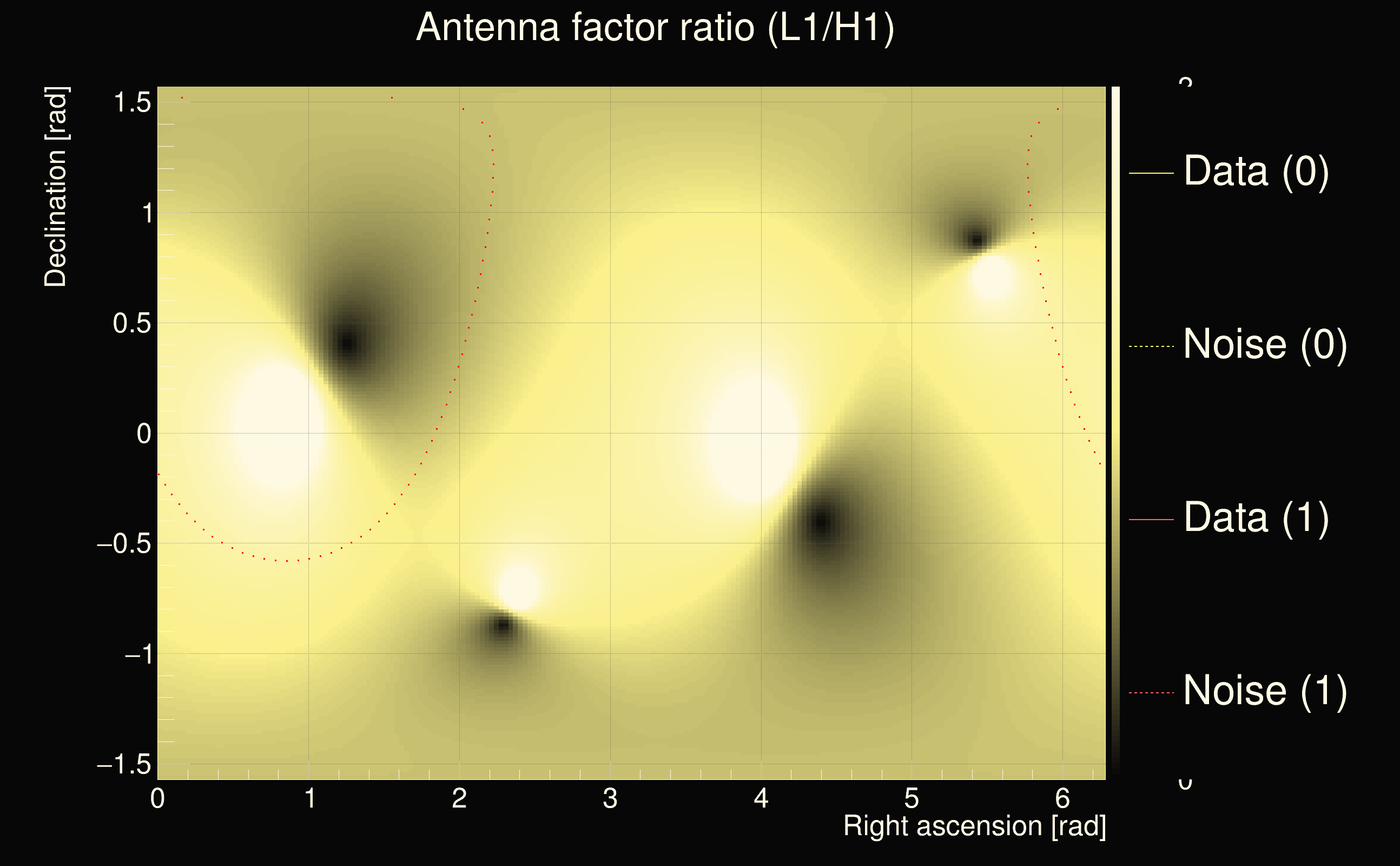

| Antenna factor ratio (min/max): | 0.0285408 / 22.4981 |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 46 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.25493, L1: 97.8743 |
| SNR variance: | H1: 0.462053, L1: 0.432056 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

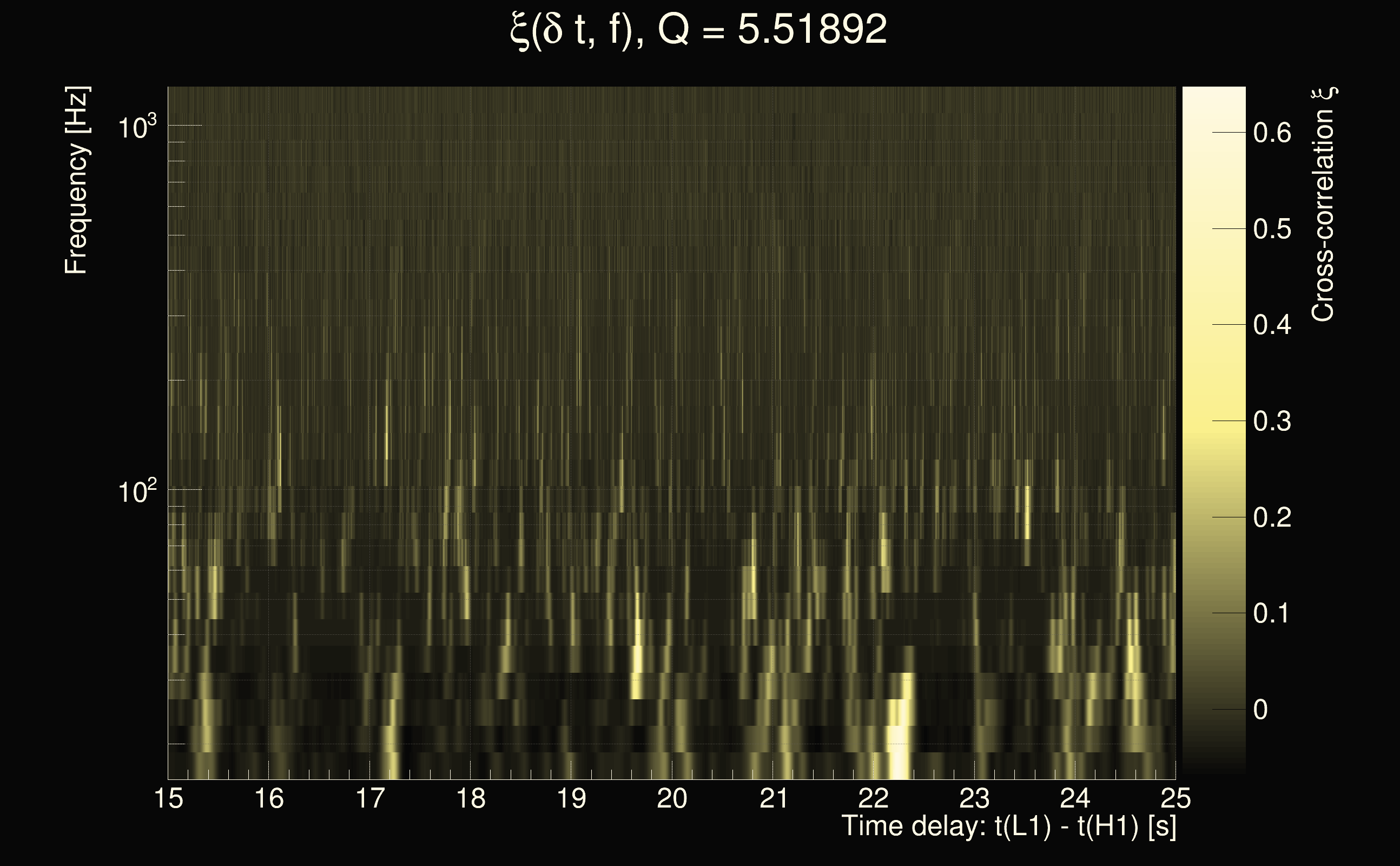

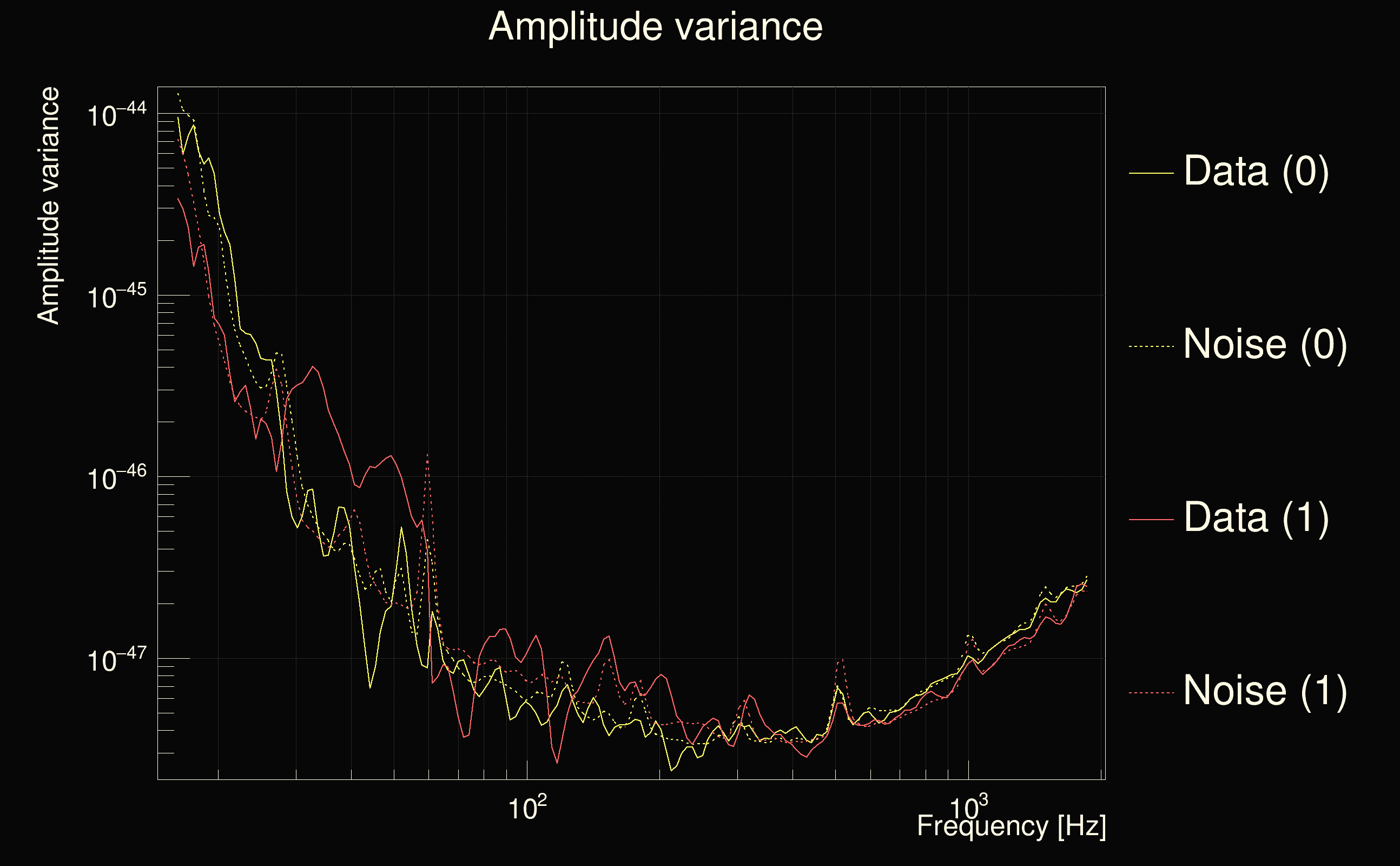

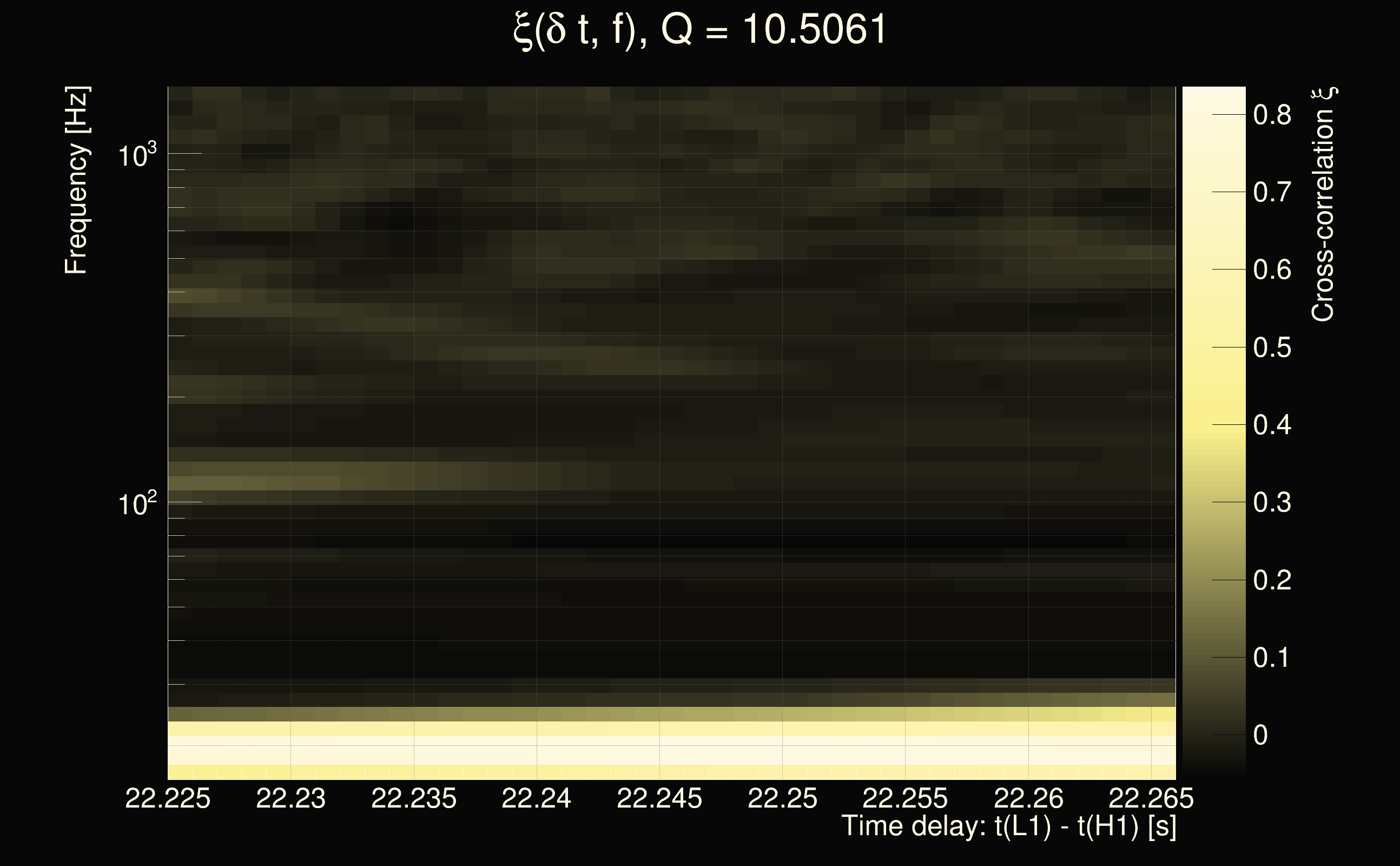

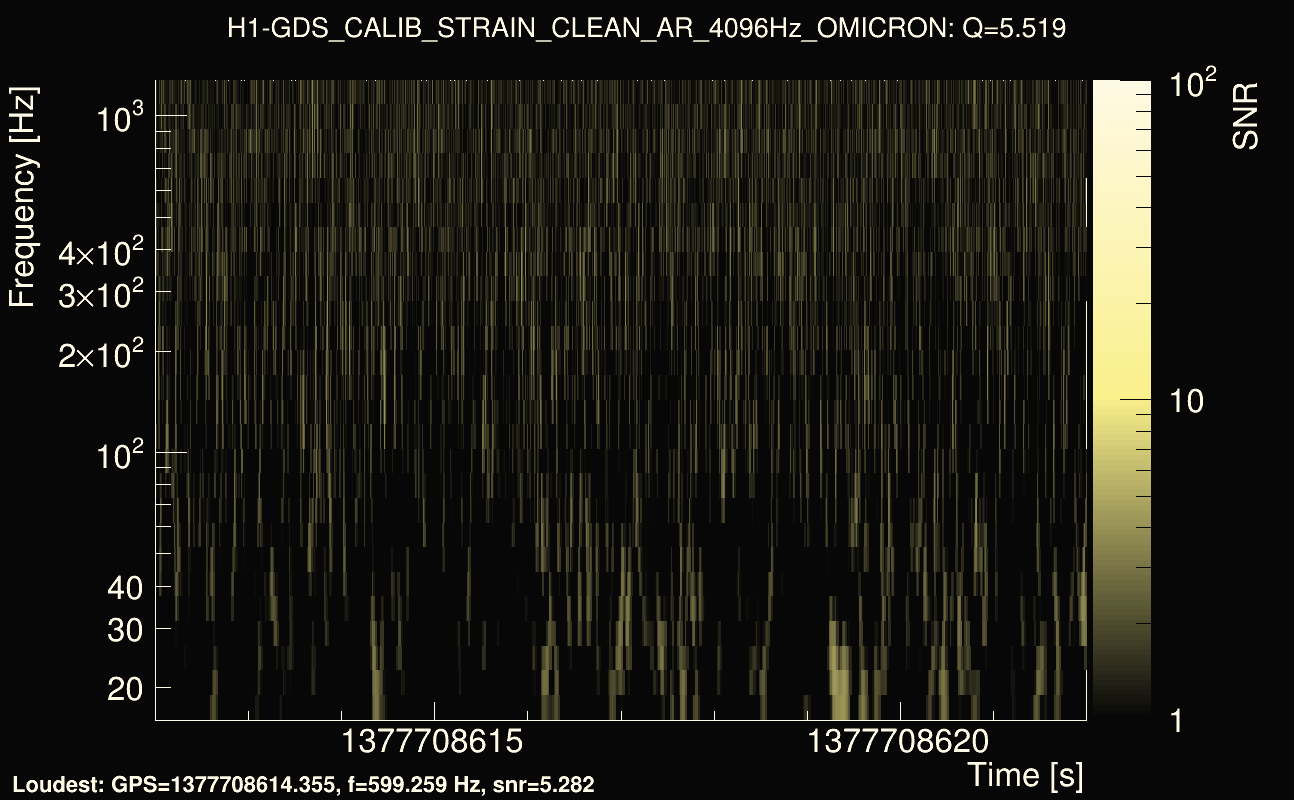

| Event time t(H1): | GPS = 1377708612 (Sat Sep 2 16:49:54 2023 ) → GPS = 1377708622 (Sat Sep 2 16:50:04 2023 ) |
| Event time t(L1): | GPS = 1377708632 (Sat Sep 2 16:50:04 2023 ) → GPS = 1377708642 (Sat Sep 2 16:50:24 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377708609 → GPS = 1377708625 |
| Omicron analysis time window (L1): | GPS = 1377708629 → GPS = 1377708645 |

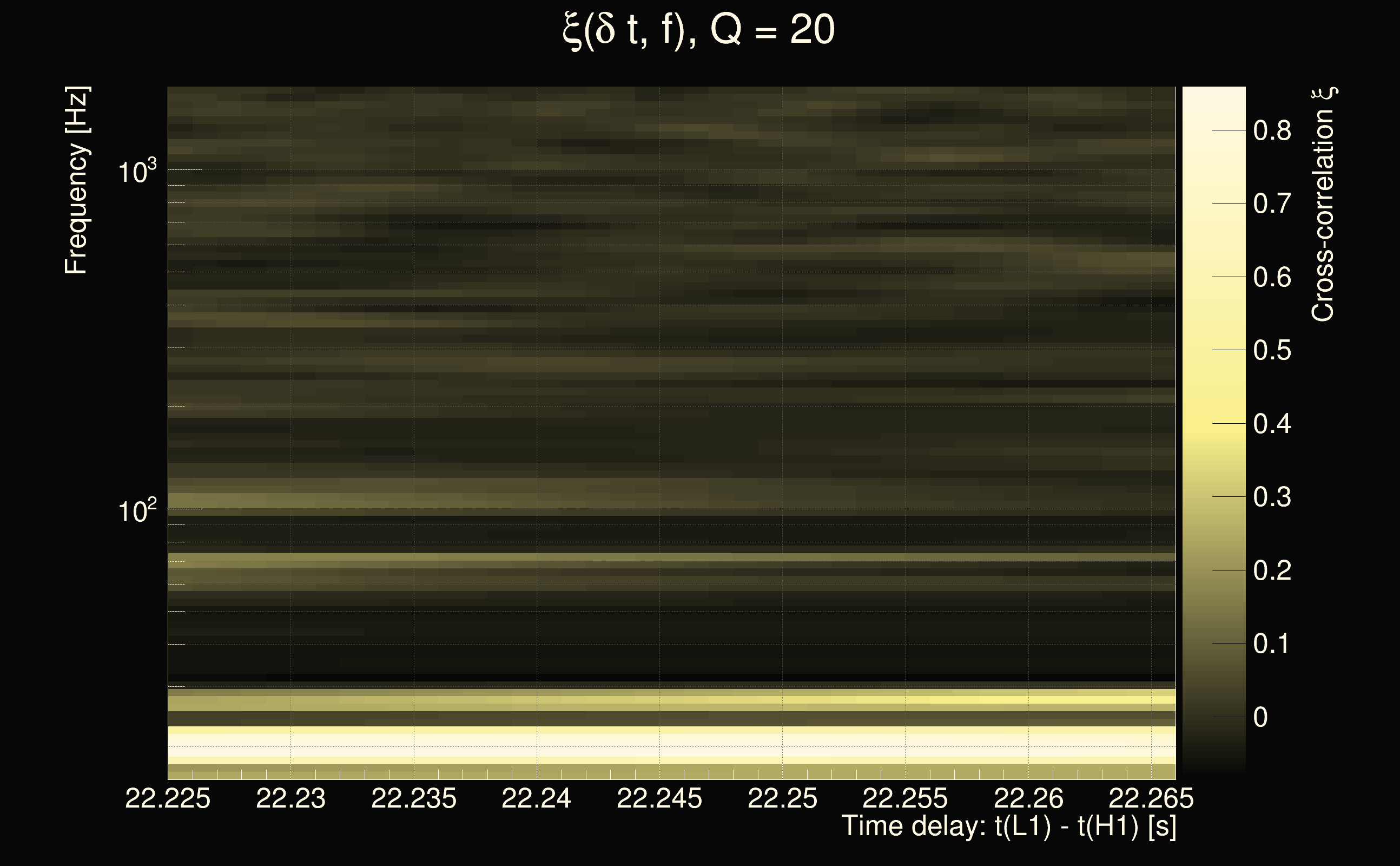

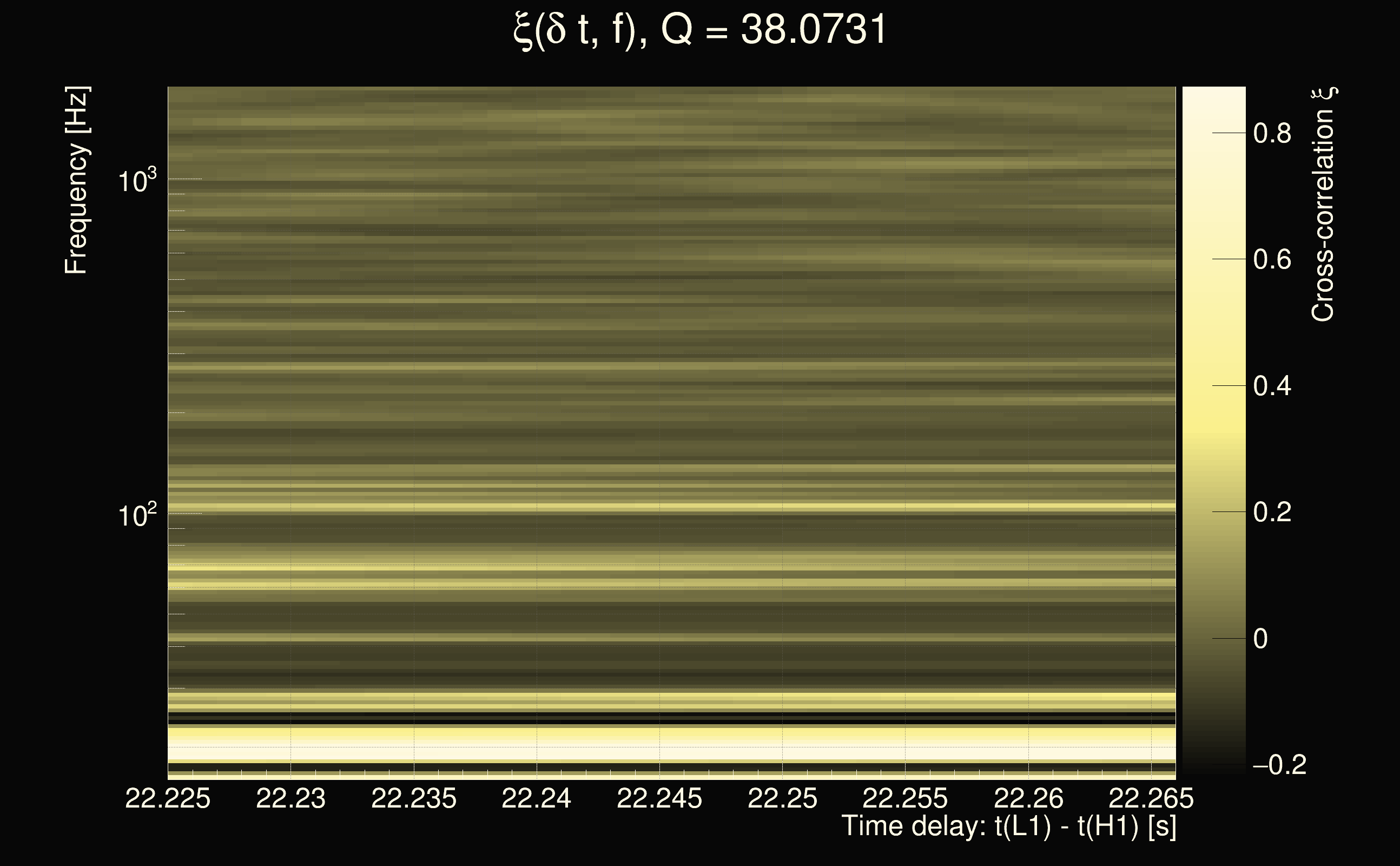

| Time delay between detectors t(L1) - t(H1): | 22.2456 s (slice index = 59 / 217), δt_gw = -0.00837692 s |
| Time delay uncertainty: | 0.00112131s |
| Frequency: | 73.5626 Hz |
| Ξ: | 0.17424 |
| Rank: | R_A = 0.17424 |
| Amplitude ratio: | 4.35353 (H1: 0.523602±3.62229, L1: 4.55431±12.721) |

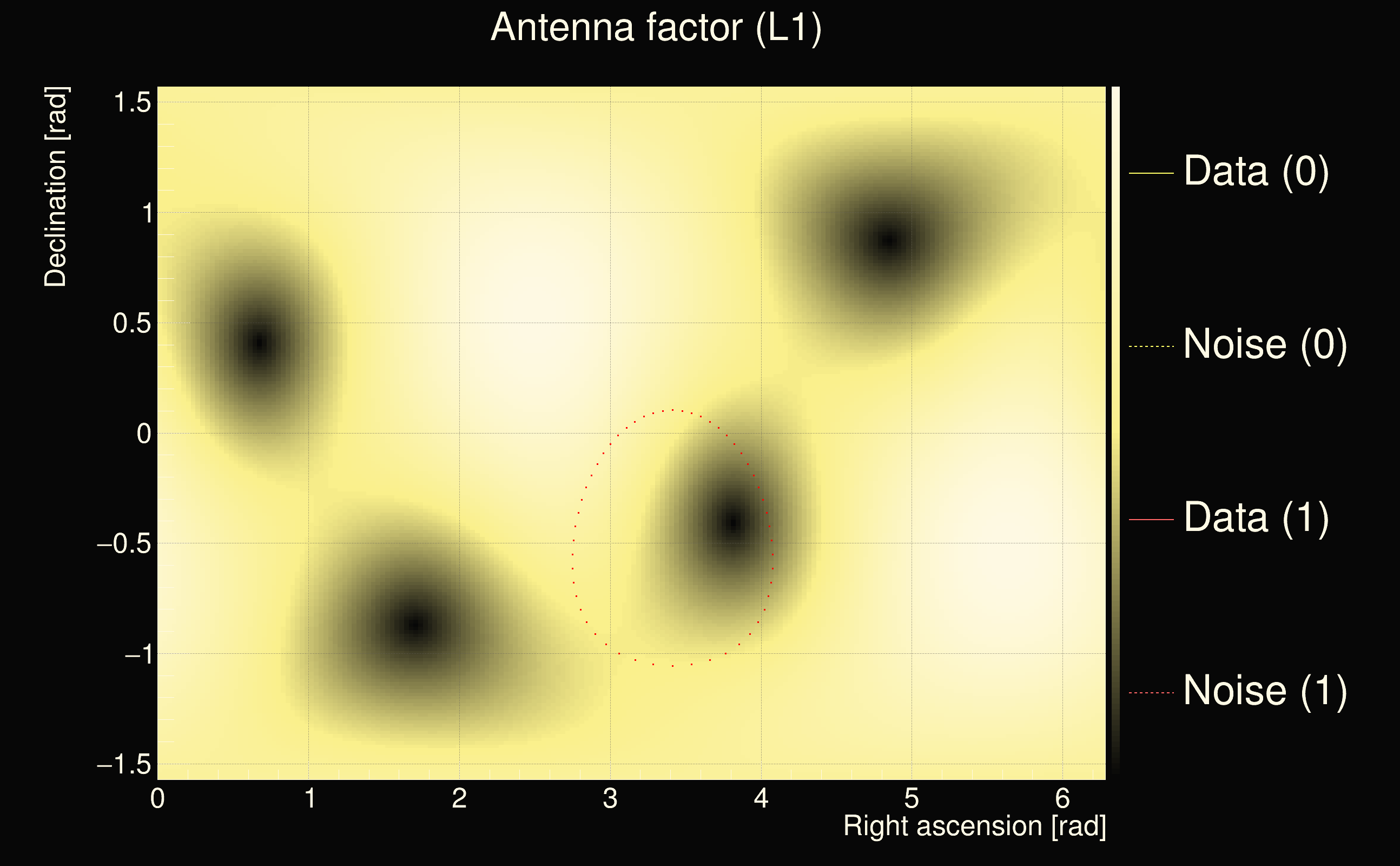

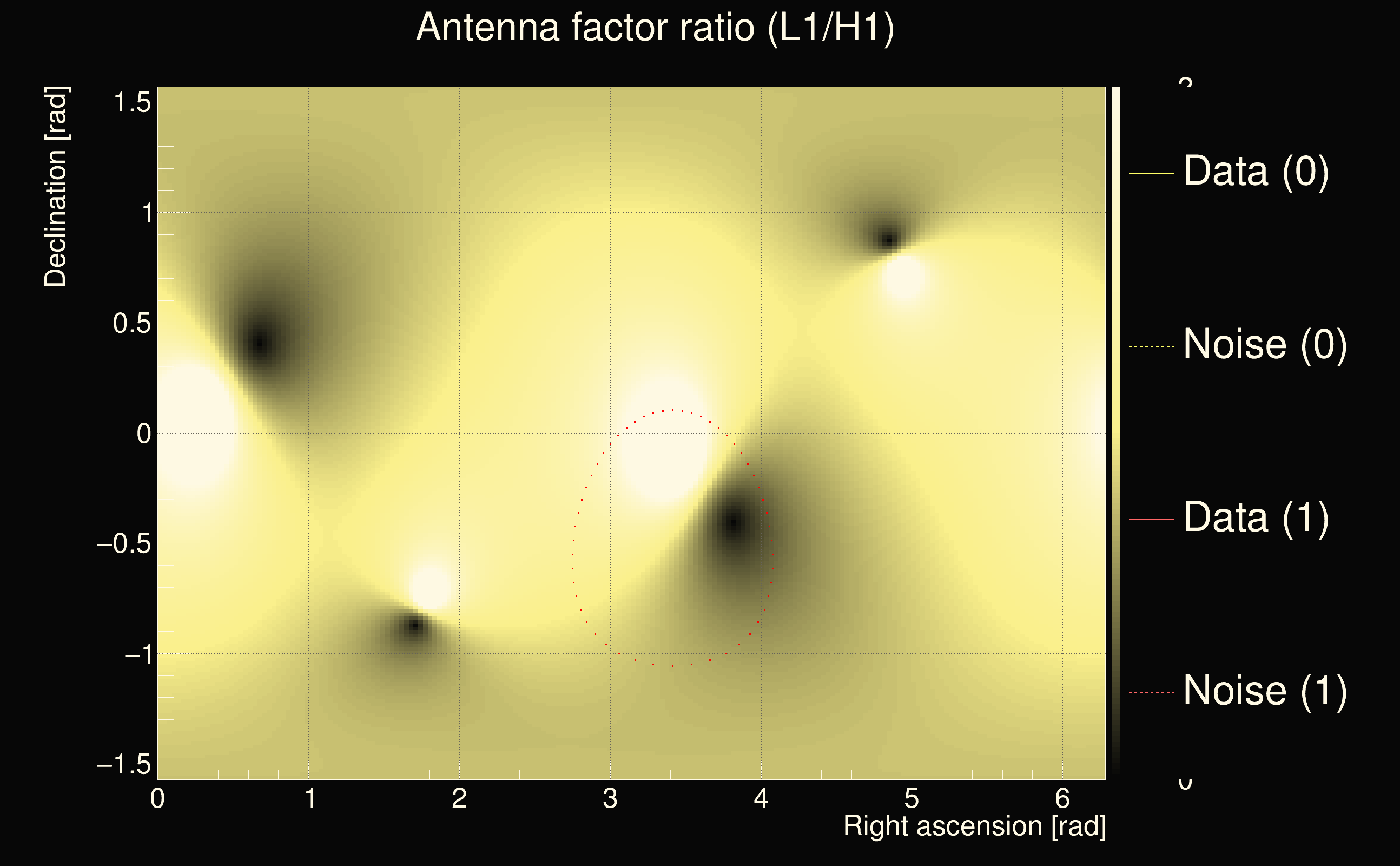

| Antenna factor ratio (min/max): | 0.0313727 / 36.5271 |
| Number of rejected frequency rows: | Q0: 24 / 26, Q1: 45 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.7164, L1: 24.9669 |

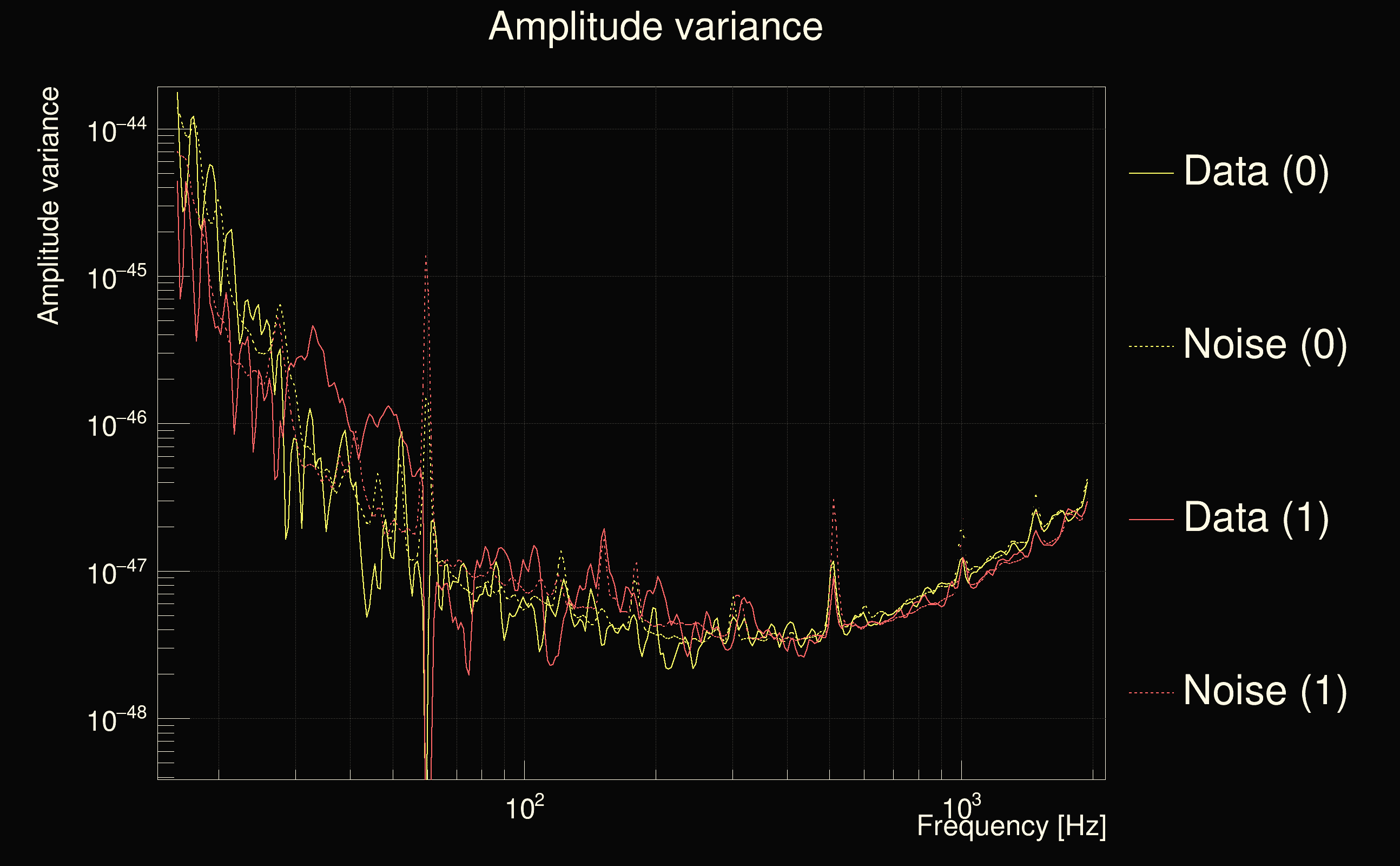

| SNR variance: | H1: 0.47616, L1: 0.380411 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

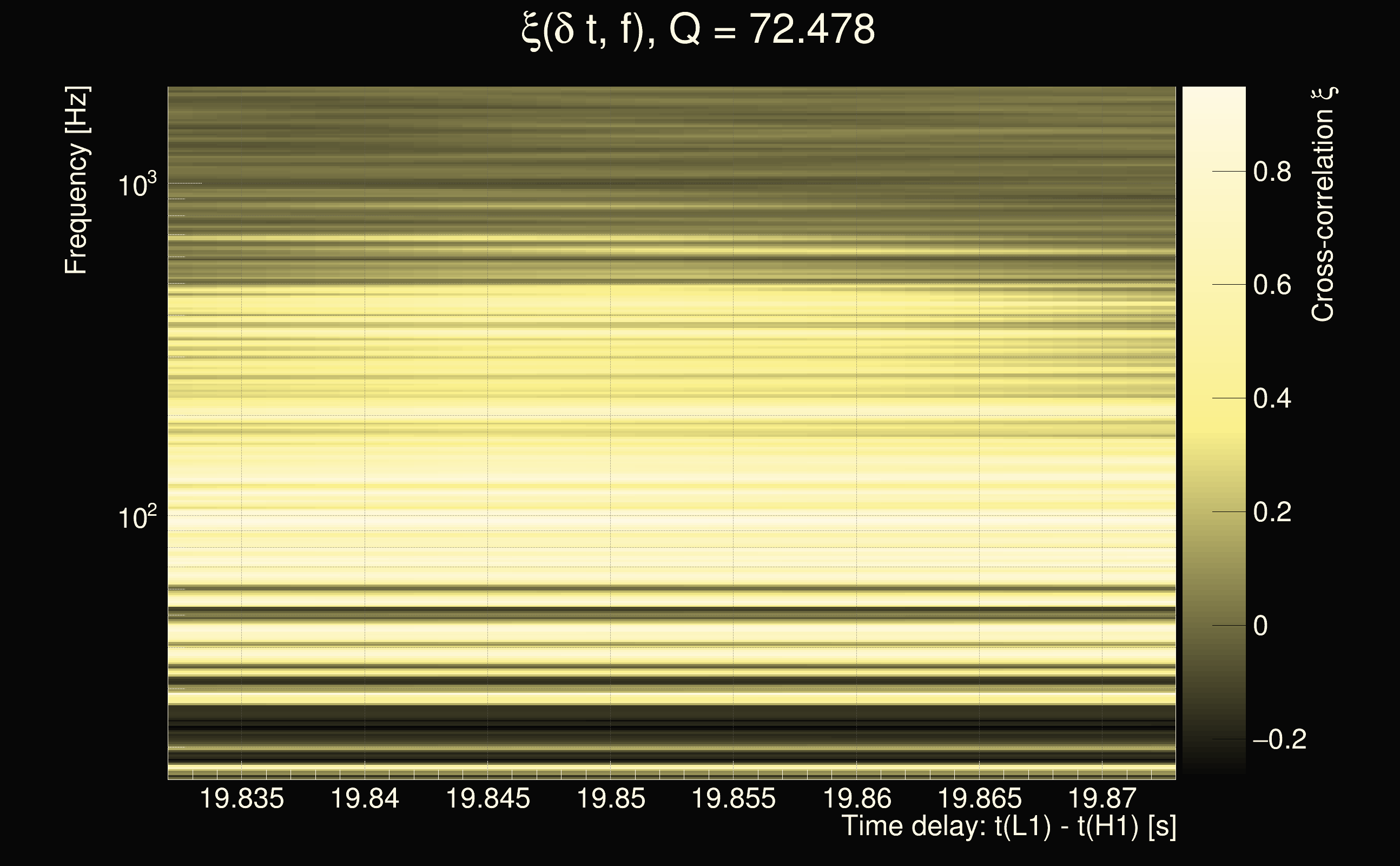

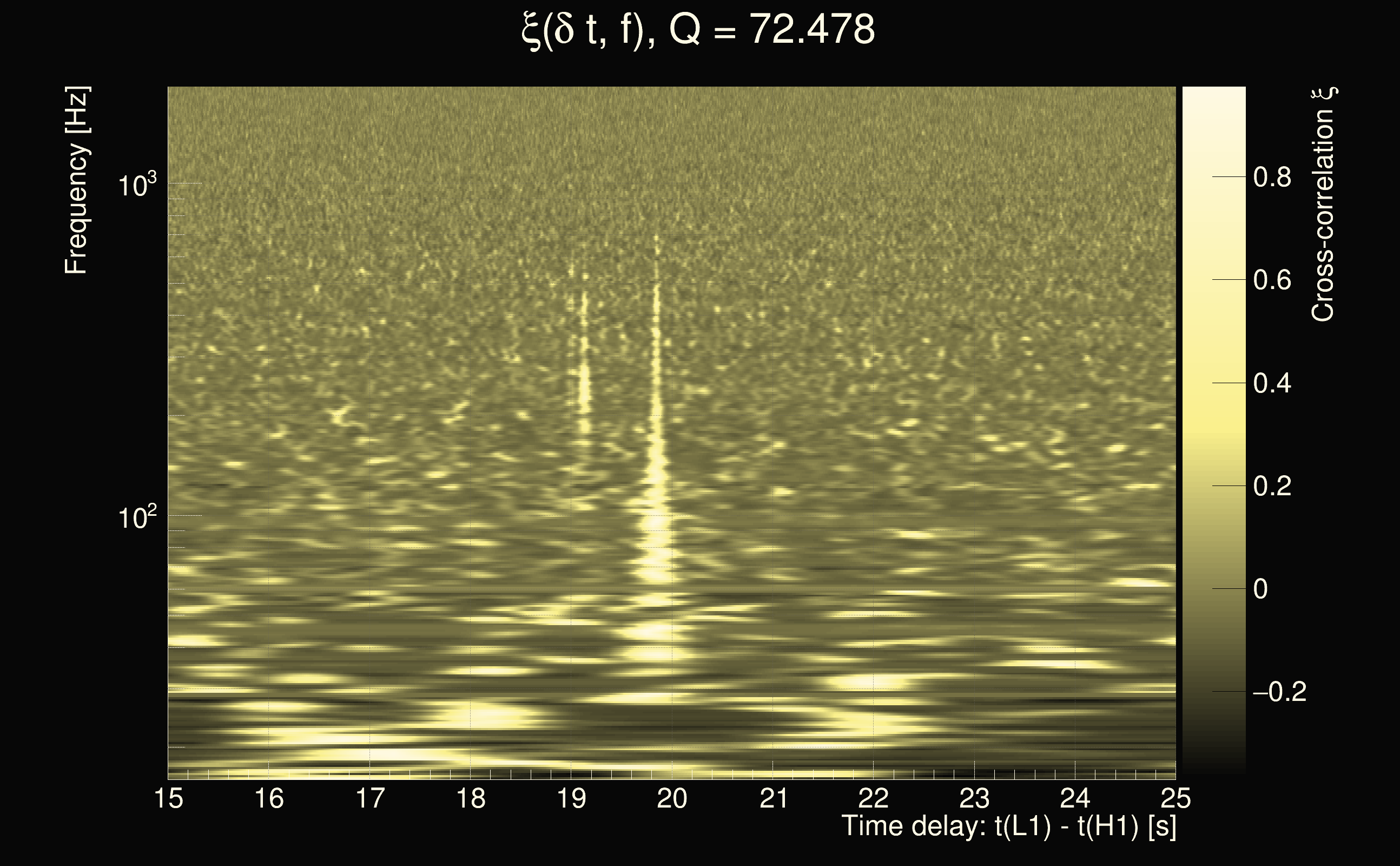

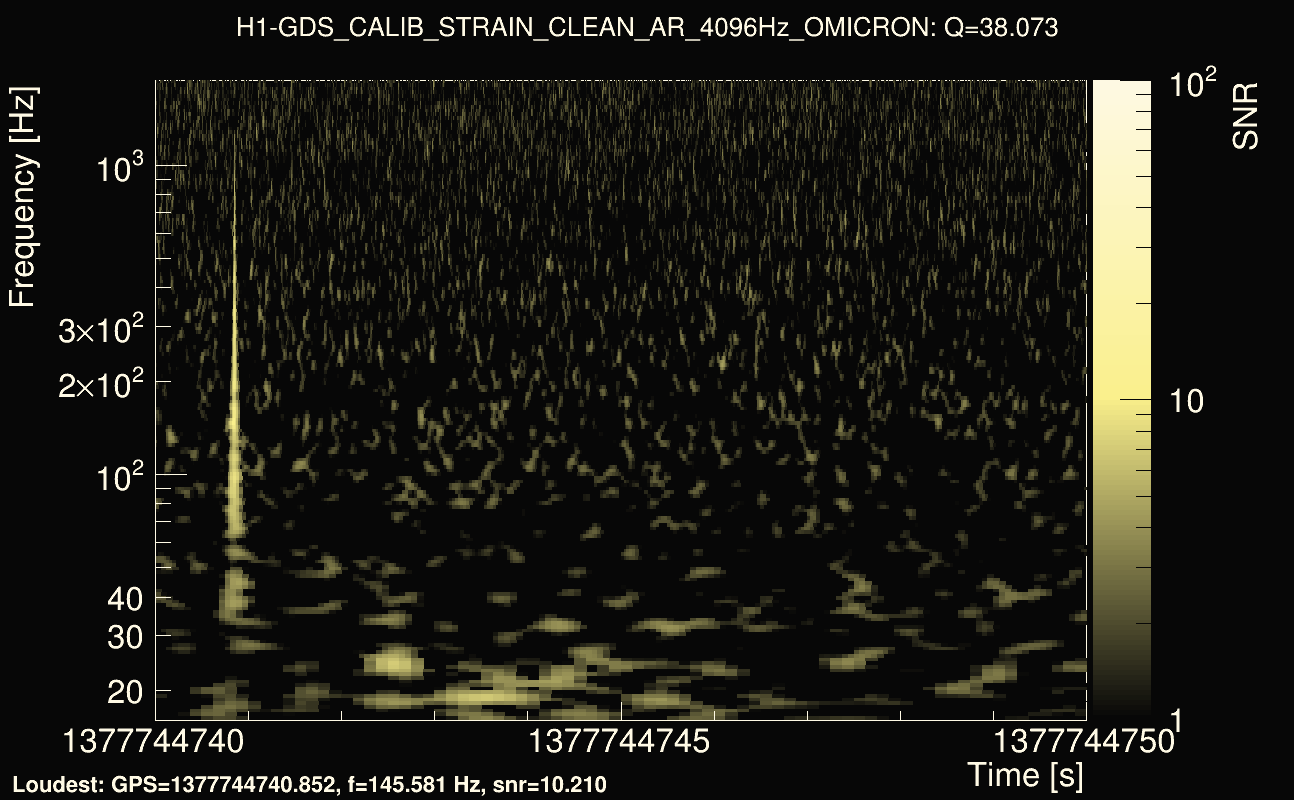

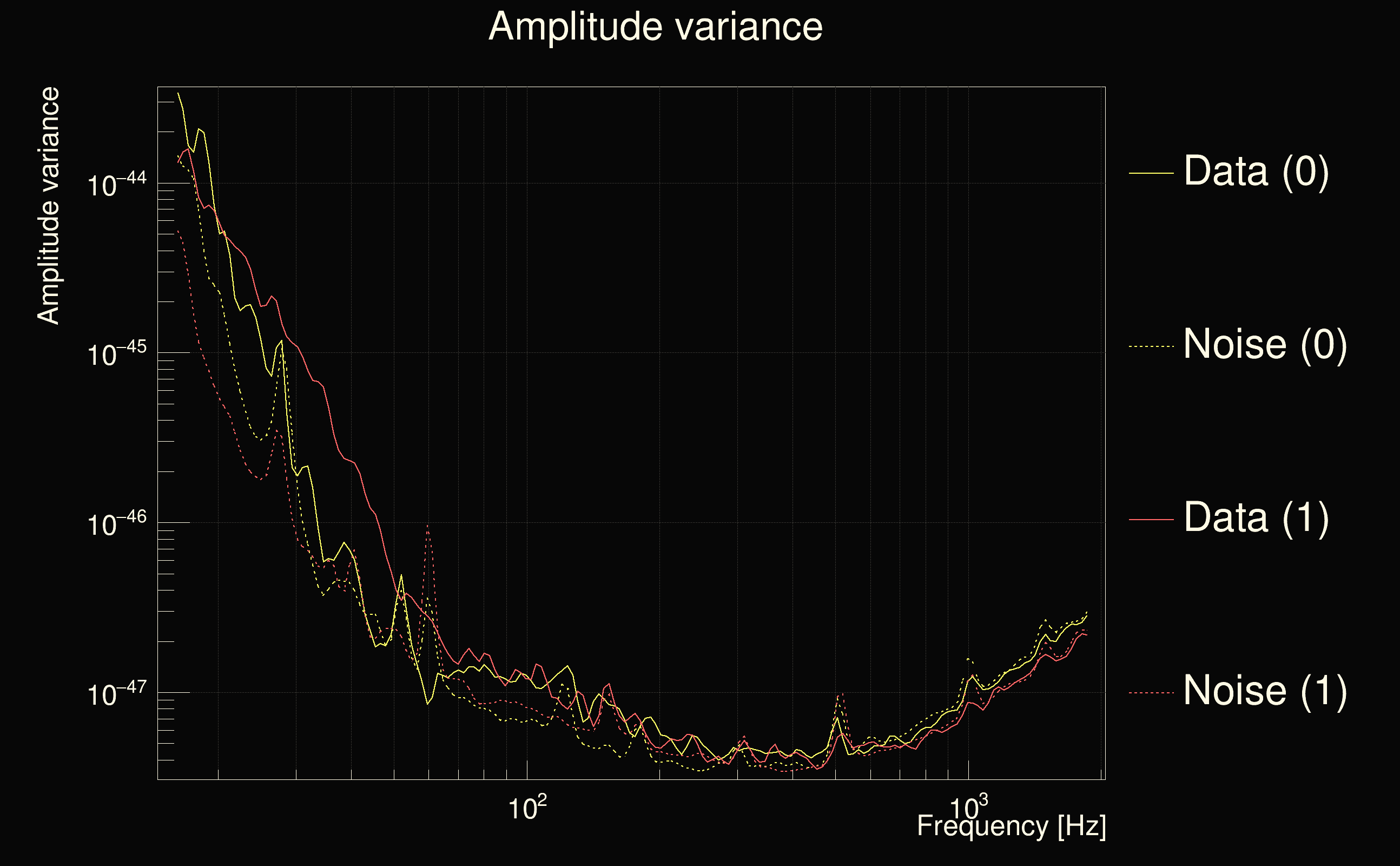

| Event time t(H1): | GPS = 1377744740 (Sun Sep 3 02:52:02 2023 ) → GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) |

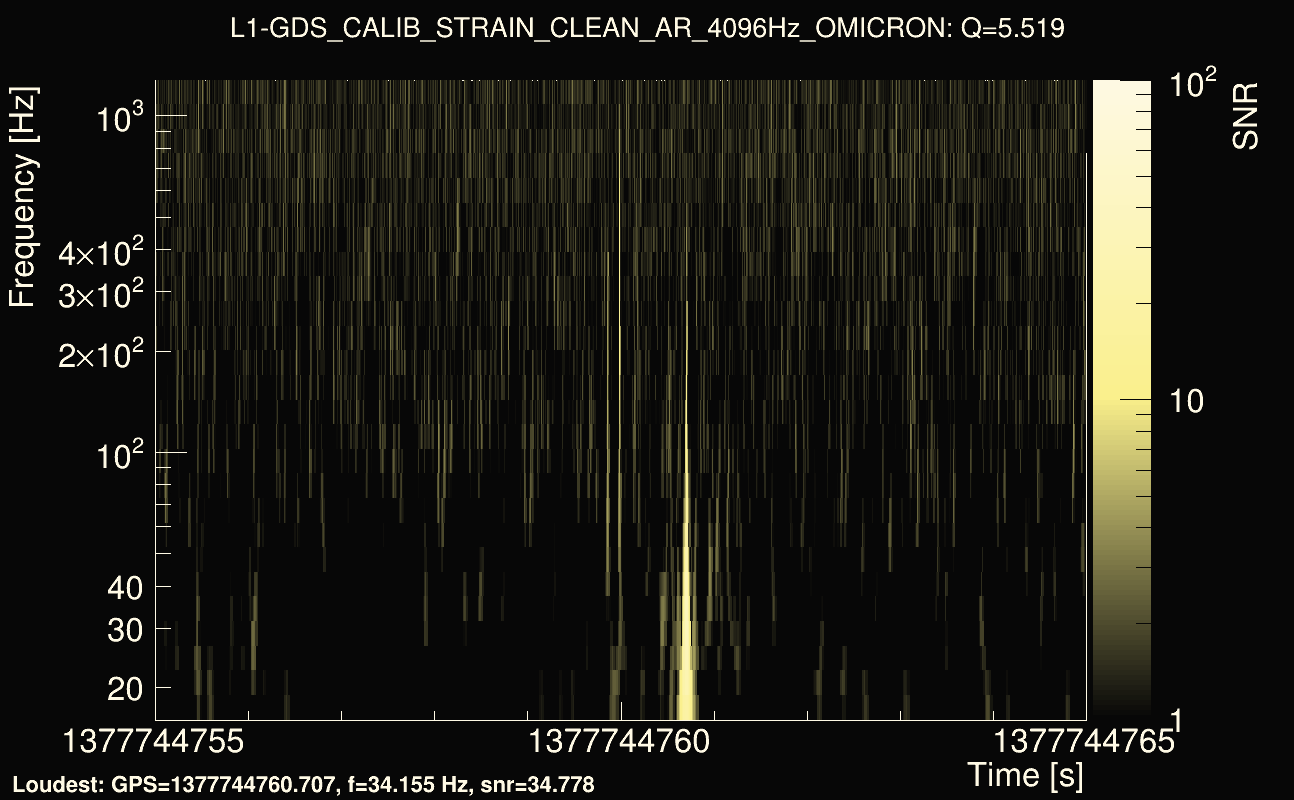

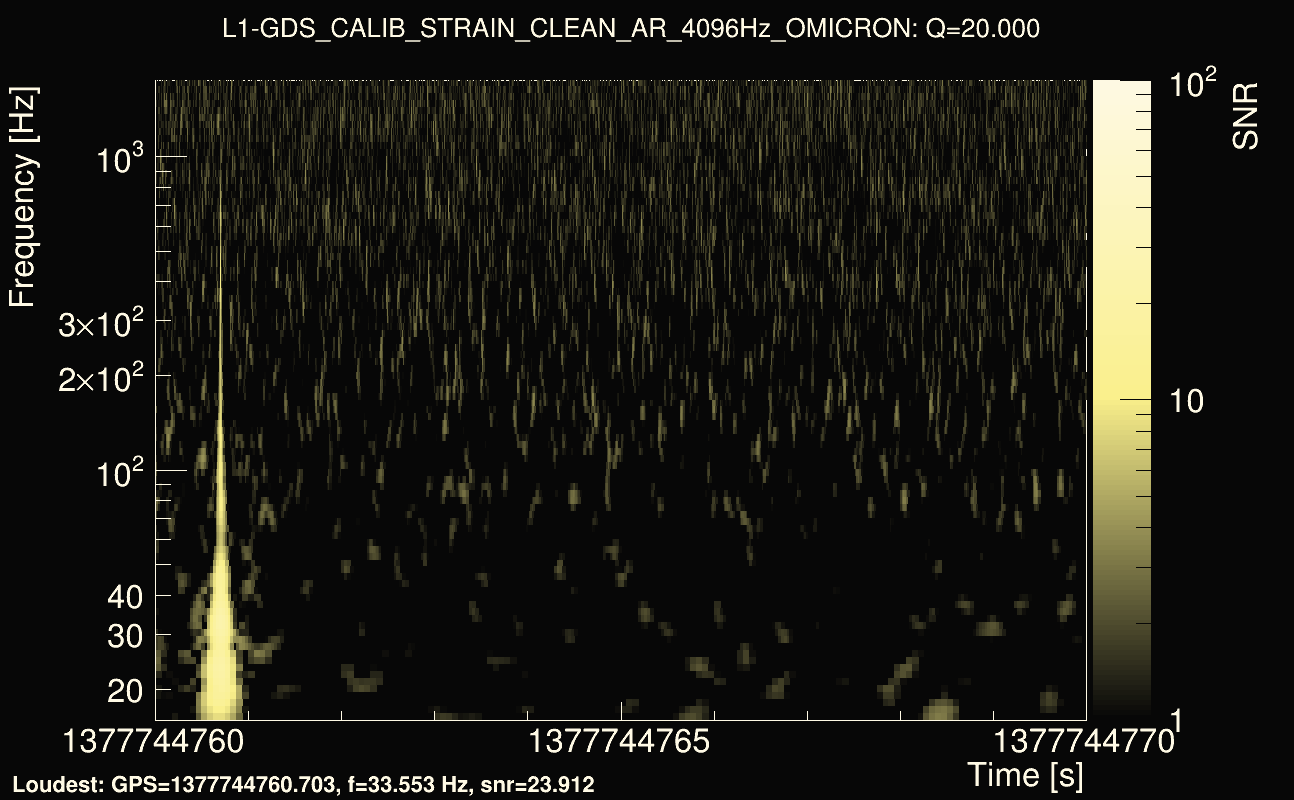

| Event time t(L1): | GPS = 1377744760 (Sun Sep 3 02:52:12 2023 ) → GPS = 1377744770 (Sun Sep 3 02:52:32 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744737 → GPS = 1377744753 |
| Omicron analysis time window (L1): | GPS = 1377744757 → GPS = 1377744773 |
| Time delay between detectors t(L1) - t(H1): | 19.8525 s (slice index = 111 / 217), δt_gw = -0.00949174 s |
| Time delay uncertainty: | 0.000327003s |
| Frequency: | 182.63 Hz |
| Ξ: | 0.174206 |
| Rank: | R_A = 0.174206 |
| Amplitude ratio: | 3.10845 (H1: 1.09786±0.948977, L1: 3.71379±2.5504) |
| Antenna factor ratio (min/max): | 0.0313727 / 36.5271 |
| Number of rejected frequency rows: | Q0: 17 / 26, Q1: 34 / 48, Q2: 70 / 92, Q3: 153 / 176, Q4: 317 / 338 |
| Maximum signal-to-noise ratio: | H1: 24.1795, L1: 44.0666 |

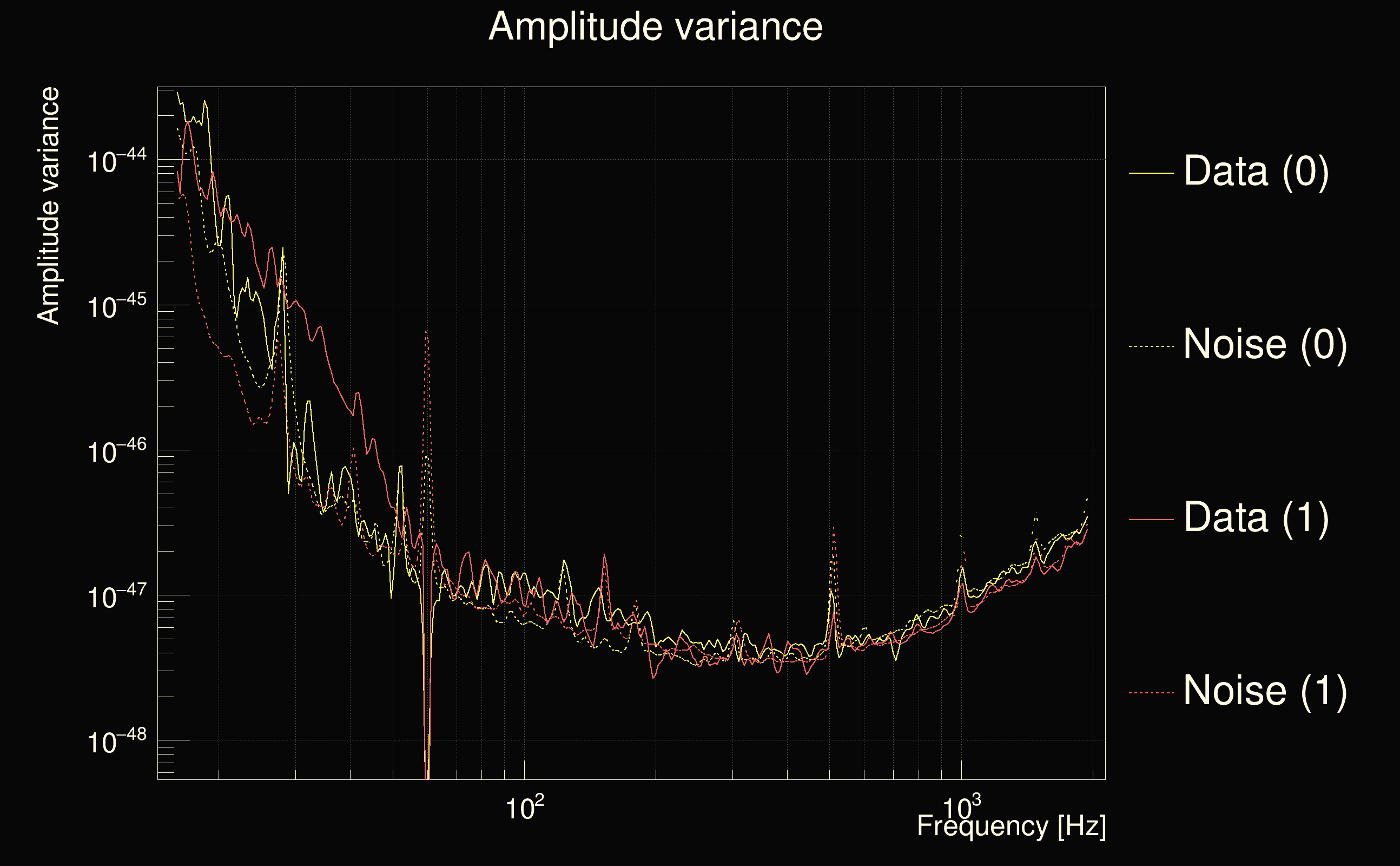

| SNR variance: | H1: 0.789746, L1: 2.15975 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |

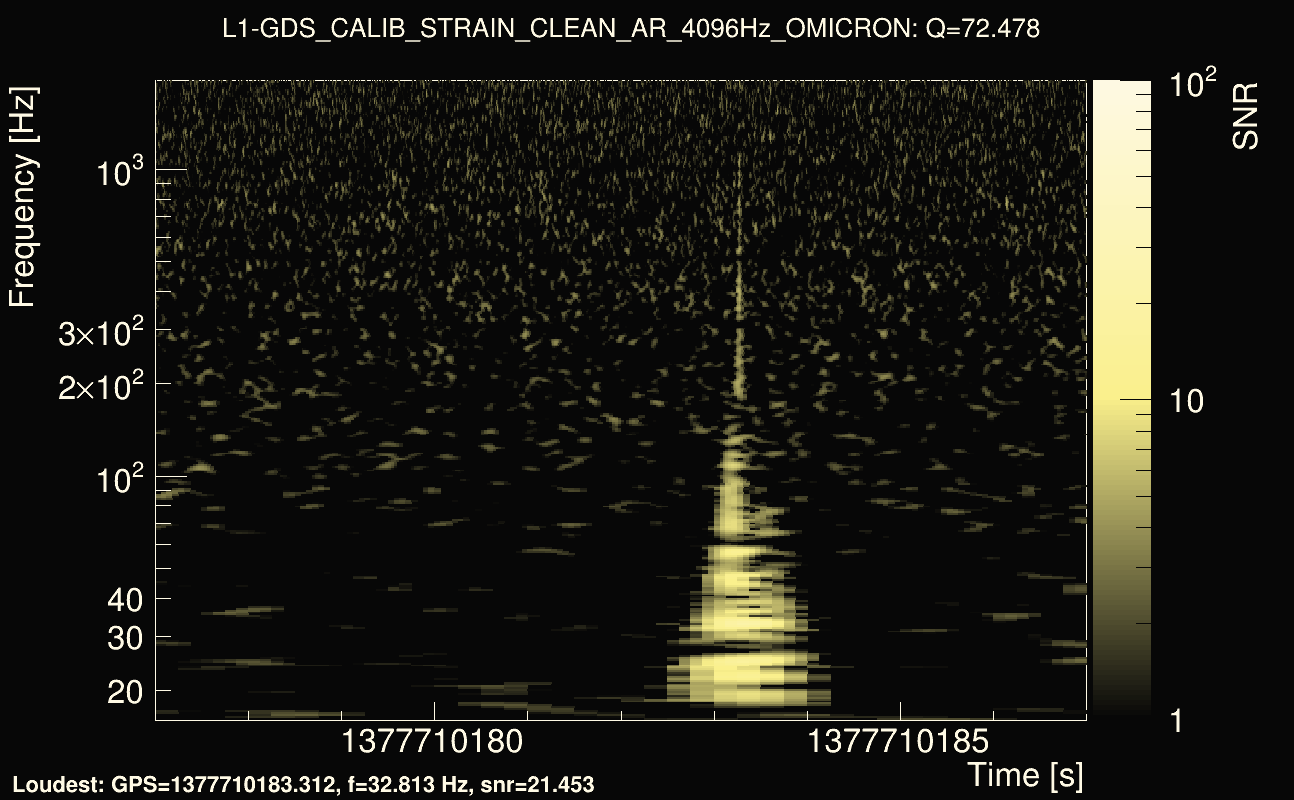

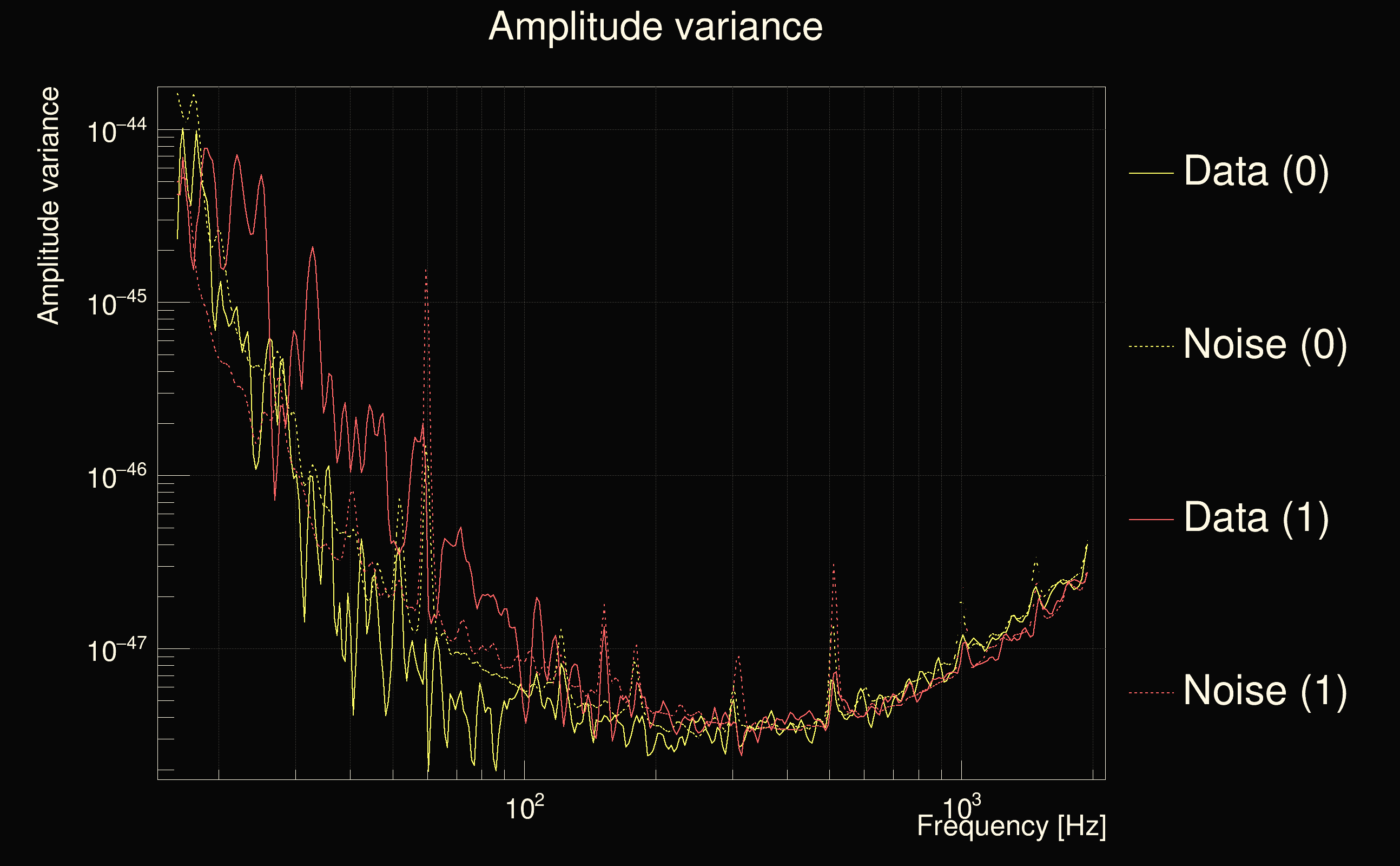

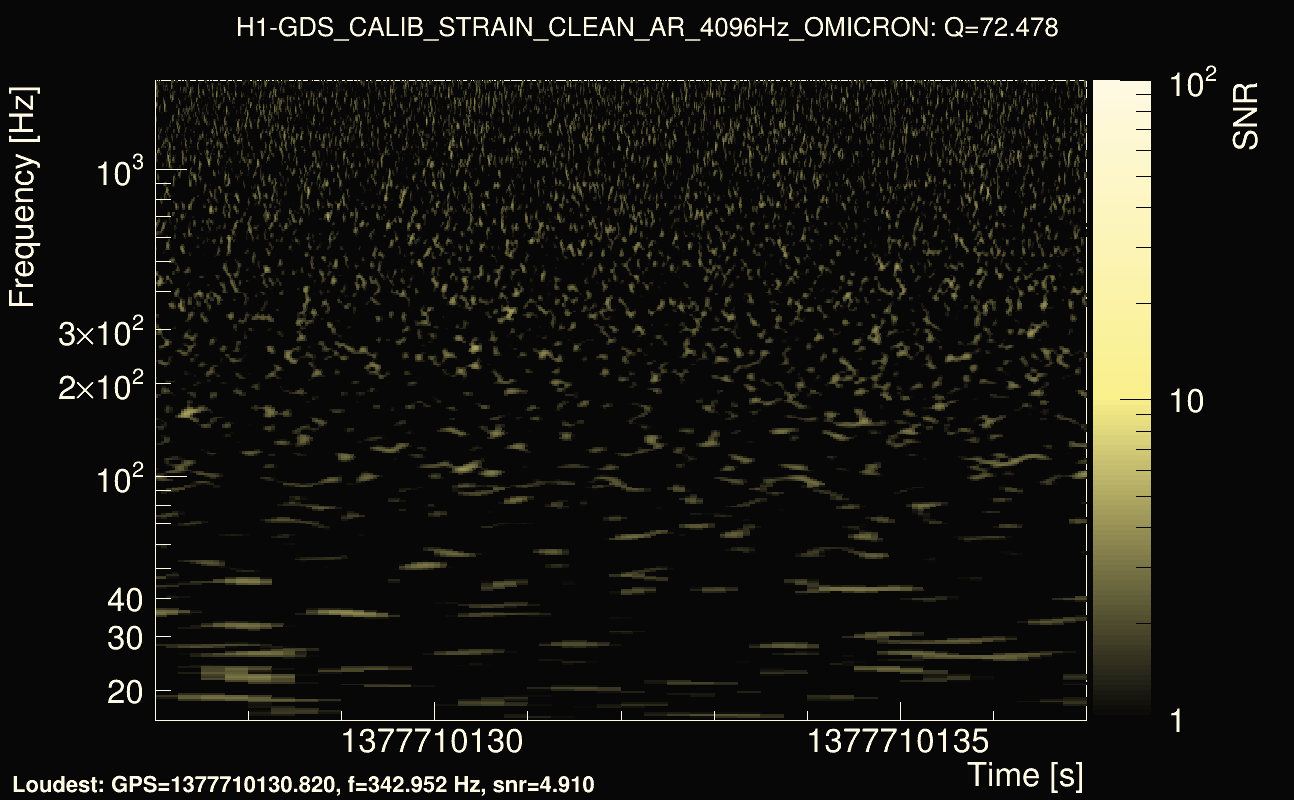

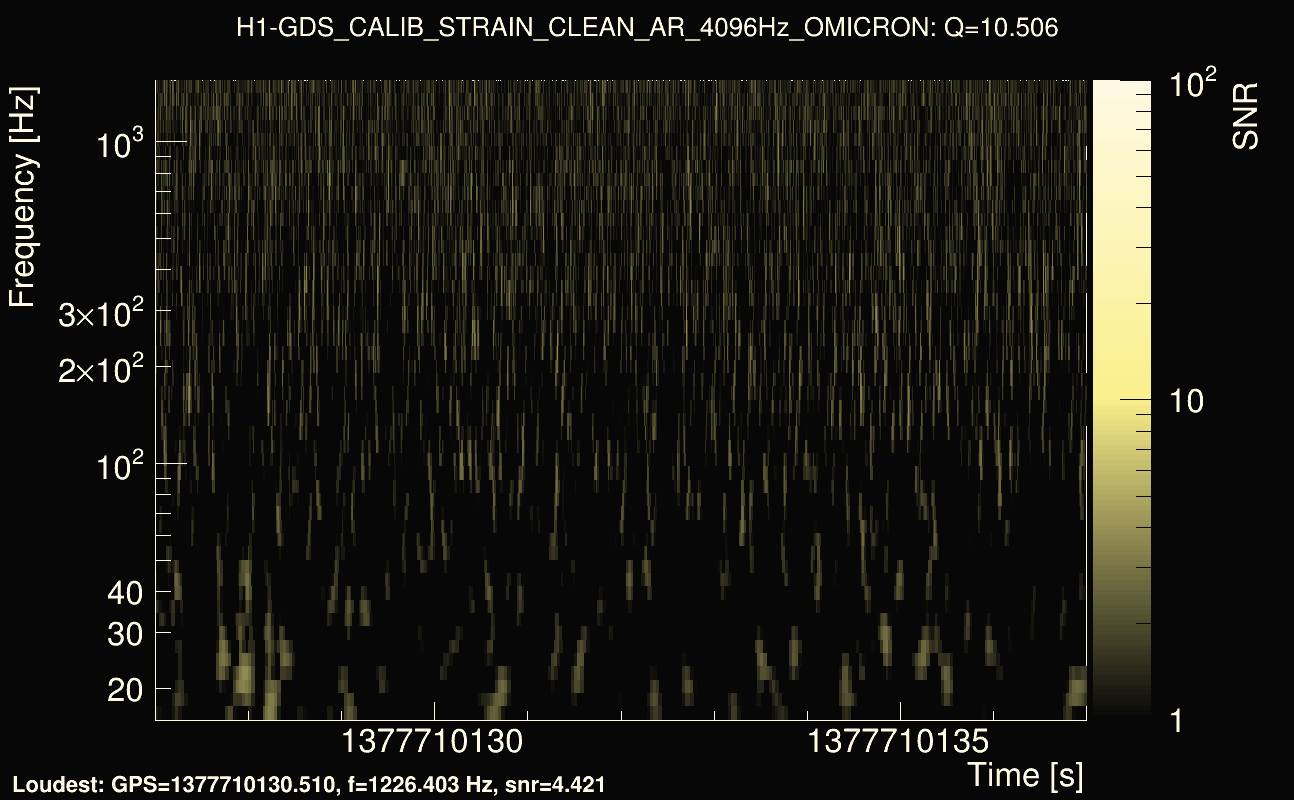

| Event time t(H1): | GPS = 1377710127 (Sat Sep 2 17:15:09 2023 ) → GPS = 1377710137 (Sat Sep 2 17:15:19 2023 ) |

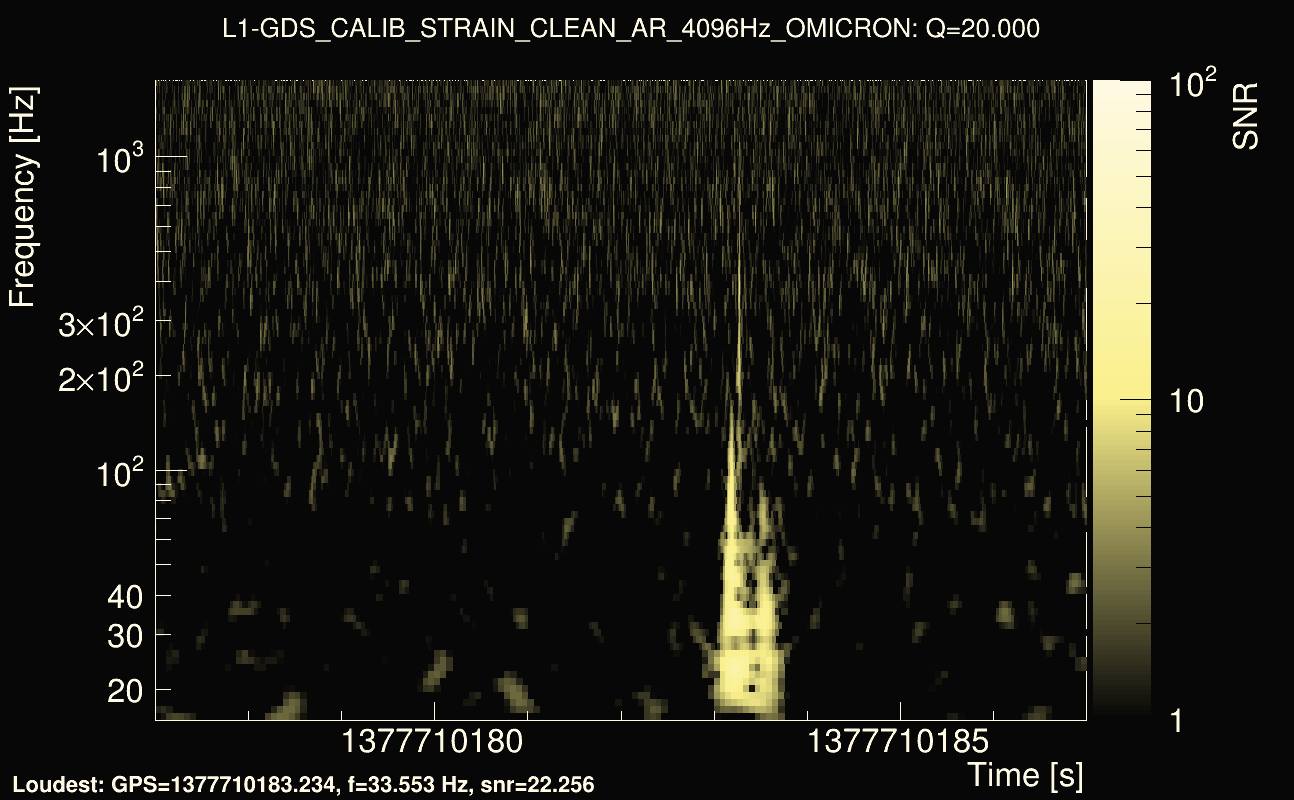

| Event time t(L1): | GPS = 1377710177 (Sat Sep 2 17:15:19 2023 ) → GPS = 1377710187 (Sat Sep 2 17:16:09 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377710124 → GPS = 1377710140 |
| Omicron analysis time window (L1): | GPS = 1377710174 → GPS = 1377710190 |

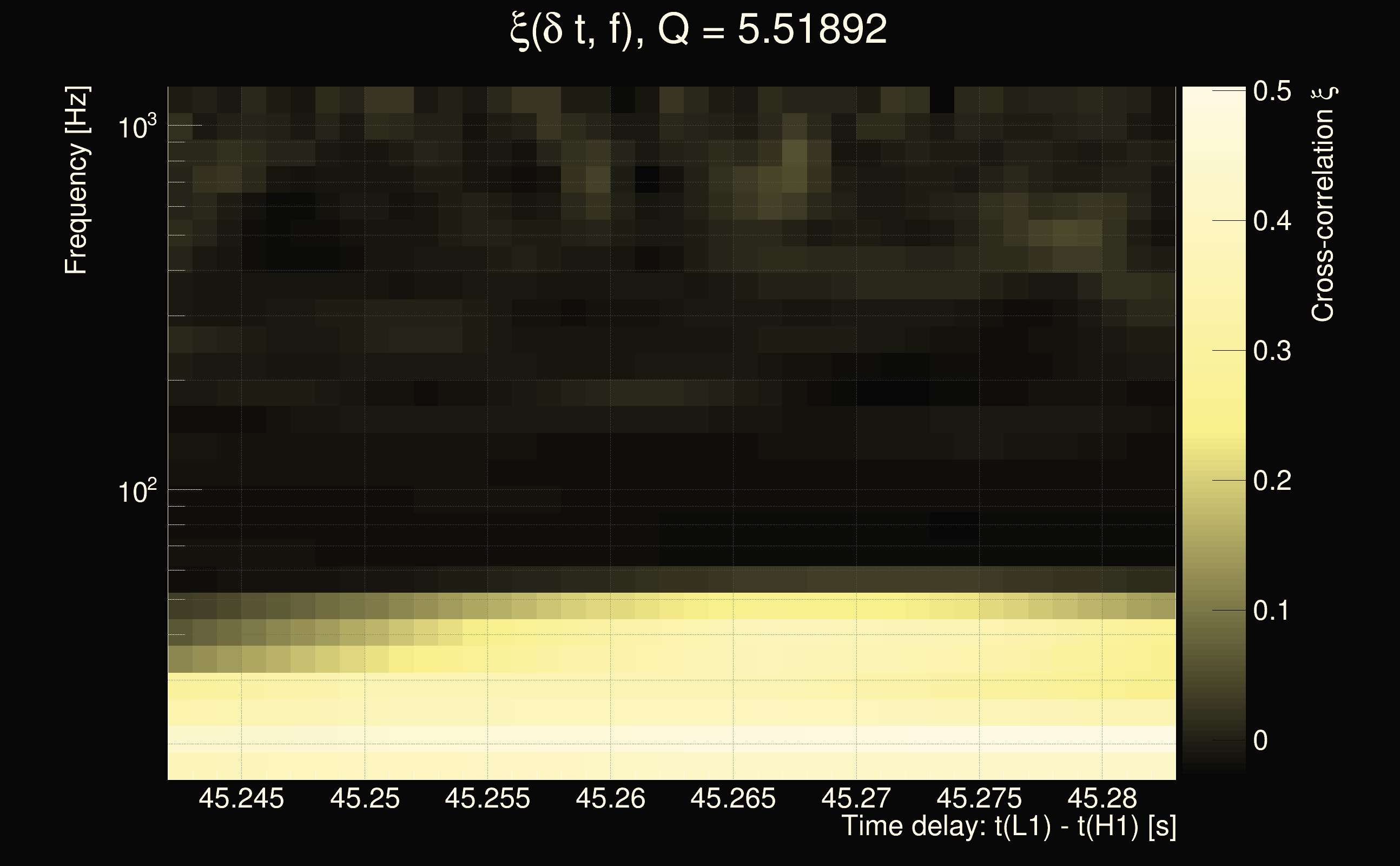

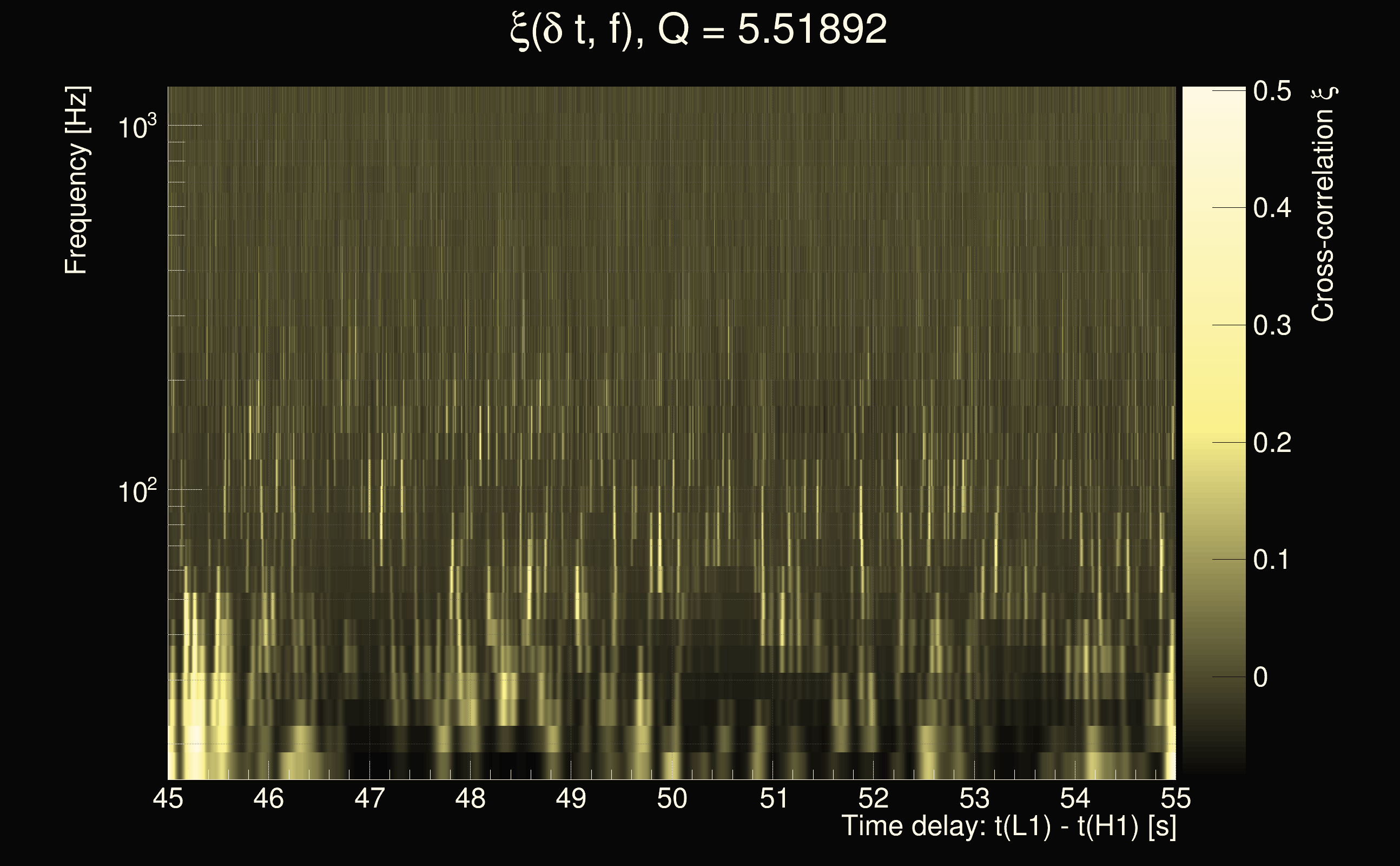

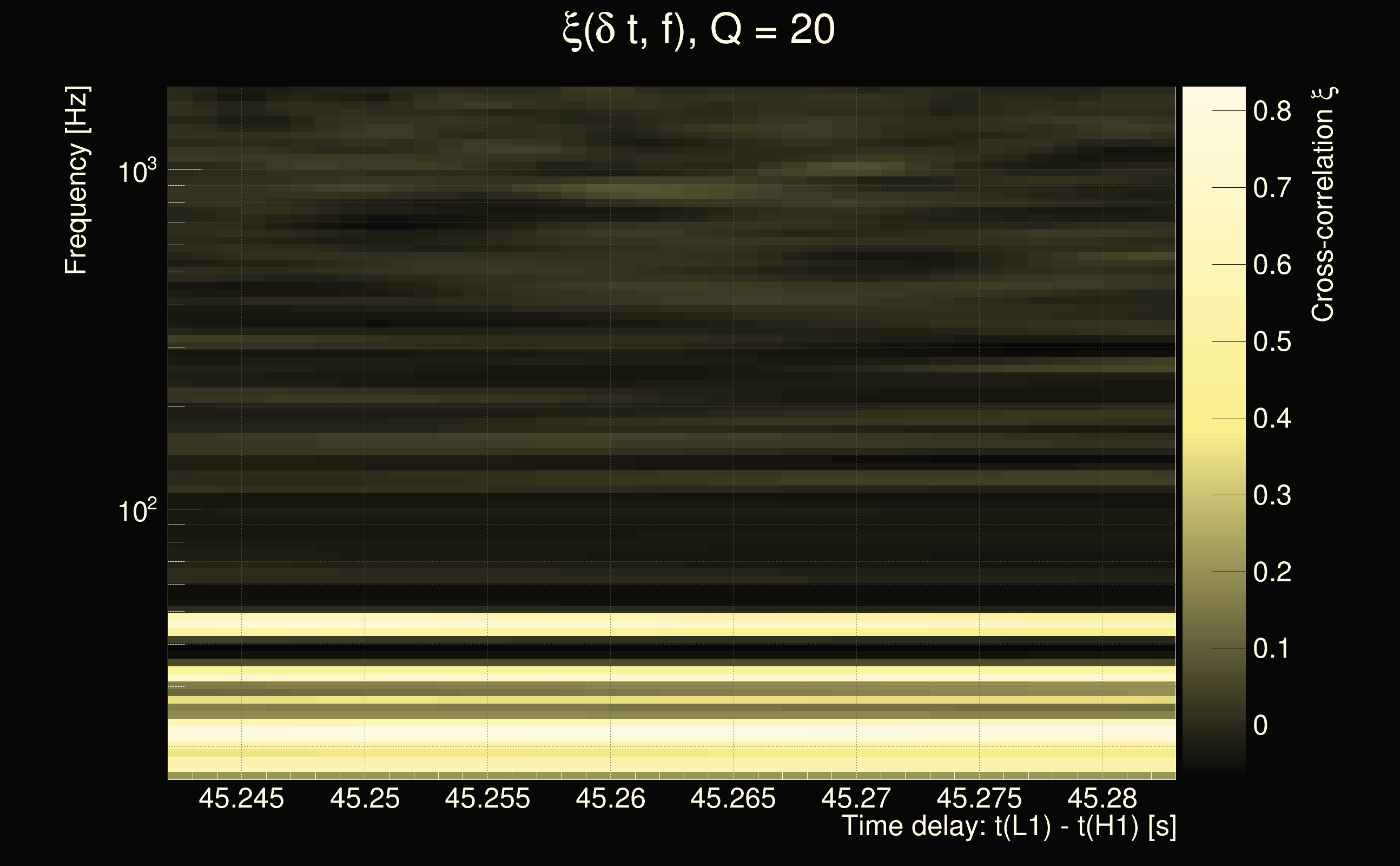

| Time delay between detectors t(L1) - t(H1): | 45.263 s (slice index = 211 / 217), δt_gw = 0.000972196 s |
| Time delay uncertainty: | 0.00313608s |
| Frequency: | 92.1299 Hz |
| Ξ: | 0.171443 |
| Rank: | R_A = 0.171443 |
| Amplitude ratio: | 6.85987 (H1: 3.56813±11.1549, L1: 6.93481±6.29291) |

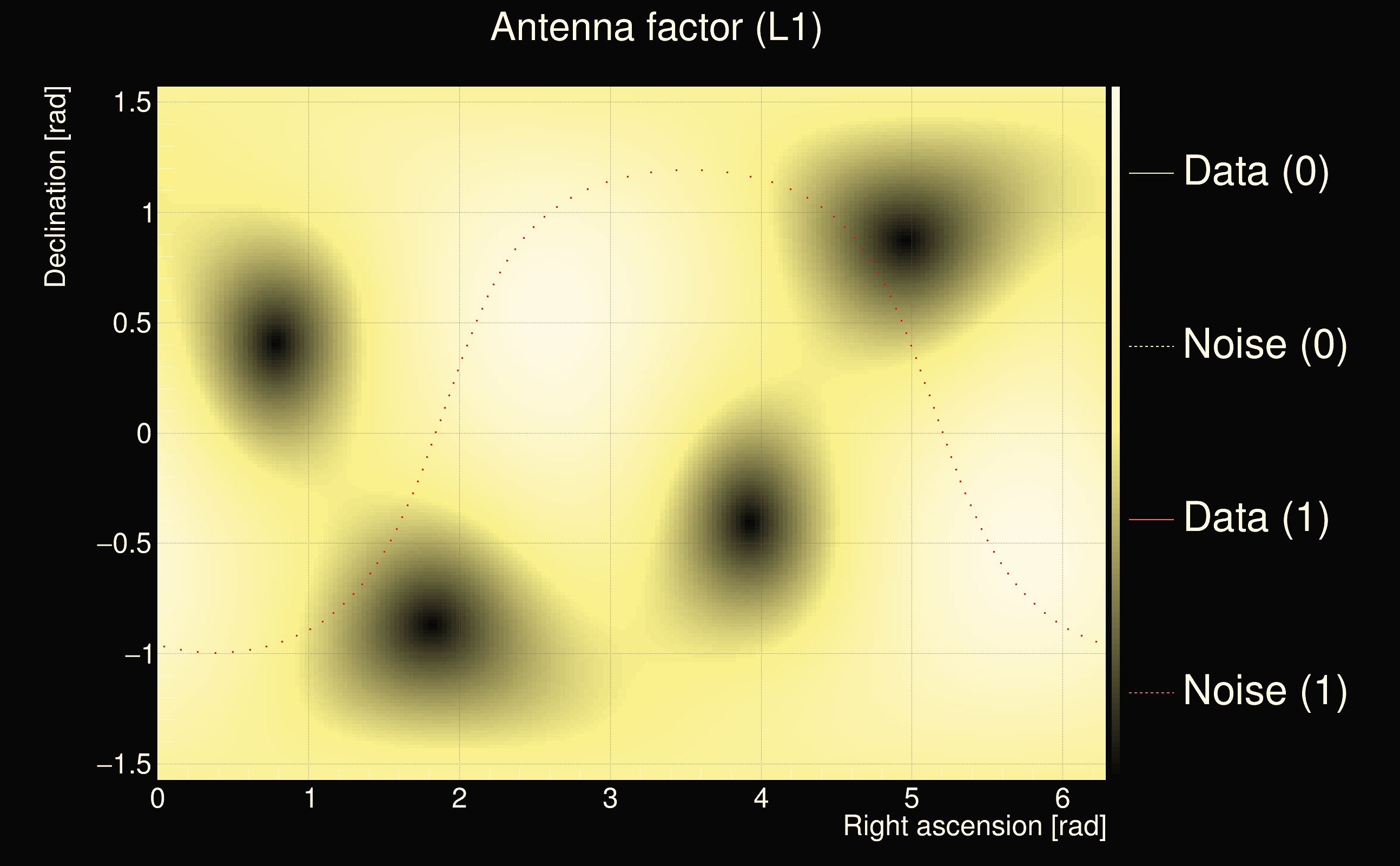

| Antenna factor ratio (min/max): | 0.0285408 / 22.4981 |
| Number of rejected frequency rows: | Q0: 23 / 26, Q1: 47 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.12472, L1: 33.964 |
| SNR variance: | H1: 0.522072, L1: 0.511984 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

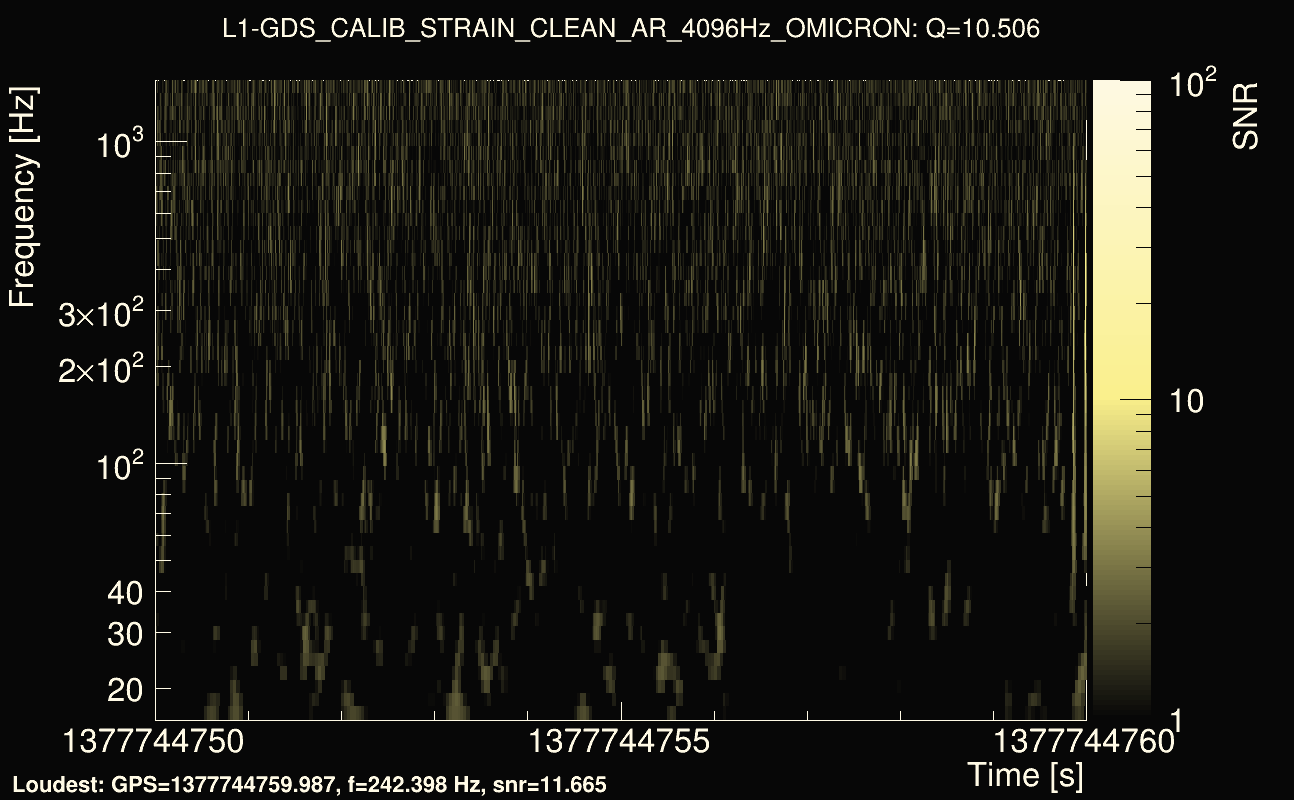

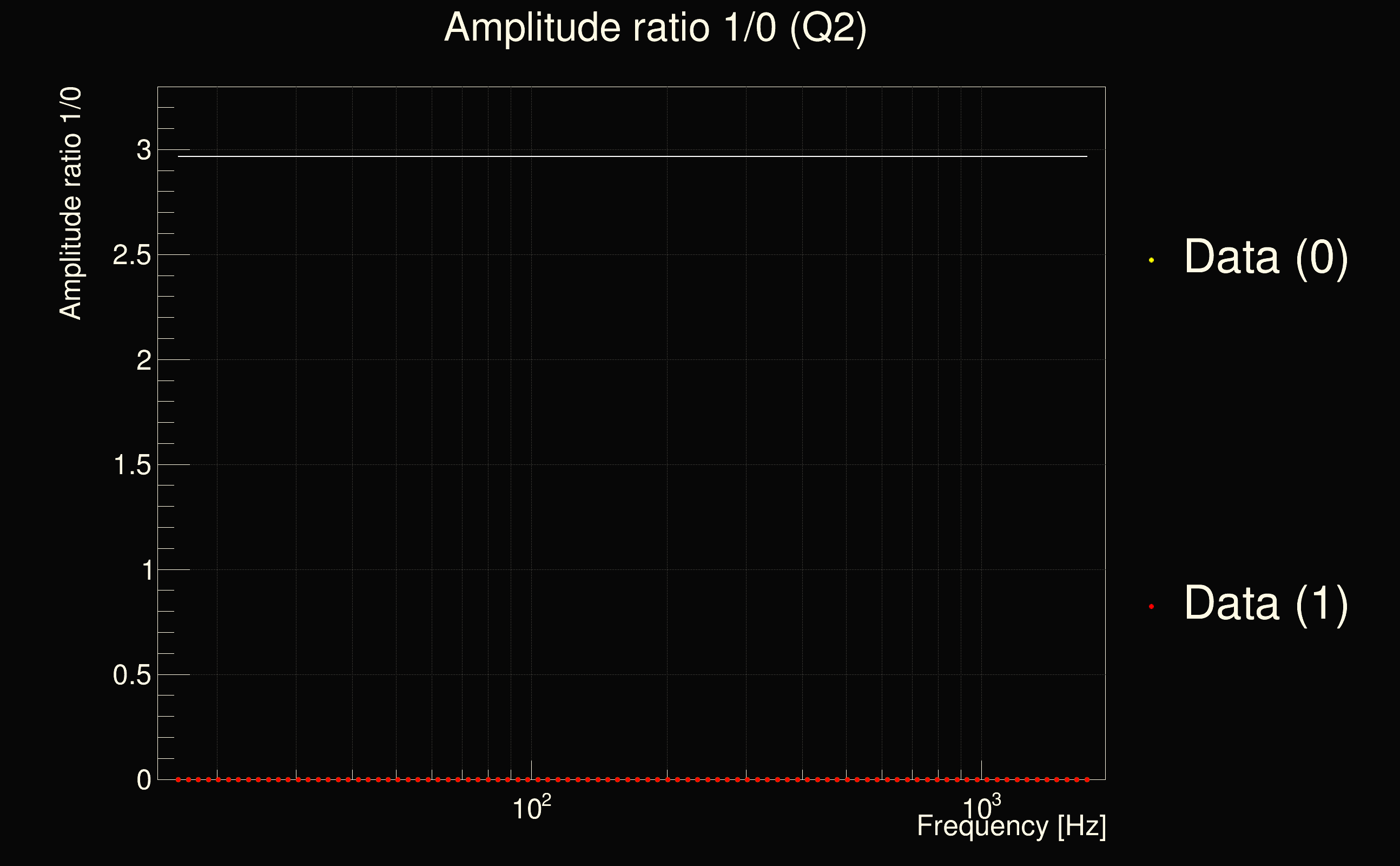

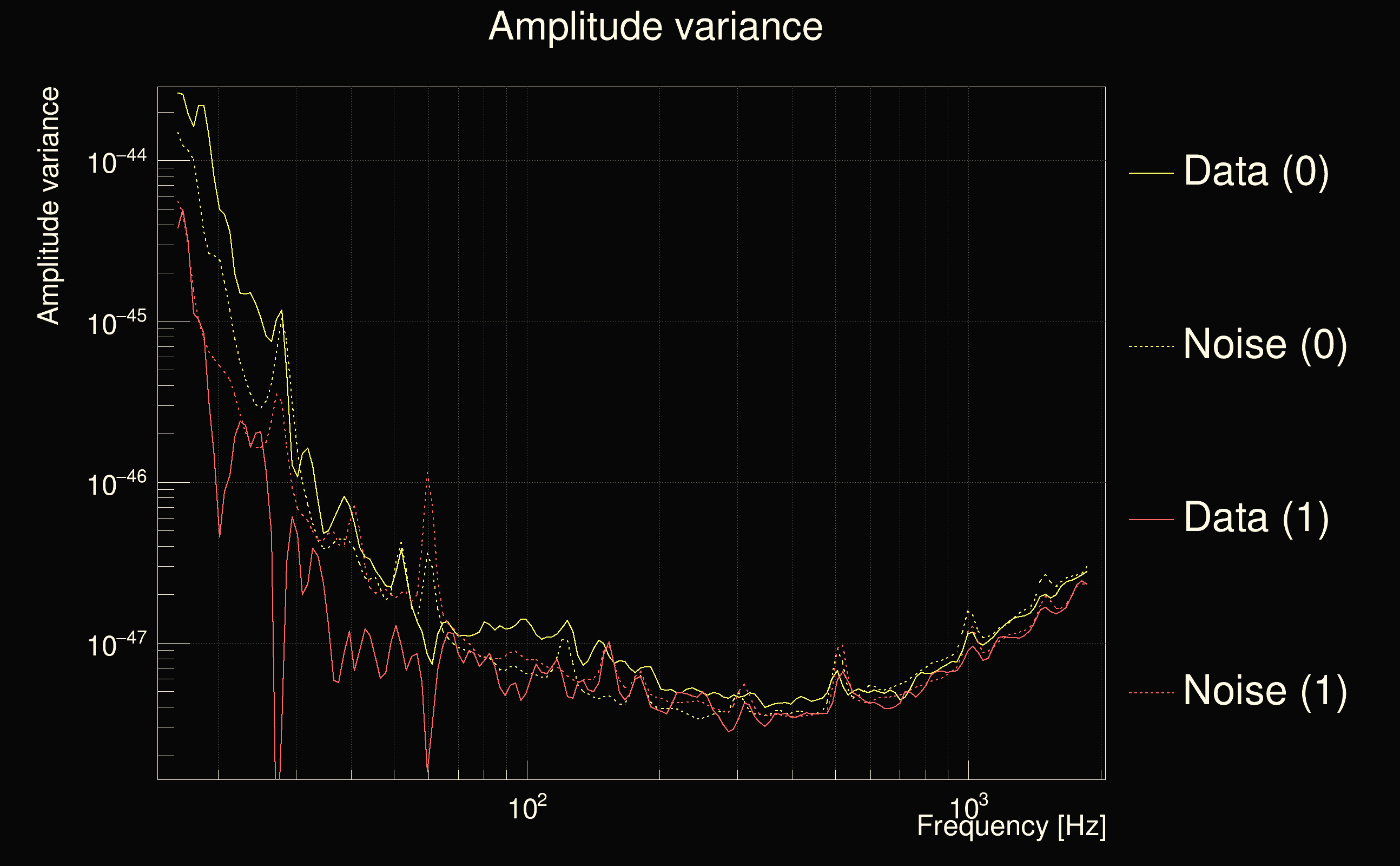

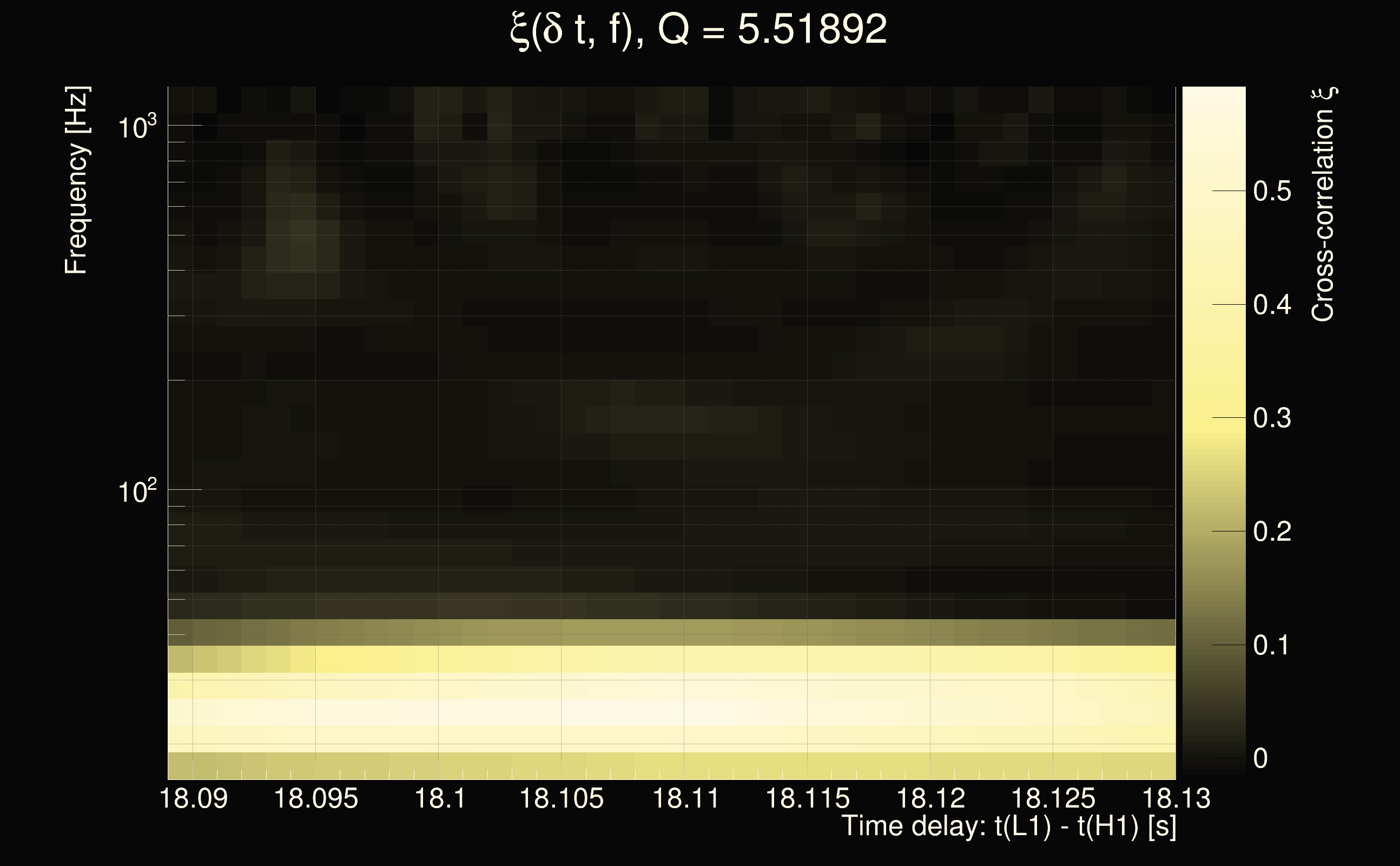

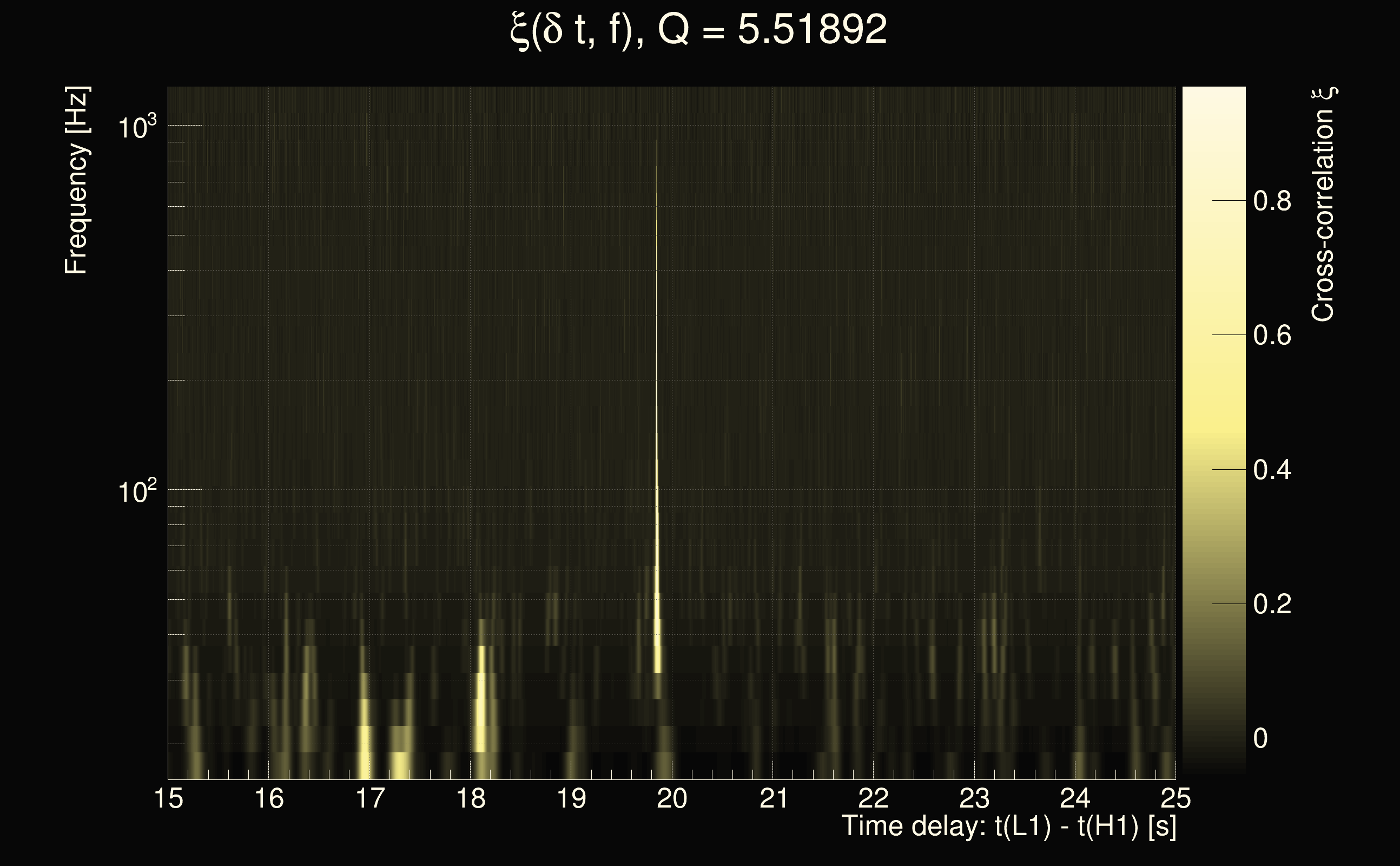

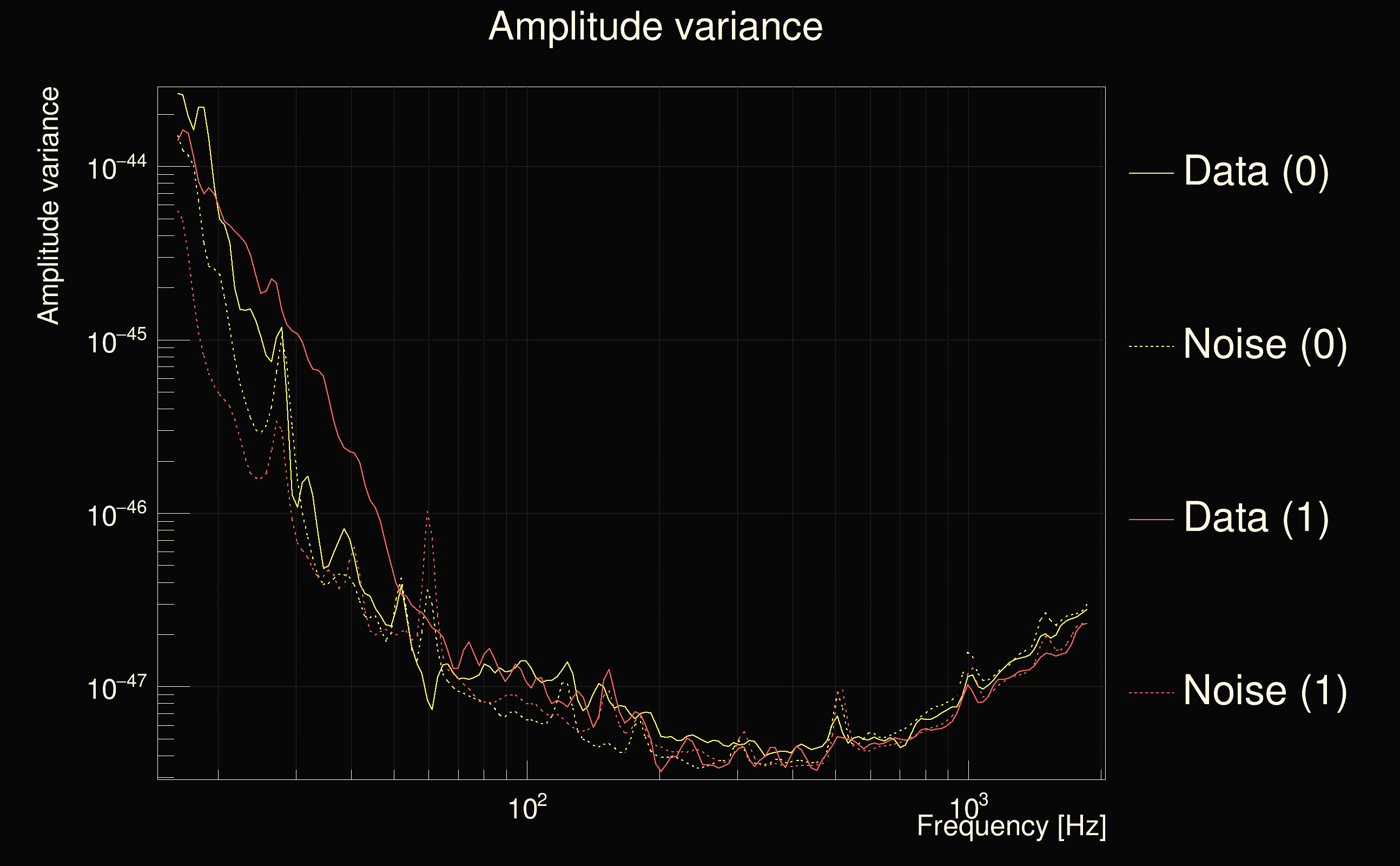

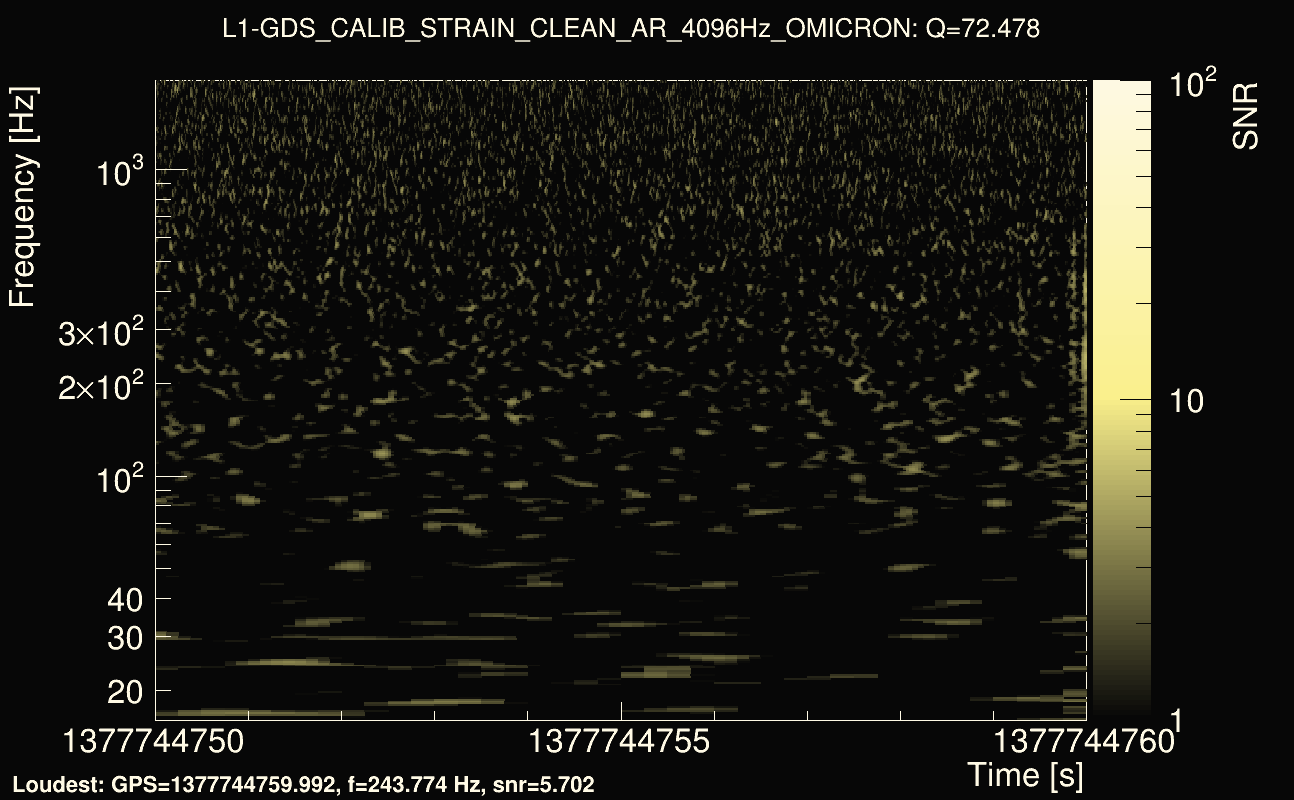

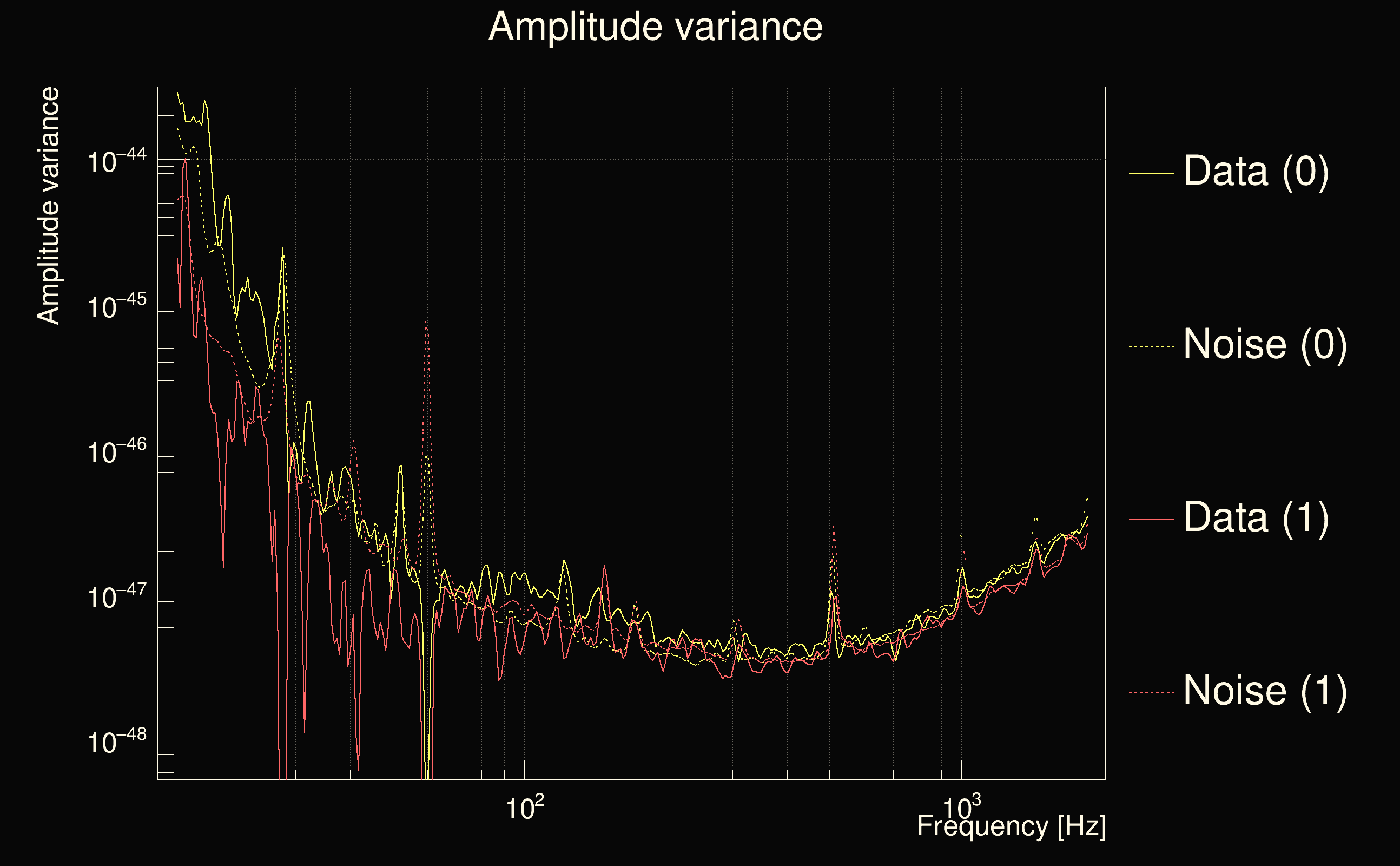

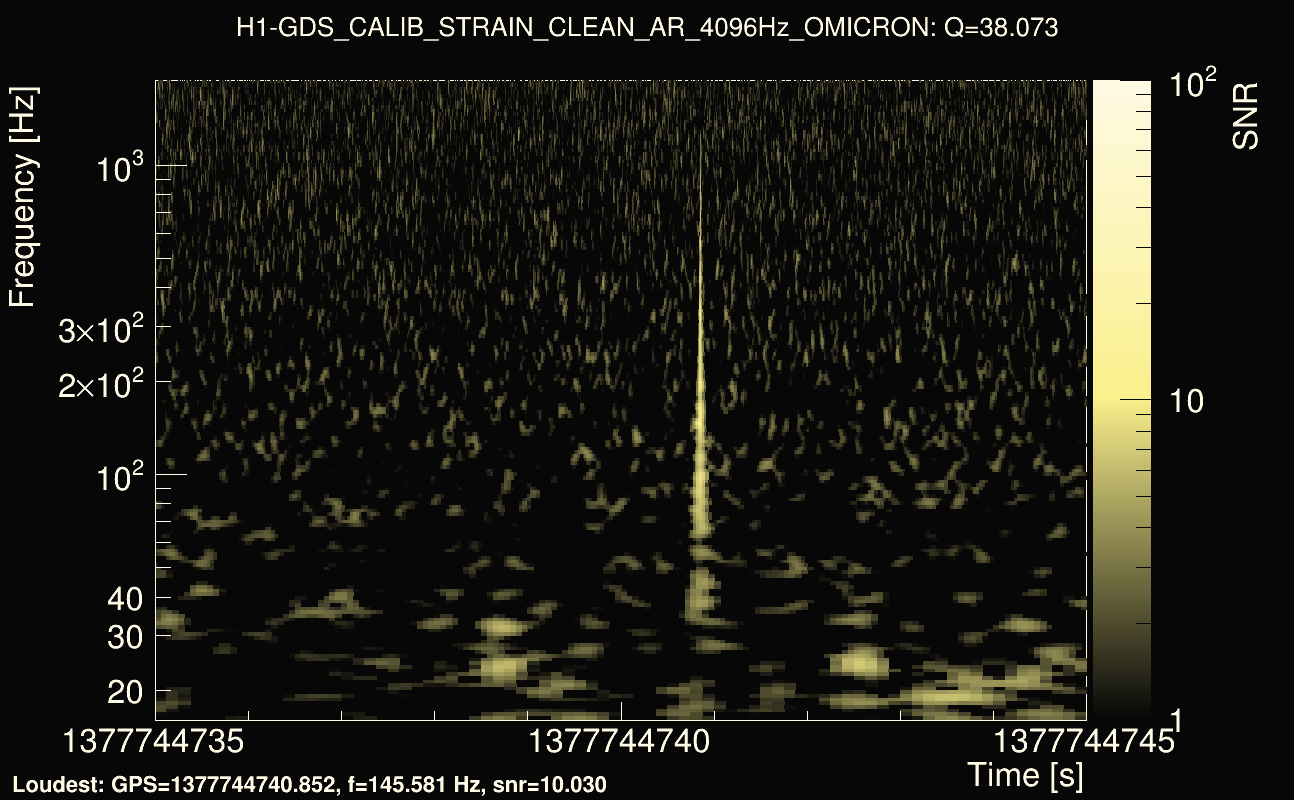

| Event time t(H1): | GPS = 1377744735 (Sun Sep 3 02:51:57 2023 ) → GPS = 1377744745 (Sun Sep 3 02:52:07 2023 ) |
| Event time t(L1): | GPS = 1377744755 (Sun Sep 3 02:52:07 2023 ) → GPS = 1377744765 (Sun Sep 3 02:52:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744732 → GPS = 1377744748 |
| Omicron analysis time window (L1): | GPS = 1377744752 → GPS = 1377744768 |
| Time delay between detectors t(L1) - t(H1): | 18.1099 s (slice index = 149 / 217), δt_gw = -0.00412256 s |
| Time delay uncertainty: | 0.000511771s |
| Frequency: | 87.1161 Hz |
| Ξ: | 0.168335 |
| Rank: | R_A = 0.168335 |
| Amplitude ratio: | 4.35728 (H1: 0.702424±1.18971, L1: 5.46802±27.8697) |
| Antenna factor ratio (min/max): | 0.0333197 / 16.9696 |
| Number of rejected frequency rows: | Q0: 13 / 26, Q1: 37 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 24.3129, L1: 44.1029 |
| SNR variance: | H1: 0.549966, L1: 0.549814 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

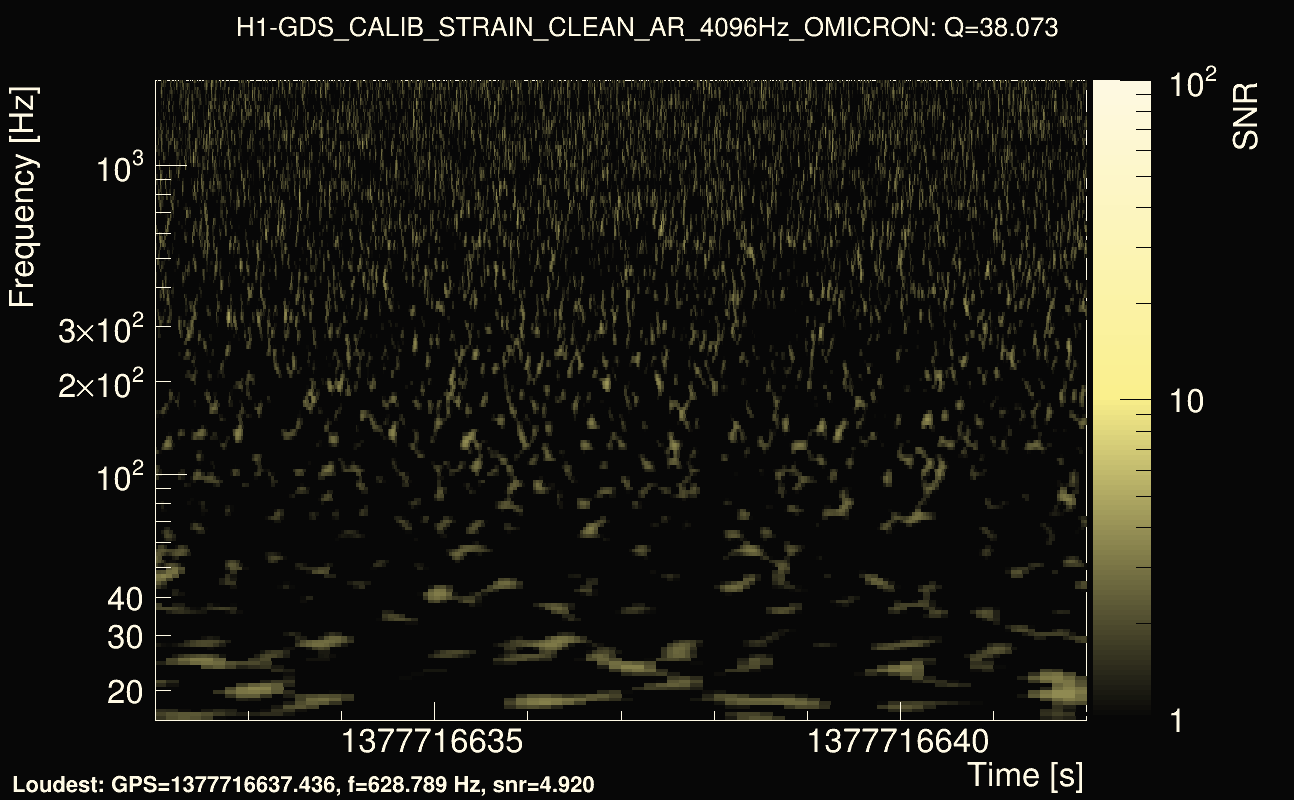

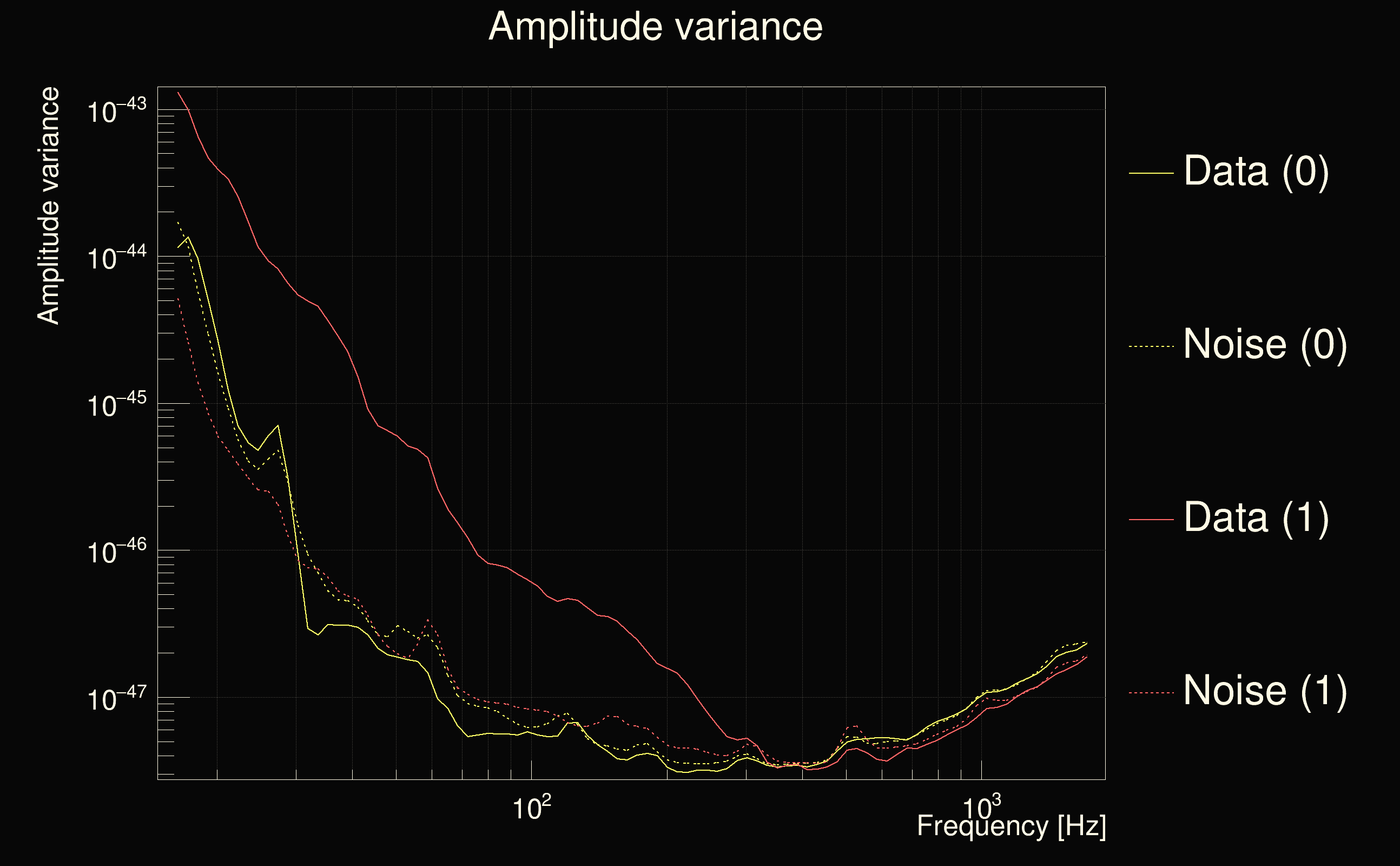

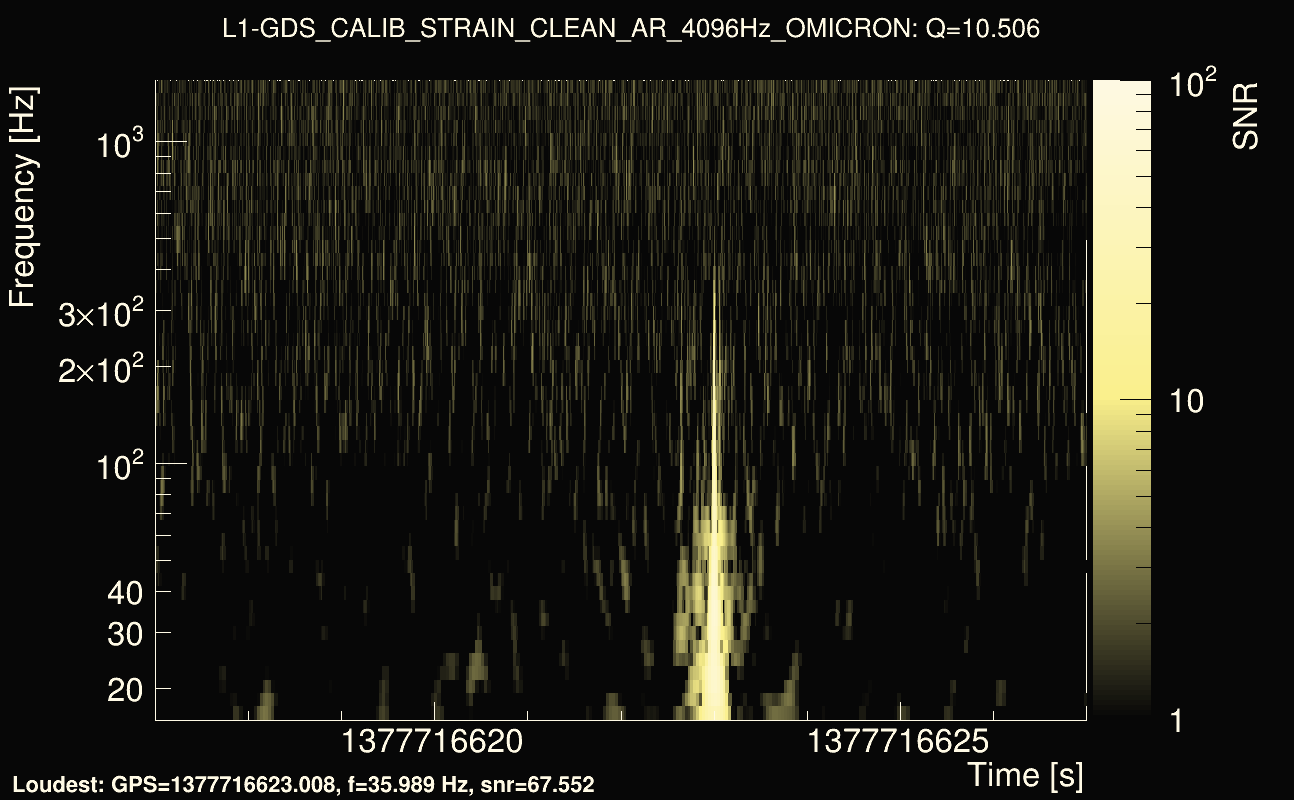

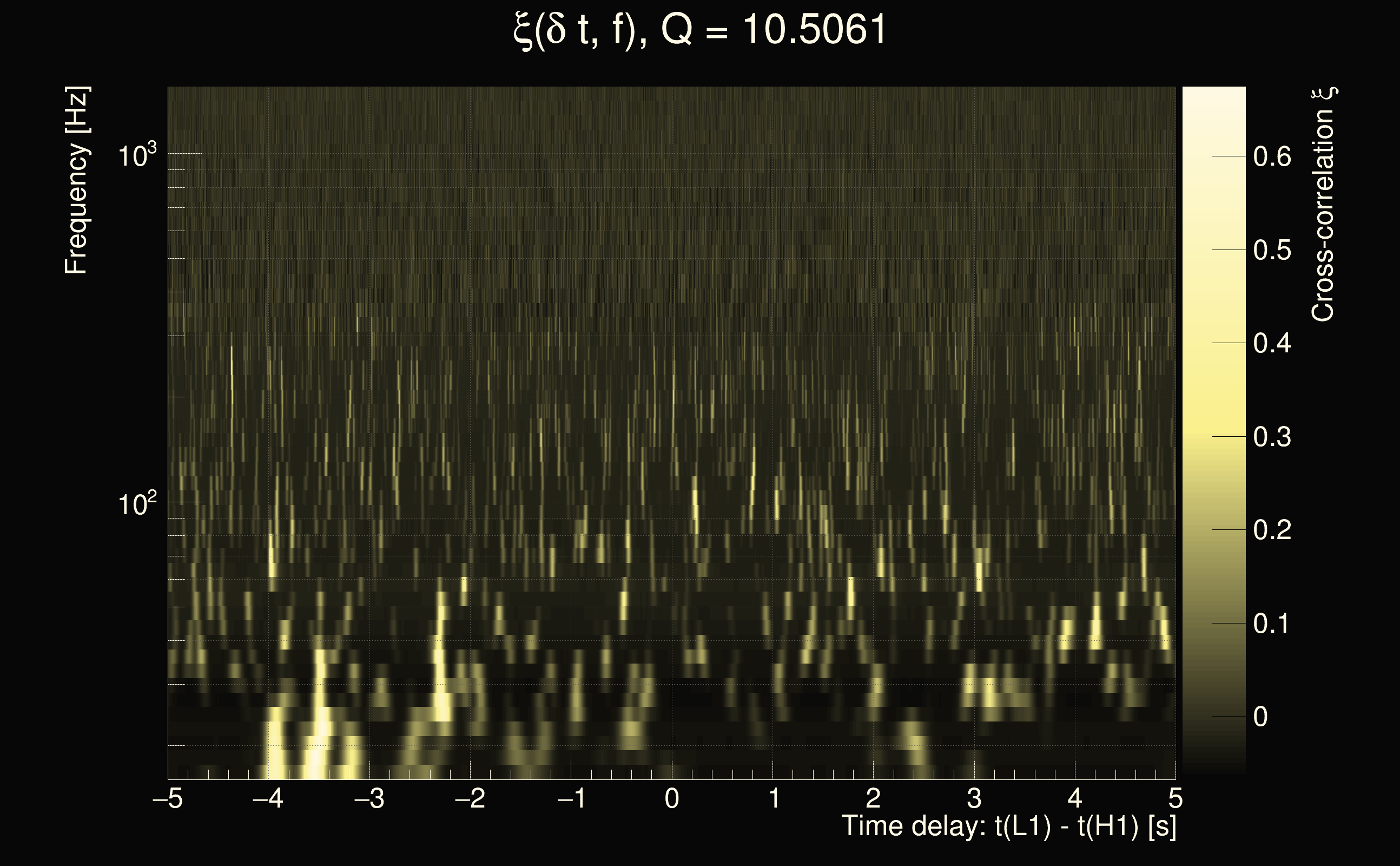

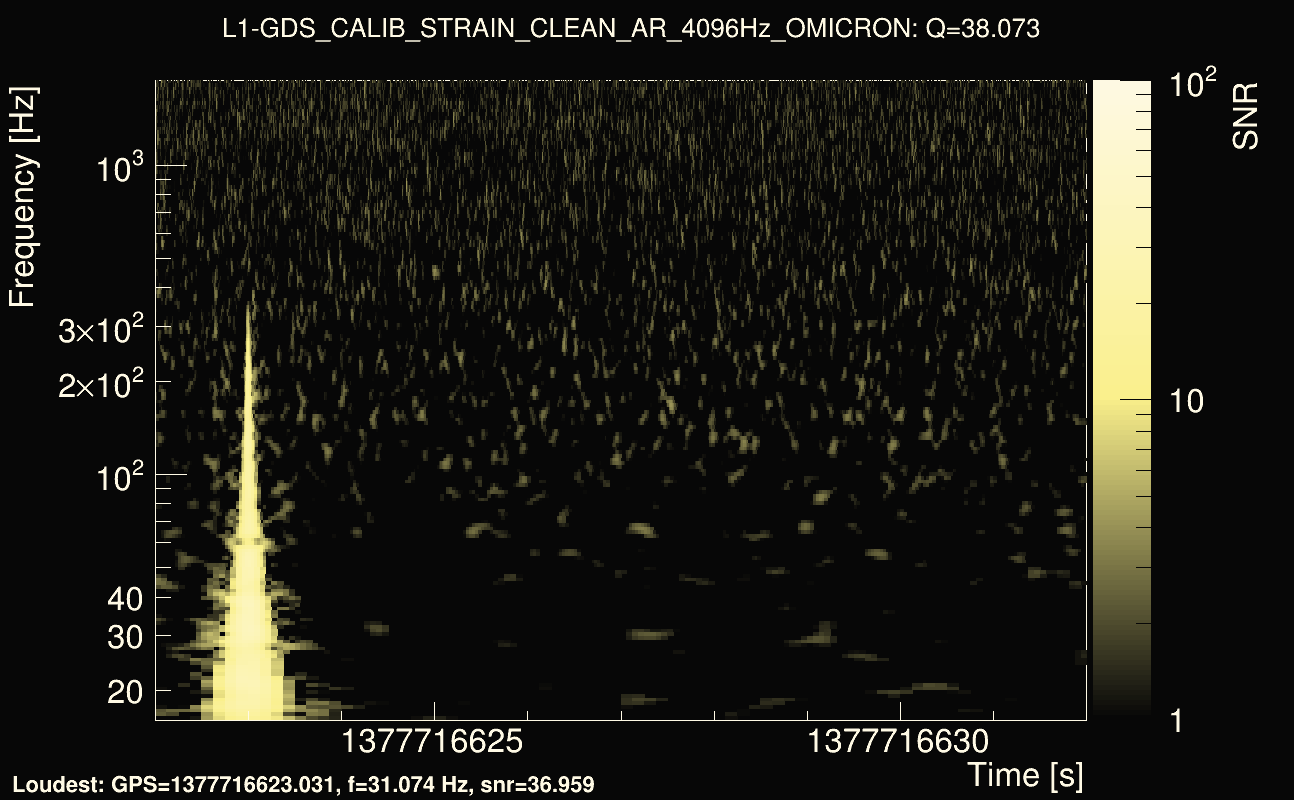

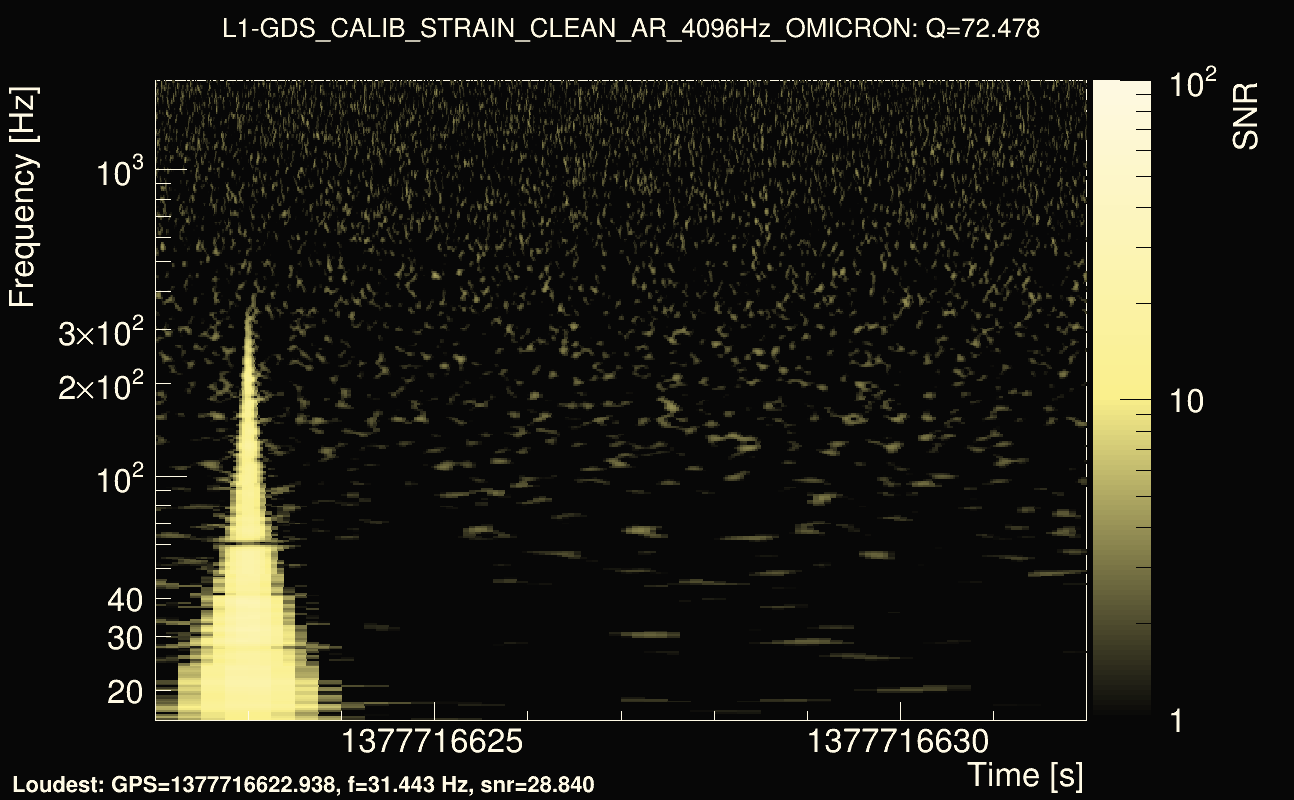

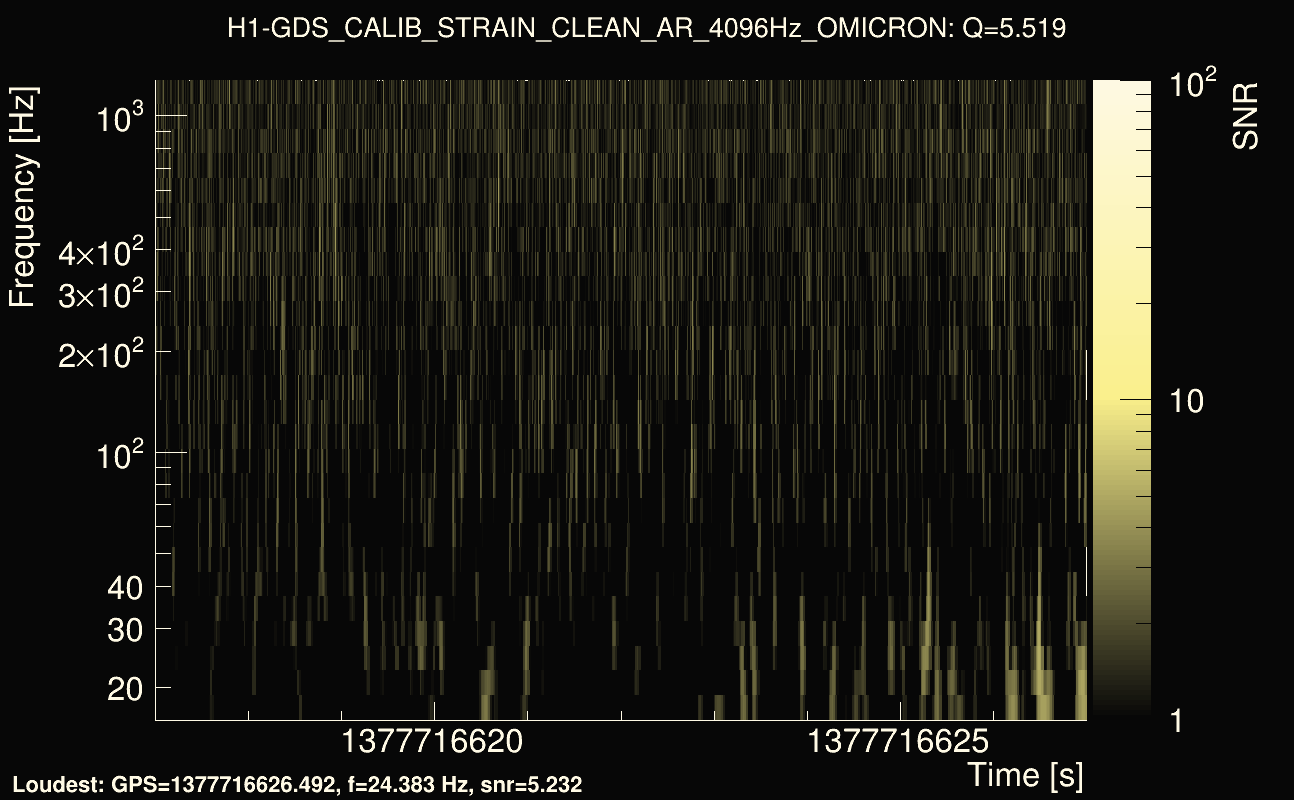

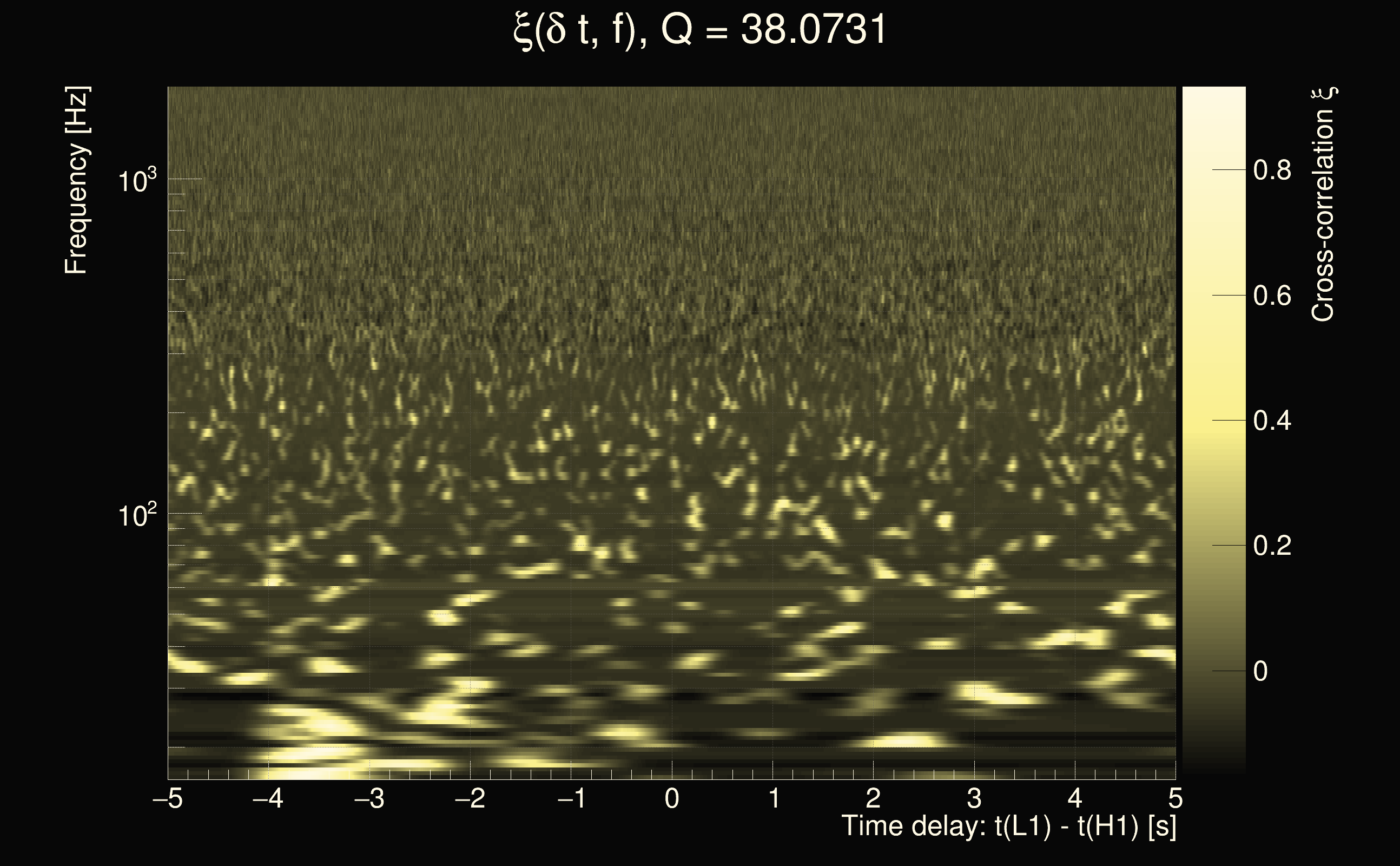

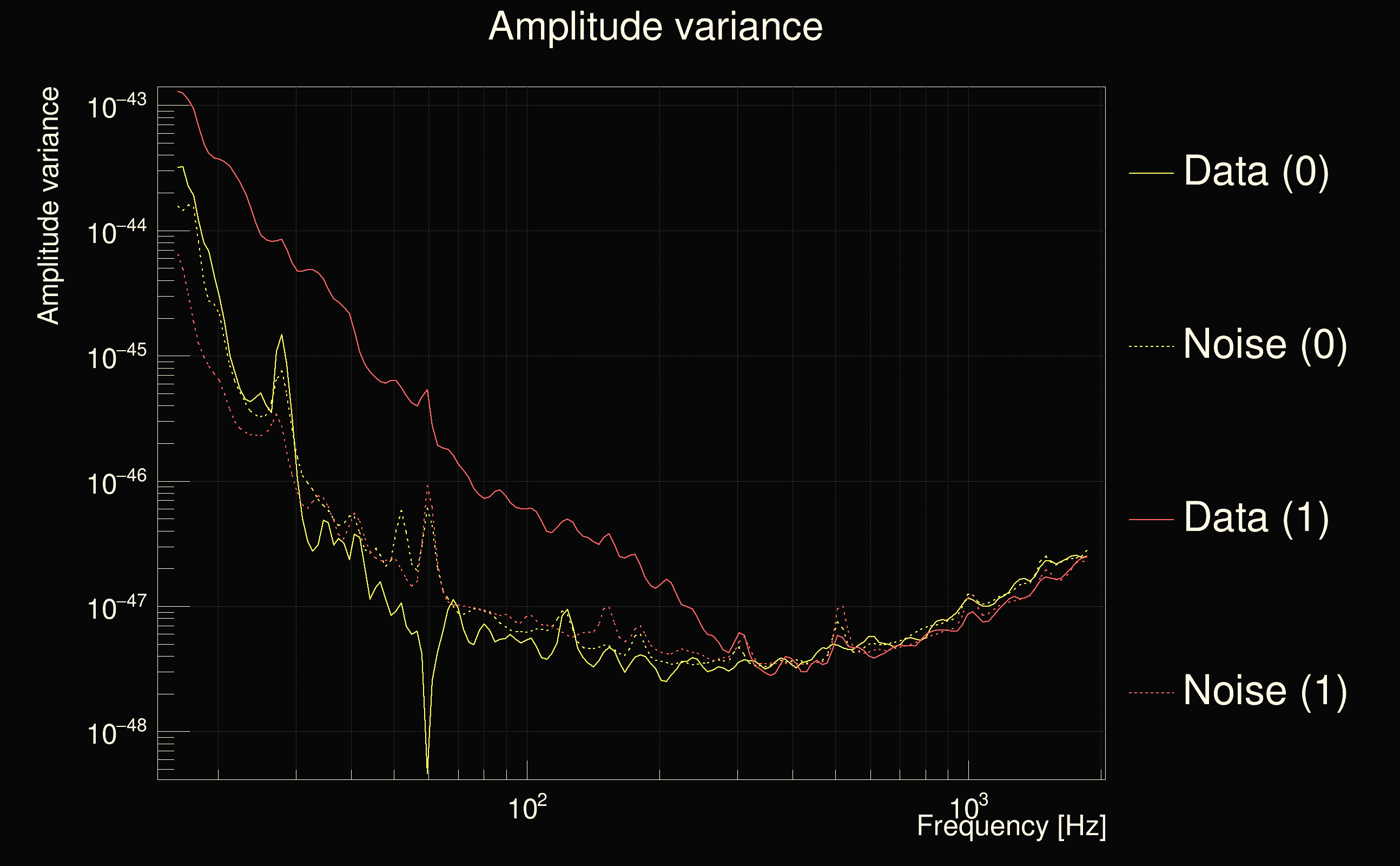

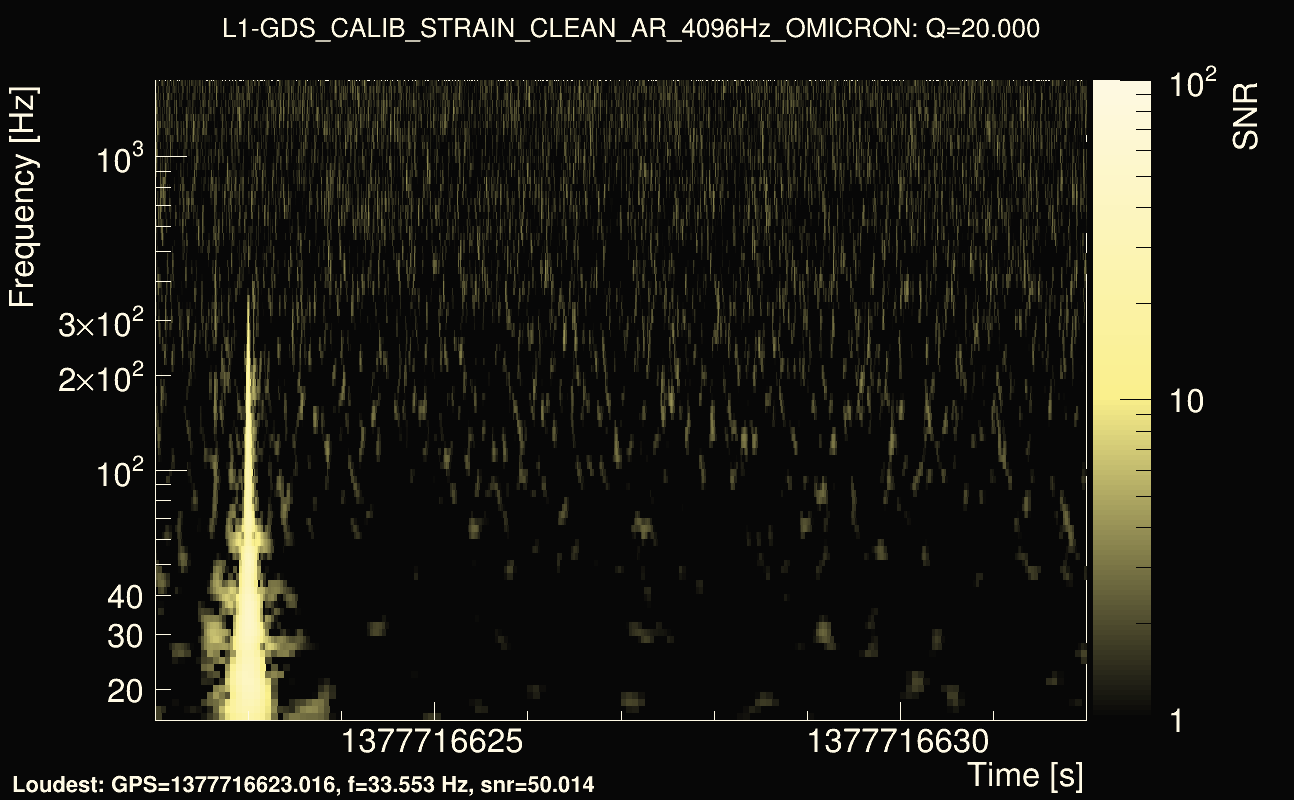

| Event time t(H1): | GPS = 1377716632 (Sat Sep 2 19:03:34 2023 ) → GPS = 1377716642 (Sat Sep 2 19:03:44 2023 ) |
| Event time t(L1): | GPS = 1377716622 (Sat Sep 2 19:03:44 2023 ) → GPS = 1377716632 (Sat Sep 2 19:03:34 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377716629 → GPS = 1377716645 |
| Omicron analysis time window (L1): | GPS = 1377716619 → GPS = 1377716635 |

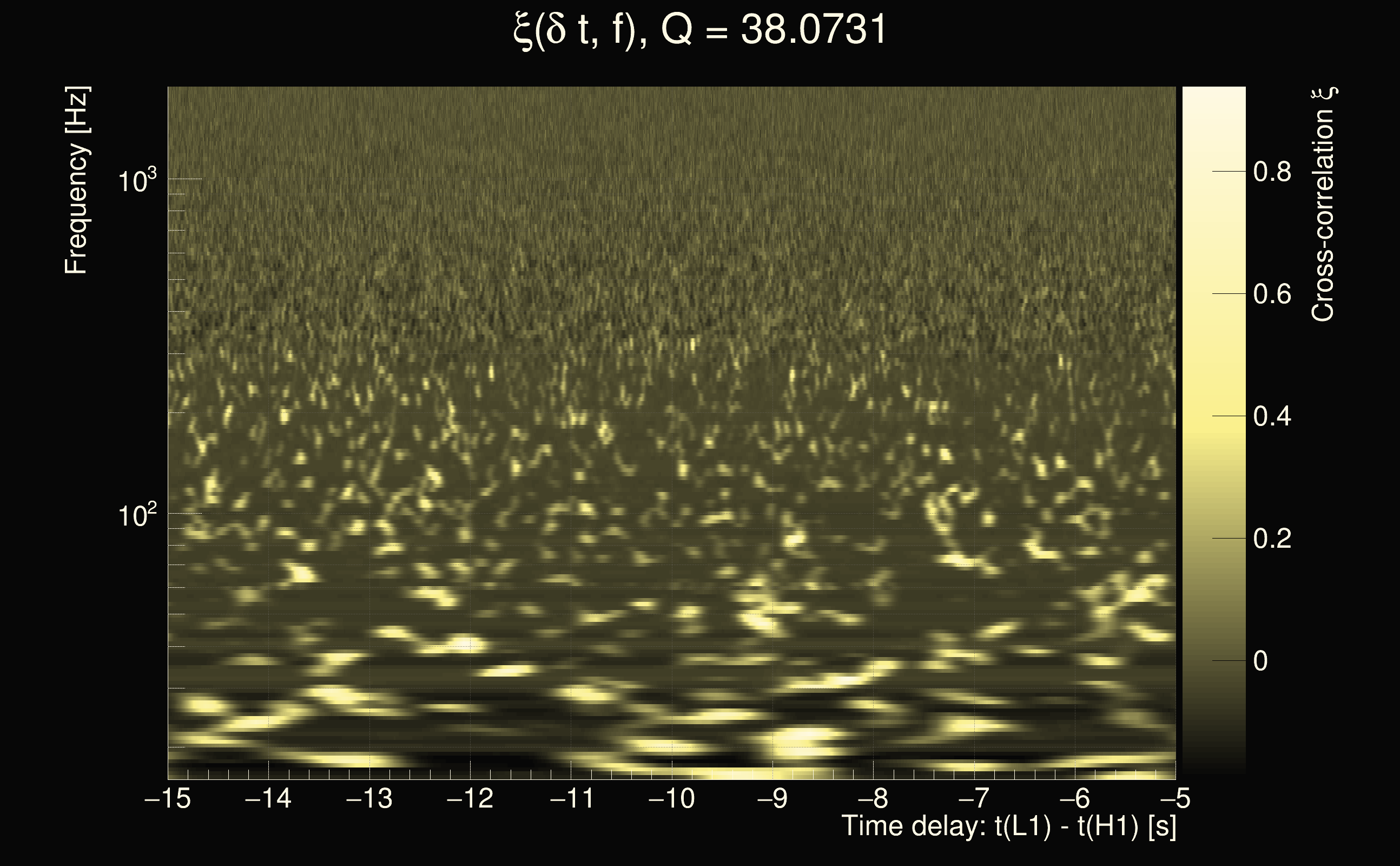

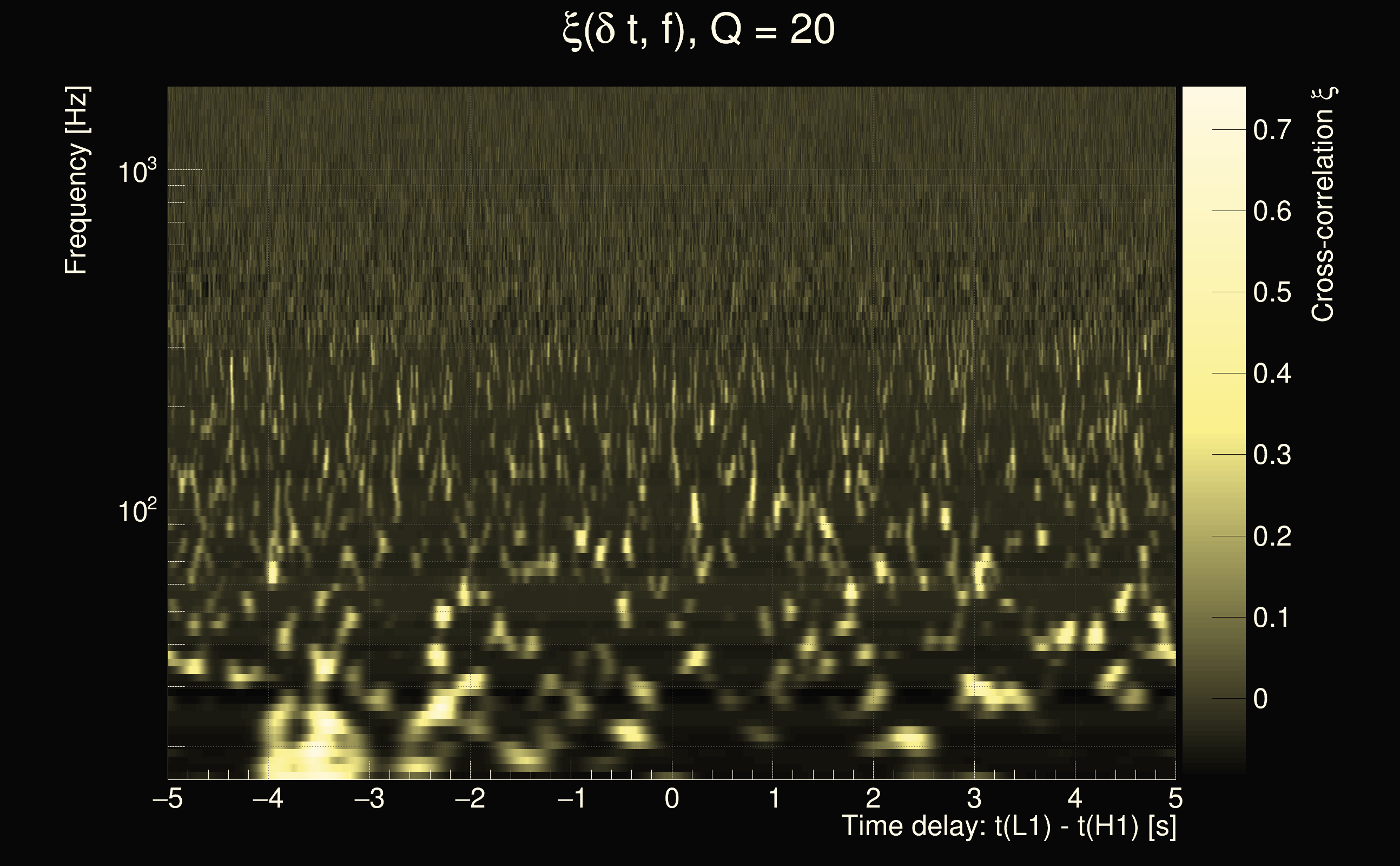

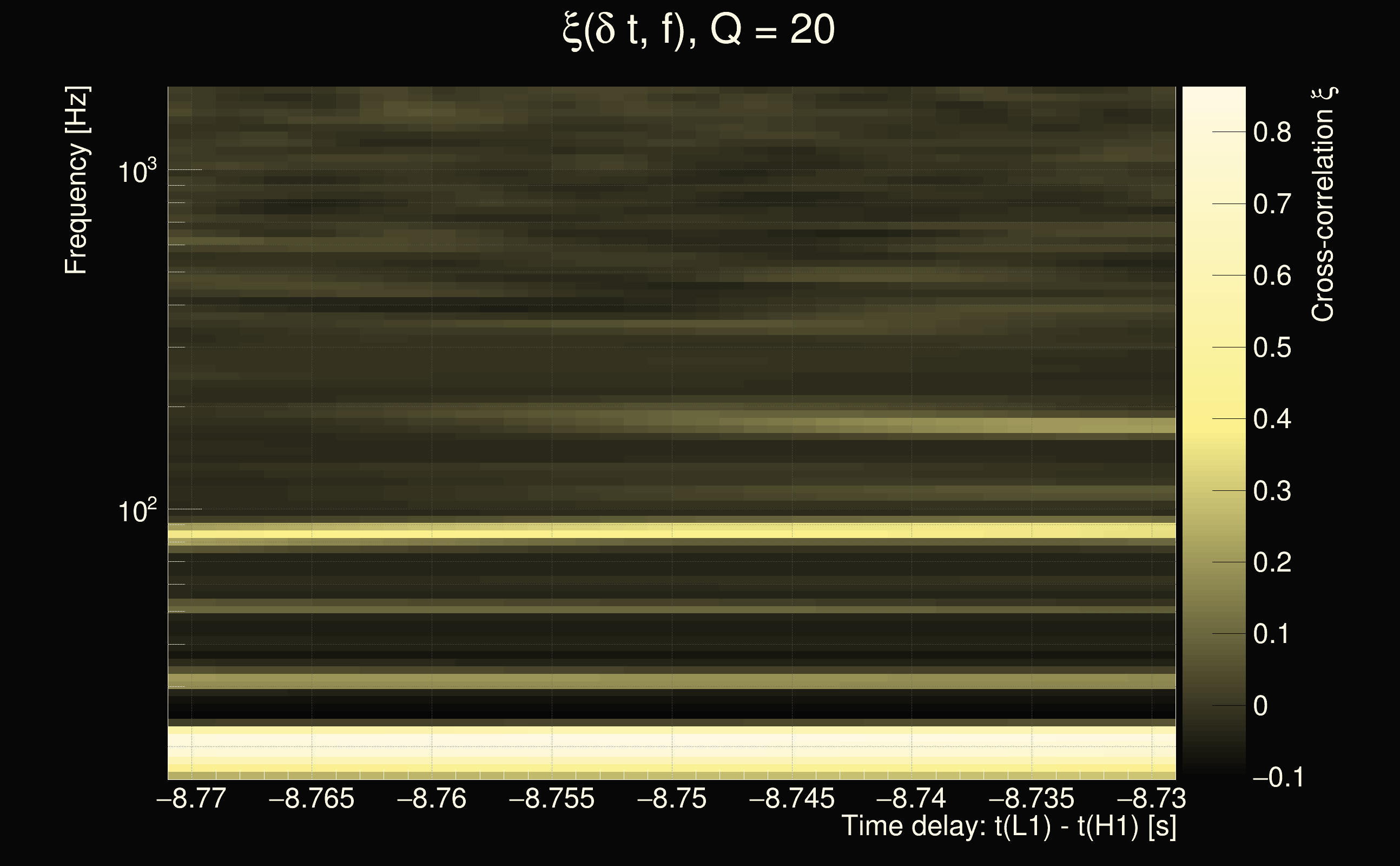

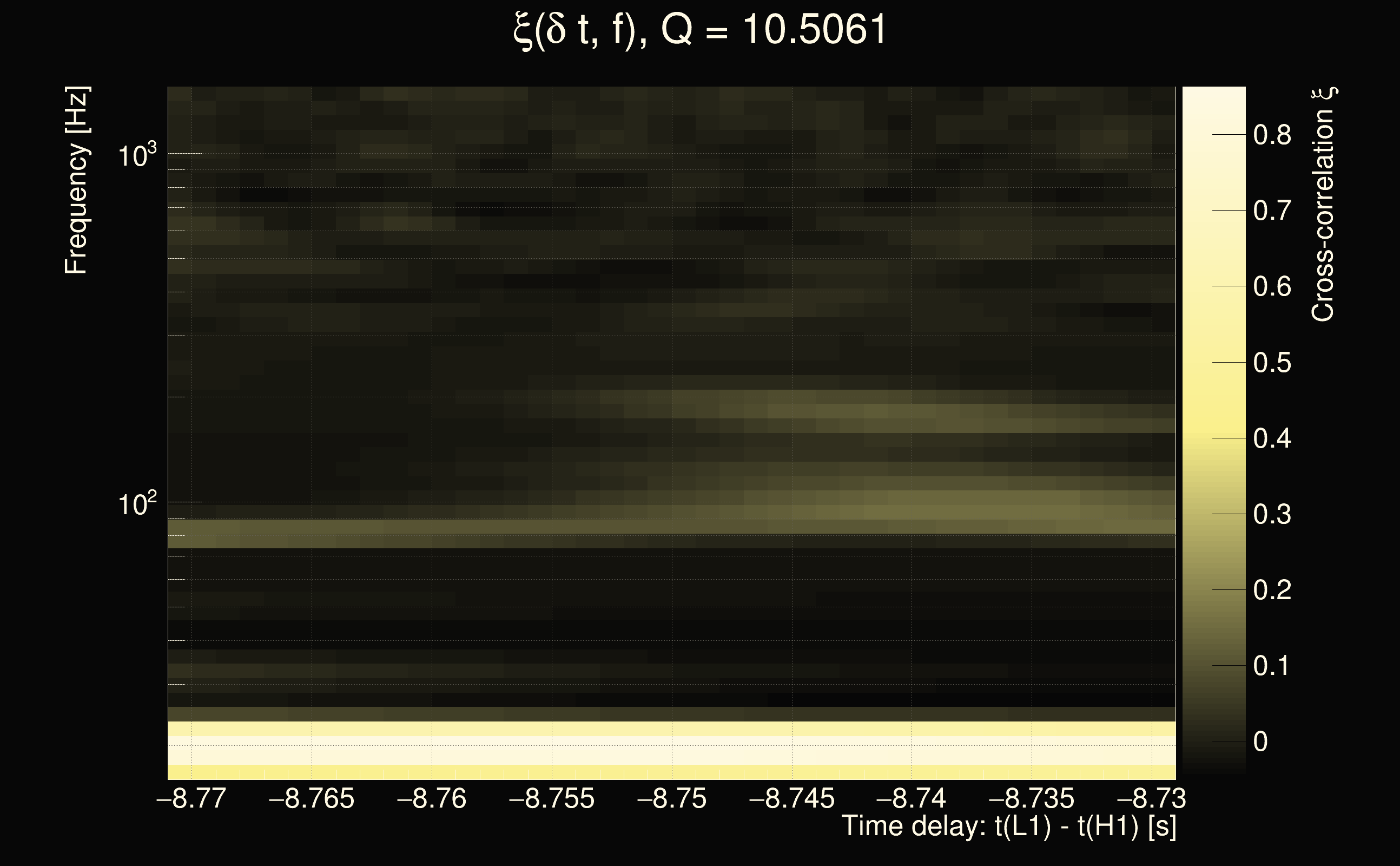

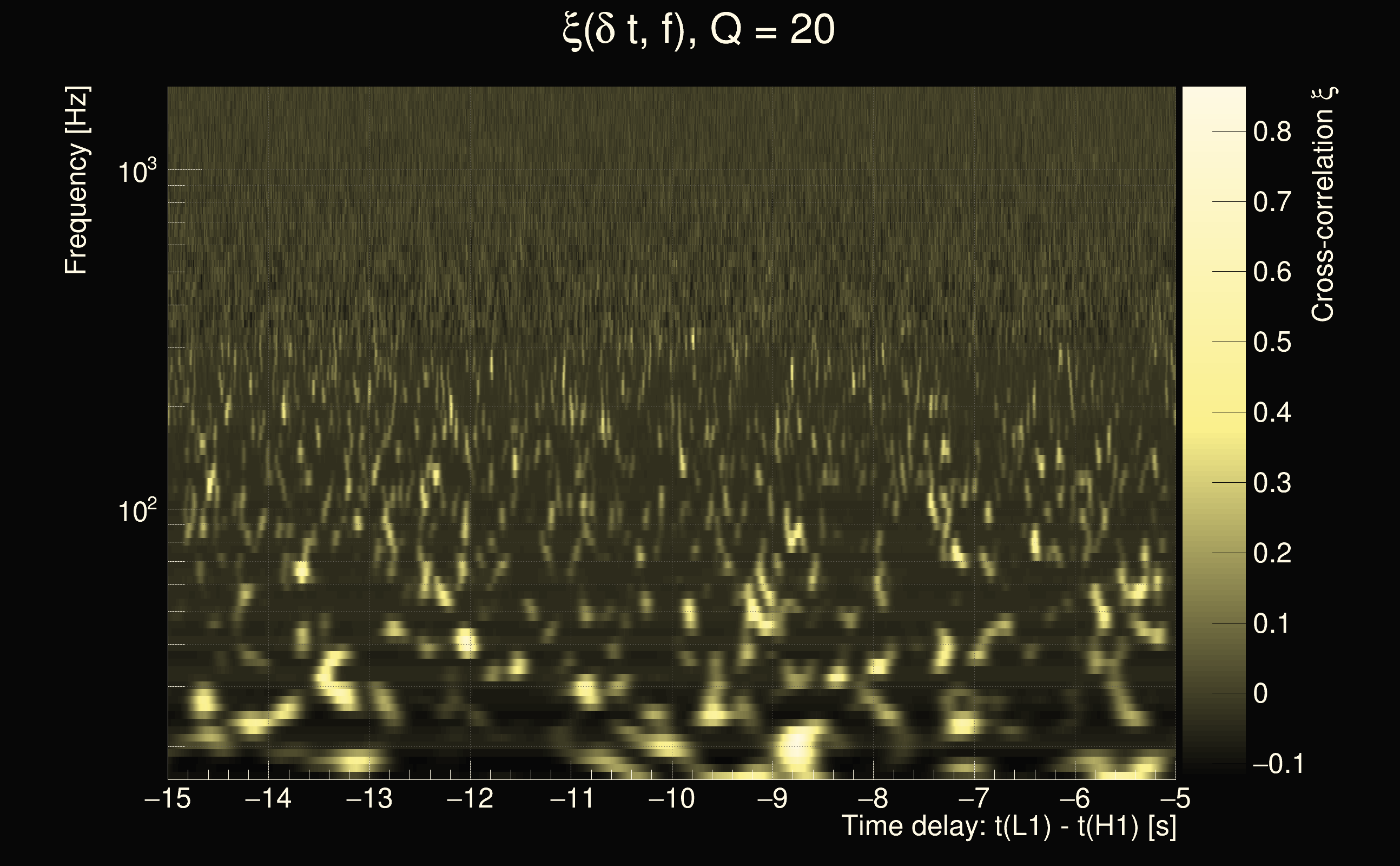

| Time delay between detectors t(L1) - t(H1): | -8.75 s (slice index = 81 / 217), δt_gw = 0.008 s |
| Time delay uncertainty: | 0.00881224s |
| Frequency: | 54.6264 Hz |
| Ξ: | 0.167278 |
| Rank: | R_A = 0.167278 |
| Amplitude ratio: | 17.3197 (H1: 5.90764±6.77207, L1: 17.3496±32.1738) |
| Antenna factor ratio (min/max): | 0.0285408 / 36.5271 |
| Number of rejected frequency rows: | Q0: 26 / 26, Q1: 45 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.10942, L1: 99.8272 |
| SNR variance: | H1: 0.515603, L1: 10.0384 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

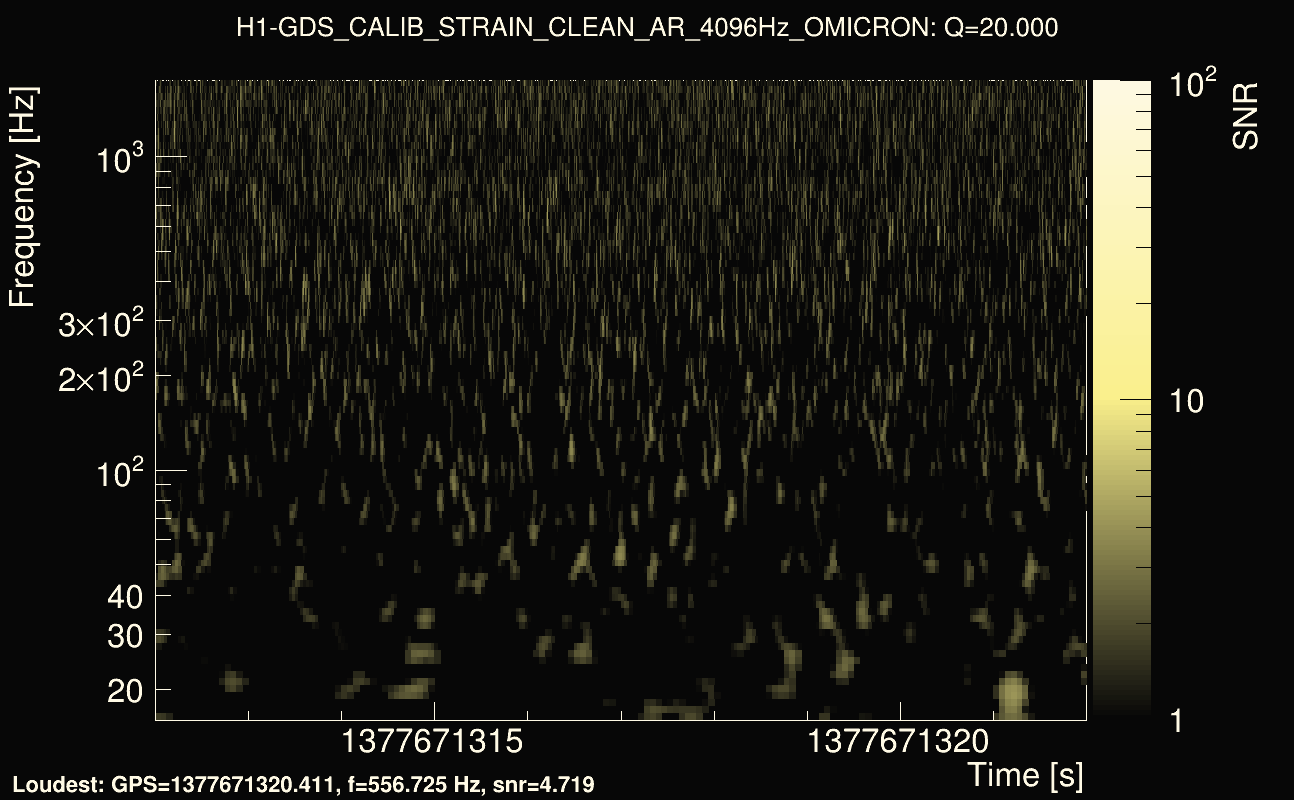

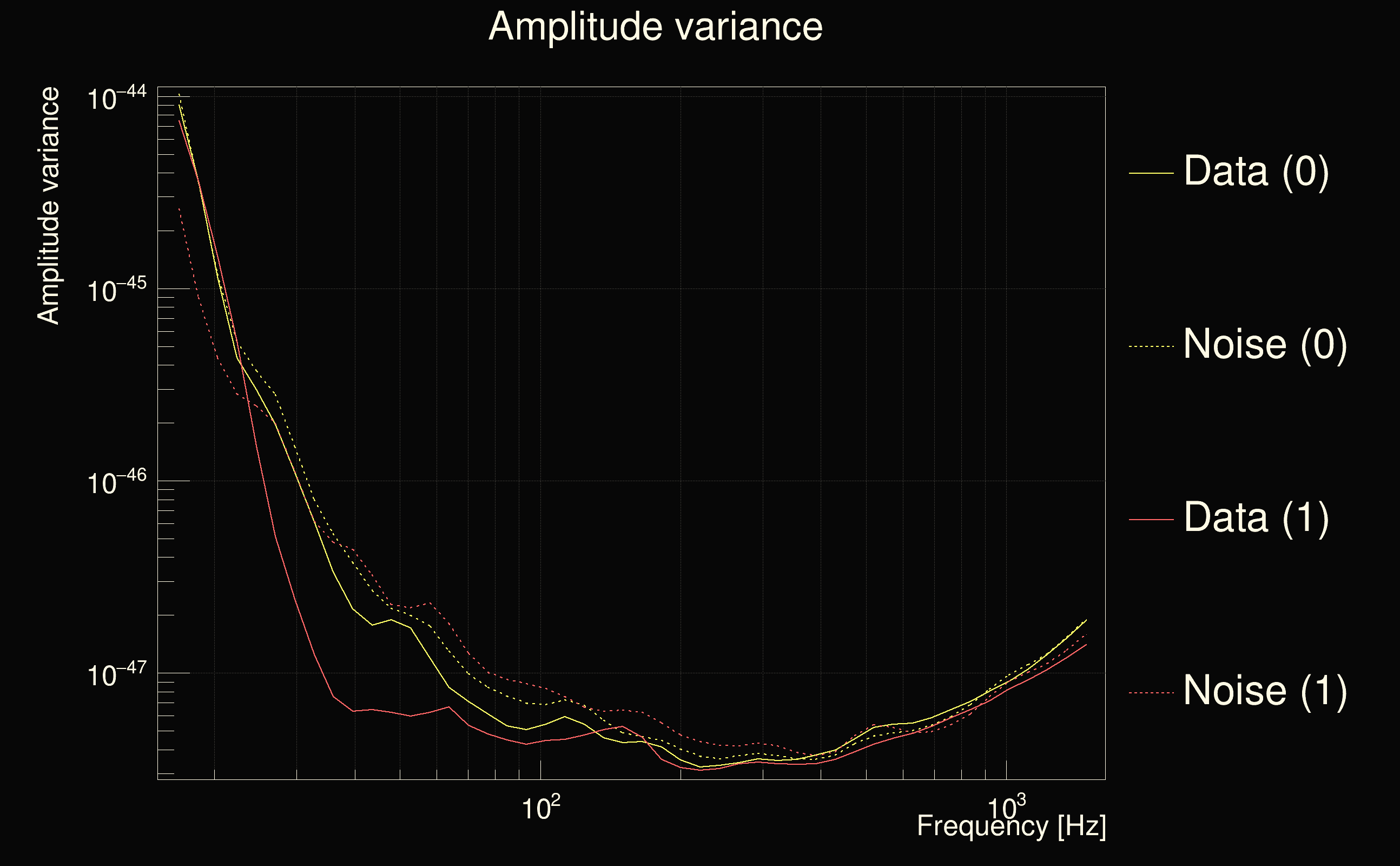

| Event time t(H1): | GPS = 1377671312 (Sat Sep 2 06:28:14 2023 ) → GPS = 1377671322 (Sat Sep 2 06:28:24 2023 ) |

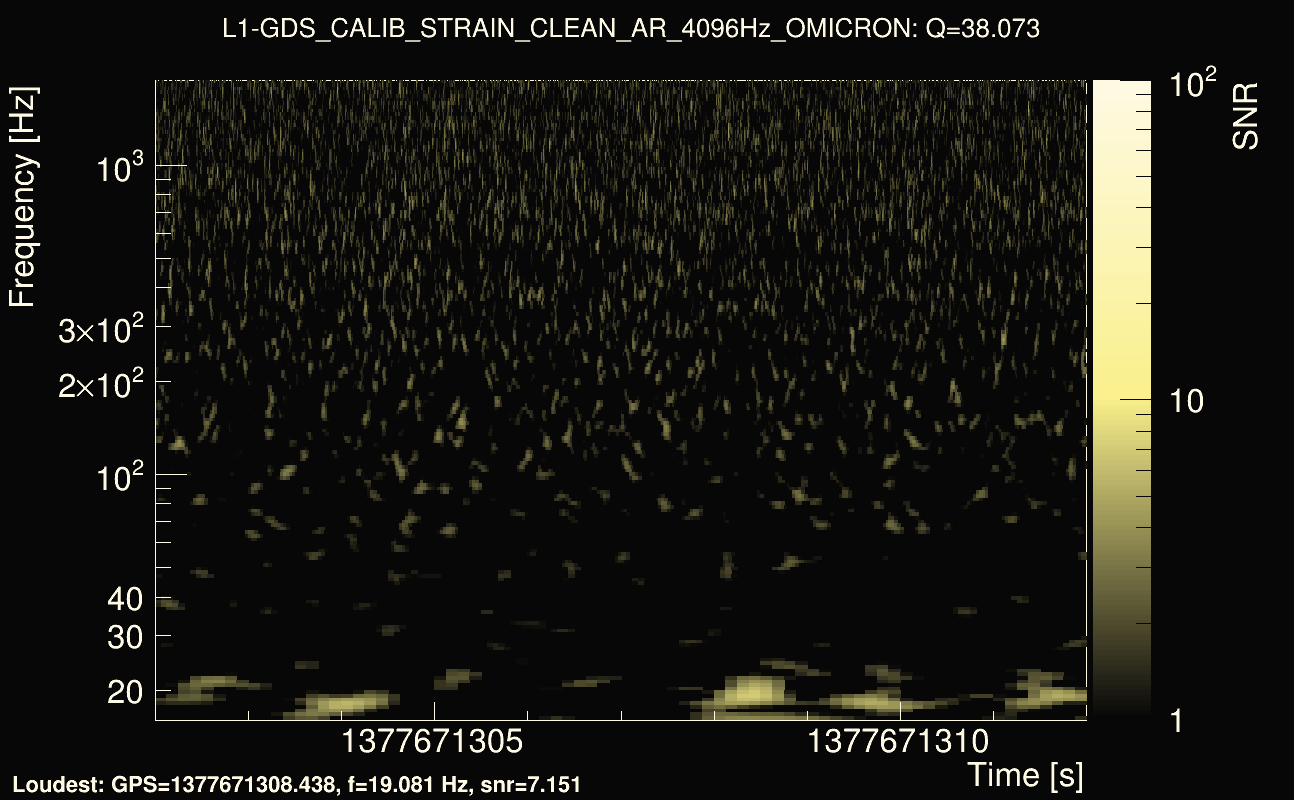

| Event time t(L1): | GPS = 1377671302 (Sat Sep 2 06:28:24 2023 ) → GPS = 1377671312 (Sat Sep 2 06:28:14 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377671309 → GPS = 1377671325 |
| Omicron analysis time window (L1): | GPS = 1377671299 → GPS = 1377671315 |

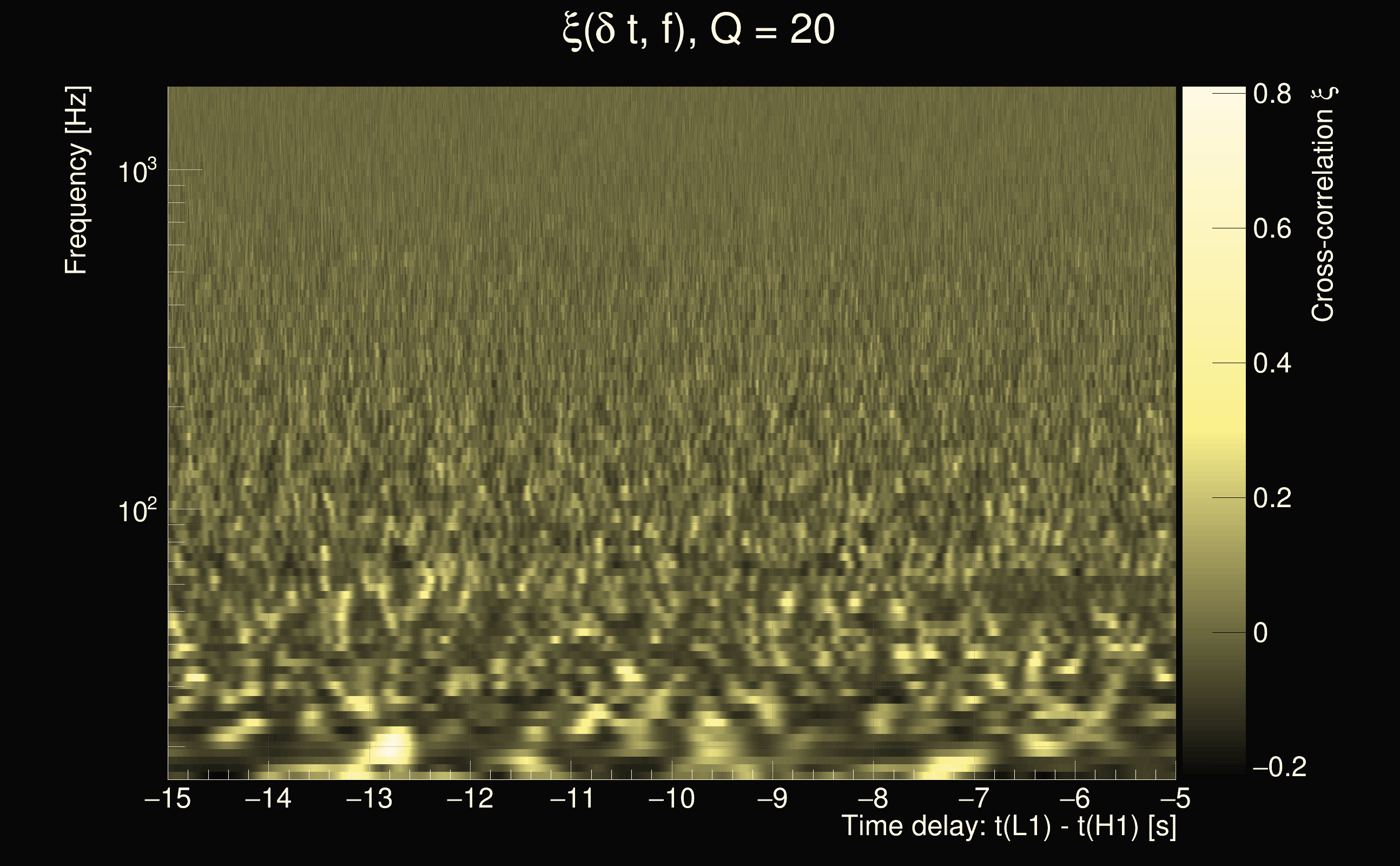

| Time delay between detectors t(L1) - t(H1): | -12.7586 s (slice index = 168 / 217), δt_gw = 0.00140829 s |
| Time delay uncertainty: | 0.000184501s |
| Frequency: | 151.557 Hz |
| Ξ: | 0.163986 |
| Rank: | R_A = 0.163986 |

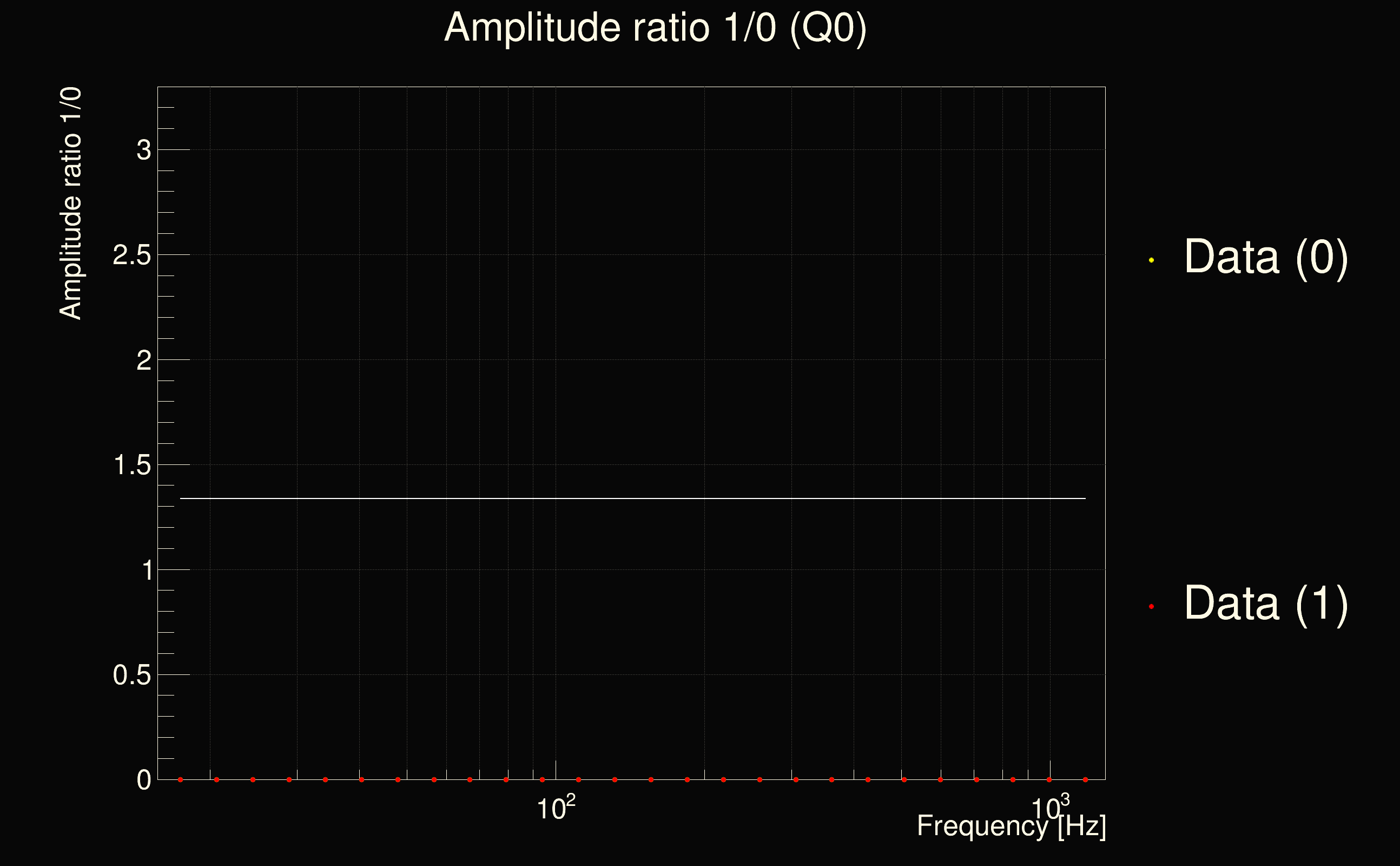

| Amplitude ratio: | 1.3368 (H1: 1.34281±2.25687, L1: 1.33402±0.604213) |

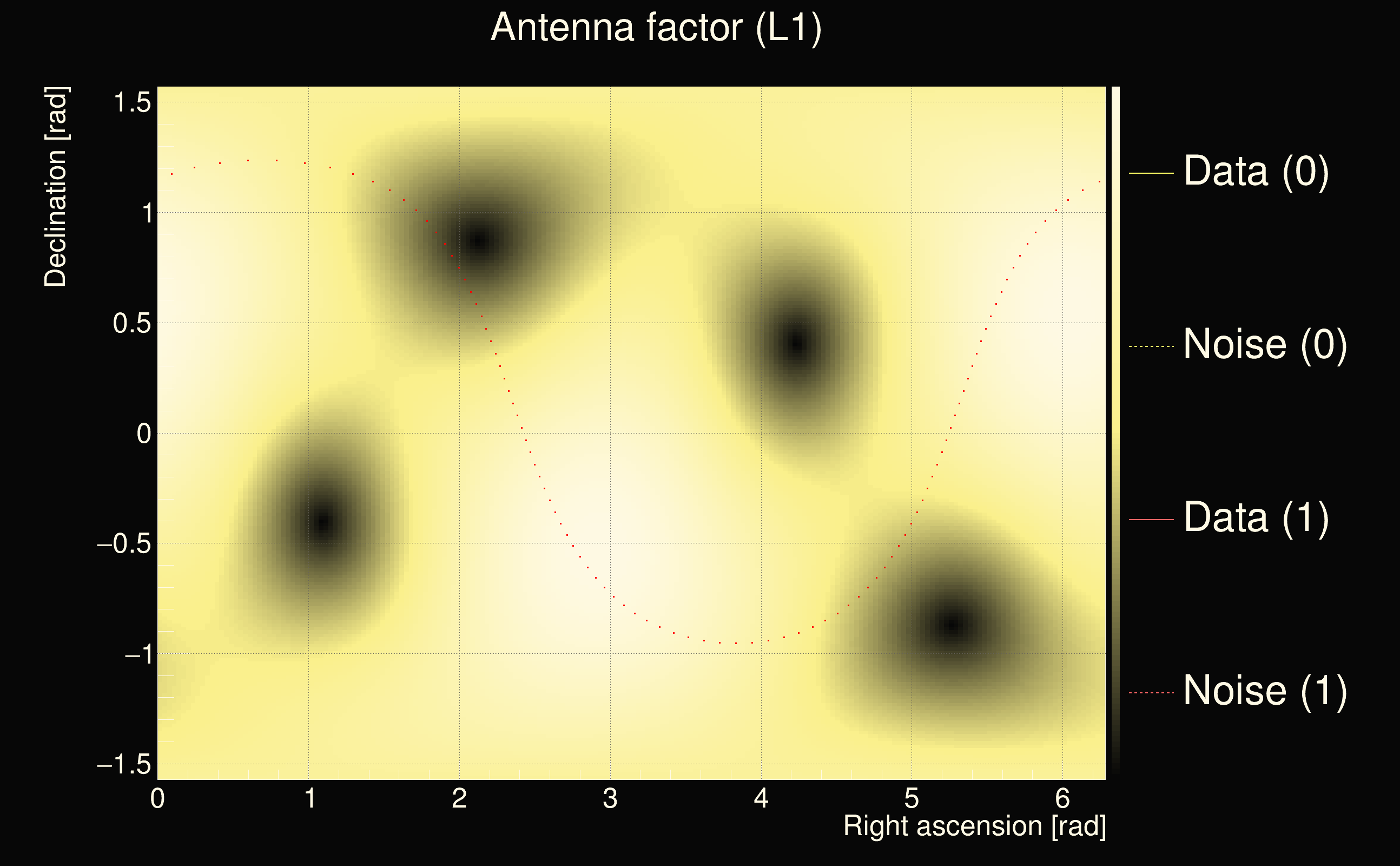

| Antenna factor ratio (min/max): | 0.479501 / 2.09593 |
| Number of rejected frequency rows: | Q0: 21 / 26, Q1: 43 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio: | H1: 5.47024, L1: 8.04337 |

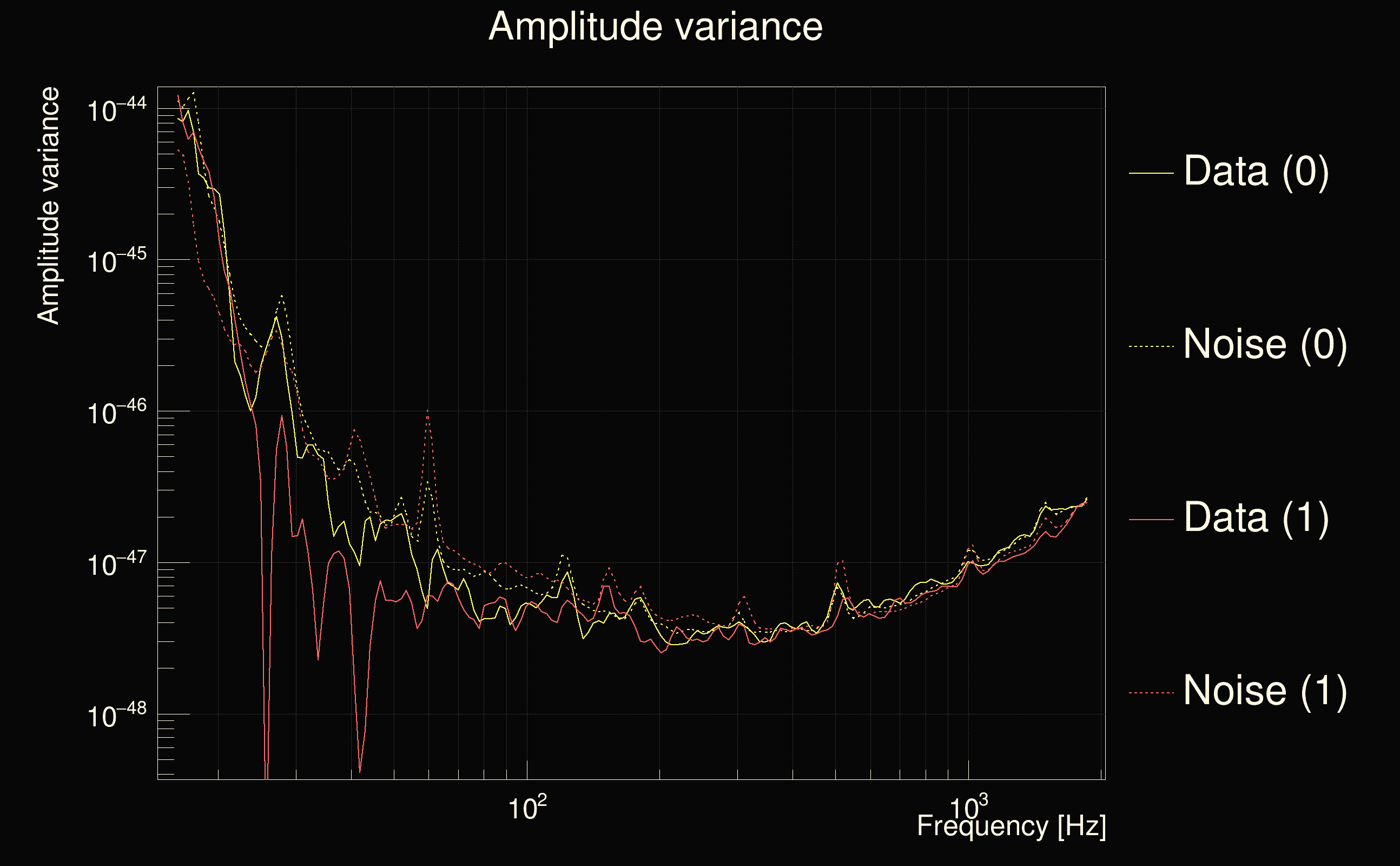

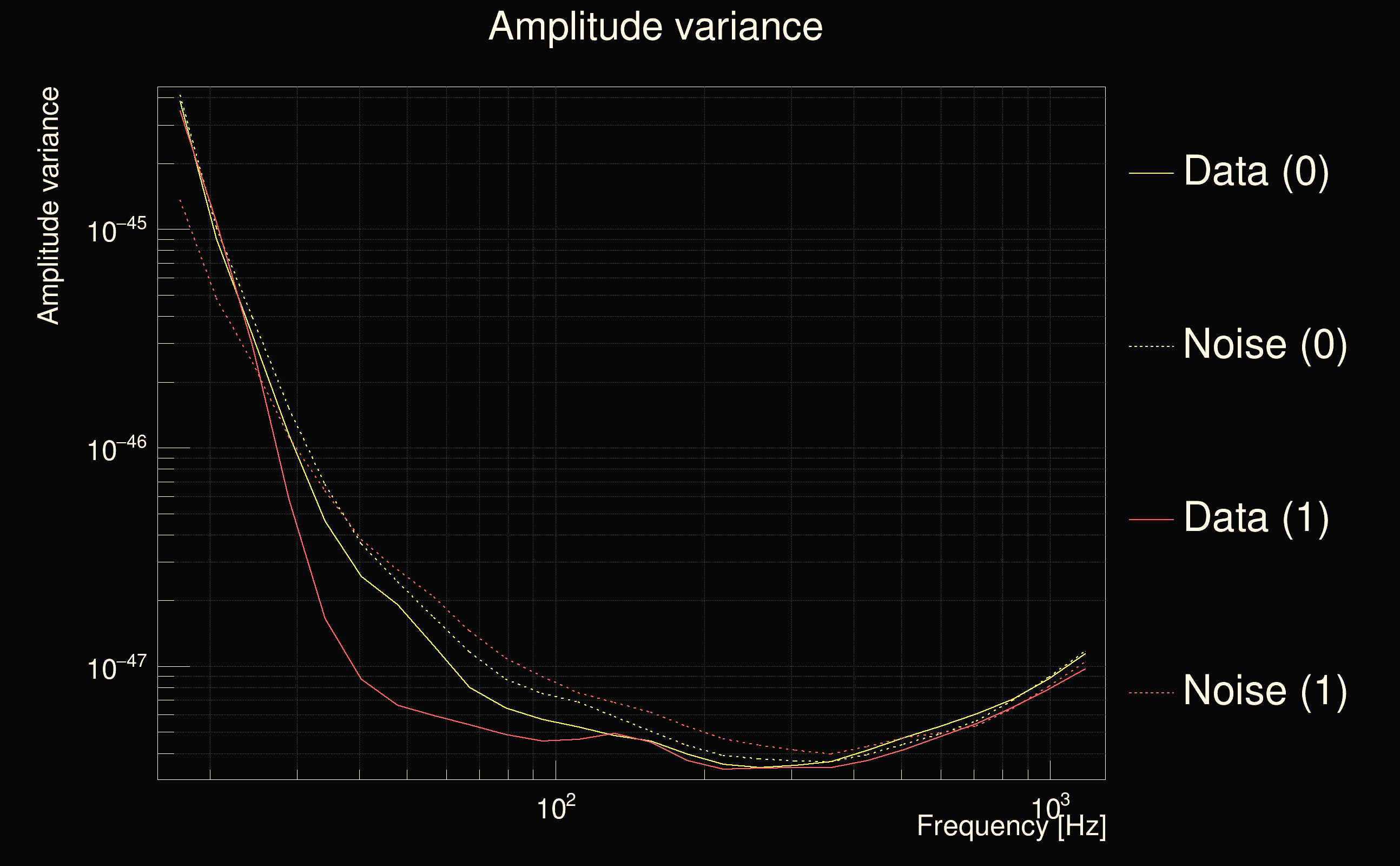

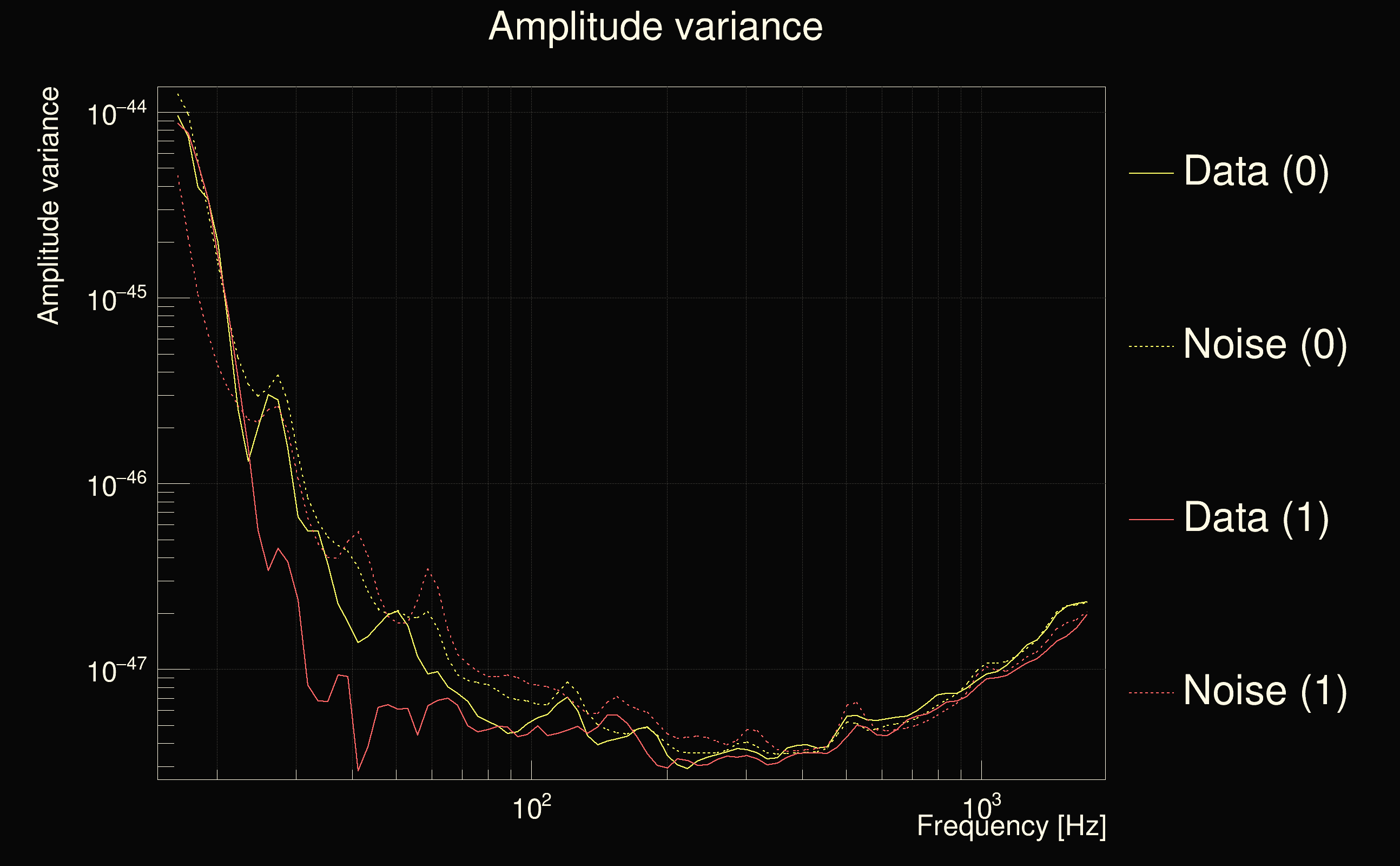

| SNR variance: | H1: 0.493513, L1: 0.549974 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
