| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Thu Oct 23 04:51:41 2025 UTC |
| Ox option file: | Targeted_bkg_showoff_131025_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |

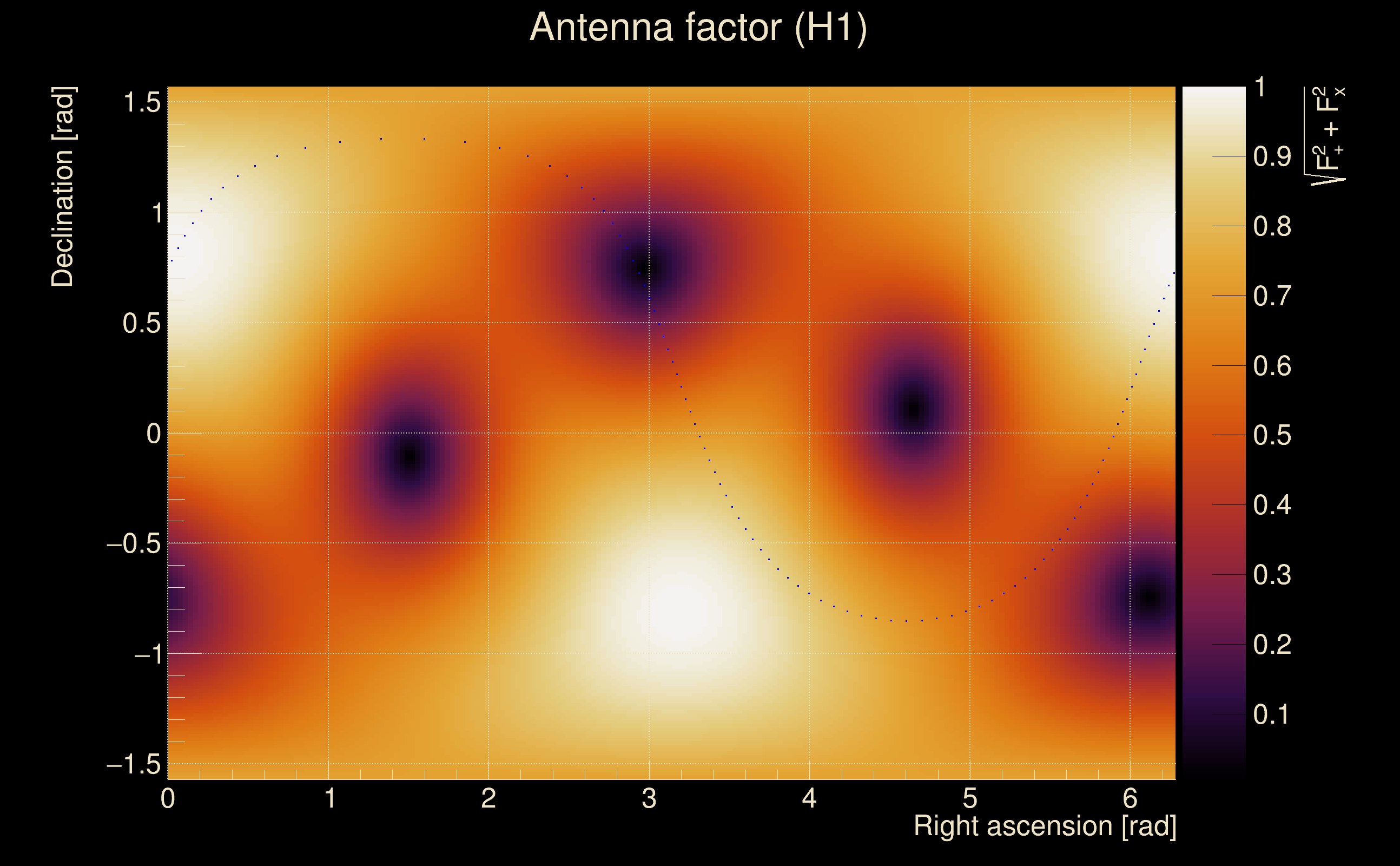

| Target sky positon: | Ra: 6.0135, Dec: 0.3475 [rad] |
| List of input Ox files: | Targeted_bkg_showoff_131025_file_list.txt (10385 files) |
| Analysis result file: | Targeted_bkg_showoff_131025_results-0.root |
| Slice selected for the the fakeground: | slice index=112 (-40.184 s), time lag = -50 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 176151 | 176169 | 420109484 | |
| Start Date (detector 0) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:04 2023 UTC | Sat Sep 2 04:55:44 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | |
| Start GPS (detector 0) | 1377665712 | 1377665662 | 1377665762 | |
| End GPS (detector 0) | 1378944121 | 1378944121 | 1378944121 | |
| Used livetime (detector 0) | 885490 s | 885585 s | 887695 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:00:53 2023 UTC | |
| Start GPS (detector 1) | 1377665712 | 1377665712 | 1377665712 | |
| End GPS (detector 1) | 1378944121 | 1378944121 | 1378944071 | |
| Used livetime (detector 1) | 885490 s | 885585 s | 893886 s | |
| Cumulative livetime | 1761510 s | 1761690 s | 4201094840 s | |
| 0 years, 20 days, 9 hours, 18 min, 30 s | 0 years, 20 days, 9 hours, 21 min, 30 s | 133 years, 45 days, 18 hours, 47 min, 20 s |
|
|
| Detection threshold: | R > 0.0389419 |
| False-alarm rate above that detection threshold: | 3.3651e-09 |
| Alternative threshold at 1/1000 yrs: | R > 0.075 |
| Alternative threshold at 1/100 yrs: | R > 0.0667218 |
| Alternative threshold at 1/10 yrs: | R > 0.0389428 |
| Alternative threshold at 1/1 yr: | R > 0.0282878 |
| Alternative threshold at 1/1 d: | R > 0.0154439 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |

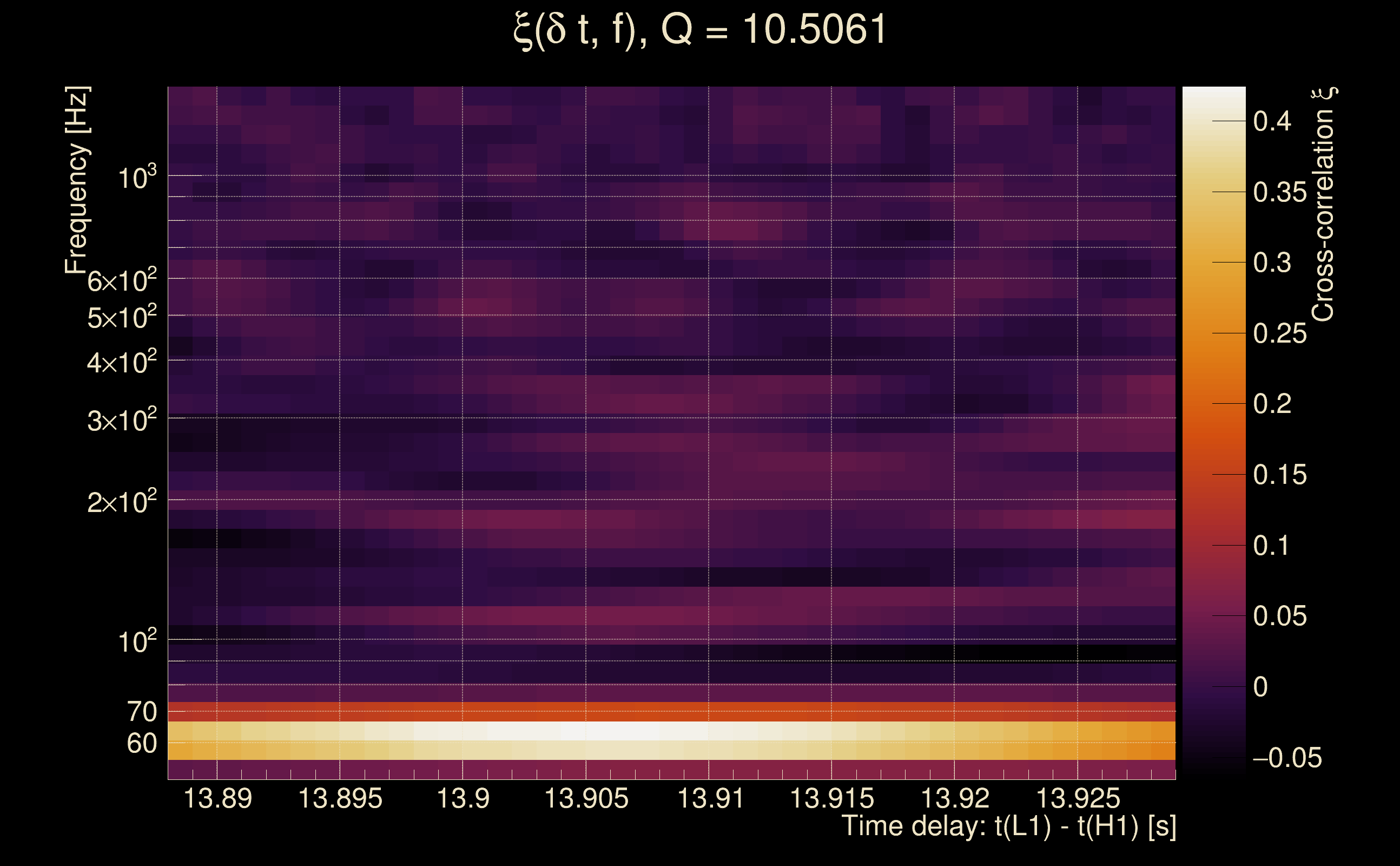

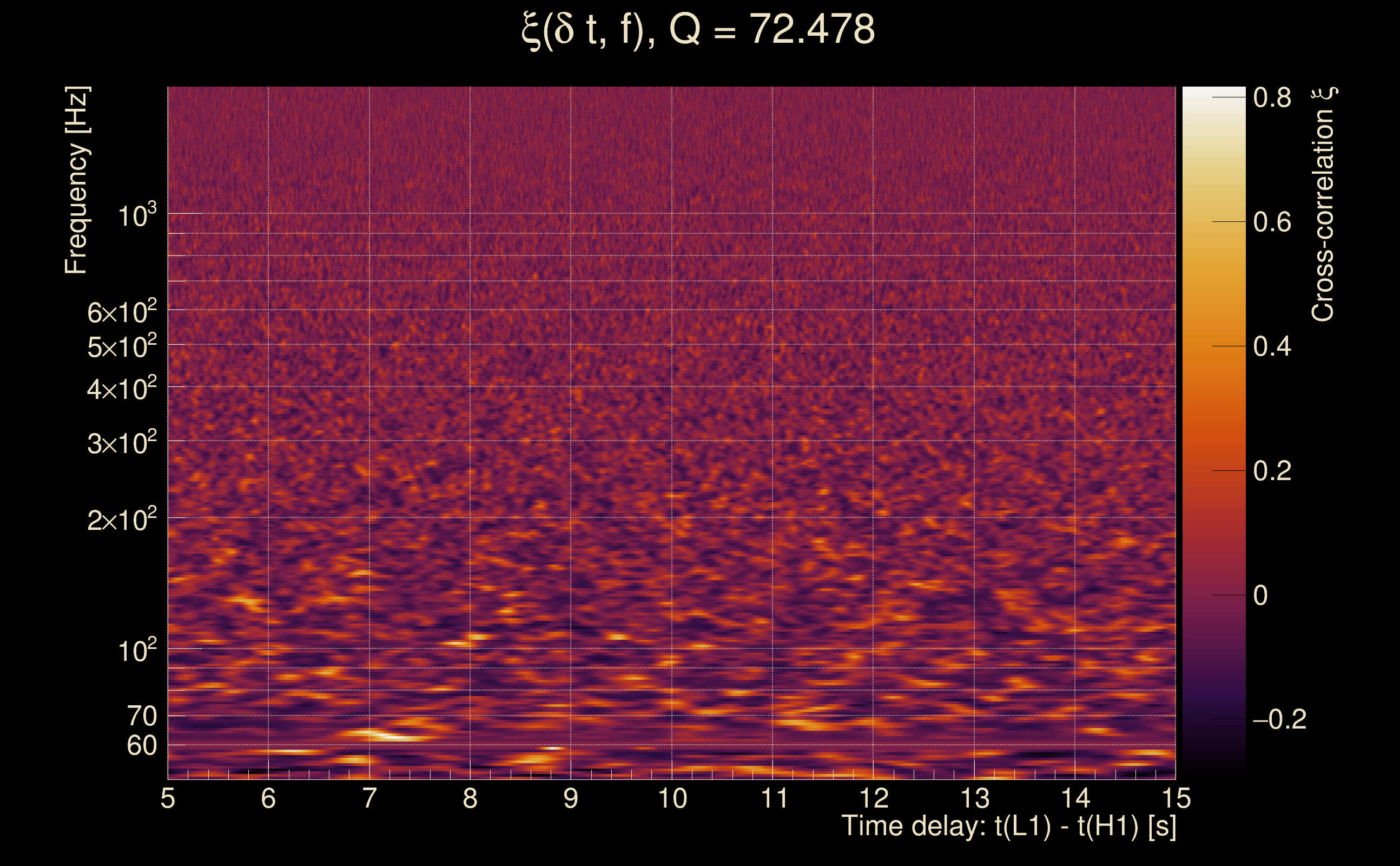

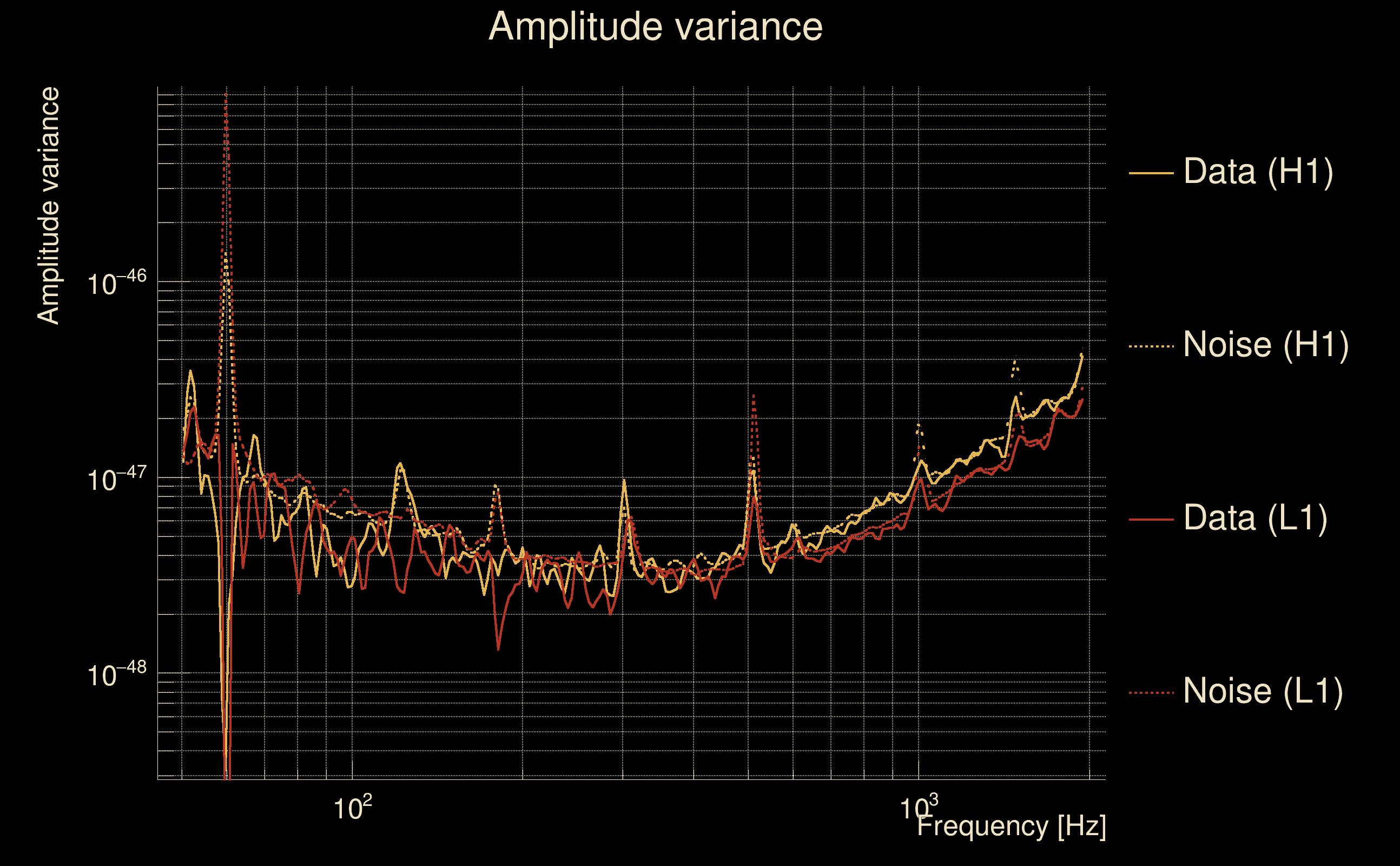

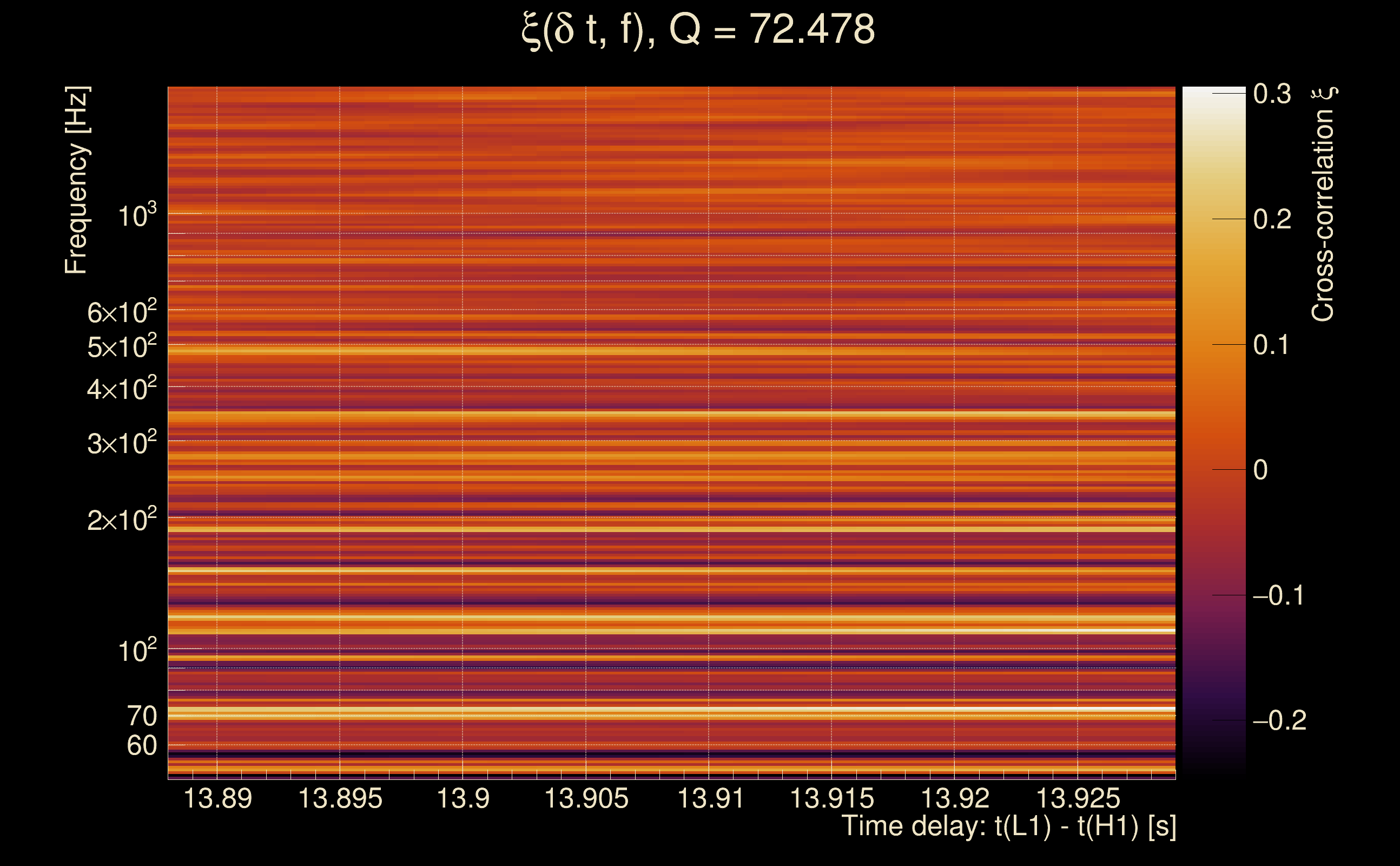

| Event time t(H1): | GPS = 1378417287 (Sun Sep 10 21:41:09 2023 ) → GPS = 1378417297 (Sun Sep 10 21:41:19 2023 ) |
| Event time t(L1): | GPS = 1378417297 (Sun Sep 10 21:41:19 2023 ) → GPS = 1378417307 (Sun Sep 10 21:41:29 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378417284 → GPS = 1378417300 |
| Omicron analysis time window (L1): | GPS = 1378417294 → GPS = 1378417310 |
| Time delay between detectors t(L1) - t(H1): | 13.9081 s (slice index = 23 / 217), δt_gw = -0.00186061 s |
| Time delay uncertainty: | 0.00544996 s |
| [targeted mode] Time delay probability: | 0.954998 (0.0564318 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 85.5972 Hz |

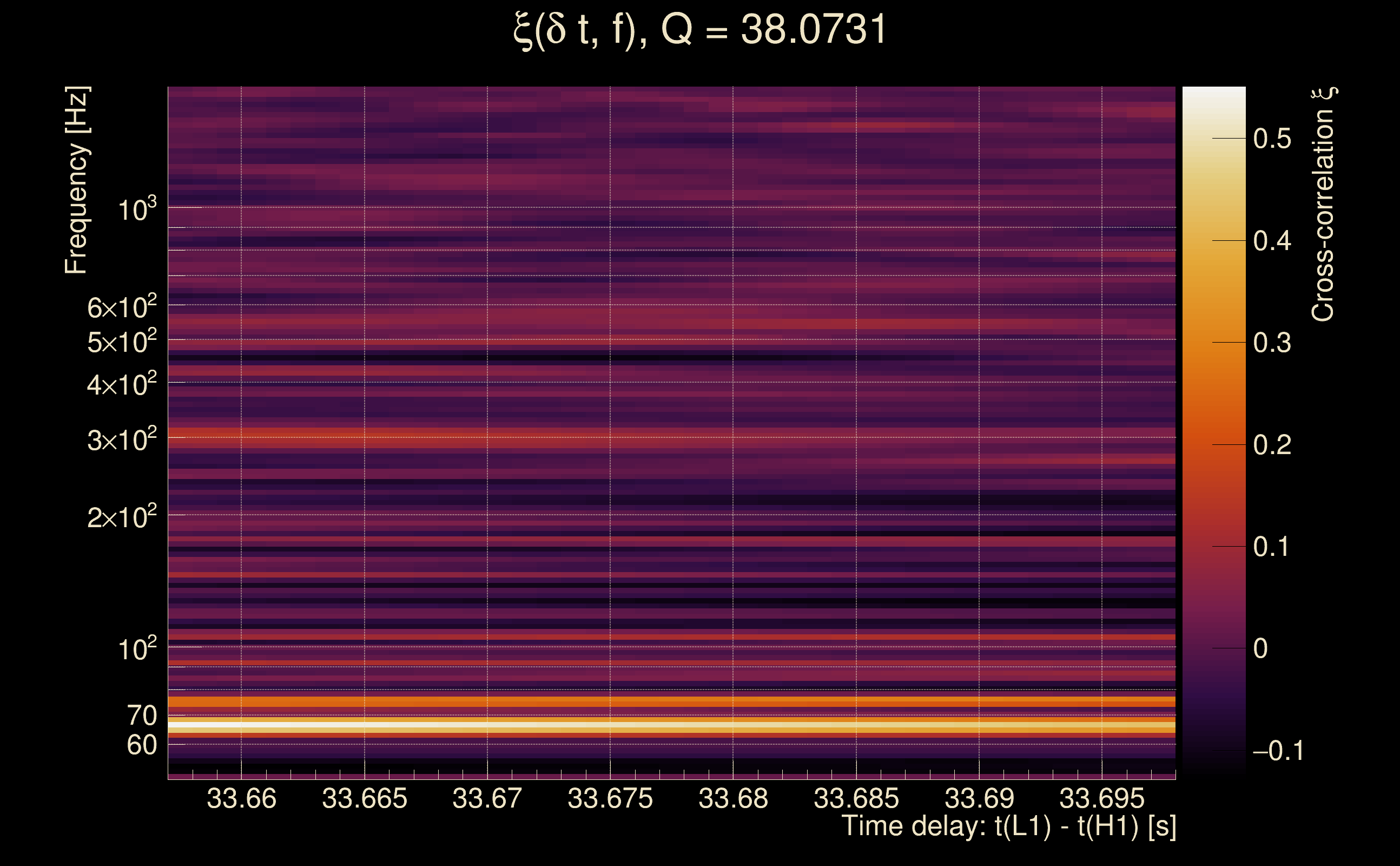

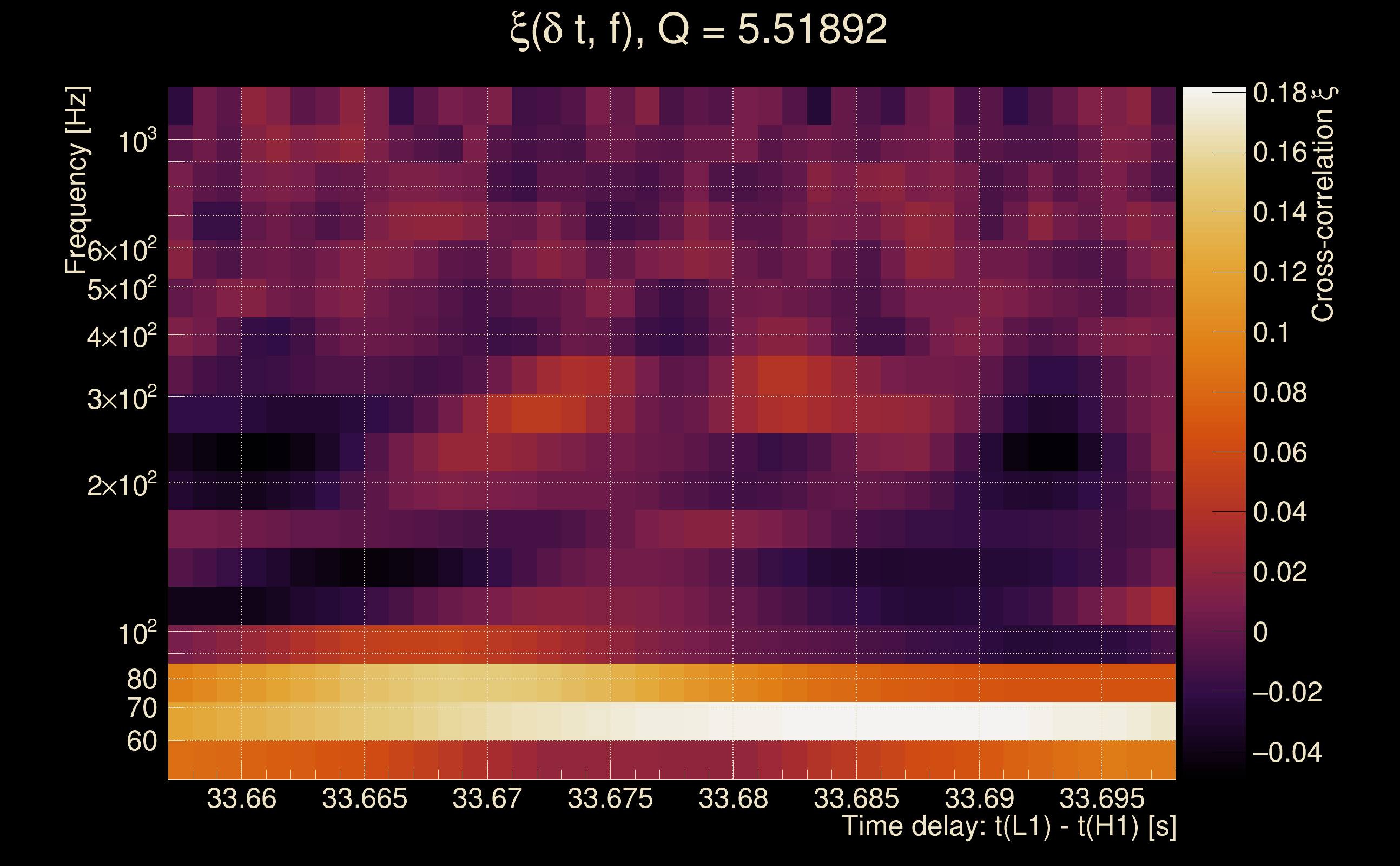

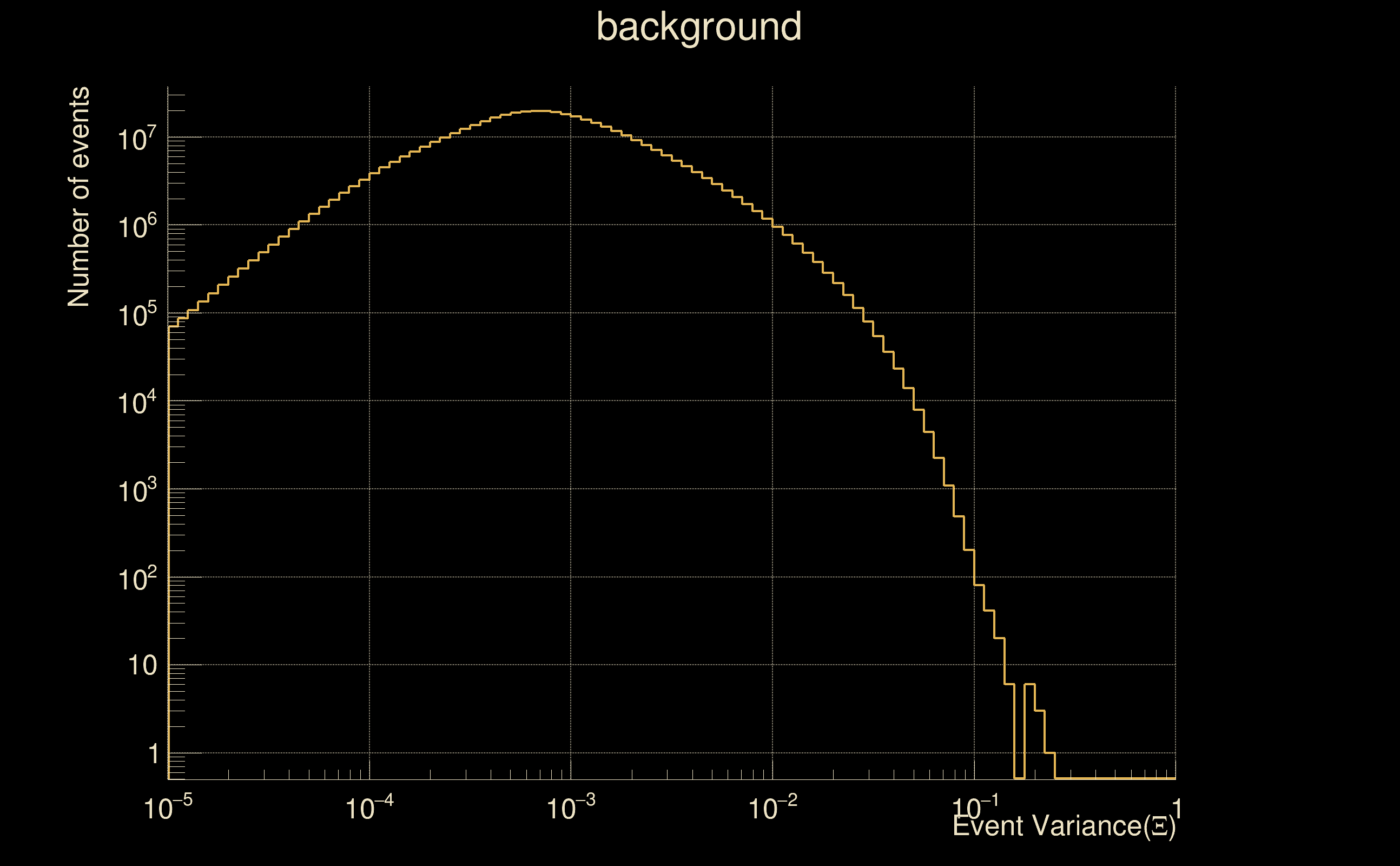

| Ξ: | 0.0766467 ± 0.108572 (variance = 0.0117879): Q0: 0.287521, Q1: 0.364018, Q2: 0.336723, Q3: 0.134839, Q4: 0.0952462 |

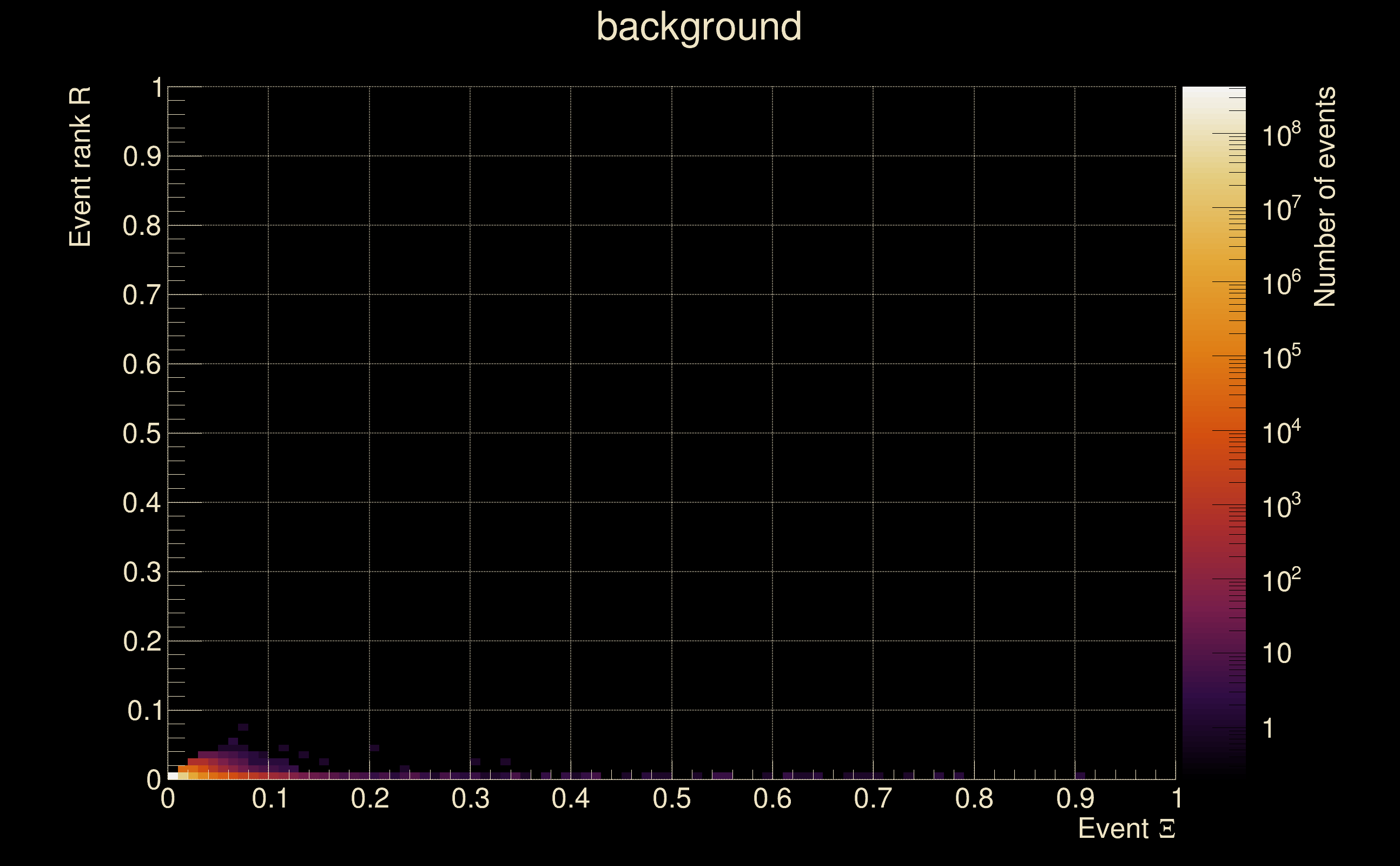

| Rank: | R_A = 0.0719623 |
| Log of amplitude ratio (L1/H1): | -0.125431, variance = 0.351839 (L1/H1: -0.144081, variance = 0.981761, H1/L1: 0.118063, variance = 0.531525) |
| Amplitude ratio (L1/H1): | 0.882116 ⋇ 1.8097 (L1/H1: 0.865817 ⋇ 2.69349, H1/L1: 1.12532 ⋇ 2.07313) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.983126 |

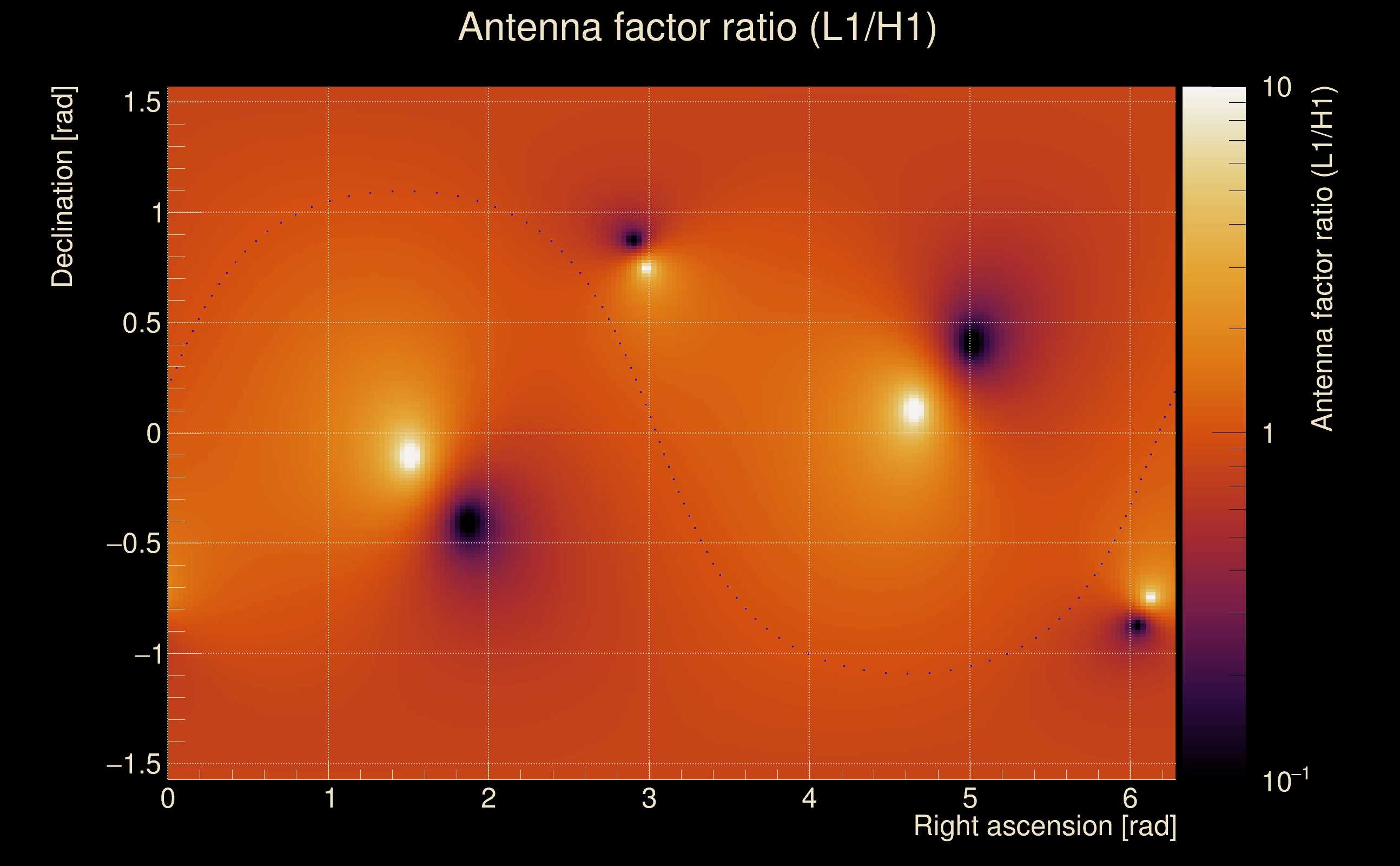

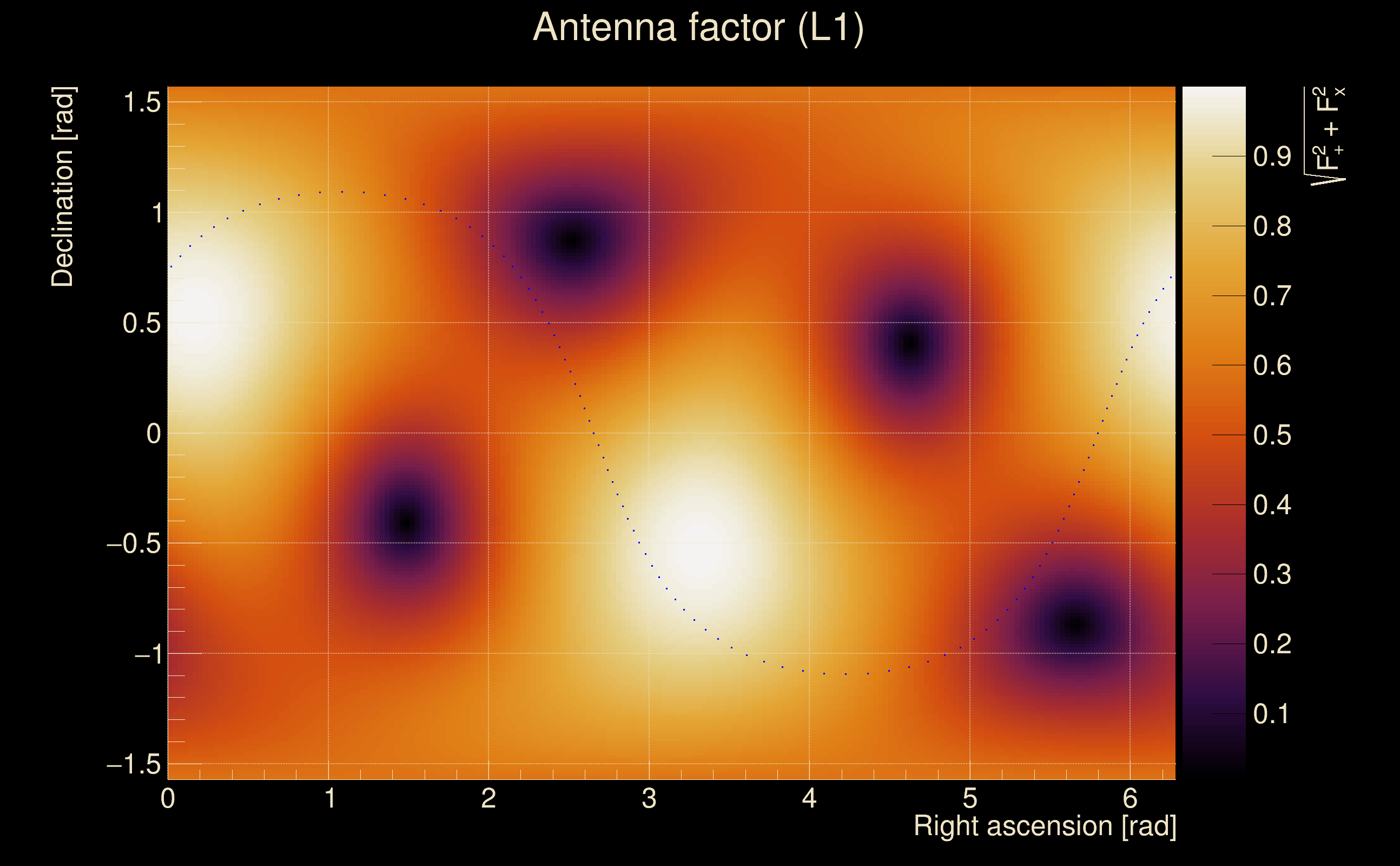

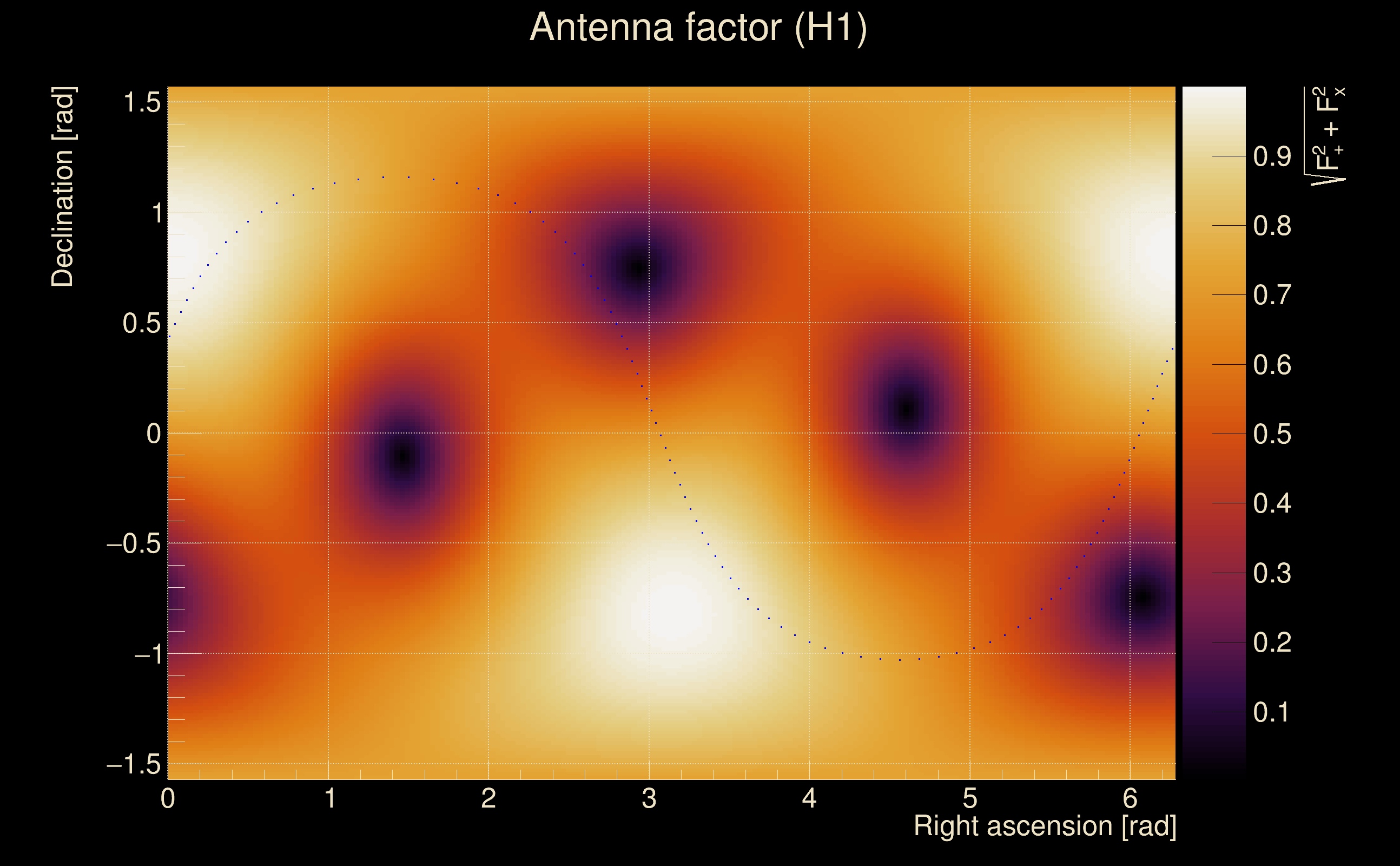

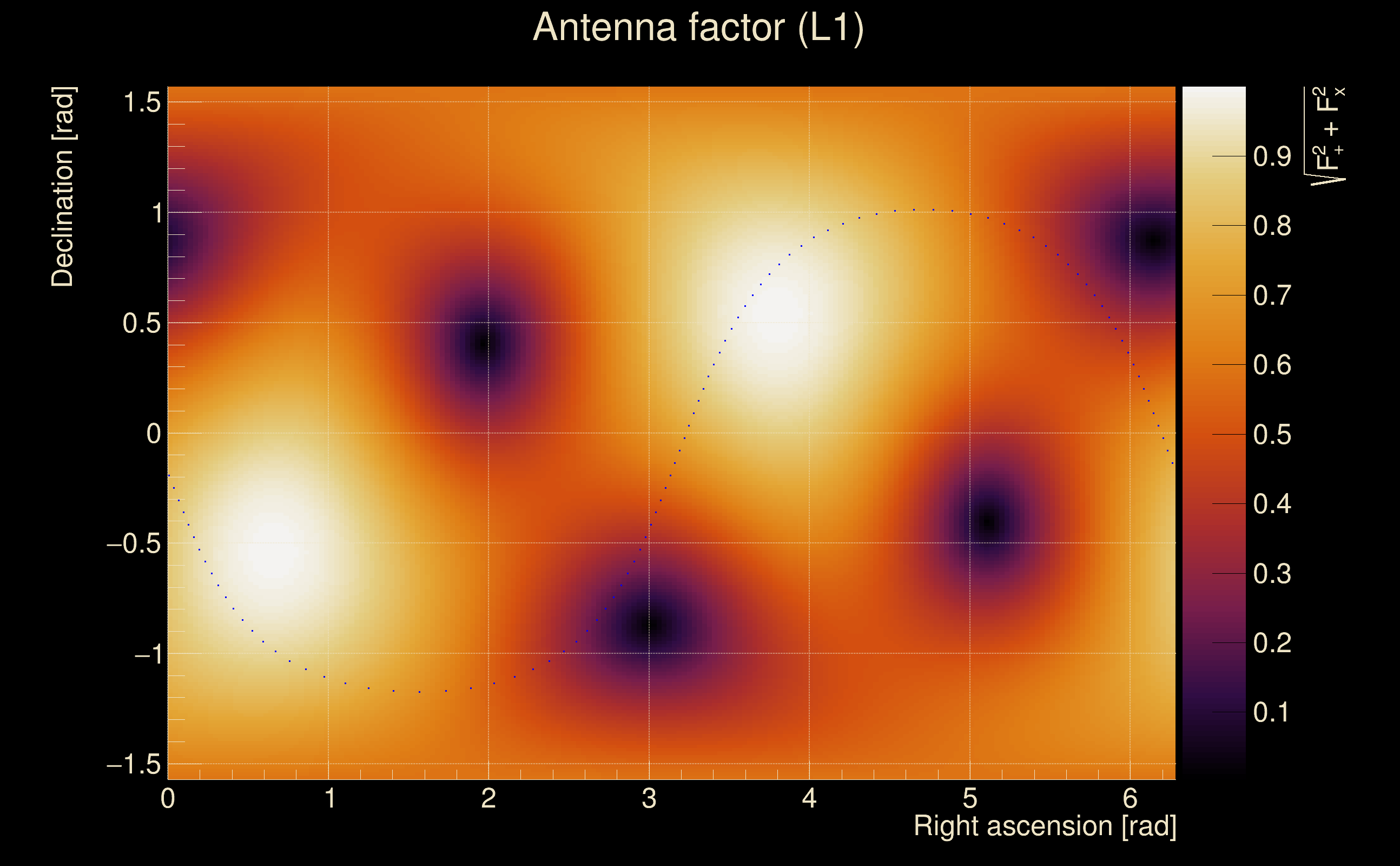

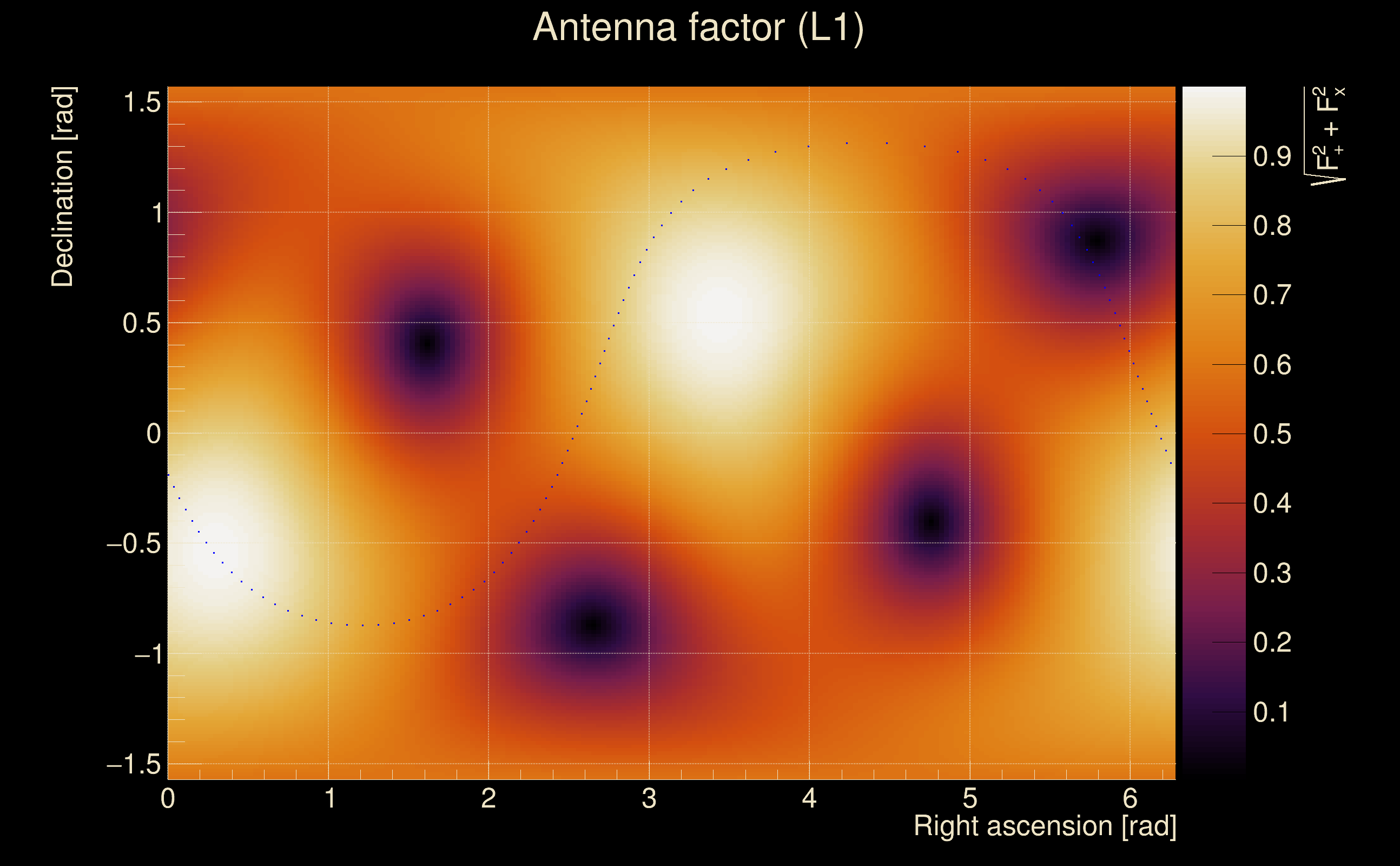

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 28 / 36, Q2: 61 / 70, Q3: 115 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.82386, L1: 7.67455 |

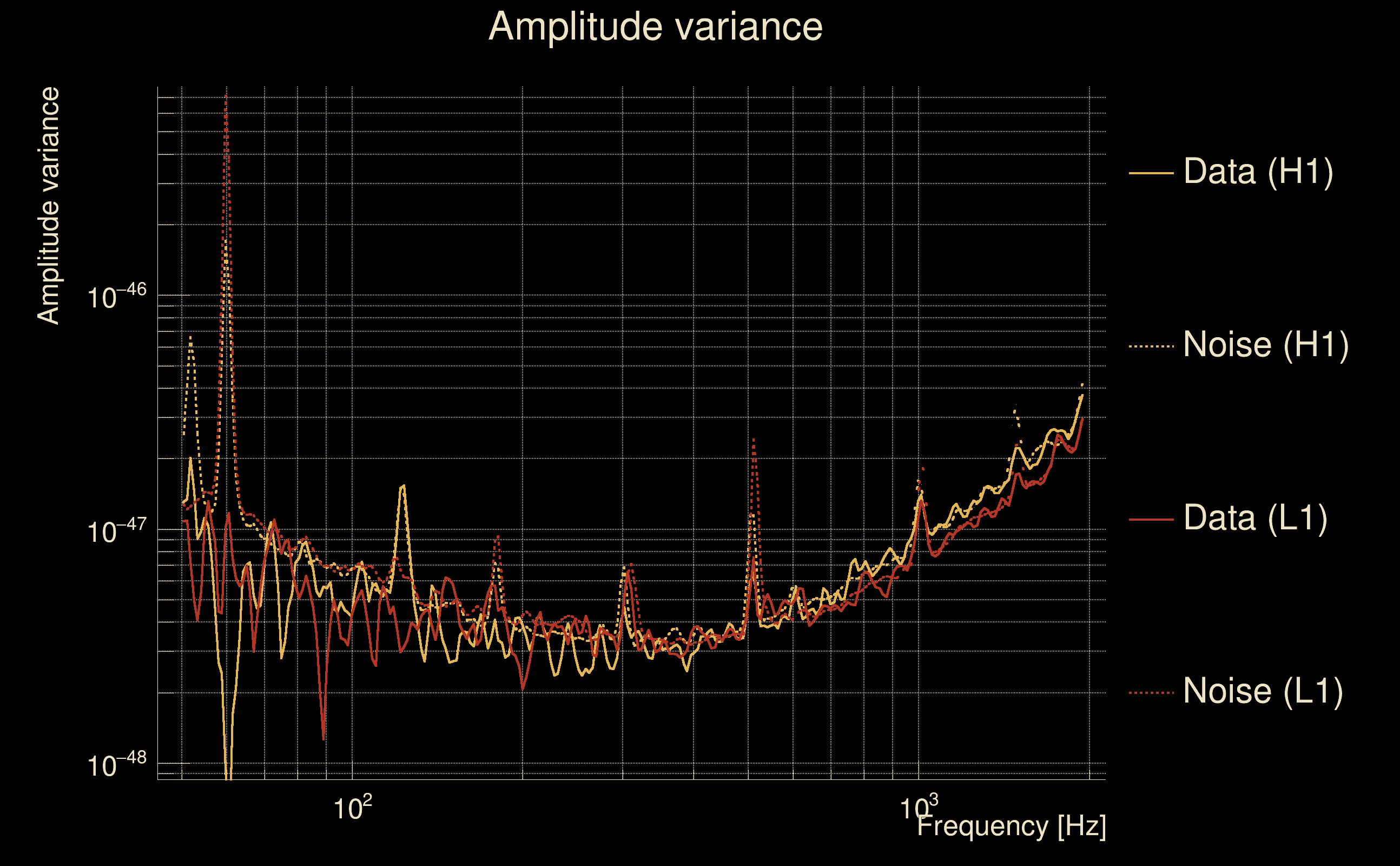

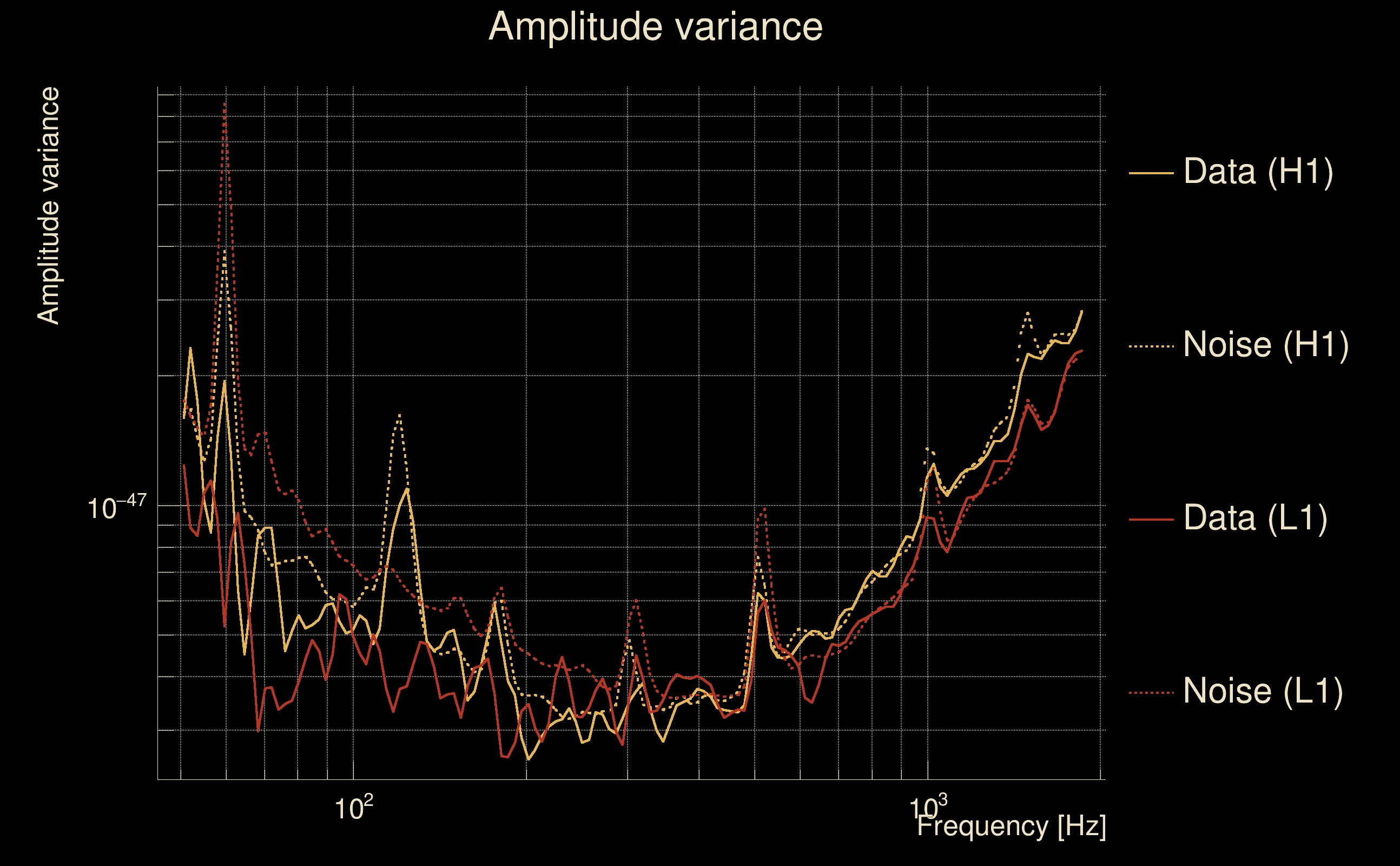

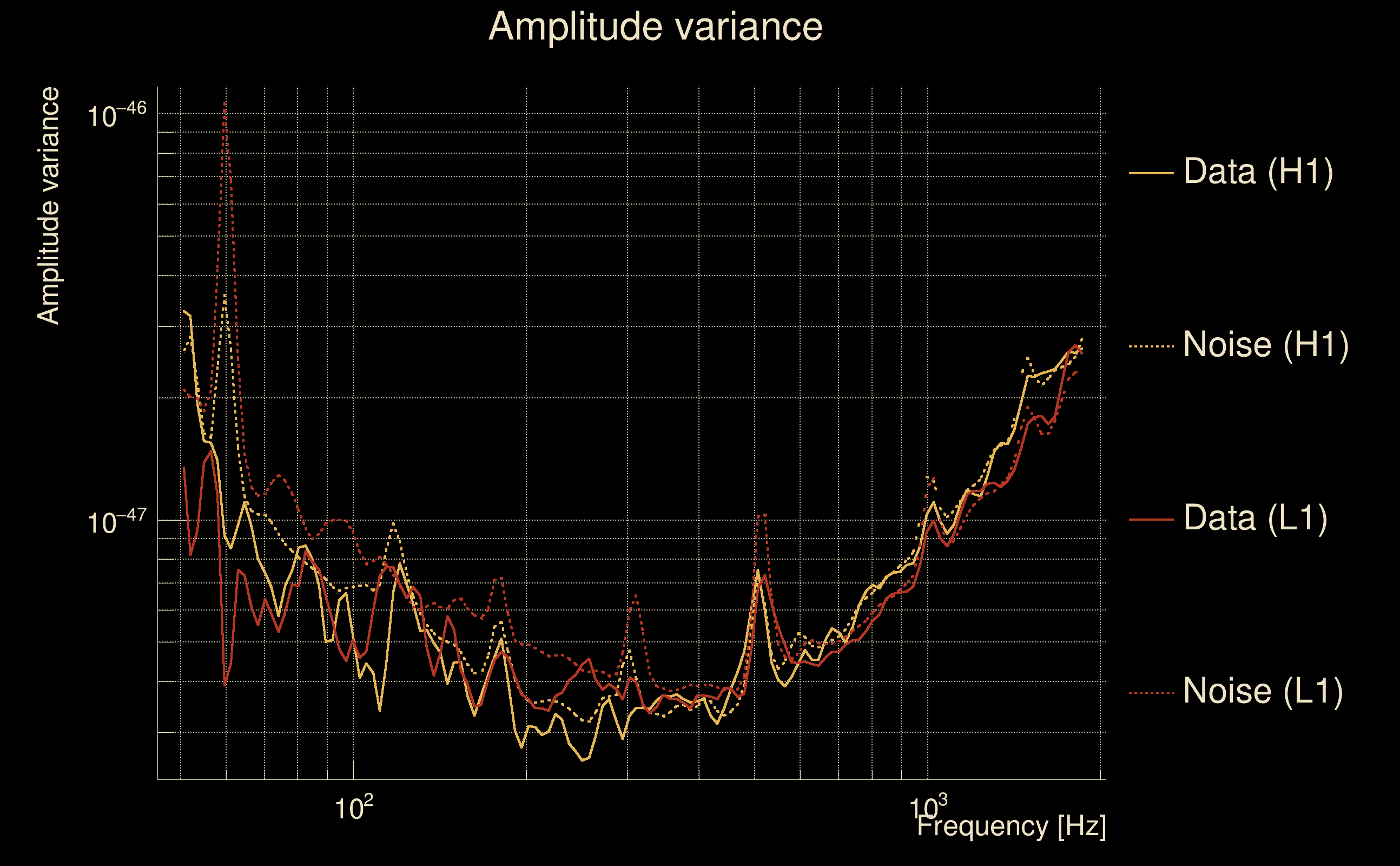

| SNR variance: | H1: 0.517356, L1: 0.520333 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

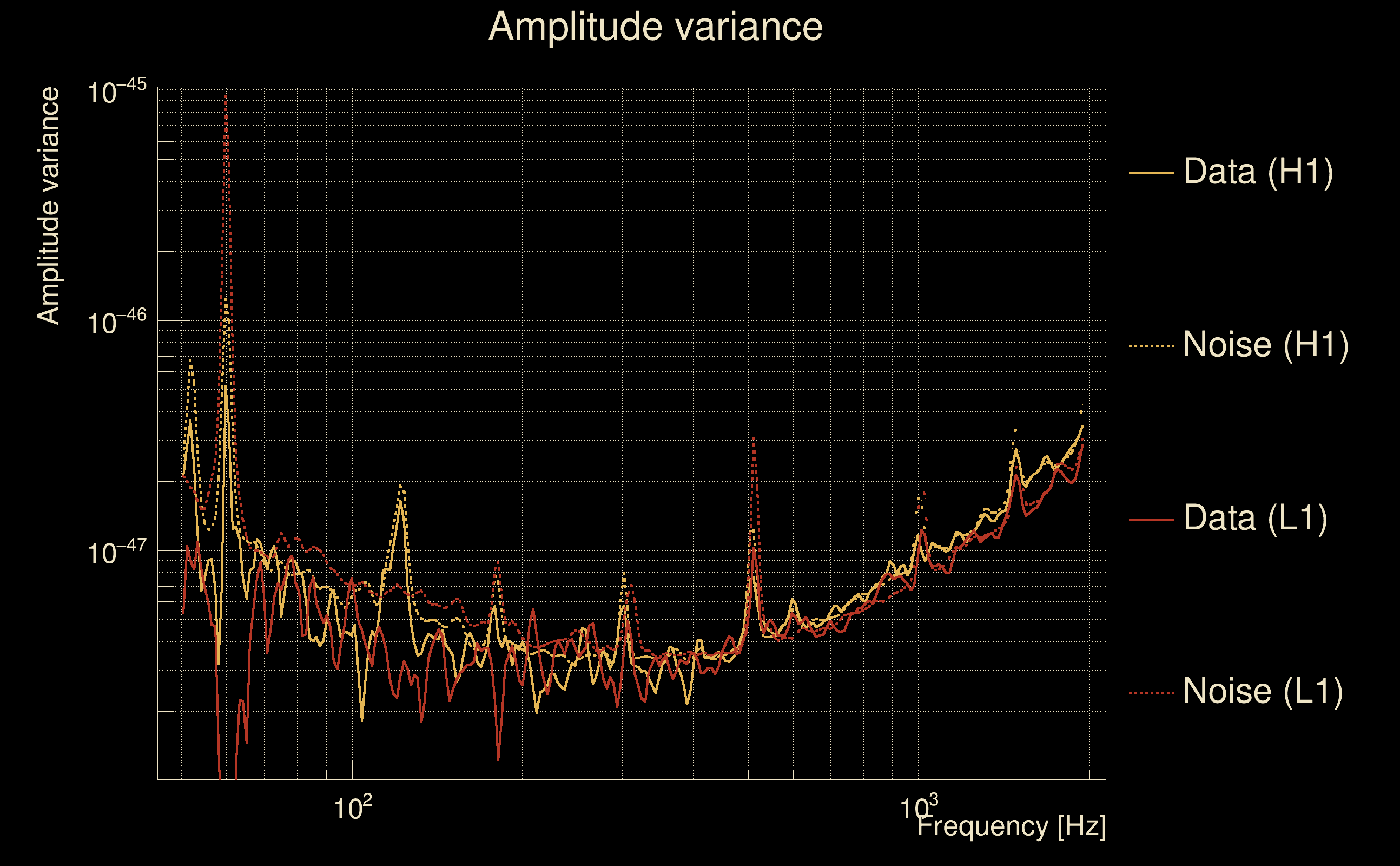

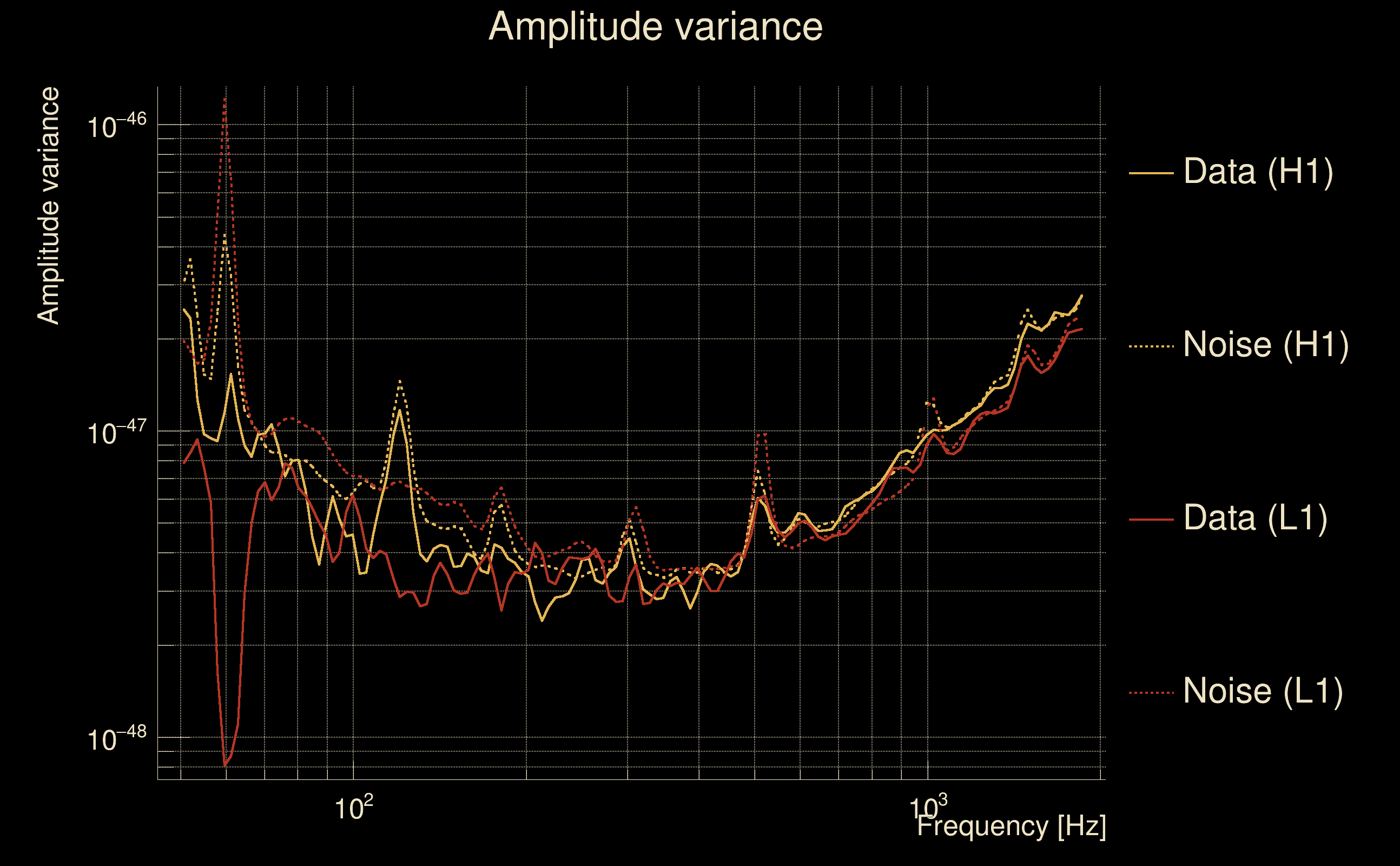

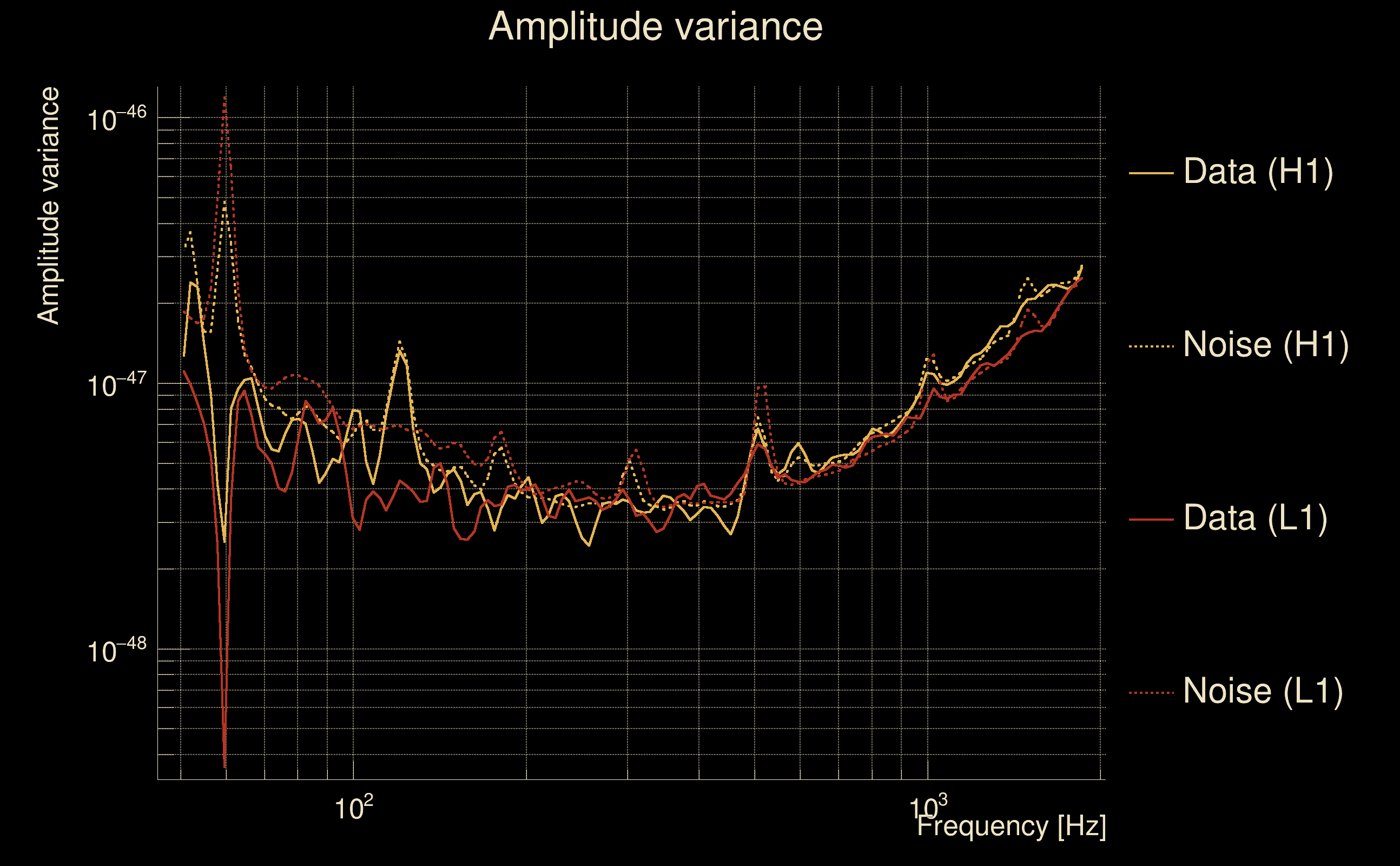

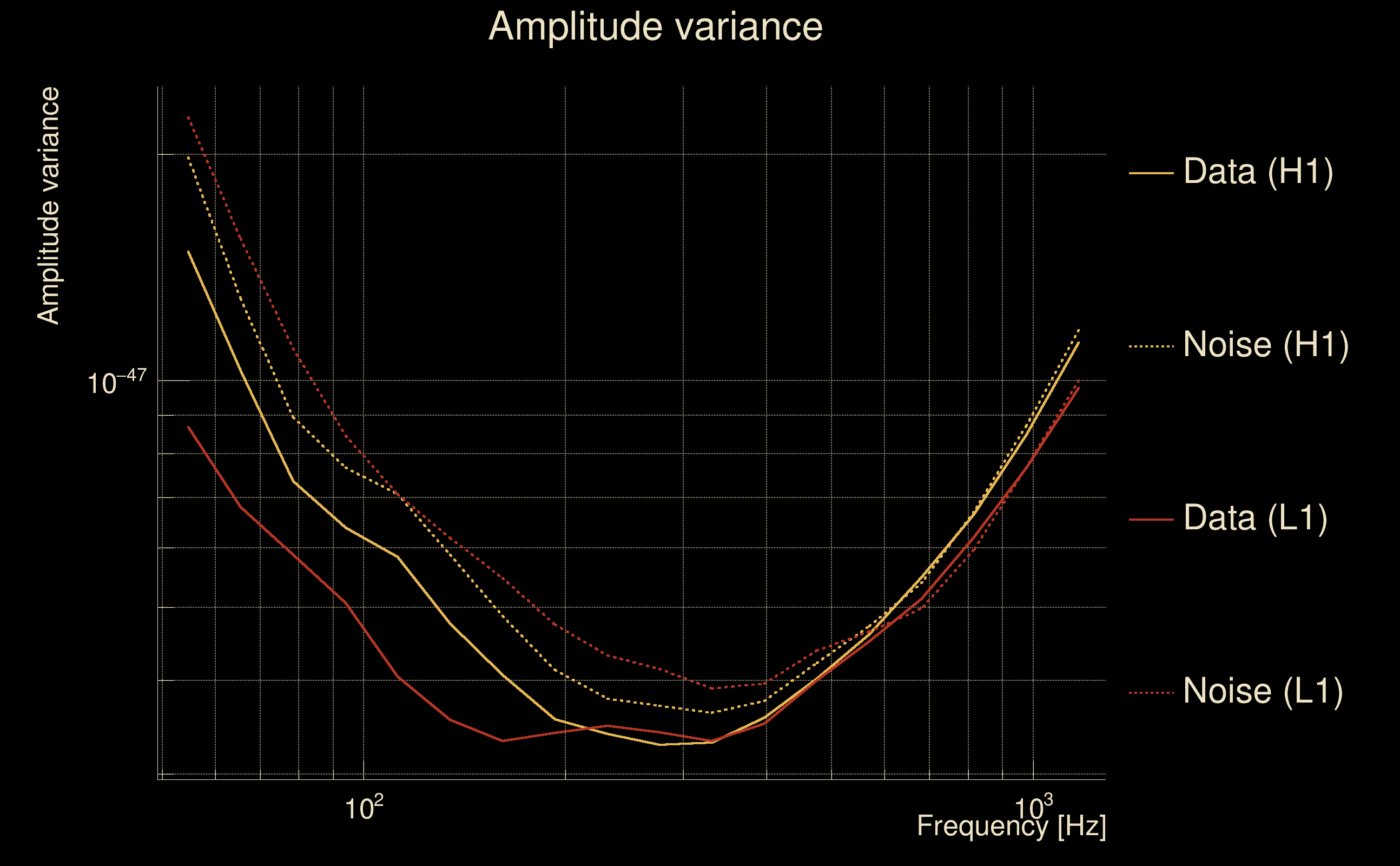

| Event time t(H1): | GPS = 1377812576 (Sun Sep 3 21:42:38 2023 ) → GPS = 1377812586 (Sun Sep 3 21:42:48 2023 ) |
| Event time t(L1): | GPS = 1377812546 (Sun Sep 3 21:42:48 2023 ) → GPS = 1377812556 (Sun Sep 3 21:42:18 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377812573 → GPS = 1377812589 |
| Omicron analysis time window (L1): | GPS = 1377812543 → GPS = 1377812559 |

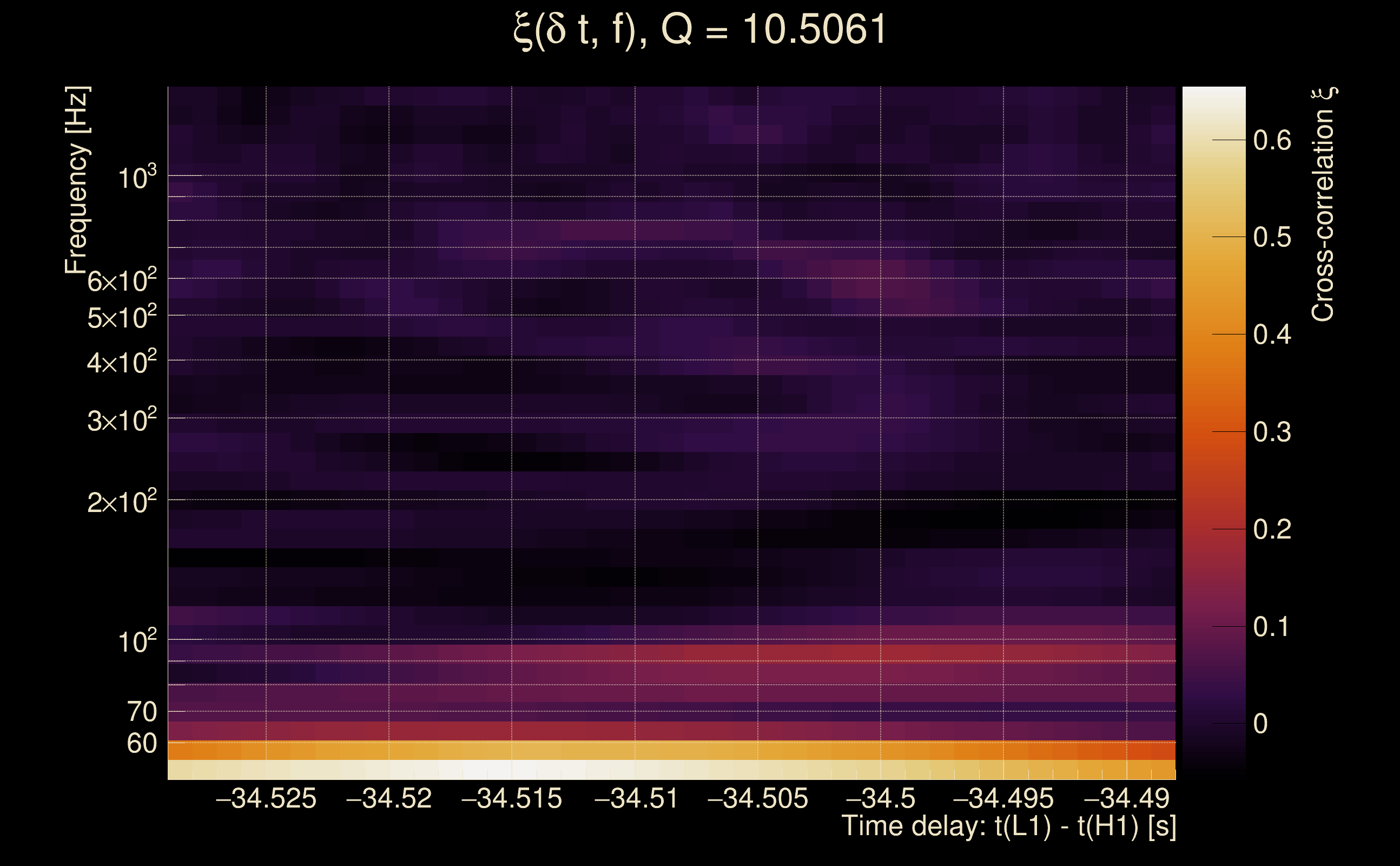

| Time delay between detectors t(L1) - t(H1): | -34.5088 s (slice index = 206 / 217), δt_gw = -0.00080475 s |
| Time delay uncertainty: | 0.0063101 s |
| [targeted mode] Time delay probability: | 0.980456 (0.0244977 sigmas), δt_target = -0.00155306 s |
| Frequency: | 128.718 Hz |
| Ξ: | 0.064058 ± 0.102669 (variance = 0.0105409): Q0: 0.21425, Q1: 0.315453, Q2: 0.0686127, Q3: 0.0545268, Q4: 0.0754538 |
| Rank: | R_A = 0.051402 |
| Log of amplitude ratio (L1/H1): | -0.109726, variance = 0.338657 (L1/H1: -0.254559, variance = 0.457081, H1/L1: -0.00181182, variance = 0.790032) |
| Amplitude ratio (L1/H1): | 0.89608 ⋇ 1.78951 (L1/H1: 0.775258 ⋇ 1.96615, H1/L1: 0.99819 ⋇ 2.4323) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.818426 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 27 / 36, Q2: 61 / 70, Q3: 128 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.22897, L1: 5.95853 |
| SNR variance: | H1: 0.540712, L1: 0.515683 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

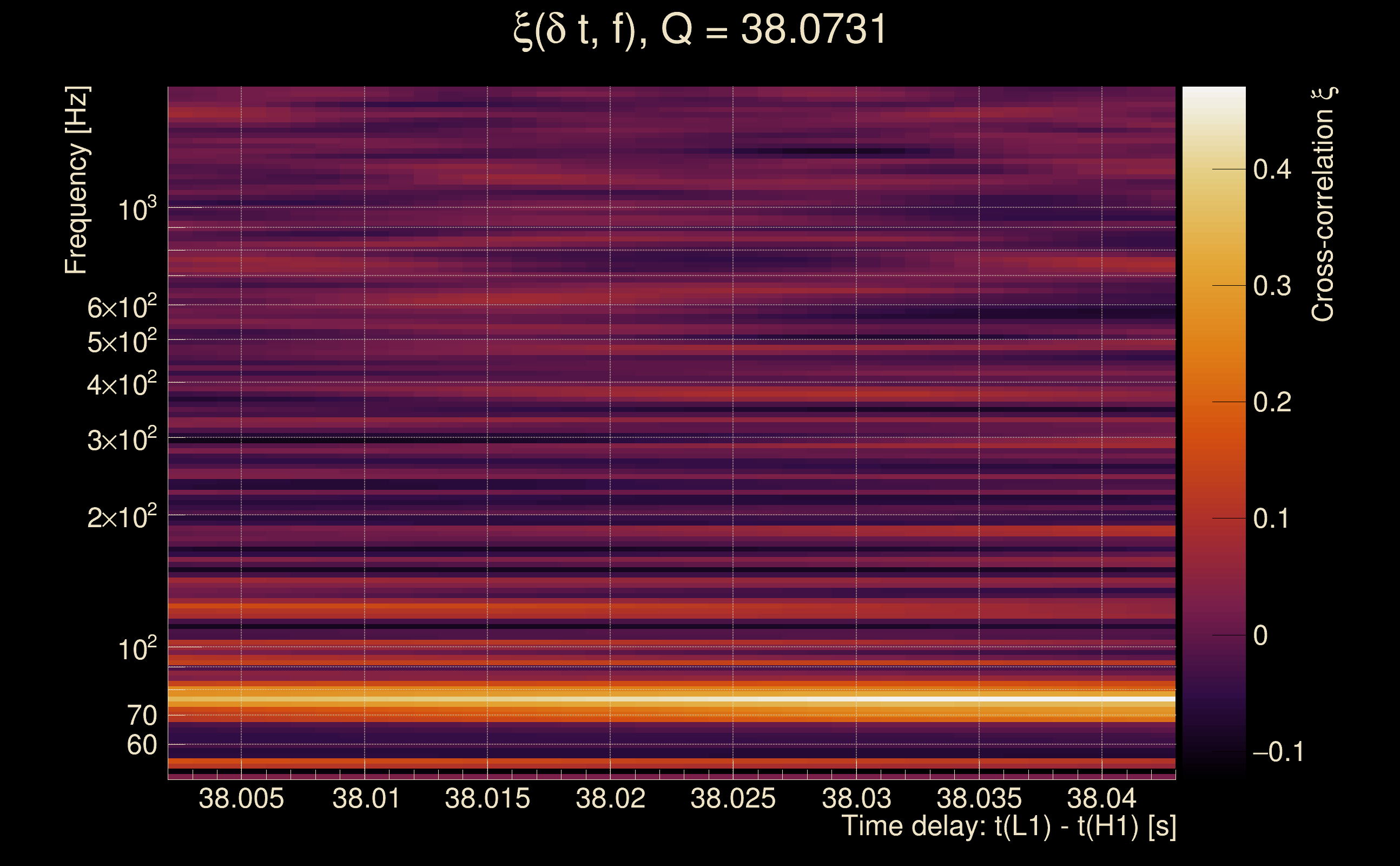

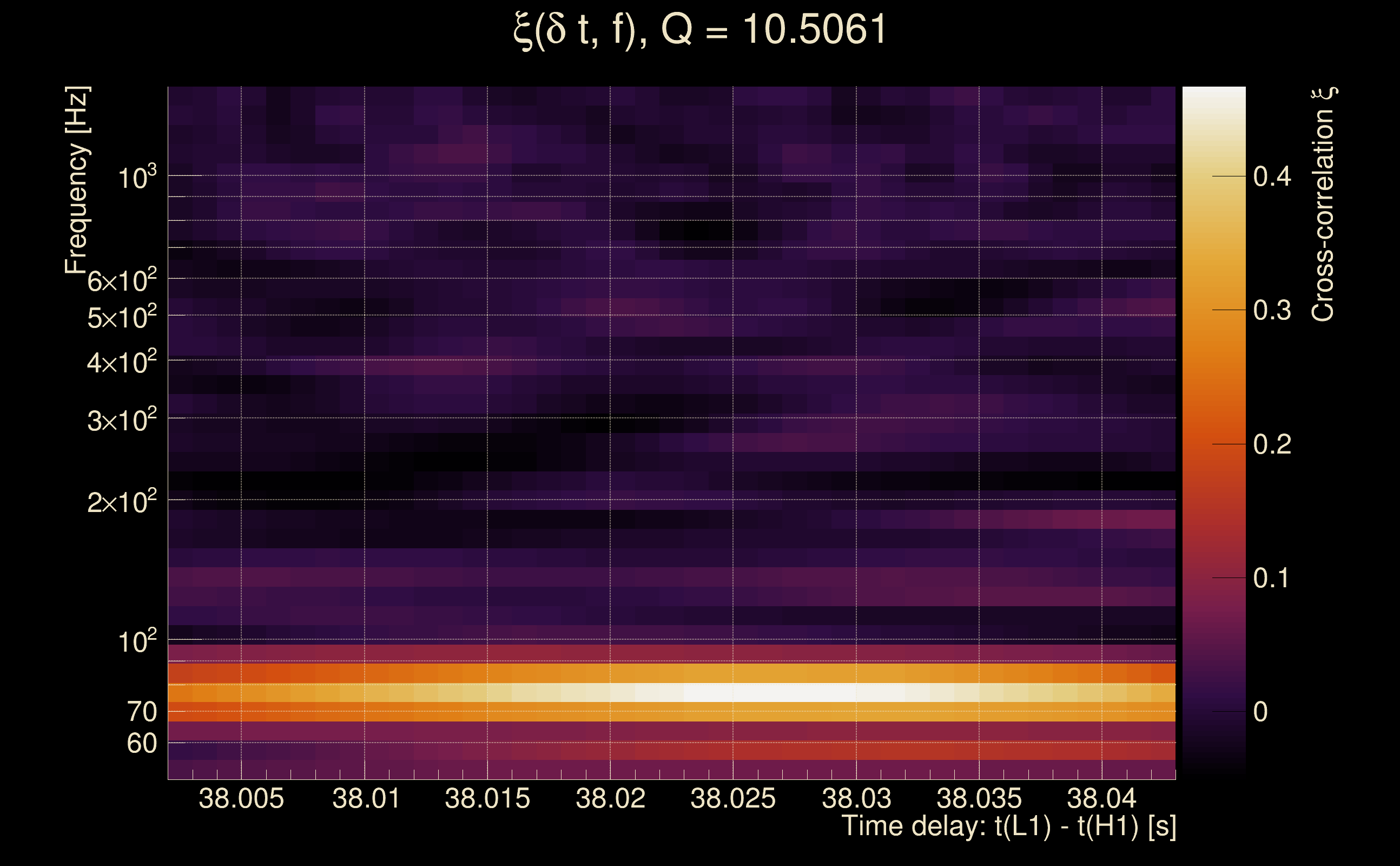

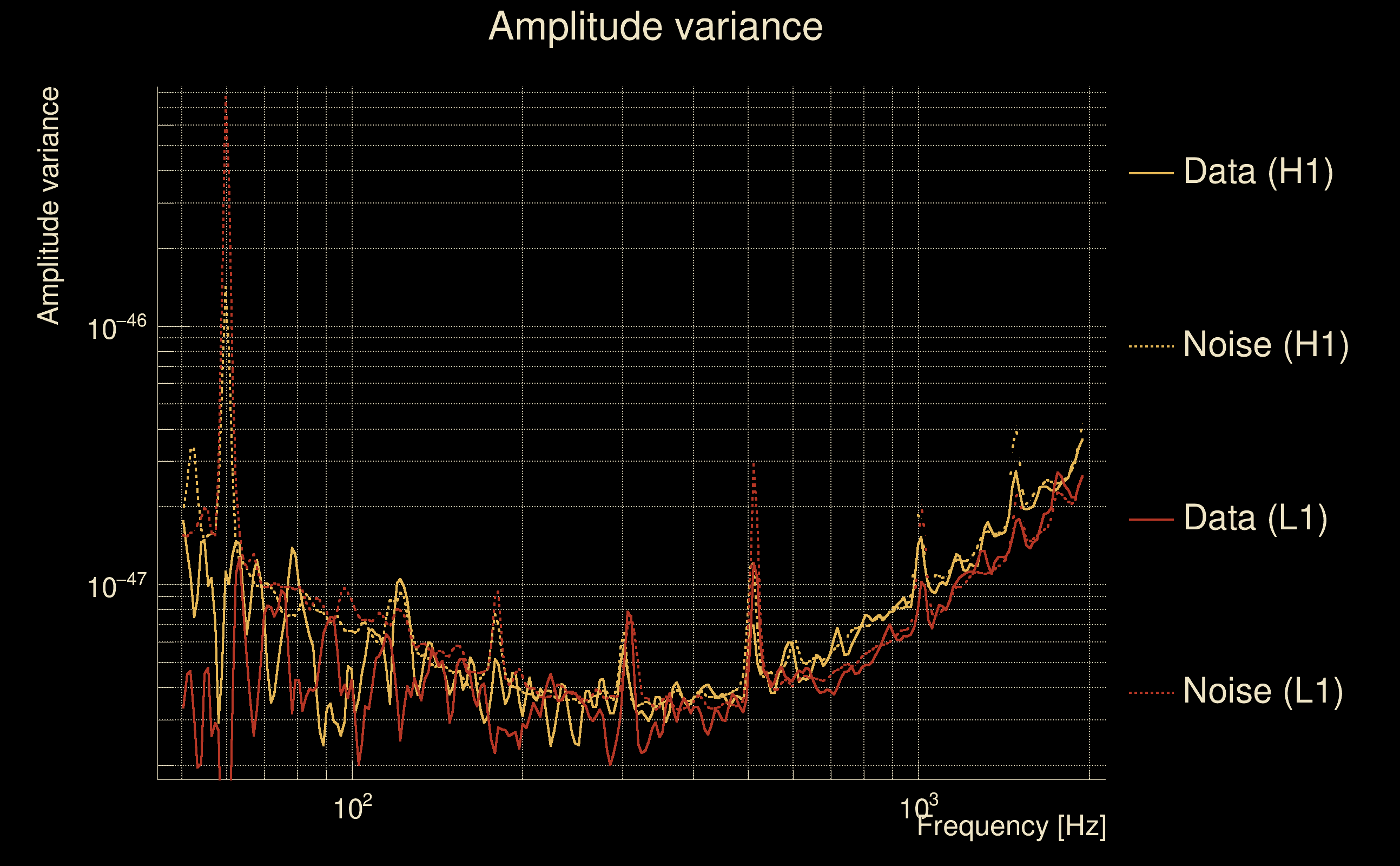

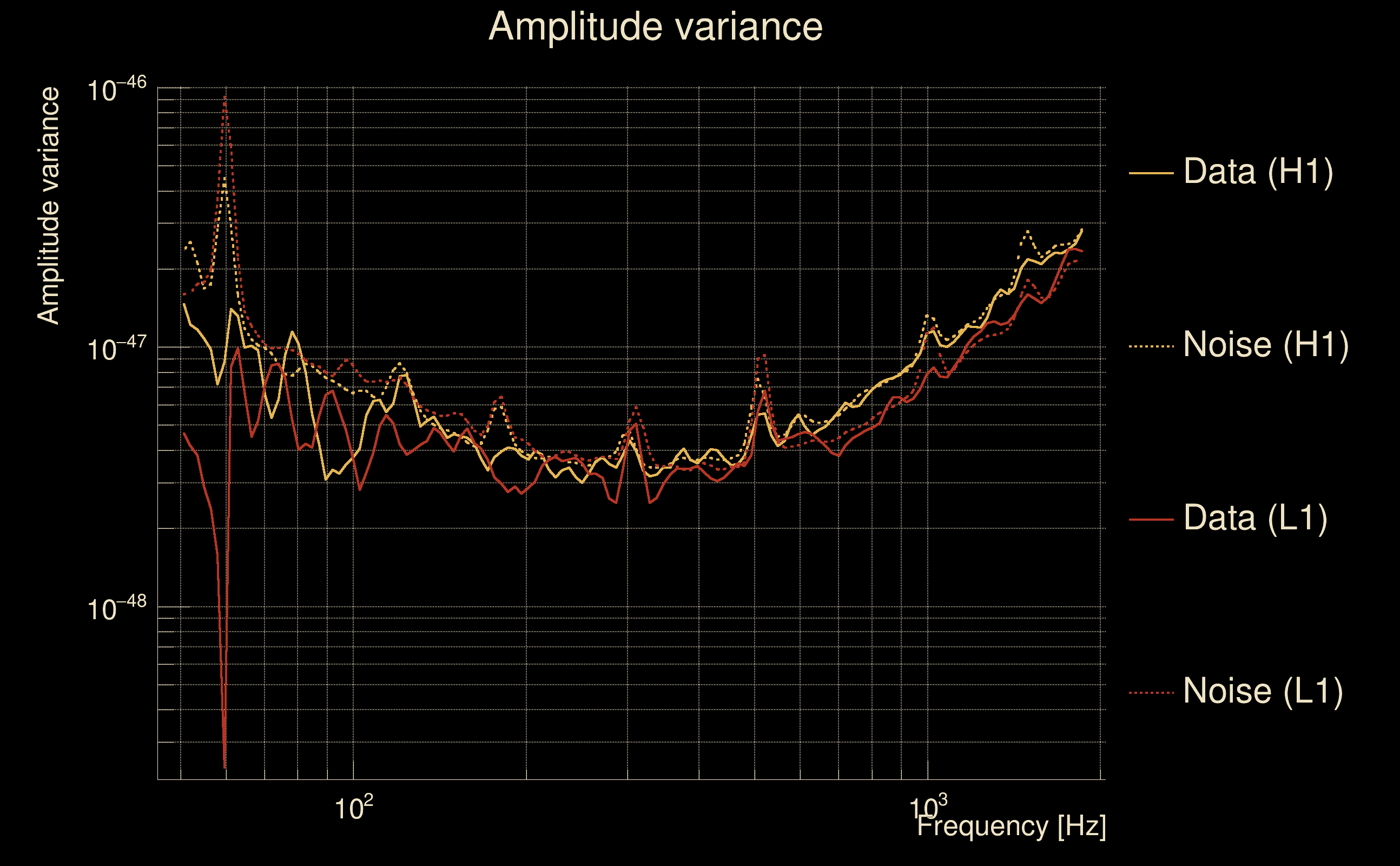

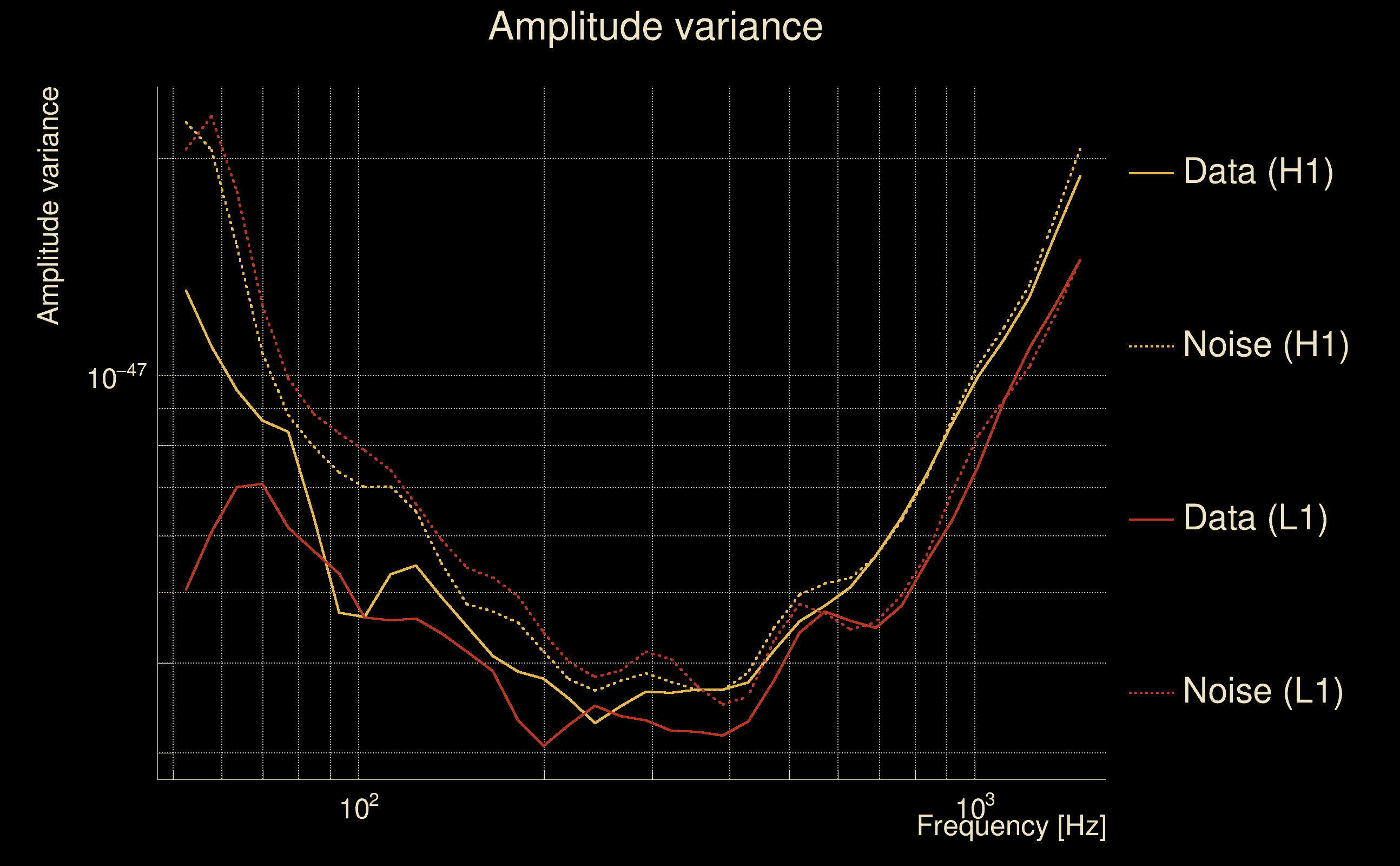

| Event time t(H1): | GPS = 1378539739 (Tue Sep 12 07:42:01 2023 ) → GPS = 1378539749 (Tue Sep 12 07:42:11 2023 ) |
| Event time t(L1): | GPS = 1378539779 (Tue Sep 12 07:42:11 2023 ) → GPS = 1378539789 (Tue Sep 12 07:42:51 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378539736 → GPS = 1378539752 |
| Omicron analysis time window (L1): | GPS = 1378539776 → GPS = 1378539792 |
| Time delay between detectors t(L1) - t(H1): | 38.0224 s (slice index = 151 / 217), δt_gw = 0.000437515 s |
| Time delay uncertainty: | 0.00732403 s |
| [targeted mode] Time delay probability: | 0.980835 (0.0240218 sigmas), δt_target = -0.000650167 s |
| Frequency: | 131.722 Hz |
| Ξ: | 0.0676377 ± 0.0798339 (variance = 0.00637344): Q0: 0.172717, Q1: 0.294428, Q2: 0.270133, Q3: 0.14879, Q4: 0.0778291 |
| Rank: | R_A = 0.0506891 |
| Log of amplitude ratio (L1/H1): | 0.0804956, variance = 0.482902 (L1/H1: -0.125589, variance = 0.985997, H1/L1: -0.291432, variance = 0.944381) |
| Amplitude ratio (L1/H1): | 1.08382 ⋇ 2.00353 (L1/H1: 0.881977 ⋇ 2.69925, H1/L1: 0.747193 ⋇ 2.64268) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.764063 |

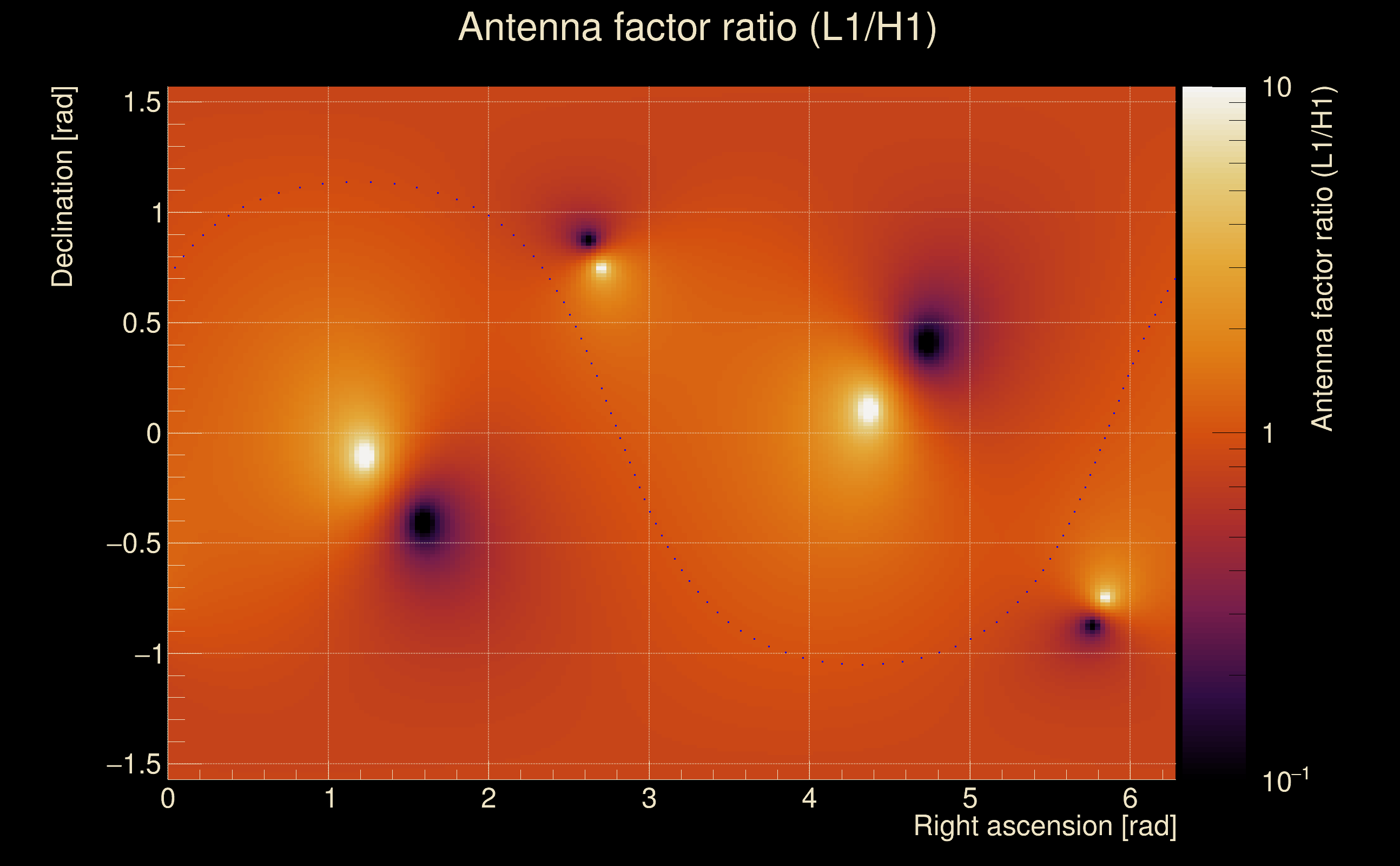

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 25 / 36, Q2: 61 / 70, Q3: 123 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.90612, L1: 5.83781 |
| SNR variance: | H1: 0.517182, L1: 0.527992 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

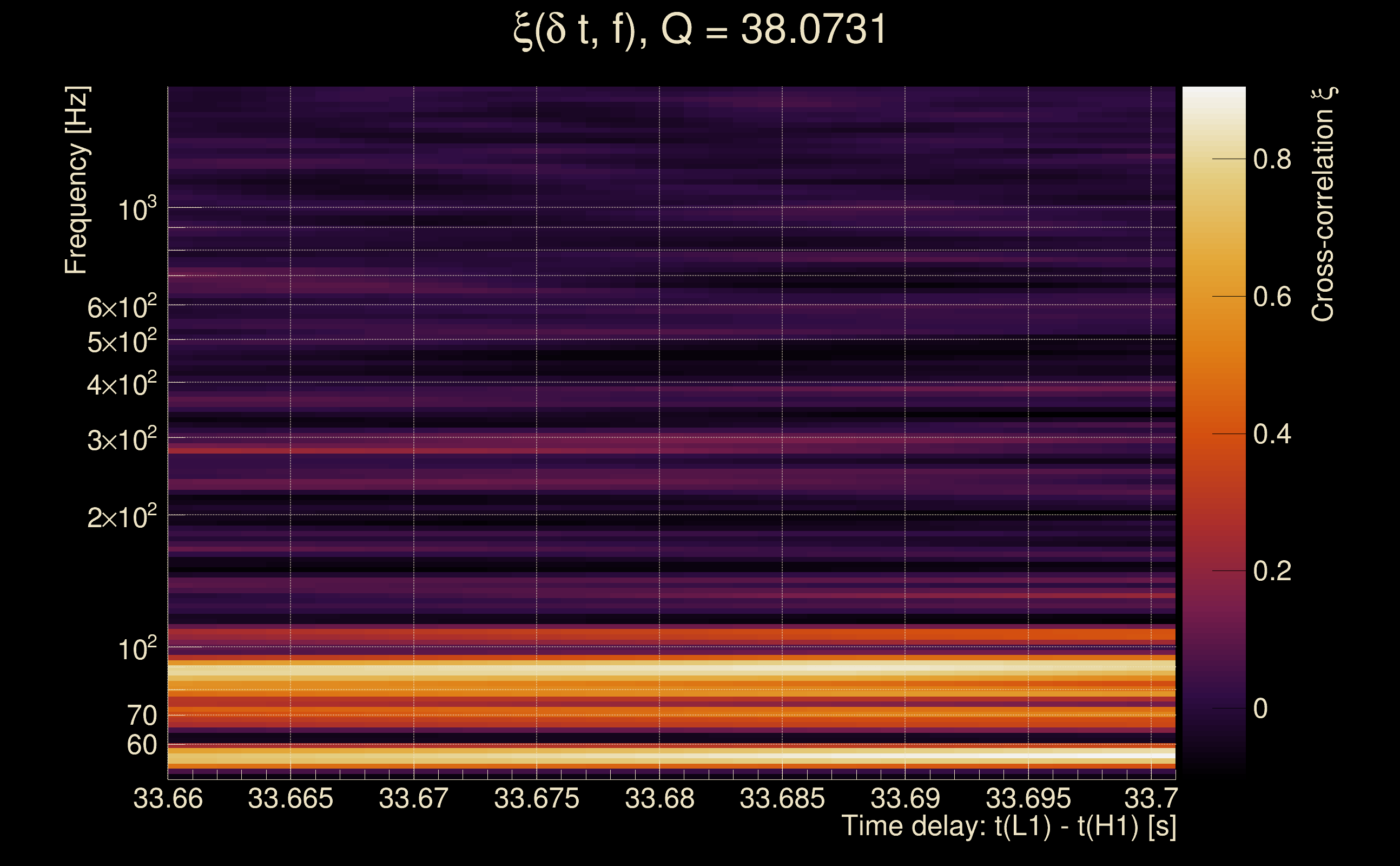

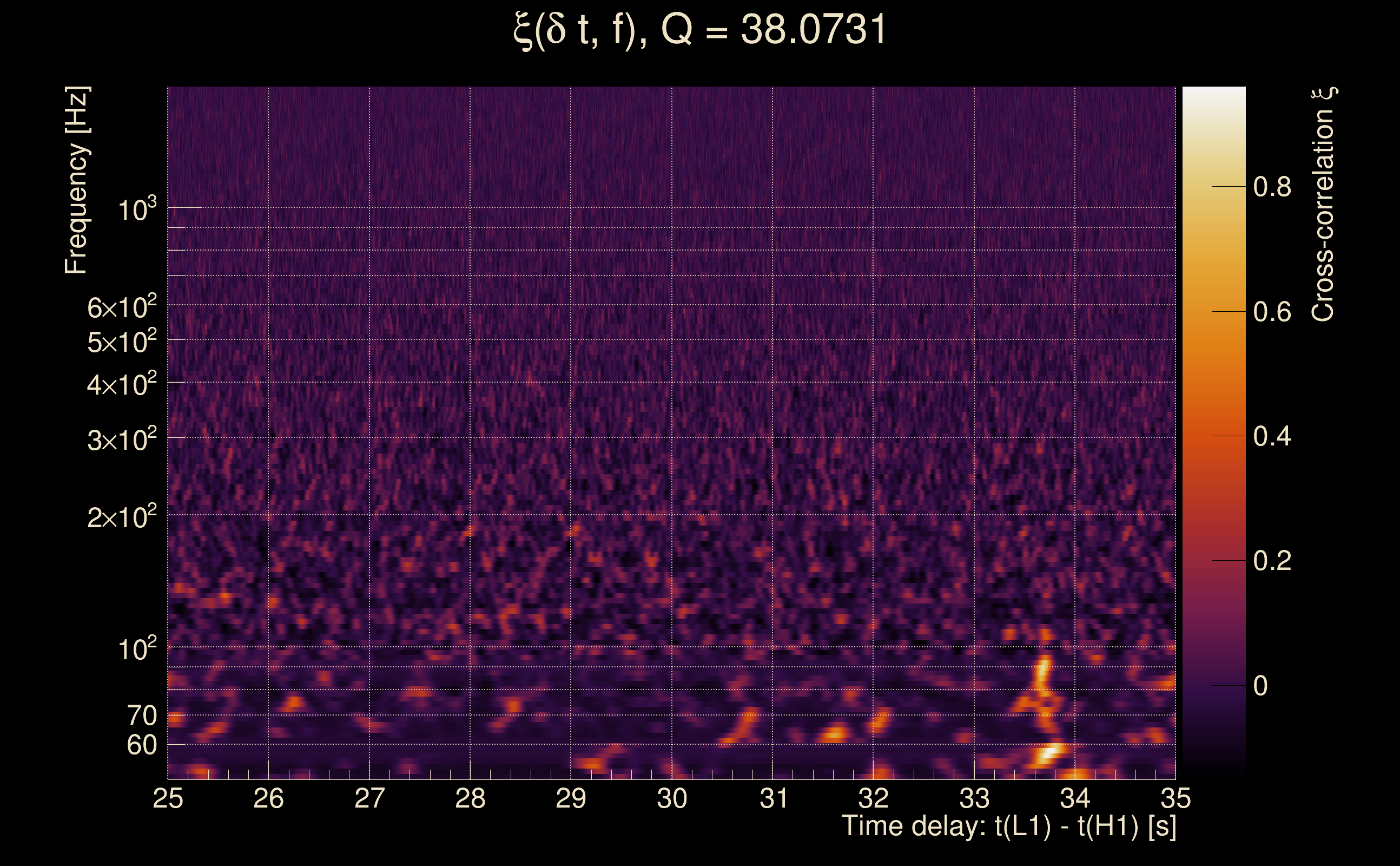

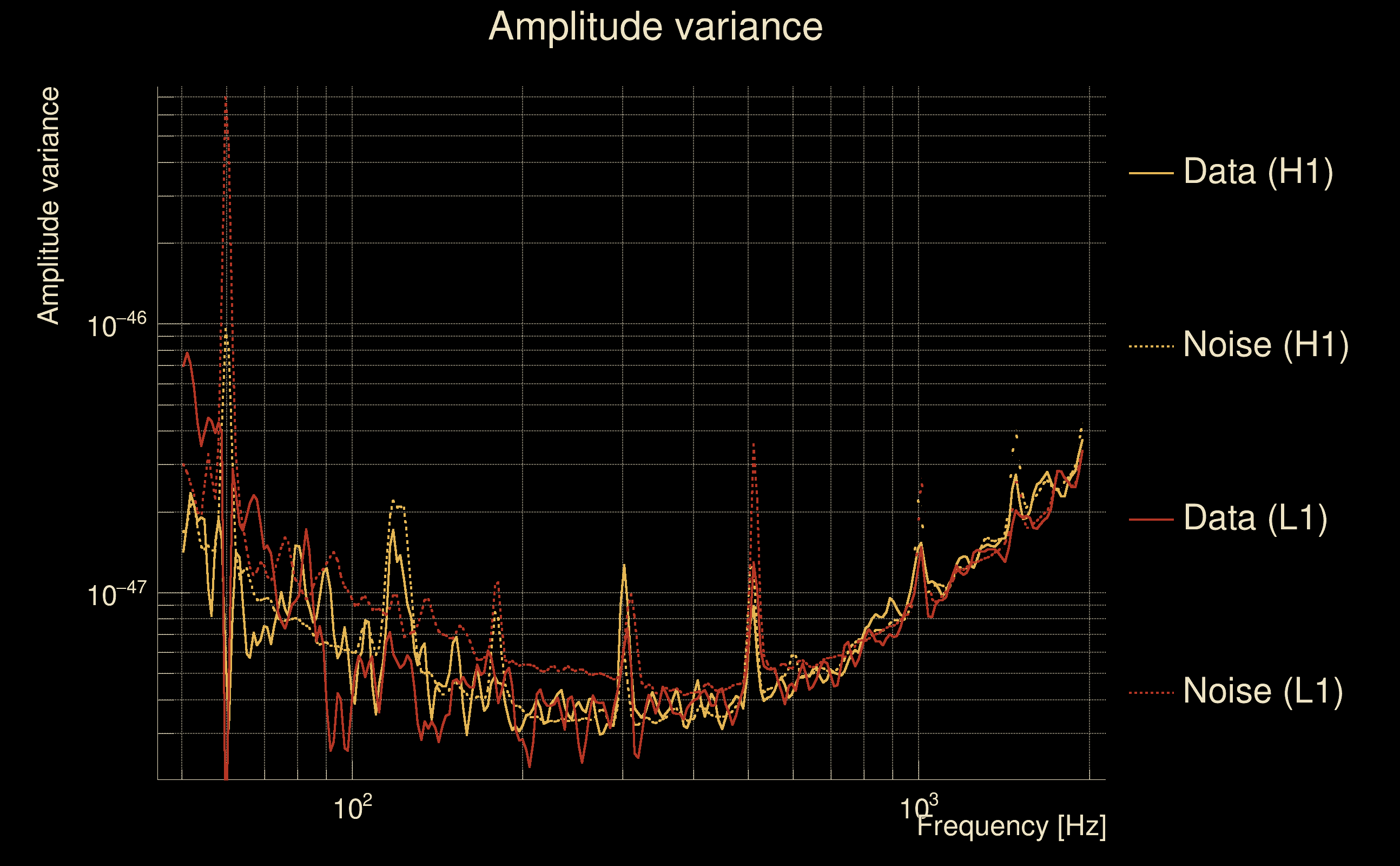

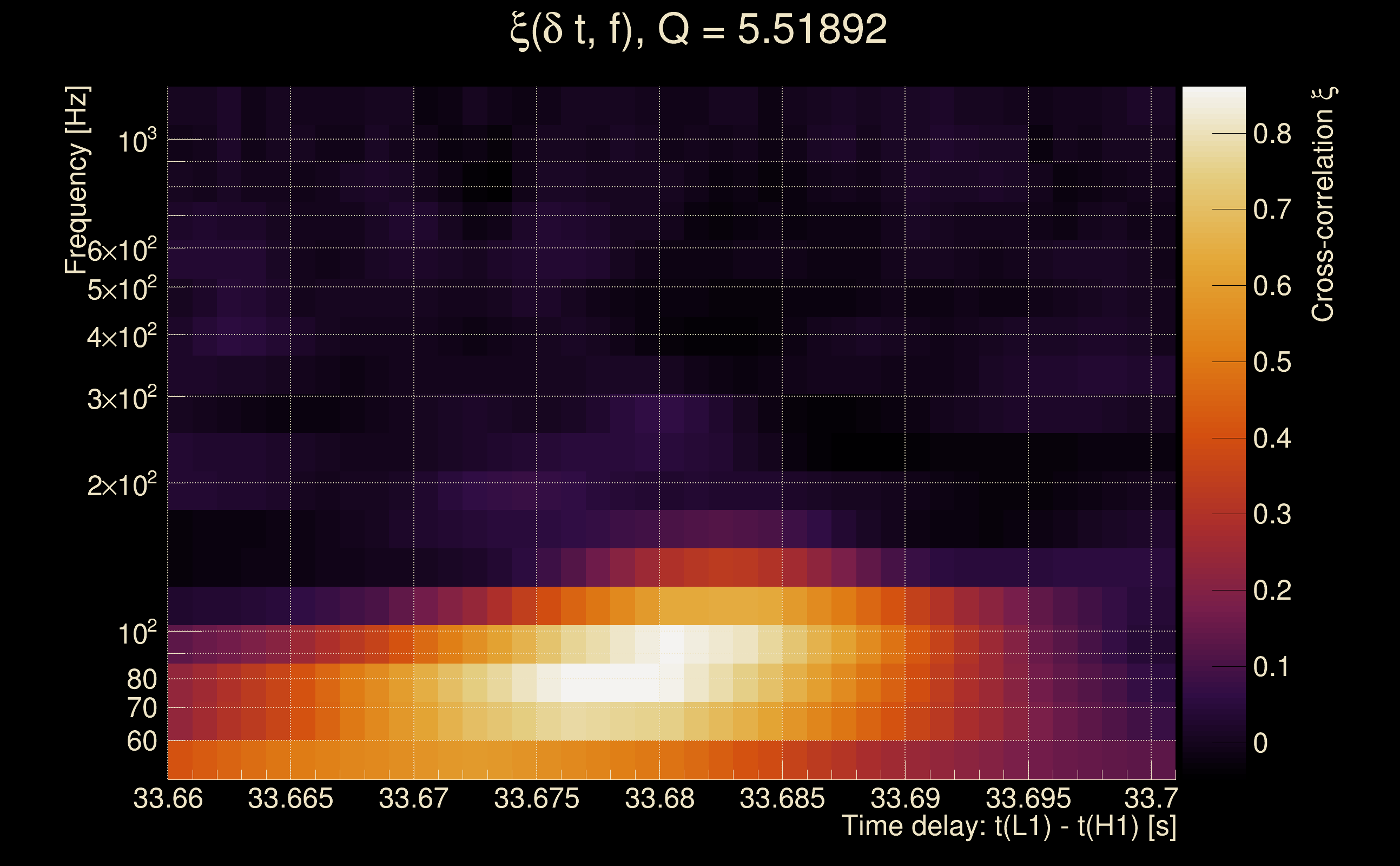

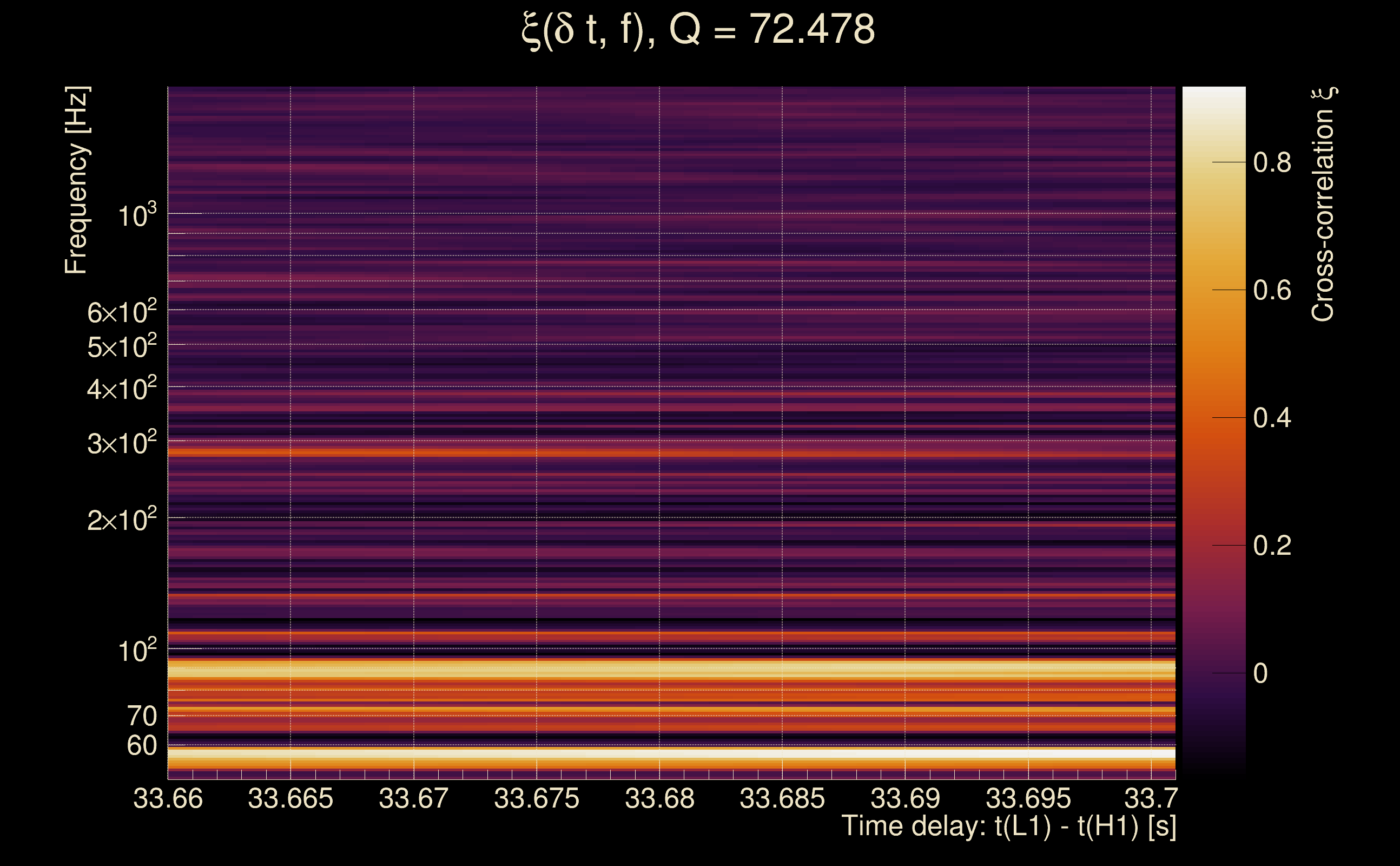

| Event time t(H1): | GPS = 1378629090 (Wed Sep 13 08:31:12 2023 ) → GPS = 1378629100 (Wed Sep 13 08:31:22 2023 ) |

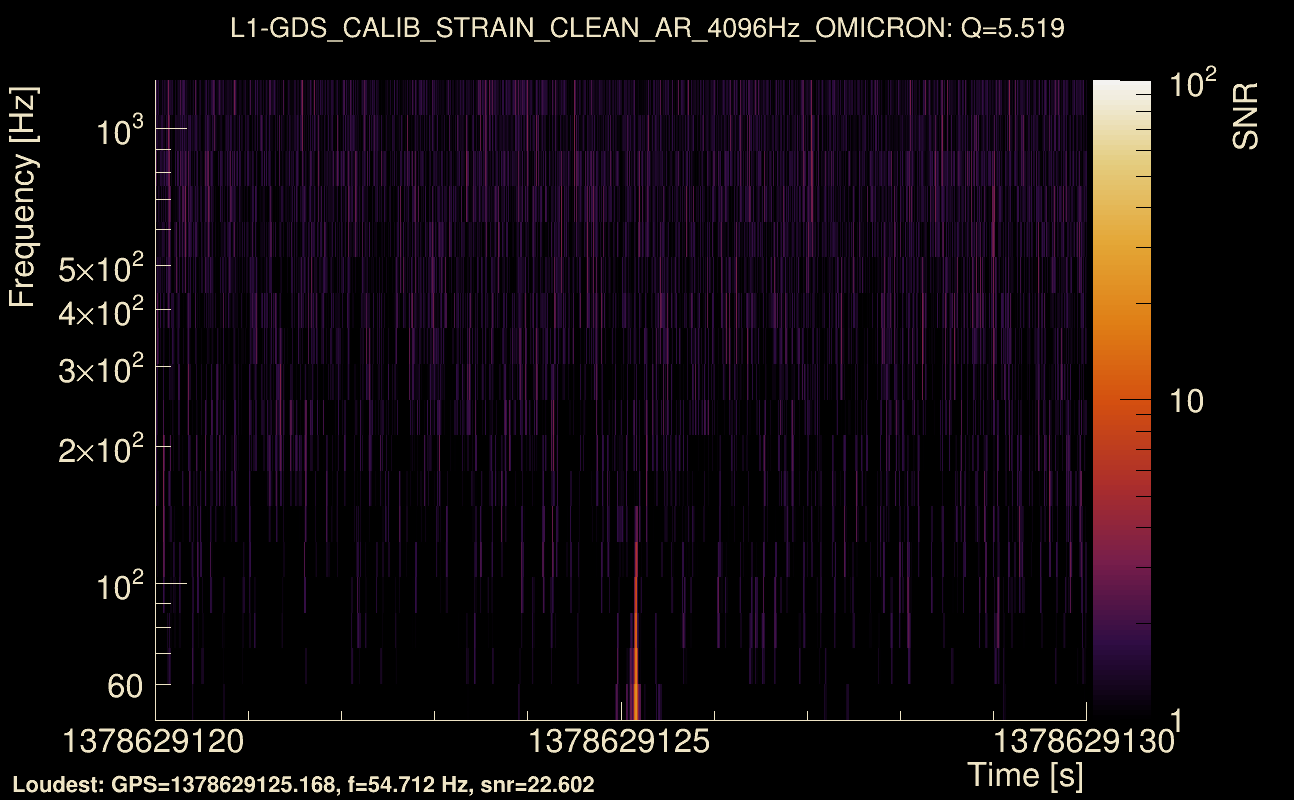

| Event time t(L1): | GPS = 1378629120 (Wed Sep 13 08:31:22 2023 ) → GPS = 1378629130 (Wed Sep 13 08:31:52 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378629087 → GPS = 1378629103 |
| Omicron analysis time window (L1): | GPS = 1378629117 → GPS = 1378629133 |
| Time delay between detectors t(L1) - t(H1): | 33.6807 s (slice index = 28 / 217), δt_gw = 0.000654694 s |
| Time delay uncertainty: | 0.0053 s |
| [targeted mode] Time delay probability: | 0.72015 (0.358259 sigmas), δt_target = 0.000613451 s |
| Frequency: | 81.4956 Hz |
| Ξ: | 0.204305 ± 0.0763991 (variance = 0.00583682): Q0: 0.709069, Q1: 0.681918, Q2: 0.664029, Q3: 0.719035, Q4: 0.508828 |
| Rank: | R_A = 0.045134 |
| Log of amplitude ratio (L1/H1): | 1.31571, variance = 0.272572 (L1/H1: 0.42408, variance = 0.567613, H1/L1: -1.38249, variance = 0.311748) |
| Amplitude ratio (L1/H1): | 3.72739 ⋇ 1.68554 (L1/H1: 1.52818 ⋇ 2.12421, H1/L1: 0.250953 ⋇ 1.74778) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.306762 |

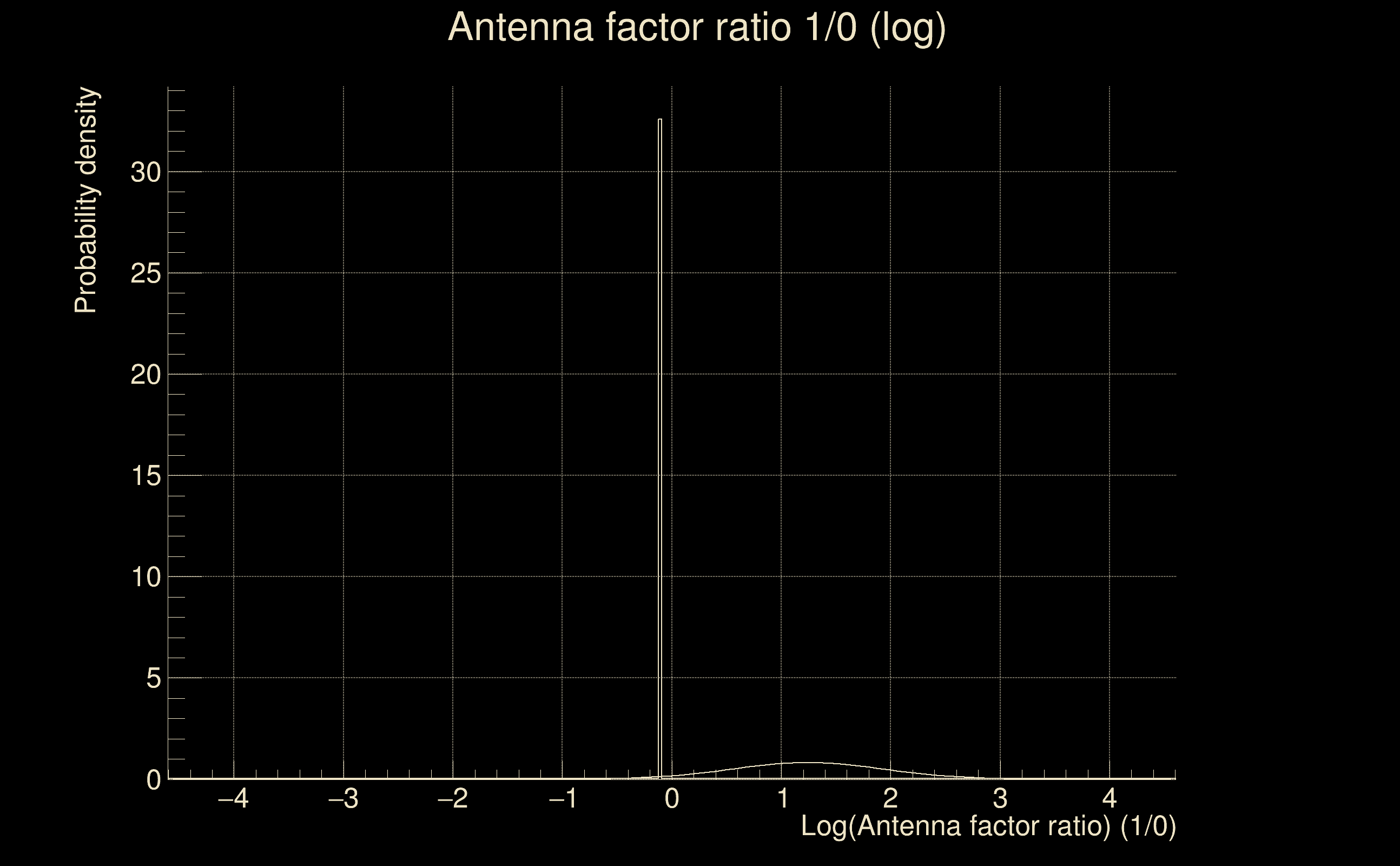

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 26 / 36, Q2: 60 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 9.50794, L1: 34.7414 |
| SNR variance: | H1: 0.556332, L1: 0.502623 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

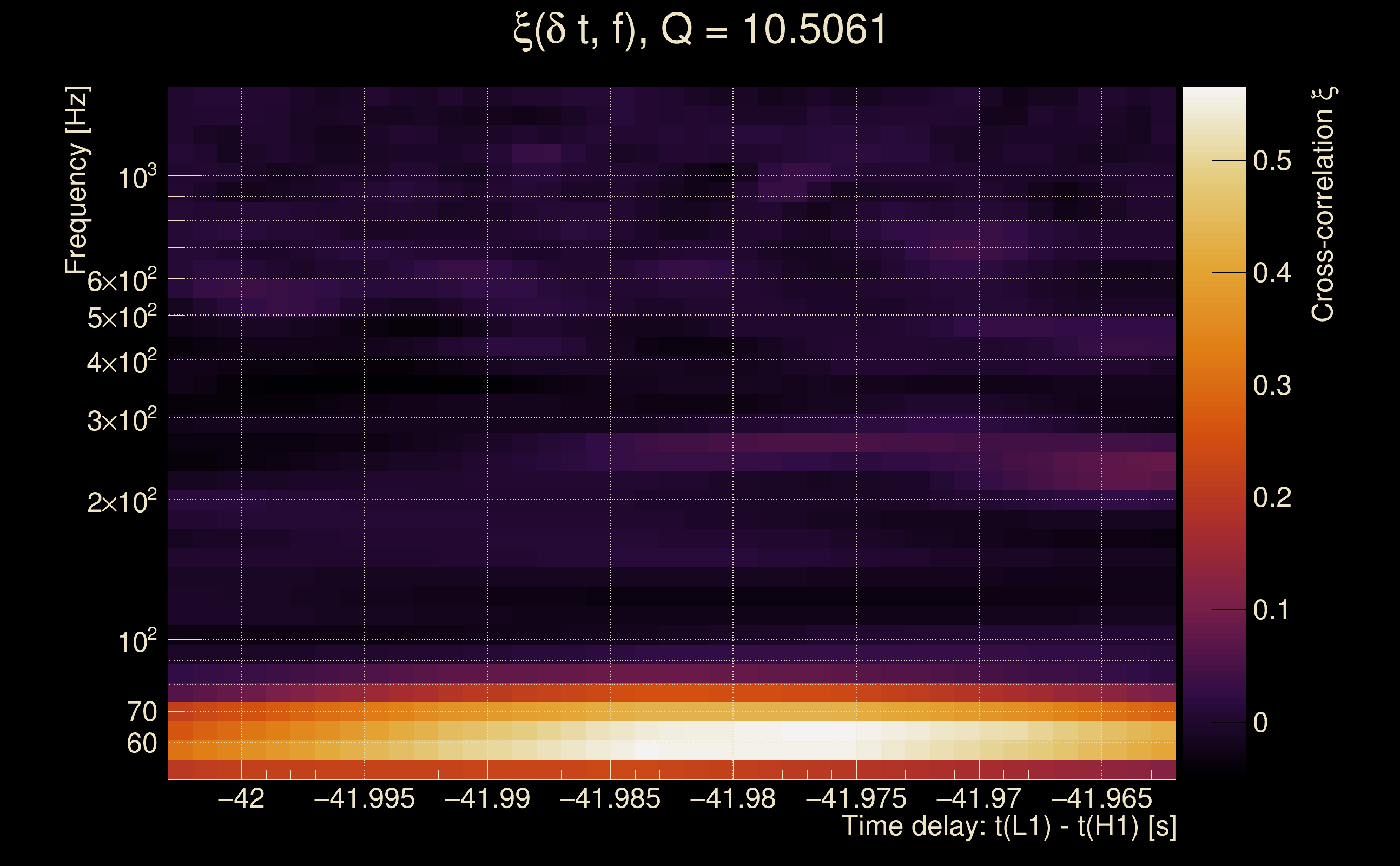

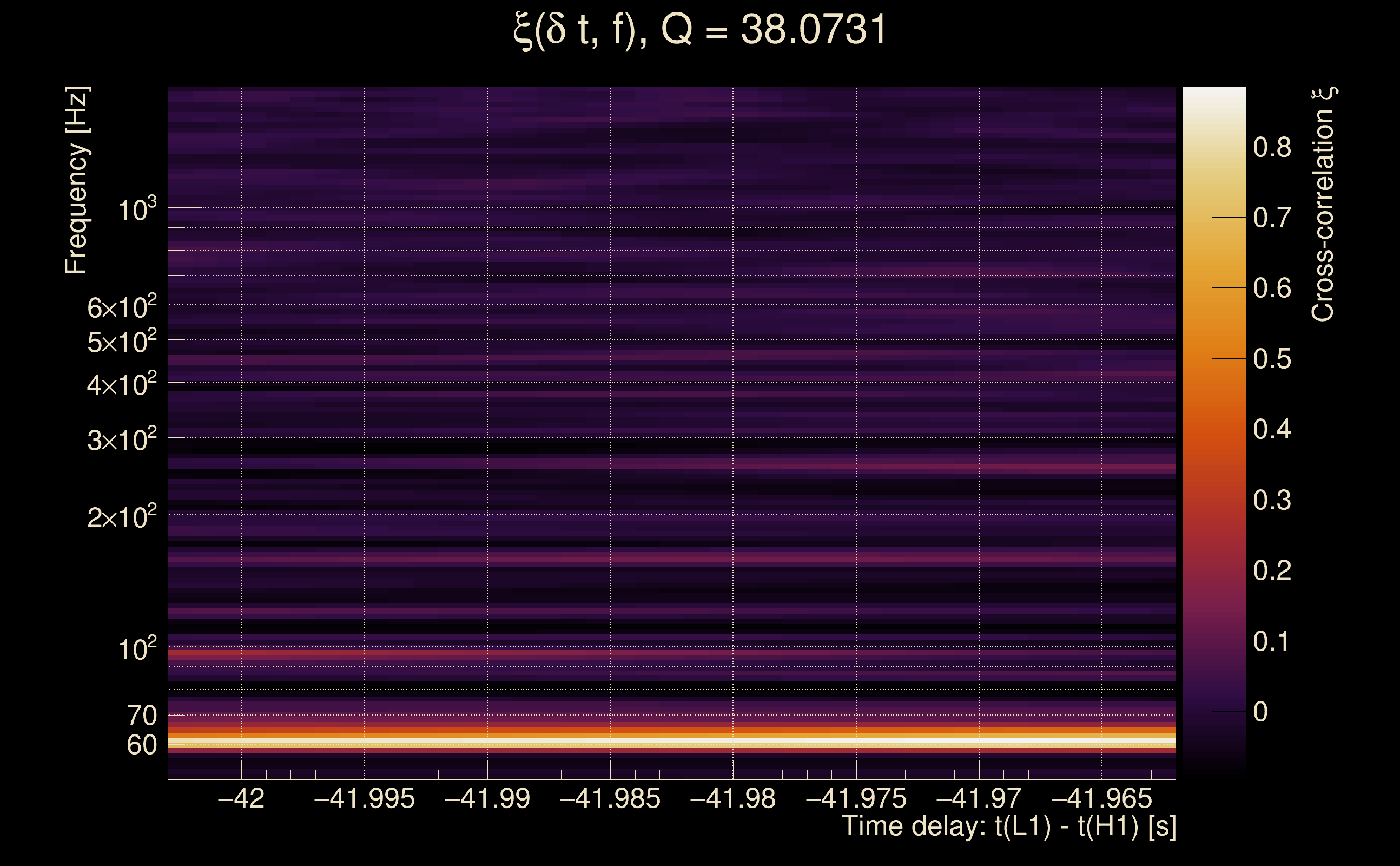

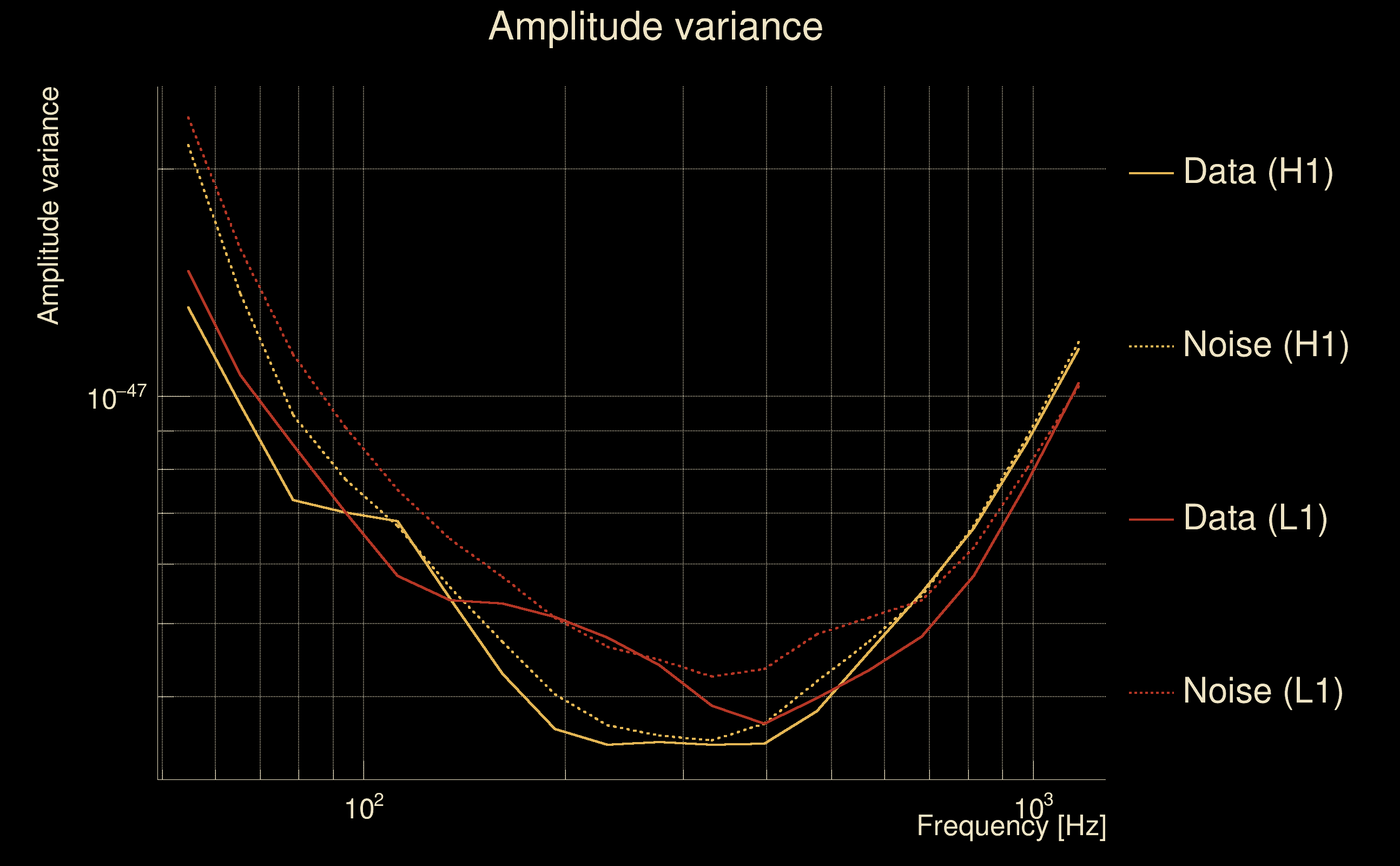

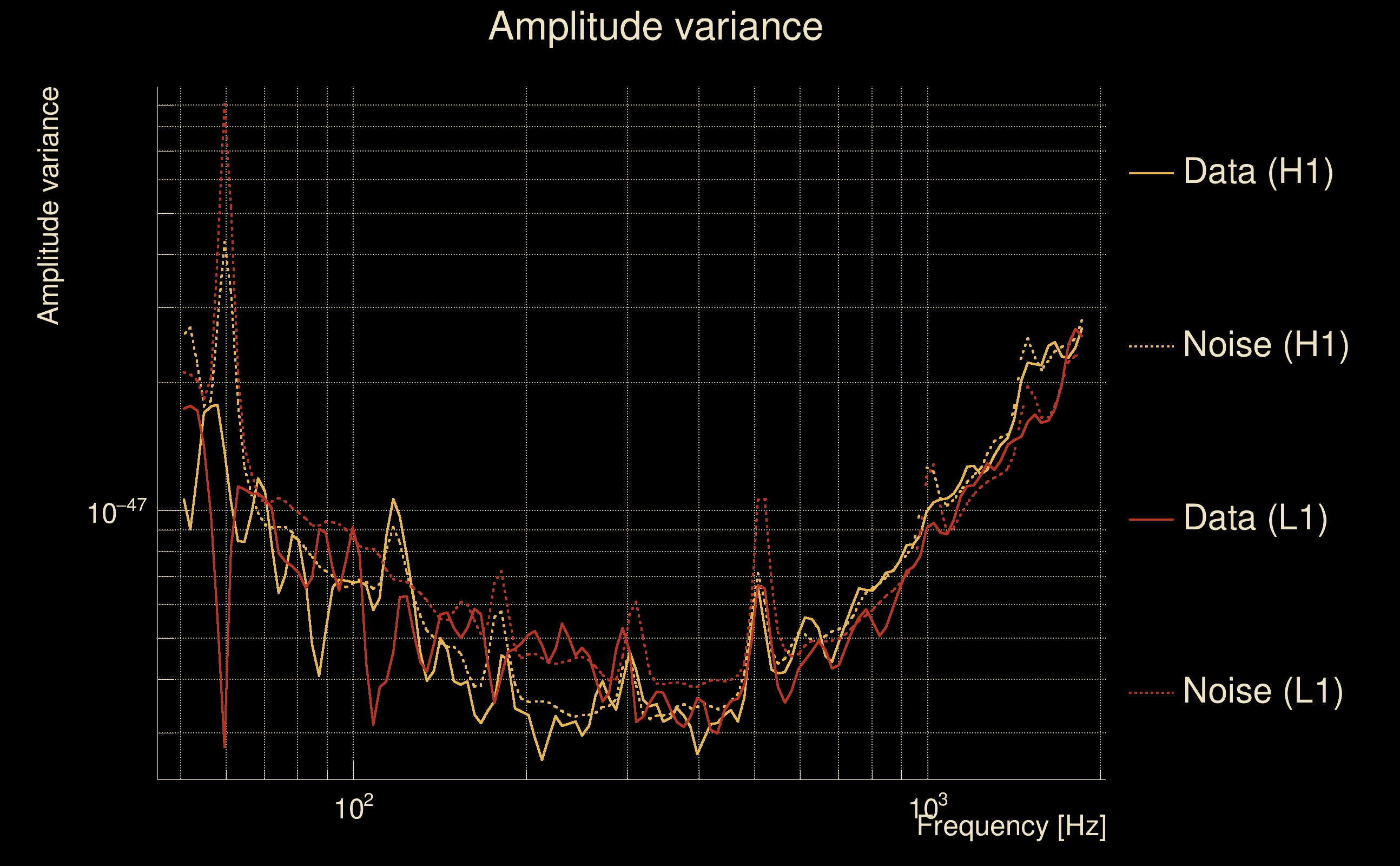

| Event time t(H1): | GPS = 1378942373 (Sat Sep 16 23:32:35 2023 ) → GPS = 1378942383 (Sat Sep 16 23:32:45 2023 ) |
| Event time t(L1): | GPS = 1378942333 (Sat Sep 16 23:32:45 2023 ) → GPS = 1378942343 (Sat Sep 16 23:32:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378942370 → GPS = 1378942386 |
| Omicron analysis time window (L1): | GPS = 1378942330 → GPS = 1378942346 |

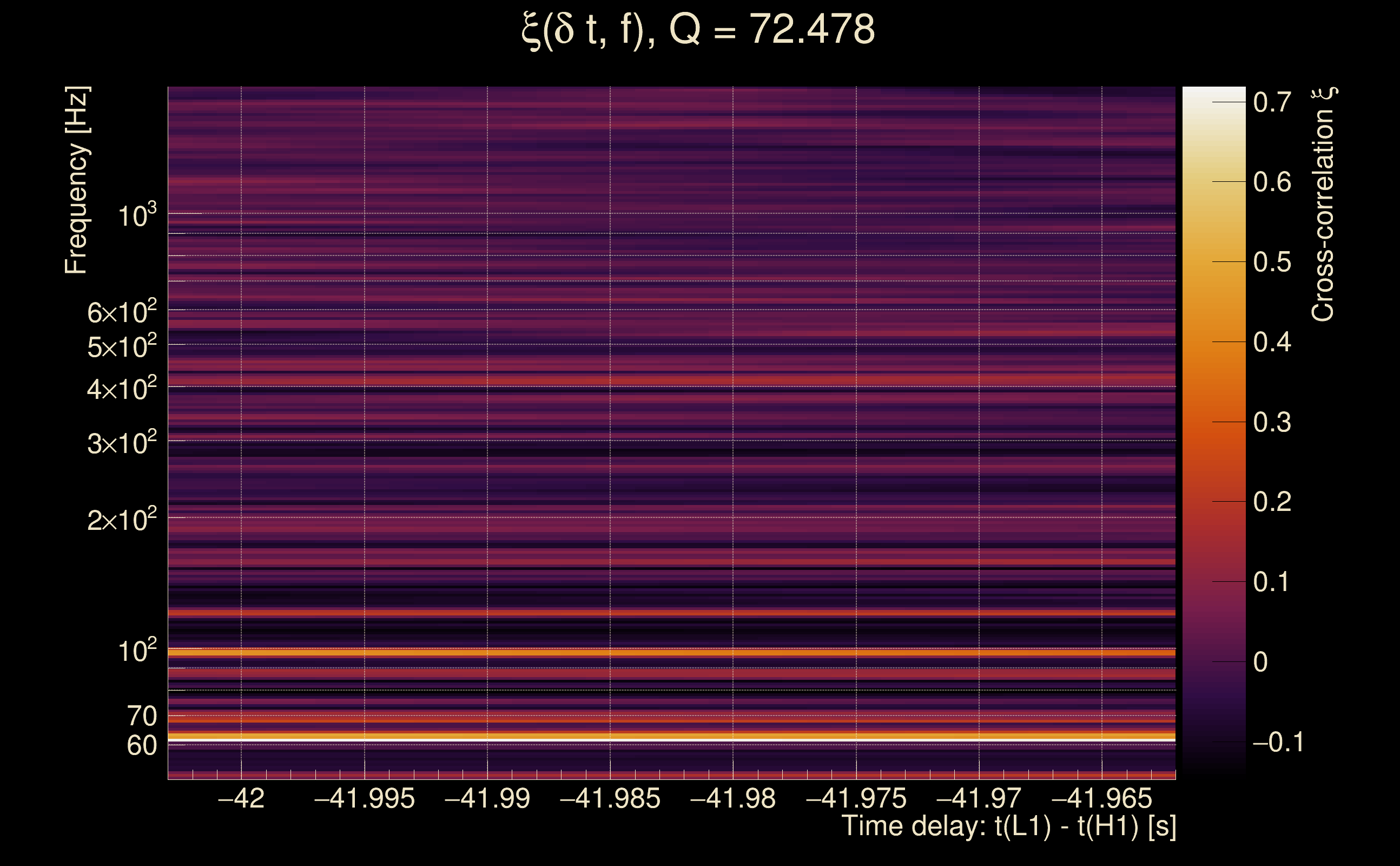

| Time delay between detectors t(L1) - t(H1): | -41.9825 s (slice index = 151 / 217), δt_gw = -0.00449979 s |
| Time delay uncertainty: | 0.00547766 s |
| [targeted mode] Time delay probability: | 0.876636 (0.155235 sigmas), δt_target = 0.00255346 s |
| Frequency: | 76.9022 Hz |
| Ξ: | 0.119019 ± 0.138878 (variance = 0.0192871): Q0: 0.438903, Q1: 0.516632, Q2: 0.491148, Q3: 0.383896, Q4: 0.12969 |
| Rank: | R_A = 0.0434019 |
| Log of amplitude ratio (L1/H1): | 0.828655, variance = 0.602332 (L1/H1: -0.432565, variance = 2.31088, H1/L1: -0.984779, variance = 0.725275) |
| Amplitude ratio (L1/H1): | 2.29024 ⋇ 2.17298 (L1/H1: 0.648843 ⋇ 4.57295, H1/L1: 0.373522 ⋇ 2.34346) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.415979 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 26 / 36, Q2: 52 / 70, Q3: 116 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.19364, L1: 14.7616 |
| SNR variance: | H1: 0.536773, L1: 0.52117 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

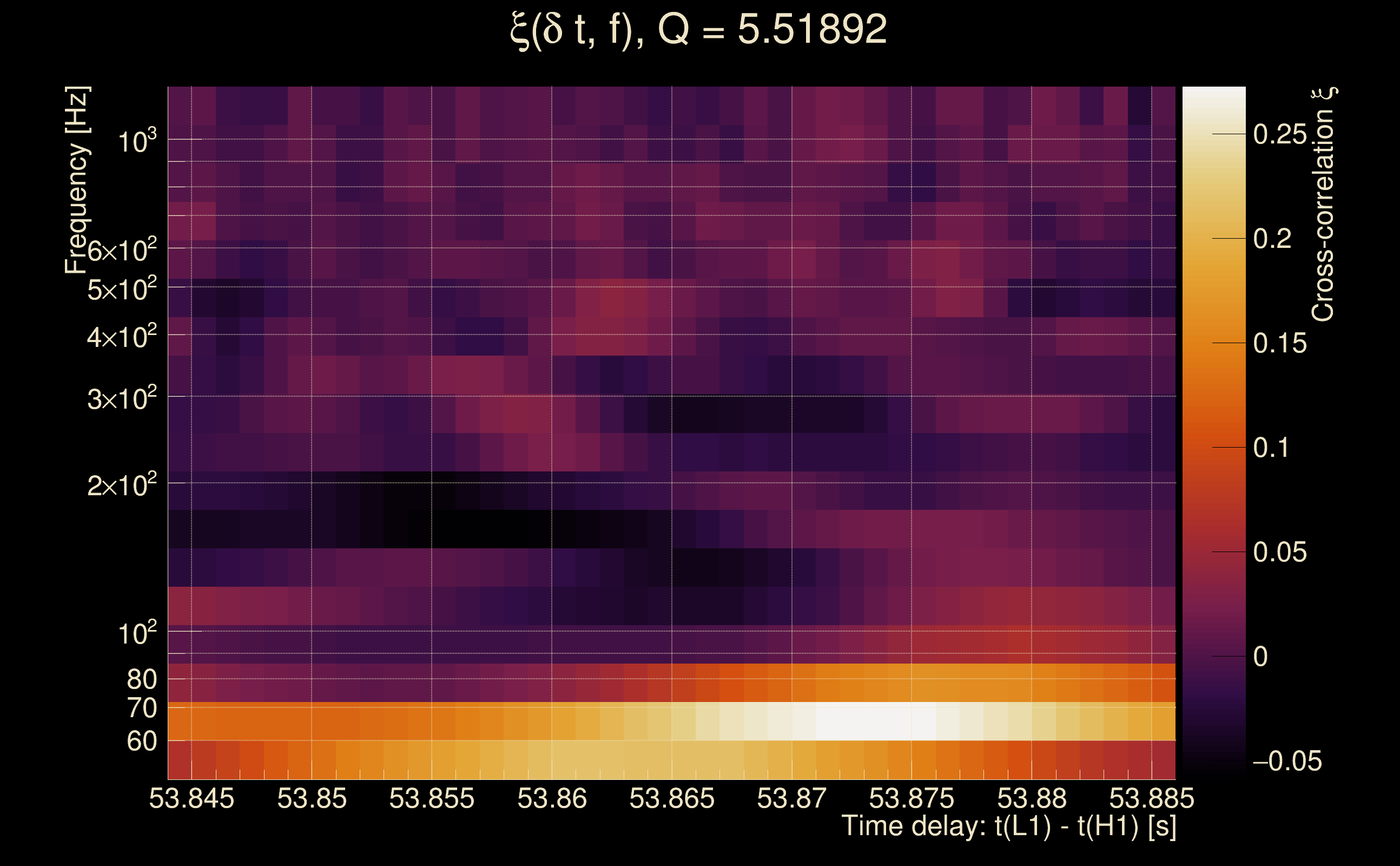

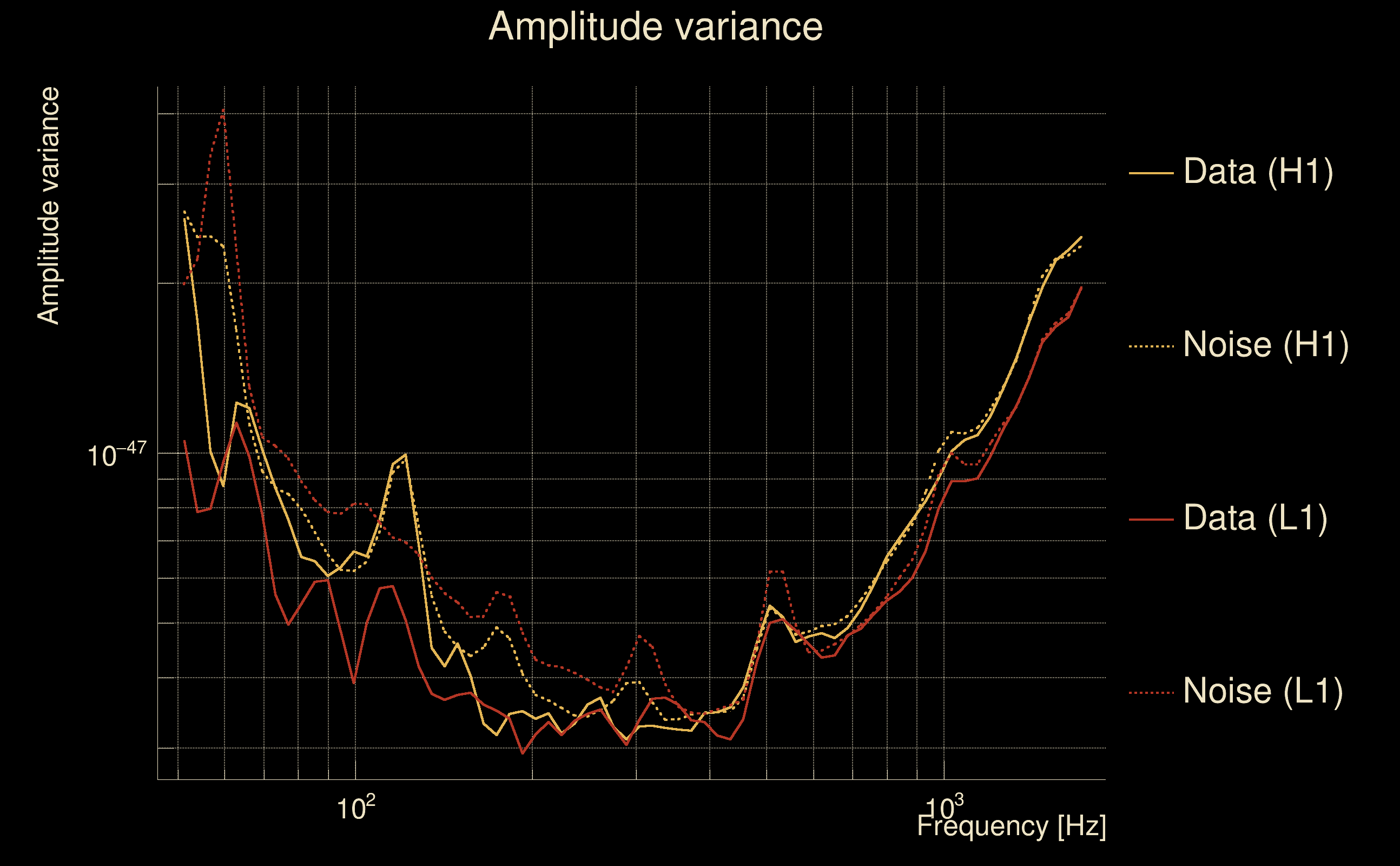

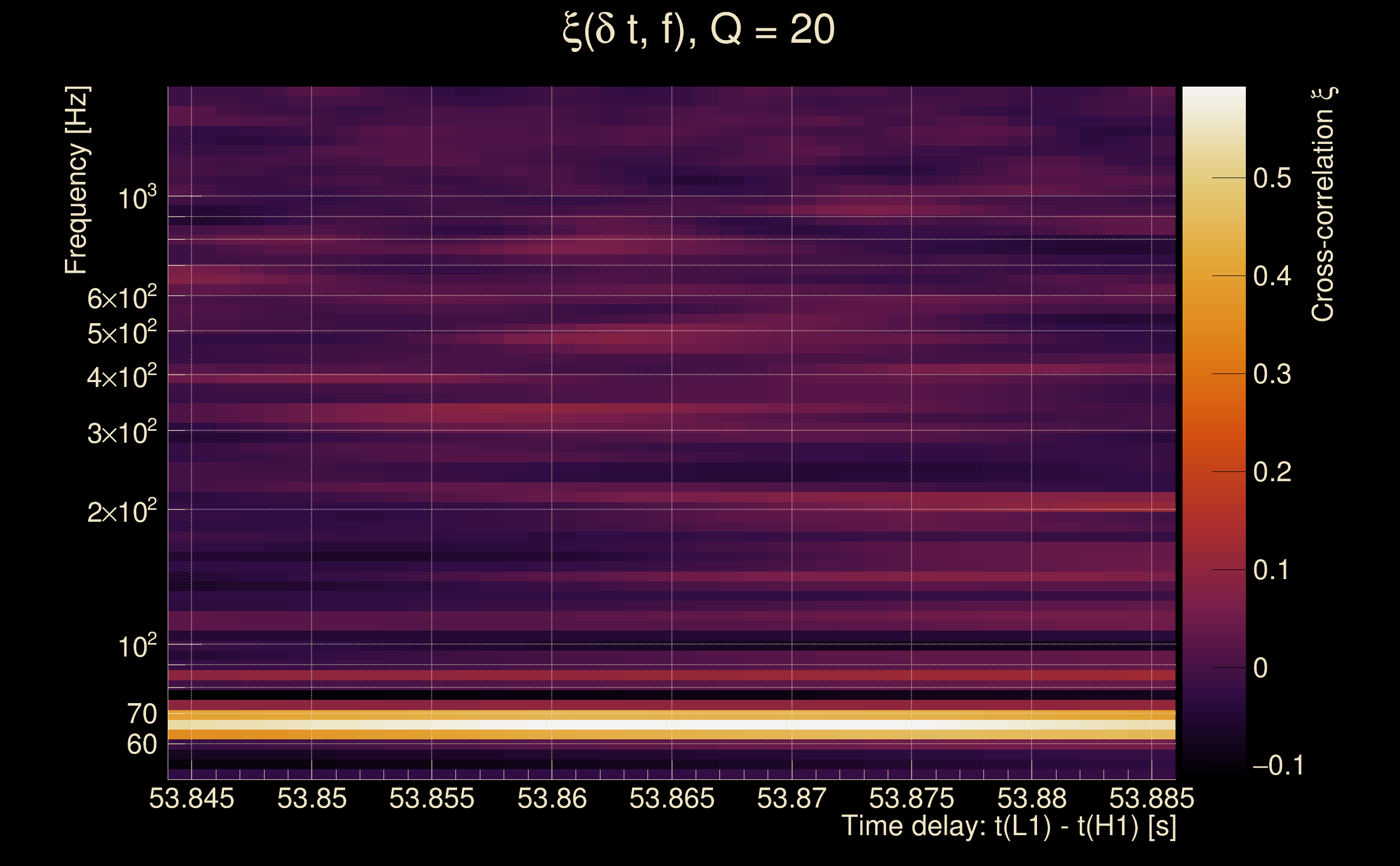

| Event time t(H1): | GPS = 1377811277 (Sun Sep 3 21:20:59 2023 ) → GPS = 1377811287 (Sun Sep 3 21:21:09 2023 ) |
| Event time t(L1): | GPS = 1377811327 (Sun Sep 3 21:21:09 2023 ) → GPS = 1377811337 (Sun Sep 3 21:21:59 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377811274 → GPS = 1377811290 |
| Omicron analysis time window (L1): | GPS = 1377811324 → GPS = 1377811340 |

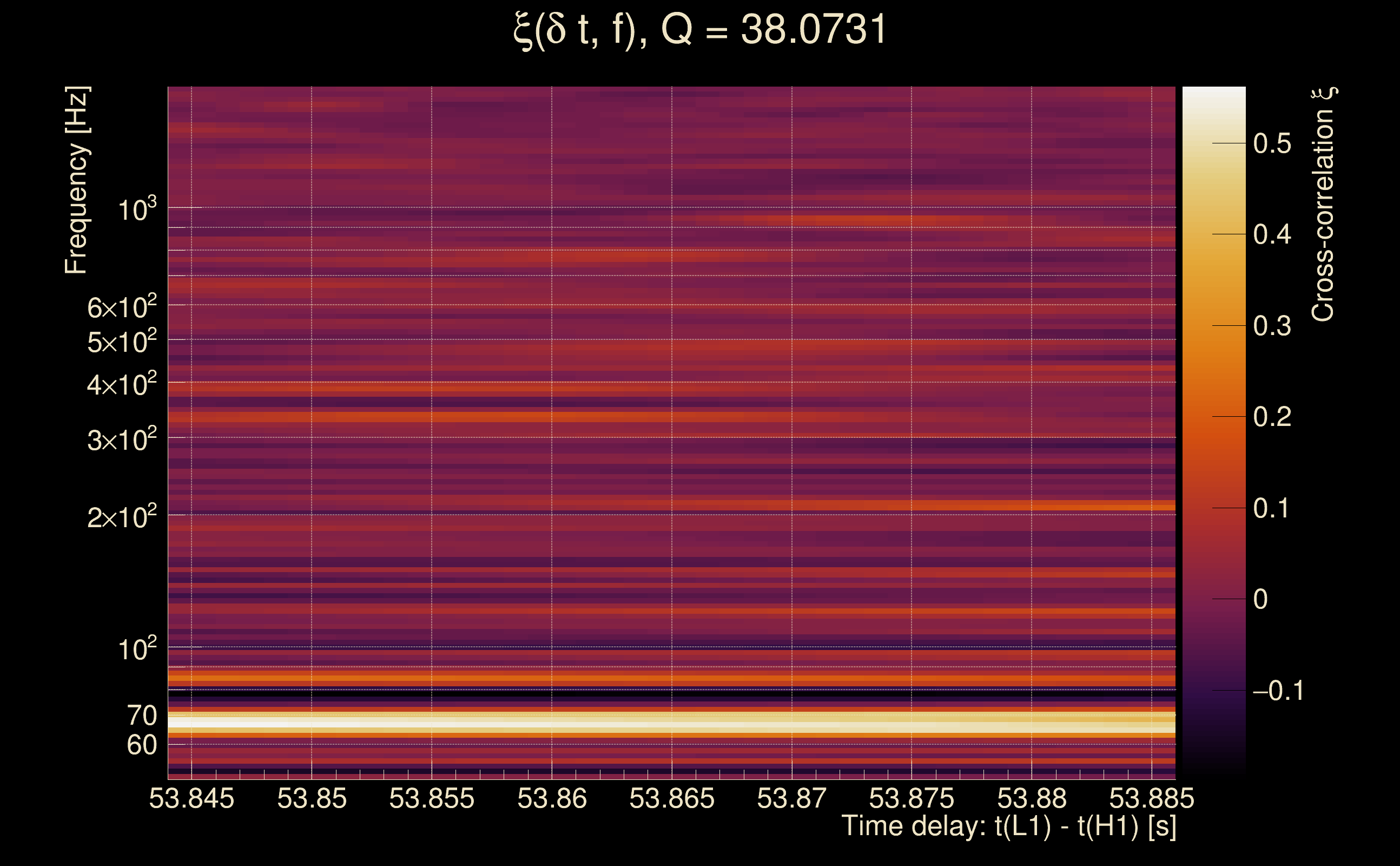

| Time delay between detectors t(L1) - t(H1): | 53.865 s (slice index = 24 / 217), δt_gw = 0.00102519 s |
| Time delay uncertainty: | 0.00598454 s |
| [targeted mode] Time delay probability: | 0.880111 (0.150829 sigmas), δt_target = -0.00535011 s |
| Frequency: | 106.197 Hz |
| Ξ: | 0.0796355 ± 0.122325 (variance = 0.0149635): Q0: 0.203822, Q1: 0.352528, Q2: 0.40904, Q3: 0.0631789, Q4: 0.309363 |
| Rank: | R_A = 0.0424731 |
| Log of amplitude ratio (L1/H1): | -0.0936145, variance = 0.415056 (L1/H1: -0.48259, variance = 0.568928, H1/L1: -0.129938, variance = 0.841314) |
| Amplitude ratio (L1/H1): | 0.910634 ⋇ 1.90455 (L1/H1: 0.617183 ⋇ 2.12607, H1/L1: 0.87815 ⋇ 2.50235) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.605996 |

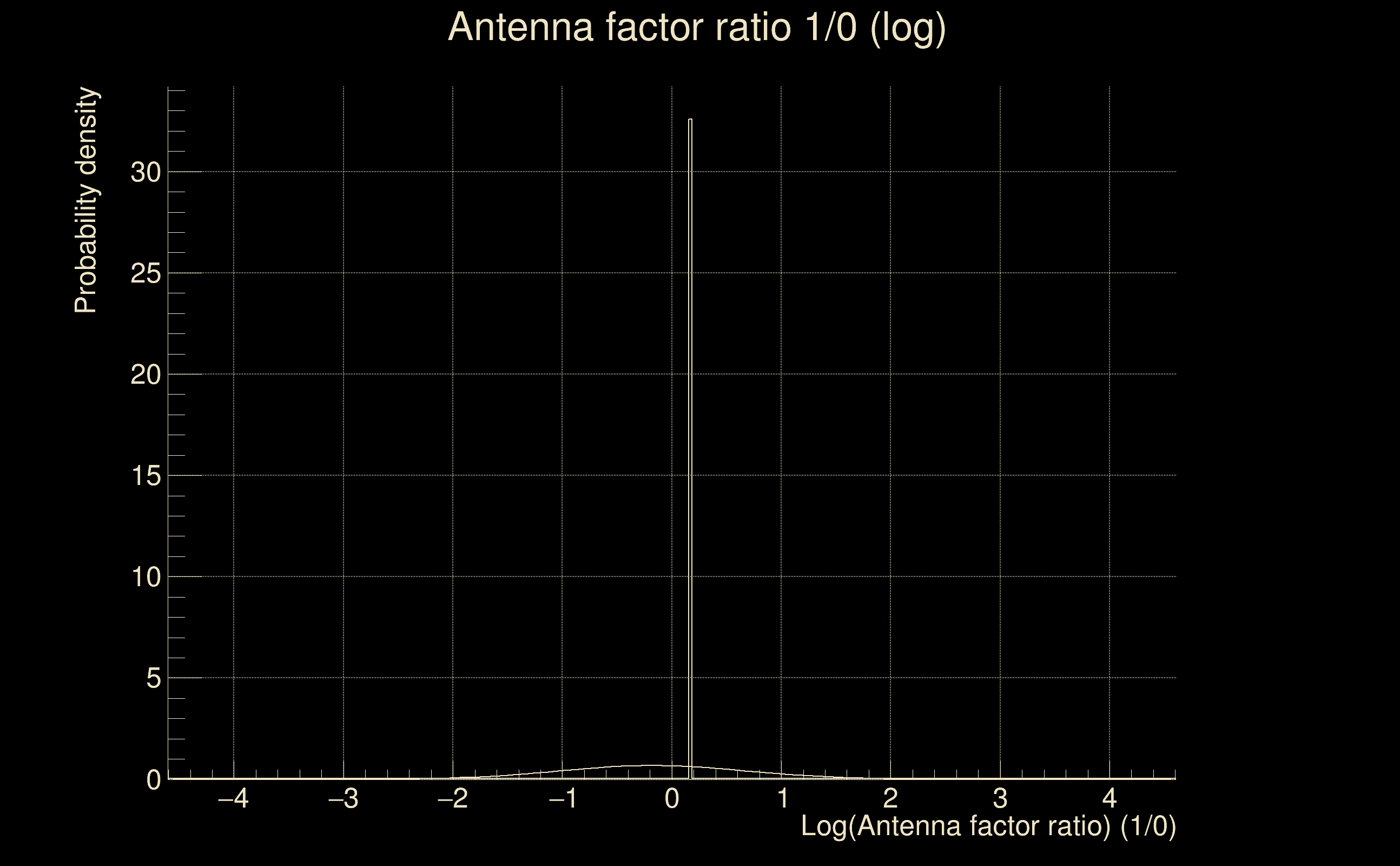

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 27 / 36, Q2: 57 / 70, Q3: 117 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.01664, L1: 6.61735 |
| SNR variance: | H1: 0.540047, L1: 0.520306 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

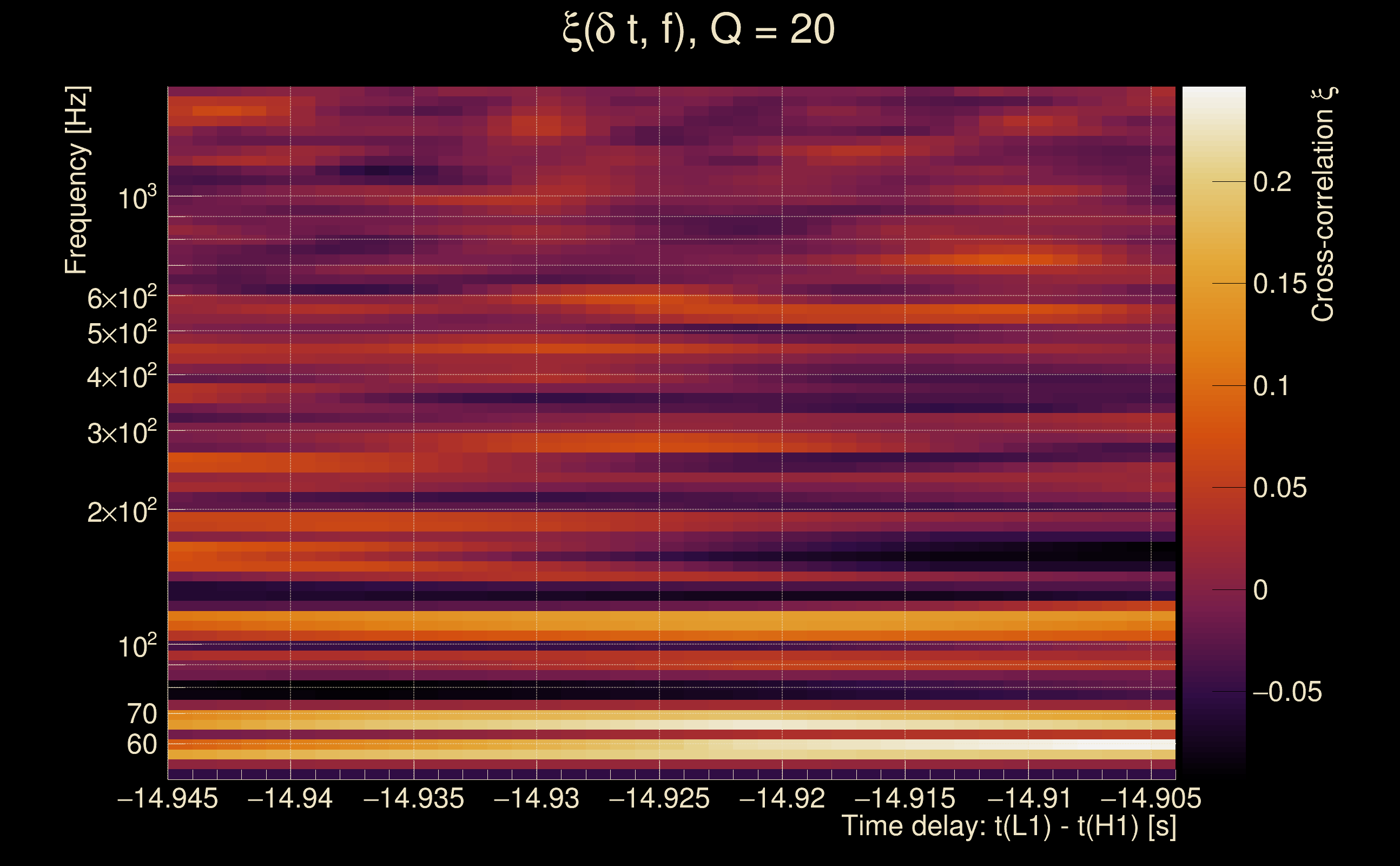

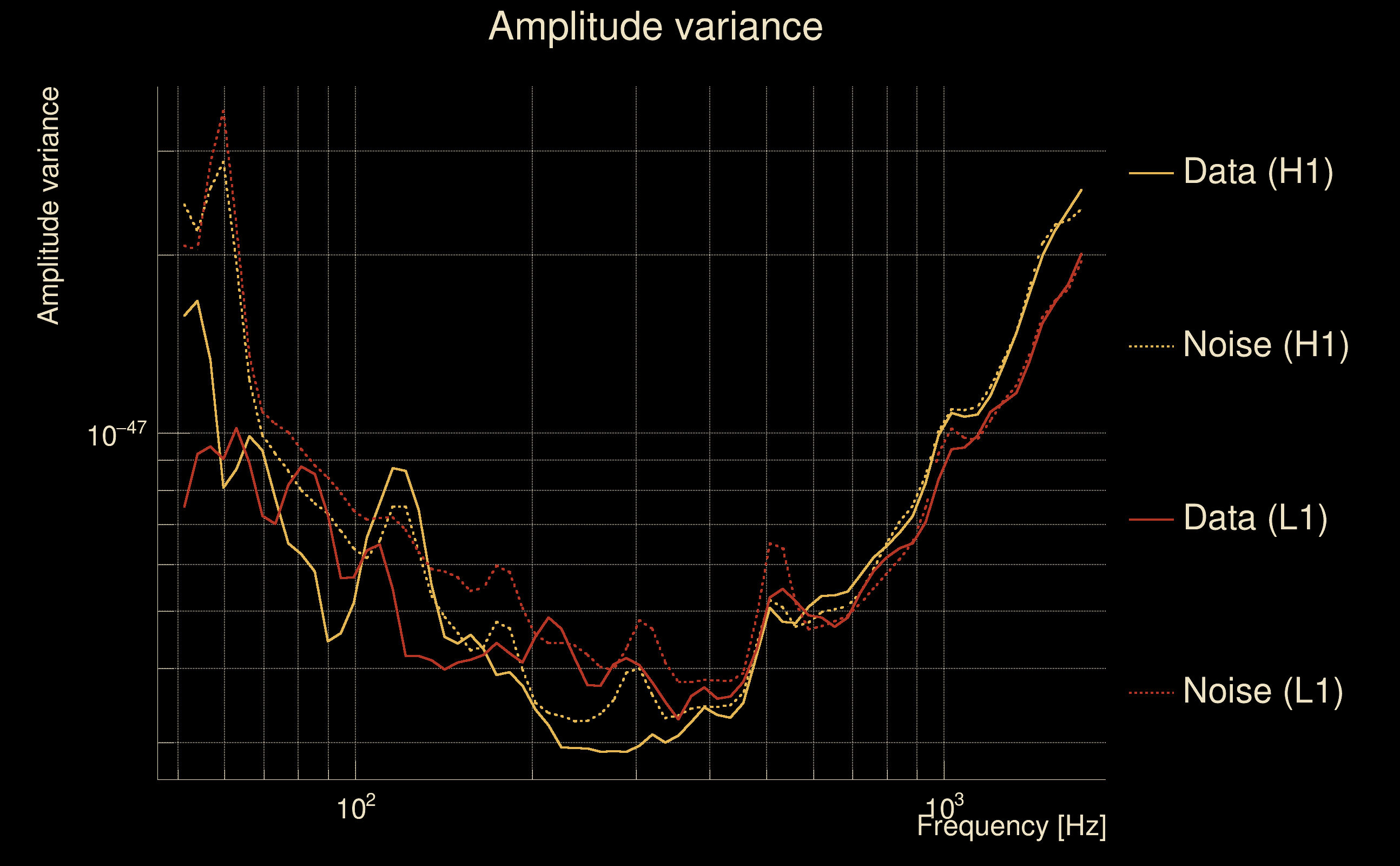

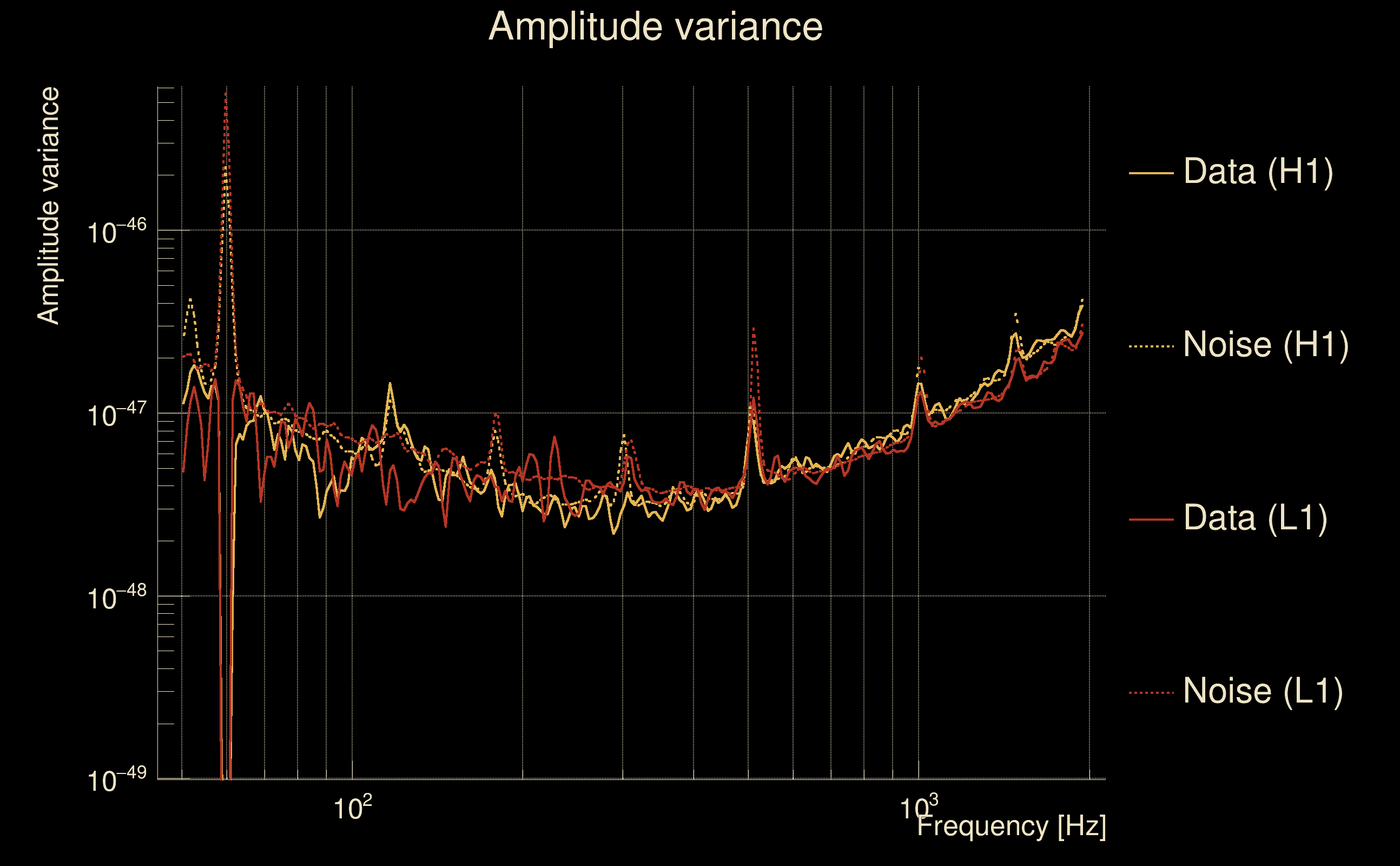

| Event time t(H1): | GPS = 1378936134 (Sat Sep 16 21:48:36 2023 ) → GPS = 1378936144 (Sat Sep 16 21:48:46 2023 ) |
| Event time t(L1): | GPS = 1378936124 (Sat Sep 16 21:48:46 2023 ) → GPS = 1378936134 (Sat Sep 16 21:48:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378936131 → GPS = 1378936147 |
| Omicron analysis time window (L1): | GPS = 1378936121 → GPS = 1378936137 |
| Time delay between detectors t(L1) - t(H1): | -14.9248 s (slice index = 215 / 217), δt_gw = -0.00284128 s |
| Time delay uncertainty: | 0.00741804 s |
| [targeted mode] Time delay probability: | 0.971459 (0.0357784 sigmas), δt_target = 0.000122547 s |
| Frequency: | 108.677 Hz |
| Ξ: | 0.0517058 ± 0.0640775 (variance = 0.00410593): Q0: 0.16529, Q1: 0.228673, Q2: 0.164089, Q3: 0.0480297, Q4: 0.0851955 |
| Rank: | R_A = 0.0409227 |
| Log of amplitude ratio (L1/H1): | 0.0250522, variance = 0.287529 (L1/H1: -0.0985842, variance = 0.577633, H1/L1: -0.152699, variance = 0.572009) |
| Amplitude ratio (L1/H1): | 1.02537 ⋇ 1.70953 (L1/H1: 0.906119 ⋇ 2.13832, H1/L1: 0.858388 ⋇ 2.13041) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.814706 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 27 / 36, Q2: 57 / 70, Q3: 126 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.00083, L1: 4.92164 |
| SNR variance: | H1: 0.527306, L1: 0.563623 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

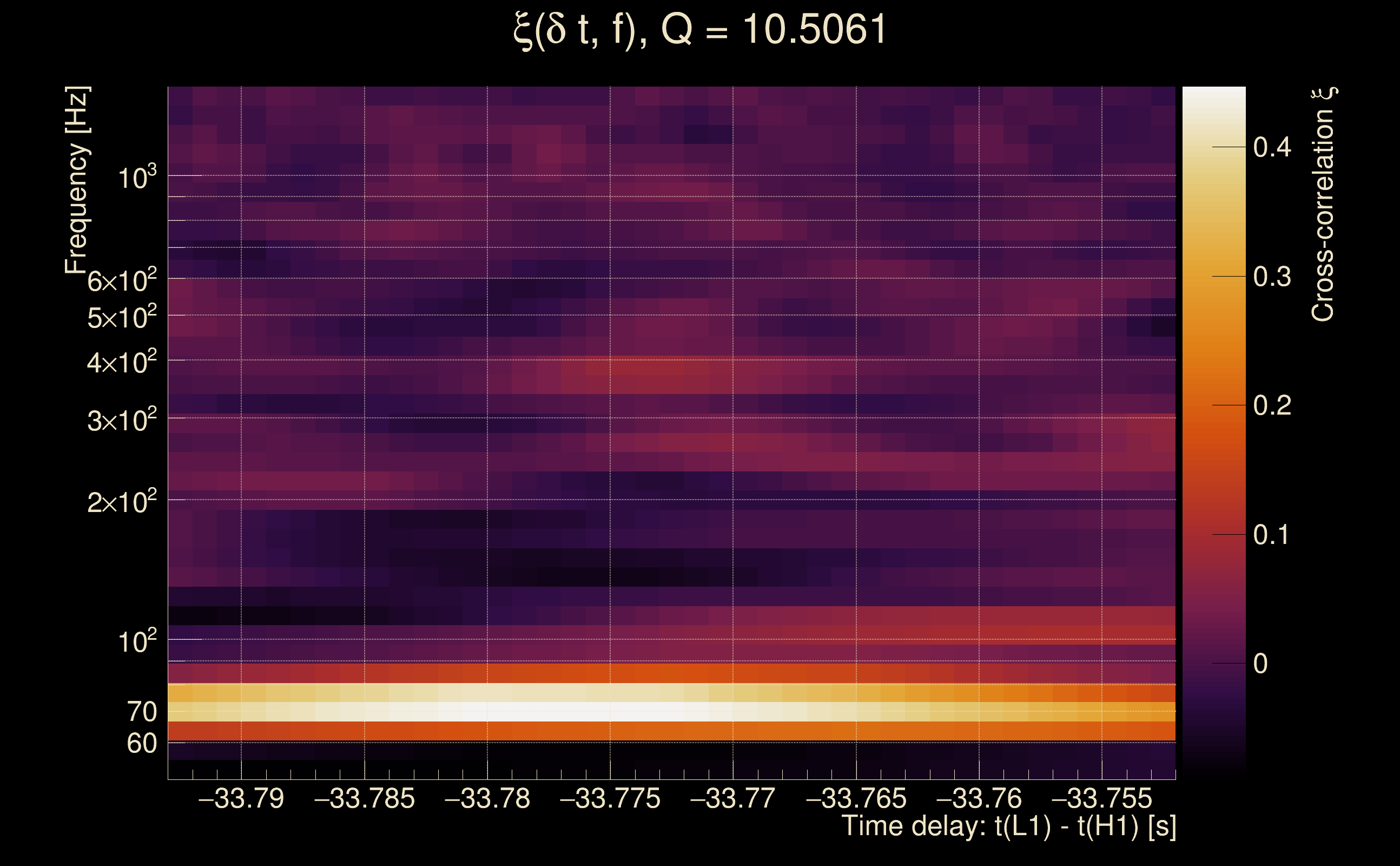

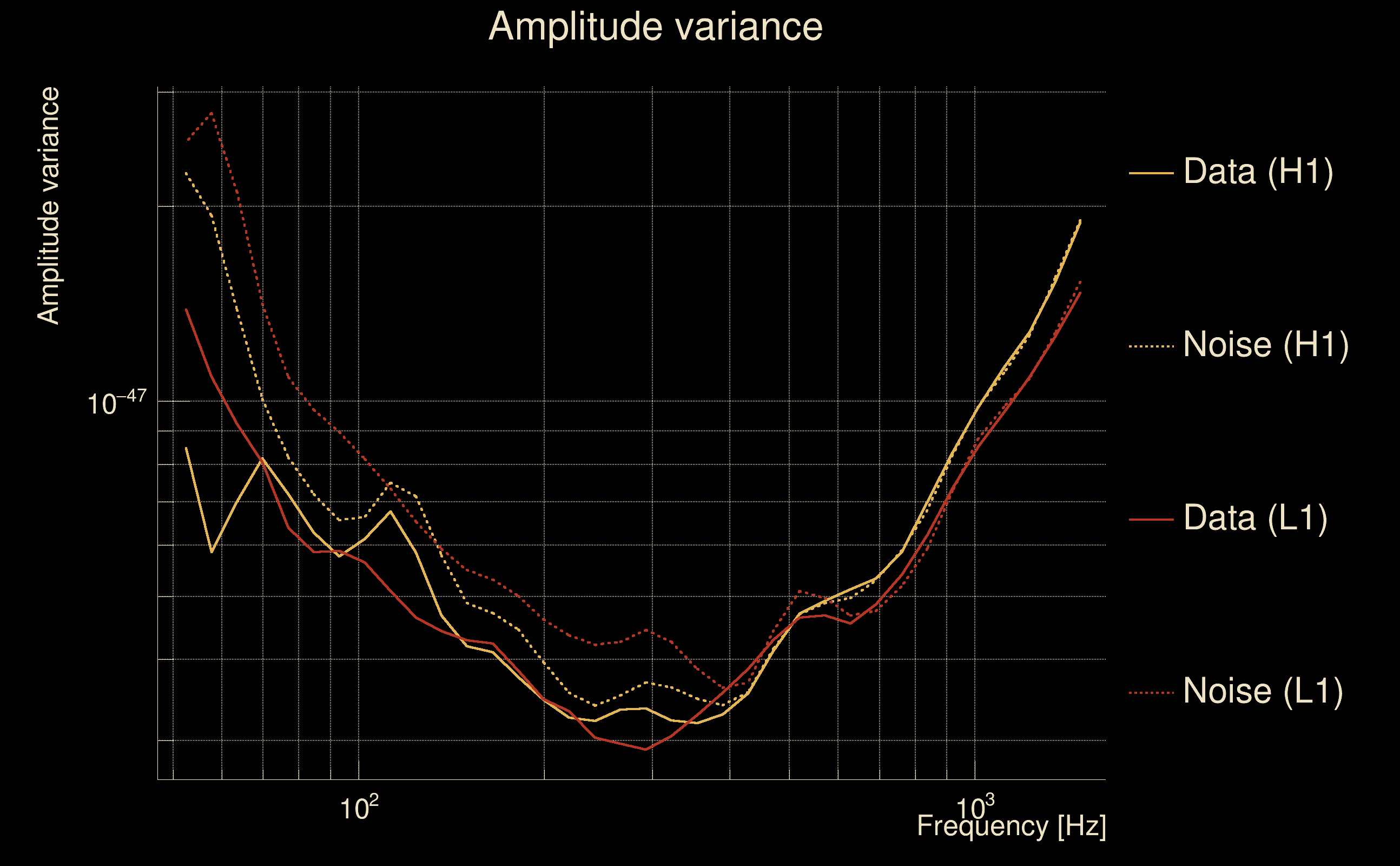

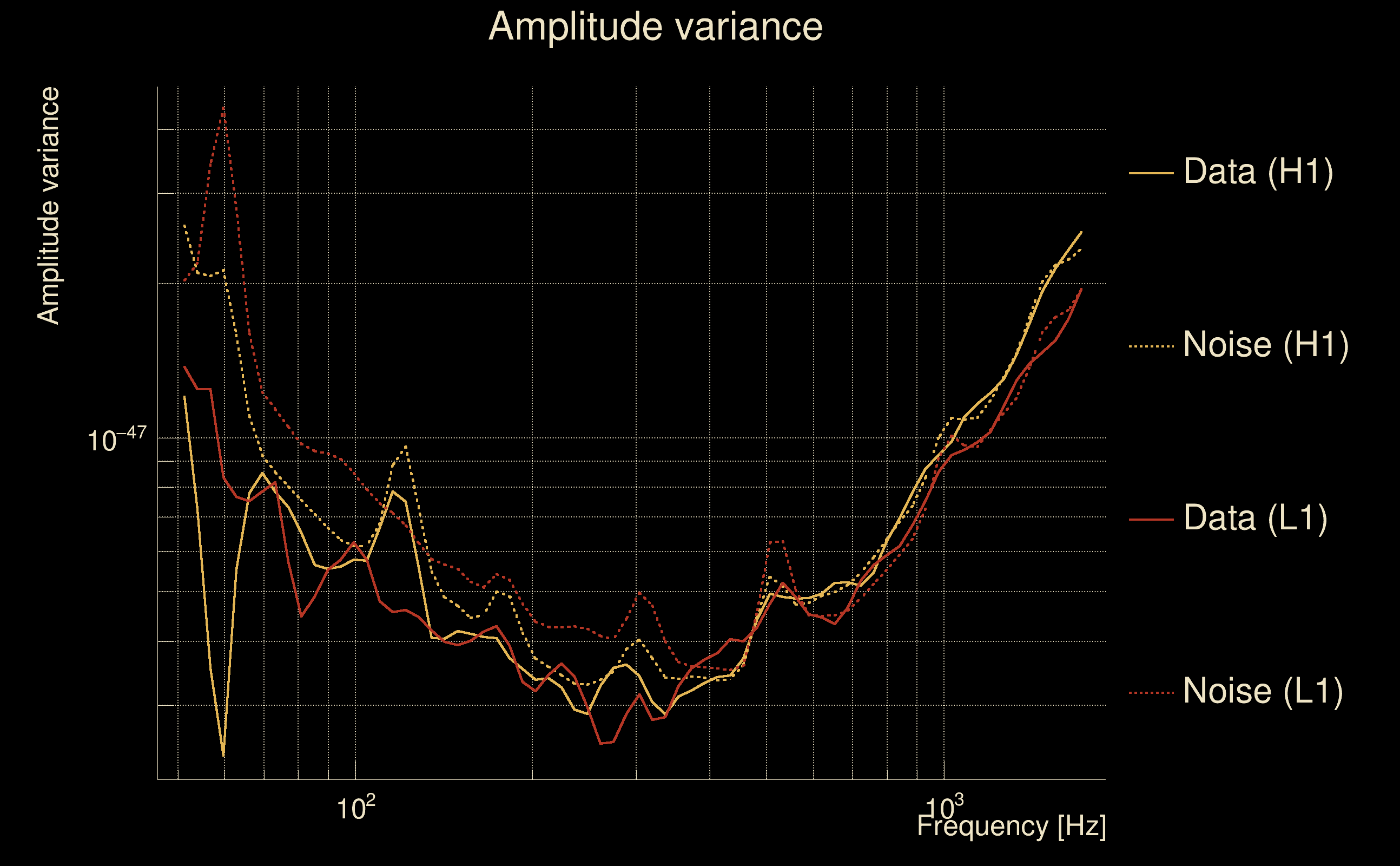

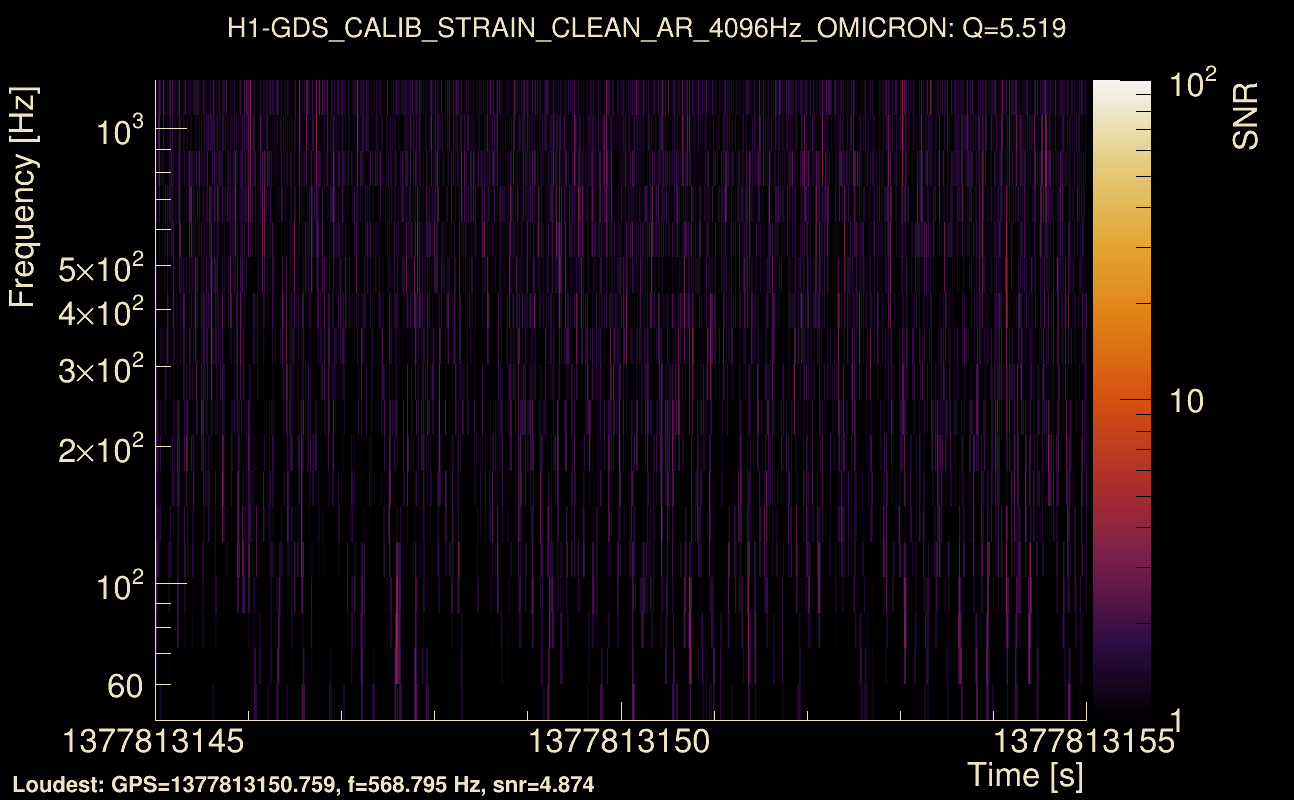

| Event time t(H1): | GPS = 1377813145 (Sun Sep 3 21:52:07 2023 ) → GPS = 1377813155 (Sun Sep 3 21:52:17 2023 ) |
| Event time t(L1): | GPS = 1377813115 (Sun Sep 3 21:52:17 2023 ) → GPS = 1377813125 (Sun Sep 3 21:51:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377813142 → GPS = 1377813158 |
| Omicron analysis time window (L1): | GPS = 1377813112 → GPS = 1377813128 |

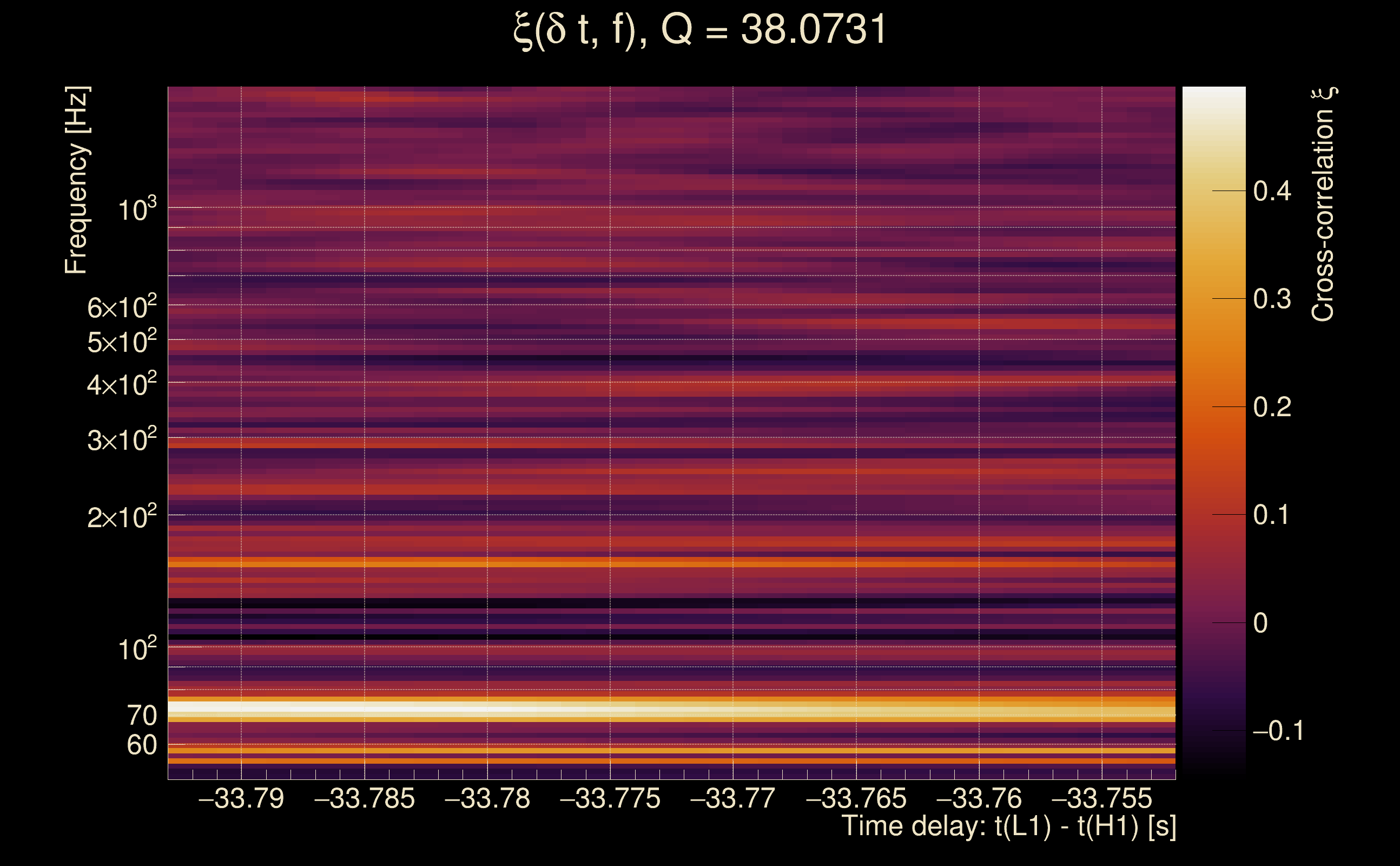

| Time delay between detectors t(L1) - t(H1): | -33.7726 s (slice index = 190 / 217), δt_gw = -0.000619198 s |
| Time delay uncertainty: | 0.00477185 s |
| [targeted mode] Time delay probability: | 0.939189 (0.0762892 sigmas), δt_target = -0.00257587 s |
| Frequency: | 135.878 Hz |
| Ξ: | 0.0679105 ± 0.0801834 (variance = 0.00642938): Q0: 0.158344, Q1: 0.274456, Q2: 0.262876, Q3: 0.249314, Q4: 0.0639895 |
| Rank: | R_A = 0.0406956 |
| Log of amplitude ratio (L1/H1): | 0.071894, variance = 0.35531 (L1/H1: -0.212192, variance = 0.705832, H1/L1: -0.348529, variance = 0.714916) |
| Amplitude ratio (L1/H1): | 1.07454 ⋇ 1.81499 (L1/H1: 0.80881 ⋇ 2.31669, H1/L1: 0.705725 ⋇ 2.3292) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.638053 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 26 / 36, Q2: 59 / 70, Q3: 114 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.96531, L1: 5.03173 |
| SNR variance: | H1: 0.518224, L1: 0.49362 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

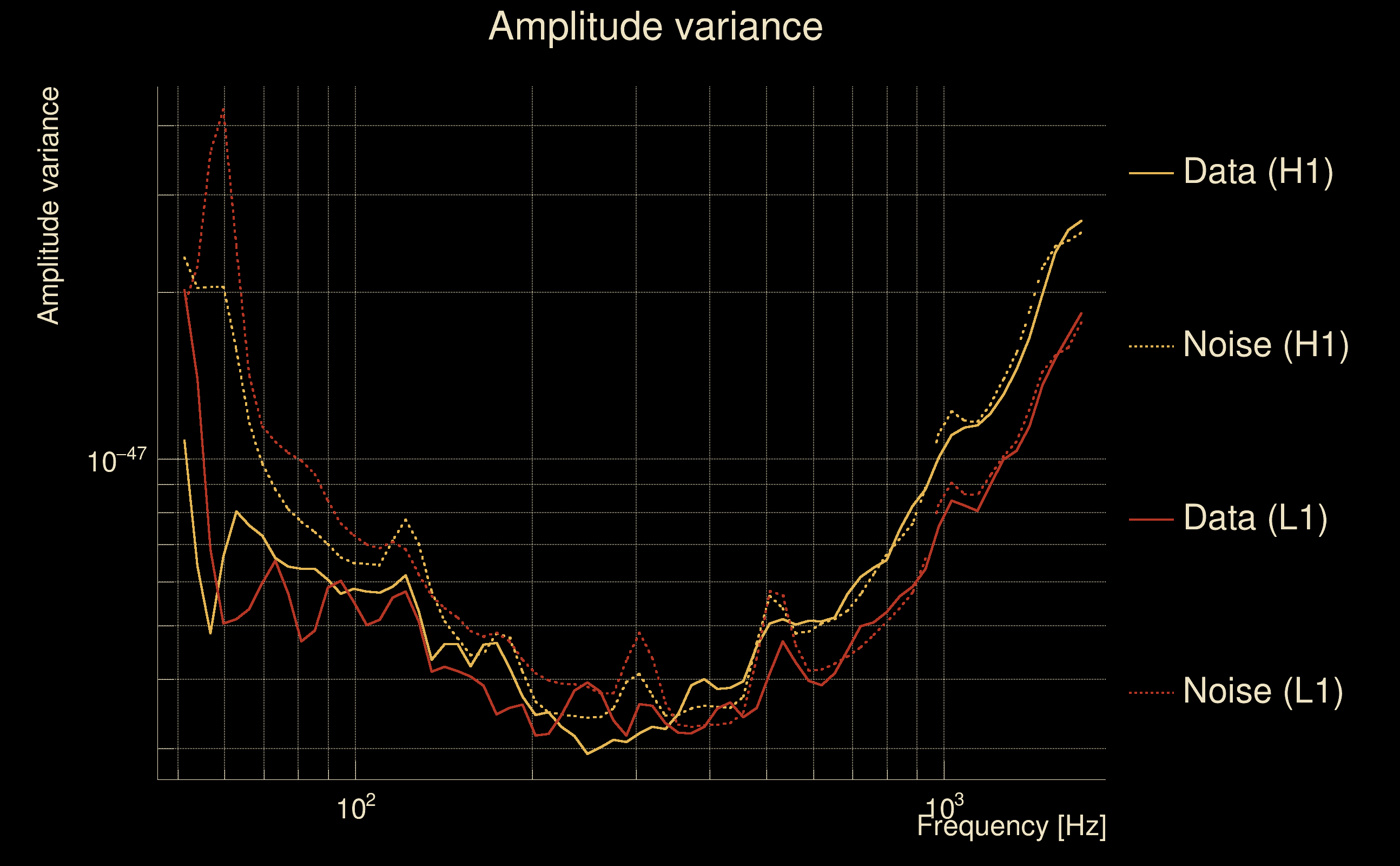

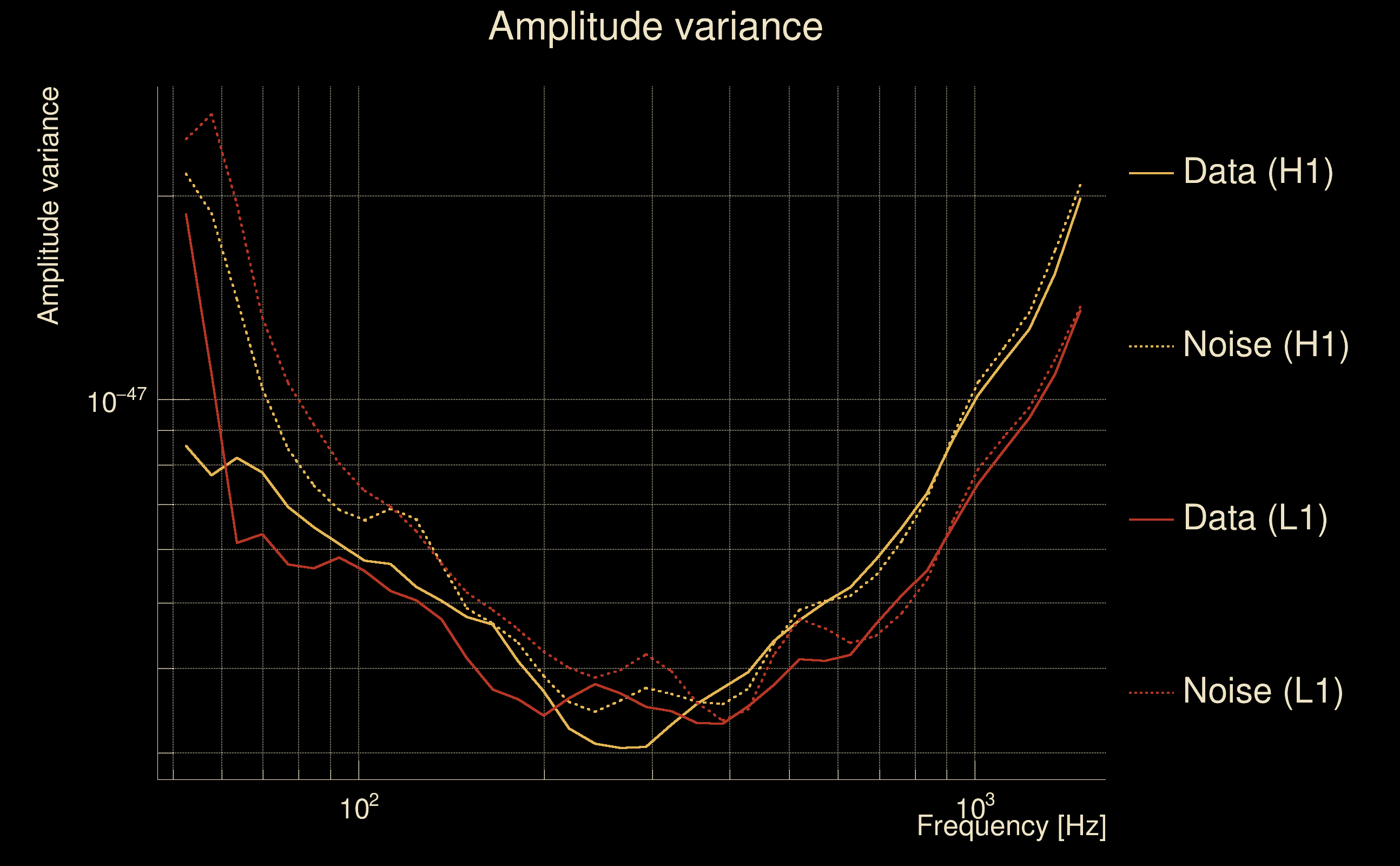

| Event time t(H1): | GPS = 1378017408 (Wed Sep 6 06:36:30 2023 ) → GPS = 1378017418 (Wed Sep 6 06:36:40 2023 ) |
| Event time t(L1): | GPS = 1378017418 (Wed Sep 6 06:36:40 2023 ) → GPS = 1378017428 (Wed Sep 6 06:36:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378017405 → GPS = 1378017421 |
| Omicron analysis time window (L1): | GPS = 1378017415 → GPS = 1378017431 |
| Time delay between detectors t(L1) - t(H1): | 14.5529 s (slice index = 9 / 217), δt_gw = -0.00111794 s |
| Time delay uncertainty: | 0.00558332 s |
| [targeted mode] Time delay probability: | 0.807992 (0.243017 sigmas), δt_target = -0.000983238 s |
| Frequency: | 113.796 Hz |
| Ξ: | 0.0868237 ± 0.0960555 (variance = 0.00922667): Q0: 0.32121, Q1: 0.261942, Q2: 0.0919277, Q3: 0.103368, Q4: 0.103072 |
| Rank: | R_A = 0.0399475 |
| Log of amplitude ratio (L1/H1): | 0.0925291, variance = 0.469328 (L1/H1: -0.585494, variance = 1.64827, H1/L1: -0.274354, variance = 0.636264) |
| Amplitude ratio (L1/H1): | 1.09695 ⋇ 1.98392 (L1/H1: 0.556831 ⋇ 3.61051, H1/L1: 0.760063 ⋇ 2.22034) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.569435 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 25 / 36, Q2: 59 / 70, Q3: 122 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.54775, L1: 10.713 |
| SNR variance: | H1: 0.521179, L1: 0.537615 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378543500 (Tue Sep 12 08:44:42 2023 ) → GPS = 1378543510 (Tue Sep 12 08:44:52 2023 ) |
| Event time t(L1): | GPS = 1378543550 (Tue Sep 12 08:44:52 2023 ) → GPS = 1378543560 (Tue Sep 12 08:45:42 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378543497 → GPS = 1378543513 |
| Omicron analysis time window (L1): | GPS = 1378543547 → GPS = 1378543563 |
| Time delay between detectors t(L1) - t(H1): | 48.4844 s (slice index = 141 / 217), δt_gw = 0.00239618 s |
| Time delay uncertainty: | 0.00789792 s |
| [targeted mode] Time delay probability: | 0.9491 (0.0638371 sigmas), δt_target = -0.00247478 s |
| Frequency: | 110.814 Hz |
| Ξ: | 0.0728713 ± 0.130602 (variance = 0.0170569): Q0: 0.261546, Q1: 0.387249, Q2: 0.0826565, Q3: 0.0560681, Q4: 0.0744684 |
| Rank: | R_A = 0.0386431 |
| Log of amplitude ratio (L1/H1): | 0.516142, variance = 0.39866 (L1/H1: 0.0501023, variance = 1.19207, H1/L1: -0.82783, variance = 0.577019) |
| Amplitude ratio (L1/H1): | 1.67555 ⋇ 1.88023 (L1/H1: 1.05138 ⋇ 2.97969, H1/L1: 0.436996 ⋇ 2.13746) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.558731 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 29 / 36, Q2: 61 / 70, Q3: 124 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.32868, L1: 6.51584 |
| SNR variance: | H1: 0.516283, L1: 0.516702 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378925695 (Sat Sep 16 18:54:37 2023 ) → GPS = 1378925705 (Sat Sep 16 18:54:47 2023 ) |
| Event time t(L1): | GPS = 1378925725 (Sat Sep 16 18:54:47 2023 ) → GPS = 1378925735 (Sat Sep 16 18:55:17 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378925692 → GPS = 1378925708 |
| Omicron analysis time window (L1): | GPS = 1378925722 → GPS = 1378925738 |
| Time delay between detectors t(L1) - t(H1): | 27.2896 s (slice index = 167 / 217), δt_gw = 0.00357477 s |
| Time delay uncertainty: | 0.00622661 s |
| [targeted mode] Time delay probability: | 0.999043 (0.00119904 sigmas), δt_target = 0.00290036 s |
| Frequency: | 143.401 Hz |
| Ξ: | 0.0438556 ± 0.0760772 (variance = 0.00578774): Q0: 0.128706, Q1: 0.164663, Q2: 0.182857, Q3: 0.196481, Q4: 0.349669 |
| Rank: | R_A = 0.0381278 |
| Log of amplitude ratio (L1/H1): | -0.246972, variance = 0.375322 (L1/H1: -0.345761, variance = 0.590844, H1/L1: 0.144895, variance = 0.920843) |
| Amplitude ratio (L1/H1): | 0.781163 ⋇ 1.84529 (L1/H1: 0.707682 ⋇ 2.15688, H1/L1: 1.15592 ⋇ 2.61067) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.870226 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 28 / 36, Q2: 61 / 70, Q3: 119 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.05036, L1: 4.96834 |
| SNR variance: | H1: 0.558357, L1: 0.517439 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378590223 (Tue Sep 12 21:43:25 2023 ) → GPS = 1378590233 (Tue Sep 12 21:43:35 2023 ) |
| Event time t(L1): | GPS = 1378590183 (Tue Sep 12 21:43:35 2023 ) → GPS = 1378590193 (Tue Sep 12 21:42:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378590220 → GPS = 1378590236 |
| Omicron analysis time window (L1): | GPS = 1378590180 → GPS = 1378590196 |
| Time delay between detectors t(L1) - t(H1): | -36.9666 s (slice index = 42 / 217), δt_gw = -0.00260717 s |
| Time delay uncertainty: | 0.00425682 s |
| [targeted mode] Time delay probability: | 0.866992 (0.16748 sigmas), δt_target = 0.00358224 s |
| Frequency: | 81.1678 Hz |
| Ξ: | 0.0639207 ± 0.126394 (variance = 0.0159753): Q0: 0.204145, Q1: 0.307207, Q2: 0.424036, Q3: 0.419095, Q4: 0.0961486 |
| Rank: | R_A = 0.0376262 |
| Log of amplitude ratio (L1/H1): | 0.114959, variance = 0.29901 (L1/H1: -0.206169, variance = 0.691262, H1/L1: -0.240392, variance = 0.472752) |
| Amplitude ratio (L1/H1): | 1.12183 ⋇ 1.72775 (L1/H1: 0.813696 ⋇ 2.29658, H1/L1: 0.786319 ⋇ 1.98888) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.678943 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 31 / 36, Q2: 56 / 70, Q3: 128 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.73259, L1: 7.57235 |
| SNR variance: | H1: 0.540498, L1: 0.514467 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377849010 (Mon Sep 4 07:49:52 2023 ) → GPS = 1377849020 (Mon Sep 4 07:50:02 2023 ) |
| Event time t(L1): | GPS = 1377849040 (Mon Sep 4 07:50:02 2023 ) → GPS = 1377849050 (Mon Sep 4 07:50:32 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377849007 → GPS = 1377849023 |
| Omicron analysis time window (L1): | GPS = 1377849037 → GPS = 1377849053 |
| Time delay between detectors t(L1) - t(H1): | 34.324 s (slice index = 14 / 217), δt_gw = -4.29121e-06 s |
| Time delay uncertainty: | 0.00531555 s |
| [targeted mode] Time delay probability: | 0.964868 (0.0440457 sigmas), δt_target = -0.00189424 s |
| Frequency: | 103.996 Hz |
| Ξ: | 0.0450926 ± 0.0233919 (variance = 0.00054718): Q0: 0.168592, Q1: 0.205405, Q2: 0.203649, Q3: 0.174055, Q4: 0.232883 |
| Rank: | R_A = 0.037523 |
| Log of amplitude ratio (L1/H1): | 0.37764, variance = 0.263983 (L1/H1: 0.296471, variance = 0.536542, H1/L1: -0.473512, variance = 0.507339) |
| Amplitude ratio (L1/H1): | 1.45884 ⋇ 1.67162 (L1/H1: 1.3451 ⋇ 2.08025, H1/L1: 0.622811 ⋇ 2.03863) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.862431 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 31 / 36, Q2: 63 / 70, Q3: 119 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.2114, L1: 4.79515 |
| SNR variance: | H1: 0.517465, L1: 0.541192 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377812536 (Sun Sep 3 21:41:58 2023 ) → GPS = 1377812546 (Sun Sep 3 21:42:08 2023 ) |
| Event time t(L1): | GPS = 1377812536 (Sun Sep 3 21:42:08 2023 ) → GPS = 1377812546 (Sun Sep 3 21:42:08 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377812533 → GPS = 1377812549 |
| Omicron analysis time window (L1): | GPS = 1377812533 → GPS = 1377812549 |
| Time delay between detectors t(L1) - t(H1): | 3.31074 s (slice index = 36 / 217), δt_gw = -0.00125715 s |
| Time delay uncertainty: | 0.00795889 s |
| [targeted mode] Time delay probability: | 0.936873 (0.0792004 sigmas), δt_target = -0.000238419 s |
| Frequency: | 137.443 Hz |
| Ξ: | 0.0525113 ± 0.0505264 (variance = 0.00255291): Q0: 0.113601, Q1: 0.146249, Q2: 0.128518, Q3: 0.247353, Q4: 0.111424 |
| Rank: | R_A = 0.0370581 |
| Log of amplitude ratio (L1/H1): | 0.0103017, variance = 0.361222 (L1/H1: -0.107454, variance = 0.556824, H1/L1: -0.282908, variance = 0.985404) |
| Amplitude ratio (L1/H1): | 1.01035 ⋇ 1.82397 (L1/H1: 0.898118 ⋇ 2.10898, H1/L1: 0.753589 ⋇ 2.69844) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.753267 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 6 / 18, Q1: 27 / 36, Q2: 58 / 70, Q3: 122 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.38023, L1: 5.50782 |
| SNR variance: | H1: 0.527928, L1: 0.534209 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378543595 (Tue Sep 12 08:46:17 2023 ) → GPS = 1378543605 (Tue Sep 12 08:46:27 2023 ) |
| Event time t(L1): | GPS = 1378543555 (Tue Sep 12 08:46:27 2023 ) → GPS = 1378543565 (Tue Sep 12 08:45:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378543592 → GPS = 1378543608 |
| Omicron analysis time window (L1): | GPS = 1378543552 → GPS = 1378543568 |
| Time delay between detectors t(L1) - t(H1): | -36.366 s (slice index = 29 / 217), δt_gw = 3.90484e-05 s |
| Time delay uncertainty: | 0.00566207 s |
| [targeted mode] Time delay probability: | 0.606265 (0.515412 sigmas), δt_target = -0.000626802 s |
| Frequency: | 83.7122 Hz |
| Ξ: | 0.0791211 ± 0.0958892 (variance = 0.00919473): Q0: 0.312686, Q1: 0.332941, Q2: 0.282325, Q3: 0.0703277, Q4: 0.201629 |
| Rank: | R_A = 0.0367238 |
| Log of amplitude ratio (L1/H1): | 0.0155622, variance = 0.41125 (L1/H1: -0.24131, variance = 1.55224, H1/L1: -0.182139, variance = 0.464809) |
| Amplitude ratio (L1/H1): | 1.01568 ⋇ 1.89893 (L1/H1: 0.785598 ⋇ 3.47602, H1/L1: 0.833485 ⋇ 1.97737) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.765584 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 27 / 36, Q2: 62 / 70, Q3: 124 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.2522, L1: 6.52218 |
| SNR variance: | H1: 0.528332, L1: 0.557762 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378849701 (Fri Sep 15 21:48:03 2023 ) → GPS = 1378849711 (Fri Sep 15 21:48:13 2023 ) |
| Event time t(L1): | GPS = 1378849731 (Fri Sep 15 21:48:13 2023 ) → GPS = 1378849741 (Fri Sep 15 21:48:43 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378849698 → GPS = 1378849714 |
| Omicron analysis time window (L1): | GPS = 1378849728 → GPS = 1378849744 |
| Time delay between detectors t(L1) - t(H1): | 33.6772 s (slice index = 28 / 217), δt_gw = -0.0028061 s |
| Time delay uncertainty: | 0.00726481 s |
| [targeted mode] Time delay probability: | 0.958996 (0.0514137 sigmas), δt_target = 0.00295734 s |
| Frequency: | 116.656 Hz |
| Ξ: | 0.0456541 ± 0.0779916 (variance = 0.00608269): Q0: 0.127155, Q1: 0.231537, Q2: 0.244509, Q3: 0.0332399, Q4: 0.123571 |
| Rank: | R_A = 0.0359555 |
| Log of amplitude ratio (L1/H1): | 0.100028, variance = 0.260597 (L1/H1: -0.0251175, variance = 0.438385, H1/L1: -0.201329, variance = 0.56599) |
| Amplitude ratio (L1/H1): | 1.1052 ⋇ 1.6661 (L1/H1: 0.975195 ⋇ 1.93887, H1/L1: 0.817644 ⋇ 2.12192) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.821239 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 25 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.03293, L1: 5.594 |
| SNR variance: | H1: 0.526369, L1: 0.534608 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377755039 (Sun Sep 3 05:43:41 2023 ) → GPS = 1377755049 (Sun Sep 3 05:43:51 2023 ) |
| Event time t(L1): | GPS = 1377755059 (Sun Sep 3 05:43:51 2023 ) → GPS = 1377755069 (Sun Sep 3 05:44:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377755036 → GPS = 1377755052 |
| Omicron analysis time window (L1): | GPS = 1377755056 → GPS = 1377755072 |
| Time delay between detectors t(L1) - t(H1): | 19.7649 s (slice index = 113 / 217), δt_gw = -0.0051499 s |
| Time delay uncertainty: | 0.00830167 s |
| [targeted mode] Time delay probability: | 0.924056 (0.0953264 sigmas), δt_target = -0.00243258 s |
| Frequency: | 128.159 Hz |
| Ξ: | 0.0387097 ± 0.0632045 (variance = 0.0039948): Q0: 0.133791, Q1: 0.213173, Q2: 0.225782, Q3: 0.0561503, Q4: 0.115713 |
| Rank: | R_A = 0.0355592 |
| Log of amplitude ratio (L1/H1): | 0.0341382, variance = 0.232318 (L1/H1: 0.0302803, variance = 0.707649, H1/L1: -0.0375765, variance = 0.268854) |
| Amplitude ratio (L1/H1): | 1.03473 ⋇ 1.6193 (L1/H1: 1.03074 ⋇ 2.31919, H1/L1: 0.963121 ⋇ 1.67953) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.994109 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 28 / 36, Q2: 62 / 70, Q3: 124 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.91914, L1: 5.21062 |
| SNR variance: | H1: 0.524904, L1: 0.51394 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378077684 (Wed Sep 6 23:21:06 2023 ) → GPS = 1378077694 (Wed Sep 6 23:21:16 2023 ) |
| Event time t(L1): | GPS = 1378077644 (Wed Sep 6 23:21:16 2023 ) → GPS = 1378077654 (Wed Sep 6 23:20:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378077681 → GPS = 1378077697 |
| Omicron analysis time window (L1): | GPS = 1378077641 → GPS = 1378077657 |
| Time delay between detectors t(L1) - t(H1): | -40.6944 s (slice index = 123 / 217), δt_gw = -0.00436953 s |
| Time delay uncertainty: | 0.00366348 s |
| [targeted mode] Time delay probability: | 0.950227 (0.0624213 sigmas), δt_target = -0.00435853 s |
| Frequency: | 96.4984 Hz |
| Ξ: | 0.0420113 ± 0.0492095 (variance = 0.00242157): Q0: 0.226686, Q1: 0.203152, Q2: 0.0893962, Q3: 0.171561, Q4: 0.131997 |
| Rank: | R_A = 0.0353938 |
| Log of amplitude ratio (L1/H1): | -0.529403, variance = 0.41502 (L1/H1: -0.635568, variance = 0.591318, H1/L1: 0.463725, variance = 0.861041) |
| Amplitude ratio (L1/H1): | 0.588957 ⋇ 1.9045 (L1/H1: 0.529635 ⋇ 2.15755, H1/L1: 1.58999 ⋇ 2.52925) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.886613 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 30 / 36, Q2: 68 / 70, Q3: 126 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.85439, L1: 6.17187 |
| SNR variance: | H1: 0.542898, L1: 0.521394 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378841677 (Fri Sep 15 19:34:19 2023 ) → GPS = 1378841687 (Fri Sep 15 19:34:29 2023 ) |
| Event time t(L1): | GPS = 1378841707 (Fri Sep 15 19:34:29 2023 ) → GPS = 1378841717 (Fri Sep 15 19:34:59 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378841674 → GPS = 1378841690 |
| Omicron analysis time window (L1): | GPS = 1378841704 → GPS = 1378841720 |
| Time delay between detectors t(L1) - t(H1): | 25.2182 s (slice index = 212 / 217), δt_gw = 0.00220232 s |
| Time delay uncertainty: | 0.00531288 s |
| [targeted mode] Time delay probability: | 0.986473 (0.0169544 sigmas), δt_target = -0.00414085 s |
| Frequency: | 86.9196 Hz |
| Ξ: | 0.0398451 ± 0.104875 (variance = 0.0109987): Q0: 0.153085, Q1: 0.278643, Q2: 0.340996, Q3: 0.0897942, Q4: 0.0761686 |
| Rank: | R_A = 0.0349406 |
| Log of amplitude ratio (L1/H1): | 0.271137, variance = 0.180864 (L1/H1: 0.219966, variance = 0.337593, H1/L1: -0.338698, variance = 0.385245) |
| Amplitude ratio (L1/H1): | 1.31145 ⋇ 1.53002 (L1/H1: 1.24603 ⋇ 1.78787, H1/L1: 0.712698 ⋇ 1.86019) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.888935 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 29 / 36, Q2: 64 / 70, Q3: 125 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.74203, L1: 4.99725 |
| SNR variance: | H1: 0.512784, L1: 0.509119 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378937543 (Sat Sep 16 22:12:05 2023 ) → GPS = 1378937553 (Sat Sep 16 22:12:15 2023 ) |
| Event time t(L1): | GPS = 1378937503 (Sat Sep 16 22:12:15 2023 ) → GPS = 1378937513 (Sat Sep 16 22:11:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378937540 → GPS = 1378937556 |
| Omicron analysis time window (L1): | GPS = 1378937500 → GPS = 1378937516 |
| Time delay between detectors t(L1) - t(H1): | -42.8535 s (slice index = 170 / 217), δt_gw = -0.00147287 s |
| Time delay uncertainty: | 0.00879182 s |
| [targeted mode] Time delay probability: | 0.835373 (0.207816 sigmas), δt_target = 0.00229239 s |
| Frequency: | 93.5425 Hz |
| Ξ: | 0.0855724 ± 0.130473 (variance = 0.0170233): Q0: 0.338808, Q1: 0.391416, Q2: 0.4833, Q3: 0.207949, Q4: 0.117031 |
| Rank: | R_A = 0.0348795 |
| Log of amplitude ratio (L1/H1): | 0.677507, variance = 0.946751 (L1/H1: -0.169627, variance = 0.808426, H1/L1: -0.84244, variance = 1.32065) |
| Amplitude ratio (L1/H1): | 1.96896 ⋇ 2.6459 (L1/H1: 0.843979 ⋇ 2.45745, H1/L1: 0.430658 ⋇ 3.15565) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.487928 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 24 / 36, Q2: 56 / 70, Q3: 125 / 134, Q4: 240 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.46339, L1: 12.3818 |
| SNR variance: | H1: 0.544809, L1: 0.525368 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
