| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Tue Oct 28 15:24:37 2025 UTC |
| Ox option file: | Targeted_O4bw_2min_newnew8_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Targeted_O4bw_2min_newnew8_file_list.txt (1 files) |
| Analysis result file: | Targeted_O4bw_2min_newnew8_results-0.root |
| Slice selected for the the fakeground: | slice index=159 (-2.346 s), time lag = 0 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 21 | 21 | 4515 | |
| Start Date (detector 0) | Mon May 15 14:21:45 2023 UTC | Mon May 15 14:21:45 2023 UTC | Mon May 15 14:21:45 2023 UTC | |
| End Date (detector 0) | Mon May 15 14:23:35 2023 UTC | Mon May 15 14:23:35 2023 UTC | Mon May 15 14:23:35 2023 UTC | |
| Start GPS (detector 0) | 1368195723 | 1368195723 | 1368195723 | |
| End GPS (detector 0) | 1368195833 | 1368195833 | 1368195833 | |
| Used livetime (detector 0) | 110 s | 110 s | 110 s | |
| Start Date (detector 1) | Mon May 15 14:21:45 2023 UTC | Mon May 15 14:21:45 2023 UTC | Mon May 15 14:21:45 2023 UTC | |
| End Date (detector 1) | Mon May 15 14:23:35 2023 UTC | Mon May 15 14:23:35 2023 UTC | Mon May 15 14:23:35 2023 UTC | |
| Start GPS (detector 1) | 1368195723 | 1368195723 | 1368195723 | |
| End GPS (detector 1) | 1368195833 | 1368195833 | 1368195833 | |
| Used livetime (detector 1) | 110 s | 110 s | 110 s | |
| Cumulative livetime | 210 s | 210 s | 45150 s | |
| 0 years, 0 days, 0 hours, 3 min, 30 s | 0 years, 0 days, 0 hours, 3 min, 30 s | 0 years, 0 days, 12 hours, 32 min, 30 s |
![]() |
![]() |

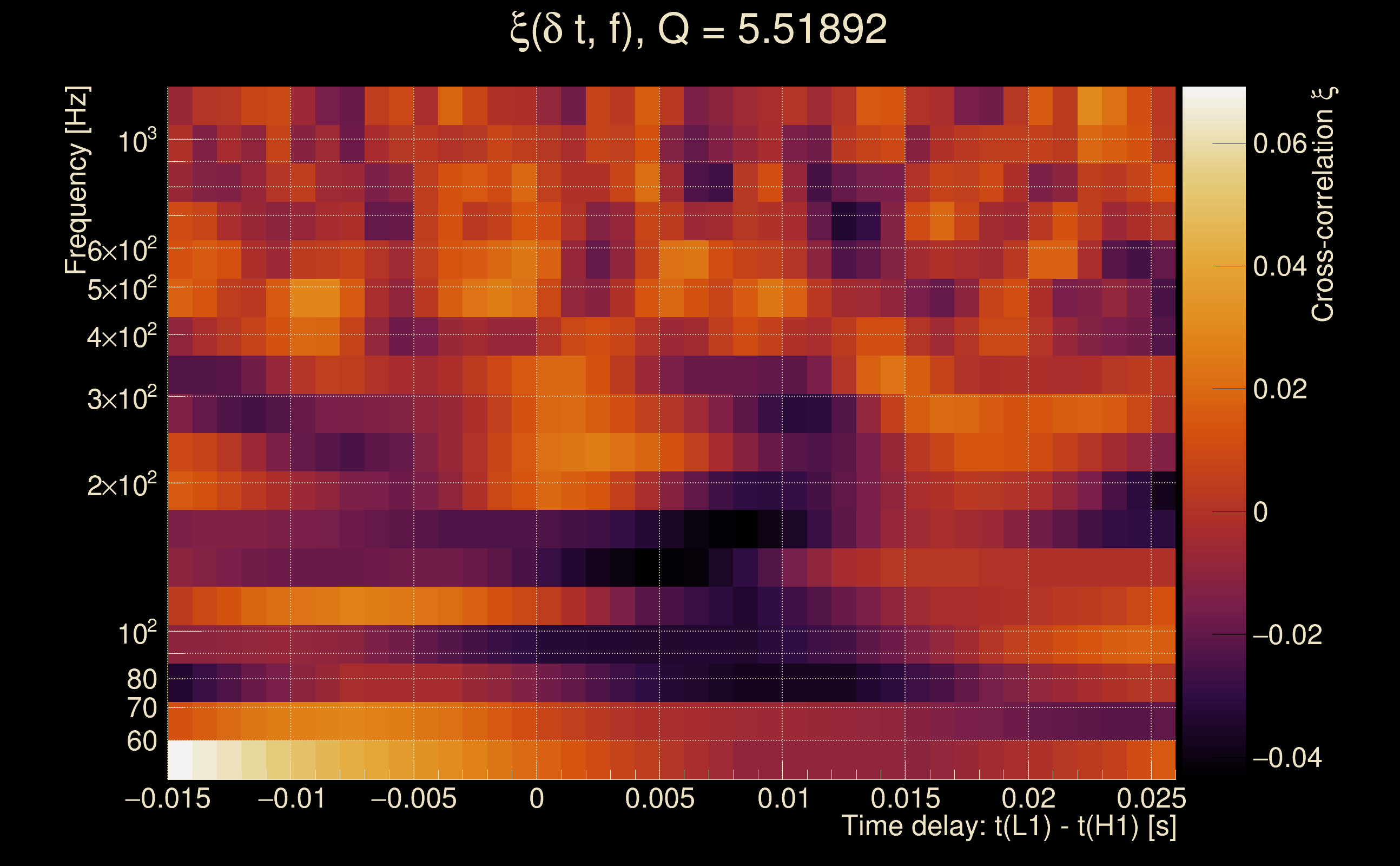

| Event time t(H1): | GPS = 1368195743 (Mon May 15 14:22:05 2023 ) → GPS = 1368195753 (Mon May 15 14:22:15 2023 ) |
| Event time t(L1): | GPS = 1368195743 (Mon May 15 14:22:15 2023 ) → GPS = 1368195753 (Mon May 15 14:22:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195740 → GPS = 1368195756 |
| Omicron analysis time window (L1): | GPS = 1368195740 → GPS = 1368195756 |
| Time delay between detectors t(L1) - t(H1): | 0.00848971 s (slice index = 108 / 217), δt_gw = 0.00848971 s |
| Time delay uncertainty: | 0.0017592 s |
| [targeted mode] Time delay probability: | 0.935237 (0.081258 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 417.948 Hz |

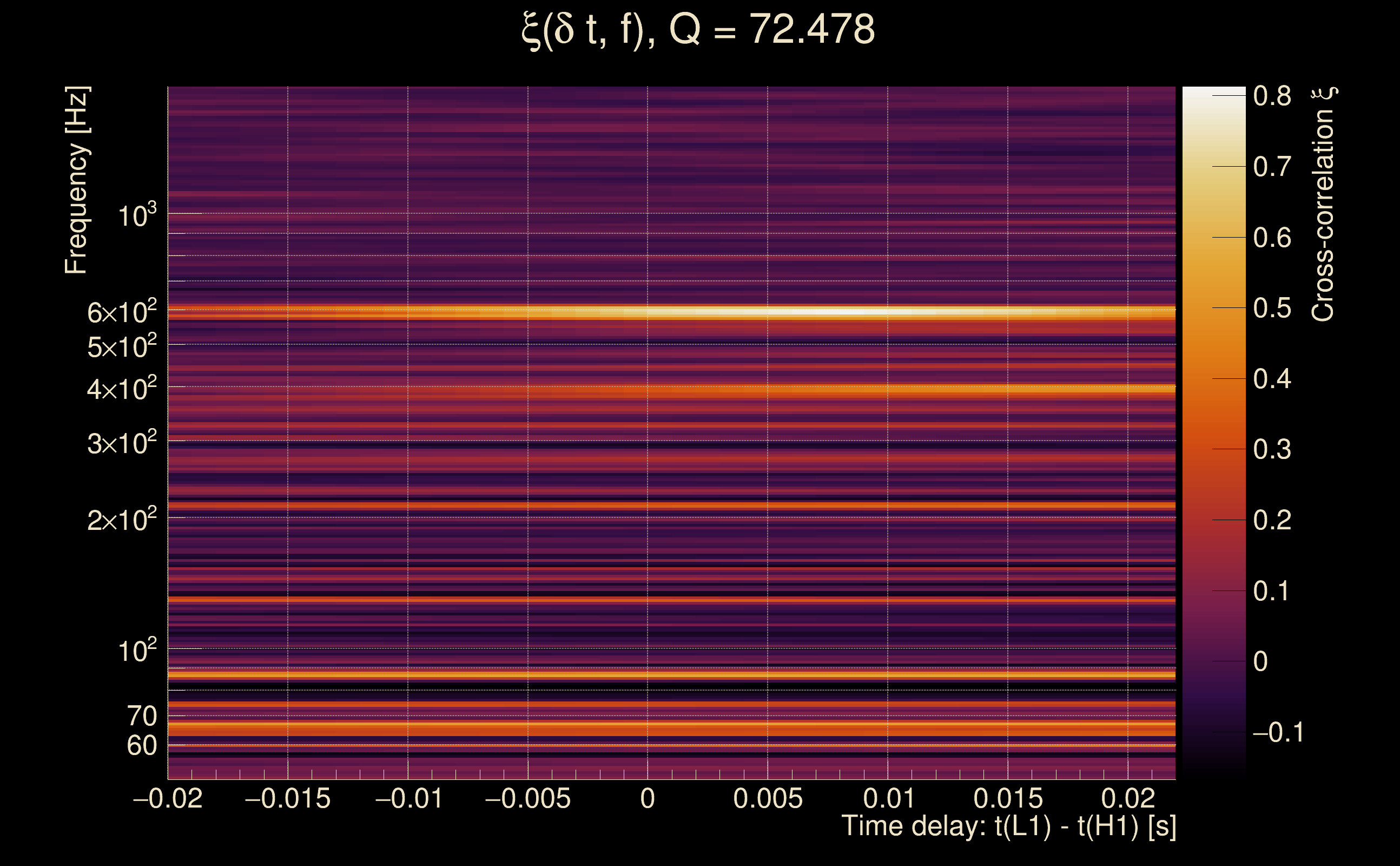

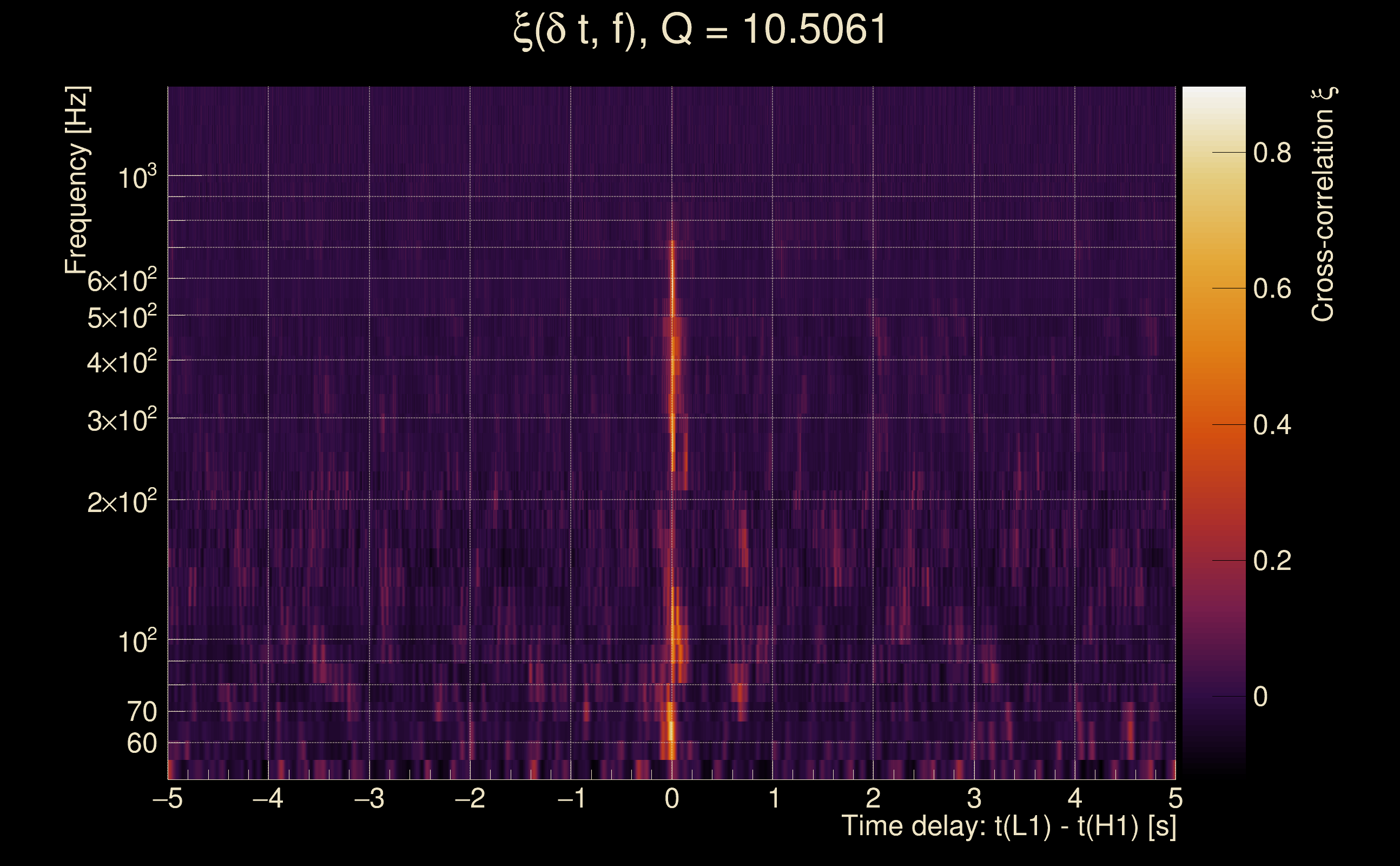

| Ξ: | 0.265186 ± 0.0334022 (variance = 0.00111571): Q0: 0.628846, Q1: 0.686285, Q2: 0.67403, Q3: 0.678075, Q4: 0.733694 |
| Rank: | R_A = 0.169985 |
| Log of amplitude ratio (L1/H1): | 0.140152, variance = 0.228144 (L1/H1: 0.285087, variance = 0.418187, H1/L1: 0.0960678, variance = 0.467) |
| Amplitude ratio (L1/H1): | 1.15045 ⋇ 1.61227 (L1/H1: 1.32988 ⋇ 1.90918, H1/L1: 1.10083 ⋇ 1.98055) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.685389 |

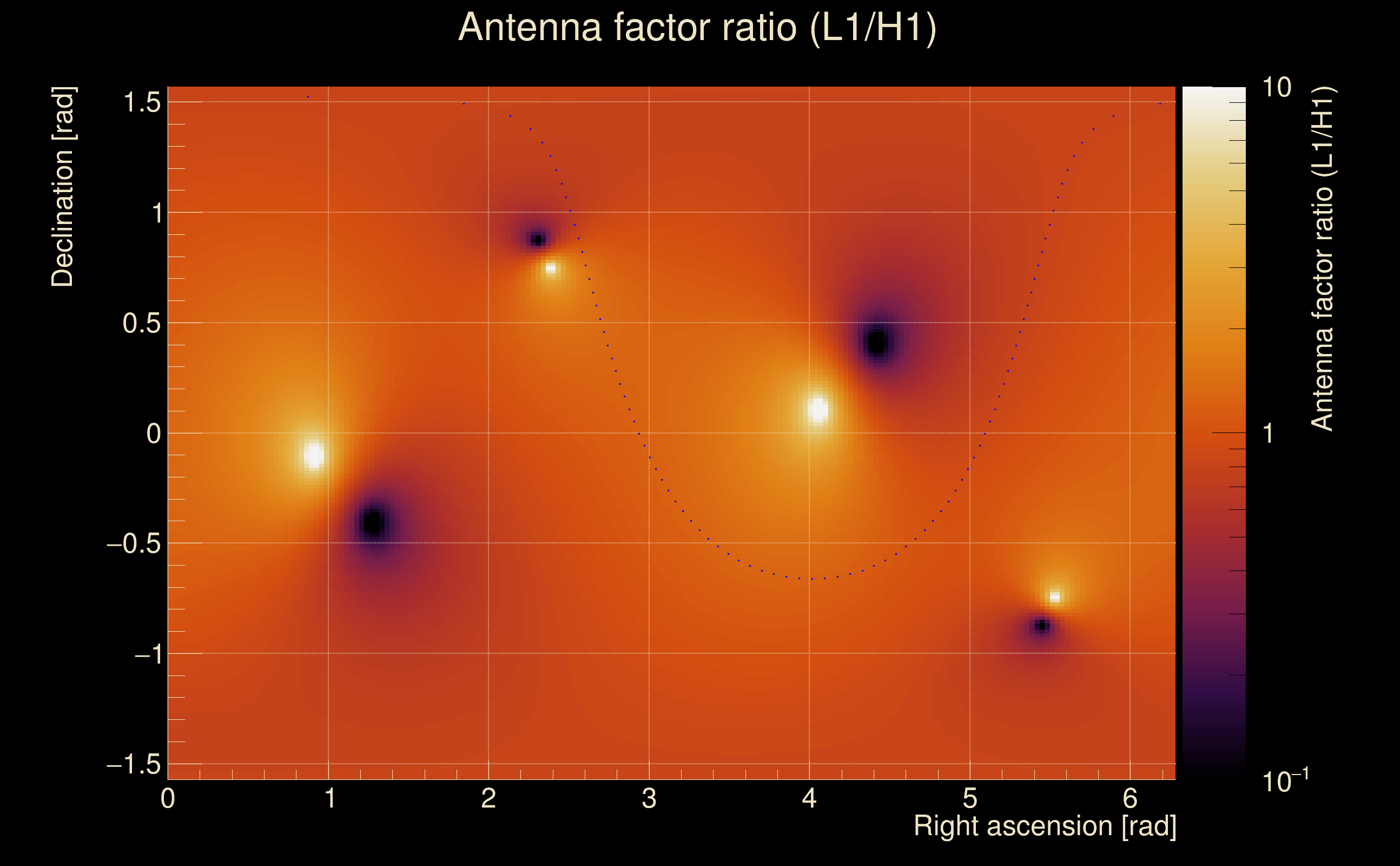

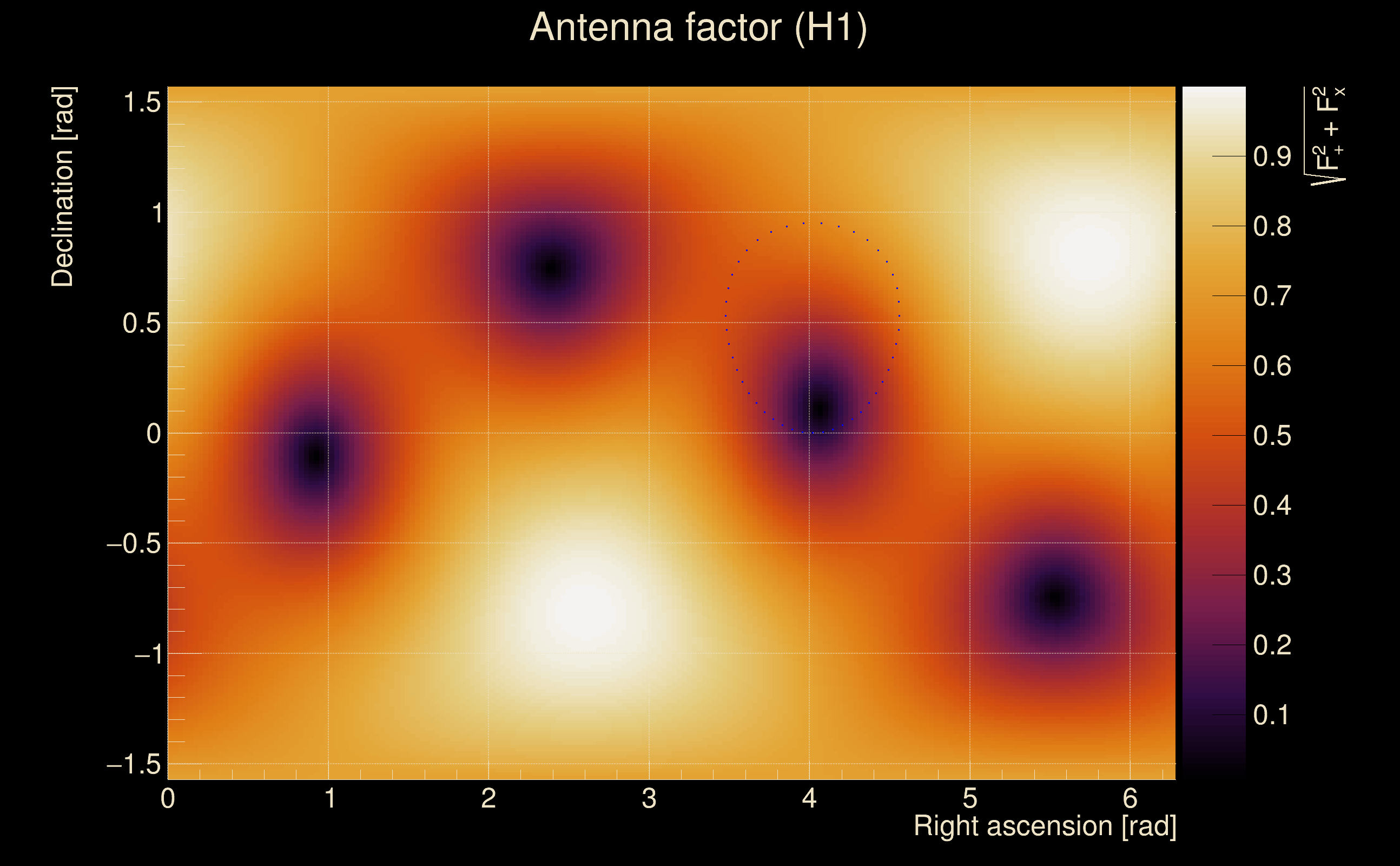

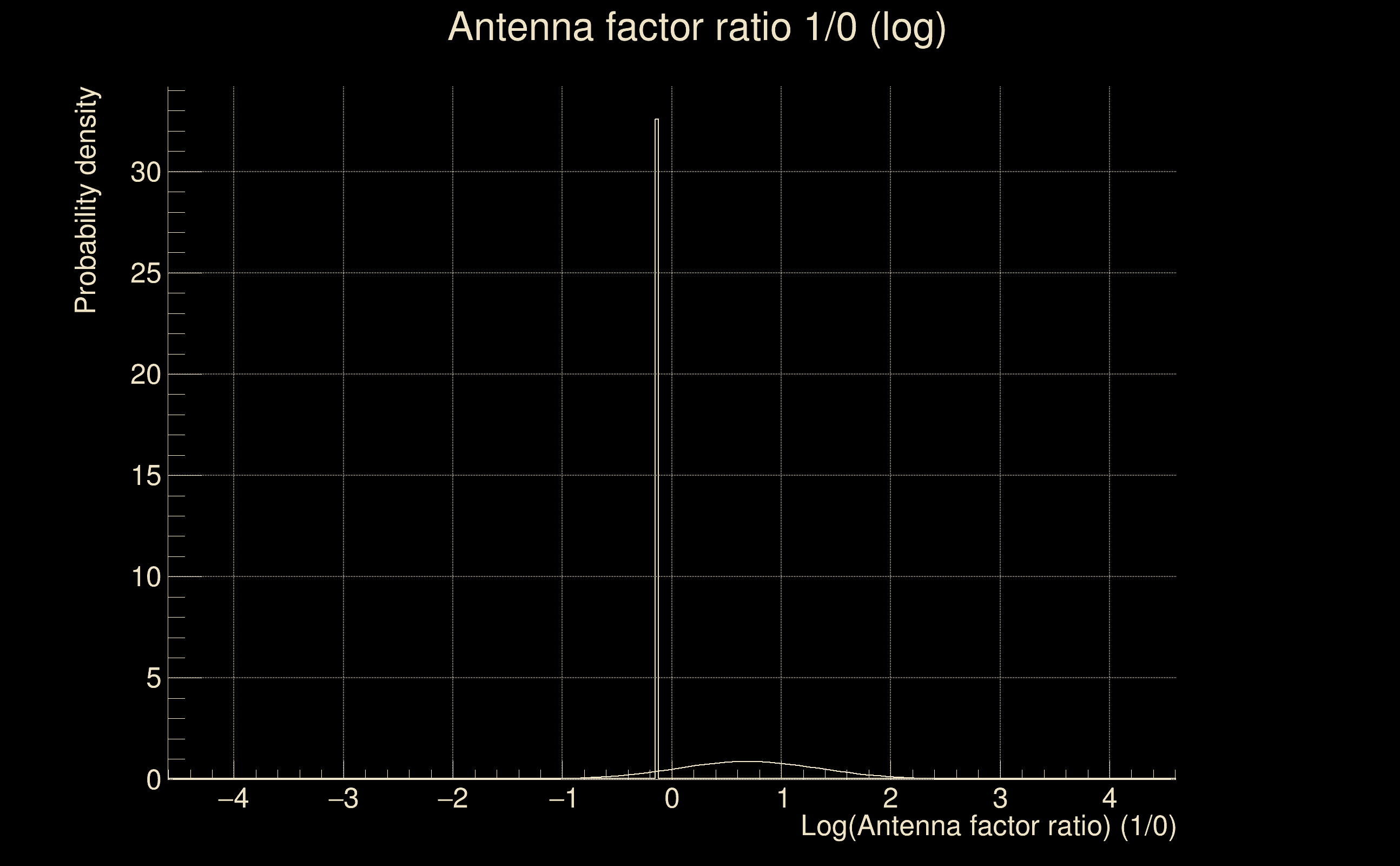

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 22 / 36, Q2: 43 / 70, Q3: 89 / 134, Q4: 209 / 258 |

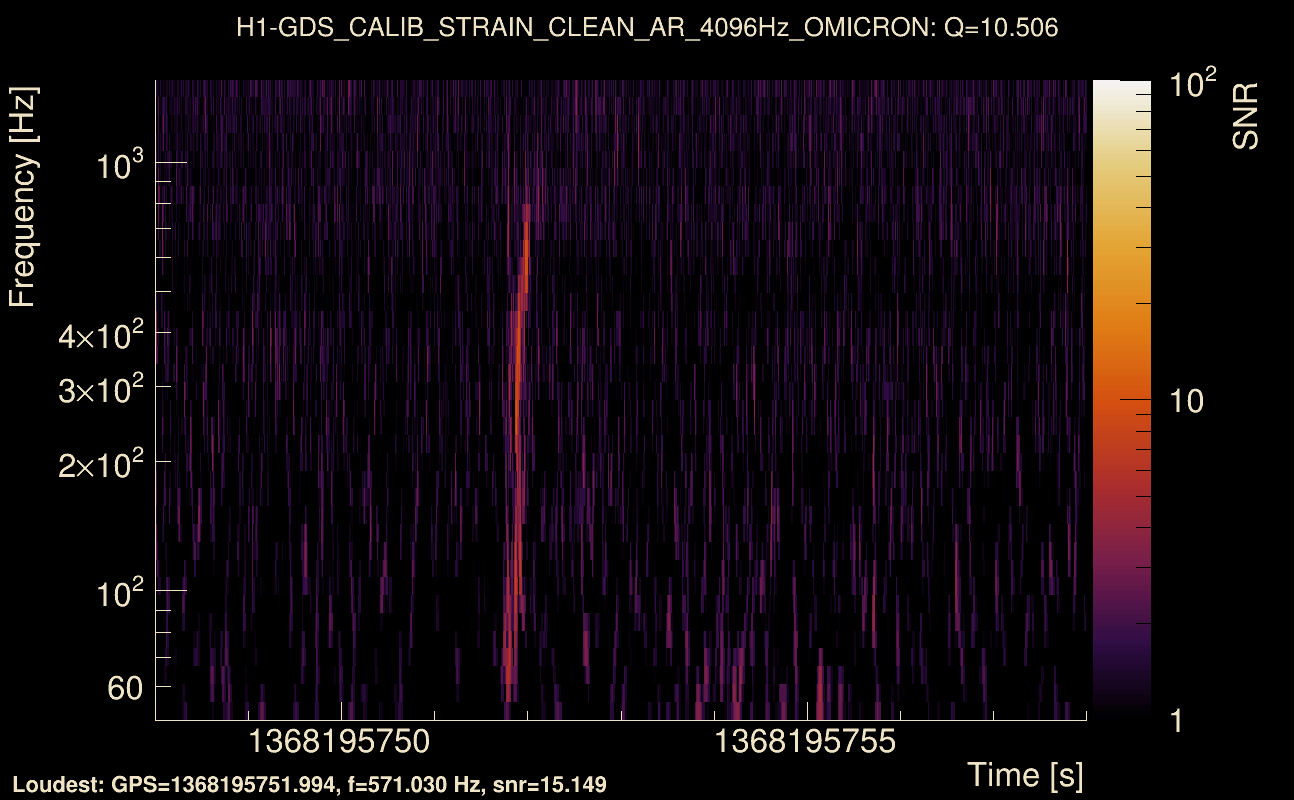

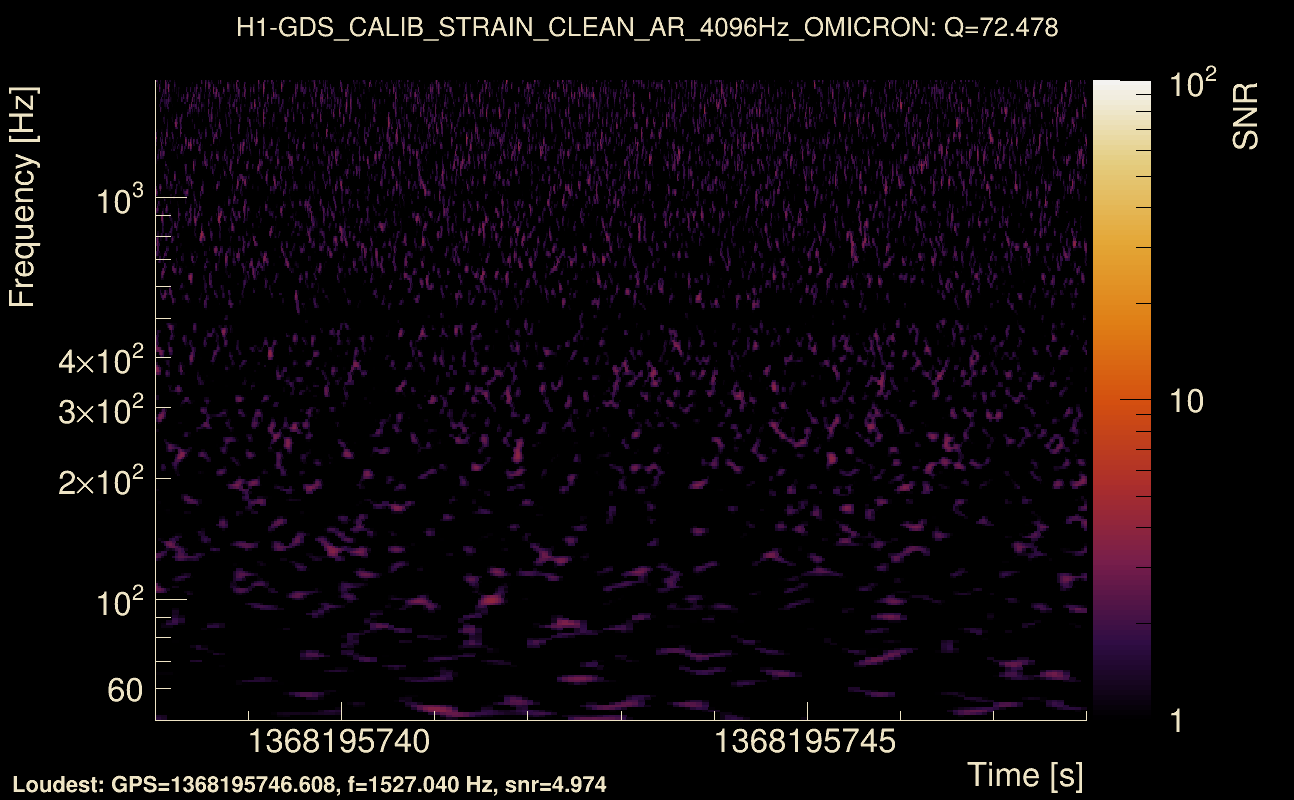

| Maximum signal-to-noise ratio: | H1: 18.3422, L1: 14.3675 |

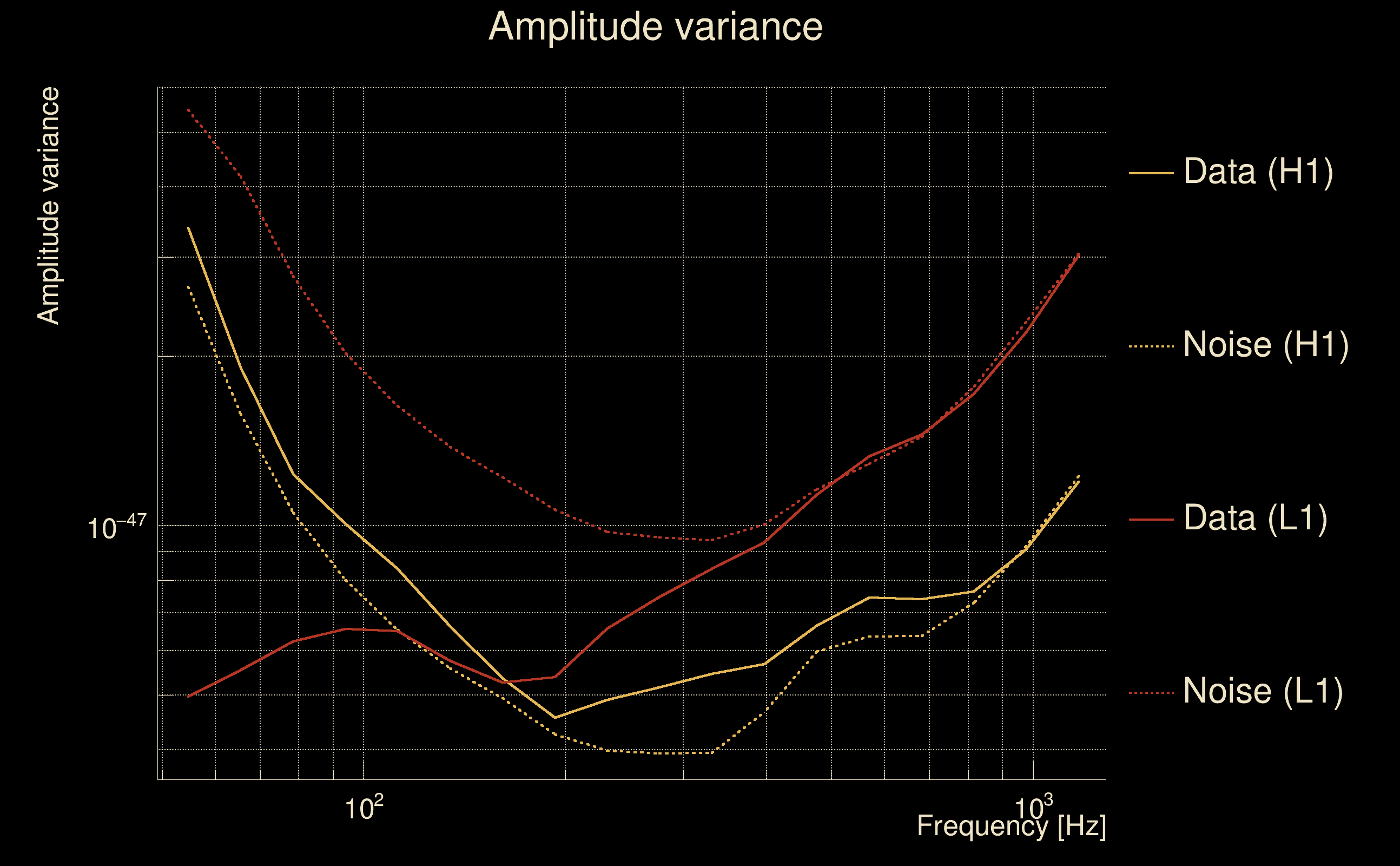

| SNR variance: | H1: 0.400918, L1: 0.444863 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

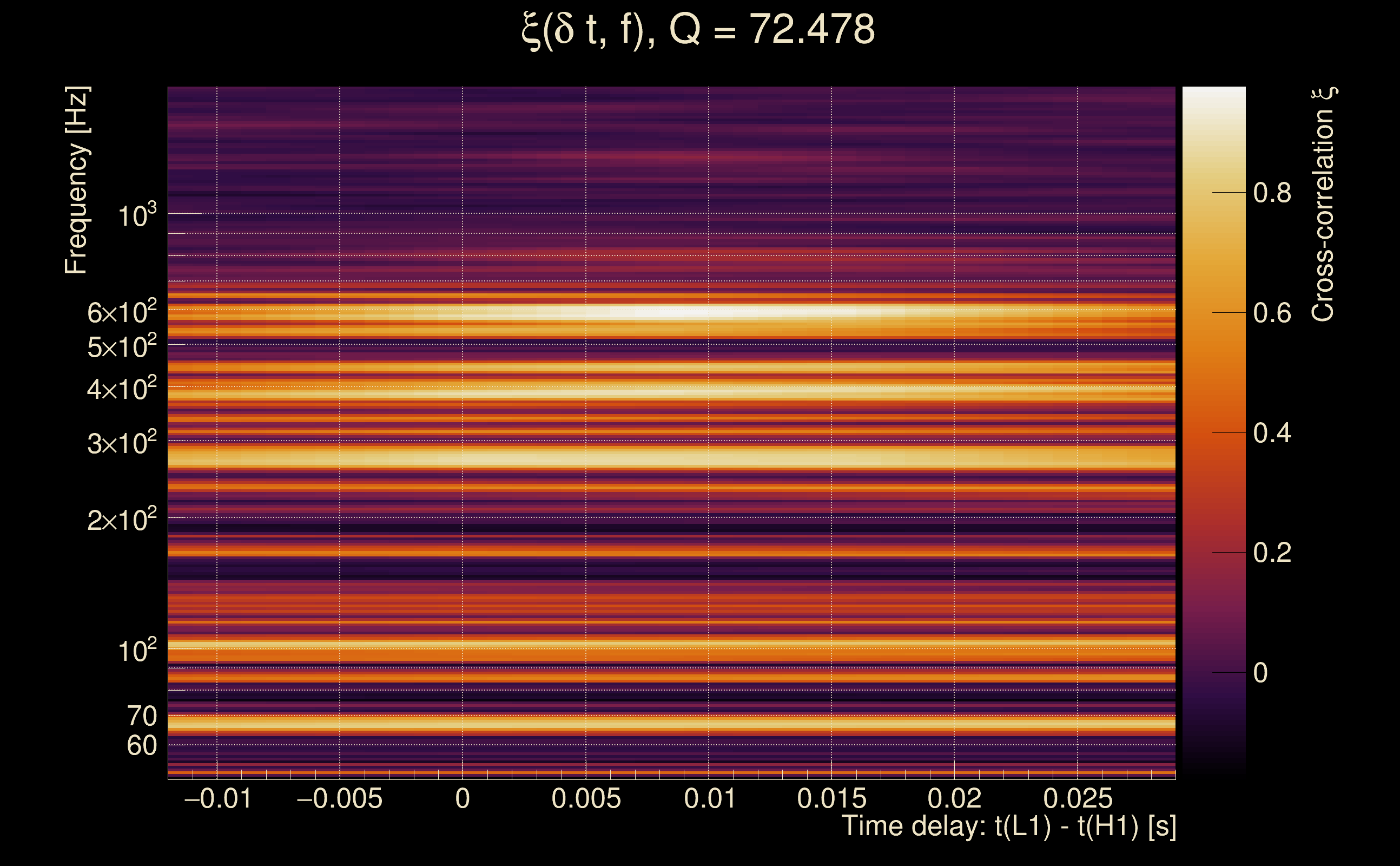

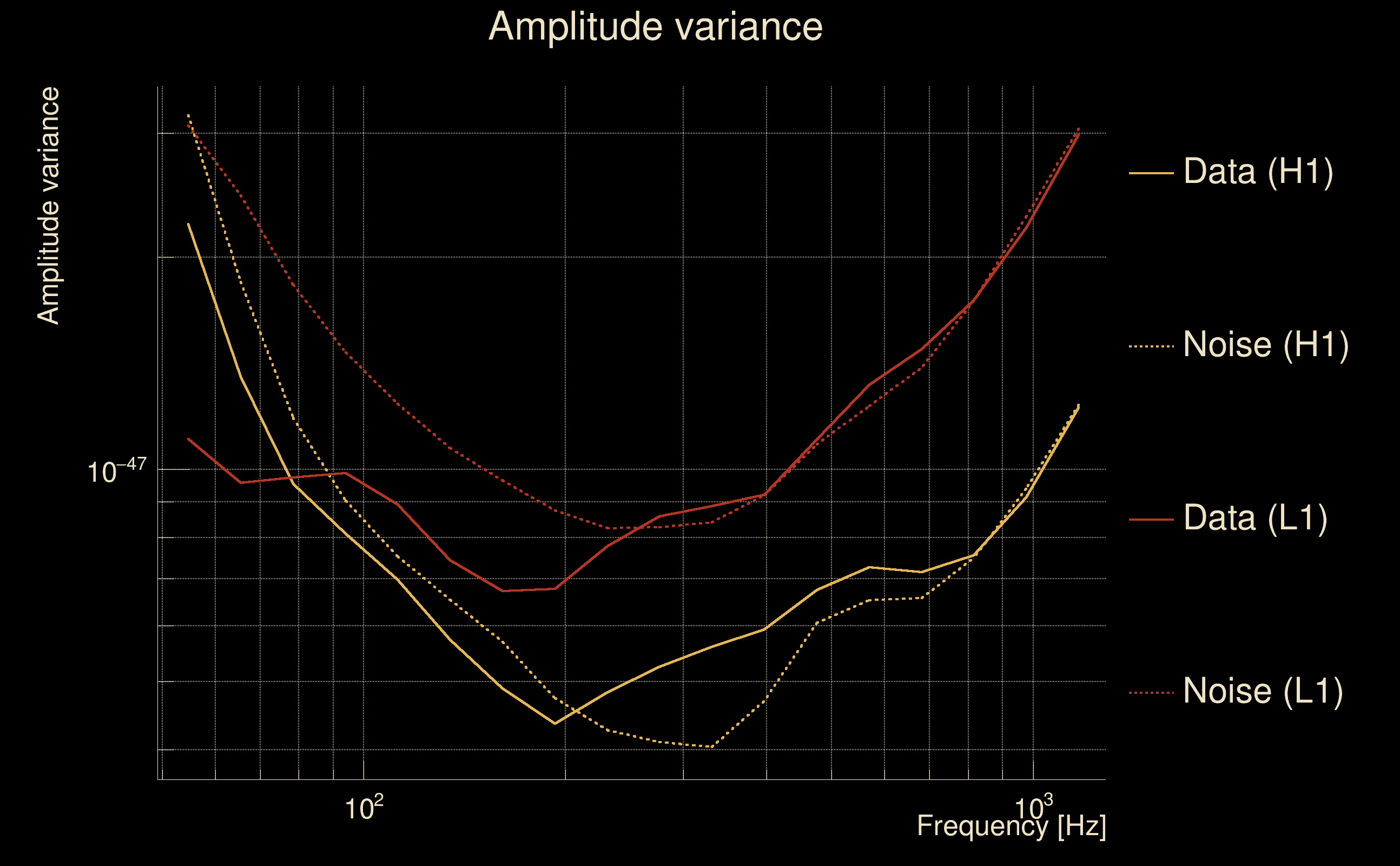

| Event time t(H1): | GPS = 1368195748 (Mon May 15 14:22:10 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Event time t(L1): | GPS = 1368195748 (Mon May 15 14:22:20 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195745 → GPS = 1368195761 |
| Omicron analysis time window (L1): | GPS = 1368195745 → GPS = 1368195761 |
| Time delay between detectors t(L1) - t(H1): | 0.0087114 s (slice index = 108 / 217), δt_gw = 0.0087114 s |
| Time delay uncertainty: | 0.00096098 s |
| [targeted mode] Time delay probability: | 0.934298 (0.0824382 sigmas), δt_target = 0.00863266 s |
| Frequency: | 399.385 Hz |
| Ξ: | 0.242475 ± 0.0427771 (variance = 0.00182988): Q0: 0.626541, Q1: 0.716554, Q2: 0.70783, Q3: 0.713089, Q4: 0.757807 |
| Rank: | R_A = 0.144687 |
| Log of amplitude ratio (L1/H1): | 0.171628, variance = 0.242071 (L1/H1: 0.349285, variance = 0.422391, H1/L1: 0.114689, variance = 0.553977) |
| Amplitude ratio (L1/H1): | 1.18724 ⋇ 1.6356 (L1/H1: 1.41805 ⋇ 1.91538, H1/L1: 1.12152 ⋇ 2.10496) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.638672 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 25 / 36, Q2: 49 / 70, Q3: 99 / 134, Q4: 219 / 258 |
| Maximum signal-to-noise ratio: | H1: 18.2009, L1: 14.3371 |
| SNR variance: | H1: 0.533392, L1: 0.518593 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195723 (Mon May 15 14:21:45 2023 ) → GPS = 1368195733 (Mon May 15 14:21:55 2023 ) |
| Event time t(L1): | GPS = 1368195723 (Mon May 15 14:21:55 2023 ) → GPS = 1368195733 (Mon May 15 14:21:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195720 → GPS = 1368195736 |
| Omicron analysis time window (L1): | GPS = 1368195720 → GPS = 1368195736 |
| Time delay between detectors t(L1) - t(H1): | 0.00872253 s (slice index = 108 / 217), δt_gw = 0.00872253 s |
| Time delay uncertainty: | 0.00120417 s |
| [targeted mode] Time delay probability: | 0.94208 (0.0726562 sigmas), δt_target = 0.00863218 s |
| Frequency: | 553.156 Hz |
| Ξ: | 0.137229 ± 0.0117261 (variance = 0.000137502): Q0: 0.697318, Q1: 0.703915, Q2: 0.686326, Q3: 0.698014, Q4: 0.722038 |
| Rank: | R_A = 0.0994028 |
| Log of amplitude ratio (L1/H1): | 0.69536, variance = 0.223465 (L1/H1: 0.863116, variance = 0.533089, H1/L1: -0.581714, variance = 0.384139) |
| Amplitude ratio (L1/H1): | 2.00443 ⋇ 1.60435 (L1/H1: 2.37053 ⋇ 2.07535, H1/L1: 0.558939 ⋇ 1.85854) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.768892 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 28 / 36, Q2: 54 / 70, Q3: 98 / 134, Q4: 211 / 258 |
| Maximum signal-to-noise ratio: | H1: 16.0886, L1: 19.547 |
| SNR variance: | H1: 0, L1: 0 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

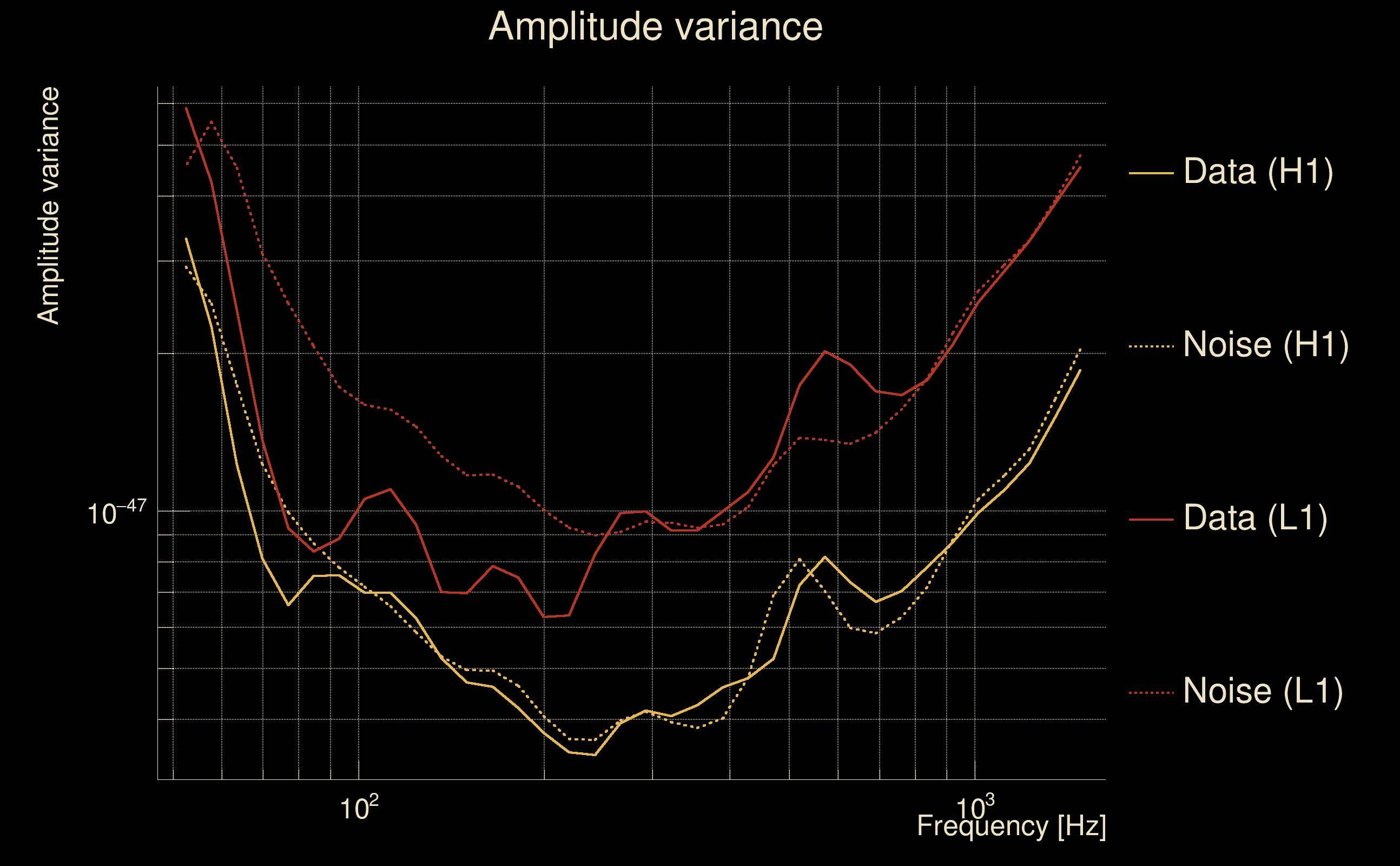

| Event time t(H1): | GPS = 1368195728 (Mon May 15 14:21:50 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Event time t(L1): | GPS = 1368195728 (Mon May 15 14:22:00 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195725 → GPS = 1368195741 |
| Omicron analysis time window (L1): | GPS = 1368195725 → GPS = 1368195741 |
| Time delay between detectors t(L1) - t(H1): | 0.00871987 s (slice index = 108 / 217), δt_gw = 0.00871987 s |
| Time delay uncertainty: | 0.00108102 s |
| [targeted mode] Time delay probability: | 0.937105 (0.0789093 sigmas), δt_target = 0.00863504 s |
| Frequency: | 551.428 Hz |
| Ξ: | 0.12969 ± 0.0147108 (variance = 0.000216407): Q0: 0.708819, Q1: 0.724158, Q2: 0.707226, Q3: 0.710557, Q4: 0.746252 |
| Rank: | R_A = 0.0639283 |
| Log of amplitude ratio (L1/H1): | 0.6671, variance = 0.210619 (L1/H1: 1.01832, variance = 0.485563, H1/L1: -0.432004, variance = 0.369393) |
| Amplitude ratio (L1/H1): | 1.94858 ⋇ 1.58238 (L1/H1: 2.76853 ⋇ 2.00737, H1/L1: 0.649207 ⋇ 1.83634) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.526015 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 29 / 36, Q2: 56 / 70, Q3: 104 / 134, Q4: 218 / 258 |
| Maximum signal-to-noise ratio: | H1: 16.019, L1: 19.5794 |
| SNR variance: | H1: 0.460055, L1: 0.62191 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

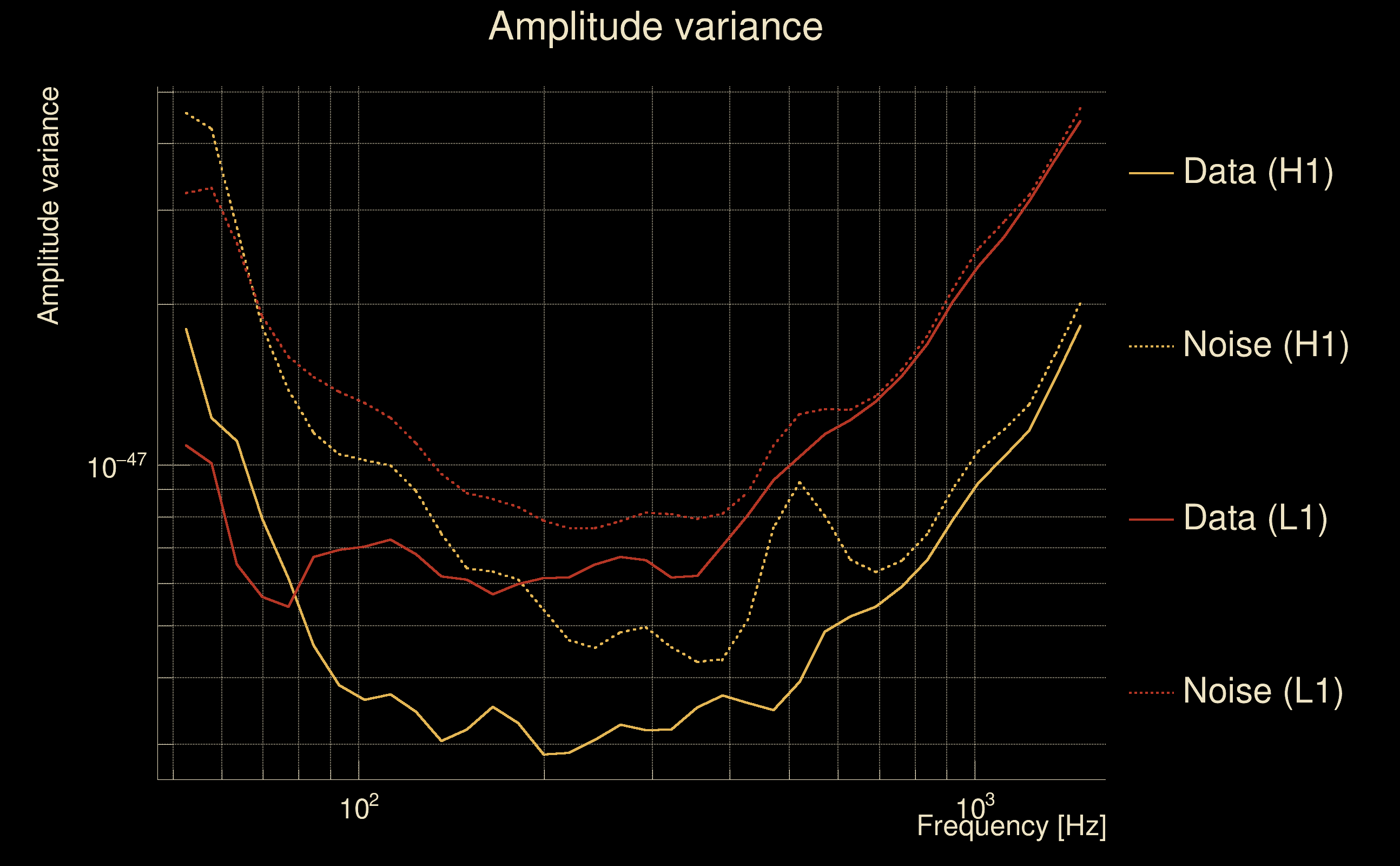

| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | 0.00841183 s (slice index = 108 / 217), δt_gw = 0.00841183 s |
| Time delay uncertainty: | 0.00270644 s |
| [targeted mode] Time delay probability: | 0.936652 (0.0794791 sigmas), δt_target = 0.00863457 s |
| Frequency: | 538.119 Hz |
| Ξ: | 0.00529656 ± 0.0838629 (variance = 0.00703298): Q0: 0, Q1: 0.104431, Q2: 0.216504, Q3: 0.23179, Q4: 0.131598 |
| Rank: | R_A = 0.00227445 |
| Log of amplitude ratio (L1/H1): | -0.02622, variance = 0.457251 (L1/H1: -0.256488, variance = 0.745805, H1/L1: -0.635588, variance = 0.702044) |
| Amplitude ratio (L1/H1): | 0.974121 ⋇ 1.9664 (L1/H1: 0.773764 ⋇ 2.37168, H1/L1: 0.529624 ⋇ 2.31146) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.458464 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 64 / 70, Q3: 124 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.87165, L1: 5.23305 |
| SNR variance: | H1: 0.447016, L1: 0.459848 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

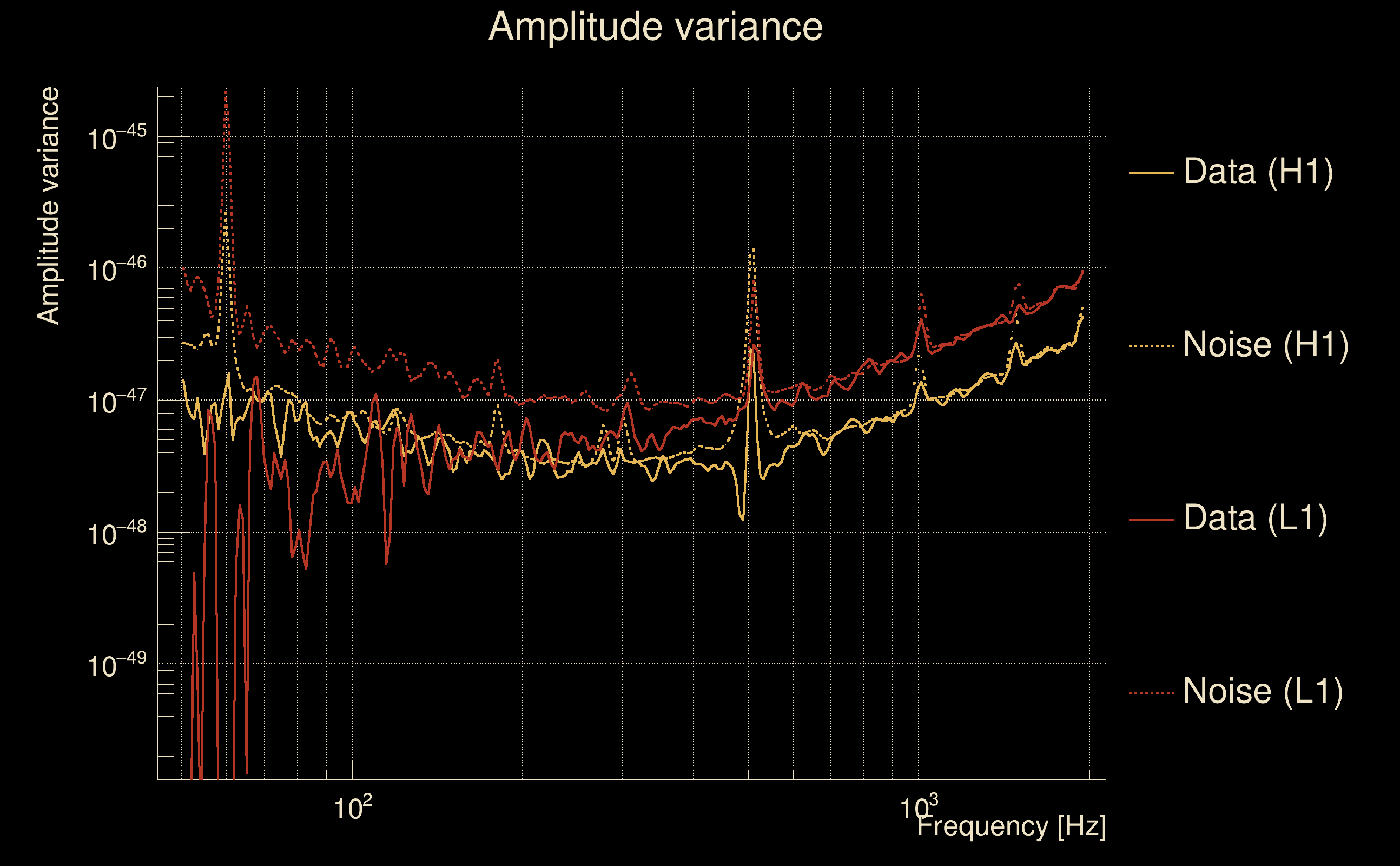

| Event time t(H1): | GPS = 1368195783 (Mon May 15 14:22:45 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Event time t(L1): | GPS = 1368195783 (Mon May 15 14:22:55 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195780 → GPS = 1368195796 |
| Omicron analysis time window (L1): | GPS = 1368195780 → GPS = 1368195796 |
| Time delay between detectors t(L1) - t(H1): | 0.00804343 s (slice index = 108 / 217), δt_gw = 0.00804343 s |
| Time delay uncertainty: | 0.0029815 s |
| [targeted mode] Time delay probability: | 0.844649 (0.195951 sigmas), δt_target = 0.00862694 s |
| Frequency: | 581.942 Hz |
| Ξ: | 0.00303166 ± 0.0756886 (variance = 0.00572876): Q0: 0, Q1: 0.137292, Q2: 0.191082, Q3: 0.210863, Q4: 0.178303 |
| Rank: | R_A = 0.00214293 |
| Log of amplitude ratio (L1/H1): | 0.22943, variance = 0.416157 (L1/H1: 0.172755, variance = 0.648447, H1/L1: -0.411362, variance = 0.694284) |
| Amplitude ratio (L1/H1): | 1.25788 ⋇ 1.90618 (L1/H1: 1.18857 ⋇ 2.23728, H1/L1: 0.662747 ⋇ 2.30075) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.836857 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 66 / 70, Q3: 130 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.93369, L1: 4.98623 |
| SNR variance: | H1: 0.426354, L1: 0.462282 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

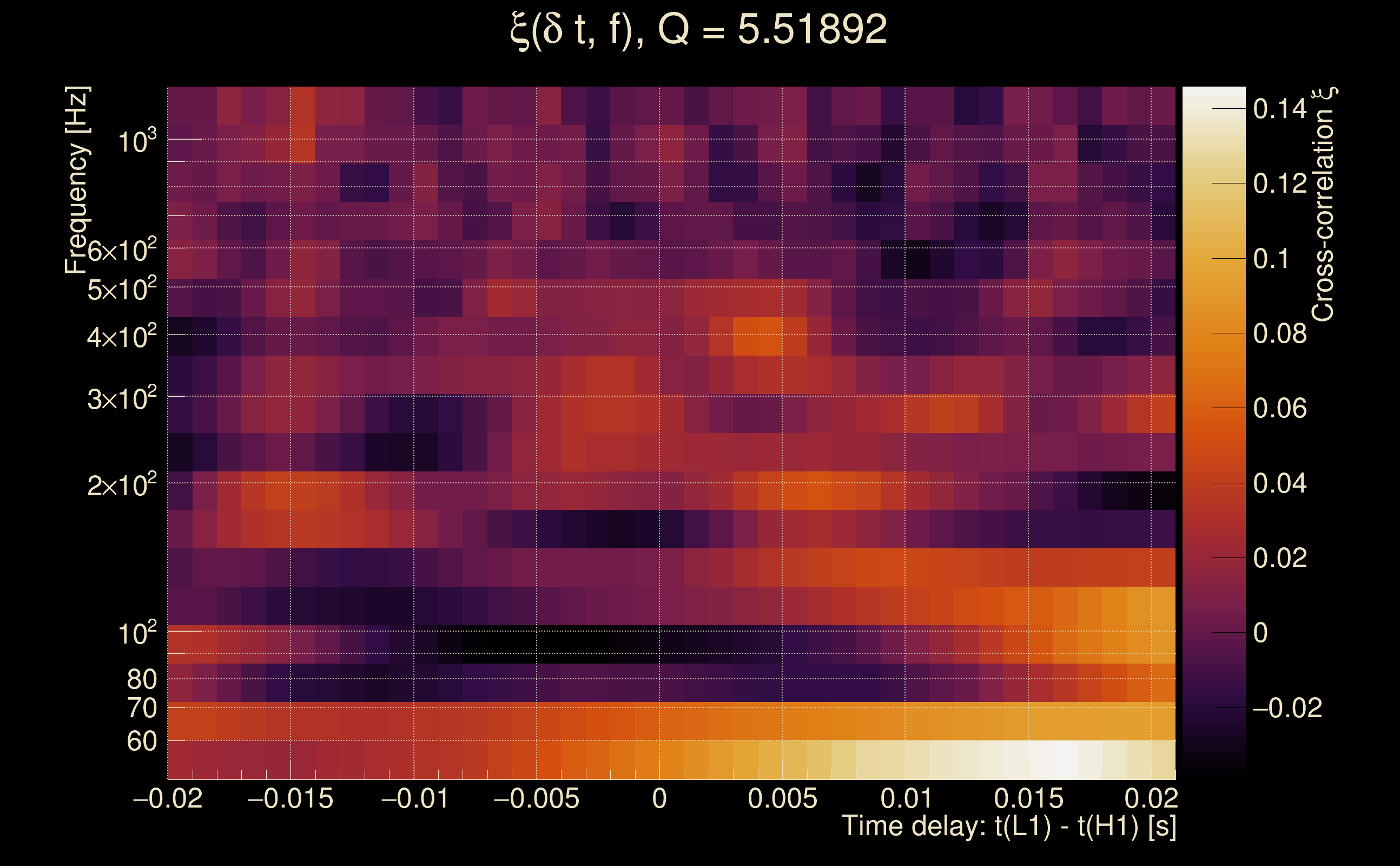

| Event time t(H1): | GPS = 1368195808 (Mon May 15 14:23:10 2023 ) → GPS = 1368195818 (Mon May 15 14:23:20 2023 ) |
| Event time t(L1): | GPS = 1368195808 (Mon May 15 14:23:20 2023 ) → GPS = 1368195818 (Mon May 15 14:23:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195805 → GPS = 1368195821 |
| Omicron analysis time window (L1): | GPS = 1368195805 → GPS = 1368195821 |
| Time delay between detectors t(L1) - t(H1): | -0.00160513 s (slice index = 108 / 217), δt_gw = -0.00160513 s |
| Time delay uncertainty: | 0.0083856 s |
| [targeted mode] Time delay probability: | 0.222498 (1.21991 sigmas), δt_target = 0.00862765 s |
| Frequency: | 315.355 Hz |
| Ξ: | 0.00182198 ± 0.137483 (variance = 0.0189017): Q0: 0, Q1: 0, Q2: 0.0765067, Q3: 0.306006, Q4: 0.294357 |
| Rank: | R_A = 0.00034642 |
| Log of amplitude ratio (L1/H1): | 0.563145, variance = 0.820738 (L1/H1: 0.340655, variance = 2.5266, H1/L1: -0.694343, variance = 1.19552) |
| Amplitude ratio (L1/H1): | 1.75619 ⋇ 2.47427 (L1/H1: 1.40587 ⋇ 4.90144, H1/L1: 0.499402 ⋇ 2.98439) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.854542 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 68 / 70, Q3: 126 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 6.7166, L1: 8.74664 |
| SNR variance: | H1: 0.423743, L1: 0.472262 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

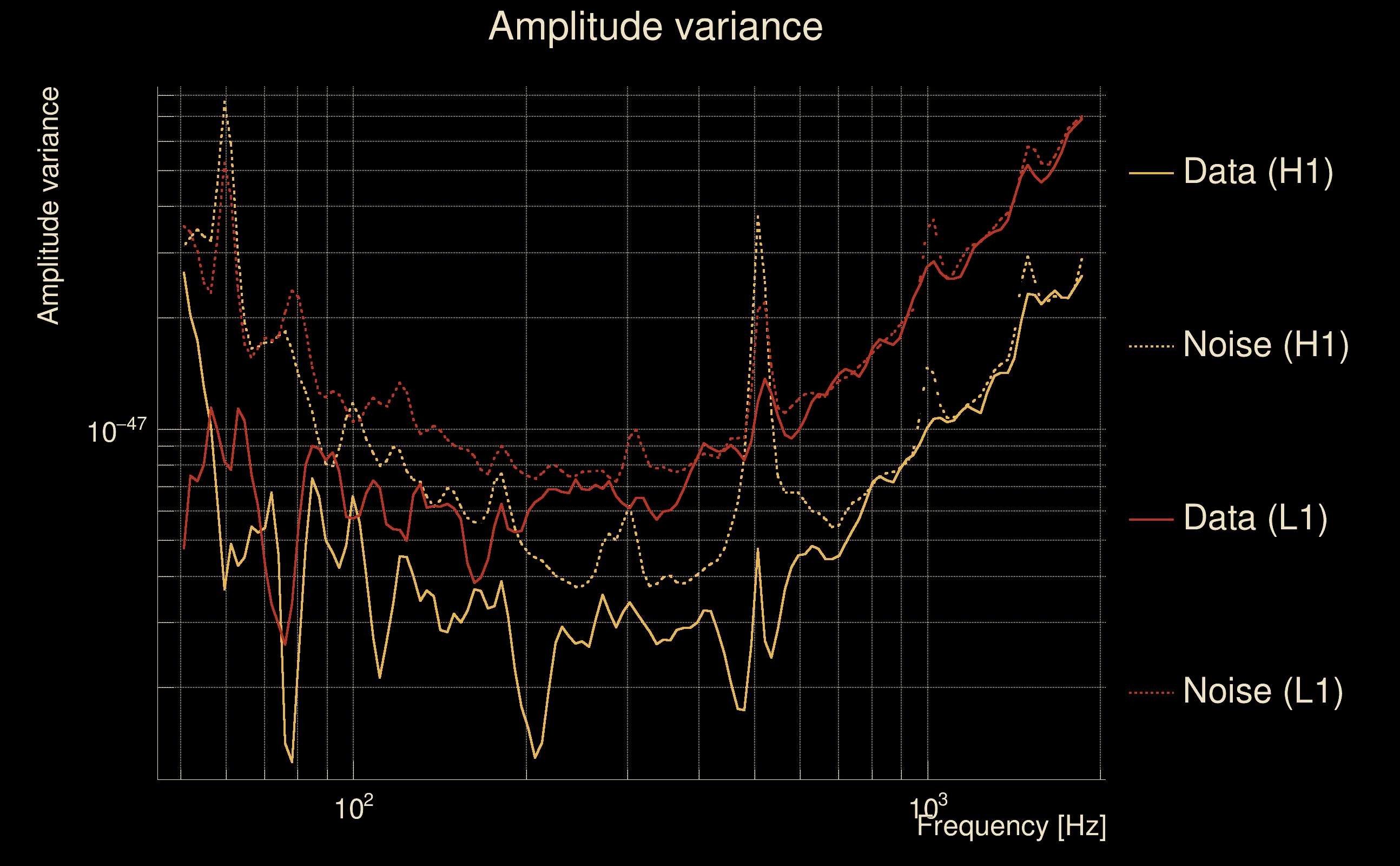

| Event time t(H1): | GPS = 1368195798 (Mon May 15 14:23:00 2023 ) → GPS = 1368195808 (Mon May 15 14:23:10 2023 ) |
| Event time t(L1): | GPS = 1368195798 (Mon May 15 14:23:10 2023 ) → GPS = 1368195808 (Mon May 15 14:23:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195795 → GPS = 1368195811 |
| Omicron analysis time window (L1): | GPS = 1368195795 → GPS = 1368195811 |
| Time delay between detectors t(L1) - t(H1): | 0.00948972 s (slice index = 108 / 217), δt_gw = 0.00948972 s |
| Time delay uncertainty: | 0.00565224 s |
| [targeted mode] Time delay probability: | 0.878513 (0.152855 sigmas), δt_target = 0.00862455 s |
| Frequency: | 662.372 Hz |
| Ξ: | 0.000413378 ± 0.0213211 (variance = 0.00045459): Q0: 0, Q1: 0, Q2: 0.035742, Q3: 0.0530997, Q4: 0.0358622 |
| Rank: | R_A = 0.000172012 |
| Log of amplitude ratio (L1/H1): | 0.451502, variance = 0.549355 (L1/H1: -0.0988958, variance = 1.09404, H1/L1: -0.962446, variance = 1.09991) |
| Amplitude ratio (L1/H1): | 1.57067 ⋇ 2.09842 (L1/H1: 0.905837 ⋇ 2.84615, H1/L1: 0.381958 ⋇ 2.85413) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.473657 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 66 / 70, Q3: 129 / 134, Q4: 256 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.16551, L1: 5.36123 |
| SNR variance: | H1: 0.421114, L1: 0.461998 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

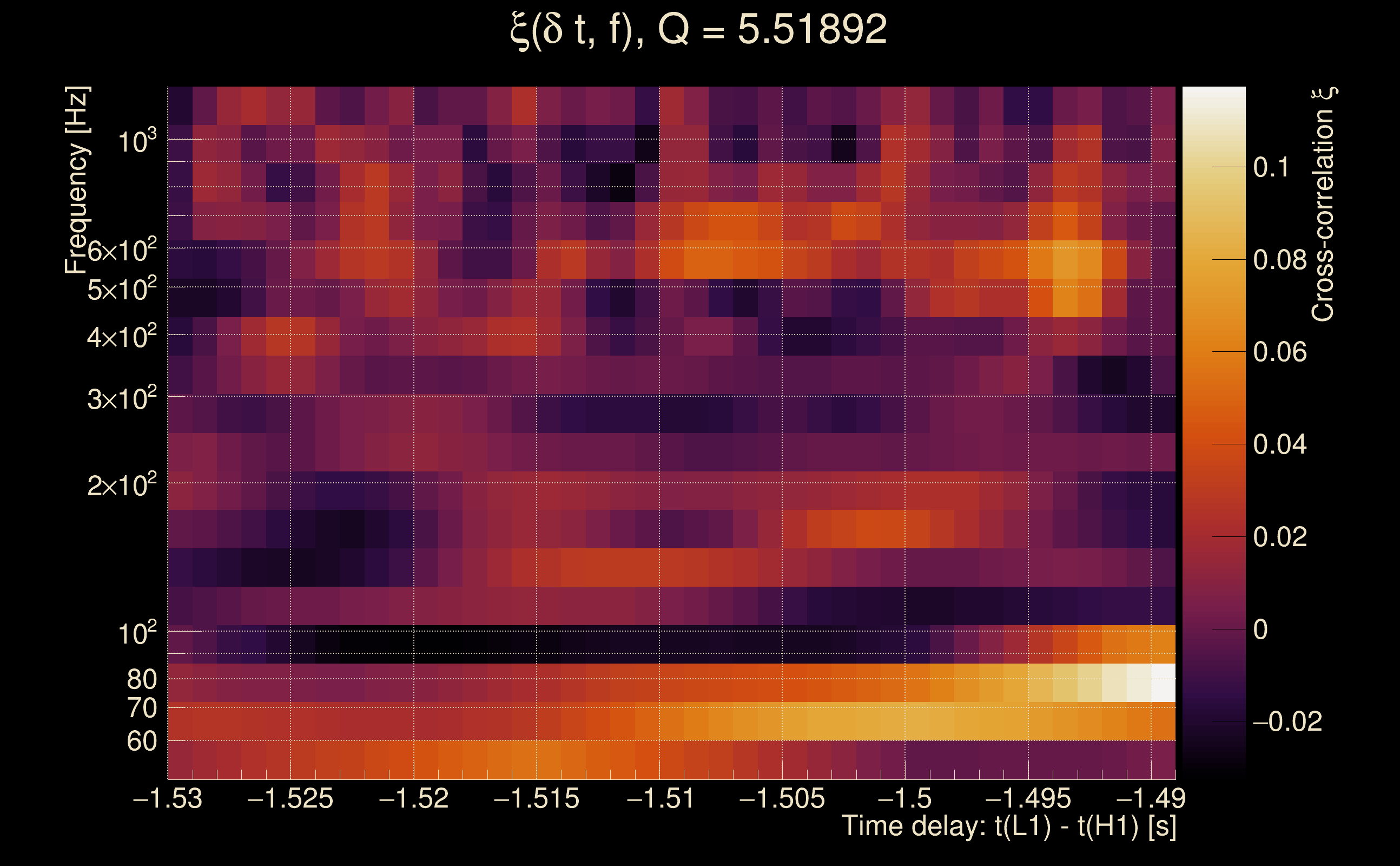

| Event time t(H1): | GPS = 1368195793 (Mon May 15 14:22:55 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Event time t(L1): | GPS = 1368195793 (Mon May 15 14:23:05 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195790 → GPS = 1368195806 |
| Omicron analysis time window (L1): | GPS = 1368195790 → GPS = 1368195806 |
| Time delay between detectors t(L1) - t(H1): | 0.00561729 s (slice index = 108 / 217), δt_gw = 0.00561729 s |
| Time delay uncertainty: | 0.00586766 s |
| [targeted mode] Time delay probability: | 0.608063 (0.512841 sigmas), δt_target = 0.00862575 s |
| Frequency: | 832.849 Hz |
| Ξ: | 0.000363809 ± 0.0273858 (variance = 0.000749981): Q0: 0, Q1: 0, Q2: 0.0498327, Q3: 0.0597582, Q4: 0.0569381 |
| Rank: | R_A = 9.8411e-05 |
| Log of amplitude ratio (L1/H1): | 0.375256, variance = 0.360447 (L1/H1: -0.0991731, variance = 0.591189, H1/L1: -0.810958, variance = 0.827885) |
| Amplitude ratio (L1/H1): | 1.45536 ⋇ 1.8228 (L1/H1: 0.905586 ⋇ 2.15737, H1/L1: 0.444432 ⋇ 2.48403) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.444859 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 68 / 70, Q3: 130 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.19776, L1: 5.42384 |
| SNR variance: | H1: 0.455518, L1: 0.453871 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195813 (Mon May 15 14:23:15 2023 ) → GPS = 1368195823 (Mon May 15 14:23:25 2023 ) |
| Event time t(L1): | GPS = 1368195813 (Mon May 15 14:23:25 2023 ) → GPS = 1368195823 (Mon May 15 14:23:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195810 → GPS = 1368195826 |
| Omicron analysis time window (L1): | GPS = 1368195810 → GPS = 1368195826 |
| Time delay between detectors t(L1) - t(H1): | 0.00101239 s (slice index = 108 / 217), δt_gw = 0.00101239 s |
| Time delay uncertainty: | 0.00830181 s |
| [targeted mode] Time delay probability: | 0.35921 (0.916871 sigmas), δt_target = 0.00862646 s |
| Frequency: | 824.918 Hz |
| Ξ: | 0.000984355 ± 0.0482609 (variance = 0.00232912): Q0: 0, Q1: 0.0295349, Q2: 0.0286988, Q3: 0.0683133, Q4: 0.139378 |
| Rank: | R_A = 8.49698e-05 |
| Log of amplitude ratio (L1/H1): | 0.81585, variance = 0.355141 (L1/H1: -0.0846413, variance = 0.913688, H1/L1: -1.35043, variance = 0.579957) |
| Amplitude ratio (L1/H1): | 2.2611 ⋇ 1.81473 (L1/H1: 0.918842 ⋇ 2.60093, H1/L1: 0.259128 ⋇ 2.14159) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.240306 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 65 / 70, Q3: 125 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 6.70522, L1: 8.70253 |
| SNR variance: | H1: 0.455345, L1: 0.496338 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195738 (Mon May 15 14:22:00 2023 ) → GPS = 1368195748 (Mon May 15 14:22:10 2023 ) |
| Event time t(L1): | GPS = 1368195738 (Mon May 15 14:22:10 2023 ) → GPS = 1368195748 (Mon May 15 14:22:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195735 → GPS = 1368195751 |
| Omicron analysis time window (L1): | GPS = 1368195735 → GPS = 1368195751 |
| Time delay between detectors t(L1) - t(H1): | 0.00574931 s (slice index = 108 / 217), δt_gw = 0.00574931 s |
| Time delay uncertainty: | 0.00438144 s |
| [targeted mode] Time delay probability: | 0.51038 (0.658245 sigmas), δt_target = 0.00862408 s |
| Frequency: | 1585.11 Hz |
| Ξ: | 0.00010408 ± 0.0265543 (variance = 0.00070513): Q0: 0, Q1: 0, Q2: 0.0174003, Q3: 0.0420412, Q4: 0.0689291 |
| Rank: | R_A = 4.95958e-05 |
| Log of amplitude ratio (L1/H1): | 0.375733, variance = 0.369458 (L1/H1: 0.318266, variance = 1.26313, H1/L1: -0.424227, variance = 0.356605) |
| Amplitude ratio (L1/H1): | 1.45606 ⋇ 1.83644 (L1/H1: 1.37474 ⋇ 3.0768, H1/L1: 0.654275 ⋇ 1.81696) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.933647 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 132 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.10571, L1: 5.55799 |
| SNR variance: | H1: 0.390892, L1: 0.428623 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195768 (Mon May 15 14:22:30 2023 ) → GPS = 1368195778 (Mon May 15 14:22:40 2023 ) |
| Event time t(L1): | GPS = 1368195768 (Mon May 15 14:22:40 2023 ) → GPS = 1368195778 (Mon May 15 14:22:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195765 → GPS = 1368195781 |
| Omicron analysis time window (L1): | GPS = 1368195765 → GPS = 1368195781 |
| Time delay between detectors t(L1) - t(H1): | 0.00478024 s (slice index = 108 / 217), δt_gw = 0.00478024 s |
| Time delay uncertainty: | 0.0042497 s |
| [targeted mode] Time delay probability: | 0.365019 (0.905843 sigmas), δt_target = 0.00863338 s |
| Frequency: | 1423.6 Hz |
| Ξ: | 0.000217686 ± 0.0225149 (variance = 0.000506921): Q0: 0, Q1: 0, Q2: 0.0361213, Q3: 0.0472228, Q4: 0.0511763 |
| Rank: | R_A = 4.03937e-05 |
| Log of amplitude ratio (L1/H1): | 0.236617, variance = 0.504747 (L1/H1: -0.257266, variance = 0.808951, H1/L1: -0.669926, variance = 1.15627) |
| Amplitude ratio (L1/H1): | 1.26696 ⋇ 2.03492 (L1/H1: 0.773163 ⋇ 2.45817, H1/L1: 0.511746 ⋇ 2.93087) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.508356 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.63468, L1: 4.94804 |
| SNR variance: | H1: 0.427302, L1: 0.447534 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195733 (Mon May 15 14:21:55 2023 ) → GPS = 1368195743 (Mon May 15 14:22:05 2023 ) |
| Event time t(L1): | GPS = 1368195733 (Mon May 15 14:22:05 2023 ) → GPS = 1368195743 (Mon May 15 14:22:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195730 → GPS = 1368195746 |
| Omicron analysis time window (L1): | GPS = 1368195730 → GPS = 1368195746 |
| Time delay between detectors t(L1) - t(H1): | 0.00419746 s (slice index = 108 / 217), δt_gw = 0.00419746 s |
| Time delay uncertainty: | 0.00468873 s |
| [targeted mode] Time delay probability: | 0.344056 (0.946182 sigmas), δt_target = 0.0086298 s |
| Frequency: | 1475.98 Hz |
| Ξ: | 0.000119145 ± 0.0293699 (variance = 0.000862591): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0599018, Q4: 0.0600002 |
| Rank: | R_A = 3.22507e-05 |
| Log of amplitude ratio (L1/H1): | 1.04276, variance = 0.641942 (L1/H1: 0.801432, variance = 2.02402, H1/L1: -1.25001, variance = 0.725204) |
| Amplitude ratio (L1/H1): | 2.83703 ⋇ 2.22824 (L1/H1: 2.22873 ⋇ 4.14823, H1/L1: 0.286502 ⋇ 2.34337) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.786744 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 132 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.16305, L1: 5.57135 |
| SNR variance: | H1: 0.458664, L1: 0.612425 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195773 (Mon May 15 14:22:35 2023 ) → GPS = 1368195783 (Mon May 15 14:22:45 2023 ) |
| Event time t(L1): | GPS = 1368195773 (Mon May 15 14:22:45 2023 ) → GPS = 1368195783 (Mon May 15 14:22:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195770 → GPS = 1368195786 |
| Omicron analysis time window (L1): | GPS = 1368195770 → GPS = 1368195786 |
| Time delay between detectors t(L1) - t(H1): | 0.00318518 s (slice index = 108 / 217), δt_gw = 0.00318518 s |
| Time delay uncertainty: | 0.00514575 s |
| [targeted mode] Time delay probability: | 0.290103 (1.0579 sigmas), δt_target = 0.00863385 s |
| Frequency: | 1016.92 Hz |
| Ξ: | 9.54086e-05 ± 0.0247495 (variance = 0.000612539): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0369455, Q4: 0.0597211 |
| Rank: | R_A = 1.58222e-05 |
| Log of amplitude ratio (L1/H1): | 0.271768, variance = 0.739037 (L1/H1: -0.225155, variance = 1.78377, H1/L1: -0.750755, variance = 1.19308) |
| Amplitude ratio (L1/H1): | 1.31228 ⋇ 2.36239 (L1/H1: 0.798392 ⋇ 3.8022, H1/L1: 0.47201 ⋇ 2.98107) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.571646 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 132 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.03572, L1: 5.12913 |
| SNR variance: | H1: 0.422242, L1: 0.426039 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195763 (Mon May 15 14:22:25 2023 ) → GPS = 1368195773 (Mon May 15 14:22:35 2023 ) |
| Event time t(L1): | GPS = 1368195763 (Mon May 15 14:22:35 2023 ) → GPS = 1368195773 (Mon May 15 14:22:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195760 → GPS = 1368195776 |
| Omicron analysis time window (L1): | GPS = 1368195760 → GPS = 1368195776 |
| Time delay between detectors t(L1) - t(H1): | 0.0100214 s (slice index = 108 / 217), δt_gw = 0.0100214 s |
| Time delay uncertainty: | 0.0037082 s |
| [targeted mode] Time delay probability: | 0.707555 (0.375142 sigmas), δt_target = 0.00862885 s |
| Frequency: | 1338.86 Hz |
| Ξ: | 3.48587e-05 ± 0.0155994 (variance = 0.000243341): Q0: 0, Q1: 0, Q2: 0, Q3: 0.014186, Q4: 0.040046 |
| Rank: | R_A = 4.50346e-06 |
| Log of amplitude ratio (L1/H1): | -0.0896597, variance = 1.83235 (L1/H1: -1.7291, variance = 4.86146, H1/L1: -1.7803, variance = 2.0715) |
| Amplitude ratio (L1/H1): | 0.914242 ⋇ 3.8715 (L1/H1: 0.177444 ⋇ 9.0691, H1/L1: 0.168588 ⋇ 4.21762) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.182589 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 133 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.58611, L1: 5.23049 |
| SNR variance: | H1: 0.415597, L1: 0.462171 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | 7.00715e-05 s (slice index = 108 / 217), δt_gw = 7.00715e-05 s |
| Time delay uncertainty: | 0.00813987 s |
| [targeted mode] Time delay probability: | 0.293247 (1.05102 sigmas), δt_target = 0.00863028 s |
| Frequency: | 626.109 Hz |
| Ξ: | 3.9715e-05 ± 0.0193151 (variance = 0.000373073): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0466207, Q4: 0.0288033 |
| Rank: | R_A = 2.88792e-06 |
| Log of amplitude ratio (L1/H1): | 0.948685, variance = 0.310484 (L1/H1: 0.340002, variance = 0.368929, H1/L1: -1.67656, variance = 0.969476) |
| Amplitude ratio (L1/H1): | 2.58231 ⋇ 1.7458 (L1/H1: 1.40495 ⋇ 1.83564, H1/L1: 0.187016 ⋇ 2.67679) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.247968 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 133 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.24913, L1: 4.80015 |
| SNR variance: | H1: 0.430071, L1: 0.471957 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195778 (Mon May 15 14:22:40 2023 ) → GPS = 1368195788 (Mon May 15 14:22:50 2023 ) |
| Event time t(L1): | GPS = 1368195778 (Mon May 15 14:22:50 2023 ) → GPS = 1368195788 (Mon May 15 14:22:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195775 → GPS = 1368195791 |
| Omicron analysis time window (L1): | GPS = 1368195775 → GPS = 1368195791 |
| Time delay between detectors t(L1) - t(H1): | 0.000595465 s (slice index = 108 / 217), δt_gw = 0.000595465 s |
| Time delay uncertainty: | 0.00395543 s |
| [targeted mode] Time delay probability: | 0.0422758 (2.03079 sigmas), δt_target = 0.00862527 s |
| Frequency: | 1106.5 Hz |
| Ξ: | 3.19714e-05 ± 0.030917 (variance = 0.00095586): Q0: 0, Q1: 0, Q2: 0, Q3: 0, Q4: 0.0772925 |
| Rank: | R_A = 1.15052e-06 |
| Log of amplitude ratio (L1/H1): | 0.622519, variance = 0.342014 (L1/H1: 0.735618, variance = 0.933837, H1/L1: -0.514527, variance = 0.455576) |
| Amplitude ratio (L1/H1): | 1.86362 ⋇ 1.79467 (L1/H1: 2.08677 ⋇ 2.62834, H1/L1: 0.597783 ⋇ 1.96396) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.851216 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 134 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.01491, L1: 5.13213 |
| SNR variance: | H1: 0.434908, L1: 0.438792 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195758 (Mon May 15 14:22:20 2023 ) → GPS = 1368195768 (Mon May 15 14:22:30 2023 ) |
| Event time t(L1): | GPS = 1368195758 (Mon May 15 14:22:30 2023 ) → GPS = 1368195768 (Mon May 15 14:22:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195755 → GPS = 1368195771 |
| Omicron analysis time window (L1): | GPS = 1368195755 → GPS = 1368195771 |
| Time delay between detectors t(L1) - t(H1): | -0.00272288 s (slice index = 108 / 217), δt_gw = -0.00272288 s |
| Time delay uncertainty: | 0.00441354 s |
| [targeted mode] Time delay probability: | 0.0100964 (2.57251 sigmas), δt_target = 0.00862813 s |
| Frequency: | 1142.95 Hz |
| Ξ: | 0.000219914 ± 0.0232487 (variance = 0.000540501): Q0: 0, Q1: 0, Q2: 0.0388061, Q3: 0.0465347, Q4: 0.0539671 |
| Rank: | R_A = 6.86456e-07 |
| Log of amplitude ratio (L1/H1): | 0.210658, variance = 0.395927 (L1/H1: -0.403294, variance = 0.744628, H1/L1: -0.878788, variance = 0.844701) |
| Amplitude ratio (L1/H1): | 1.23449 ⋇ 1.87616 (L1/H1: 0.668116 ⋇ 2.37007, H1/L1: 0.415286 ⋇ 2.50697) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.309167 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 130 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.49592, L1: 5.26839 |
| SNR variance: | H1: 0.418285, L1: 0.452799 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195753 (Mon May 15 14:22:15 2023 ) → GPS = 1368195763 (Mon May 15 14:22:25 2023 ) |
| Event time t(L1): | GPS = 1368195753 (Mon May 15 14:22:25 2023 ) → GPS = 1368195763 (Mon May 15 14:22:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195750 → GPS = 1368195766 |
| Omicron analysis time window (L1): | GPS = 1368195750 → GPS = 1368195766 |
| Time delay between detectors t(L1) - t(H1): | -0.00233293 s (slice index = 108 / 217), δt_gw = -0.00233293 s |
| Time delay uncertainty: | 0.00434718 s |
| [targeted mode] Time delay probability: | 0.0116628 (2.52219 sigmas), δt_target = 0.00863099 s |
| Frequency: | 1141.6 Hz |
| Ξ: | 8.46822e-05 ± 0.020377 (variance = 0.000415221): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0338996, Q4: 0.0474335 |
| Rank: | R_A = 1.94796e-07 |
| Log of amplitude ratio (L1/H1): | 0.63968, variance = 0.817524 (L1/H1: -0.637023, variance = 2.76352, H1/L1: -1.77435, variance = 0.733579) |
| Amplitude ratio (L1/H1): | 1.89587 ⋇ 2.46988 (L1/H1: 0.528864 ⋇ 5.27187, H1/L1: 0.169594 ⋇ 2.35489) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.197236 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 131 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.79559, L1: 5.0869 |
| SNR variance: | H1: 0.550813, L1: 0.516188 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195818 (Mon May 15 14:23:20 2023 ) → GPS = 1368195828 (Mon May 15 14:23:30 2023 ) |
| Event time t(L1): | GPS = 1368195818 (Mon May 15 14:23:30 2023 ) → GPS = 1368195828 (Mon May 15 14:23:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195815 → GPS = 1368195831 |
| Omicron analysis time window (L1): | GPS = 1368195815 → GPS = 1368195831 |
| Time delay between detectors t(L1) - t(H1): | -0.00418529 s (slice index = 108 / 217), δt_gw = -0.00418529 s |
| Time delay uncertainty: | 0.00406522 s |
| [targeted mode] Time delay probability: | 0.00162864 (3.15073 sigmas), δt_target = 0.00863147 s |
| Frequency: | 1171.19 Hz |
| Ξ: | 0.000120036 ± 0.0149742 (variance = 0.000224227): Q0: 0, Q1: 0, Q2: 0.0270923, Q3: 0.0256422, Q4: 0.0362284 |
| Rank: | R_A = 6.19518e-08 |
| Log of amplitude ratio (L1/H1): | -0.00389503, variance = 0.471382 (L1/H1: -0.691638, variance = 0.848913, H1/L1: -0.682548, variance = 1.03626) |
| Amplitude ratio (L1/H1): | 0.996113 ⋇ 1.98689 (L1/H1: 0.500755 ⋇ 2.51272, H1/L1: 0.505328 ⋇ 2.76757) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.316898 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.81175, L1: 4.81631 |
| SNR variance: | H1: 0.46627, L1: 0.493324 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | -2.33946 s (slice index = 159 / 217), δt_gw = 0.00653907 s |
| Time delay uncertainty: | 0.00782508 s |
| [targeted mode] Time delay probability: | 0.78961 (0.266818 sigmas), δt_target = 0.00862312 s |
| Frequency: | 713.002 Hz |
| Ξ: | 0.00100285 ± 0.0200367 (variance = 0.000401471): Q0: 0, Q1: 0.0315904, Q2: 0.0278544, Q3: 0.0617127, Q4: 0.0411788 |
| Rank: | R_A = 0.000528349 |
| Log of amplitude ratio (L1/H1): | 0.430946, variance = 0.372887 (L1/H1: 0.303797, variance = 0.590048, H1/L1: -0.796381, variance = 0.722482) |
| Amplitude ratio (L1/H1): | 1.53871 ⋇ 1.84162 (L1/H1: 1.35499 ⋇ 2.15577, H1/L1: 0.450958 ⋇ 2.33962) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.667227 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 33 / 36, Q2: 66 / 70, Q3: 131 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.87165, L1: 5.23305 |
| SNR variance: | H1: 0.447016, L1: 0.459848 |
| Event time t(H1): | GPS = 1368195748 (Mon May 15 14:22:10 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Event time t(L1): | GPS = 1368195748 (Mon May 15 14:22:20 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195745 → GPS = 1368195761 |
| Omicron analysis time window (L1): | GPS = 1368195745 → GPS = 1368195761 |
| Time delay between detectors t(L1) - t(H1): | -2.34396 s (slice index = 159 / 217), δt_gw = 0.00204023 s |
| Time delay uncertainty: | 0.00843633 s |
| [targeted mode] Time delay probability: | 0.434581 (0.781377 sigmas), δt_target = 0.00862312 s |
| Frequency: | 407.648 Hz |
| Ξ: | 0.00683696 ± 0.0360408 (variance = 0.00129894): Q0: 0.0202318, Q1: 0.0384051, Q2: 0.0579715, Q3: 0.1145, Q4: 0.100966 |
| Rank: | R_A = 0.00013772 |
| Log of amplitude ratio (L1/H1): | -0.535675, variance = 1.53226 (L1/H1: -2.36124, variance = 2.9571, H1/L1: -2.40646, variance = 2.77033) |
| Amplitude ratio (L1/H1): | 0.585274 ⋇ 3.44818 (L1/H1: 0.0943033 ⋇ 5.58242, H1/L1: 0.0901342 ⋇ 5.28266) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0463513 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 30 / 36, Q2: 59 / 70, Q3: 118 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 18.2009, L1: 14.3371 |
| SNR variance: | H1: 0.533392, L1: 0.518593 |
| Event time t(H1): | GPS = 1368195773 (Mon May 15 14:22:35 2023 ) → GPS = 1368195783 (Mon May 15 14:22:45 2023 ) |
| Event time t(L1): | GPS = 1368195773 (Mon May 15 14:22:45 2023 ) → GPS = 1368195783 (Mon May 15 14:22:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195770 → GPS = 1368195786 |
| Omicron analysis time window (L1): | GPS = 1368195770 → GPS = 1368195786 |
| Time delay between detectors t(L1) - t(H1): | -2.33947 s (slice index = 159 / 217), δt_gw = 0.00652898 s |
| Time delay uncertainty: | 0.00685843 s |
| [targeted mode] Time delay probability: | 0.759473 (0.306173 sigmas), δt_target = 0.00862312 s |
| Frequency: | 1701.57 Hz |
| Ξ: | 0.000189721 ± 0.0240988 (variance = 0.00058075): Q0: 0, Q1: 0, Q2: 0.0480191, Q3: 0.0525139, Q4: 0.0465496 |
| Rank: | R_A = 0.000109474 |
| Log of amplitude ratio (L1/H1): | 0.329846, variance = 0.448276 (L1/H1: 0.123118, variance = 0.478839, H1/L1: -0.529114, variance = 1.28407) |
| Amplitude ratio (L1/H1): | 1.39075 ⋇ 1.95333 (L1/H1: 1.13102 ⋇ 1.99767, H1/L1: 0.589127 ⋇ 3.10548) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.759773 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.03572, L1: 5.12913 |
| SNR variance: | H1: 0.422242, L1: 0.426039 |
| Event time t(H1): | GPS = 1368195728 (Mon May 15 14:21:50 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Event time t(L1): | GPS = 1368195728 (Mon May 15 14:22:00 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195725 → GPS = 1368195741 |
| Omicron analysis time window (L1): | GPS = 1368195725 → GPS = 1368195741 |
| Time delay between detectors t(L1) - t(H1): | -2.3397 s (slice index = 159 / 217), δt_gw = 0.00630208 s |
| Time delay uncertainty: | 0.00348924 s |
| [targeted mode] Time delay probability: | 0.503828 (0.668479 sigmas), δt_target = 0.00862312 s |
| Frequency: | 637.657 Hz |
| Ξ: | 0.00160493 ± 0.0234427 (variance = 0.000549558): Q0: 0.0157552, Q1: 0.0310533, Q2: 0.0231134, Q3: 0.0600762, Q4: 0.0774545 |
| Rank: | R_A = 0.000105482 |
| Log of amplitude ratio (L1/H1): | 0.988293, variance = 1.19263 (L1/H1: -0.942402, variance = 2.20728, H1/L1: -2.28065, variance = 2.33464) |
| Amplitude ratio (L1/H1): | 2.68665 ⋇ 2.98046 (L1/H1: 0.389691 ⋇ 4.41802, H1/L1: 0.102218 ⋇ 4.60874) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.130449 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 34 / 36, Q2: 62 / 70, Q3: 125 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 16.019, L1: 19.5794 |
| SNR variance: | H1: 0.460055, L1: 0.62191 |
| Event time t(H1): | GPS = 1368195778 (Mon May 15 14:22:40 2023 ) → GPS = 1368195788 (Mon May 15 14:22:50 2023 ) |
| Event time t(L1): | GPS = 1368195778 (Mon May 15 14:22:50 2023 ) → GPS = 1368195788 (Mon May 15 14:22:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195775 → GPS = 1368195791 |
| Omicron analysis time window (L1): | GPS = 1368195775 → GPS = 1368195791 |
| Time delay between detectors t(L1) - t(H1): | -2.34121 s (slice index = 159 / 217), δt_gw = 0.00478742 s |
| Time delay uncertainty: | 0.00931802 s |
| [targeted mode] Time delay probability: | 0.680207 (0.412181 sigmas), δt_target = 0.00862312 s |
| Frequency: | 1135.68 Hz |
| Ξ: | 0.000151441 ± 0.0193416 (variance = 0.000374097): Q0: 0, Q1: 0, Q2: 0.0400054, Q3: 0.0434814, Q4: 0.0332173 |
| Rank: | R_A = 6.59567e-05 |
| Log of amplitude ratio (L1/H1): | 1.06197, variance = 0.867417 (L1/H1: 0.620084, variance = 1.15884, H1/L1: -1.4839, variance = 2.25821) |
| Amplitude ratio (L1/H1): | 2.89206 ⋇ 2.53794 (L1/H1: 1.85908 ⋇ 2.93437, H1/L1: 0.226752 ⋇ 4.49397) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.640286 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 132 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.01491, L1: 5.13213 |
| SNR variance: | H1: 0.434908, L1: 0.438792 |
| Detection threshold: | R > 0.005 |
| False-alarm rate above that detection threshold: | 0.05 |
| Alternative threshold at 1/1000 yrs: | R > 0.005 |
| Alternative threshold at 1/100 yrs: | R > 0.005 |
| Alternative threshold at 1/10 yrs: | R > 0.005 |
| Alternative threshold at 1/1 yr: | R > 0.005 |
| Alternative threshold at 1/1 d: | R > 0.005 |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195728 (Mon May 15 14:21:50 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Event time t(L1): | GPS = 1368195728 (Mon May 15 14:22:00 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195725 → GPS = 1368195741 |
| Omicron analysis time window (L1): | GPS = 1368195725 → GPS = 1368195741 |
| Time delay between detectors t(L1) - t(H1): | -0.0368642 s (slice index = 109 / 217), δt_gw = 0.00913581 s |
| Time delay uncertainty: | 0.00483882 s |
| [targeted mode] Time delay probability: | 0.917496 (0.103589 sigmas), δt_target = 0.00862312 s |
| Frequency: | 641.309 Hz |
| Ξ: | 0.00749047 ± 0.0804697 (variance = 0.00647537): Q0: 0.176182, Q1: 0, Q2: 0.192059, Q3: 0.223466, Q4: 0.198452 |
| Rank: | R_A = 0.00588484 |
| Log of amplitude ratio (L1/H1): | 0.696187, variance = 0.300141 (L1/H1: 0.573909, variance = 0.786439, H1/L1: -0.778037, variance = 0.484063) |
| Amplitude ratio (L1/H1): | 2.00609 ⋇ 1.72953 (L1/H1: 1.77519 ⋇ 2.42738, H1/L1: 0.459307 ⋇ 2.0052) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.85629 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 36 / 36, Q2: 67 / 70, Q3: 123 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 16.019, L1: 19.5794 |
| SNR variance: | H1: 0.460055, L1: 0.62191 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | 4.69997 s (slice index = 6 / 217), δt_gw = 0.0079721 s |
| Time delay uncertainty: | 0.00622872 s |
| [targeted mode] Time delay probability: | 0.916271 (0.105132 sigmas), δt_target = 0.00863457 s |
| Frequency: | 651.784 Hz |
| Ξ: | 0.00326999 ± 0.0421485 (variance = 0.0017765): Q0: 0, Q1: 0.0733155, Q2: 0.0940308, Q3: 0.112423, Q4: 0.114584 |
| Rank: | R_A = 0.00162136 |
| Log of amplitude ratio (L1/H1): | 0.207491, variance = 0.949992 (L1/H1: -0.0641862, variance = 1.55523, H1/L1: -0.988313, variance = 1.41121) |
| Amplitude ratio (L1/H1): | 1.23059 ⋇ 2.65031 (L1/H1: 0.93783 ⋇ 3.4802, H1/L1: 0.372204 ⋇ 3.28033) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.541141 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 32 / 36, Q2: 64 / 70, Q3: 133 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.87165, L1: 5.23305 |
| SNR variance: | H1: 0.447016, L1: 0.459848 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | 2.12509 s (slice index = 62 / 217), δt_gw = 0.00908741 s |
| Time delay uncertainty: | 0.00475541 s |
| [targeted mode] Time delay probability: | 0.922861 (0.0968302 sigmas), δt_target = 0.00862694 s |
| Frequency: | 706.414 Hz |
| Ξ: | 0.00258005 ± 0.0241557 (variance = 0.0005835): Q0: 0, Q1: 0.0484317, Q2: 0.0709557, Q3: 0.0513112, Q4: 0.0580377 |
| Rank: | R_A = 0.00108234 |
| Log of amplitude ratio (L1/H1): | 0.0531041, variance = 0.52999 (L1/H1: -0.202766, variance = 0.853586, H1/L1: -0.788494, variance = 0.903436) |
| Amplitude ratio (L1/H1): | 1.05454 ⋇ 2.07094 (L1/H1: 0.81647 ⋇ 2.51909, H1/L1: 0.454529 ⋇ 2.58698) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.454567 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 32 / 36, Q2: 62 / 70, Q3: 130 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.87165, L1: 5.23305 |
| SNR variance: | H1: 0.447016, L1: 0.459848 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195793 (Mon May 15 14:22:55 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Event time t(L1): | GPS = 1368195793 (Mon May 15 14:23:05 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195790 → GPS = 1368195806 |
| Omicron analysis time window (L1): | GPS = 1368195790 → GPS = 1368195806 |
| Time delay between detectors t(L1) - t(H1): | 1.11282 s (slice index = 84 / 217), δt_gw = 0.00882398 s |
| Time delay uncertainty: | 0.00148312 s |
| [targeted mode] Time delay probability: | 0.894054 (0.133177 sigmas), δt_target = 0.00862694 s |
| Frequency: | 811.202 Hz |
| Ξ: | 0.00121948 ± 0.0199051 (variance = 0.000396212): Q0: 0, Q1: 0.0582369, Q2: 0.0449511, Q3: 0.0468651, Q4: 0.0361139 |
| Rank: | R_A = 0.00101209 |
| Log of amplitude ratio (L1/H1): | 0.339791, variance = 0.489356 (L1/H1: 0.275284, variance = 0.571385, H1/L1: -0.399032, variance = 1.31899) |
| Amplitude ratio (L1/H1): | 1.40465 ⋇ 2.01283 (L1/H1: 1.3169 ⋇ 2.12953, H1/L1: 0.670969 ⋇ 3.15338) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.928284 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 66 / 70, Q3: 132 / 134, Q4: 256 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.19776, L1: 5.42384 |
| SNR variance: | H1: 0.455518, L1: 0.453871 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195783 (Mon May 15 14:22:45 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Event time t(L1): | GPS = 1368195783 (Mon May 15 14:22:55 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195780 → GPS = 1368195796 |
| Omicron analysis time window (L1): | GPS = 1368195780 → GPS = 1368195796 |
| Time delay between detectors t(L1) - t(H1): | -0.865444 s (slice index = 127 / 217), δt_gw = 0.00855555 s |
| Time delay uncertainty: | 0.000833029 s |
| [targeted mode] Time delay probability: | 0.931026 (0.0865541 sigmas), δt_target = 0.00862646 s |
| Frequency: | 667.798 Hz |
| Ξ: | 0.00137972 ± 0.0339349 (variance = 0.00115158): Q0: 0, Q1: 0.0634684, Q2: 0.084428, Q3: 0, Q4: 0.0463211 |
| Rank: | R_A = 0.000855023 |
| Log of amplitude ratio (L1/H1): | 0.204676, variance = 0.550854 (L1/H1: 0.0693151, variance = 0.86247, H1/L1: -0.639194, variance = 0.876336) |
| Amplitude ratio (L1/H1): | 1.22713 ⋇ 2.10054 (L1/H1: 1.07177 ⋇ 2.5312, H1/L1: 0.527718 ⋇ 2.55009) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.665616 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 67 / 70, Q3: 134 / 134, Q4: 257 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.93369, L1: 4.98623 |
| SNR variance: | H1: 0.426354, L1: 0.462282 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | -1.5091 s (slice index = 141 / 217), δt_gw = 0.00889718 s |
| Time delay uncertainty: | 0.00415164 s |
| [targeted mode] Time delay probability: | 0.9481 (0.0650926 sigmas), δt_target = 0.00862765 s |
| Frequency: | 647.359 Hz |
| Ξ: | 0.00260083 ± 0.0495907 (variance = 0.00245924): Q0: 0, Q1: 0.0859919, Q2: 0.10291, Q3: 0.114613, Q4: 0.148381 |
| Rank: | R_A = 0.000830165 |
| Log of amplitude ratio (L1/H1): | -0.0650068, variance = 0.398868 (L1/H1: -0.362448, variance = 0.626411, H1/L1: -0.789863, variance = 0.812047) |
| Amplitude ratio (L1/H1): | 0.937061 ⋇ 1.88054 (L1/H1: 0.69597 ⋇ 2.20662, H1/L1: 0.453907 ⋇ 2.4624) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.336666 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 66 / 70, Q3: 126 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.87165, L1: 5.23305 |
| SNR variance: | H1: 0.447016, L1: 0.459848 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195748 (Mon May 15 14:22:10 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Event time t(L1): | GPS = 1368195748 (Mon May 15 14:22:20 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195745 → GPS = 1368195761 |
| Omicron analysis time window (L1): | GPS = 1368195745 → GPS = 1368195761 |
| Time delay between detectors t(L1) - t(H1): | -0.0461081 s (slice index = 109 / 217), δt_gw = -0.000108087 s |
| Time delay uncertainty: | 0.00771757 s |
| [targeted mode] Time delay probability: | 0.257418 (1.13252 sigmas), δt_target = 0.00862694 s |
| Frequency: | 392.789 Hz |
| Ξ: | 0.00614821 ± 0.0174541 (variance = 0.000304644): Q0: 0.112683, Q1: 0.117198, Q2: 0.0987314, Q3: 0.151106, Q4: 0.112692 |
| Rank: | R_A = 0.000718981 |
| Log of amplitude ratio (L1/H1): | -0.0584313, variance = 0.383256 (L1/H1: -0.399107, variance = 0.751437, H1/L1: -0.490611, variance = 0.662299) |
| Amplitude ratio (L1/H1): | 0.943243 ⋇ 1.85721 (L1/H1: 0.670919 ⋇ 2.37941, H1/L1: 0.612252 ⋇ 2.25651) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.454287 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 34 / 36, Q2: 66 / 70, Q3: 128 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 18.2009, L1: 14.3371 |
| SNR variance: | H1: 0.533392, L1: 0.518593 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195748 (Mon May 15 14:22:10 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Event time t(L1): | GPS = 1368195748 (Mon May 15 14:22:20 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195745 → GPS = 1368195761 |
| Omicron analysis time window (L1): | GPS = 1368195745 → GPS = 1368195761 |
| Time delay between detectors t(L1) - t(H1): | 0.138548 s (slice index = 105 / 217), δt_gw = 0.000548207 s |
| Time delay uncertainty: | 0.00558263 s |
| [targeted mode] Time delay probability: | 0.147601 (1.44806 sigmas), δt_target = 0.00863218 s |
| Frequency: | 335.562 Hz |
| Ξ: | 0.0394305 ± 0.0665372 (variance = 0.00442719): Q0: 0.16402, Q1: 0.235262, Q2: 0.345192, Q3: 0.290604, Q4: 0.186974 |
| Rank: | R_A = 0.000707845 |
| Log of amplitude ratio (L1/H1): | -0.144287, variance = 0.551595 (L1/H1: -1.01944, variance = 0.990525, H1/L1: -1.26614, variance = 1.18947) |
| Amplitude ratio (L1/H1): | 0.865639 ⋇ 2.10159 (L1/H1: 0.360795 ⋇ 2.7054, H1/L1: 0.281917 ⋇ 2.97615) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.121624 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 29 / 36, Q2: 60 / 70, Q3: 119 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 18.2009, L1: 14.3371 |
| SNR variance: | H1: 0.533392, L1: 0.518593 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195783 (Mon May 15 14:22:45 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Event time t(L1): | GPS = 1368195783 (Mon May 15 14:22:55 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195780 → GPS = 1368195796 |
| Omicron analysis time window (L1): | GPS = 1368195780 → GPS = 1368195796 |
| Time delay between detectors t(L1) - t(H1): | -4.54477 s (slice index = 207 / 217), δt_gw = 0.0092274 s |
| Time delay uncertainty: | 0.00500457 s |
| [targeted mode] Time delay probability: | 0.90461 (0.11984 sigmas), δt_target = 0.00863218 s |
| Frequency: | 683.758 Hz |
| Ξ: | 0.000825583 ± 0.0237169 (variance = 0.00056249): Q0: 0, Q1: 0.0426931, Q2: 0.035341, Q3: 0.056755, Q4: 0.0701262 |
| Rank: | R_A = 0.000689391 |
| Log of amplitude ratio (L1/H1): | 0.476285, variance = 0.460279 (L1/H1: 0.448618, variance = 0.72036, H1/L1: -0.5651, variance = 0.735311) |
| Amplitude ratio (L1/H1): | 1.61008 ⋇ 1.9708 (L1/H1: 1.56615 ⋇ 2.3367, H1/L1: 0.568303 ⋇ 2.35727) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.923088 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 69 / 70, Q3: 132 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.93369, L1: 4.98623 |
| SNR variance: | H1: 0.426354, L1: 0.462282 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Event time t(H1): | GPS = 1368195783 (Mon May 15 14:22:45 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Event time t(L1): | GPS = 1368195783 (Mon May 15 14:22:55 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195780 → GPS = 1368195796 |
| Omicron analysis time window (L1): | GPS = 1368195780 → GPS = 1368195796 |
| Time delay between detectors t(L1) - t(H1): | -1.51025 s (slice index = 141 / 217), δt_gw = 0.00774906 s |
| Time delay uncertainty: | 0.00340067 s |
| [targeted mode] Time delay probability: | 0.796129 (0.25836 sigmas), δt_target = 0.00862765 s |
| Frequency: | 634.231 Hz |
| Ξ: | 0.00172867 ± 0.0597535 (variance = 0.00357049): Q0: 0, Q1: 0.0952745, Q2: 0.102674, Q3: 0.135523, Q4: 0.181268 |
| Rank: | R_A = 0.000659813 |
| Log of amplitude ratio (L1/H1): | 0.130848, variance = 0.340969 (L1/H1: -0.0444379, variance = 0.532504, H1/L1: -0.693532, variance = 0.556347) |
| Amplitude ratio (L1/H1): | 1.1398 ⋇ 1.79306 (L1/H1: 0.956535 ⋇ 2.07452, H1/L1: 0.499808 ⋇ 2.10831) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.47943 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 67 / 70, Q3: 130 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.93369, L1: 4.98623 |
| SNR variance: | H1: 0.426354, L1: 0.462282 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Number of injections (total/valid/detected): | 4 / 4 / 2 |
| List of missed injections: | ./AND16-S20S_missed.txt |
| Injection amplitude at 90% detection efficiency: | 6.03192 |
| Injection amplitude at 50% detection efficiency: | 6.00062 |
| Injection amplitude at 10% detection efficiency: | 5.96933 |
![]() |
| florent.robinet@ijclab.in2p3.fr |
