| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Oct 27 14:19:11 2025 UTC |
| Ox option file: | Targeted_O4bw_10min_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Targeted_O4bw_10min_file_list.txt (1 files) |
| Analysis result file: | Targeted_O4bw_10min_results-0.root |
| Slice selected for the the fakeground: | slice index=208 (-4.6 s), time lag = 0 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 117 | 117 | 25155 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Mon May 15 14:23:15 2023 UTC | Mon May 15 14:23:15 2023 UTC | Mon May 15 14:23:15 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368195813 | 1368195813 | 1368195813 | |
| Used livetime (detector 0) | 590 s | 590 s | 590 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Mon May 15 14:23:15 2023 UTC | Mon May 15 14:23:15 2023 UTC | Mon May 15 14:23:15 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368195813 | 1368195813 | 1368195813 | |
| Used livetime (detector 1) | 590 s | 590 s | 590 s | |
| Cumulative livetime | 1170 s | 1170 s | 251550 s | |
| 0 years, 0 days, 0 hours, 19 min, 30 s | 0 years, 0 days, 0 hours, 19 min, 30 s | 0 years, 2 days, 21 hours, 52 min, 30 s |
|
|

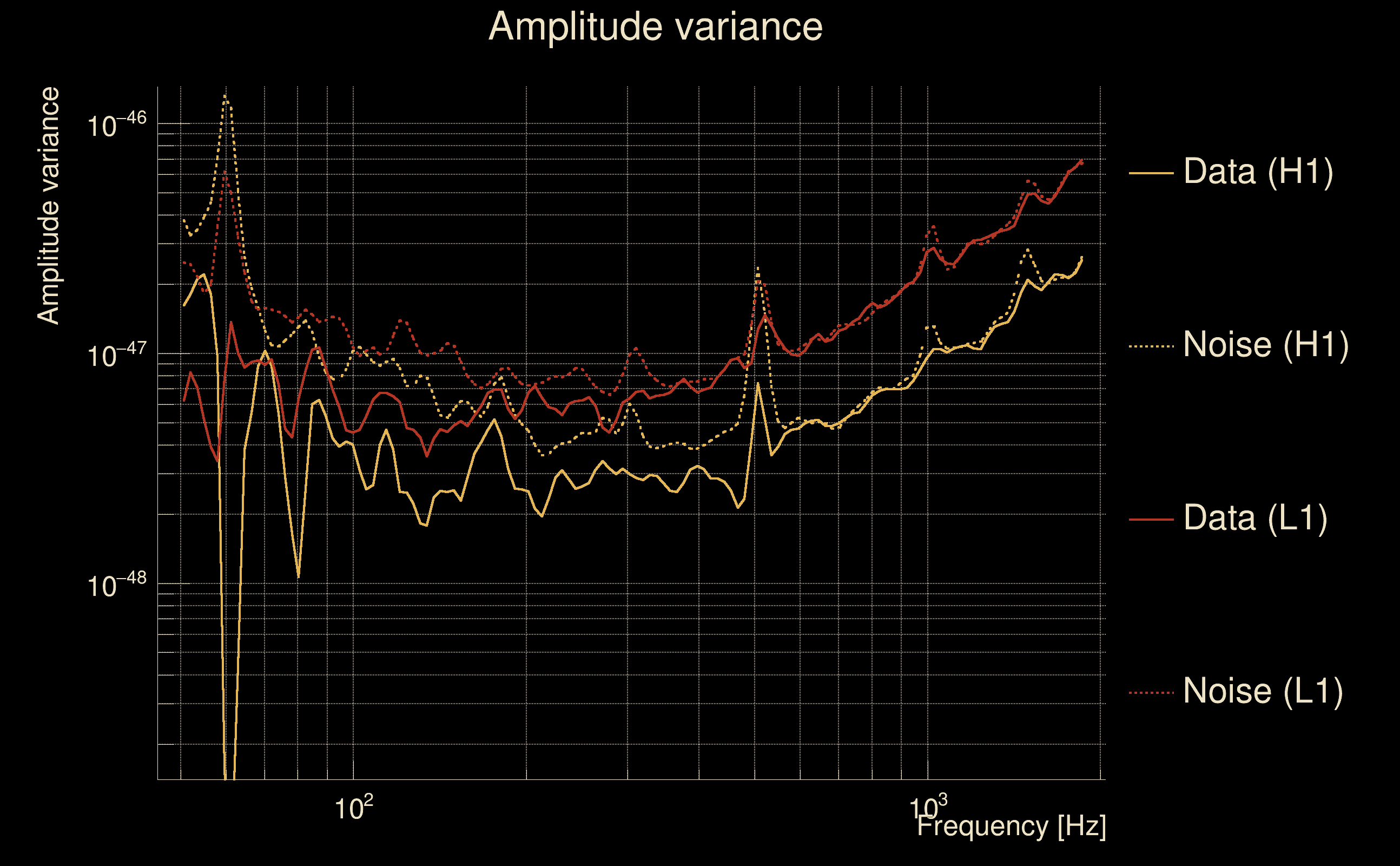

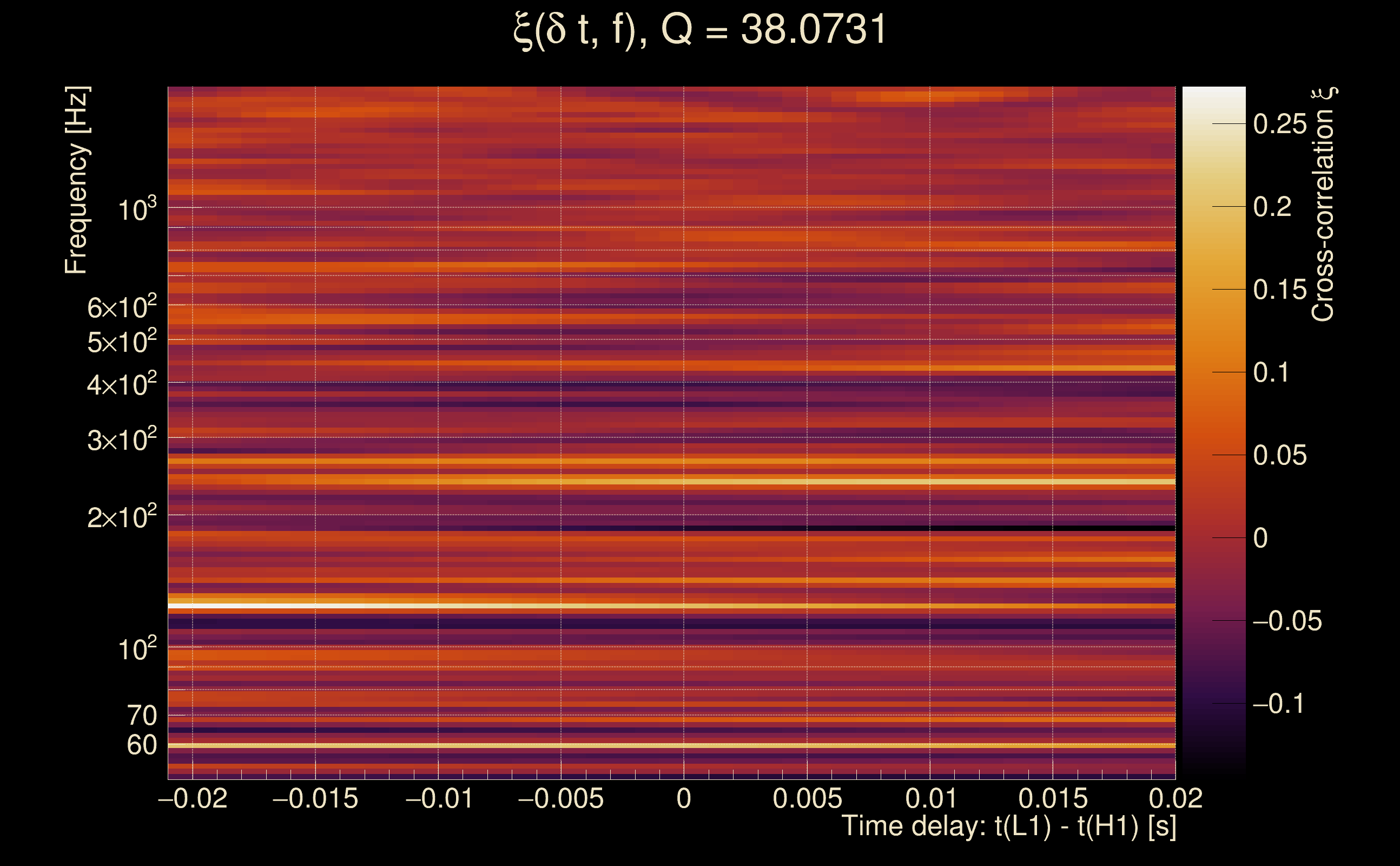

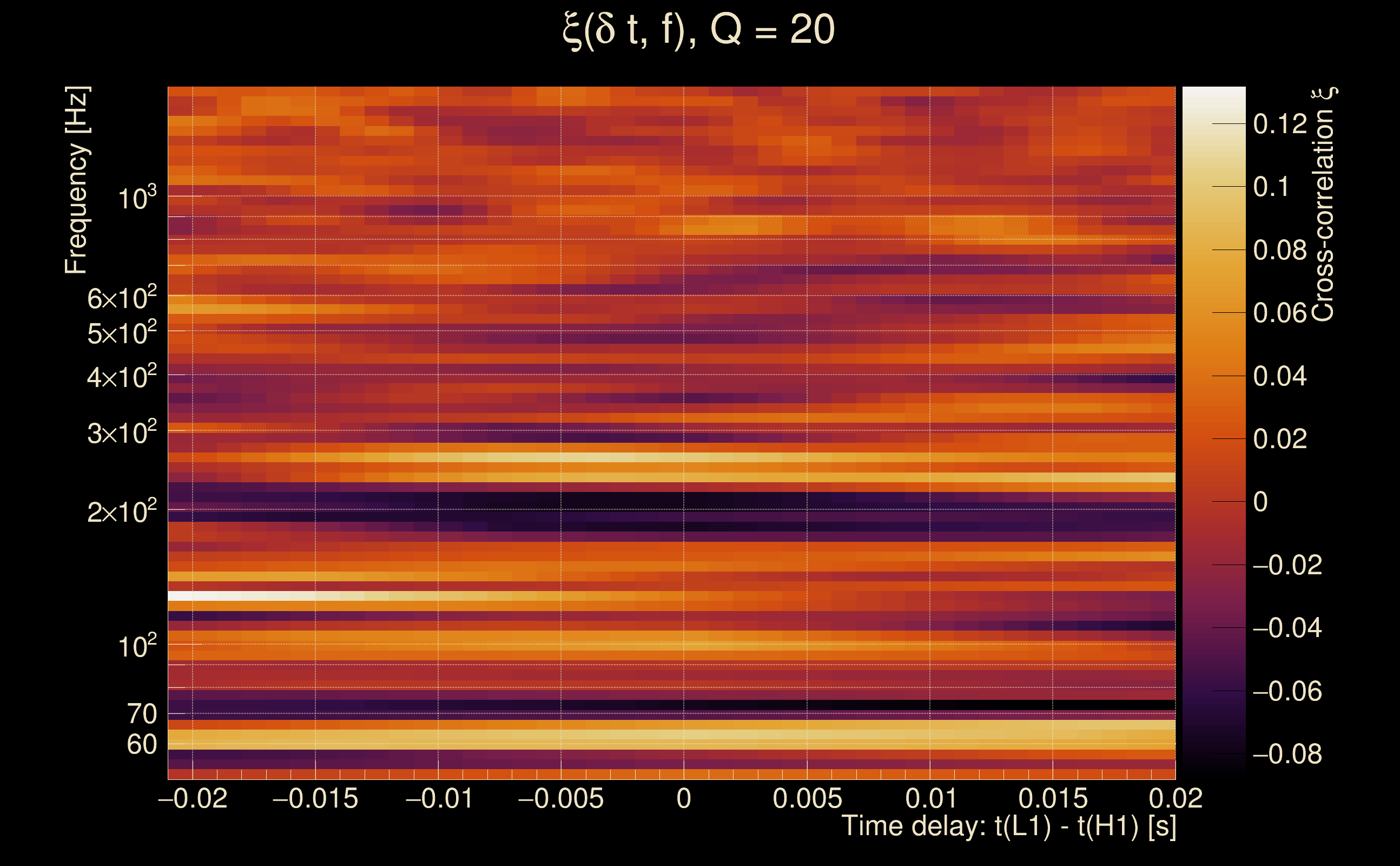

| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -0.00312192 s (slice index = 108 / 217), δt_gw = -0.00312192 s |
| Time delay uncertainty: | 0.00546154 s |
| [targeted mode] Time delay probability: | 0.0314845 (2.1509 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 231.536 Hz |
| Ξ: | 0.00355869 ± 0.065689 (variance = 0.00431505): Q0: 0.0308996, Q1: 0.0211877, Q2: 0.061902, Q3: 0.203961, Q4: 0.0754933 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.28851, variance = 0.670178 (L1/H1: -0.754869, variance = 1.39156, H1/L1: -1.46779, variance = 1.26358) |
| Amplitude ratio (L1/H1): | 1.33444 ⋇ 2.26742 (L1/H1: 0.470072 ⋇ 3.25321, H1/L1: 0.230434 ⋇ 3.07742) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.172553 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 31 / 36, Q2: 66 / 70, Q3: 129 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |

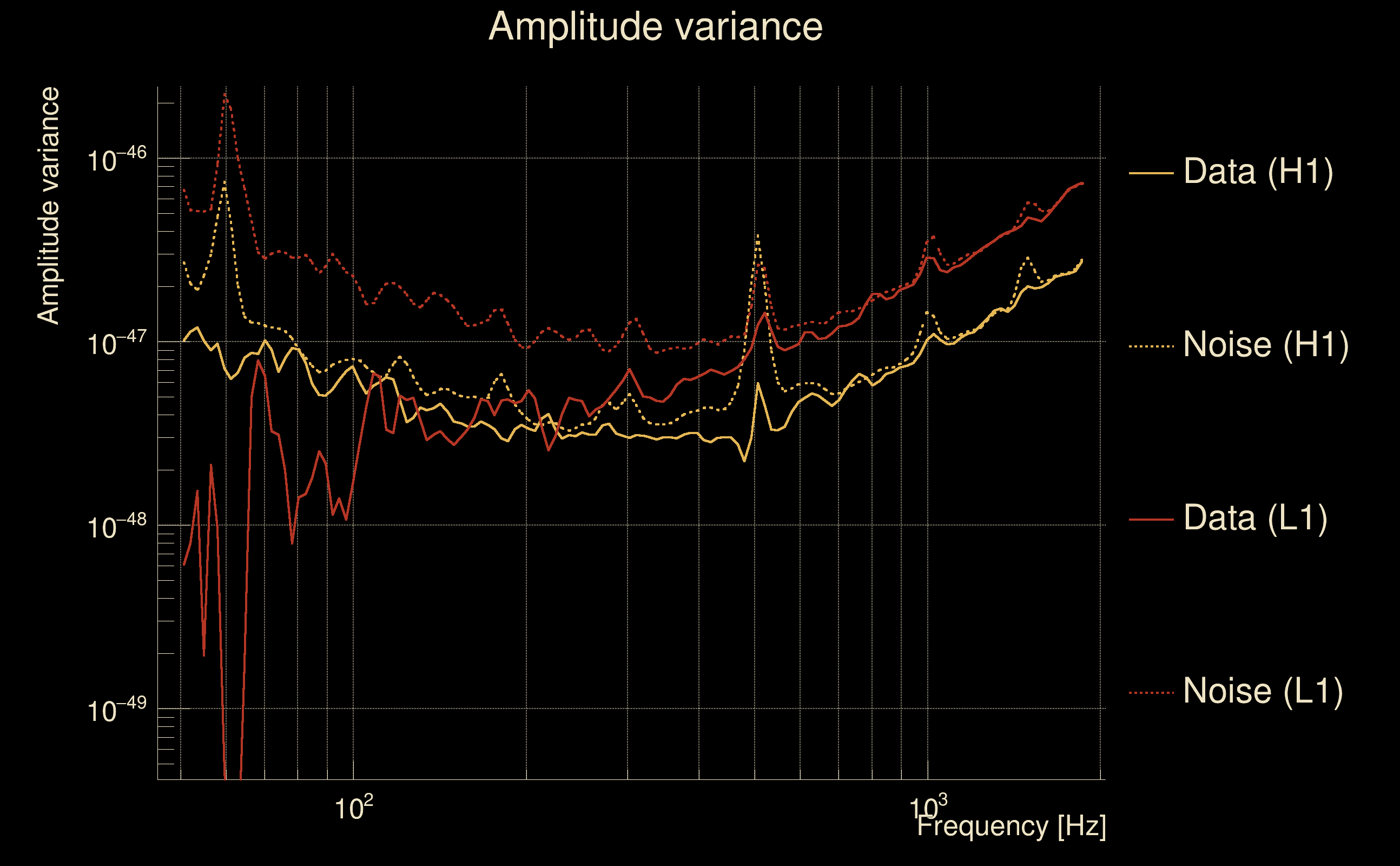

| SNR variance: | H1: 0.512659, L1: 0.542509 |

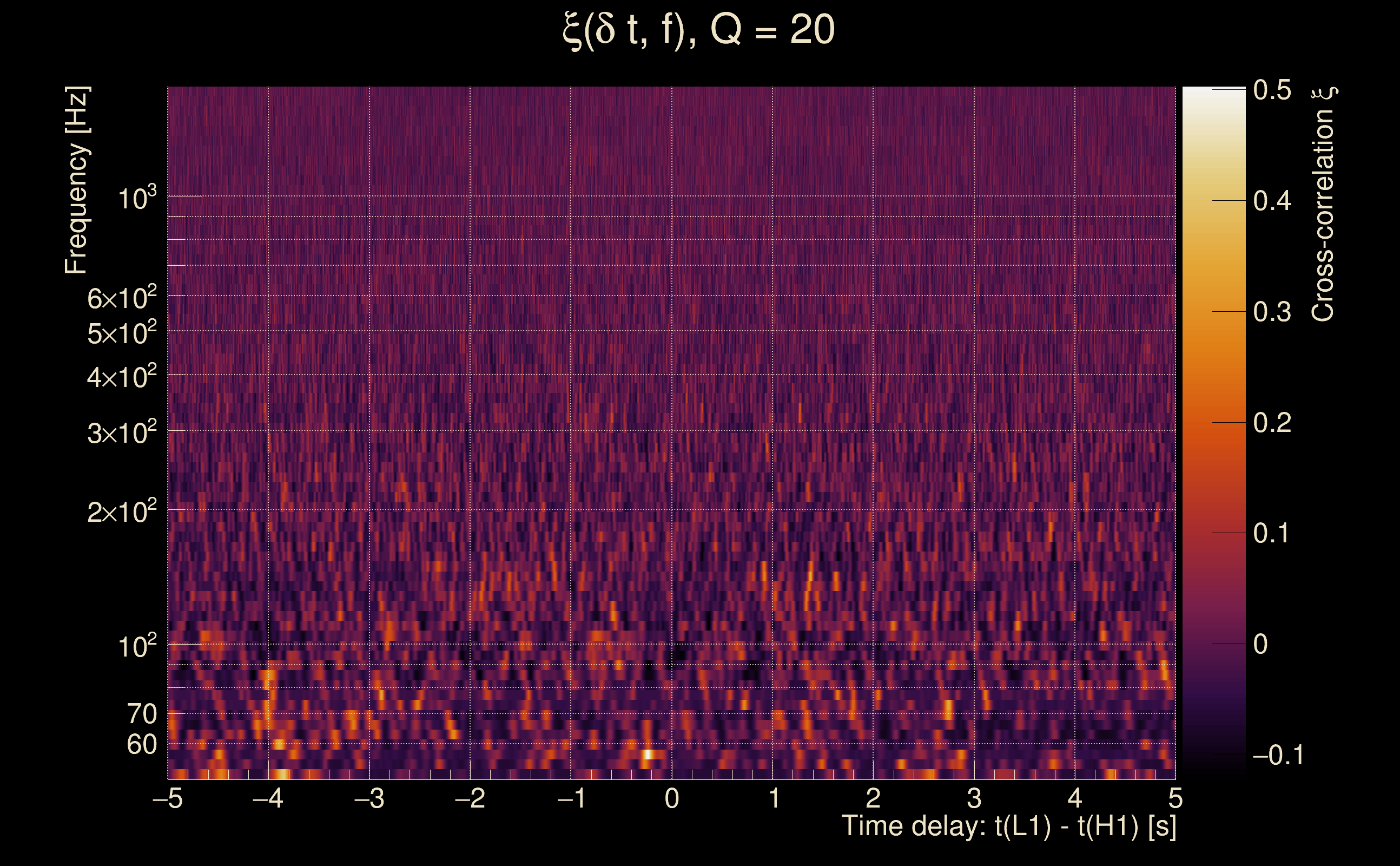

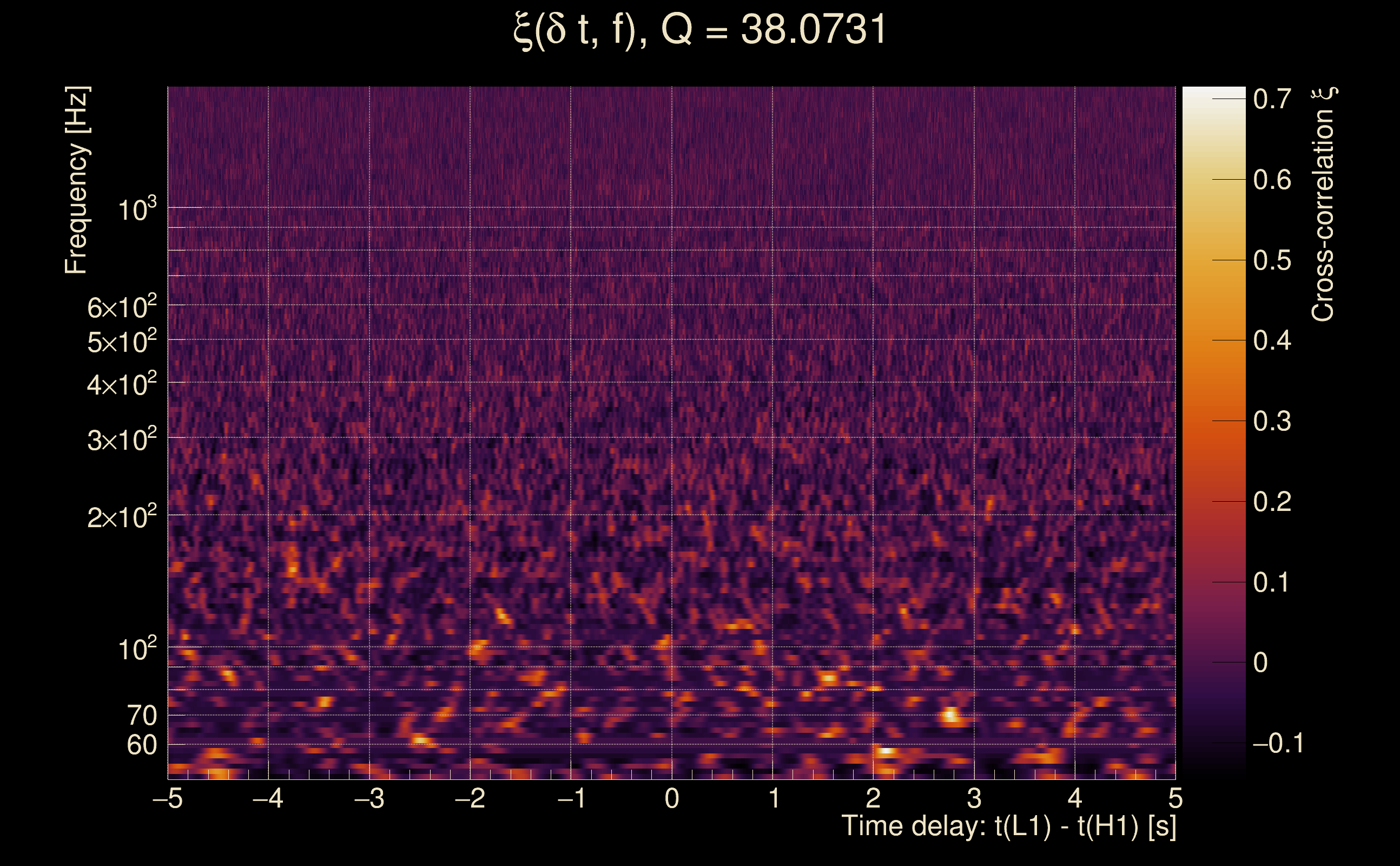

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

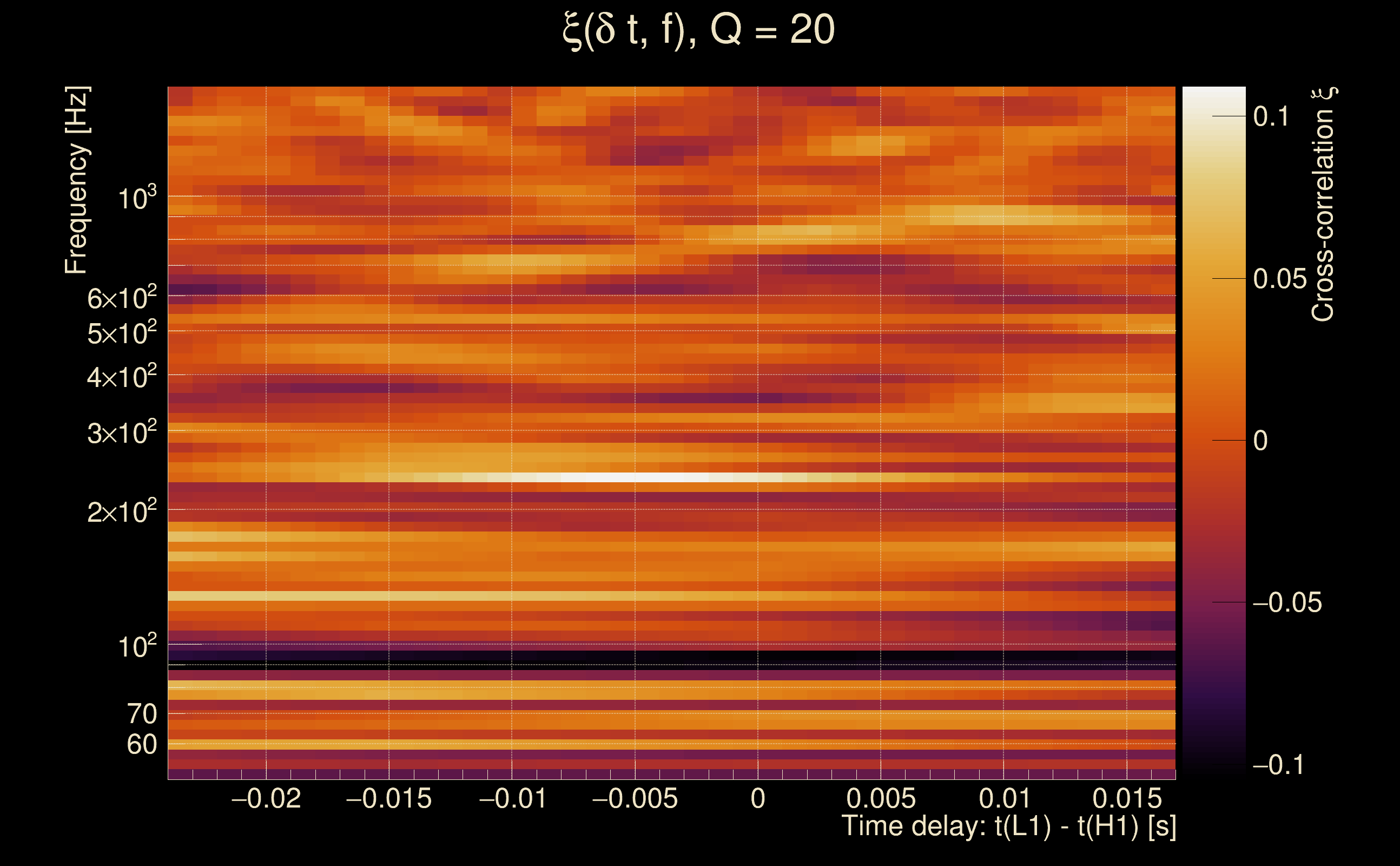

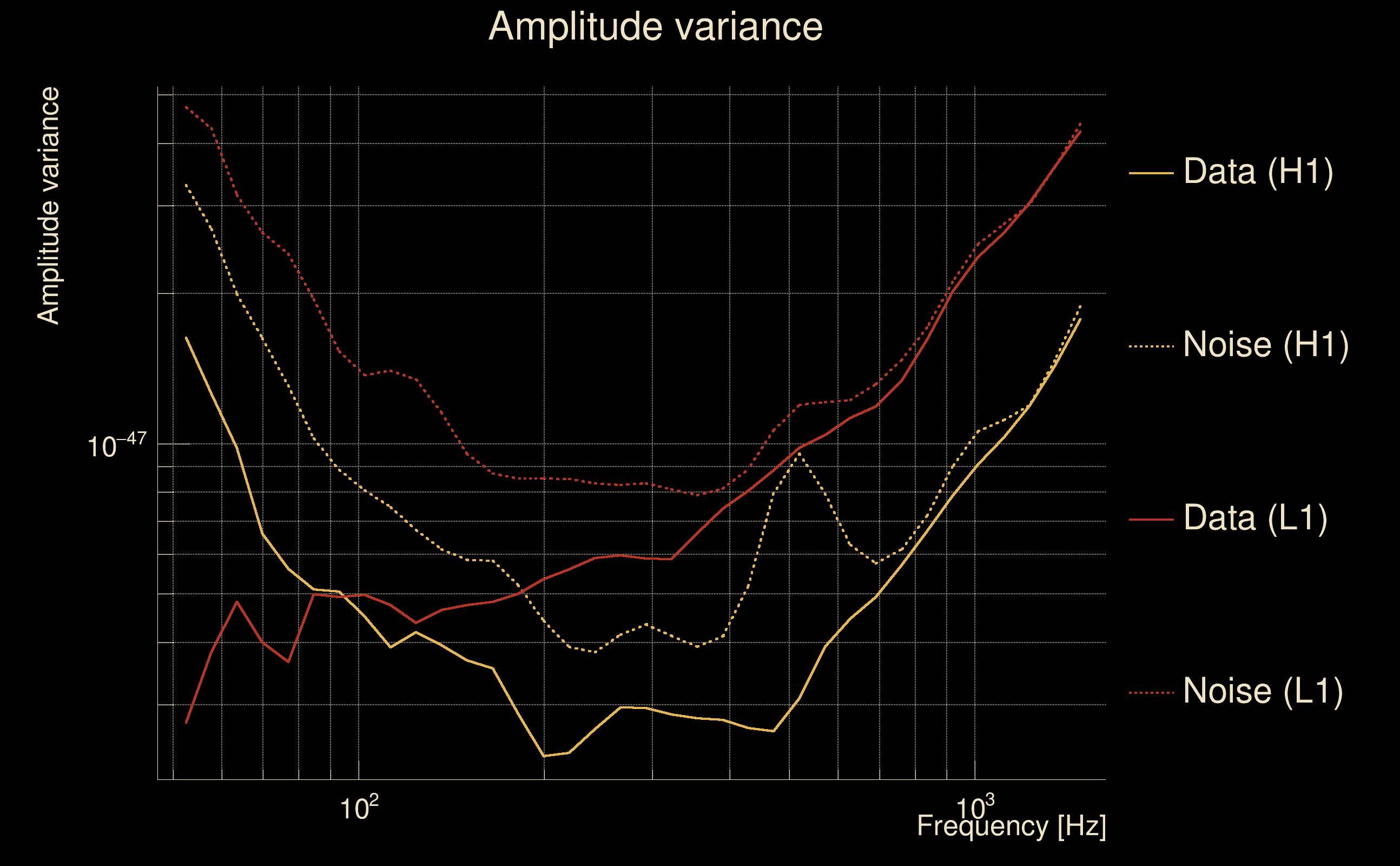

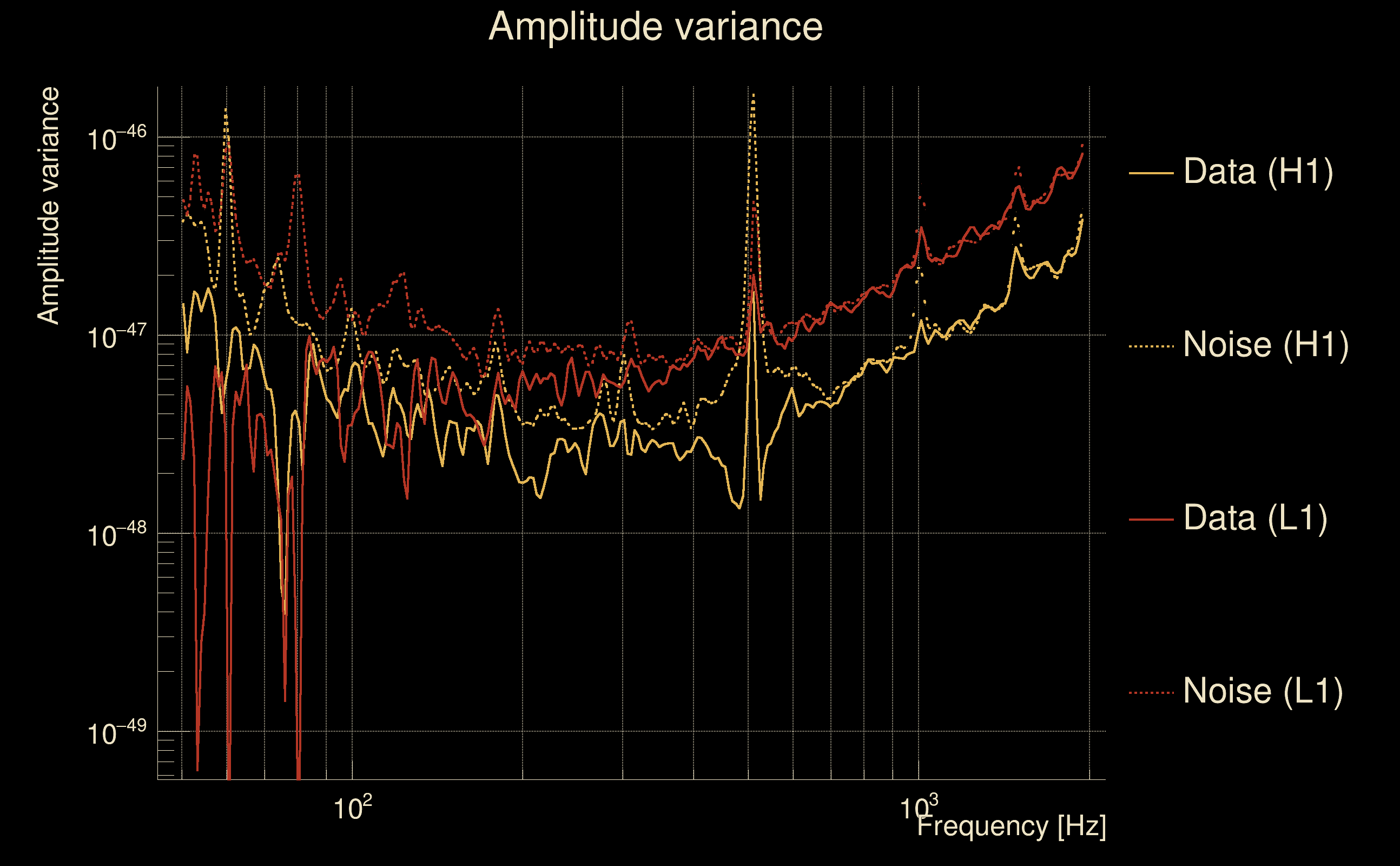

| Event time t(H1): | GPS = 1368195798 (Mon May 15 14:23:00 2023 ) → GPS = 1368195808 (Mon May 15 14:23:10 2023 ) |
| Event time t(L1): | GPS = 1368195798 (Mon May 15 14:23:10 2023 ) → GPS = 1368195808 (Mon May 15 14:23:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195795 → GPS = 1368195811 |
| Omicron analysis time window (L1): | GPS = 1368195795 → GPS = 1368195811 |
| Time delay between detectors t(L1) - t(H1): | -0.000345479 s (slice index = 108 / 217), δt_gw = -0.000345479 s |
| Time delay uncertainty: | 0.00646051 s |
| [targeted mode] Time delay probability: | 0.164947 (1.38863 sigmas), δt_target = 0.00862527 s |
| Frequency: | 499.155 Hz |
| Ξ: | 0.0055276 ± 0.0308379 (variance = 0.000950975): Q0: 0.0289677, Q1: 0.0395213, Q2: 0.0519193, Q3: 0.076559, Q4: 0.115347 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.346255, variance = 0.363233 (L1/H1: -0.316645, variance = 0.702354, H1/L1: -1.06147, variance = 0.752271) |
| Amplitude ratio (L1/H1): | 1.41376 ⋇ 1.82702 (L1/H1: 0.728589 ⋇ 2.31189, H1/L1: 0.345947 ⋇ 2.38056) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.253187 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 31 / 36, Q2: 59 / 70, Q3: 122 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.57763, L1: 5.36977 |
| SNR variance: | H1: 0.505123, L1: 0.530136 |

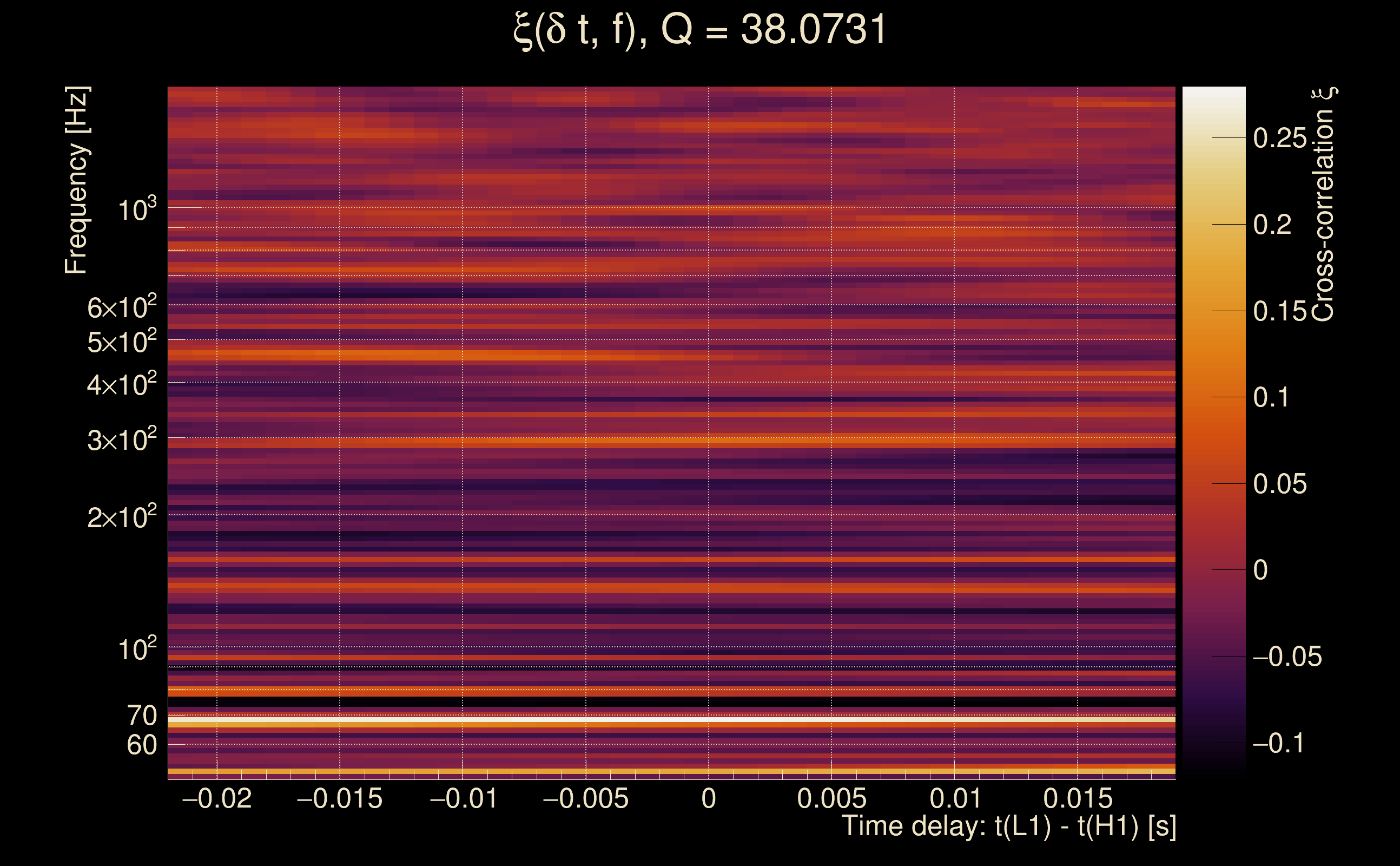

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195793 (Mon May 15 14:22:55 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Event time t(L1): | GPS = 1368195793 (Mon May 15 14:23:05 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195790 → GPS = 1368195806 |
| Omicron analysis time window (L1): | GPS = 1368195790 → GPS = 1368195806 |
| Time delay between detectors t(L1) - t(H1): | -0.0031904 s (slice index = 108 / 217), δt_gw = -0.0031904 s |
| Time delay uncertainty: | 0.00546216 s |
| [targeted mode] Time delay probability: | 0.03051 (2.16341 sigmas), δt_target = 0.00862575 s |
| Frequency: | 651.059 Hz |
| Ξ: | 0.0032944 ± 0.0211365 (variance = 0.000446752): Q0: 0.031834, Q1: 0.0290745, Q2: 0.0507701, Q3: 0.0629142, Q4: 0.0863666 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.467631, variance = 0.501011 (L1/H1: -0.496819, variance = 0.773591, H1/L1: -1.50384, variance = 1.26293) |
| Amplitude ratio (L1/H1): | 1.59621 ⋇ 2.02956 (L1/H1: 0.608463 ⋇ 2.40979, H1/L1: 0.222275 ⋇ 3.07653) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.160935 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 34 / 36, Q2: 64 / 70, Q3: 123 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.60287, L1: 5.40539 |
| SNR variance: | H1: 0.51279, L1: 0.512433 |

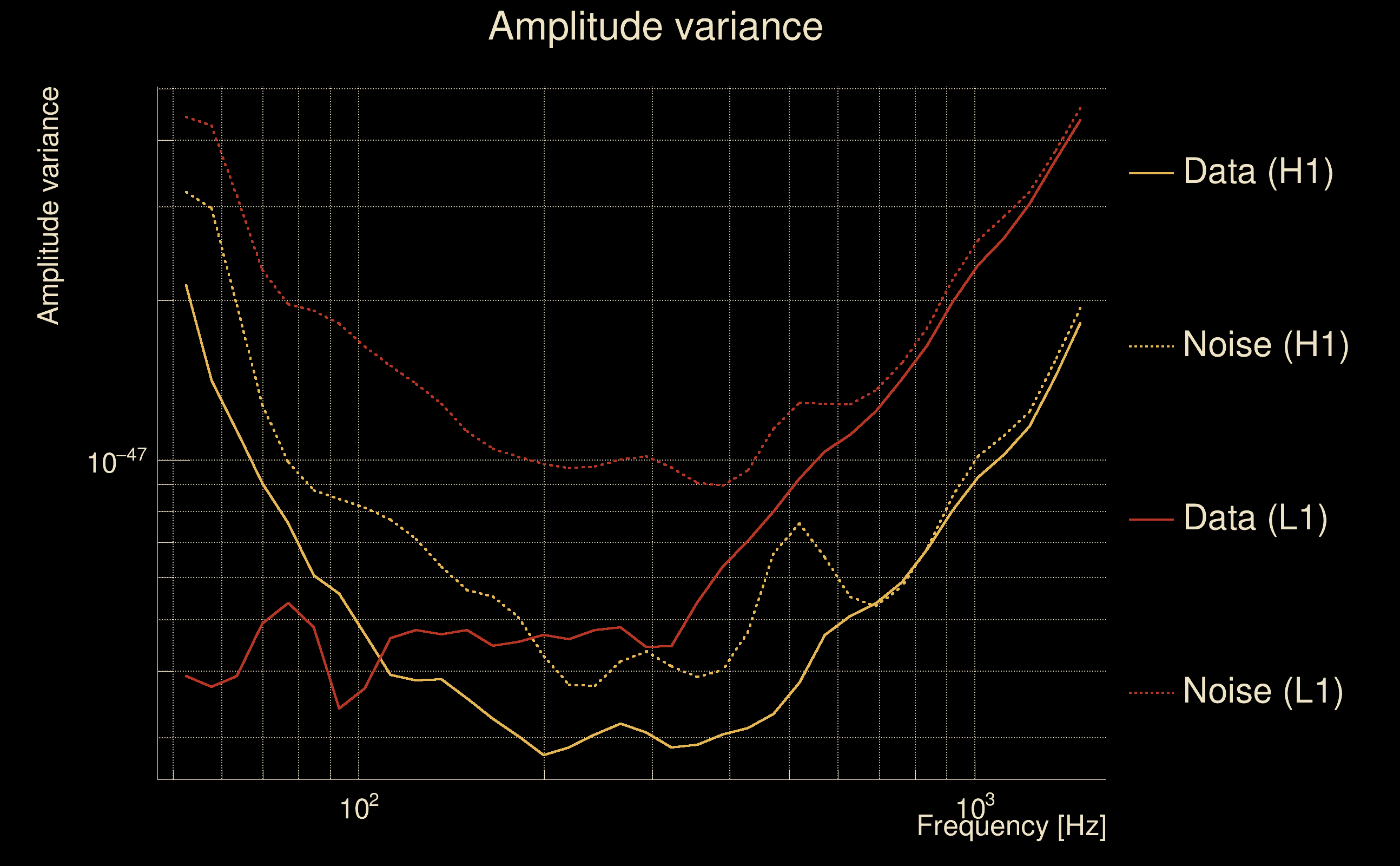

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

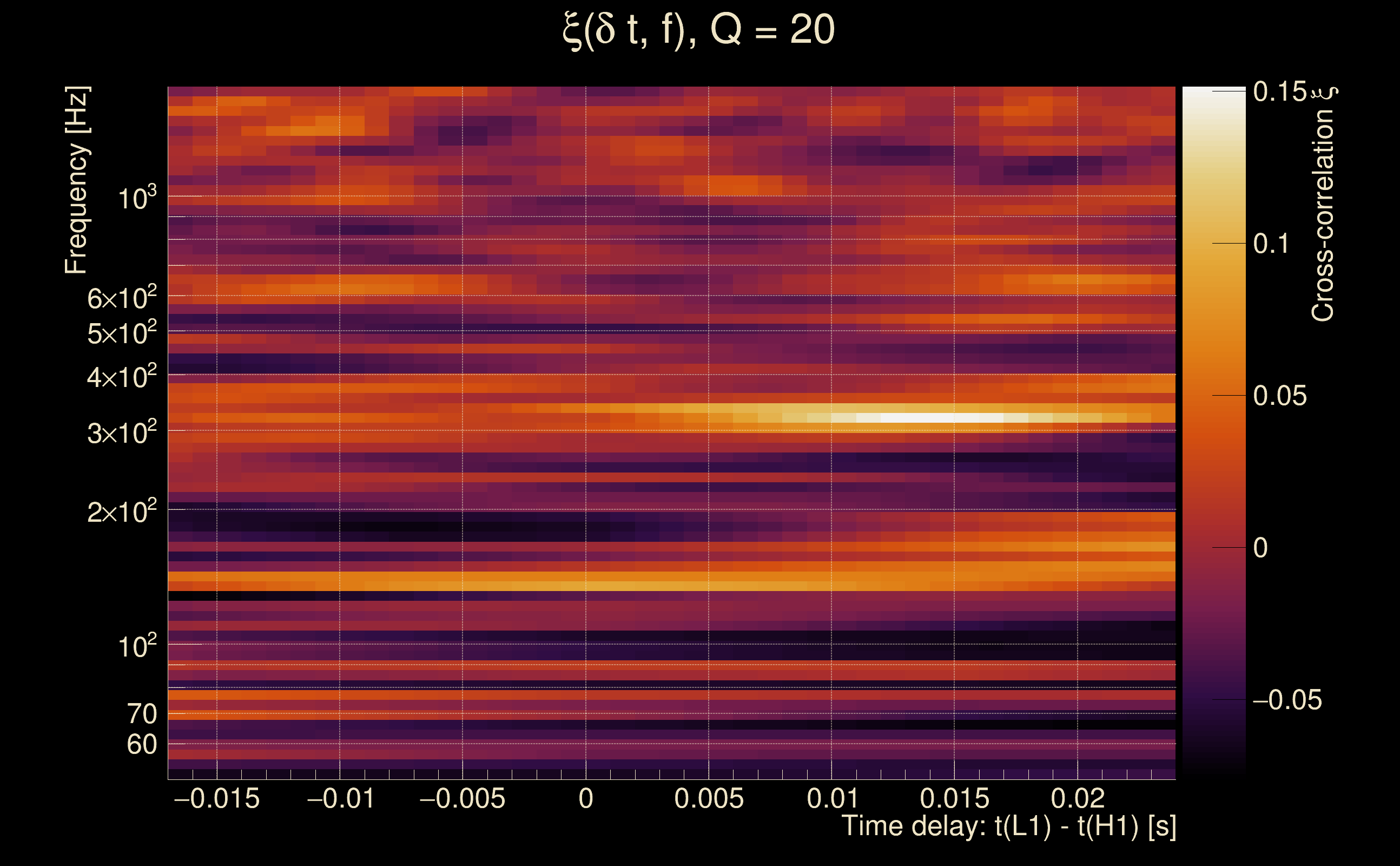

| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | -0.00149601 s (slice index = 108 / 217), δt_gw = -0.00149601 s |
| Time delay uncertainty: | 0.00893997 s |
| [targeted mode] Time delay probability: | 0.257498 (1.13232 sigmas), δt_target = 0.00862646 s |
| Frequency: | 278.331 Hz |
| Ξ: | 0.00268801 ± 0.030277 (variance = 0.000916699): Q0: 0.0465969, Q1: 0.0187485, Q2: 0.0308442, Q3: 0.0736872, Q4: 0.102616 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.462844, variance = 0.736116 (L1/H1: -0.732265, variance = 1.32716, H1/L1: -1.59108, variance = 1.59922) |
| Amplitude ratio (L1/H1): | 1.58858 ⋇ 2.35837 (L1/H1: 0.480819 ⋇ 3.16459, H1/L1: 0.203705 ⋇ 3.54169) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.174414 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 33 / 36, Q2: 63 / 70, Q3: 125 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.21363, L1: 5.3659 |
| SNR variance: | H1: 0.507229, L1: 0.518157 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

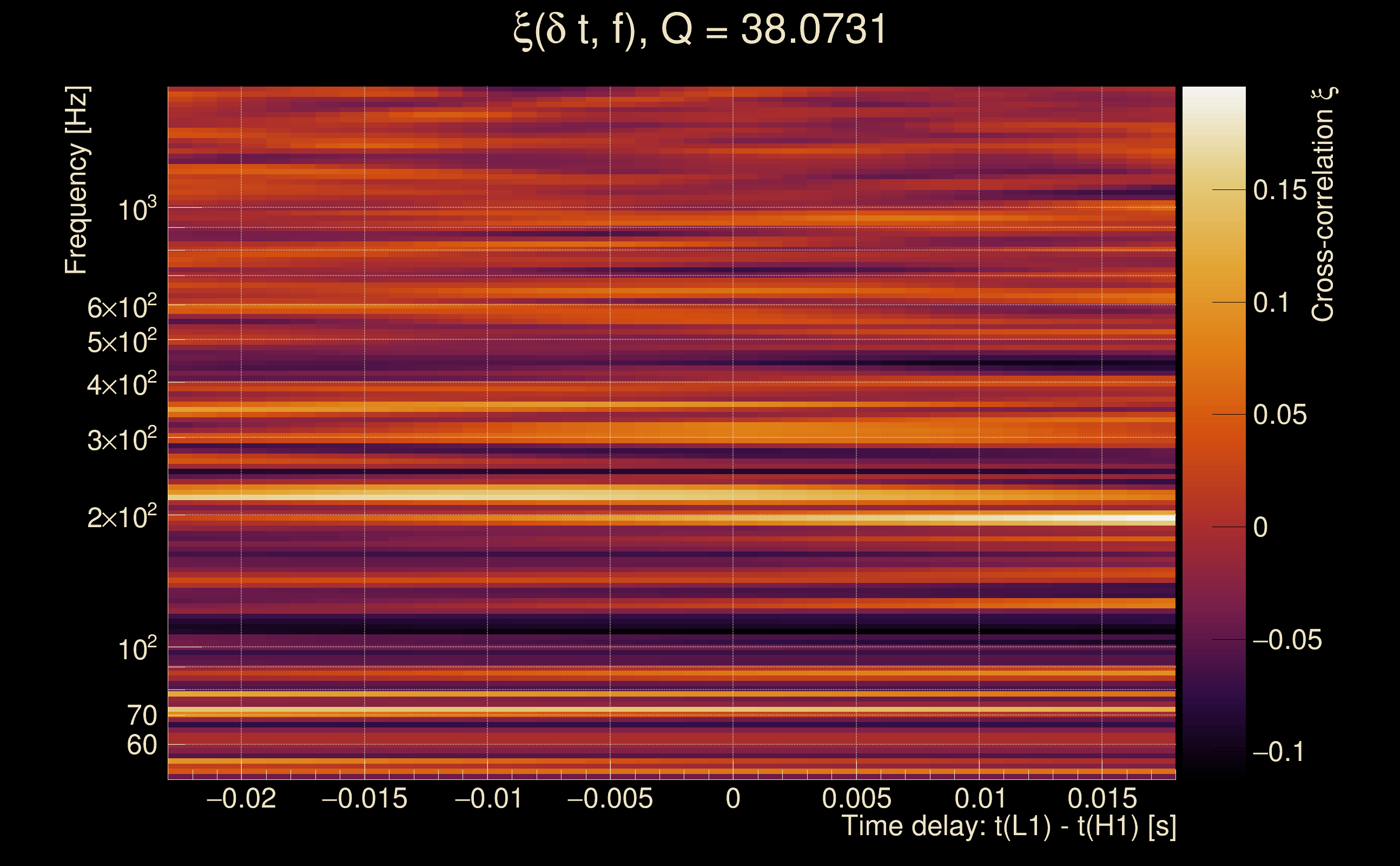

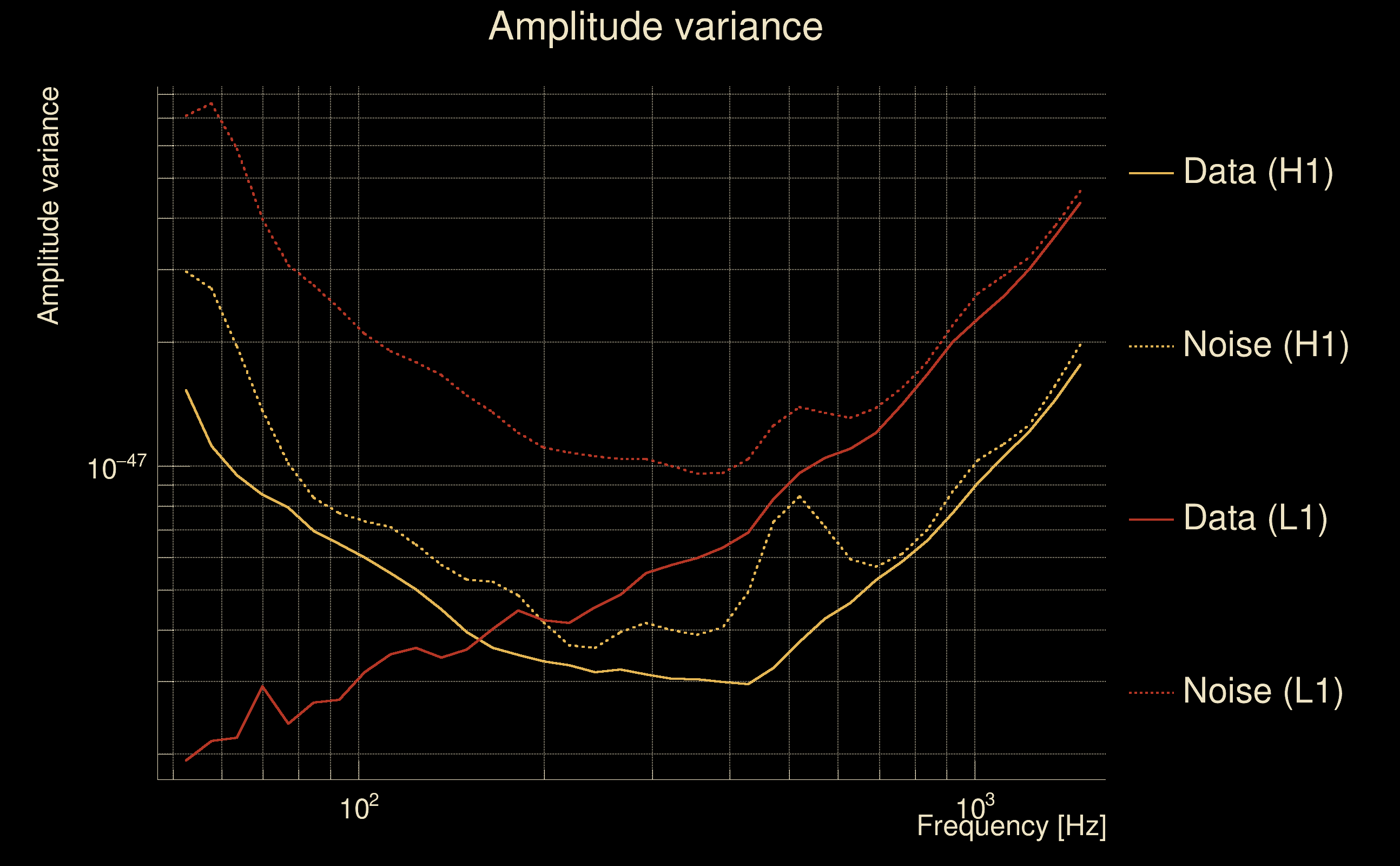

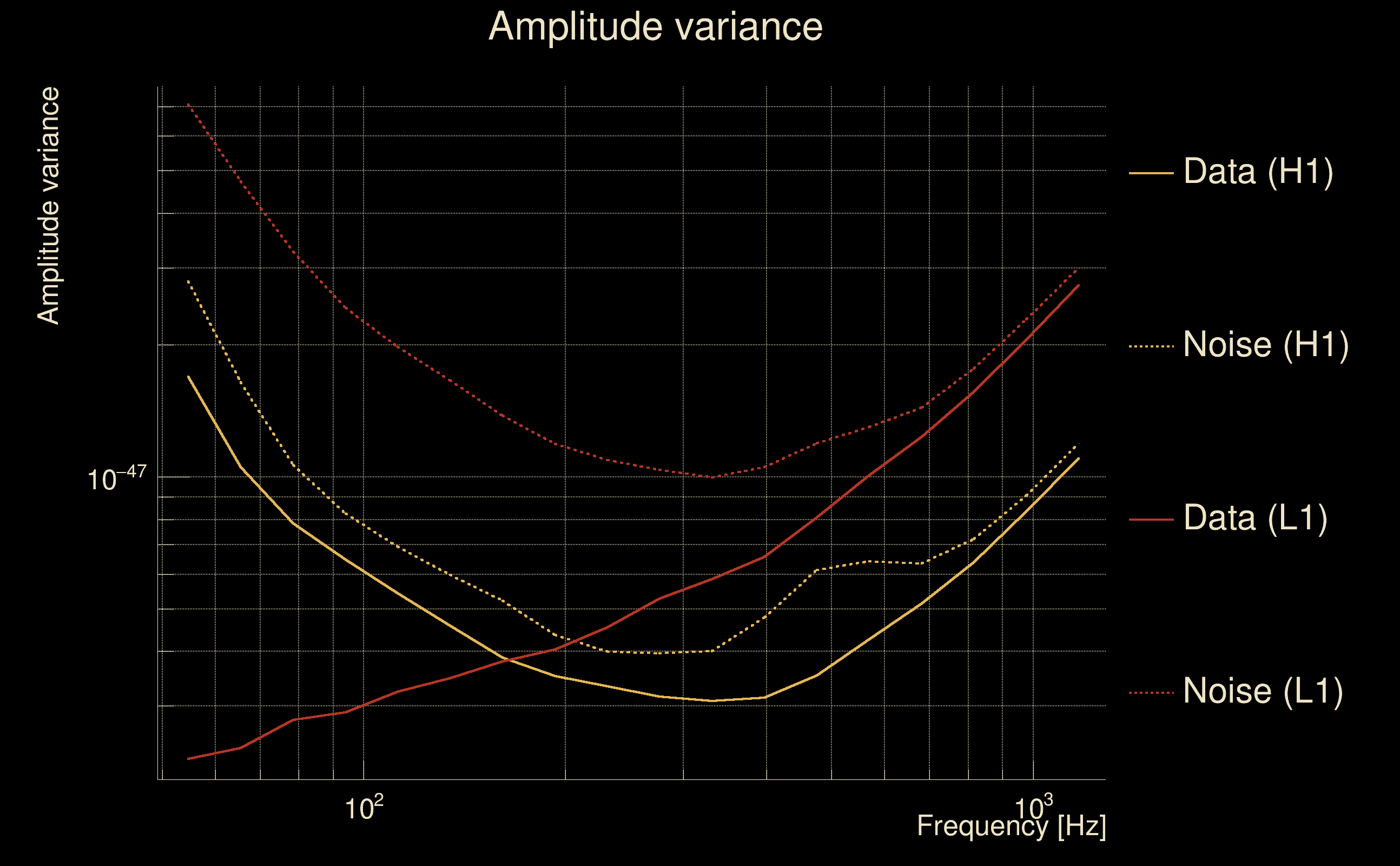

| Event time t(H1): | GPS = 1368195783 (Mon May 15 14:22:45 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Event time t(L1): | GPS = 1368195783 (Mon May 15 14:22:55 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |

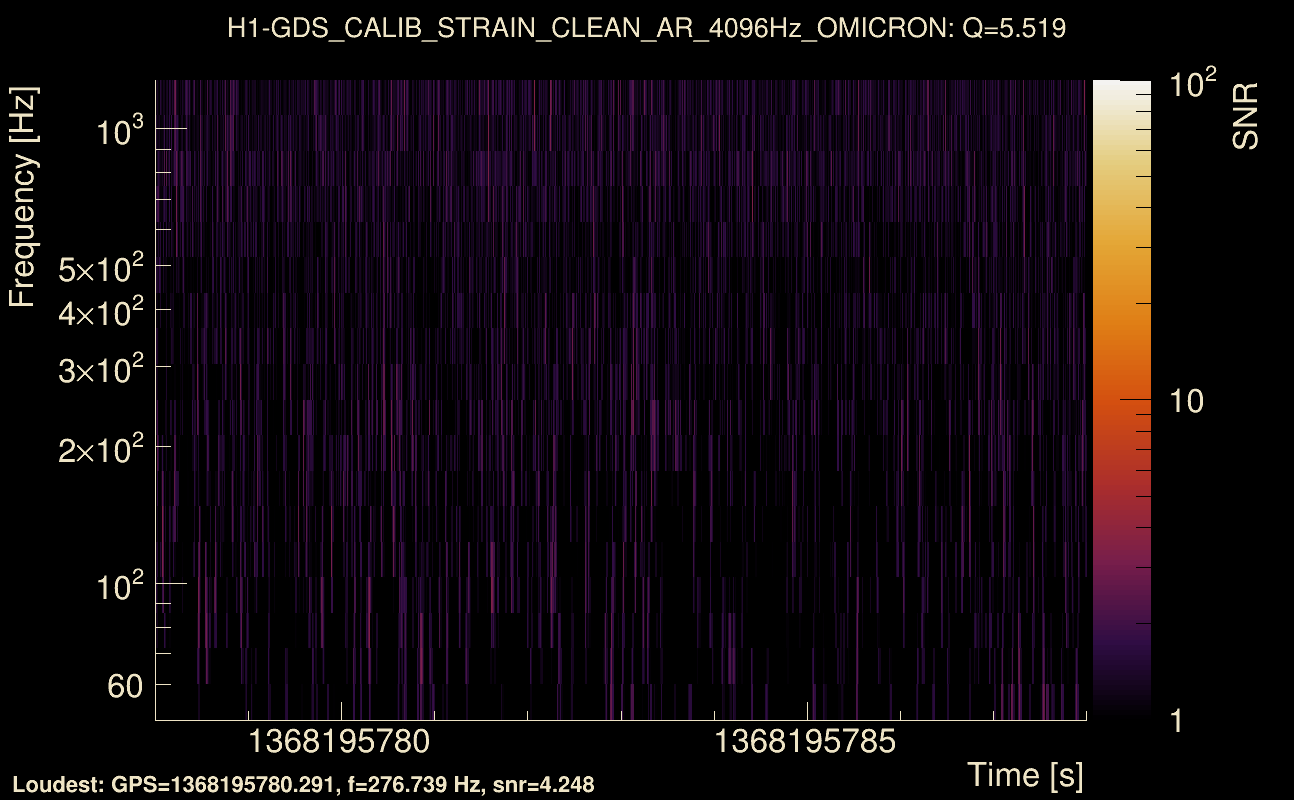

| Omicron analysis time window (H1): | GPS = 1368195780 → GPS = 1368195796 |
| Omicron analysis time window (L1): | GPS = 1368195780 → GPS = 1368195796 |
| Time delay between detectors t(L1) - t(H1): | 0.00344312 s (slice index = 108 / 217), δt_gw = 0.00344312 s |
| Time delay uncertainty: | 0.00625462 s |
| [targeted mode] Time delay probability: | 0.407154 (0.828913 sigmas), δt_target = 0.00862694 s |
| Frequency: | 611.765 Hz |
| Ξ: | 0.00161043 ± 0.0244689 (variance = 0.000598728): Q0: 0.0163463, Q1: 0.030718, Q2: 0.00232668, Q3: 0.0510952, Q4: 0.0710982 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.441591, variance = 0.389137 (L1/H1: -0.710213, variance = 0.746795, H1/L1: -1.50105, variance = 0.802406) |
| Amplitude ratio (L1/H1): | 1.55518 ⋇ 1.86602 (L1/H1: 0.491539 ⋇ 2.37304, H1/L1: 0.222897 ⋇ 2.44922) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0756367 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 34 / 36, Q2: 69 / 70, Q3: 128 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.94887, L1: 5.16005 |
| SNR variance: | H1: 0.527506, L1: 0.531509 |

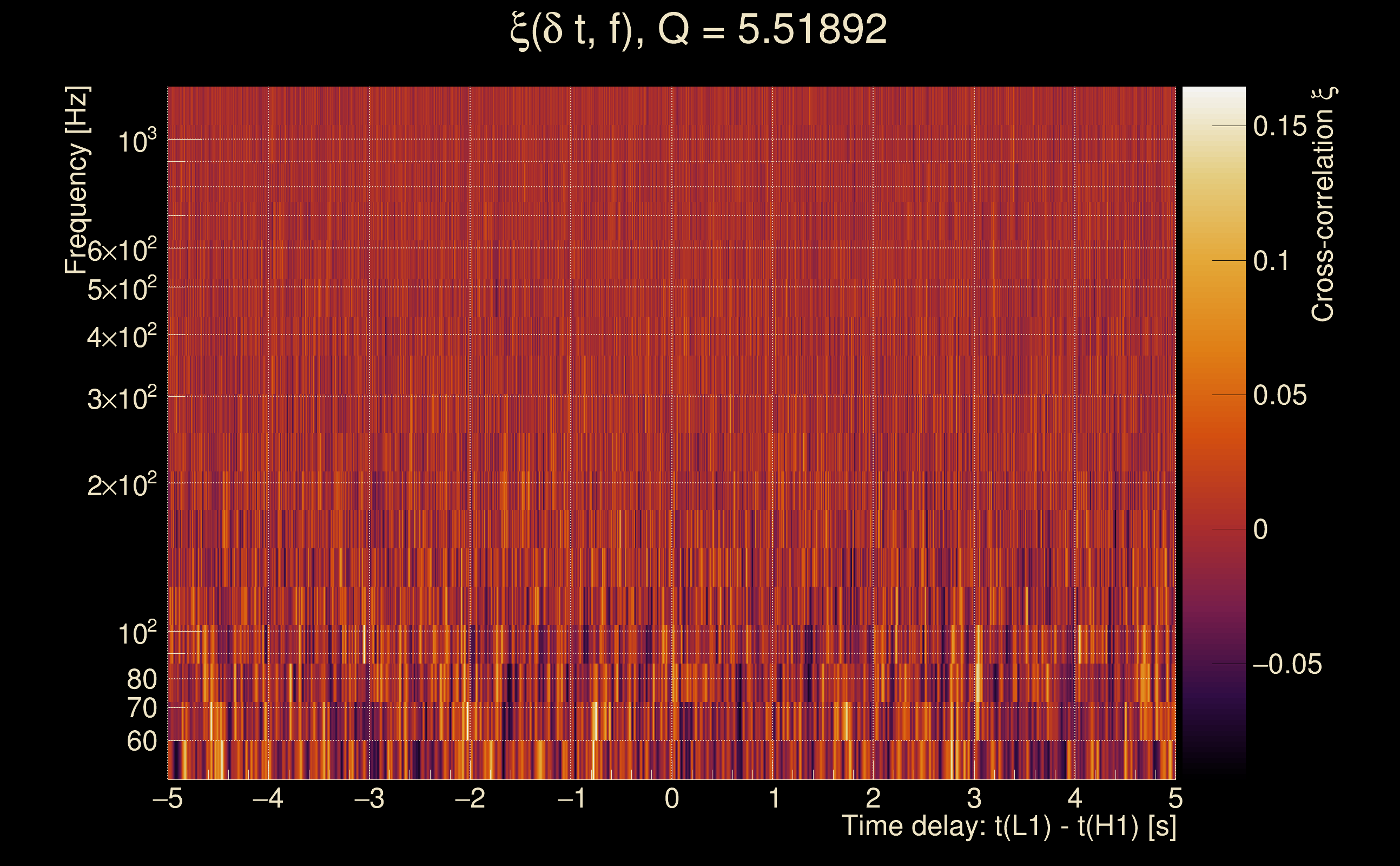

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

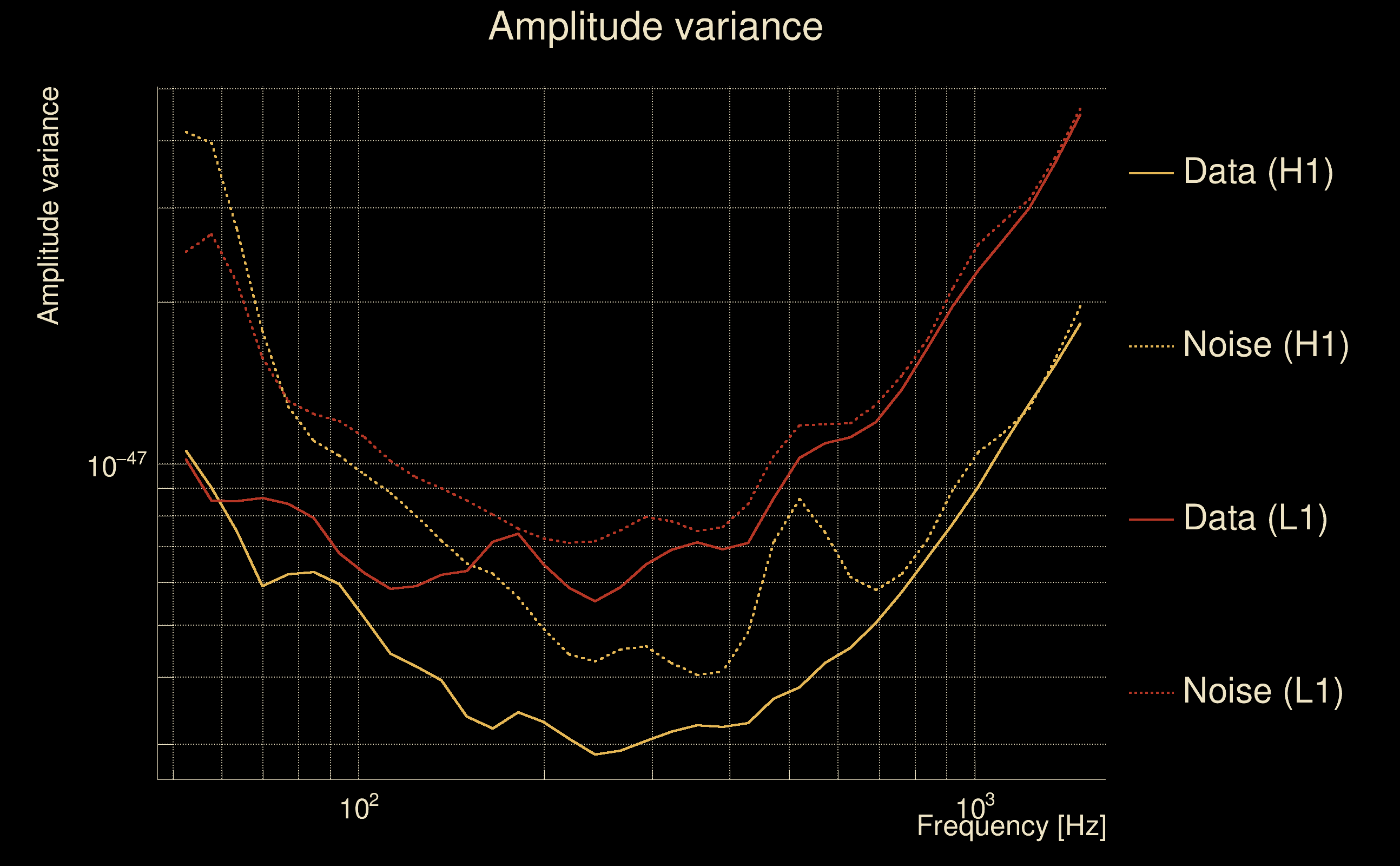

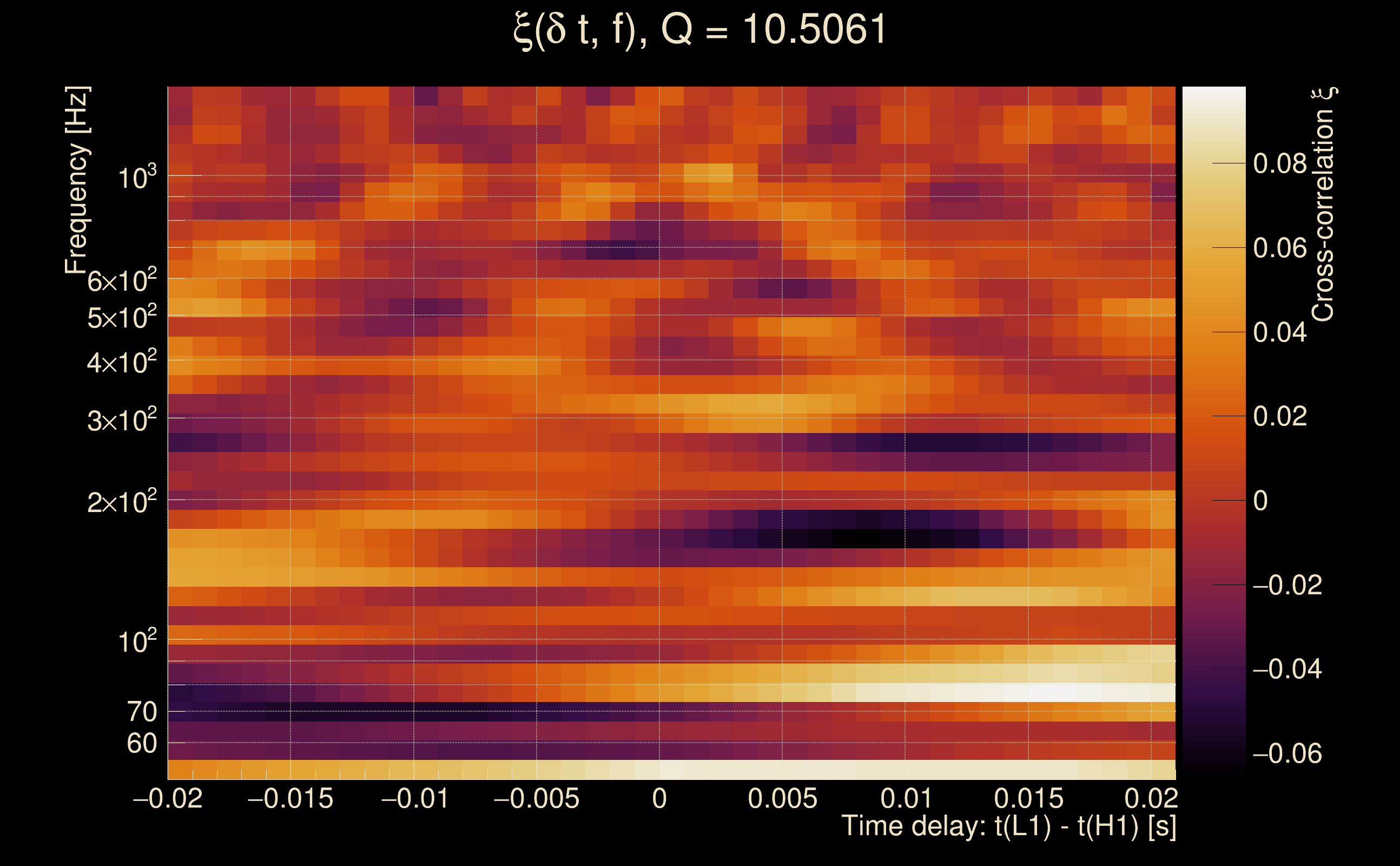

| Event time t(H1): | GPS = 1368195778 (Mon May 15 14:22:40 2023 ) → GPS = 1368195788 (Mon May 15 14:22:50 2023 ) |
| Event time t(L1): | GPS = 1368195778 (Mon May 15 14:22:50 2023 ) → GPS = 1368195788 (Mon May 15 14:22:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195775 → GPS = 1368195791 |
| Omicron analysis time window (L1): | GPS = 1368195775 → GPS = 1368195791 |
| Time delay between detectors t(L1) - t(H1): | -0.00255202 s (slice index = 108 / 217), δt_gw = -0.00255202 s |
| Time delay uncertainty: | 0.00694072 s |
| [targeted mode] Time delay probability: | 0.107222 (1.6108 sigmas), δt_target = 0.00862765 s |
| Frequency: | 255.879 Hz |
| Ξ: | 0.00274406 ± 0.0274184 (variance = 0.000751769): Q0: 0.0224701, Q1: 0.0429254, Q2: 0.0532629, Q3: 0.034298, Q4: 0.101947 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.14347, variance = 0.3926 (L1/H1: -0.883871, variance = 0.825912, H1/L1: -1.12058, variance = 0.747434) |
| Amplitude ratio (L1/H1): | 1.15427 ⋇ 1.8712 (L1/H1: 0.41318 ⋇ 2.48134, H1/L1: 0.32609 ⋇ 2.37392) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.110037 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 33 / 36, Q2: 67 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.06854, L1: 5.19719 |
| SNR variance: | H1: 0.544686, L1: 0.507531 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

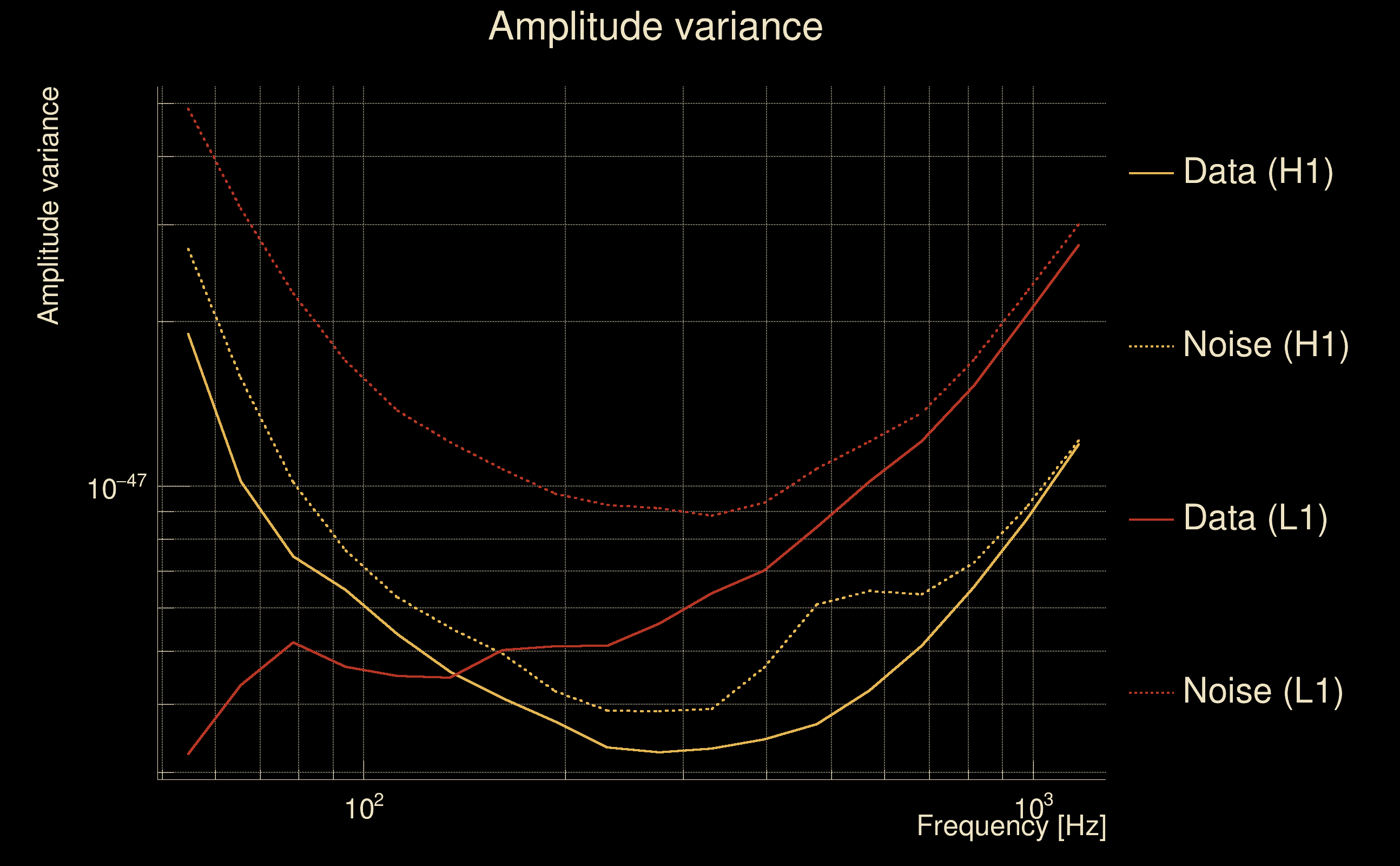

| Event time t(H1): | GPS = 1368195773 (Mon May 15 14:22:35 2023 ) → GPS = 1368195783 (Mon May 15 14:22:45 2023 ) |
| Event time t(L1): | GPS = 1368195773 (Mon May 15 14:22:45 2023 ) → GPS = 1368195783 (Mon May 15 14:22:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195770 → GPS = 1368195786 |
| Omicron analysis time window (L1): | GPS = 1368195770 → GPS = 1368195786 |
| Time delay between detectors t(L1) - t(H1): | 0.000931866 s (slice index = 108 / 217), δt_gw = 0.000931866 s |
| Time delay uncertainty: | 0.00528837 s |
| [targeted mode] Time delay probability: | 0.145543 (1.45546 sigmas), δt_target = 0.00862813 s |
| Frequency: | 514.722 Hz |
| Ξ: | 0.00292311 ± 0.052427 (variance = 0.00274859): Q0: 0.0226962, Q1: 0.046155, Q2: 0.0352913, Q3: 0.0640621, Q4: 0.168648 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.596385, variance = 0.934329 (L1/H1: -0.113059, variance = 0.990539, H1/L1: -1.2857, variance = 2.69689) |
| Amplitude ratio (L1/H1): | 1.81554 ⋇ 2.62901 (L1/H1: 0.893098 ⋇ 2.70542, H1/L1: 0.276458 ⋇ 5.16664) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.466359 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 32 / 36, Q2: 67 / 70, Q3: 121 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.12869, L1: 5.20305 |
| SNR variance: | H1: 0.53251, L1: 0.501095 |

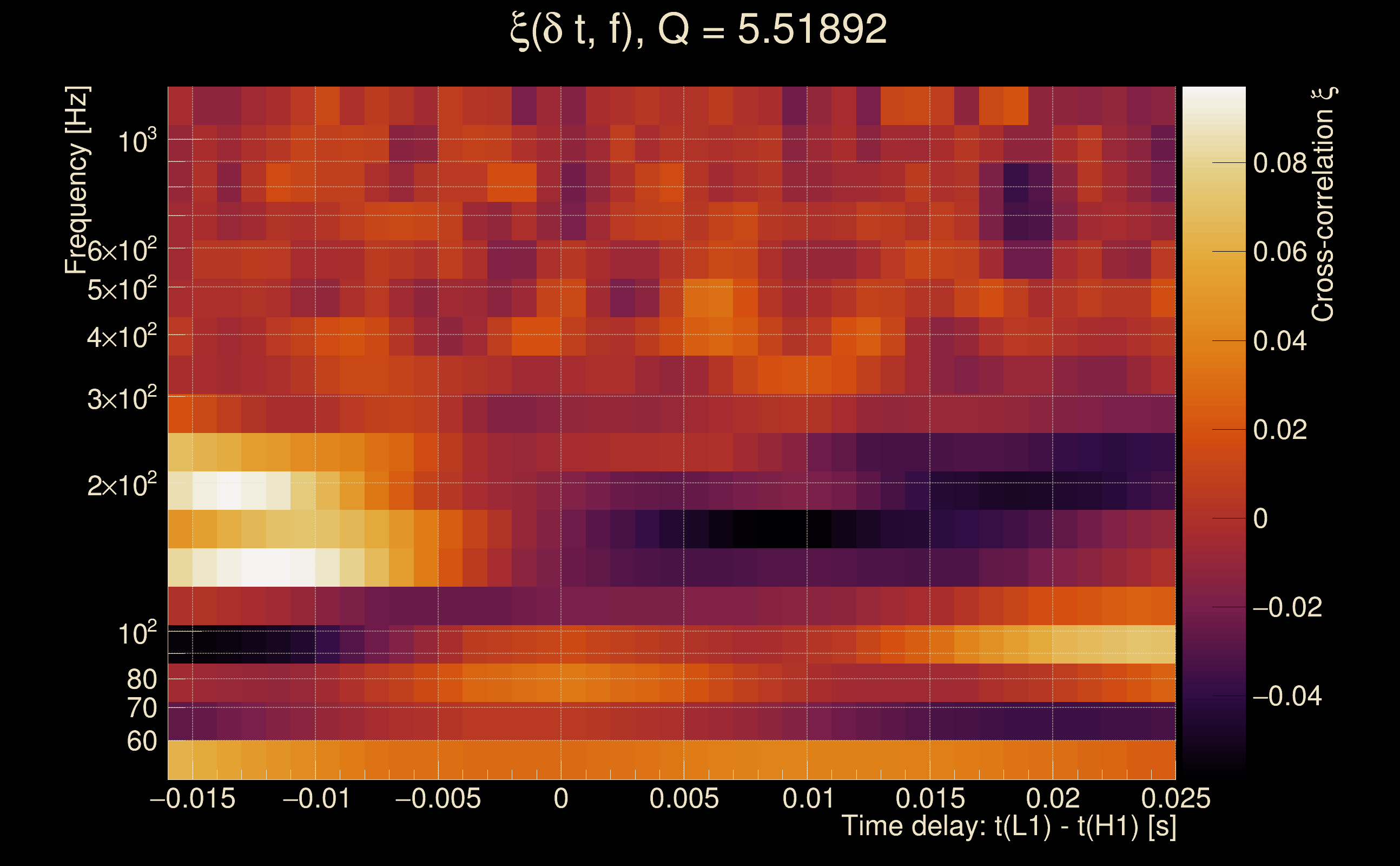

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

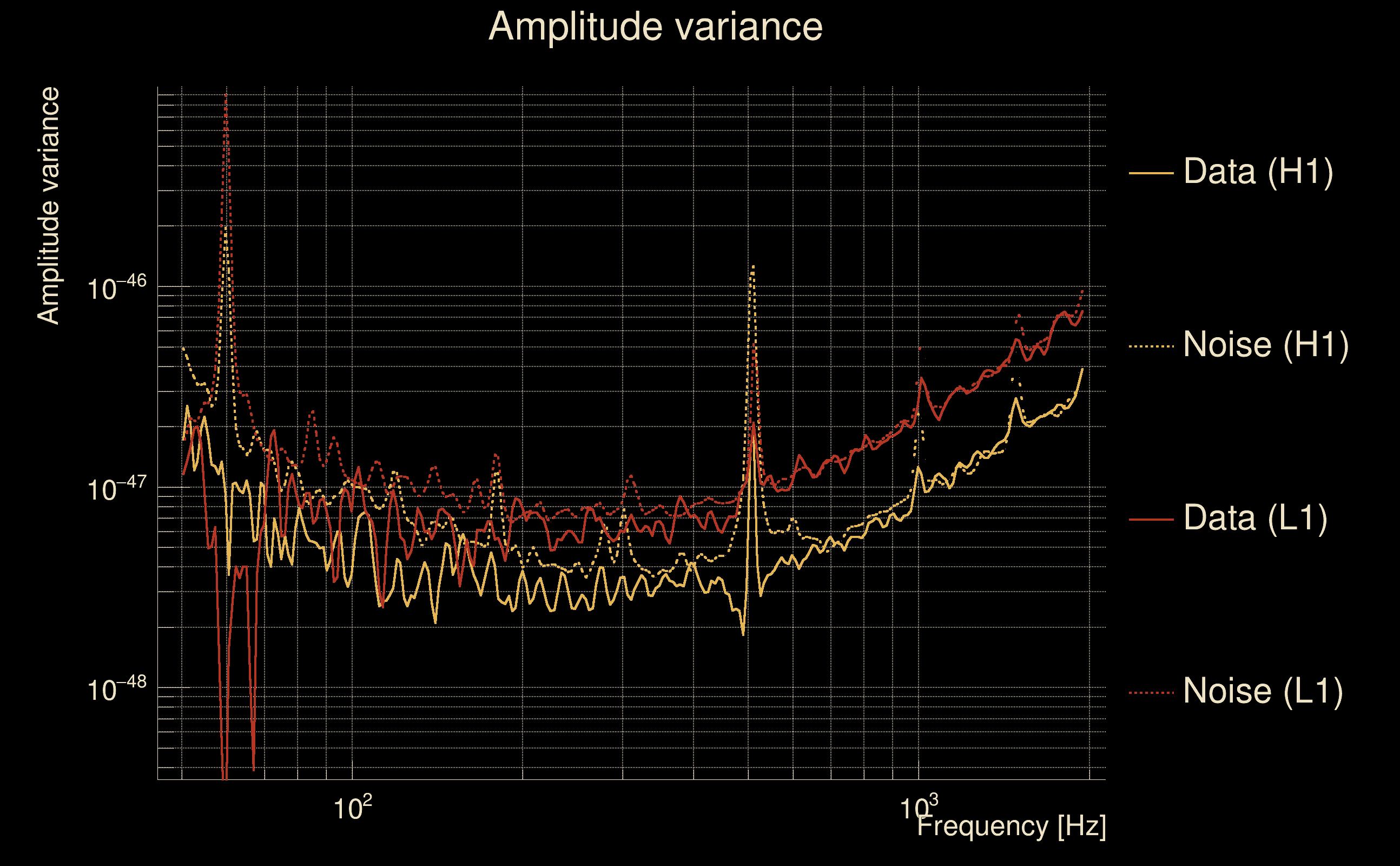

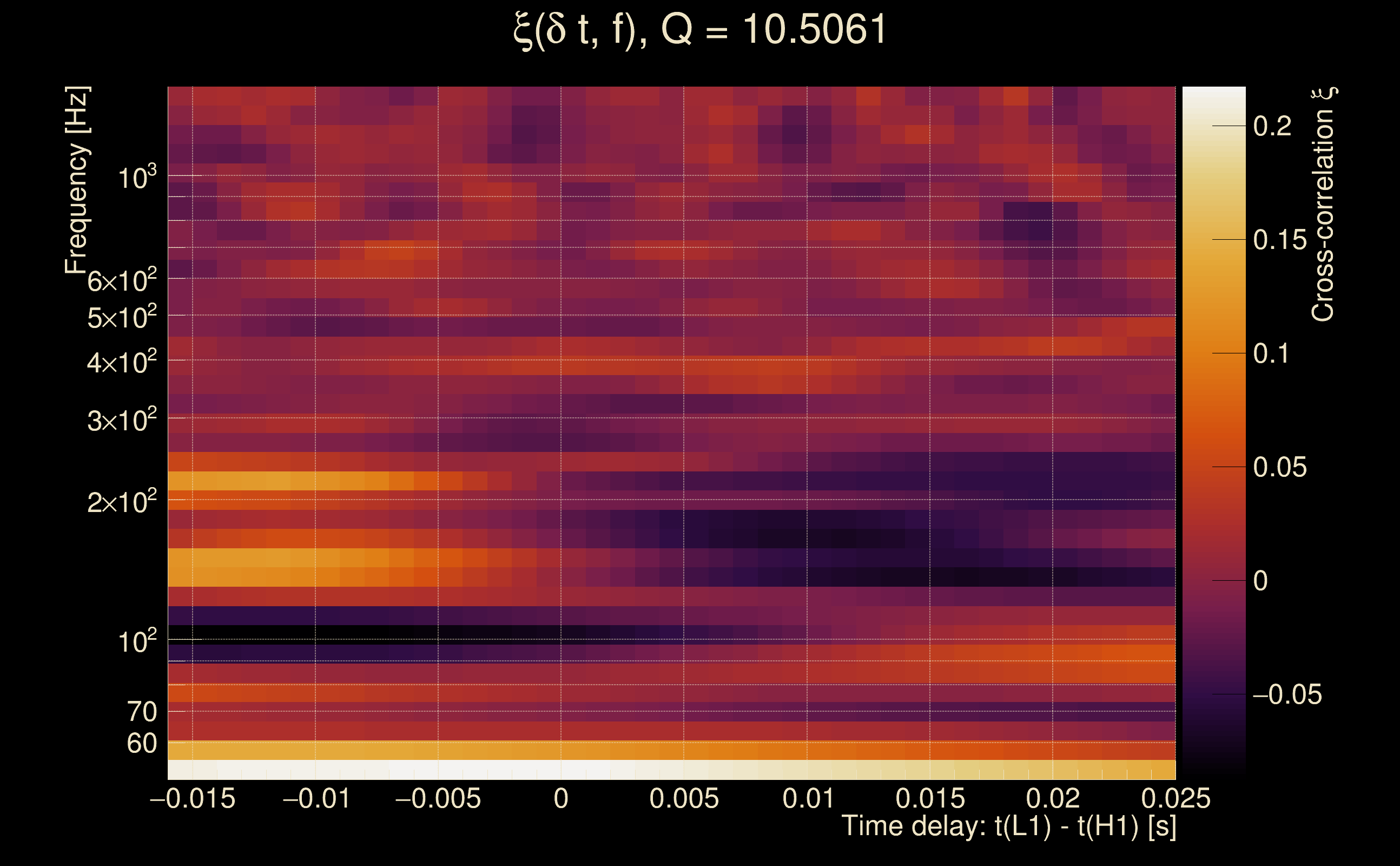

| Event time t(H1): | GPS = 1368195768 (Mon May 15 14:22:30 2023 ) → GPS = 1368195778 (Mon May 15 14:22:40 2023 ) |
| Event time t(L1): | GPS = 1368195768 (Mon May 15 14:22:40 2023 ) → GPS = 1368195778 (Mon May 15 14:22:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195765 → GPS = 1368195781 |
| Omicron analysis time window (L1): | GPS = 1368195765 → GPS = 1368195781 |
| Time delay between detectors t(L1) - t(H1): | 0.00418384 s (slice index = 108 / 217), δt_gw = 0.00418384 s |
| Time delay uncertainty: | 0.0065299 s |
| [targeted mode] Time delay probability: | 0.495959 (0.680862 sigmas), δt_target = 0.00862885 s |
| Frequency: | 516.003 Hz |
| Ξ: | 0.00179814 ± 0.0470793 (variance = 0.00221646): Q0: 0, Q1: 0.0583613, Q2: 0.0661362, Q3: 0.0467603, Q4: 0.145577 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.138494, variance = 0.723425 (L1/H1: -0.754505, variance = 1.30215, H1/L1: -1.11382, variance = 1.61332) |
| Amplitude ratio (L1/H1): | 1.14854 ⋇ 2.34092 (L1/H1: 0.470243 ⋇ 3.13026, H1/L1: 0.328302 ⋇ 3.56144) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.273865 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 66 / 70, Q3: 125 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.13701, L1: 4.91542 |
| SNR variance: | H1: 0.545427, L1: 0.52698 |

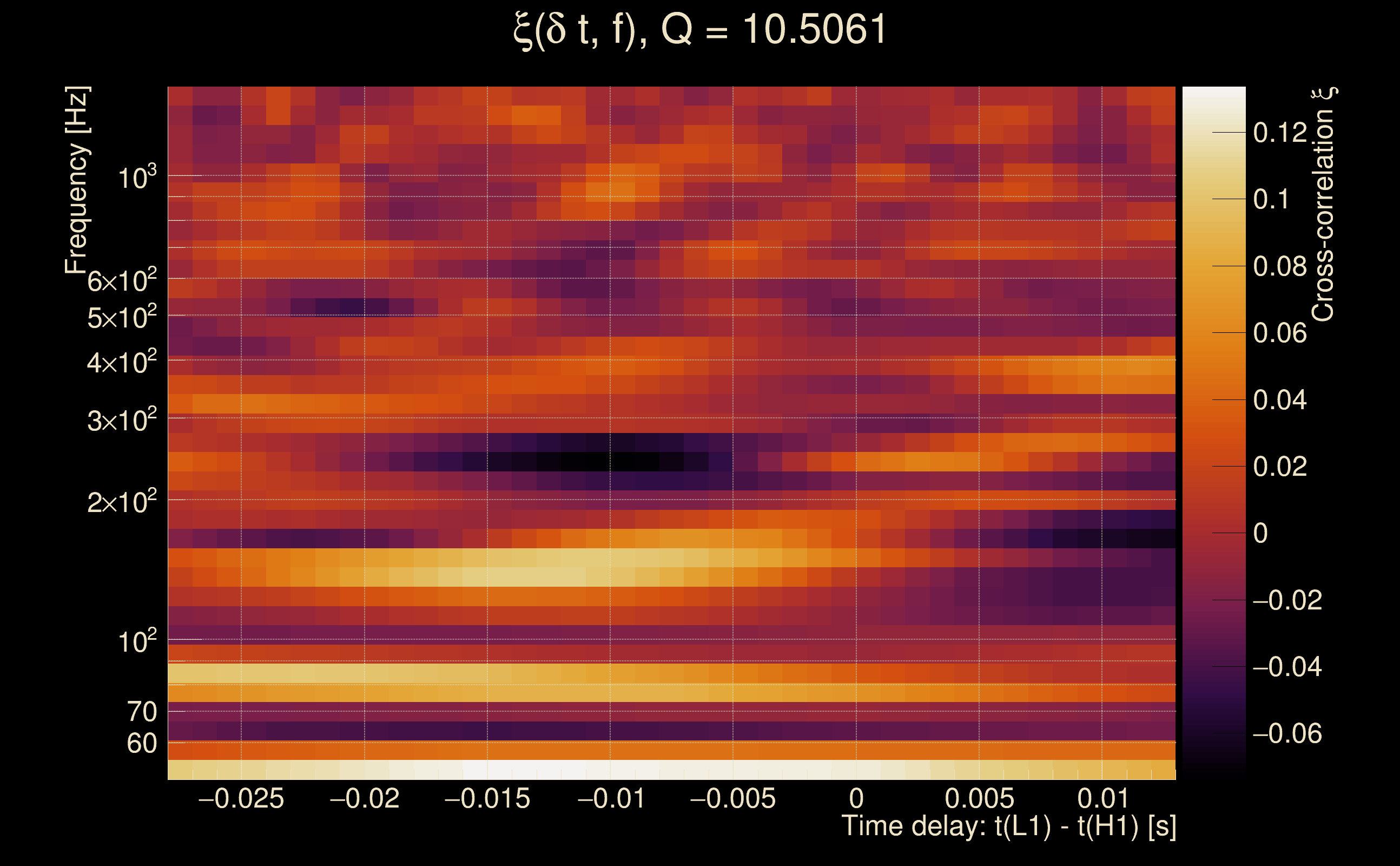

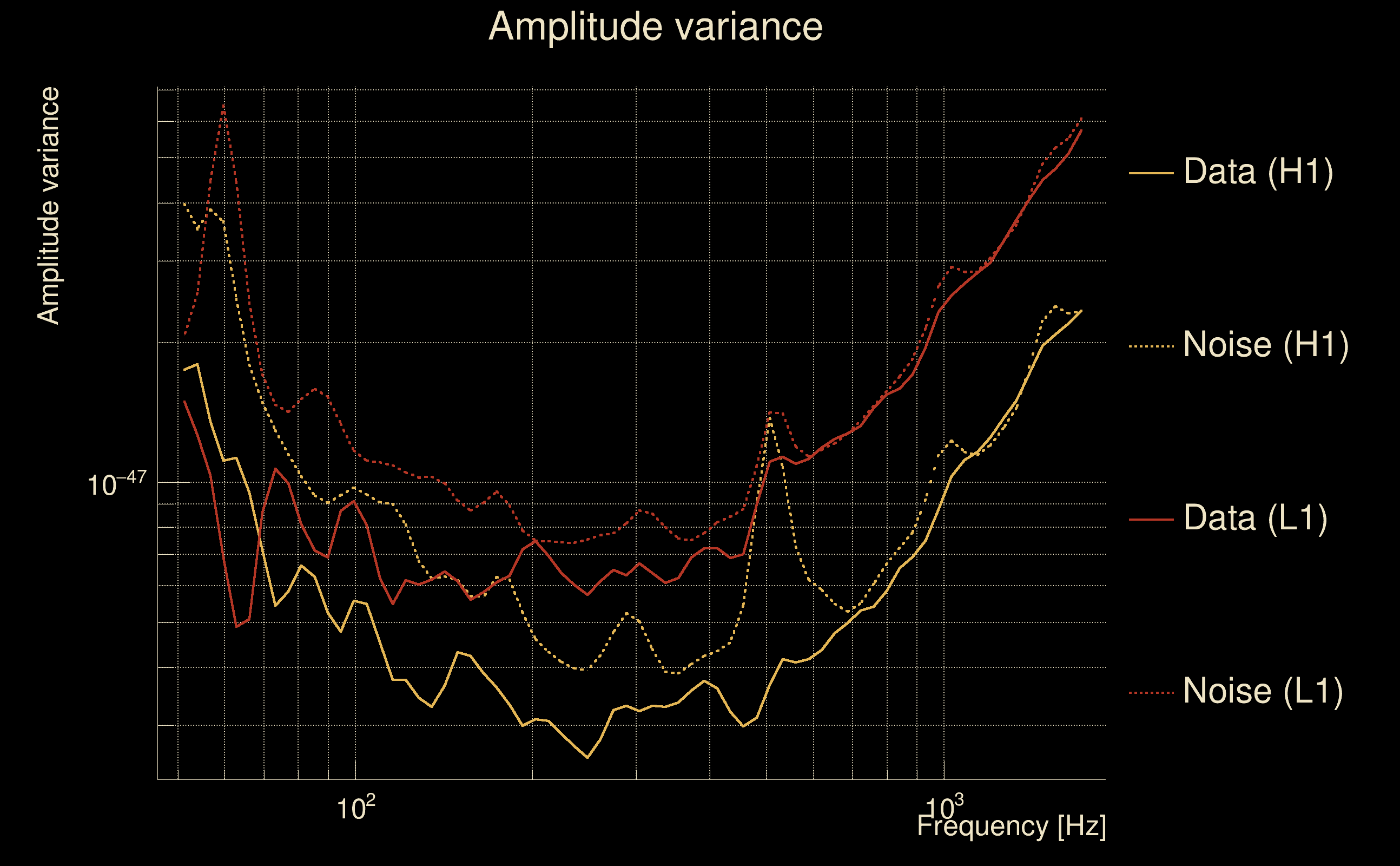

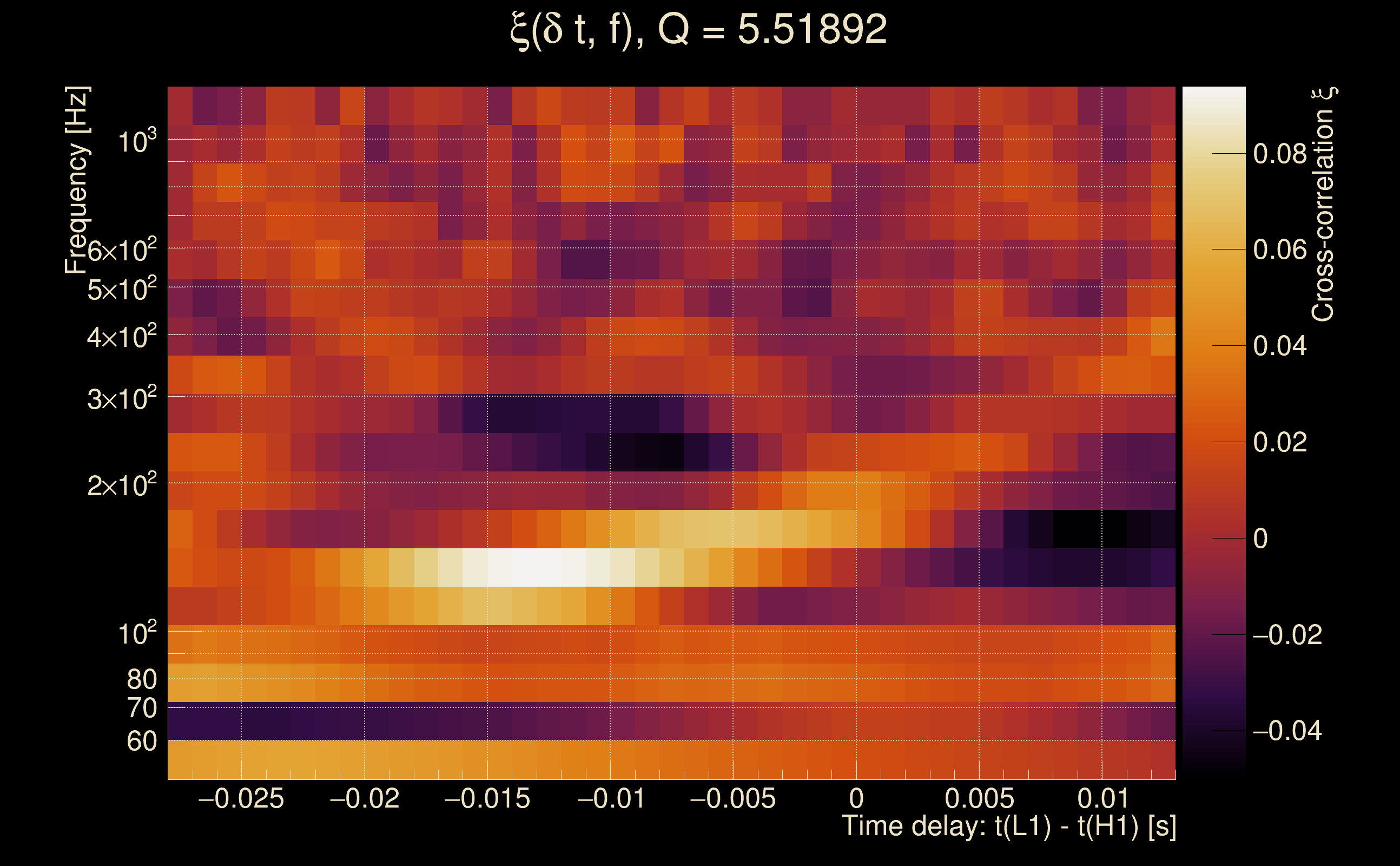

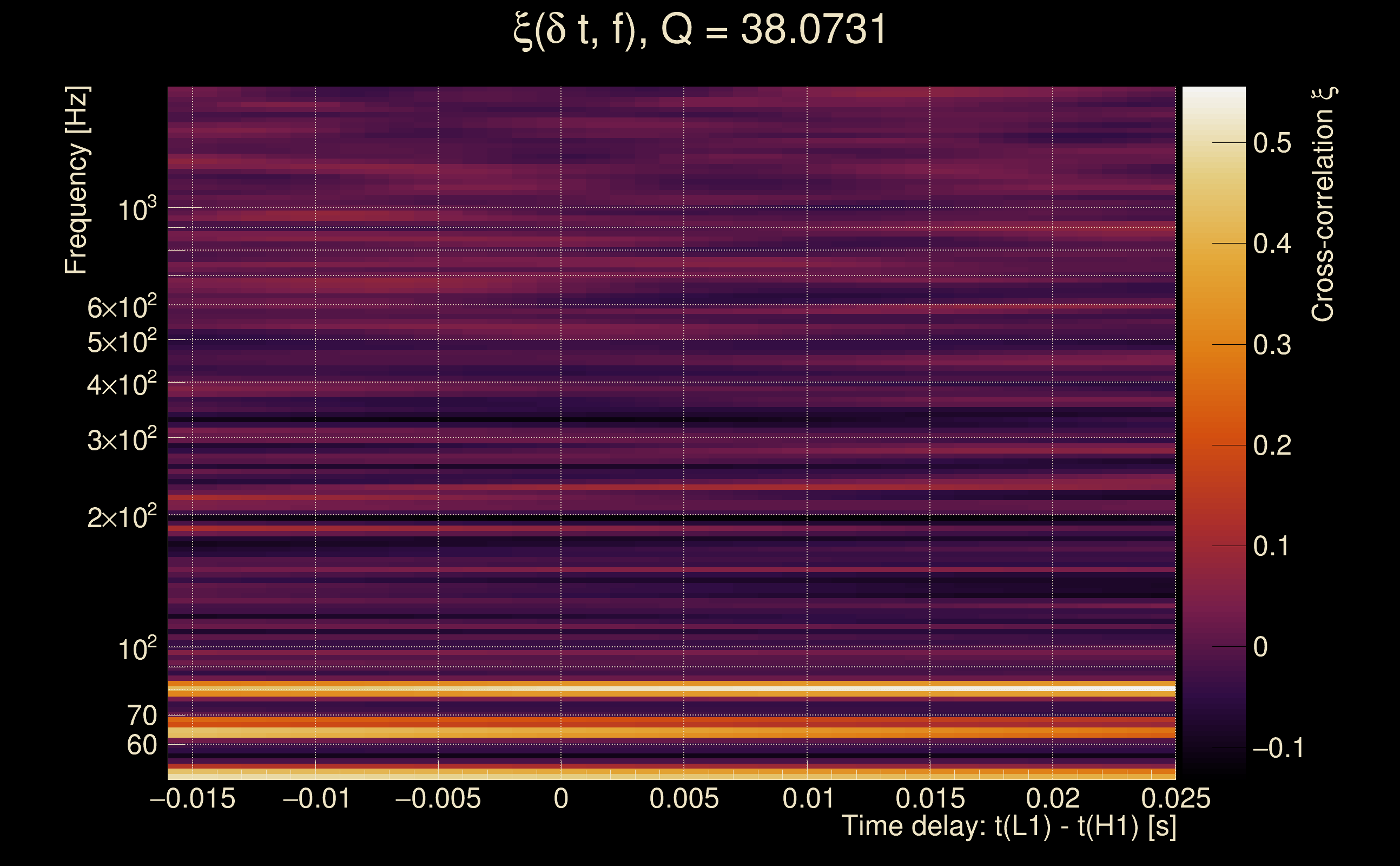

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

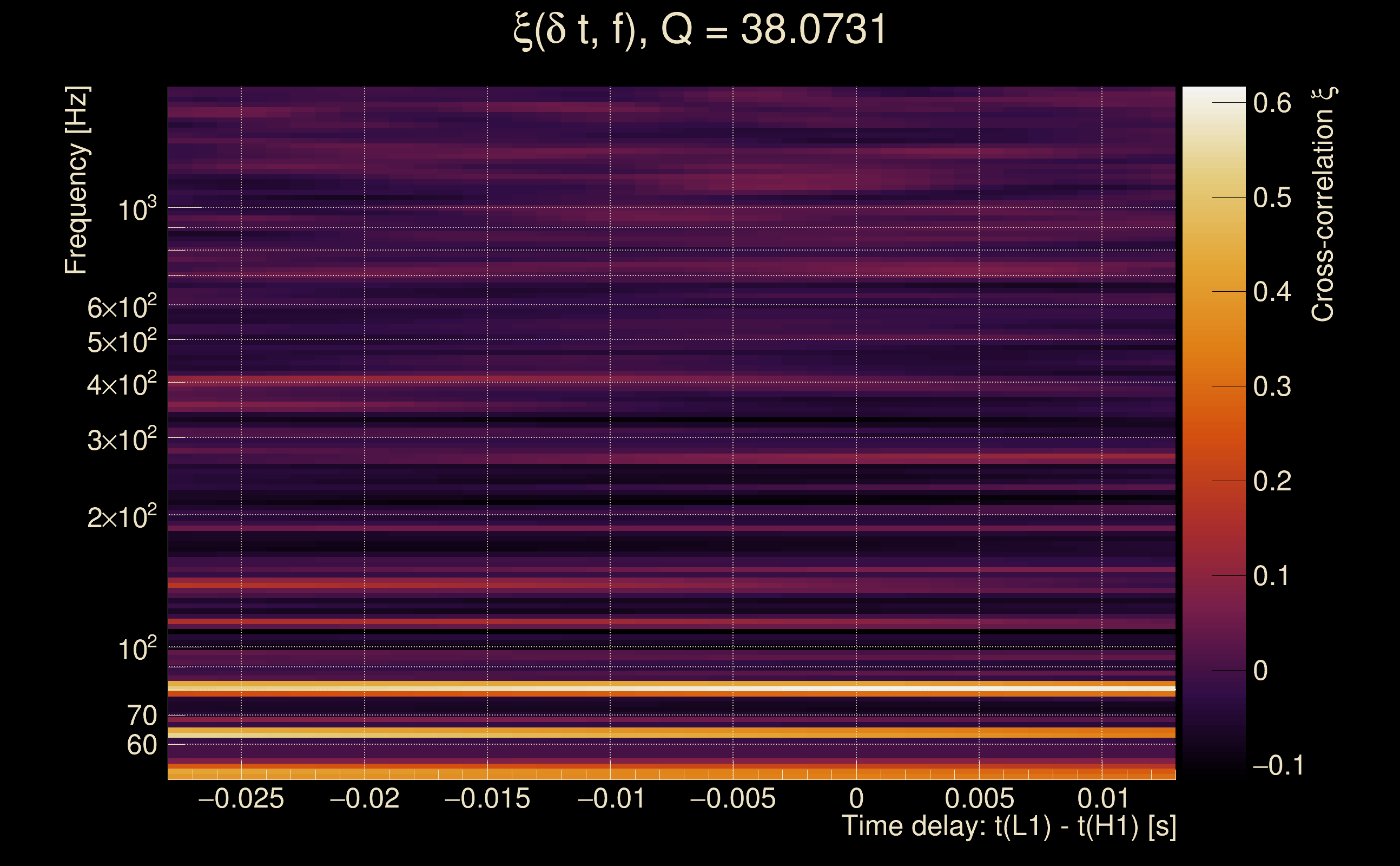

| Event time t(H1): | GPS = 1368195763 (Mon May 15 14:22:25 2023 ) → GPS = 1368195773 (Mon May 15 14:22:35 2023 ) |
| Event time t(L1): | GPS = 1368195763 (Mon May 15 14:22:35 2023 ) → GPS = 1368195773 (Mon May 15 14:22:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195760 → GPS = 1368195776 |
| Omicron analysis time window (L1): | GPS = 1368195760 → GPS = 1368195776 |
| Time delay between detectors t(L1) - t(H1): | 0.00423532 s (slice index = 108 / 217), δt_gw = 0.00423532 s |
| Time delay uncertainty: | 0.00652067 s |
| [targeted mode] Time delay probability: | 0.500309 (0.674003 sigmas), δt_target = 0.0086298 s |
| Frequency: | 250.04 Hz |
| Ξ: | 0.00395014 ± 0.130814 (variance = 0.0171124): Q0: 0.0195509, Q1: 0.0998355, Q2: 0, Q3: 0.0428238, Q4: 0.356695 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | -0.225939, variance = 0.975739 (L1/H1: -0.978157, variance = 2.21565, H1/L1: -0.726653, variance = 1.45859) |
| Amplitude ratio (L1/H1): | 0.797767 ⋇ 2.68531 (L1/H1: 0.376004 ⋇ 4.43047, H1/L1: 0.483524 ⋇ 3.34585) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.373793 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 33 / 36, Q2: 70 / 70, Q3: 128 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 6.16001, L1: 5.47394 |
| SNR variance: | H1: 0.538639, L1: 0.542573 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195758 (Mon May 15 14:22:20 2023 ) → GPS = 1368195768 (Mon May 15 14:22:30 2023 ) |
| Event time t(L1): | GPS = 1368195758 (Mon May 15 14:22:30 2023 ) → GPS = 1368195768 (Mon May 15 14:22:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195755 → GPS = 1368195771 |
| Omicron analysis time window (L1): | GPS = 1368195755 → GPS = 1368195771 |
| Time delay between detectors t(L1) - t(H1): | -0.00712078 s (slice index = 108 / 217), δt_gw = -0.00712078 s |
| Time delay uncertainty: | 0.00487316 s |
| [targeted mode] Time delay probability: | 0.00122775 (3.23235 sigmas), δt_target = 0.00863028 s |
| Frequency: | 382.656 Hz |
| Ξ: | 0.00845868 ± 0.00686303 (variance = 4.71012e-05): Q0: 0.0586614, Q1: 0.0449598, Q2: 0.0392374, Q3: 0.0448859, Q4: 0.040747 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.212308, variance = 0.620821 (L1/H1: -0.422835, variance = 1.22371, H1/L1: -0.999566, variance = 1.23358) |
| Amplitude ratio (L1/H1): | 1.23653 ⋇ 2.19882 (L1/H1: 0.655187 ⋇ 3.02289, H1/L1: 0.368039 ⋇ 3.03638) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.364201 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 32 / 36, Q2: 65 / 70, Q3: 129 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 6.13512, L1: 5.51062 |
| SNR variance: | H1: 0.555167, L1: 0.534791 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195753 (Mon May 15 14:22:15 2023 ) → GPS = 1368195763 (Mon May 15 14:22:25 2023 ) |
| Event time t(L1): | GPS = 1368195753 (Mon May 15 14:22:25 2023 ) → GPS = 1368195763 (Mon May 15 14:22:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195750 → GPS = 1368195766 |
| Omicron analysis time window (L1): | GPS = 1368195750 → GPS = 1368195766 |
| Time delay between detectors t(L1) - t(H1): | 0.00480487 s (slice index = 108 / 217), δt_gw = 0.00480487 s |
| Time delay uncertainty: | 0.00658221 s |
| [targeted mode] Time delay probability: | 0.561001 (0.581355 sigmas), δt_target = 0.00863099 s |
| Frequency: | 264.813 Hz |
| Ξ: | 0.00726298 ± 0.00748298 (variance = 5.5995e-05): Q0: 0.0414114, Q1: 0.0512985, Q2: 0.0436118, Q3: 0.056372, Q4: 0.035113 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.116182, variance = 0.688711 (L1/H1: -0.57298, variance = 1.20903, H1/L1: -1.05588, variance = 1.59948) |
| Amplitude ratio (L1/H1): | 1.1232 ⋇ 2.29306 (L1/H1: 0.563843 ⋇ 3.00284, H1/L1: 0.347887 ⋇ 3.54205) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.331074 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 31 / 36, Q2: 63 / 70, Q3: 128 / 134, Q4: 256 / 258 |
| Maximum signal-to-noise ratio: | H1: 6.17226, L1: 5.28581 |
| SNR variance: | H1: 0.553963, L1: 0.543081 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195748 (Mon May 15 14:22:10 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Event time t(L1): | GPS = 1368195748 (Mon May 15 14:22:20 2023 ) → GPS = 1368195758 (Mon May 15 14:22:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195745 → GPS = 1368195761 |
| Omicron analysis time window (L1): | GPS = 1368195745 → GPS = 1368195761 |
| Time delay between detectors t(L1) - t(H1): | 0.0035969 s (slice index = 108 / 217), δt_gw = 0.0035969 s |
| Time delay uncertainty: | 0.00972397 s |
| [targeted mode] Time delay probability: | 0.604582 (0.517822 sigmas), δt_target = 0.00863147 s |
| Frequency: | 189.621 Hz |
| Ξ: | 0.00756987 ± 0.0807359 (variance = 0.00651829): Q0: 0.0382577, Q1: 0.0466279, Q2: 0.0164515, Q3: 0.238539, Q4: 0.0562209 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.00934868, variance = 0.504303 (L1/H1: -0.764904, variance = 0.915015, H1/L1: -0.962271, variance = 1.12352) |
| Amplitude ratio (L1/H1): | 1.00939 ⋇ 2.03428 (L1/H1: 0.465379 ⋇ 2.60274, H1/L1: 0.382024 ⋇ 2.88626) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.226394 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 33 / 36, Q2: 66 / 70, Q3: 126 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.38717, L1: 4.85594 |
| SNR variance: | H1: 0.524623, L1: 0.543932 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195743 (Mon May 15 14:22:05 2023 ) → GPS = 1368195753 (Mon May 15 14:22:15 2023 ) |
| Event time t(L1): | GPS = 1368195743 (Mon May 15 14:22:15 2023 ) → GPS = 1368195753 (Mon May 15 14:22:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195740 → GPS = 1368195756 |
| Omicron analysis time window (L1): | GPS = 1368195740 → GPS = 1368195756 |
| Time delay between detectors t(L1) - t(H1): | -0.0048248 s (slice index = 108 / 217), δt_gw = -0.0048248 s |
| Time delay uncertainty: | 0.00579328 s |
| [targeted mode] Time delay probability: | 0.0201823 (2.32294 sigmas), δt_target = 0.00863218 s |
| Frequency: | 594.998 Hz |
| Ξ: | 0.000857852 ± 0.0238947 (variance = 0.000570959): Q0: 0, Q1: 0.0182228, Q2: 0.0351624, Q3: 0.0394378, Q4: 0.0717472 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.296599, variance = 0.354045 (L1/H1: -0.680418, variance = 0.710614, H1/L1: -1.46405, variance = 0.691034) |
| Amplitude ratio (L1/H1): | 1.34528 ⋇ 1.81306 (L1/H1: 0.506405 ⋇ 2.32328, H1/L1: 0.231297 ⋇ 2.29627) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0700877 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 34 / 36, Q2: 65 / 70, Q3: 125 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.16817, L1: 4.72789 |
| SNR variance: | H1: 0.540194, L1: 0.53159 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195738 (Mon May 15 14:22:00 2023 ) → GPS = 1368195748 (Mon May 15 14:22:10 2023 ) |
| Event time t(L1): | GPS = 1368195738 (Mon May 15 14:22:10 2023 ) → GPS = 1368195748 (Mon May 15 14:22:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195735 → GPS = 1368195751 |
| Omicron analysis time window (L1): | GPS = 1368195735 → GPS = 1368195751 |
| Time delay between detectors t(L1) - t(H1): | 0.000376149 s (slice index = 108 / 217), δt_gw = 0.000376149 s |
| Time delay uncertainty: | 0.00730232 s |
| [targeted mode] Time delay probability: | 0.258153 (1.13077 sigmas), δt_target = 0.00863266 s |
| Frequency: | 341.633 Hz |
| Ξ: | 0.00751934 ± 0.0133615 (variance = 0.000178531): Q0: 0.0283915, Q1: 0.0579923, Q2: 0.0506687, Q3: 0.0538054, Q4: 0.0691567 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.53882, variance = 0.475803 (L1/H1: -0.785694, variance = 0.755382, H1/L1: -1.81763, variance = 1.13395) |
| Amplitude ratio (L1/H1): | 1.71398 ⋇ 1.99329 (L1/H1: 0.455803 ⋇ 2.38483, H1/L1: 0.16241 ⋇ 2.90047) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0582287 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 30 / 36, Q2: 64 / 70, Q3: 123 / 134, Q4: 241 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.53299, L1: 5.63099 |
| SNR variance: | H1: 0.541749, L1: 0.519668 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195733 (Mon May 15 14:21:55 2023 ) → GPS = 1368195743 (Mon May 15 14:22:05 2023 ) |
| Event time t(L1): | GPS = 1368195733 (Mon May 15 14:22:05 2023 ) → GPS = 1368195743 (Mon May 15 14:22:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195730 → GPS = 1368195746 |
| Omicron analysis time window (L1): | GPS = 1368195730 → GPS = 1368195746 |
| Time delay between detectors t(L1) - t(H1): | 0.0013184 s (slice index = 108 / 217), δt_gw = 0.0013184 s |
| Time delay uncertainty: | 0.00467258 s |
| [targeted mode] Time delay probability: | 0.117439 (1.56561 sigmas), δt_target = 0.00863338 s |
| Frequency: | 219.102 Hz |
| Ξ: | 0.0128662 ± 0.0225165 (variance = 0.000506991): Q0: 0.0538311, Q1: 0.0637832, Q2: 0.0612618, Q3: 0.0602909, Q4: 0.115482 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.189534, variance = 0.44781 (L1/H1: -0.492764, variance = 0.911417, H1/L1: -0.870383, variance = 0.879887) |
| Amplitude ratio (L1/H1): | 1.20869 ⋇ 1.95265 (L1/H1: 0.610936 ⋇ 2.59784, H1/L1: 0.418791 ⋇ 2.55492) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.308444 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 31 / 36, Q2: 63 / 70, Q3: 121 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.94824, L1: 5.95456 |
| SNR variance: | H1: 0.534195, L1: 0.605764 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195728 (Mon May 15 14:21:50 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Event time t(L1): | GPS = 1368195728 (Mon May 15 14:22:00 2023 ) → GPS = 1368195738 (Mon May 15 14:22:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195725 → GPS = 1368195741 |
| Omicron analysis time window (L1): | GPS = 1368195725 → GPS = 1368195741 |
| Time delay between detectors t(L1) - t(H1): | 0.00456908 s (slice index = 108 / 217), δt_gw = 0.00456908 s |
| Time delay uncertainty: | 0.00491843 s |
| [targeted mode] Time delay probability: | 0.408474 (0.826581 sigmas), δt_target = 0.00863385 s |
| Frequency: | 140.952 Hz |
| Ξ: | 0.0173371 ± 0.0407276 (variance = 0.00165874): Q0: 0.150345, Q1: 0.145713, Q2: 0.0677794, Q3: 0.0579613, Q4: 0.1405 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 1.0556, variance = 0.664106 (L1/H1: -0.308911, variance = 0.978876, H1/L1: -1.11136, variance = 0.71785) |
| Amplitude ratio (L1/H1): | 2.87371 ⋇ 2.25901 (L1/H1: 0.734246 ⋇ 2.68957, H1/L1: 0.329112 ⋇ 2.33325) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.275561 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 33 / 36, Q2: 61 / 70, Q3: 129 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.18956, L1: 25.6736 |
| SNR variance: | H1: 0.535979, L1: 0.610018 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195723 (Mon May 15 14:21:45 2023 ) → GPS = 1368195733 (Mon May 15 14:21:55 2023 ) |
| Event time t(L1): | GPS = 1368195723 (Mon May 15 14:21:55 2023 ) → GPS = 1368195733 (Mon May 15 14:21:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195720 → GPS = 1368195736 |
| Omicron analysis time window (L1): | GPS = 1368195720 → GPS = 1368195736 |
| Time delay between detectors t(L1) - t(H1): | 0.00410409 s (slice index = 108 / 217), δt_gw = 0.00410409 s |
| Time delay uncertainty: | 0.00541044 s |
| [targeted mode] Time delay probability: | 0.402341 (0.837447 sigmas), δt_target = 0.00863457 s |
| Frequency: | 161.101 Hz |
| Ξ: | 0.0263877 ± 0.0340718 (variance = 0.00116088): Q0: 0.114623, Q1: 0.117938, Q2: 0.0657103, Q3: 0.0395686, Q4: 0.126398 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 1.67715, variance = 0.821145 (L1/H1: -0.718739, variance = 1.13127, H1/L1: -1.77342, variance = 0.886629) |
| Amplitude ratio (L1/H1): | 5.3503 ⋇ 2.47483 (L1/H1: 0.487366 ⋇ 2.89681, H1/L1: 0.169752 ⋇ 2.56411) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0793642 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 29 / 36, Q2: 64 / 70, Q3: 125 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.18797, L1: 25.8822 |
| SNR variance: | H1: 0.514472, L1: 0.509824 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195718 (Mon May 15 14:21:40 2023 ) → GPS = 1368195728 (Mon May 15 14:21:50 2023 ) |
| Event time t(L1): | GPS = 1368195718 (Mon May 15 14:21:50 2023 ) → GPS = 1368195728 (Mon May 15 14:21:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195715 → GPS = 1368195731 |
| Omicron analysis time window (L1): | GPS = 1368195715 → GPS = 1368195731 |
| Time delay between detectors t(L1) - t(H1): | -0.00350267 s (slice index = 108 / 217), δt_gw = -0.00350267 s |
| Time delay uncertainty: | 0.00620926 s |
| [targeted mode] Time delay probability: | 0.0505959 (1.95489 sigmas), δt_target = 0.00863504 s |
| Frequency: | 462.156 Hz |
| Ξ: | 0.00202801 ± 0.0136072 (variance = 0.000185157): Q0: 0.0279604, Q1: 0.0241752, Q2: 0.0486198, Q3: 0.058906, Q4: 0.0510226 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | -0.132598, variance = 0.574488 (L1/H1: -1.3881, variance = 1.05829, H1/L1: -1.23559, variance = 1.25204) |
| Amplitude ratio (L1/H1): | 0.875817 ⋇ 2.1339 (L1/H1: 0.249548 ⋇ 2.79752, H1/L1: 0.290662 ⋇ 3.06162) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0843219 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 33 / 36, Q2: 65 / 70, Q3: 127 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.29046, L1: 5.06791 |
| SNR variance: | H1: 0.515474, L1: 0.518322 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195713 (Mon May 15 14:21:35 2023 ) → GPS = 1368195723 (Mon May 15 14:21:45 2023 ) |
| Event time t(L1): | GPS = 1368195713 (Mon May 15 14:21:45 2023 ) → GPS = 1368195723 (Mon May 15 14:21:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195710 → GPS = 1368195726 |
| Omicron analysis time window (L1): | GPS = 1368195710 → GPS = 1368195726 |
| Time delay between detectors t(L1) - t(H1): | 0.000201487 s (slice index = 108 / 217), δt_gw = 0.000201487 s |
| Time delay uncertainty: | 0.00658747 s |
| [targeted mode] Time delay probability: | 0.200397 (1.28042 sigmas), δt_target = 0.00863576 s |
| Frequency: | 252.947 Hz |
| Ξ: | 0.00714789 ± 0.019329 (variance = 0.00037361): Q0: 0.0286224, Q1: 0.0642924, Q2: 0.0871178, Q3: 0.0554852, Q4: 0.0708345 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.459524, variance = 0.415557 (L1/H1: -0.513737, variance = 1.05285, H1/L1: -1.45767, variance = 0.597624) |
| Amplitude ratio (L1/H1): | 1.58332 ⋇ 1.9053 (L1/H1: 0.598256 ⋇ 2.79012, H1/L1: 0.232778 ⋇ 2.16639) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.124902 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 30 / 36, Q2: 61 / 70, Q3: 121 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.87575, L1: 4.81459 |
| SNR variance: | H1: 0.527766, L1: 0.528598 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195708 (Mon May 15 14:21:30 2023 ) → GPS = 1368195718 (Mon May 15 14:21:40 2023 ) |
| Event time t(L1): | GPS = 1368195708 (Mon May 15 14:21:40 2023 ) → GPS = 1368195718 (Mon May 15 14:21:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195705 → GPS = 1368195721 |
| Omicron analysis time window (L1): | GPS = 1368195705 → GPS = 1368195721 |
| Time delay between detectors t(L1) - t(H1): | -0.00174185 s (slice index = 108 / 217), δt_gw = -0.00174185 s |
| Time delay uncertainty: | 0.00744761 s |
| [targeted mode] Time delay probability: | 0.163446 (1.39357 sigmas), δt_target = 0.00863624 s |
| Frequency: | 420.016 Hz |
| Ξ: | 0.00674269 ± 0.0344927 (variance = 0.00118975): Q0: 0.0291807, Q1: 0.0581754, Q2: 0.0394564, Q3: 0.0438738, Q4: 0.125697 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.619702, variance = 0.371739 (L1/H1: 0.13646, variance = 0.786245, H1/L1: -1.1047, variance = 0.700395) |
| Amplitude ratio (L1/H1): | 1.85837 ⋇ 1.83989 (L1/H1: 1.14621 ⋇ 2.42712, H1/L1: 0.331311 ⋇ 2.30919) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.427133 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 32 / 36, Q2: 63 / 70, Q3: 125 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.82686, L1: 4.81812 |
| SNR variance: | H1: 0.529452, L1: 0.510686 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.60223 s (slice index = 208 / 217), δt_gw = -0.00223299 s |
| Time delay uncertainty: | 0.00362841 s |
| [targeted mode] Time delay probability: | 0.00276643 (2.99257 sigmas), δt_target = 0.00863695 s |
| Frequency: | 464.022 Hz |
| Ξ: | 0.00332254 ± 0.0106494 (variance = 0.00011341): Q0: 0.040044, Q1: 0.0295951, Q2: 0.0318401, Q3: 0.0516379, Q4: 0.056603 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.458491, variance = 0.717429 (L1/H1: -0.973789, variance = 1.36464, H1/L1: -2.07733, variance = 1.51239) |
| Amplitude ratio (L1/H1): | 1.58169 ⋇ 2.33267 (L1/H1: 0.377649 ⋇ 3.21613, H1/L1: 0.125265 ⋇ 3.42051) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0720479 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 33 / 36, Q2: 66 / 70, Q3: 129 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Event time t(H1): | GPS = 1368195798 (Mon May 15 14:23:00 2023 ) → GPS = 1368195808 (Mon May 15 14:23:10 2023 ) |
| Event time t(L1): | GPS = 1368195798 (Mon May 15 14:23:10 2023 ) → GPS = 1368195808 (Mon May 15 14:23:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195795 → GPS = 1368195811 |
| Omicron analysis time window (L1): | GPS = 1368195795 → GPS = 1368195811 |
| Time delay between detectors t(L1) - t(H1): | -4.60138 s (slice index = 208 / 217), δt_gw = -0.00138431 s |
| Time delay uncertainty: | 0.0066532 s |
| [targeted mode] Time delay probability: | 0.13244 (1.50455 sigmas), δt_target = 0.00863695 s |
| Frequency: | 320.239 Hz |
| Ξ: | 0.0107868 ± 0.0325894 (variance = 0.00106207): Q0: 0.0364411, Q1: 0.0487631, Q2: 0.0722536, Q3: 0.0535257, Q4: 0.128965 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.304796, variance = 0.501957 (L1/H1: -0.25985, variance = 1.16662, H1/L1: -0.914003, variance = 0.811384) |
| Amplitude ratio (L1/H1): | 1.35635 ⋇ 2.03092 (L1/H1: 0.771167 ⋇ 2.94498, H1/L1: 0.400916 ⋇ 2.46149) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.40392 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 28 / 36, Q2: 59 / 70, Q3: 128 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.57763, L1: 5.36977 |
| SNR variance: | H1: 0.505123, L1: 0.530136 |
| Event time t(H1): | GPS = 1368195793 (Mon May 15 14:22:55 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Event time t(L1): | GPS = 1368195793 (Mon May 15 14:23:05 2023 ) → GPS = 1368195803 (Mon May 15 14:23:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195790 → GPS = 1368195806 |
| Omicron analysis time window (L1): | GPS = 1368195790 → GPS = 1368195806 |
| Time delay between detectors t(L1) - t(H1): | -4.603 s (slice index = 208 / 217), δt_gw = -0.00300495 s |
| Time delay uncertainty: | 0.0102775 s |
| [targeted mode] Time delay probability: | 0.257747 (1.13173 sigmas), δt_target = 0.00863695 s |
| Frequency: | 969.696 Hz |
| Ξ: | 0.000404711 ± 0.0160212 (variance = 0.00025668): Q0: 0, Q1: 0.018548, Q2: 0.0320085, Q3: 0.0260539, Q4: 0.0488028 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.213159, variance = 0.452829 (L1/H1: -1.53867, variance = 0.639146, H1/L1: -2.09533, variance = 1.2108) |
| Amplitude ratio (L1/H1): | 1.23758 ⋇ 1.95996 (L1/H1: 0.214666 ⋇ 2.22435, H1/L1: 0.12303 ⋇ 3.00525) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00754436 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 67 / 70, Q3: 129 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.60287, L1: 5.40539 |
| SNR variance: | H1: 0.51279, L1: 0.512433 |
| Event time t(H1): | GPS = 1368195788 (Mon May 15 14:22:50 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Event time t(L1): | GPS = 1368195788 (Mon May 15 14:23:00 2023 ) → GPS = 1368195798 (Mon May 15 14:23:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195785 → GPS = 1368195801 |
| Omicron analysis time window (L1): | GPS = 1368195785 → GPS = 1368195801 |
| Time delay between detectors t(L1) - t(H1): | -4.60419 s (slice index = 208 / 217), δt_gw = -0.00419318 s |
| Time delay uncertainty: | 0.00482979 s |
| [targeted mode] Time delay probability: | 0.0079454 (2.65438 sigmas), δt_target = 0.00863695 s |
| Frequency: | 558.143 Hz |
| Ξ: | 0.00517609 ± 0.0224573 (variance = 0.000504331): Q0: 0.023546, Q1: 0.0415026, Q2: 0.052502, Q3: 0.0542769, Q4: 0.0919913 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.479582, variance = 0.482198 (L1/H1: -0.154256, variance = 0.999694, H1/L1: -1.07796, variance = 0.931428) |
| Amplitude ratio (L1/H1): | 1.6154 ⋇ 2.00252 (L1/H1: 0.857052 ⋇ 2.71787, H1/L1: 0.34029 ⋇ 2.62506) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.375236 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 31 / 36, Q2: 58 / 70, Q3: 121 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.21363, L1: 5.3659 |
| SNR variance: | H1: 0.507229, L1: 0.518157 |
| Event time t(H1): | GPS = 1368195783 (Mon May 15 14:22:45 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Event time t(L1): | GPS = 1368195783 (Mon May 15 14:22:55 2023 ) → GPS = 1368195793 (Mon May 15 14:22:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195780 → GPS = 1368195796 |
| Omicron analysis time window (L1): | GPS = 1368195780 → GPS = 1368195796 |
| Time delay between detectors t(L1) - t(H1): | -4.60394 s (slice index = 208 / 217), δt_gw = -0.00394125 s |
| Time delay uncertainty: | 0.00796312 s |
| [targeted mode] Time delay probability: | 0.114476 (1.57839 sigmas), δt_target = 0.00863695 s |
| Frequency: | 430.316 Hz |
| Ξ: | 0.00152176 ± 0.055176 (variance = 0.00304439): Q0: 0.0250336, Q1: 0.0211296, Q2: 0.0421023, Q3: 0.0303906, Q4: 0.166469 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.268169, variance = 0.547384 (L1/H1: -0.681669, variance = 1.12867, H1/L1: -1.14185, variance = 1.06256) |
| Amplitude ratio (L1/H1): | 1.30757 ⋇ 2.09563 (L1/H1: 0.505772 ⋇ 2.89328, H1/L1: 0.319228 ⋇ 2.80333) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.217997 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 35 / 36, Q2: 65 / 70, Q3: 130 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.94887, L1: 5.16005 |
| SNR variance: | H1: 0.527506, L1: 0.531509 |
| Detection threshold: | R > 0.135 |
| False-alarm rate above that detection threshold: | 0.0498867 |
| Alternative threshold at 1/1000 yrs: | R > 0.135 |
| Alternative threshold at 1/100 yrs: | R > 0.135 |
| Alternative threshold at 1/10 yrs: | R > 0.135 |
| Alternative threshold at 1/1 yr: | R > 0.135 |
| Alternative threshold at 1/1 d: | R > 0.135 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.96266 s (slice index = 216 / 217), δt_gw = 0.00534185 s |
| Time delay uncertainty: | 0.00614218 s |
| [targeted mode] Time delay probability: | 0.592948 (0.534568 sigmas), δt_target = 0.00863695 s |
| Frequency: | 332.912 Hz |
| Ξ: | 0.00464969 ± 0.0290651 (variance = 0.00084478): Q0: 0.0280277, Q1: 0.0321608, Q2: 0.0999433, Q3: 0.0702128, Q4: 0.0882085 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.404137, variance = 0.677977 (L1/H1: -0.664674, variance = 1.22688, H1/L1: -1.61216, variance = 1.50934) |
| Amplitude ratio (L1/H1): | 1.49801 ⋇ 2.27822 (L1/H1: 0.514441 ⋇ 3.02723, H1/L1: 0.199456 ⋇ 3.41627) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.168687 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 32 / 36, Q2: 65 / 70, Q3: 126 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.92822 s (slice index = 215 / 217), δt_gw = -0.00622097 s |
| Time delay uncertainty: | 0.00469168 s |
| [targeted mode] Time delay probability: | 0.00155414 (3.16438 sigmas), δt_target = 0.00862527 s |
| Frequency: | 456.98 Hz |
| Ξ: | 0.000363604 ± 0.0203221 (variance = 0.000412988): Q0: 0, Q1: 0.0208122, Q2: 0.025153, Q3: 0.0627626, Q4: 0.0315715 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.401976, variance = 0.43427 (L1/H1: -0.507875, variance = 1.04222, H1/L1: -1.43033, variance = 0.639306) |
| Amplitude ratio (L1/H1): | 1.49478 ⋇ 1.93284 (L1/H1: 0.601773 ⋇ 2.77567, H1/L1: 0.239229 ⋇ 2.22458) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.134997 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 69 / 70, Q3: 129 / 134, Q4: 256 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.88034 s (slice index = 214 / 217), δt_gw = -0.00434067 s |
| Time delay uncertainty: | 0.00456856 s |
| [targeted mode] Time delay probability: | 0.00453856 (2.83808 sigmas), δt_target = 0.00862527 s |
| Frequency: | 251.803 Hz |
| Ξ: | 0.0049301 ± 0.0128837 (variance = 0.000165989): Q0: 0.0392701, Q1: 0.0587342, Q2: 0.0770289, Q3: 0.0463802, Q4: 0.0587986 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.253349, variance = 0.416733 (L1/H1: -0.774459, variance = 0.842693, H1/L1: -1.41503, variance = 0.814611) |
| Amplitude ratio (L1/H1): | 1.28833 ⋇ 1.90703 (L1/H1: 0.460953 ⋇ 2.50423, H1/L1: 0.242919 ⋇ 2.4659) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0889894 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 32 / 36, Q2: 64 / 70, Q3: 130 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.8269 s (slice index = 213 / 217), δt_gw = 0.00310198 s |
| Time delay uncertainty: | 0.00596811 s |
| [targeted mode] Time delay probability: | 0.354723 (0.925467 sigmas), δt_target = 0.00862527 s |
| Frequency: | 400.914 Hz |
| Ξ: | 0.00110496 ± 0.0399152 (variance = 0.00159322): Q0: 0, Q1: 0, Q2: 0.07394, Q3: 0.0718088, Q4: 0.0940259 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.531621, variance = 1.10825 (L1/H1: -0.666648, variance = 2.37911, H1/L1: -1.88596, variance = 1.98997) |
| Amplitude ratio (L1/H1): | 1.70169 ⋇ 2.86547 (L1/H1: 0.513427 ⋇ 4.67597, H1/L1: 0.151683 ⋇ 4.09867) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.222007 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 65 / 70, Q3: 127 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.7865 s (slice index = 212 / 217), δt_gw = -0.00249952 s |
| Time delay uncertainty: | 0.00590874 s |
| [targeted mode] Time delay probability: | 0.0597317 (1.88277 sigmas), δt_target = 0.00862527 s |
| Frequency: | 324.096 Hz |
| Ξ: | 0.00713012 ± 0.0141969 (variance = 0.000201552): Q0: 0.0496211, Q1: 0.052725, Q2: 0.0588422, Q3: 0.0832336, Q4: 0.0808178 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.527632, variance = 0.677376 (L1/H1: -0.508311, variance = 1.06554, H1/L1: -1.69851, variance = 1.71272) |
| Amplitude ratio (L1/H1): | 1.69491 ⋇ 2.27739 (L1/H1: 0.601511 ⋇ 2.80738, H1/L1: 0.182957 ⋇ 3.70139) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.185511 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 30 / 36, Q2: 67 / 70, Q3: 127 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.73513 s (slice index = 211 / 217), δt_gw = 0.00286533 s |
| Time delay uncertainty: | 0.0028318 s |
| [targeted mode] Time delay probability: | 0.0419495 (2.03402 sigmas), δt_target = 0.00862527 s |
| Frequency: | 329.91 Hz |
| Ξ: | 0.00367703 ± 0.0211105 (variance = 0.000445655): Q0: 0.021269, Q1: 0.043145, Q2: 0.0832416, Q3: 0.0640722, Q4: 0.0633703 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.422676, variance = 0.439104 (L1/H1: -0.580376, variance = 0.903132, H1/L1: -1.55638, variance = 0.838919) |
| Amplitude ratio (L1/H1): | 1.52604 ⋇ 1.93992 (L1/H1: 0.559688 ⋇ 2.58657, H1/L1: 0.210899 ⋇ 2.49909) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.105466 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 32 / 36, Q2: 64 / 70, Q3: 126 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.69109 s (slice index = 210 / 217), δt_gw = 0.000909559 s |
| Time delay uncertainty: | 0.00652326 s |
| [targeted mode] Time delay probability: | 0.236888 (1.1828 sigmas), δt_target = 0.00862527 s |
| Frequency: | 349.294 Hz |
| Ξ: | 0.00178437 ± 0.0333868 (variance = 0.00111468): Q0: 0.016366, Q1: 0.0328675, Q2: 0.0248491, Q3: 0.0566638, Q4: 0.109096 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.219511, variance = 0.520008 (L1/H1: -1.17438, variance = 1.12491, H1/L1: -1.79496, variance = 0.922745) |
| Amplitude ratio (L1/H1): | 1.24547 ⋇ 2.05673 (L1/H1: 0.309009 ⋇ 2.88816, H1/L1: 0.166134 ⋇ 2.61325) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0379804 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 32 / 36, Q2: 67 / 70, Q3: 129 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.64837 s (slice index = 209 / 217), δt_gw = -0.00236576 s |
| Time delay uncertainty: | 0.00361958 s |
| [targeted mode] Time delay probability: | 0.00239304 (3.03655 sigmas), δt_target = 0.00862527 s |
| Frequency: | 486.94 Hz |
| Ξ: | 0.00278806 ± 0.0145162 (variance = 0.000210721): Q0: 0.025108, Q1: 0.0349501, Q2: 0.041796, Q3: 0.0580129, Q4: 0.0644271 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.198734, variance = 0.464385 (L1/H1: -0.760696, variance = 0.976759, H1/L1: -1.28313, variance = 0.859588) |
| Amplitude ratio (L1/H1): | 1.21986 ⋇ 1.97676 (L1/H1: 0.467341 ⋇ 2.68669, H1/L1: 0.277169 ⋇ 2.52727) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.131497 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 33 / 36, Q2: 67 / 70, Q3: 126 / 134, Q4: 241 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.55549 s (slice index = 207 / 217), δt_gw = -0.00149067 s |
| Time delay uncertainty: | 0.00387941 s |
| [targeted mode] Time delay probability: | 0.00911808 (2.60759 sigmas), δt_target = 0.00862527 s |
| Frequency: | 324.829 Hz |
| Ξ: | 0.00355953 ± 0.0199112 (variance = 0.000396457): Q0: 0.0311746, Q1: 0.0410655, Q2: 0.0692614, Q3: 0.0522926, Q4: 0.0868776 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.231496, variance = 0.450231 (L1/H1: -0.535835, variance = 1.14999, H1/L1: -1.09877, variance = 0.574061) |
| Amplitude ratio (L1/H1): | 1.26048 ⋇ 1.95618 (L1/H1: 0.58518 ⋇ 2.92231, H1/L1: 0.33328 ⋇ 2.1333) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.213165 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 30 / 36, Q2: 65 / 70, Q3: 127 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195803 (Mon May 15 14:23:05 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Event time t(L1): | GPS = 1368195803 (Mon May 15 14:23:15 2023 ) → GPS = 1368195813 (Mon May 15 14:23:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195800 → GPS = 1368195816 |
| Omicron analysis time window (L1): | GPS = 1368195800 → GPS = 1368195816 |
| Time delay between detectors t(L1) - t(H1): | -4.50606 s (slice index = 206 / 217), δt_gw = 0.00193502 s |
| Time delay uncertainty: | 0.00472287 s |
| [targeted mode] Time delay probability: | 0.15661 (1.41657 sigmas), δt_target = 0.00862527 s |
| Frequency: | 357.401 Hz |
| Ξ: | 0.00394369 ± 0.0969213 (variance = 0.00939375): Q0: 0.0315703, Q1: 0.0276184, Q2: 0.0496265, Q3: 0.0654935, Q4: 0.283507 |
| Rank: | R_A = 0.13682 |
| Log of amplitude ratio (L1/H1): | 0.482705, variance = 0.818937 (L1/H1: -0.701656, variance = 1.39406, H1/L1: -1.82133, variance = 1.93545) |
| Amplitude ratio (L1/H1): | 1.62045 ⋇ 2.47181 (L1/H1: 0.495764 ⋇ 3.25666, H1/L1: 0.161811 ⋇ 4.01969) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.16676 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 32 / 36, Q2: 64 / 70, Q3: 126 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.31491, L1: 4.99929 |
| SNR variance: | H1: 0.512659, L1: 0.542509 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Number of injections (total/valid/detected): | 20 / 20 / 20 |
| List of missed injections: | ./AND16-S20S_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | -1 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
