| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:42:49 2026 UTC |
| Ox option file: | Ixf7_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |

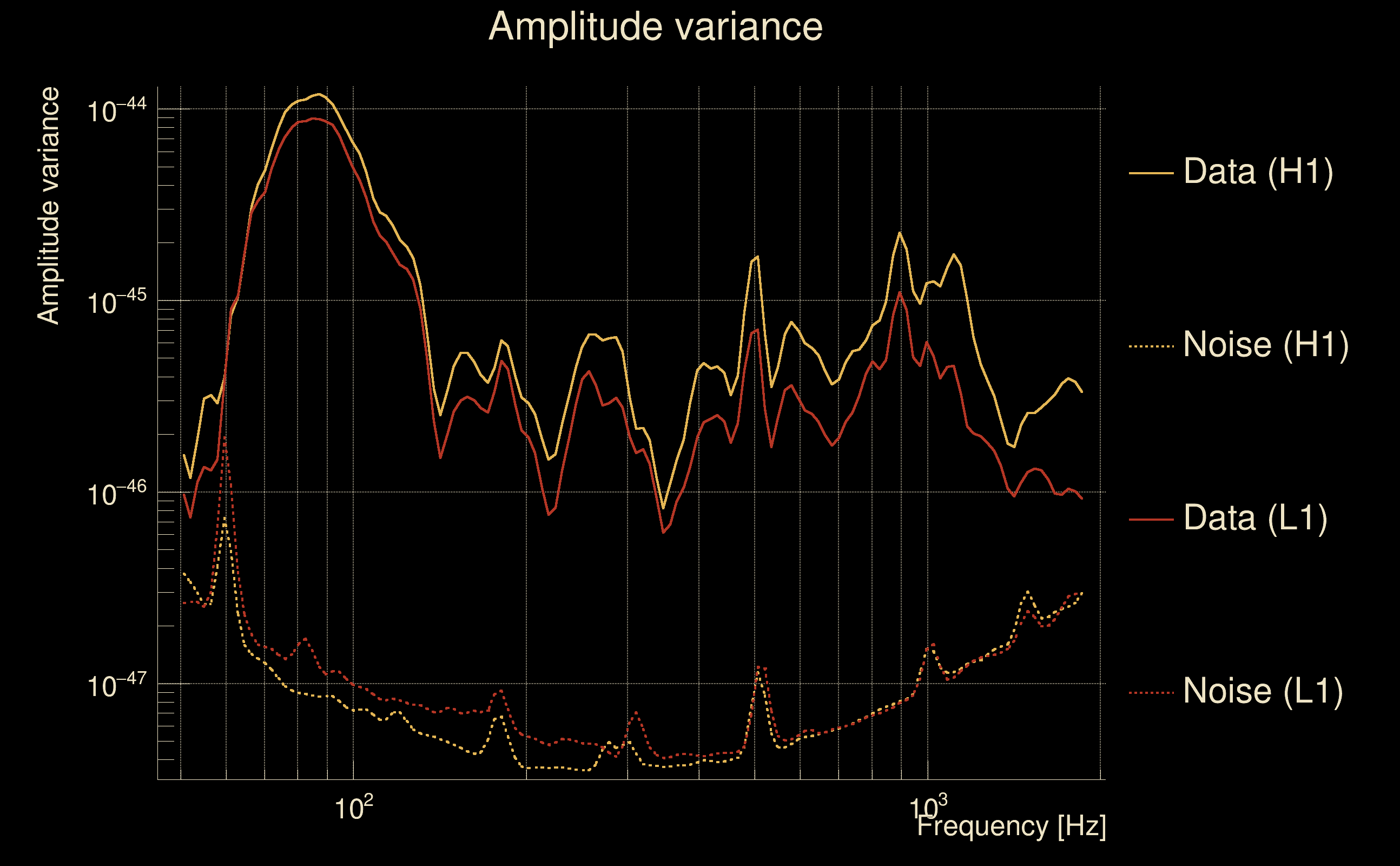

| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf7_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf7_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=132 (-1.104 s), time lag = 0 s |

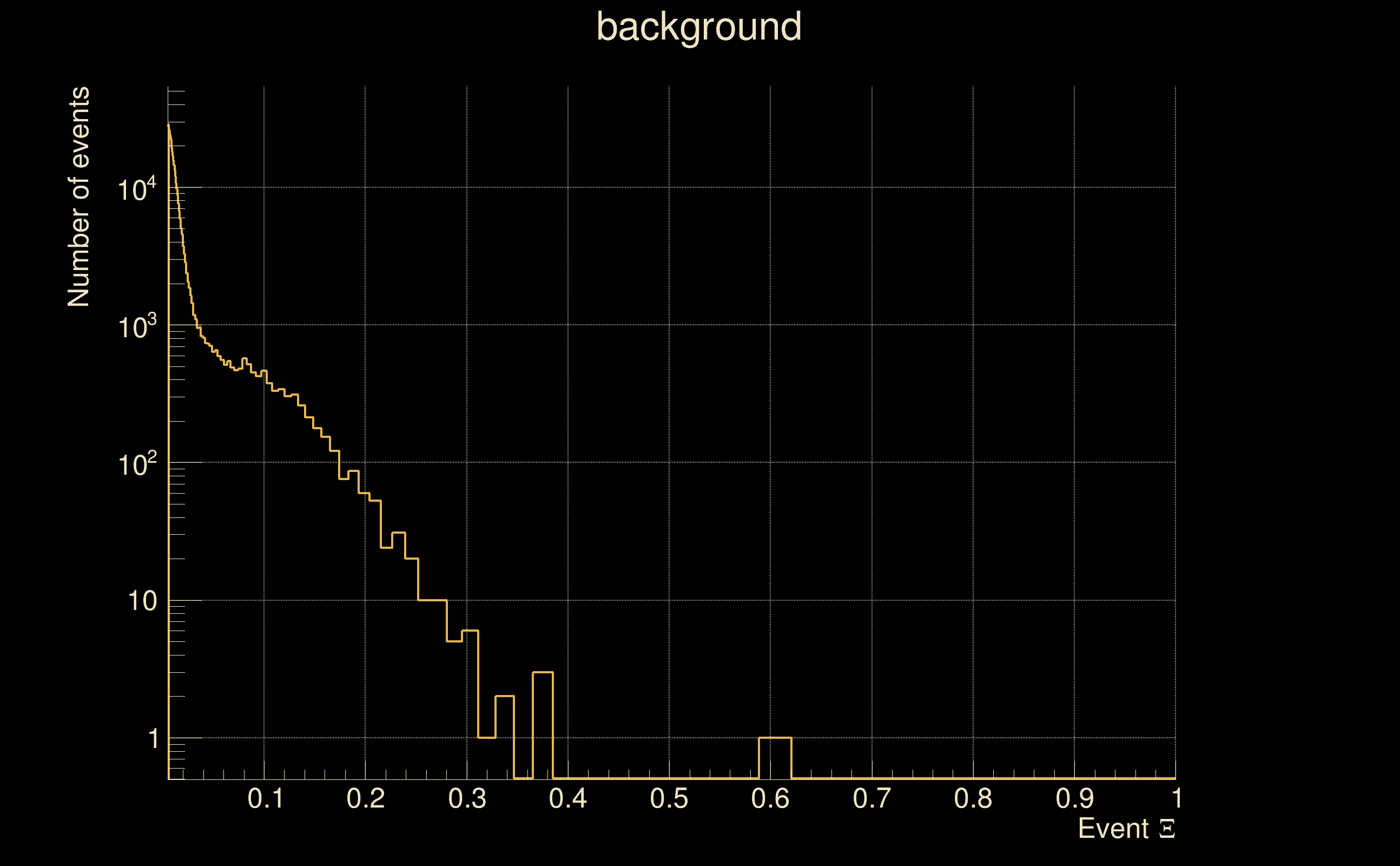

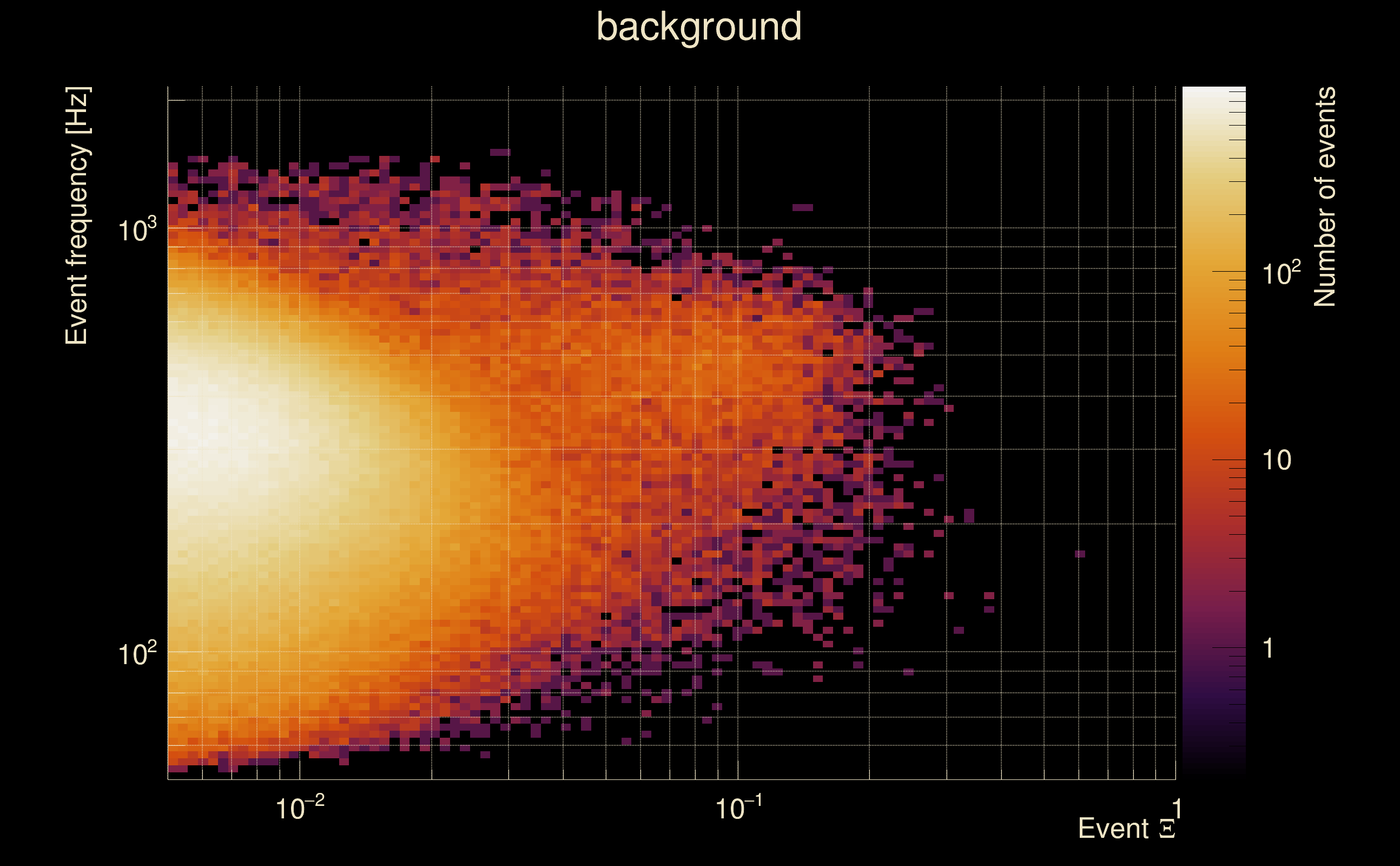

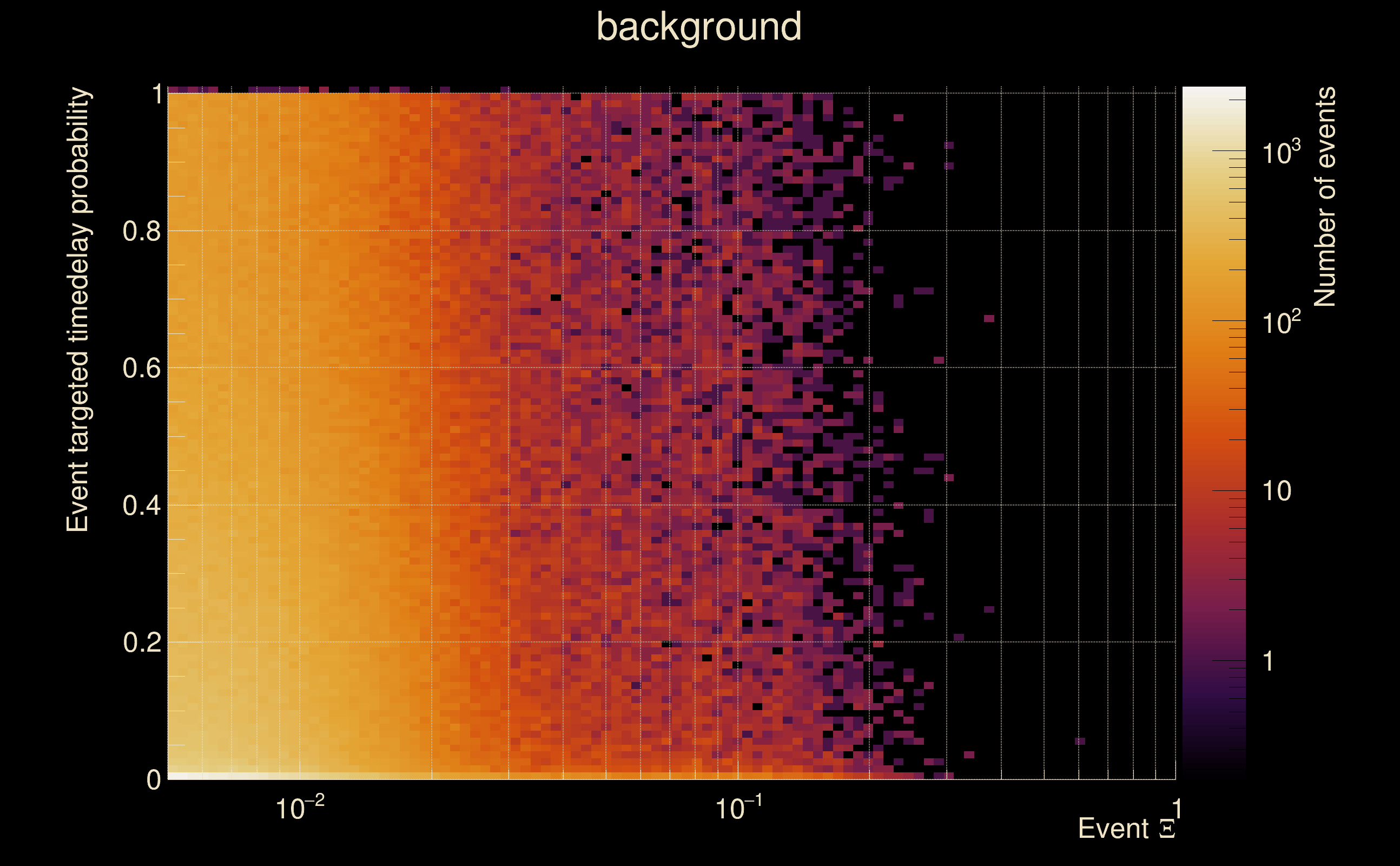

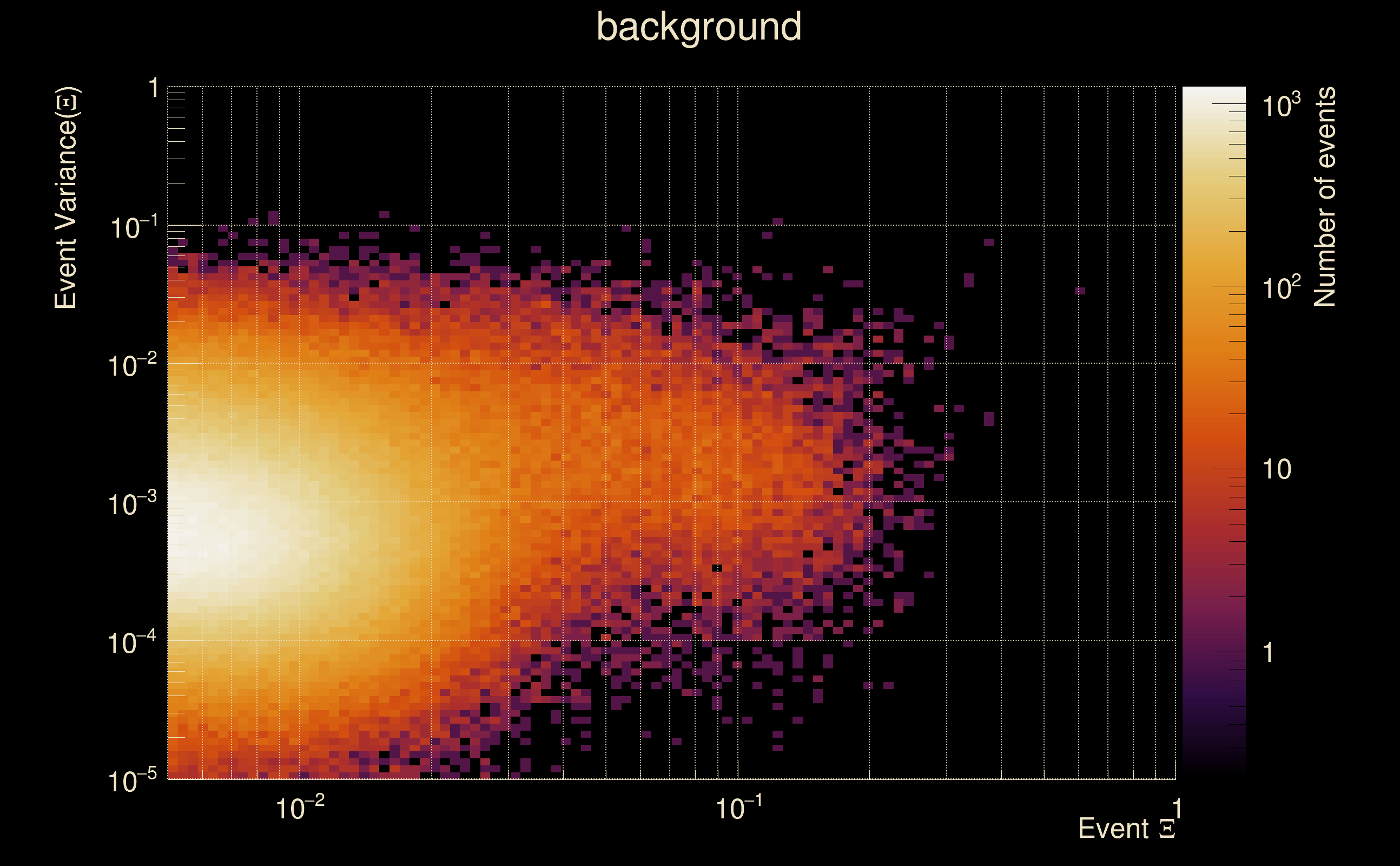

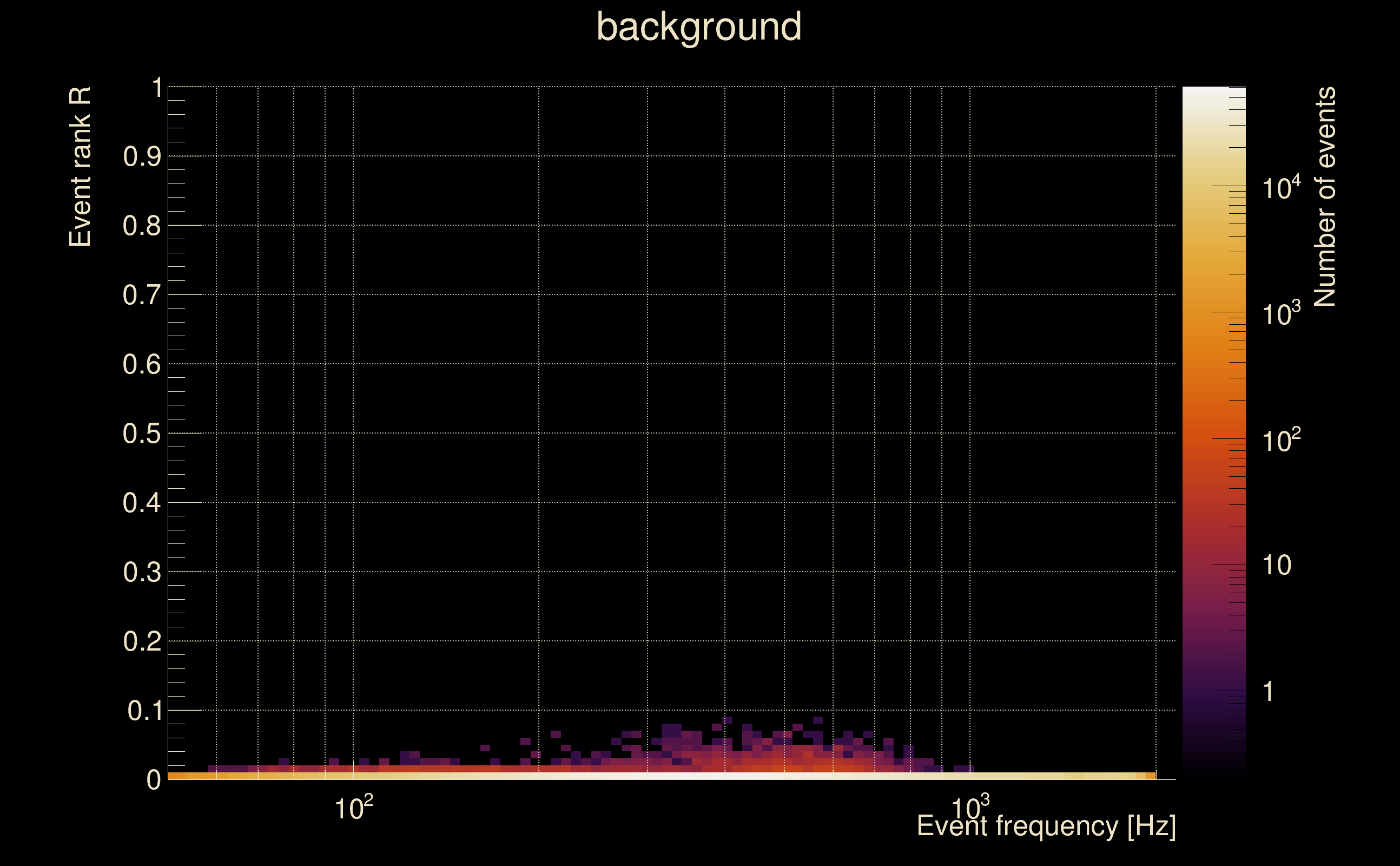

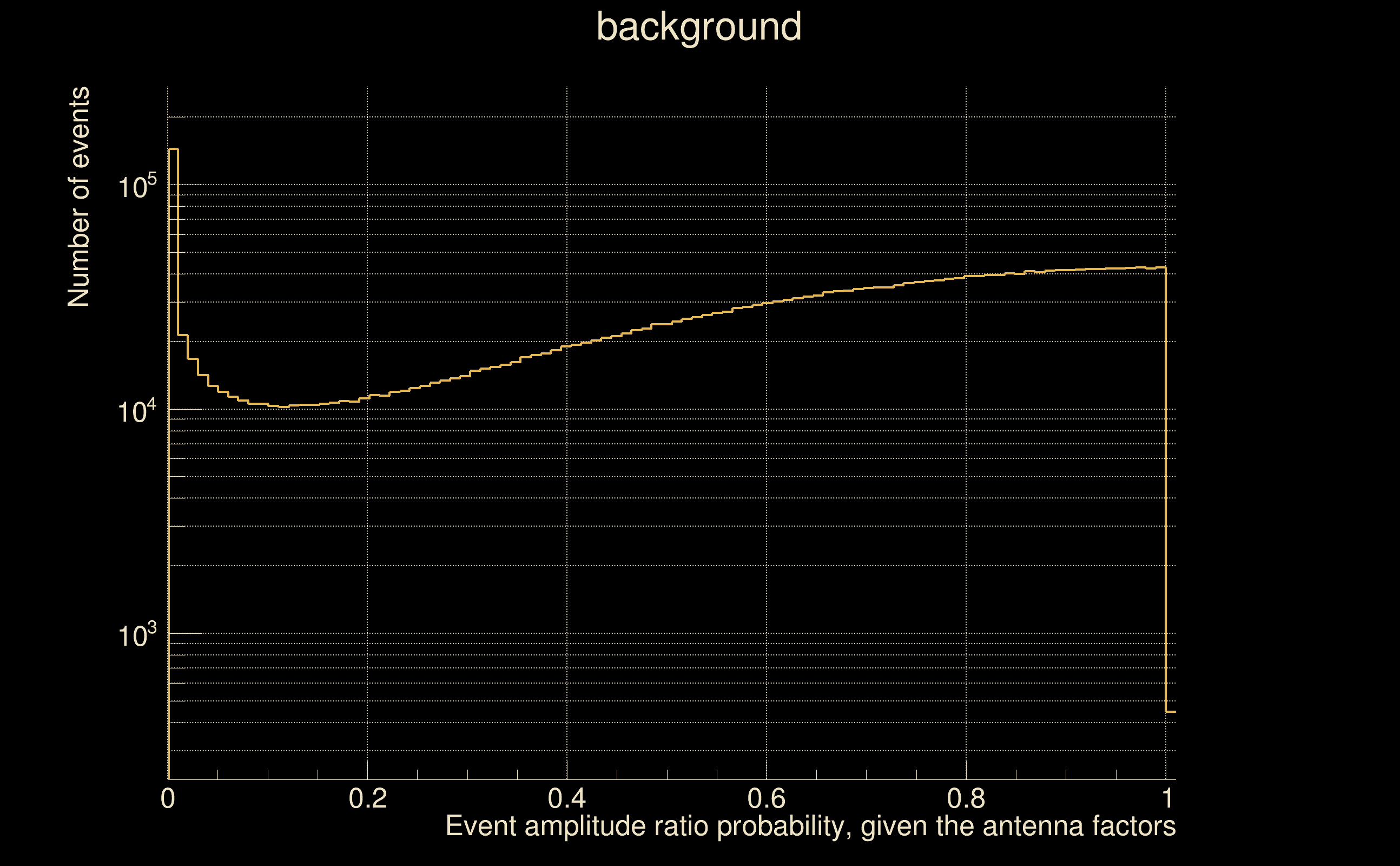

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

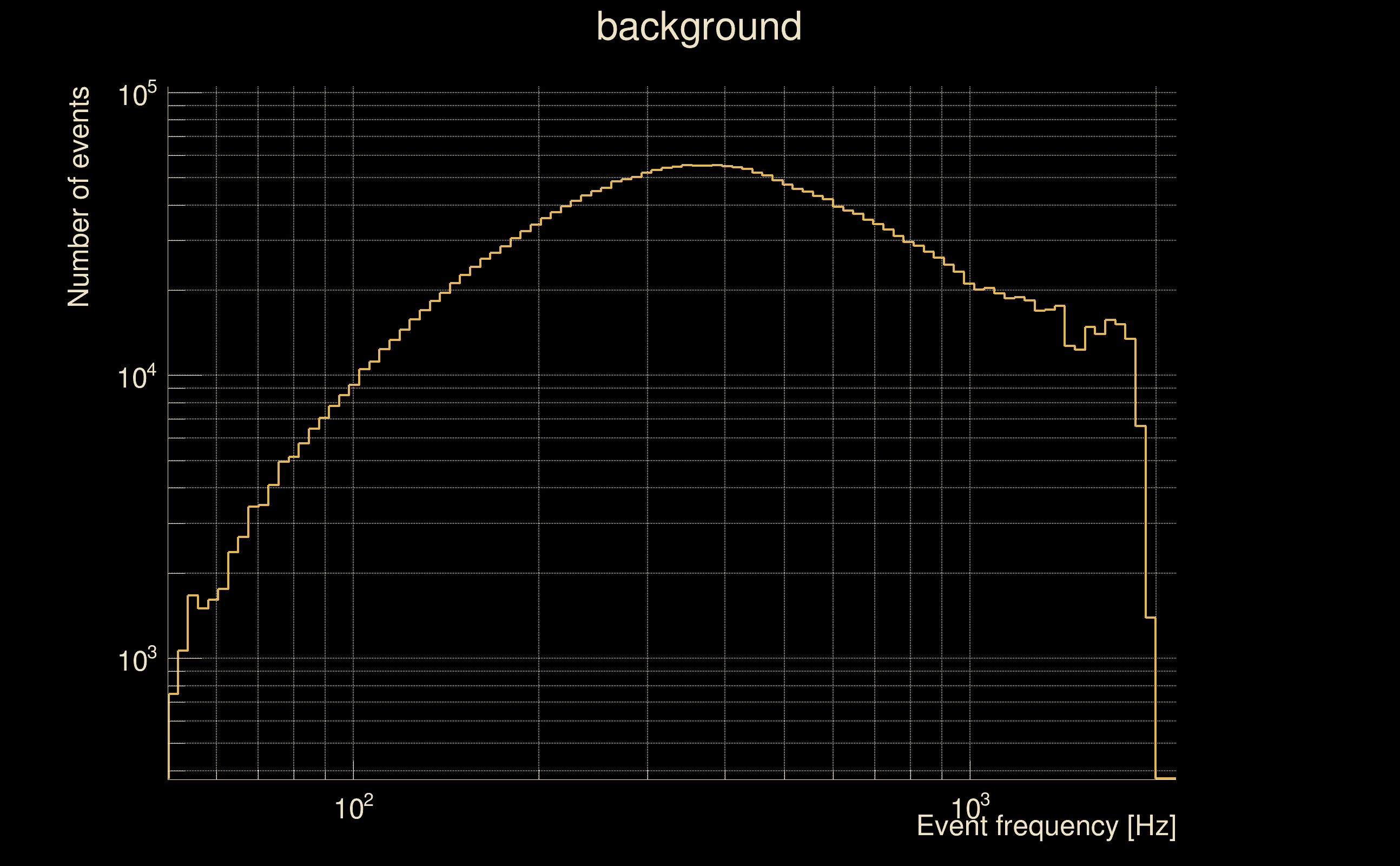

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

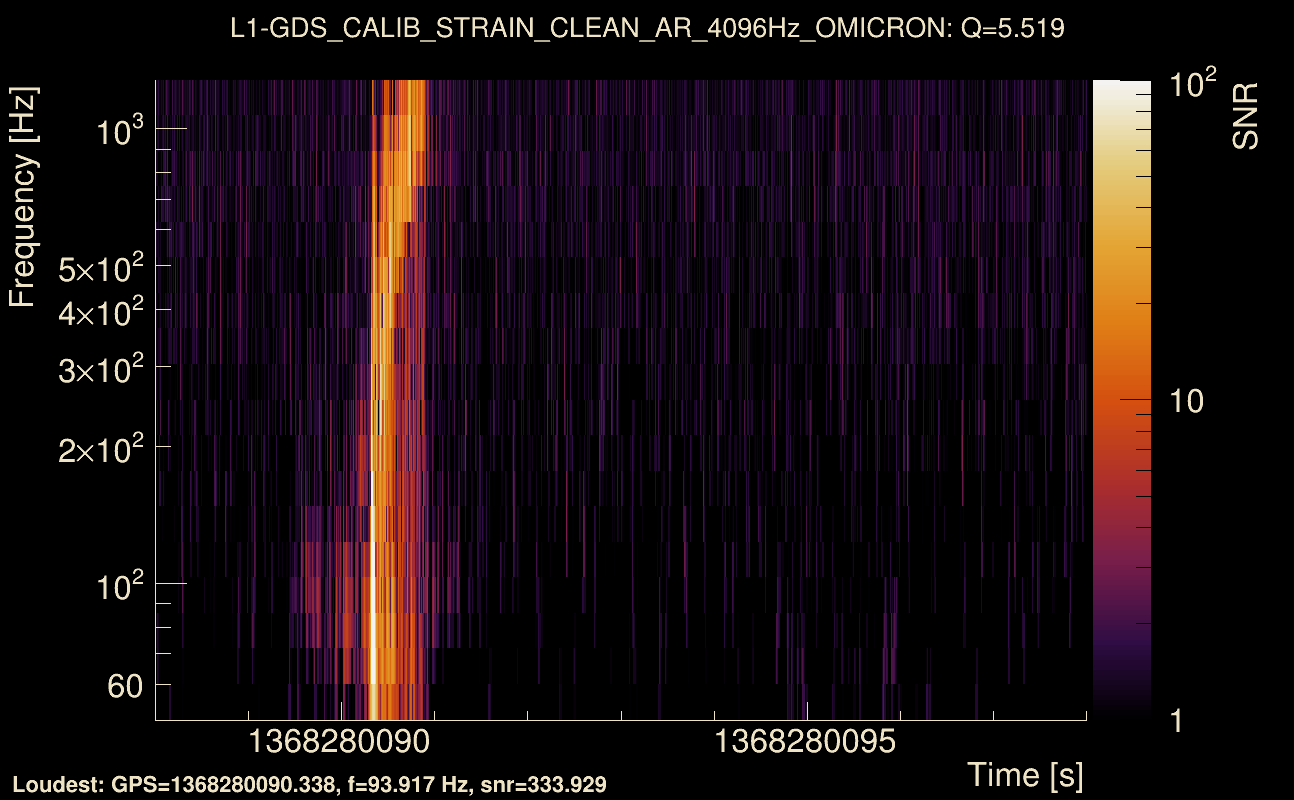

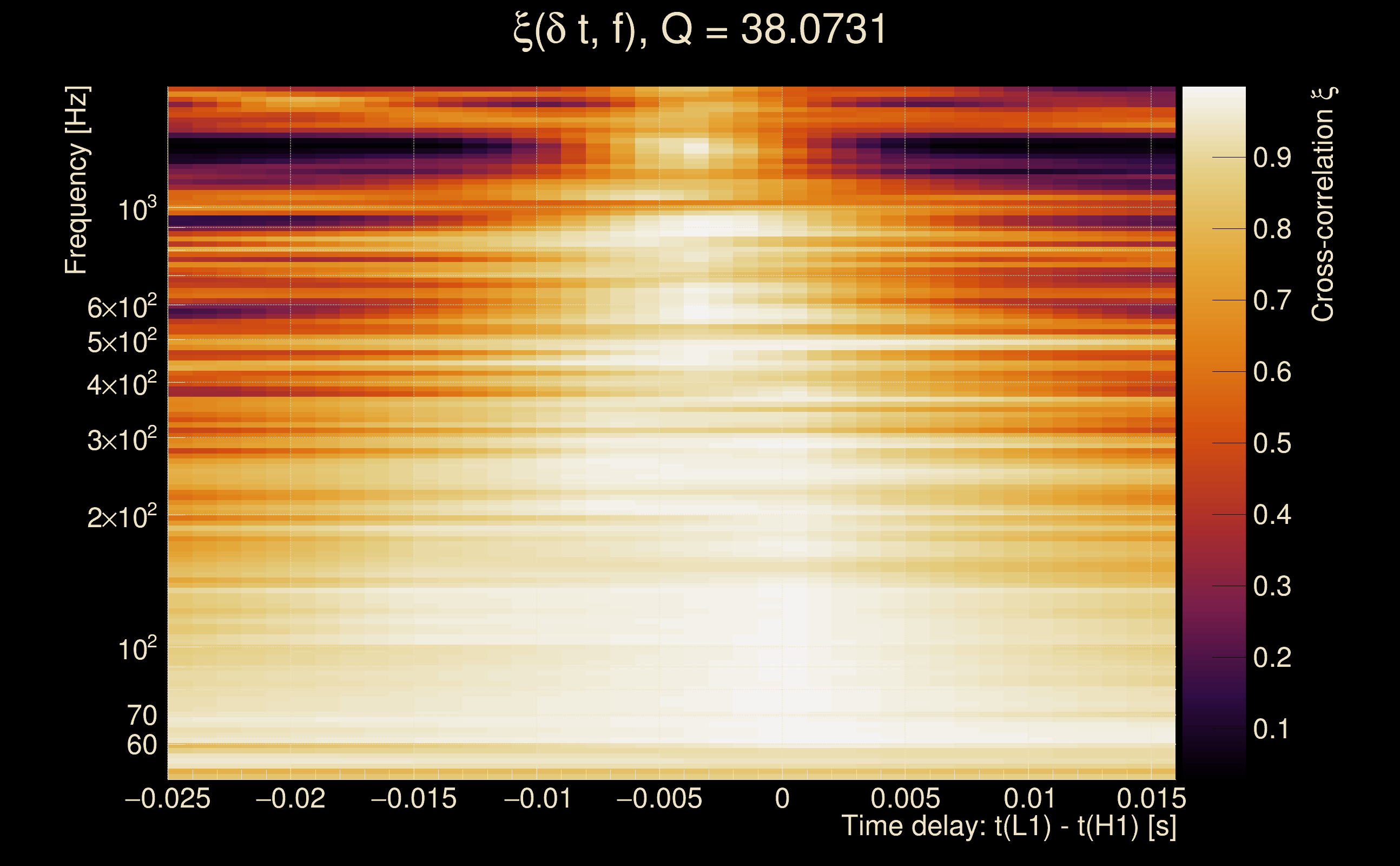

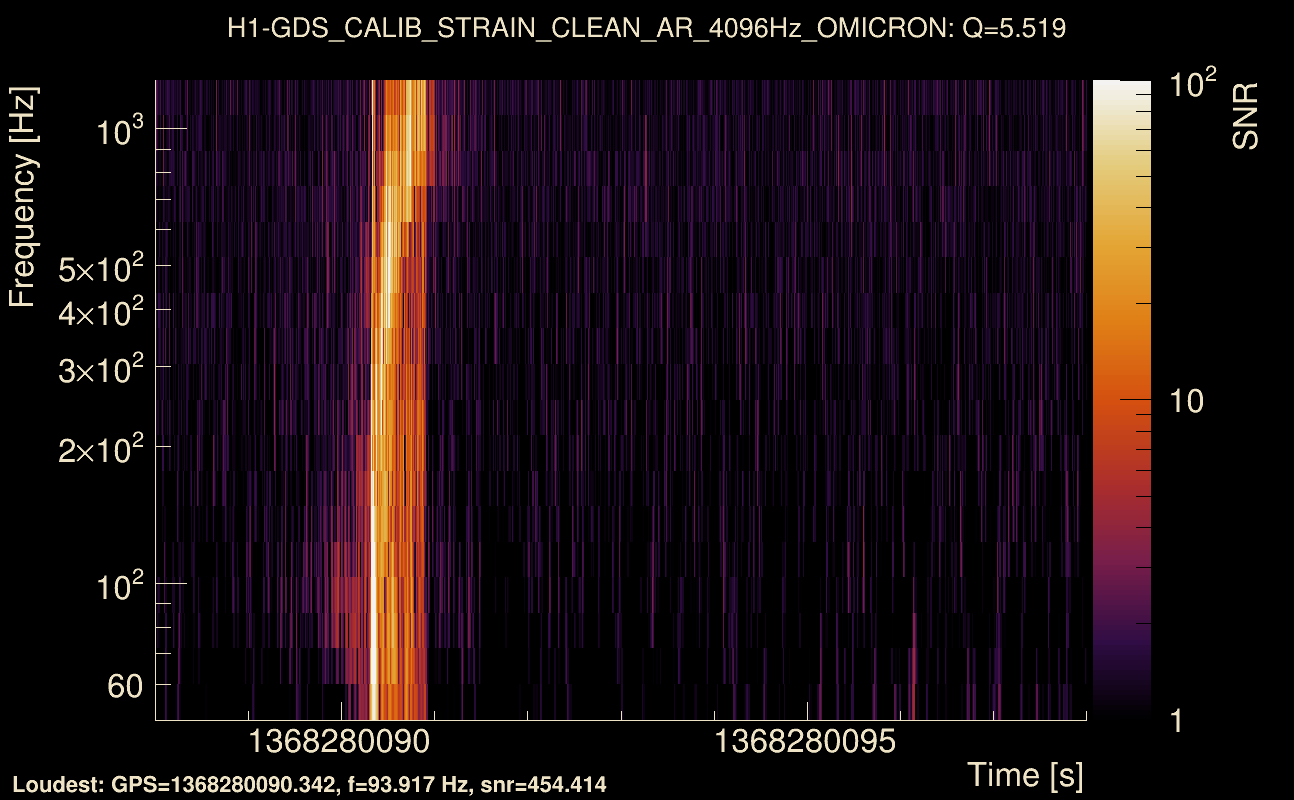

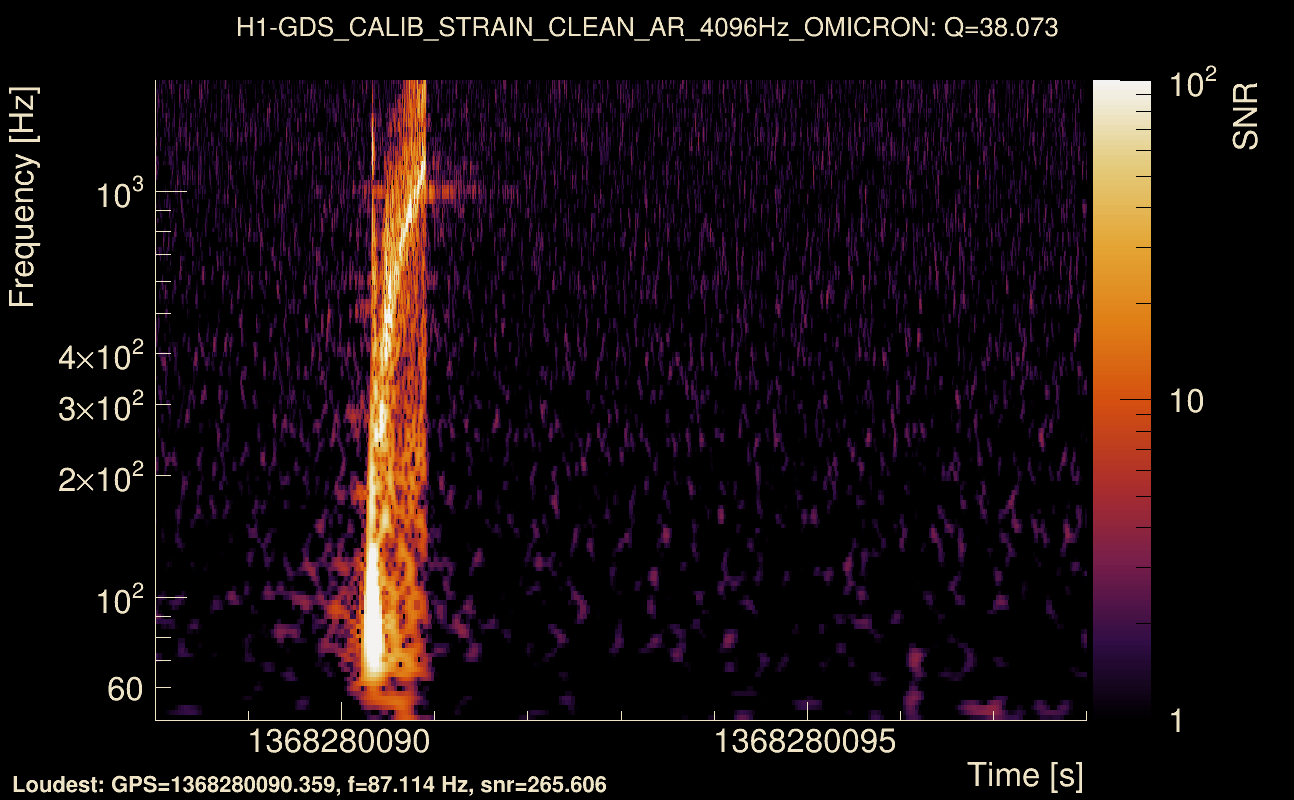

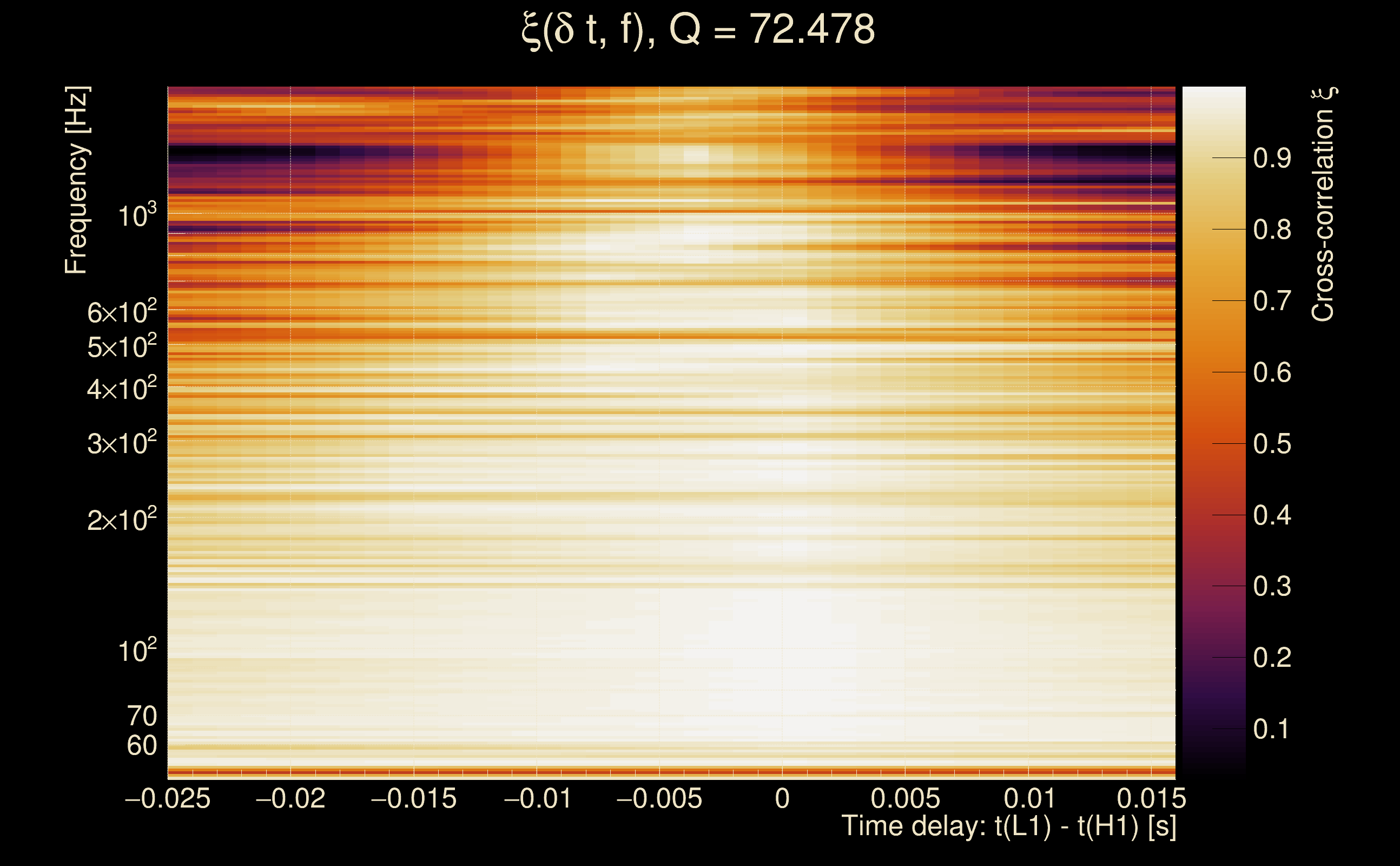

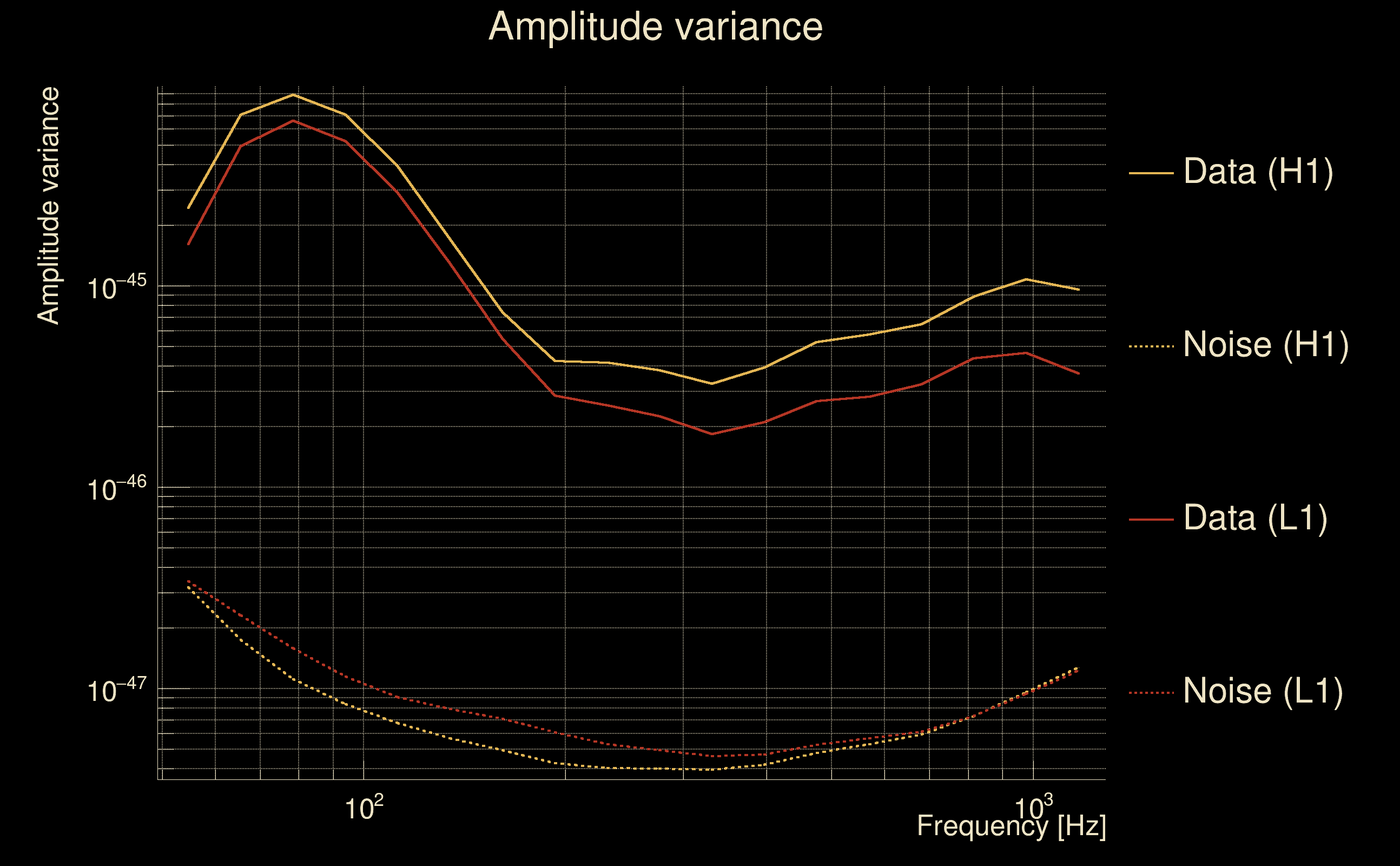

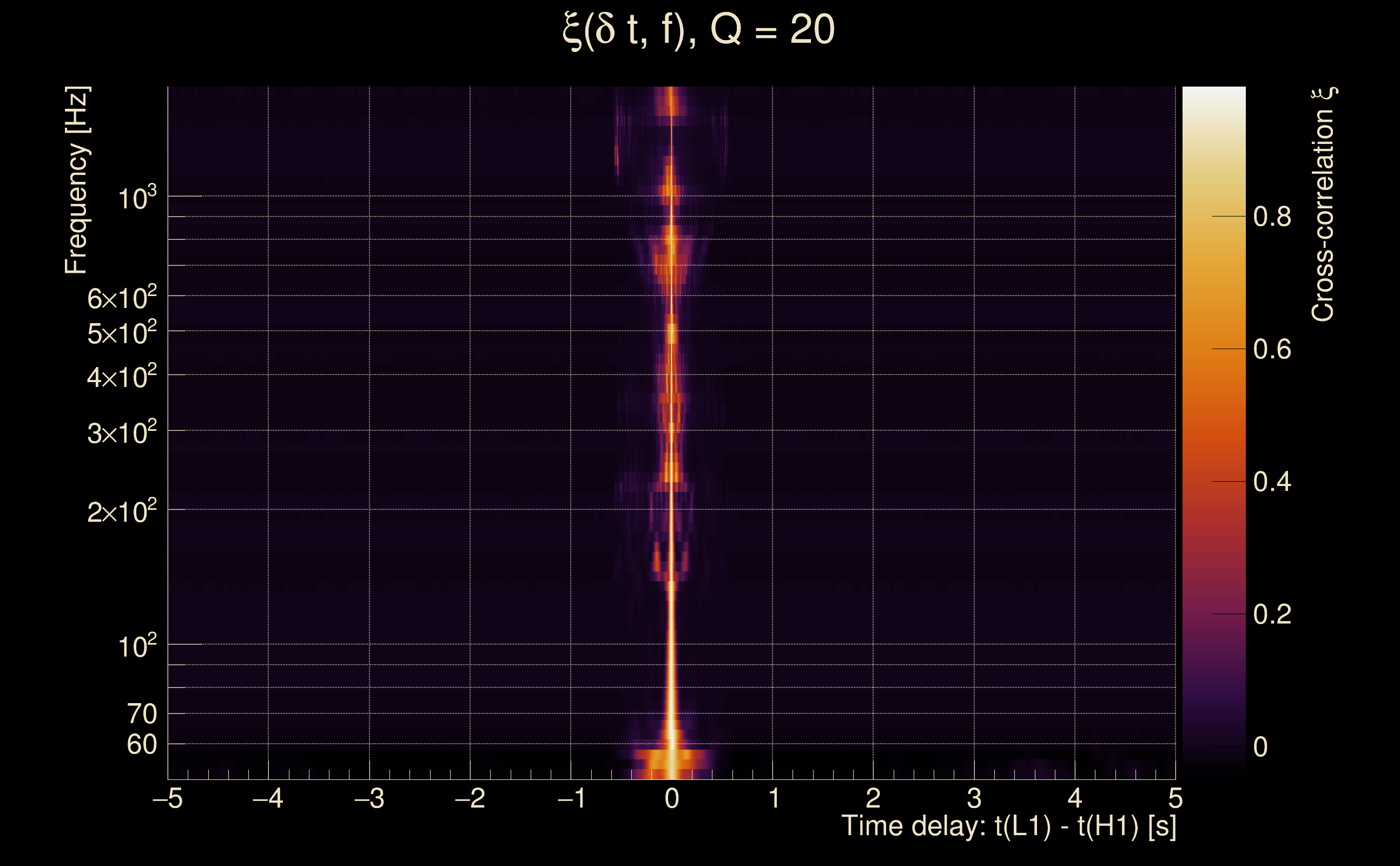

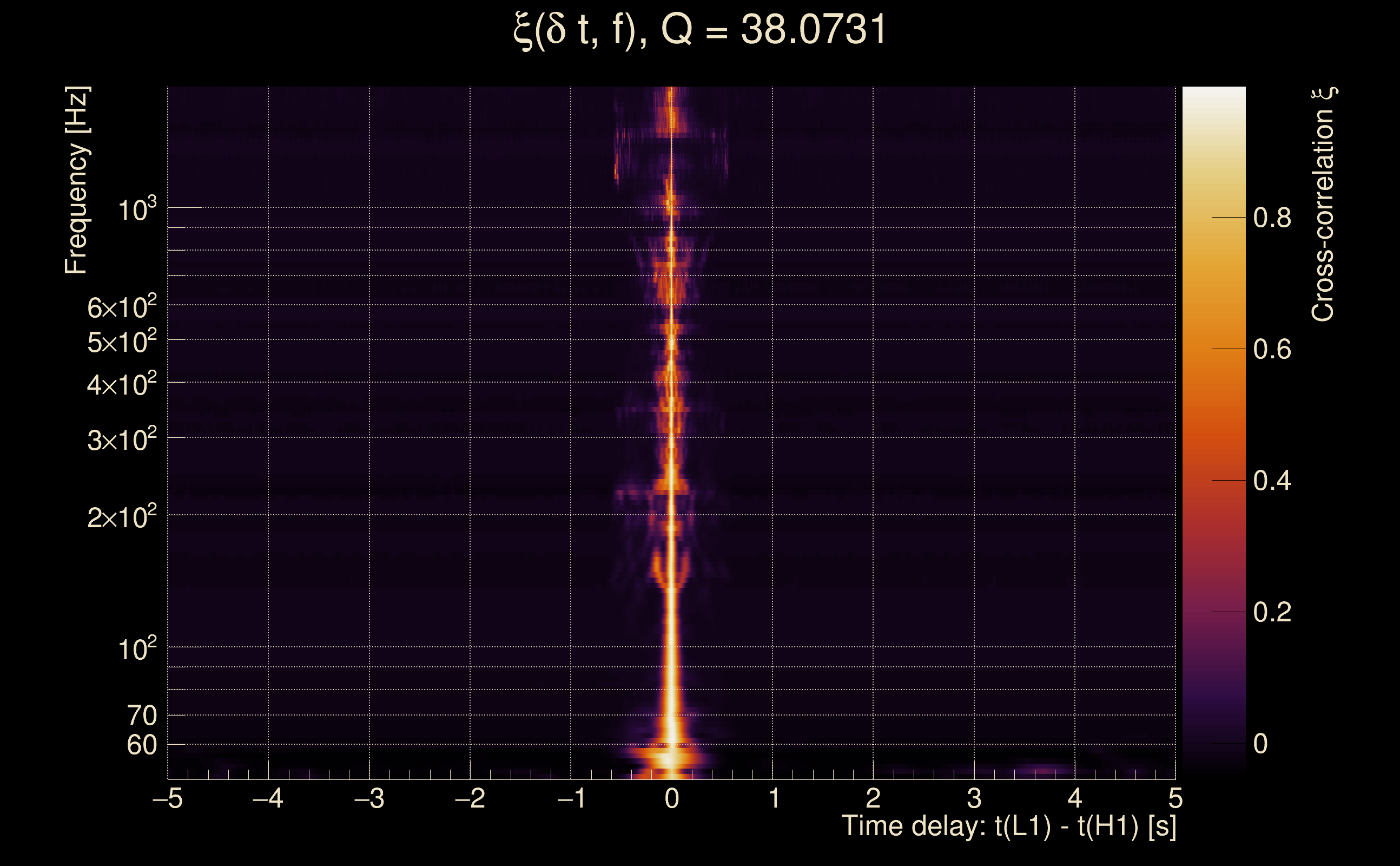

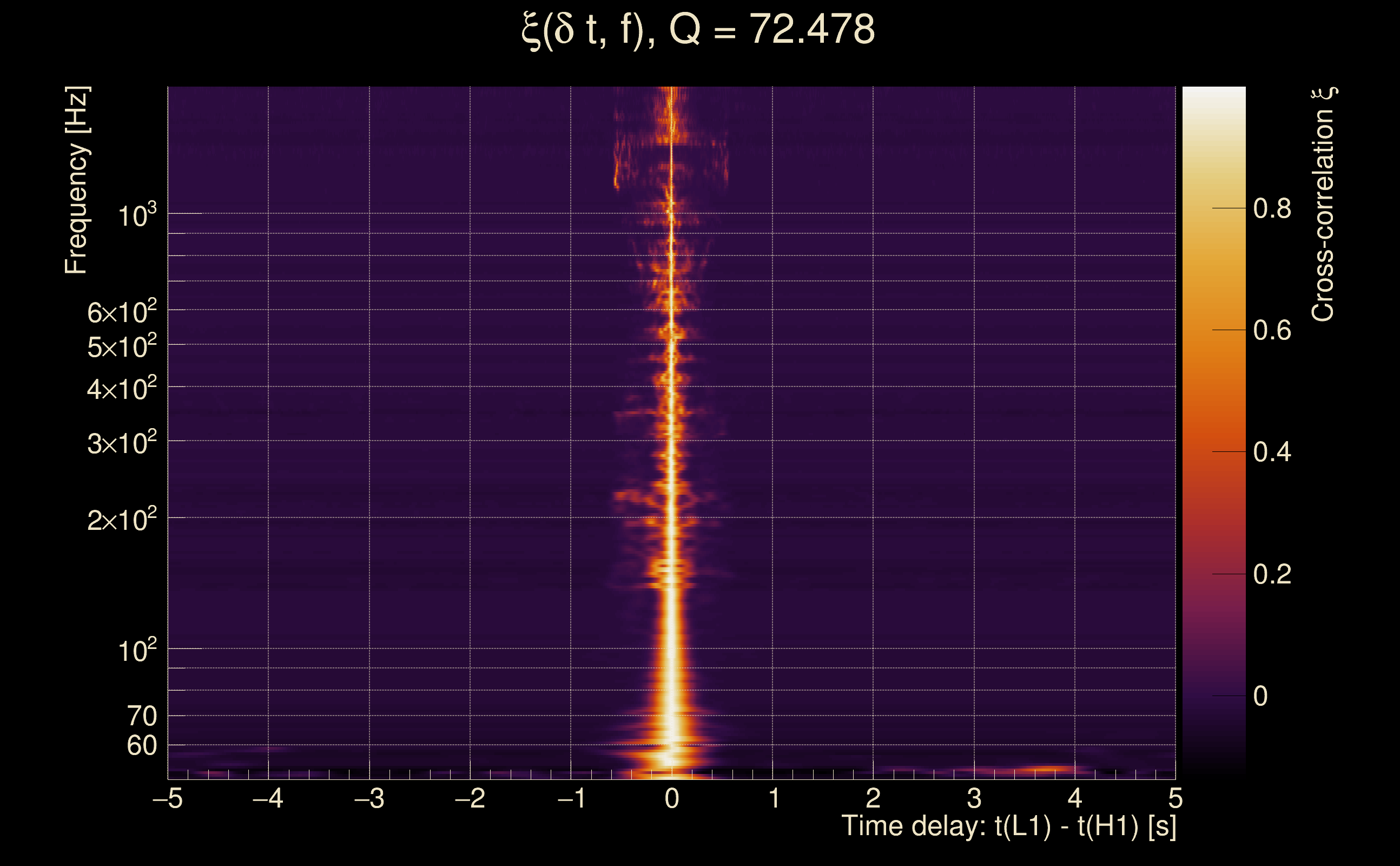

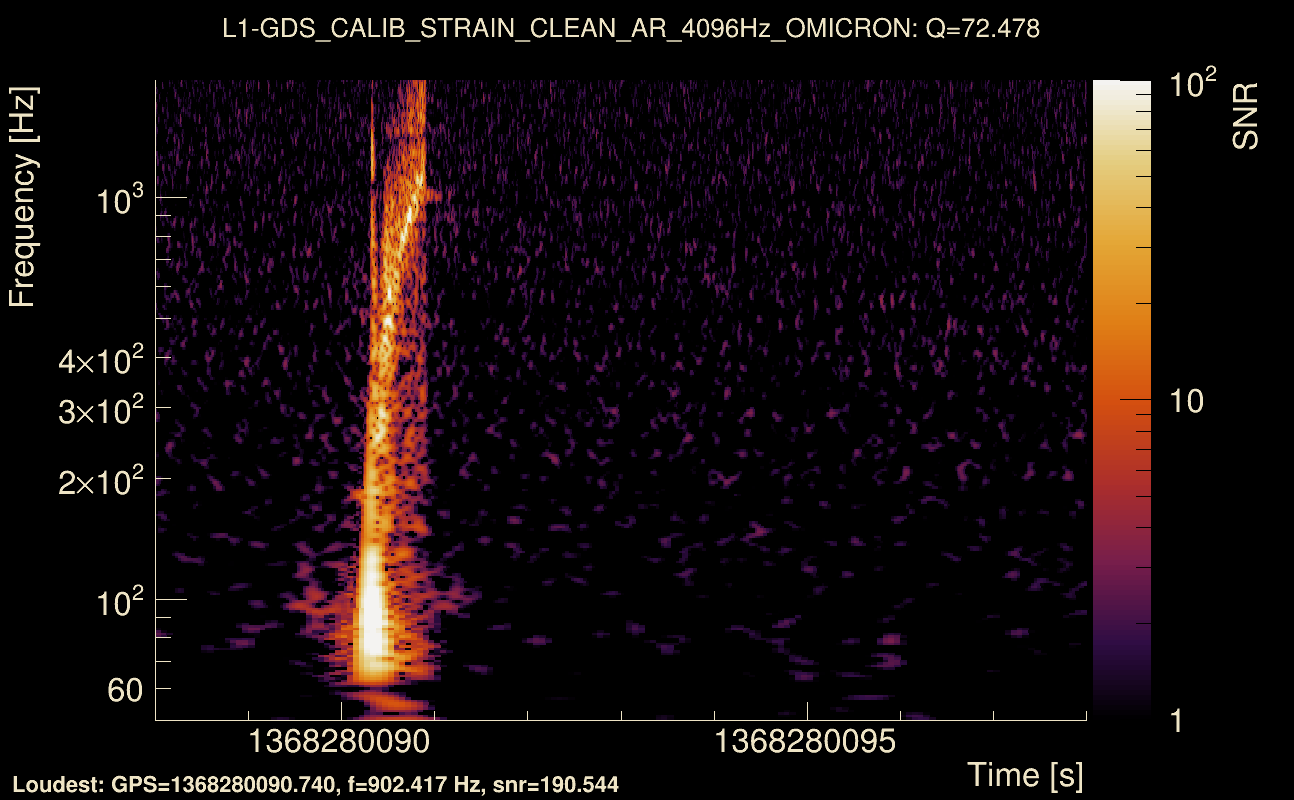

| Event time t(H1): | GPS = 1368280083 (Tue May 16 13:47:45 2023 ) → GPS = 1368280093 (Tue May 16 13:47:55 2023 ) |
| Event time t(L1): | GPS = 1368280083 (Tue May 16 13:47:55 2023 ) → GPS = 1368280093 (Tue May 16 13:47:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368280080 → GPS = 1368280096 |
| Omicron analysis time window (L1): | GPS = 1368280080 → GPS = 1368280096 |

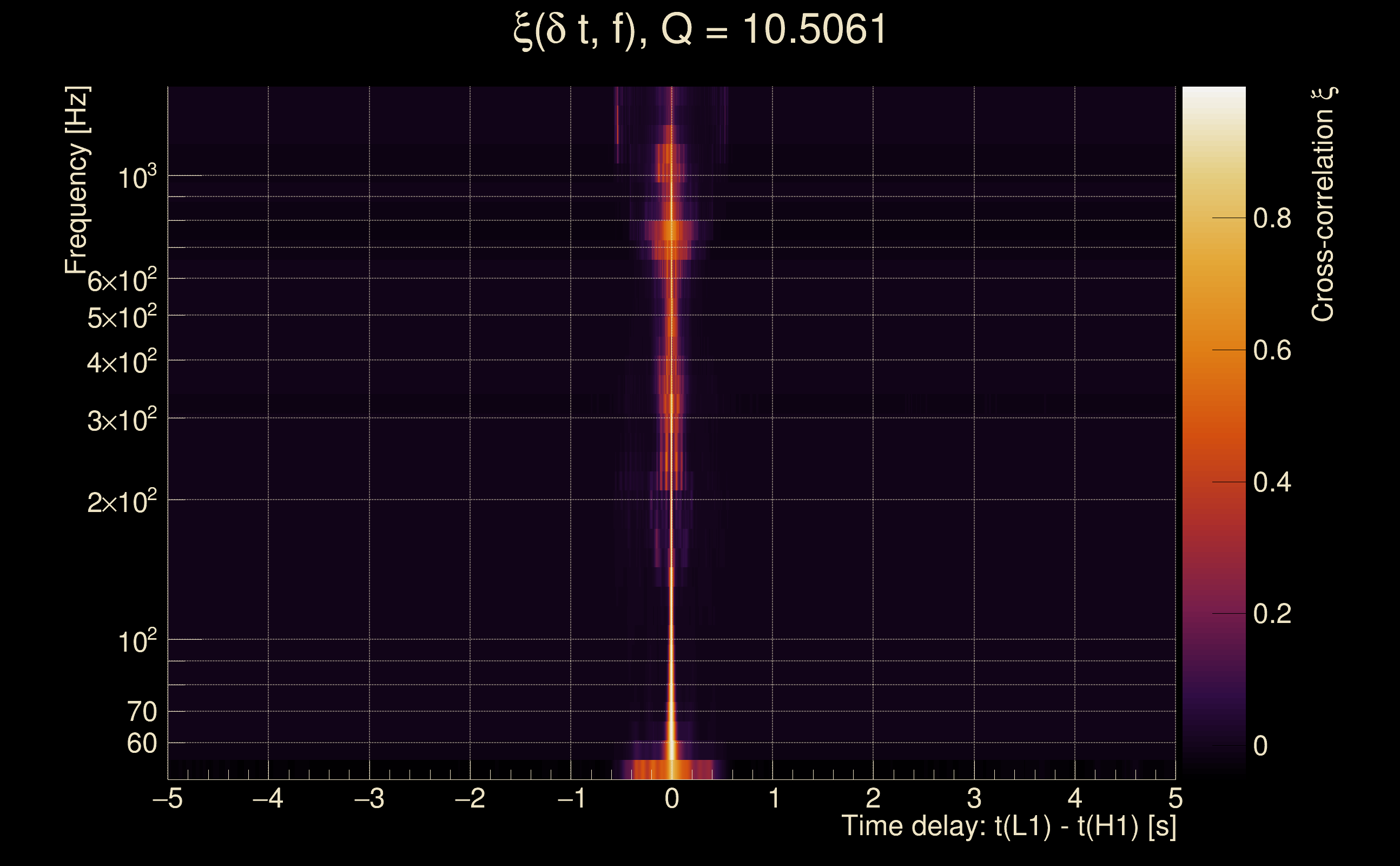

| Time delay between detectors t(L1) - t(H1): | -0.00402881 s (slice index = 108 / 217), δt_gw = -0.00402881 s |
| Time delay standard deviation: | 0.0223912 s |
| [targeted mode] Time delay probability: | 9.69482e-145 (25.6177 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 284.162 Hz |
| Ξ: | 0.953611 ± 0.00598973 (variance = 3.58769e-05): Q0: 0.968593, Q1: 0.955175, Q2: 0.952462, Q3: 0.953152, Q4: 0.954445 |
| Rank: | R_A = 0.903588 |
| Log of amplitude ratio (L1/H1): | -0.196516, variance = 0.159377 (L1/H1: -0.216685, variance = 0.314838, H1/L1: 0.169237, variance = 0.306105) |
| Amplitude ratio (L1/H1): | 0.821588 ⋇ 1.49066 (L1/H1: 0.805184 ⋇ 1.75261, H1/L1: 1.1844 ⋇ 1.73893) |

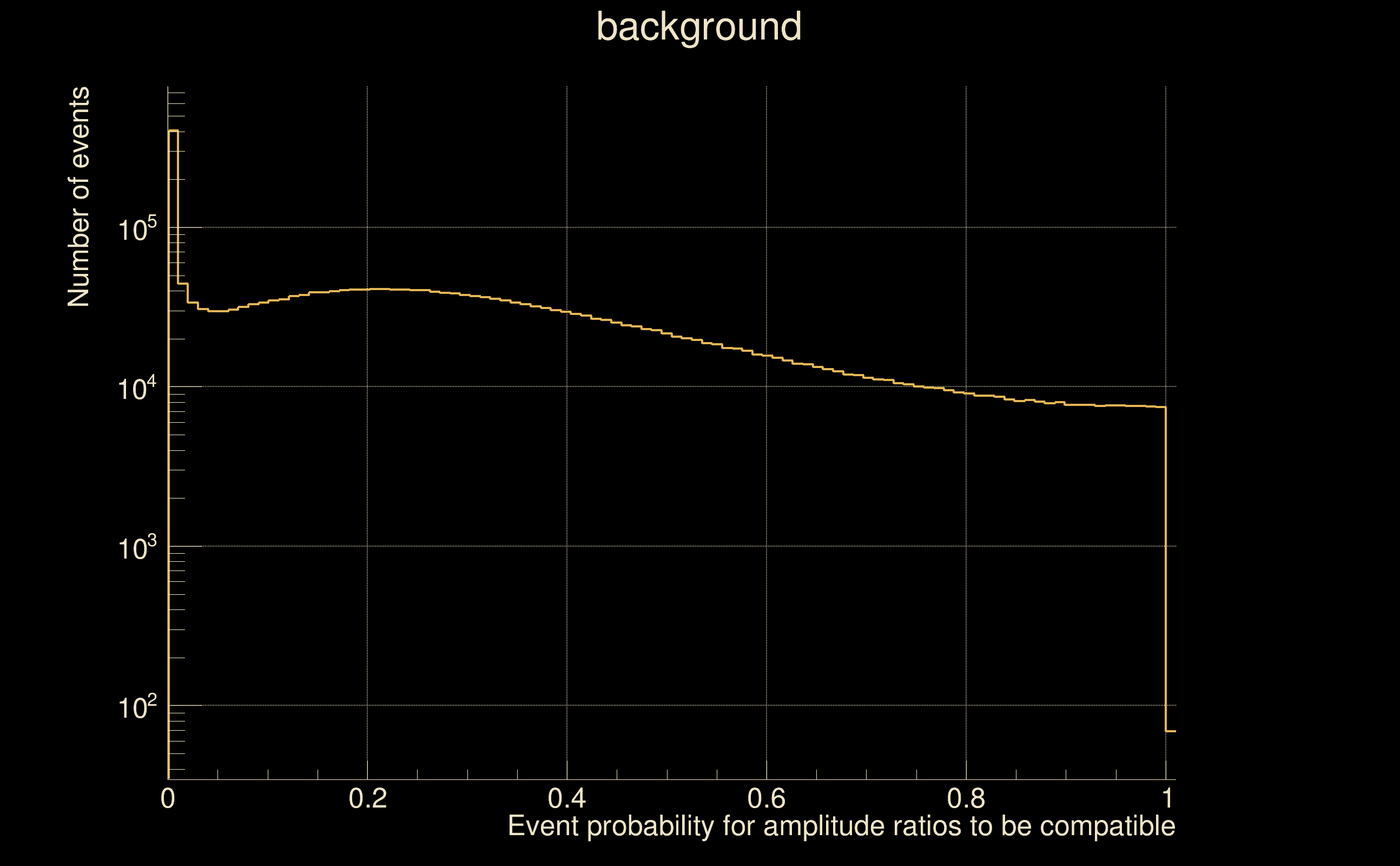

| Amplitude ratio H1|L1 compatibility (probability): | 0.951986 |
| Antenna factor probability: | 0.995334 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 2 / 70, Q3: 4 / 134, Q4: 18 / 258 |
| Maximum signal-to-noise ratio: | H1: 466.477, L1: 401.096 |

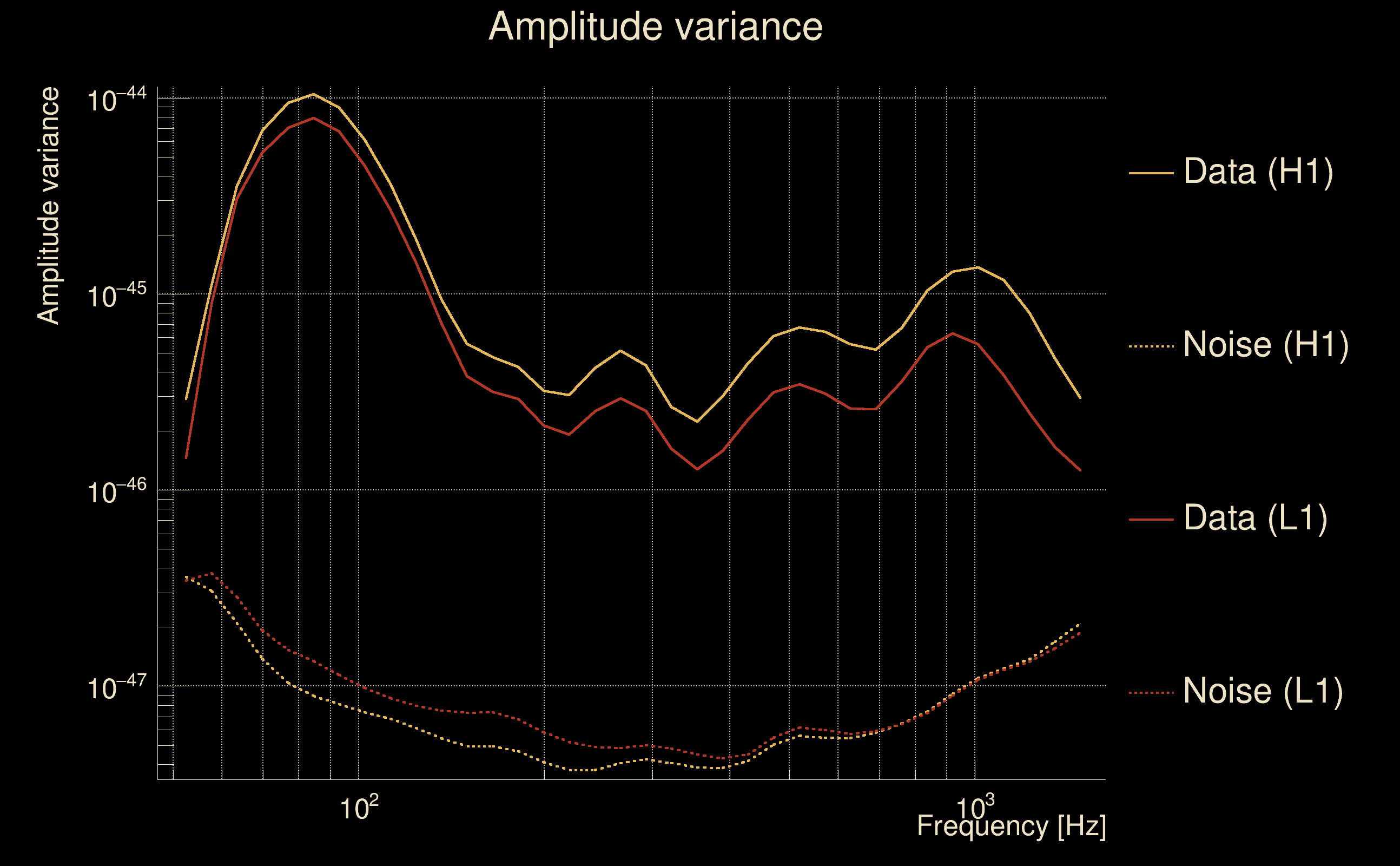

| SNR variance: | H1: 0.568692, L1: 0.501984 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

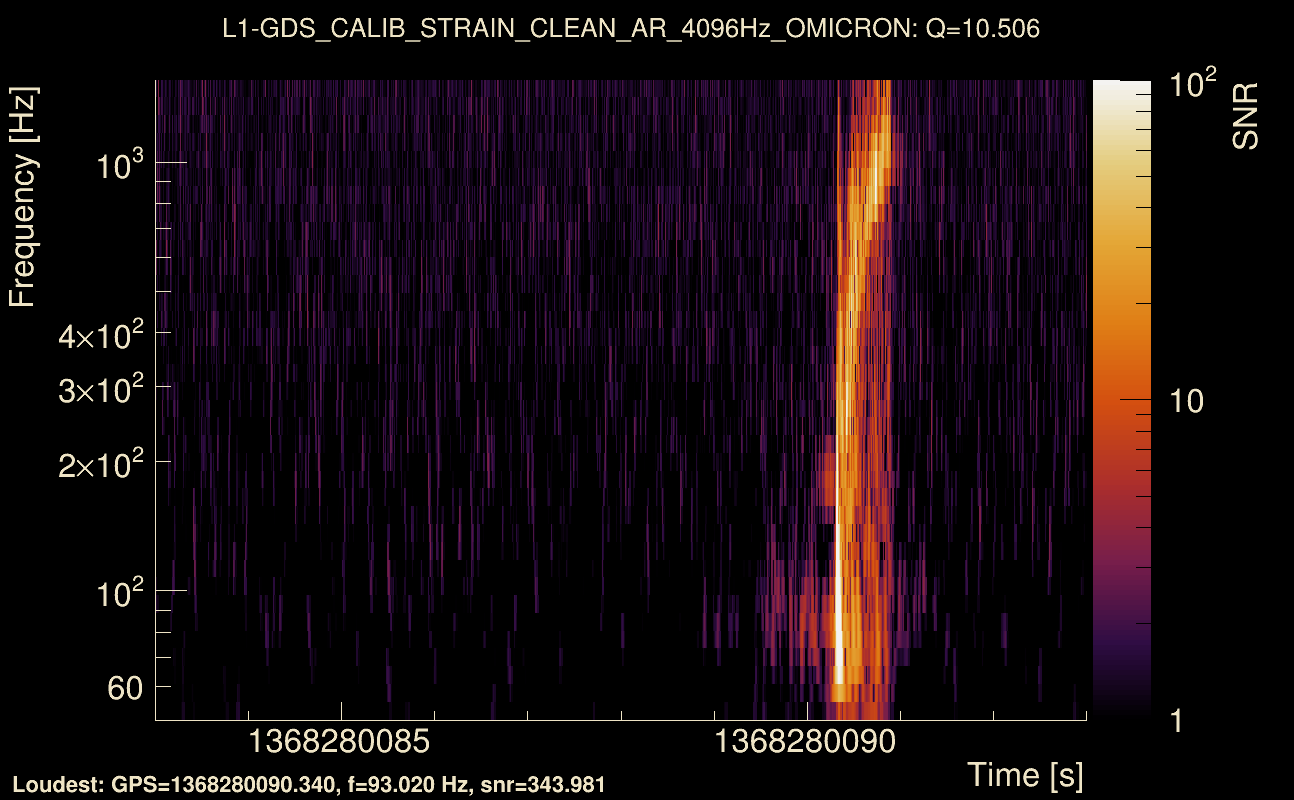

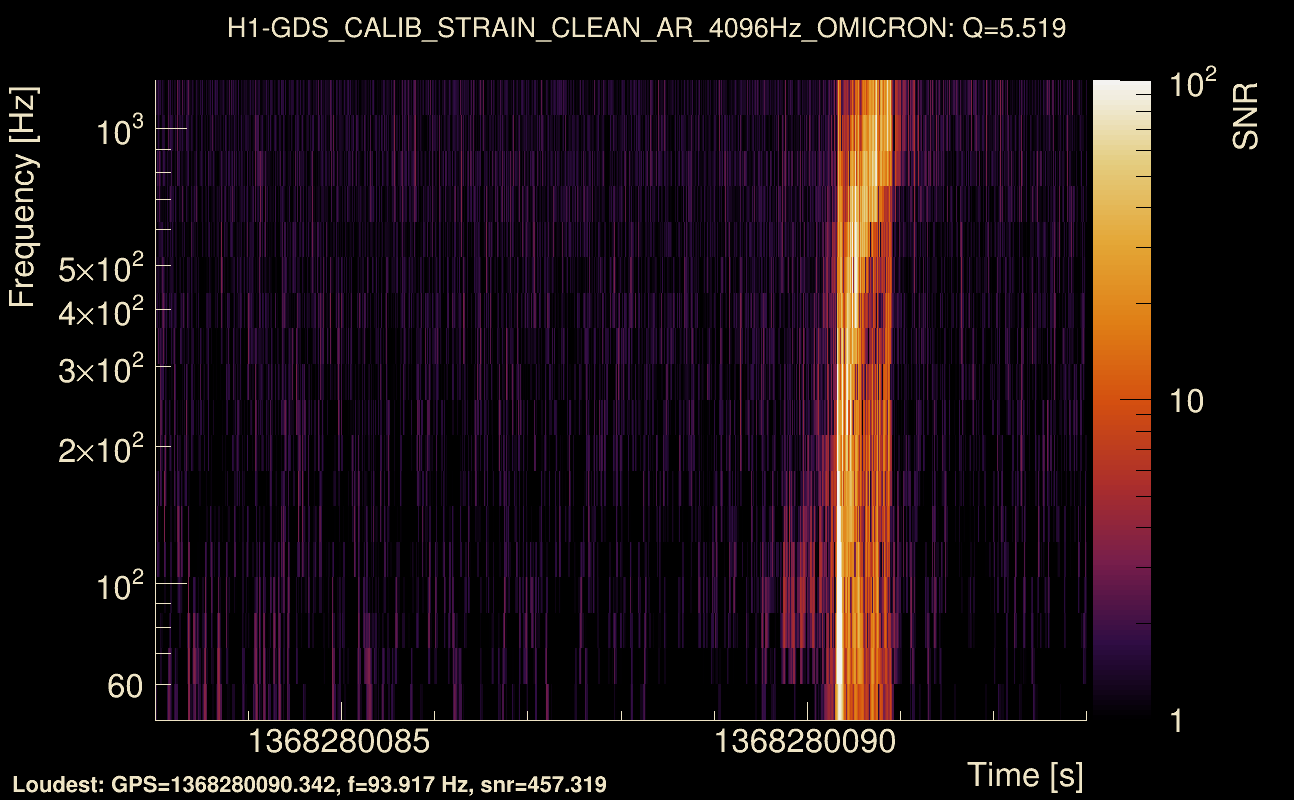

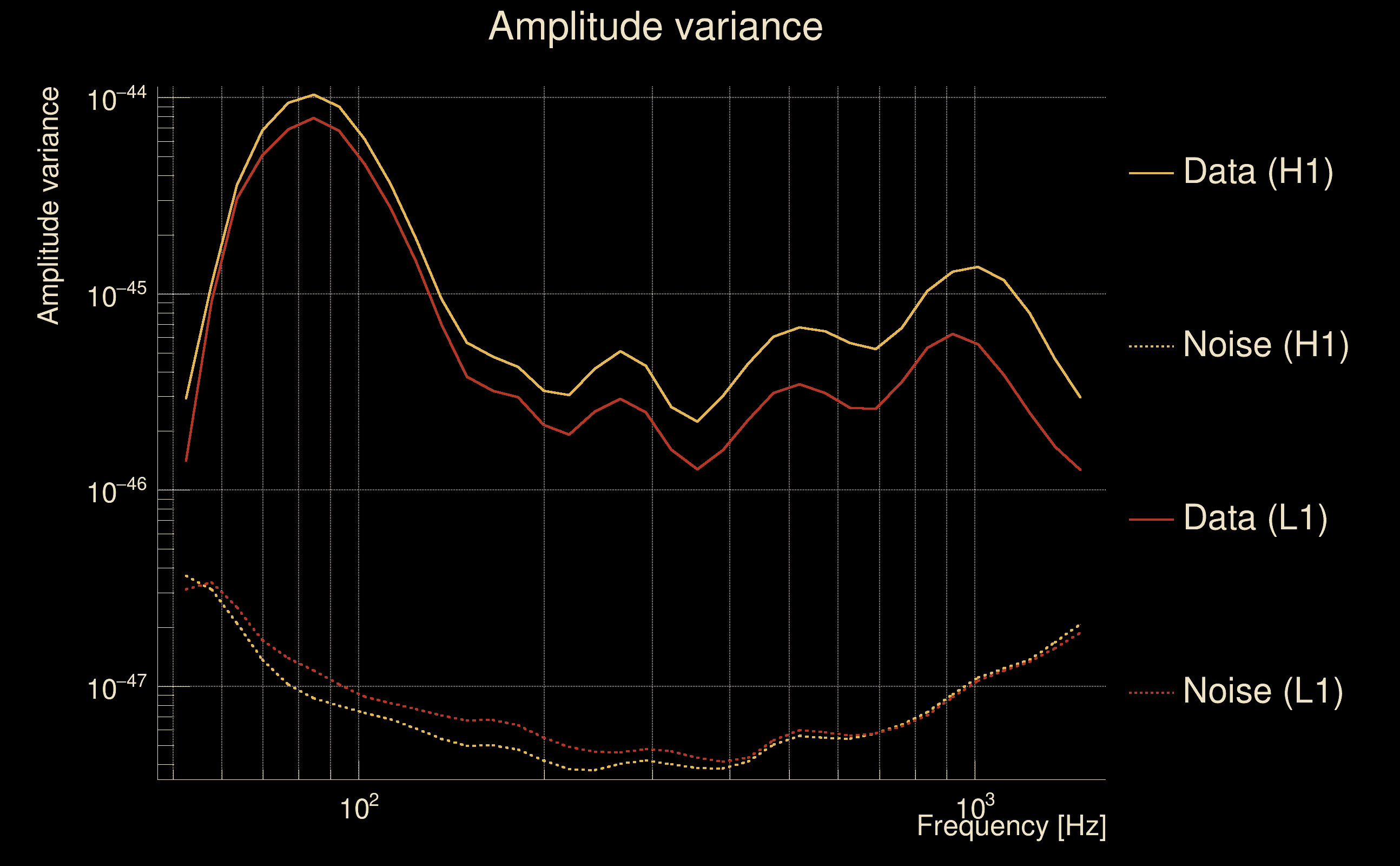

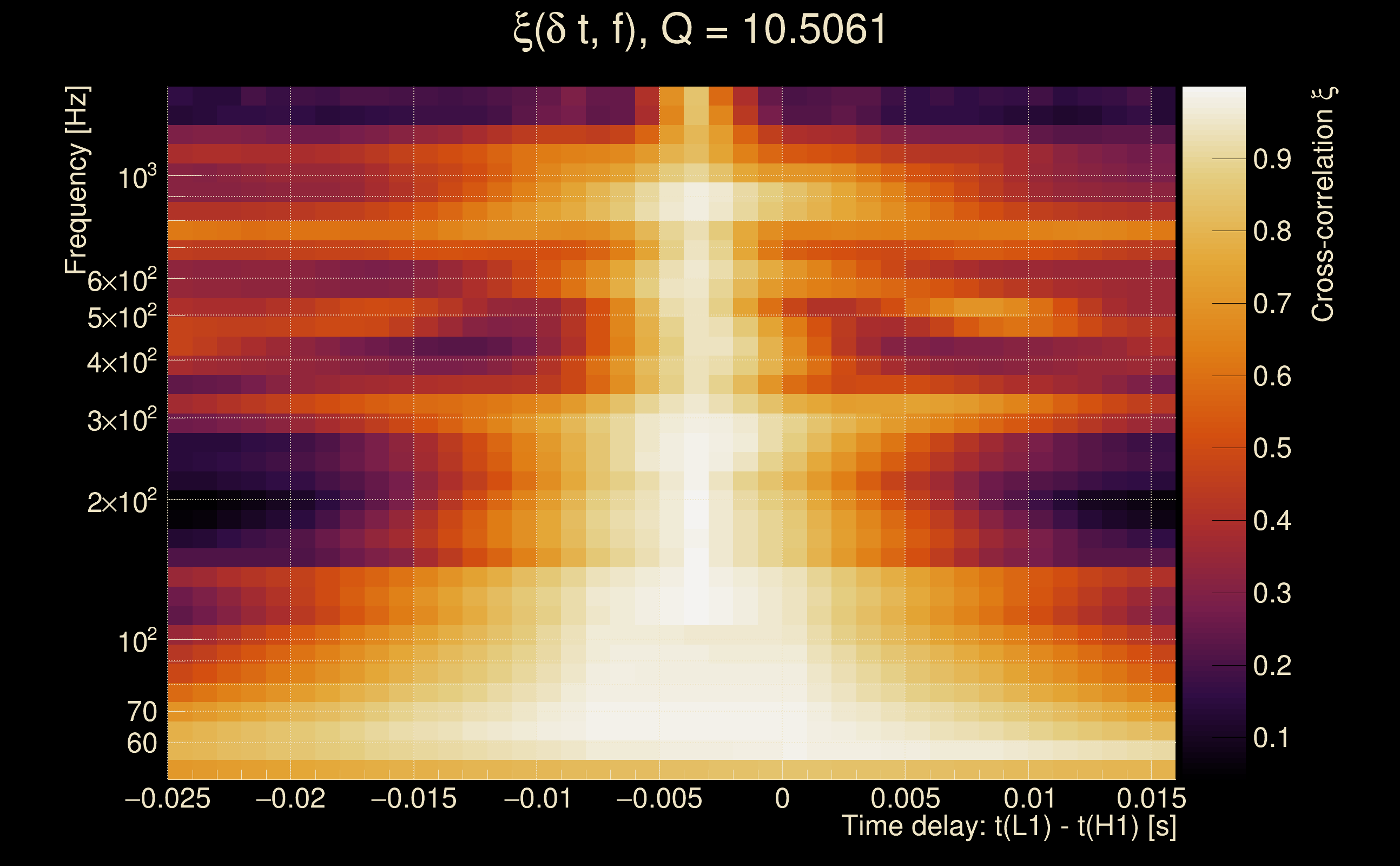

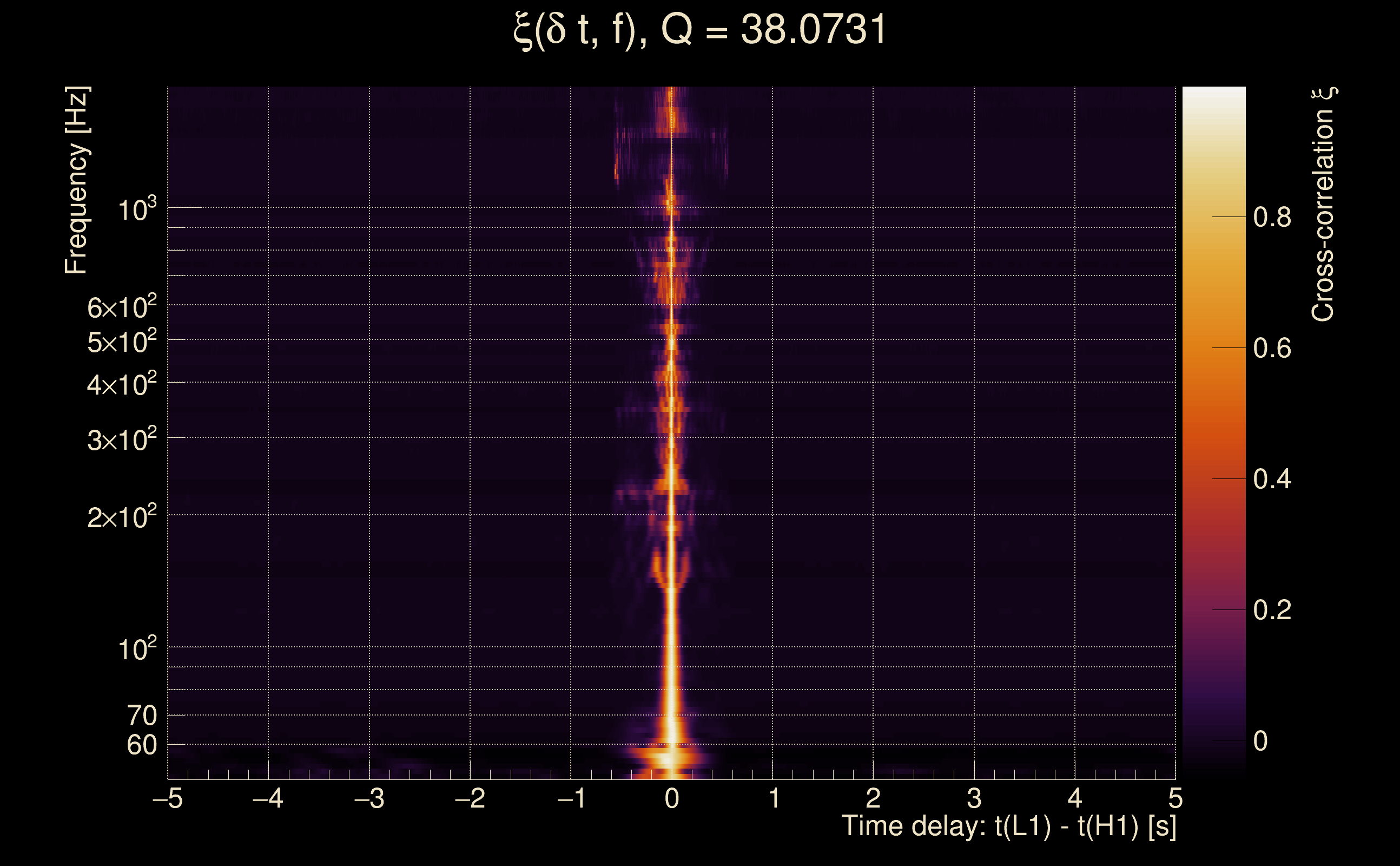

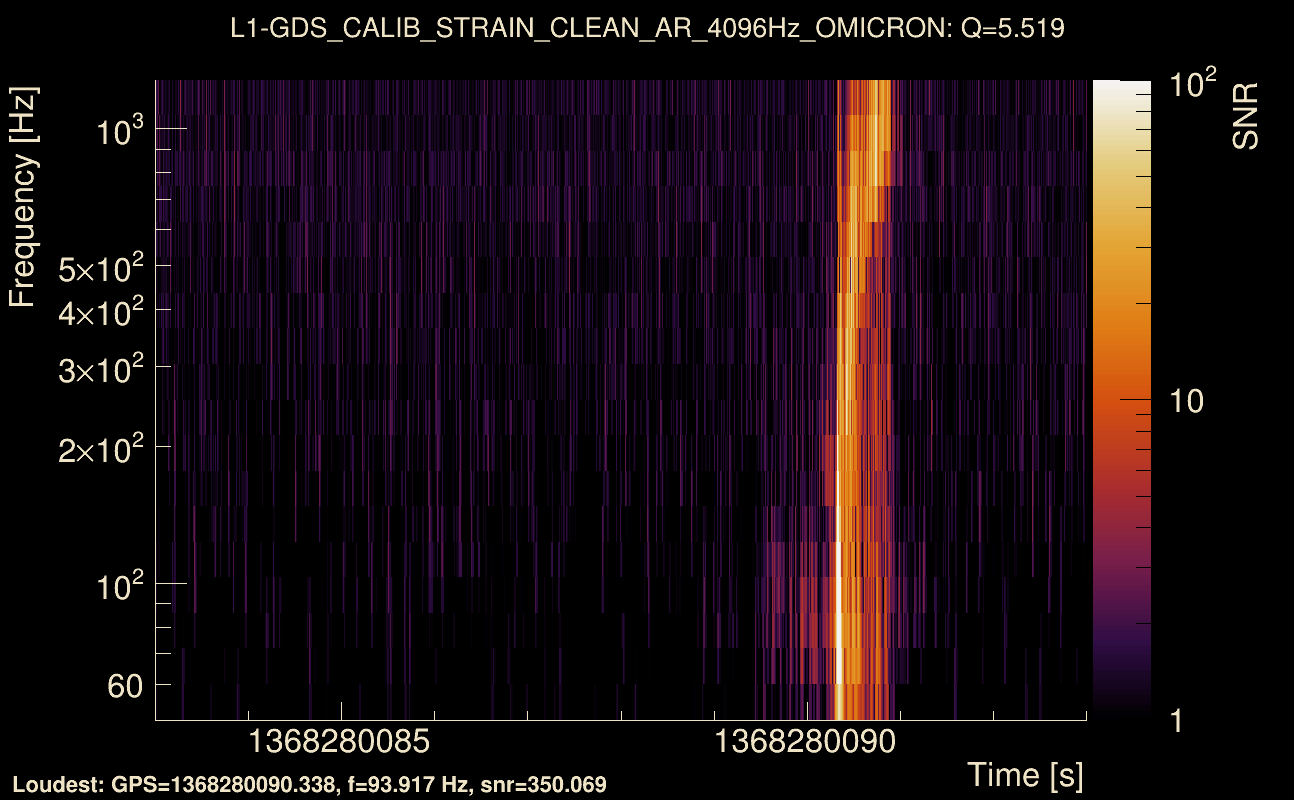

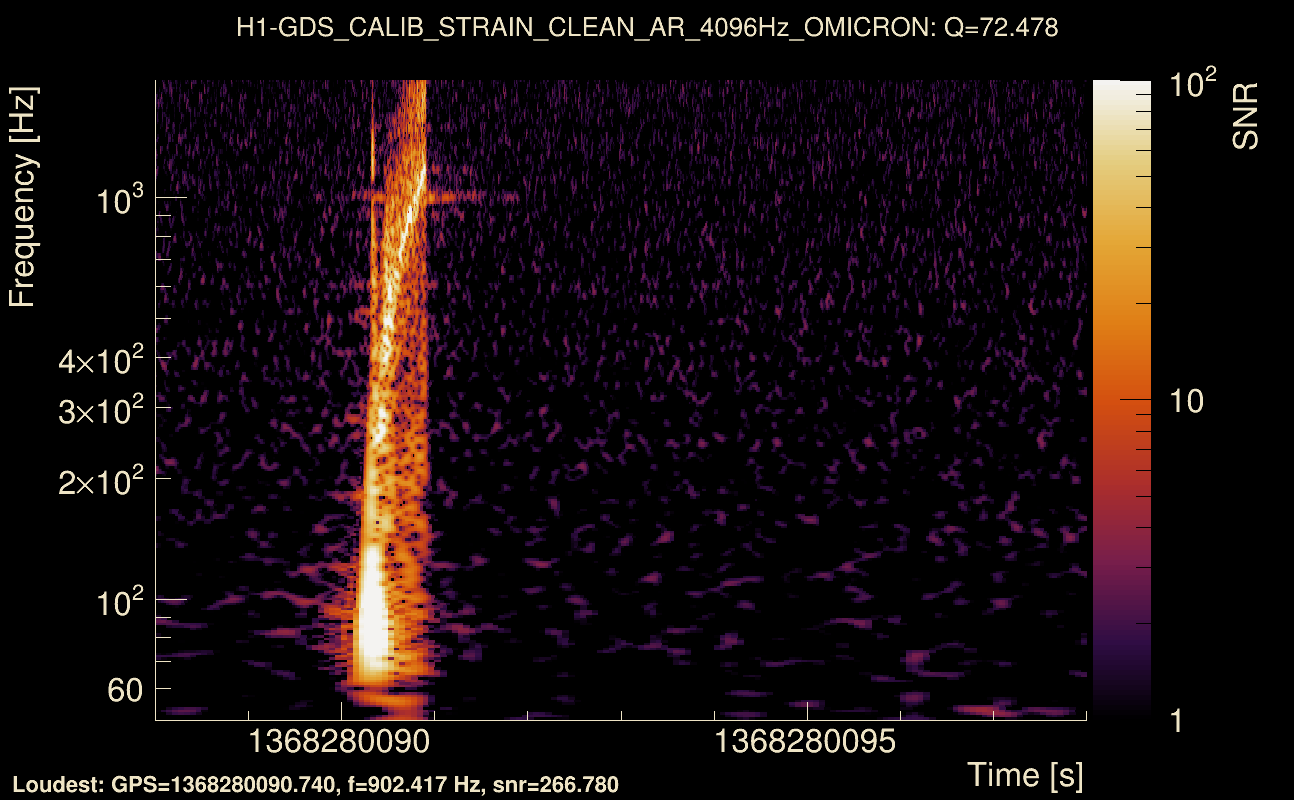

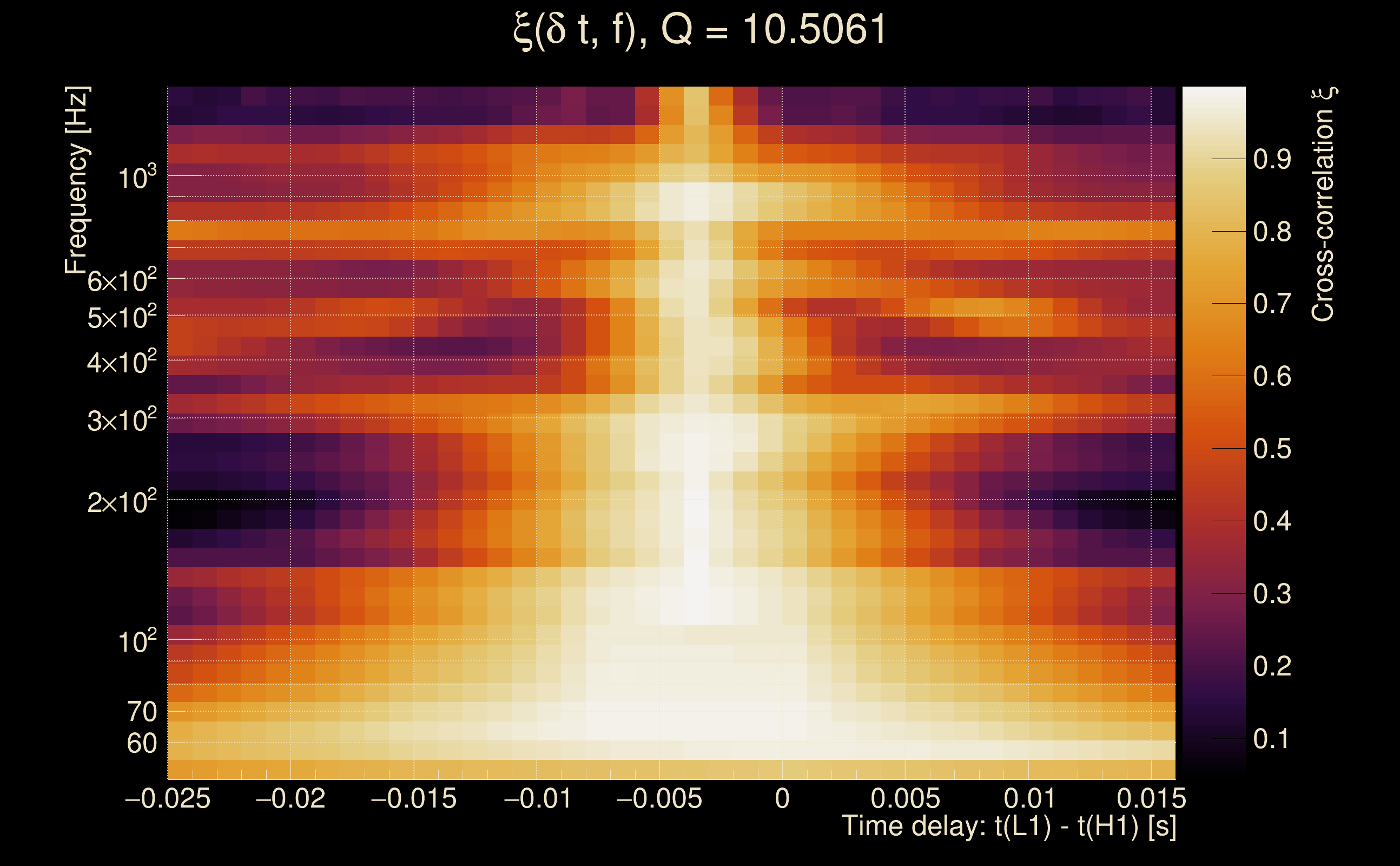

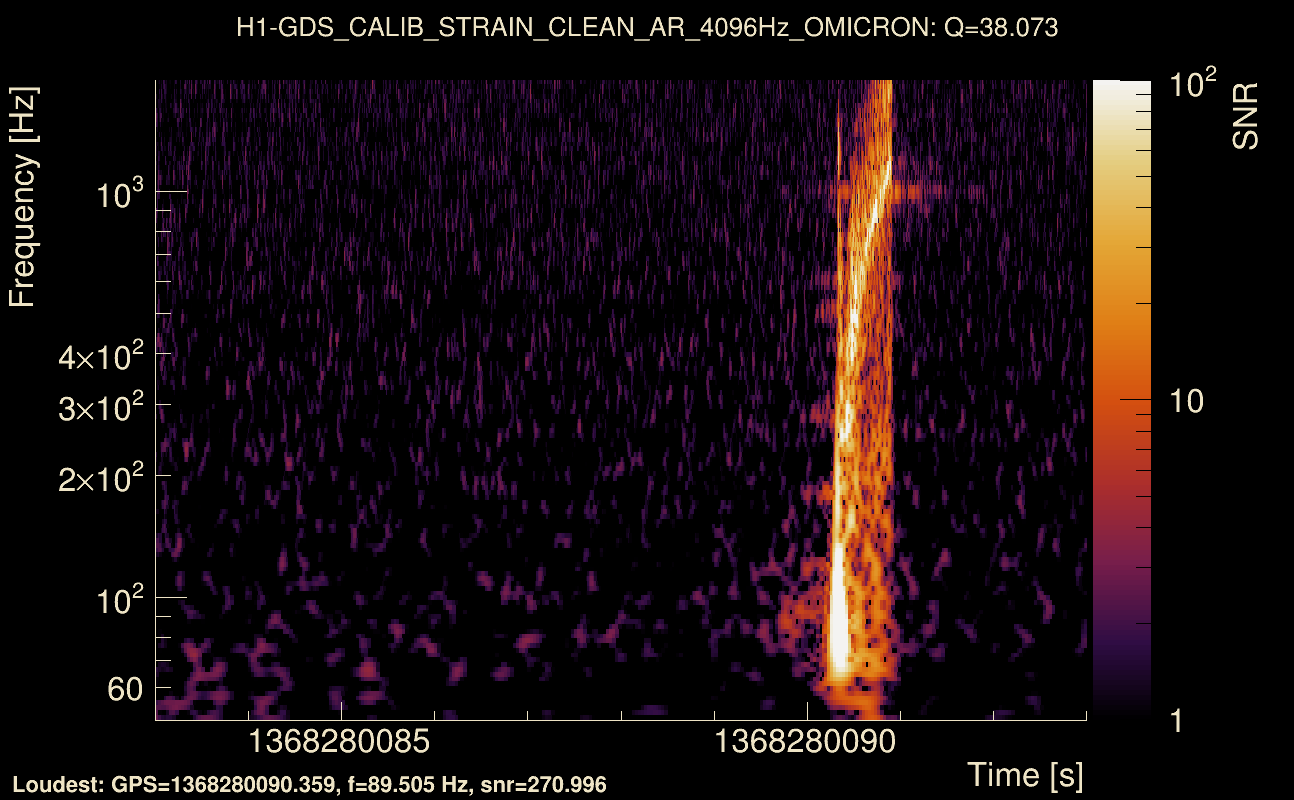

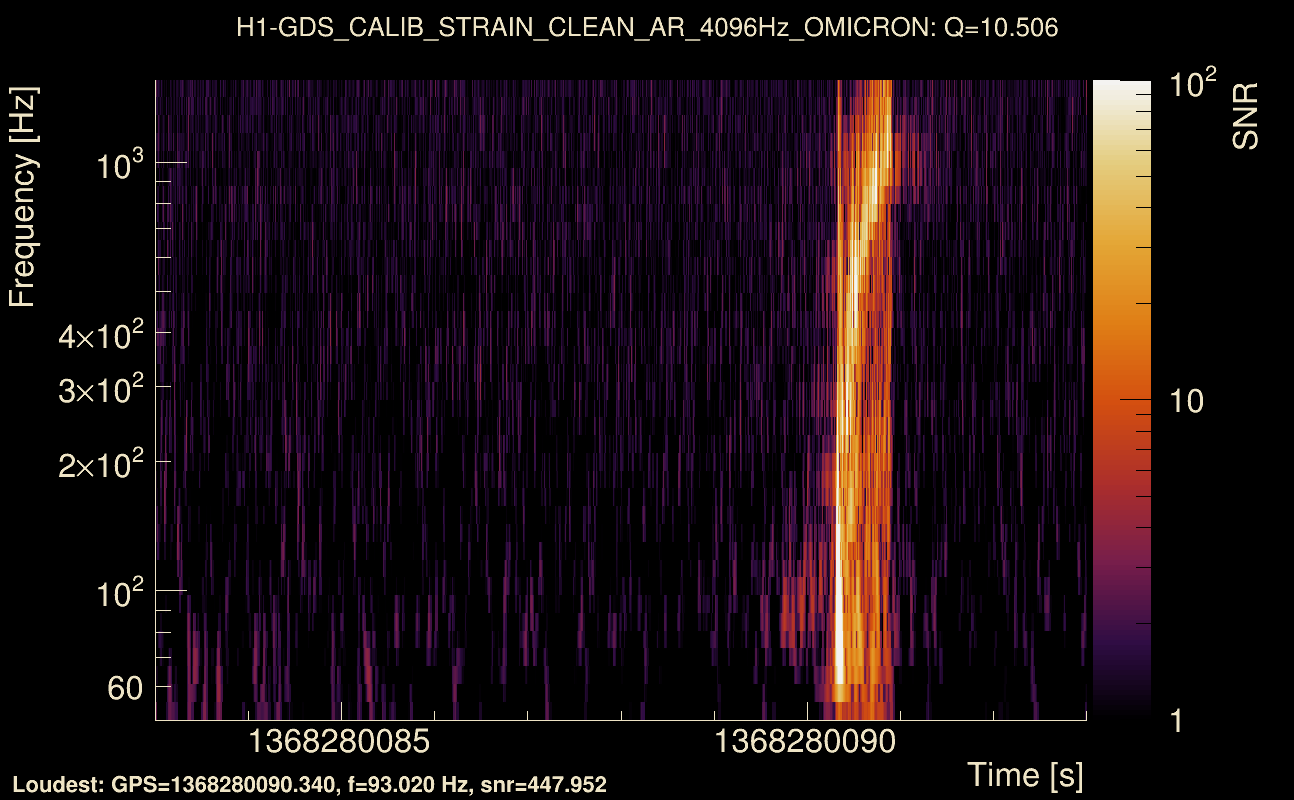

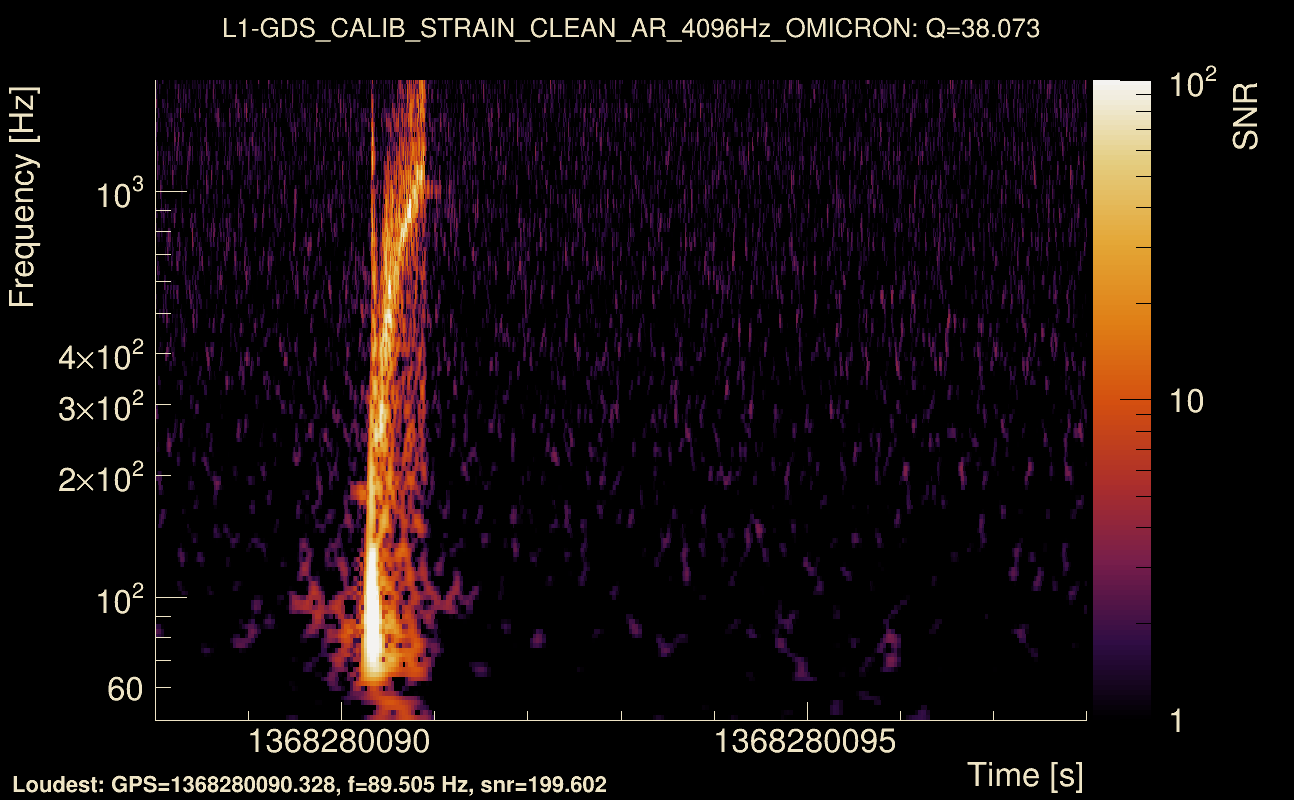

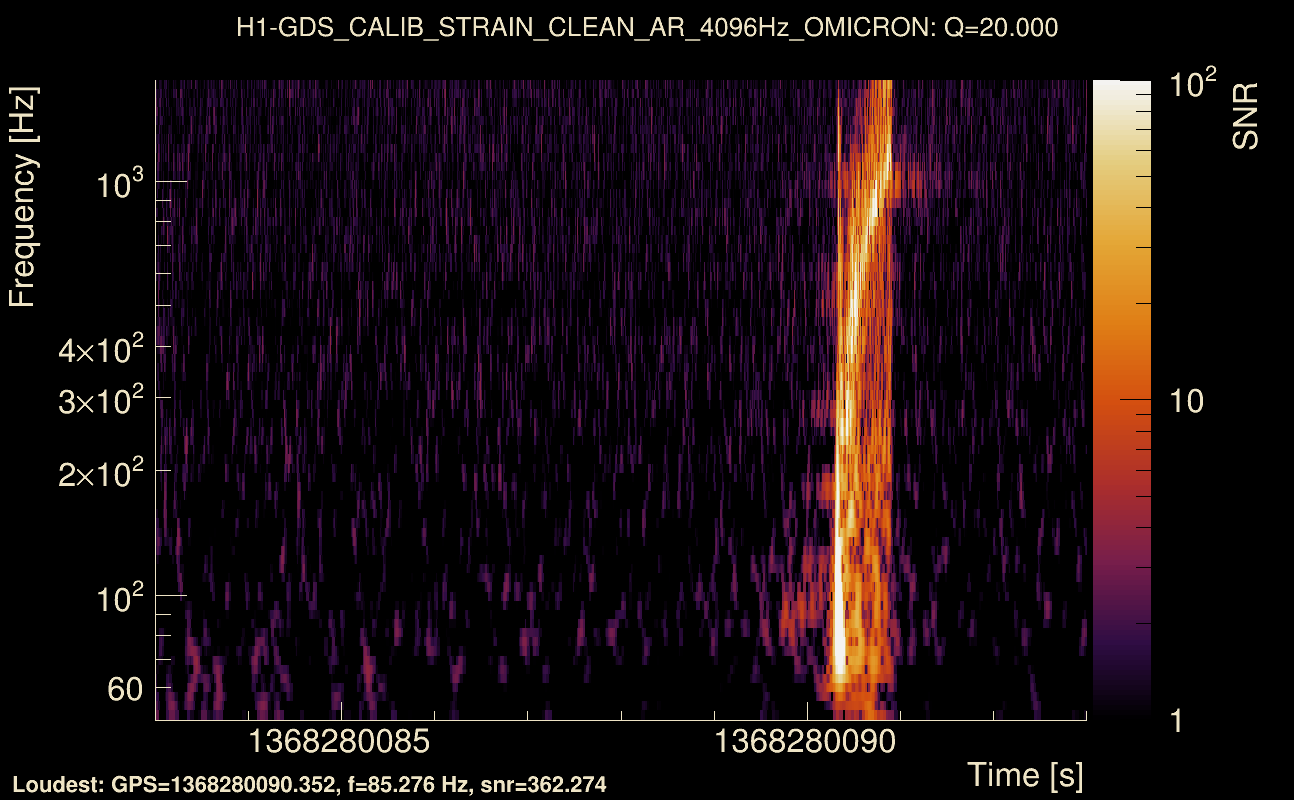

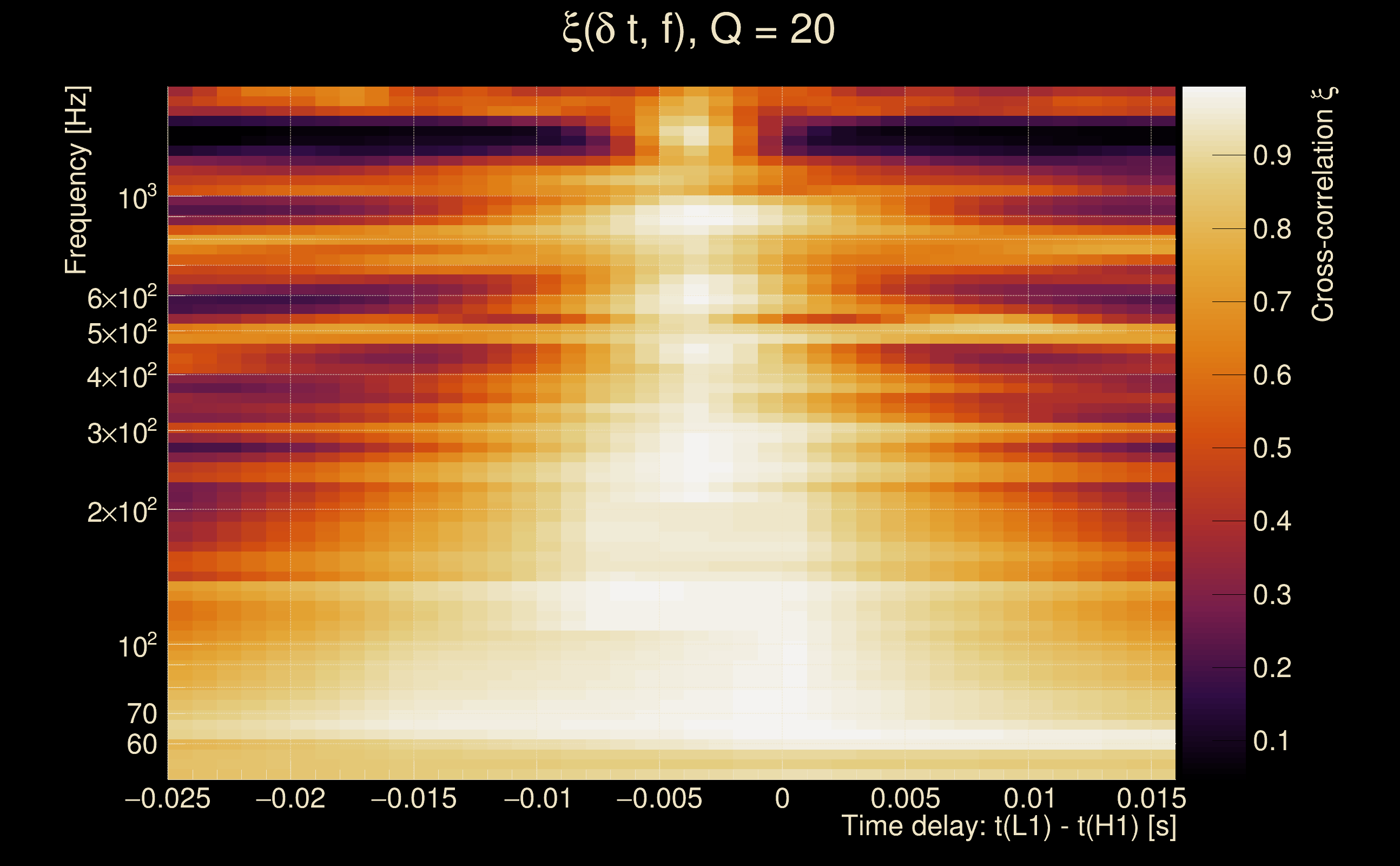

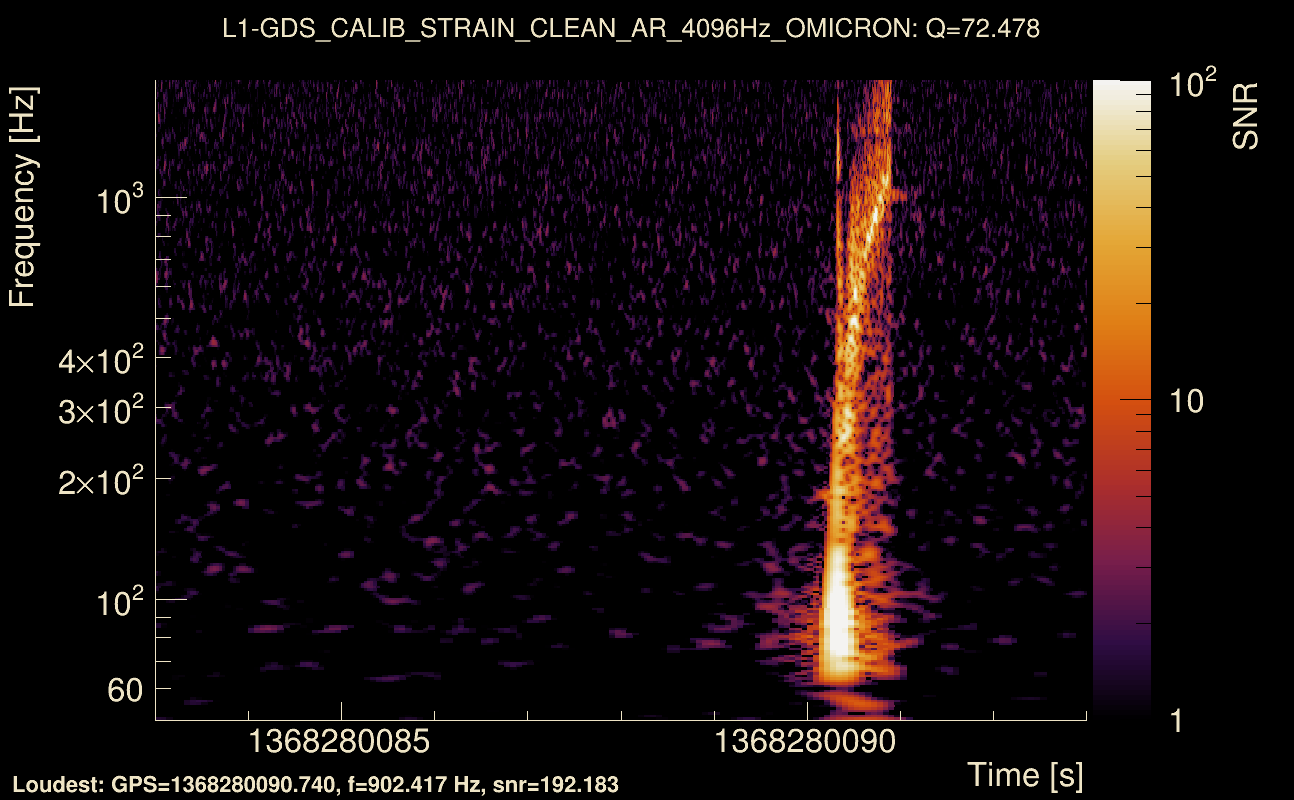

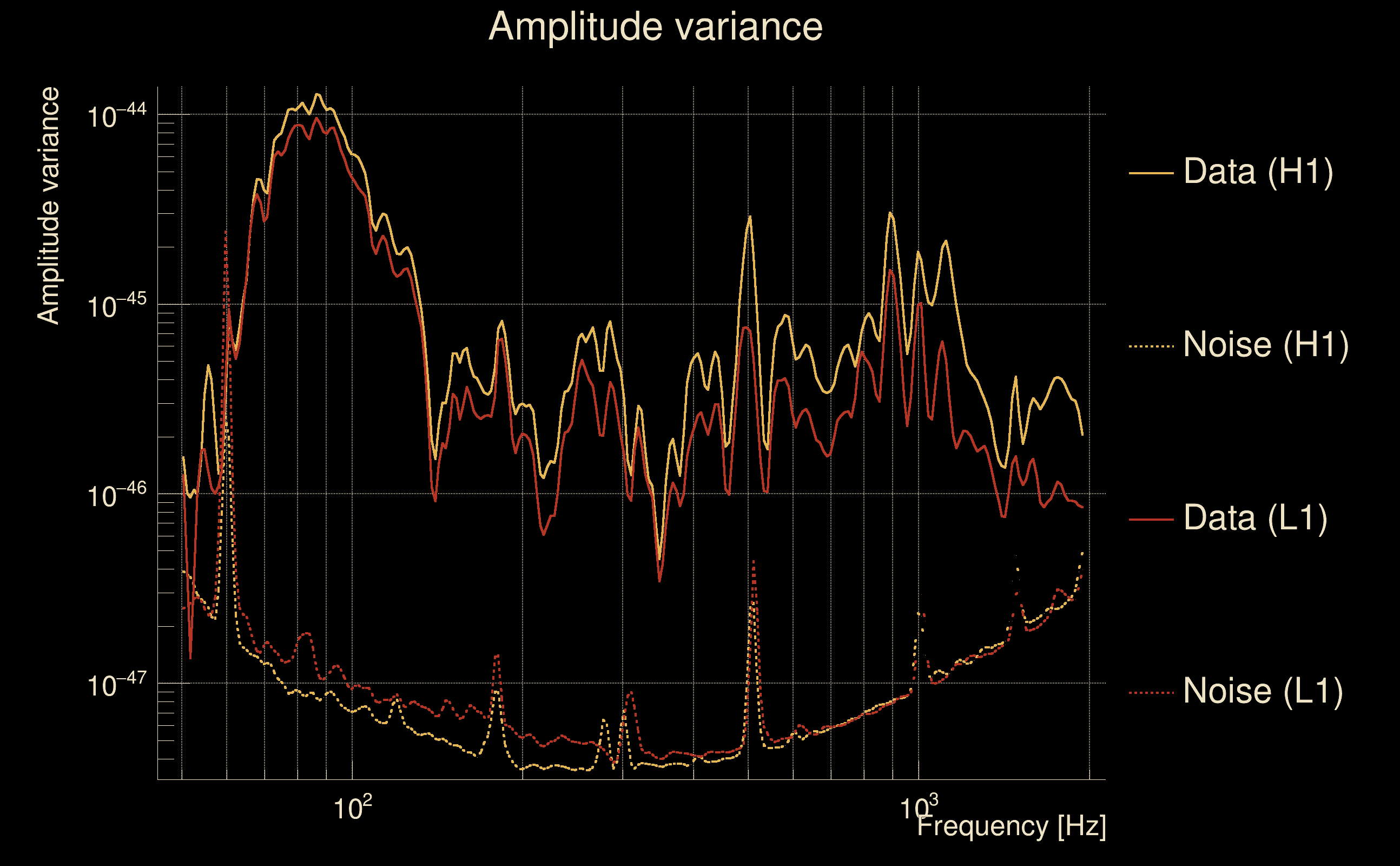

| Event time t(H1): | GPS = 1368280088 (Tue May 16 13:47:50 2023 ) → GPS = 1368280098 (Tue May 16 13:48:00 2023 ) |
| Event time t(L1): | GPS = 1368280088 (Tue May 16 13:48:00 2023 ) → GPS = 1368280098 (Tue May 16 13:48:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368280085 → GPS = 1368280101 |
| Omicron analysis time window (L1): | GPS = 1368280085 → GPS = 1368280101 |
| Time delay between detectors t(L1) - t(H1): | -0.00402971 s (slice index = 108 / 217), δt_gw = -0.00402971 s |
| Time delay standard deviation: | 0.0223485 s |
| [targeted mode] Time delay probability: | 7.64432e-146 (25.7165 sigmas), δt_target = -0.00986218 s |
| Frequency: | 284.015 Hz |
| Ξ: | 0.953576 ± 0.00599003 (variance = 3.58805e-05): Q0: 0.968397, Q1: 0.955036, Q2: 0.952421, Q3: 0.953118, Q4: 0.953736 |
| Rank: | R_A = 0.903082 |
| Log of amplitude ratio (L1/H1): | -0.197015, variance = 0.159167 (L1/H1: -0.216946, variance = 0.314703, H1/L1: 0.170229, variance = 0.306068) |
| Amplitude ratio (L1/H1): | 0.821179 ⋇ 1.49027 (L1/H1: 0.804974 ⋇ 1.7524, H1/L1: 1.18558 ⋇ 1.73887) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.952719 |
| Antenna factor probability: | 0.994047 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 2 / 70, Q3: 4 / 134, Q4: 17 / 258 |
| Maximum signal-to-noise ratio: | H1: 462.473, L1: 398.933 |
| SNR variance: | H1: 116.844, L1: 79.2956 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

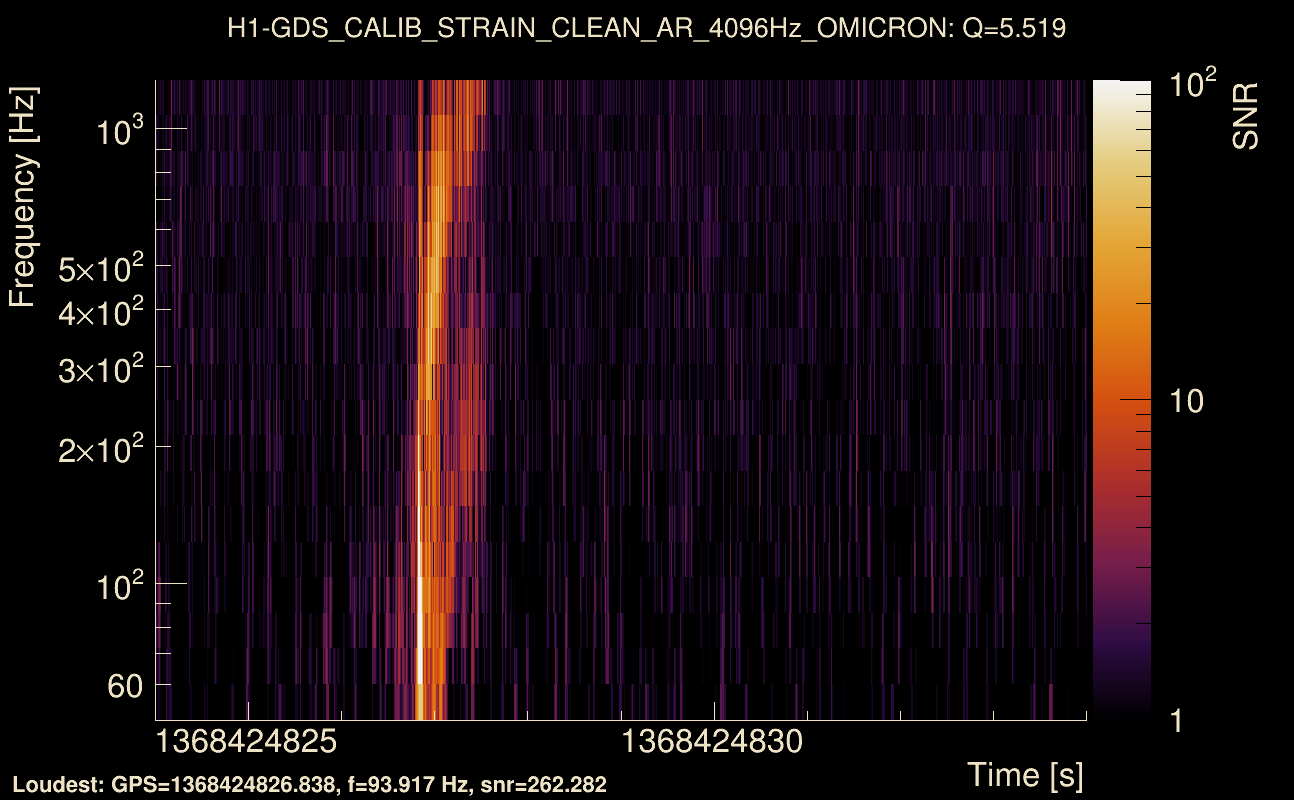

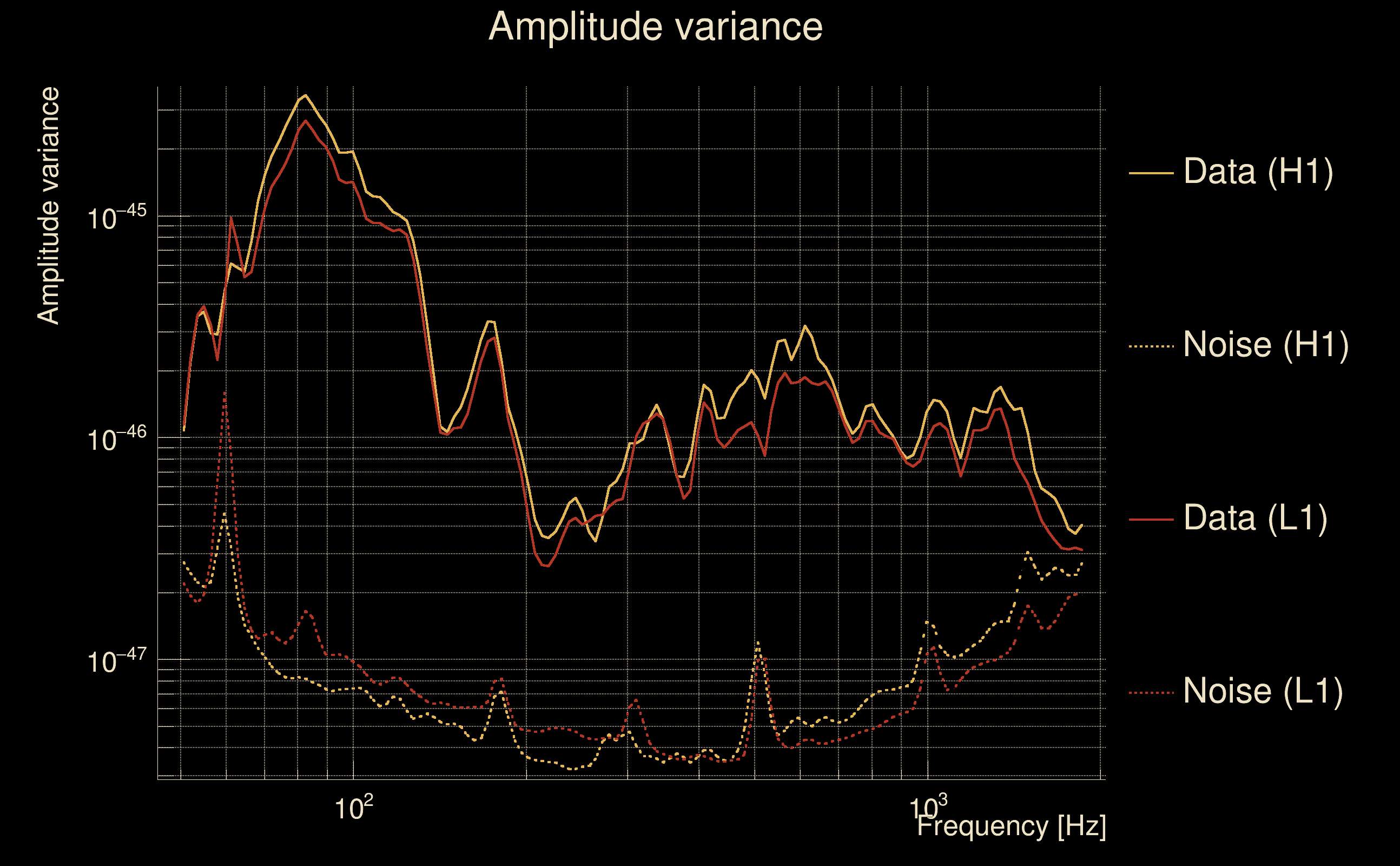

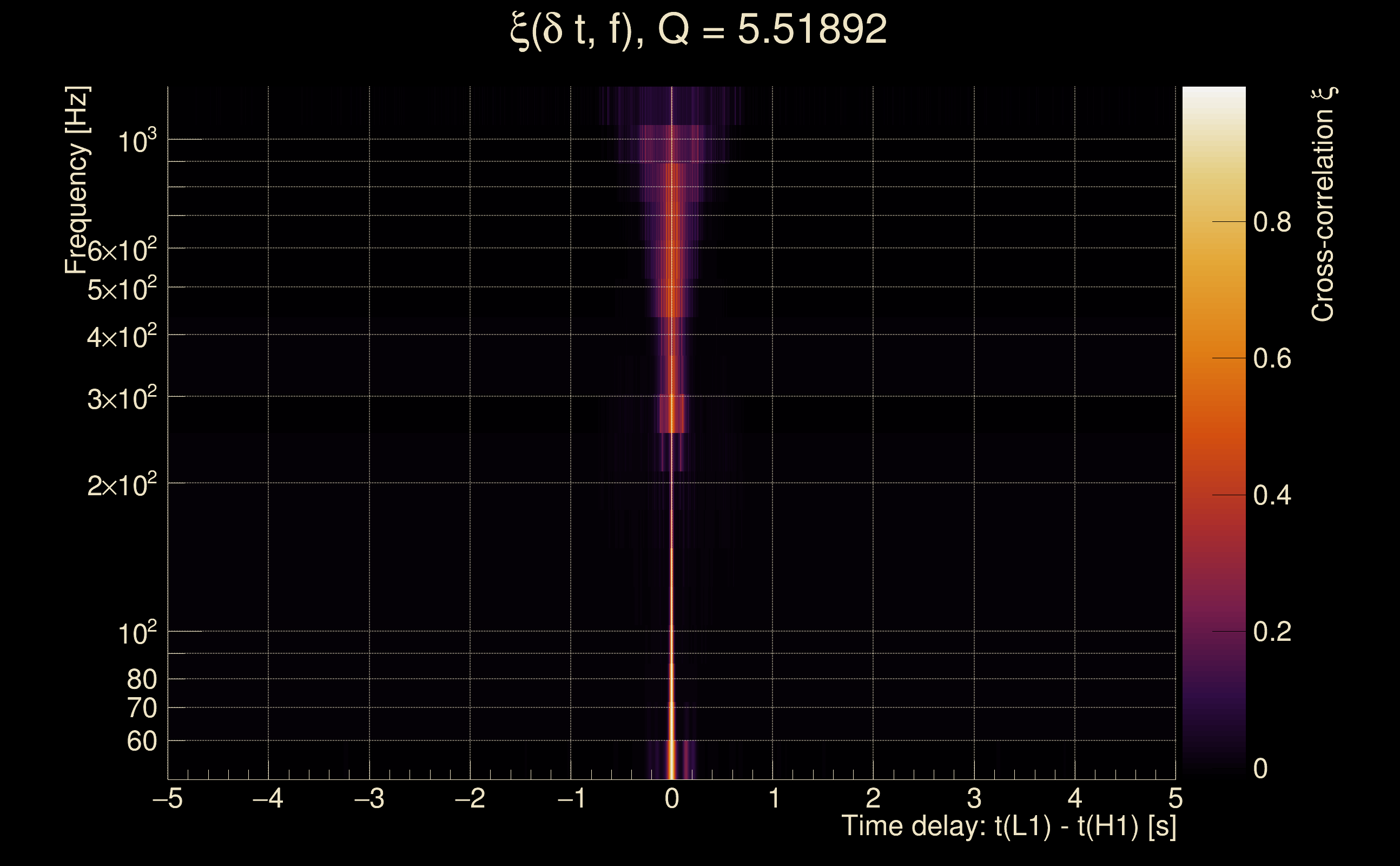

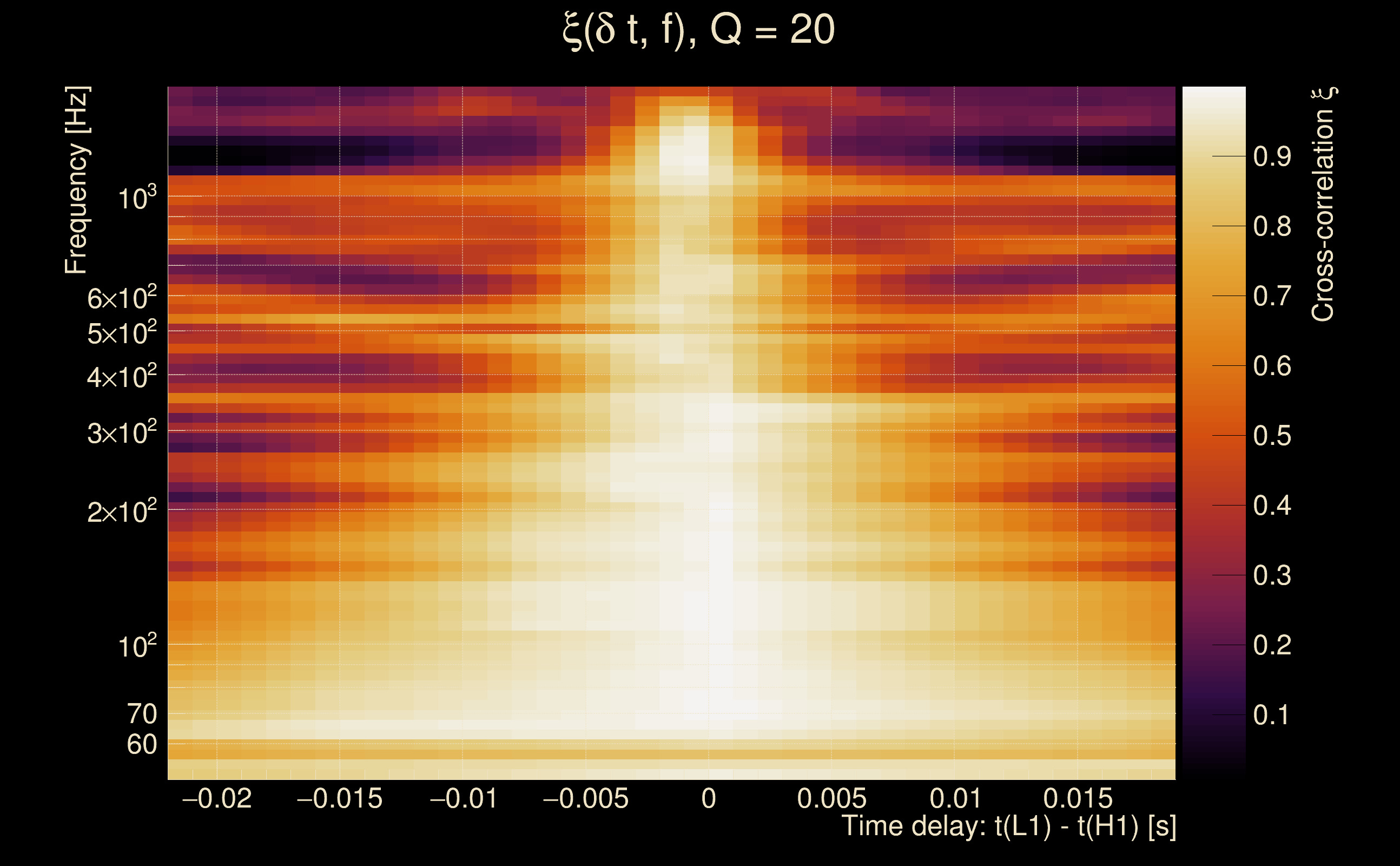

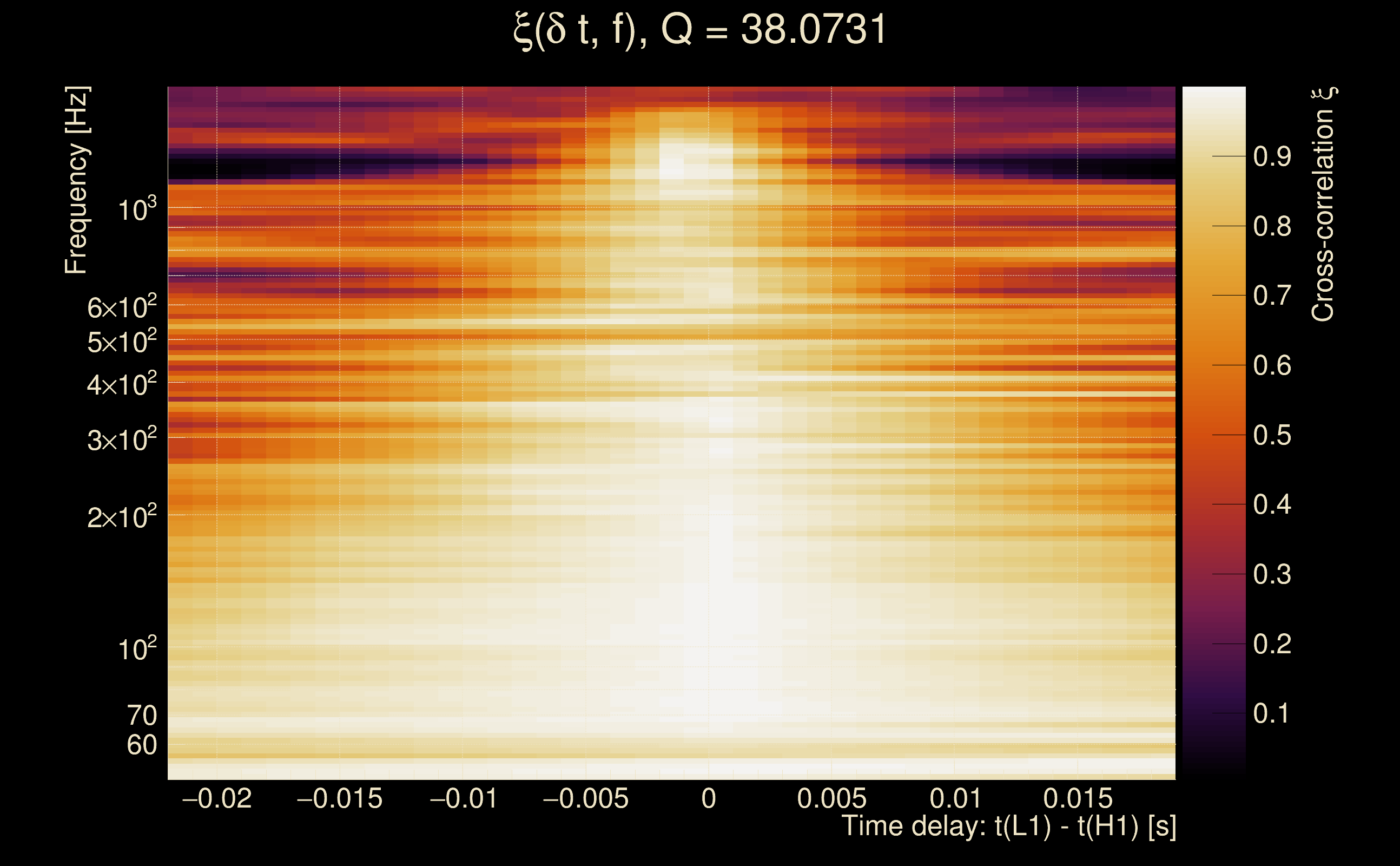

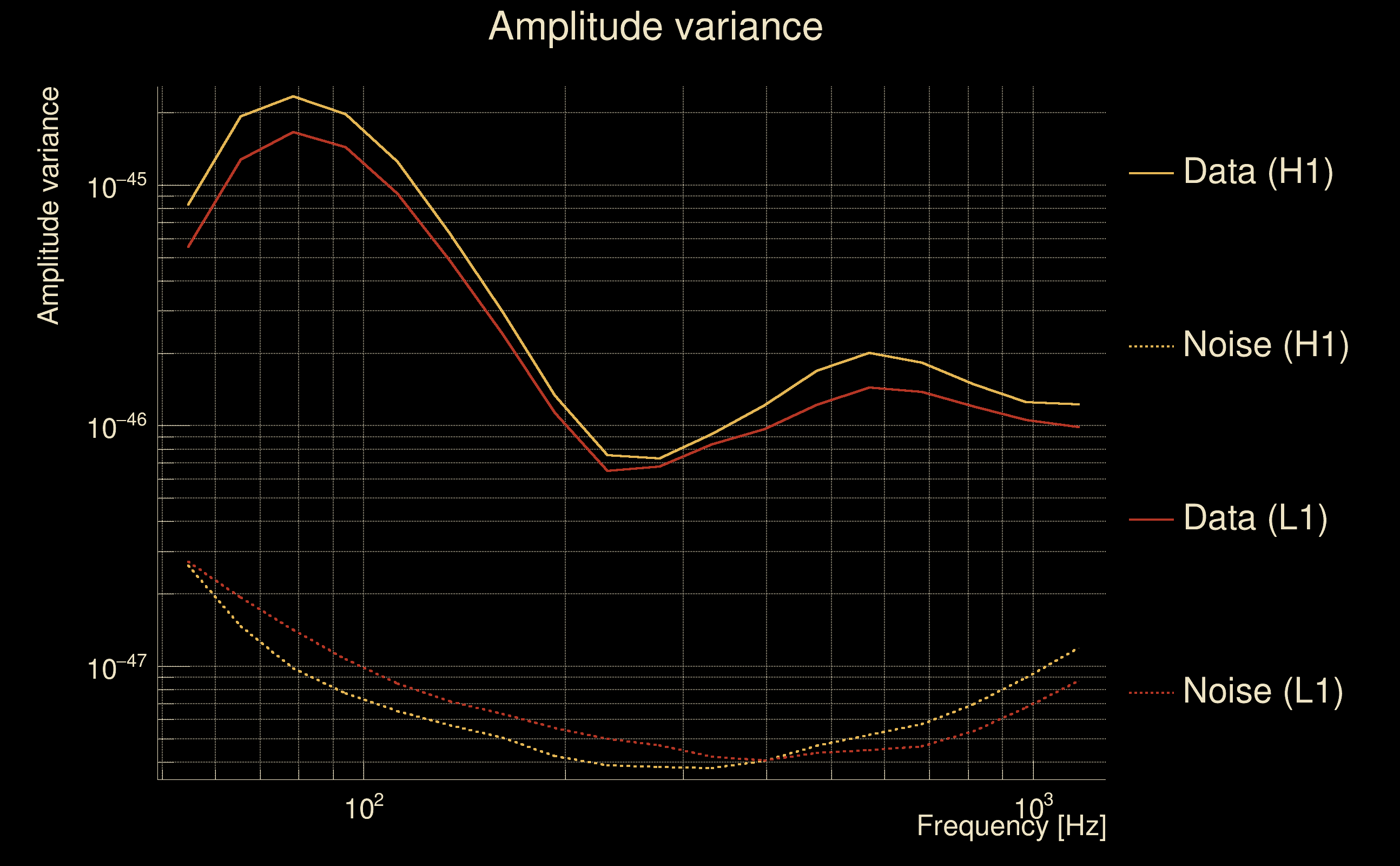

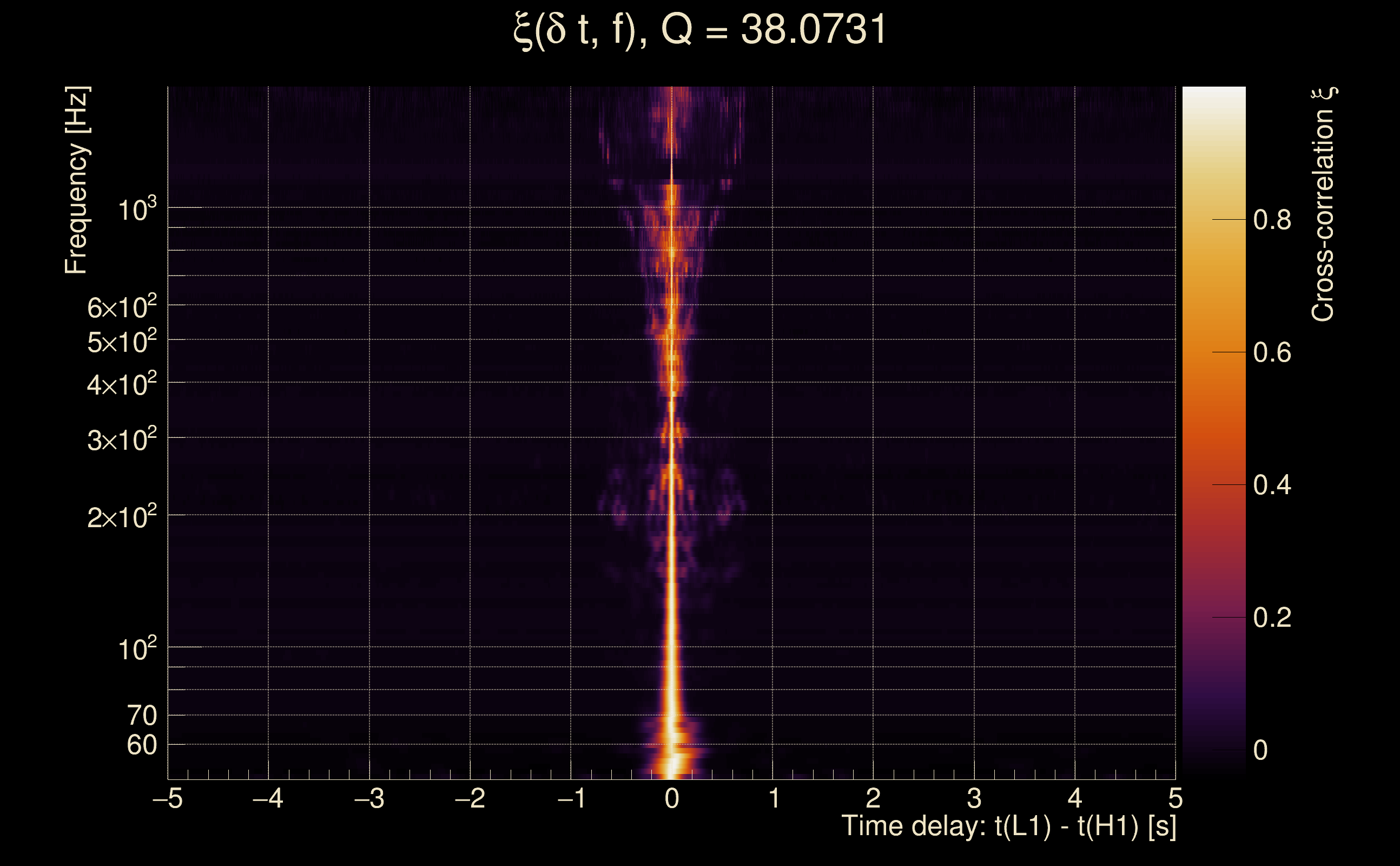

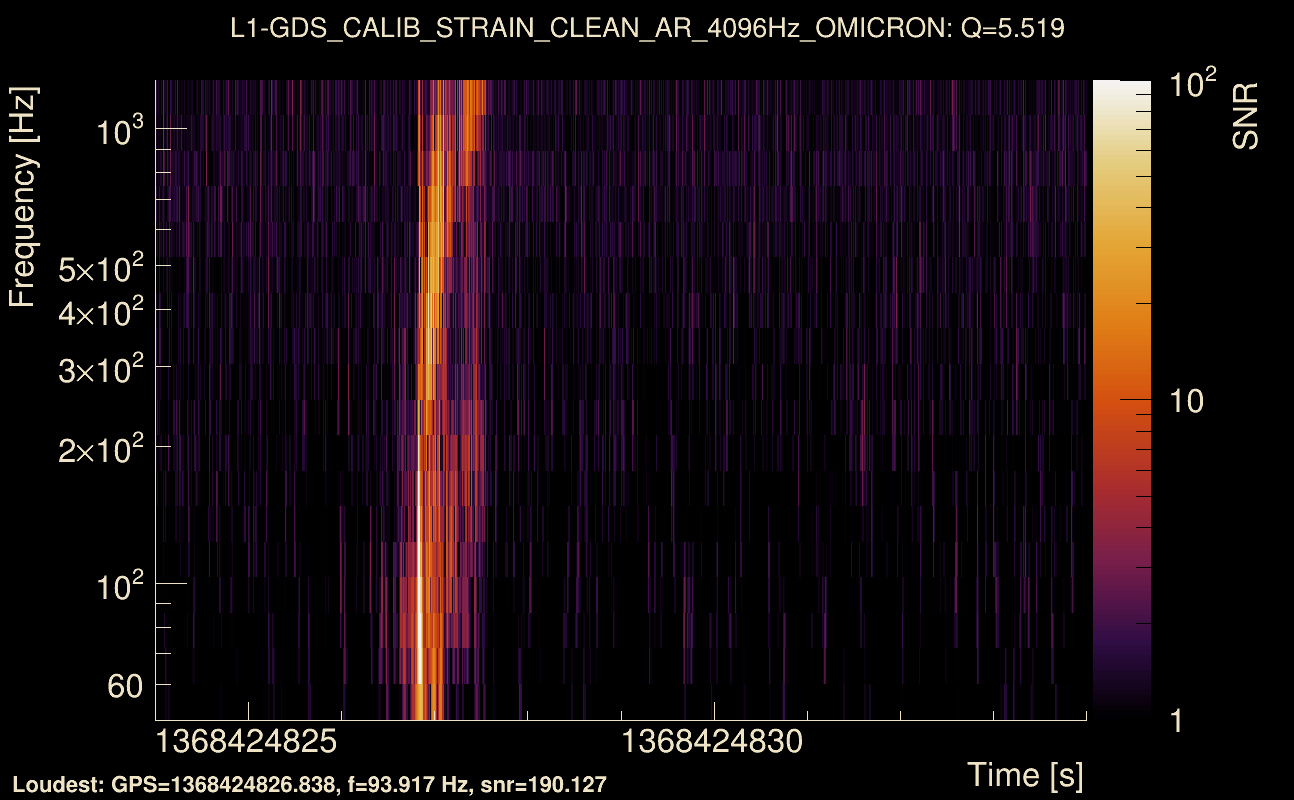

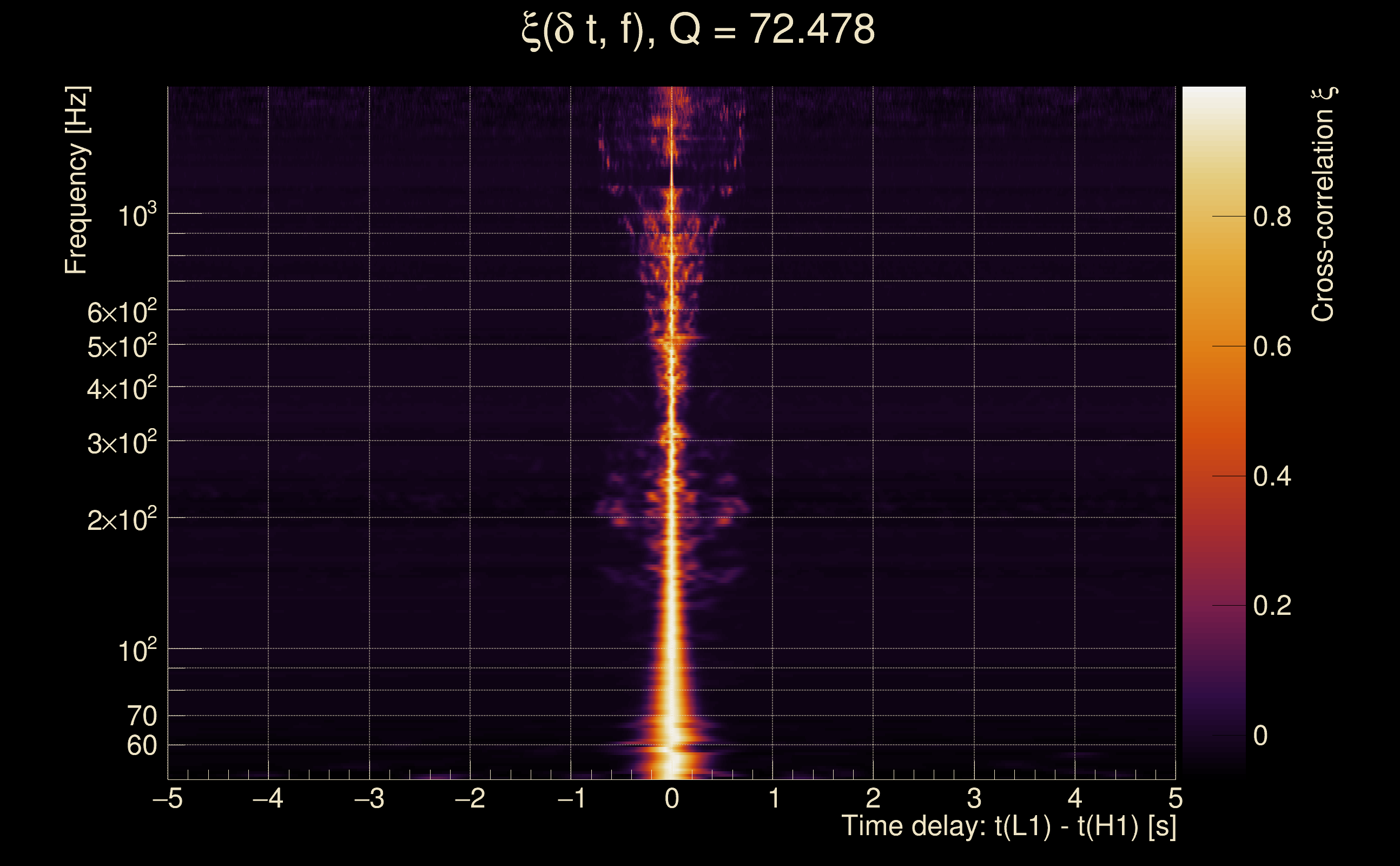

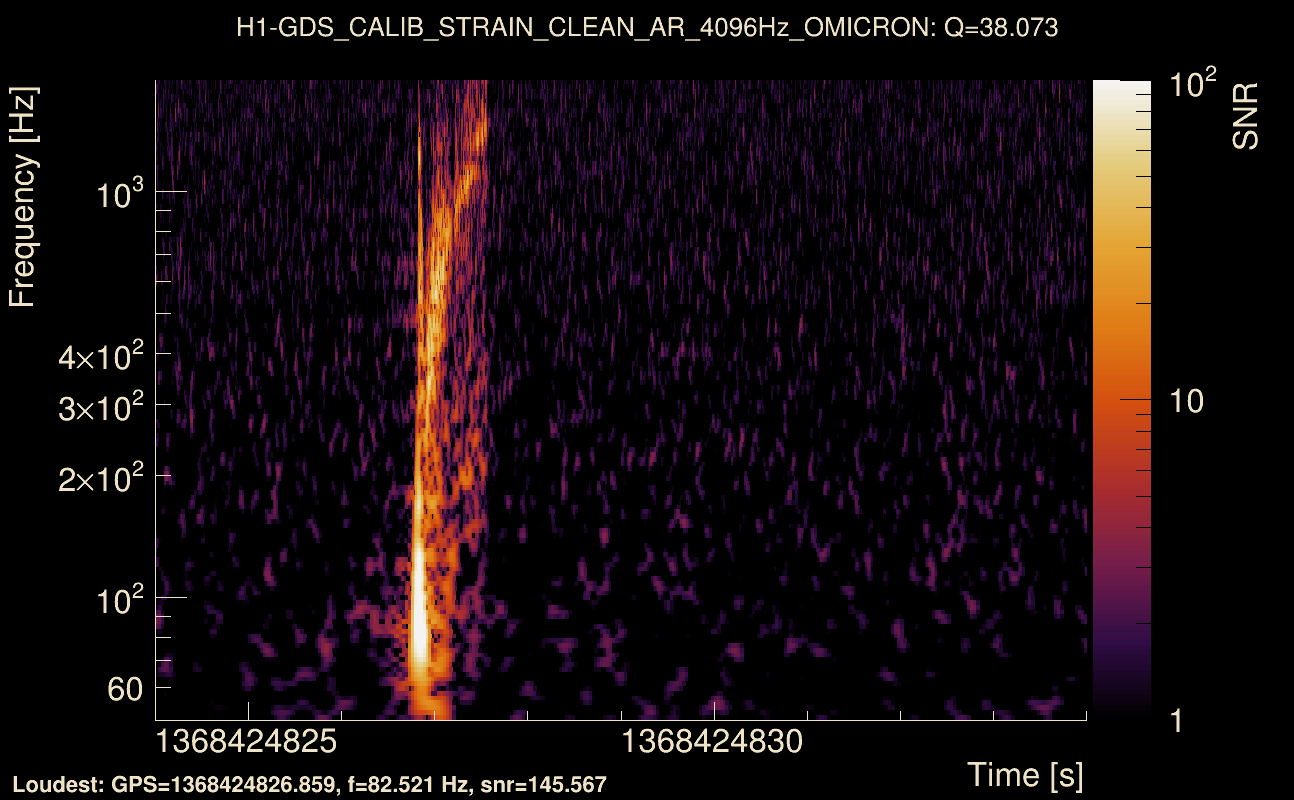

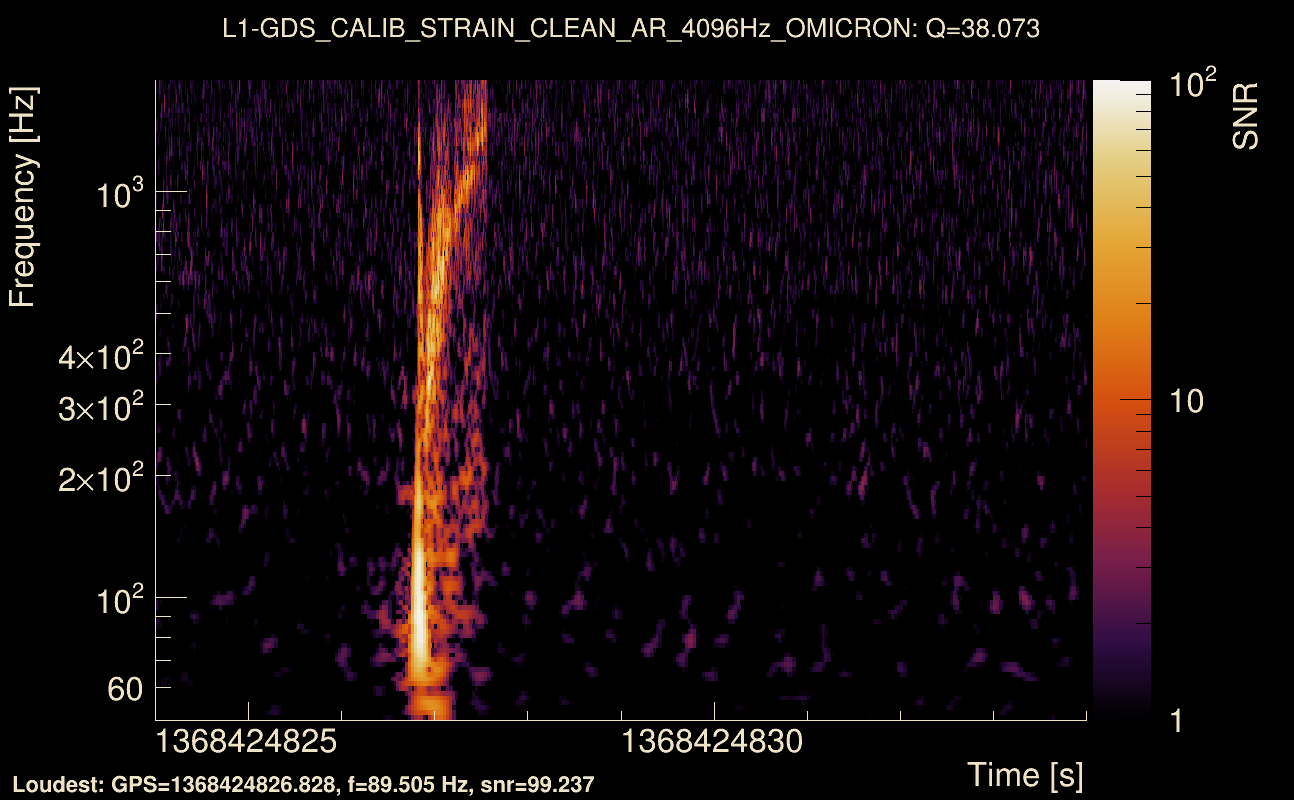

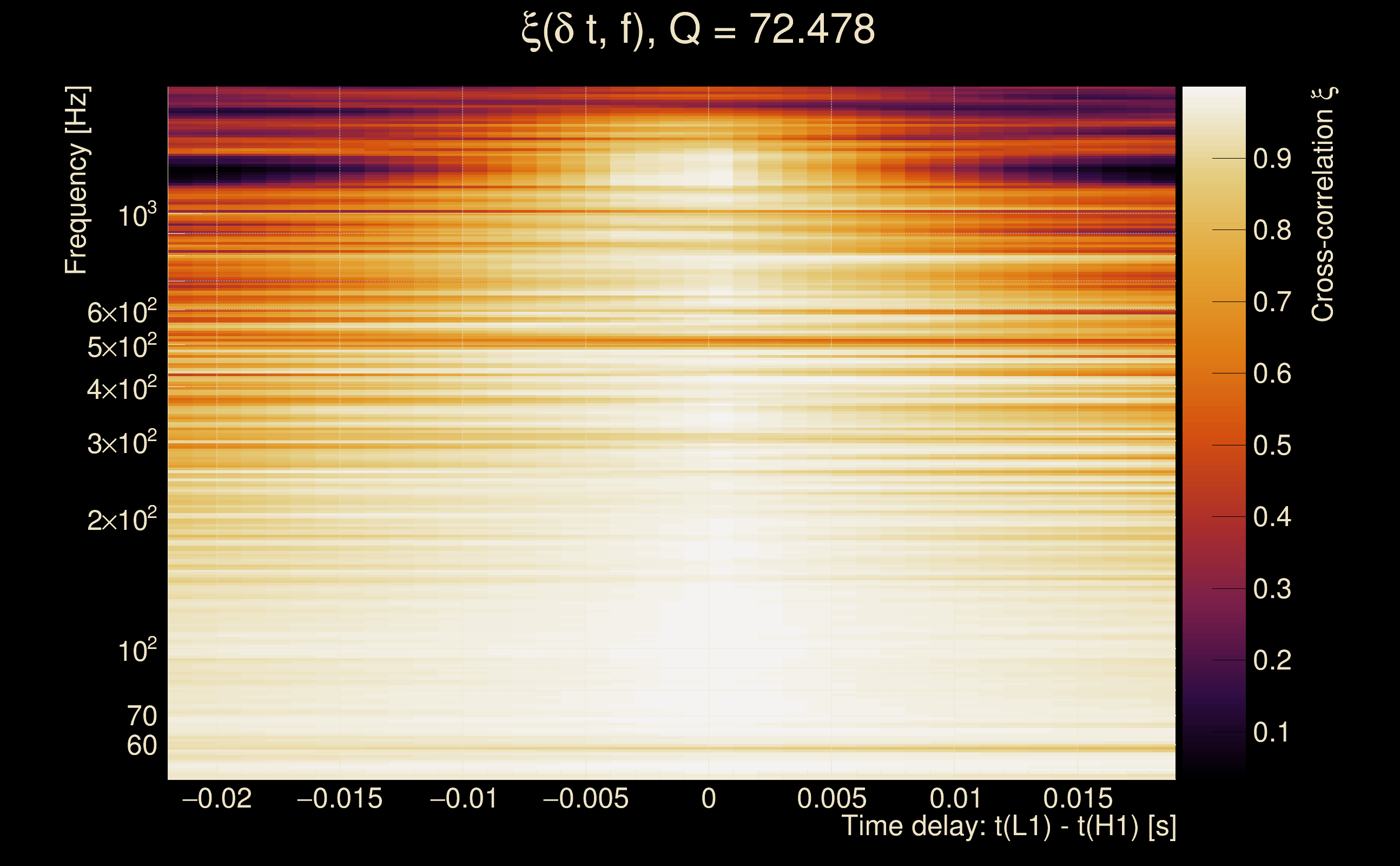

| Event time t(H1): | GPS = 1368424824 (Thu May 18 06:00:06 2023 ) → GPS = 1368424834 (Thu May 18 06:00:16 2023 ) |
| Event time t(L1): | GPS = 1368424824 (Thu May 18 06:00:16 2023 ) → GPS = 1368424834 (Thu May 18 06:00:16 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424821 → GPS = 1368424837 |
| Omicron analysis time window (L1): | GPS = 1368424821 → GPS = 1368424837 |
| Time delay between detectors t(L1) - t(H1): | -0.00123702 s (slice index = 108 / 217), δt_gw = -0.00123702 s |
| Time delay standard deviation: | 0.0242961 s |
| [targeted mode] Time delay probability: | 2.60412e-10 (6.32068 sigmas), δt_target = -0.00986195 s |
| Frequency: | 276.408 Hz |
| Ξ: | 0.950635 ± 0.00367352 (variance = 1.34947e-05): Q0: 0.948057, Q1: 0.957548, Q2: 0.957557, Q3: 0.955026, Q4: 0.957516 |
| Rank: | R_A = 0.884958 |
| Log of amplitude ratio (L1/H1): | -0.14018, variance = 0.162079 (L1/H1: -0.15011, variance = 0.302668, H1/L1: 0.123069, variance = 0.303209) |
| Amplitude ratio (L1/H1): | 0.869202 ⋇ 1.49569 (L1/H1: 0.860614 ⋇ 1.73352, H1/L1: 1.13096 ⋇ 1.73437) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.972287 |
| Antenna factor probability: | 0.957446 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 7 / 258 |
| Maximum signal-to-noise ratio: | H1: 259.297, L1: 197.531 |
| SNR variance: | H1: 33.503, L1: 21.5535 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368435489 (Thu May 18 08:57:51 2023 ) → GPS = 1368435499 (Thu May 18 08:58:01 2023 ) |
| Event time t(L1): | GPS = 1368435489 (Thu May 18 08:58:01 2023 ) → GPS = 1368435499 (Thu May 18 08:58:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368435486 → GPS = 1368435502 |
| Omicron analysis time window (L1): | GPS = 1368435486 → GPS = 1368435502 |
| Time delay between detectors t(L1) - t(H1): | -1.10542 s (slice index = 132 / 217), δt_gw = -0.00141984 s |
| Time delay standard deviation: | 0.064987 s |
| [targeted mode] Time delay probability: | 0.0645371 (1.84845 sigmas), δt_target = -0.000464439 s |
| Frequency: | 168.371 Hz |
| Ξ: | 0.0429252 ± 0.0486644 (variance = 0.00236823): Q0: 0.123327, Q1: 0.108301, Q2: 0.135712, Q3: 0.104252, Q4: 0.236304 |
| Rank: | R_A = 0.0169358 |
| Log of amplitude ratio (L1/H1): | -0.312584, variance = 0.490102 (L1/H1: -0.893834, variance = 1.07785, H1/L1: -0.251265, variance = 0.887878) |
| Amplitude ratio (L1/H1): | 0.731554 ⋇ 2.0139 (L1/H1: 0.409084 ⋇ 2.82412, H1/L1: 0.777816 ⋇ 2.56581) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.41408 |
| Antenna factor probability: | 0.952814 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 22 / 36, Q2: 57 / 70, Q3: 125 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.25554, L1: 8.38195 |
| SNR variance: | H1: 0.544994, L1: 0.535666 |

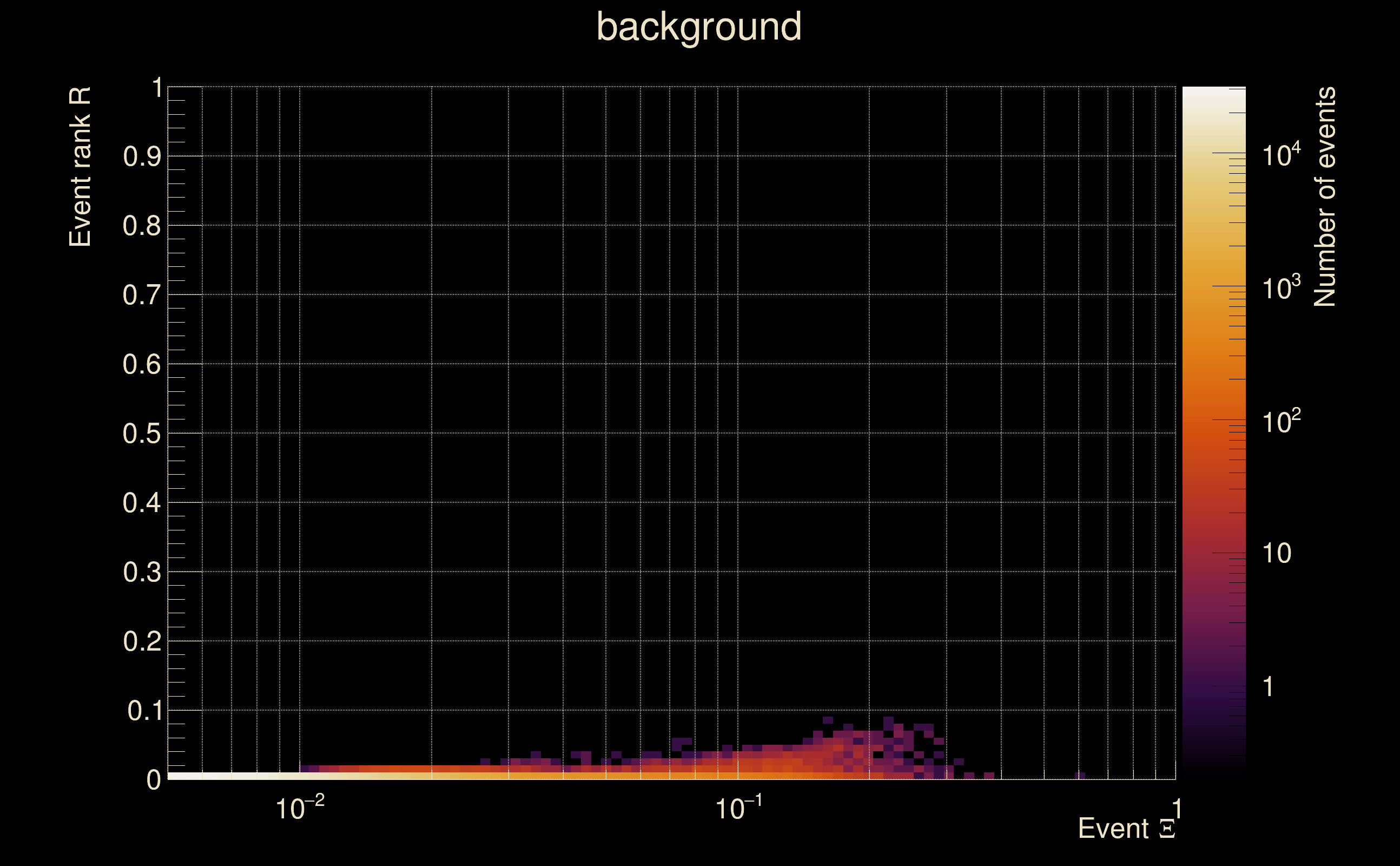

| Detection threshold: | R > 0.0503939 |
| False-alarm rate above that detection threshold: | 2.60839e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.0897809 |
| Alternative threshold at 1/100 yrs: | R > 0.0897809 |
| Alternative threshold at 1/10 yrs: | R > 0.0897809 |
| Alternative threshold at 1/1 yr: | R > 0.0897809 |
| Alternative threshold at 1/1 d: | R > 0.0328142 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

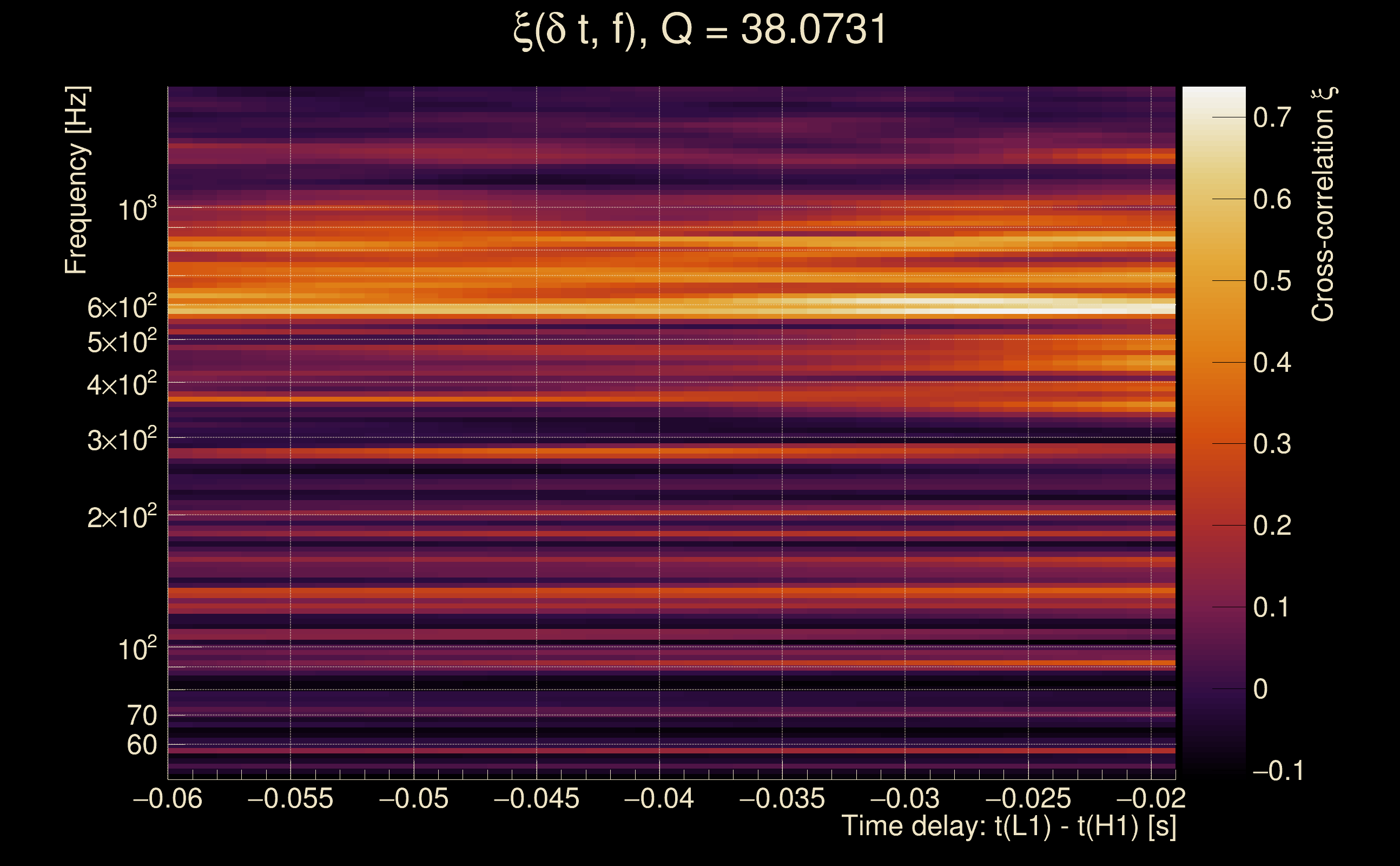

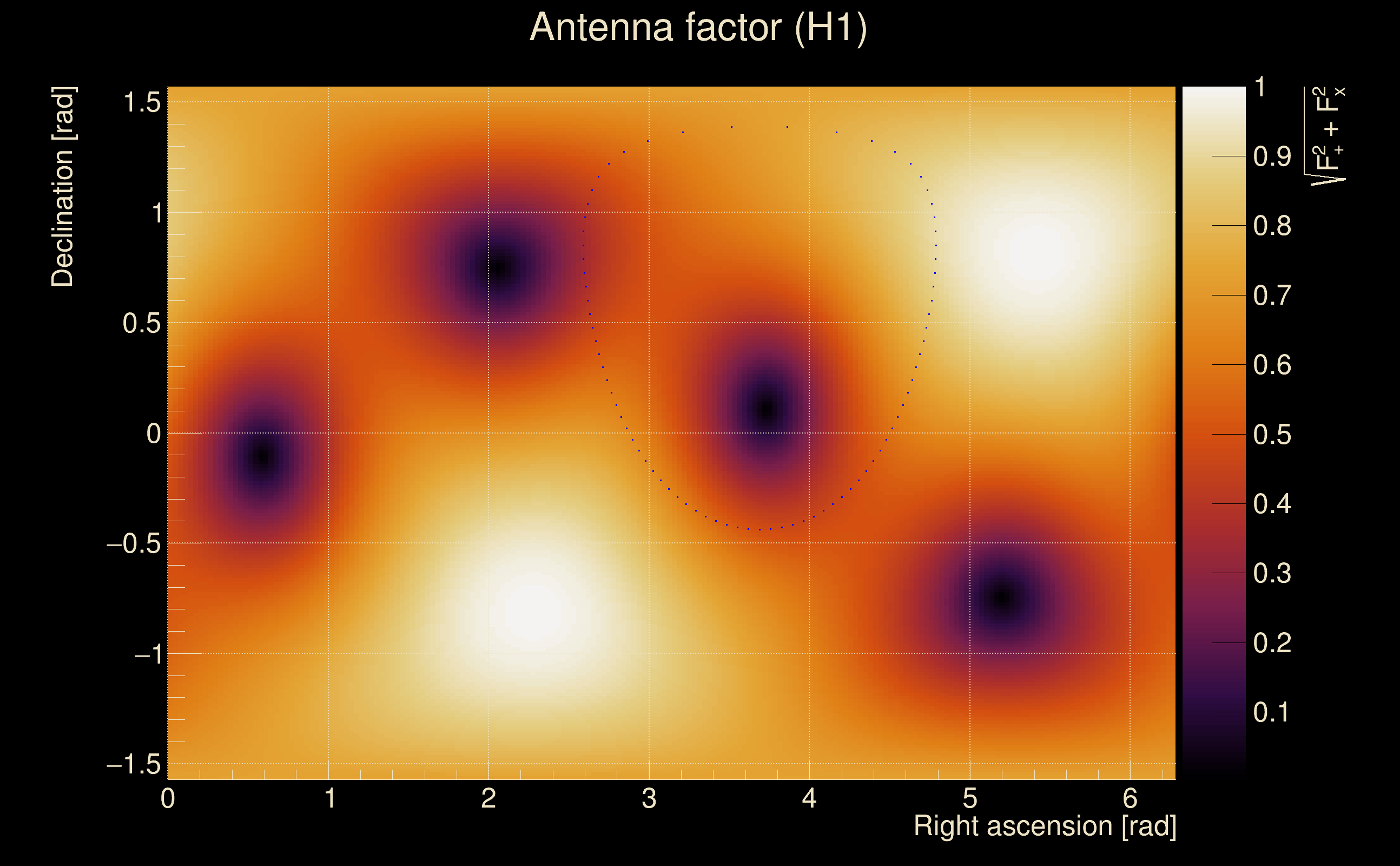

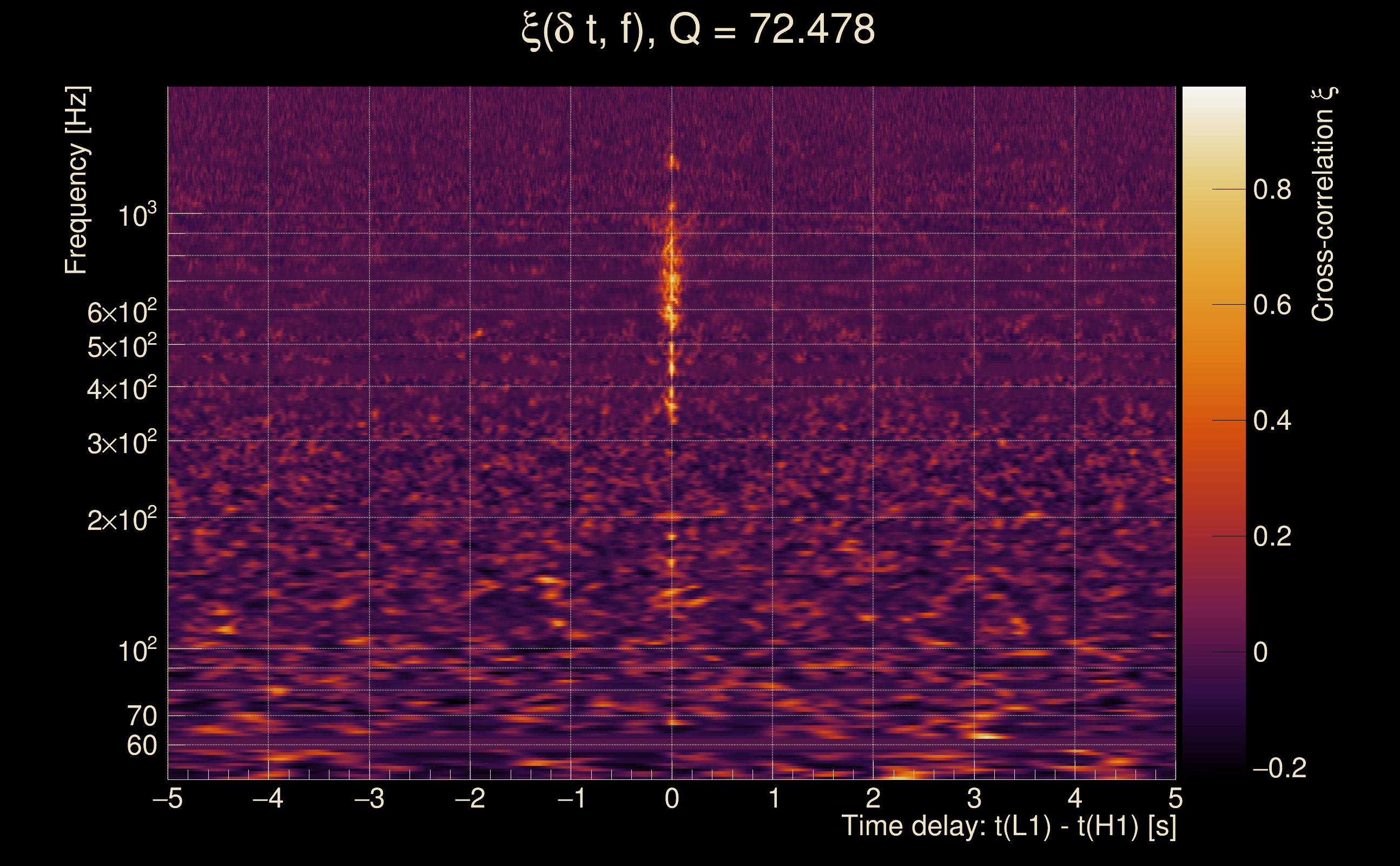

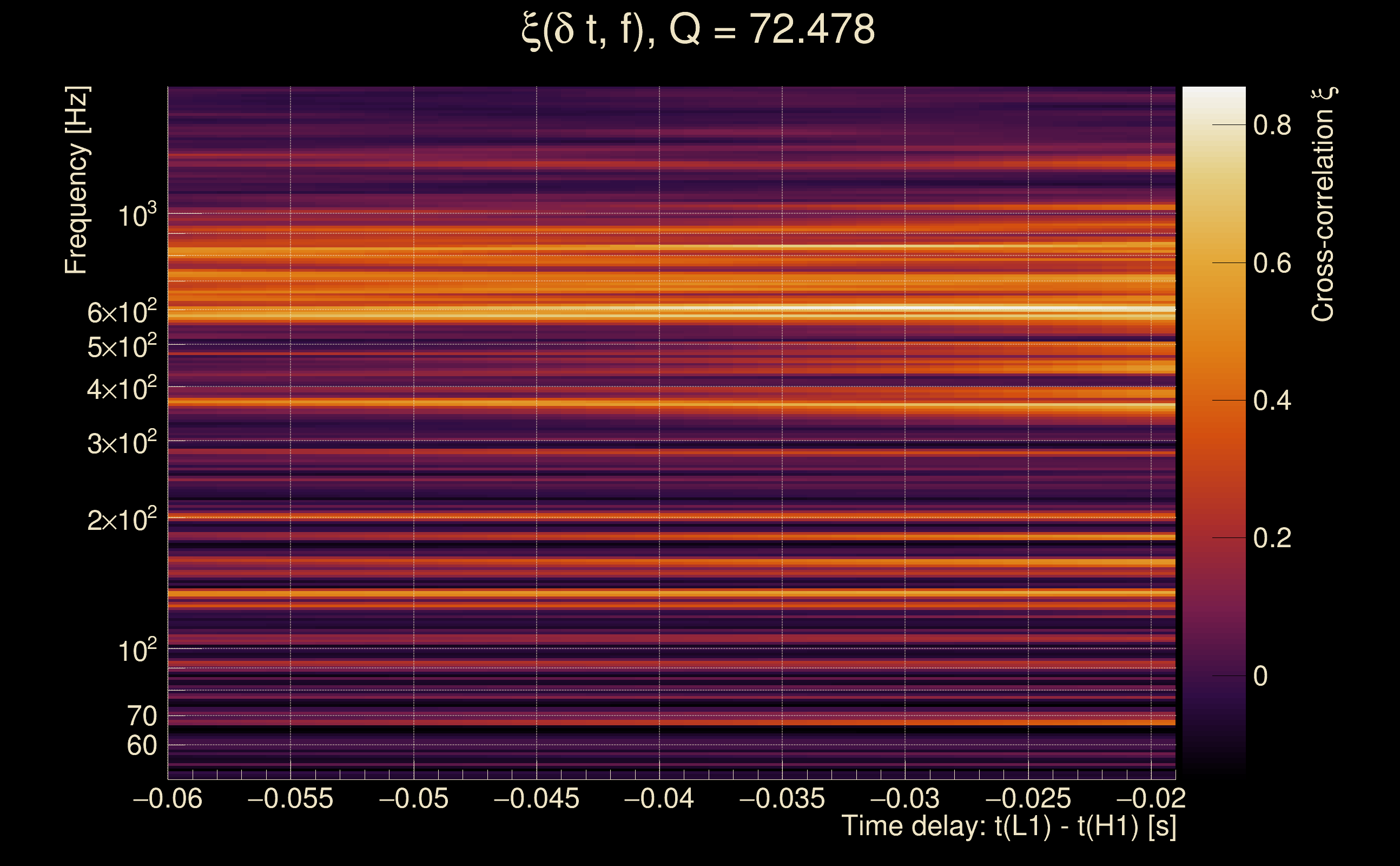

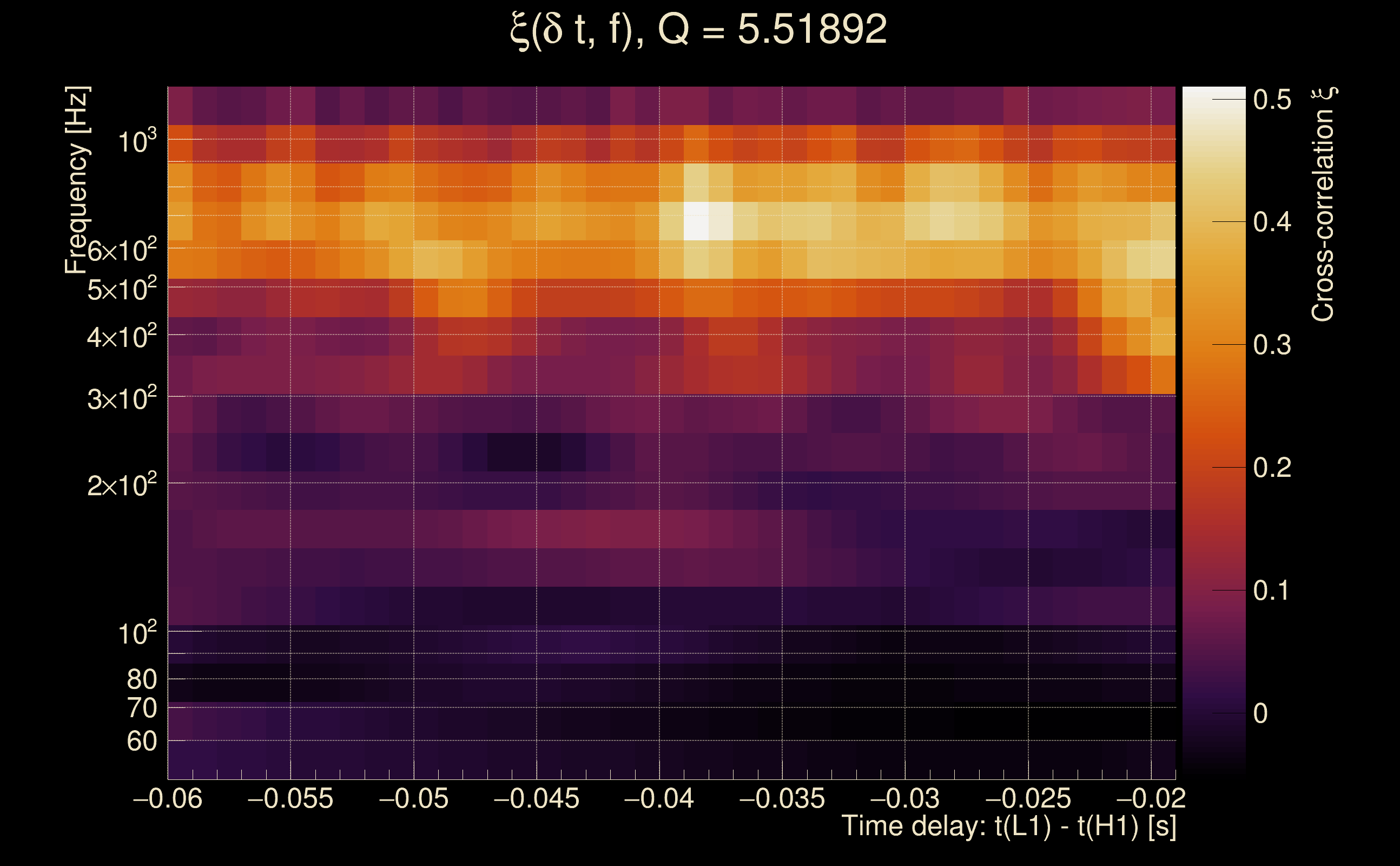

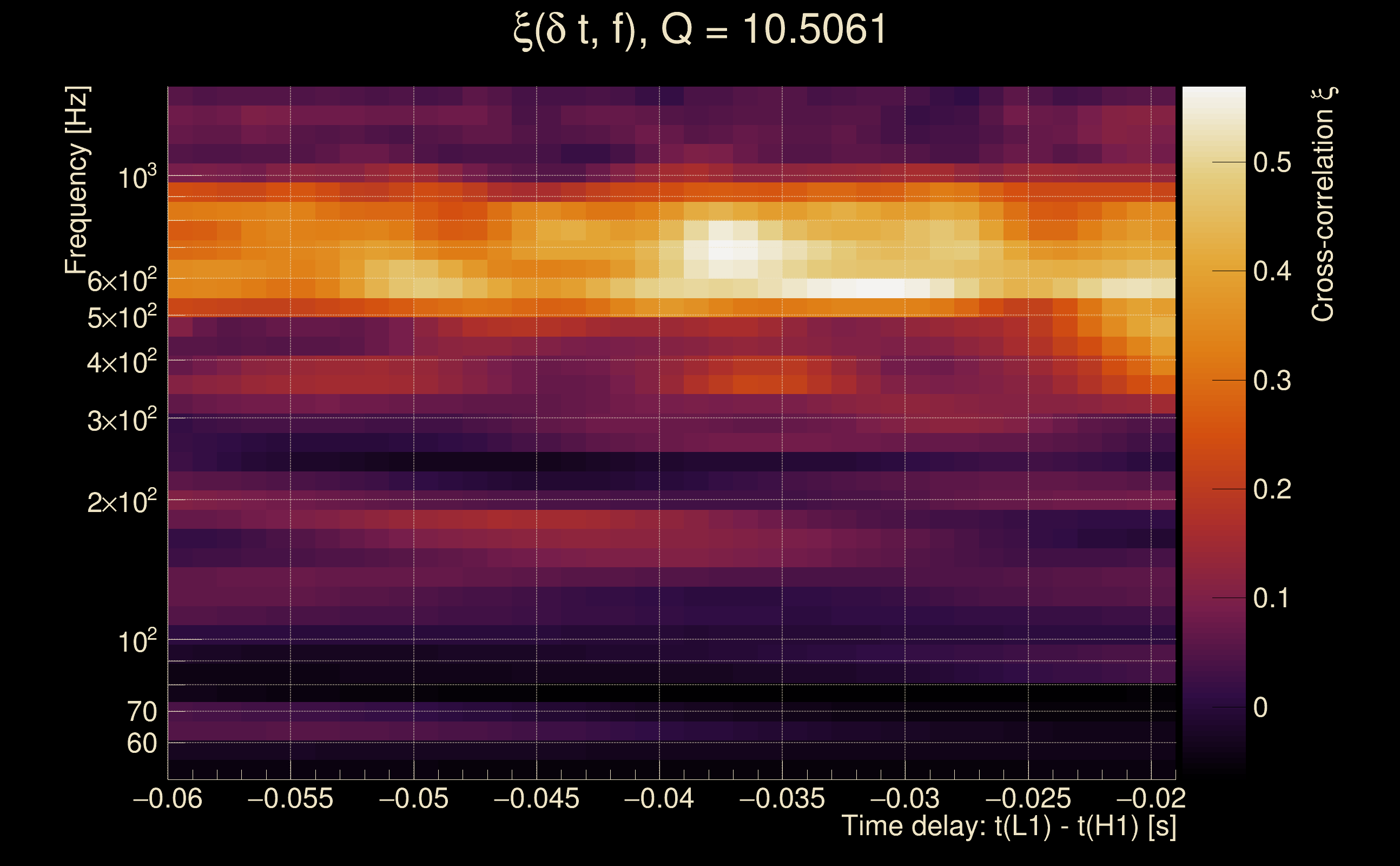

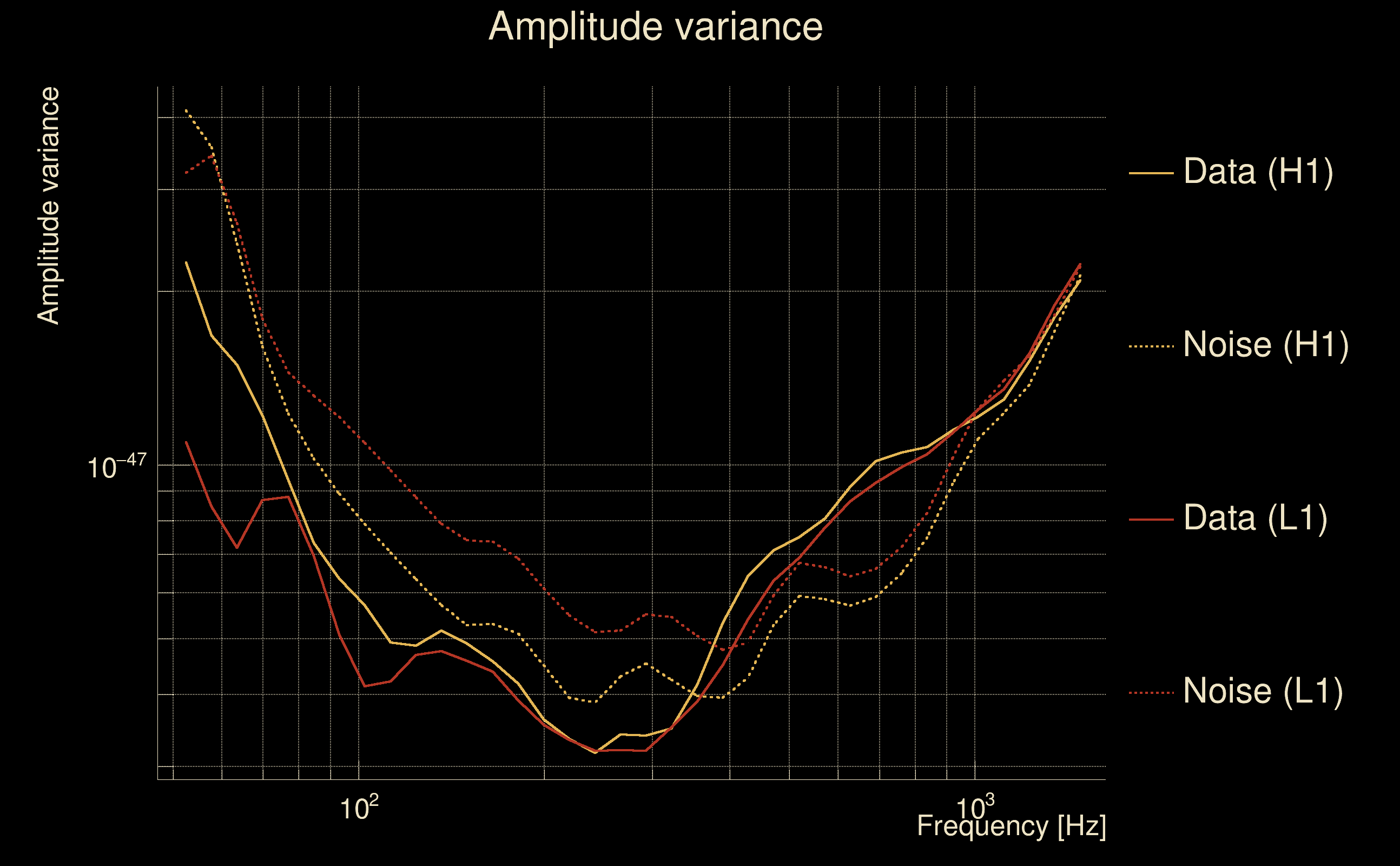

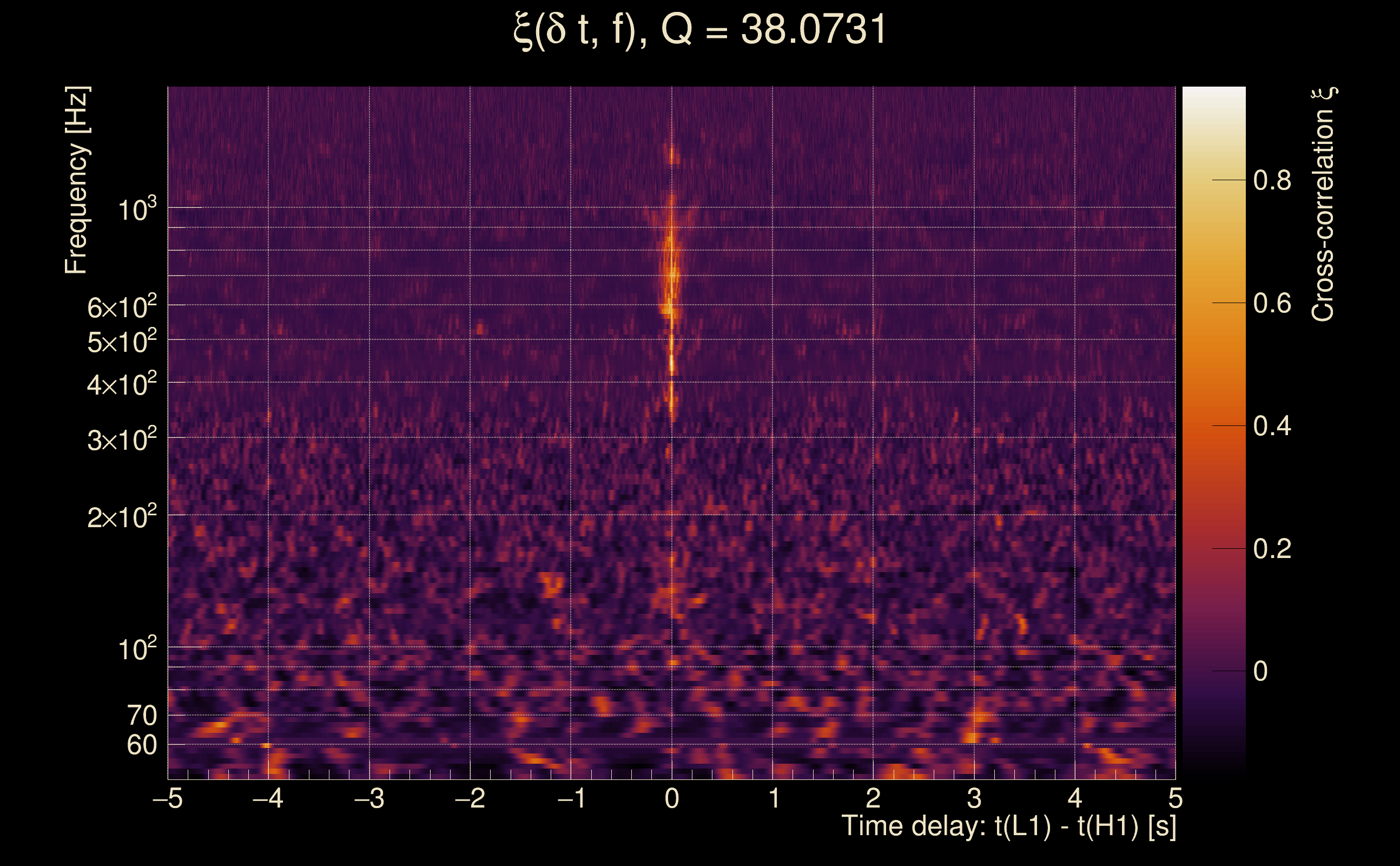

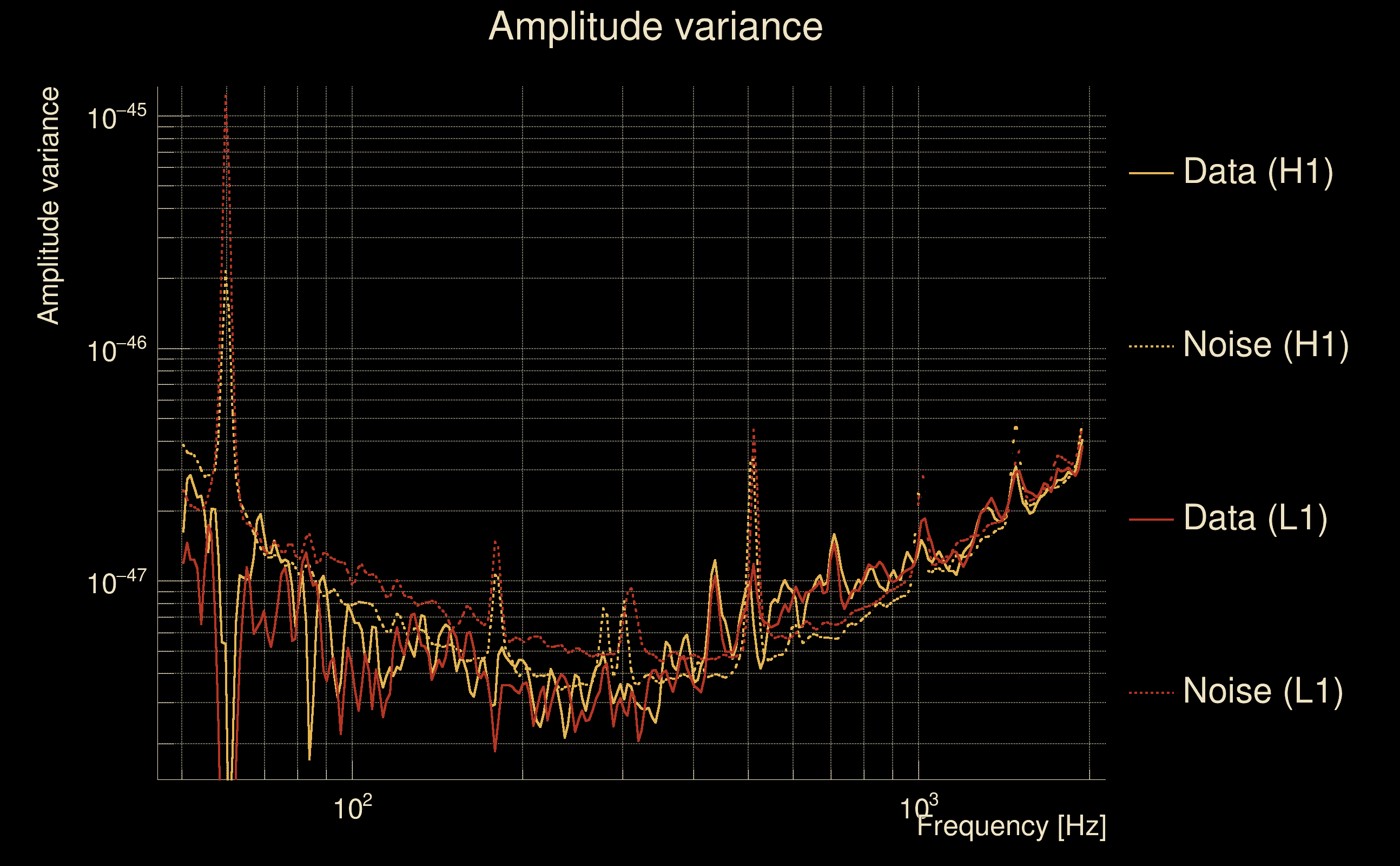

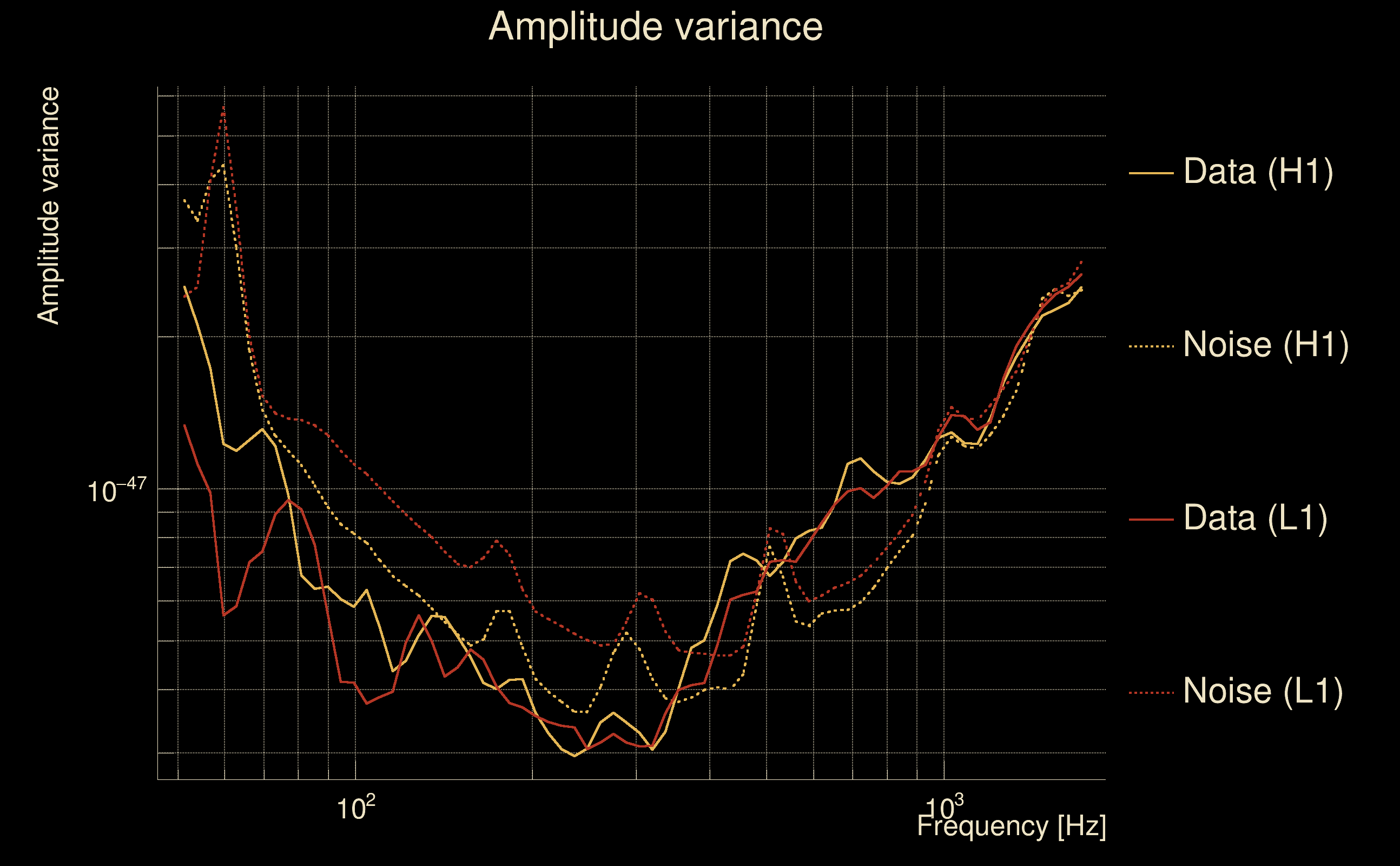

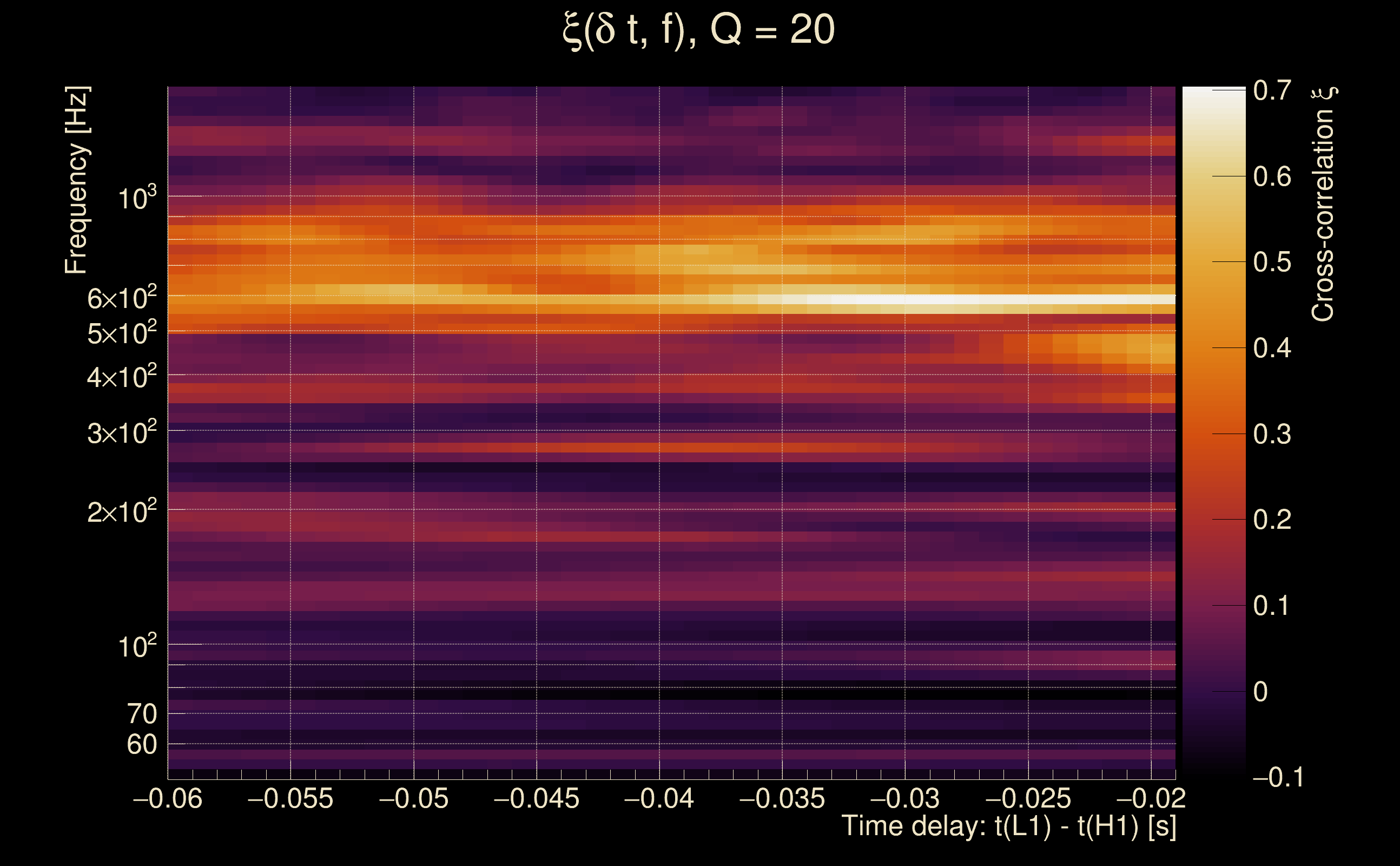

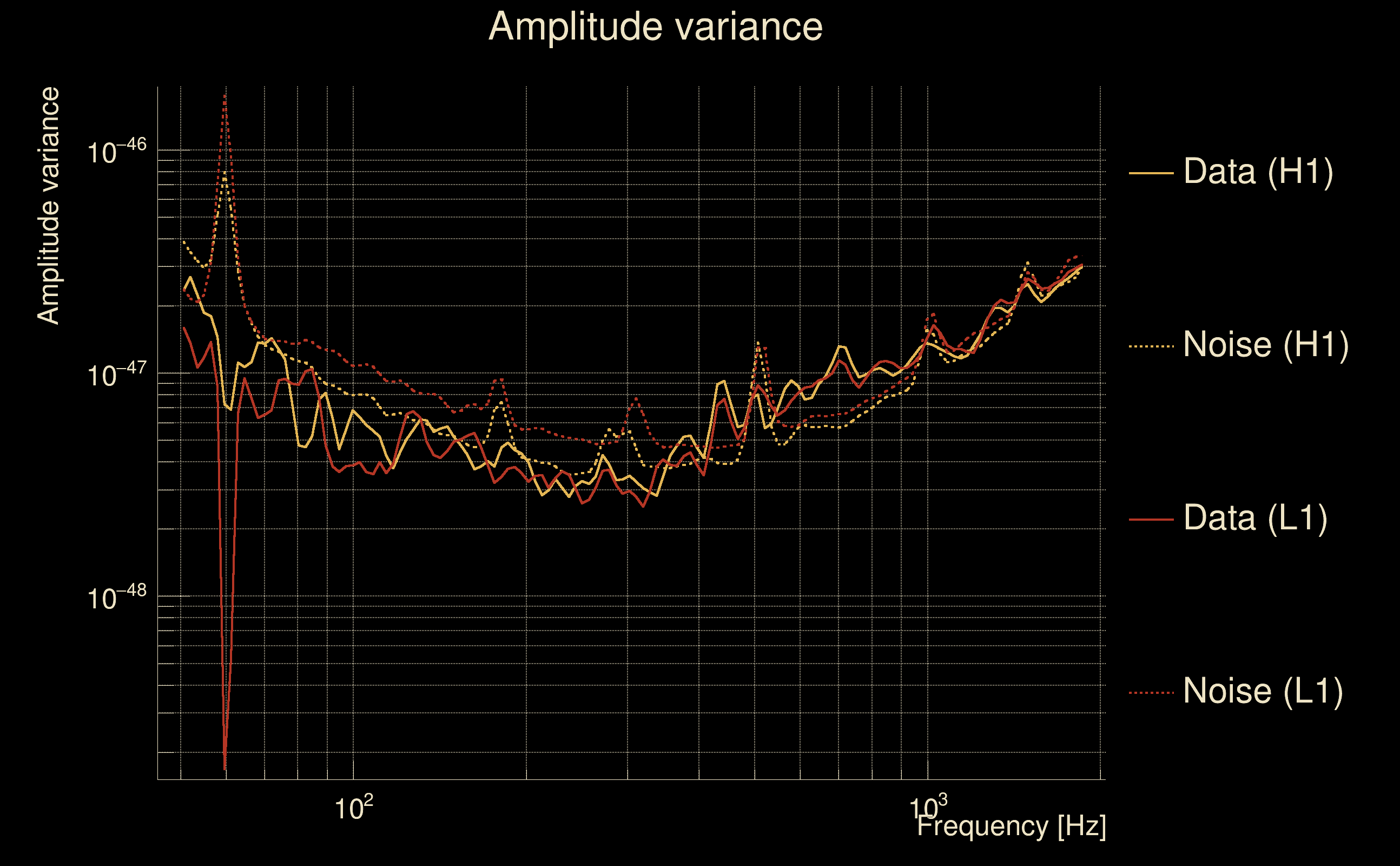

| Event time t(H1): | GPS = 1368277423 (Tue May 16 13:03:25 2023 ) → GPS = 1368277433 (Tue May 16 13:03:35 2023 ) |
| Event time t(L1): | GPS = 1368277423 (Tue May 16 13:03:35 2023 ) → GPS = 1368277433 (Tue May 16 13:03:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368277420 → GPS = 1368277436 |
| Omicron analysis time window (L1): | GPS = 1368277420 → GPS = 1368277436 |
| Time delay between detectors t(L1) - t(H1): | -0.0398818 s (slice index = 109 / 217), δt_gw = 0.00611818 s |
| Time delay standard deviation: | 0.0636488 s |
| [targeted mode] Time delay probability: | 0.489302 (0.691419 sigmas), δt_target = -0.000464439 s |
| Frequency: | 565.174 Hz |
| Ξ: | 0.157069 ± 0.0383277 (variance = 0.00146901): Q0: 0.370369, Q1: 0.38802, Q2: 0.412713, Q3: 0.354546, Q4: 0.464161 |
| Rank: | R_A = 0.0877137 |
| Log of amplitude ratio (L1/H1): | -0.260994, variance = 0.244505 (L1/H1: -0.456005, variance = 0.423092, H1/L1: -0.0941535, variance = 0.542766) |
| Amplitude ratio (L1/H1): | 0.770286 ⋇ 1.63964 (L1/H1: 0.633811 ⋇ 1.91641, H1/L1: 0.910143 ⋇ 2.08909) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.575618 |
| Antenna factor probability: | 0.970162 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 22 / 36, Q2: 57 / 70, Q3: 121 / 134, Q4: 238 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.7578, L1: 13.1588 |
| SNR variance: | H1: 0.961703, L1: 0.666493 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

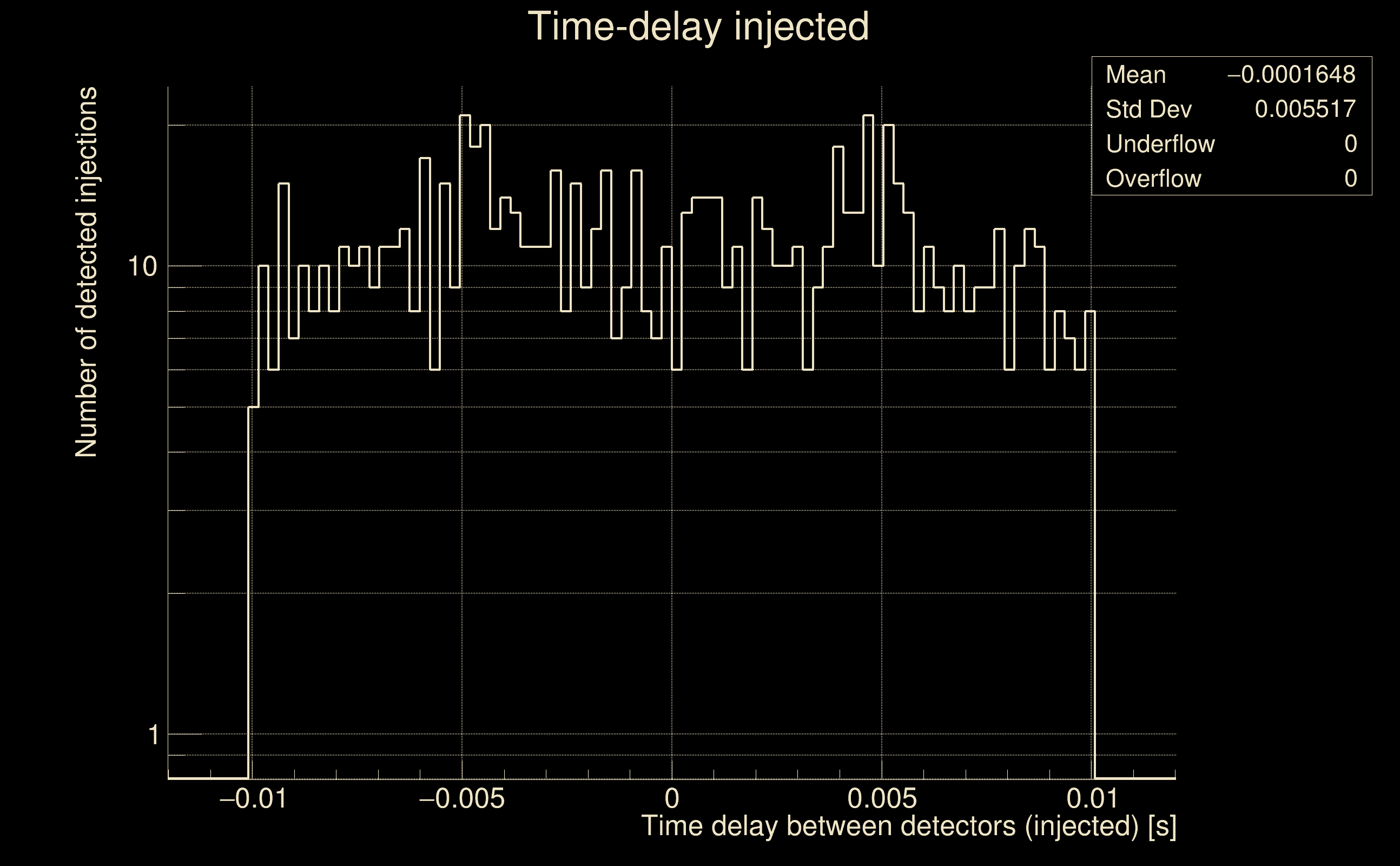

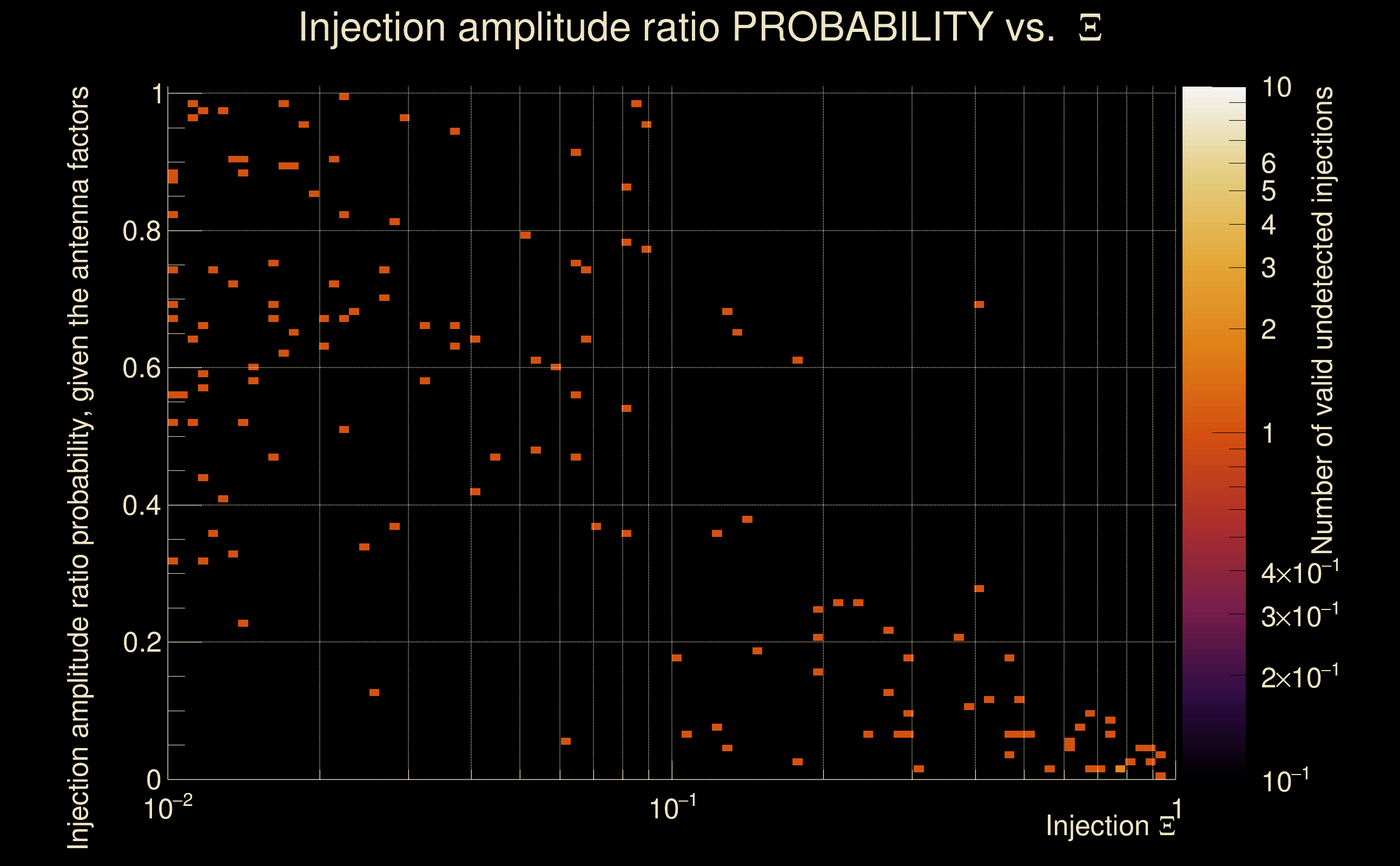

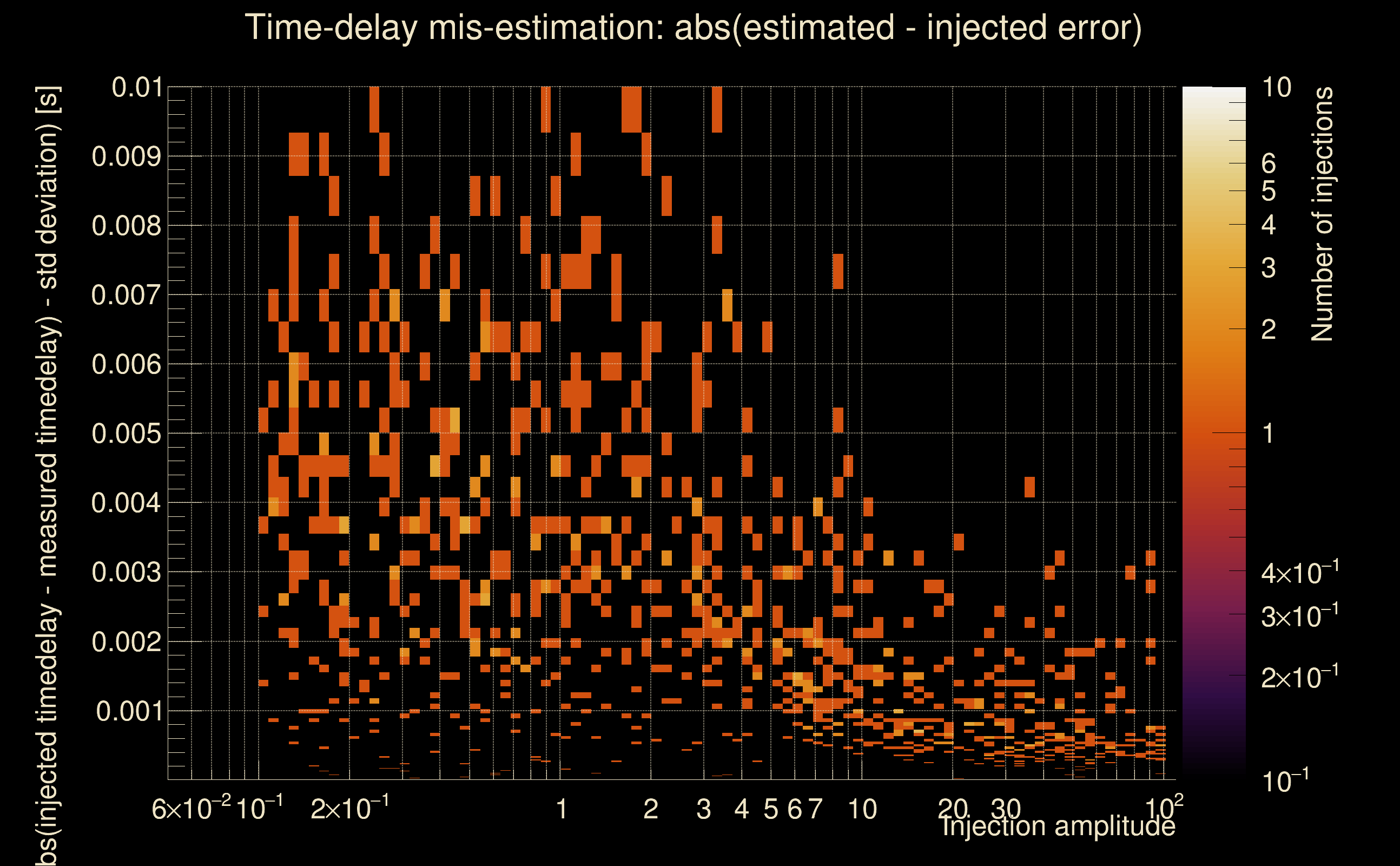

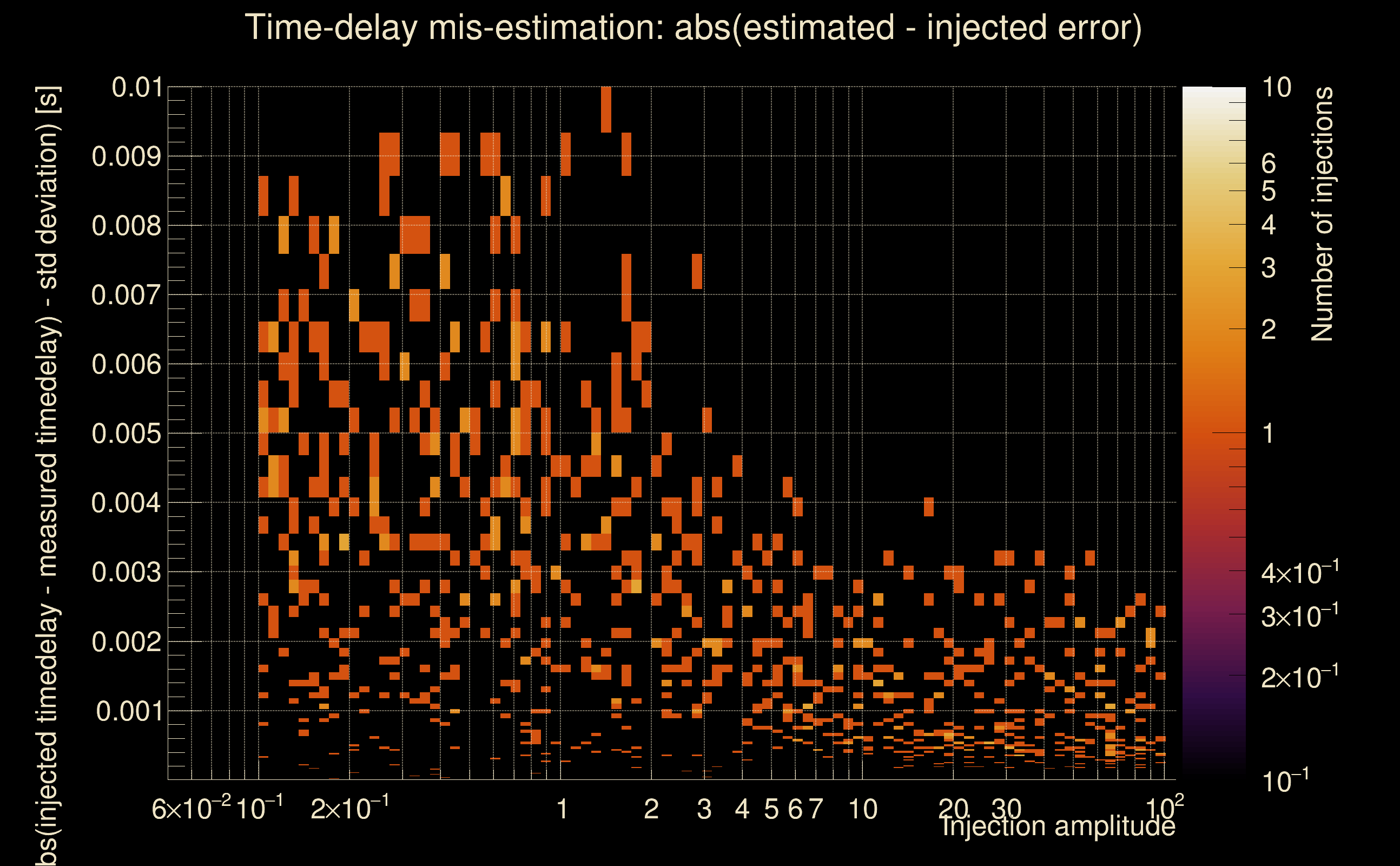

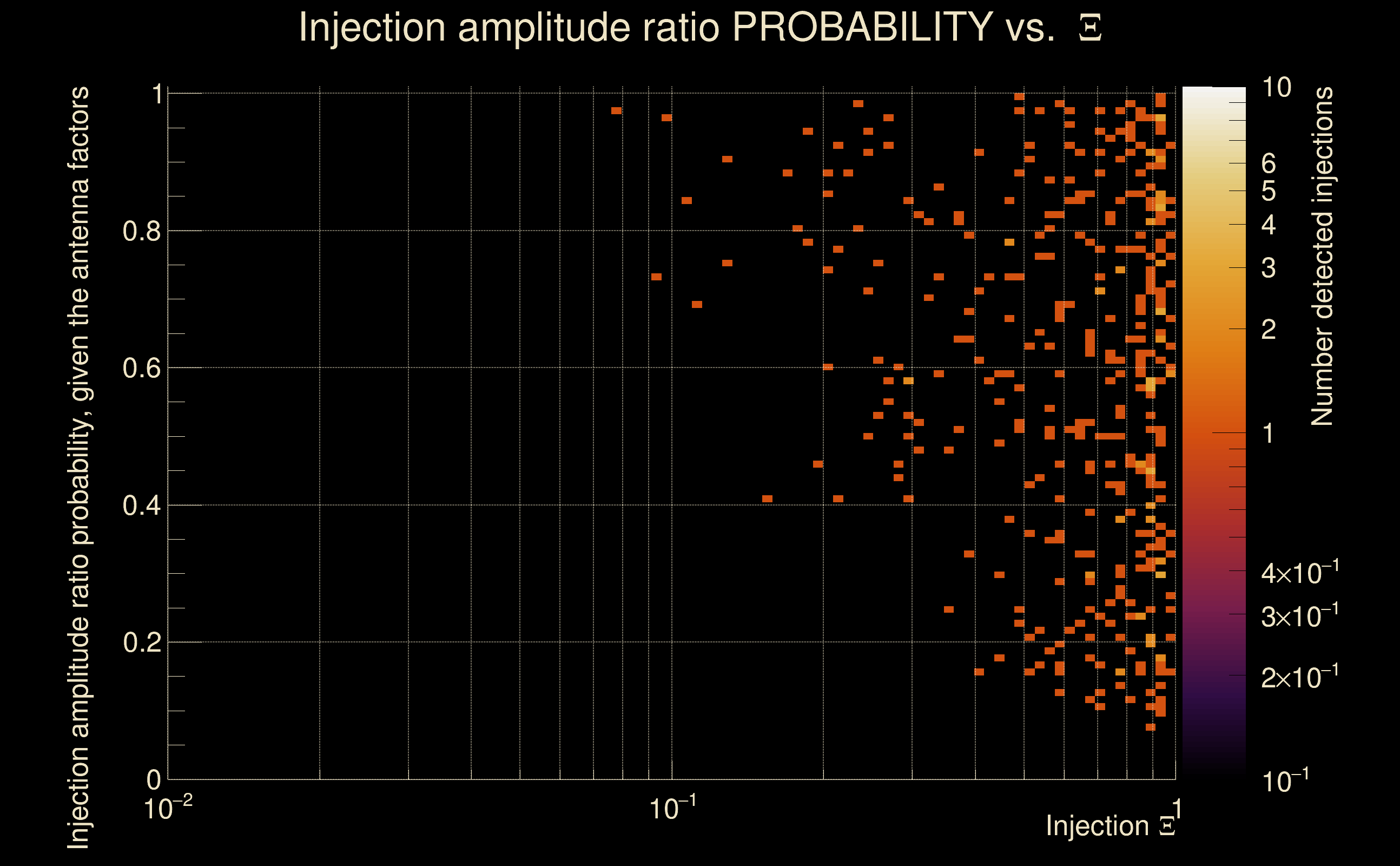

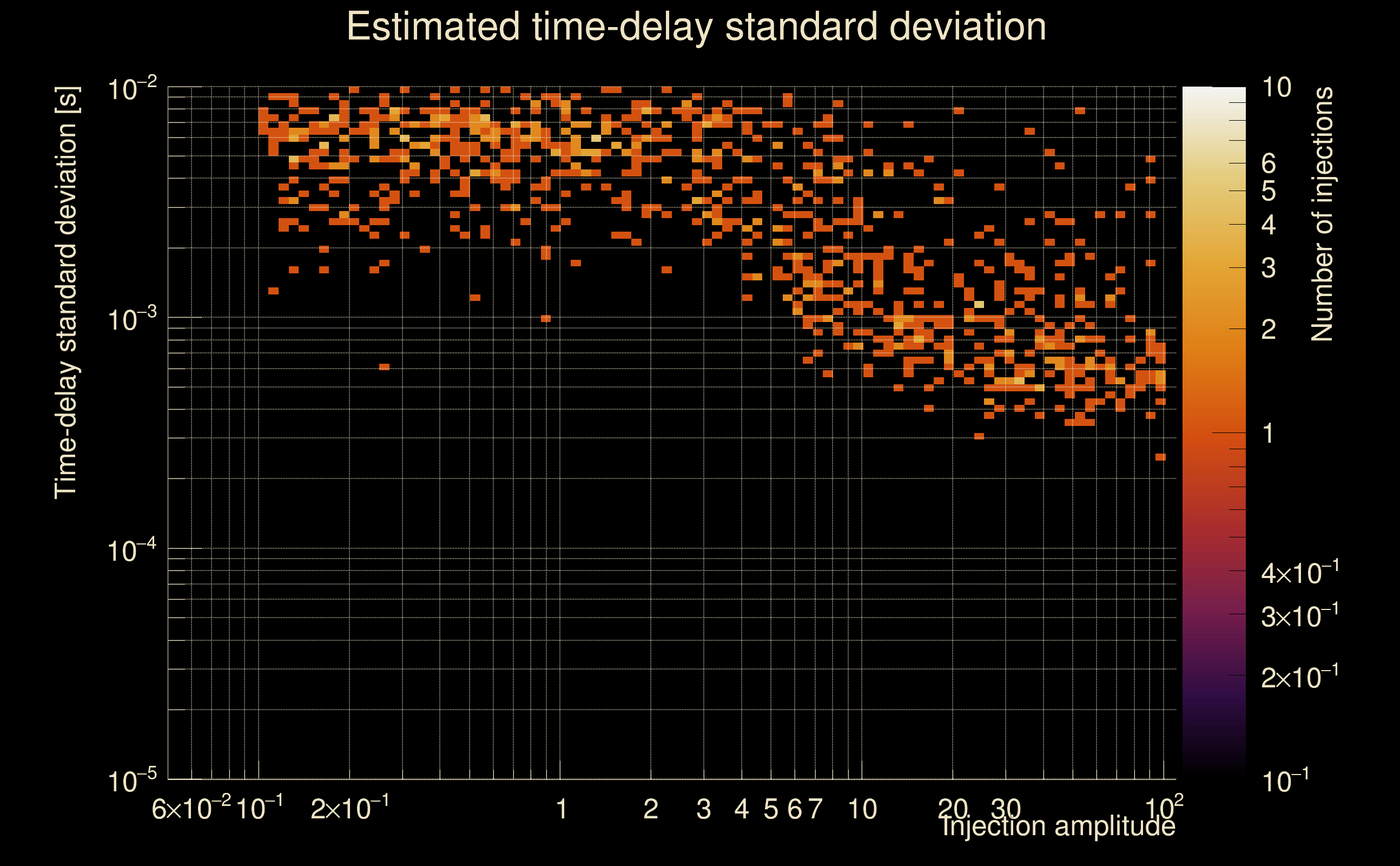

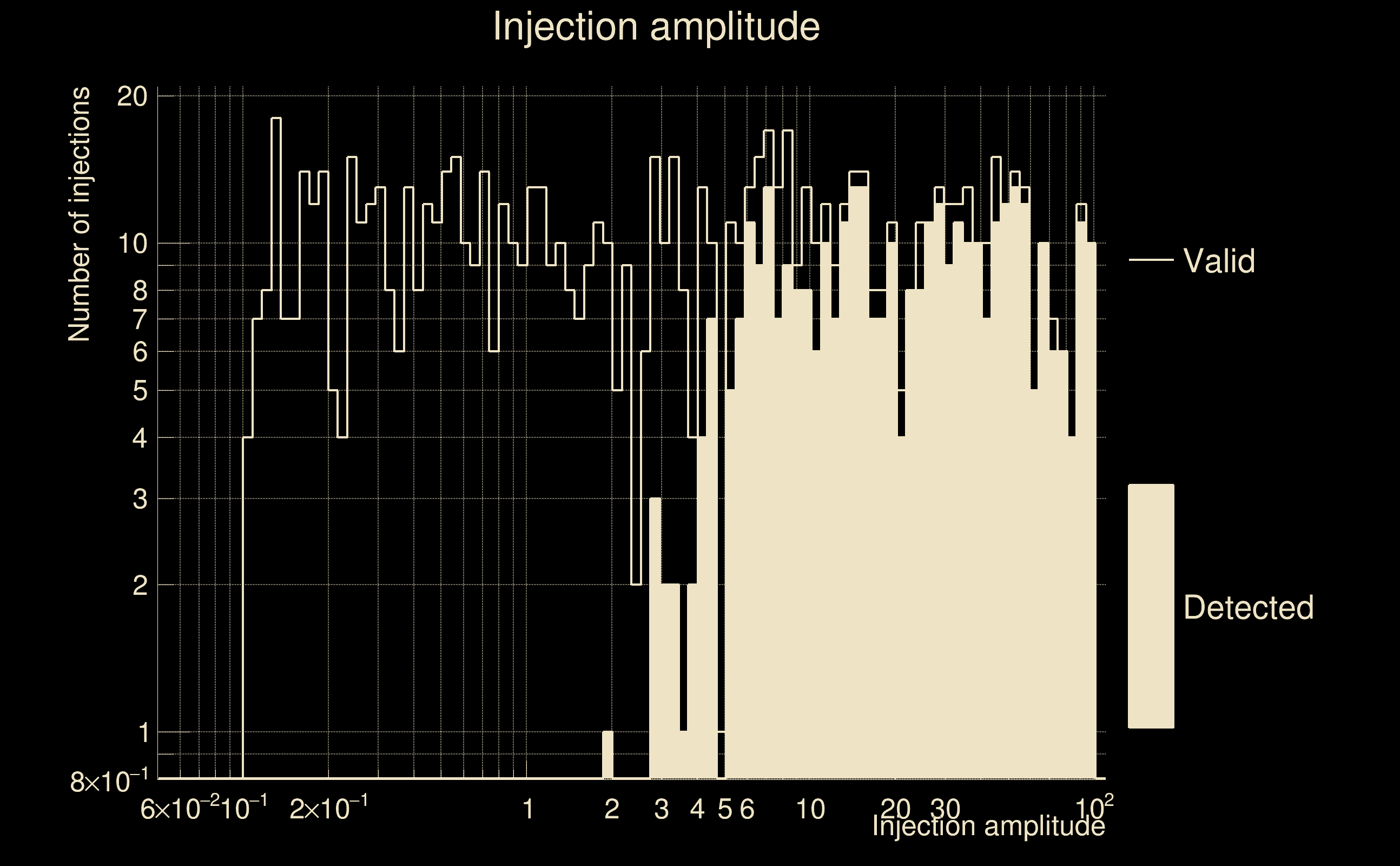

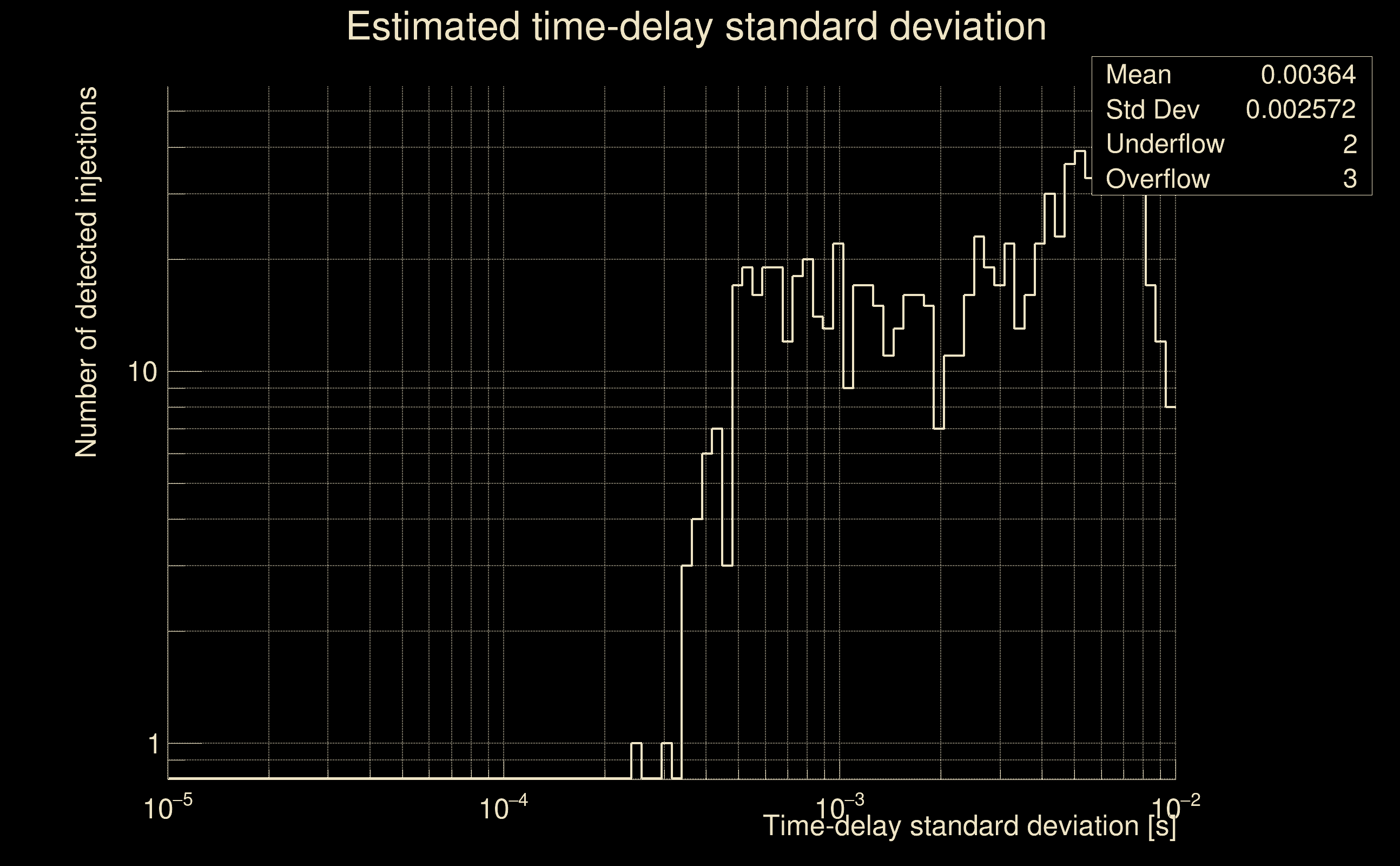

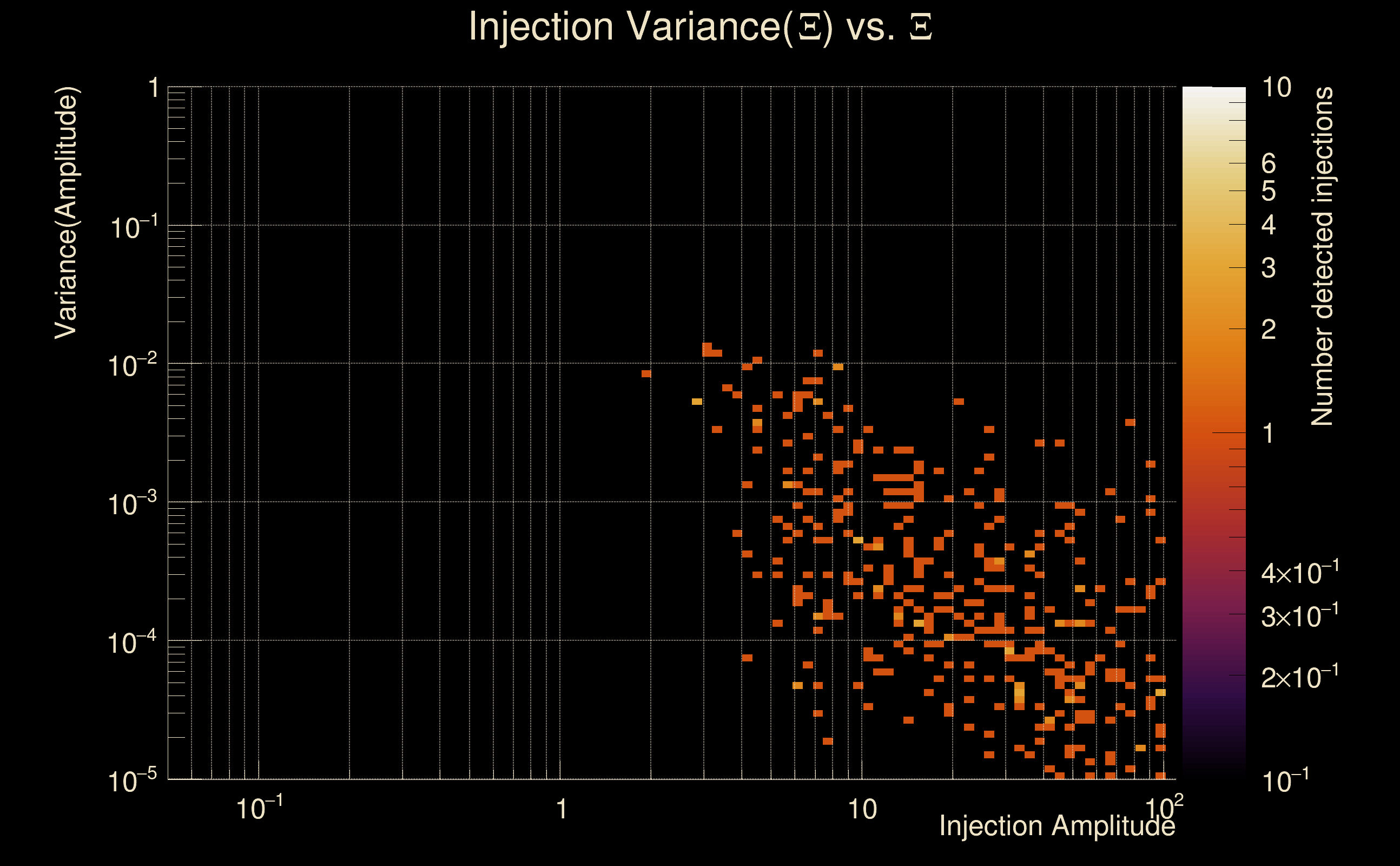

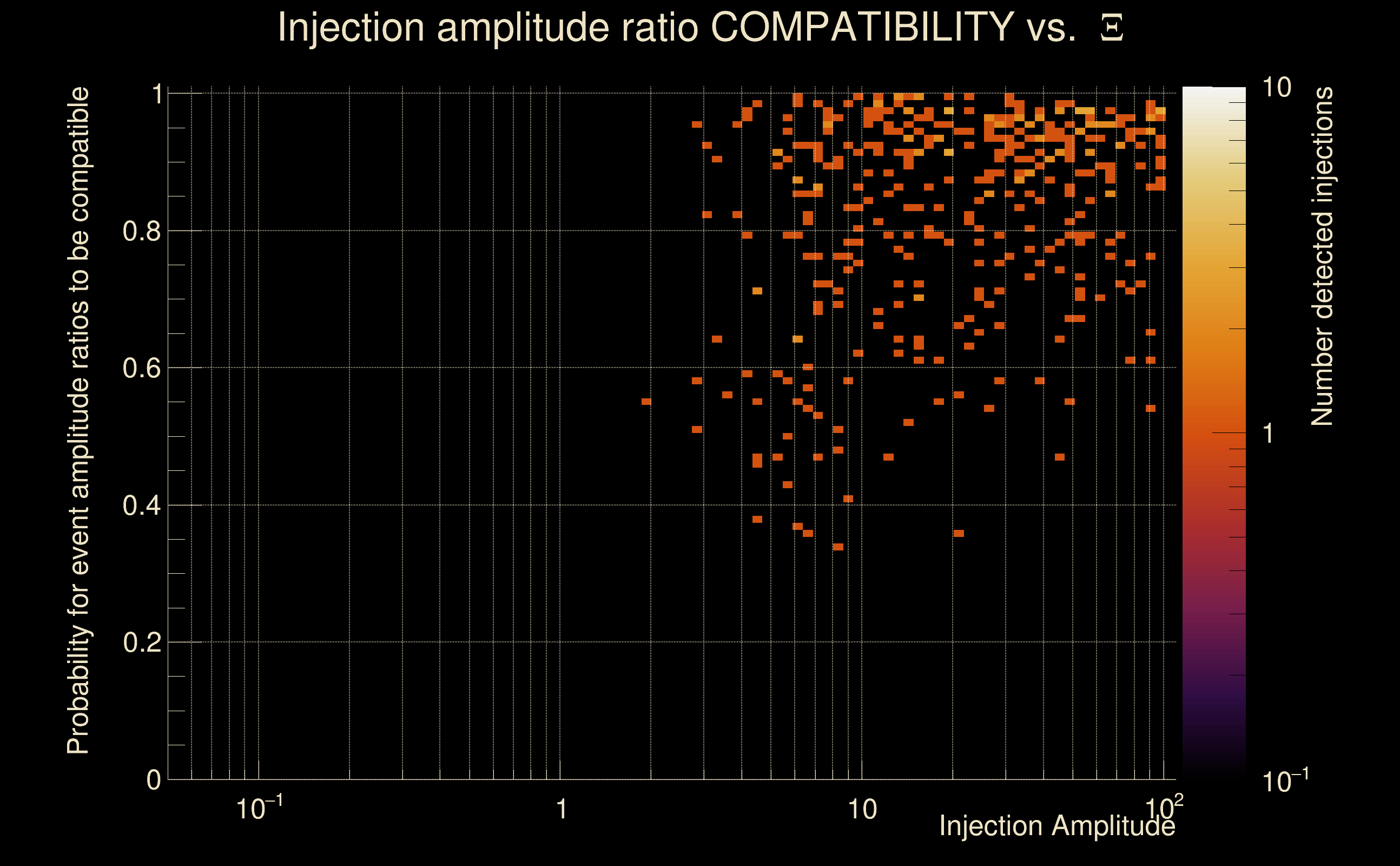

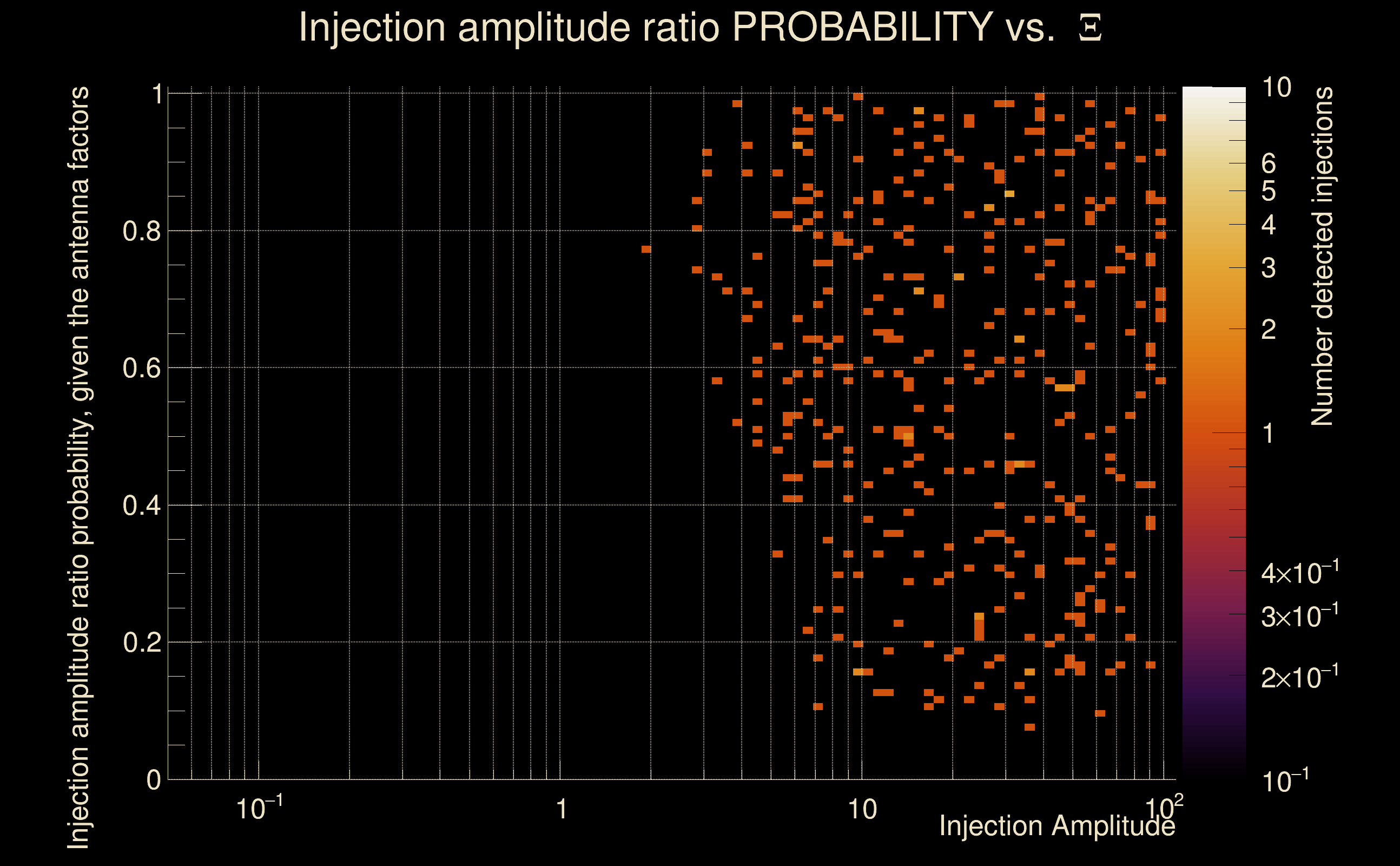

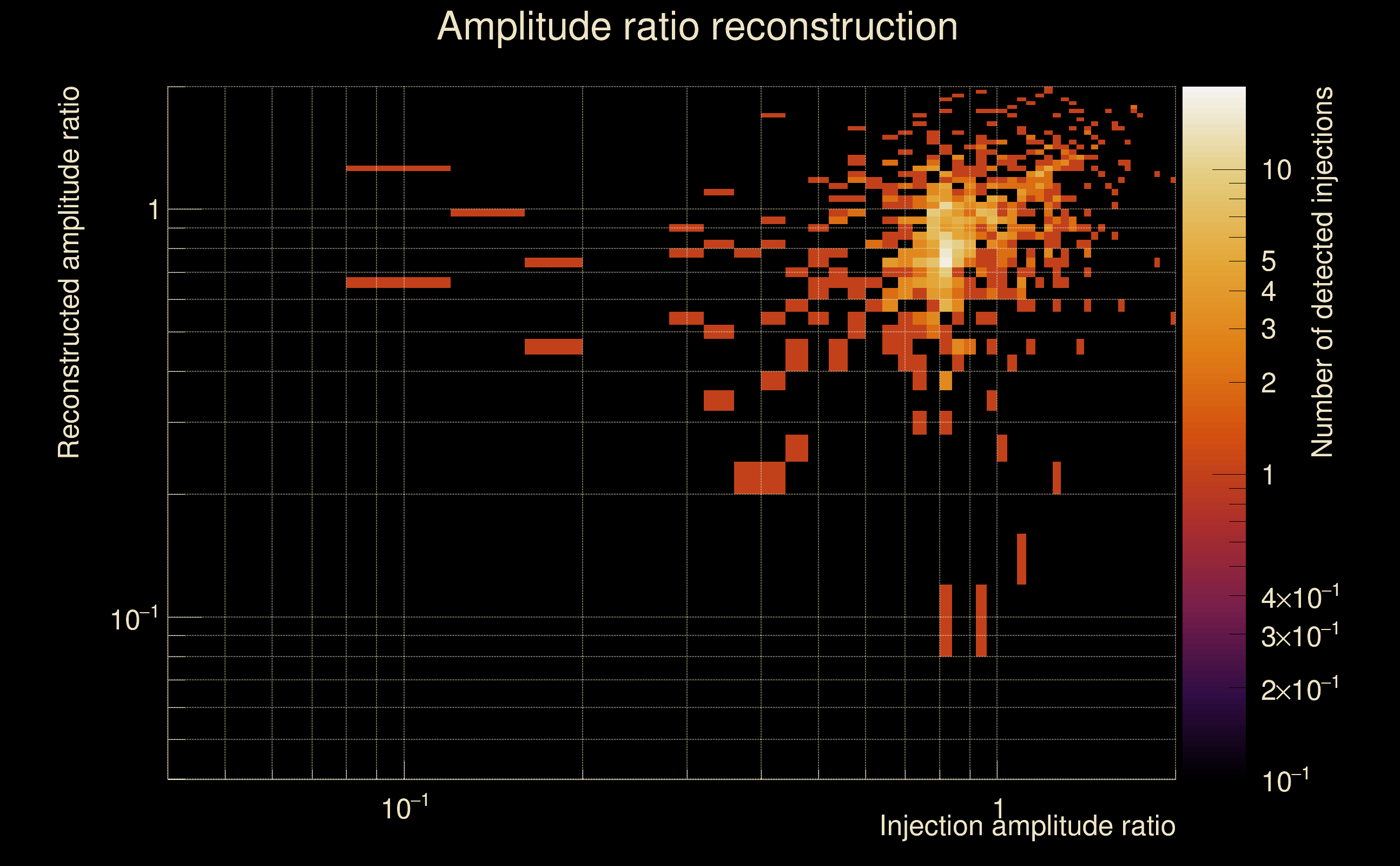

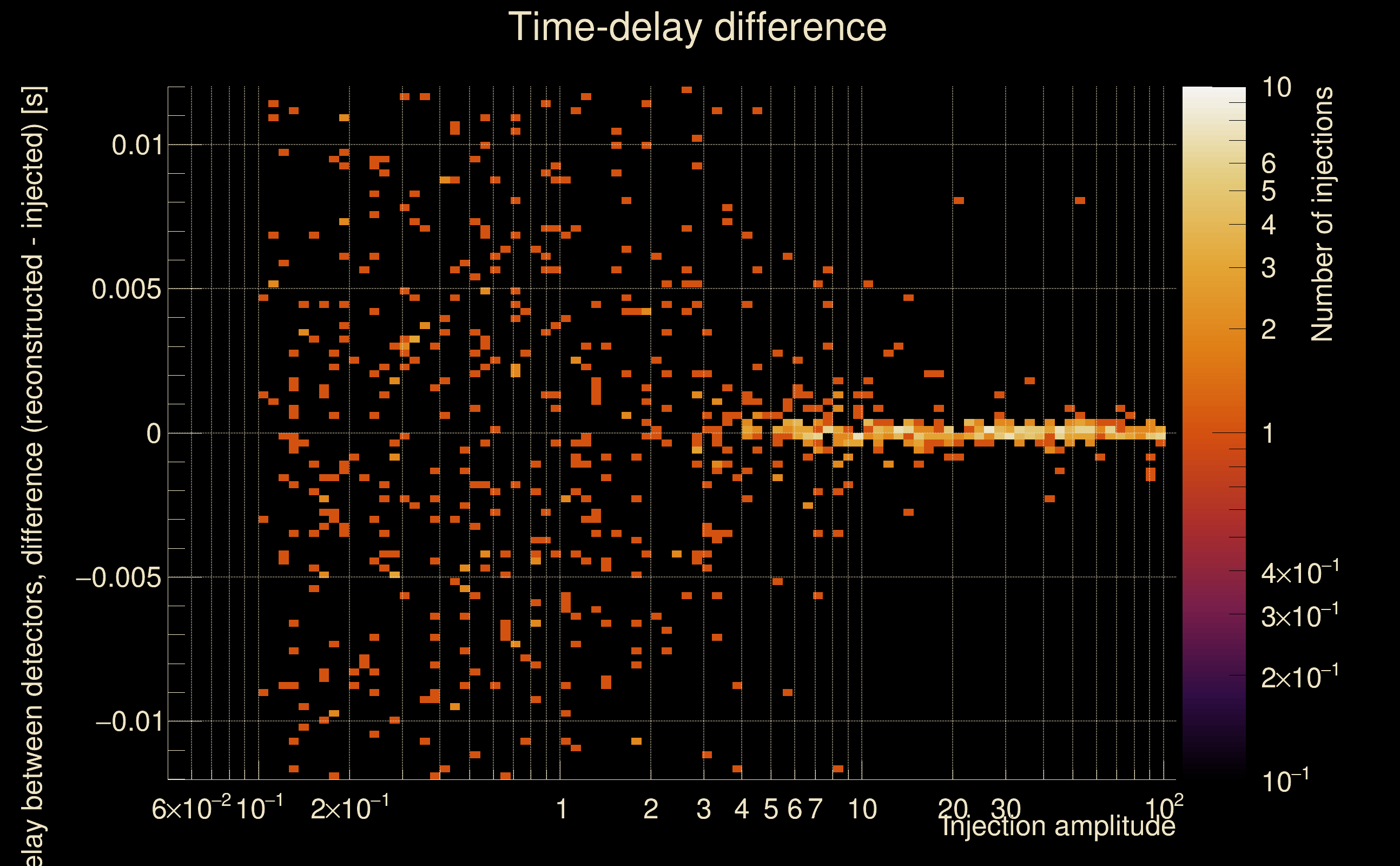

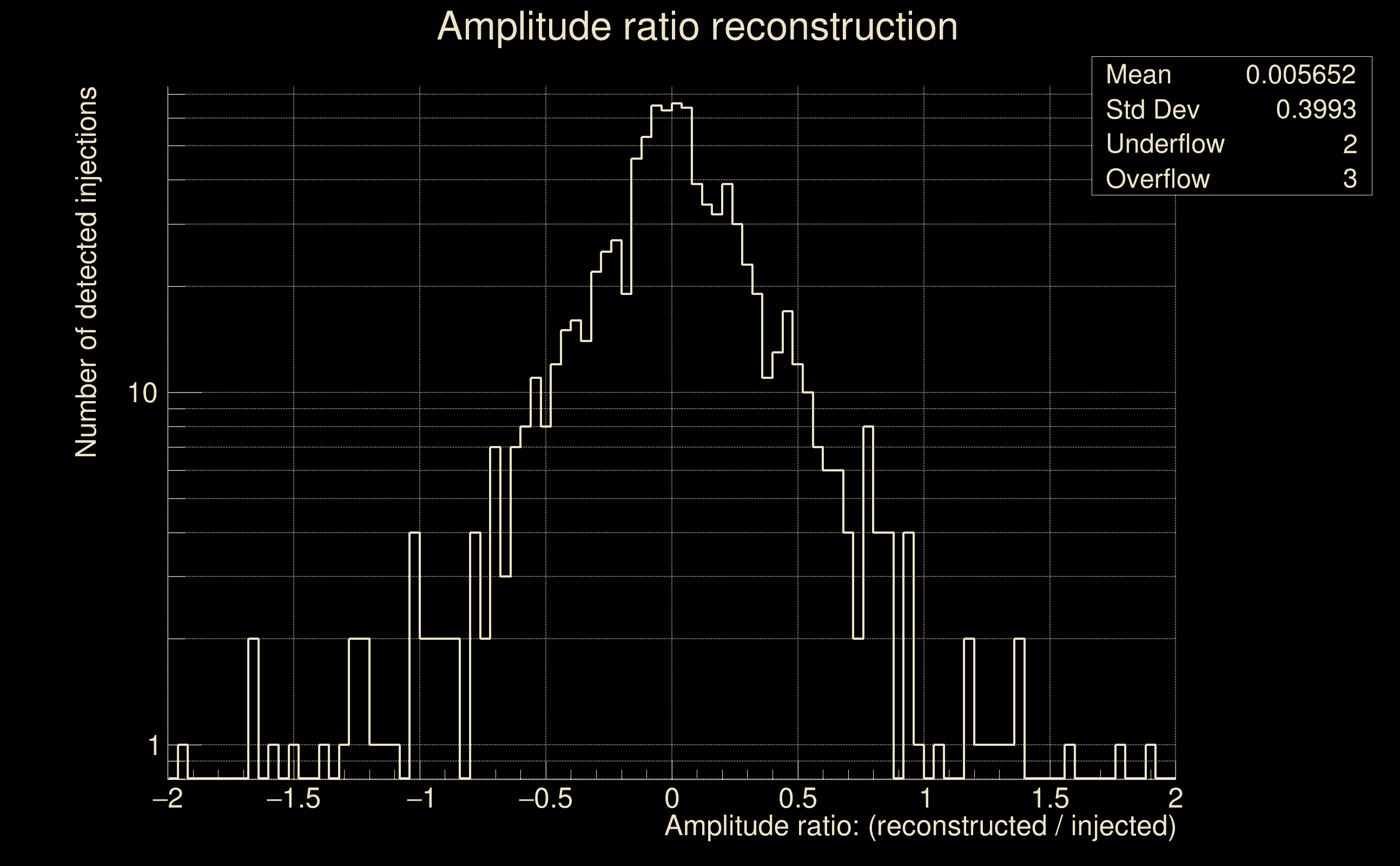

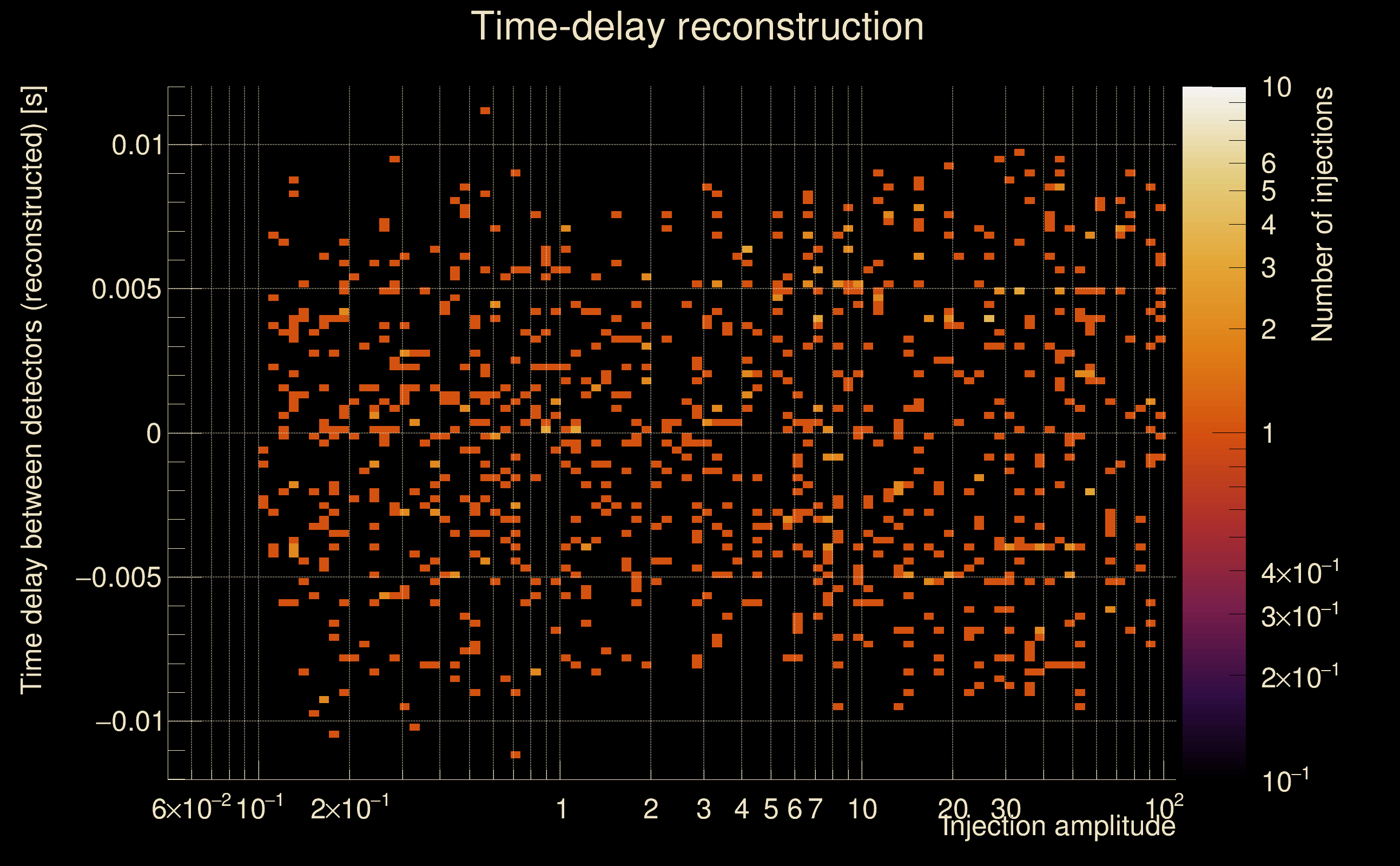

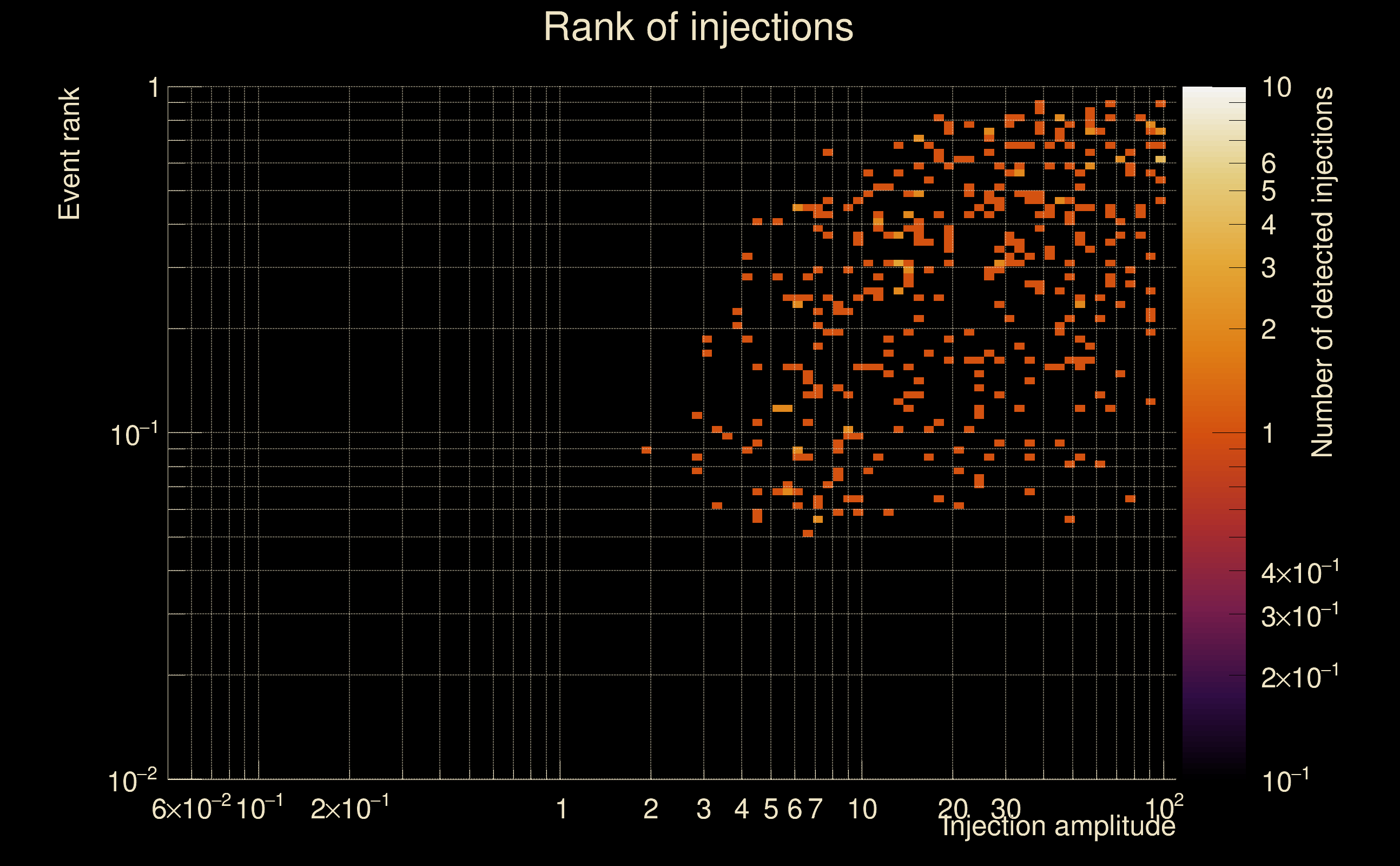

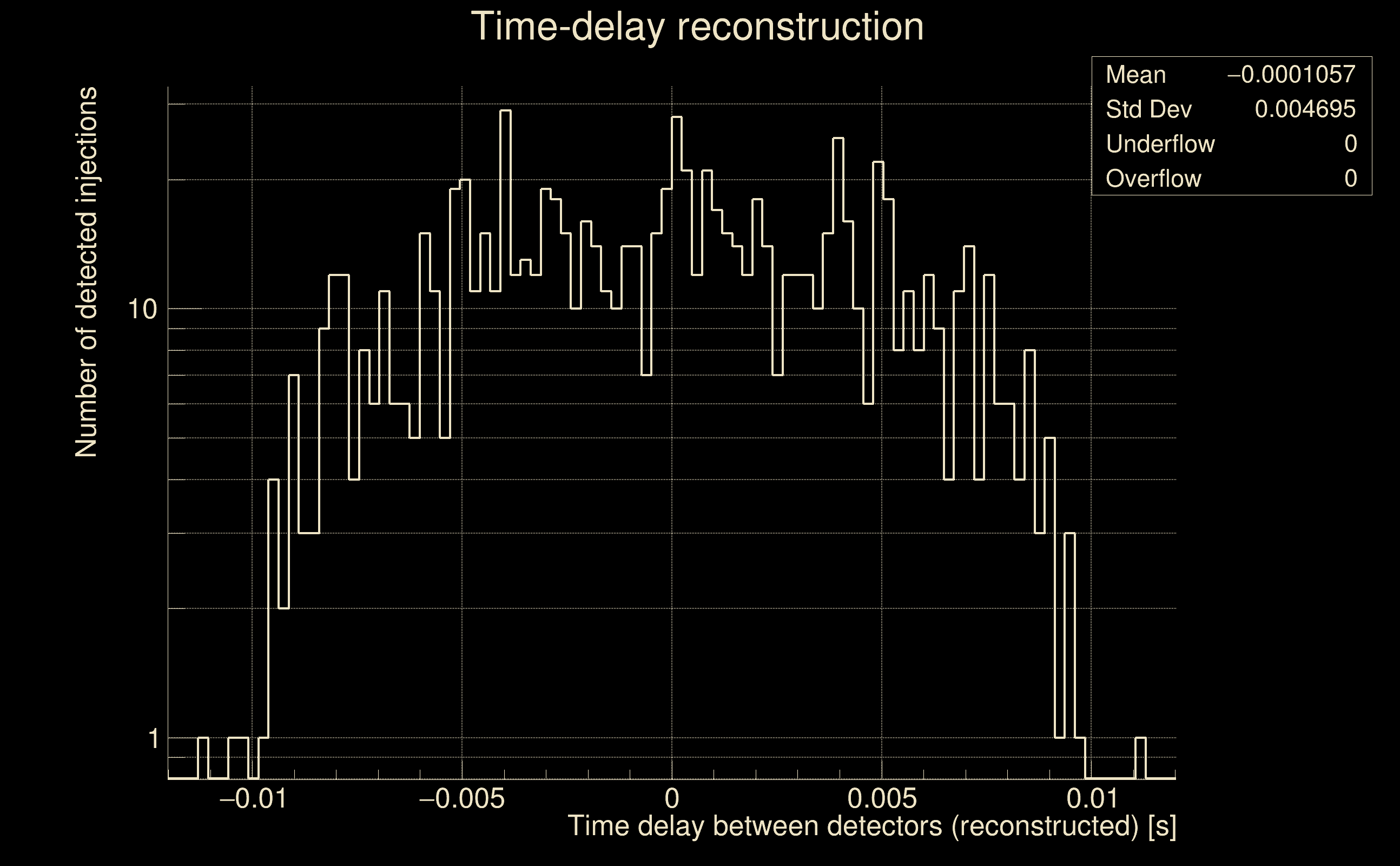

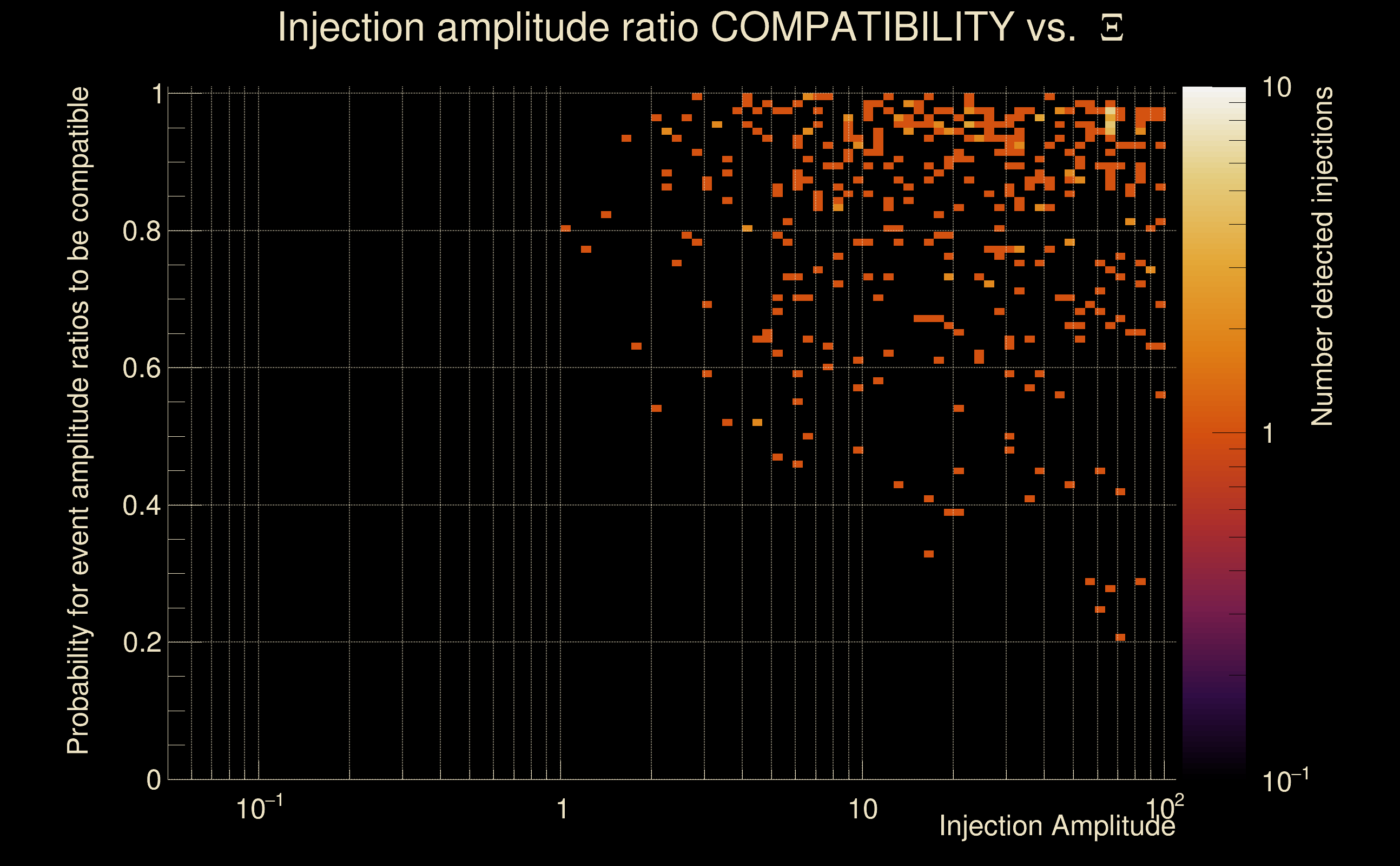

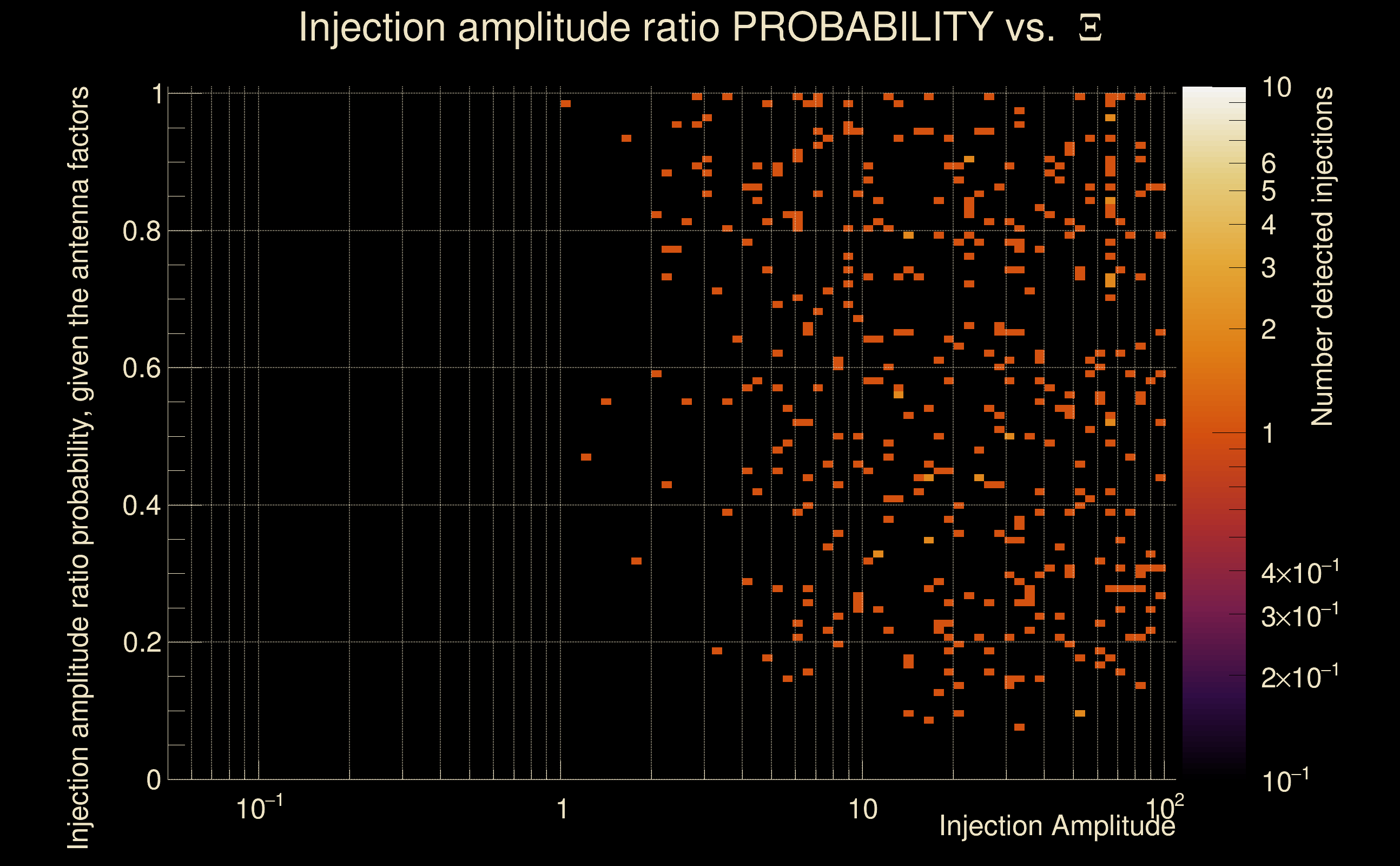

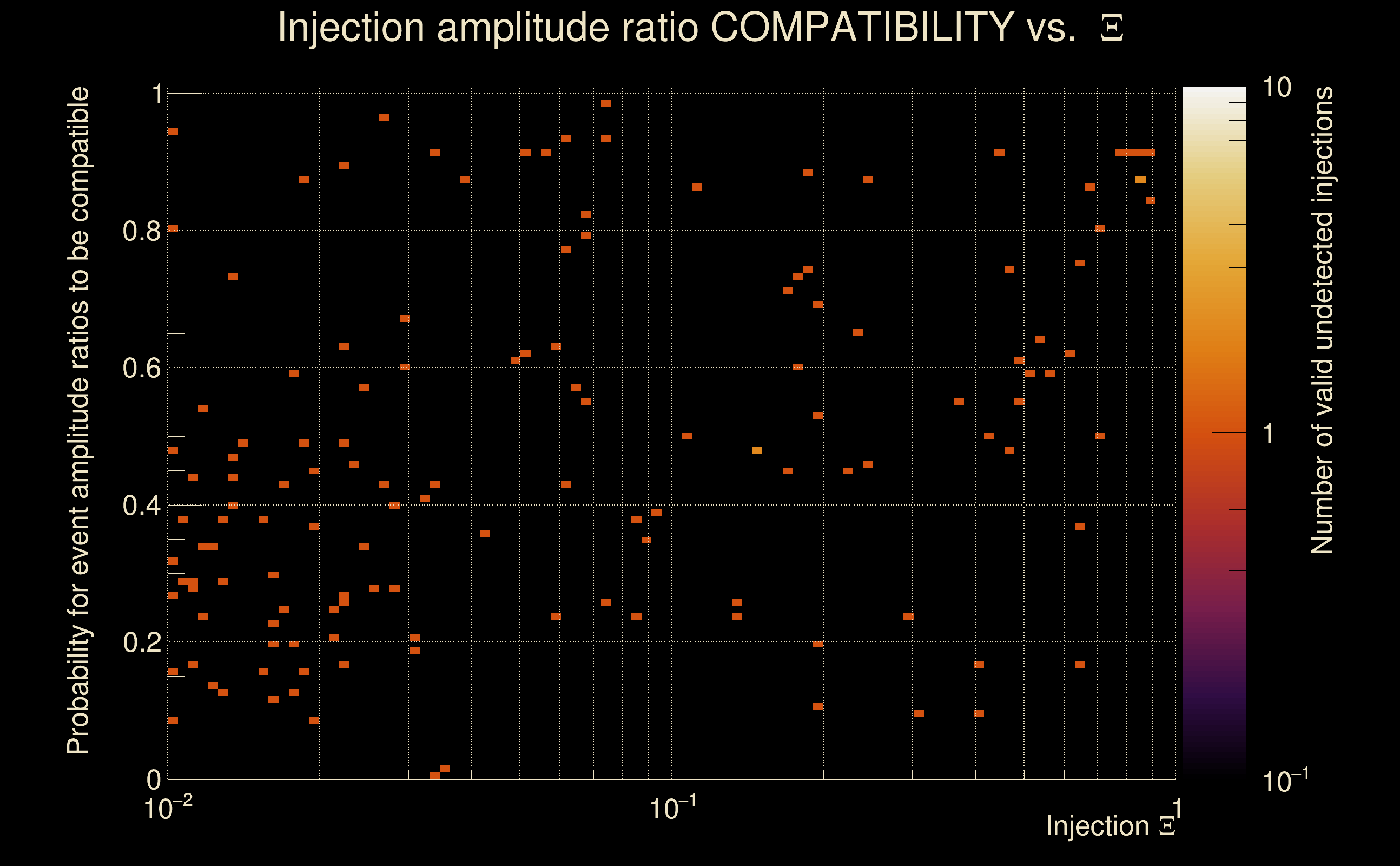

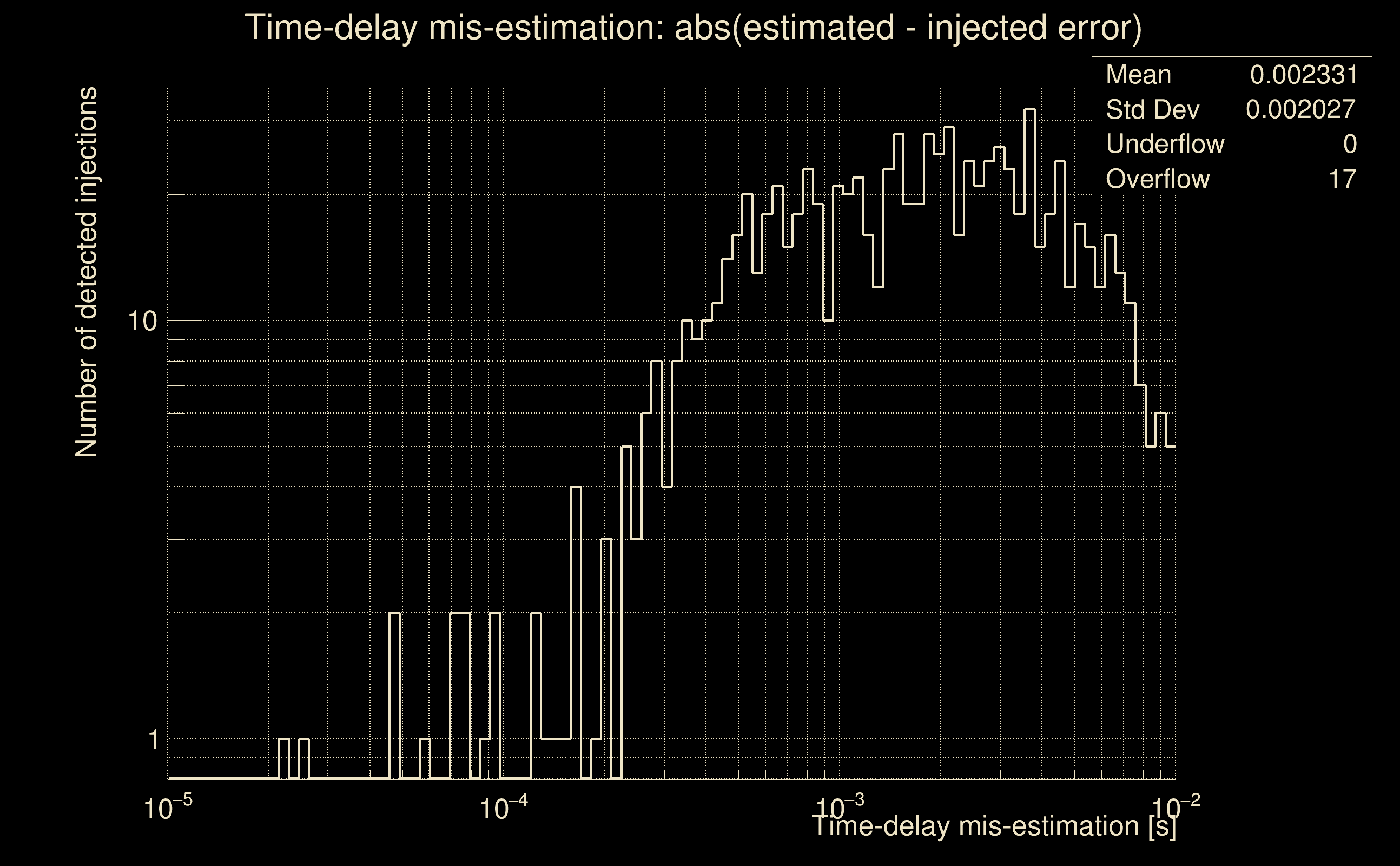

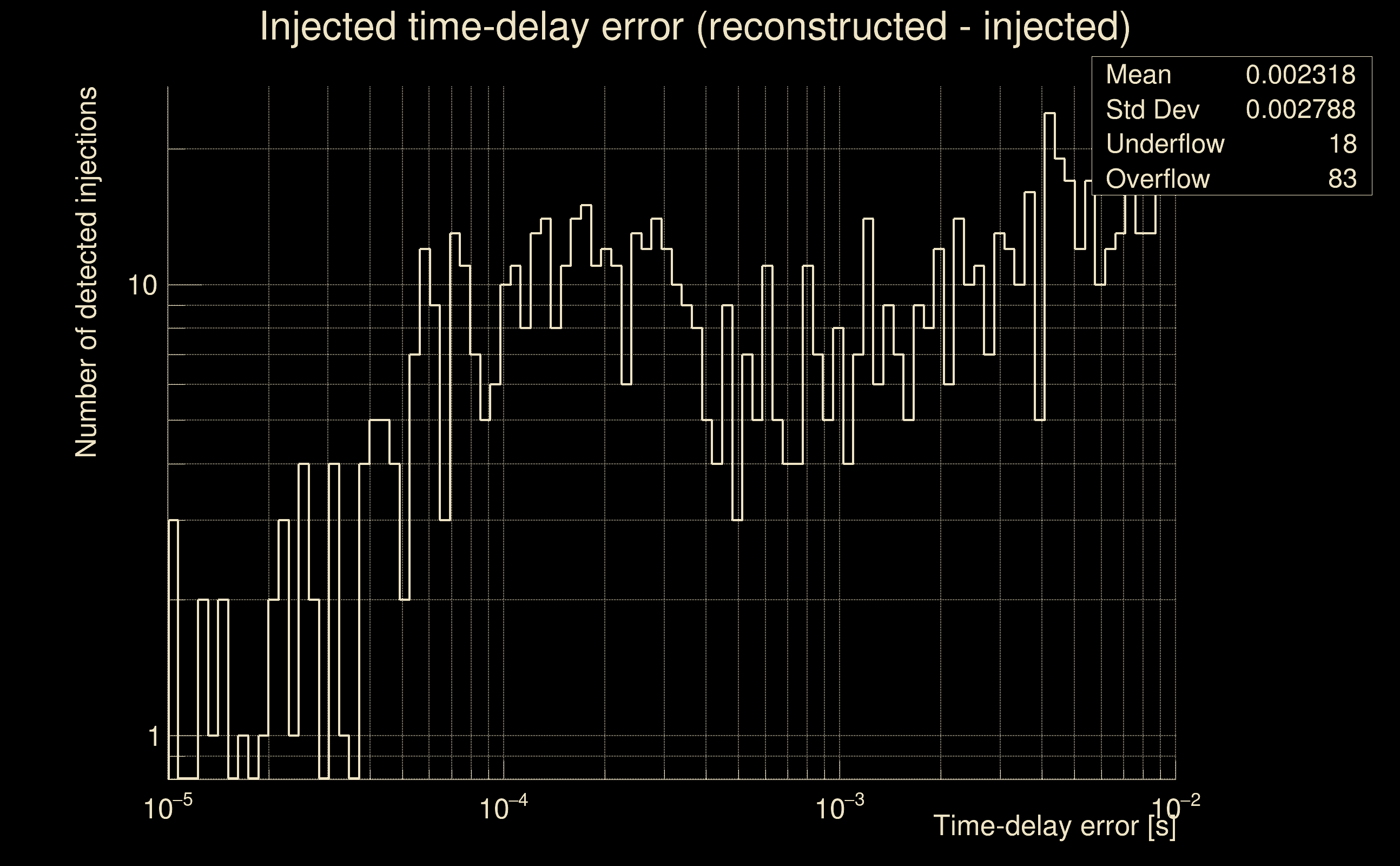

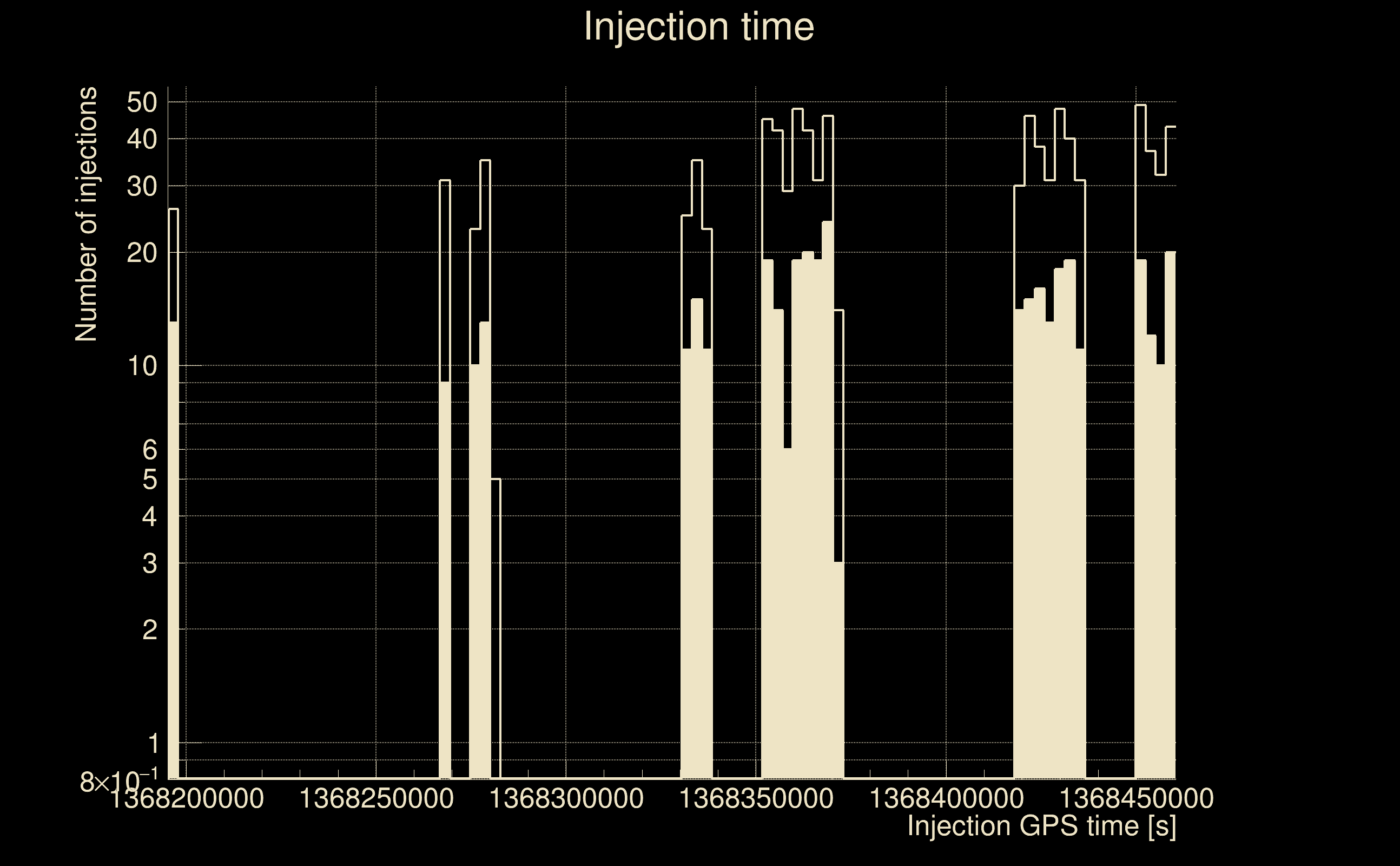

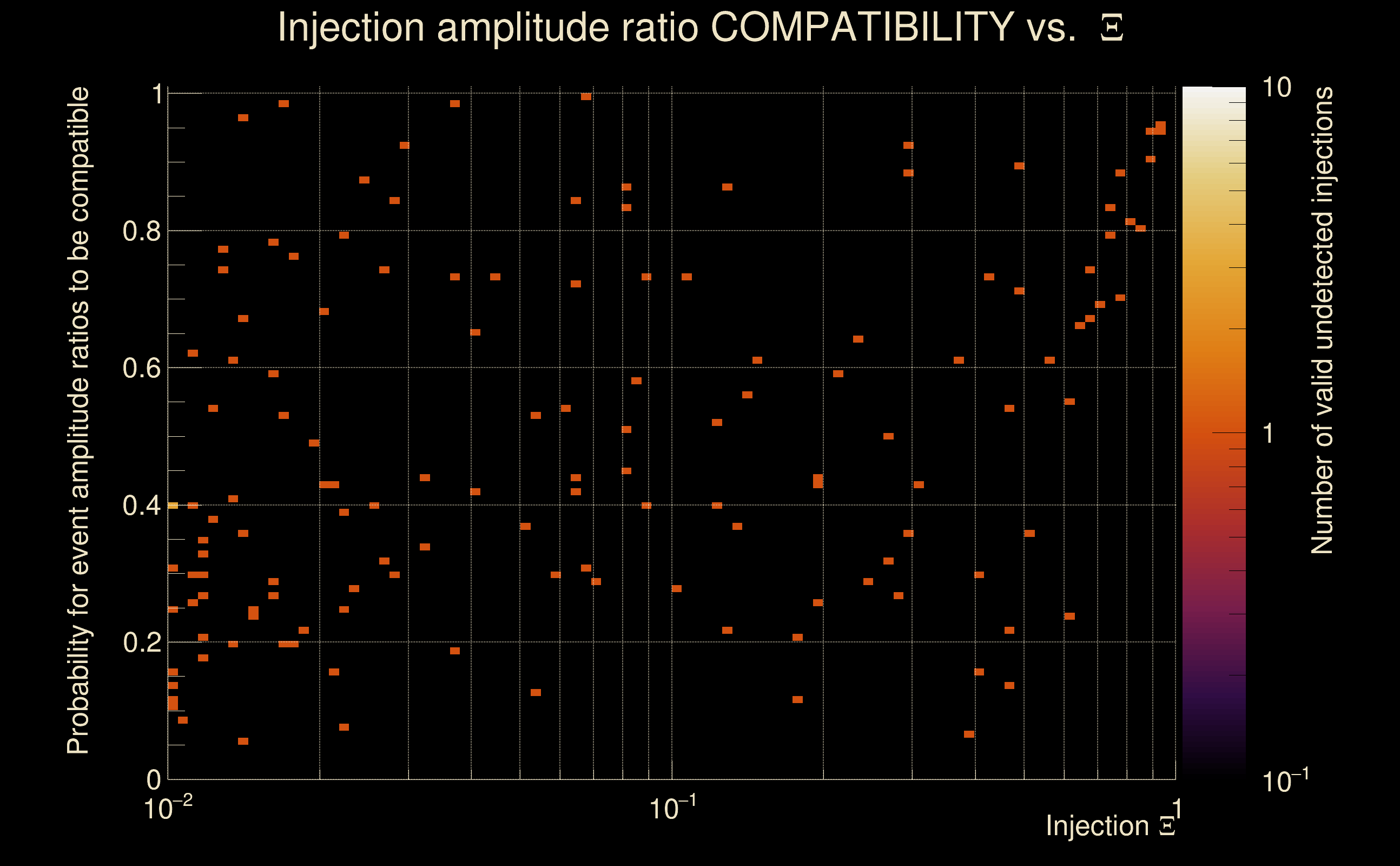

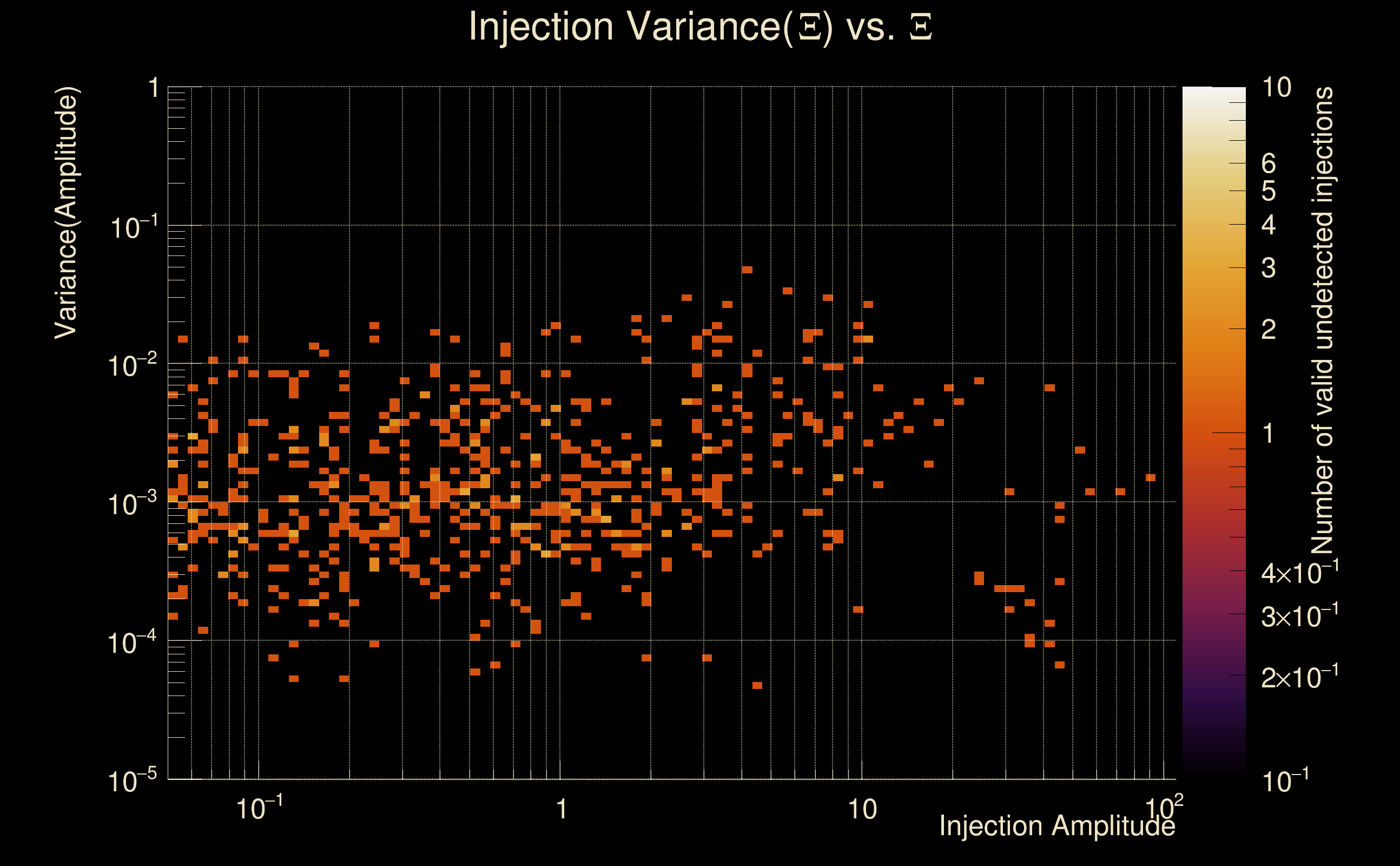

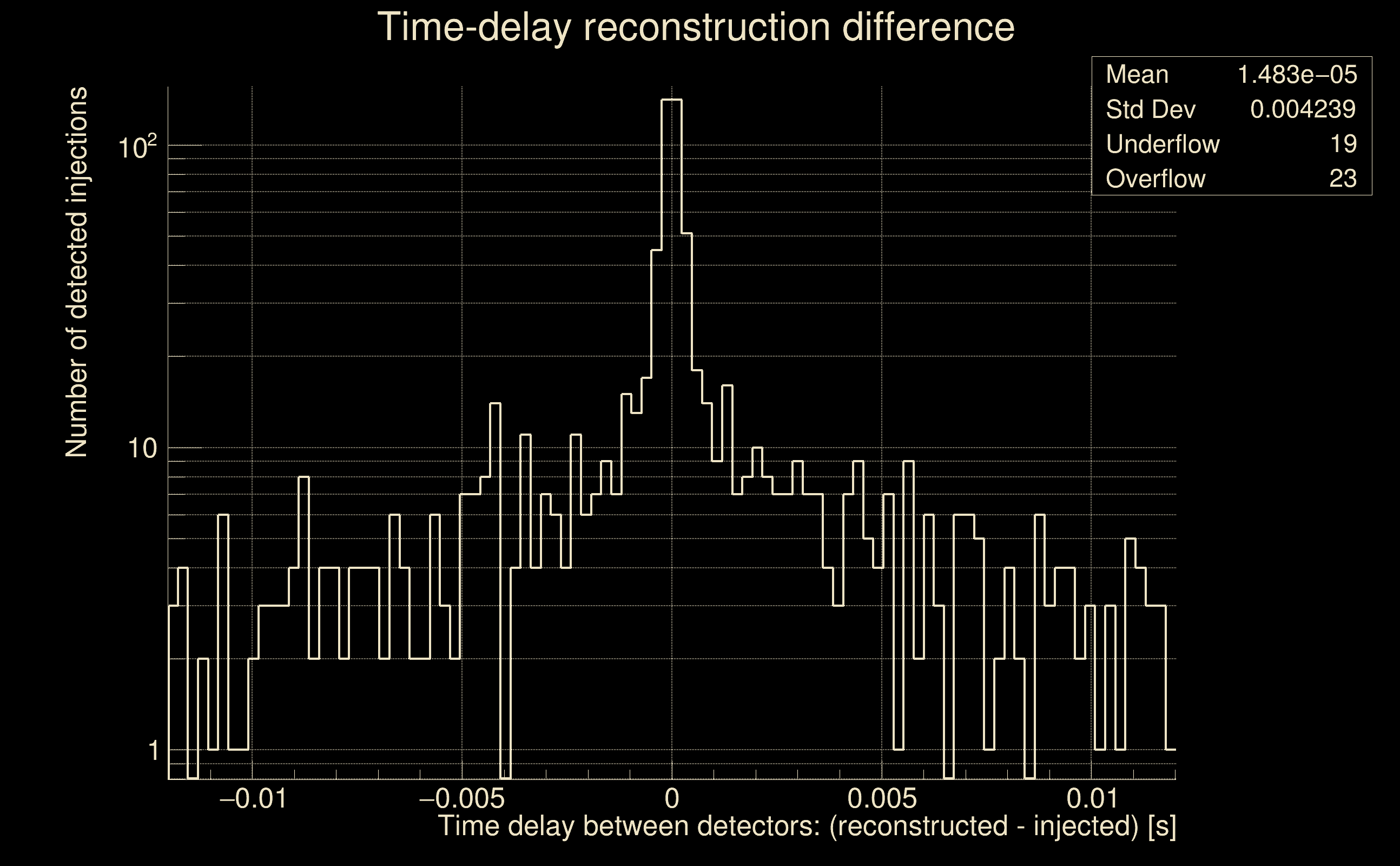

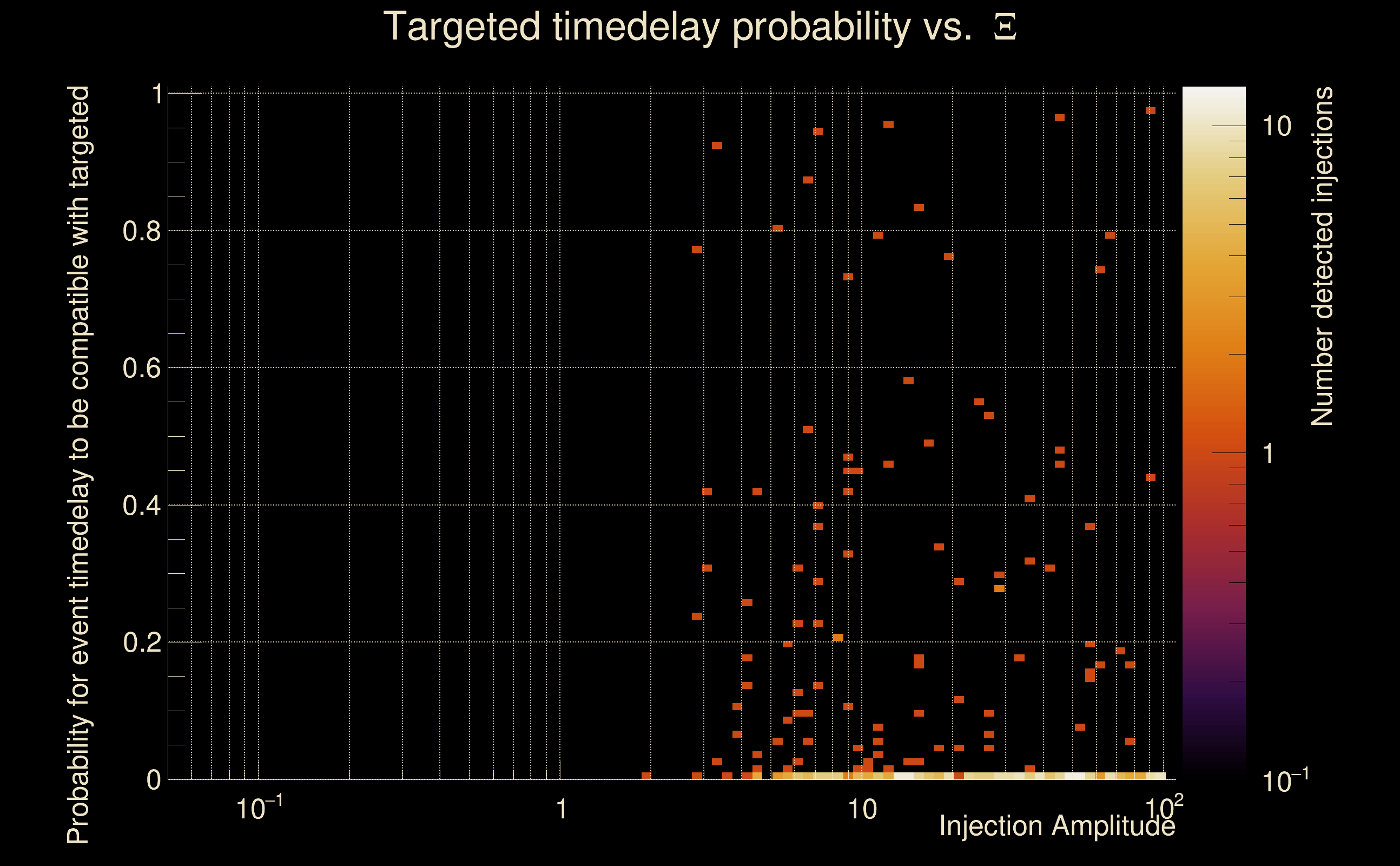

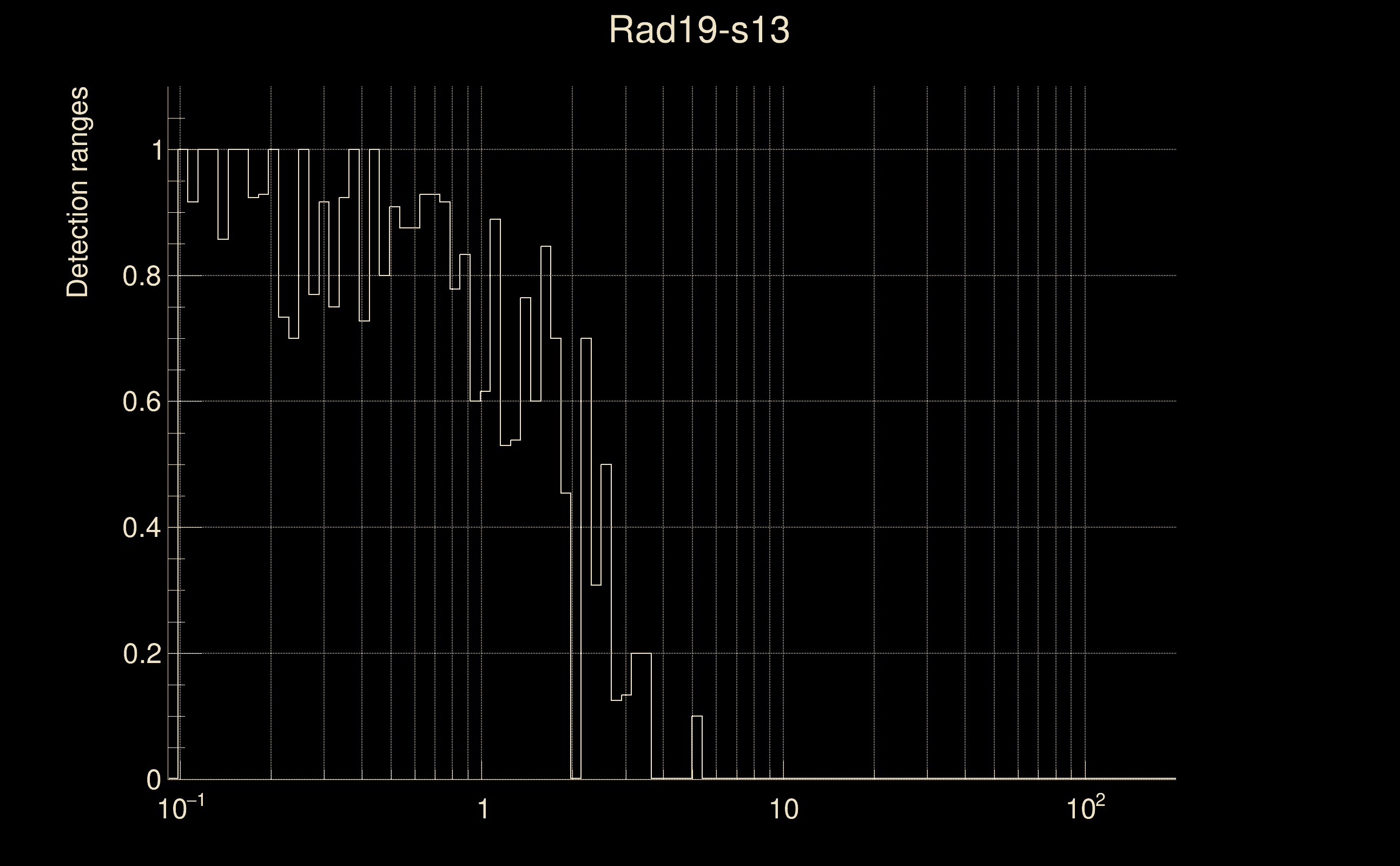

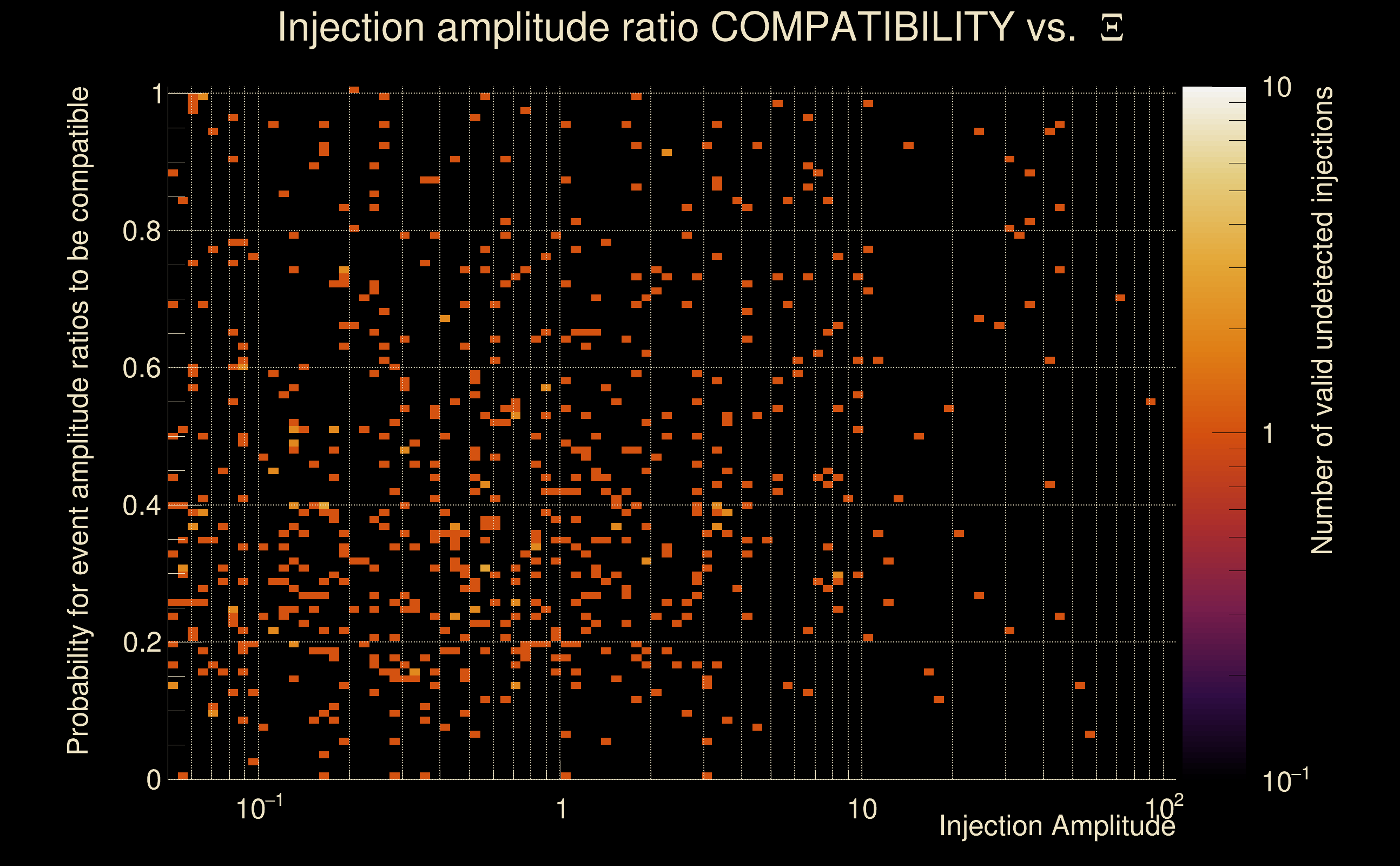

| Number of injections (total/valid/detected): | 1042 / 925 / 373 |
| List of missed injections: | ./Rad19-s13_missed.txt |
| Injection amplitude at 90% detection efficiency: | 21.8492 |
| Injection amplitude at 50% detection efficiency: | 5.33703 |
| Injection amplitude at 10% detection efficiency: | 4.95534 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

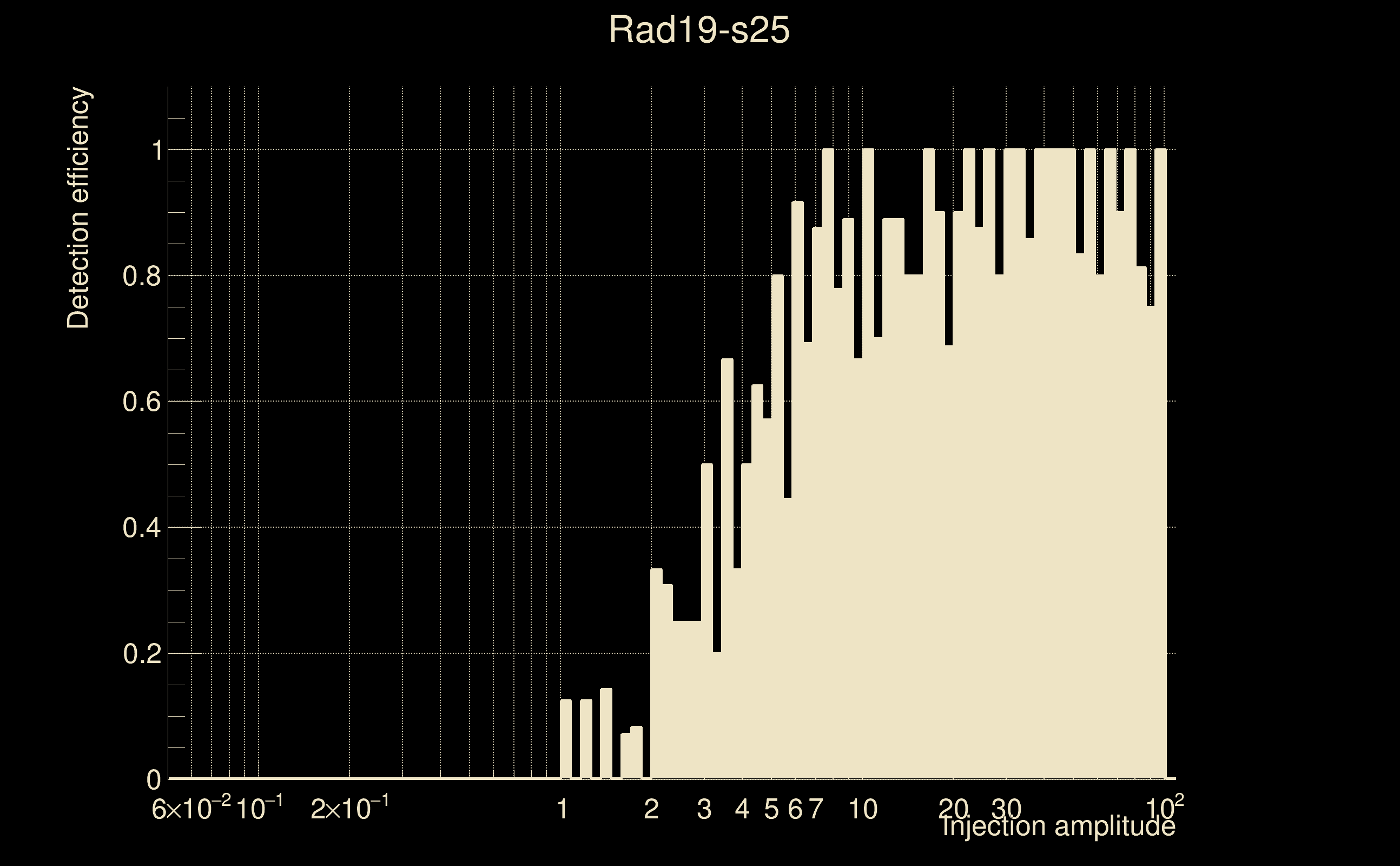

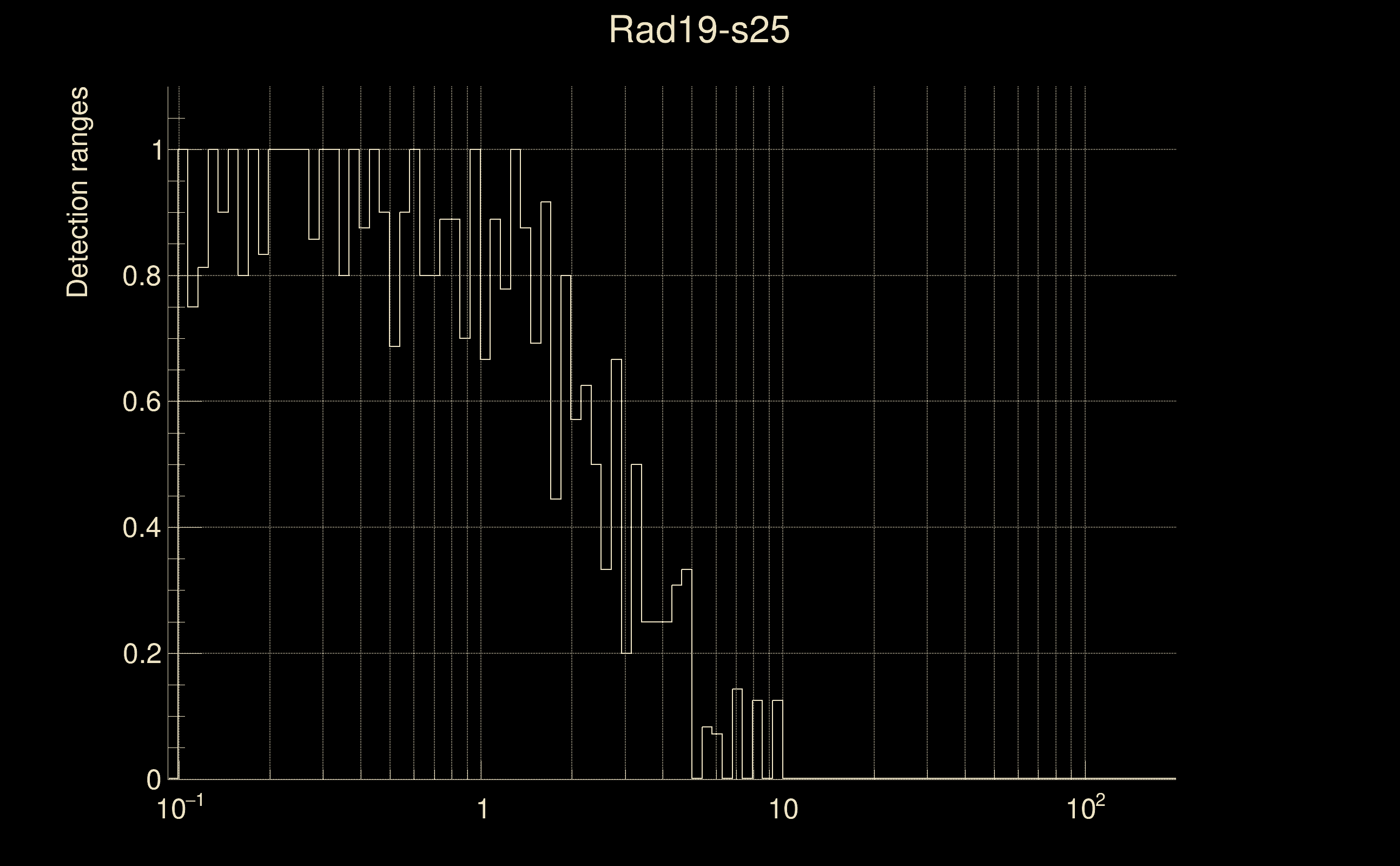

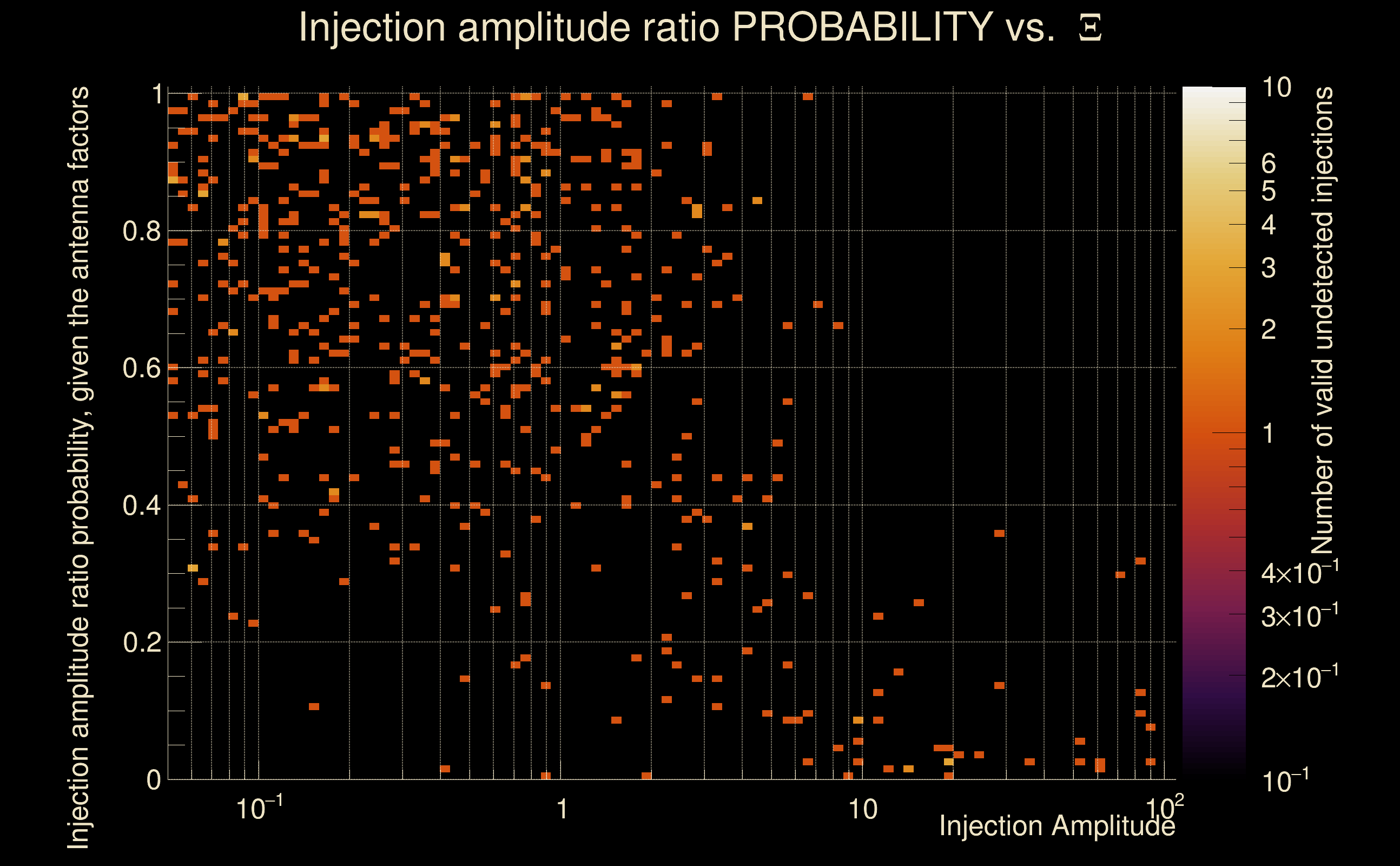

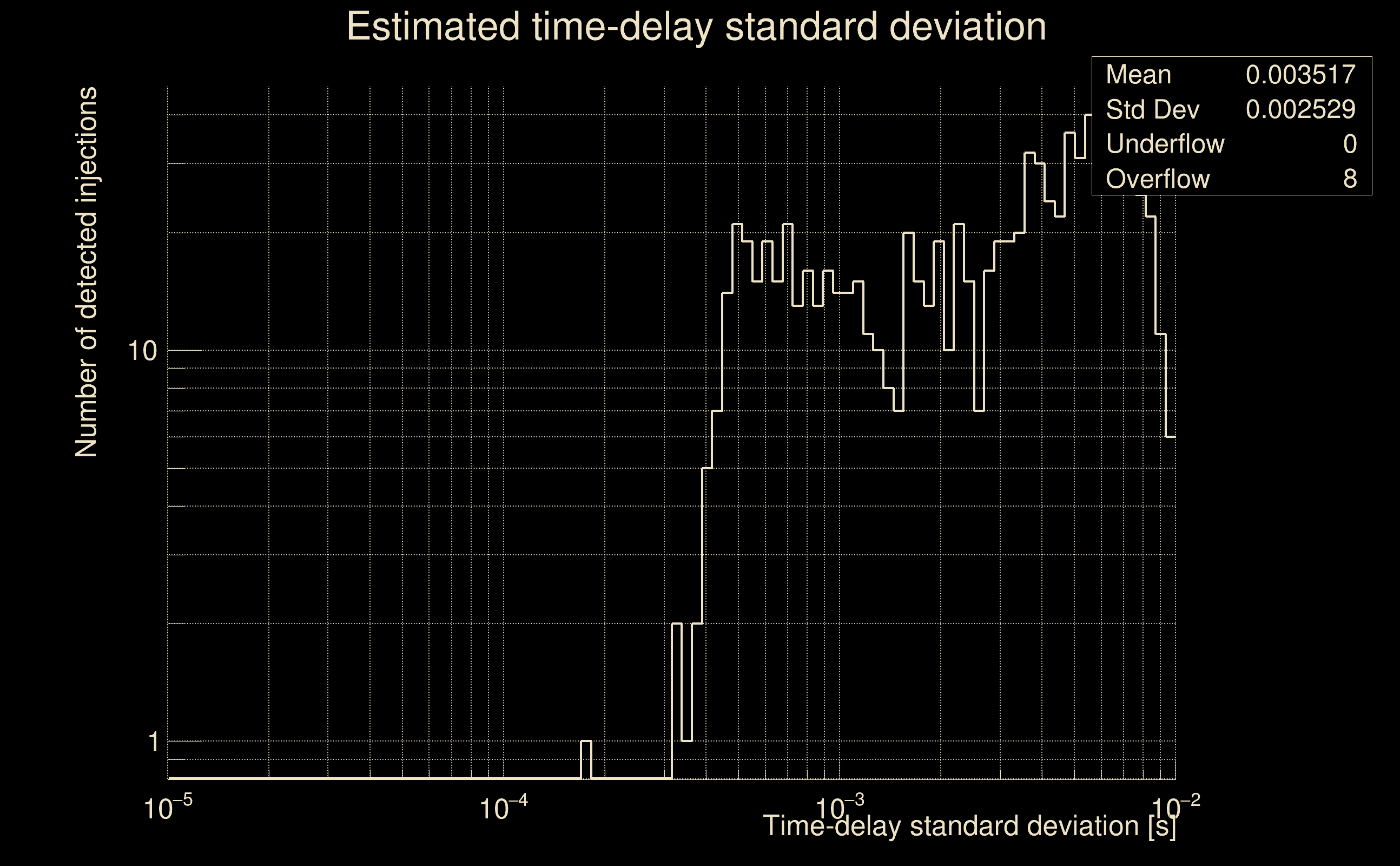

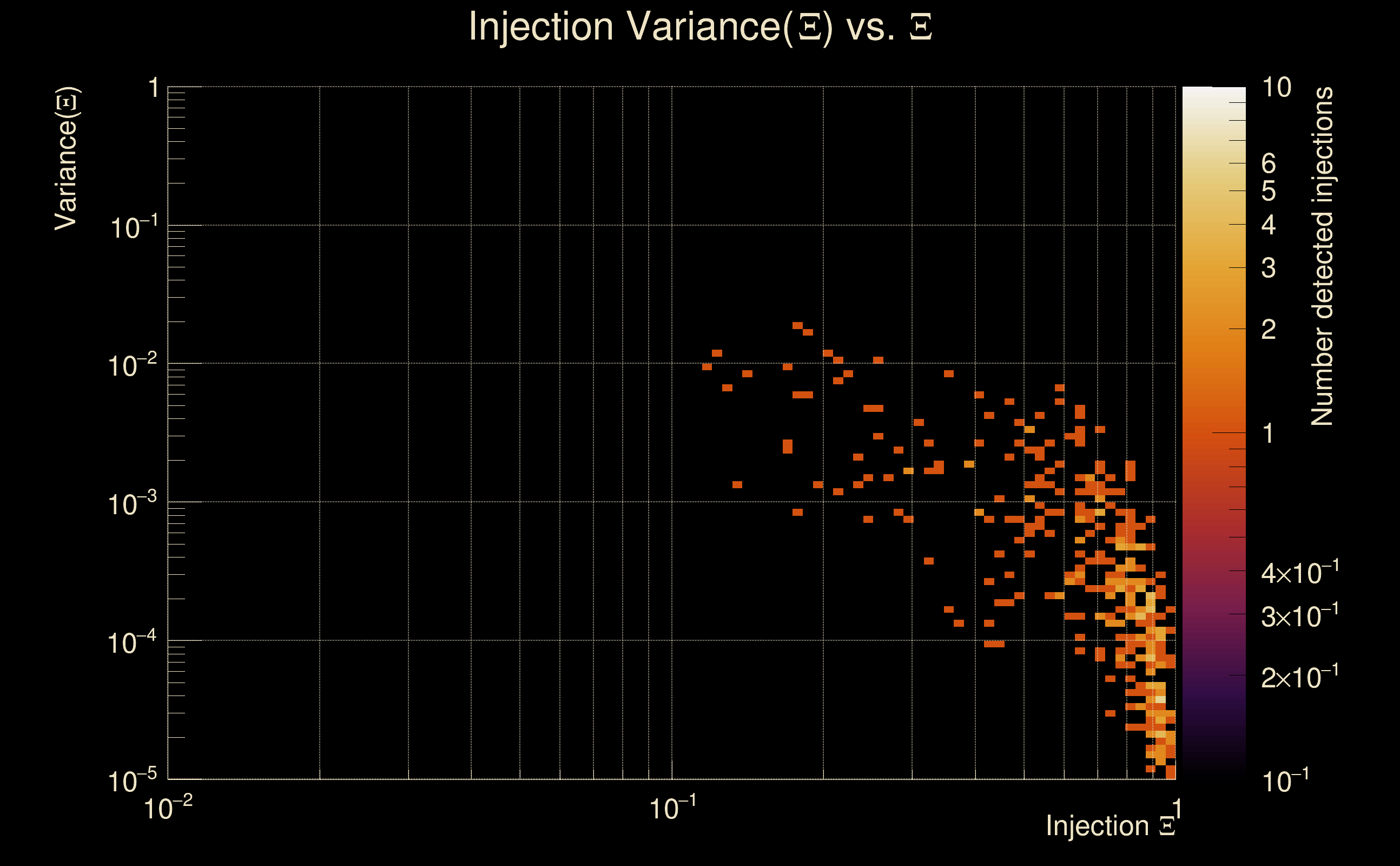

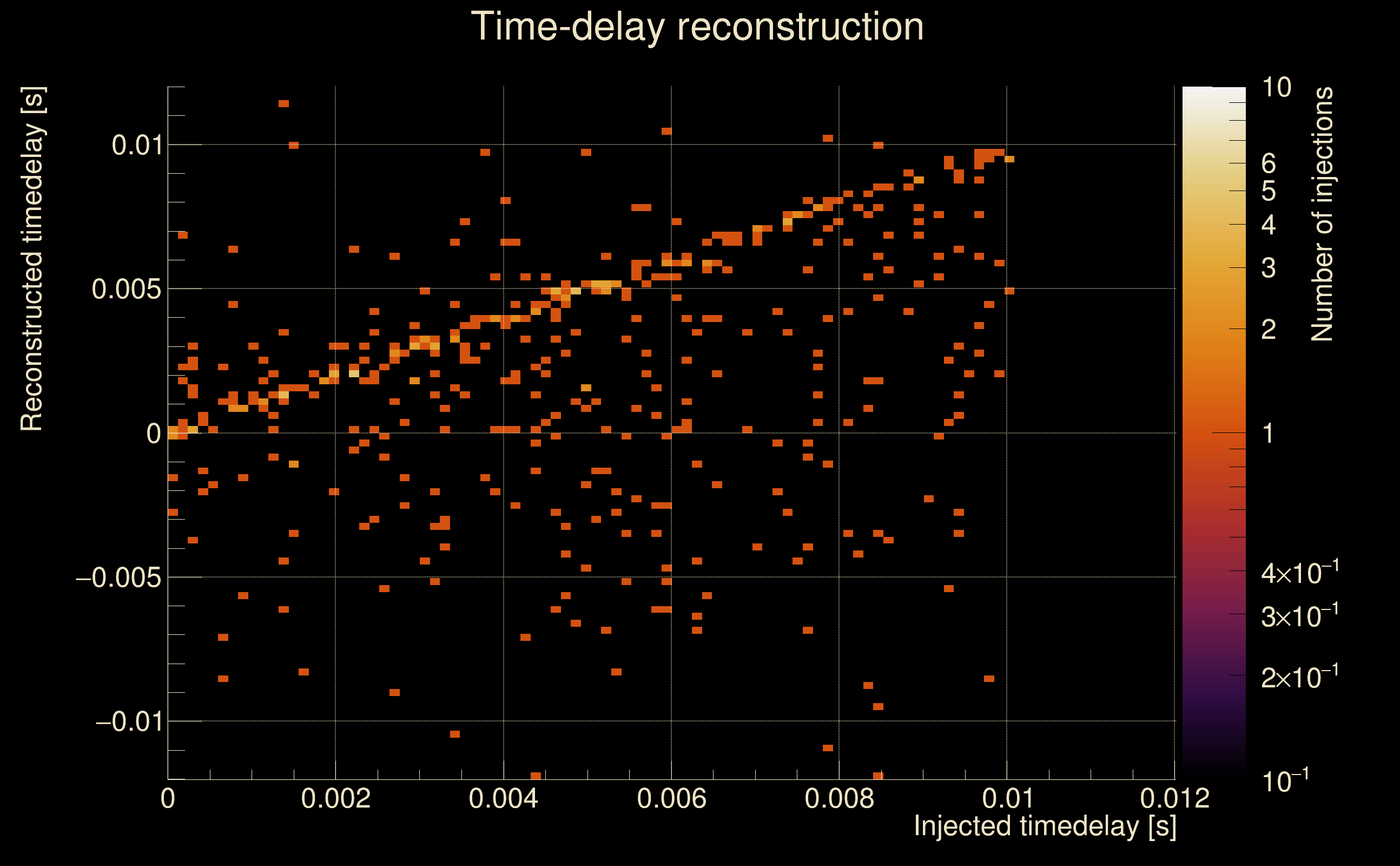

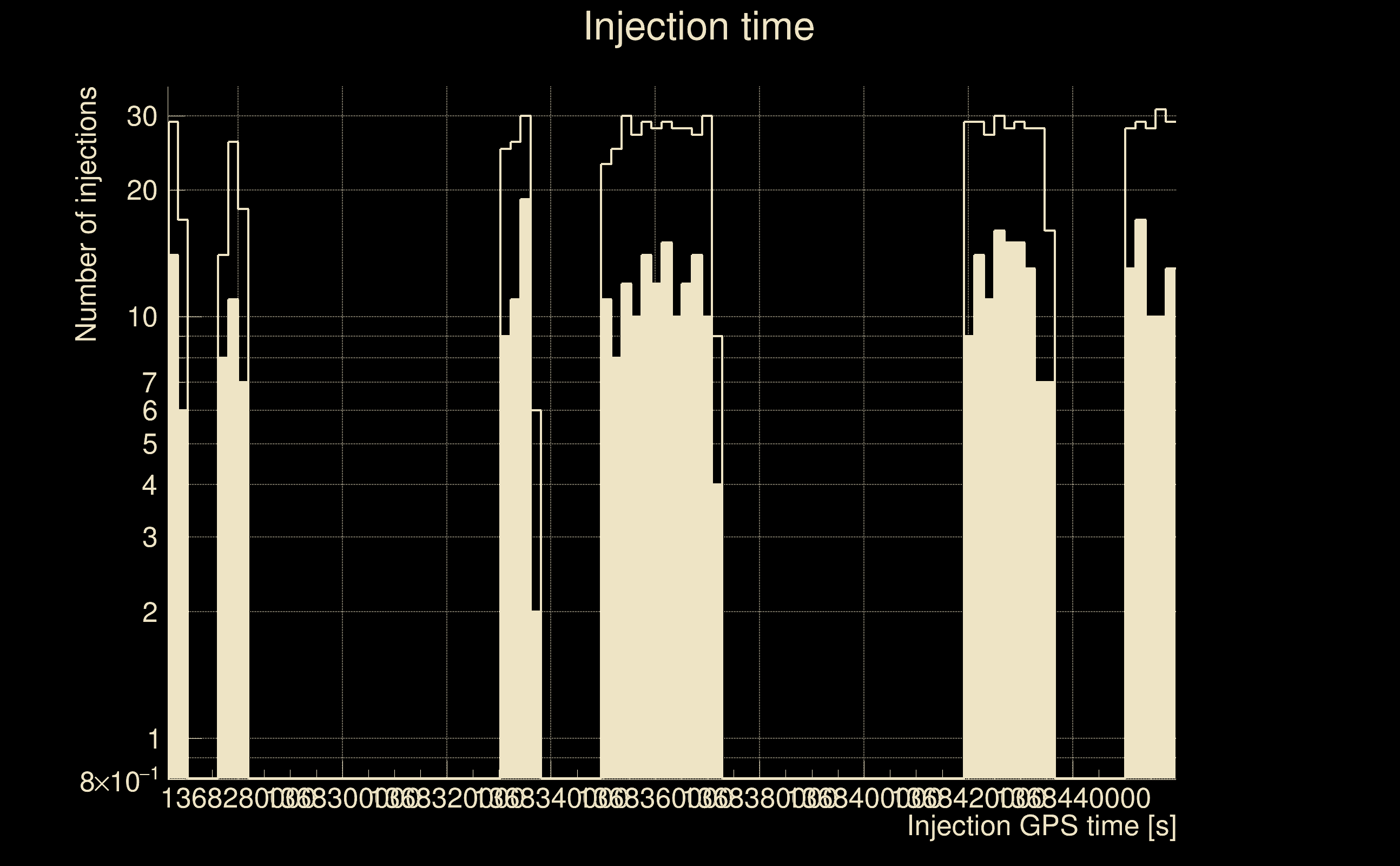

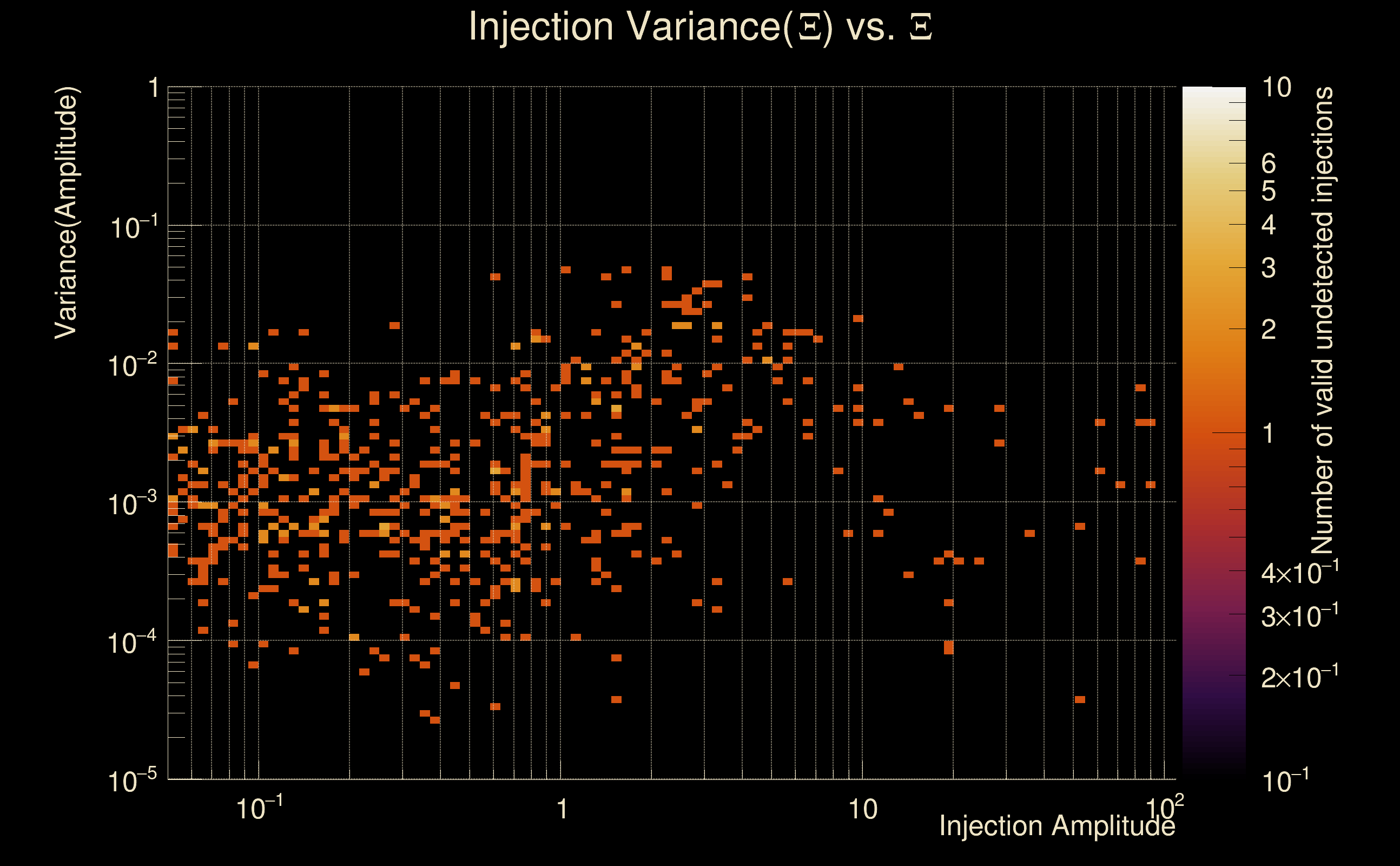

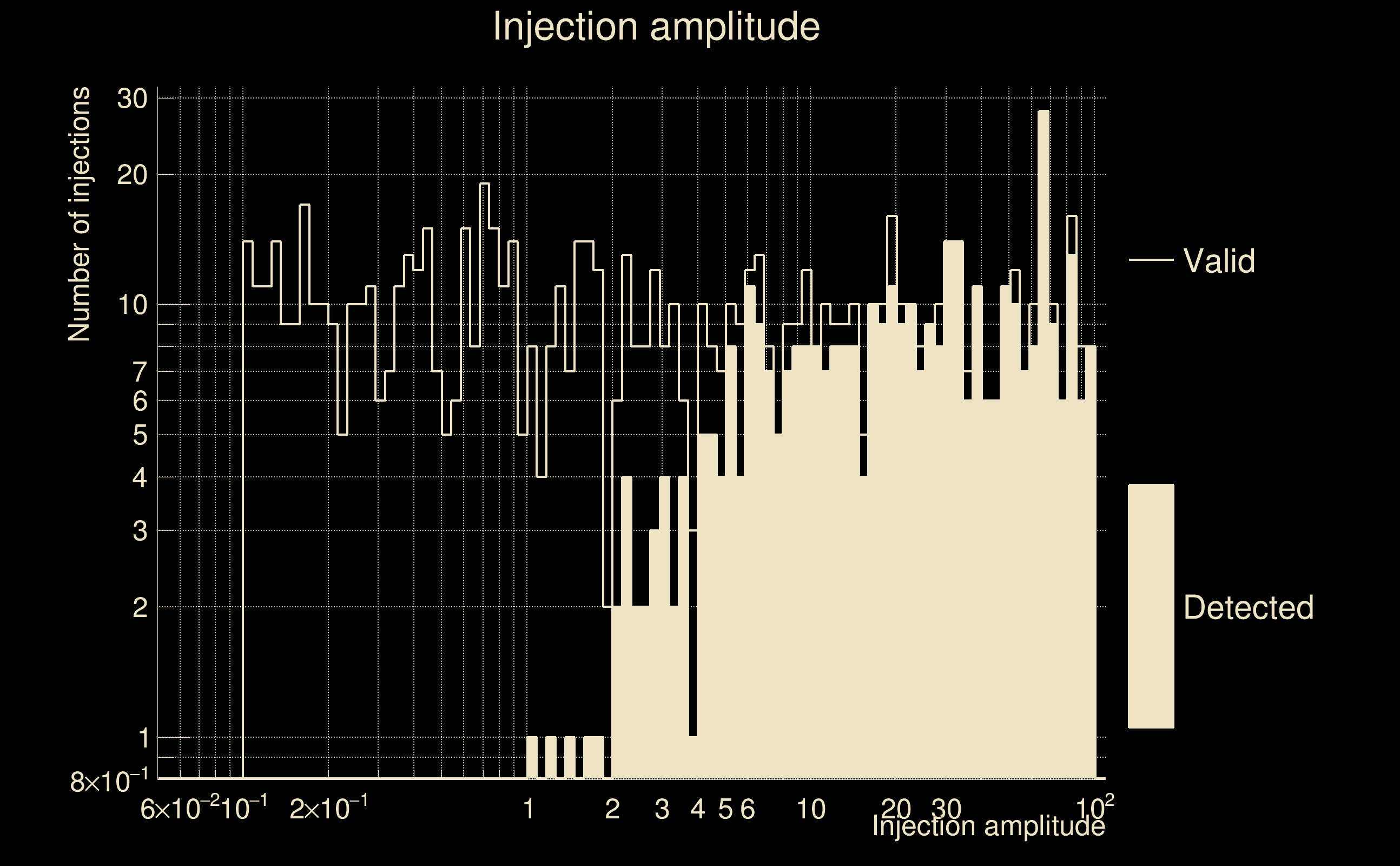

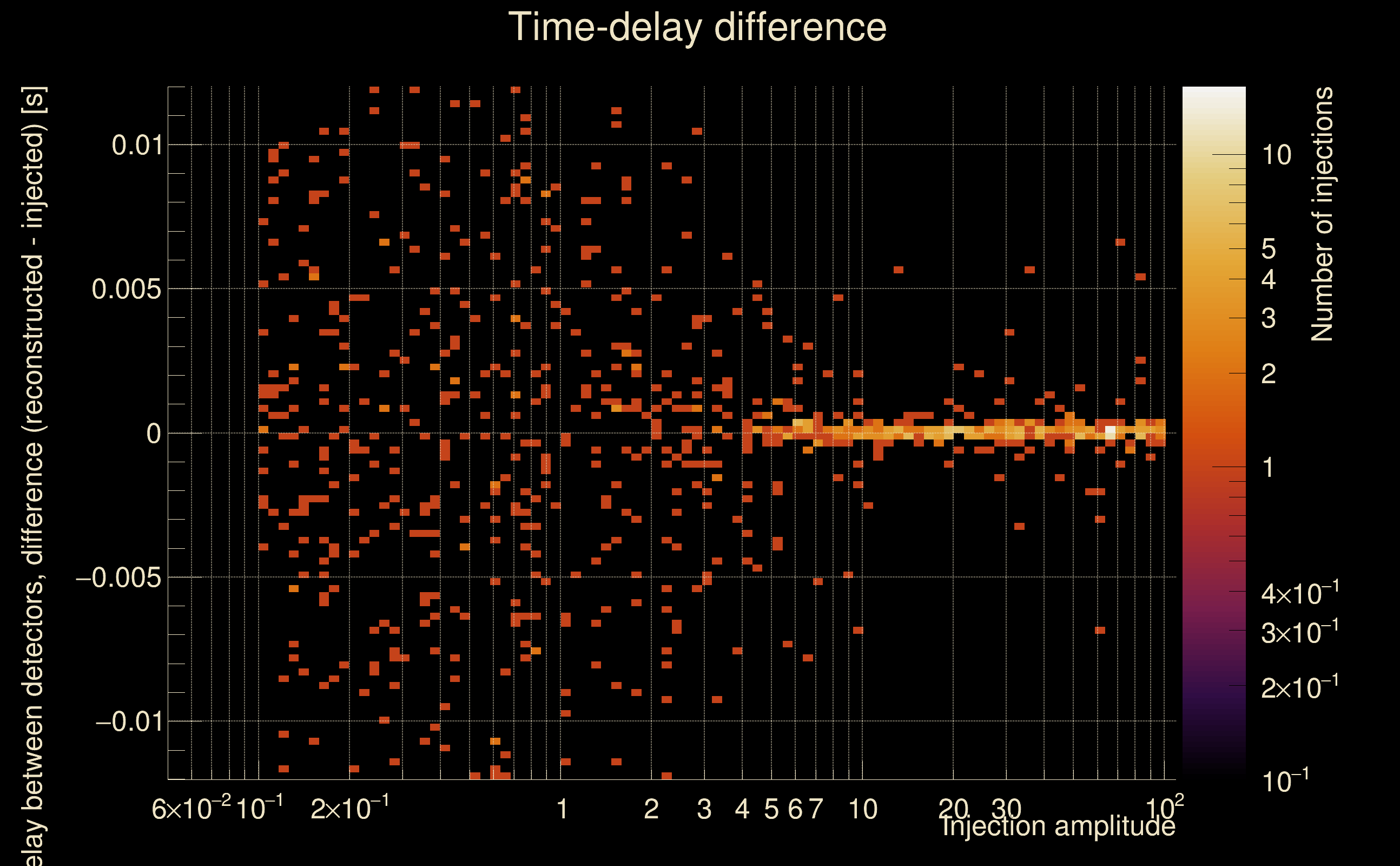

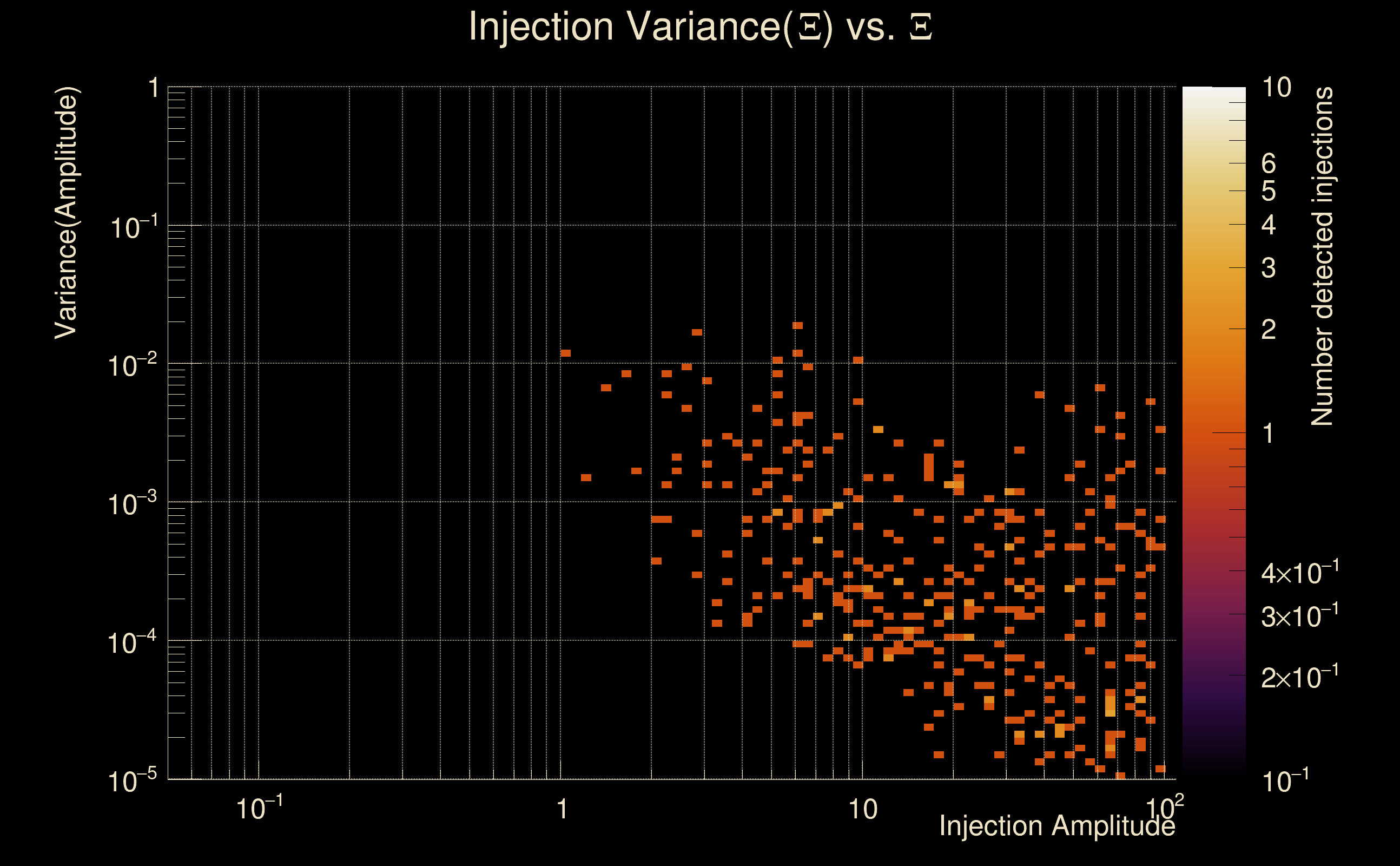

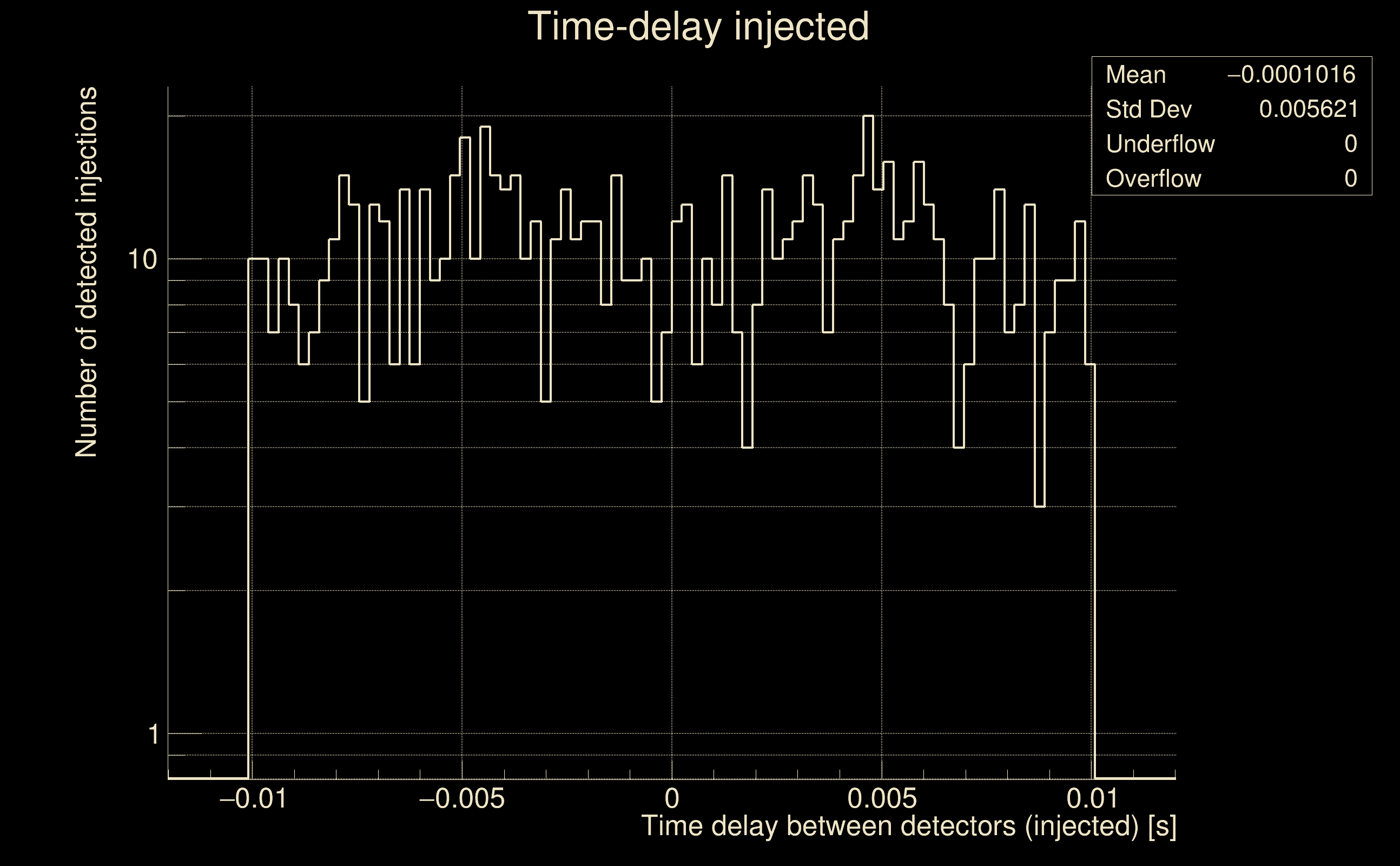

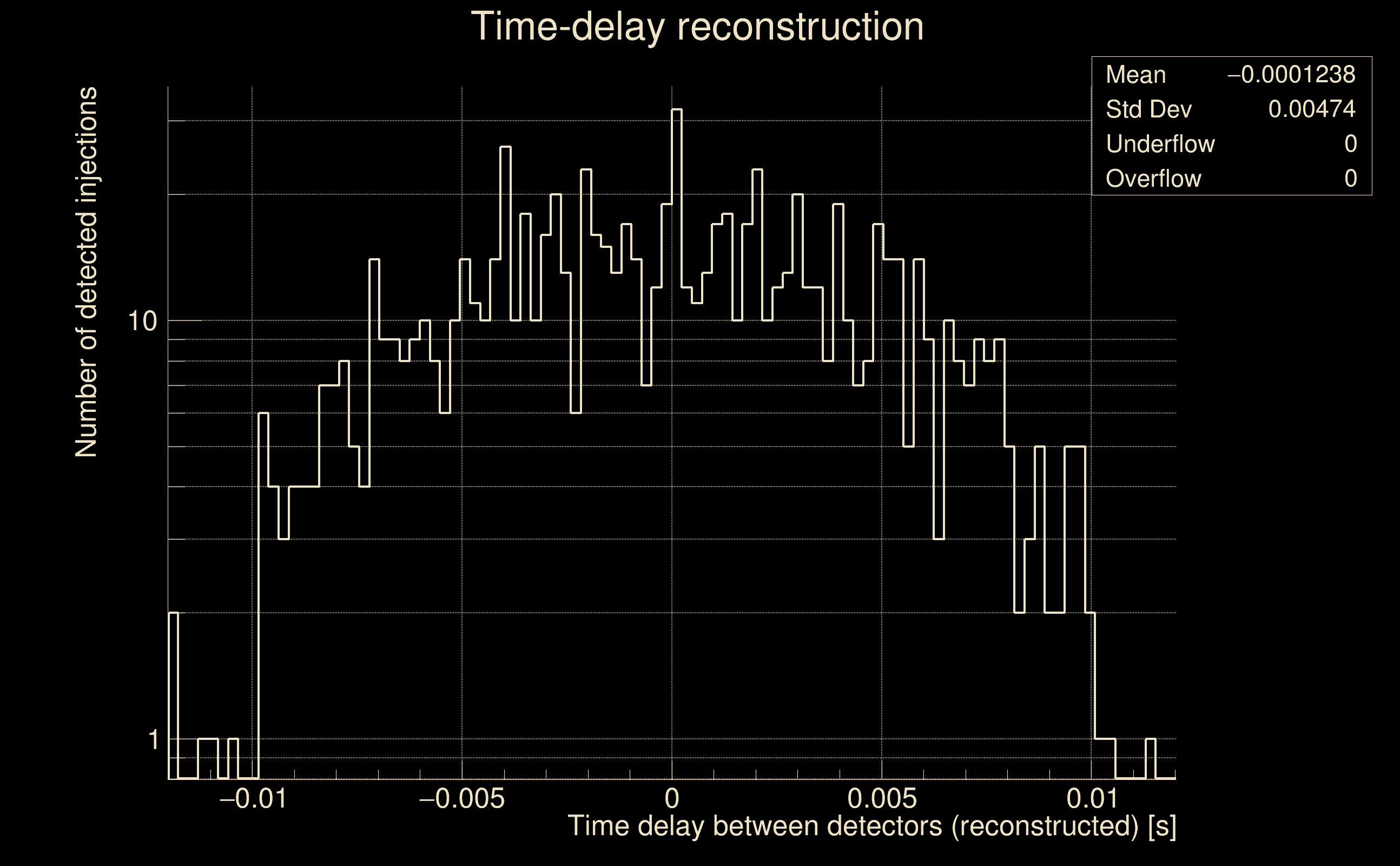

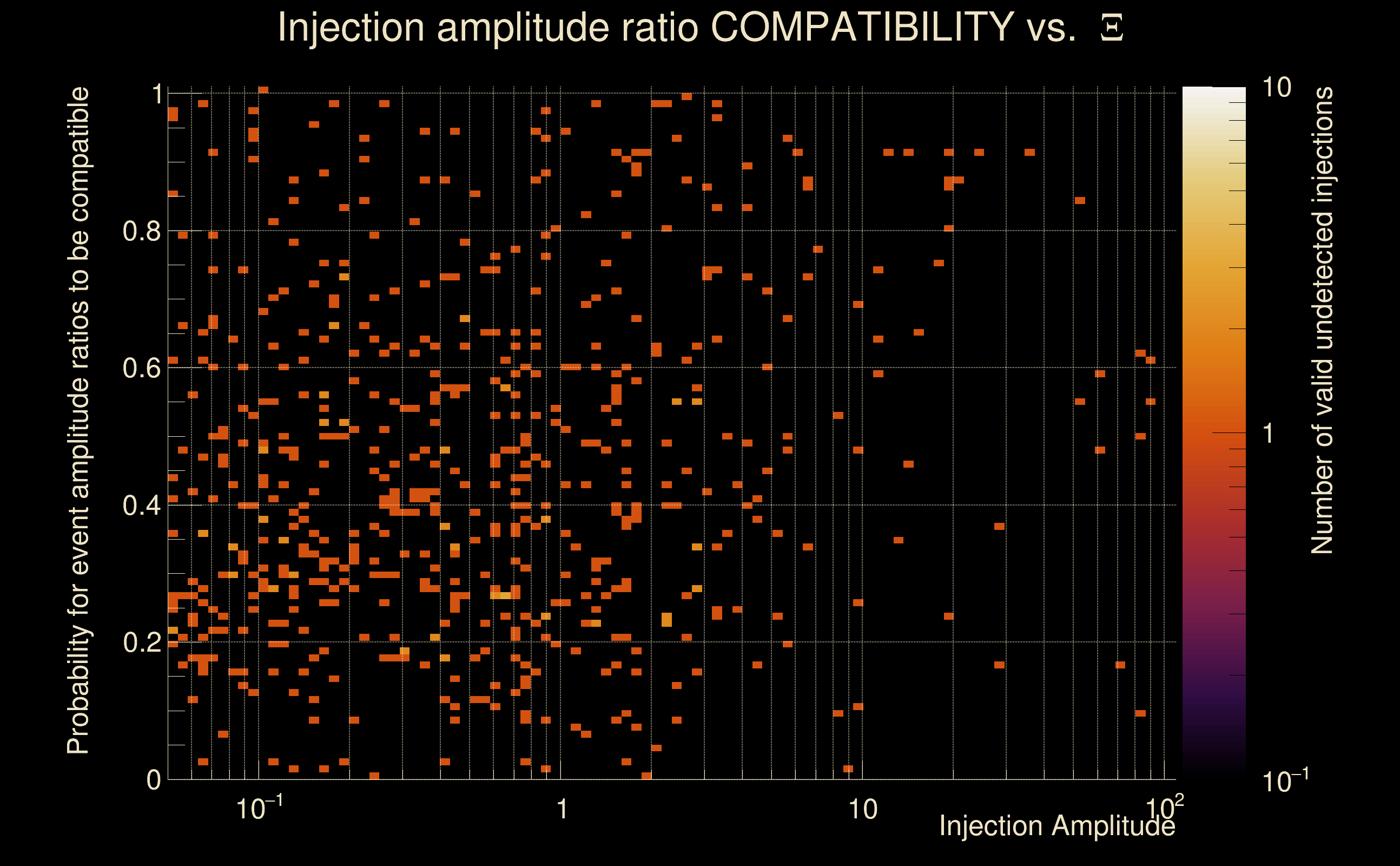

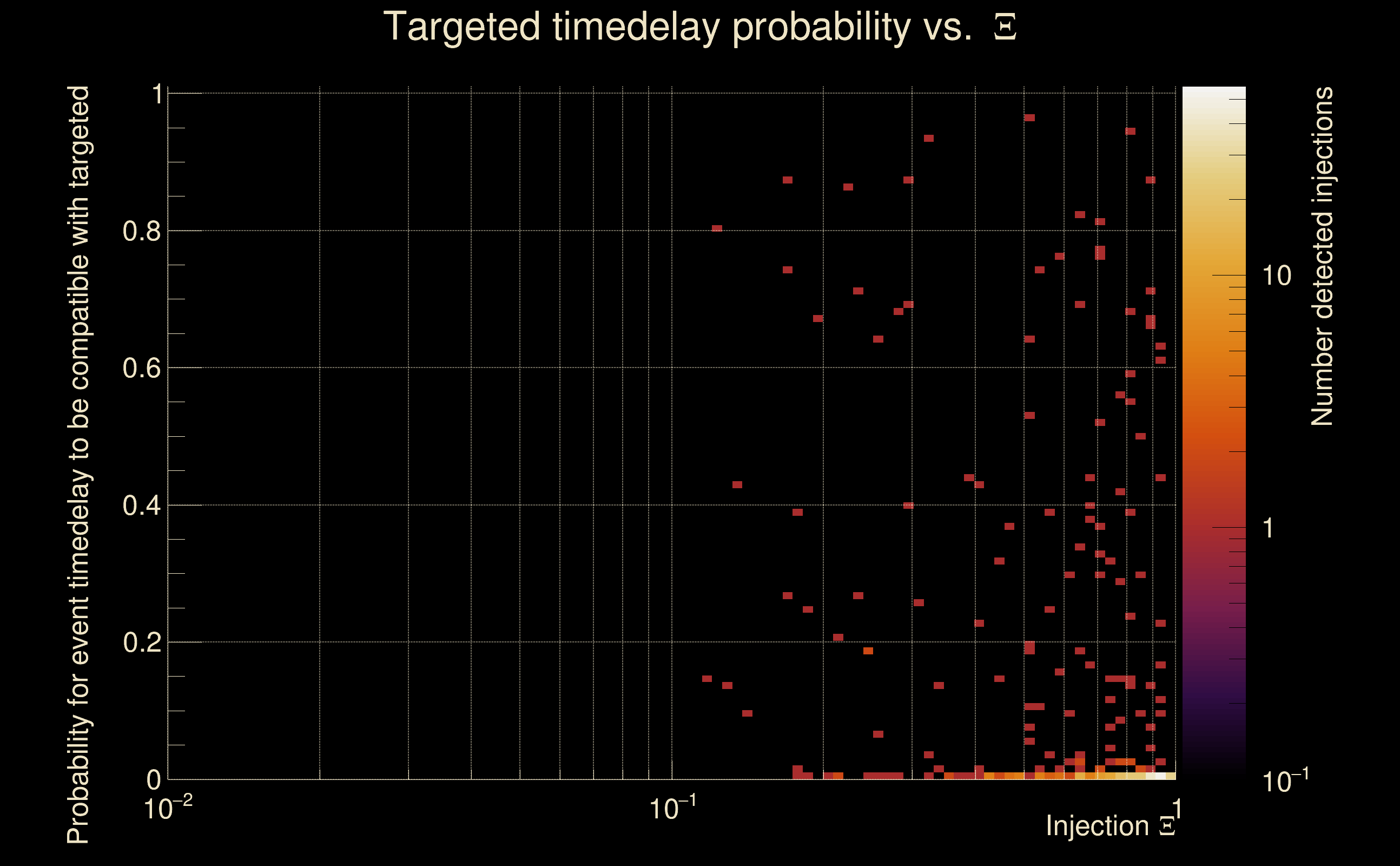

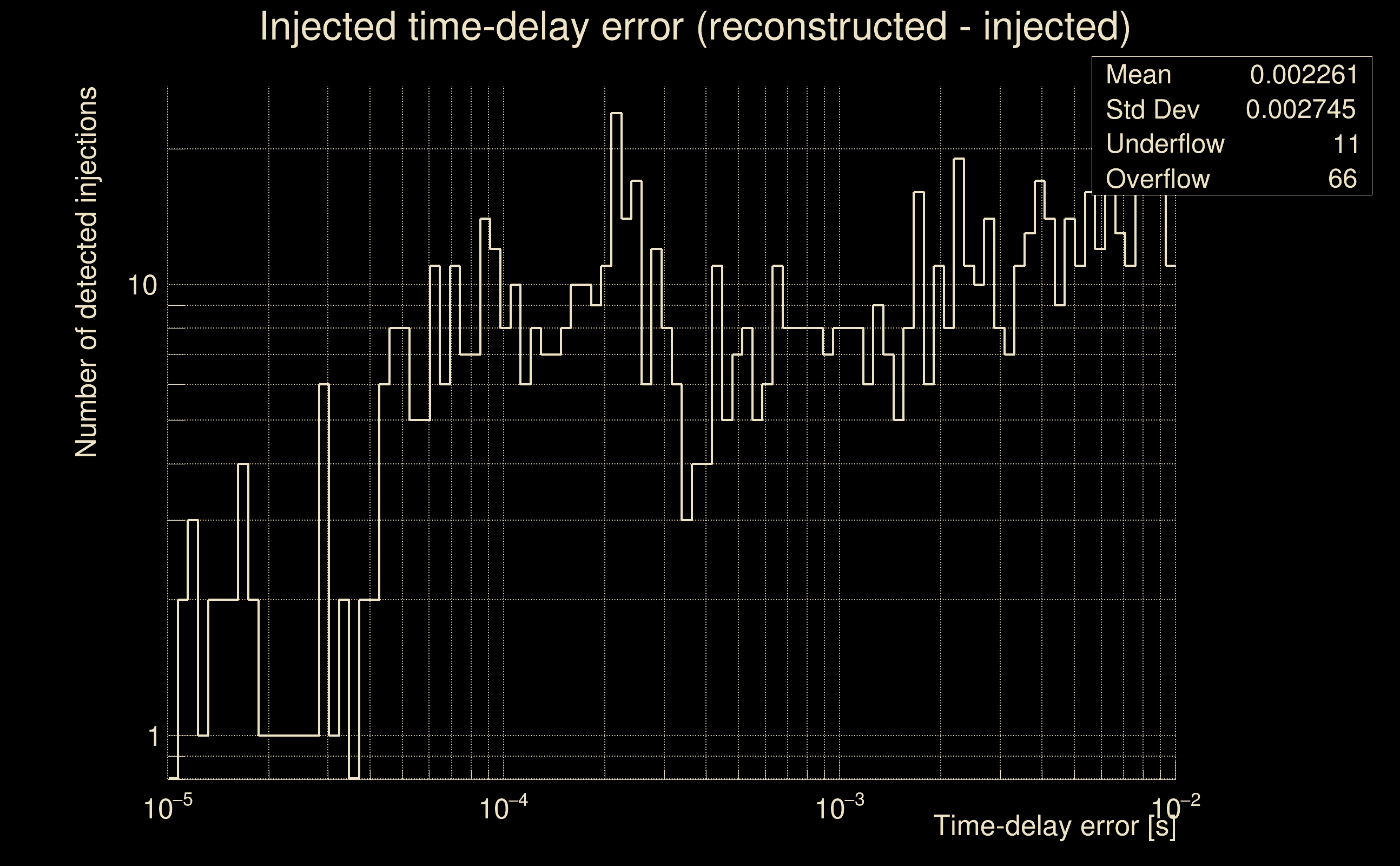

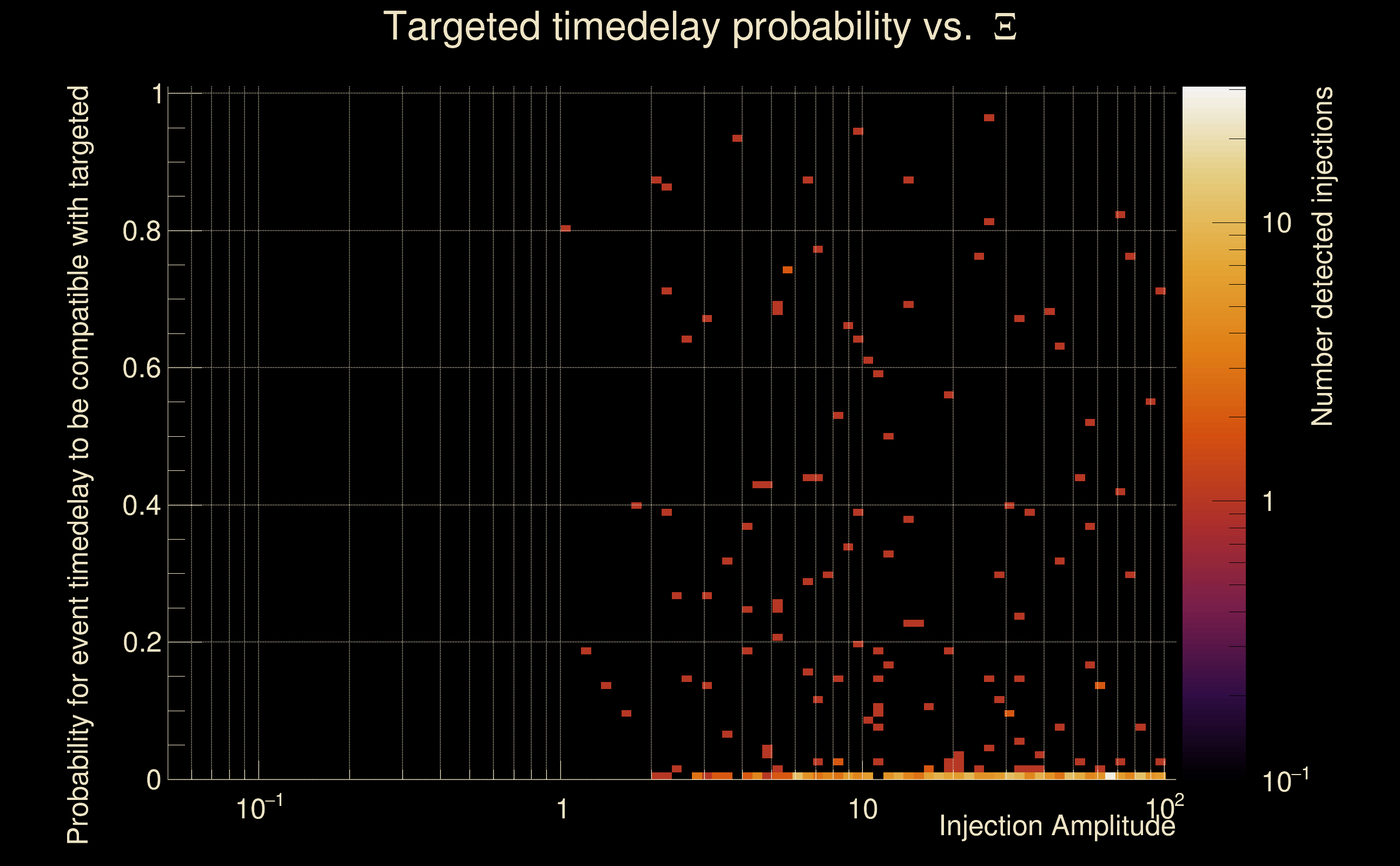

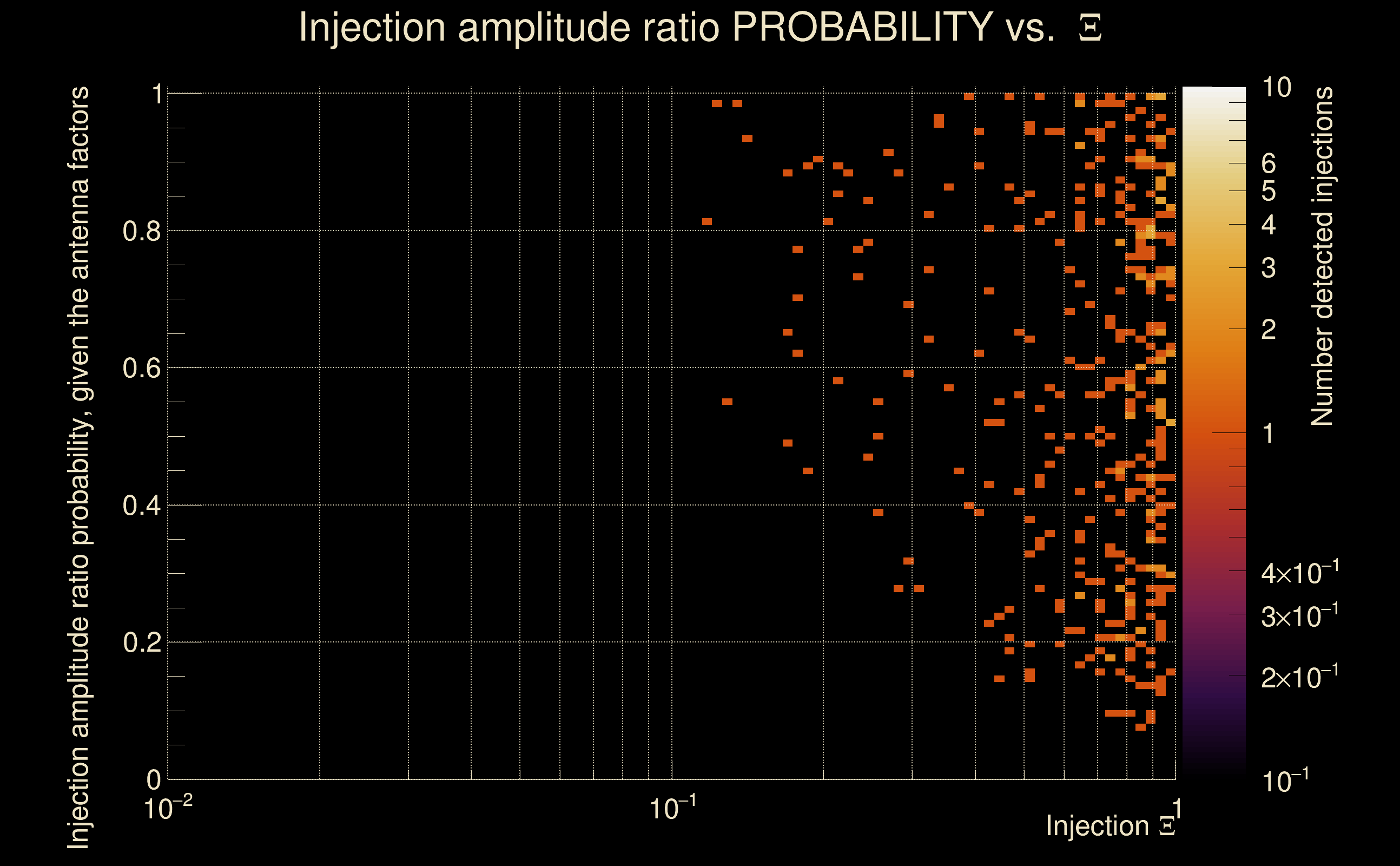

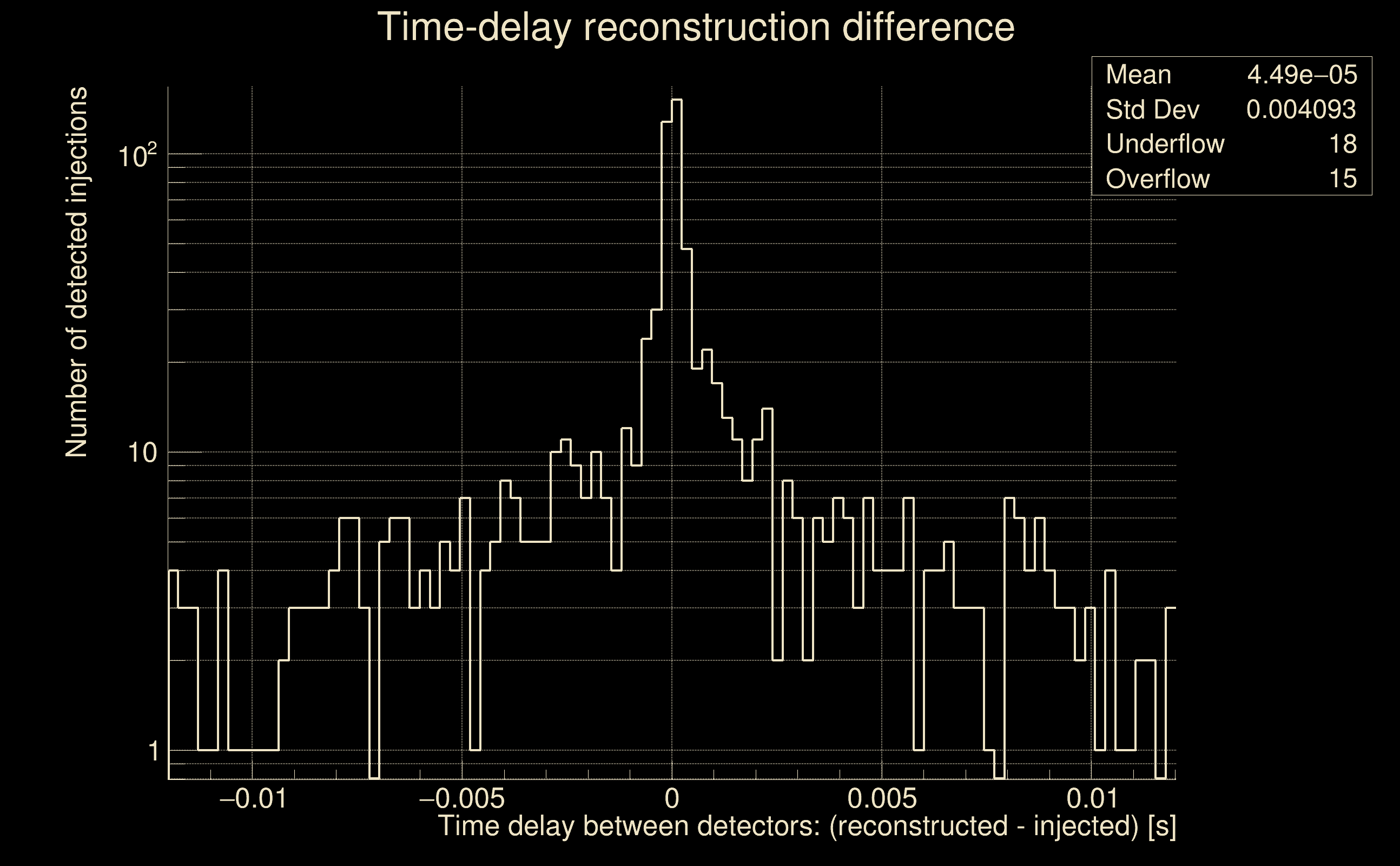

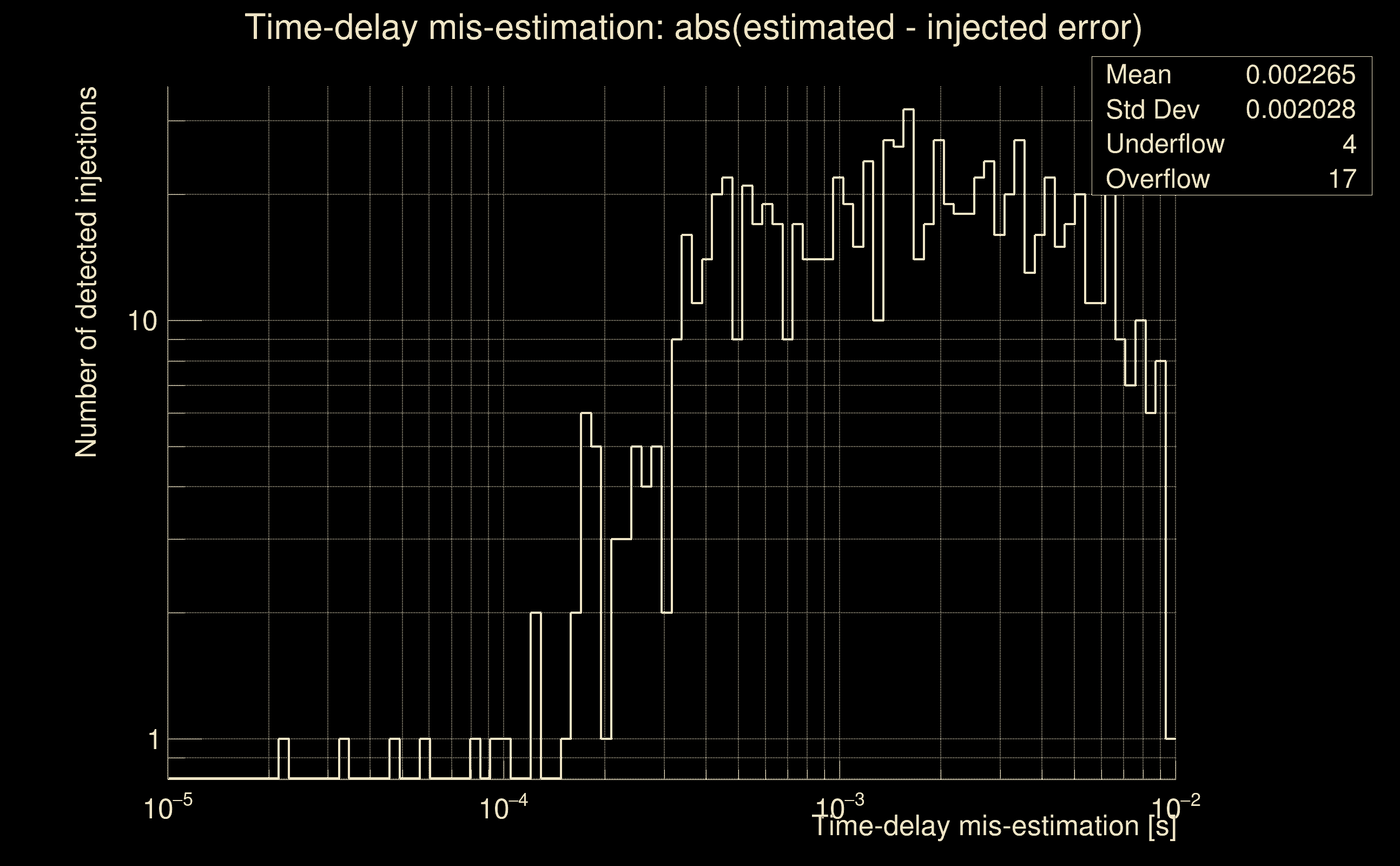

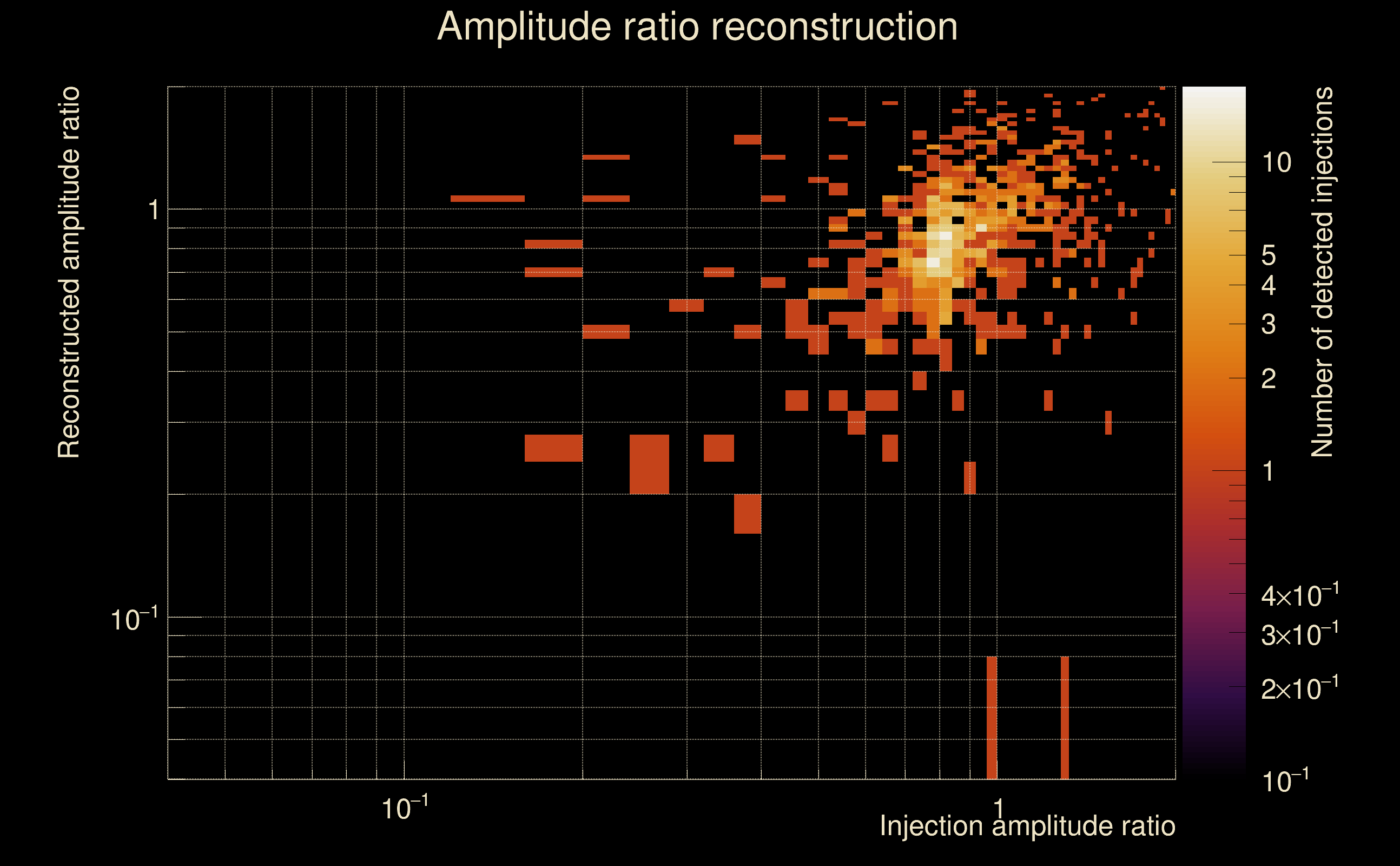

| Number of injections (total/valid/detected): | 1006 / 893 / 389 |
| List of missed injections: | ./Rad19-s25_missed.txt |
| Injection amplitude at 90% detection efficiency: | 7.23691 |
| Injection amplitude at 50% detection efficiency: | 5.70927 |
| Injection amplitude at 10% detection efficiency: | 1.9744 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
