| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:41:29 2026 UTC |
| Ox option file: | TargIxf_080426_SN7_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 10000 (detector 0), < 10000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | TargIxf_080426_SN7_file_list.txt (1245 files) |
| Analysis result file: | TargIxf_080426_SN7_results-1.root |
| Slice selected for the the fakeground: | slice index=53 (2.53 s), time lag = 0 s |

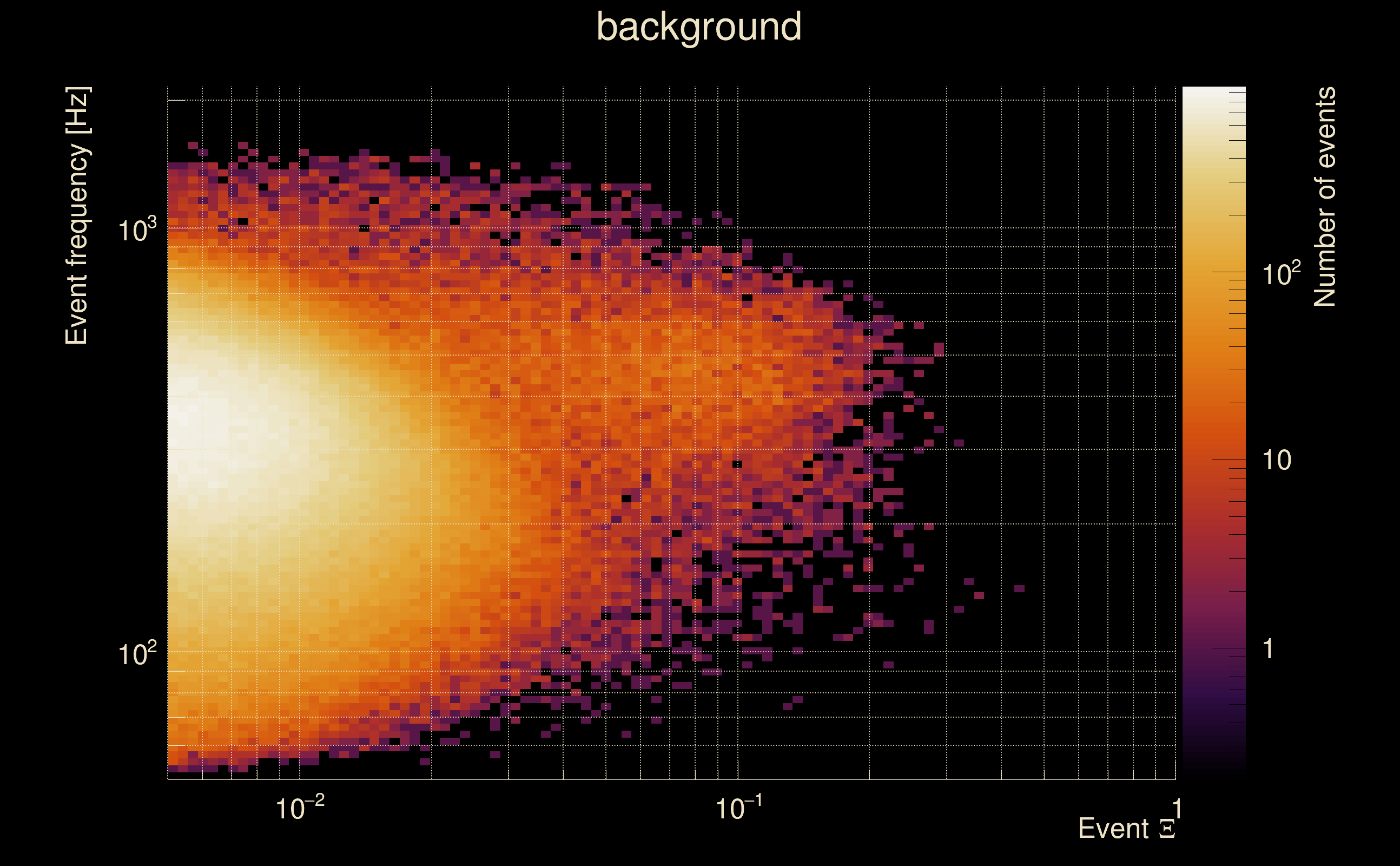

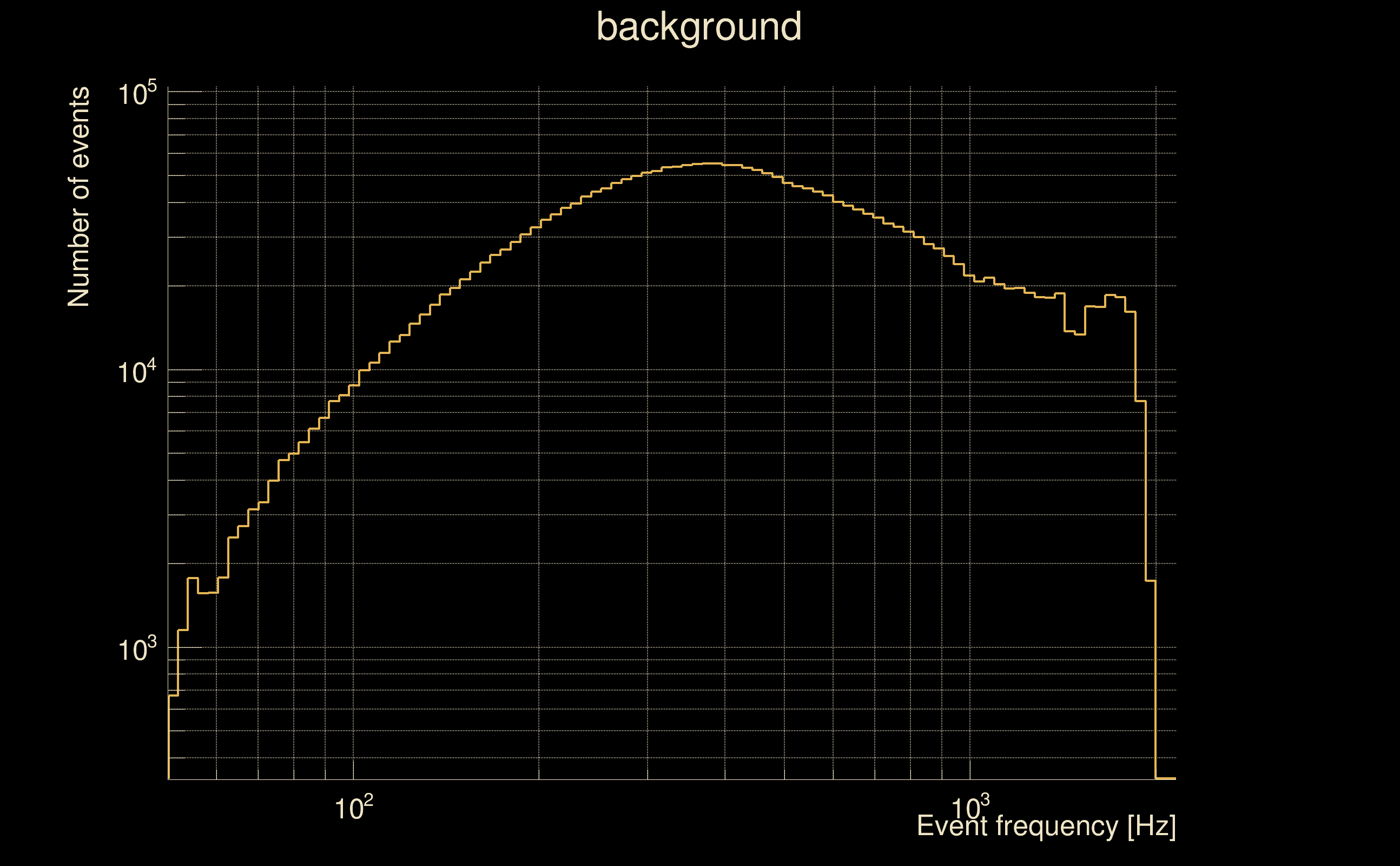

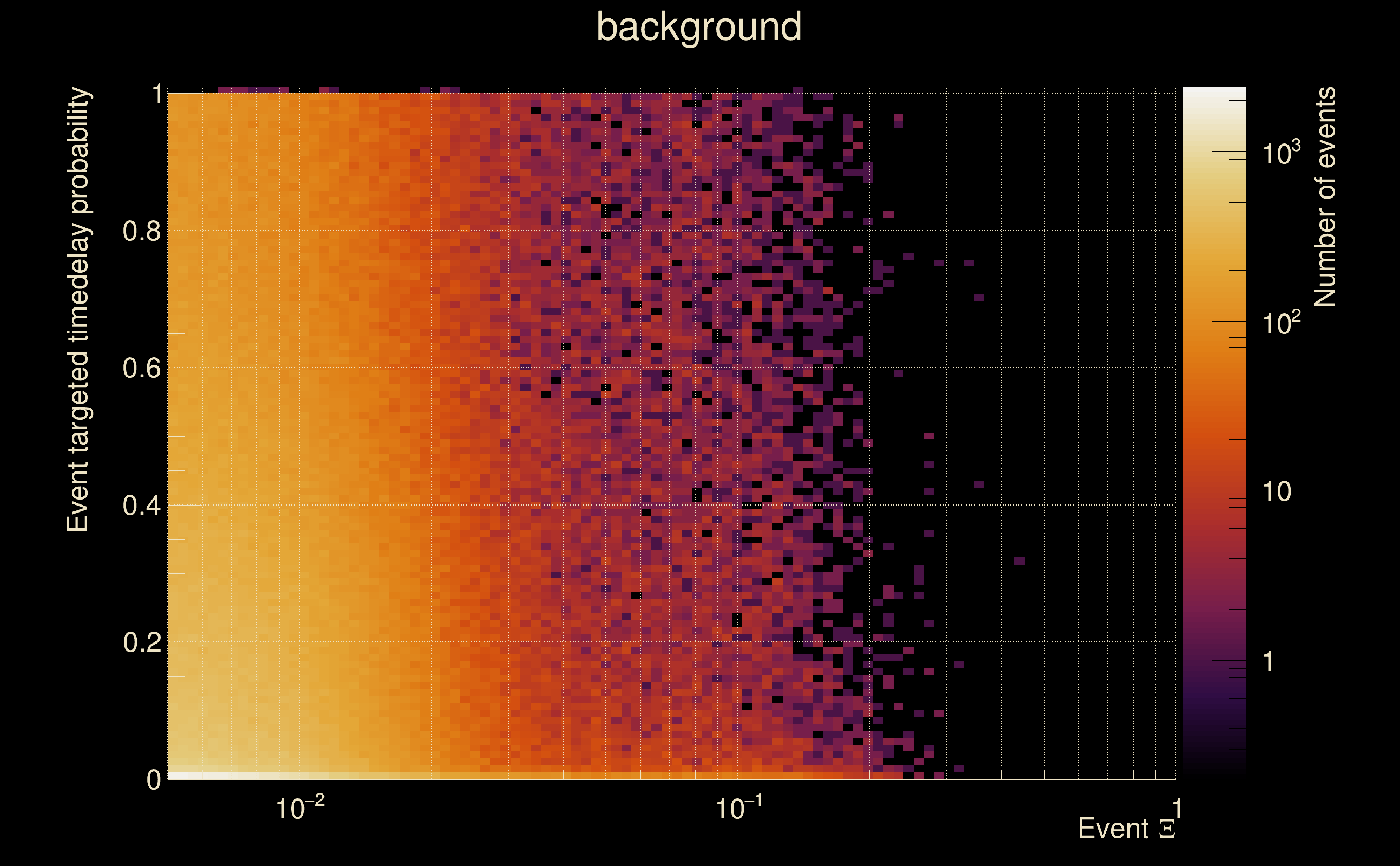

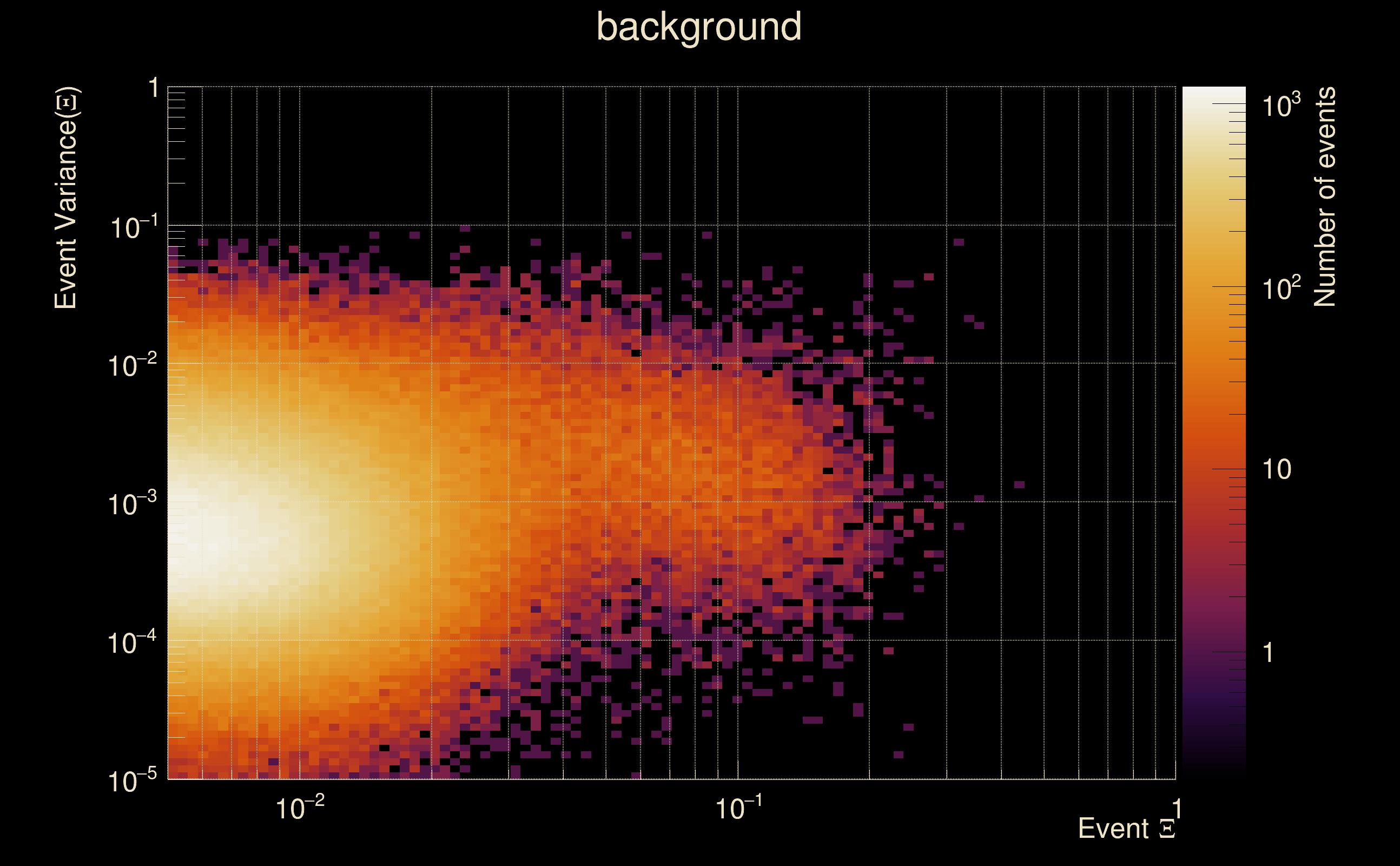

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

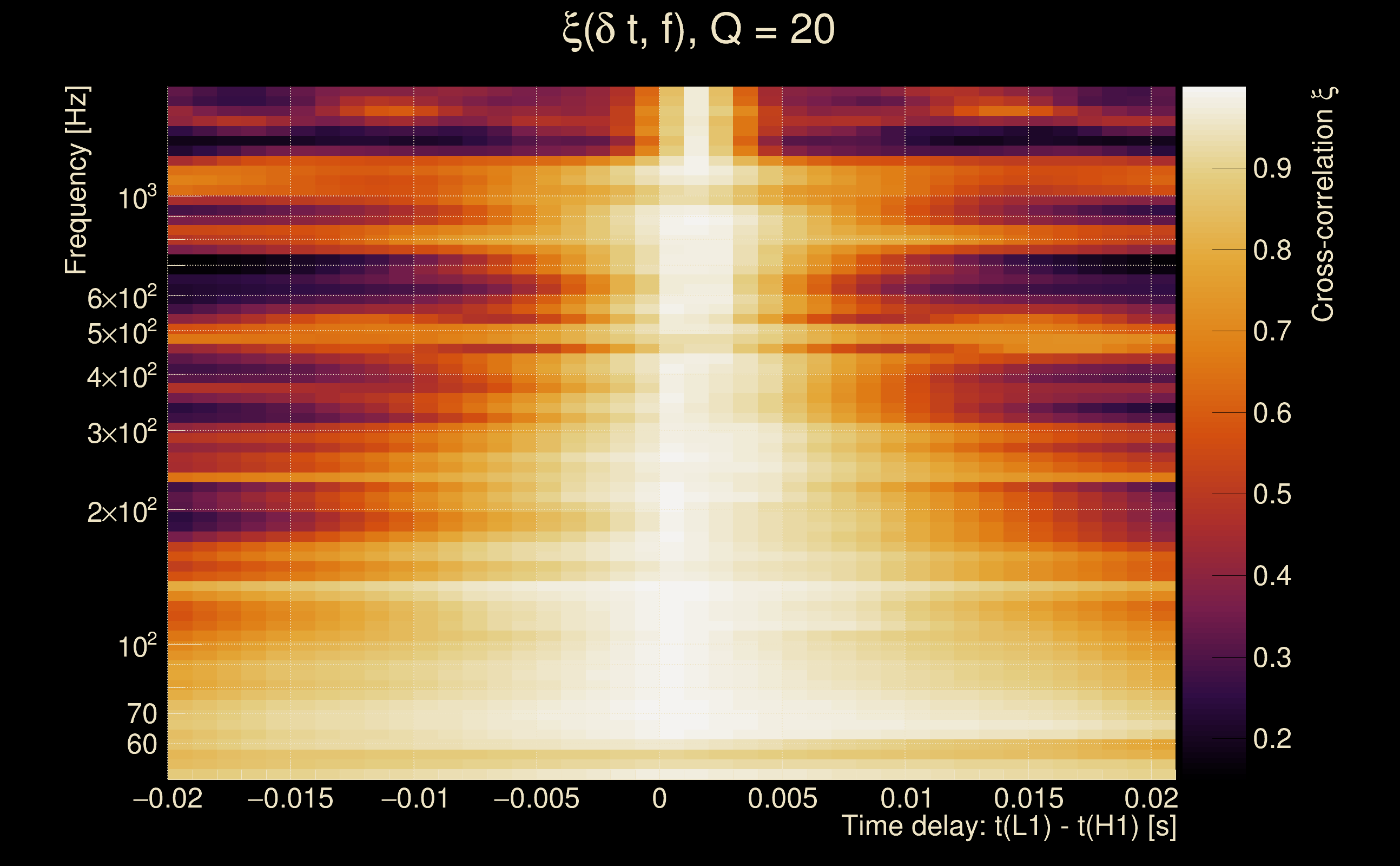

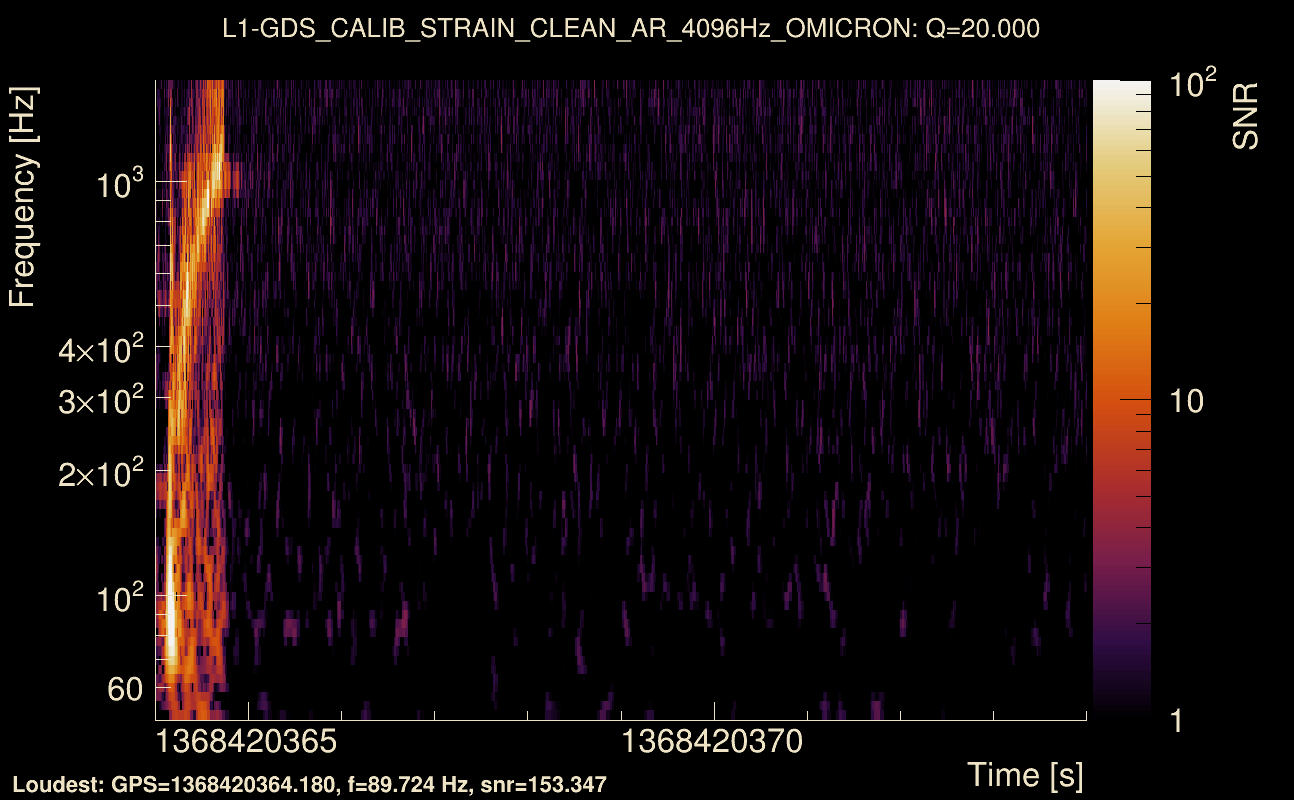

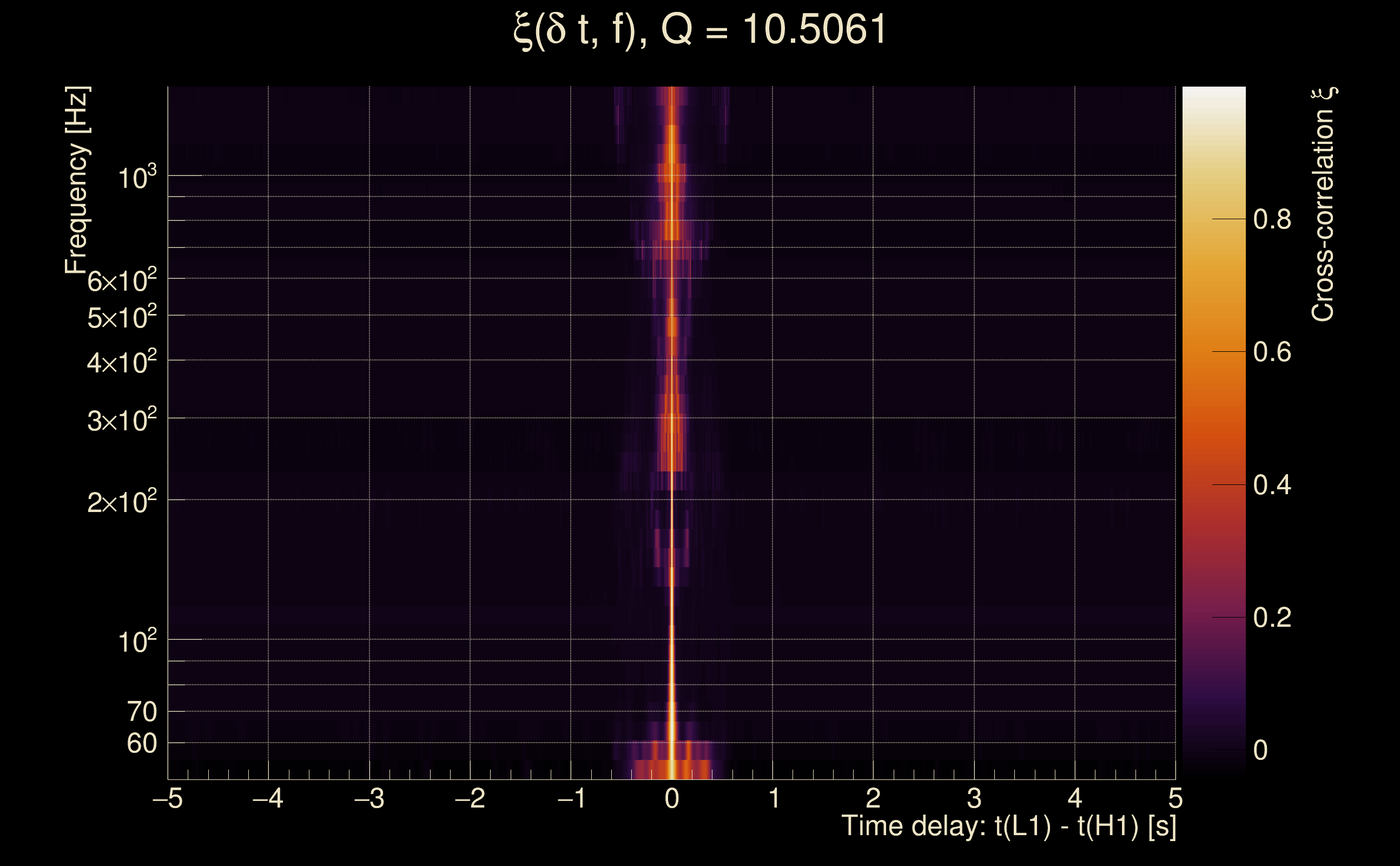

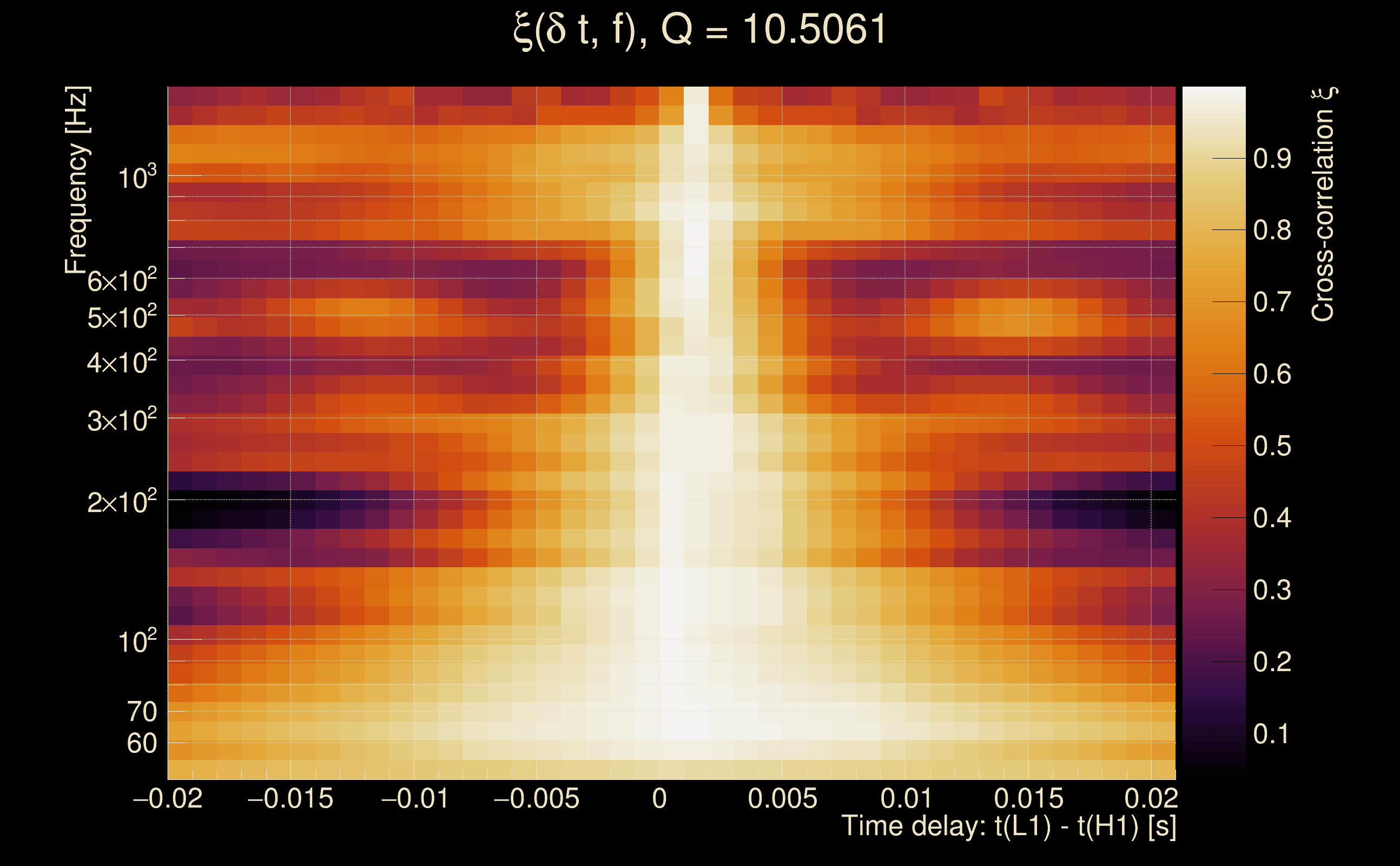

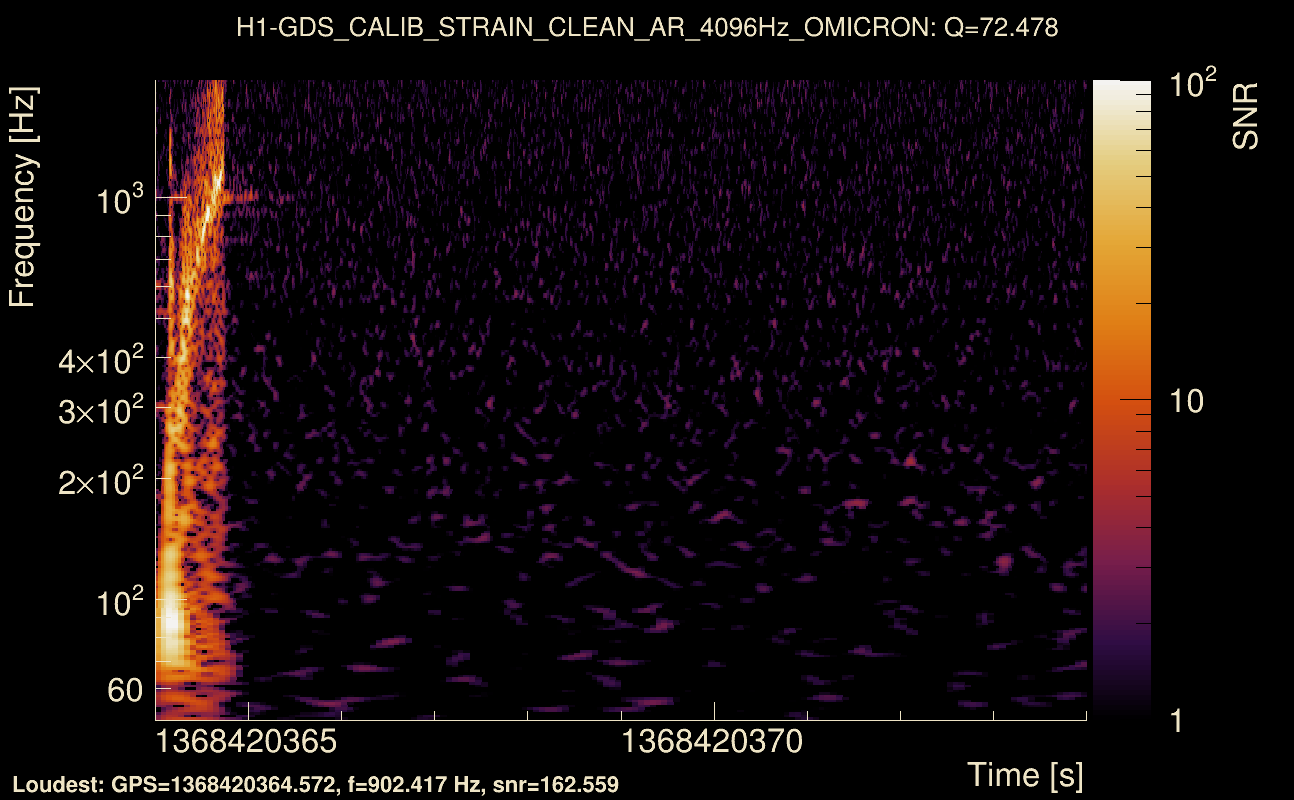

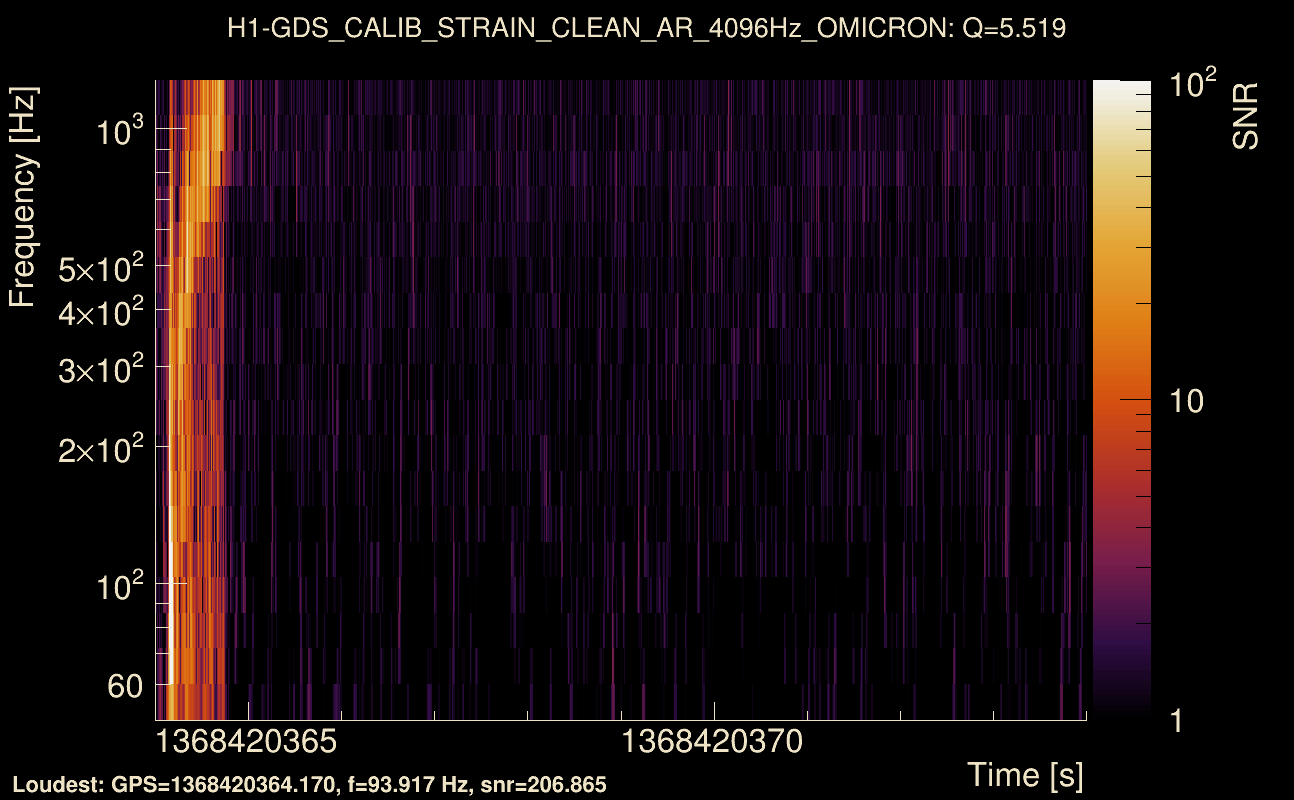

| Event time t(H1): | GPS = 1368420359 (Thu May 18 04:45:41 2023 ) → GPS = 1368420369 (Thu May 18 04:45:51 2023 ) |
| Event time t(L1): | GPS = 1368420359 (Thu May 18 04:45:51 2023 ) → GPS = 1368420369 (Thu May 18 04:45:51 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420356 → GPS = 1368420372 |
| Omicron analysis time window (L1): | GPS = 1368420356 → GPS = 1368420372 |
| Time delay between detectors t(L1) - t(H1): | 0.000942493 s (slice index = 108 / 217), δt_gw = 0.000942493 s |
| Time delay standard deviation: | 0.018541 s |

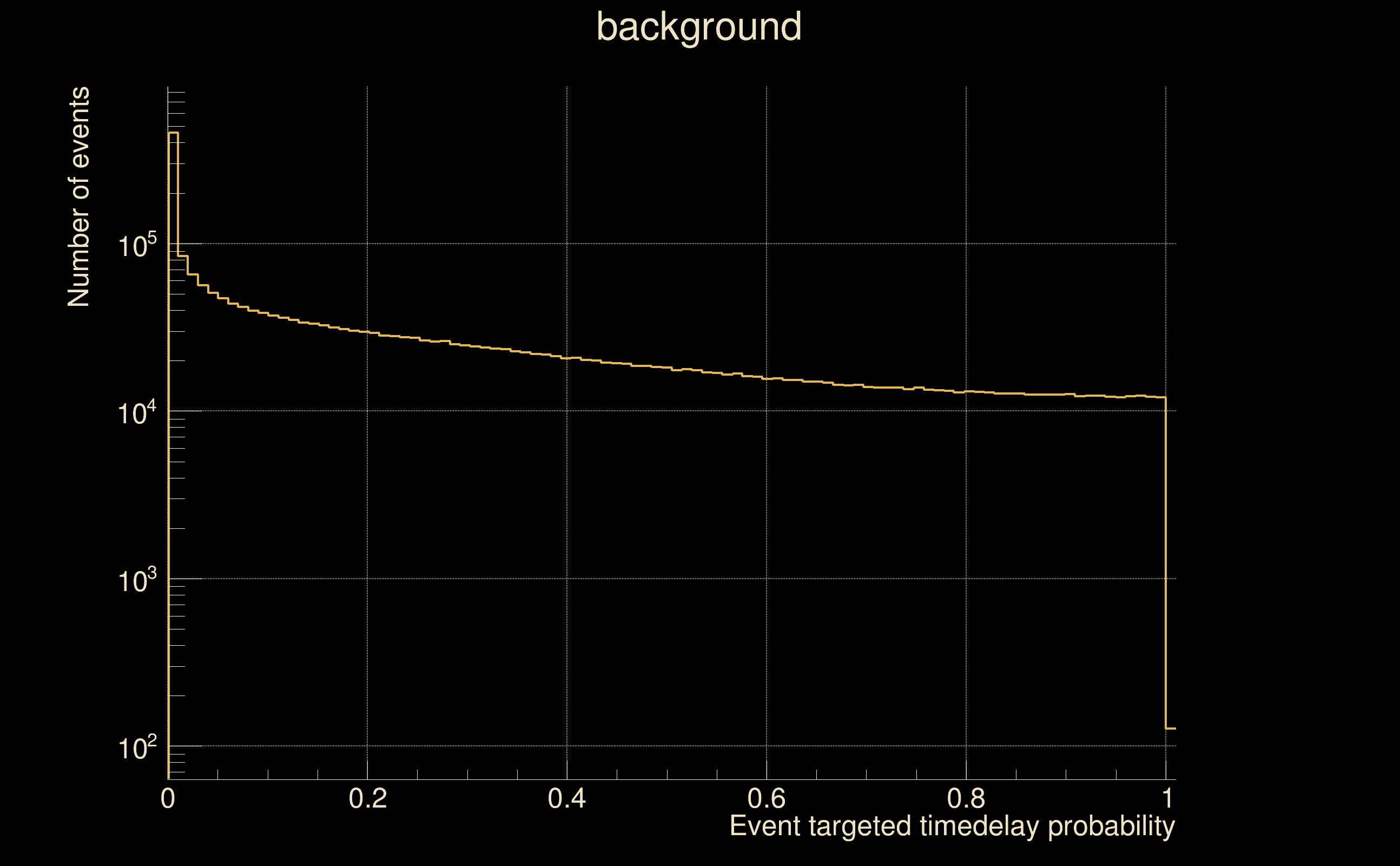

| [targeted mode] Time delay probability: | 0.991756 (0.0103321 sigmas), δt_target = 3.4988e+64 s |
| Frequency: | 287.107 Hz |

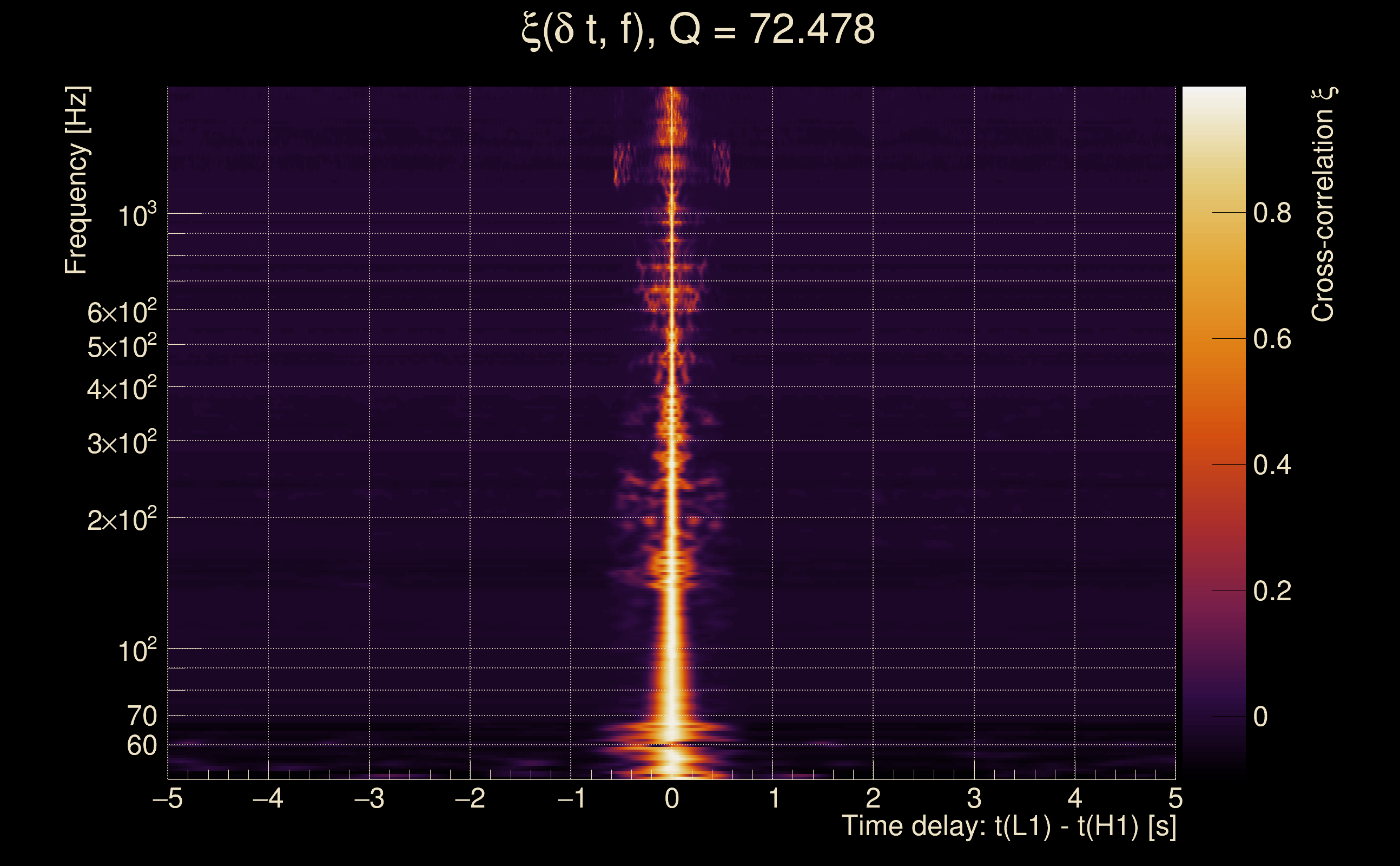

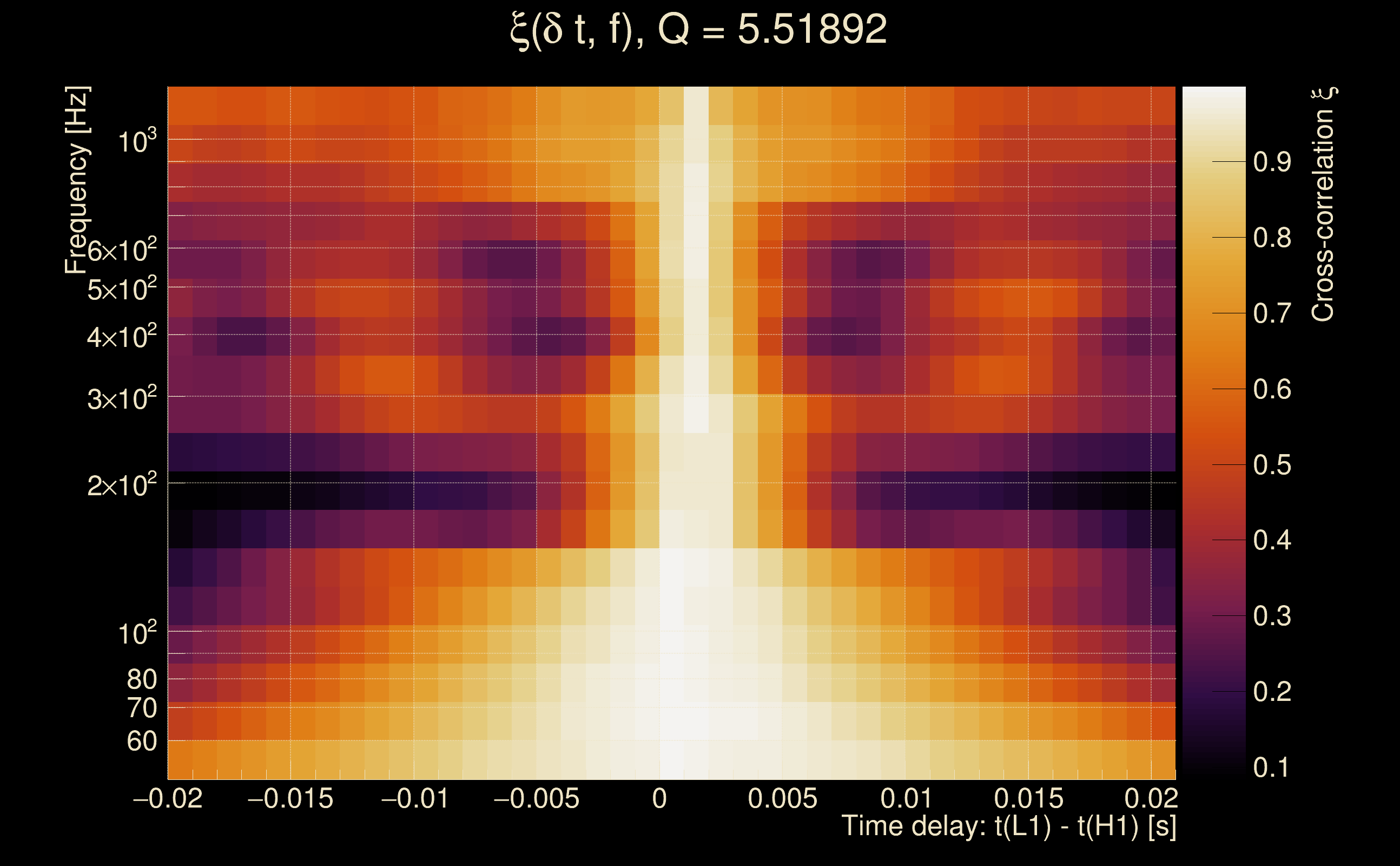

| Ξ: | 0.98153 ± 0.00132287 (variance = 1.74999e-06): Q0: 0.98106, Q1: 0.983517, Q2: 0.983017, Q3: 0.981566, Q4: 0.979872 |
| Rank: | R_A = 0.973439 |
| Log of amplitude ratio (L1/H1): | -0.00826936, variance = 0.151744 (L1/H1: -0.0190109, variance = 0.303608, H1/L1: -0.00186701, variance = 0.302898) |
| Amplitude ratio (L1/H1): | 0.991765 ⋇ 1.47631 (L1/H1: 0.981169 ⋇ 1.735, H1/L1: 0.998135 ⋇ 1.73388) |

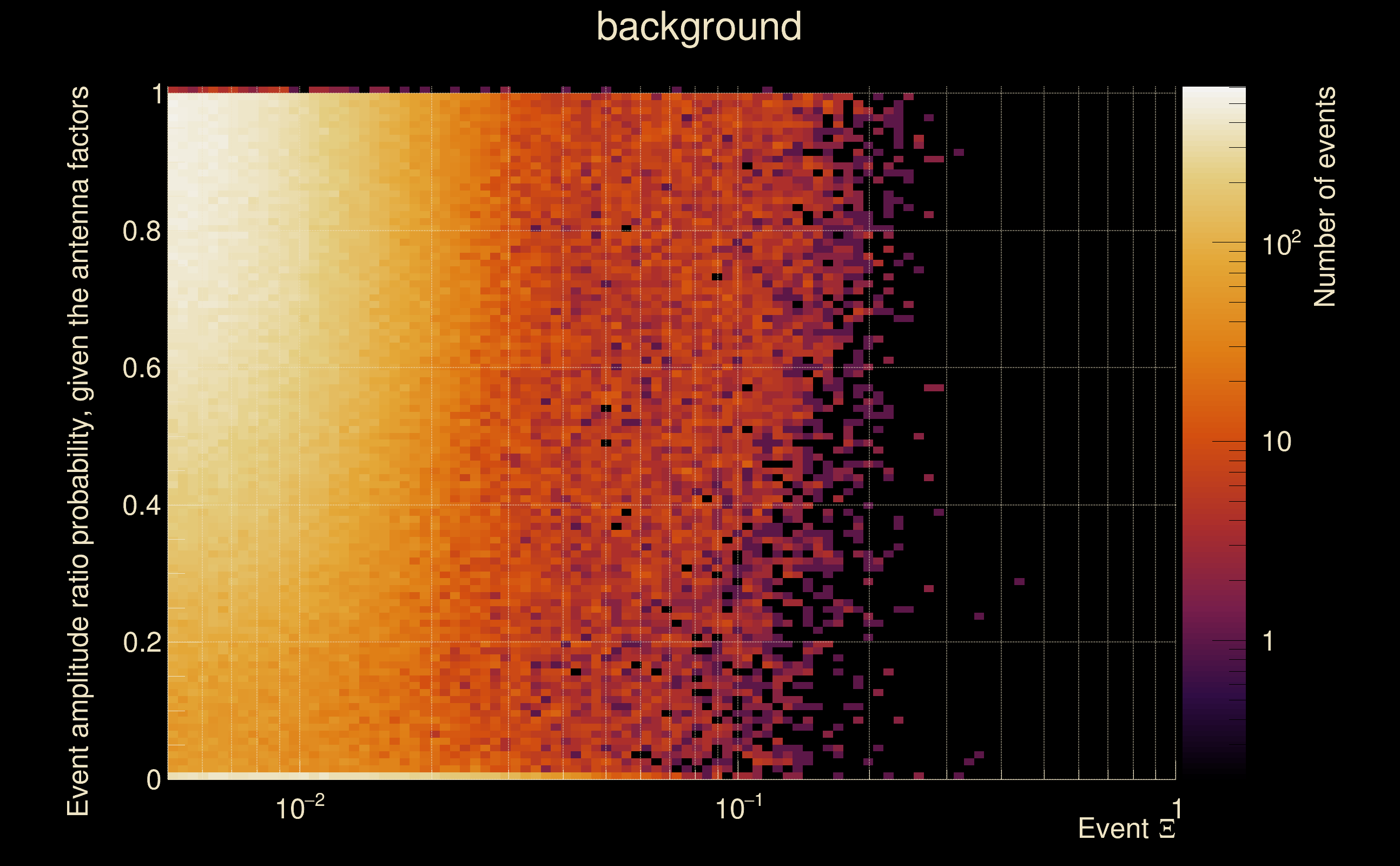

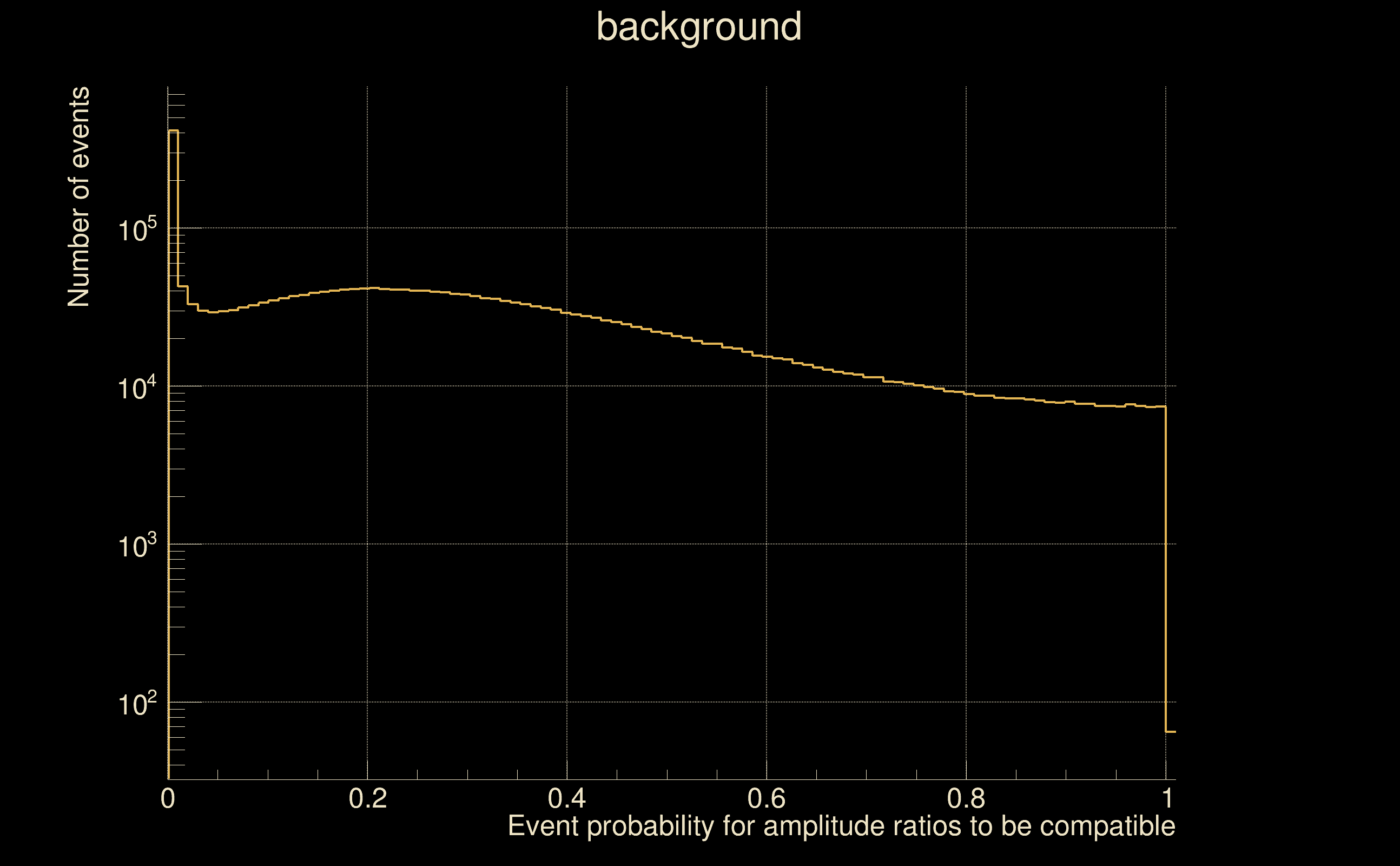

| Amplitude ratio H1|L1 compatibility (probability): | 0.978613 |

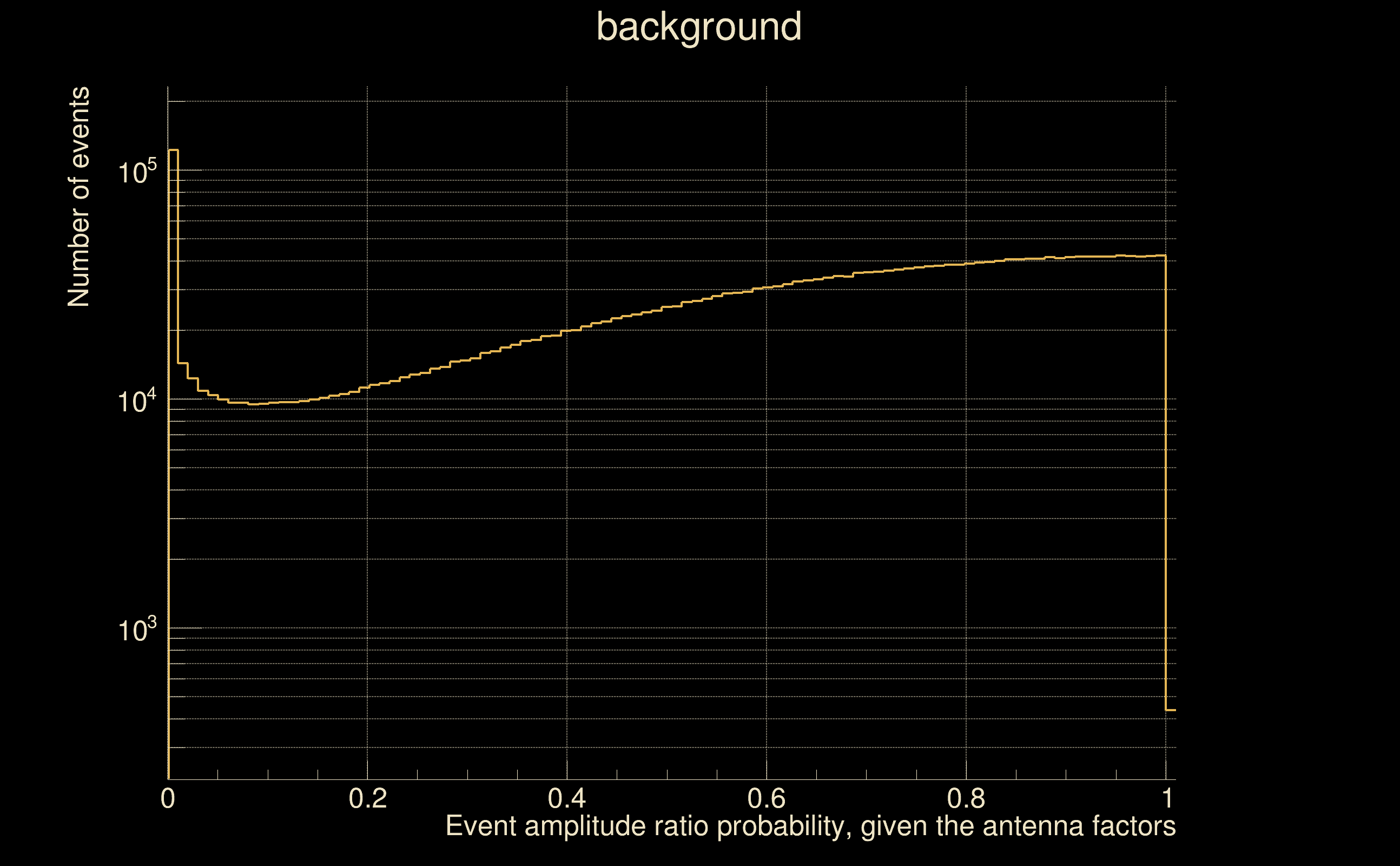

| Antenna factor probability: | 0.923997 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 224.883, L1: 231.499 |

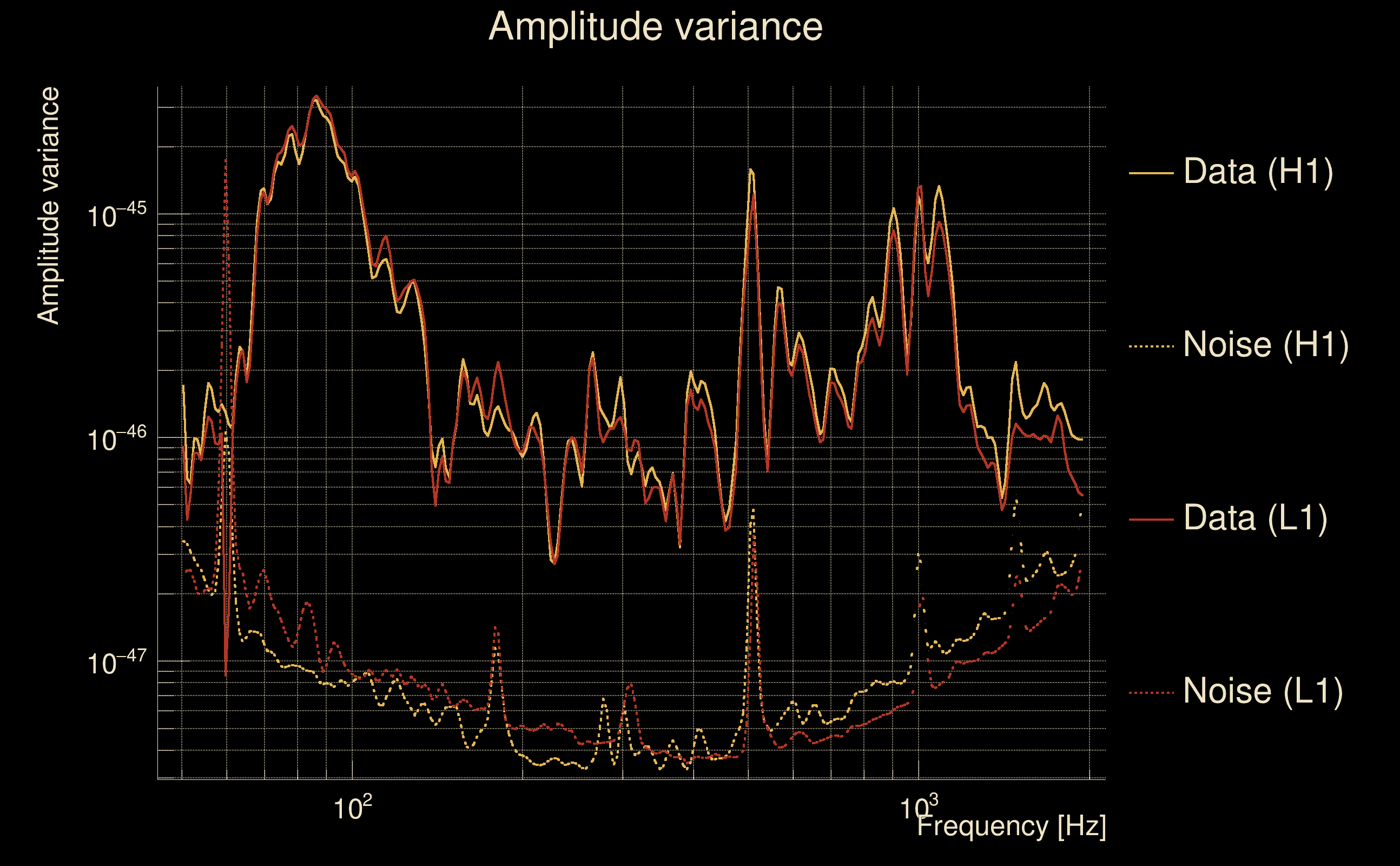

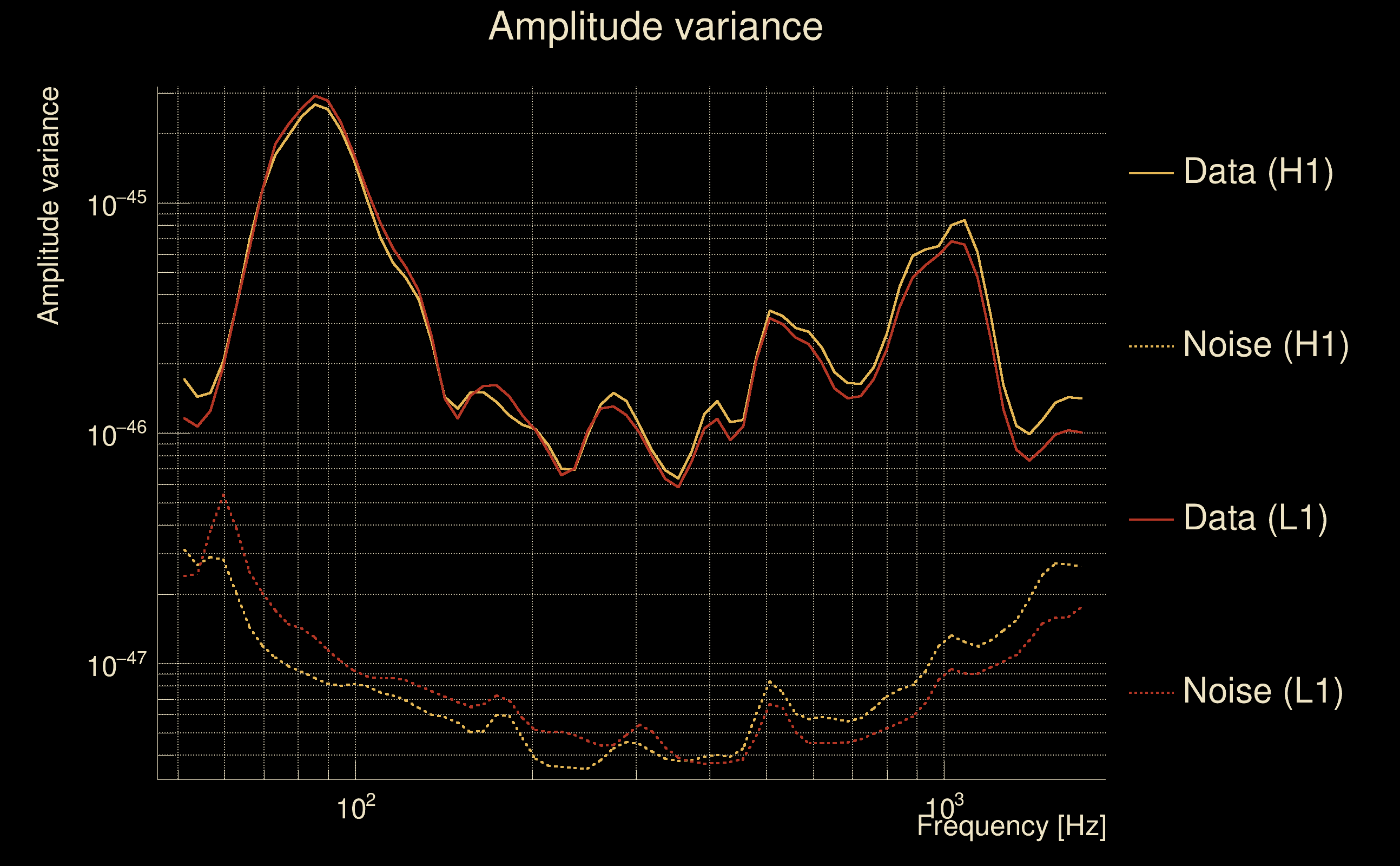

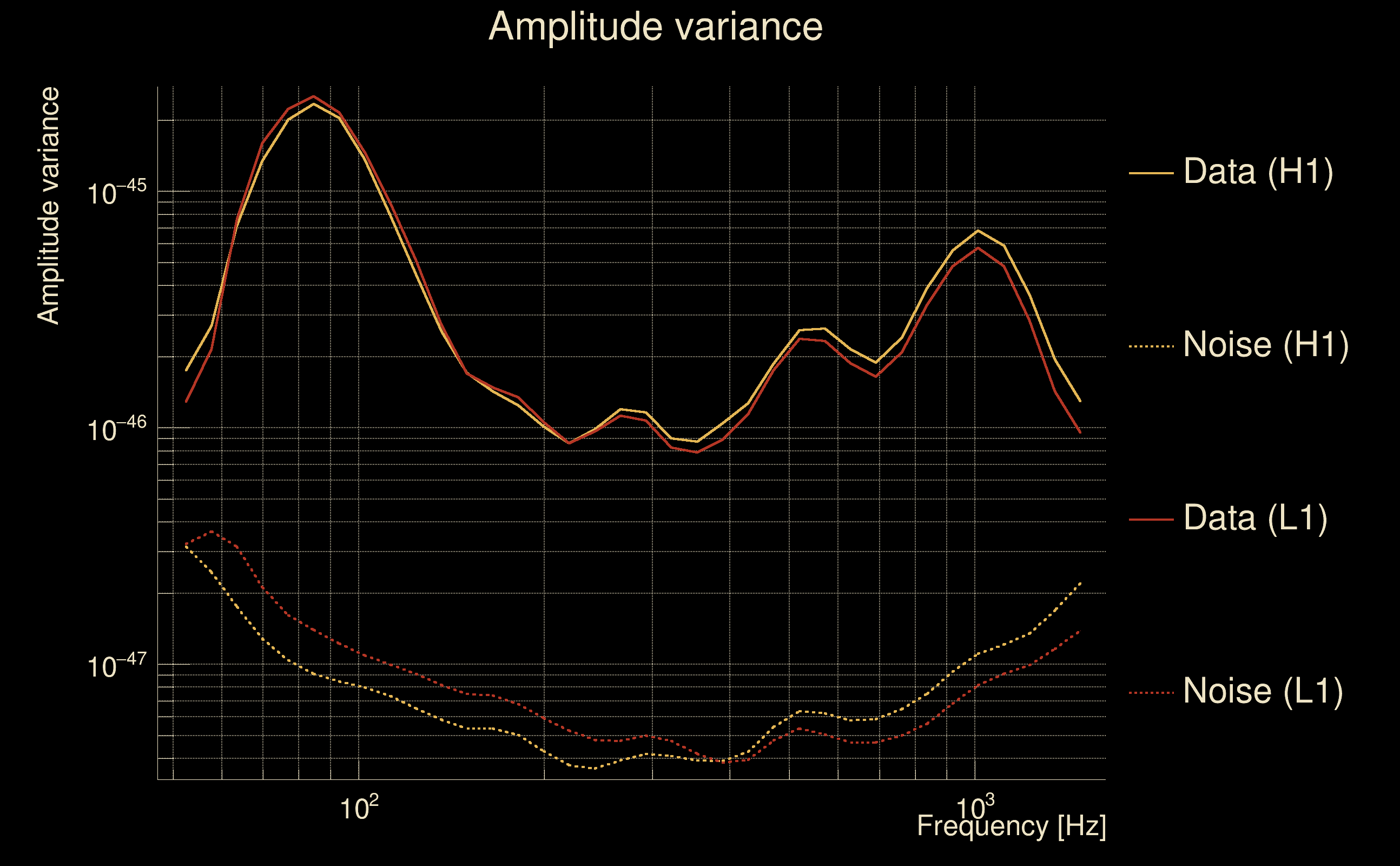

| SNR variance: | H1: 0.56667, L1: 0.626194 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

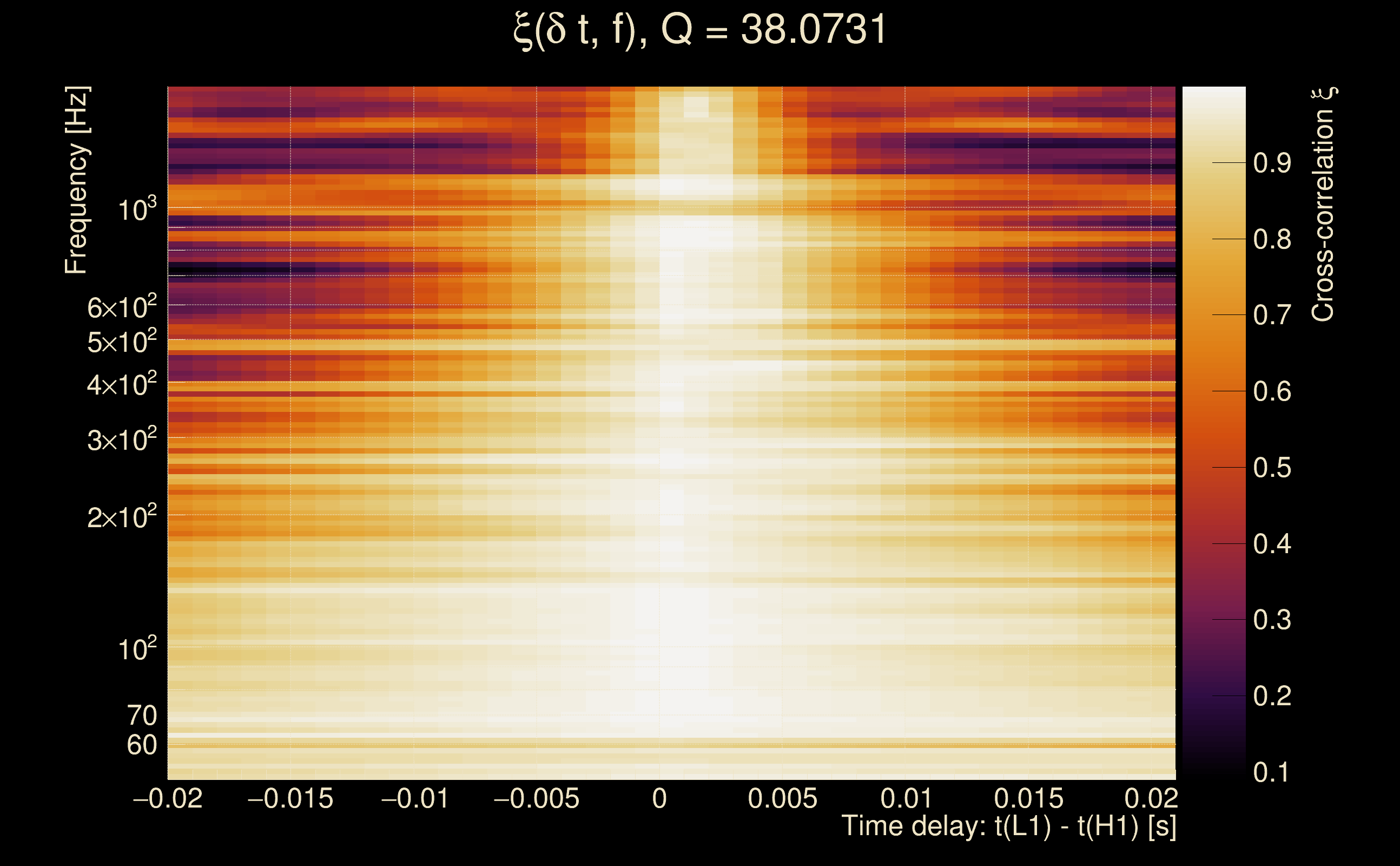

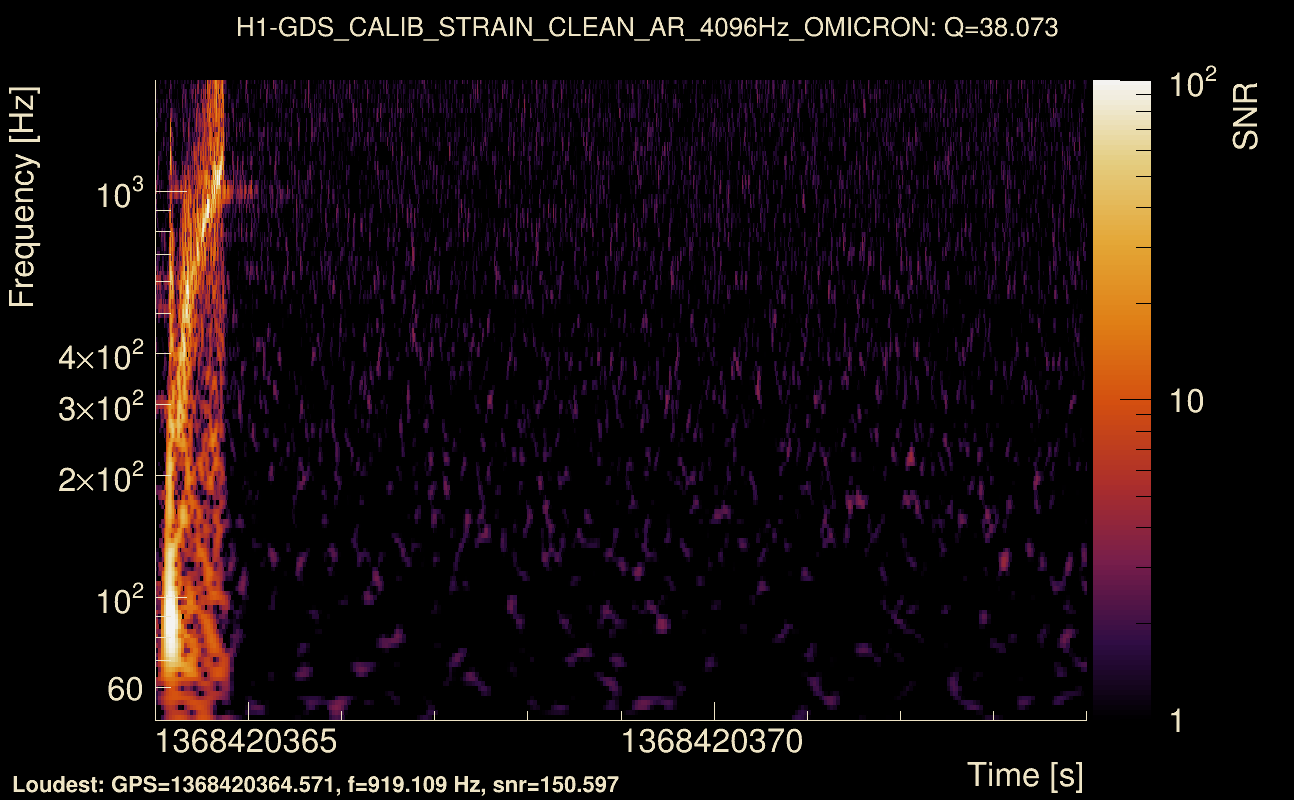

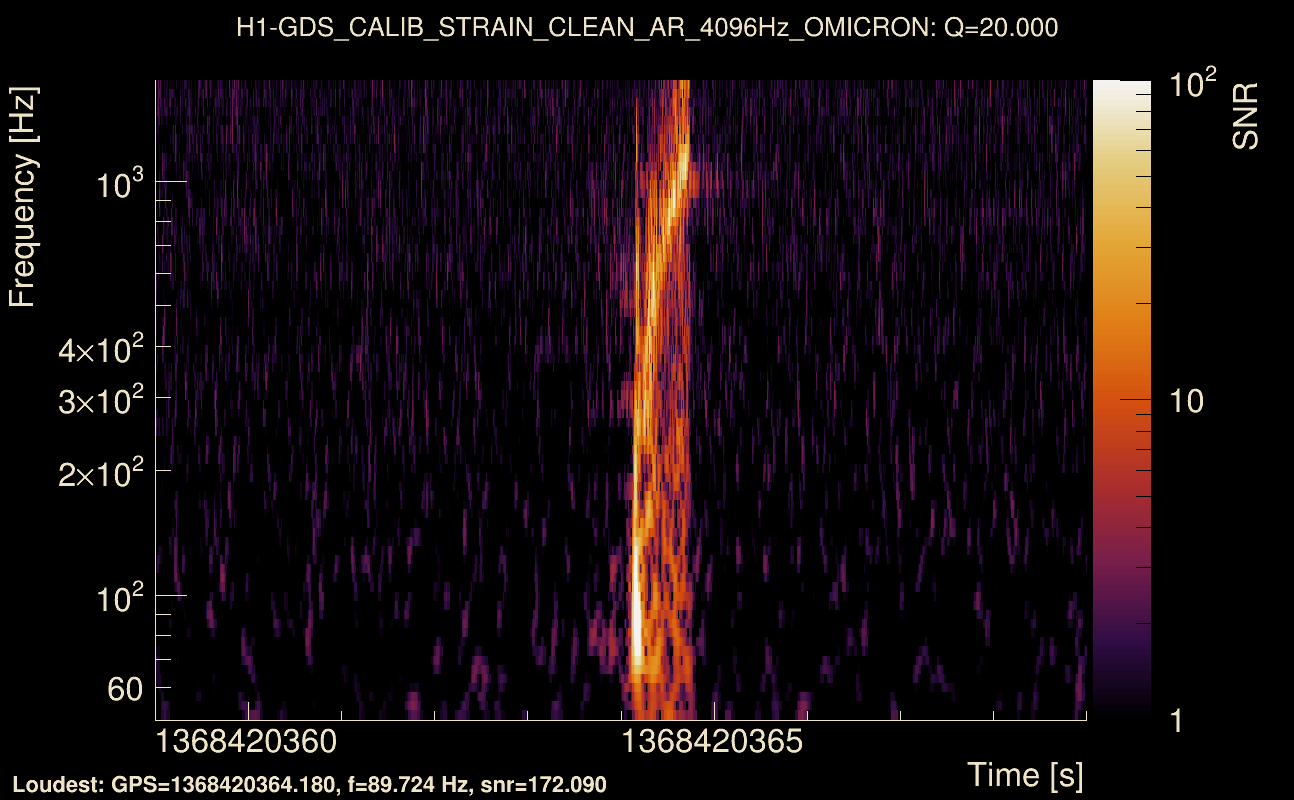

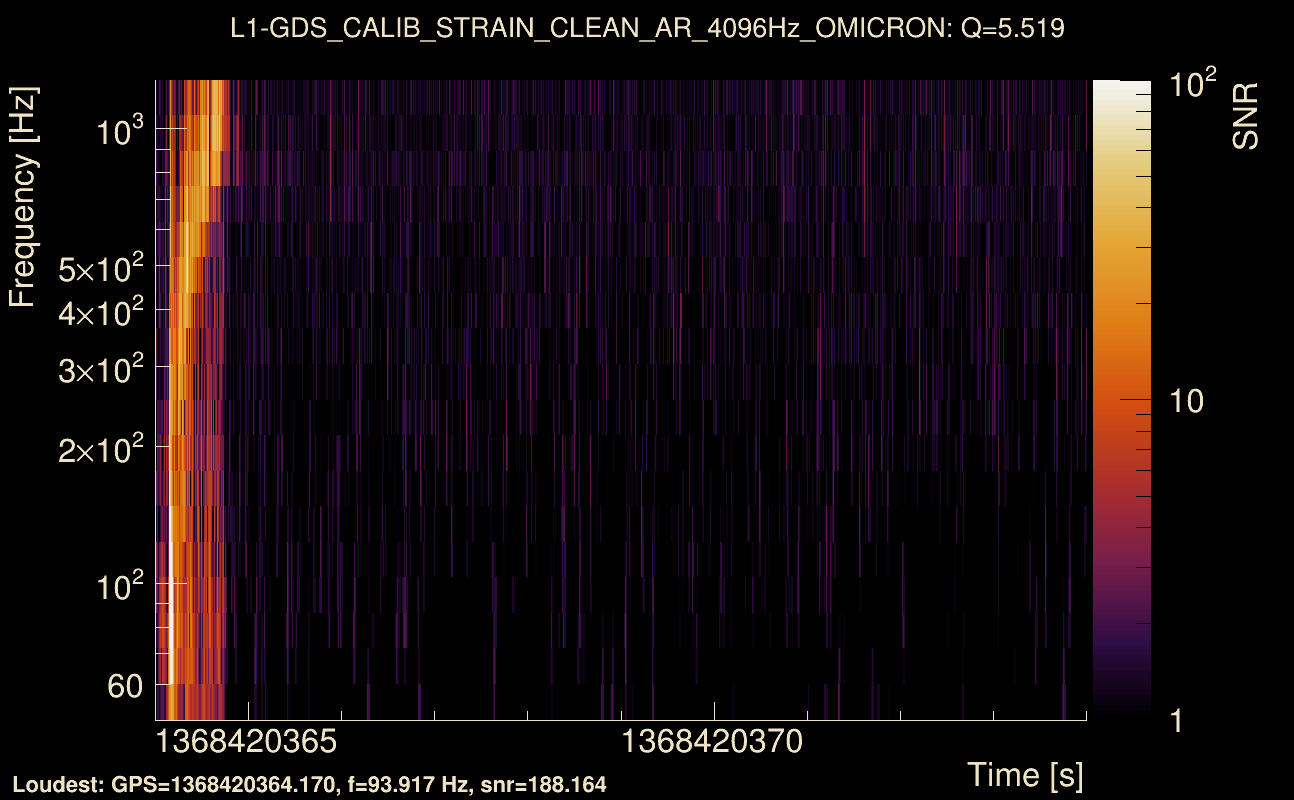

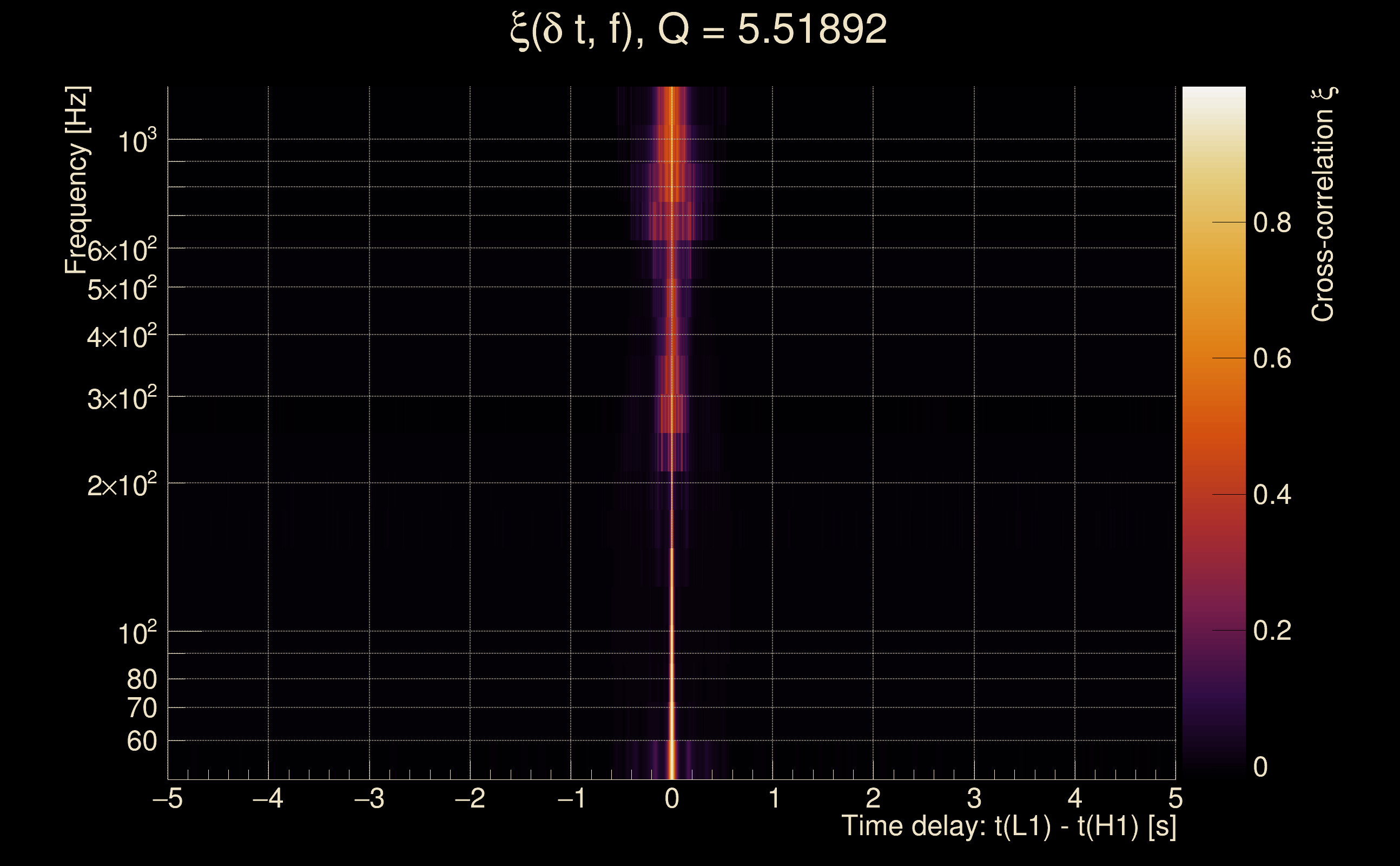

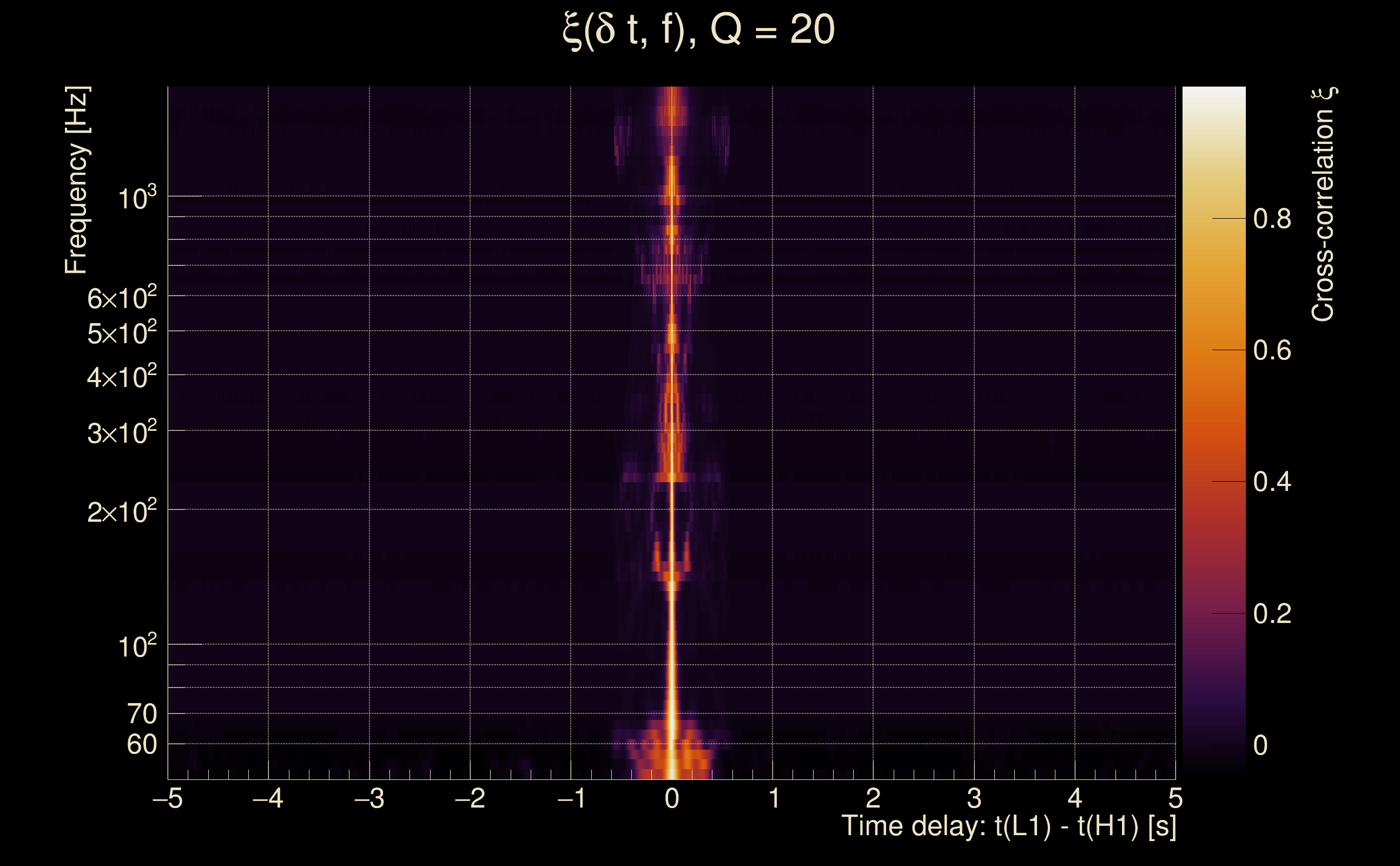

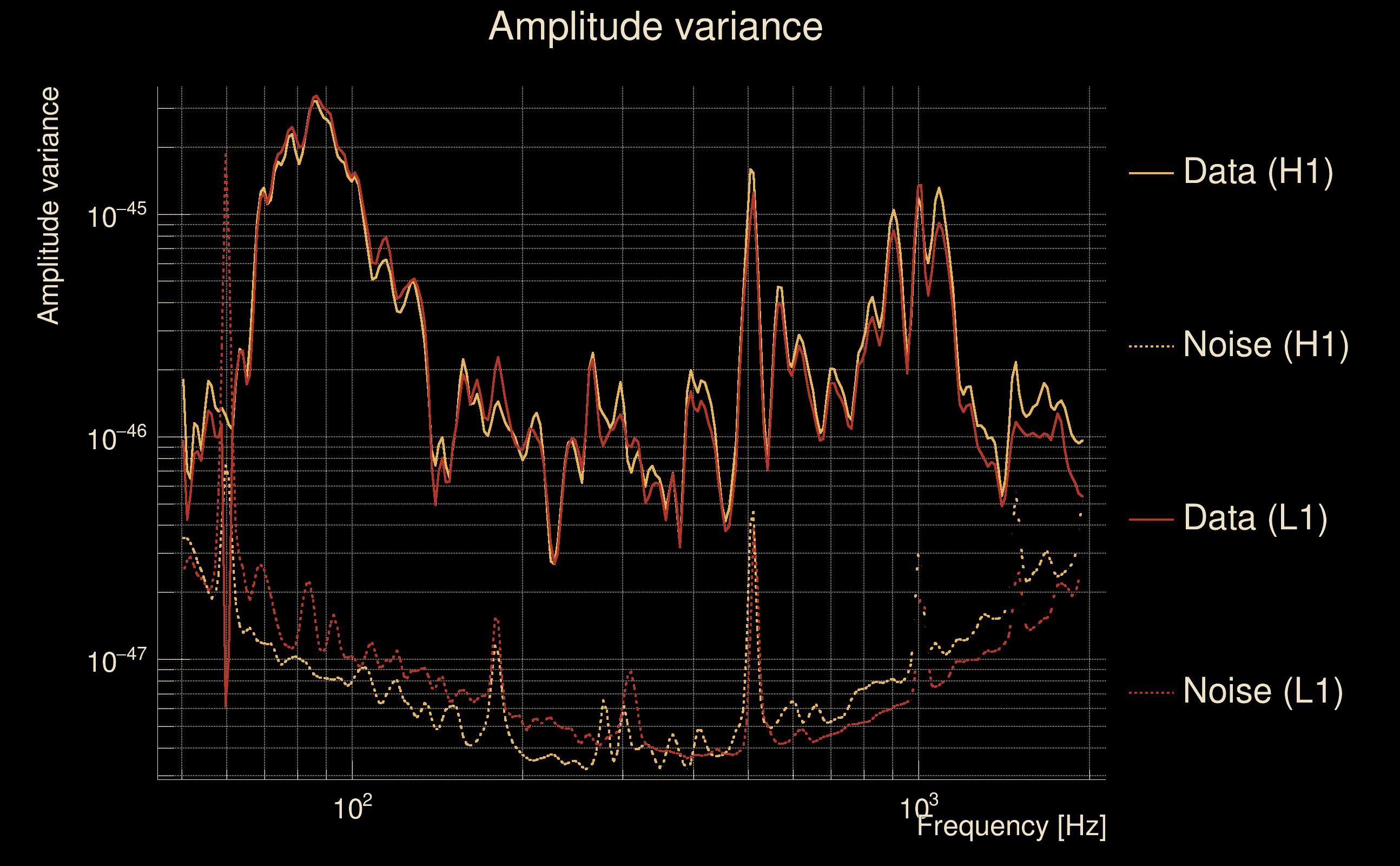

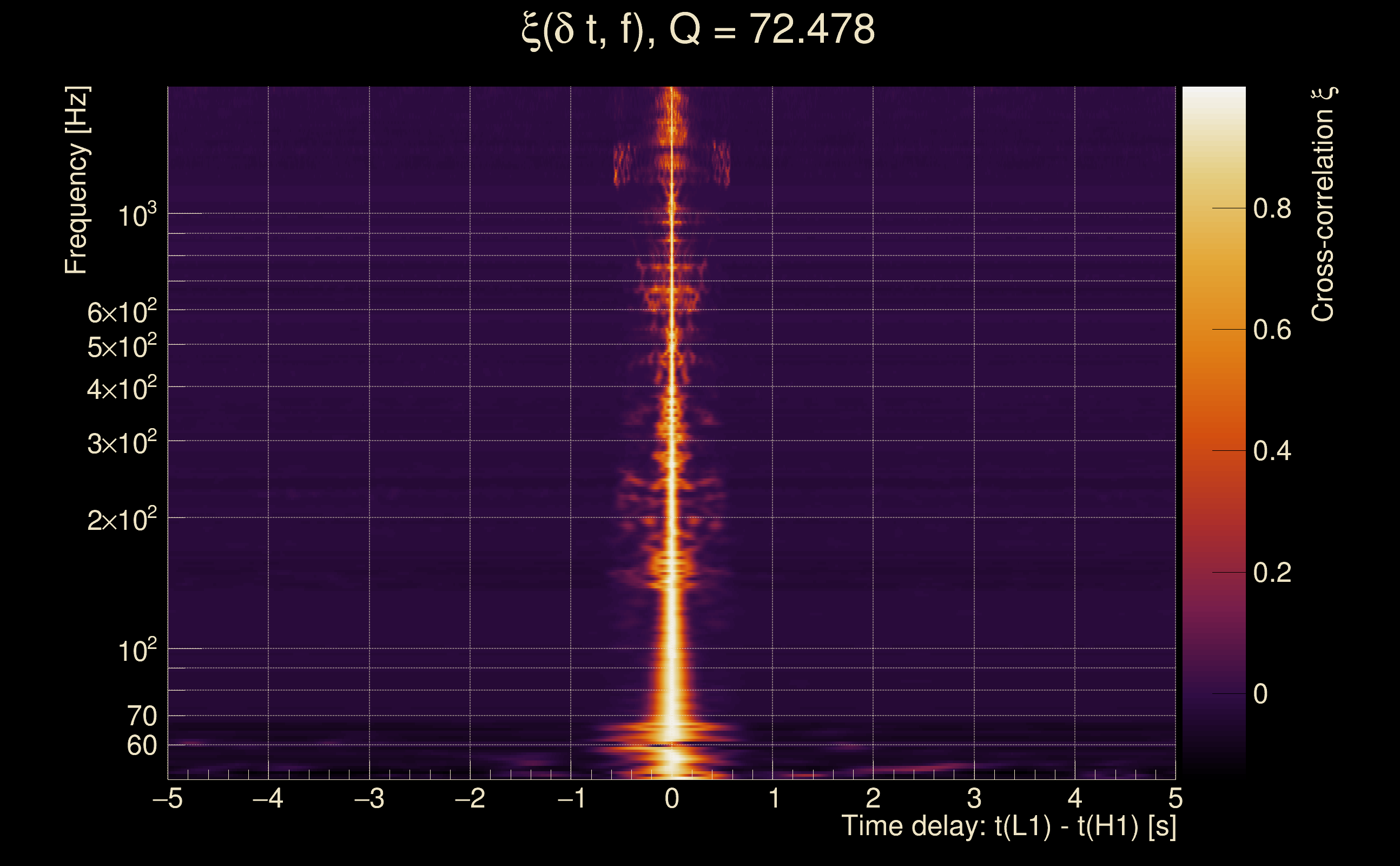

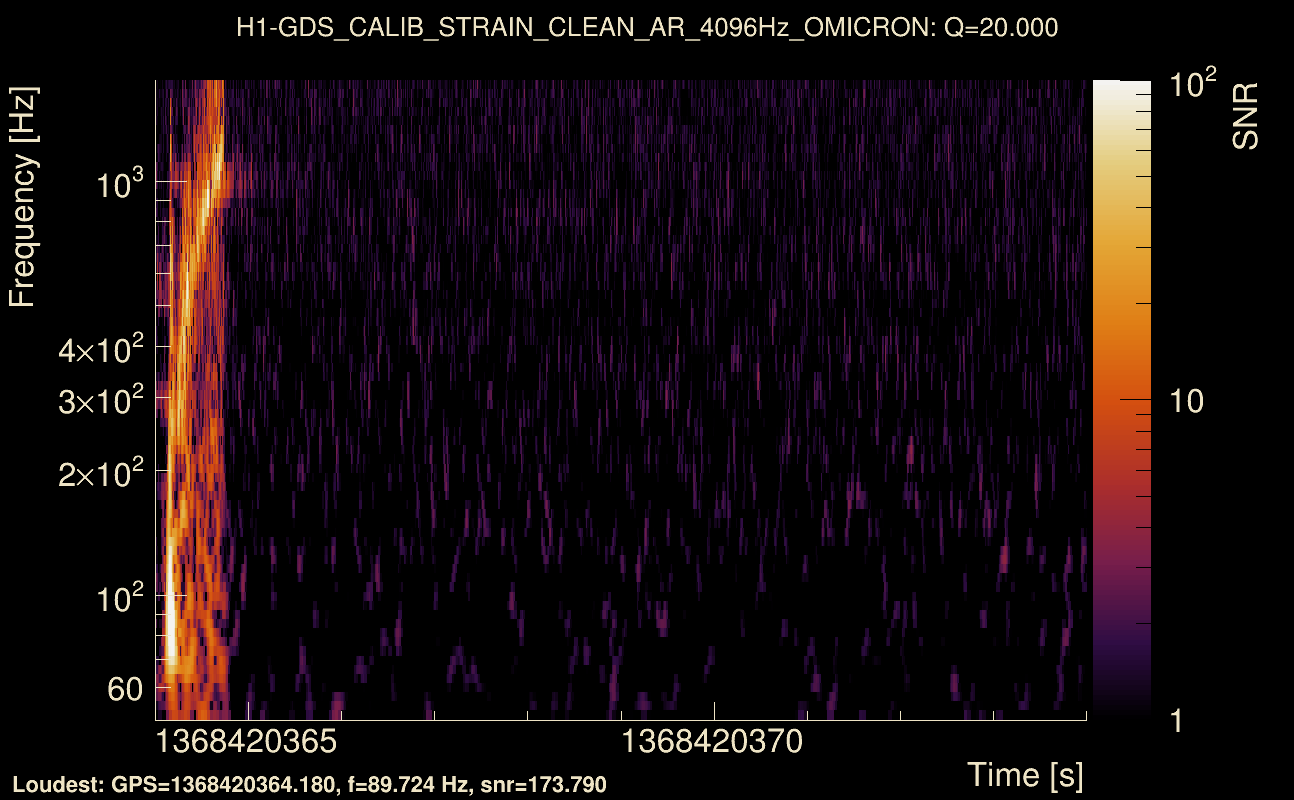

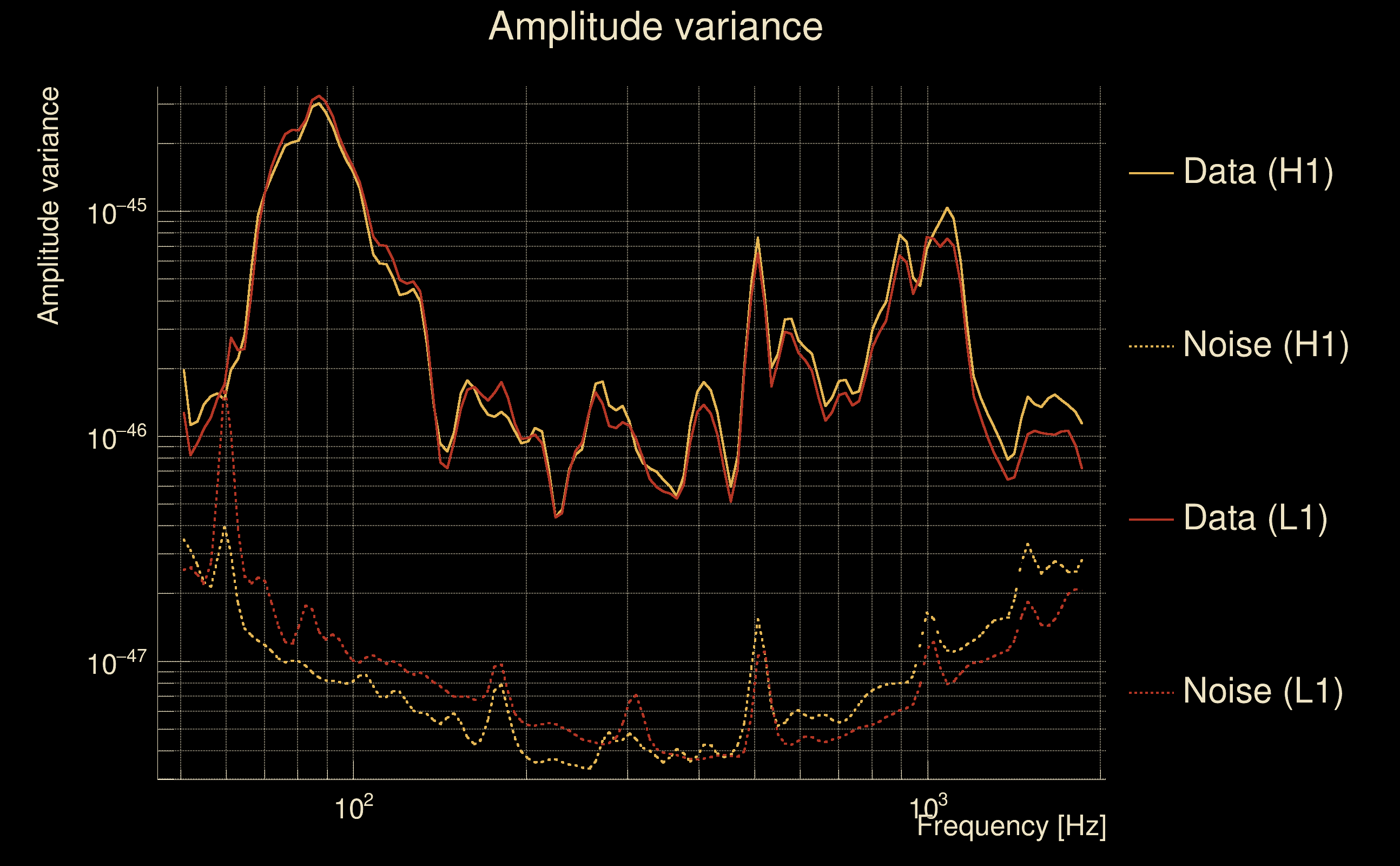

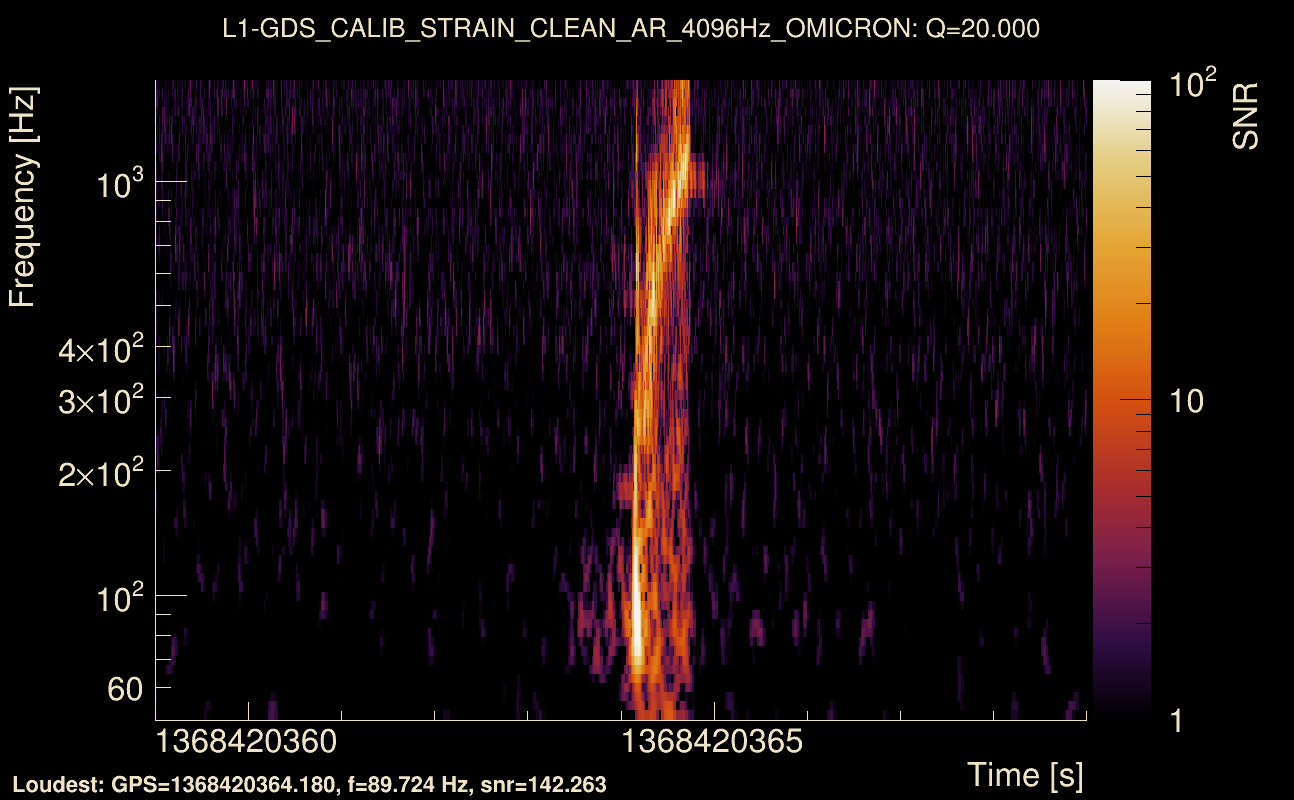

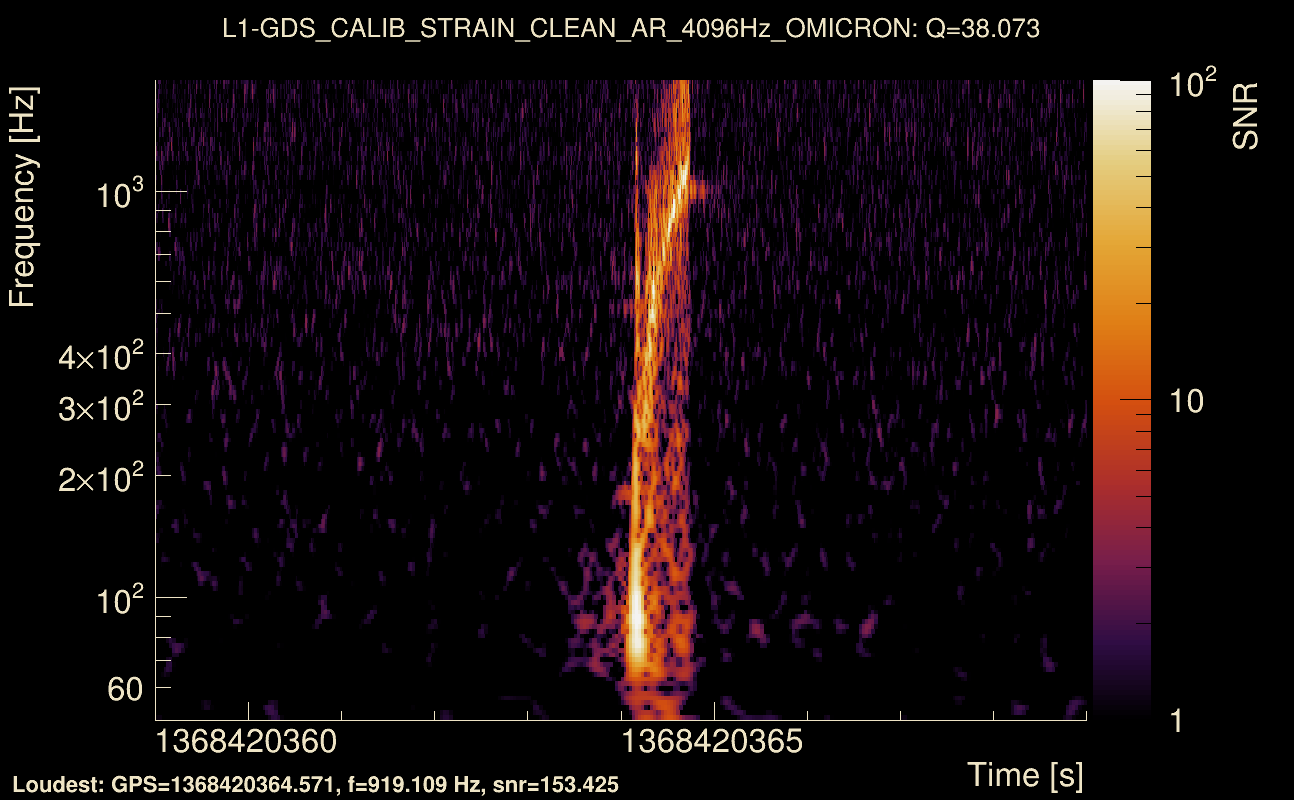

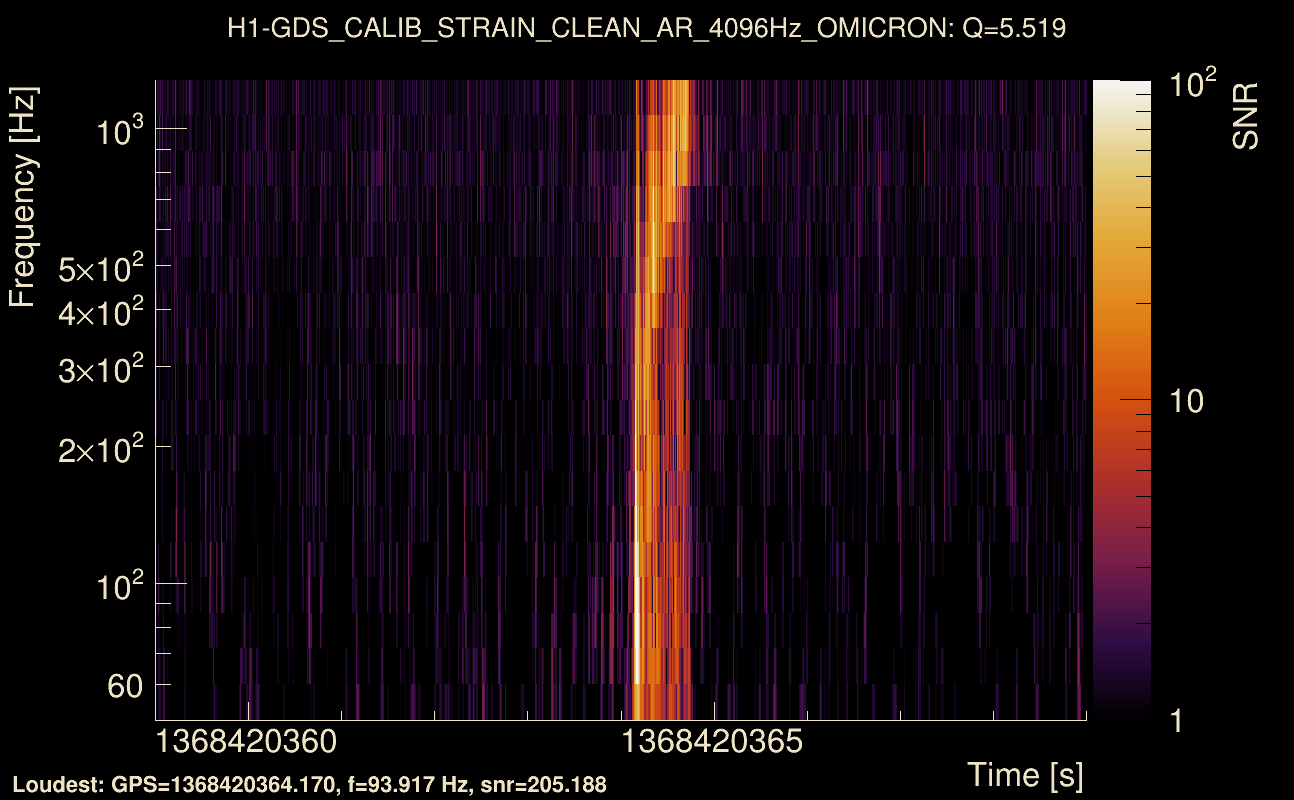

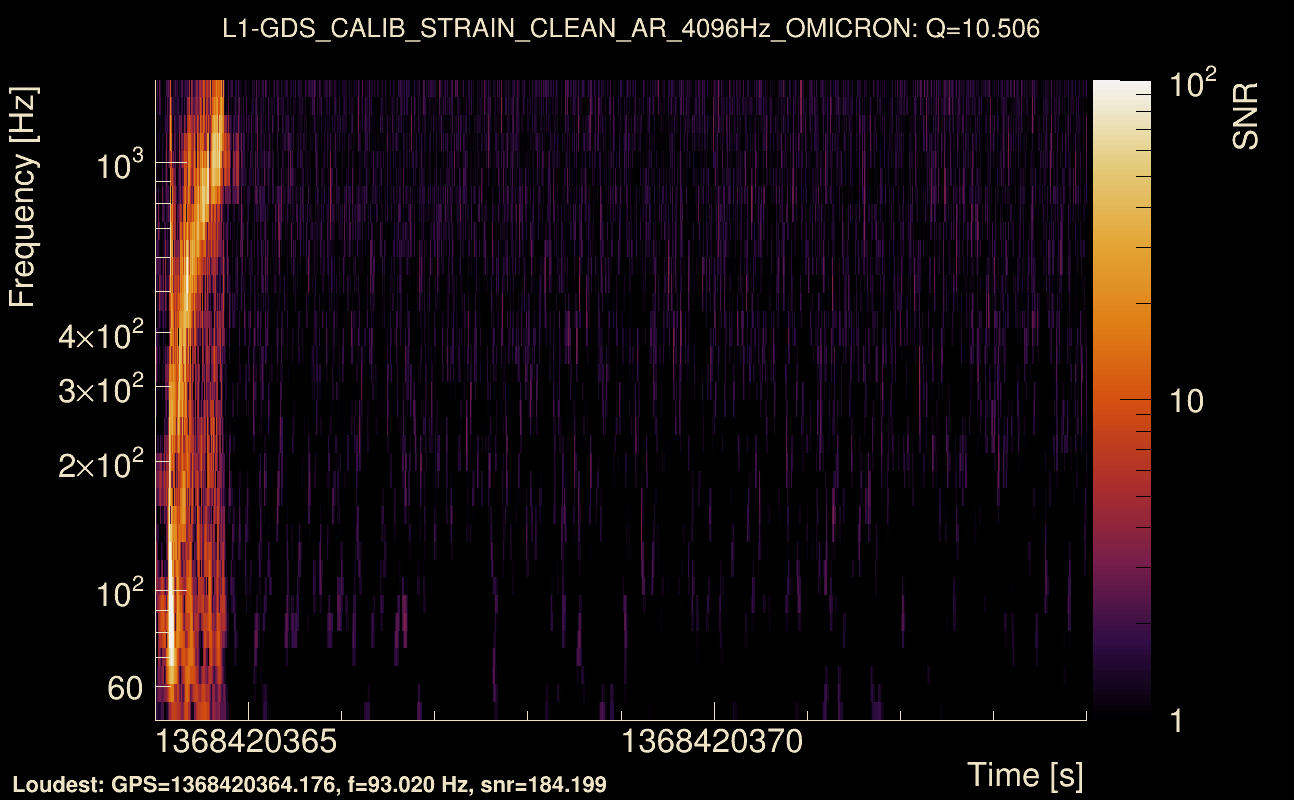

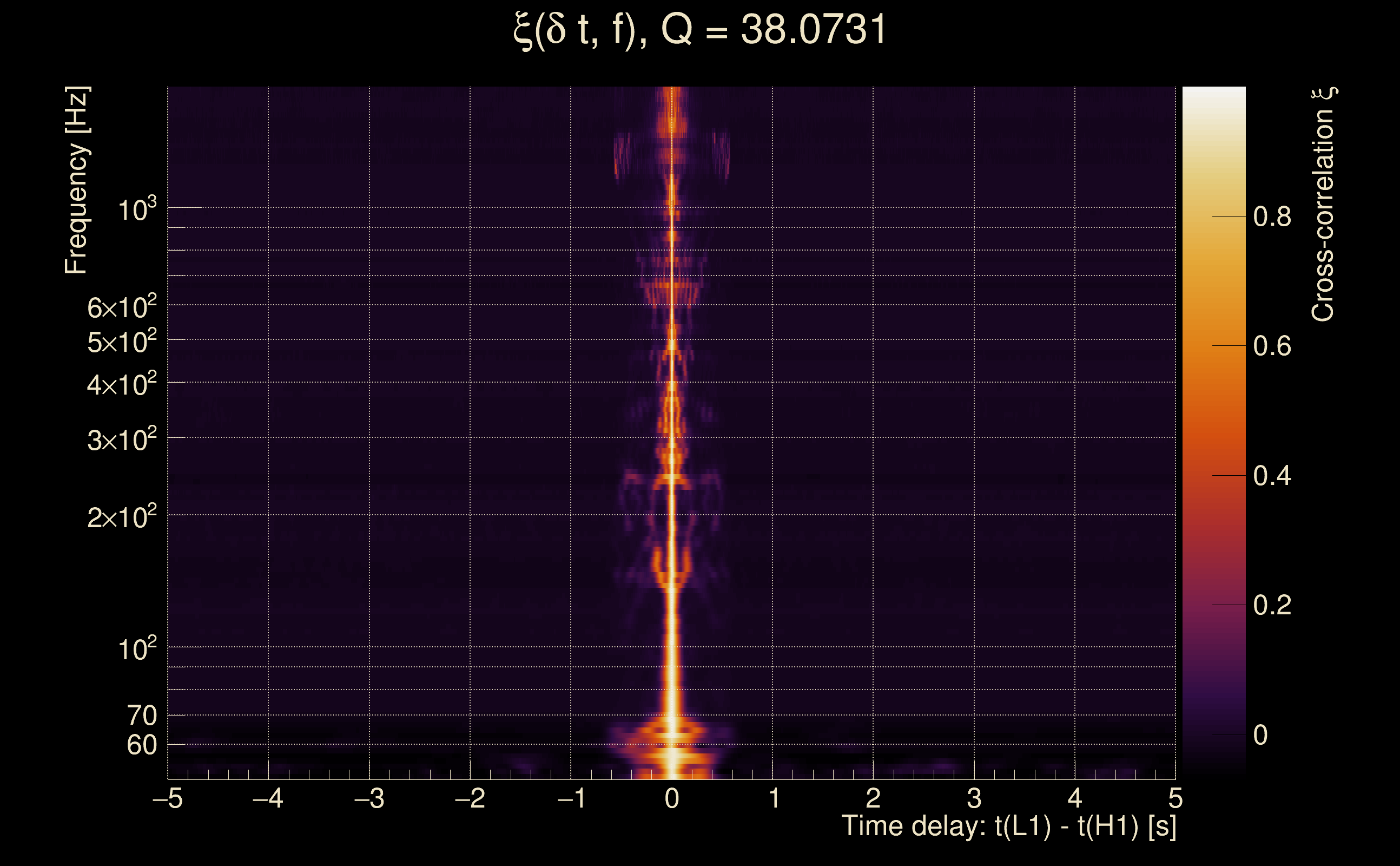

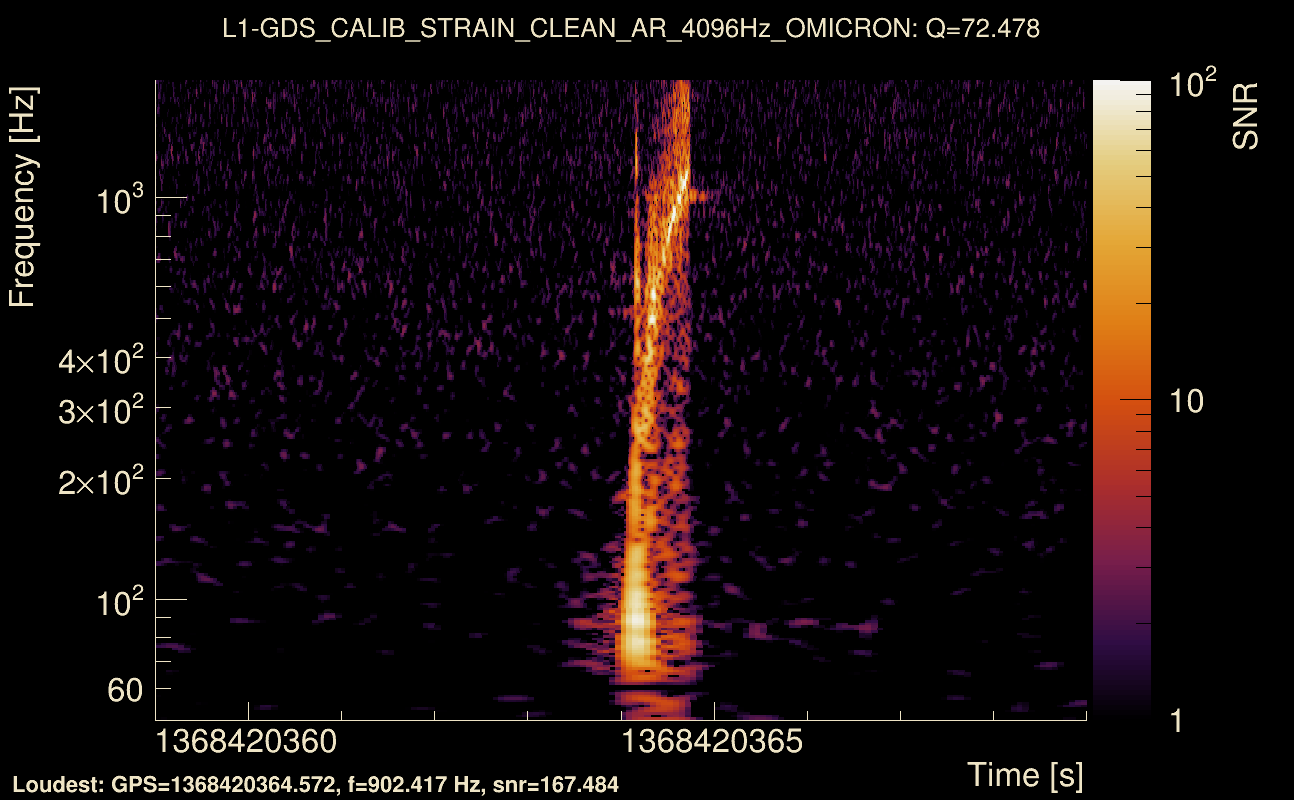

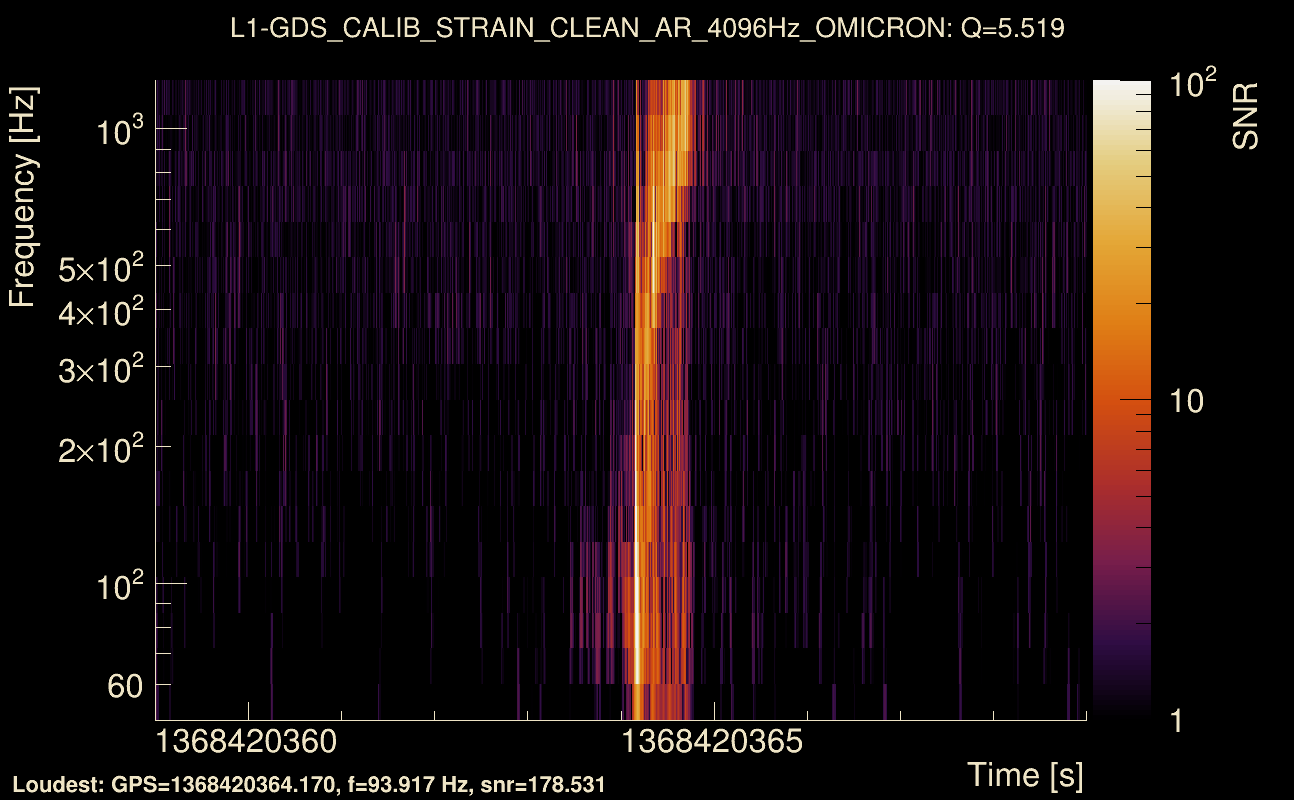

| Event time t(H1): | GPS = 1368420364 (Thu May 18 04:45:46 2023 ) → GPS = 1368420374 (Thu May 18 04:45:56 2023 ) |
| Event time t(L1): | GPS = 1368420364 (Thu May 18 04:45:56 2023 ) → GPS = 1368420374 (Thu May 18 04:45:56 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420361 → GPS = 1368420377 |
| Omicron analysis time window (L1): | GPS = 1368420361 → GPS = 1368420377 |

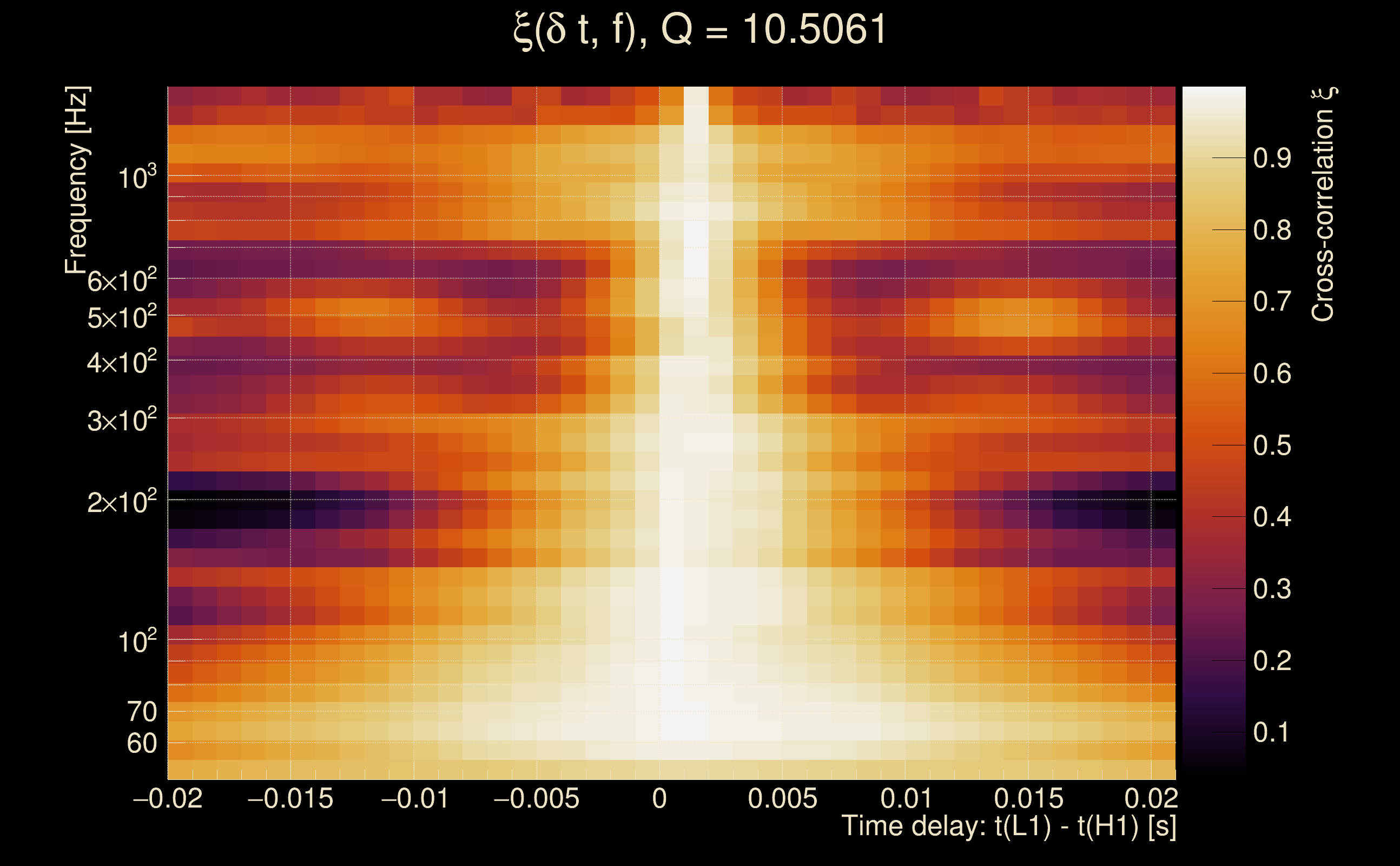

| Time delay between detectors t(L1) - t(H1): | 0.000942366 s (slice index = 108 / 217), δt_gw = 0.000942366 s |
| Time delay standard deviation: | 0.0185457 s |
| [targeted mode] Time delay probability: | 0.987594 (0.0155489 sigmas), δt_target = 0.000946045 s |
| Frequency: | 286.68 Hz |
| Ξ: | 0.981754 ± 0.00125642 (variance = 1.57858e-06): Q0: 0.981084, Q1: 0.983628, Q2: 0.983148, Q3: 0.981825, Q4: 0.980252 |
| Rank: | R_A = 0.969575 |
| Log of amplitude ratio (L1/H1): | -0.00800277, variance = 0.151702 (L1/H1: -0.0168695, variance = 0.30348, H1/L1: -0.00040766, variance = 0.302933) |
| Amplitude ratio (L1/H1): | 0.992029 ⋇ 1.47623 (L1/H1: 0.983272 ⋇ 1.7348, H1/L1: 0.999592 ⋇ 1.73394) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.982299 |
| Antenna factor probability: | 0.923295 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 223.849, L1: 229.841 |
| SNR variance: | H1: 32.6348, L1: 33.7816 |

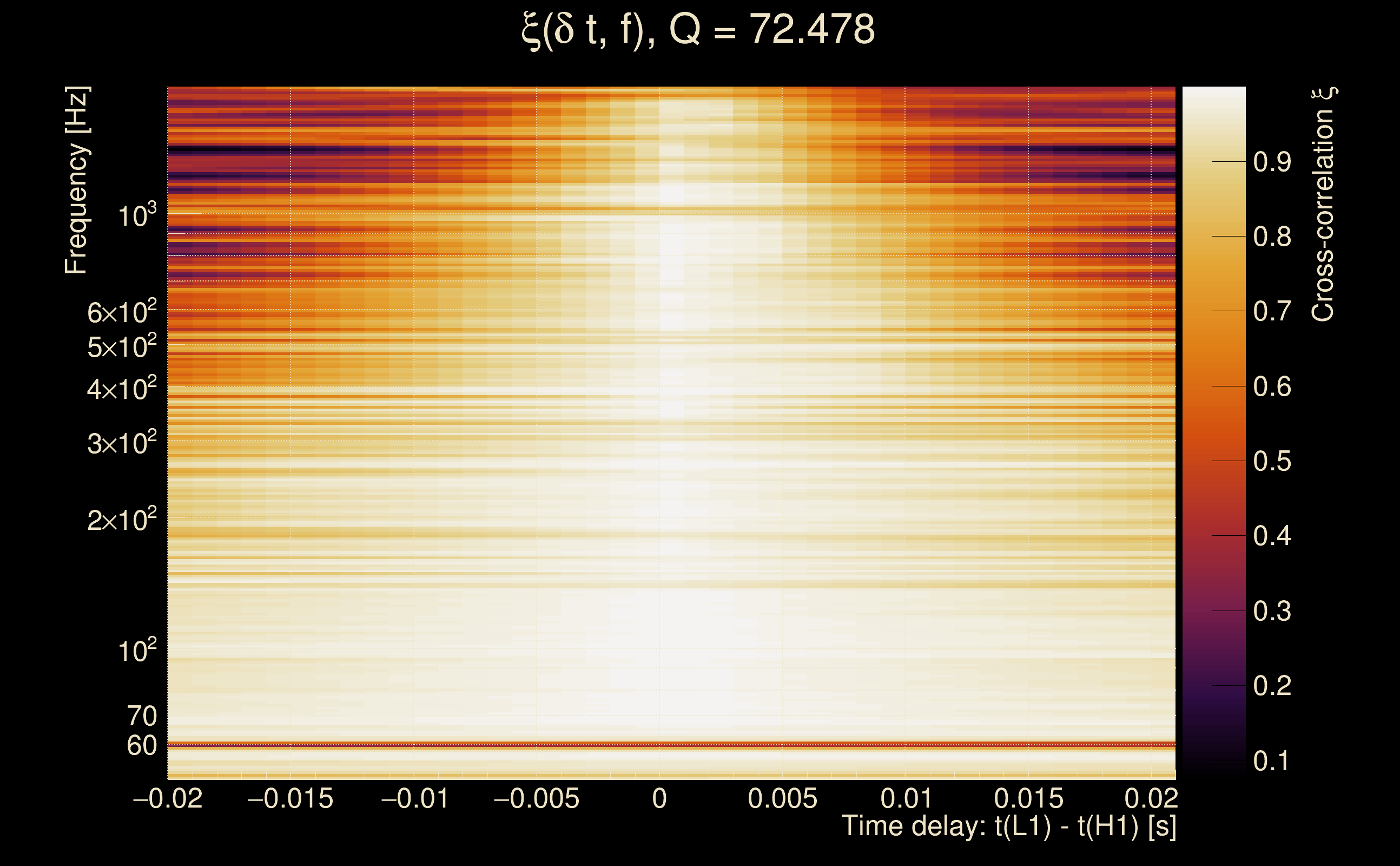

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

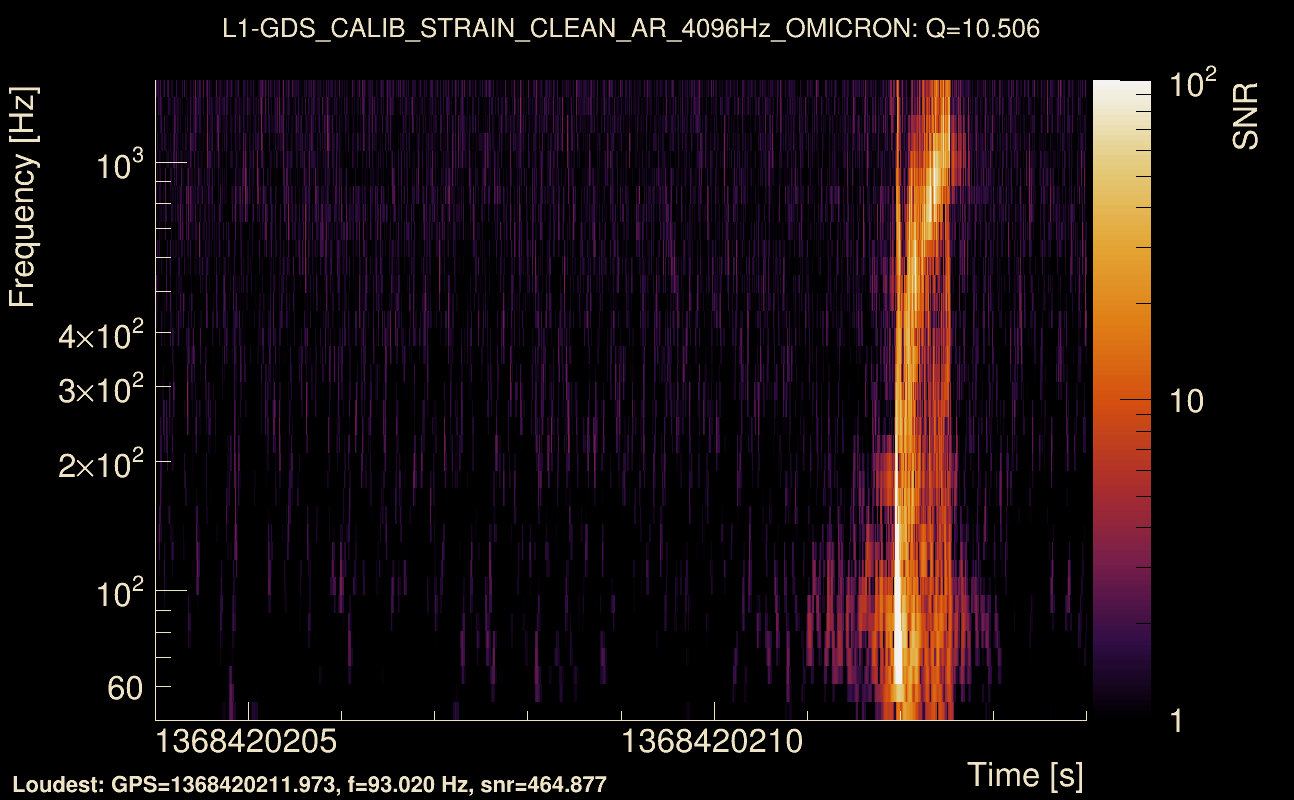

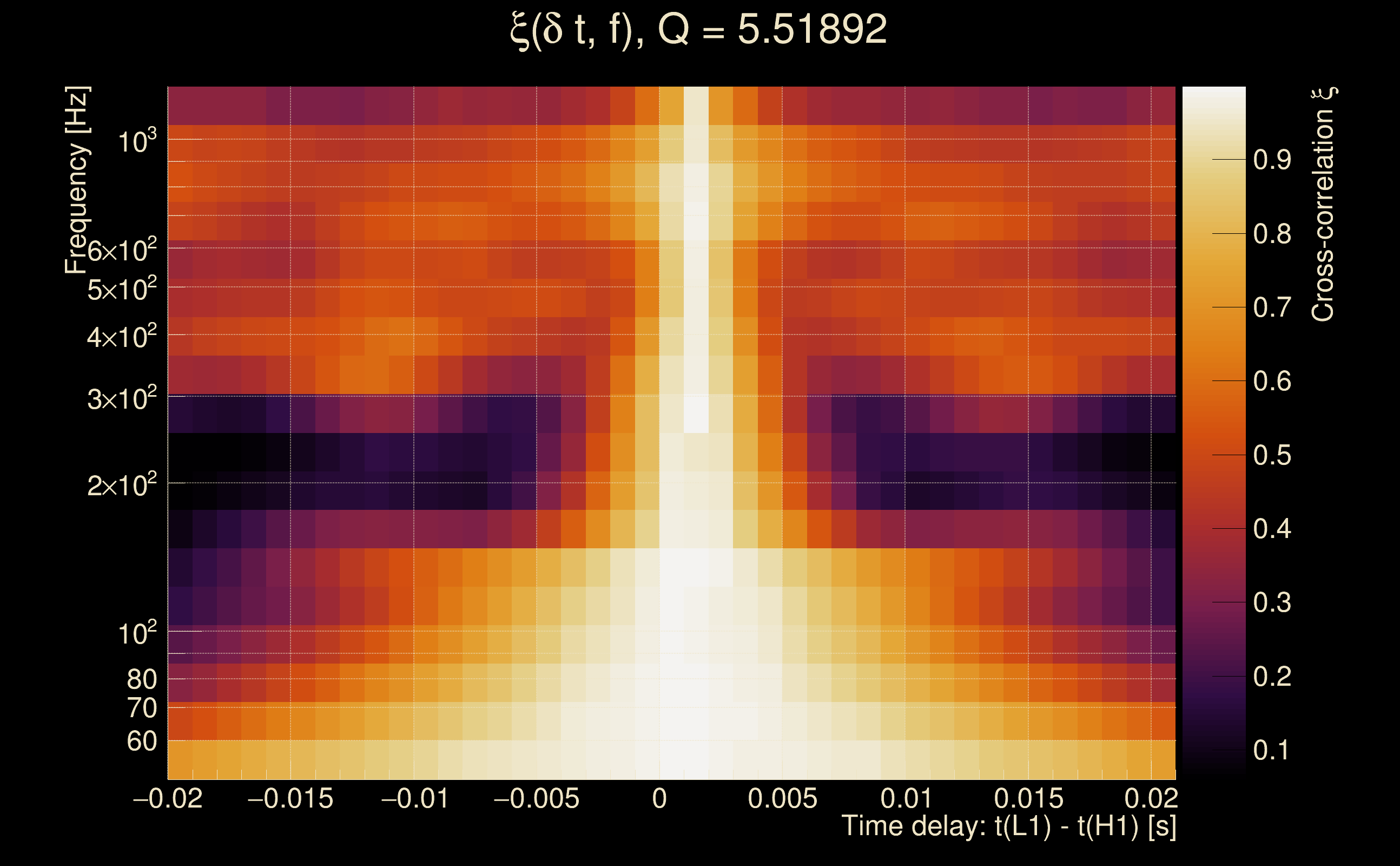

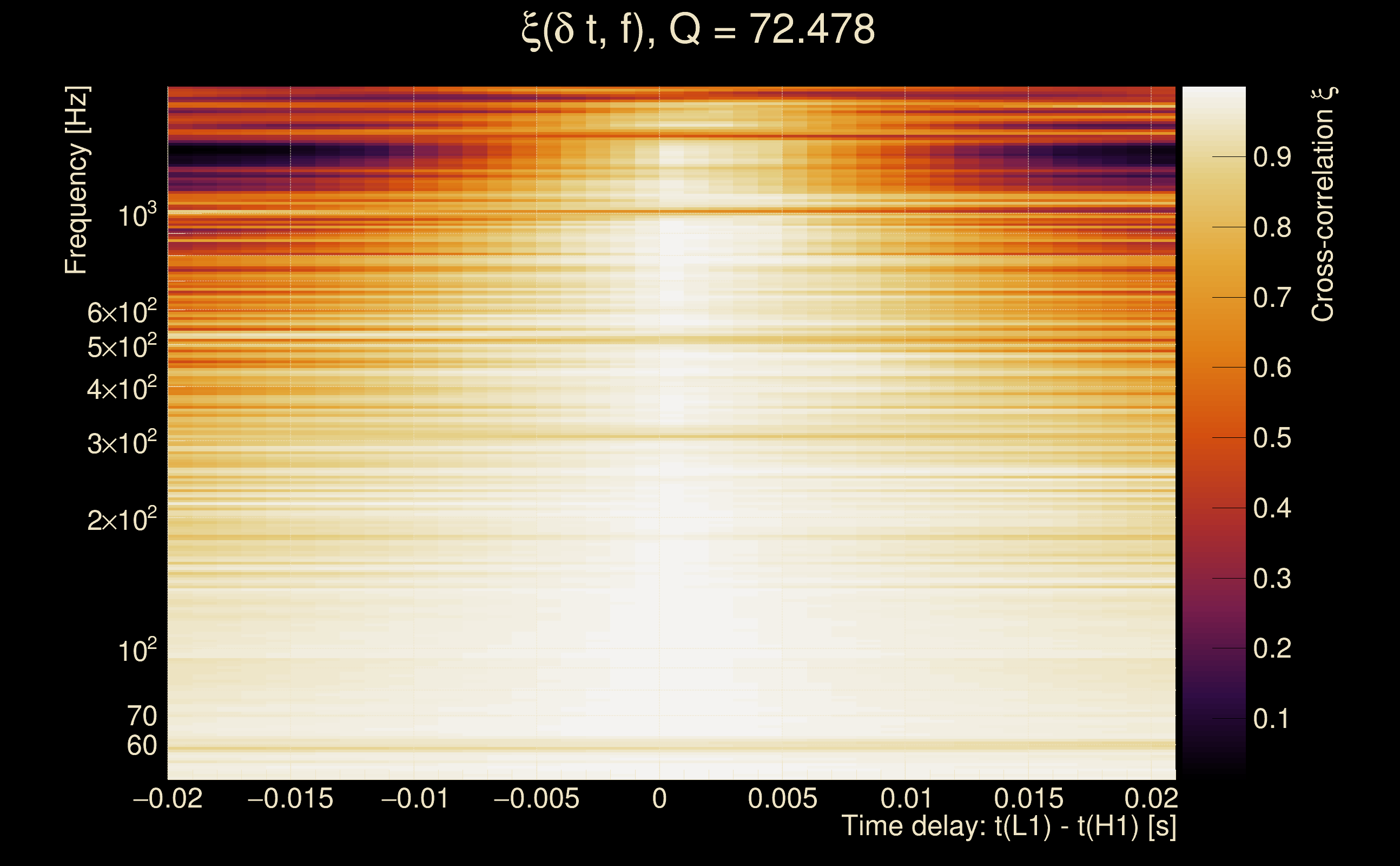

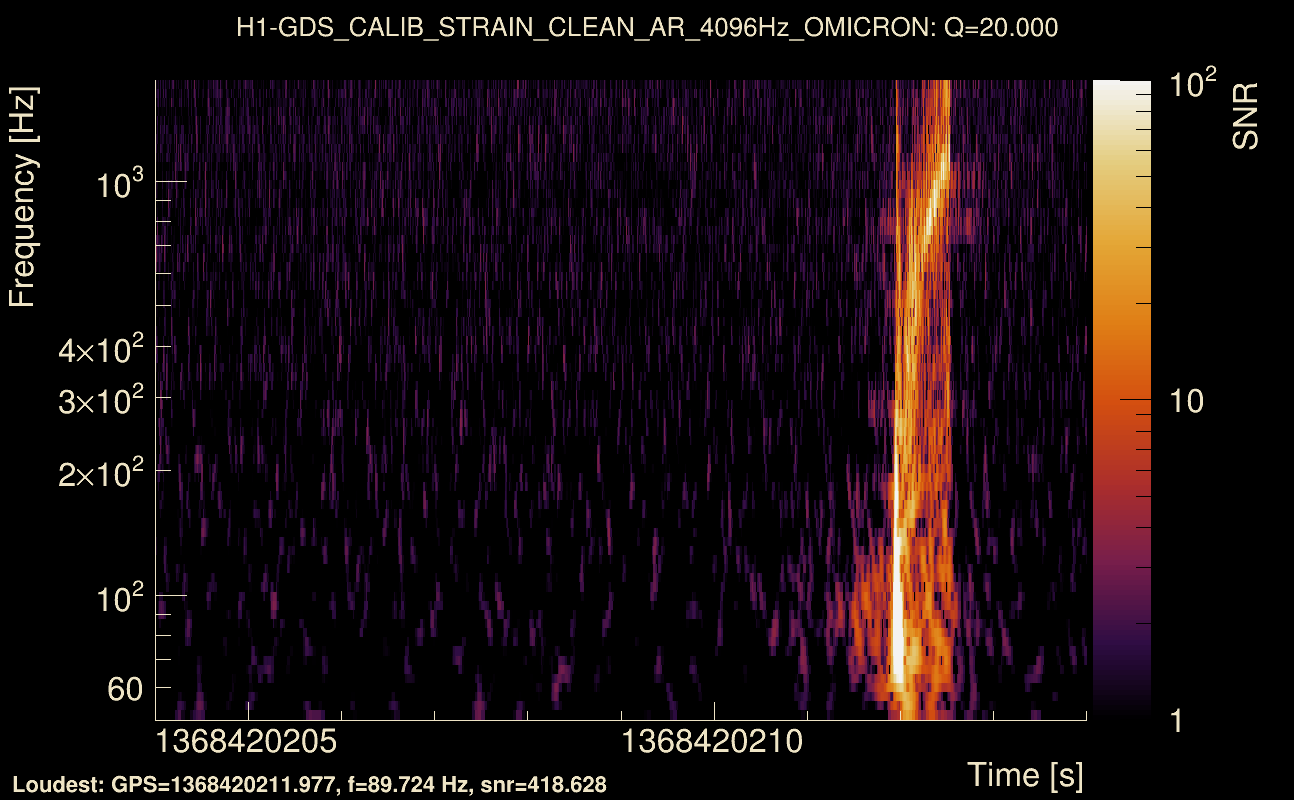

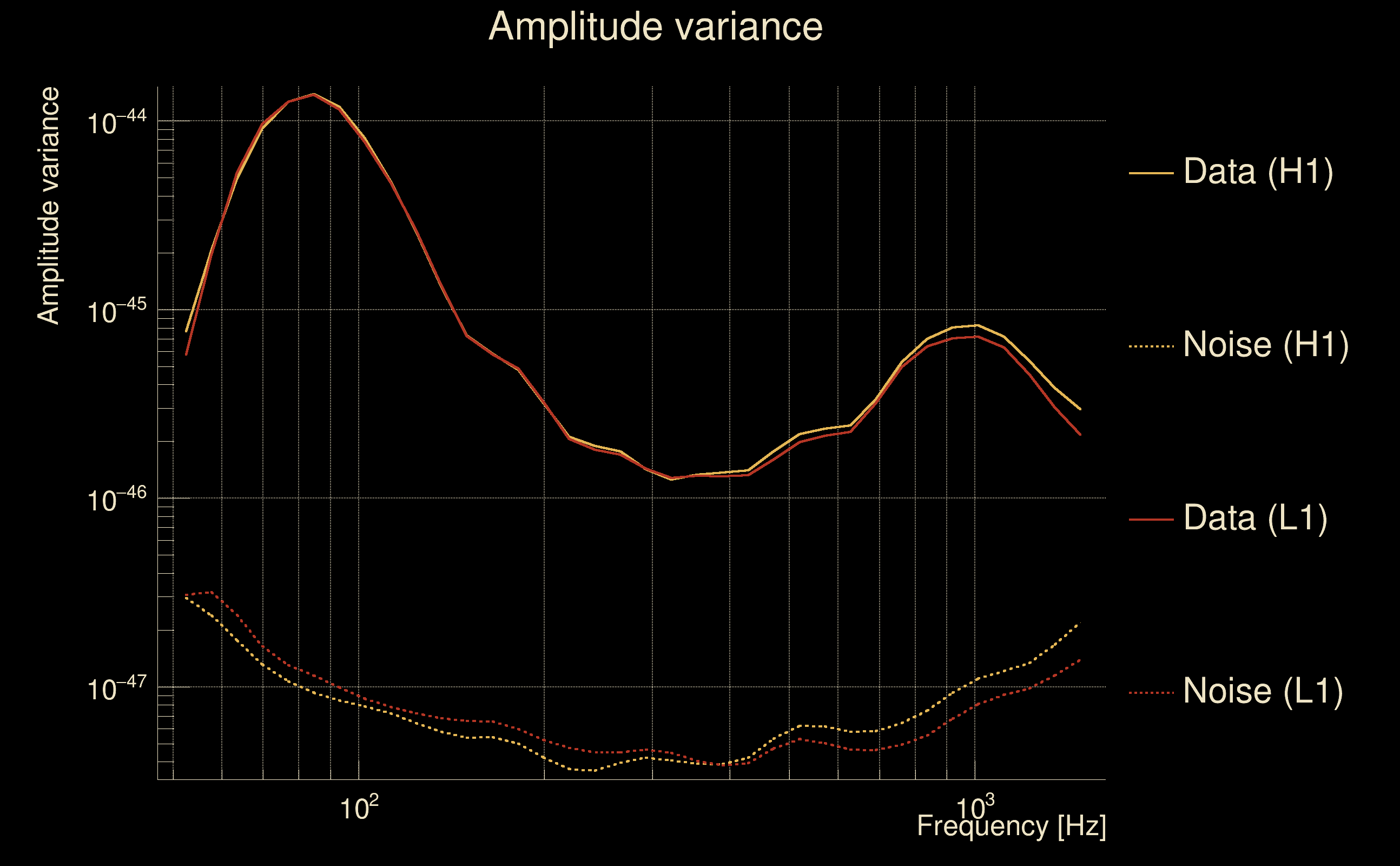

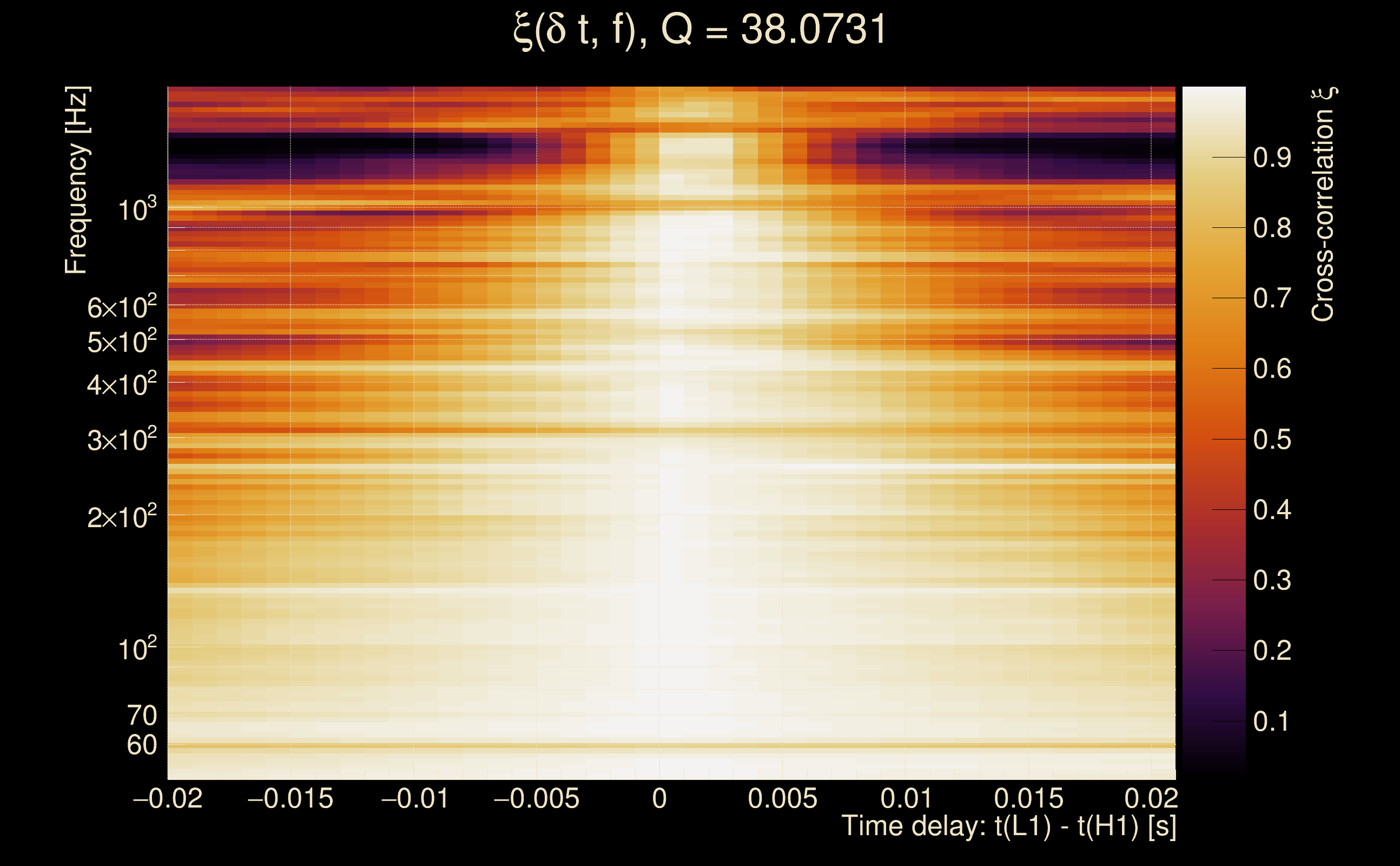

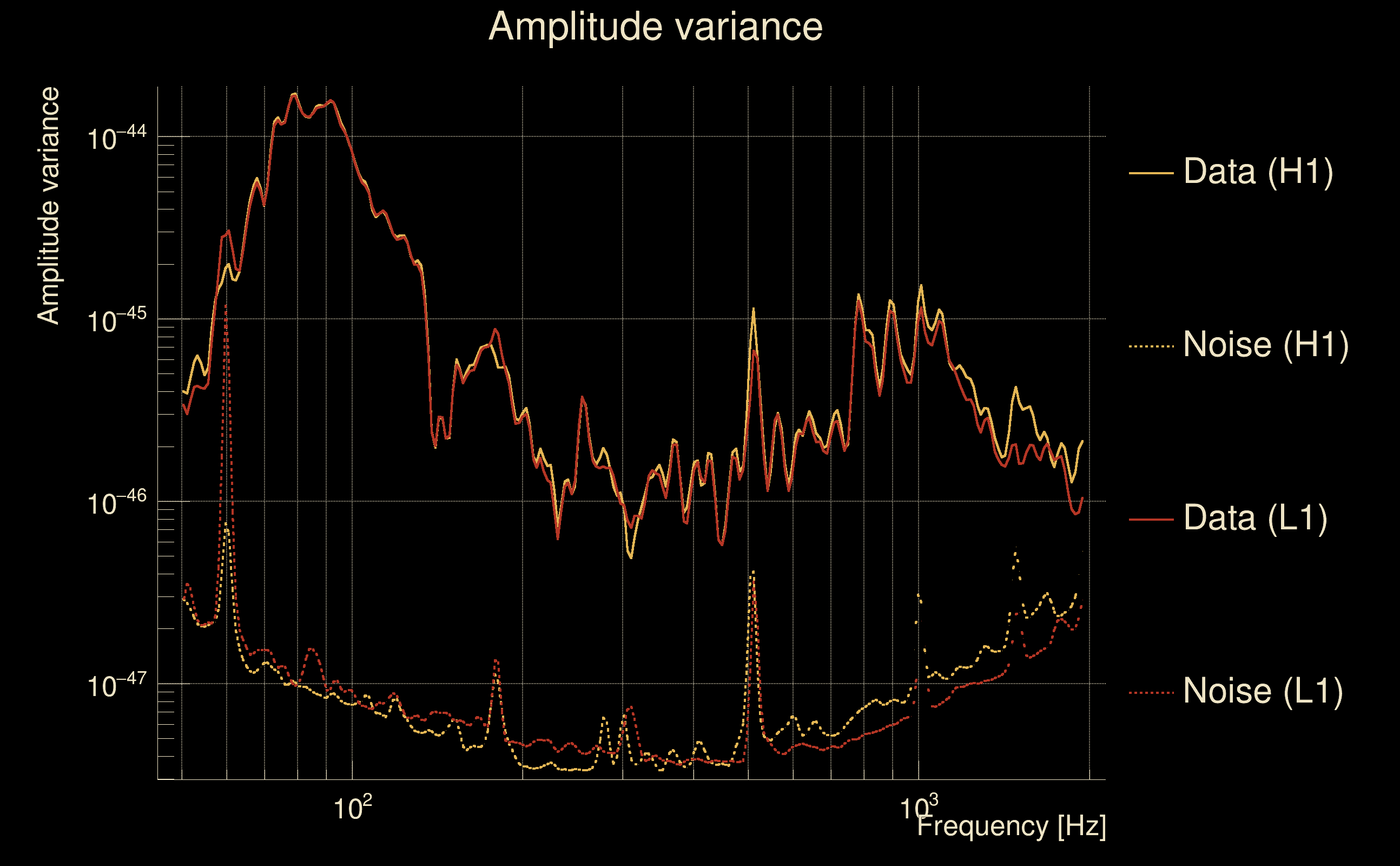

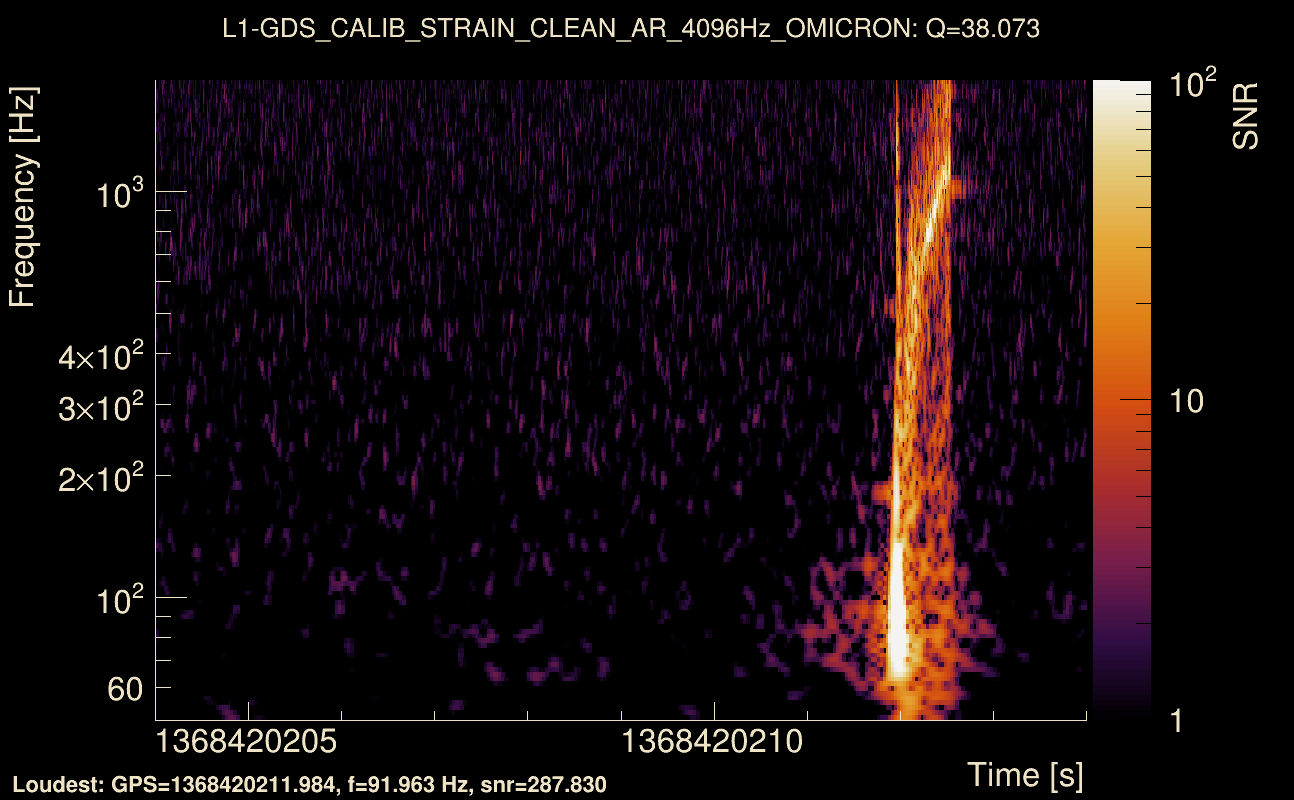

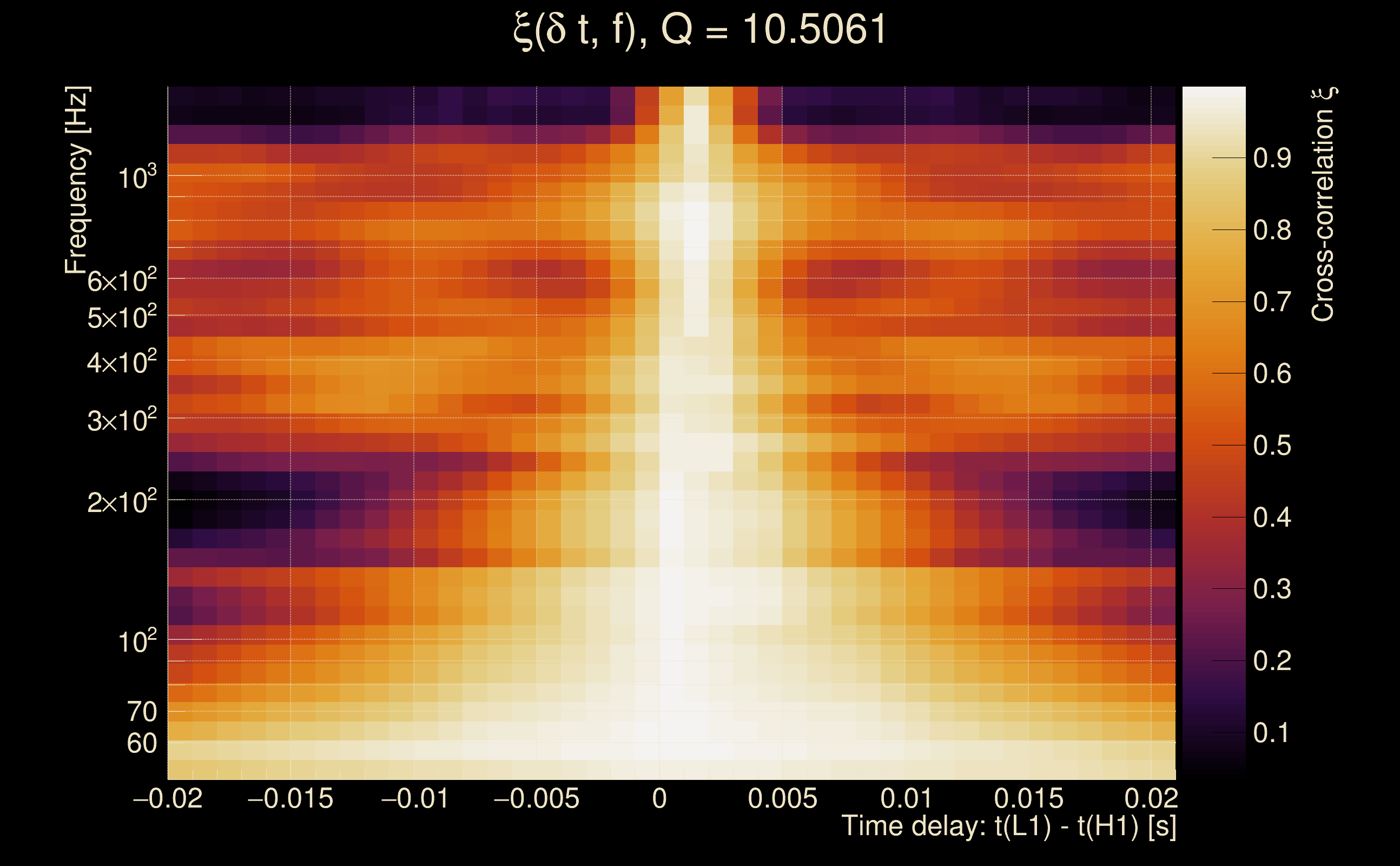

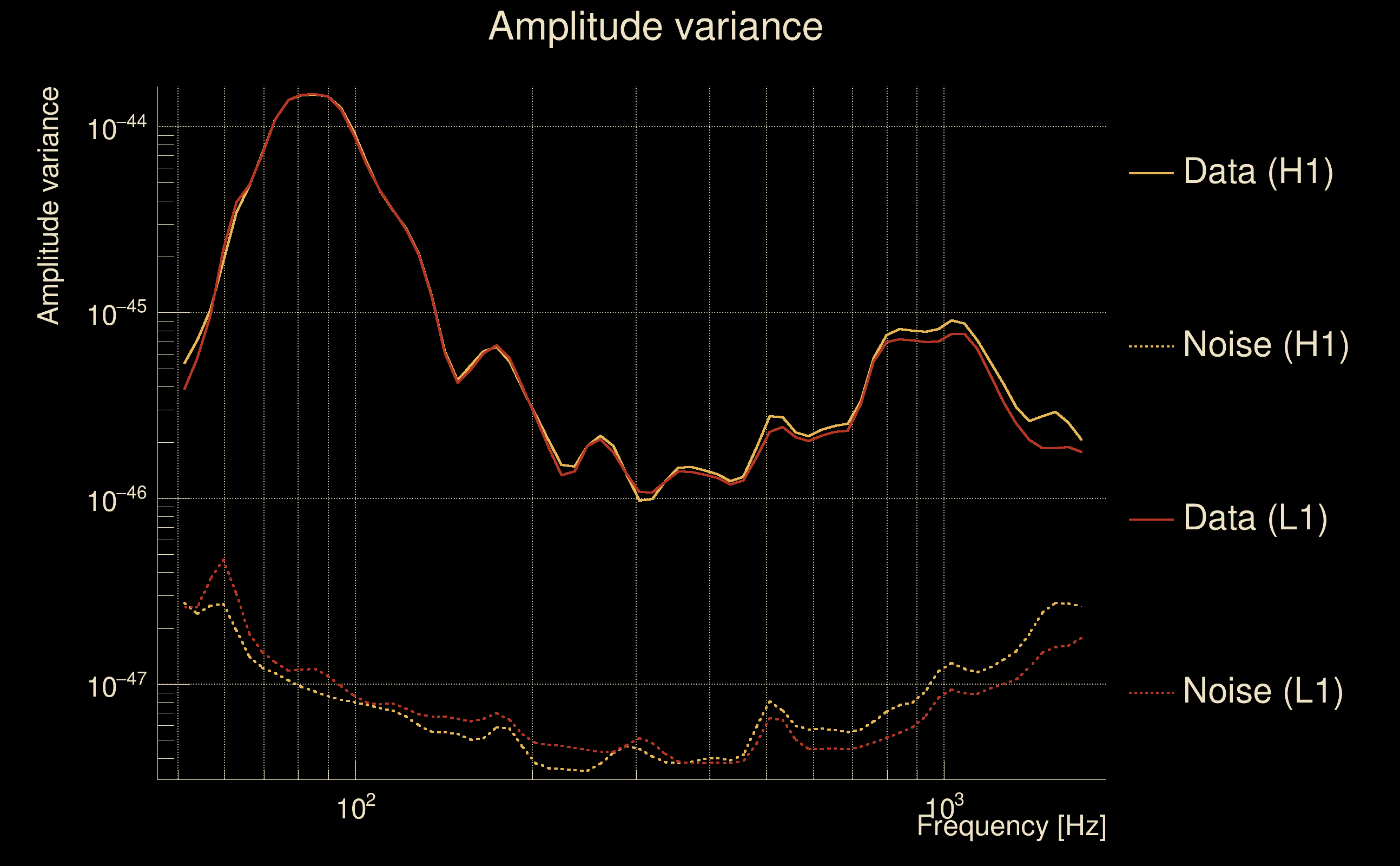

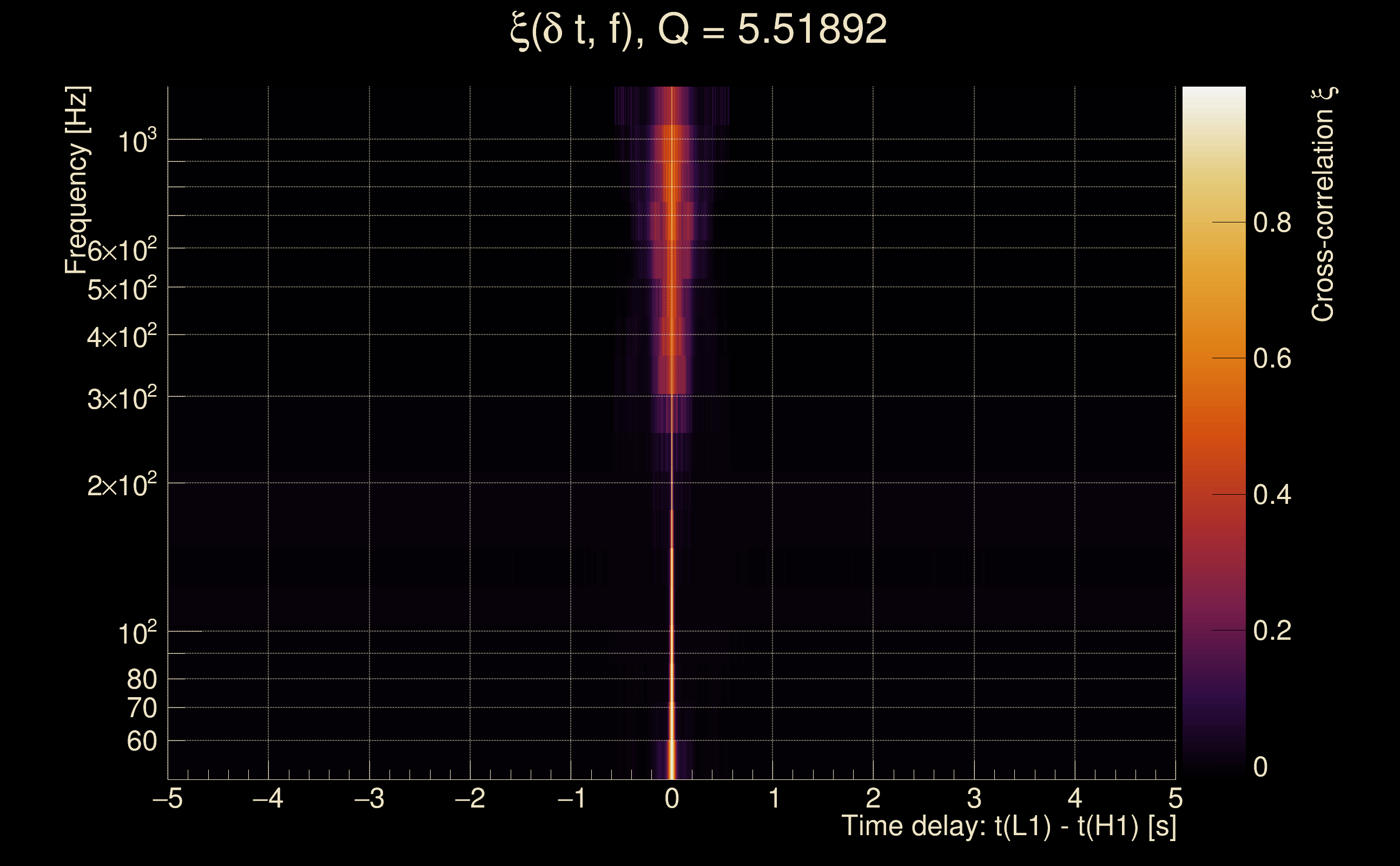

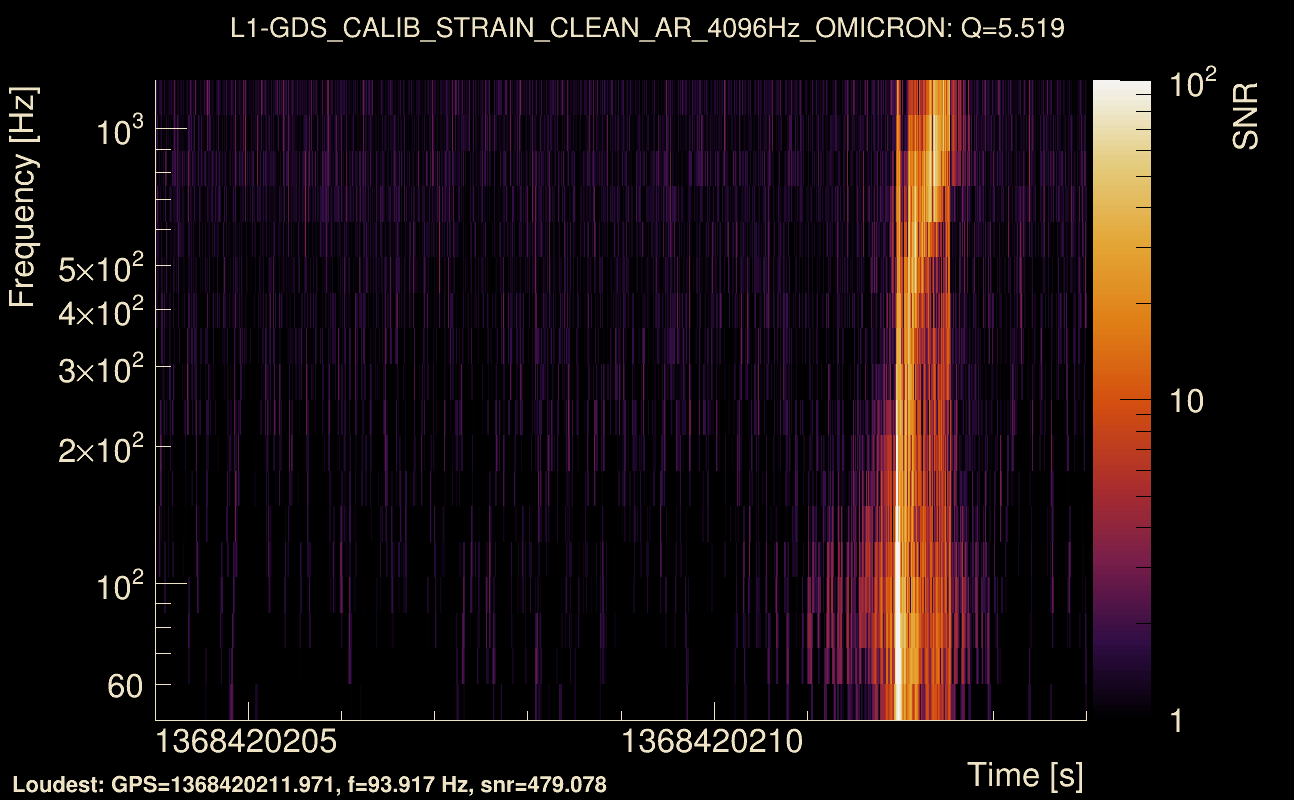

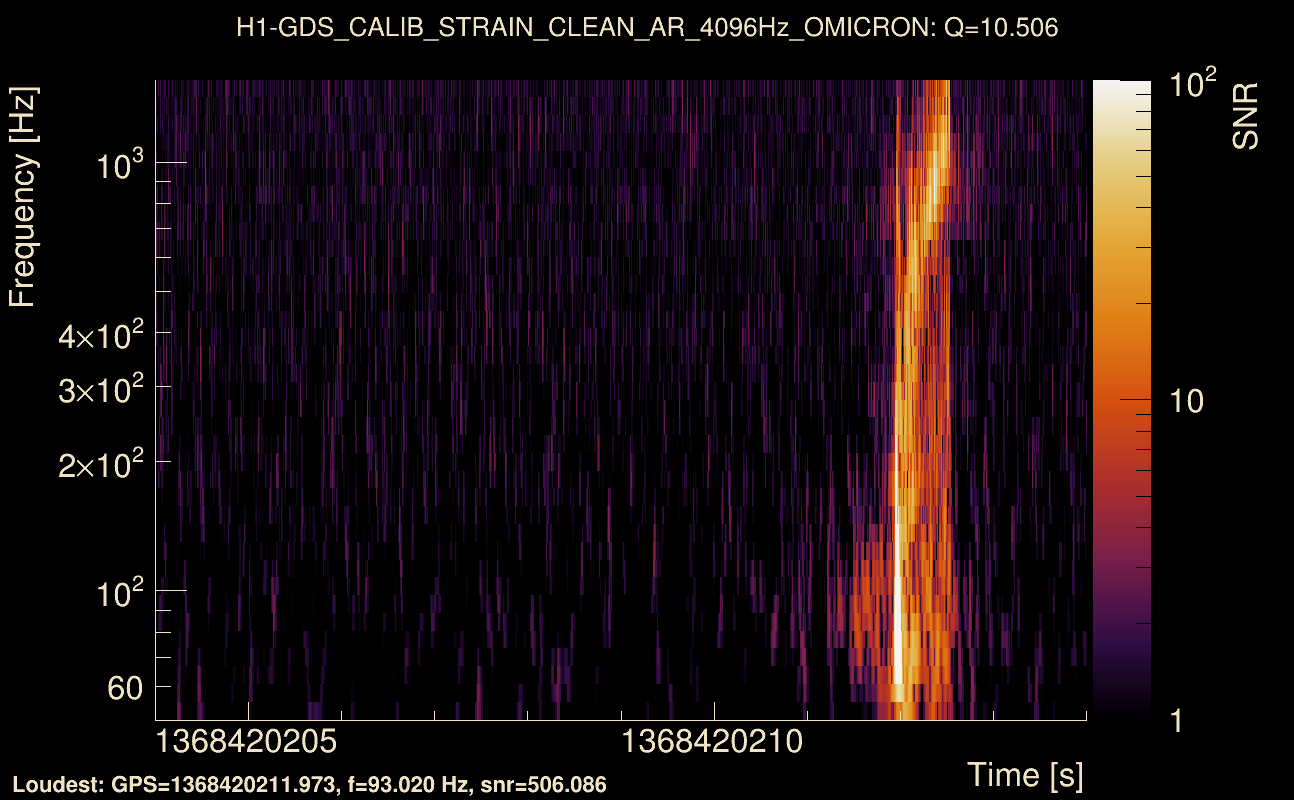

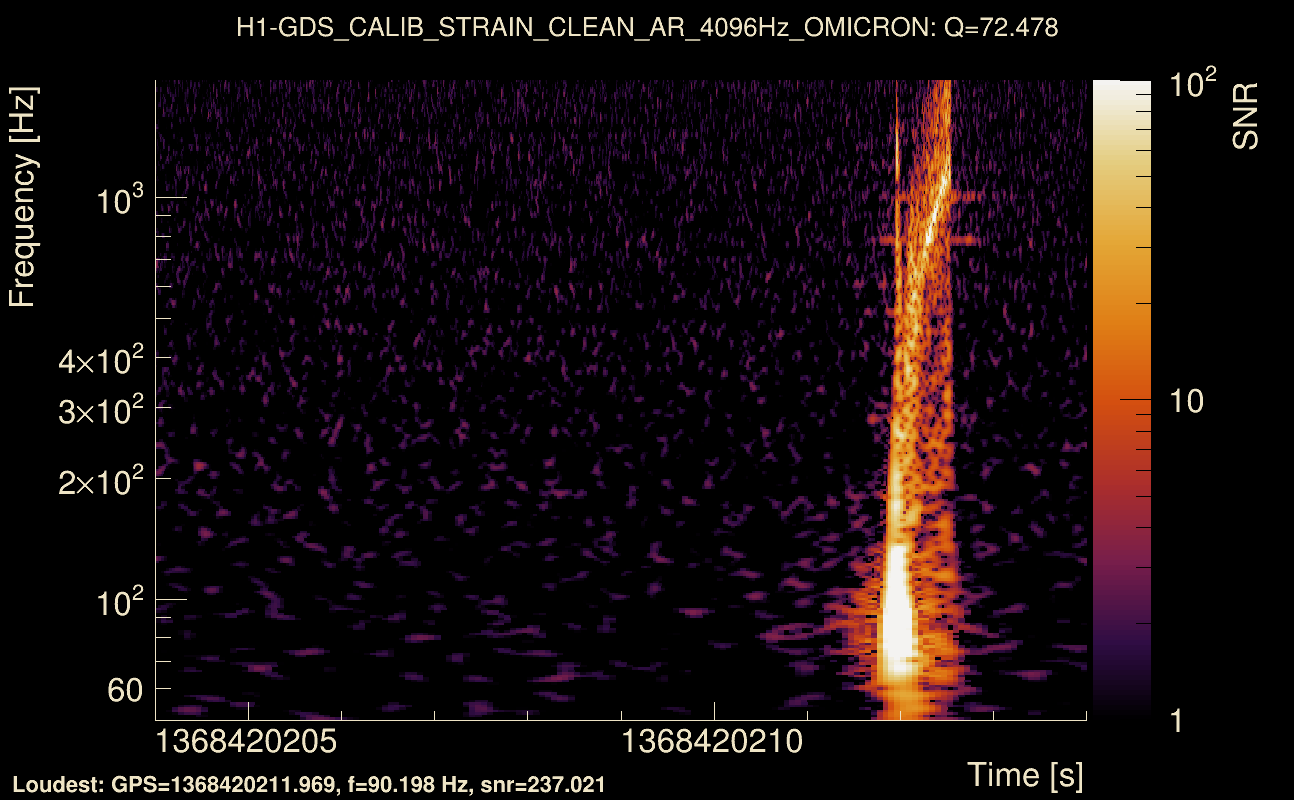

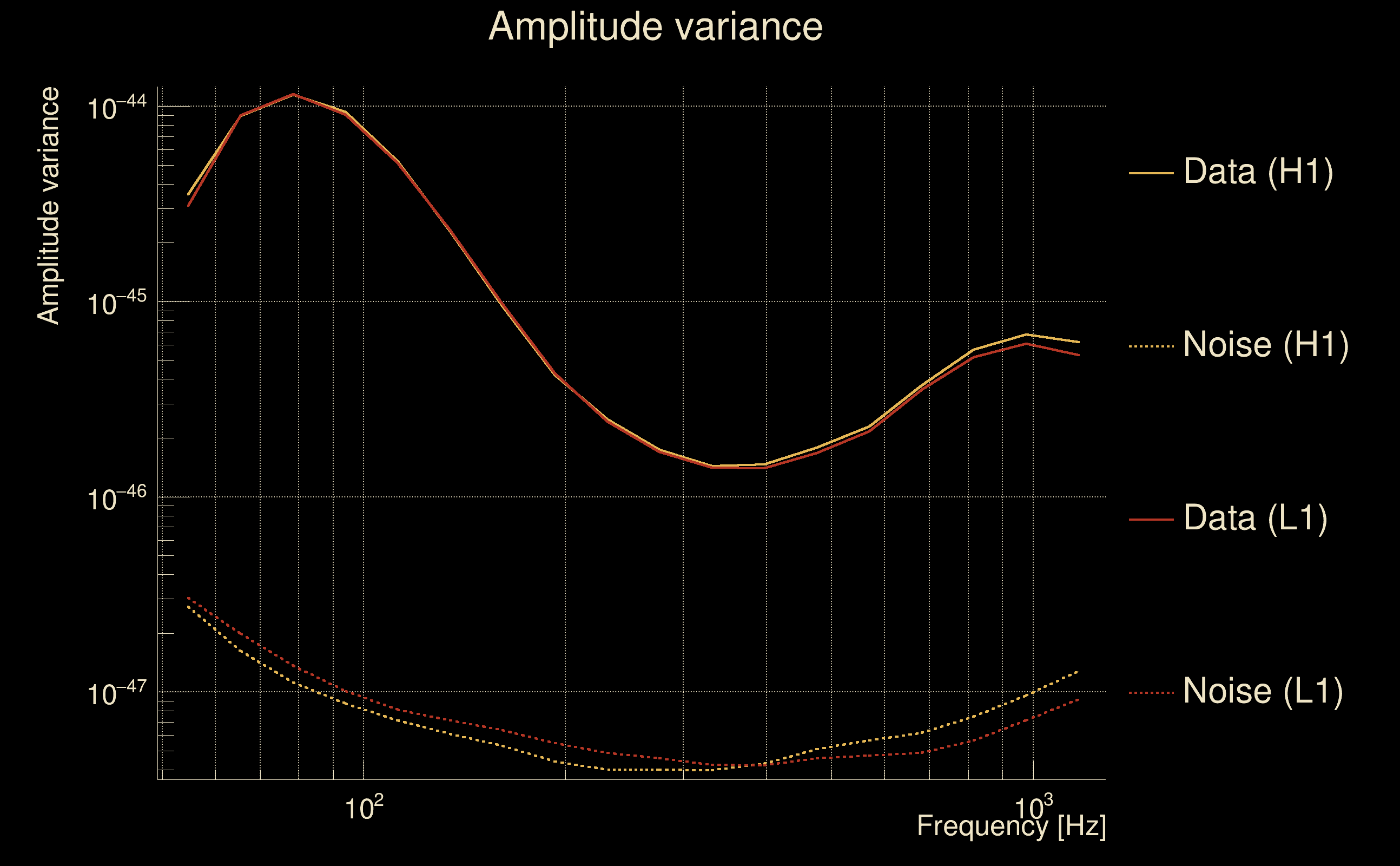

| Event time t(H1): | GPS = 1368420204 (Thu May 18 04:43:06 2023 ) → GPS = 1368420214 (Thu May 18 04:43:16 2023 ) |
| Event time t(L1): | GPS = 1368420204 (Thu May 18 04:43:16 2023 ) → GPS = 1368420214 (Thu May 18 04:43:16 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420201 → GPS = 1368420217 |
| Omicron analysis time window (L1): | GPS = 1368420201 → GPS = 1368420217 |
| Time delay between detectors t(L1) - t(H1): | 0.000910038 s (slice index = 108 / 217), δt_gw = 0.000910038 s |
| Time delay standard deviation: | 0.0228146 s |
| [targeted mode] Time delay probability: | 0.979545 (0.0256391 sigmas), δt_target = 0.000947714 s |
| Frequency: | 279.701 Hz |

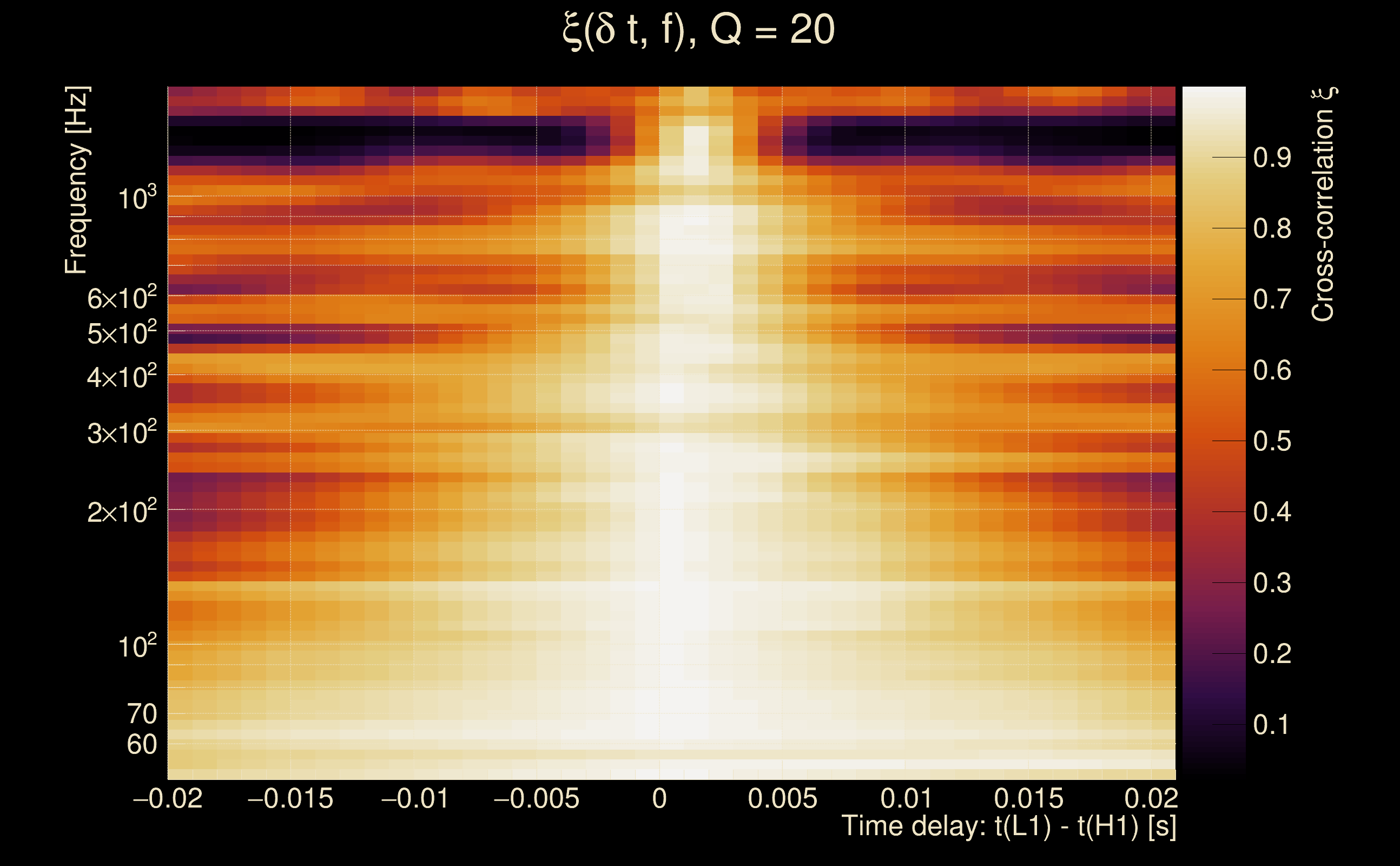

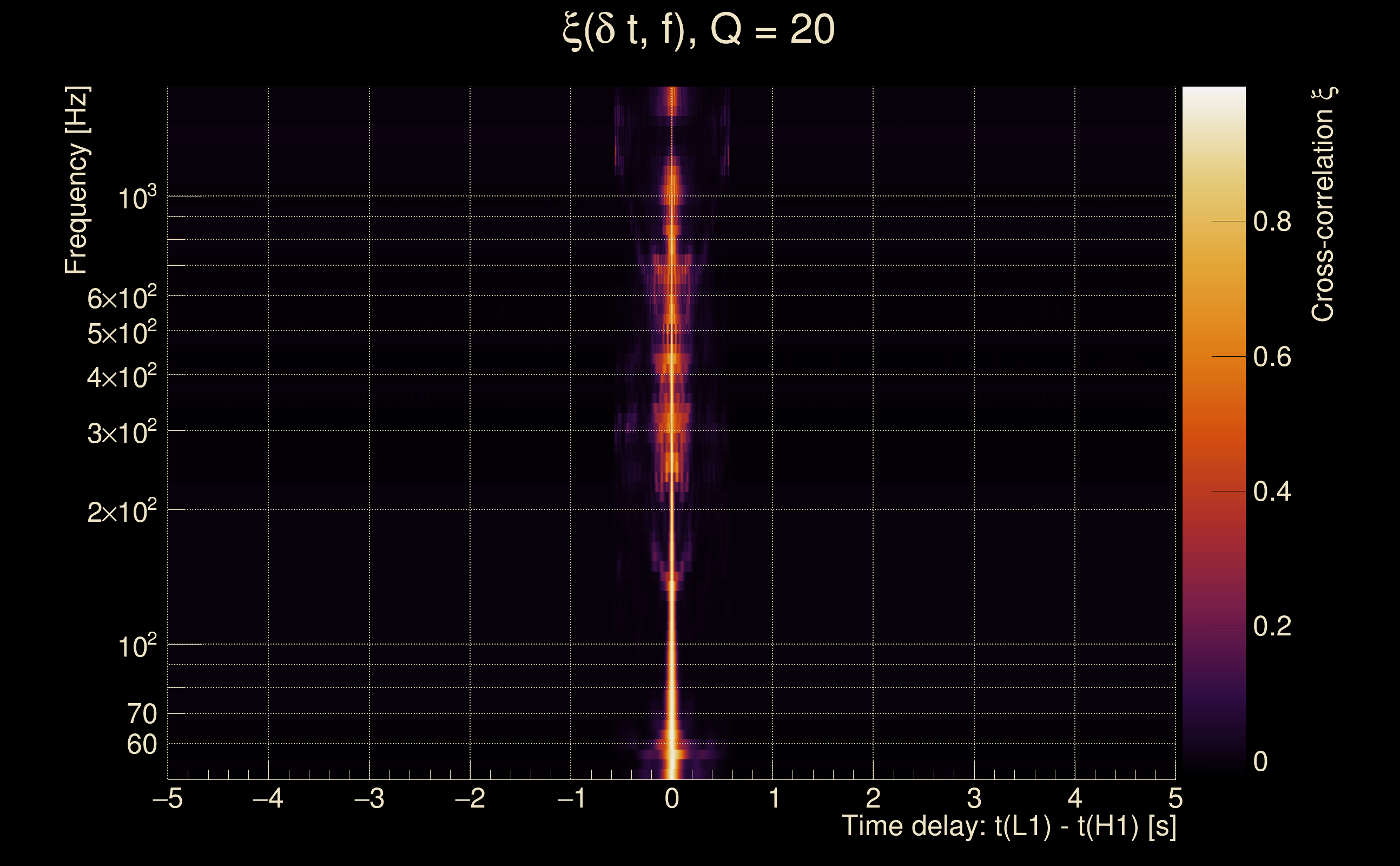

| Ξ: | 0.978036 ± 0.00252133 (variance = 6.35708e-06): Q0: 0.980929, Q1: 0.979751, Q2: 0.97545, Q3: 0.974427, Q4: 0.97632 |
| Rank: | R_A = 0.95803 |
| Log of amplitude ratio (L1/H1): | -0.0147565, variance = 0.150396 (L1/H1: -0.0209181, variance = 0.300984, H1/L1: 0.0084766, variance = 0.300536) |
| Amplitude ratio (L1/H1): | 0.985352 ⋇ 1.47375 (L1/H1: 0.979299 ⋇ 1.73086, H1/L1: 1.00851 ⋇ 1.73016) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.987201 |
| Antenna factor probability: | 0.941532 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 579.073, L1: 573.594 |

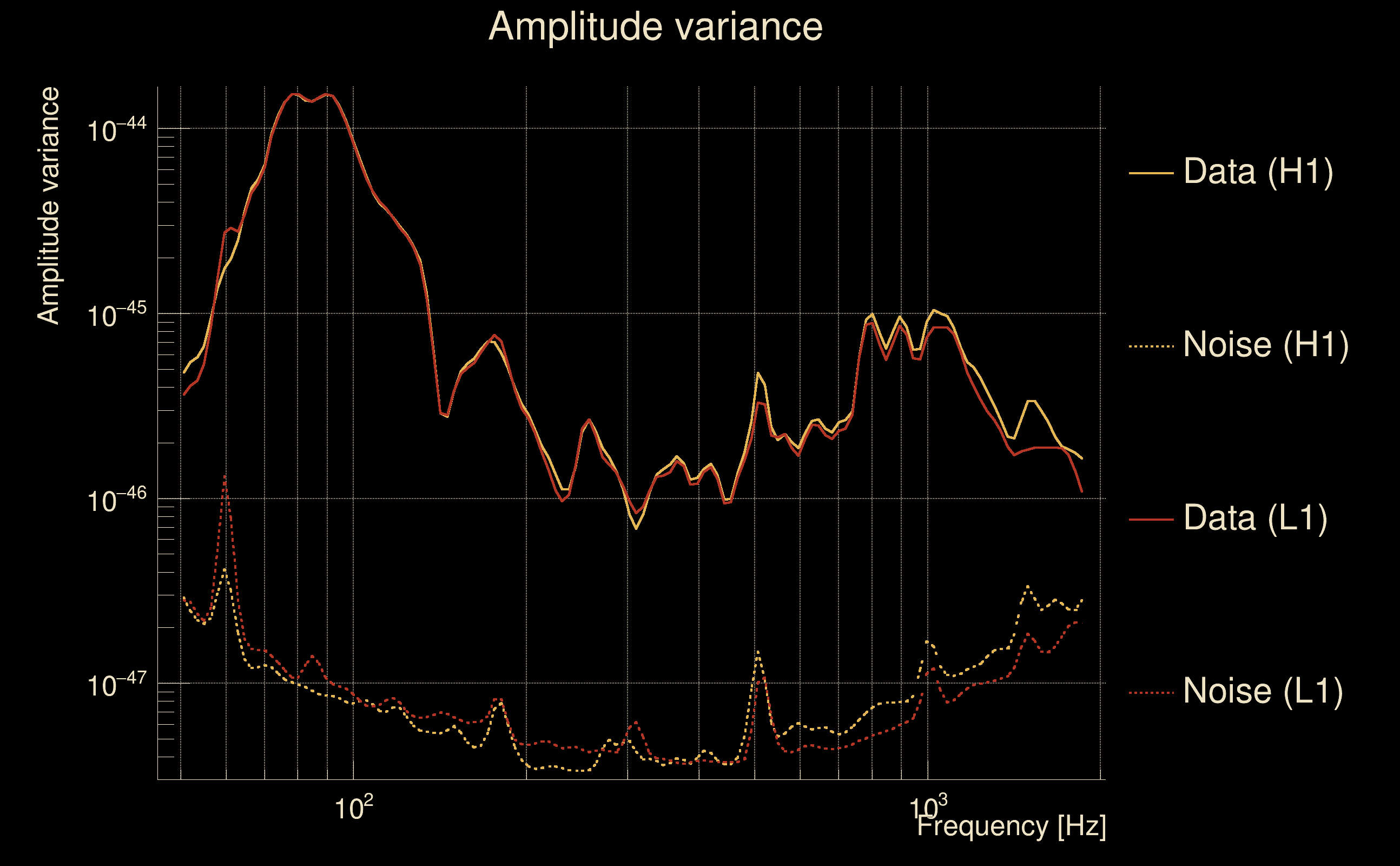

| SNR variance: | H1: 0.530682, L1: 0.512882 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368333888 (Wed May 17 04:44:30 2023 ) → GPS = 1368333898 (Wed May 17 04:44:40 2023 ) |
| Event time t(L1): | GPS = 1368333888 (Wed May 17 04:44:40 2023 ) → GPS = 1368333898 (Wed May 17 04:44:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368333885 → GPS = 1368333901 |
| Omicron analysis time window (L1): | GPS = 1368333885 → GPS = 1368333901 |
| Time delay between detectors t(L1) - t(H1): | 2.5285 s (slice index = 53 / 217), δt_gw = -0.00150465 s |
| Time delay standard deviation: | 0.0842643 s |
| [targeted mode] Time delay probability: | 0.740308 (0.331446 sigmas), δt_target = 0.000896692 s |
| Frequency: | 184.855 Hz |
| Ξ: | 0.0314239 ± 0.00503551 (variance = 2.53564e-05): Q0: 0.0946879, Q1: 0.0820929, Q2: 0.0860327, Q3: 0.092521, Q4: 0.0831735 |
| Rank: | R_A = 0.0232634 |
| Log of amplitude ratio (L1/H1): | -0.386115, variance = 0.548915 (L1/H1: -2.07039, variance = 1.111, H1/L1: -2.02115, variance = 0.969782) |
| Amplitude ratio (L1/H1): | 0.679692 ⋇ 2.0978 (L1/H1: 0.126136 ⋇ 2.86922, H1/L1: 0.132503 ⋇ 2.67721) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00456193 |
| Antenna factor probability: | 0.641383 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 28 / 36, Q2: 60 / 70, Q3: 117 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 18.6012, L1: 15.5591 |
| SNR variance: | H1: 0.617935, L1: 0.638927 |

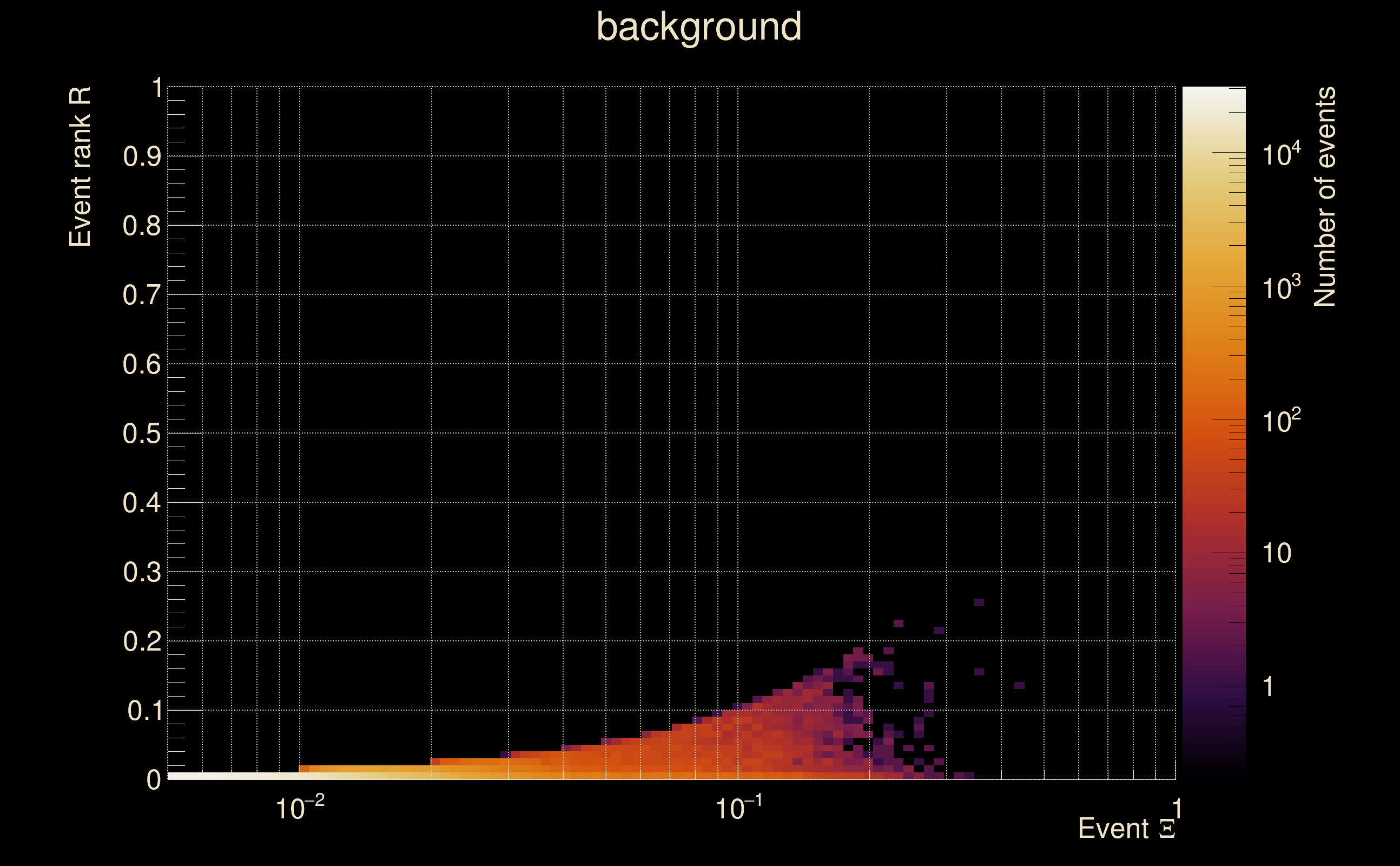

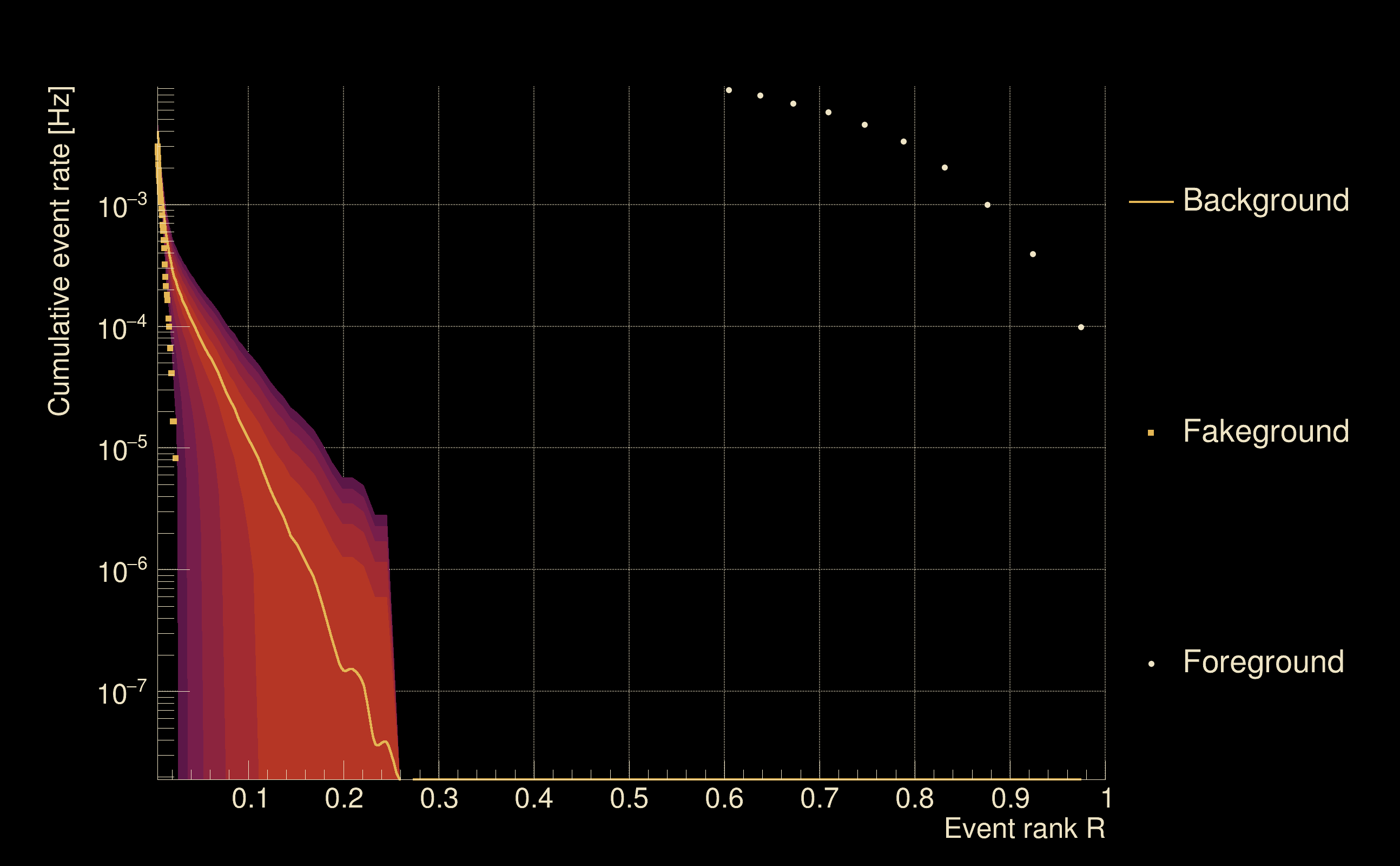

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 1.21099e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.245685 |
| Alternative threshold at 1/100 yrs: | R > 0.245685 |
| Alternative threshold at 1/10 yrs: | R > 0.245685 |
| Alternative threshold at 1/1 yr: | R > 0.245685 |
| Alternative threshold at 1/1 d: | R > 0.0998724 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

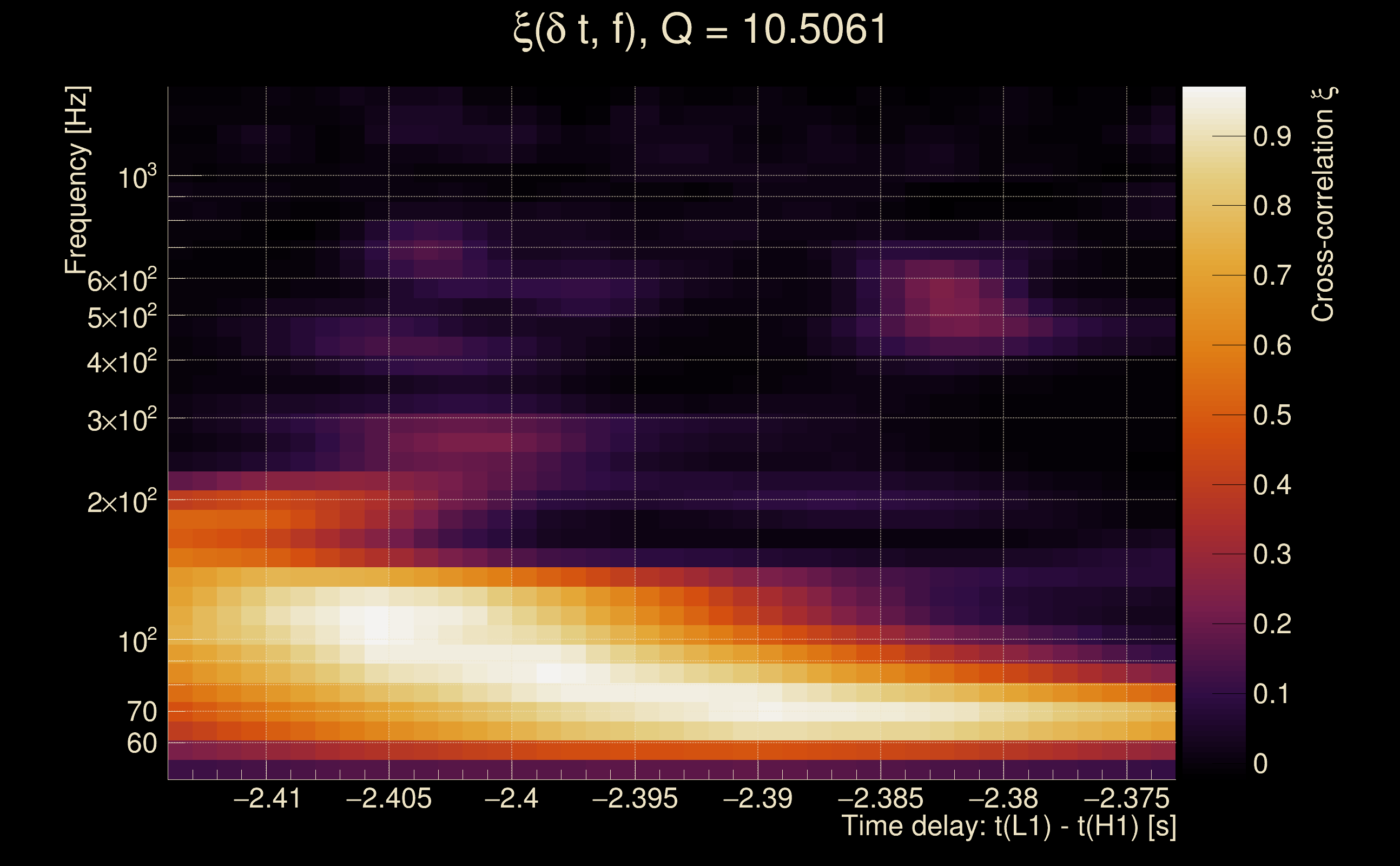

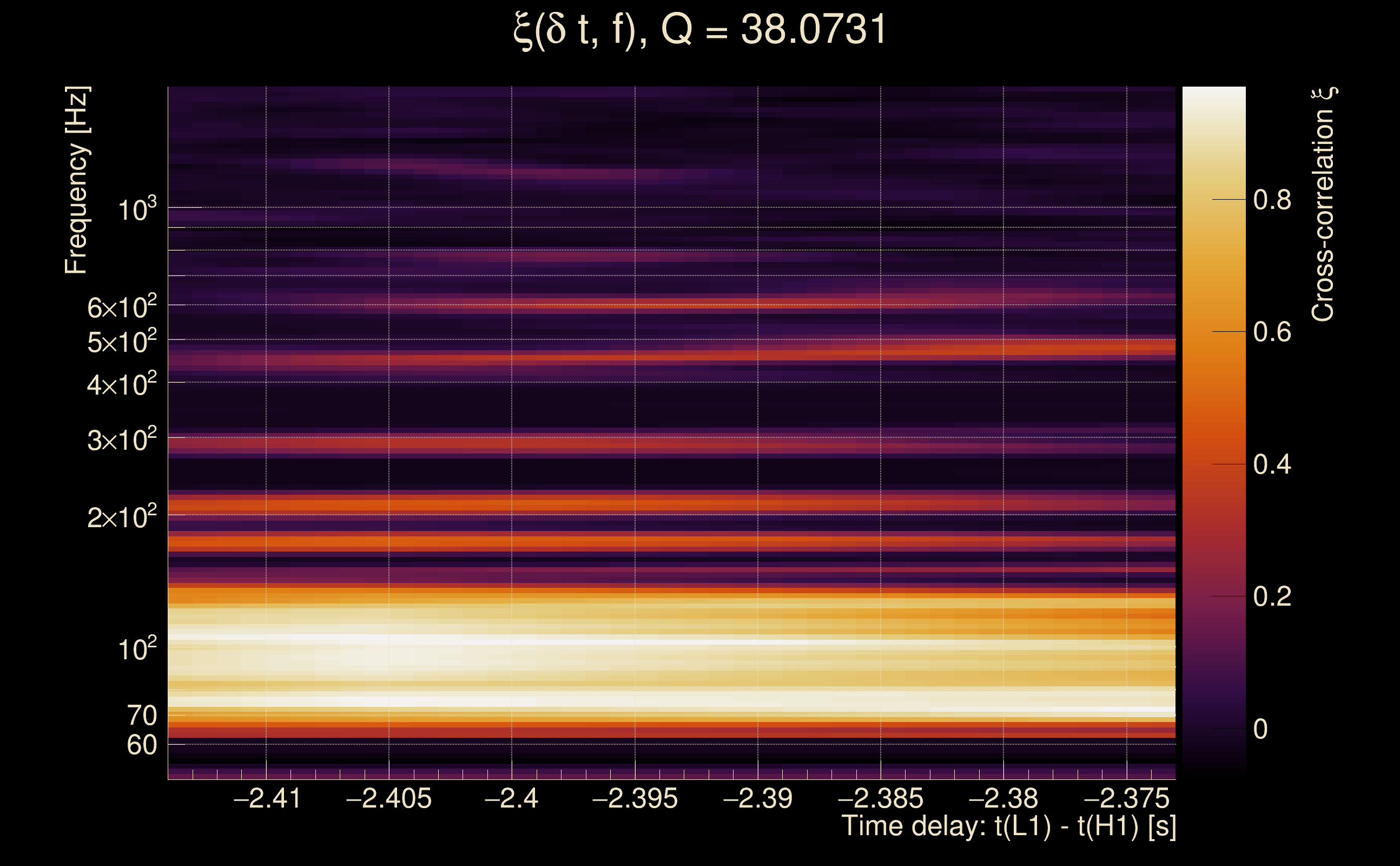

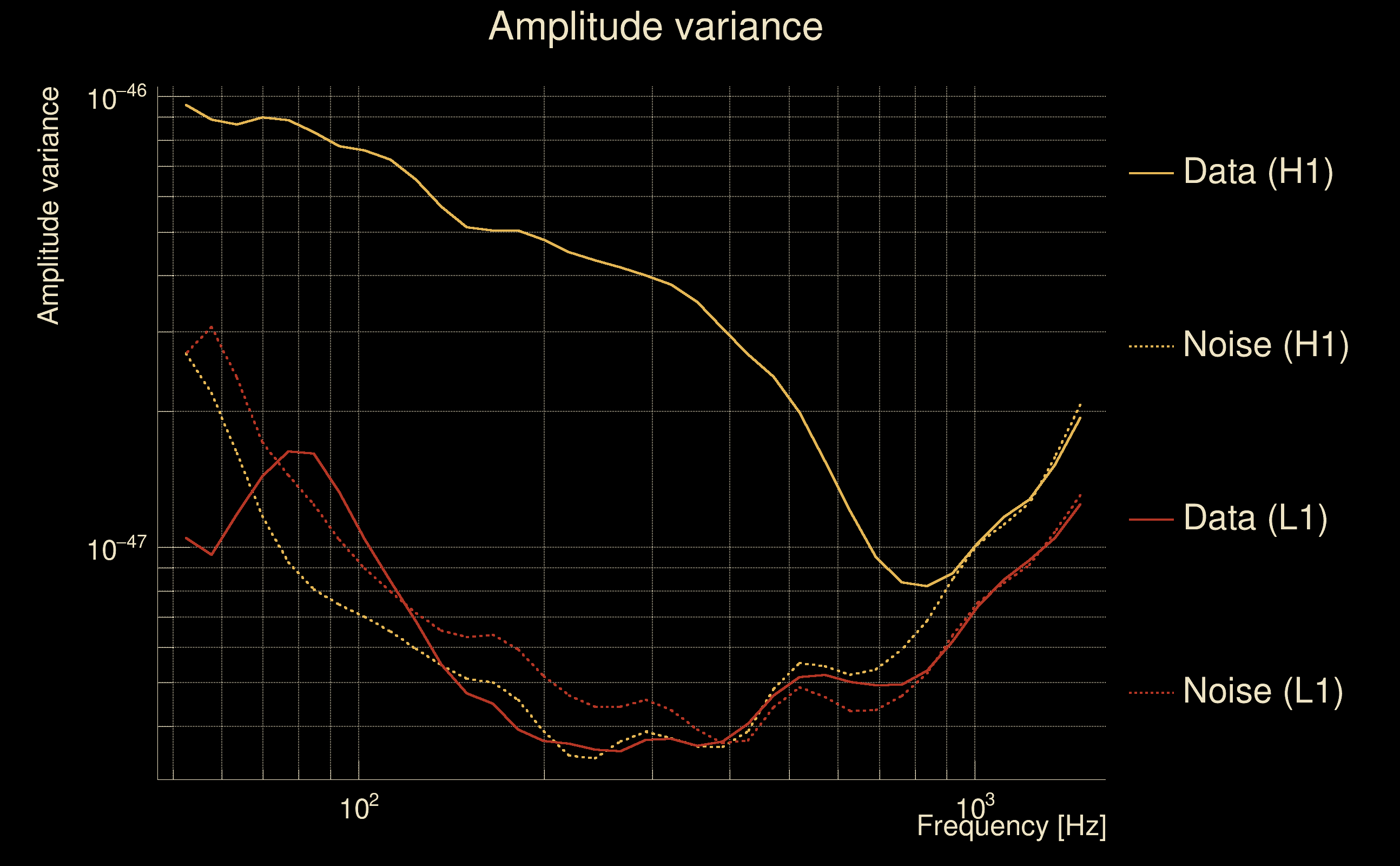

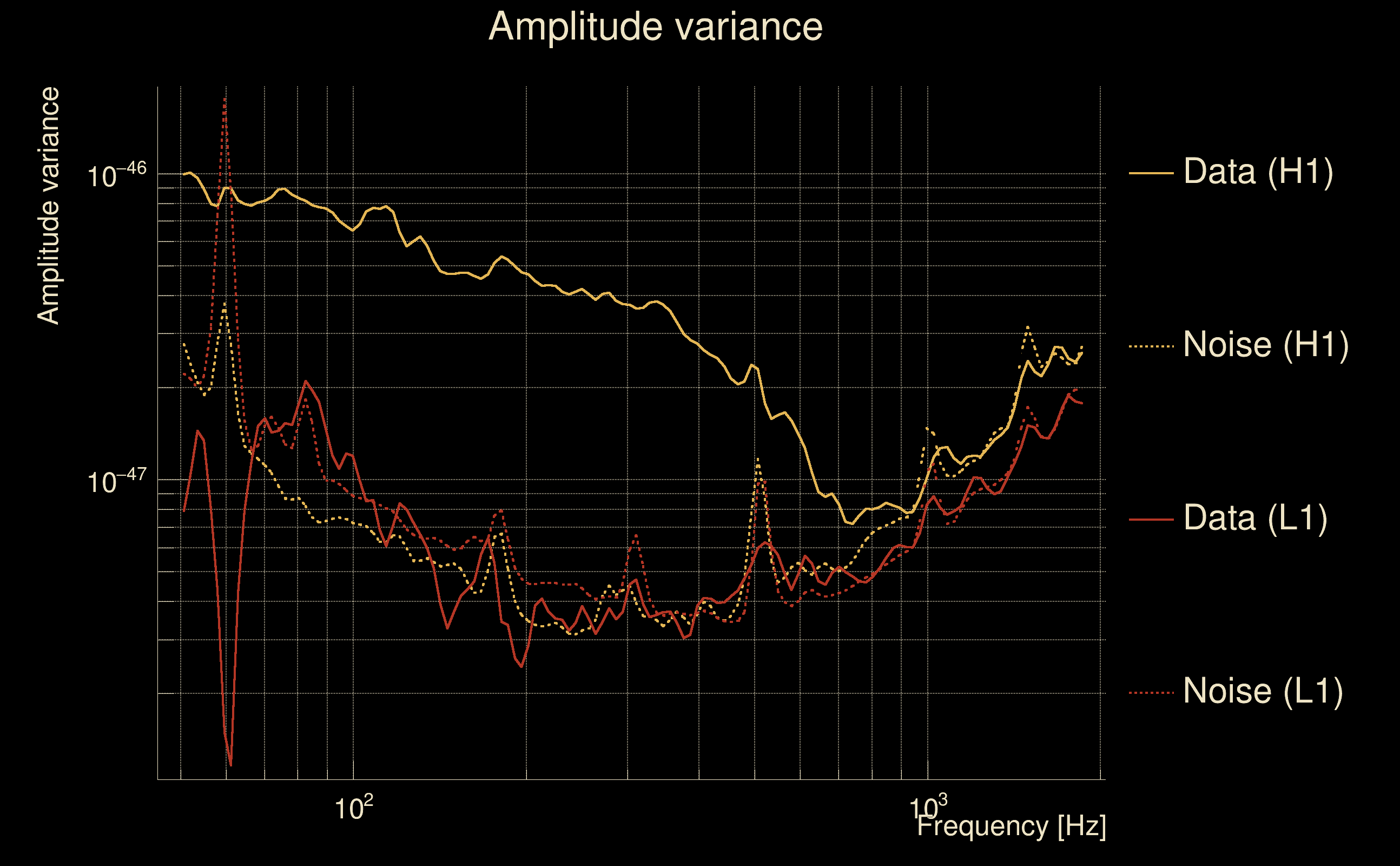

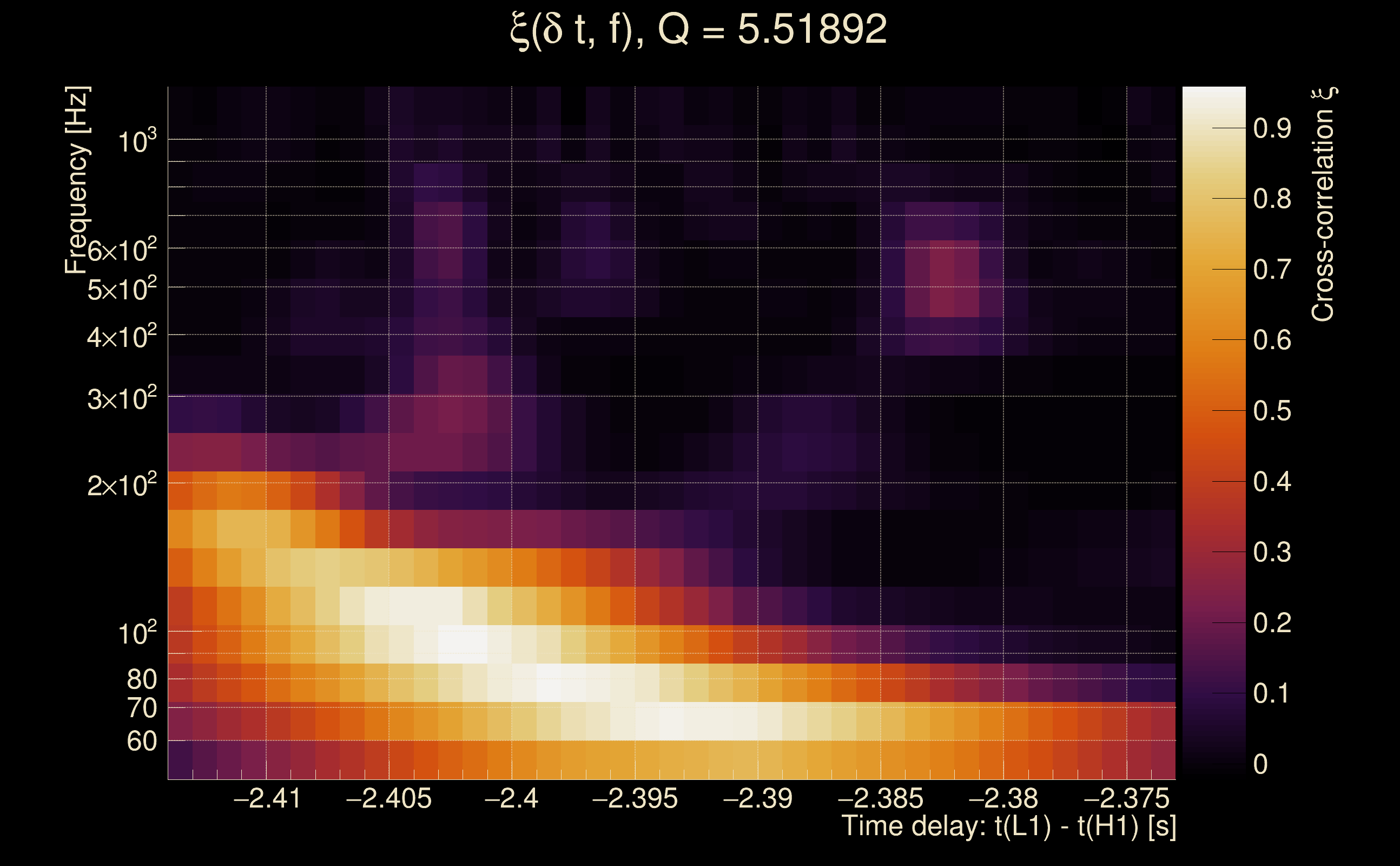

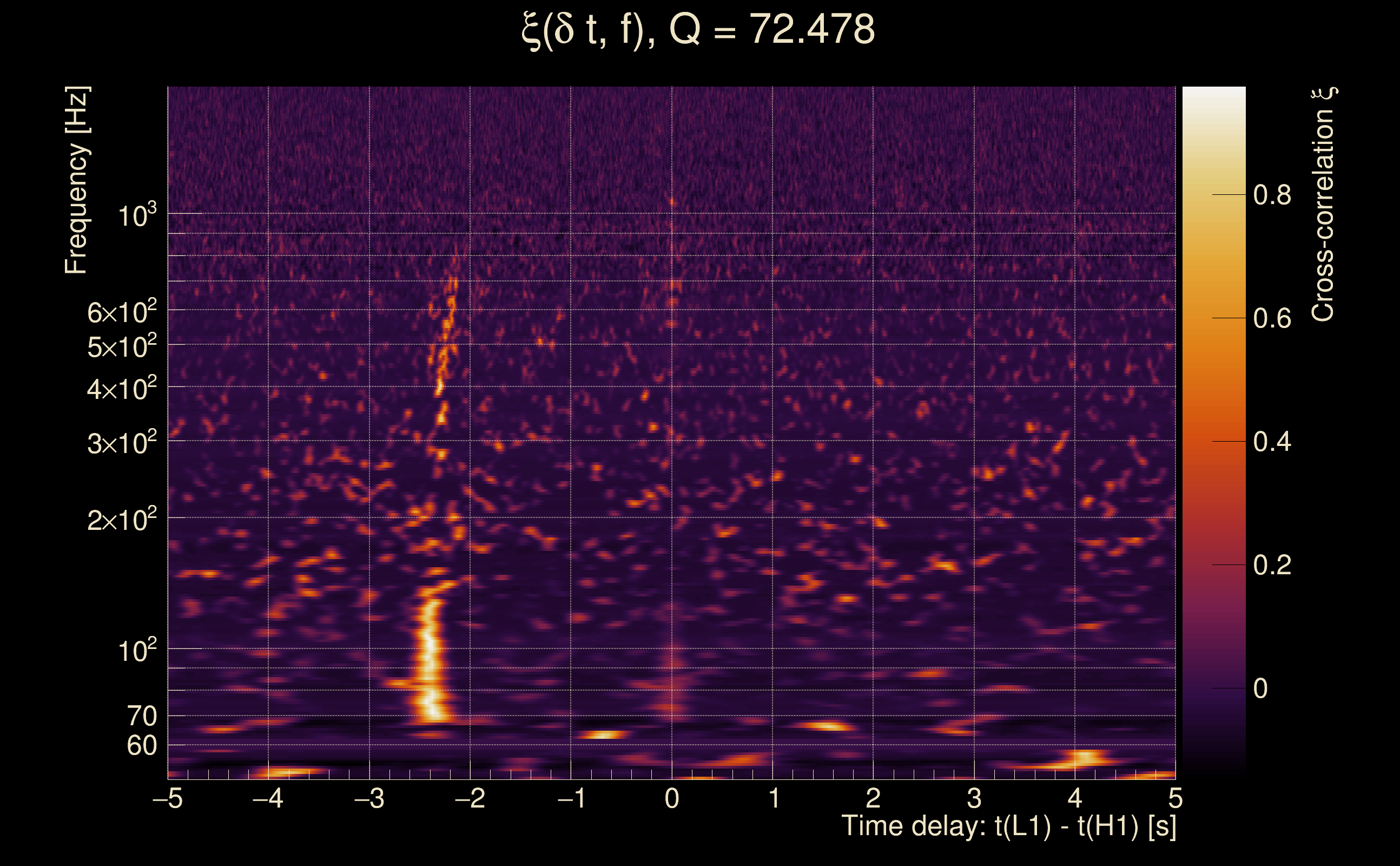

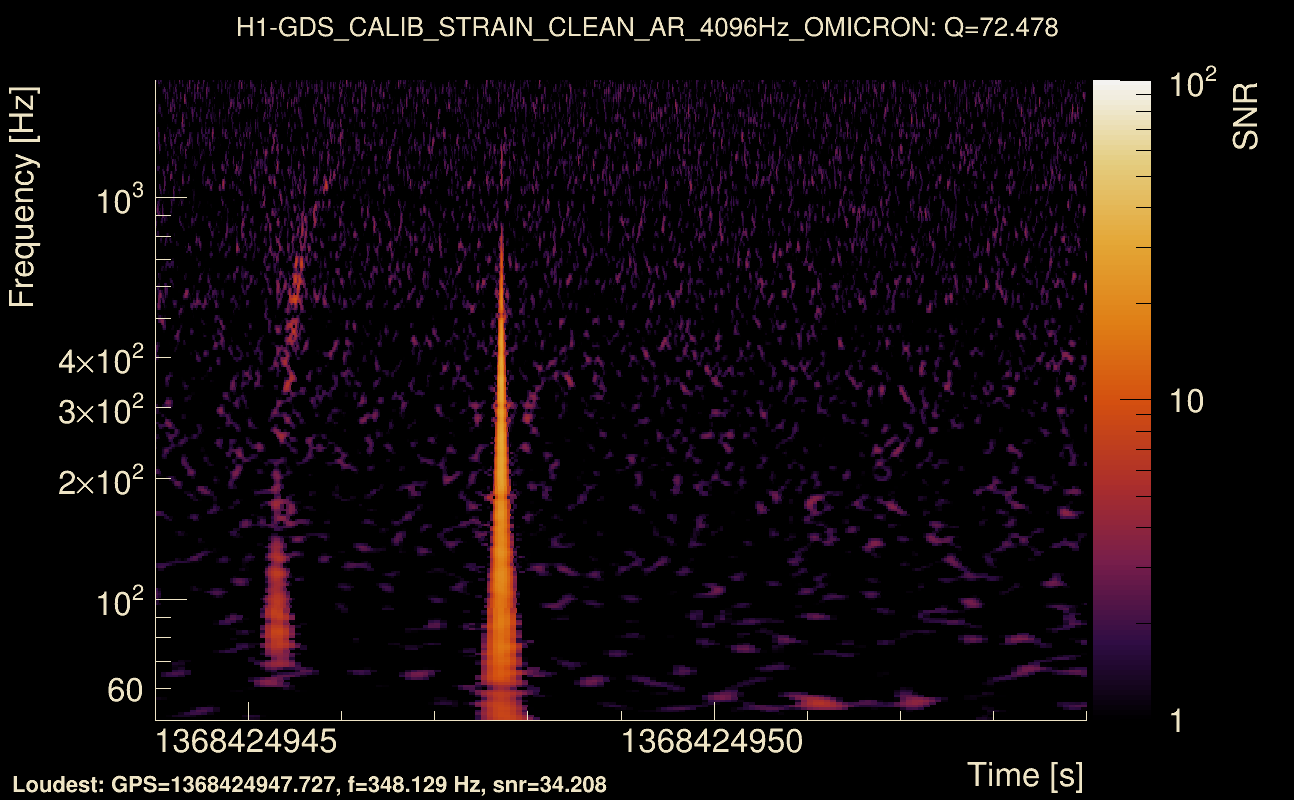

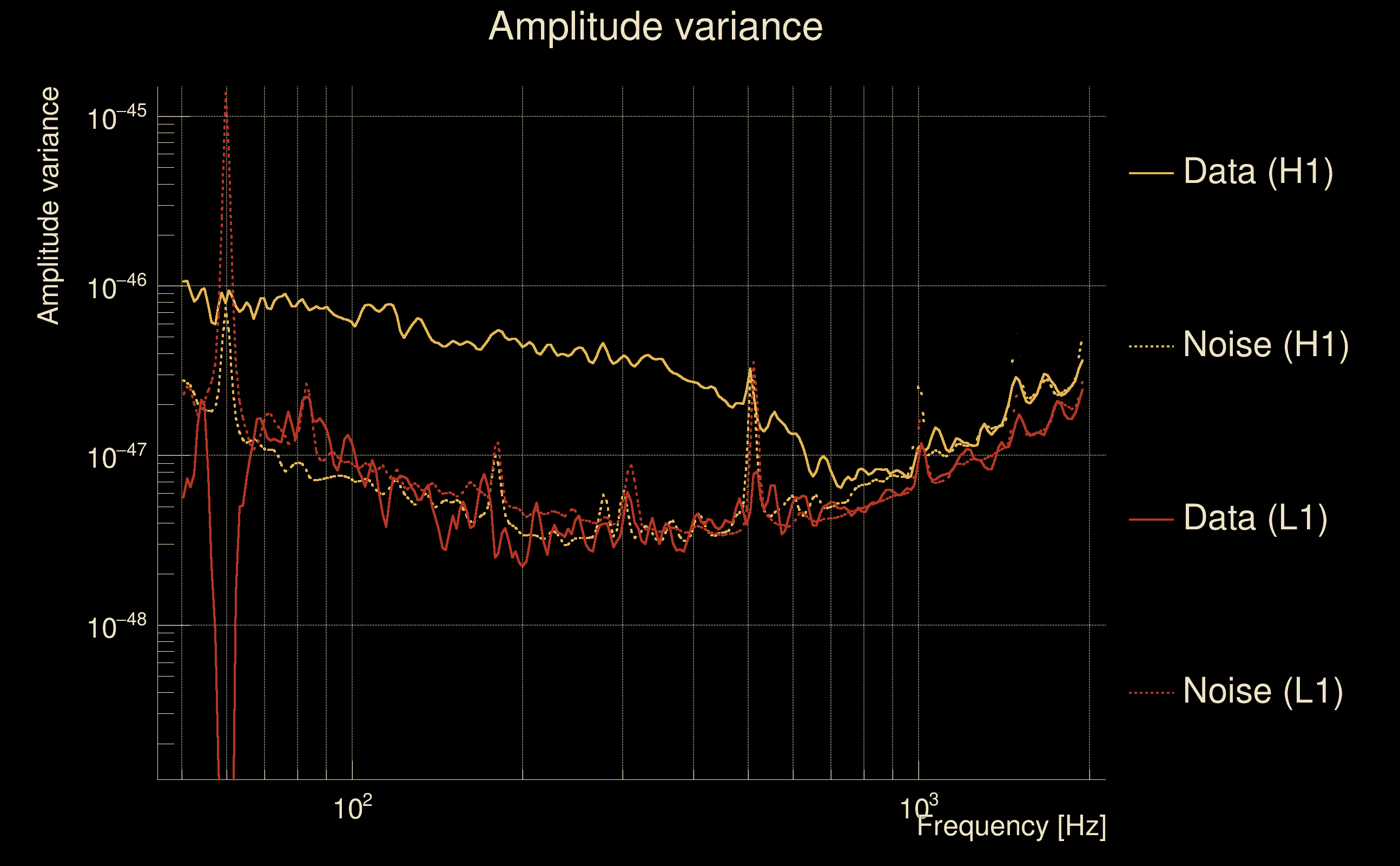

| Event time t(H1): | GPS = 1368424944 (Thu May 18 06:02:06 2023 ) → GPS = 1368424954 (Thu May 18 06:02:16 2023 ) |
| Event time t(L1): | GPS = 1368424944 (Thu May 18 06:02:16 2023 ) → GPS = 1368424954 (Thu May 18 06:02:16 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424941 → GPS = 1368424957 |
| Omicron analysis time window (L1): | GPS = 1368424941 → GPS = 1368424957 |
| Time delay between detectors t(L1) - t(H1): | -2.39318 s (slice index = 160 / 217), δt_gw = -0.0011759 s |
| Time delay standard deviation: | 0.0984347 s |
| [targeted mode] Time delay probability: | 0.701467 (0.383341 sigmas), δt_target = 0.000896692 s |
| Frequency: | 136.113 Hz |
| Ξ: | 0.356783 ± 0.137498 (variance = 0.0189056): Q0: 0.761775, Q1: 0.632612, Q2: 0.580113, Q3: 0.488221, Q4: 0.352557 |
| Rank: | R_A = 0.250272 |
| Log of amplitude ratio (L1/H1): | -2.40018, variance = 1.13527 (L1/H1: -2.4296, variance = 1.18409, H1/L1: 1.02596, variance = 0.686292) |
| Amplitude ratio (L1/H1): | 0.0907019 ⋇ 2.90226 (L1/H1: 0.0880716 ⋇ 2.96881, H1/L1: 2.78977 ⋇ 2.28971) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.30473 |

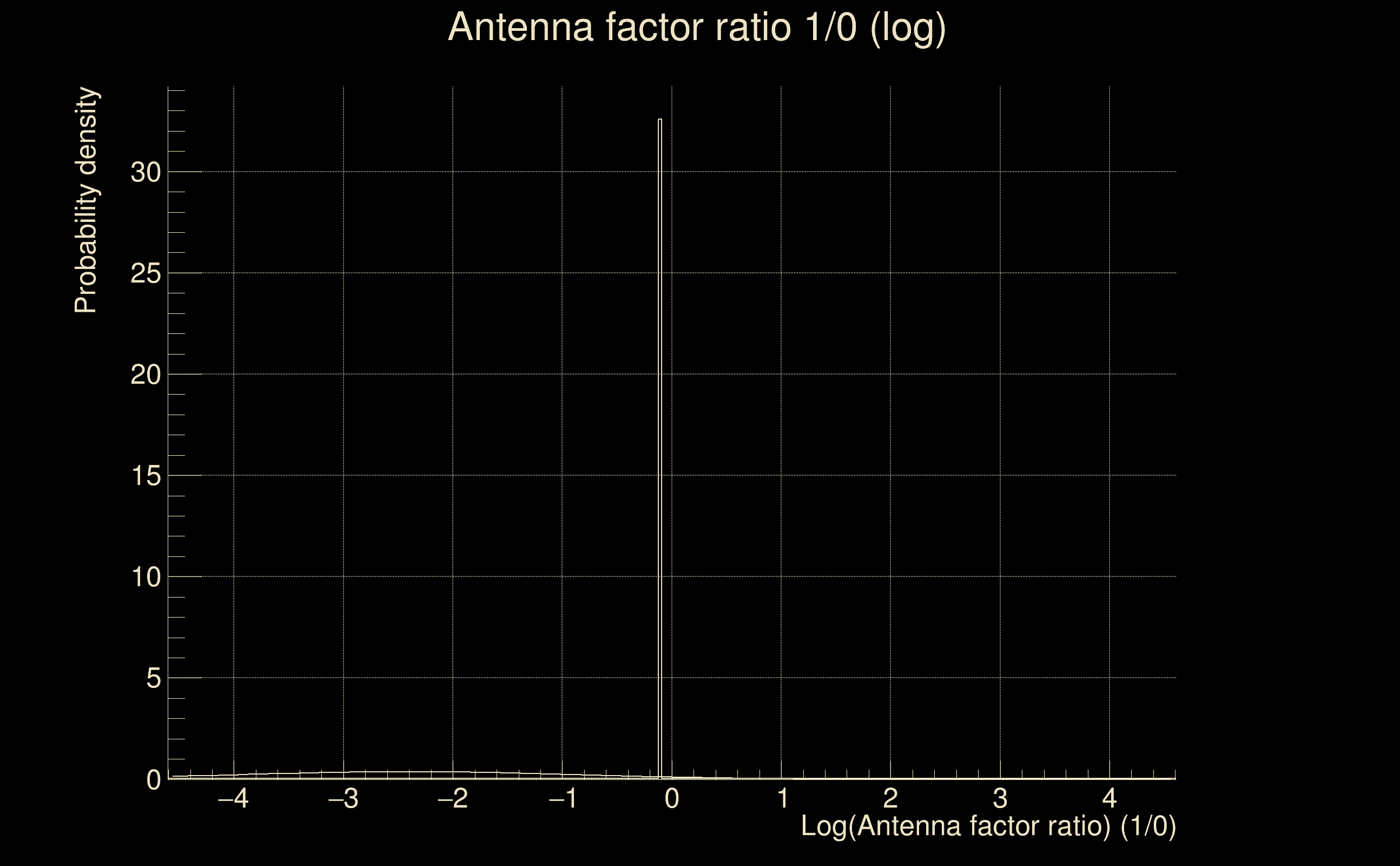

| Antenna factor probability: | 0.0324206 |
| Number of rejected frequency rows: | Q0: 7 / 18, Q1: 18 / 36, Q2: 42 / 70, Q3: 105 / 134, Q4: 235 / 258 |
| Maximum signal-to-noise ratio: | H1: 111.488, L1: 16.3148 |

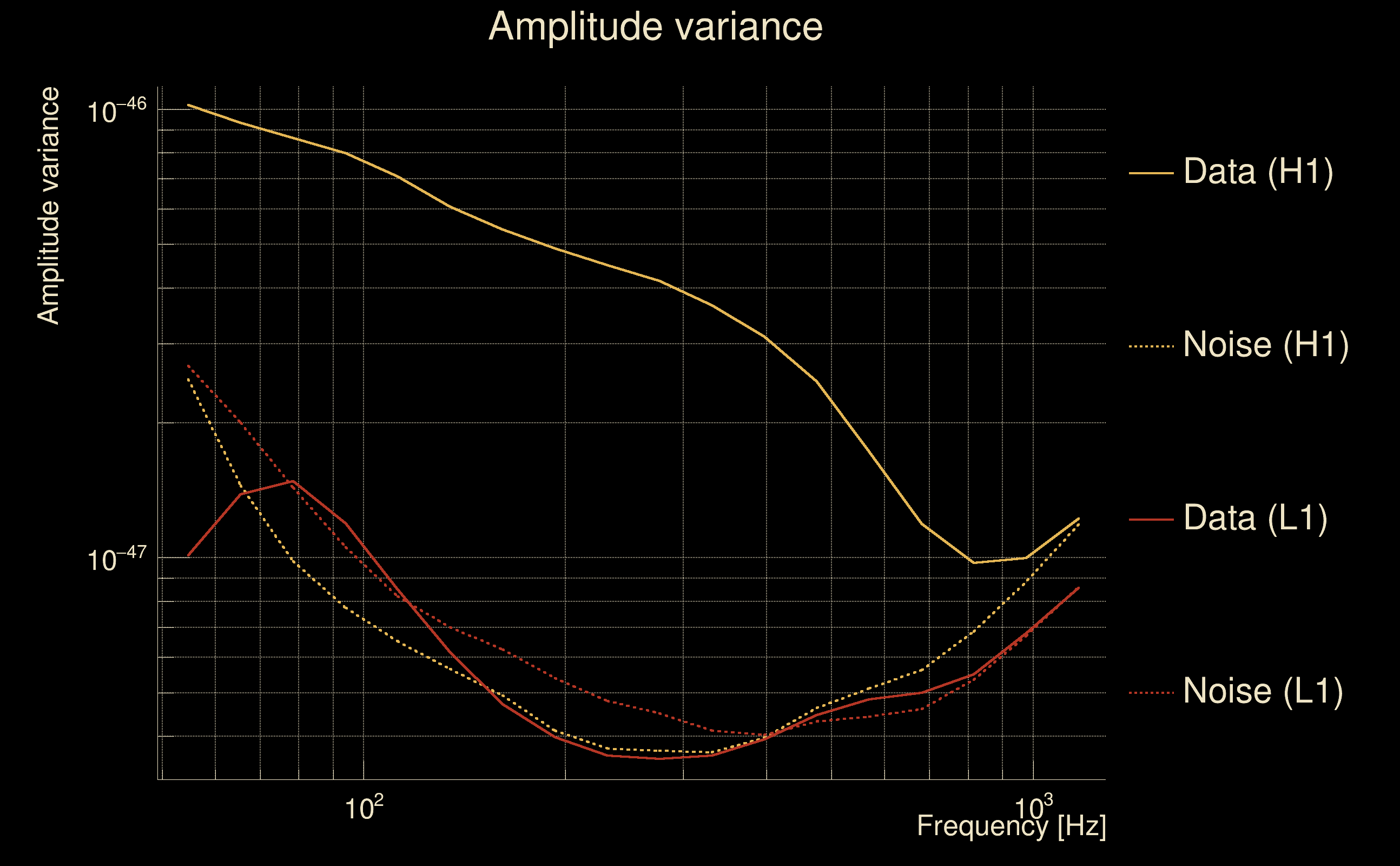

| SNR variance: | H1: 3.40506, L1: 0.598529 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

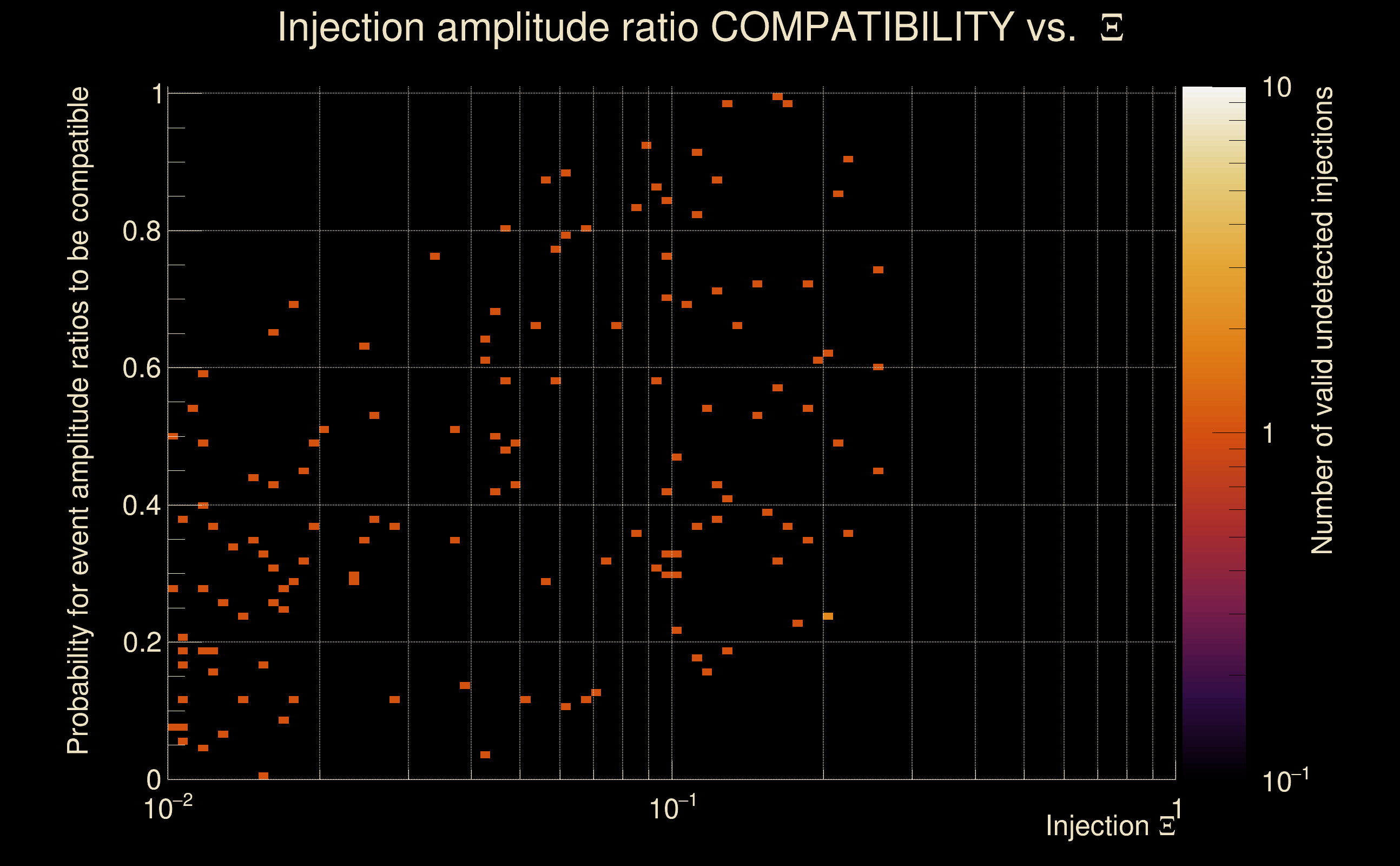

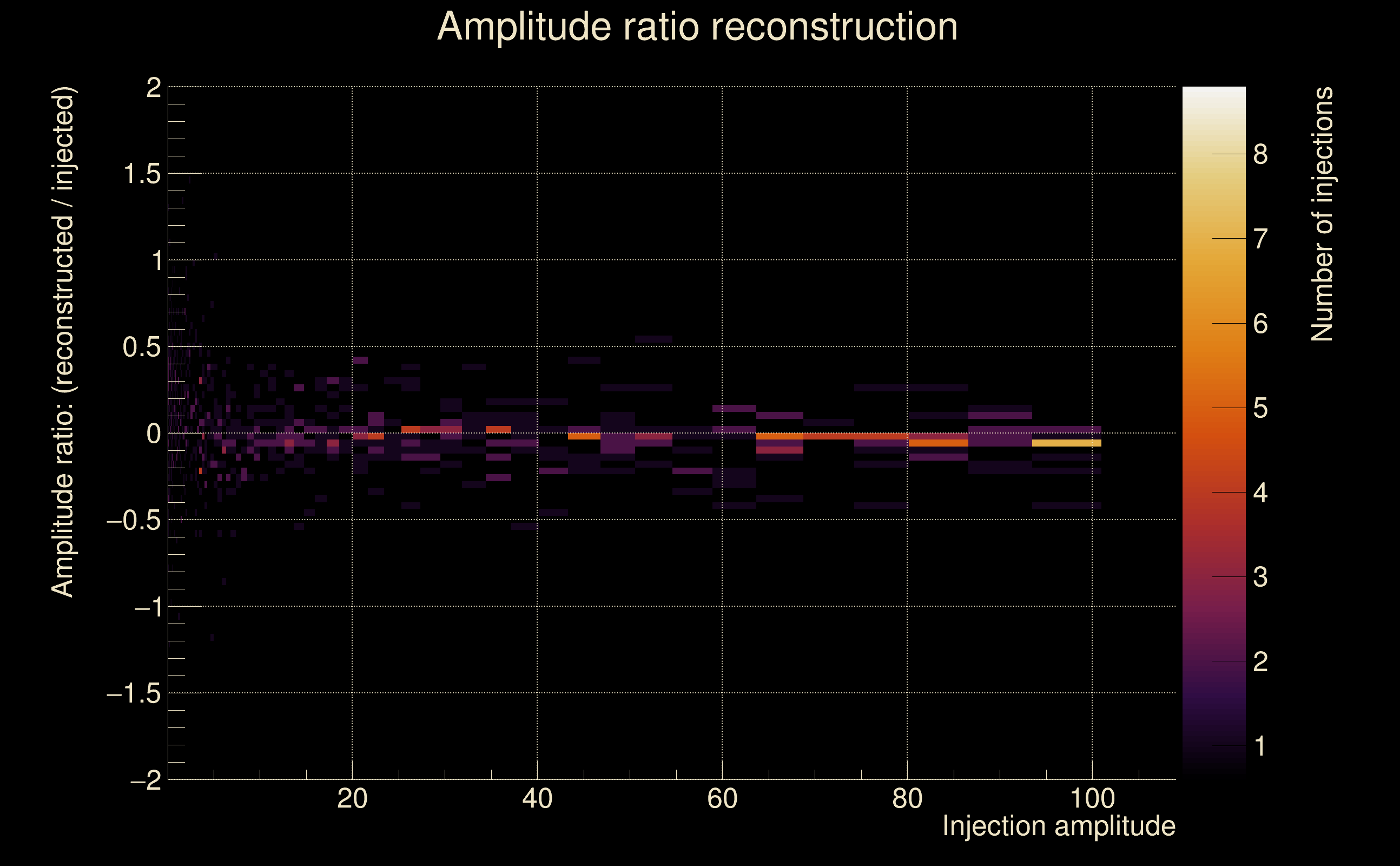

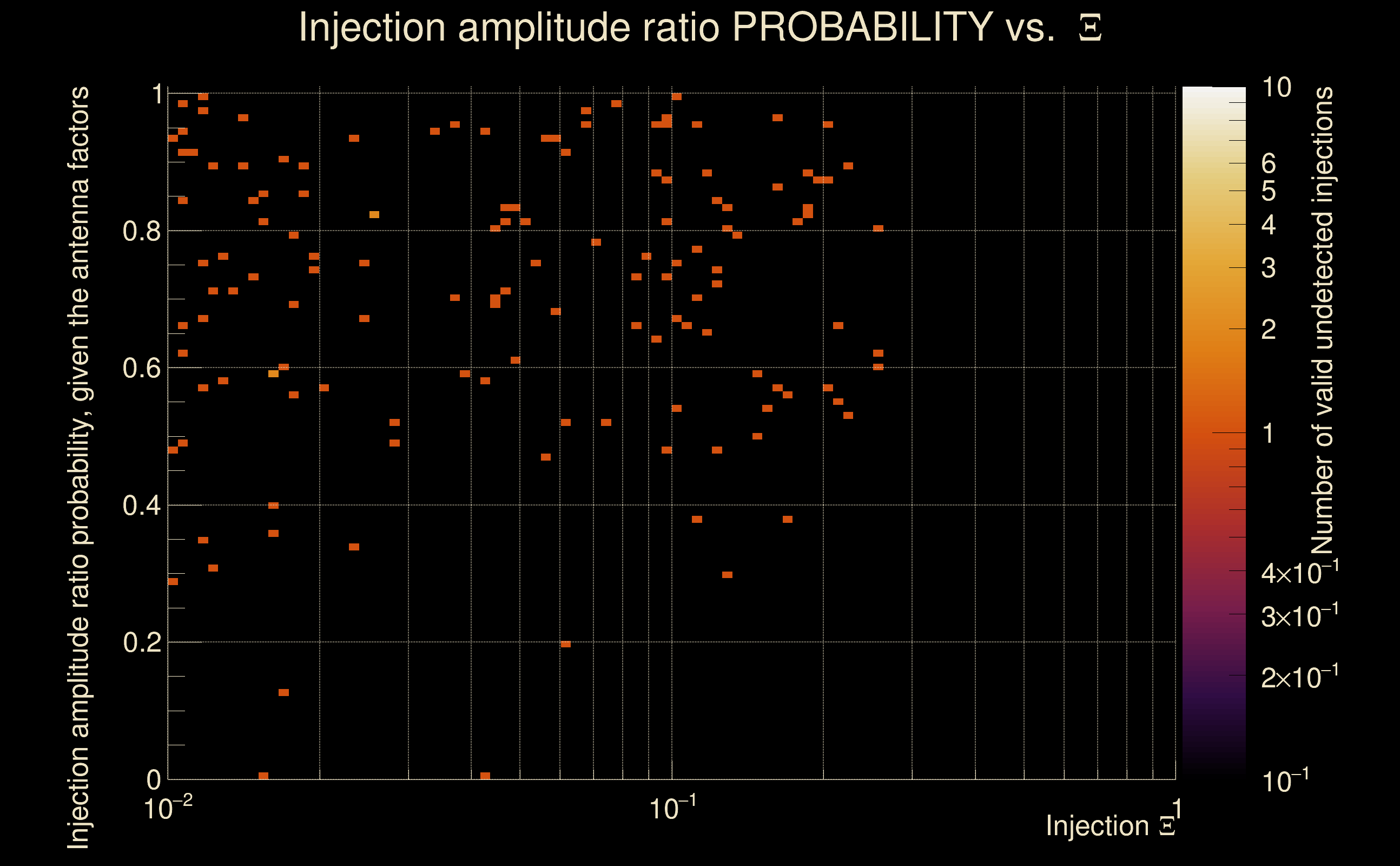

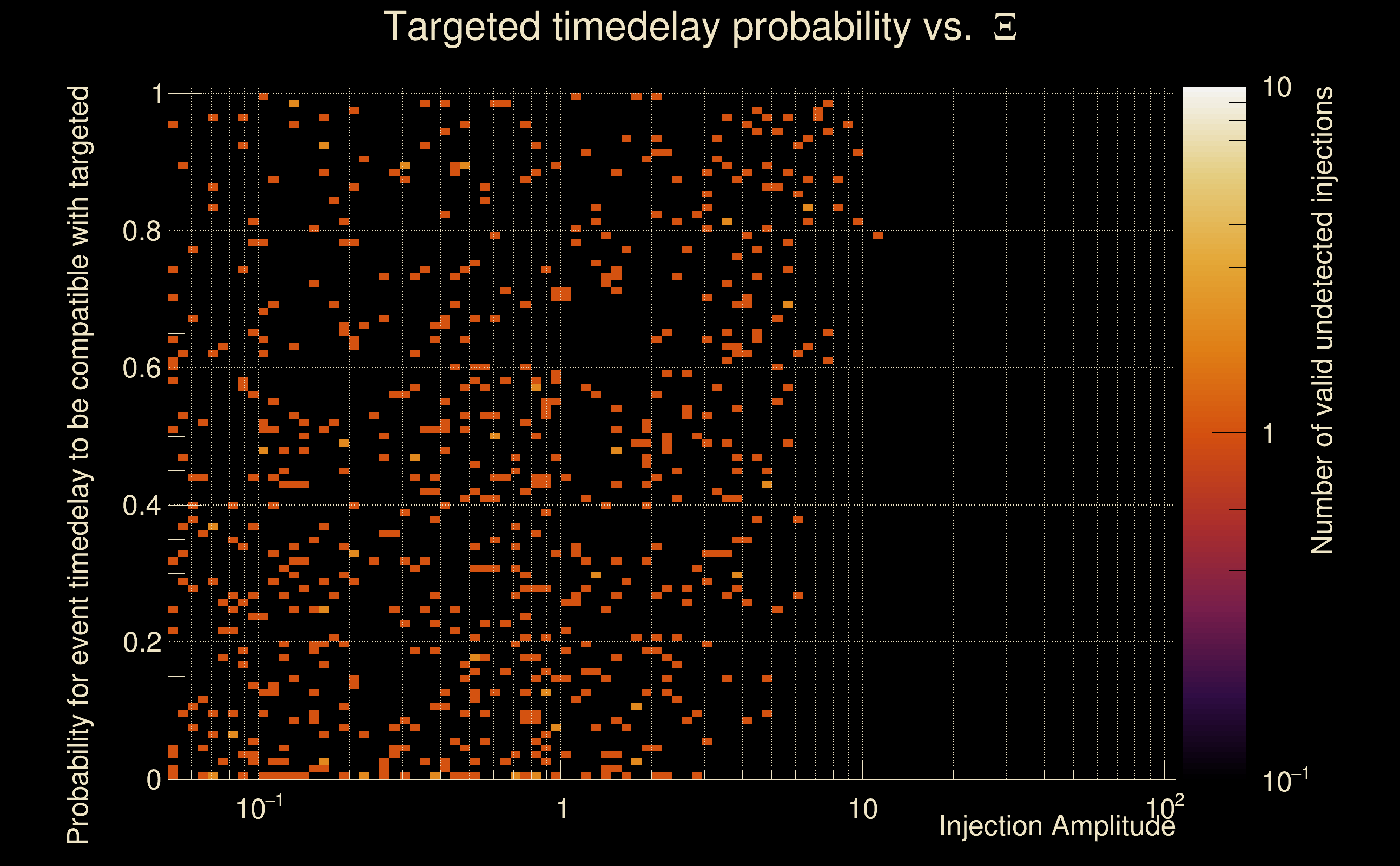

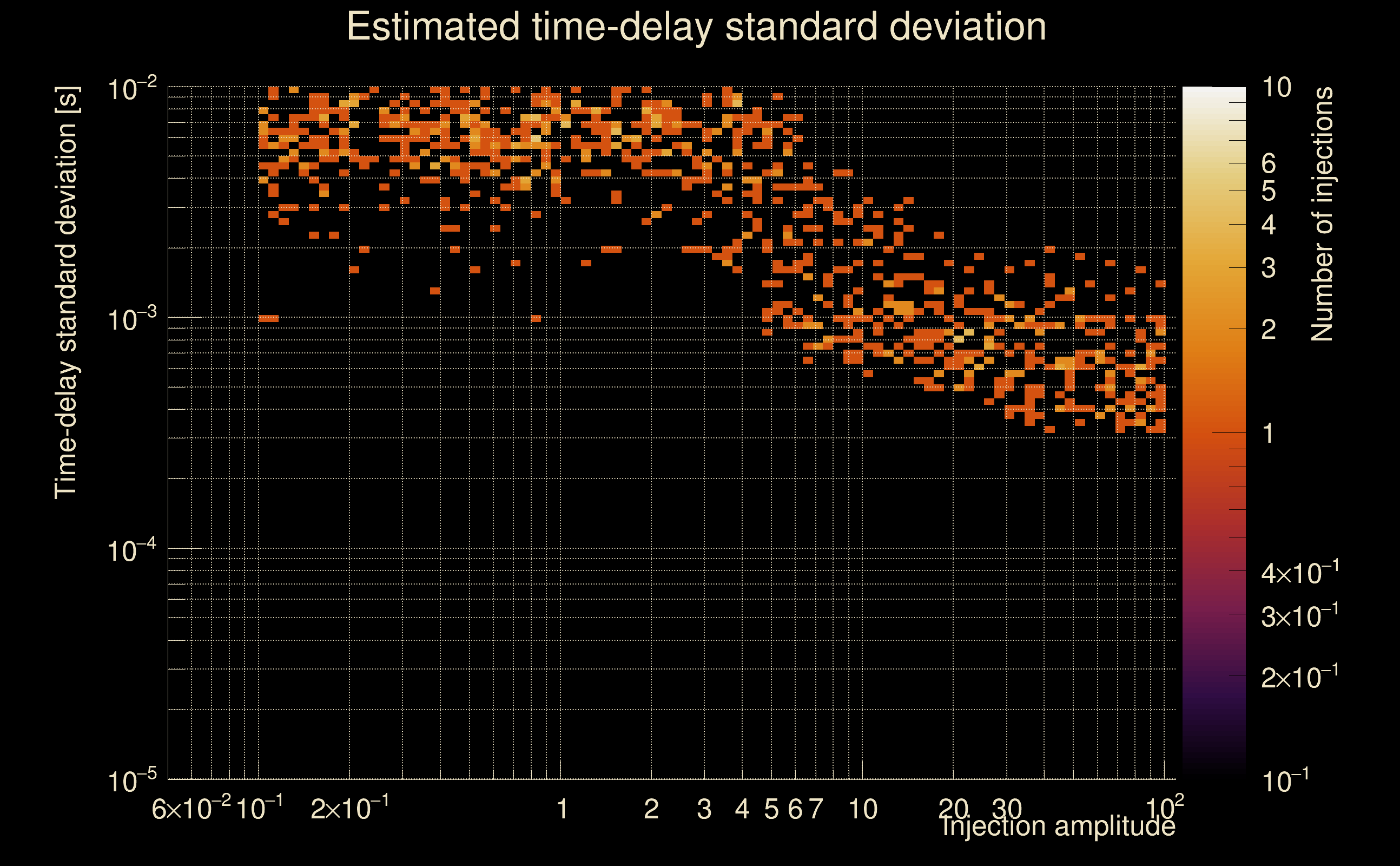

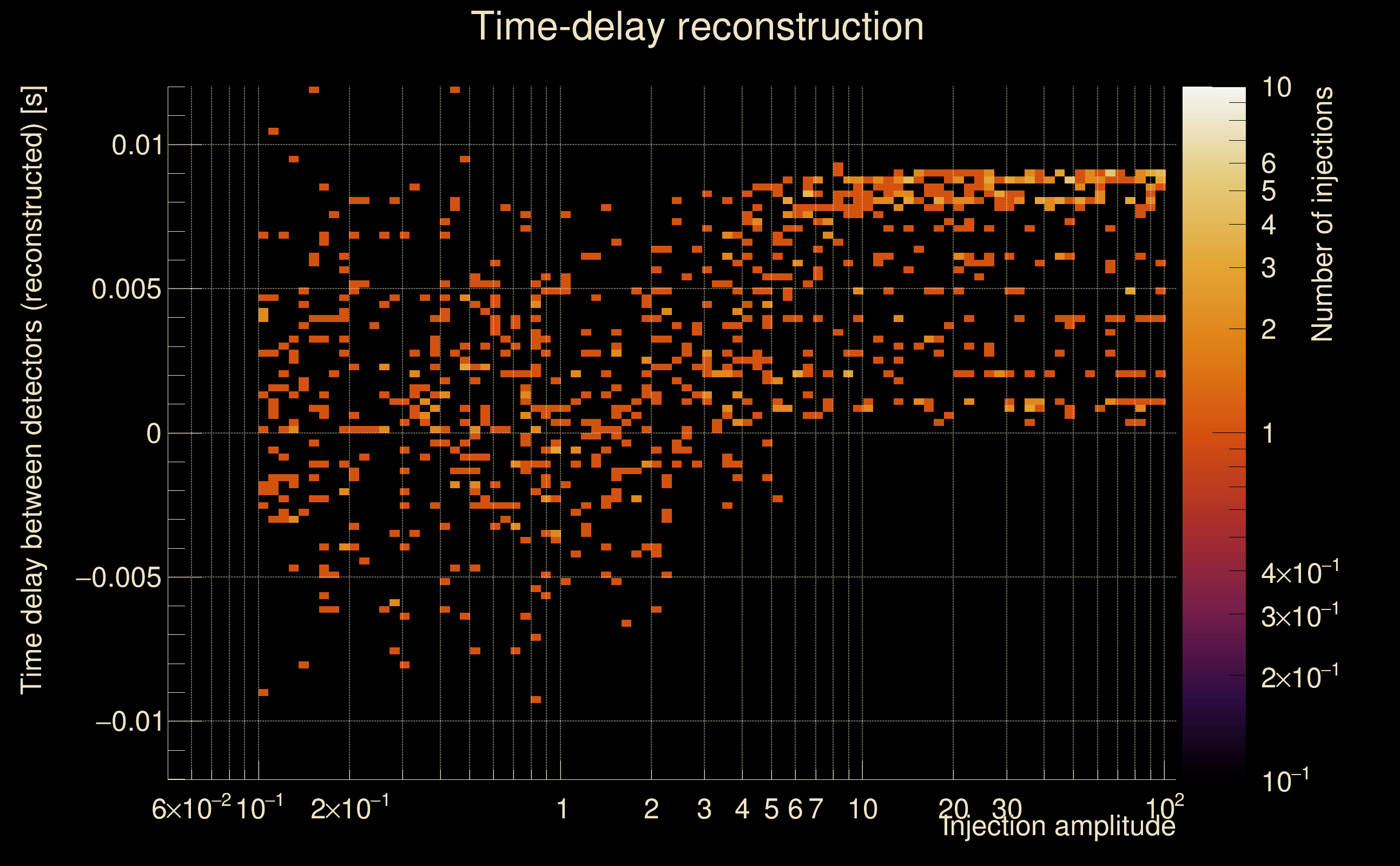

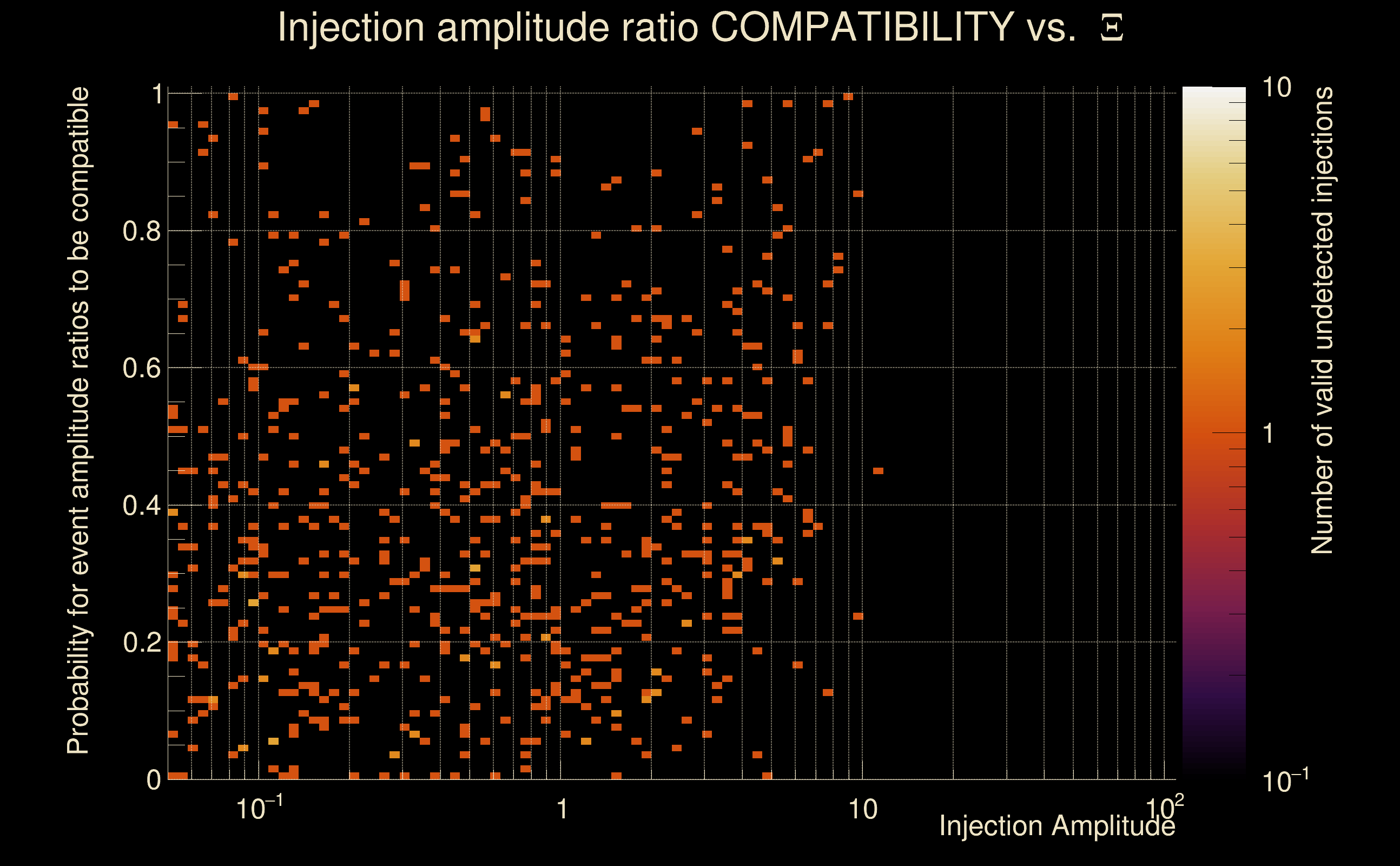

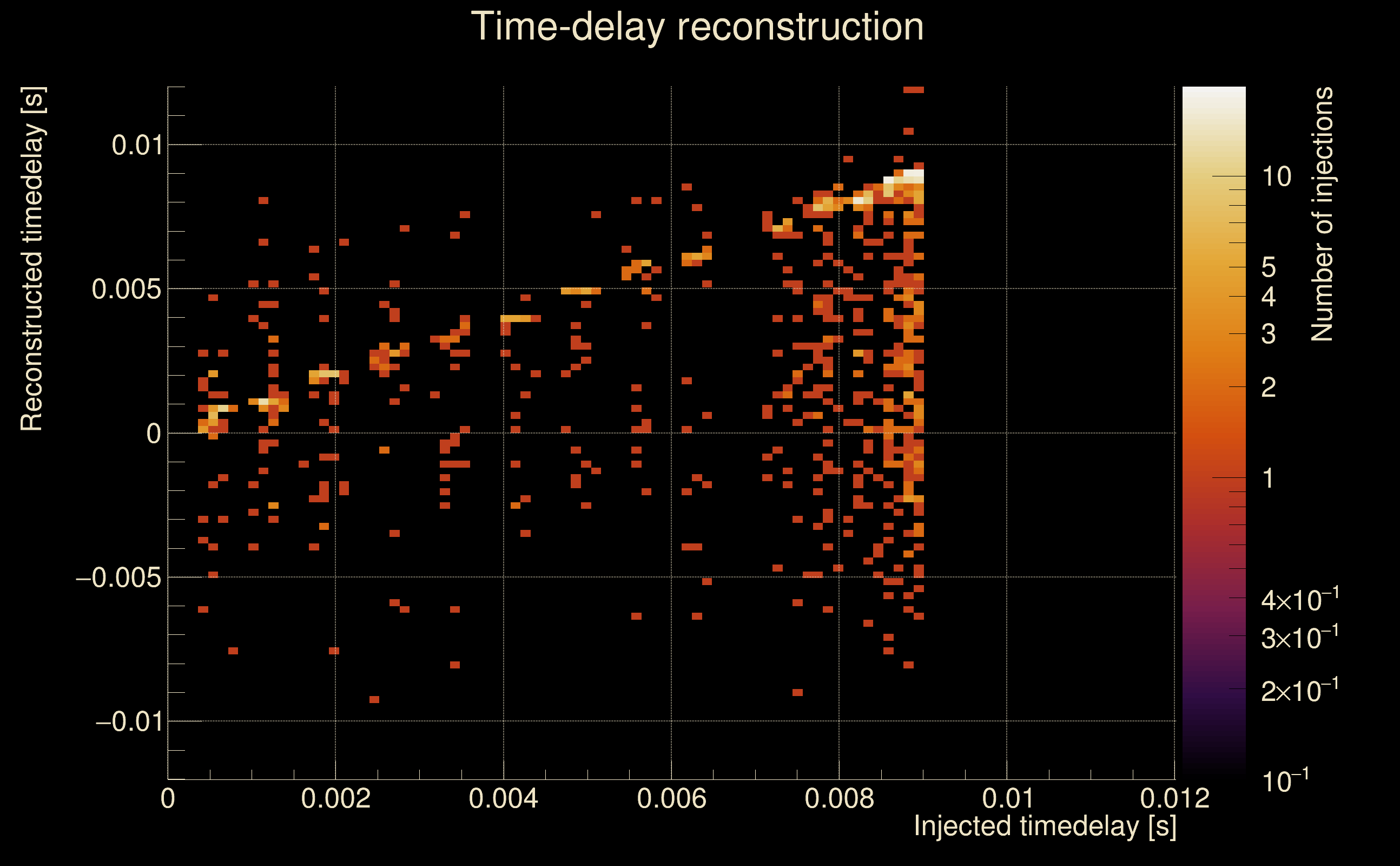

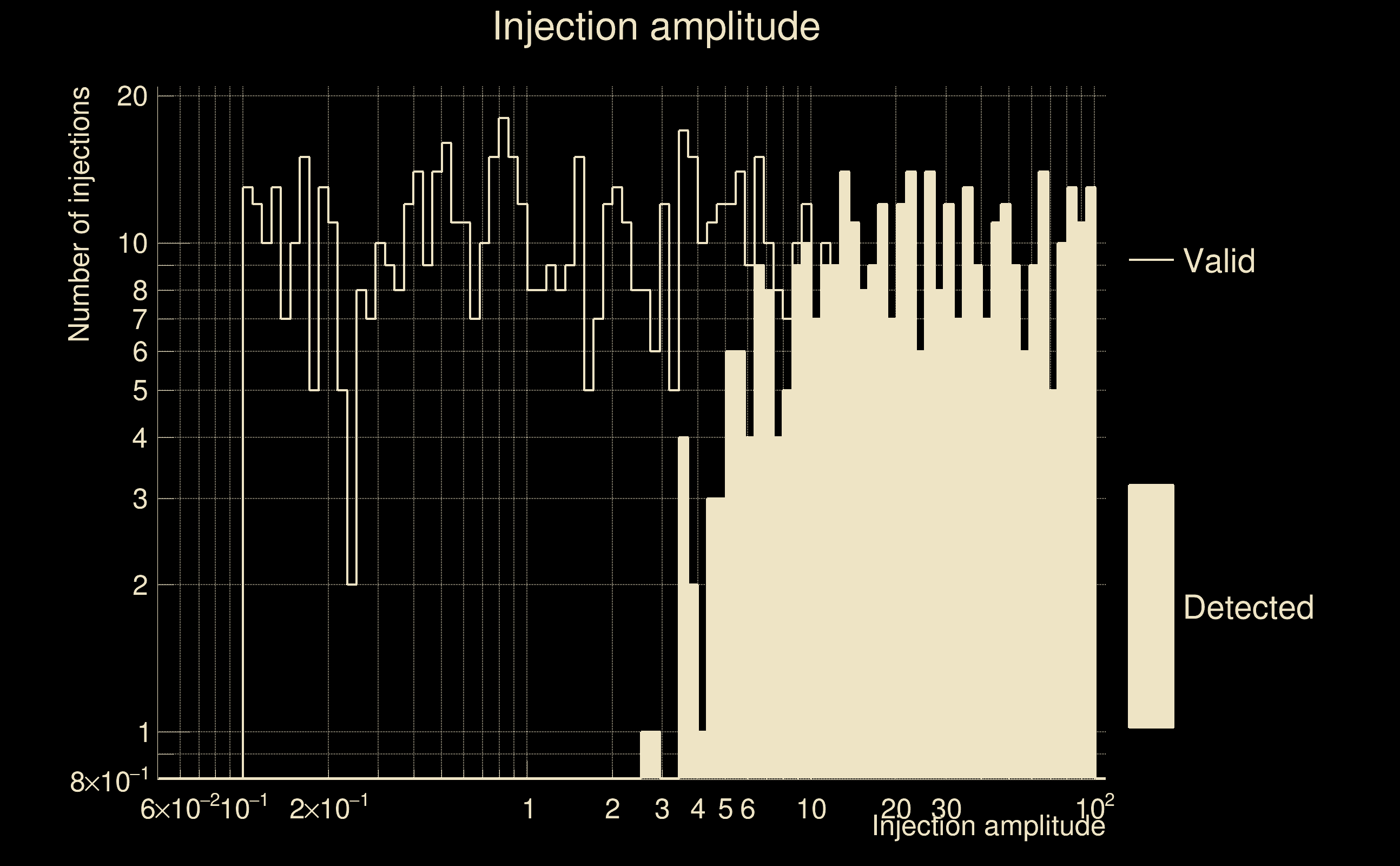

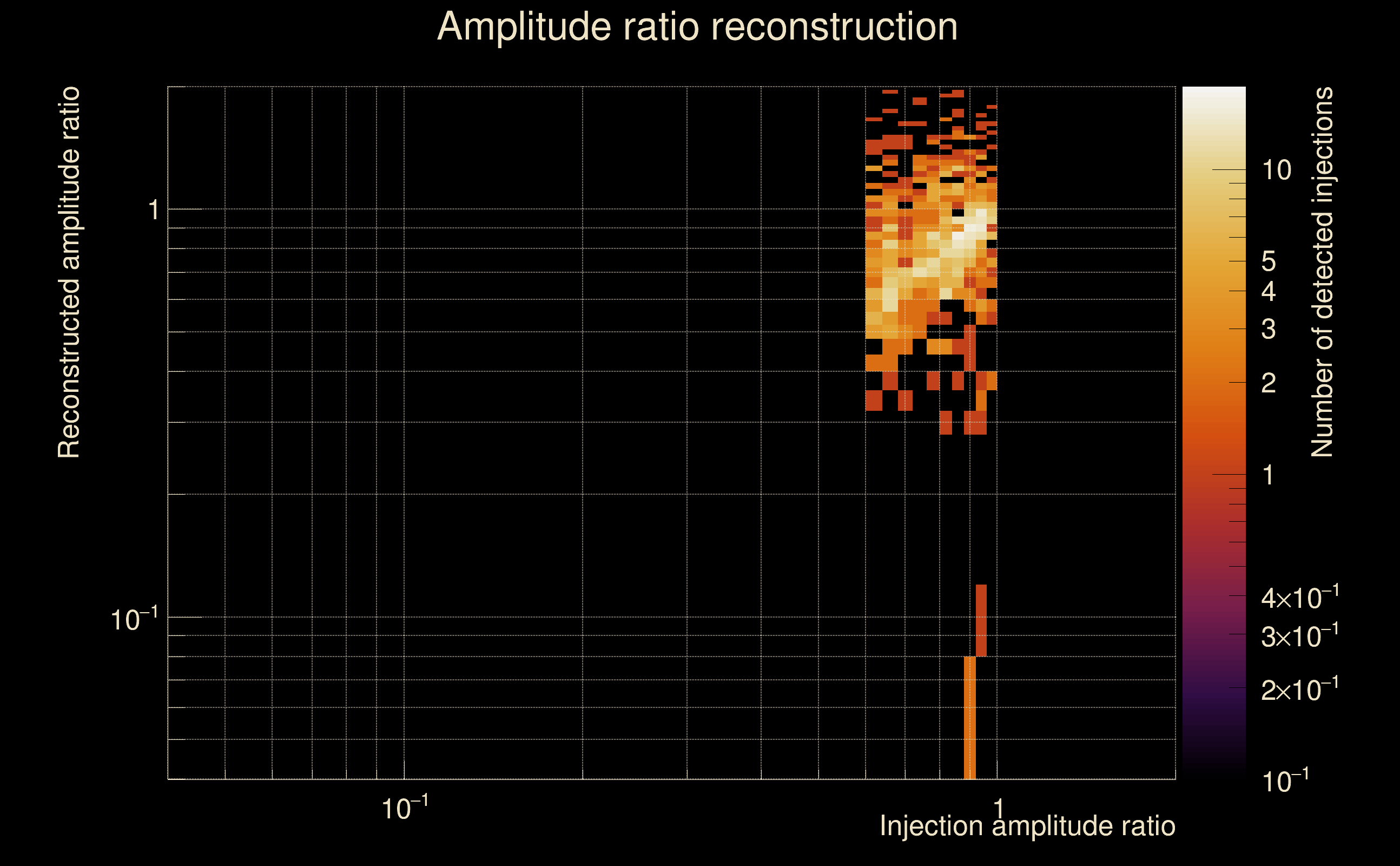

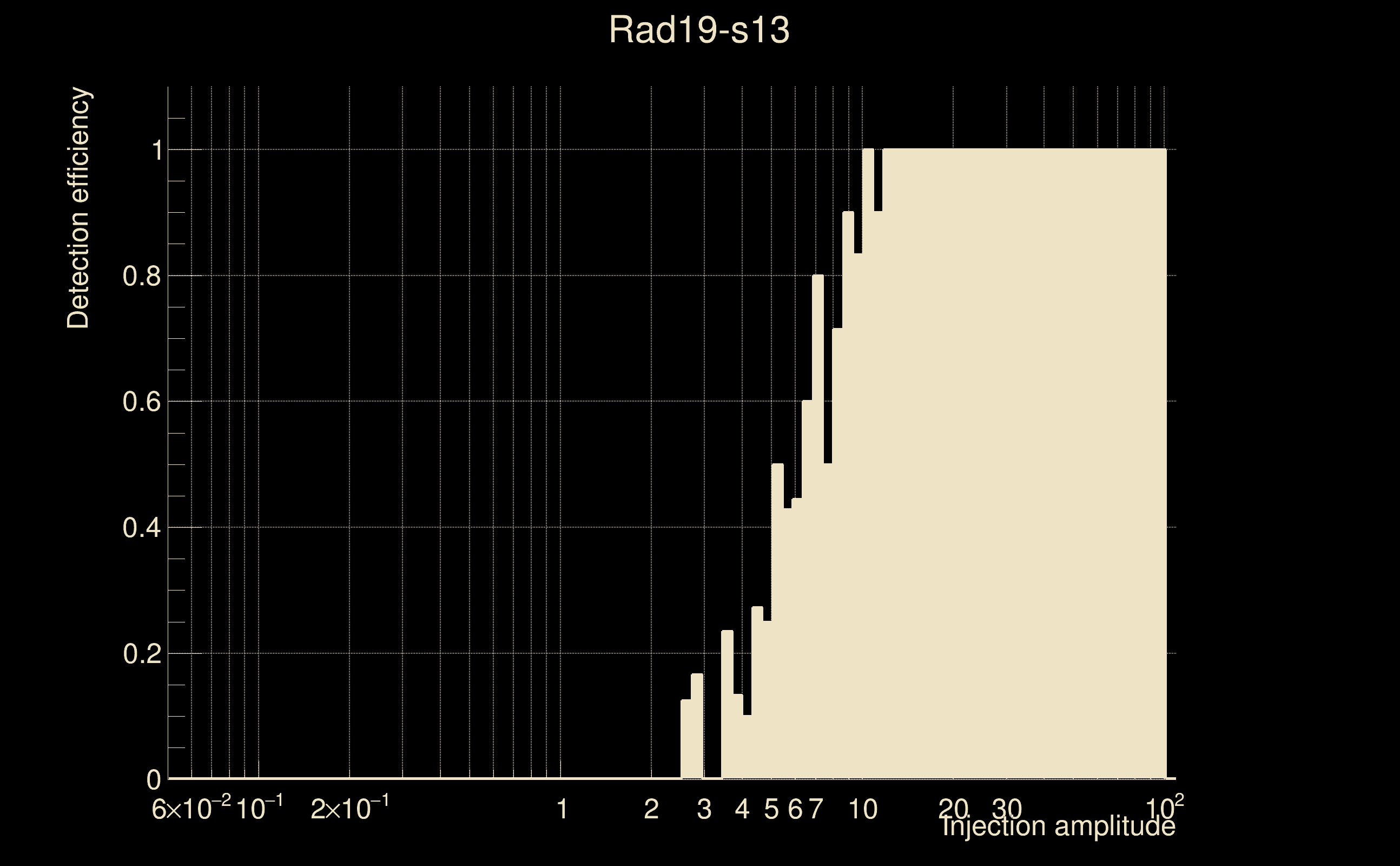

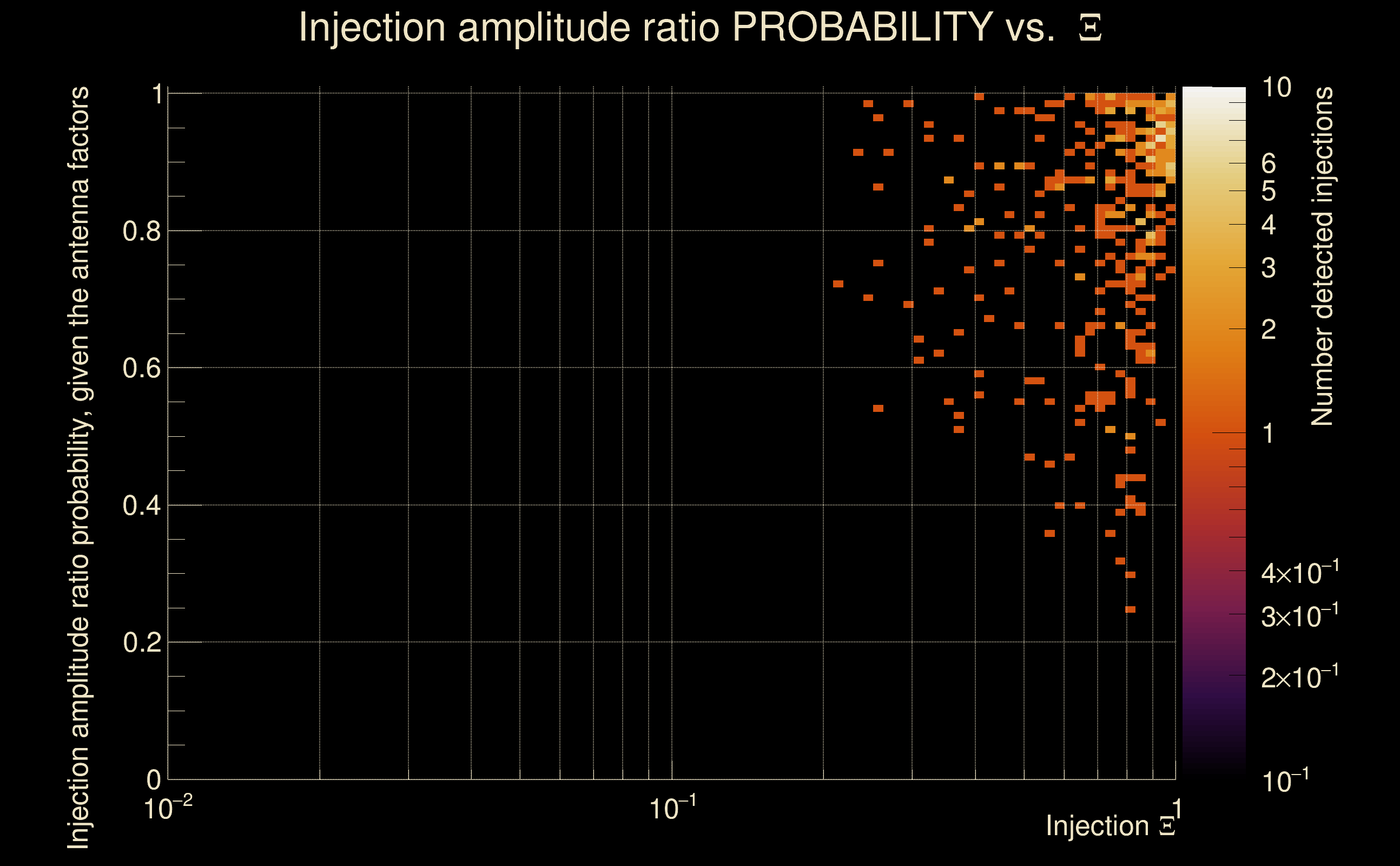

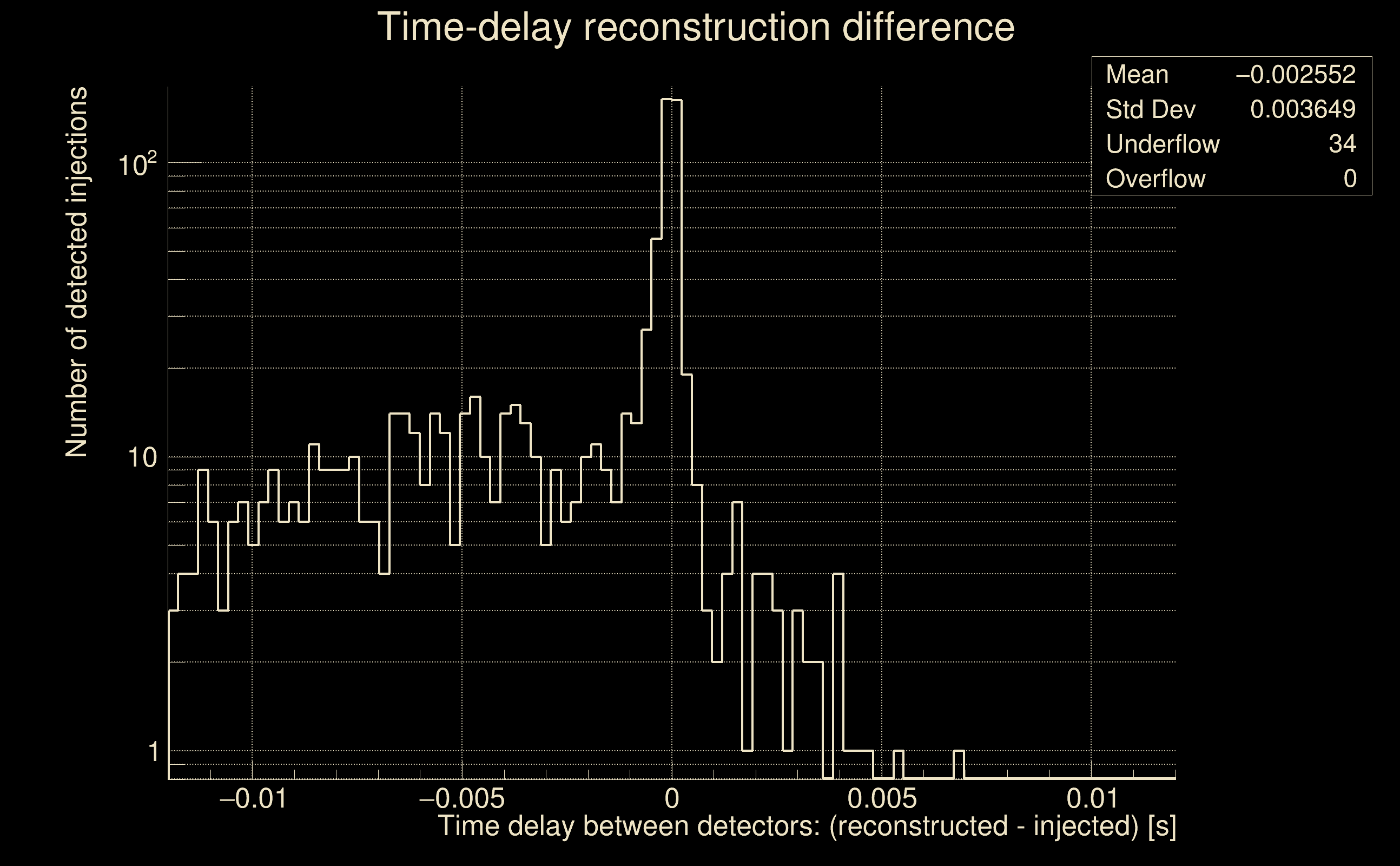

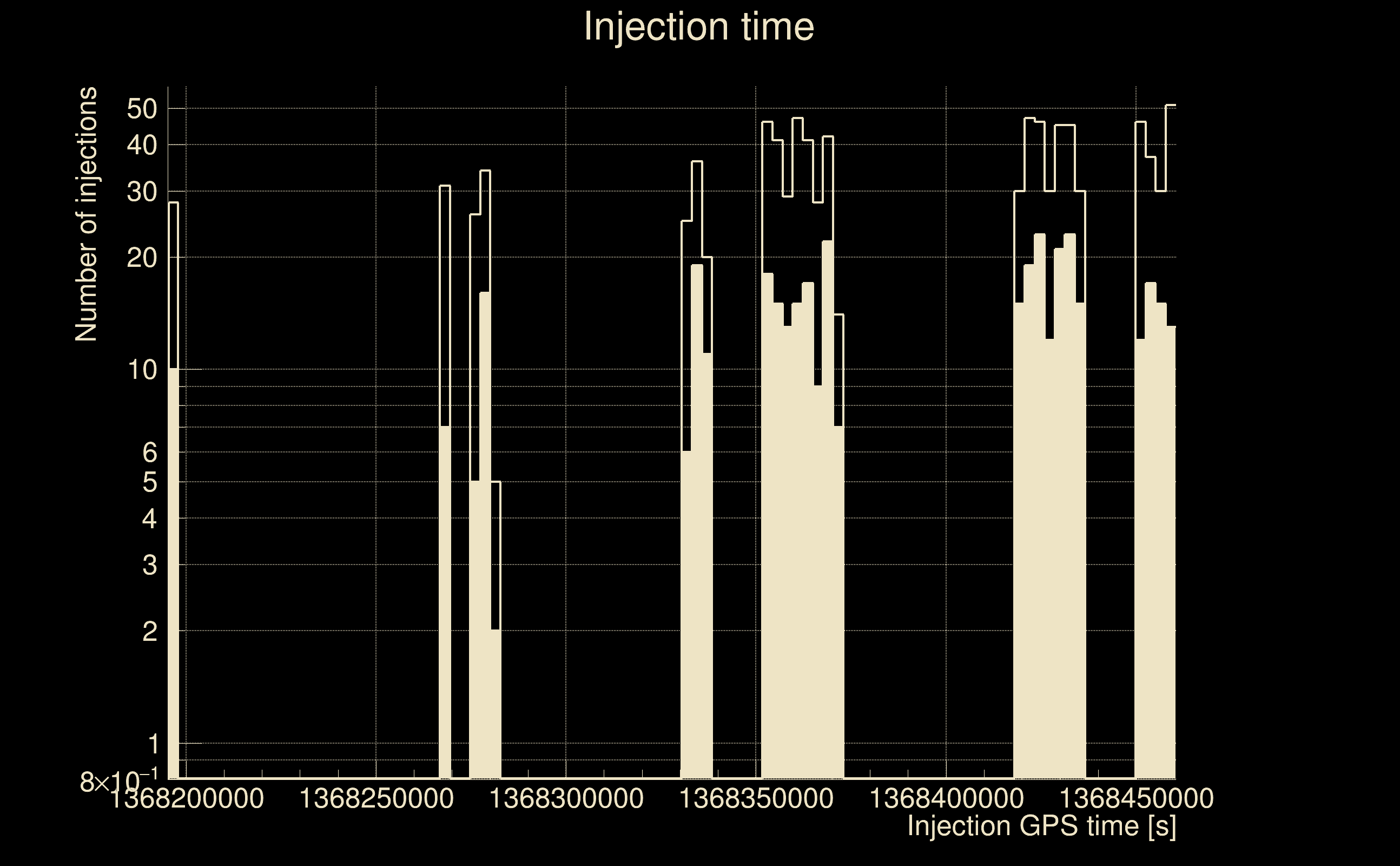

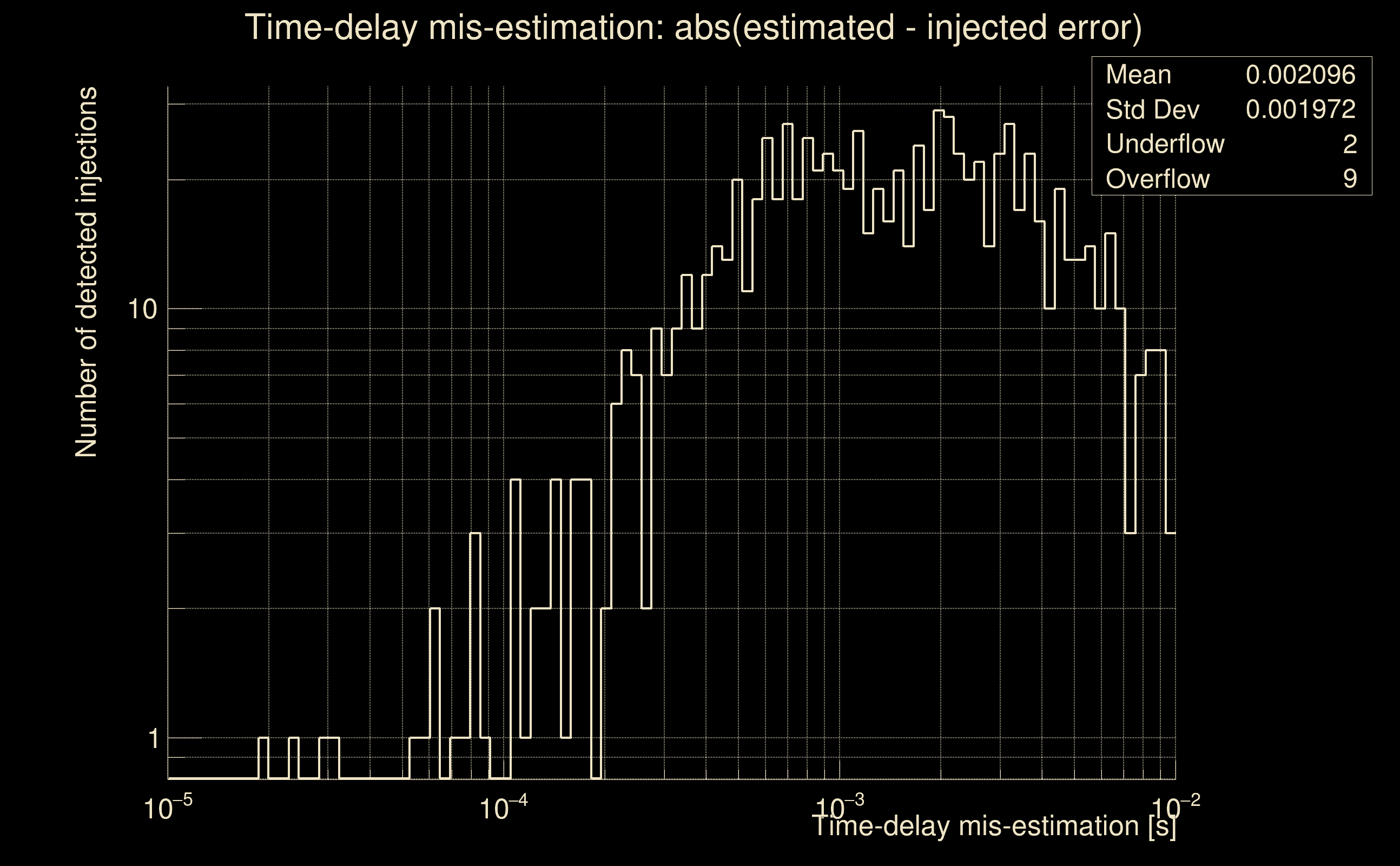

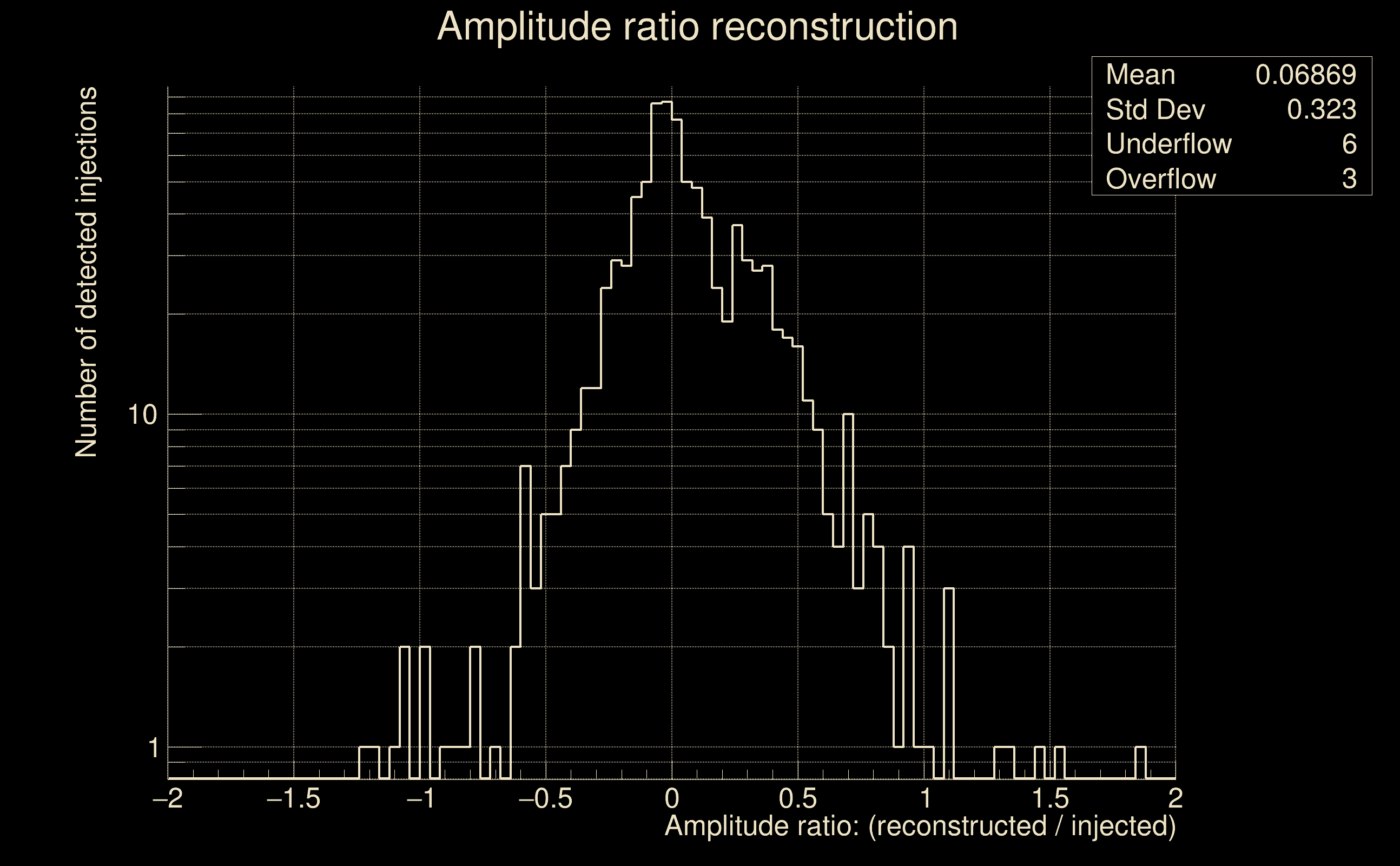

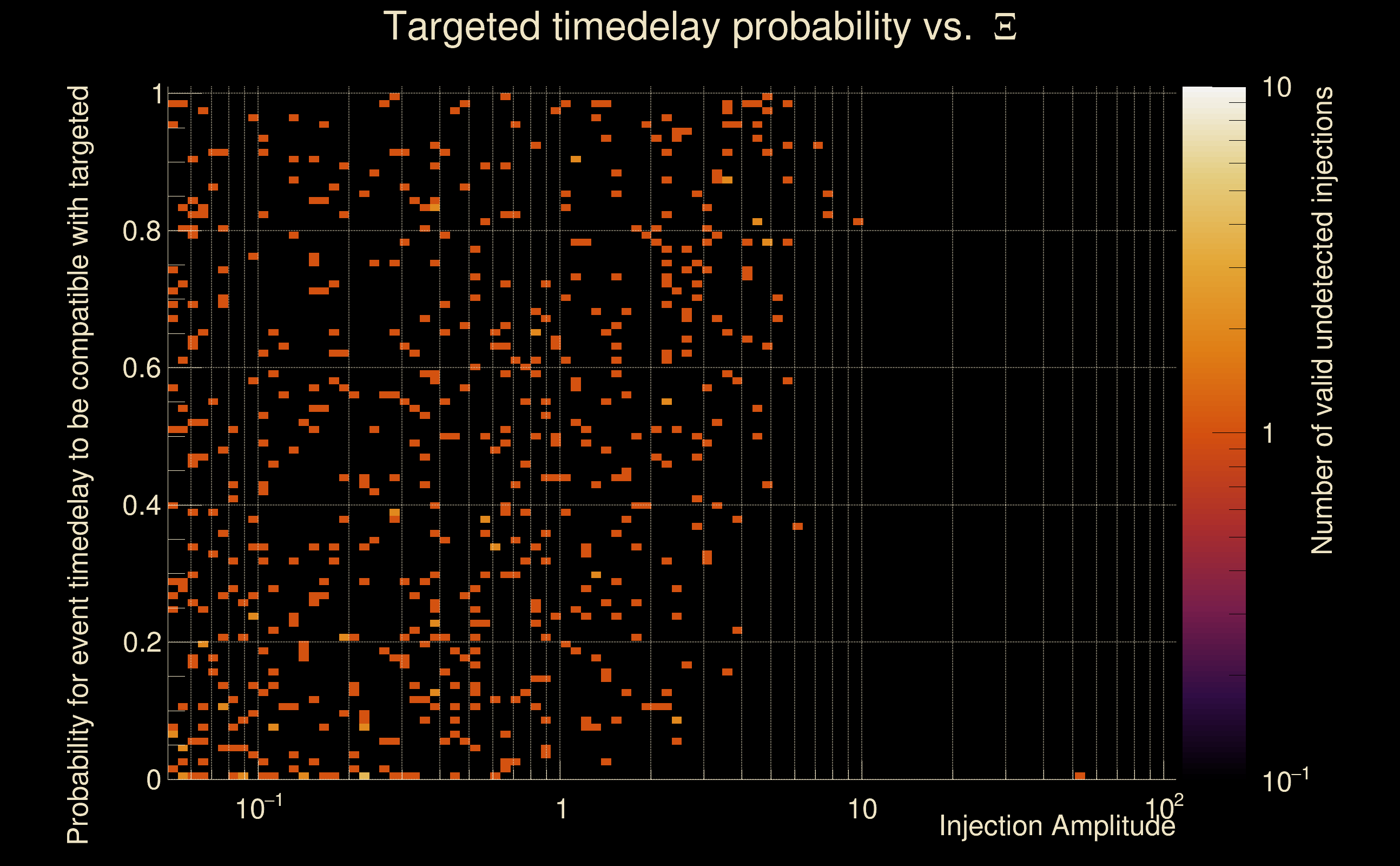

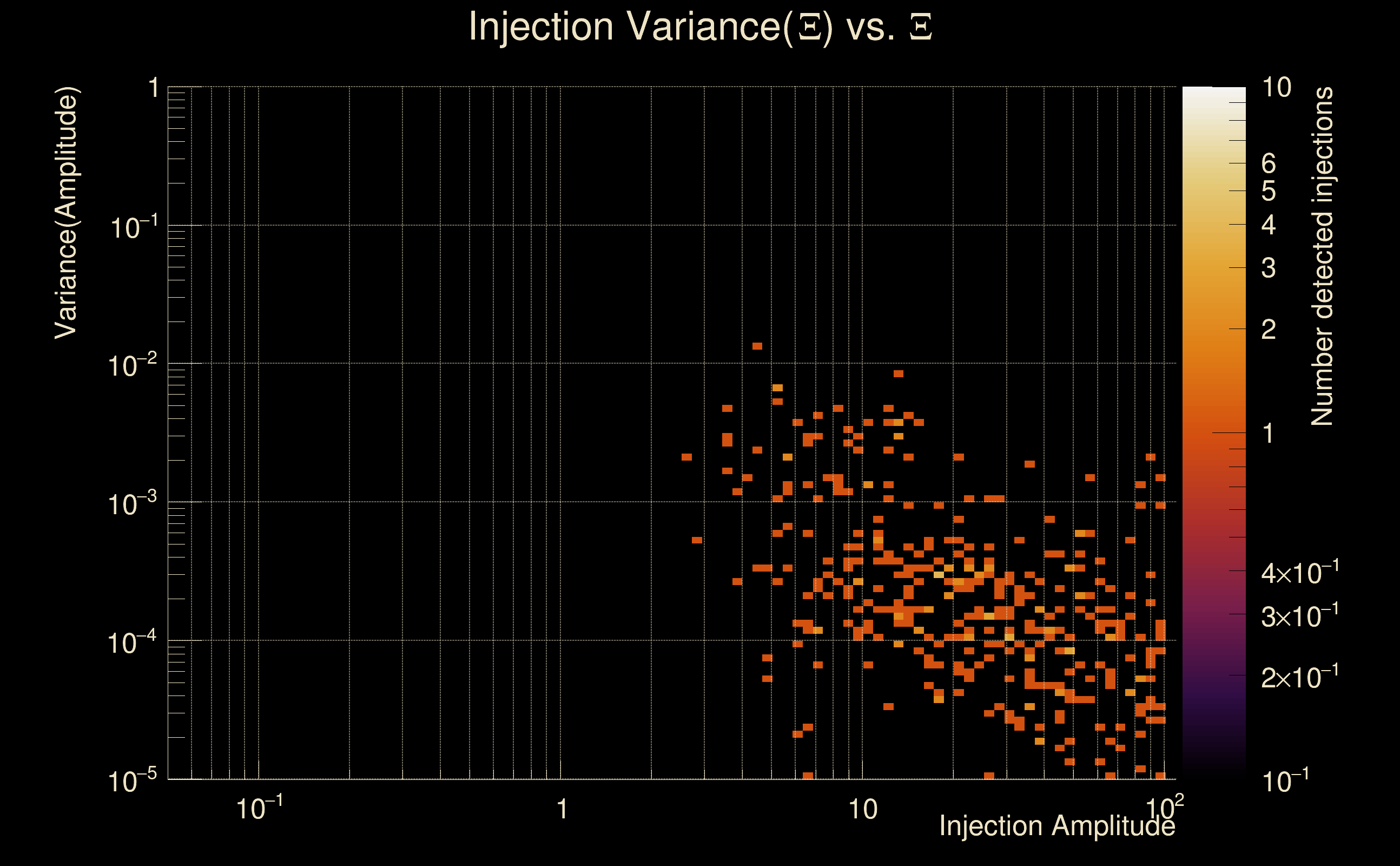

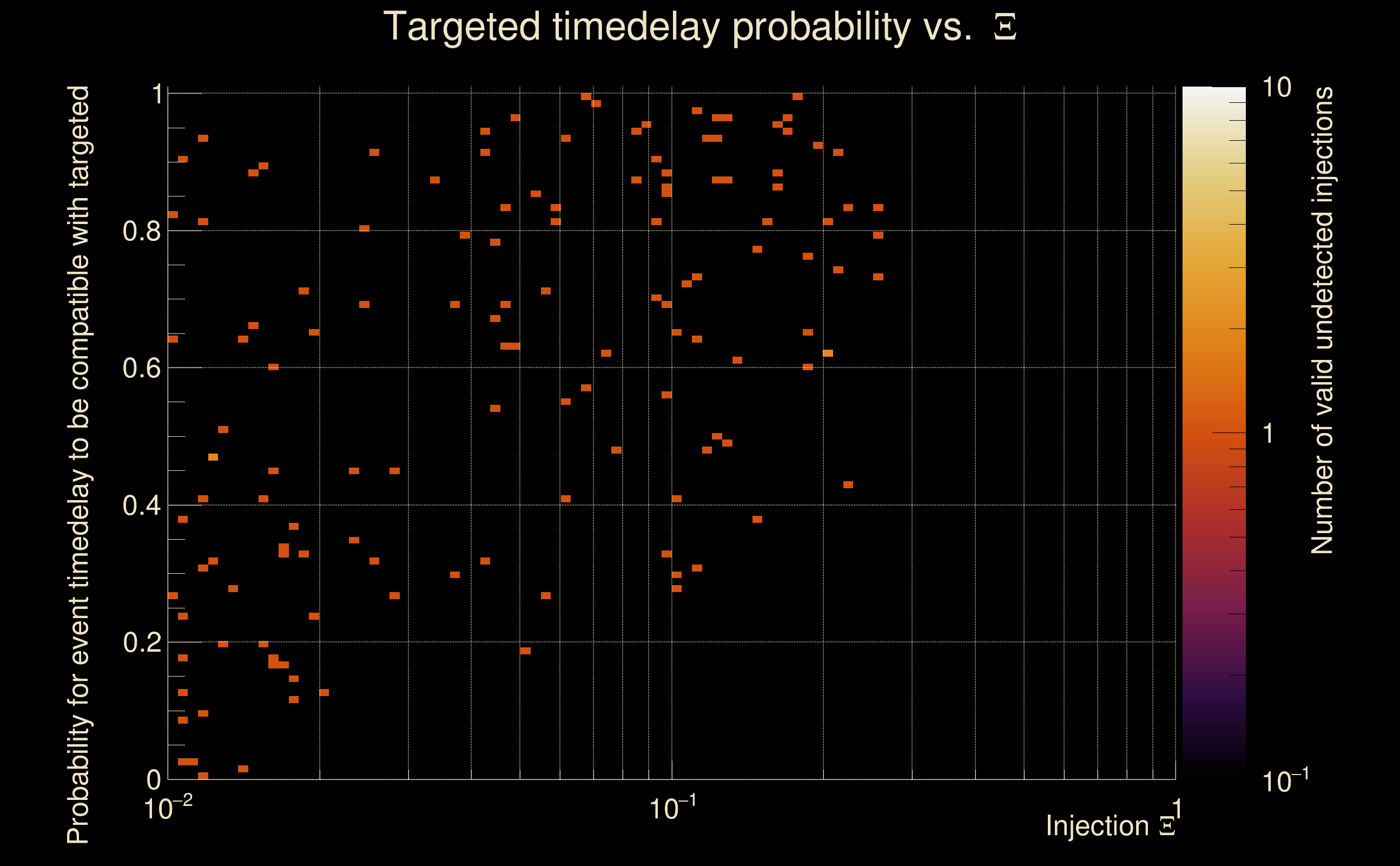

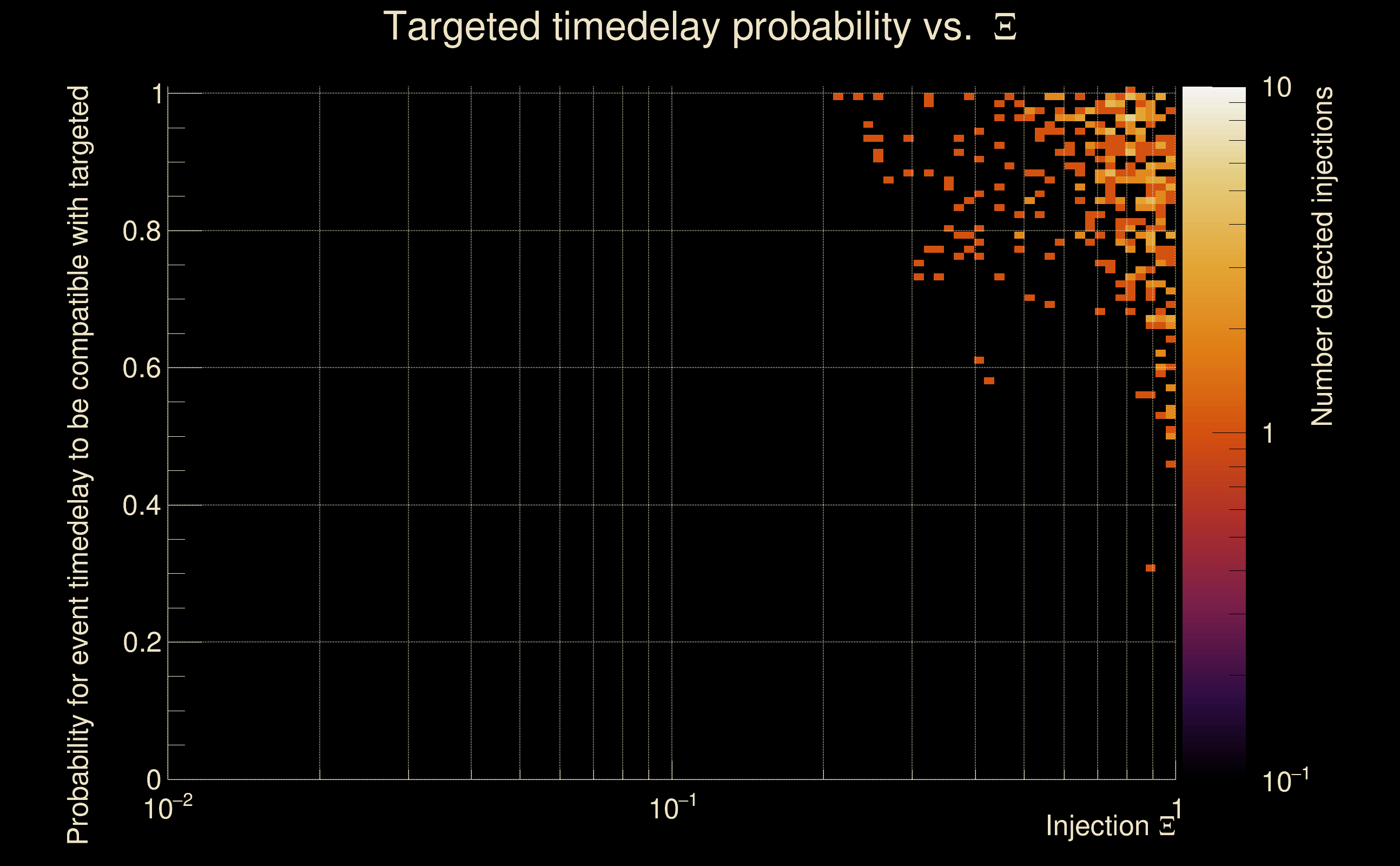

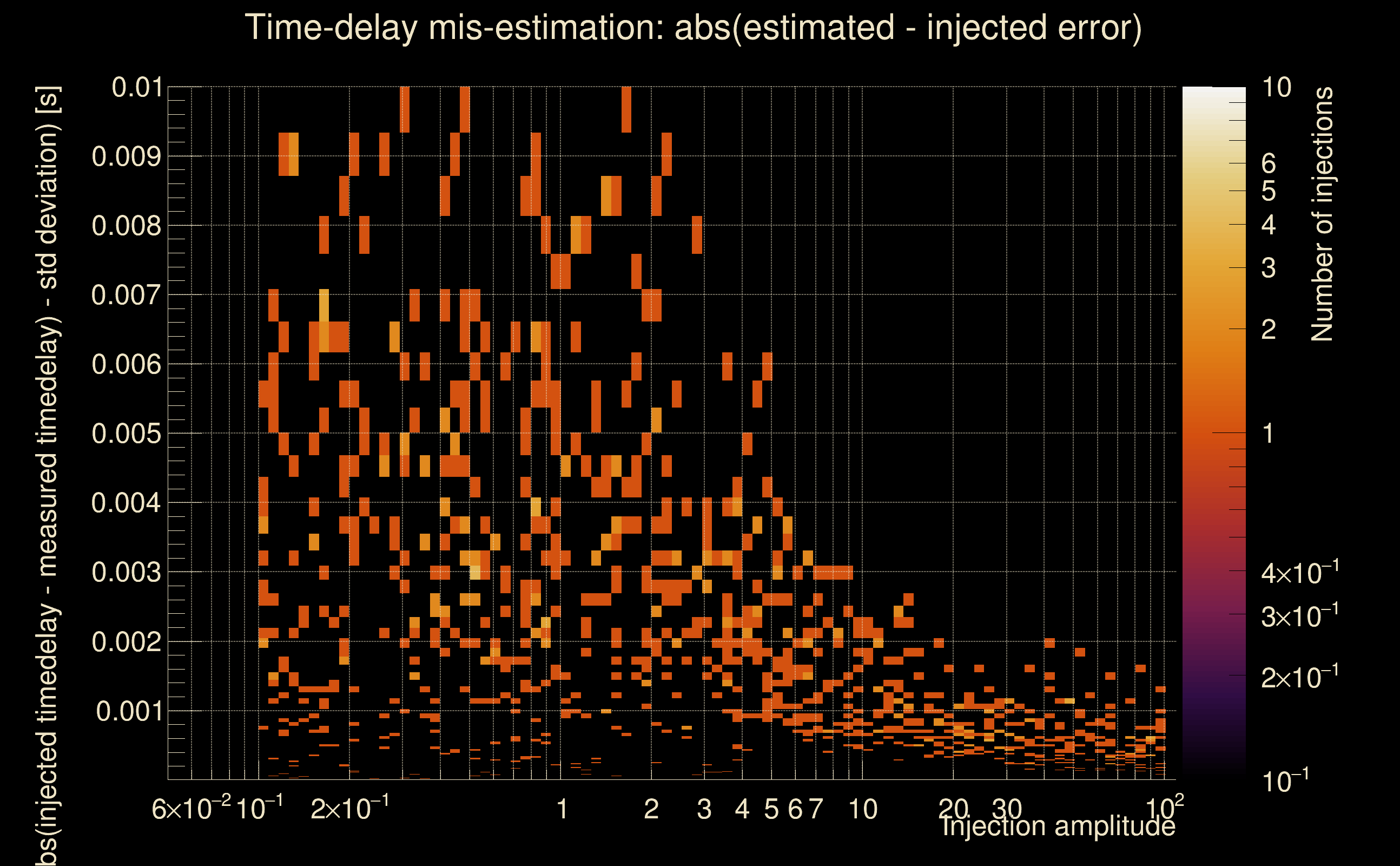

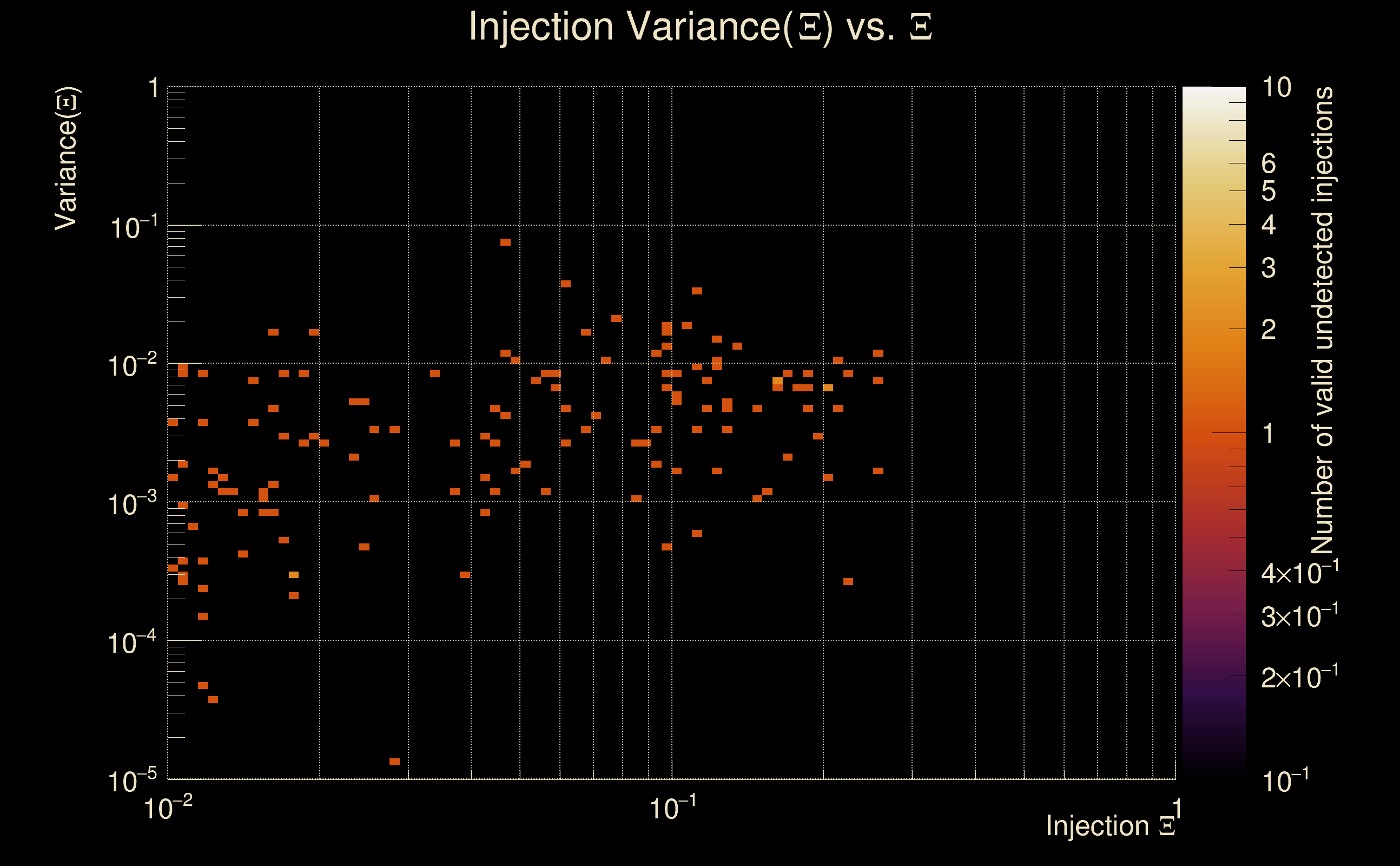

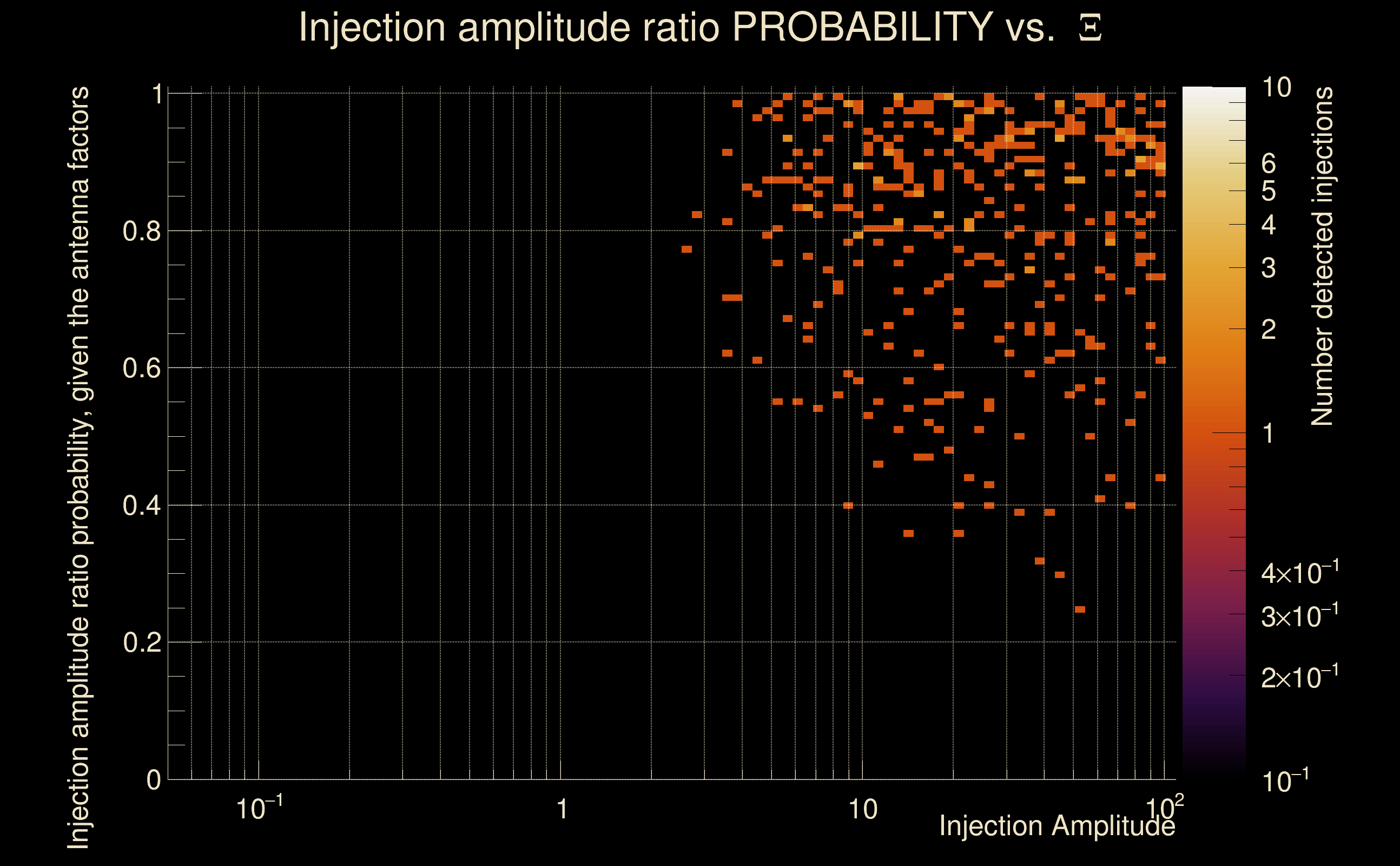

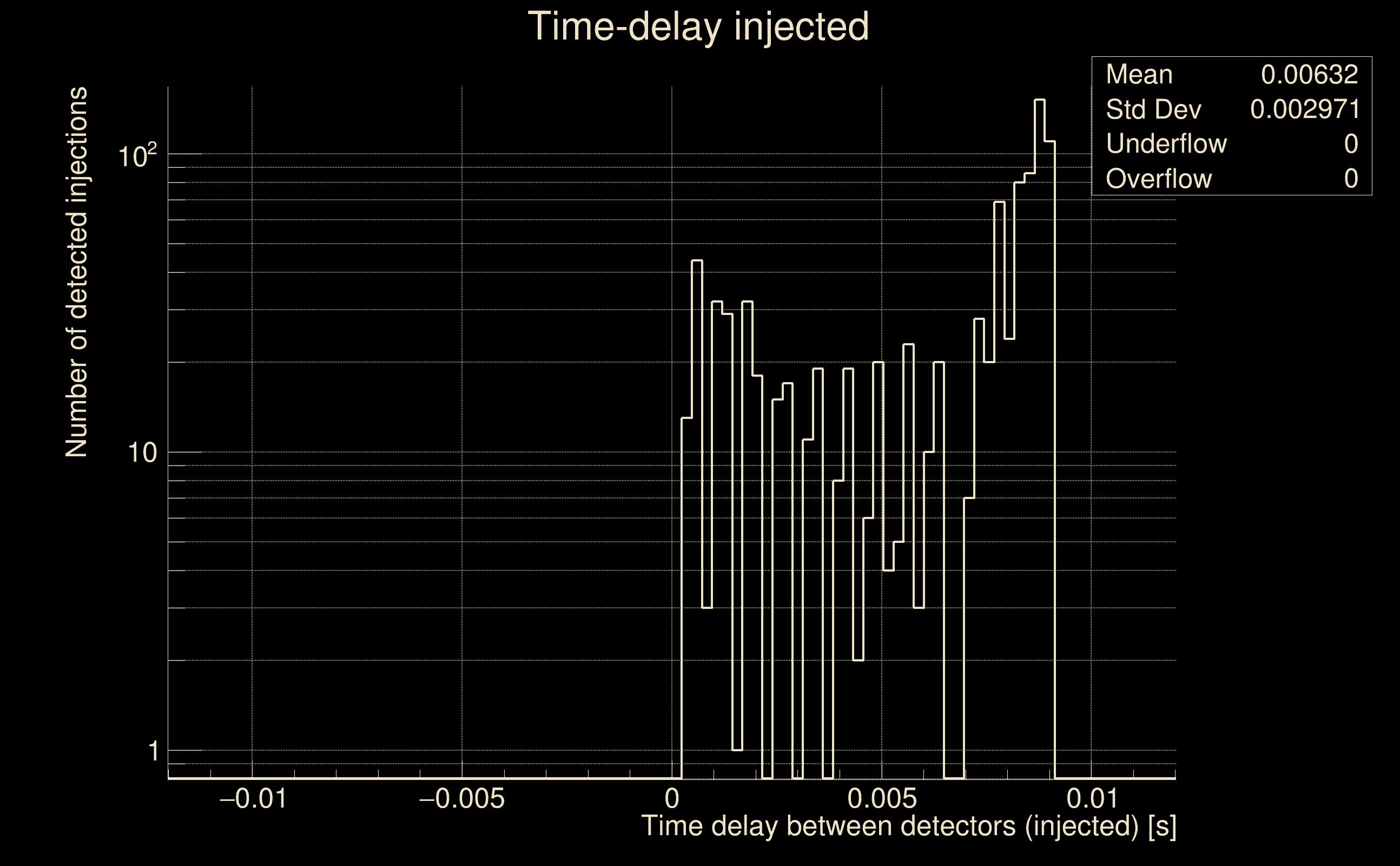

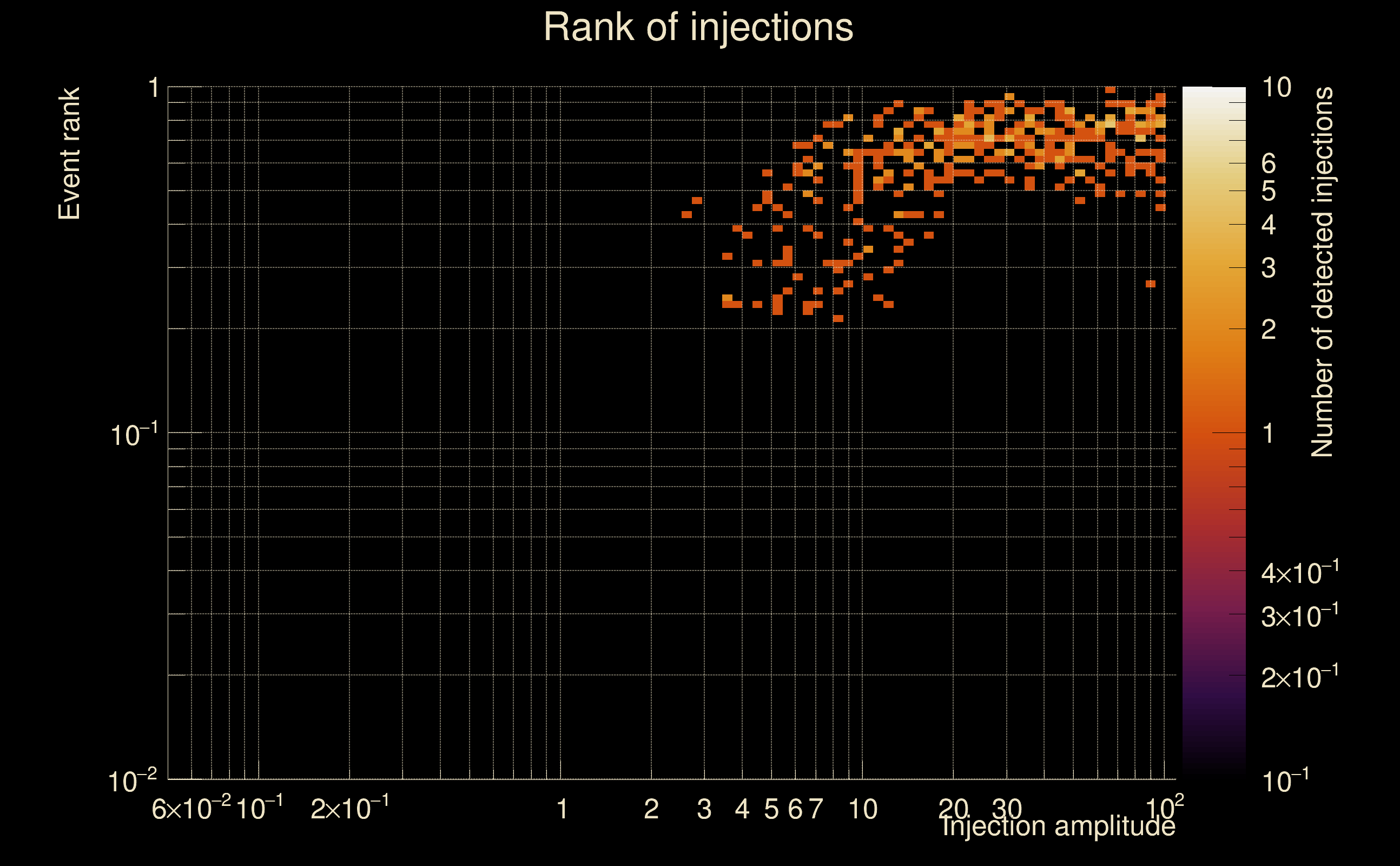

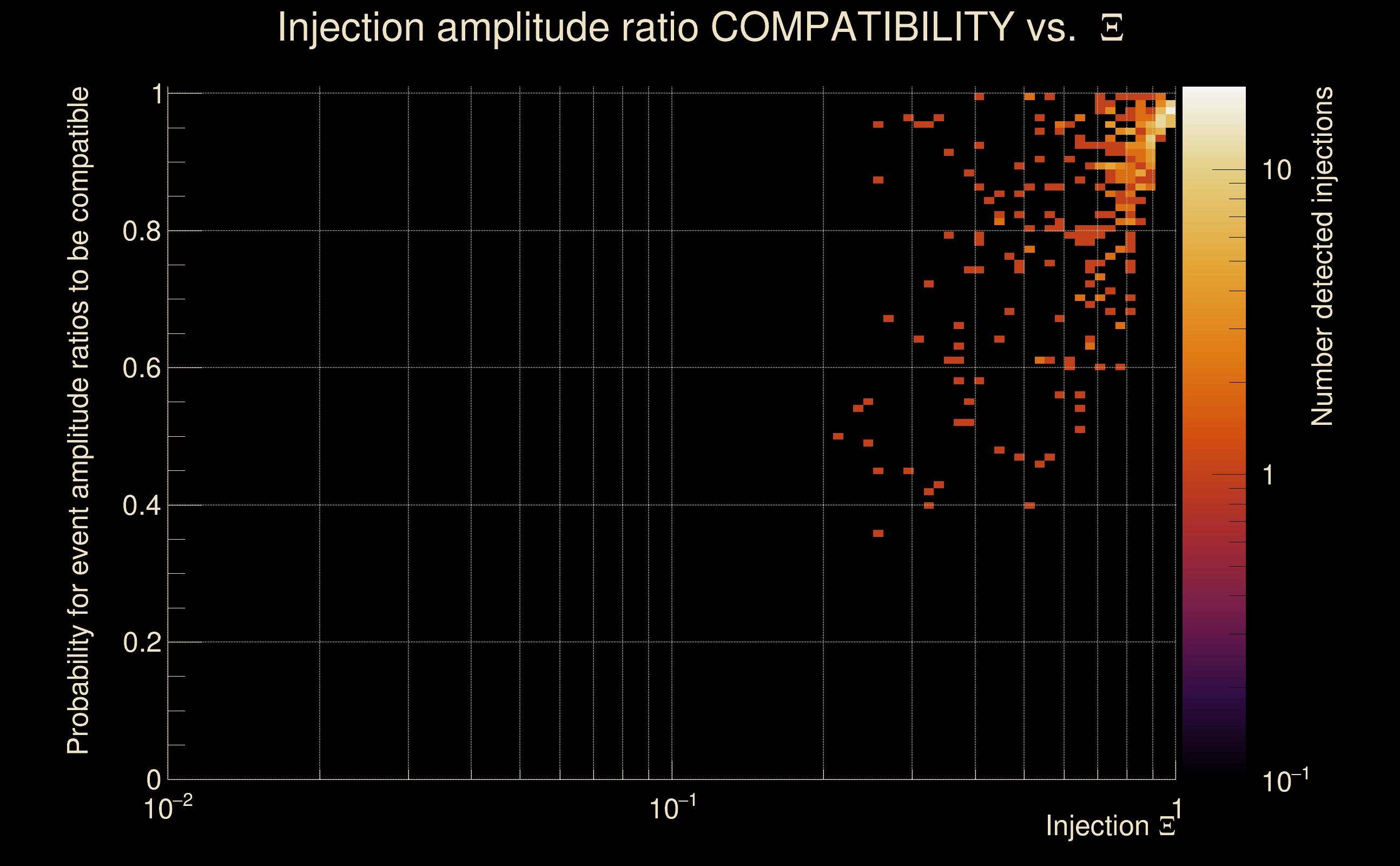

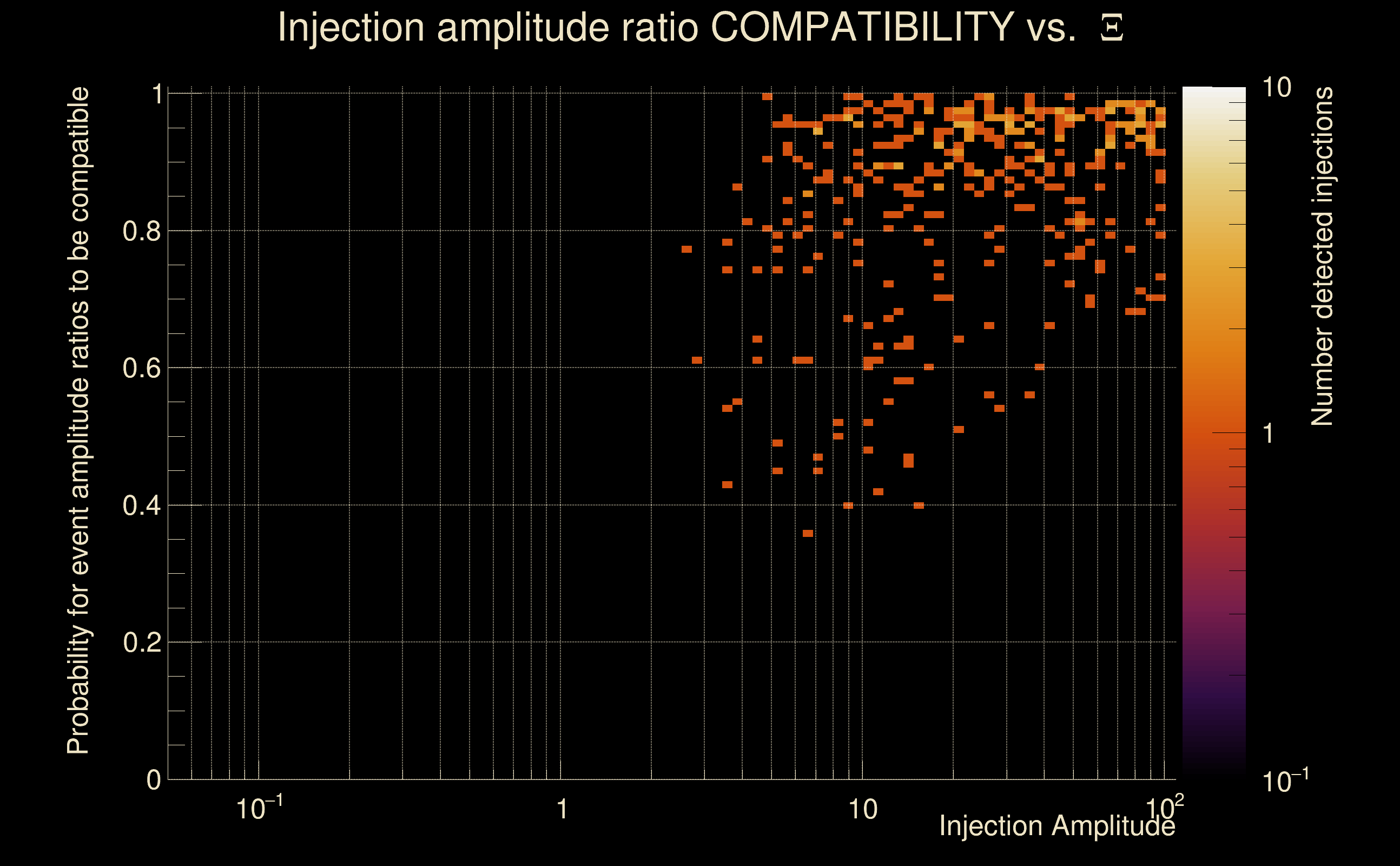

| Number of injections (total/valid/detected): | 1042 / 930 / 377 |
| List of missed injections: | ./Rad19-s13_missed.txt |

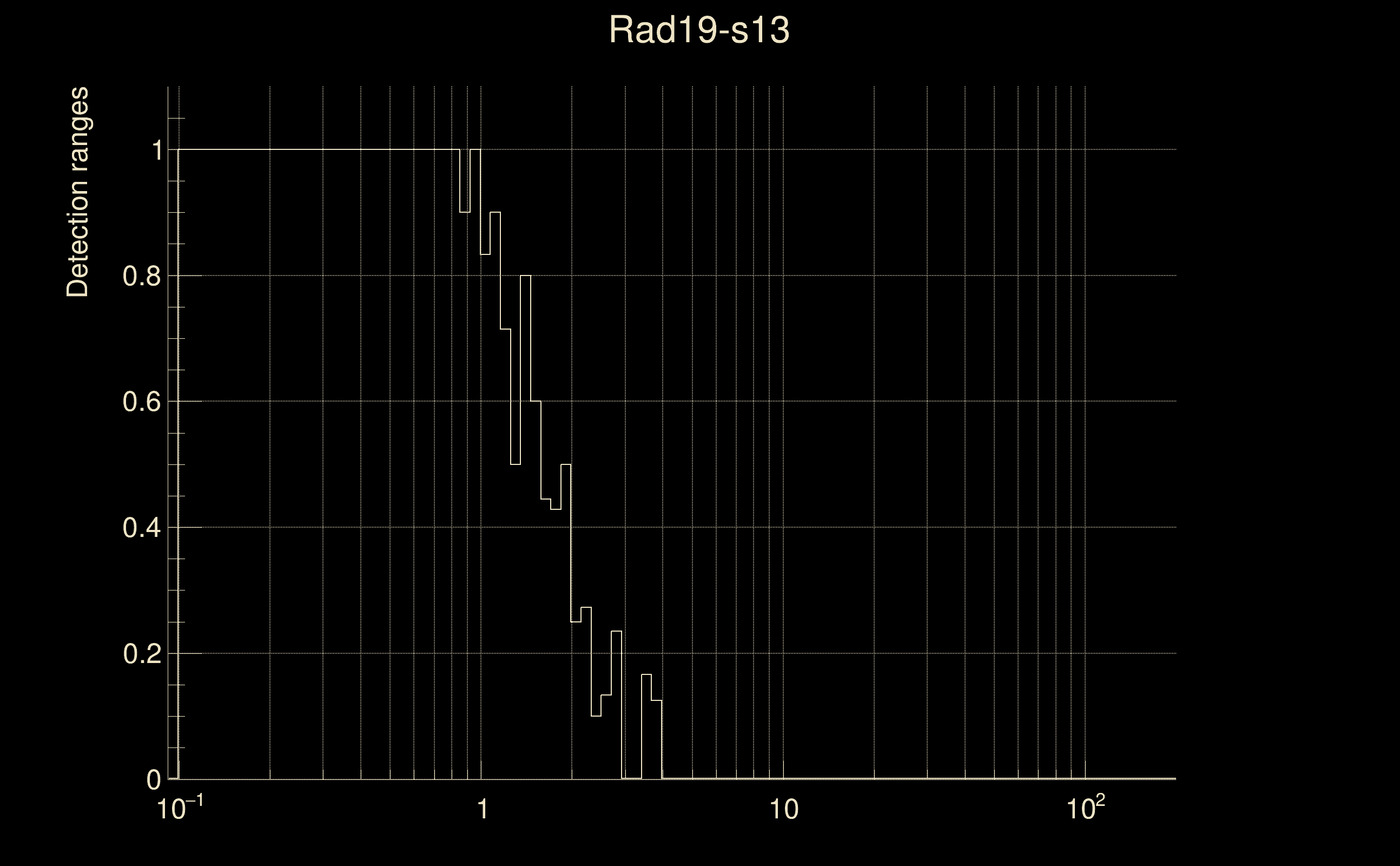

| Injection amplitude at 90% detection efficiency: | 9.99541 |
| Injection amplitude at 50% detection efficiency: | 6.28198 |
| Injection amplitude at 10% detection efficiency: | 3.41479 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

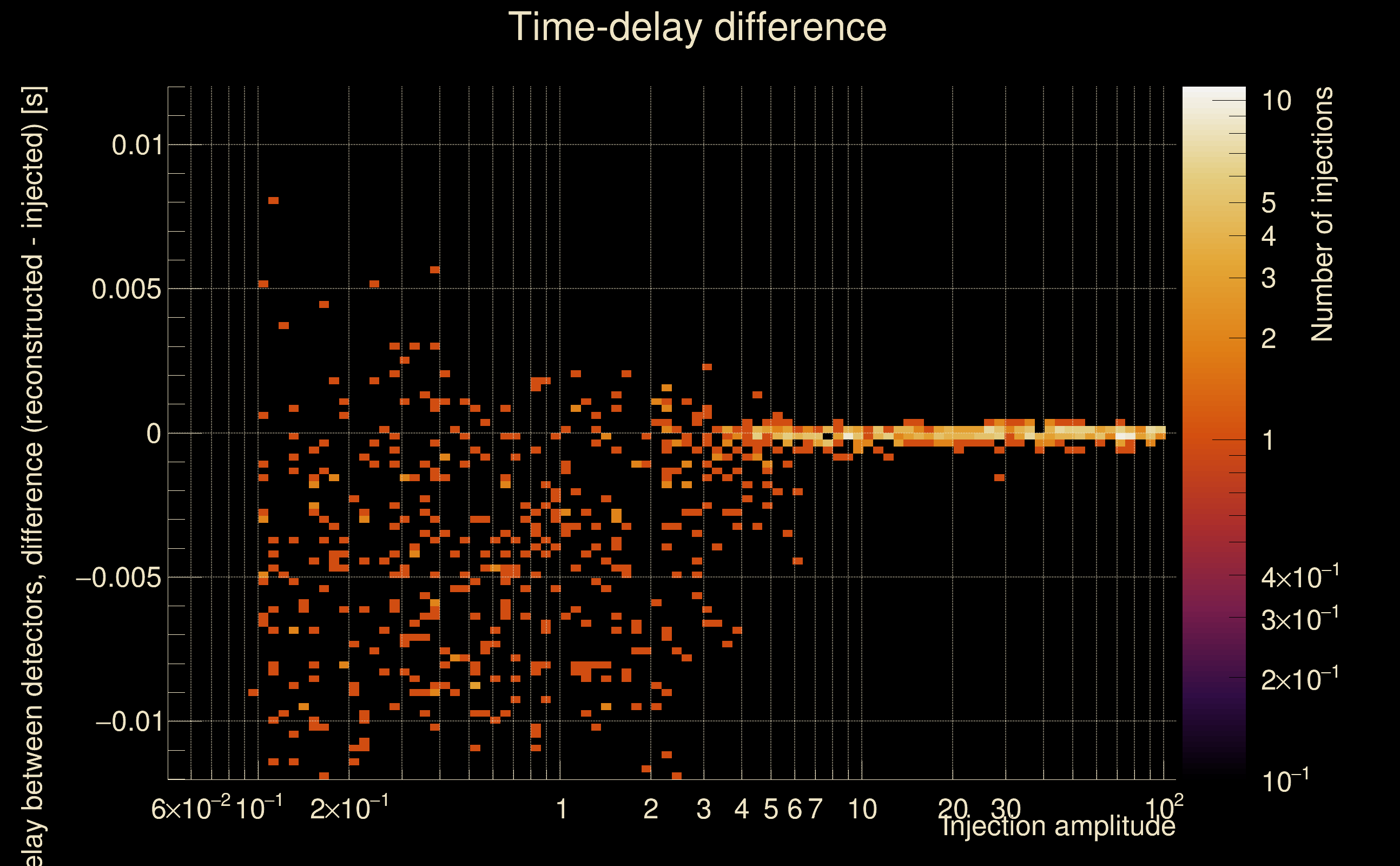

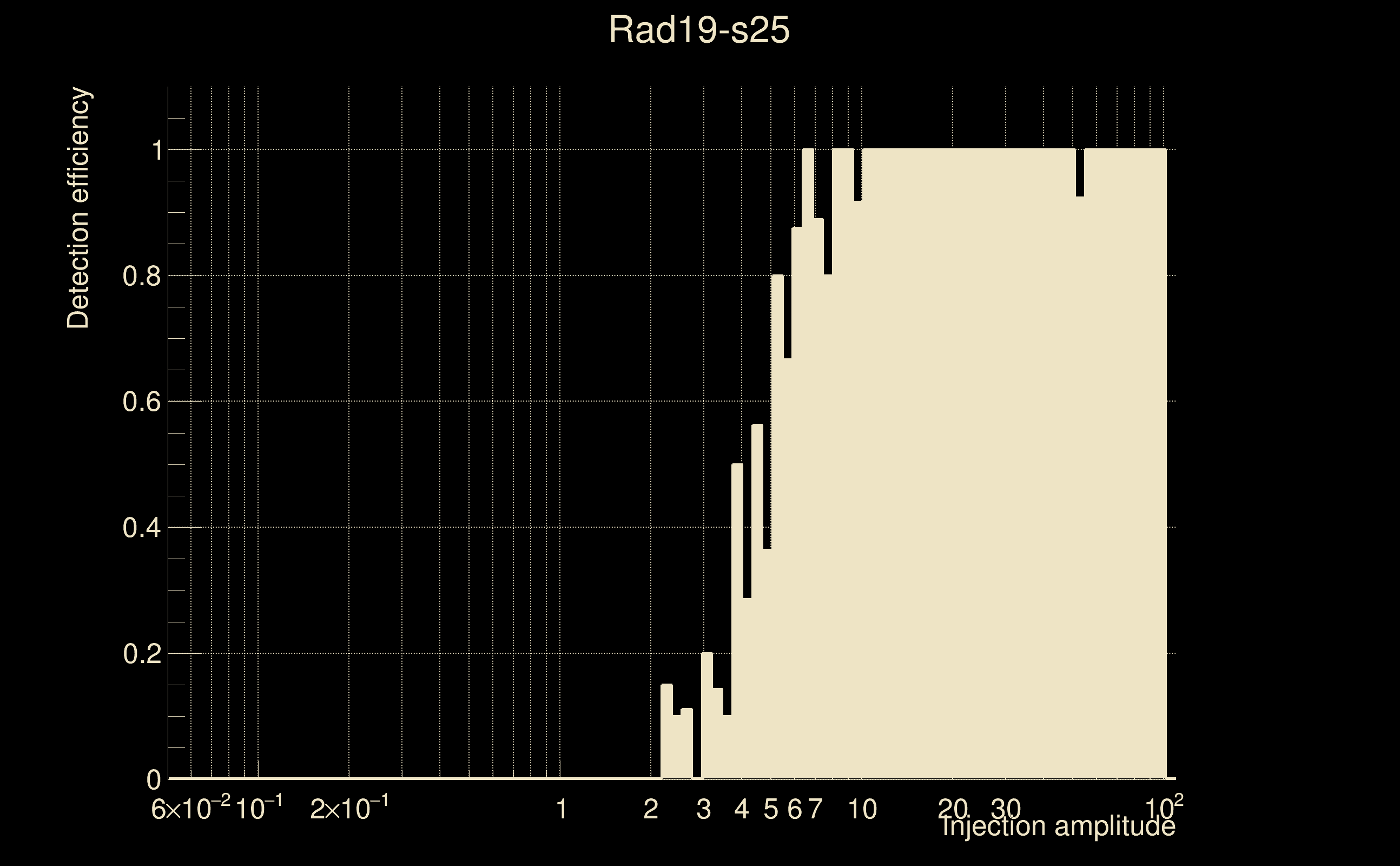

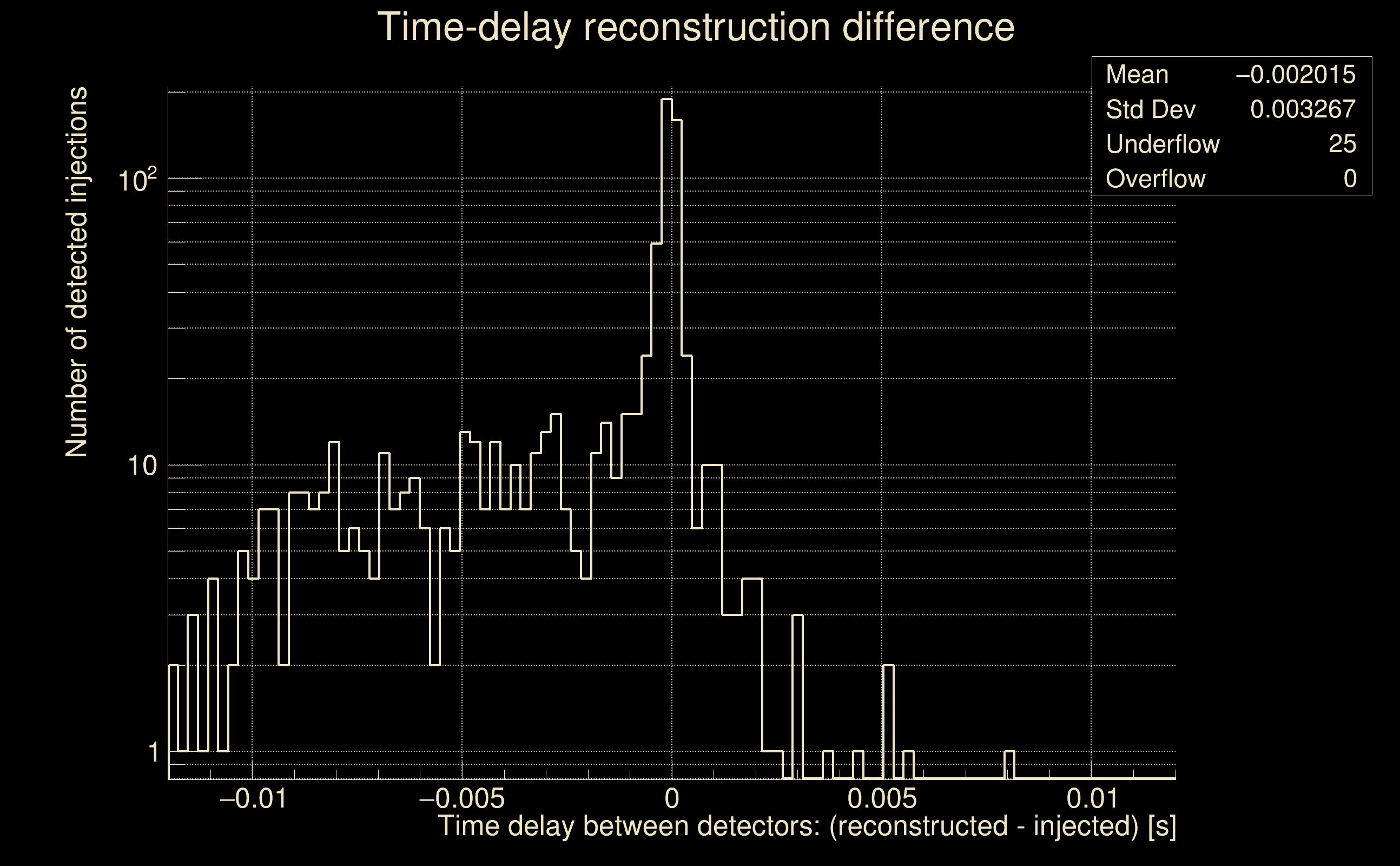

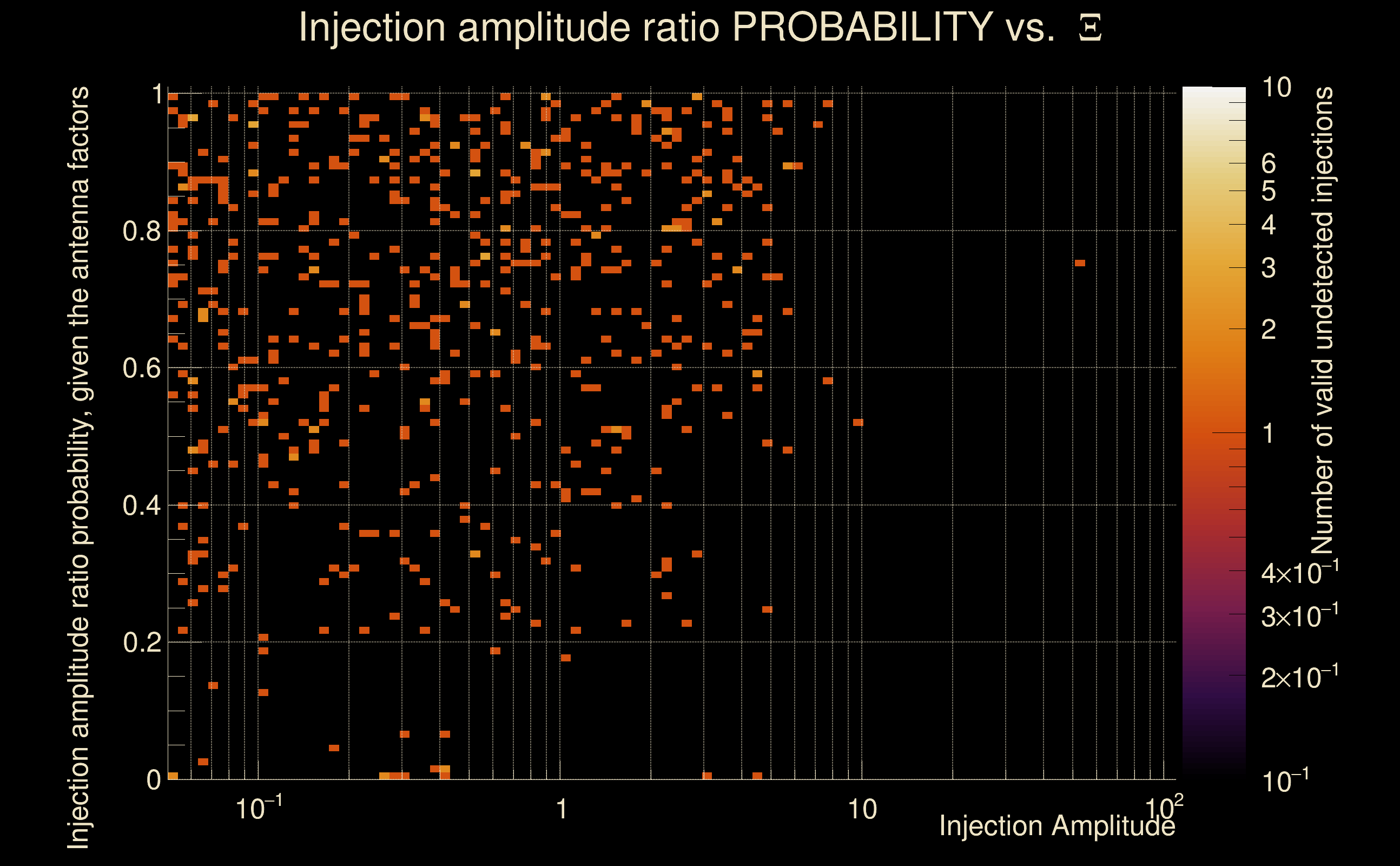

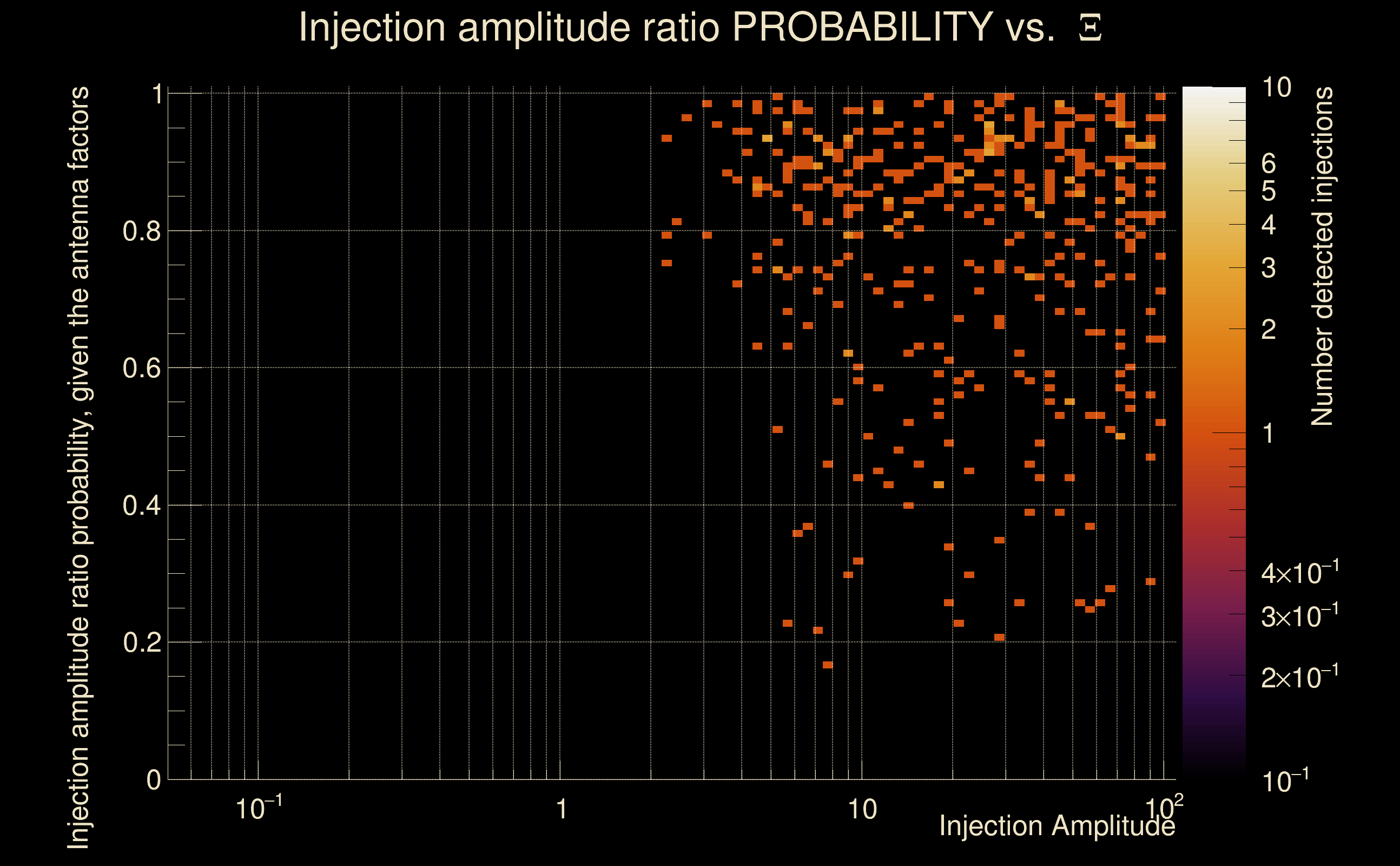

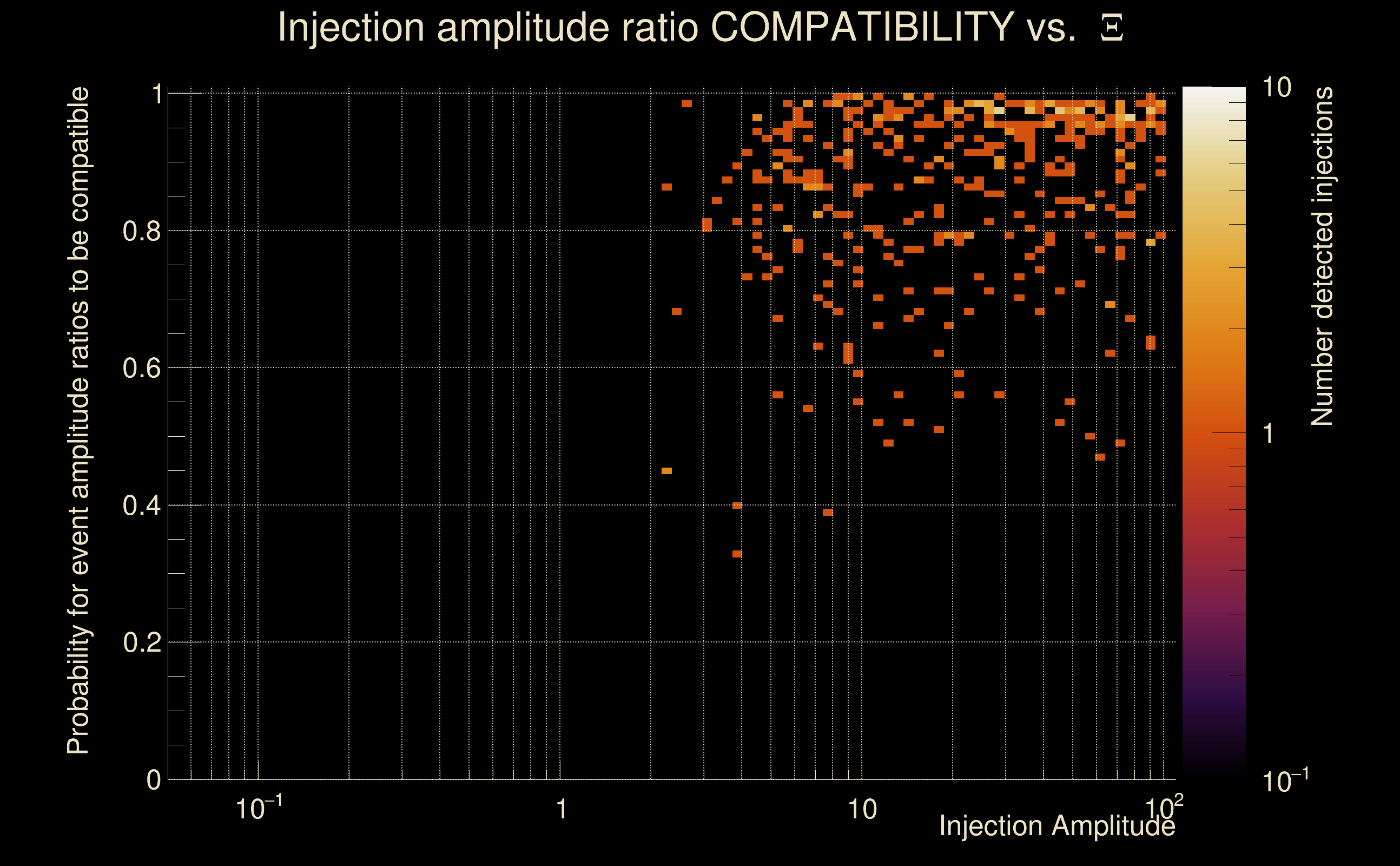

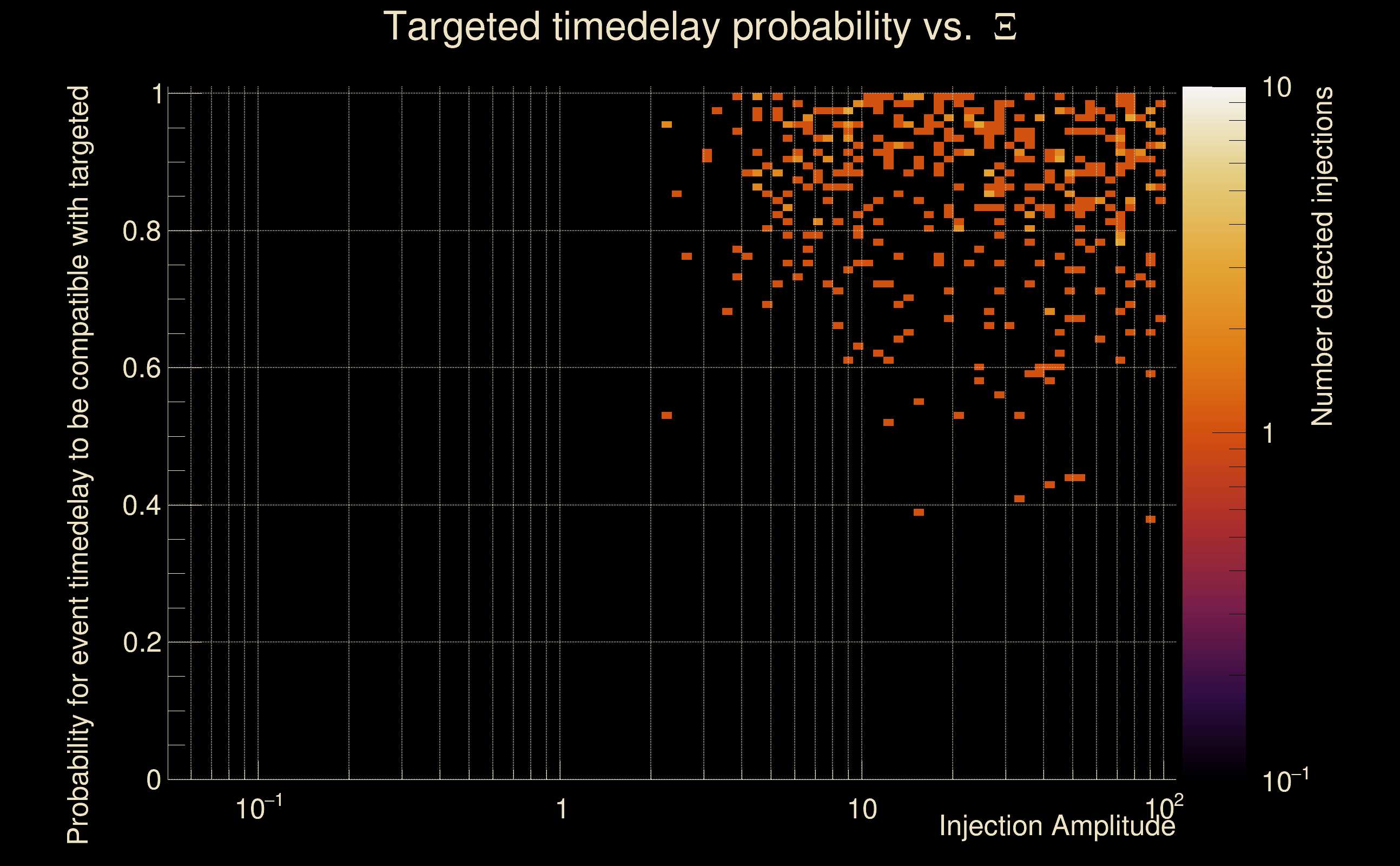

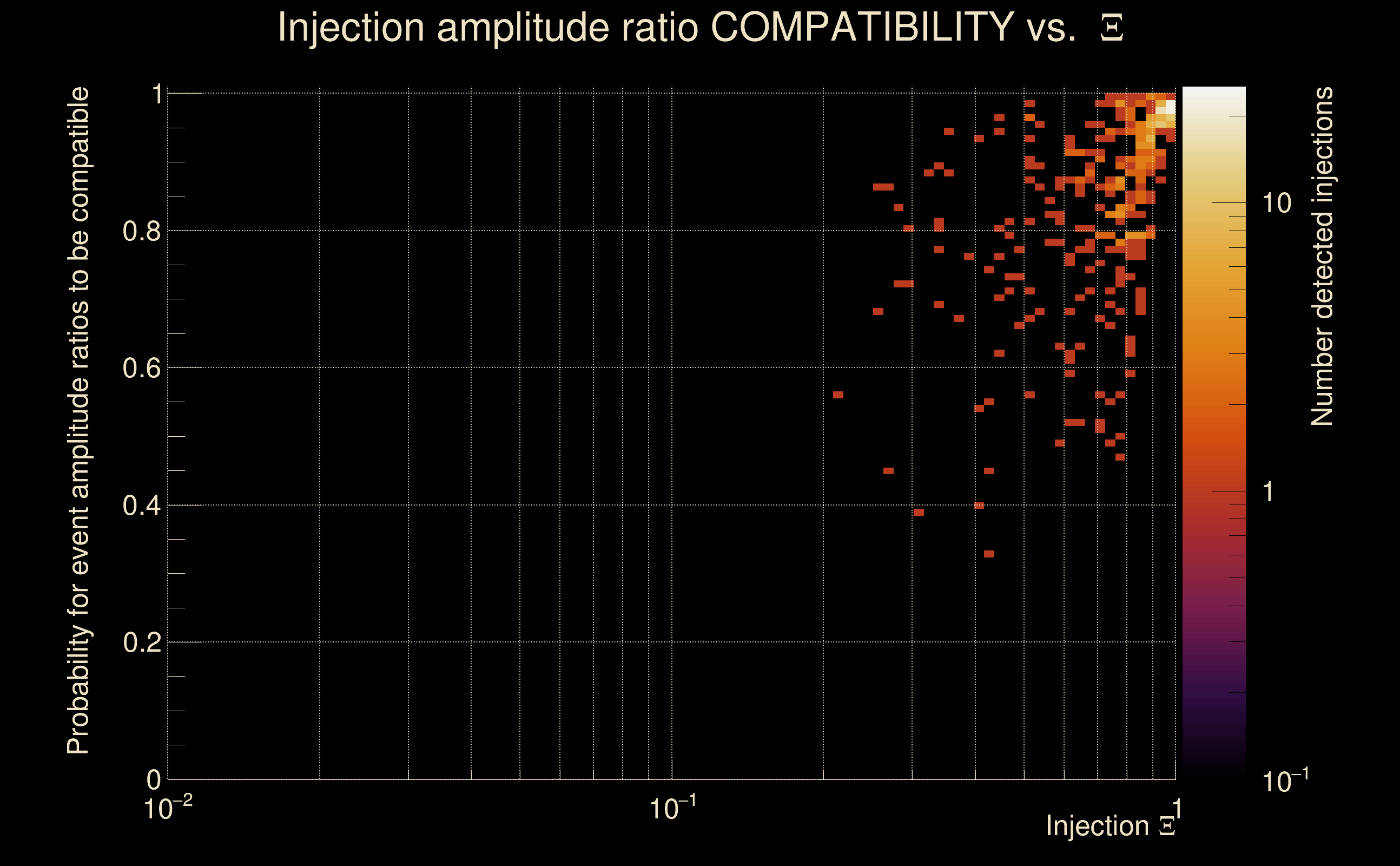

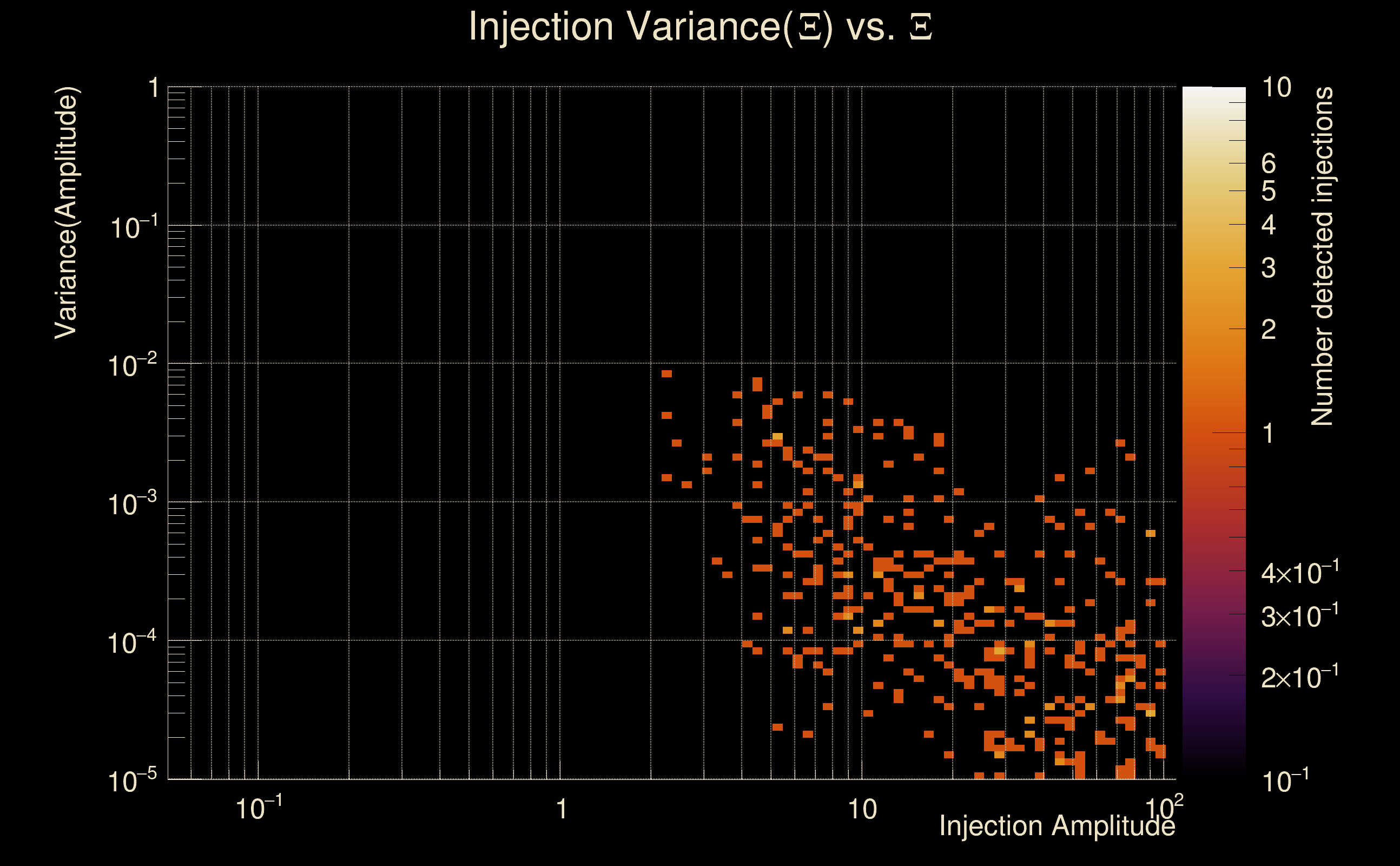

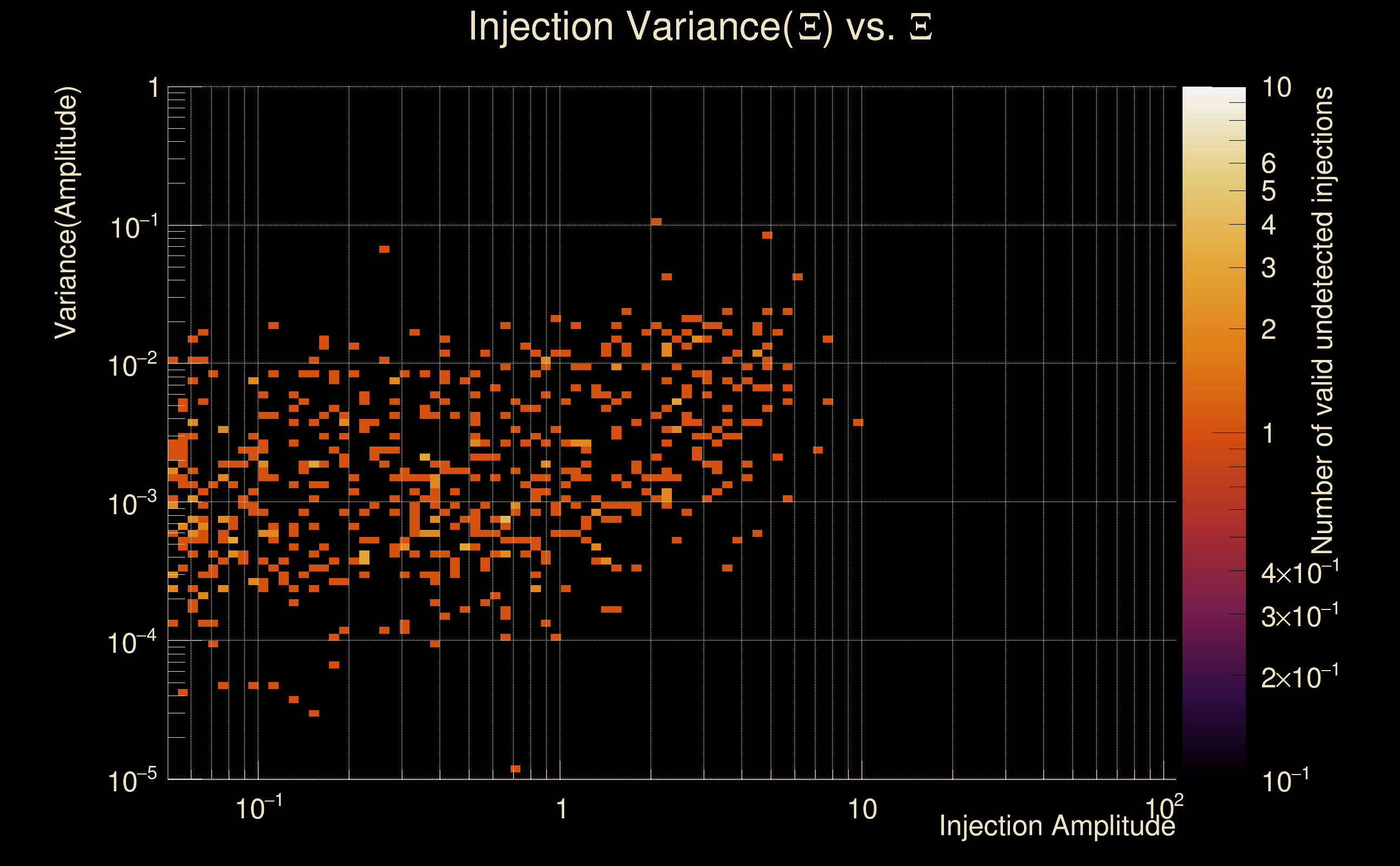

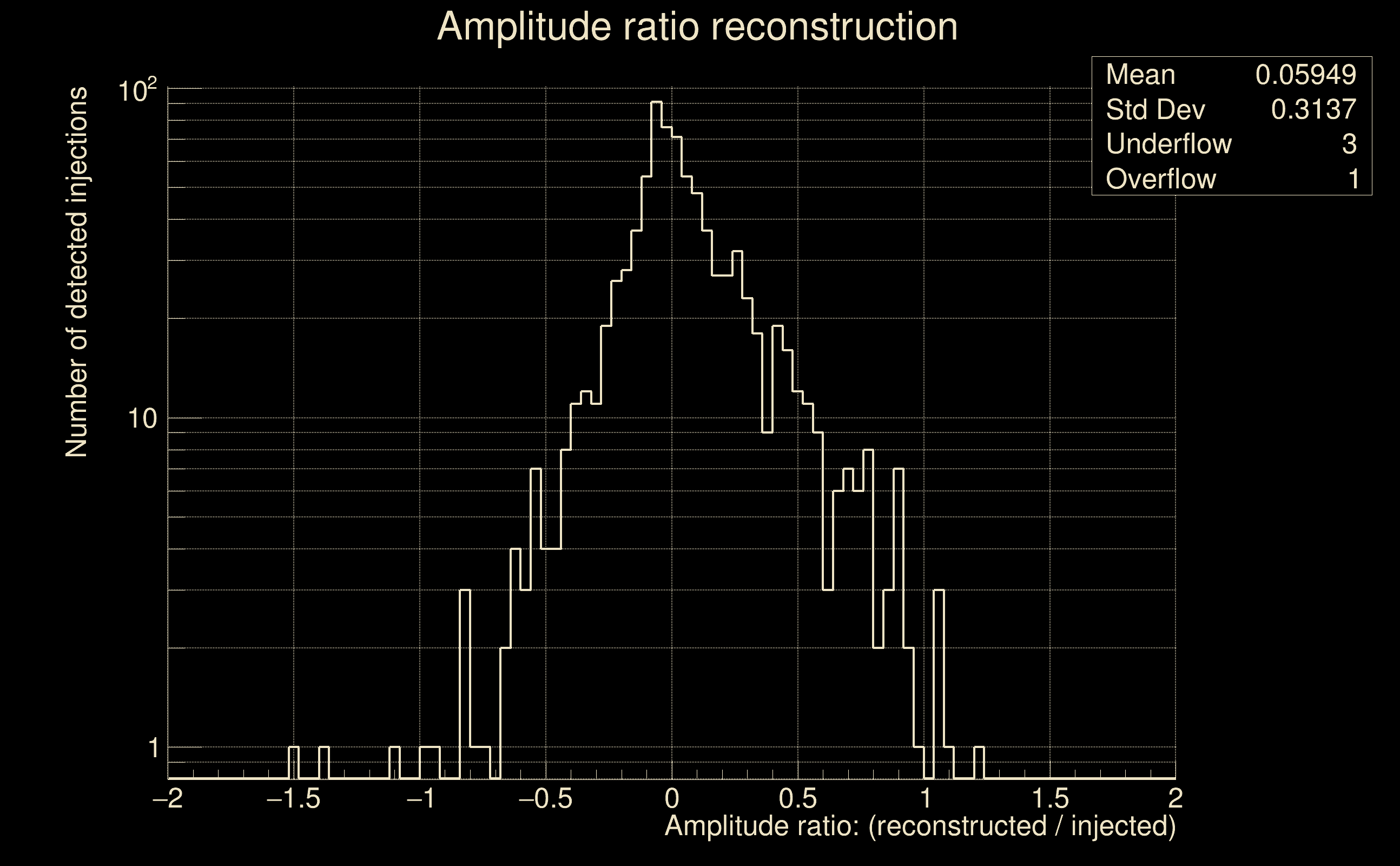

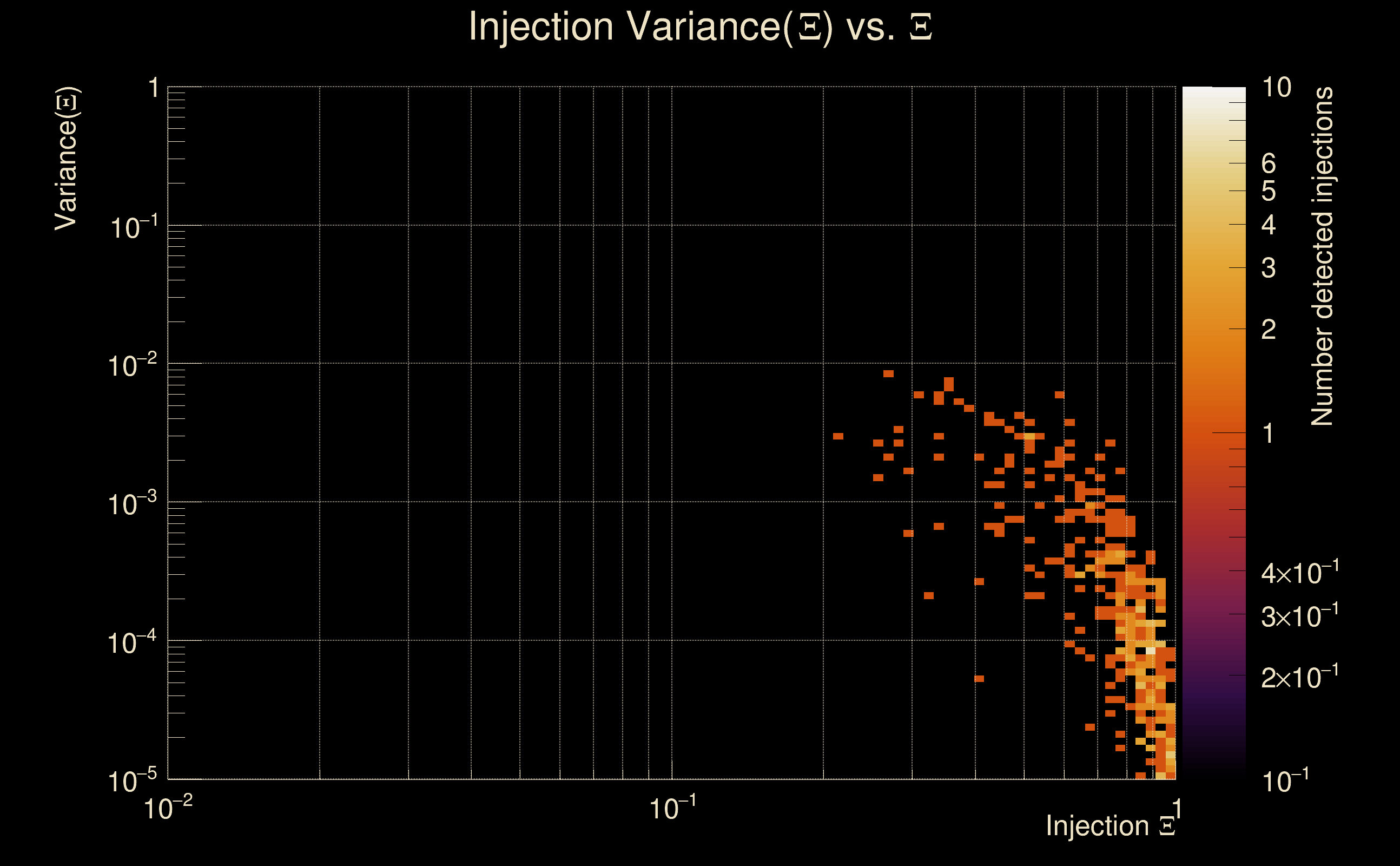

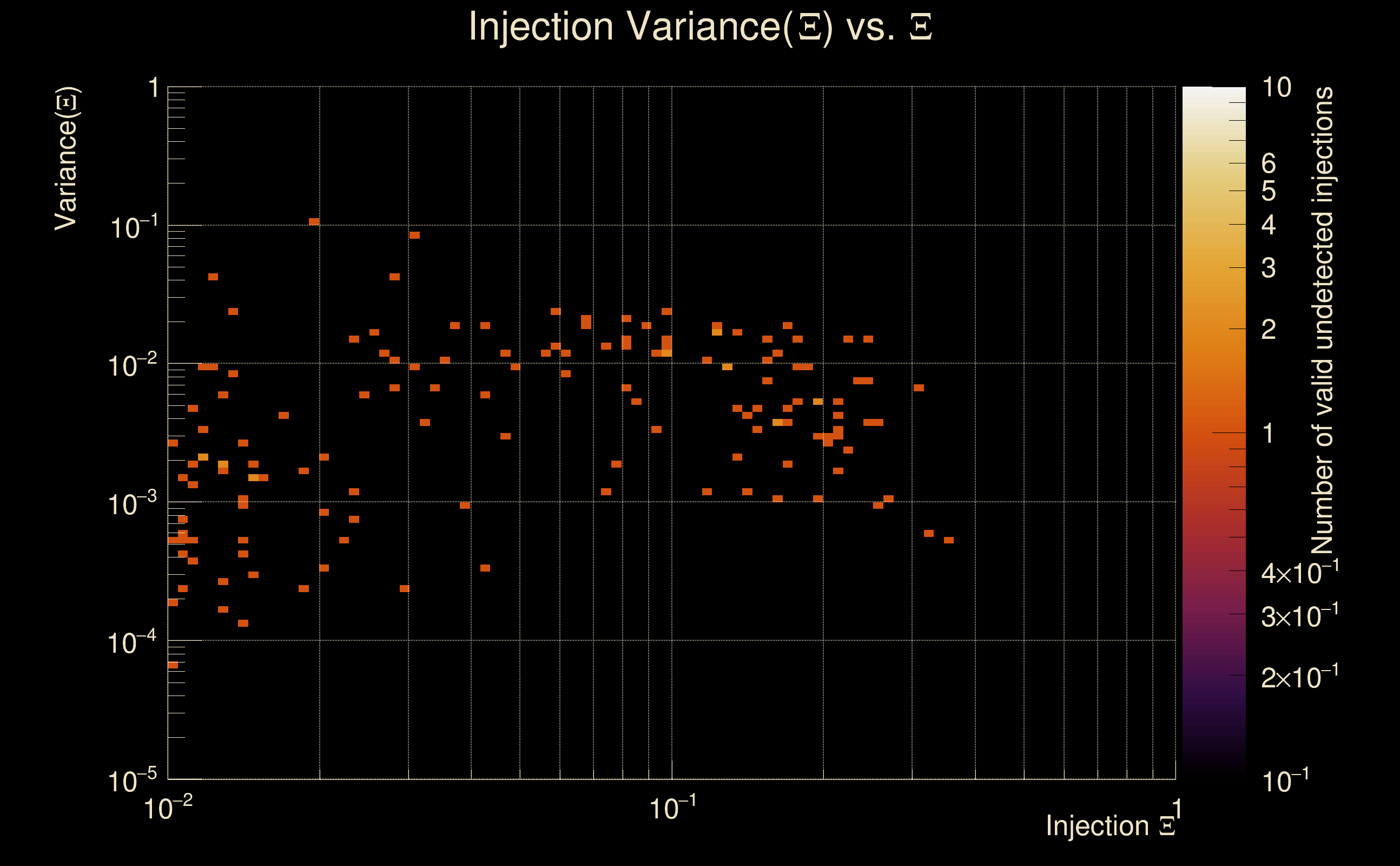

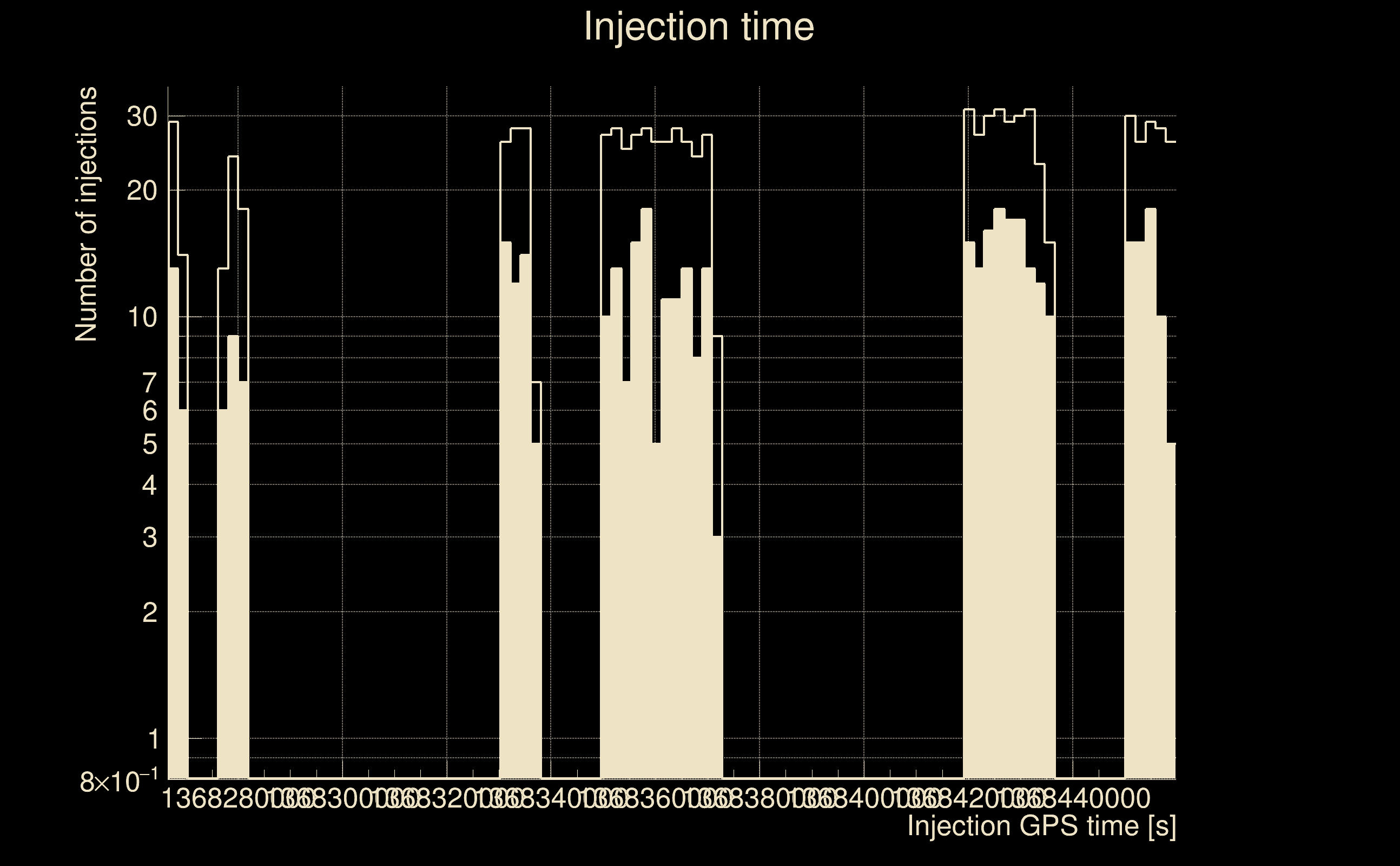

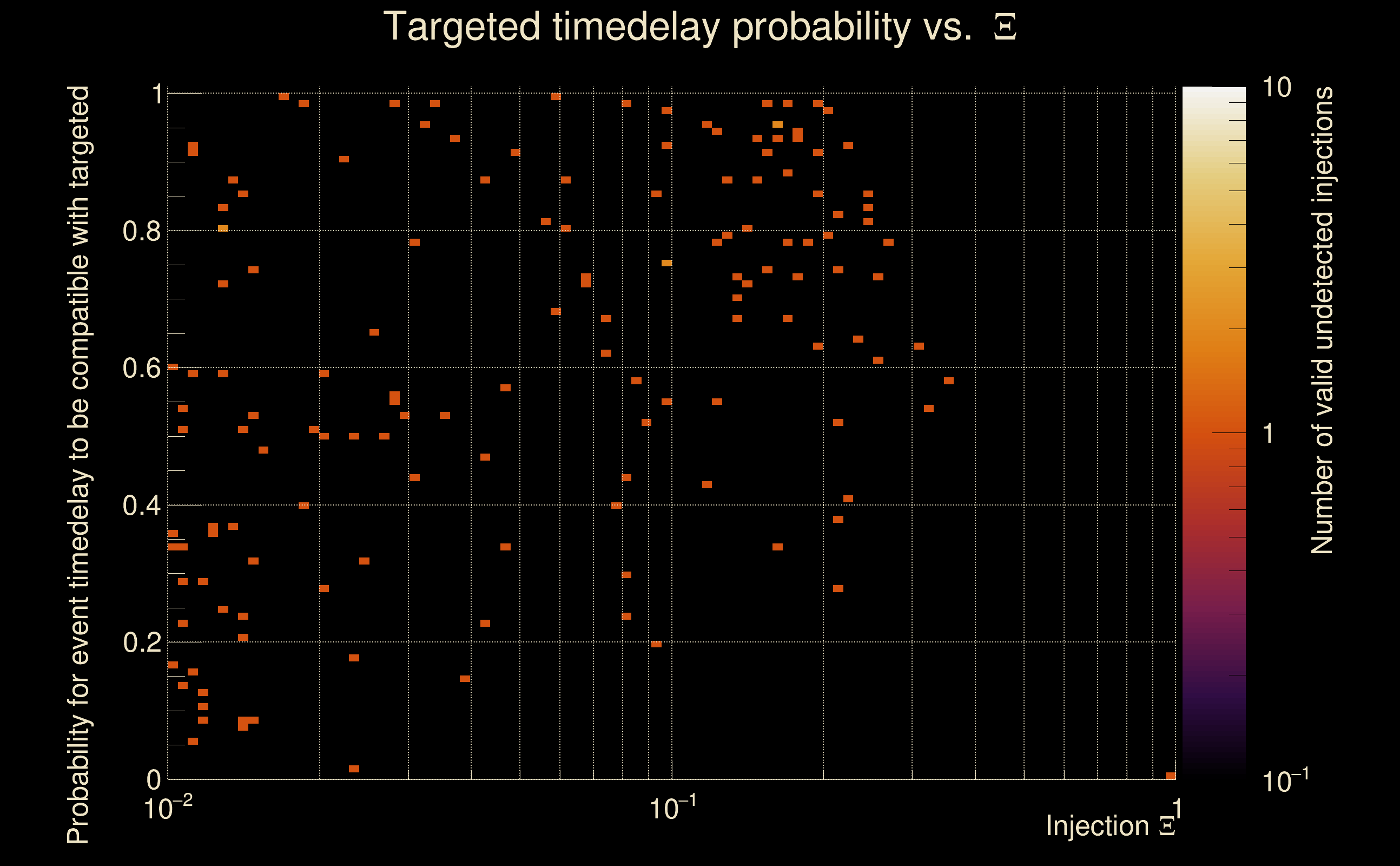

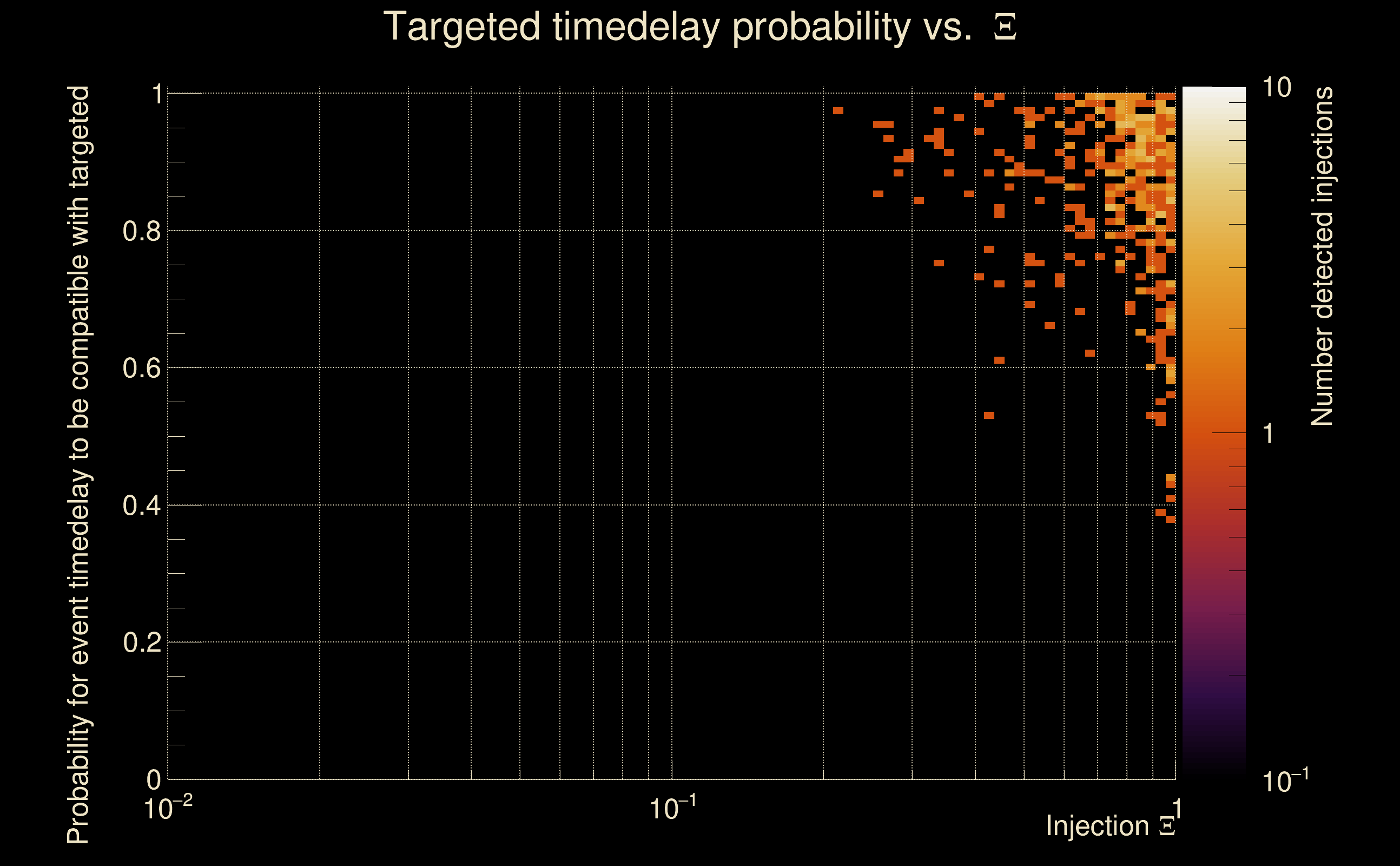

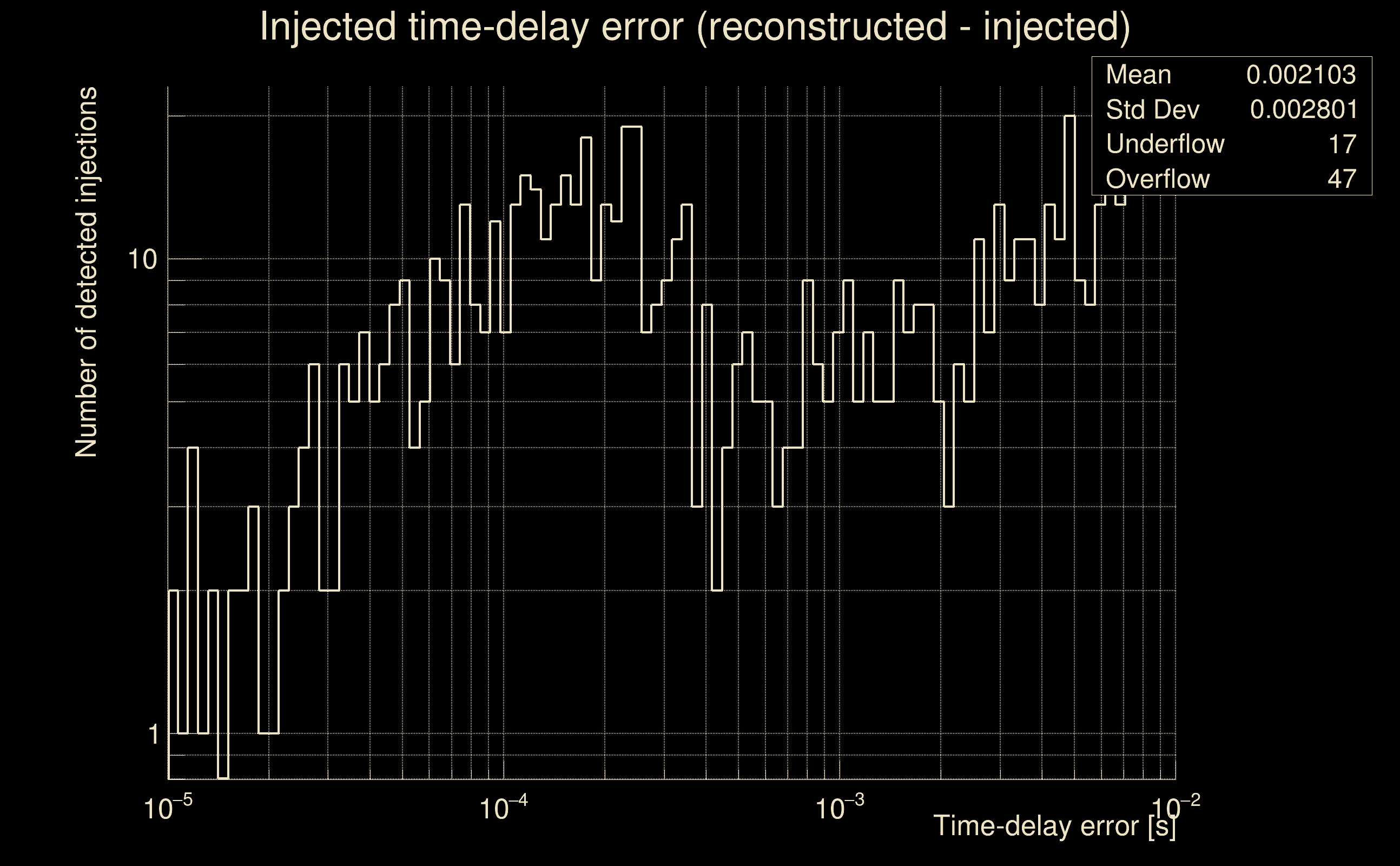

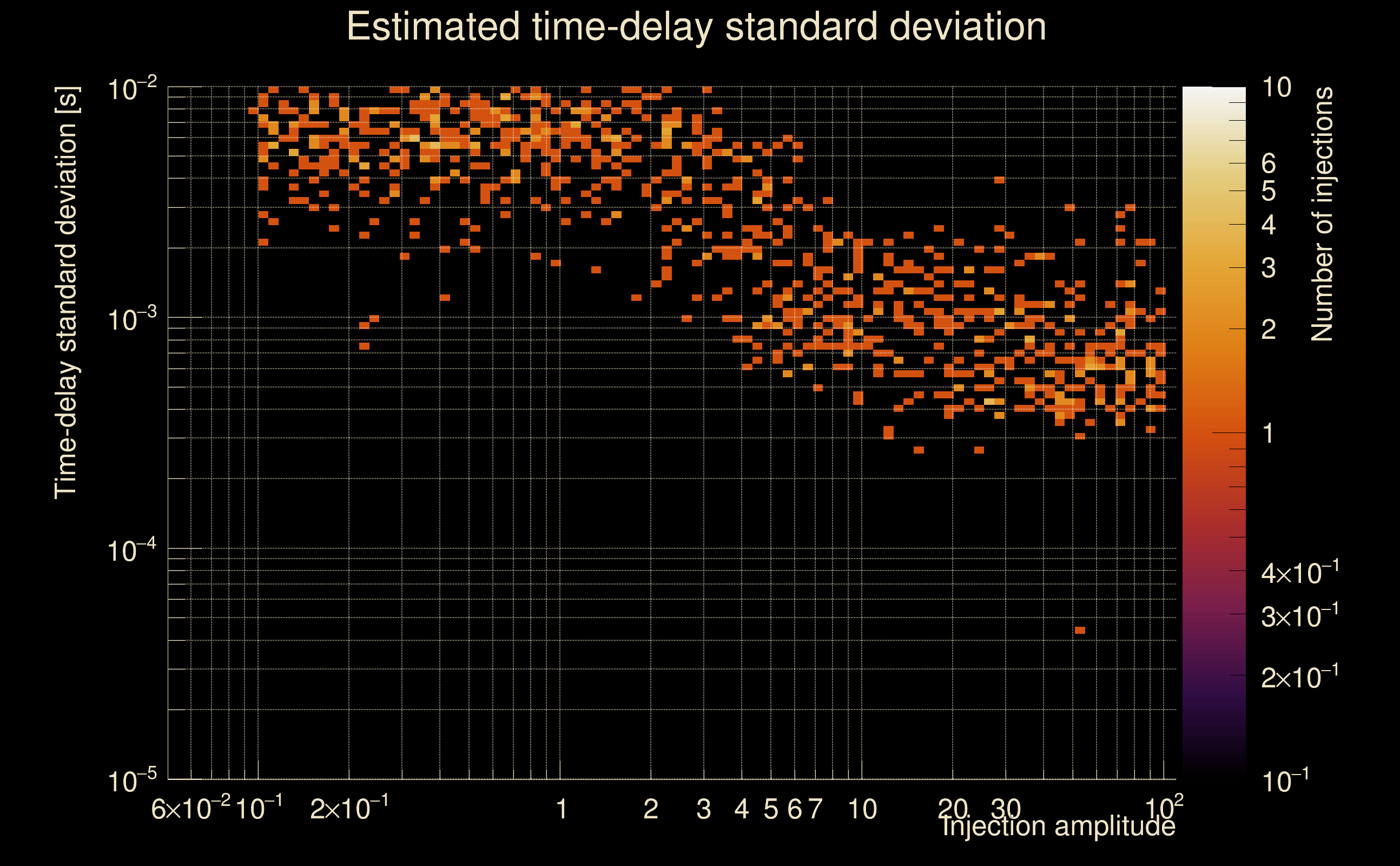

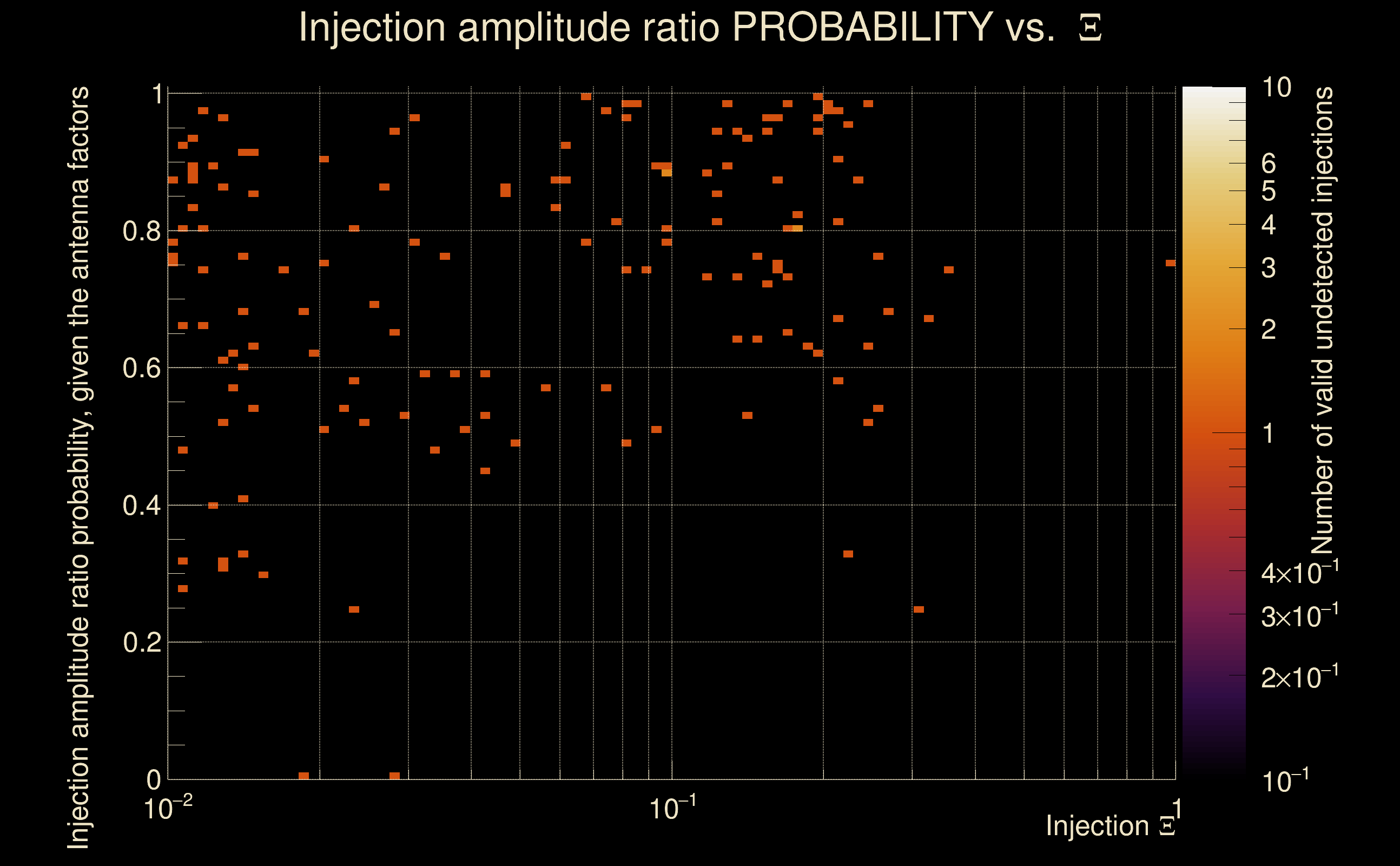

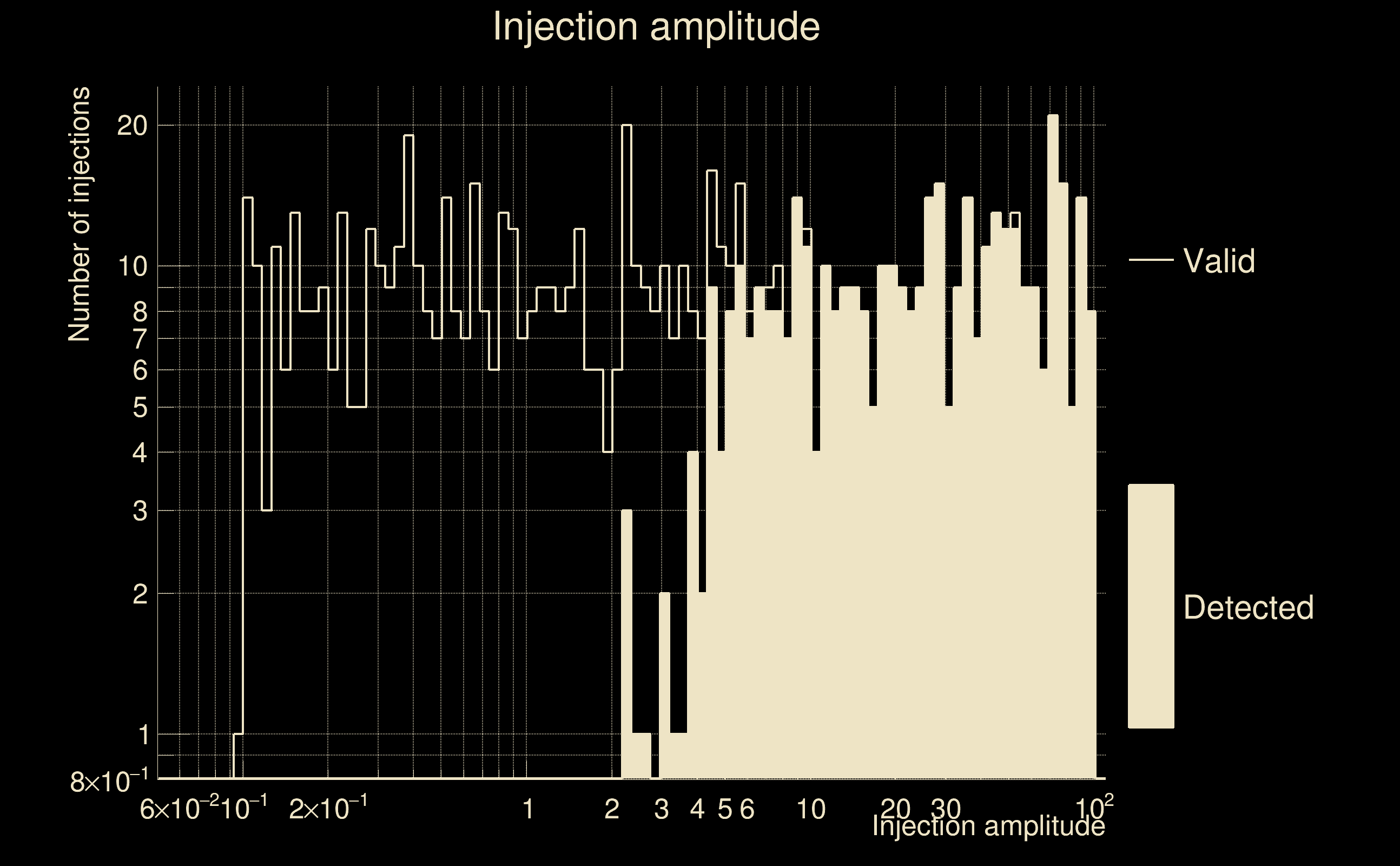

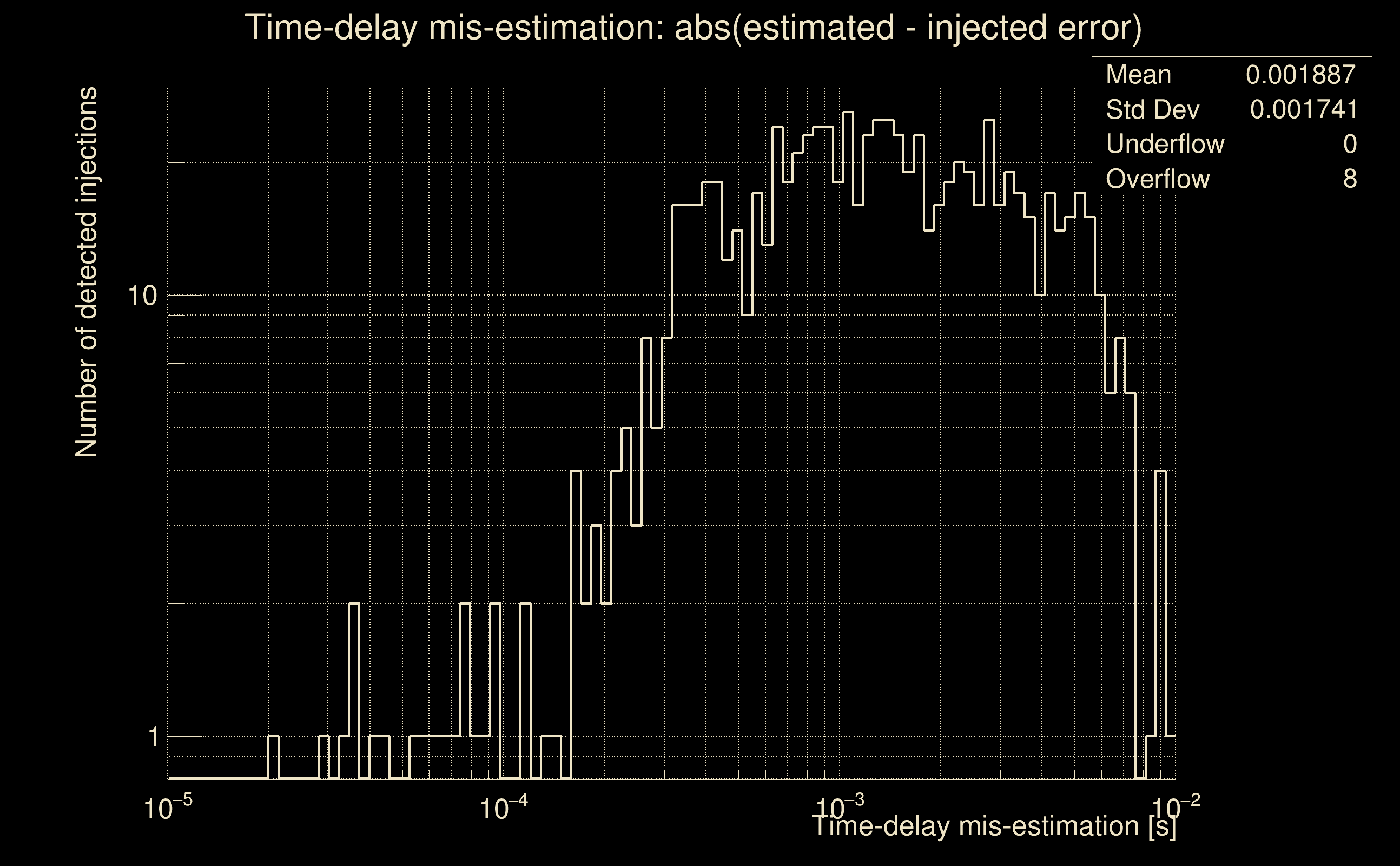

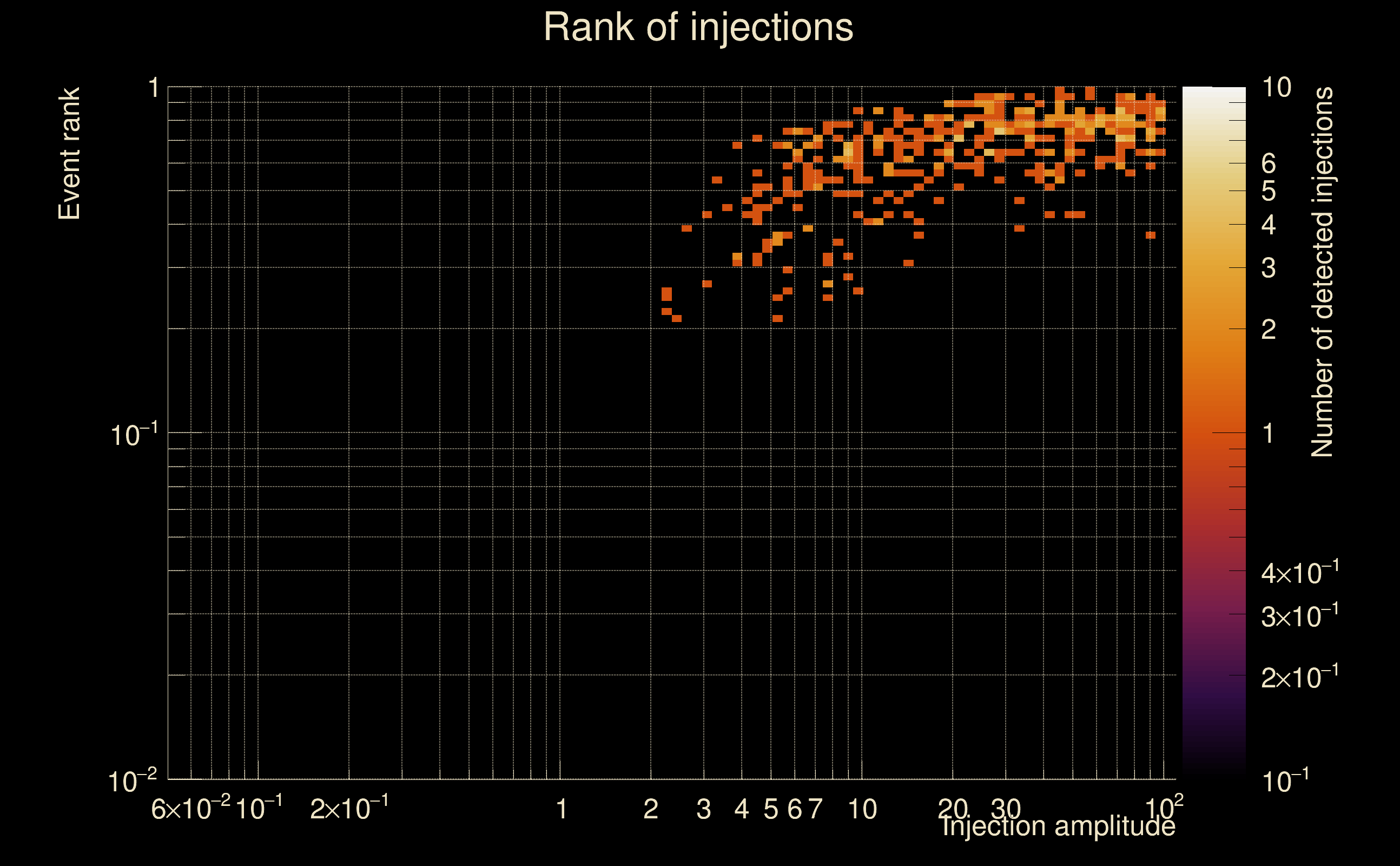

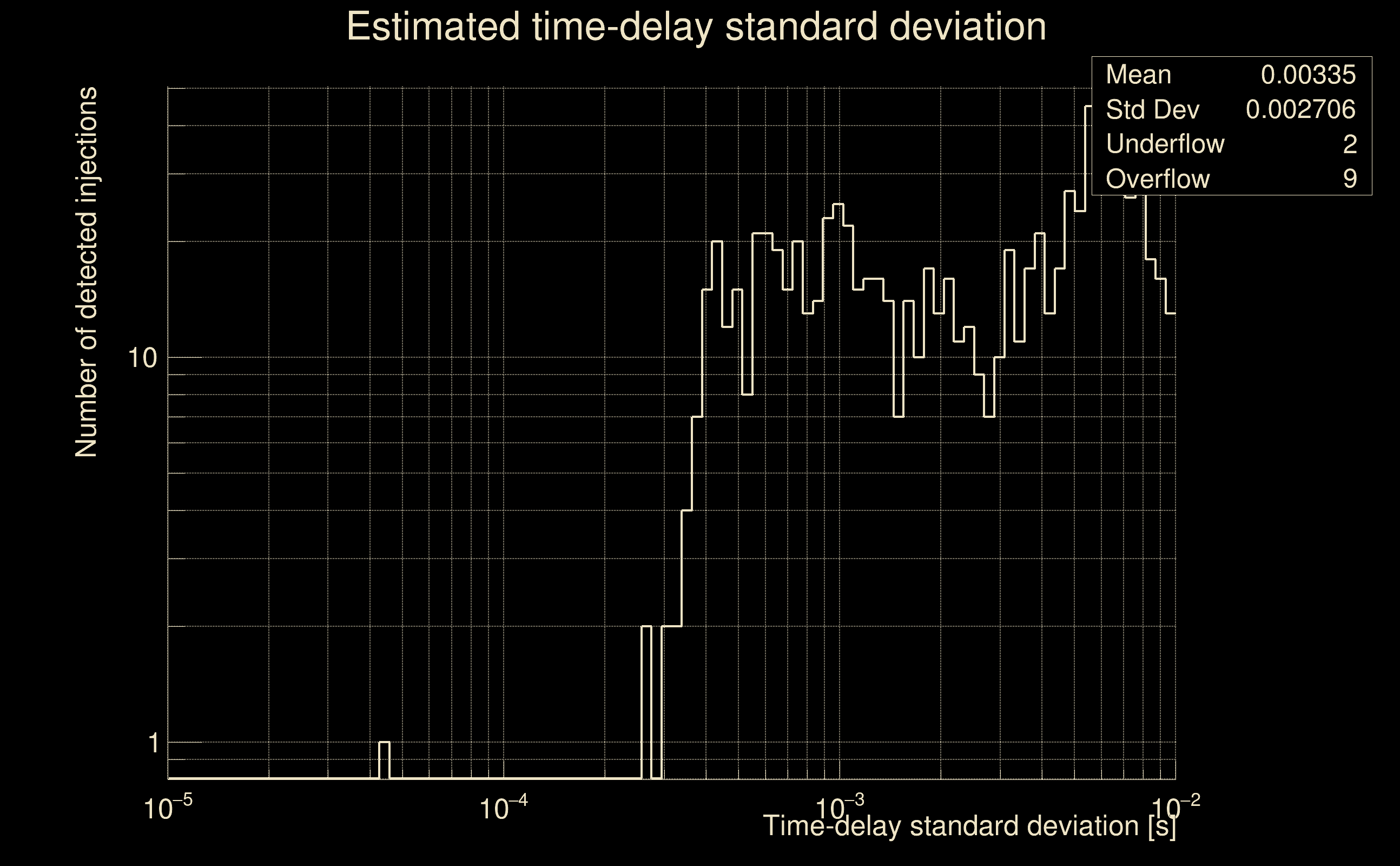

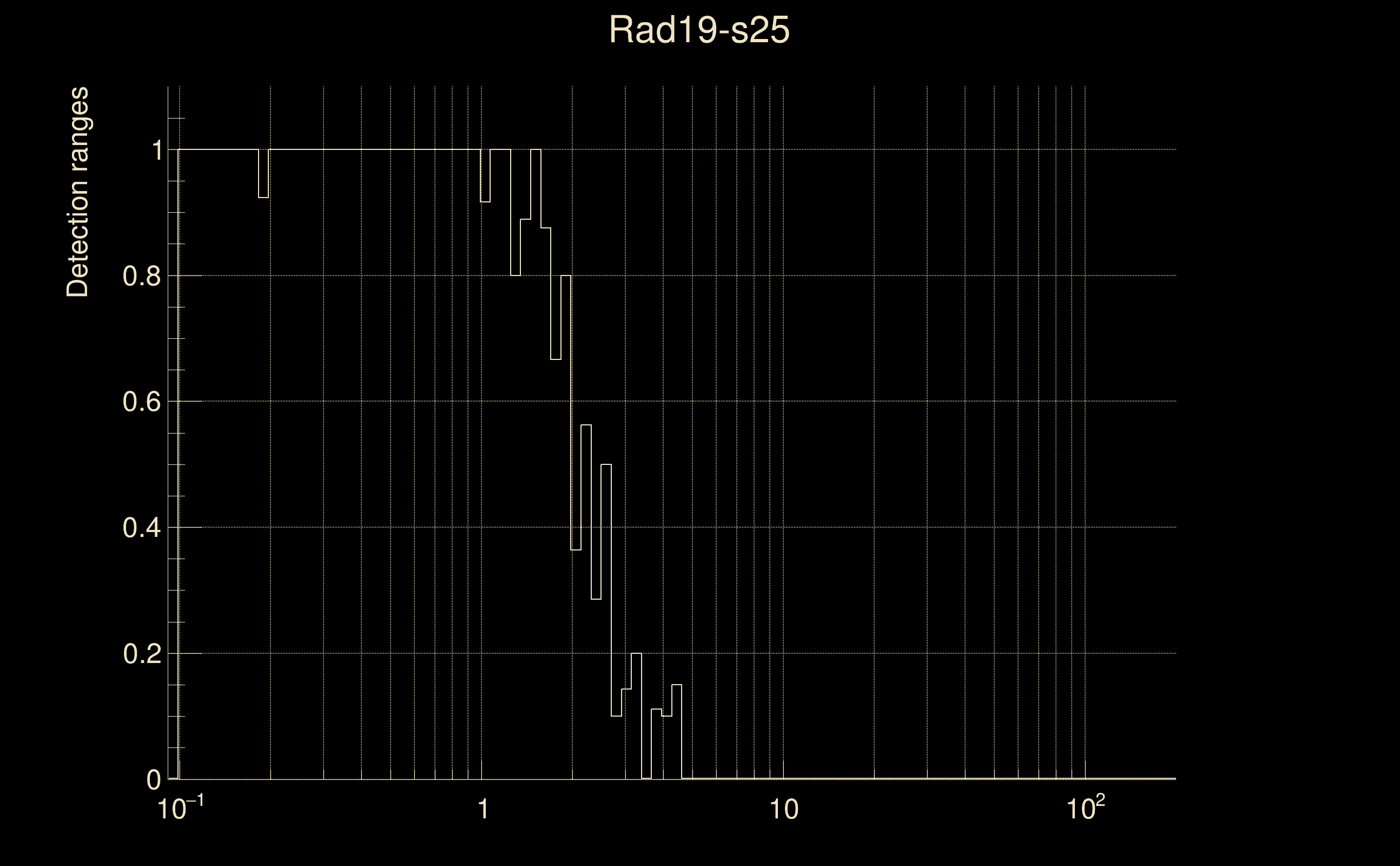

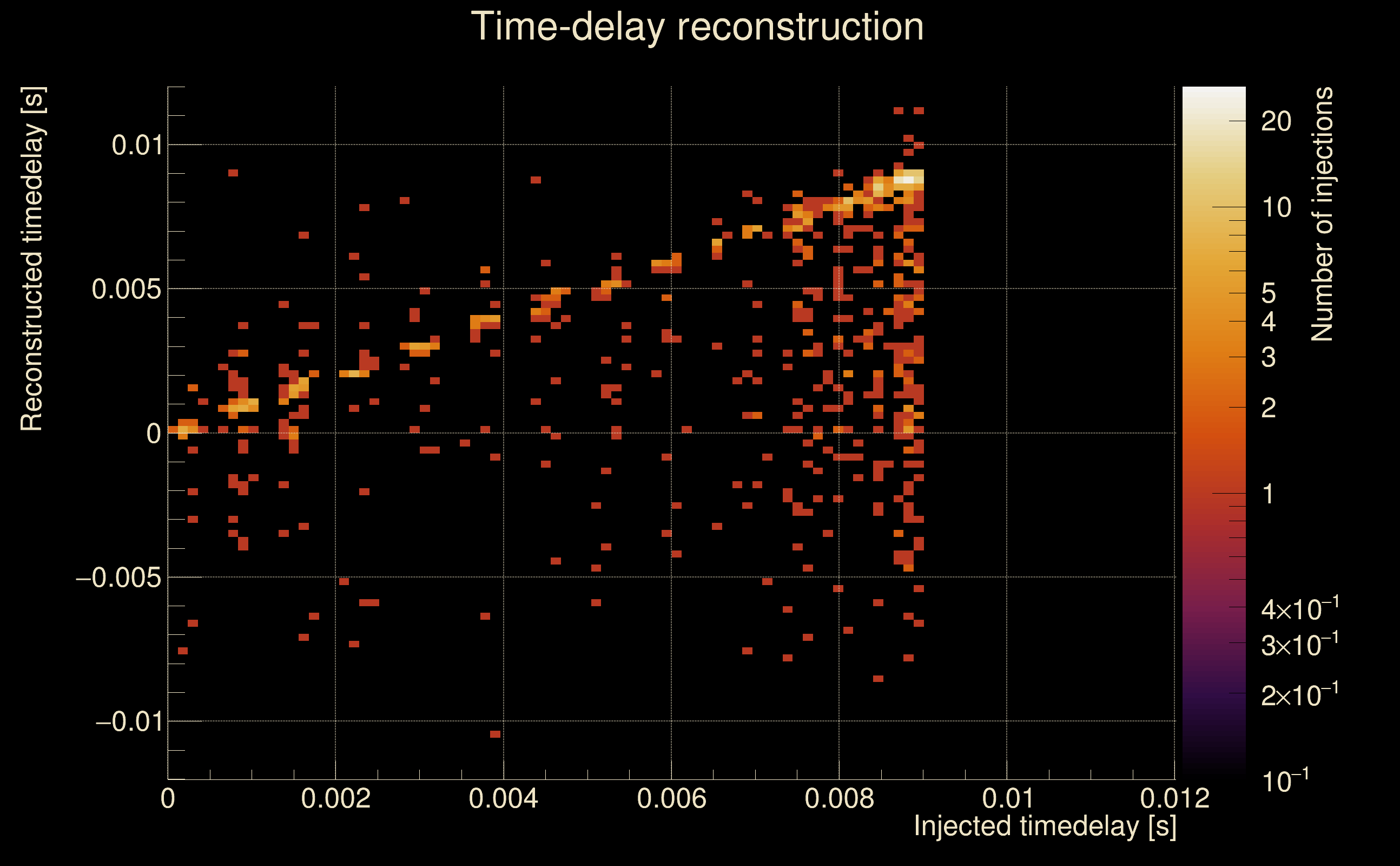

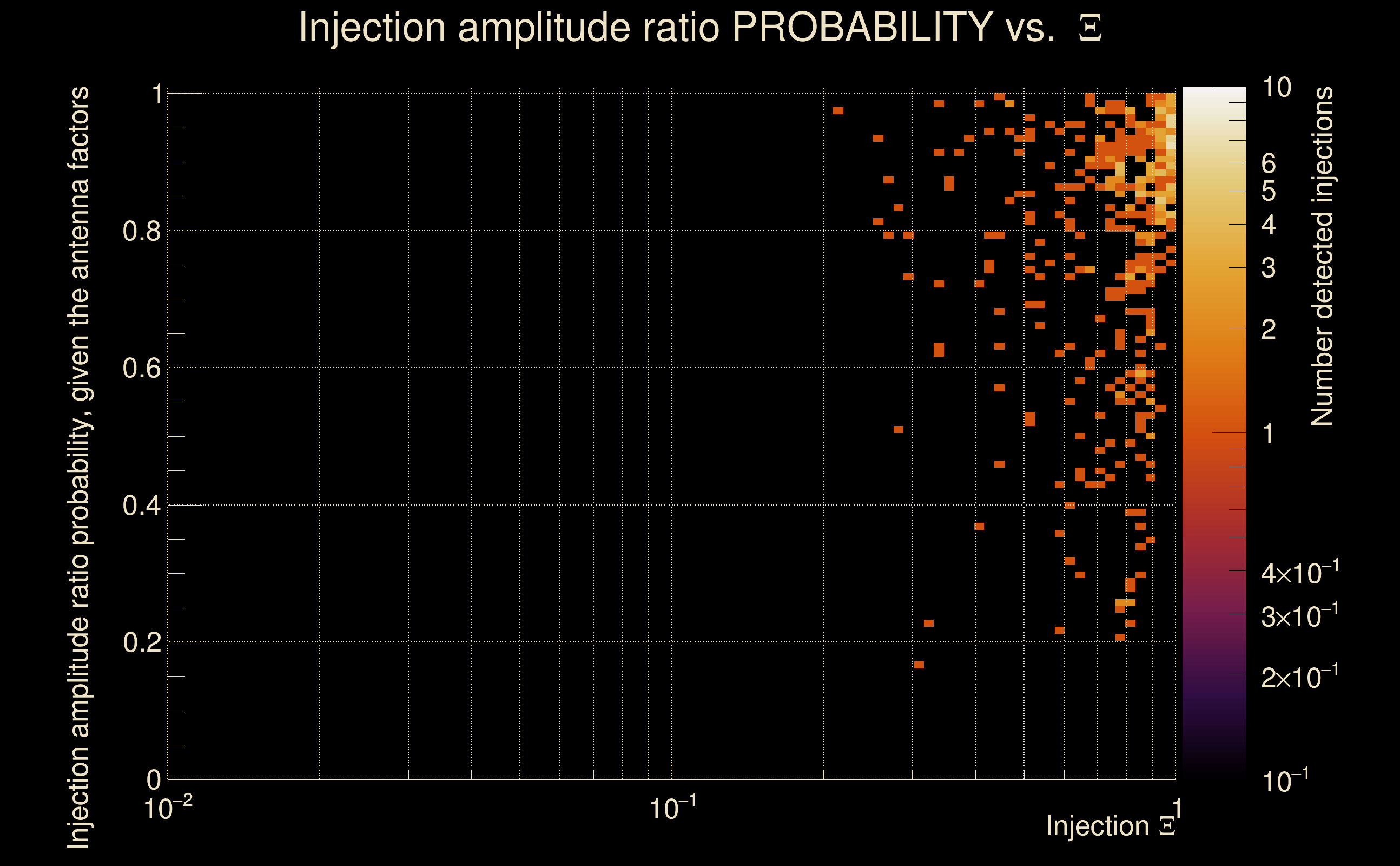

| Number of injections (total/valid/detected): | 1006 / 874 / 408 |
| List of missed injections: | ./Rad19-s25_missed.txt |
| Injection amplitude at 90% detection efficiency: | 6.22863 |
| Injection amplitude at 50% detection efficiency: | 4.98926 |
| Injection amplitude at 10% detection efficiency: | 2.95515 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
