| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:42:30 2026 UTC |
| Ox option file: | Ixf7_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf7_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf7_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=63 (2.07 s), time lag = 0 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

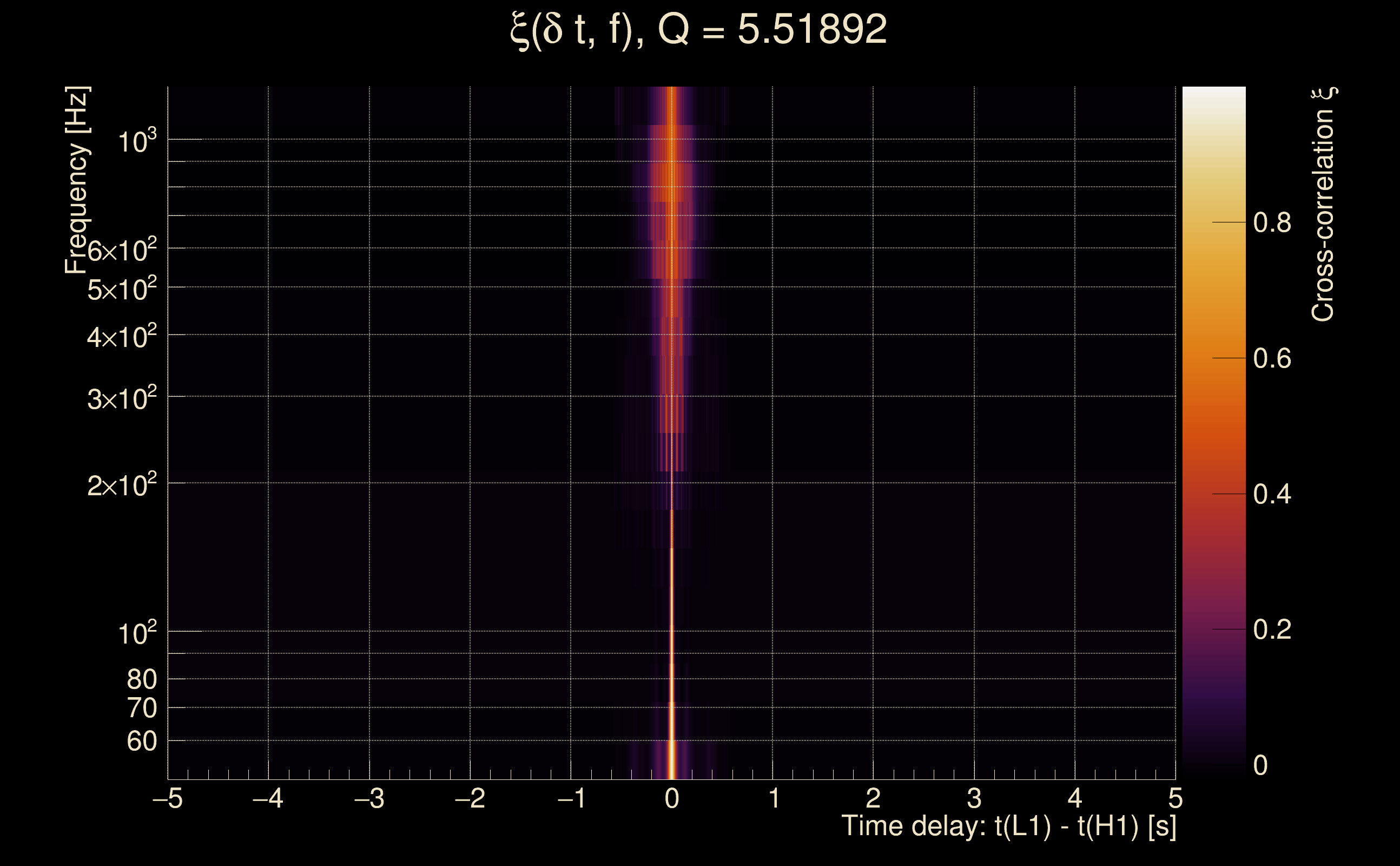

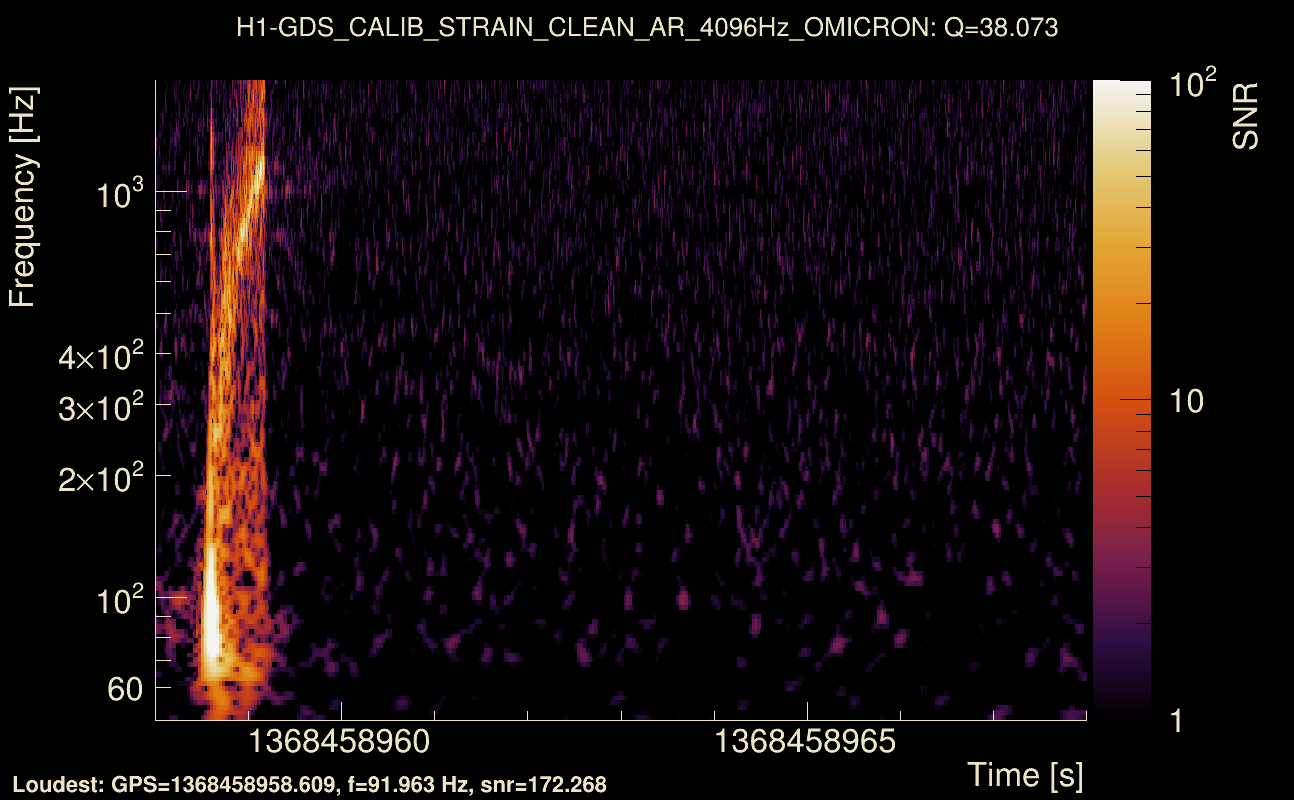

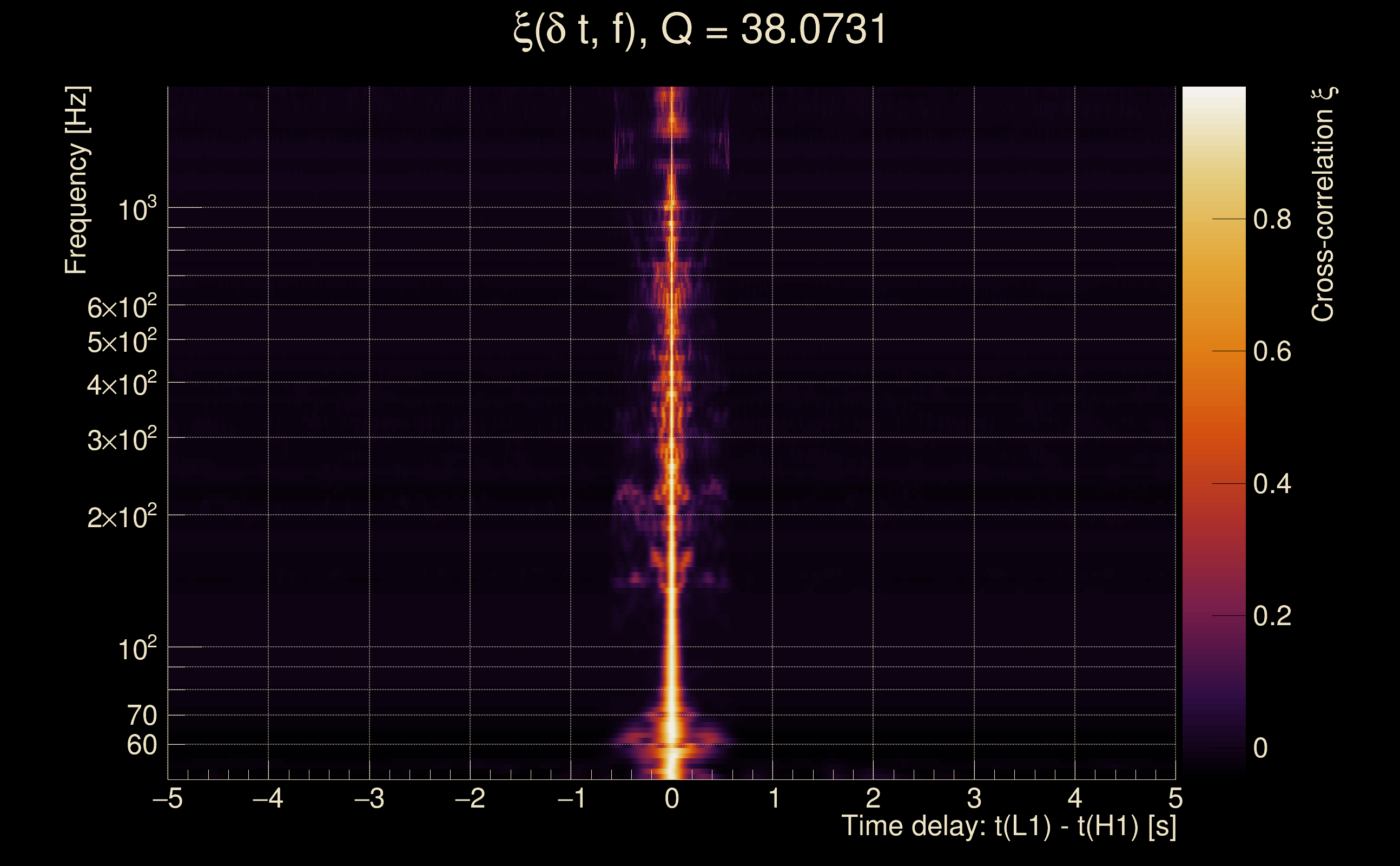

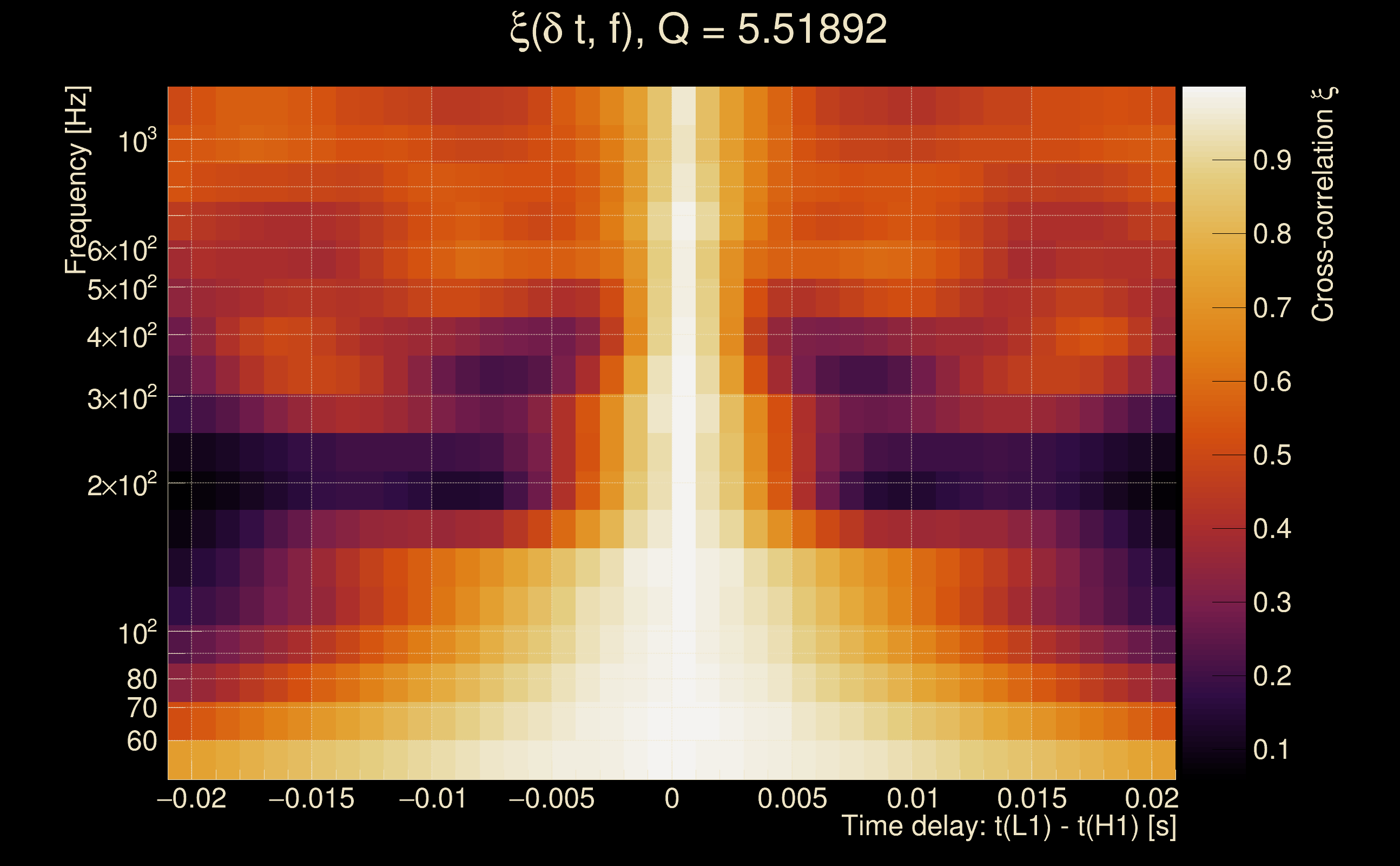

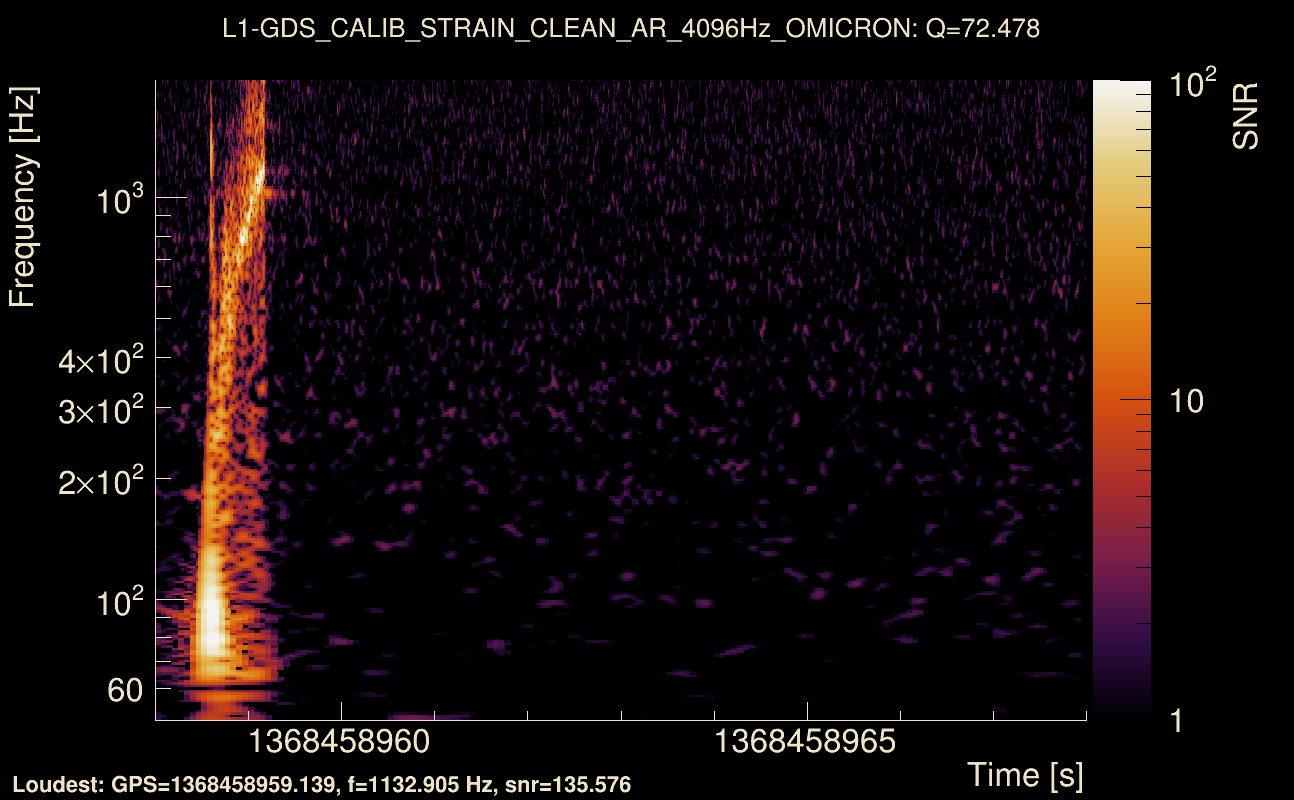

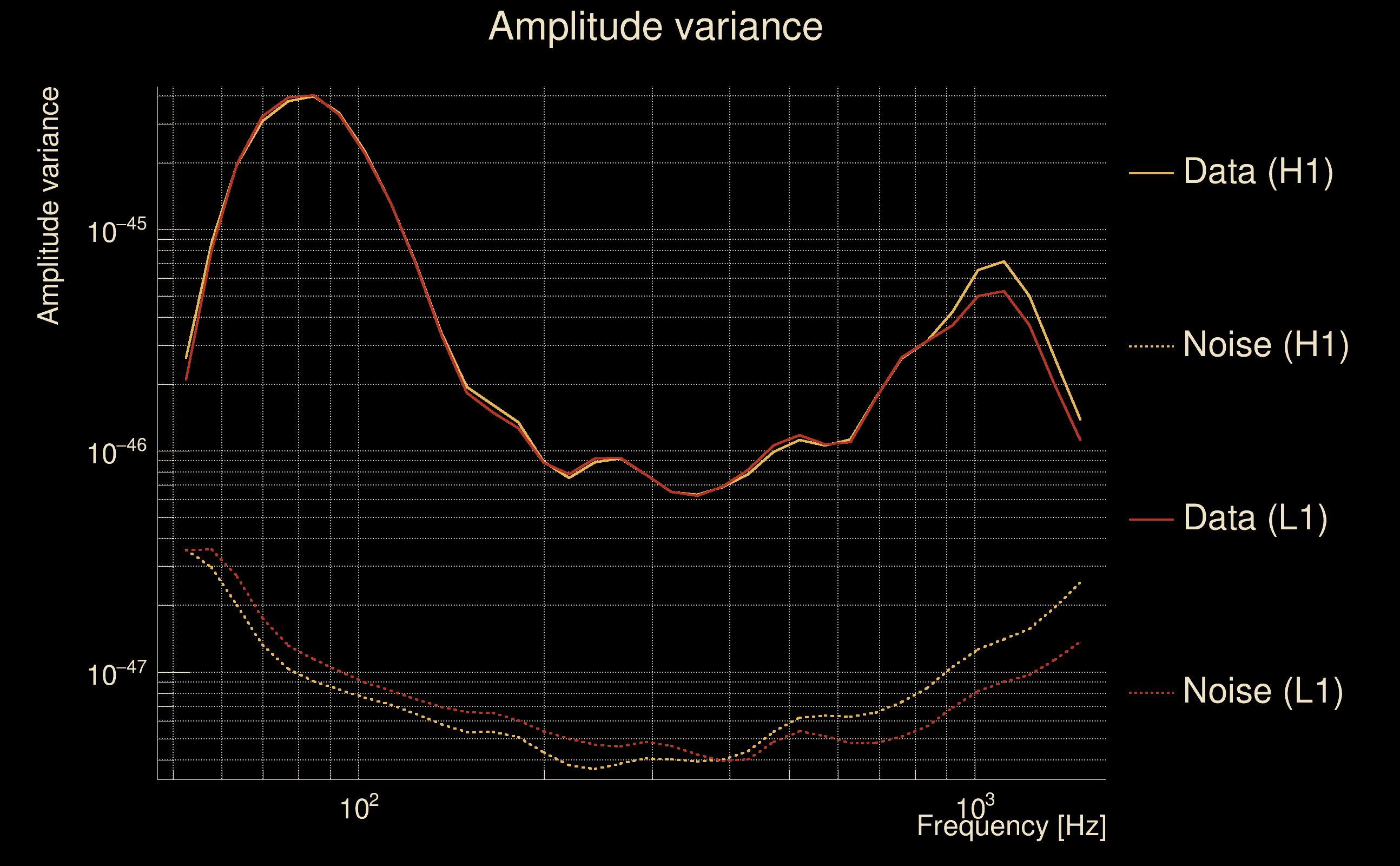

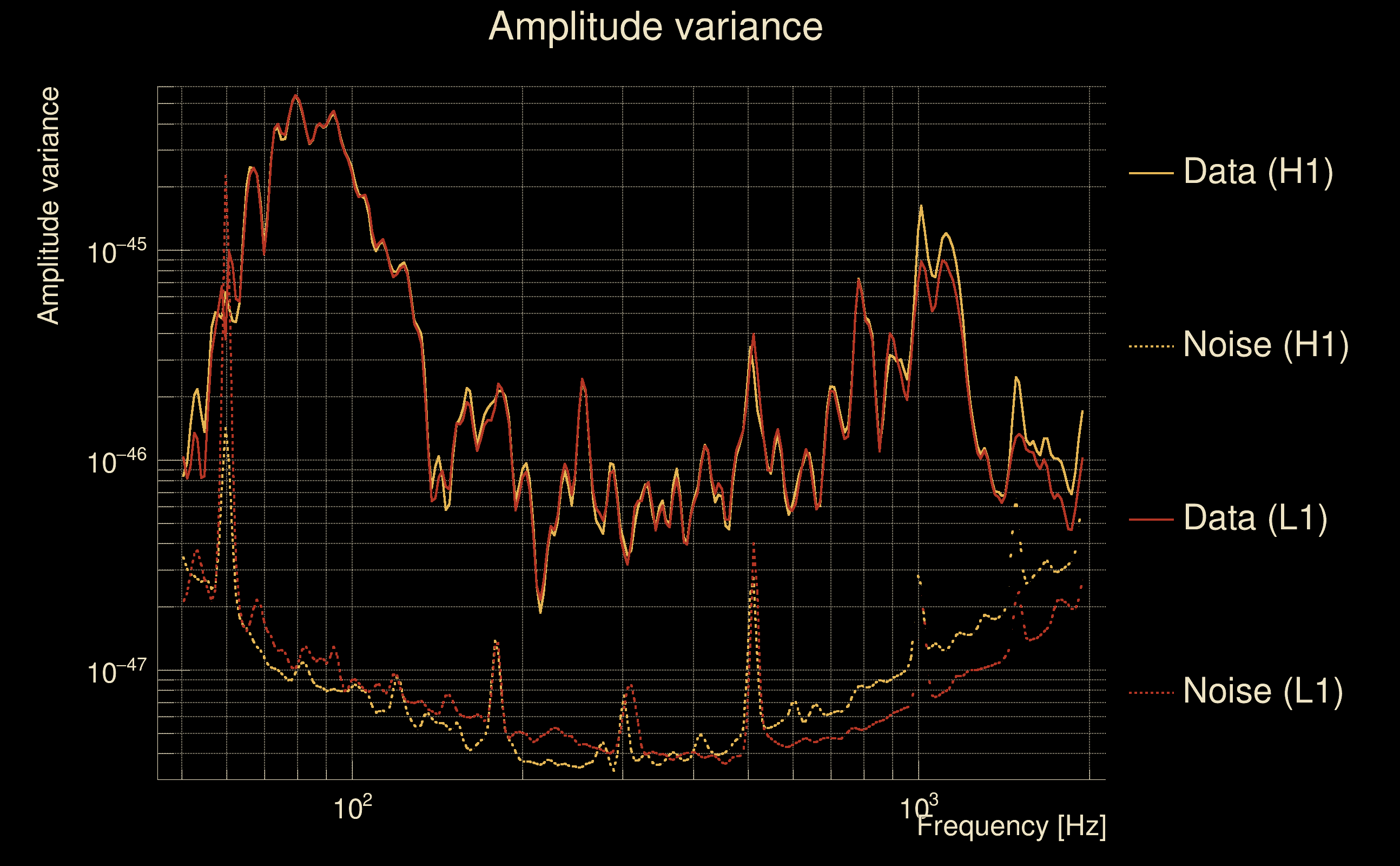

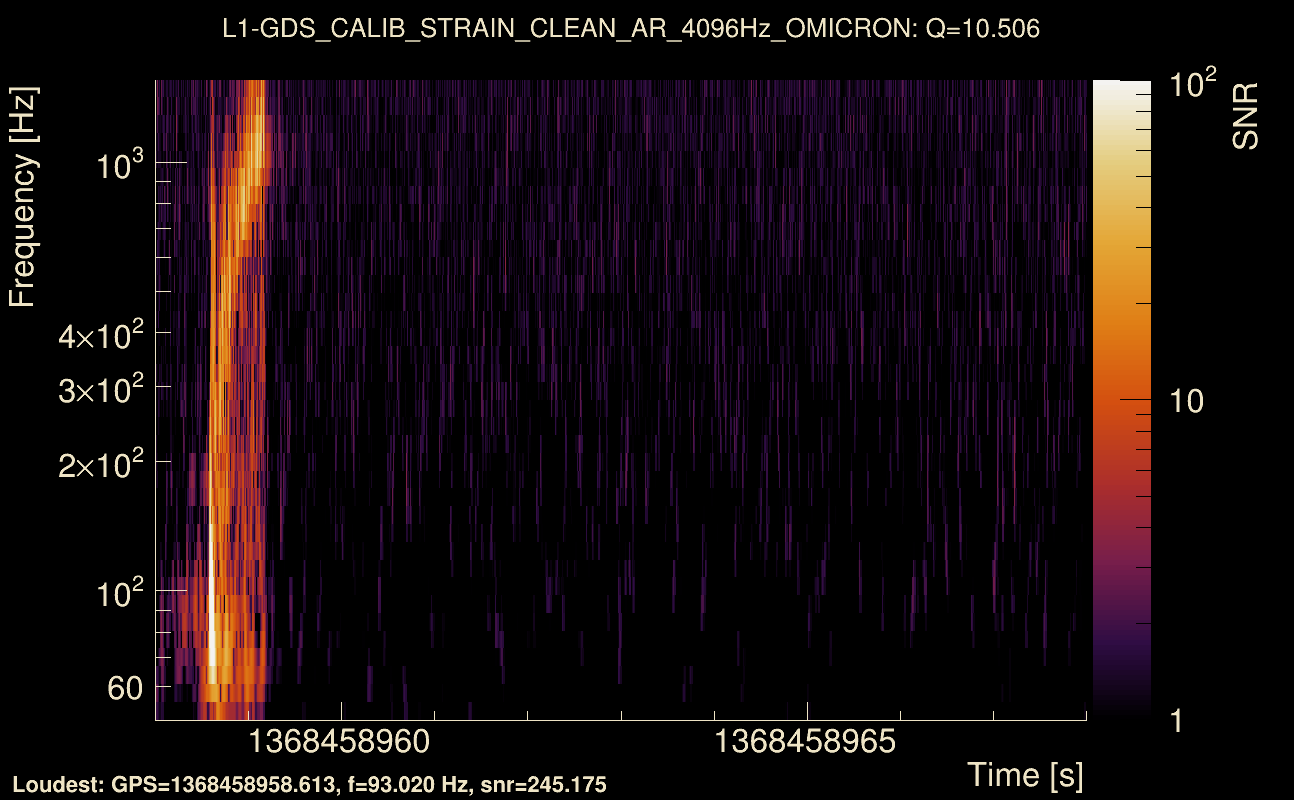

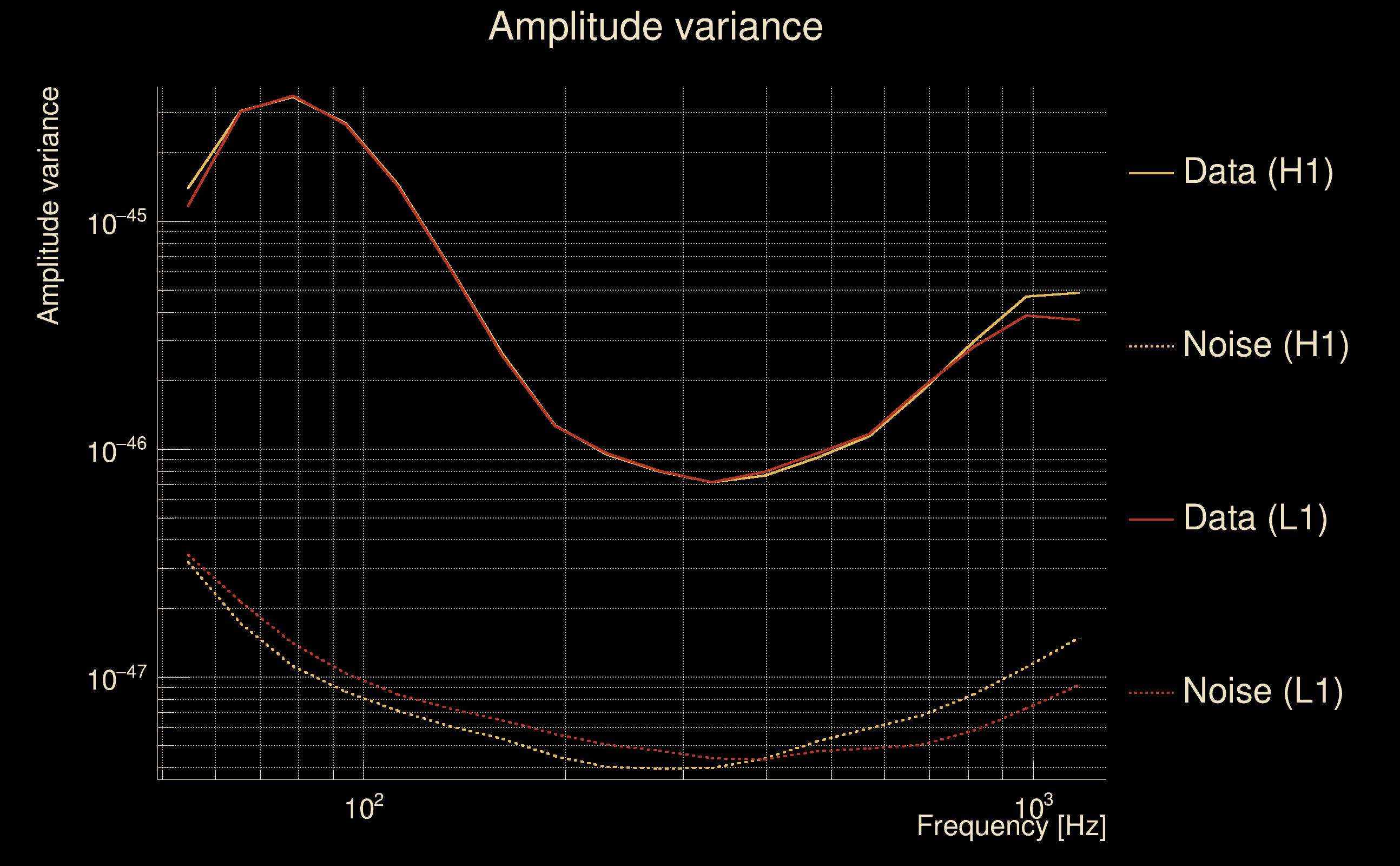

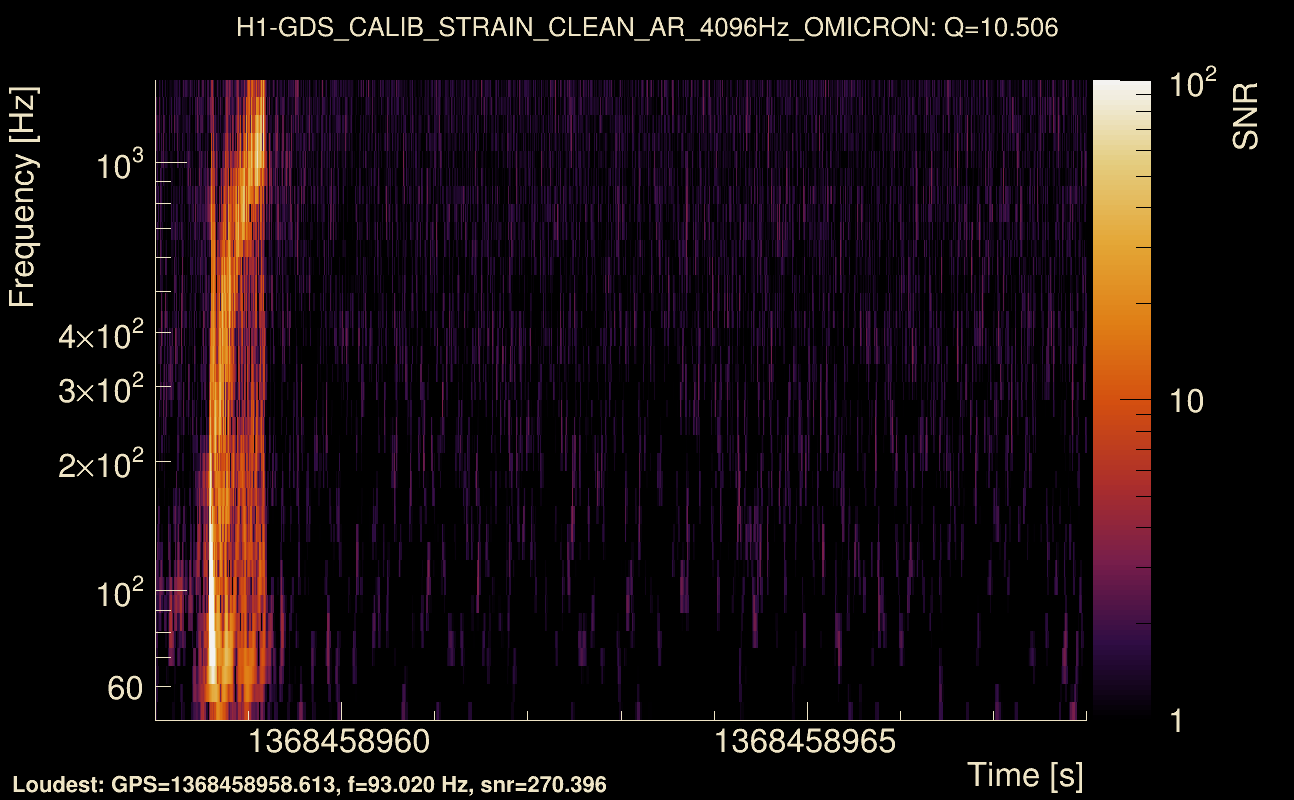

| Event time t(H1): | GPS = 1368458953 (Thu May 18 15:28:55 2023 ) → GPS = 1368458963 (Thu May 18 15:29:05 2023 ) |
| Event time t(L1): | GPS = 1368458953 (Thu May 18 15:29:05 2023 ) → GPS = 1368458963 (Thu May 18 15:29:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368458950 → GPS = 1368458966 |
| Omicron analysis time window (L1): | GPS = 1368458950 → GPS = 1368458966 |
| Time delay between detectors t(L1) - t(H1): | -1.56059e-05 s (slice index = 108 / 217), δt_gw = -1.56059e-05 s |

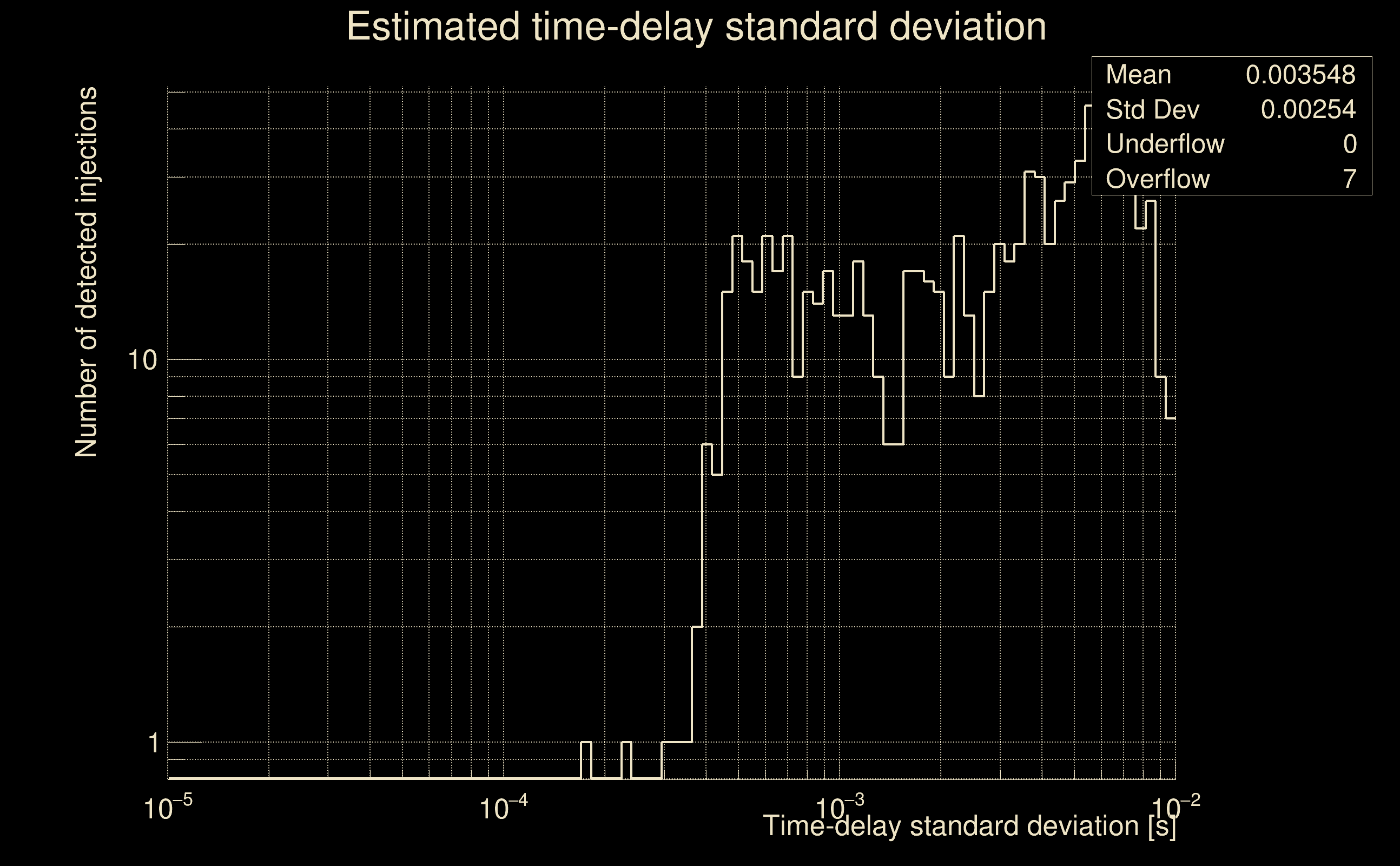

| Time delay standard deviation: | 0.0134353 s |
| [targeted mode] Time delay probability: | 0 (43.1404 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 284.233 Hz |
| Ξ: | 0.987048 ± 0.00393561 (variance = 1.5489e-05): Q0: 0.989236, Q1: 0.988105, Q2: 0.983871, Q3: 0.981016, Q4: 0.979042 |
| Rank: | R_A = 0.987048 |
| Log of amplitude ratio (L1/H1): | -0.0146606, variance = 0.151286 (L1/H1: -0.0193975, variance = 0.302545, H1/L1: 0.00959067, variance = 0.301853) |
| Amplitude ratio (L1/H1): | 0.985446 ⋇ 1.47544 (L1/H1: 0.980789 ⋇ 1.73332, H1/L1: 1.00964 ⋇ 1.73223) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.989935 |

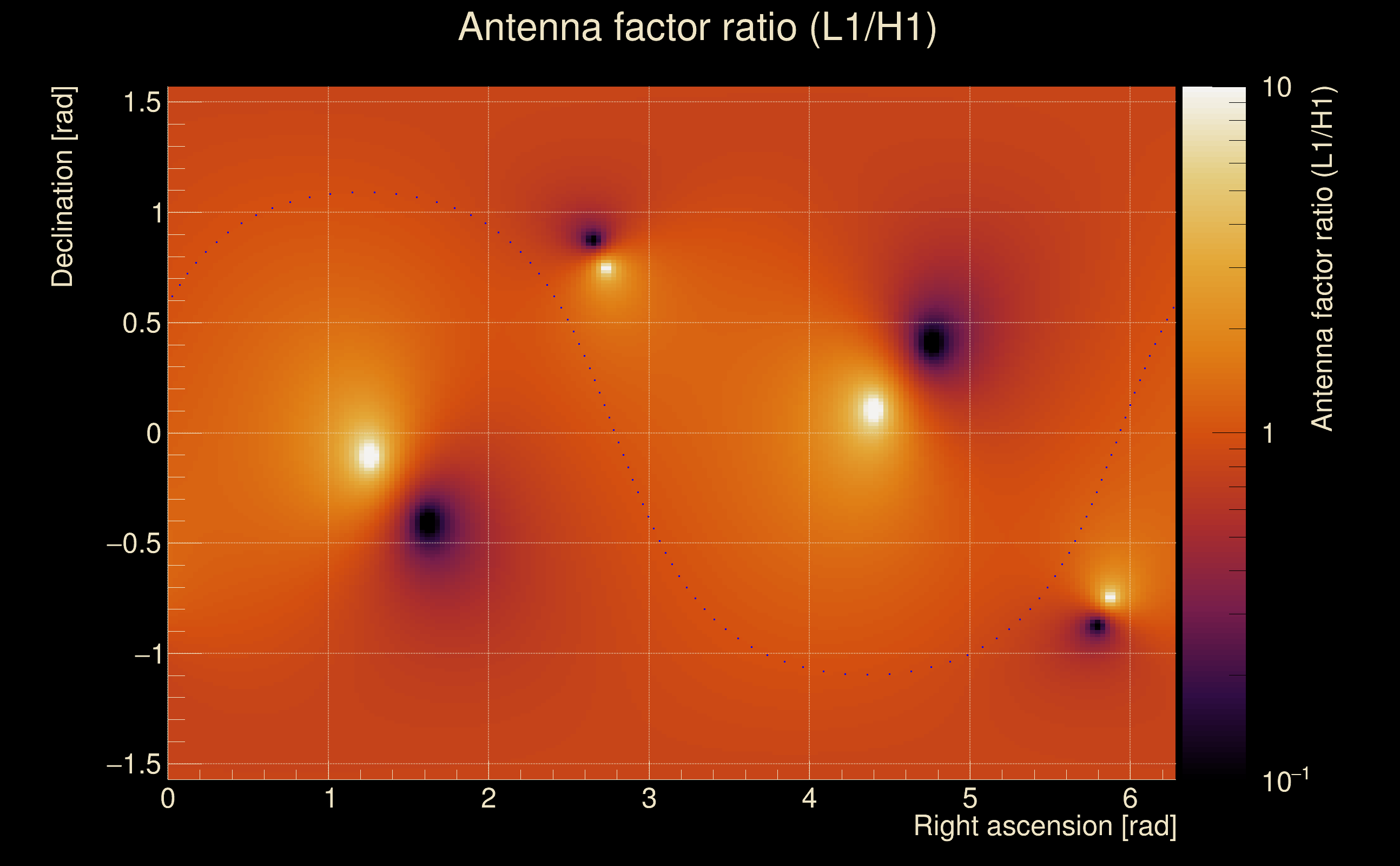

| Antenna factor probability: | 0.880152 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 298.995, L1: 289.006 |

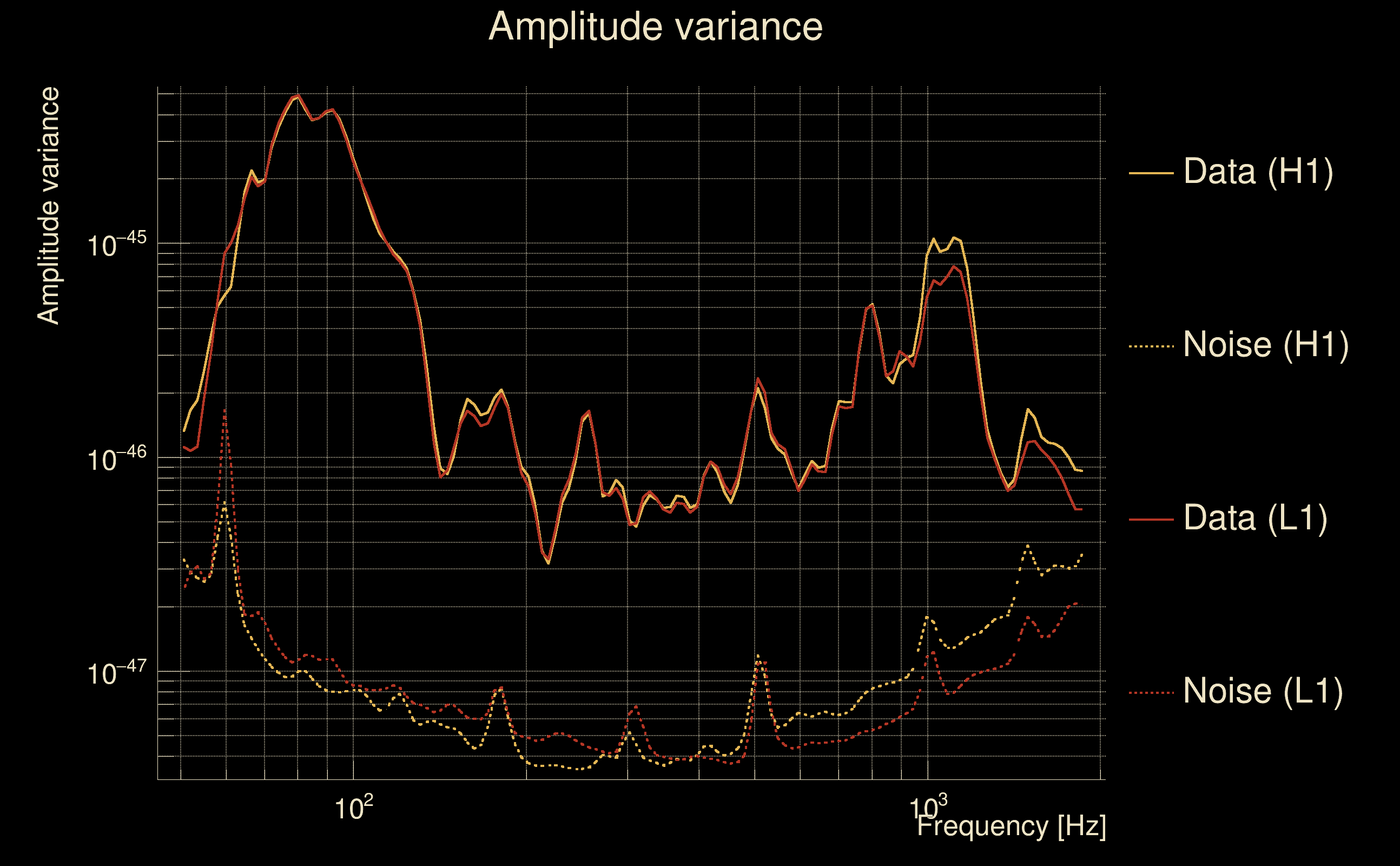

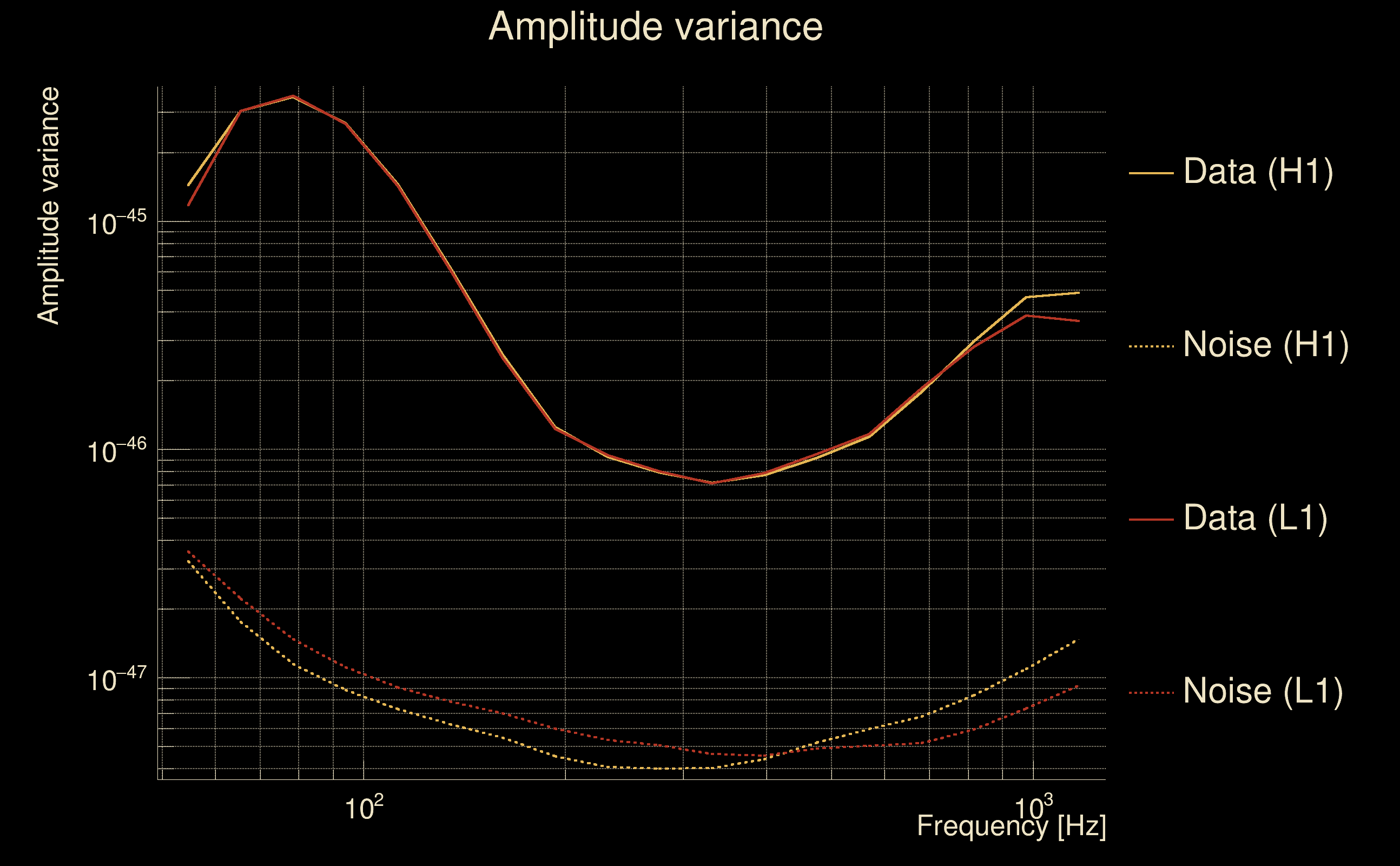

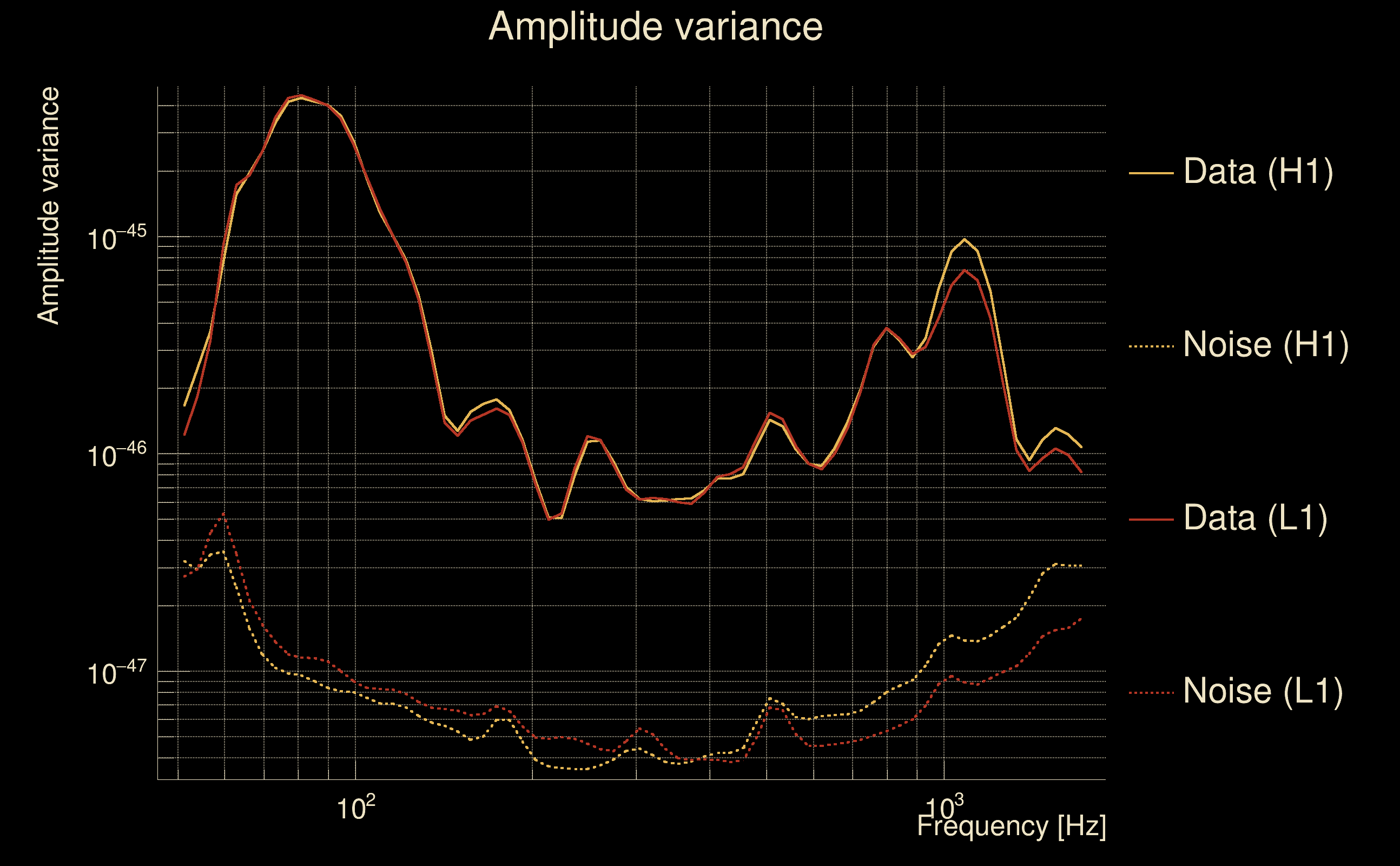

| SNR variance: | H1: 0.486363, L1: 0.465517 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

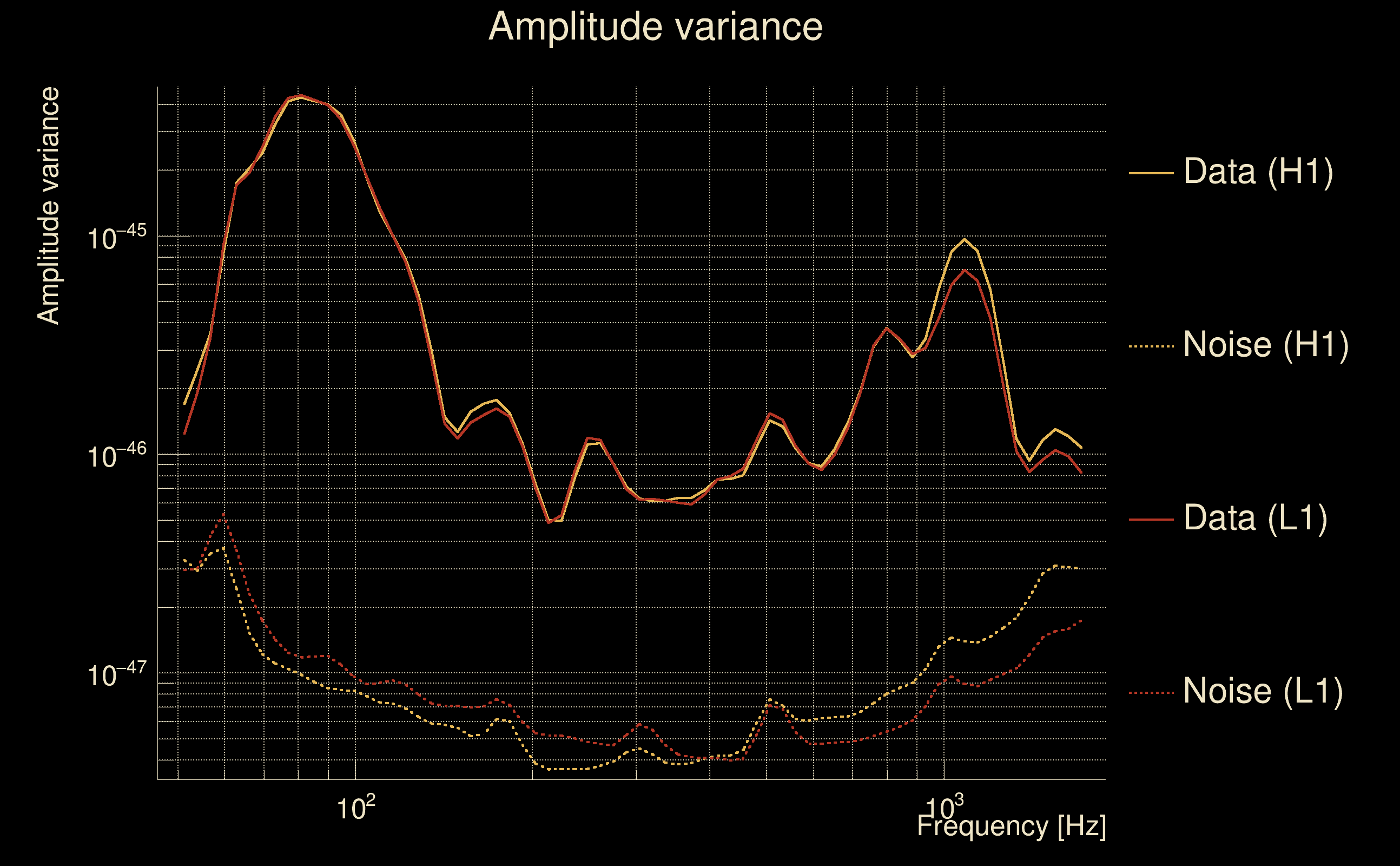

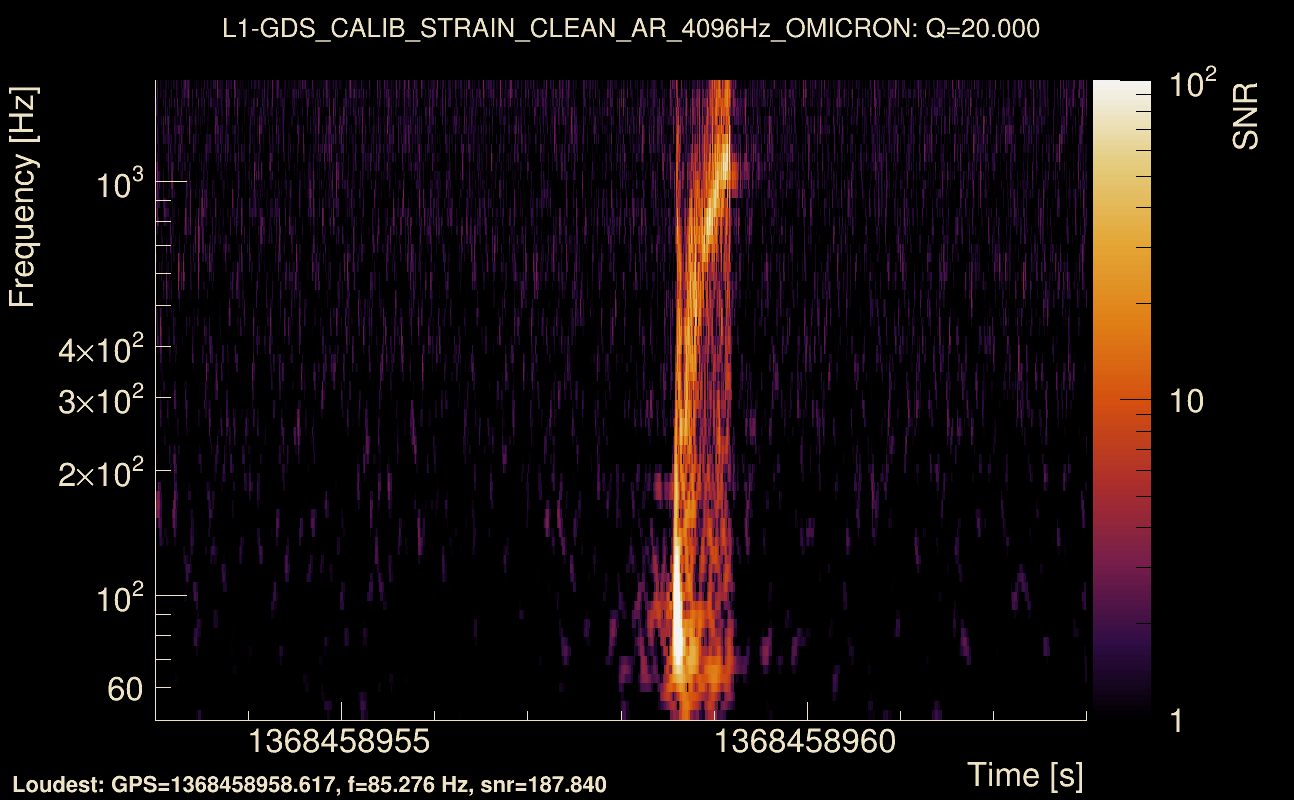

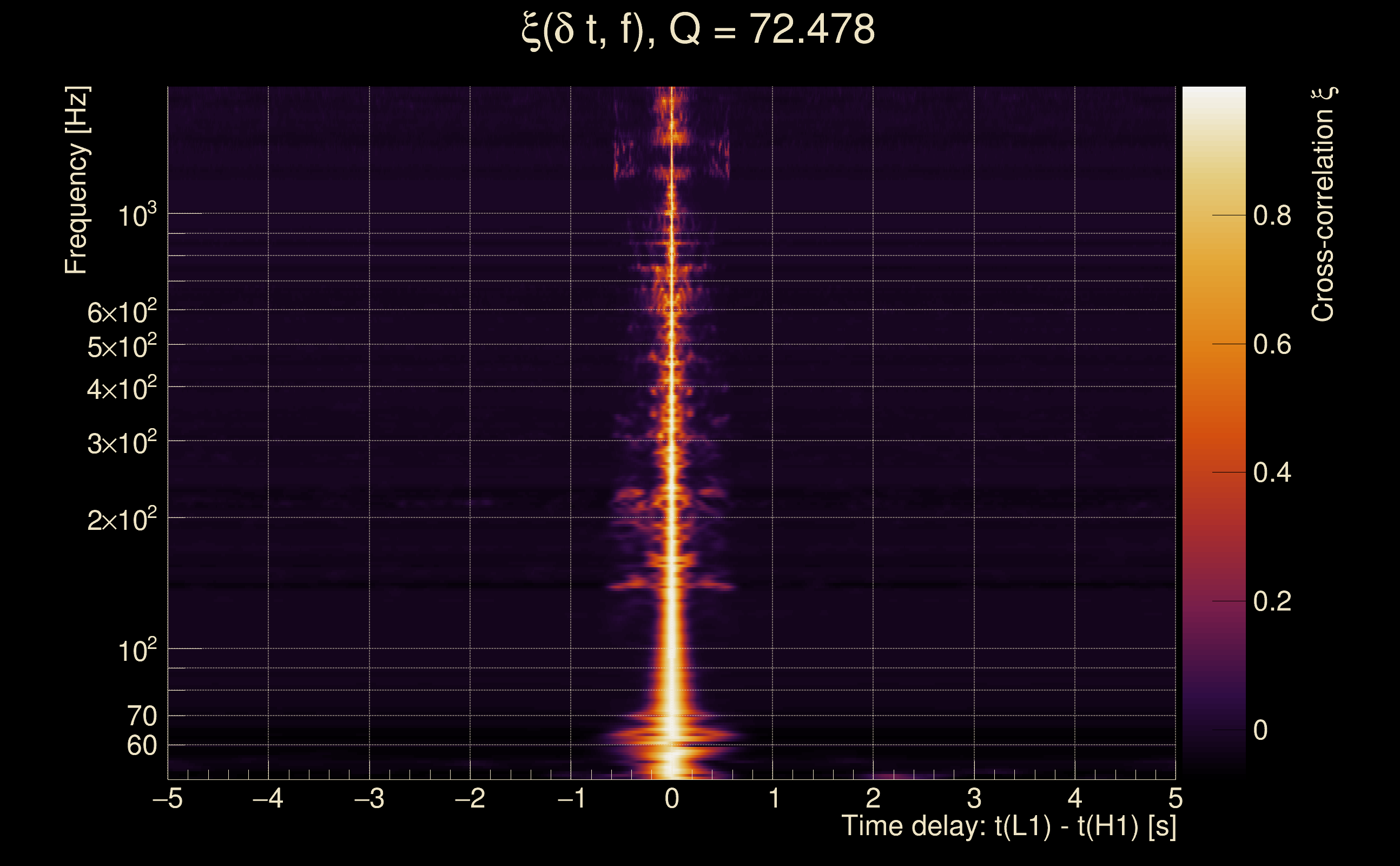

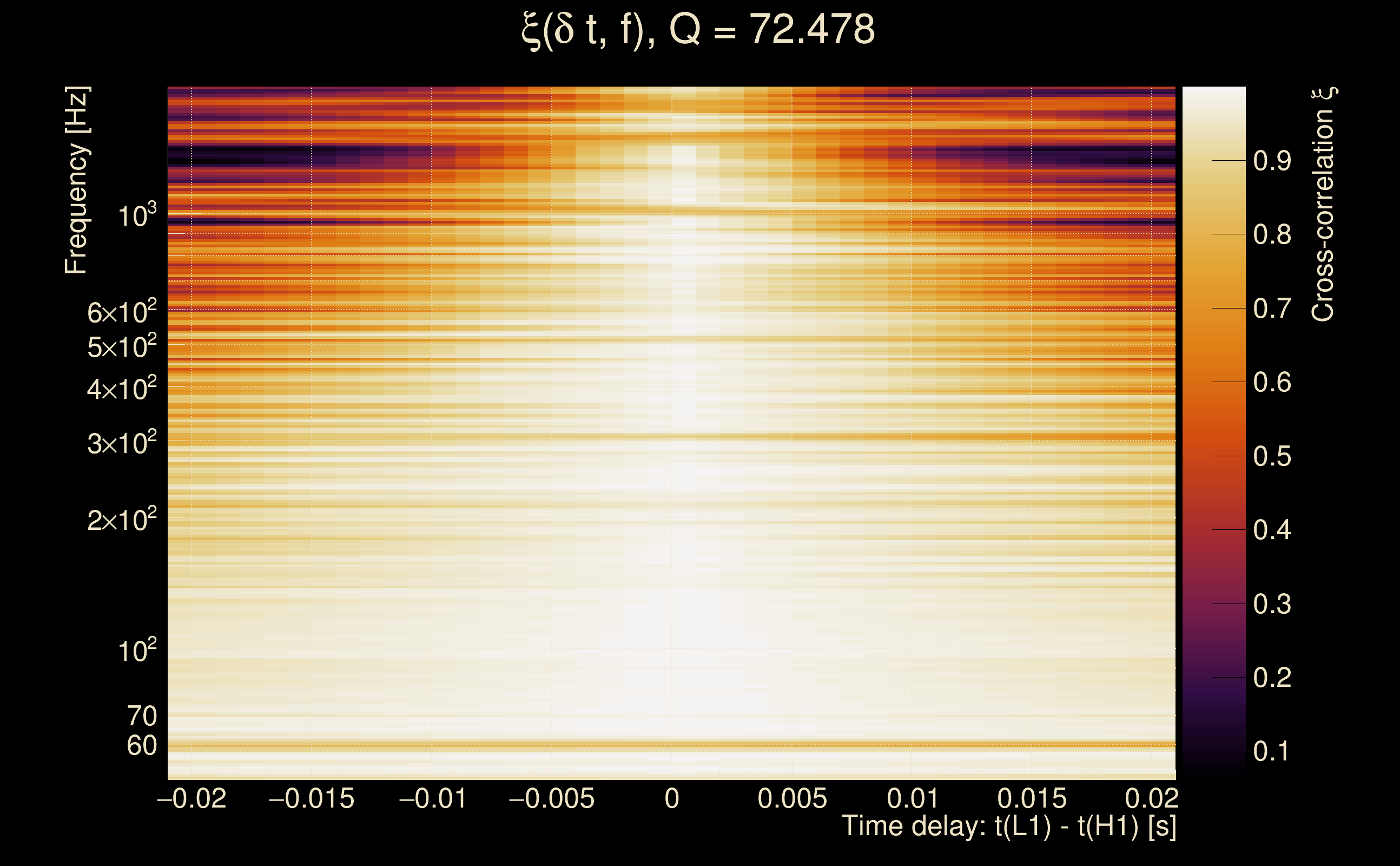

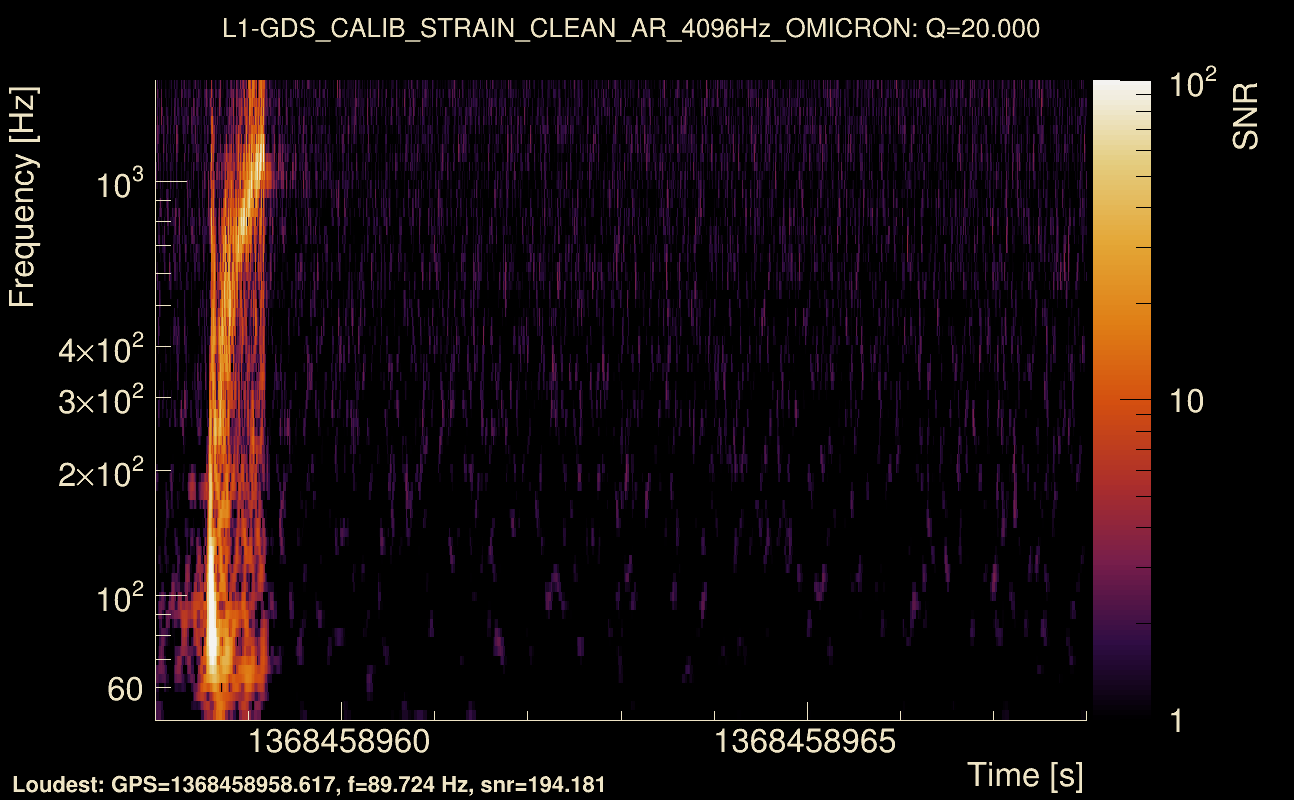

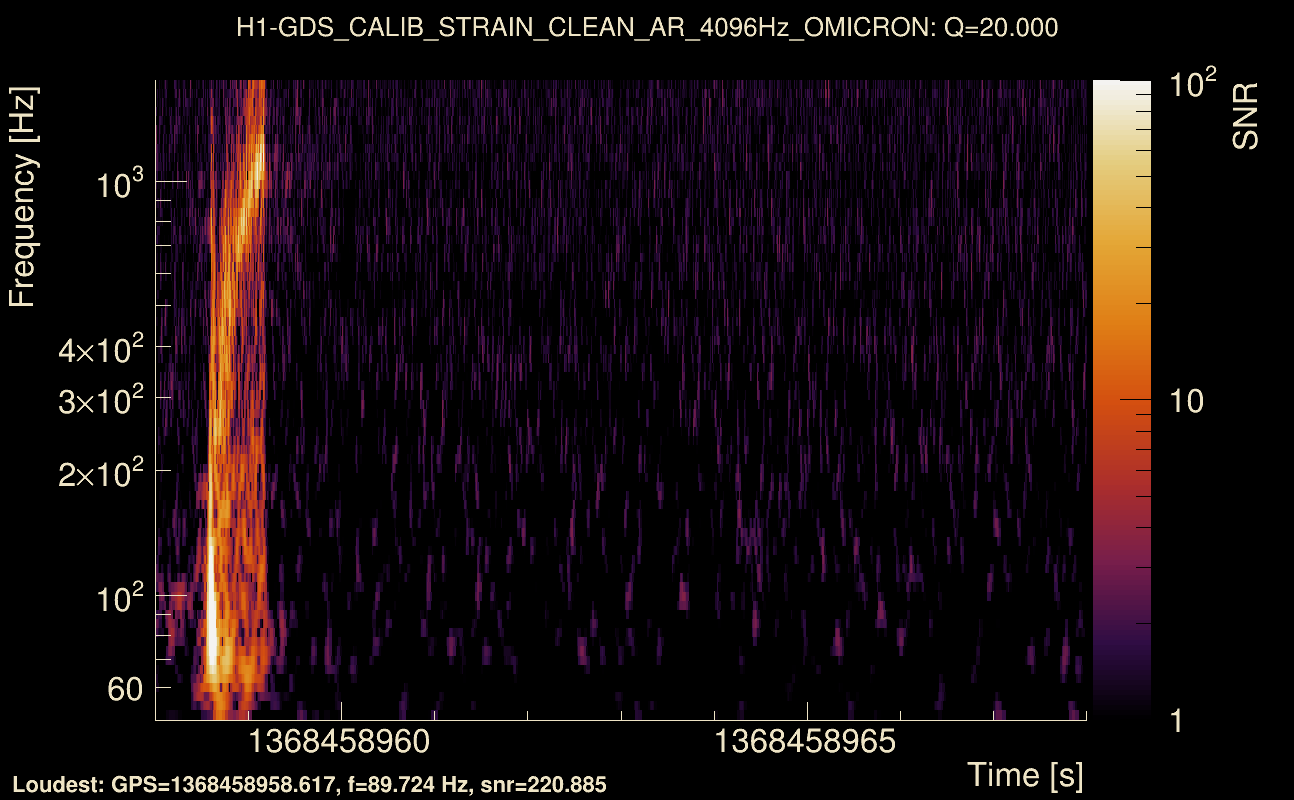

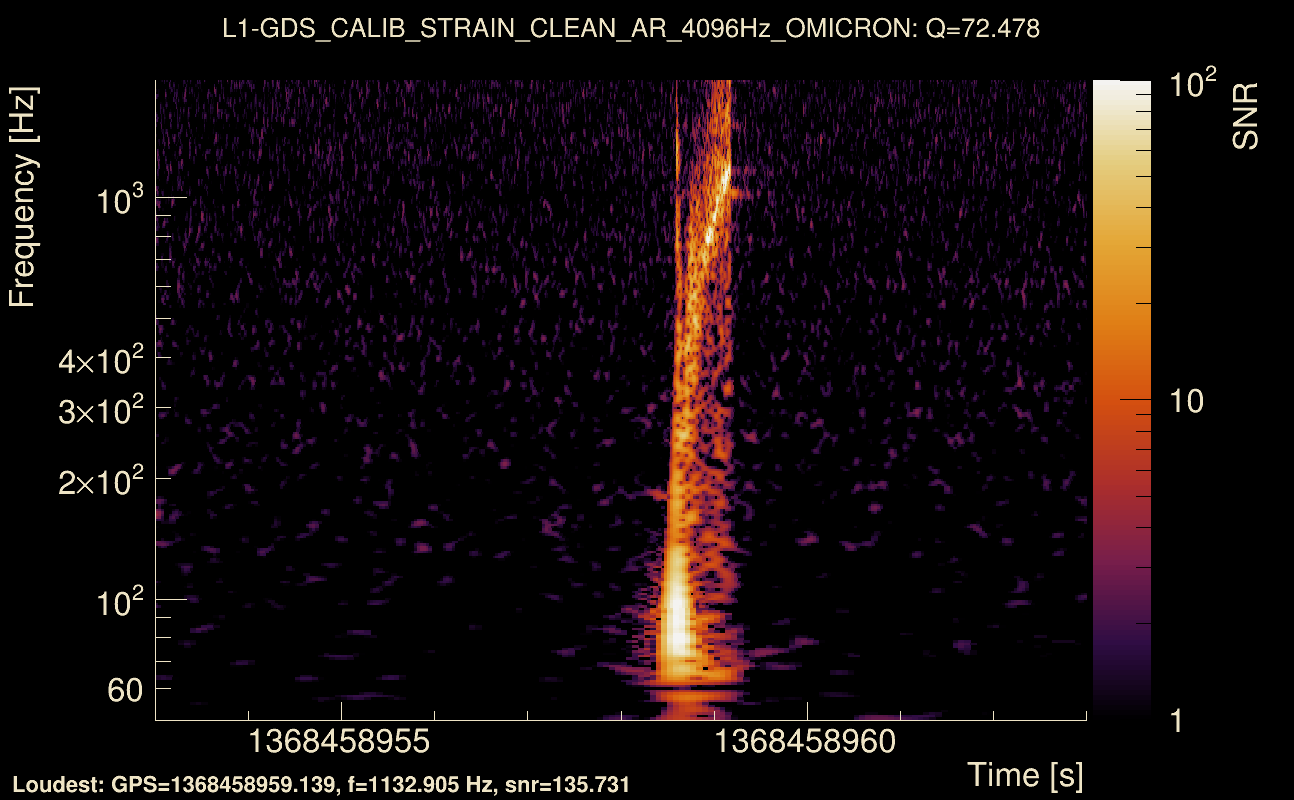

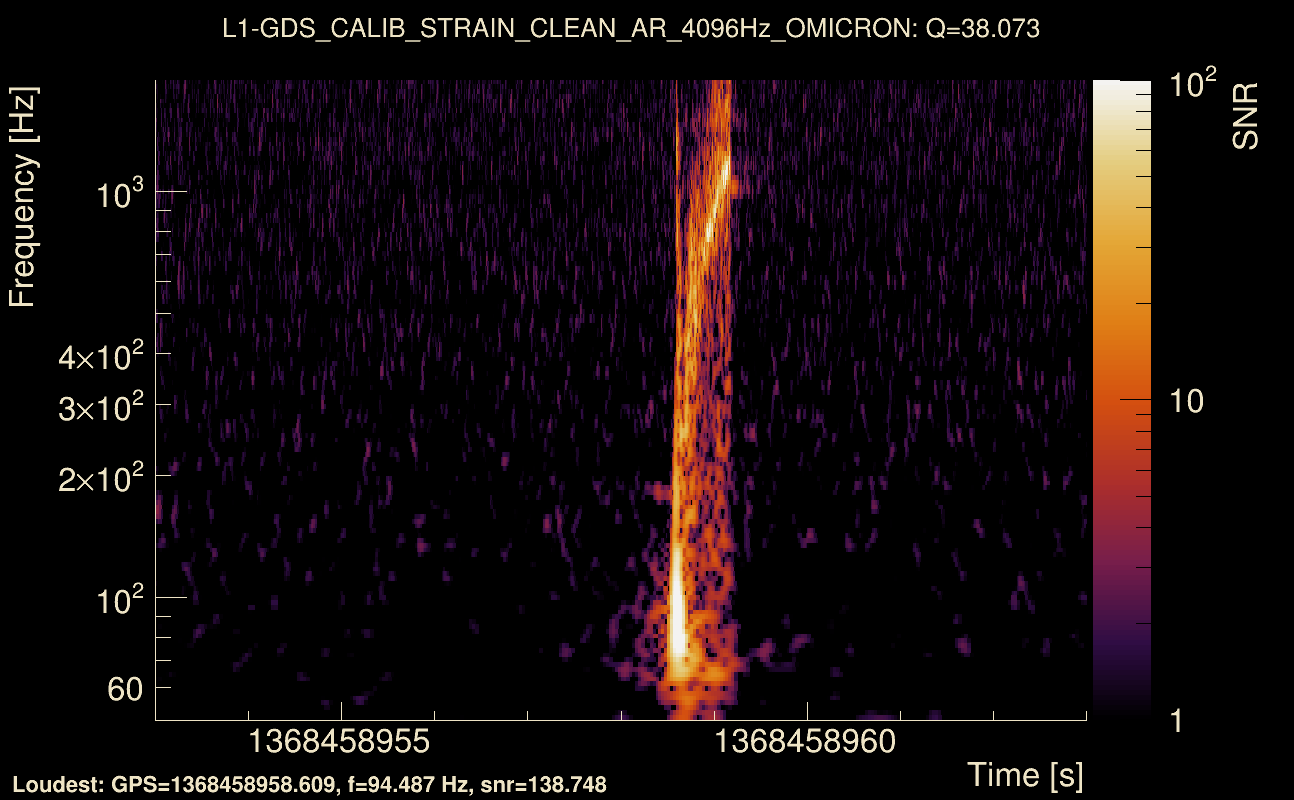

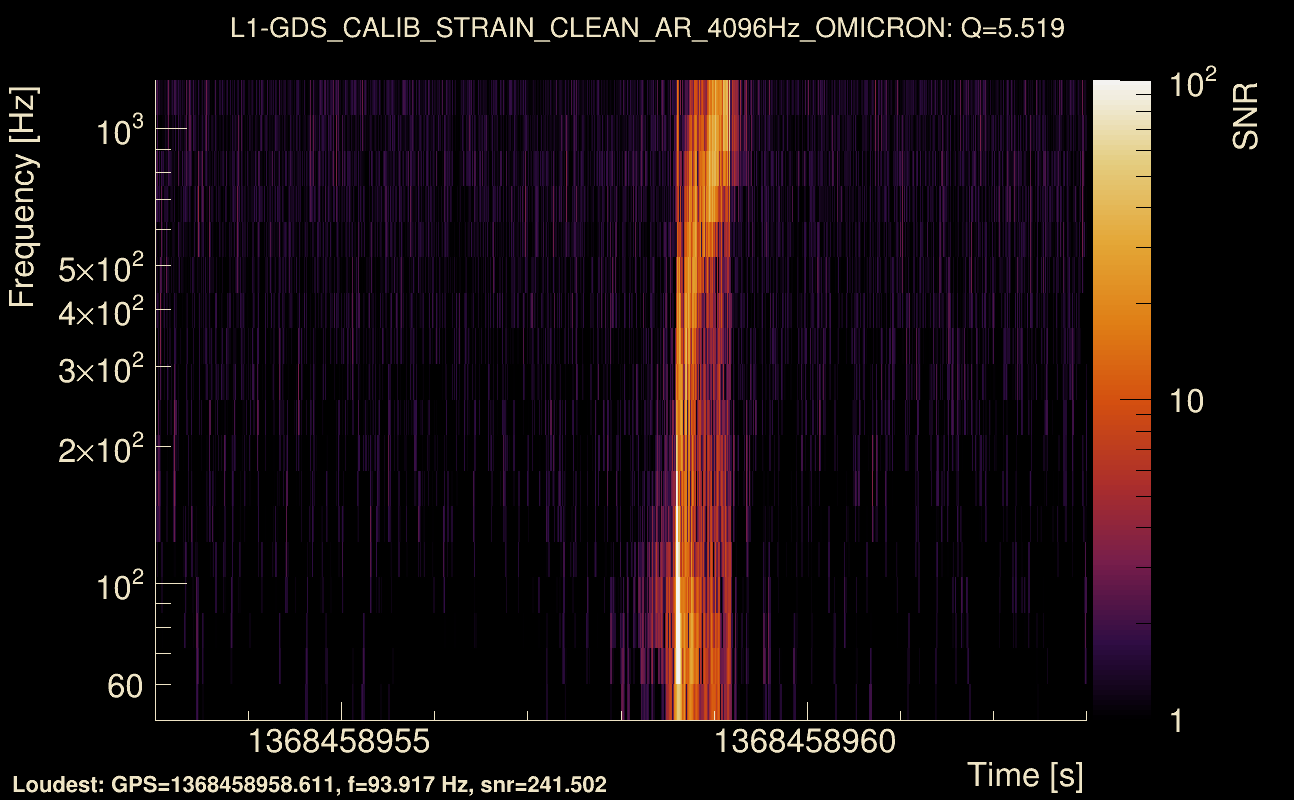

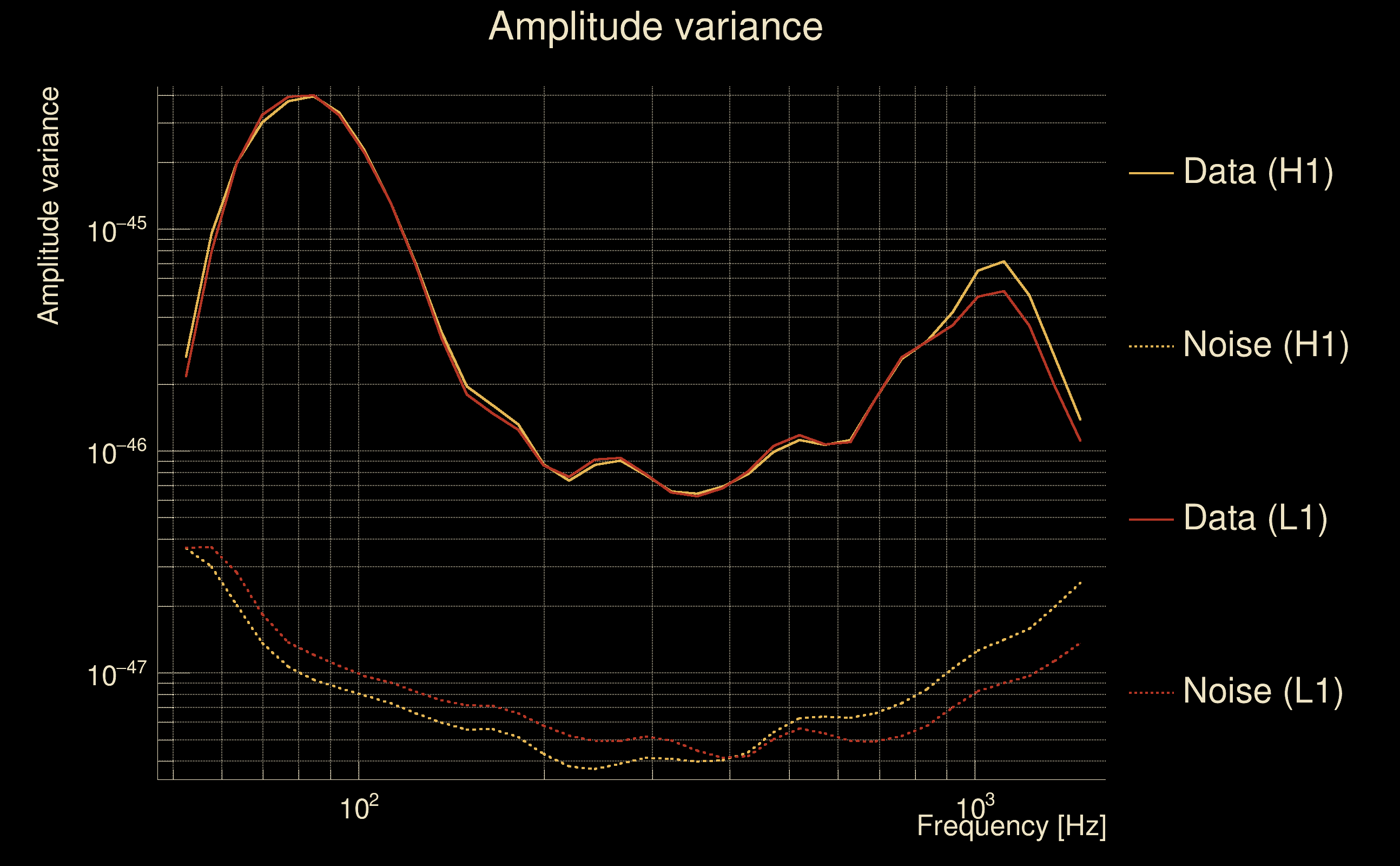

| Event time t(H1): | GPS = 1368458958 (Thu May 18 15:29:00 2023 ) → GPS = 1368458968 (Thu May 18 15:29:10 2023 ) |
| Event time t(L1): | GPS = 1368458958 (Thu May 18 15:29:10 2023 ) → GPS = 1368458968 (Thu May 18 15:29:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368458955 → GPS = 1368458971 |
| Omicron analysis time window (L1): | GPS = 1368458955 → GPS = 1368458971 |
| Time delay between detectors t(L1) - t(H1): | -1.56042e-05 s (slice index = 108 / 217), δt_gw = -1.56042e-05 s |
| Time delay standard deviation: | 0.0134348 s |
| [targeted mode] Time delay probability: | 0 (43.1367 sigmas), δt_target = -0.00847626 s |
| Frequency: | 284.2 Hz |
| Ξ: | 0.986891 ± 0.00381931 (variance = 1.45871e-05): Q0: 0.989012, Q1: 0.987969, Q2: 0.983758, Q3: 0.981046, Q4: 0.979157 |
| Rank: | R_A = 0.986891 |
| Log of amplitude ratio (L1/H1): | -0.0157142, variance = 0.151231 (L1/H1: -0.0199354, variance = 0.302553, H1/L1: 0.0112499, variance = 0.301857) |
| Amplitude ratio (L1/H1): | 0.984409 ⋇ 1.47533 (L1/H1: 0.980262 ⋇ 1.73334, H1/L1: 1.01131 ⋇ 1.73224) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.991086 |
| Antenna factor probability: | 0.882359 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 298.017, L1: 289.788 |

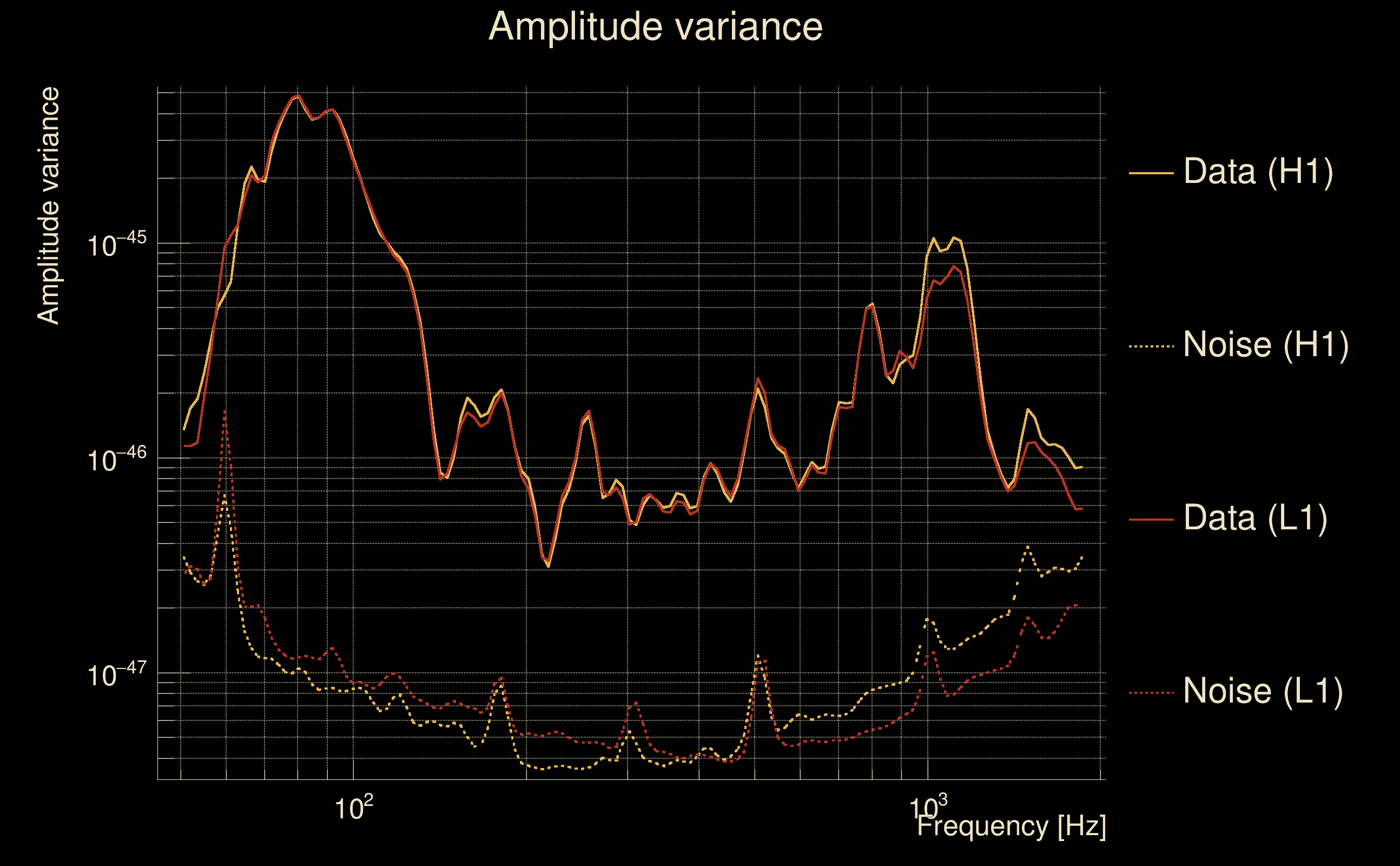

| SNR variance: | H1: 45.7528, L1: 43.9174 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

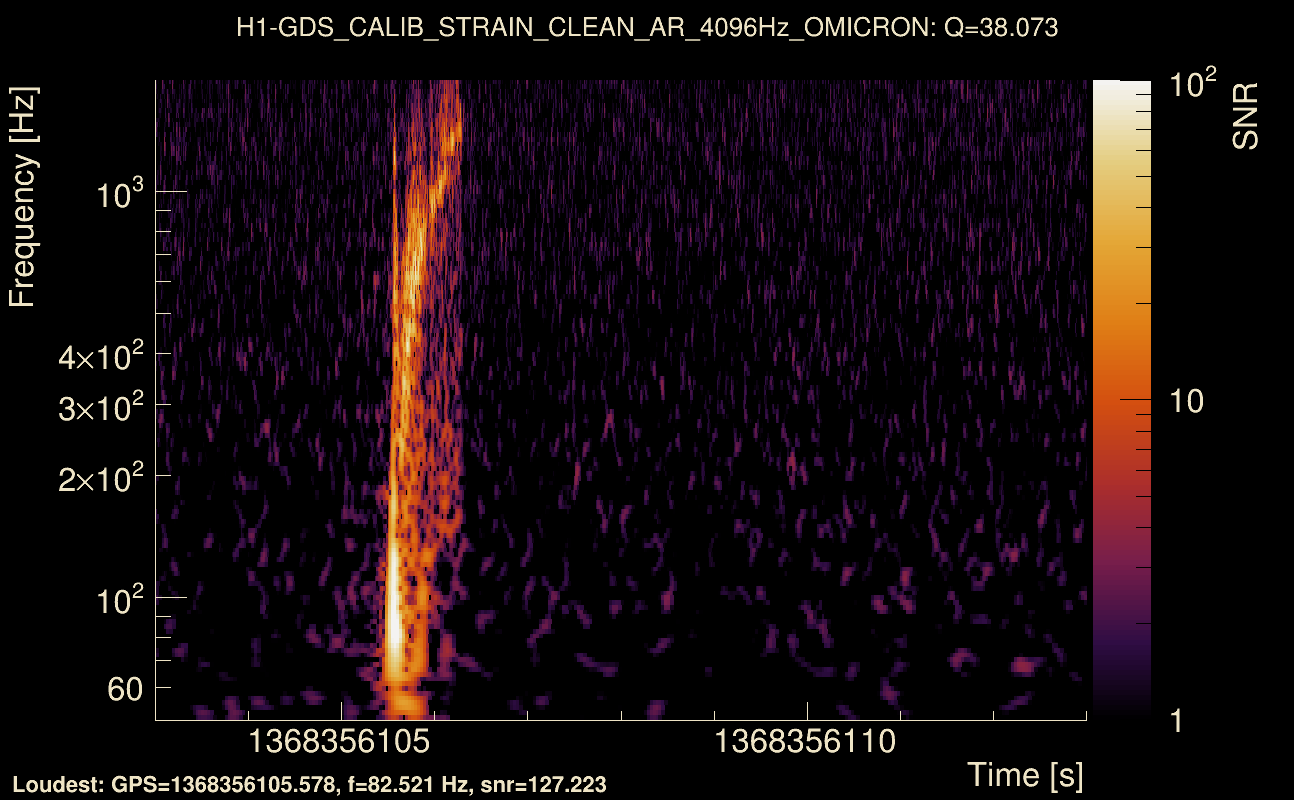

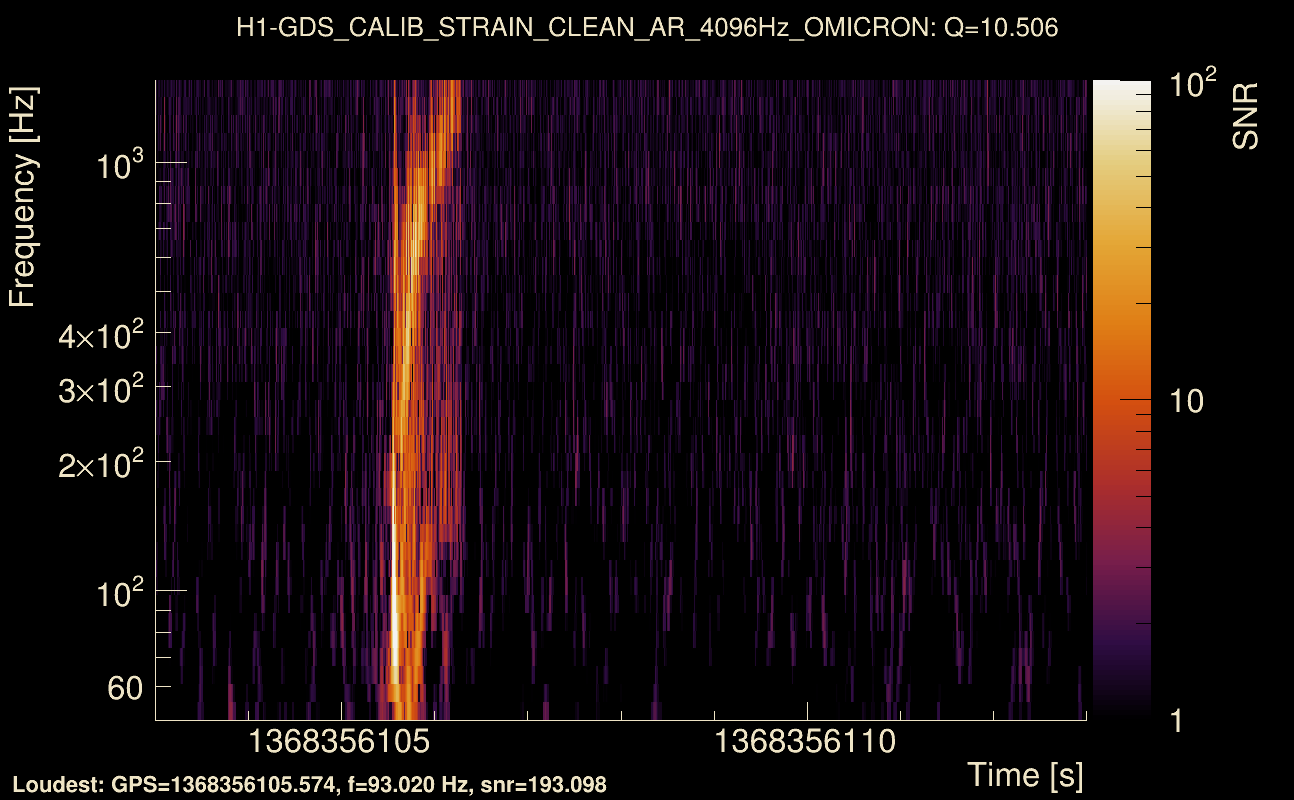

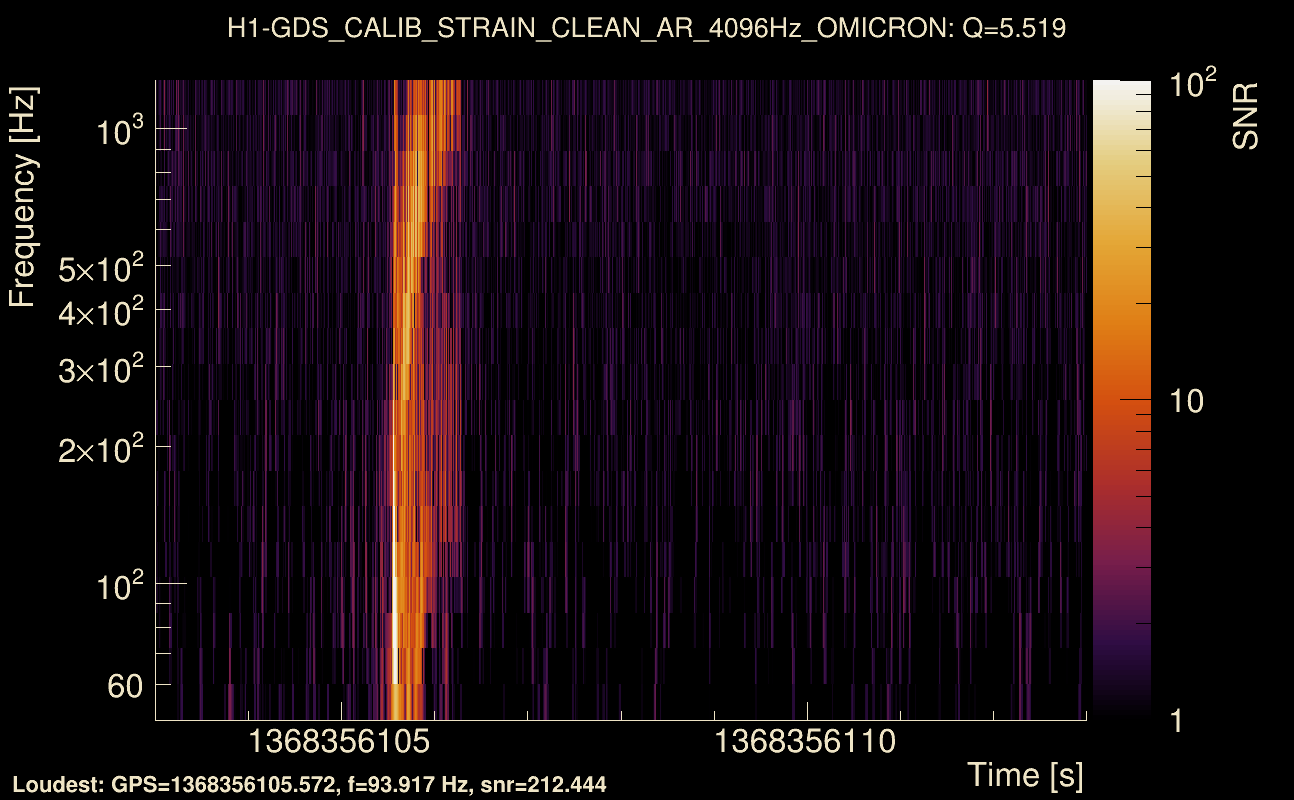

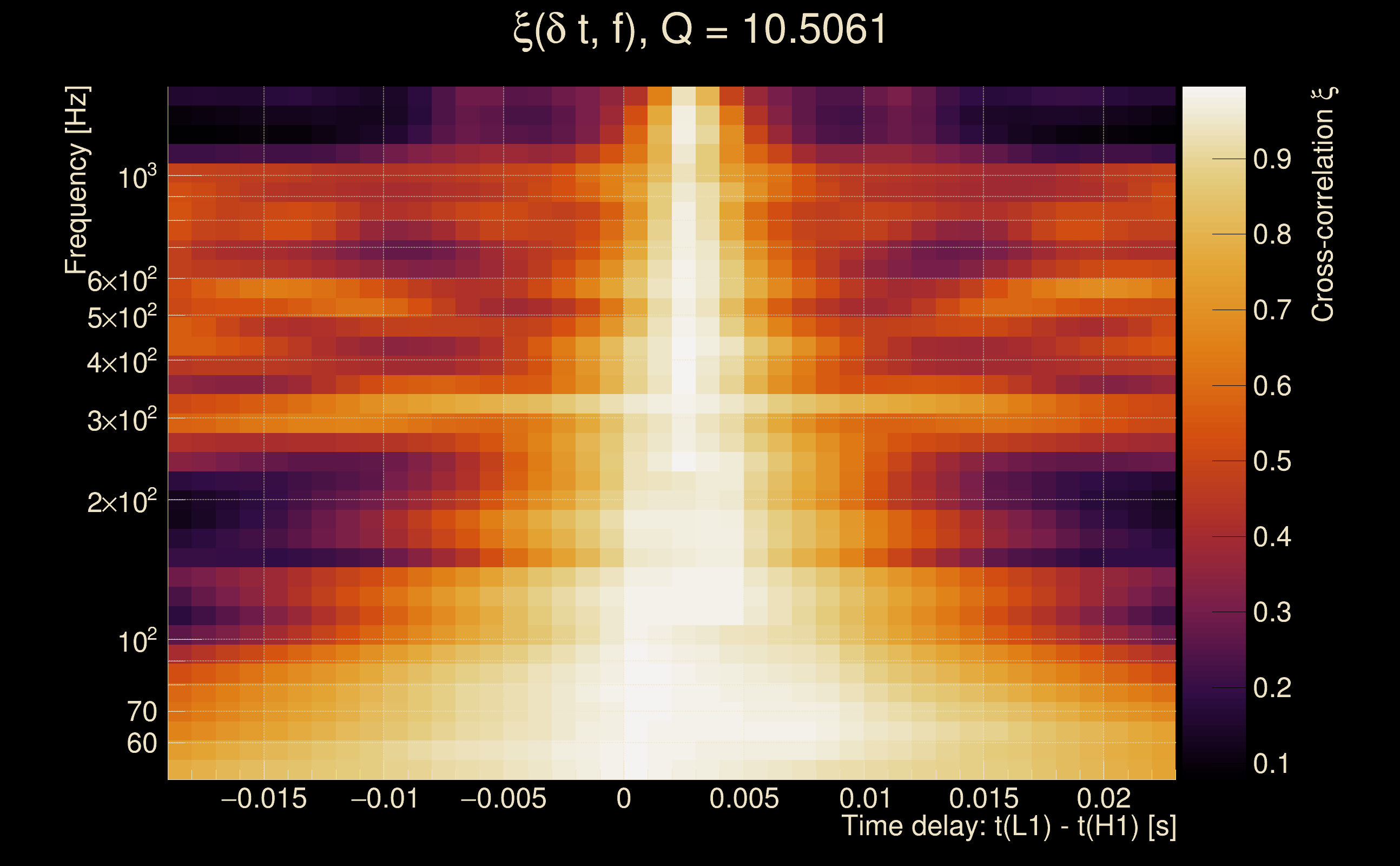

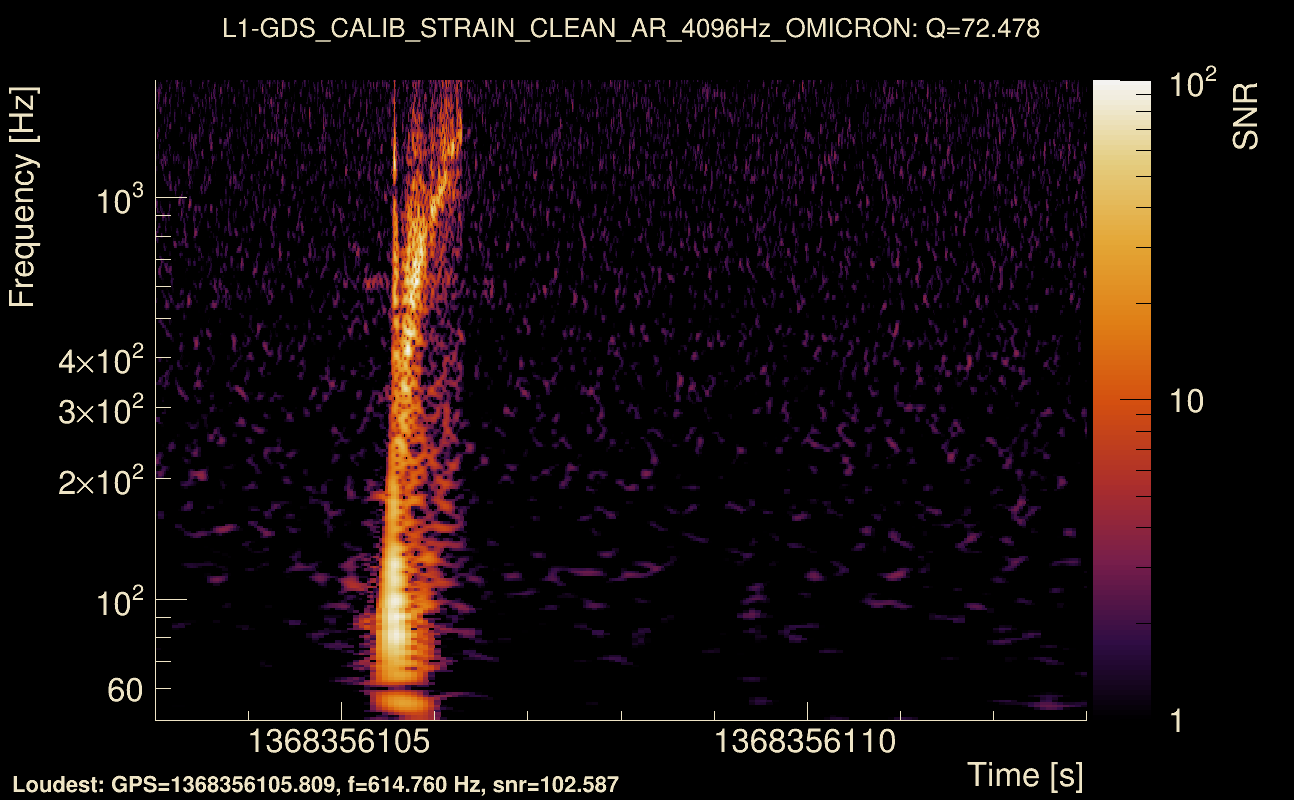

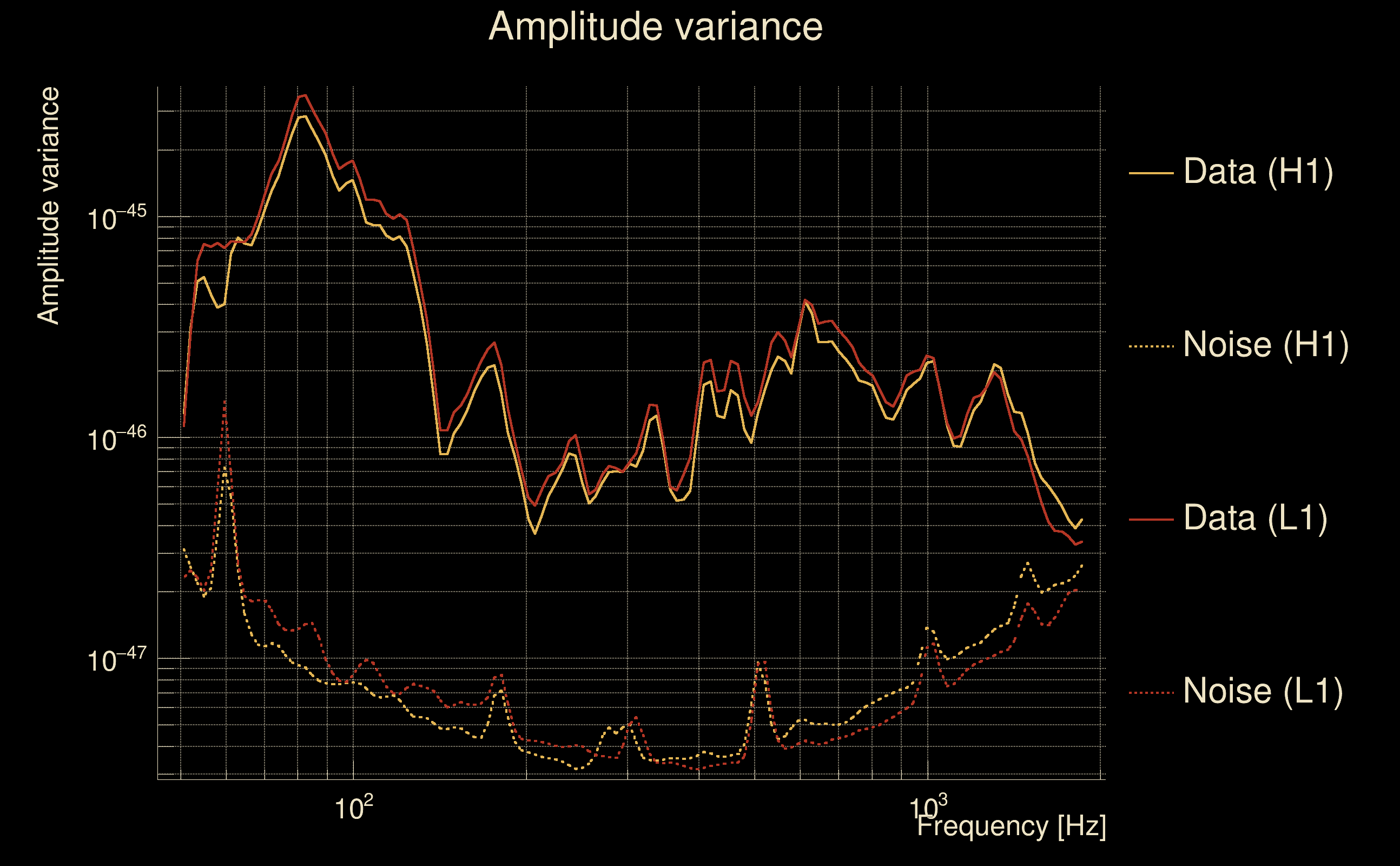

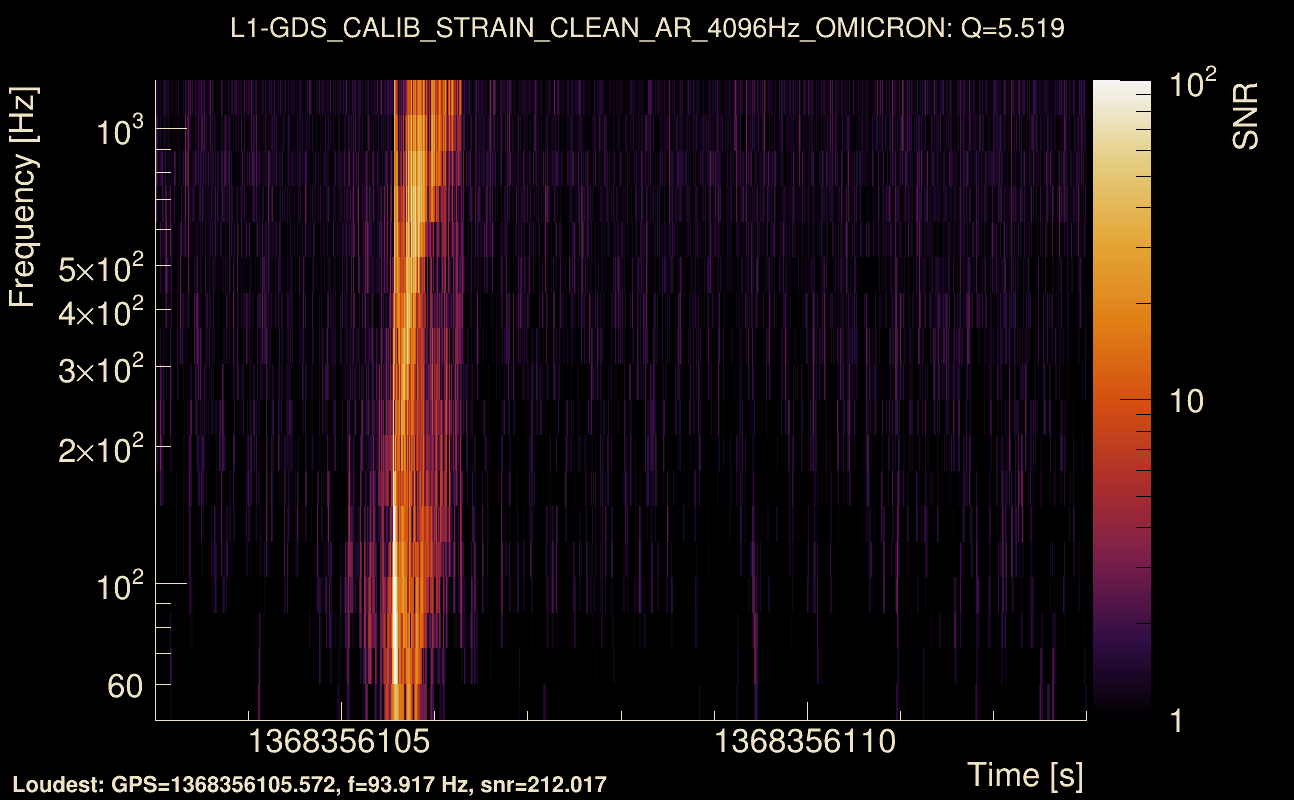

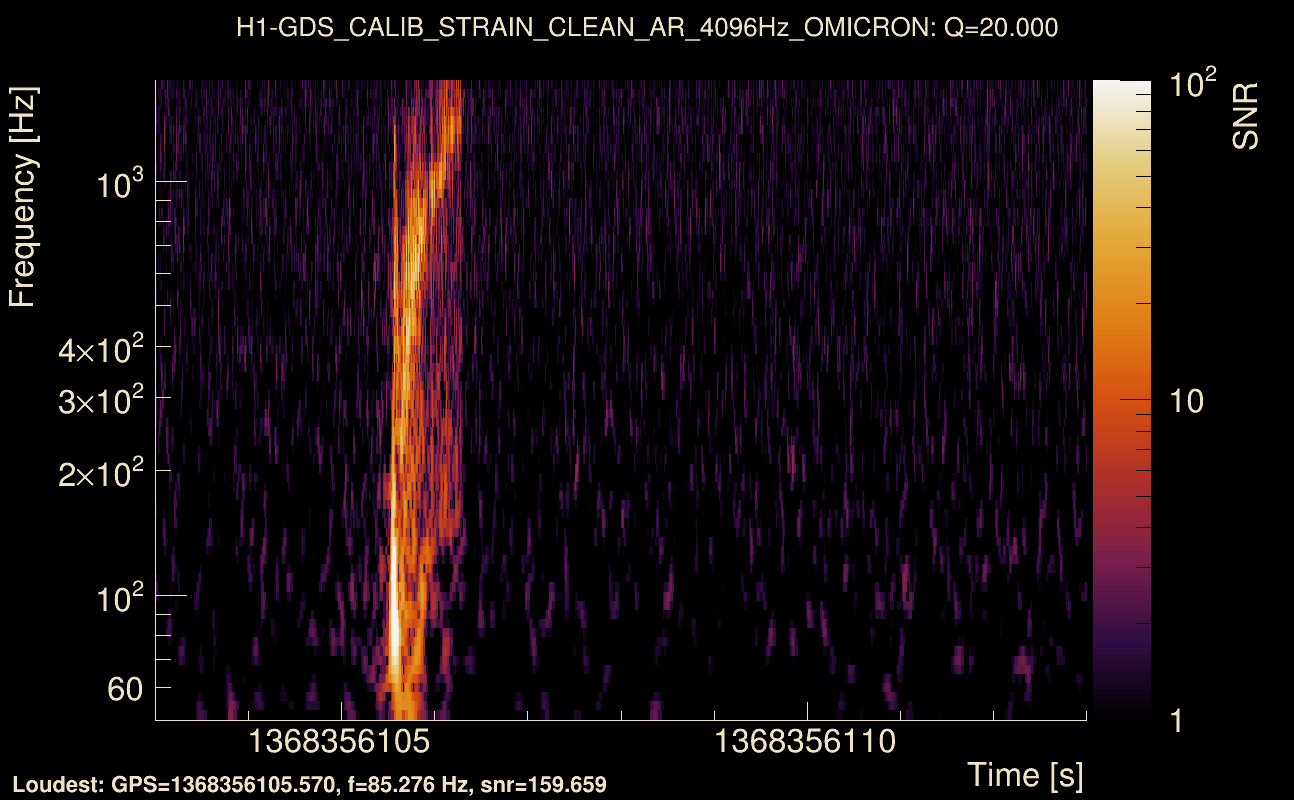

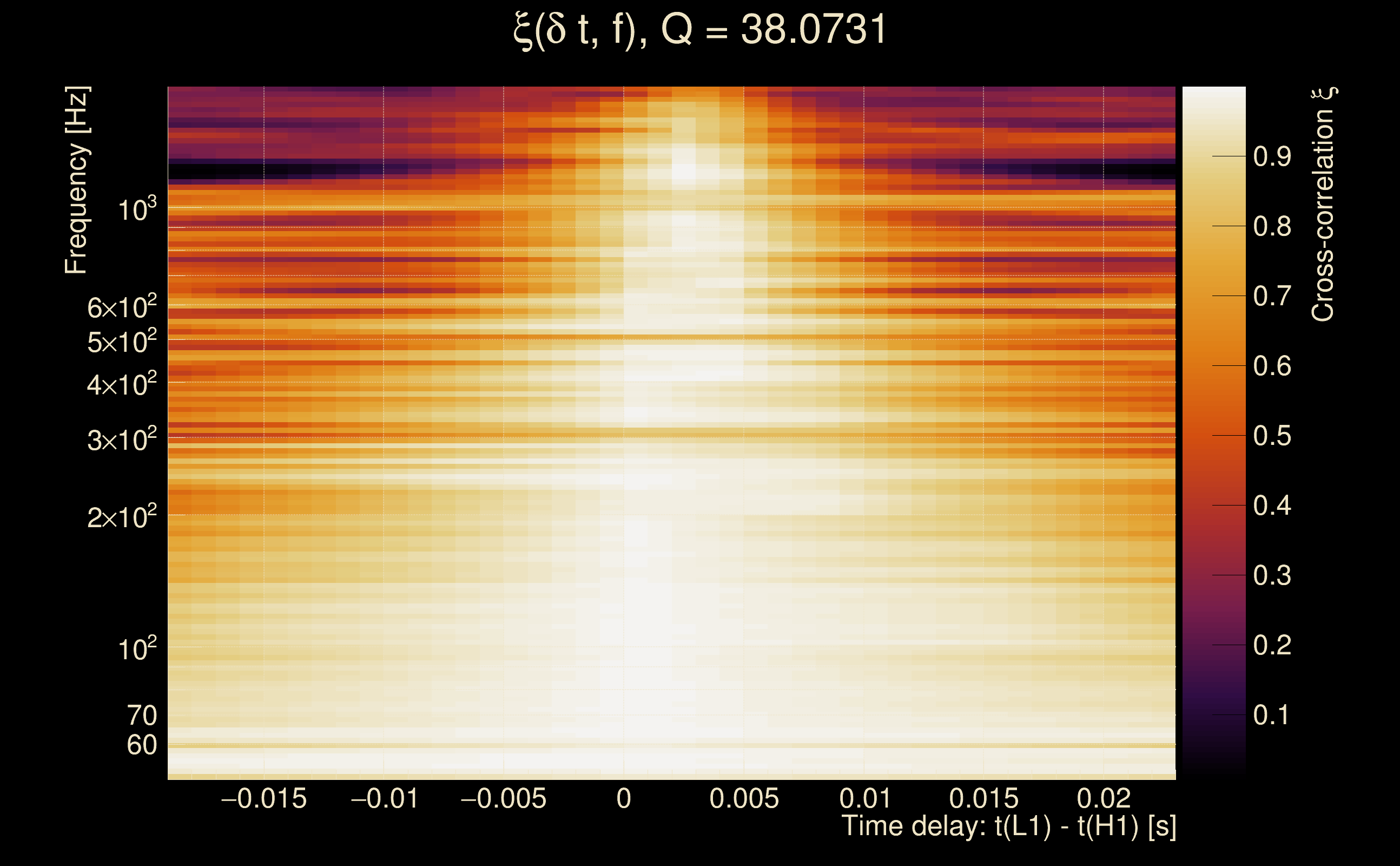

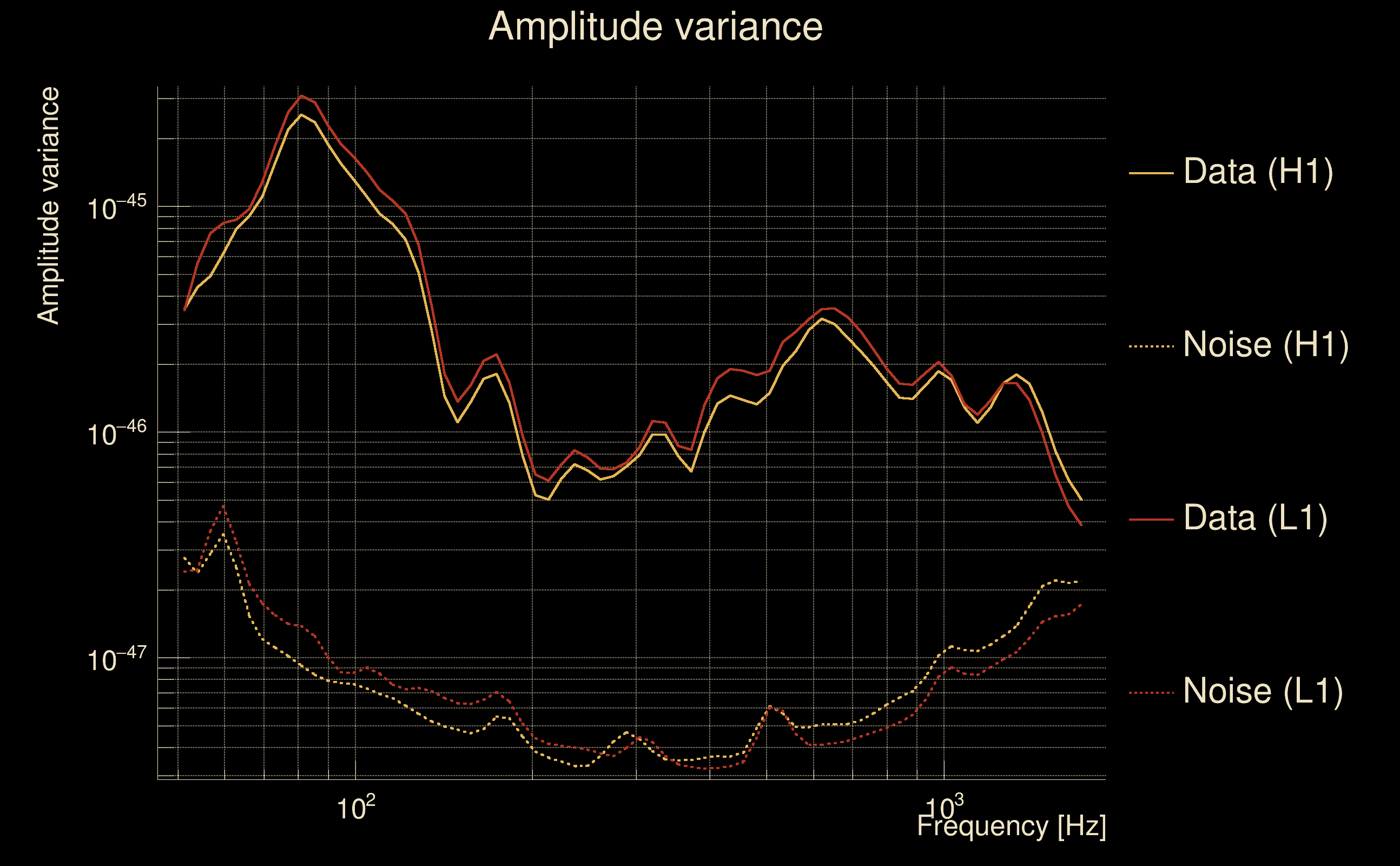

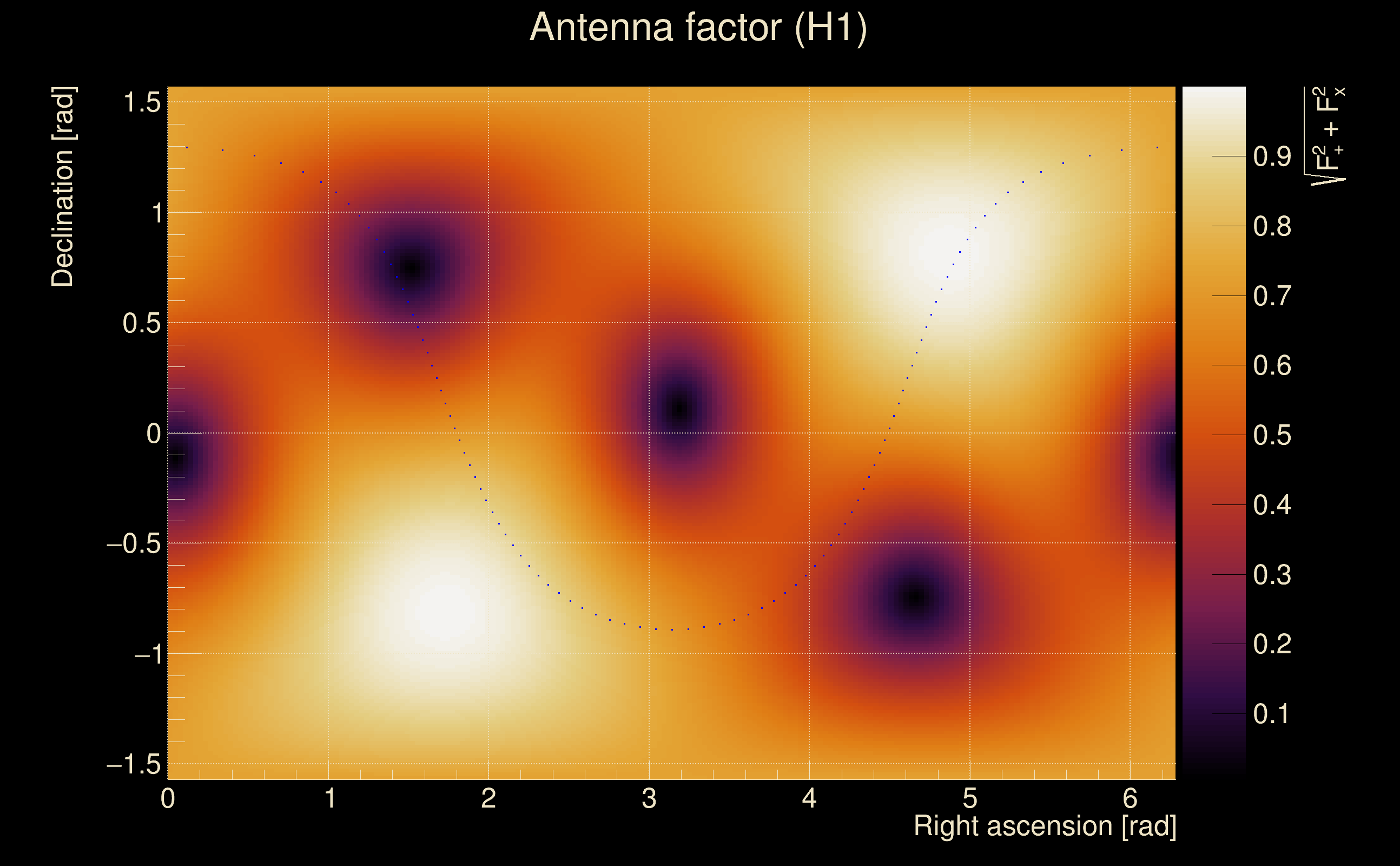

| Event time t(H1): | GPS = 1368356103 (Wed May 17 10:54:45 2023 ) → GPS = 1368356113 (Wed May 17 10:54:55 2023 ) |
| Event time t(L1): | GPS = 1368356103 (Wed May 17 10:54:55 2023 ) → GPS = 1368356113 (Wed May 17 10:54:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368356100 → GPS = 1368356116 |
| Omicron analysis time window (L1): | GPS = 1368356100 → GPS = 1368356116 |
| Time delay between detectors t(L1) - t(H1): | 0.00200784 s (slice index = 108 / 217), δt_gw = 0.00200784 s |
| Time delay standard deviation: | 0.0183967 s |
| [targeted mode] Time delay probability: | 2.11351e-74 (18.2488 sigmas), δt_target = -0.00847459 s |
| Frequency: | 281.995 Hz |
| Ξ: | 0.979101 ± 0.00498481 (variance = 2.48483e-05): Q0: 0.982103, Q1: 0.978997, Q2: 0.975632, Q3: 0.971324, Q4: 0.968344 |
| Rank: | R_A = 0.979101 |
| Log of amplitude ratio (L1/H1): | 0.093885, variance = 0.152615 (L1/H1: 0.0831426, variance = 0.301276, H1/L1: -0.102388, variance = 0.301075) |
| Amplitude ratio (L1/H1): | 1.09843 ⋇ 1.47796 (L1/H1: 1.0867 ⋇ 1.73132, H1/L1: 0.902679 ⋇ 1.73101) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980217 |

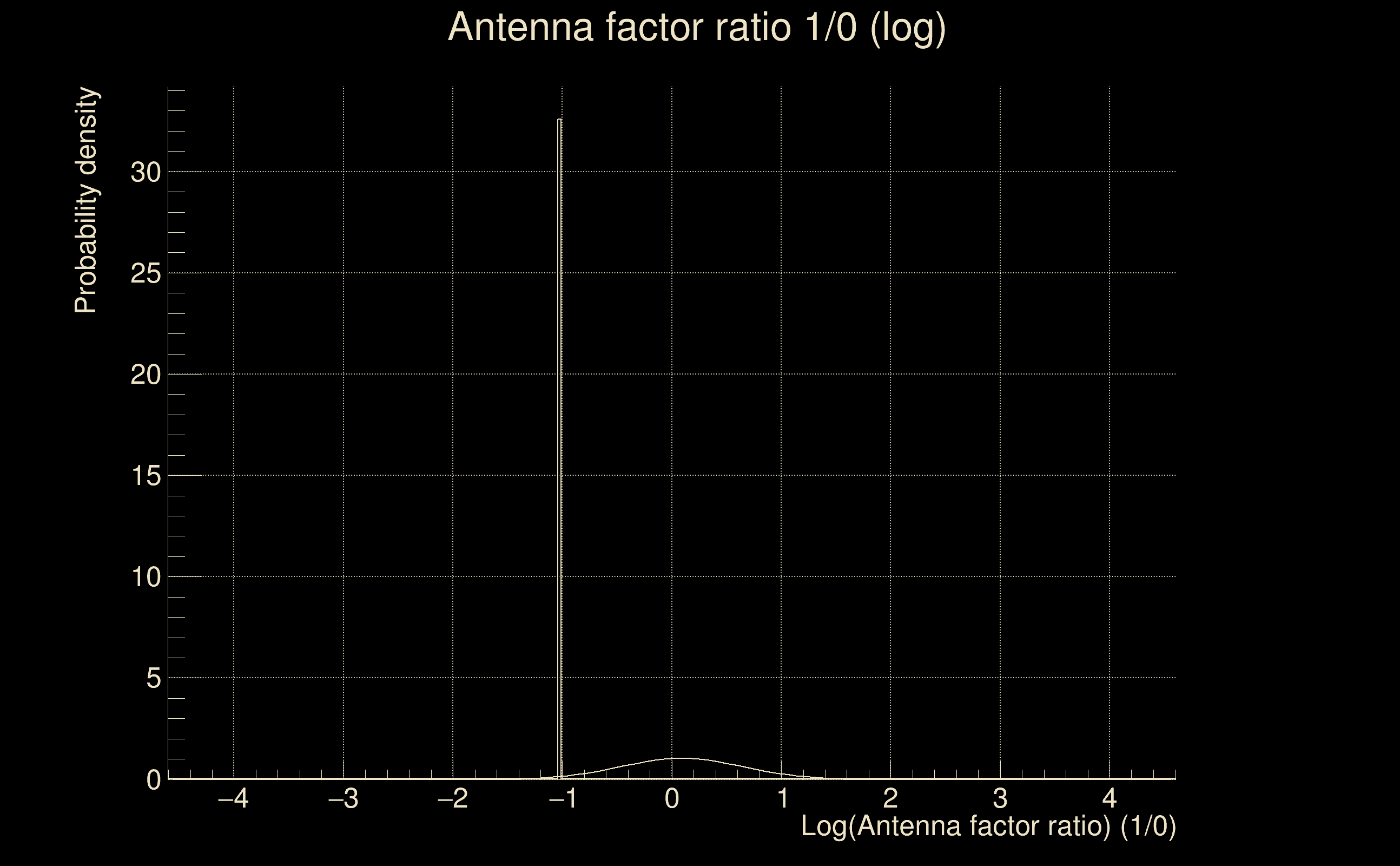

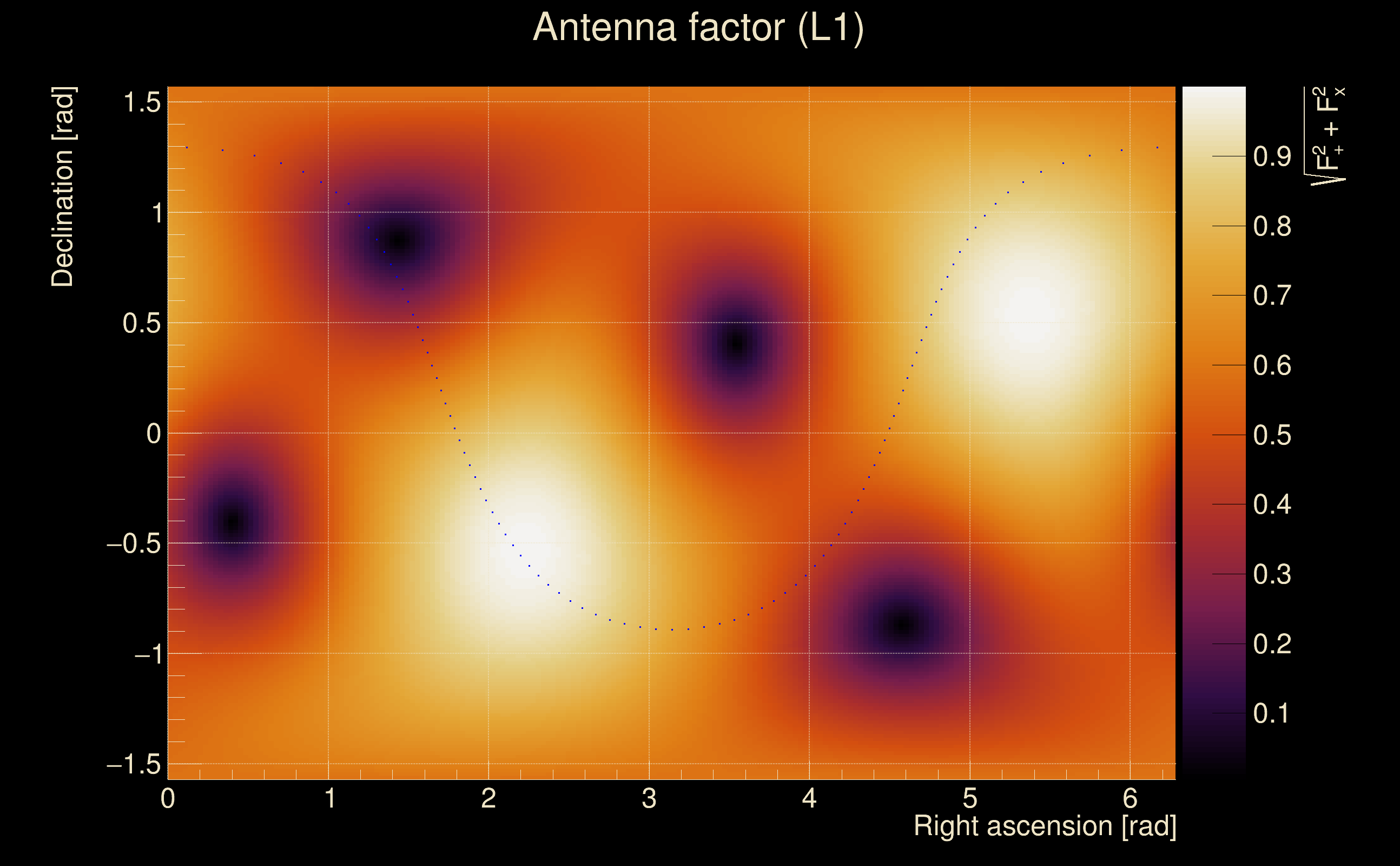

| Antenna factor probability: | 0.159964 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 226.022, L1: 254.049 |
| SNR variance: | H1: 30.195, L1: 37.8638 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368435569 (Thu May 18 08:59:11 2023 ) → GPS = 1368435579 (Thu May 18 08:59:21 2023 ) |
| Event time t(L1): | GPS = 1368435569 (Thu May 18 08:59:21 2023 ) → GPS = 1368435579 (Thu May 18 08:59:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368435566 → GPS = 1368435582 |
| Omicron analysis time window (L1): | GPS = 1368435566 → GPS = 1368435582 |
| Time delay between detectors t(L1) - t(H1): | 2.07082 s (slice index = 63 / 217), δt_gw = 0.000820176 s |
| Time delay standard deviation: | 0.0695059 s |
| [targeted mode] Time delay probability: | 0.247017 (1.15763 sigmas), δt_target = -0.00876498 s |
| Frequency: | 109.252 Hz |
| Ξ: | 0.0684029 ± 0.0581373 (variance = 0.00337995): Q0: 0.195767, Q1: 0.21915, Q2: 0.182355, Q3: 0.313631, Q4: 0.316936 |
| Rank: | R_A = 0.0684029 |
| Log of amplitude ratio (L1/H1): | 0.893537, variance = 1.29989 (L1/H1: -1.56908, variance = 2.76363, H1/L1: -2.54813, variance = 2.38586) |
| Amplitude ratio (L1/H1): | 2.44376 ⋇ 3.12716 (L1/H1: 0.208236 ⋇ 5.27204, H1/L1: 0.0782279 ⋇ 4.6862) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0696237 |
| Antenna factor probability: | 0.273134 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 23 / 36, Q2: 57 / 70, Q3: 109 / 134, Q4: 236 / 258 |
| Maximum signal-to-noise ratio: | H1: 14.9849, L1: 18.2813 |
| SNR variance: | H1: 0.525731, L1: 0.53231 |

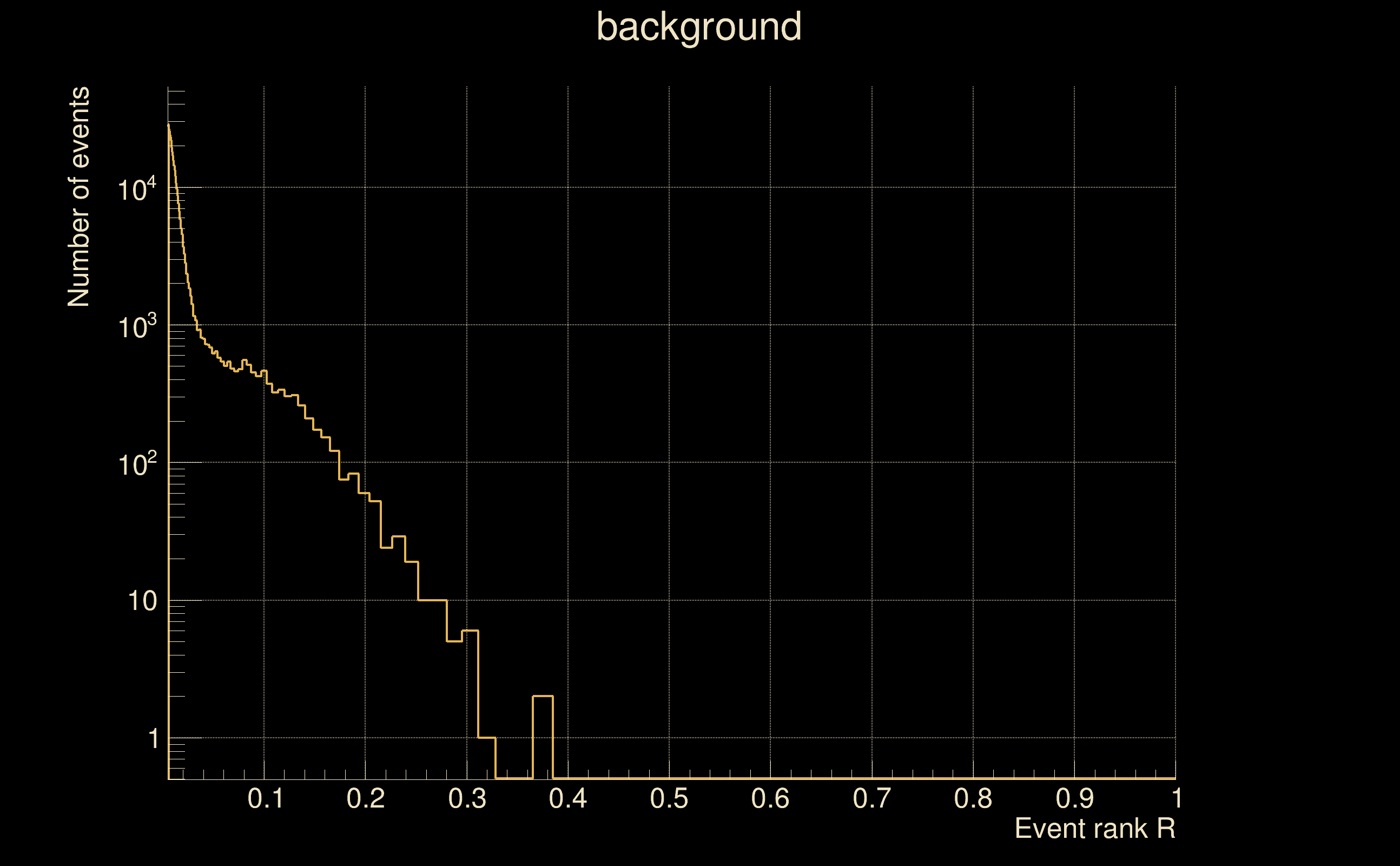

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.375372 |
| Alternative threshold at 1/100 yrs: | R > 0.375372 |
| Alternative threshold at 1/10 yrs: | R > 0.375372 |
| Alternative threshold at 1/1 yr: | R > 0.375372 |
| Alternative threshold at 1/1 d: | R > 0.179256 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

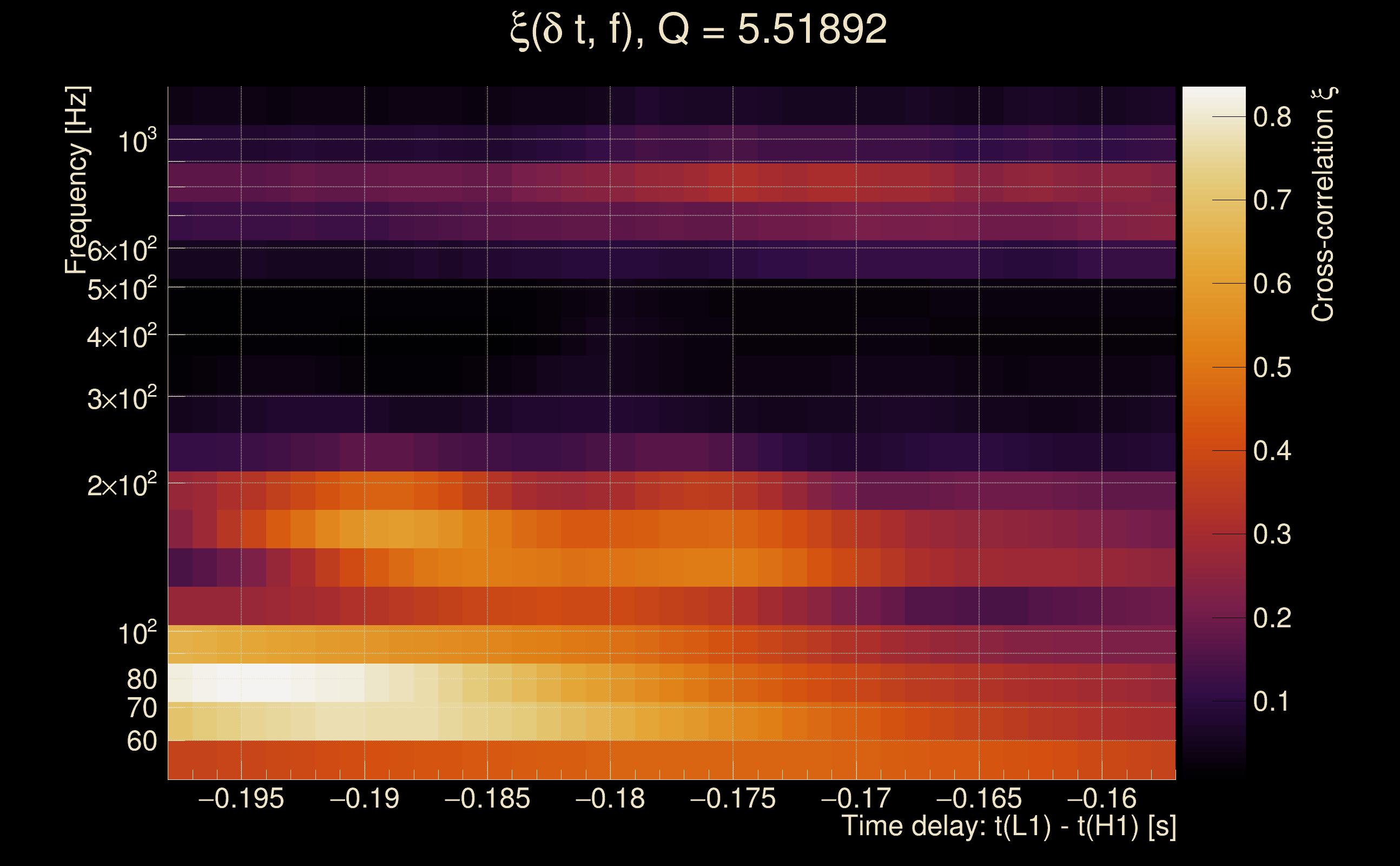

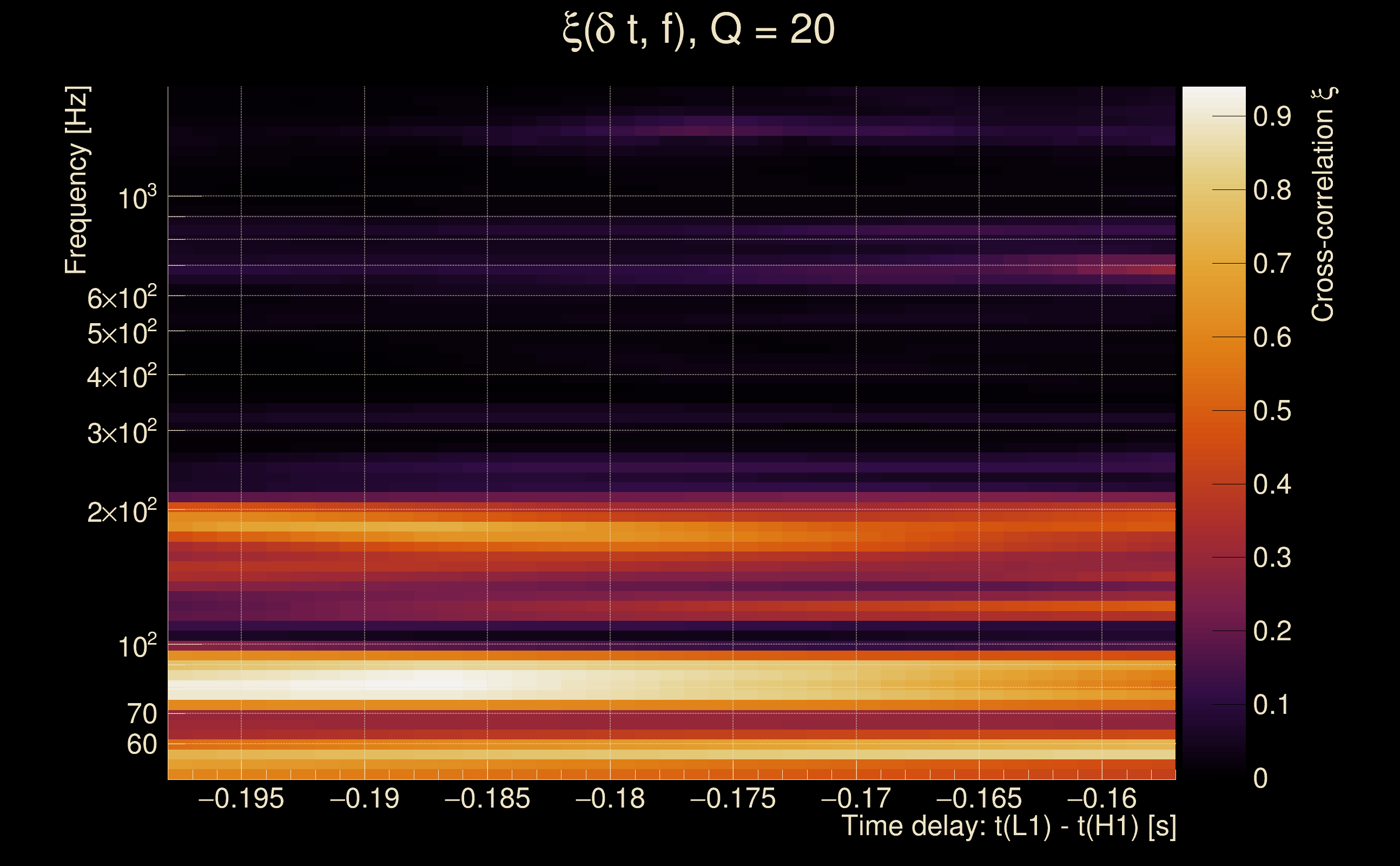

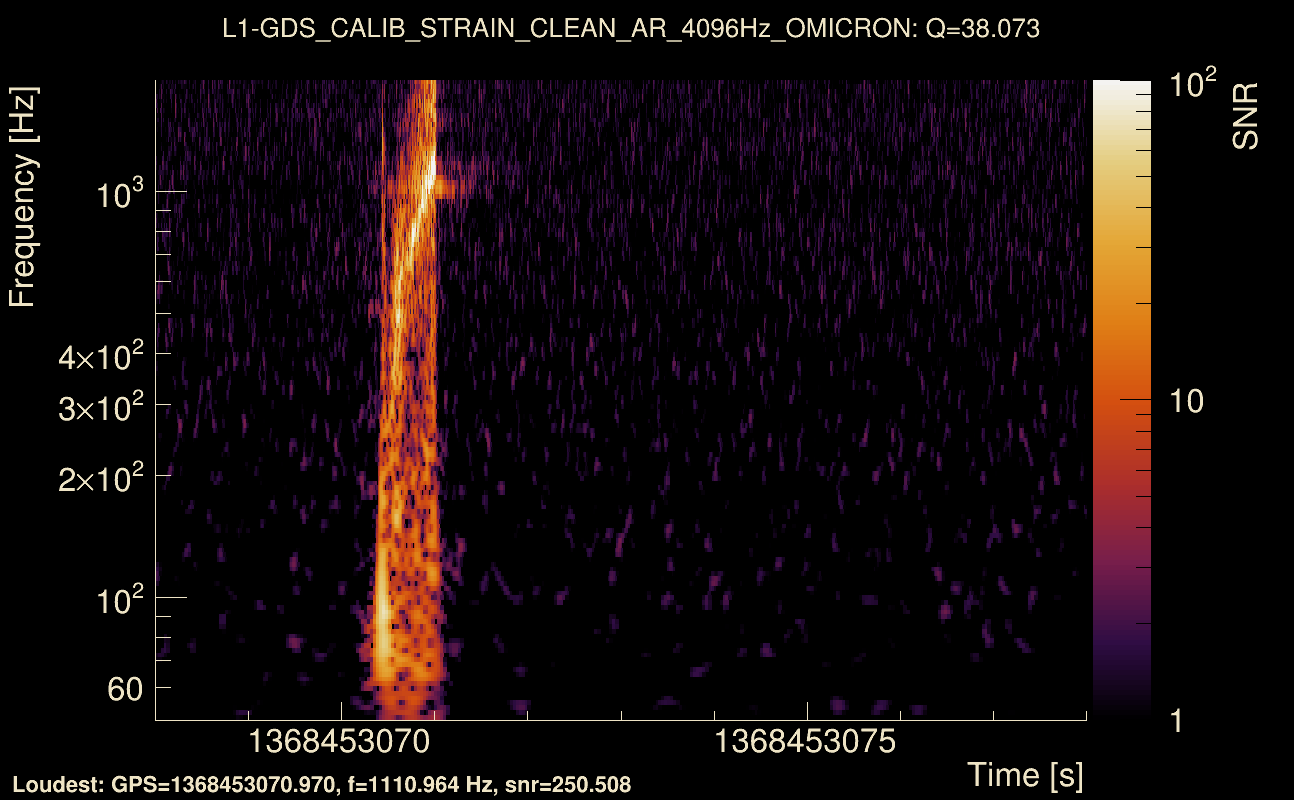

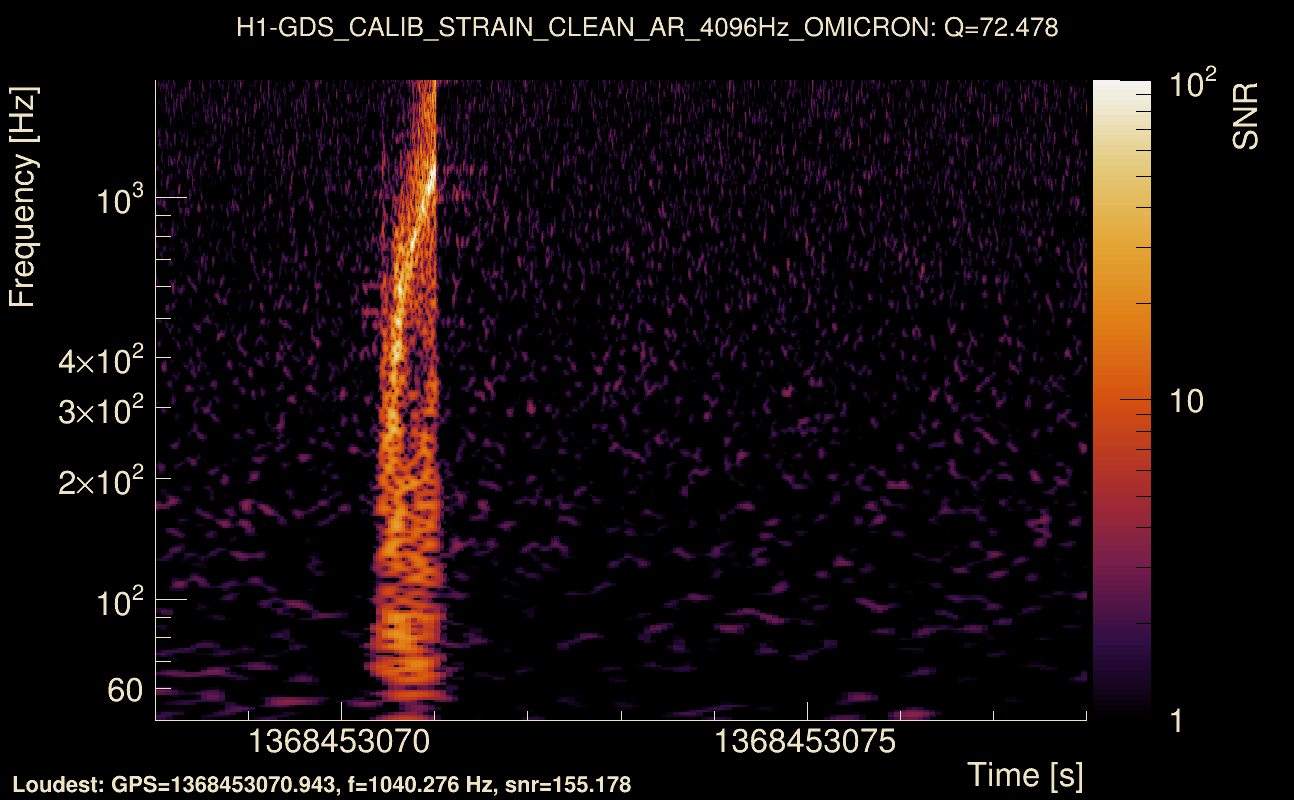

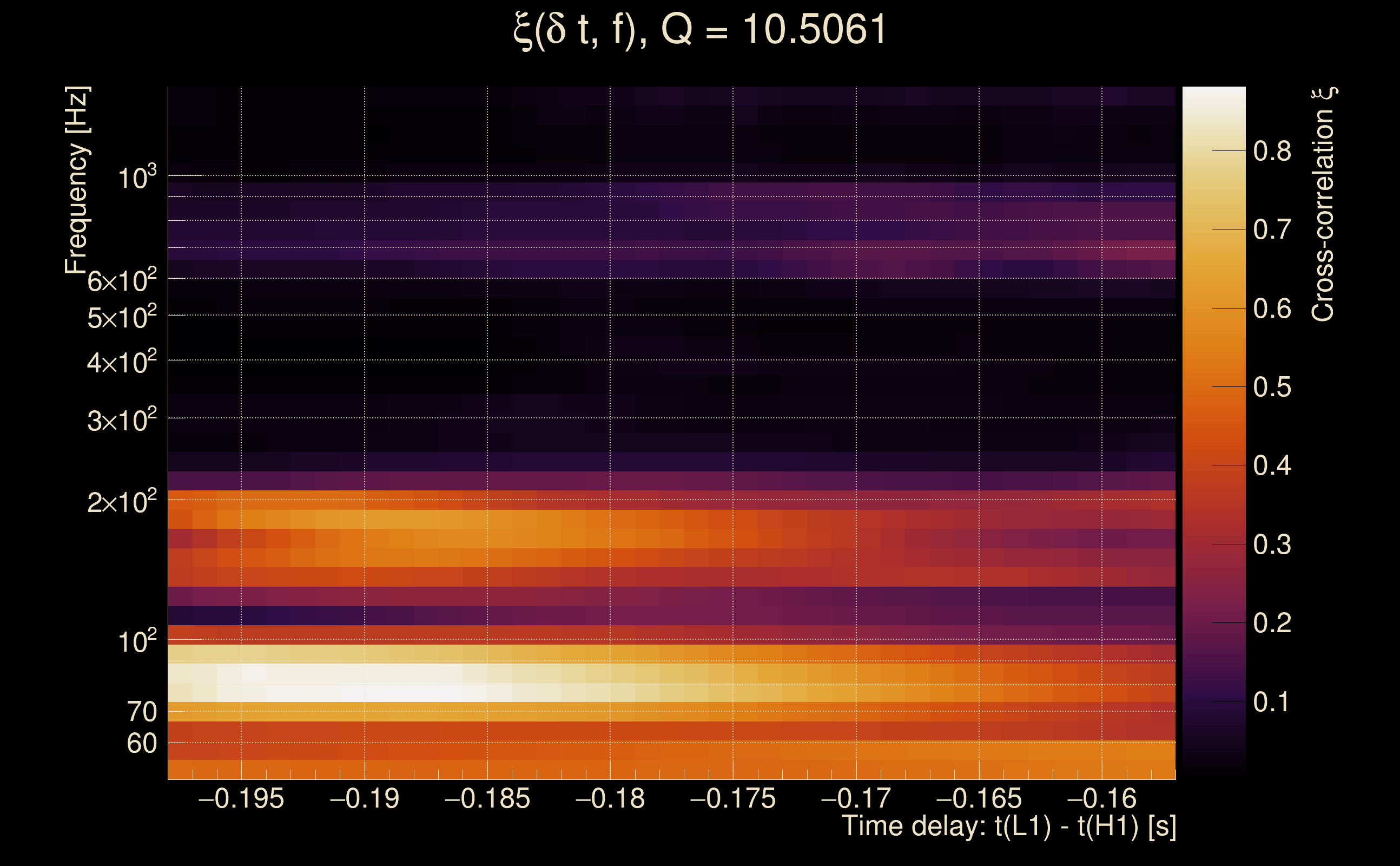

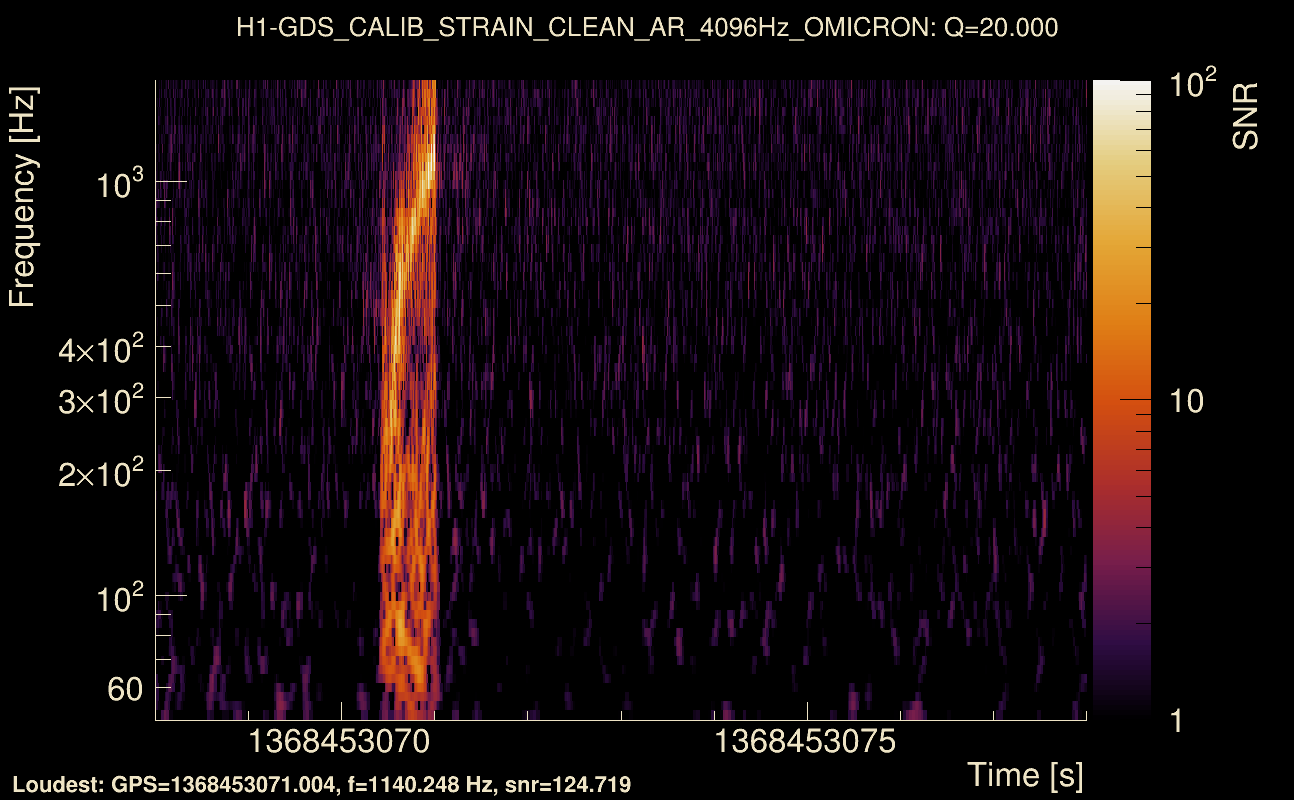

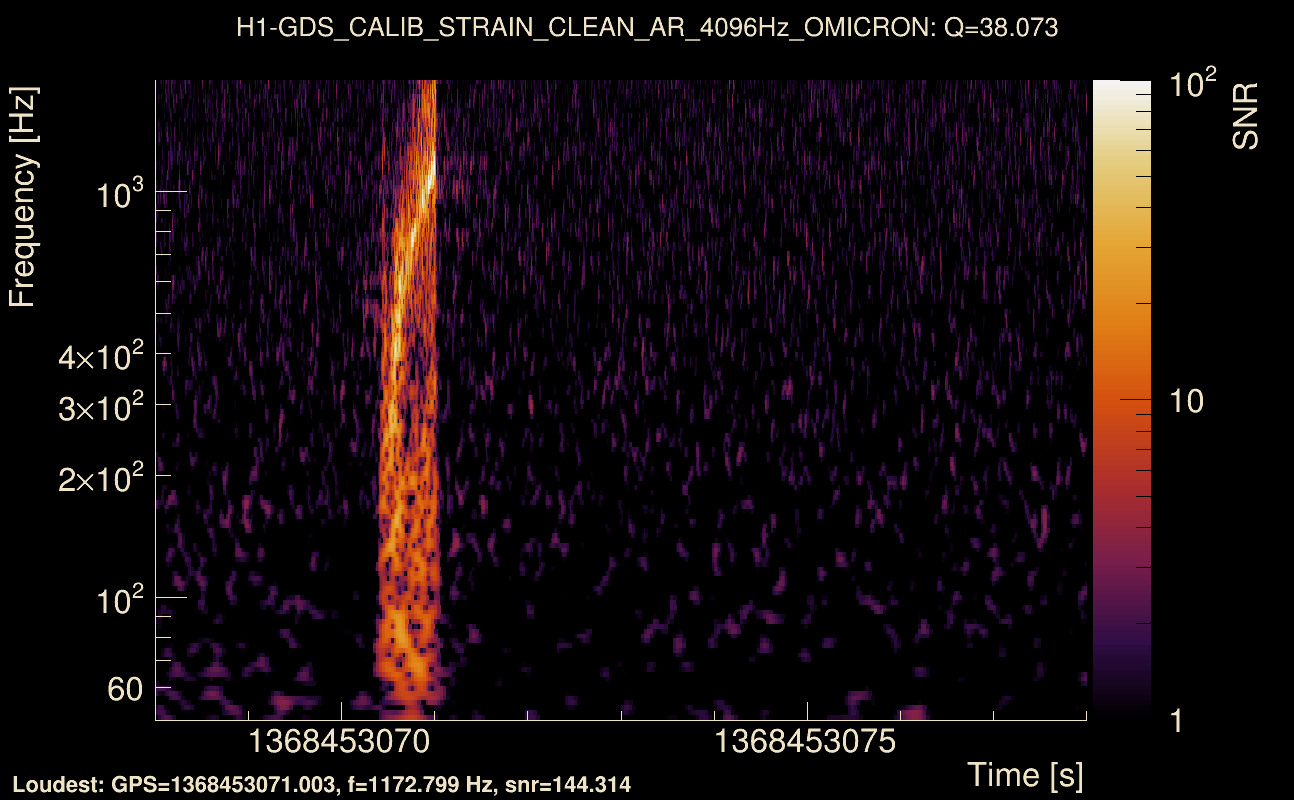

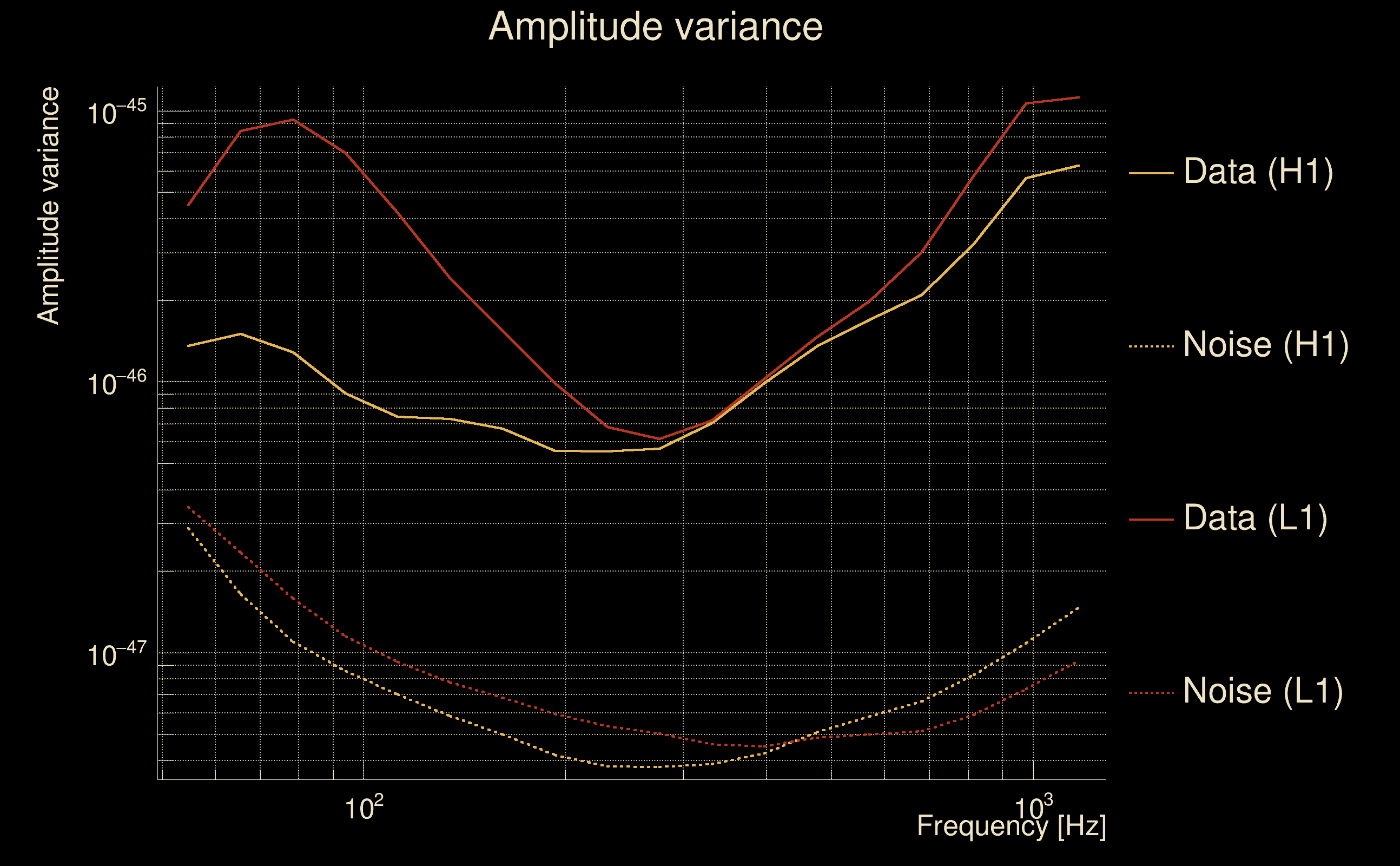

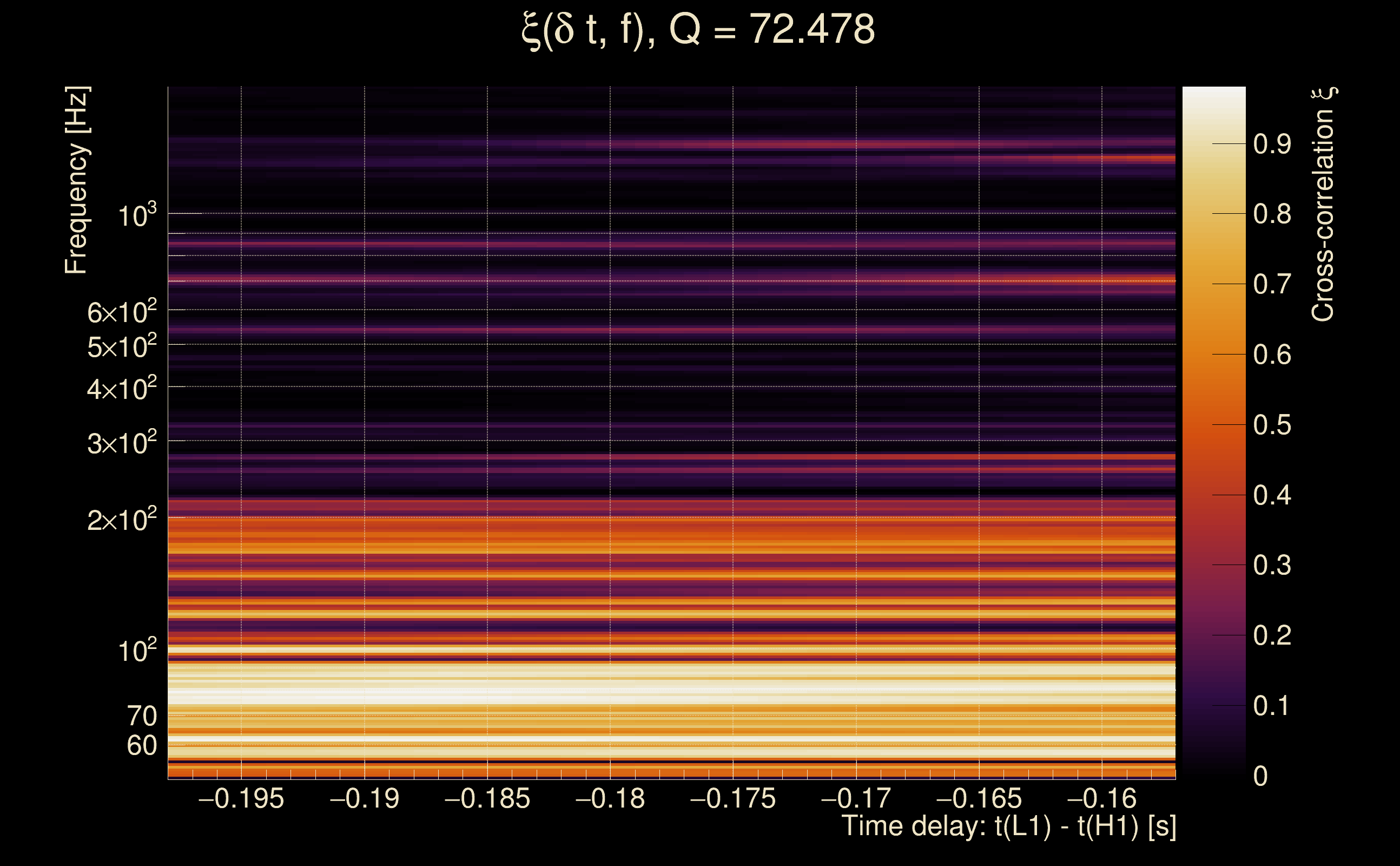

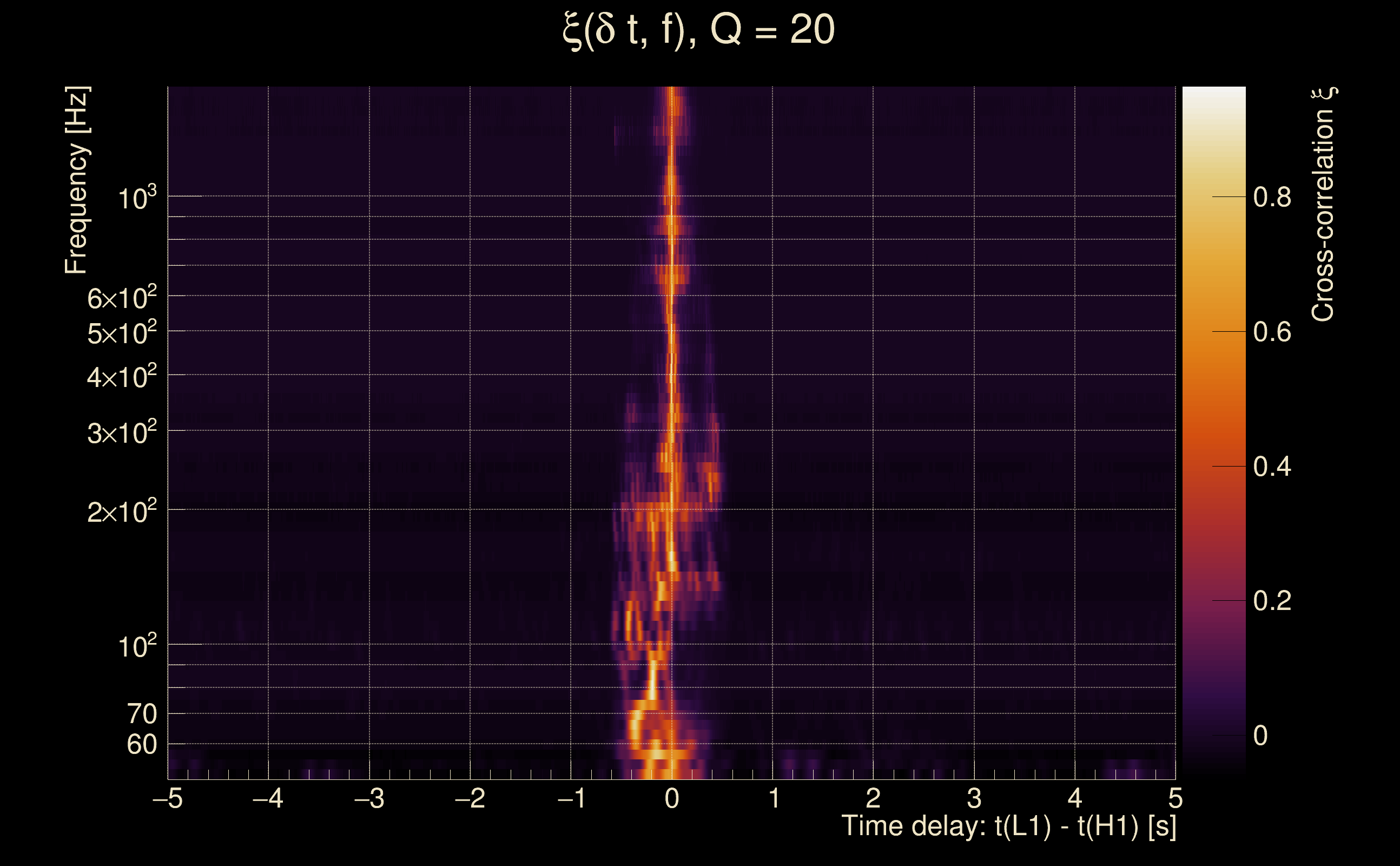

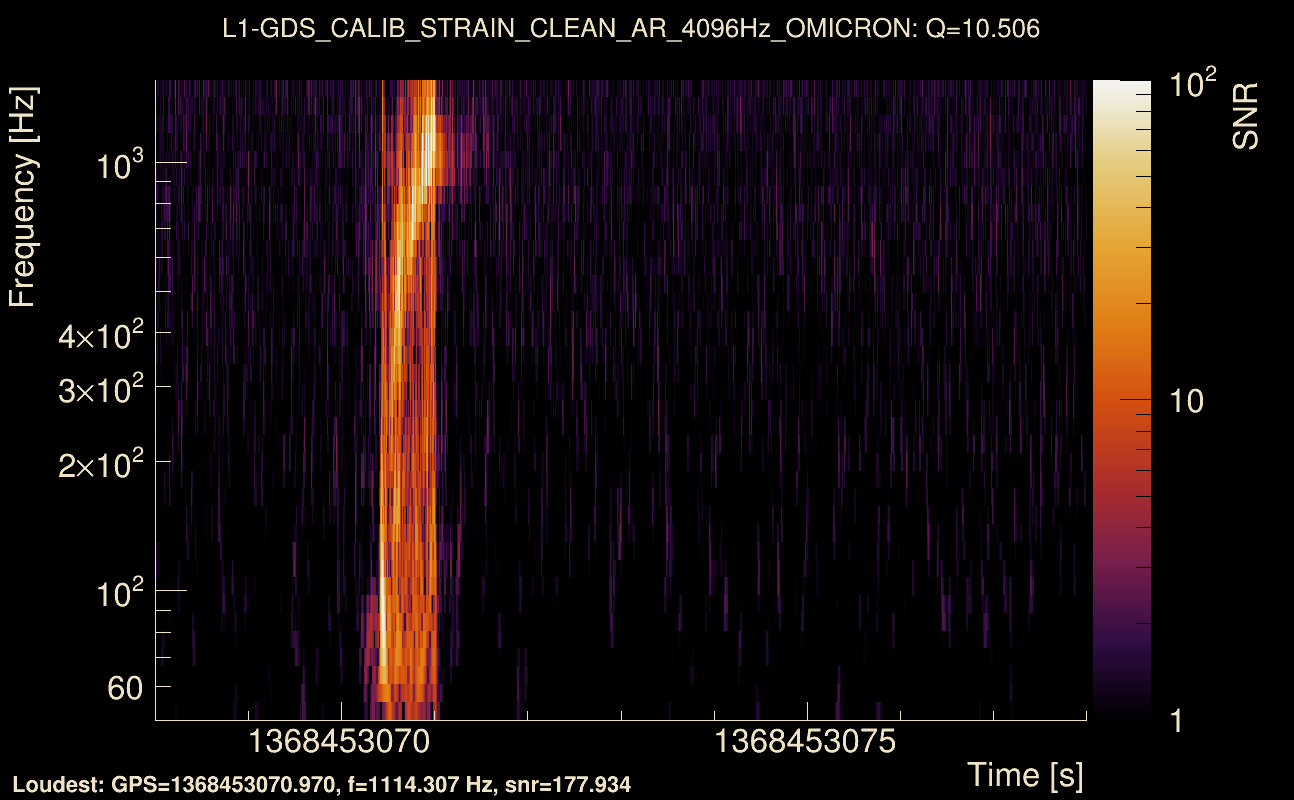

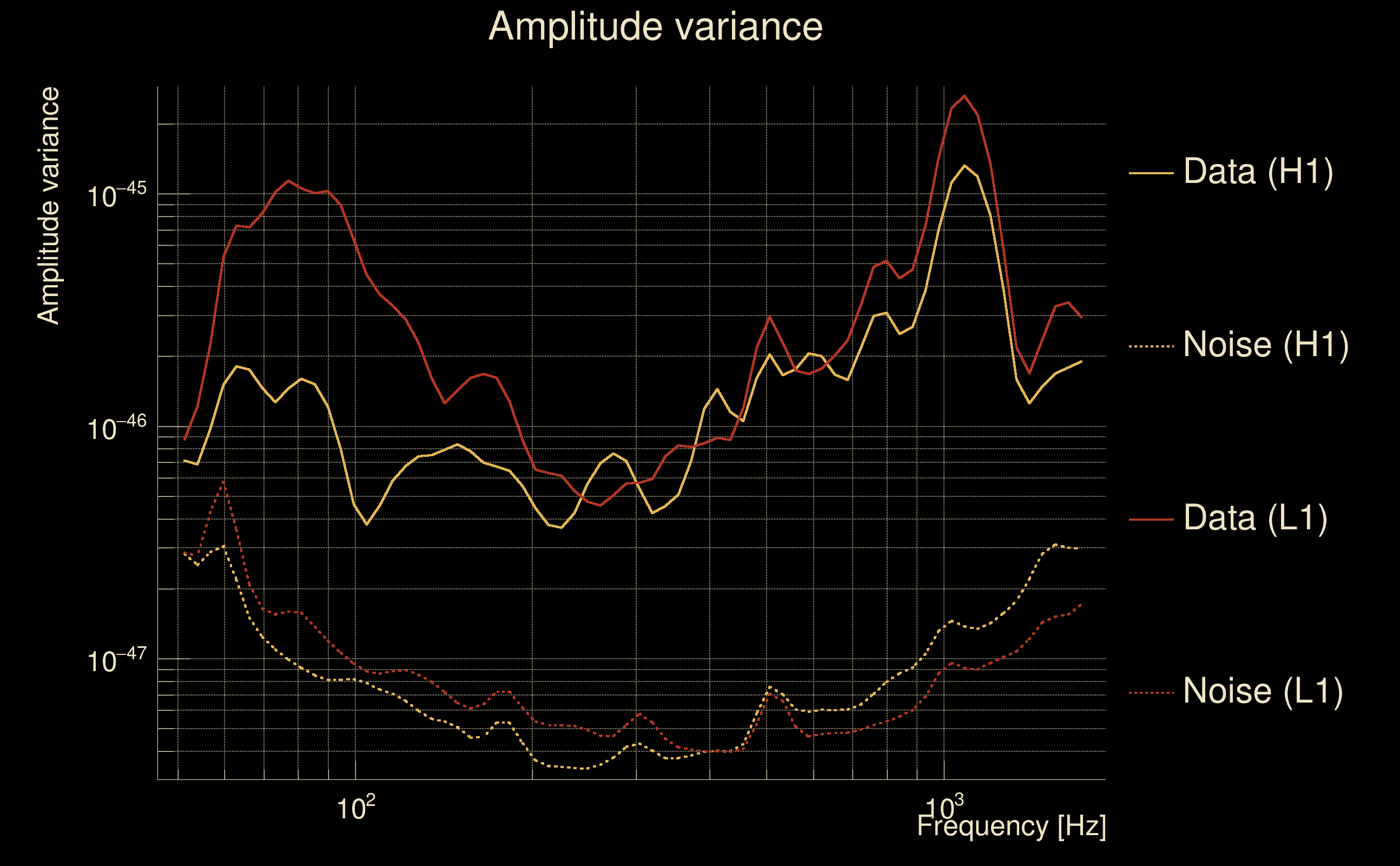

| Event time t(H1): | GPS = 1368453068 (Thu May 18 13:50:50 2023 ) → GPS = 1368453078 (Thu May 18 13:51:00 2023 ) |
| Event time t(L1): | GPS = 1368453068 (Thu May 18 13:51:00 2023 ) → GPS = 1368453078 (Thu May 18 13:51:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368453065 → GPS = 1368453081 |
| Omicron analysis time window (L1): | GPS = 1368453065 → GPS = 1368453081 |
| Time delay between detectors t(L1) - t(H1): | -0.177181 s (slice index = 112 / 217), δt_gw = 0.00681942 s |
| Time delay standard deviation: | 0.0673523 s |
| [targeted mode] Time delay probability: | 0.668886 (0.427677 sigmas), δt_target = -0.00876498 s |
| Frequency: | 136.576 Hz |
| Ξ: | 0.367406 ± 0.0617684 (variance = 0.00381534): Q0: 0.522282, Q1: 0.57501, Q2: 0.652849, Q3: 0.621364, Q4: 0.701075 |
| Rank: | R_A = 0.367406 |
| Log of amplitude ratio (L1/H1): | 0.804103, variance = 0.29801 (L1/H1: -0.787119, variance = 0.933699, H1/L1: -1.41322, variance = 0.433014) |
| Amplitude ratio (L1/H1): | 2.23469 ⋇ 1.72617 (L1/H1: 0.455154 ⋇ 2.62815, H1/L1: 0.243359 ⋇ 1.931) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0598179 |
| Antenna factor probability: | 0.0726132 |
| Number of rejected frequency rows: | Q0: 3 / 18, Q1: 13 / 36, Q2: 42 / 70, Q3: 92 / 134, Q4: 214 / 258 |
| Maximum signal-to-noise ratio: | H1: 154.726, L1: 250.081 |
| SNR variance: | H1: 11.2561, L1: 29.4717 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

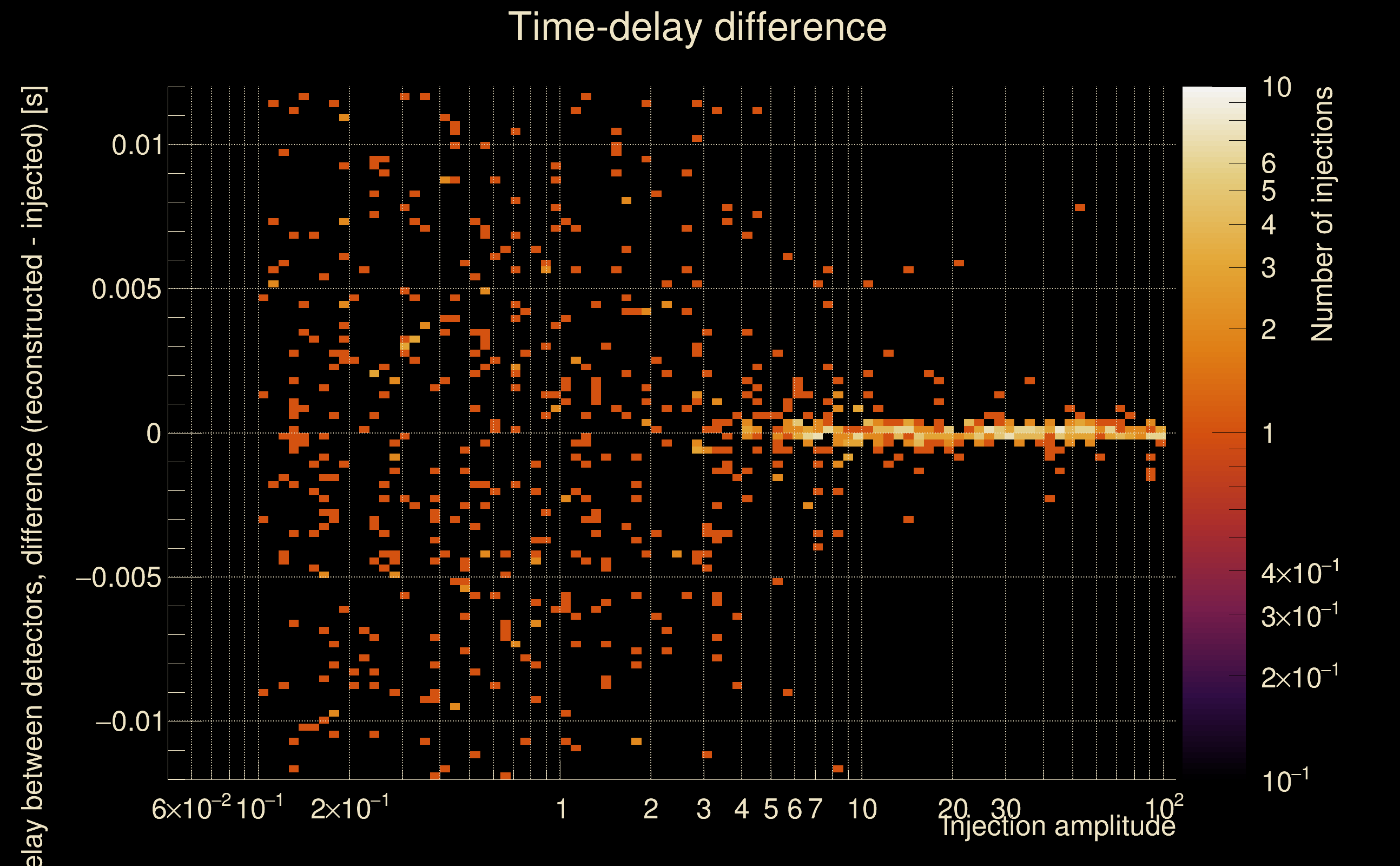

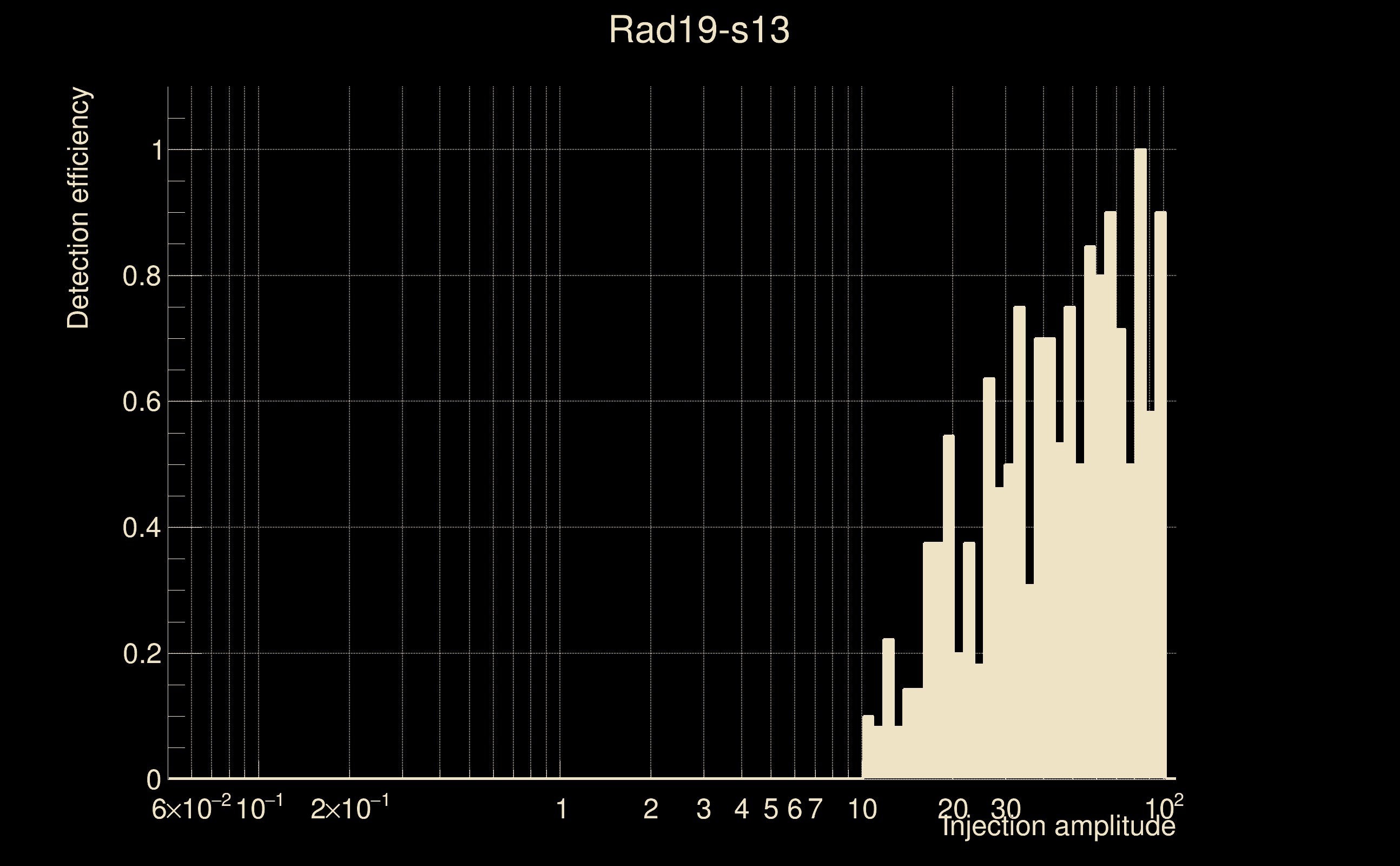

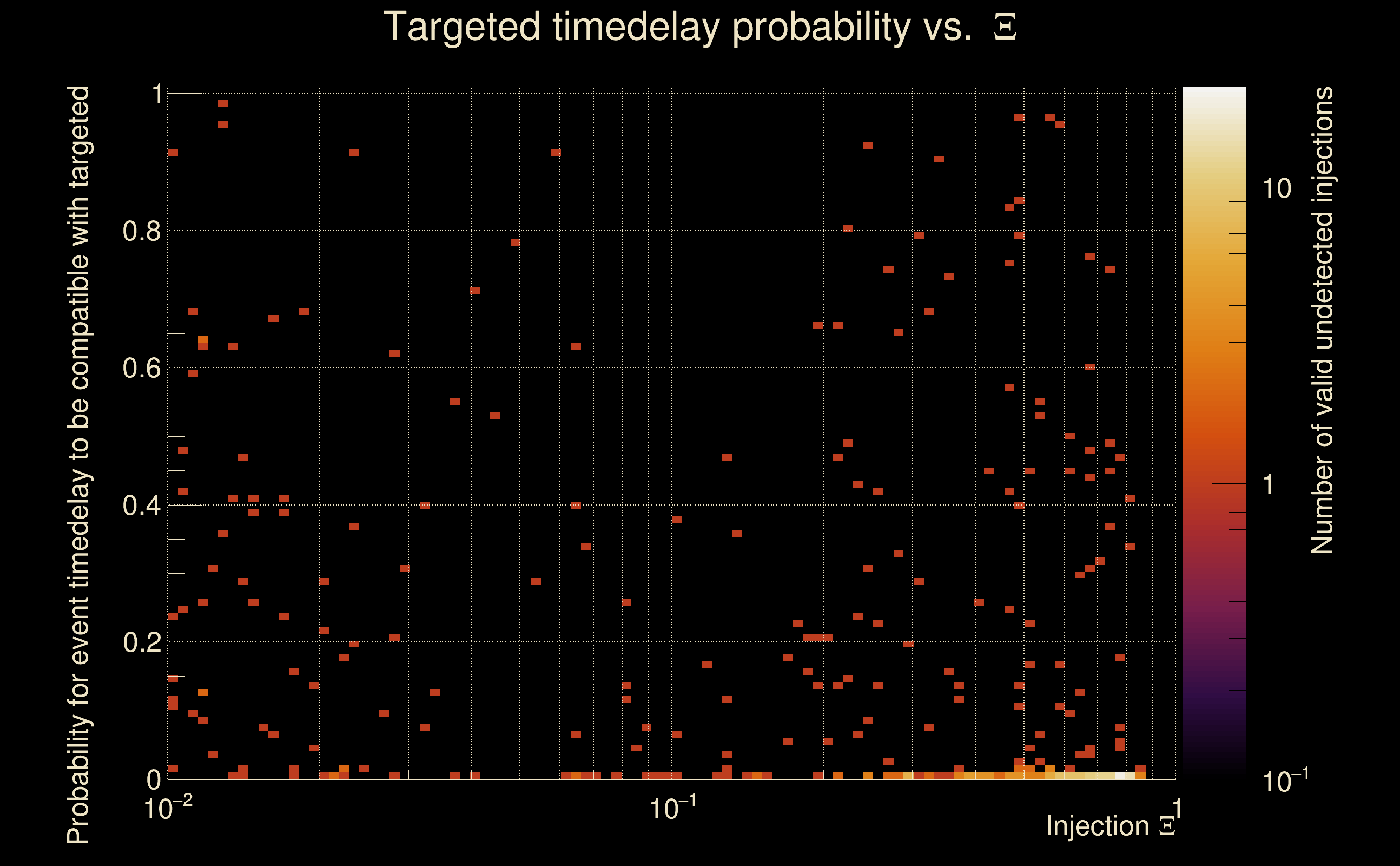

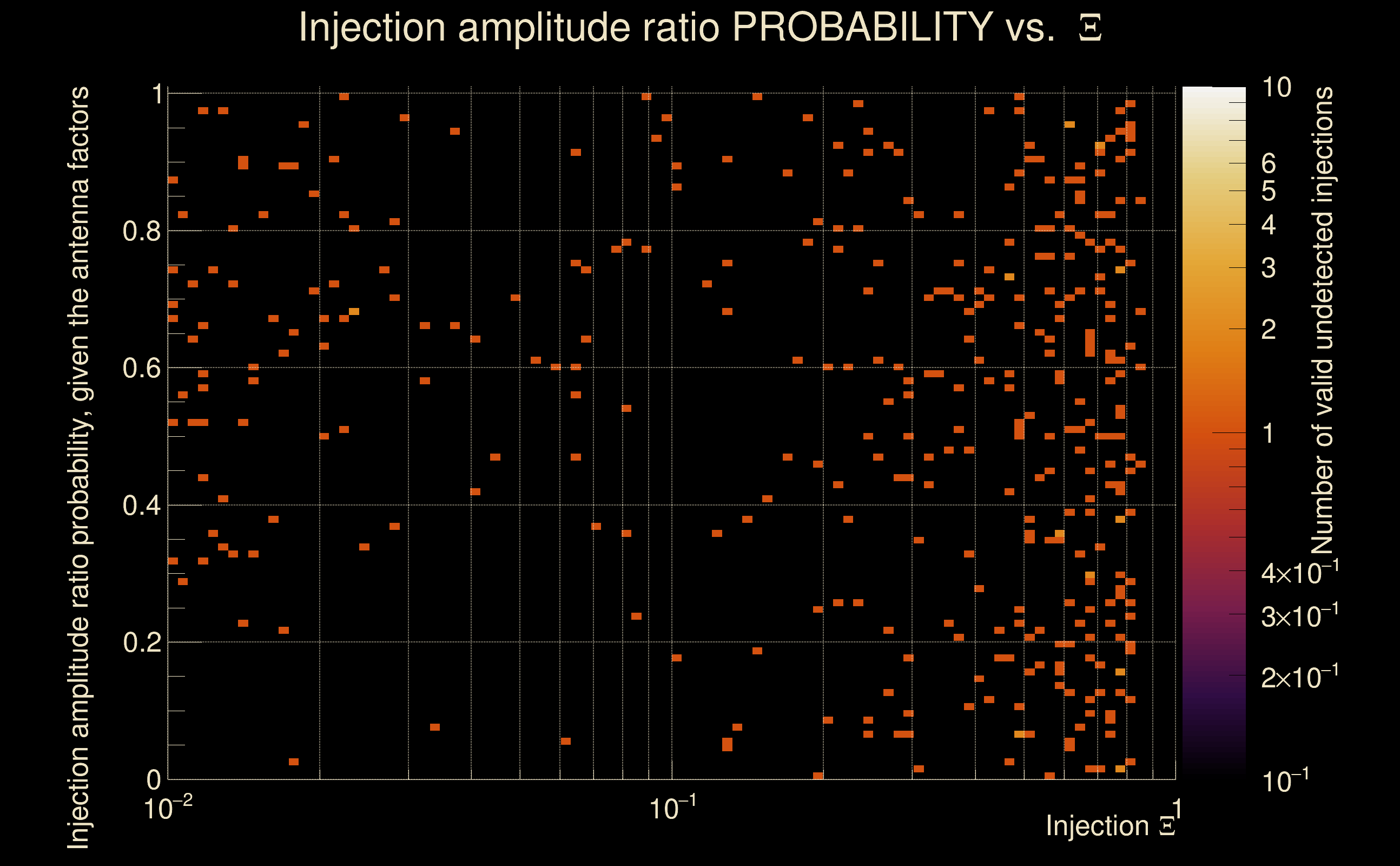

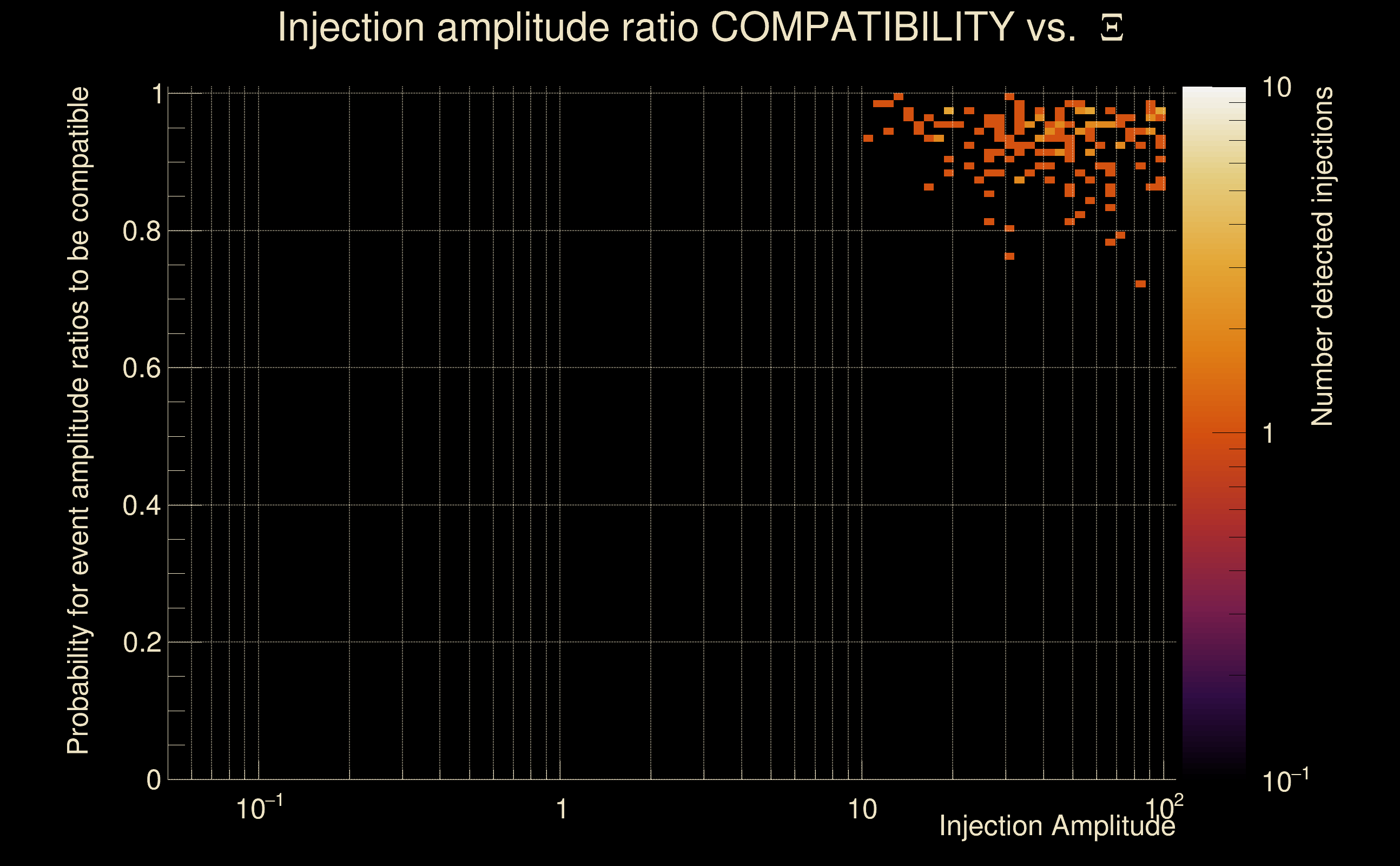

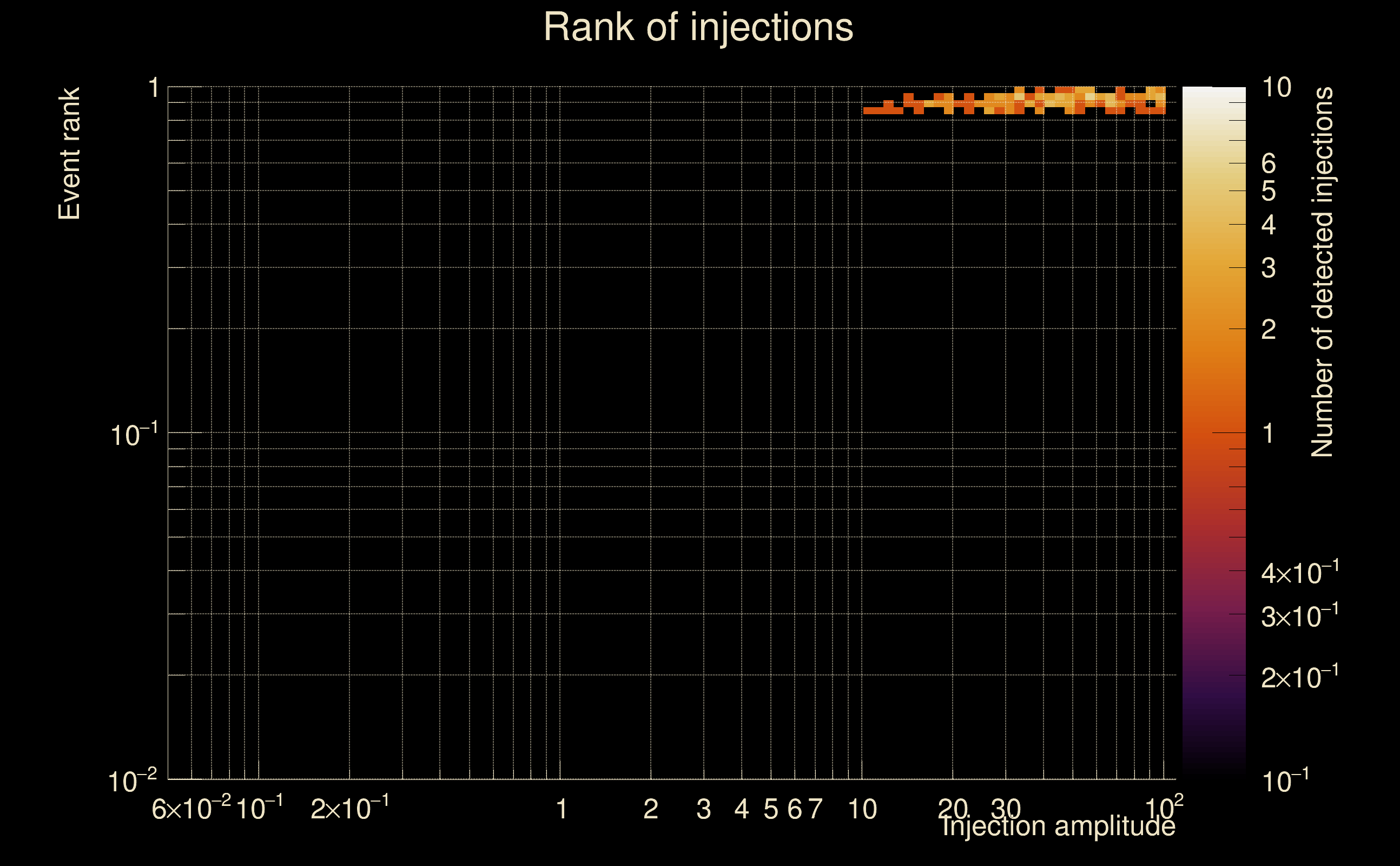

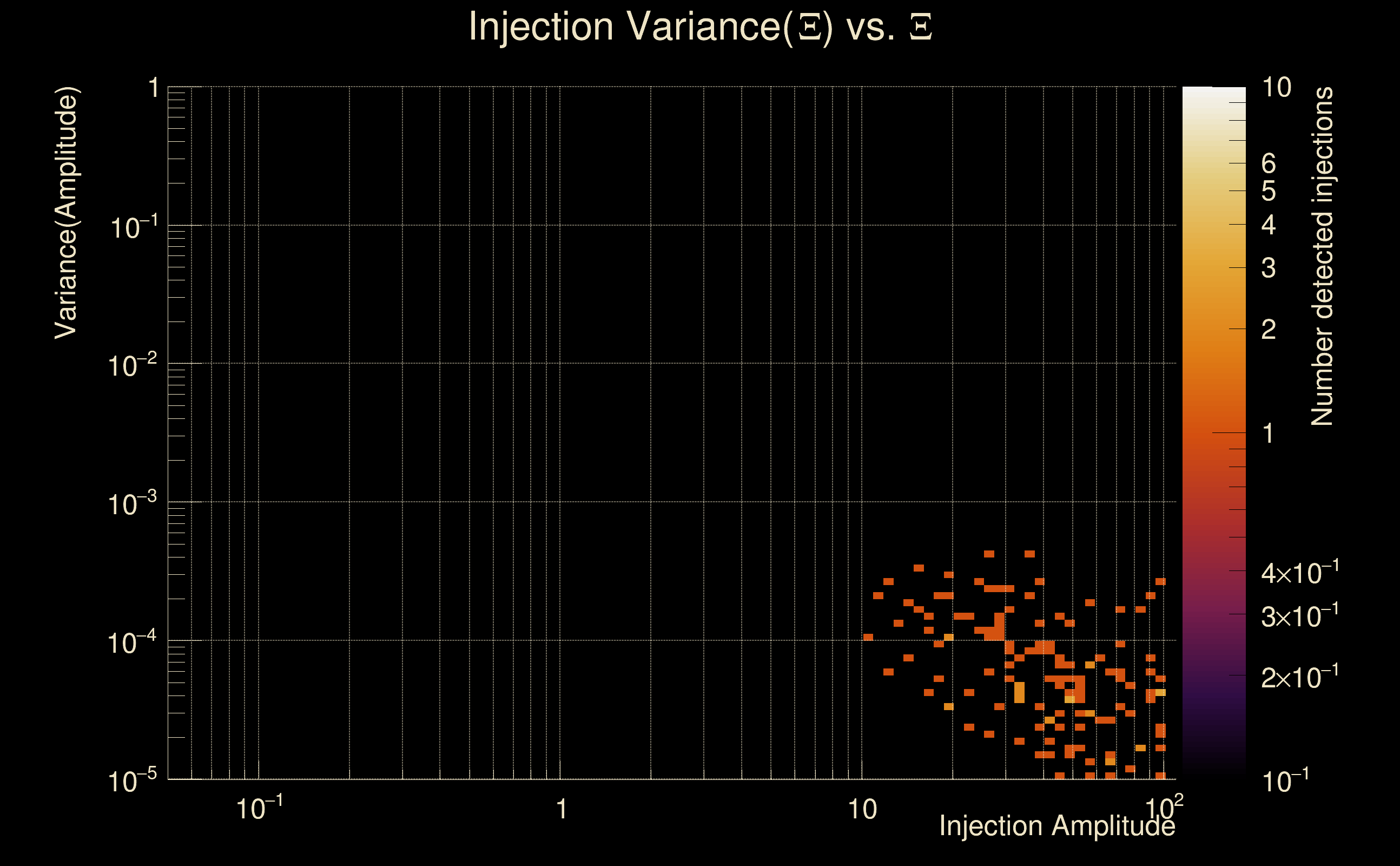

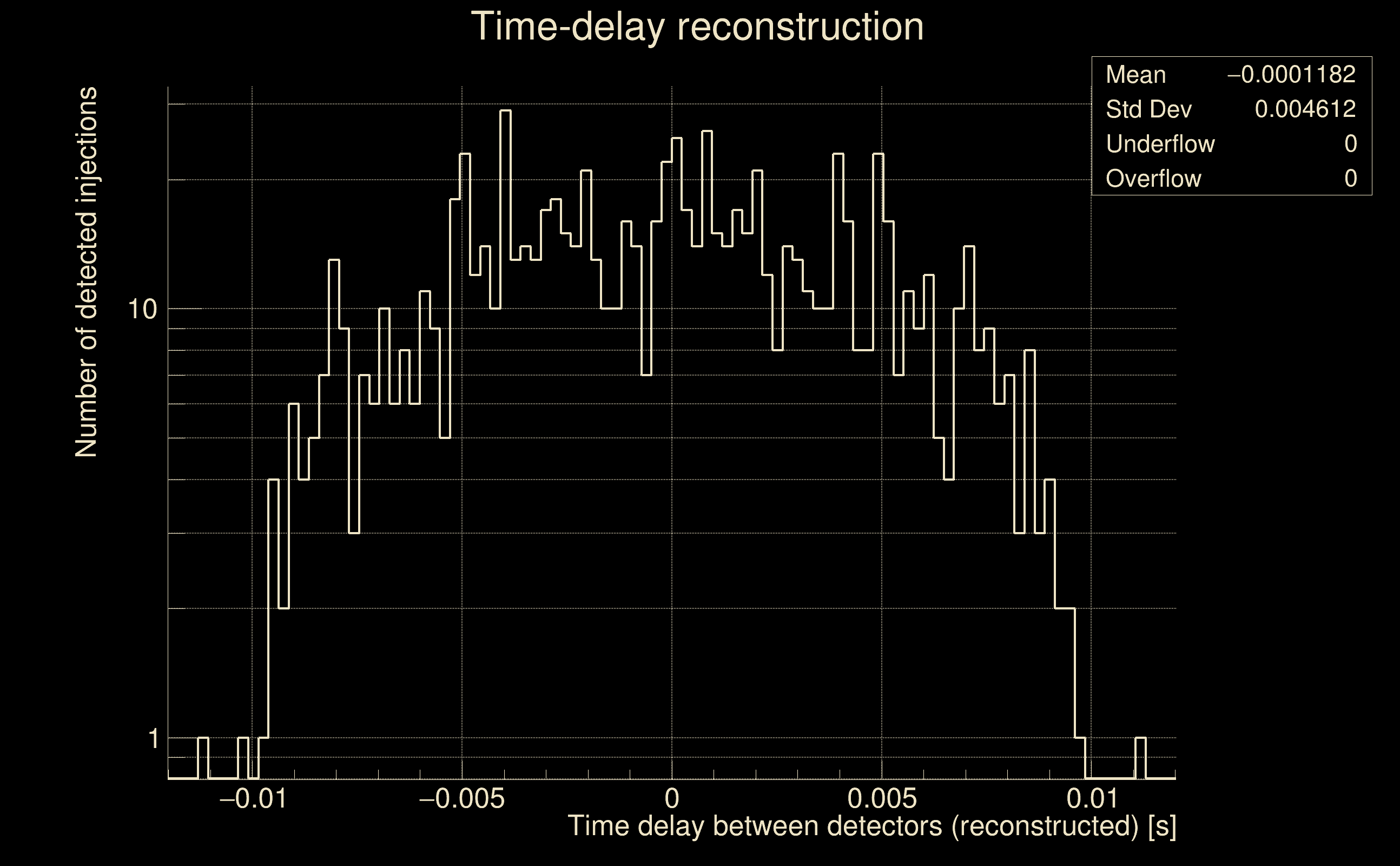

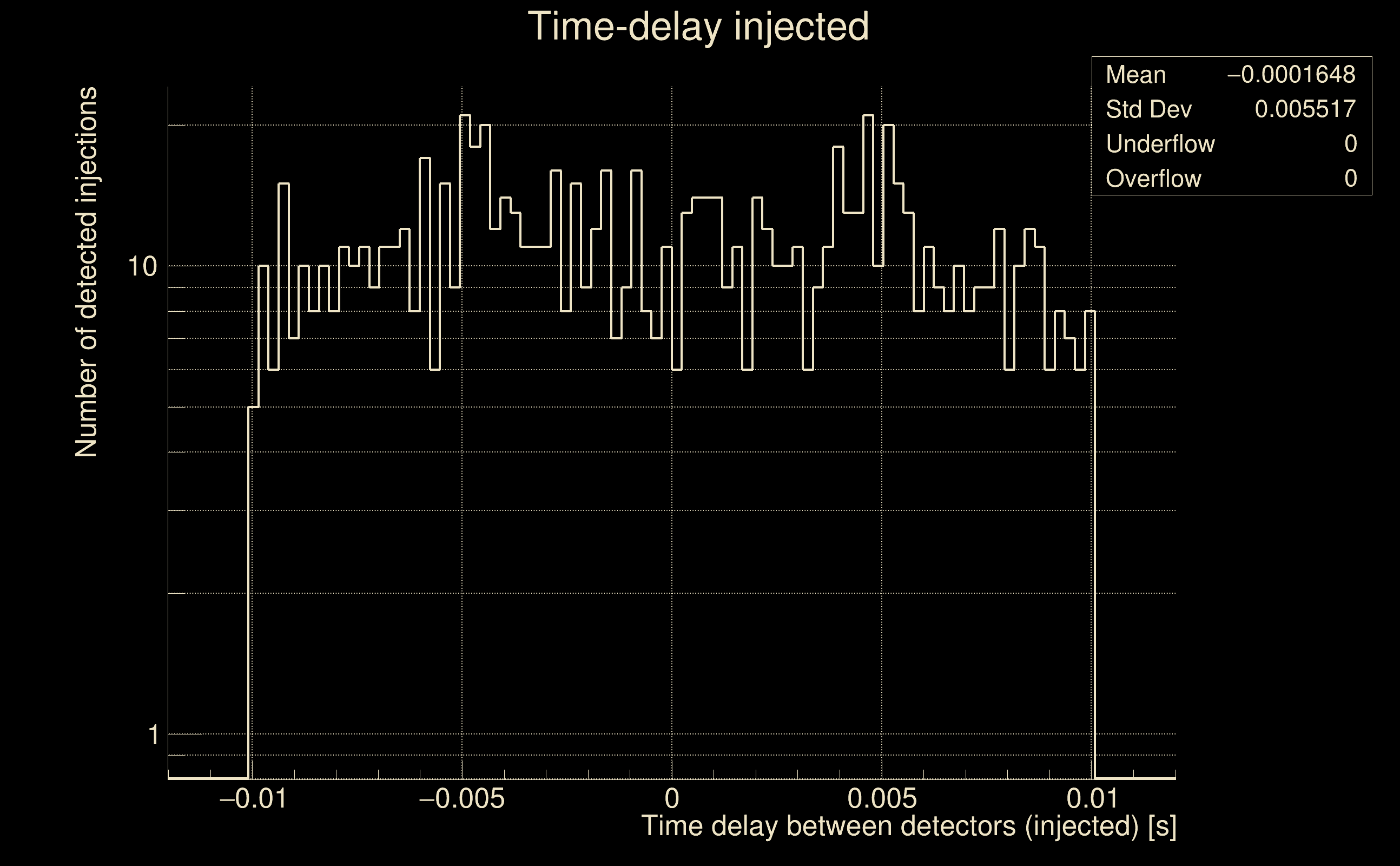

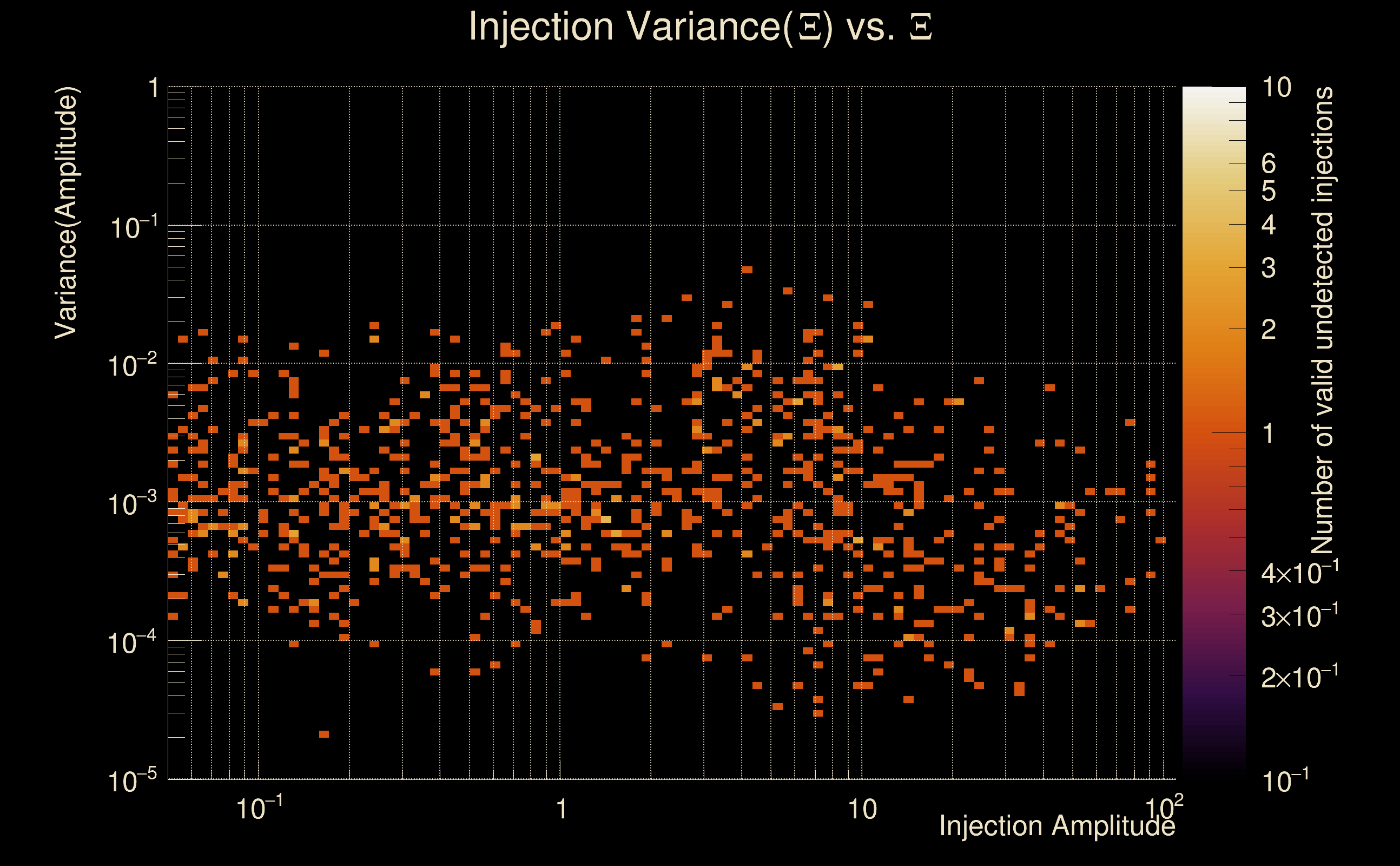

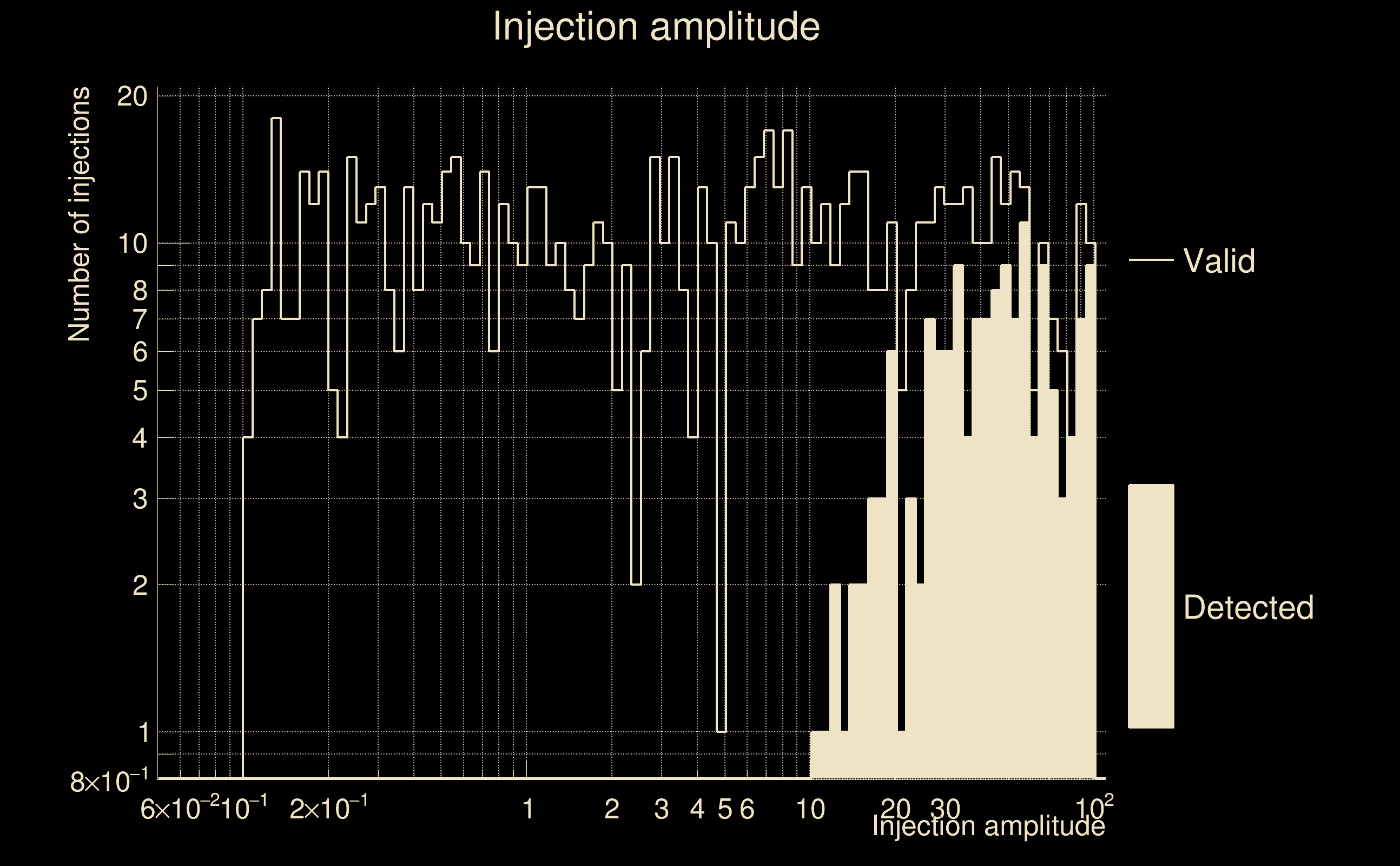

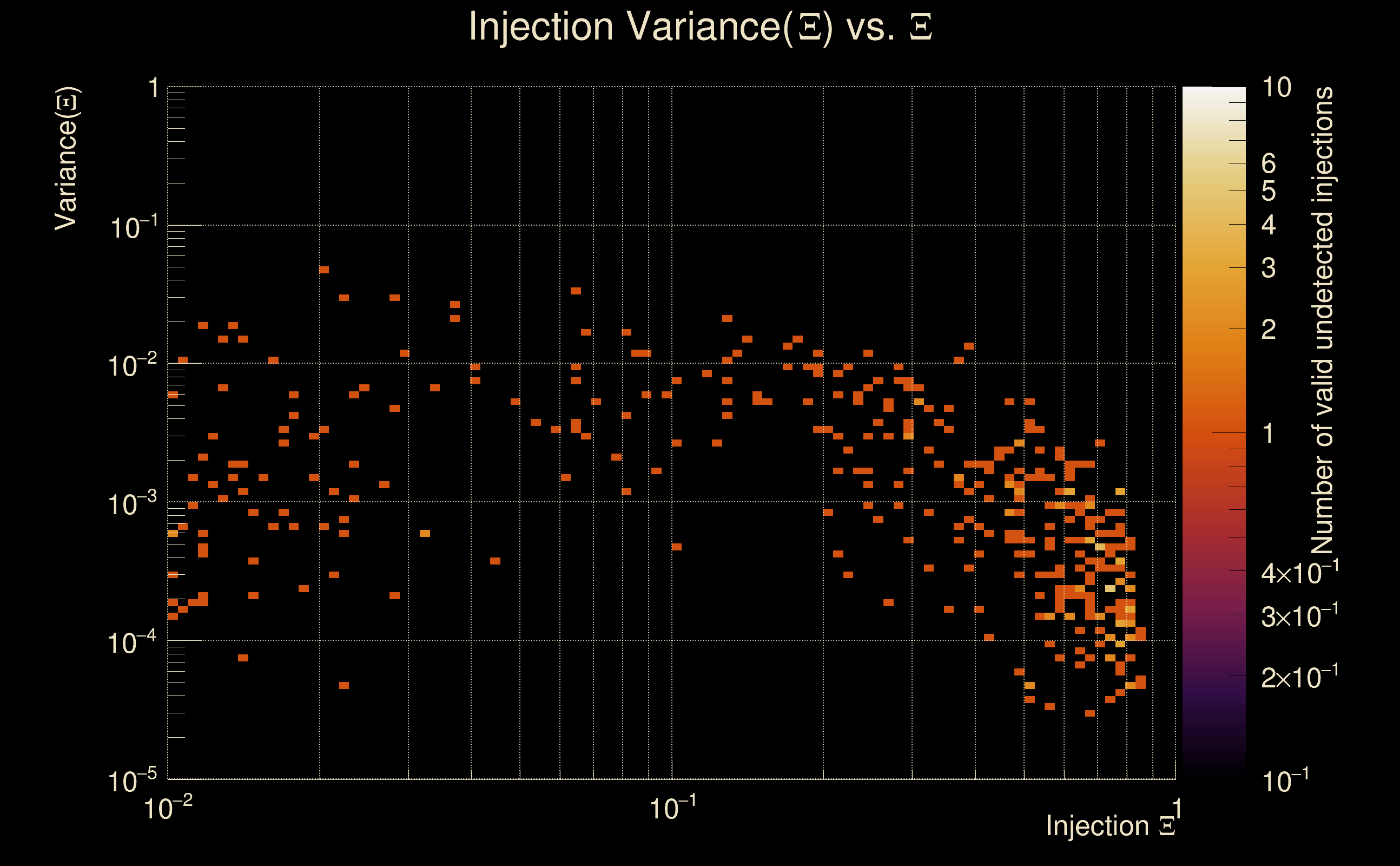

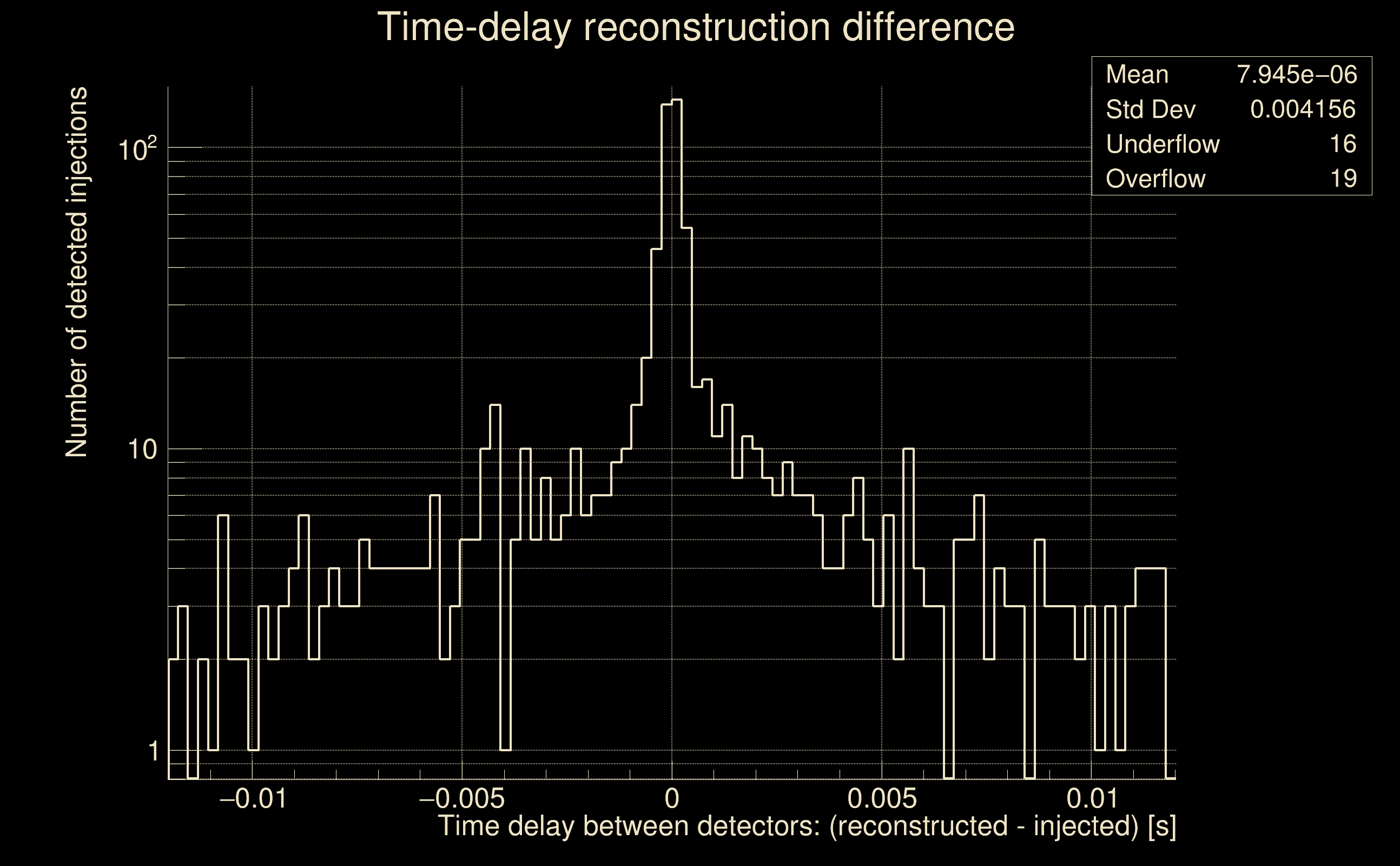

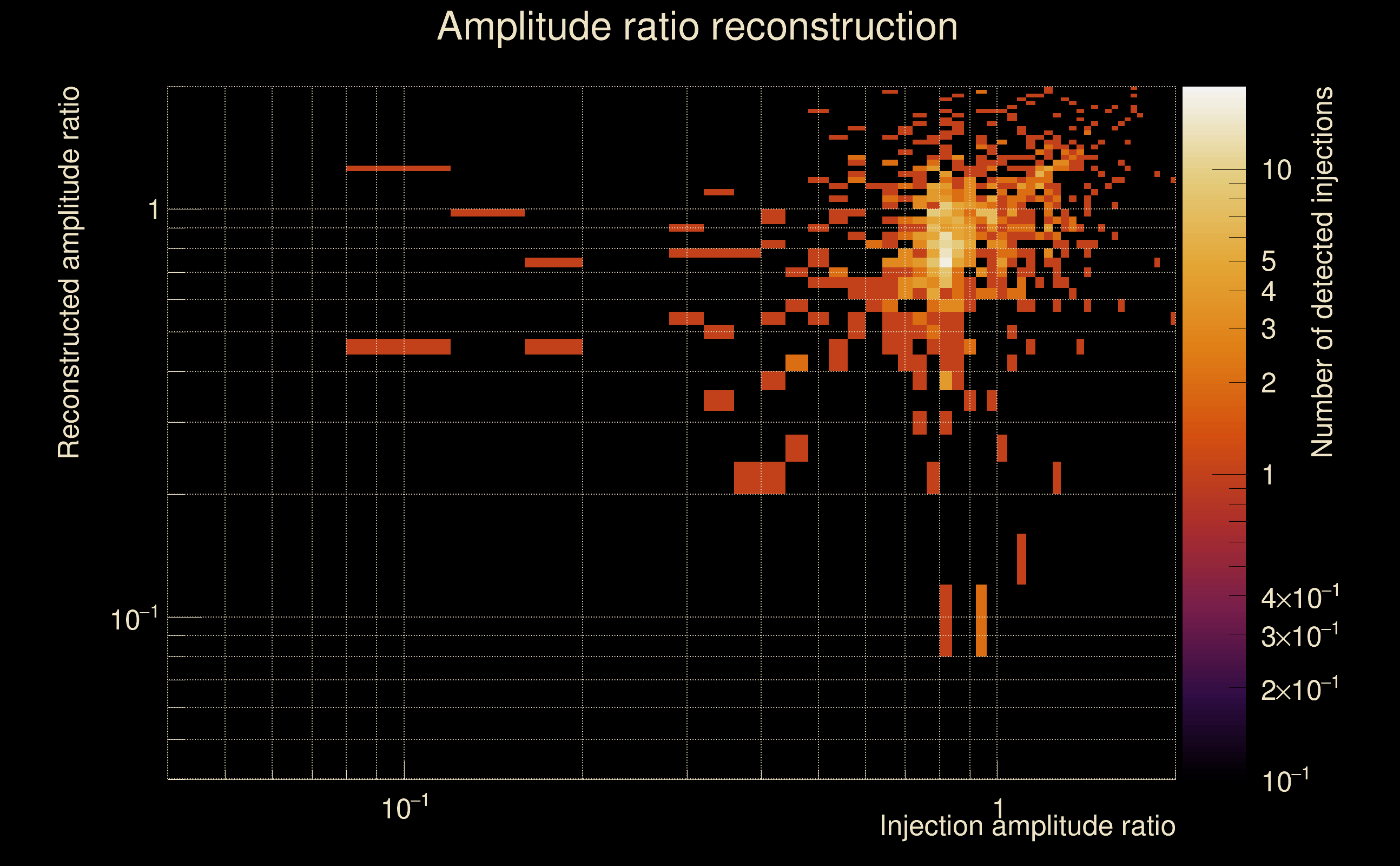

| Number of injections (total/valid/detected): | 1042 / 925 / 149 |
| List of missed injections: | ./Rad19-s13_missed.txt |
| Injection amplitude at 90% detection efficiency: | 82.6833 |
| Injection amplitude at 50% detection efficiency: | 37.4129 |
| Injection amplitude at 10% detection efficiency: | 13.5372 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

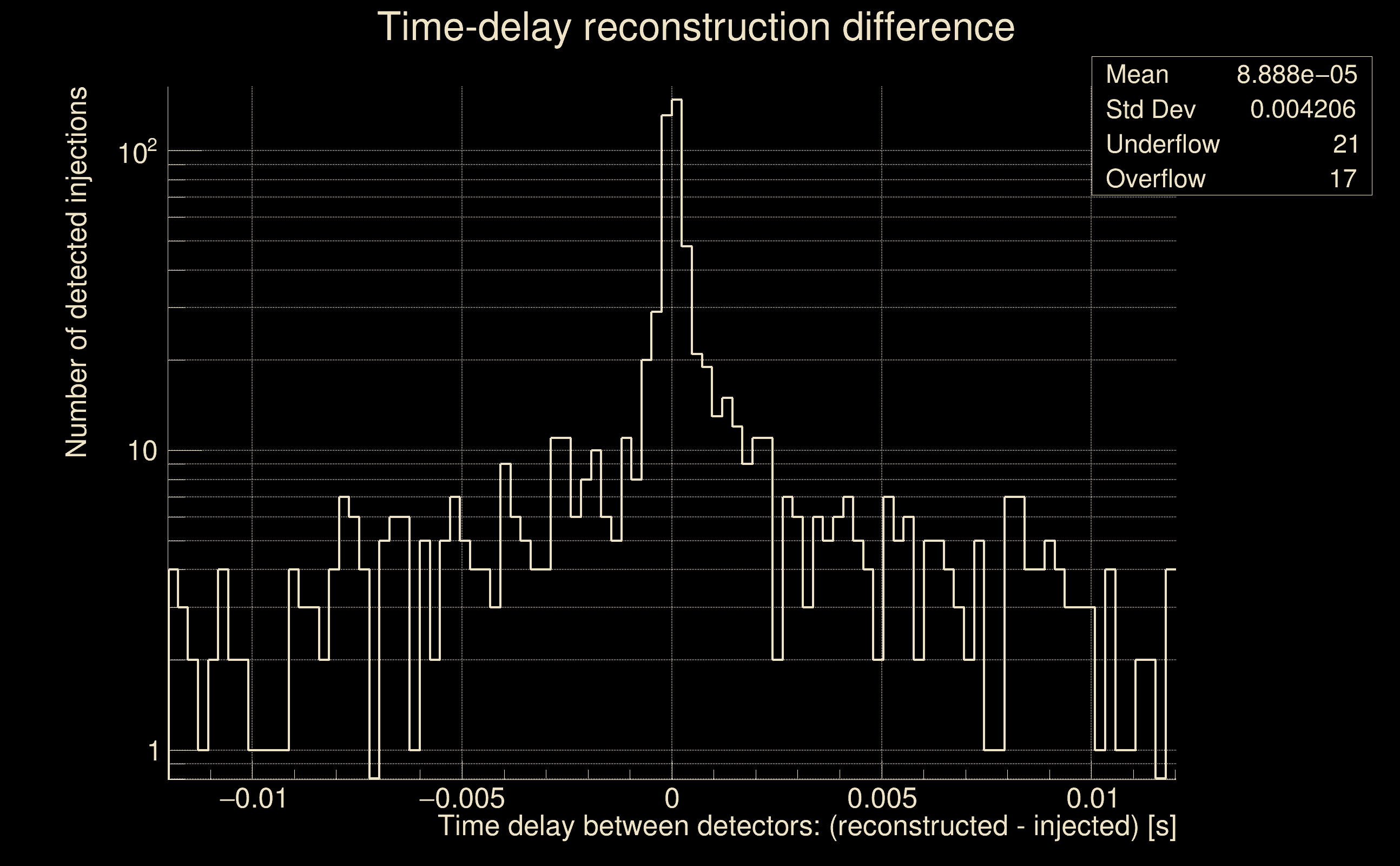

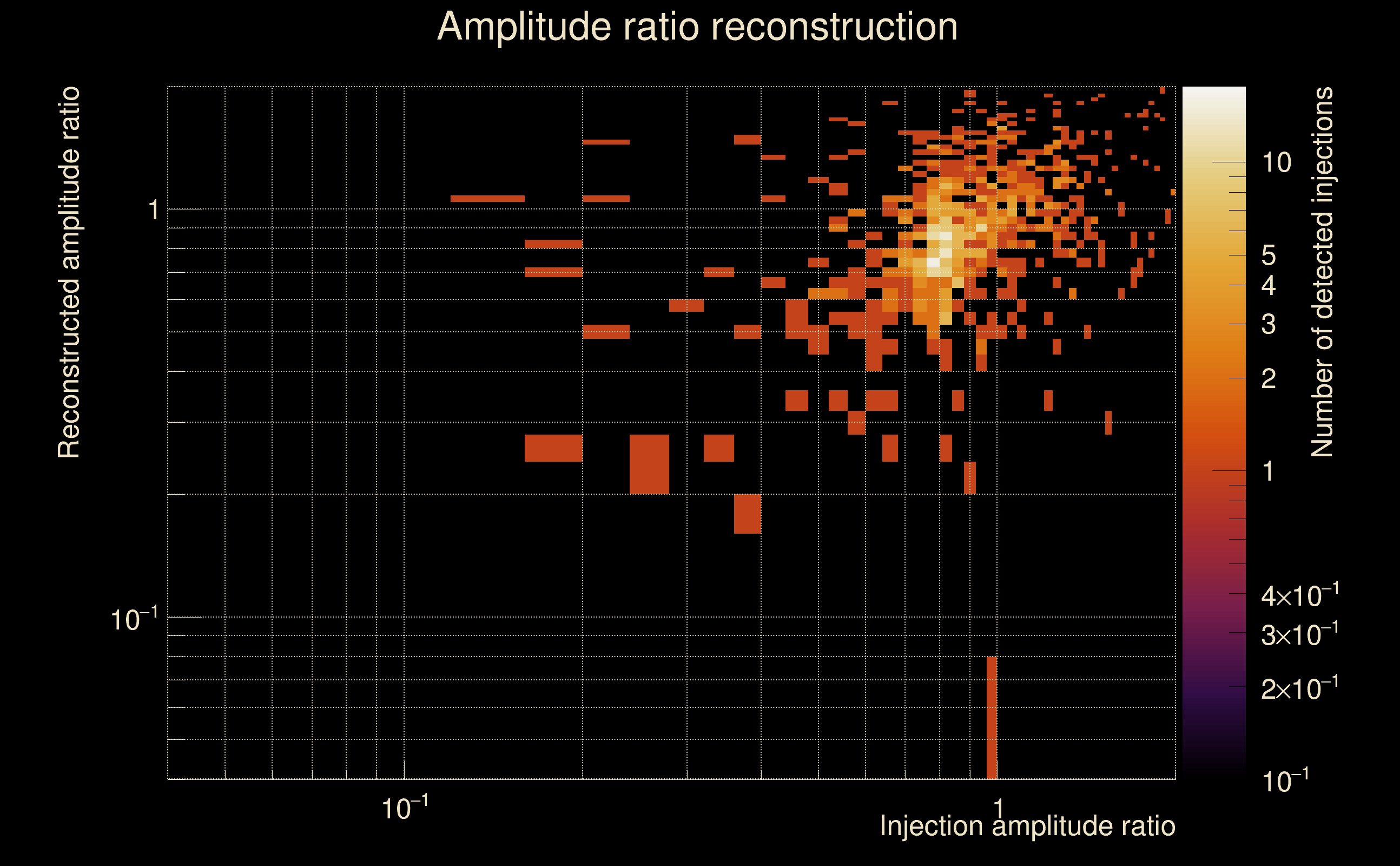

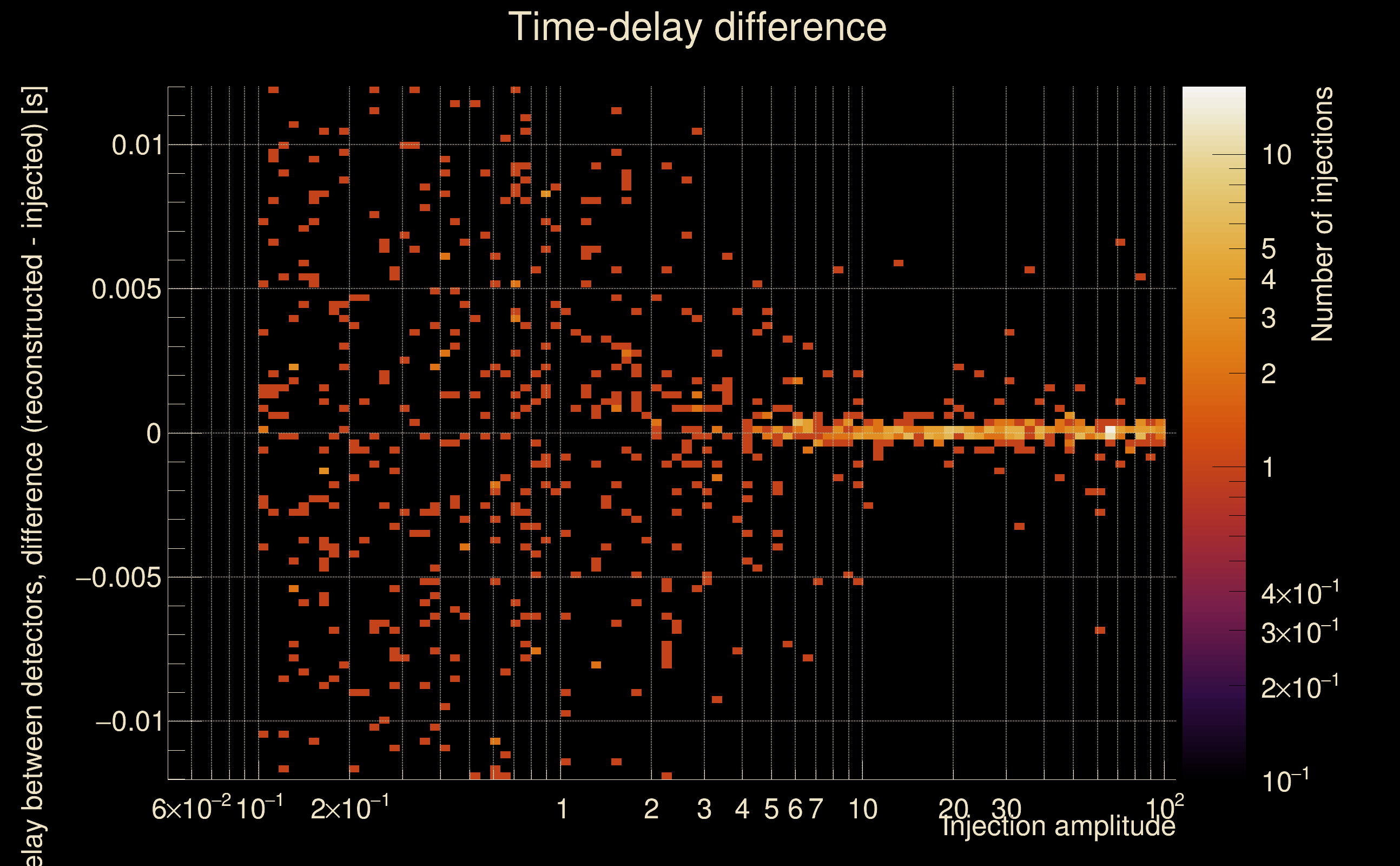

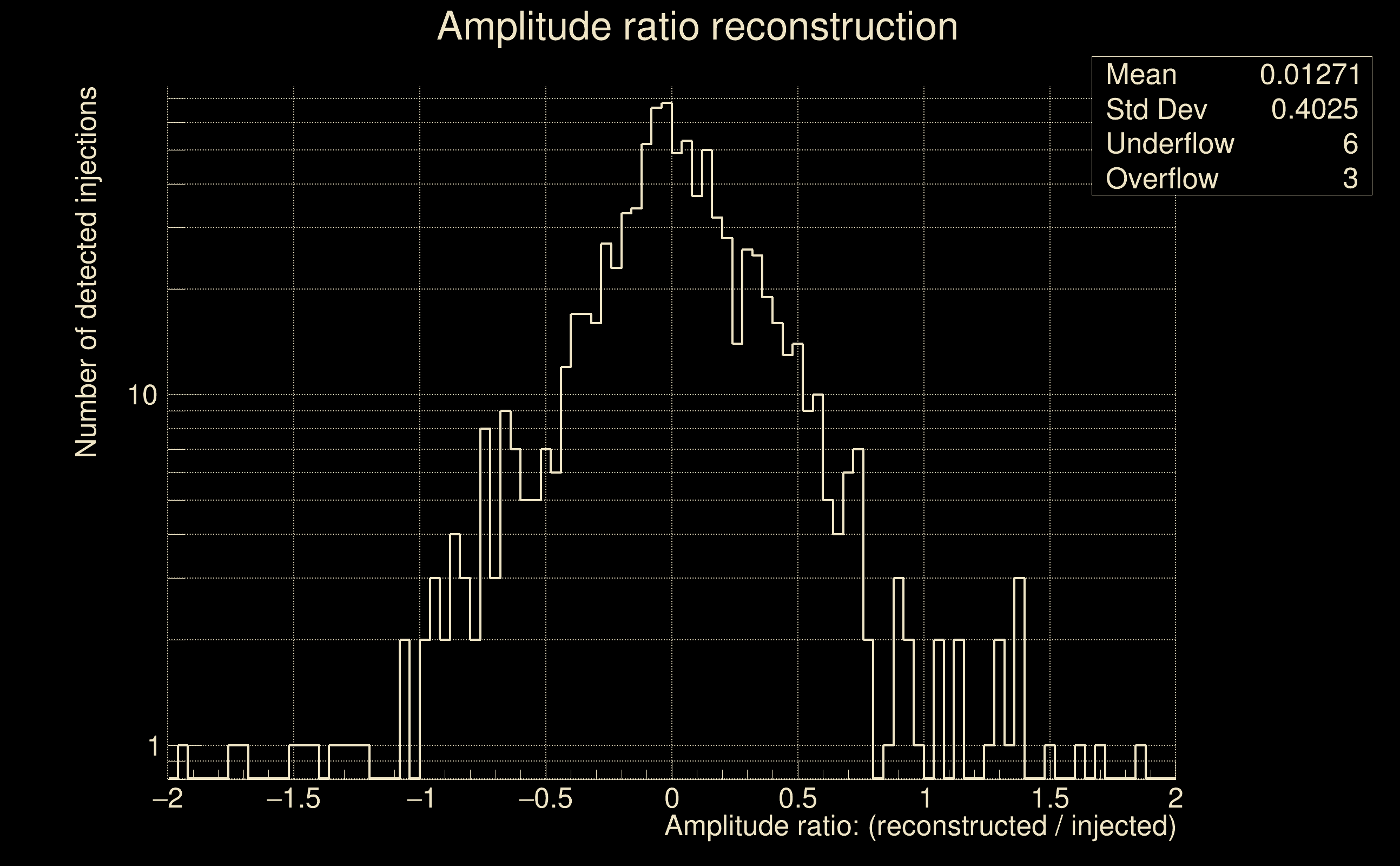

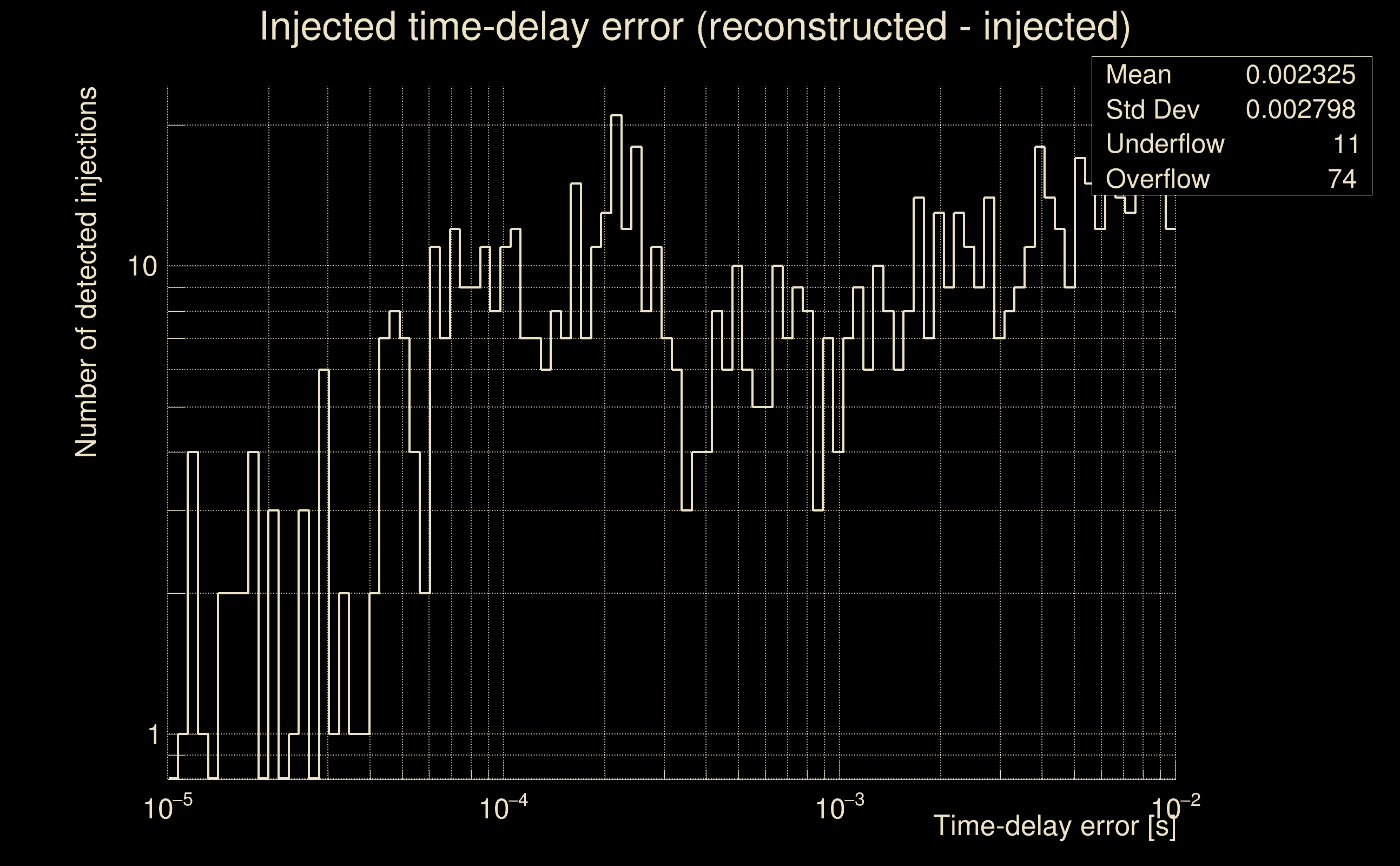

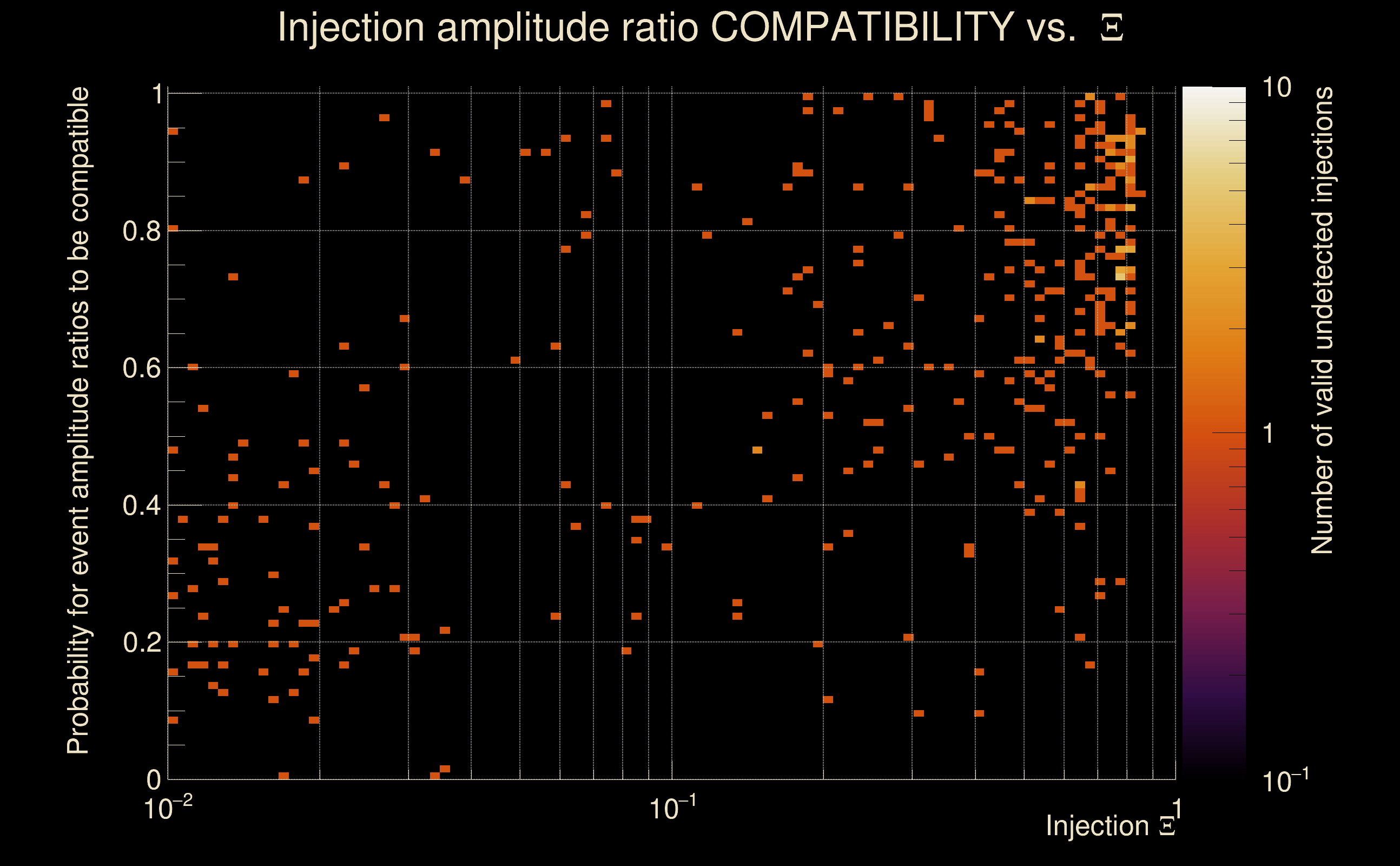

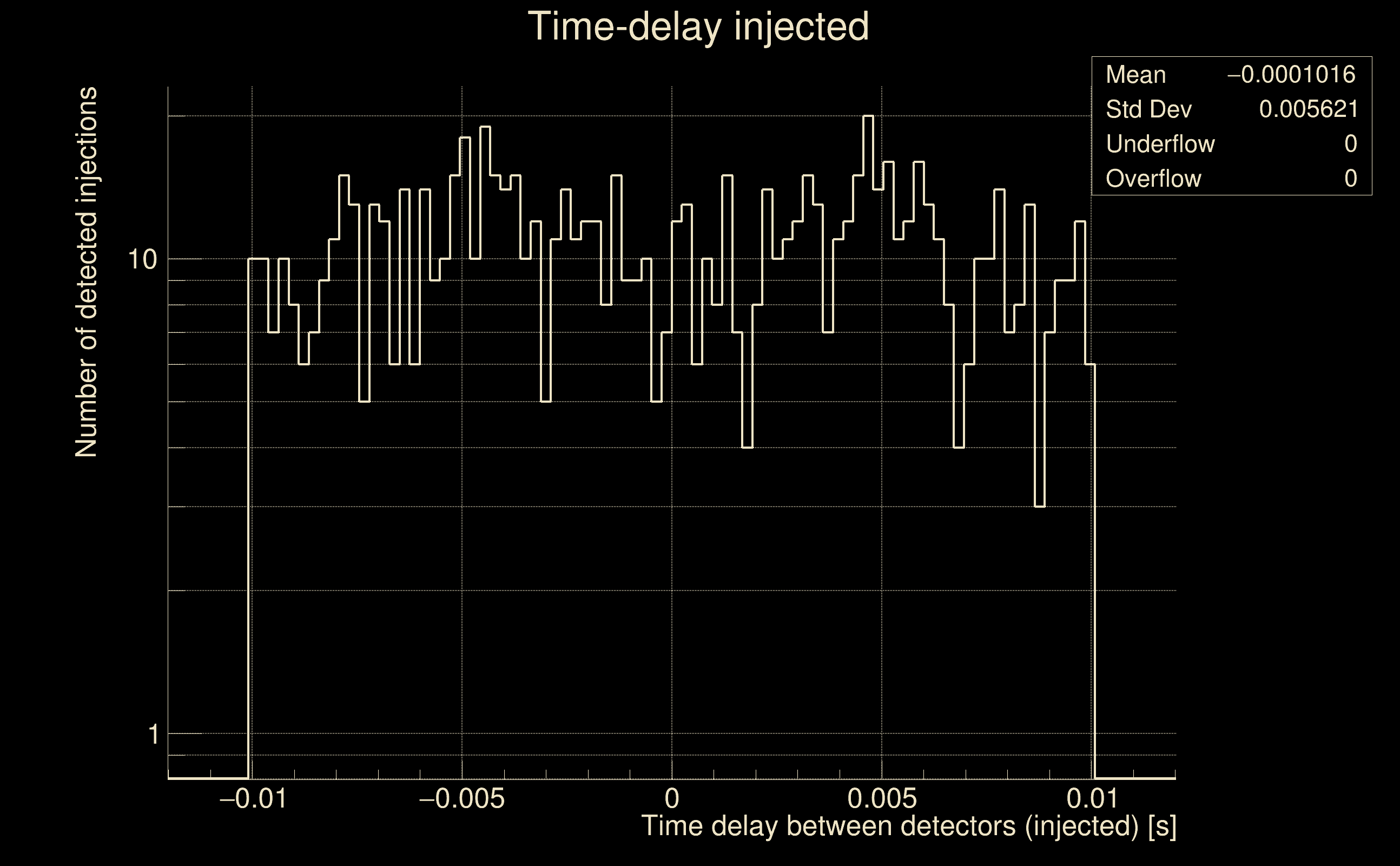

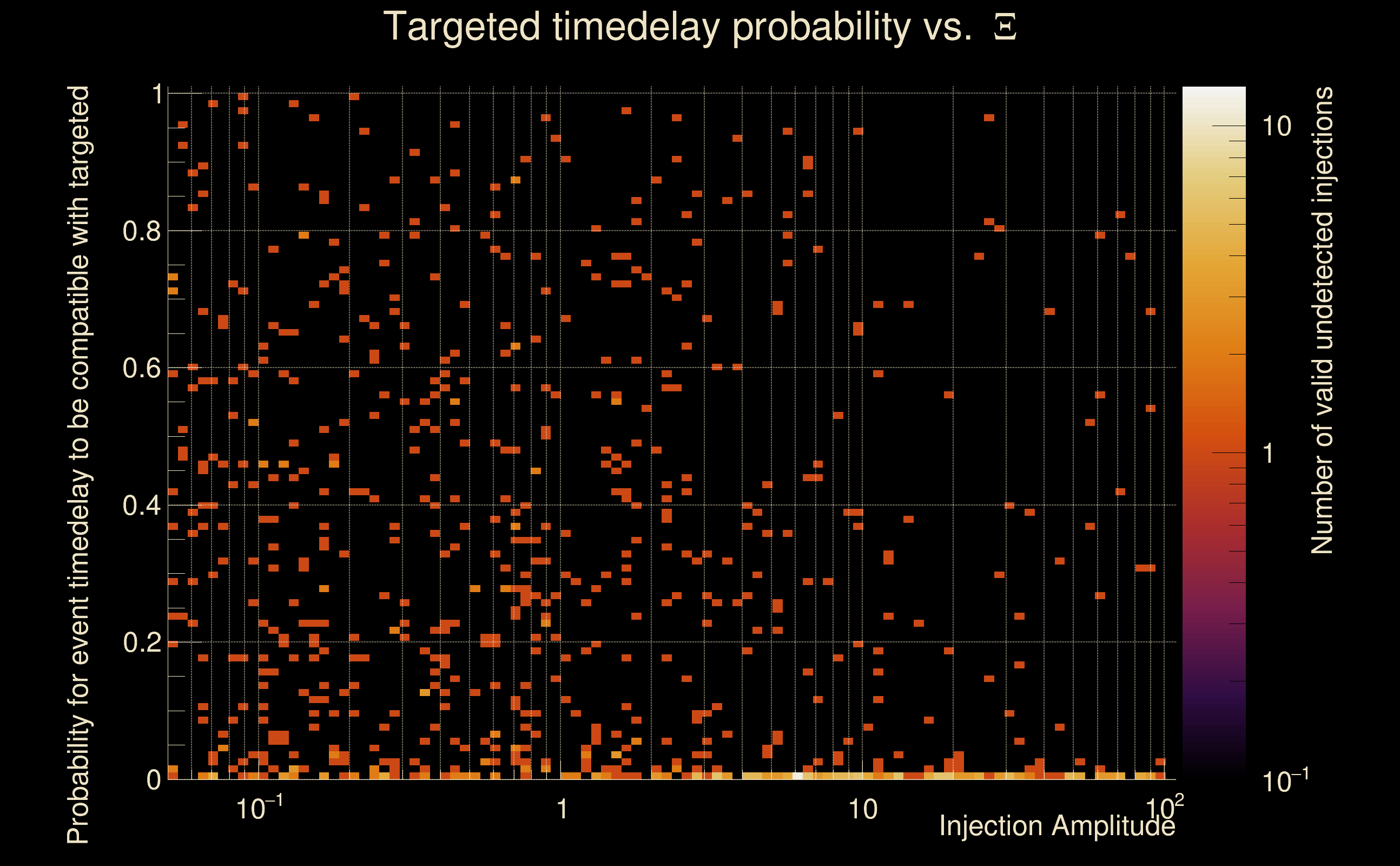

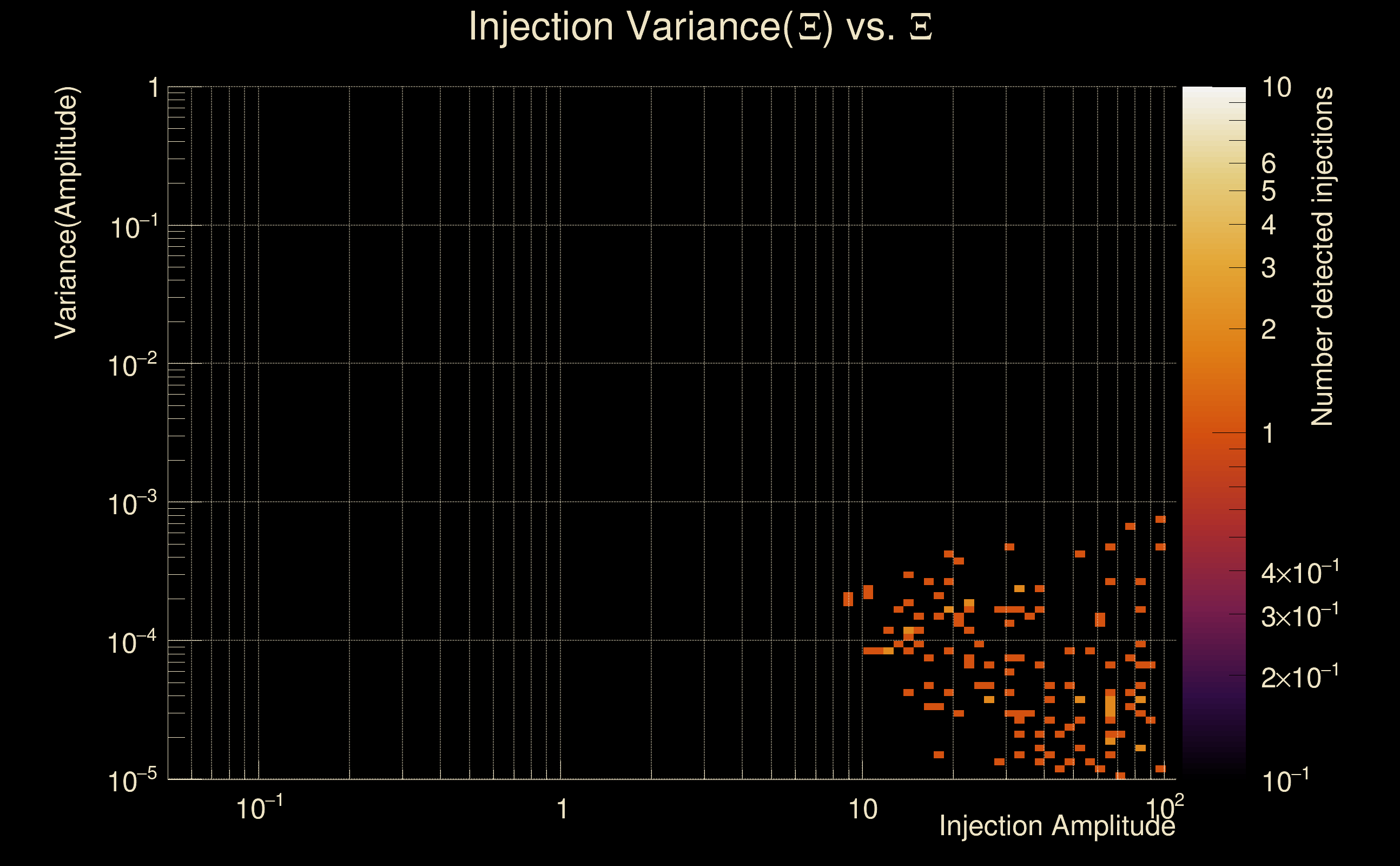

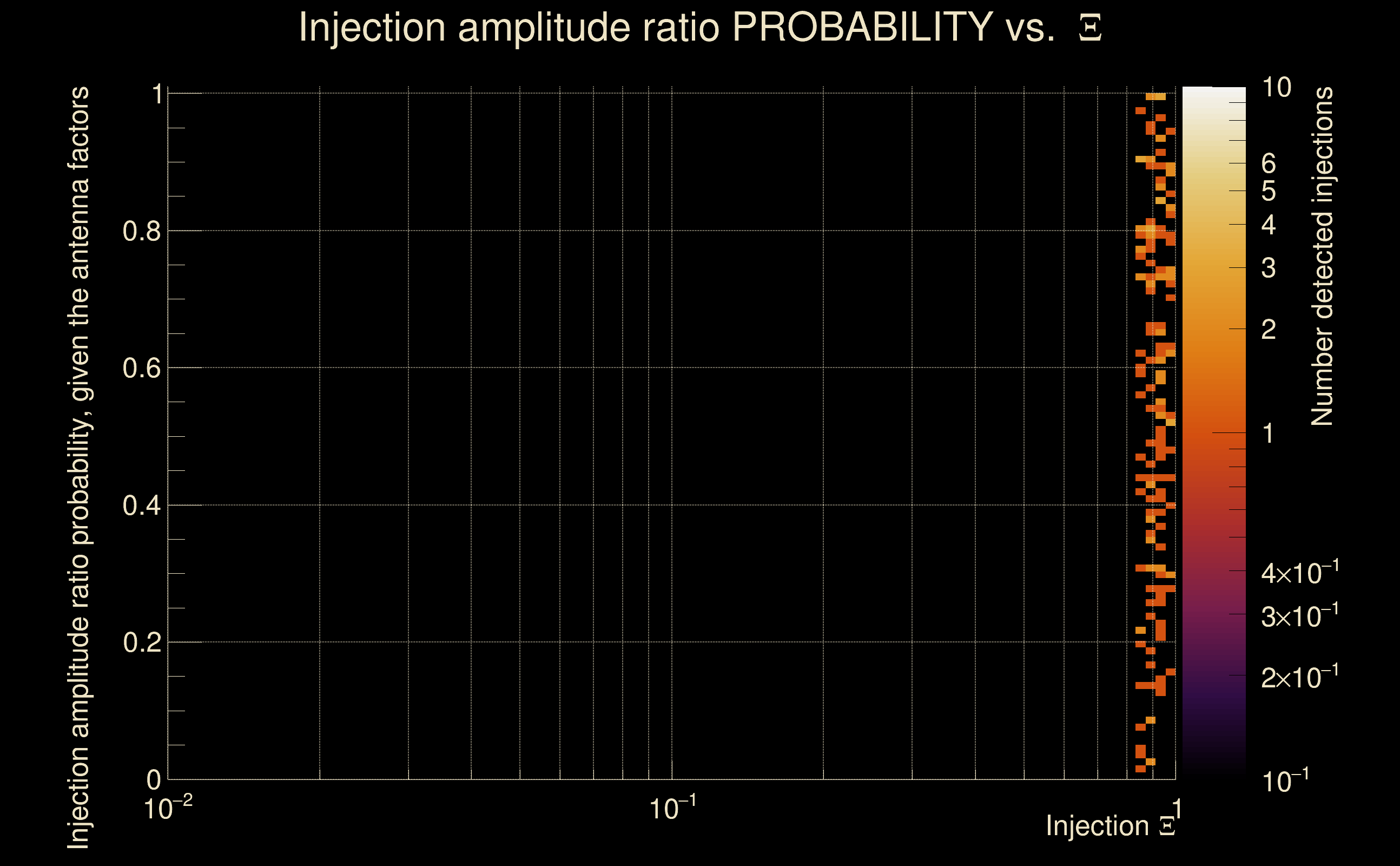

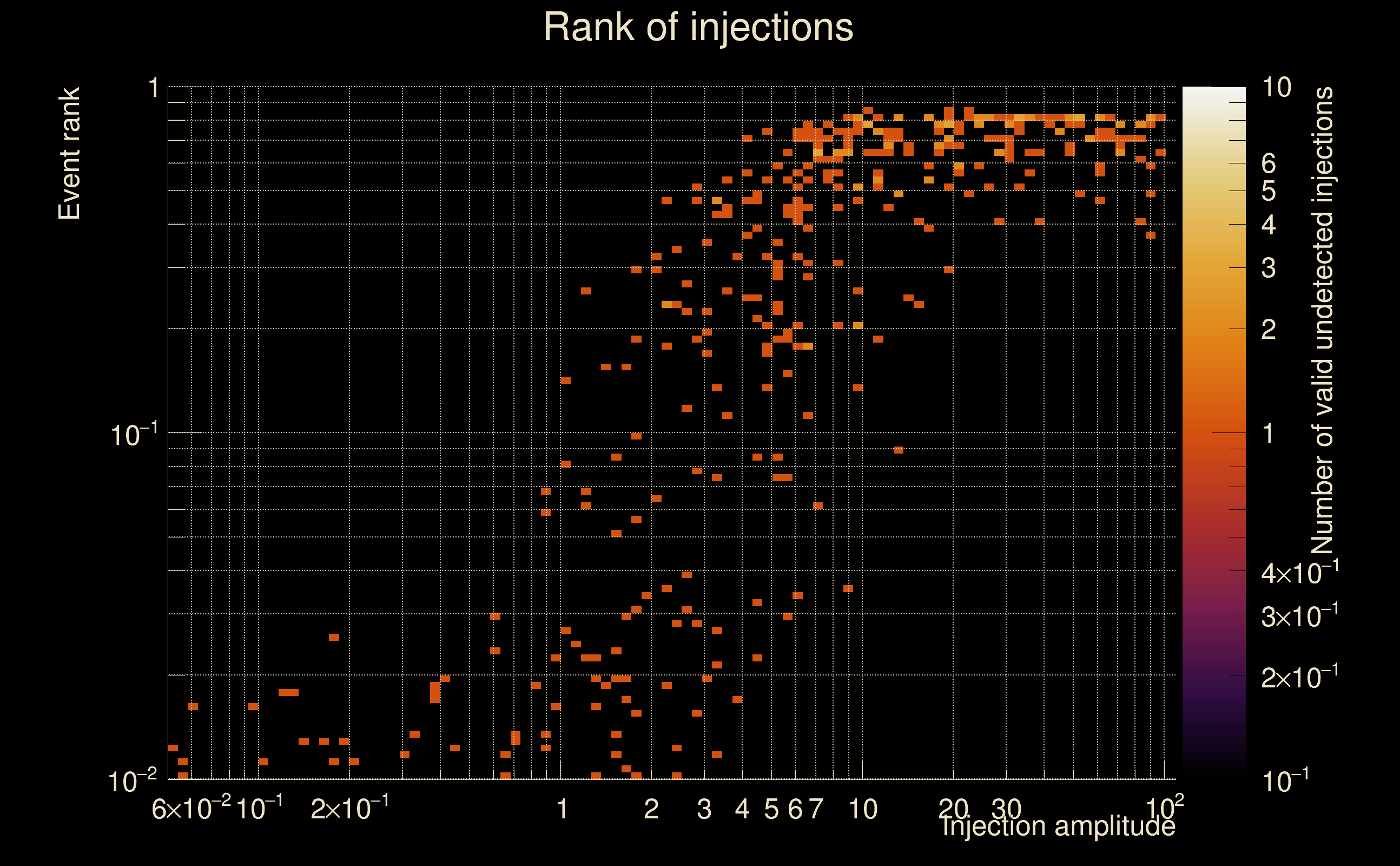

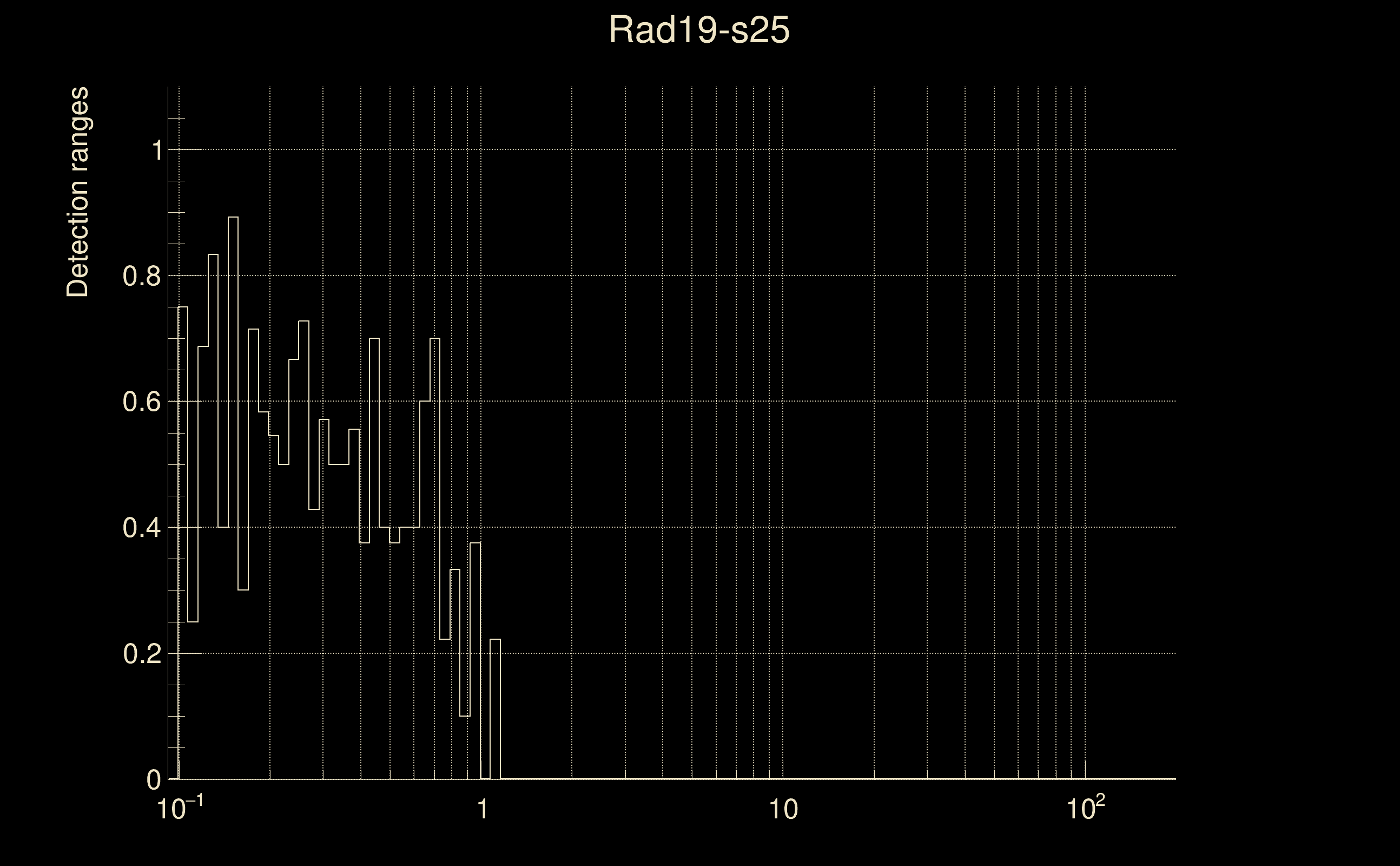

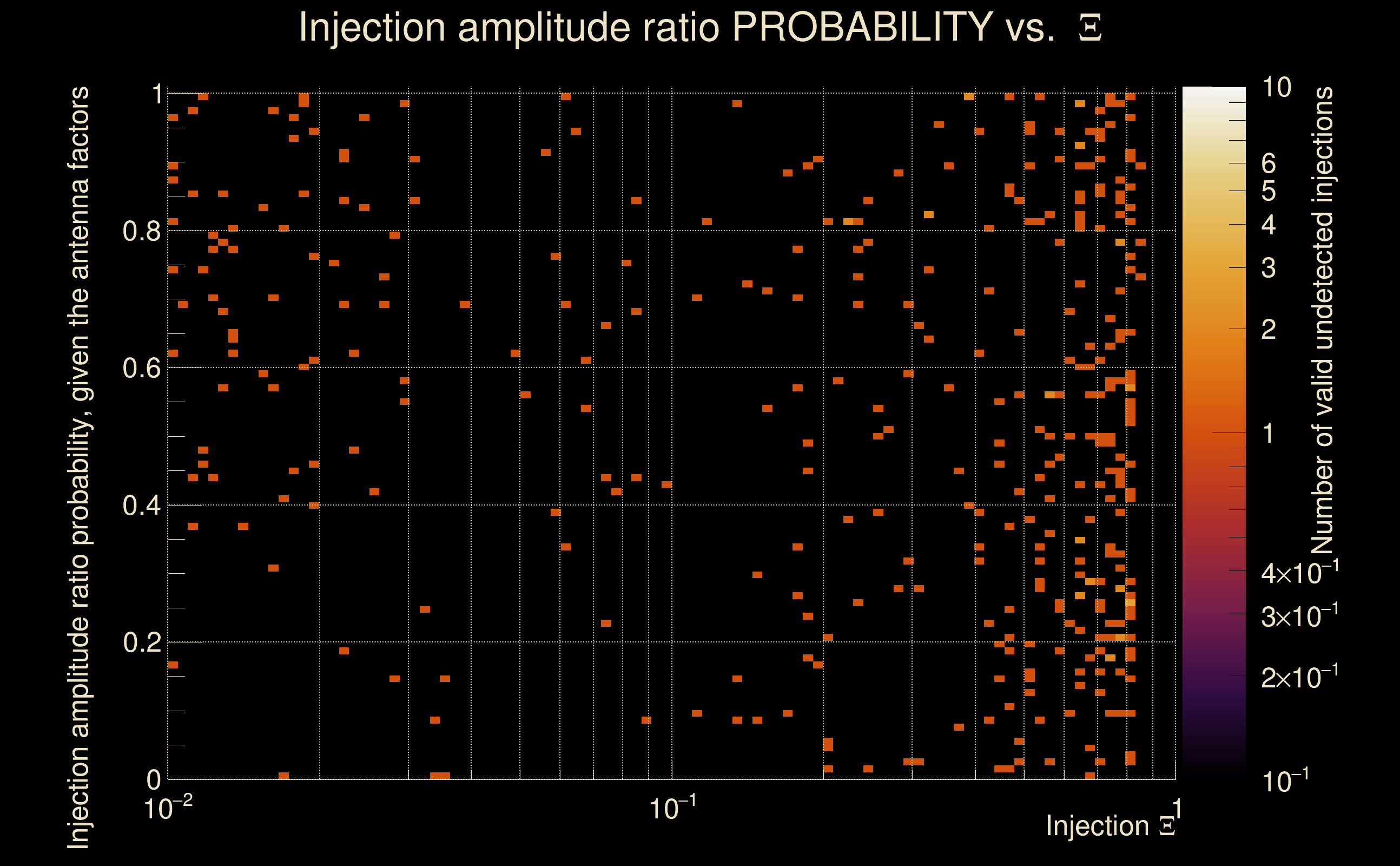

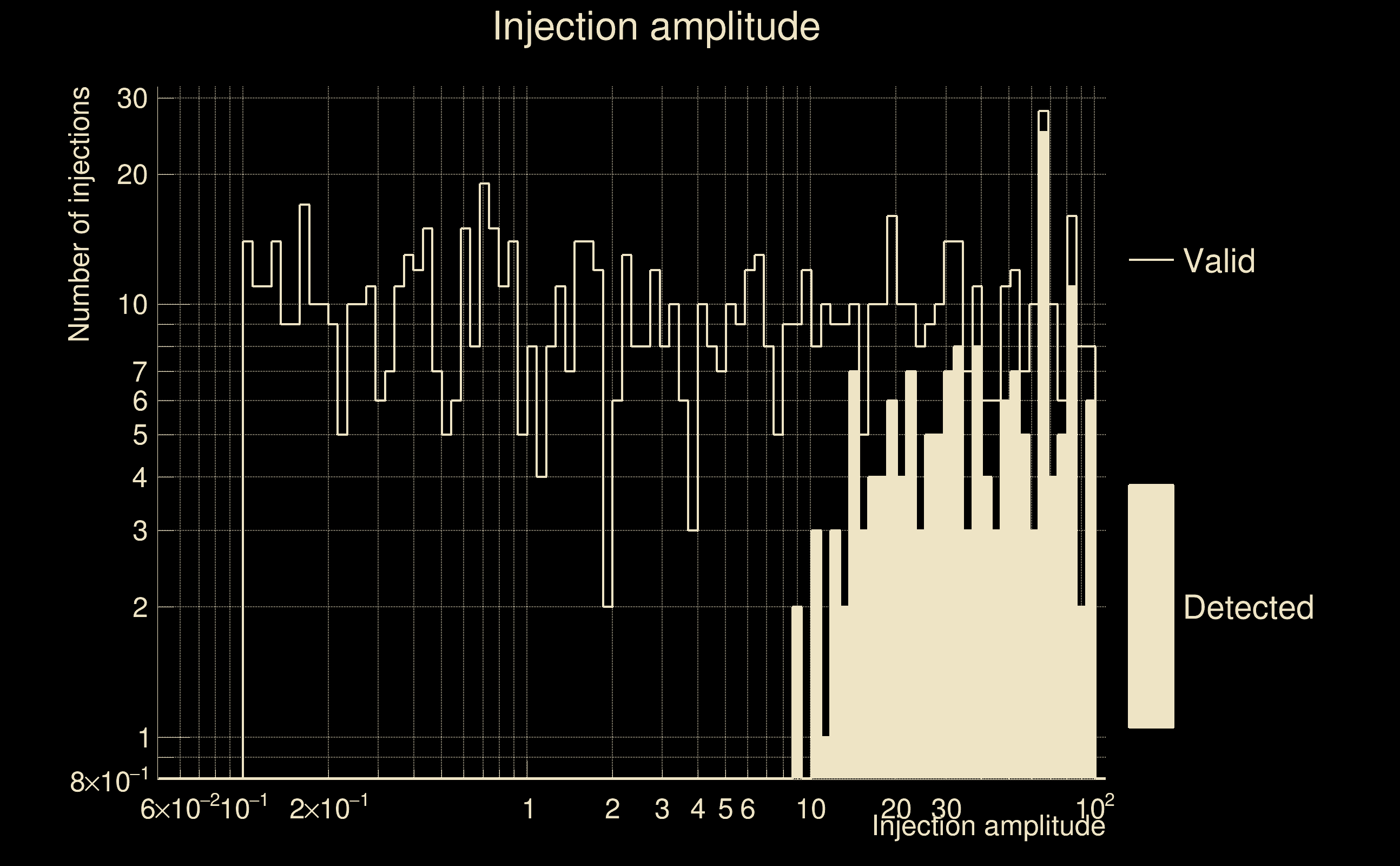

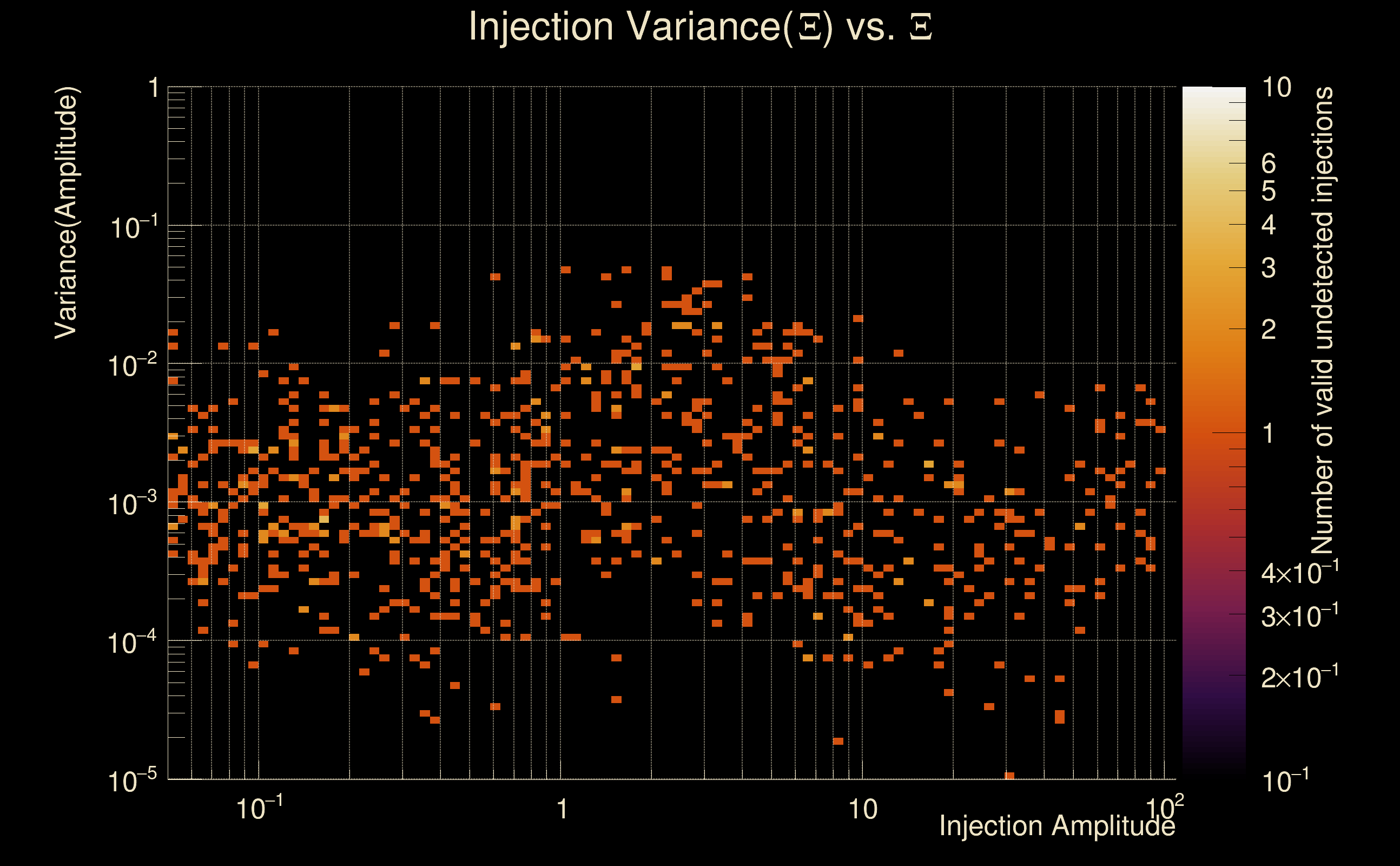

| Number of injections (total/valid/detected): | 1006 / 893 / 166 |
| List of missed injections: | ./Rad19-s25_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | 62.9446 |
| Injection amplitude at 10% detection efficiency: | 9.89369 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
