| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:42:44 2026 UTC |
| Ox option file: | Ixf6_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |

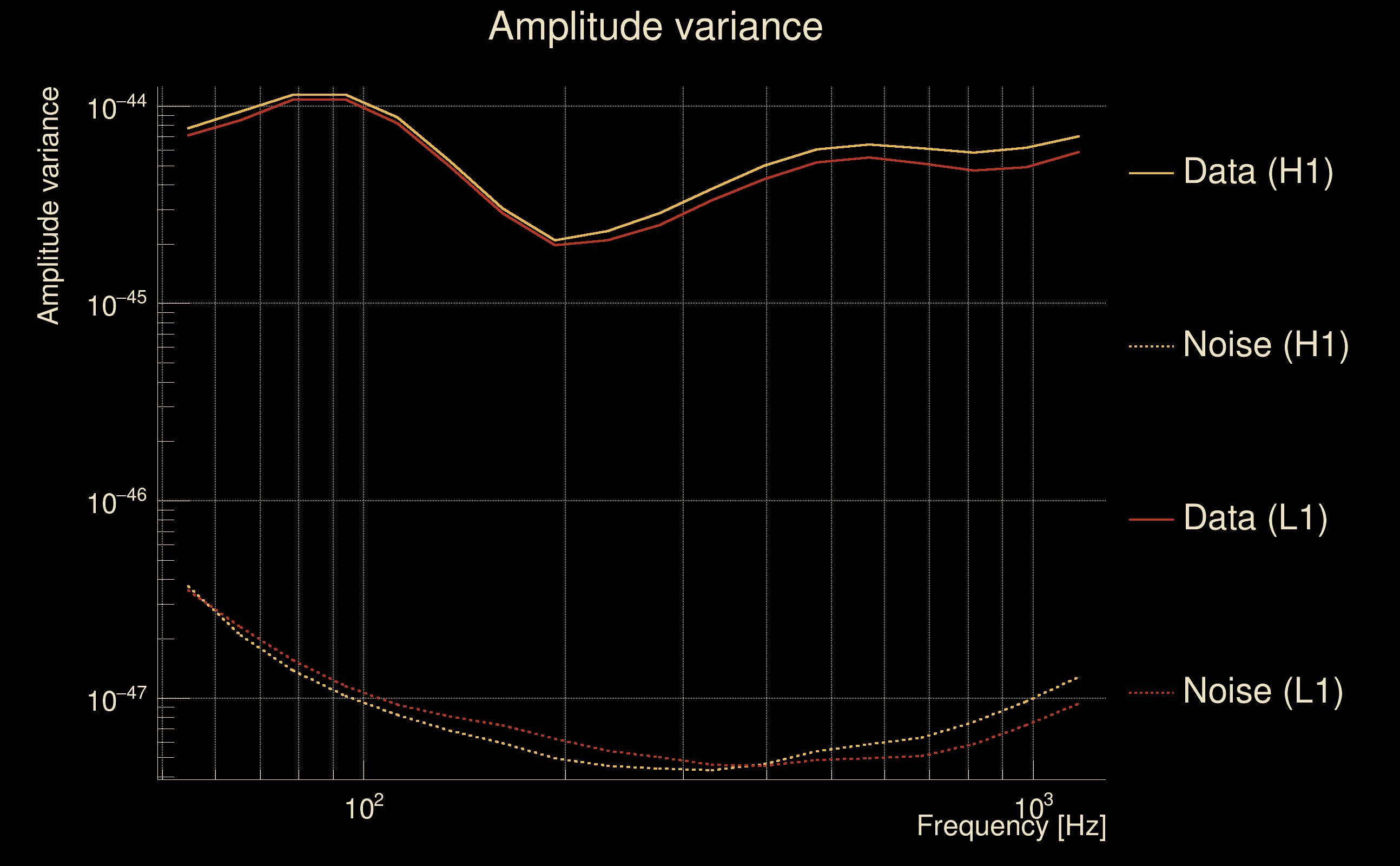

| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf6_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf6_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=21 (4.002 s), time lag = 0 s |

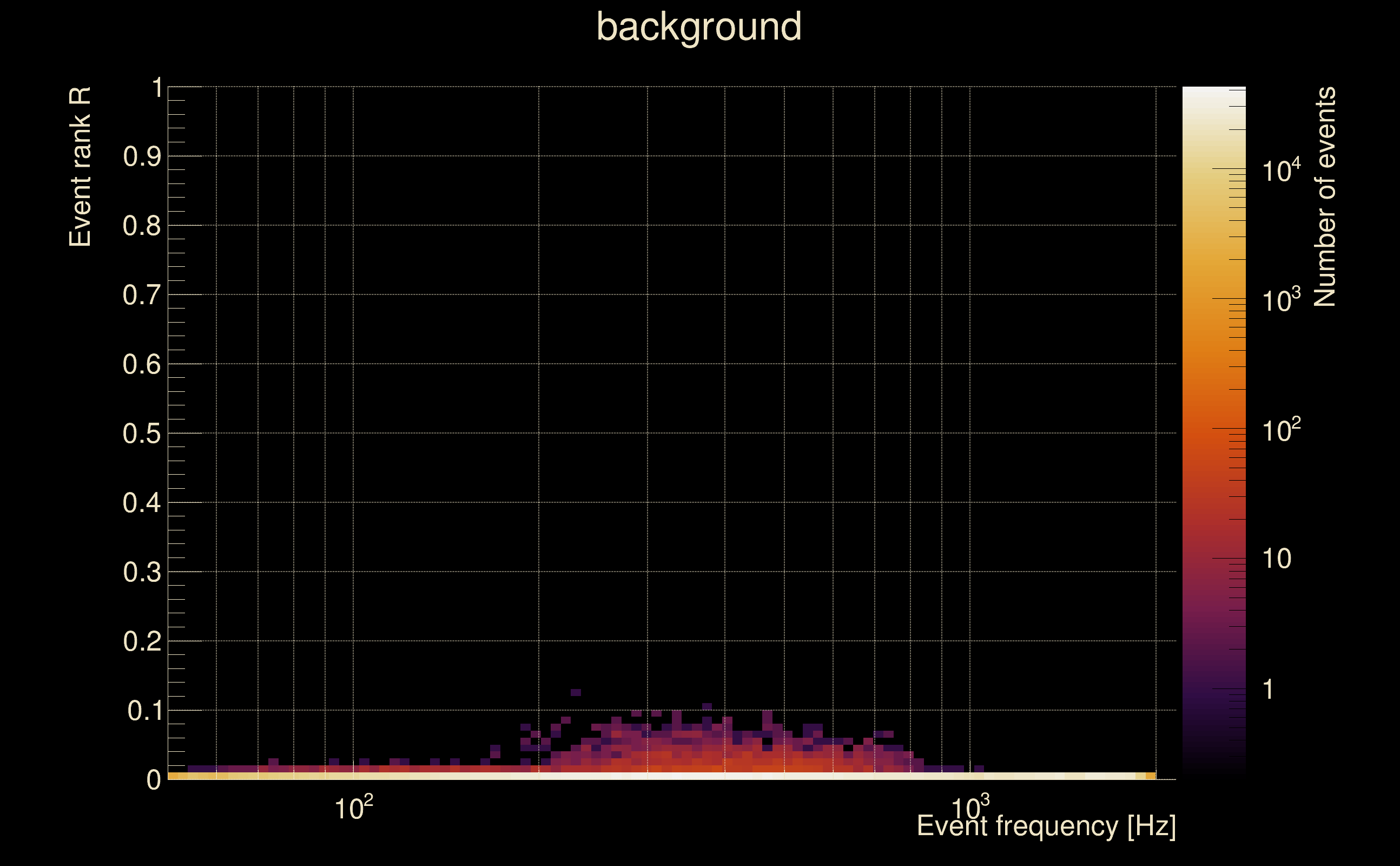

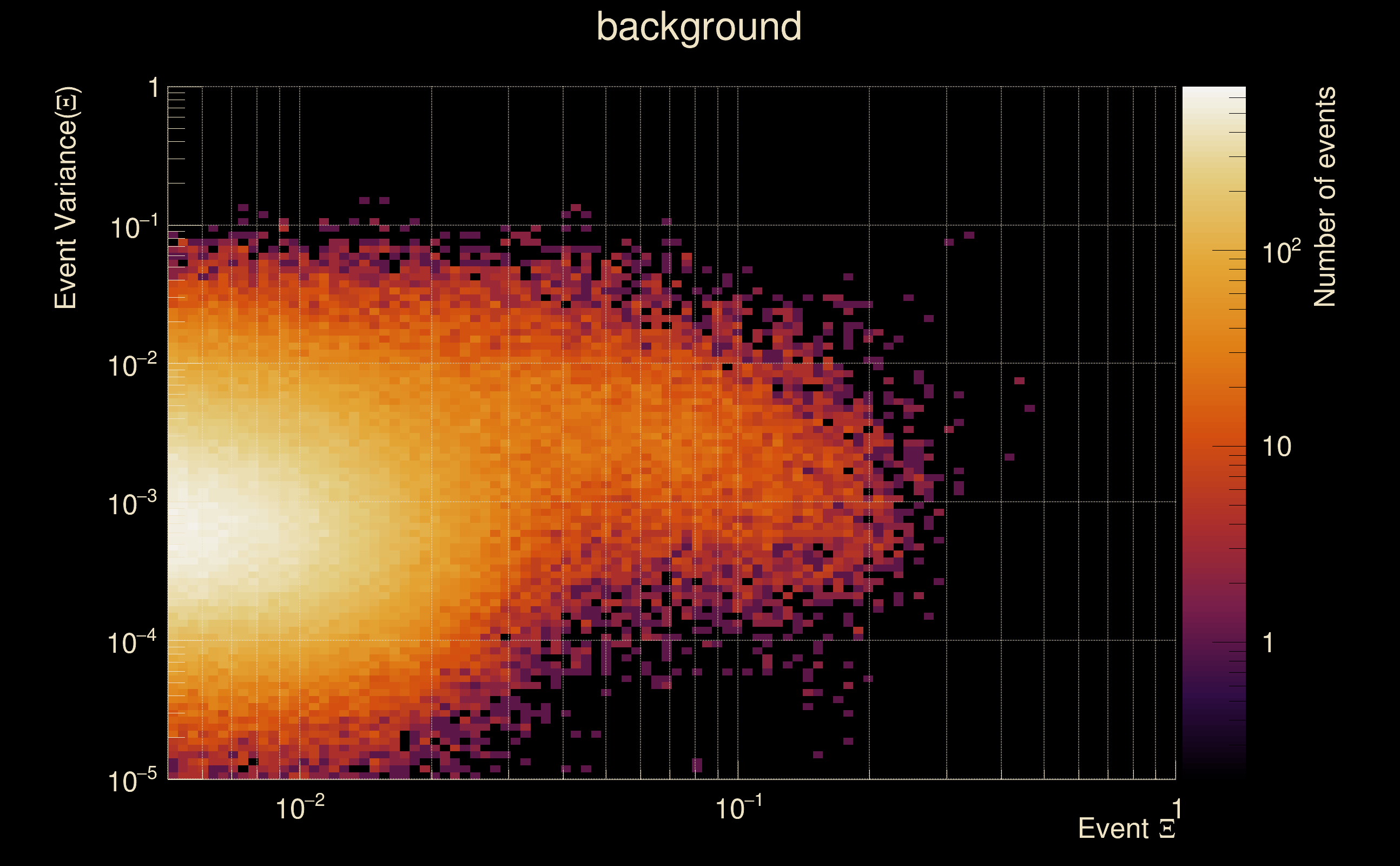

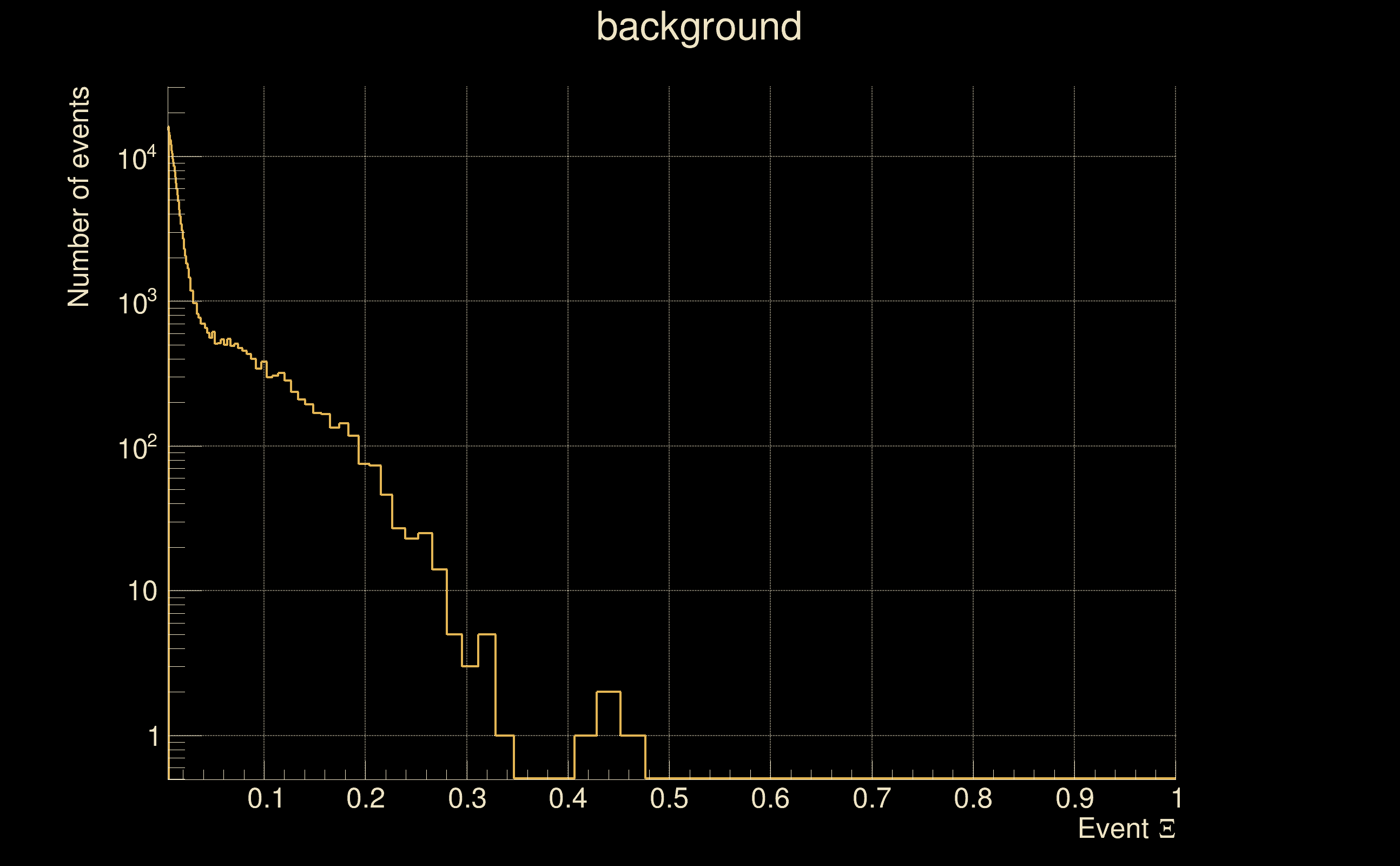

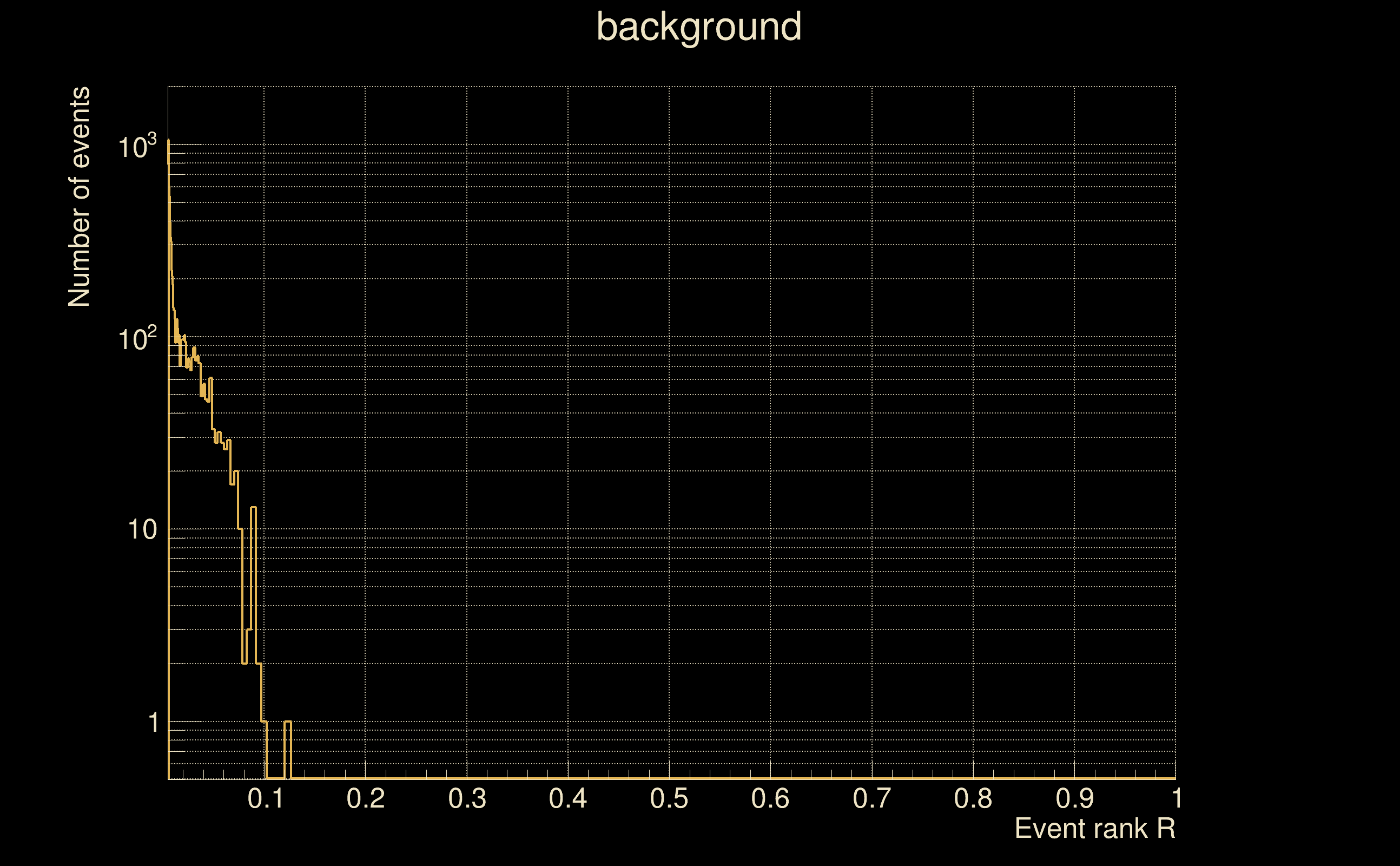

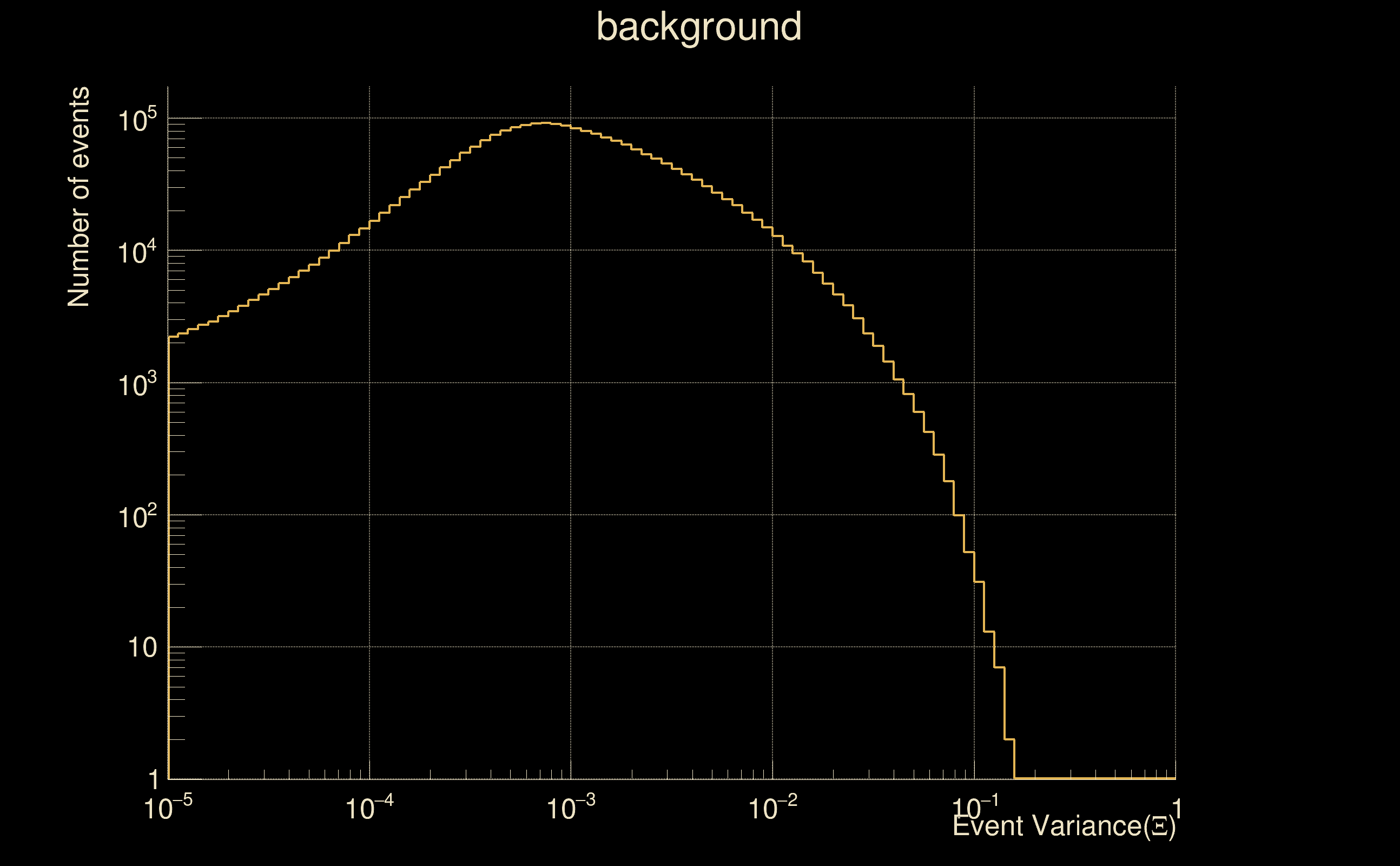

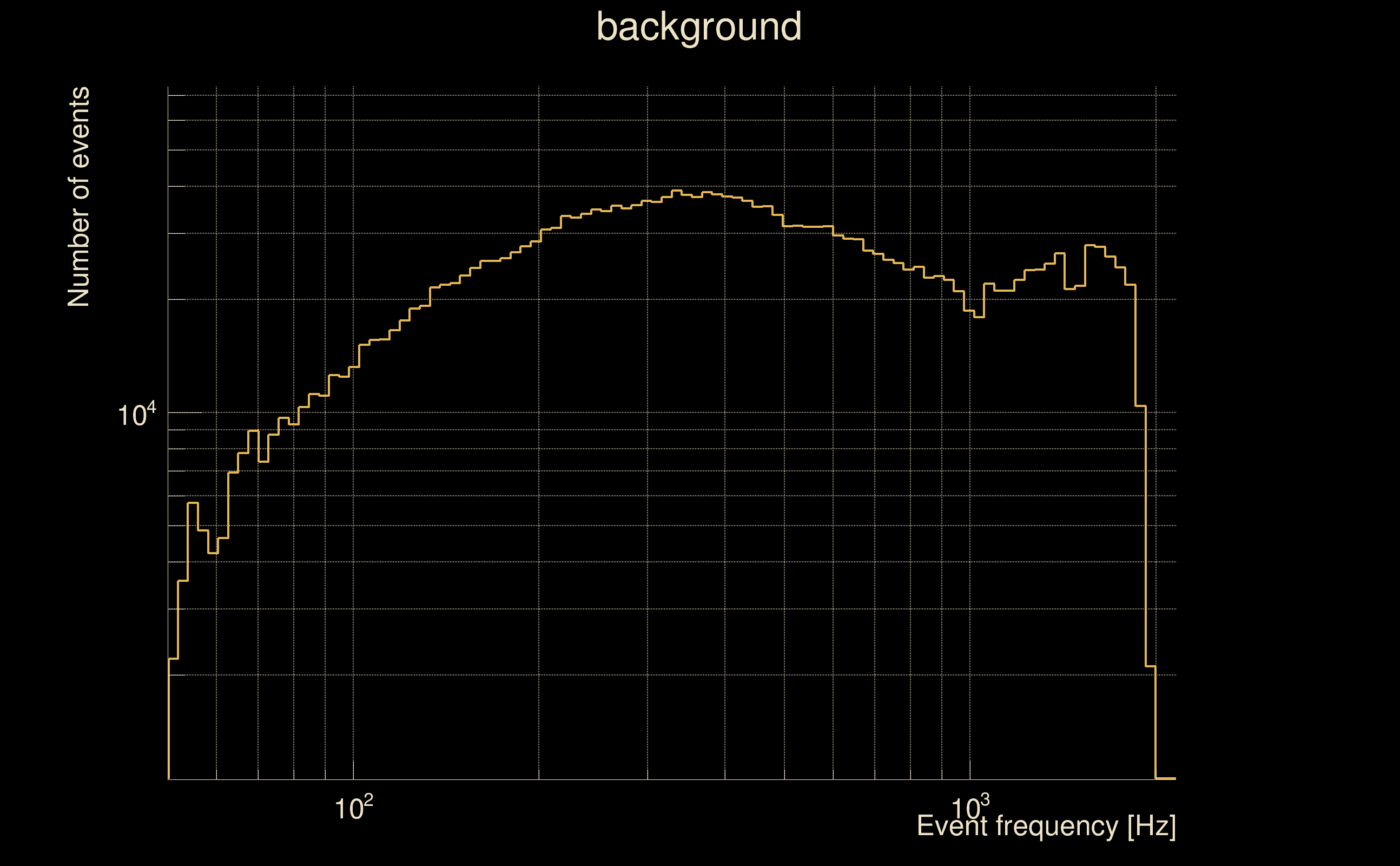

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

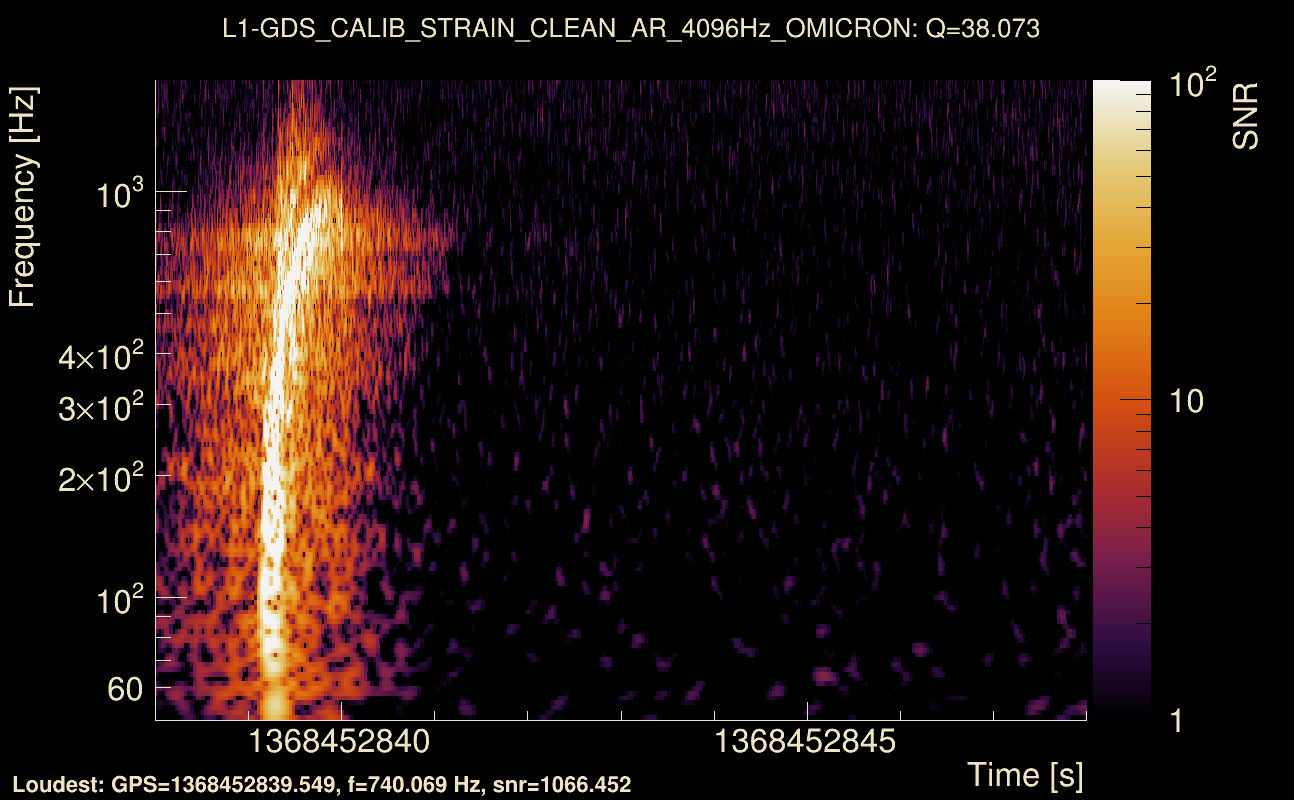

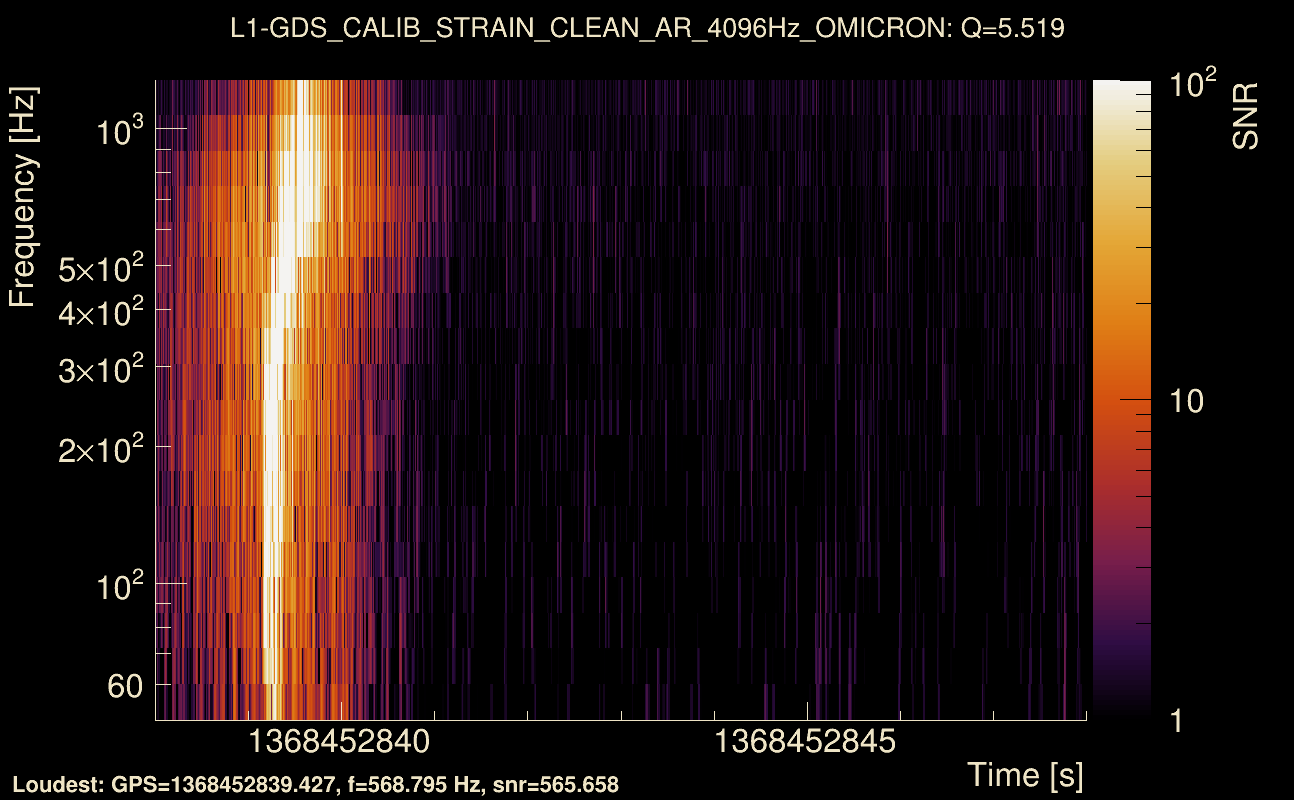

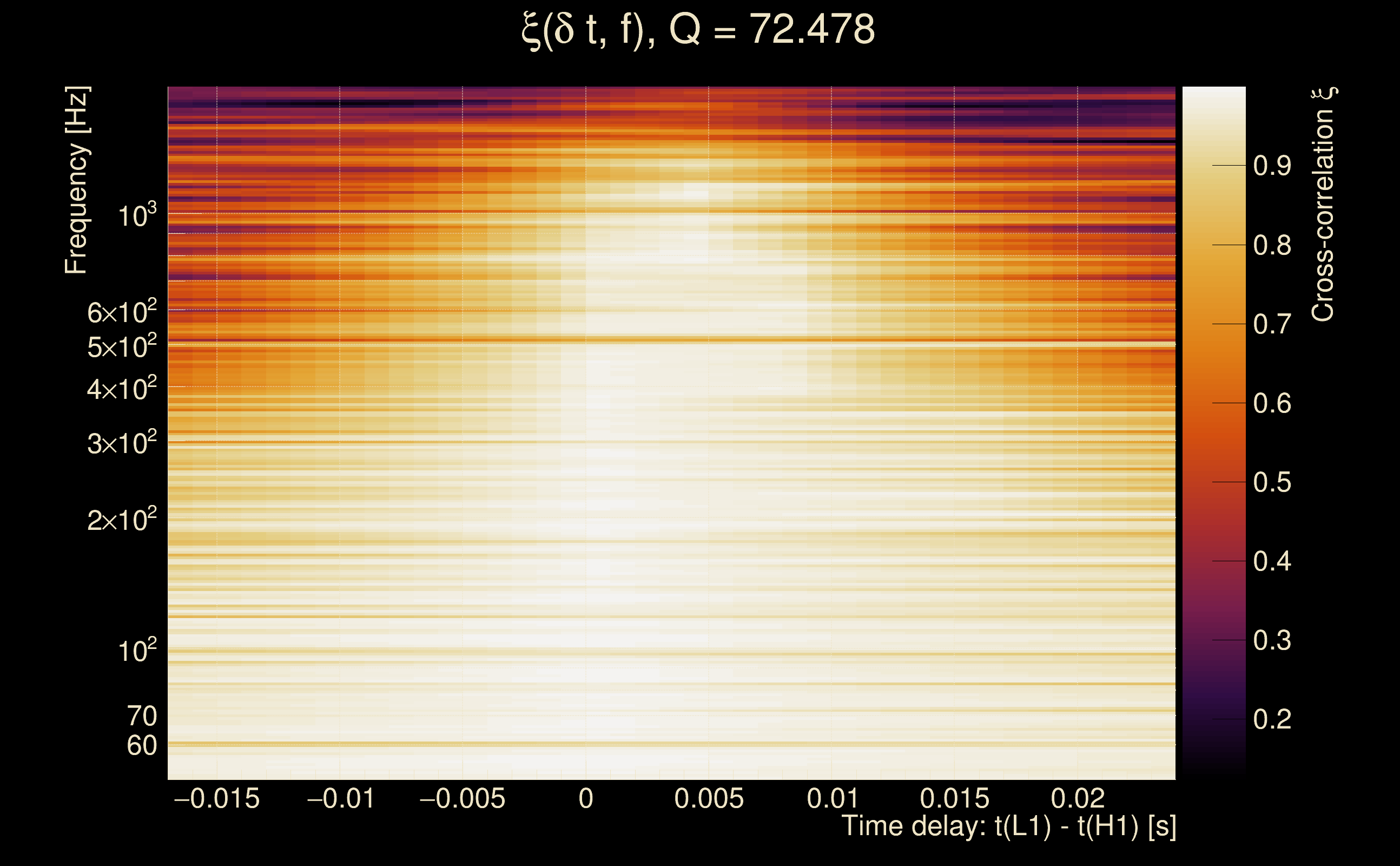

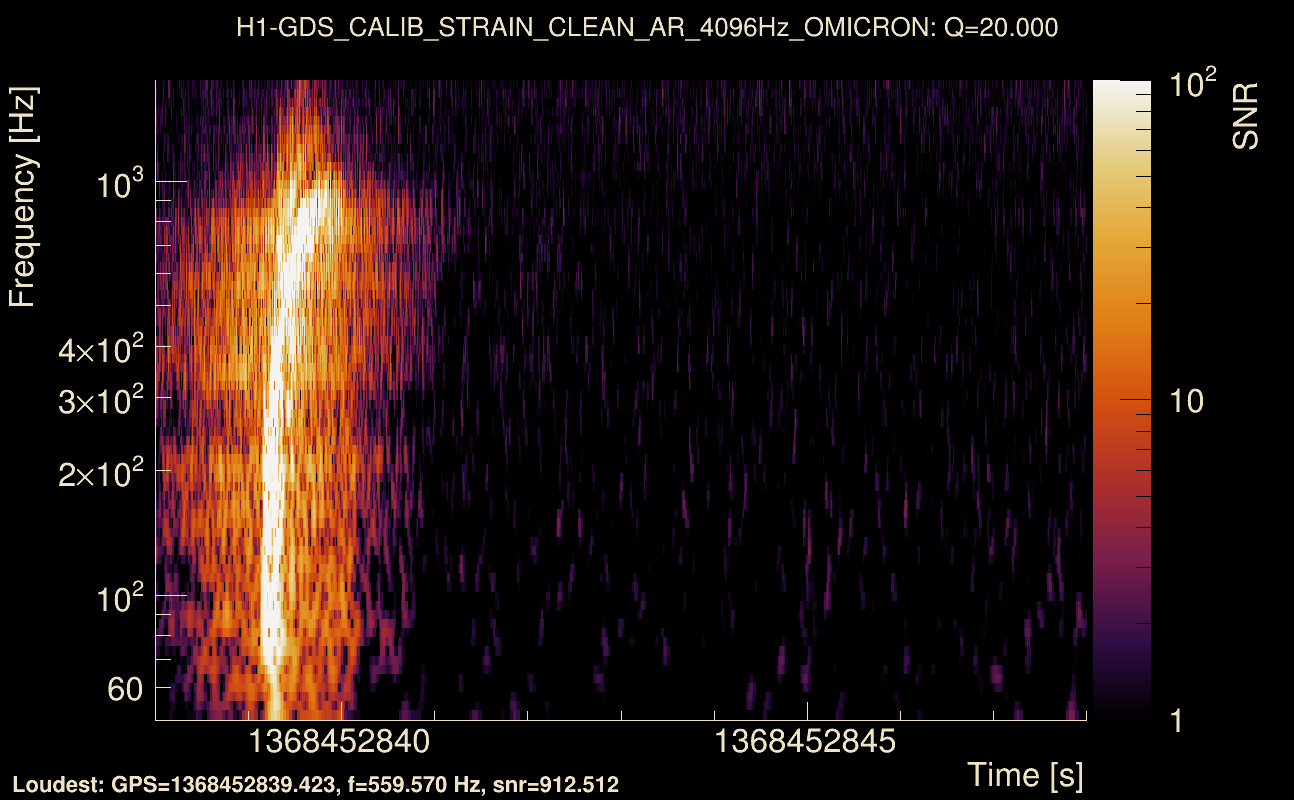

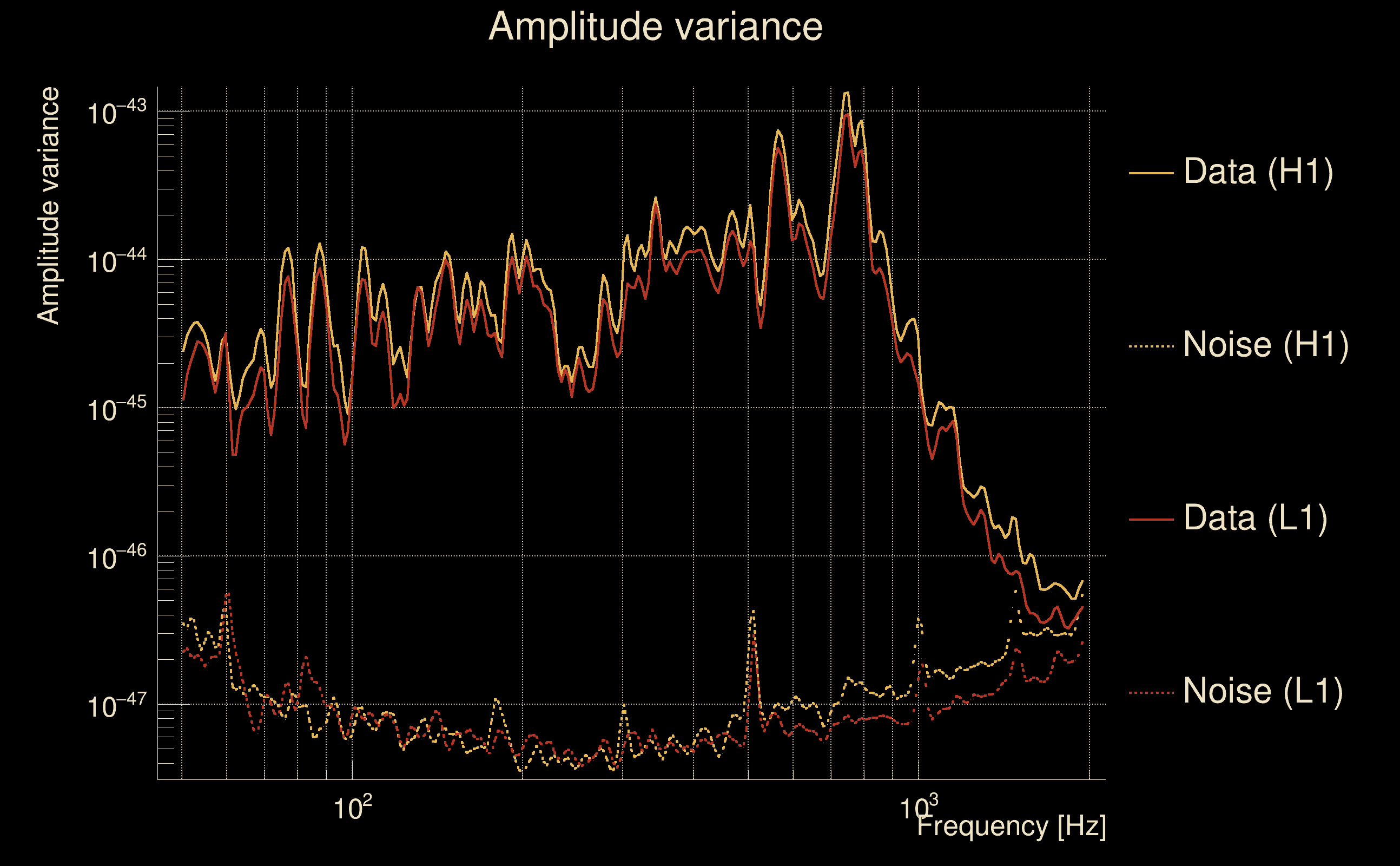

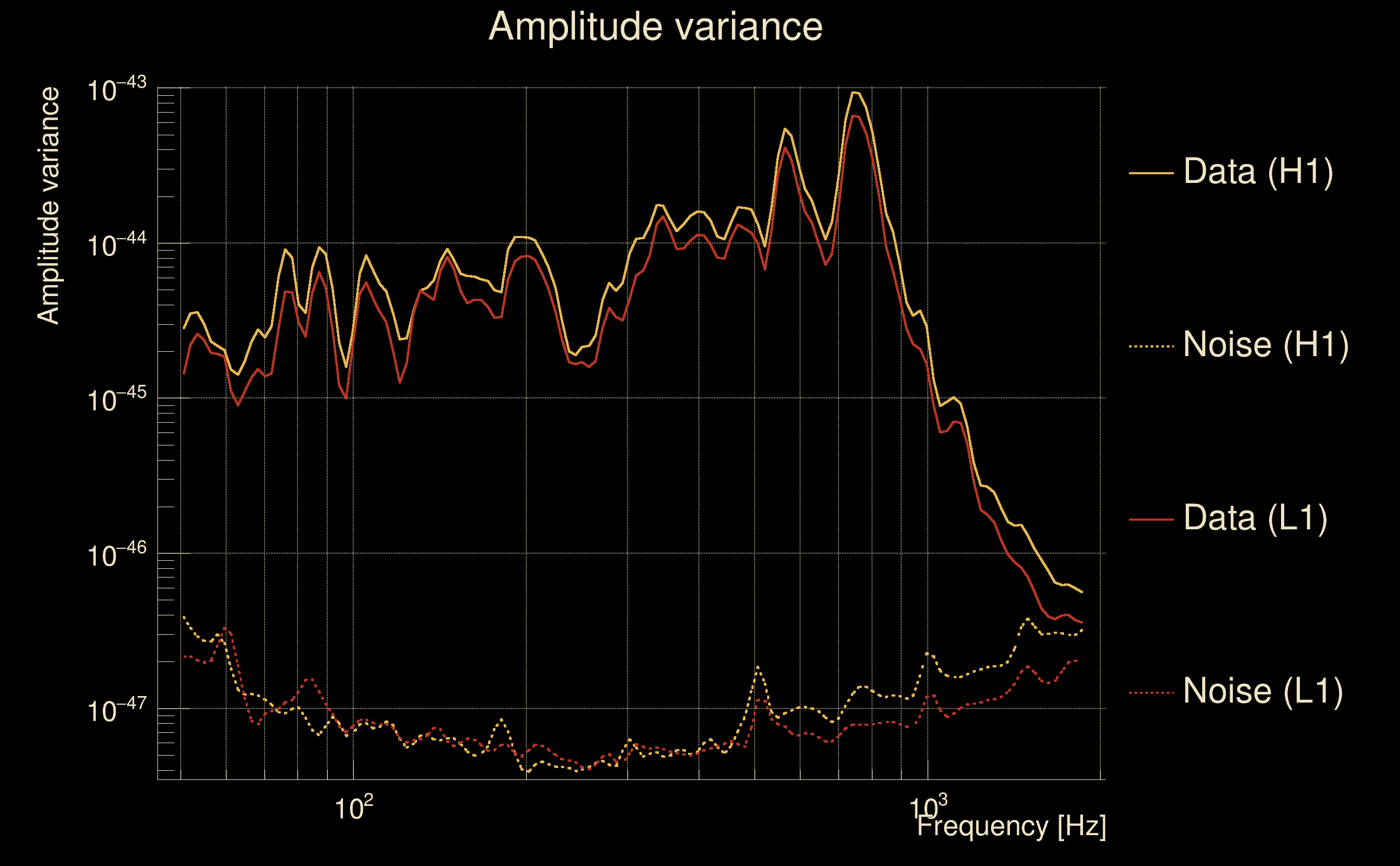

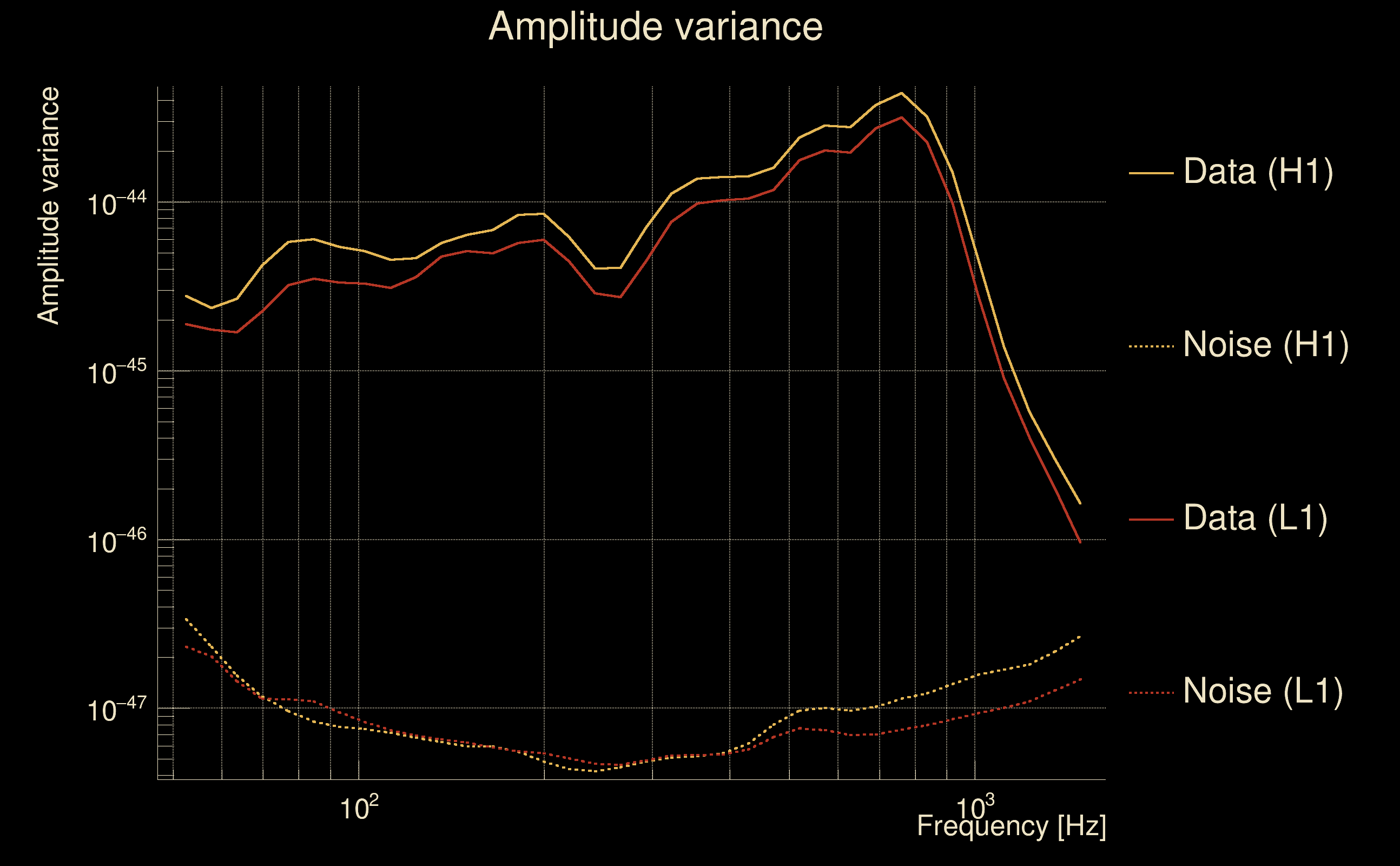

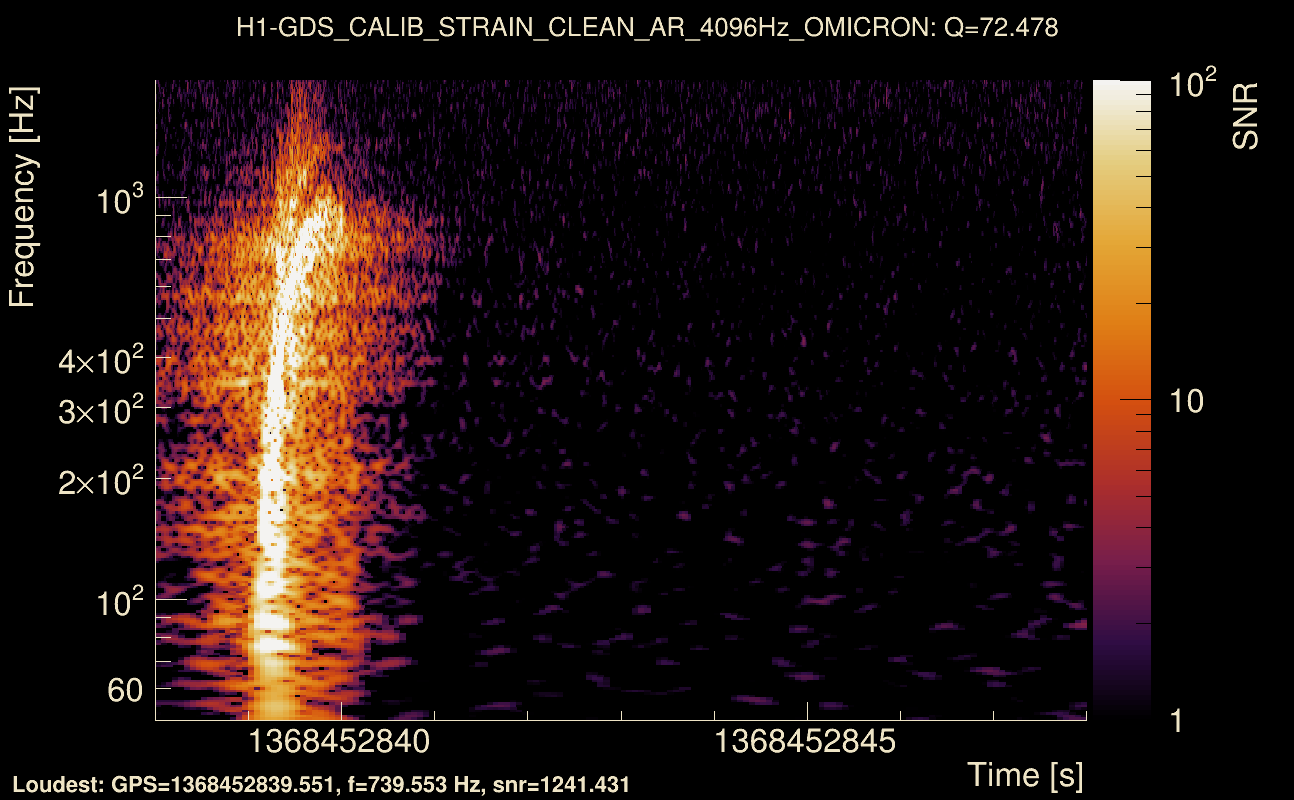

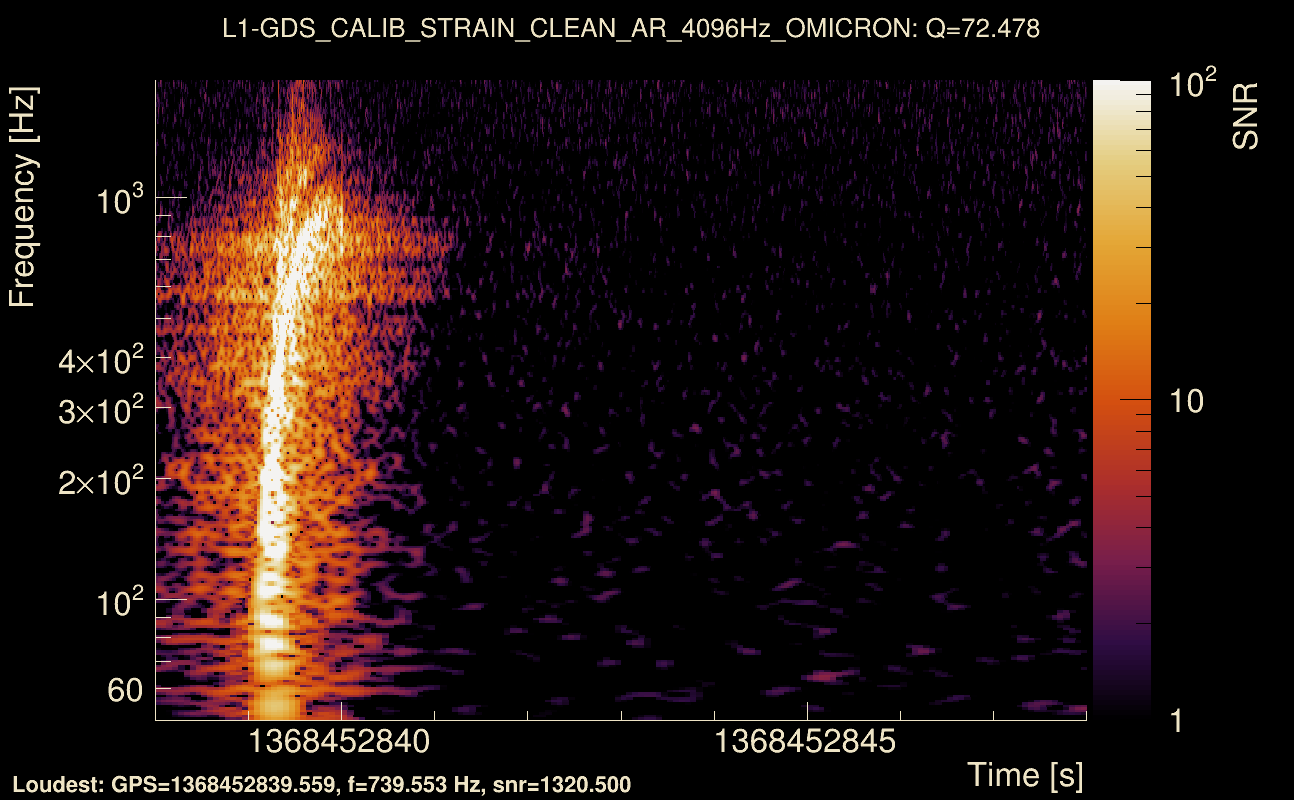

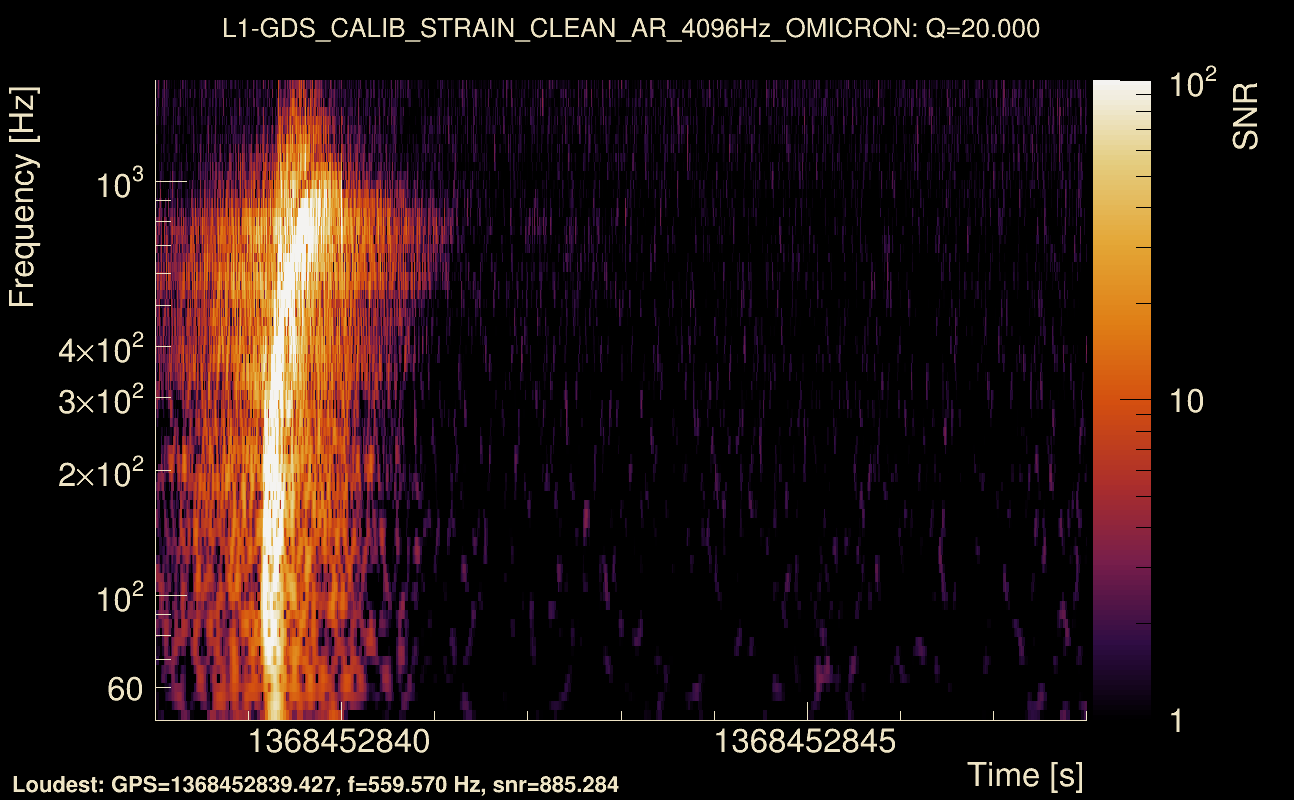

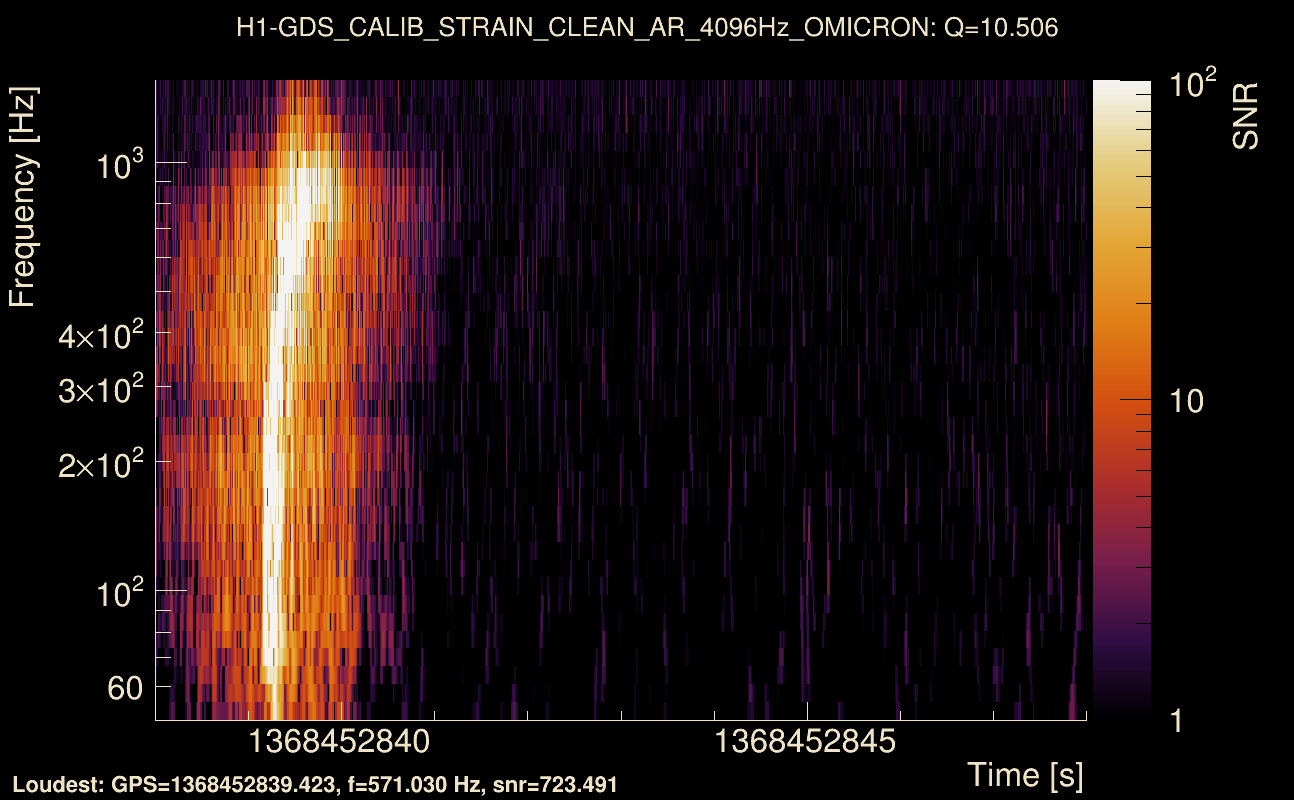

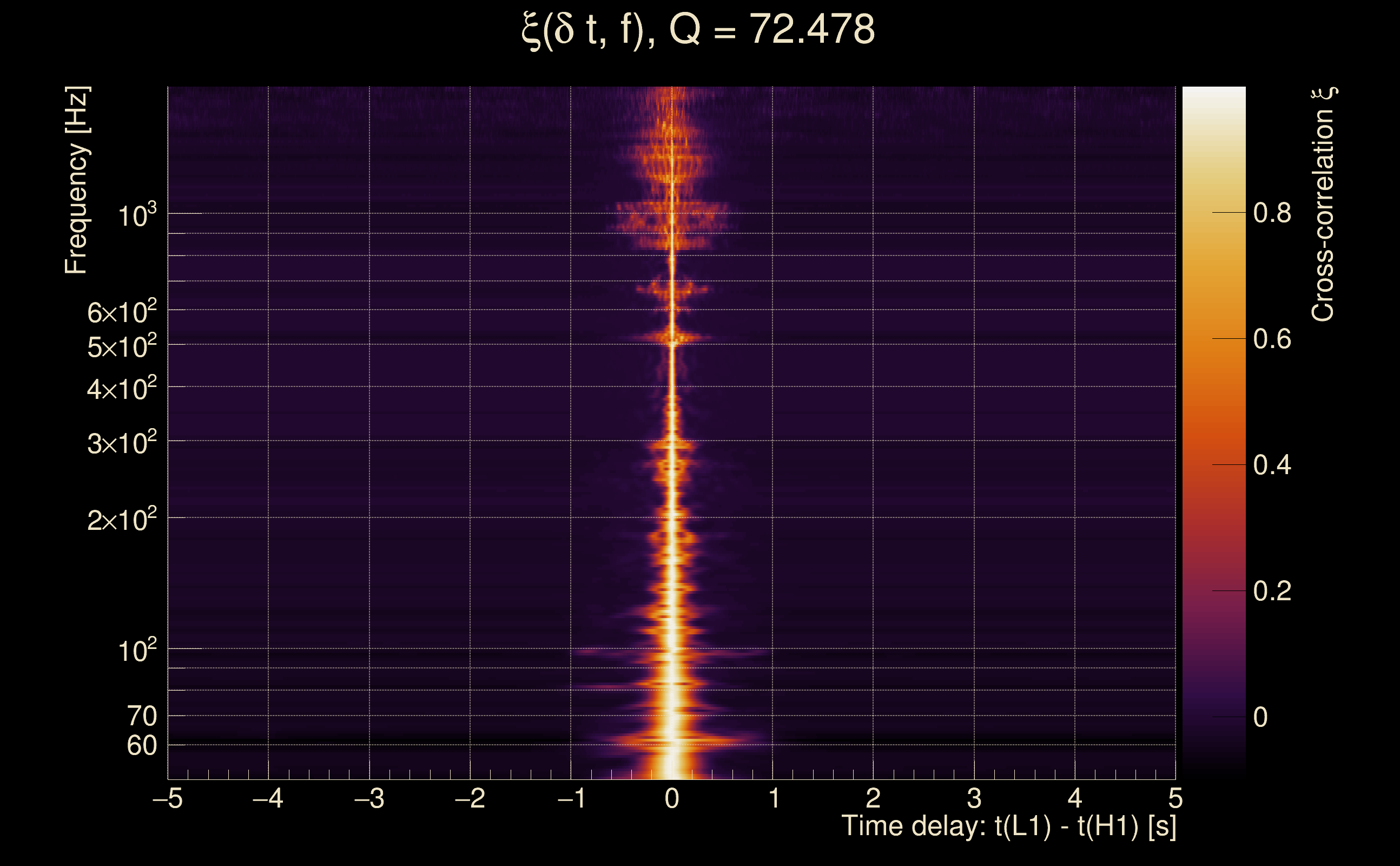

| Event time t(H1): | GPS = 1368452838 (Thu May 18 13:47:00 2023 ) → GPS = 1368452848 (Thu May 18 13:47:10 2023 ) |
| Event time t(L1): | GPS = 1368452838 (Thu May 18 13:47:10 2023 ) → GPS = 1368452848 (Thu May 18 13:47:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368452835 → GPS = 1368452851 |
| Omicron analysis time window (L1): | GPS = 1368452835 → GPS = 1368452851 |

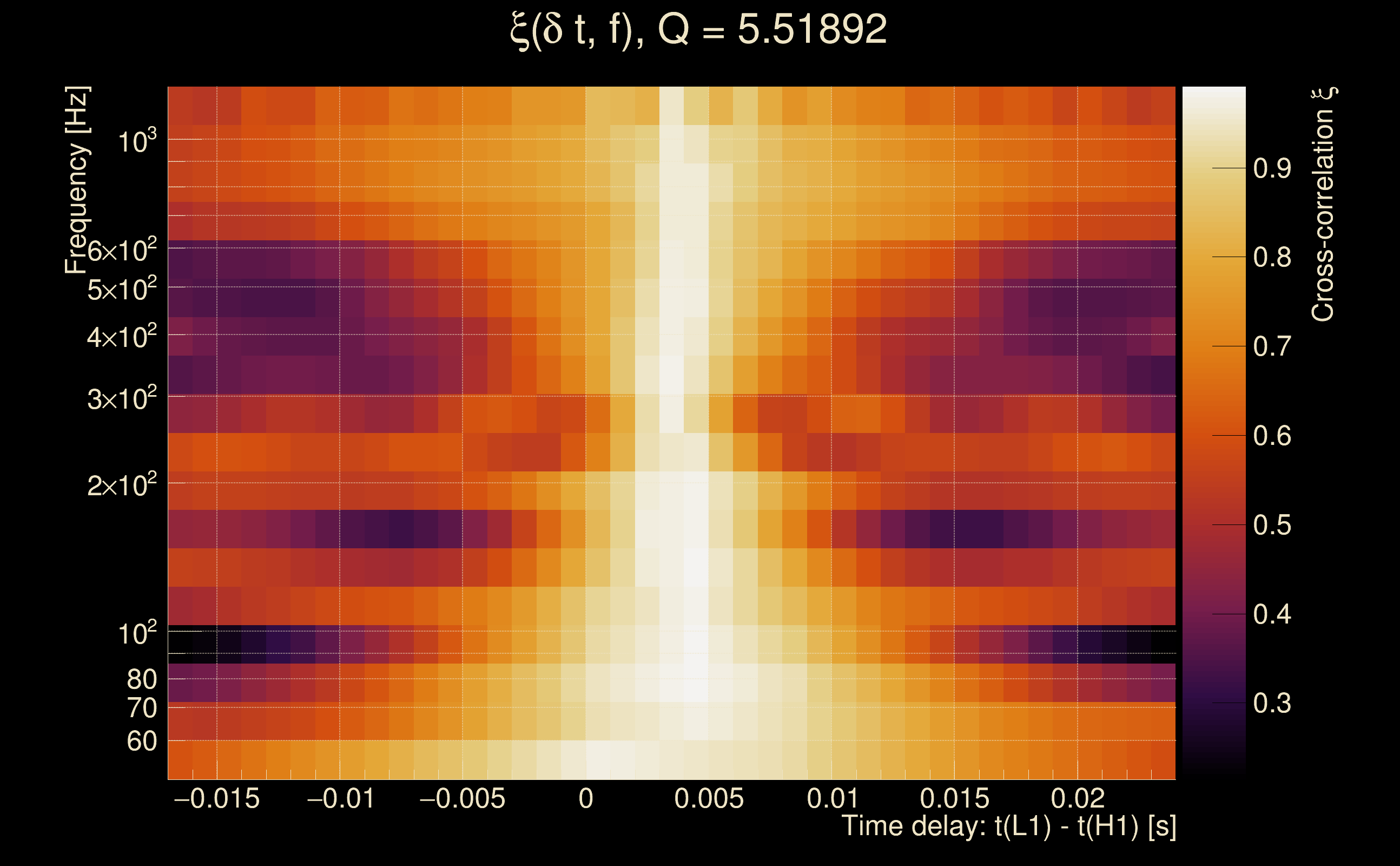

| Time delay between detectors t(L1) - t(H1): | 0.00313456 s (slice index = 108 / 217), δt_gw = 0.00313456 s |
| Time delay standard deviation: | 0.0217924 s |
| [targeted mode] Time delay probability: | 1.35867e-32 (11.8885 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 282.262 Hz |

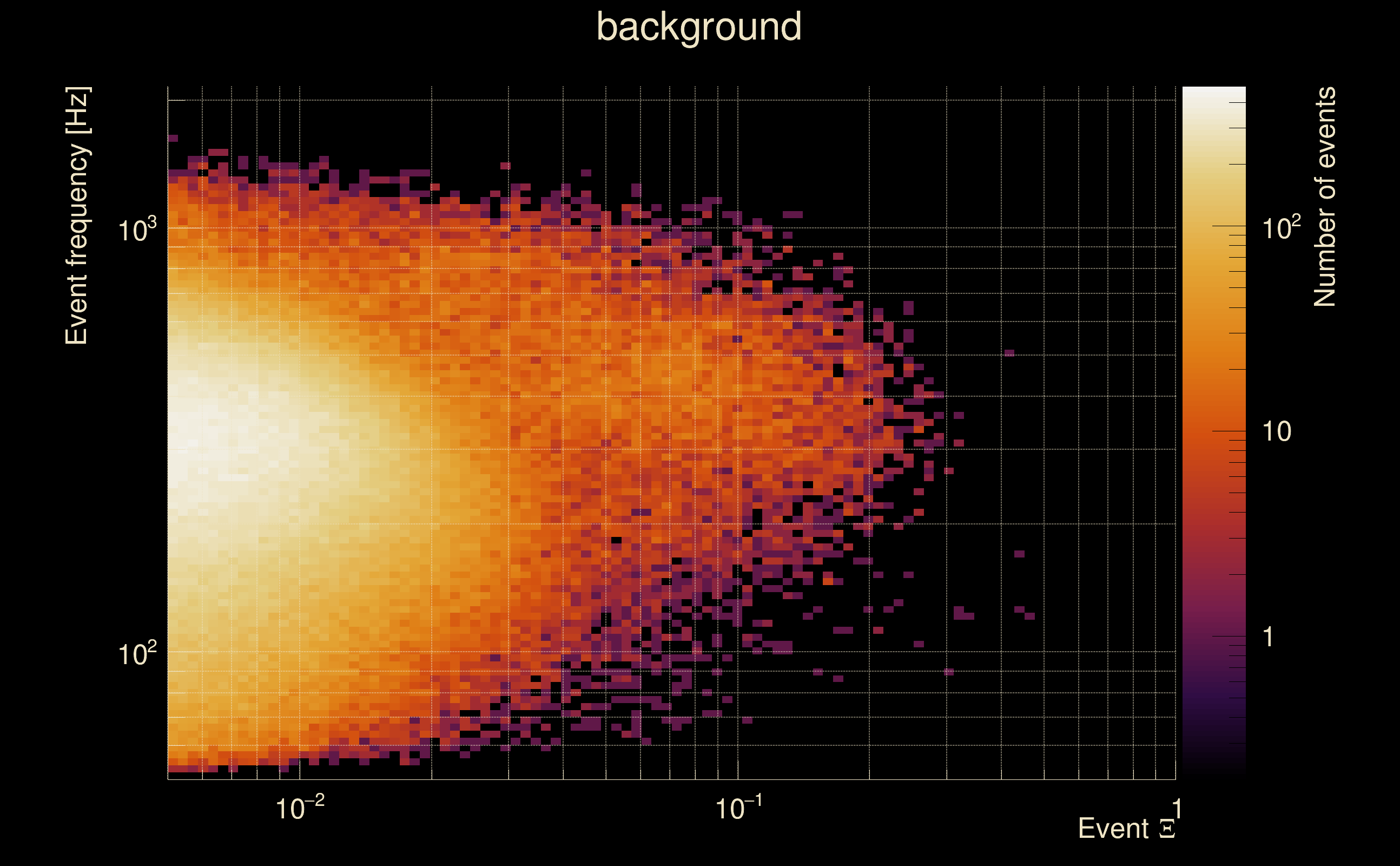

| Ξ: | 0.974507 ± 0.00883453 (variance = 7.8049e-05): Q0: 0.984761, Q1: 0.978514, Q2: 0.970676, Q3: 0.964302, Q4: 0.96086 |
| Rank: | R_A = 0.949769 |
| Log of amplitude ratio (L1/H1): | -0.179223, variance = 0.151089 (L1/H1: -0.188292, variance = 0.301913, H1/L1: 0.169351, variance = 0.301304) |
| Amplitude ratio (L1/H1): | 0.835919 ⋇ 1.47506 (L1/H1: 0.828373 ⋇ 1.73233, H1/L1: 1.18454 ⋇ 1.73137) |

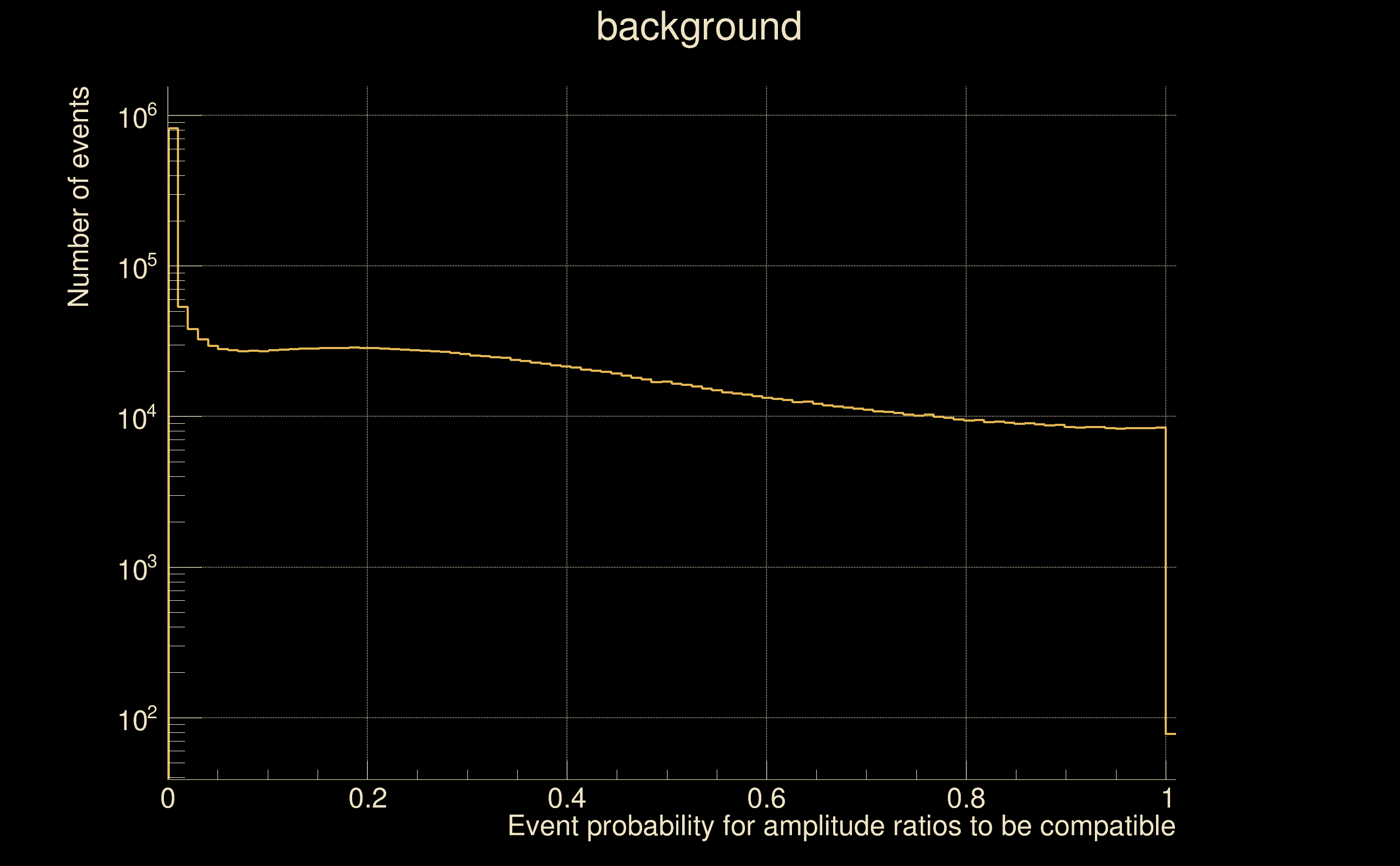

| Amplitude ratio H1|L1 compatibility (probability): | 0.980544 |

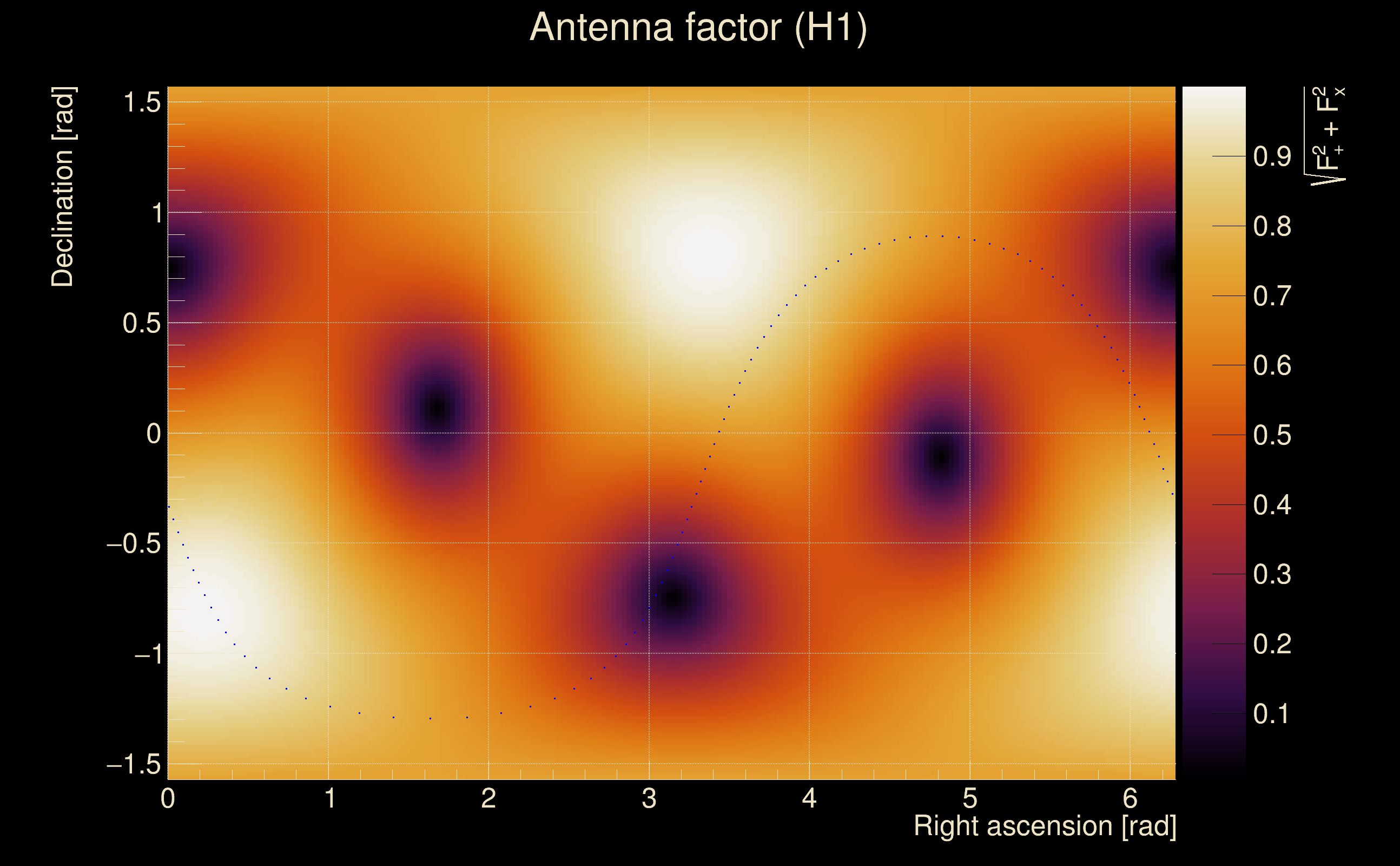

| Antenna factor probability: | 0.993954 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 2 / 70, Q3: 0 / 134, Q4: 7 / 258 |
| Maximum signal-to-noise ratio: | H1: 1795.4, L1: 1720.8 |
| SNR variance: | H1: 0, L1: 0 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

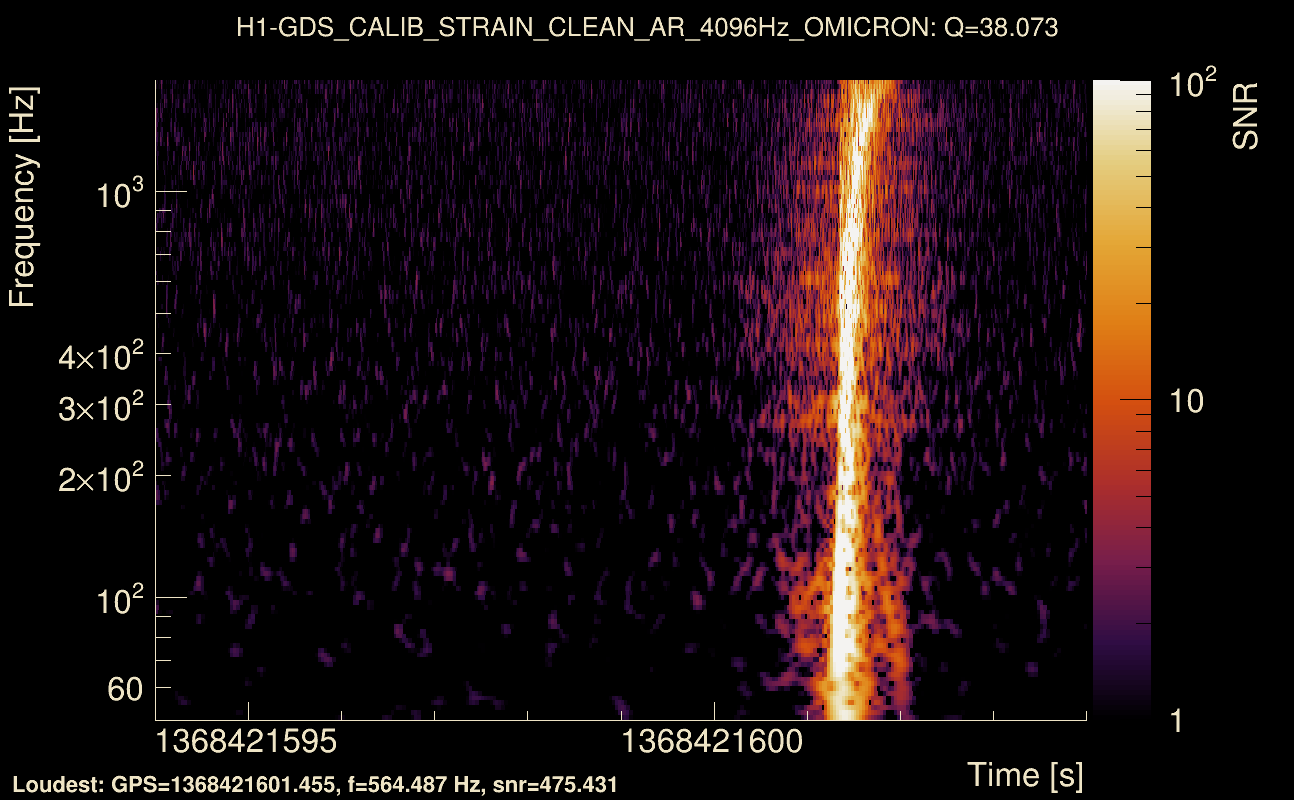

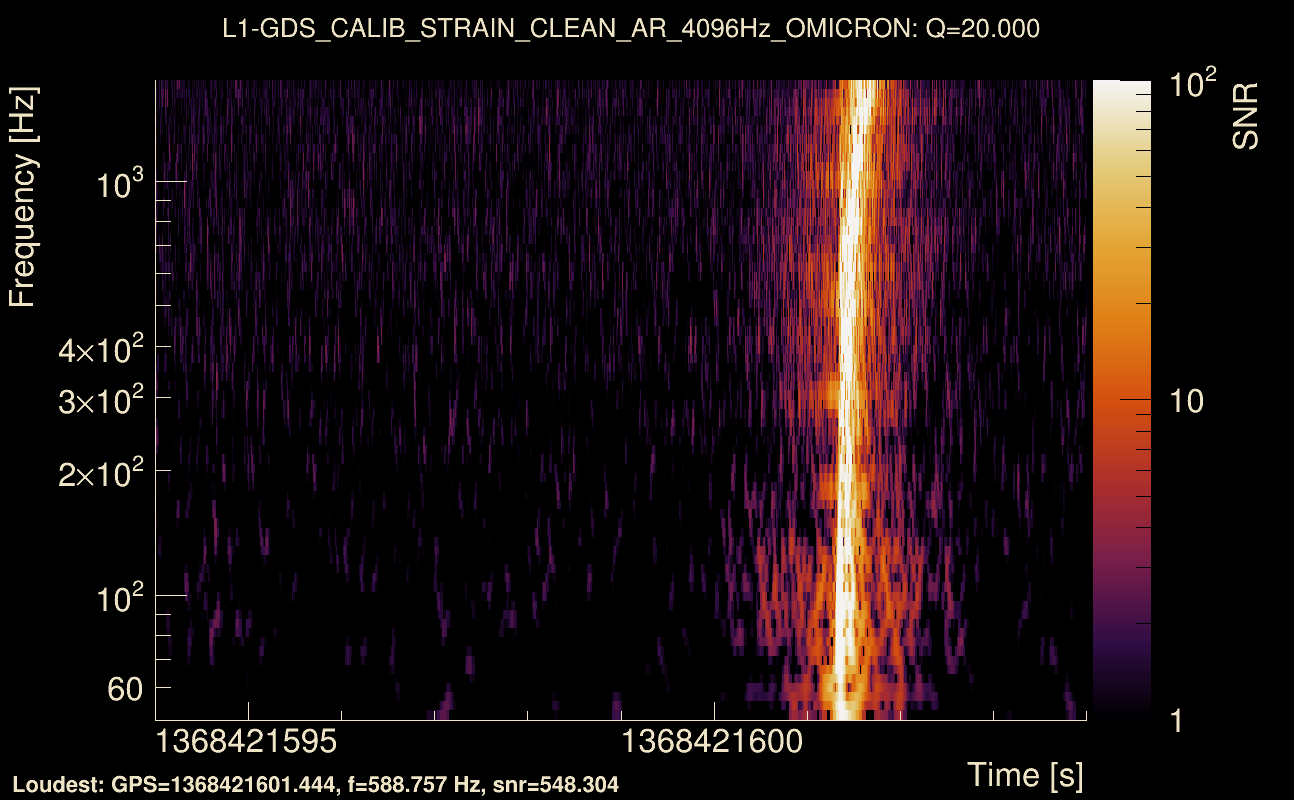

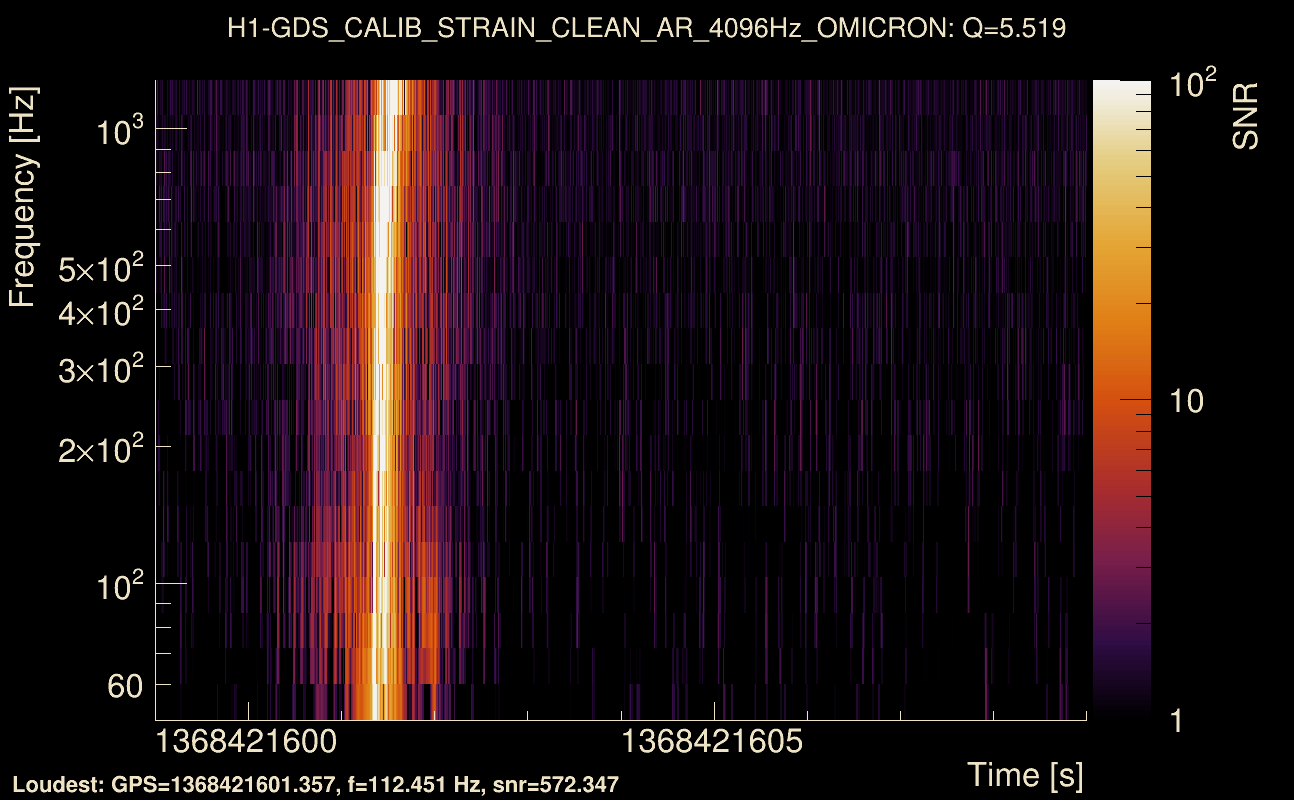

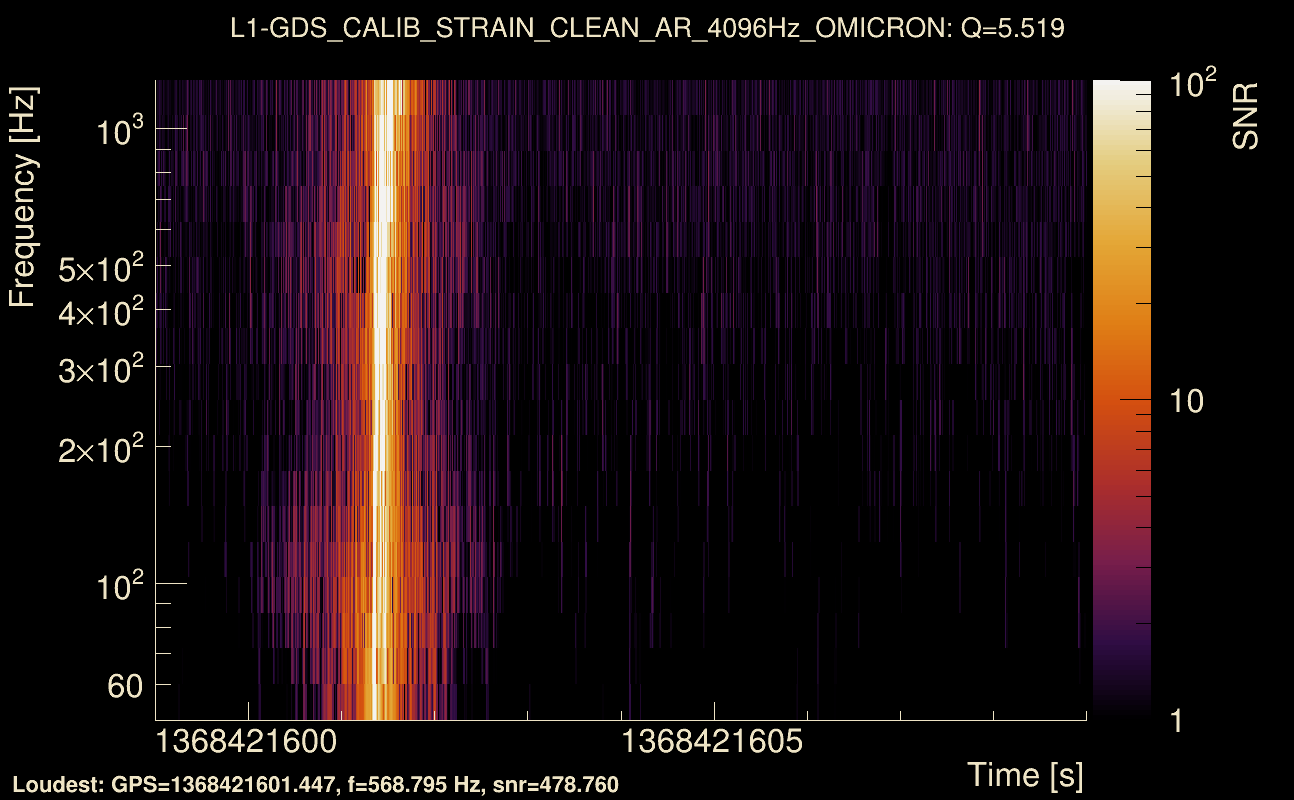

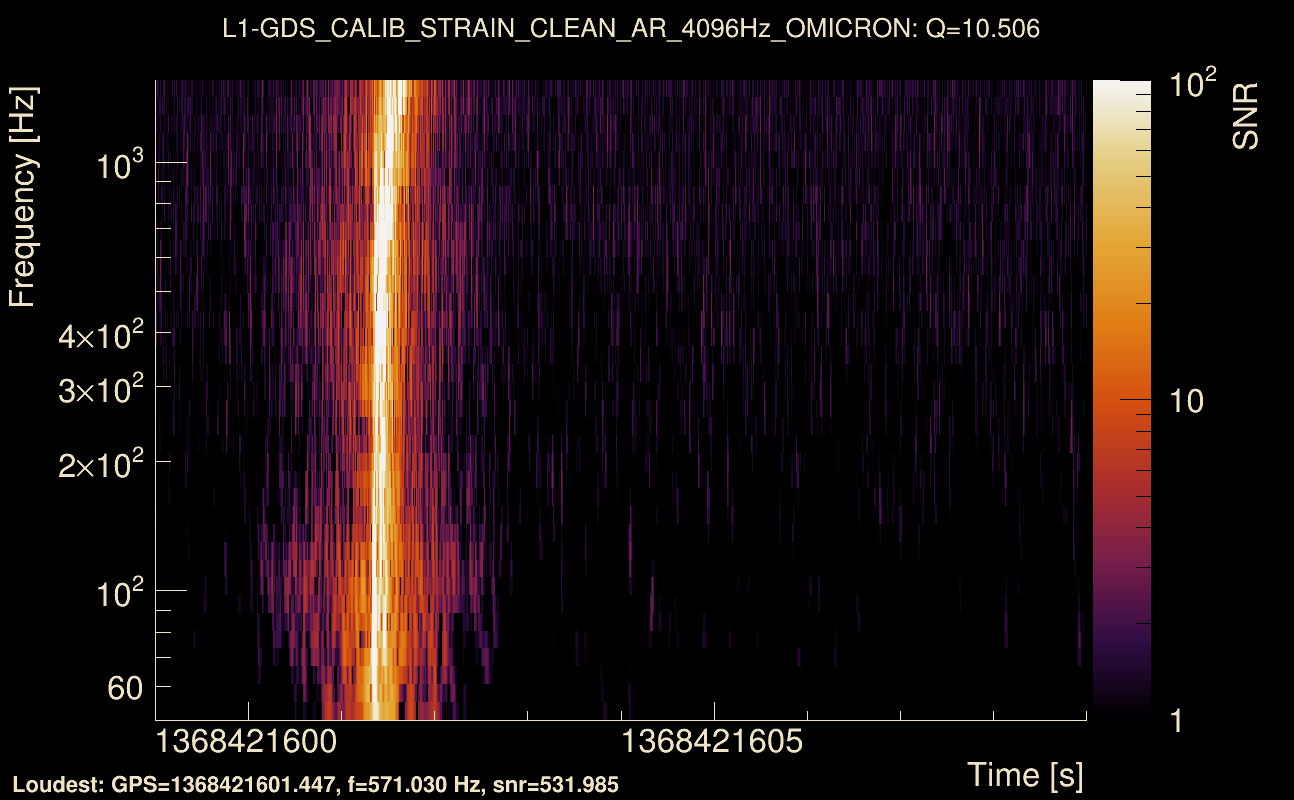

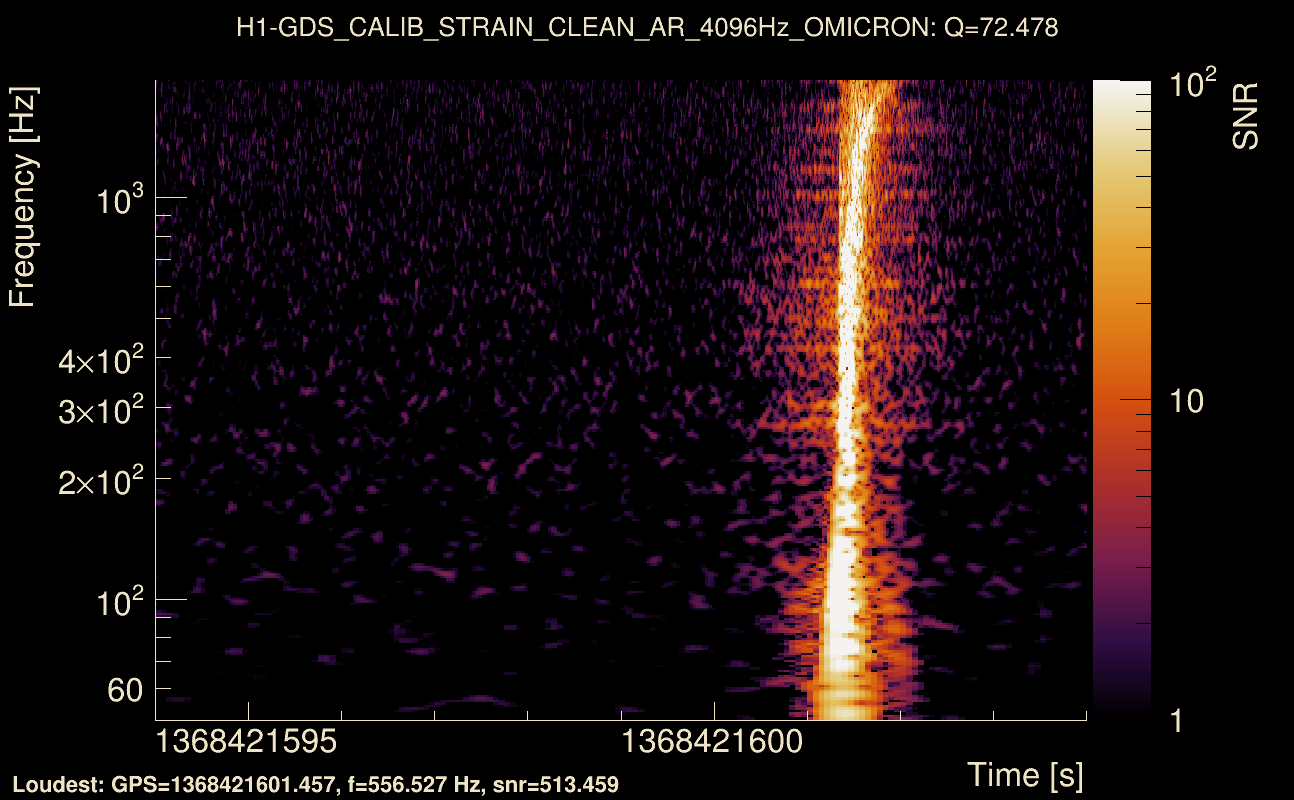

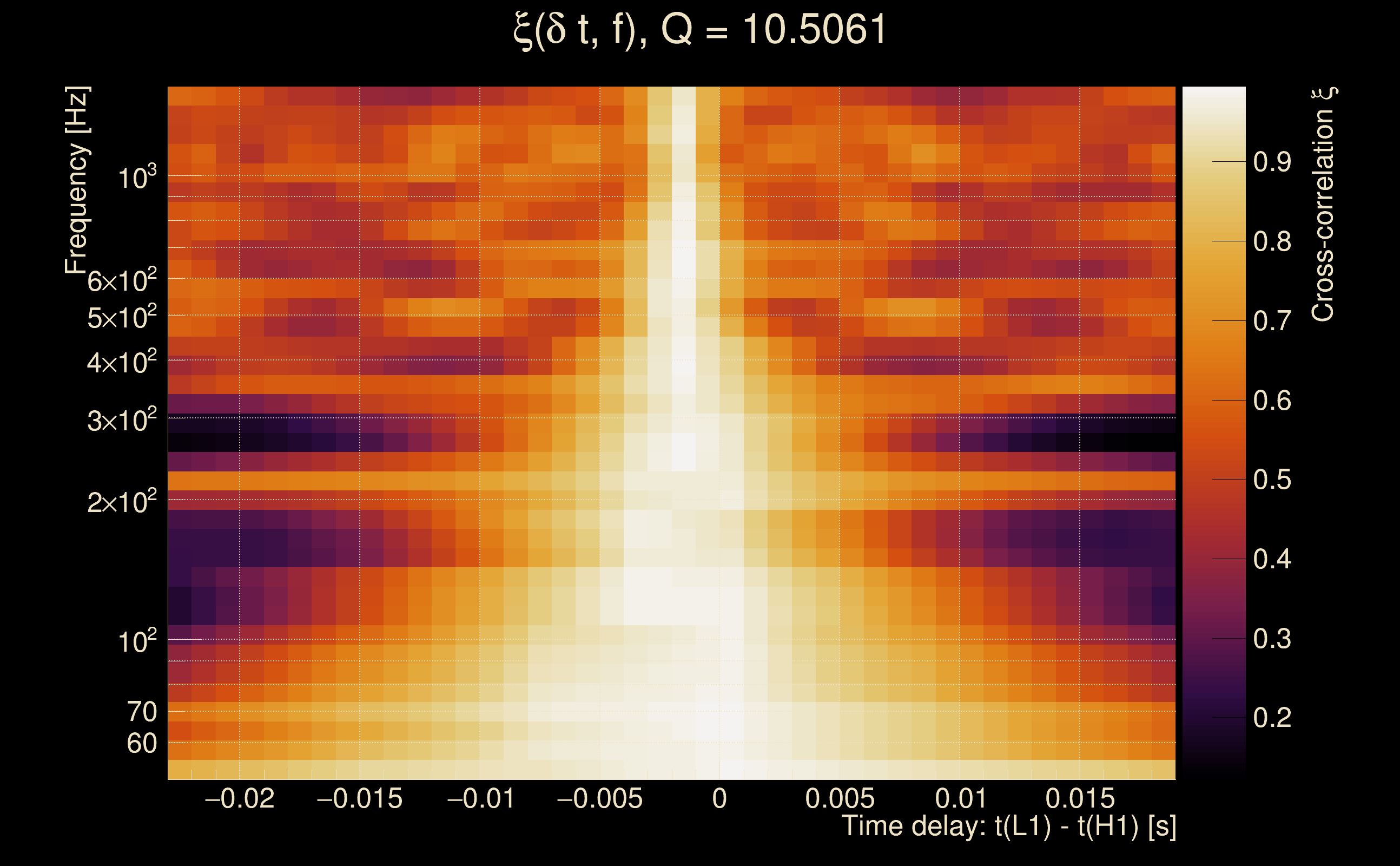

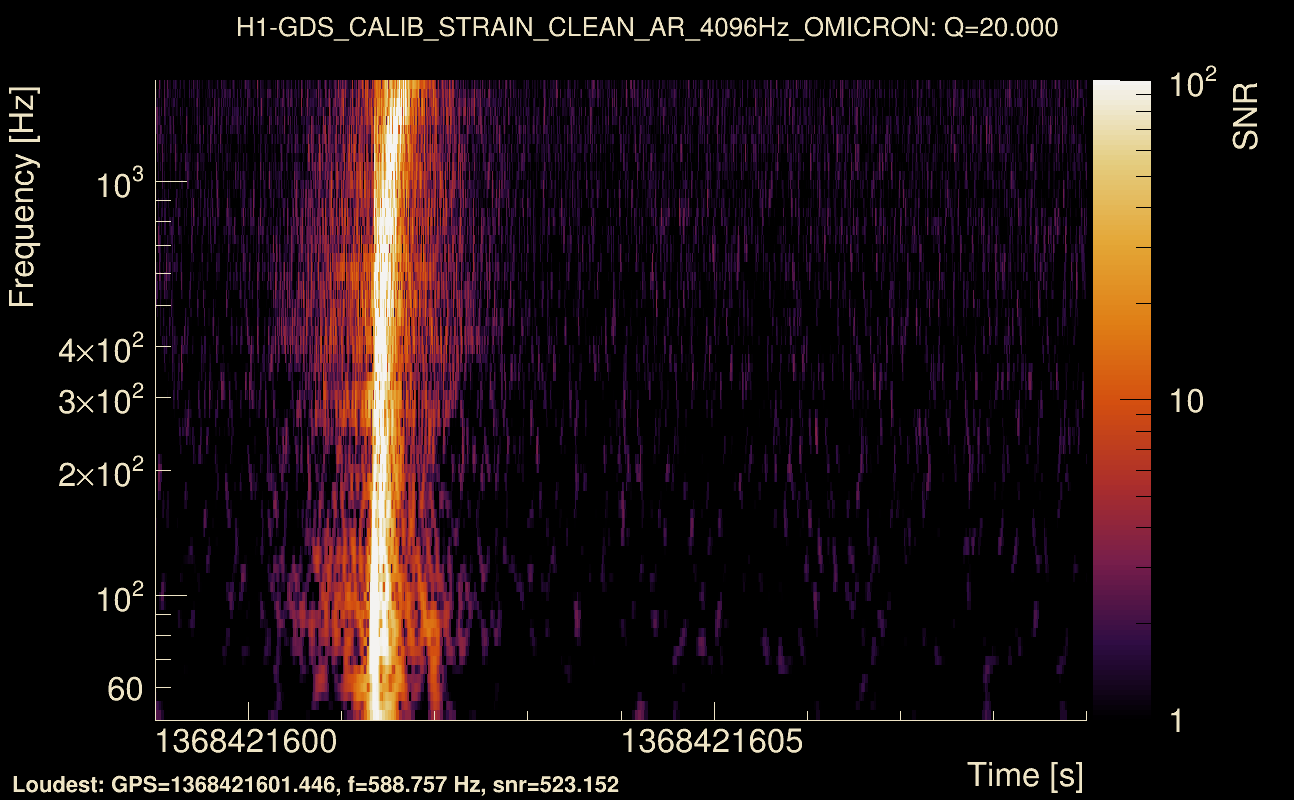

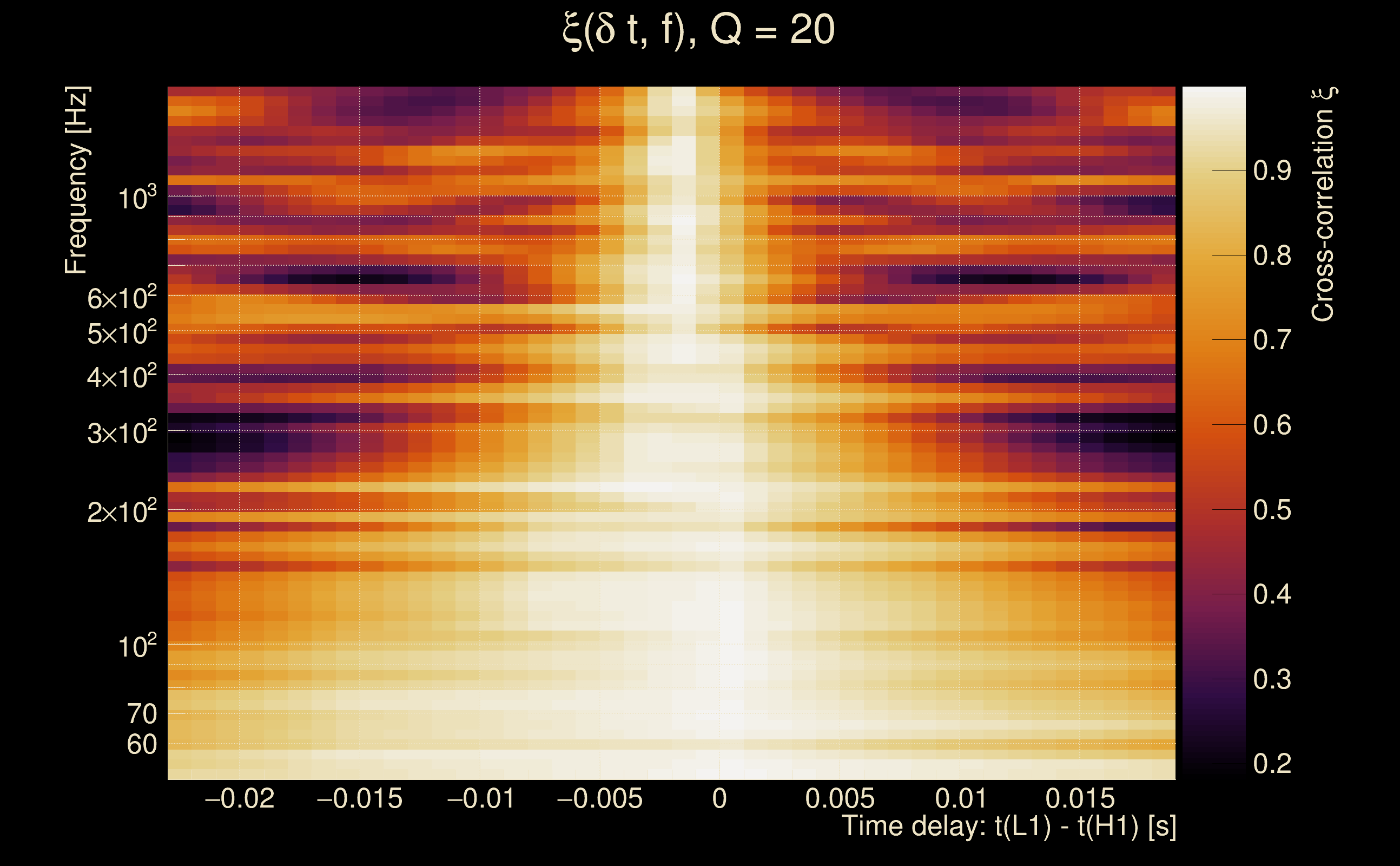

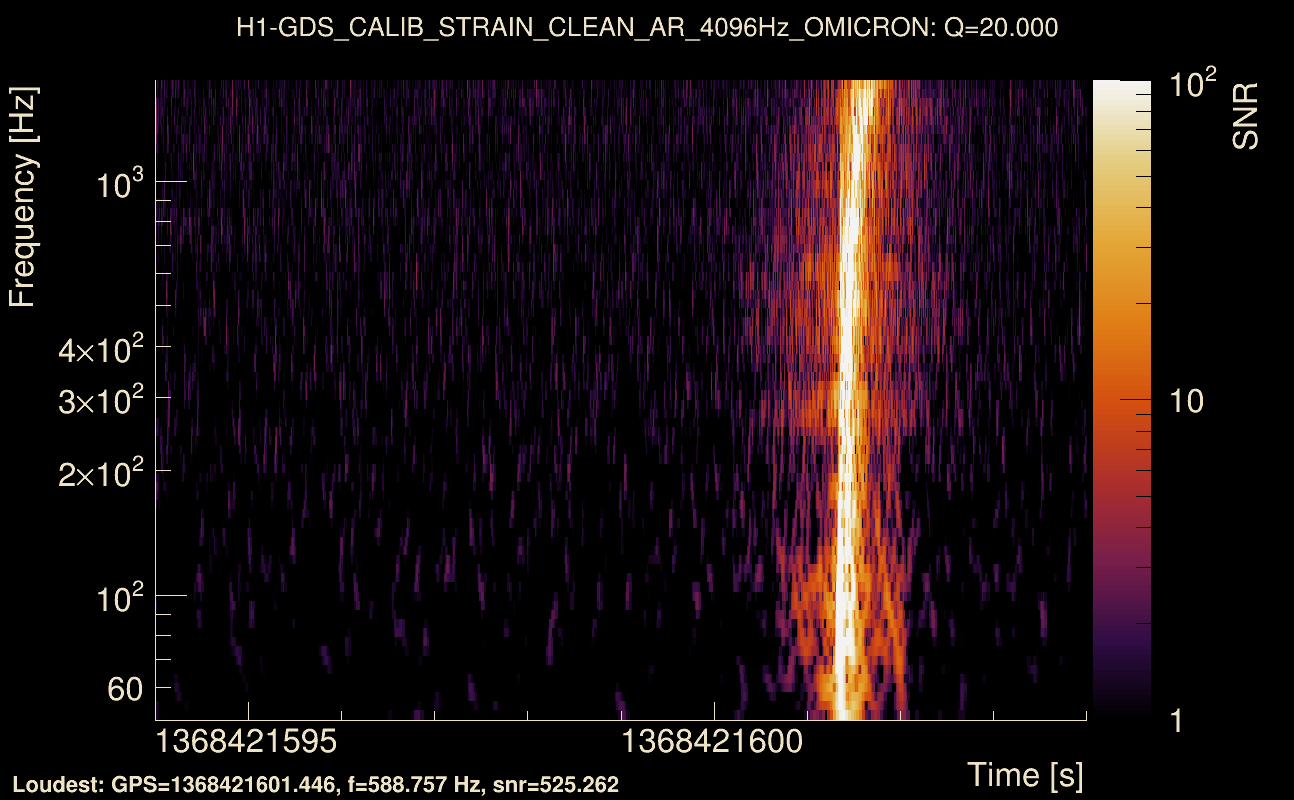

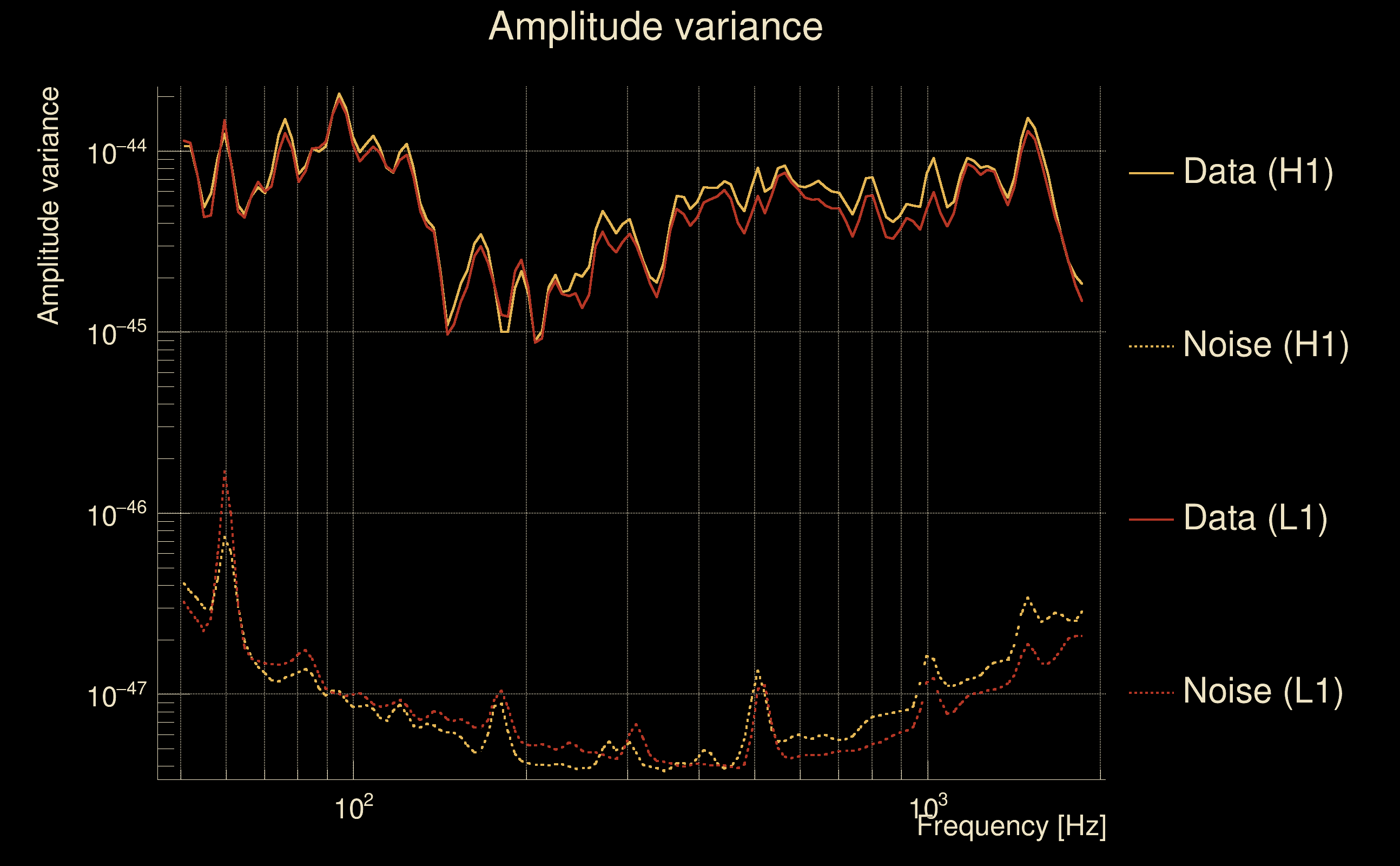

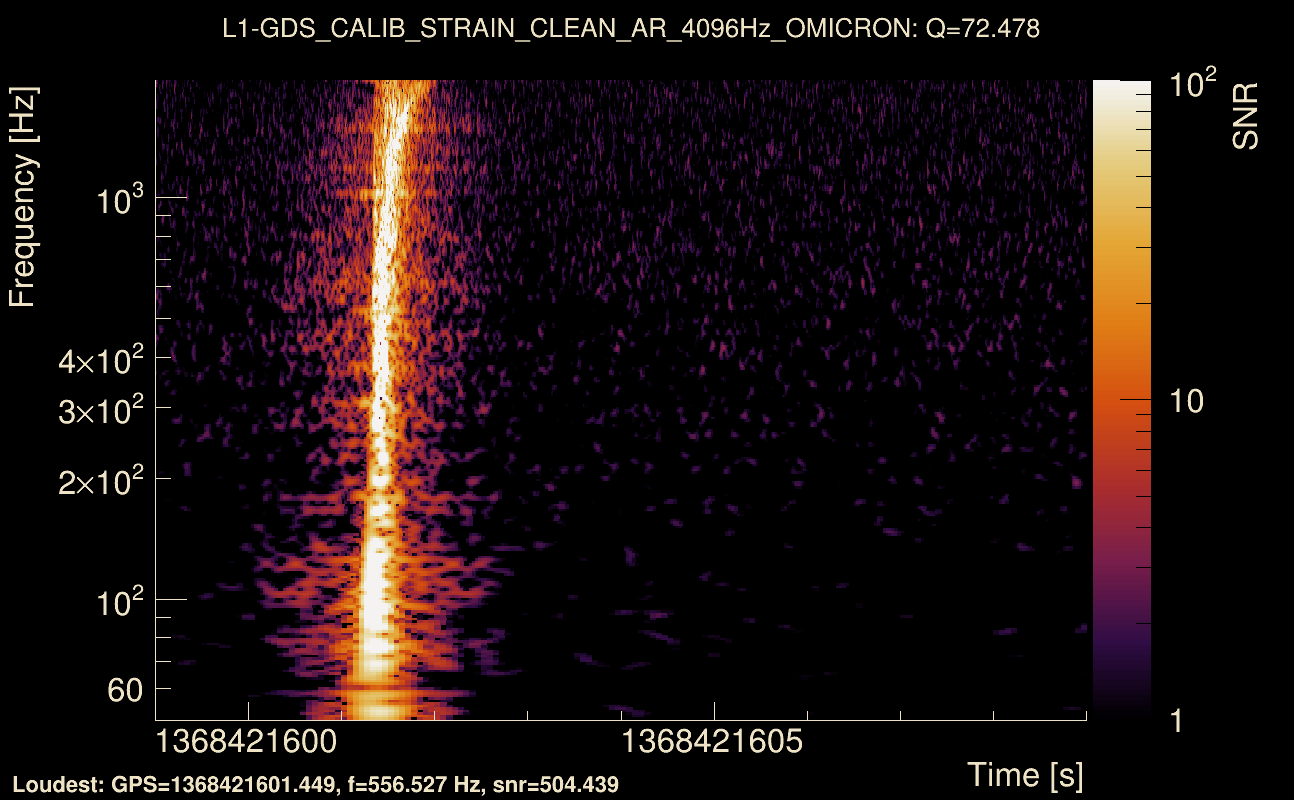

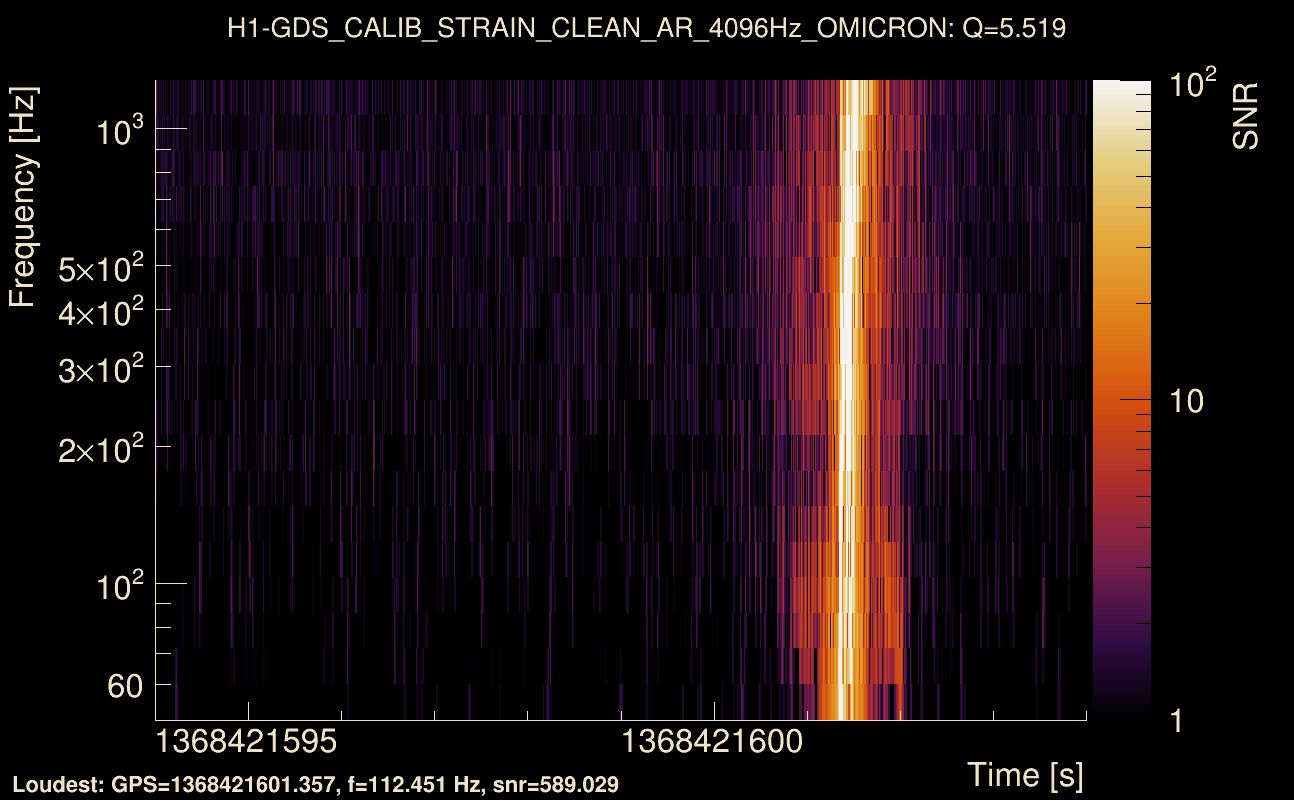

| Event time t(H1): | GPS = 1368421599 (Thu May 18 05:06:21 2023 ) → GPS = 1368421609 (Thu May 18 05:06:31 2023 ) |
| Event time t(L1): | GPS = 1368421599 (Thu May 18 05:06:31 2023 ) → GPS = 1368421609 (Thu May 18 05:06:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368421596 → GPS = 1368421612 |
| Omicron analysis time window (L1): | GPS = 1368421596 → GPS = 1368421612 |
| Time delay between detectors t(L1) - t(H1): | -0.00199985 s (slice index = 108 / 217), δt_gw = -0.00199985 s |
| Time delay standard deviation: | 0.0180075 s |
| [targeted mode] Time delay probability: | 4.62109e-25 (10.3405 sigmas), δt_target = -0.00982046 s |
| Frequency: | 286.613 Hz |
| Ξ: | 0.979143 ± 0.00115991 (variance = 1.3454e-06): Q0: 0.979558, Q1: 0.981578, Q2: 0.981831, Q3: 0.982445, Q4: 0.982947 |
| Rank: | R_A = 0.948972 |
| Log of amplitude ratio (L1/H1): | -0.0649574, variance = 0.150966 (L1/H1: -0.078776, variance = 0.302017, H1/L1: 0.050497, variance = 0.301513) |
| Amplitude ratio (L1/H1): | 0.937107 ⋇ 1.47483 (L1/H1: 0.924247 ⋇ 1.73249, H1/L1: 1.05179 ⋇ 1.7317) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.970963 |
| Antenna factor probability: | 0.99817 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 4 / 258 |
| Maximum signal-to-noise ratio: | H1: 701.426, L1: 685.685 |

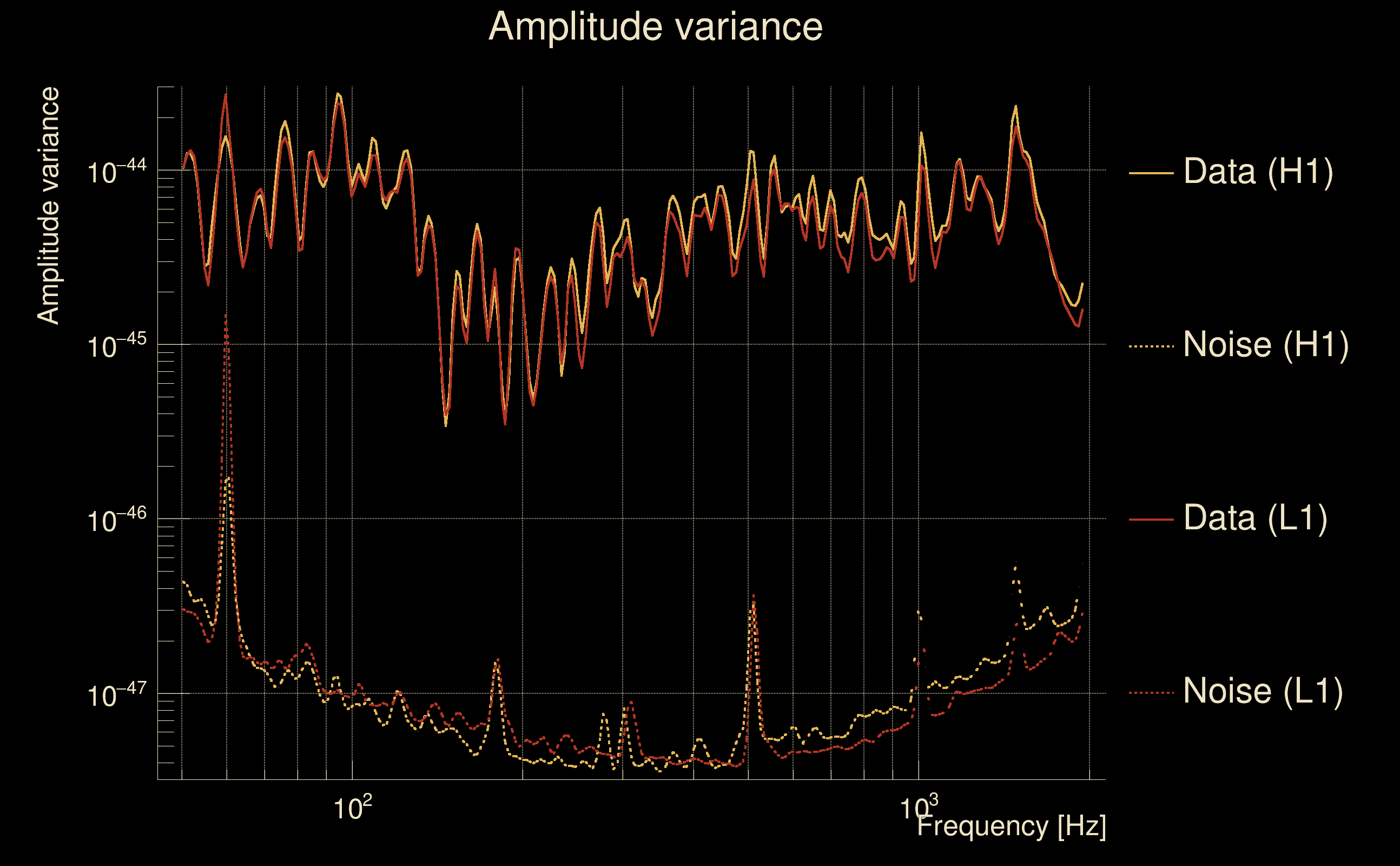

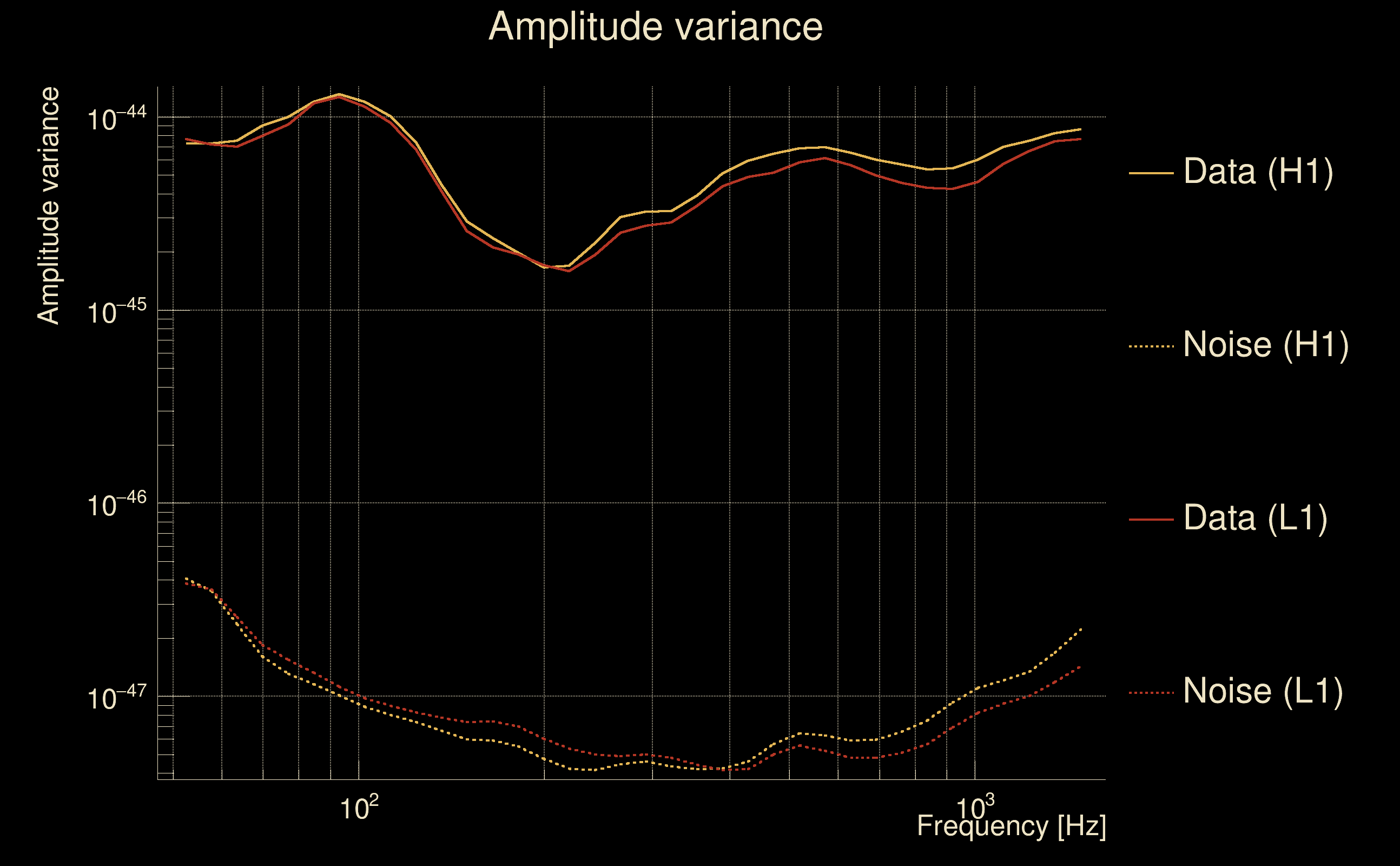

| SNR variance: | H1: 469.172, L1: 460.34 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

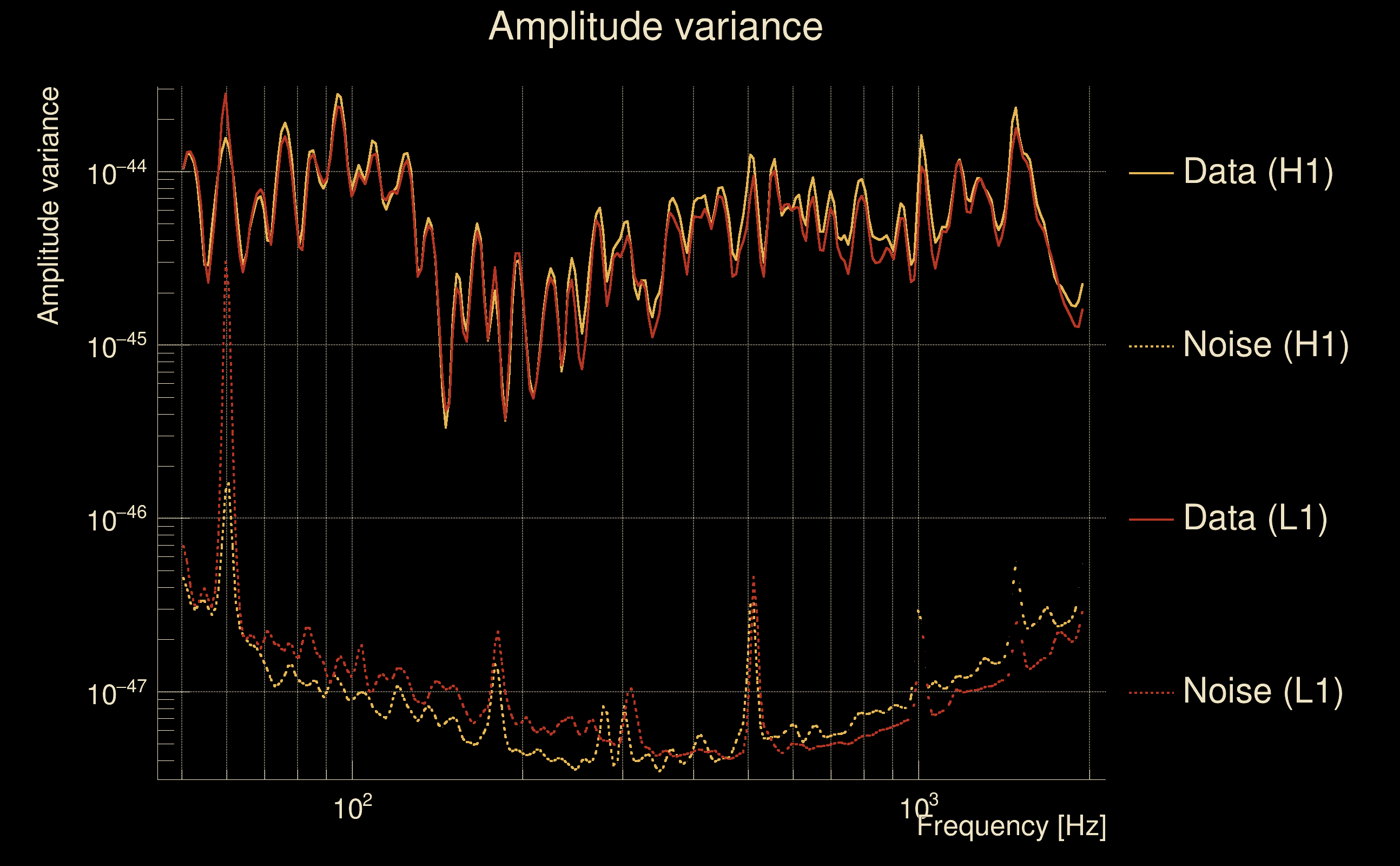

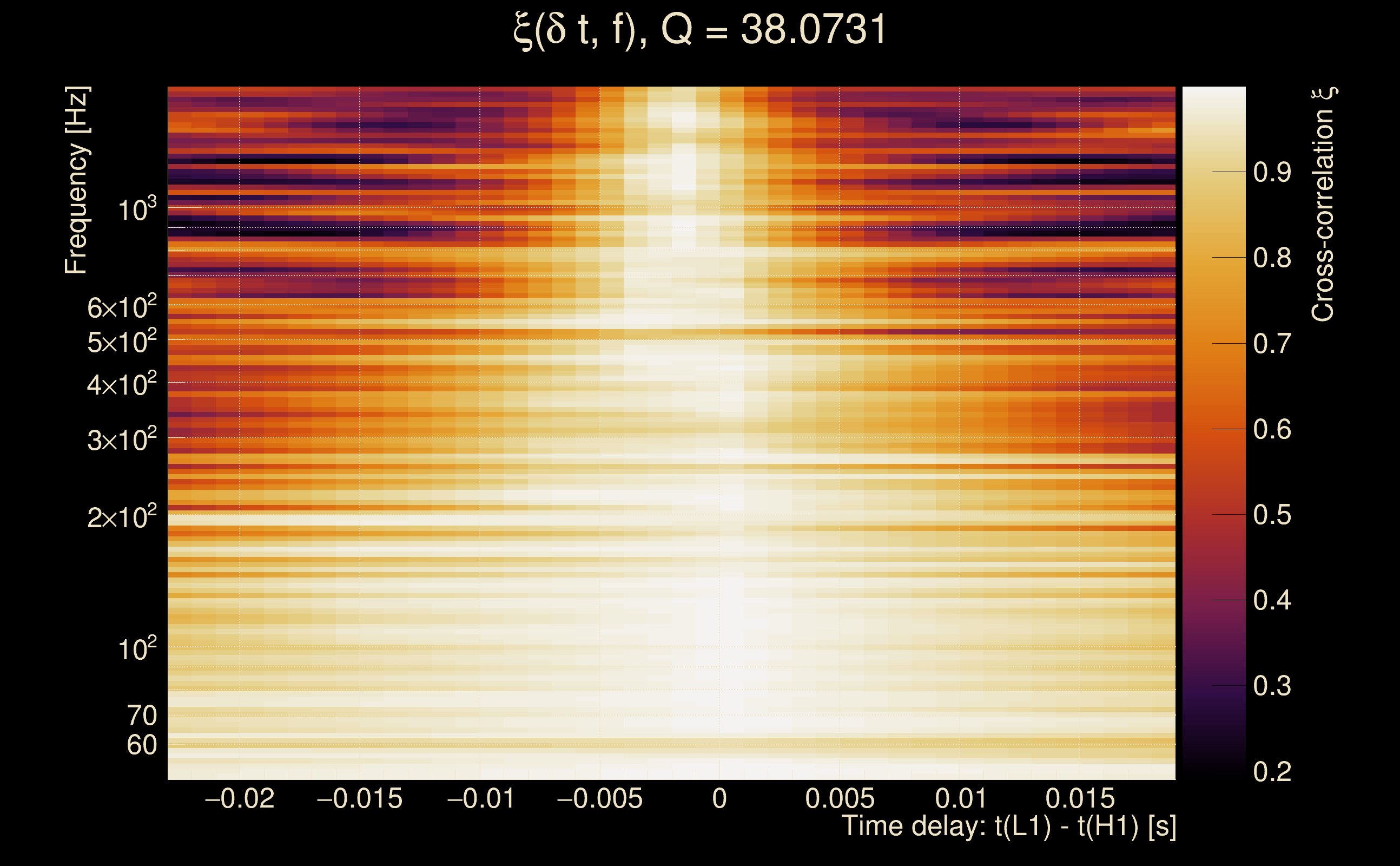

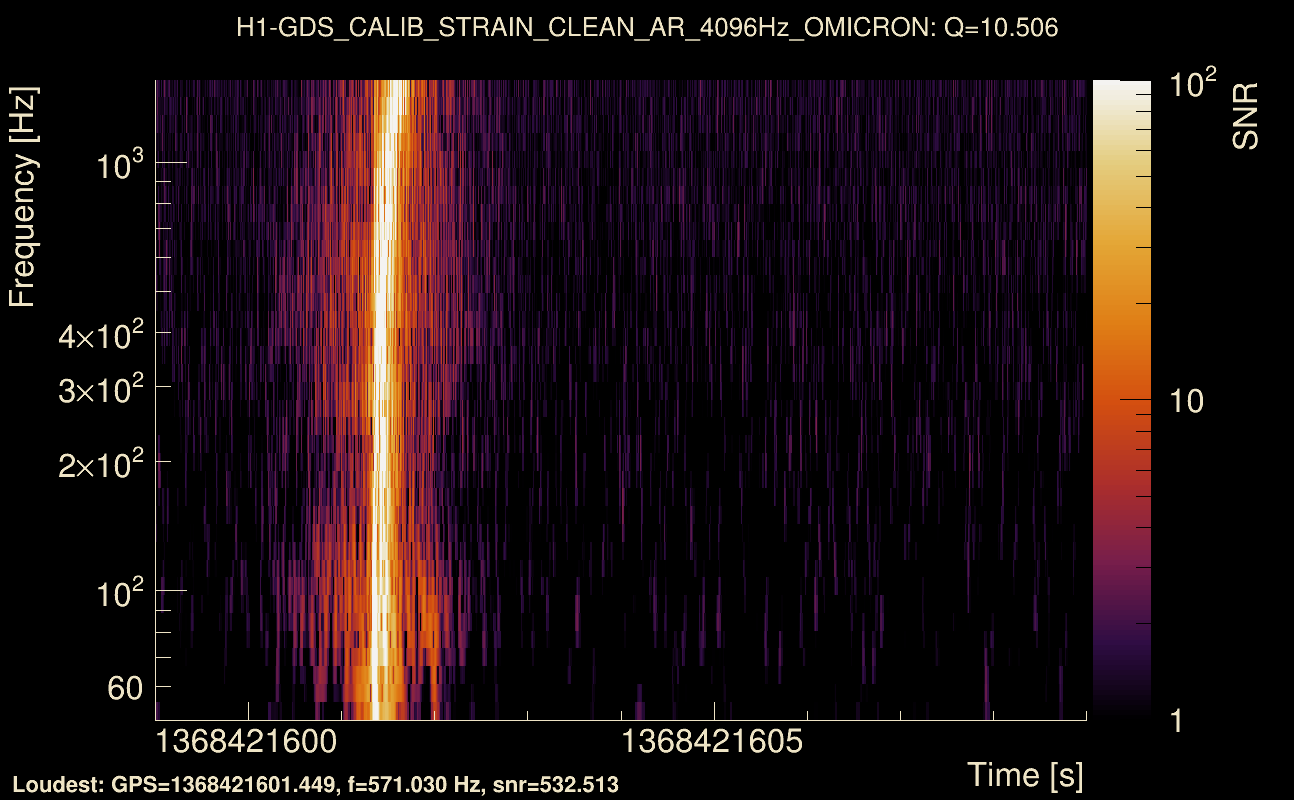

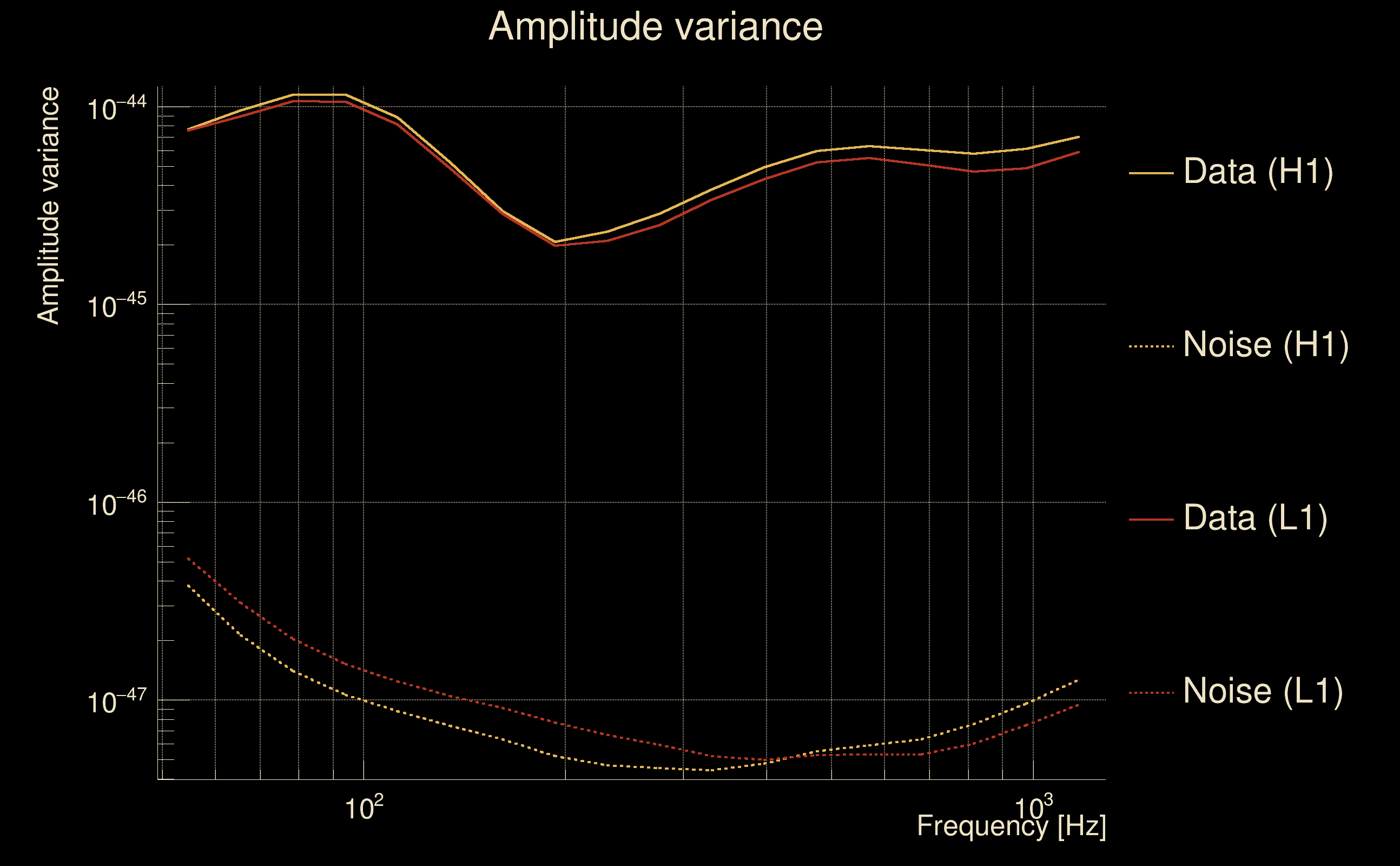

| Event time t(H1): | GPS = 1368421594 (Thu May 18 05:06:16 2023 ) → GPS = 1368421604 (Thu May 18 05:06:26 2023 ) |
| Event time t(L1): | GPS = 1368421594 (Thu May 18 05:06:26 2023 ) → GPS = 1368421604 (Thu May 18 05:06:26 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368421591 → GPS = 1368421607 |
| Omicron analysis time window (L1): | GPS = 1368421591 → GPS = 1368421607 |
| Time delay between detectors t(L1) - t(H1): | -0.00199985 s (slice index = 108 / 217), δt_gw = -0.00199985 s |
| Time delay standard deviation: | 0.0180079 s |
| [targeted mode] Time delay probability: | 4.89685e-25 (10.3349 sigmas), δt_target = 0.00115371 s |
| Frequency: | 286.598 Hz |
| Ξ: | 0.979089 ± 0.00114794 (variance = 1.31778e-06): Q0: 0.9795, Q1: 0.981562, Q2: 0.981744, Q3: 0.982362, Q4: 0.982855 |
| Rank: | R_A = 0.948492 |
| Log of amplitude ratio (L1/H1): | -0.0650067, variance = 0.150962 (L1/H1: -0.0789139, variance = 0.301998, H1/L1: 0.0504567, variance = 0.30152) |
| Amplitude ratio (L1/H1): | 0.937061 ⋇ 1.47482 (L1/H1: 0.92412 ⋇ 1.73246, H1/L1: 1.05175 ⋇ 1.73171) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.970779 |
| Antenna factor probability: | 0.997909 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 4 / 258 |
| Maximum signal-to-noise ratio: | H1: 705.903, L1: 690.132 |
| SNR variance: | H1: 0.53131, L1: 0.535949 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368420199 (Thu May 18 04:43:01 2023 ) → GPS = 1368420209 (Thu May 18 04:43:11 2023 ) |
| Event time t(L1): | GPS = 1368420199 (Thu May 18 04:43:11 2023 ) → GPS = 1368420209 (Thu May 18 04:43:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420196 → GPS = 1368420212 |
| Omicron analysis time window (L1): | GPS = 1368420196 → GPS = 1368420212 |
| Time delay between detectors t(L1) - t(H1): | 3.99949 s (slice index = 21 / 217), δt_gw = -0.00251126 s |
| Time delay standard deviation: | 0.0757003 s |
| [targeted mode] Time delay probability: | 0.552238 (0.59441 sigmas), δt_target = 0.00115609 s |
| Frequency: | 187.923 Hz |
| Ξ: | 0.0242203 ± 0.0524205 (variance = 0.0027479): Q0: 0.0818087, Q1: 0.155565, Q2: 0.232924, Q3: 0.18889, Q4: 0.120844 |
| Rank: | R_A = 0.0139189 |
| Log of amplitude ratio (L1/H1): | -0.121061, variance = 1.13473 (L1/H1: -0.613817, variance = 2.79787, H1/L1: -0.447596, variance = 1.53883) |
| Amplitude ratio (L1/H1): | 0.88598 ⋇ 2.90153 (L1/H1: 0.541281 ⋇ 5.32644, H1/L1: 0.639163 ⋇ 3.45732) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.61027 |
| Antenna factor probability: | 0.941679 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 28 / 36, Q2: 59 / 70, Q3: 121 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.98513, L1: 4.64053 |
| SNR variance: | H1: 0.525007, L1: 0.531109 |

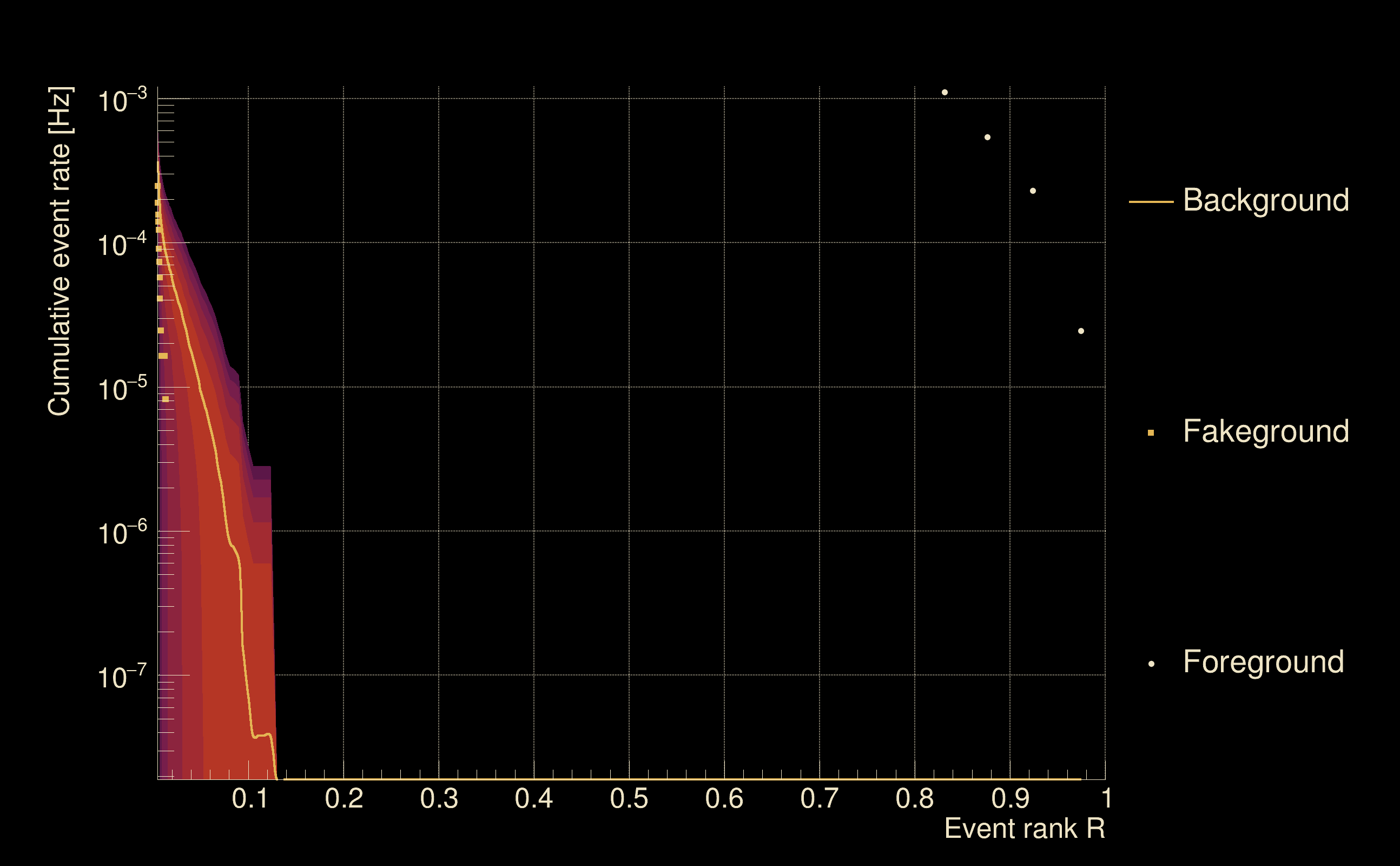

| Detection threshold: | R > 0.0503939 |
| False-alarm rate above that detection threshold: | 8.56311e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.12338 |
| Alternative threshold at 1/100 yrs: | R > 0.12338 |
| Alternative threshold at 1/10 yrs: | R > 0.12338 |
| Alternative threshold at 1/1 yr: | R > 0.12338 |
| Alternative threshold at 1/1 d: | R > 0.0475435 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

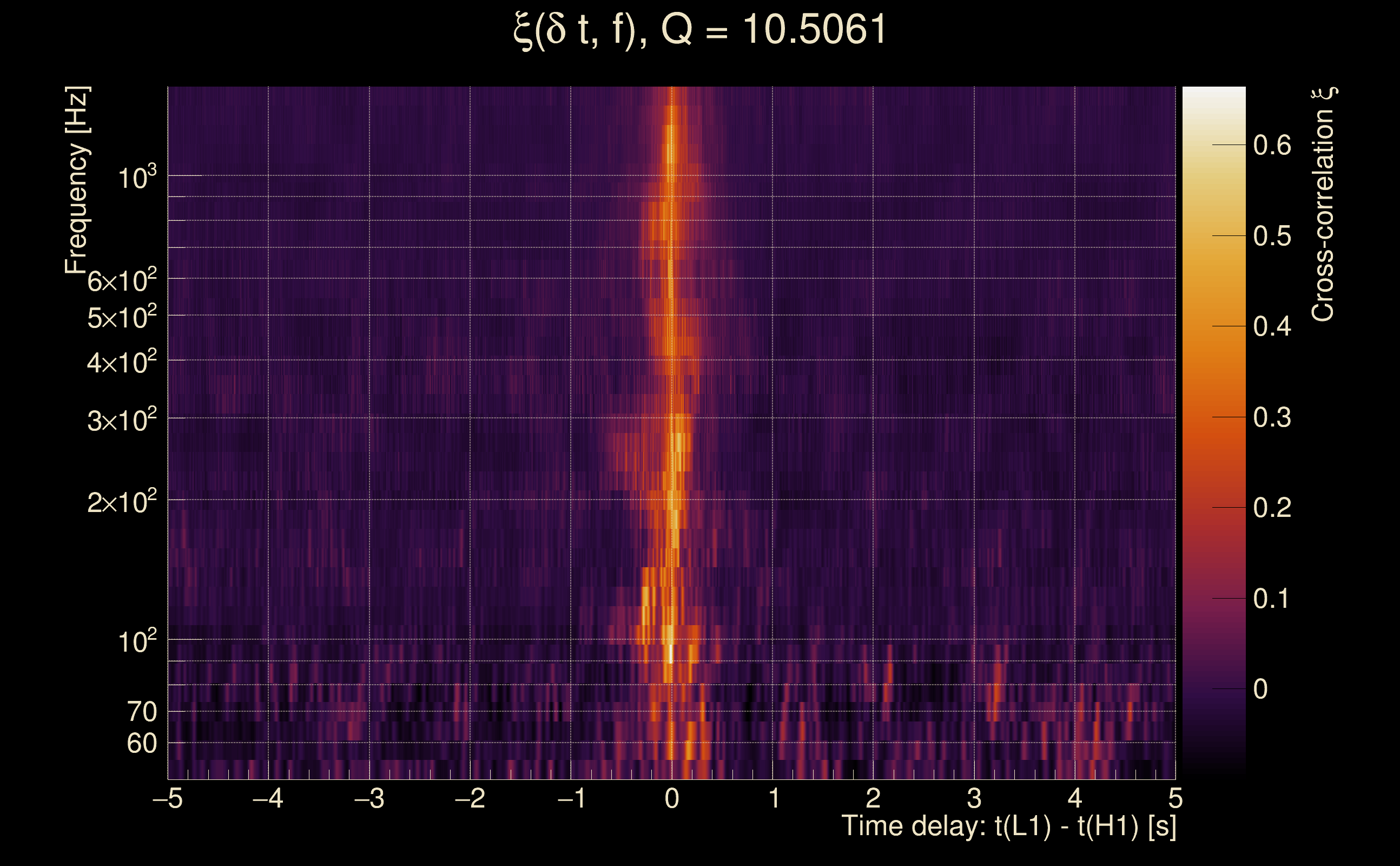

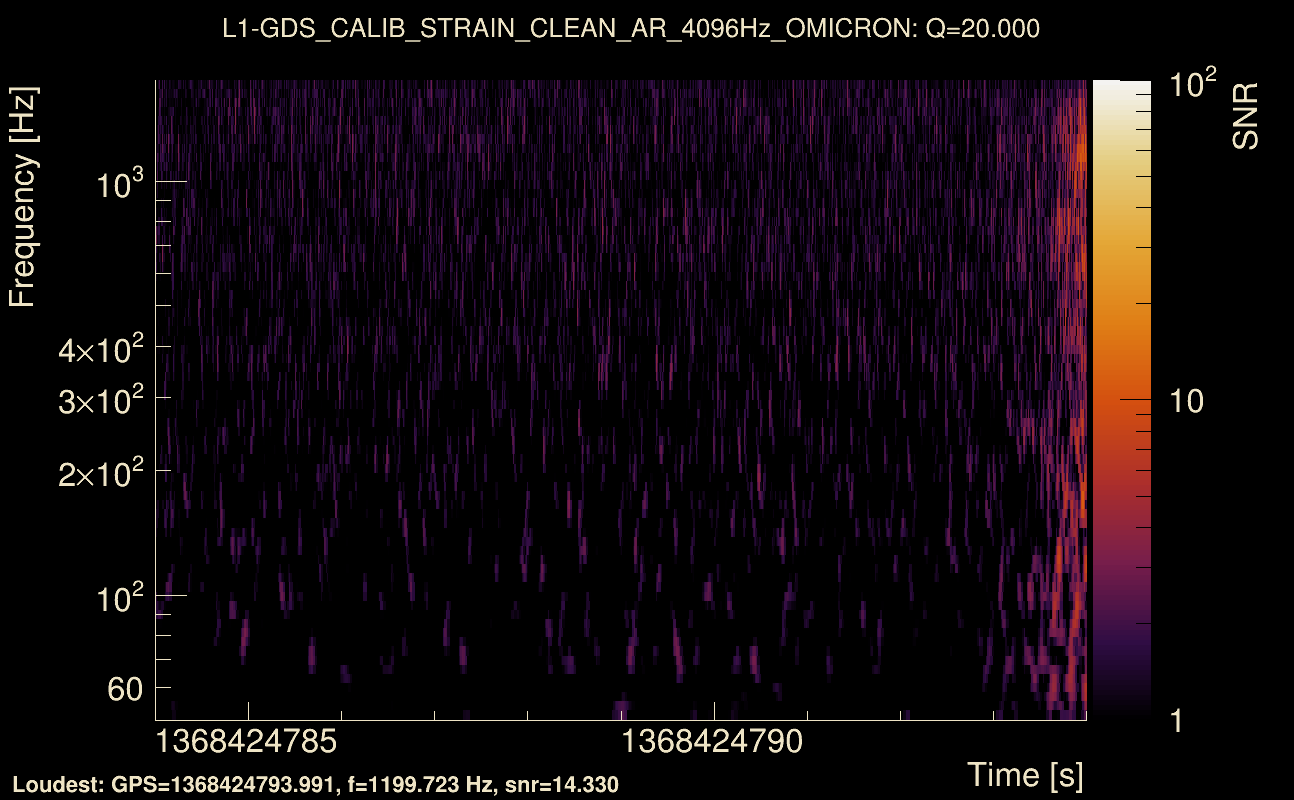

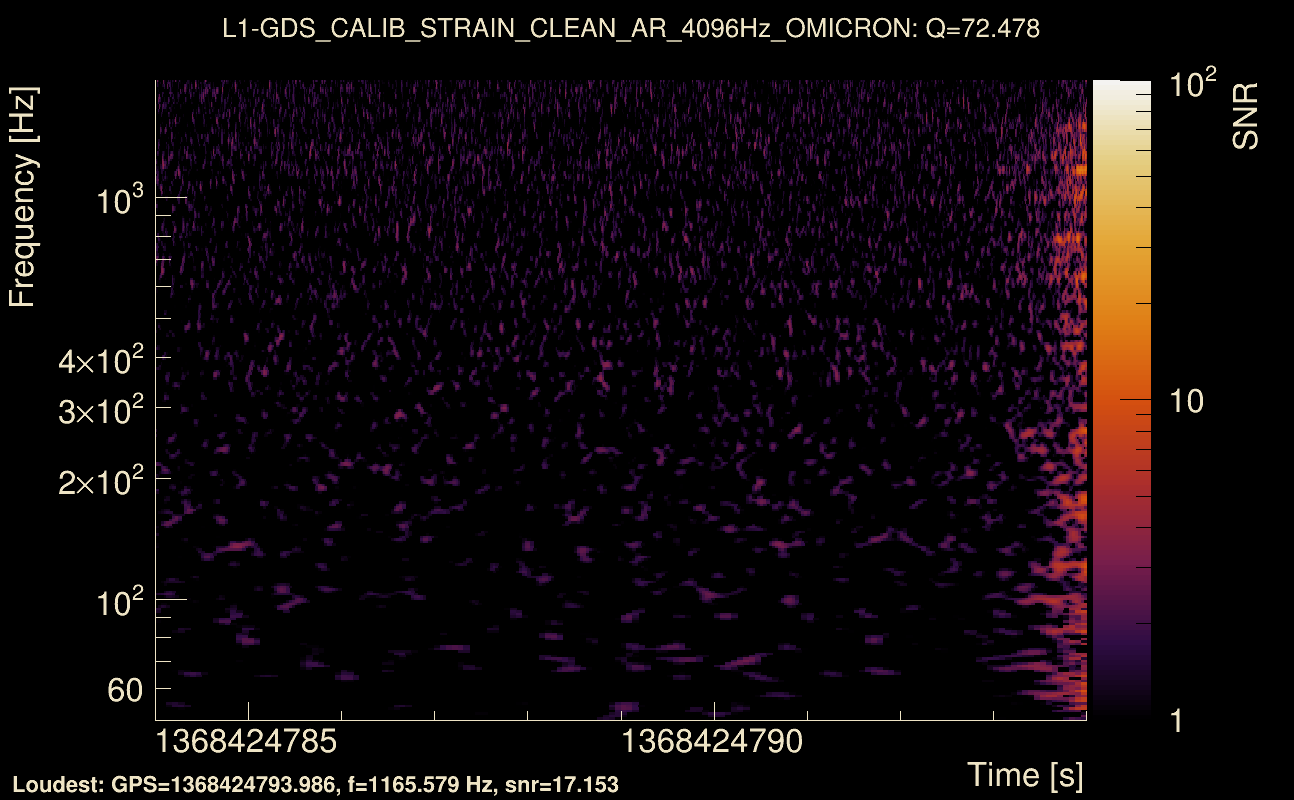

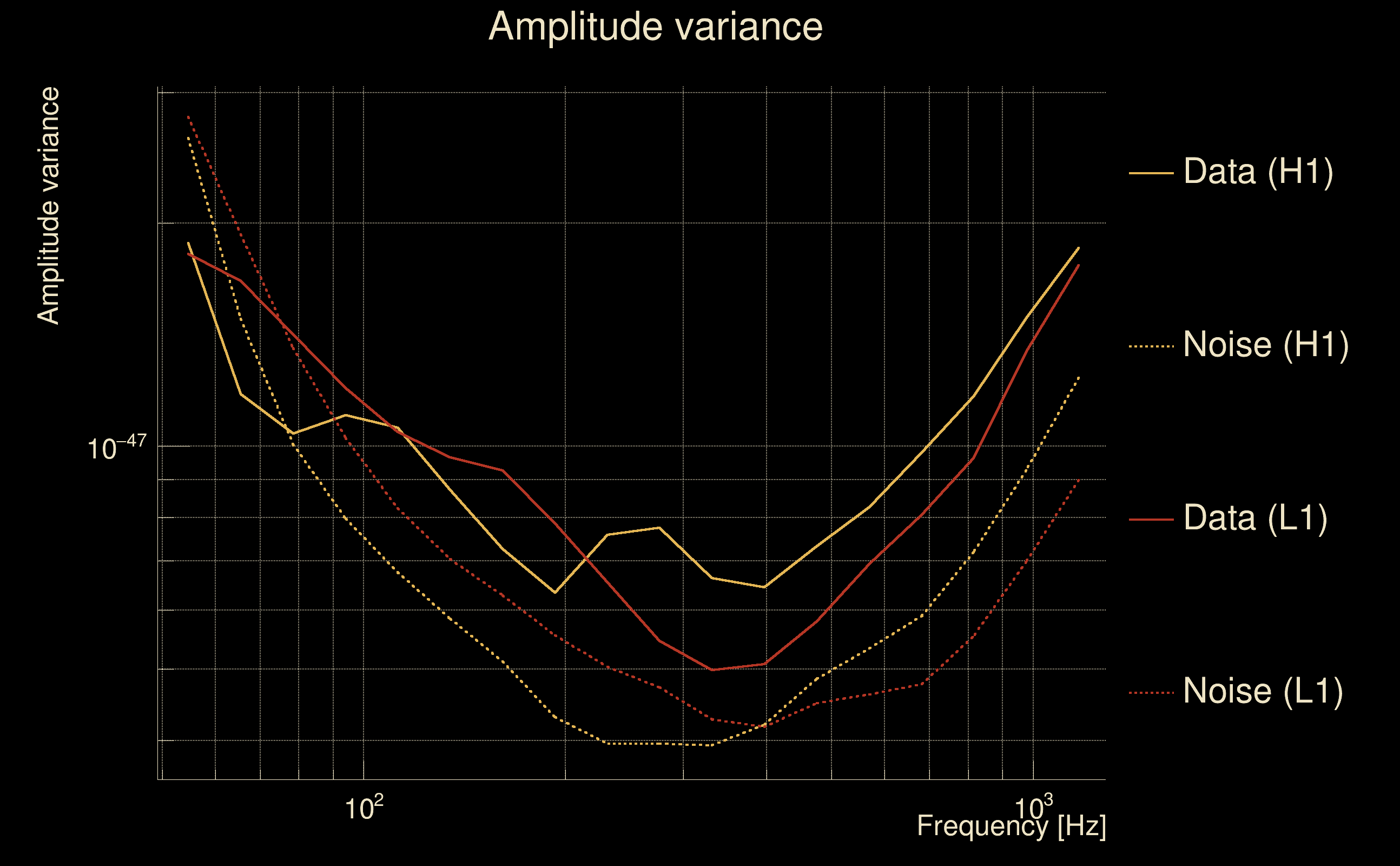

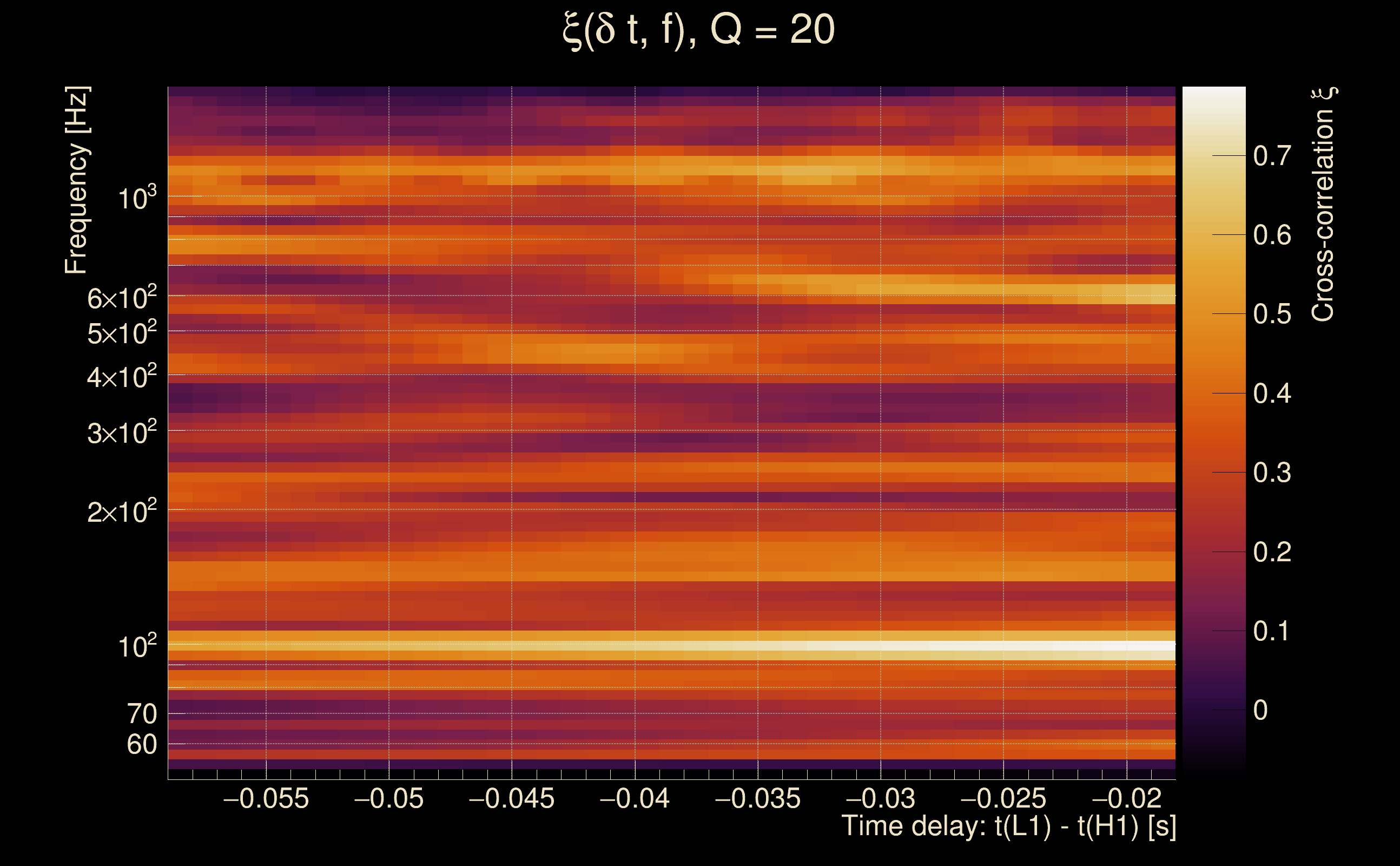

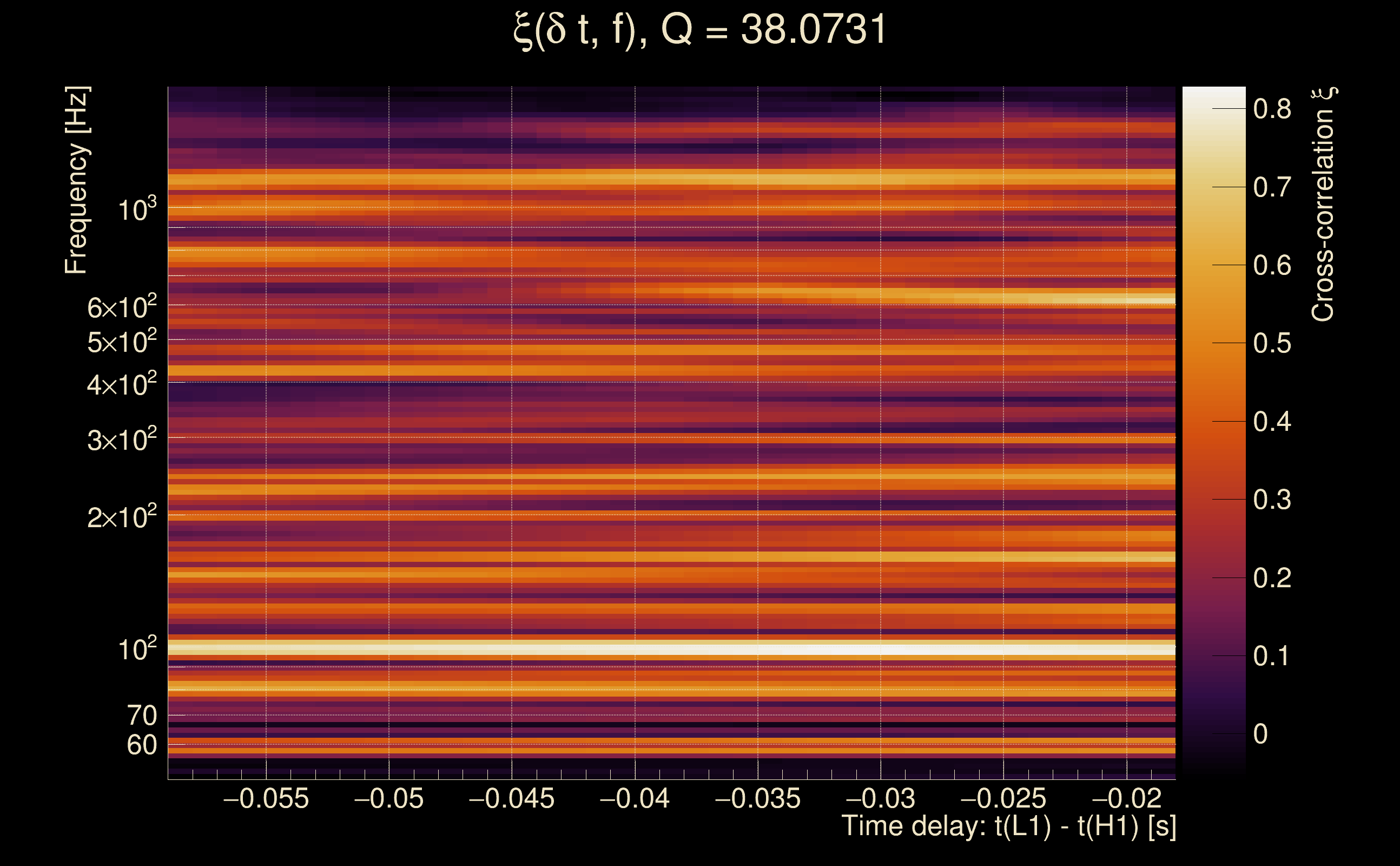

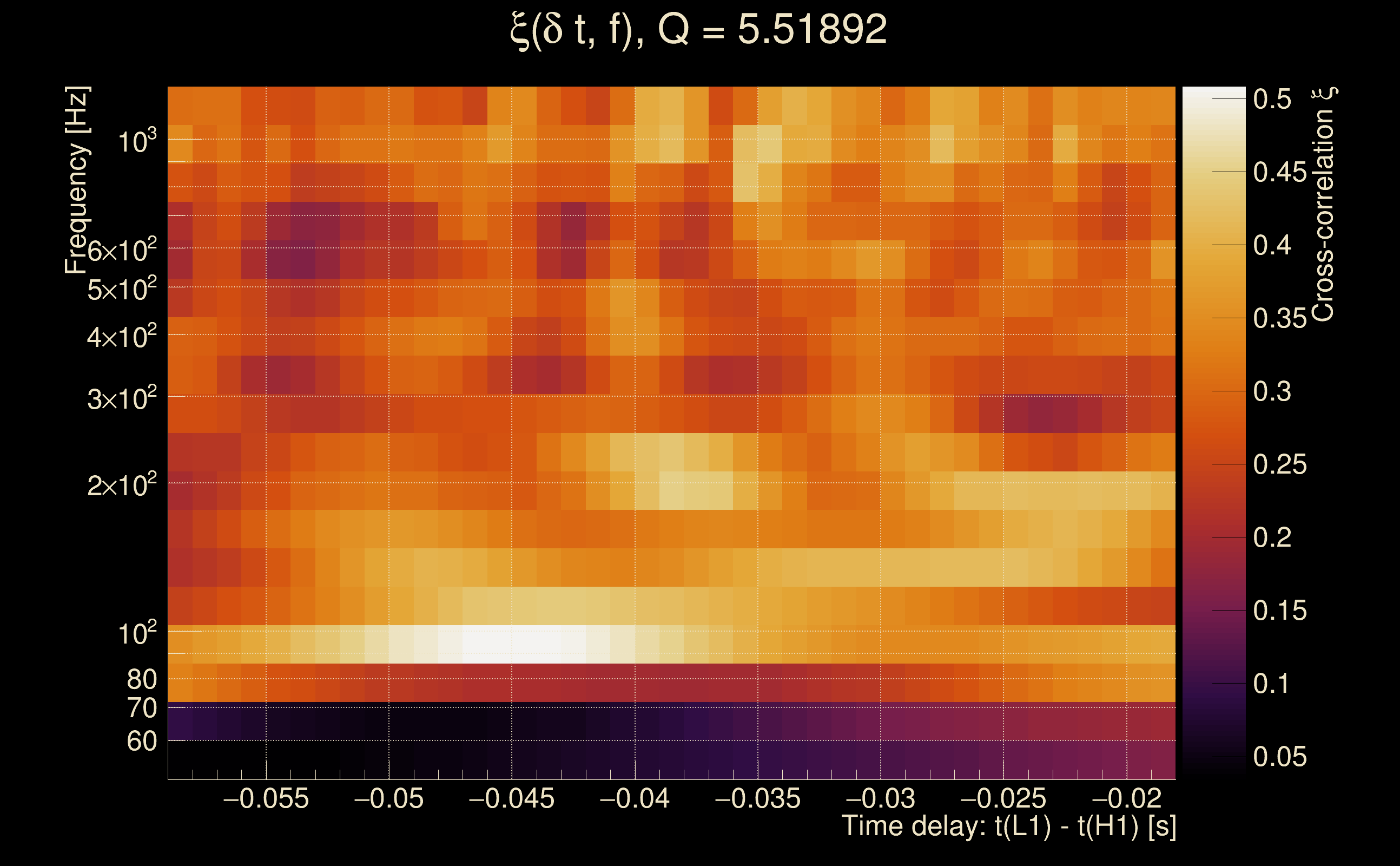

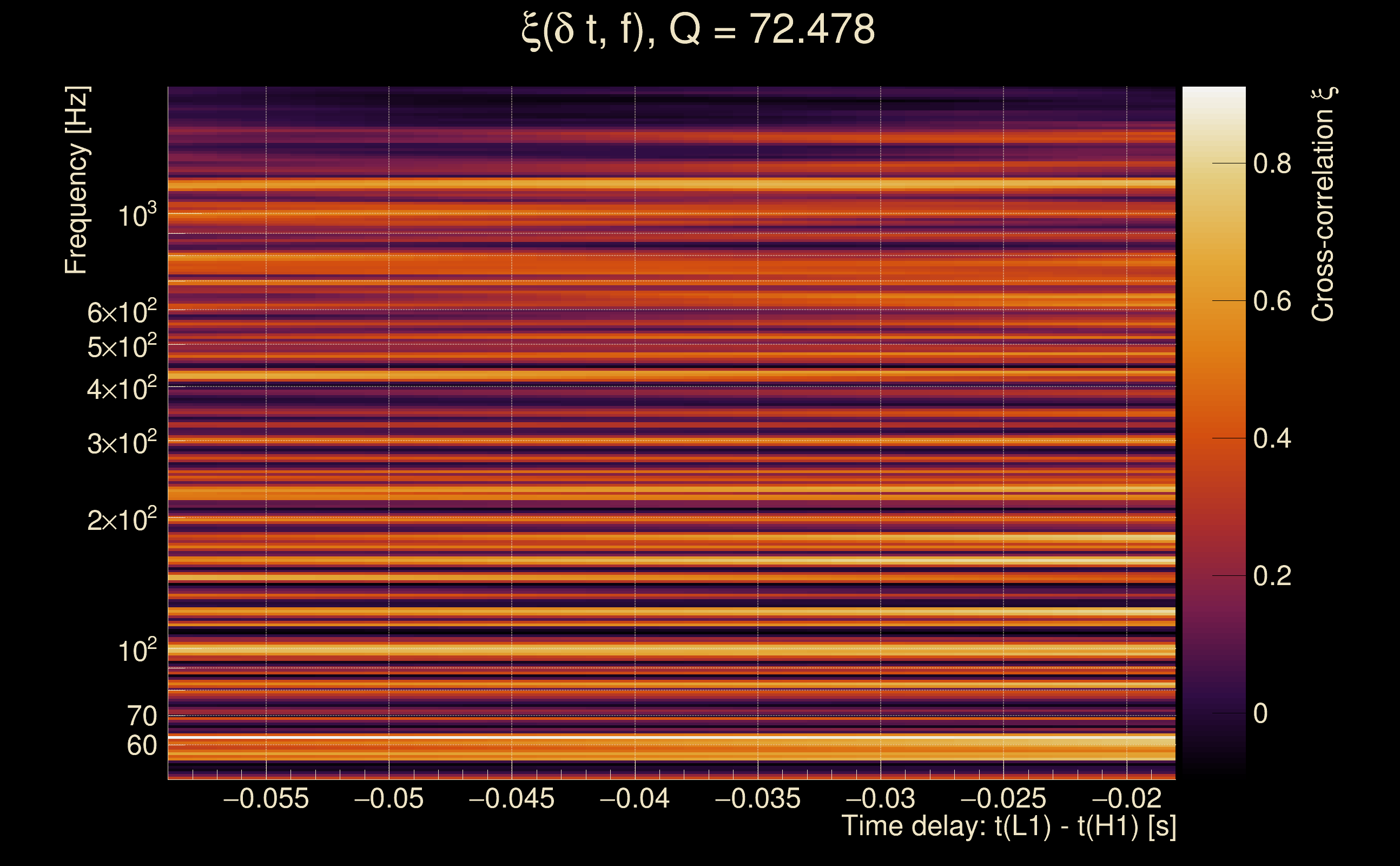

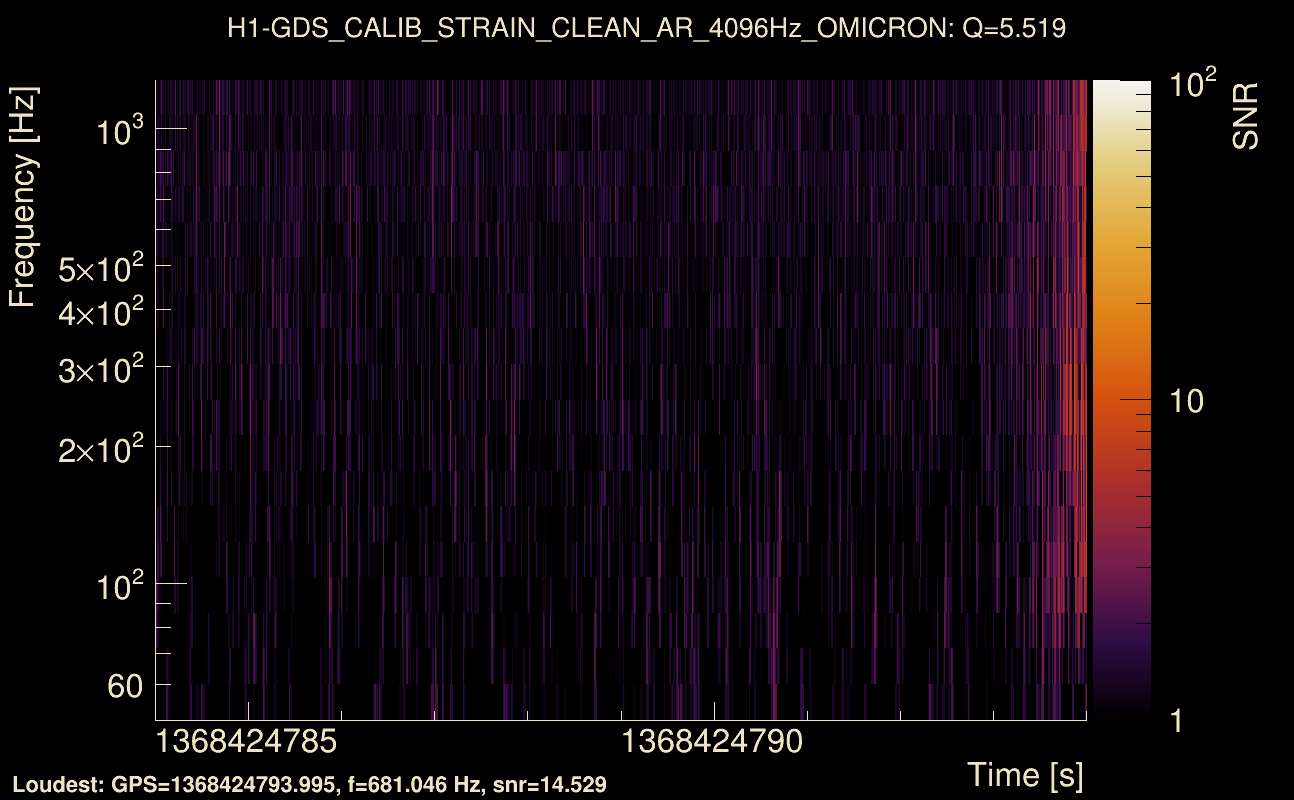

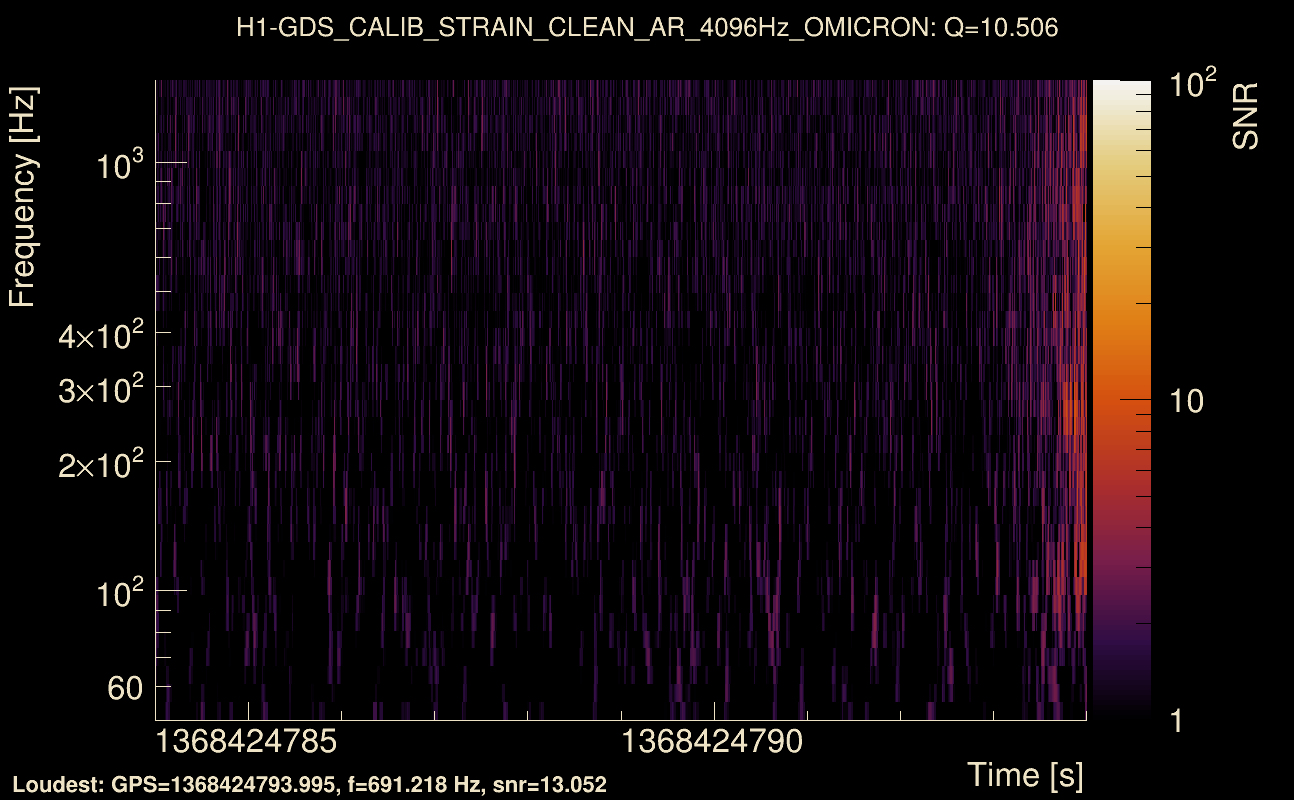

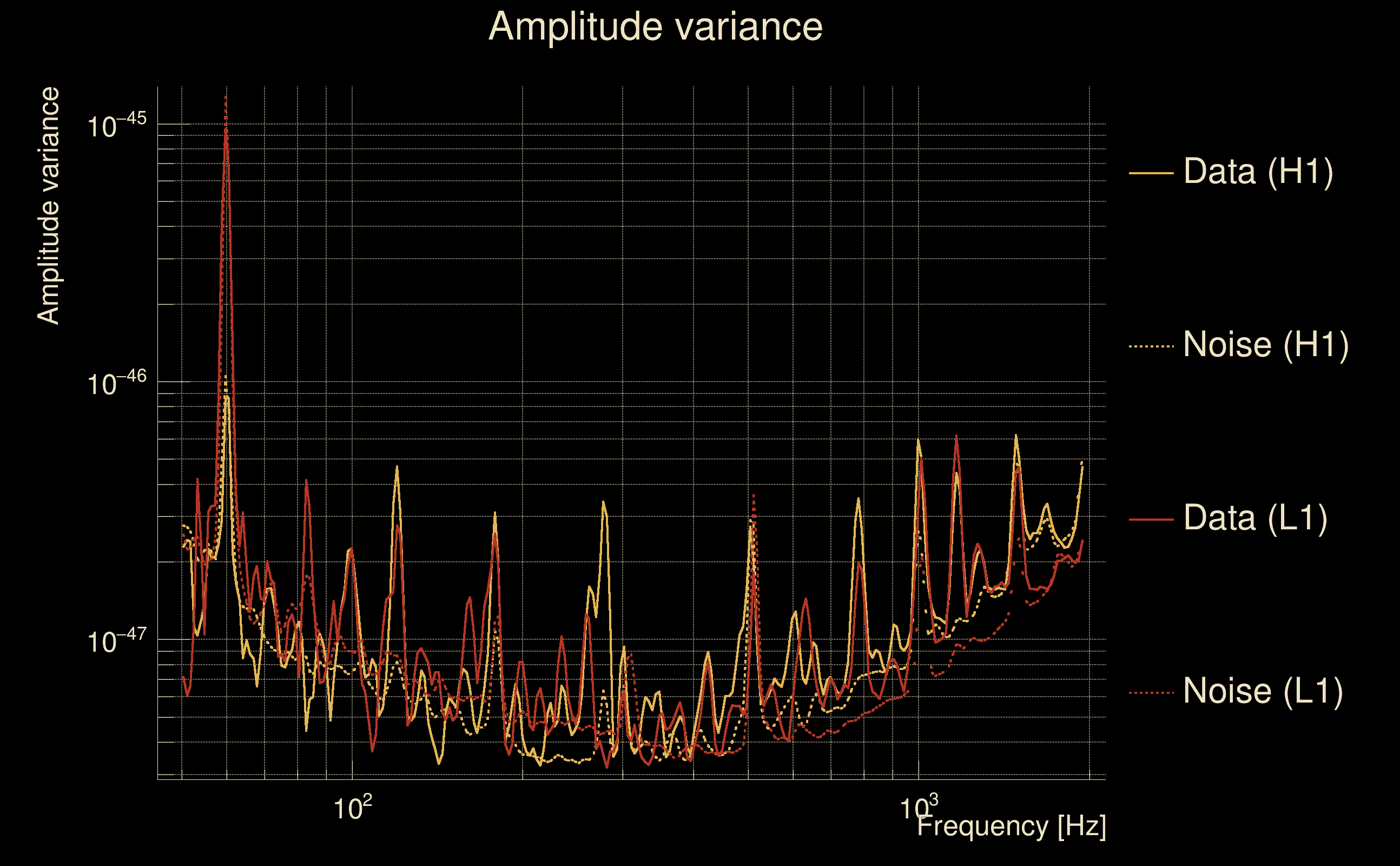

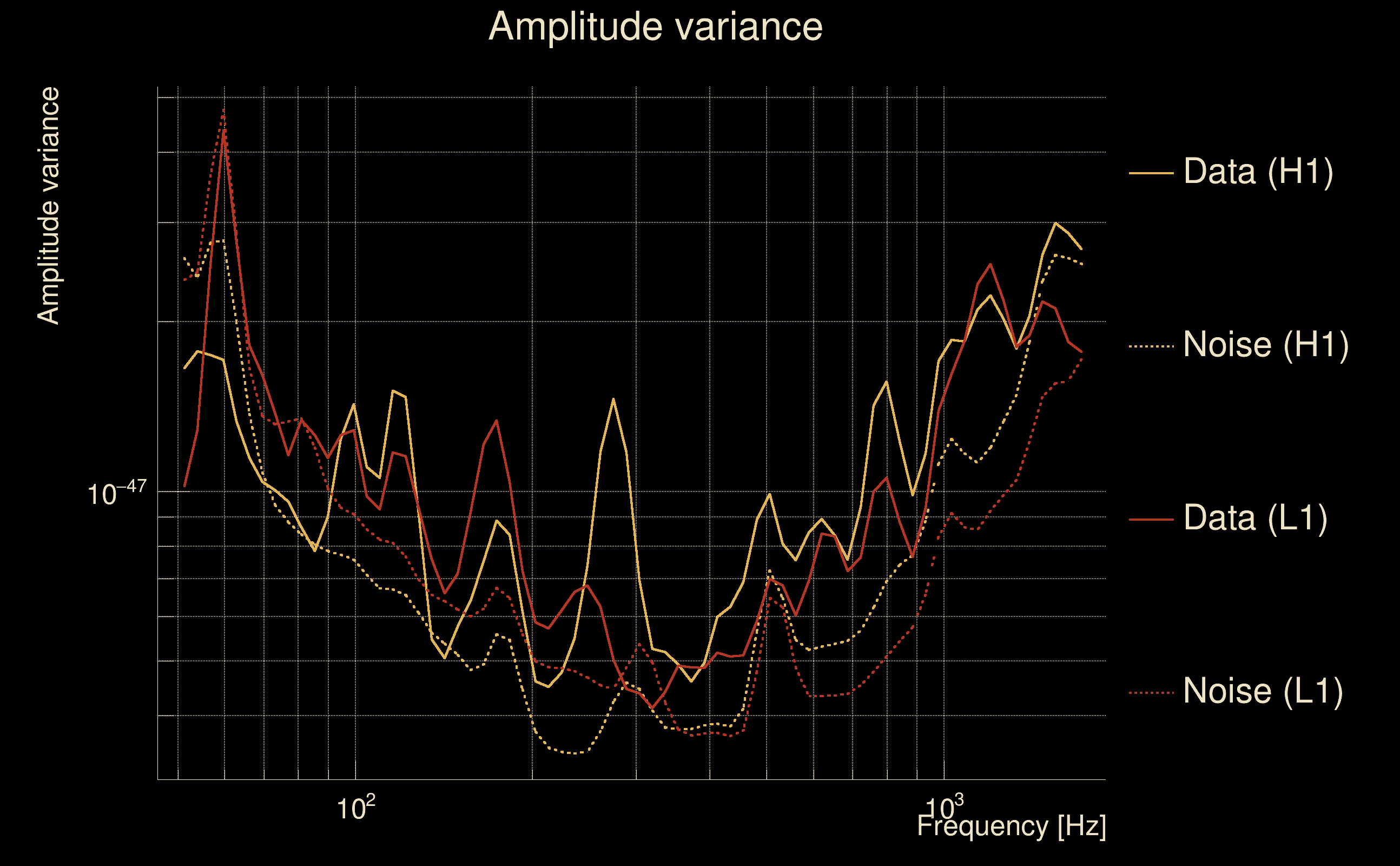

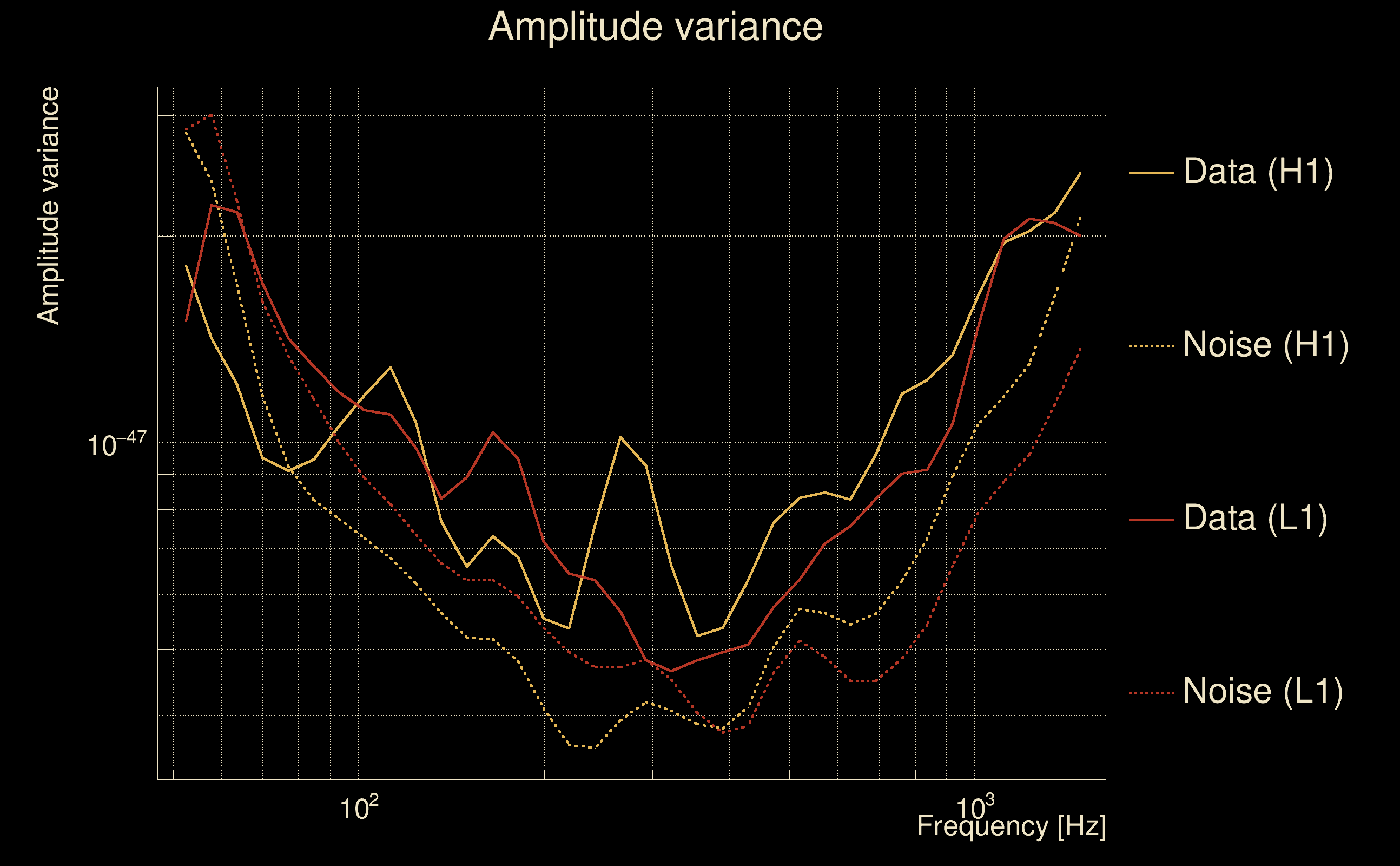

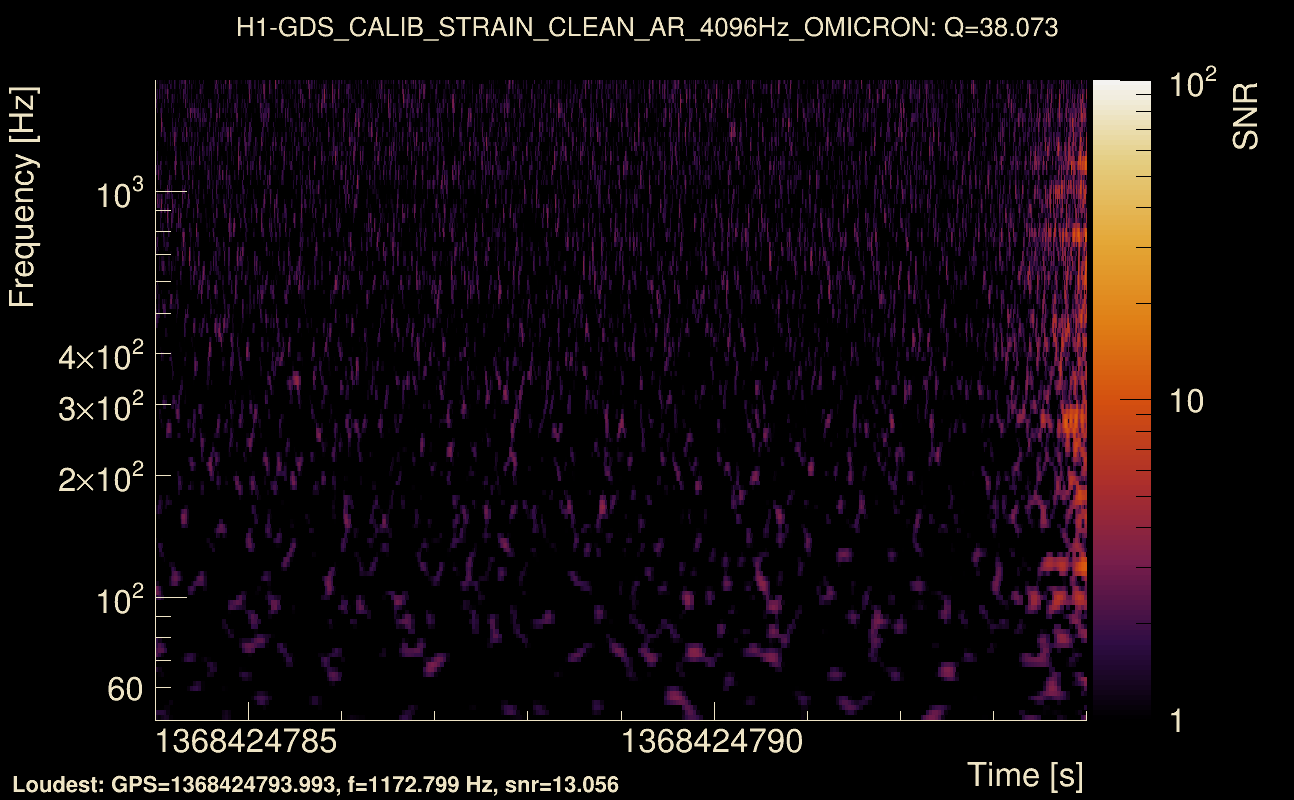

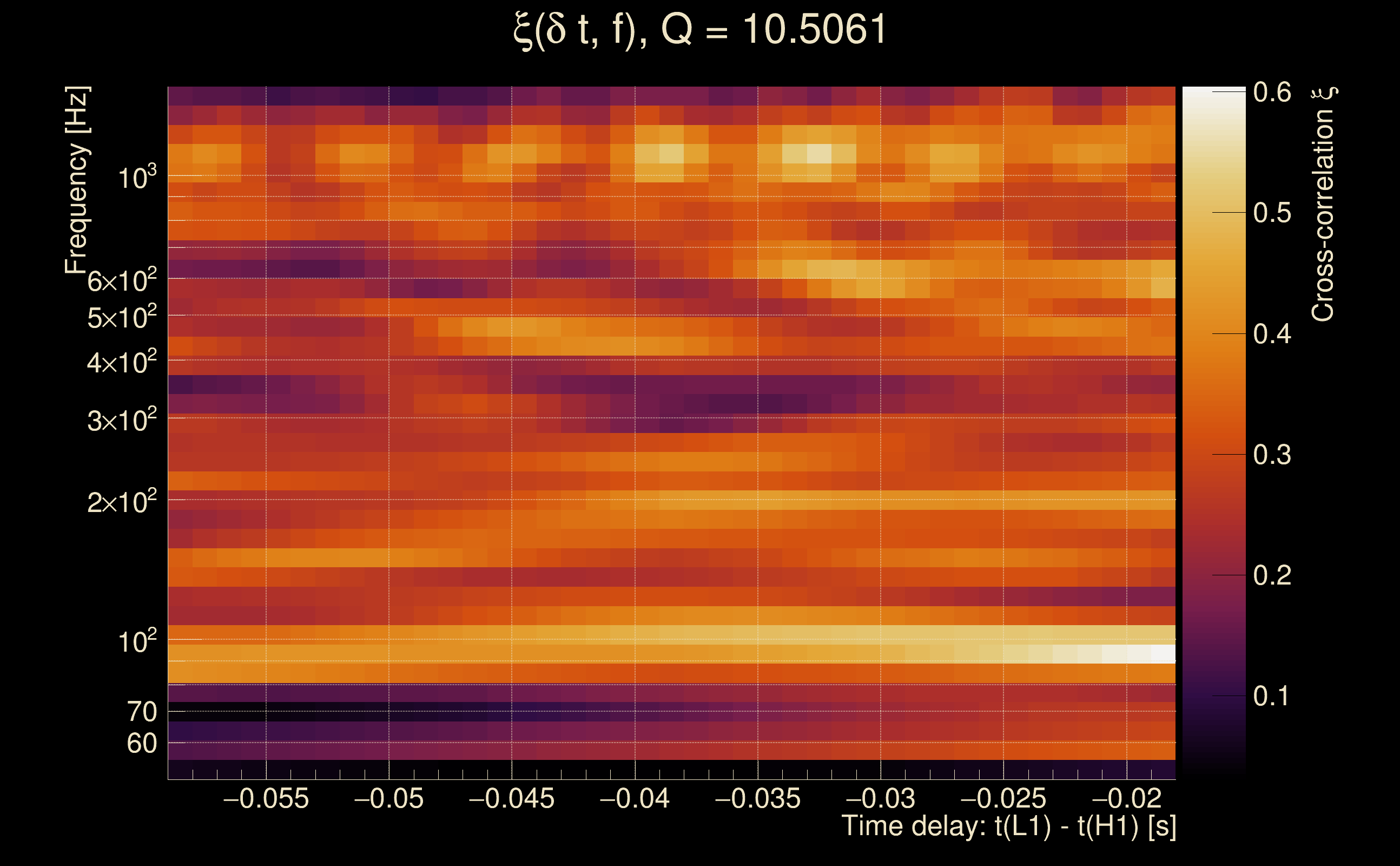

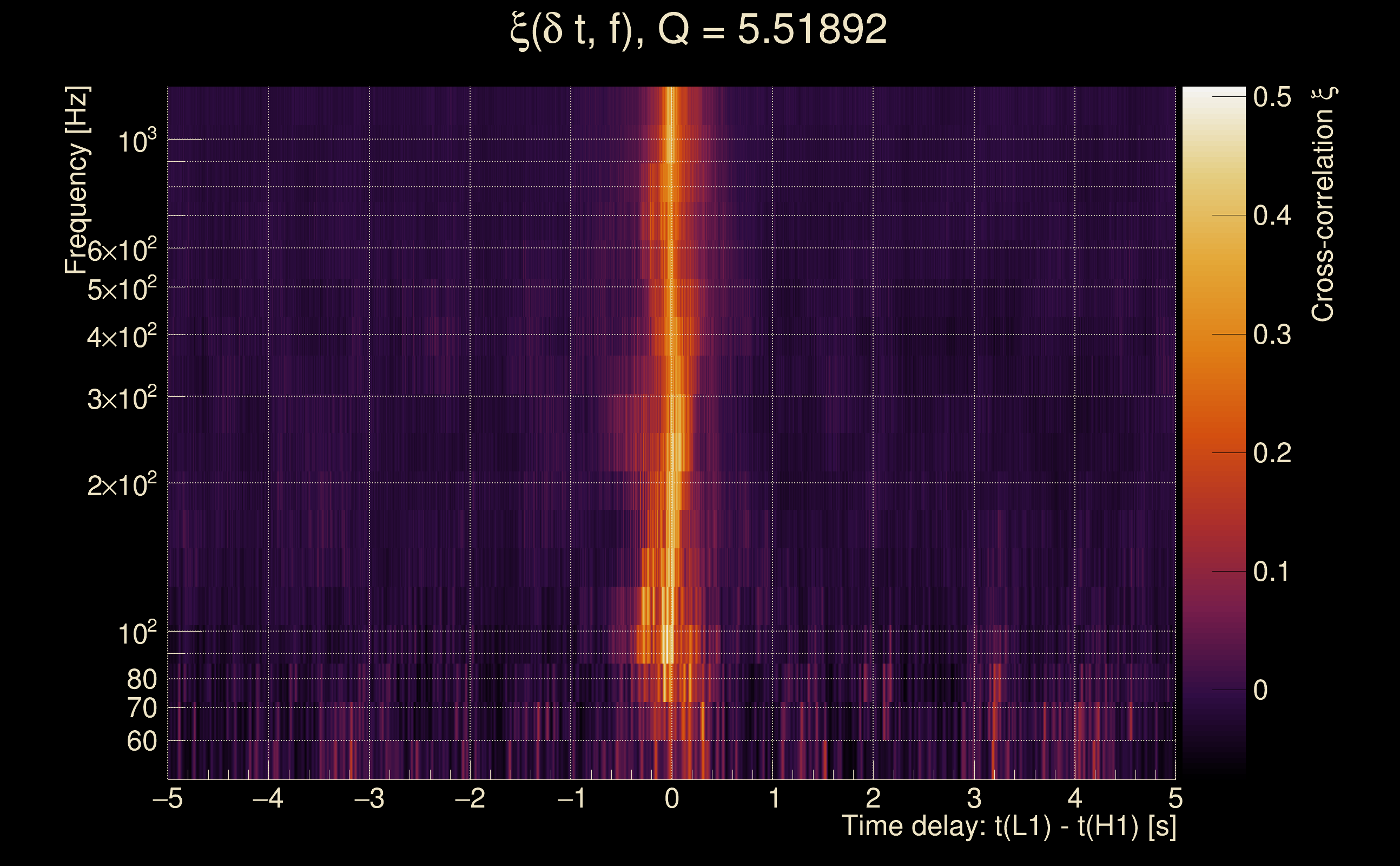

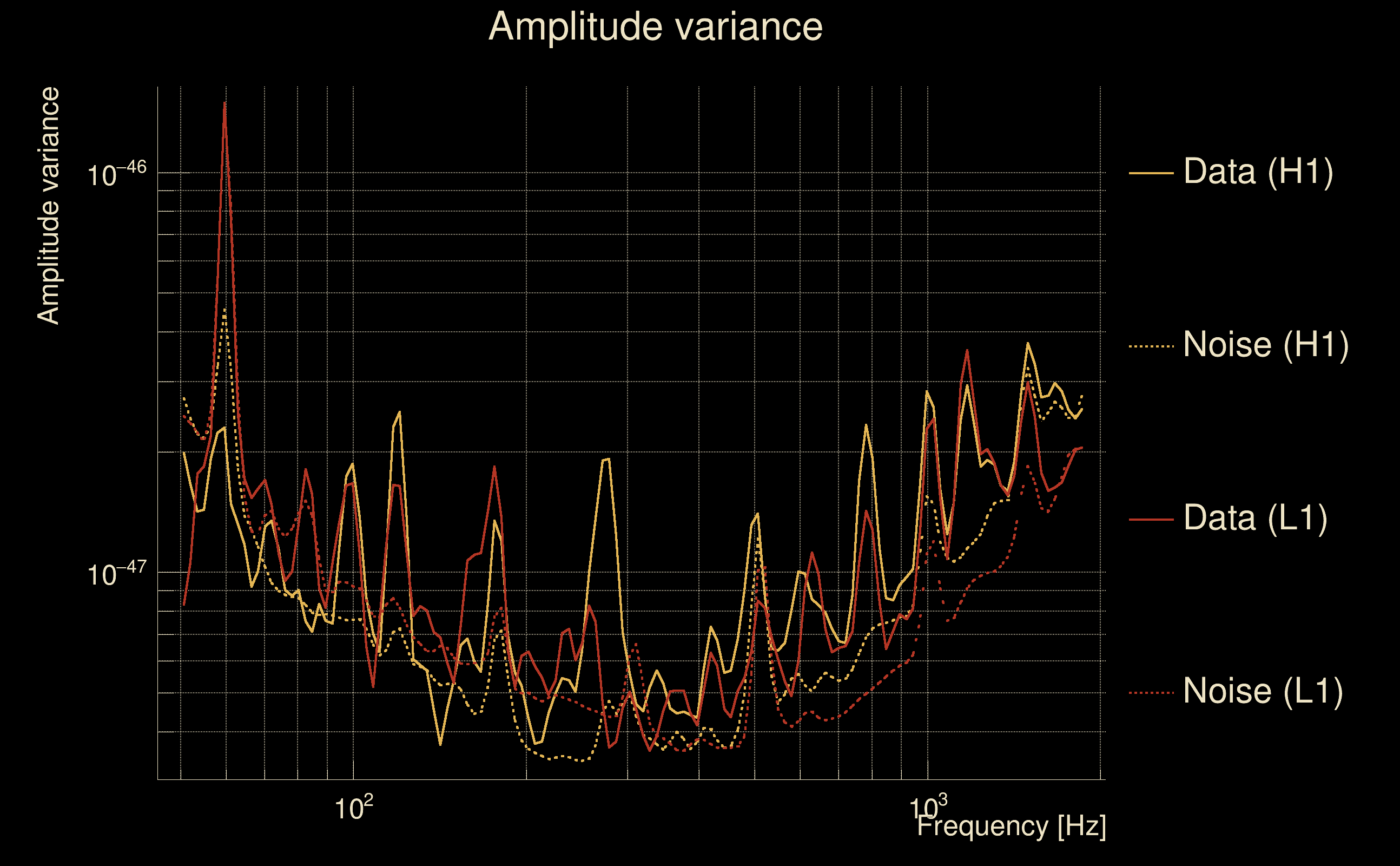

| Event time t(H1): | GPS = 1368424784 (Thu May 18 05:59:26 2023 ) → GPS = 1368424794 (Thu May 18 05:59:36 2023 ) |
| Event time t(L1): | GPS = 1368424784 (Thu May 18 05:59:36 2023 ) → GPS = 1368424794 (Thu May 18 05:59:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424781 → GPS = 1368424797 |
| Omicron analysis time window (L1): | GPS = 1368424781 → GPS = 1368424797 |
| Time delay between detectors t(L1) - t(H1): | -0.0389421 s (slice index = 109 / 217), δt_gw = 0.00705787 s |
| Time delay standard deviation: | 0.0786871 s |
| [targeted mode] Time delay probability: | 0.459621 (0.739472 sigmas), δt_target = 0.00115609 s |
| Frequency: | 226.332 Hz |
| Ξ: | 0.197293 ± 0.0489989 (variance = 0.0024009): Q0: 0.518173, Q1: 0.477899, Q2: 0.454845, Q3: 0.36957, Q4: 0.439672 |
| Rank: | R_A = 0.126503 |
| Log of amplitude ratio (L1/H1): | -0.0751536, variance = 0.267432 (L1/H1: -0.300015, variance = 0.46459, H1/L1: -0.111663, variance = 0.575714) |
| Amplitude ratio (L1/H1): | 0.927601 ⋇ 1.67722 (L1/H1: 0.740807 ⋇ 1.97706, H1/L1: 0.894346 ⋇ 2.13562) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.686489 |
| Antenna factor probability: | 0.934019 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 18 / 36, Q2: 52 / 70, Q3: 120 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.0089, L1: 18.6606 |
| SNR variance: | H1: 0.408678, L1: 0.332057 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

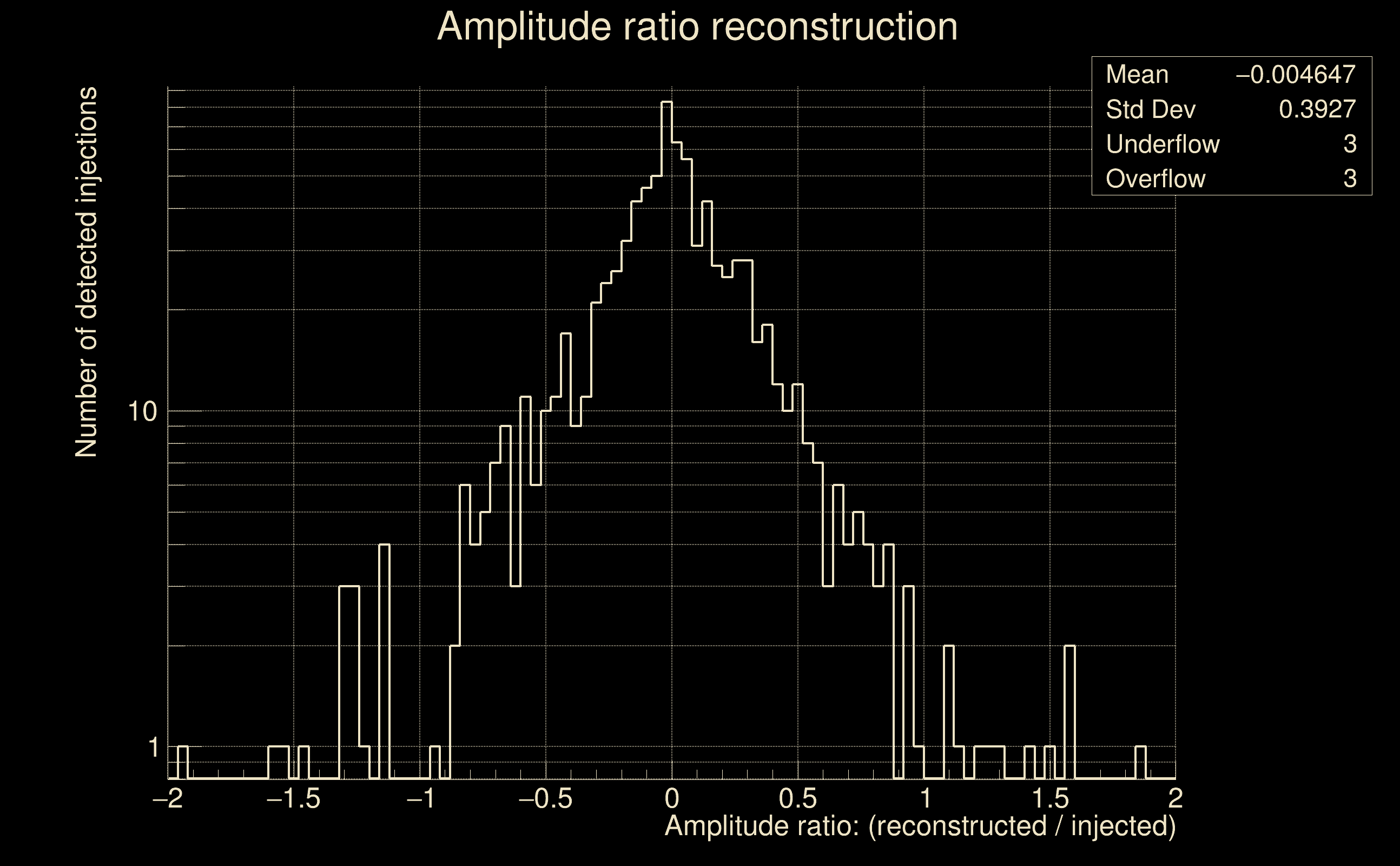

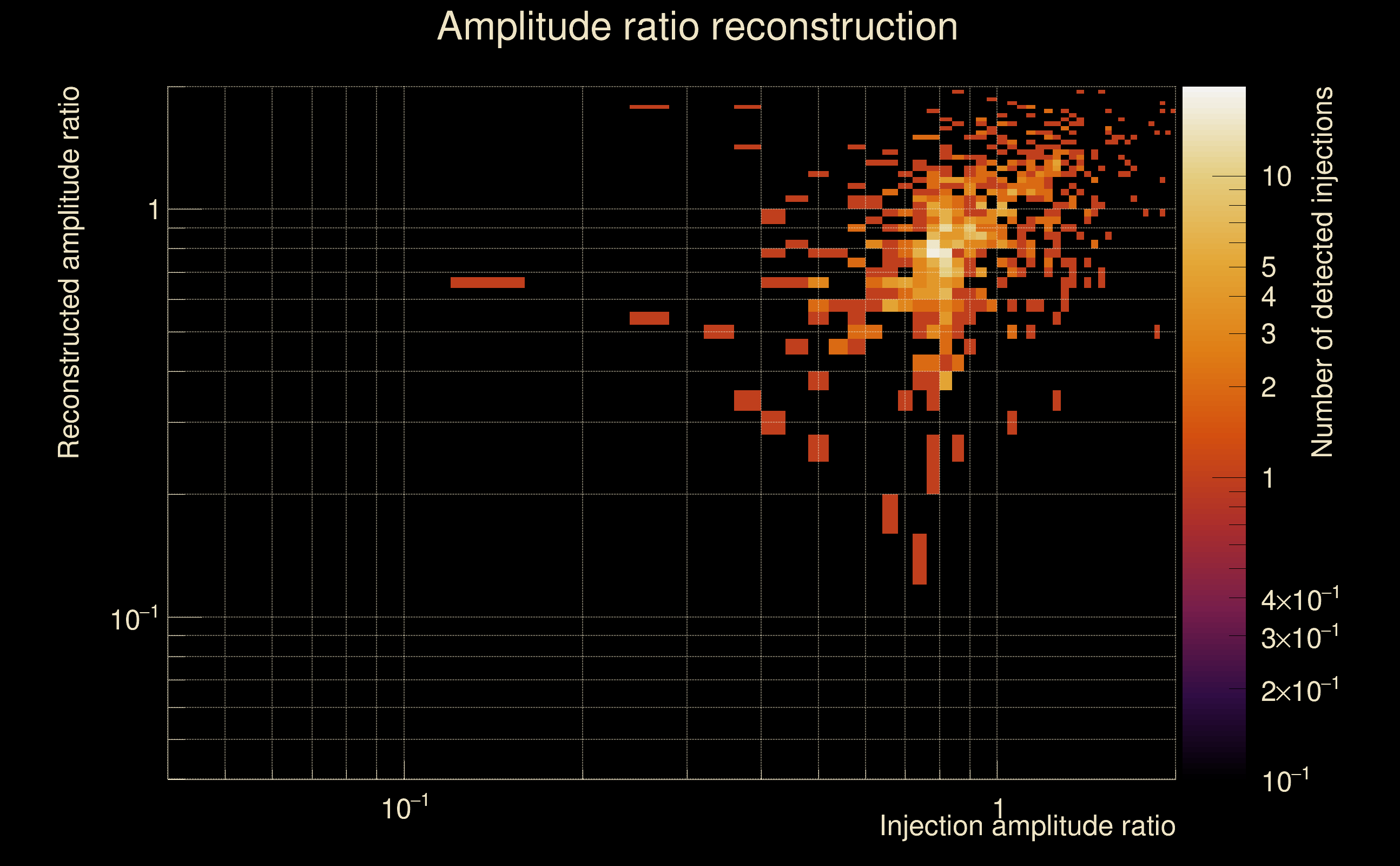

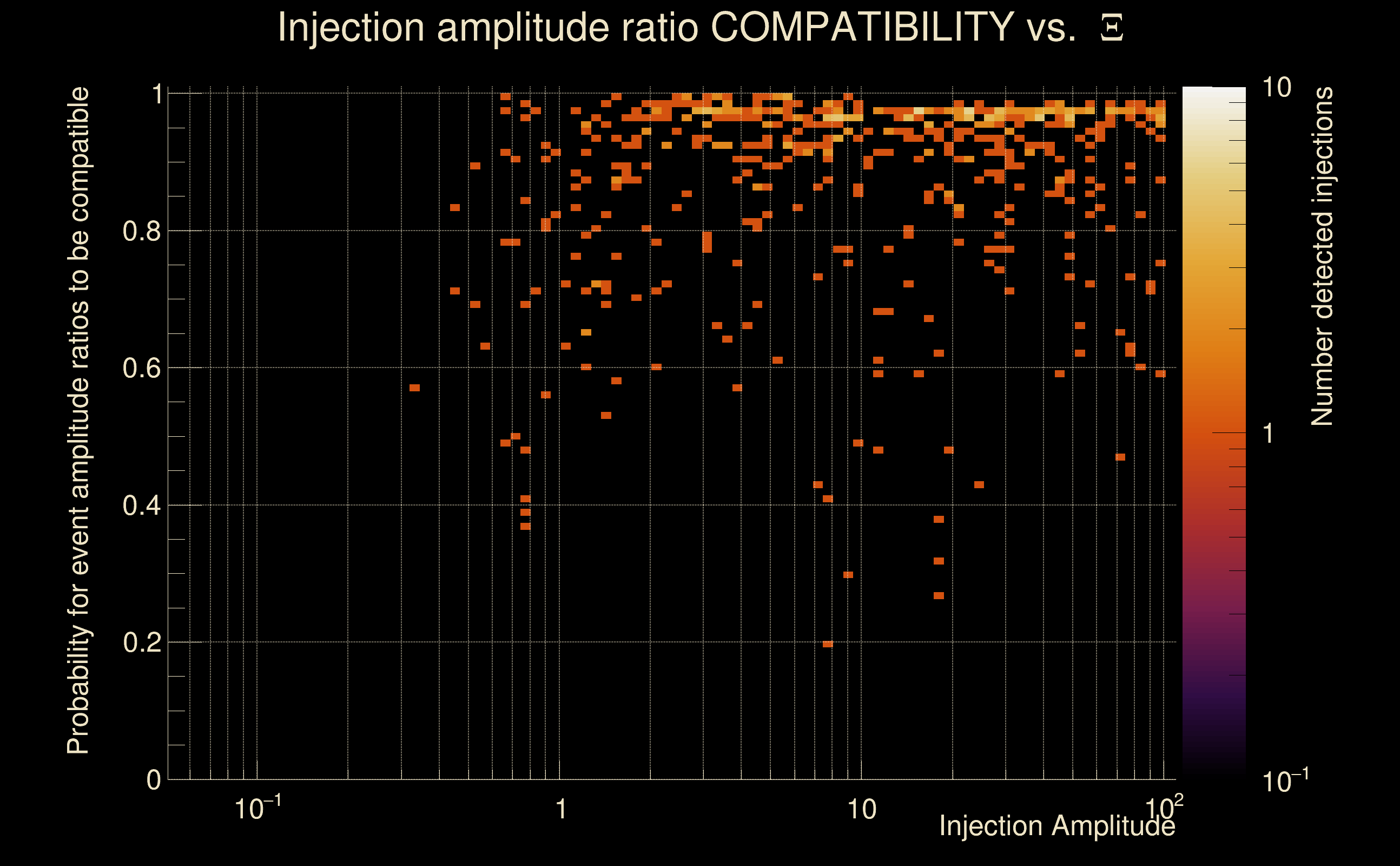

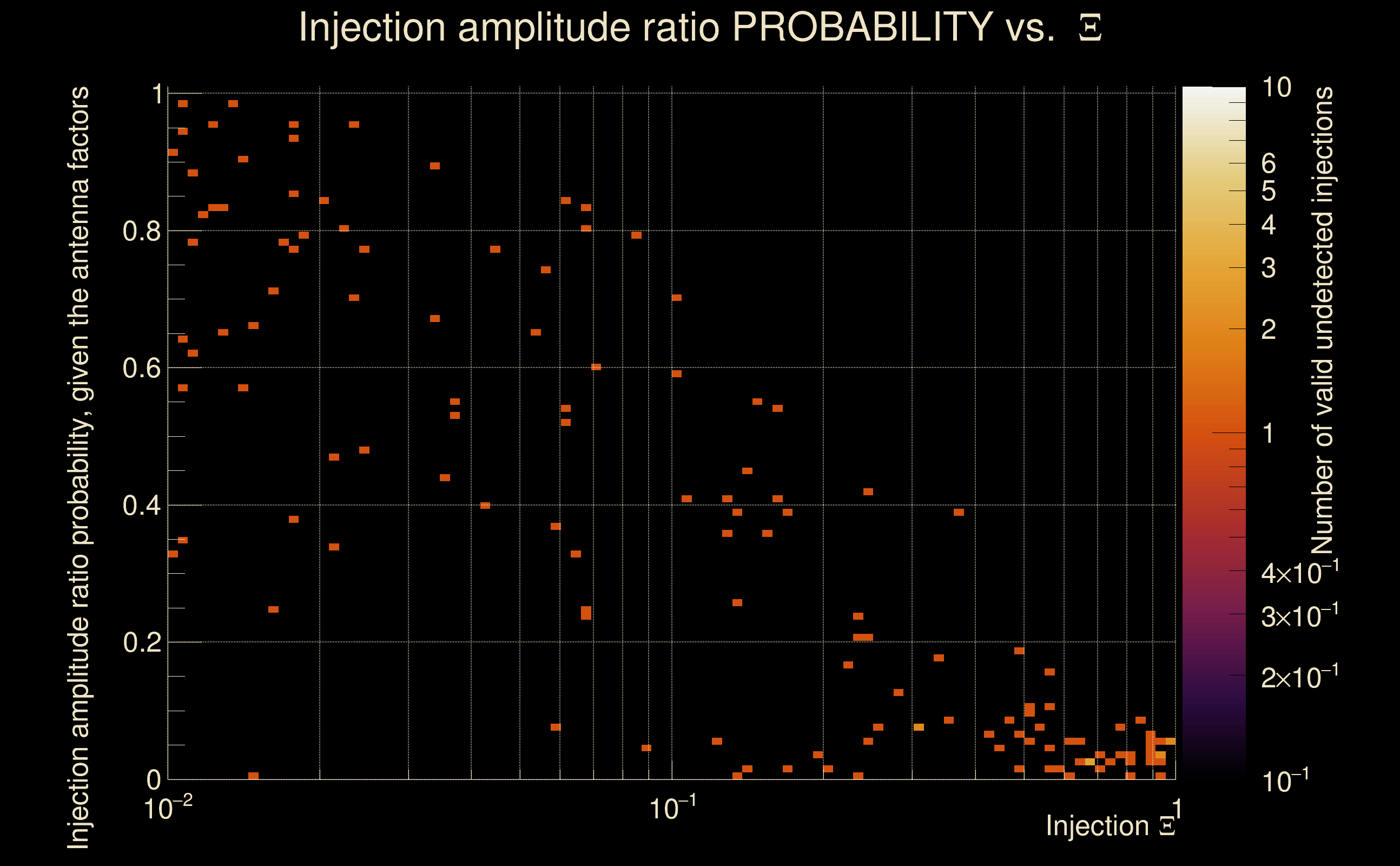

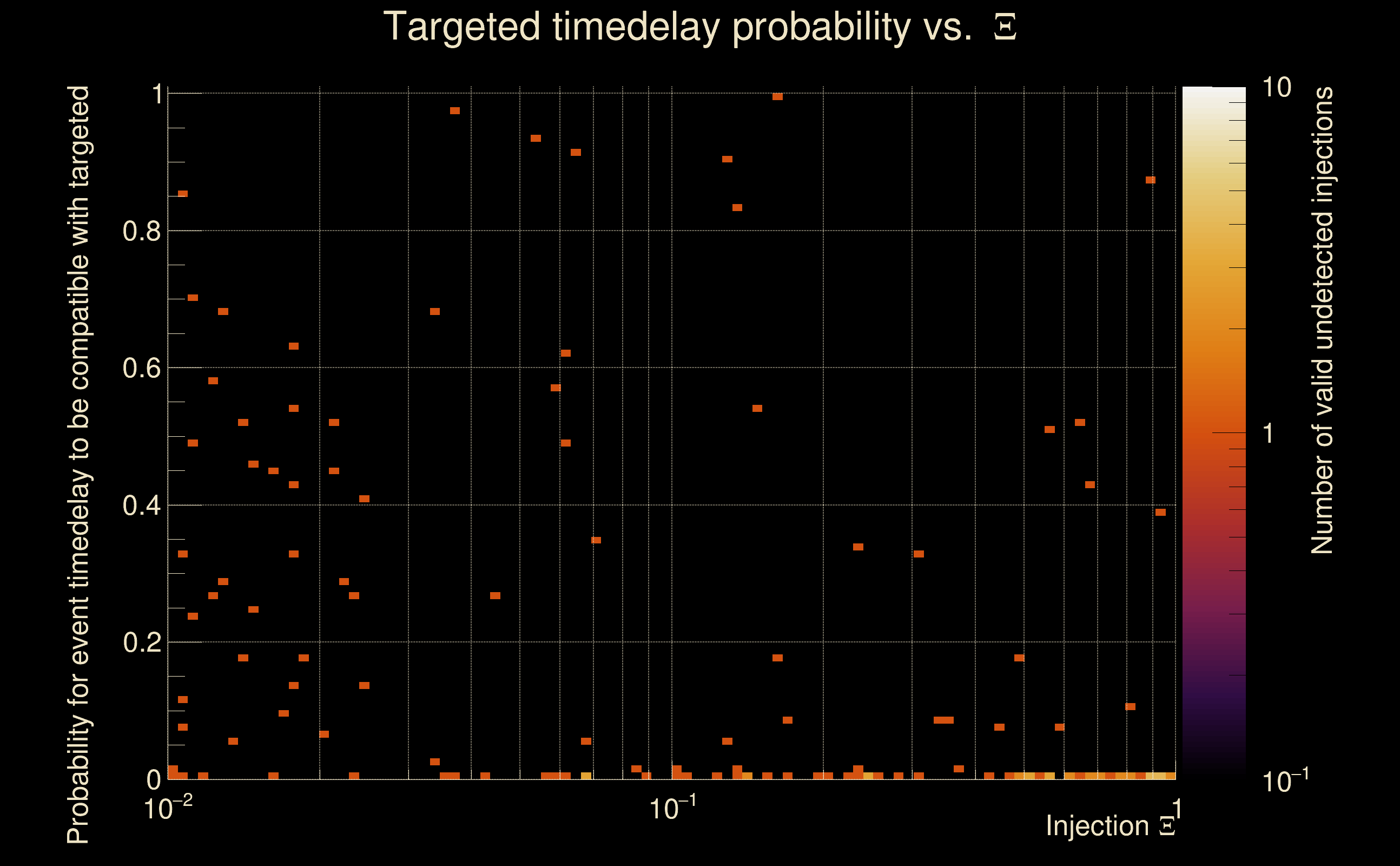

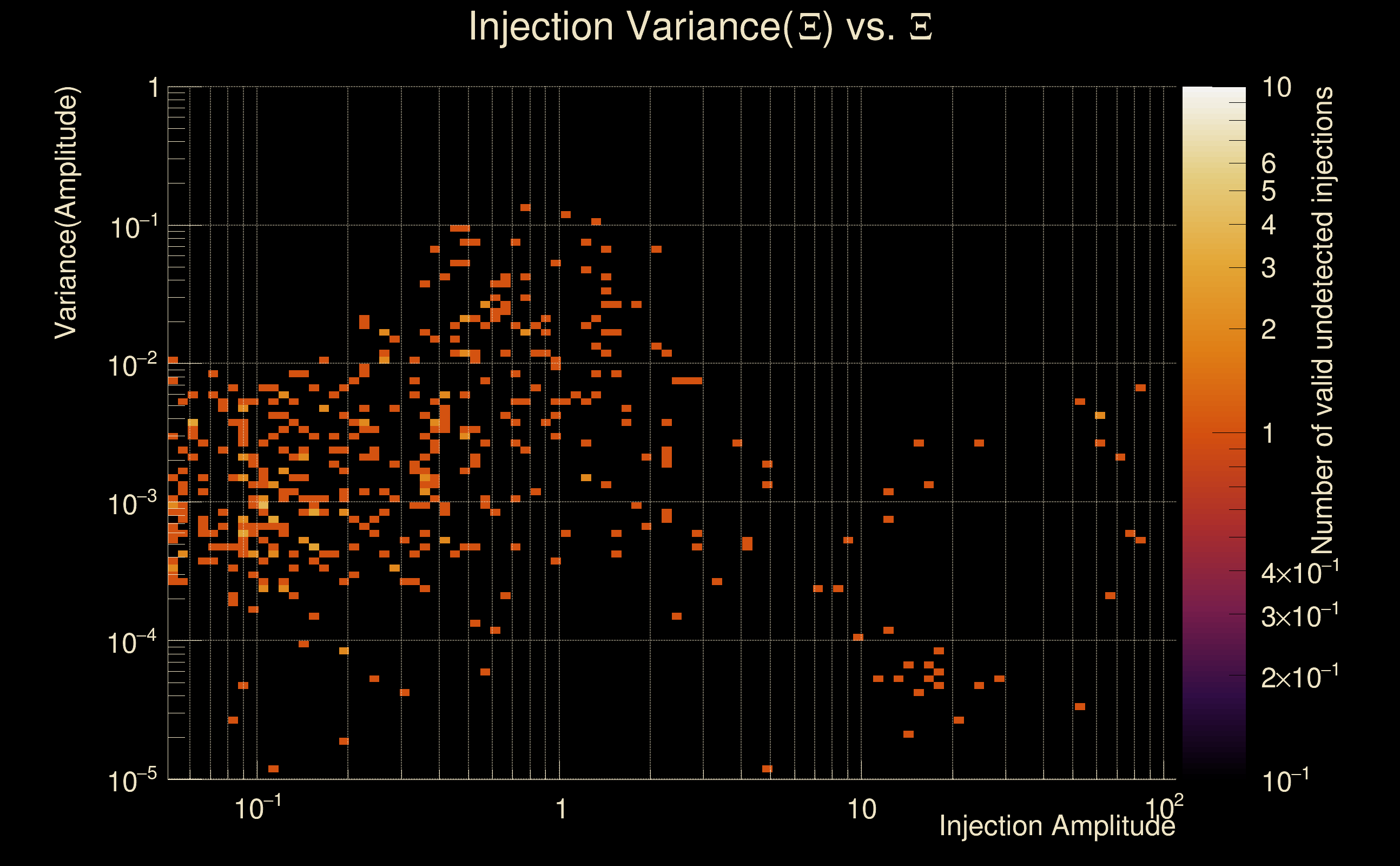

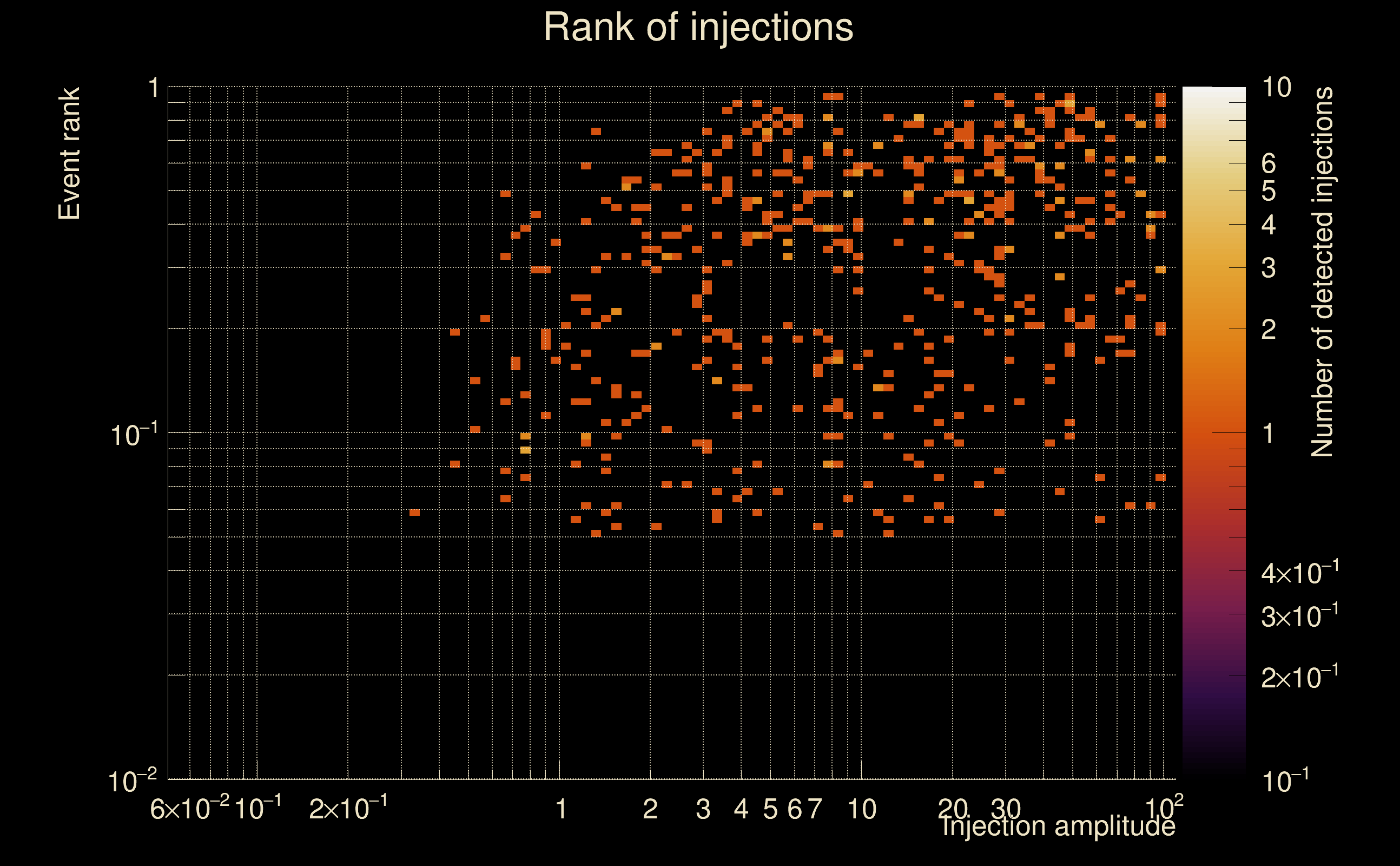

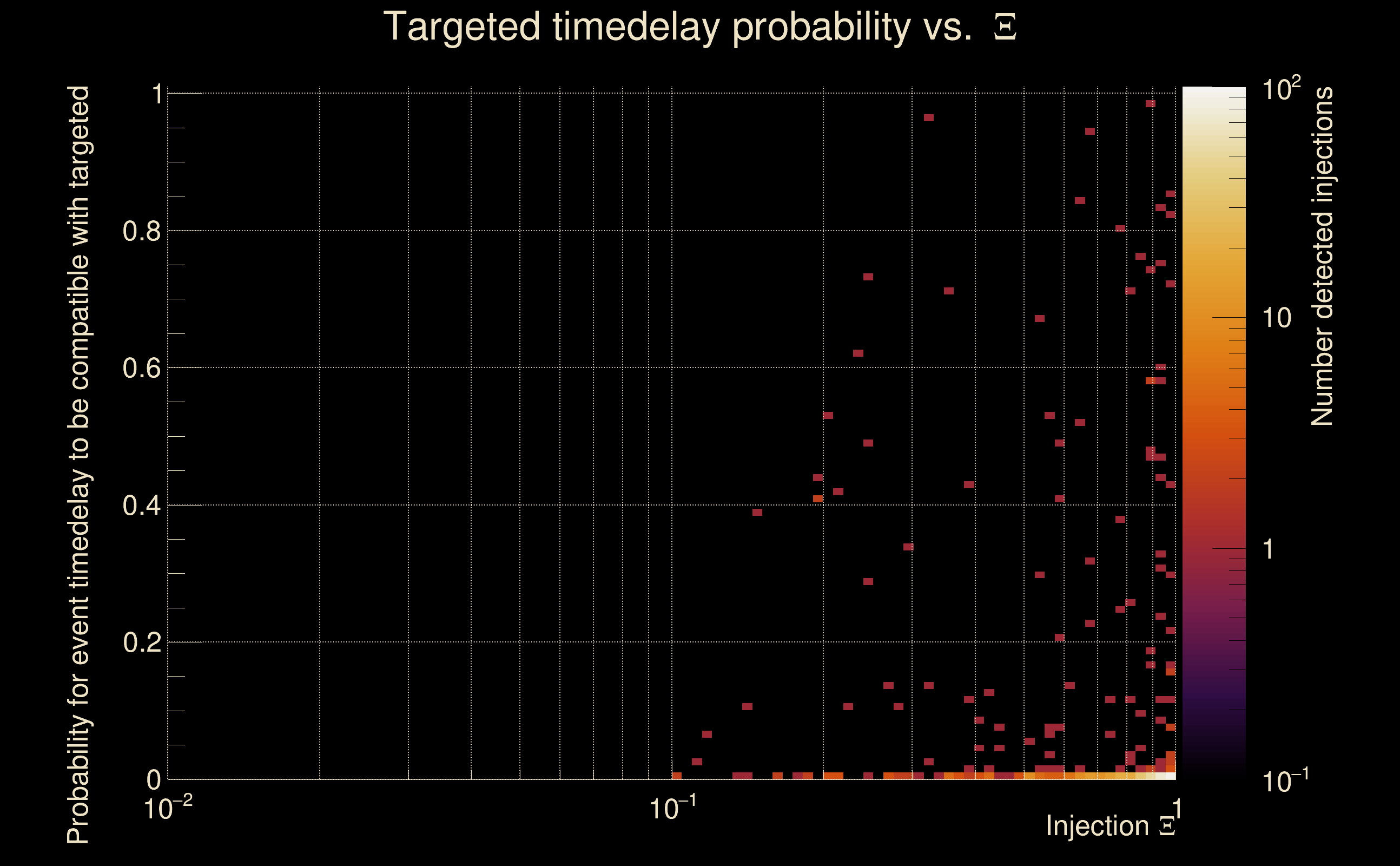

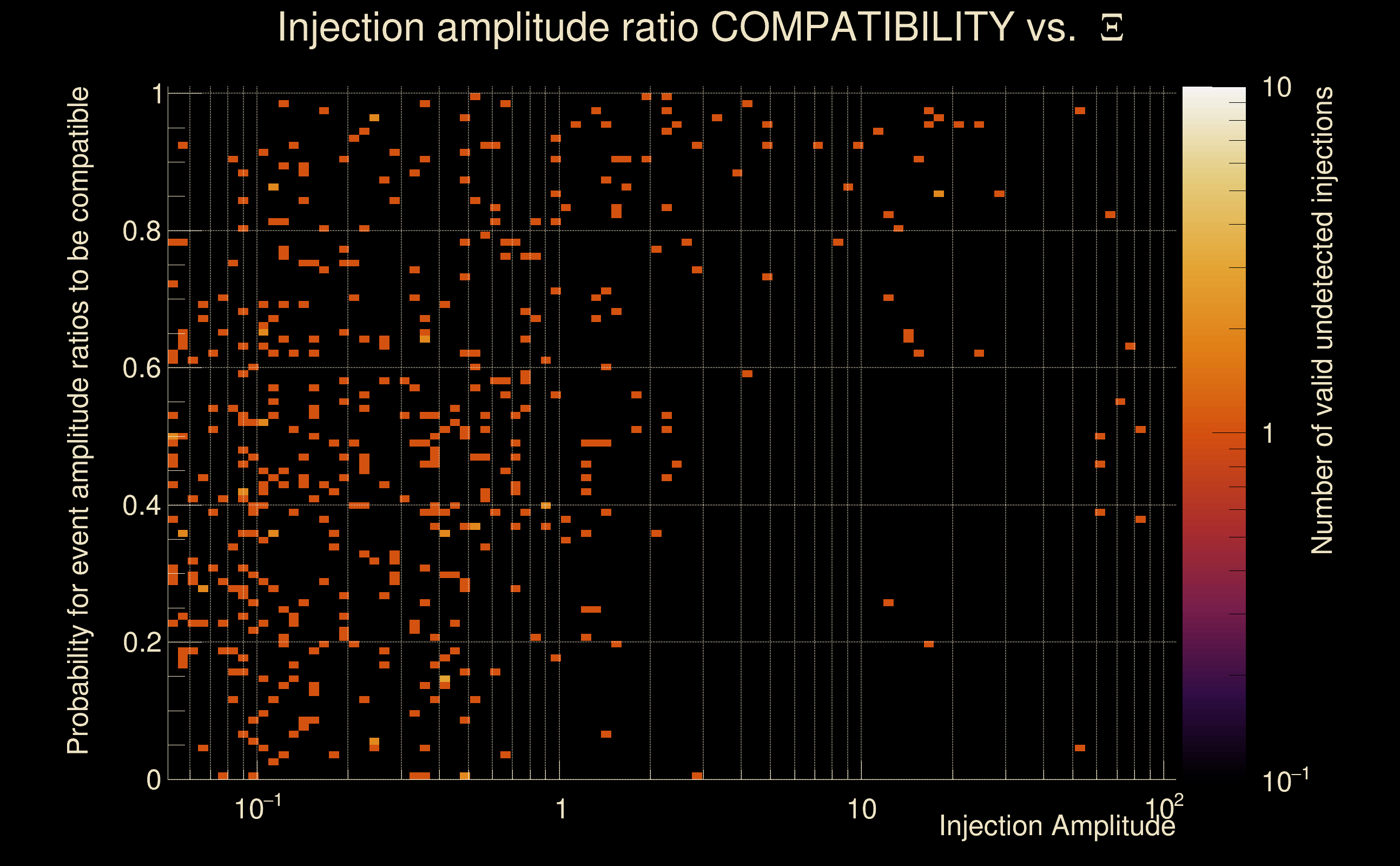

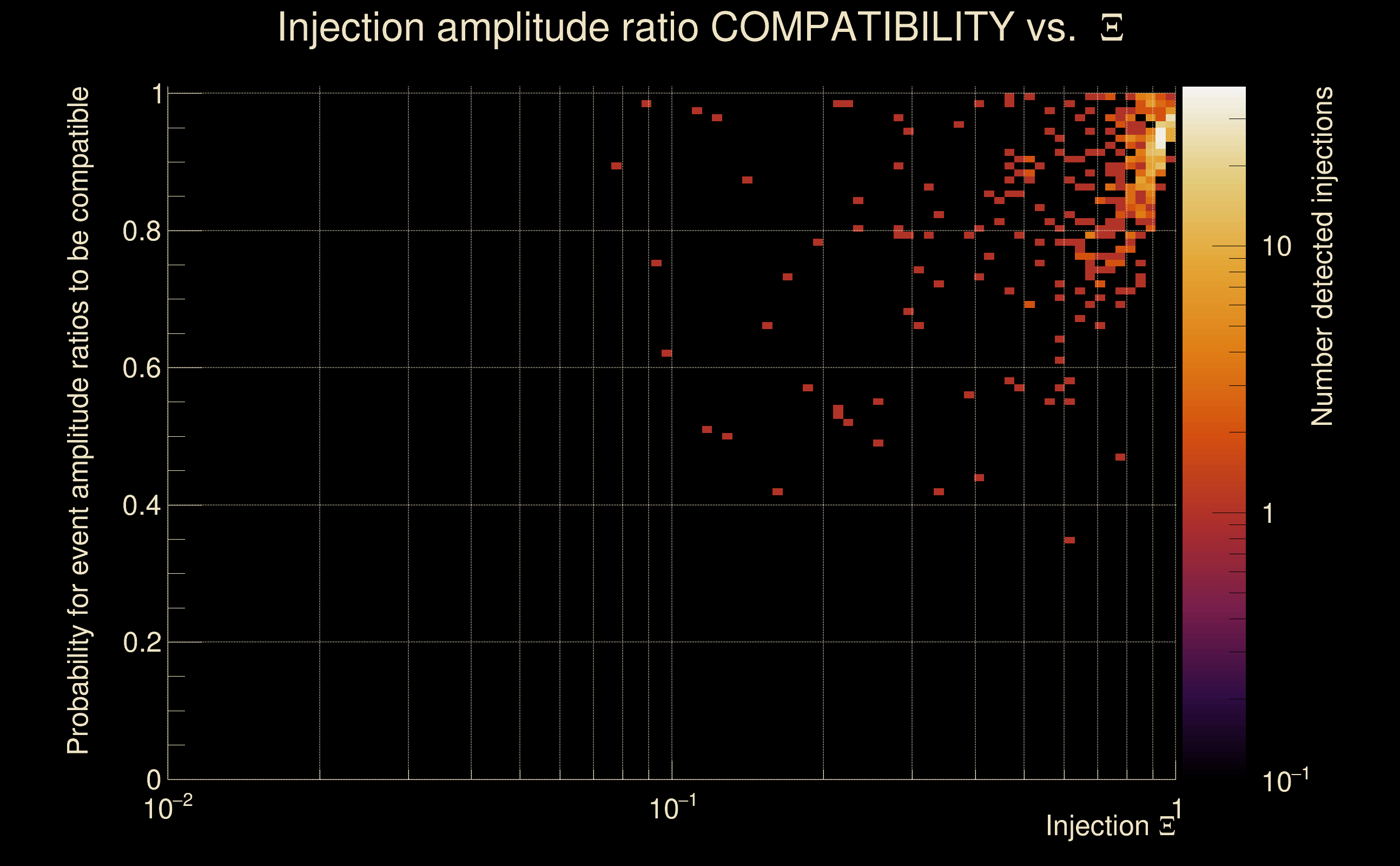

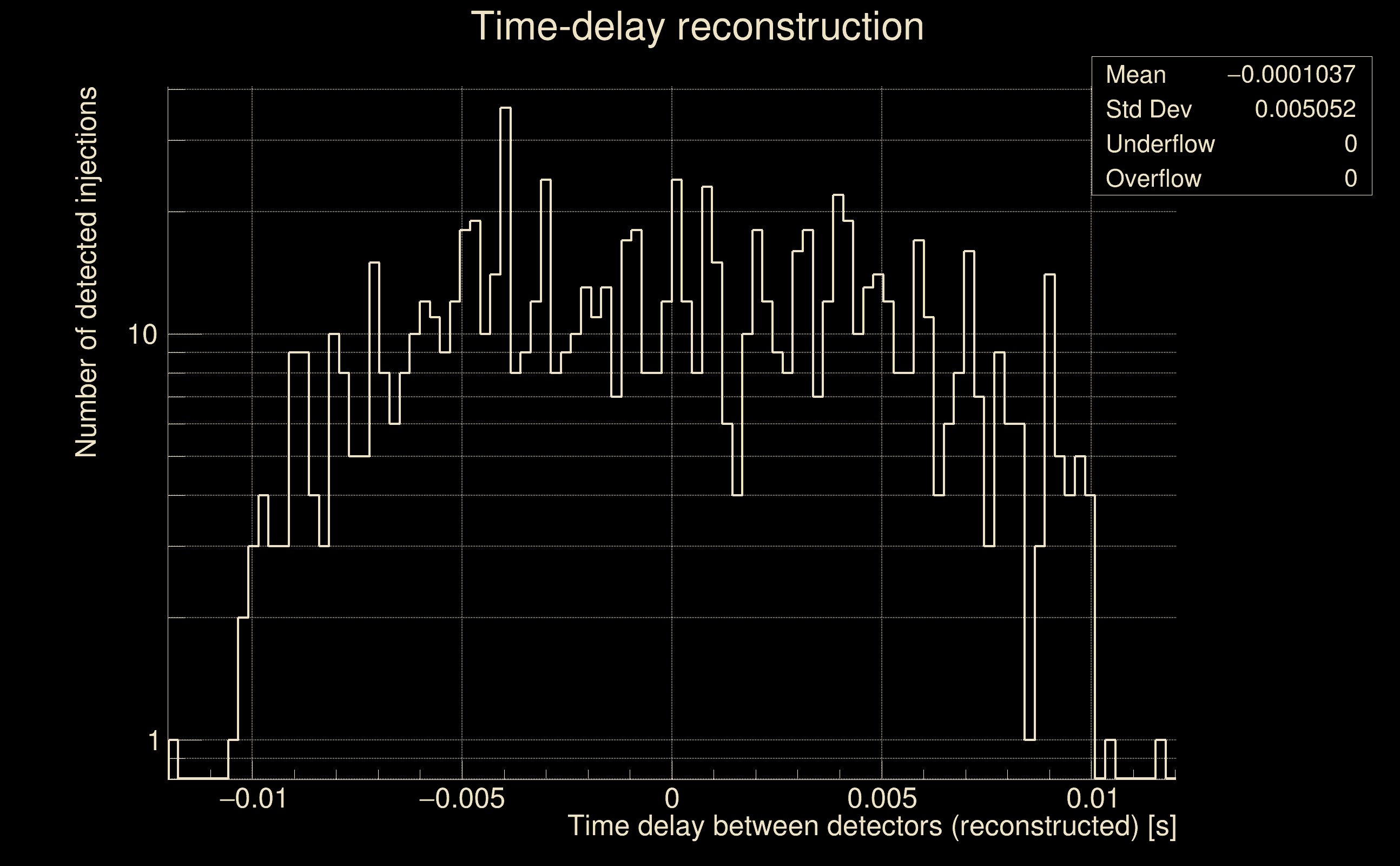

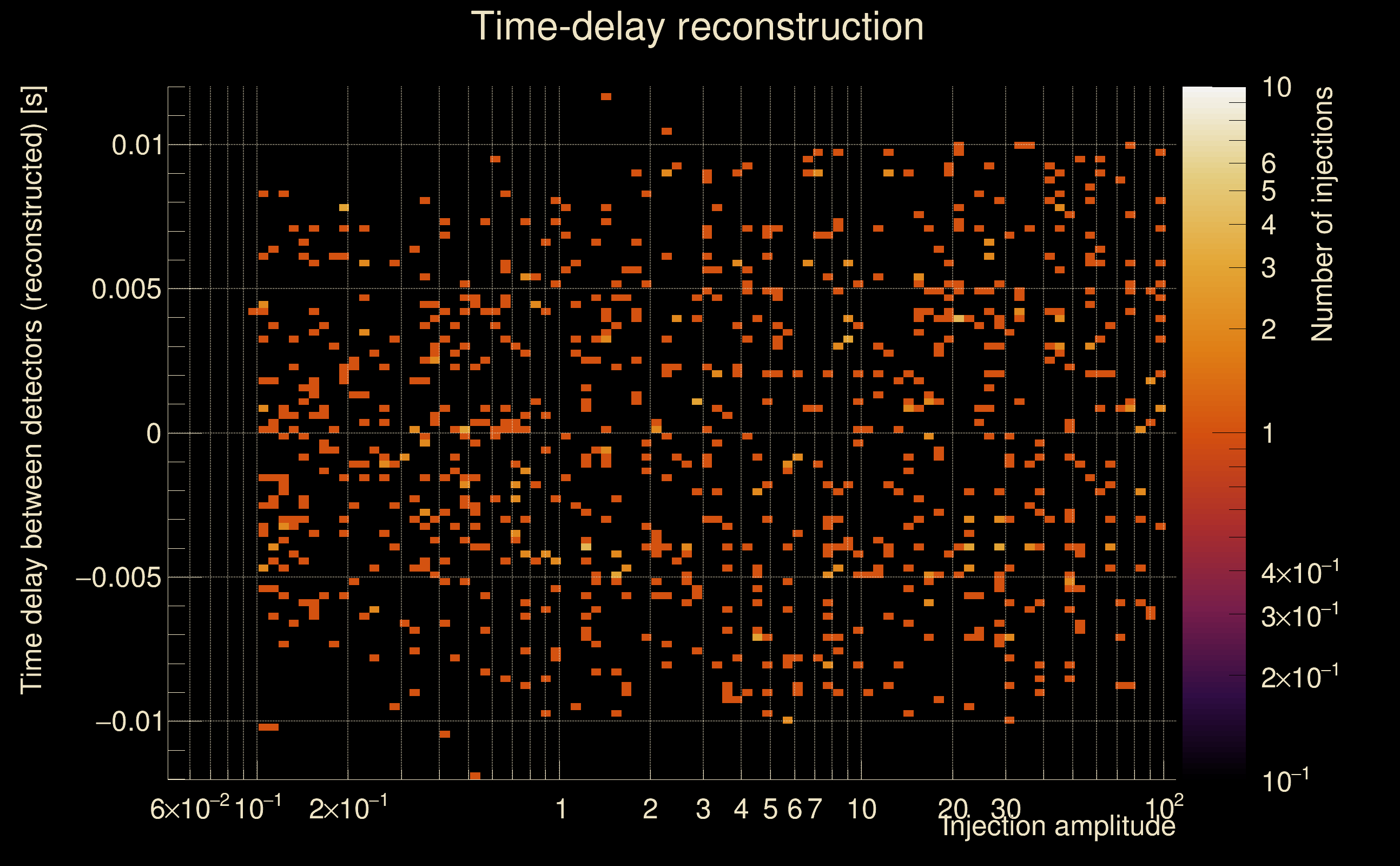

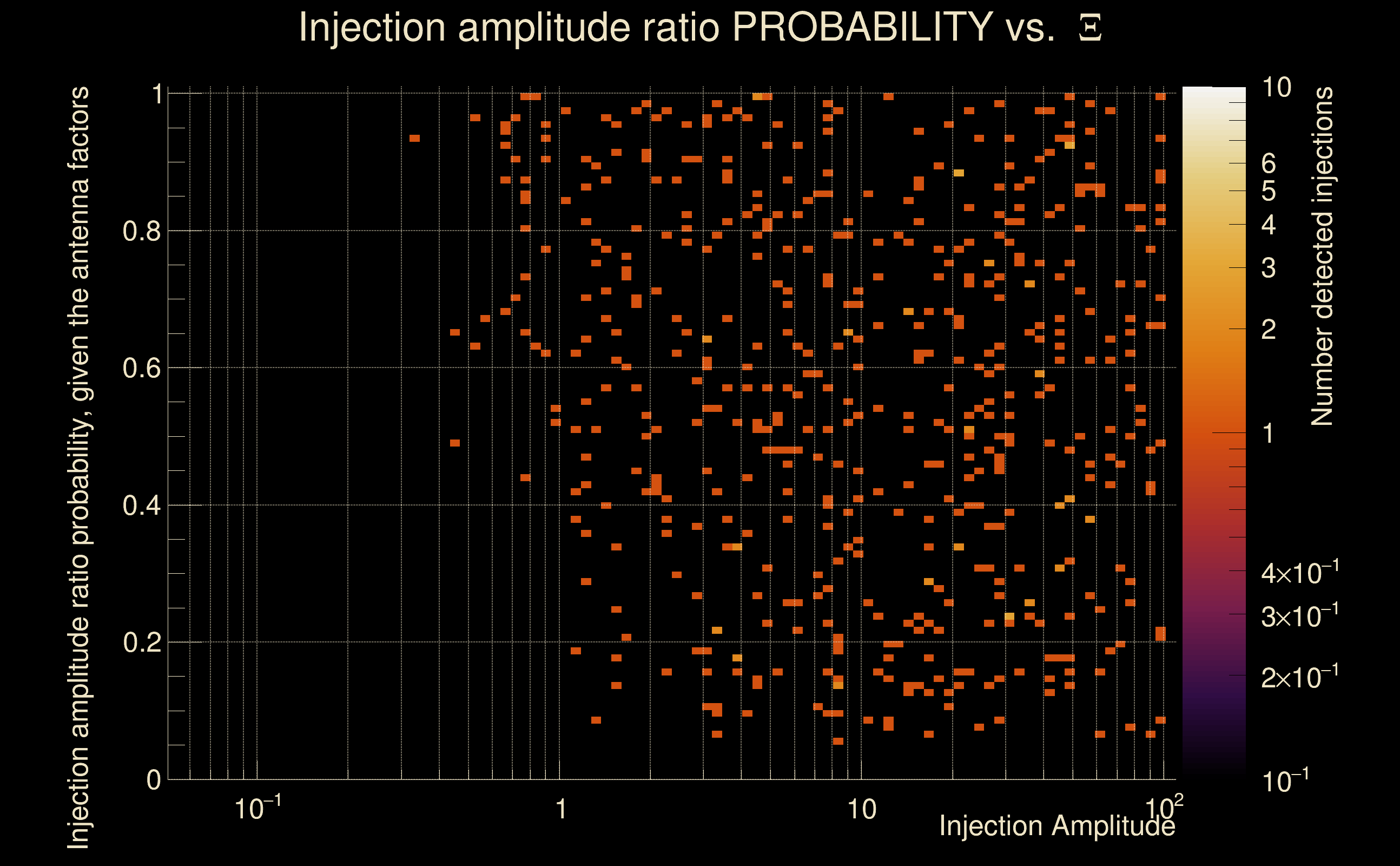

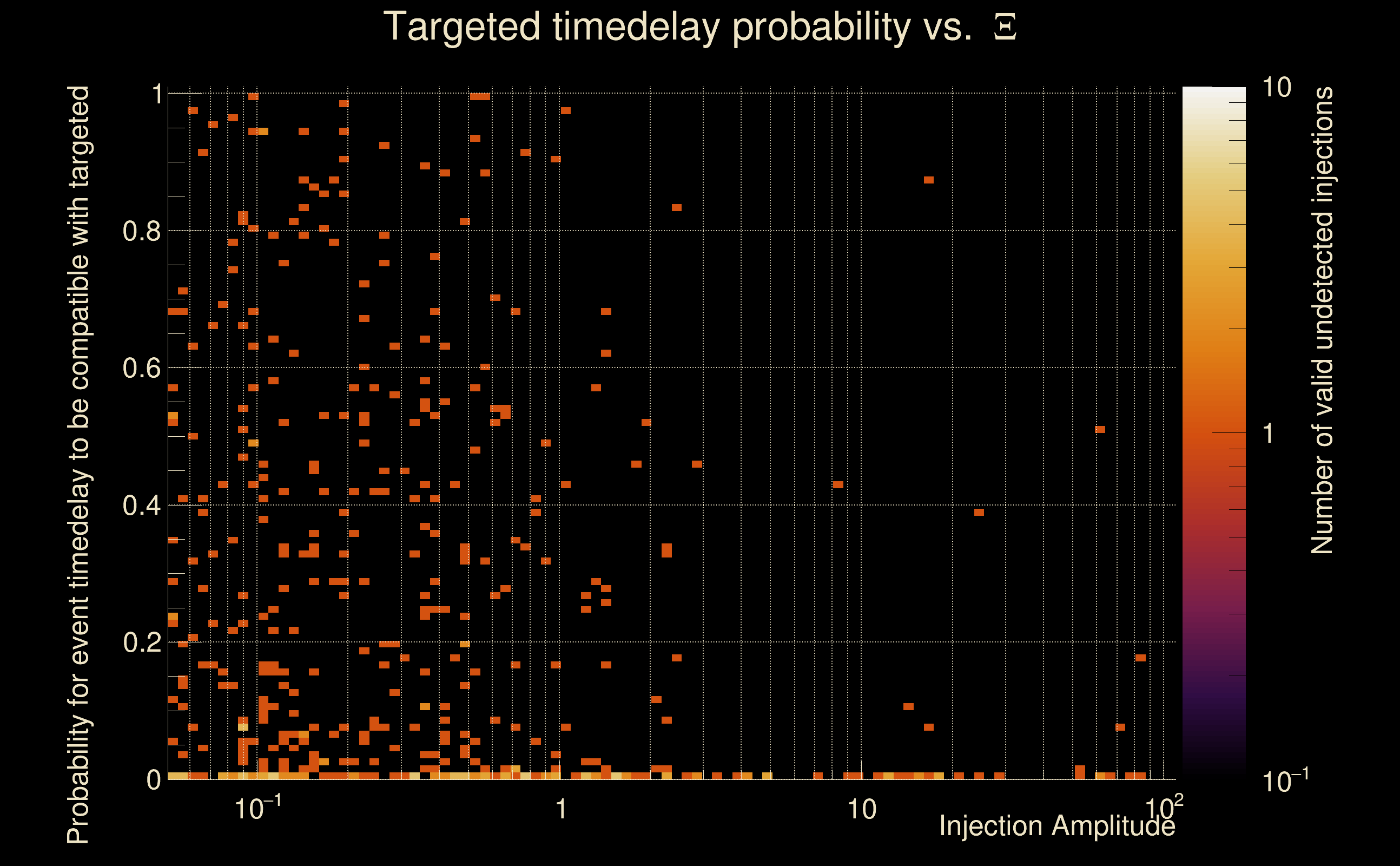

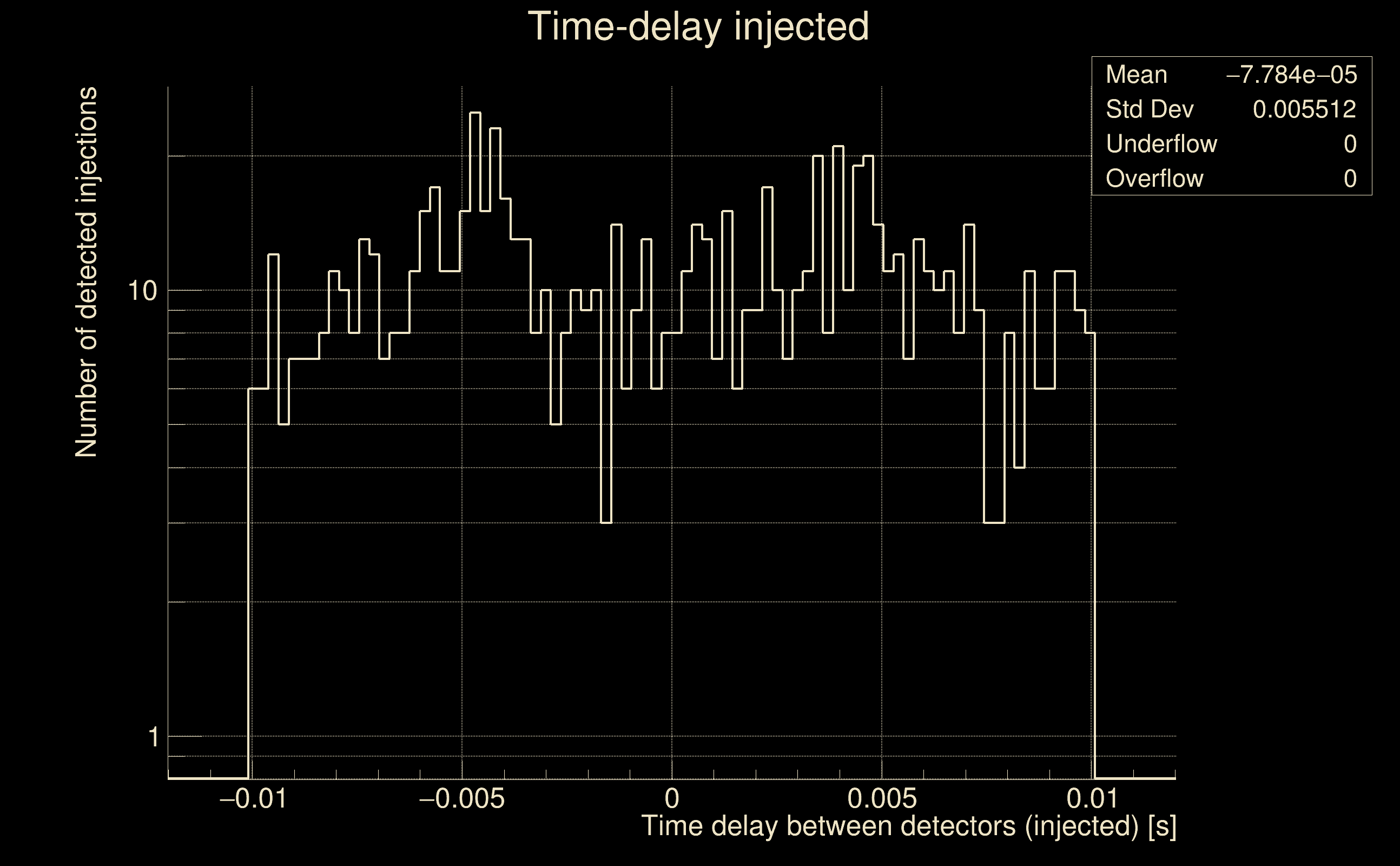

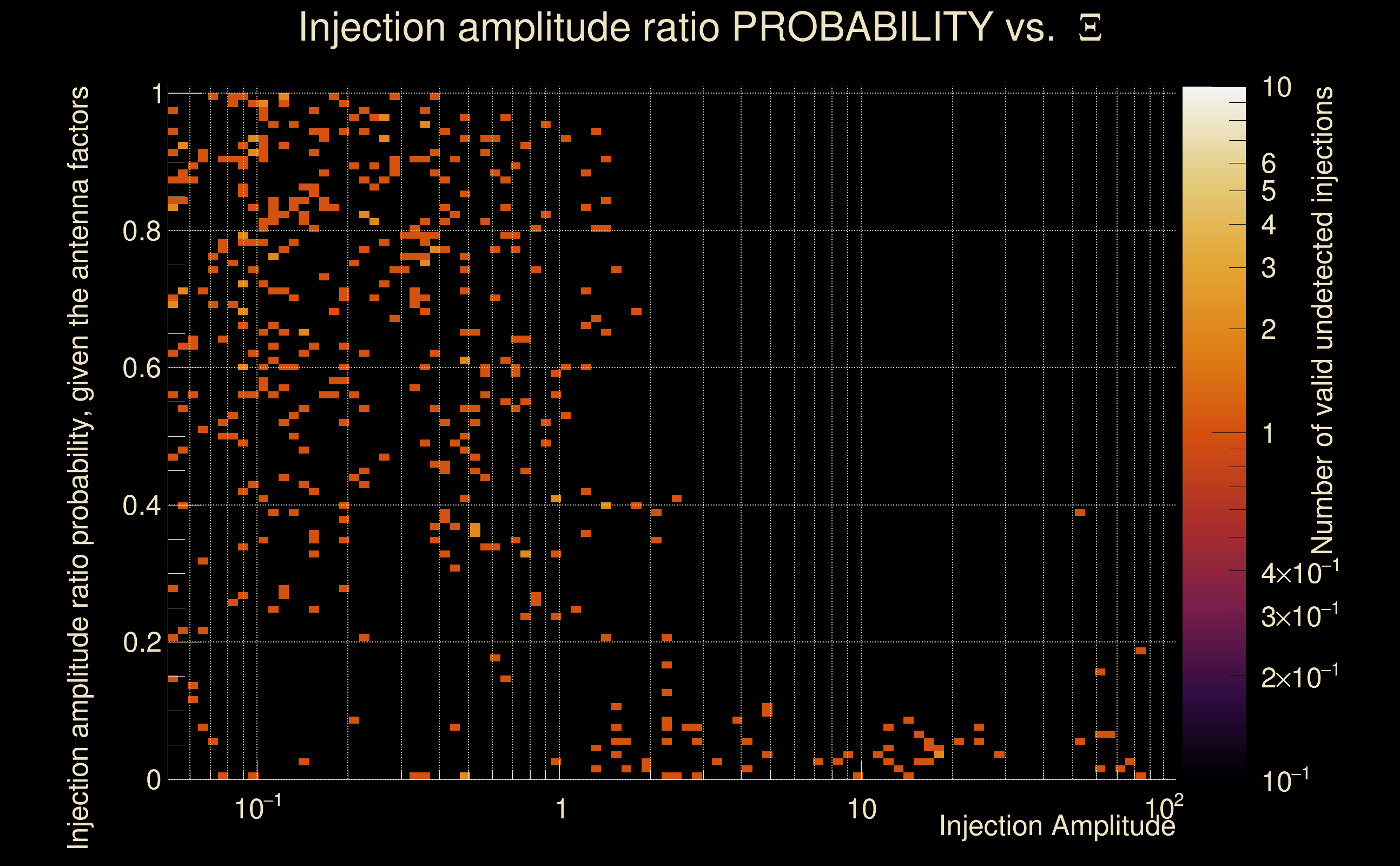

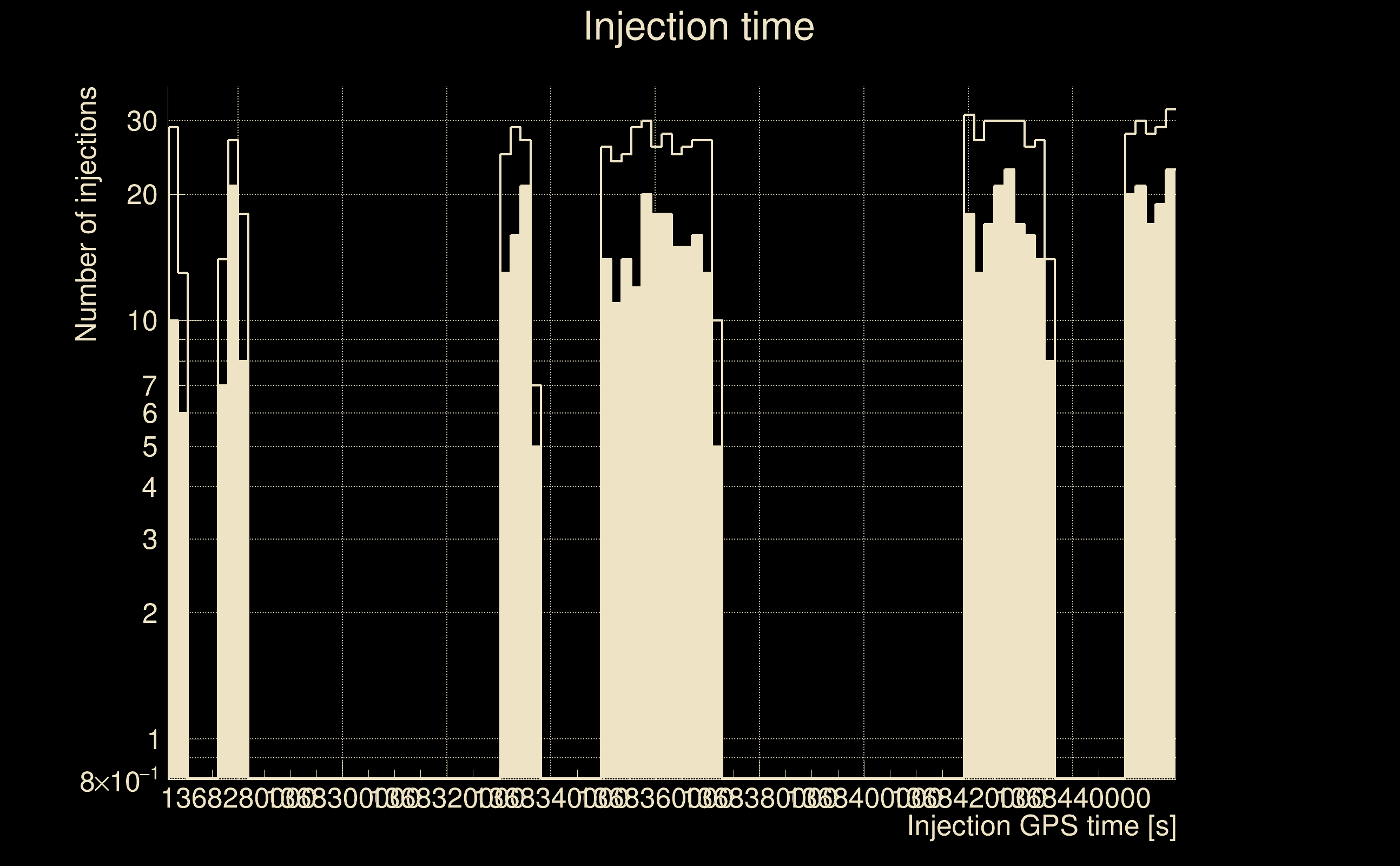

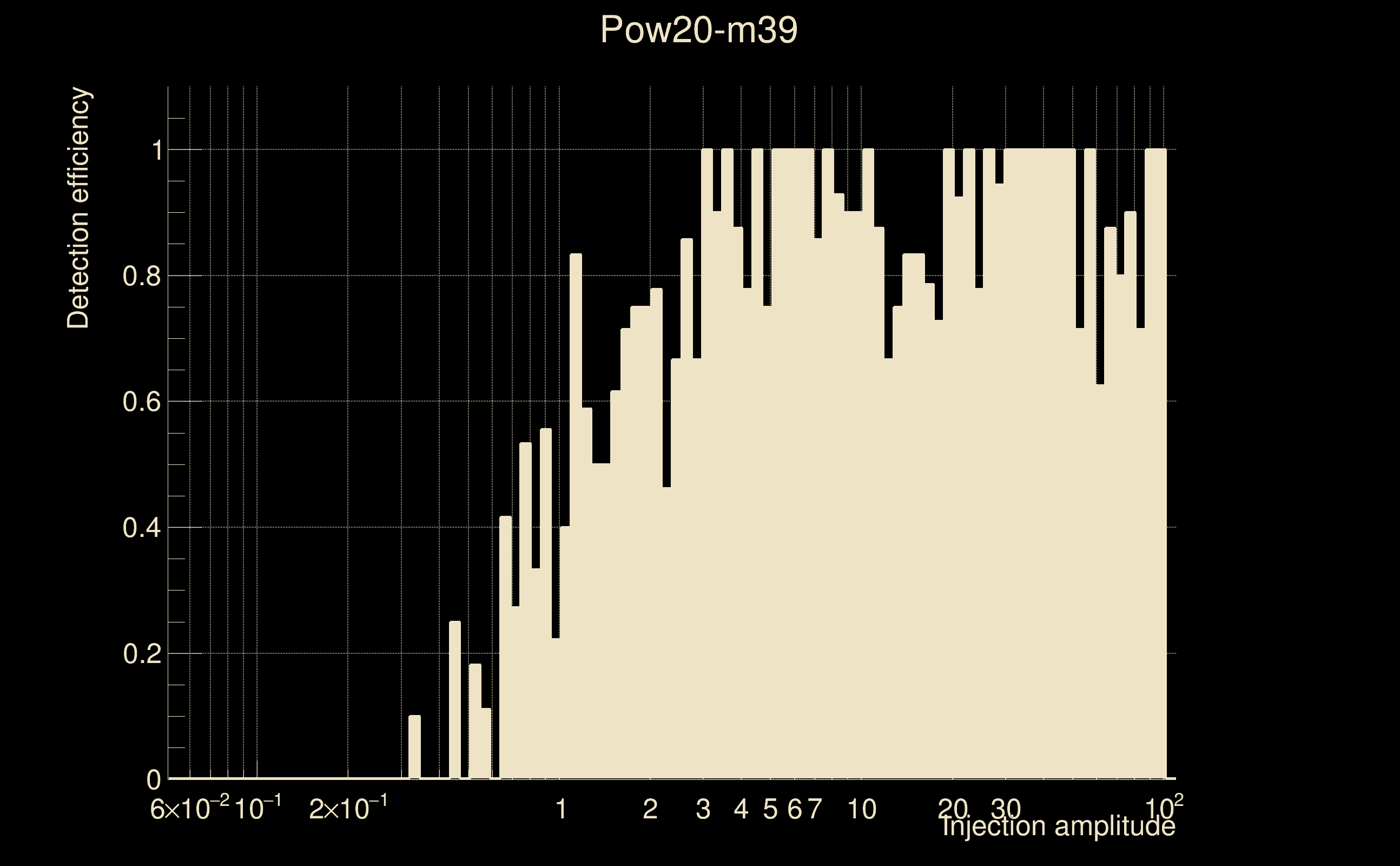

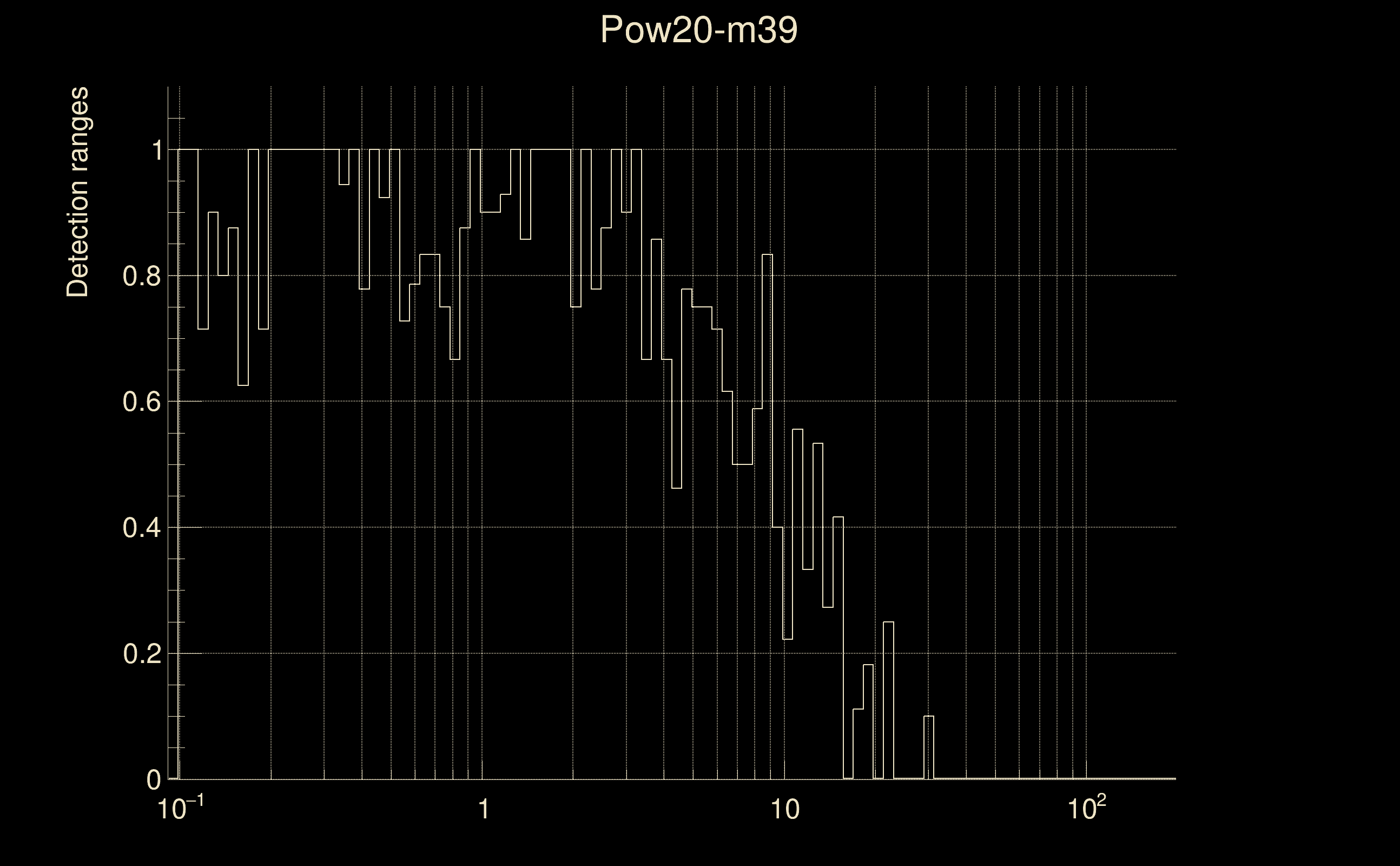

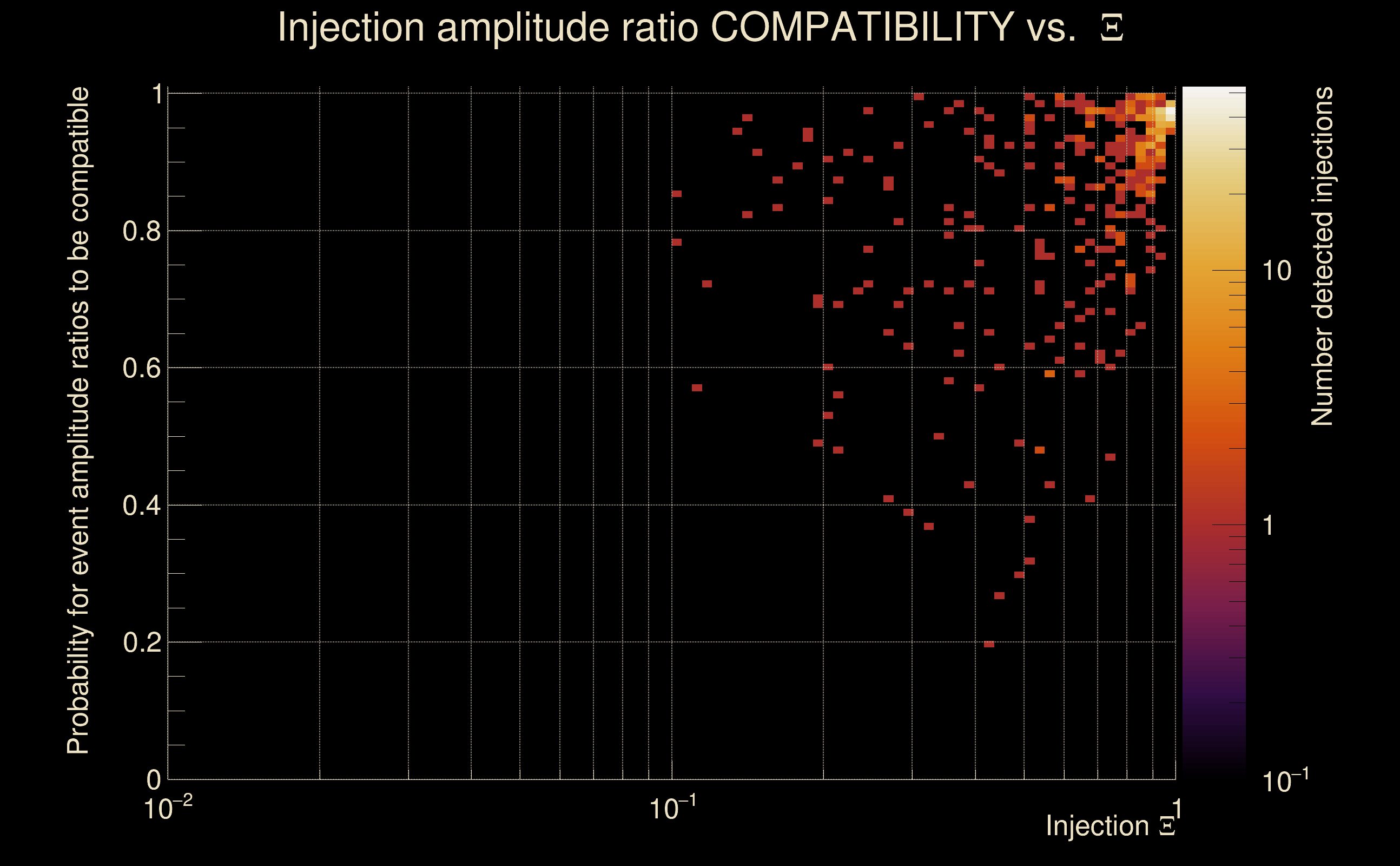

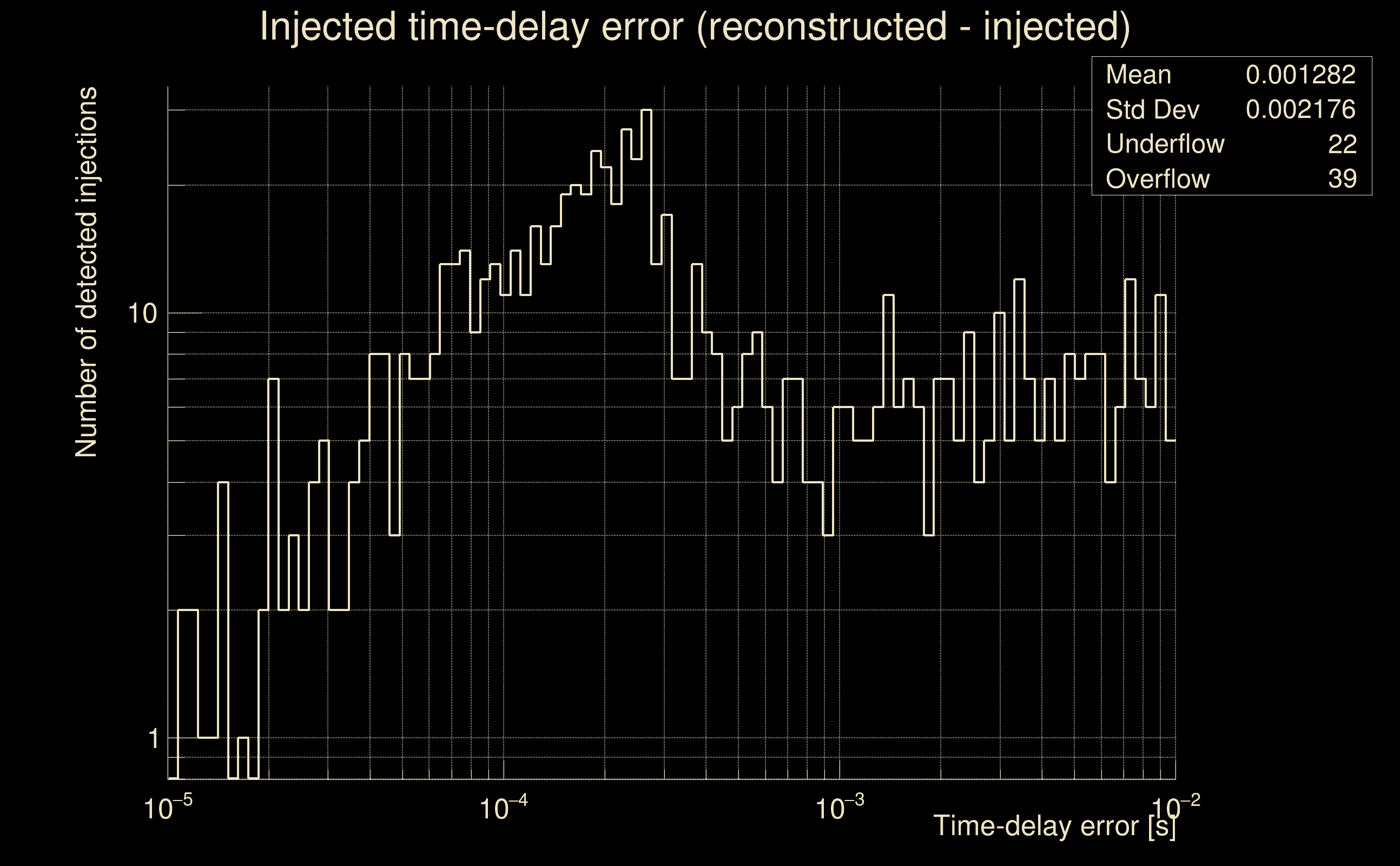

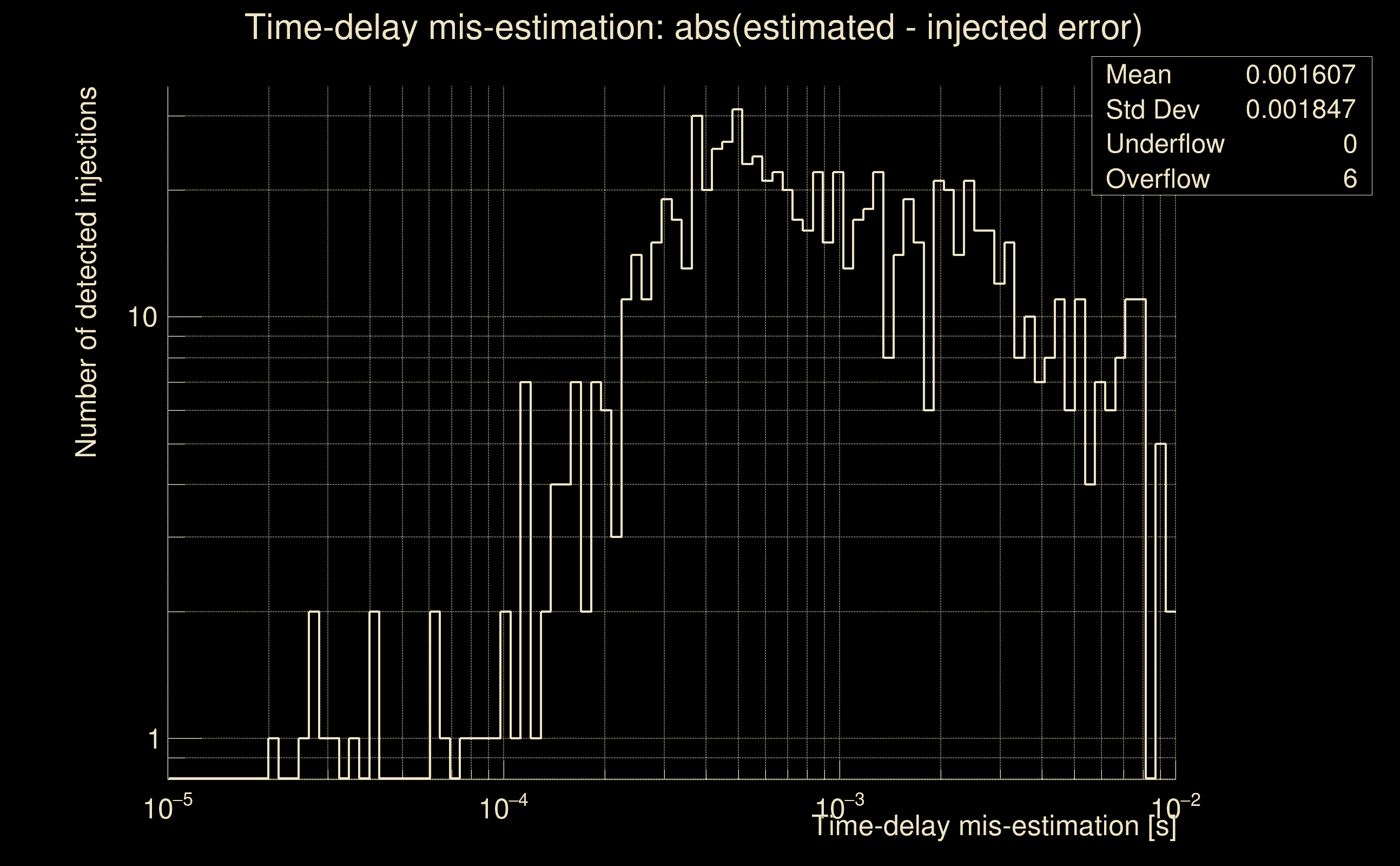

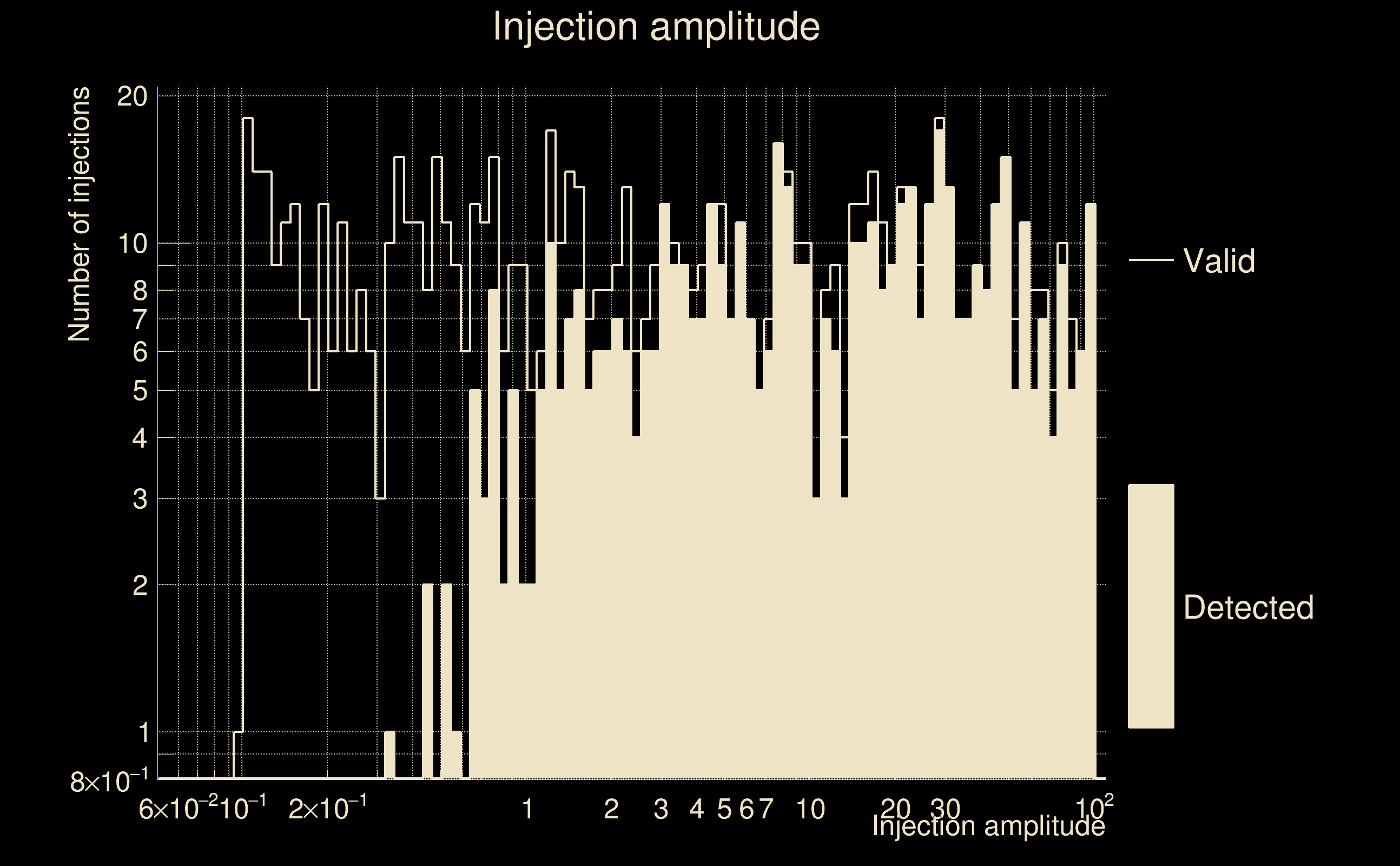

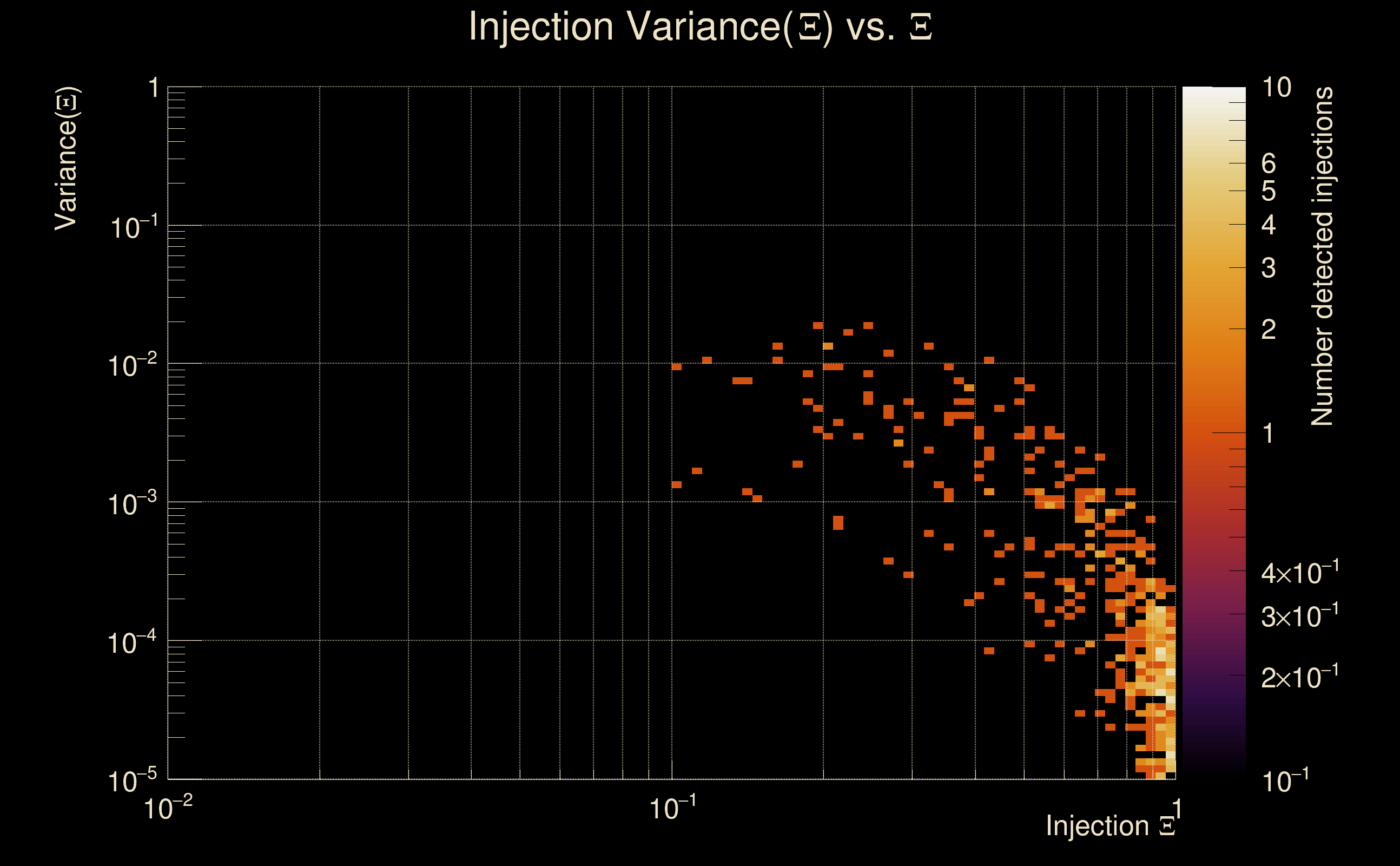

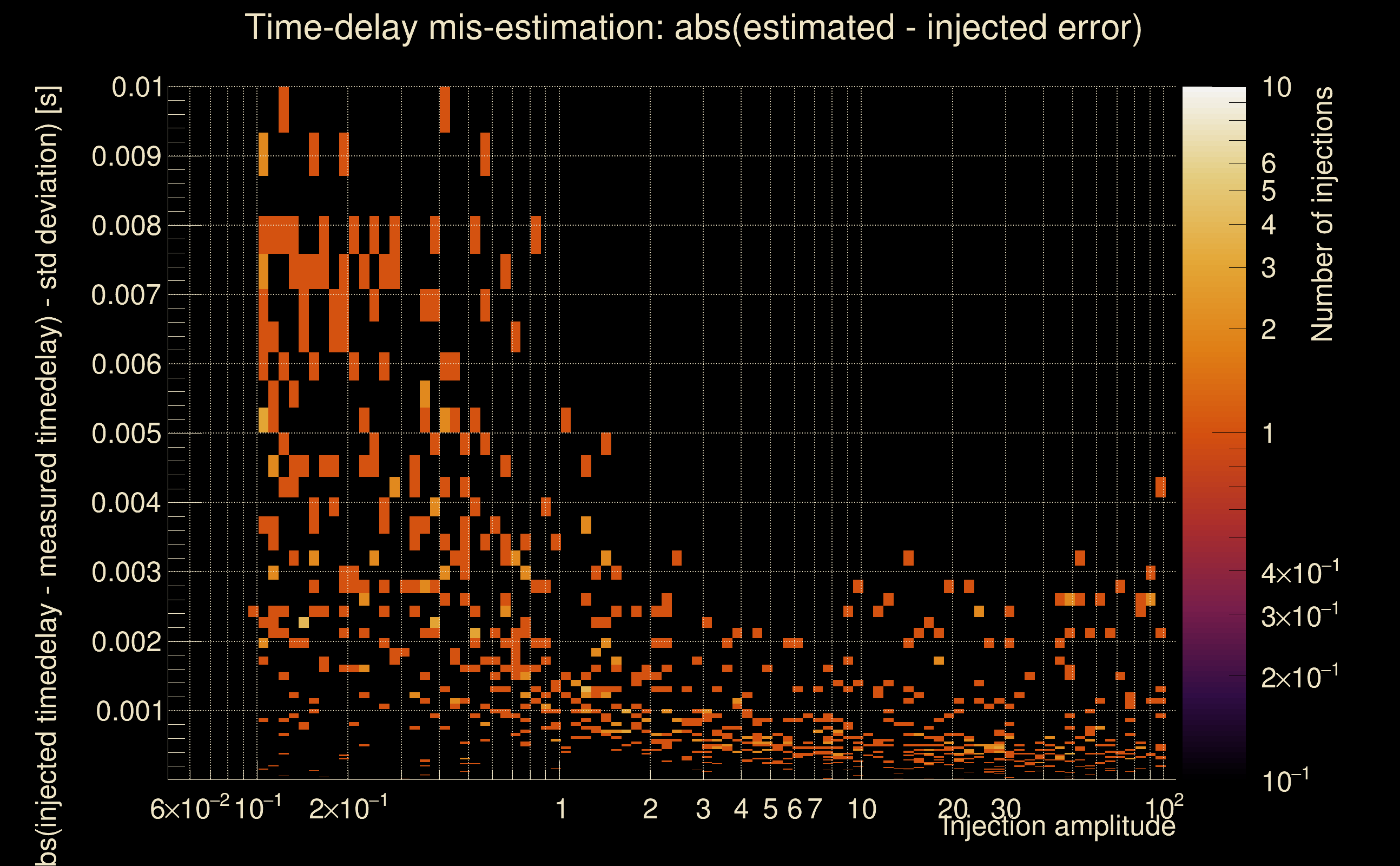

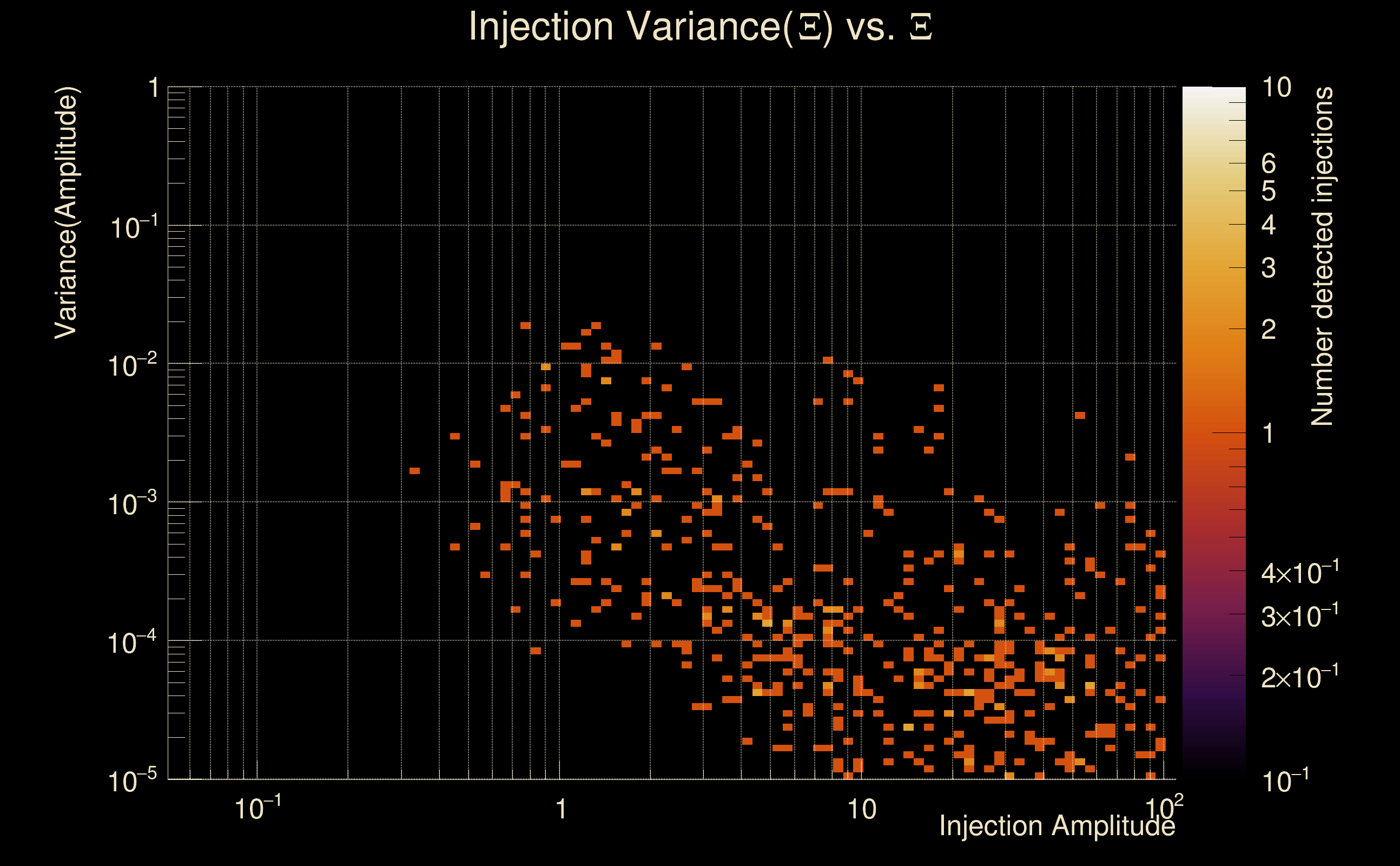

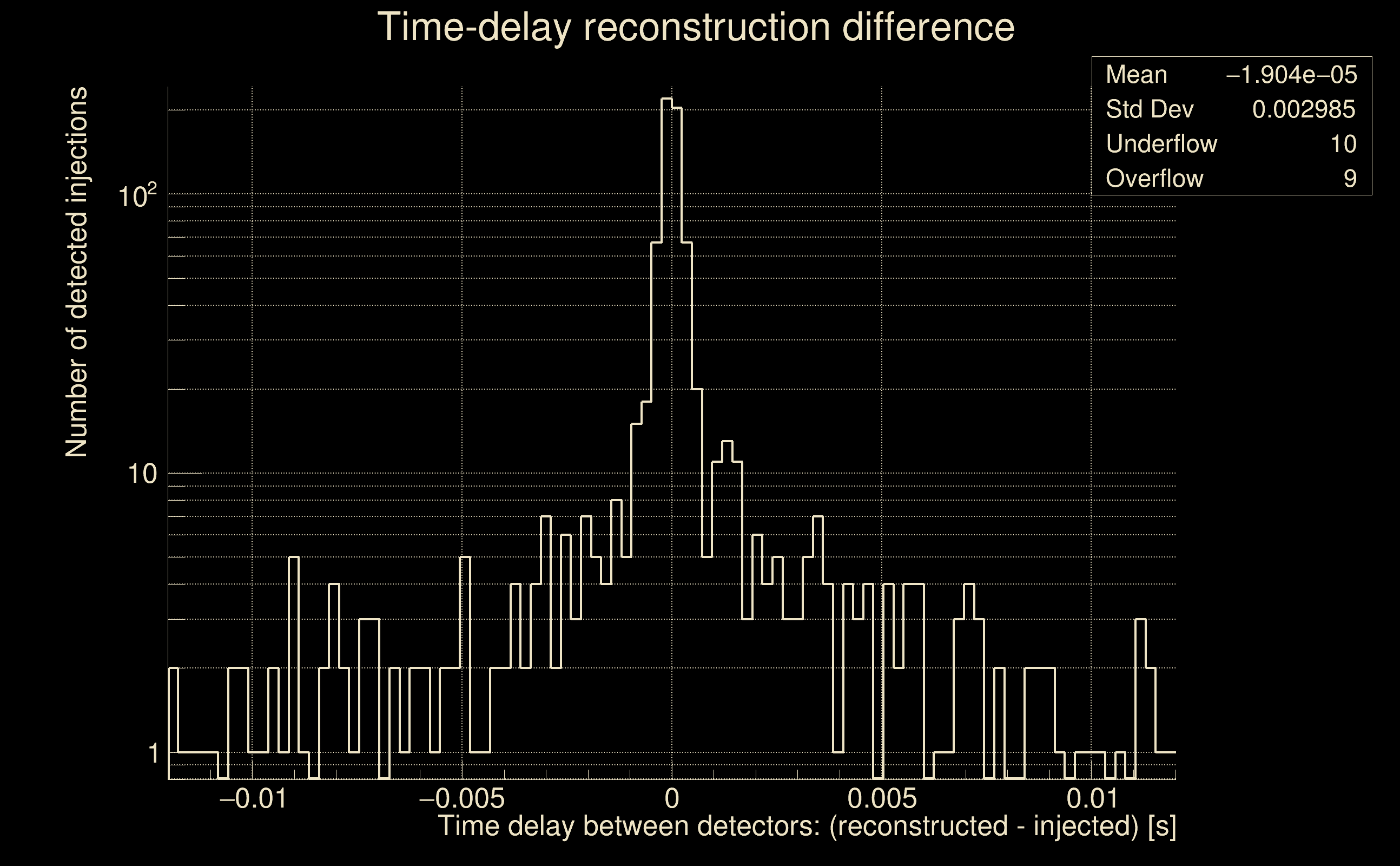

| Number of injections (total/valid/detected): | 1006 / 884 / 525 |
| List of missed injections: | ./Pow20-m39_missed.txt |
| Injection amplitude at 90% detection efficiency: | 3.01384 |
| Injection amplitude at 50% detection efficiency: | 2.30085 |
| Injection amplitude at 10% detection efficiency: | 0.626068 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

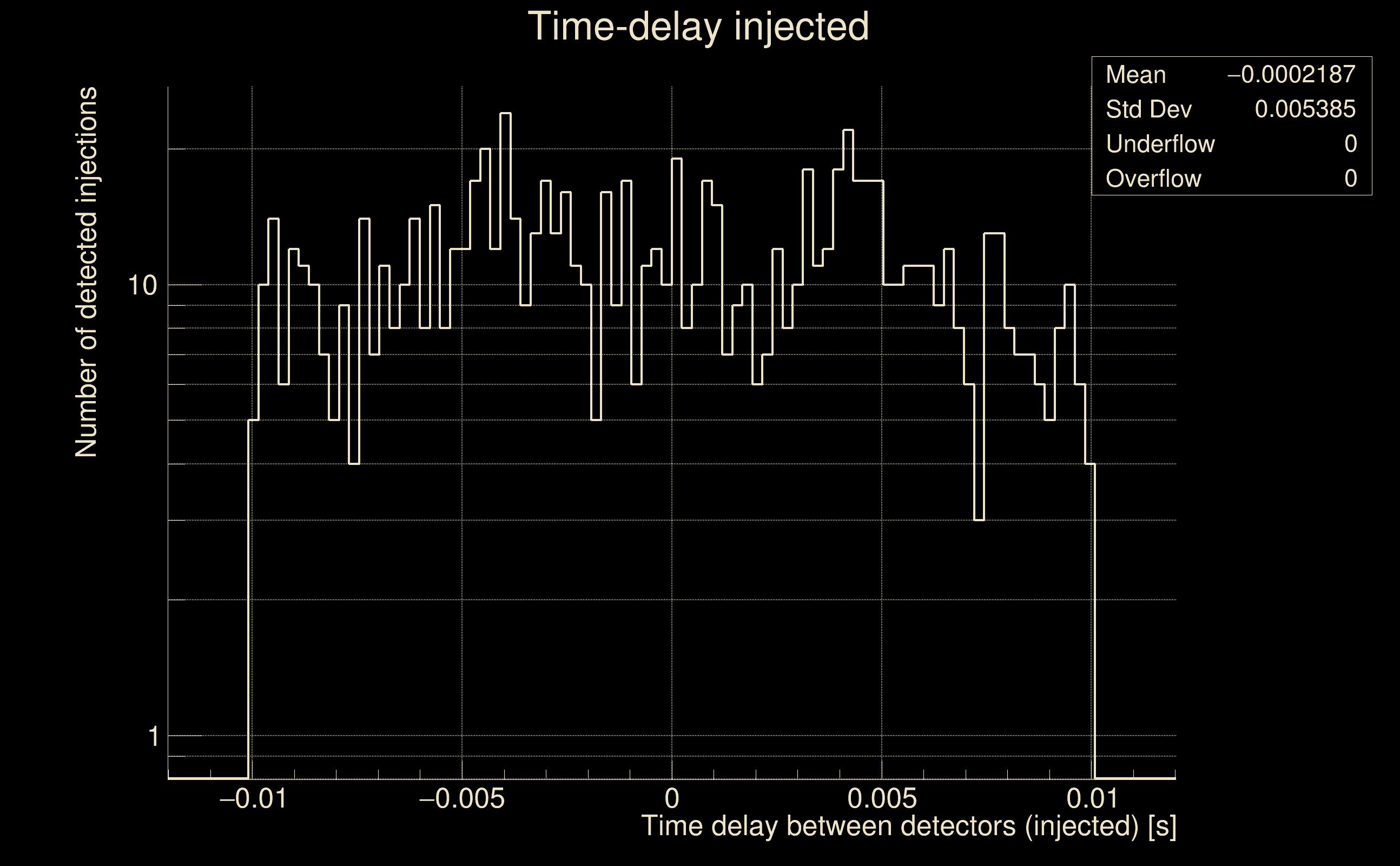

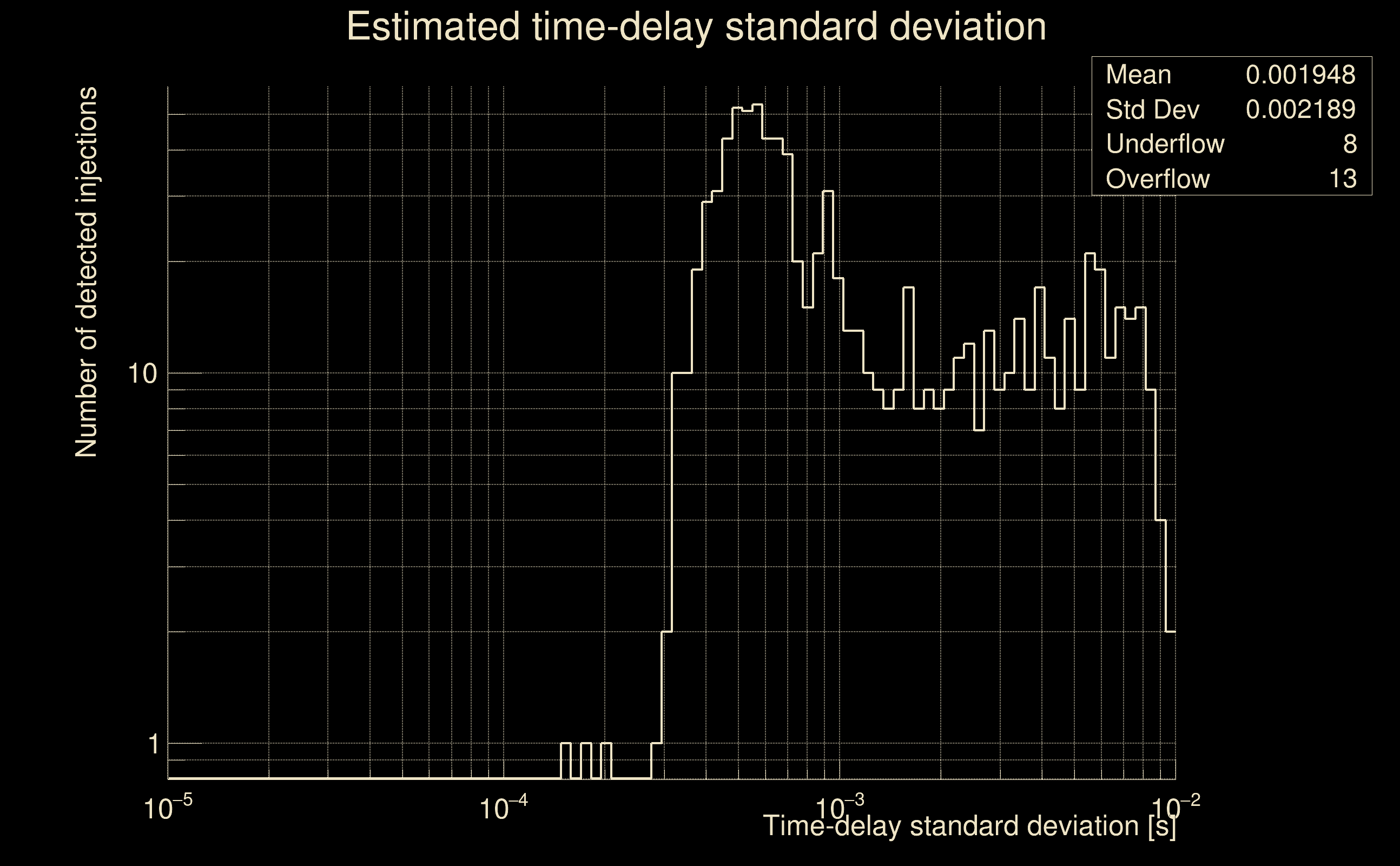

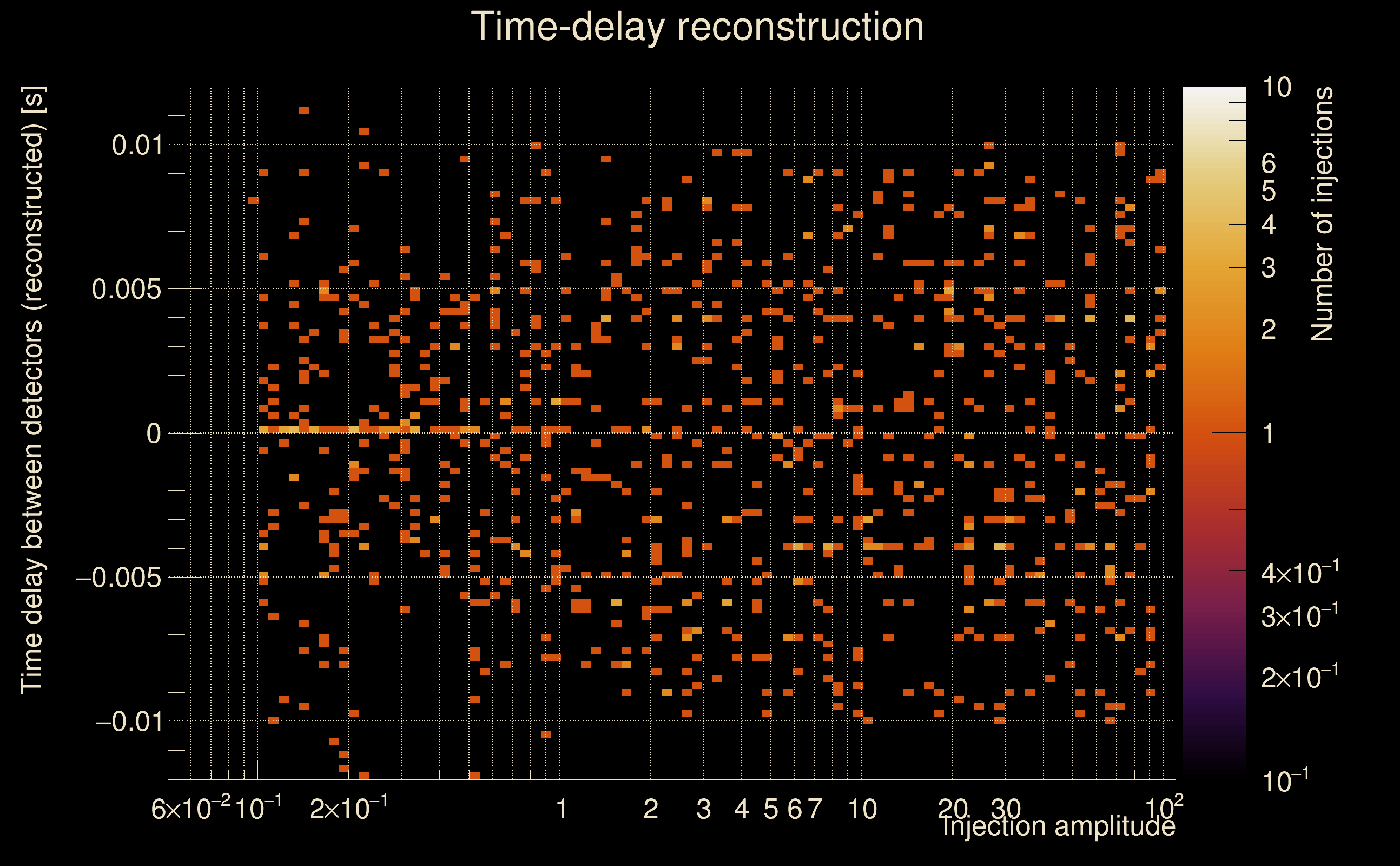

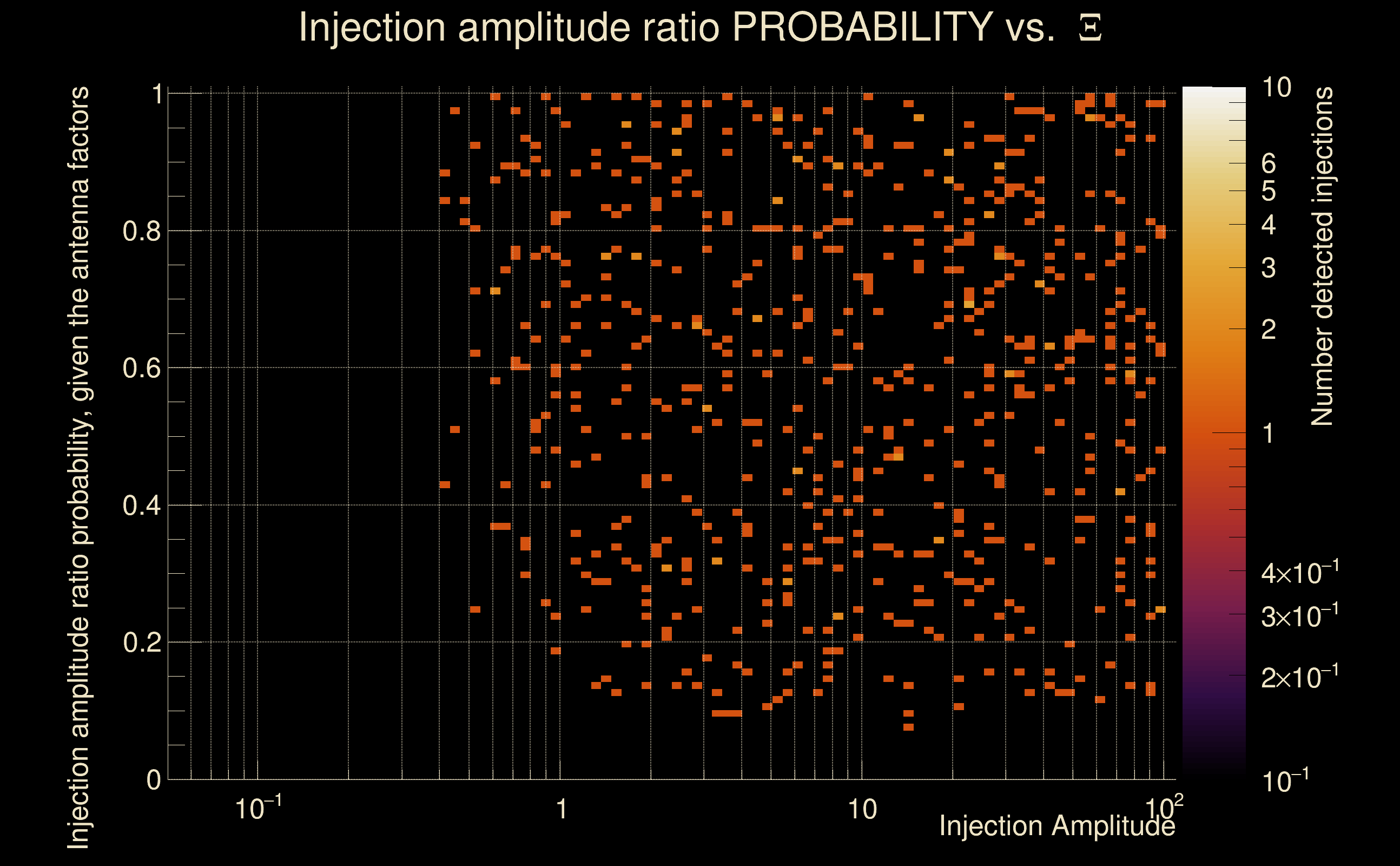

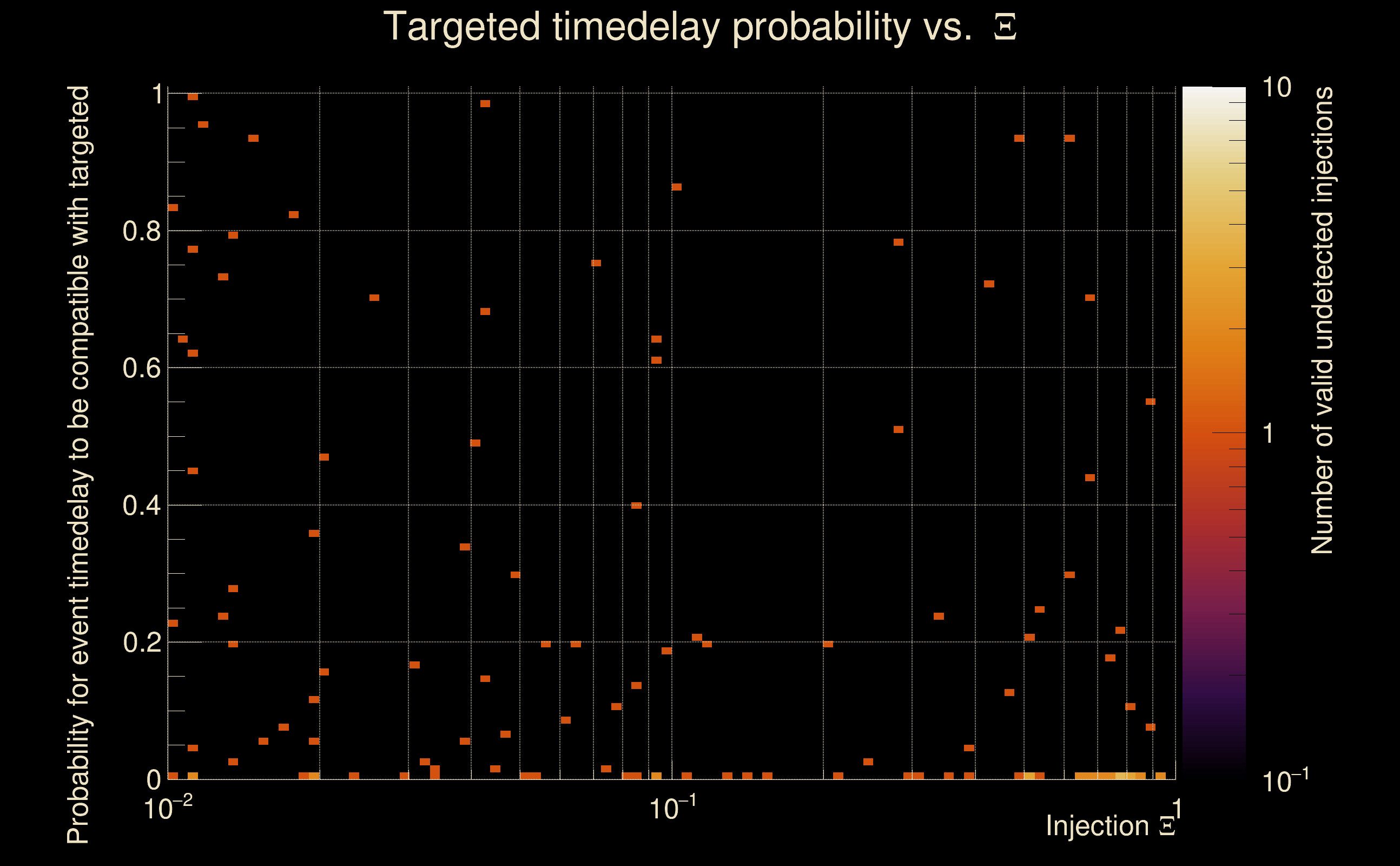

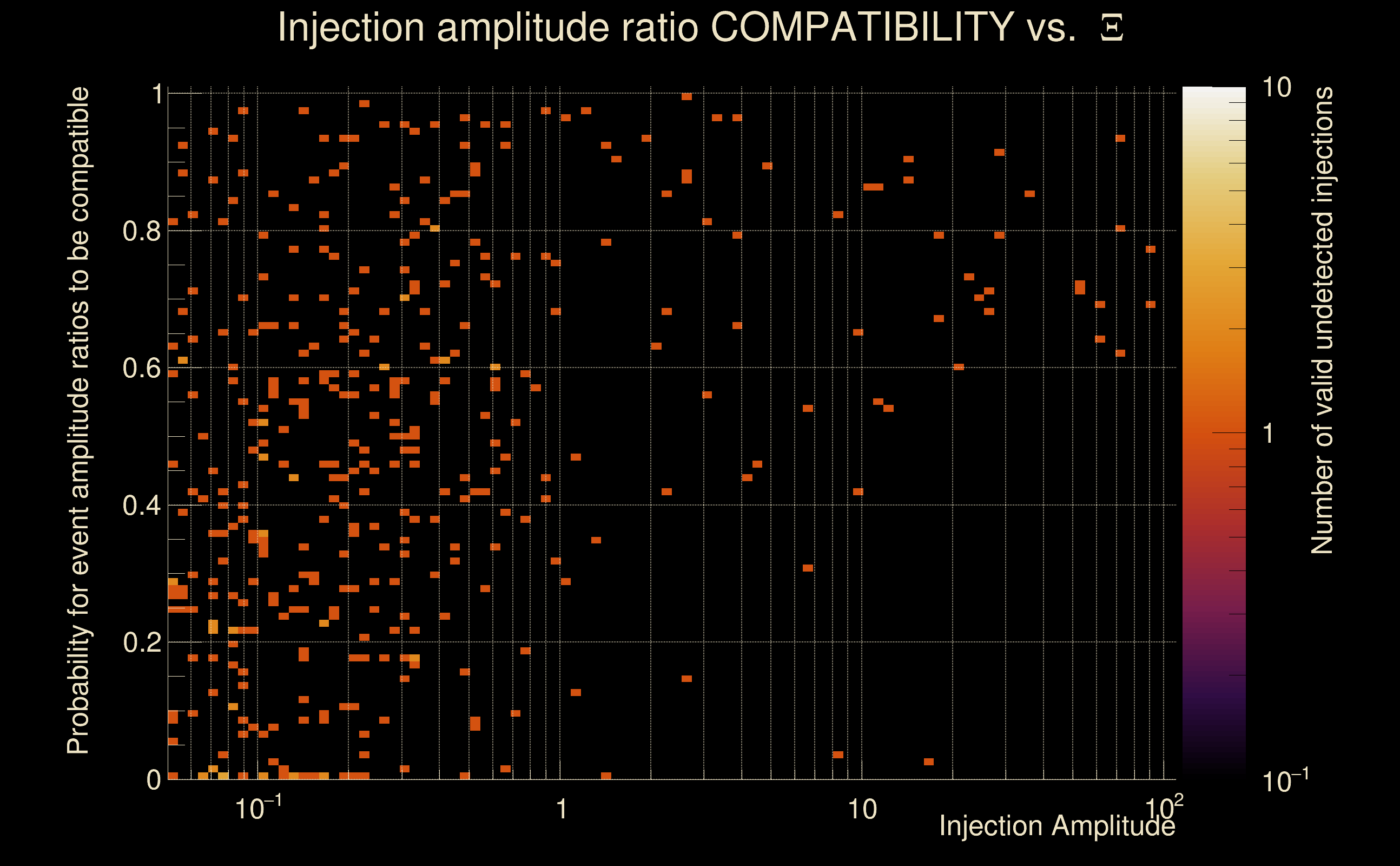

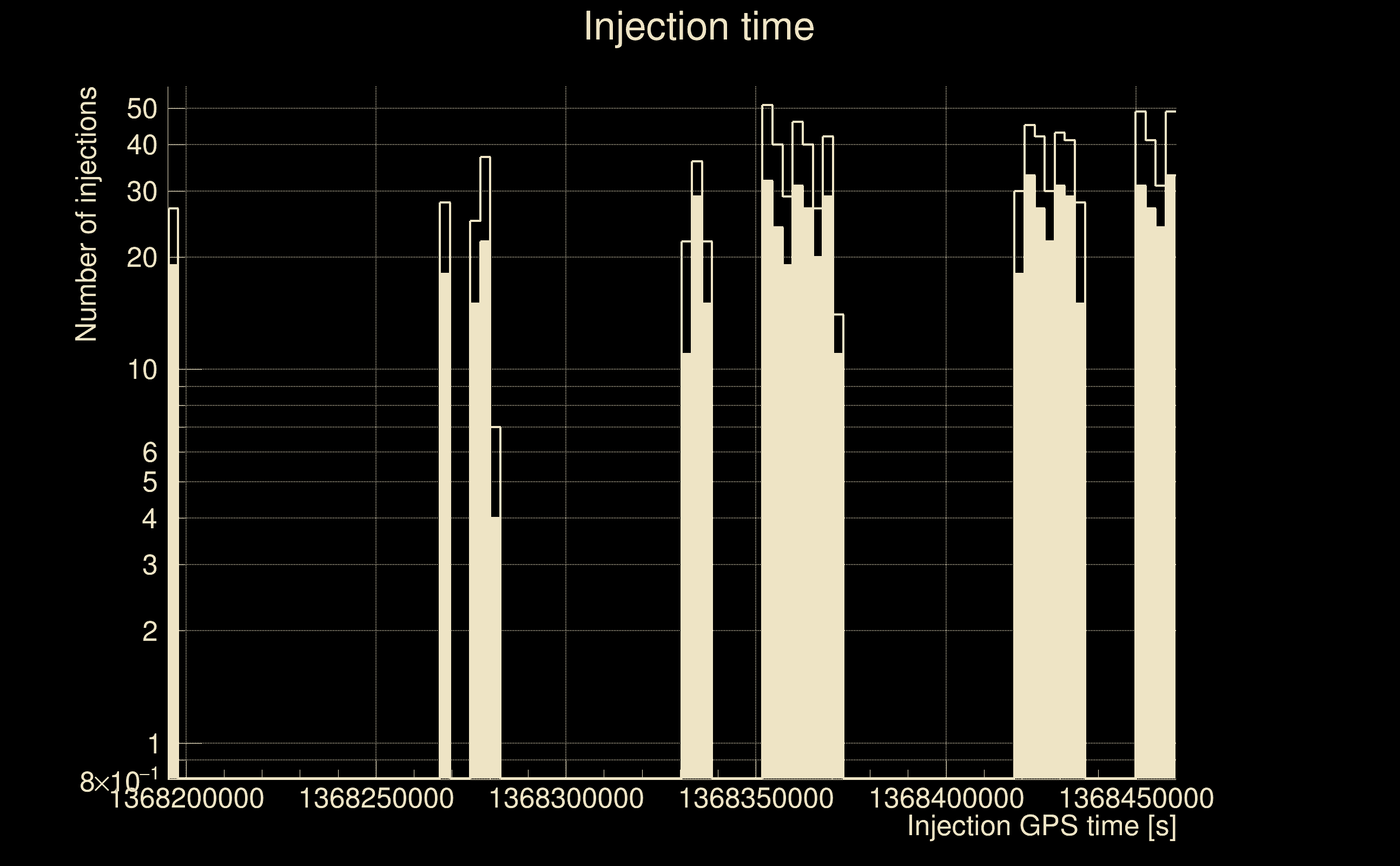

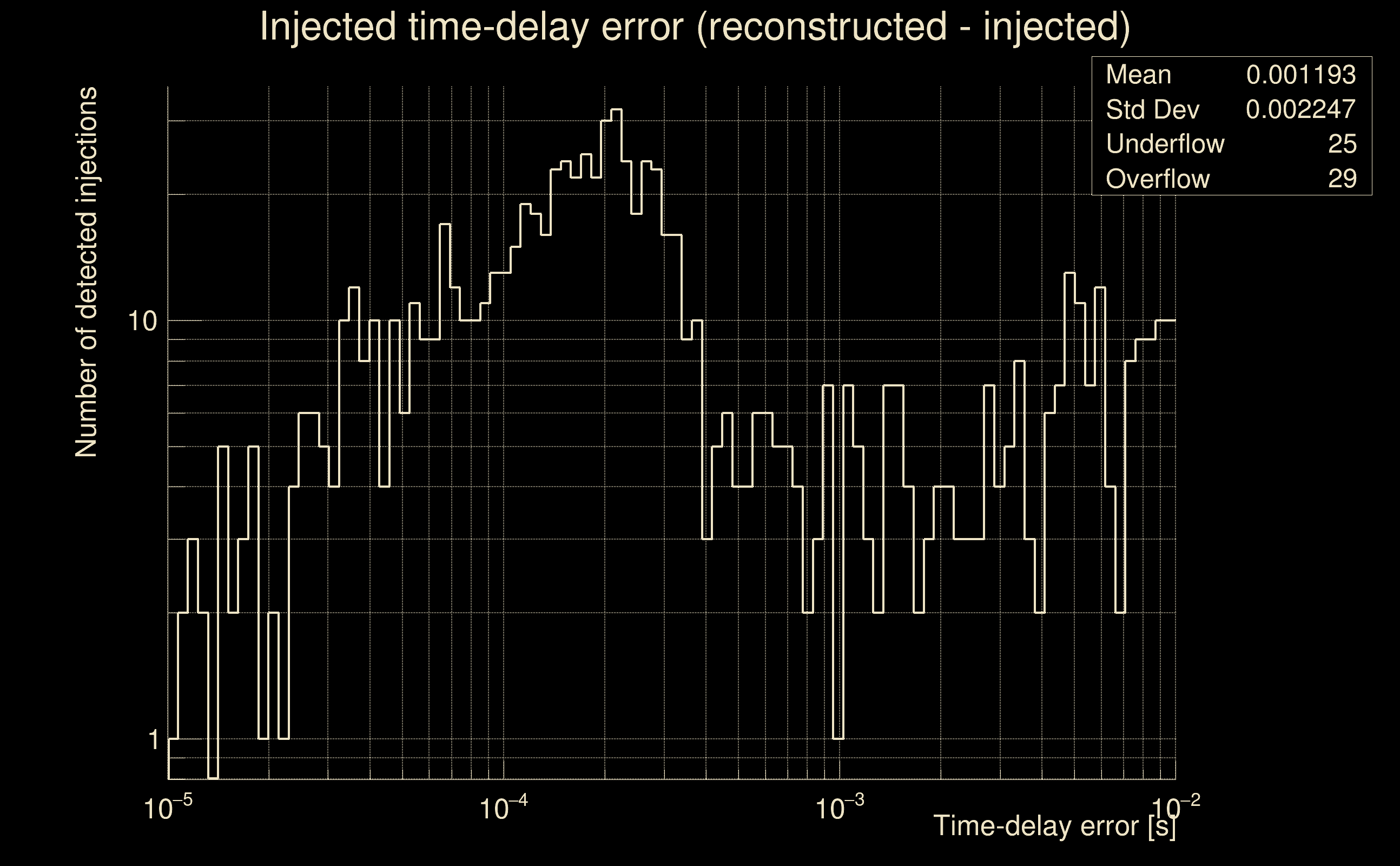

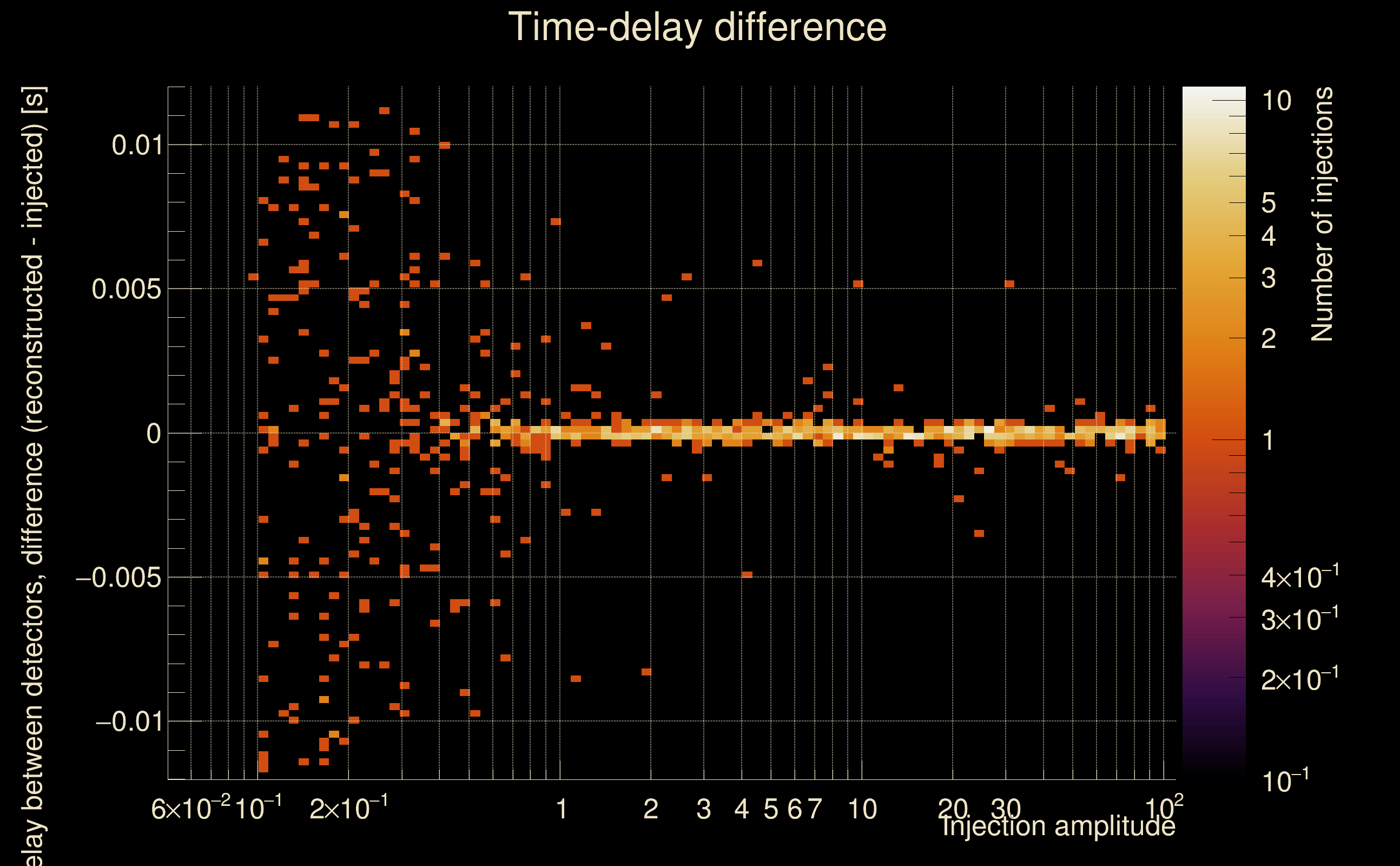

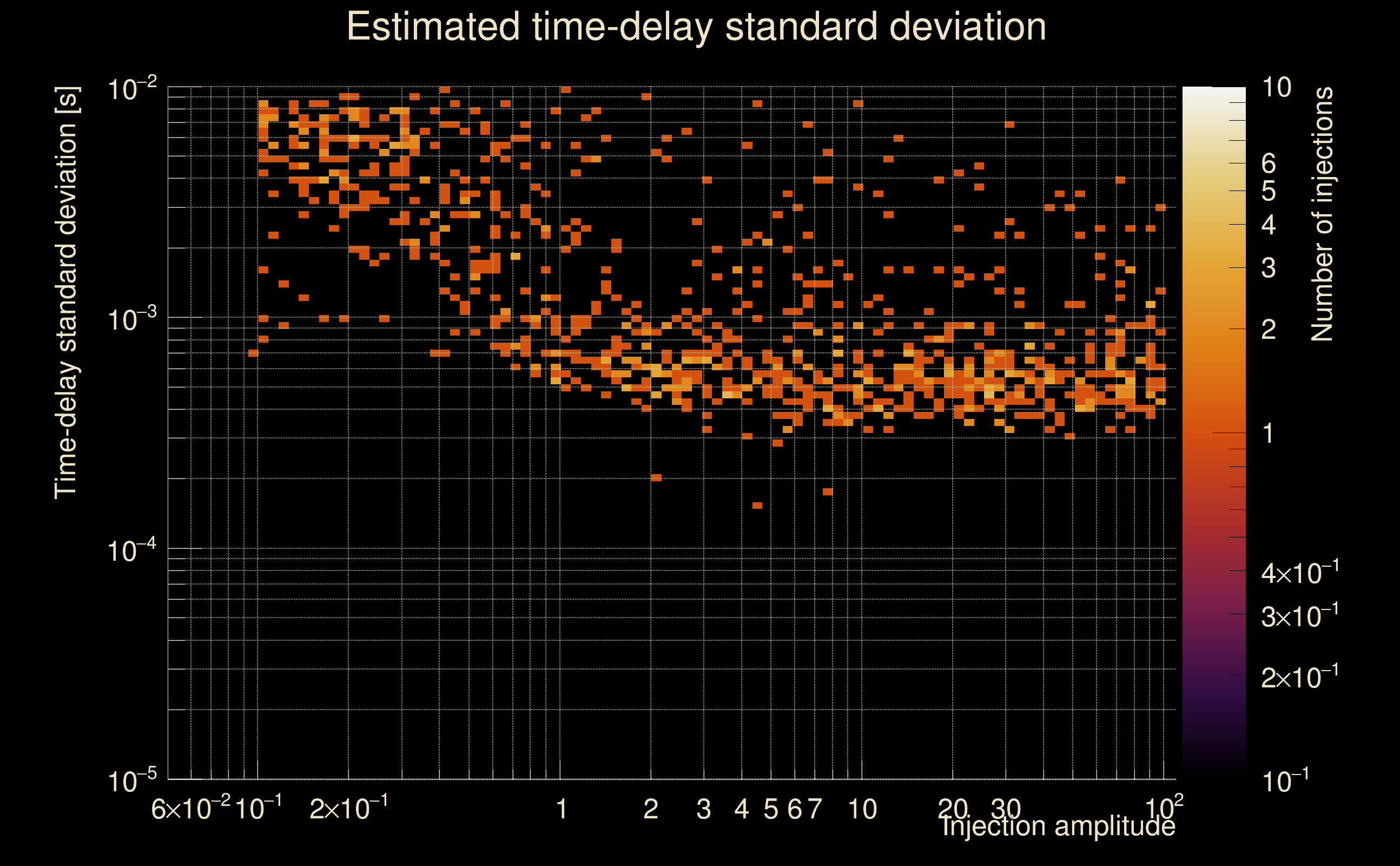

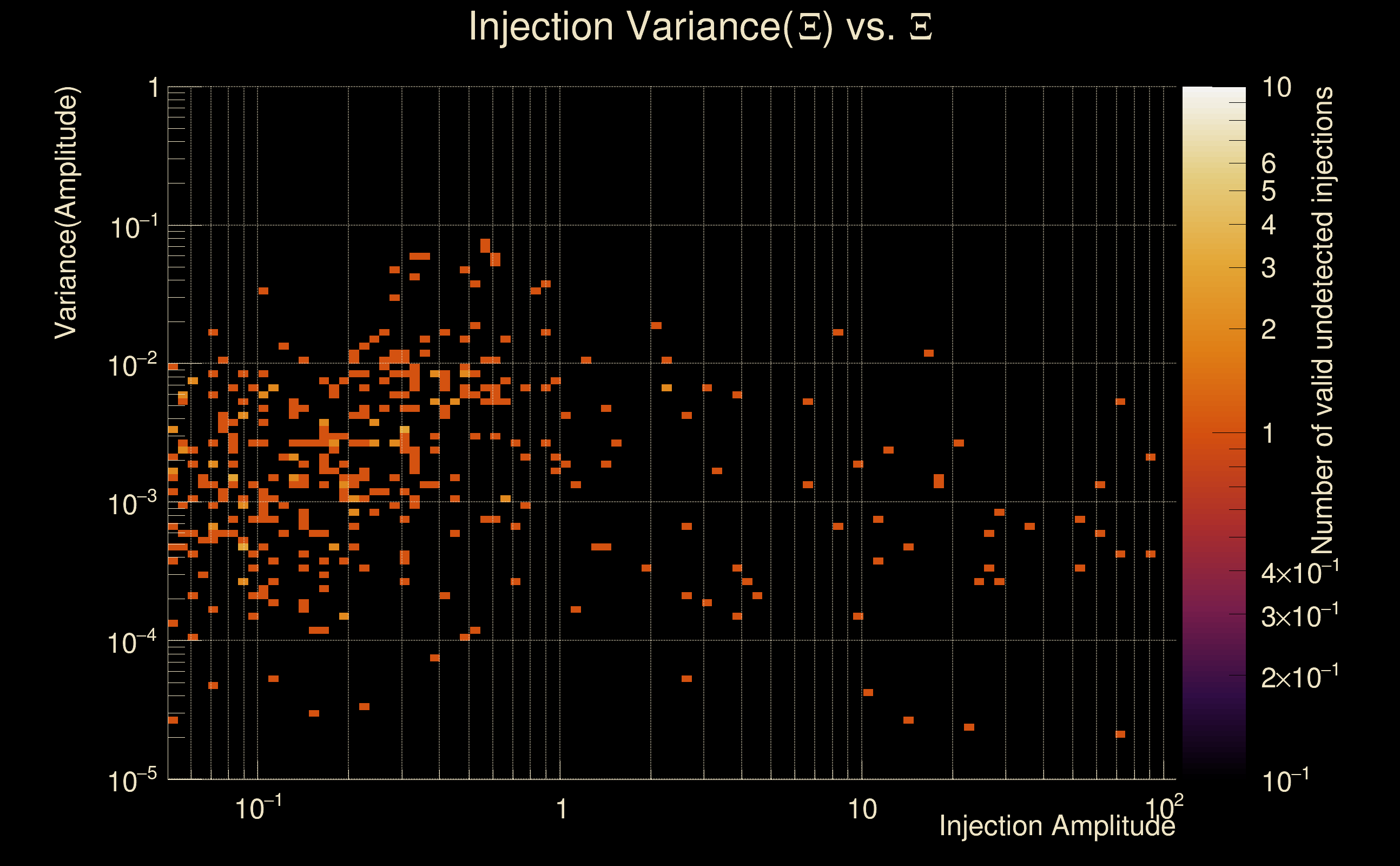

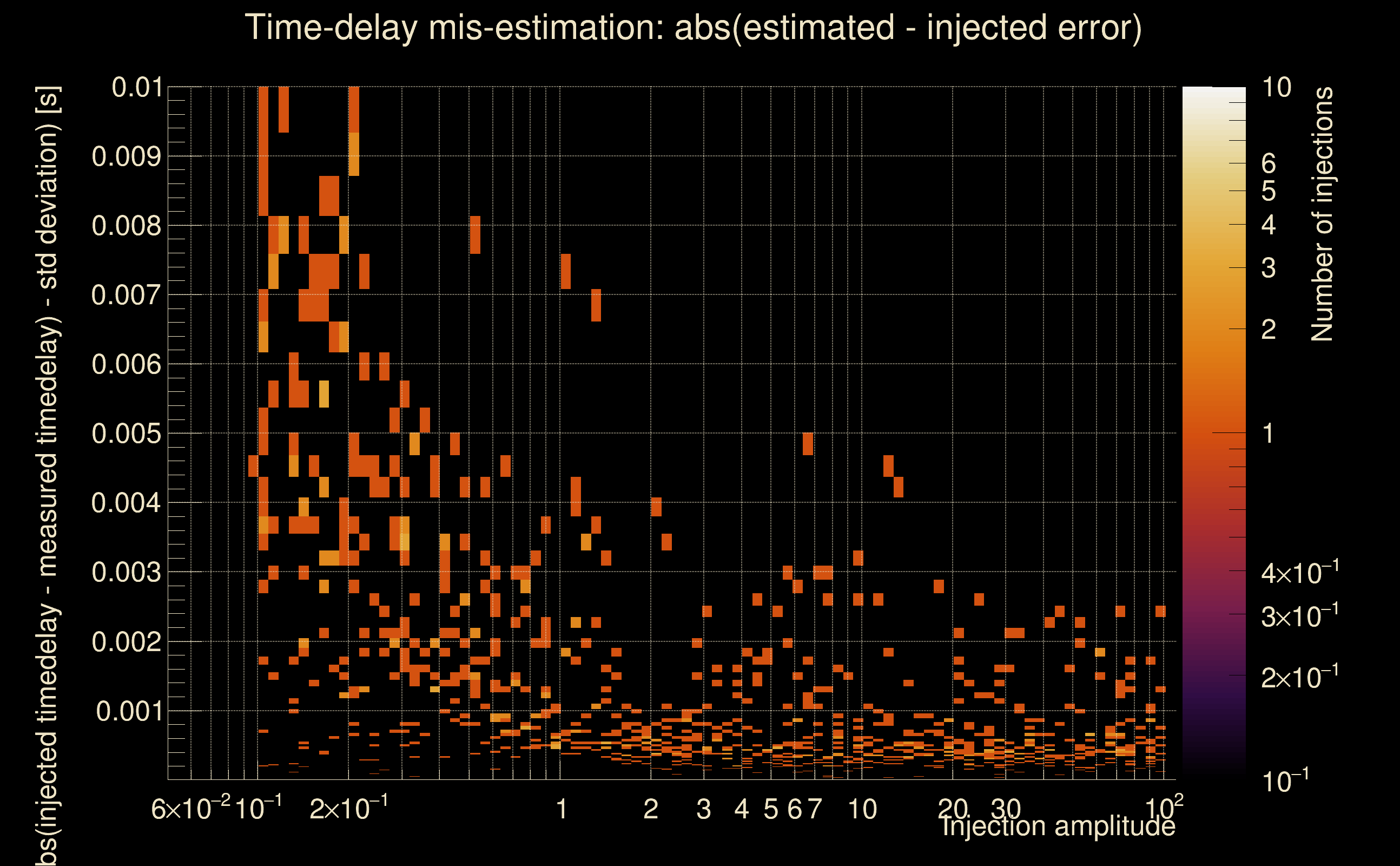

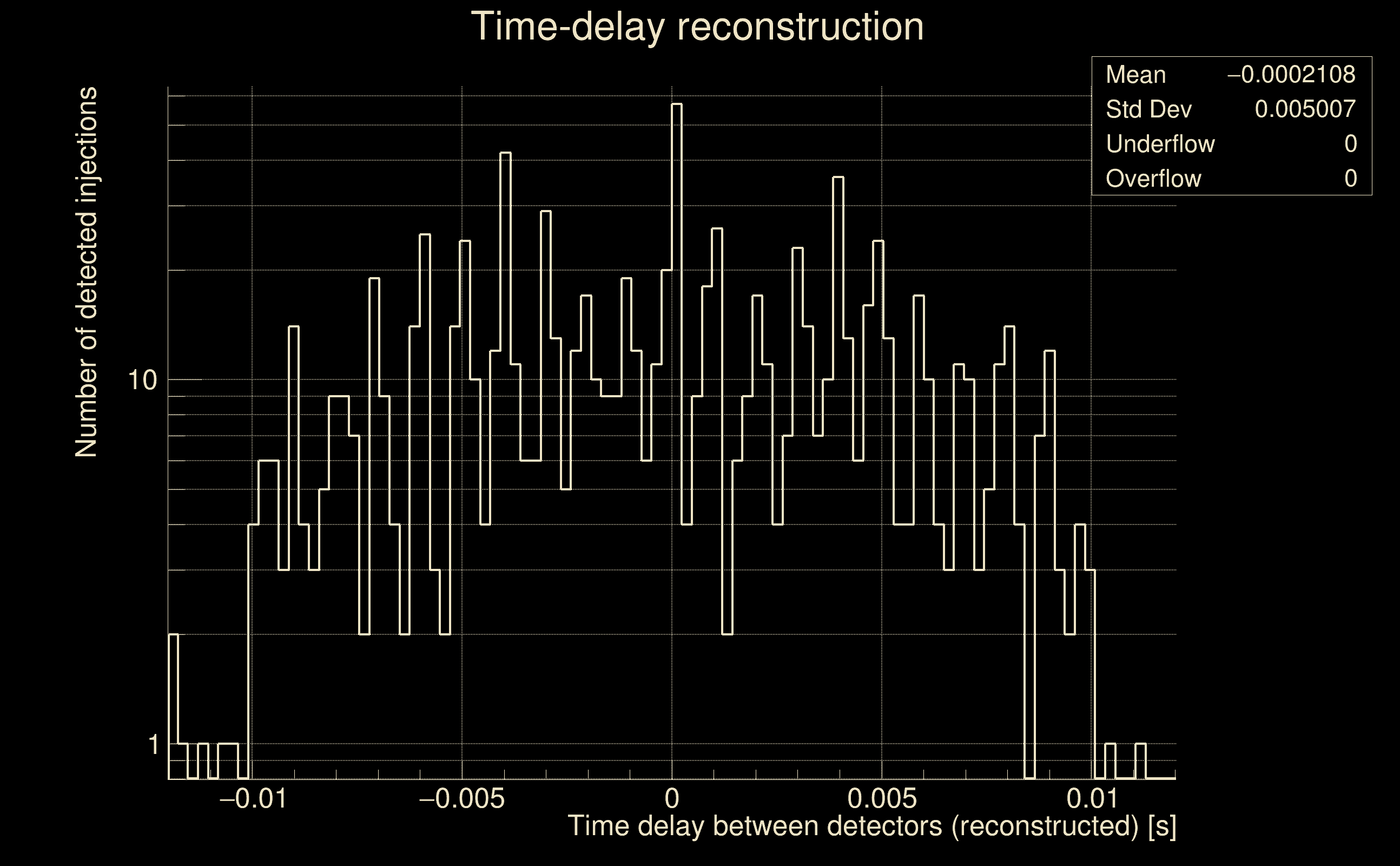

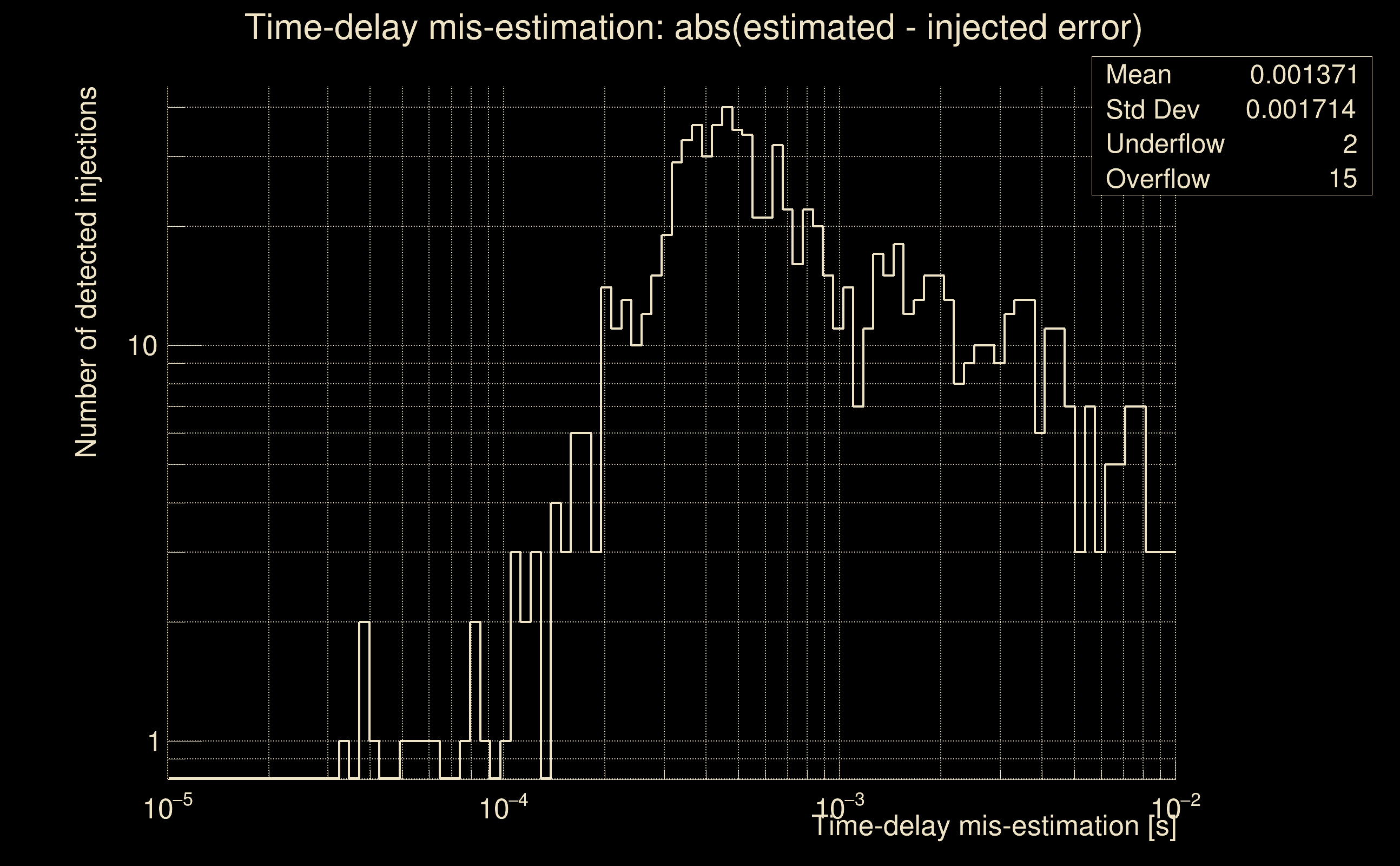

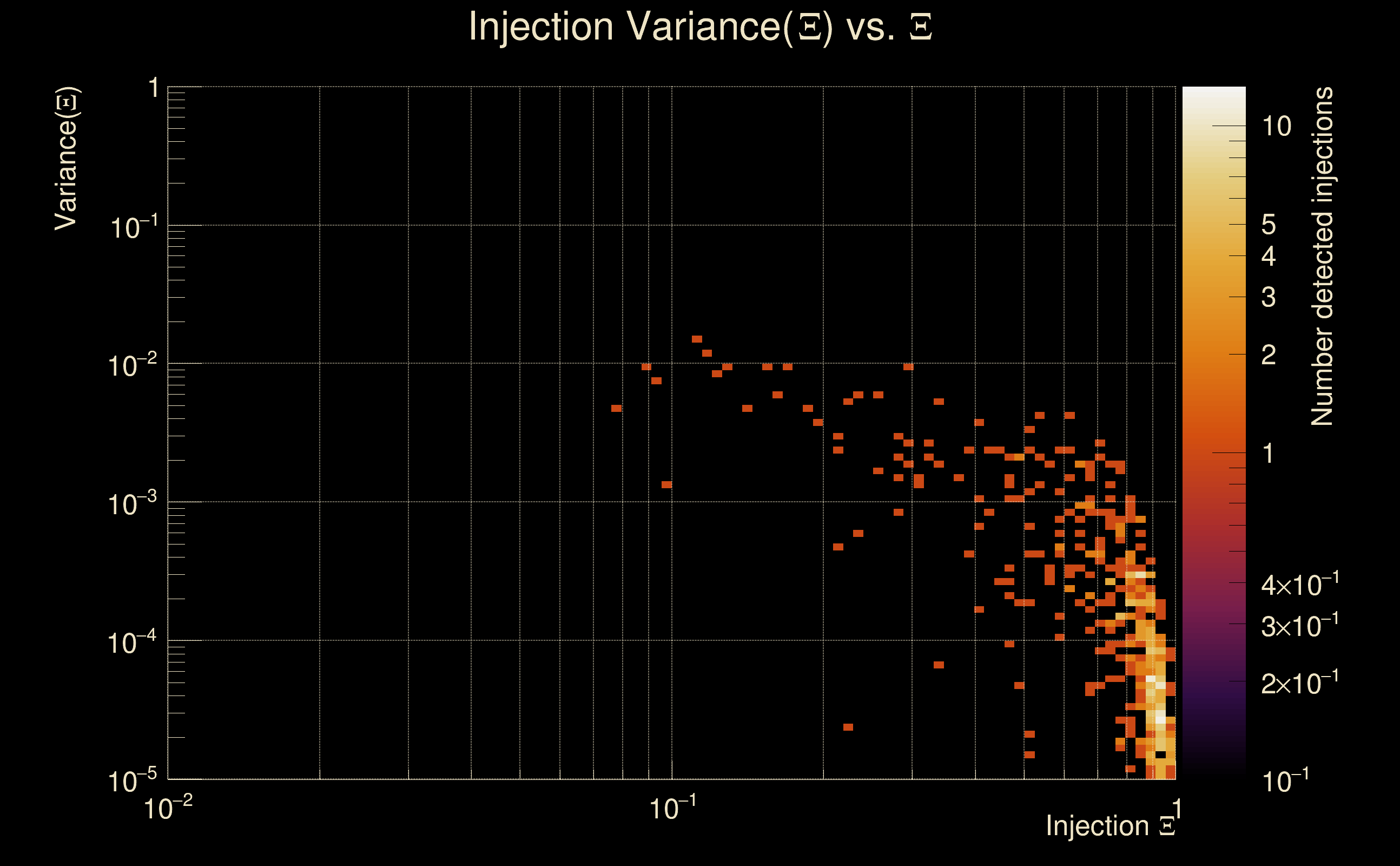

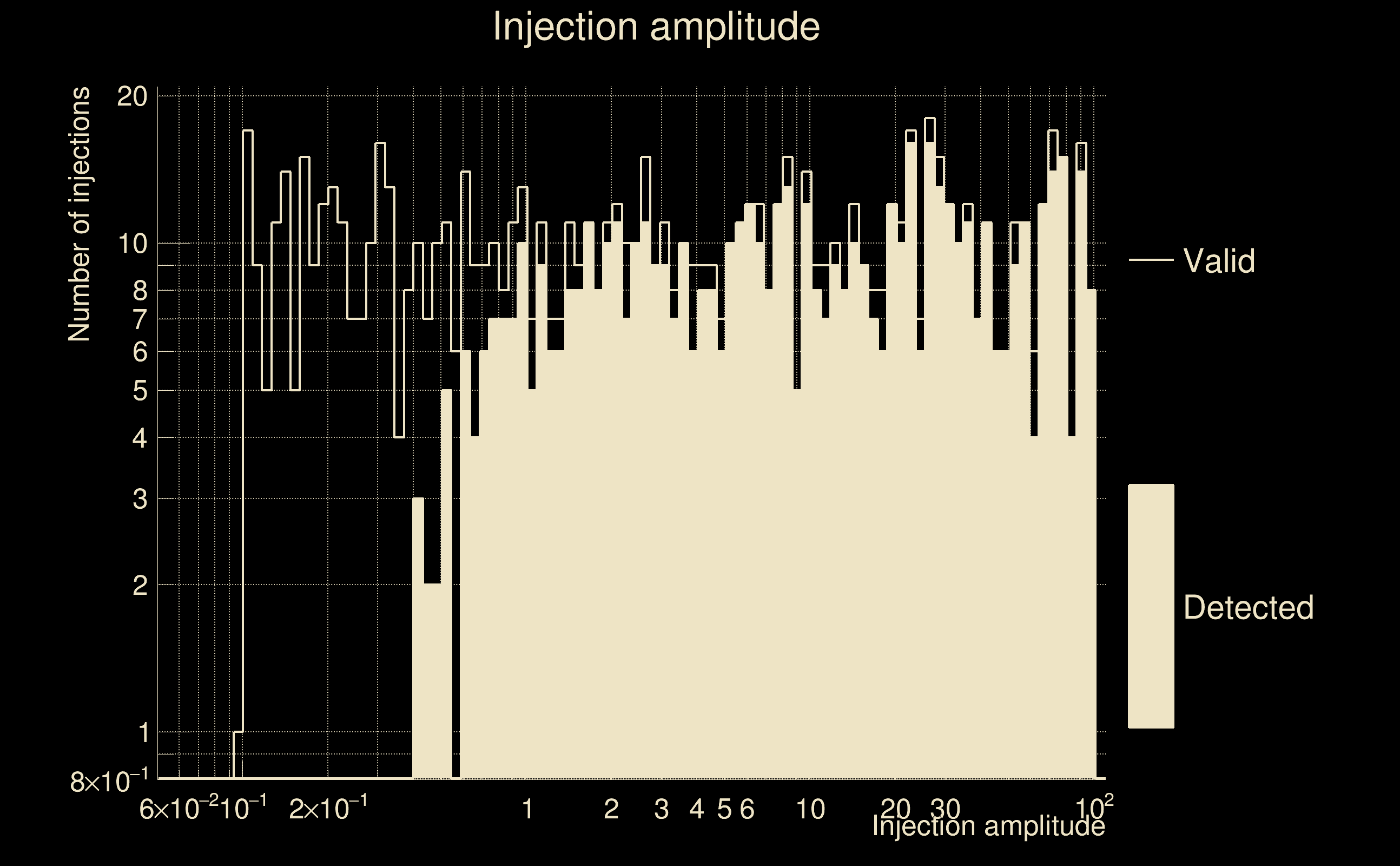

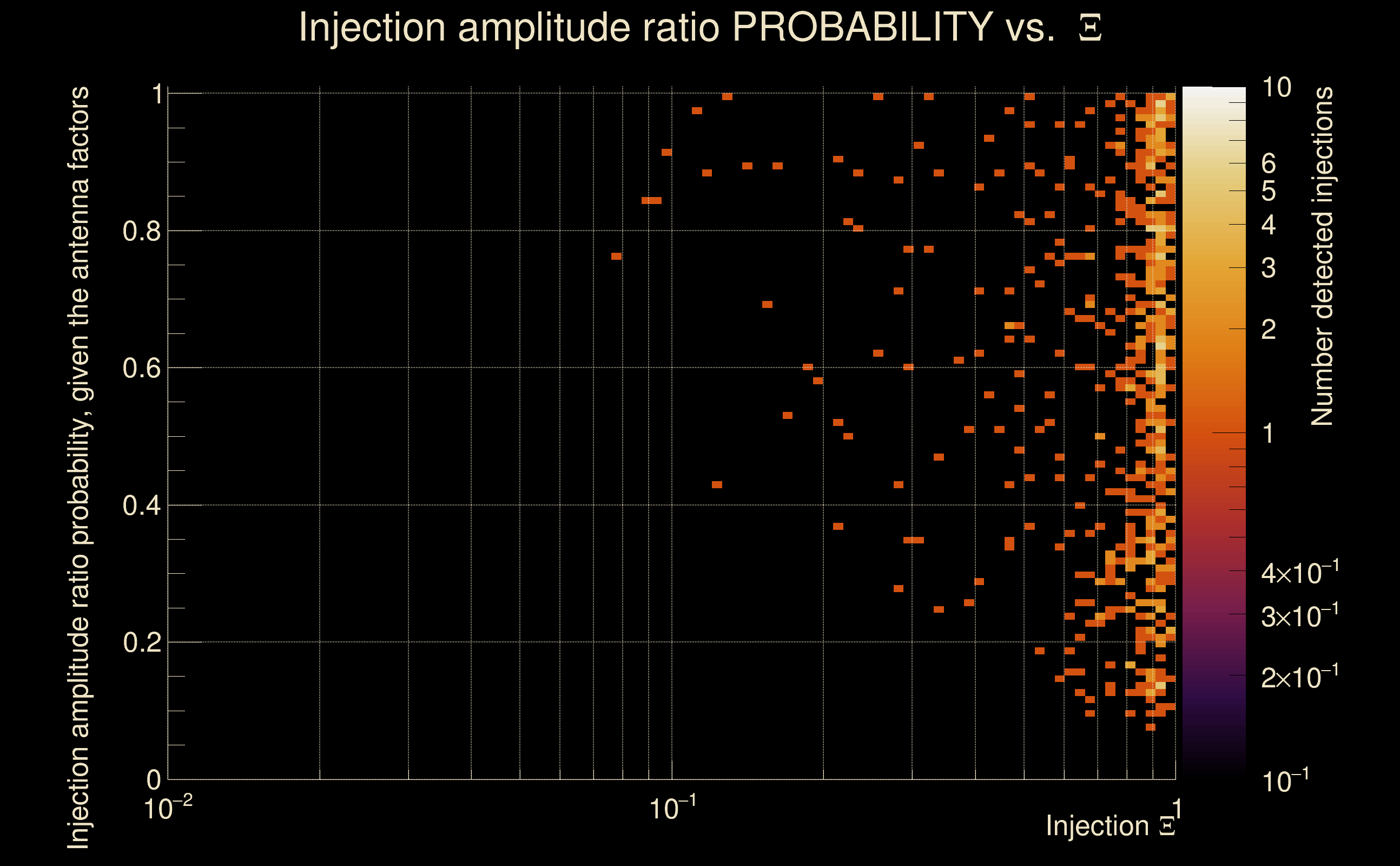

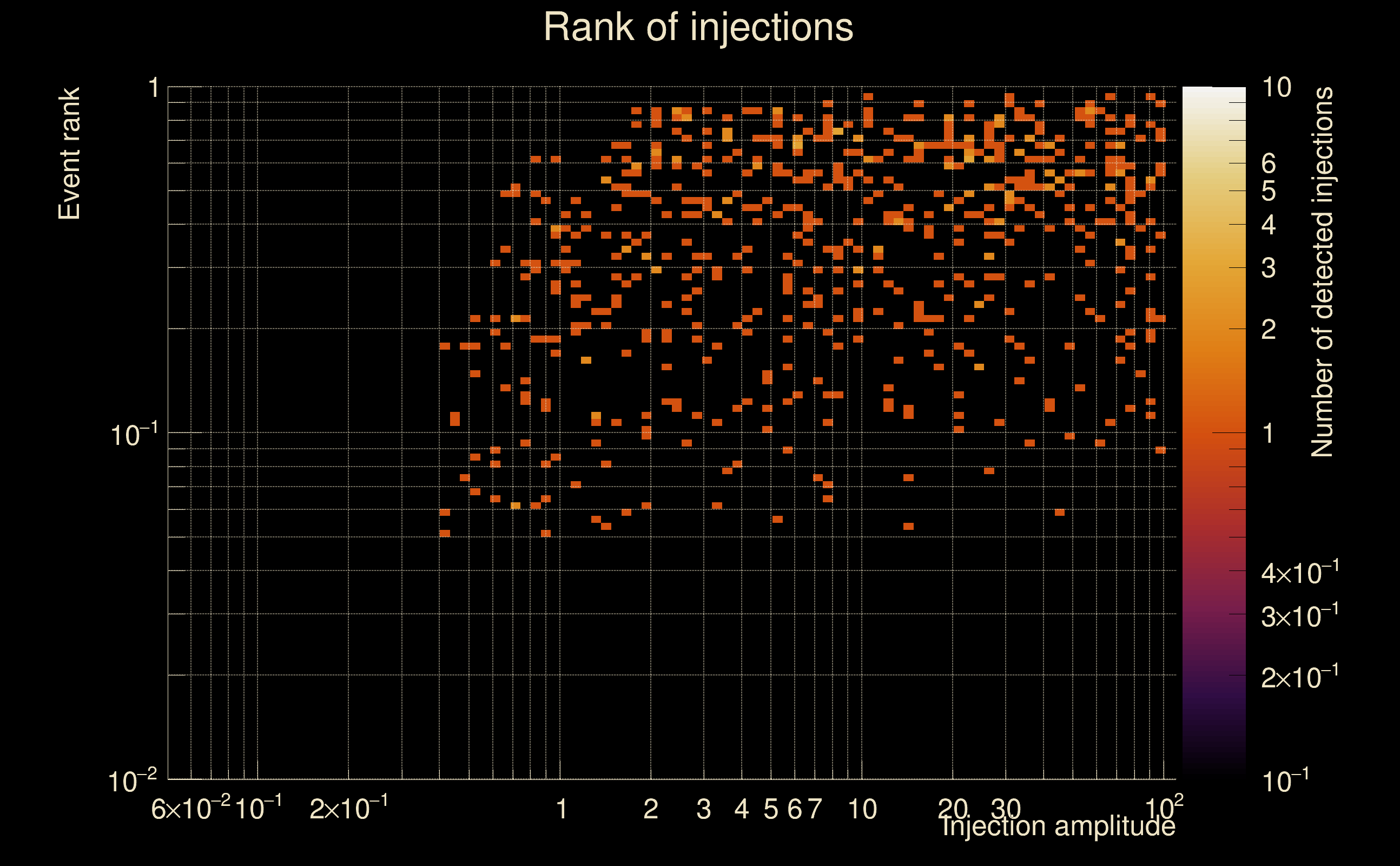

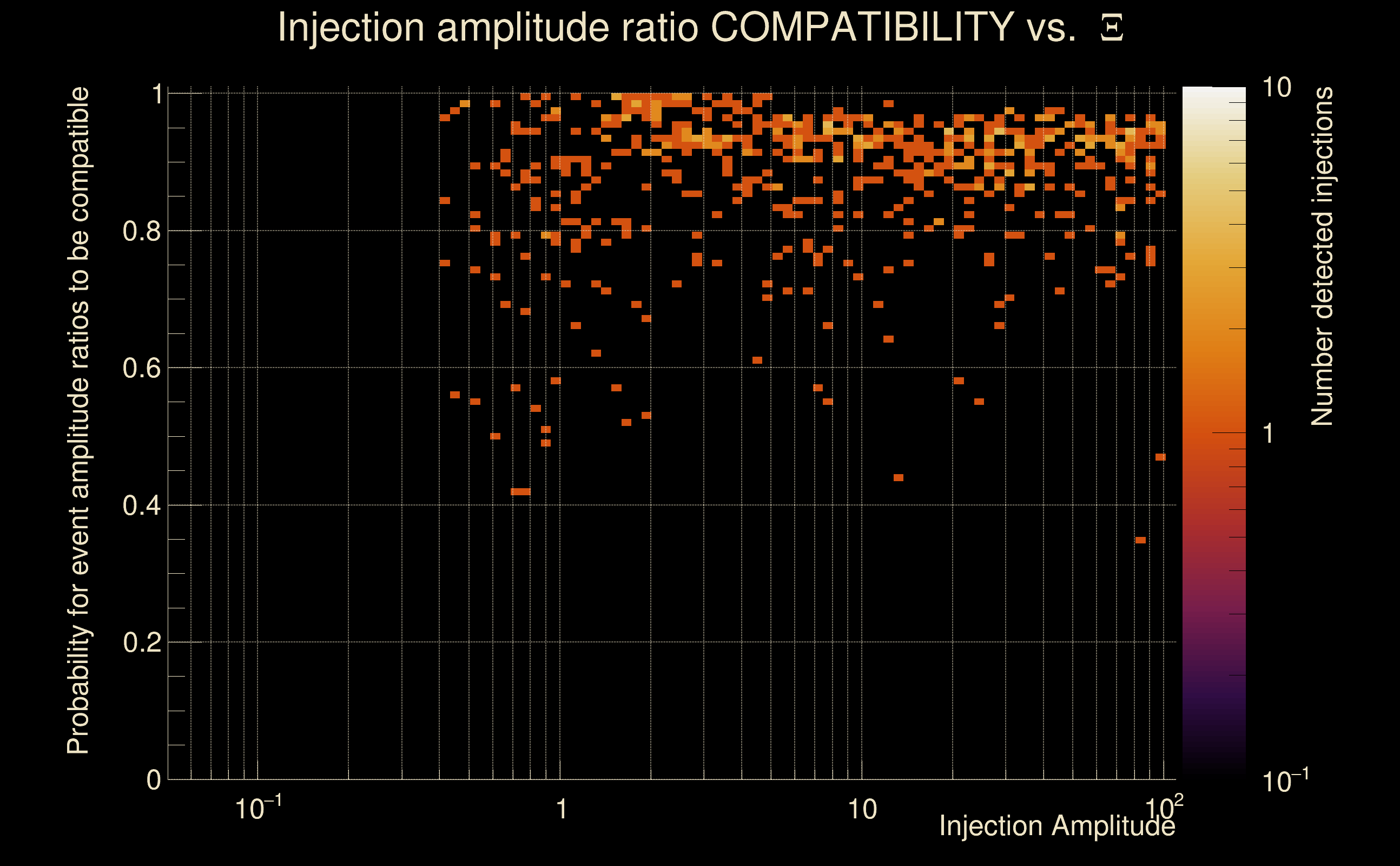

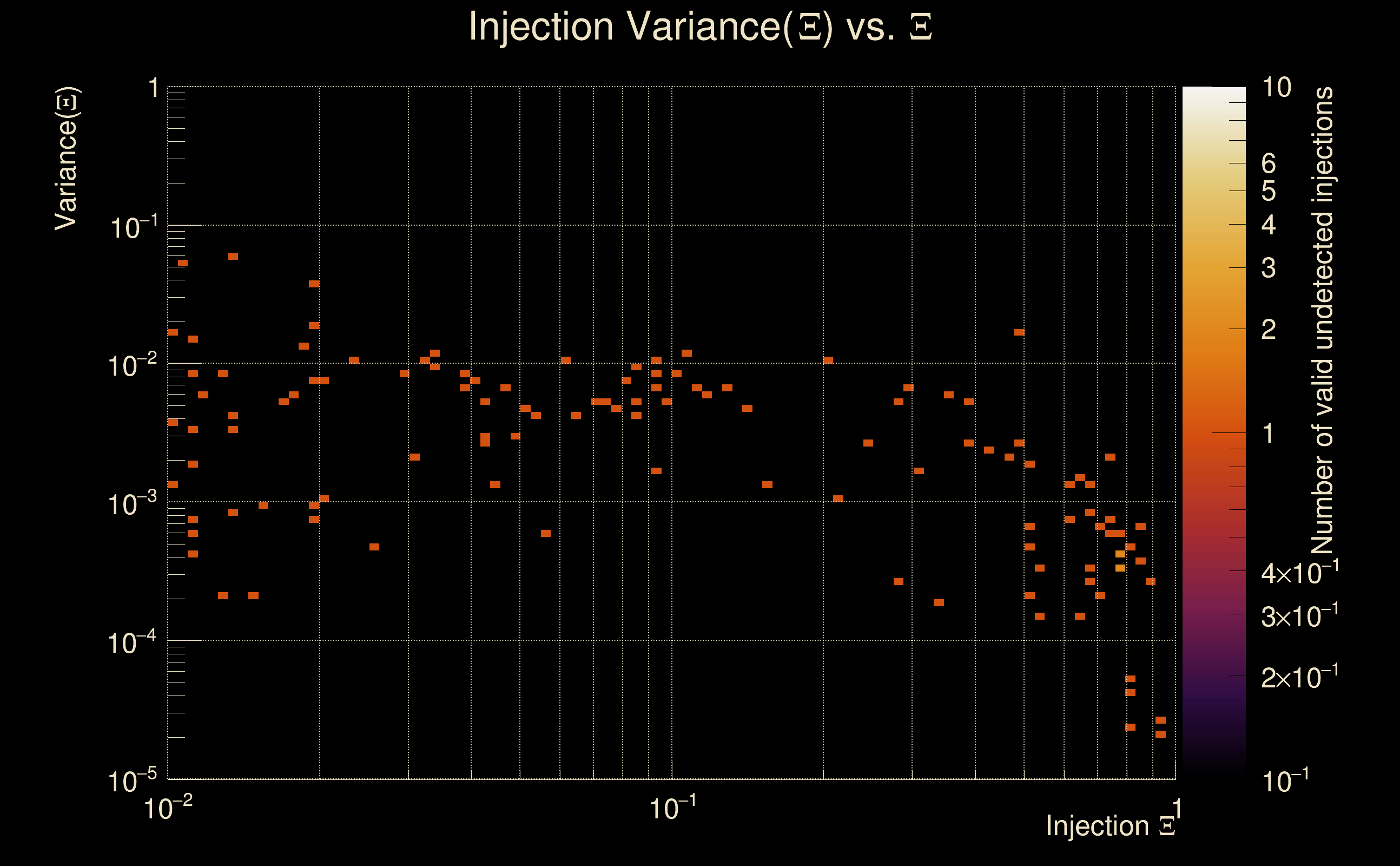

| Number of injections (total/valid/detected): | 1042 / 922 / 616 |
| List of missed injections: | ./Pow23-B12_missed.txt |
| Injection amplitude at 90% detection efficiency: | 1.55245 |
| Injection amplitude at 50% detection efficiency: | 0.674374 |
| Injection amplitude at 10% detection efficiency: | 0.577512 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
