| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:40:36 2026 UTC |
| Ox option file: | TargIxf_080426_SN6_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 10000 (detector 0), < 10000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |

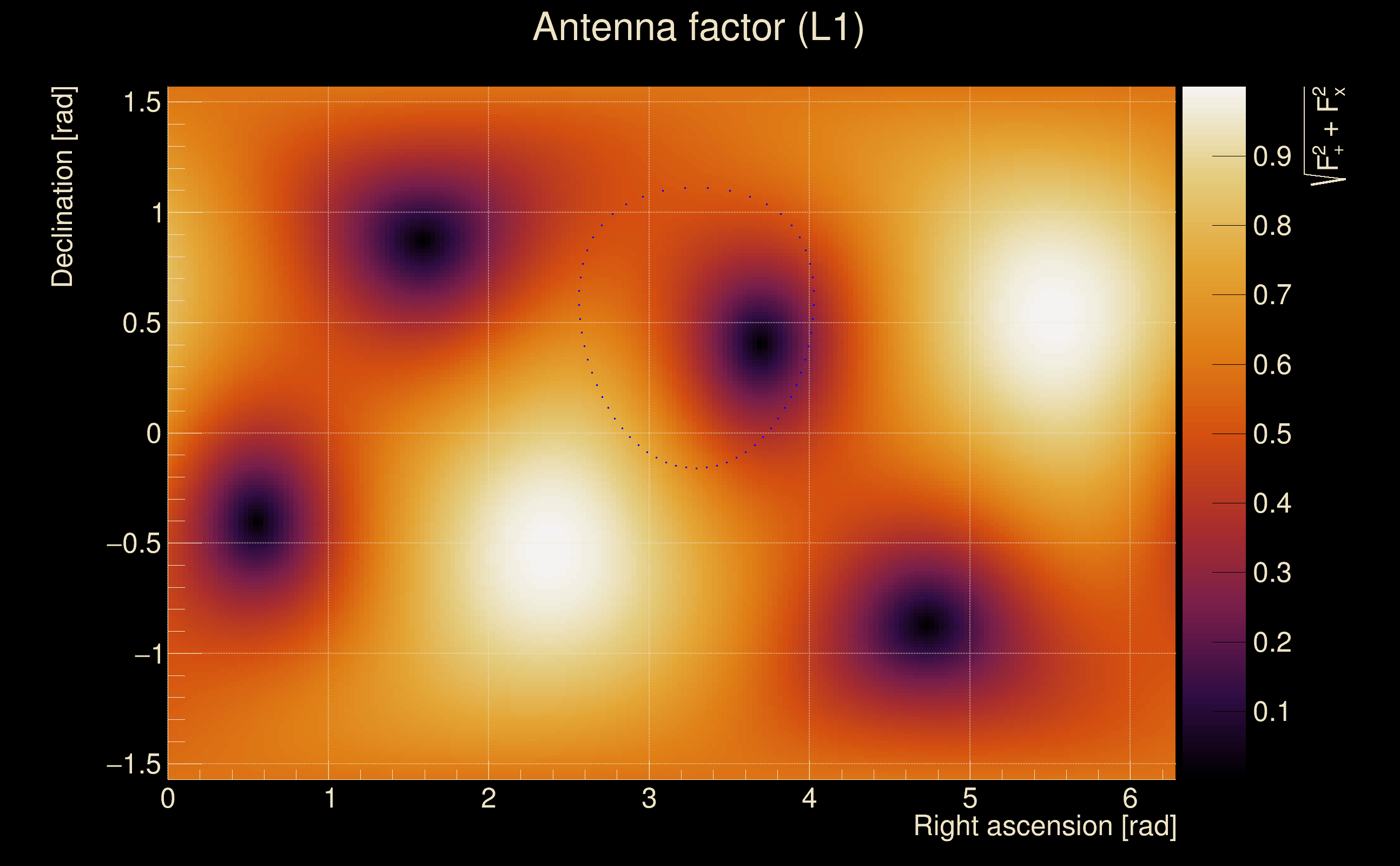

| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | TargIxf_080426_SN6_file_list.txt (1245 files) |
| Analysis result file: | TargIxf_080426_SN6_results-1.root |
| Slice selected for the the fakeground: | slice index=28 (3.68 s), time lag = 0 s |

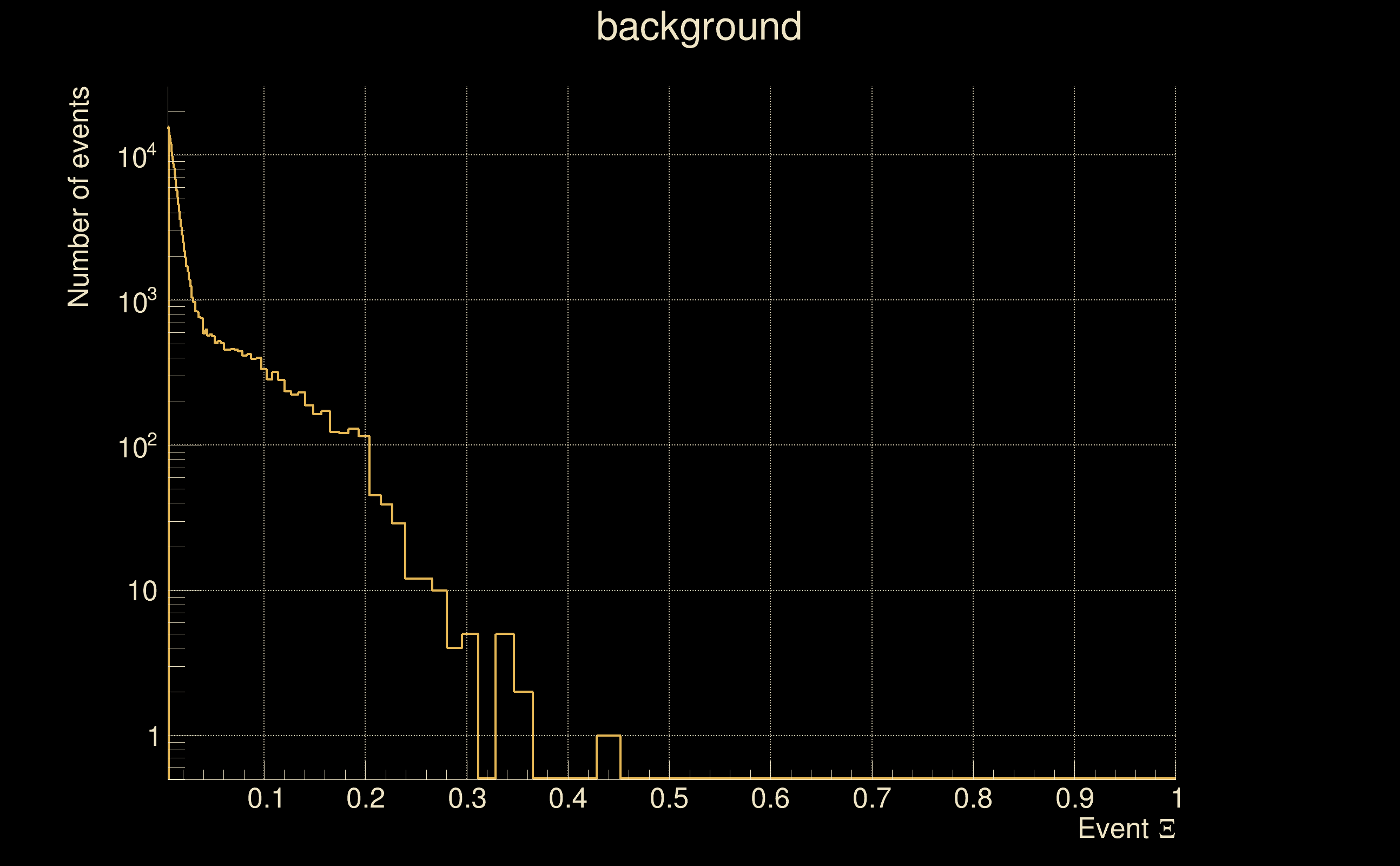

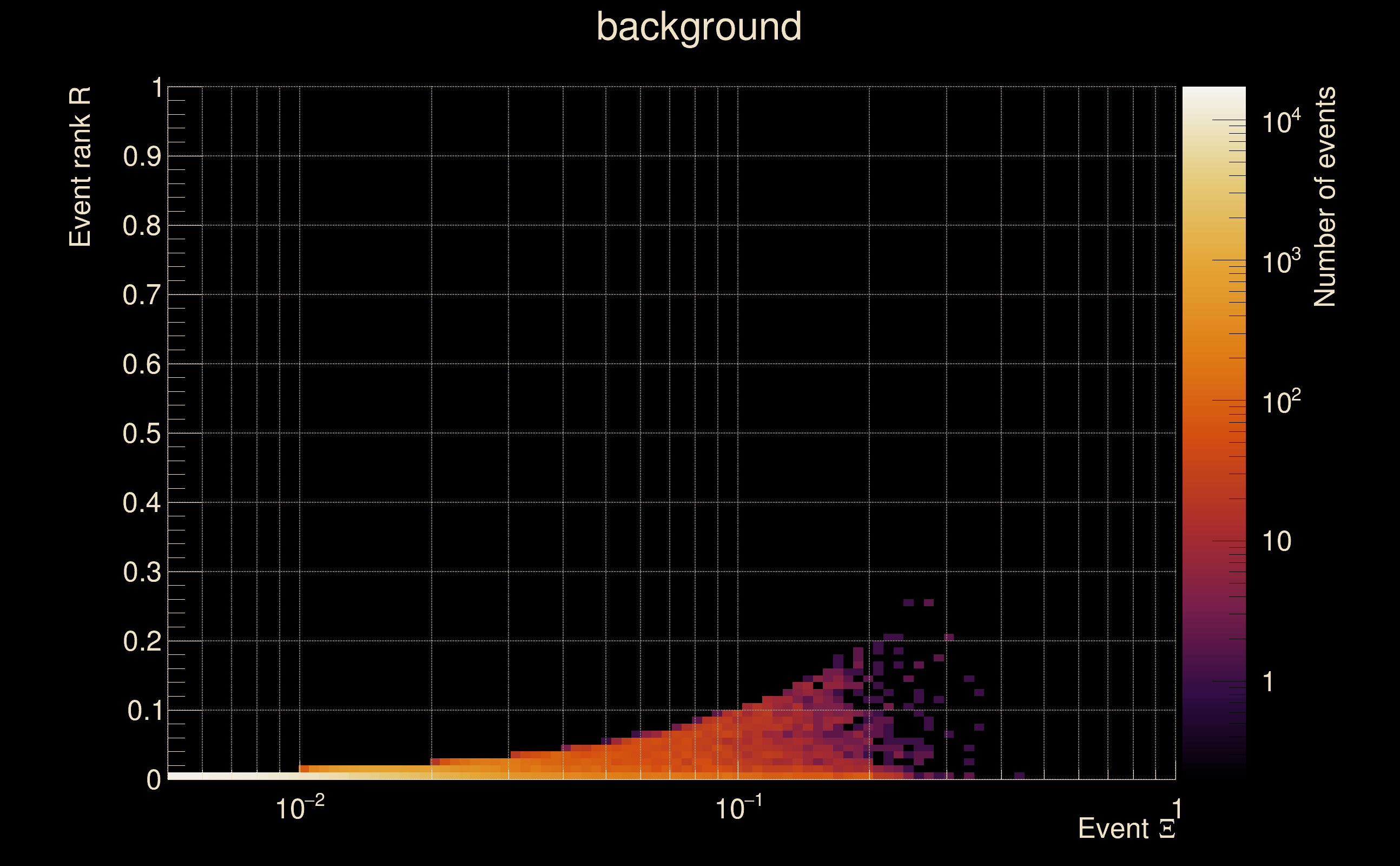

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

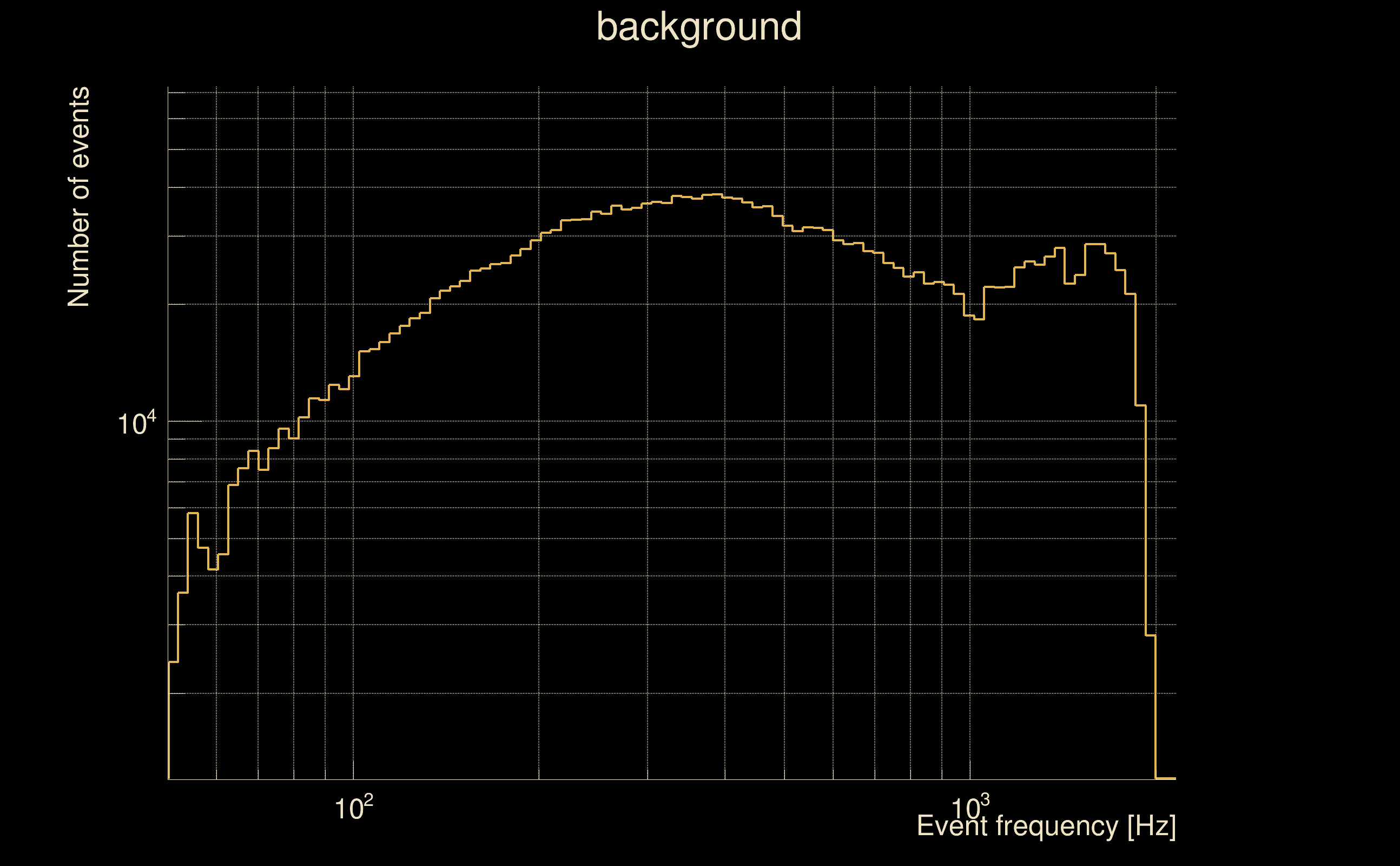

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

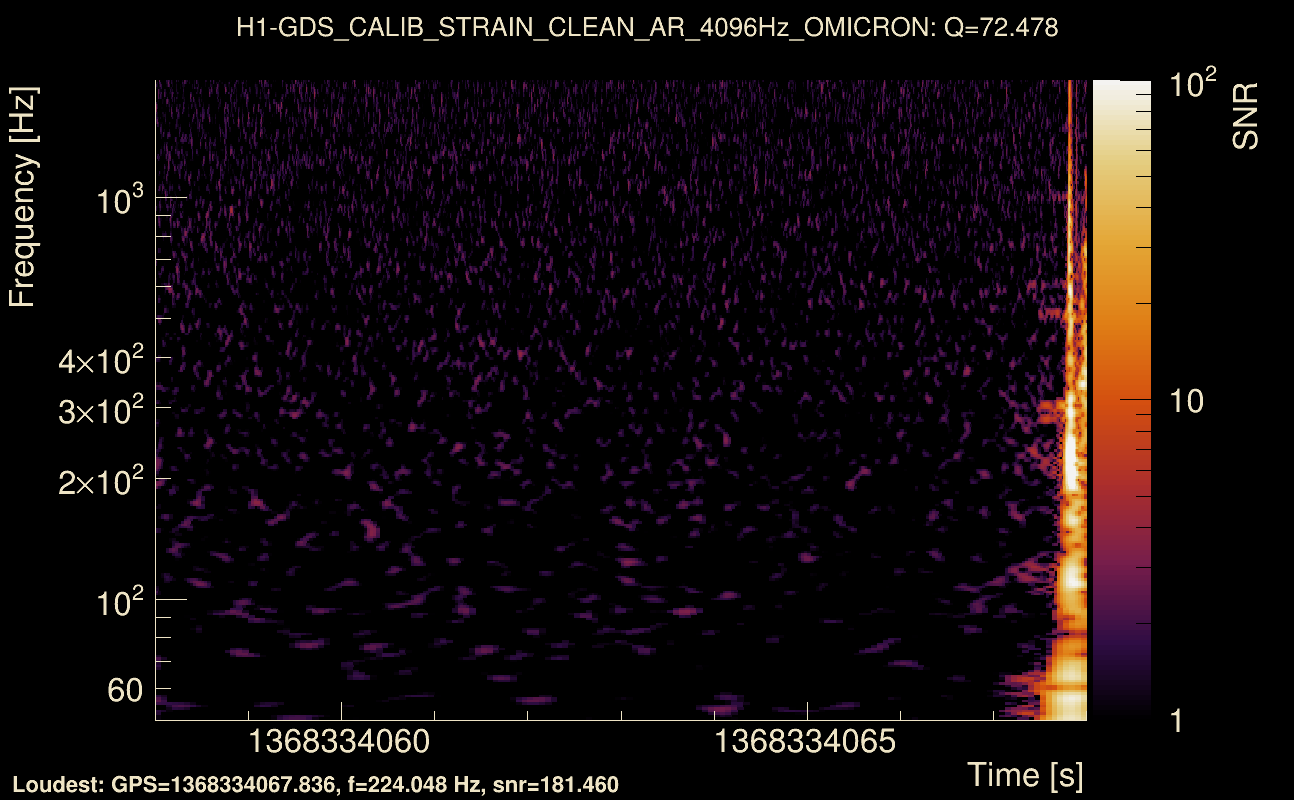

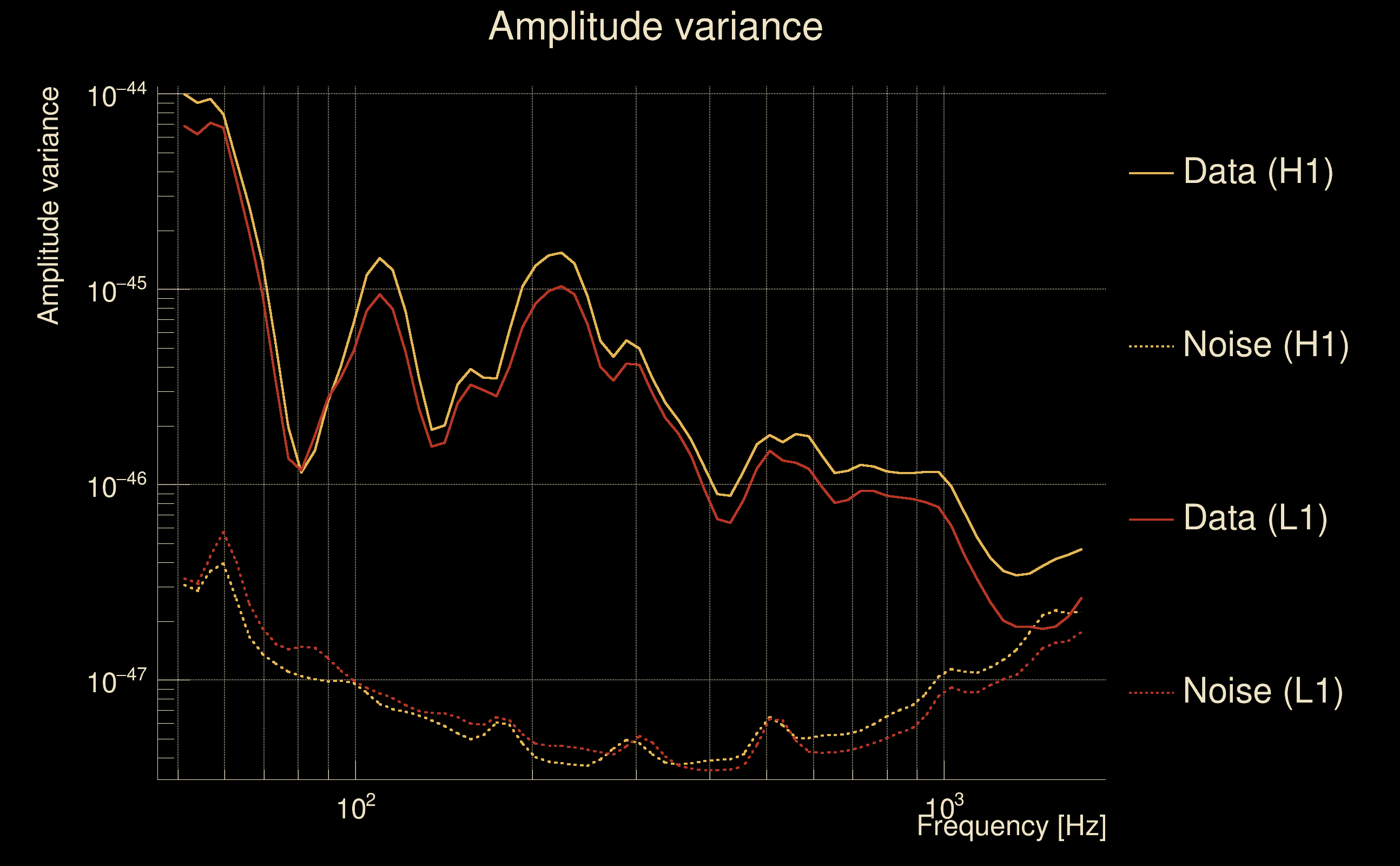

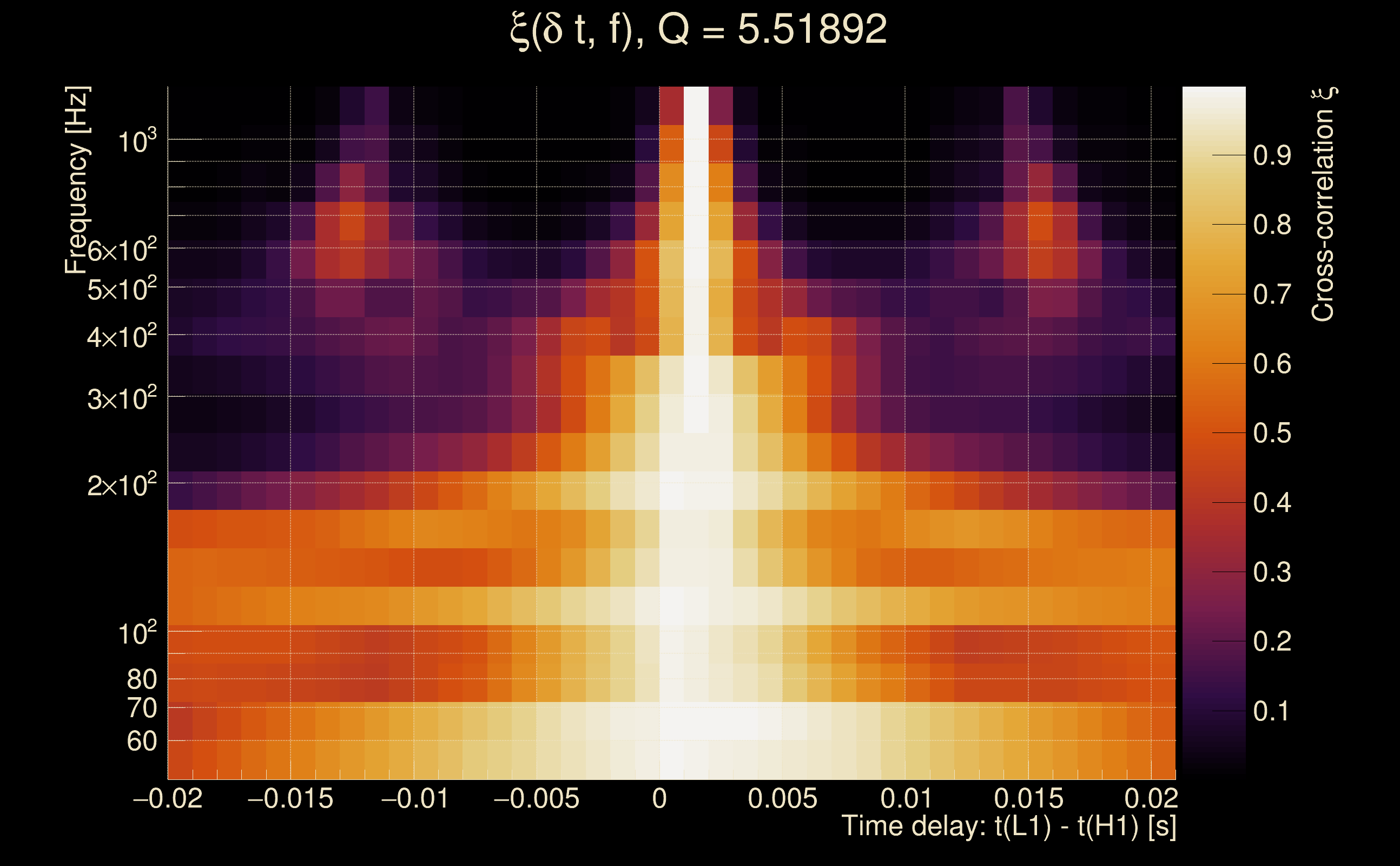

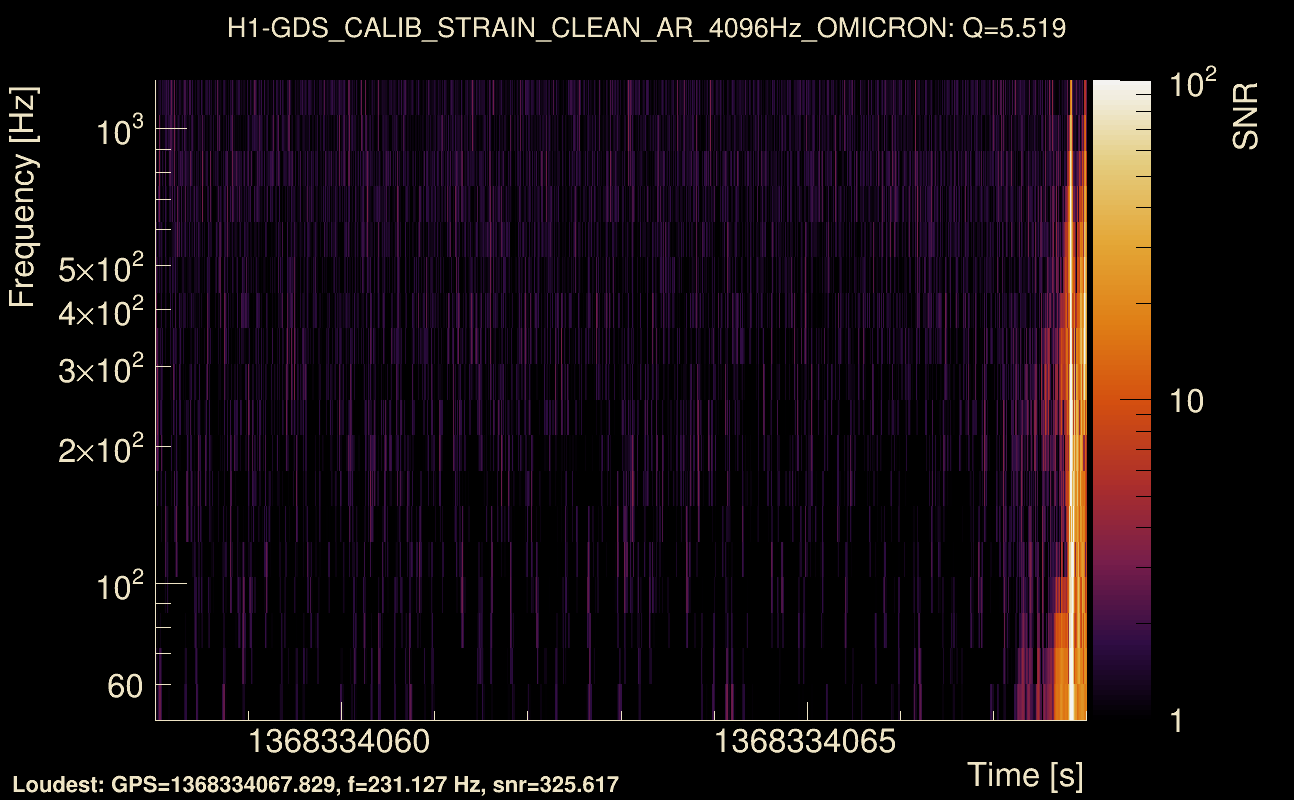

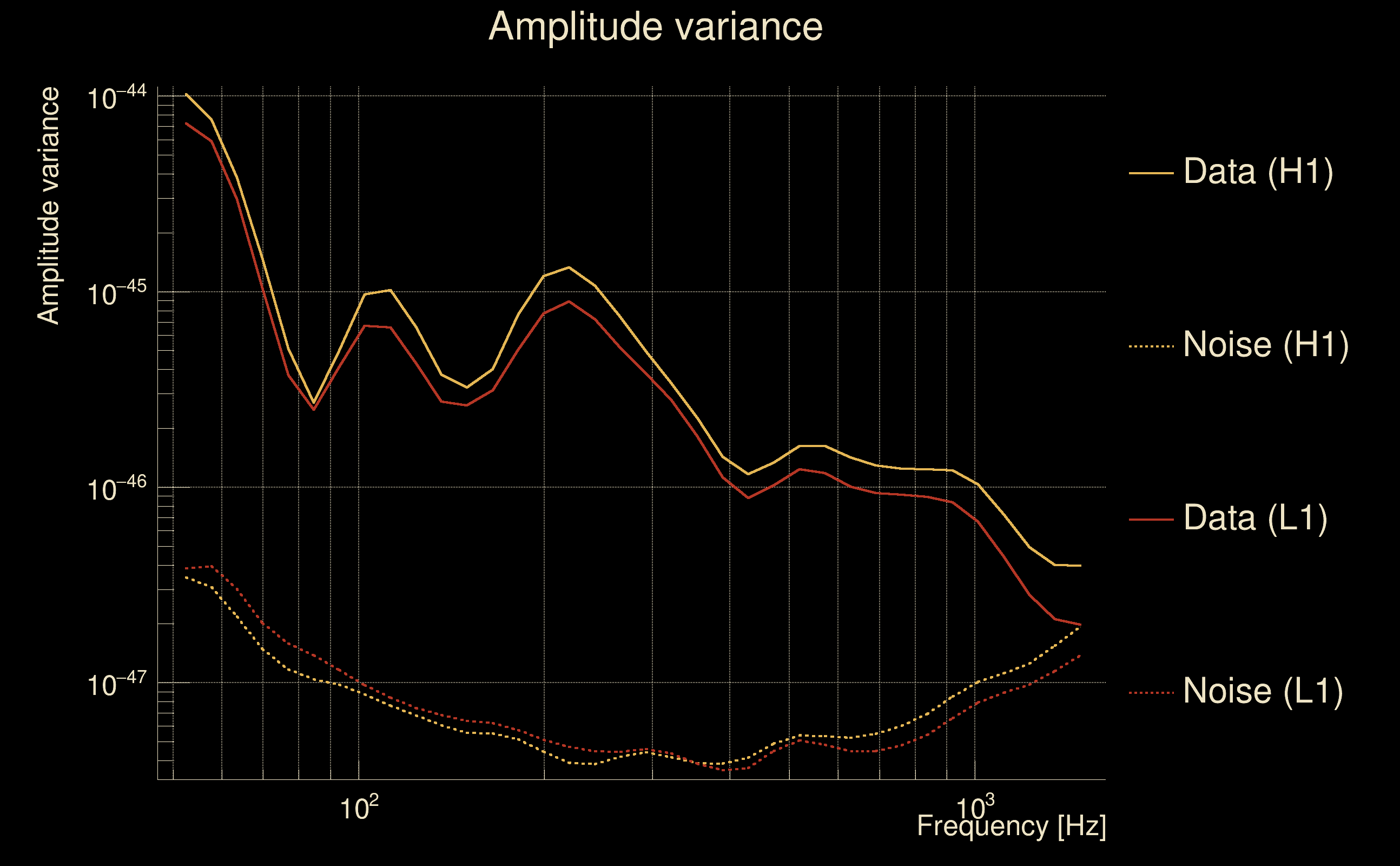

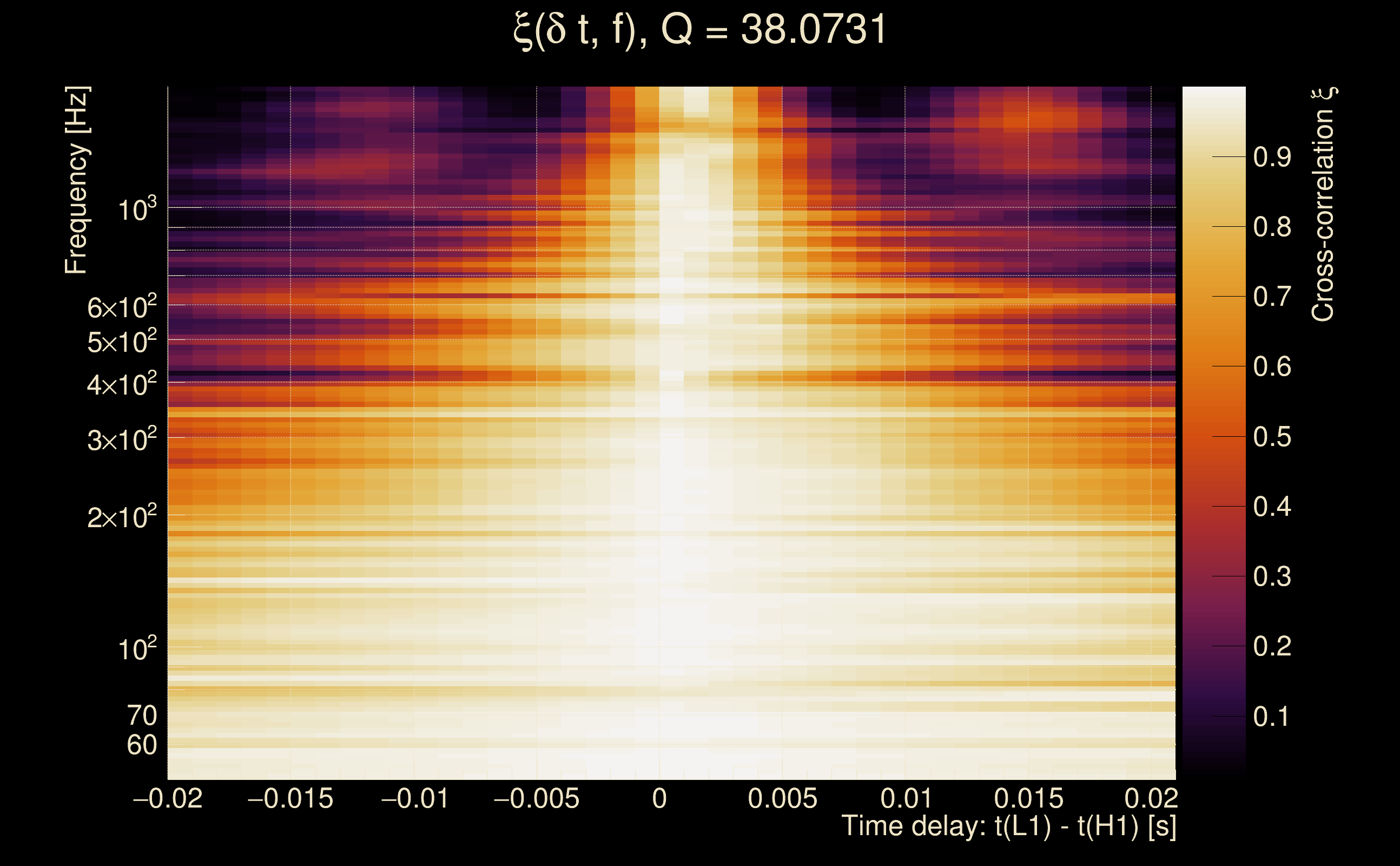

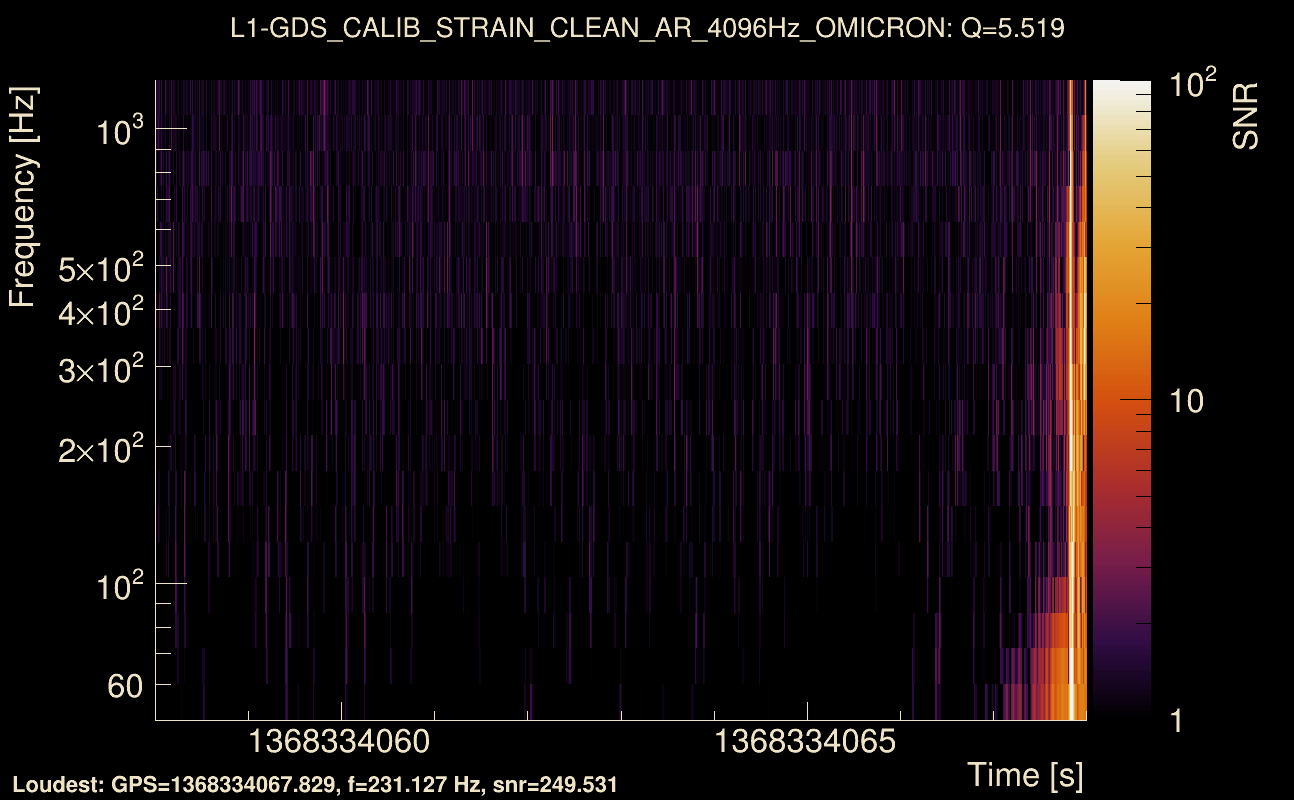

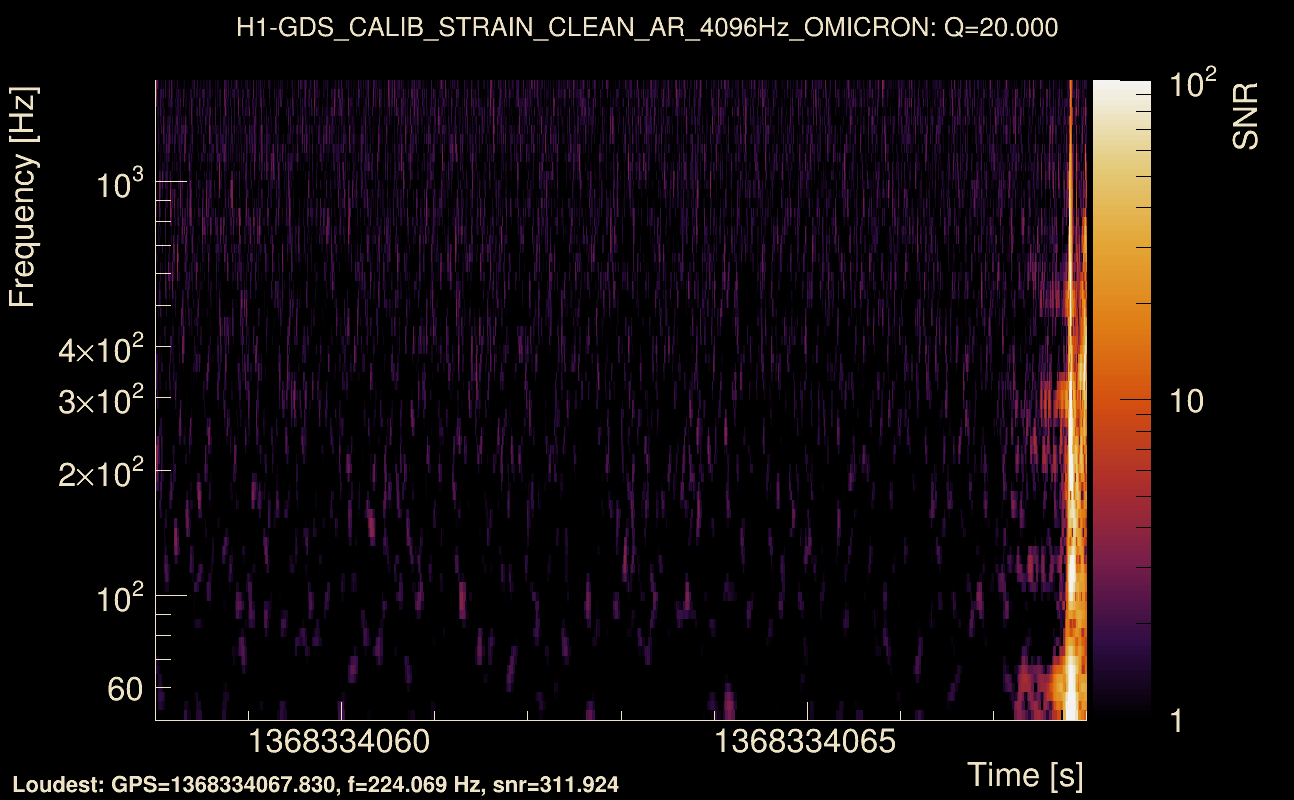

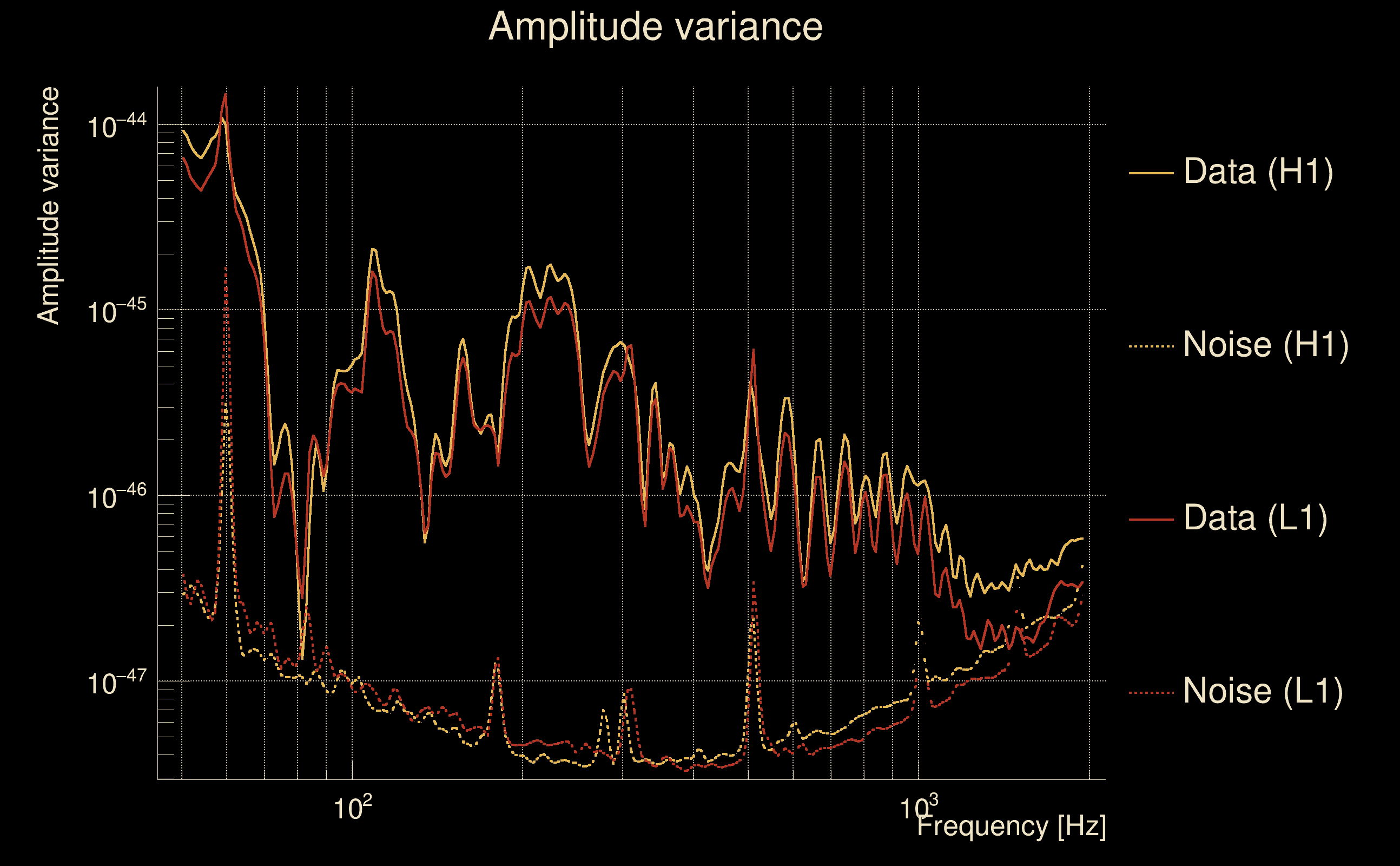

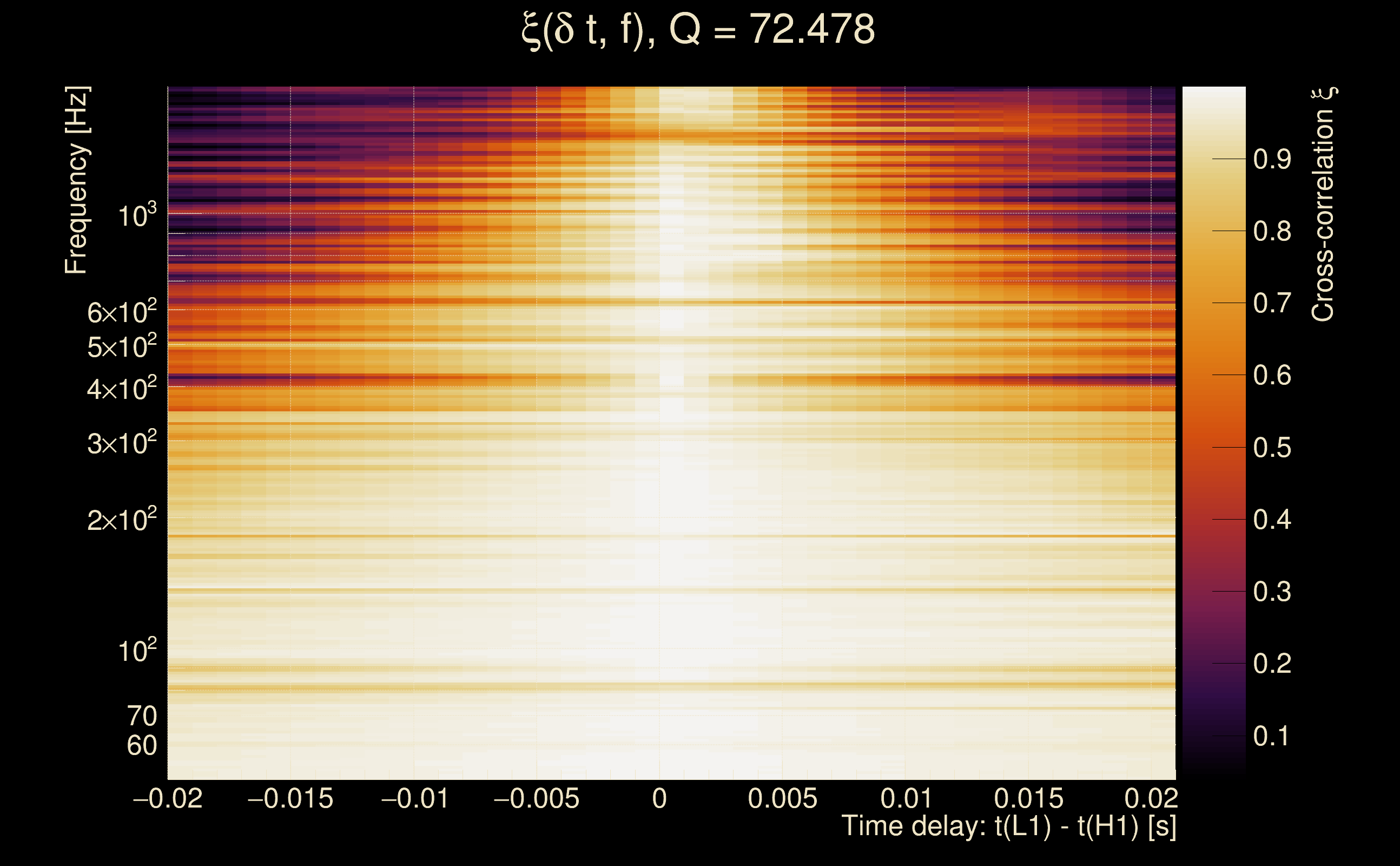

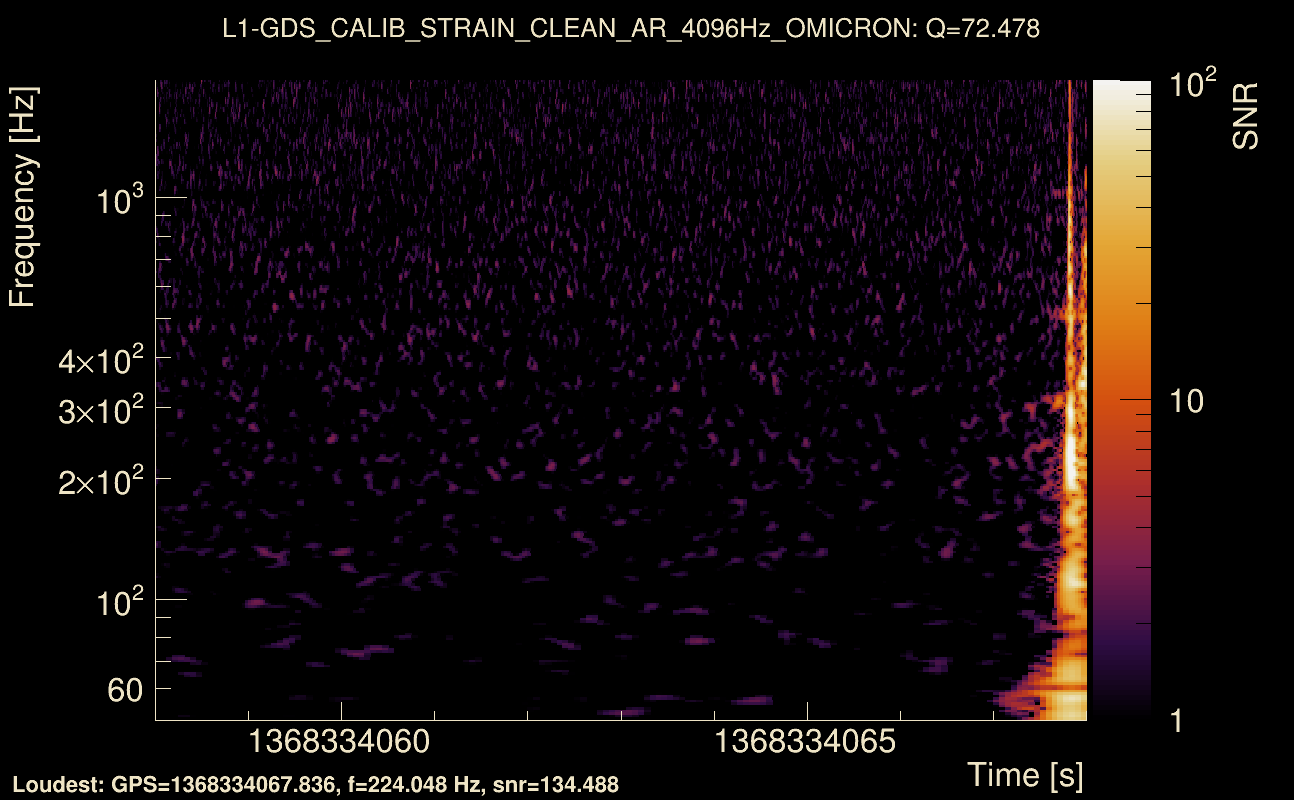

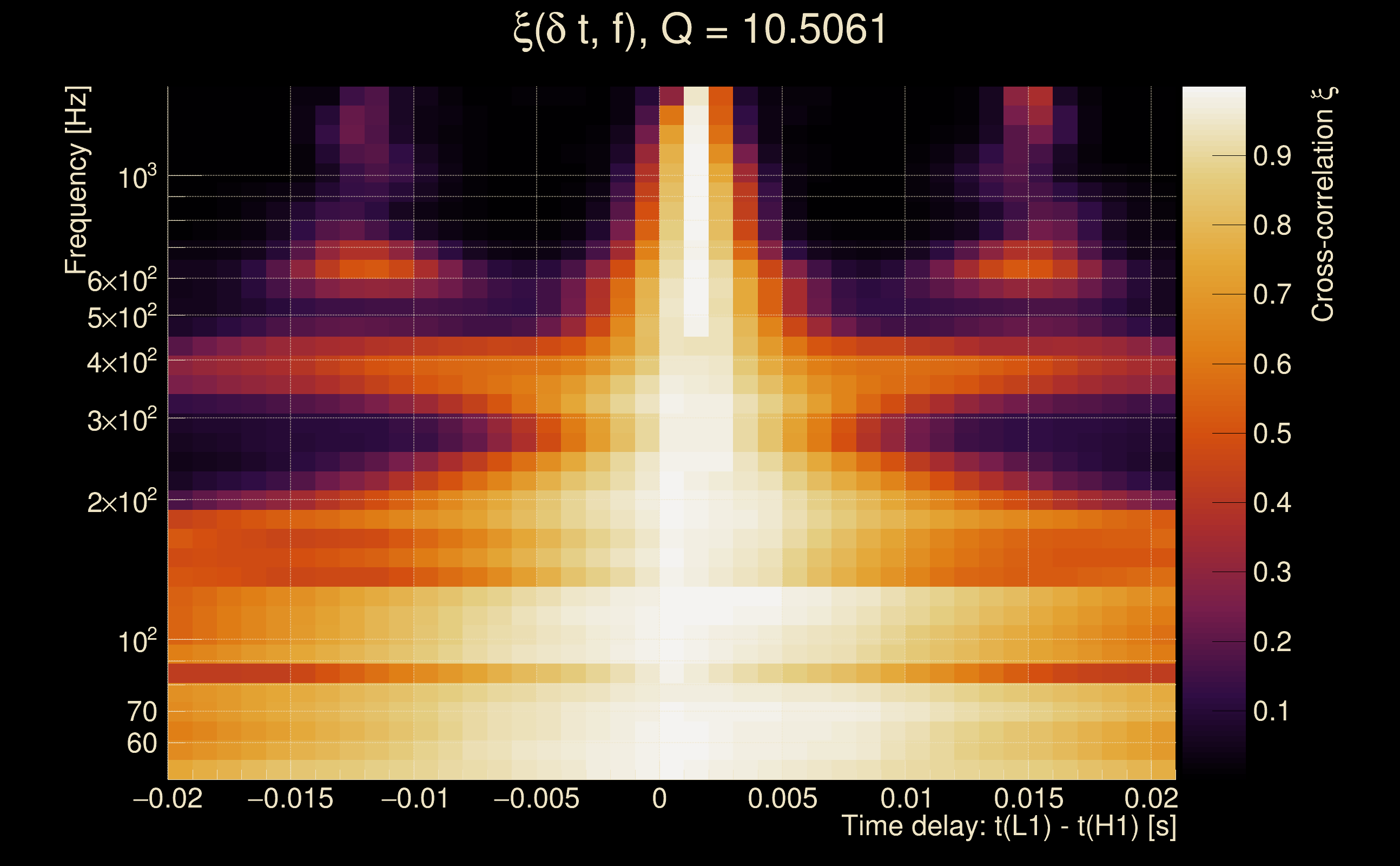

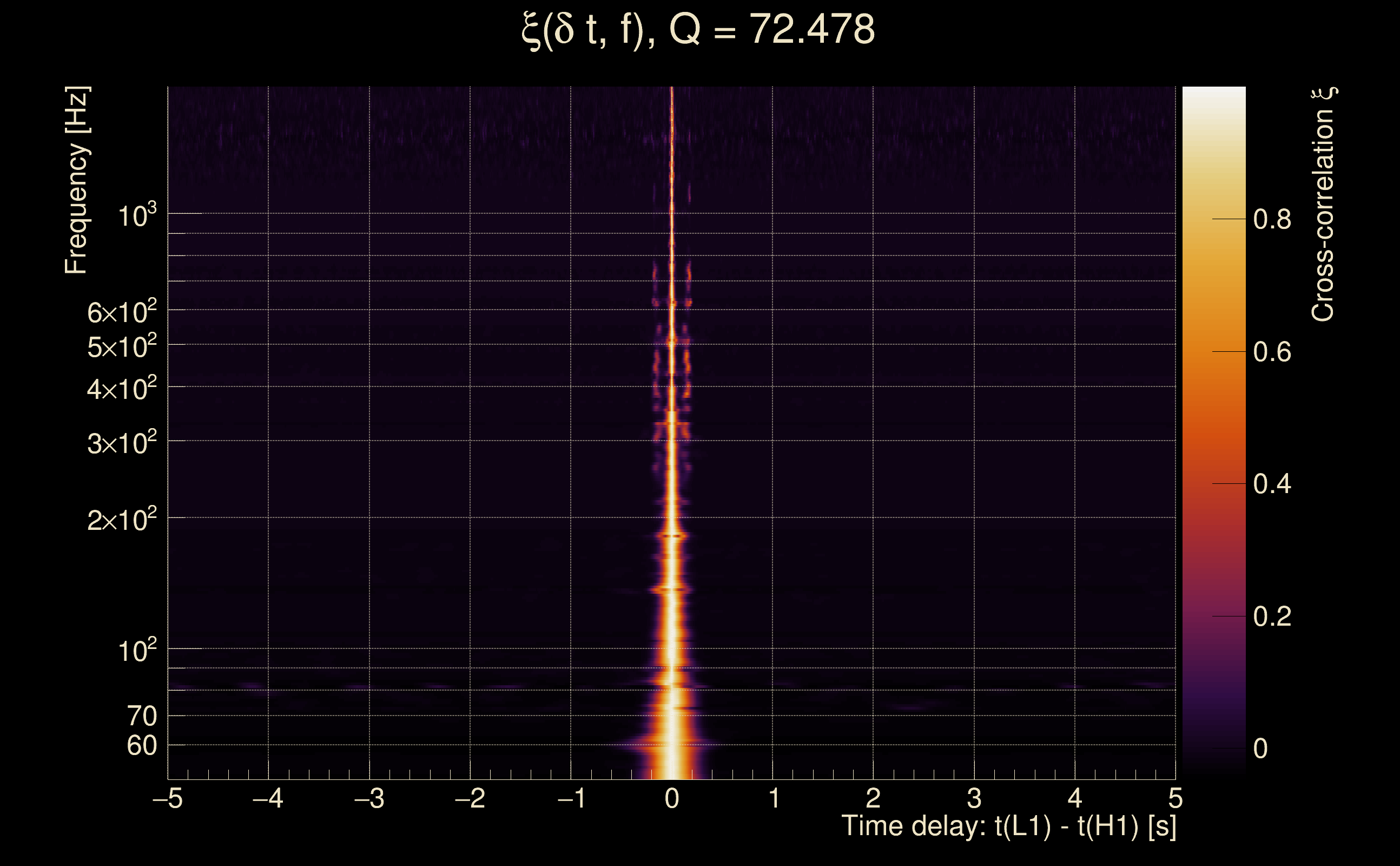

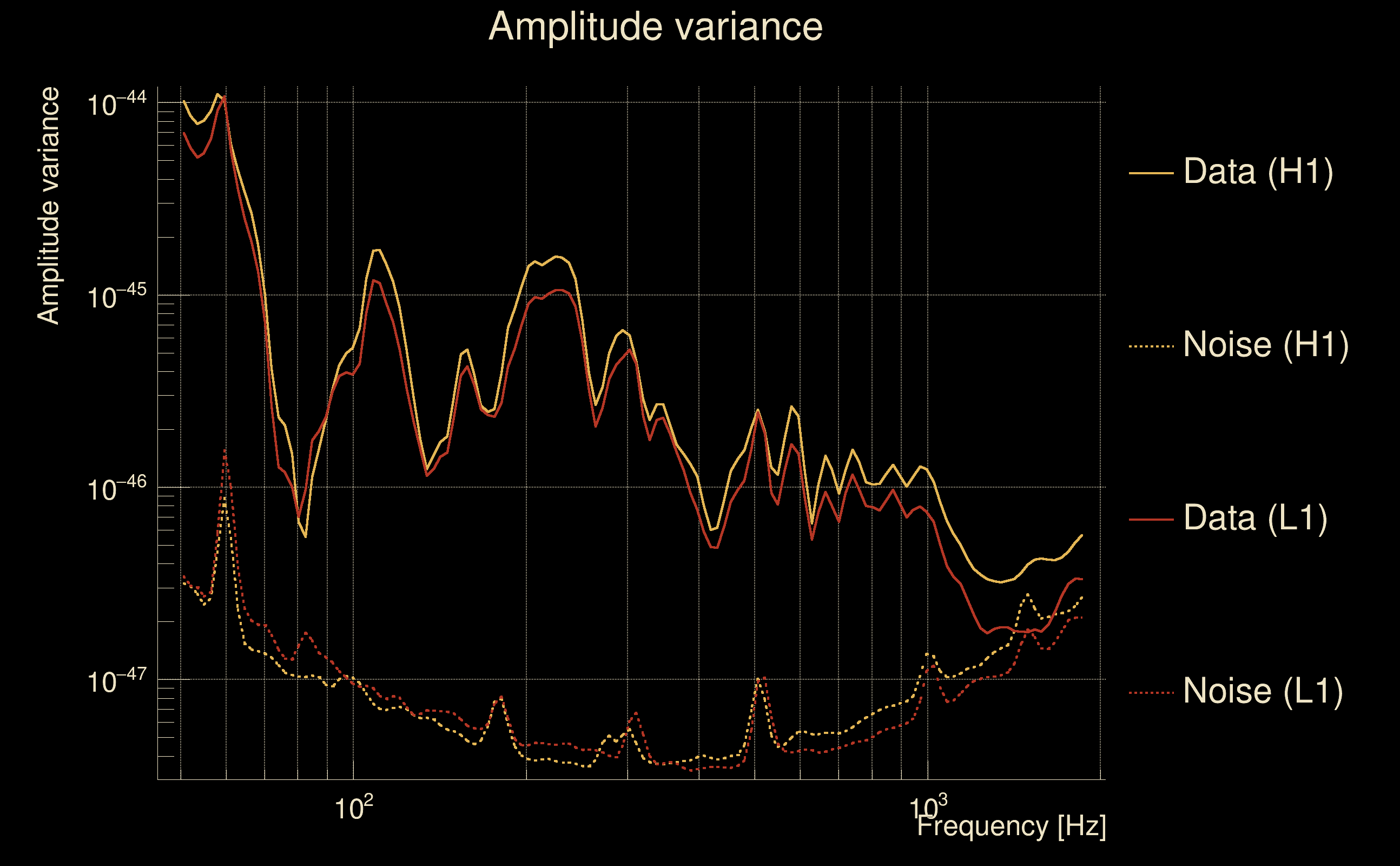

| Event time t(H1): | GPS = 1368334058 (Wed May 17 04:47:20 2023 ) → GPS = 1368334068 (Wed May 17 04:47:30 2023 ) |
| Event time t(L1): | GPS = 1368334058 (Wed May 17 04:47:30 2023 ) → GPS = 1368334068 (Wed May 17 04:47:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368334055 → GPS = 1368334071 |
| Omicron analysis time window (L1): | GPS = 1368334055 → GPS = 1368334071 |

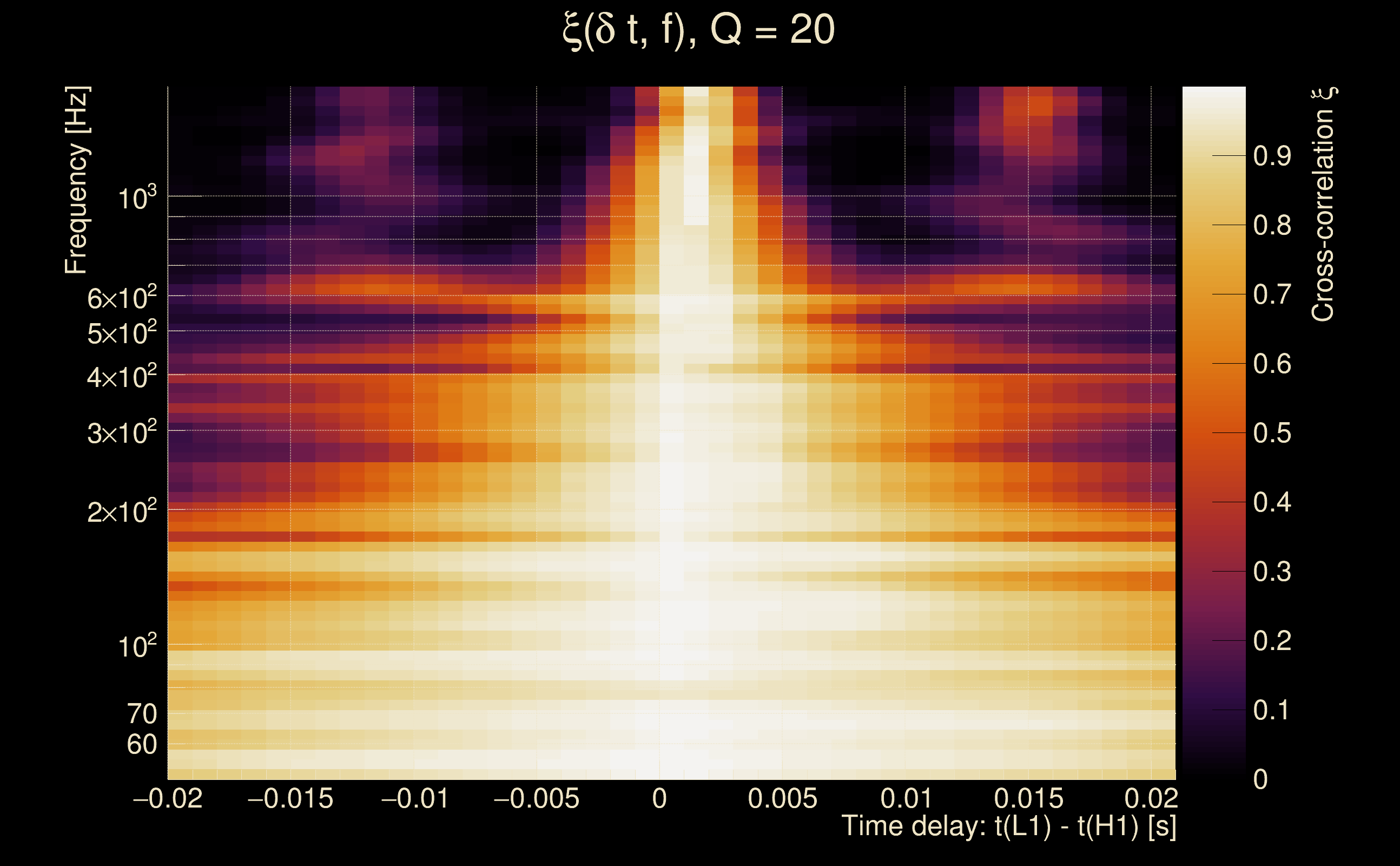

| Time delay between detectors t(L1) - t(H1): | 0.000902847 s (slice index = 108 / 217), δt_gw = 0.000902847 s |
| Time delay standard deviation: | 0.0181565 s |

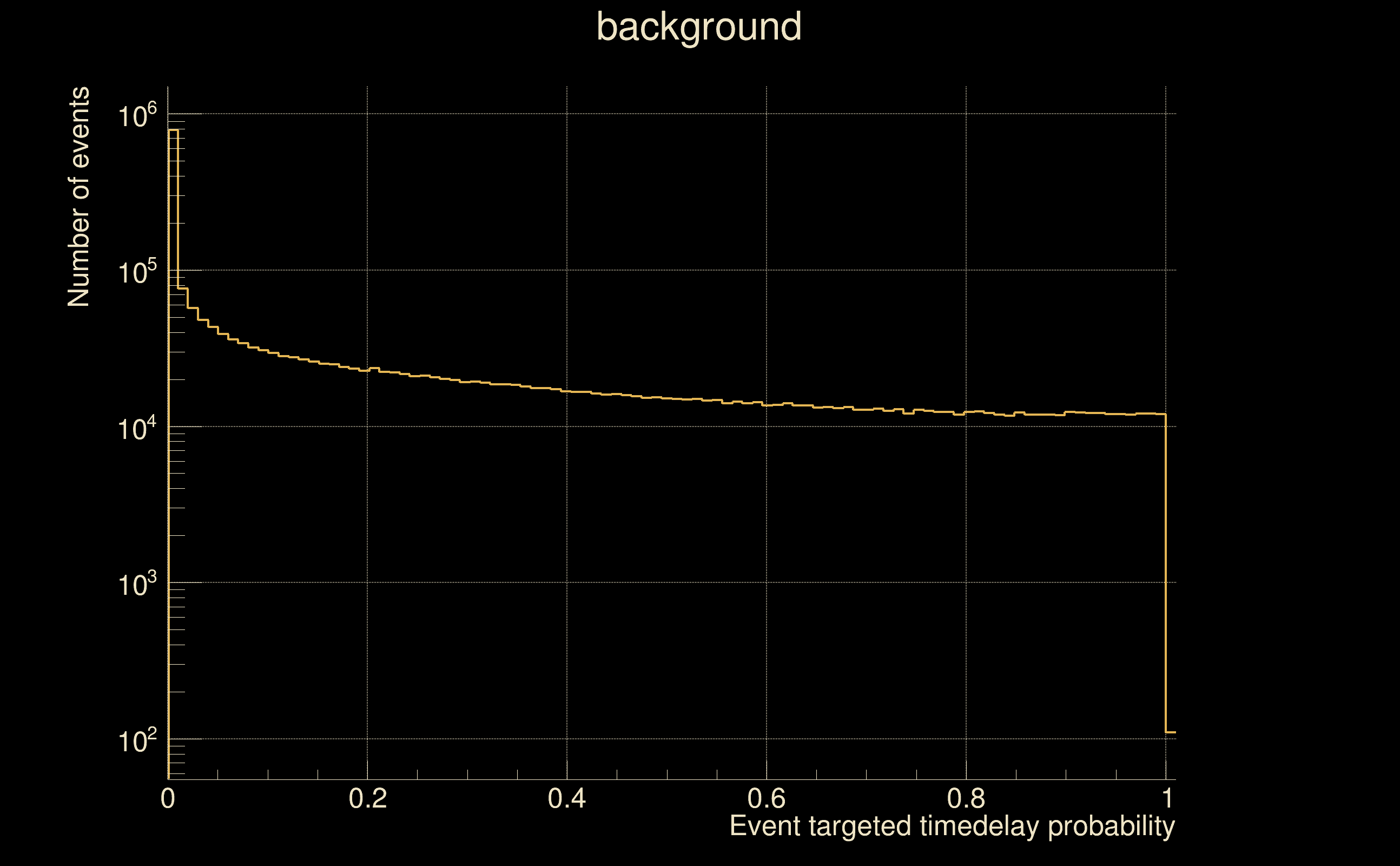

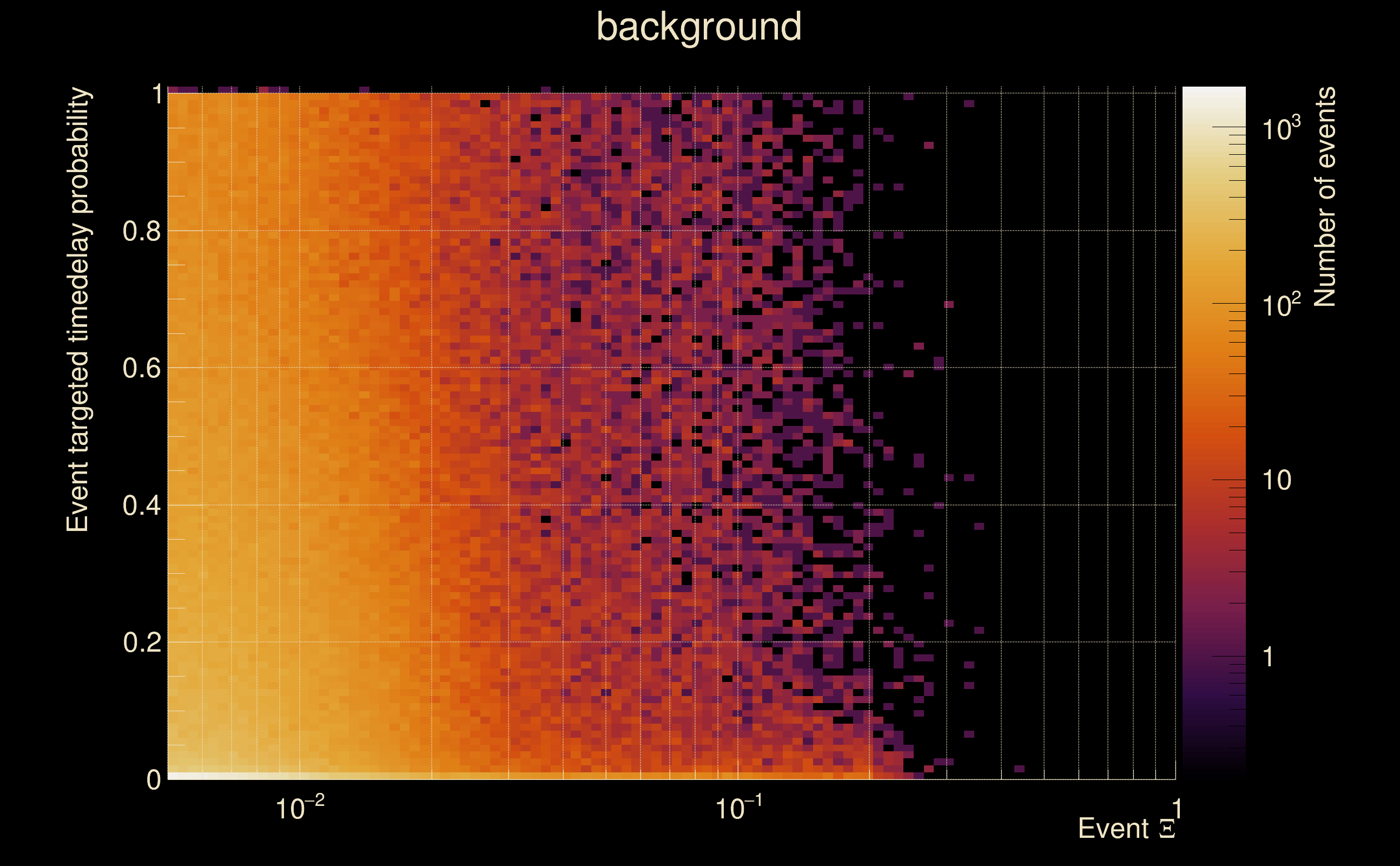

| [targeted mode] Time delay probability: | 0.999531 (0.000587785 sigmas), δt_target = 3.4988e+64 s |
| Frequency: | 286.716 Hz |
| Ξ: | 0.986438 ± 0.00368701 (variance = 1.3594e-05): Q0: 0.99066, Q1: 0.987154, Q2: 0.982084, Q3: 0.98203, Q4: 0.981166 |
| Rank: | R_A = 0.985976 |
| Log of amplitude ratio (L1/H1): | -0.171475, variance = 0.157005 (L1/H1: -0.178384, variance = 0.302376, H1/L1: 0.16121, variance = 0.302661) |
| Amplitude ratio (L1/H1): | 0.842422 ⋇ 1.48622 (L1/H1: 0.836621 ⋇ 1.73306, H1/L1: 1.17493 ⋇ 1.73351) |

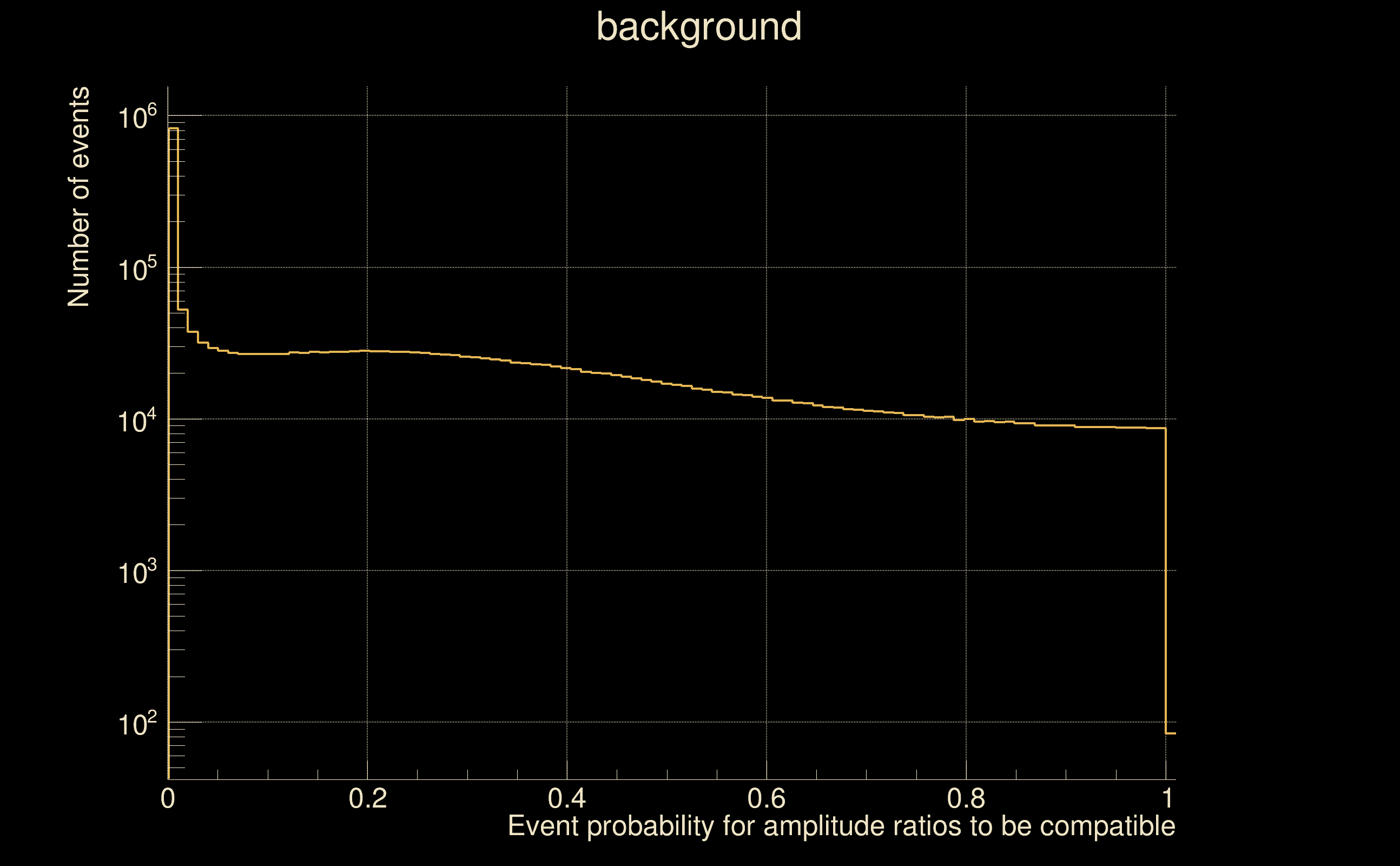

| Amplitude ratio H1|L1 compatibility (probability): | 0.982385 |

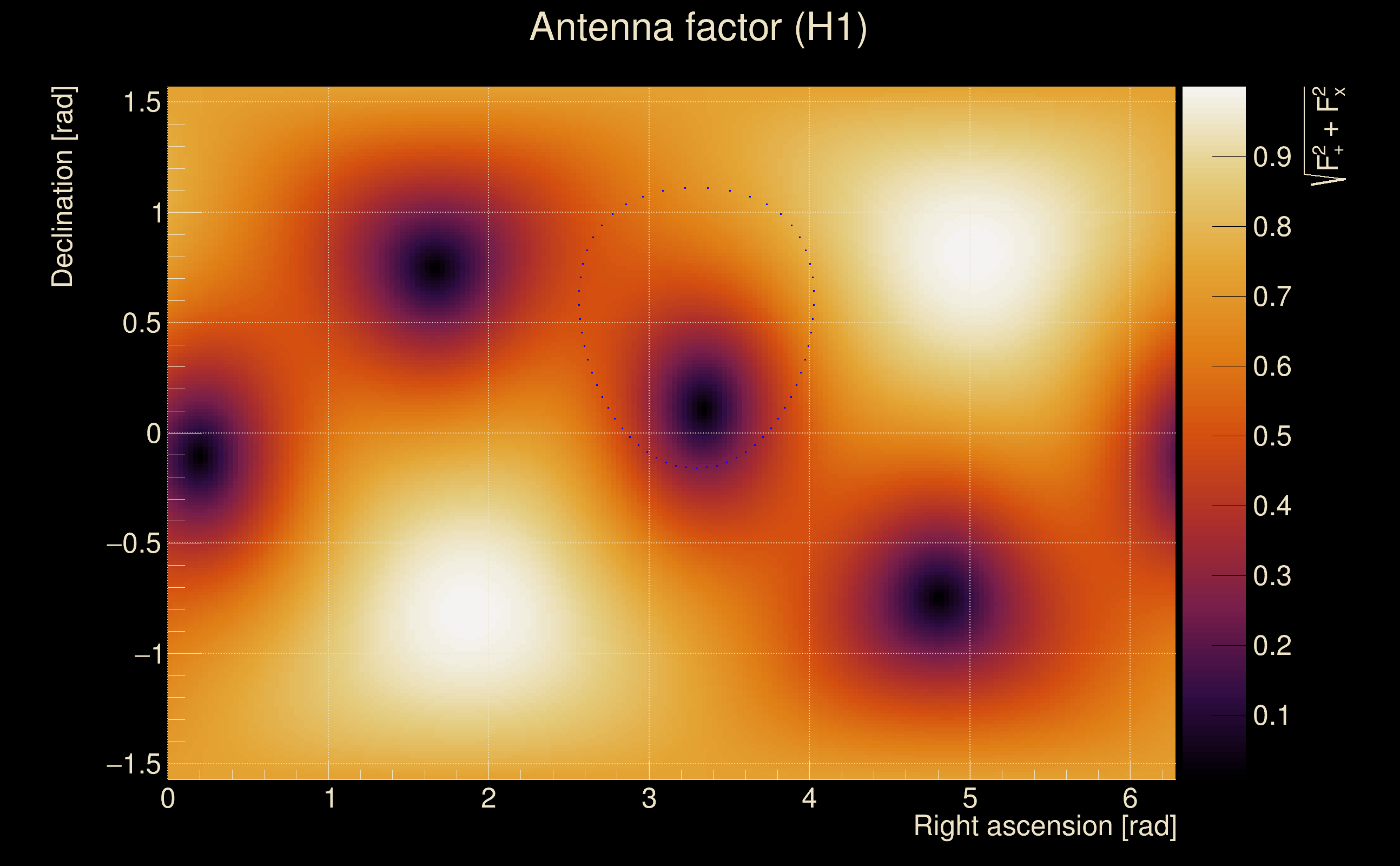

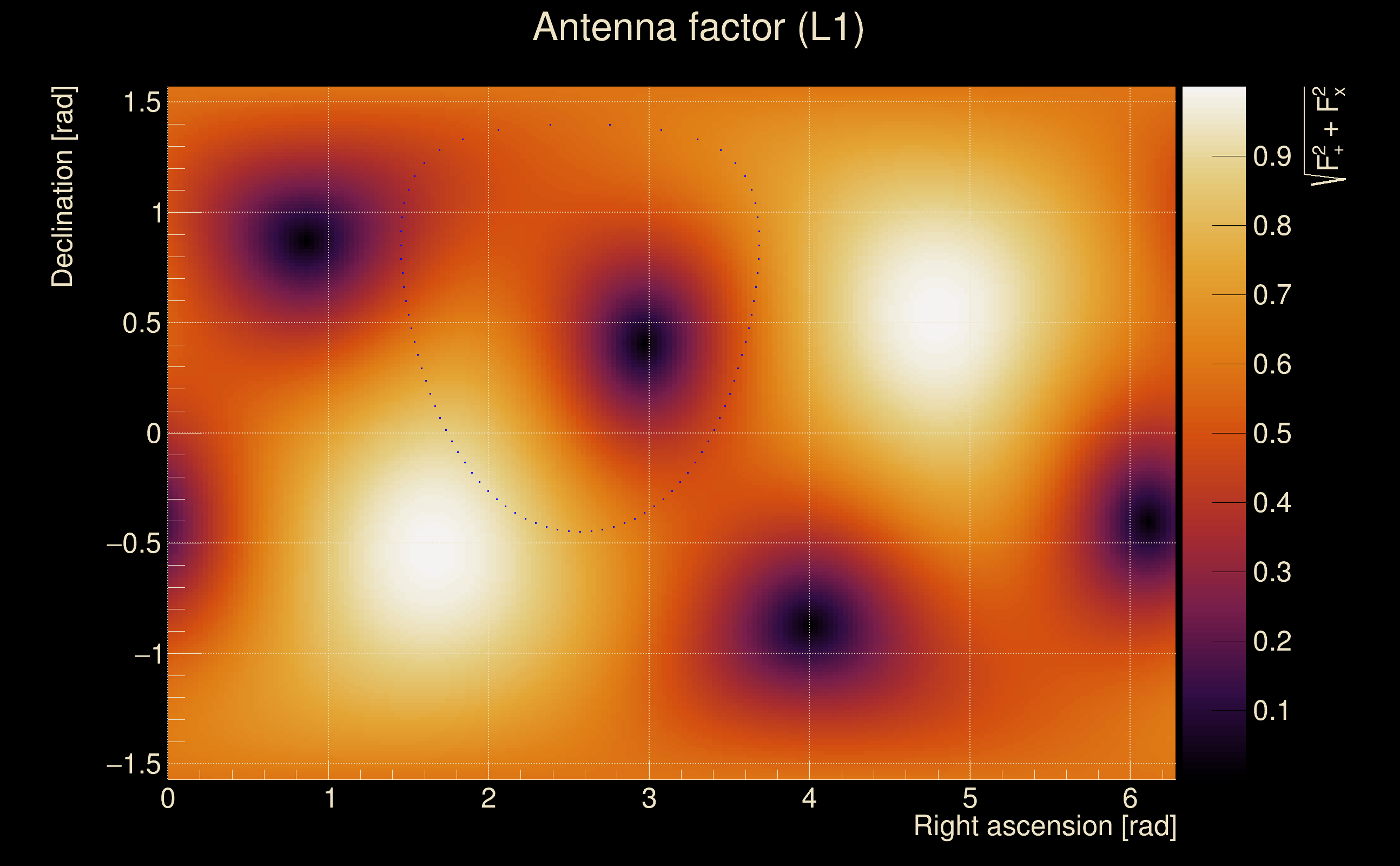

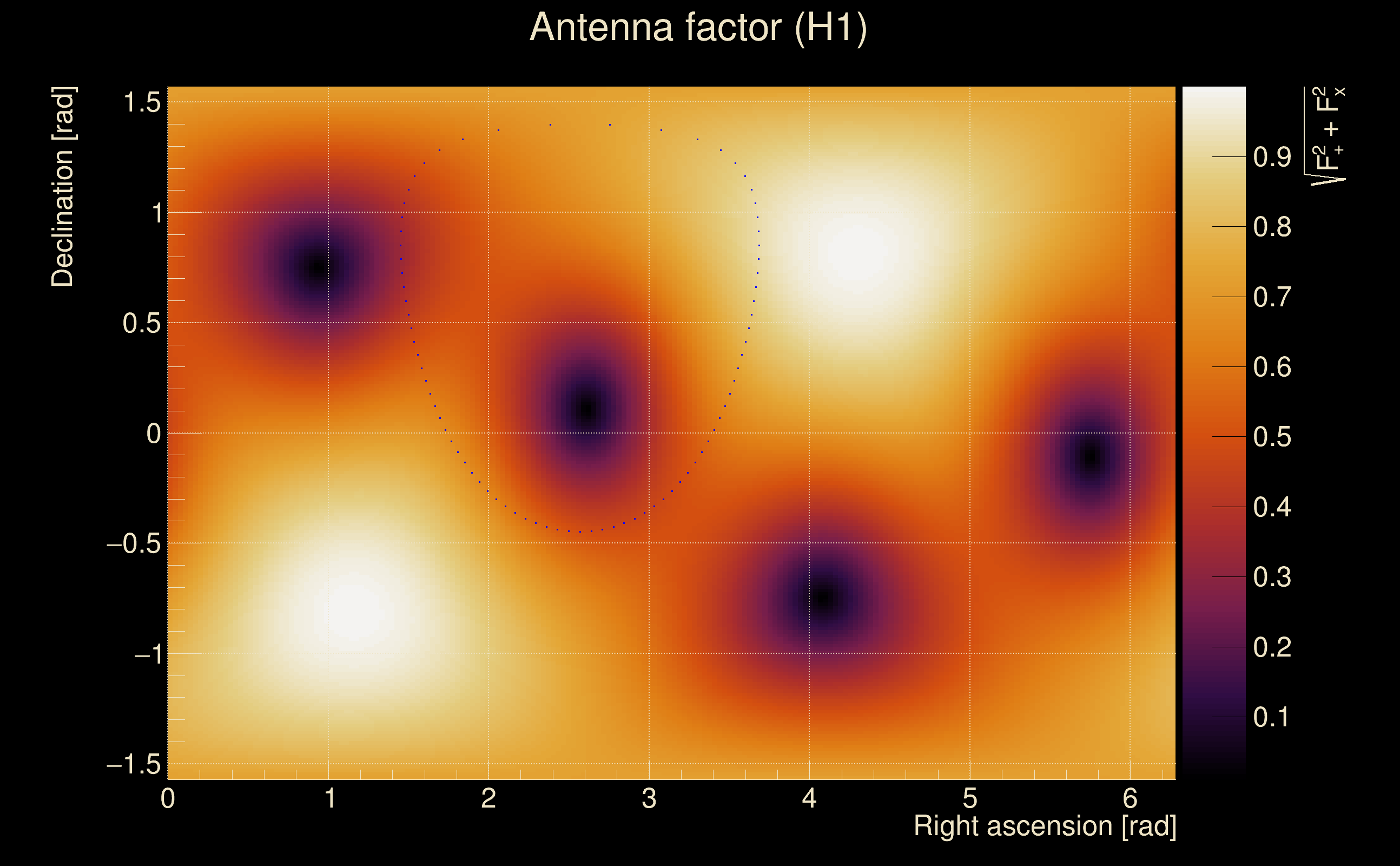

| Antenna factor probability: | 0.746638 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 2 / 258 |

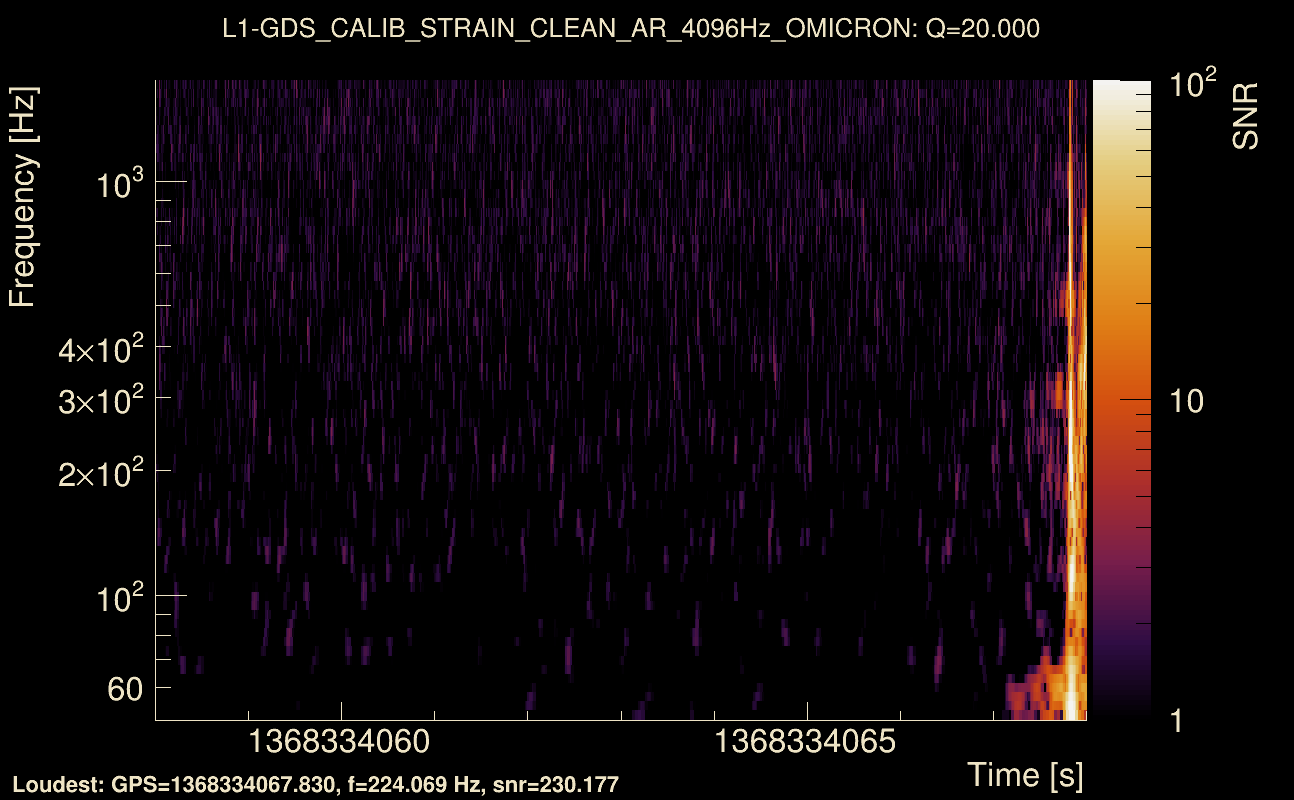

| Maximum signal-to-noise ratio: | H1: 347.143, L1: 284.807 |

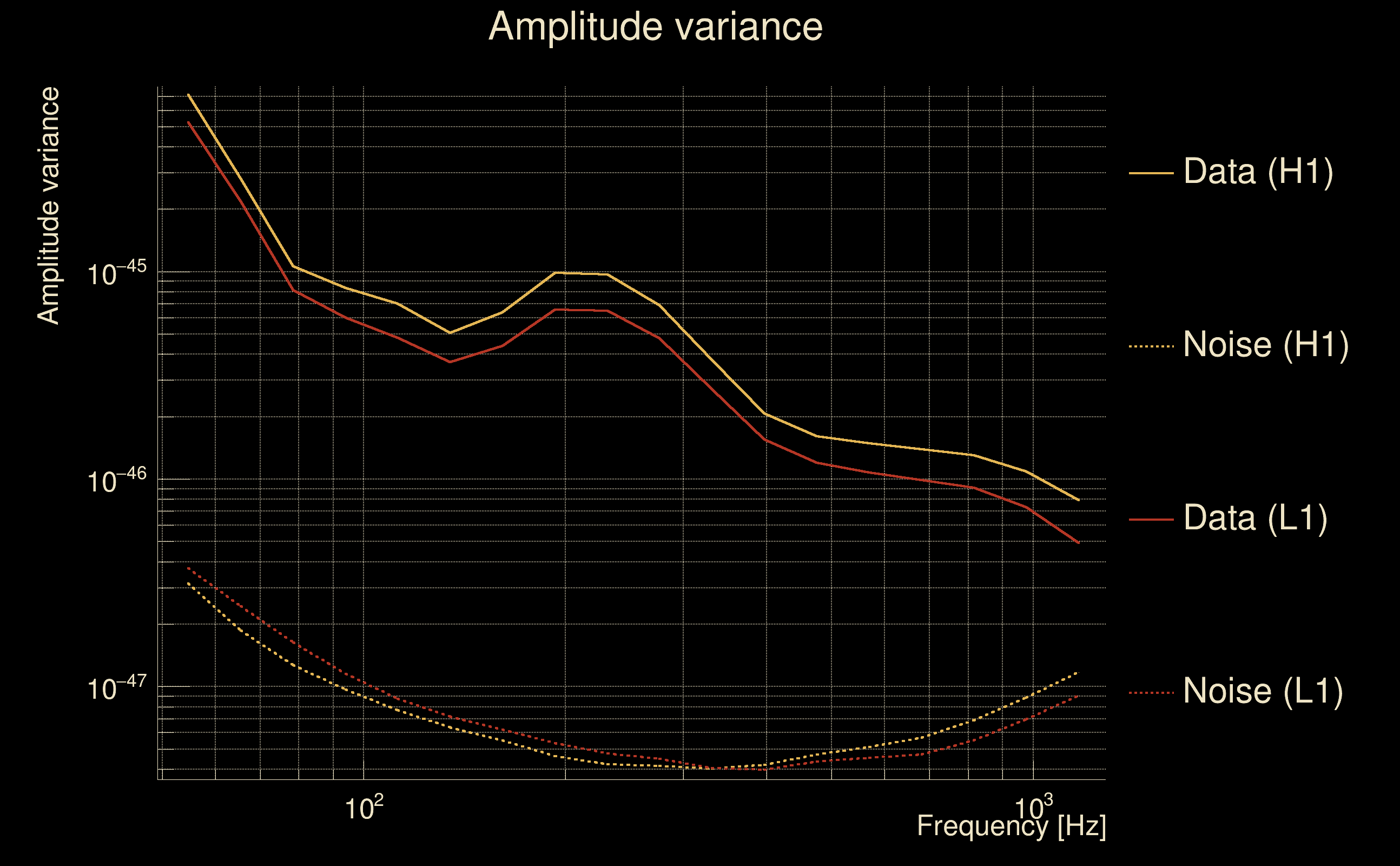

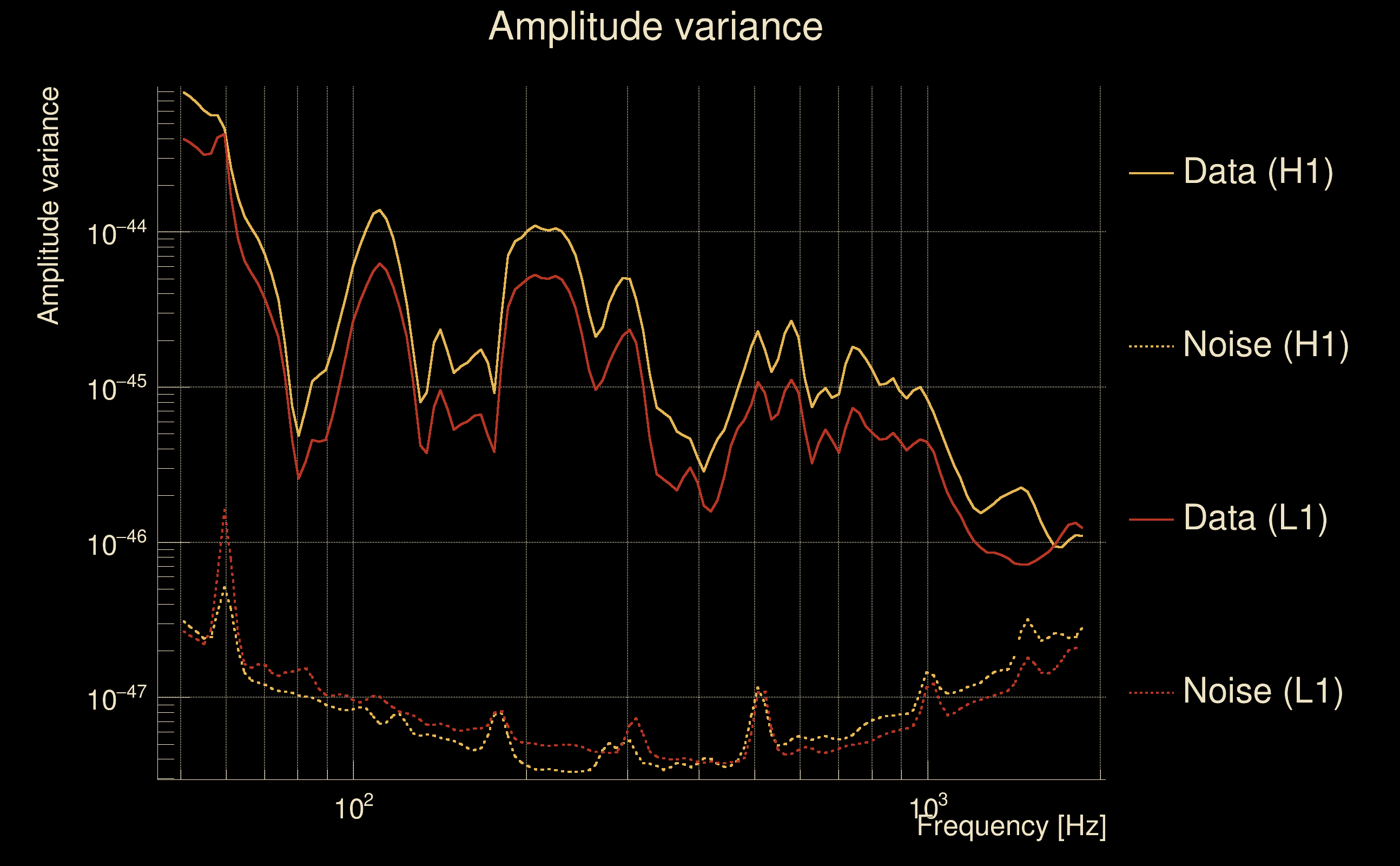

| SNR variance: | H1: 0.522242, L1: 0.497423 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

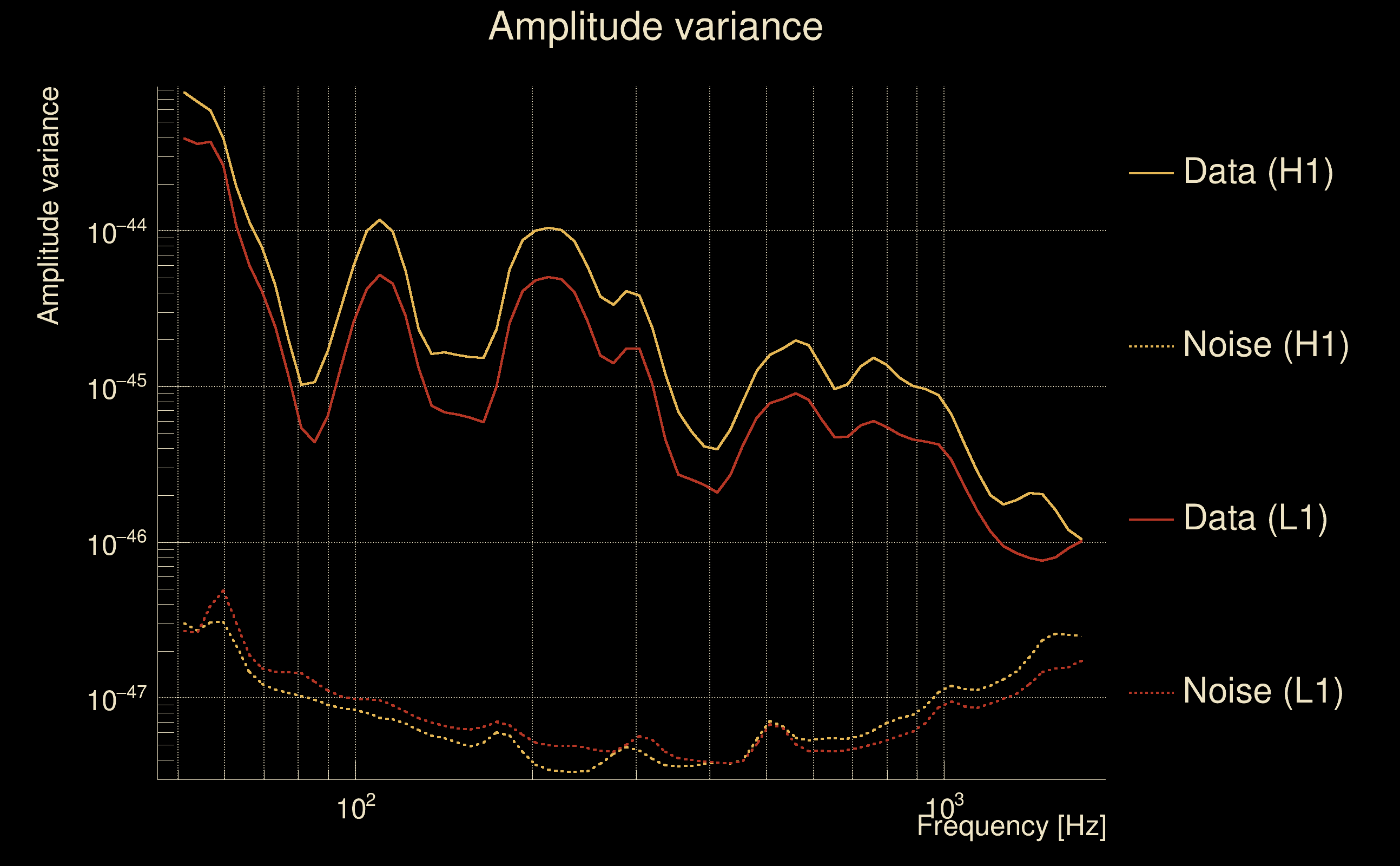

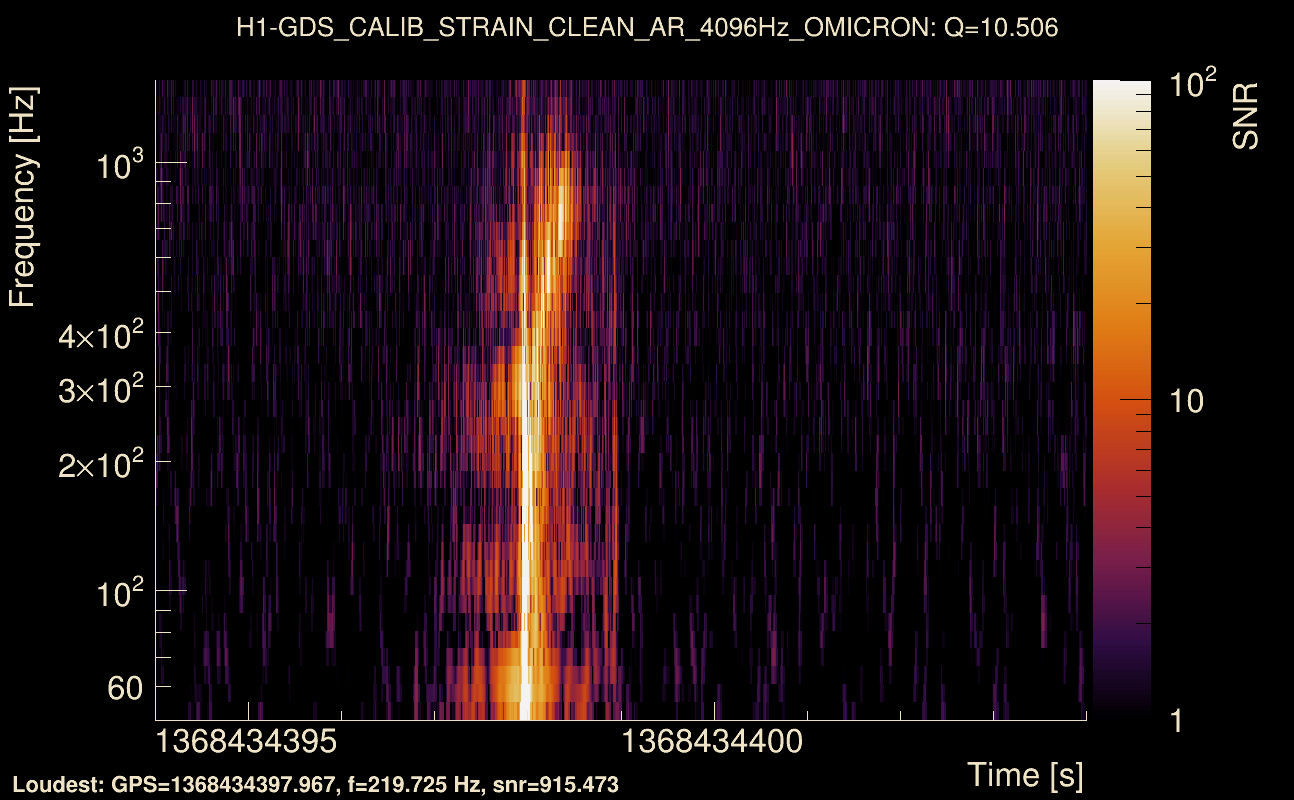

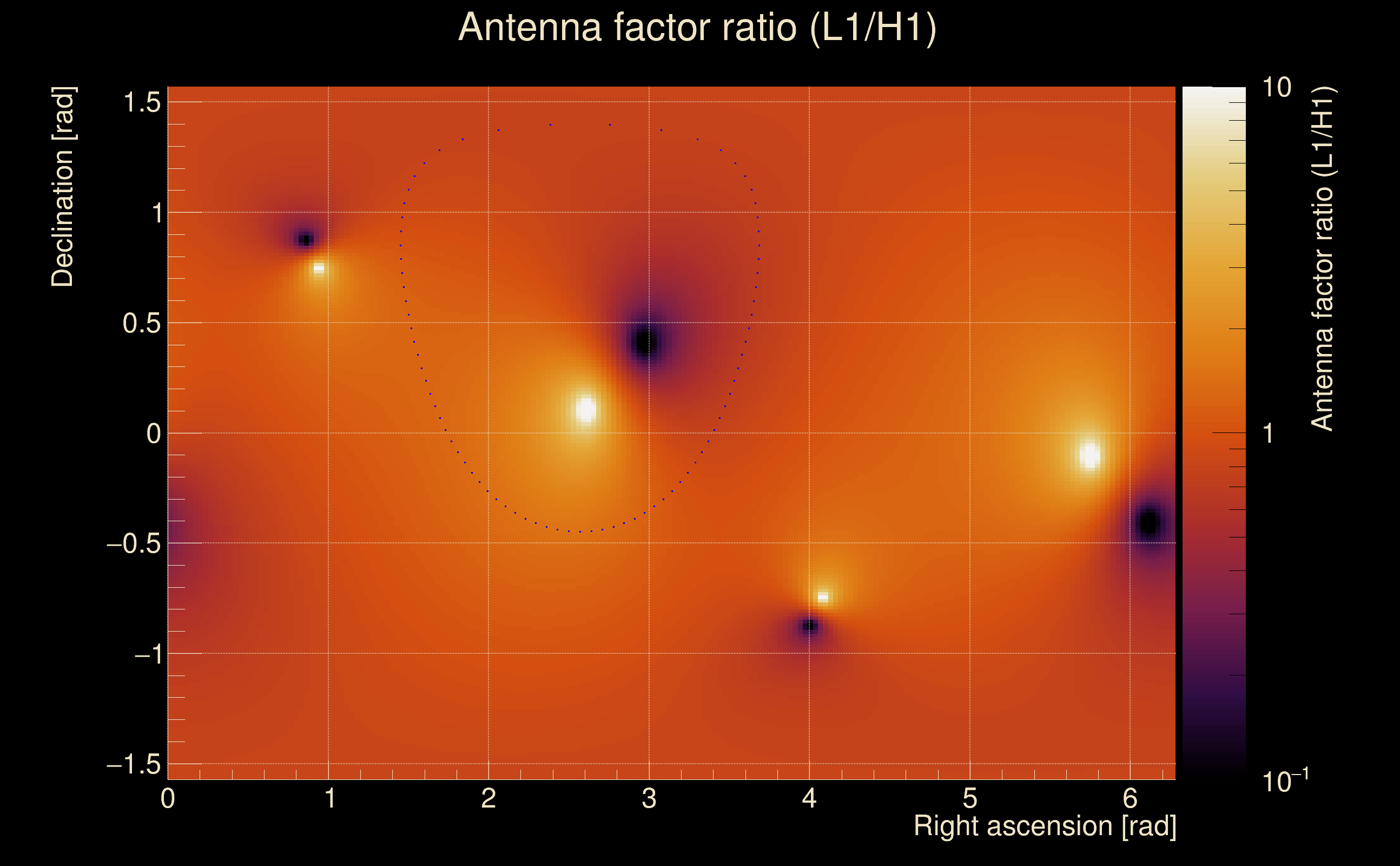

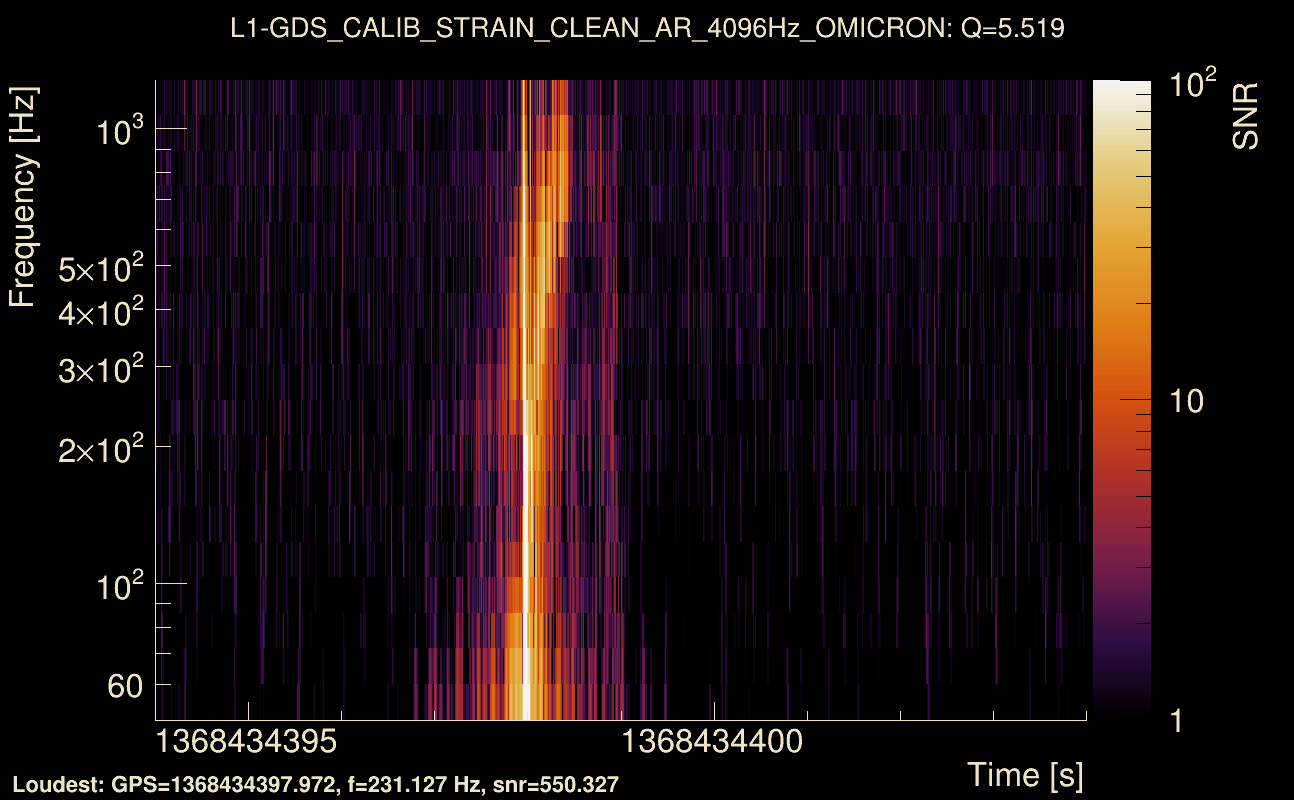

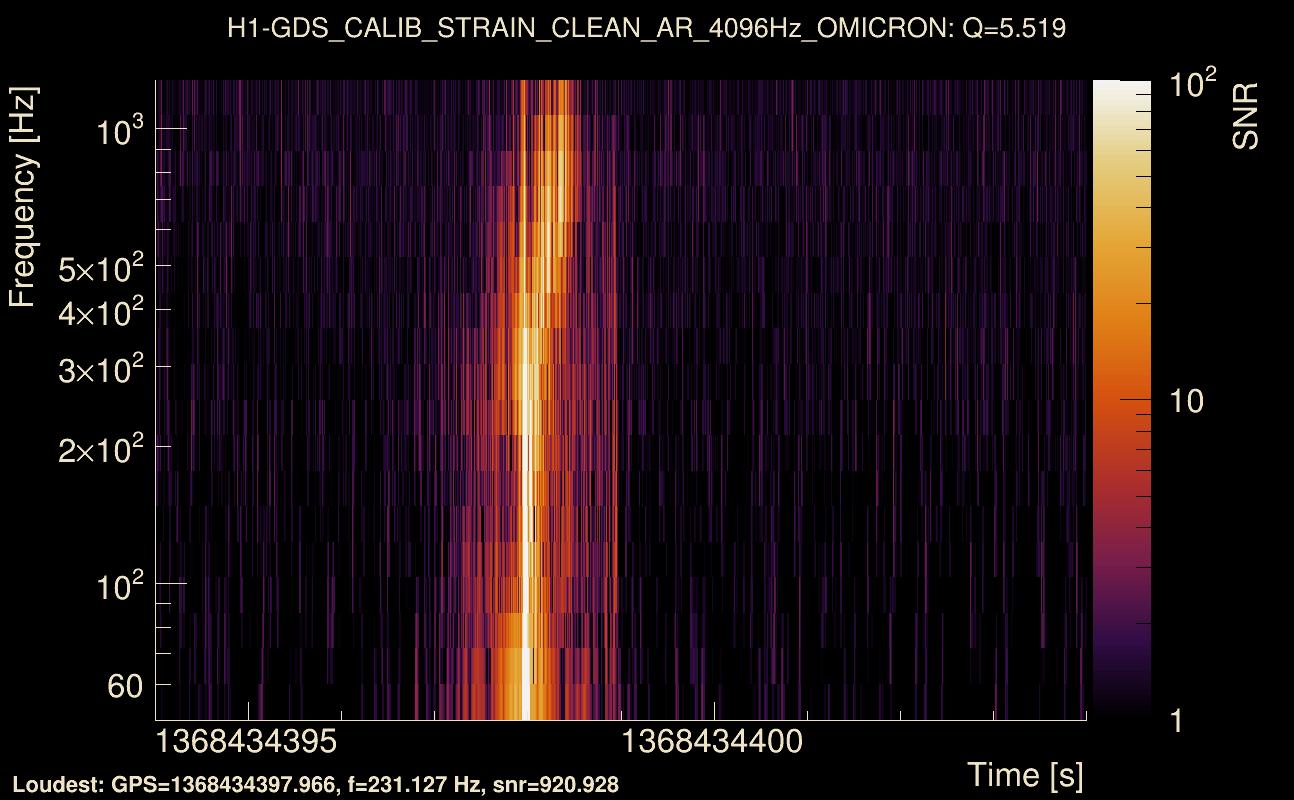

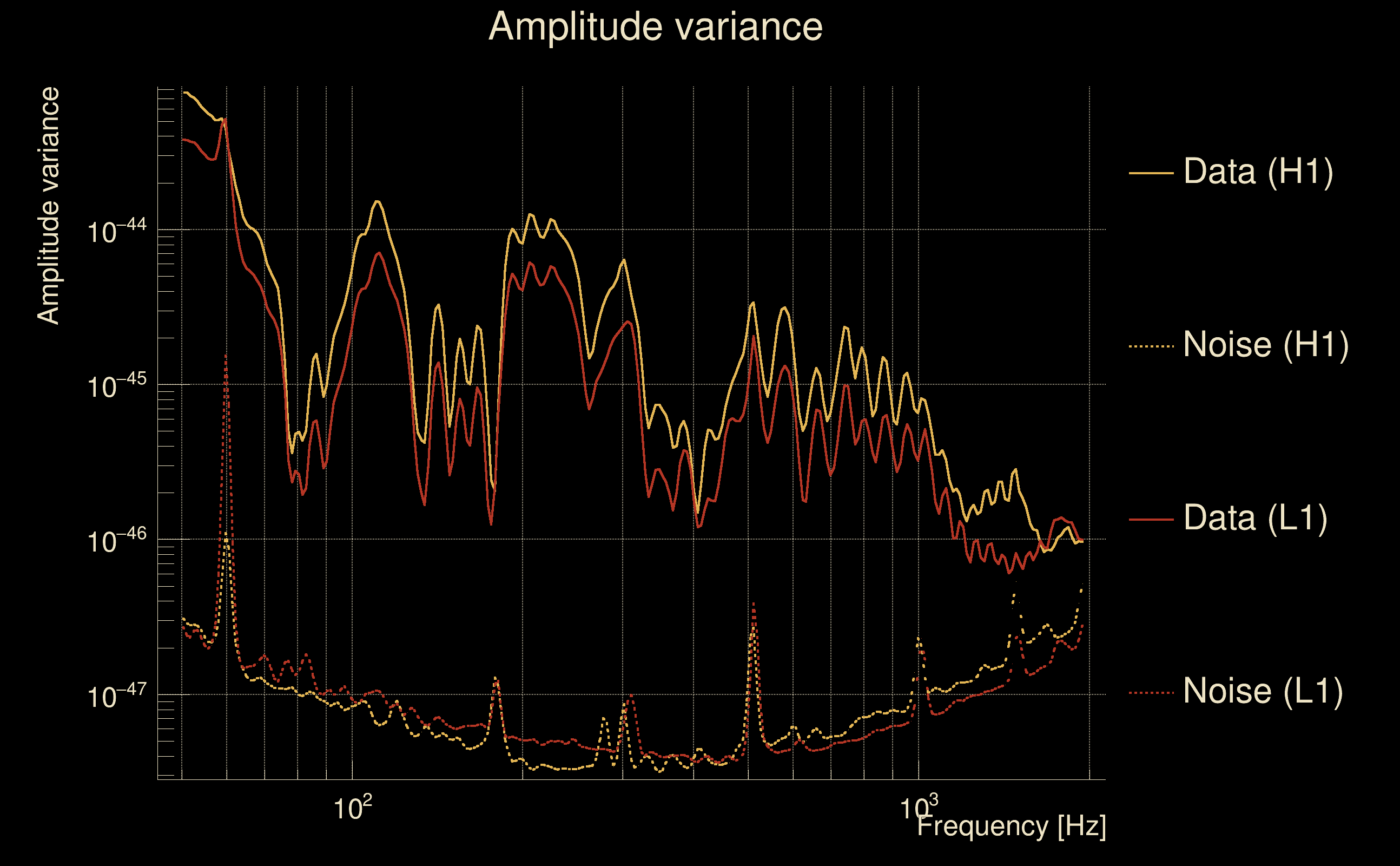

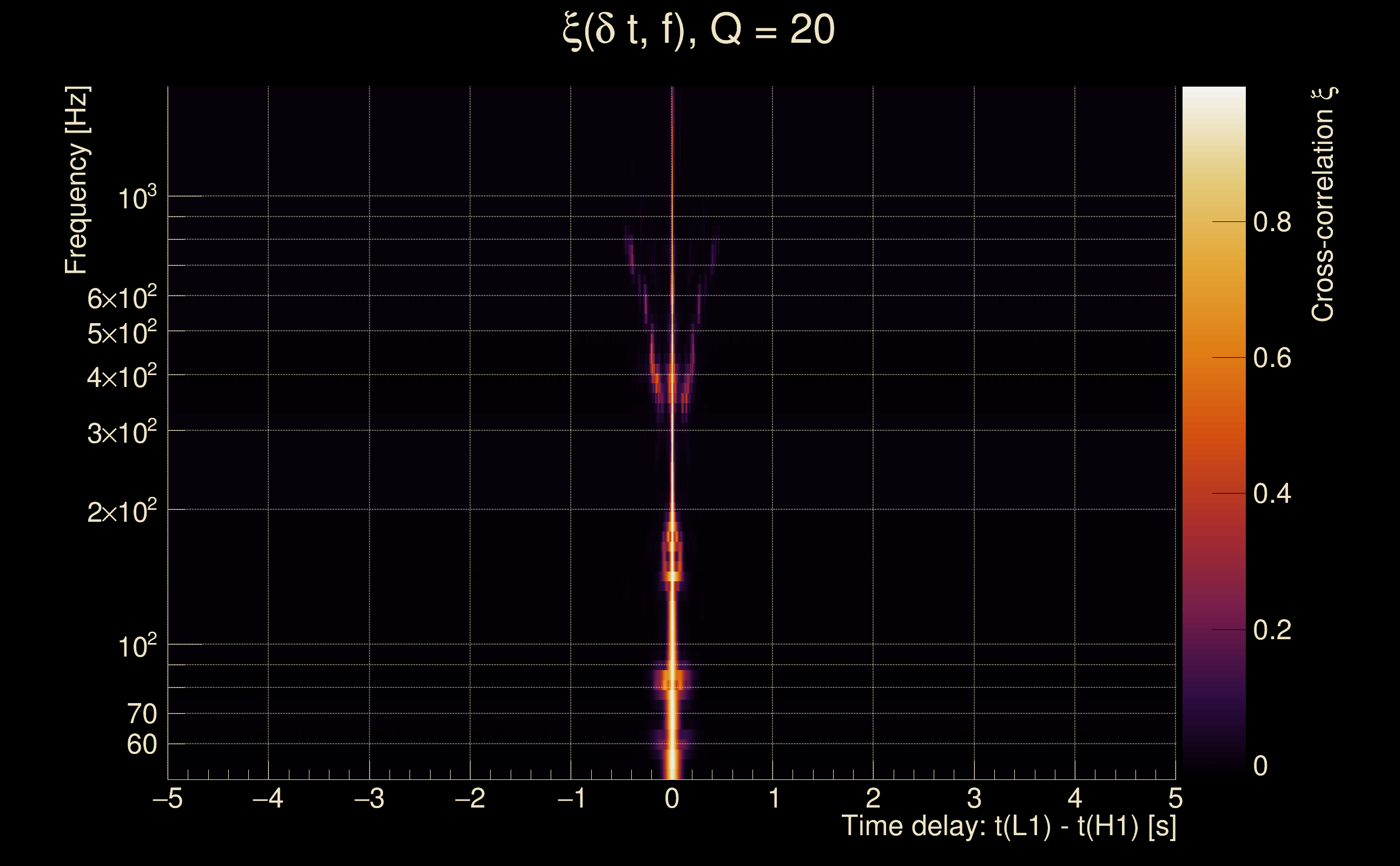

| Event time t(H1): | GPS = 1368434389 (Thu May 18 08:39:31 2023 ) → GPS = 1368434399 (Thu May 18 08:39:41 2023 ) |
| Event time t(L1): | GPS = 1368434389 (Thu May 18 08:39:41 2023 ) → GPS = 1368434399 (Thu May 18 08:39:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368434386 → GPS = 1368434402 |
| Omicron analysis time window (L1): | GPS = 1368434386 → GPS = 1368434402 |

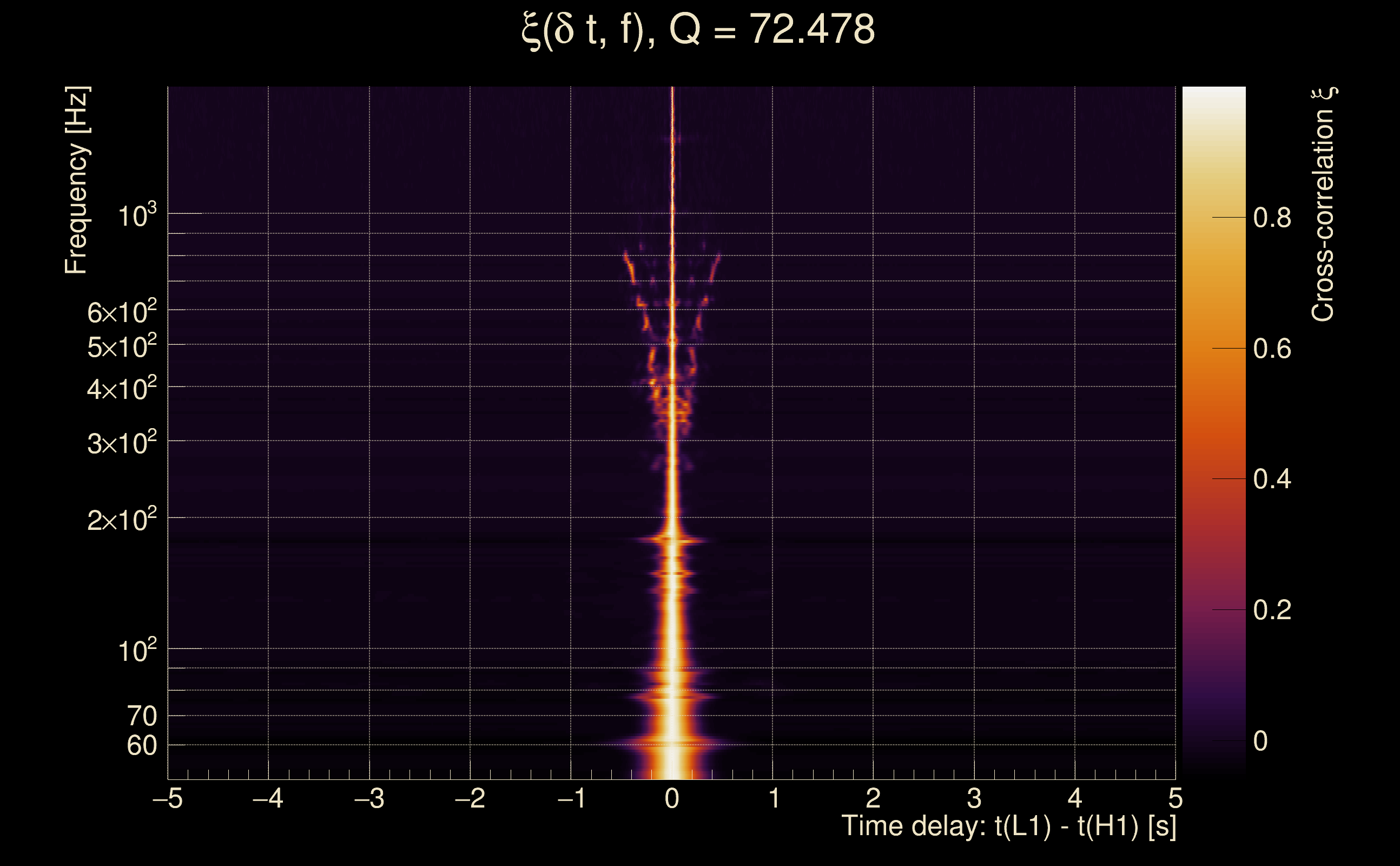

| Time delay between detectors t(L1) - t(H1): | 0.00602091 s (slice index = 108 / 217), δt_gw = 0.00602091 s |
| Time delay standard deviation: | 0.0200368 s |
| [targeted mode] Time delay probability: | 0.999772 (0.000285308 sigmas), δt_target = 0.000902653 s |
| Frequency: | 287.608 Hz |
| Ξ: | 0.978715 ± 0.00155835 (variance = 2.42847e-06): Q0: 0.981681, Q1: 0.9813, Q2: 0.979293, Q3: 0.979824, Q4: 0.977323 |
| Rank: | R_A = 0.978493 |
| Log of amplitude ratio (L1/H1): | -0.365201, variance = 0.18 (L1/H1: -0.374936, variance = 0.303732, H1/L1: 0.340757, variance = 0.303858) |
| Amplitude ratio (L1/H1): | 0.694057 ⋇ 1.52846 (L1/H1: 0.687333 ⋇ 1.73519, H1/L1: 1.40601 ⋇ 1.73539) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.965025 |
| Antenna factor probability: | 0.929558 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 4 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 975.318, L1: 615.514 |
| SNR variance: | H1: 0.511407, L1: 0.537194 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

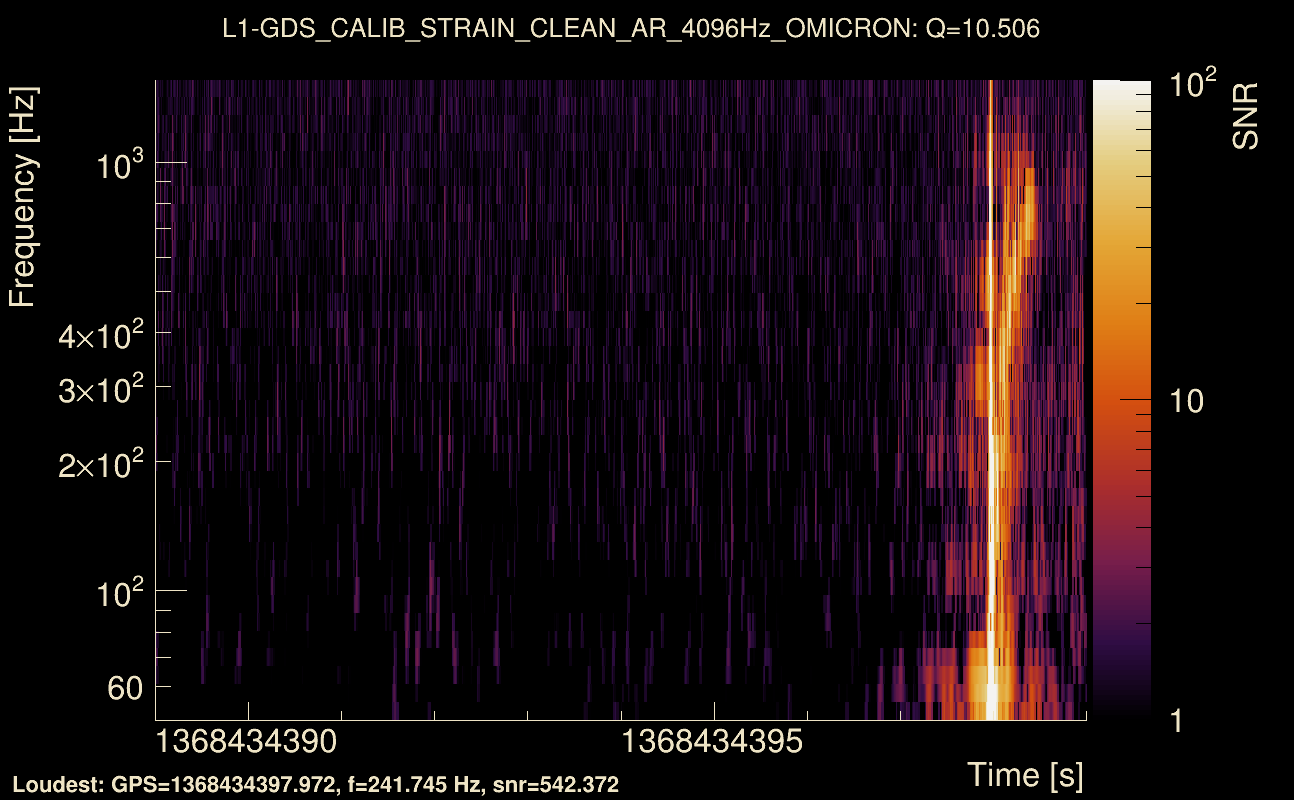

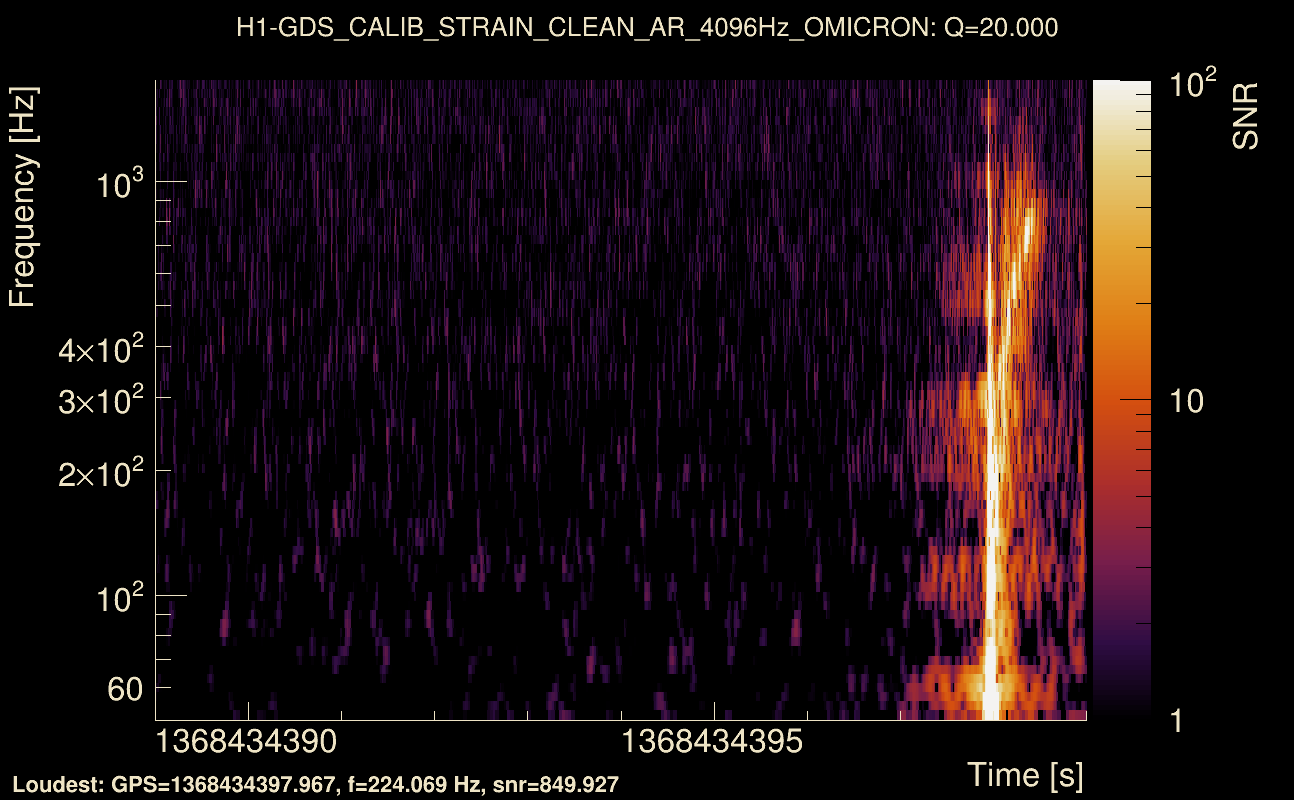

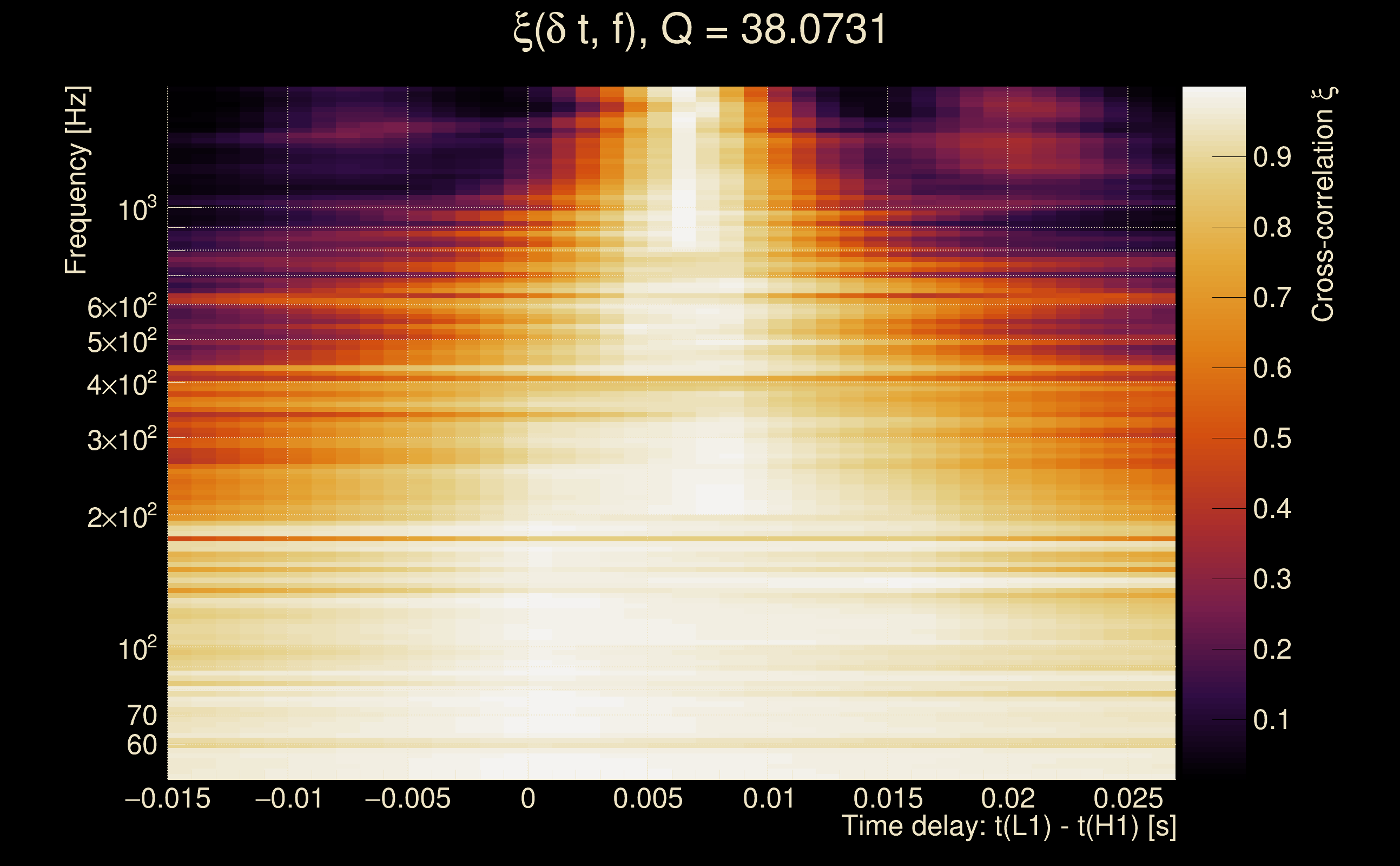

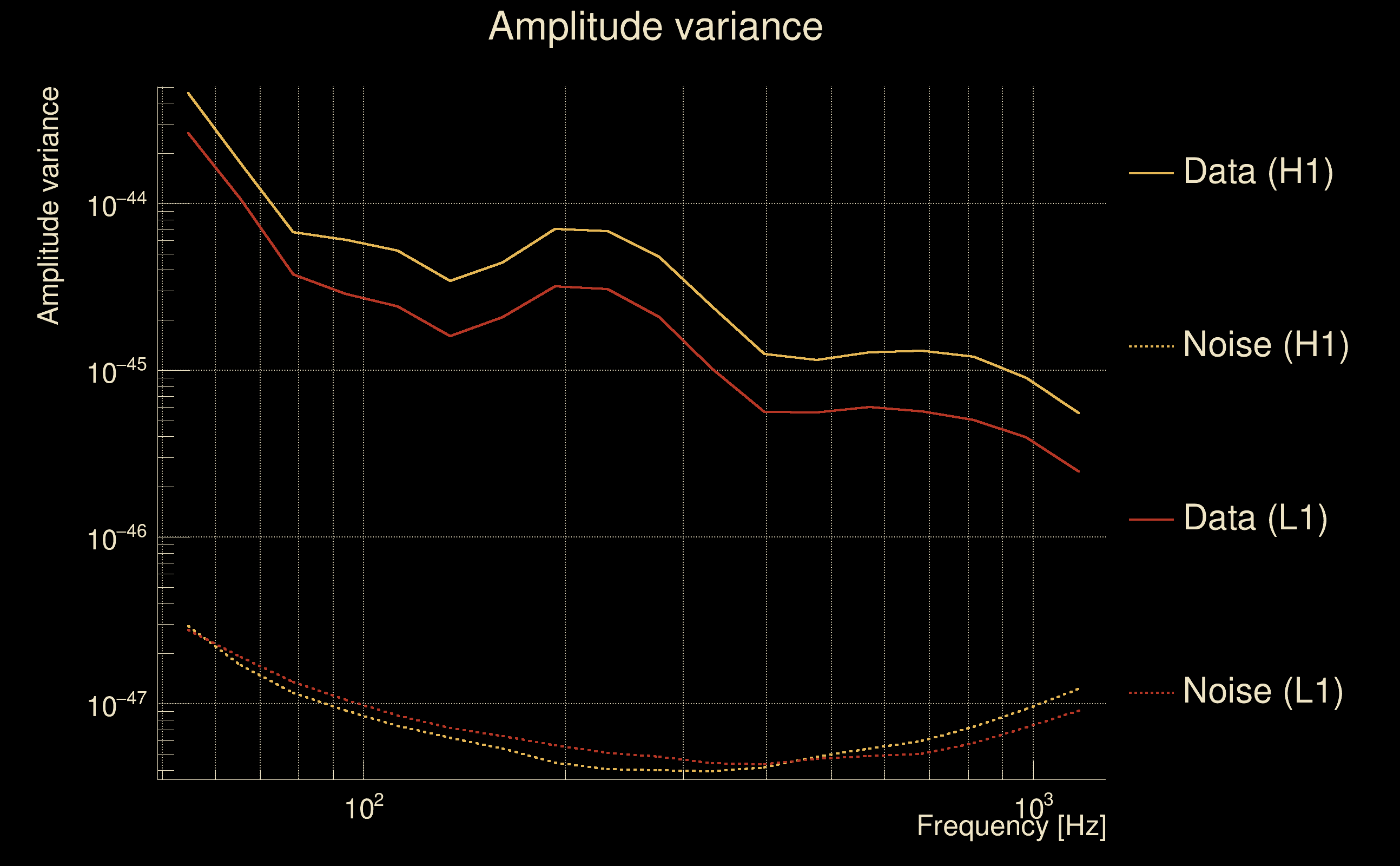

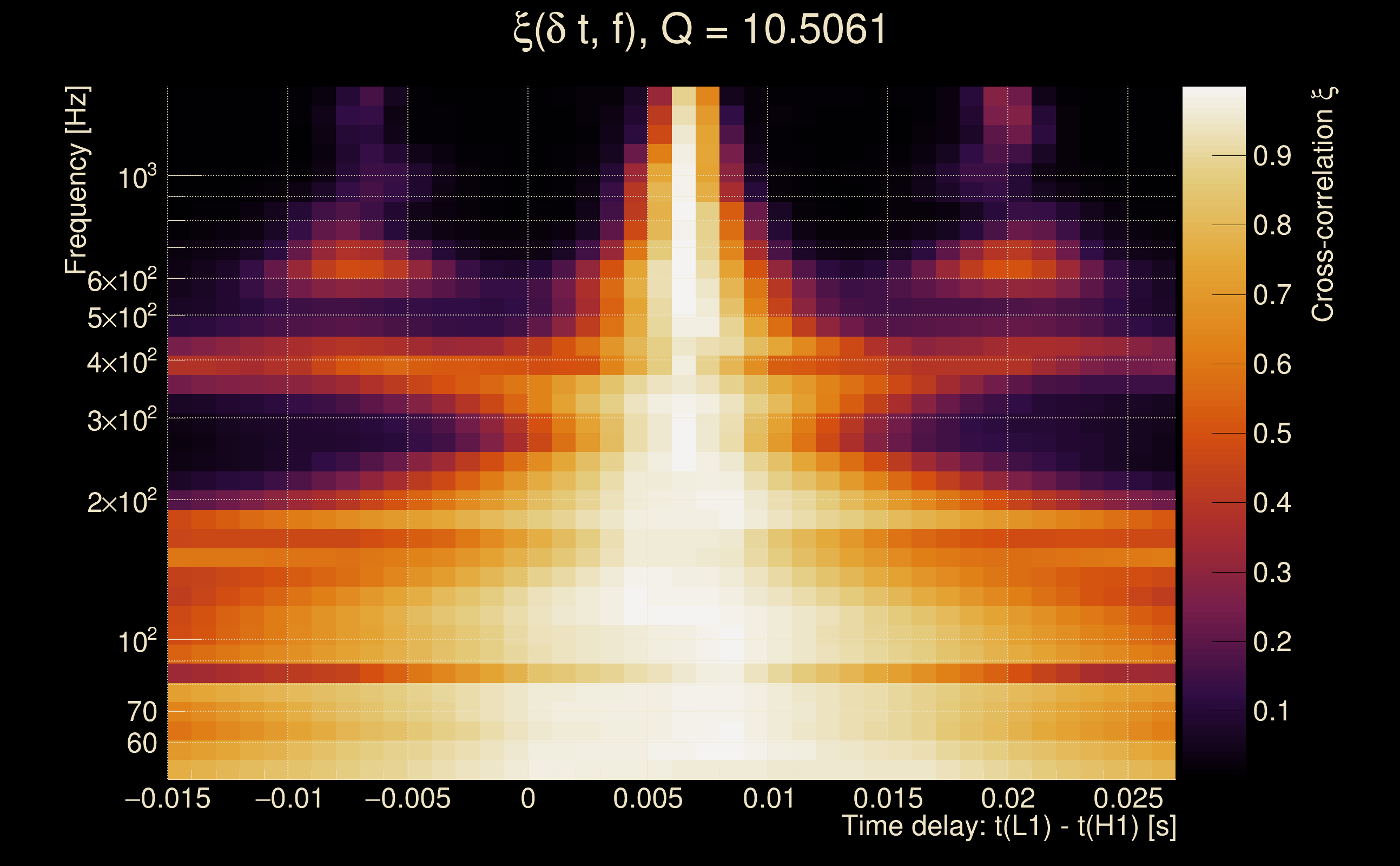

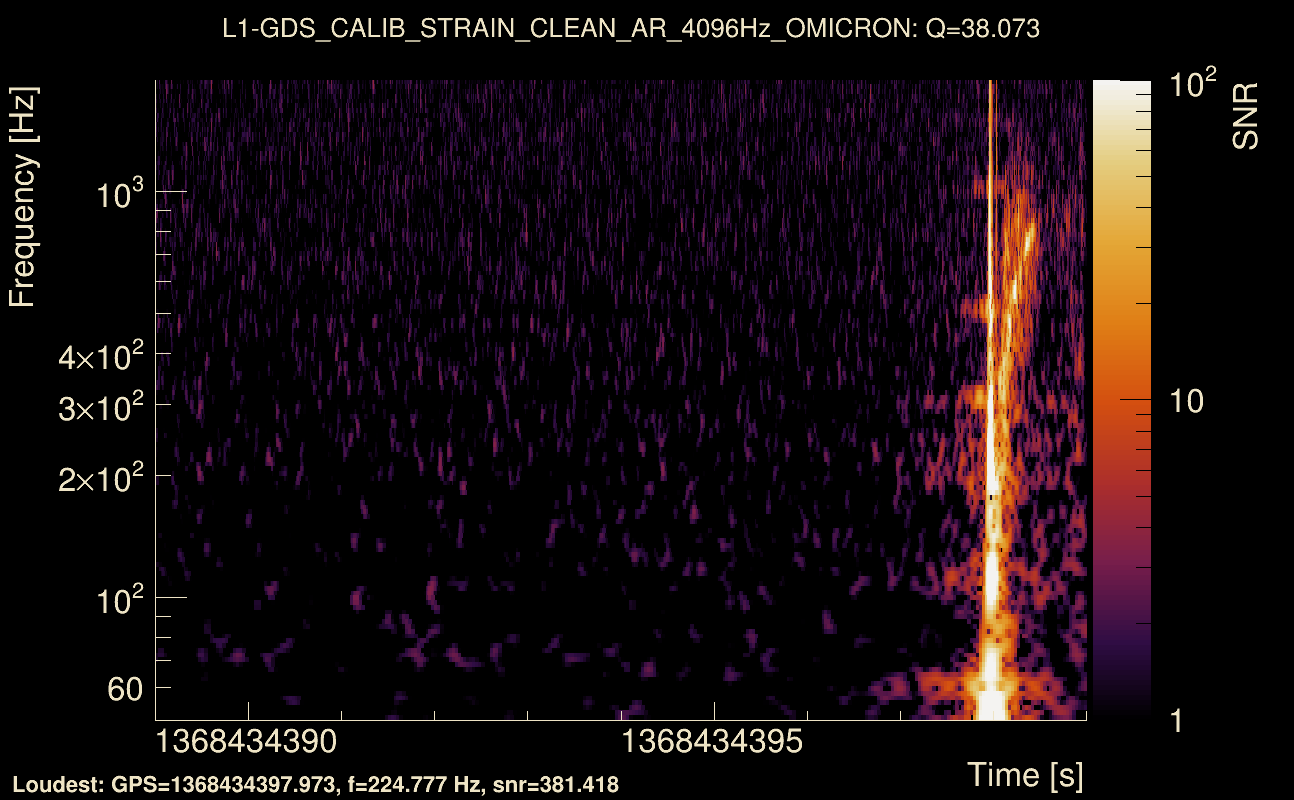

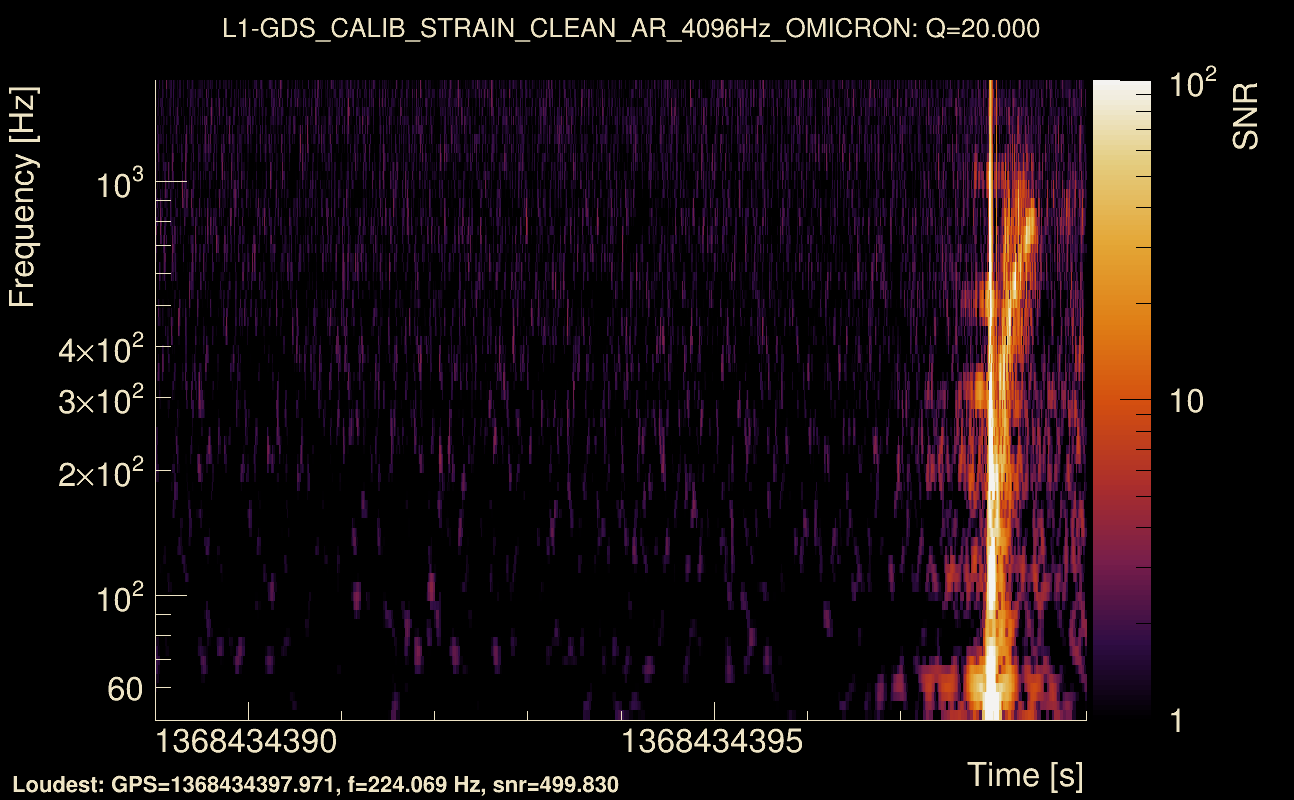

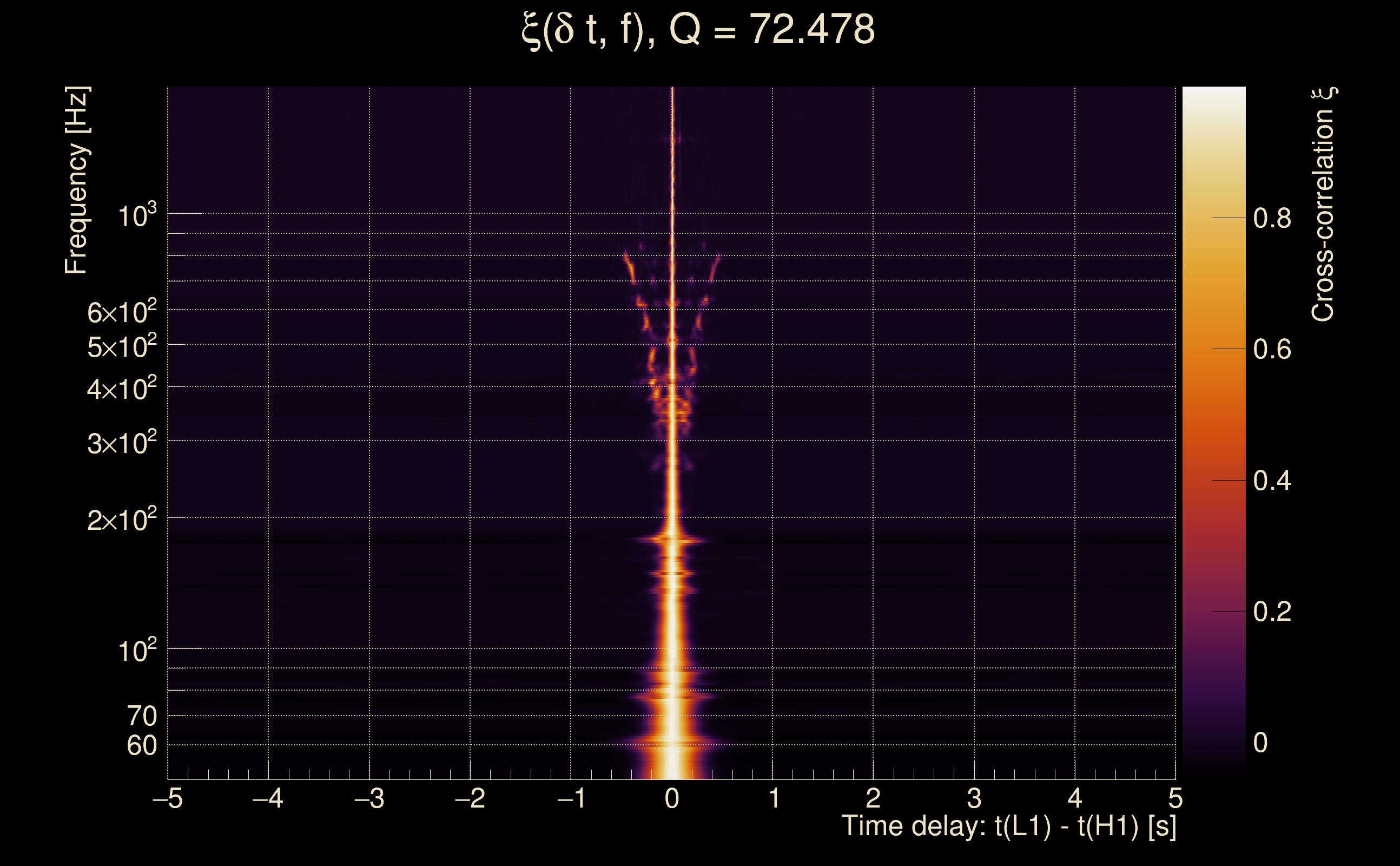

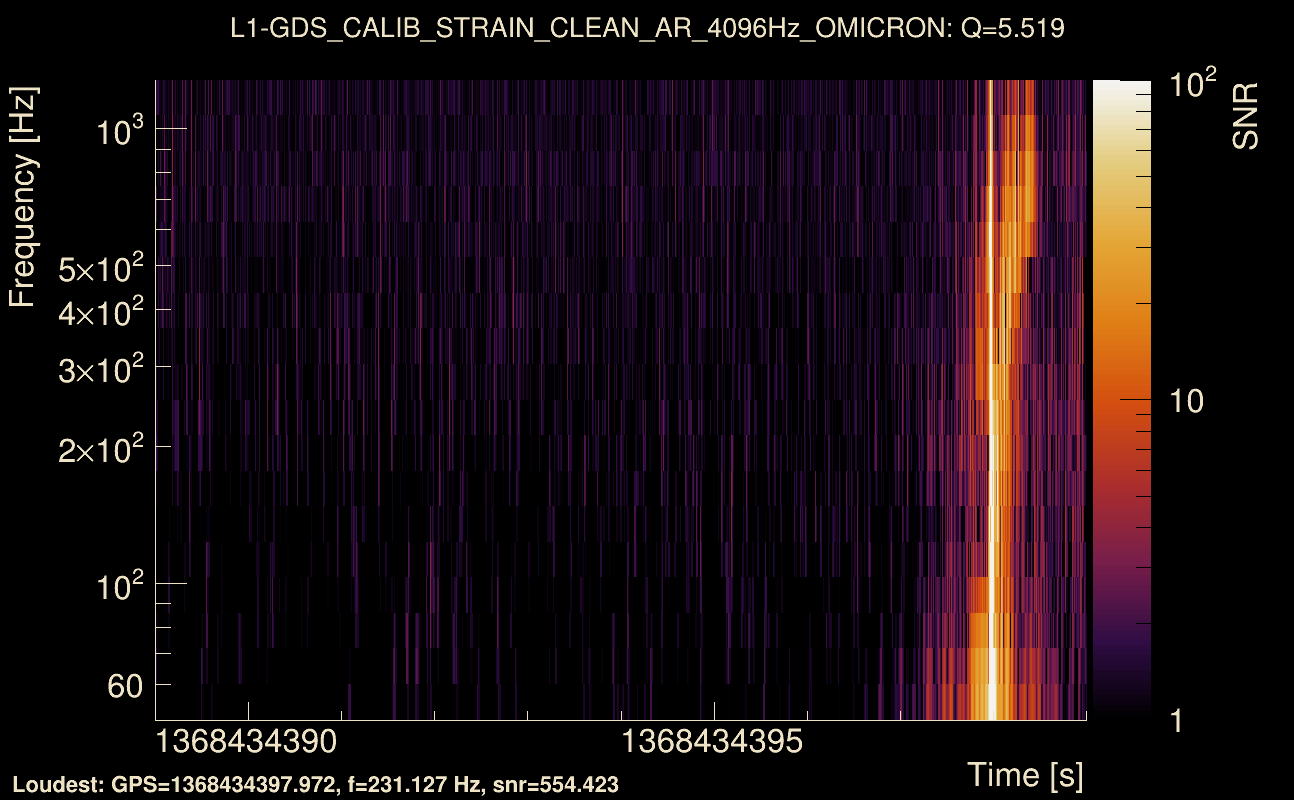

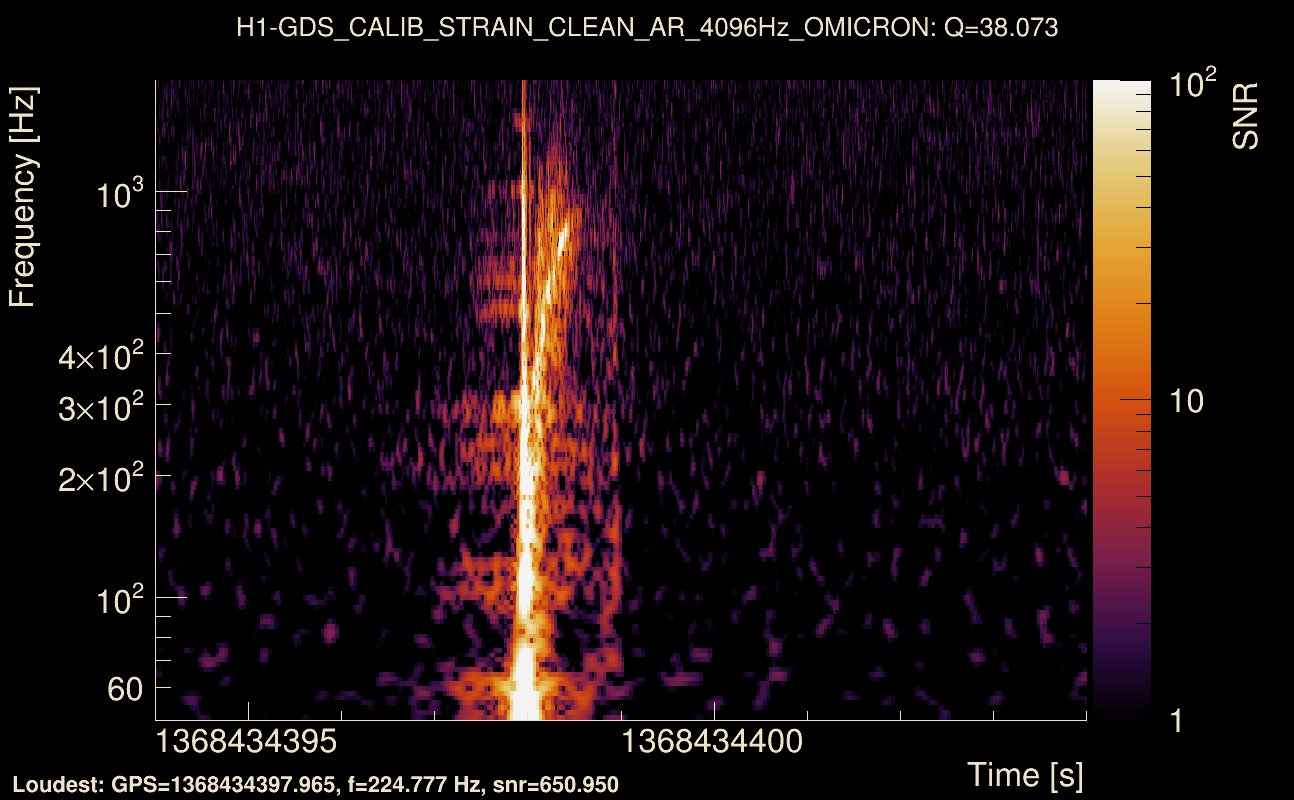

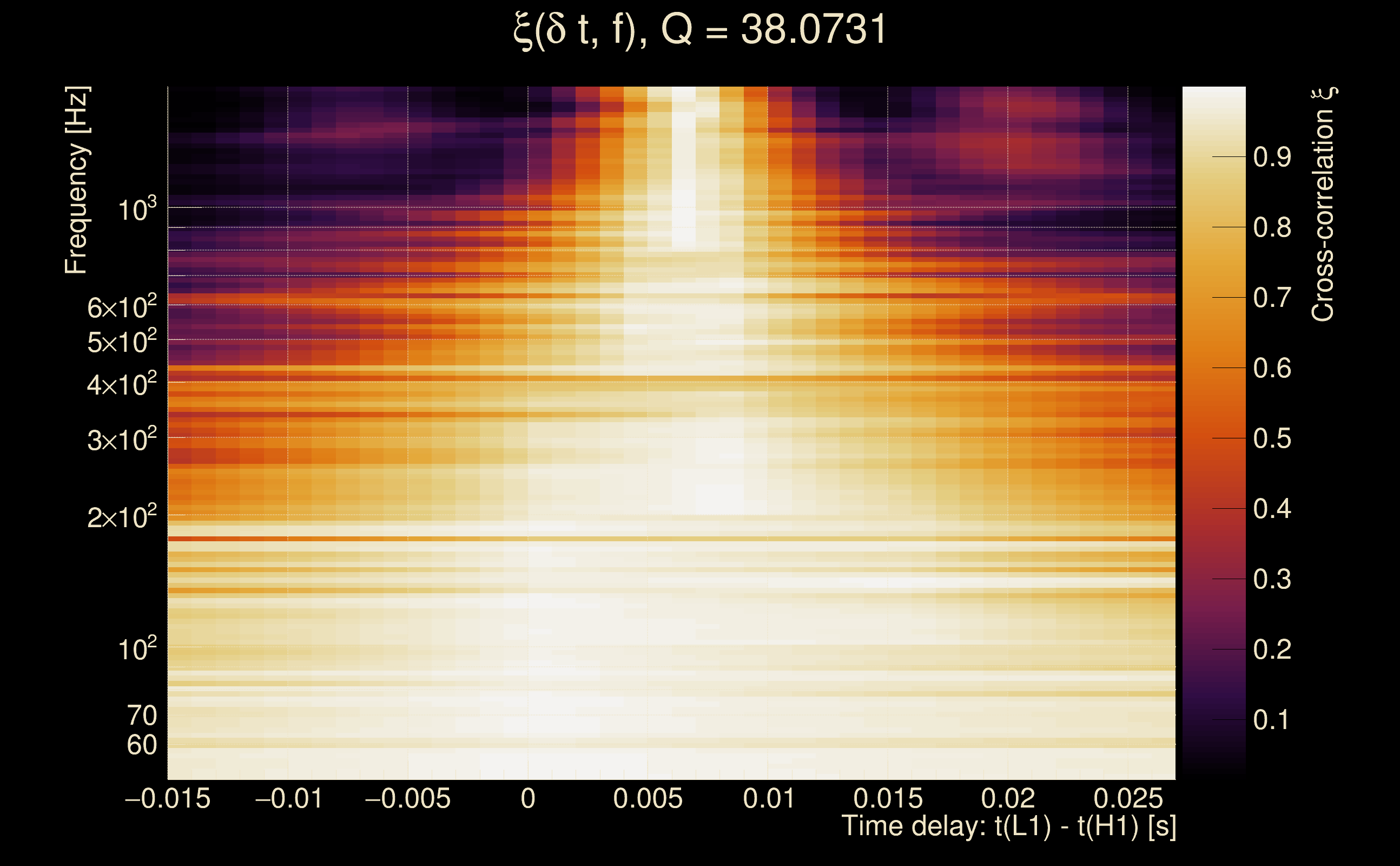

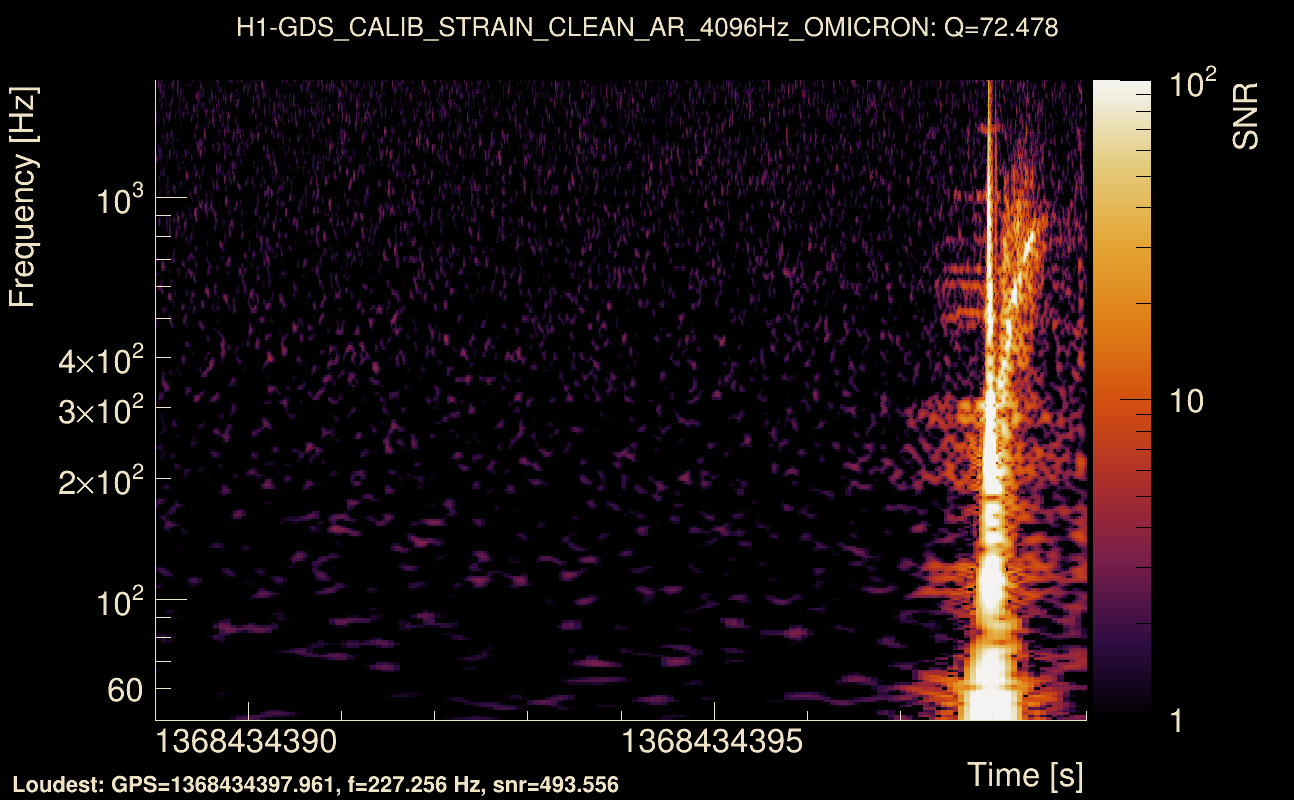

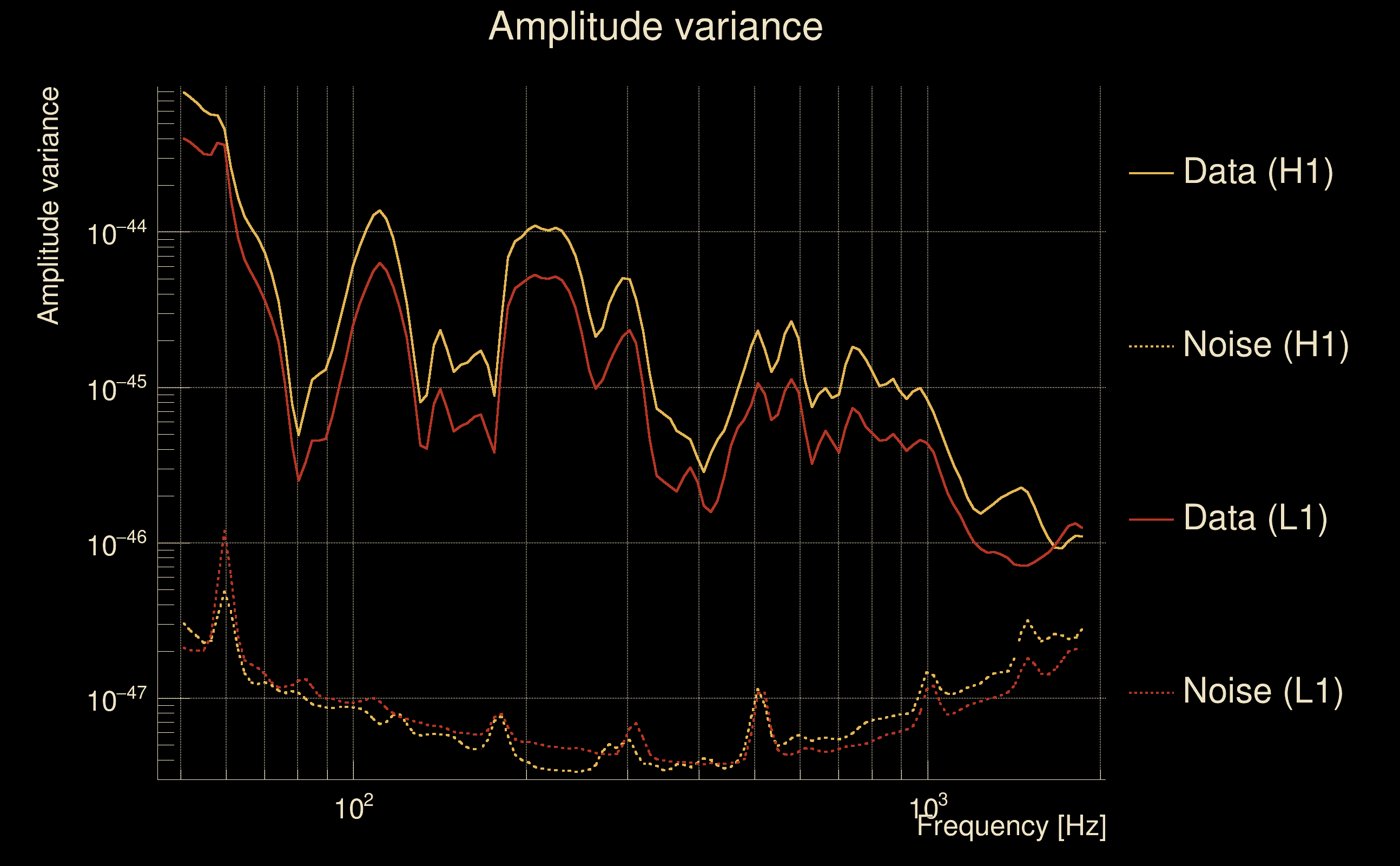

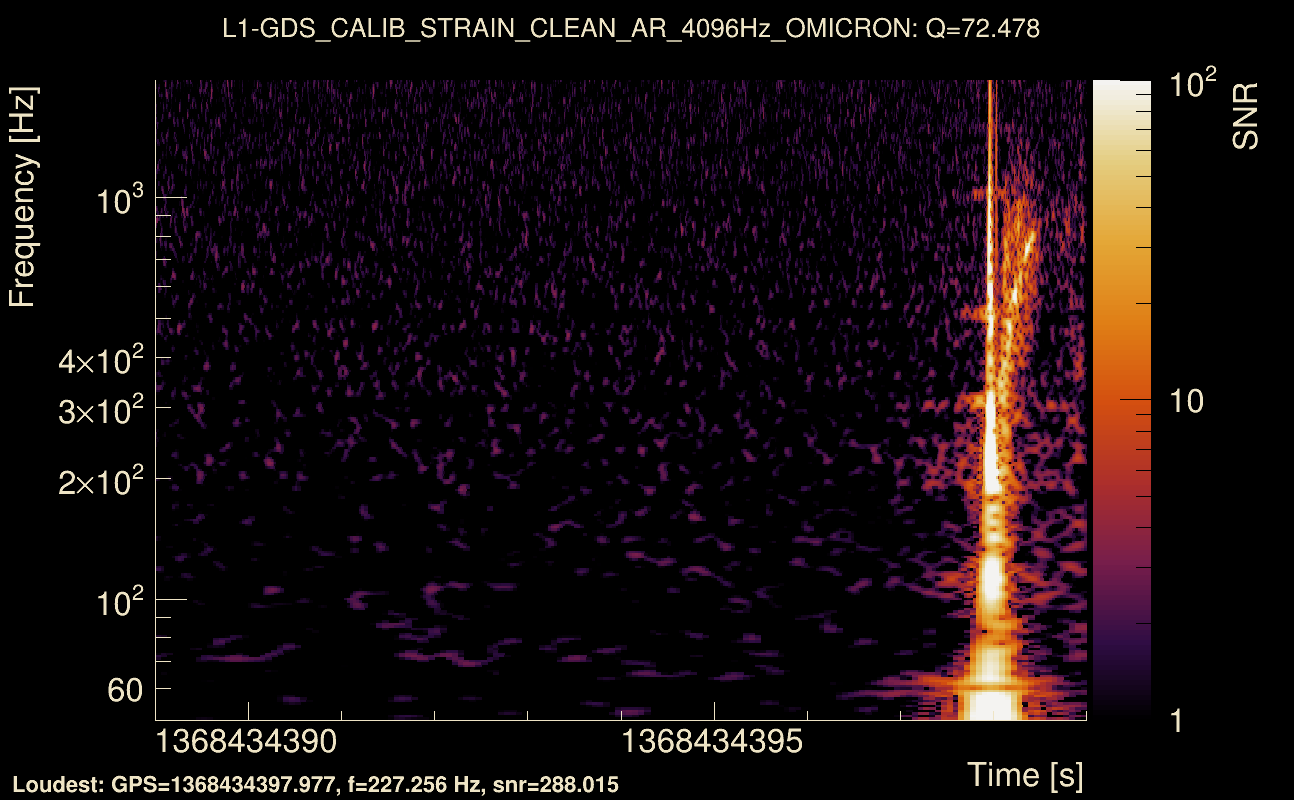

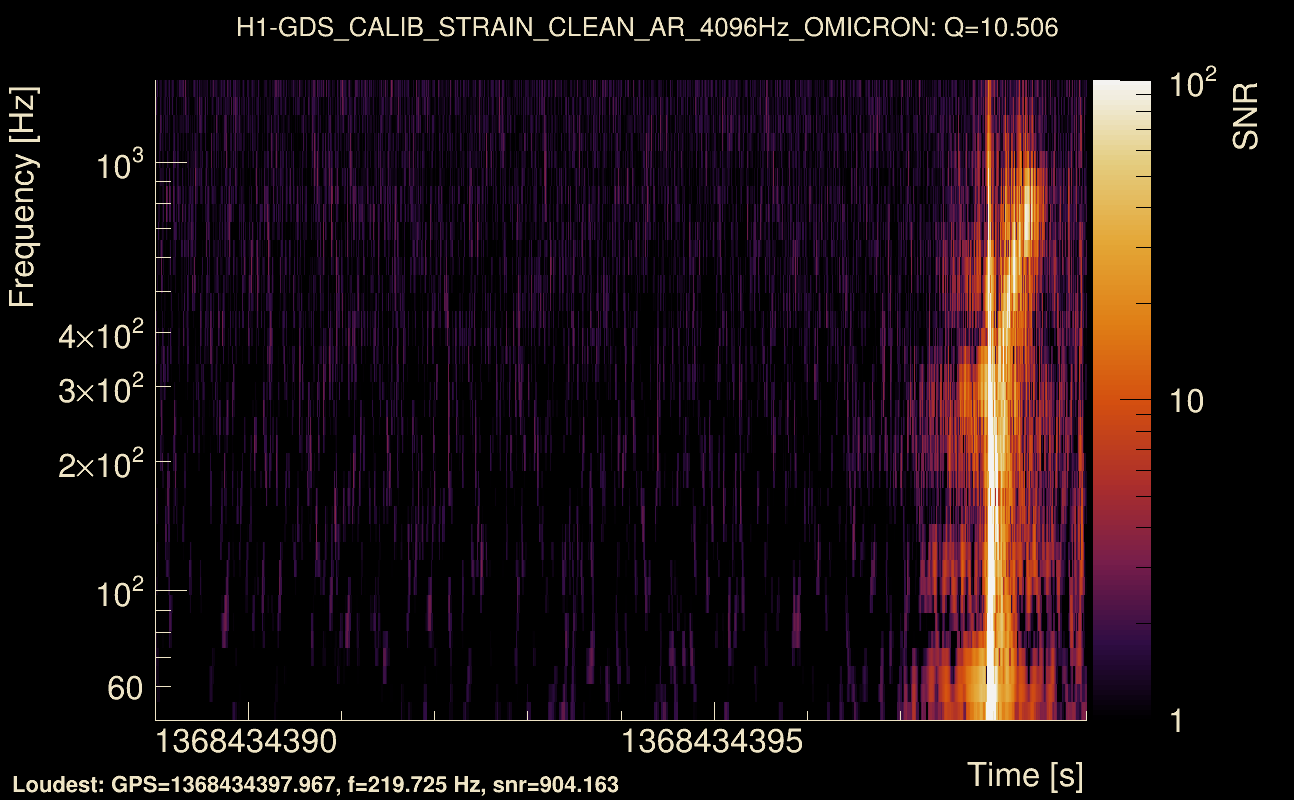

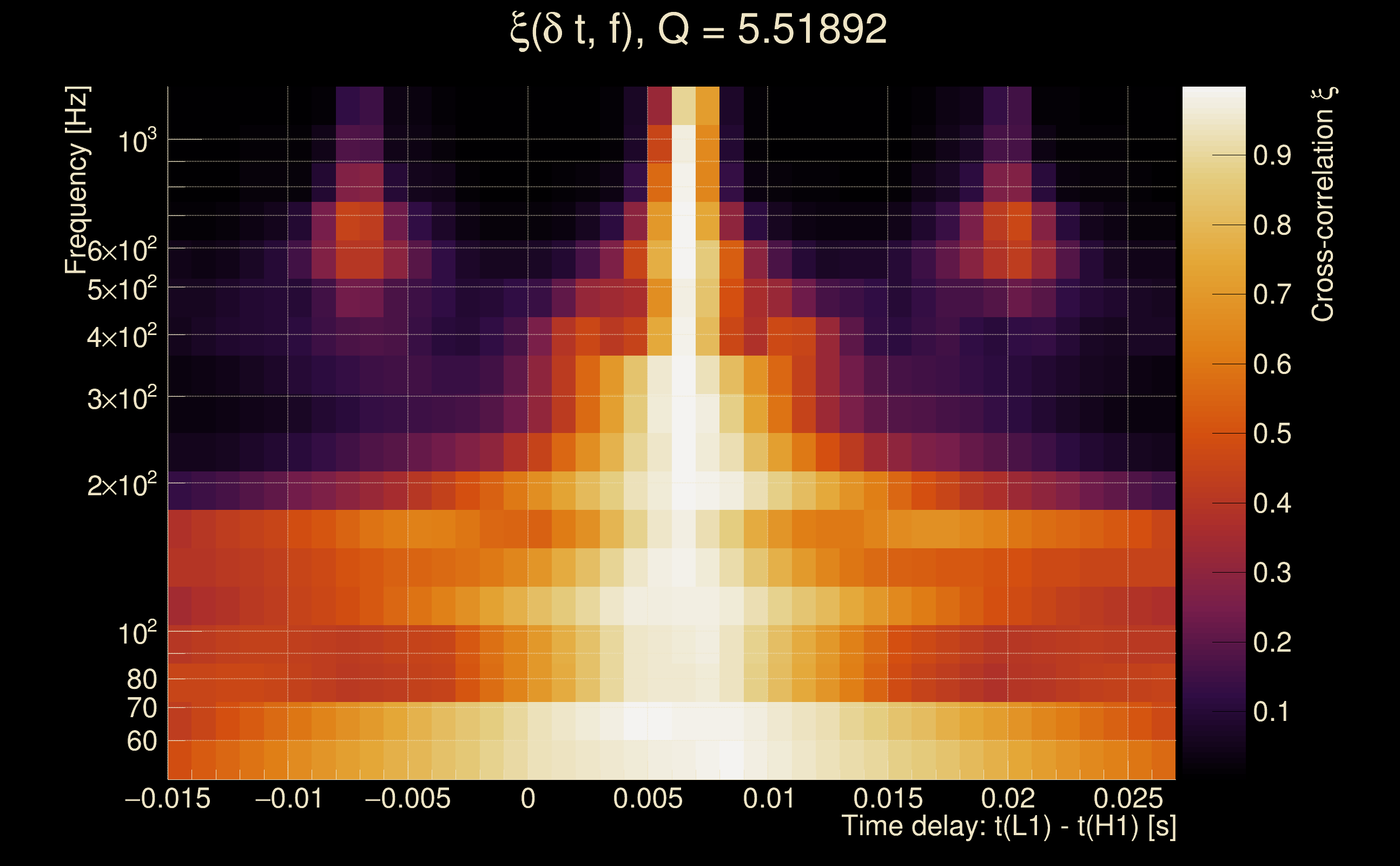

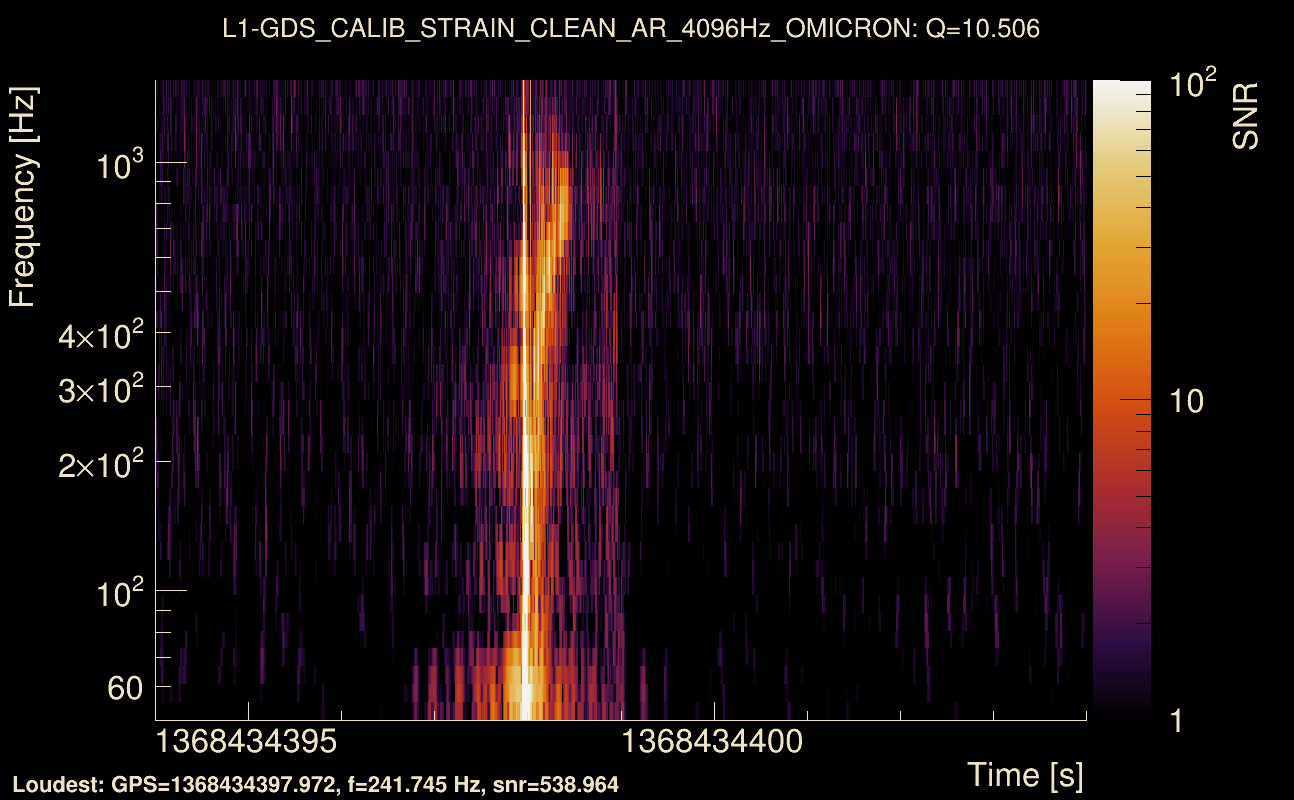

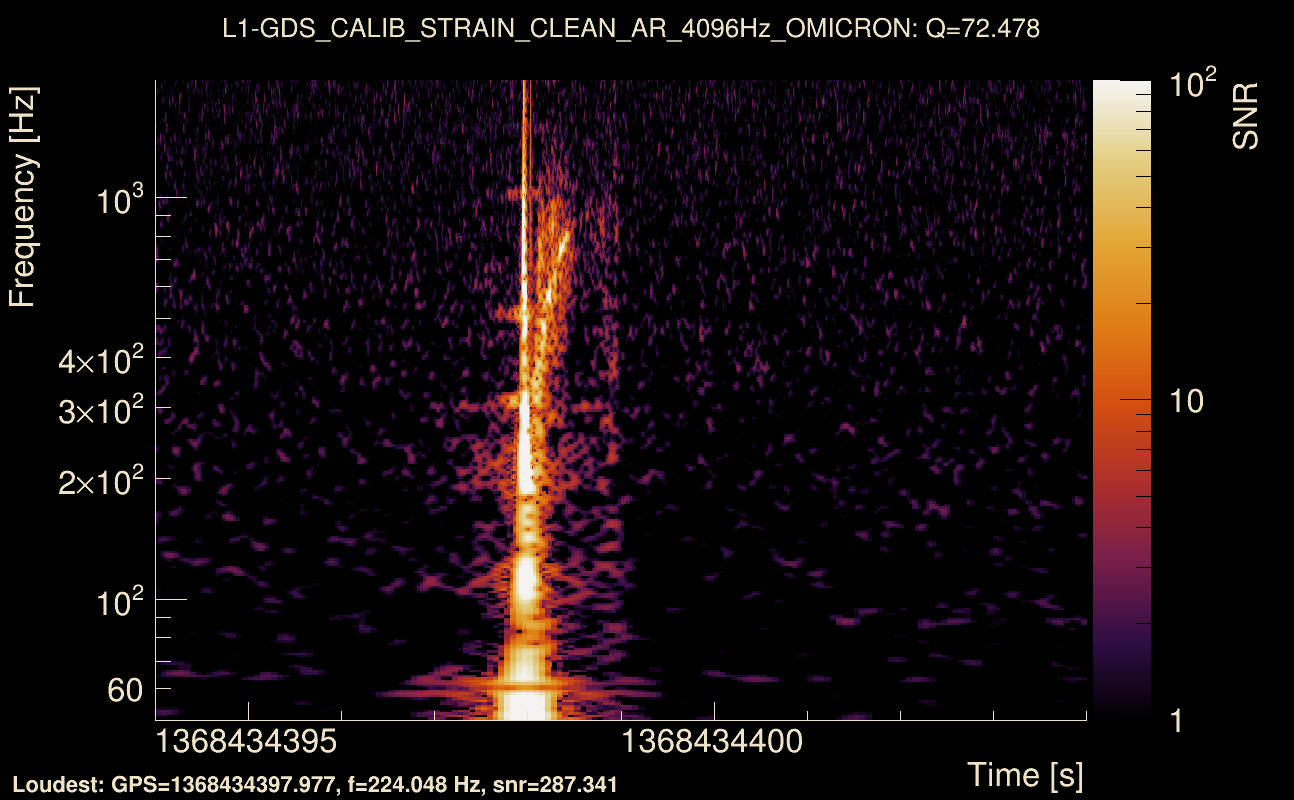

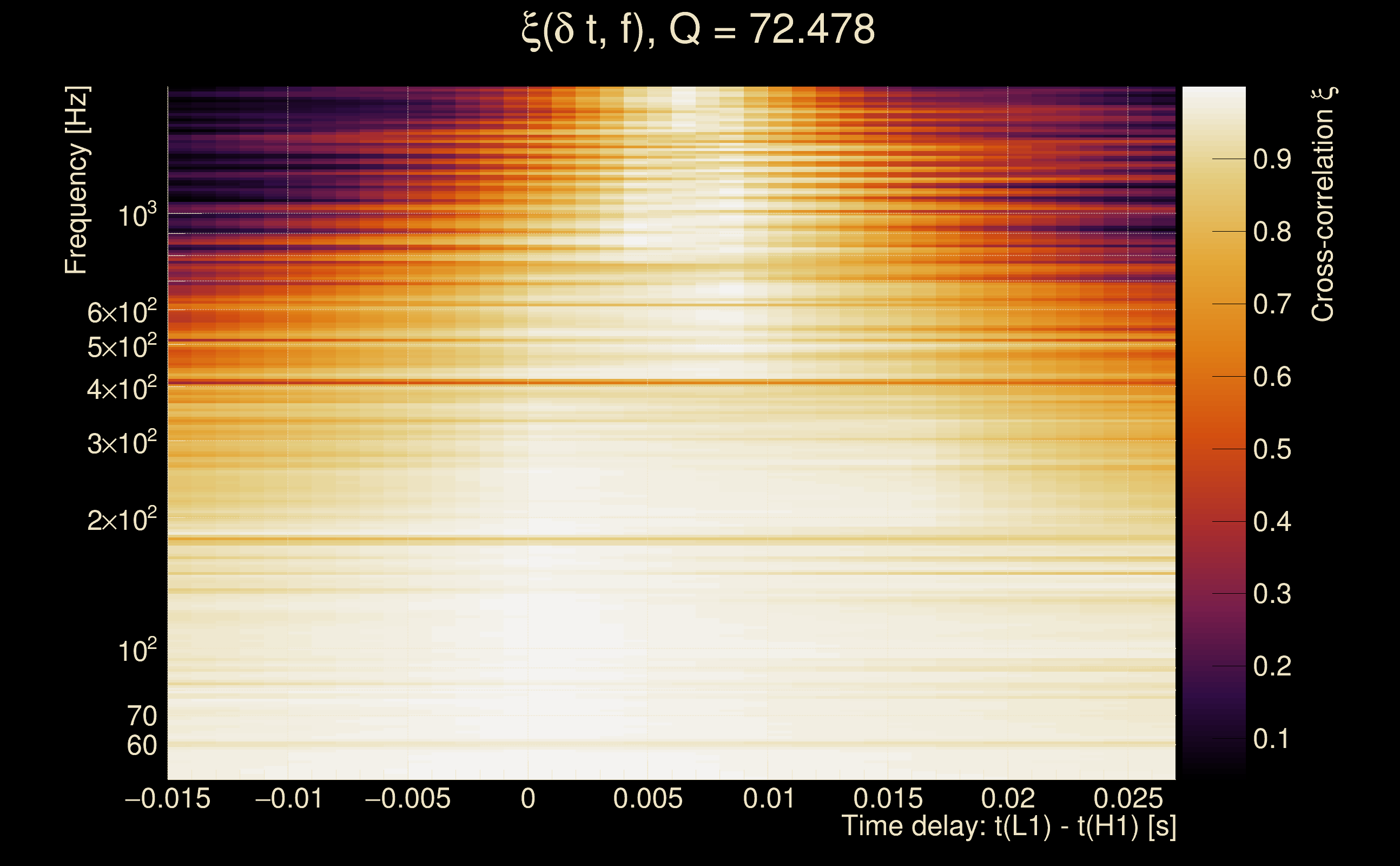

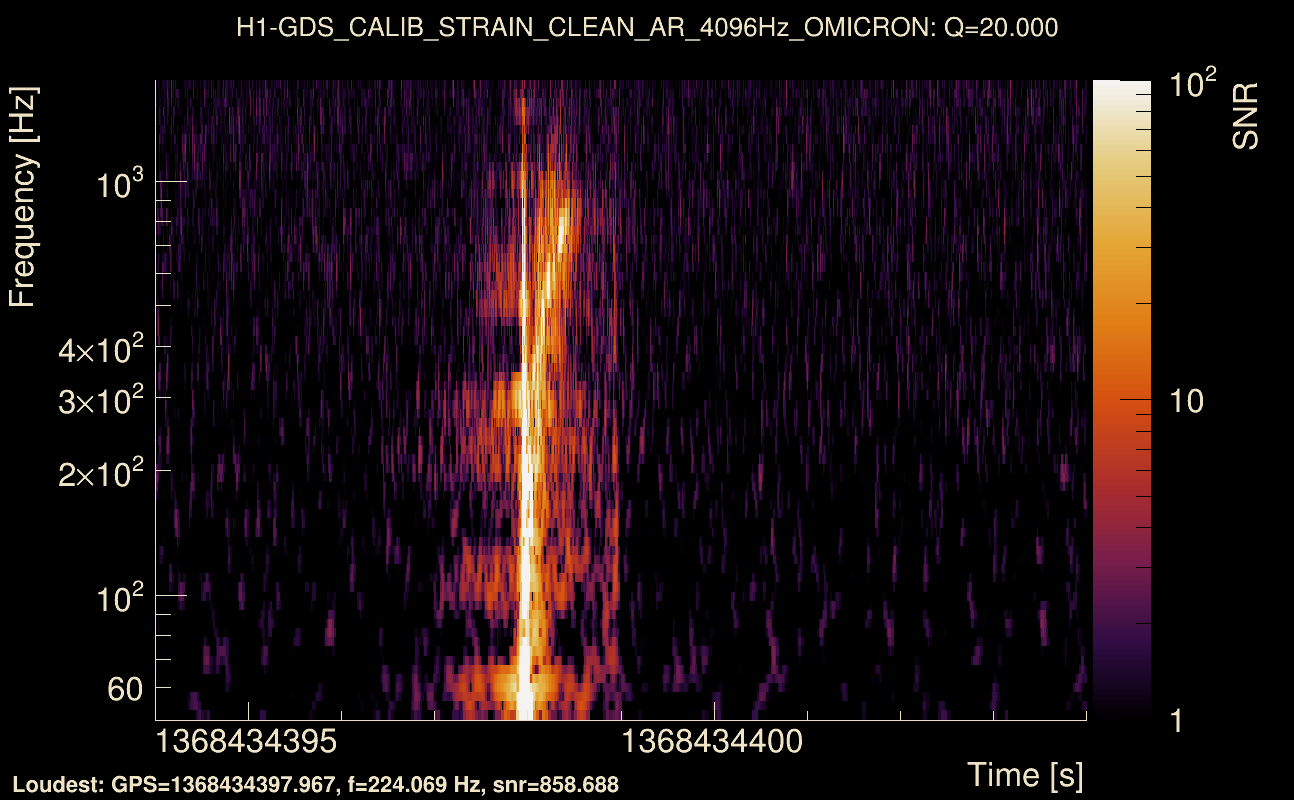

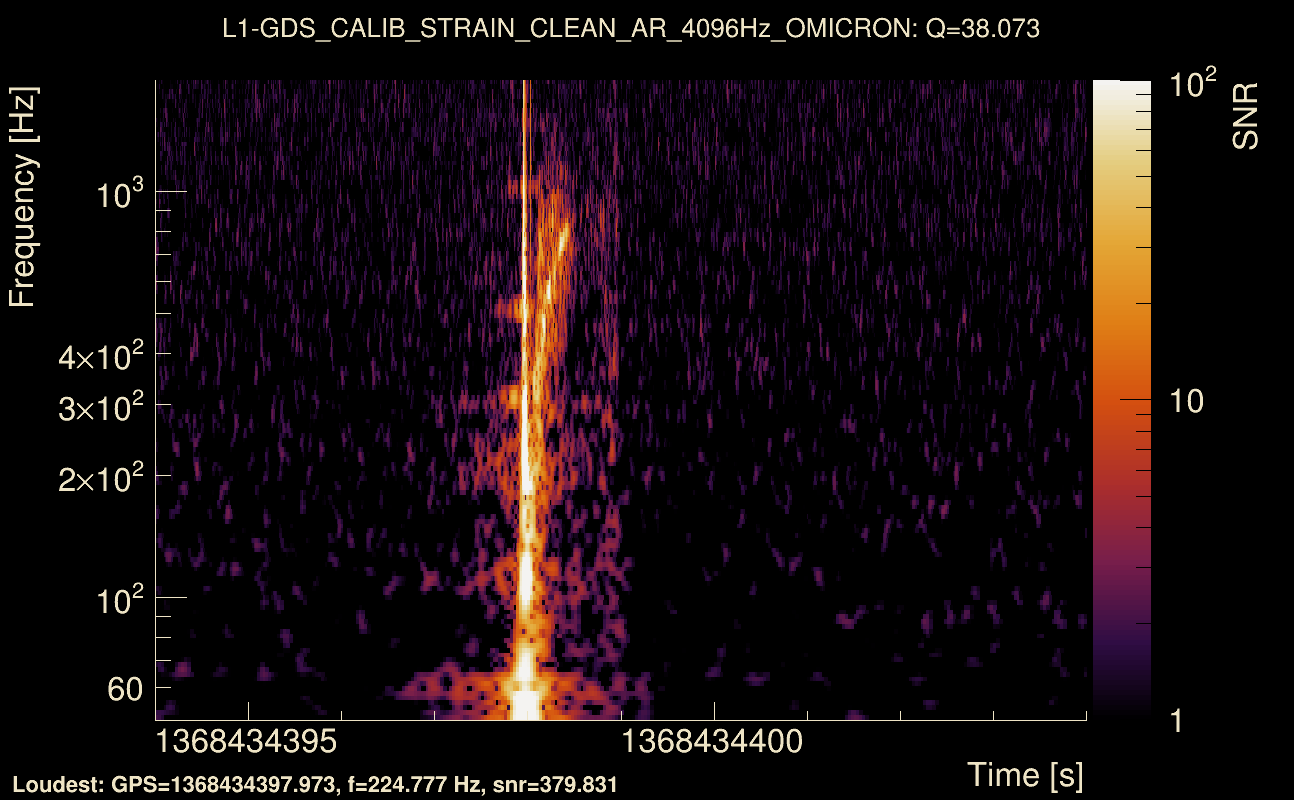

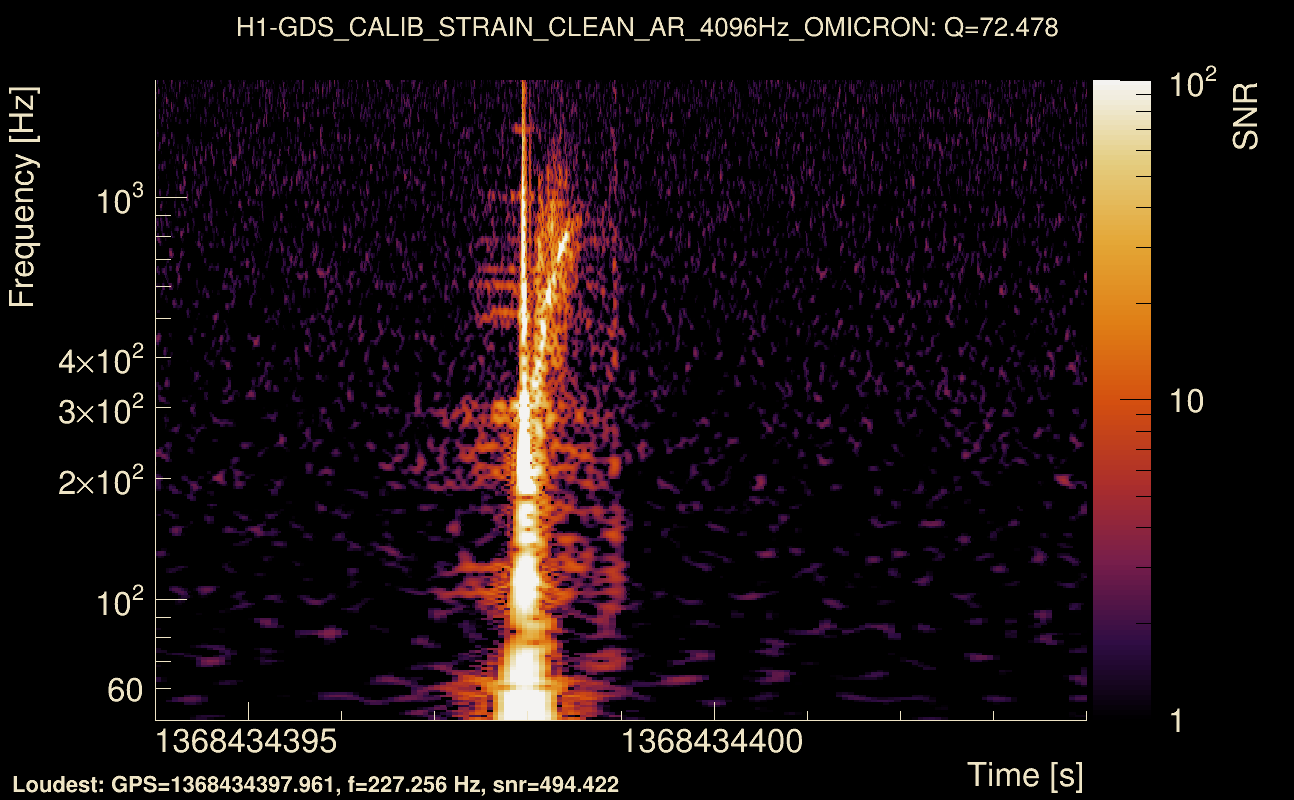

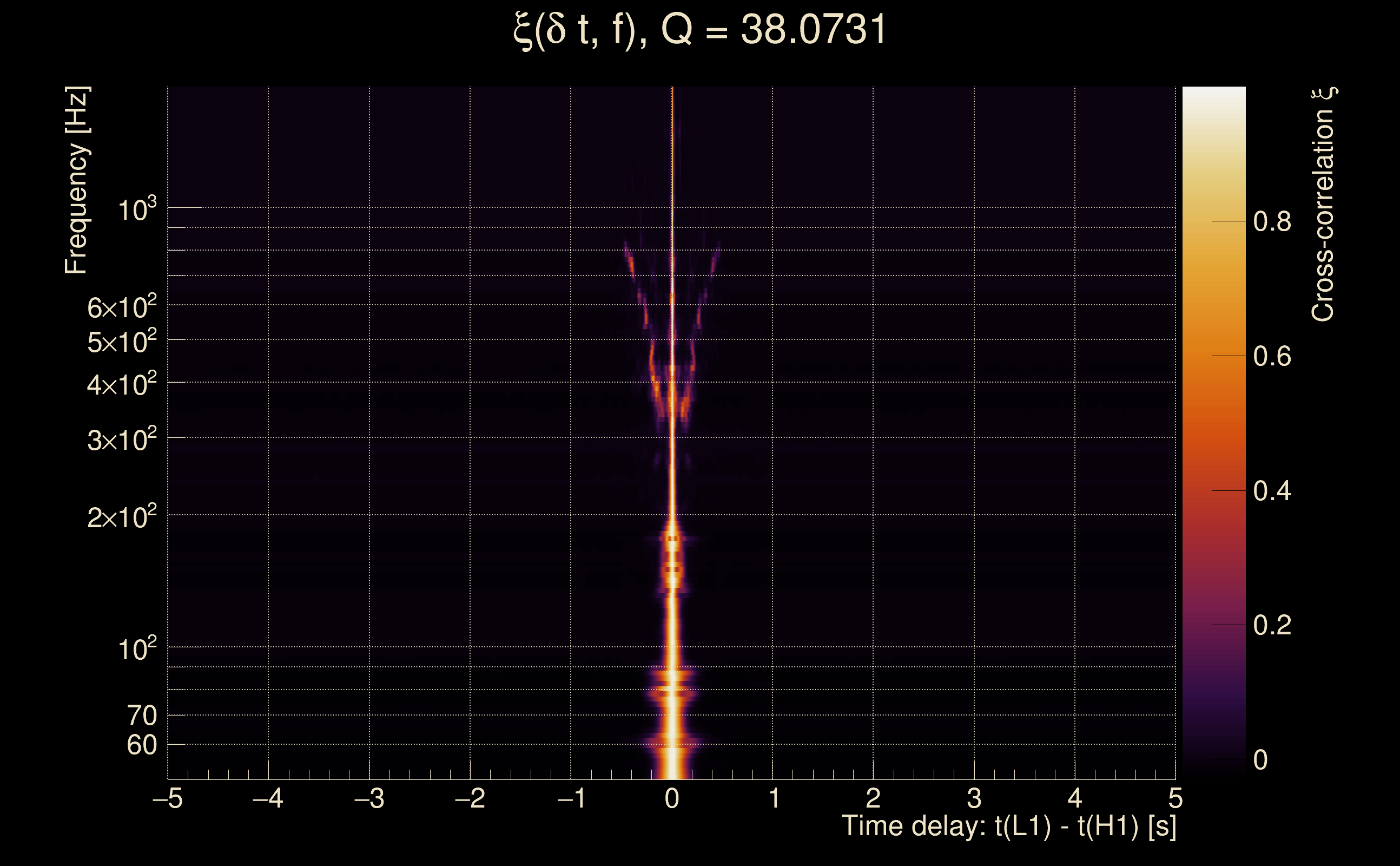

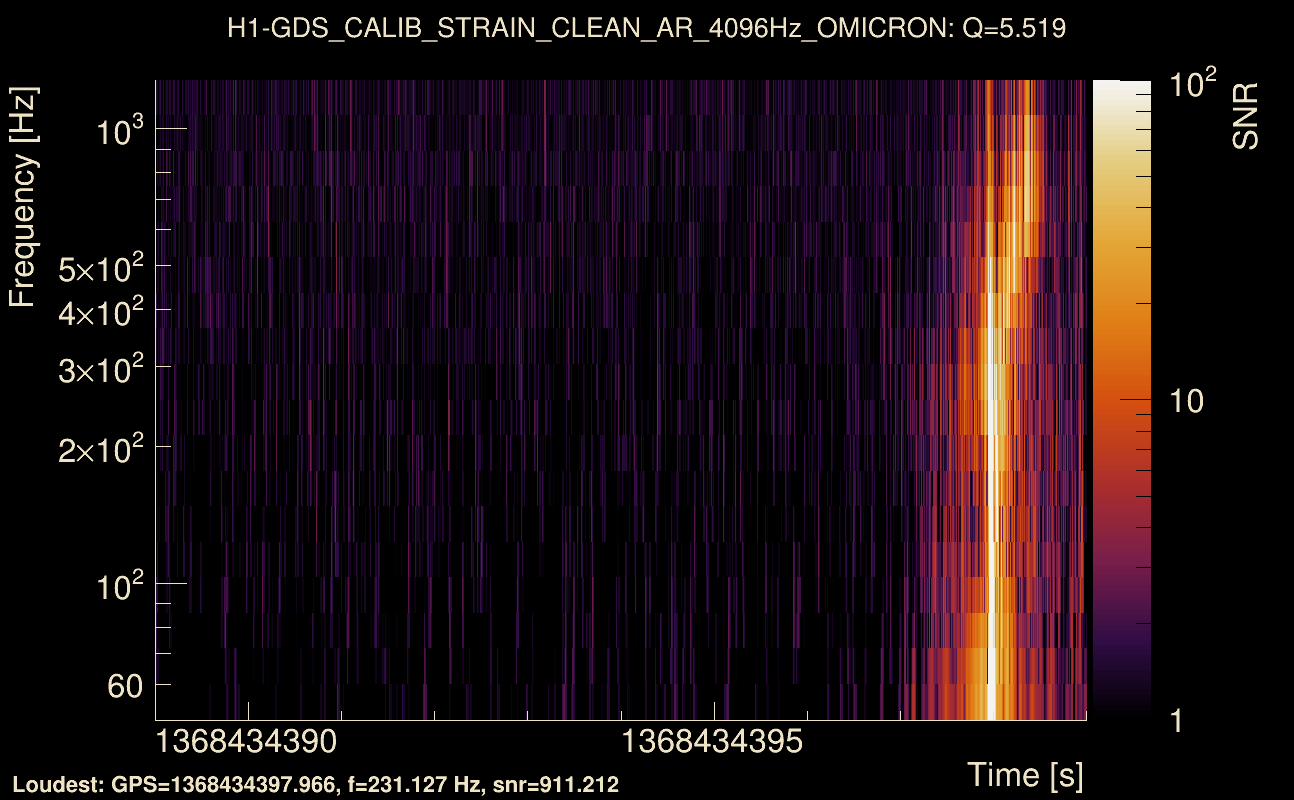

| Event time t(H1): | GPS = 1368434394 (Thu May 18 08:39:36 2023 ) → GPS = 1368434404 (Thu May 18 08:39:46 2023 ) |
| Event time t(L1): | GPS = 1368434394 (Thu May 18 08:39:46 2023 ) → GPS = 1368434404 (Thu May 18 08:39:46 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368434391 → GPS = 1368434407 |
| Omicron analysis time window (L1): | GPS = 1368434391 → GPS = 1368434407 |
| Time delay between detectors t(L1) - t(H1): | 0.00602144 s (slice index = 108 / 217), δt_gw = 0.00602144 s |
| Time delay standard deviation: | 0.0200848 s |
| [targeted mode] Time delay probability: | 0.997053 (0.00369323 sigmas), δt_target = 0.00602102 s |
| Frequency: | 287.622 Hz |

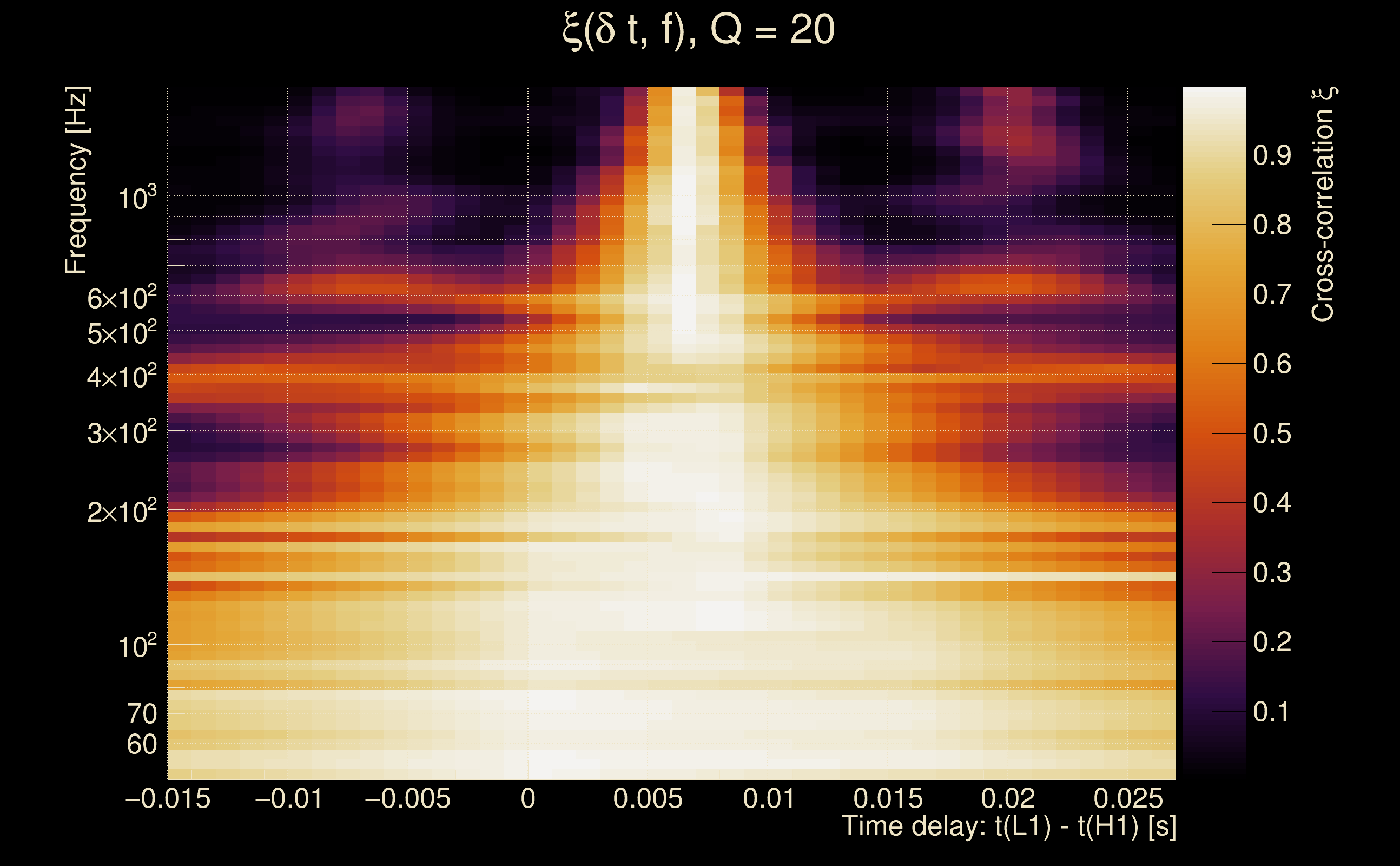

| Ξ: | 0.978609 ± 0.00152842 (variance = 2.33606e-06): Q0: 0.981698, Q1: 0.981328, Q2: 0.979325, Q3: 0.979883, Q4: 0.977434 |
| Rank: | R_A = 0.975725 |
| Log of amplitude ratio (L1/H1): | -0.365074, variance = 0.180222 (L1/H1: -0.374614, variance = 0.303704, H1/L1: 0.341013, variance = 0.303768) |
| Amplitude ratio (L1/H1): | 0.694145 ⋇ 1.52886 (L1/H1: 0.687555 ⋇ 1.73515, H1/L1: 1.40637 ⋇ 1.73525) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.965613 |
| Antenna factor probability: | 0.930064 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 4 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 968.781, L1: 609.994 |

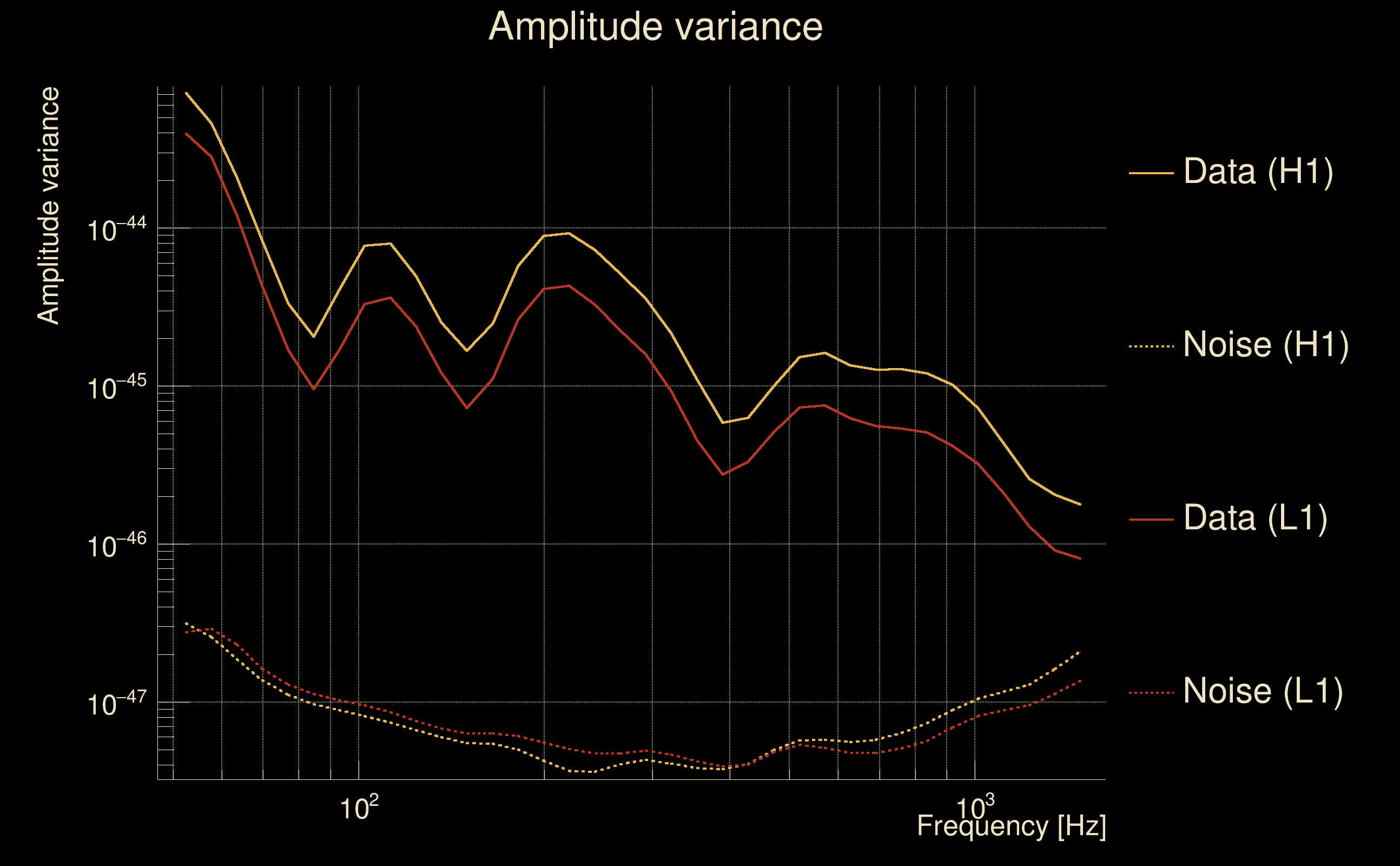

| SNR variance: | H1: 377.522, L1: 195.373 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368450763 (Thu May 18 13:12:25 2023 ) → GPS = 1368450773 (Thu May 18 13:12:35 2023 ) |
| Event time t(L1): | GPS = 1368450763 (Thu May 18 13:12:35 2023 ) → GPS = 1368450773 (Thu May 18 13:12:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368450760 → GPS = 1368450776 |
| Omicron analysis time window (L1): | GPS = 1368450760 → GPS = 1368450776 |
| Time delay between detectors t(L1) - t(H1): | 3.68398 s (slice index = 28 / 217), δt_gw = 0.00398006 s |
| Time delay standard deviation: | 0.0852073 s |
| [targeted mode] Time delay probability: | 0.49777 (0.678002 sigmas), δt_target = 0.00602293 s |
| Frequency: | 197.46 Hz |
| Ξ: | 0.190243 ± 0.0841221 (variance = 0.00707653): Q0: 0.409495, Q1: 0.464707, Q2: 0.51772, Q3: 0.557691, Q4: 0.656734 |
| Rank: | R_A = 0.0946971 |
| Log of amplitude ratio (L1/H1): | -1.71149, variance = 0.368708 (L1/H1: -1.90227, variance = 0.440241, H1/L1: -0.150612, variance = 0.75151) |
| Amplitude ratio (L1/H1): | 0.180597 ⋇ 1.83531 (L1/H1: 0.14923 ⋇ 1.94159, H1/L1: 0.860181 ⋇ 2.37952) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0600414 |
| Antenna factor probability: | 0.0157534 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 22 / 36, Q2: 46 / 70, Q3: 92 / 134, Q4: 208 / 258 |
| Maximum signal-to-noise ratio: | H1: 63.5682, L1: 20.3472 |
| SNR variance: | H1: 1.38958, L1: 0.496971 |

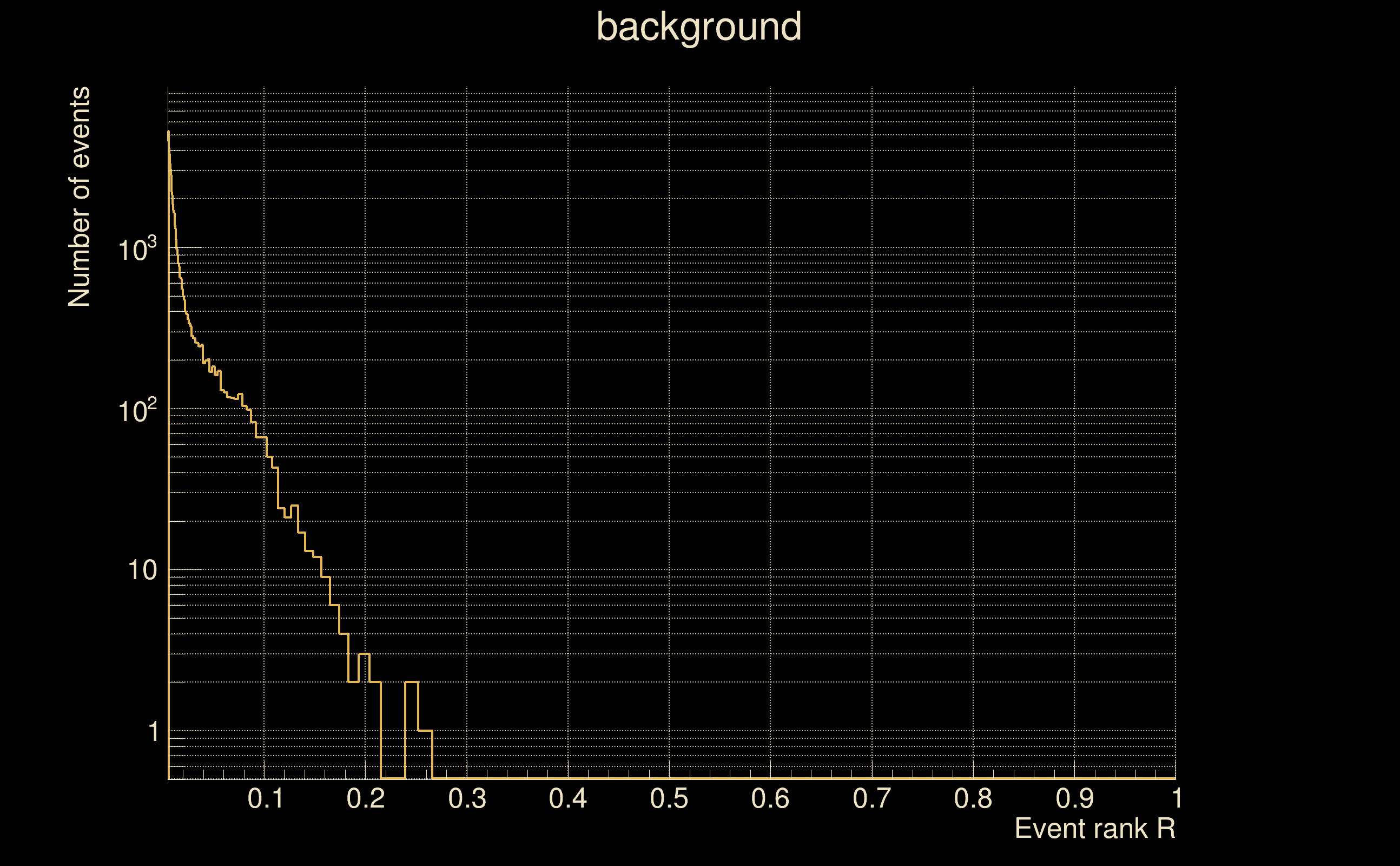

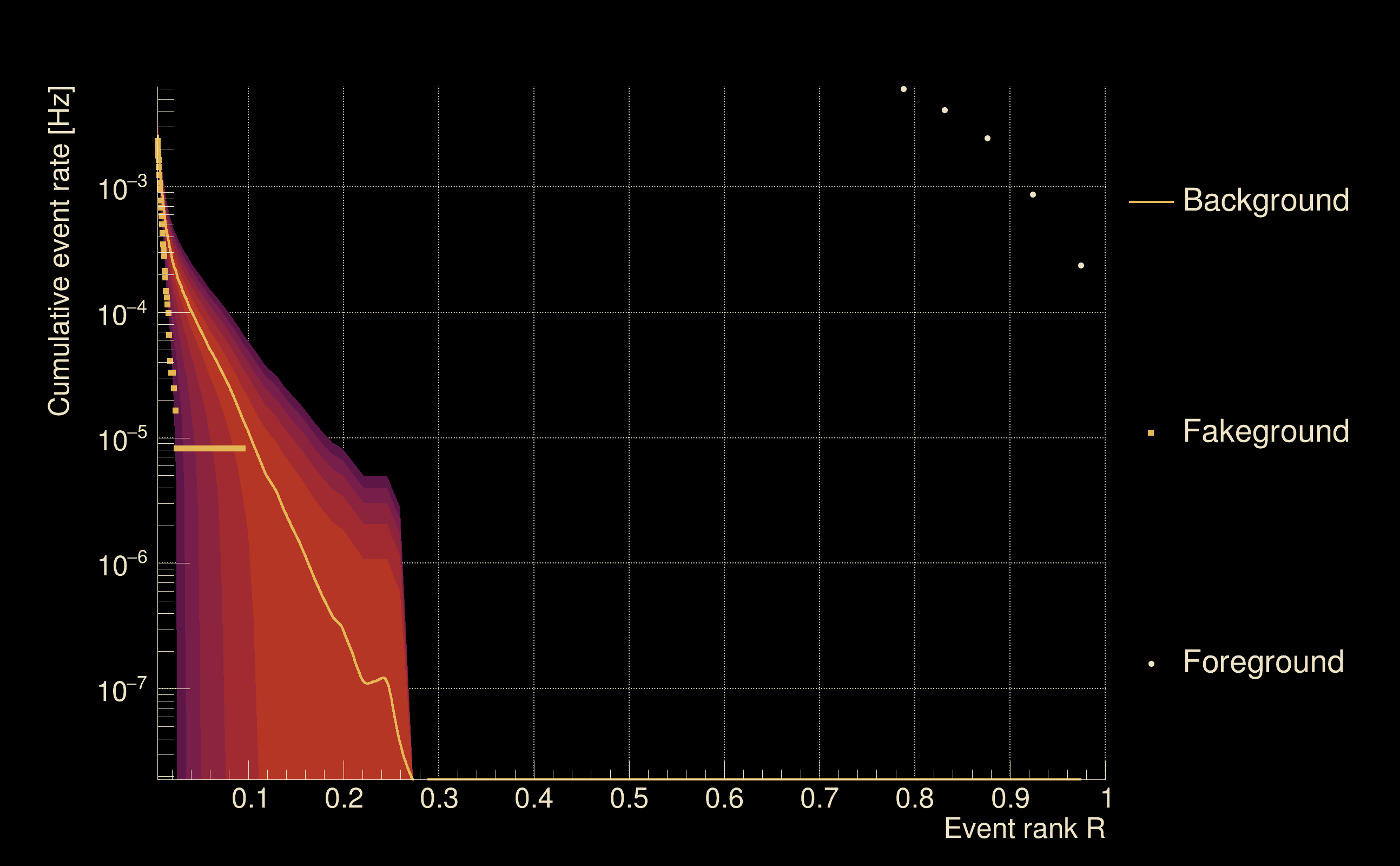

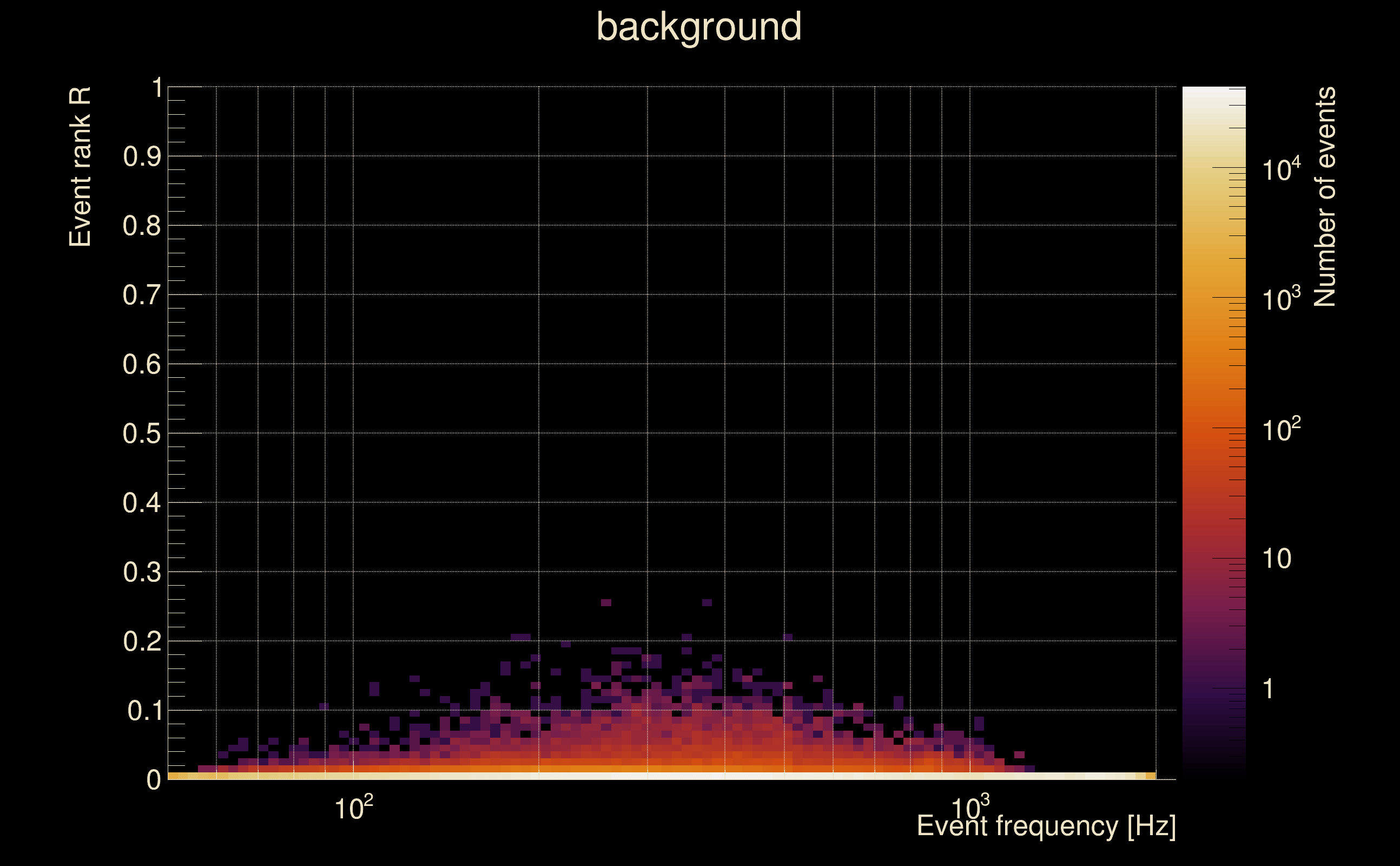

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 1.28115e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.259054 |
| Alternative threshold at 1/100 yrs: | R > 0.259054 |
| Alternative threshold at 1/10 yrs: | R > 0.259054 |
| Alternative threshold at 1/1 yr: | R > 0.259054 |
| Alternative threshold at 1/1 d: | R > 0.0948927 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

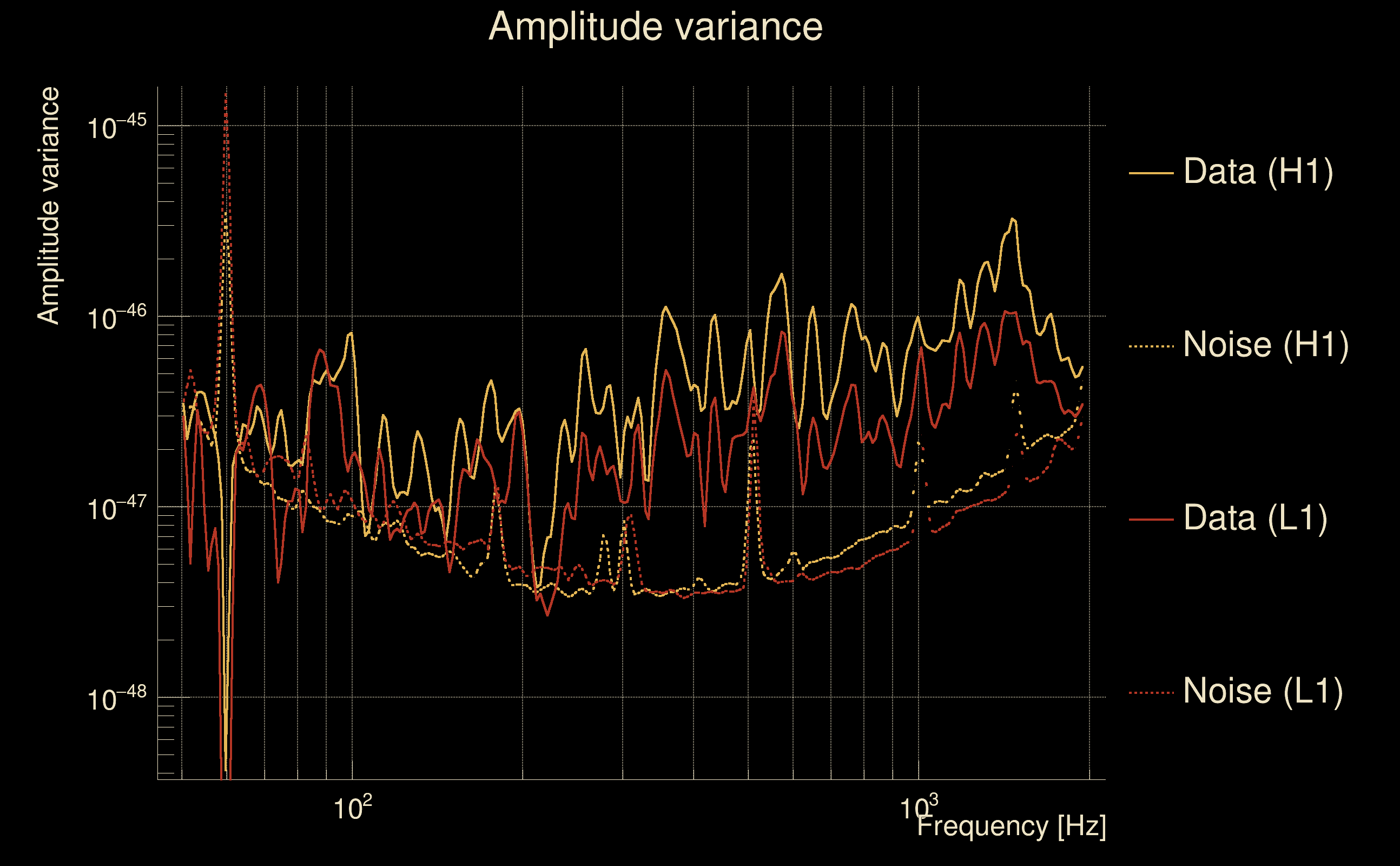

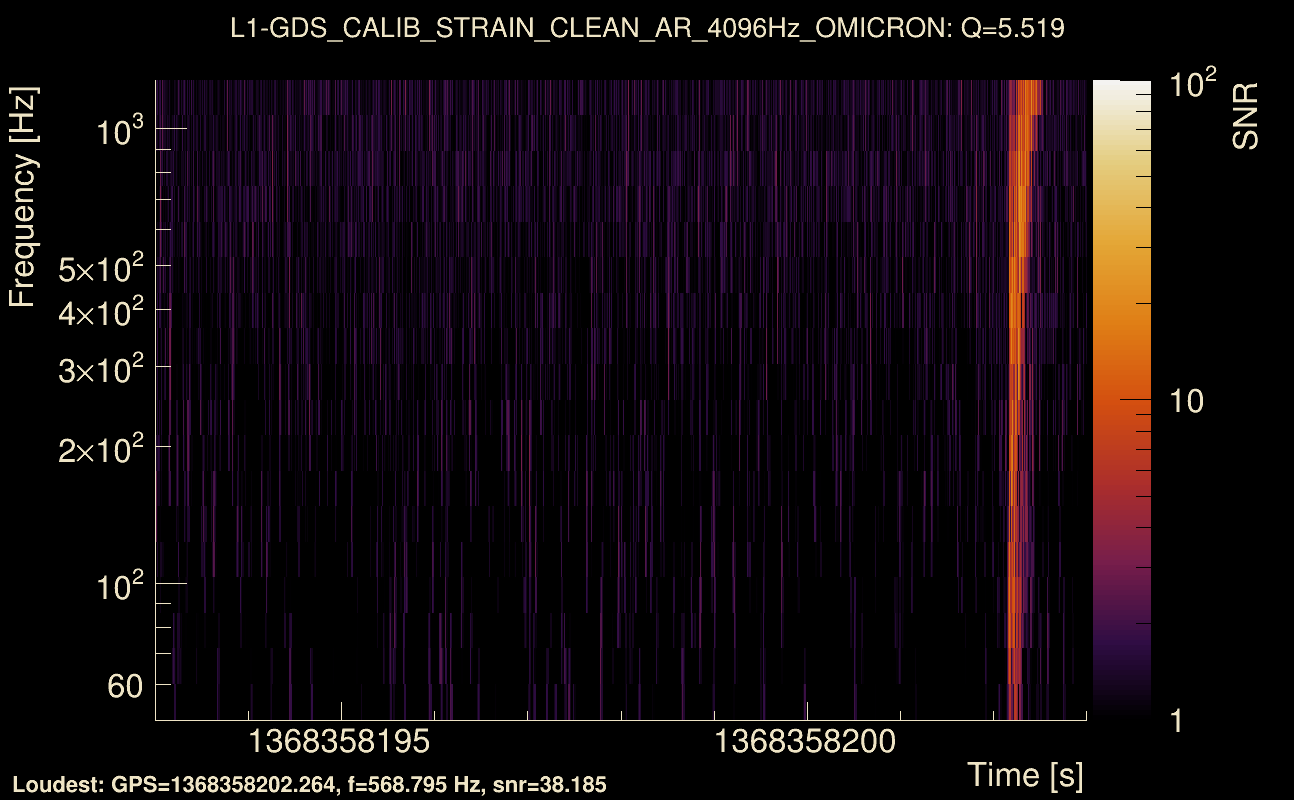

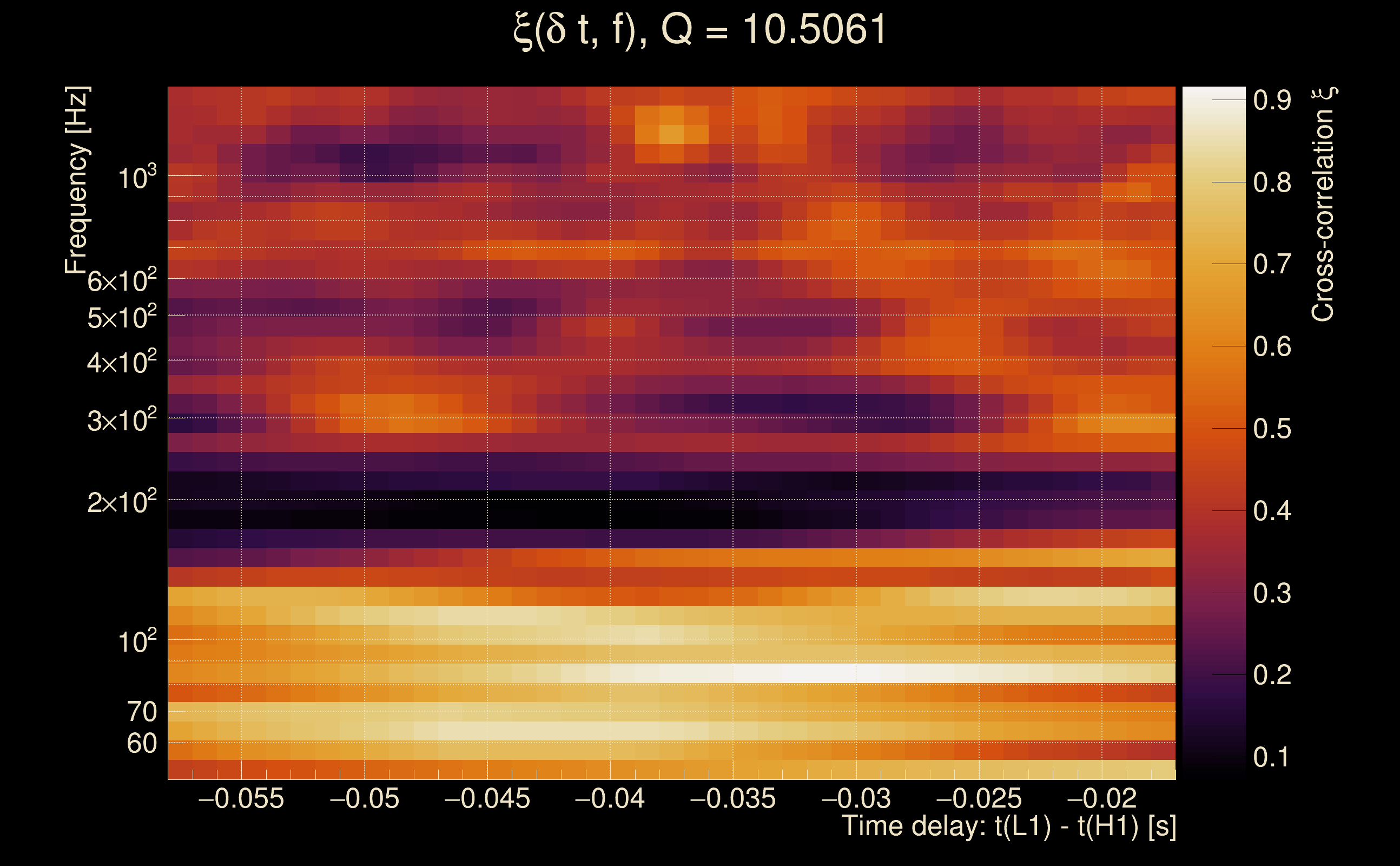

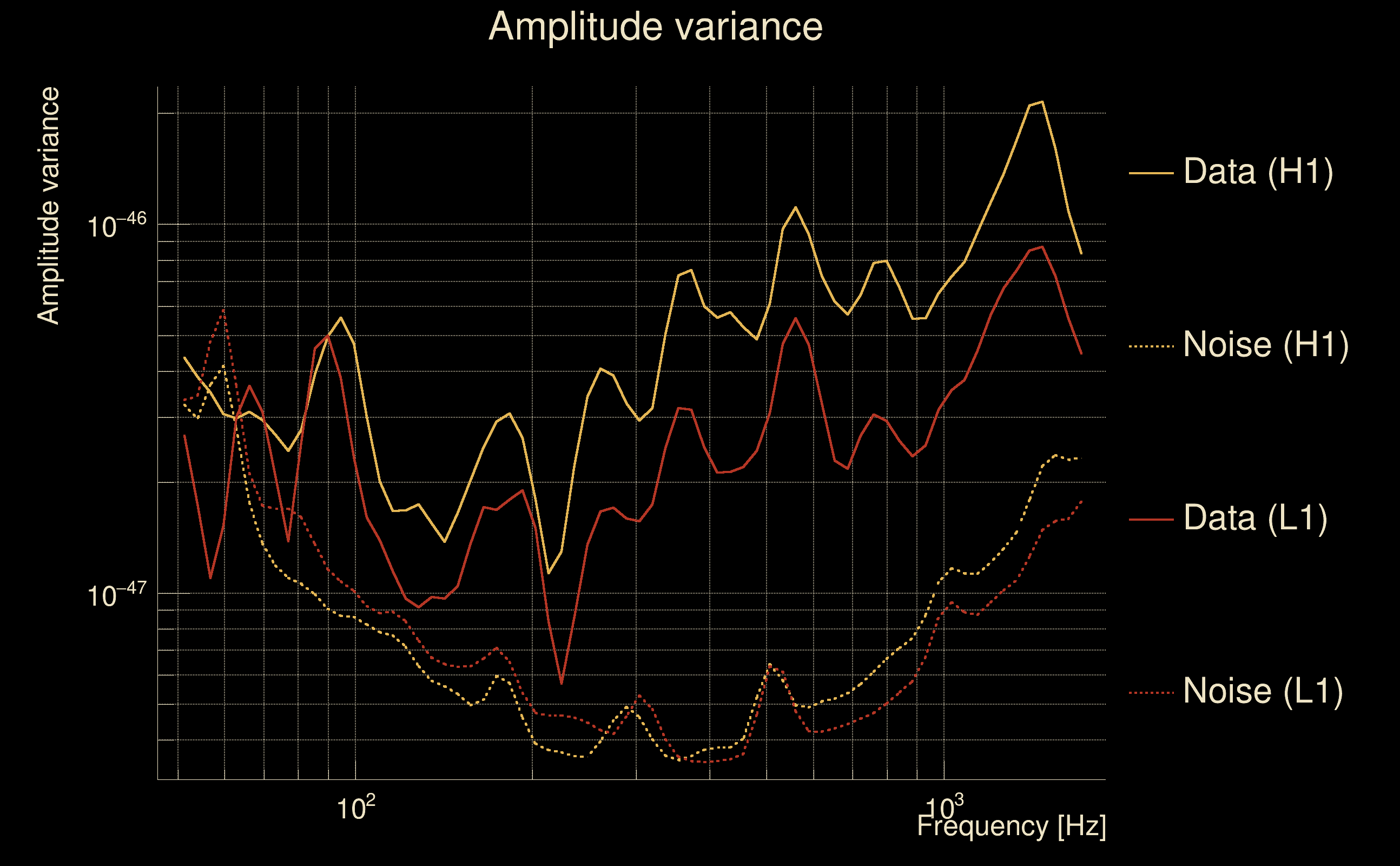

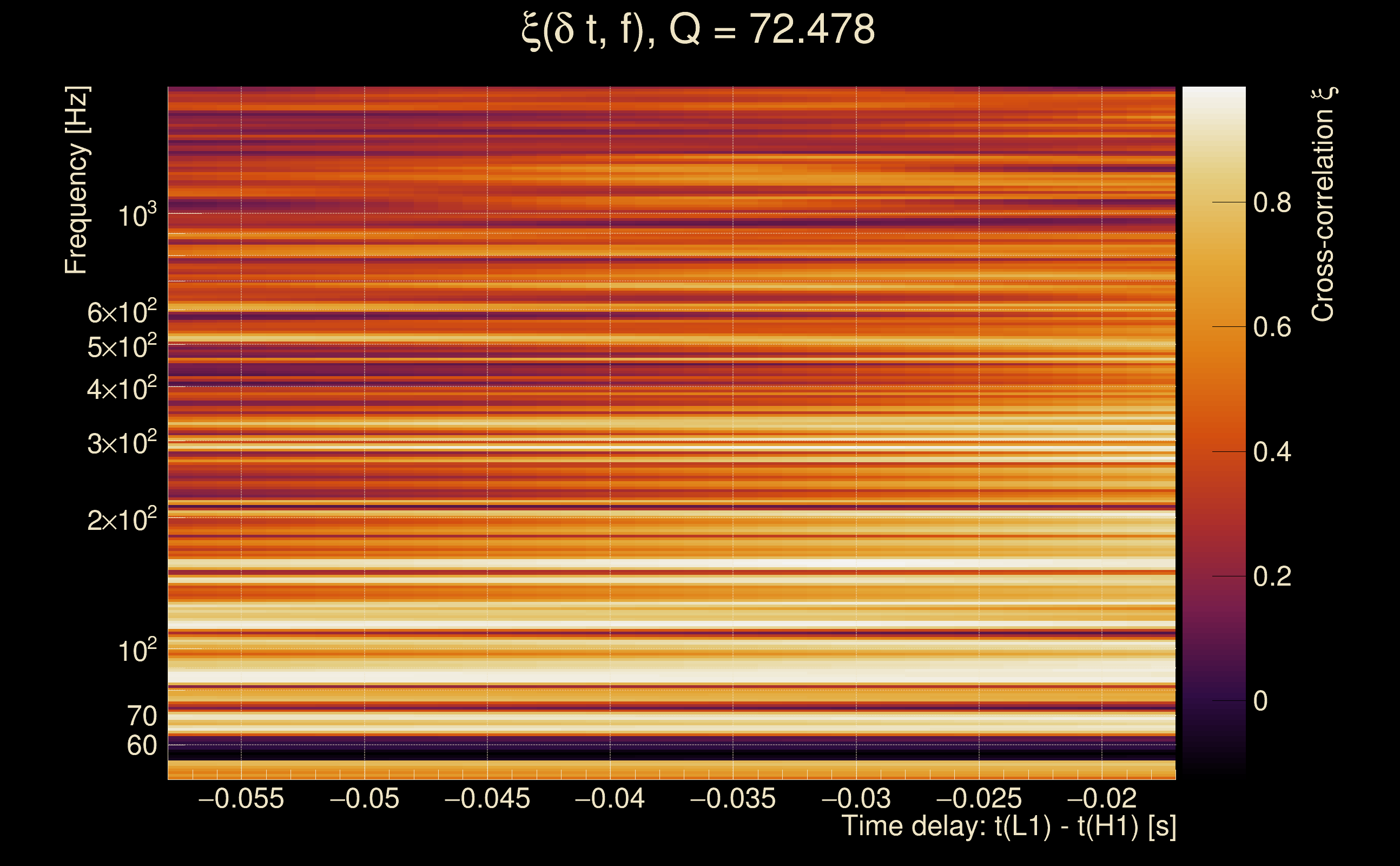

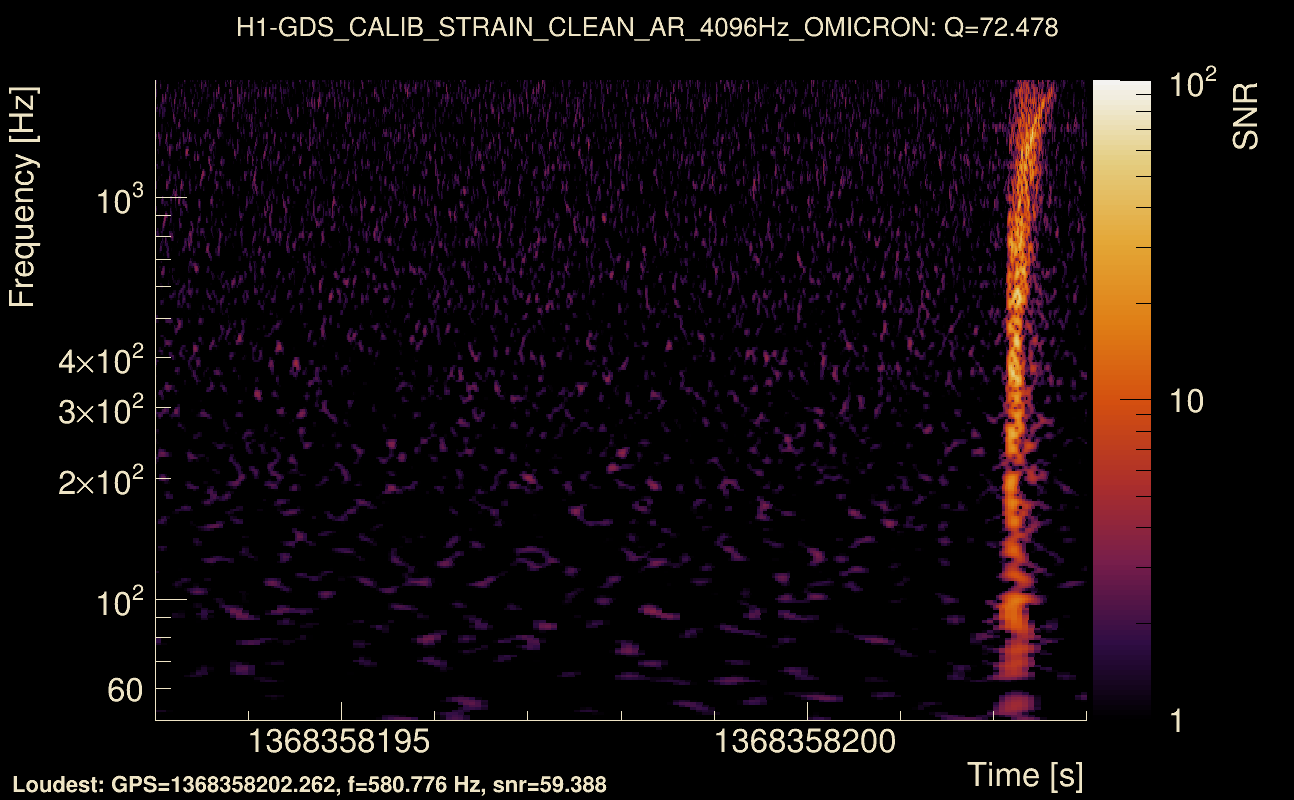

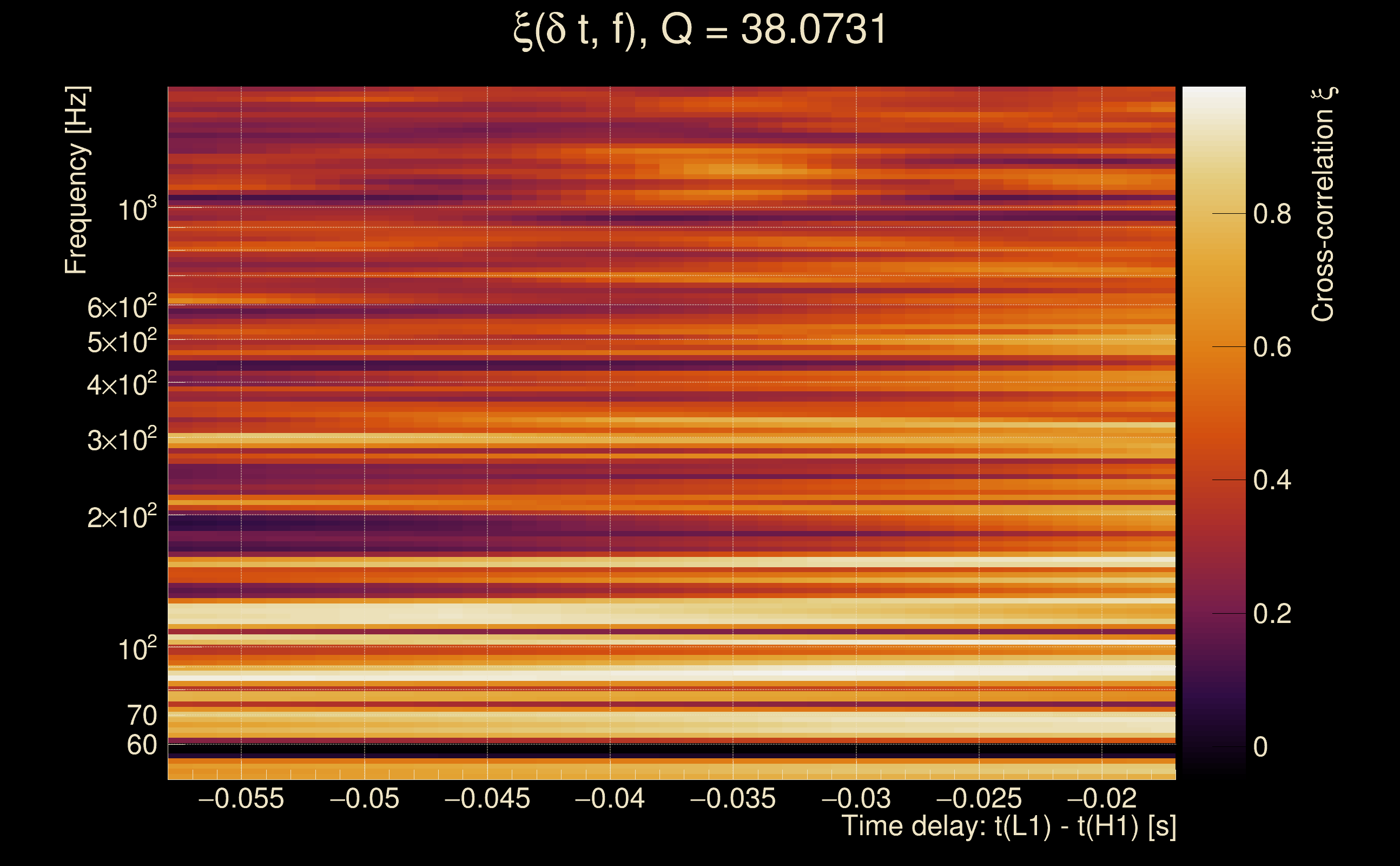

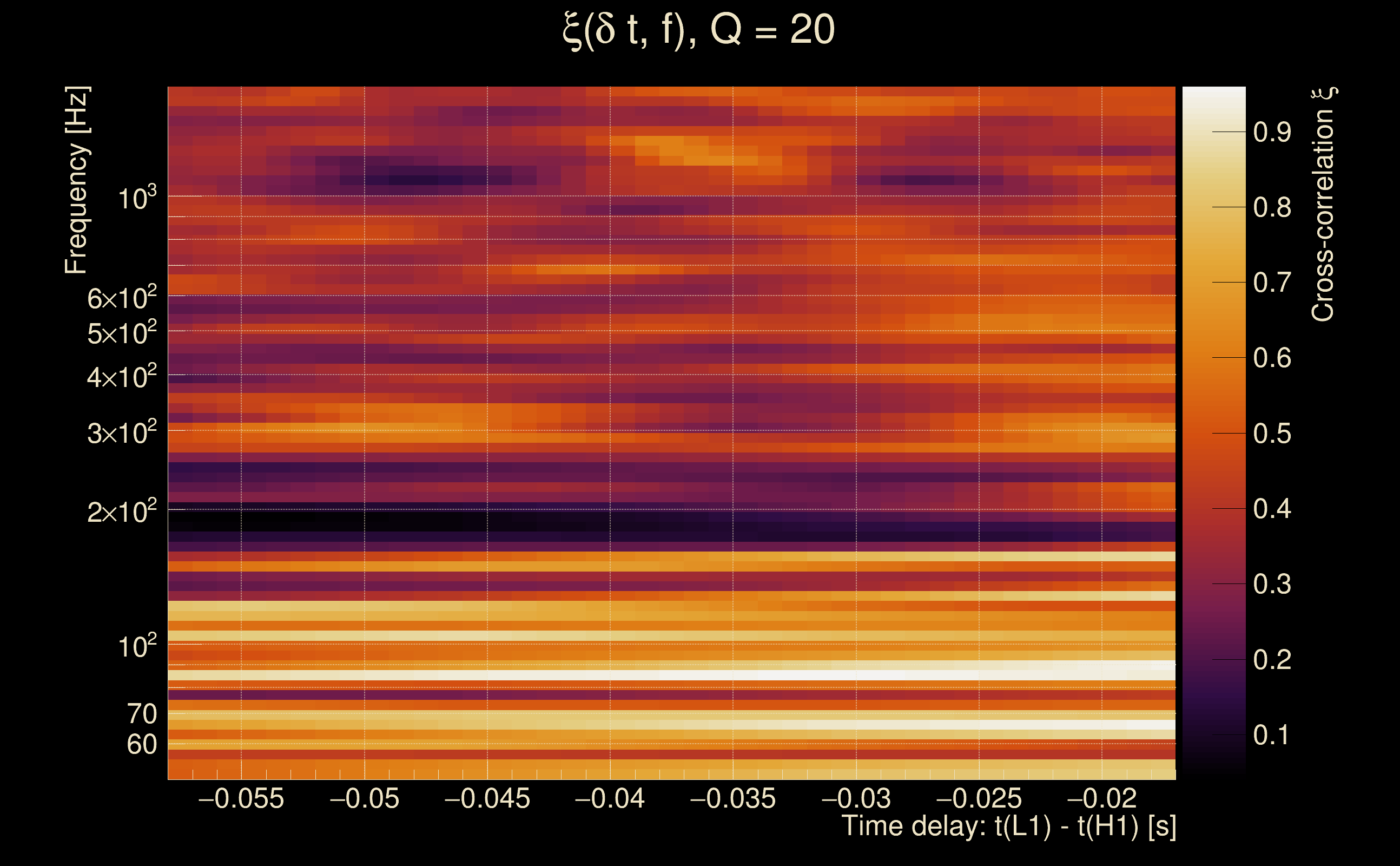

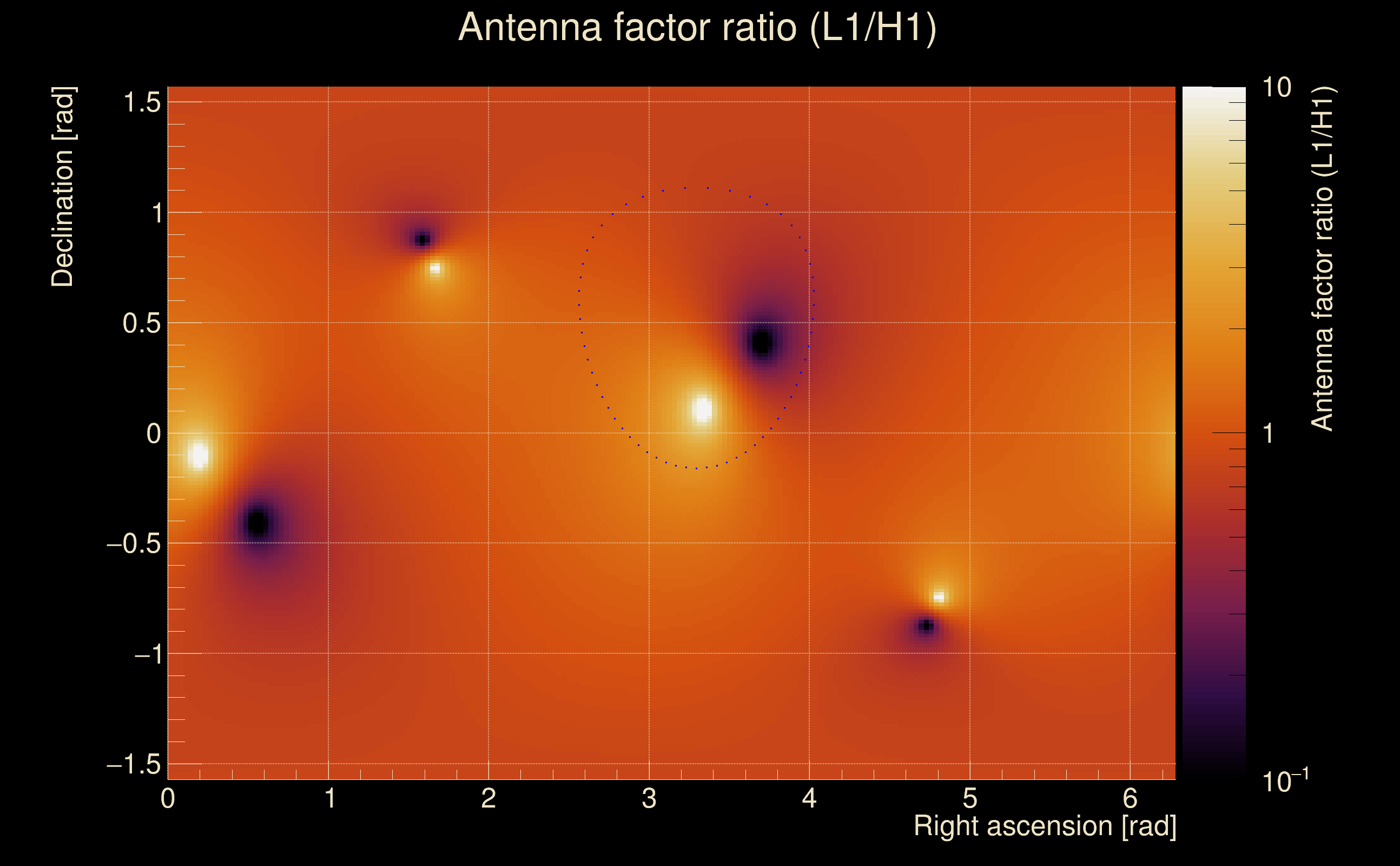

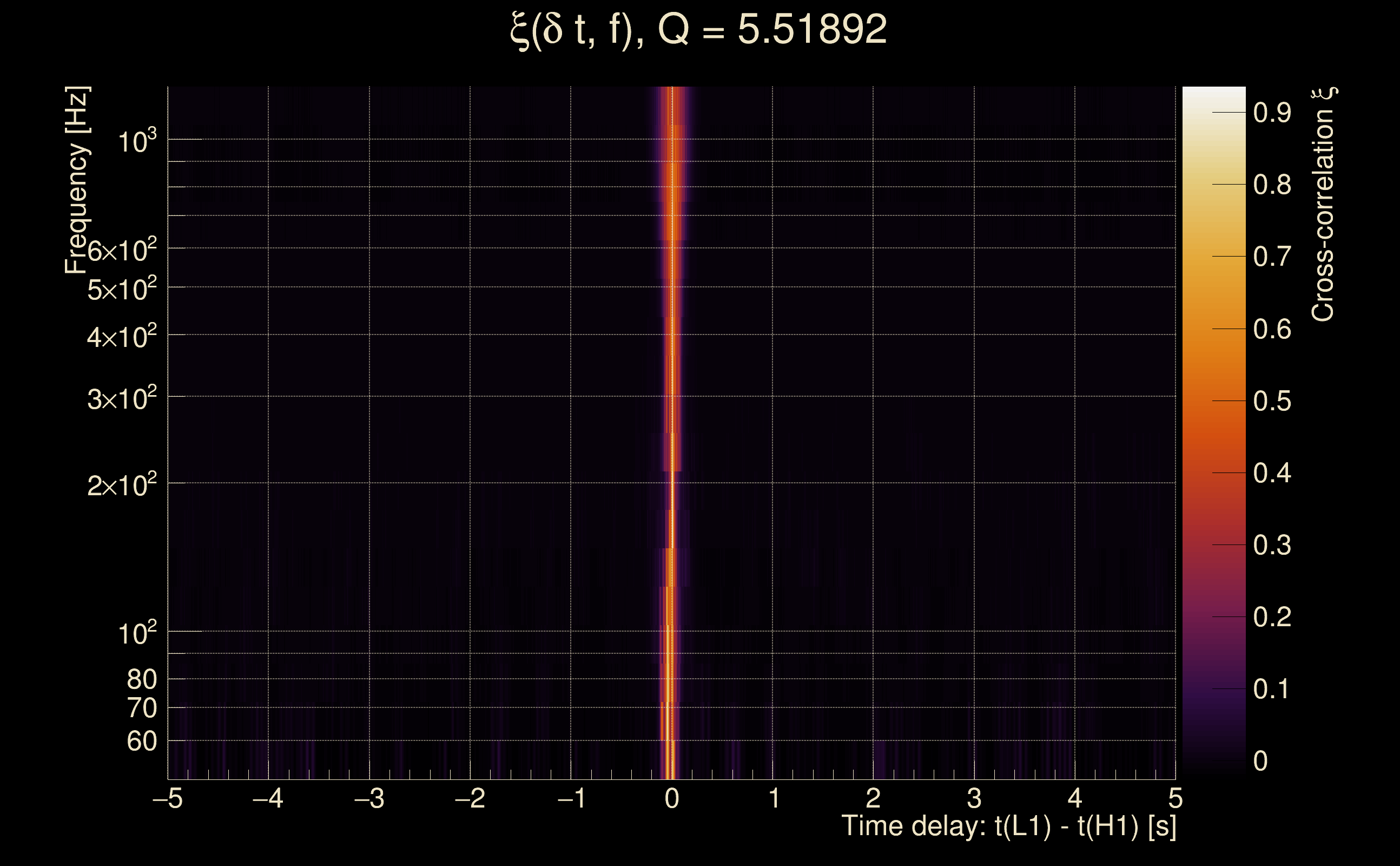

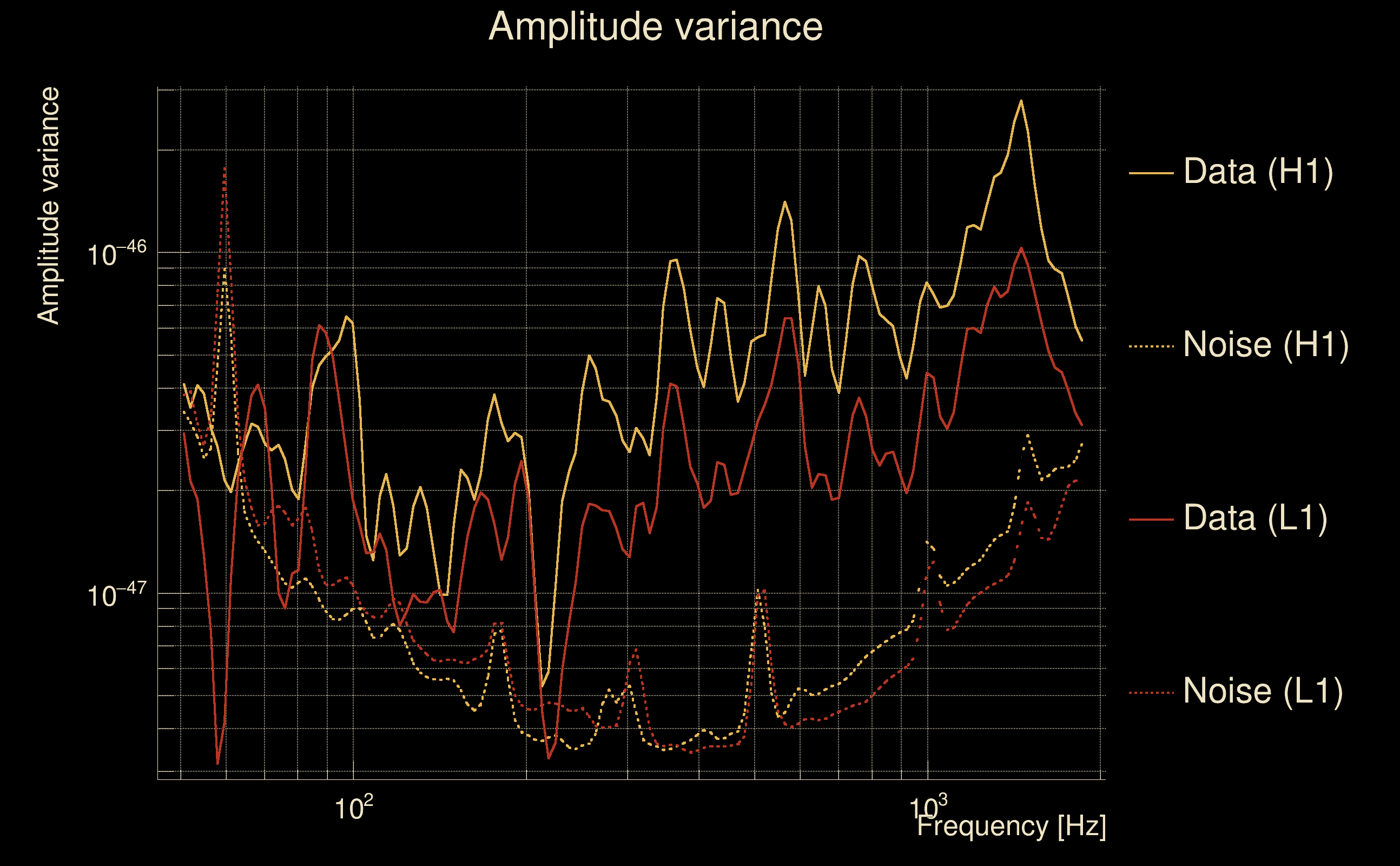

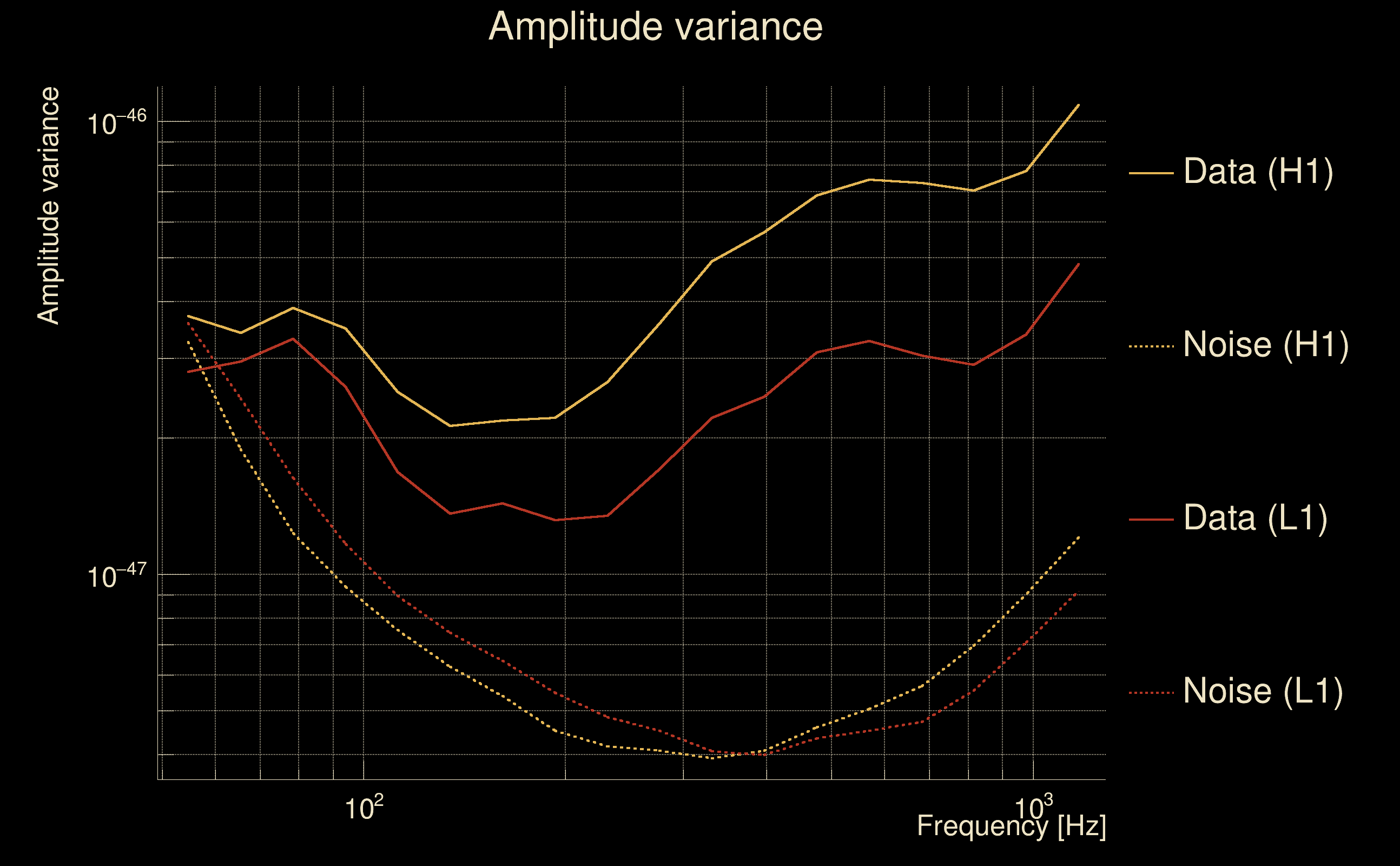

| Event time t(H1): | GPS = 1368358193 (Wed May 17 11:29:35 2023 ) → GPS = 1368358203 (Wed May 17 11:29:45 2023 ) |
| Event time t(L1): | GPS = 1368358193 (Wed May 17 11:29:45 2023 ) → GPS = 1368358203 (Wed May 17 11:29:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368358190 → GPS = 1368358206 |
| Omicron analysis time window (L1): | GPS = 1368358190 → GPS = 1368358206 |

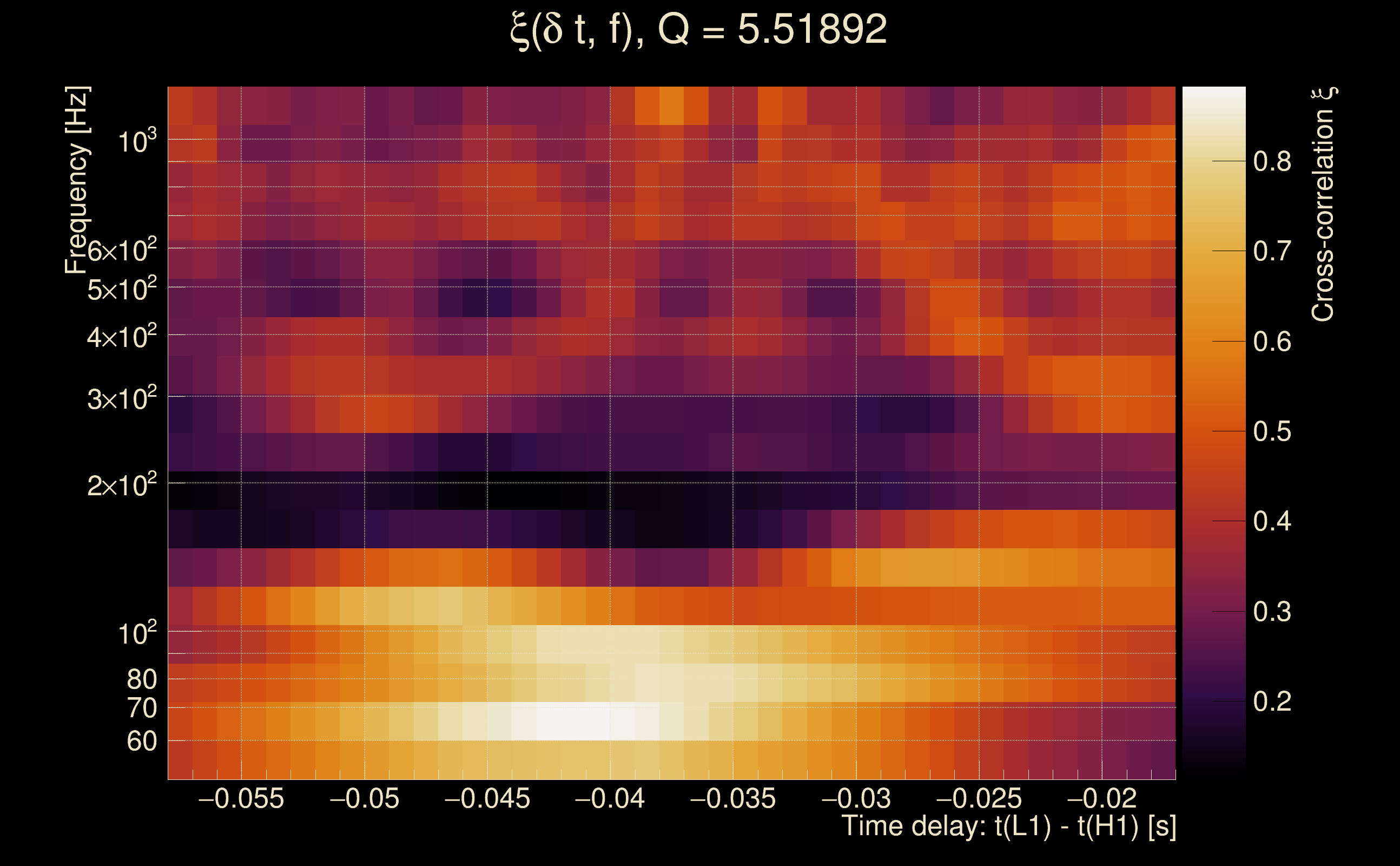

| Time delay between detectors t(L1) - t(H1): | -0.0379446 s (slice index = 109 / 217), δt_gw = 0.00805543 s |
| Time delay standard deviation: | 0.0706035 s |
| [targeted mode] Time delay probability: | 0.923069 (0.096569 sigmas), δt_target = 0.00602293 s |
| Frequency: | 252.669 Hz |
| Ξ: | 0.277094 ± 0.0593269 (variance = 0.00351968): Q0: 0.73884, Q1: 0.713895, Q2: 0.616853, Q3: 0.617826, Q4: 0.589697 |
| Rank: | R_A = 0.255776 |
| Log of amplitude ratio (L1/H1): | -0.464991, variance = 0.174739 (L1/H1: -0.770085, variance = 0.346641, H1/L1: 0.020869, variance = 0.319208) |
| Amplitude ratio (L1/H1): | 0.628141 ⋇ 1.51895 (L1/H1: 0.462974 ⋇ 1.80176, H1/L1: 1.02109 ⋇ 1.75942) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.358534 |

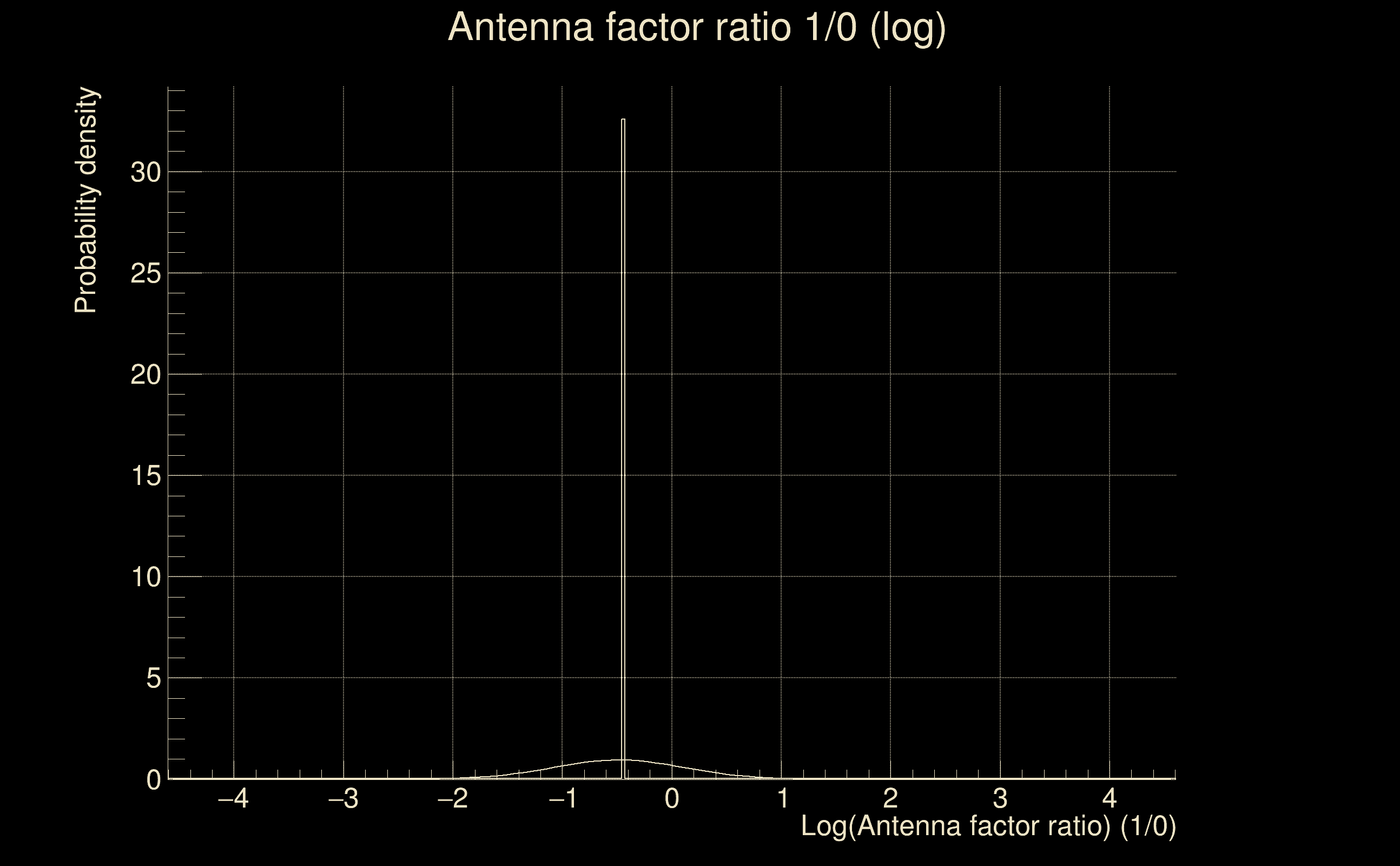

| Antenna factor probability: | 0.945617 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 22 / 36, Q2: 47 / 70, Q3: 103 / 134, Q4: 227 / 258 |
| Maximum signal-to-noise ratio: | H1: 63.2084, L1: 52.3891 |

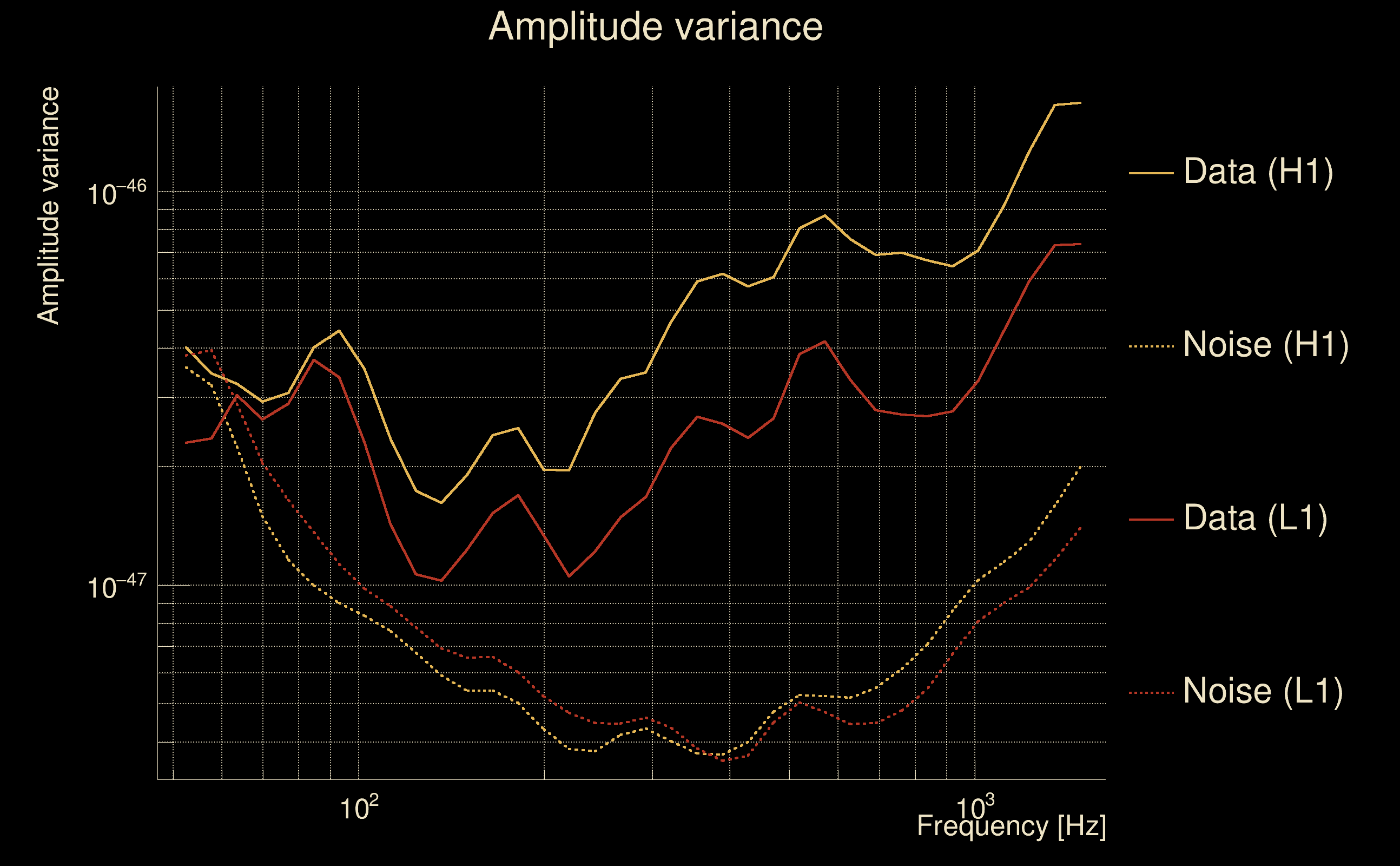

| SNR variance: | H1: 0.489037, L1: 0.548919 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

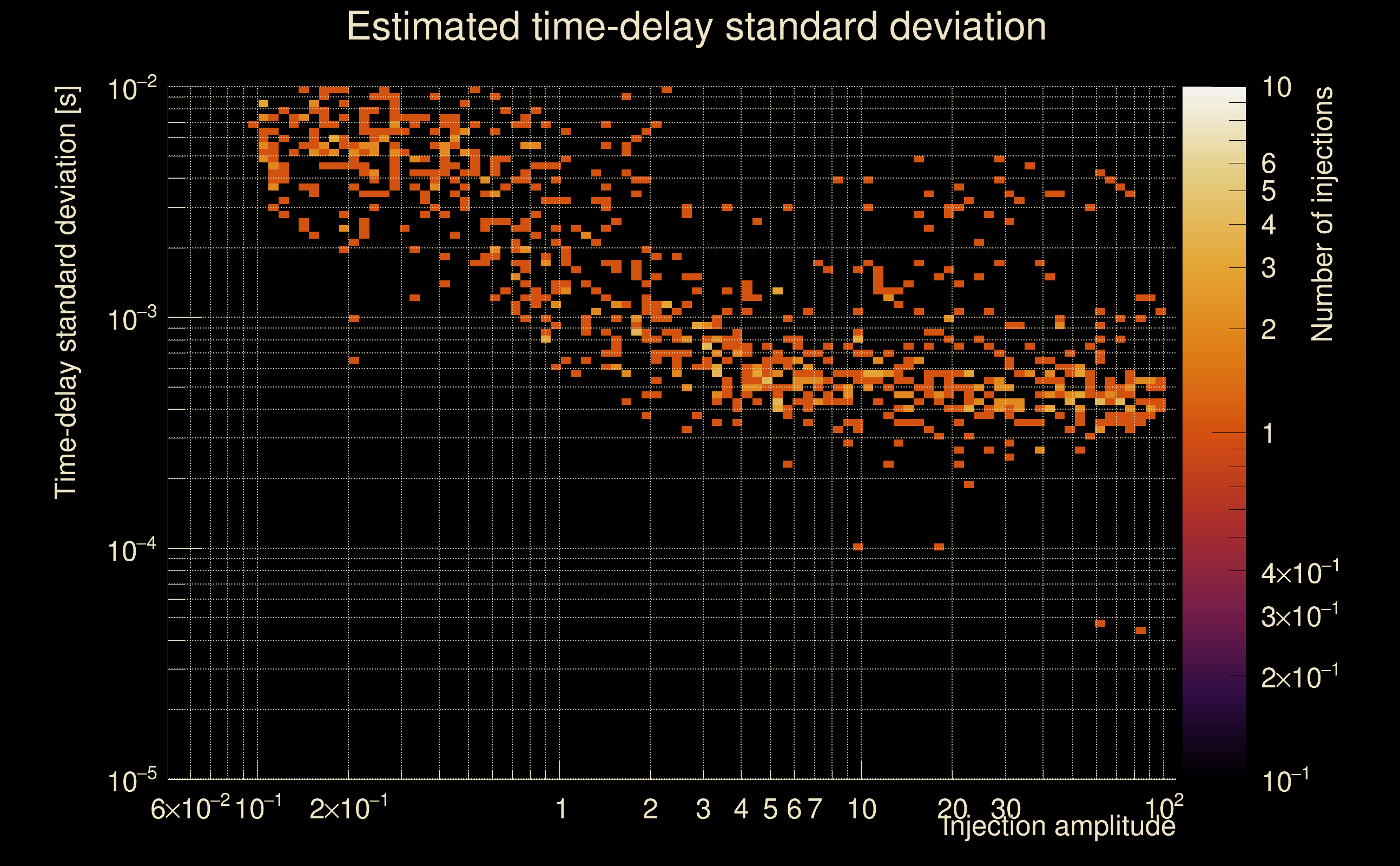

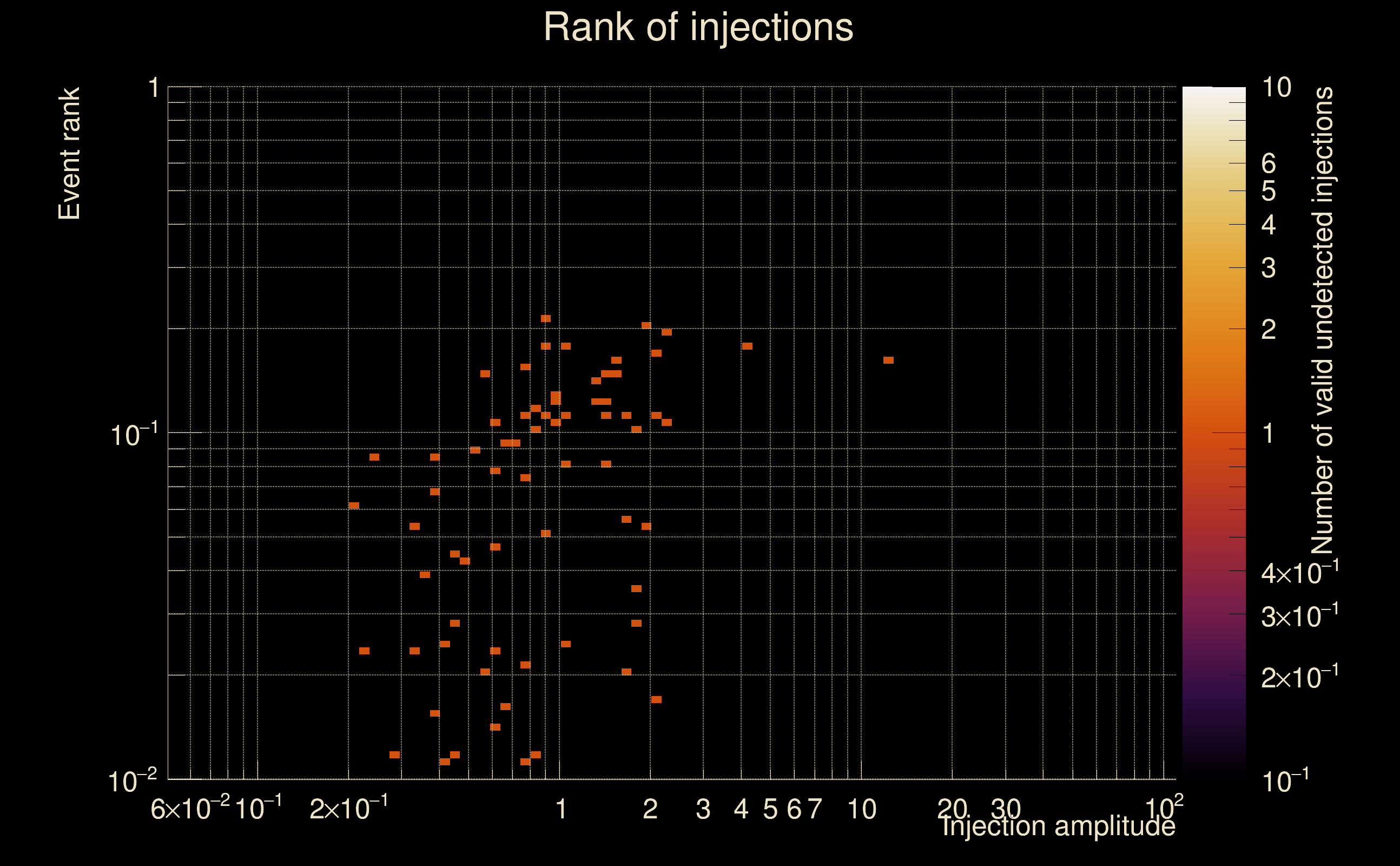

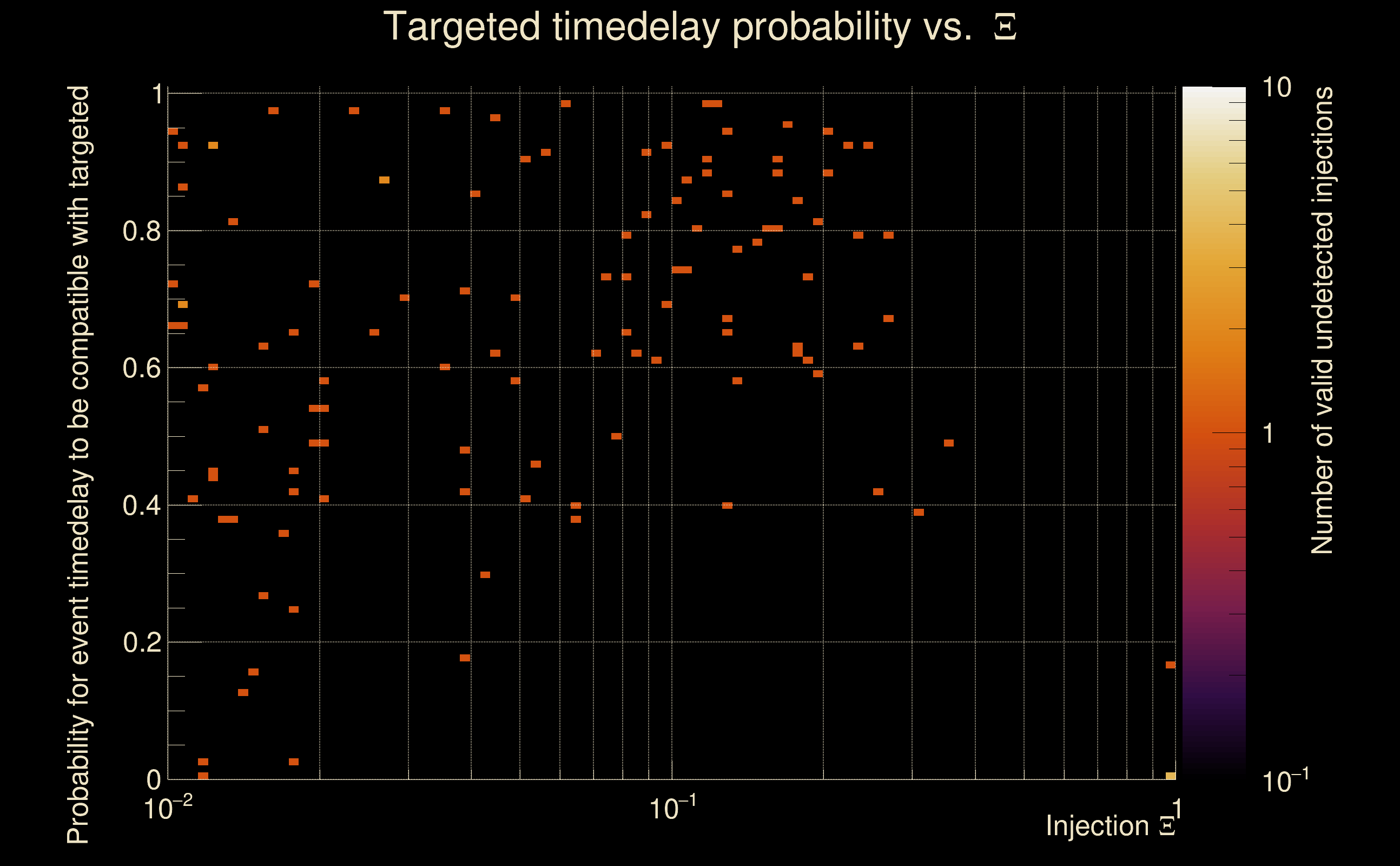

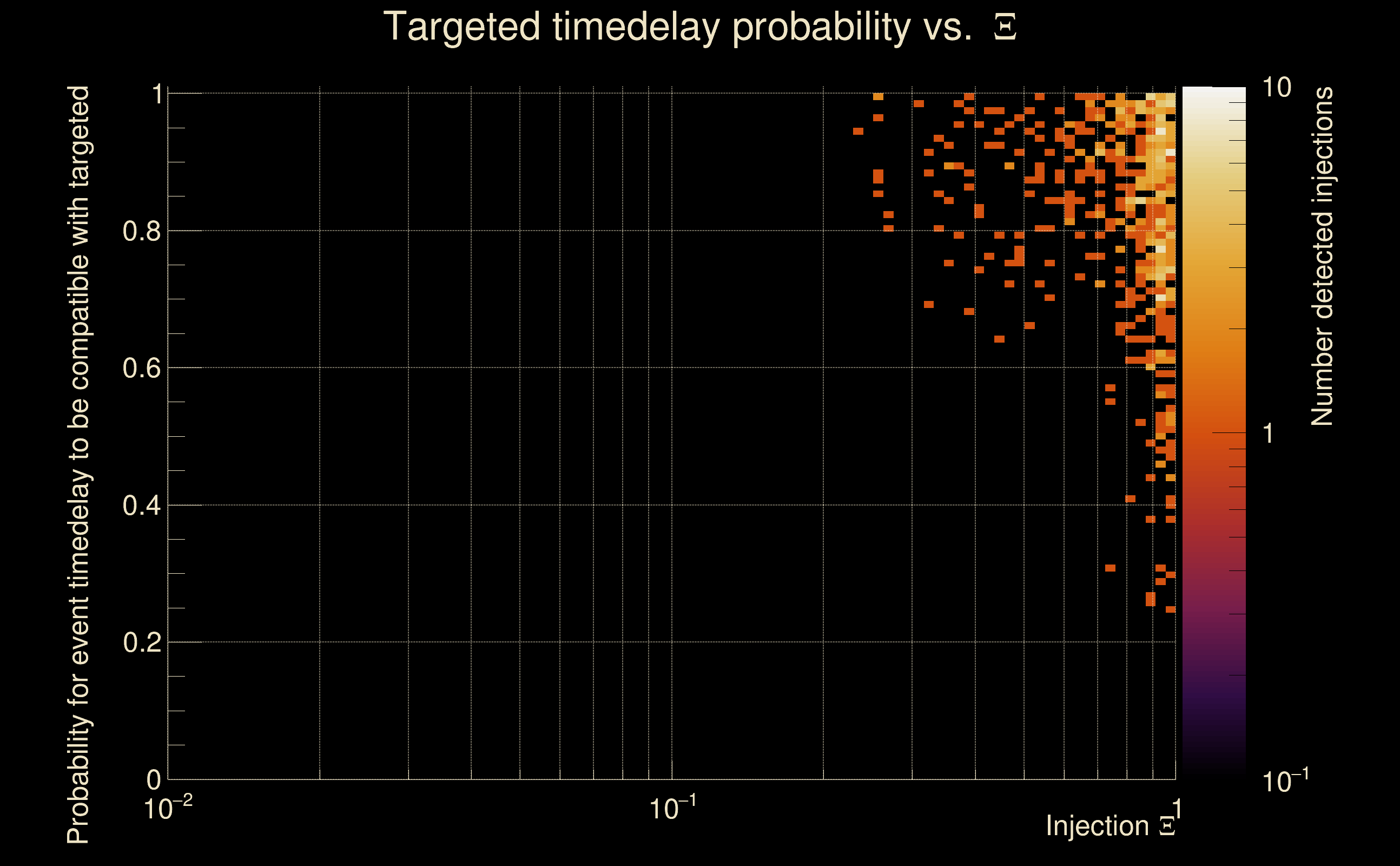

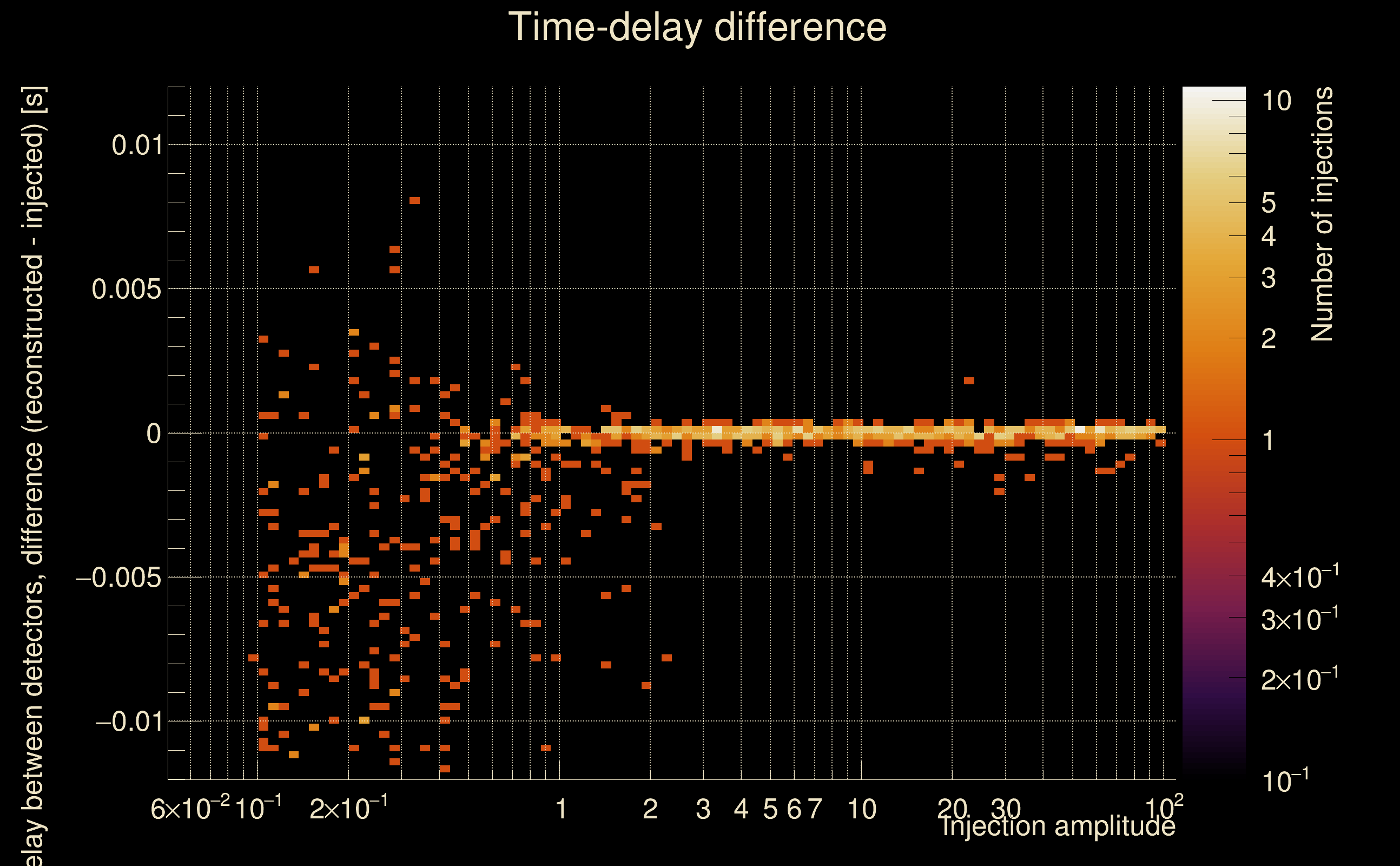

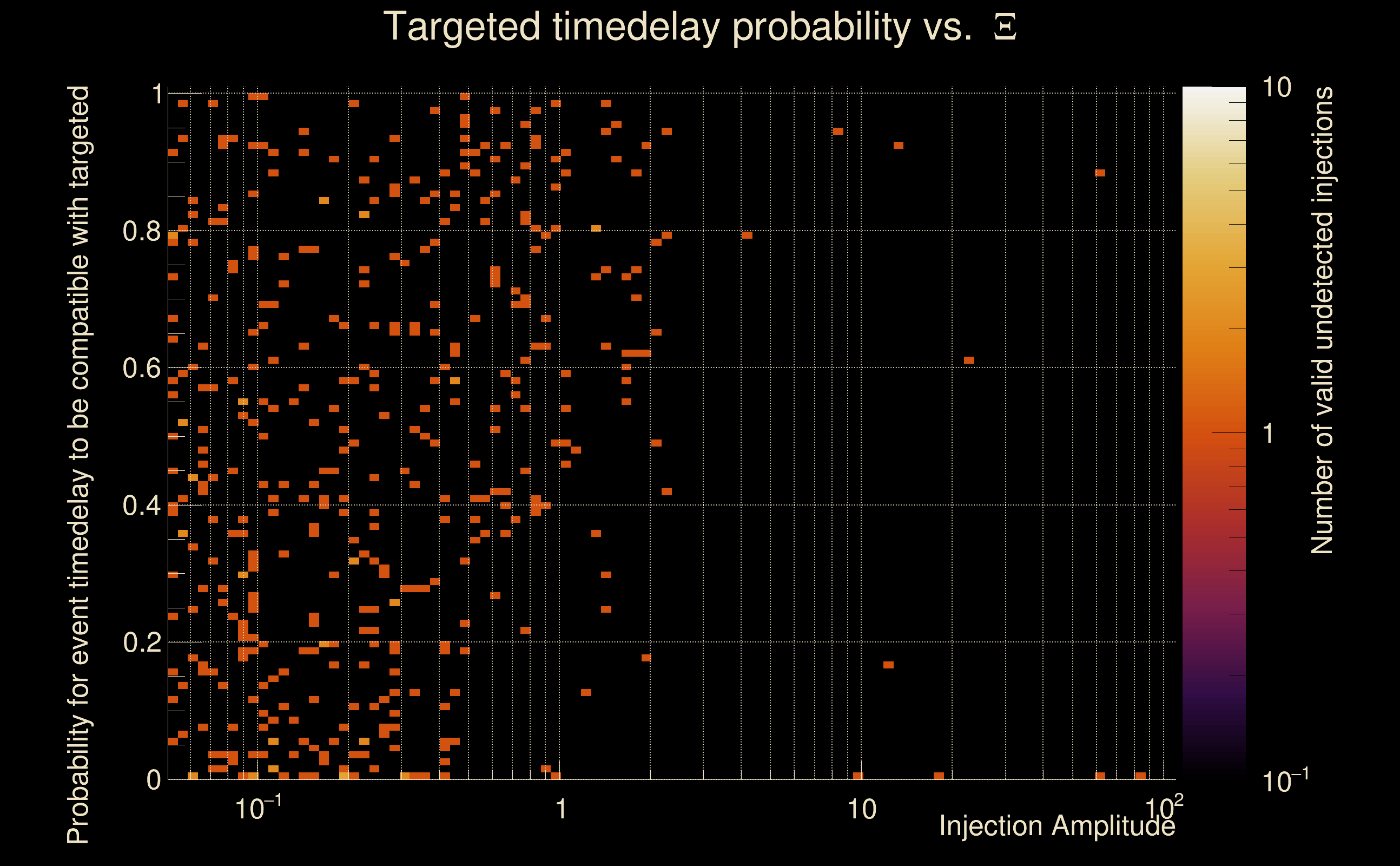

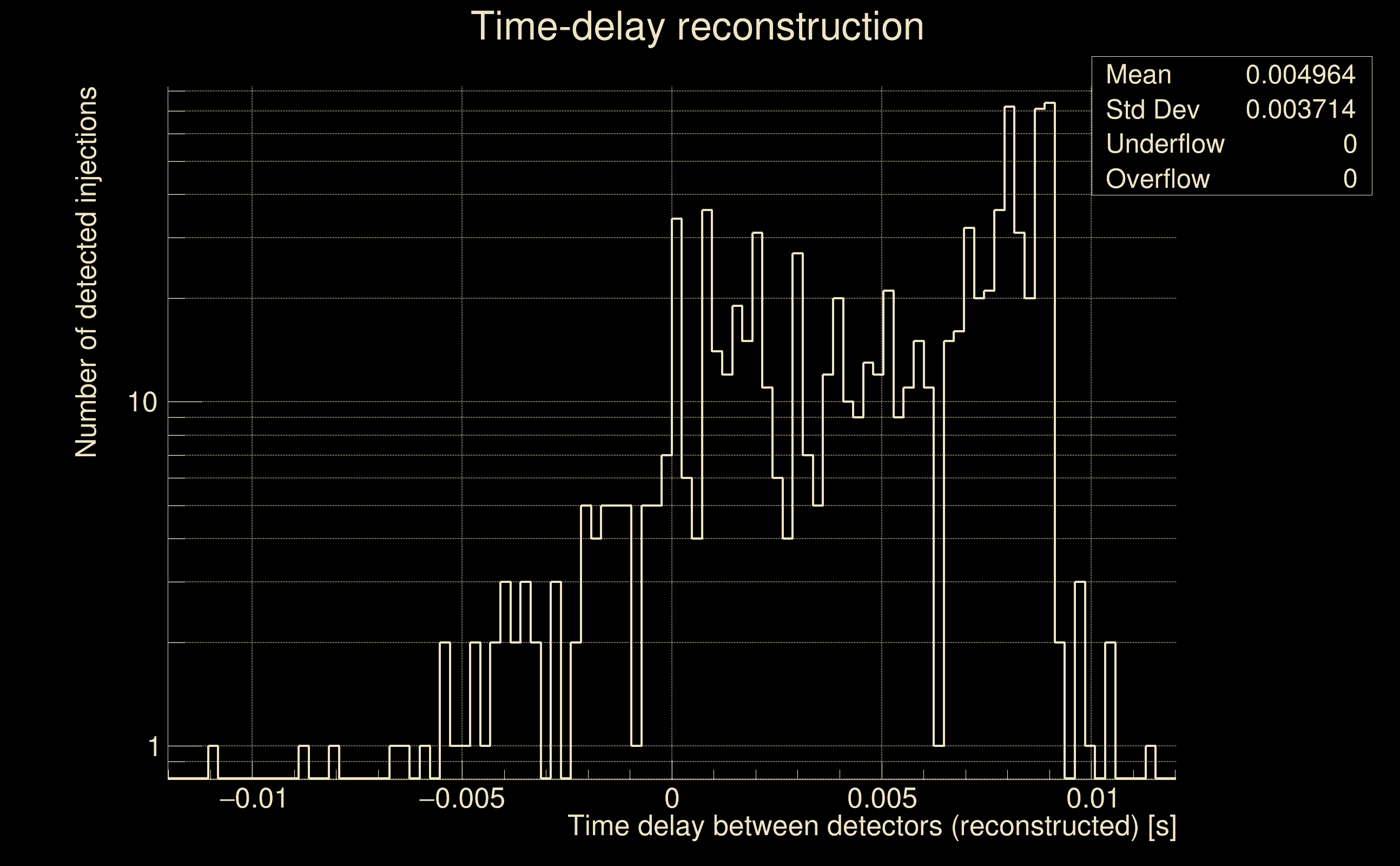

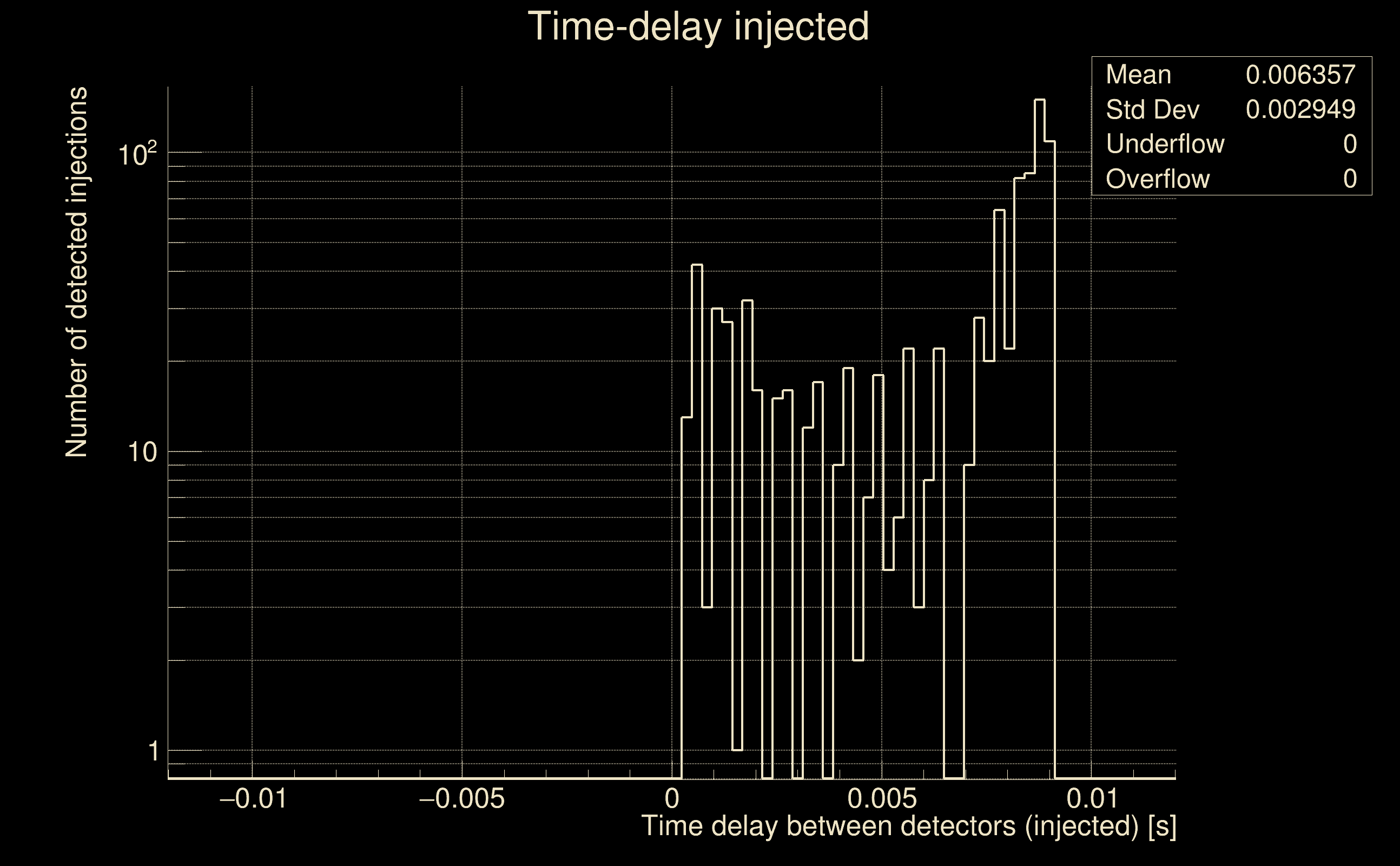

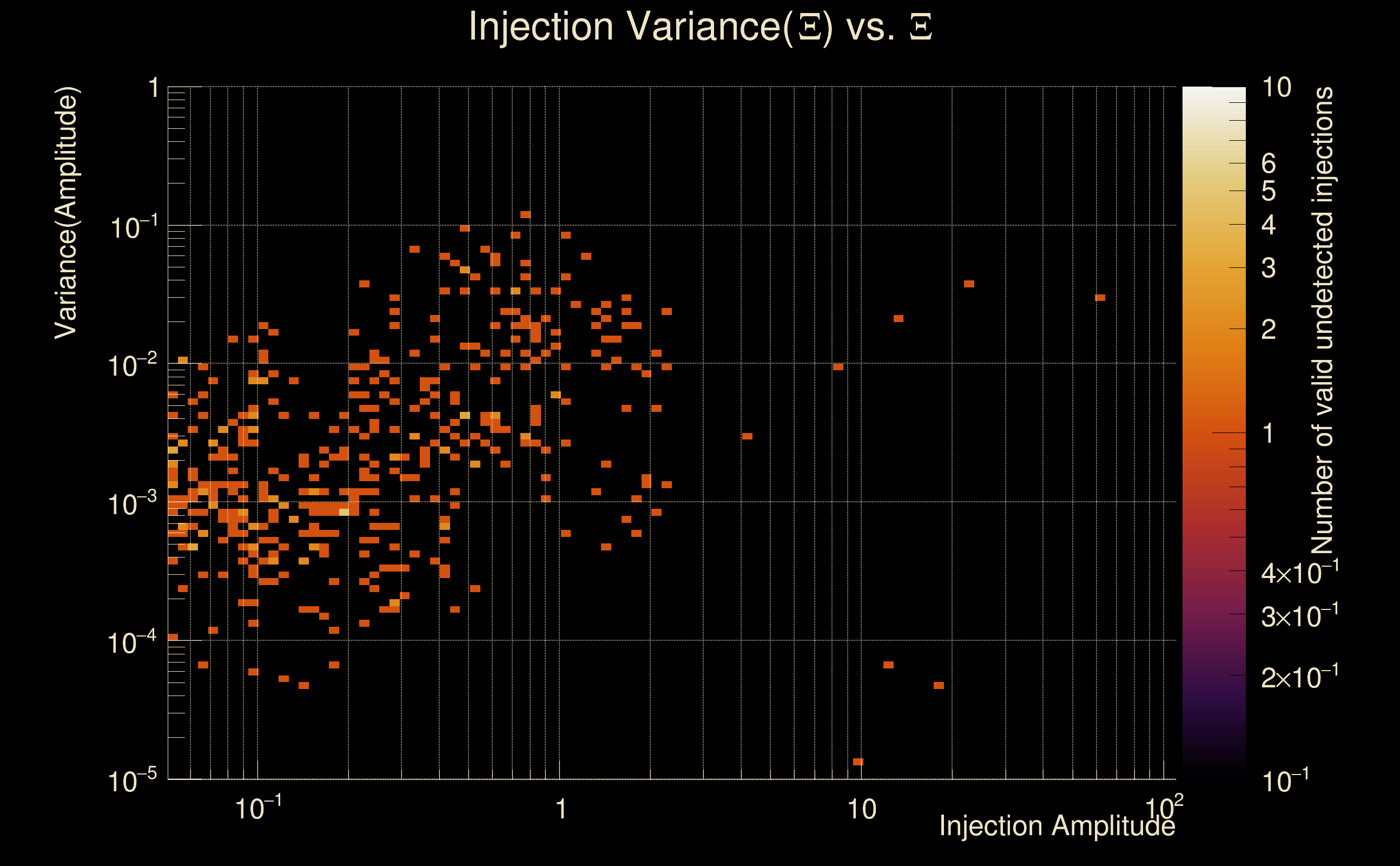

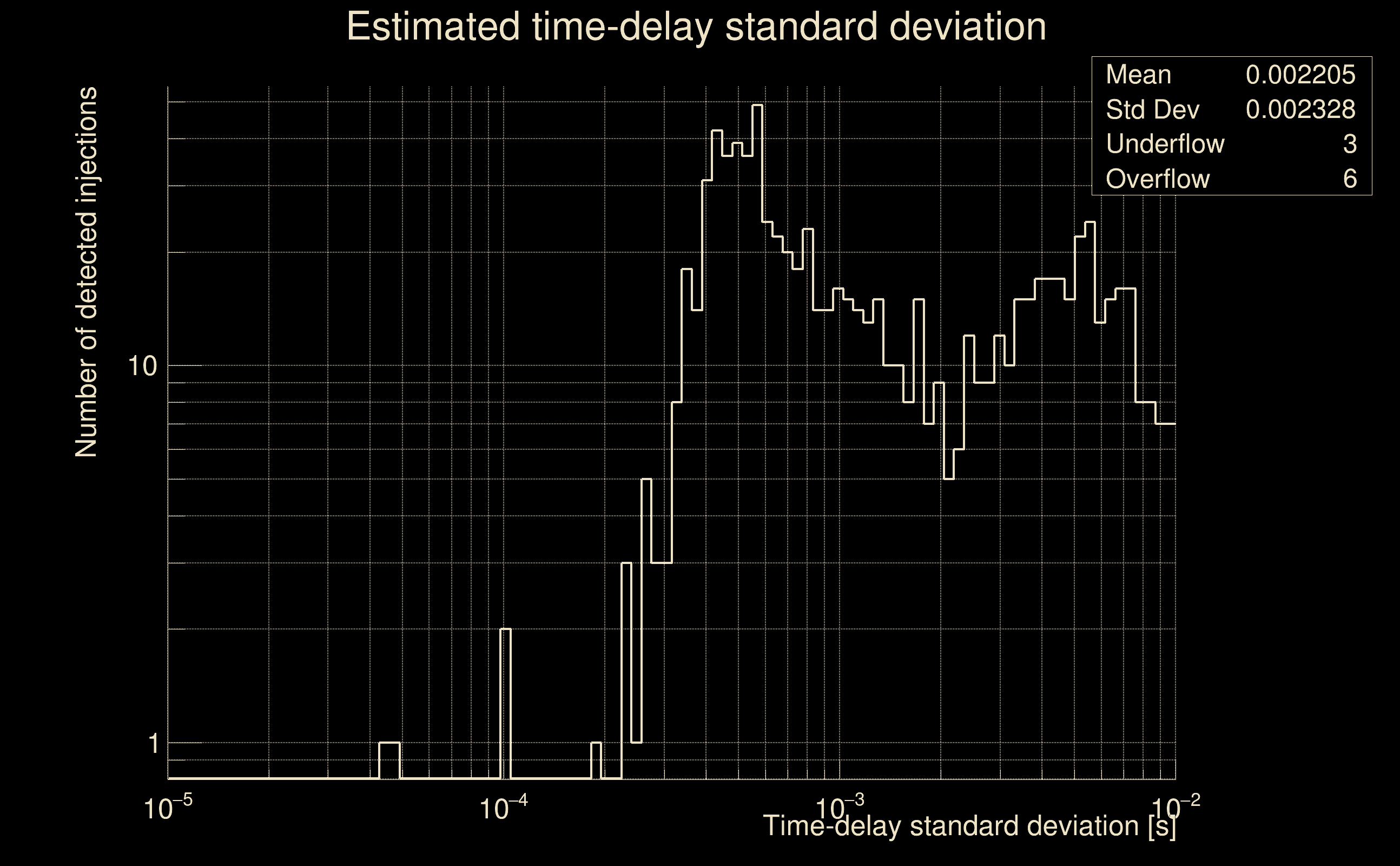

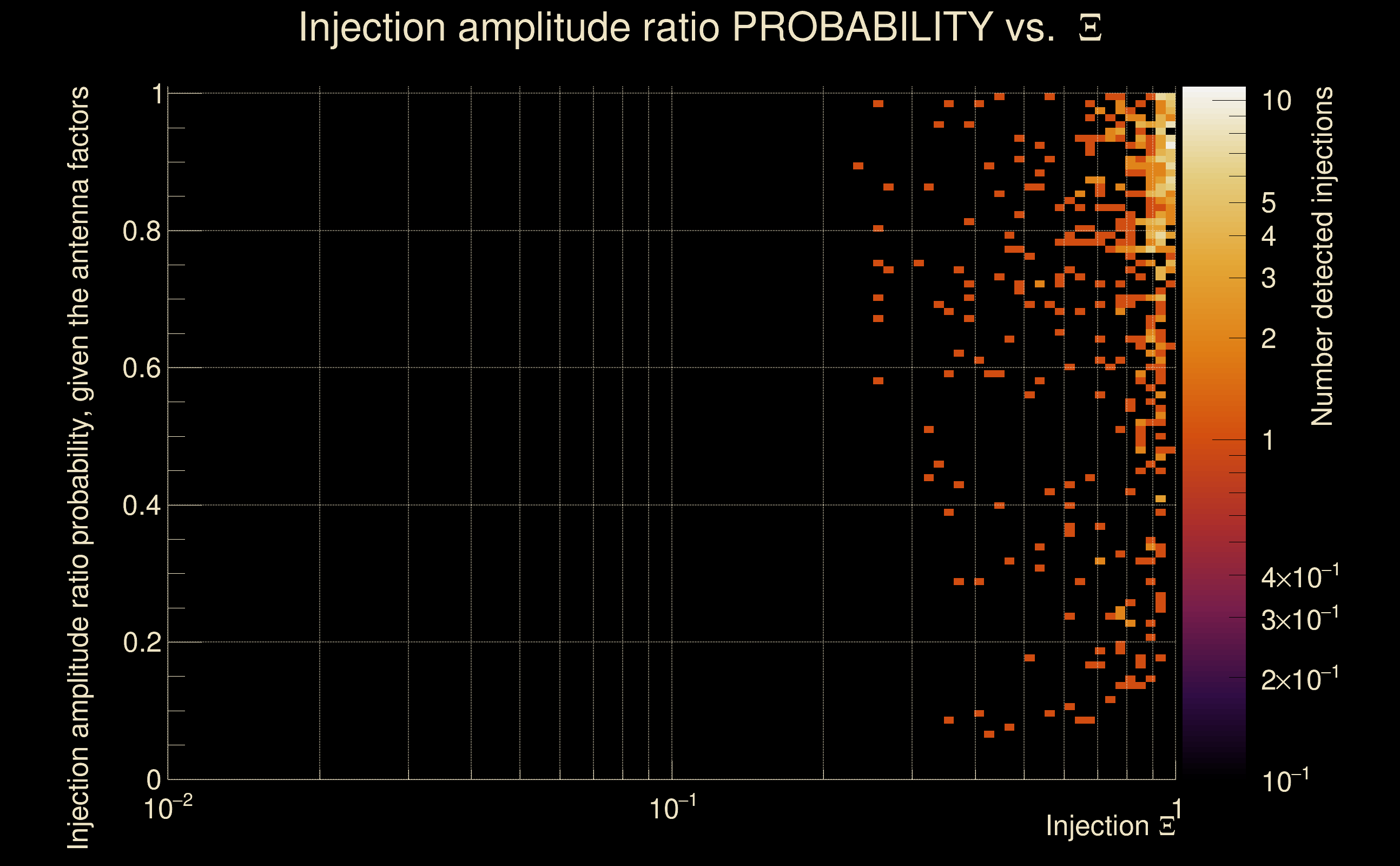

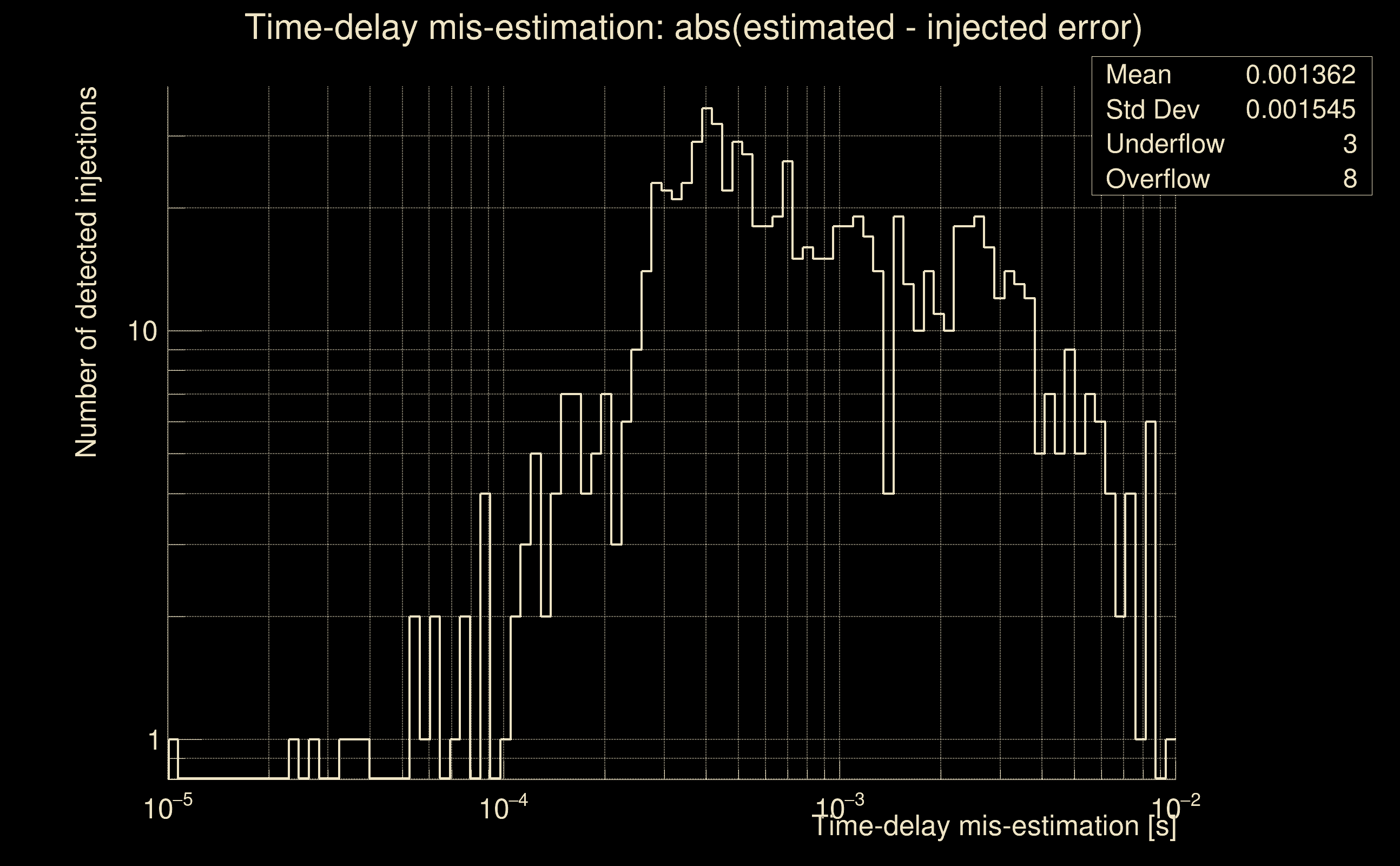

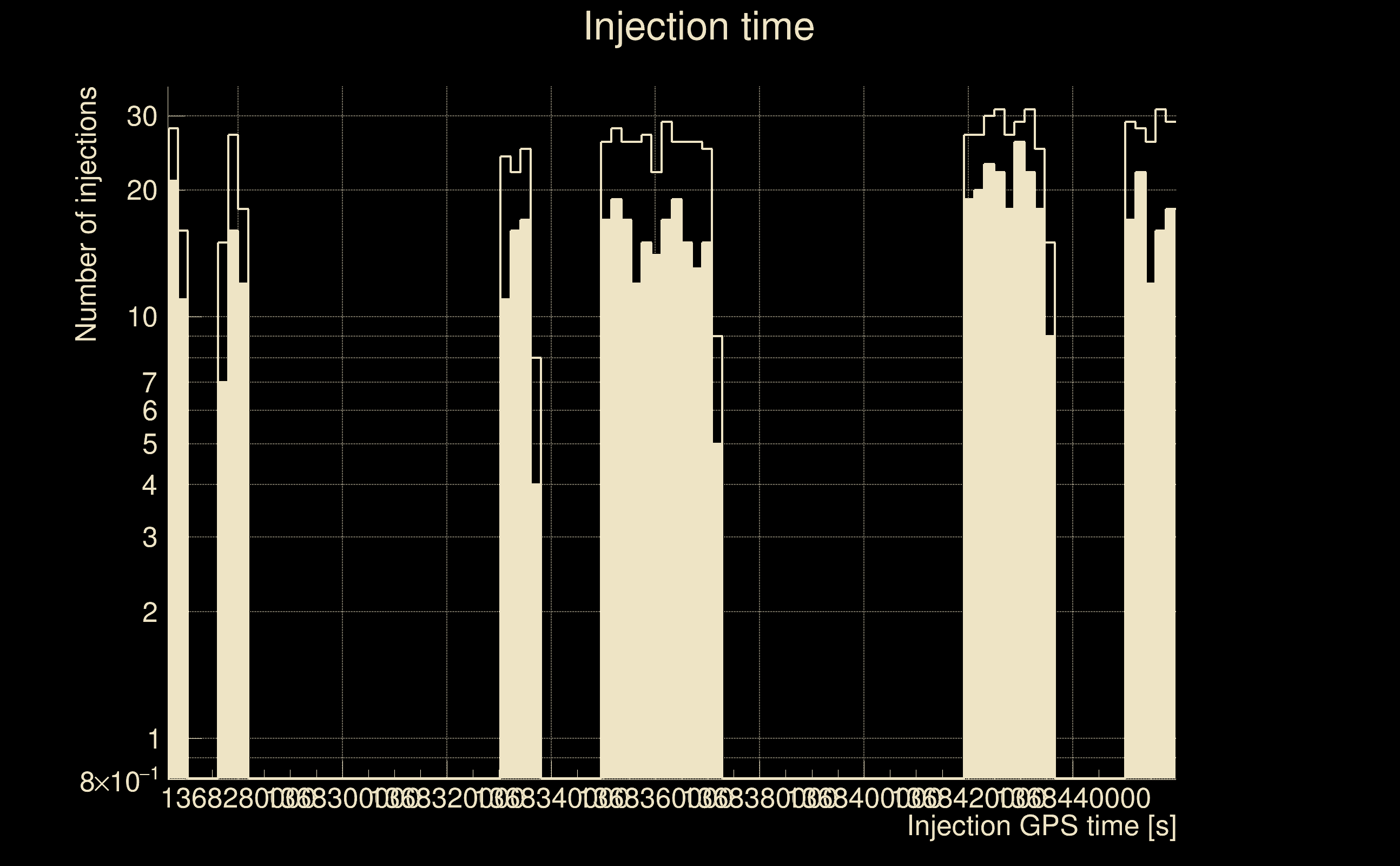

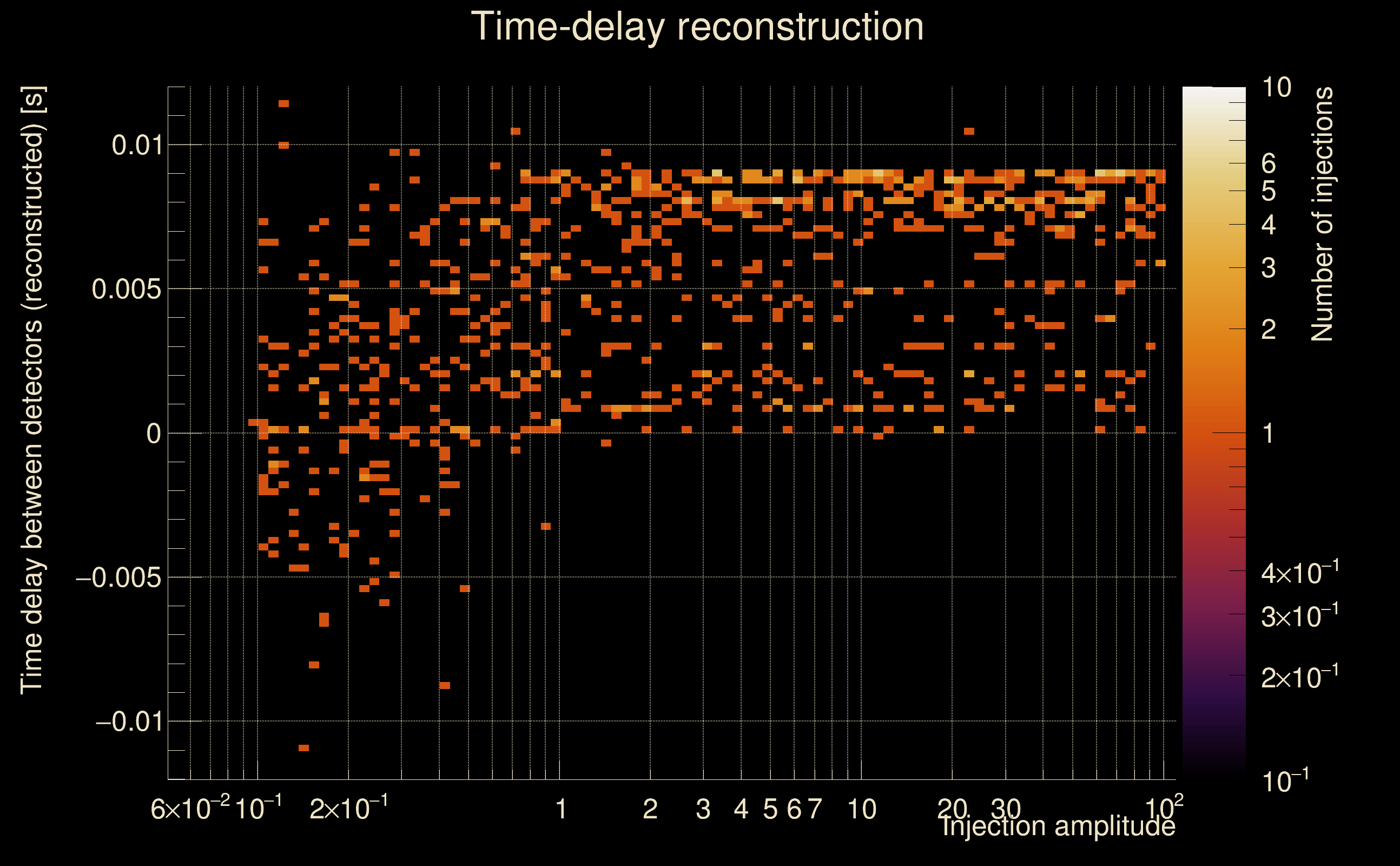

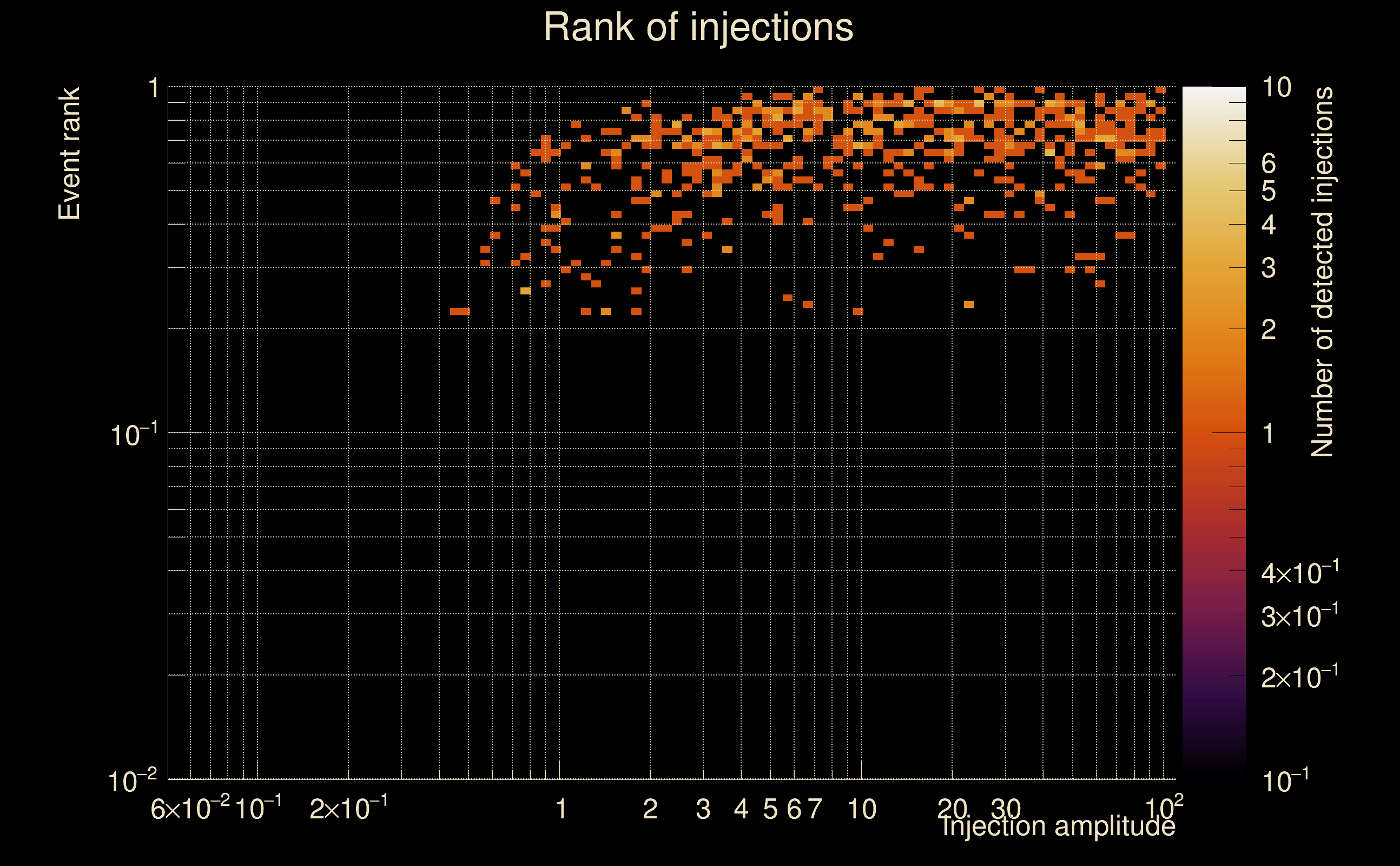

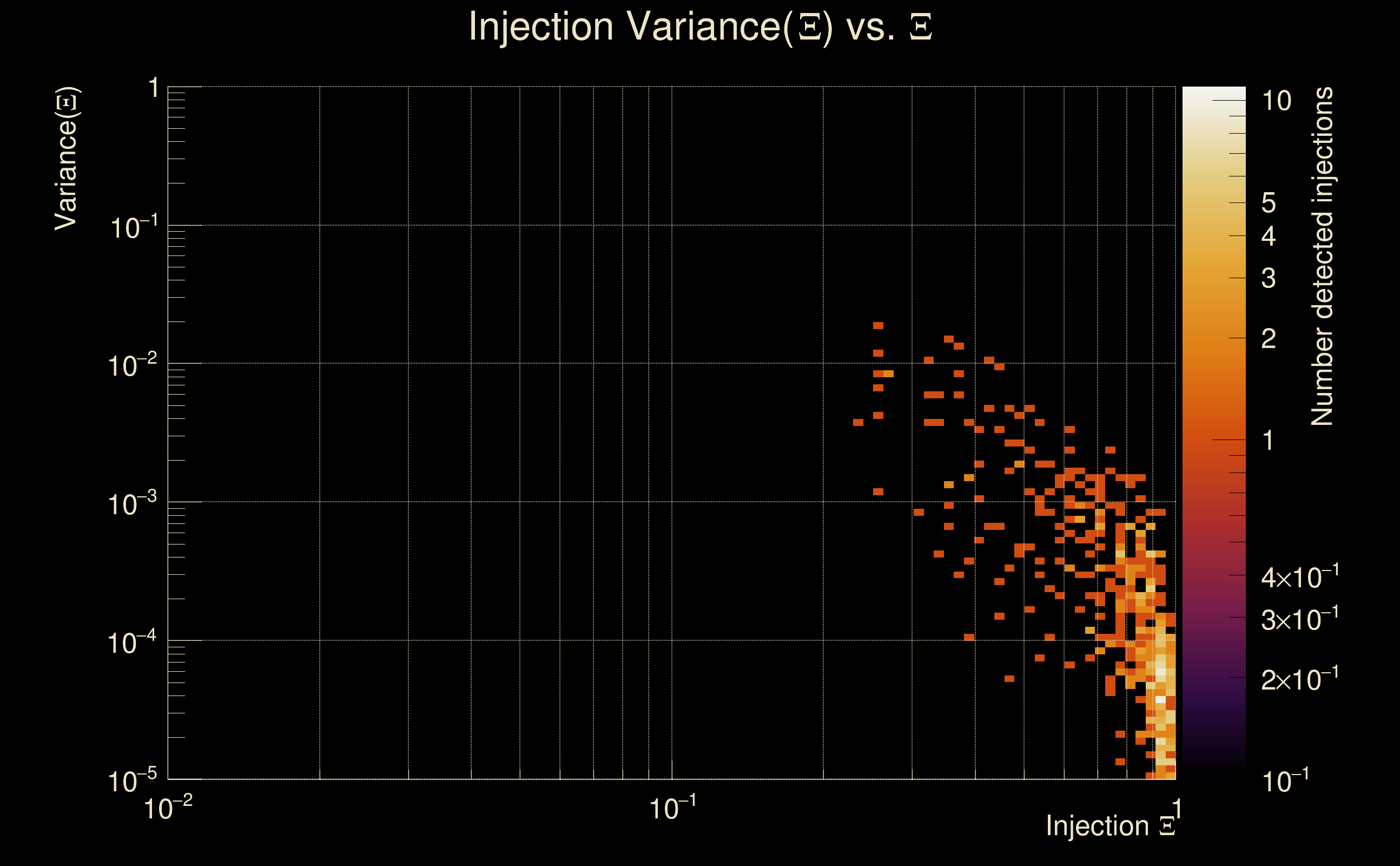

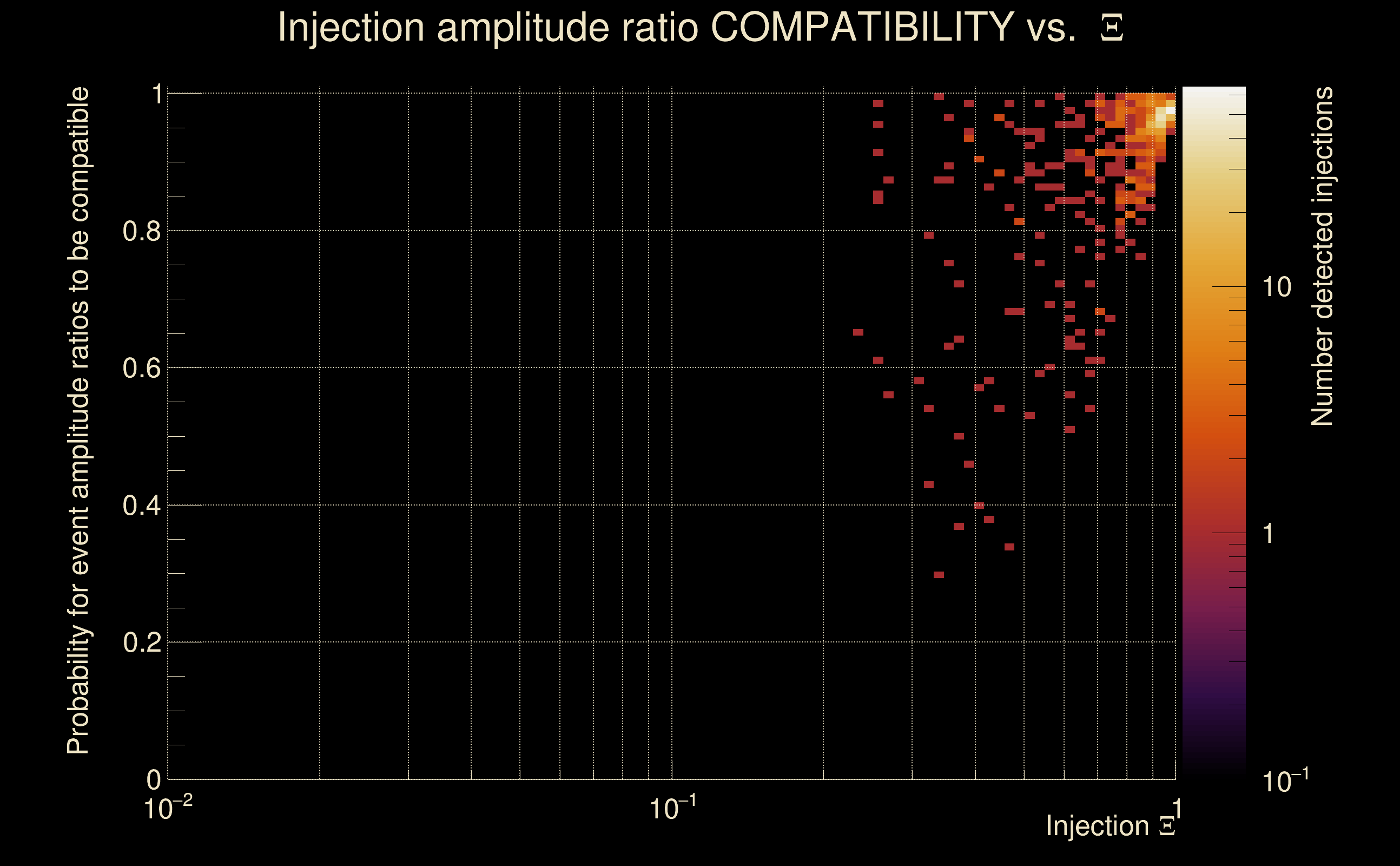

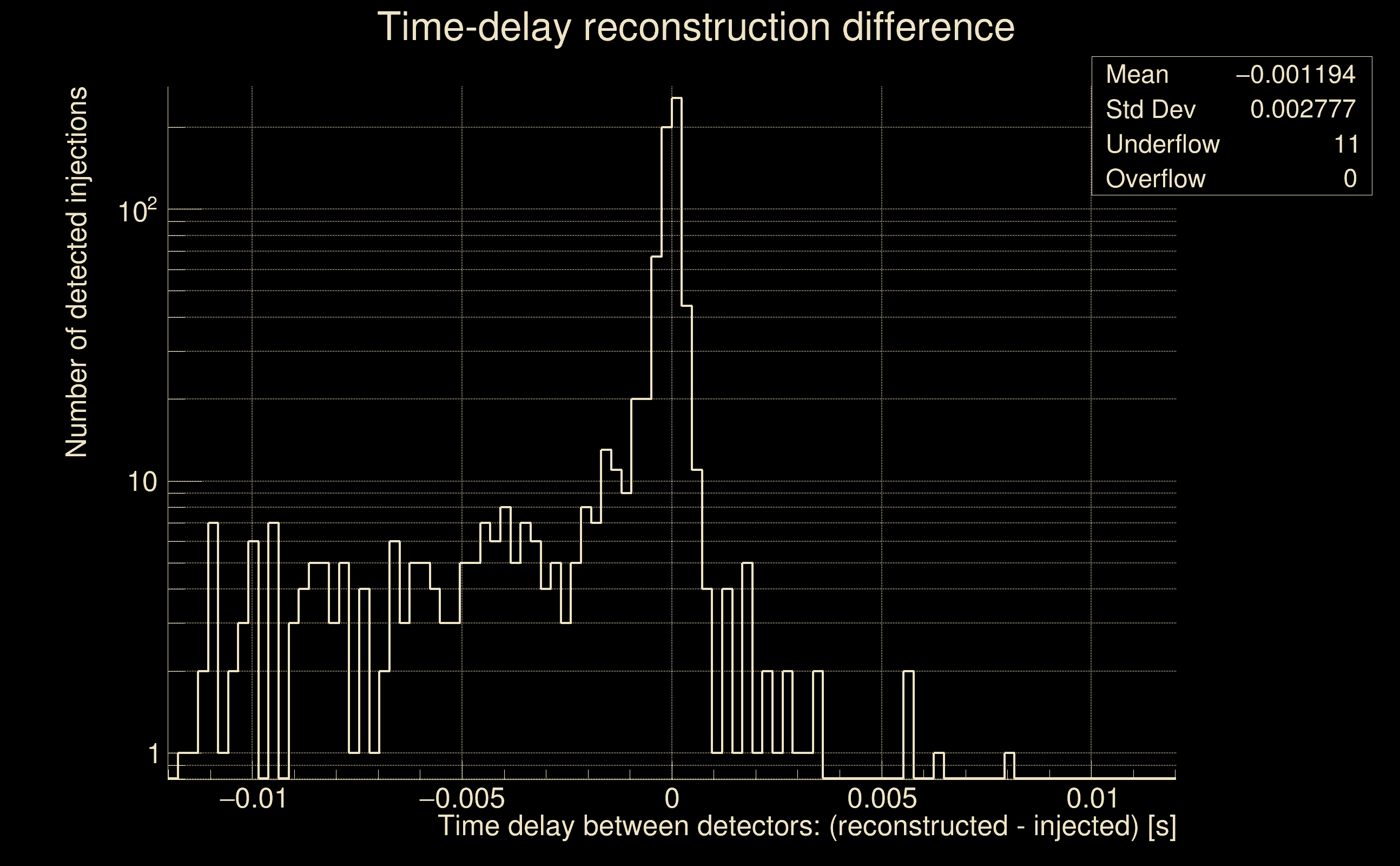

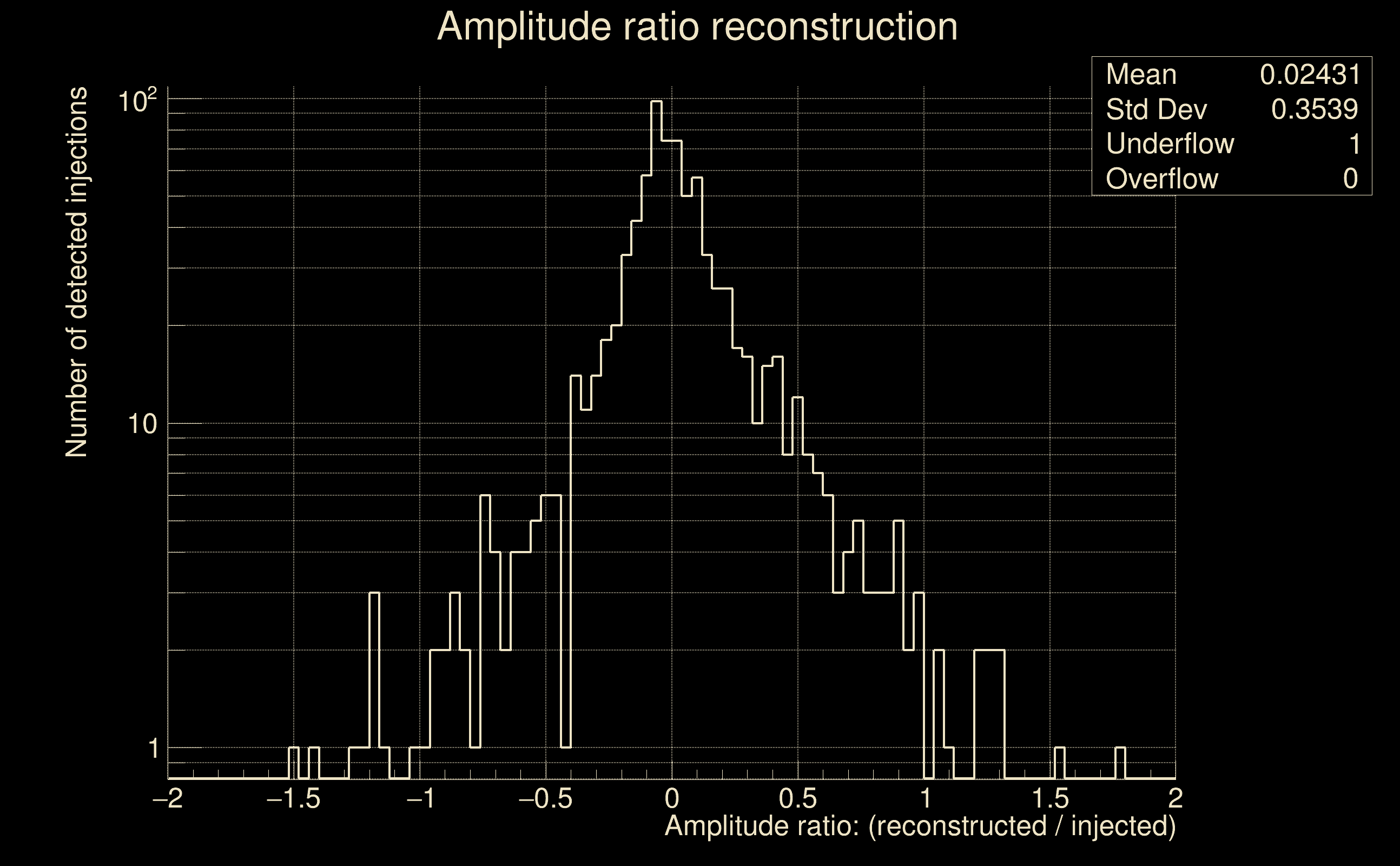

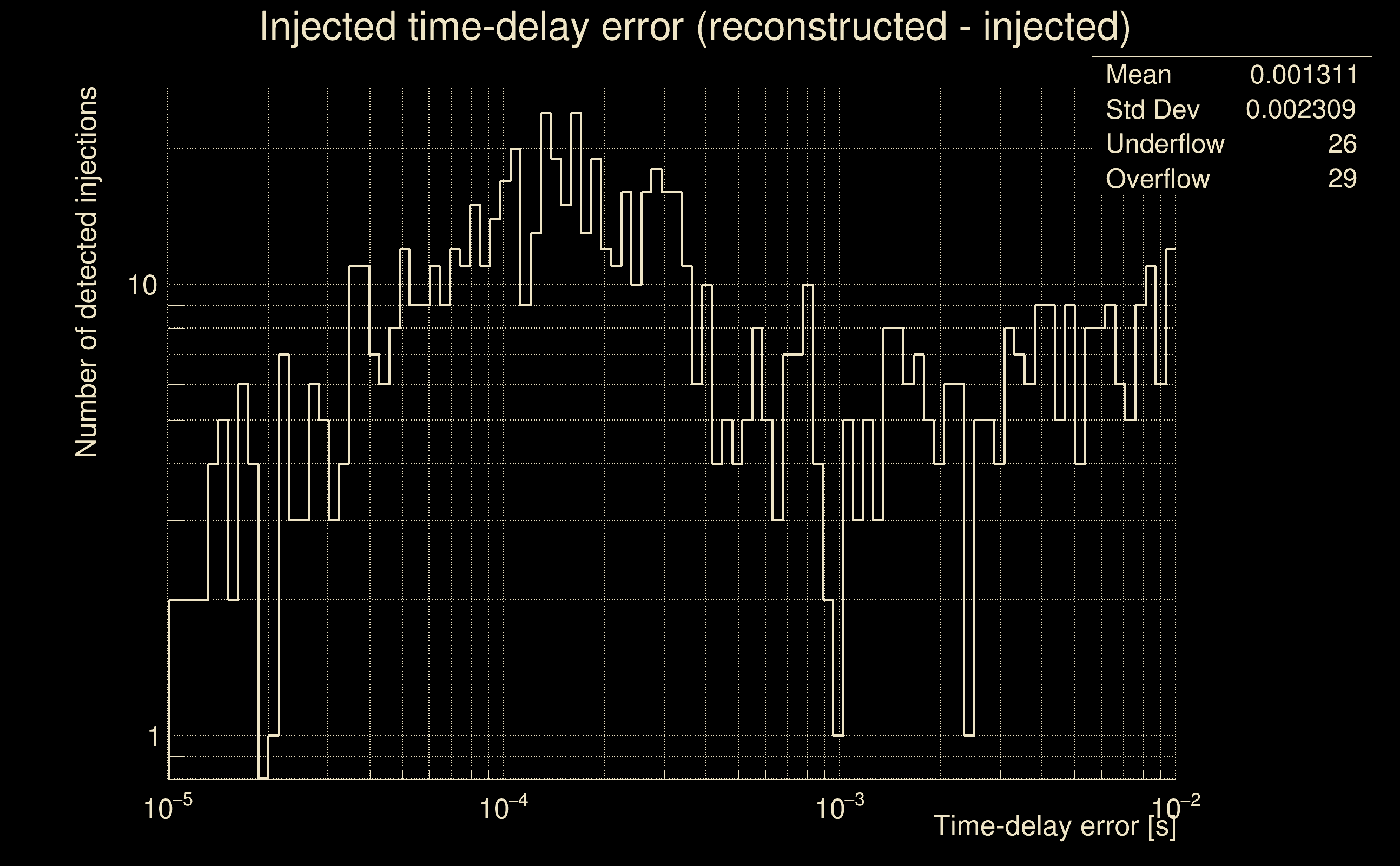

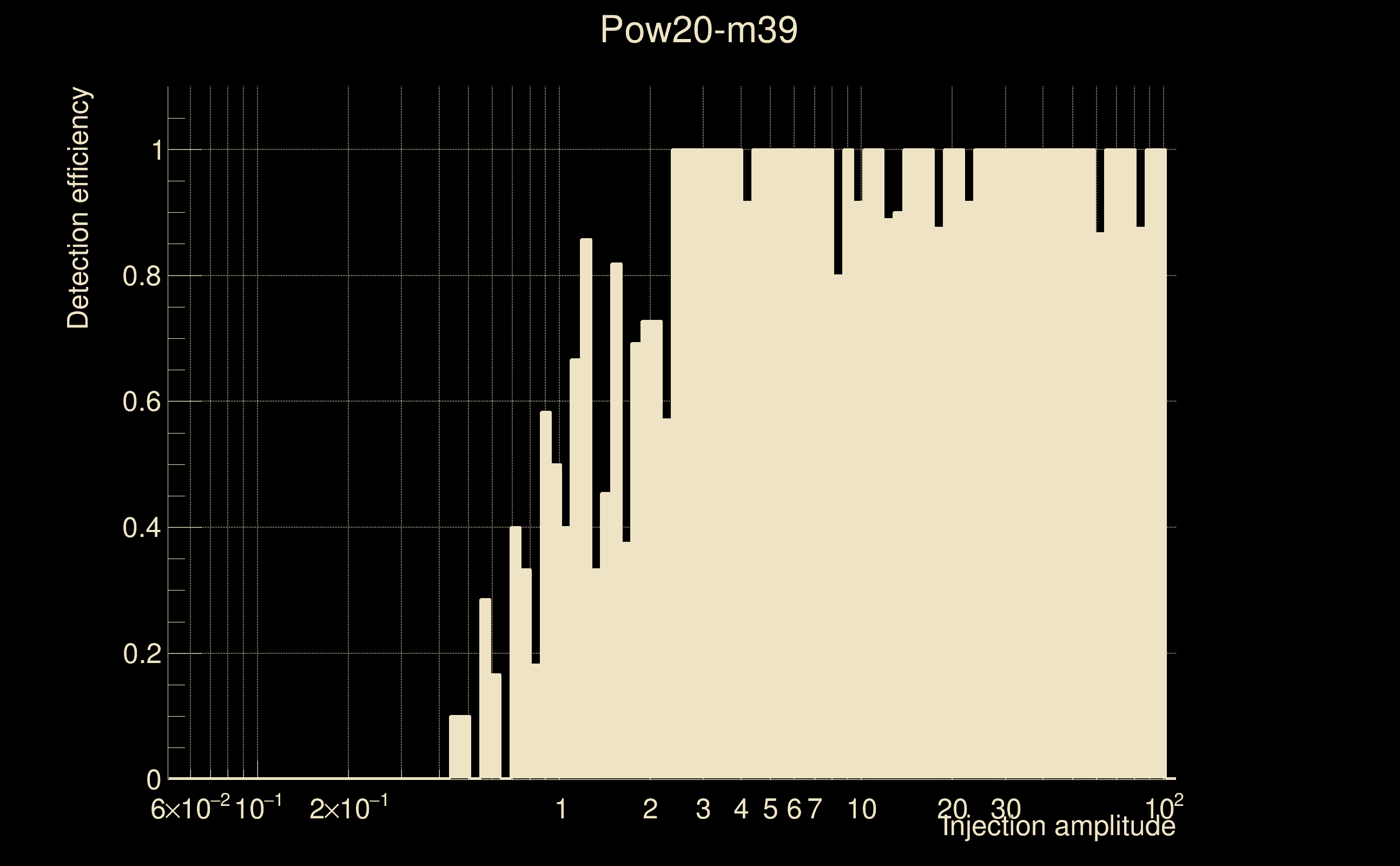

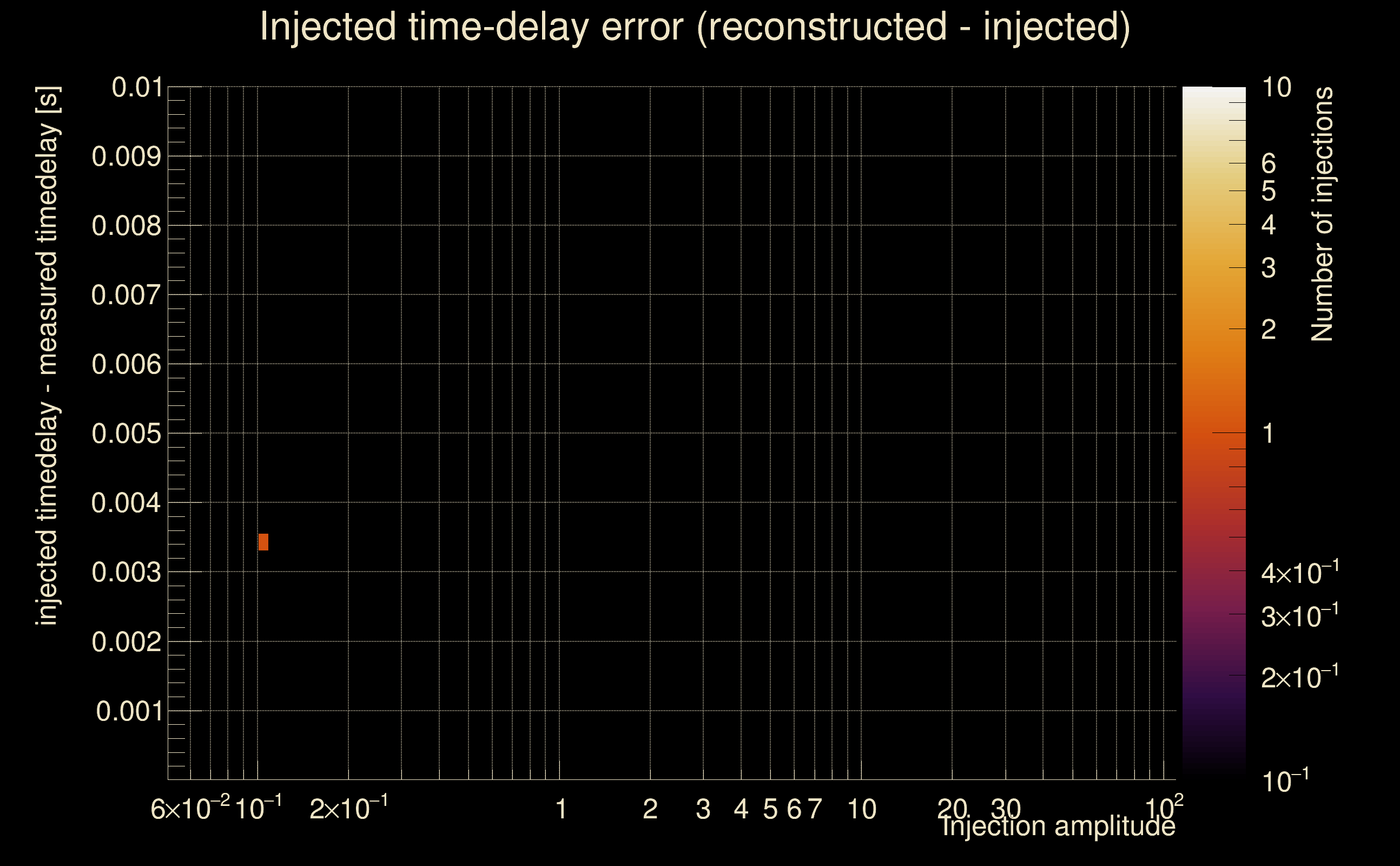

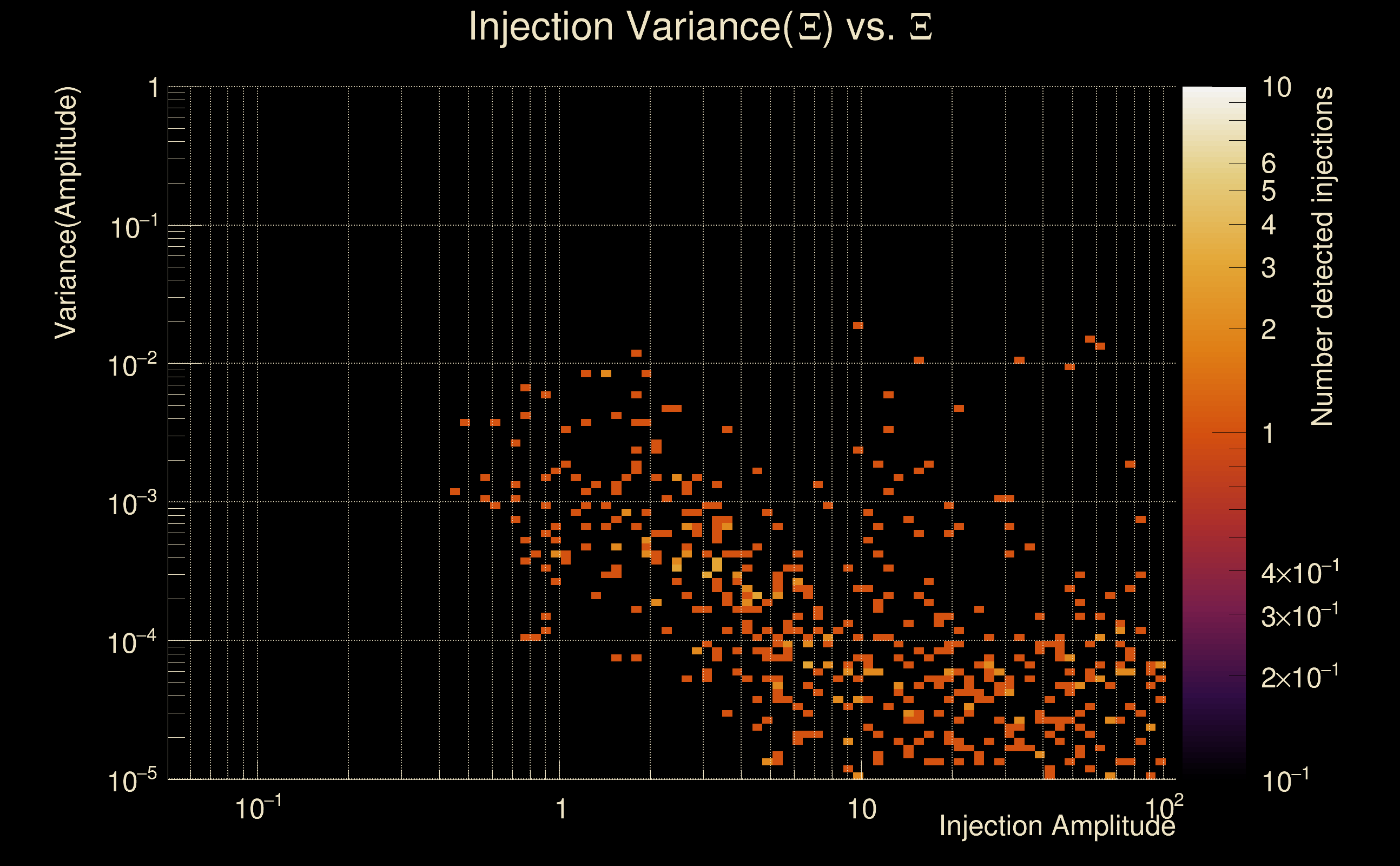

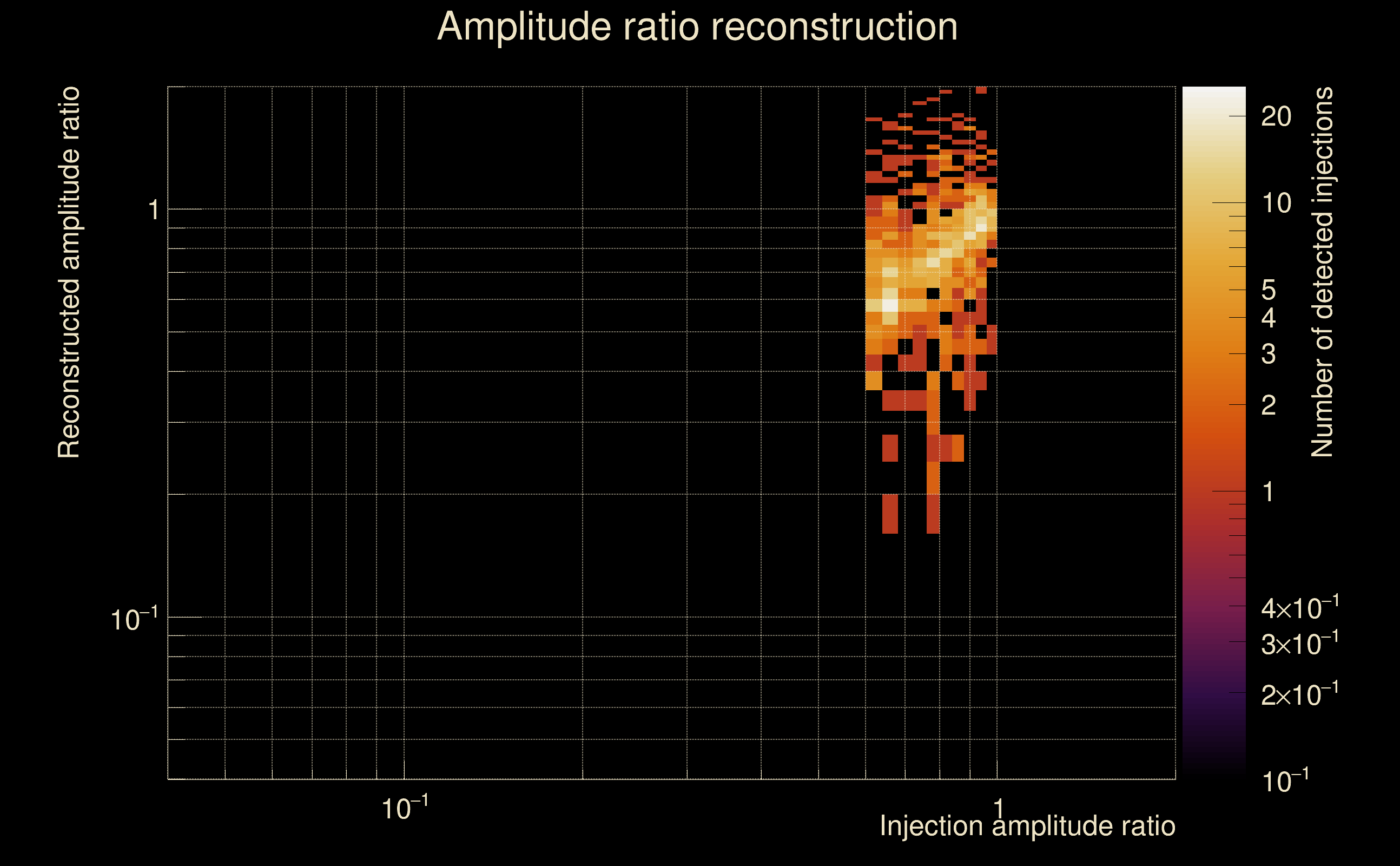

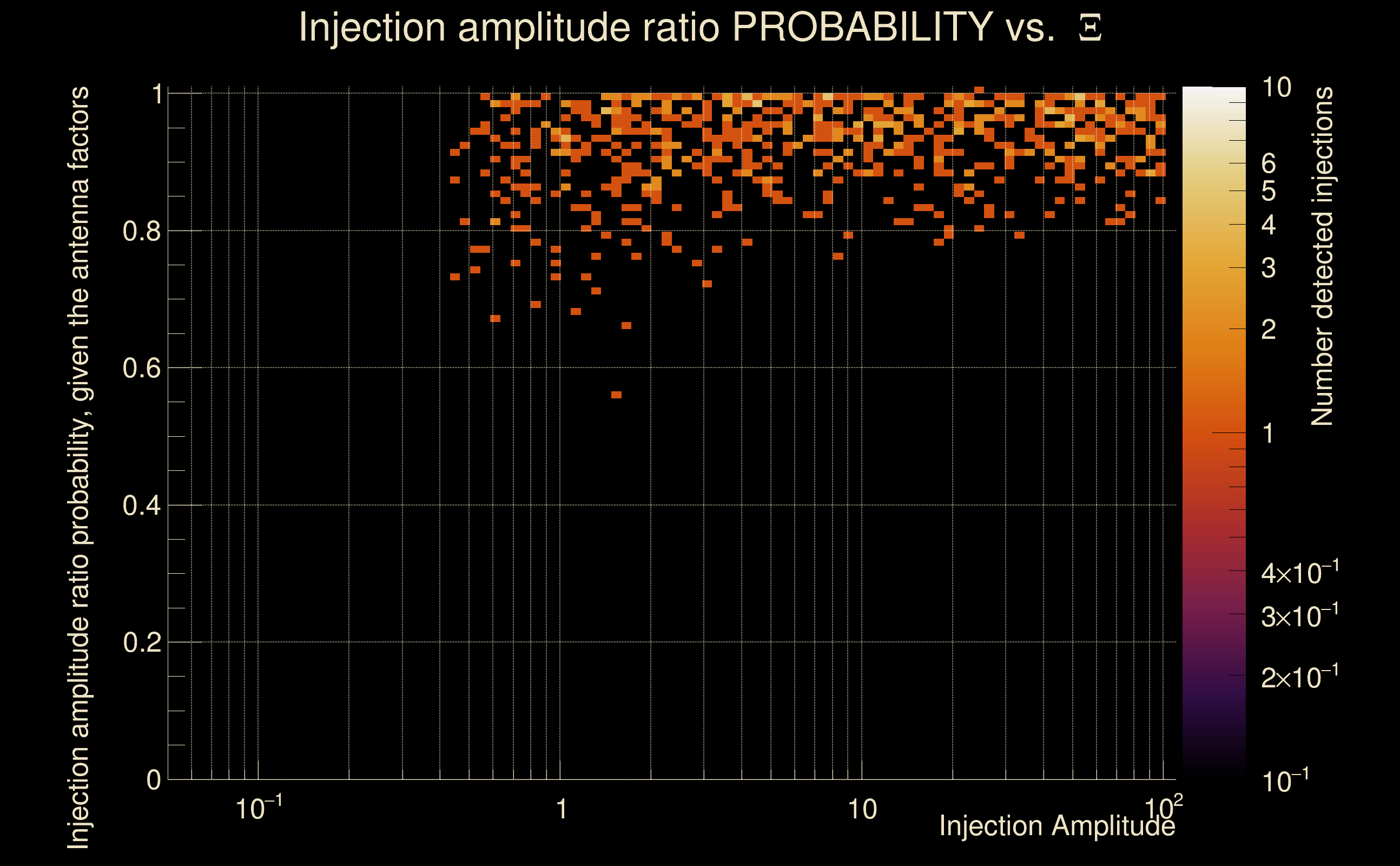

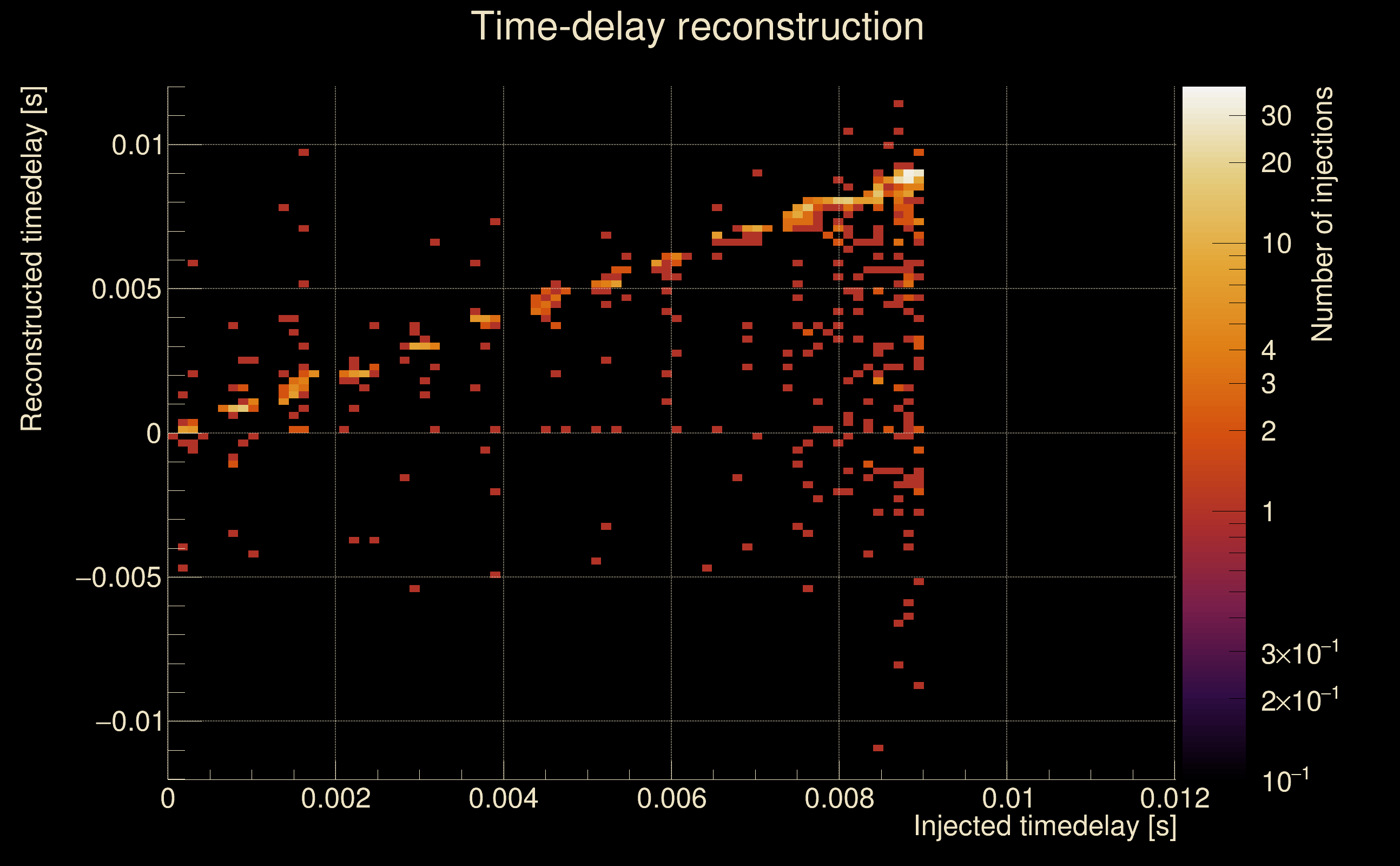

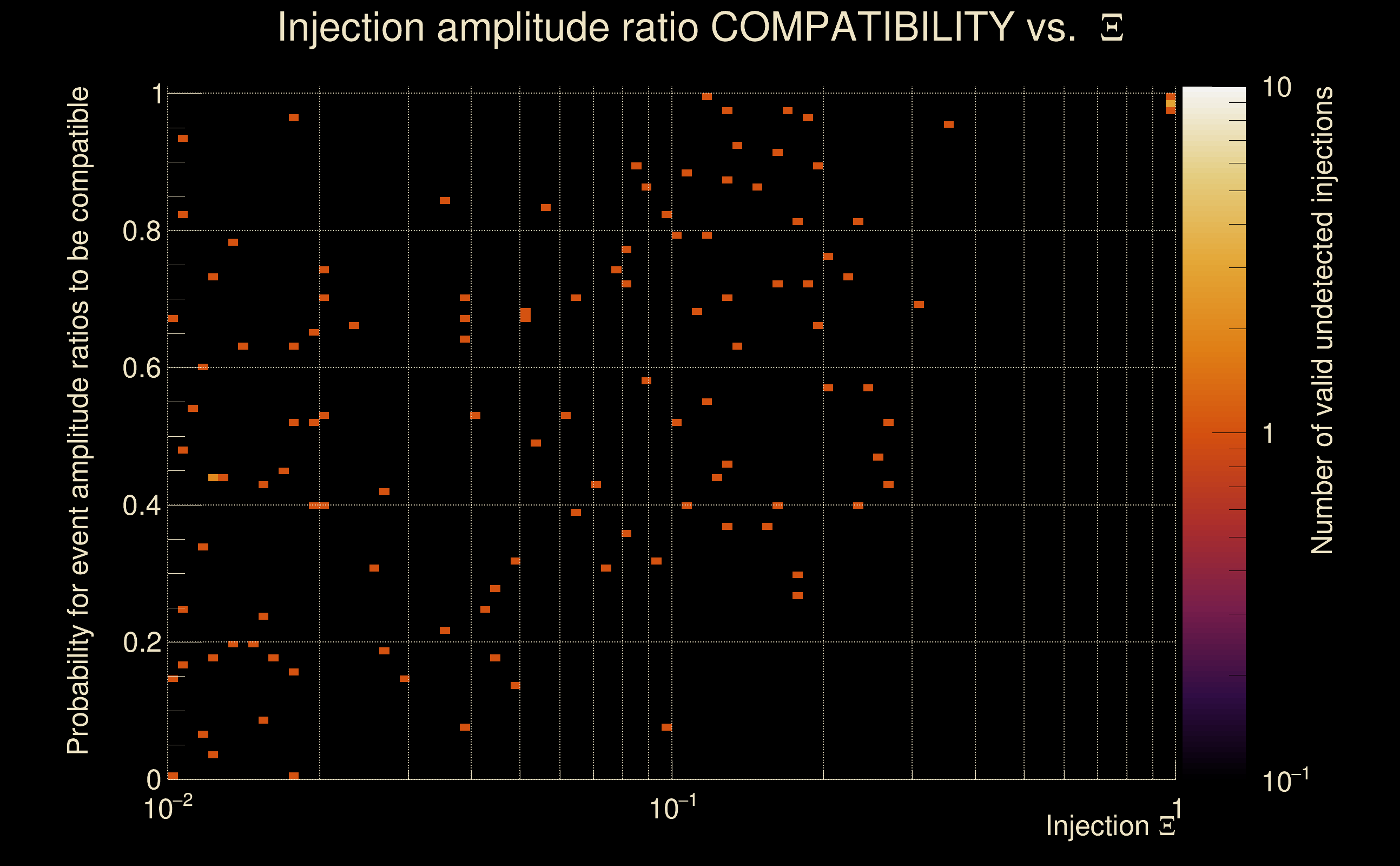

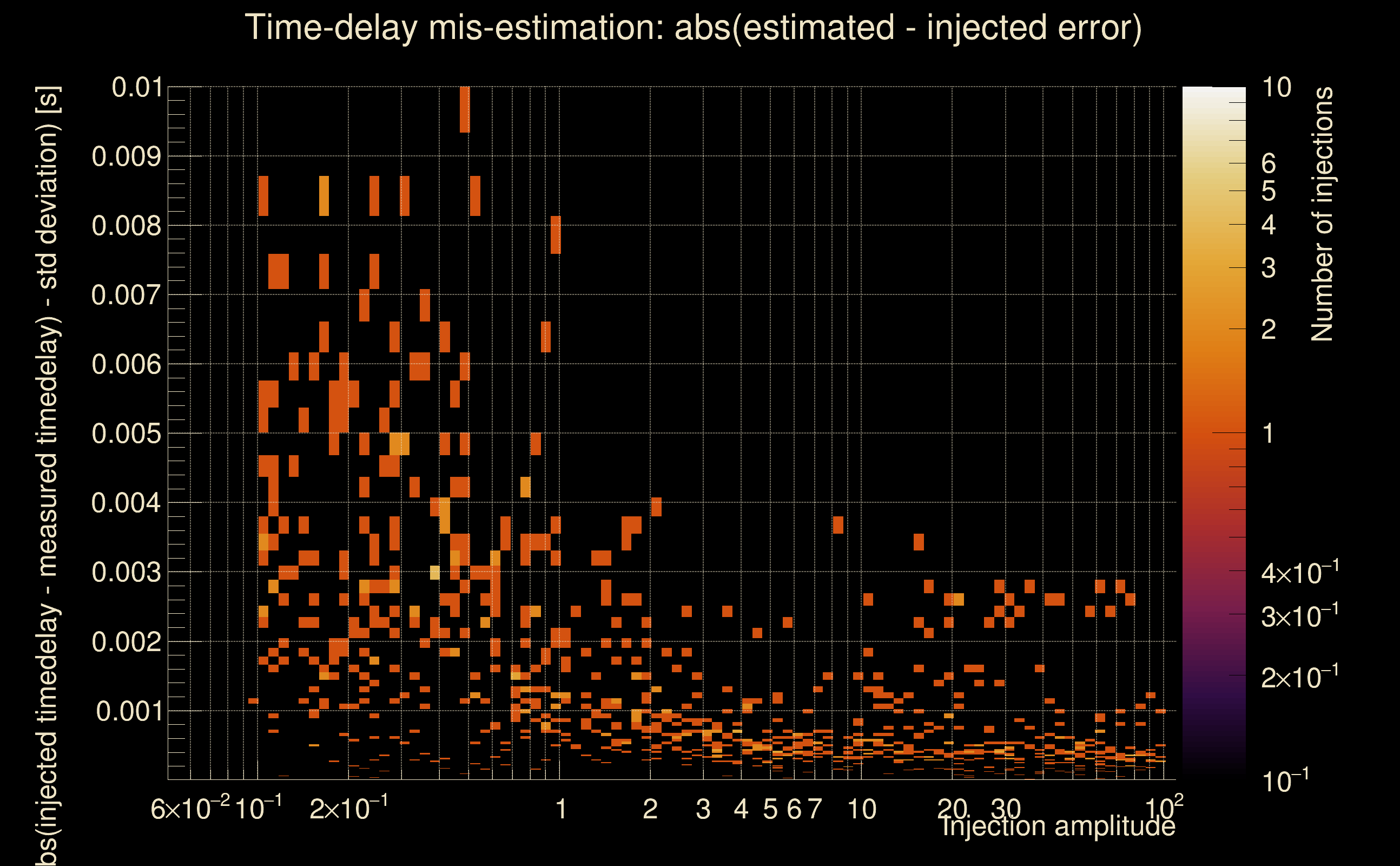

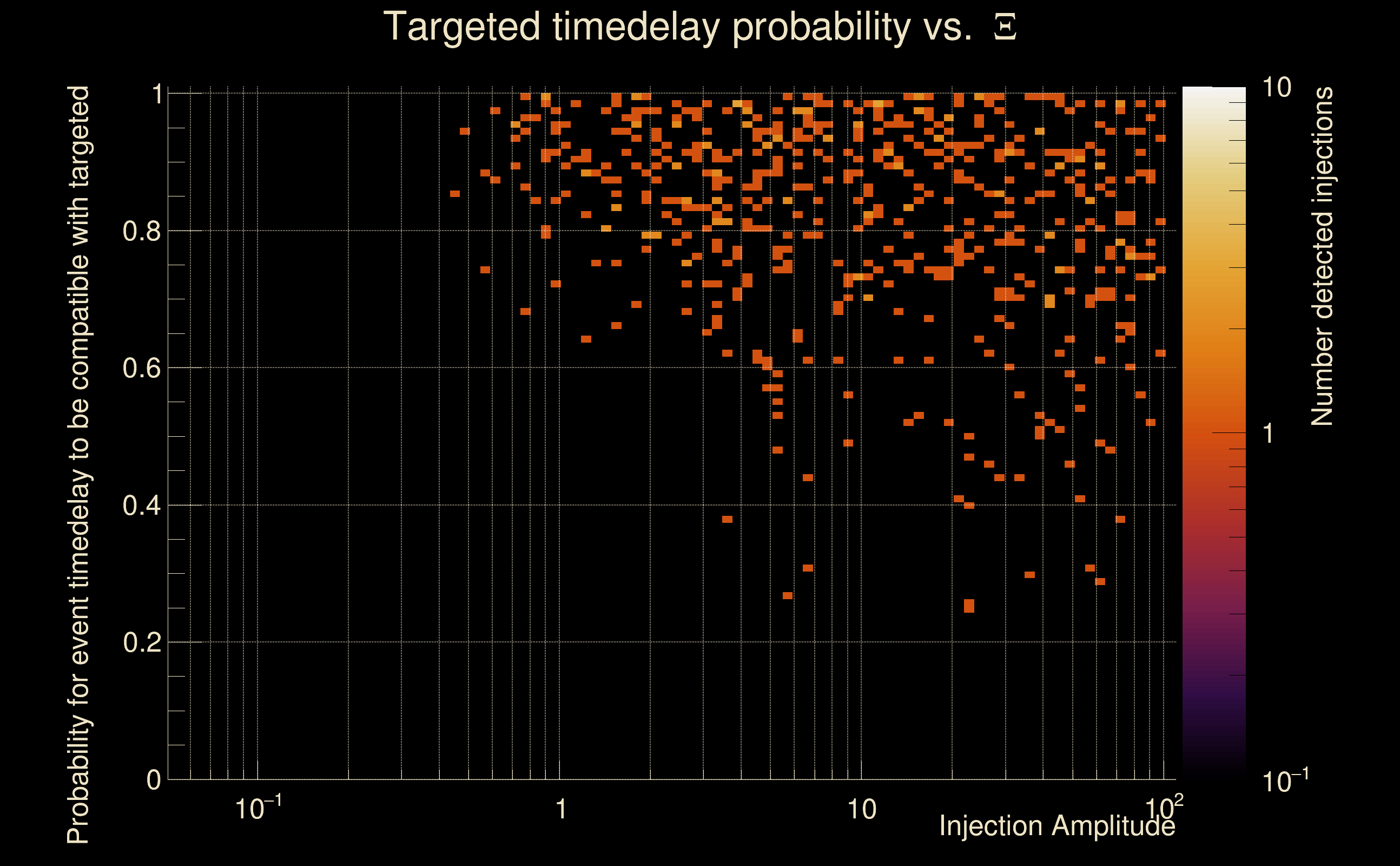

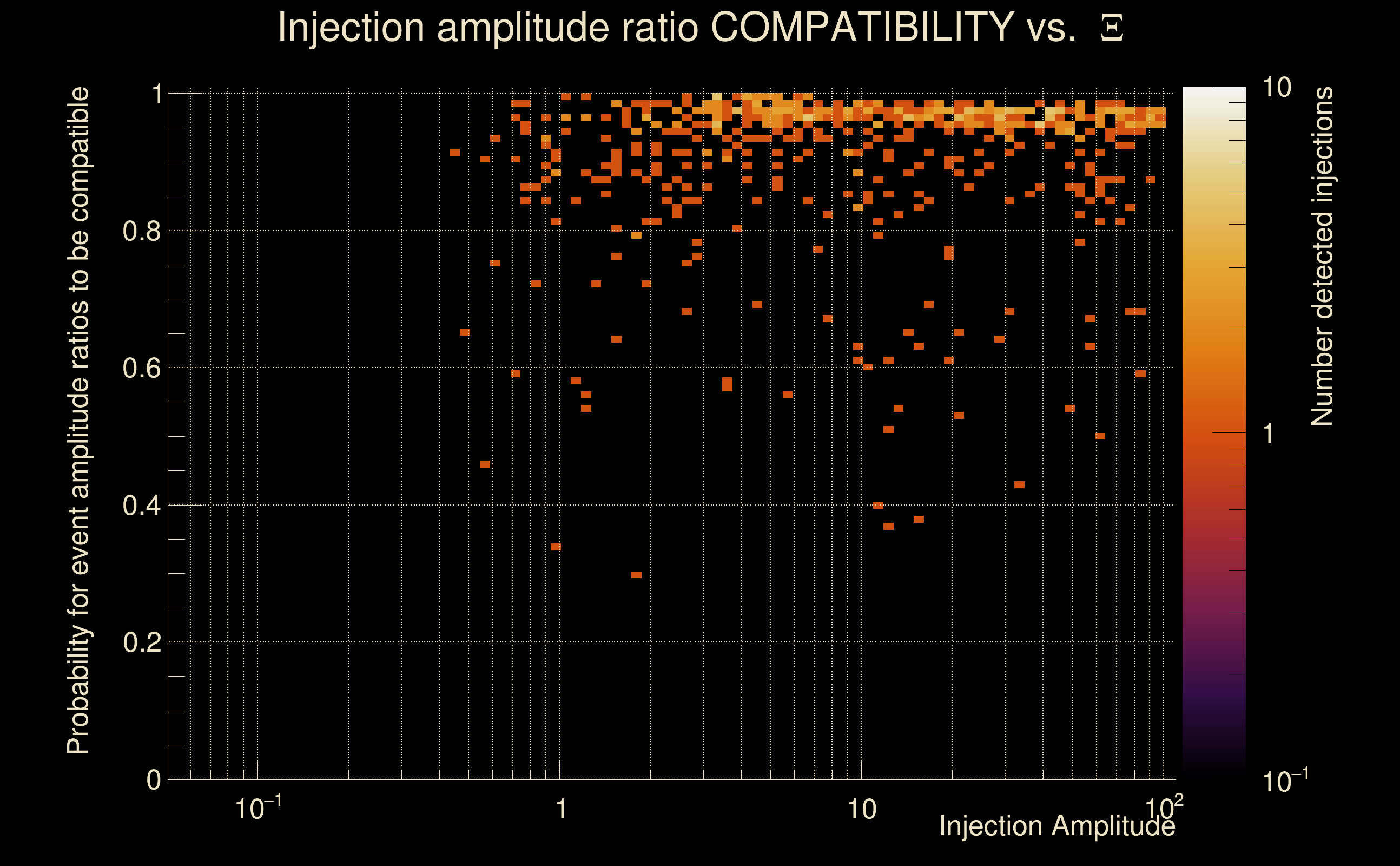

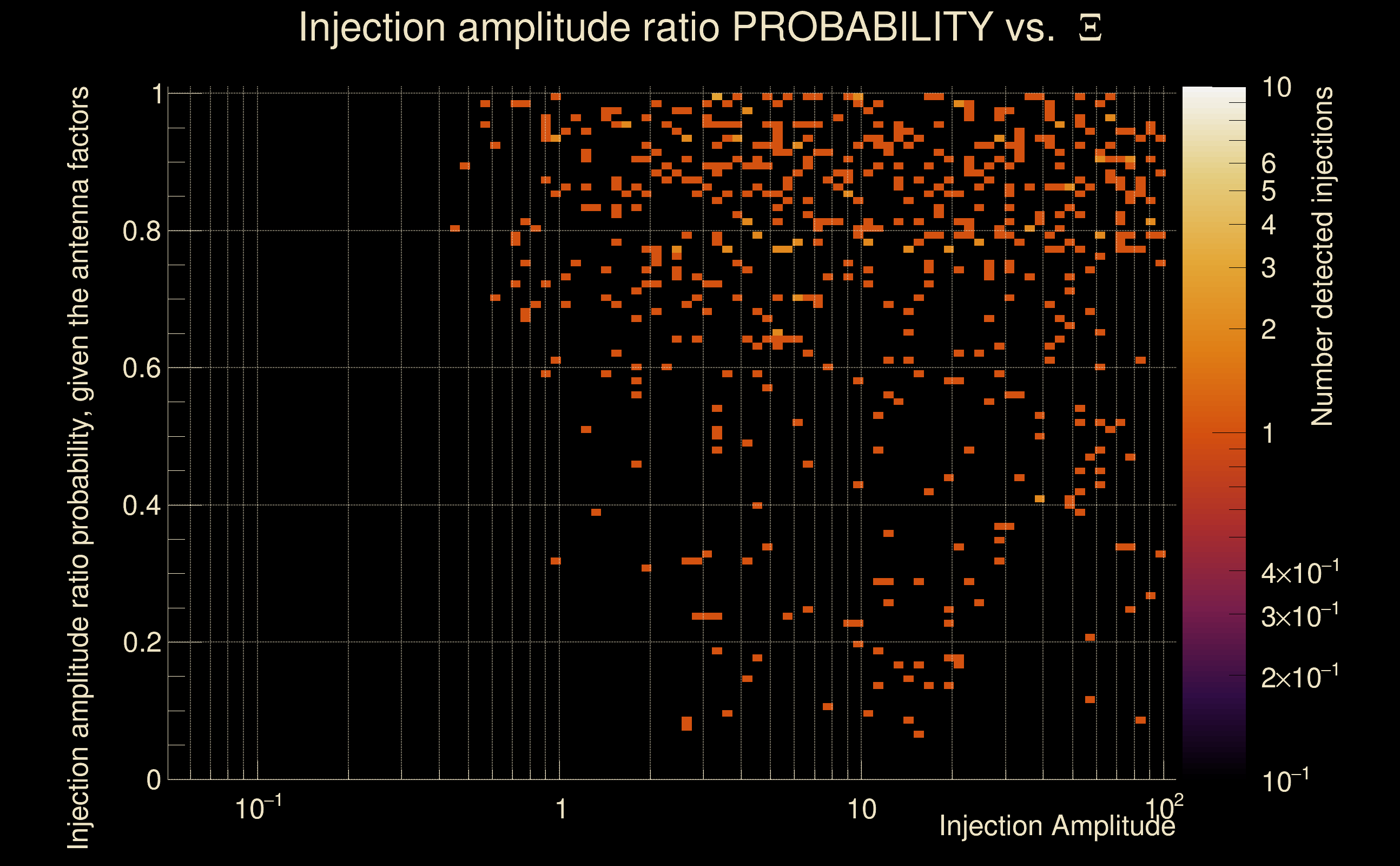

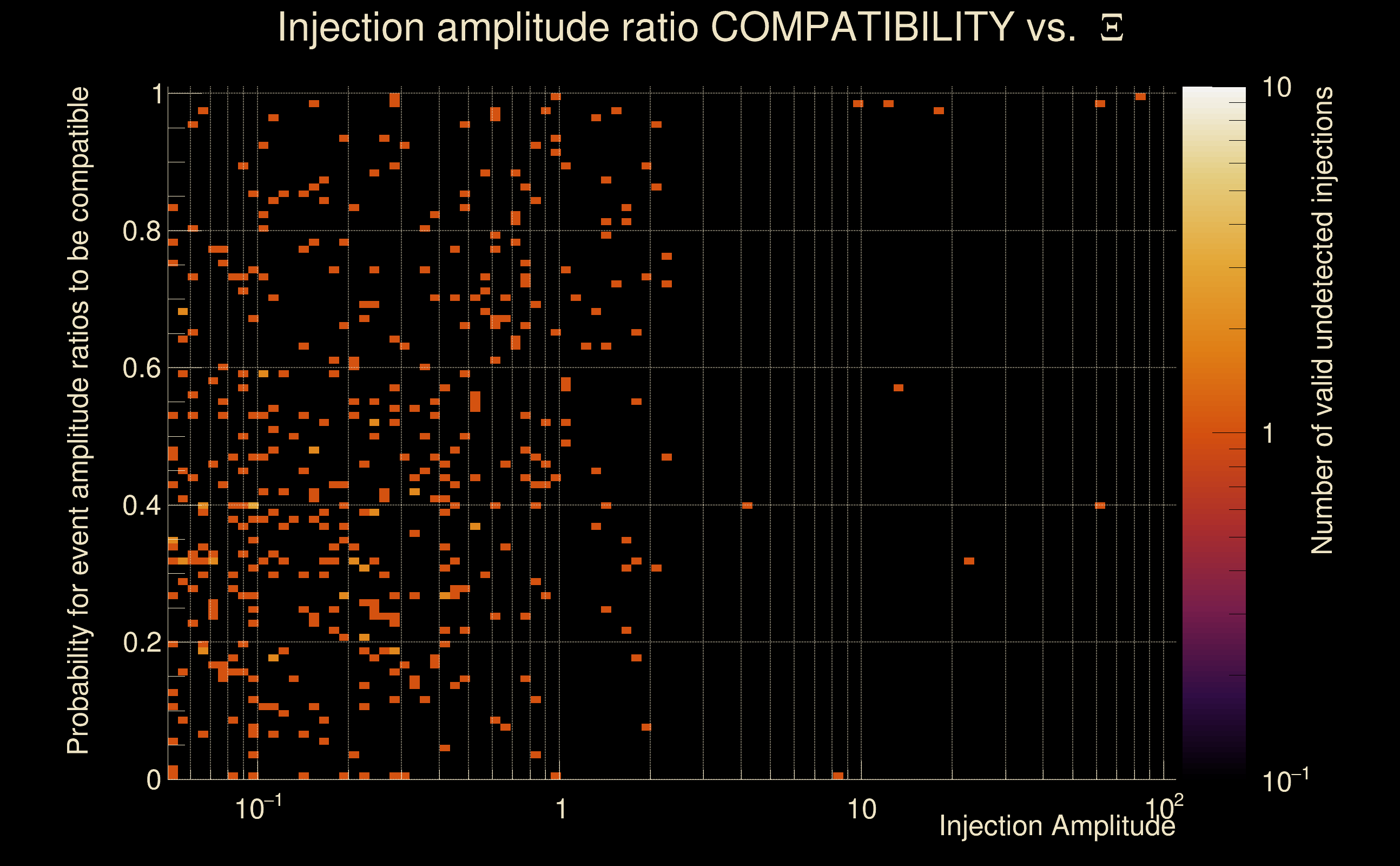

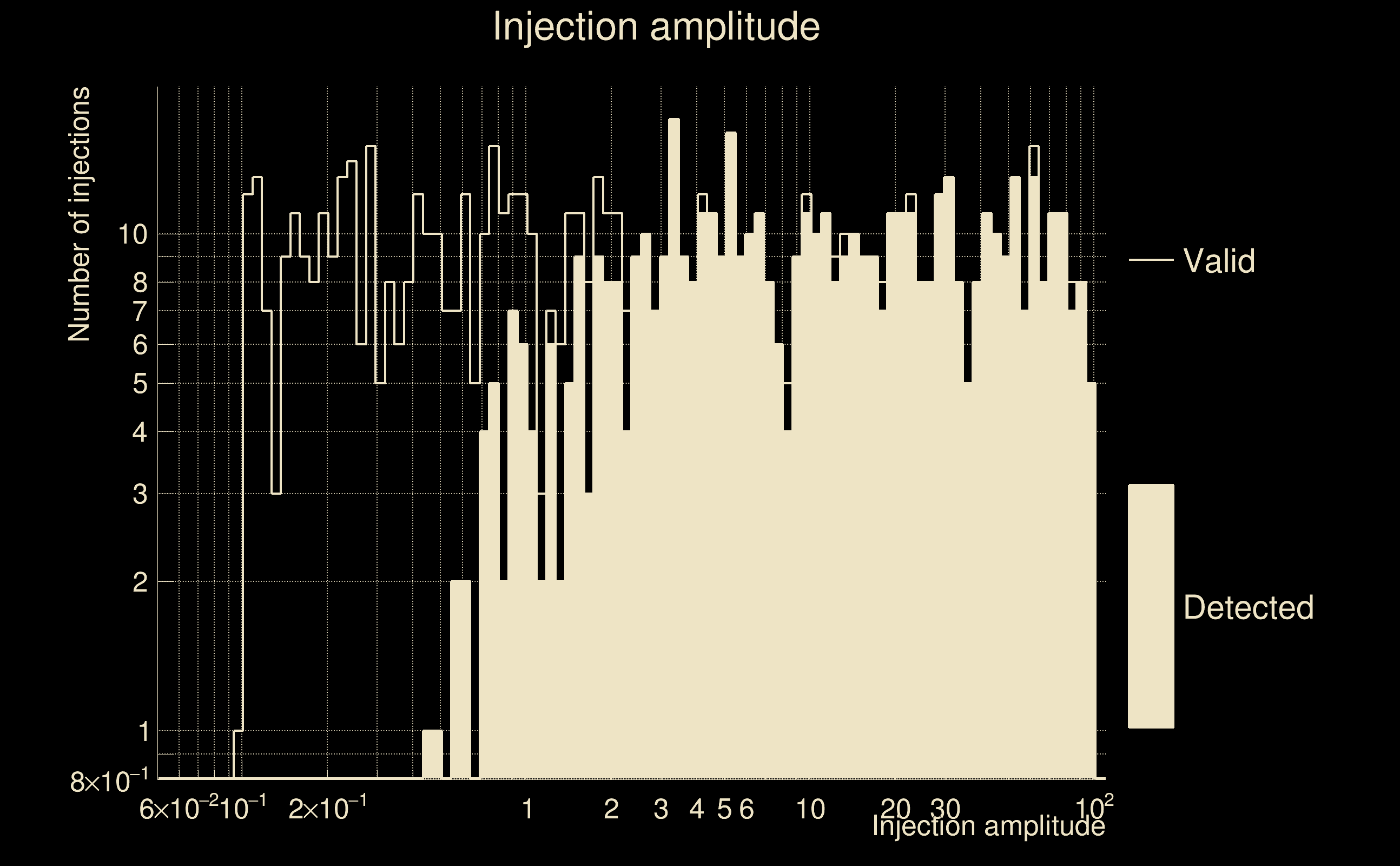

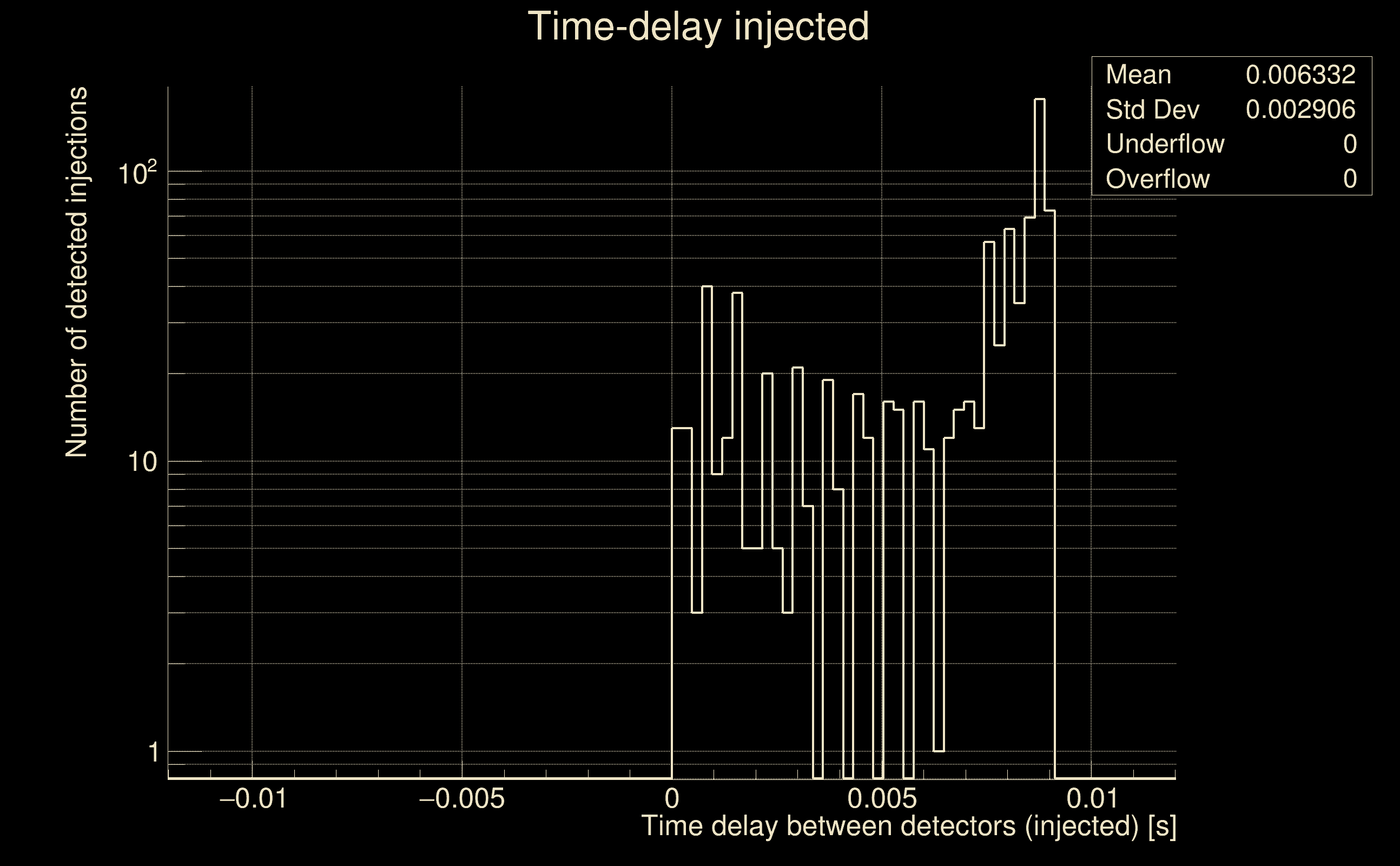

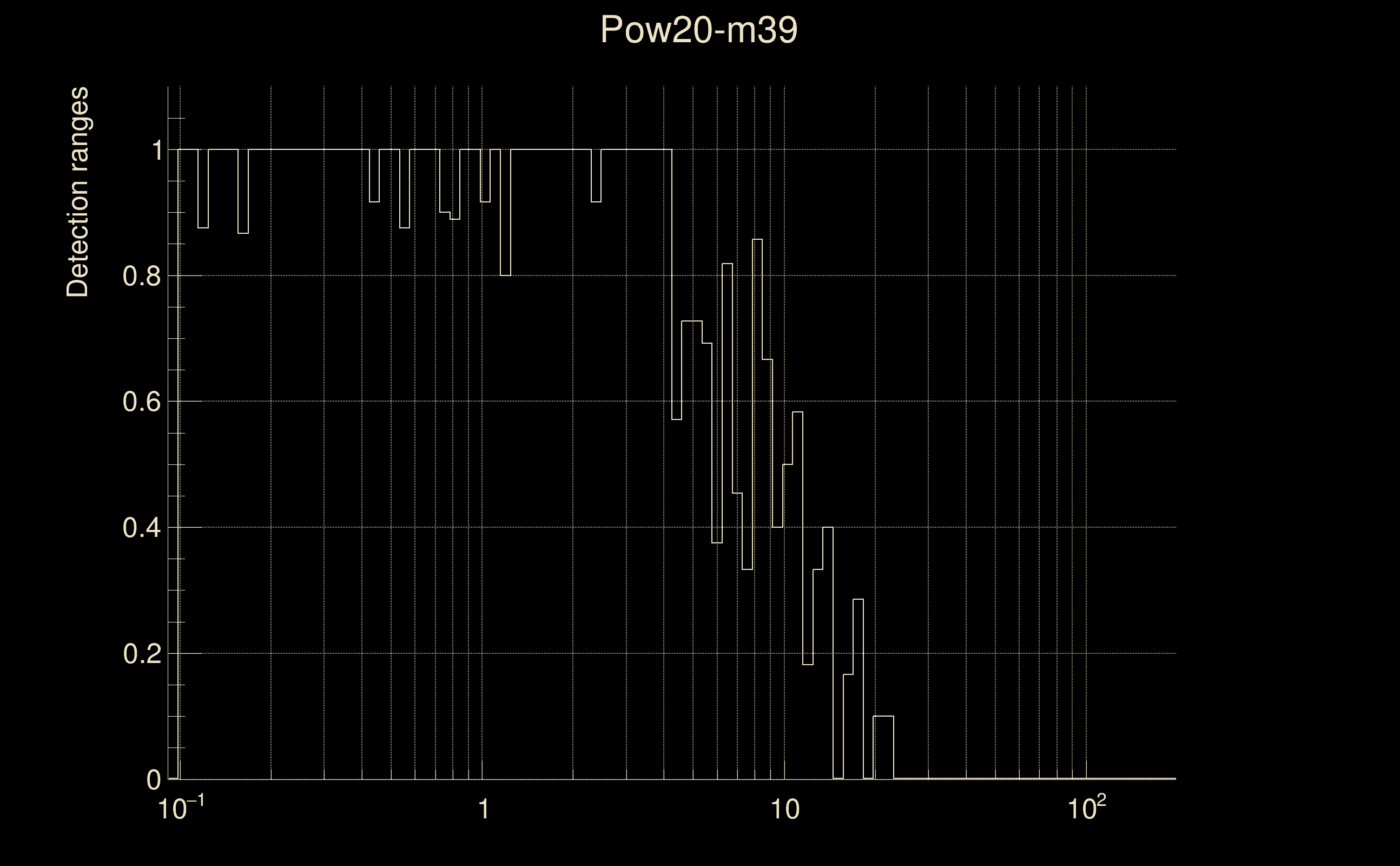

| Number of injections (total/valid/detected): | 1006 / 864 / 555 |
| List of missed injections: | ./Pow20-m39_missed.txt |
| Injection amplitude at 90% detection efficiency: | 2.40616 |
| Injection amplitude at 50% detection efficiency: | 1.71982 |
| Injection amplitude at 10% detection efficiency: | 0.676332 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

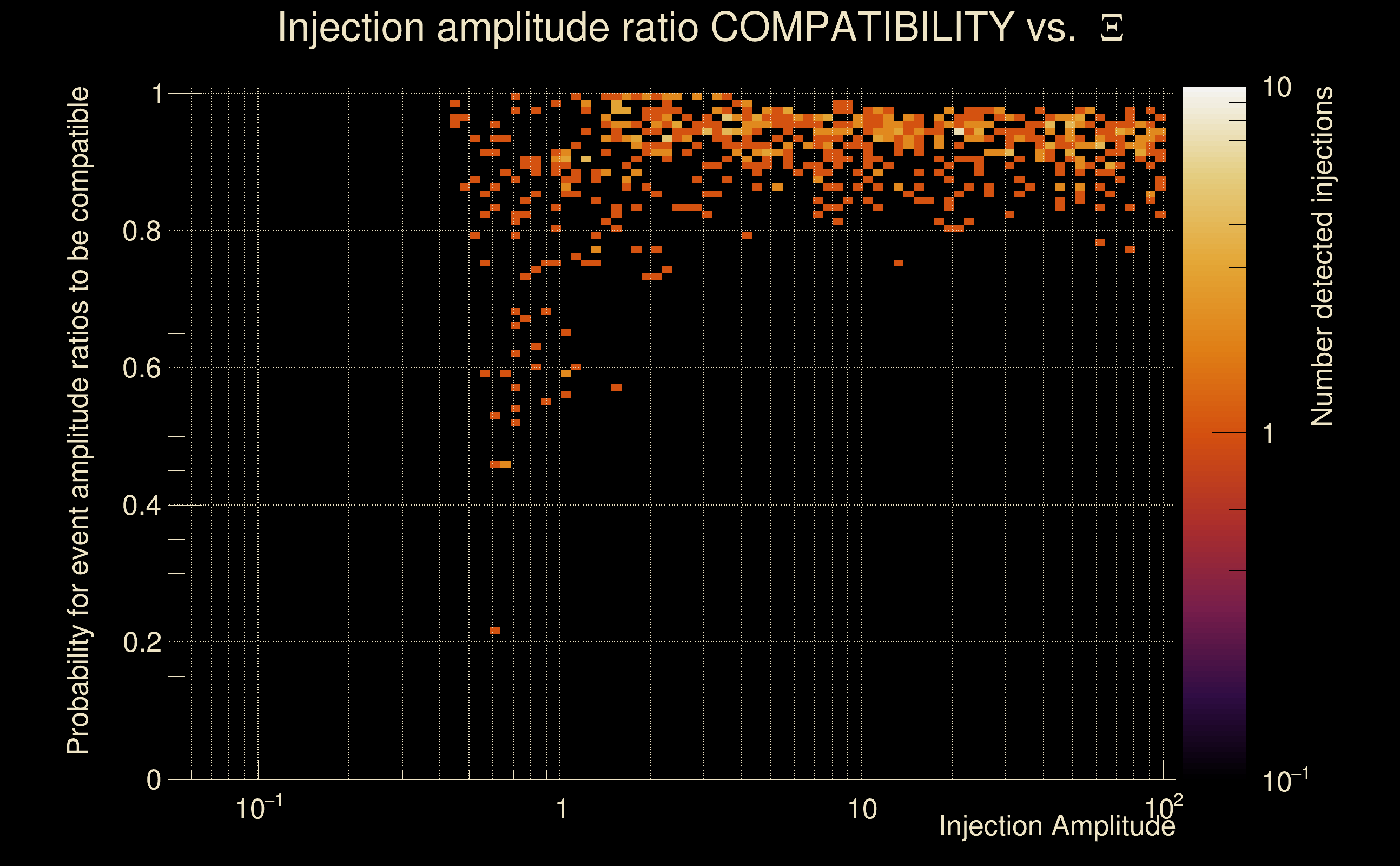

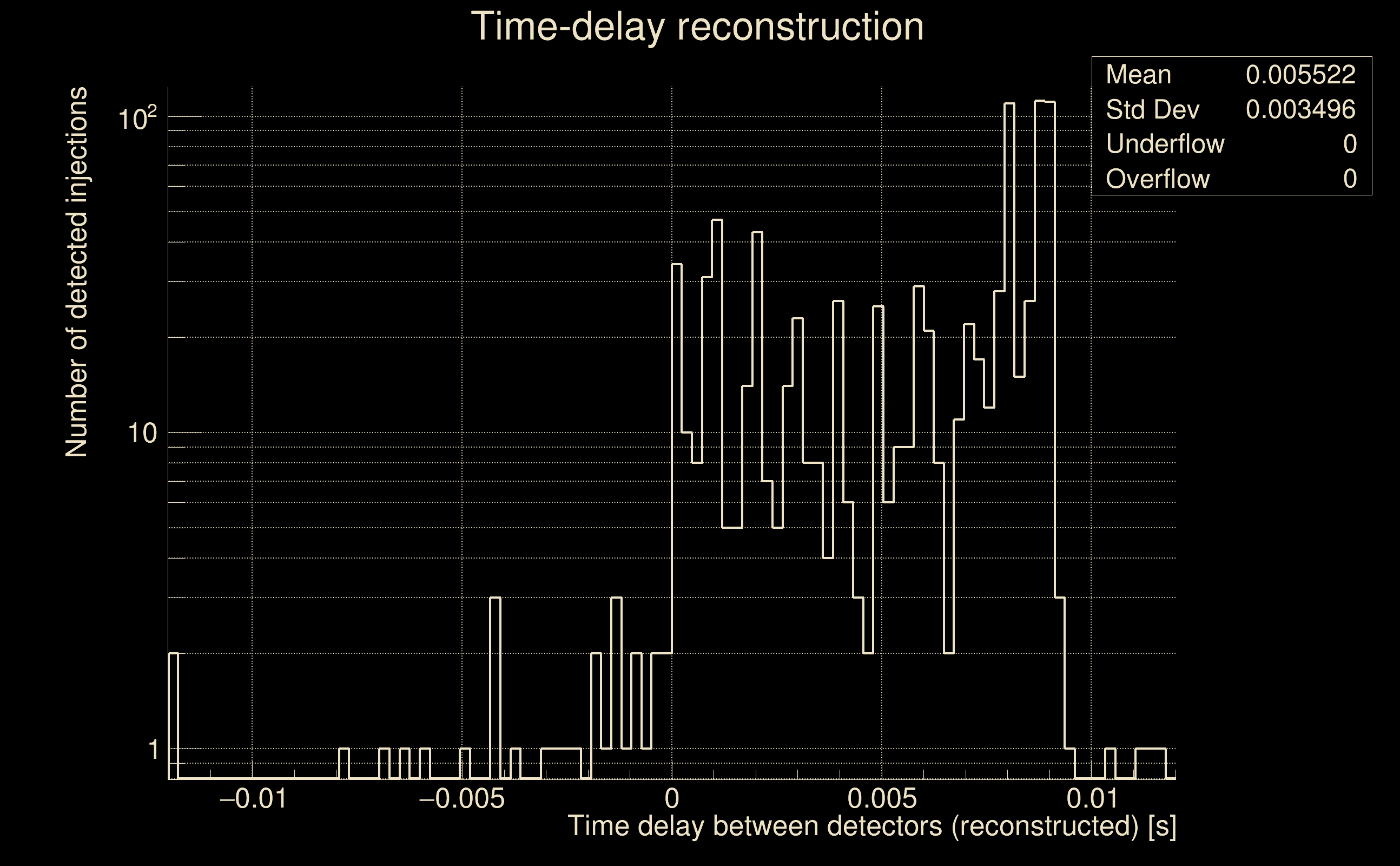

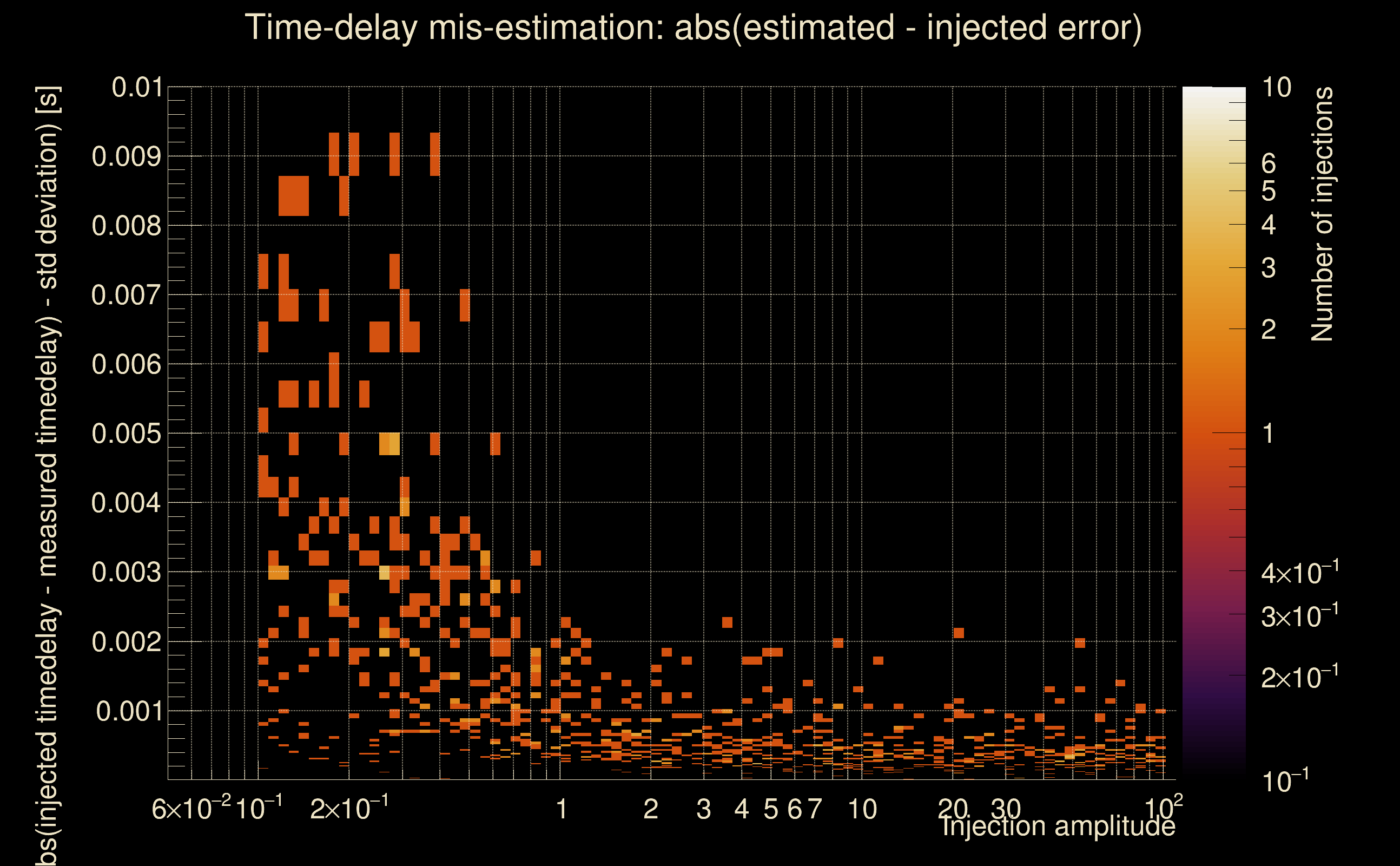

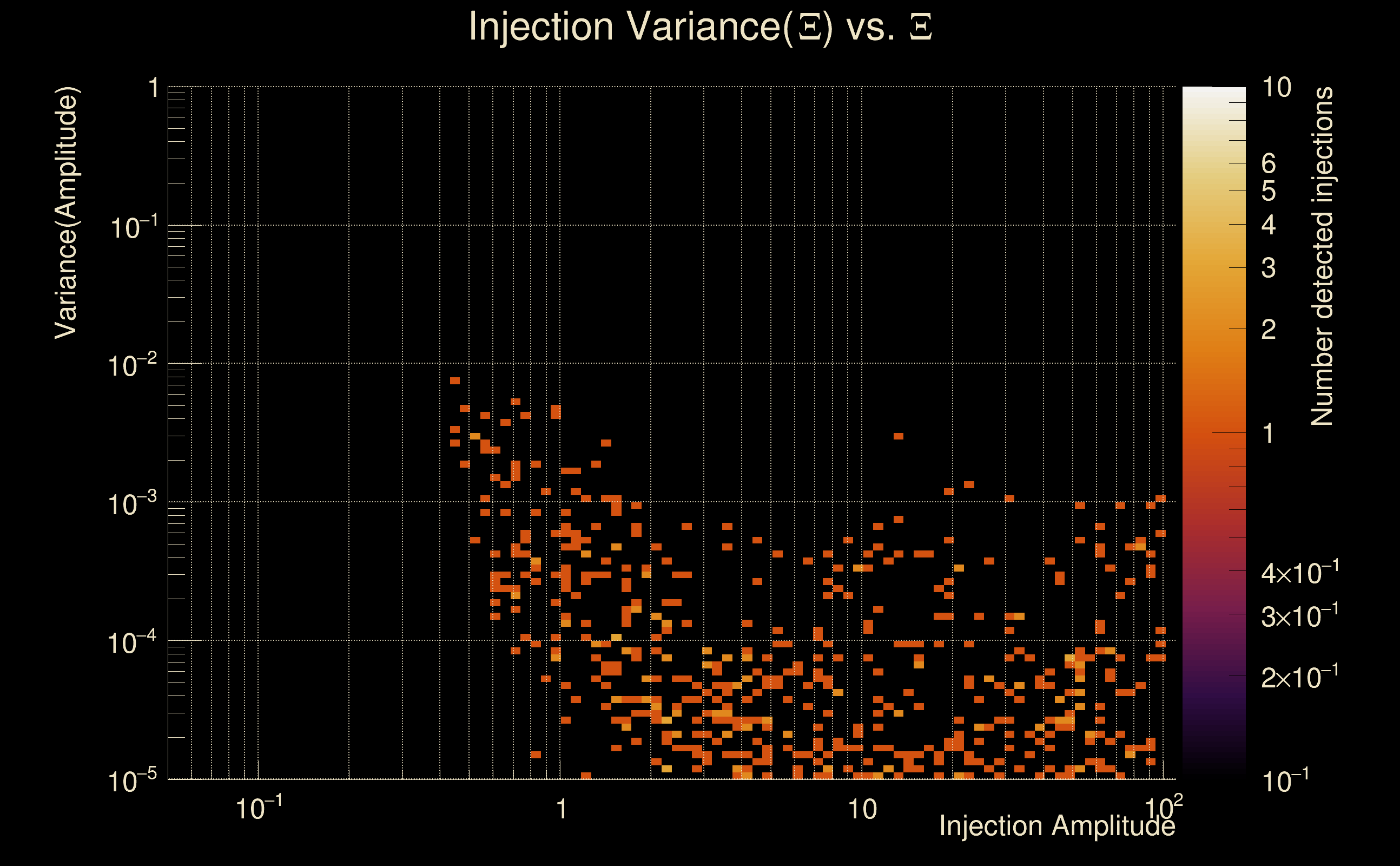

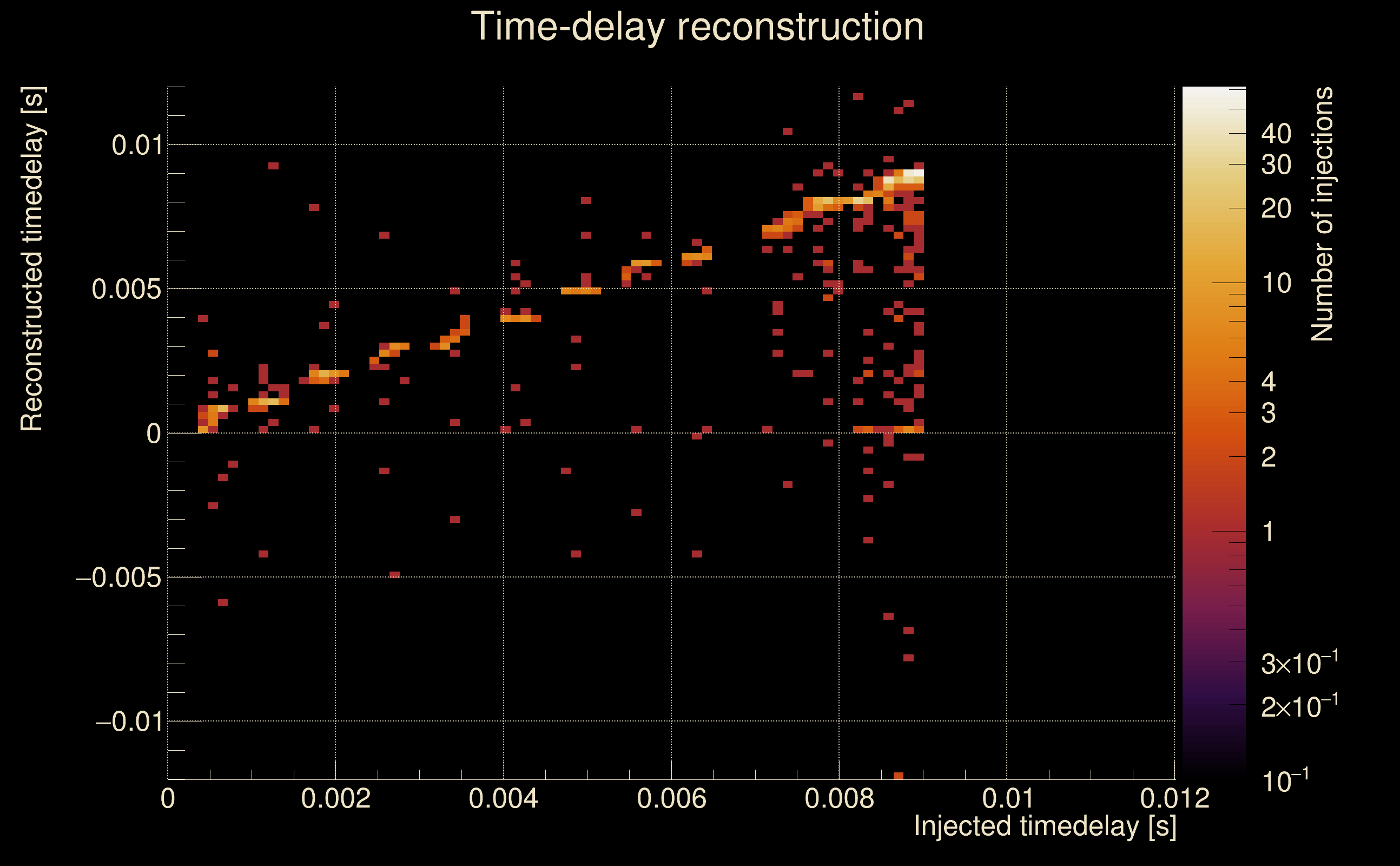

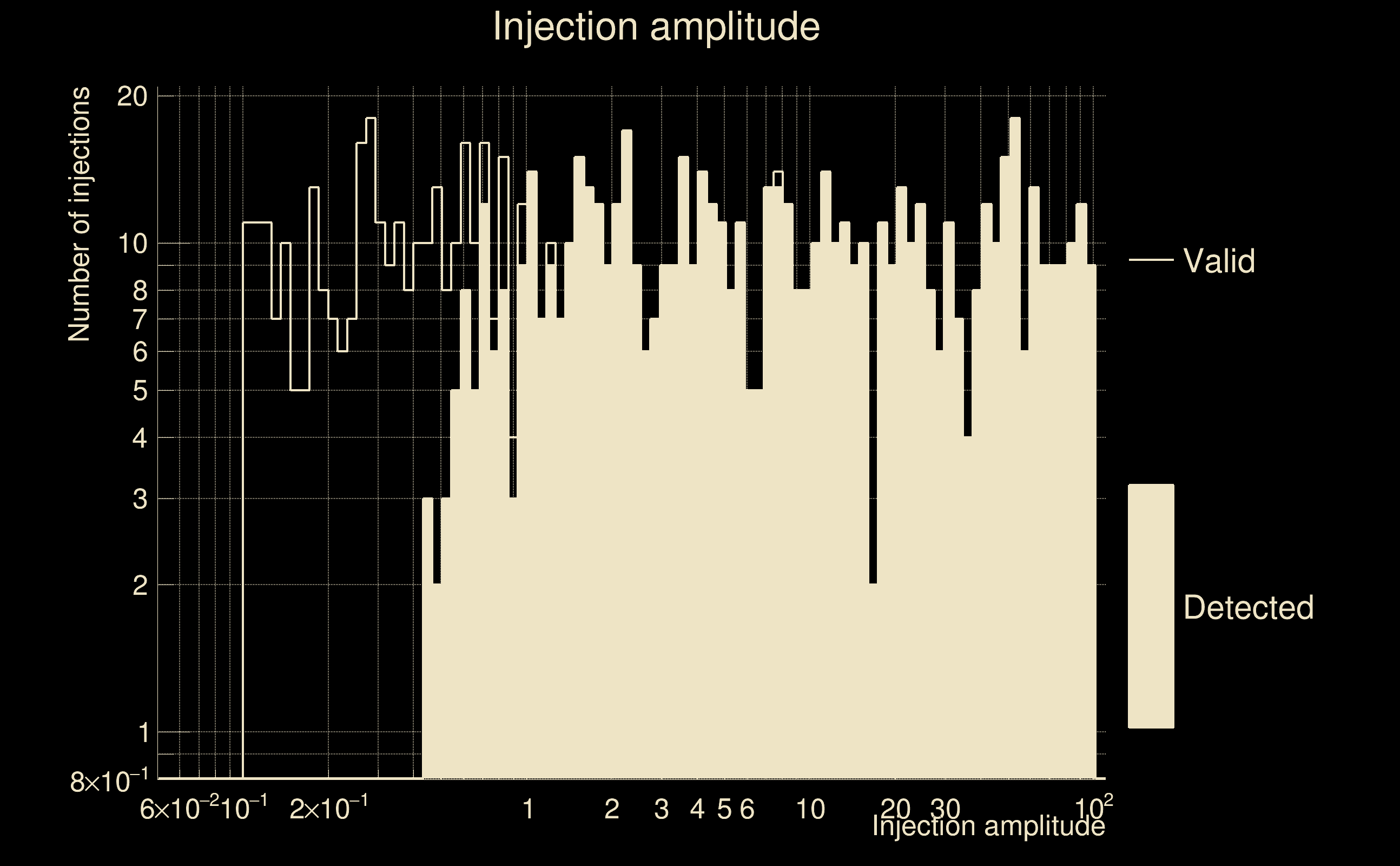

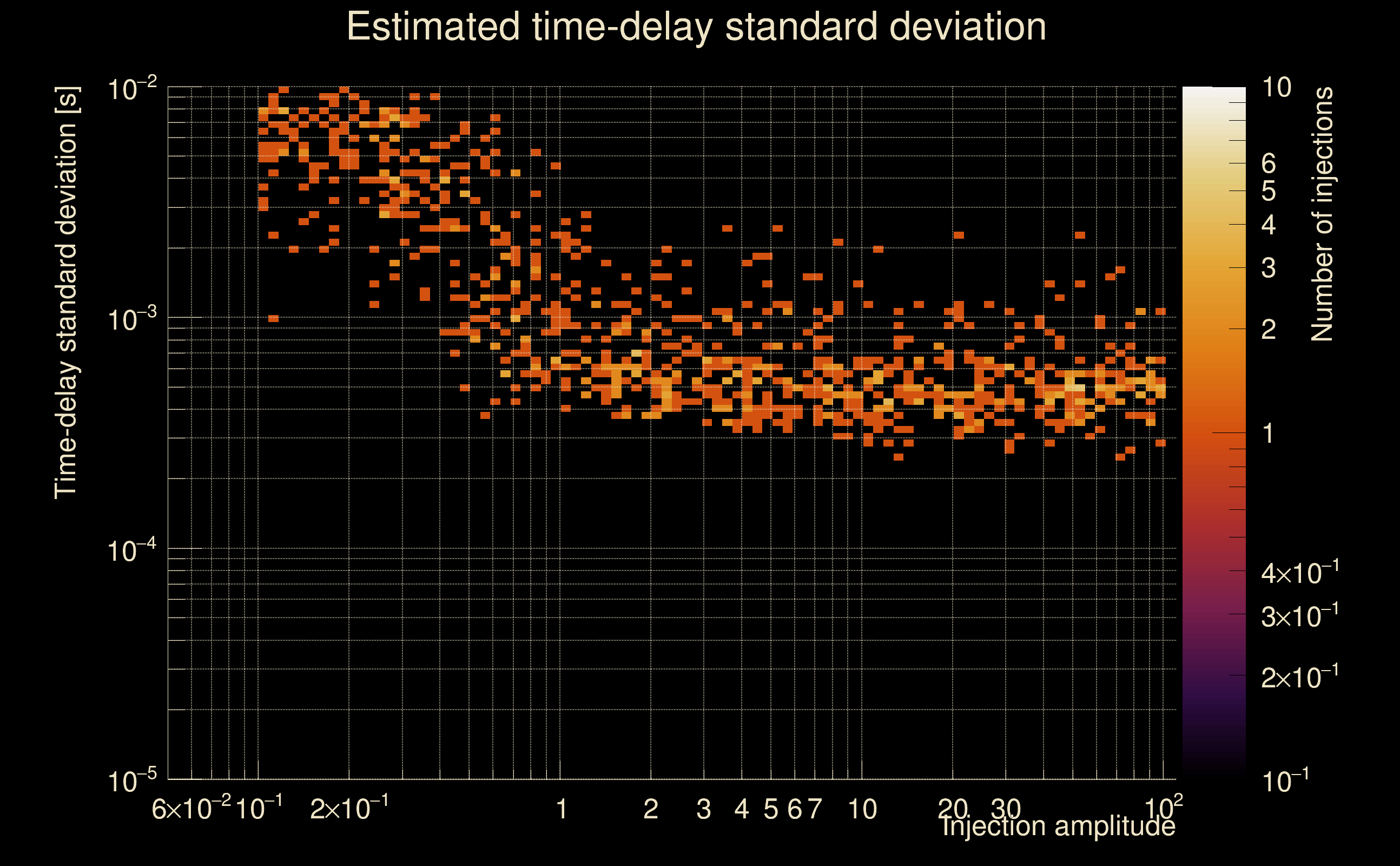

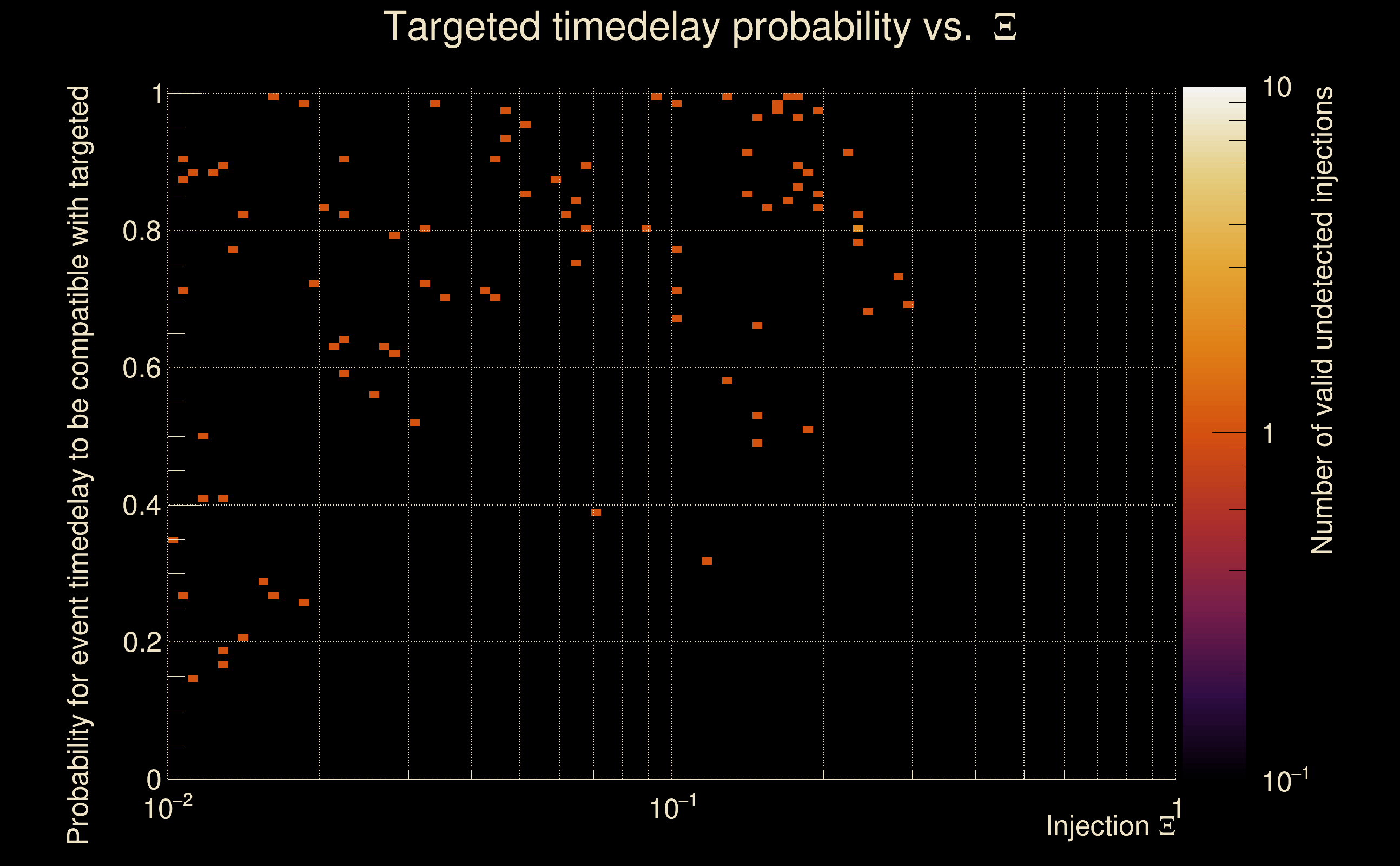

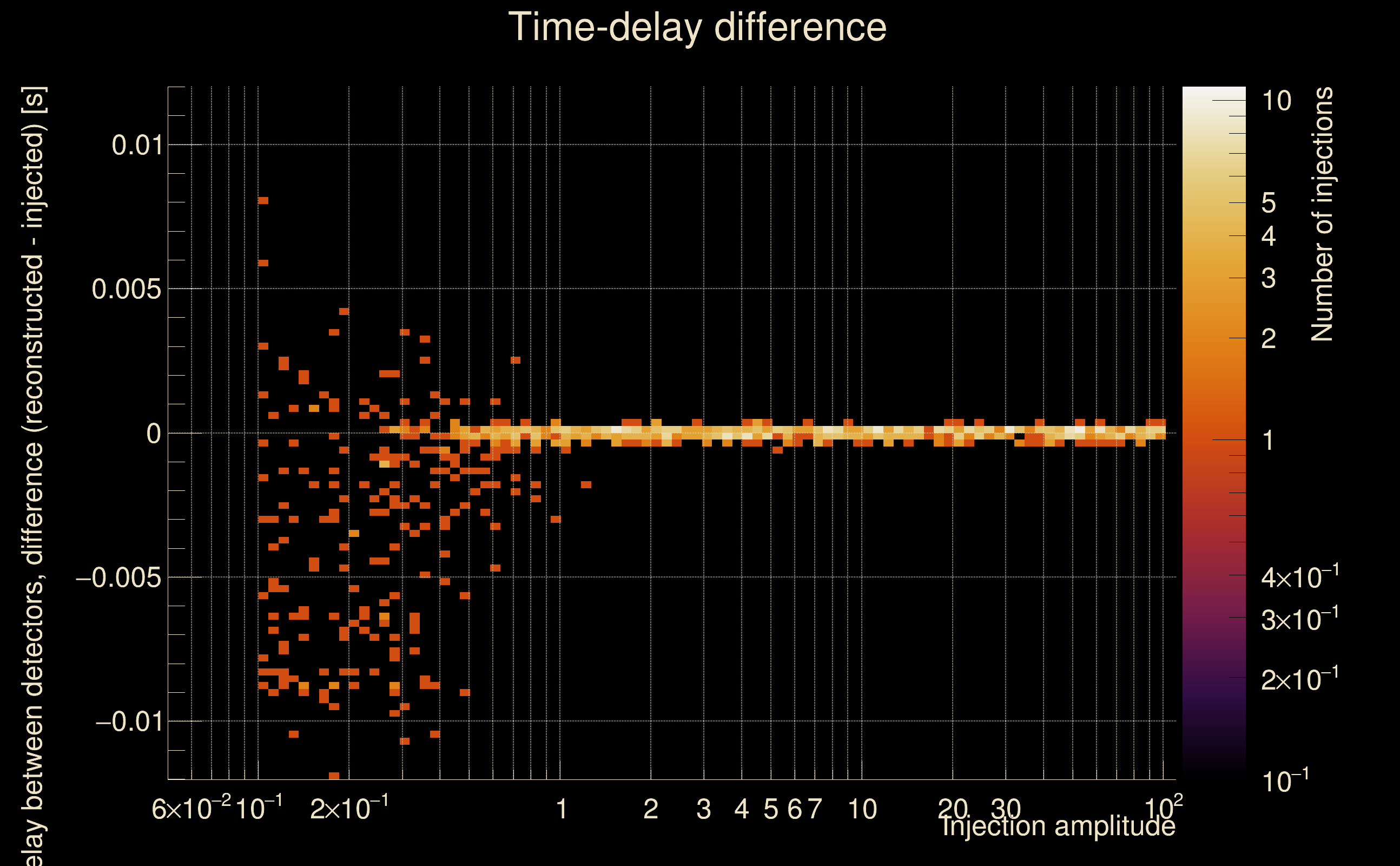

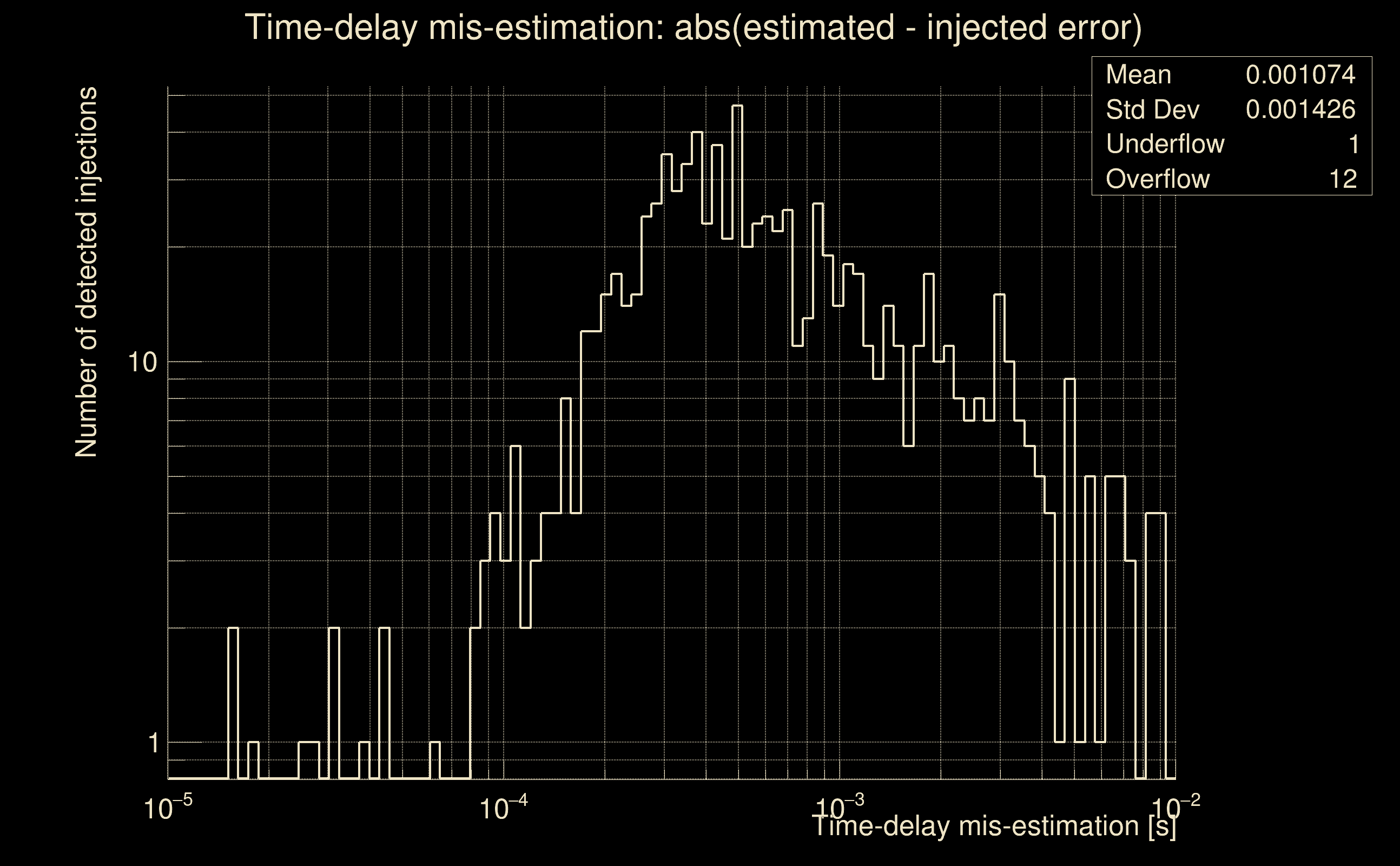

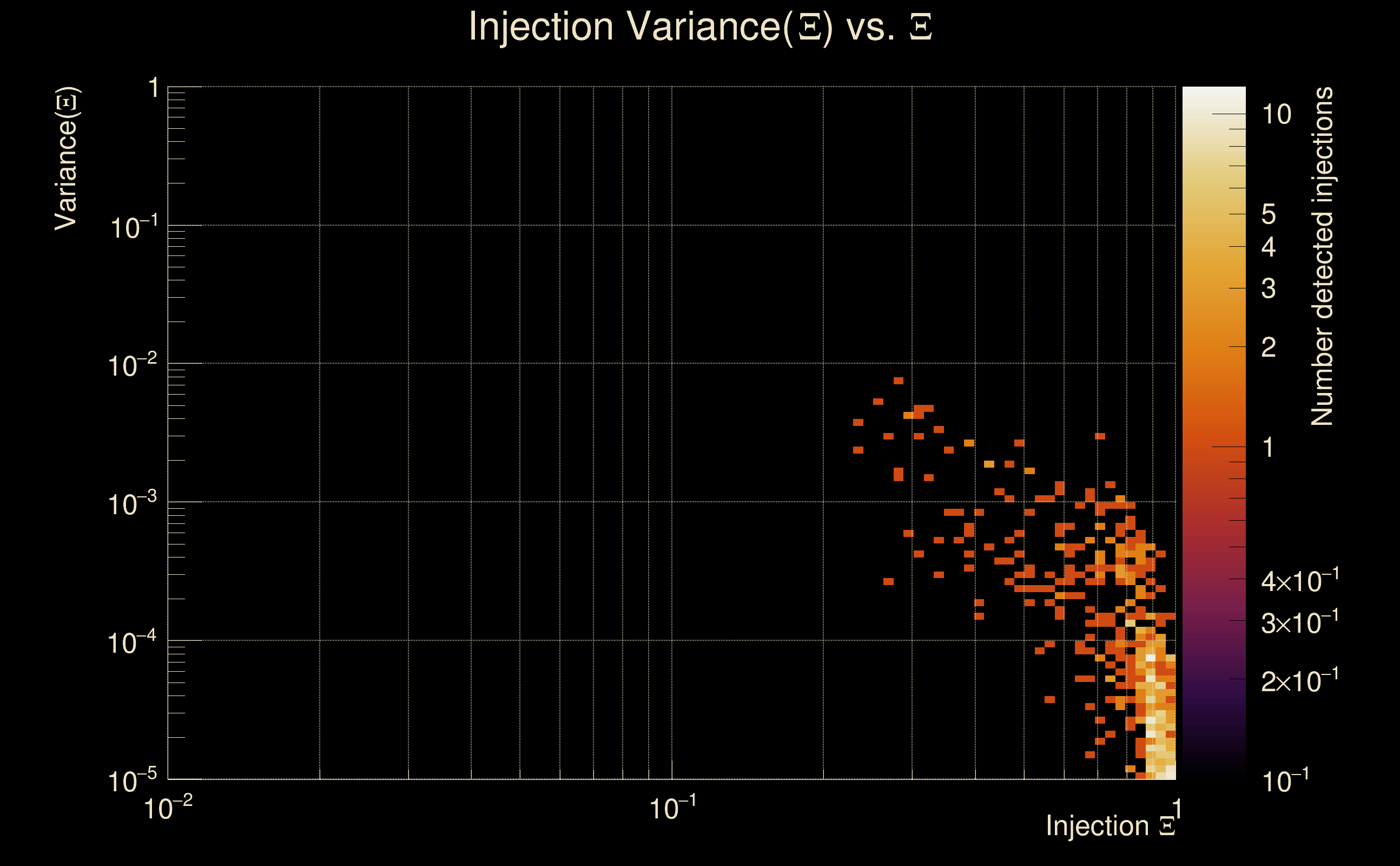

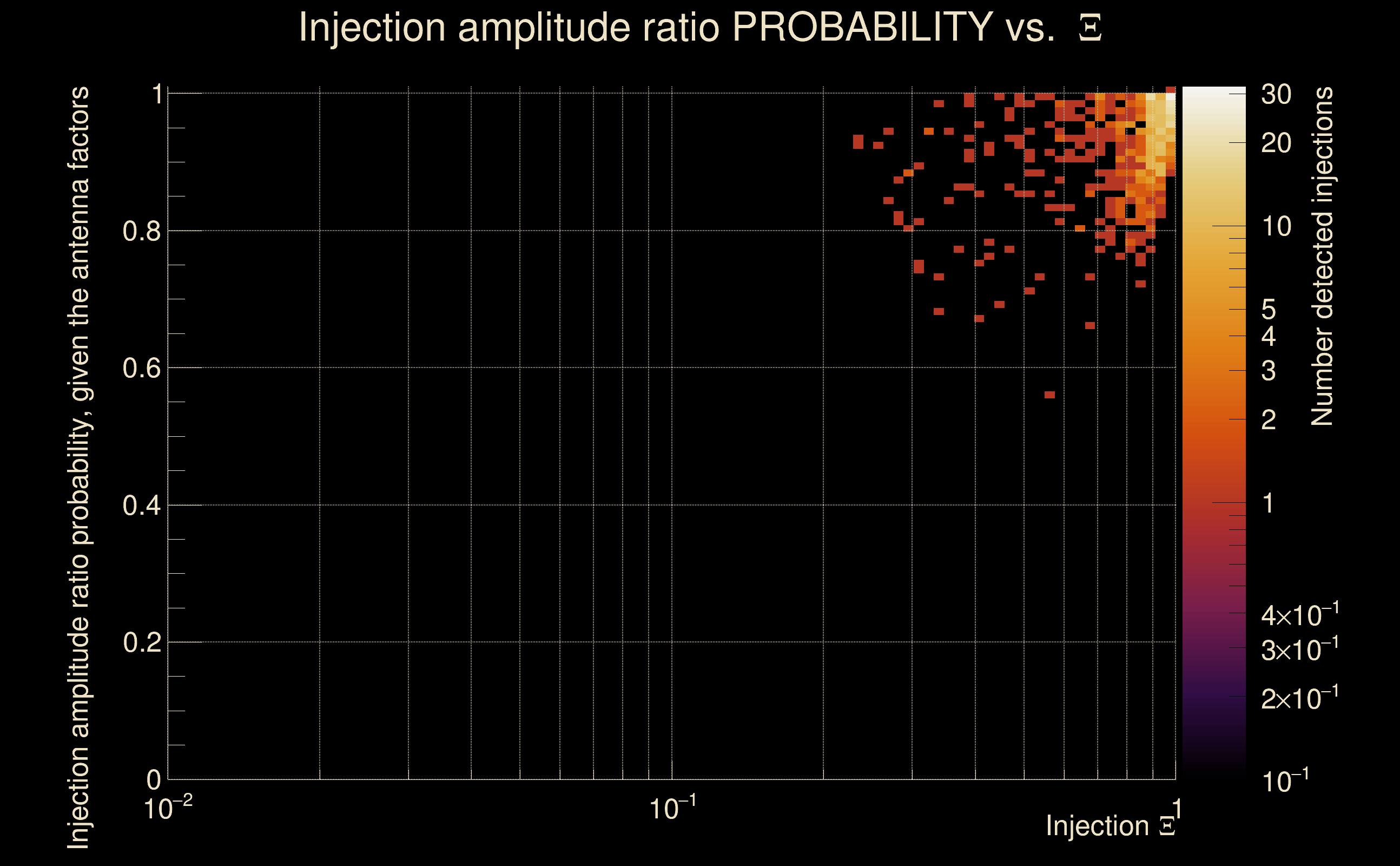

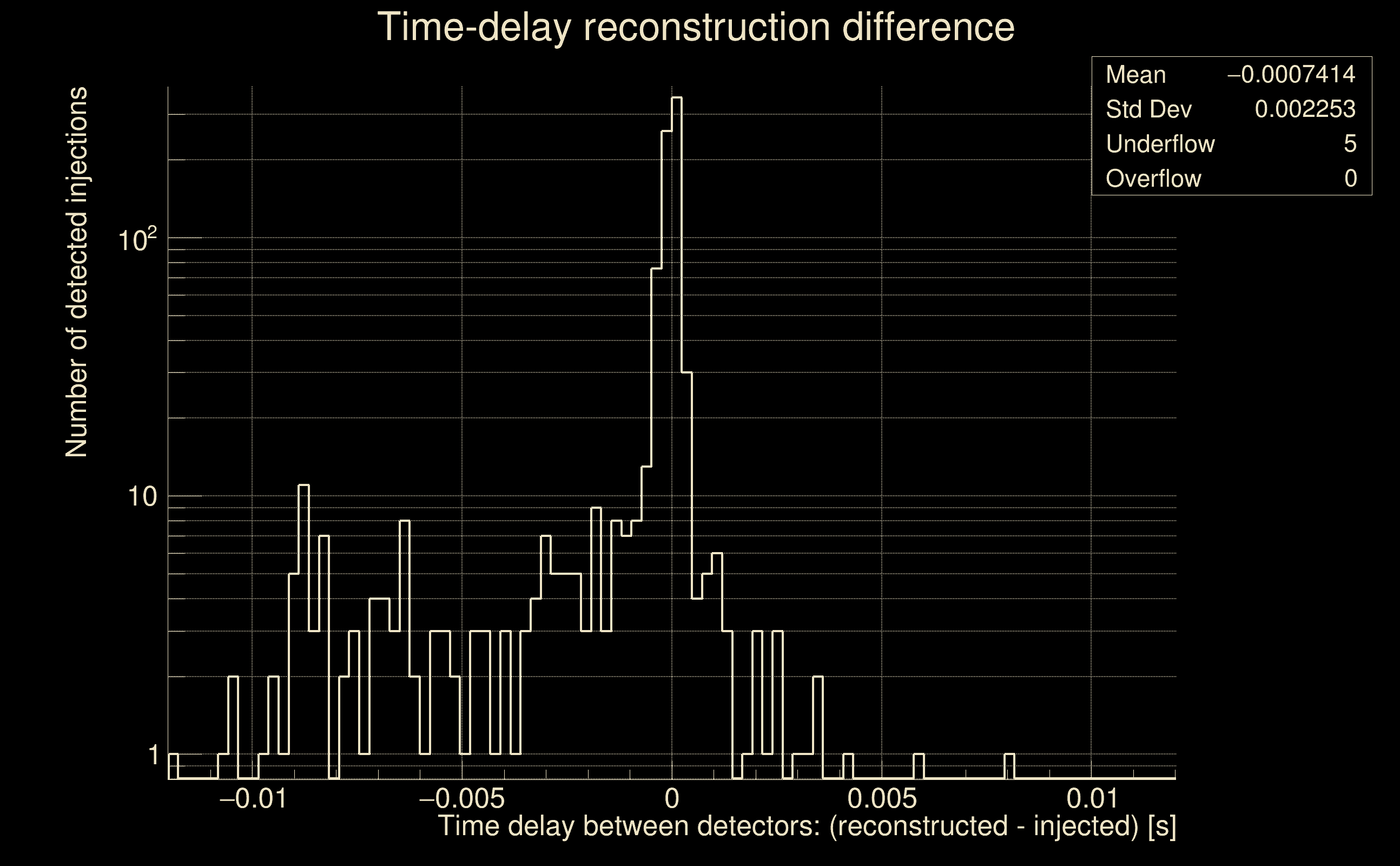

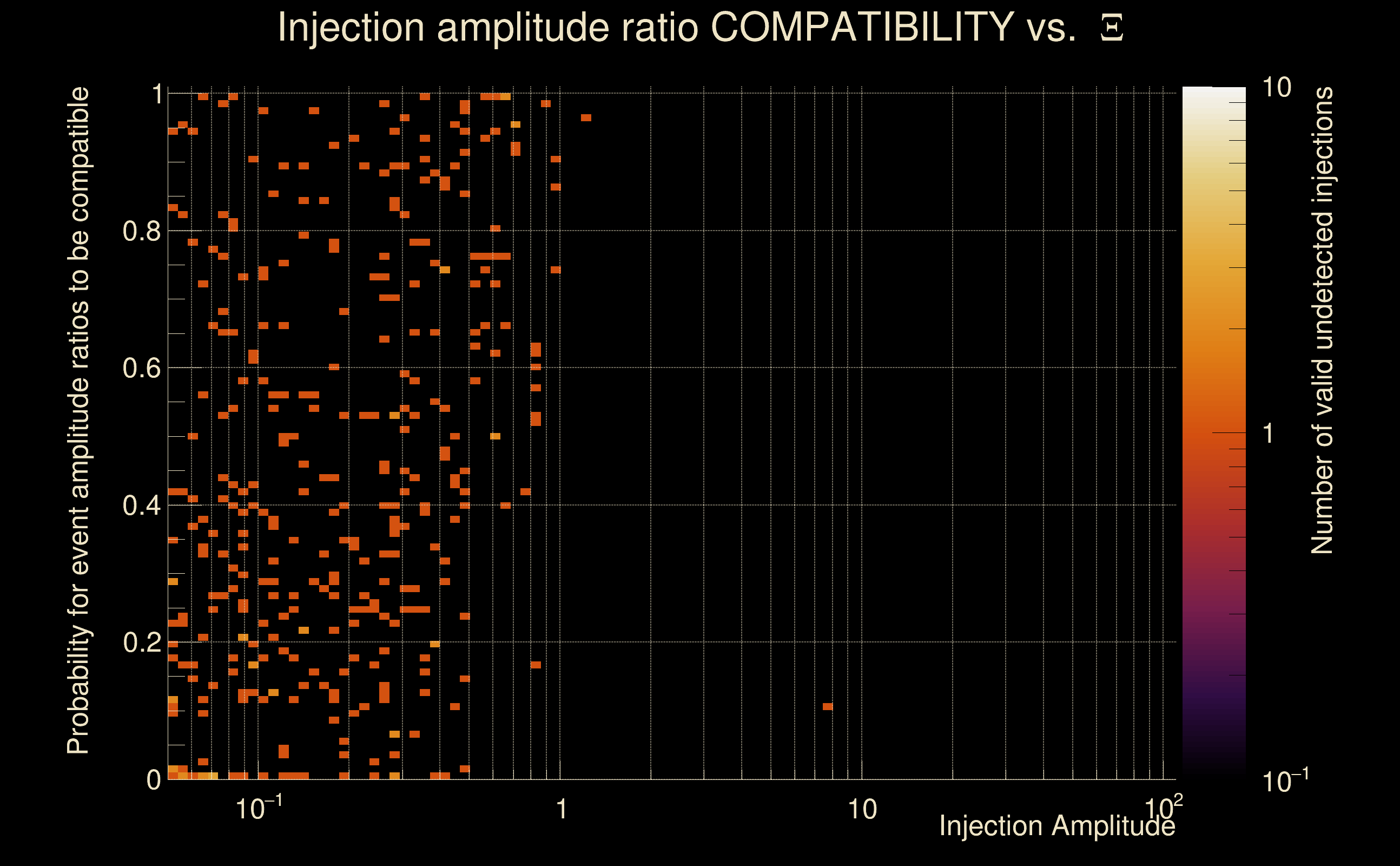

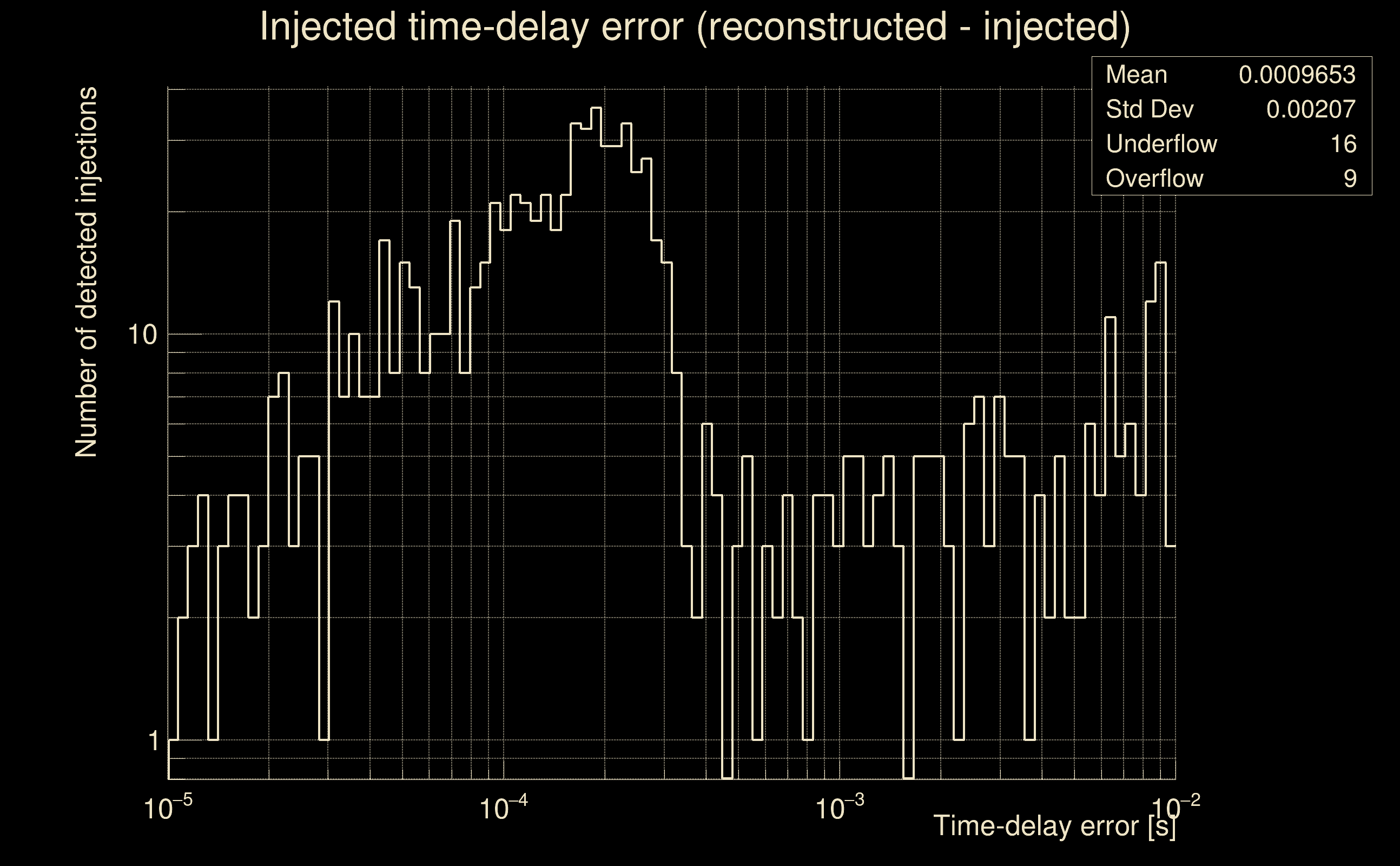

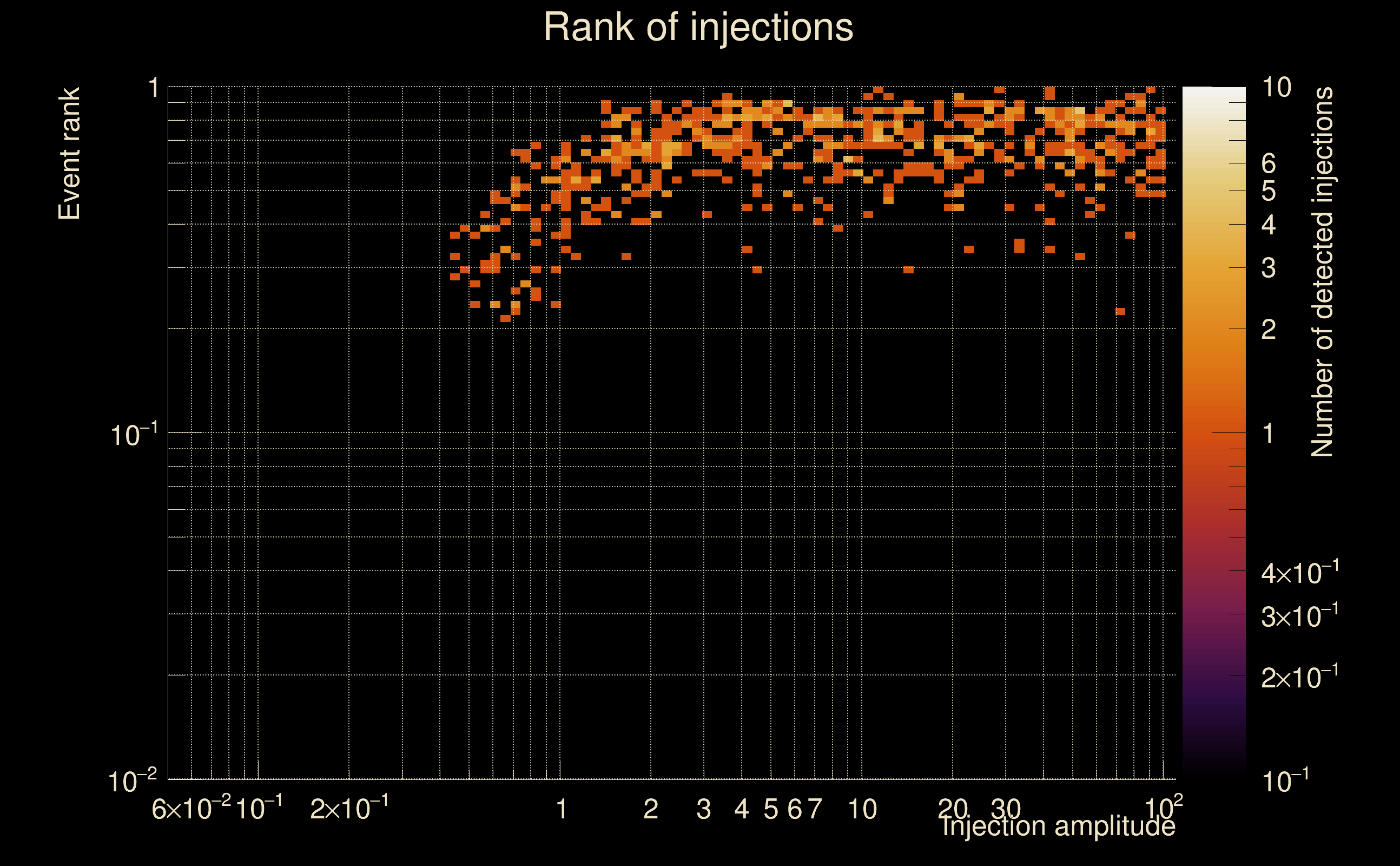

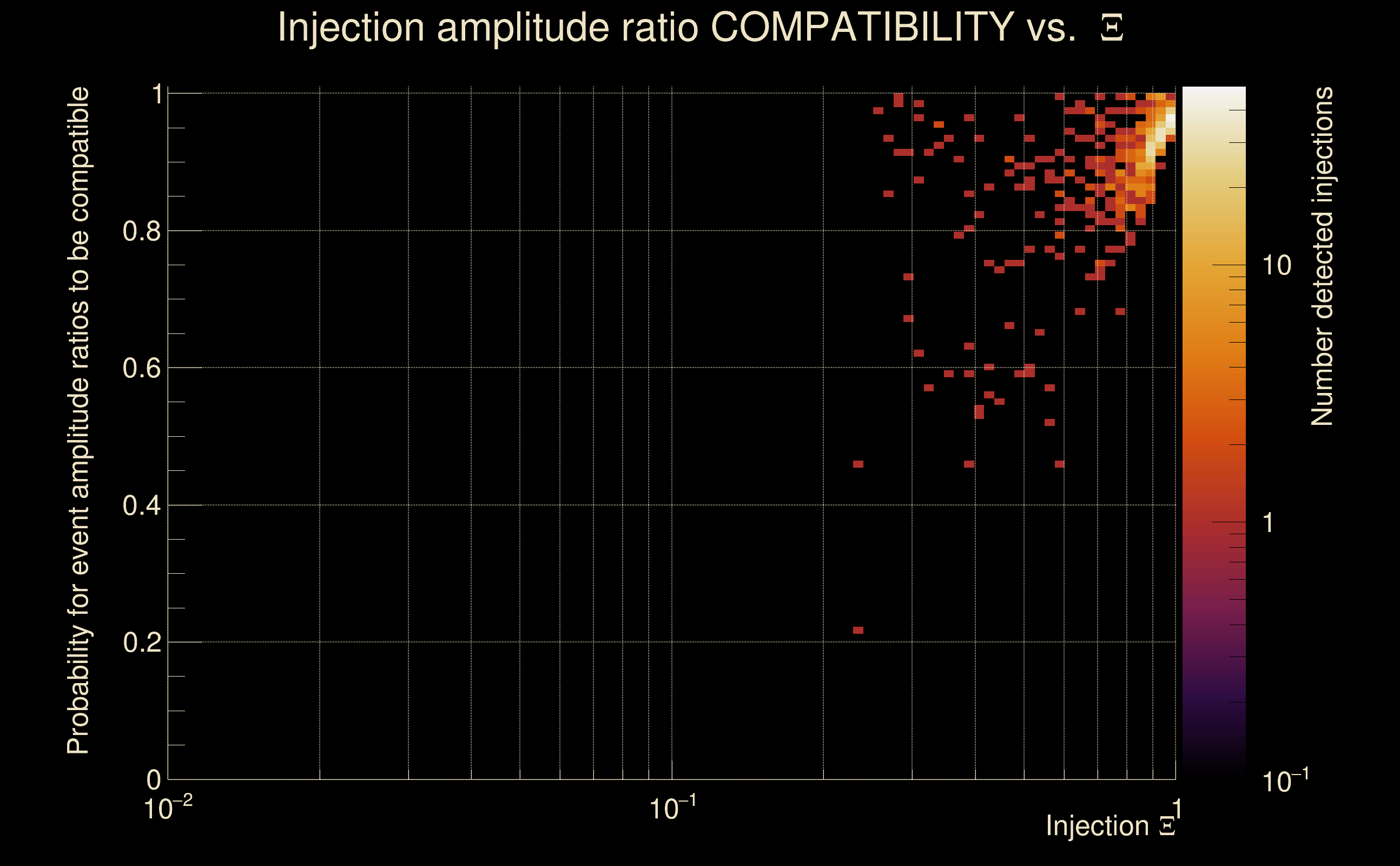

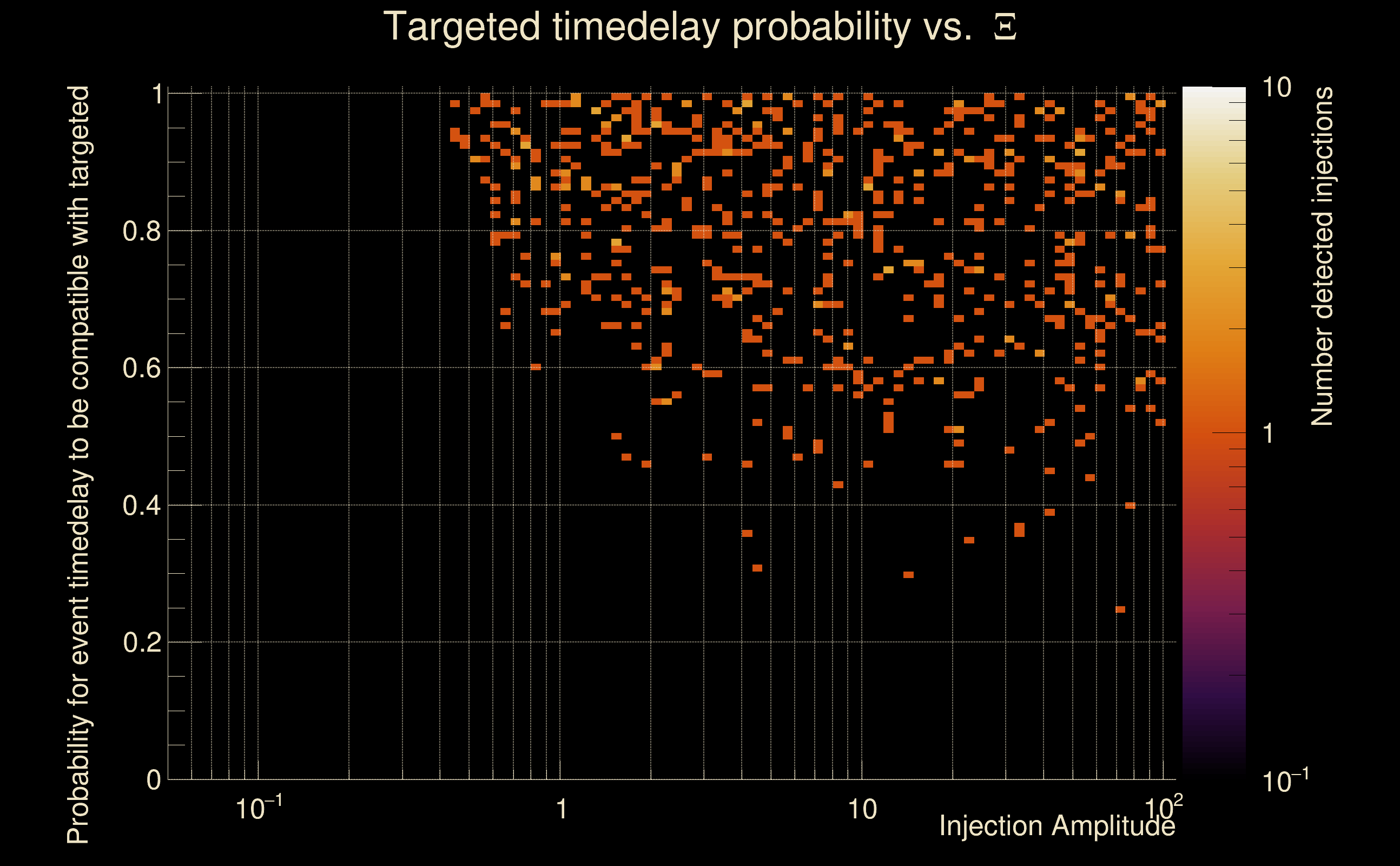

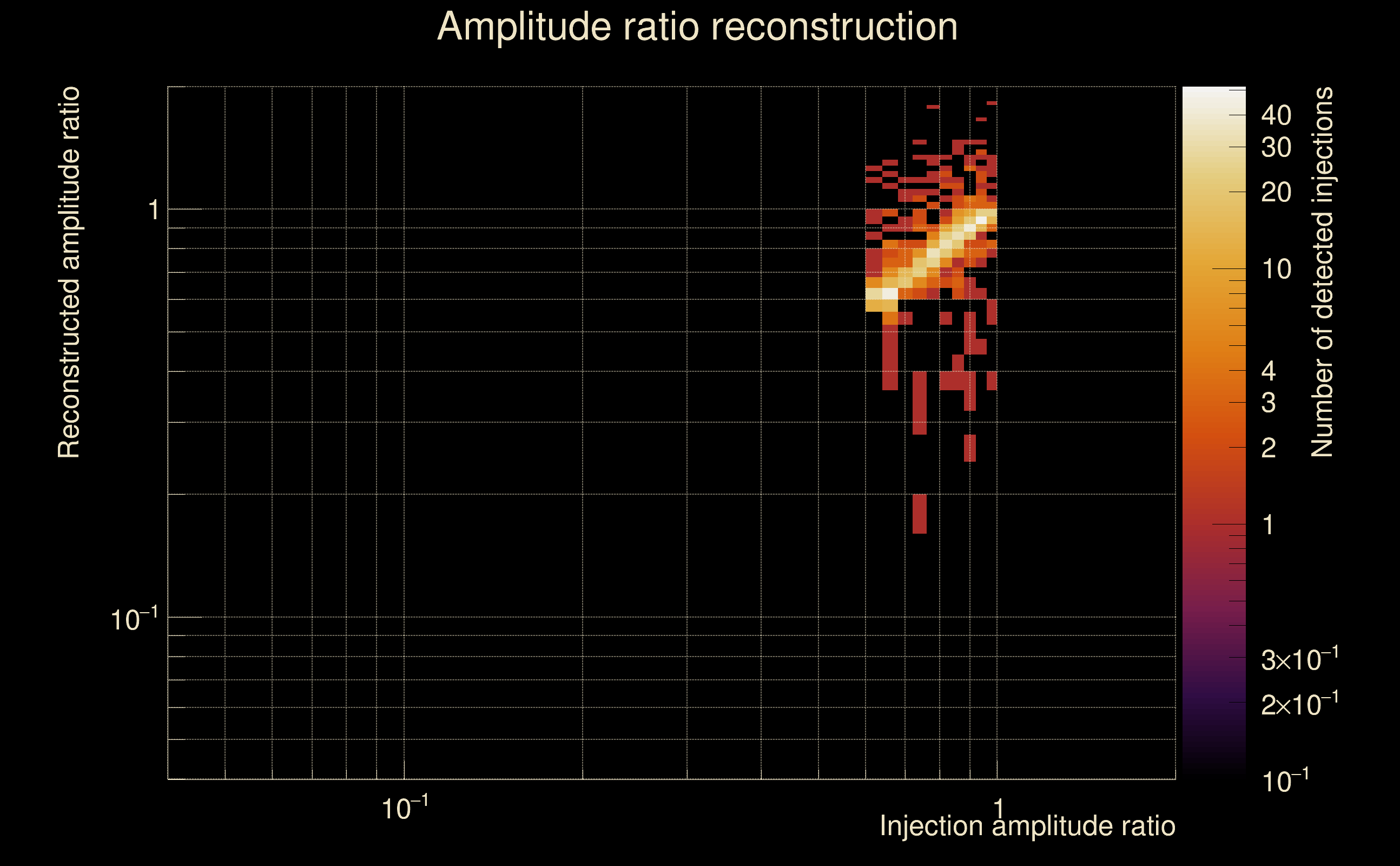

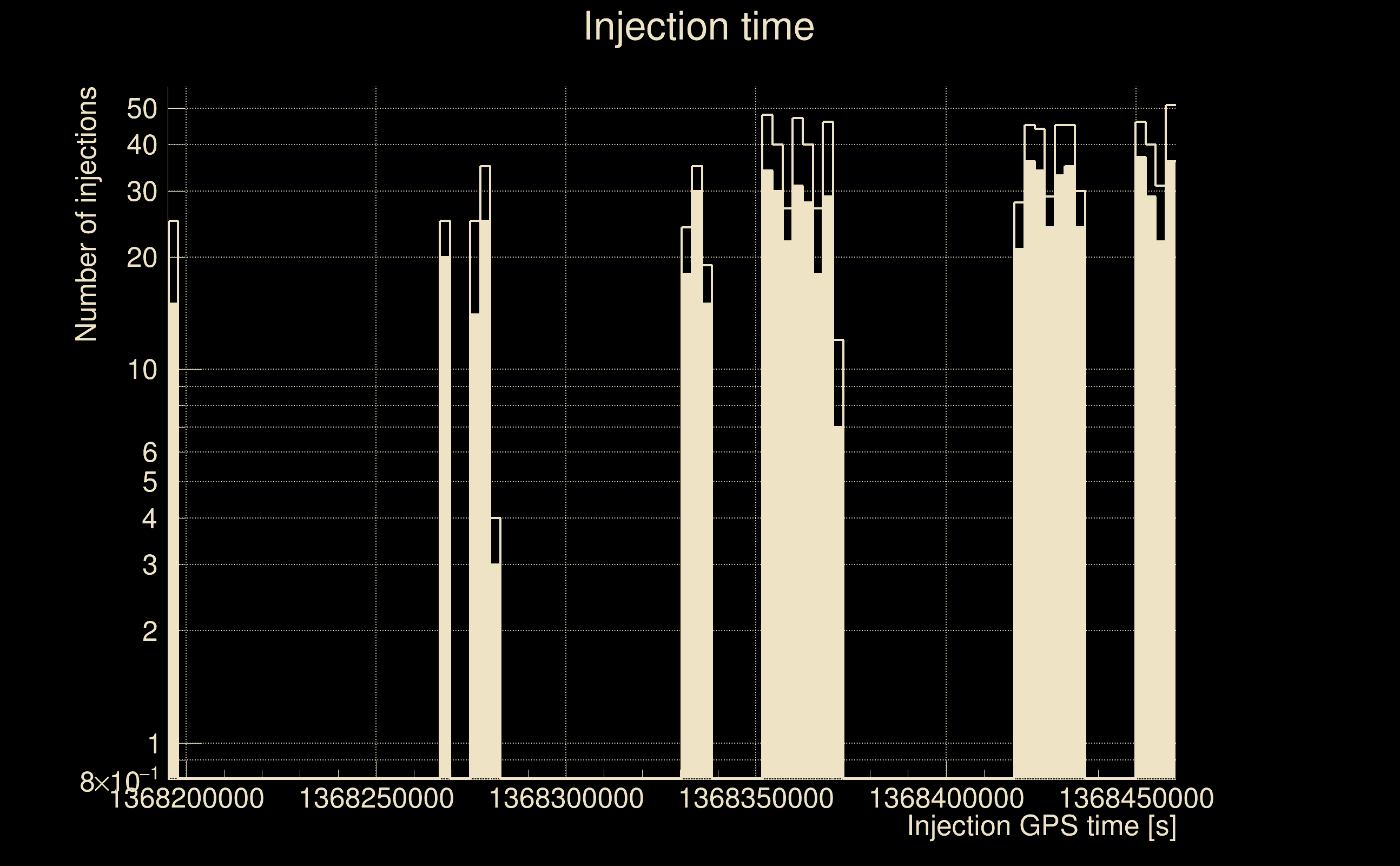

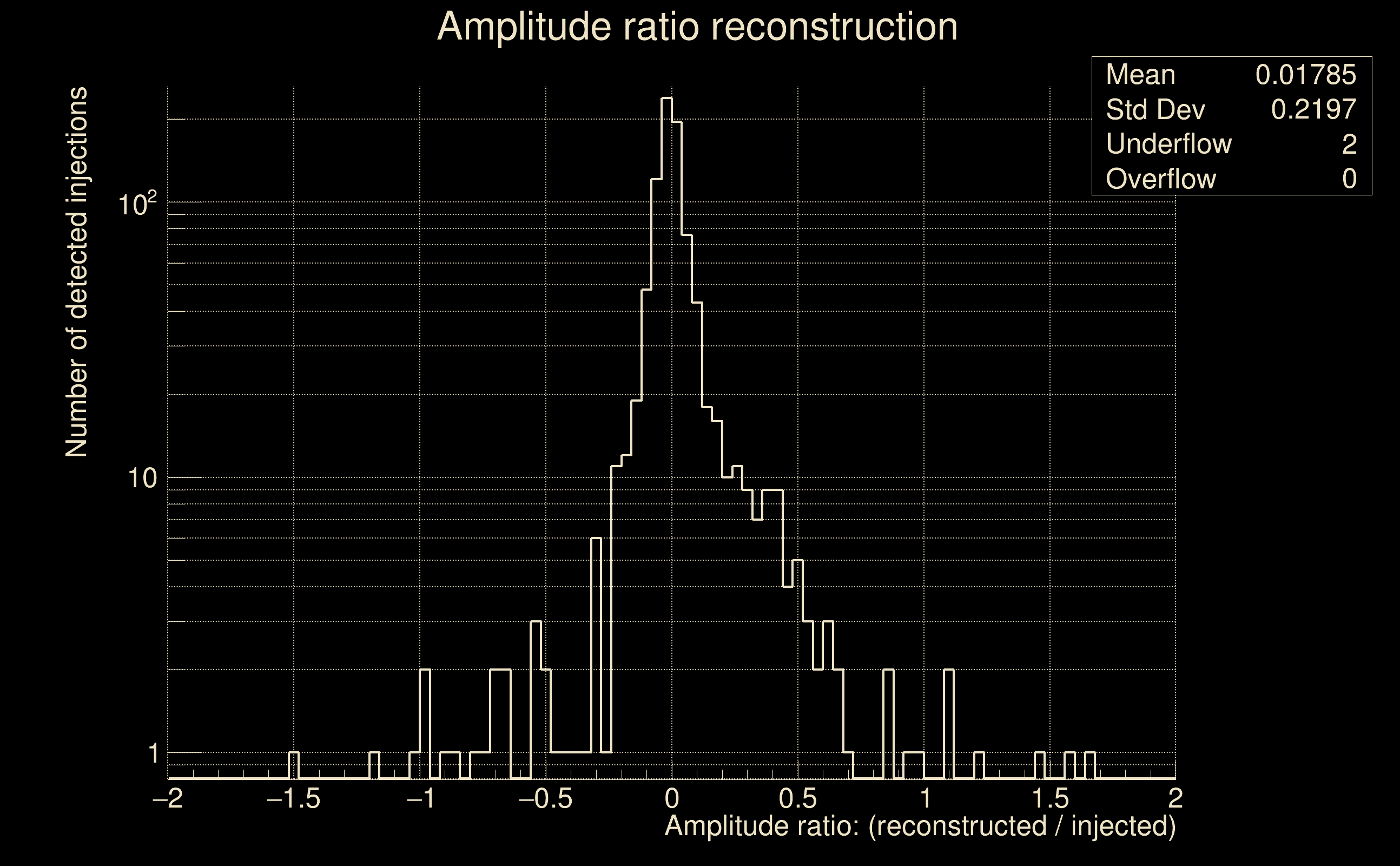

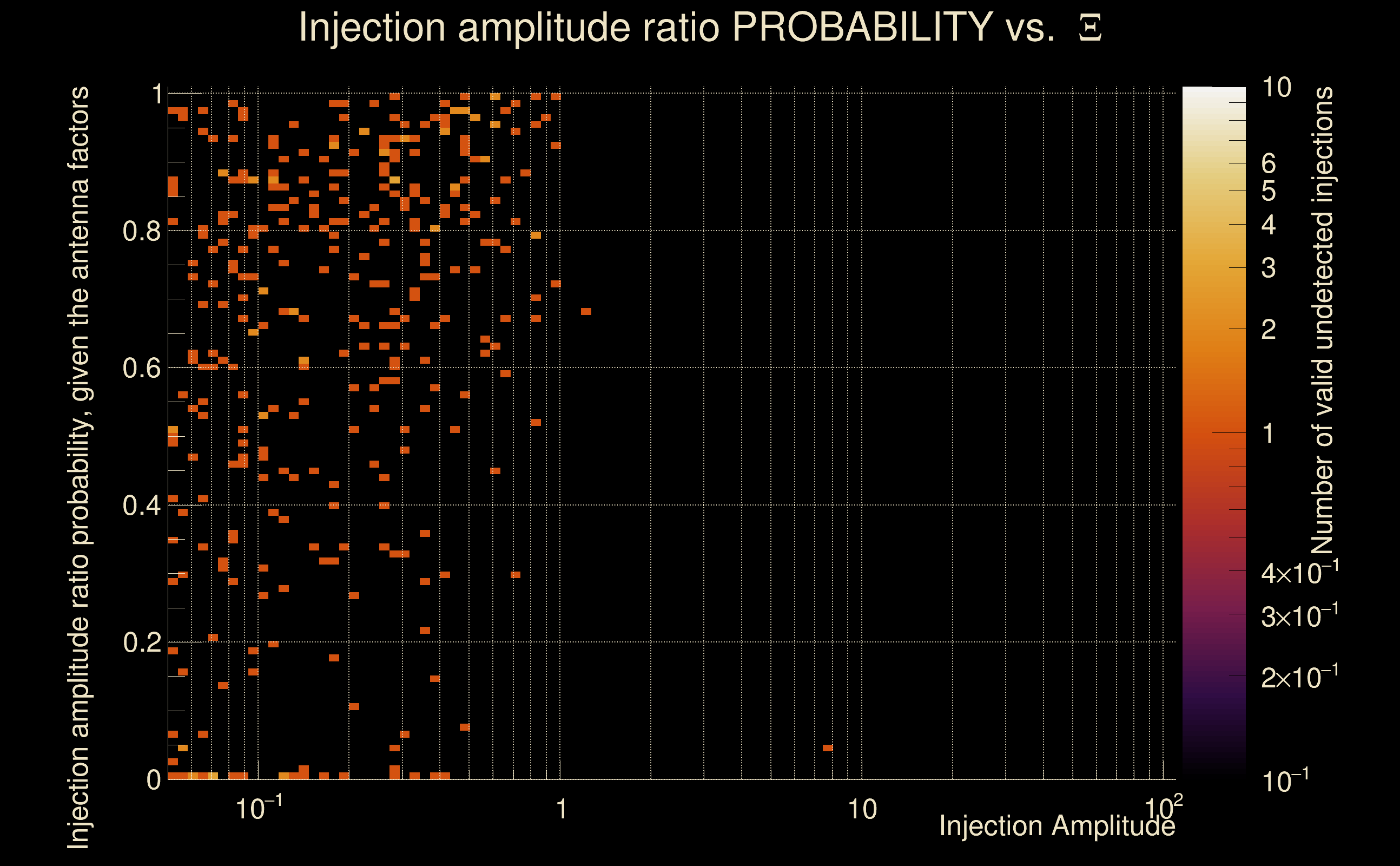

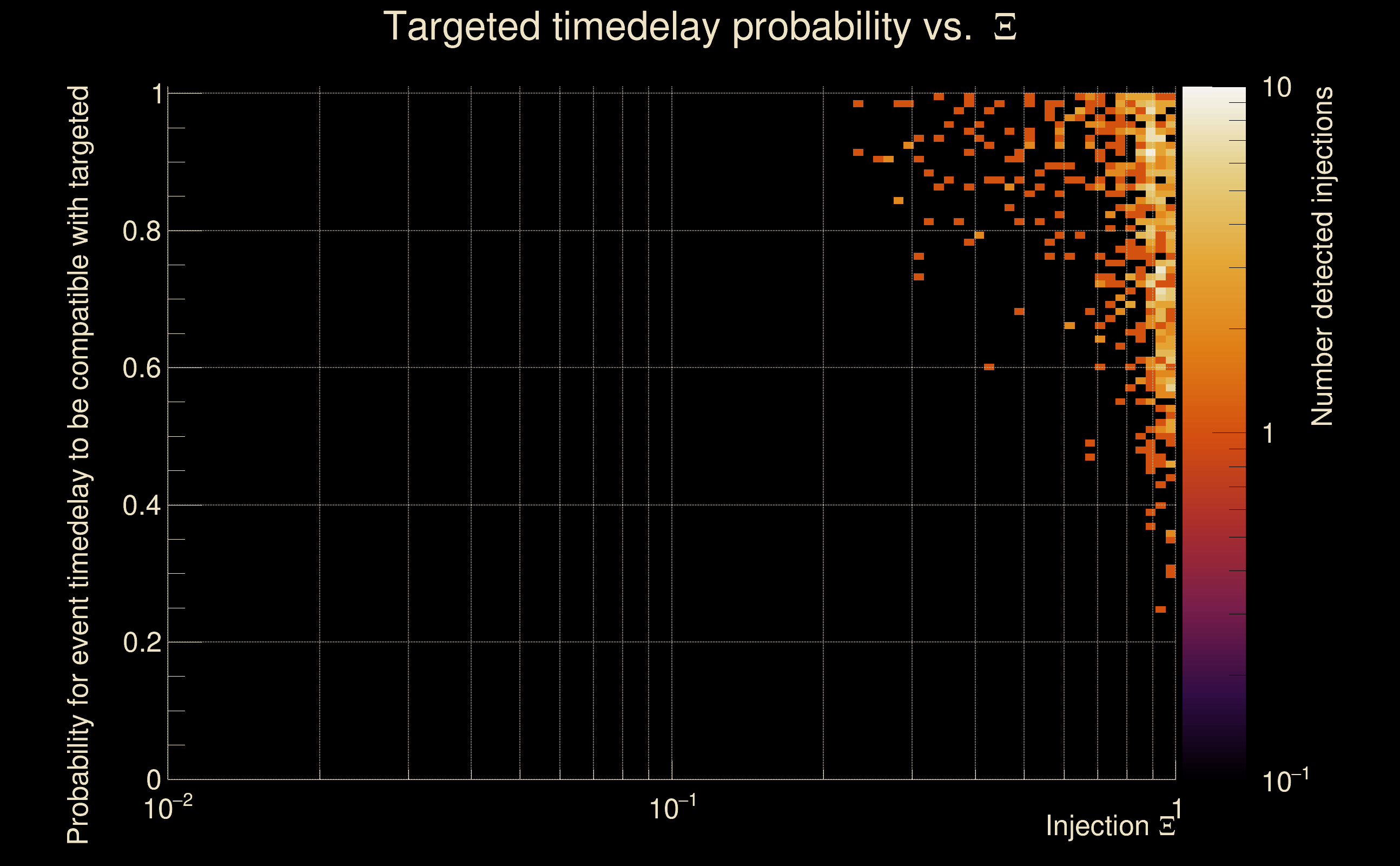

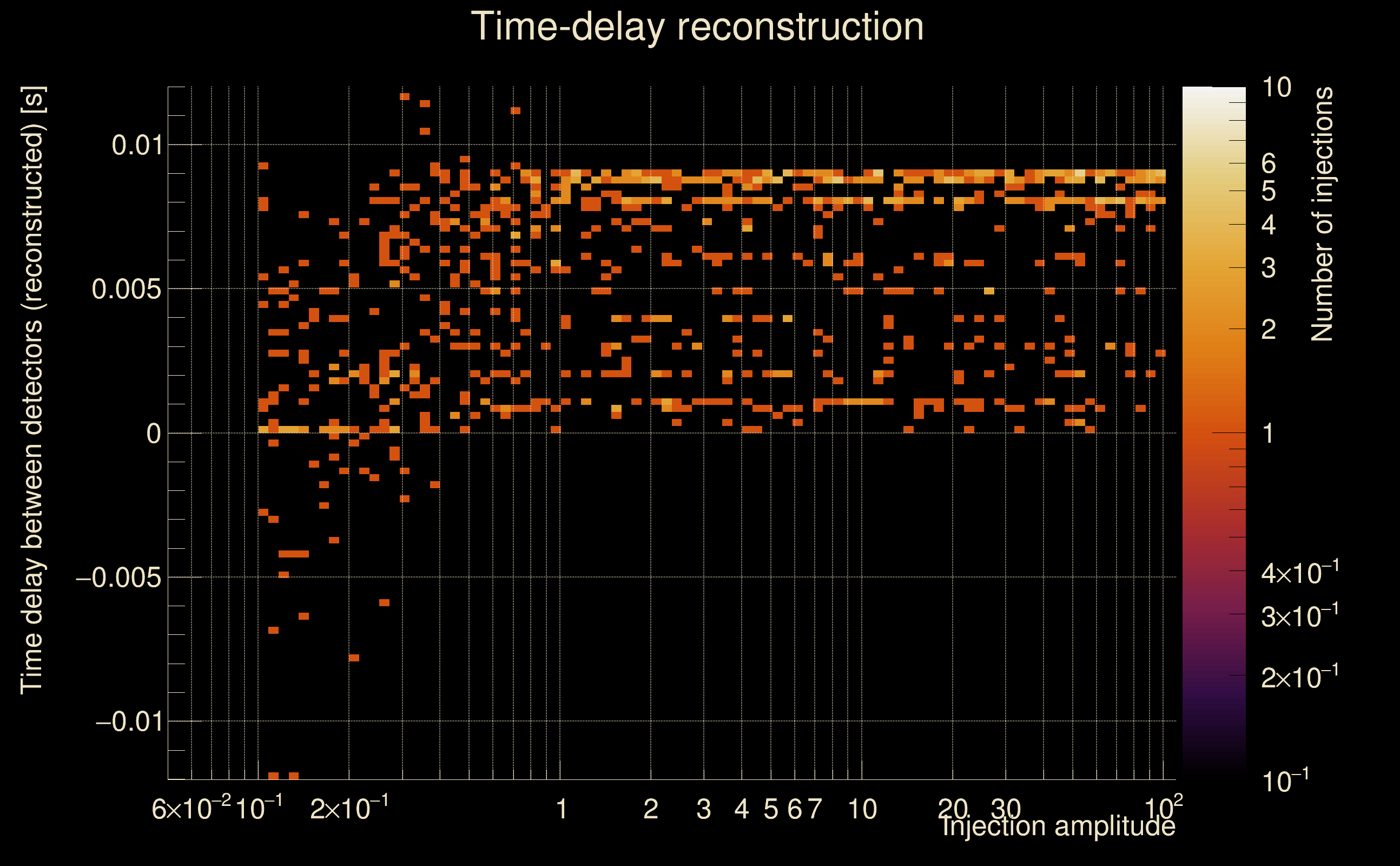

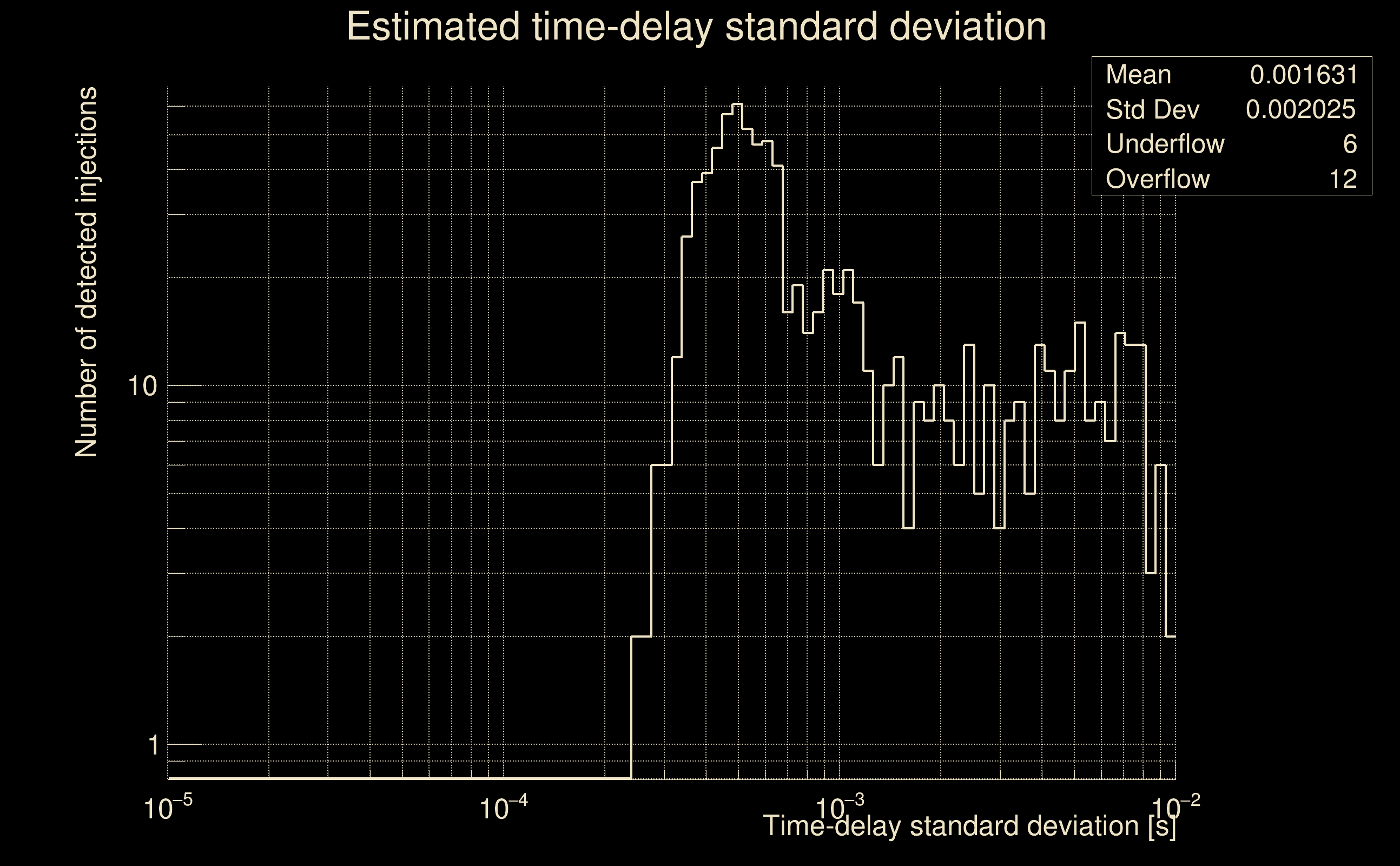

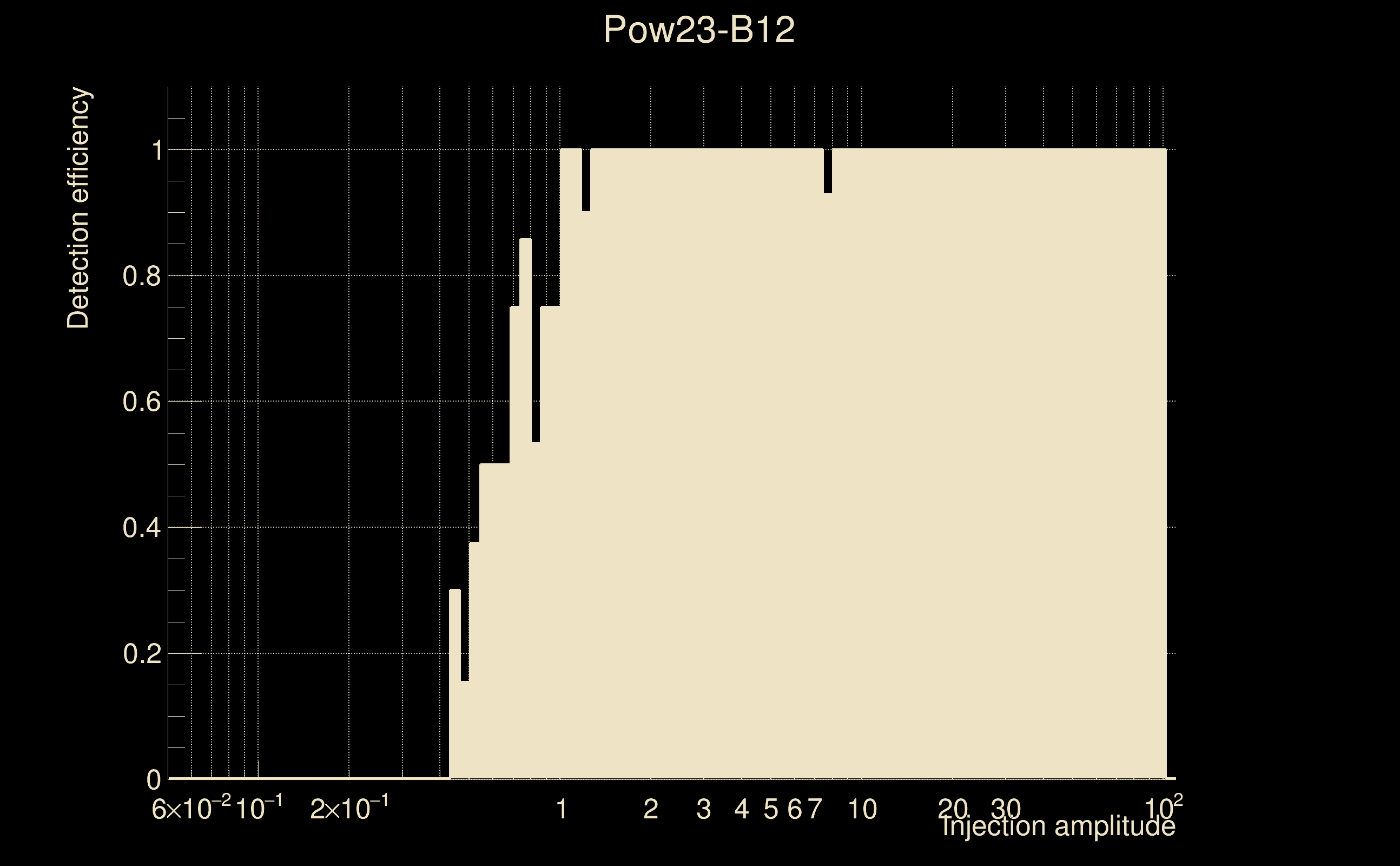

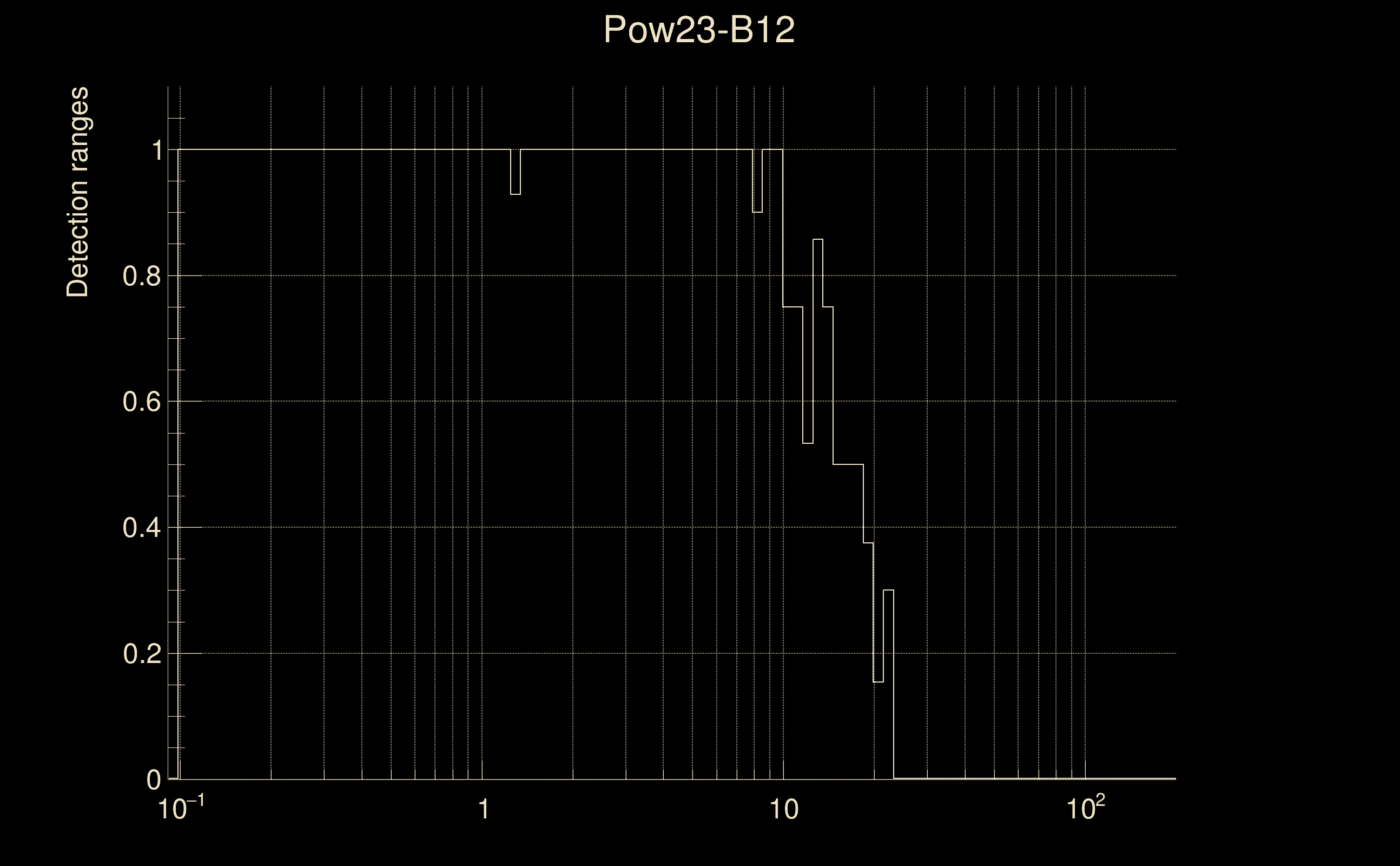

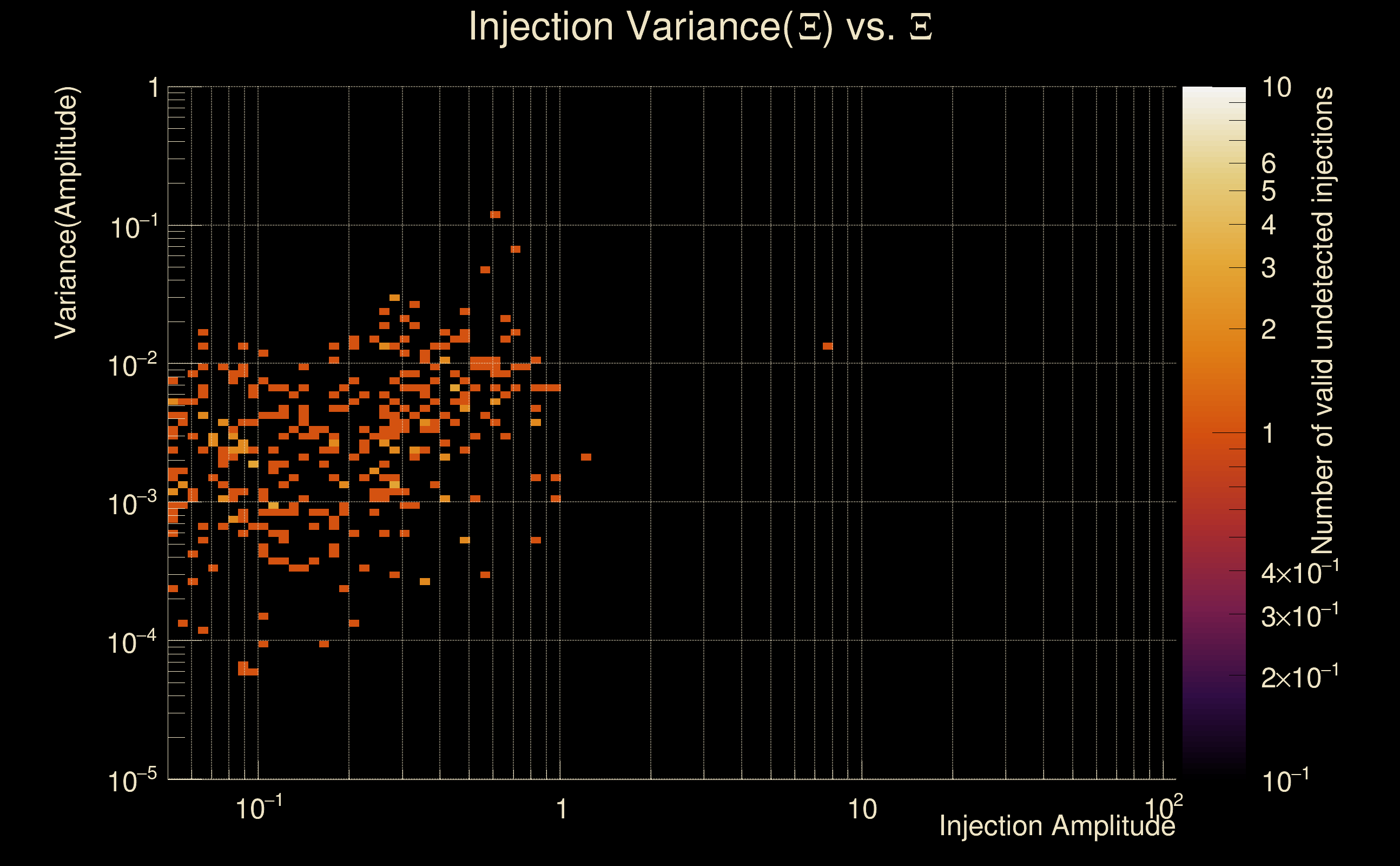

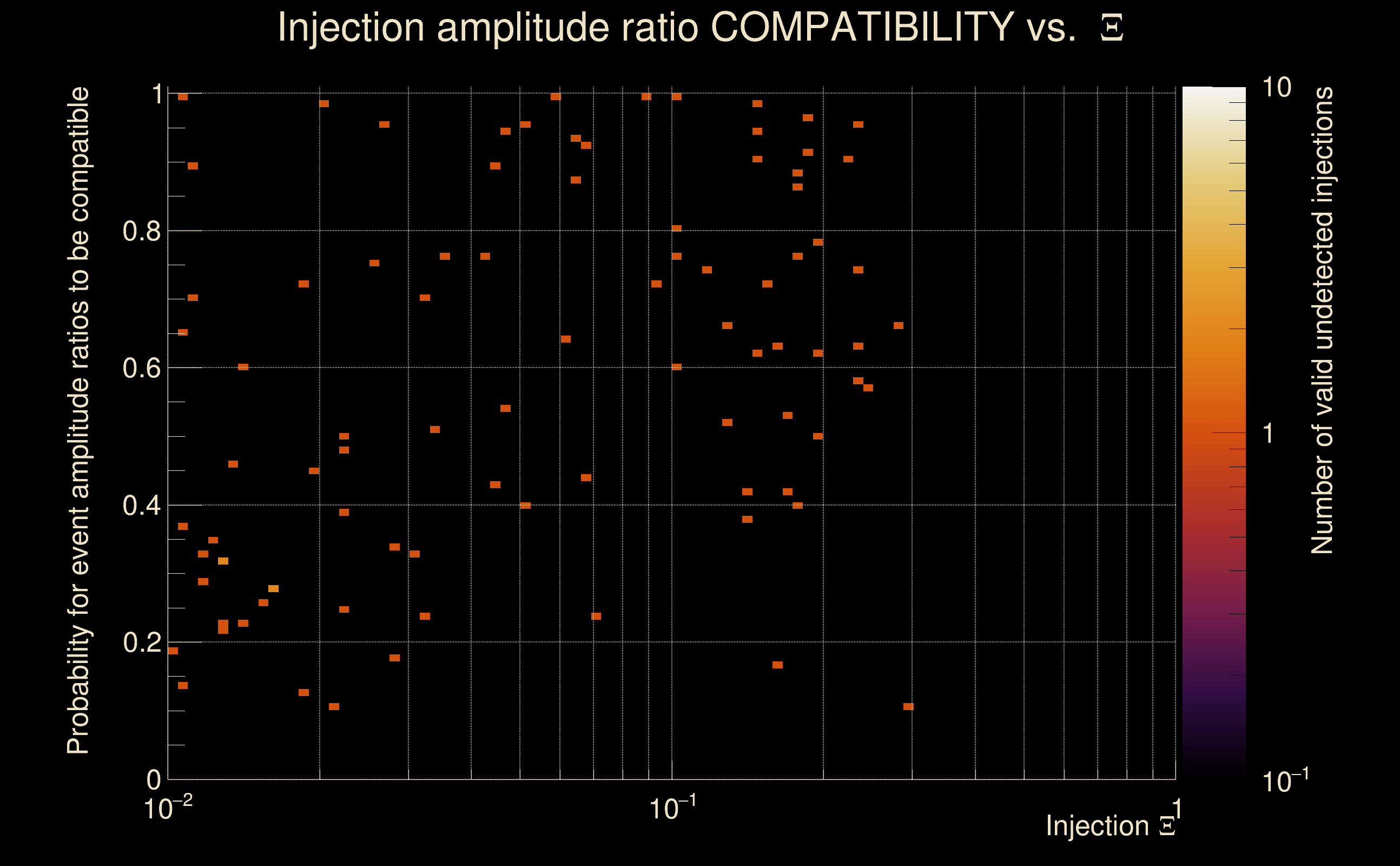

| Number of injections (total/valid/detected): | 1042 / 913 / 670 |
| List of missed injections: | ./Pow23-B12_missed.txt |
| Injection amplitude at 90% detection efficiency: | 1.01535 |
| Injection amplitude at 50% detection efficiency: | 0.56541 |
| Injection amplitude at 10% detection efficiency: | 0.426712 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
