| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 28 09:43:15 2026 UTC |
| Ox option file: | Ixf6_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf6_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf6_allsky_results-0.root |
| Slice selected for the the fakeground: | slice index=78 (1.38 s), time lag = 0 s |

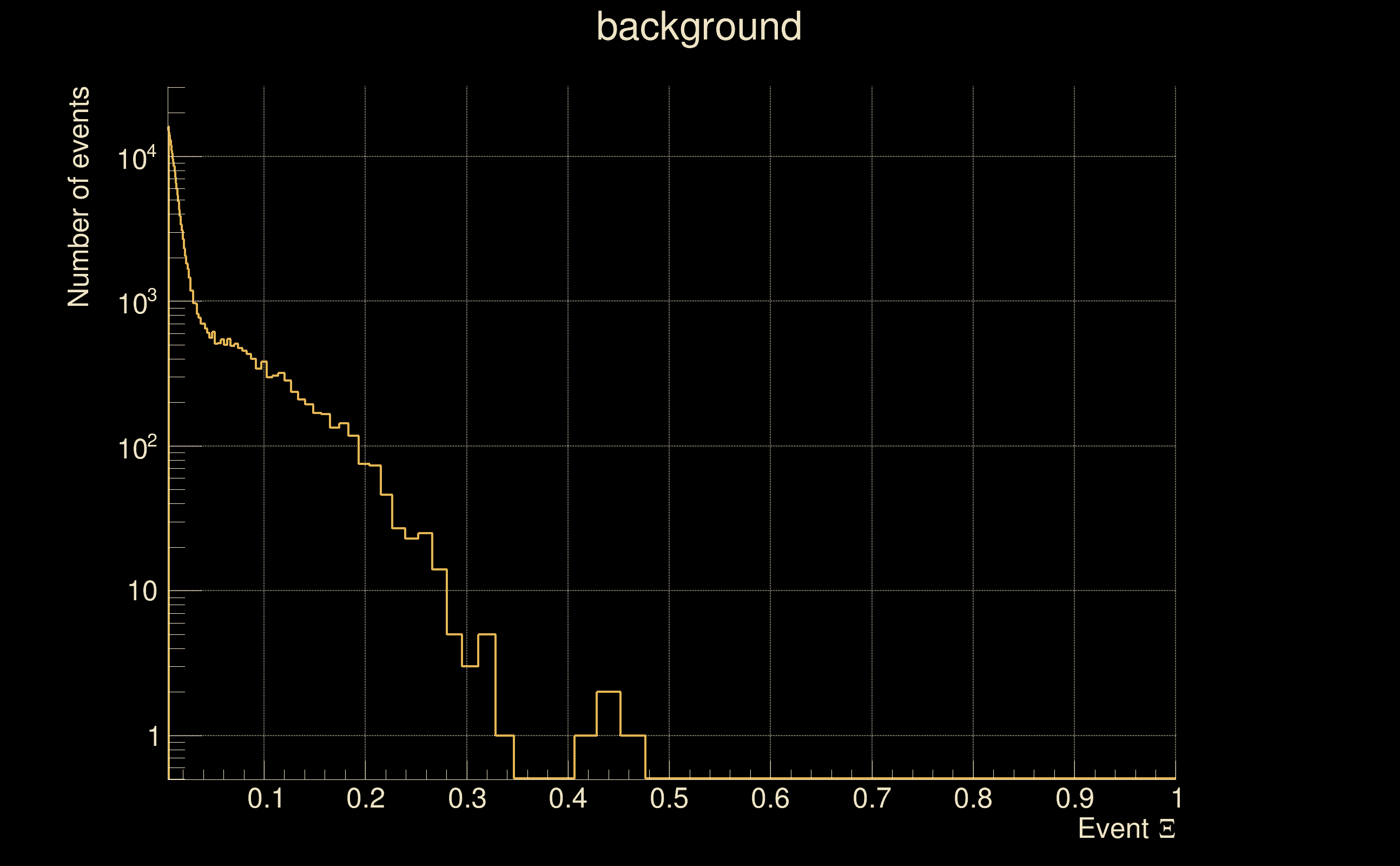

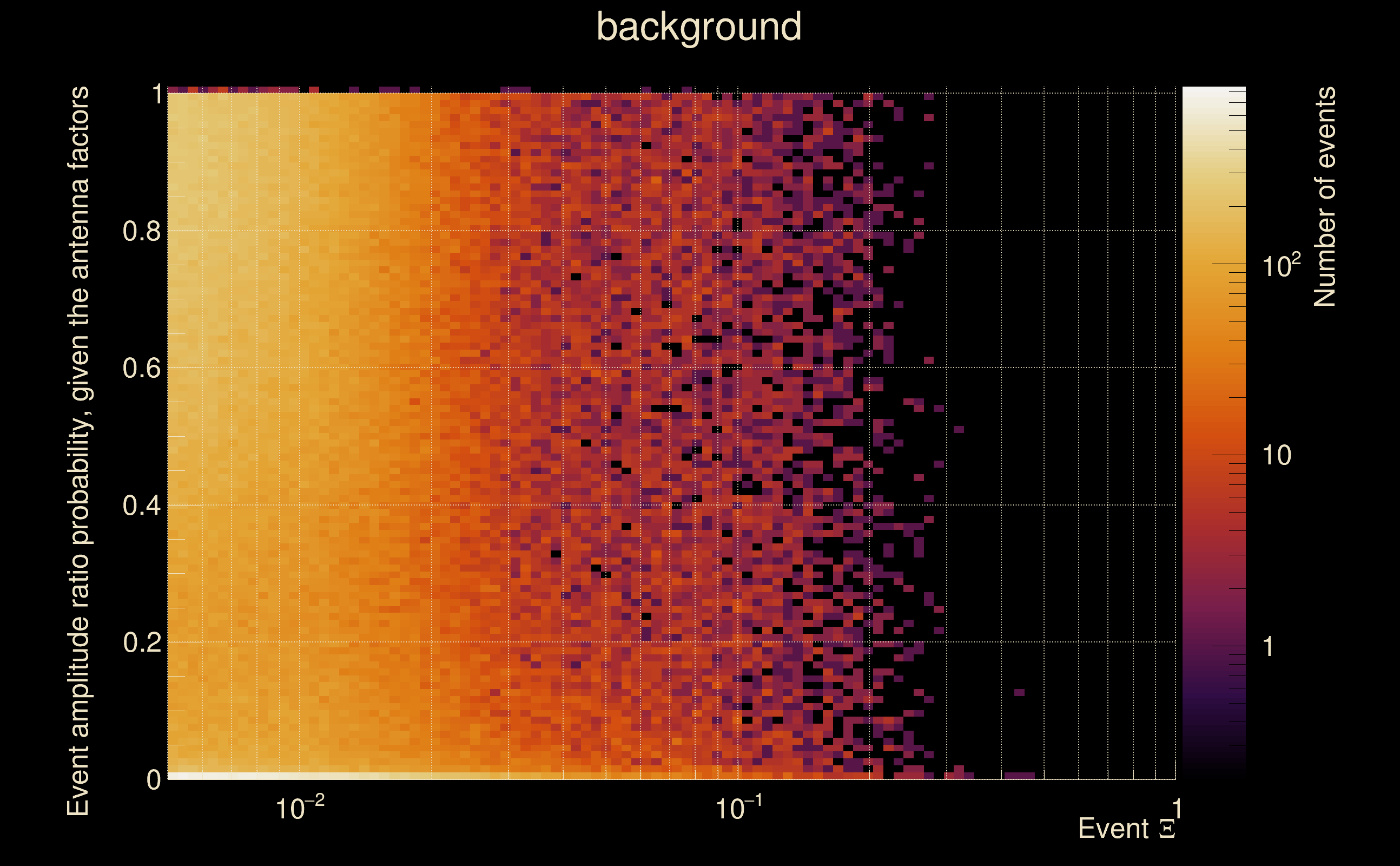

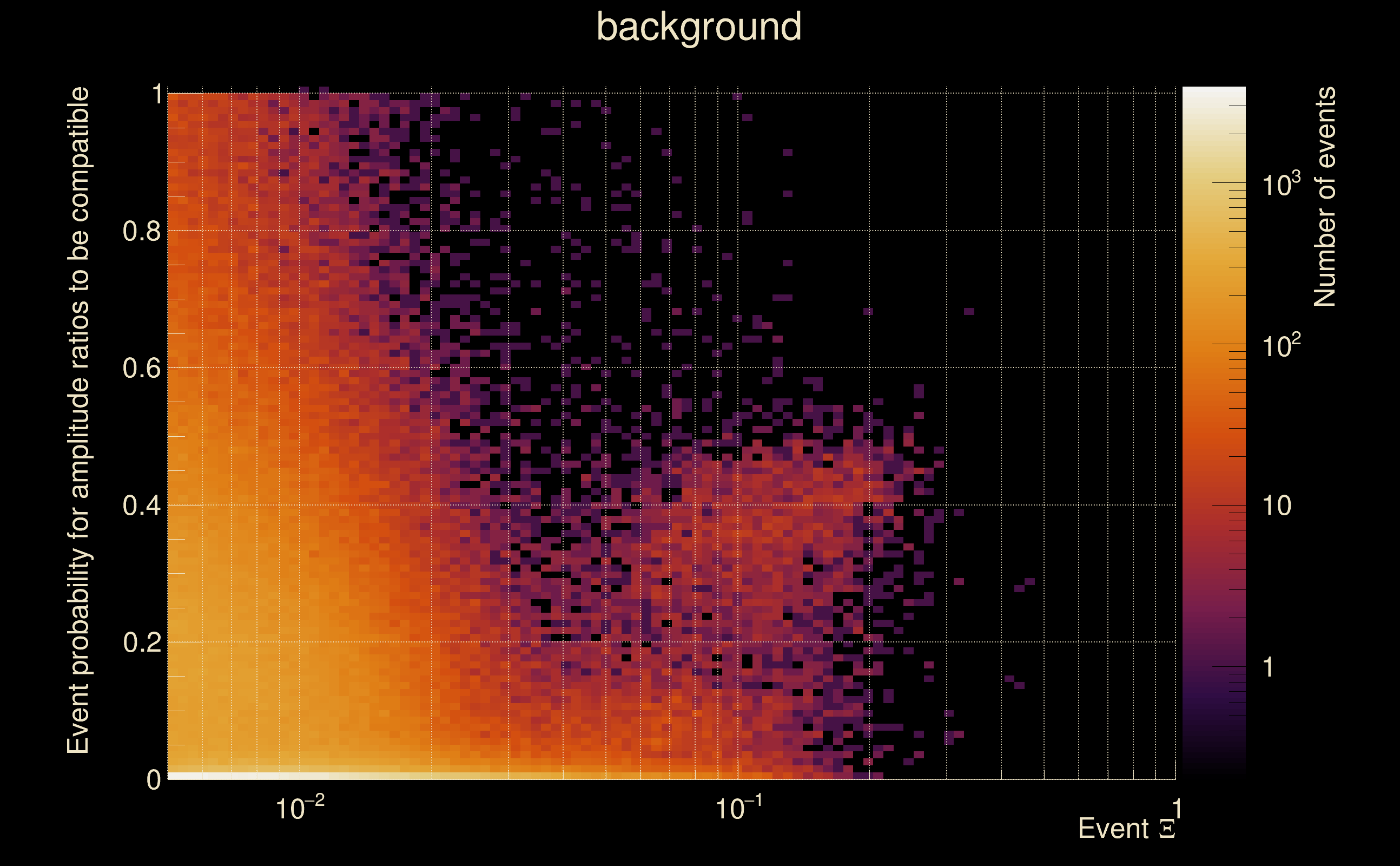

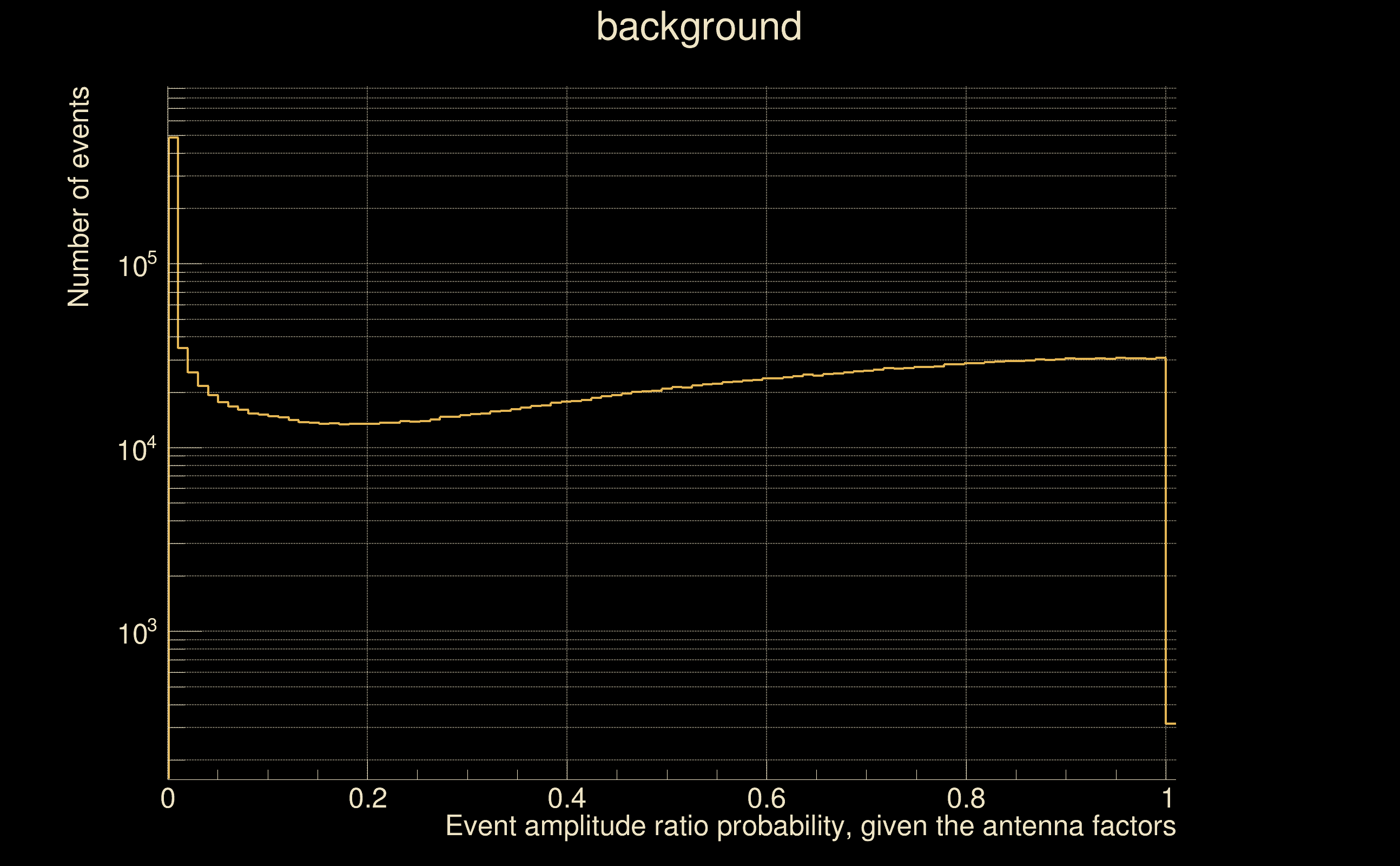

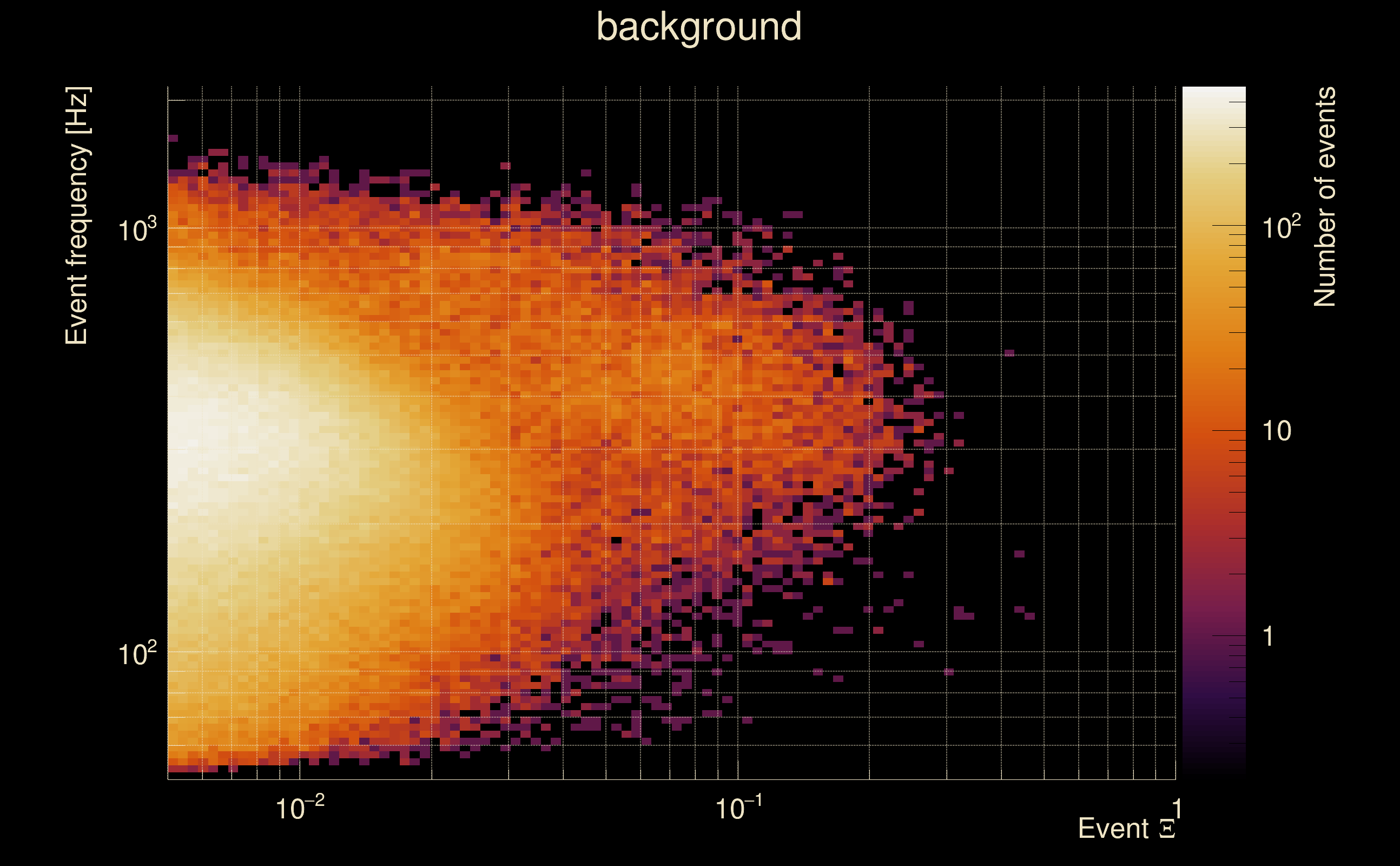

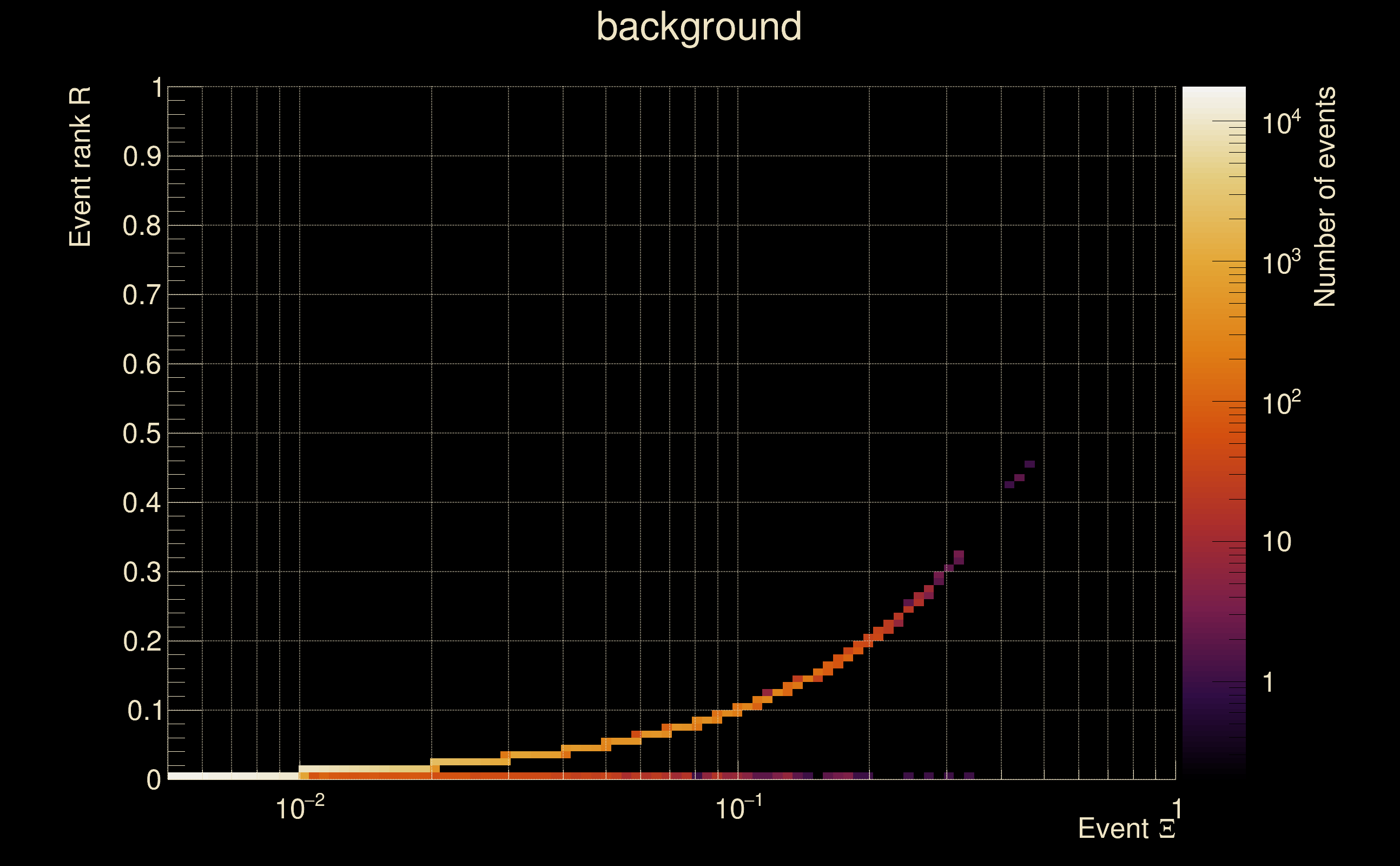

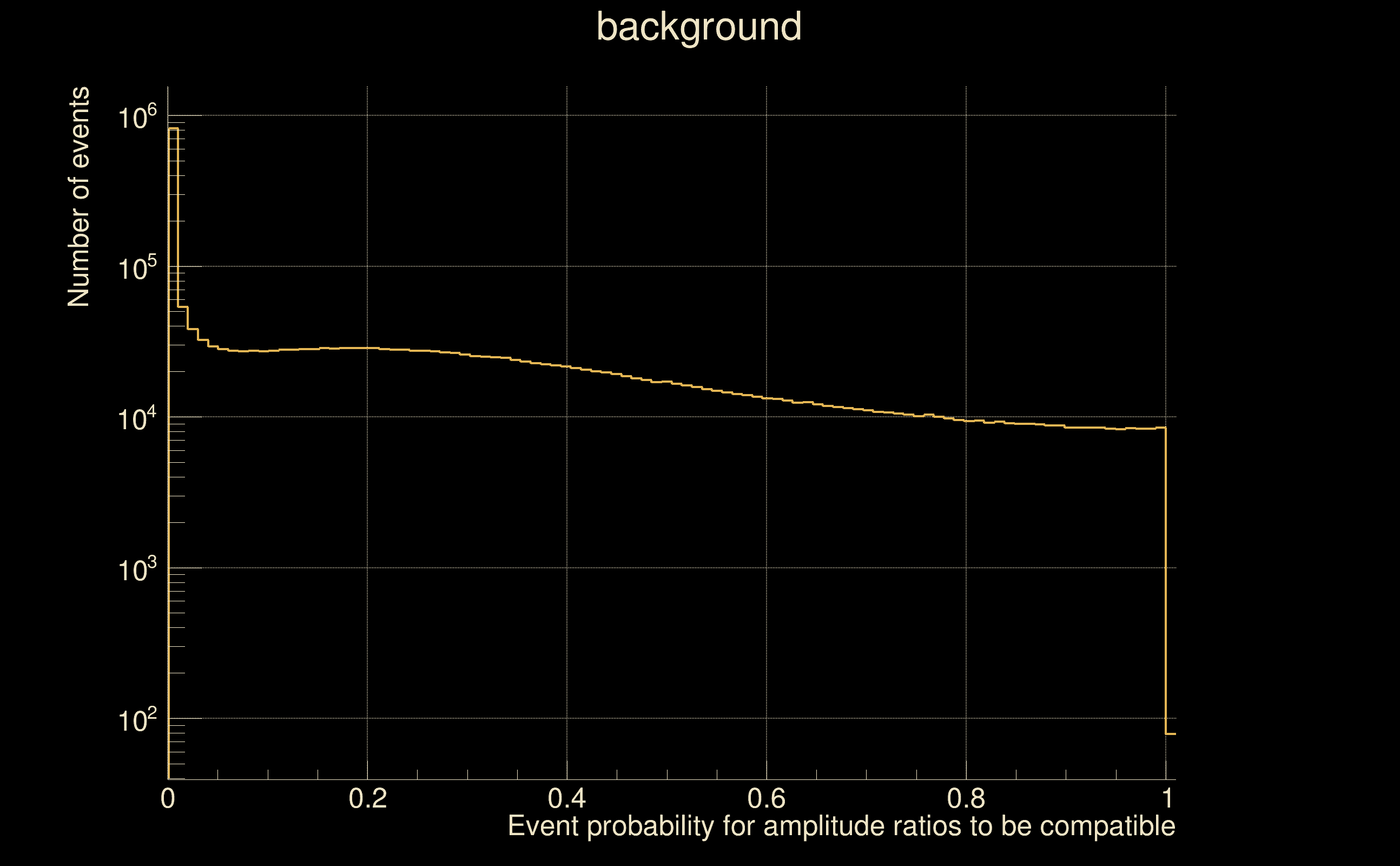

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

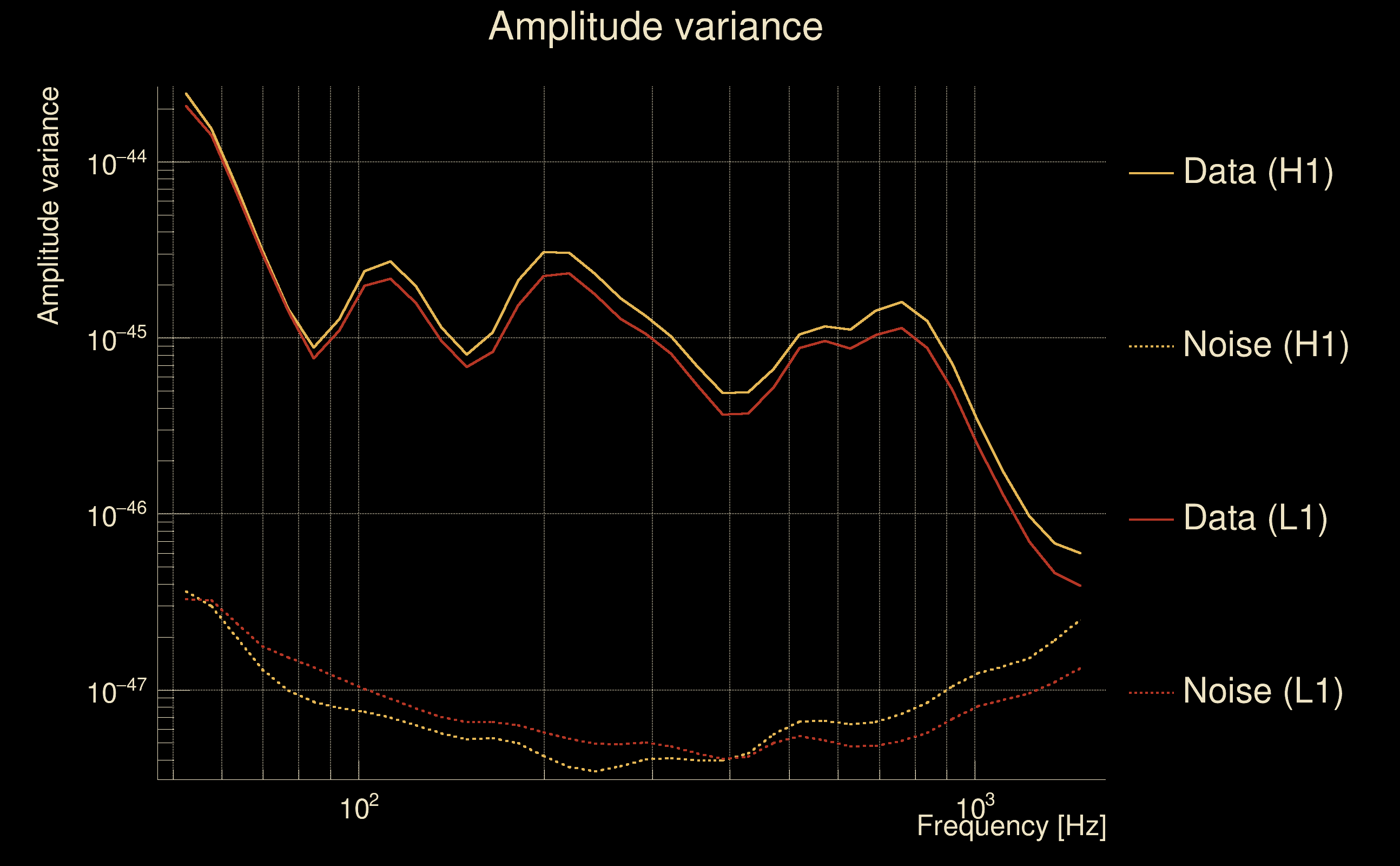

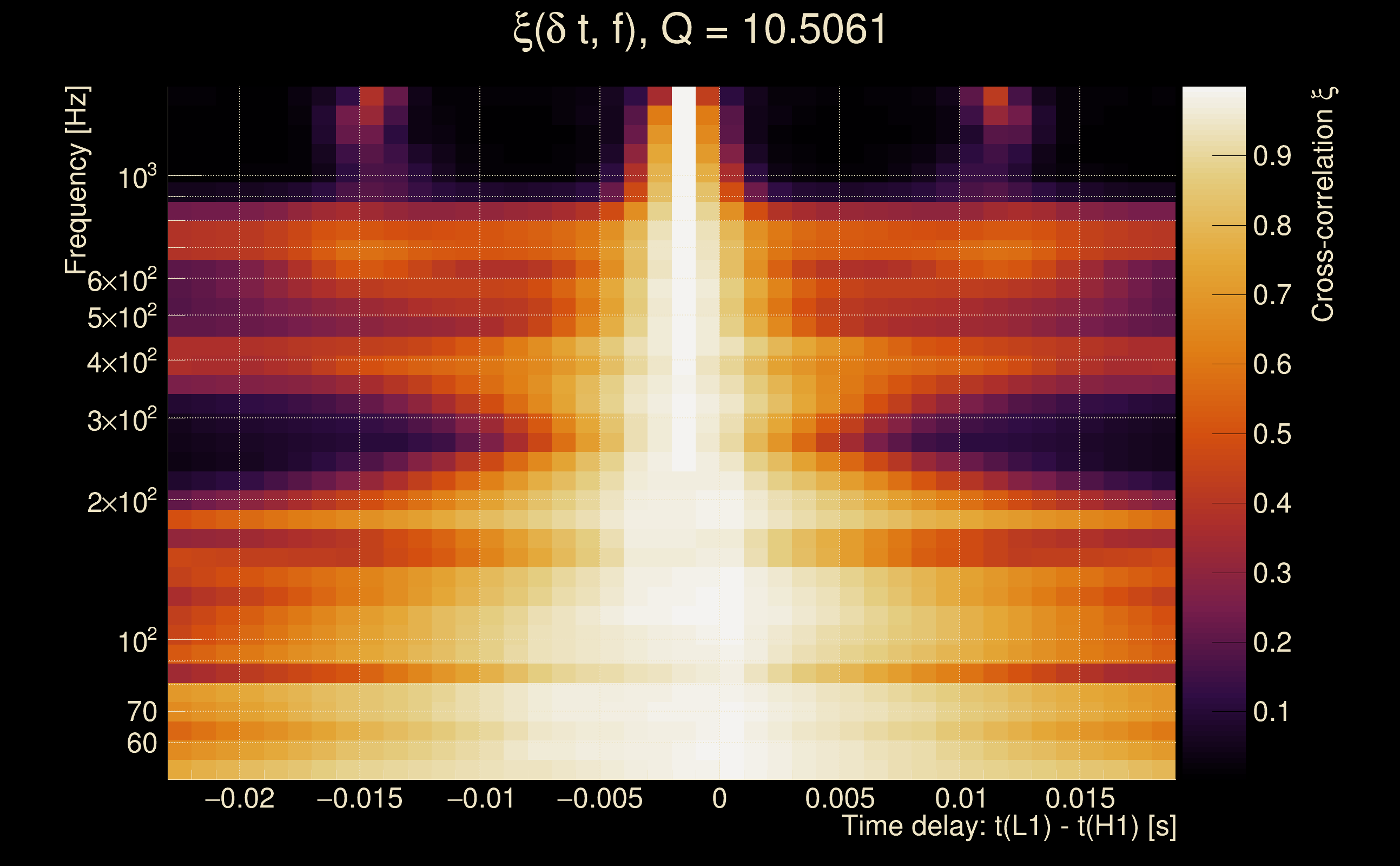

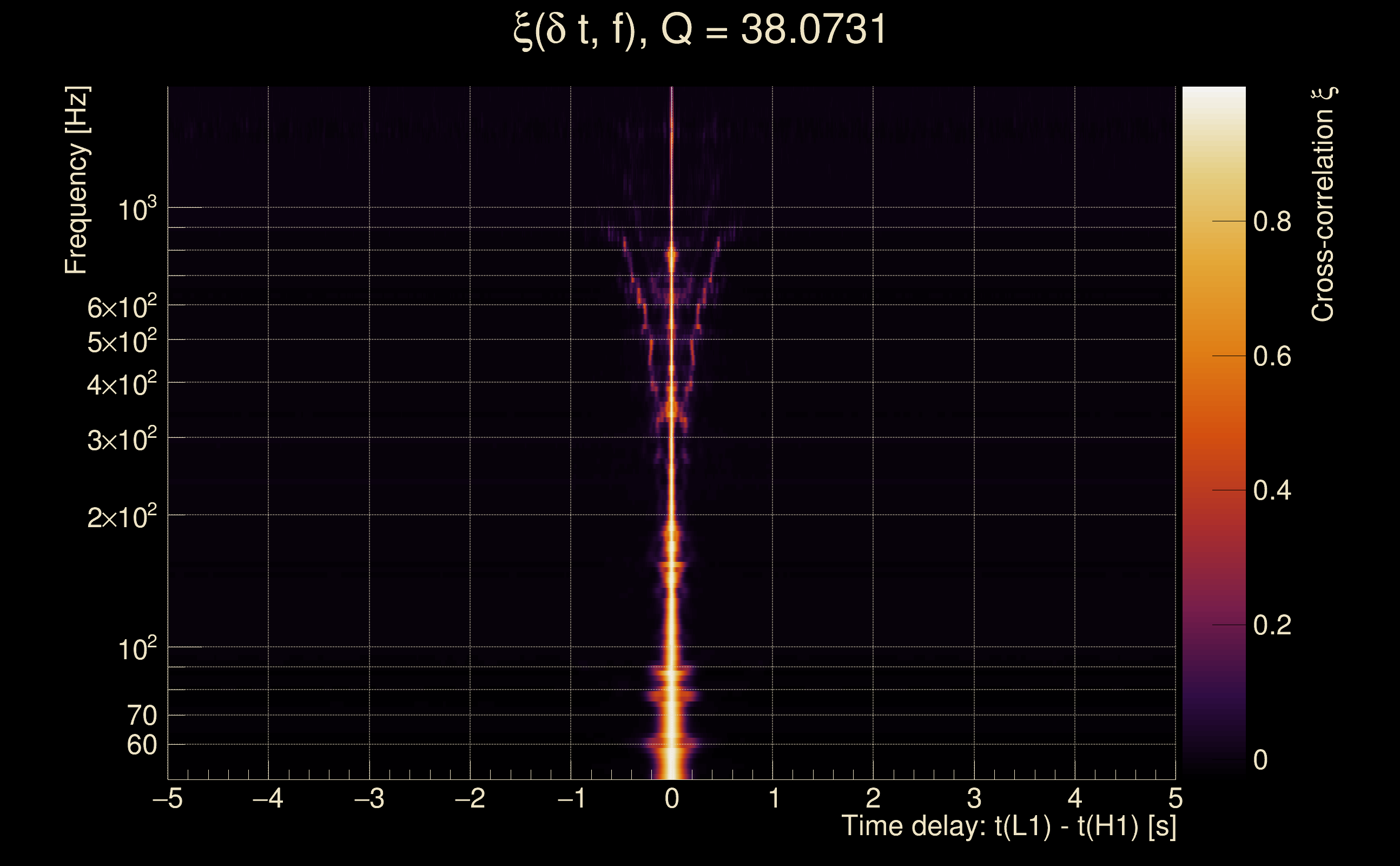

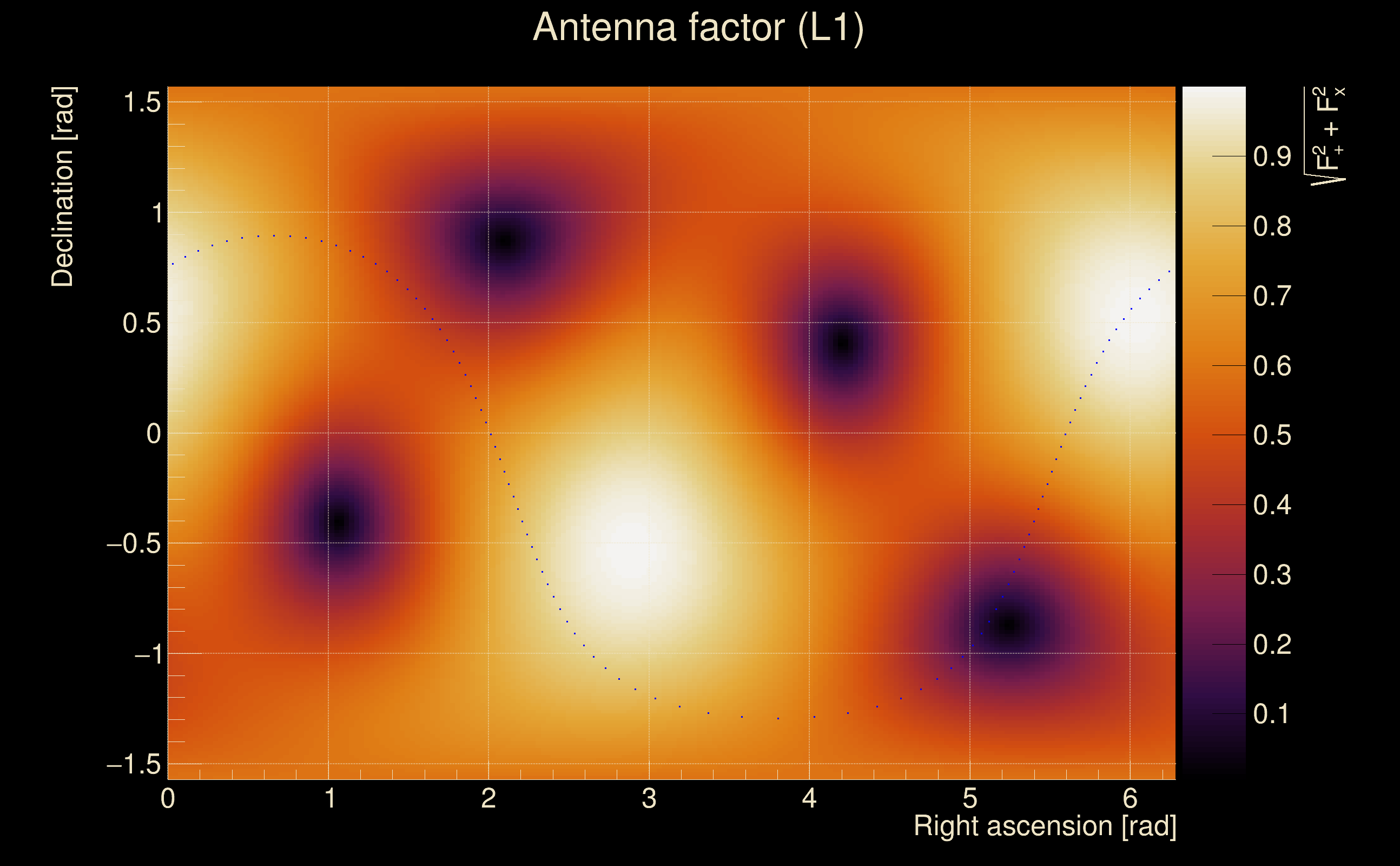

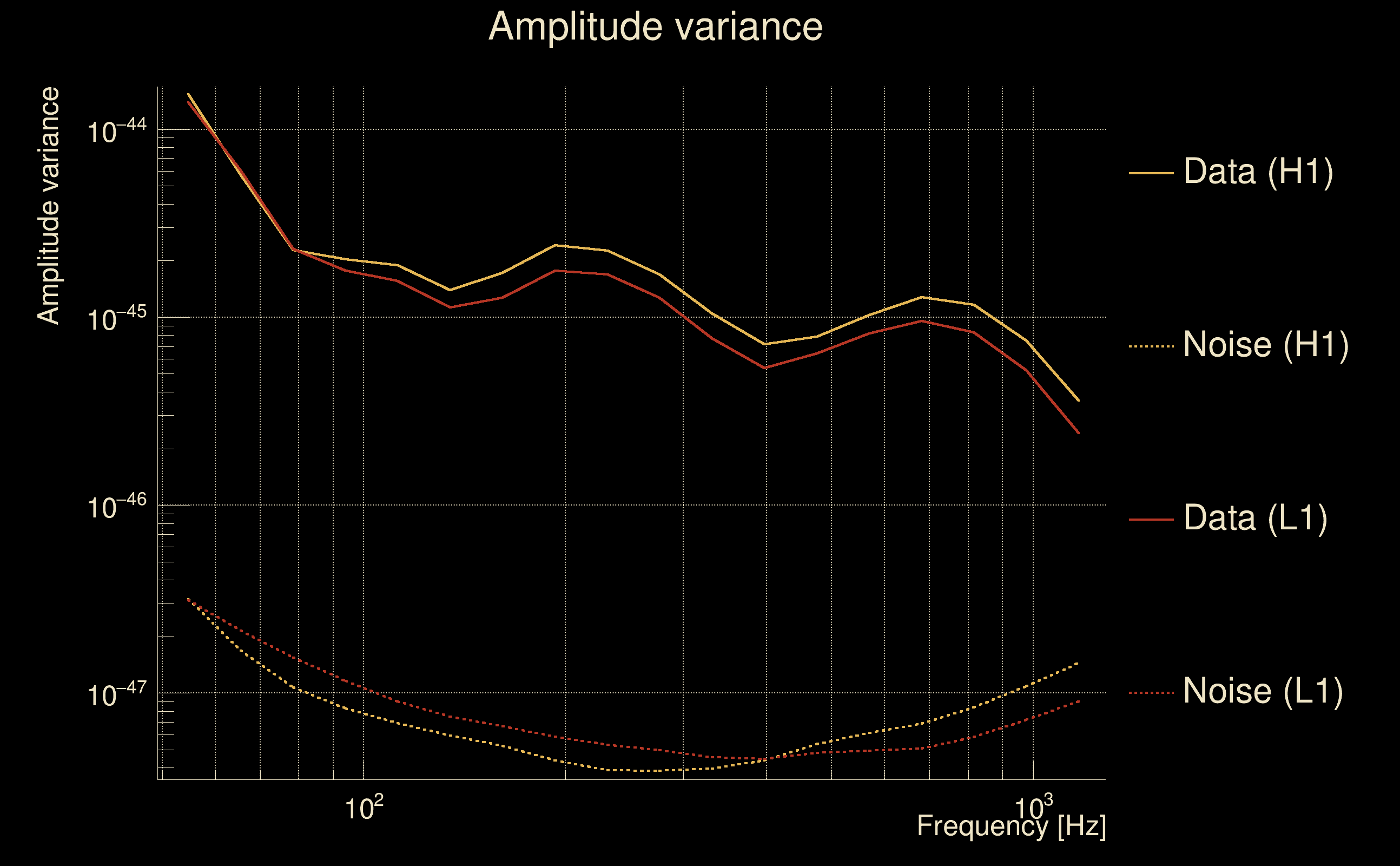

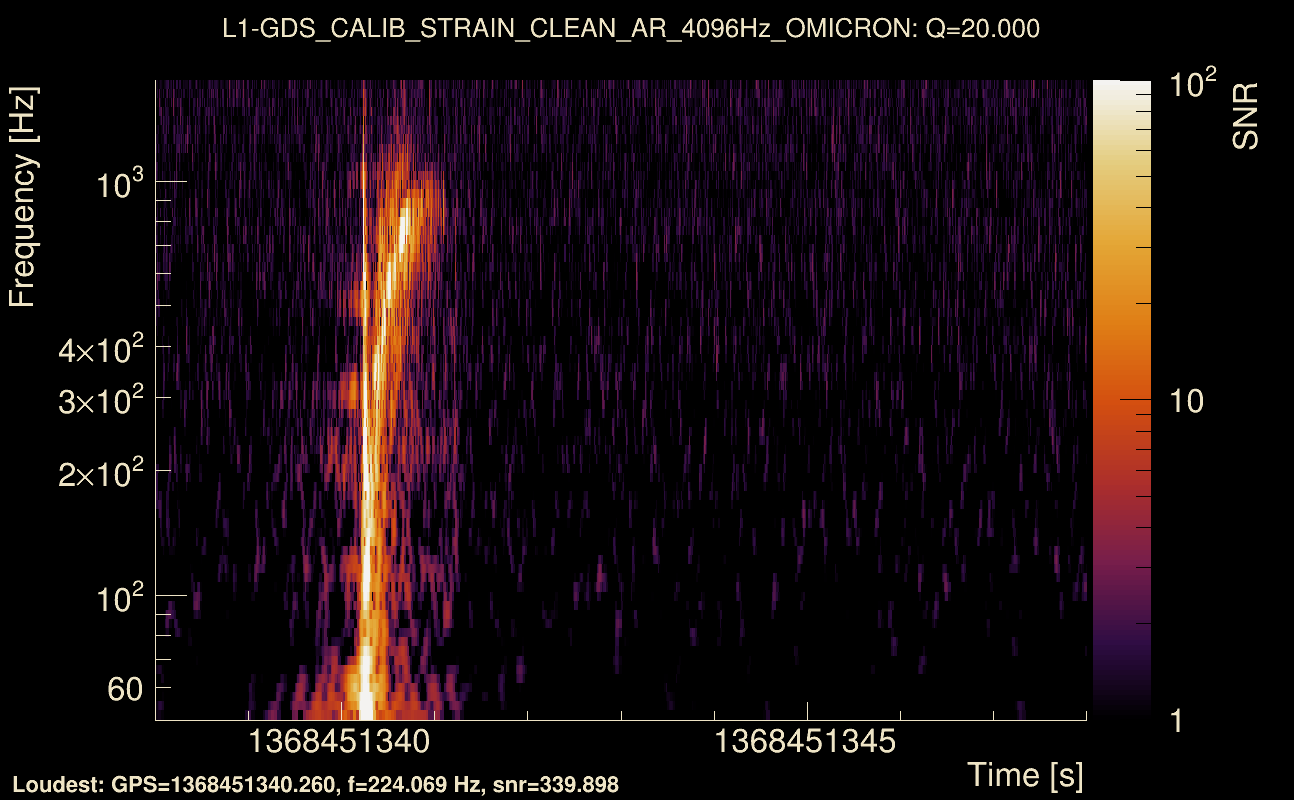

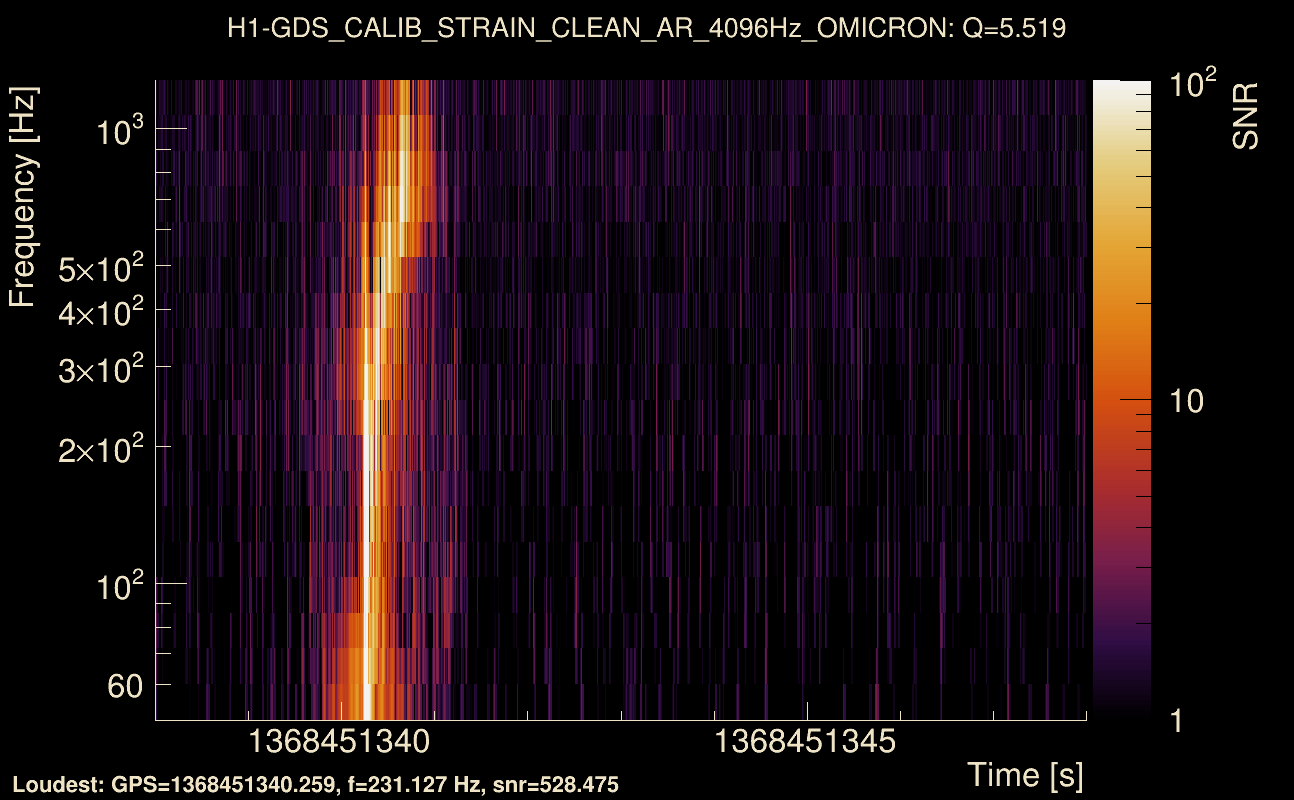

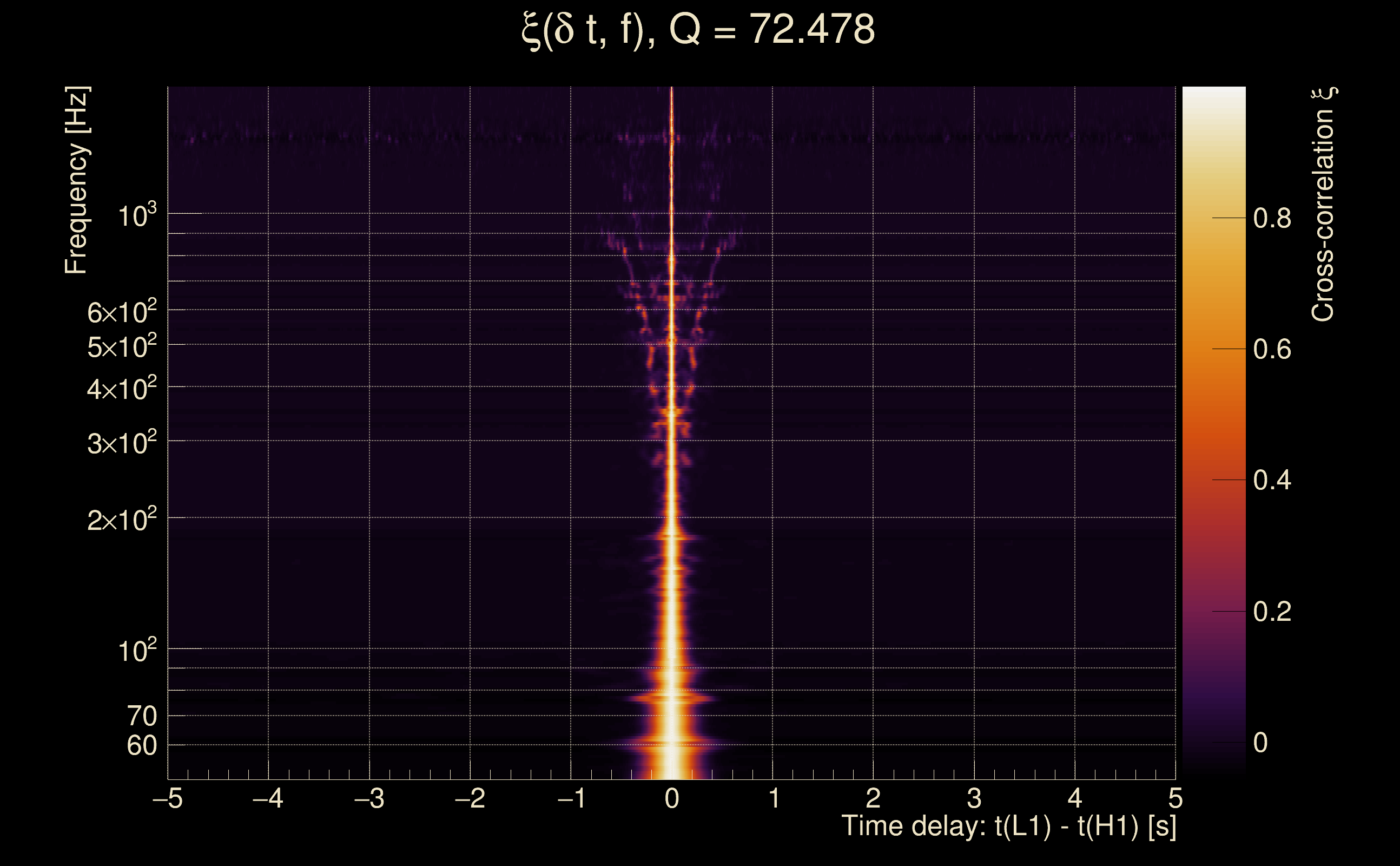

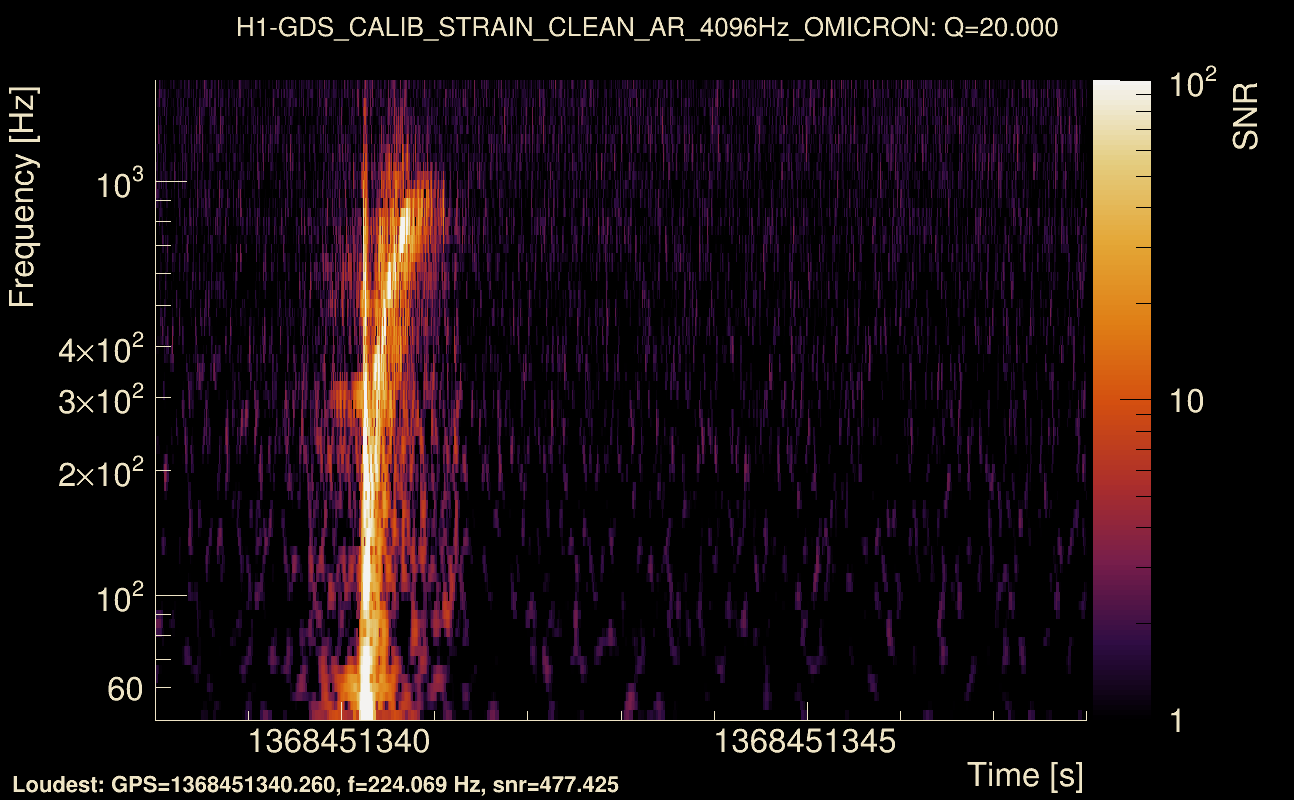

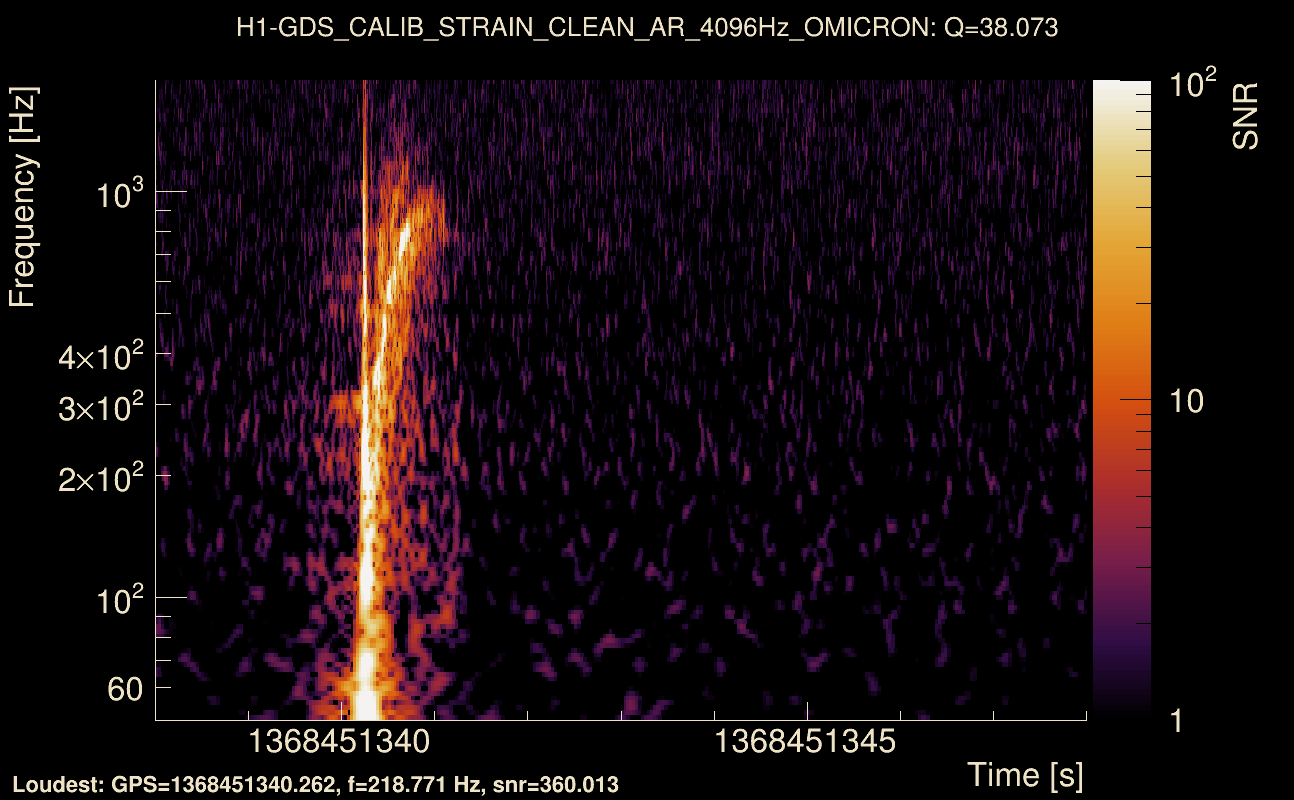

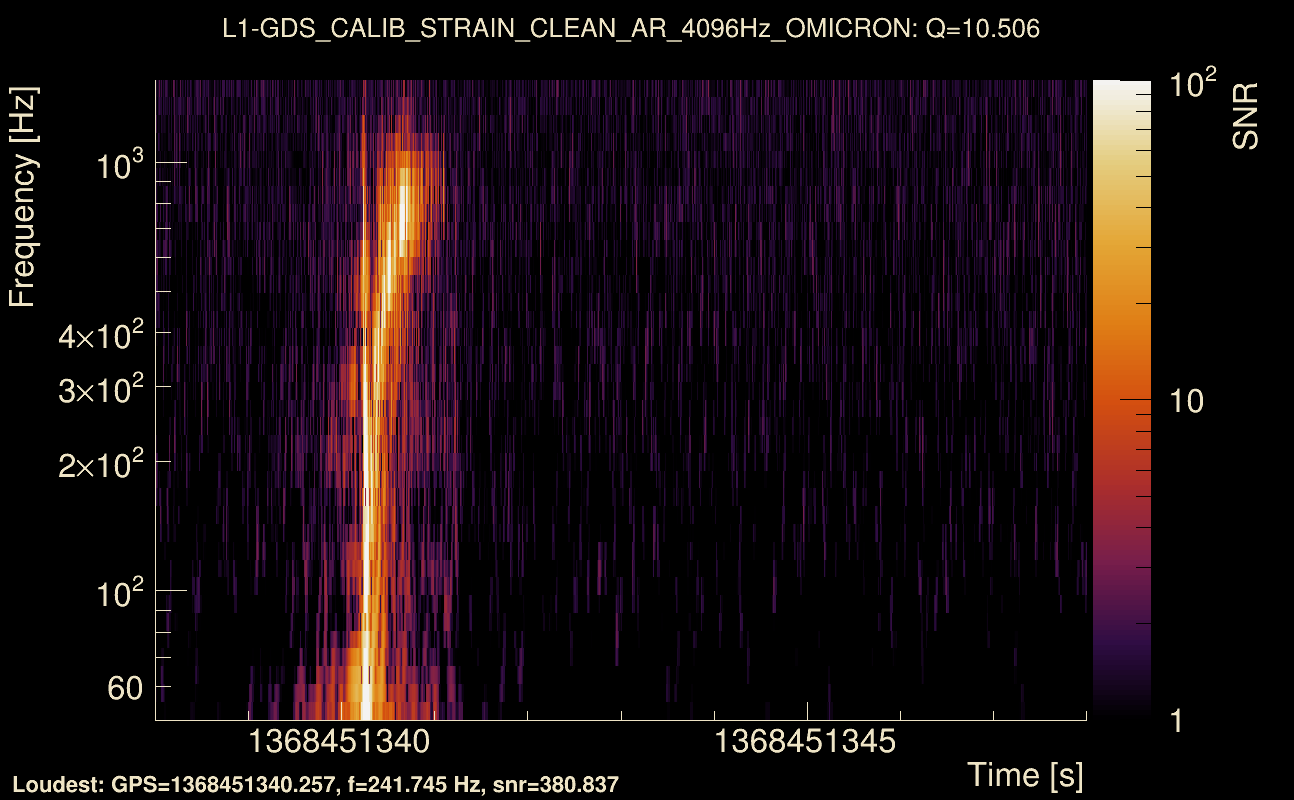

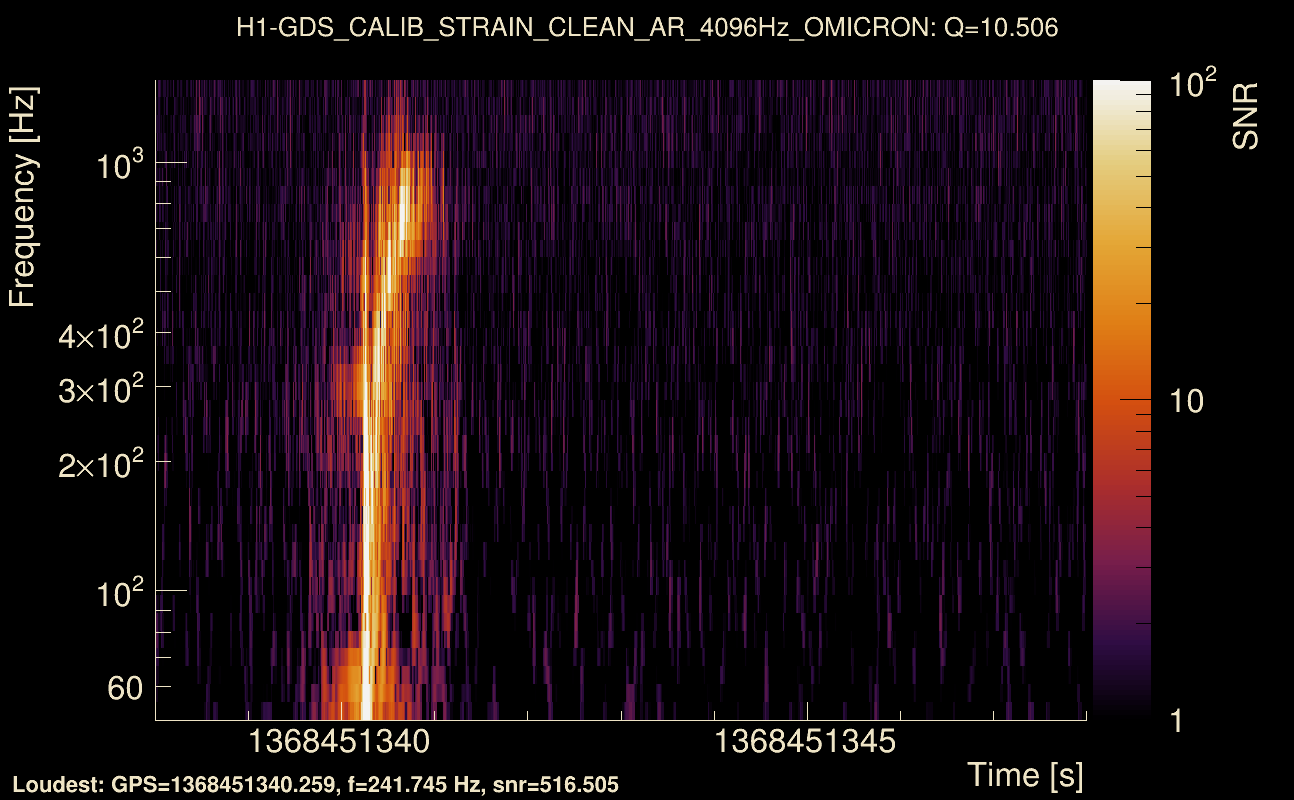

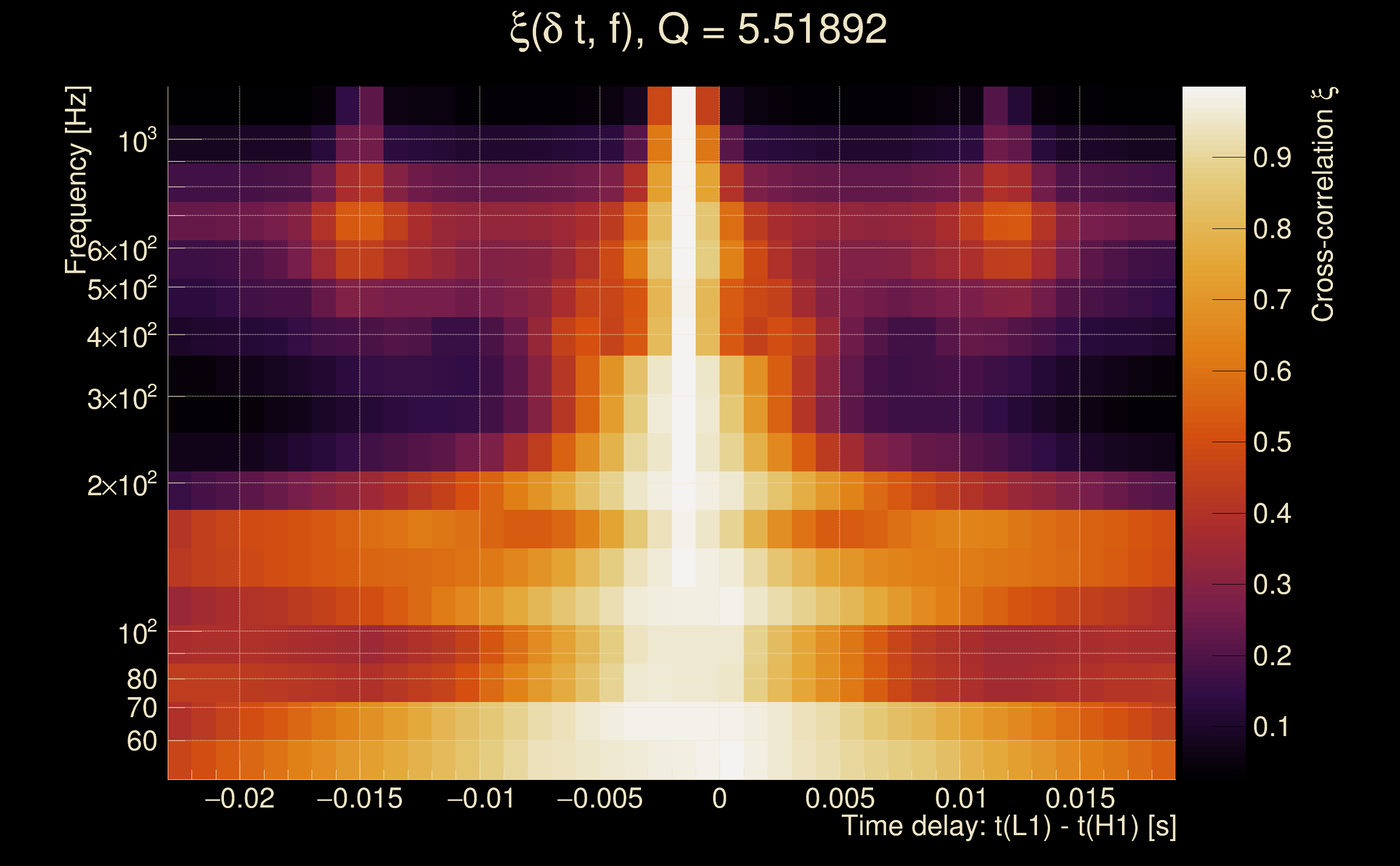

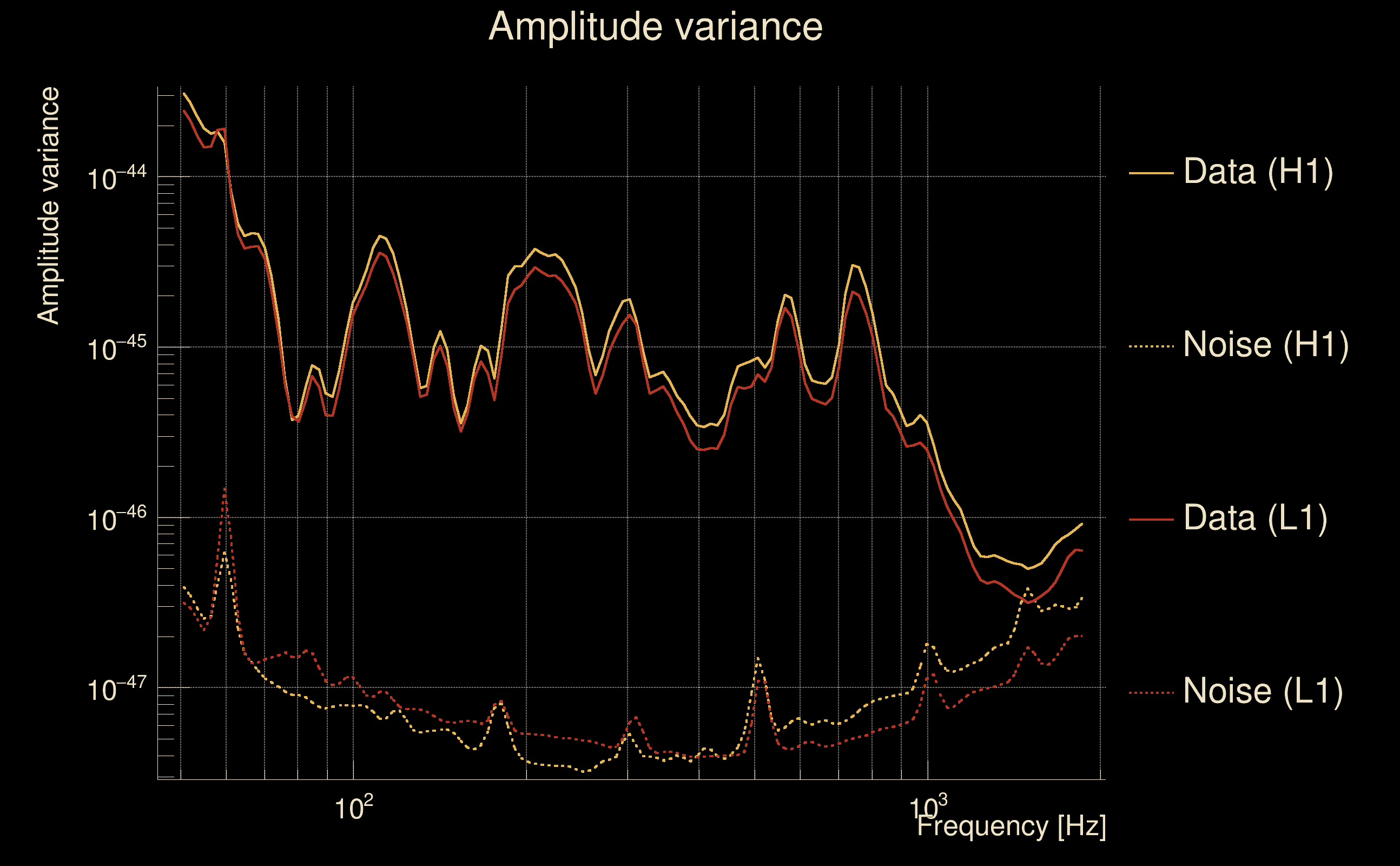

| Event time t(H1): | GPS = 1368451333 (Thu May 18 13:21:55 2023 ) → GPS = 1368451343 (Thu May 18 13:22:05 2023 ) |
| Event time t(L1): | GPS = 1368451333 (Thu May 18 13:22:05 2023 ) → GPS = 1368451343 (Thu May 18 13:22:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368451330 → GPS = 1368451346 |
| Omicron analysis time window (L1): | GPS = 1368451330 → GPS = 1368451346 |
| Time delay between detectors t(L1) - t(H1): | -0.00197732 s (slice index = 108 / 217), δt_gw = -0.00197732 s |
| Time delay standard deviation: | 0.0179078 s |
| [targeted mode] Time delay probability: | 2.68064e-251 (33.8589 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 287.655 Hz |
| Ξ: | 0.991638 ± 0.00128412 (variance = 1.64896e-06): Q0: 0.991609, Q1: 0.992628, Q2: 0.991926, Q3: 0.991044, Q4: 0.988857 |
| Rank: | R_A = 0.991638 |
| Log of amplitude ratio (L1/H1): | -0.114795, variance = 0.157642 (L1/H1: -0.122643, variance = 0.301709, H1/L1: 0.102744, variance = 0.302077) |
| Amplitude ratio (L1/H1): | 0.891549 ⋇ 1.48742 (L1/H1: 0.88458 ⋇ 1.73201, H1/L1: 1.10821 ⋇ 1.73259) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.97957 |

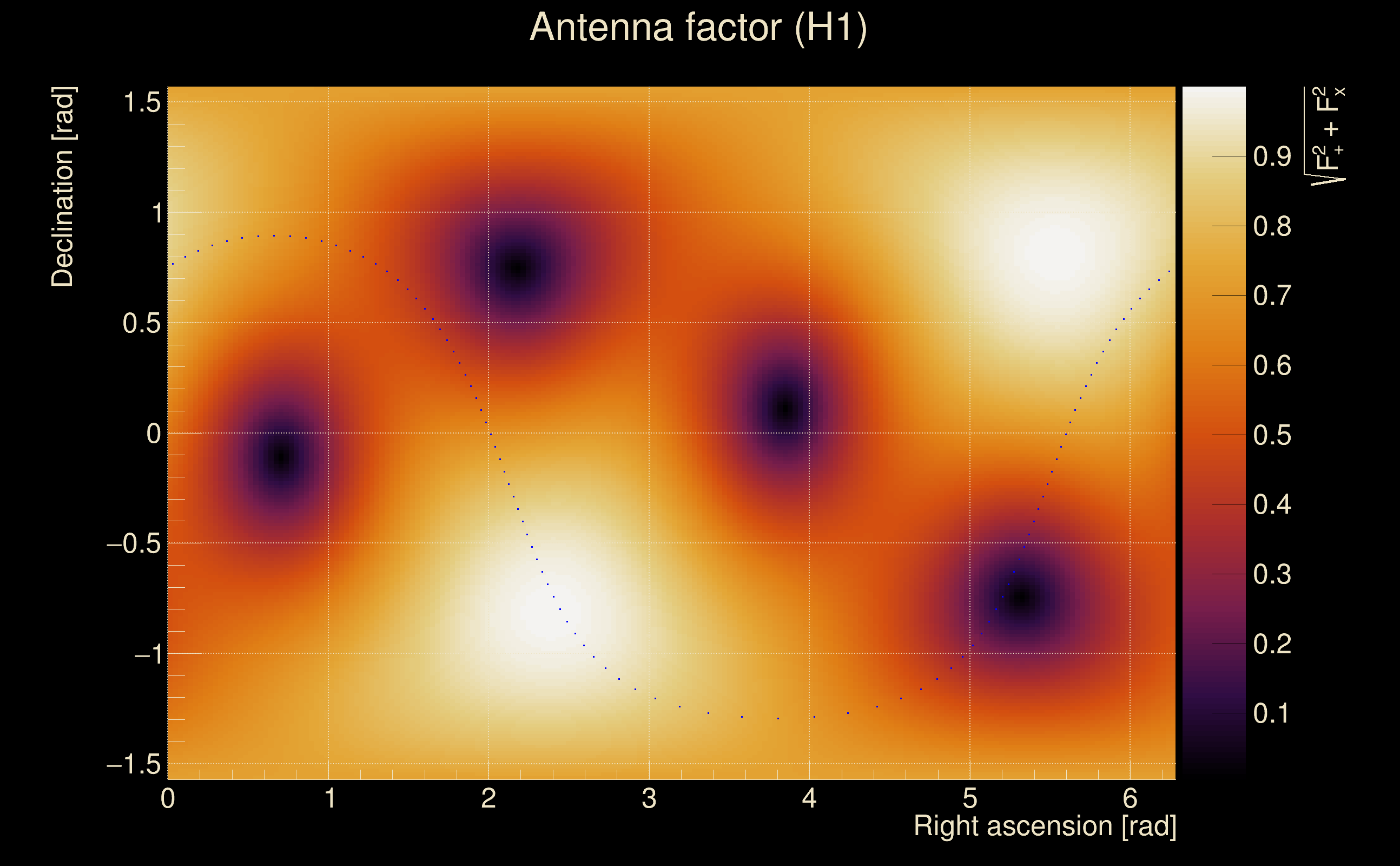

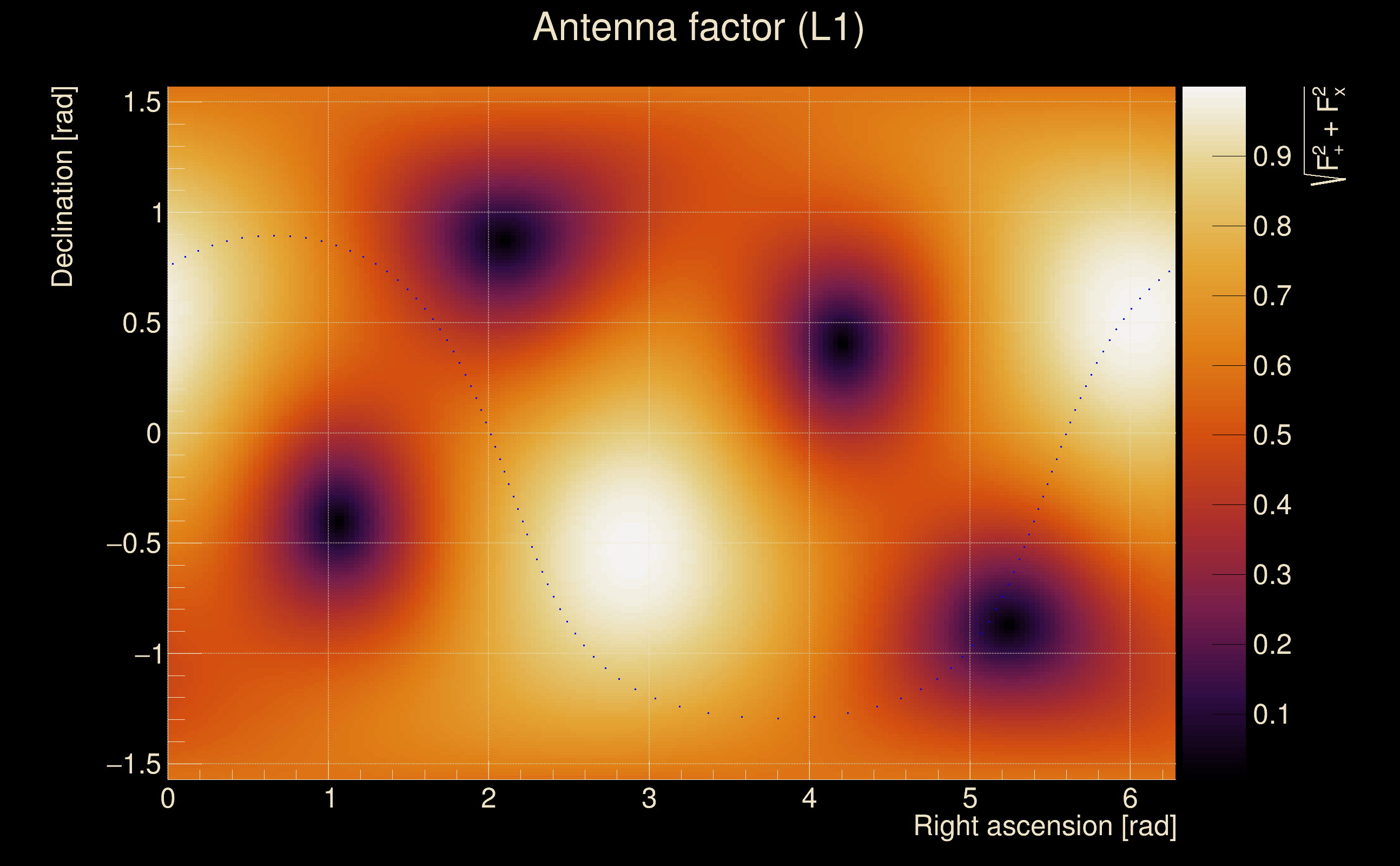

| Antenna factor probability: | 0.777729 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 536.076, L1: 432.609 |

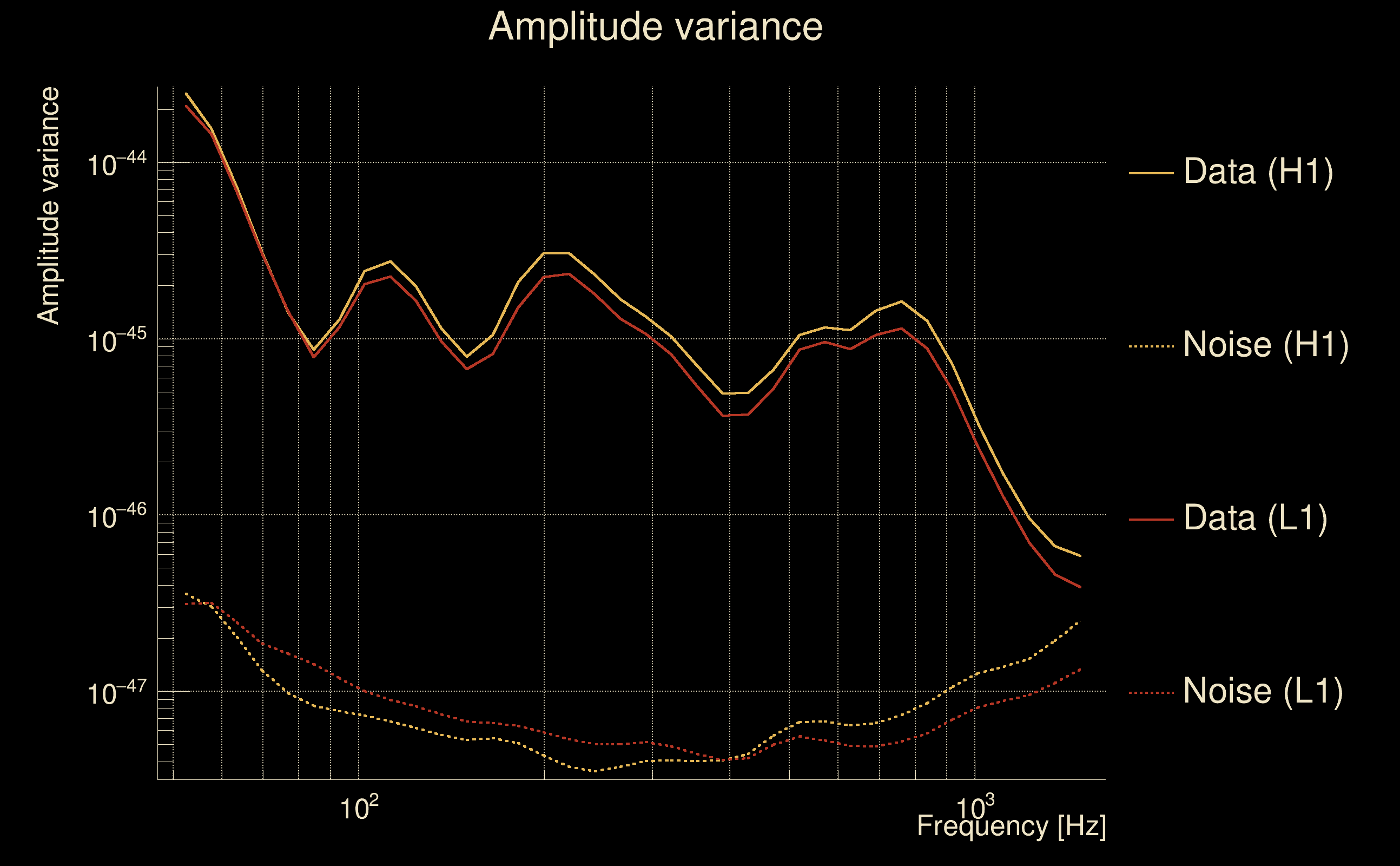

| SNR variance: | H1: 0.474982, L1: 0.526812 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

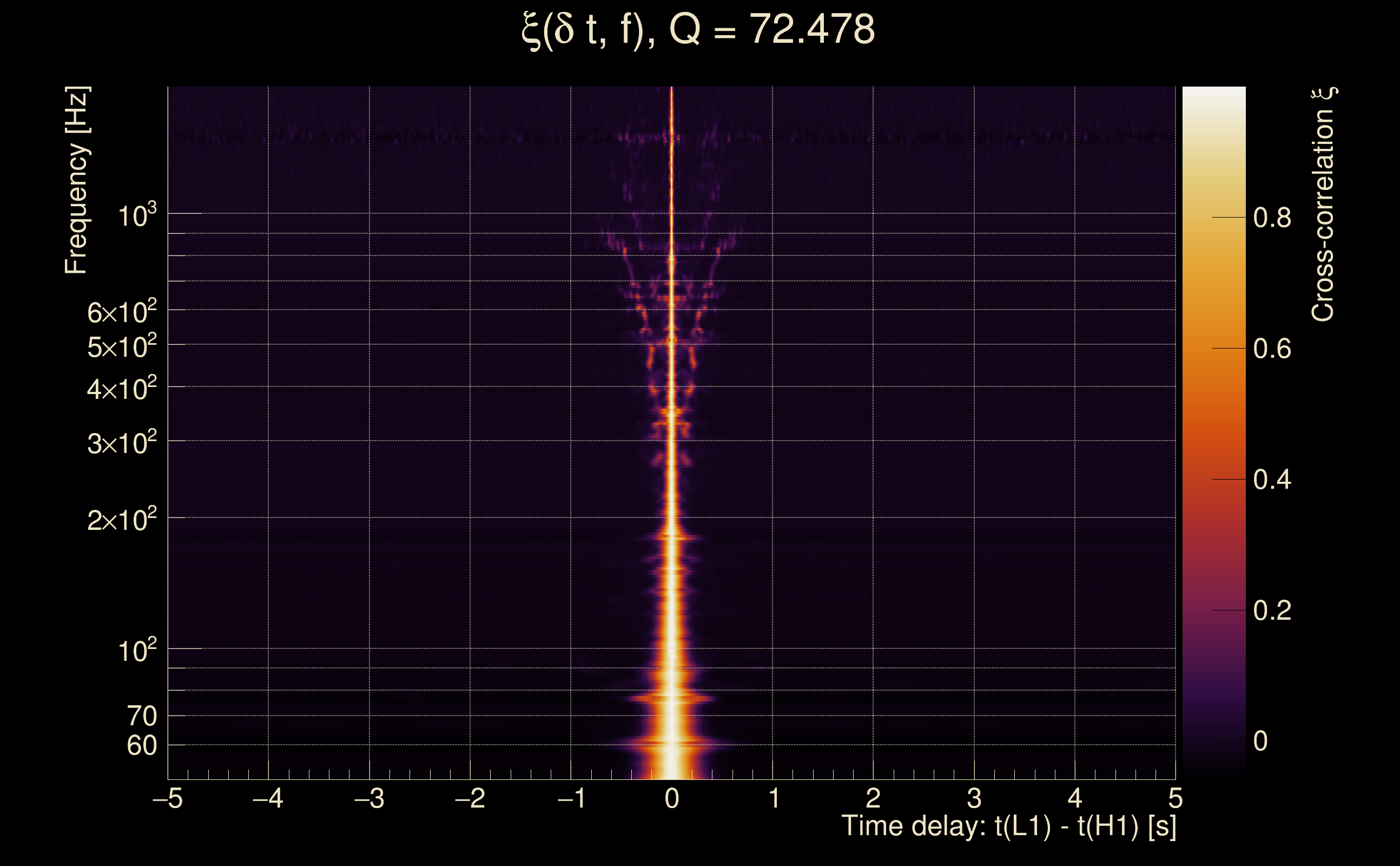

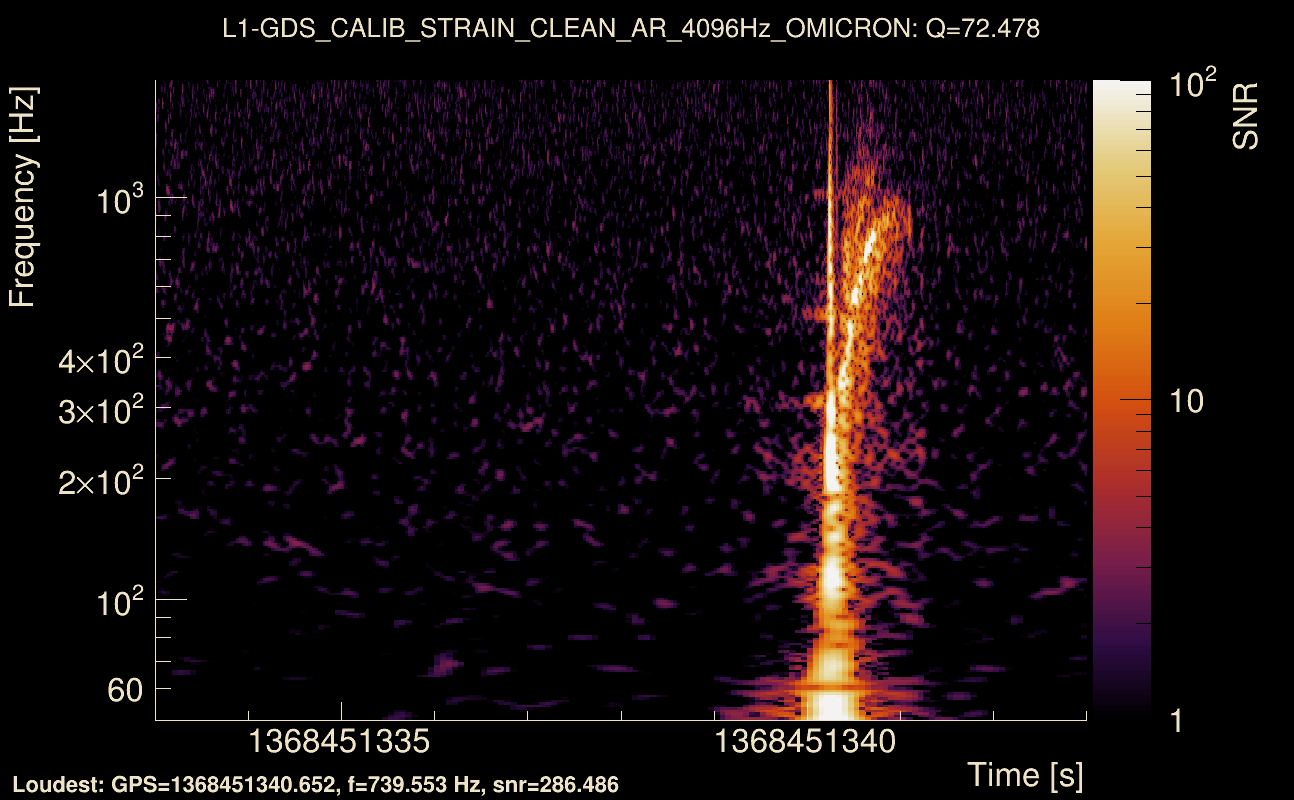

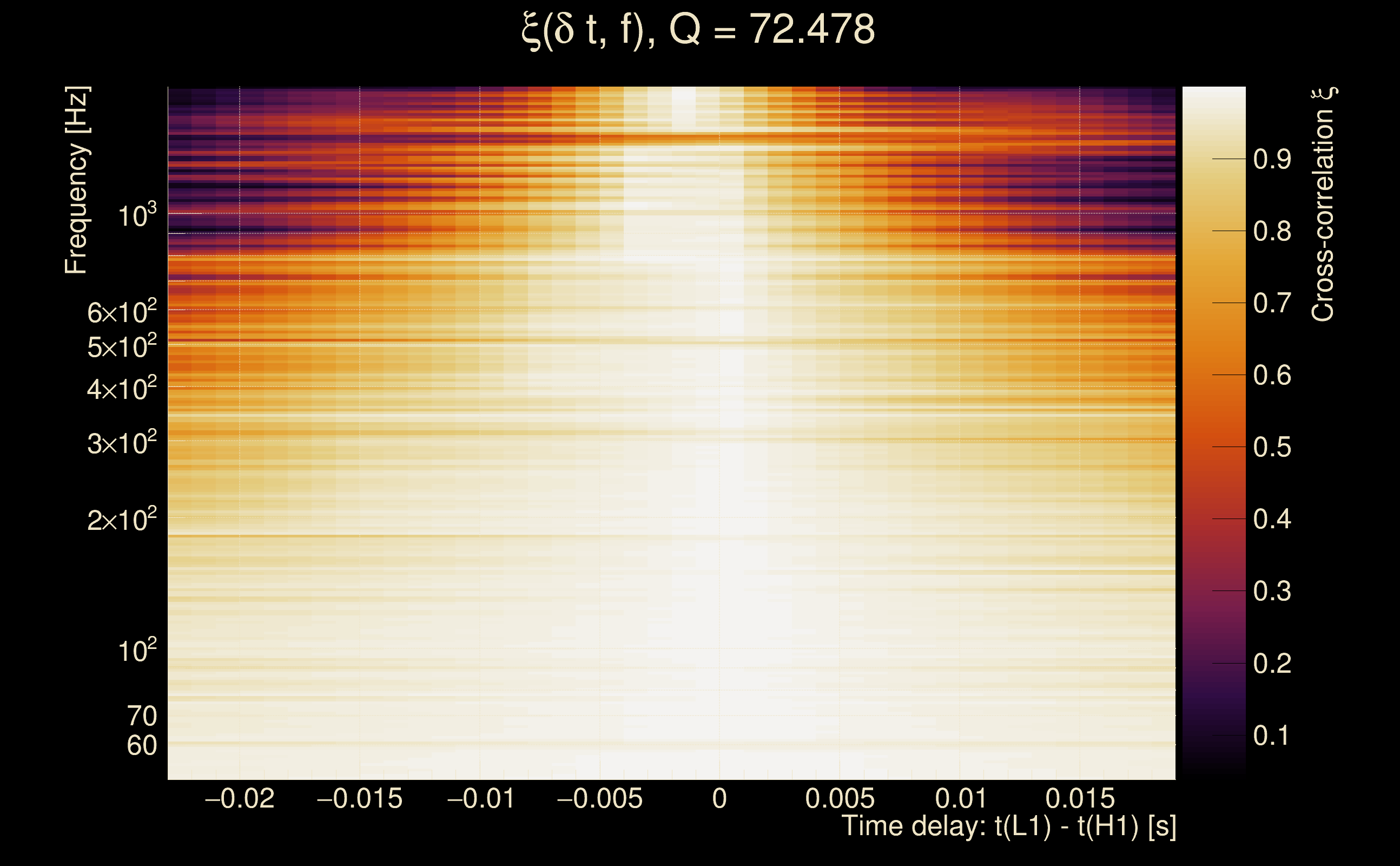

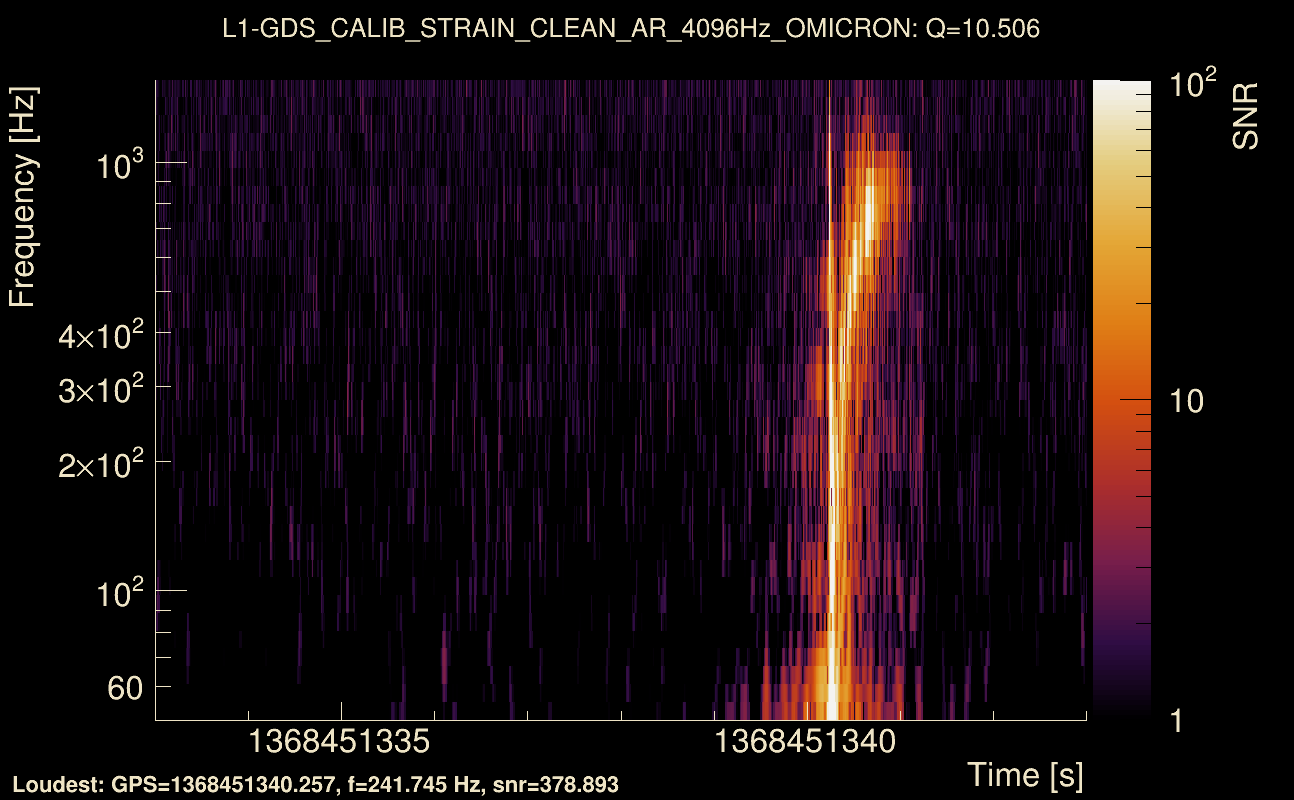

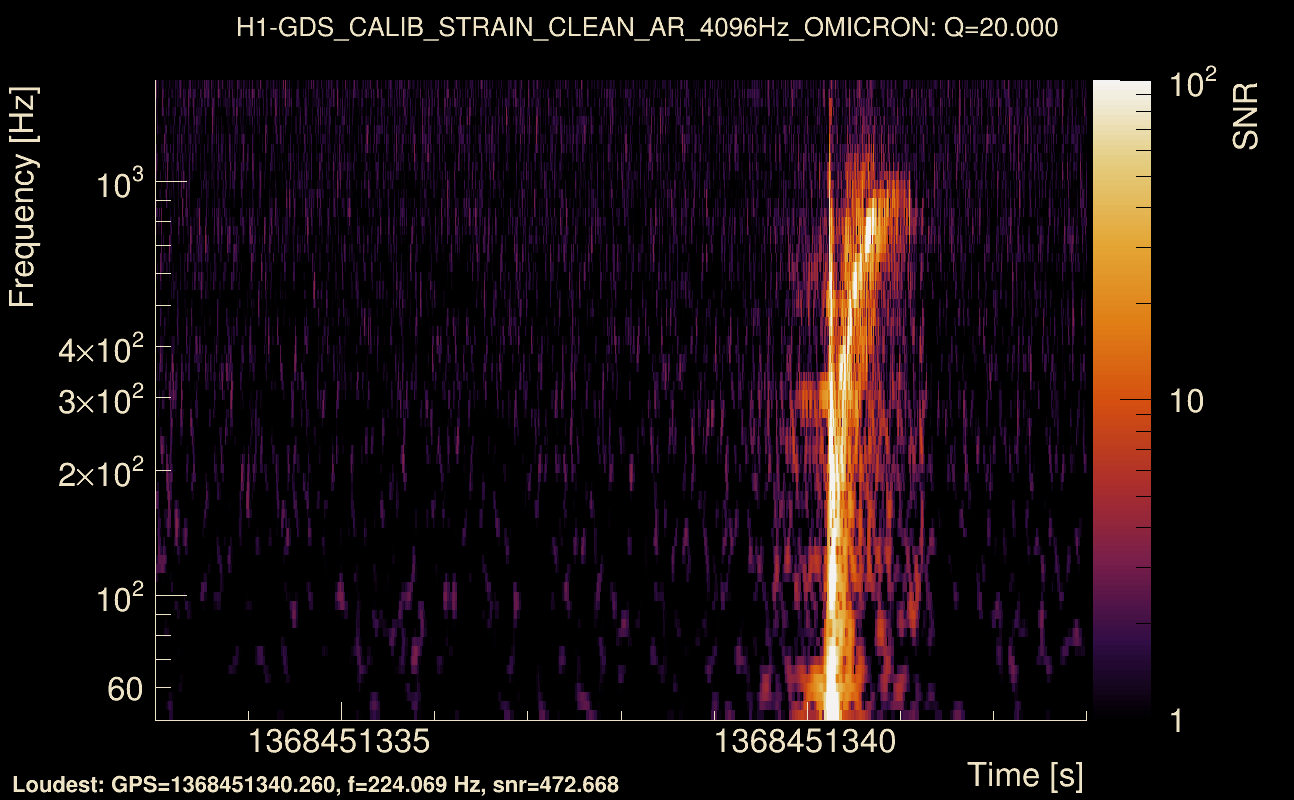

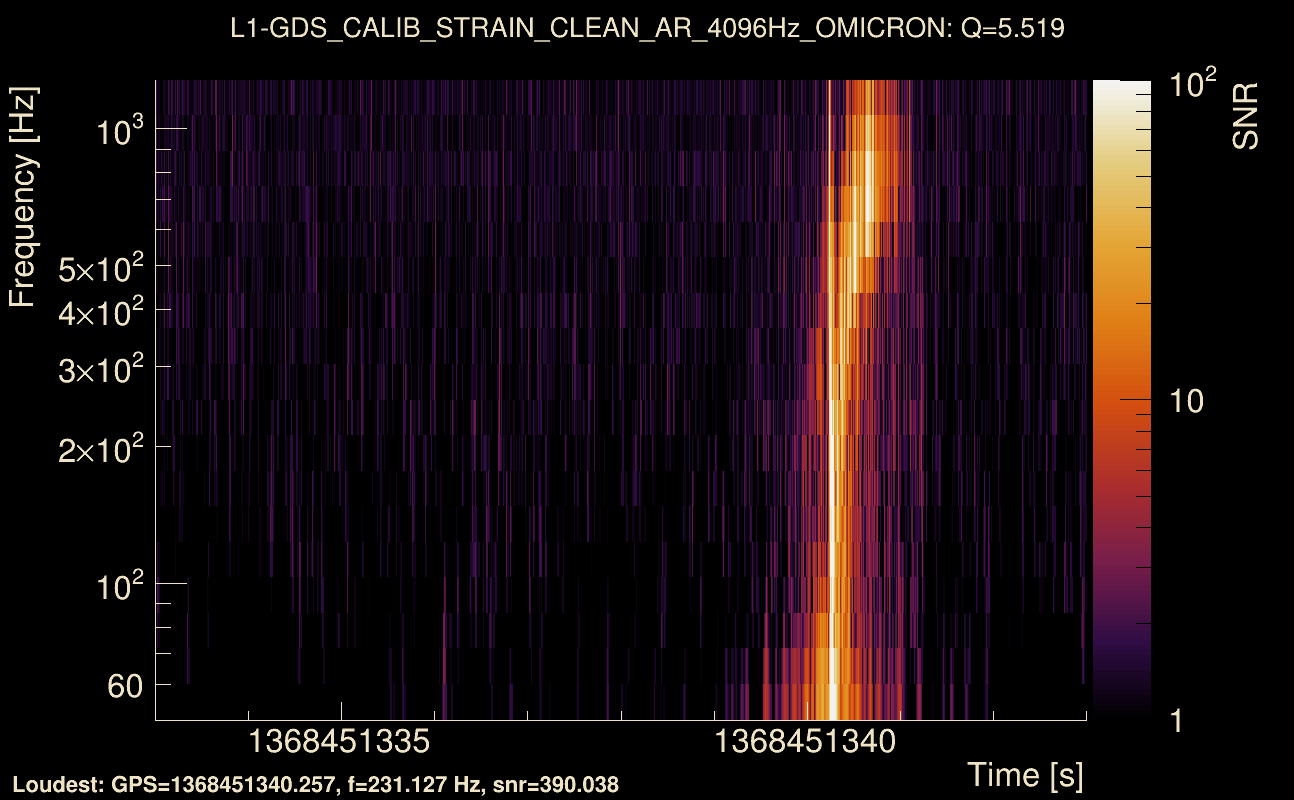

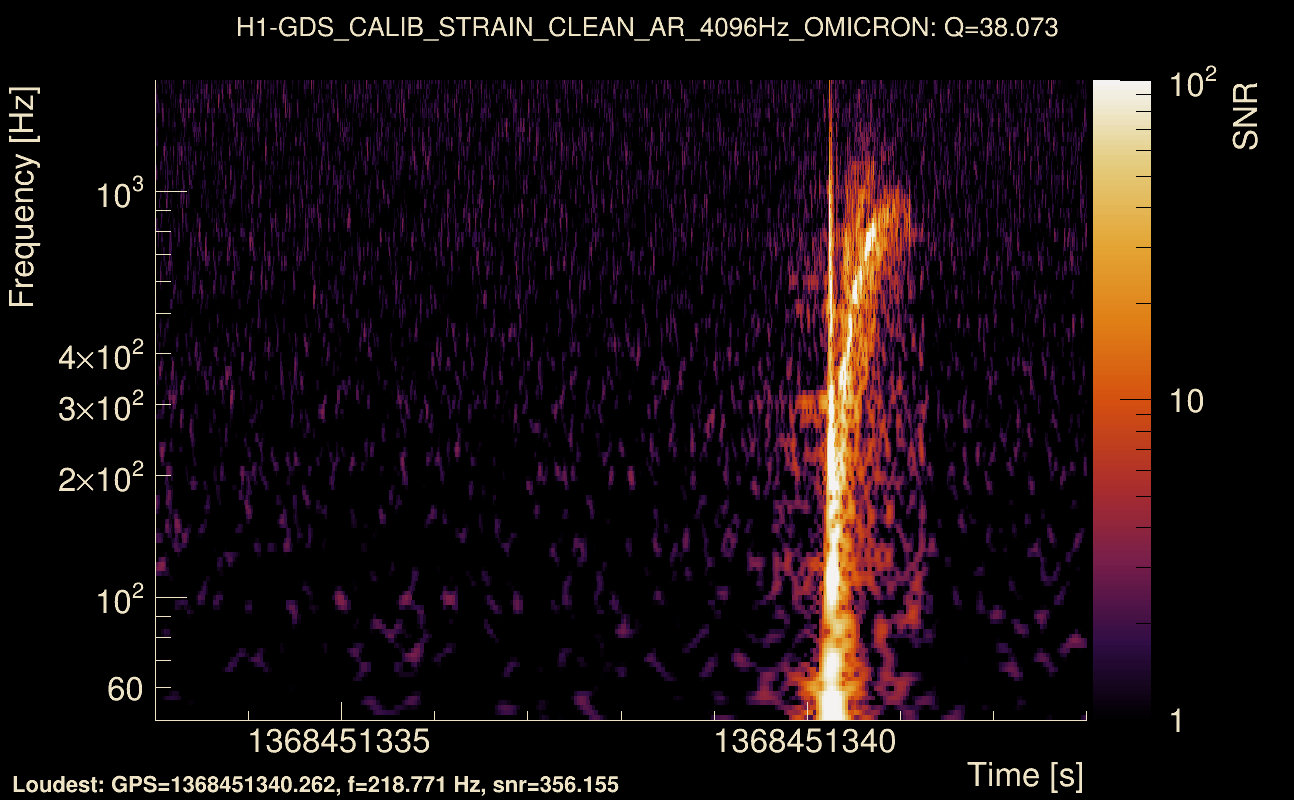

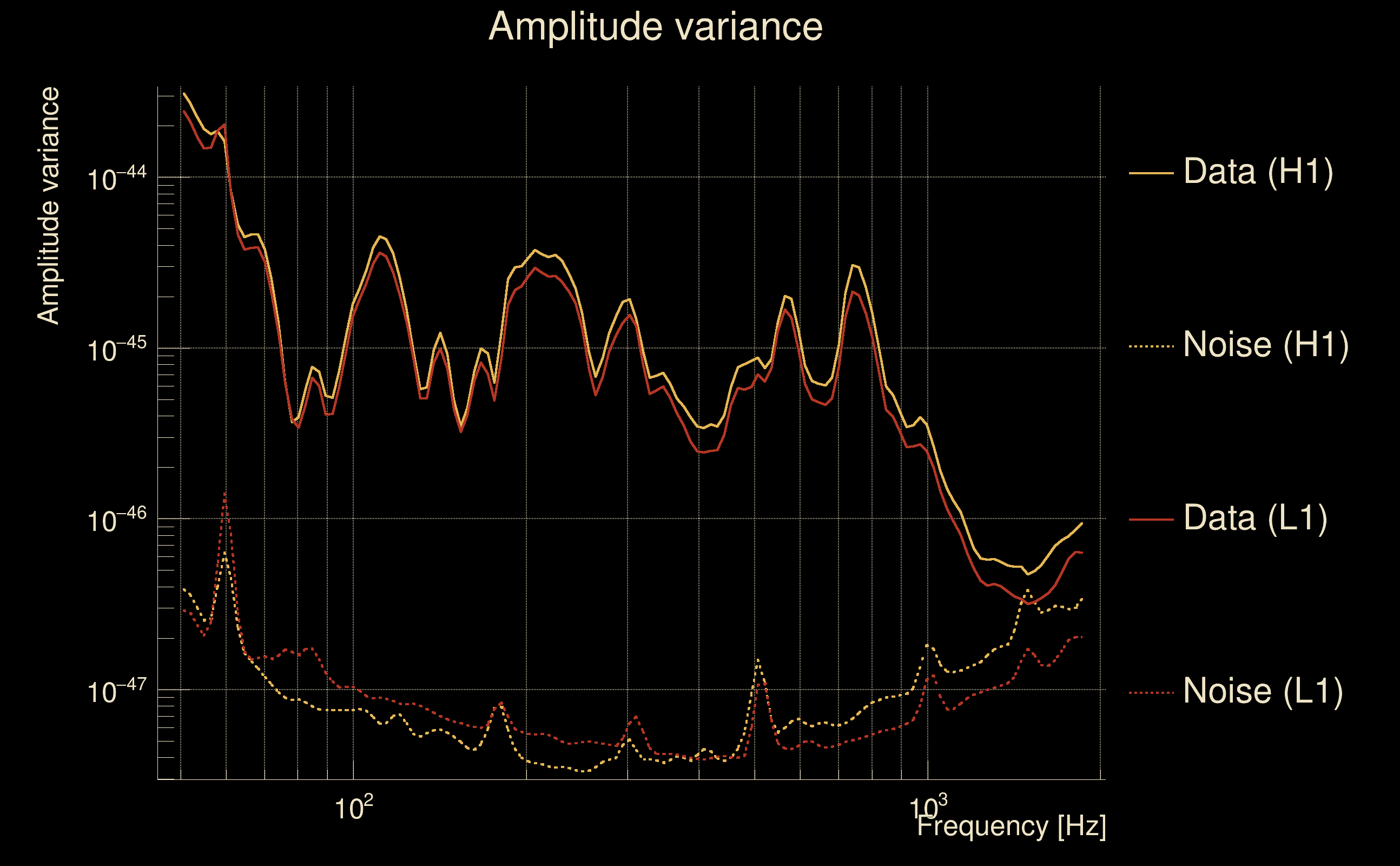

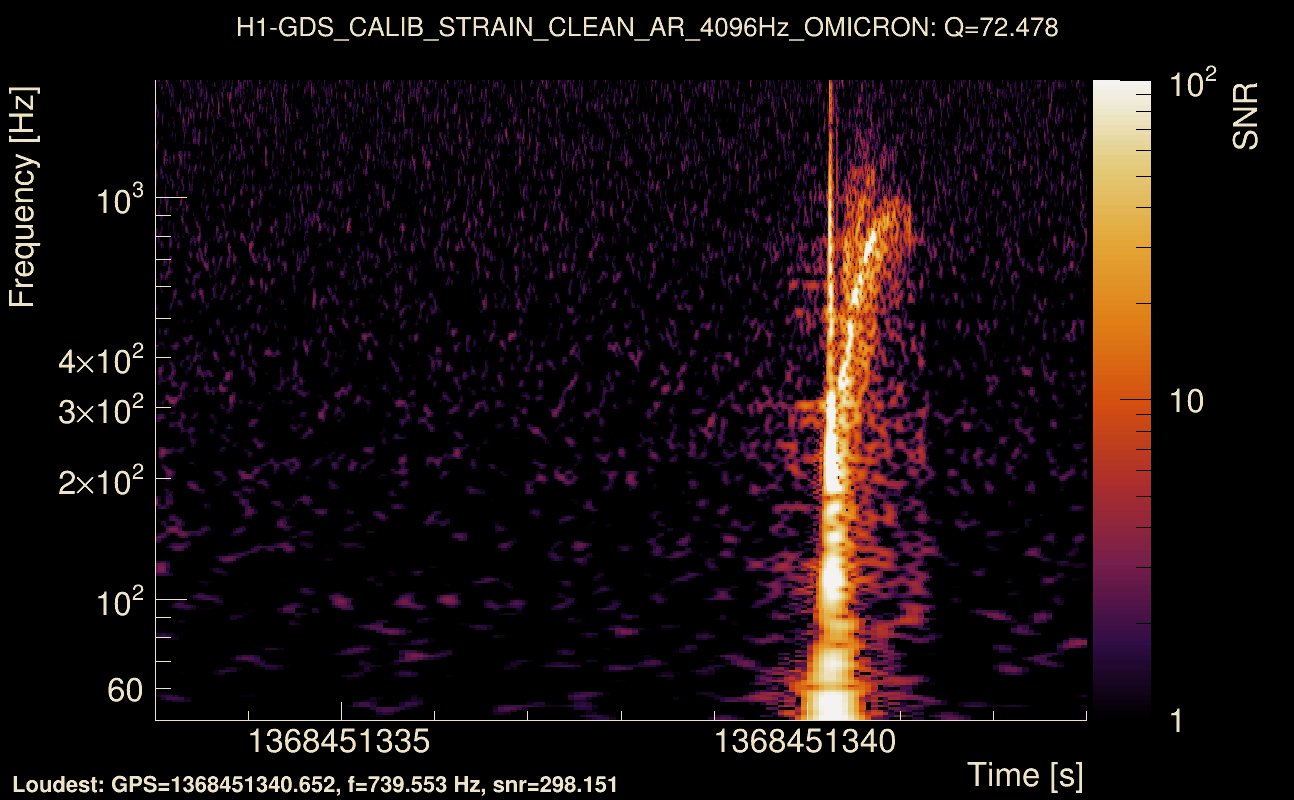

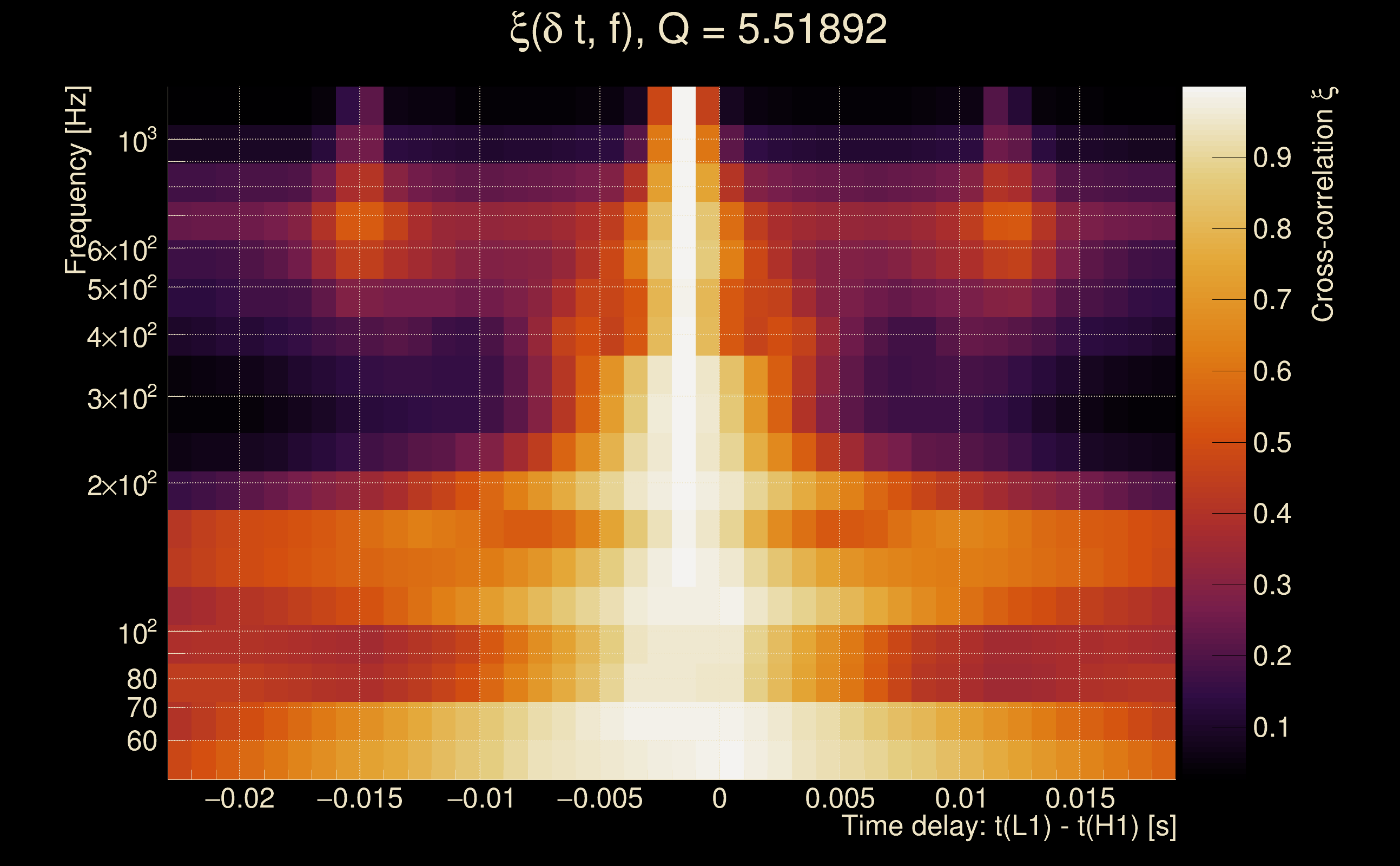

| Event time t(H1): | GPS = 1368451338 (Thu May 18 13:22:00 2023 ) → GPS = 1368451348 (Thu May 18 13:22:10 2023 ) |
| Event time t(L1): | GPS = 1368451338 (Thu May 18 13:22:10 2023 ) → GPS = 1368451348 (Thu May 18 13:22:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368451335 → GPS = 1368451351 |
| Omicron analysis time window (L1): | GPS = 1368451335 → GPS = 1368451351 |
| Time delay between detectors t(L1) - t(H1): | -0.00197732 s (slice index = 108 / 217), δt_gw = -0.00197732 s |
| Time delay standard deviation: | 0.0179082 s |
| [targeted mode] Time delay probability: | 2.9705e-251 (33.8559 sigmas), δt_target = -0.00993586 s |
| Frequency: | 287.63 Hz |
| Ξ: | 0.991614 ± 0.00127299 (variance = 1.62051e-06): Q0: 0.991576, Q1: 0.992627, Q2: 0.991892, Q3: 0.991012, Q4: 0.988874 |
| Rank: | R_A = 0.991614 |
| Log of amplitude ratio (L1/H1): | -0.114272, variance = 0.157639 (L1/H1: -0.122035, variance = 0.301834, H1/L1: 0.102378, variance = 0.302206) |
| Amplitude ratio (L1/H1): | 0.892015 ⋇ 1.48741 (L1/H1: 0.885117 ⋇ 1.7322, H1/L1: 1.1078 ⋇ 1.73279) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.979822 |
| Antenna factor probability: | 0.777024 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 530.06, L1: 428.237 |
| SNR variance: | H1: 142.915, L1: 120.978 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

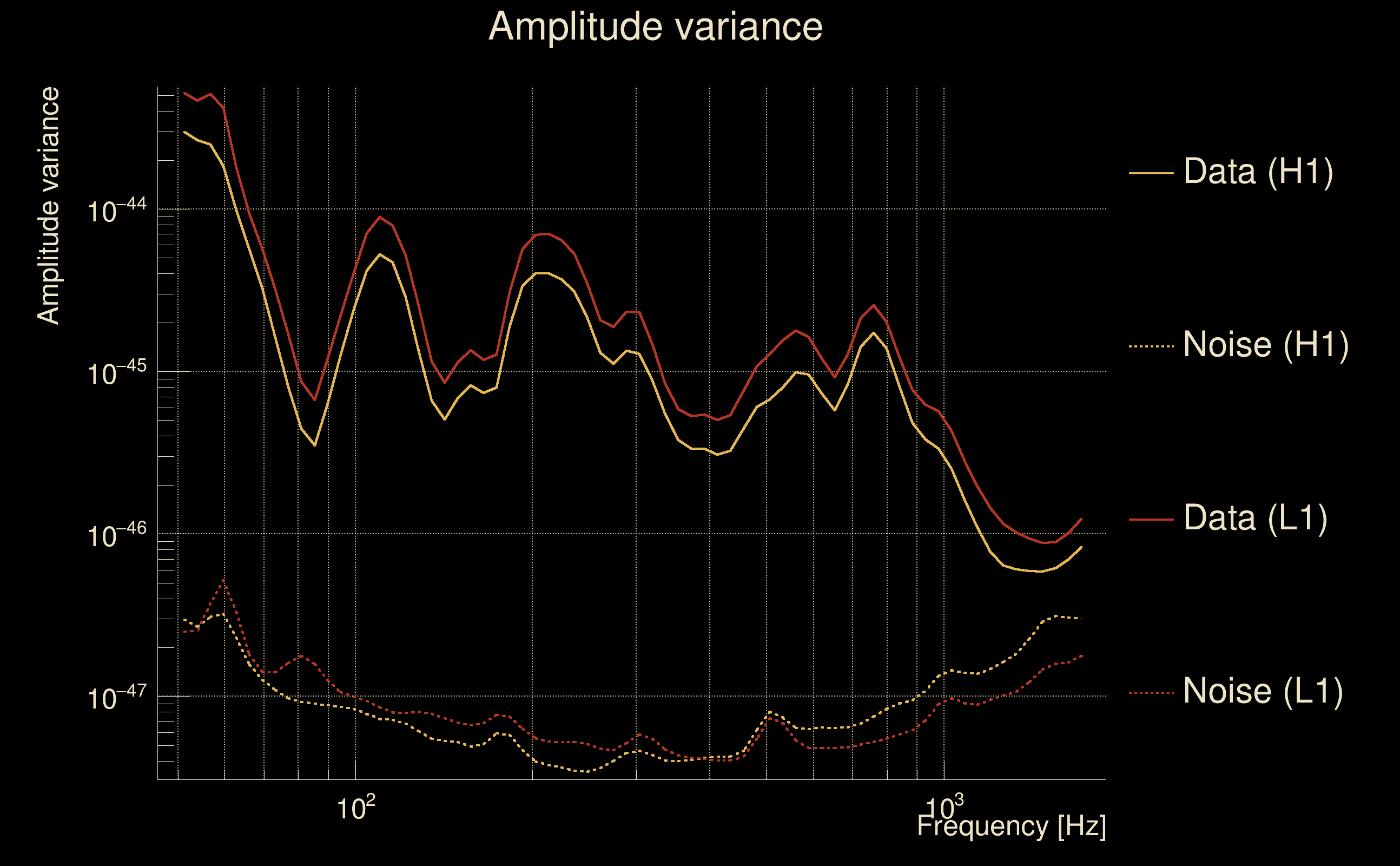

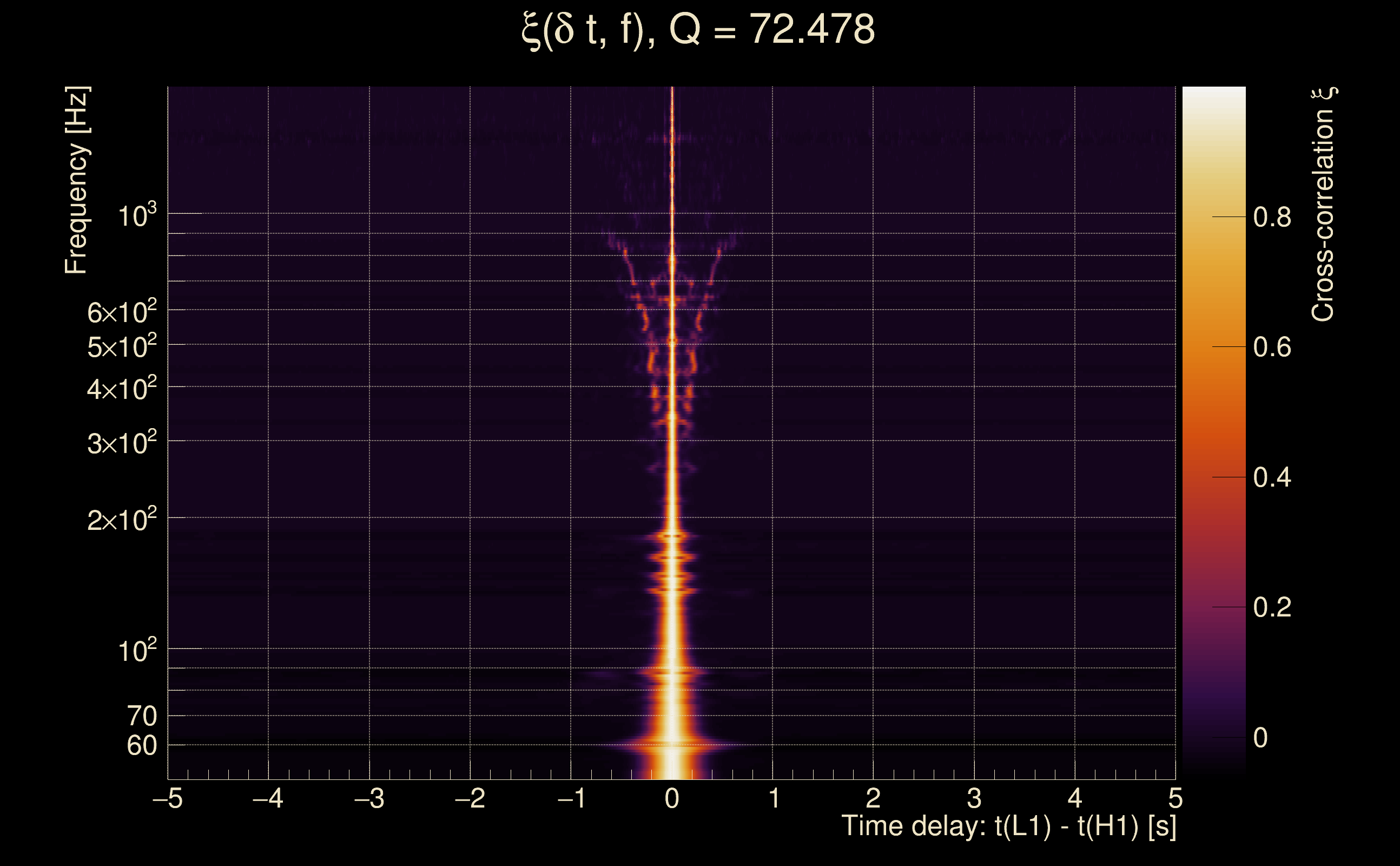

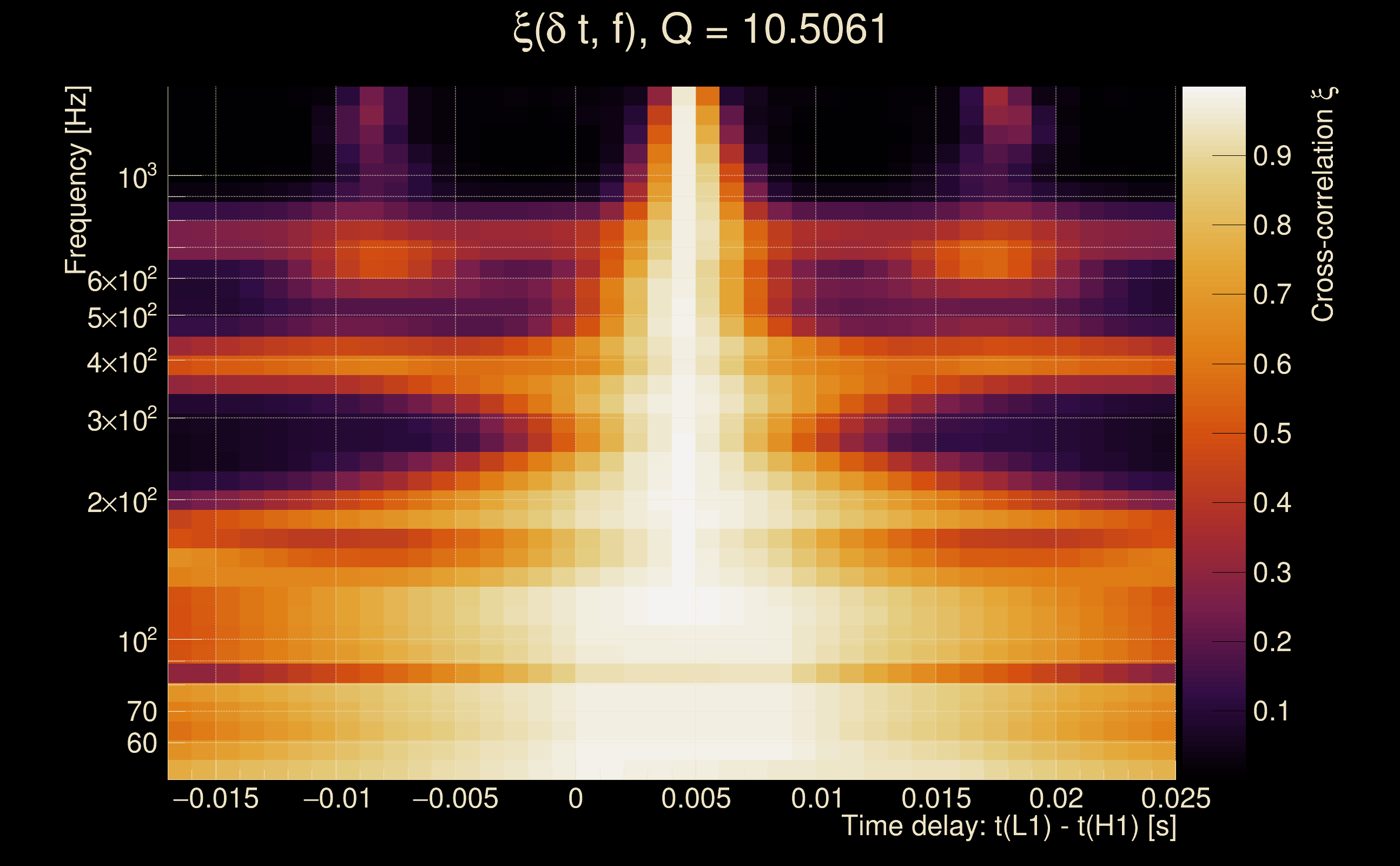

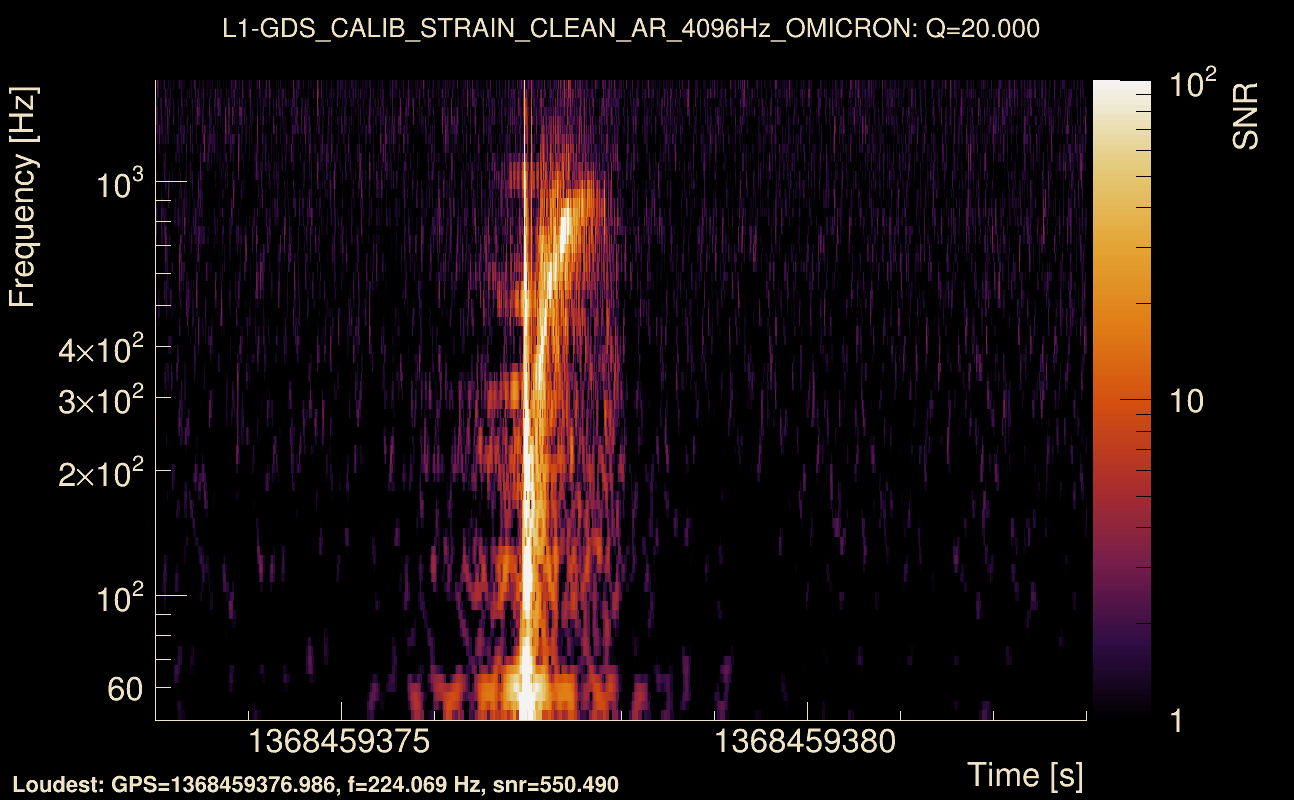

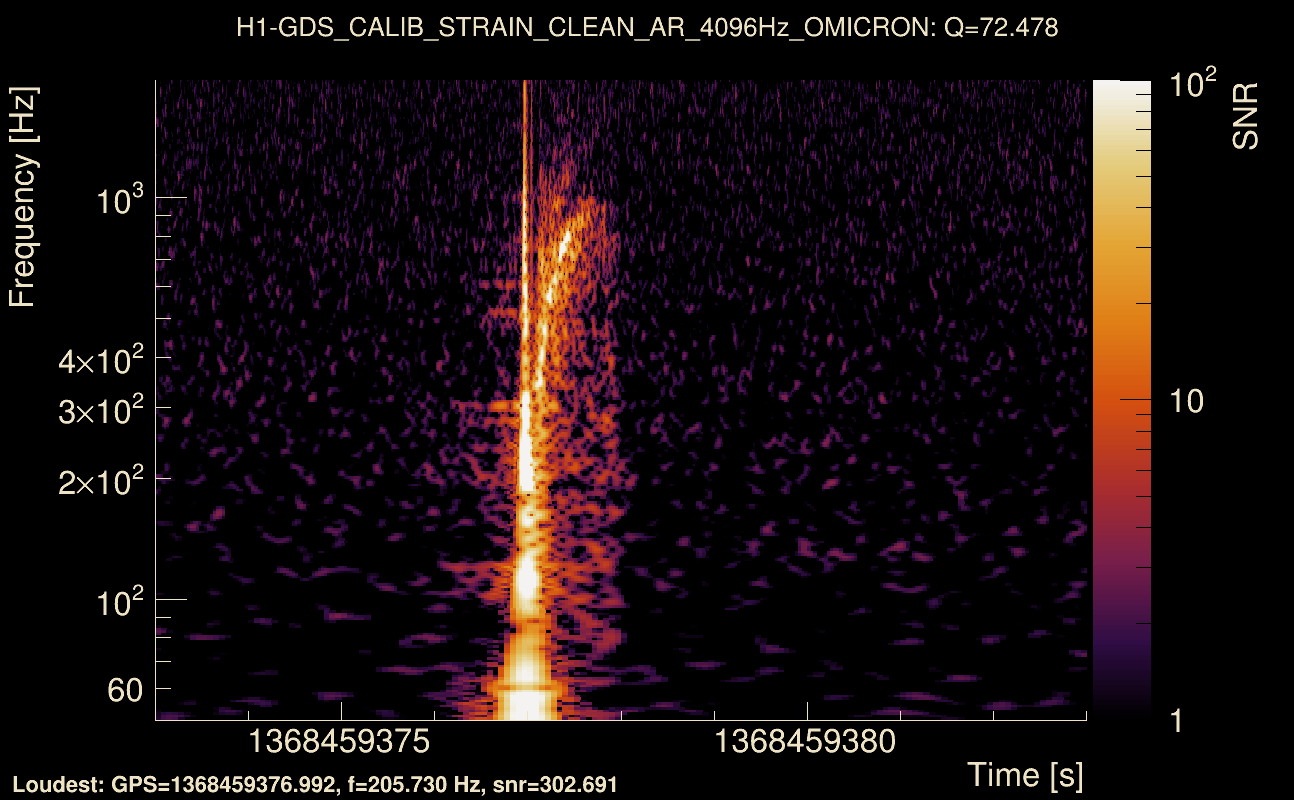

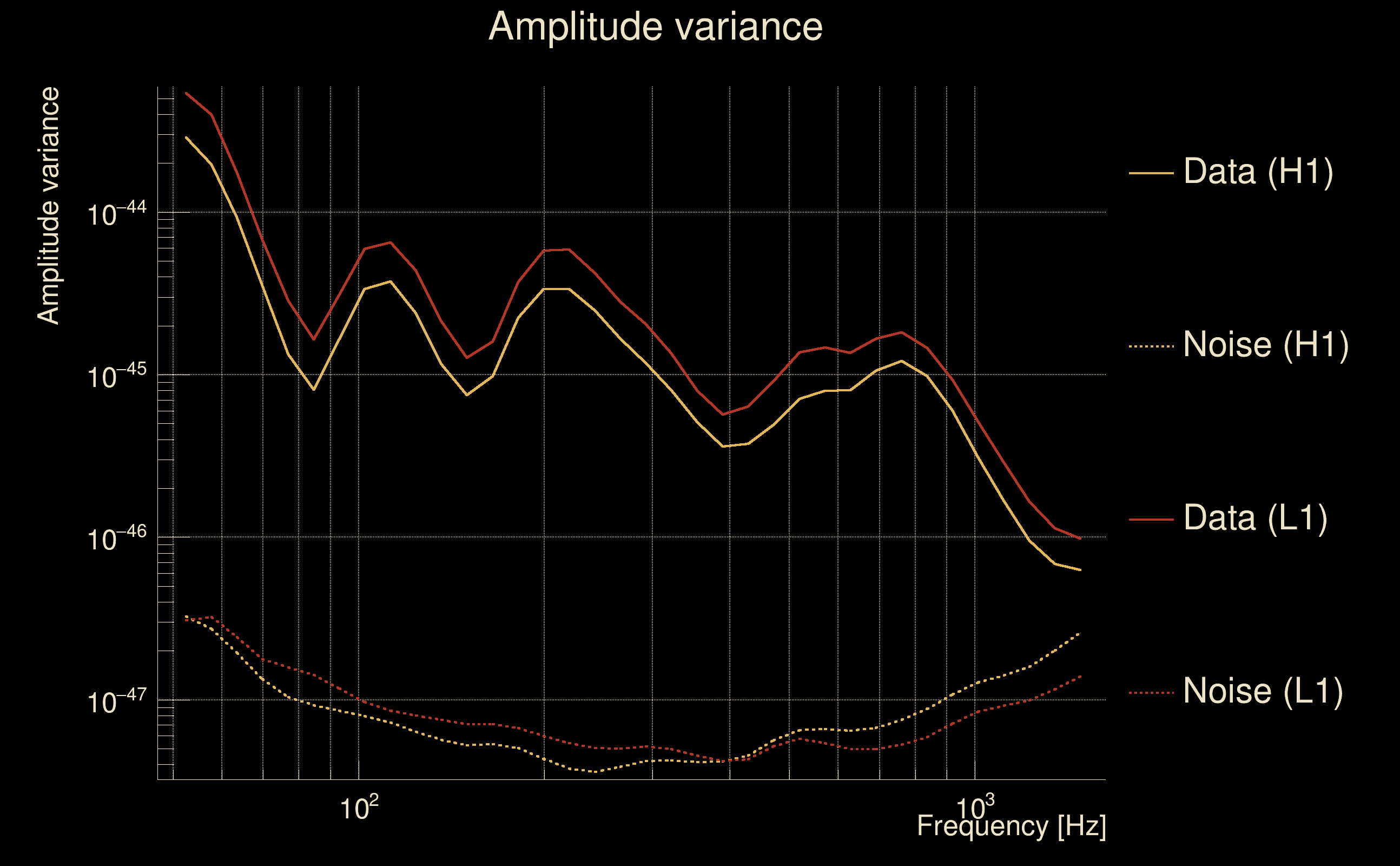

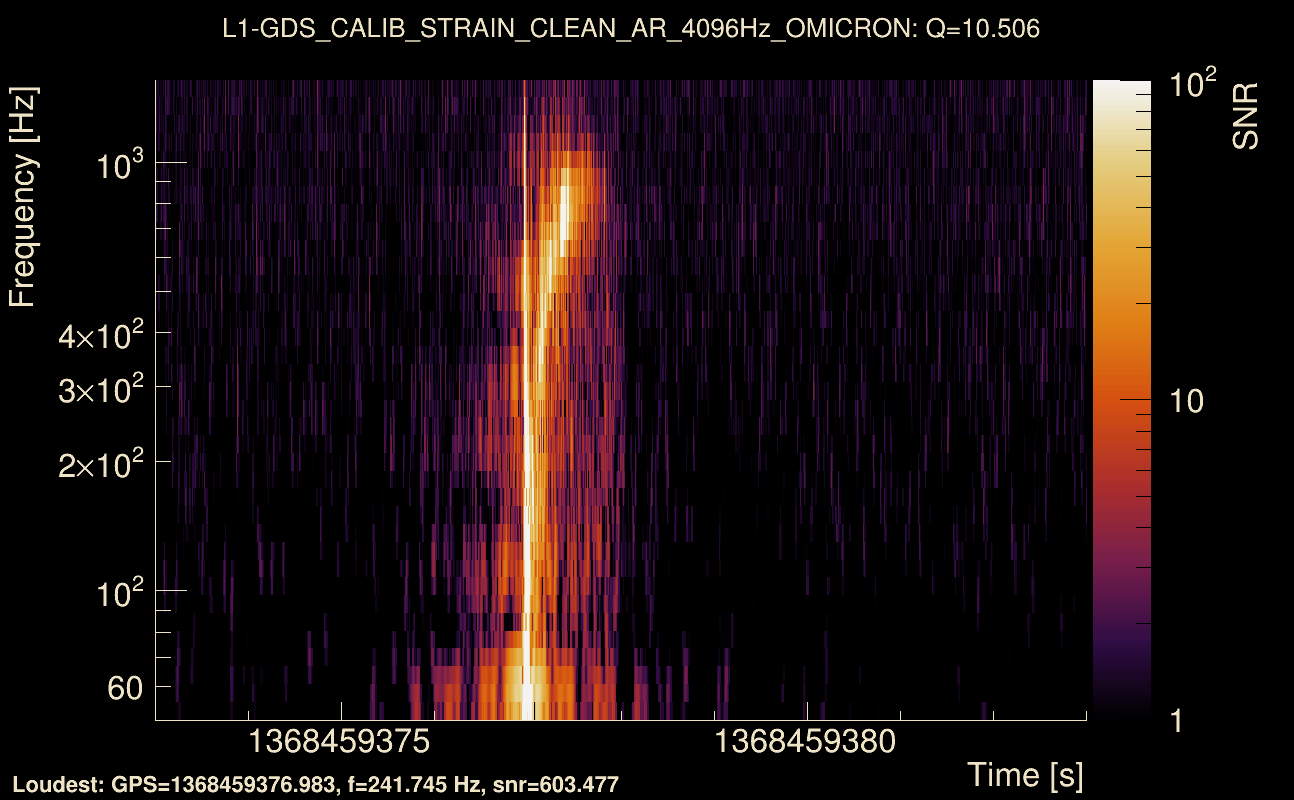

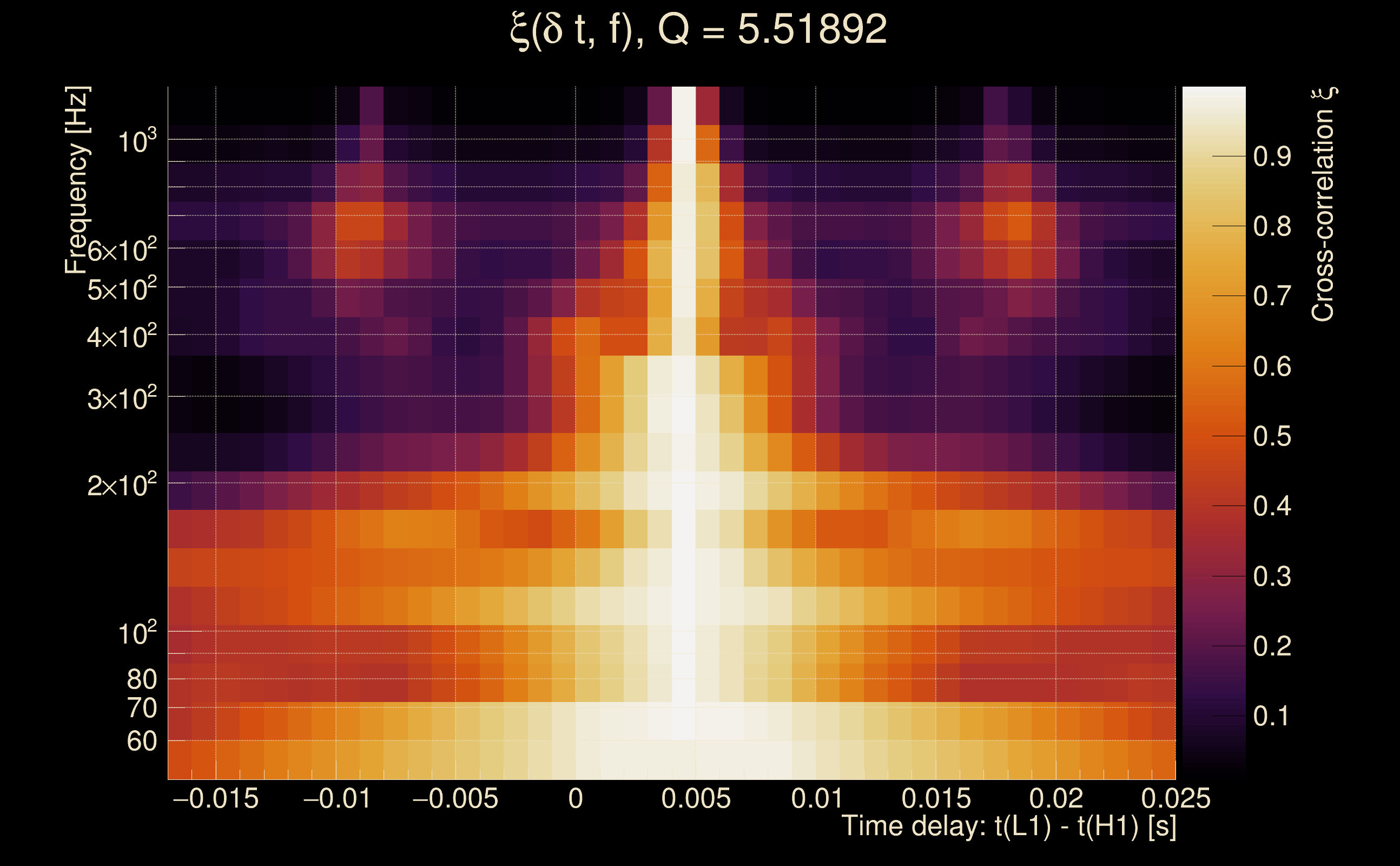

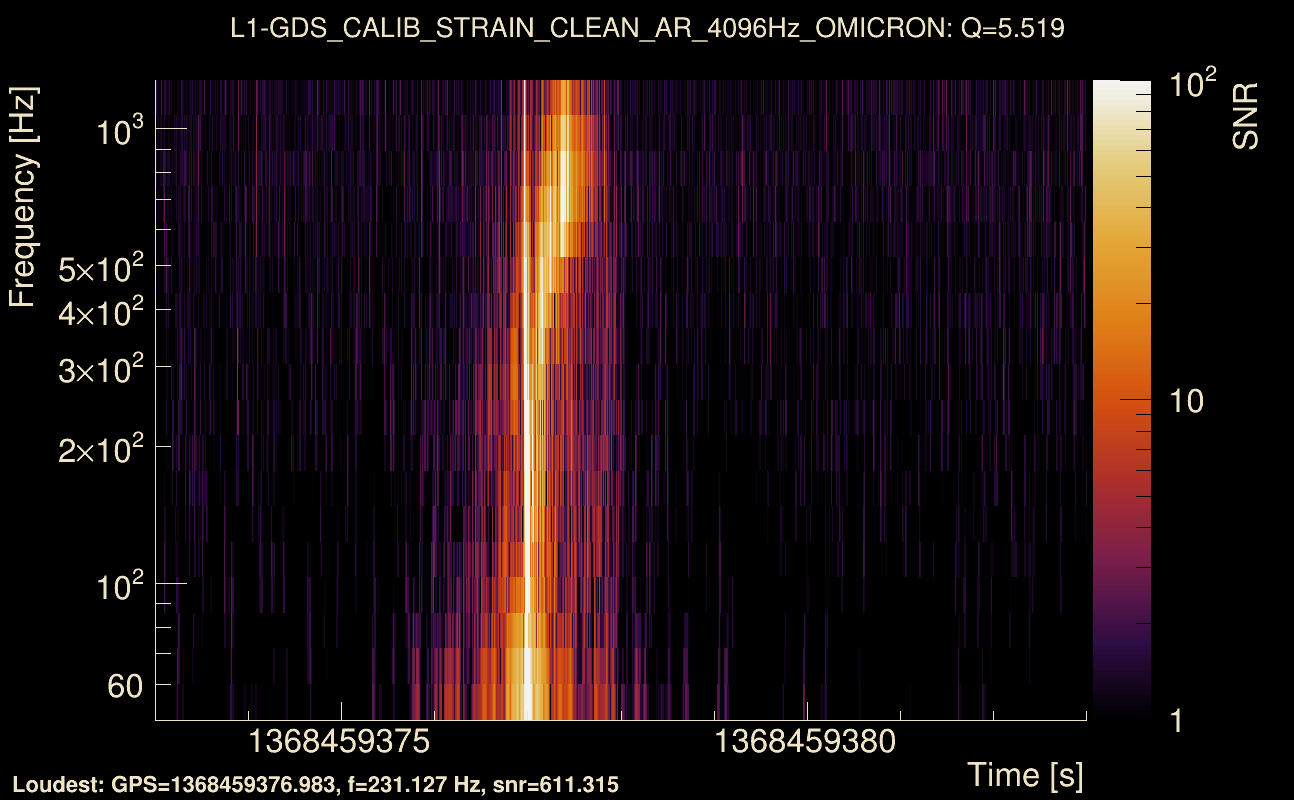

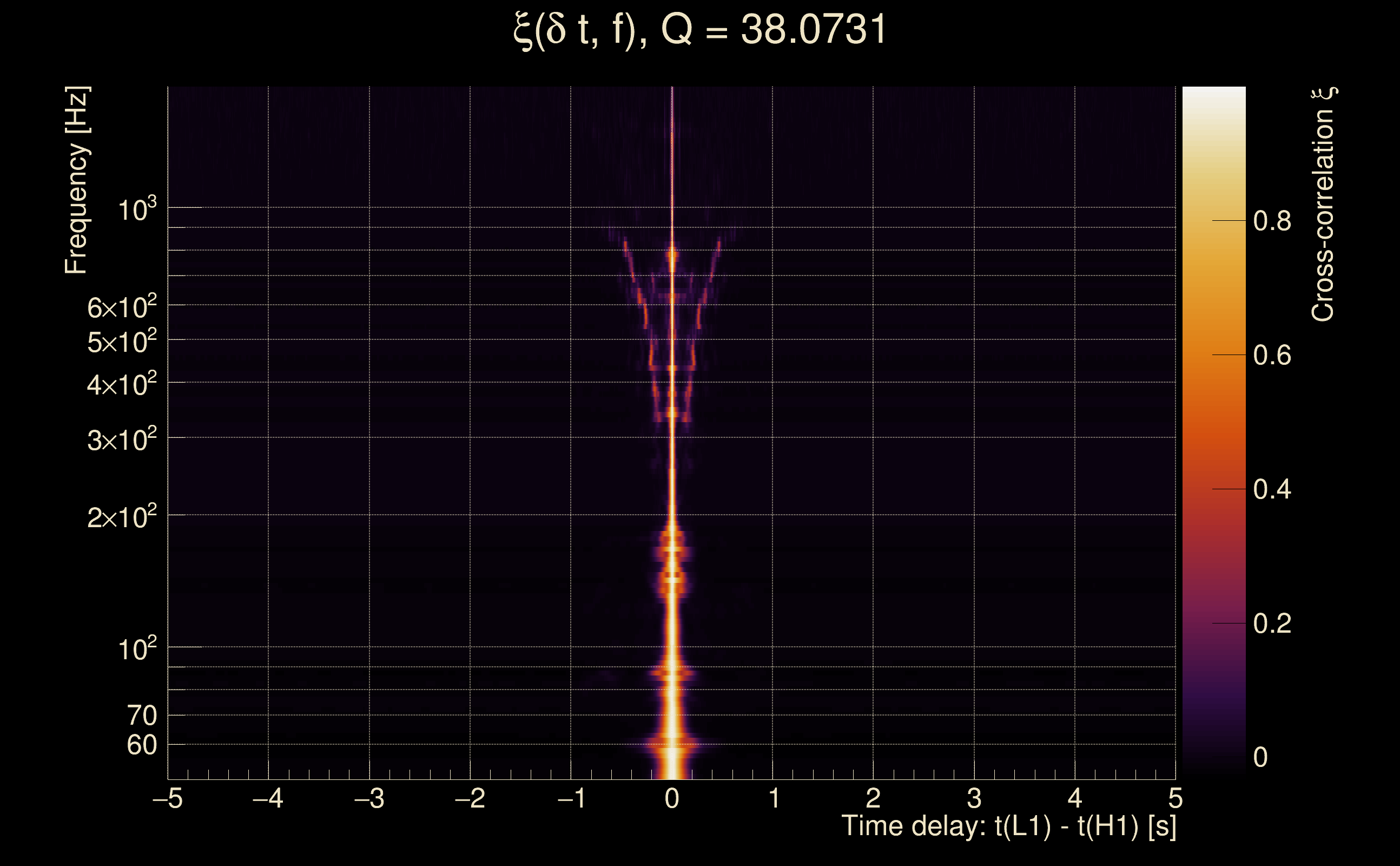

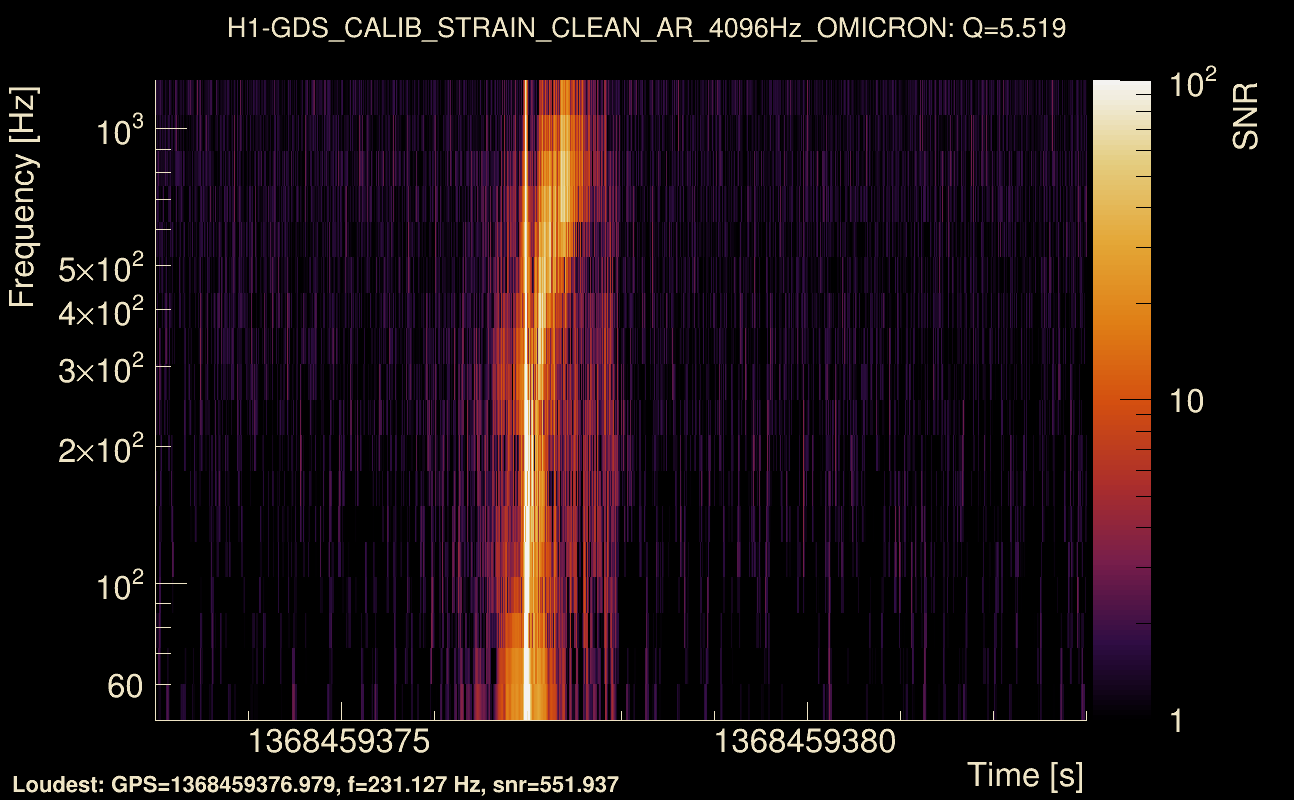

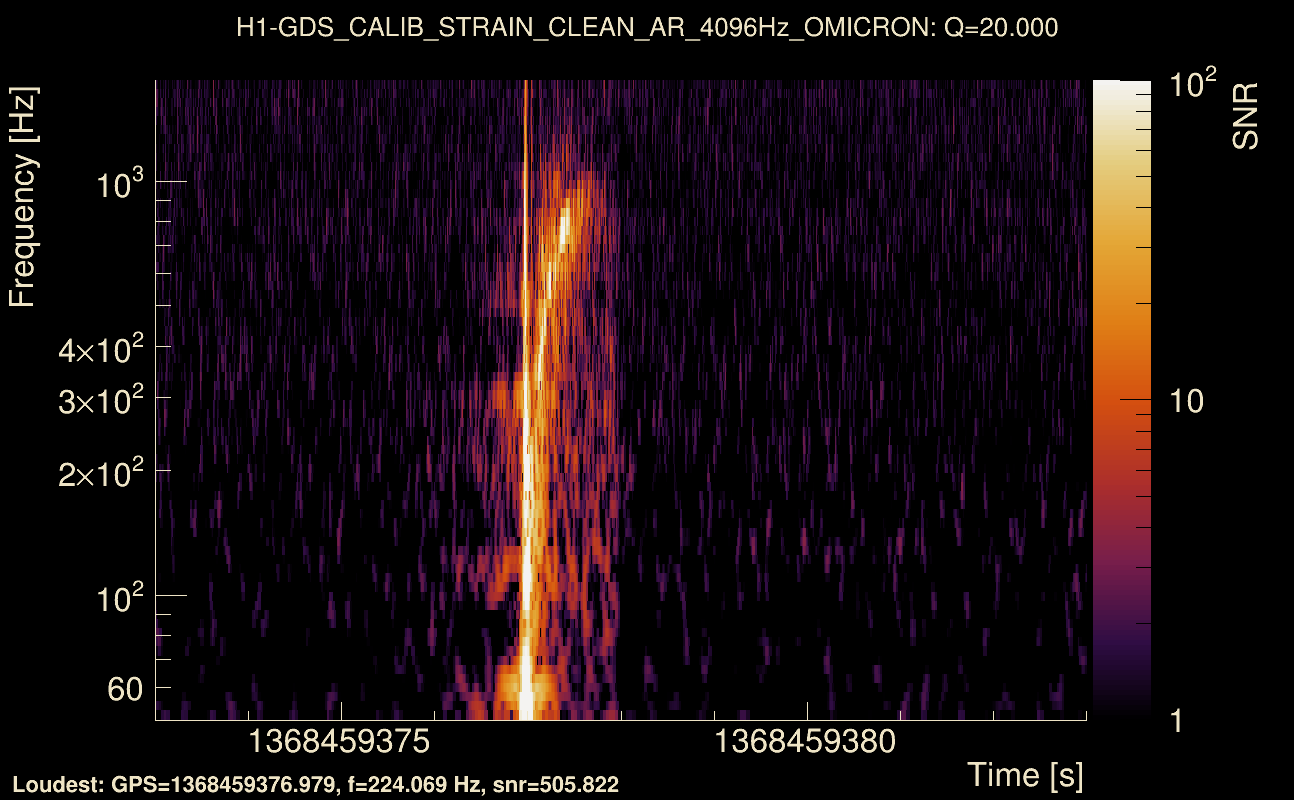

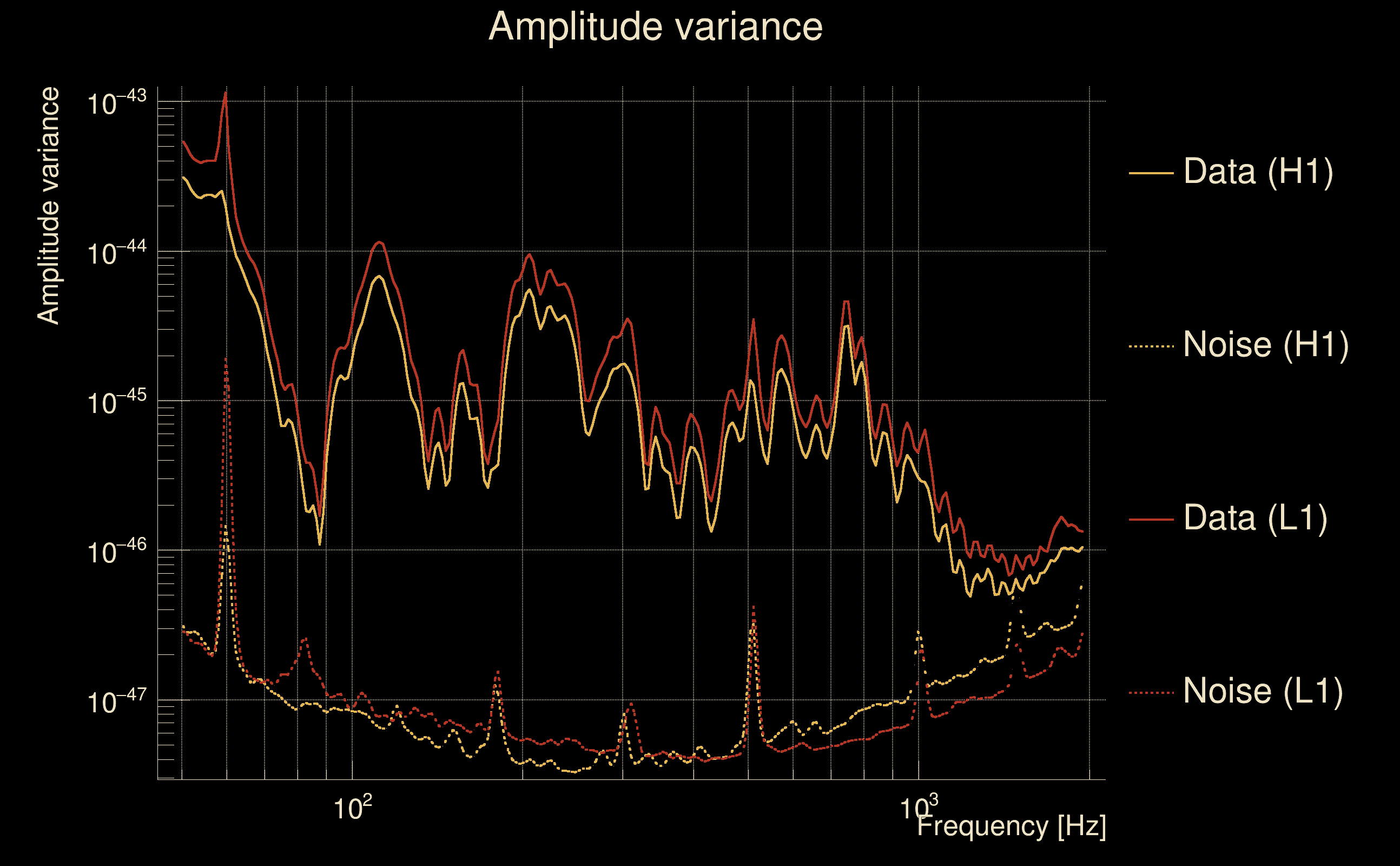

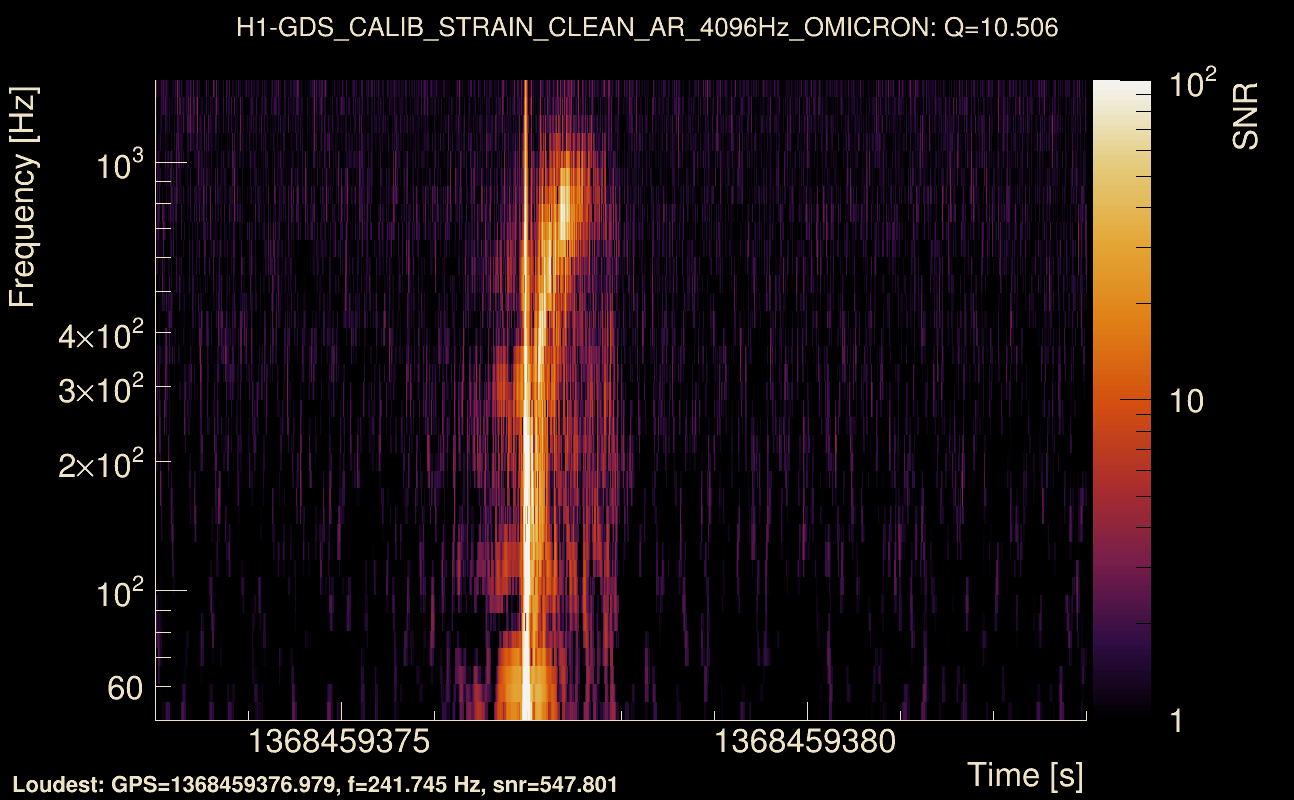

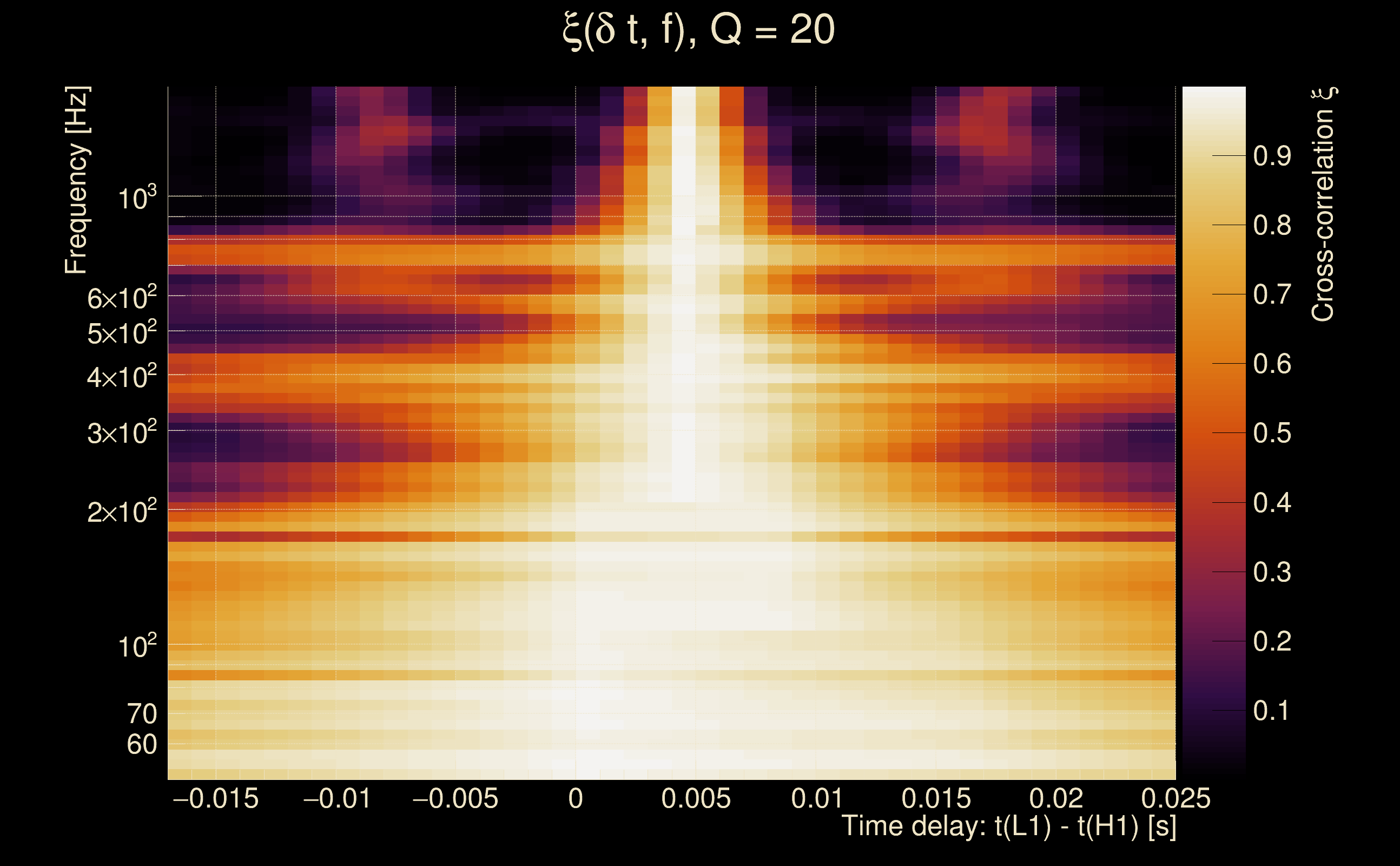

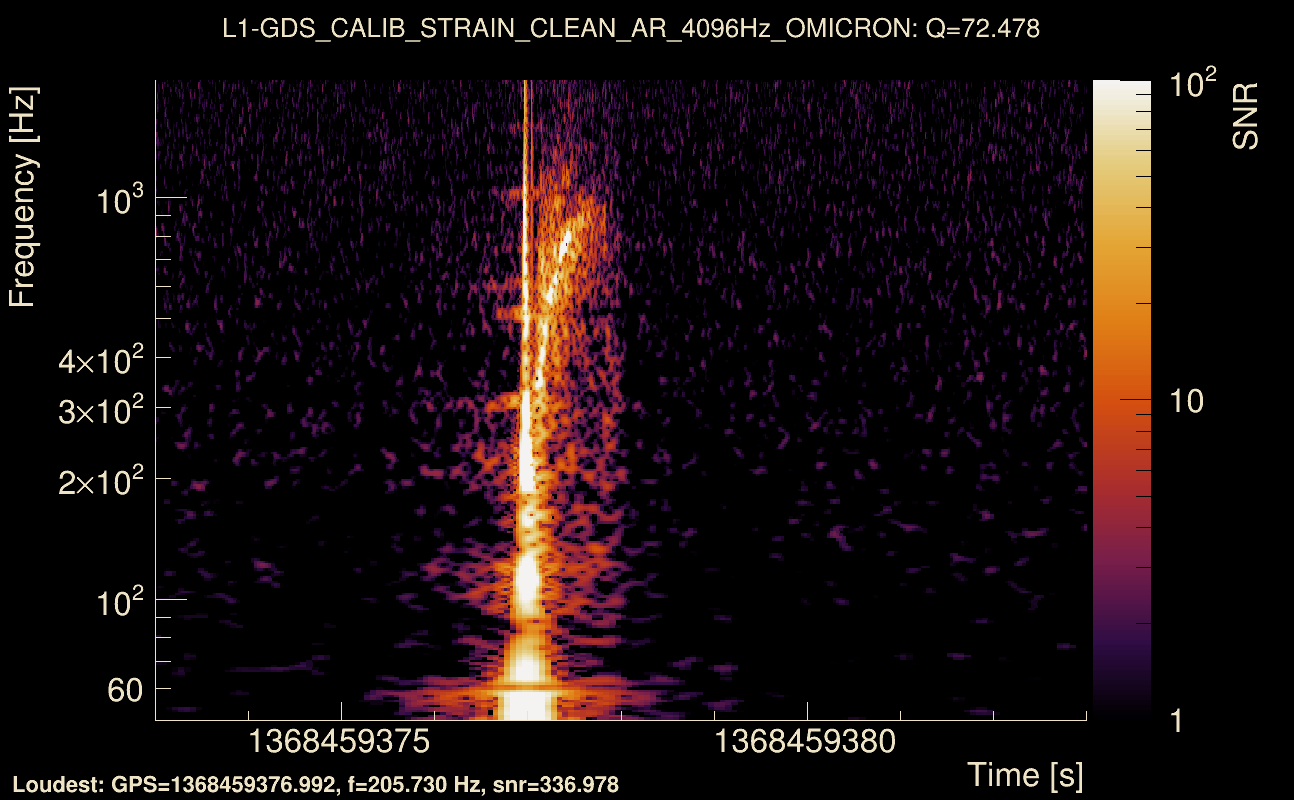

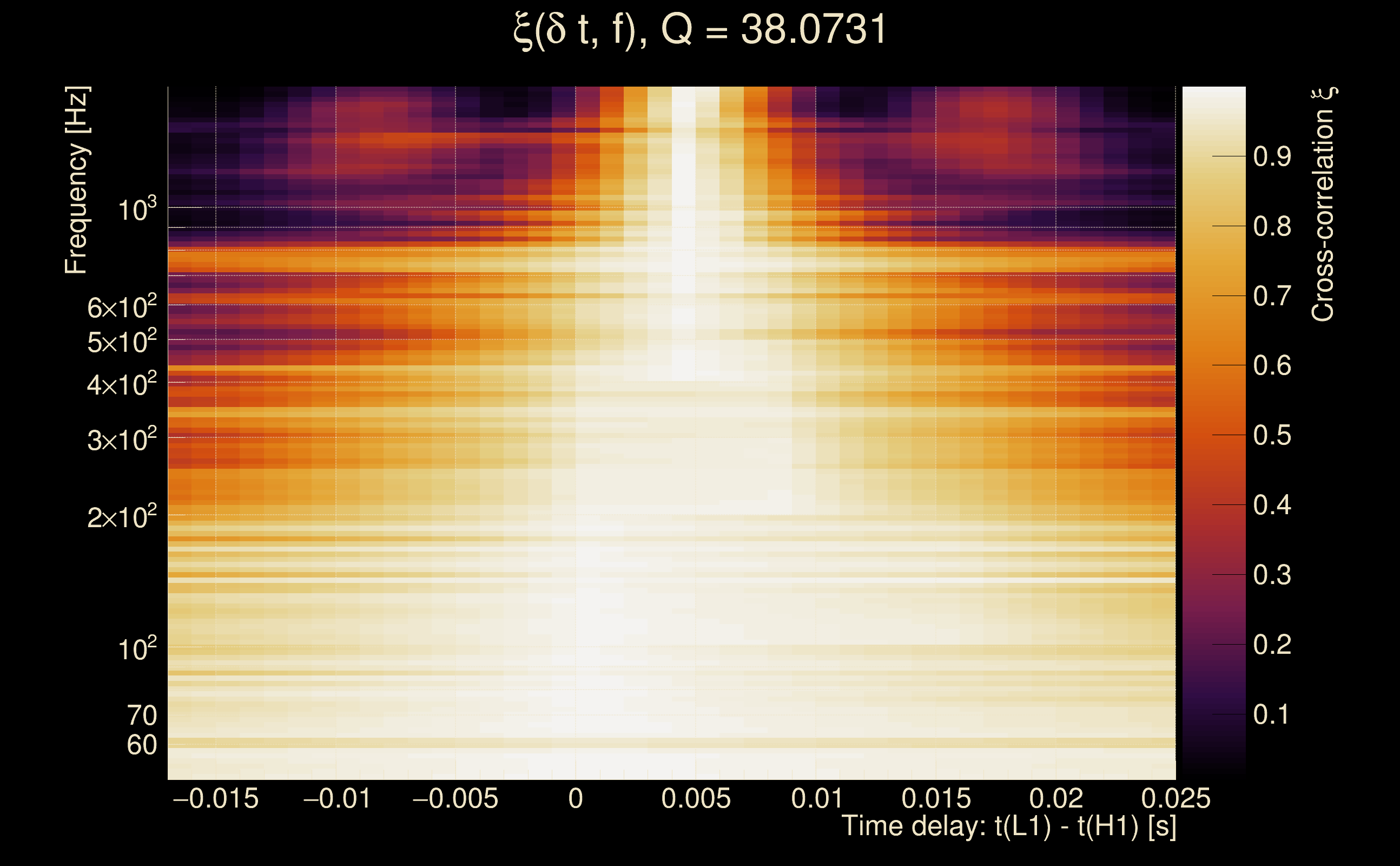

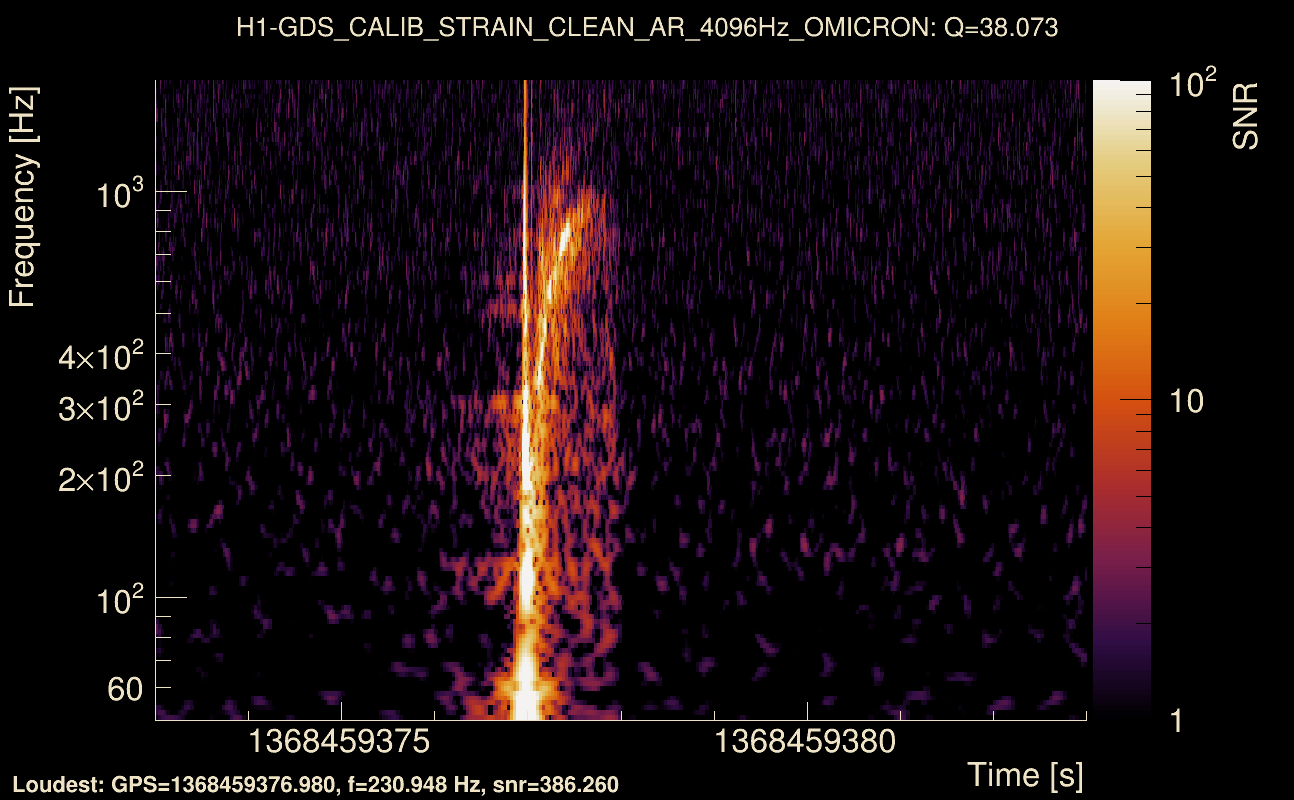

| Event time t(H1): | GPS = 1368459373 (Thu May 18 15:35:55 2023 ) → GPS = 1368459383 (Thu May 18 15:36:05 2023 ) |
| Event time t(L1): | GPS = 1368459373 (Thu May 18 15:36:05 2023 ) → GPS = 1368459383 (Thu May 18 15:36:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368459370 → GPS = 1368459386 |
| Omicron analysis time window (L1): | GPS = 1368459370 → GPS = 1368459386 |
| Time delay between detectors t(L1) - t(H1): | 0.00400401 s (slice index = 108 / 217), δt_gw = 0.00400401 s |
| Time delay standard deviation: | 0.0179266 s |
| [targeted mode] Time delay probability: | 3.83884e-30 (11.4074 sigmas), δt_target = -0.00993562 s |
| Frequency: | 287.739 Hz |
| Ξ: | 0.987447 ± 0.00179657 (variance = 3.22766e-06): Q0: 0.987831, Q1: 0.984926, Q2: 0.98902, Q3: 0.989853, Q4: 0.989573 |
| Rank: | R_A = 0.987447 |
| Log of amplitude ratio (L1/H1): | 0.27318, variance = 0.155736 (L1/H1: 0.262172, variance = 0.301033, H1/L1: -0.280747, variance = 0.30118) |
| Amplitude ratio (L1/H1): | 1.31414 ⋇ 1.48384 (L1/H1: 1.29975 ⋇ 1.73094, H1/L1: 0.75522 ⋇ 1.73117) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980904 |

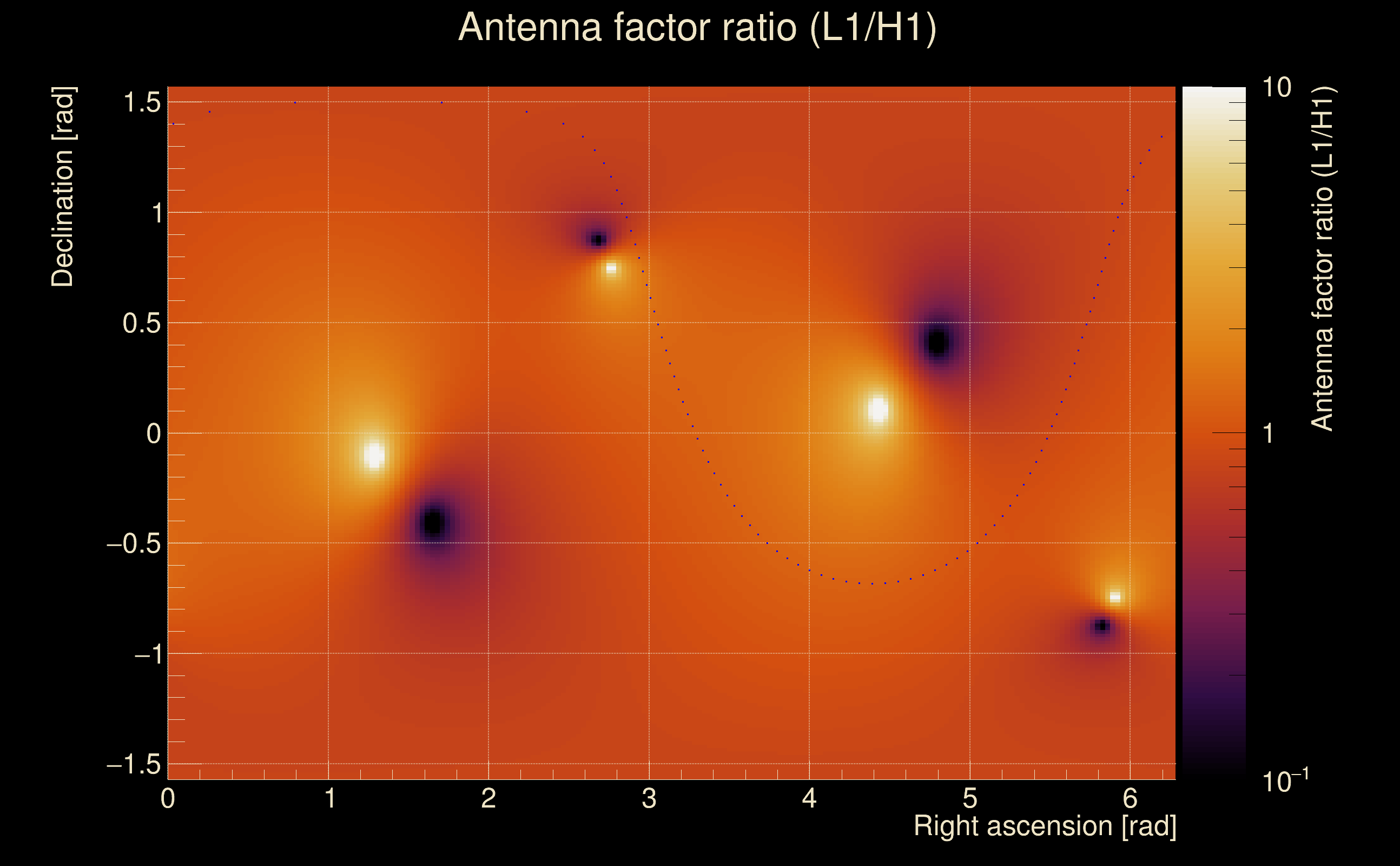

| Antenna factor probability: | 0.38485 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 580.951, L1: 700.735 |

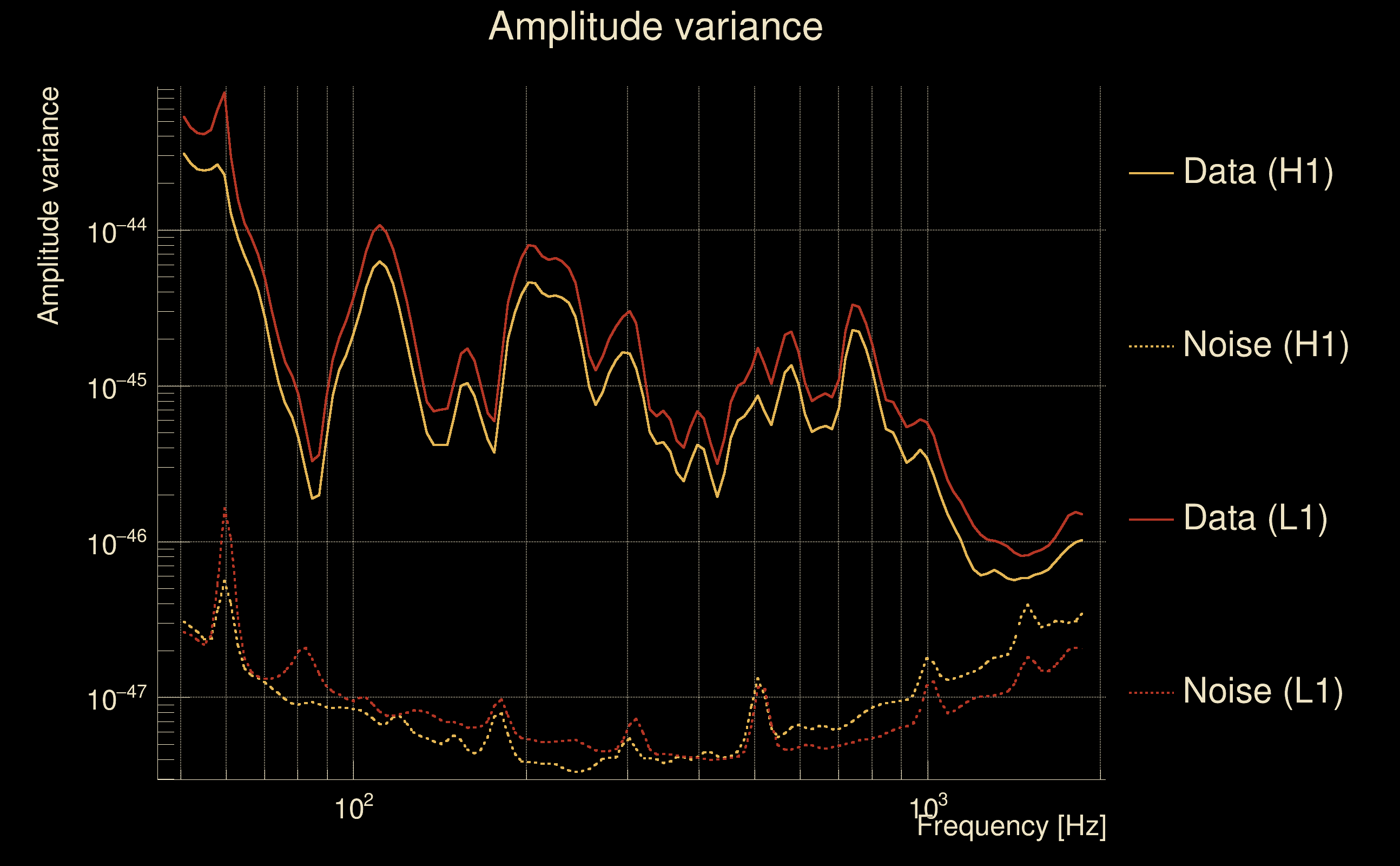

| SNR variance: | H1: 156.053, L1: 288.861 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368276958 (Tue May 16 12:55:40 2023 ) → GPS = 1368276968 (Tue May 16 12:55:50 2023 ) |
| Event time t(L1): | GPS = 1368276958 (Tue May 16 12:55:50 2023 ) → GPS = 1368276968 (Tue May 16 12:55:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368276955 → GPS = 1368276971 |
| Omicron analysis time window (L1): | GPS = 1368276955 → GPS = 1368276971 |
| Time delay between detectors t(L1) - t(H1): | 1.38337 s (slice index = 78 / 217), δt_gw = 0.00336985 s |
| Time delay standard deviation: | 0.0657539 s |
| [targeted mode] Time delay probability: | 0.199446 (1.28313 sigmas), δt_target = -0.00833631 s |
| Frequency: | 78.3779 Hz |
| Ξ: | 0.0576672 ± 0.0653412 (variance = 0.00426947): Q0: 0.221548, Q1: 0.327793, Q2: 0.366773, Q3: 0.349142, Q4: 0.212564 |
| Rank: | R_A = 0.0576672 |
| Log of amplitude ratio (L1/H1): | -4.33132, variance = 0.469643 (L1/H1: -4.3316, variance = 0.469814, H1/L1: 2.76618, variance = 0.682087) |
| Amplitude ratio (L1/H1): | 0.0131502 ⋇ 1.98438 (L1/H1: 0.0131464 ⋇ 1.98462, H1/L1: 15.8978 ⋇ 2.2839) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.144685 |
| Antenna factor probability: | 3.88479e-09 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 30 / 36, Q2: 63 / 70, Q3: 128 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 387.486, L1: 5.21936 |
| SNR variance: | H1: 1570.47, L1: 0.505698 |

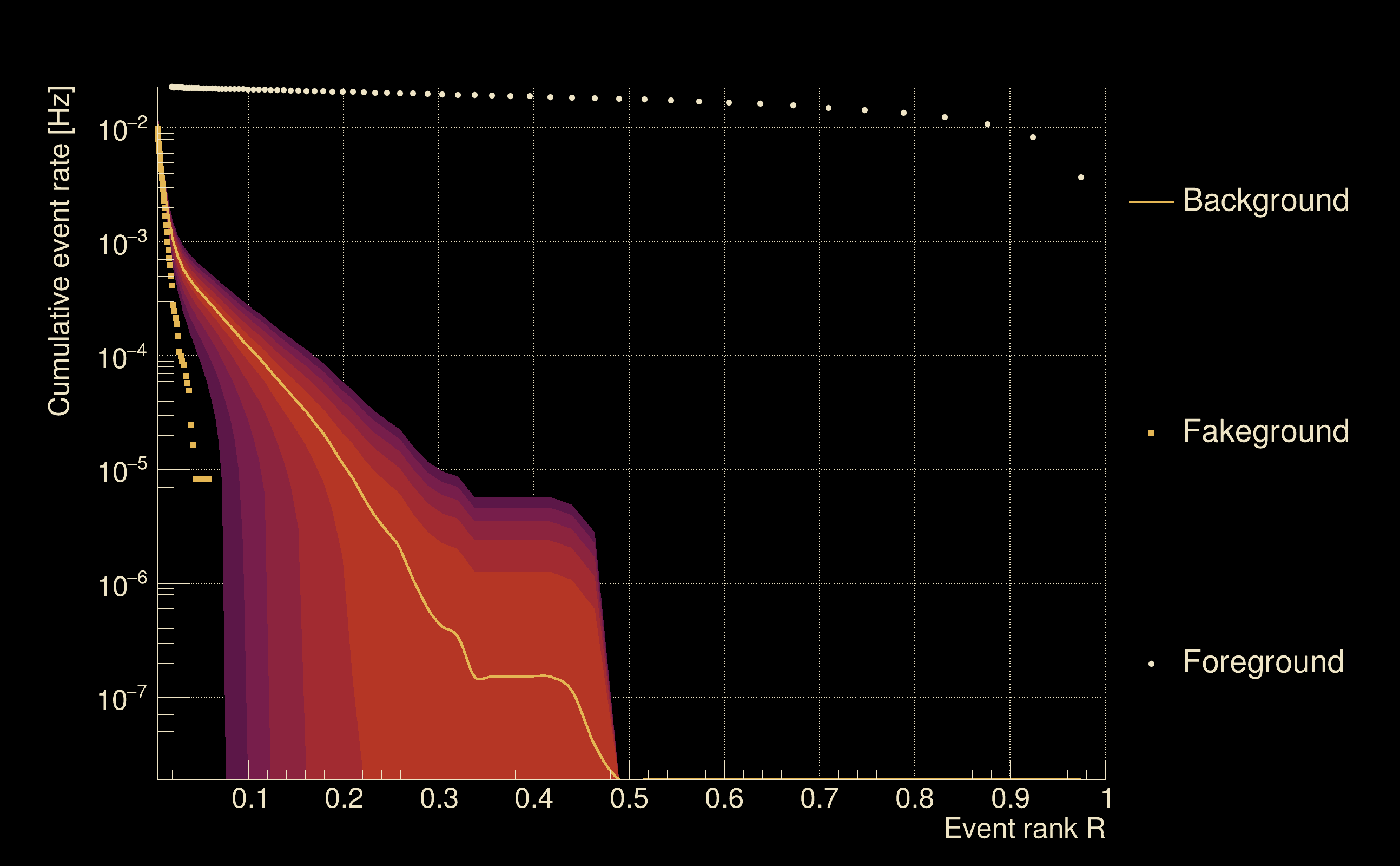

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.463984 |
| Alternative threshold at 1/100 yrs: | R > 0.463984 |
| Alternative threshold at 1/10 yrs: | R > 0.463984 |
| Alternative threshold at 1/1 yr: | R > 0.463984 |
| Alternative threshold at 1/1 d: | R > 0.189165 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

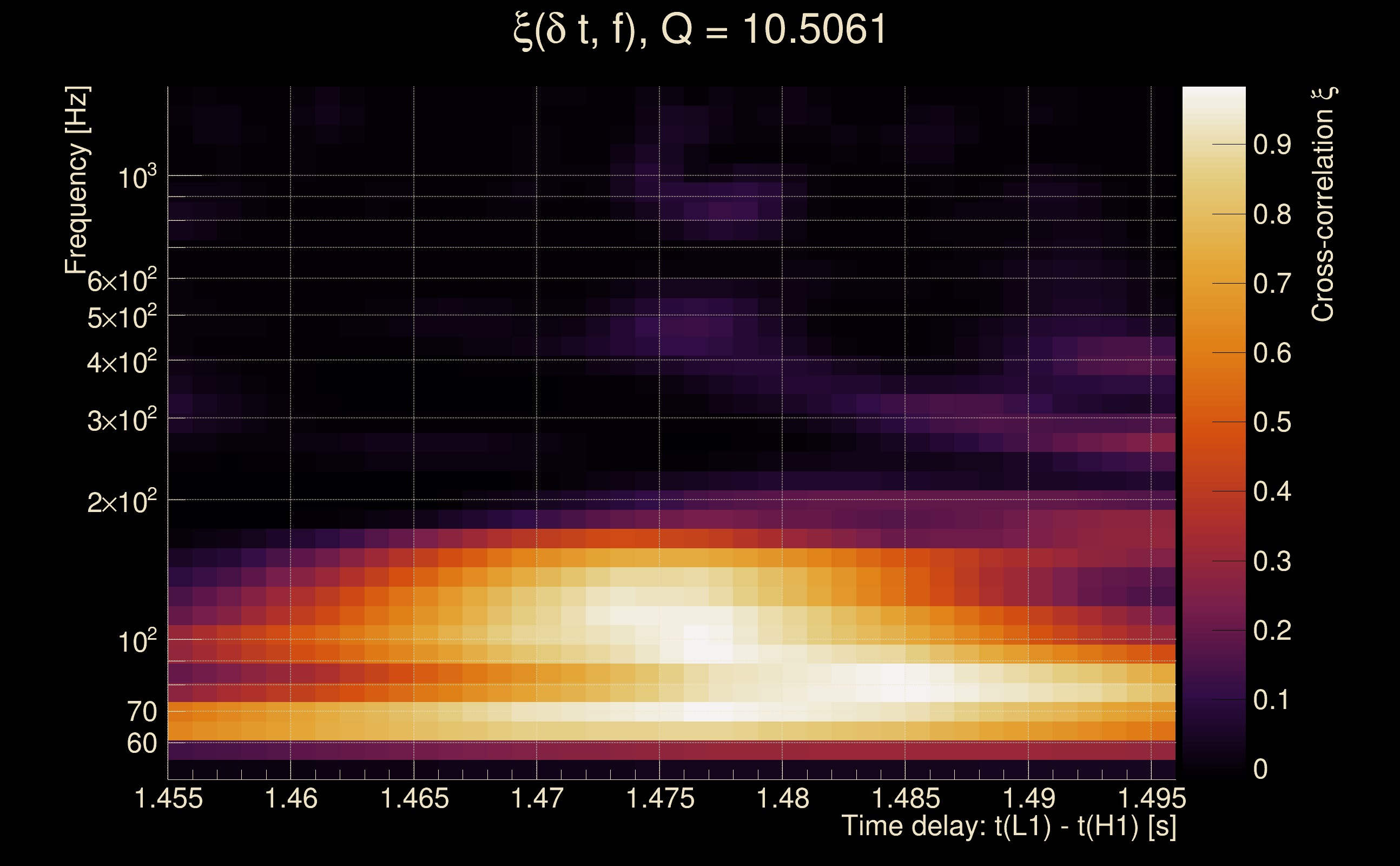

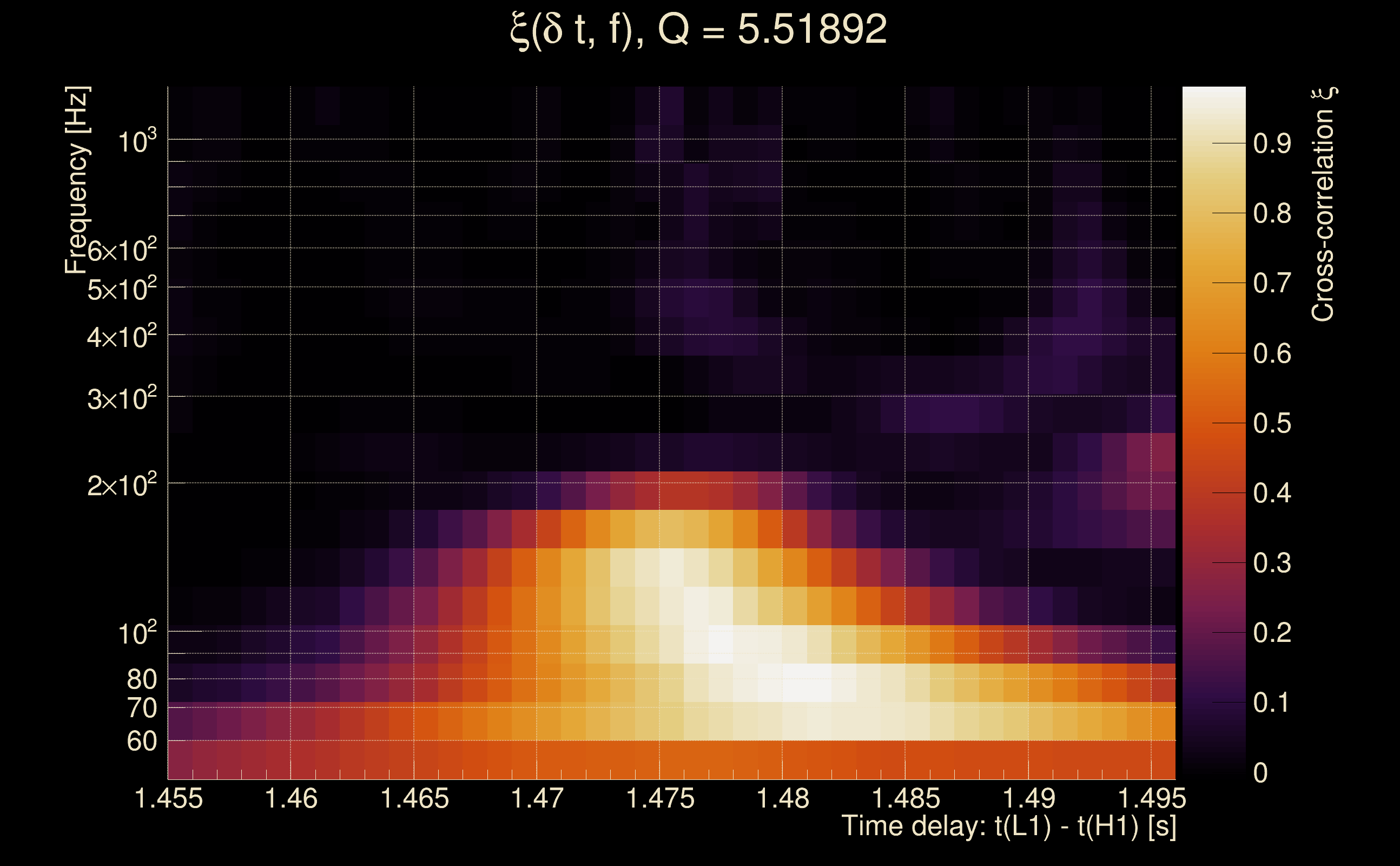

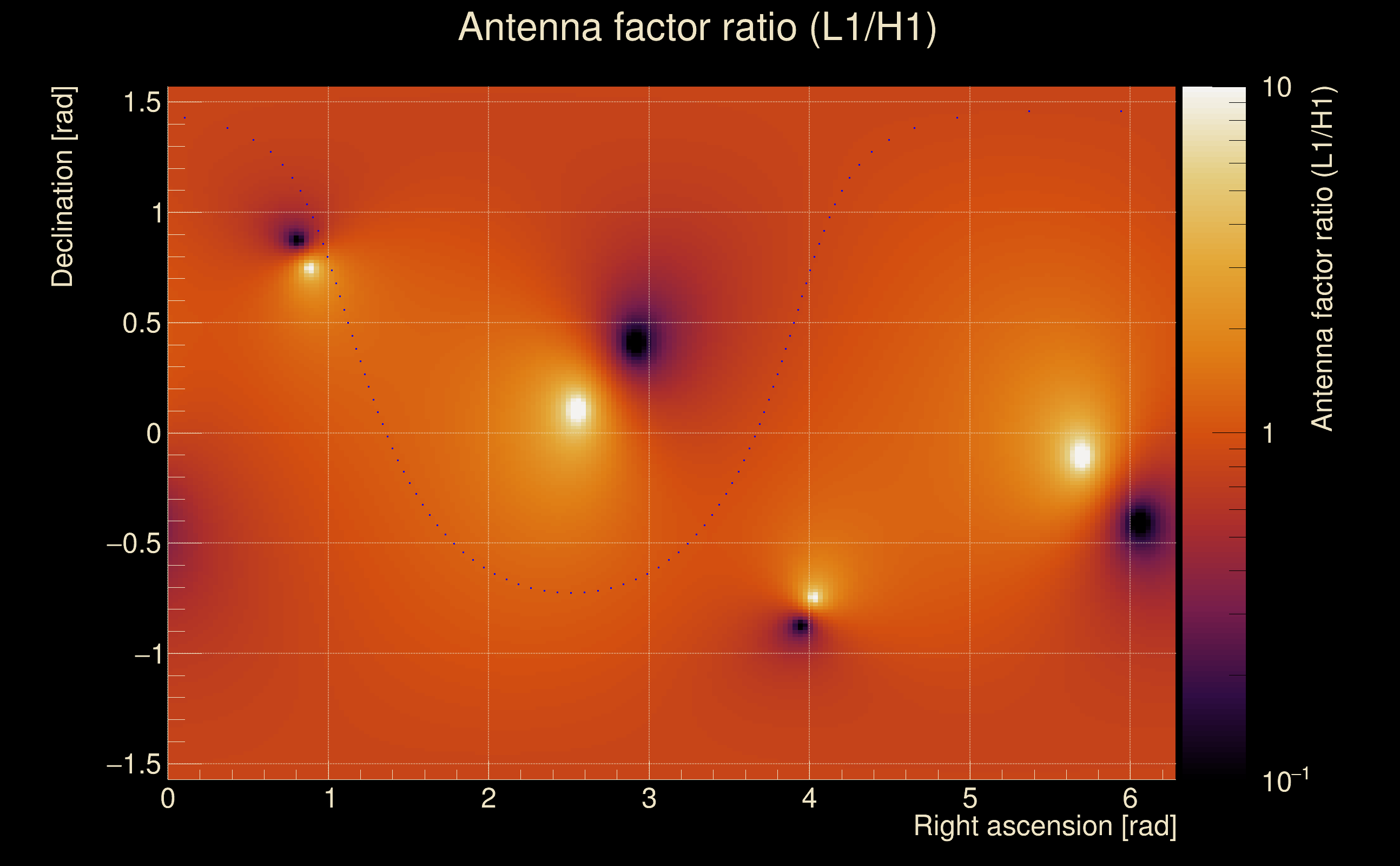

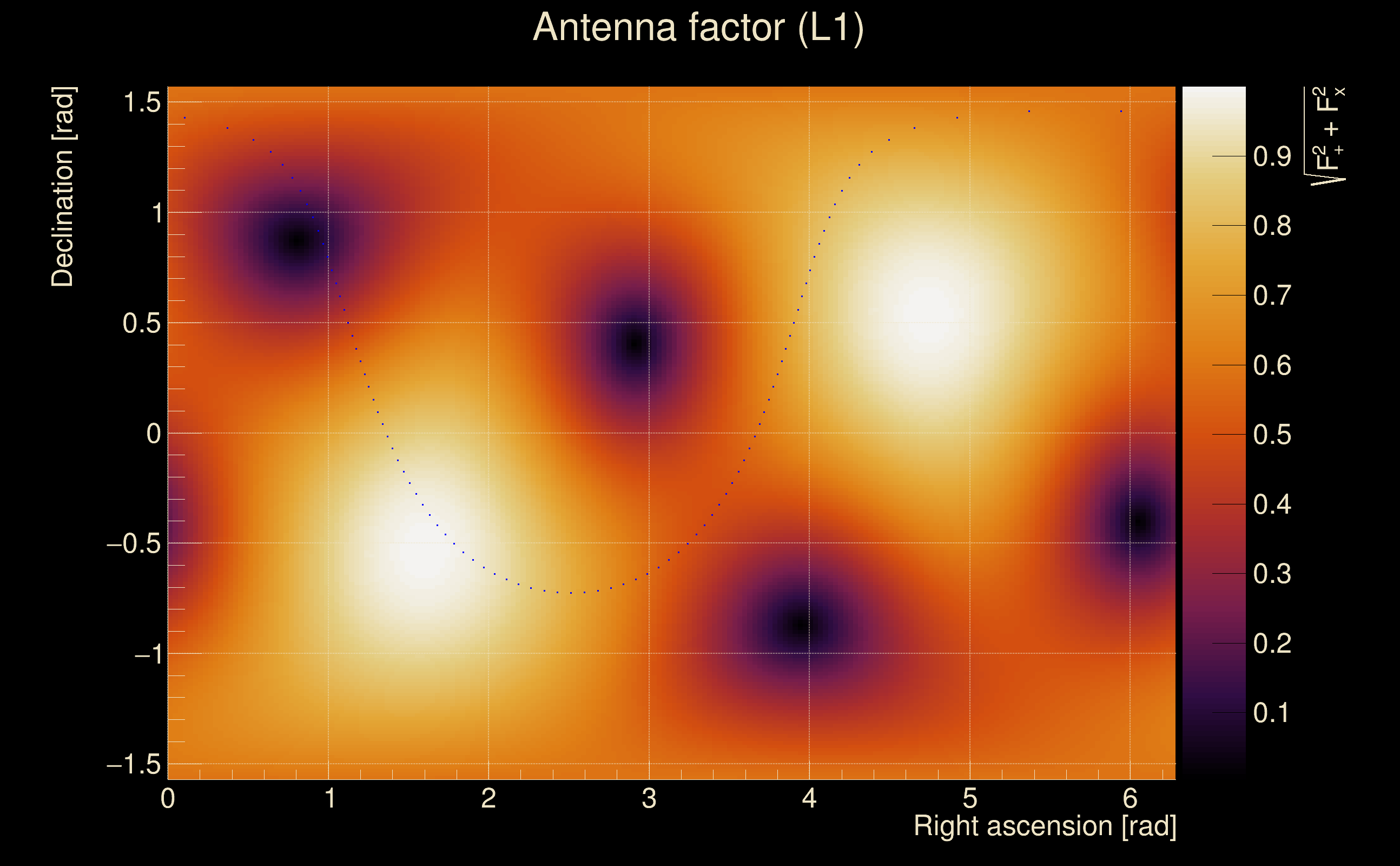

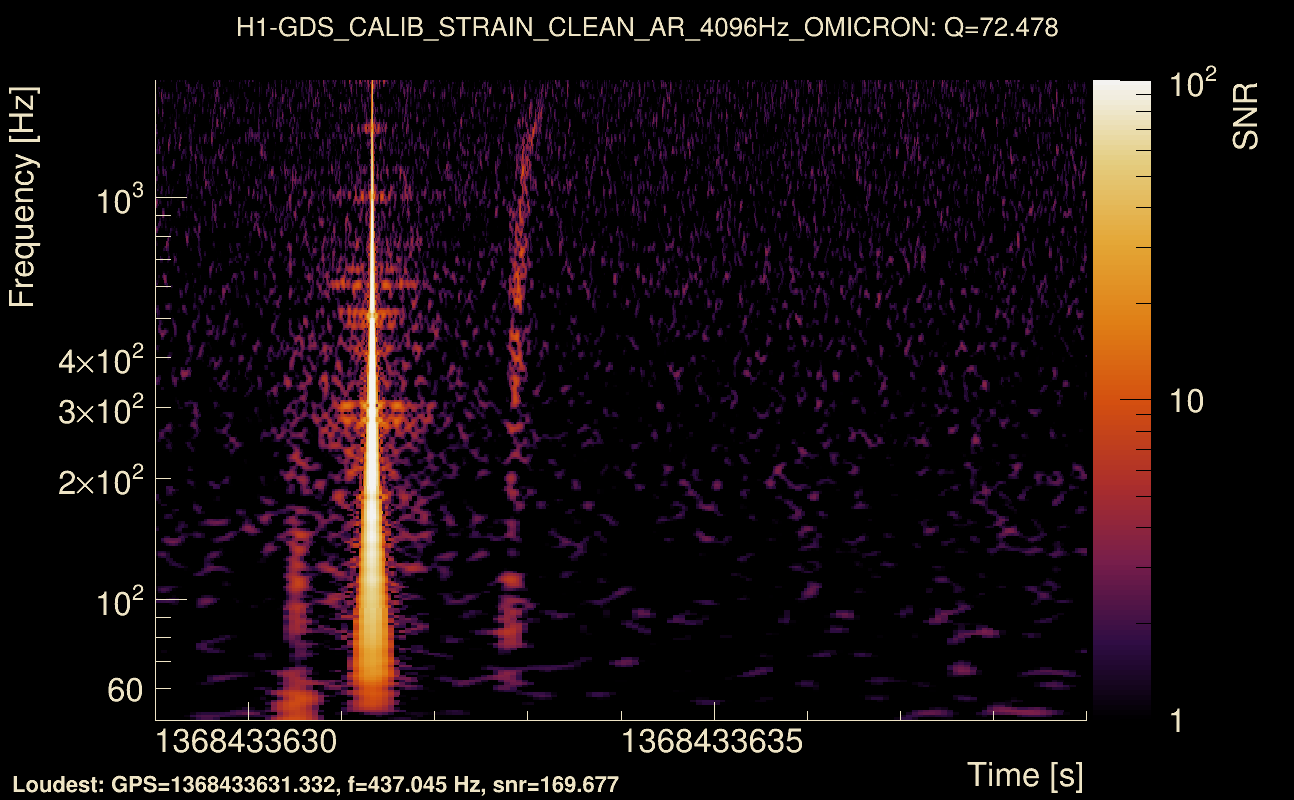

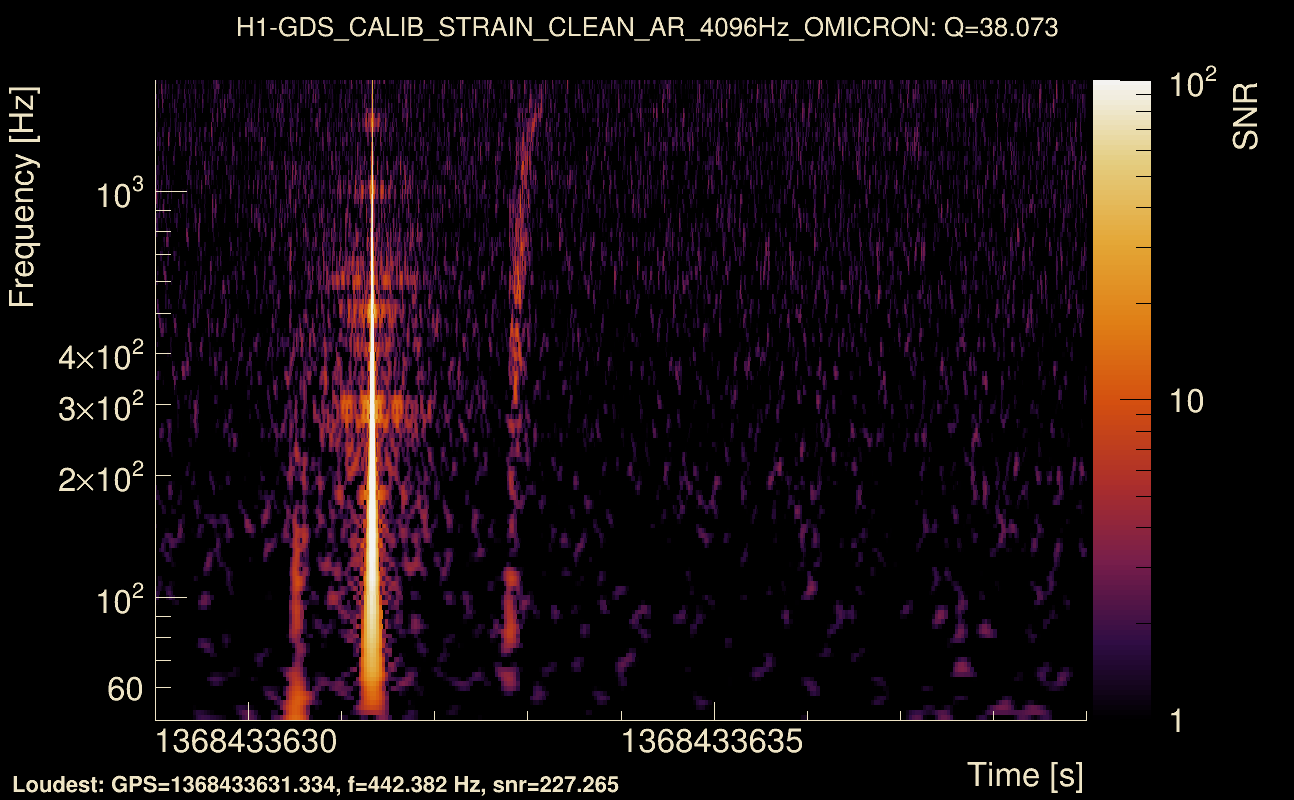

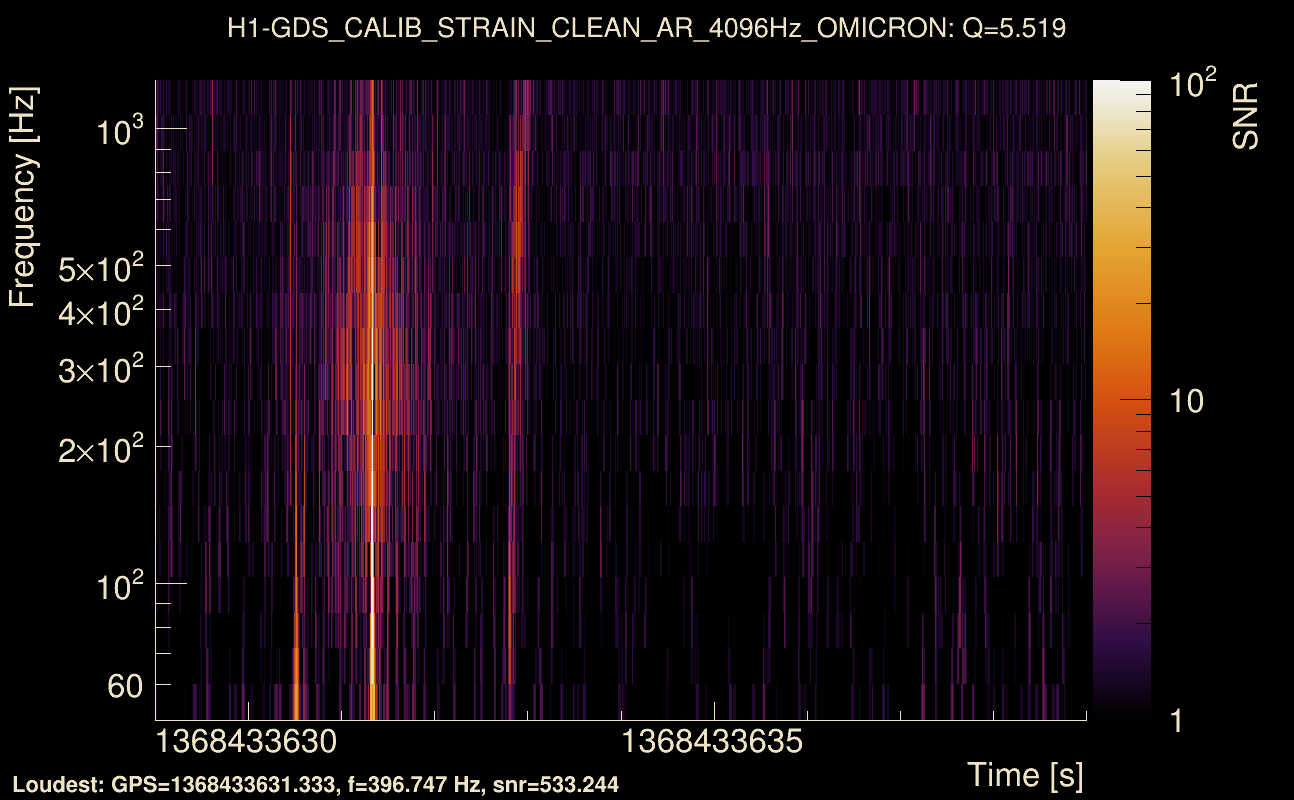

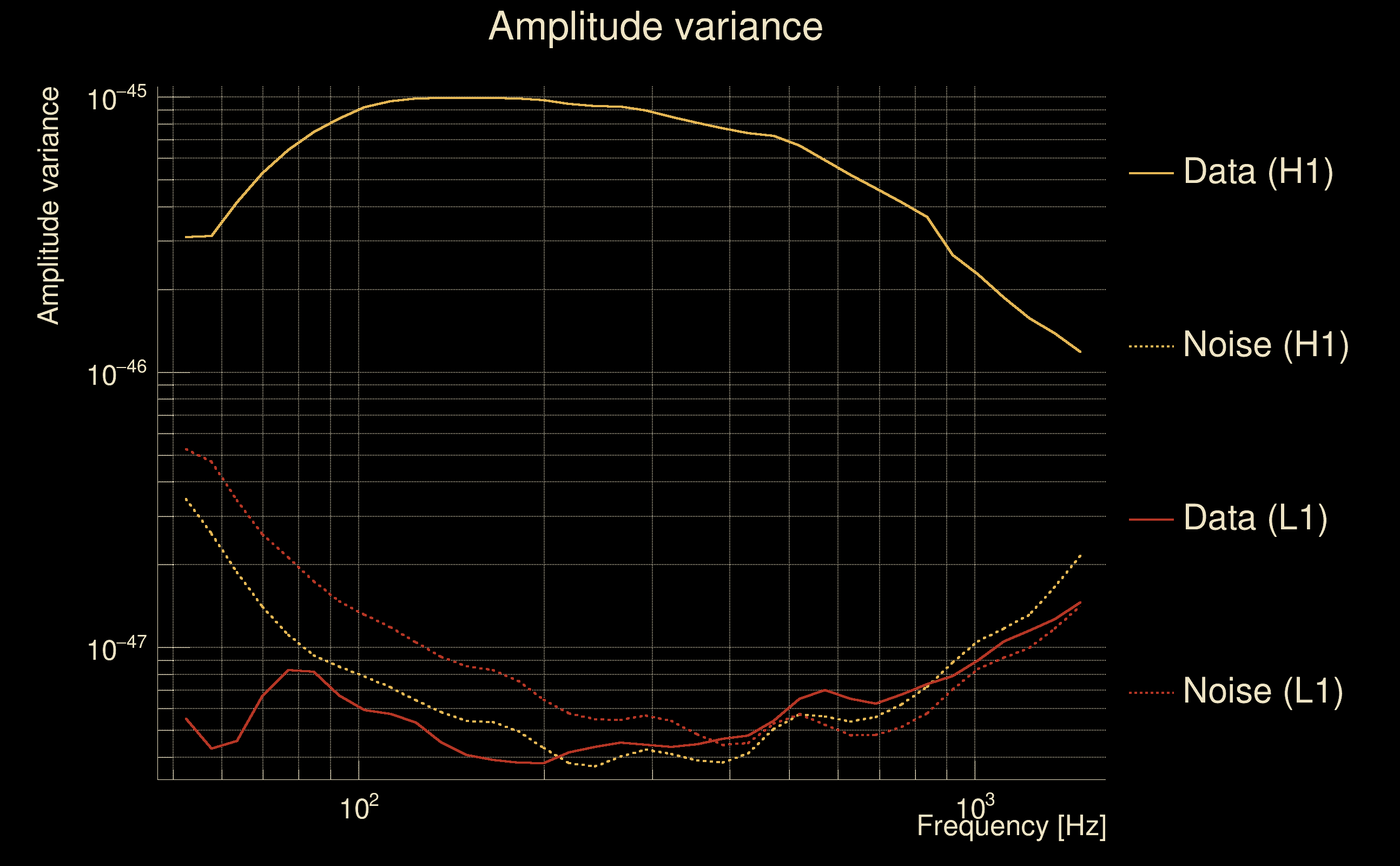

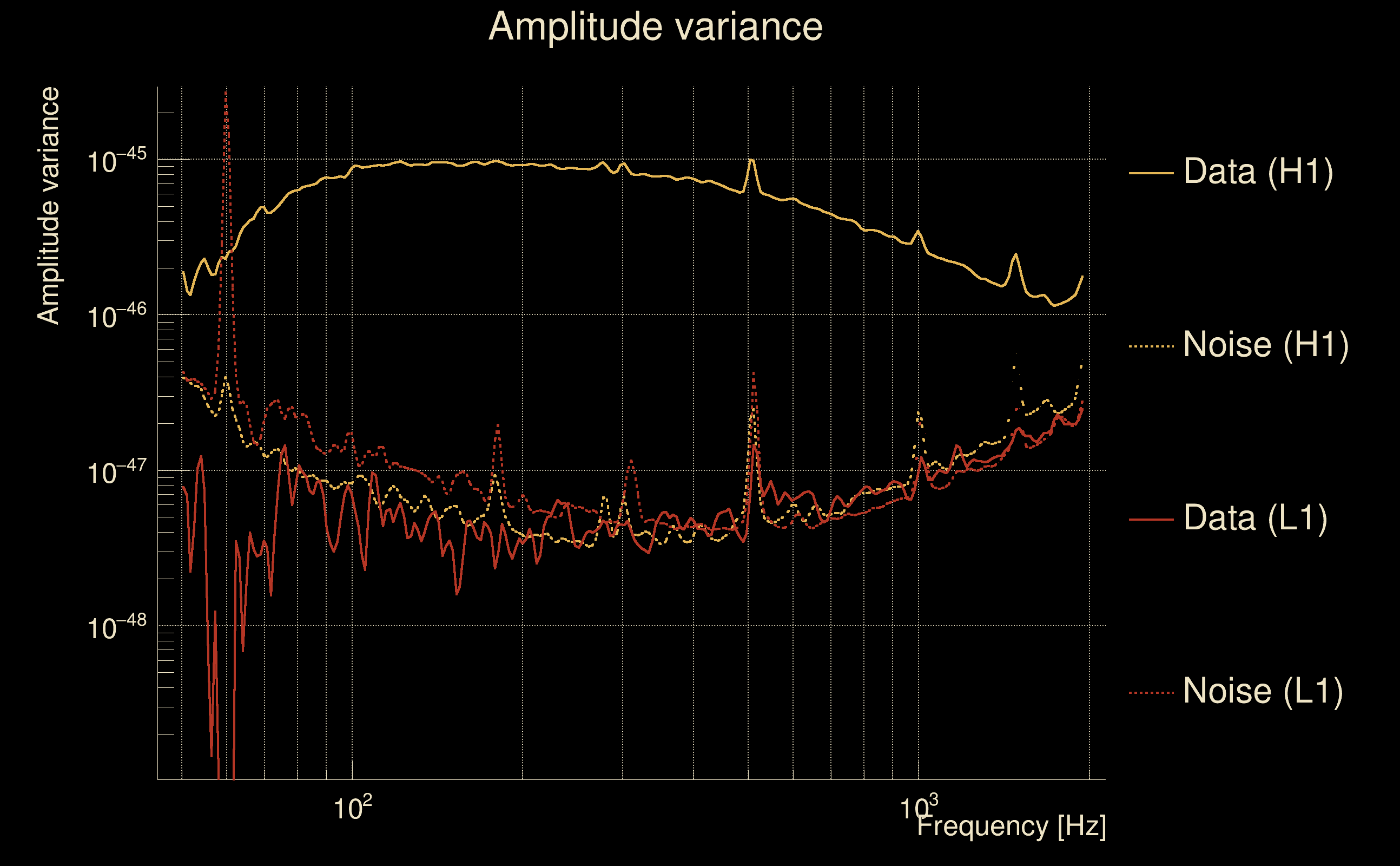

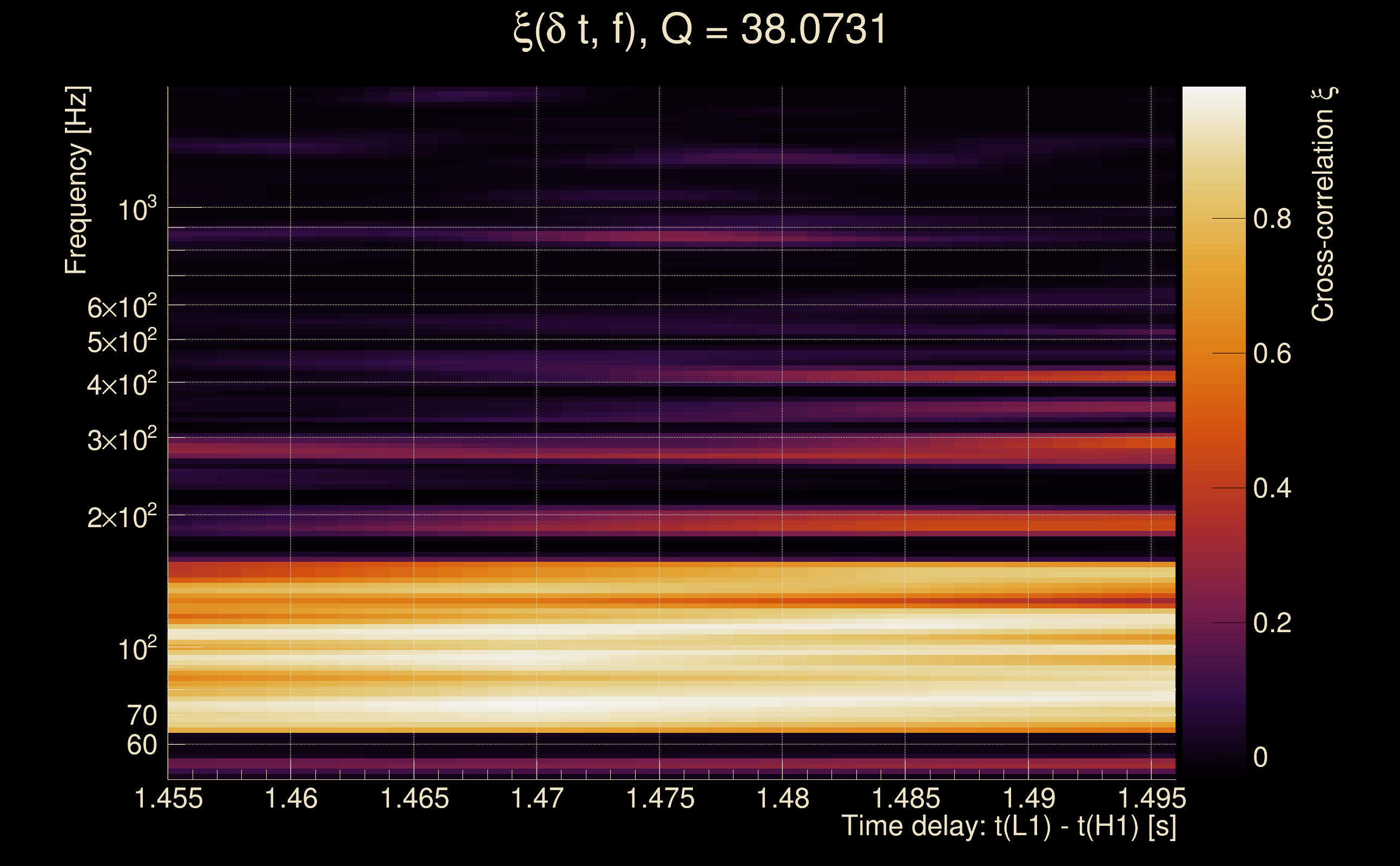

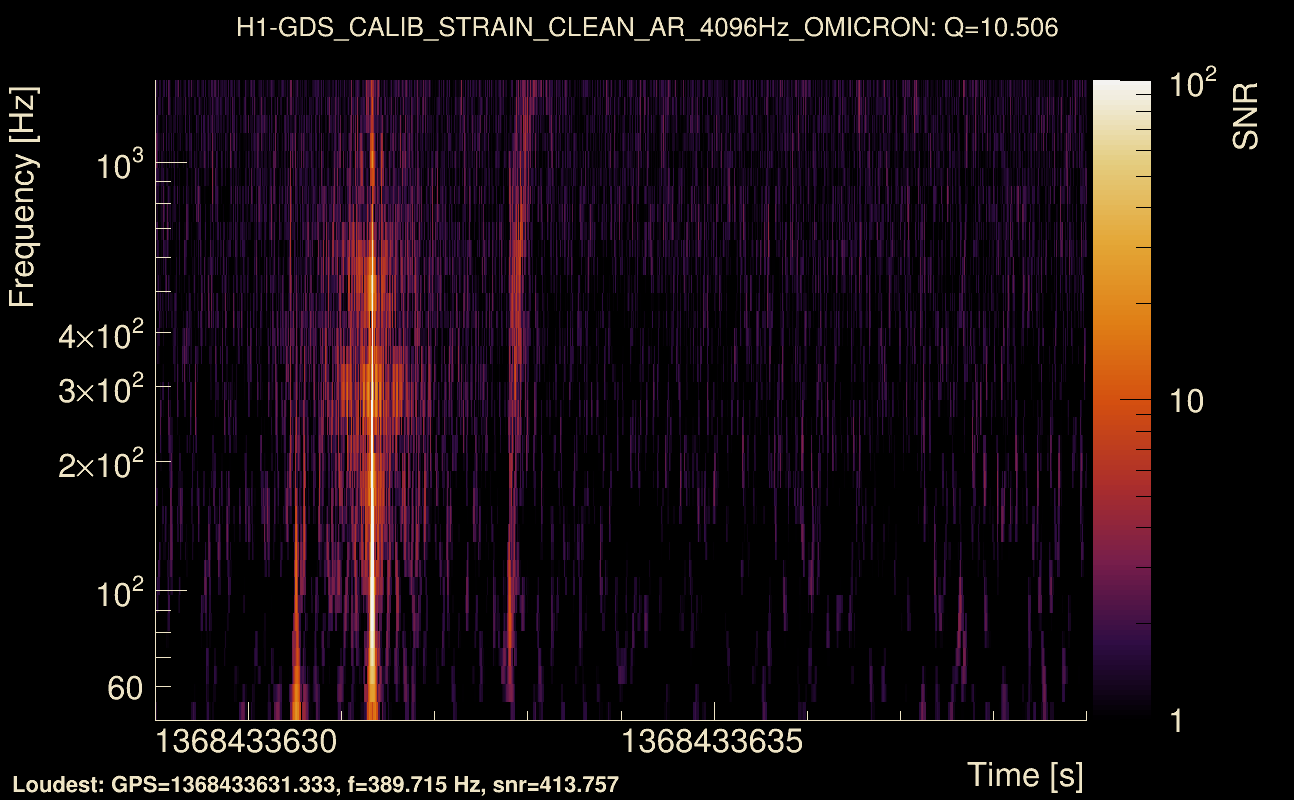

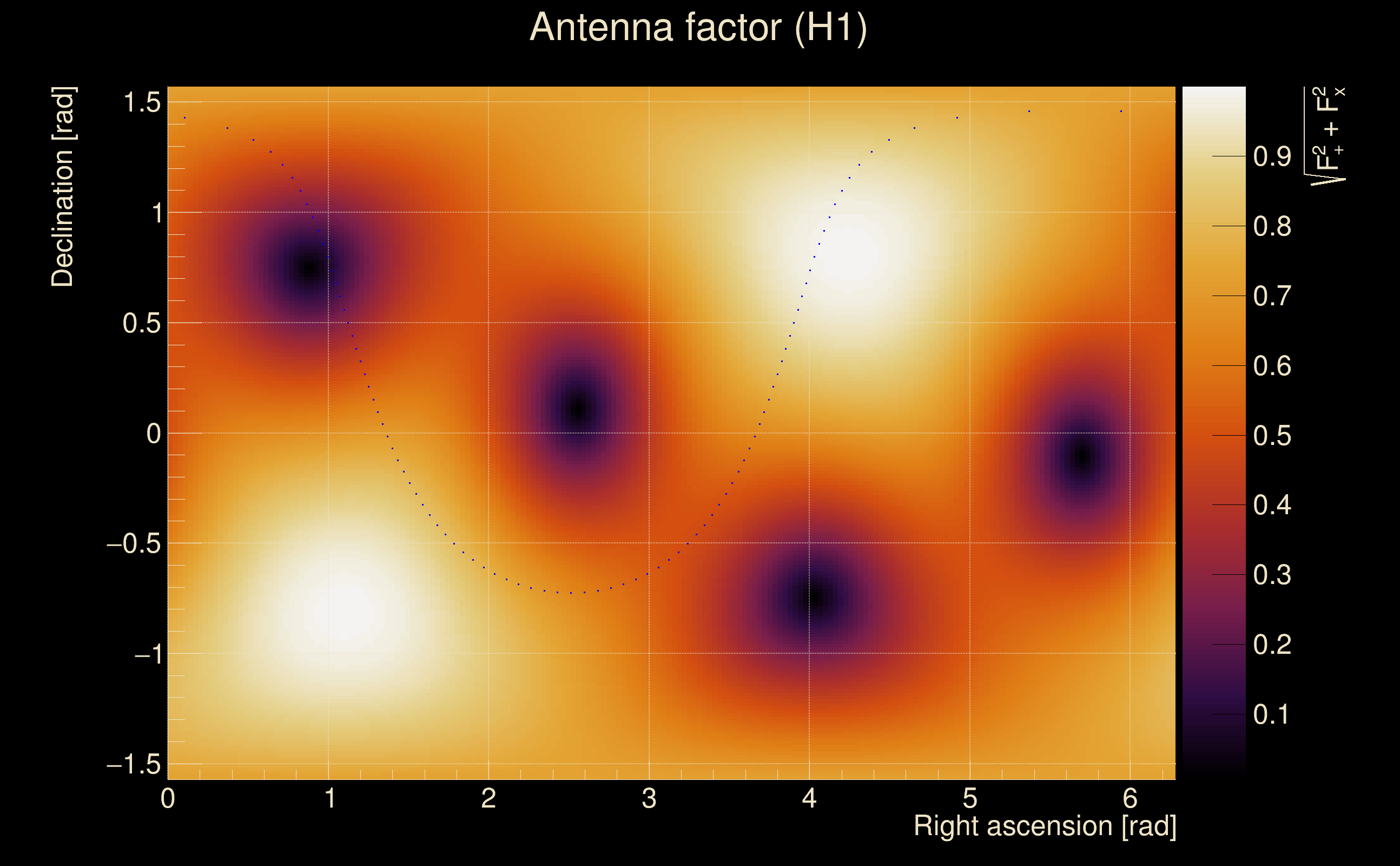

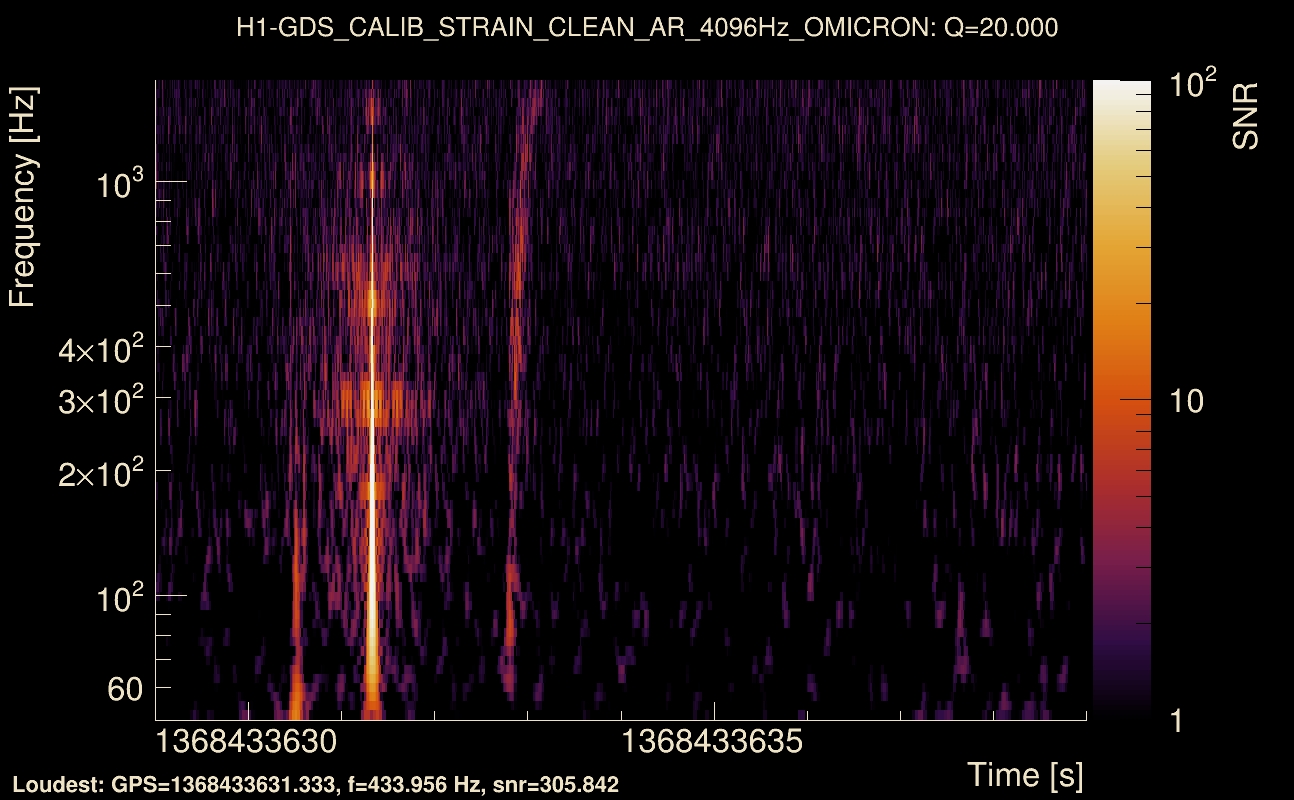

| Event time t(H1): | GPS = 1368433629 (Thu May 18 08:26:51 2023 ) → GPS = 1368433639 (Thu May 18 08:27:01 2023 ) |
| Event time t(L1): | GPS = 1368433629 (Thu May 18 08:27:01 2023 ) → GPS = 1368433639 (Thu May 18 08:27:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368433626 → GPS = 1368433642 |
| Omicron analysis time window (L1): | GPS = 1368433626 → GPS = 1368433642 |

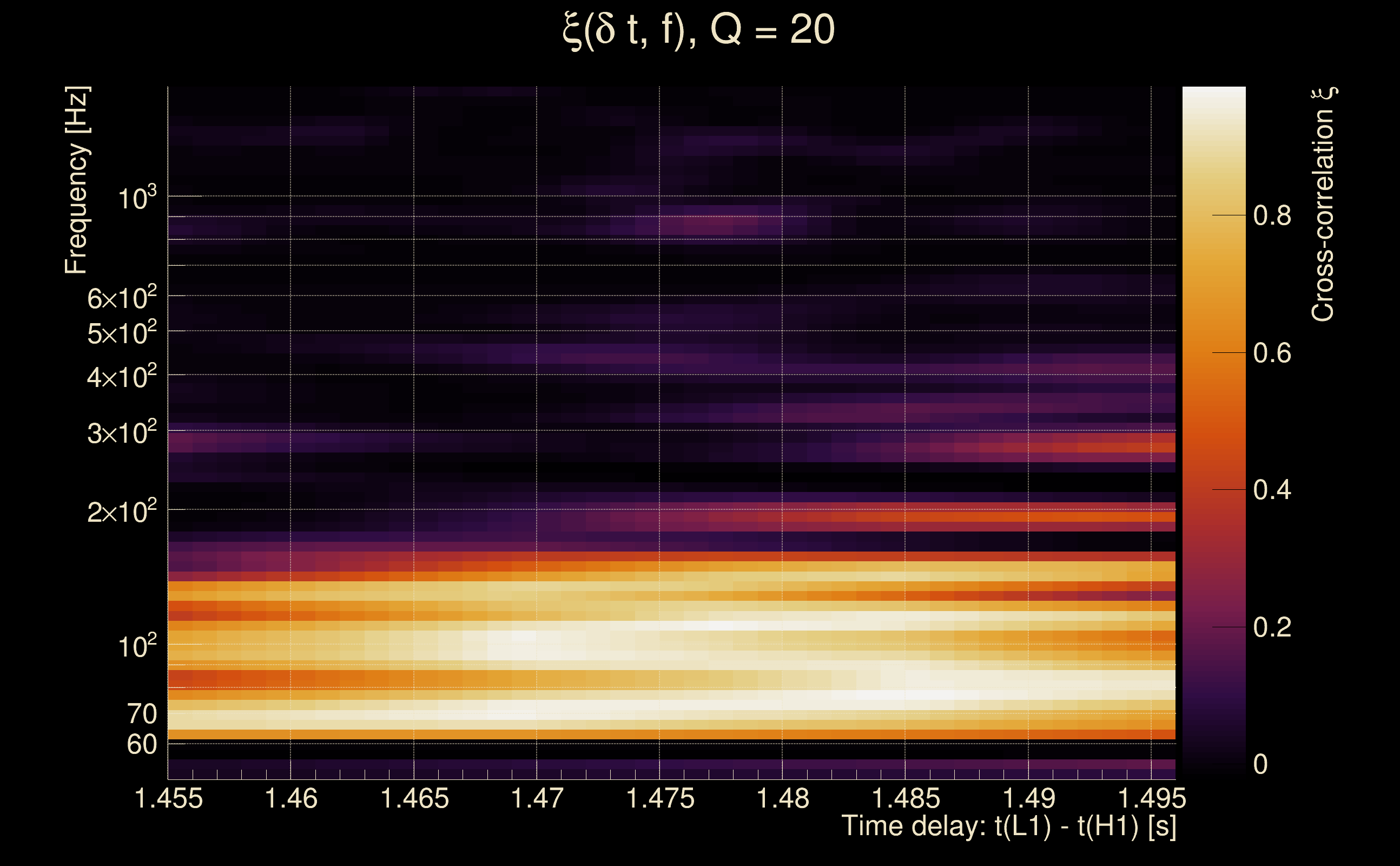

| Time delay between detectors t(L1) - t(H1): | 1.47561 s (slice index = 76 / 217), δt_gw = 0.00361039 s |
| Time delay standard deviation: | 0.0640525 s |
| [targeted mode] Time delay probability: | 0.600364 (0.523877 sigmas), δt_target = -0.00833631 s |
| Frequency: | 121.04 Hz |
| Ξ: | 0.457548 ± 0.0706314 (variance = 0.00498879): Q0: 0.820604, Q1: 0.826416, Q2: 0.780937, Q3: 0.73842, Q4: 0.633683 |
| Rank: | R_A = 0.457548 |
| Log of amplitude ratio (L1/H1): | -3.79796, variance = 1.28233 (L1/H1: -3.79919, variance = 1.28412, H1/L1: 2.03373, variance = 1.51098) |
| Amplitude ratio (L1/H1): | 0.0224165 ⋇ 3.10309 (L1/H1: 0.0223889 ⋇ 3.10554, H1/L1: 7.64255 ⋇ 3.41856) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.290973 |

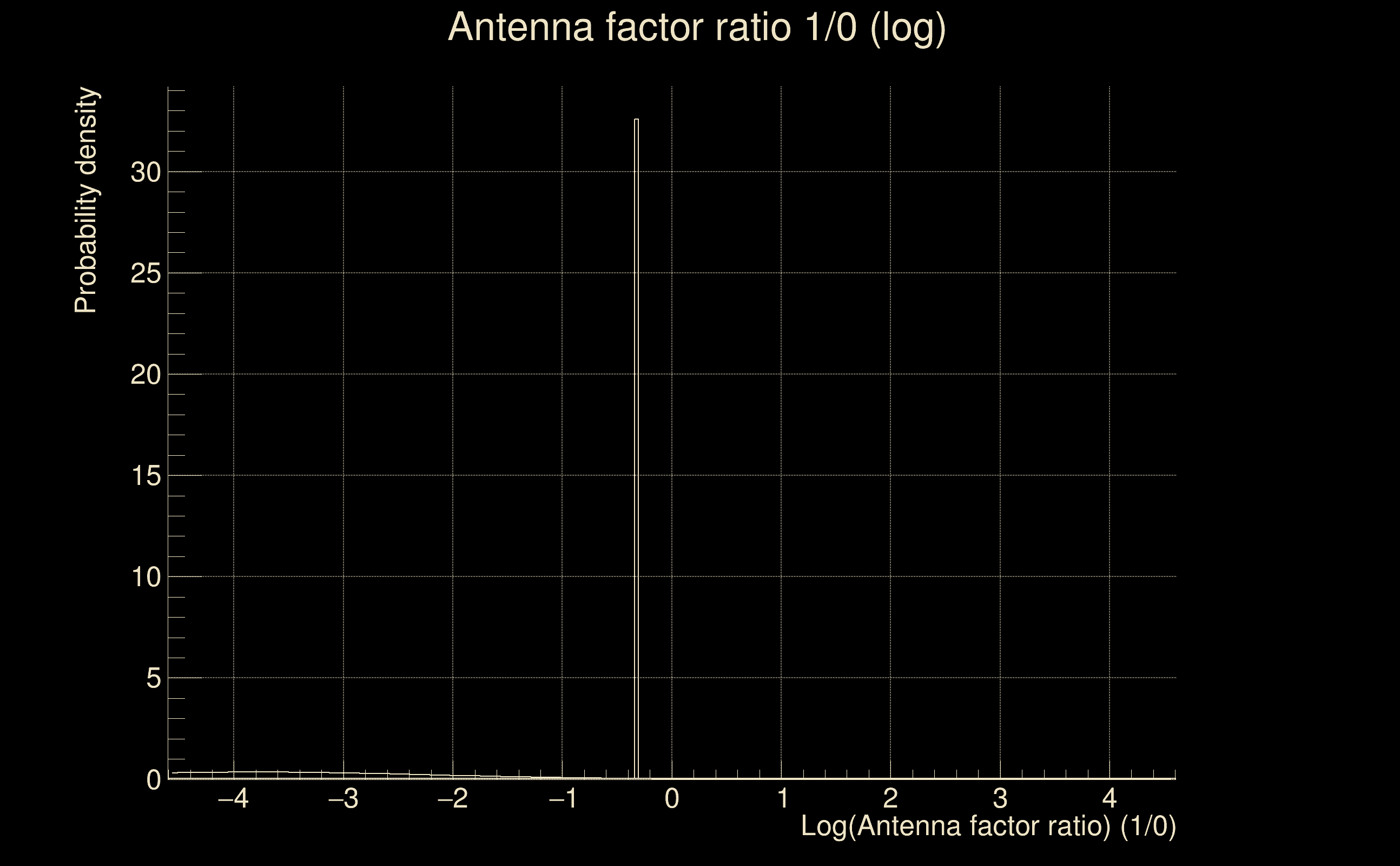

| Antenna factor probability: | 0.00206494 |
| Number of rejected frequency rows: | Q0: 7 / 18, Q1: 15 / 36, Q2: 31 / 70, Q3: 88 / 134, Q4: 206 / 258 |
| Maximum signal-to-noise ratio: | H1: 538.609, L1: 14.2363 |
| SNR variance: | H1: 60.1071, L1: 0.654024 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

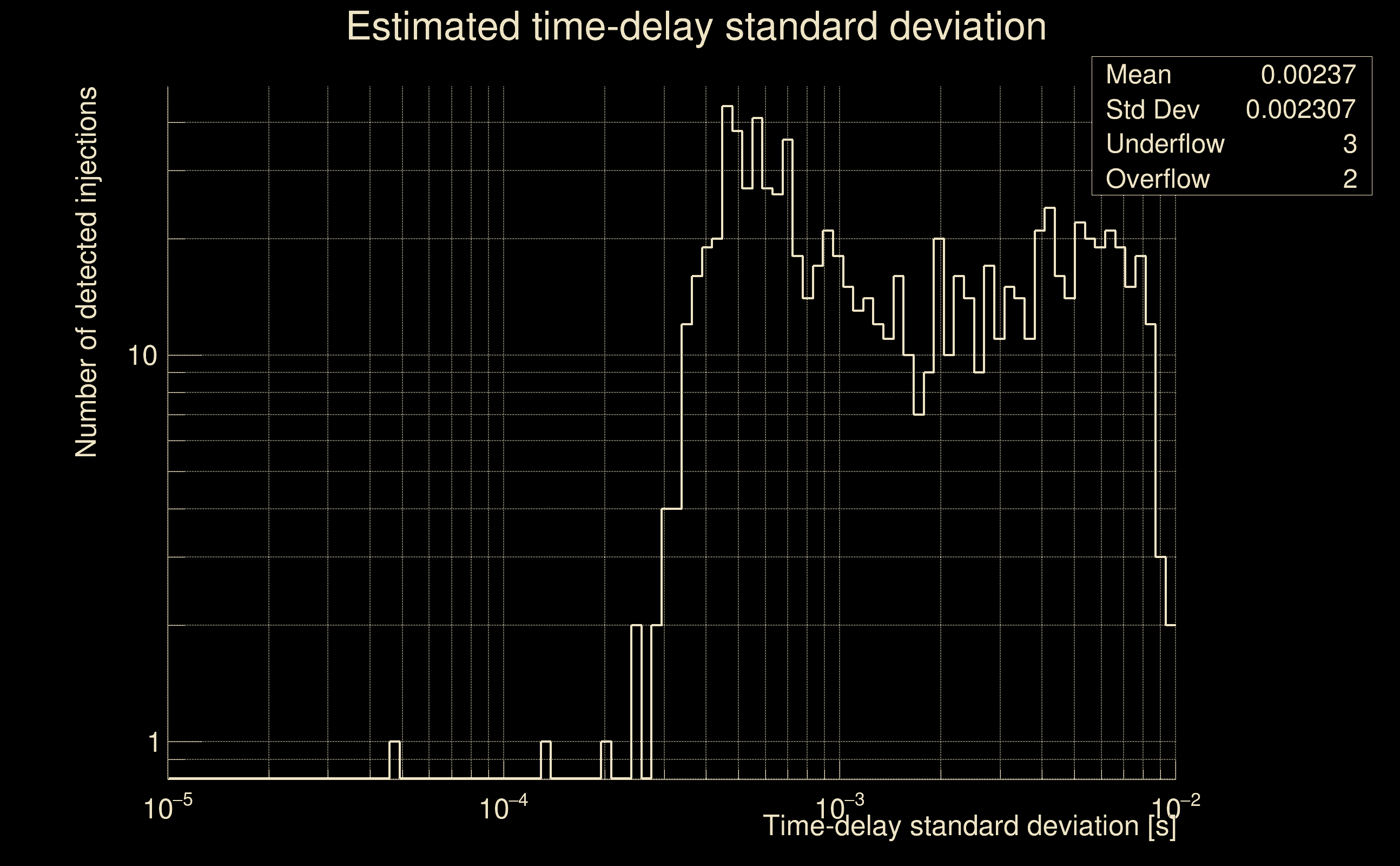

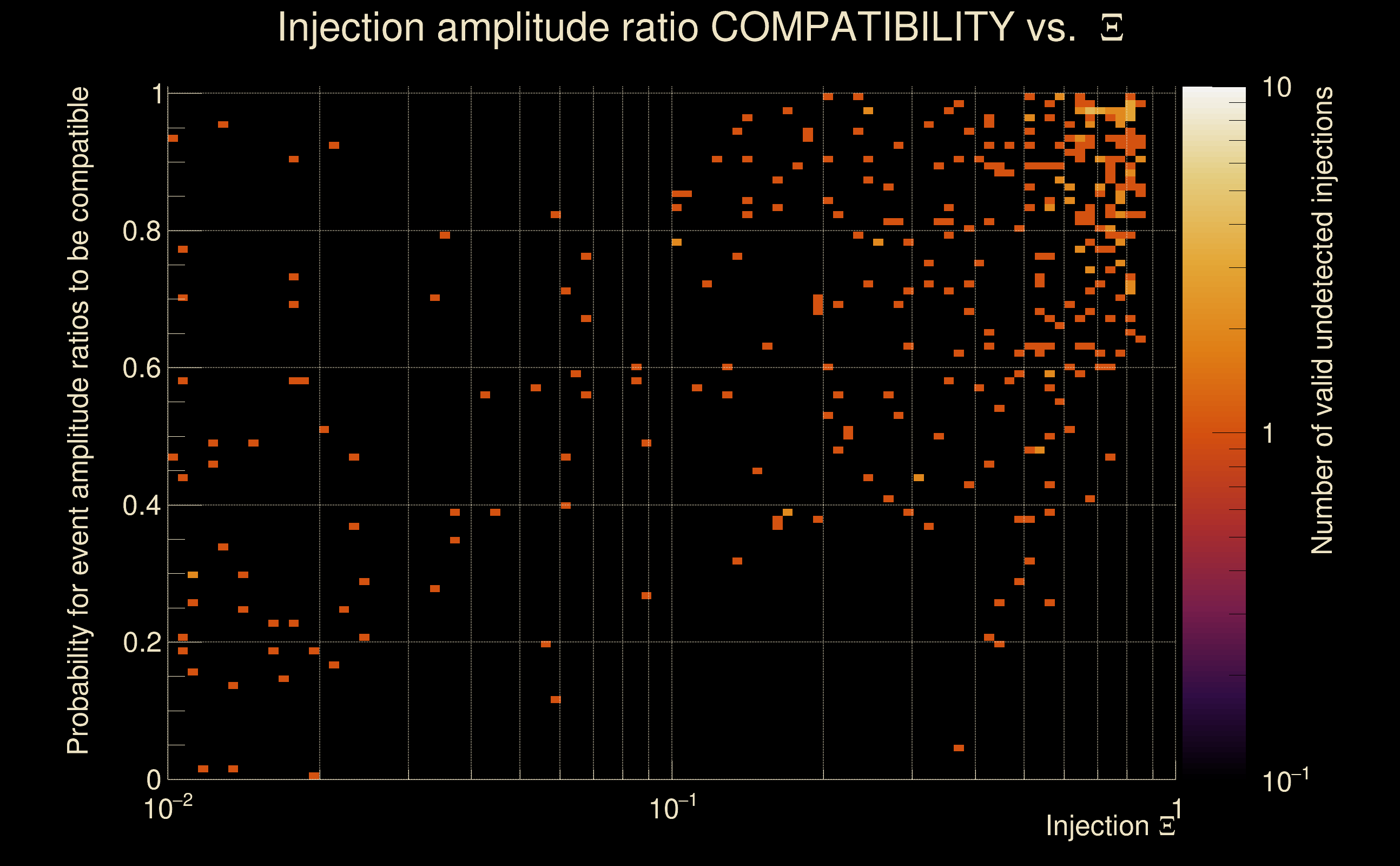

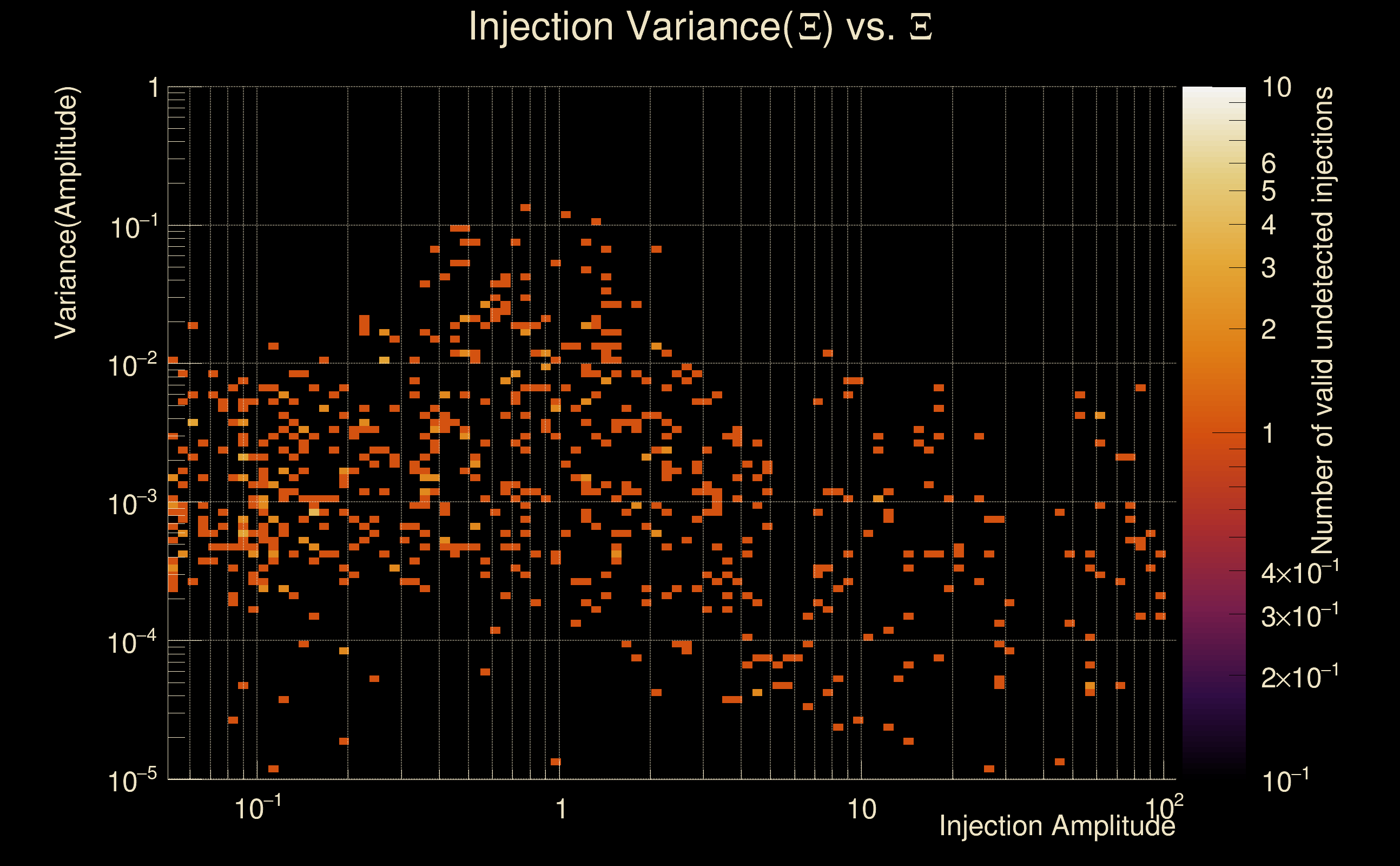

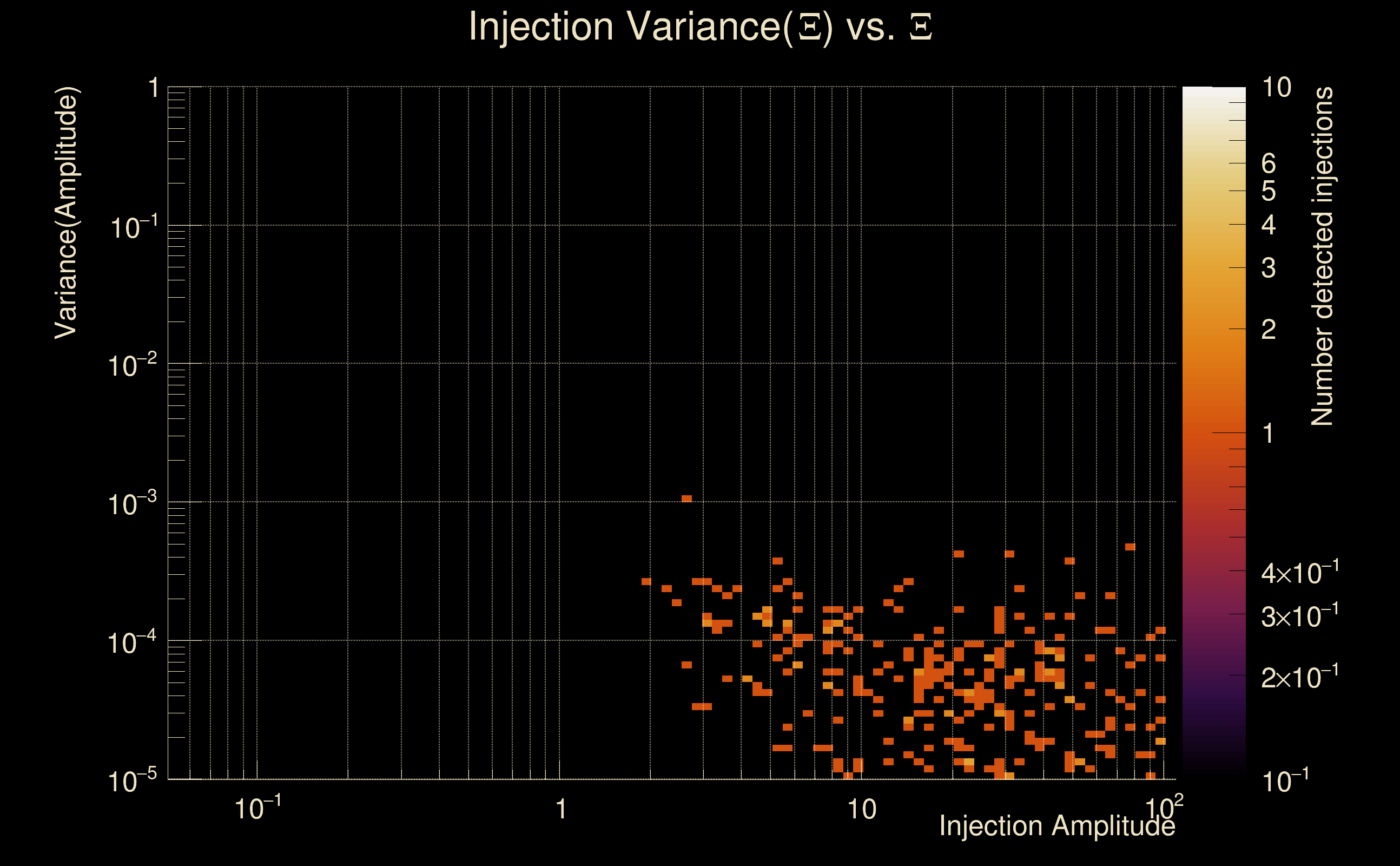

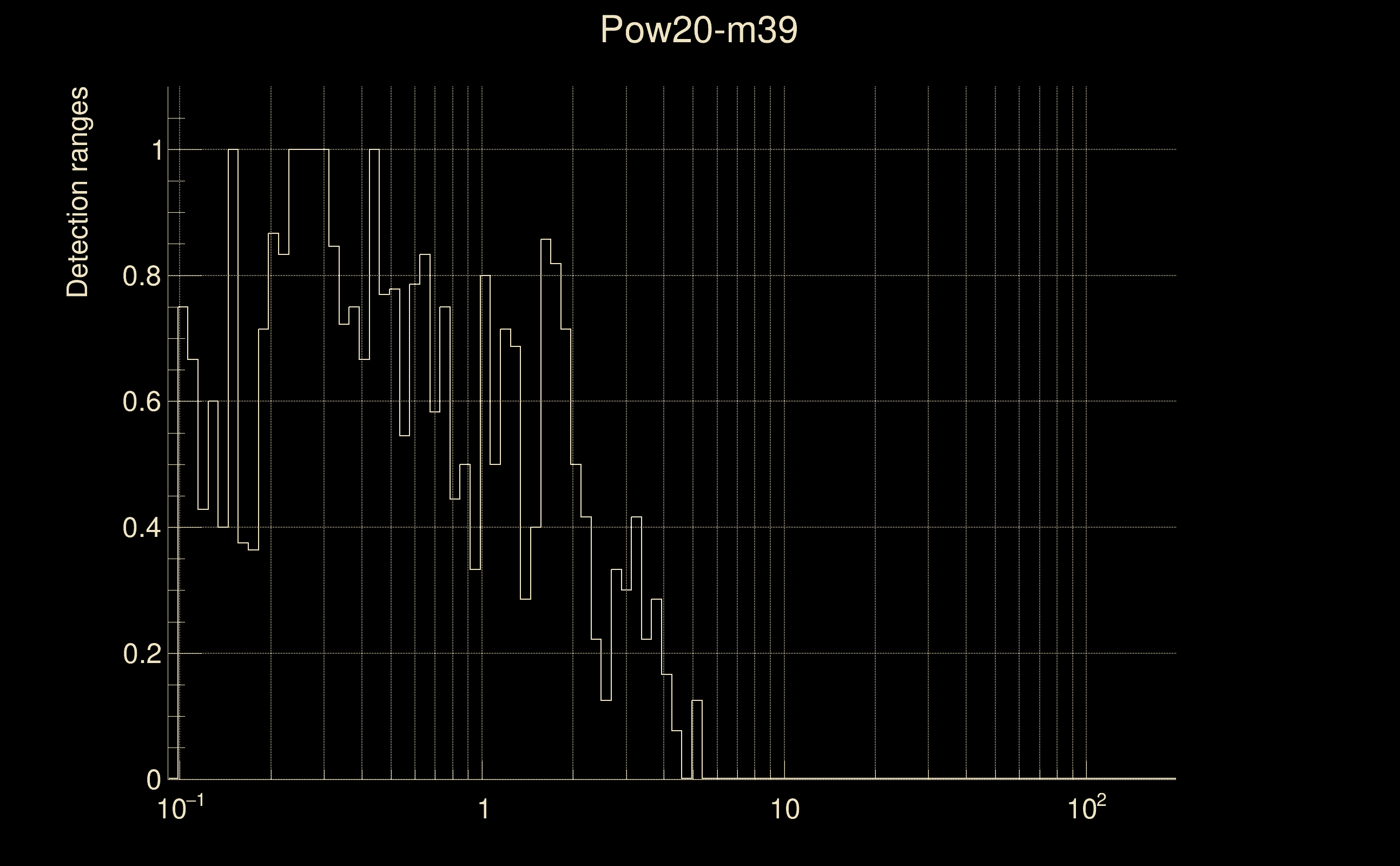

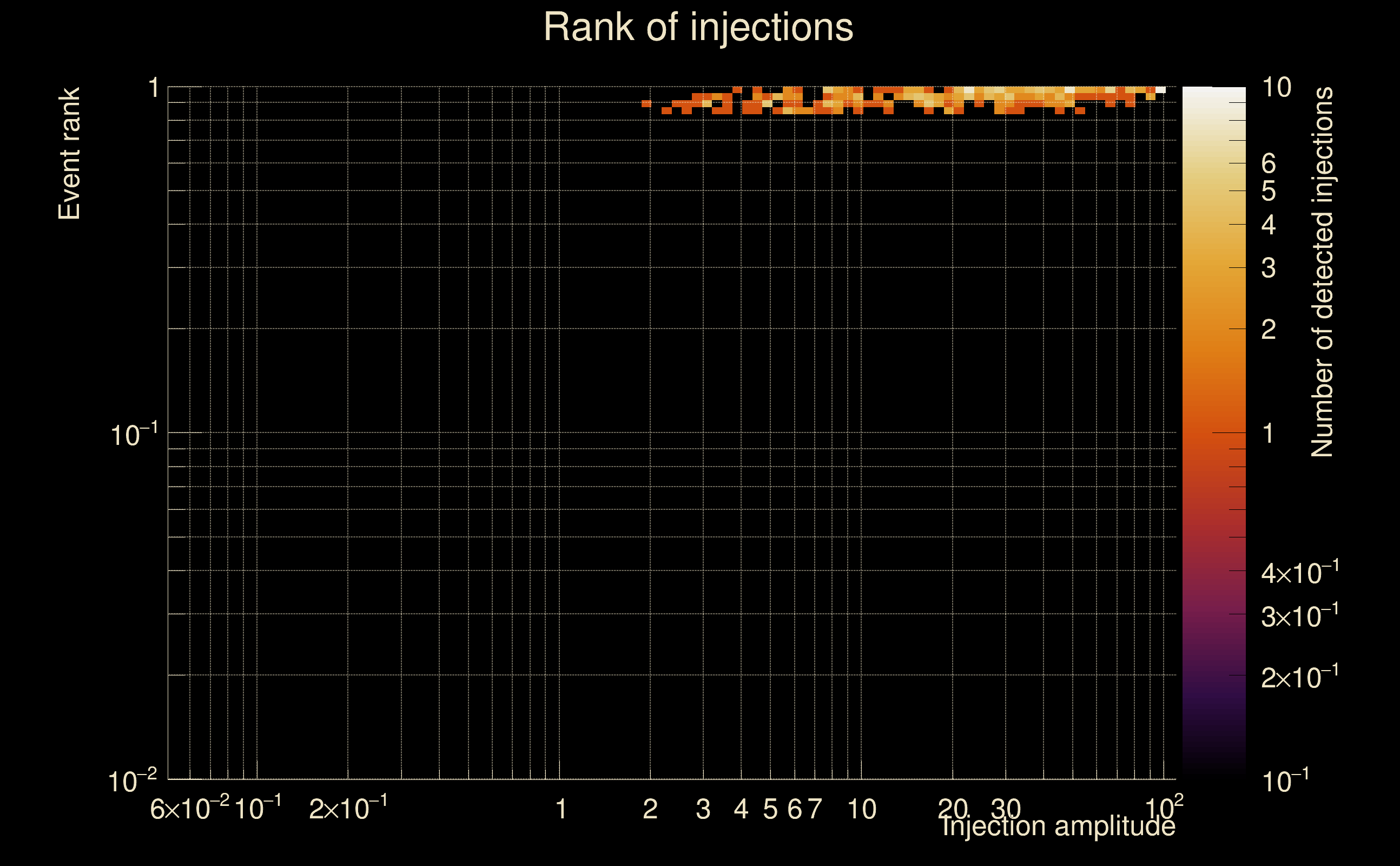

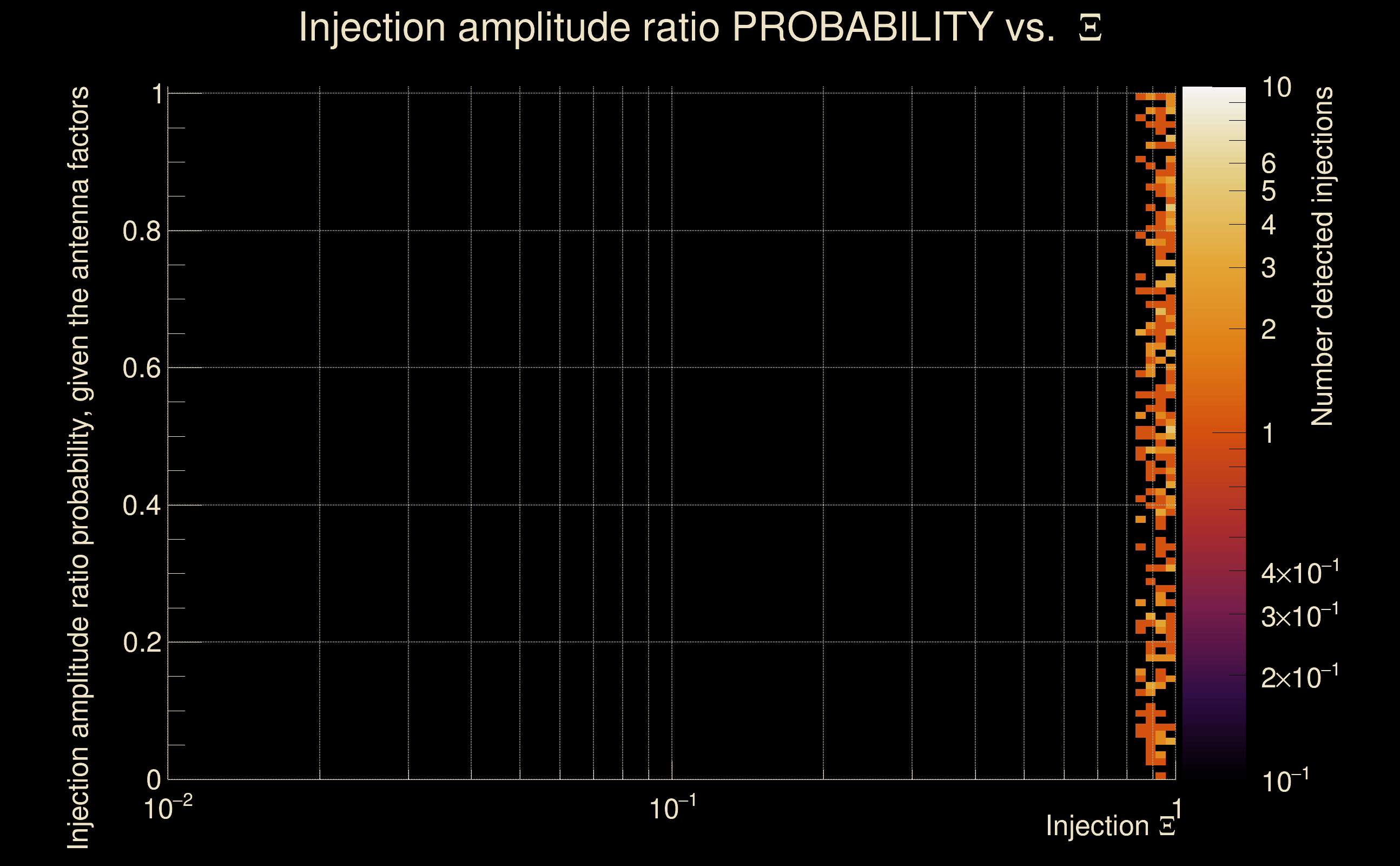

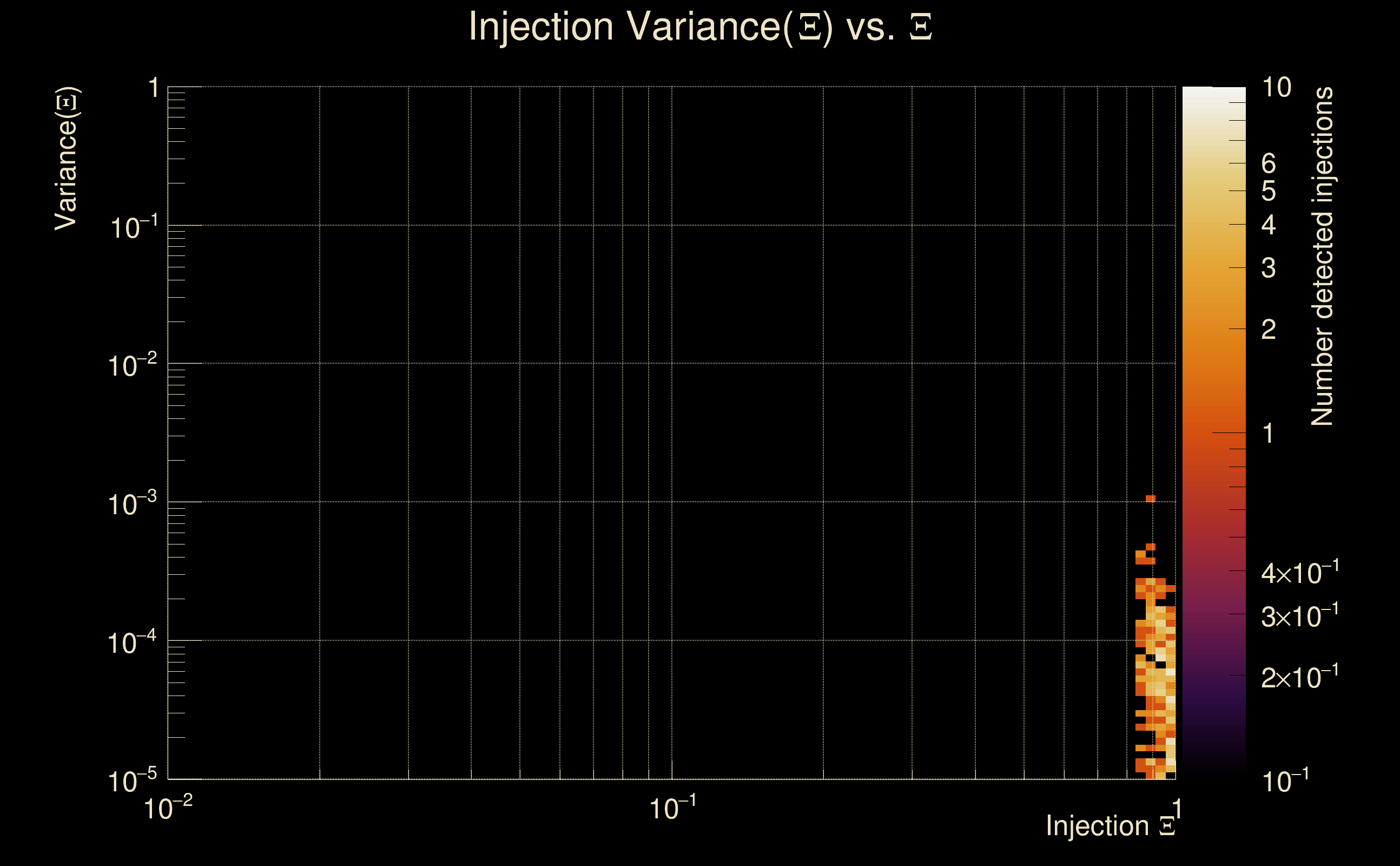

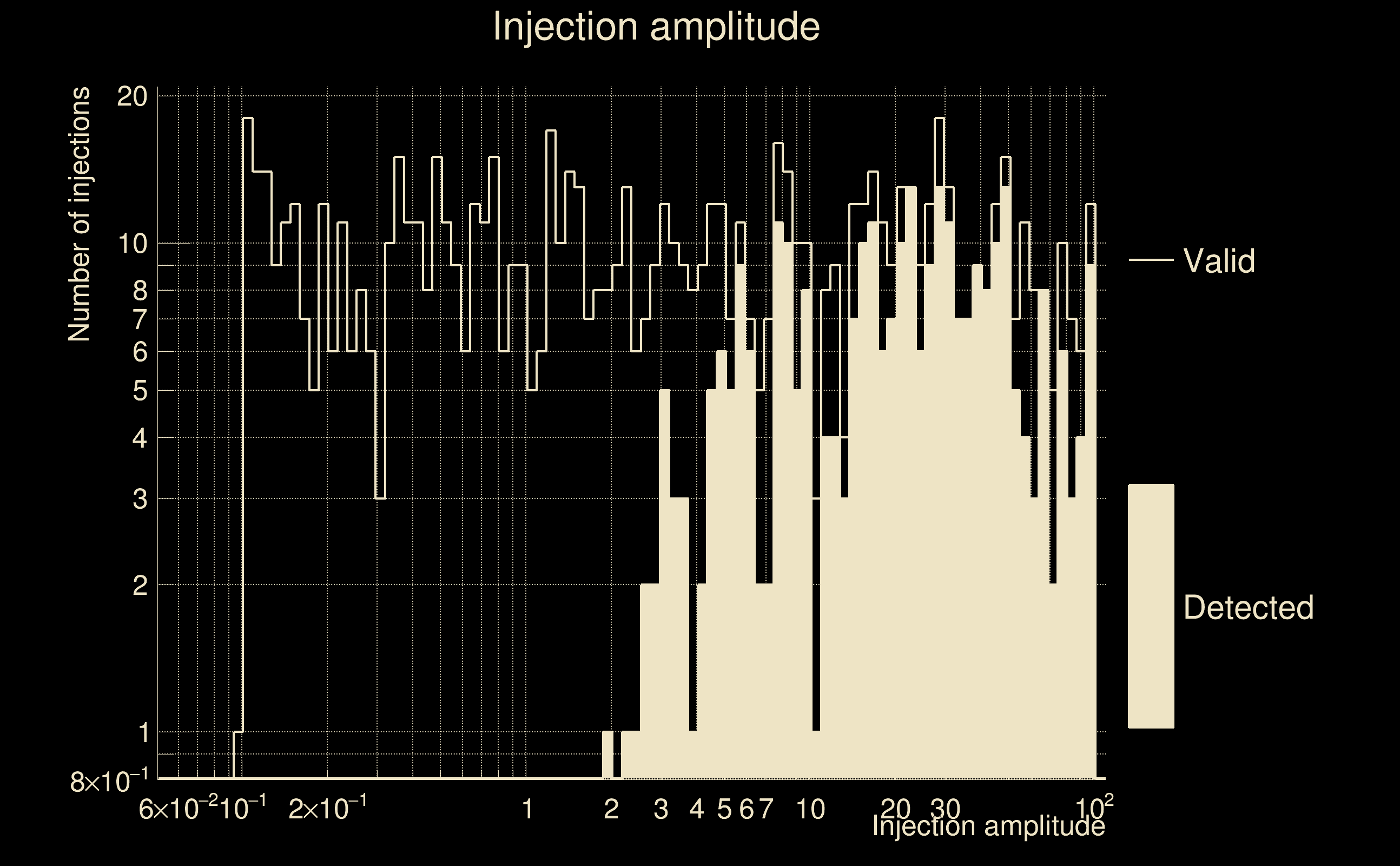

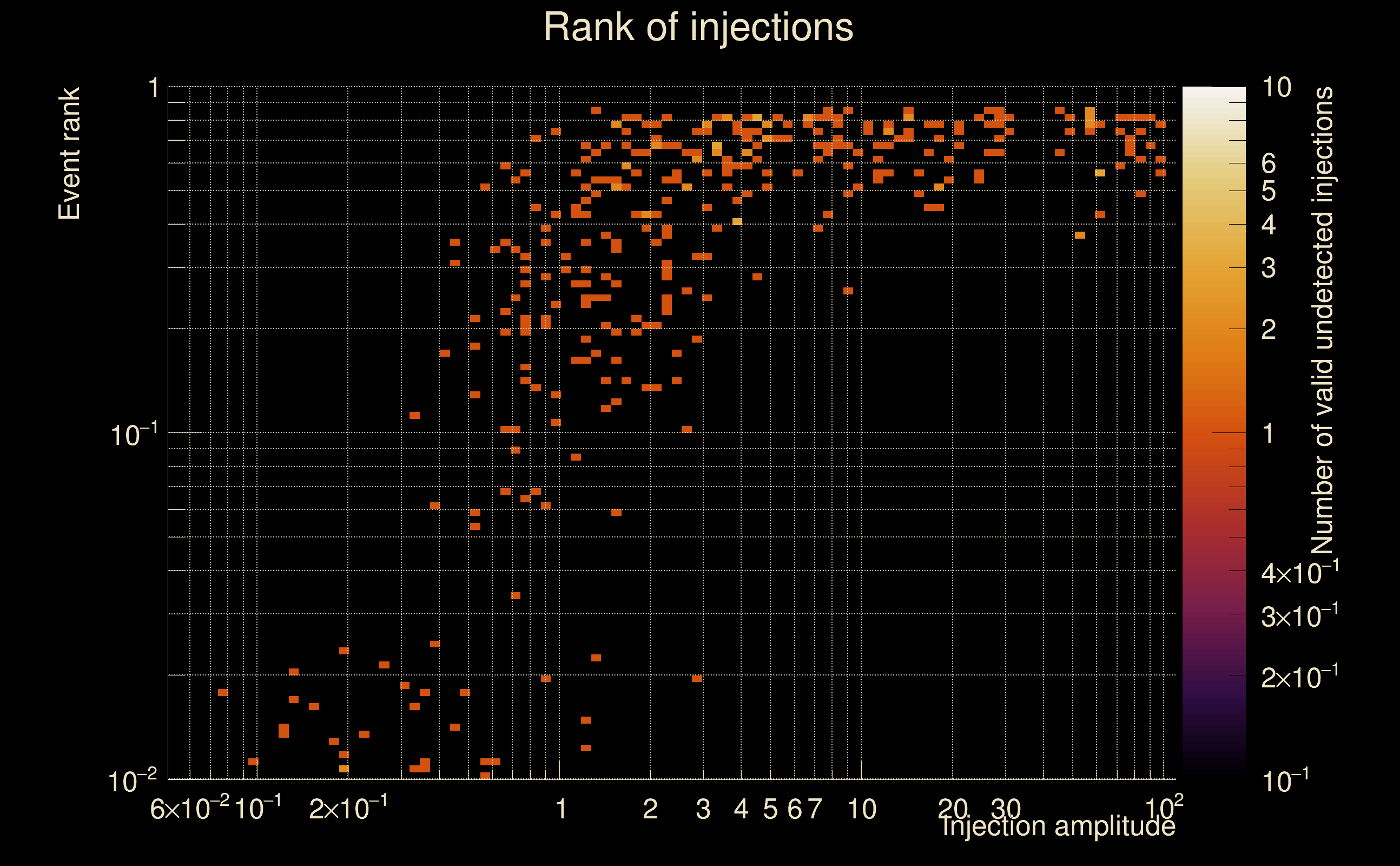

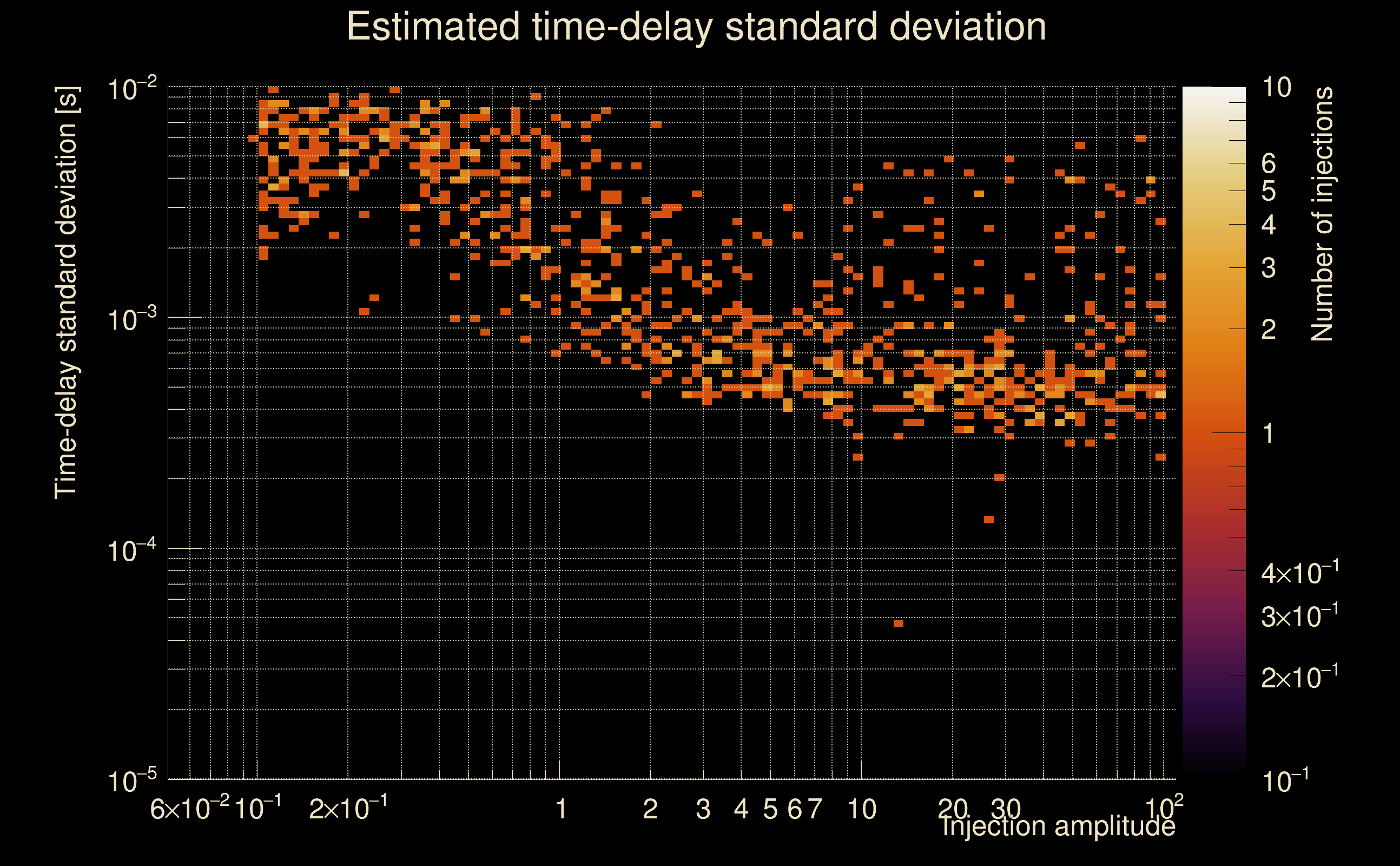

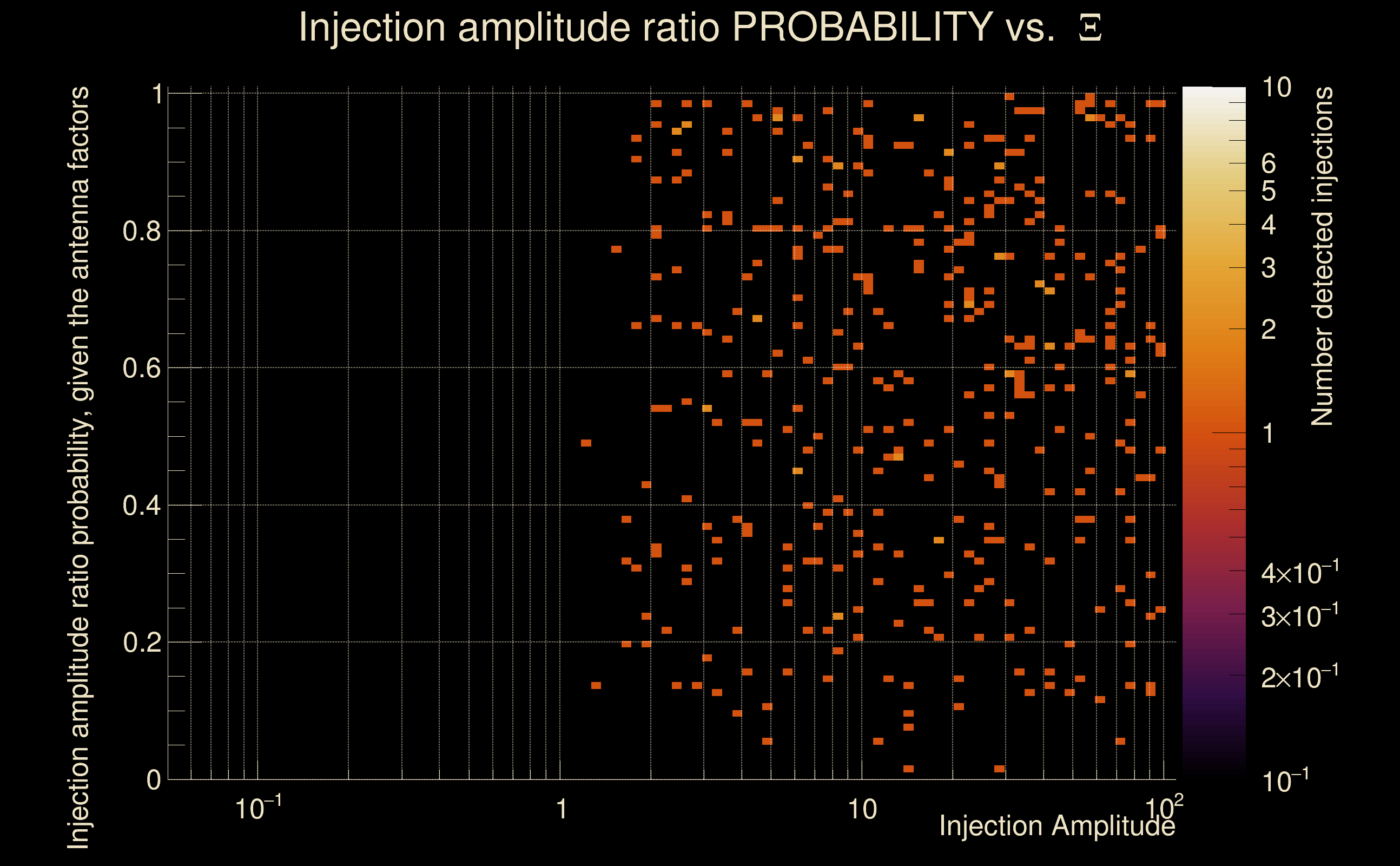

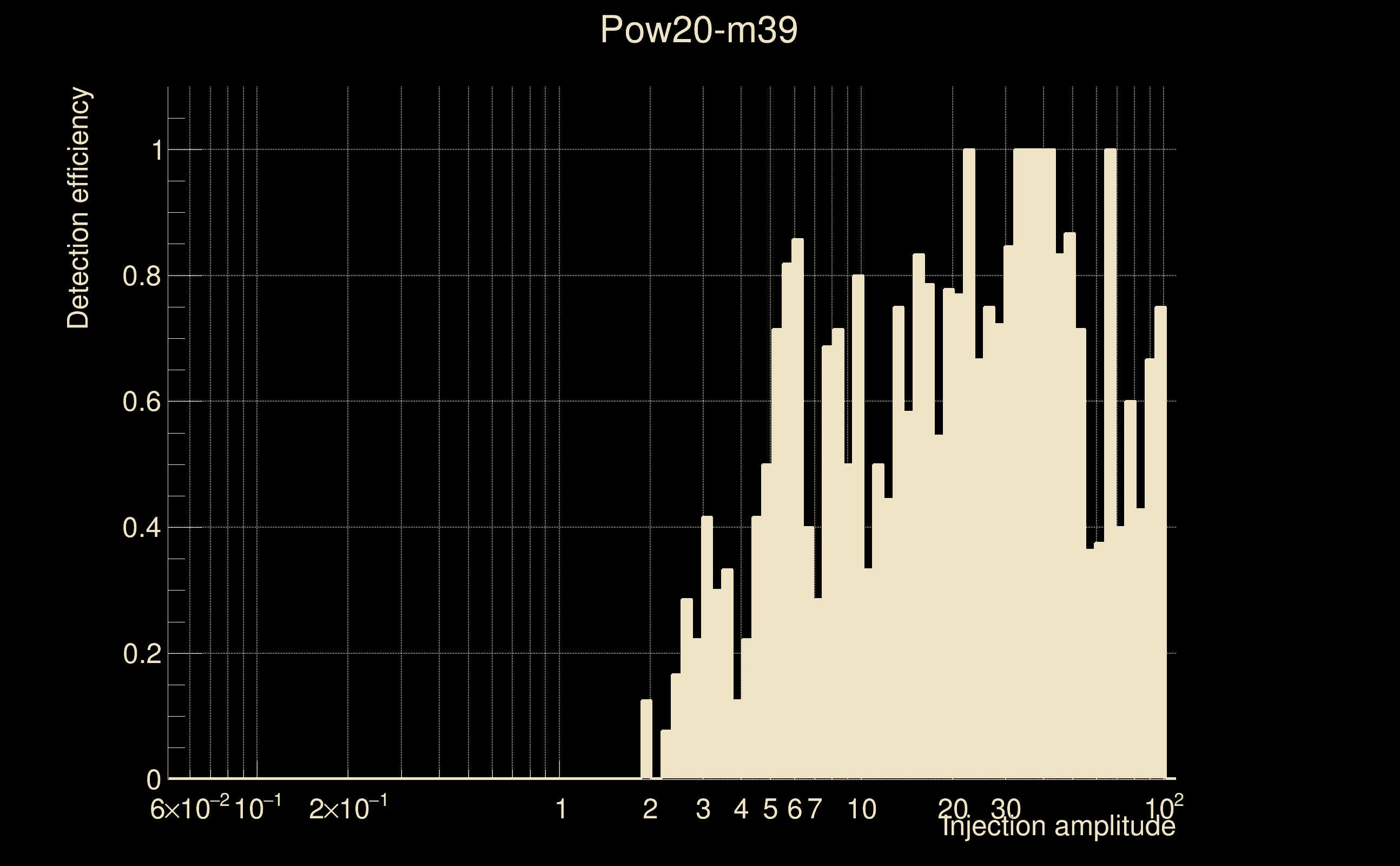

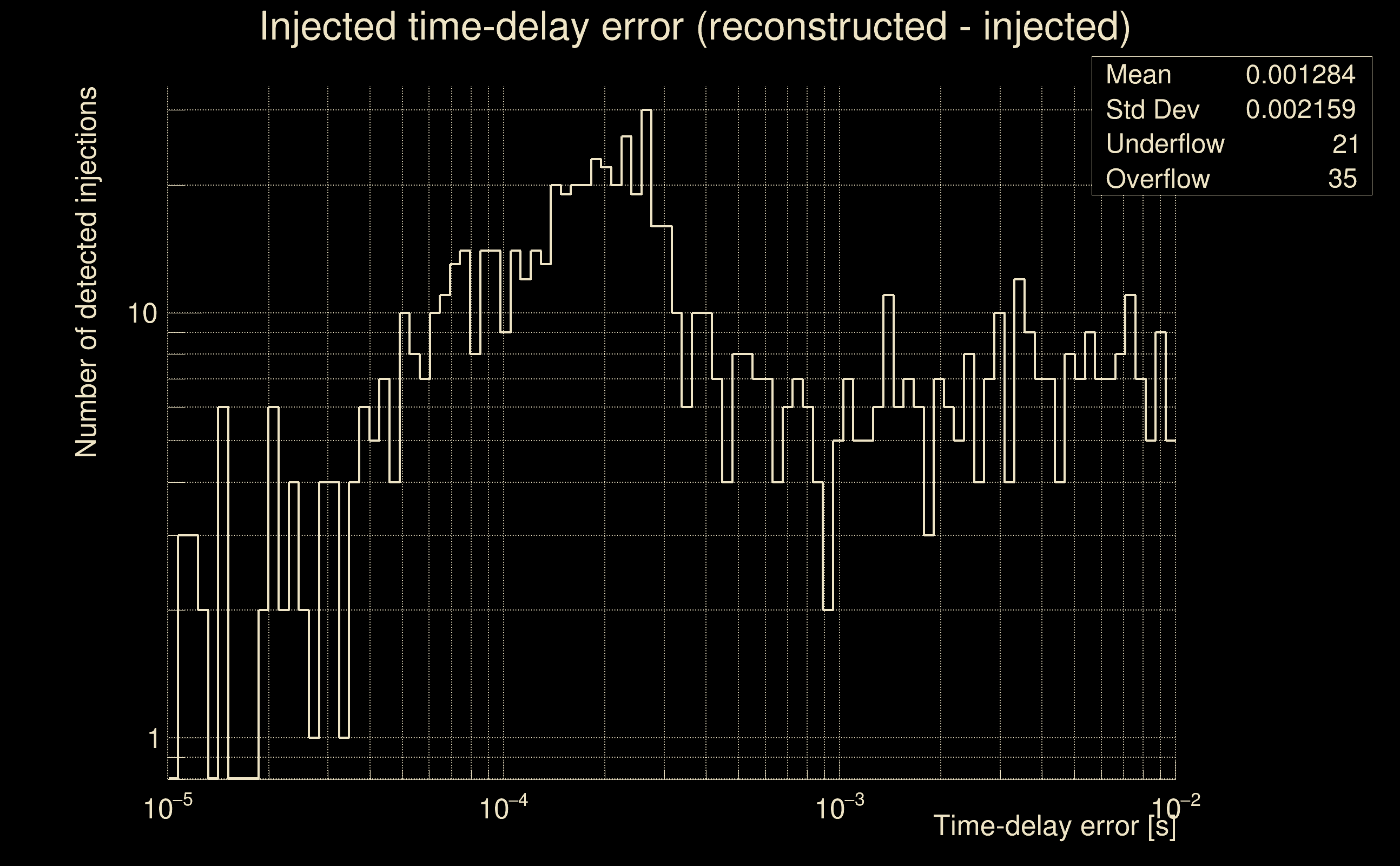

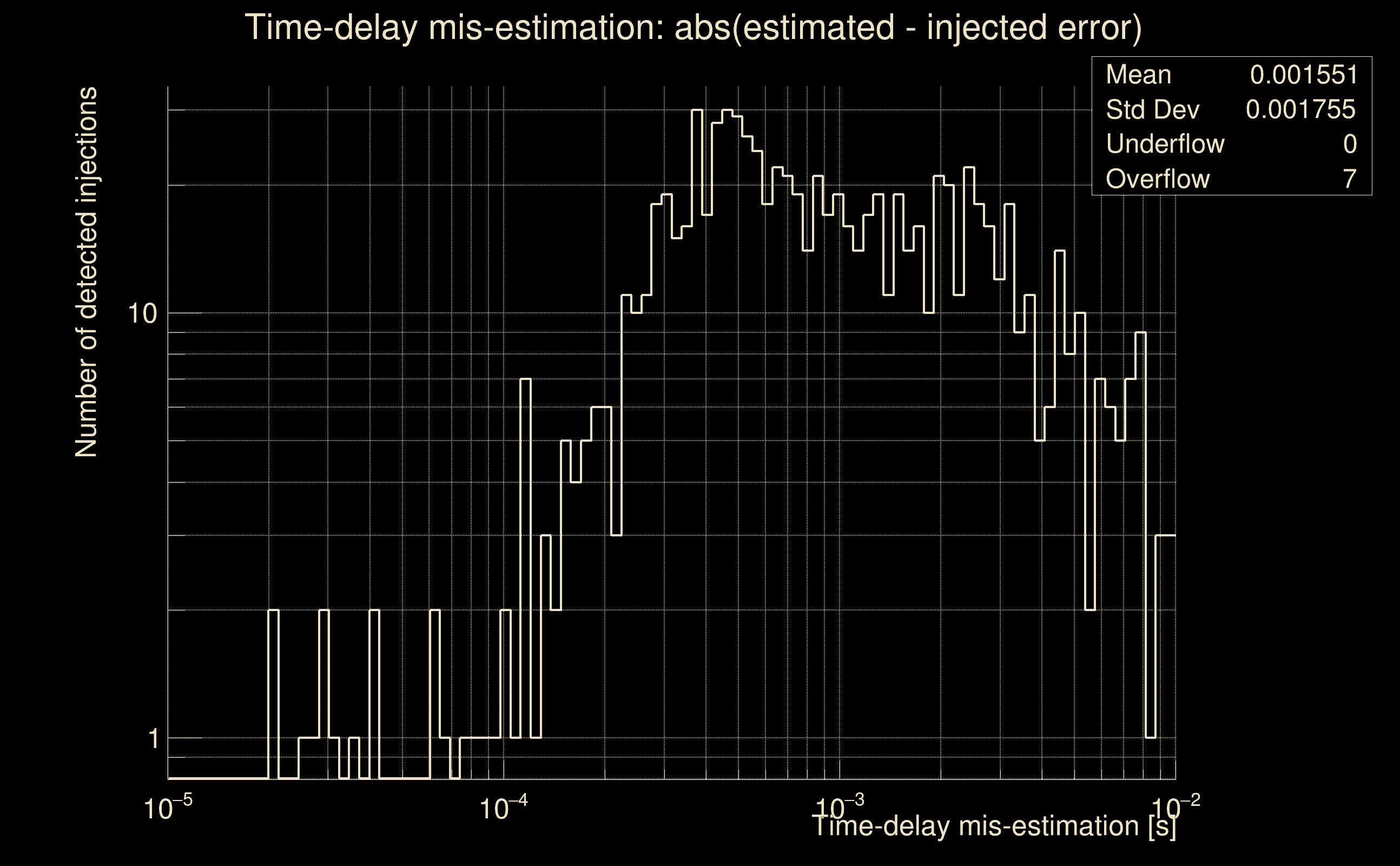

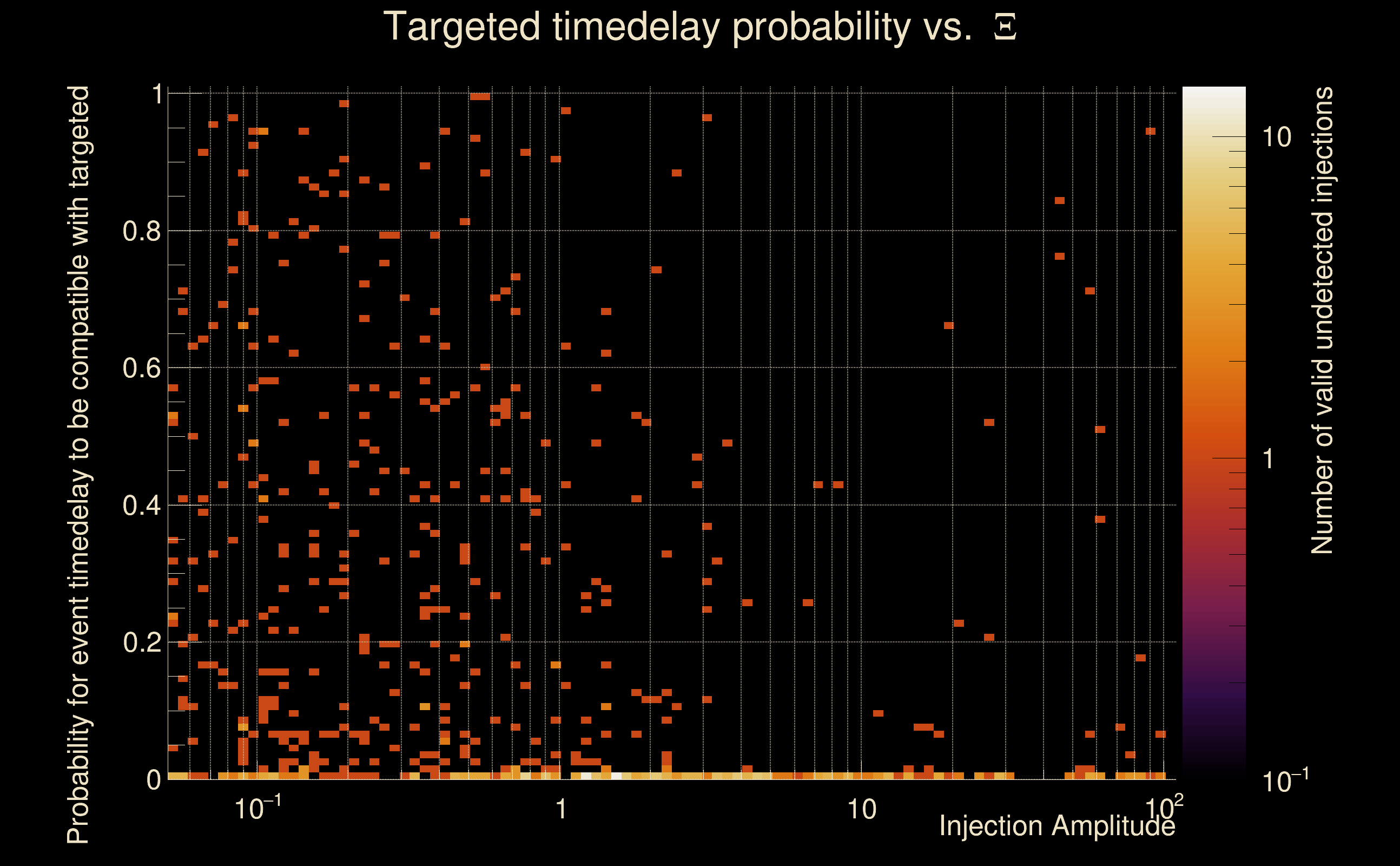

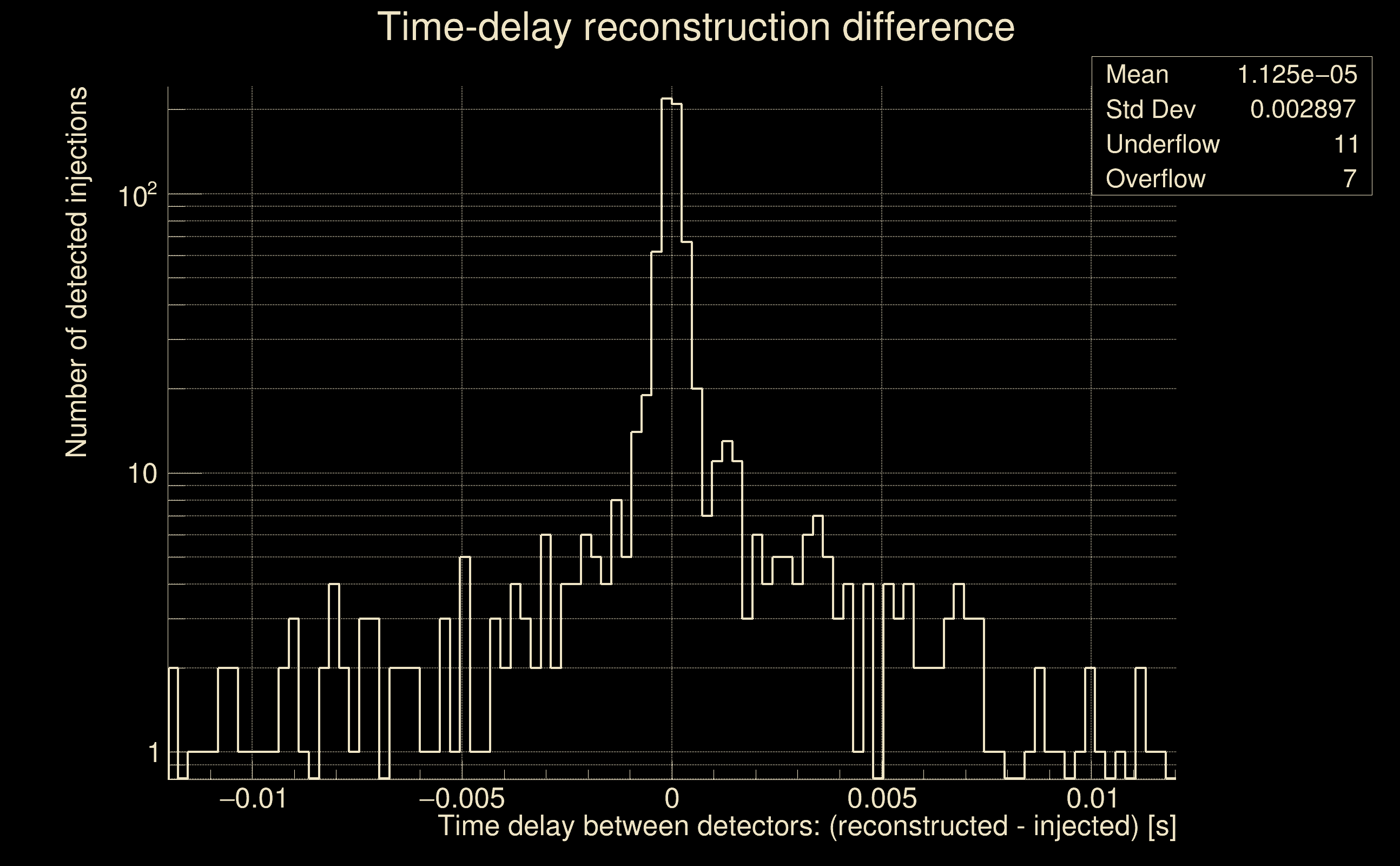

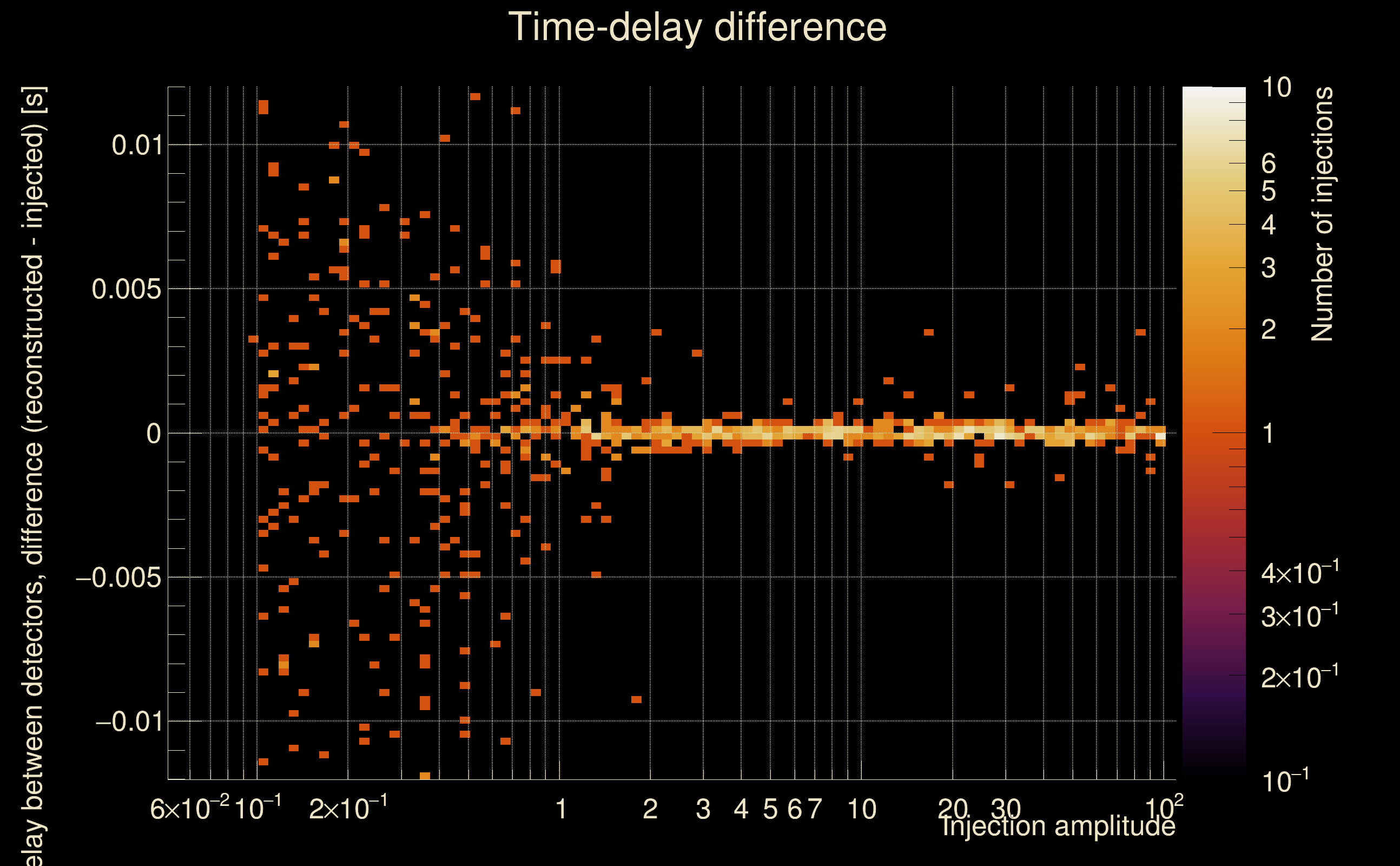

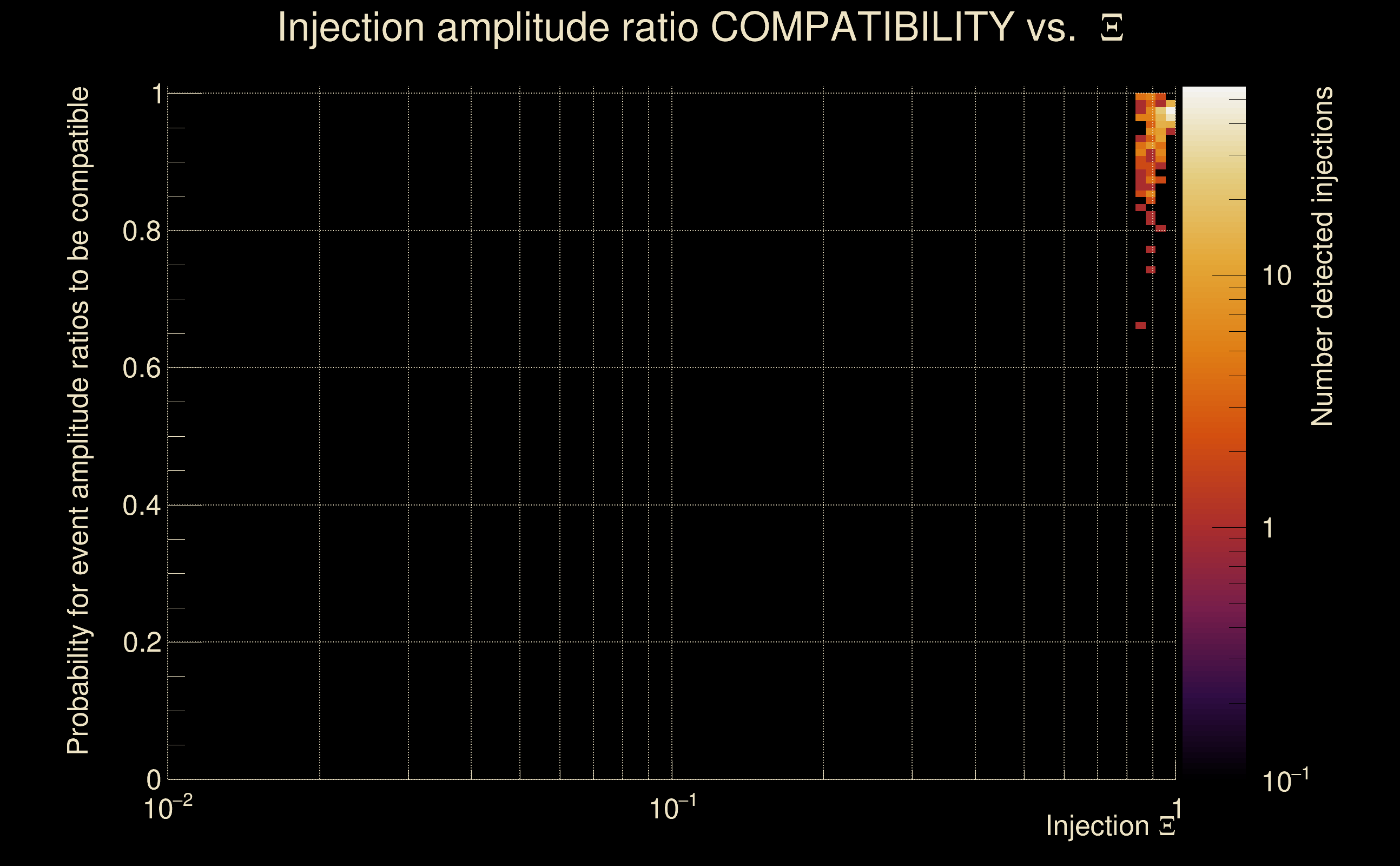

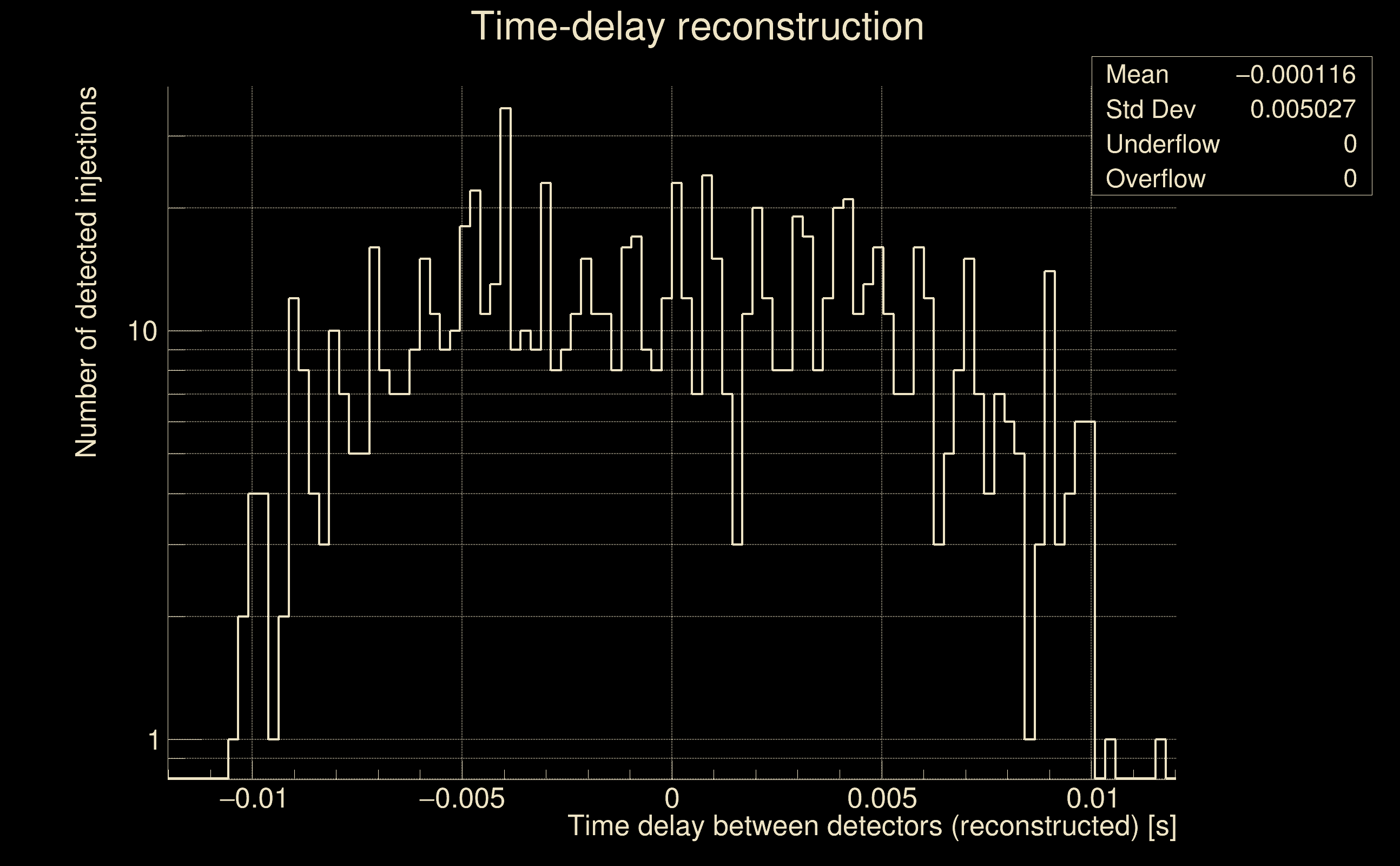

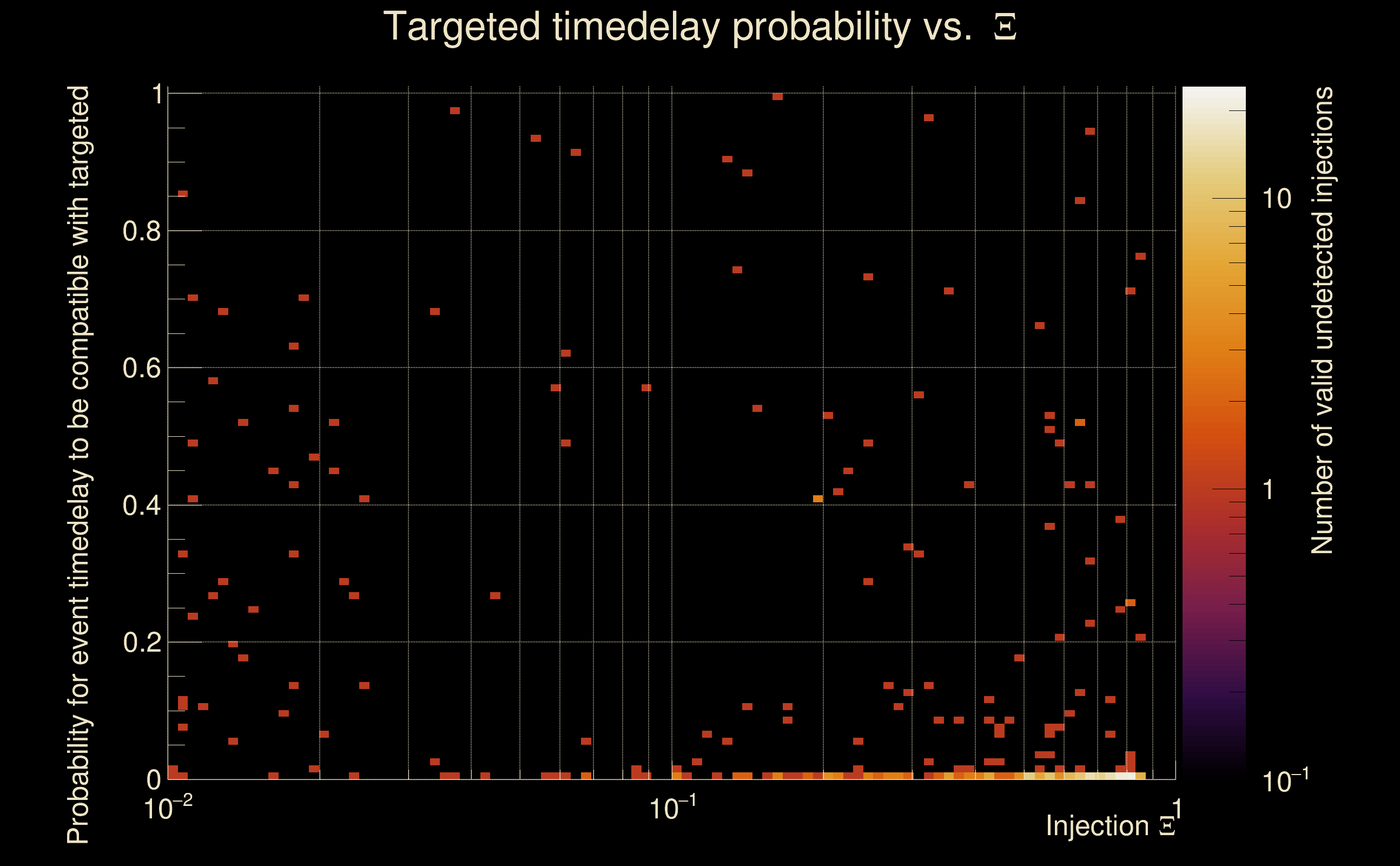

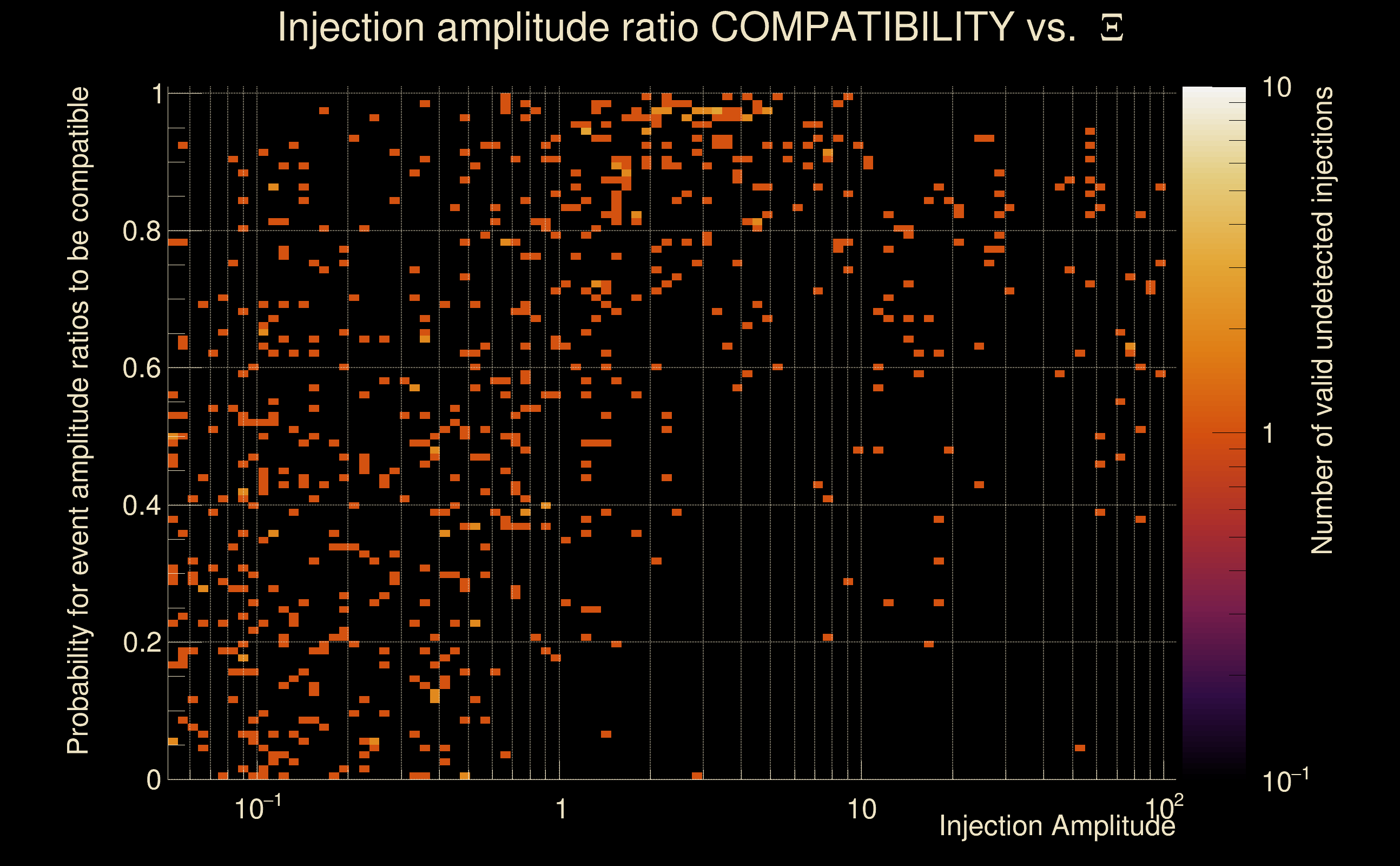

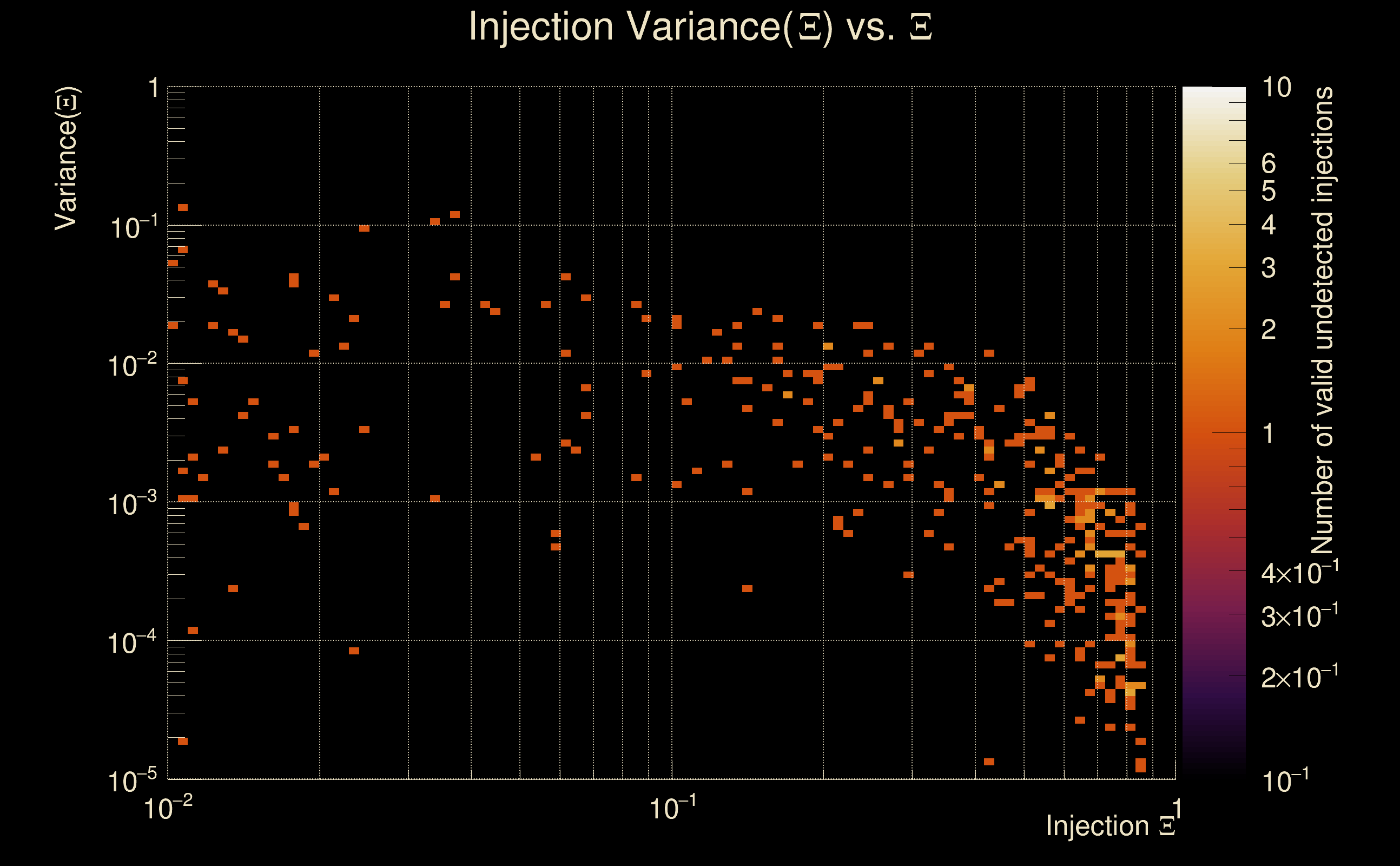

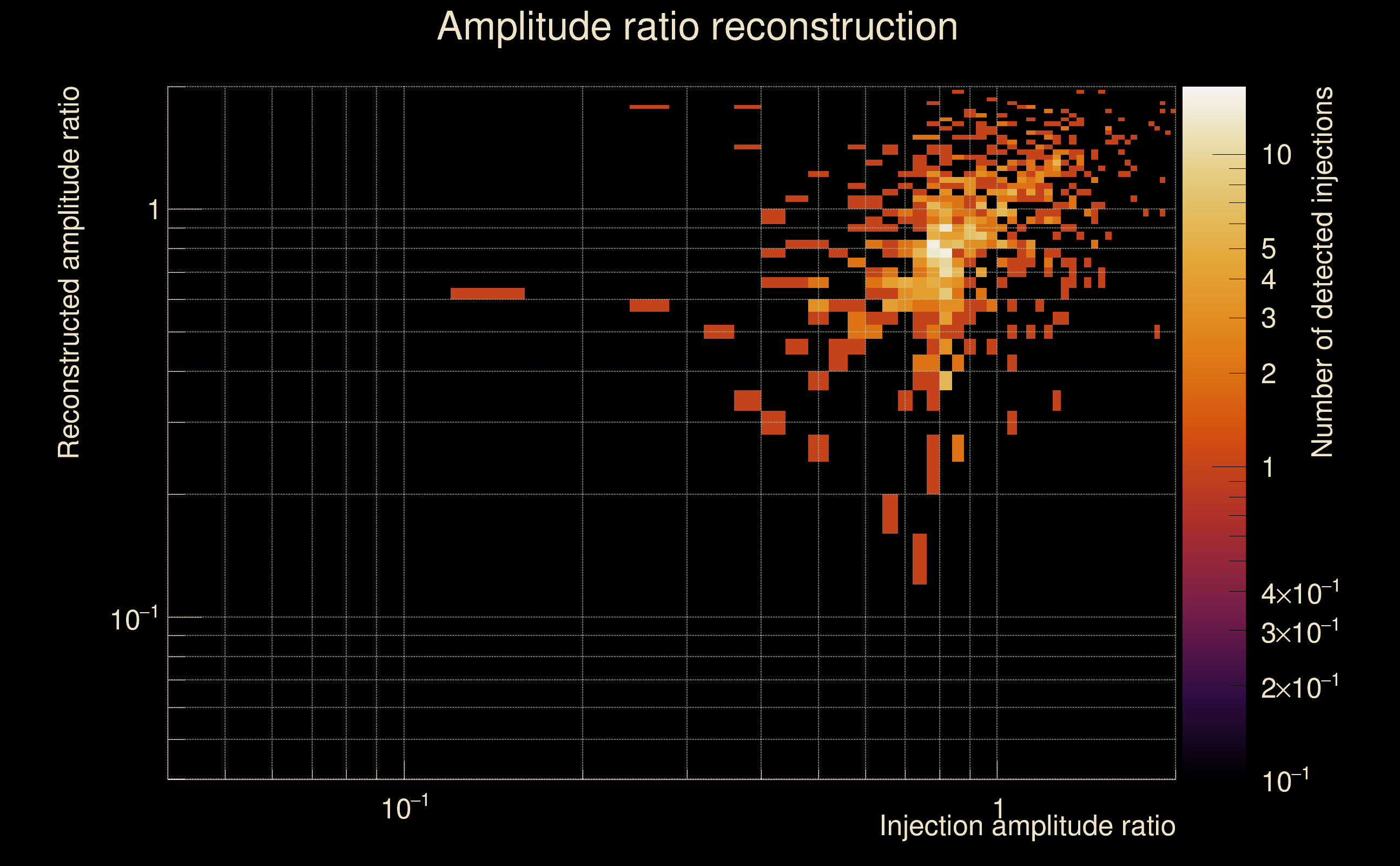

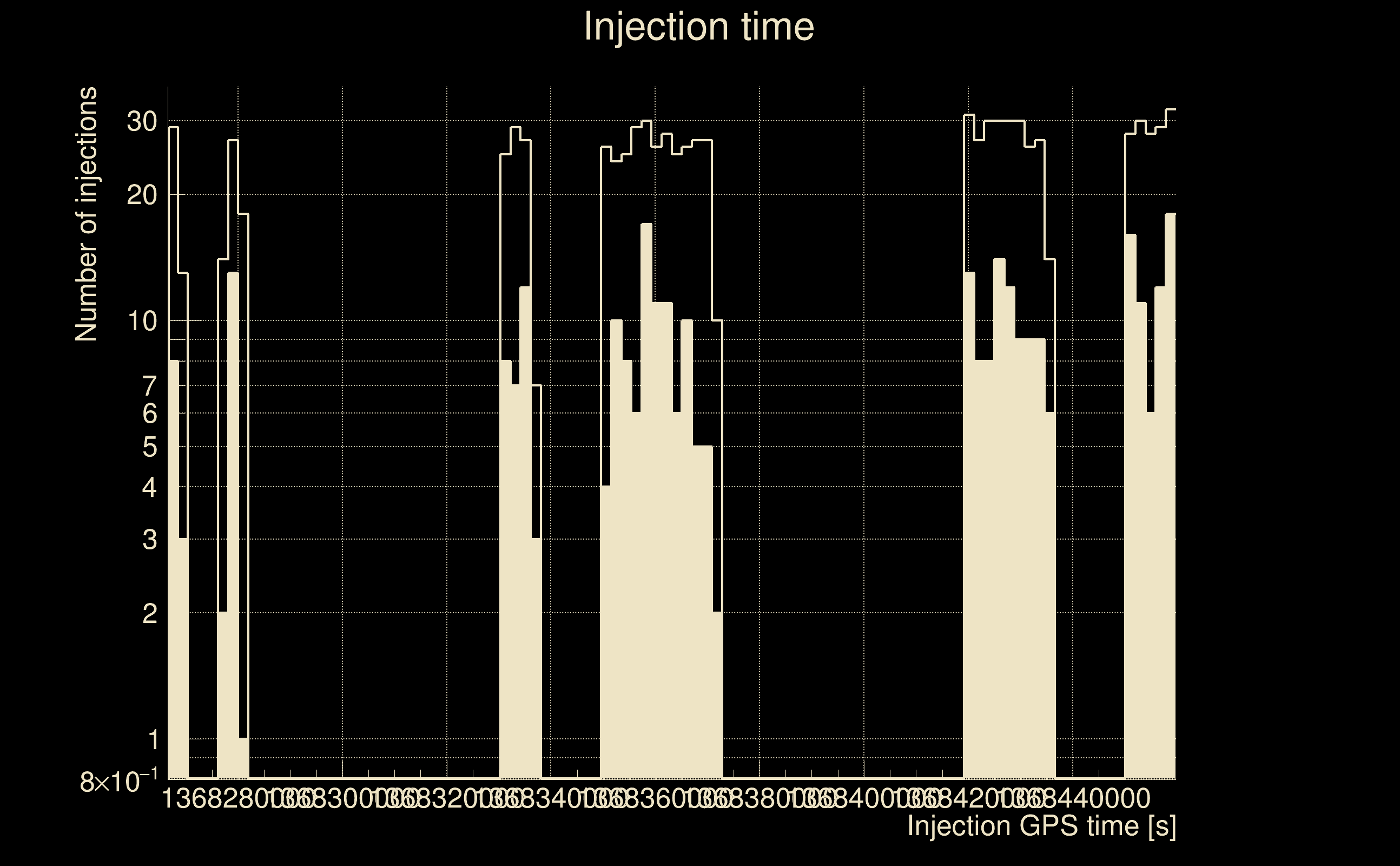

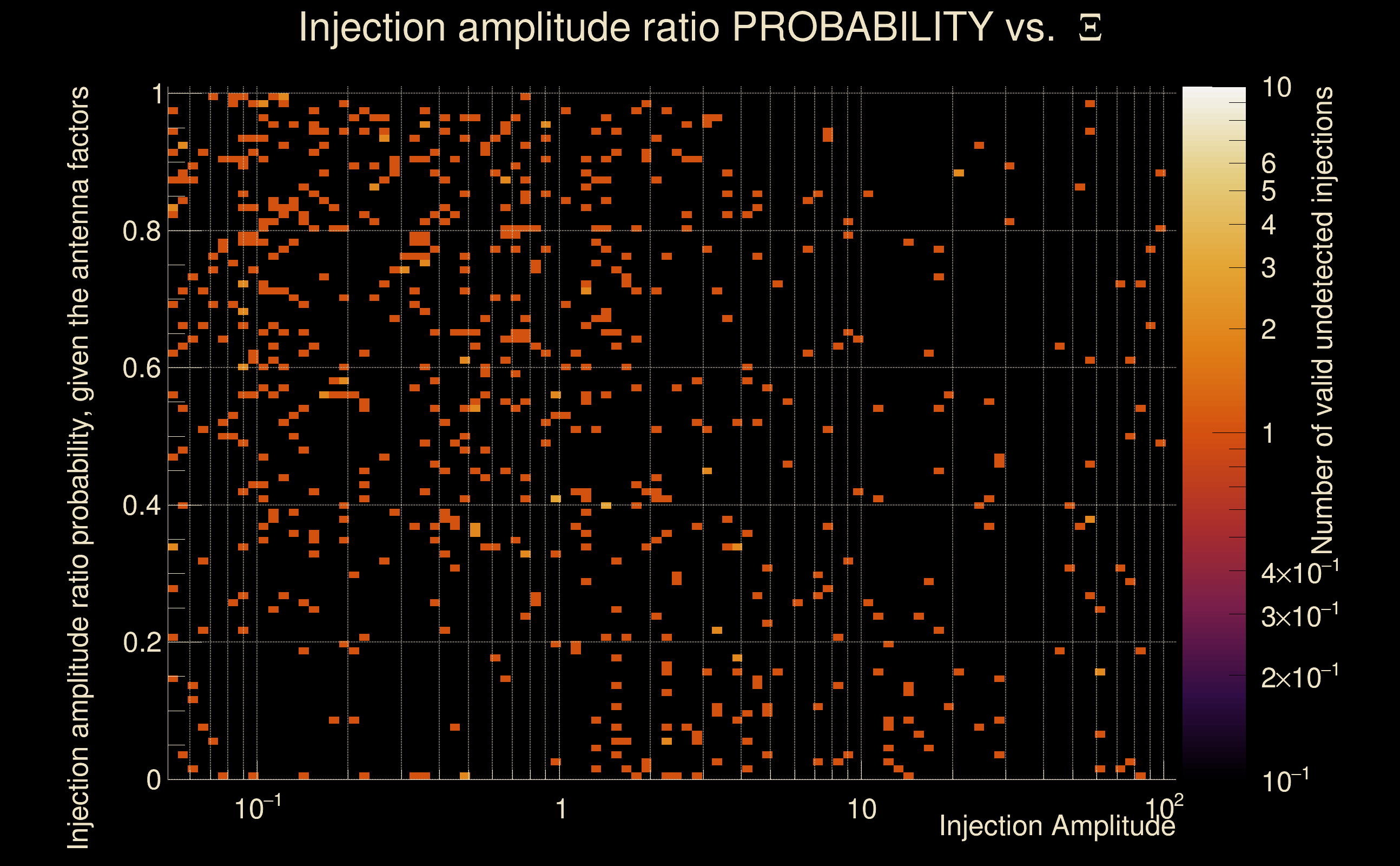

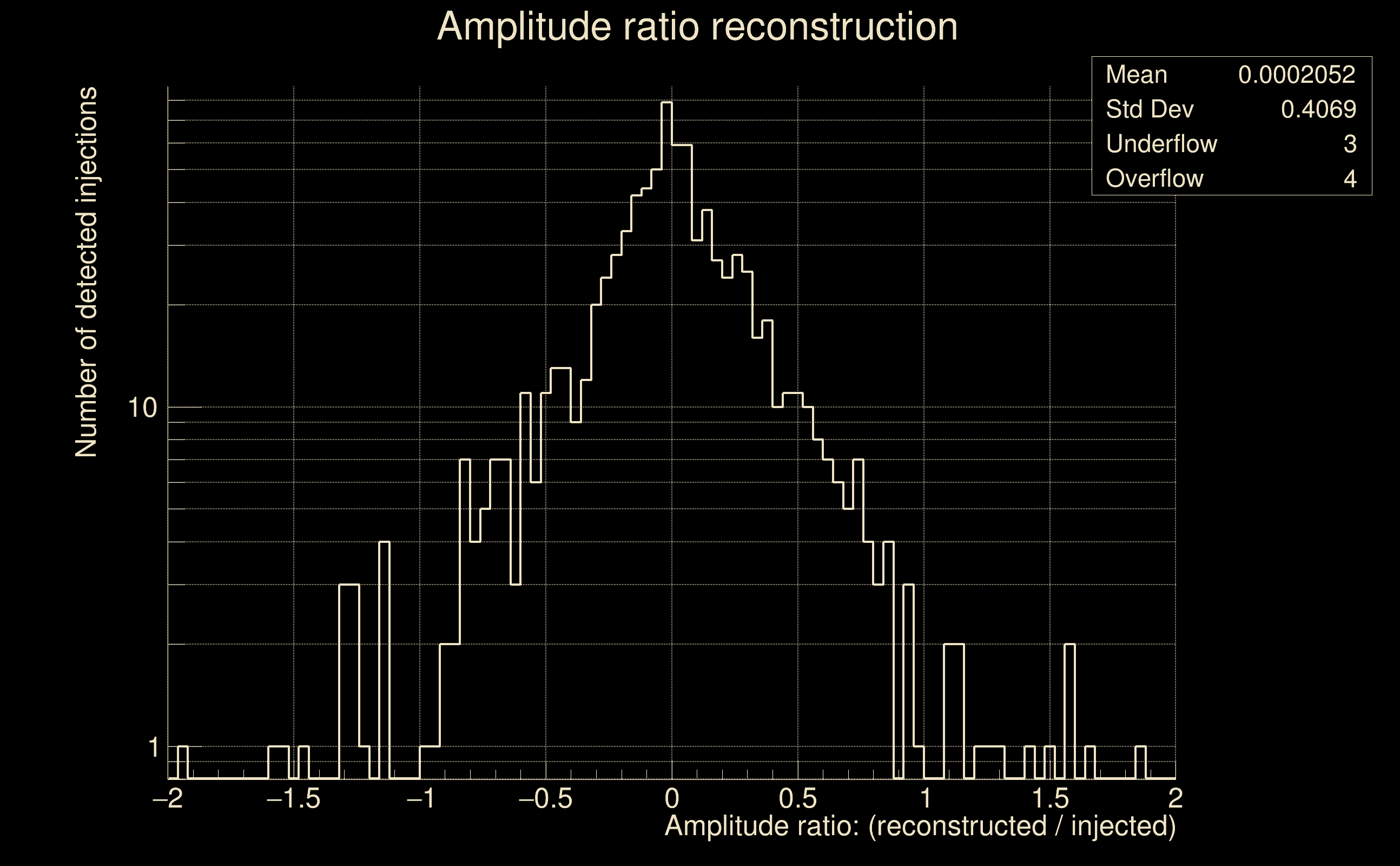

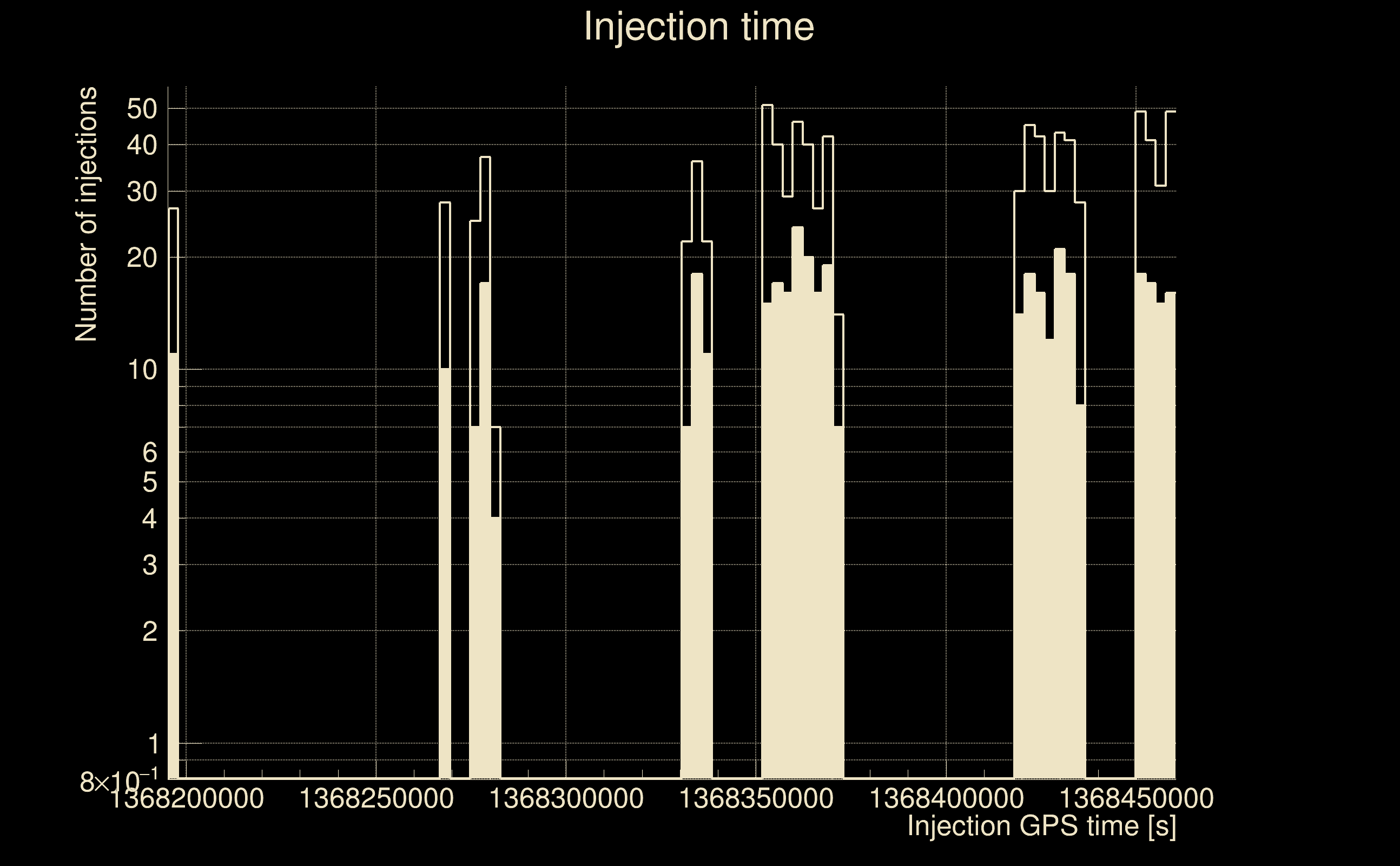

| Number of injections (total/valid/detected): | 1006 / 884 / 303 |
| List of missed injections: | ./Pow20-m39_missed.txt |
| Injection amplitude at 90% detection efficiency: | 21.9776 |
| Injection amplitude at 50% detection efficiency: | 12.4604 |
| Injection amplitude at 10% detection efficiency: | 2.31345 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

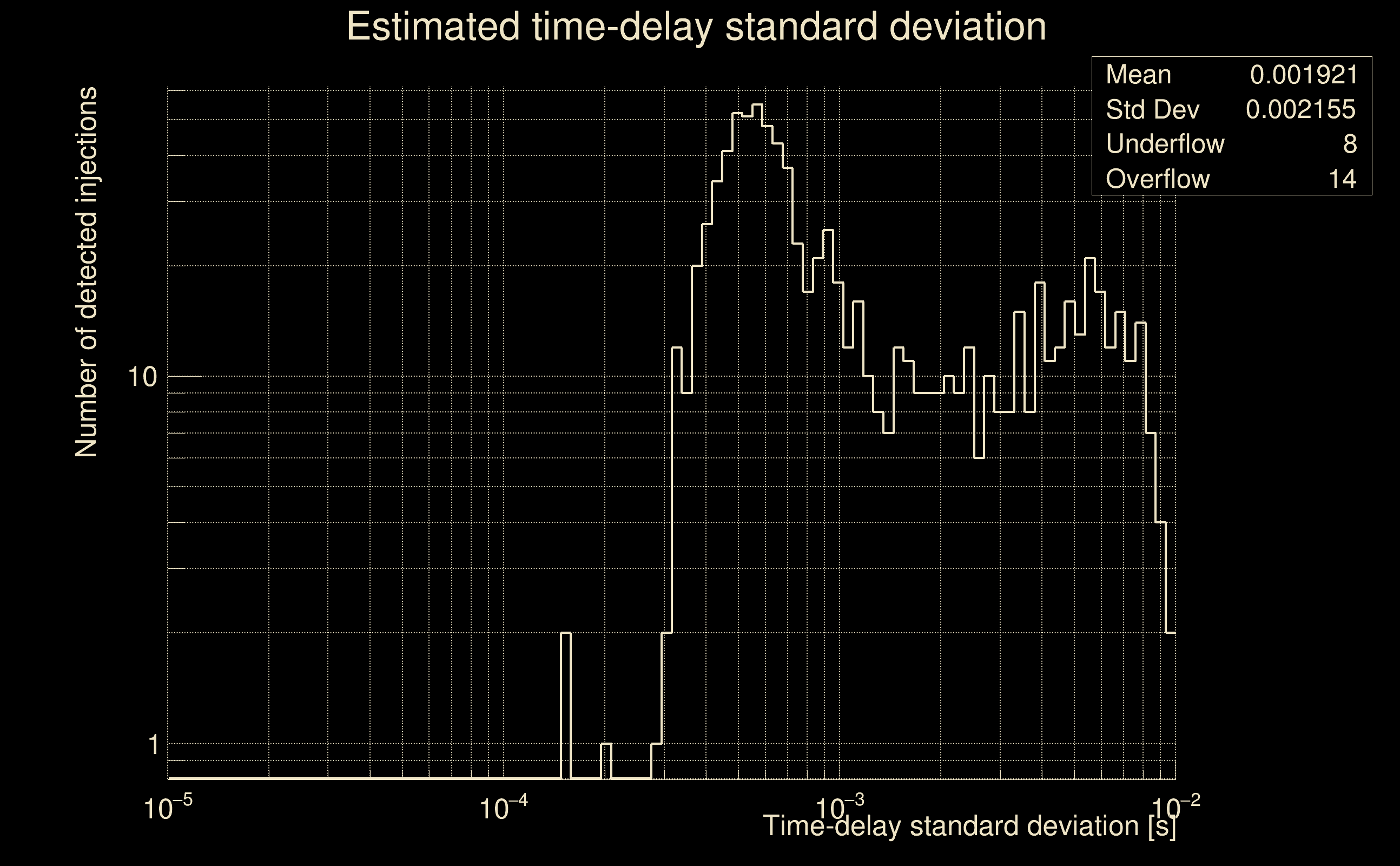

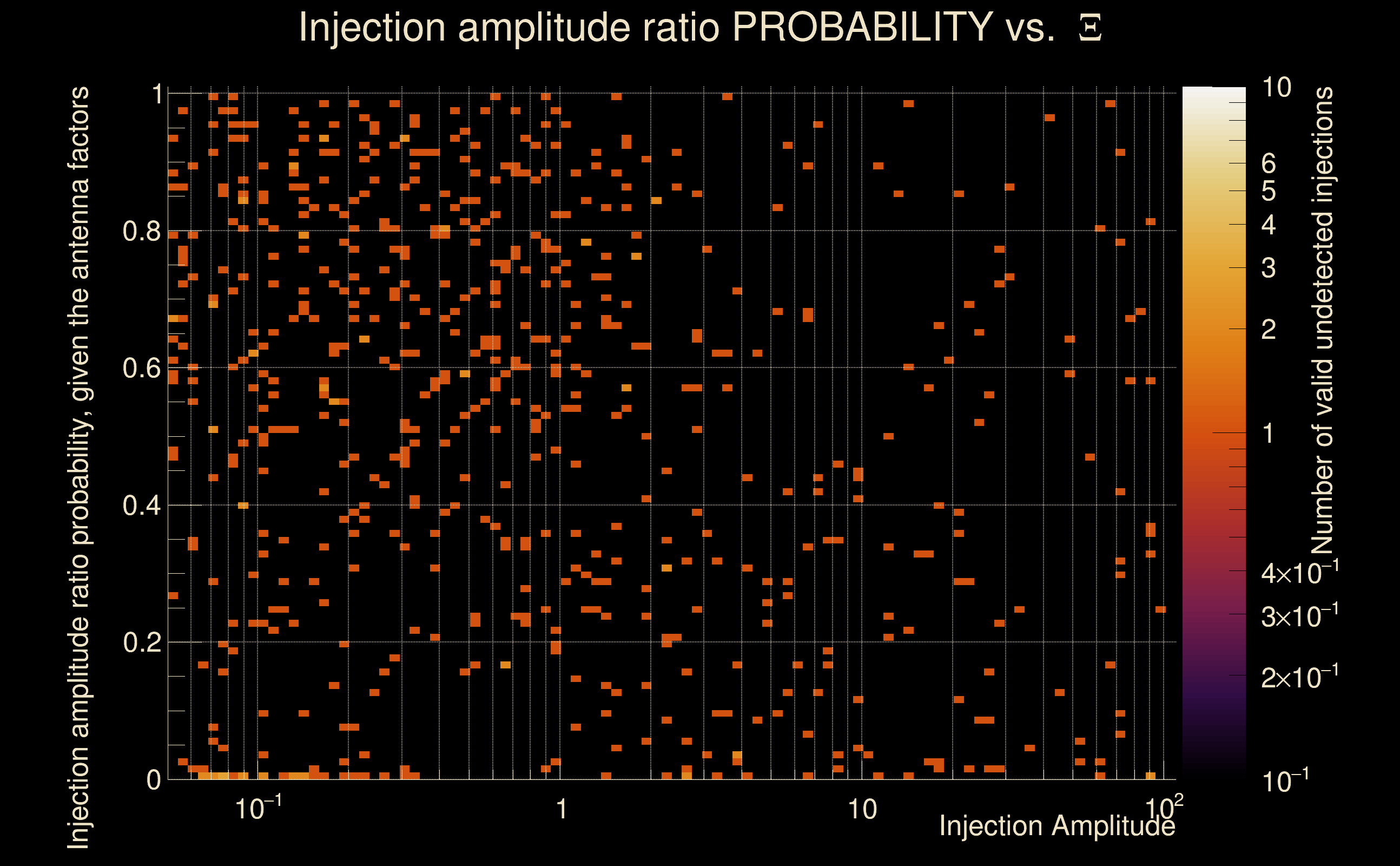

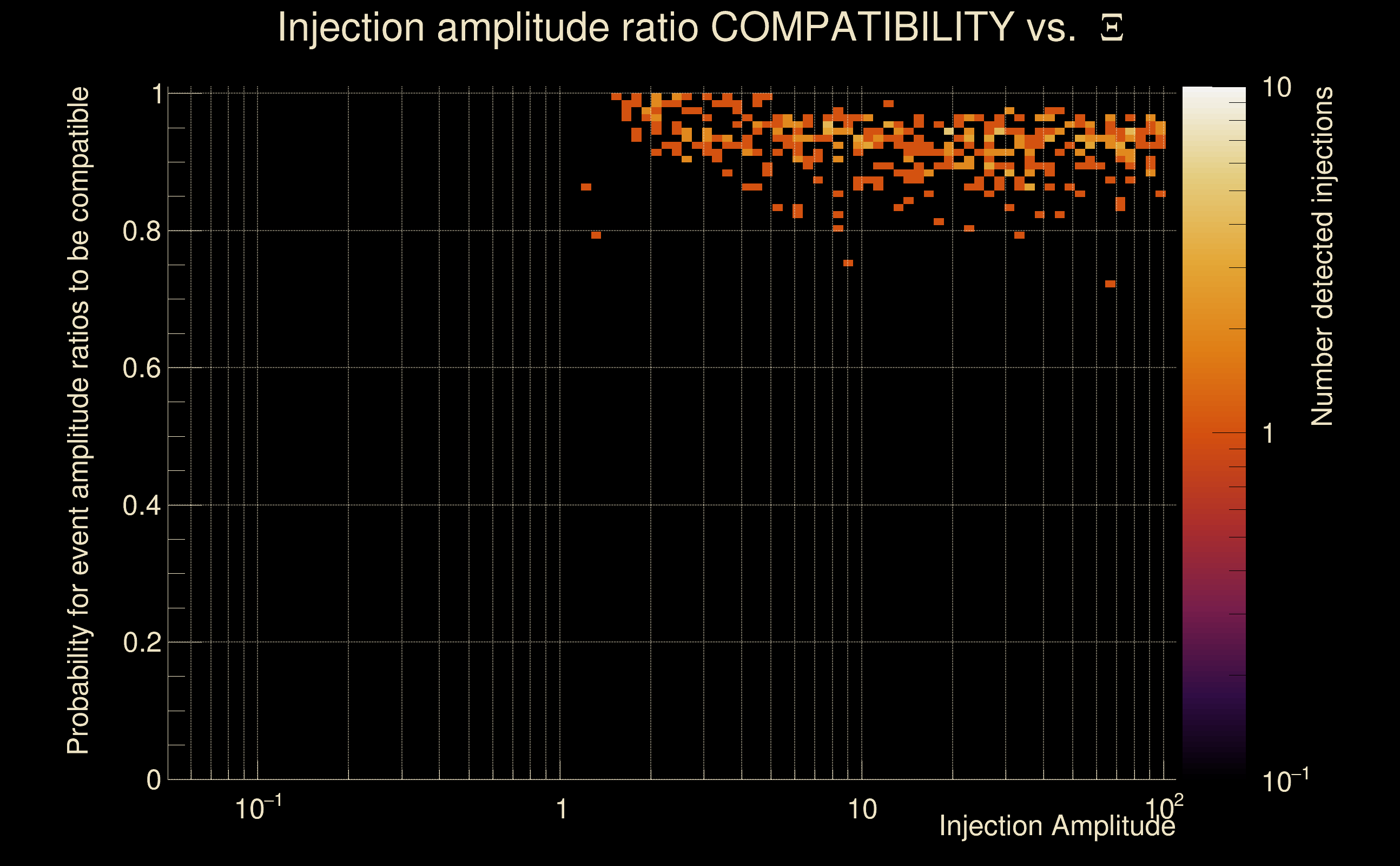

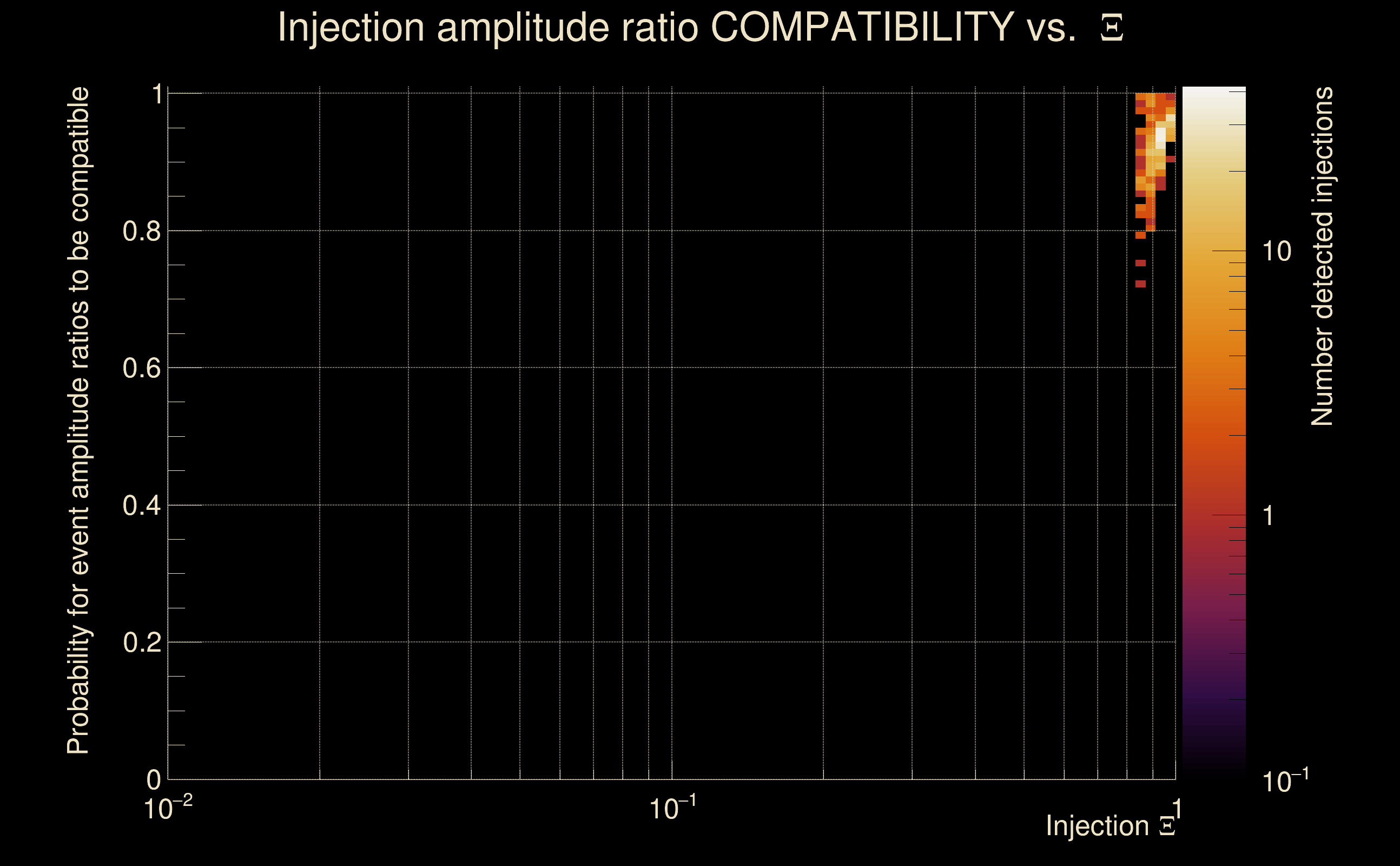

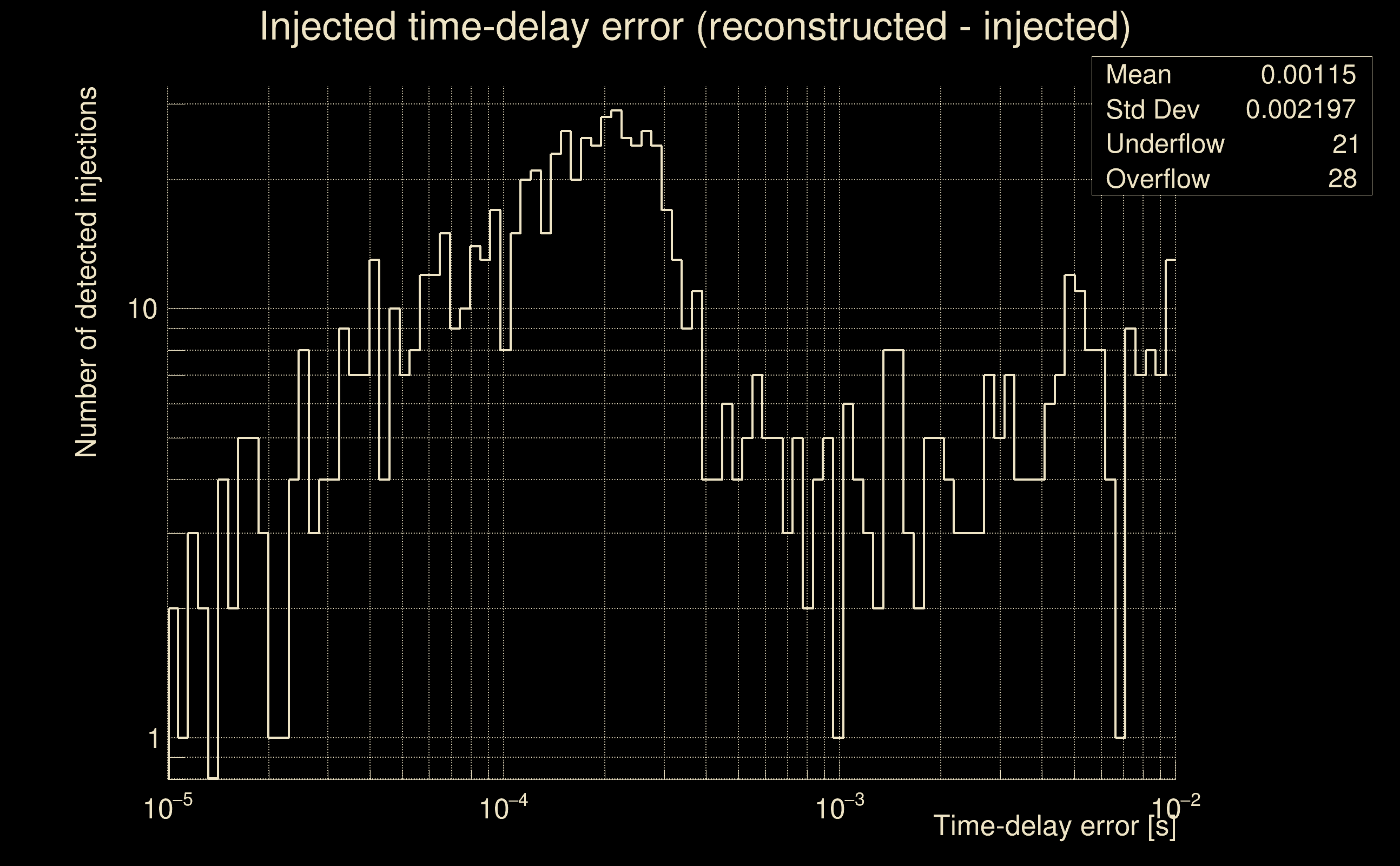

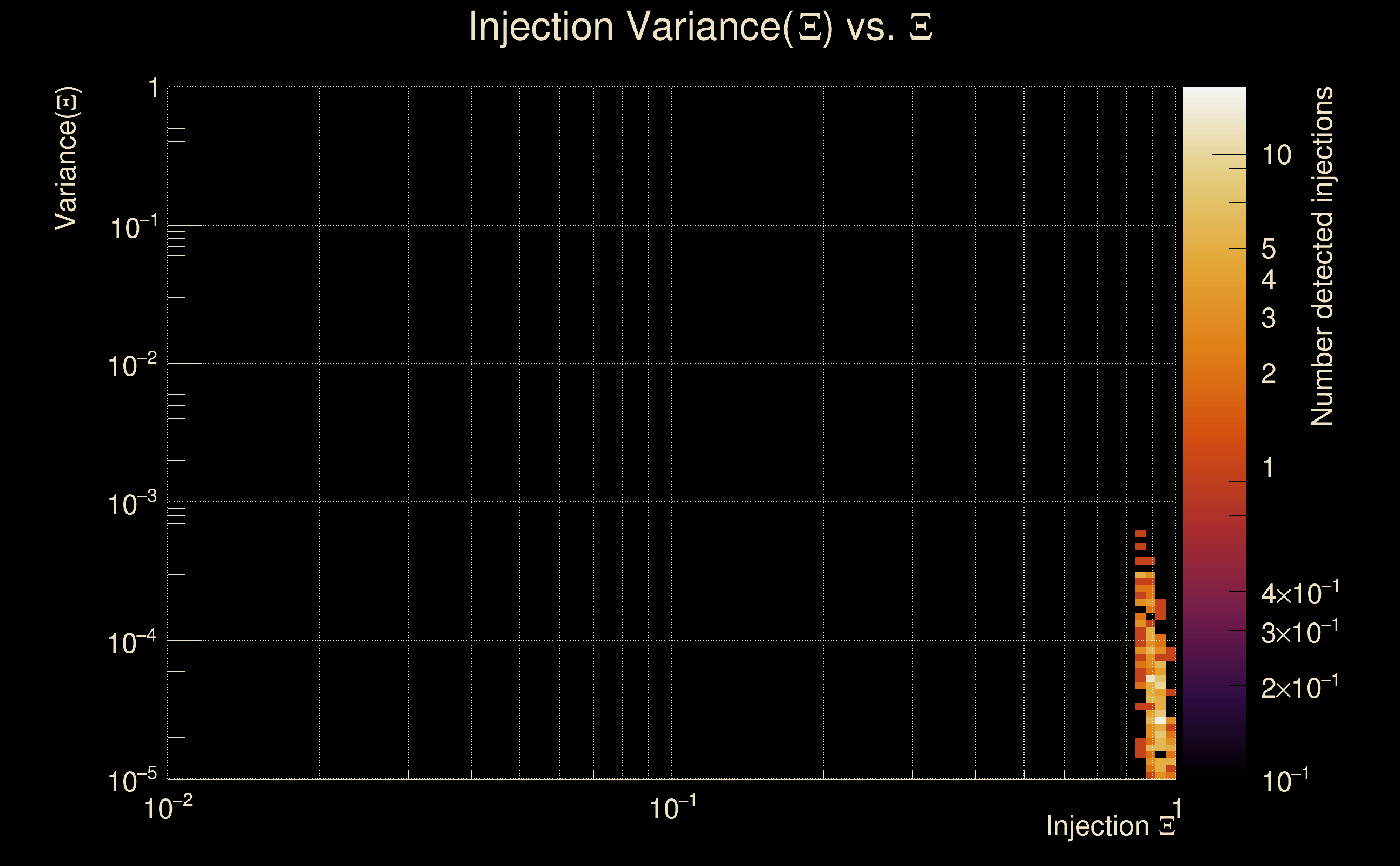

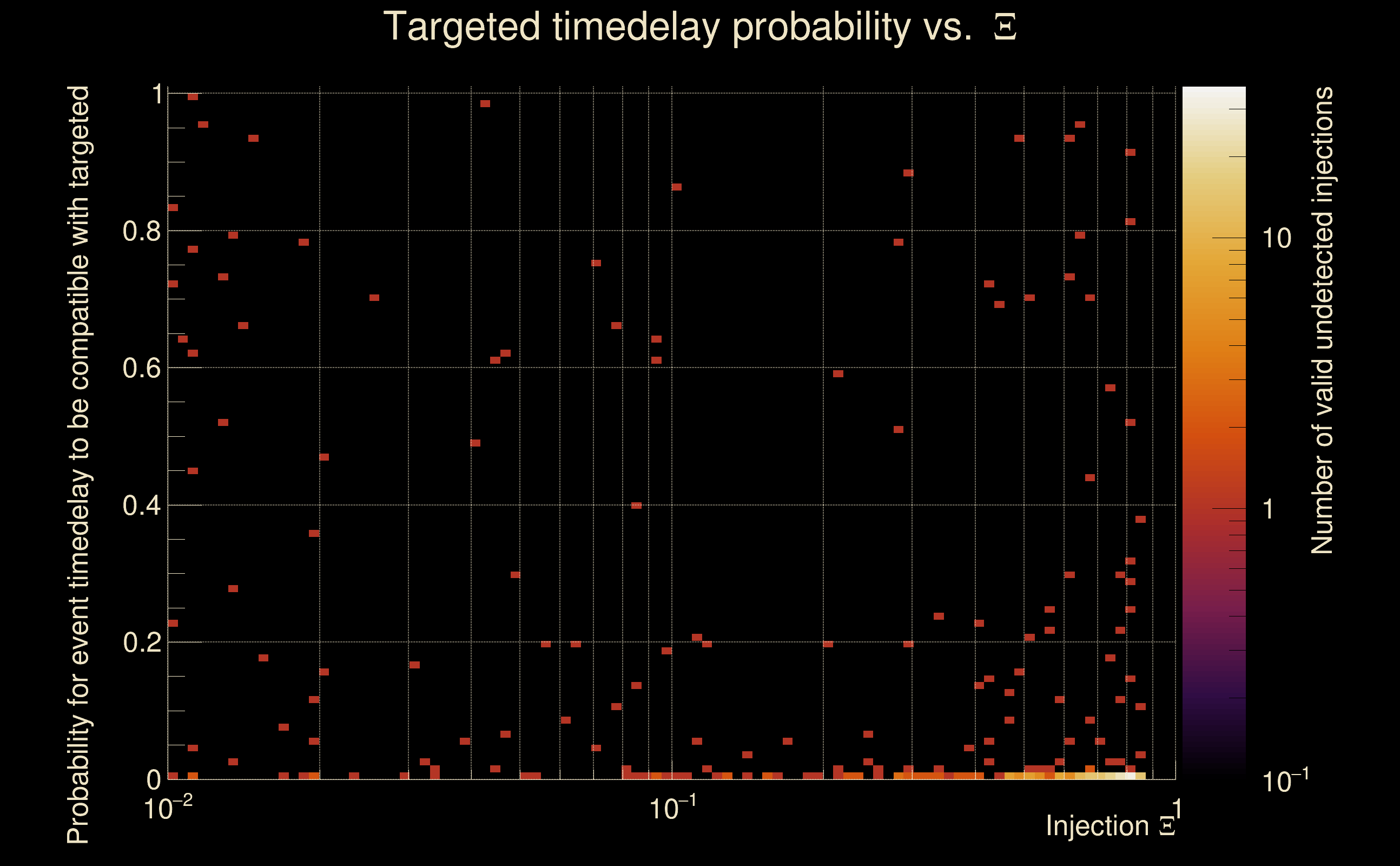

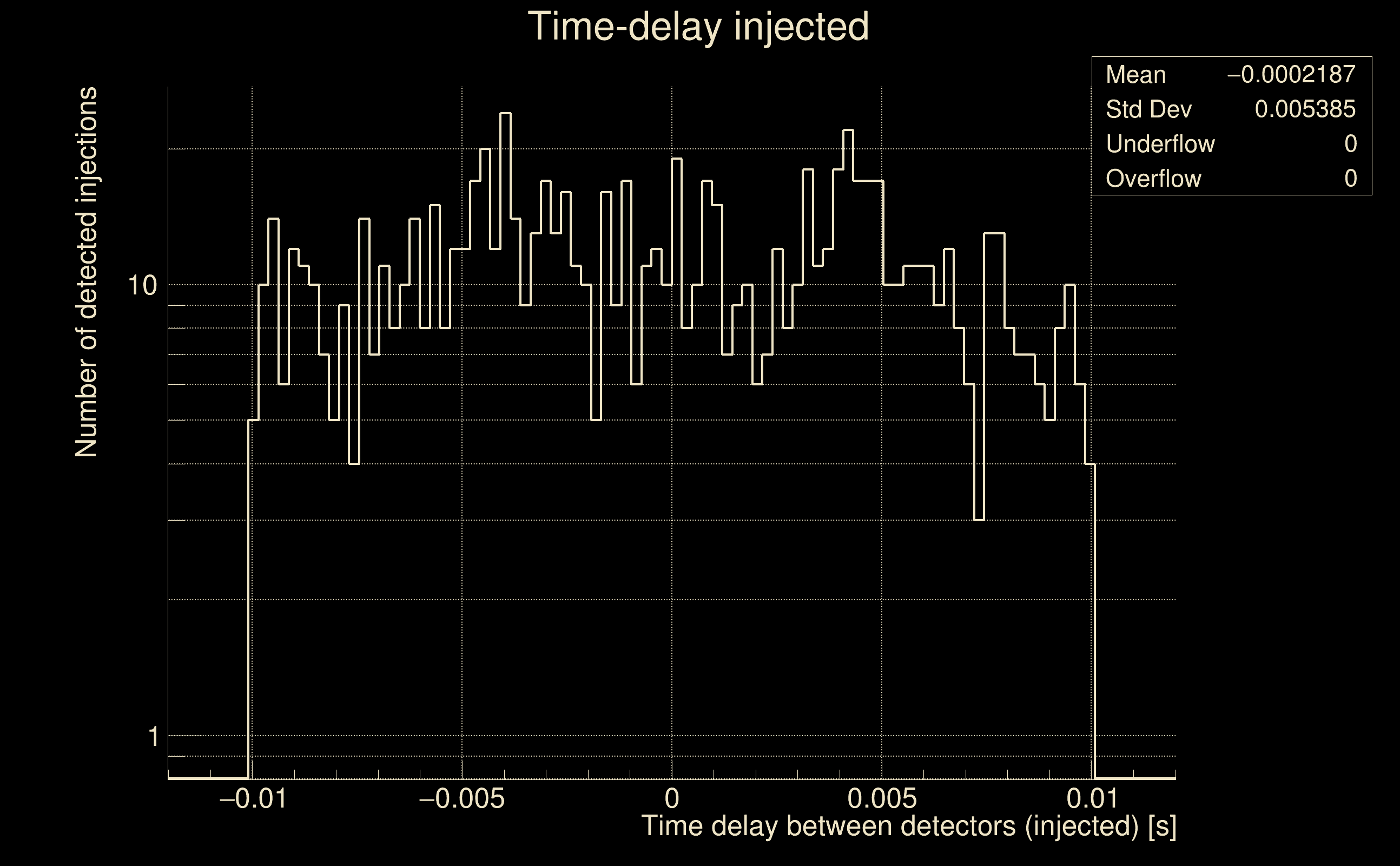

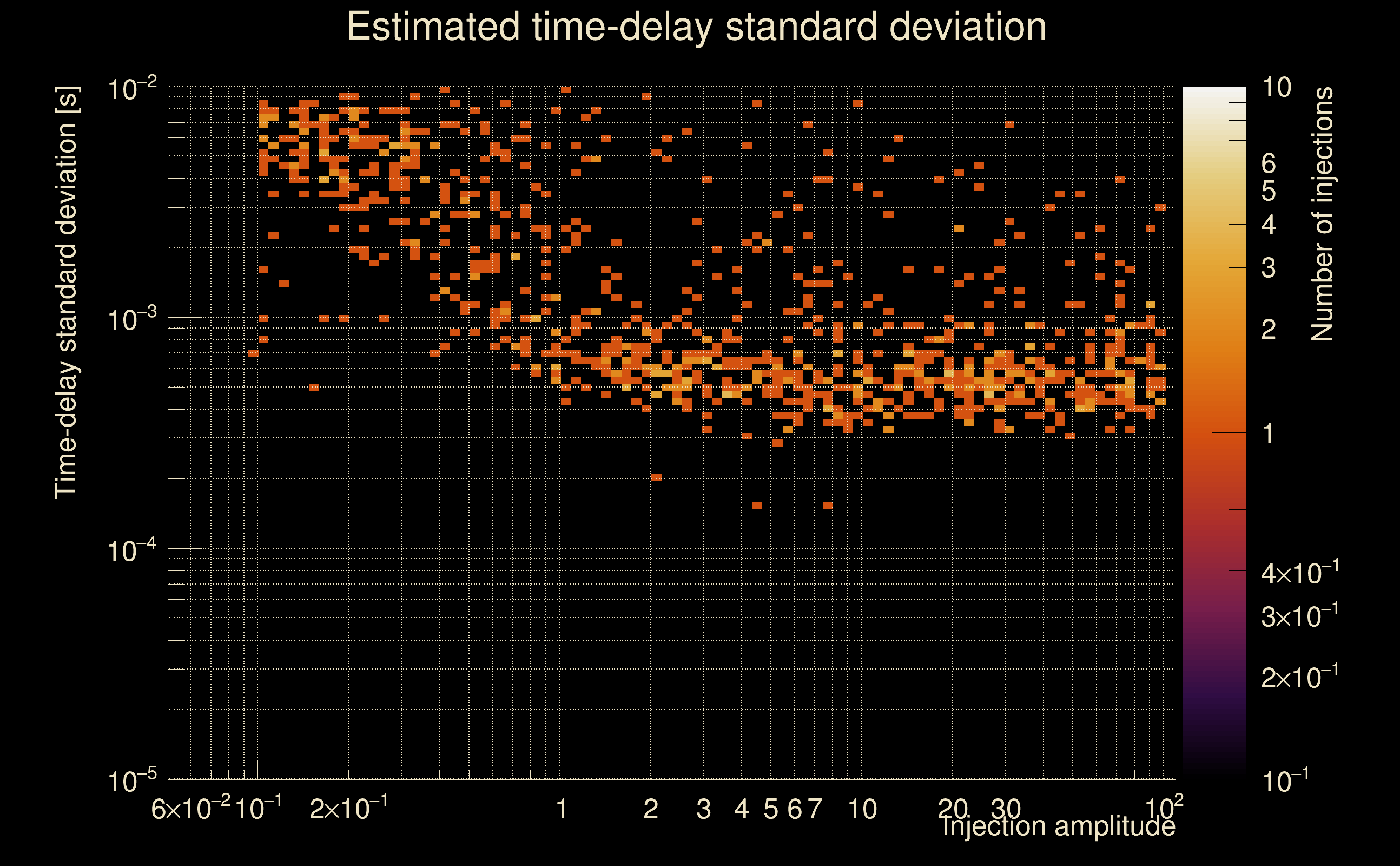

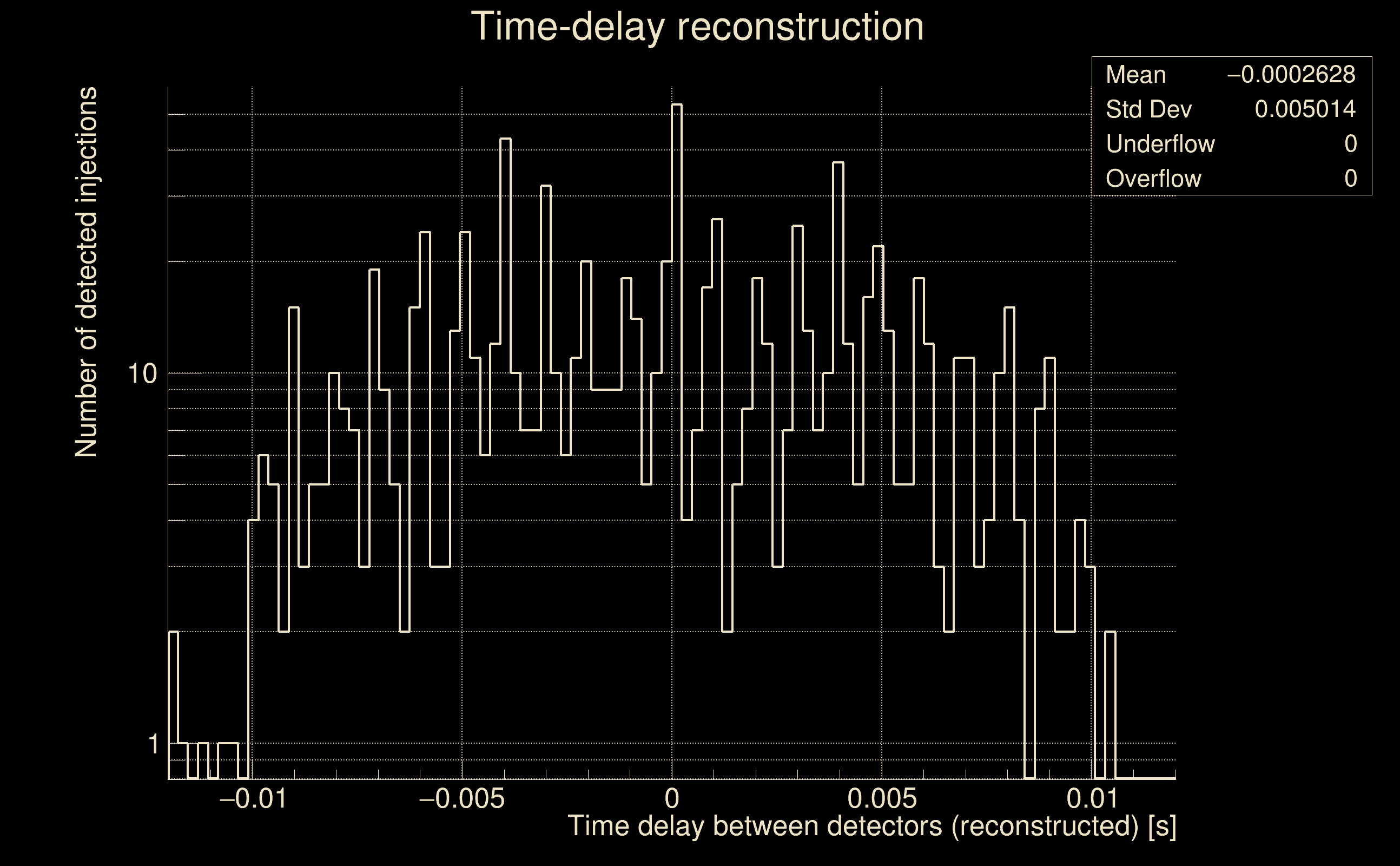

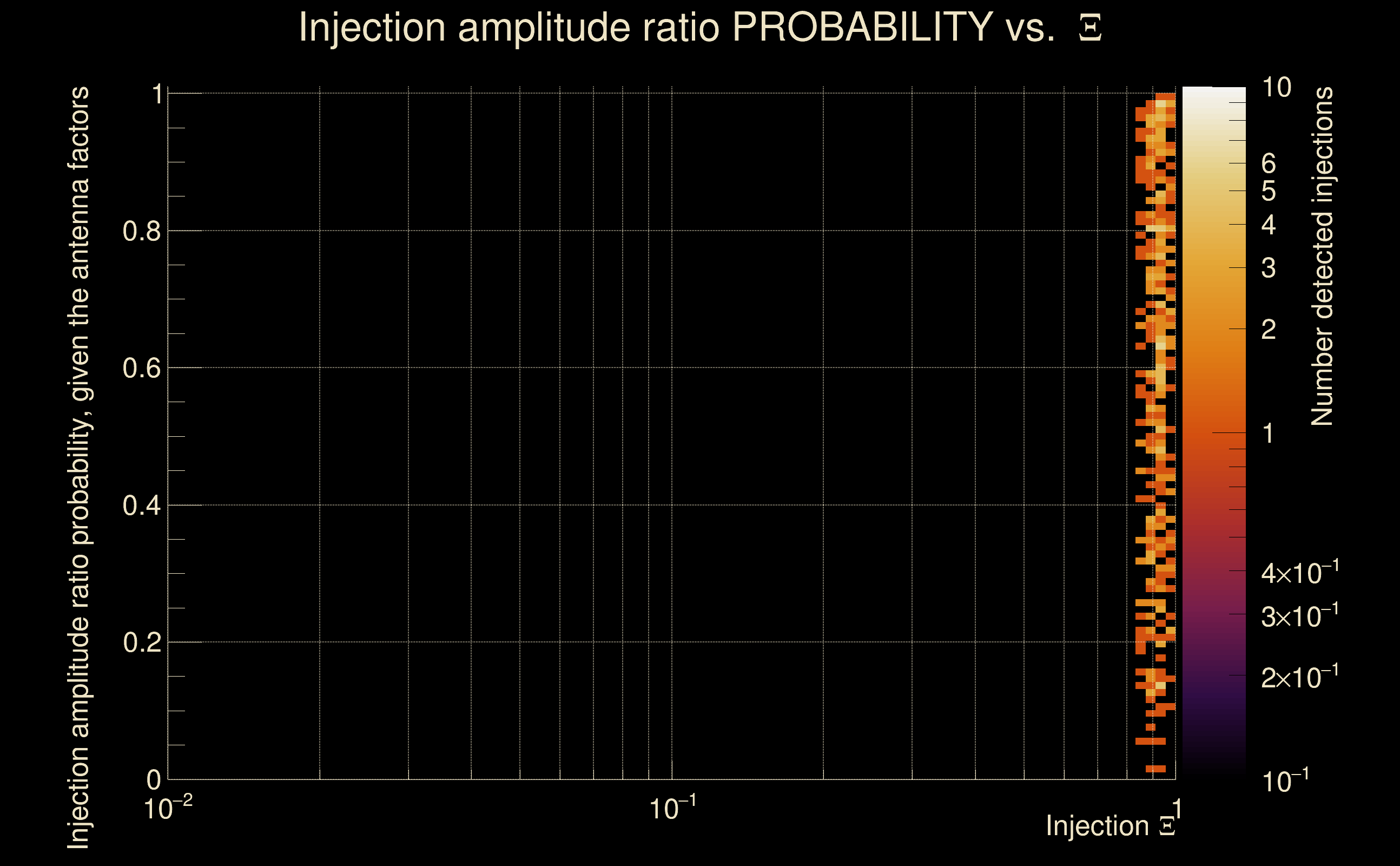

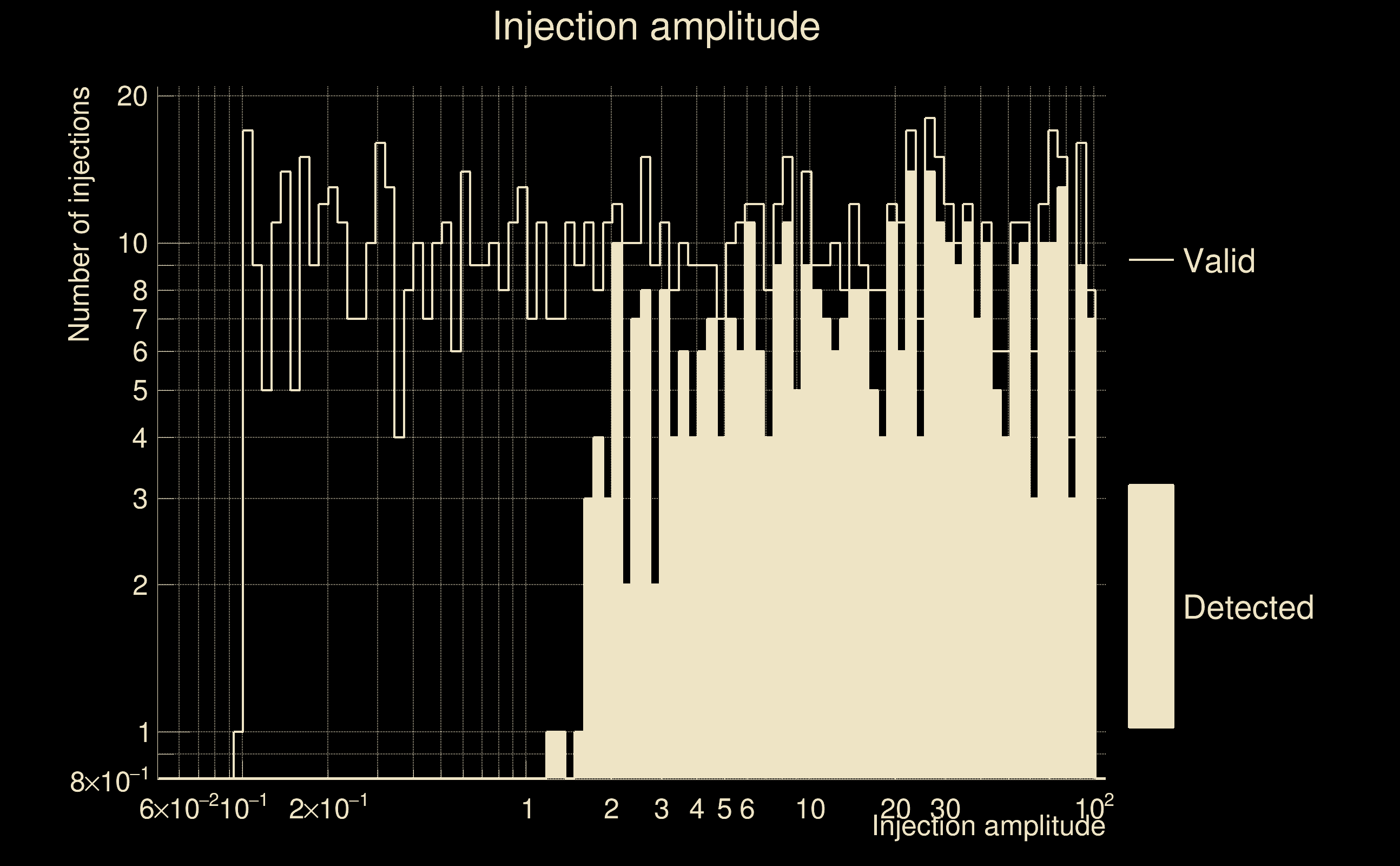

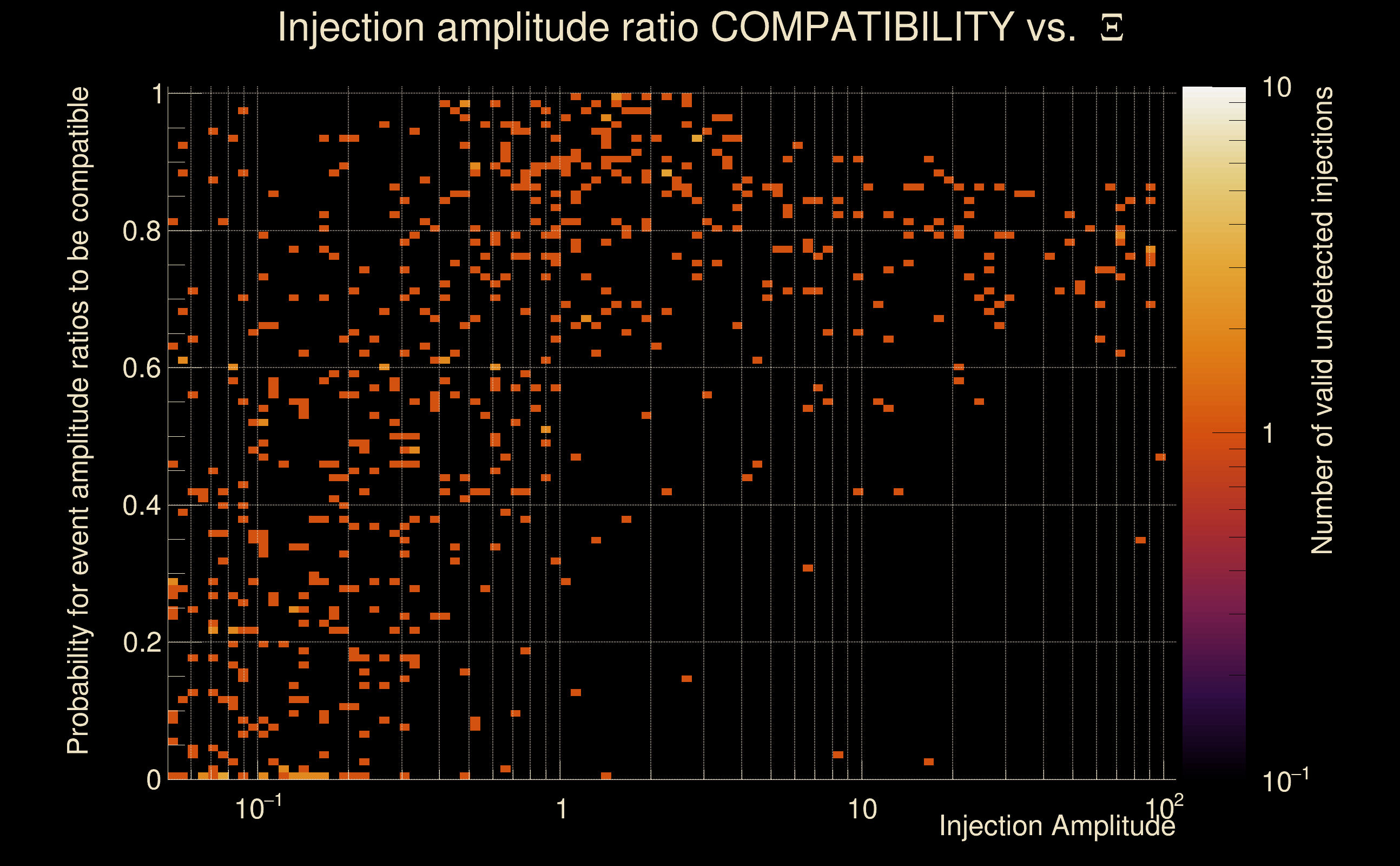

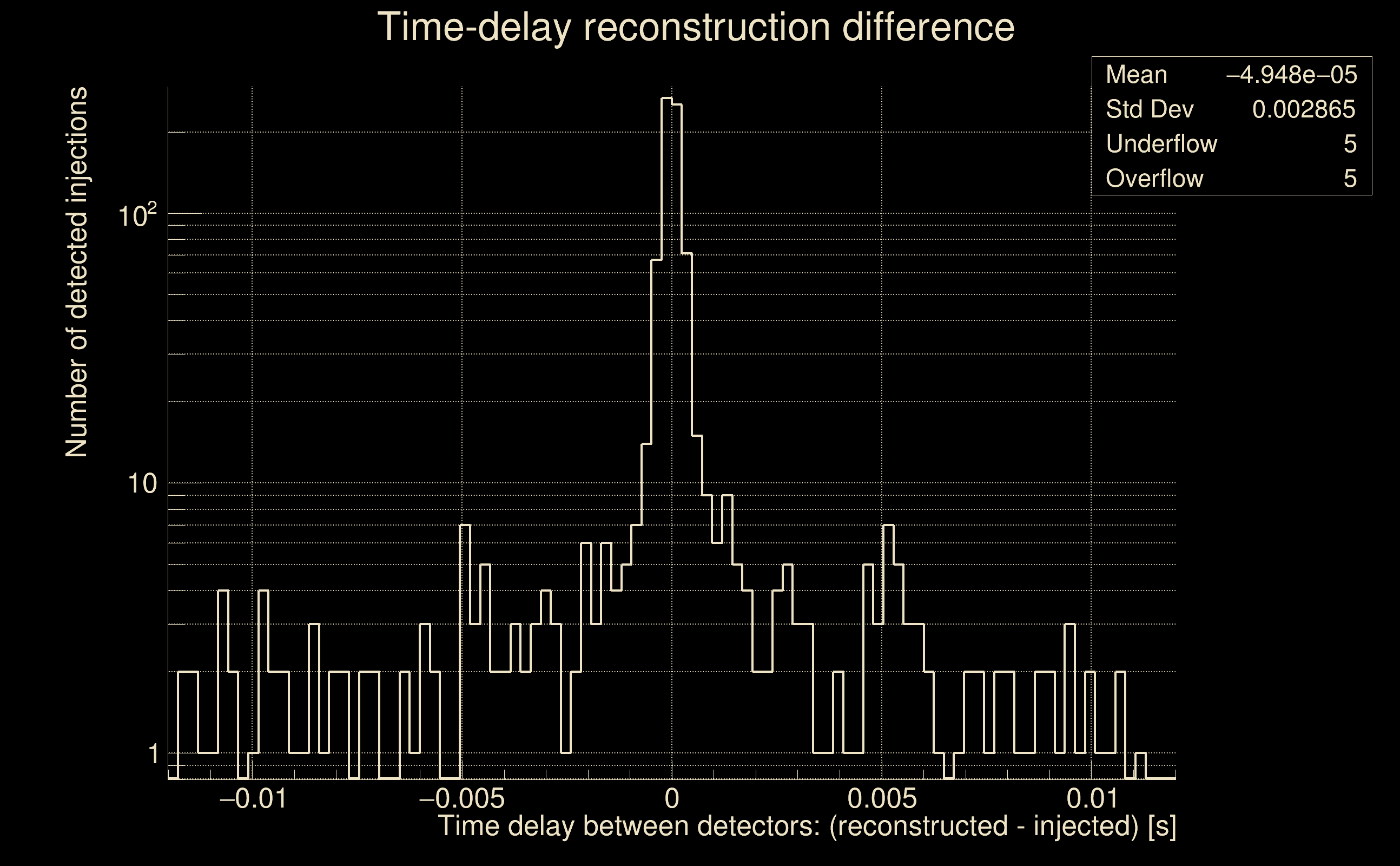

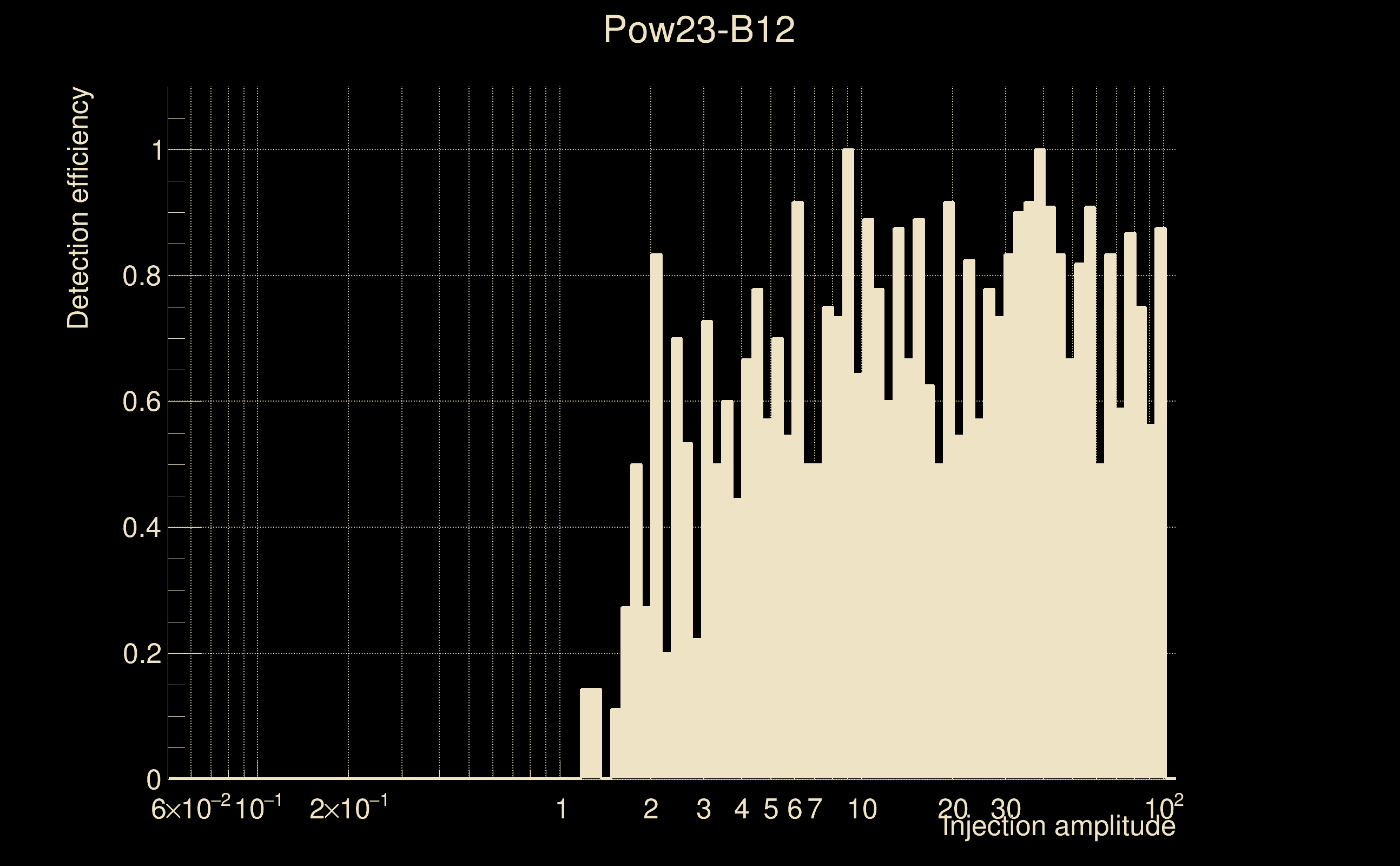

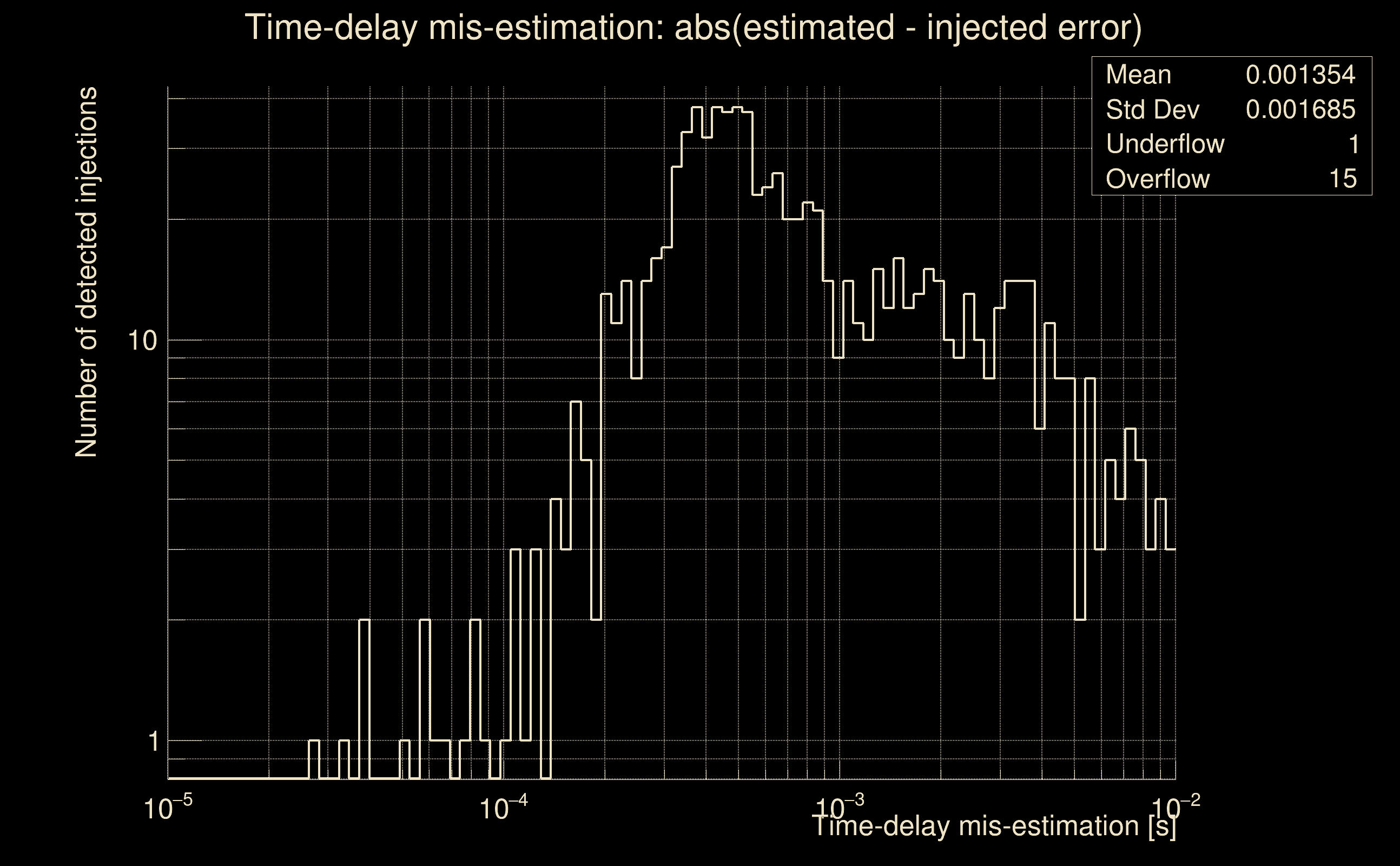

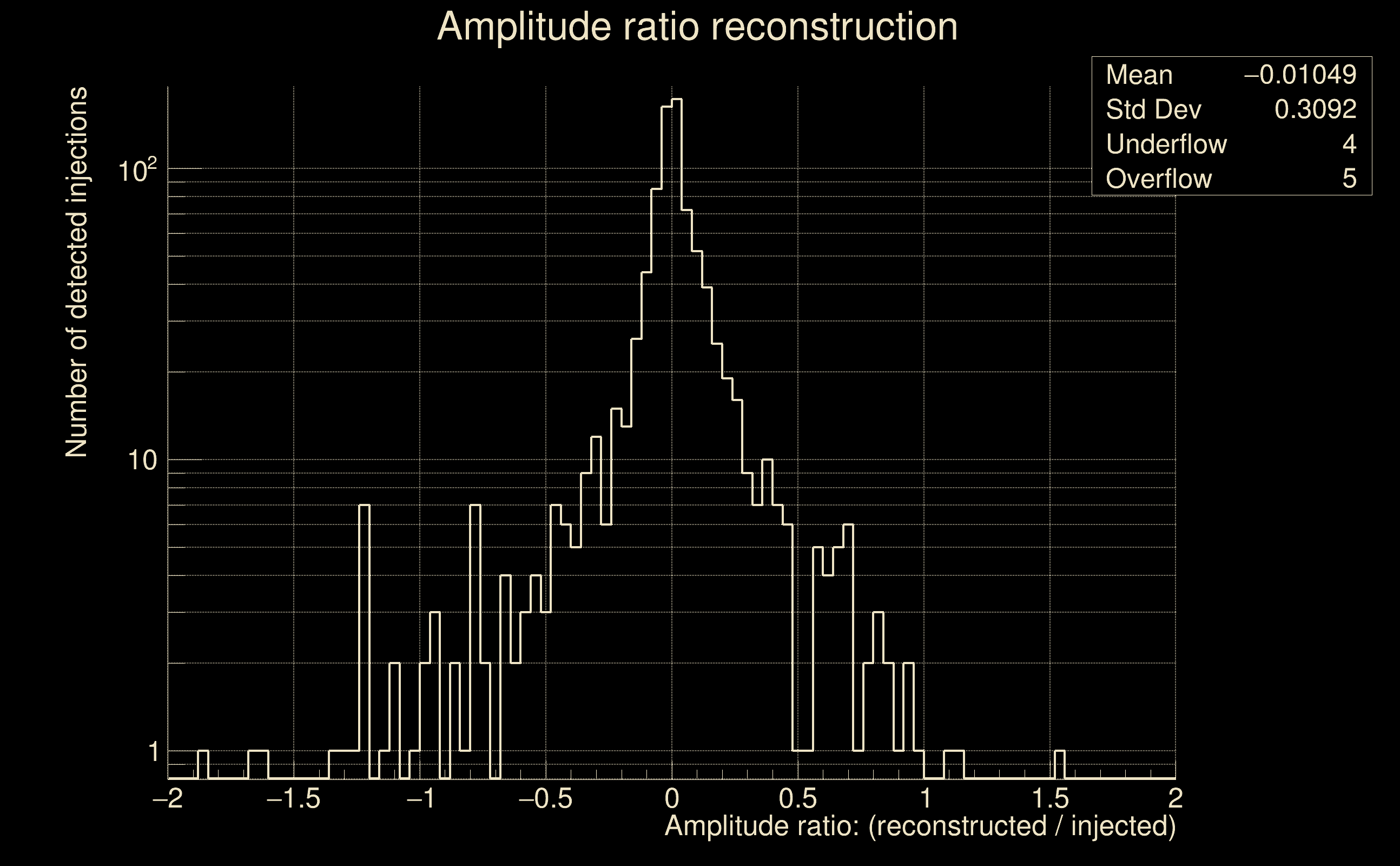

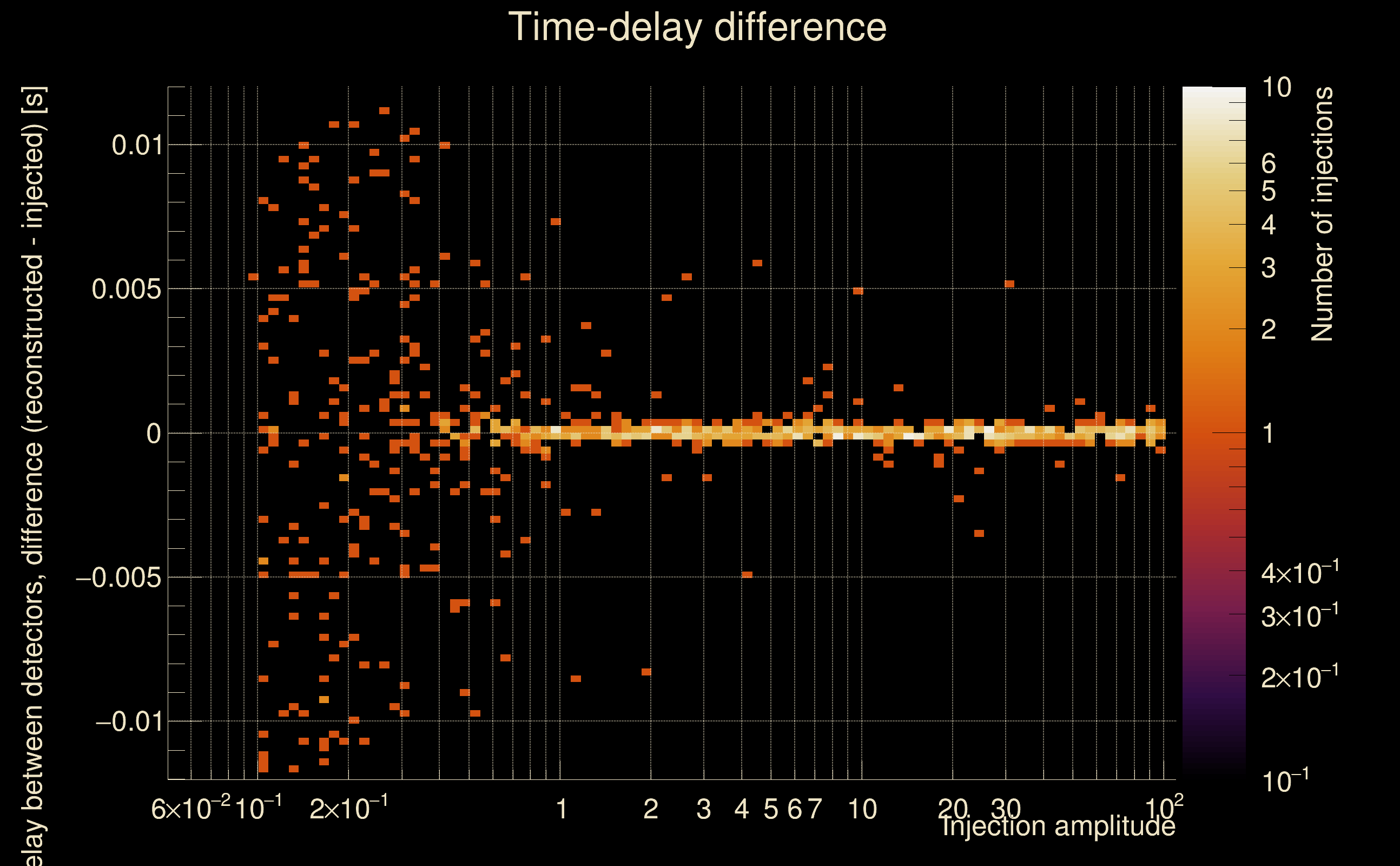

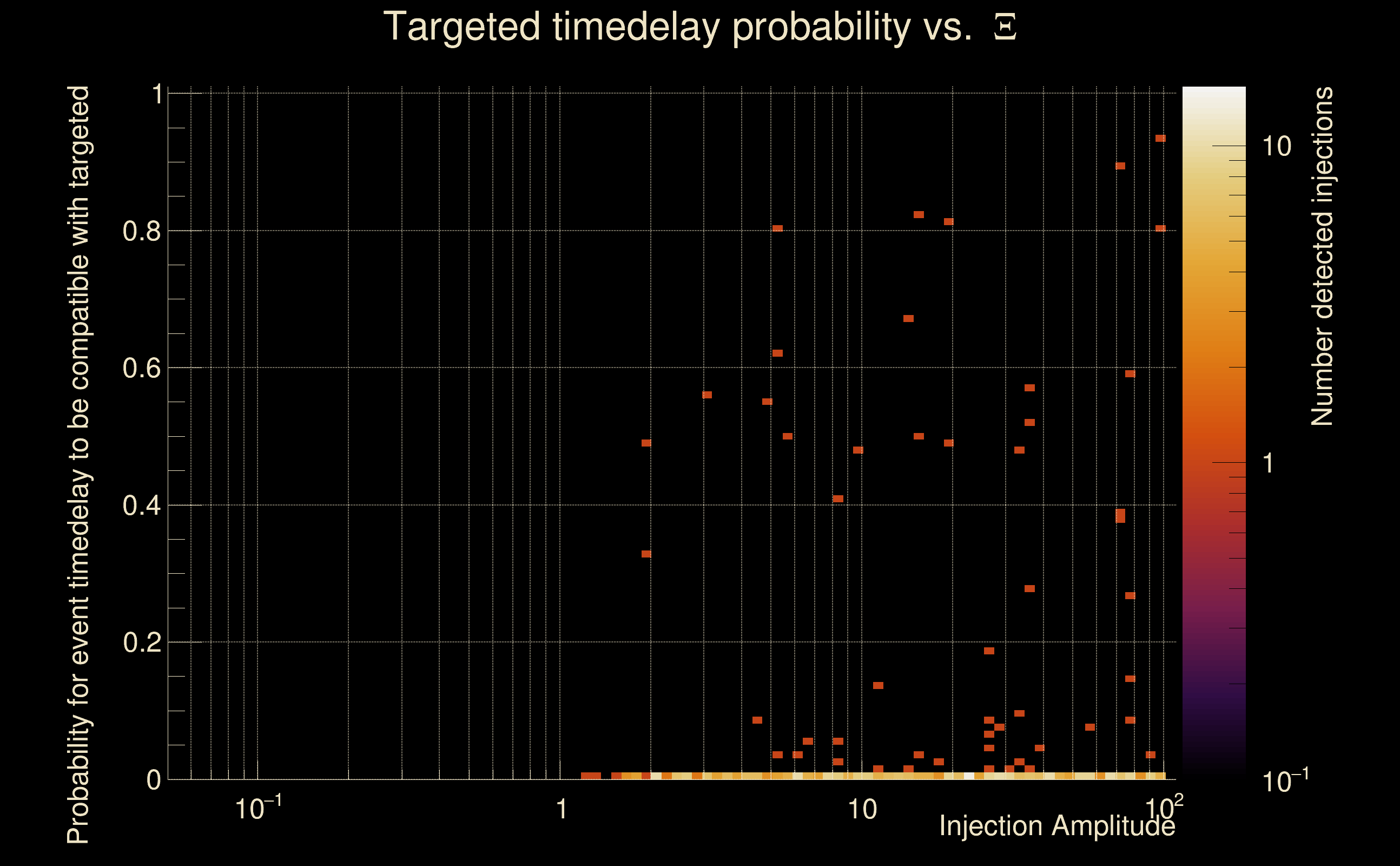

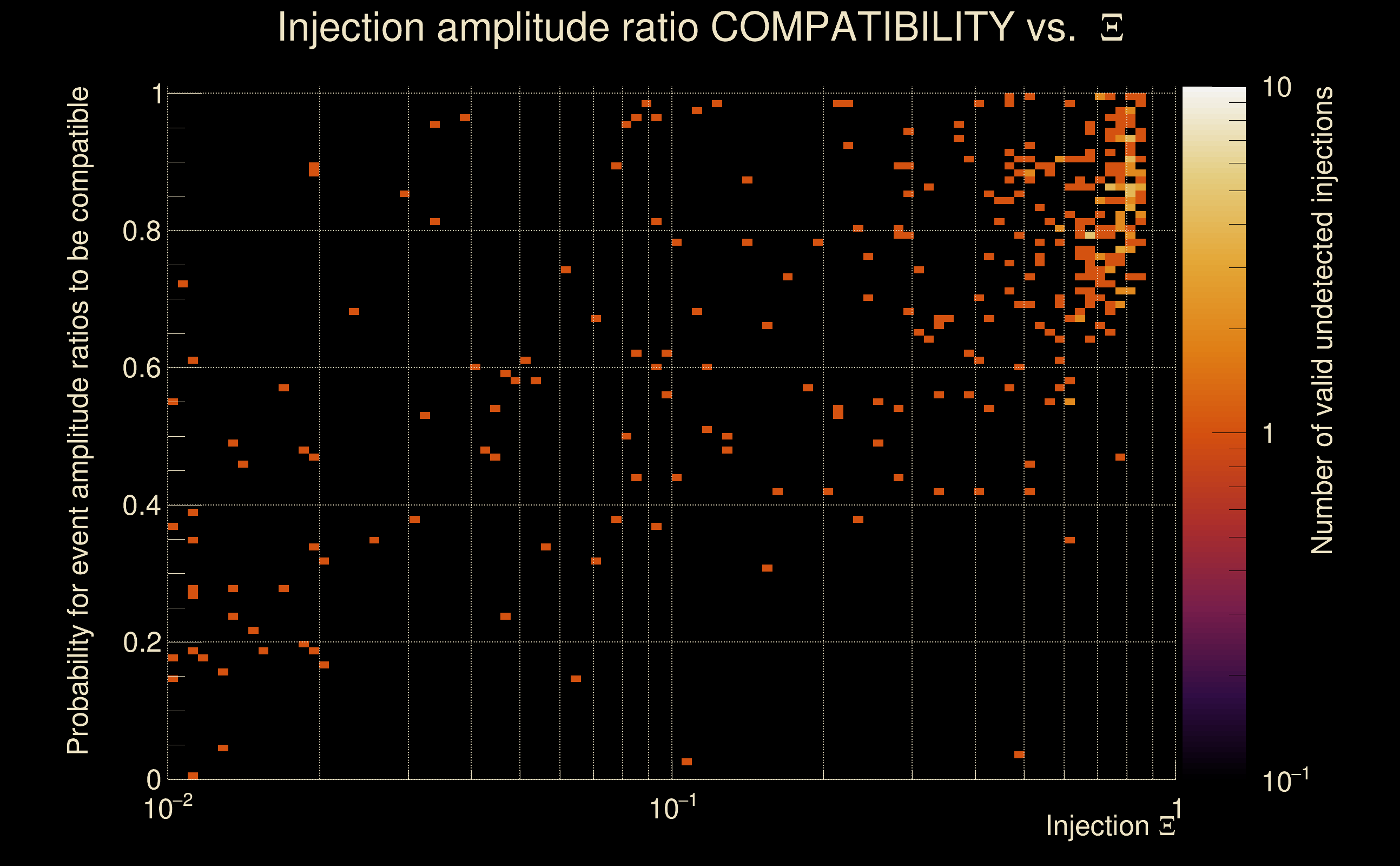

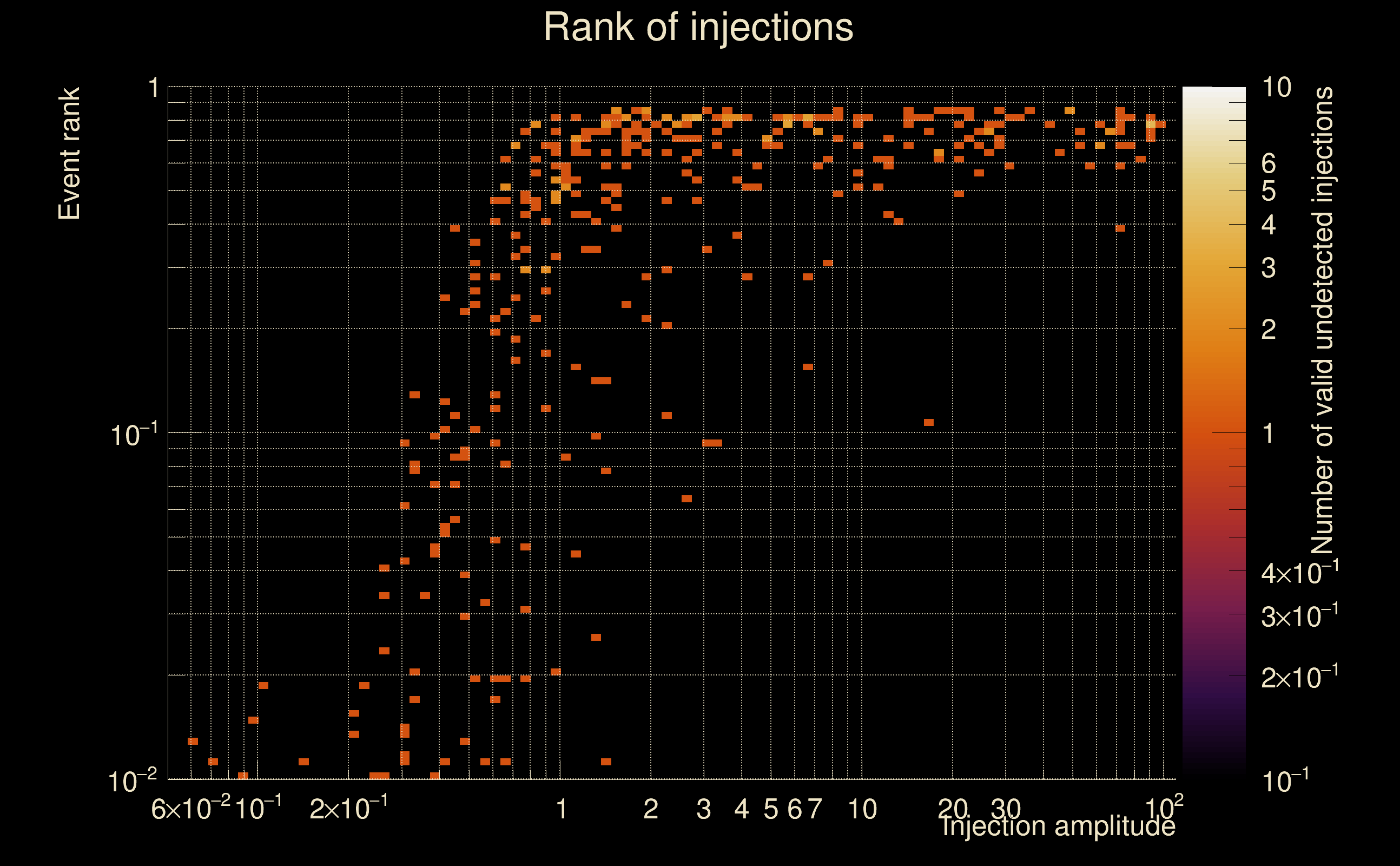

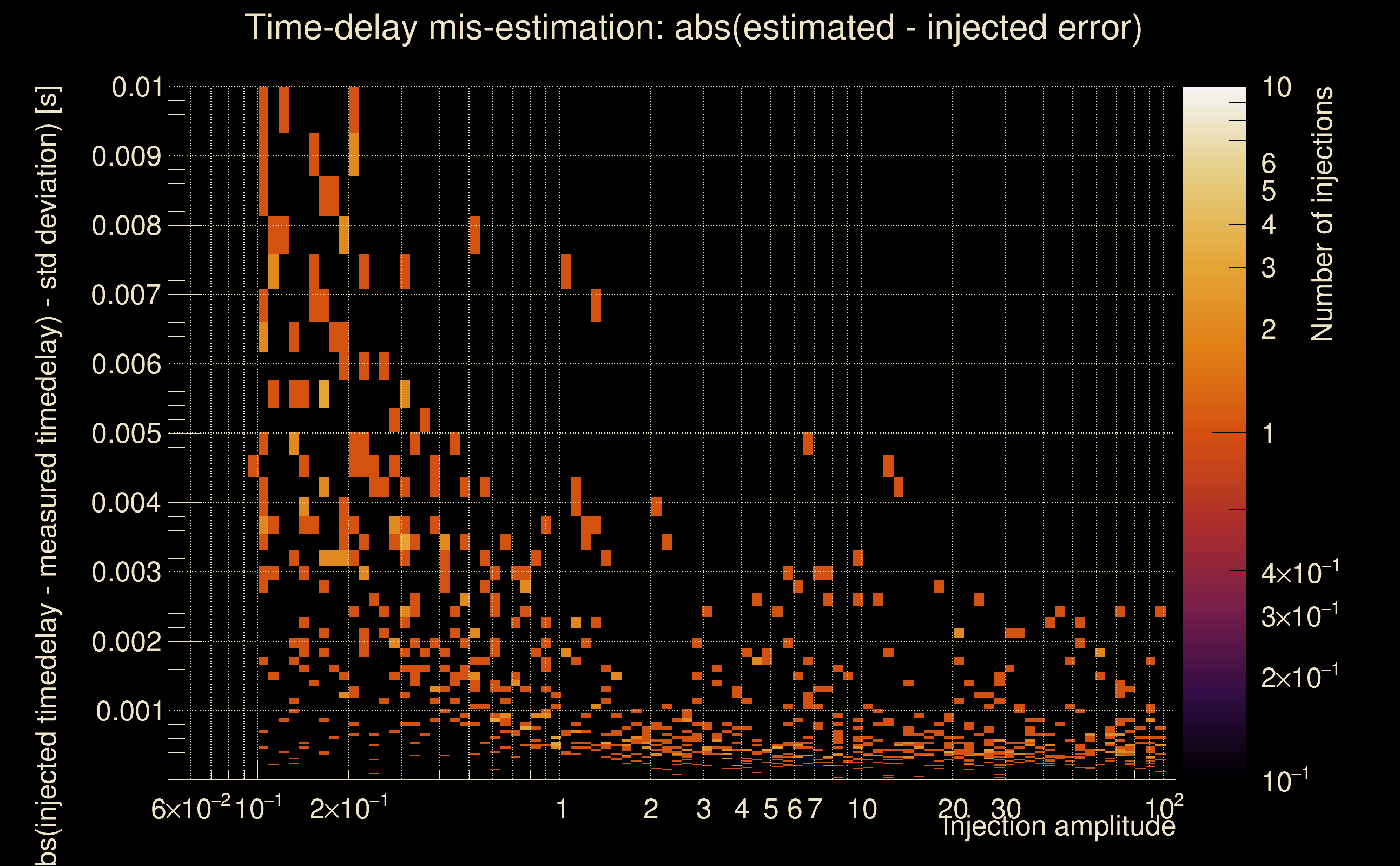

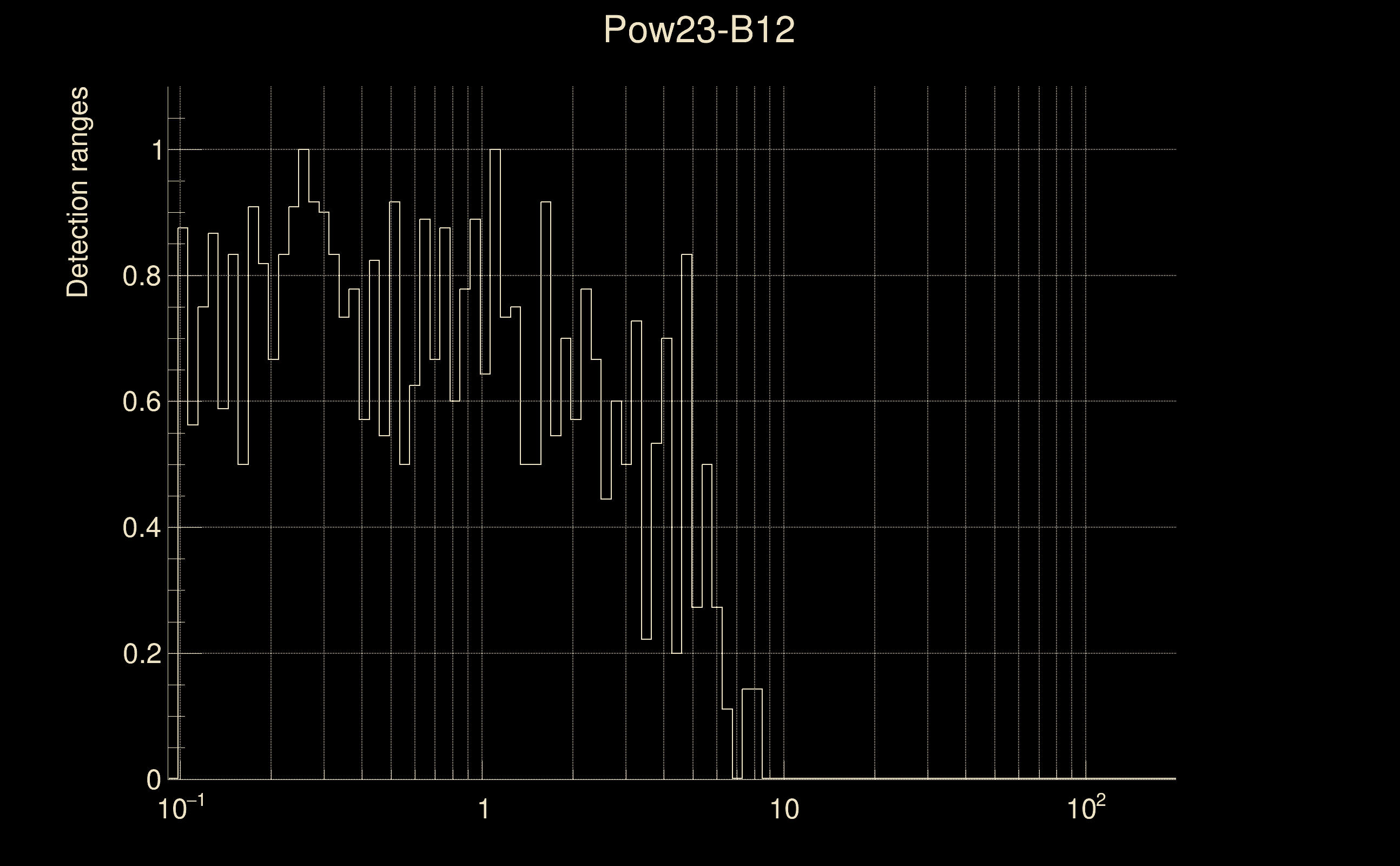

| Number of injections (total/valid/detected): | 1042 / 922 / 392 |
| List of missed injections: | ./Pow23-B12_missed.txt |
| Injection amplitude at 90% detection efficiency: | 8.77457 |
| Injection amplitude at 50% detection efficiency: | 3.95173 |
| Injection amplitude at 10% detection efficiency: | 1.52875 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
