| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:42:41 2026 UTC |
| Ox option file: | Ixf5_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf5_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf5_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=130 (-1.012 s), time lag = 0 s |

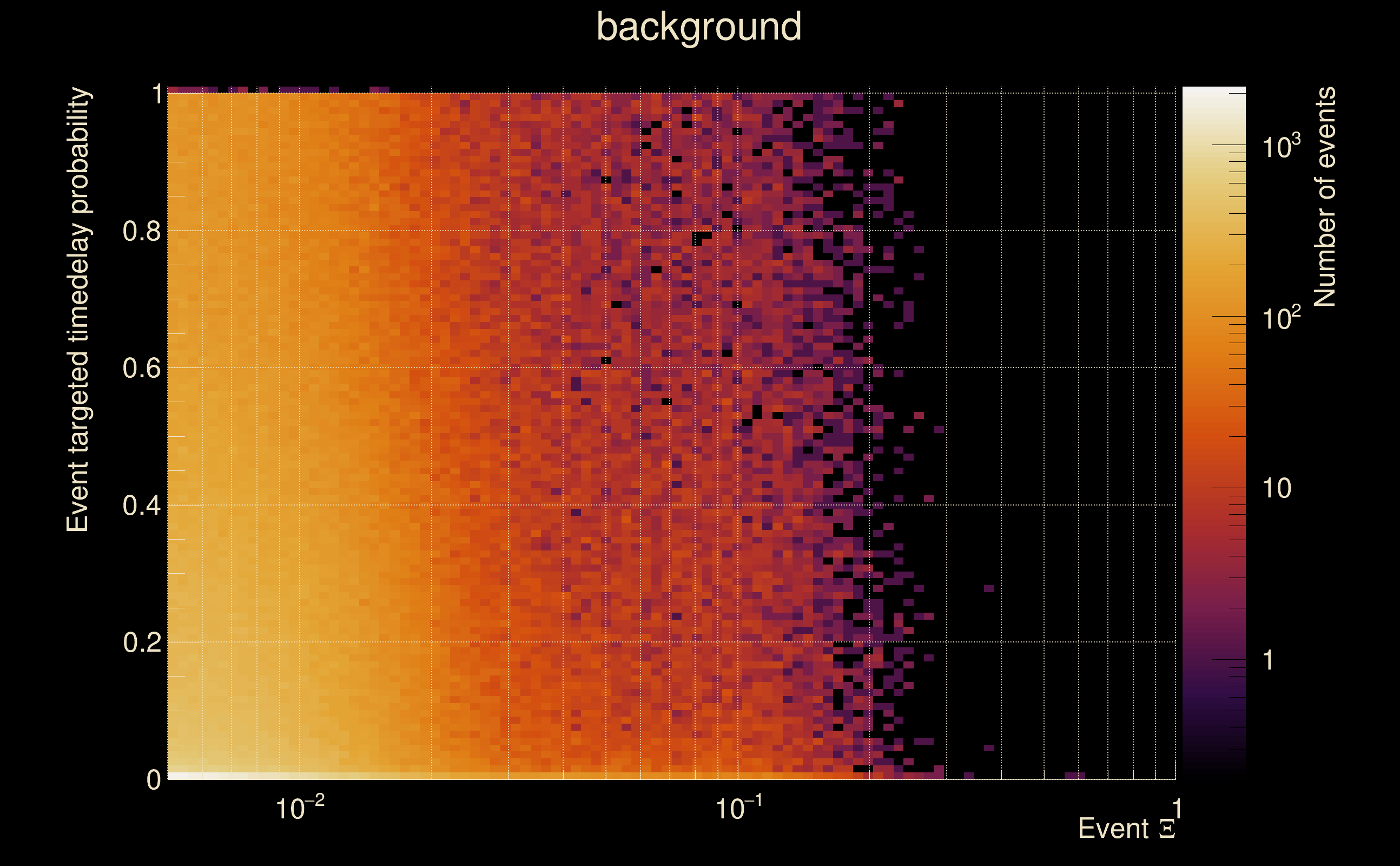

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

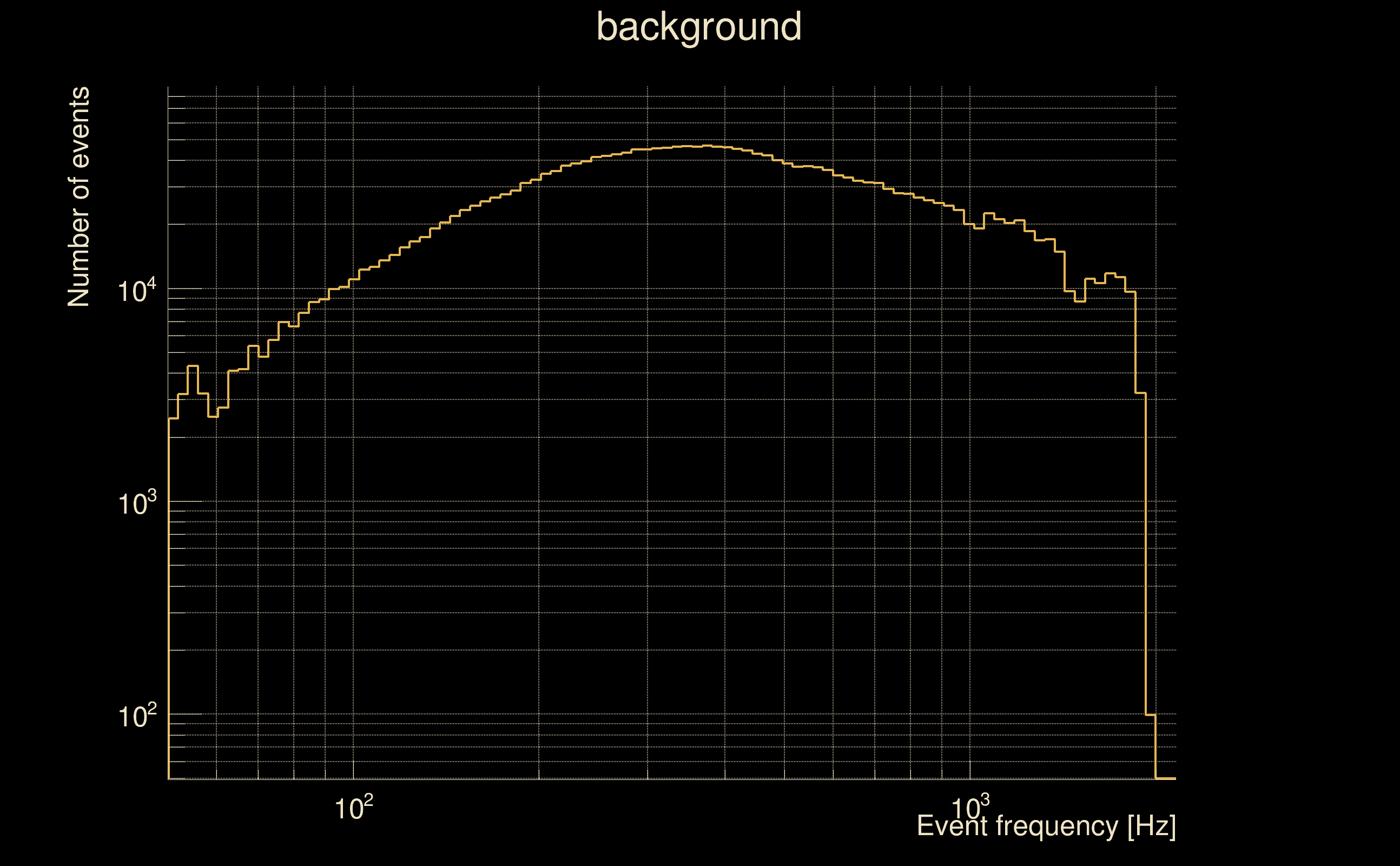

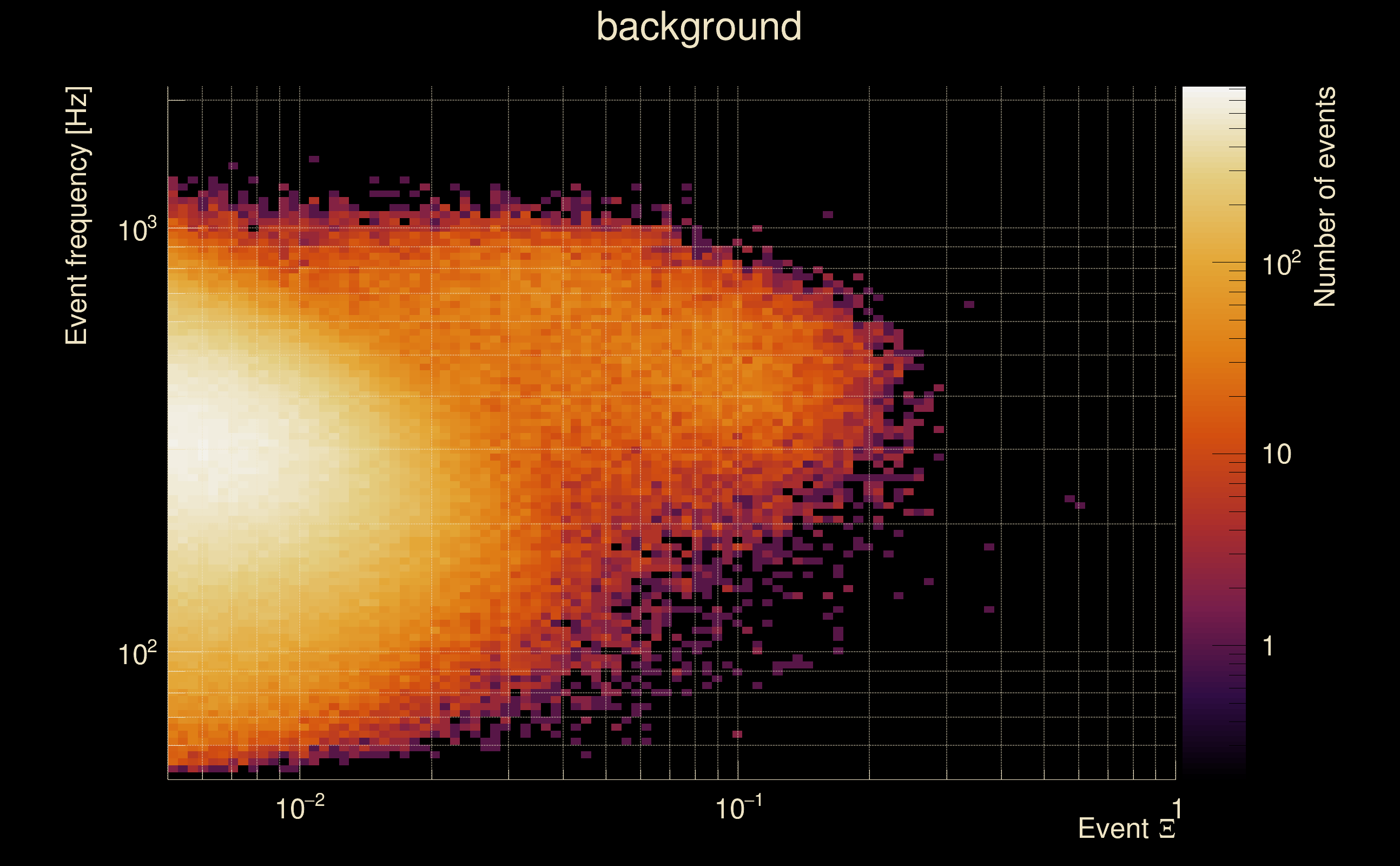

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

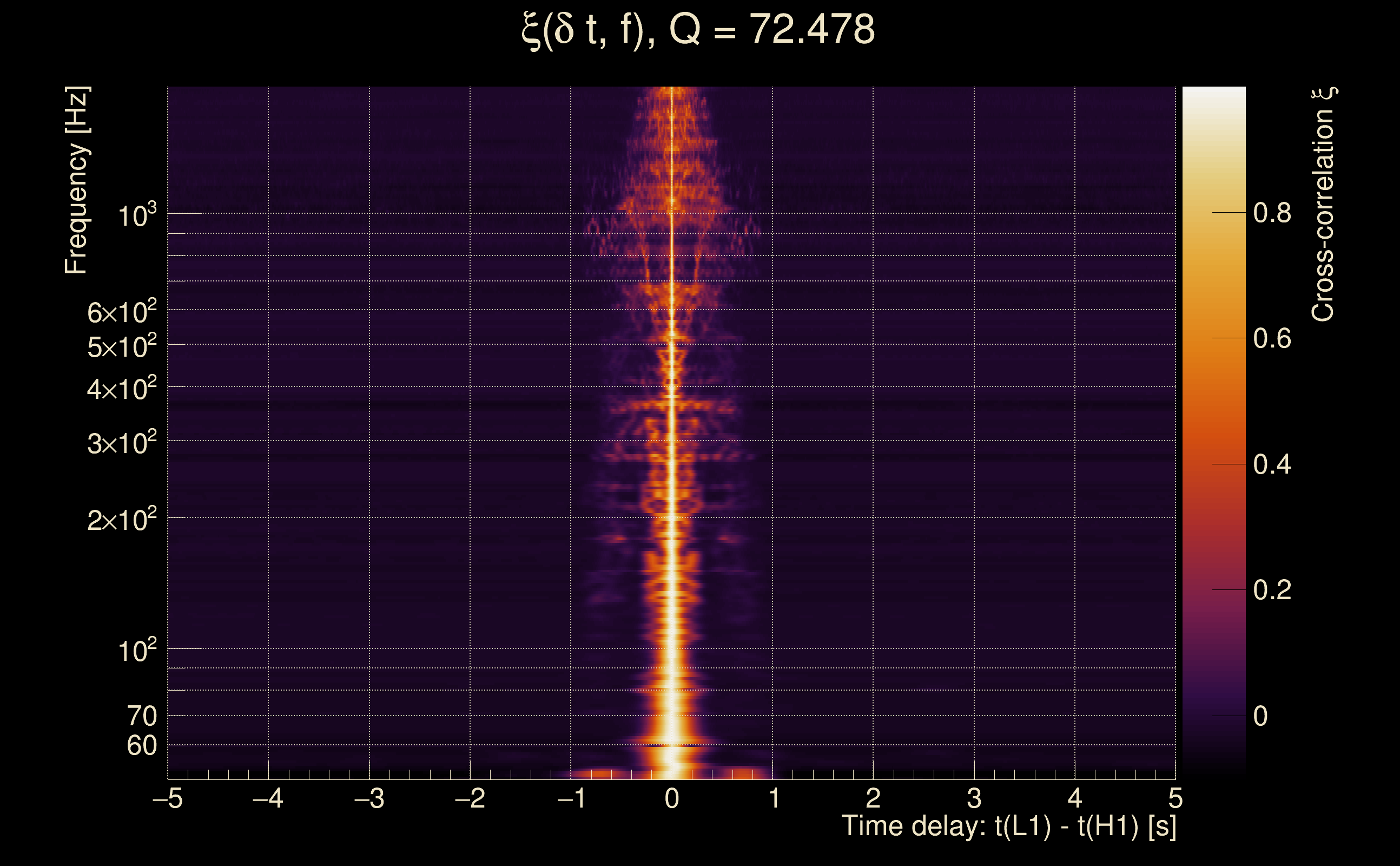

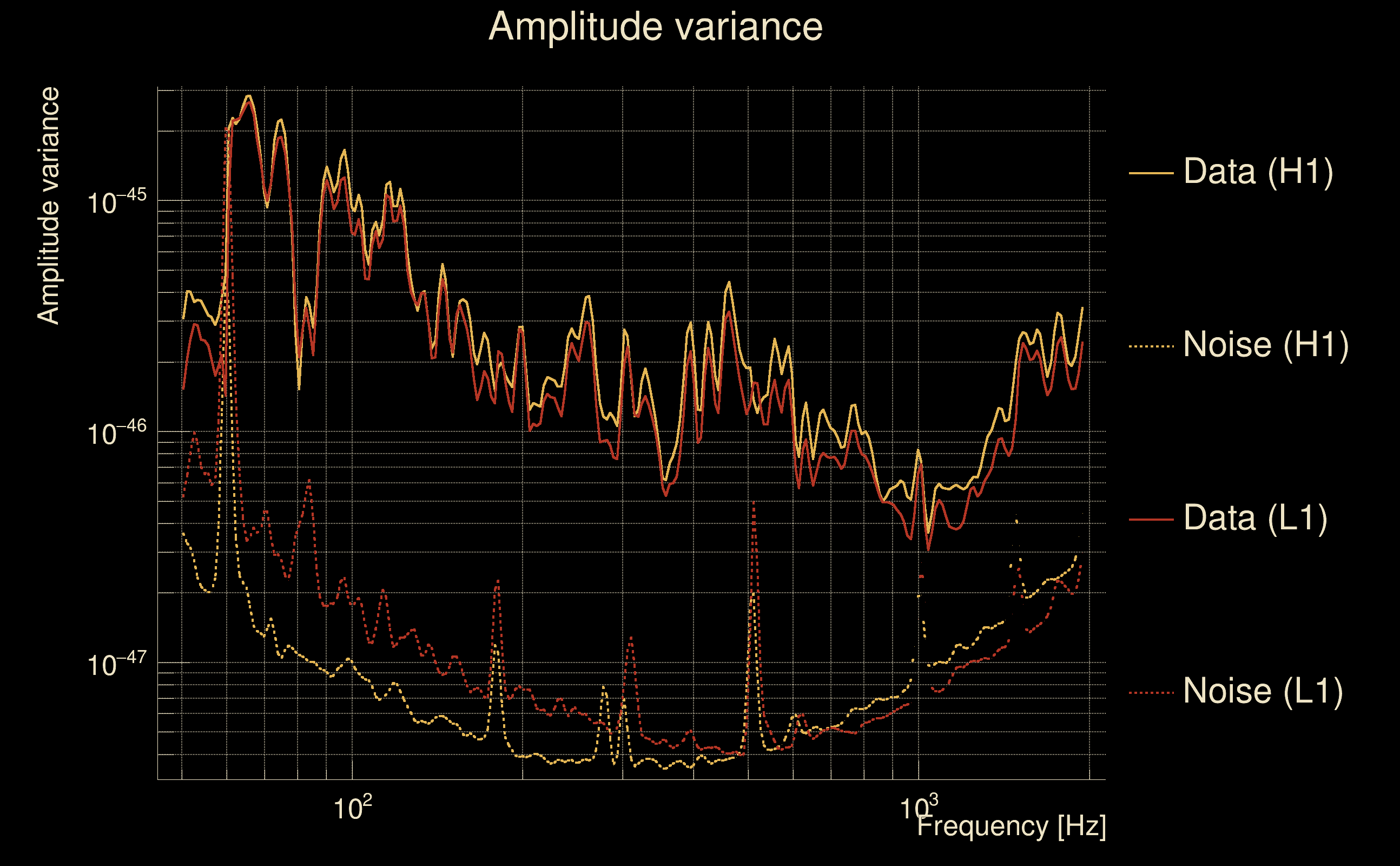

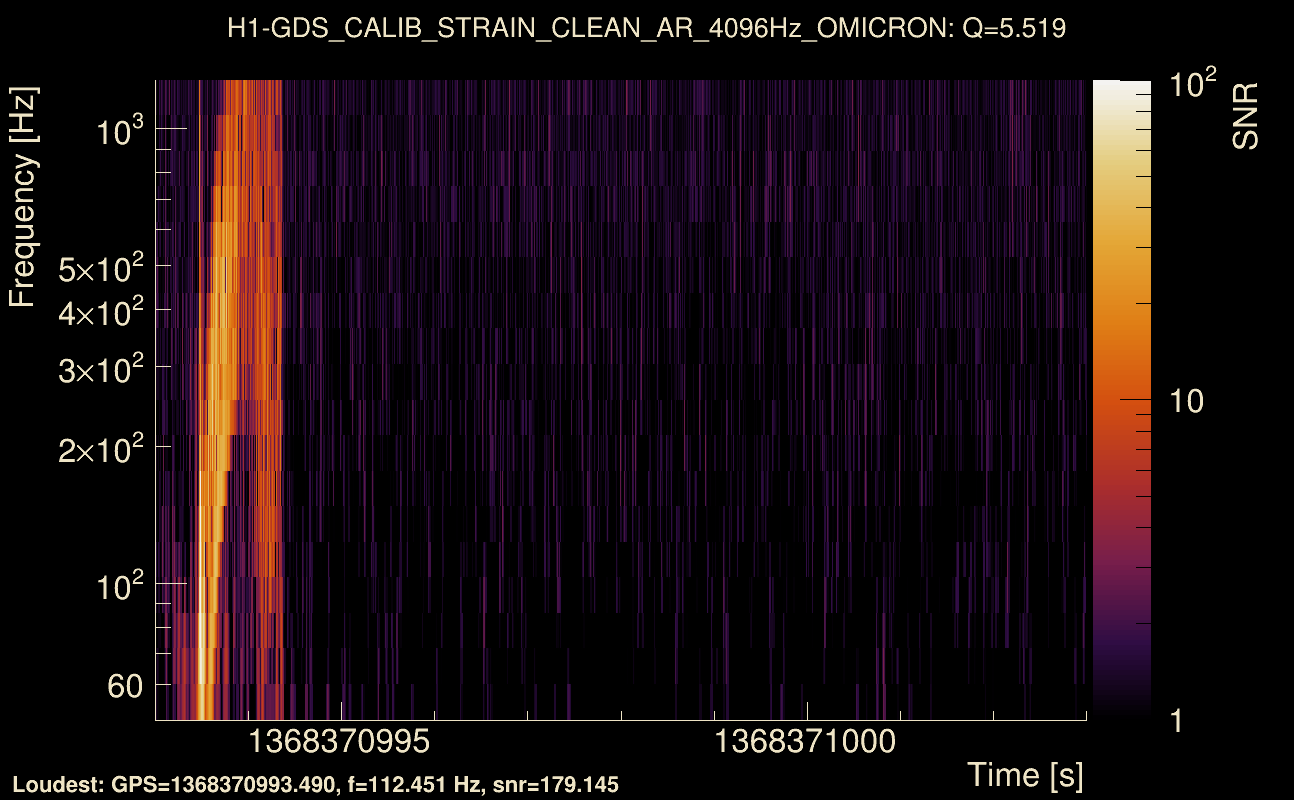

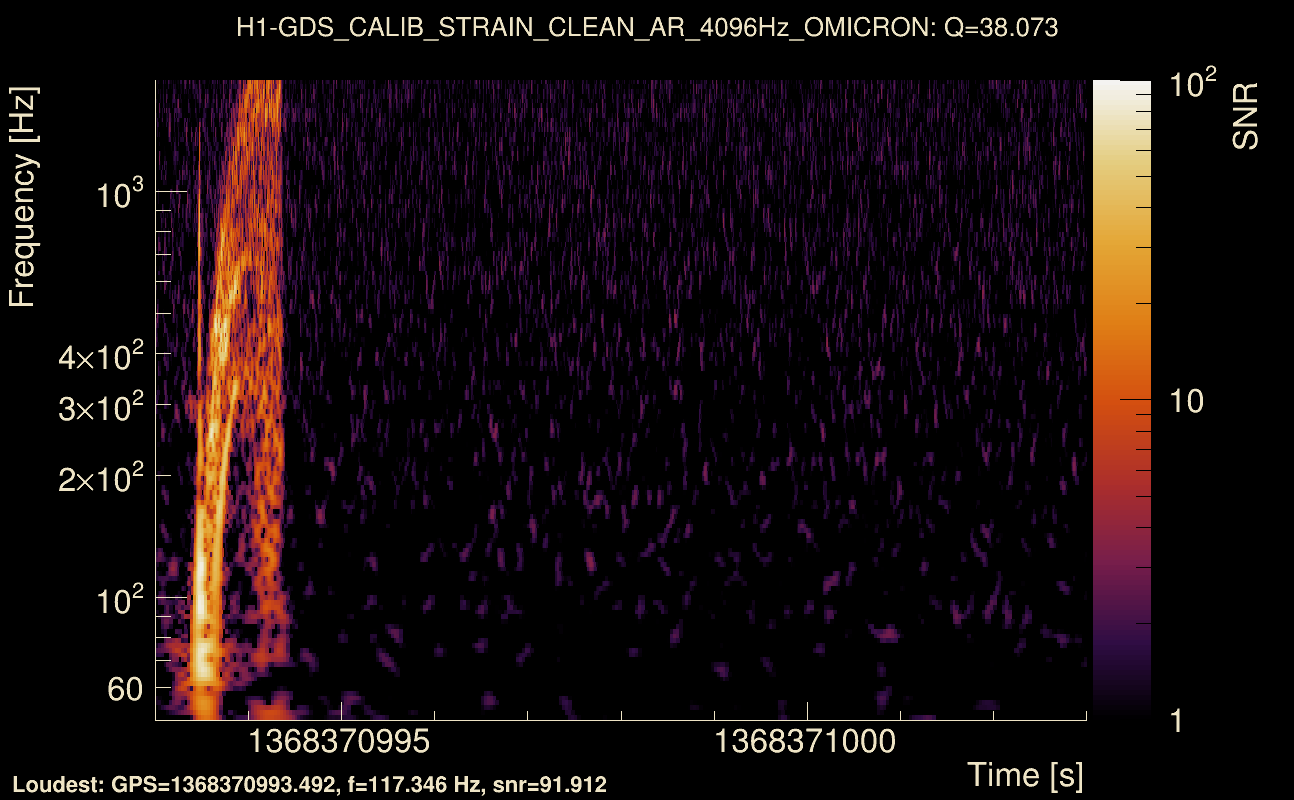

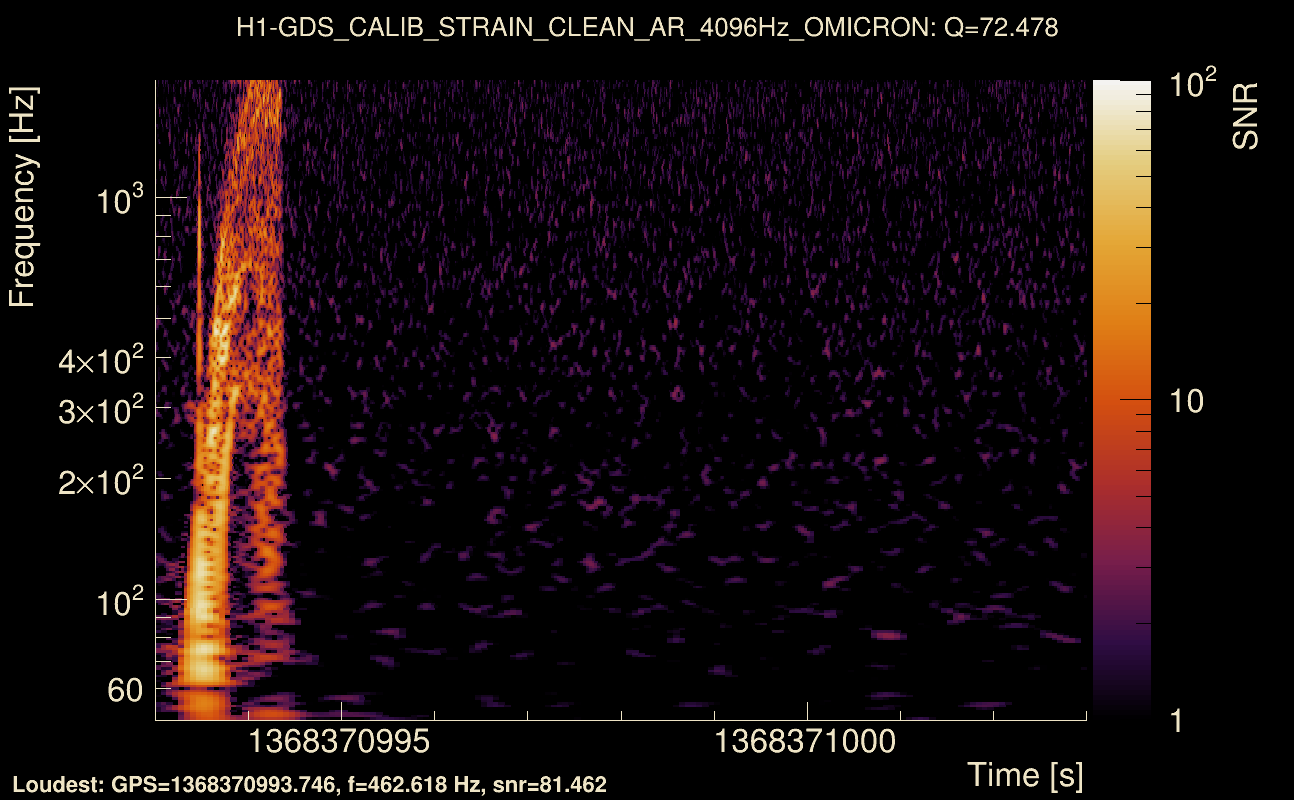

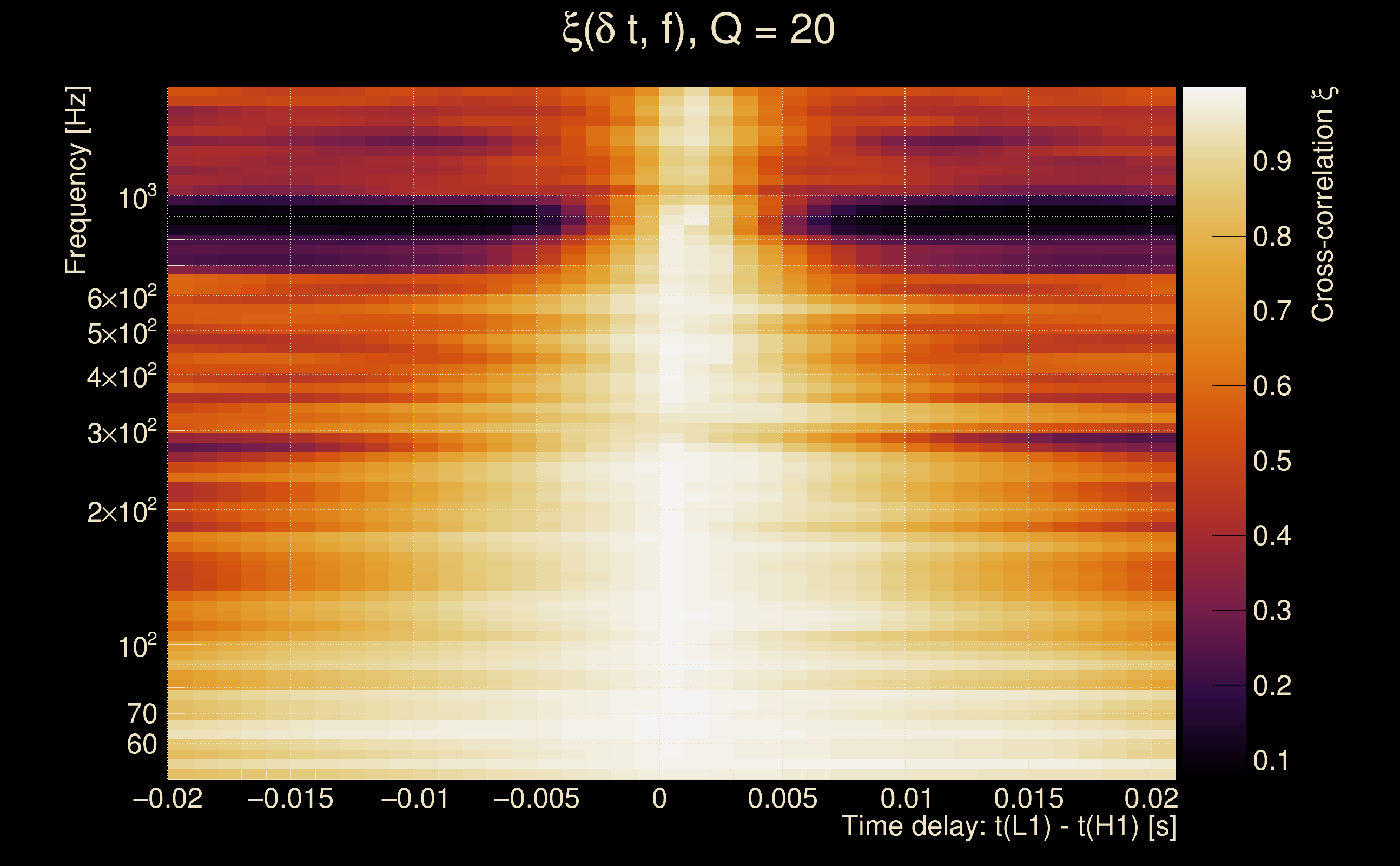

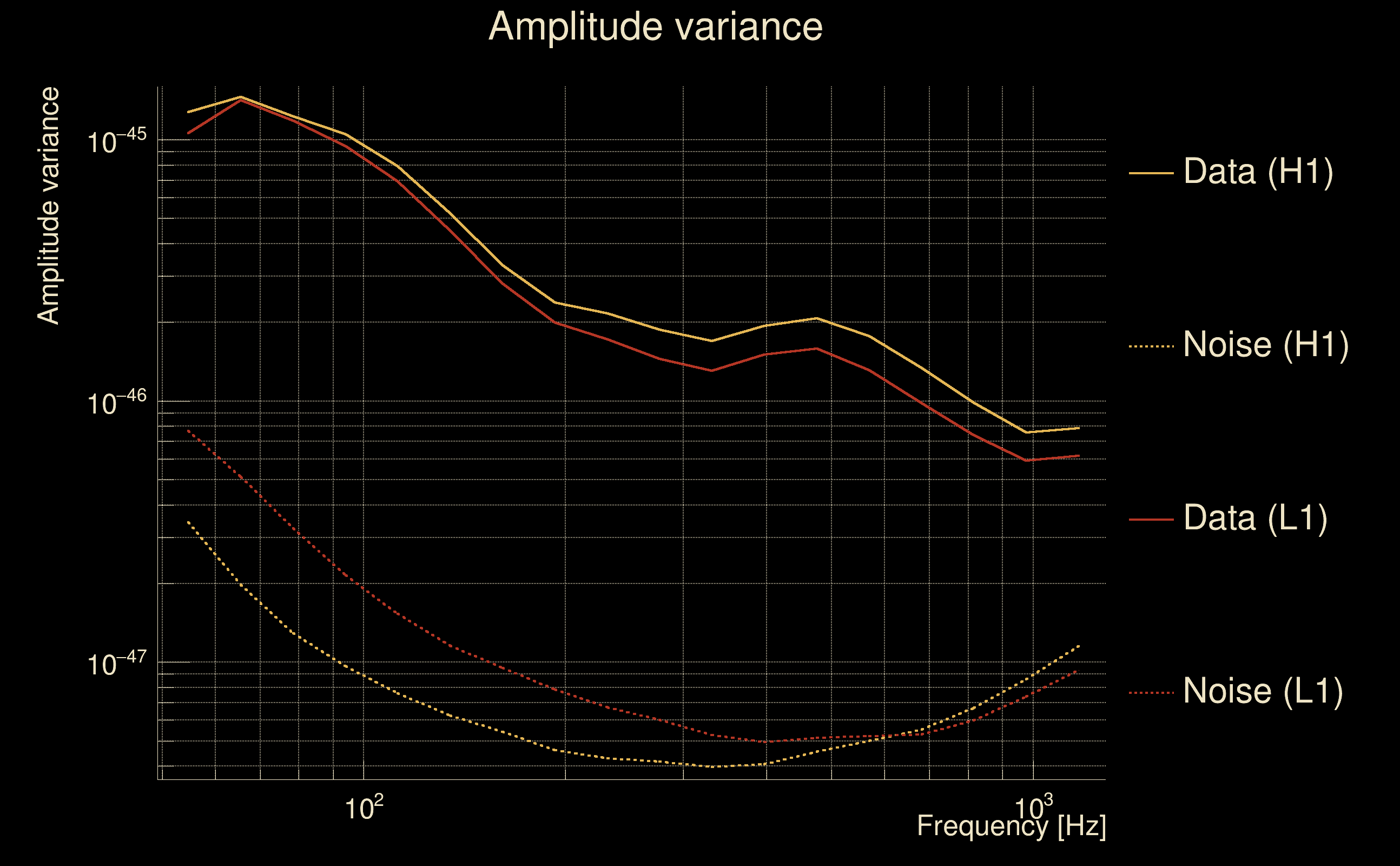

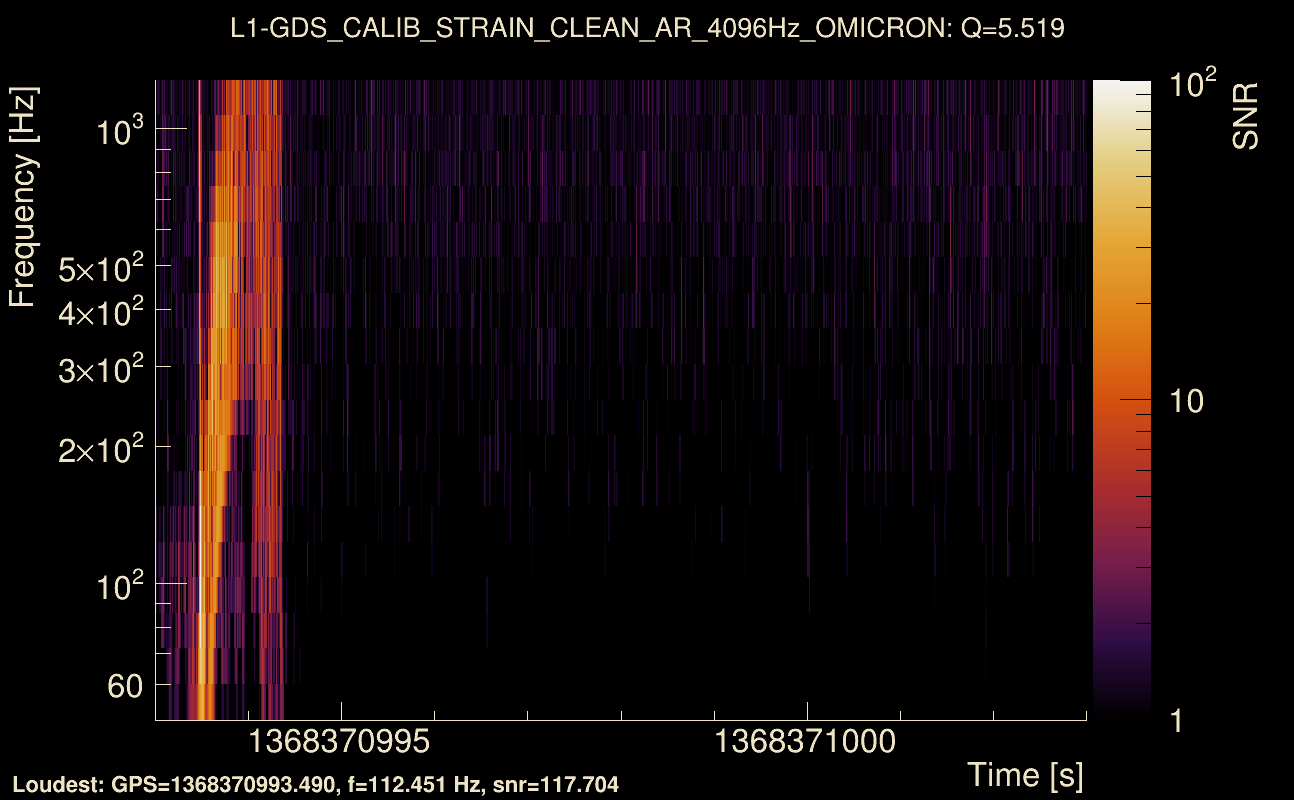

| Event time t(H1): | GPS = 1368370988 (Wed May 17 15:02:50 2023 ) → GPS = 1368370998 (Wed May 17 15:03:00 2023 ) |
| Event time t(L1): | GPS = 1368370988 (Wed May 17 15:03:00 2023 ) → GPS = 1368370998 (Wed May 17 15:03:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368370985 → GPS = 1368371001 |
| Omicron analysis time window (L1): | GPS = 1368370985 → GPS = 1368371001 |

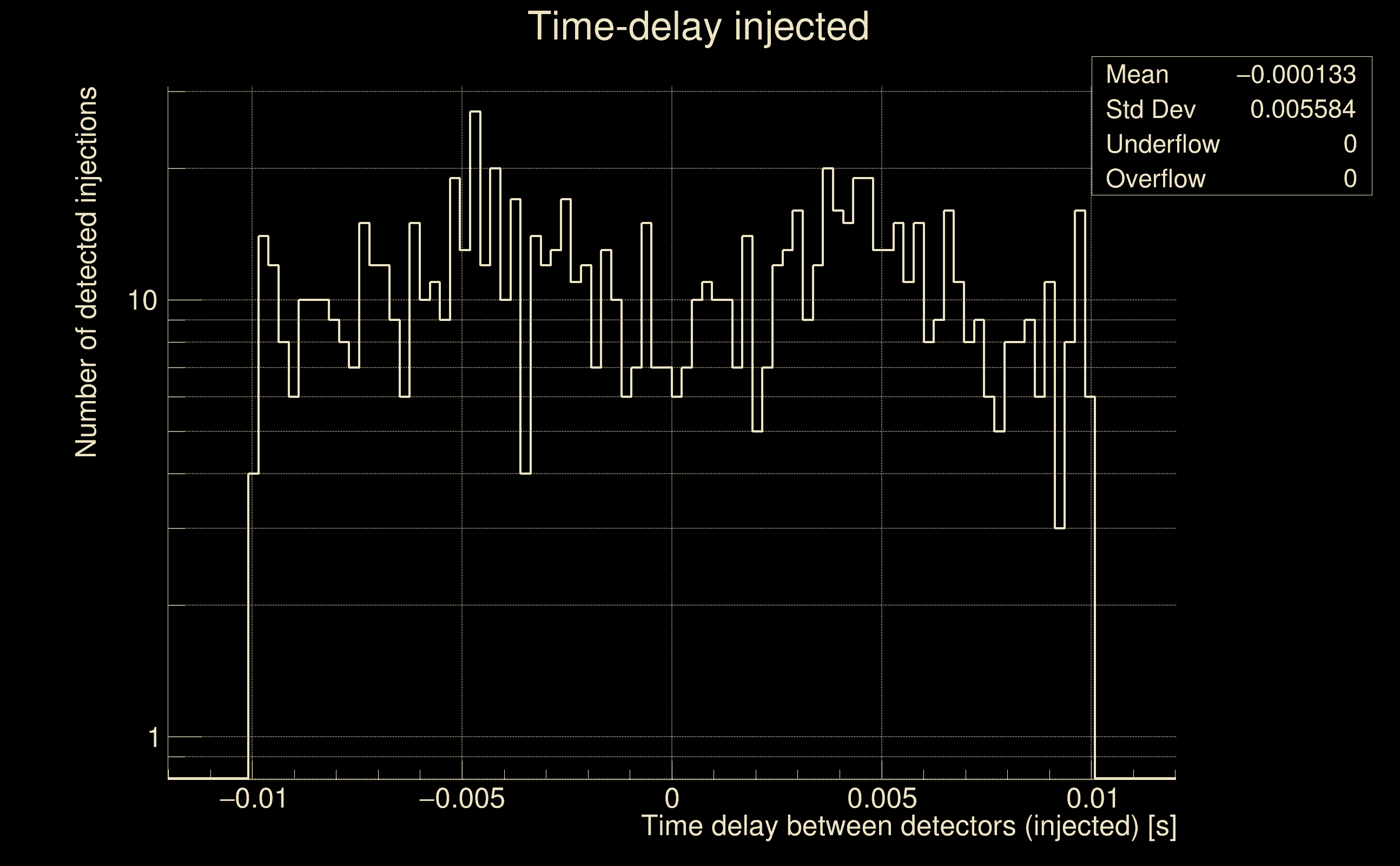

| Time delay between detectors t(L1) - t(H1): | 0.000859817 s (slice index = 108 / 217), δt_gw = 0.000859817 s |

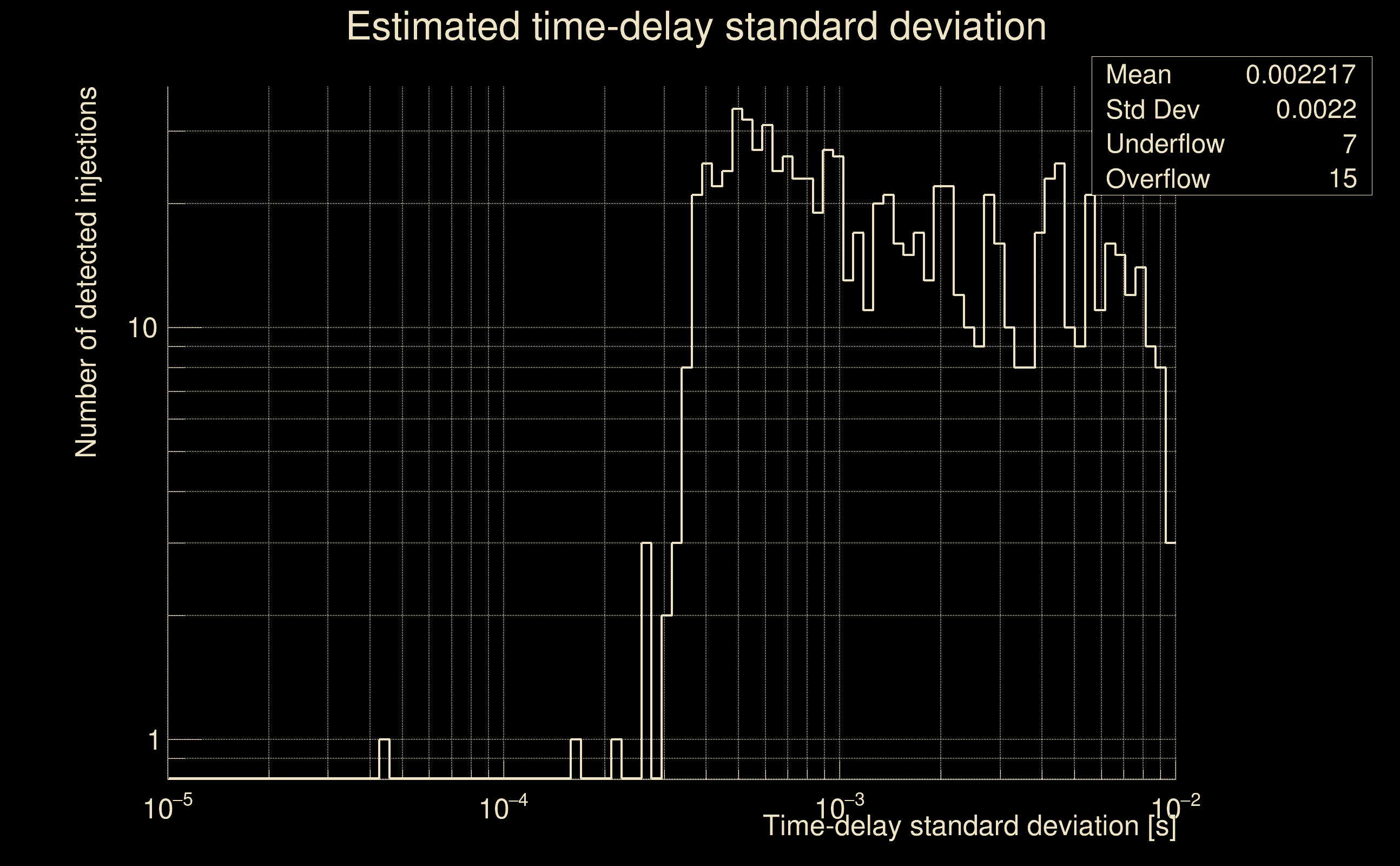

| Time delay standard deviation: | 0.019024 s |
| [targeted mode] Time delay probability: | 1.4884e-90 (20.1793 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 282.065 Hz |

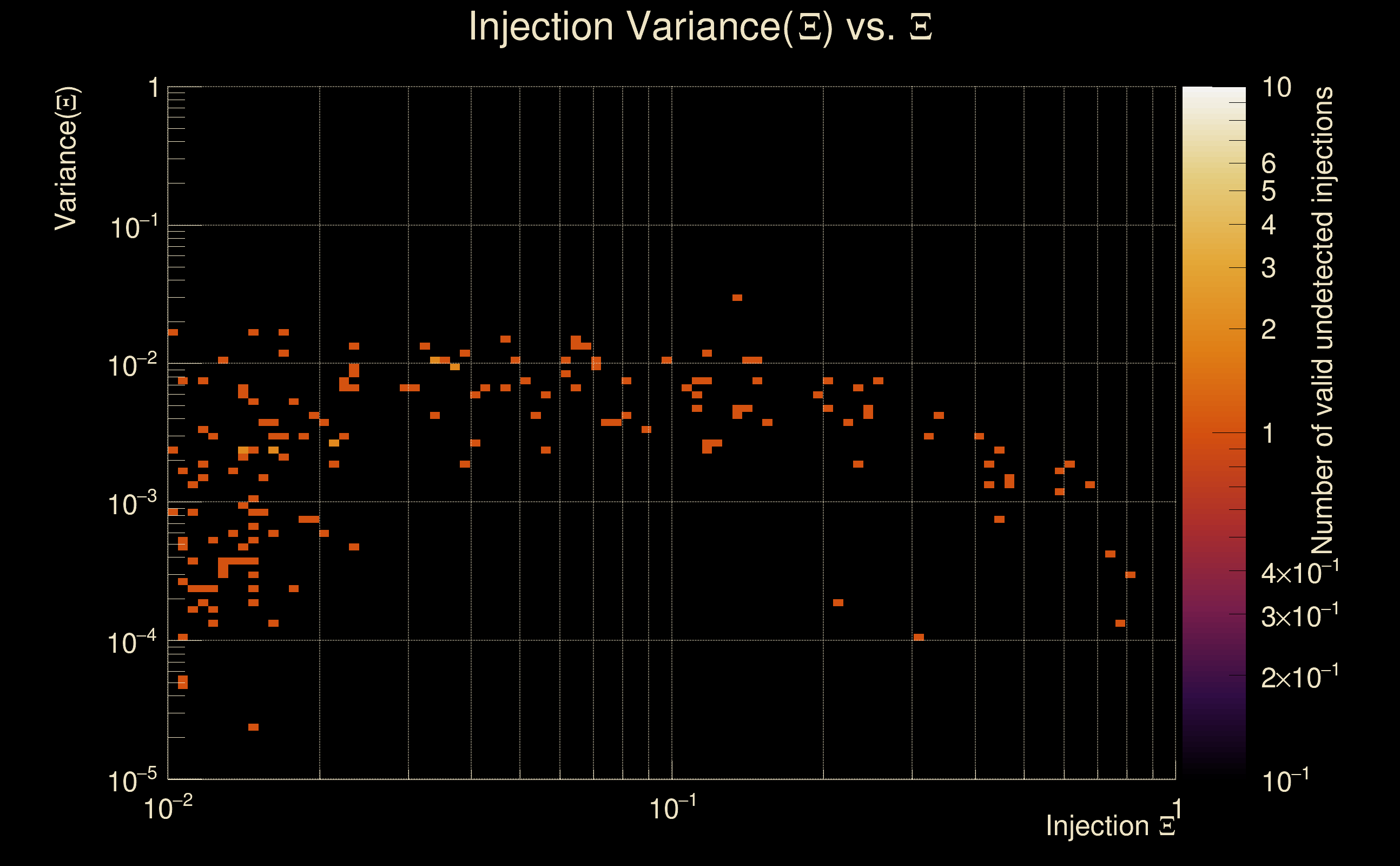

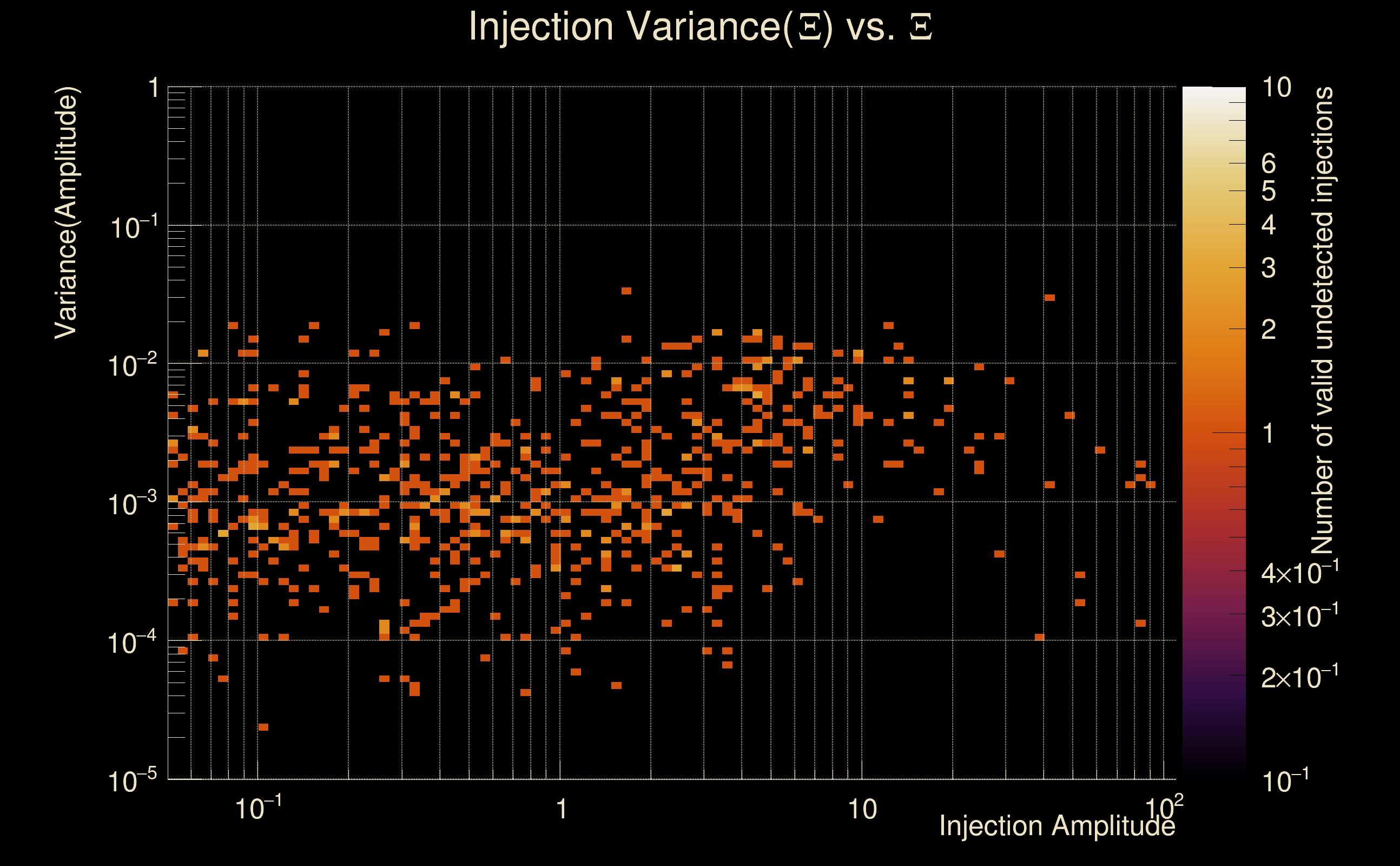

| Ξ: | 0.975217 ± 0.00139938 (variance = 1.95826e-06): Q0: 0.973947, Q1: 0.975621, Q2: 0.977731, Q3: 0.977481, Q4: 0.976895 |
| Rank: | R_A = 0.946388 |
| Log of amplitude ratio (L1/H1): | -0.0975097, variance = 0.151558 (L1/H1: -0.107522, variance = 0.302223, H1/L1: 0.0861528, variance = 0.301534) |

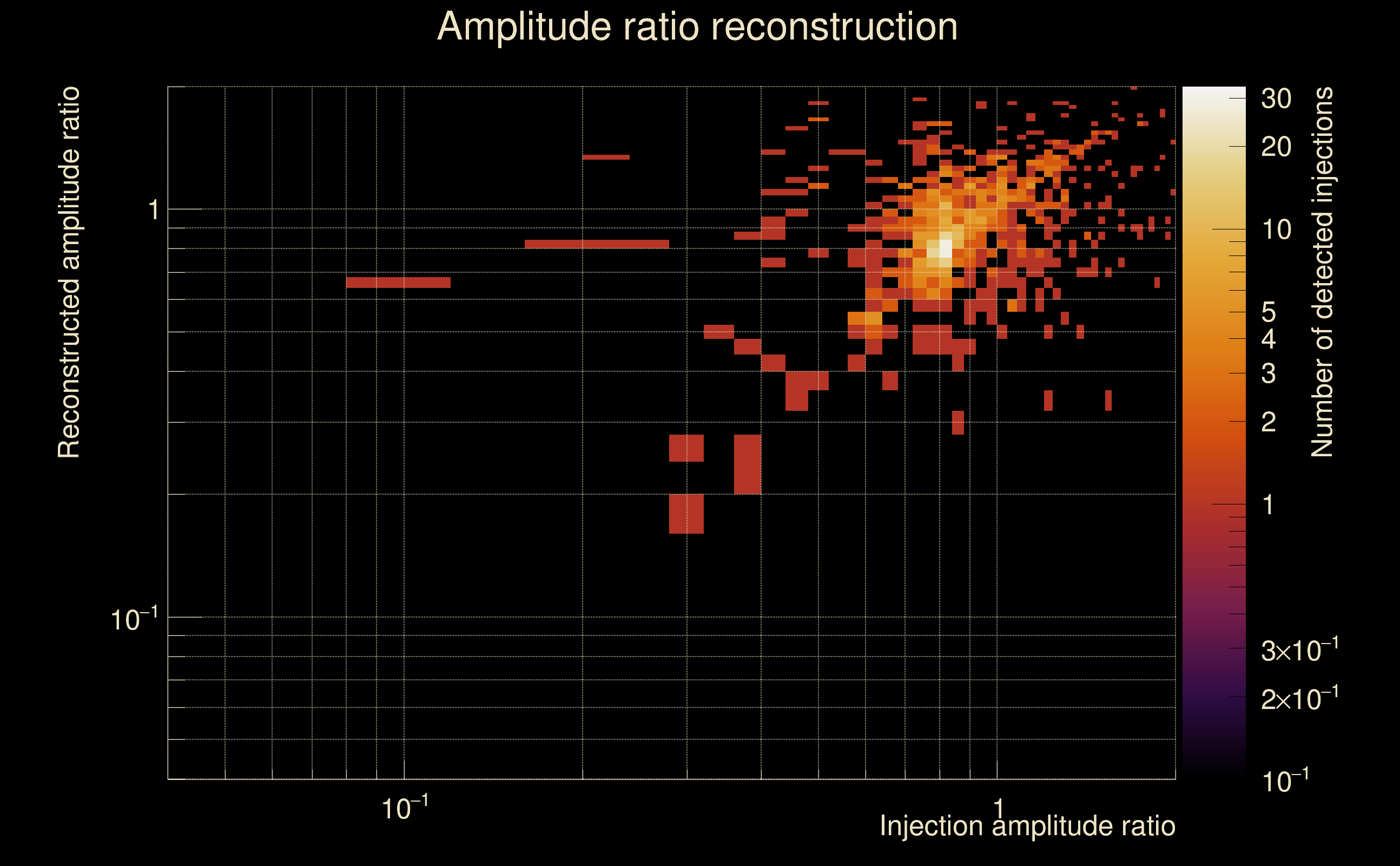

| Amplitude ratio (L1/H1): | 0.907094 ⋇ 1.47595 (L1/H1: 0.898056 ⋇ 1.73282, H1/L1: 1.08997 ⋇ 1.73173) |

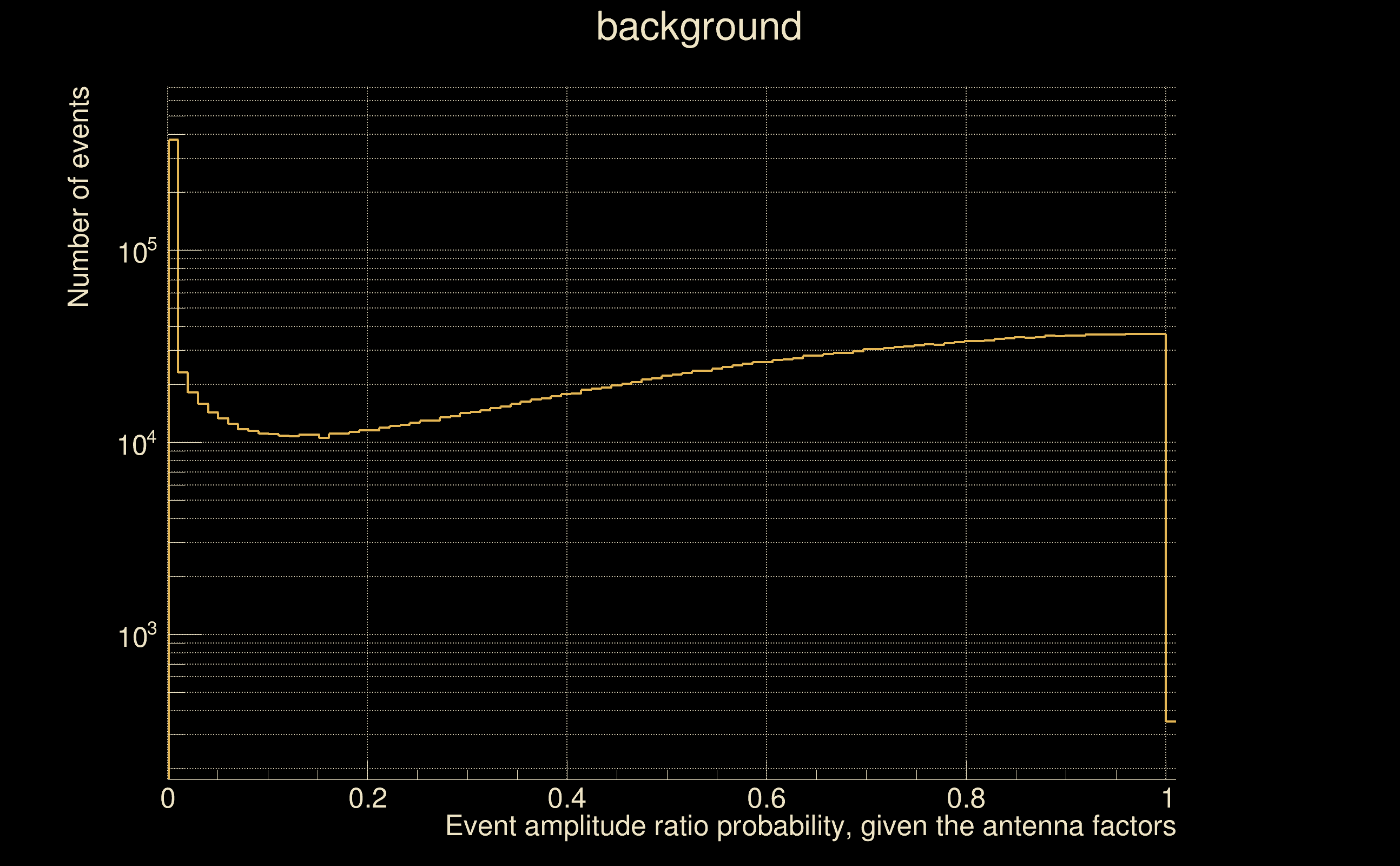

| Amplitude ratio H1|L1 compatibility (probability): | 0.978059 |

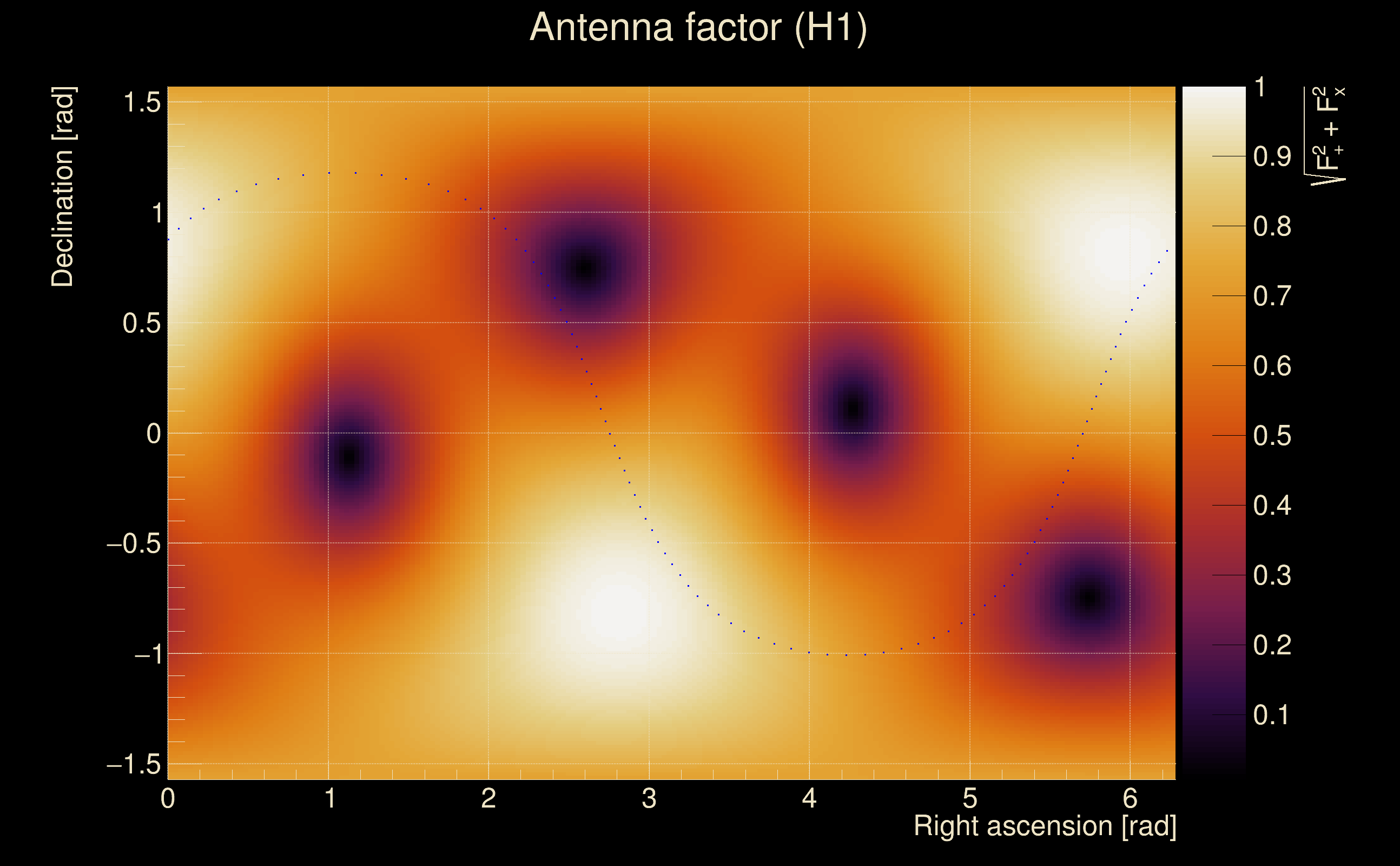

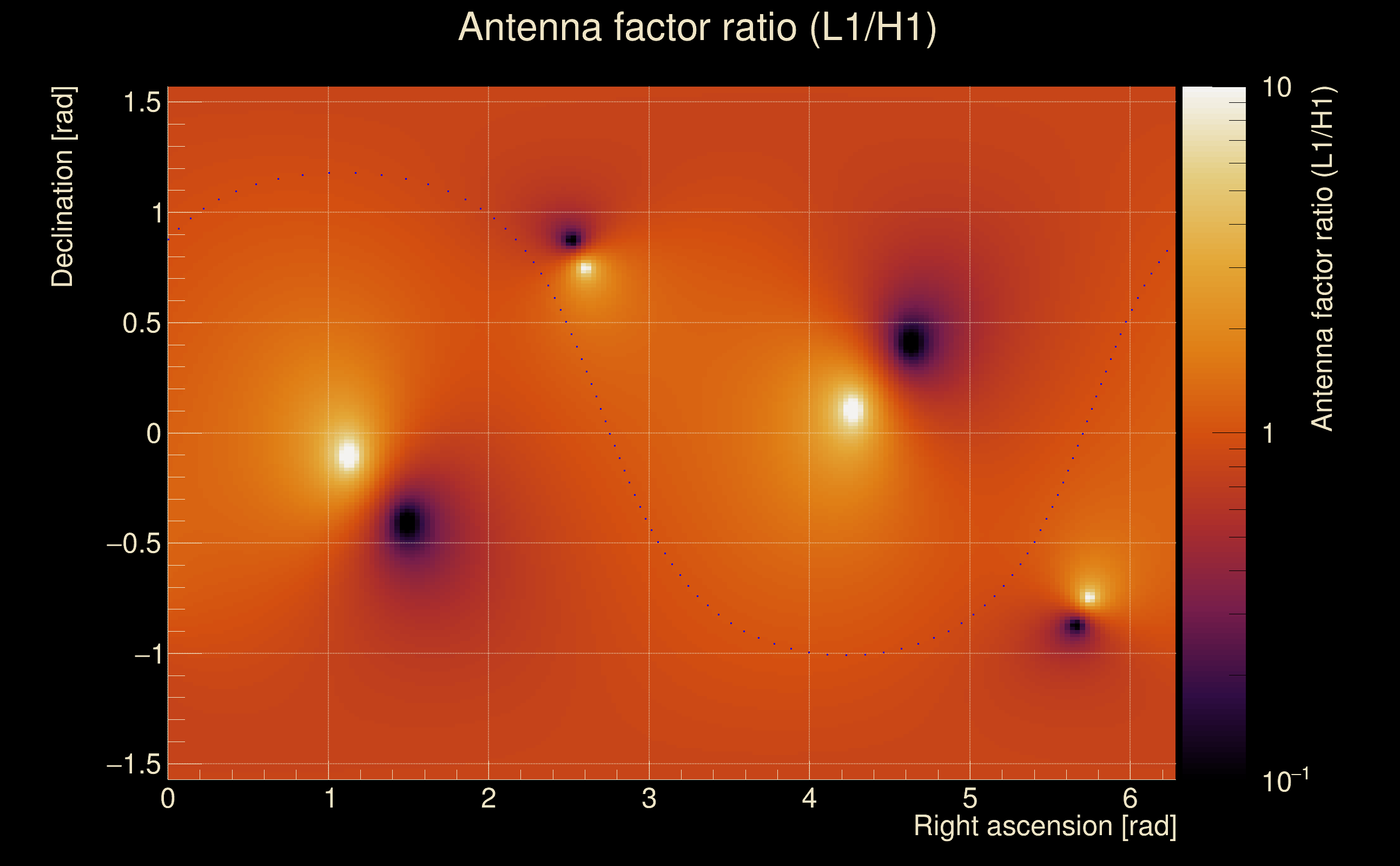

| Antenna factor probability: | 0.992208 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 207.172, L1: 194.526 |

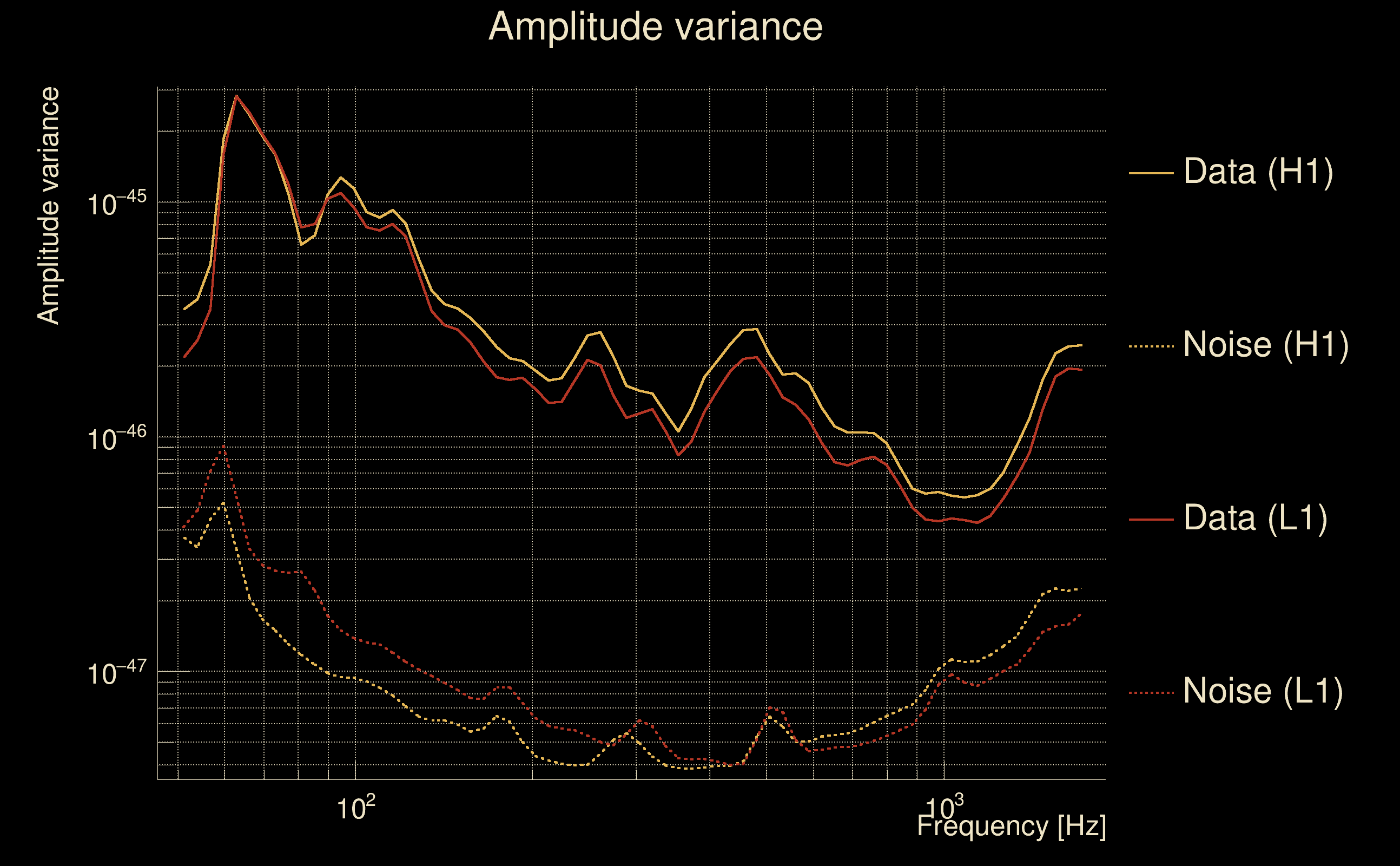

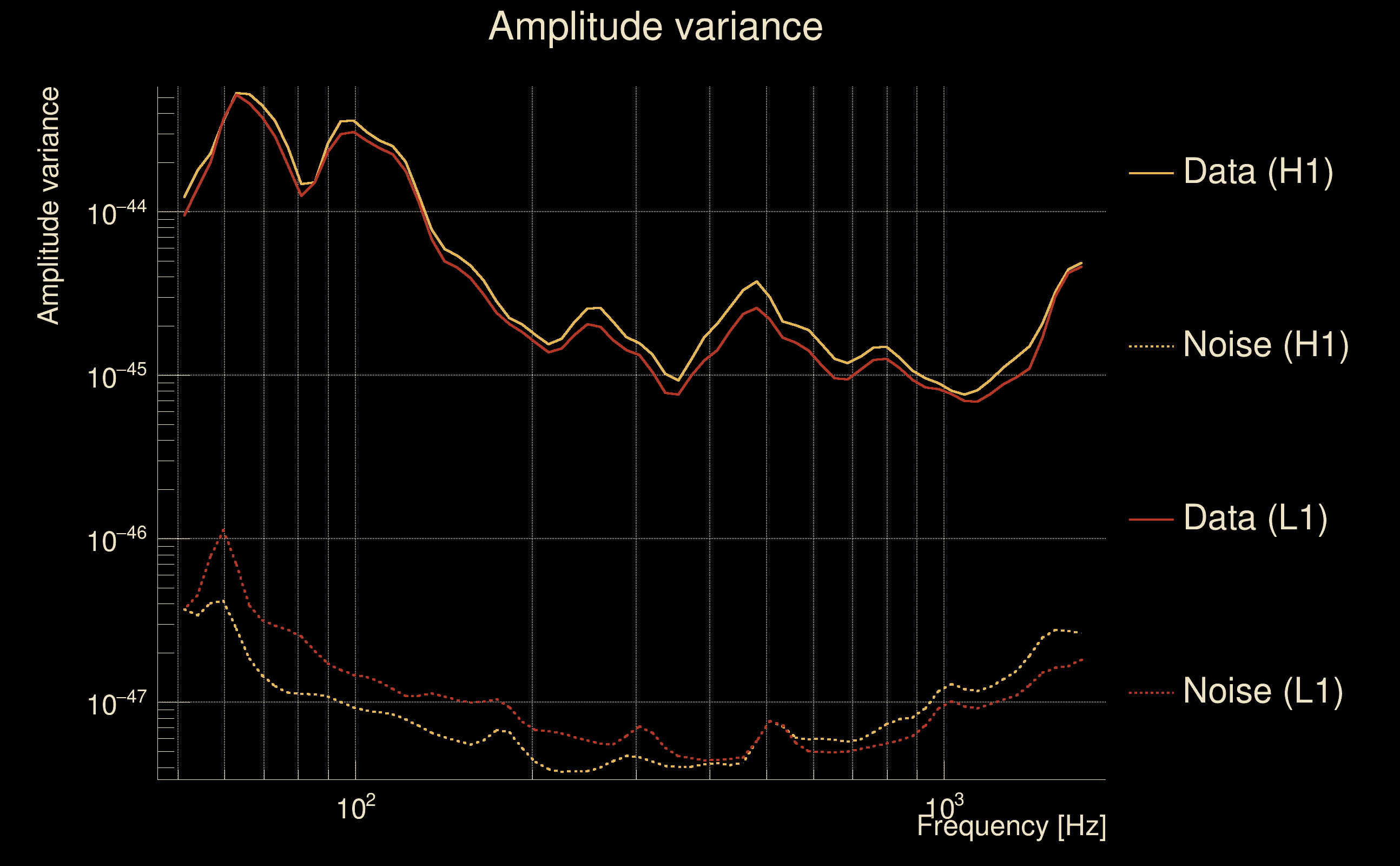

| SNR variance: | H1: 0.55913, L1: 0.513209 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

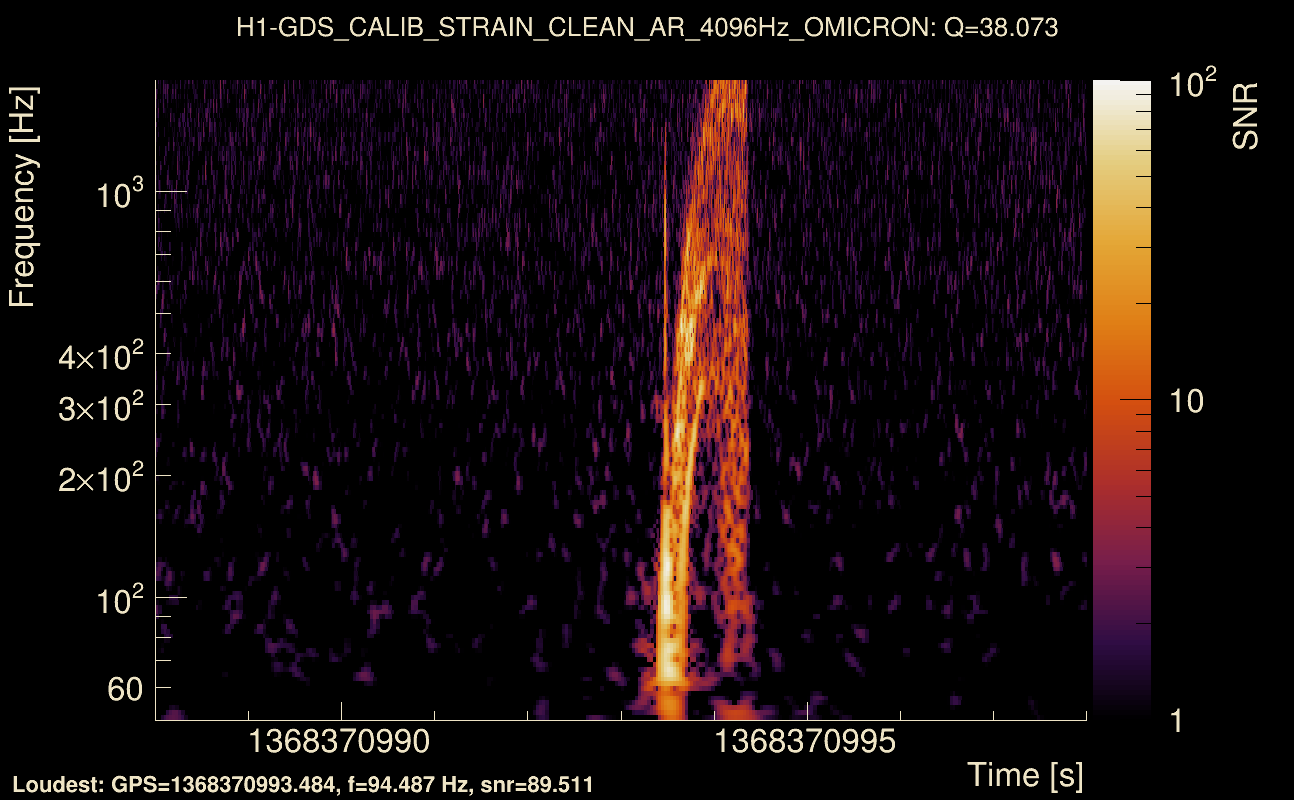

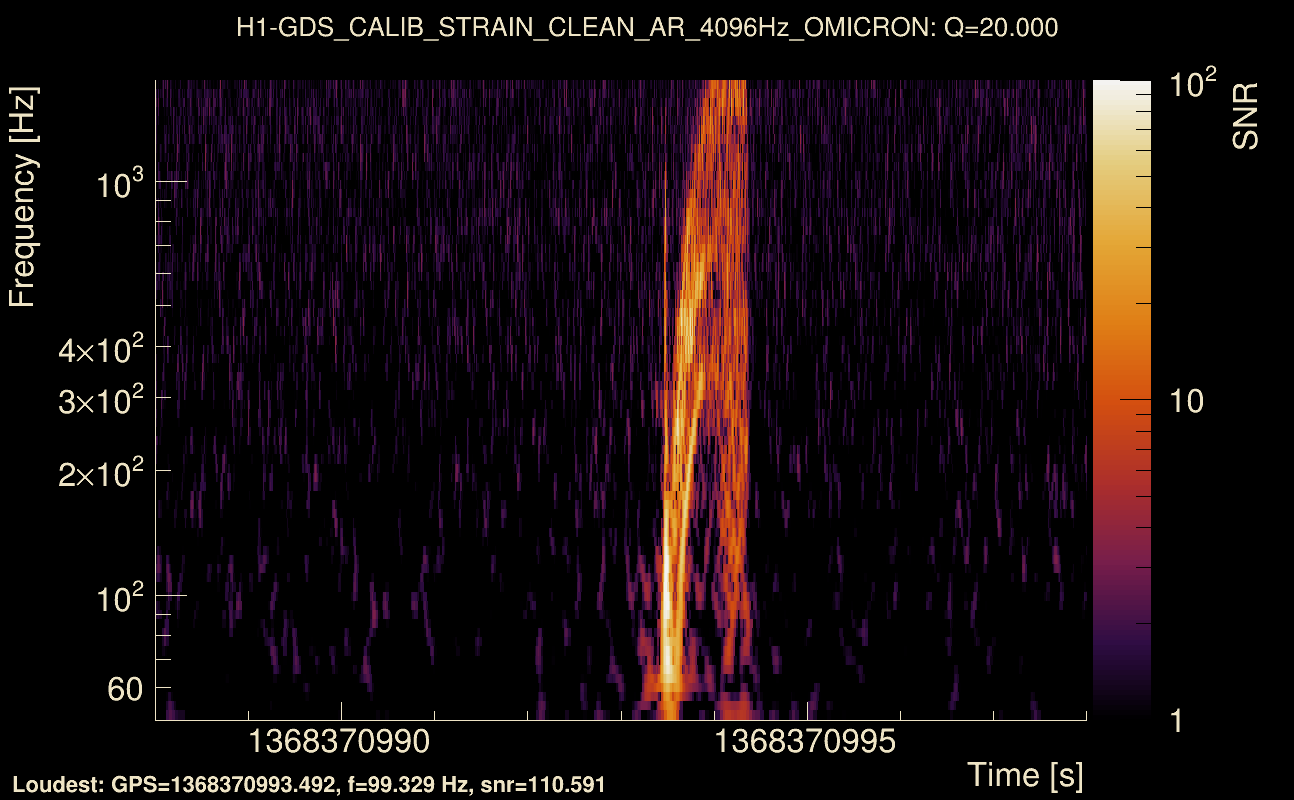

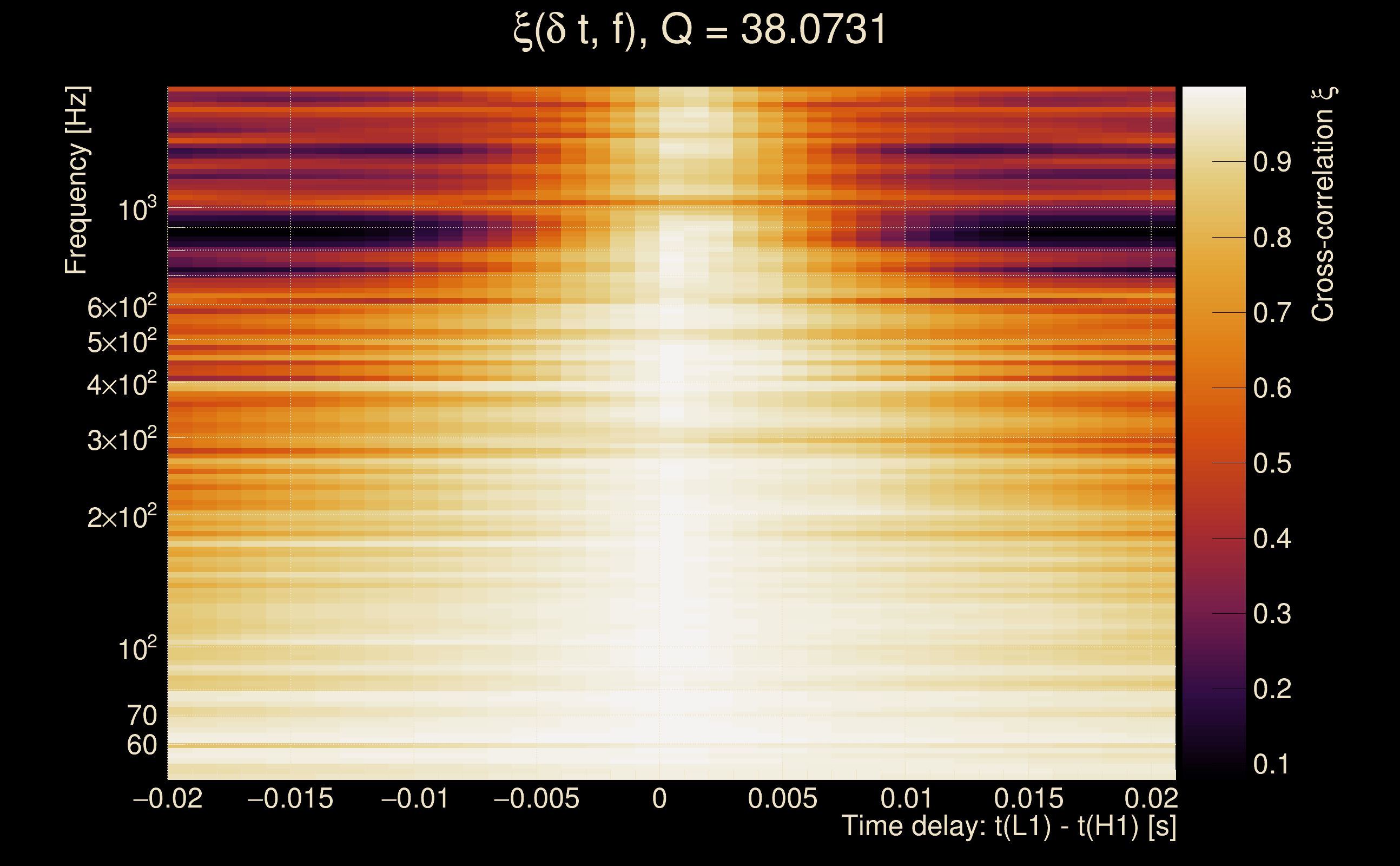

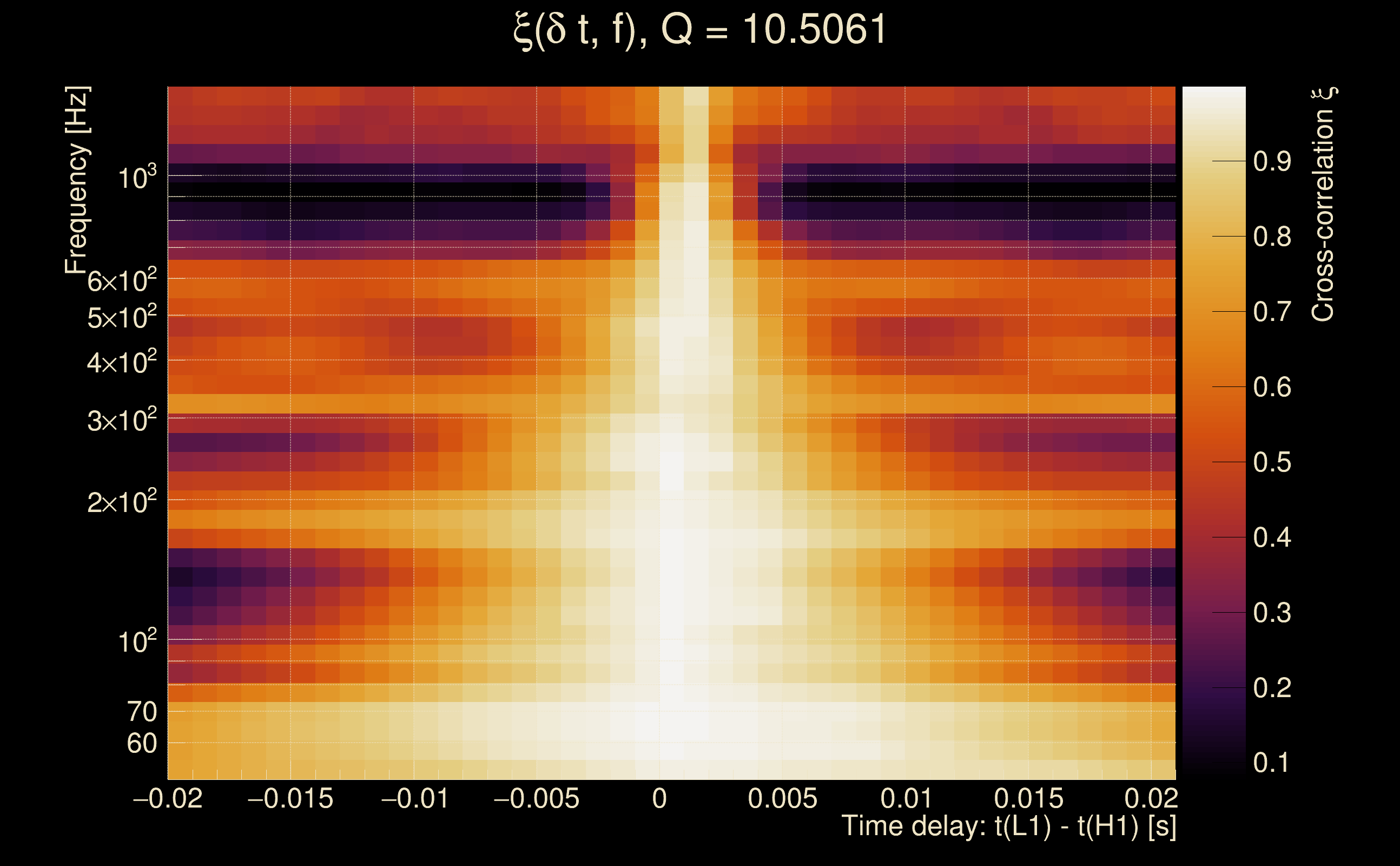

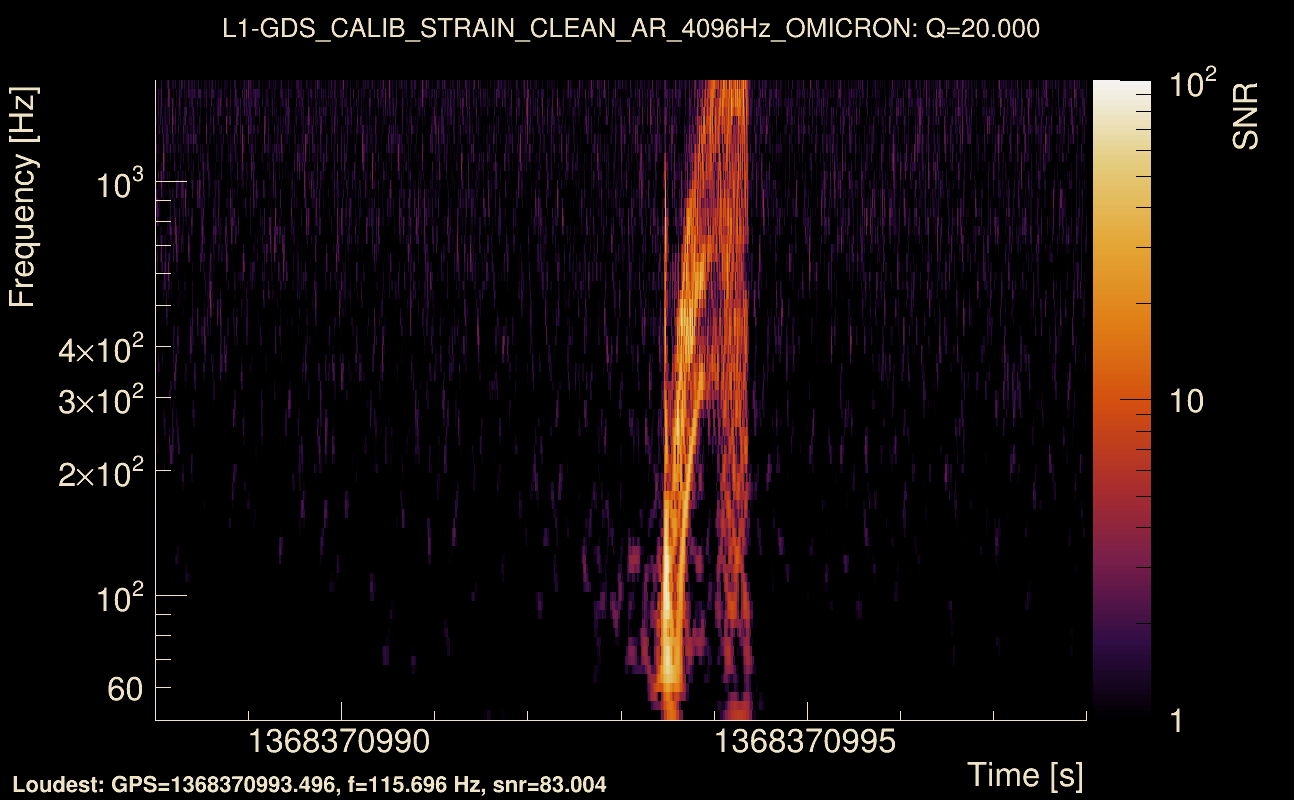

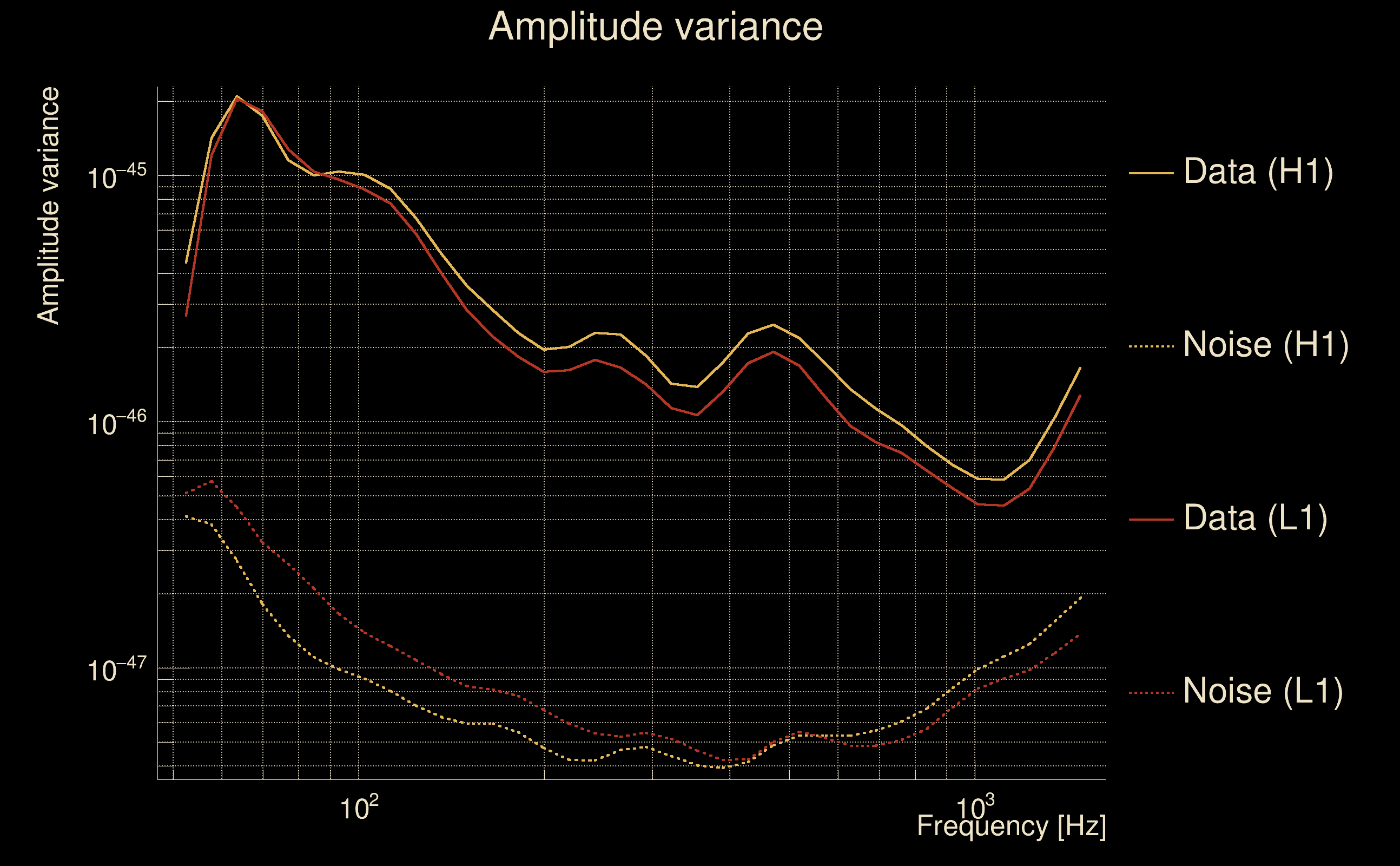

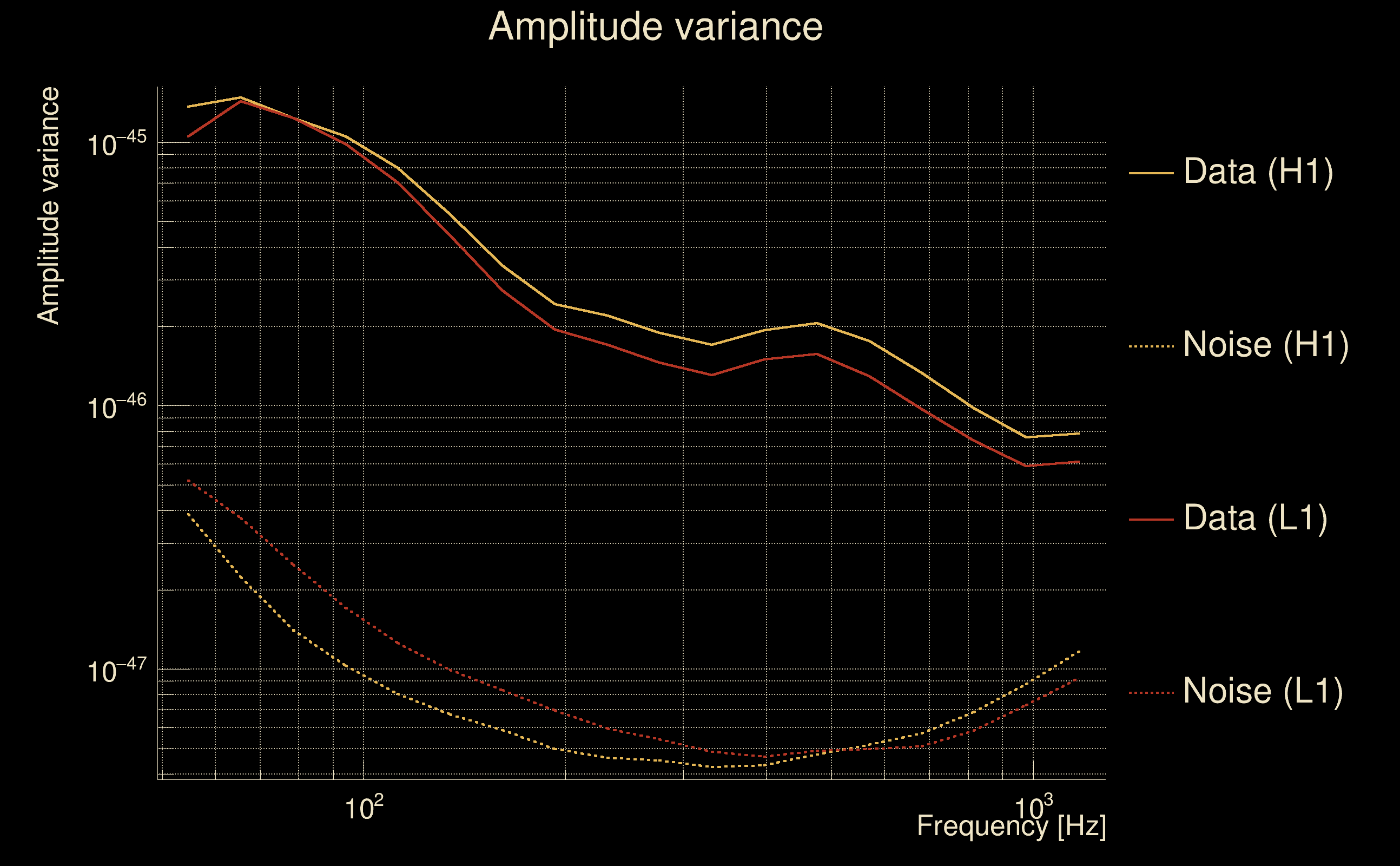

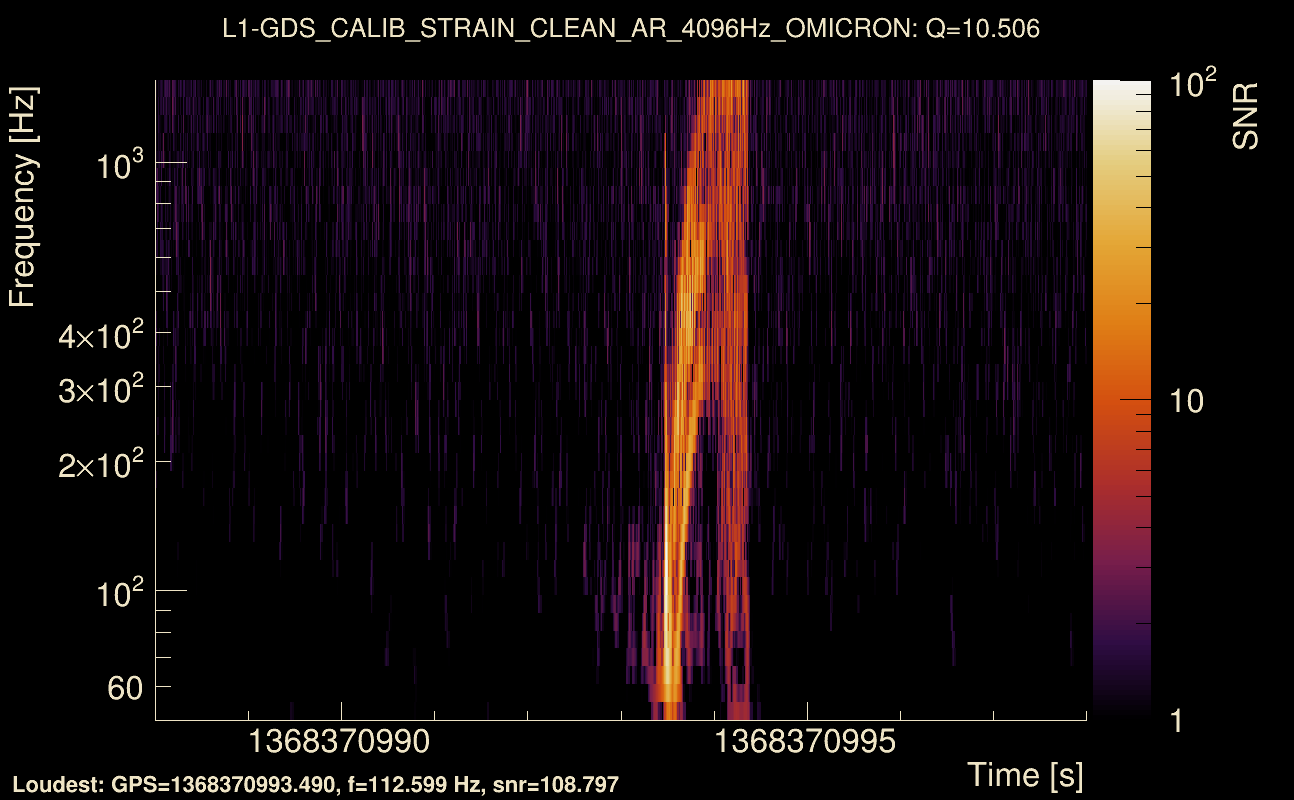

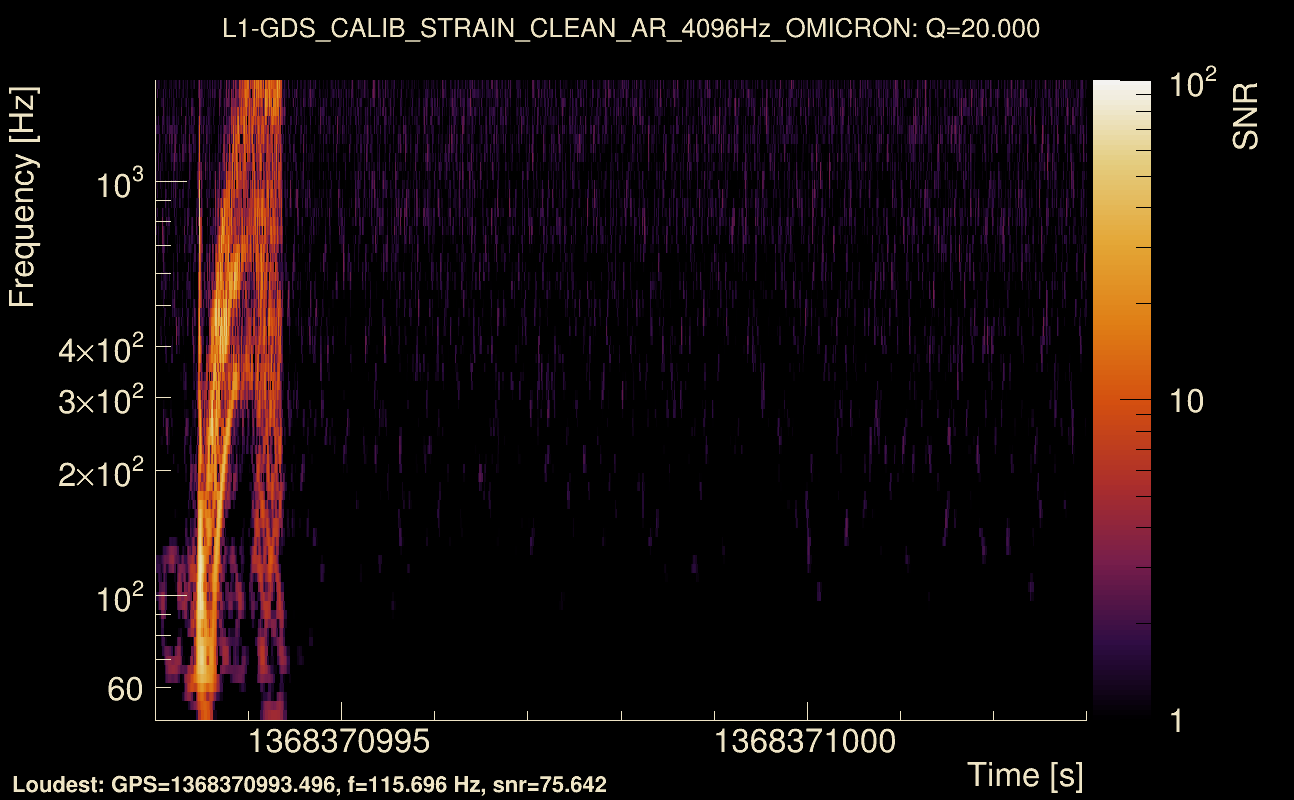

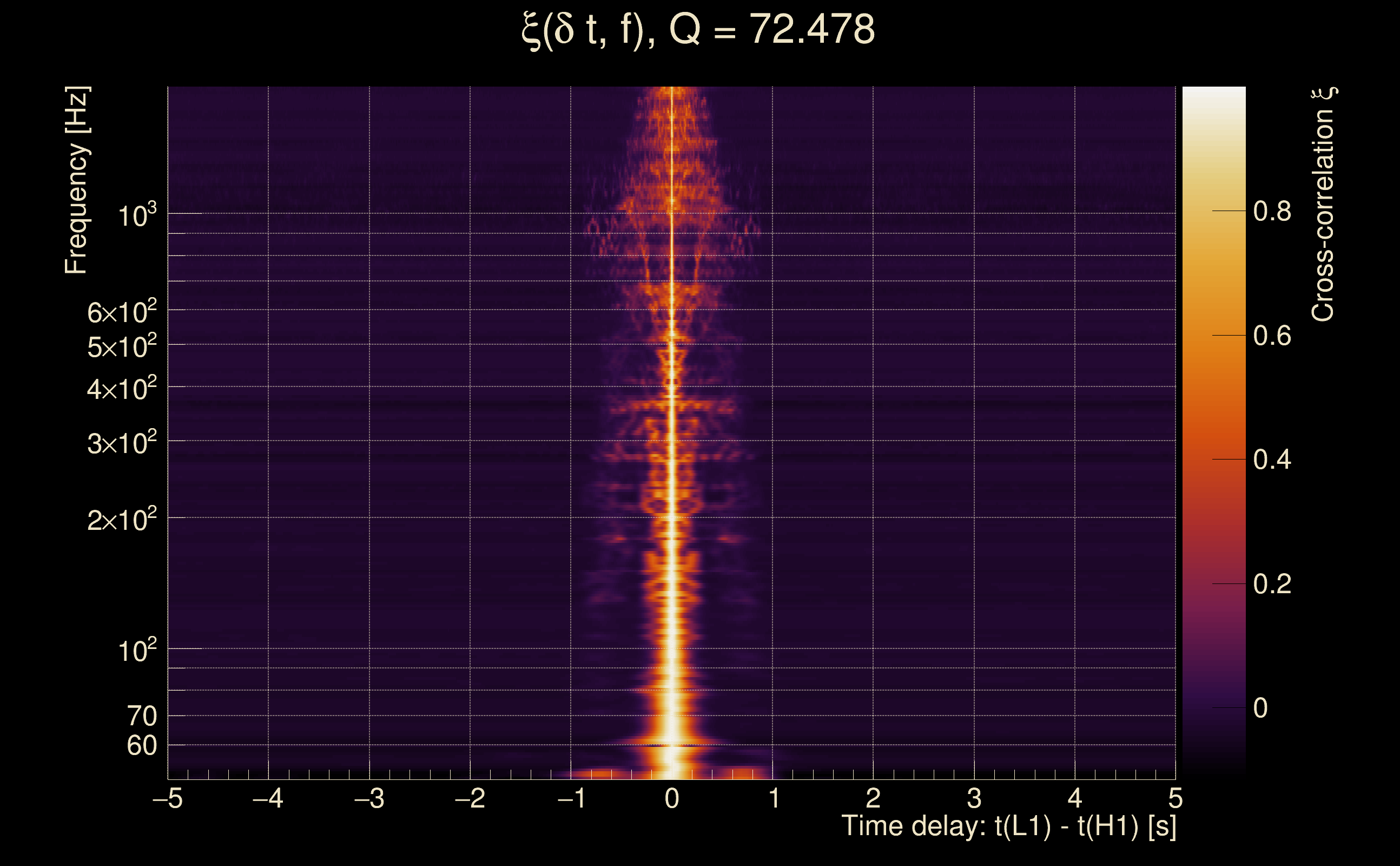

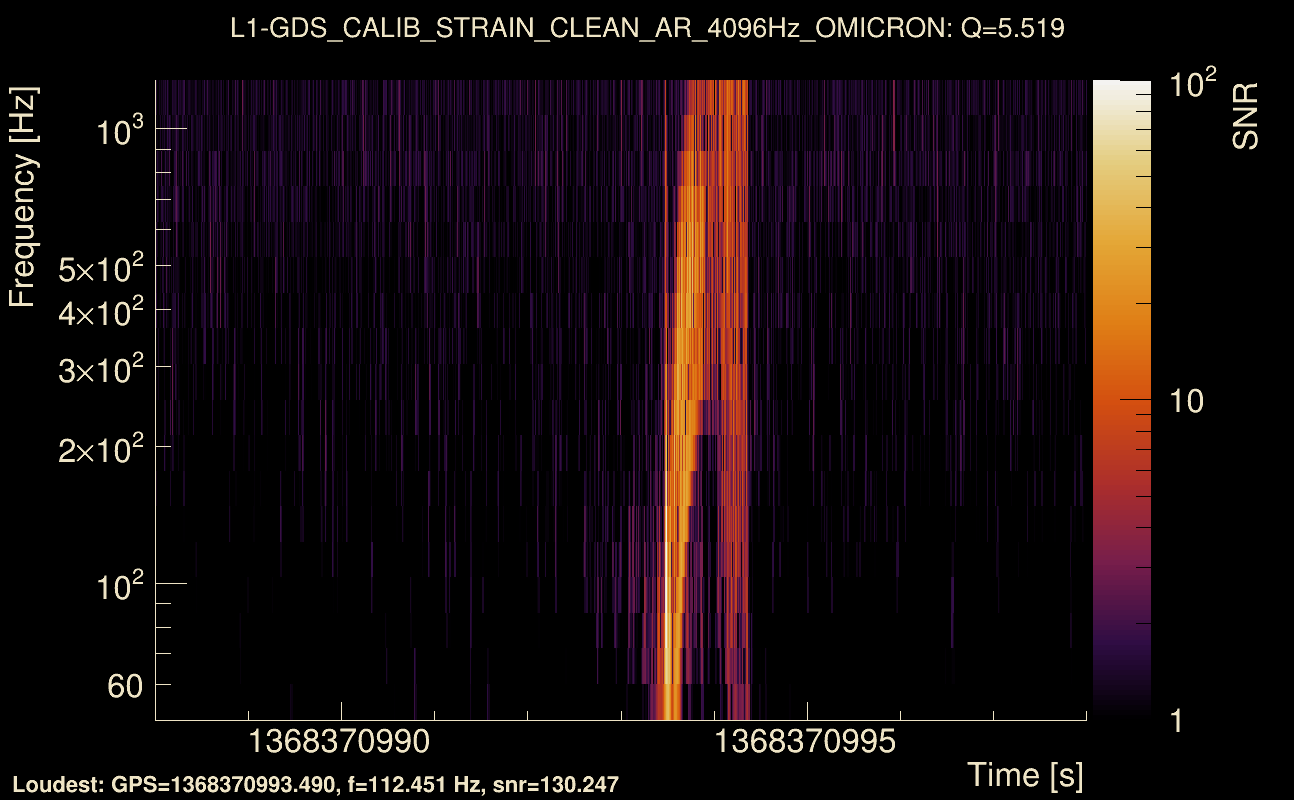

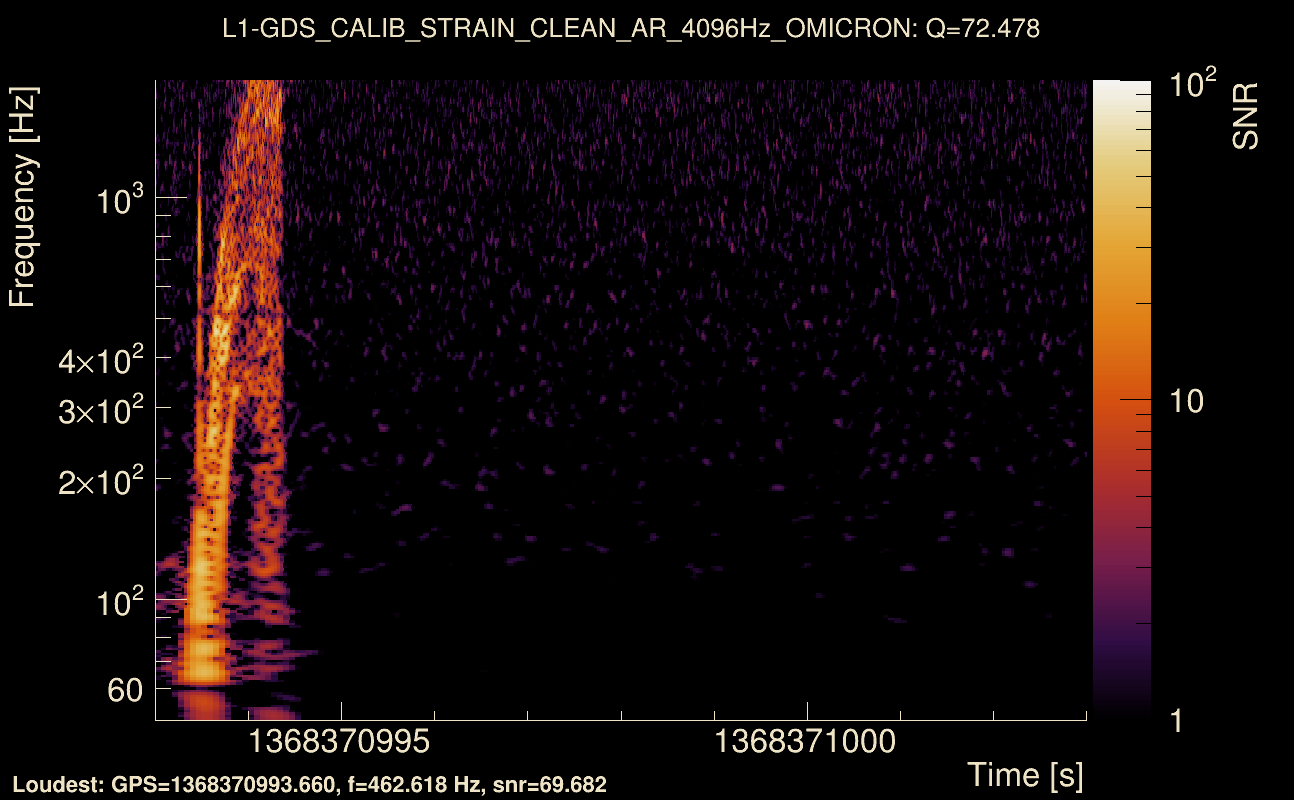

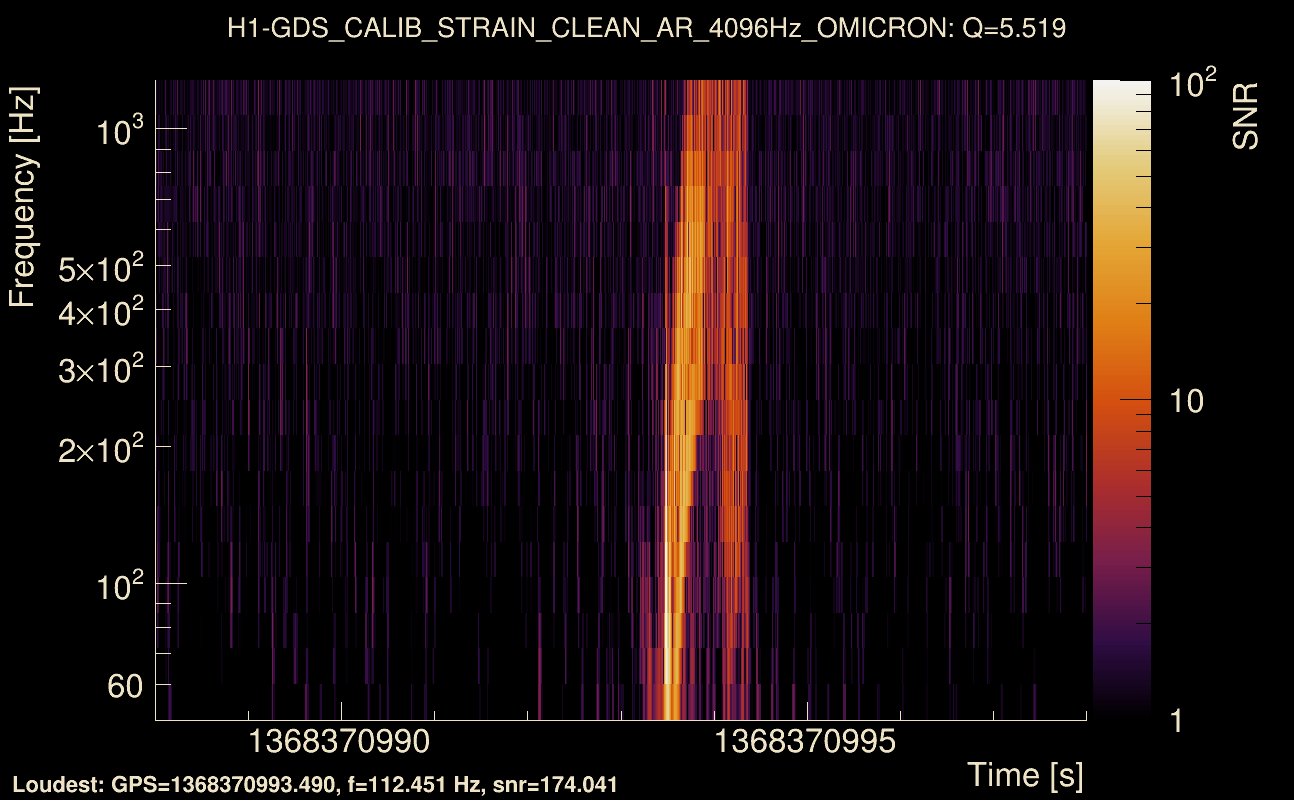

| Event time t(H1): | GPS = 1368370993 (Wed May 17 15:02:55 2023 ) → GPS = 1368371003 (Wed May 17 15:03:05 2023 ) |
| Event time t(L1): | GPS = 1368370993 (Wed May 17 15:03:05 2023 ) → GPS = 1368371003 (Wed May 17 15:03:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368370990 → GPS = 1368371006 |
| Omicron analysis time window (L1): | GPS = 1368370990 → GPS = 1368371006 |
| Time delay between detectors t(L1) - t(H1): | 0.000868372 s (slice index = 108 / 217), δt_gw = 0.000868372 s |
| Time delay standard deviation: | 0.0187937 s |
| [targeted mode] Time delay probability: | 9.76056e-95 (20.65 sigmas), δt_target = -0.00901031 s |
| Frequency: | 282.069 Hz |

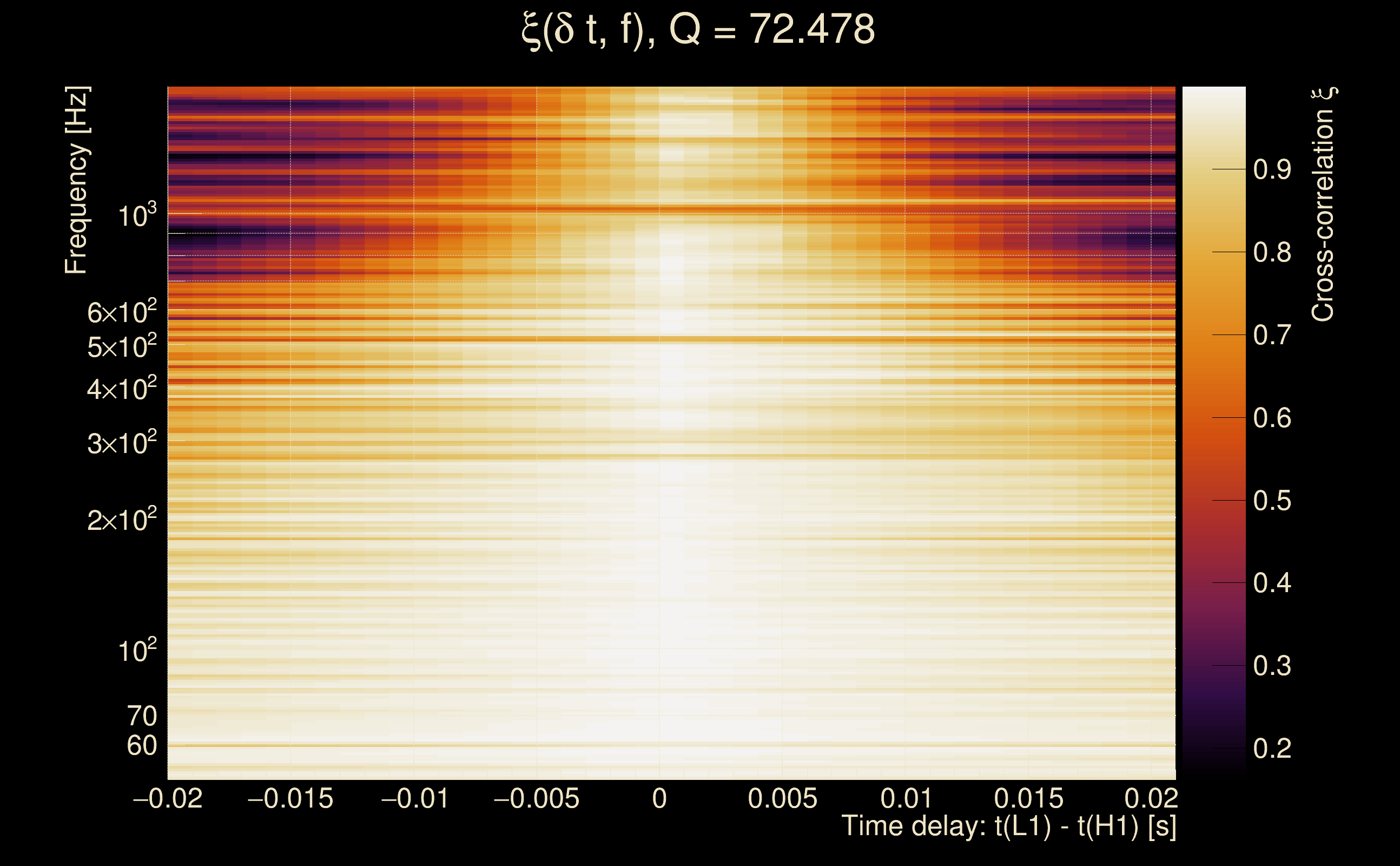

| Ξ: | 0.975373 ± 0.00134504 (variance = 1.80914e-06): Q0: 0.974144, Q1: 0.975777, Q2: 0.977821, Q3: 0.97753, Q4: 0.976928 |
| Rank: | R_A = 0.945556 |
| Log of amplitude ratio (L1/H1): | -0.0989459, variance = 0.151612 (L1/H1: -0.107998, variance = 0.302182, H1/L1: 0.0886056, variance = 0.301512) |
| Amplitude ratio (L1/H1): | 0.905792 ⋇ 1.47606 (L1/H1: 0.89763 ⋇ 1.73275, H1/L1: 1.09265 ⋇ 1.7317) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980088 |

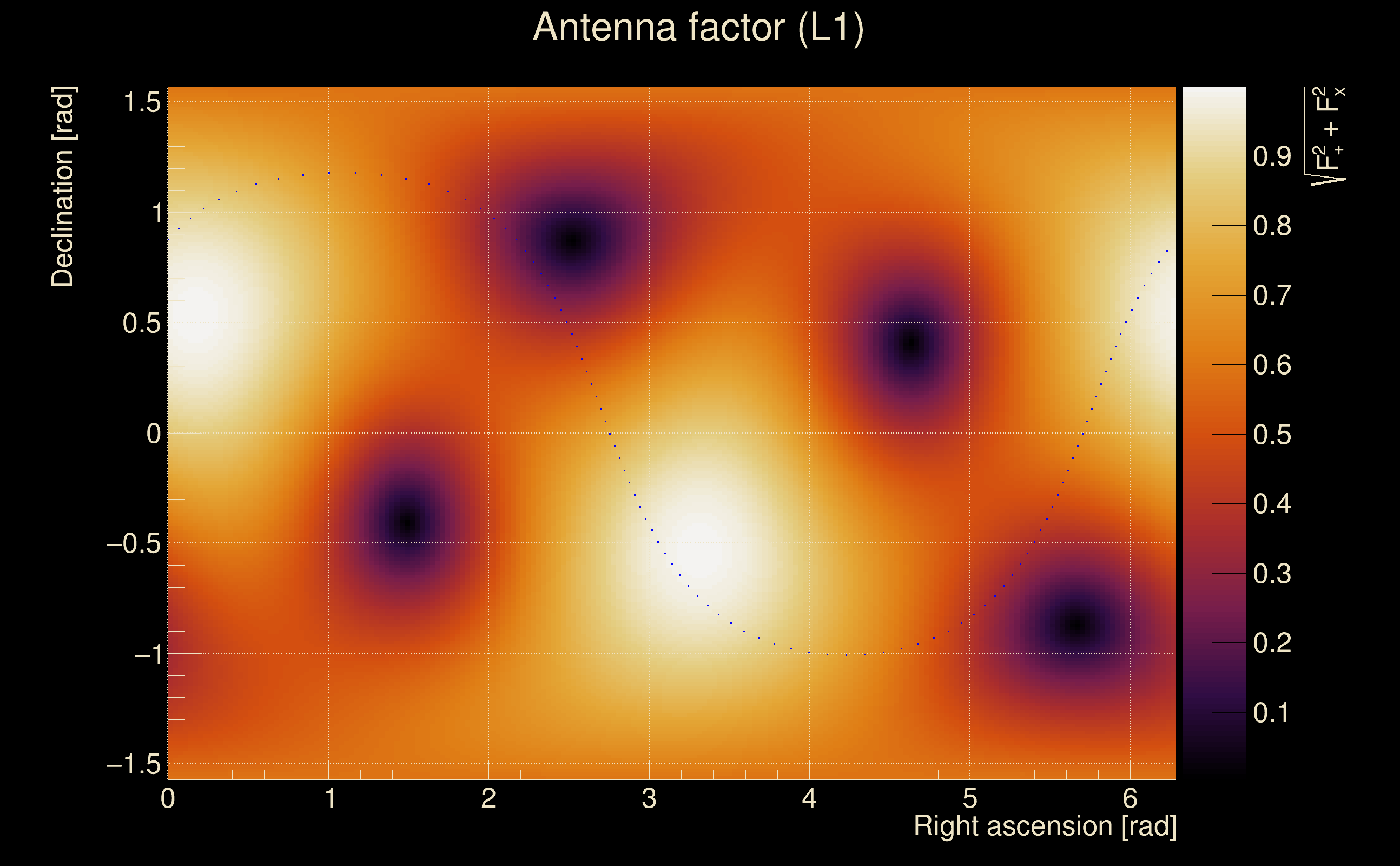

| Antenna factor probability: | 0.989126 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 206.684, L1: 193.377 |
| SNR variance: | H1: 31.433, L1: 27.2215 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

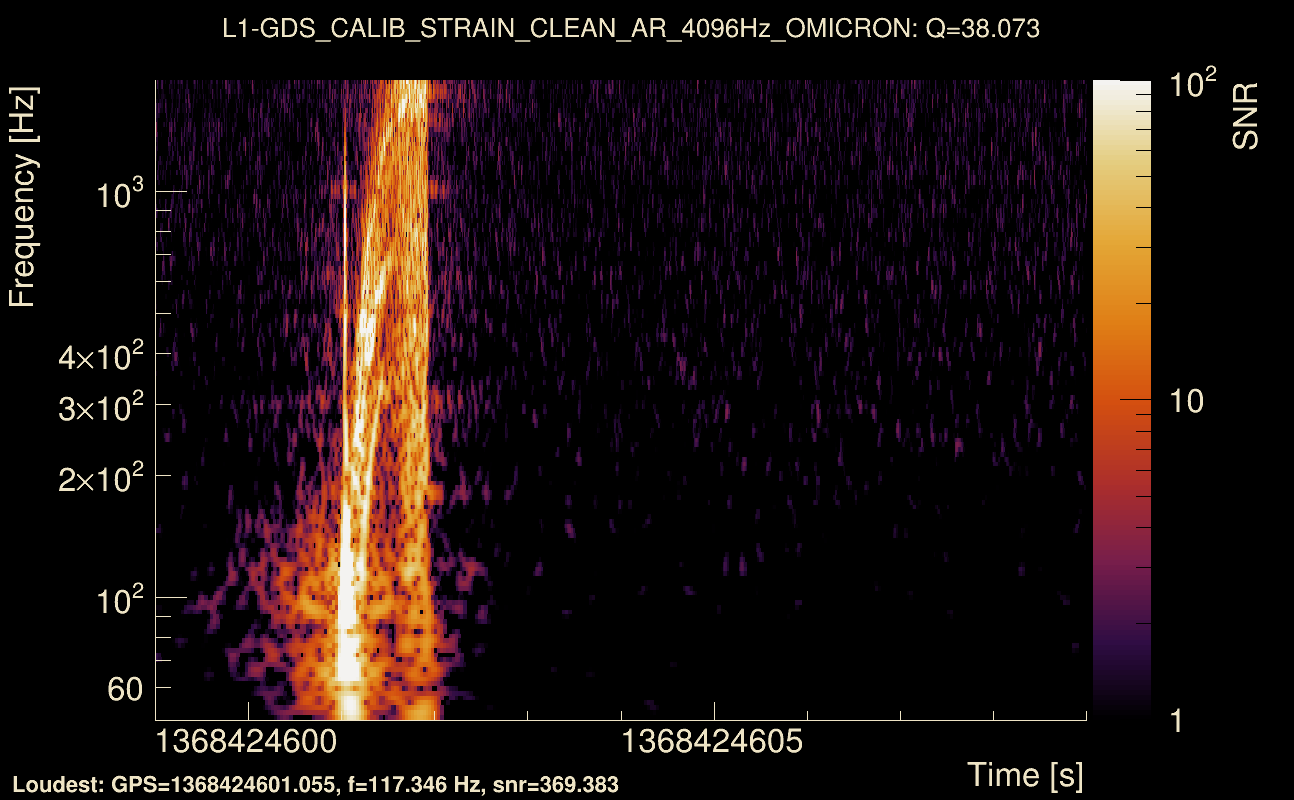

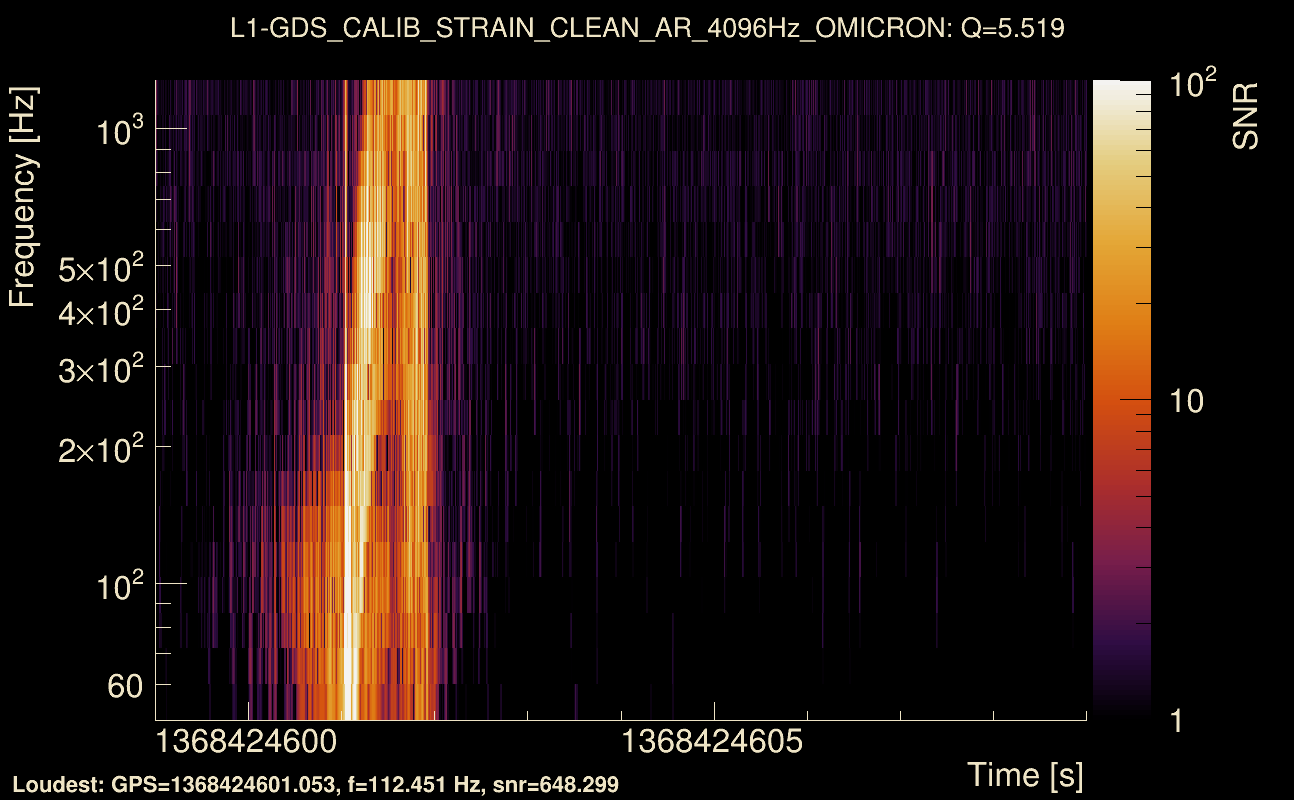

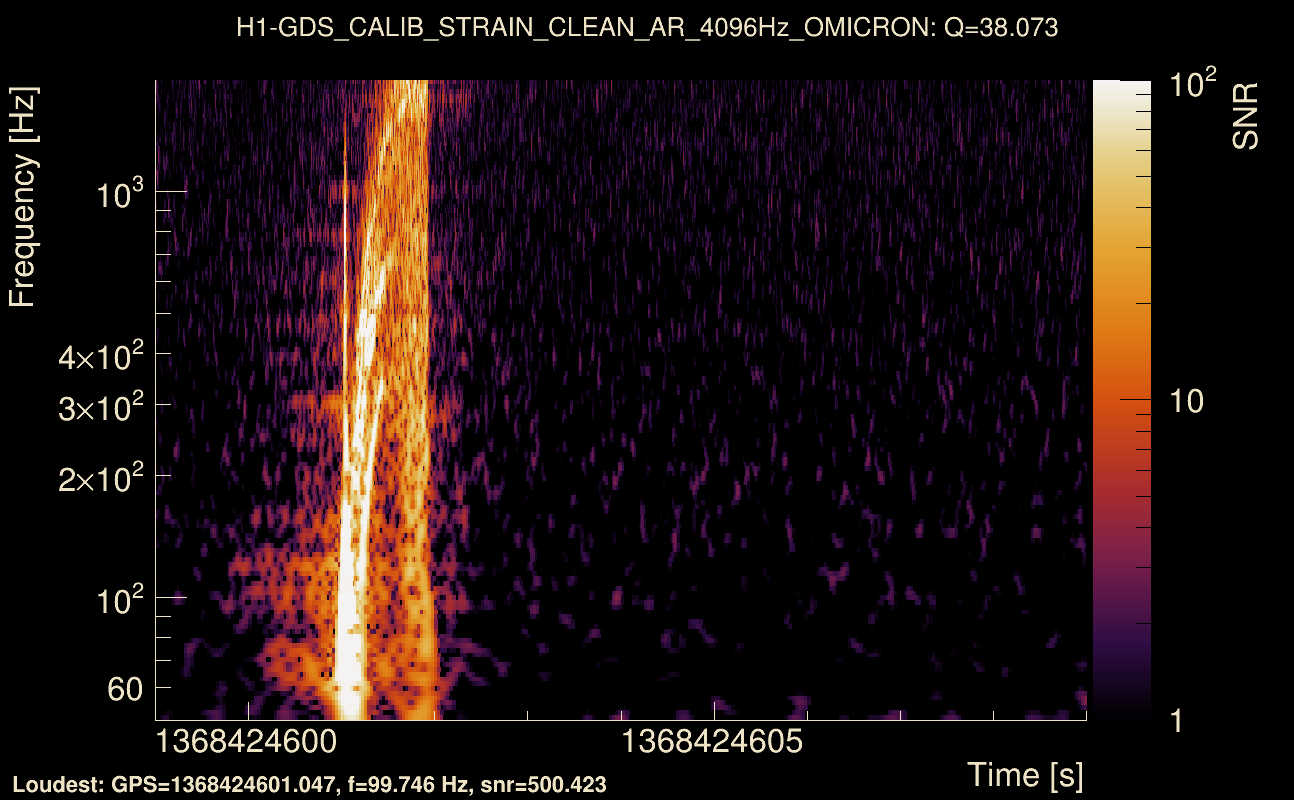

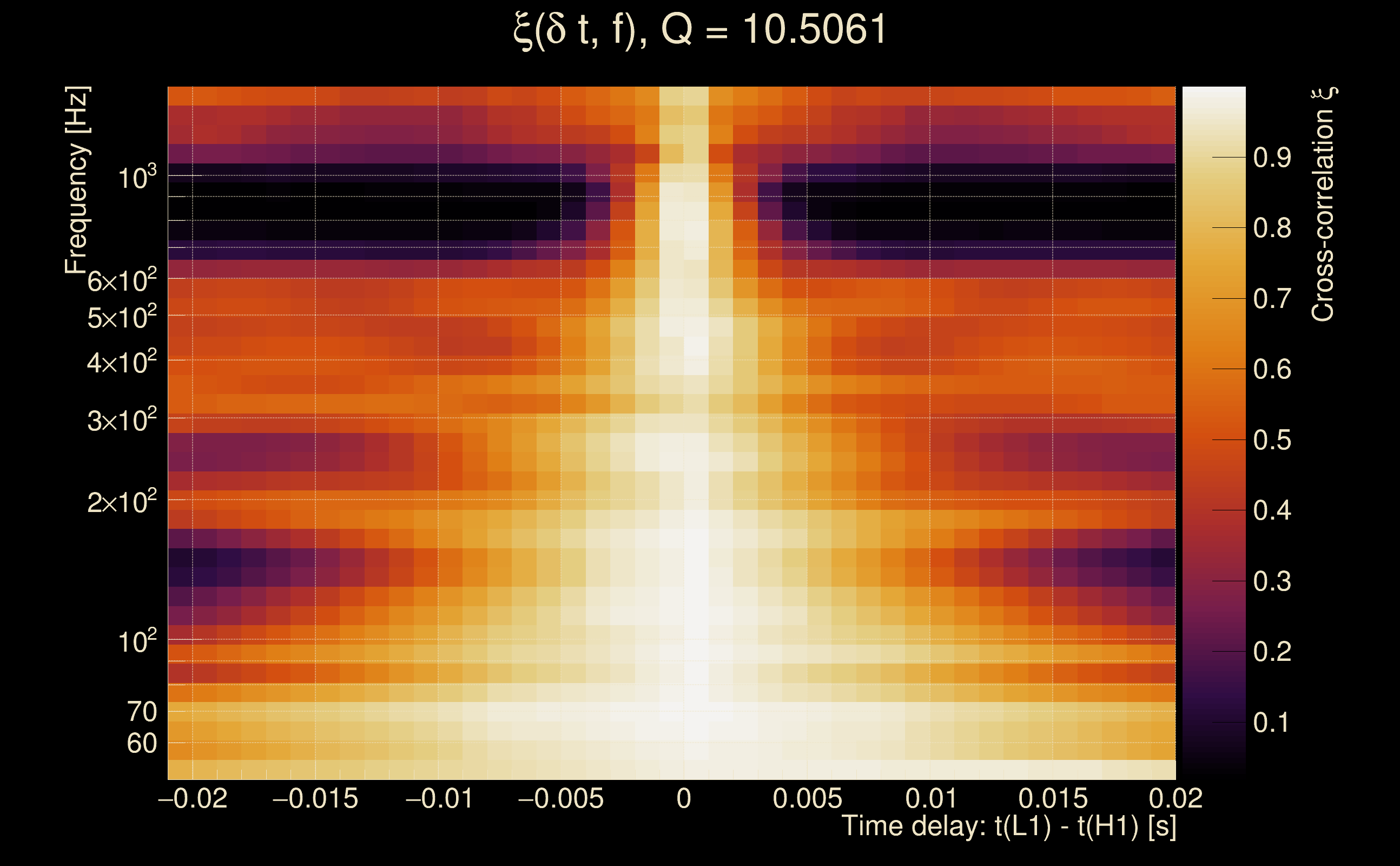

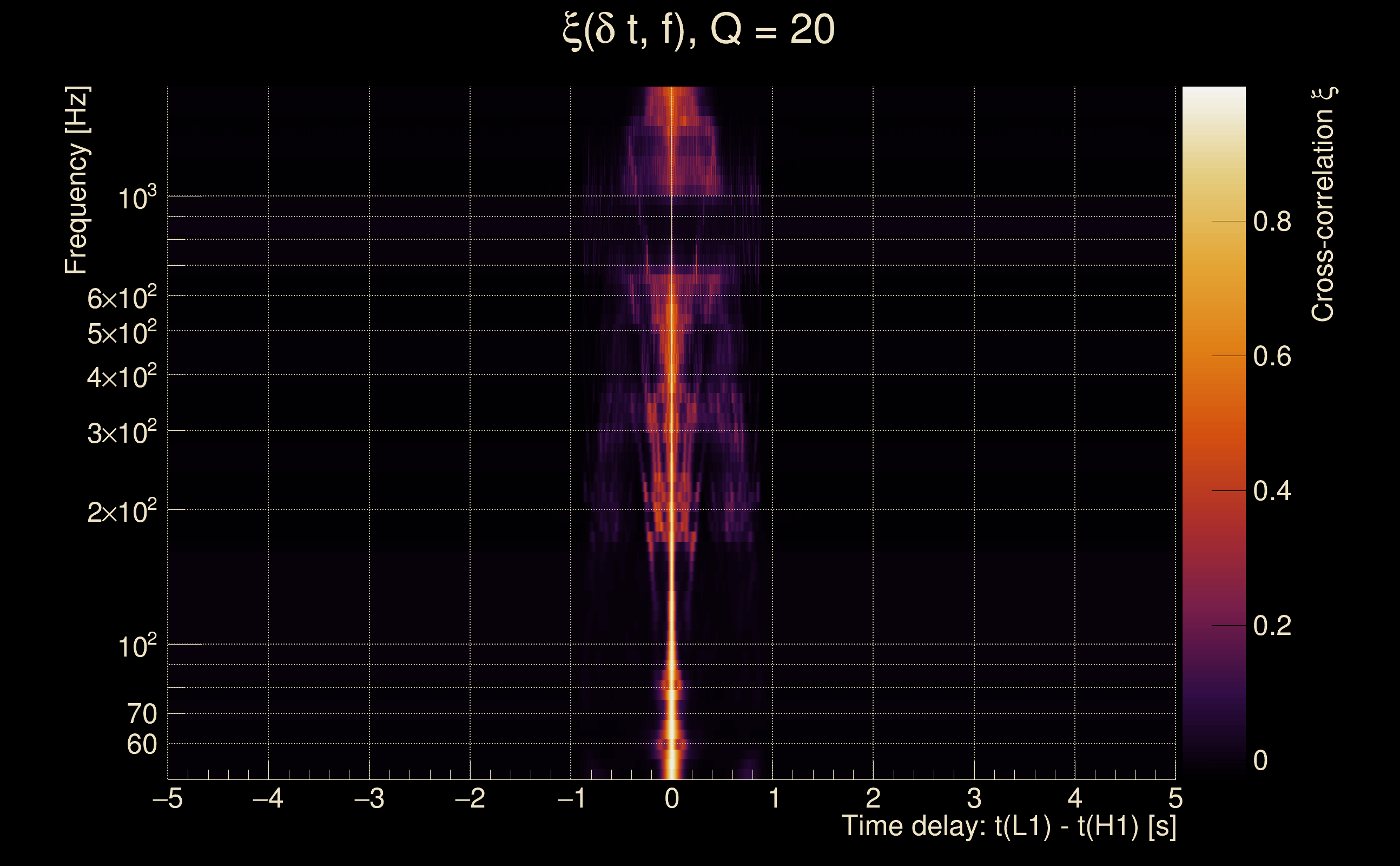

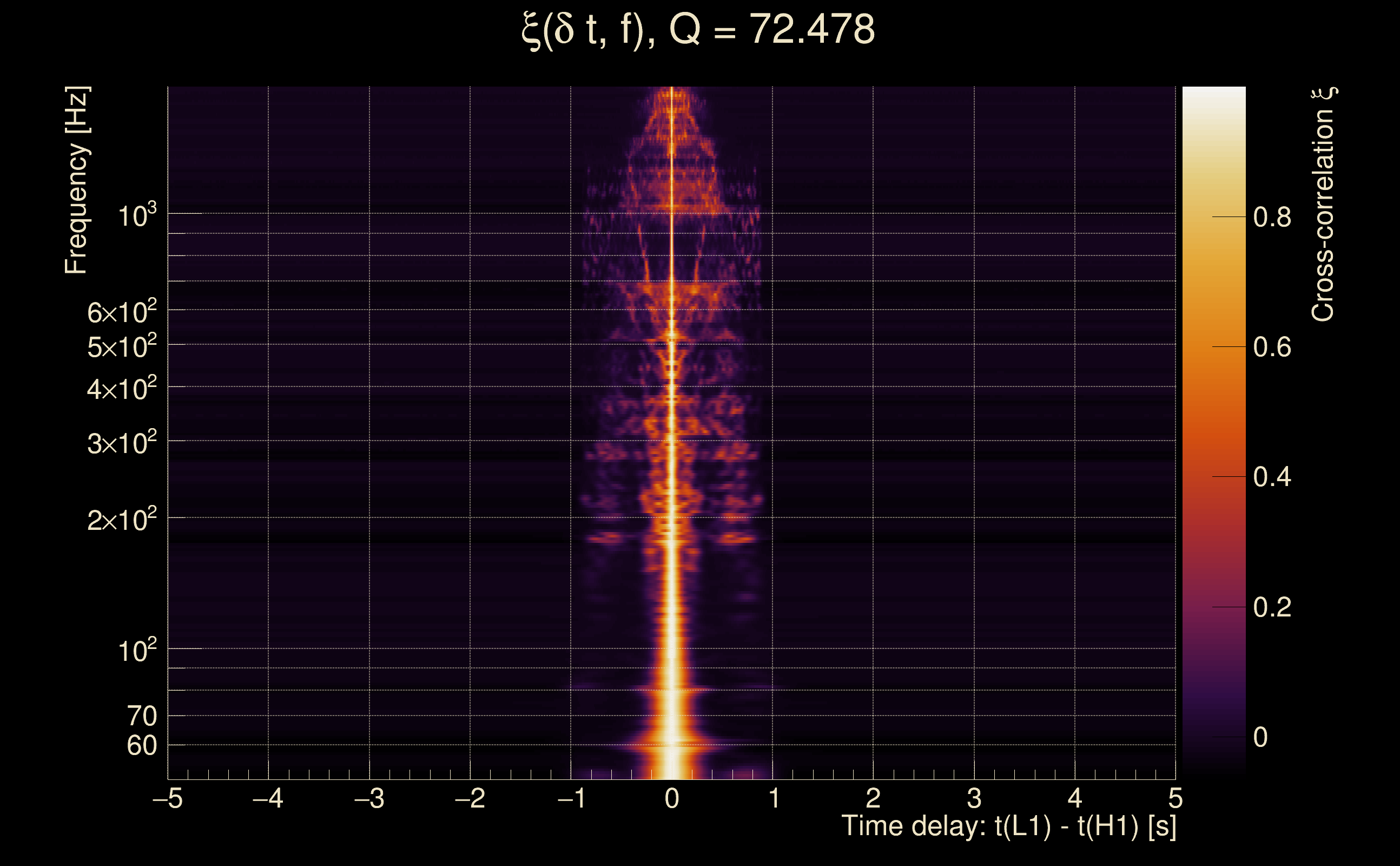

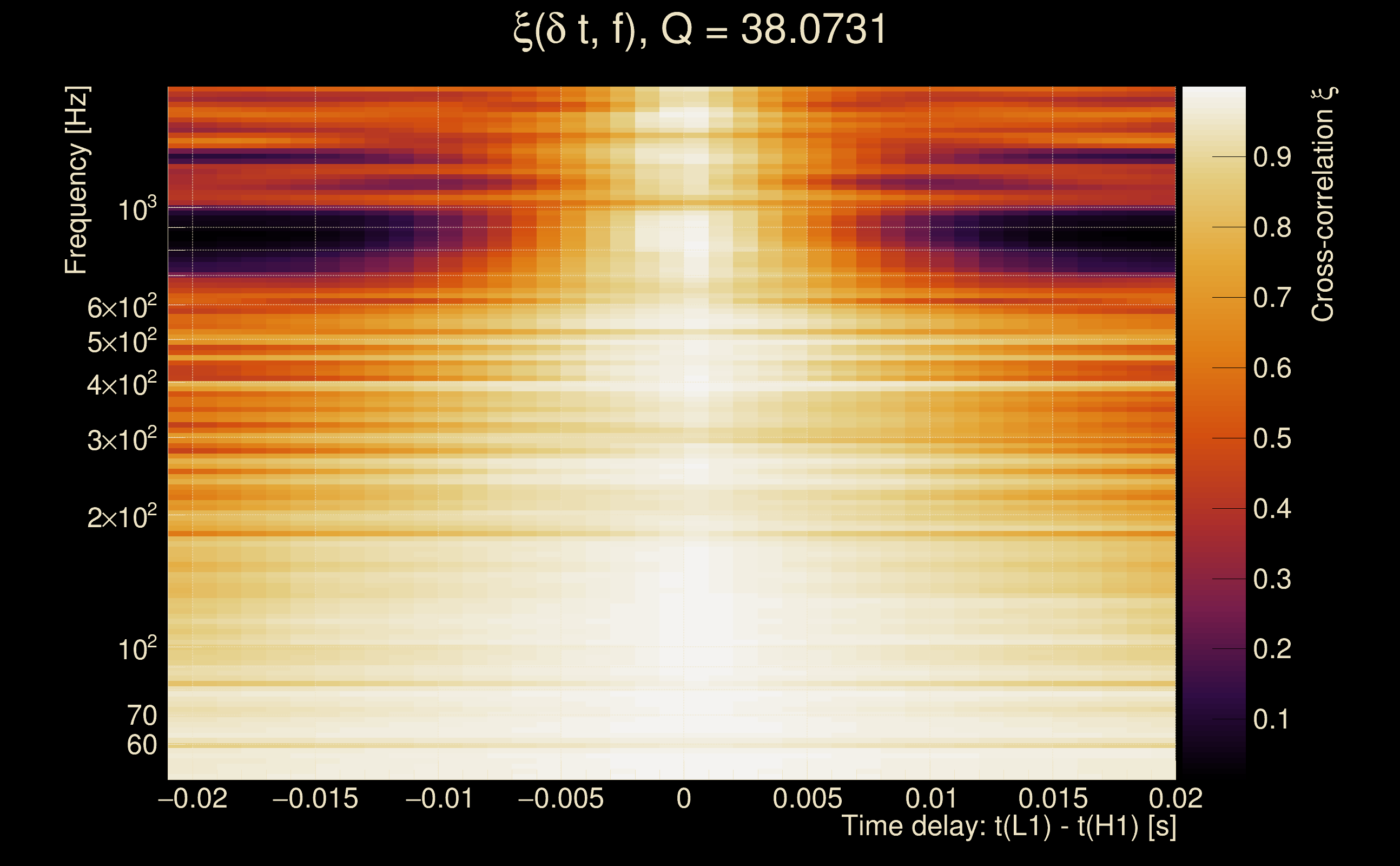

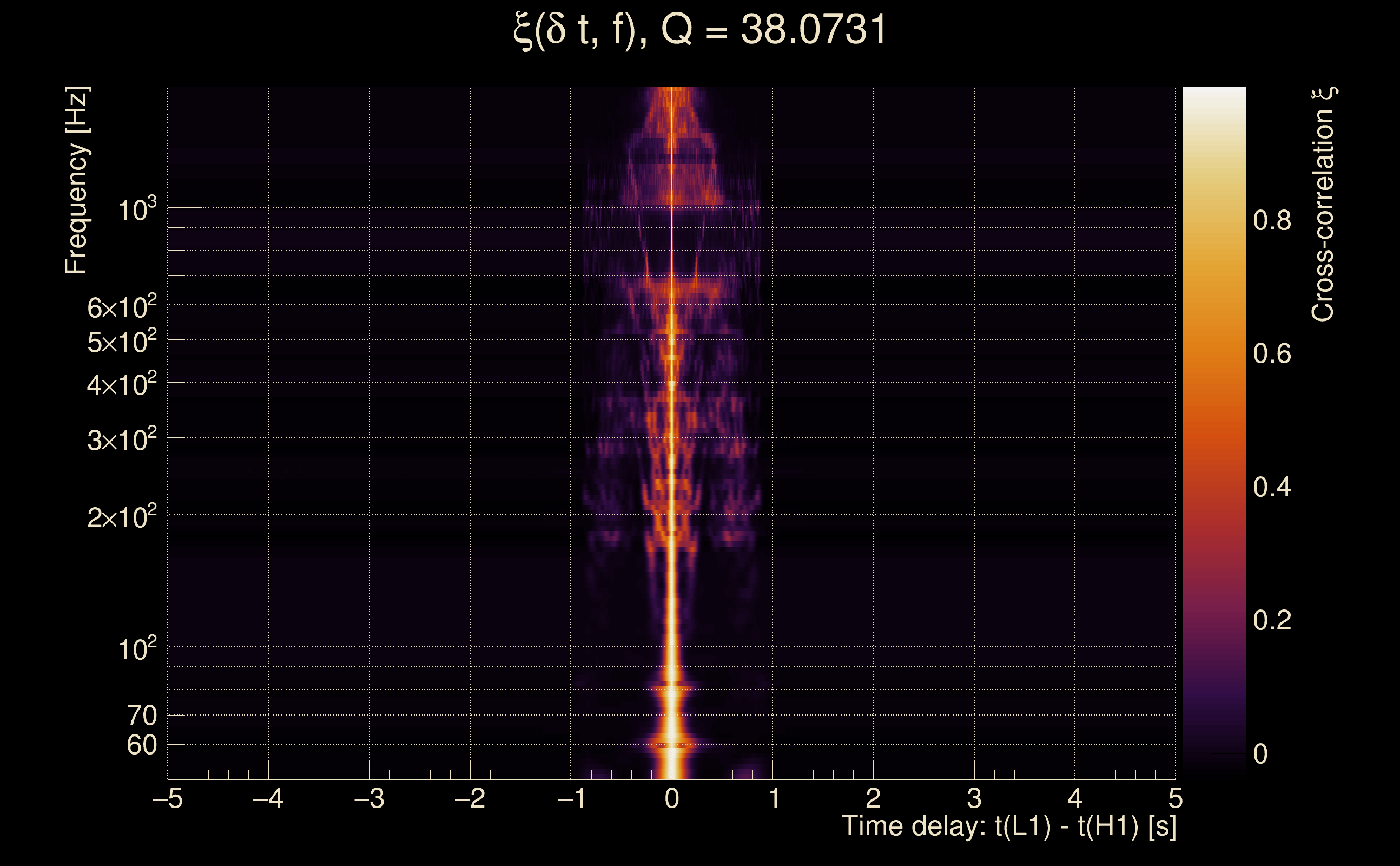

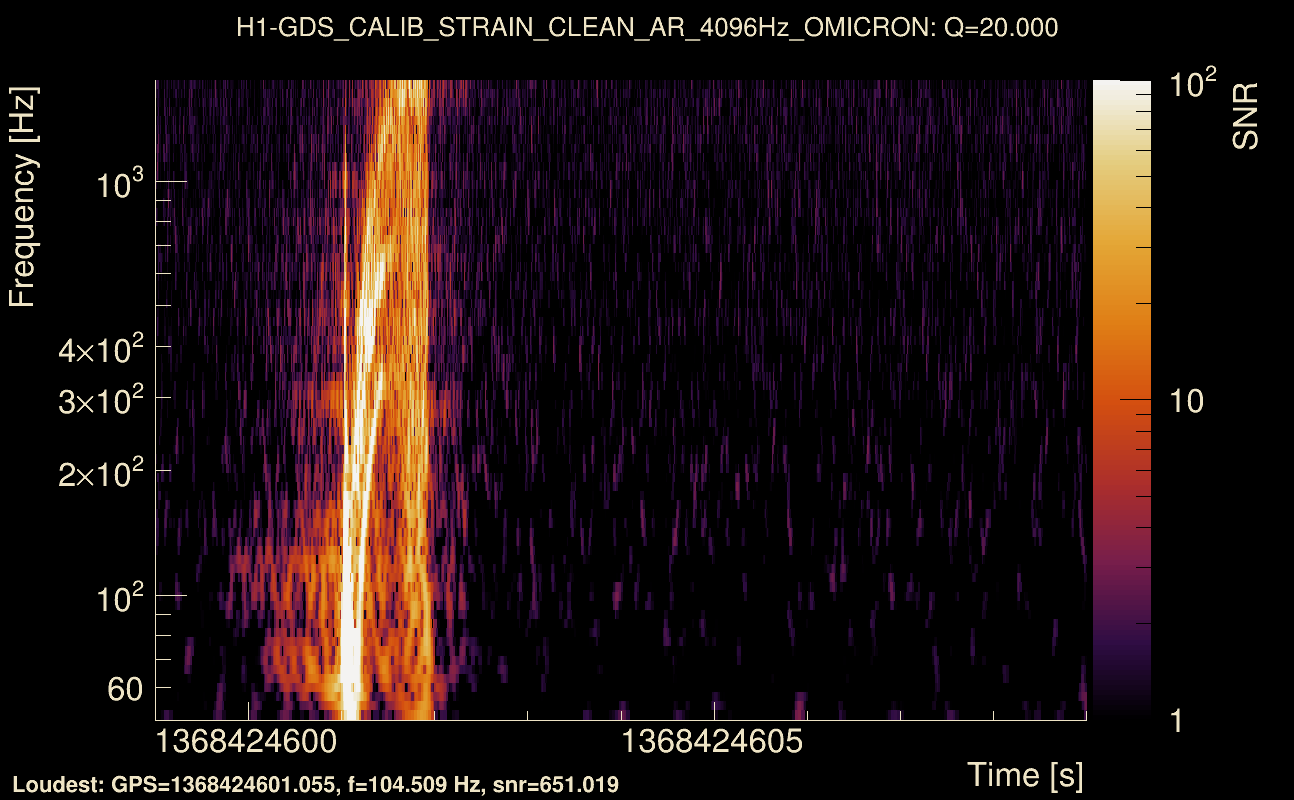

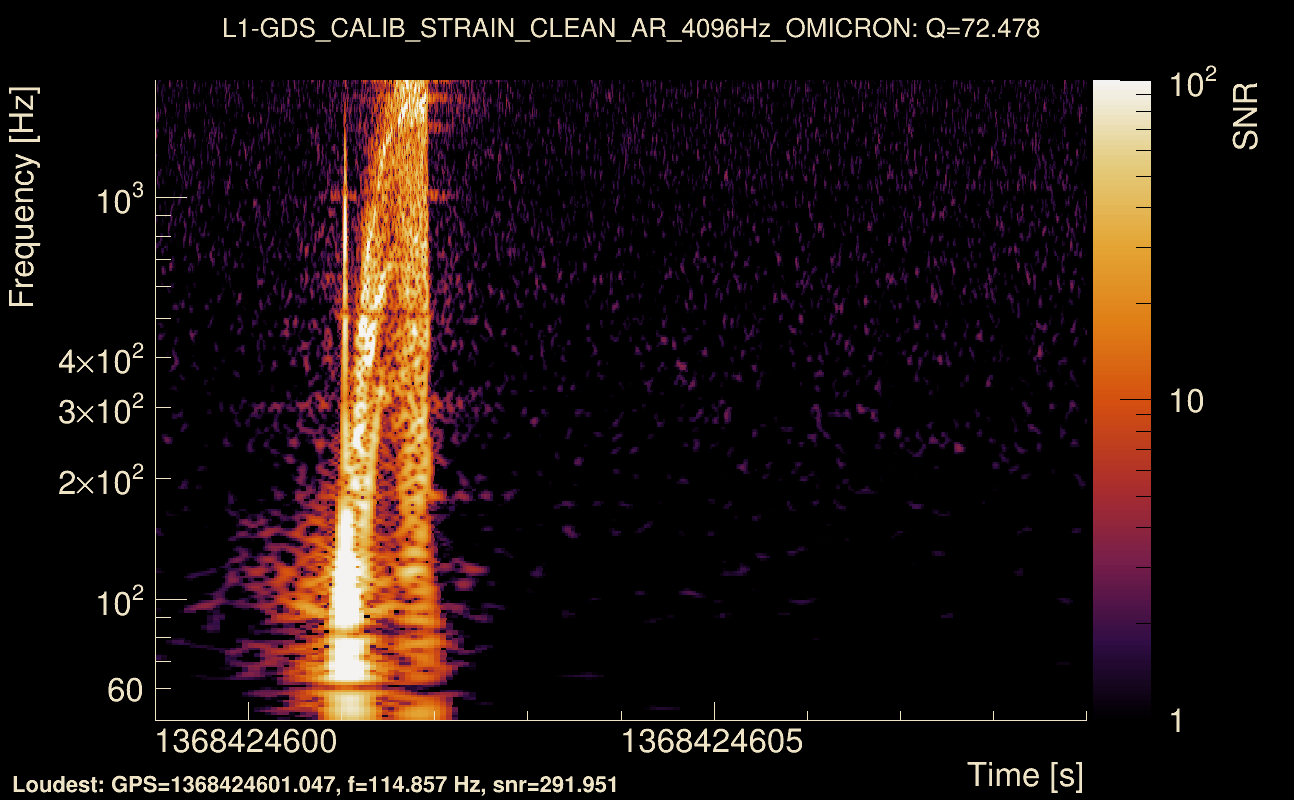

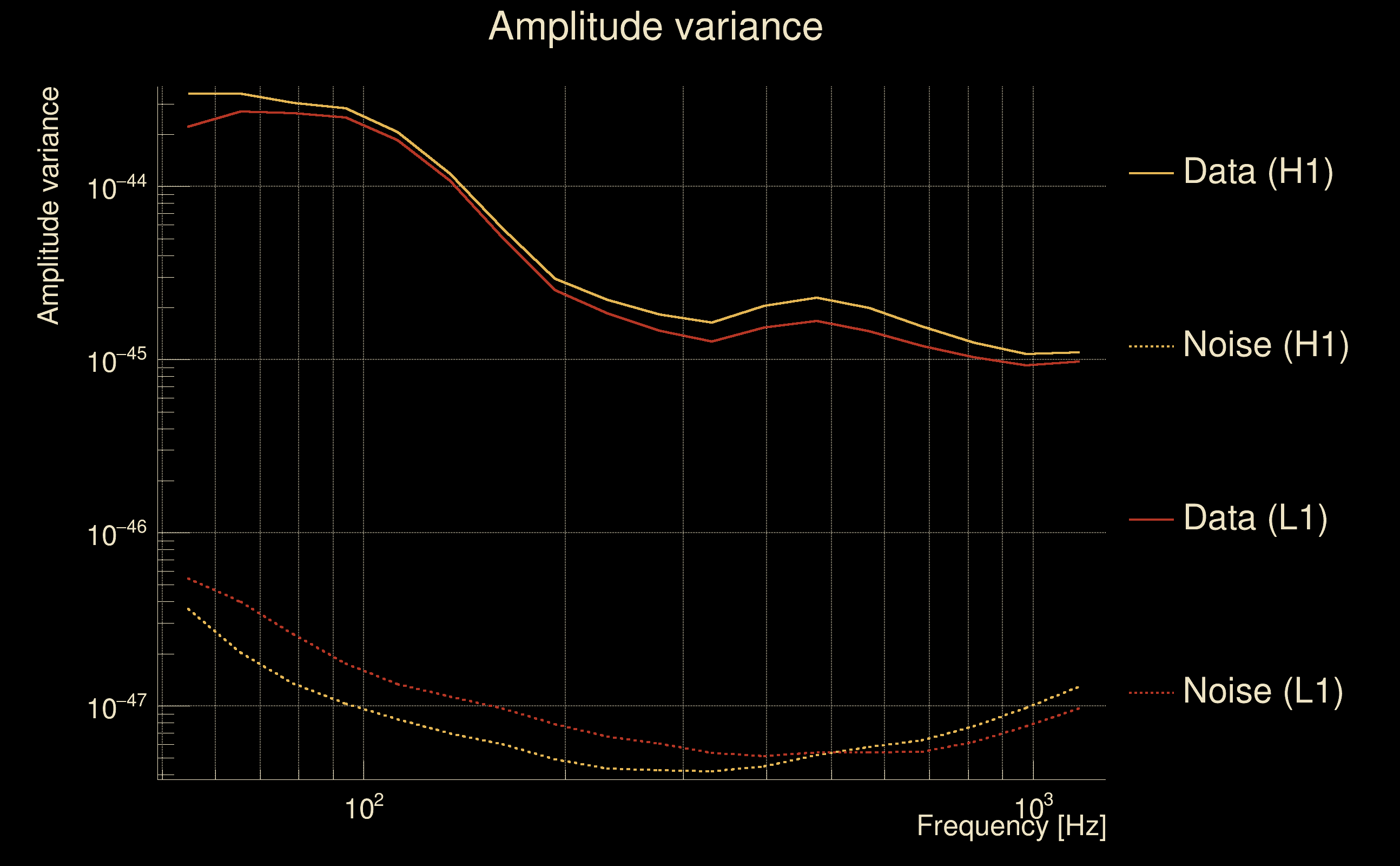

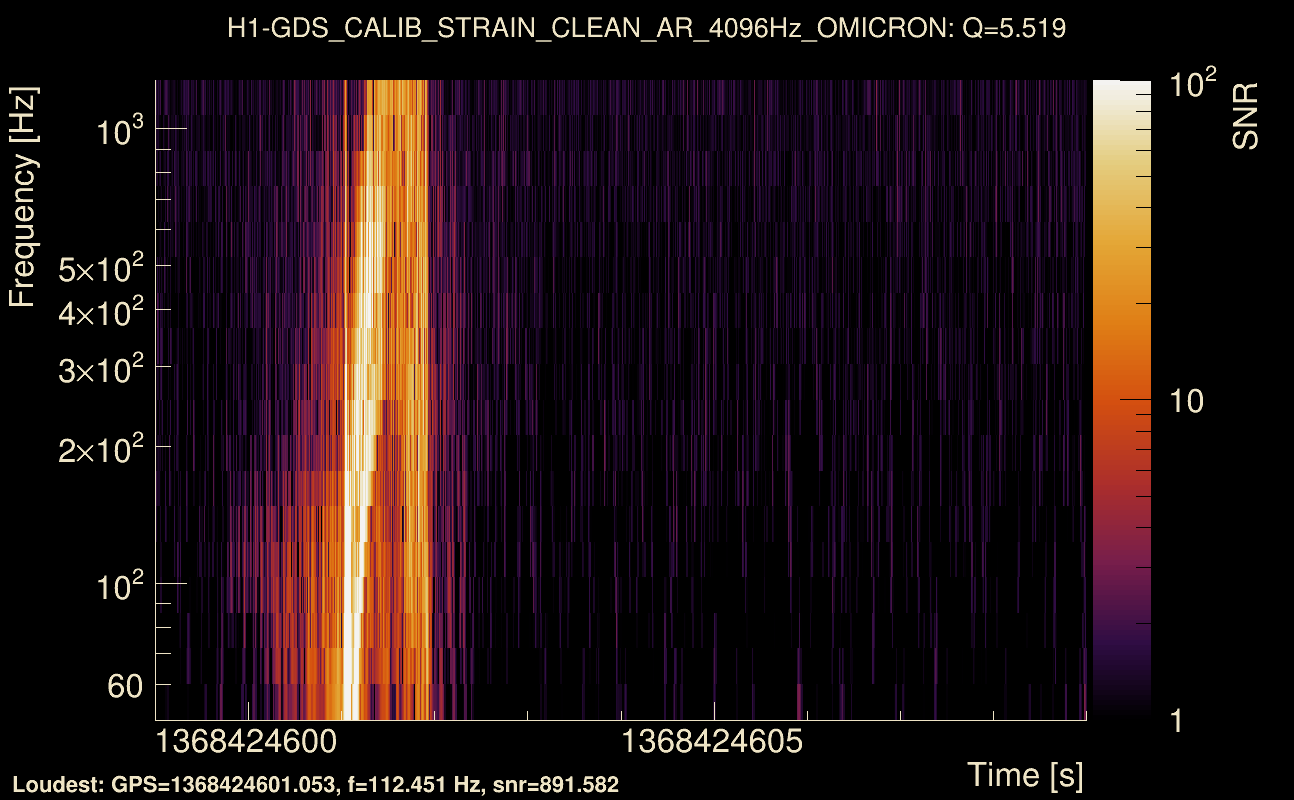

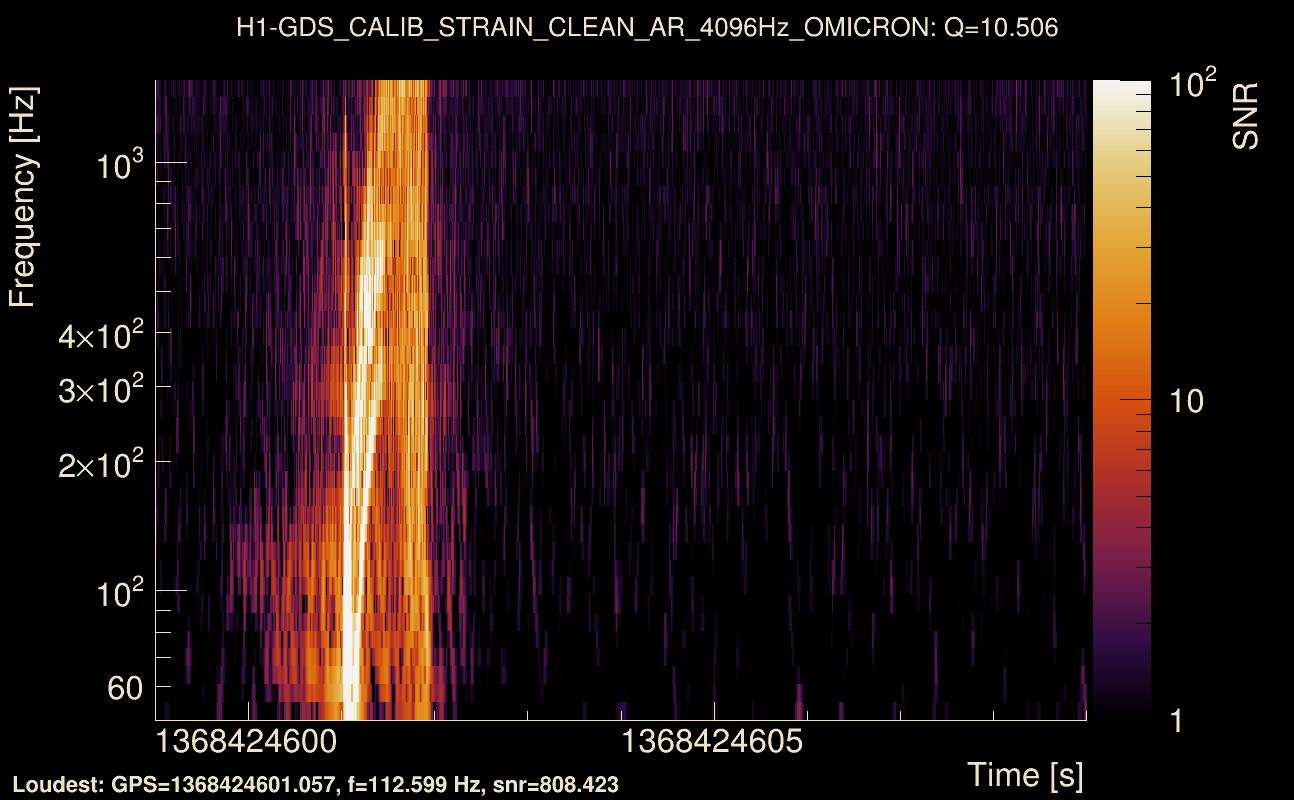

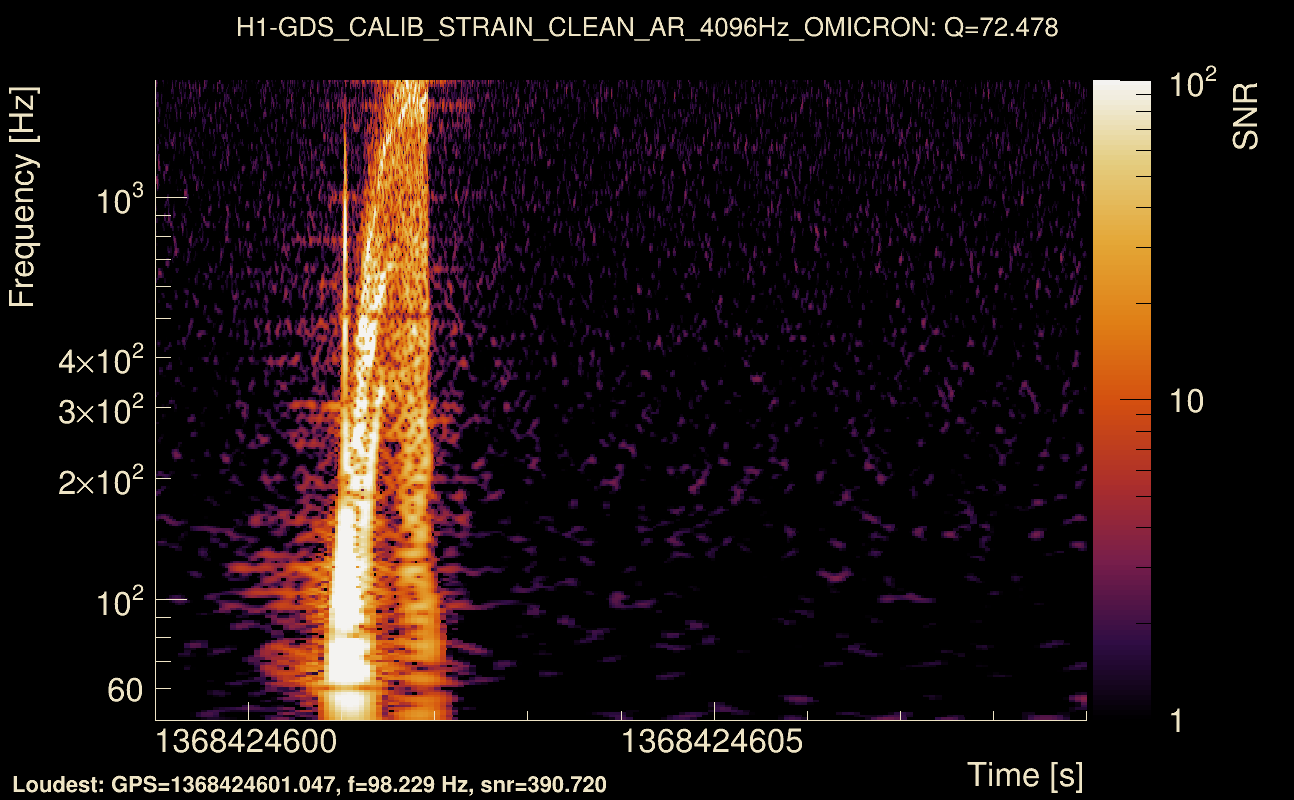

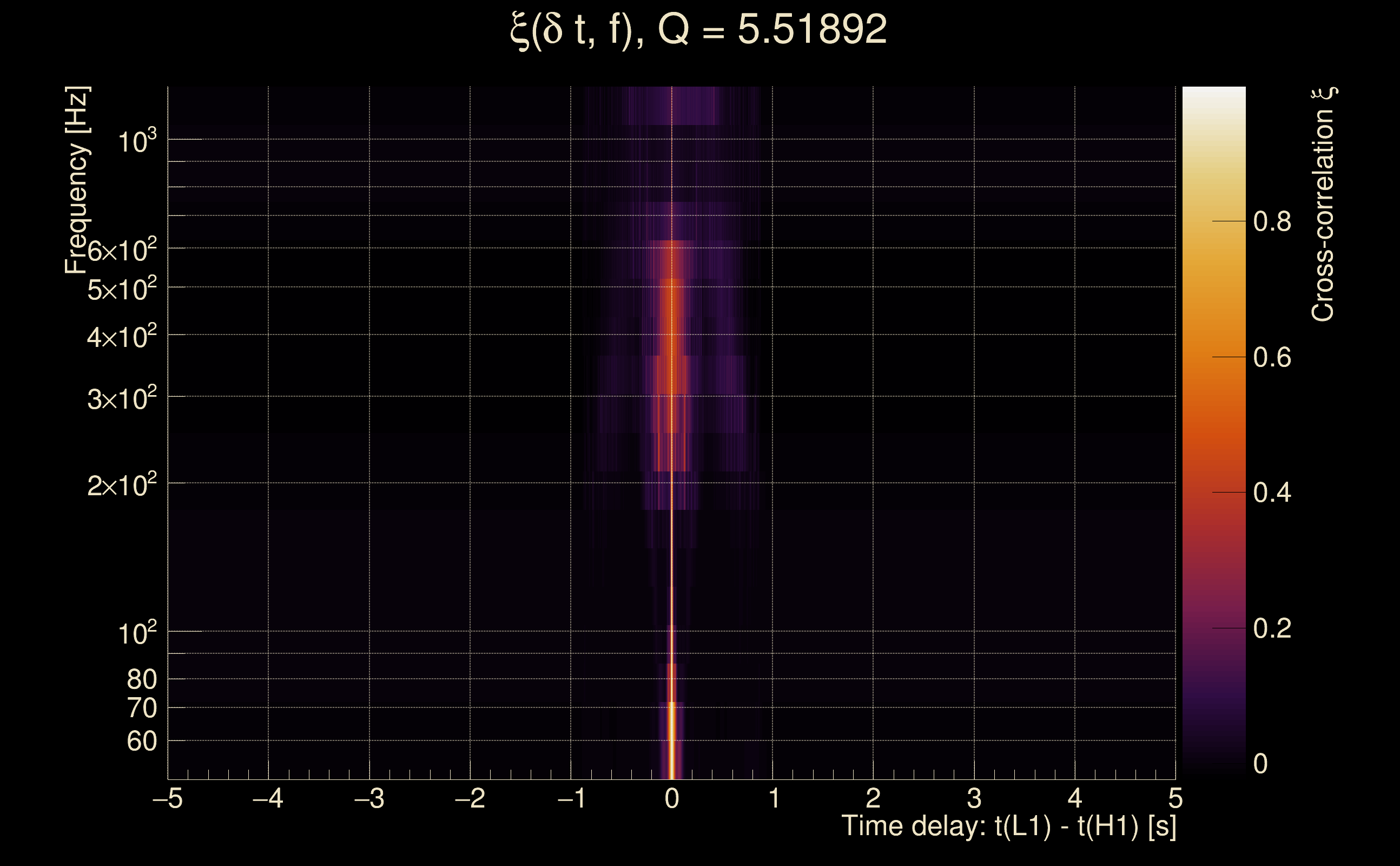

| Event time t(H1): | GPS = 1368424599 (Thu May 18 05:56:21 2023 ) → GPS = 1368424609 (Thu May 18 05:56:31 2023 ) |
| Event time t(L1): | GPS = 1368424599 (Thu May 18 05:56:31 2023 ) → GPS = 1368424609 (Thu May 18 05:56:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424596 → GPS = 1368424612 |
| Omicron analysis time window (L1): | GPS = 1368424596 → GPS = 1368424612 |
| Time delay between detectors t(L1) - t(H1): | -0.000220423 s (slice index = 108 / 217), δt_gw = -0.000220423 s |
| Time delay standard deviation: | 0.020418 s |
| [targeted mode] Time delay probability: | 2.71954e-10 (6.31398 sigmas), δt_target = -0.00900912 s |
| Frequency: | 281.009 Hz |
| Ξ: | 0.963852 ± 0.00733219 (variance = 5.37611e-05): Q0: 0.955988, Q1: 0.969328, Q2: 0.97497, Q3: 0.975186, Q4: 0.974521 |
| Rank: | R_A = 0.918582 |
| Log of amplitude ratio (L1/H1): | -0.100859, variance = 0.151003 (L1/H1: -0.109919, variance = 0.301712, H1/L1: 0.0911352, variance = 0.301533) |
| Amplitude ratio (L1/H1): | 0.90406 ⋇ 1.4749 (L1/H1: 0.895907 ⋇ 1.73201, H1/L1: 1.09542 ⋇ 1.73173) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980706 |
| Antenna factor probability: | 0.971782 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 987.573, L1: 953.239 |
| SNR variance: | H1: 550.879, L1: 499.649 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368361003 (Wed May 17 12:16:25 2023 ) → GPS = 1368361013 (Wed May 17 12:16:35 2023 ) |
| Event time t(L1): | GPS = 1368361003 (Wed May 17 12:16:35 2023 ) → GPS = 1368361013 (Wed May 17 12:16:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368361000 → GPS = 1368361016 |
| Omicron analysis time window (L1): | GPS = 1368361000 → GPS = 1368361016 |
| Time delay between detectors t(L1) - t(H1): | -1.01099 s (slice index = 130 / 217), δt_gw = 0.00100529 s |
| Time delay standard deviation: | 0.0522803 s |
| [targeted mode] Time delay probability: | 0.00417914 (2.86431 sigmas), δt_target = -0.000346661 s |
| Frequency: | 123.745 Hz |
| Ξ: | 0.0241144 ± 0.0289545 (variance = 0.000838363): Q0: 0.0967429, Q1: 0.109648, Q2: 0.0490441, Q3: 0.0952352, Q4: 0.138624 |
| Rank: | R_A = 0.0126402 |
| Log of amplitude ratio (L1/H1): | -0.0931912, variance = 0.727061 (L1/H1: -0.418797, variance = 1.47429, H1/L1: -0.237062, variance = 1.43323) |
| Amplitude ratio (L1/H1): | 0.911019 ⋇ 2.34592 (L1/H1: 0.657838 ⋇ 3.36761, H1/L1: 0.788943 ⋇ 3.31075) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.700508 |
| Antenna factor probability: | 0.748279 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 31 / 36, Q2: 67 / 70, Q3: 124 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.797, L1: 4.76313 |
| SNR variance: | H1: 0.496943, L1: 0.533729 |

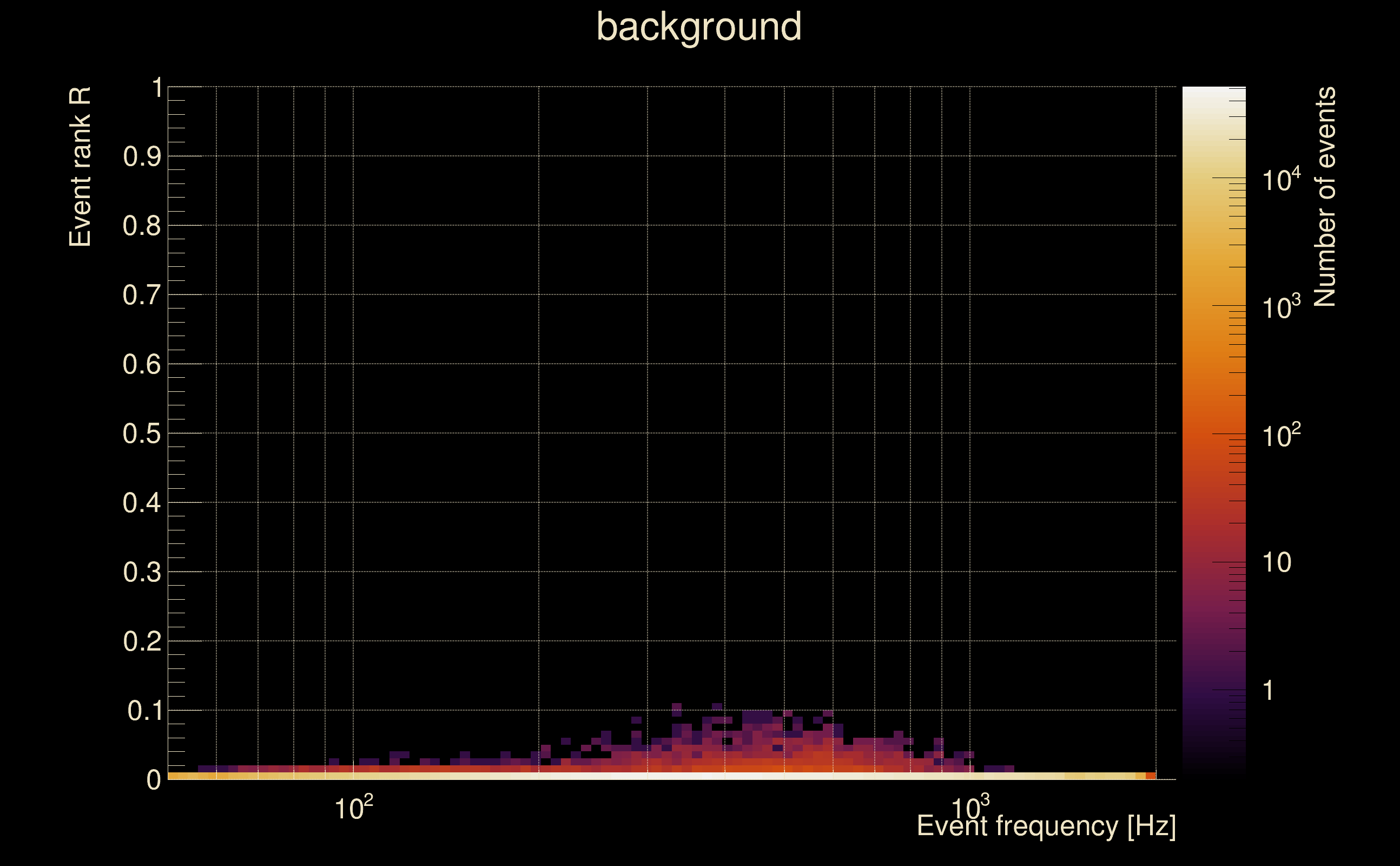

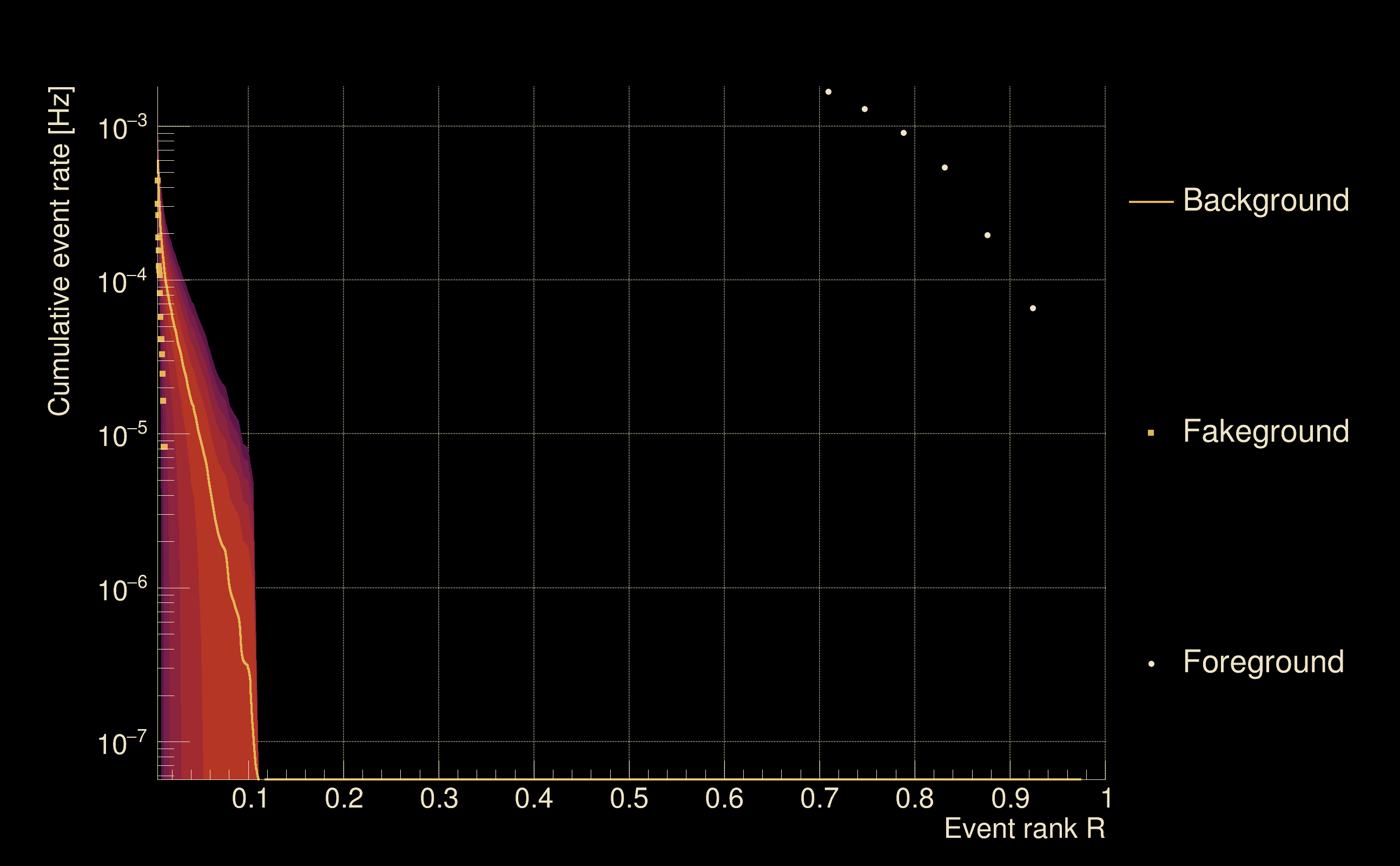

| Detection threshold: | R > 0.0503939 |
| False-alarm rate above that detection threshold: | 8.25878e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.105248 |
| Alternative threshold at 1/100 yrs: | R > 0.105248 |
| Alternative threshold at 1/10 yrs: | R > 0.105248 |
| Alternative threshold at 1/1 yr: | R > 0.105248 |
| Alternative threshold at 1/1 d: | R > 0.0451461 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

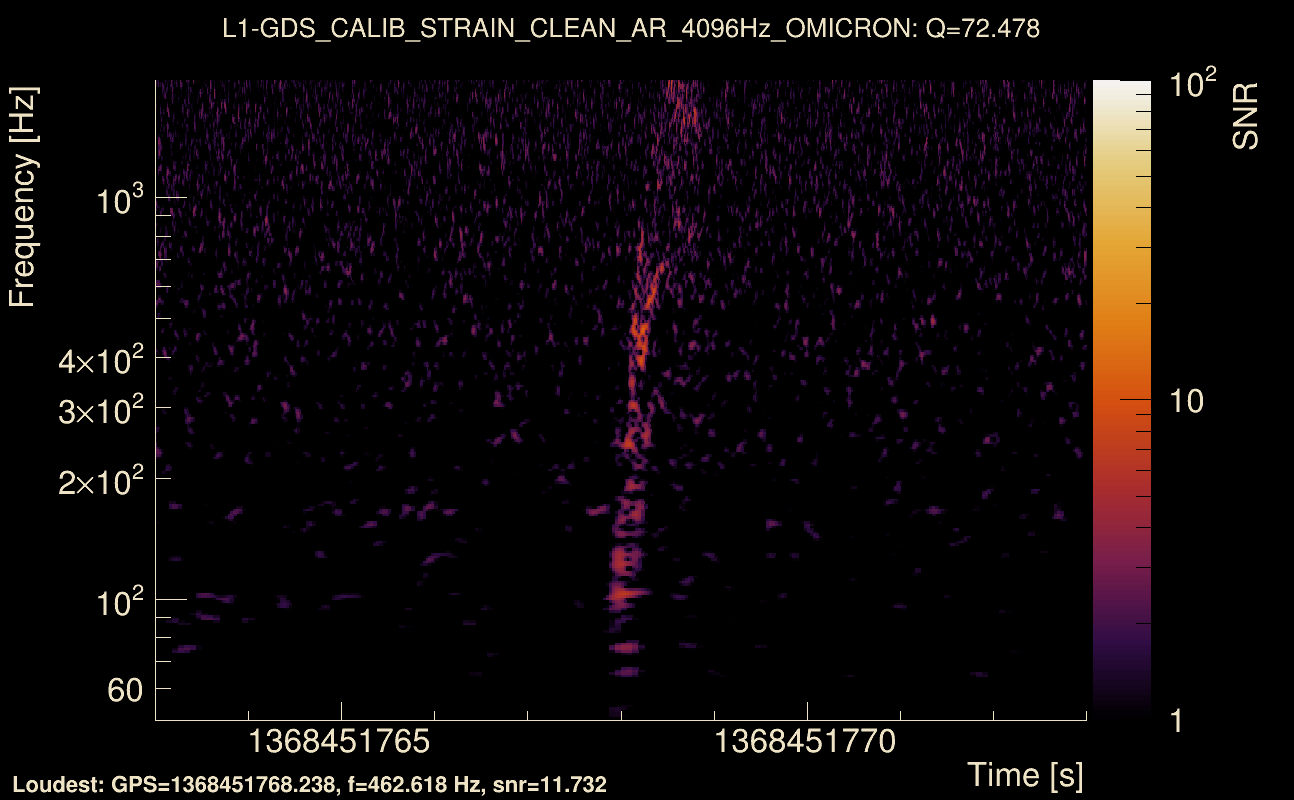

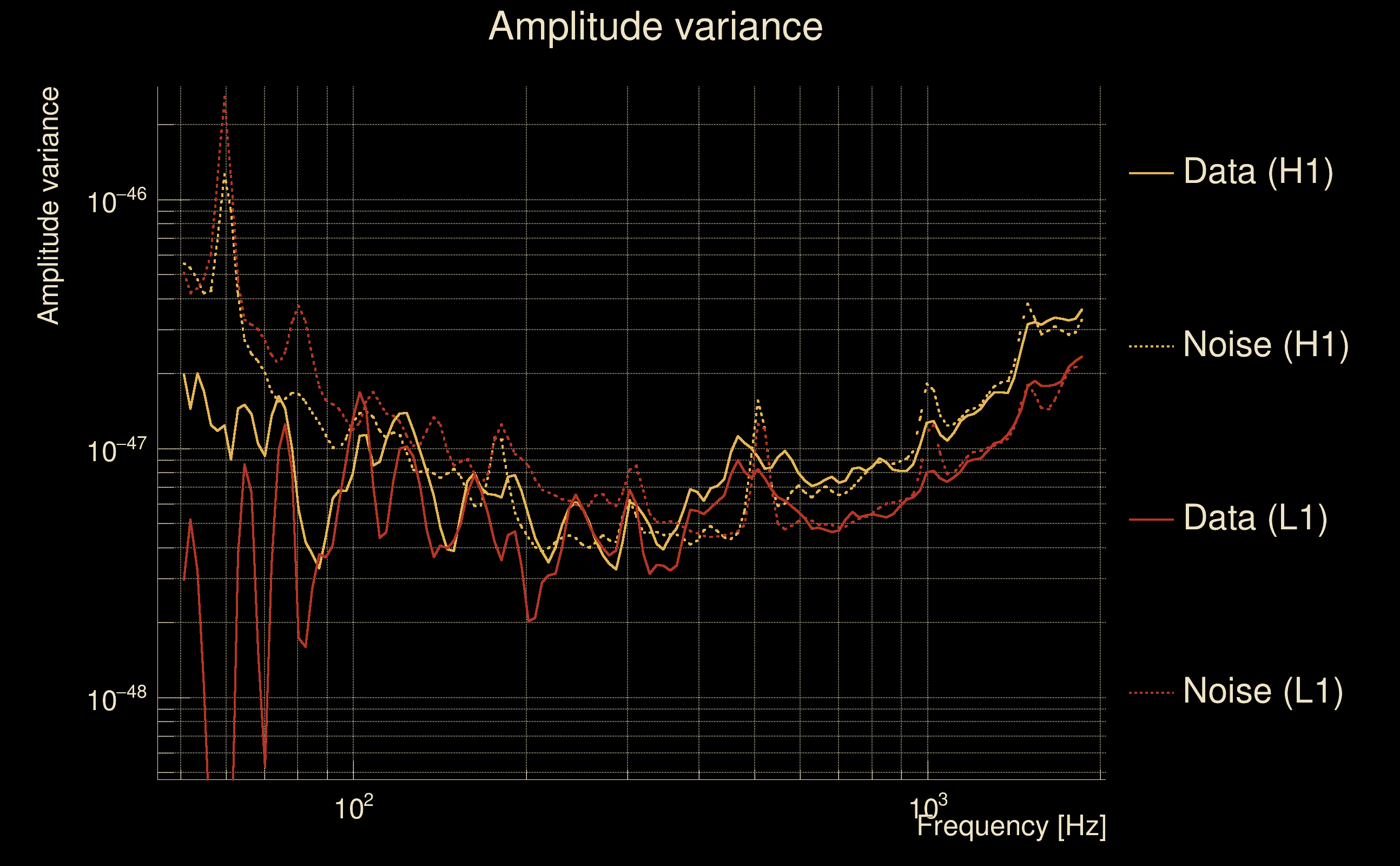

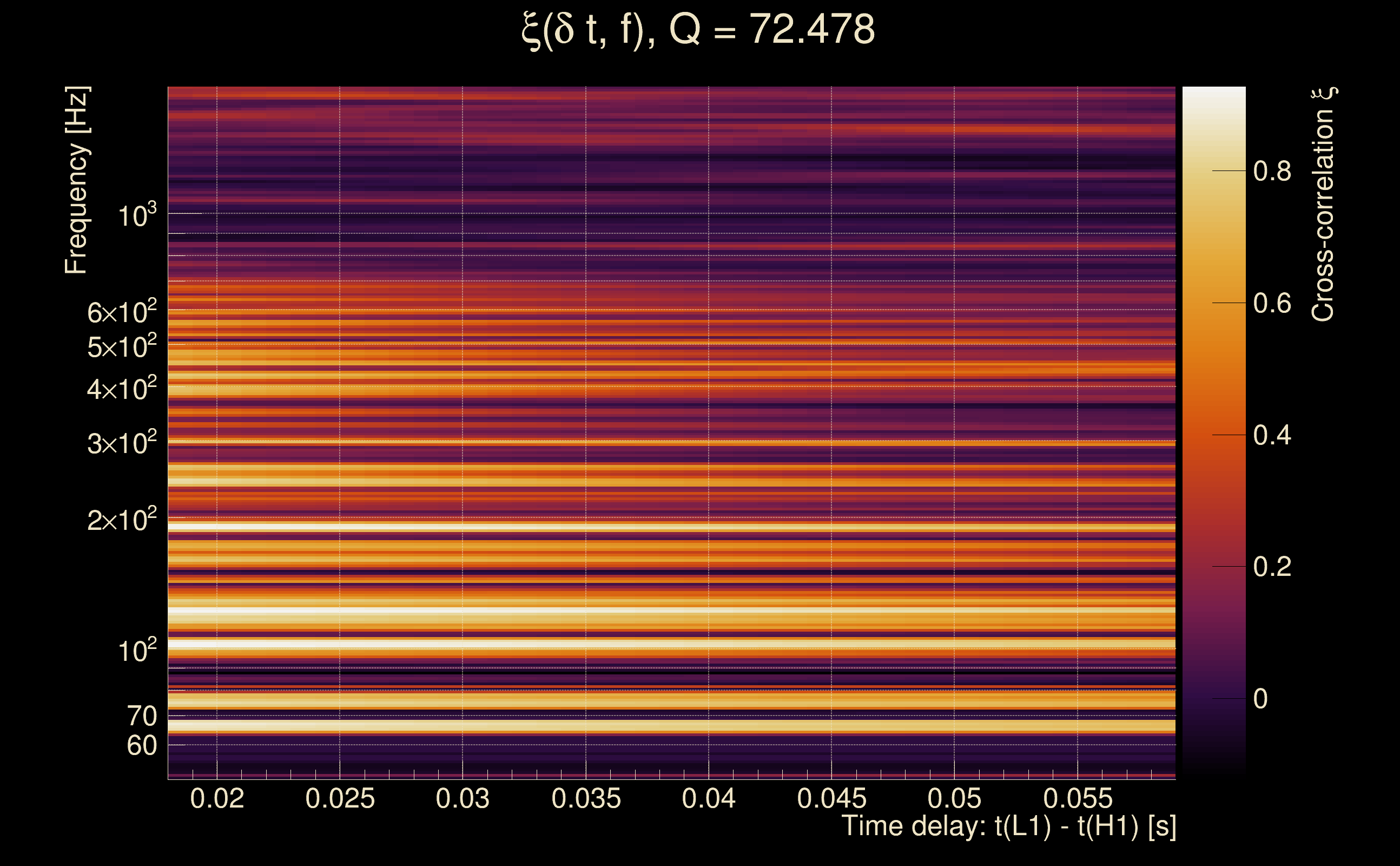

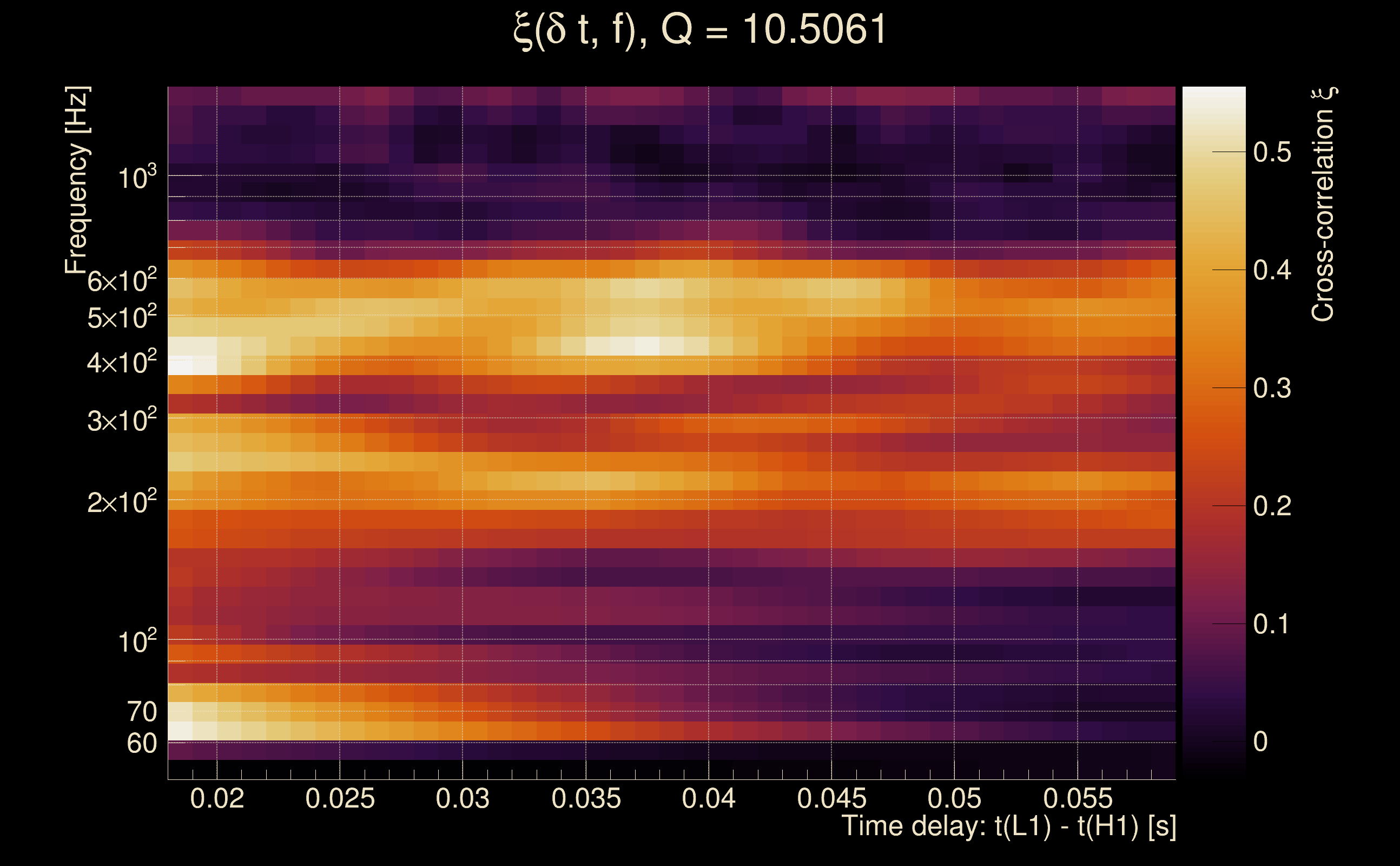

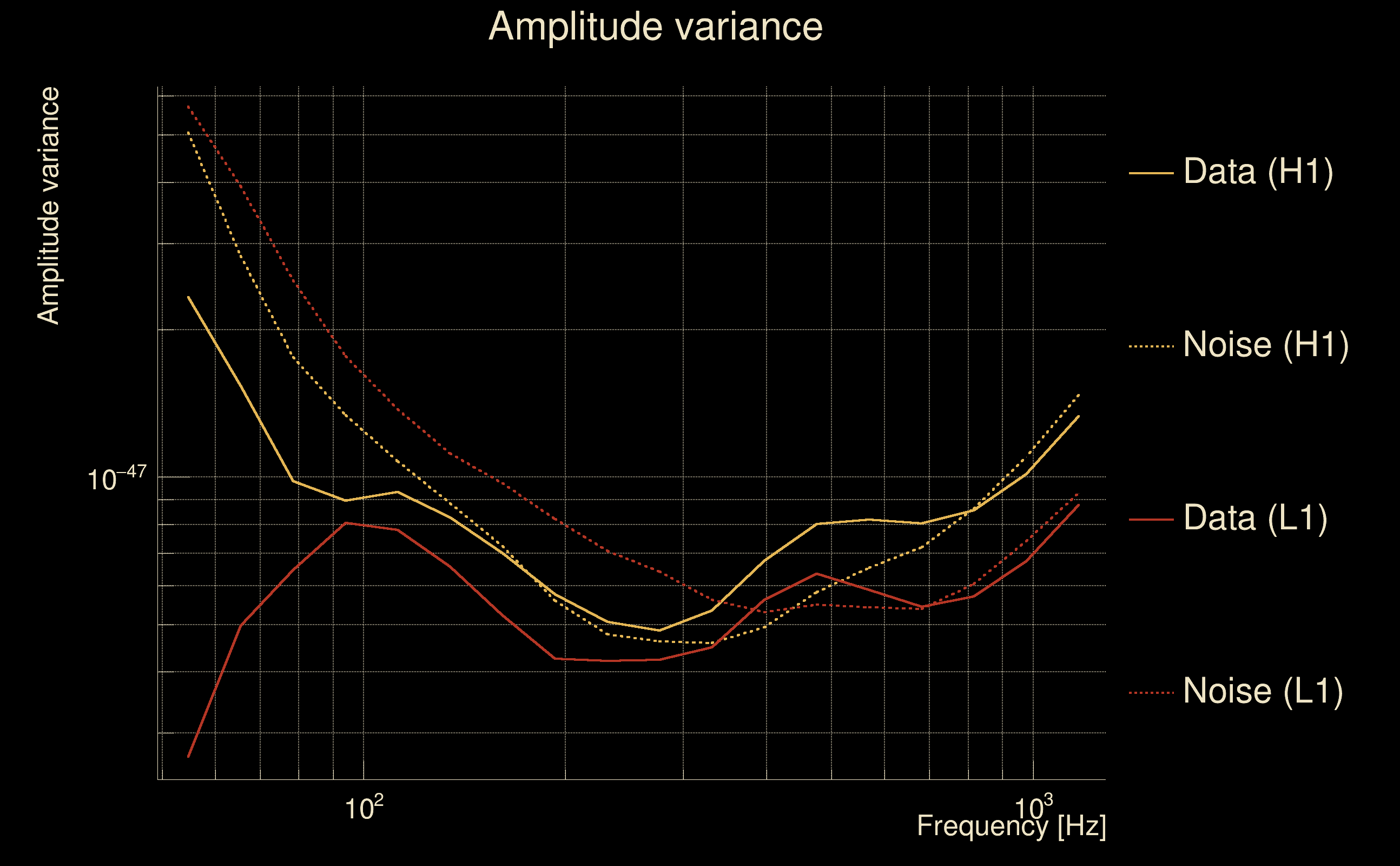

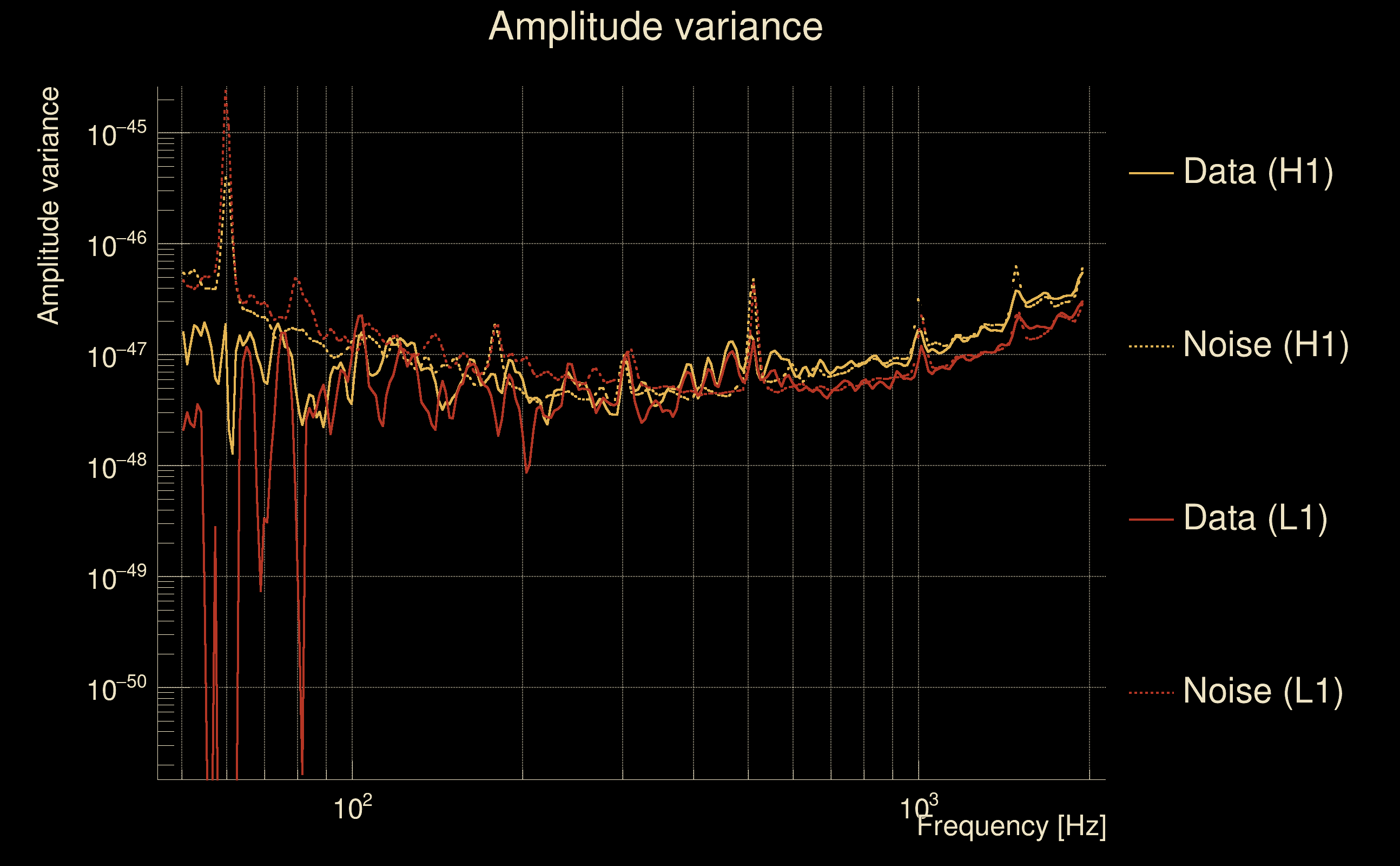

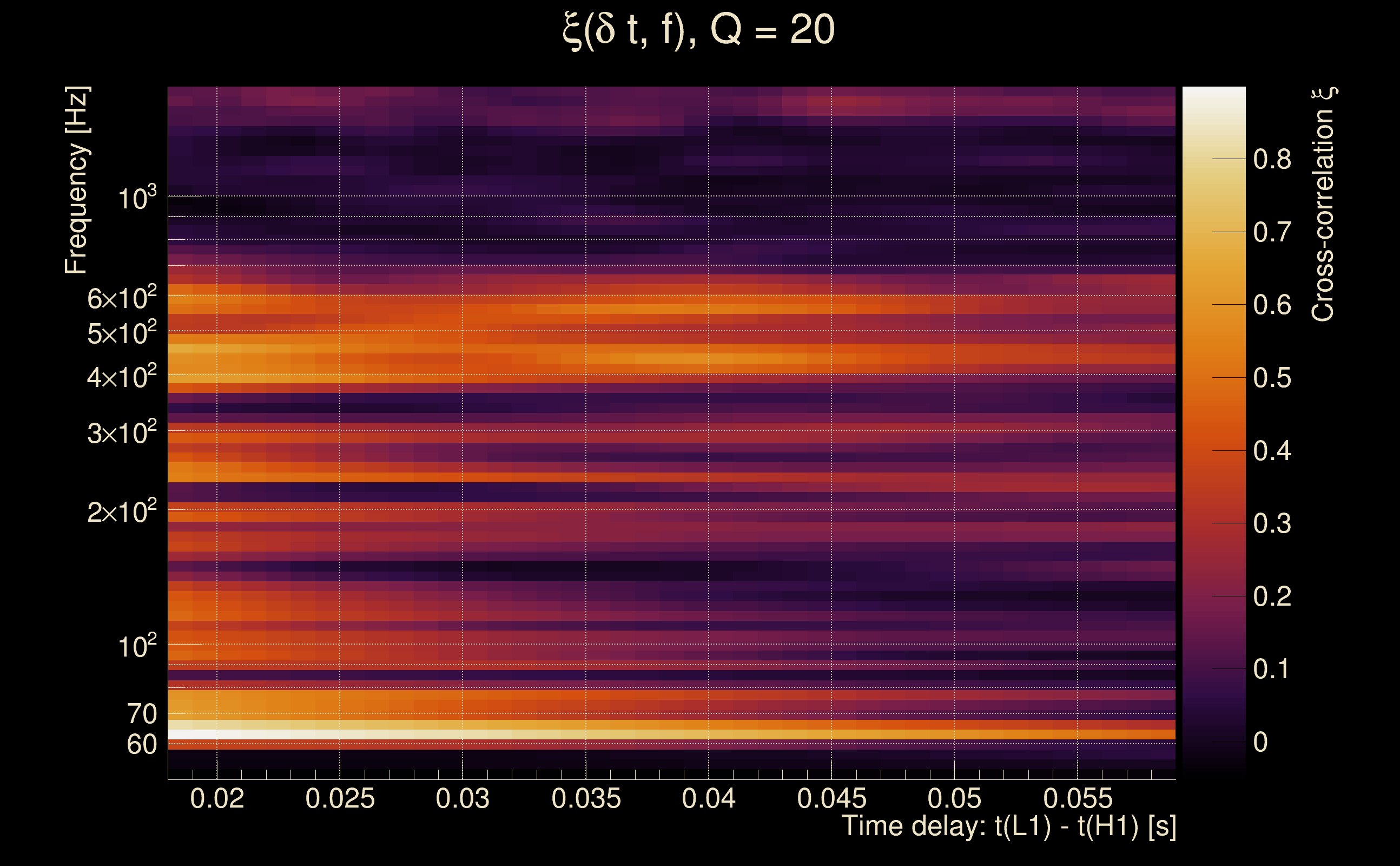

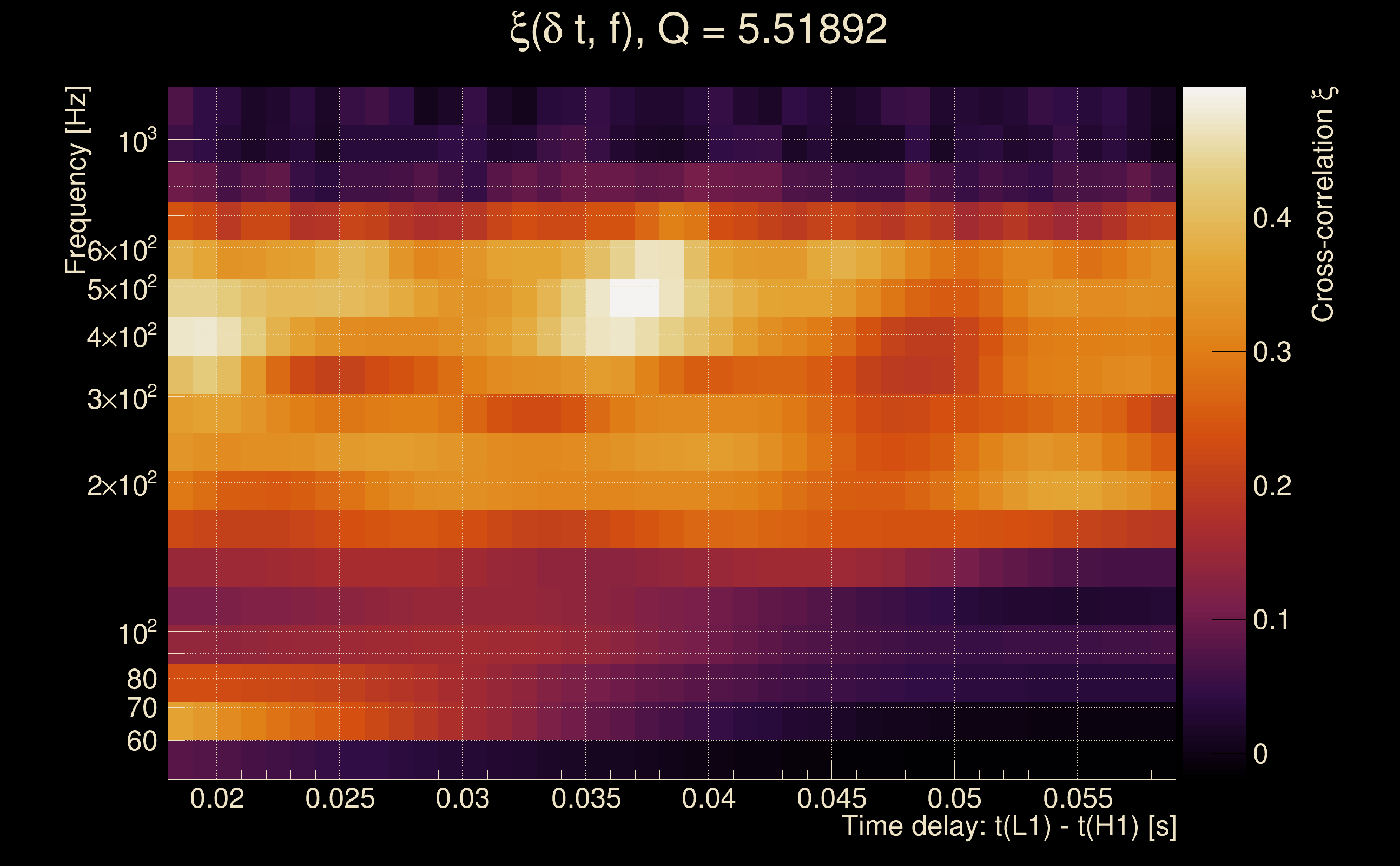

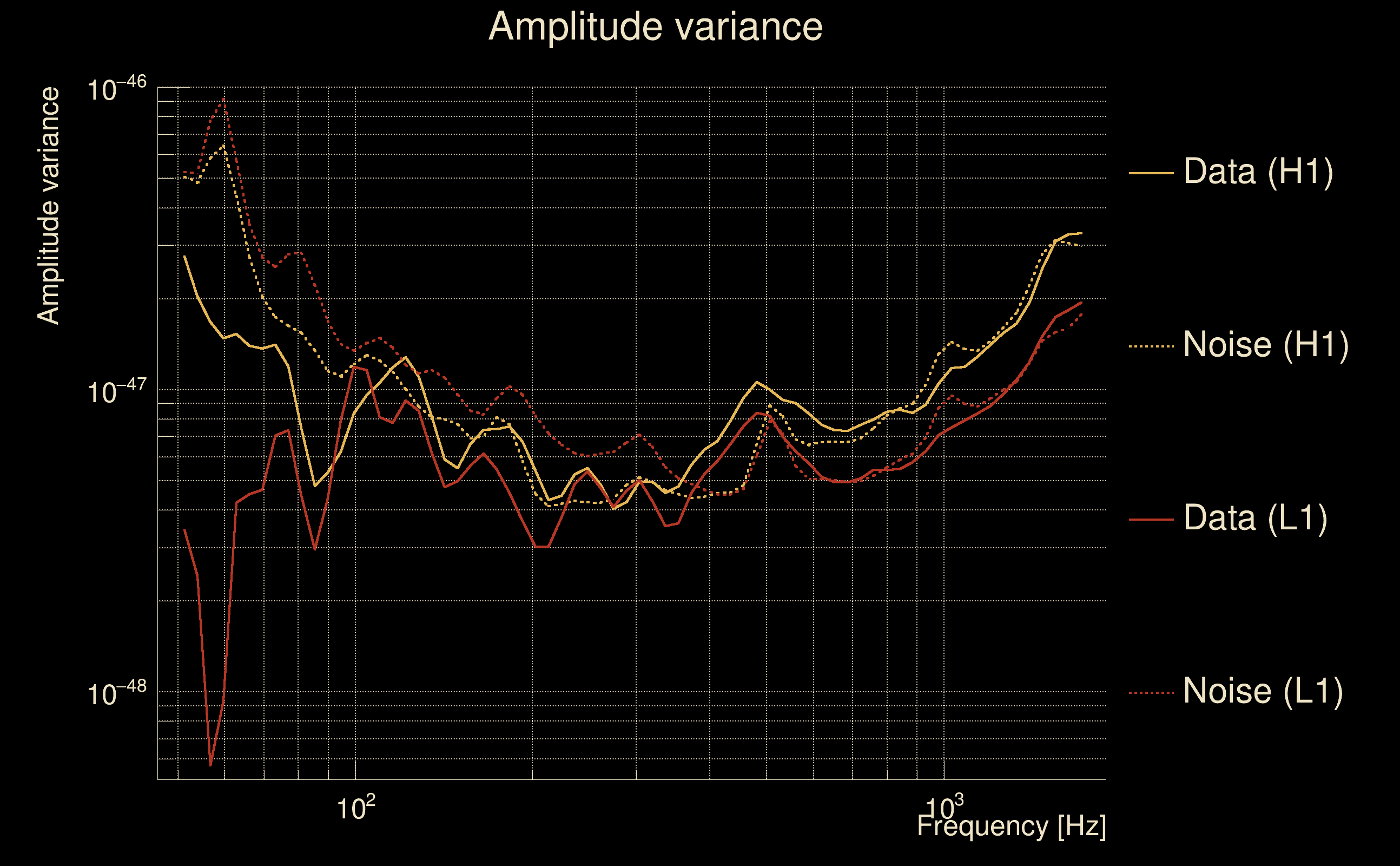

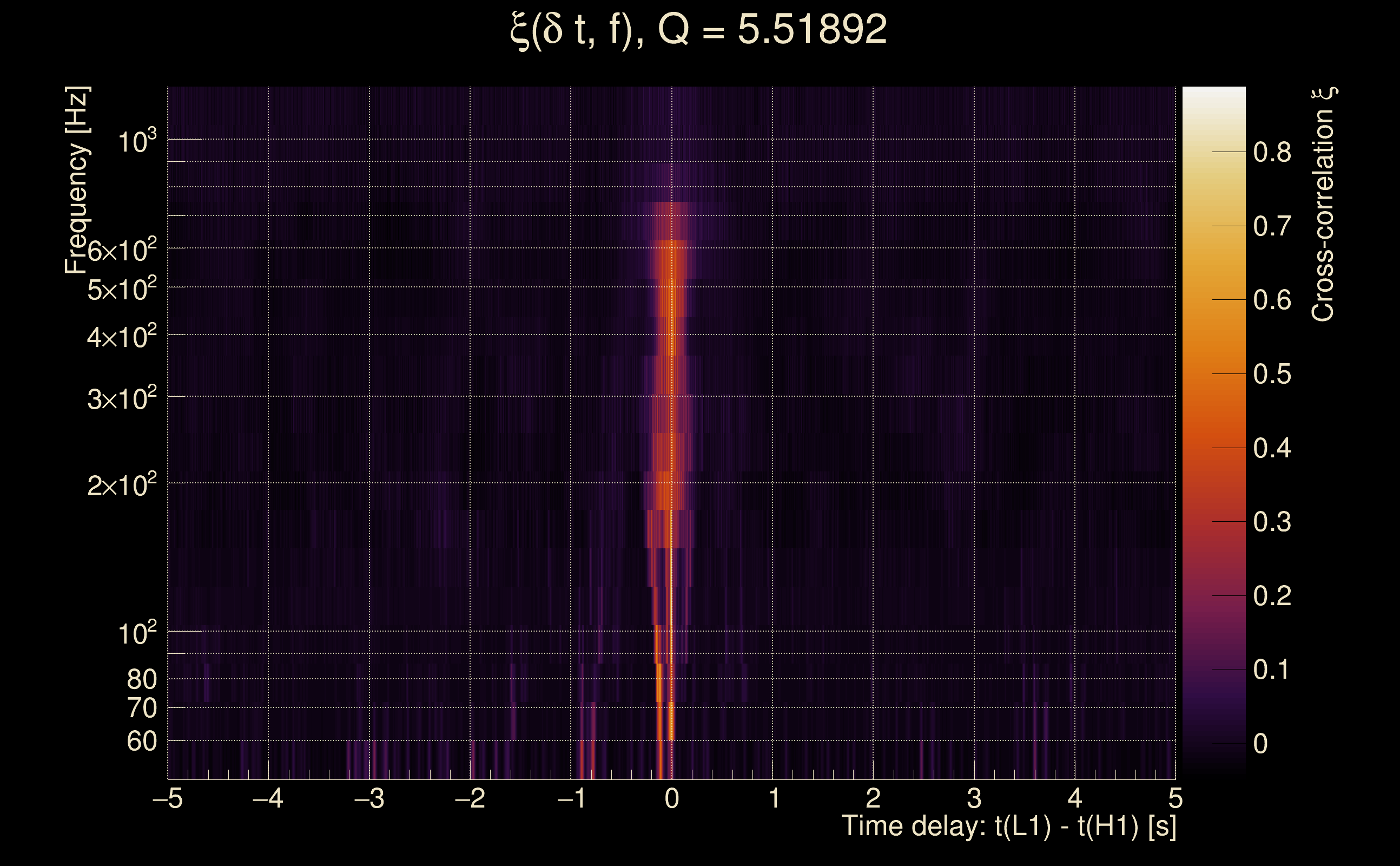

| Event time t(H1): | GPS = 1368451763 (Thu May 18 13:29:05 2023 ) → GPS = 1368451773 (Thu May 18 13:29:15 2023 ) |
| Event time t(L1): | GPS = 1368451763 (Thu May 18 13:29:15 2023 ) → GPS = 1368451773 (Thu May 18 13:29:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368451760 → GPS = 1368451776 |
| Omicron analysis time window (L1): | GPS = 1368451760 → GPS = 1368451776 |
| Time delay between detectors t(L1) - t(H1): | 0.0386449 s (slice index = 107 / 217), δt_gw = -0.00735508 s |
| Time delay standard deviation: | 0.0640536 s |
| [targeted mode] Time delay probability: | 7.75794e-05 (3.95176 sigmas), δt_target = -0.000346661 s |
| Frequency: | 391.701 Hz |
| Ξ: | 0.164109 ± 0.0736702 (variance = 0.0054273): Q0: 0.377729, Q1: 0.385478, Q2: 0.384893, Q3: 0.482996, Q4: 0.25143 |
| Rank: | R_A = 0.104614 |
| Log of amplitude ratio (L1/H1): | -0.256087, variance = 0.198418 (L1/H1: -0.429078, variance = 0.373406, H1/L1: 0.0733839, variance = 0.422346) |
| Amplitude ratio (L1/H1): | 0.774074 ⋇ 1.56118 (L1/H1: 0.651109 ⋇ 1.8424, H1/L1: 1.07614 ⋇ 1.91531) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.690086 |
| Antenna factor probability: | 0.923755 |
| Number of rejected frequency rows: | Q0: 7 / 18, Q1: 22 / 36, Q2: 60 / 70, Q3: 131 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 15.102, L1: 14.6951 |
| SNR variance: | H1: 0.498002, L1: 0.472661 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

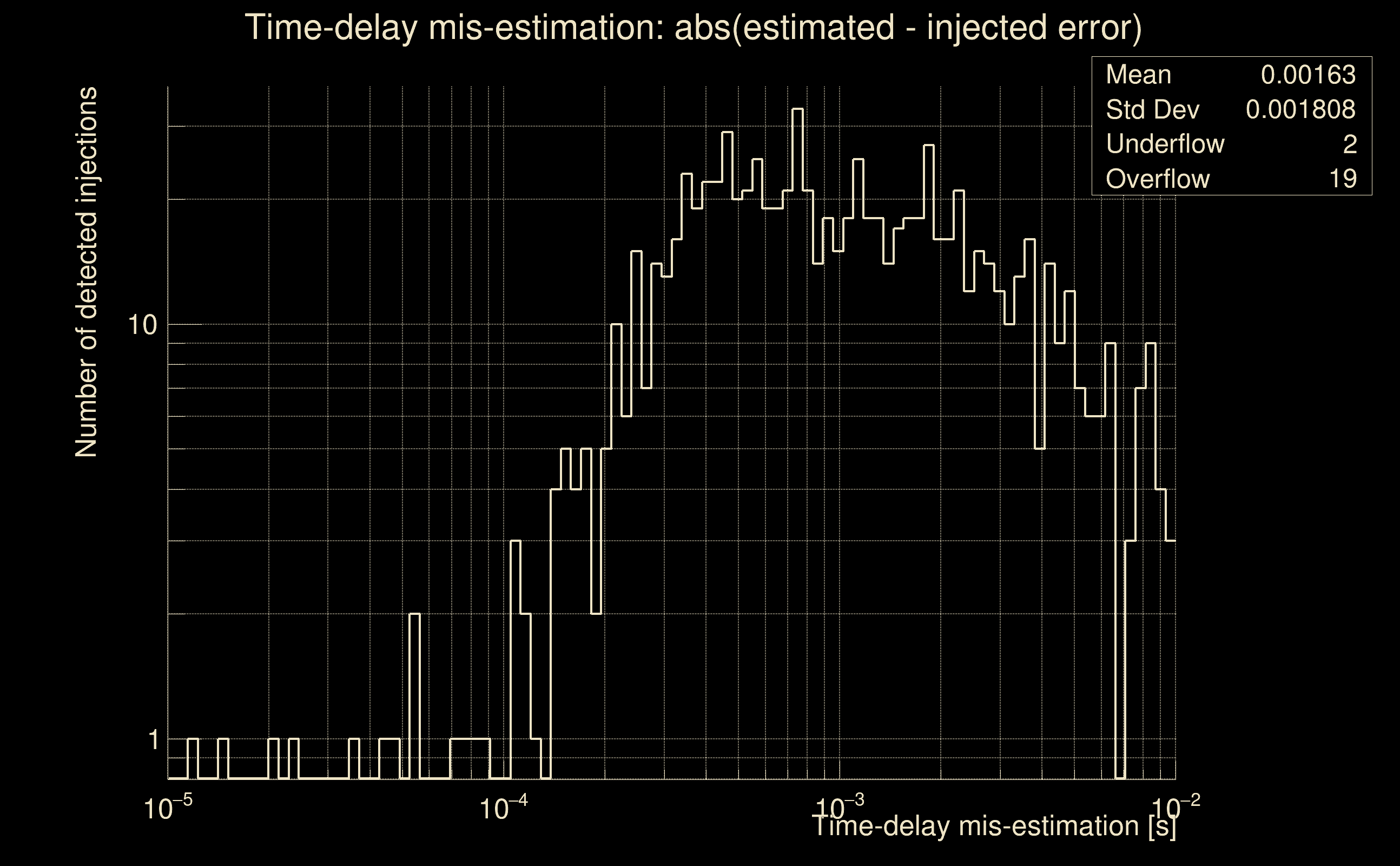

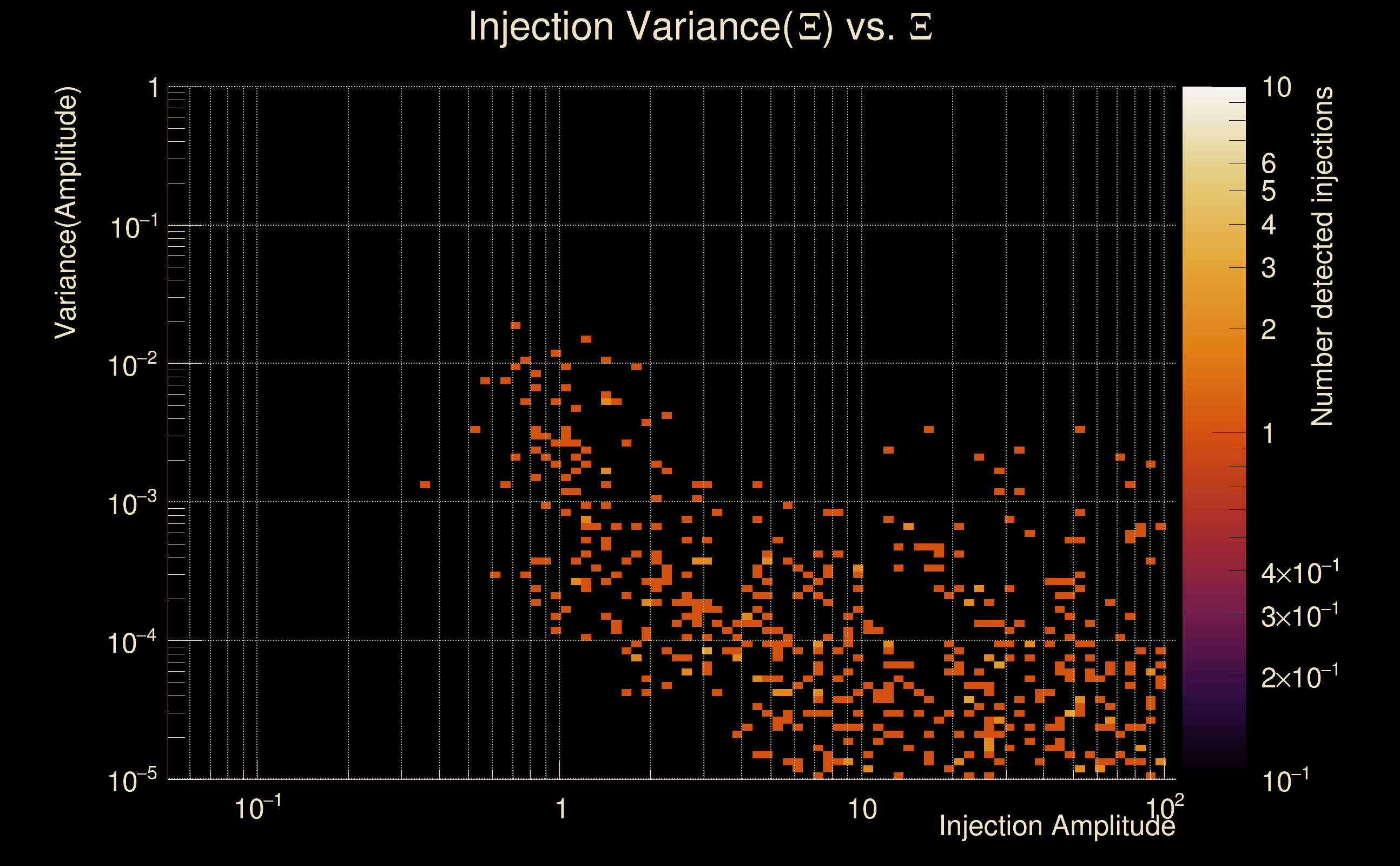

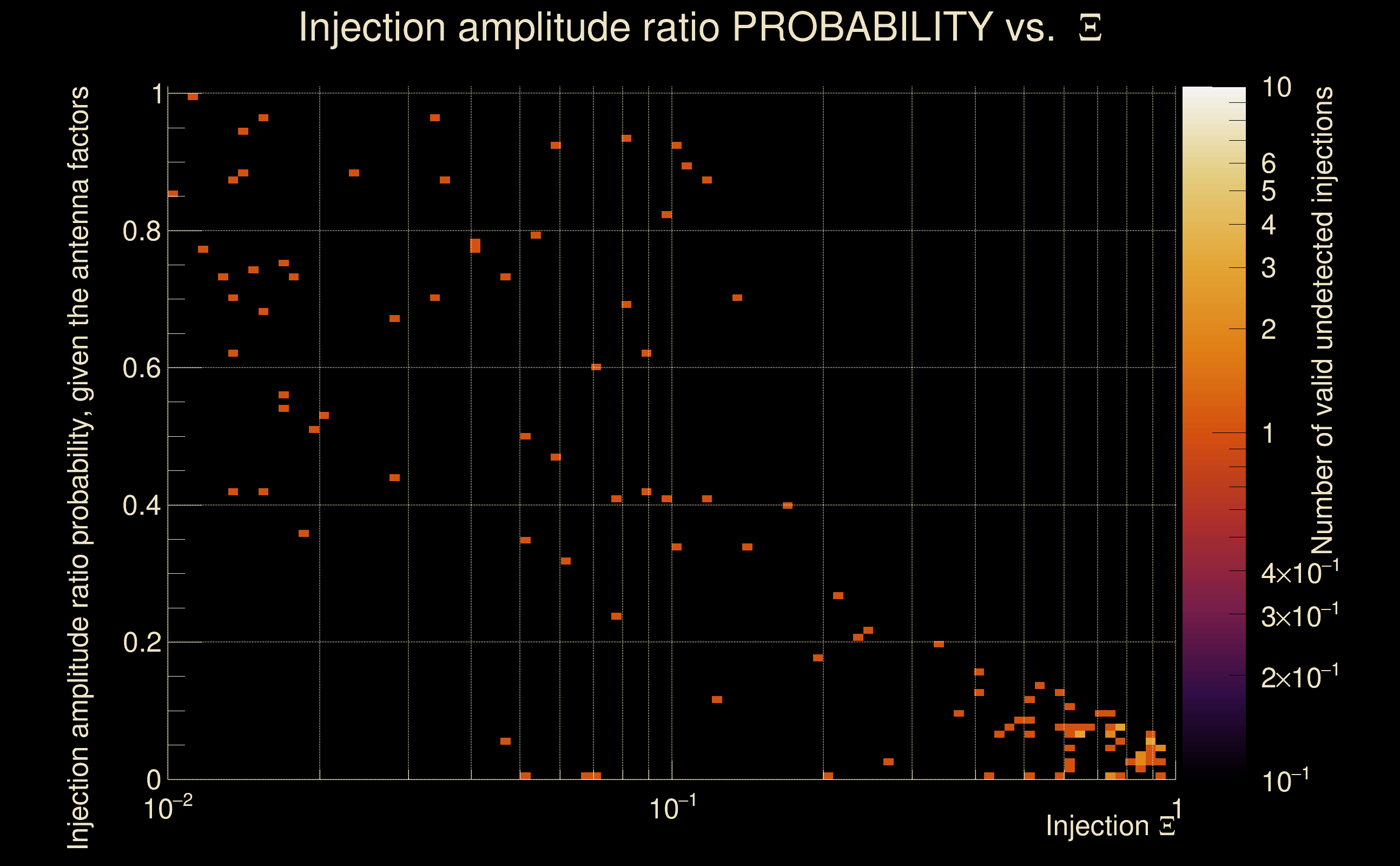

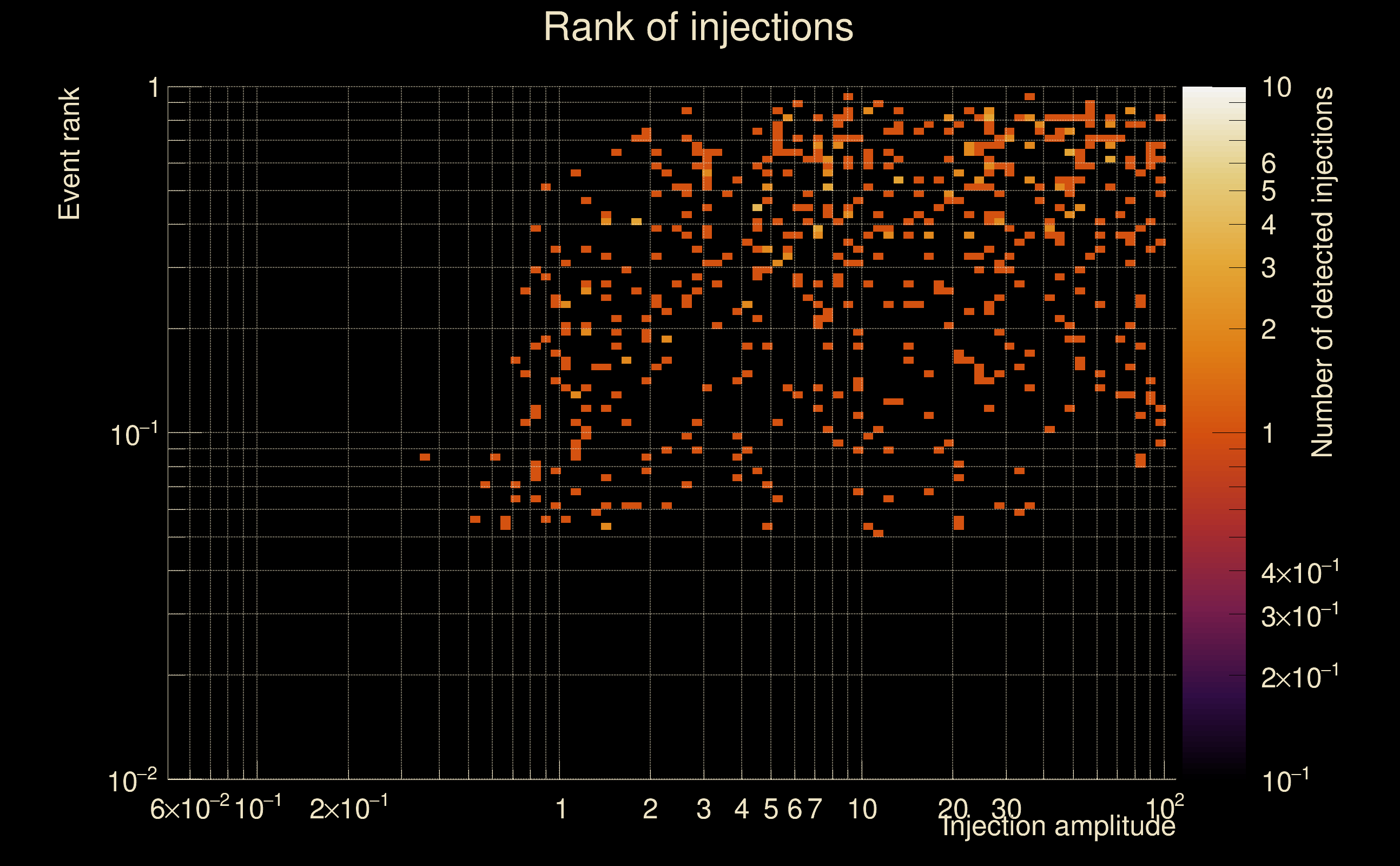

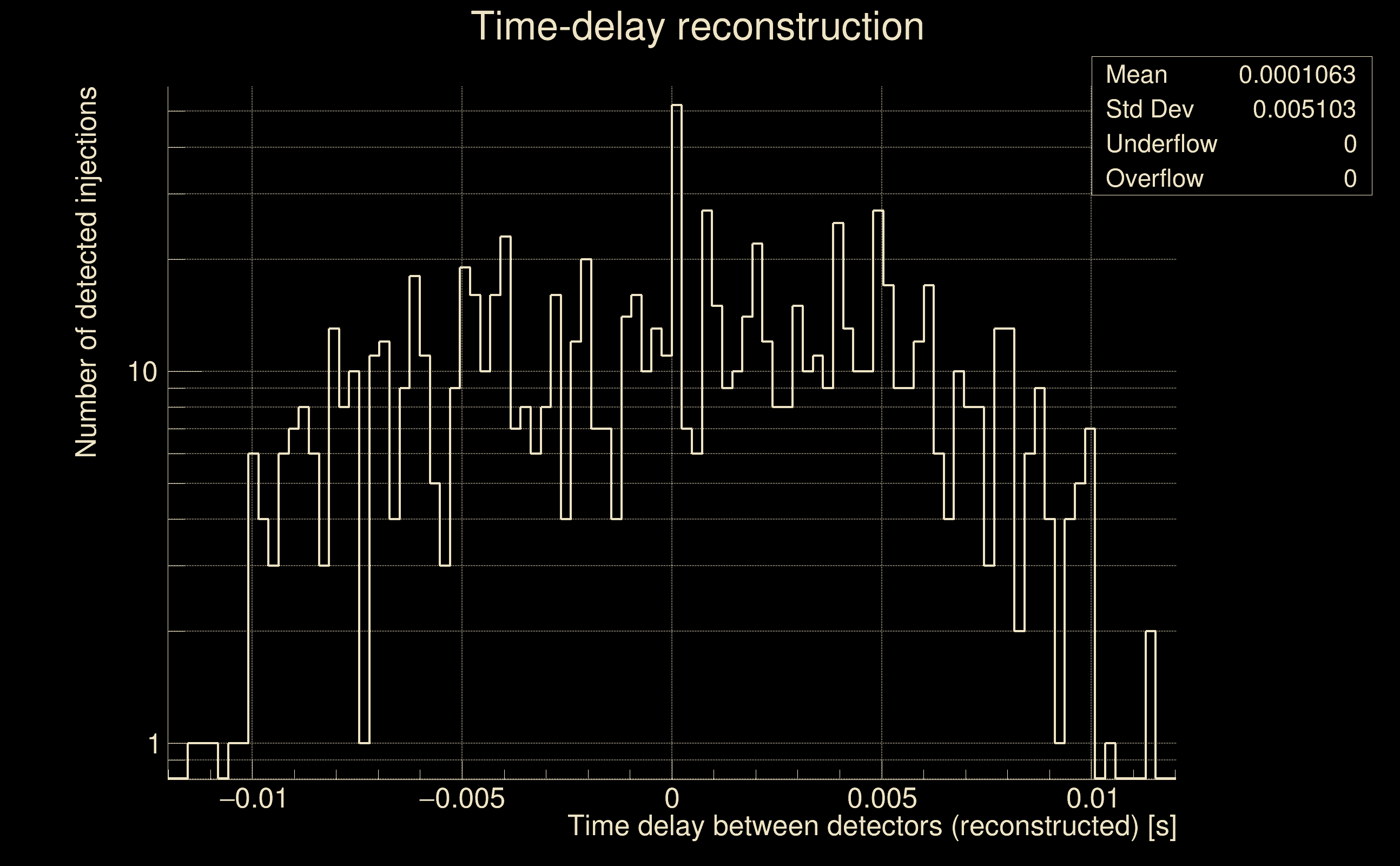

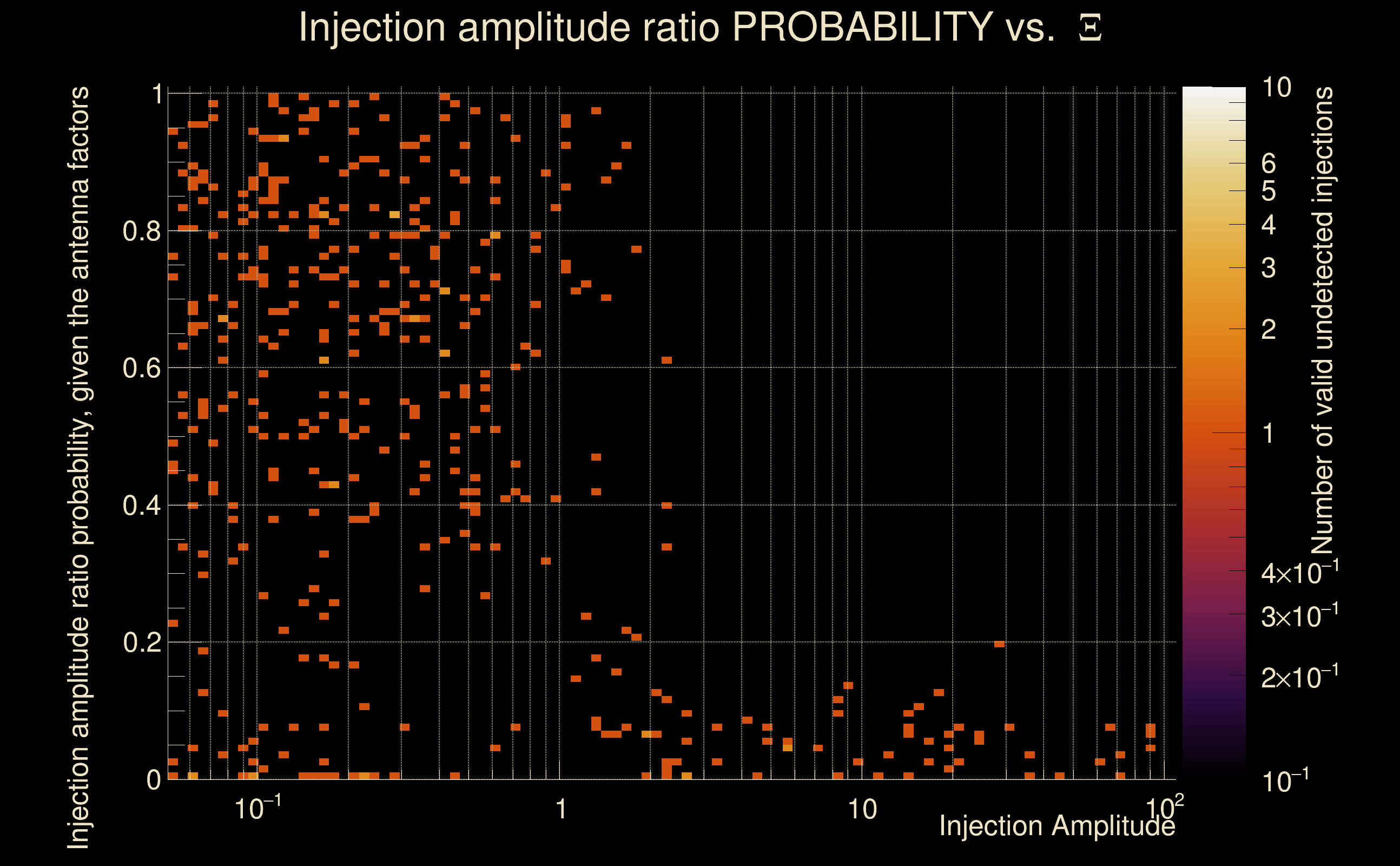

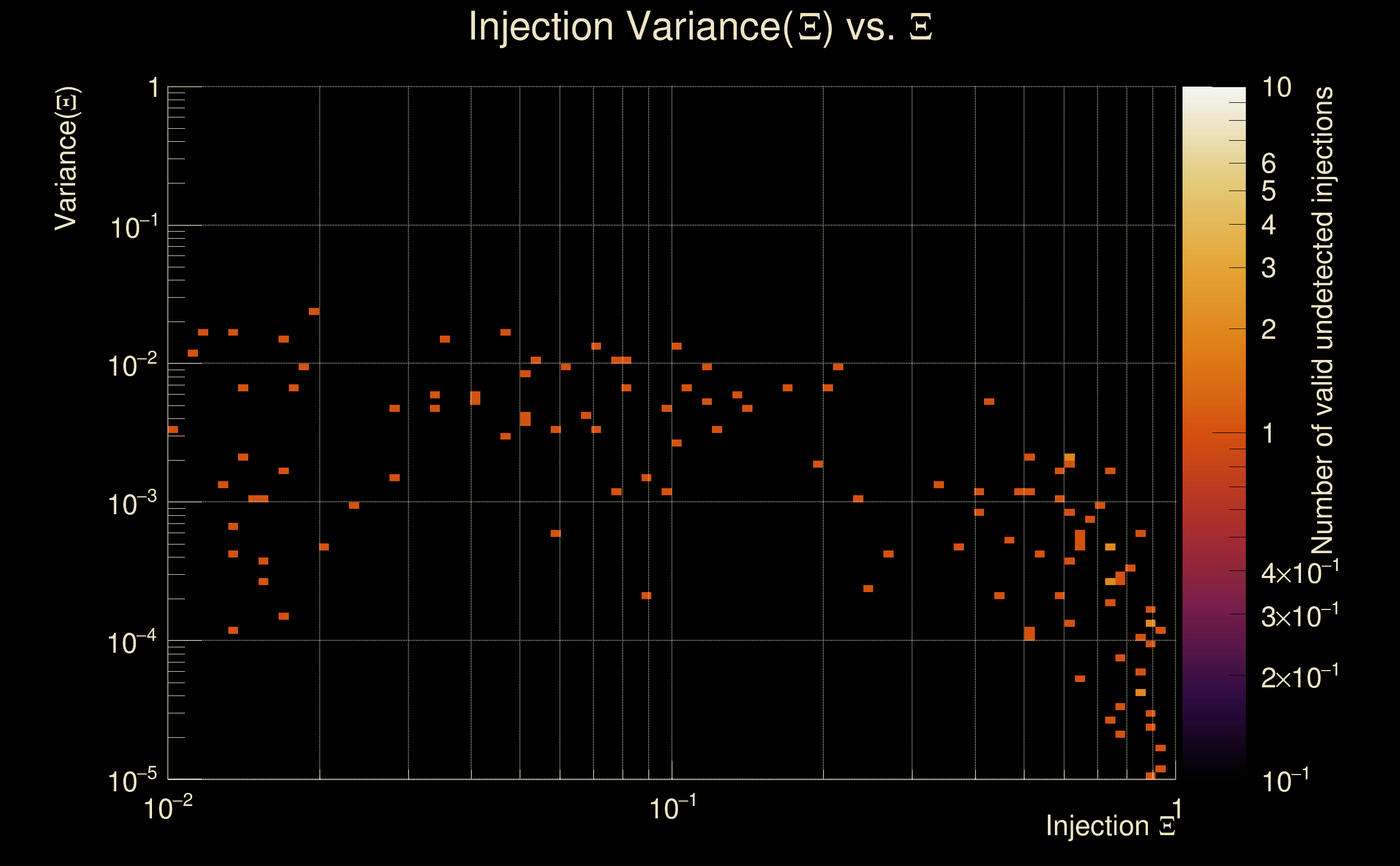

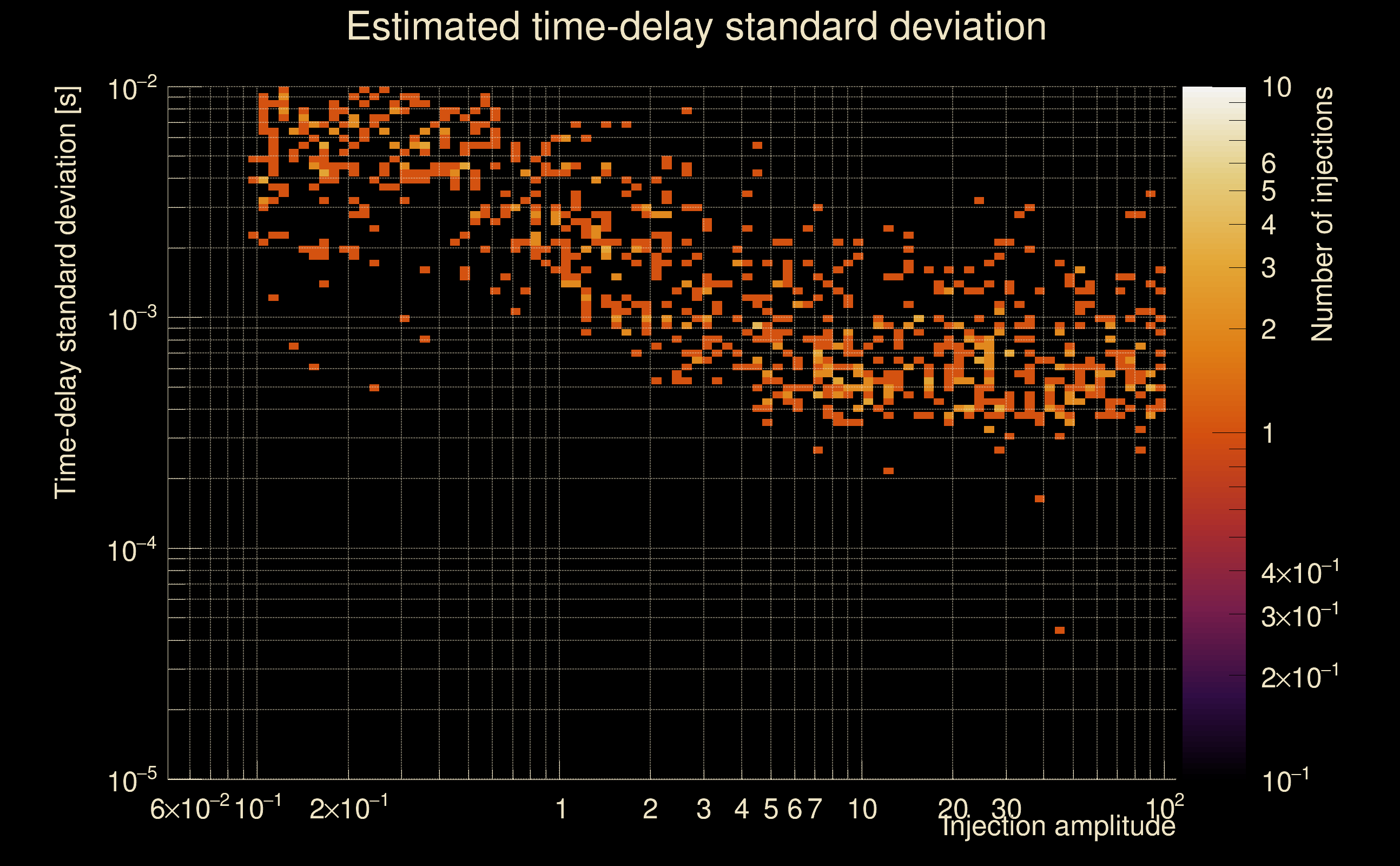

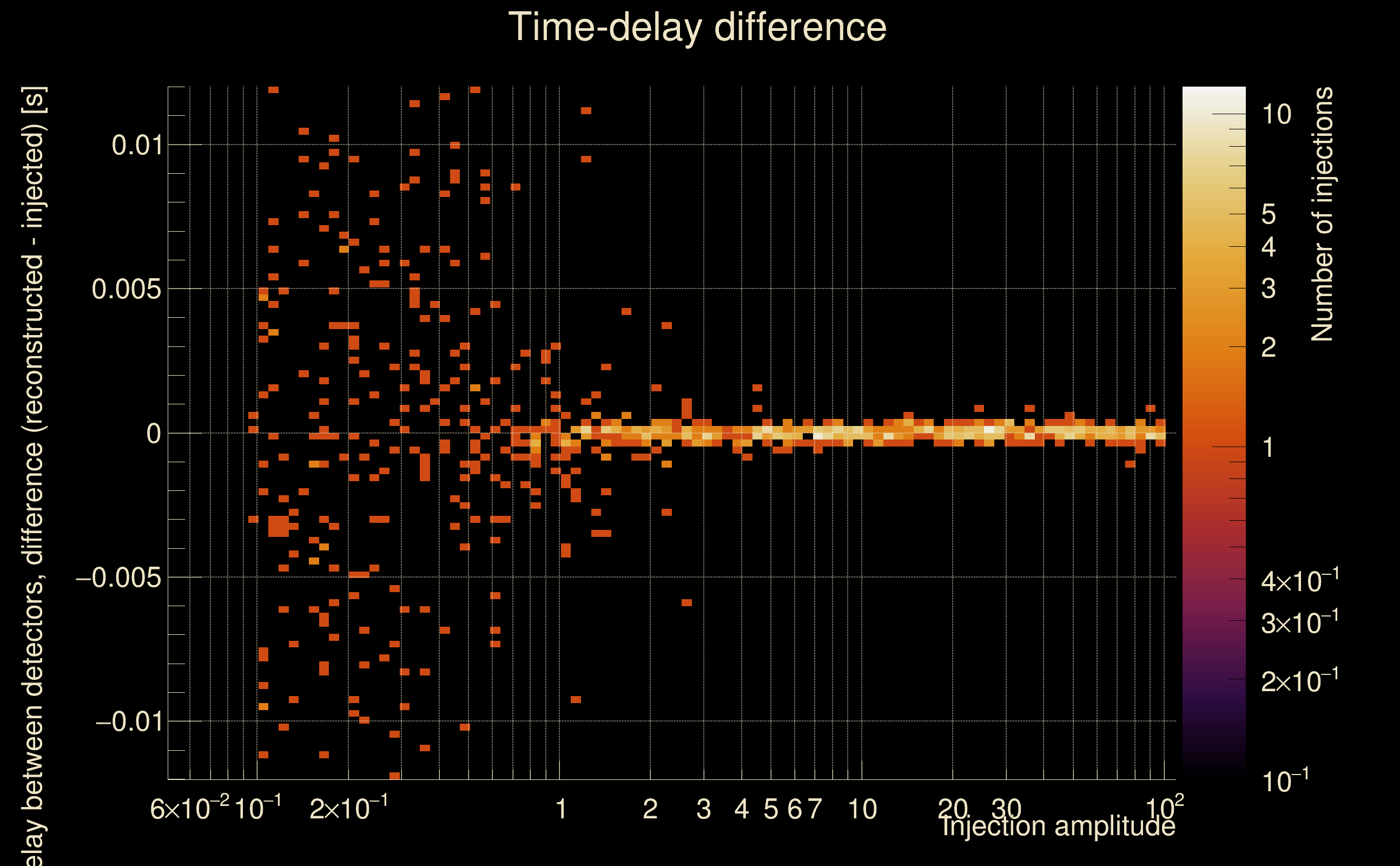

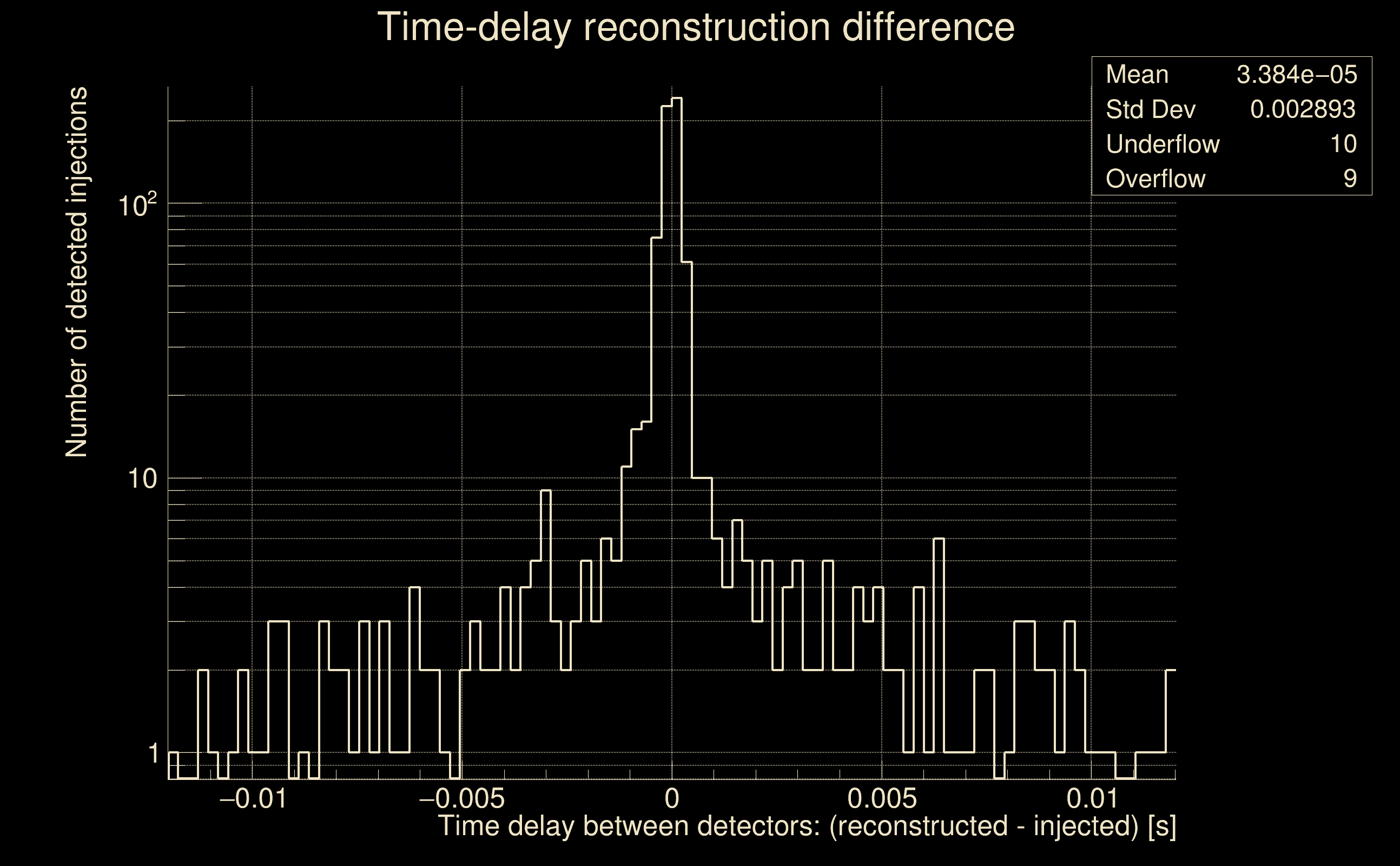

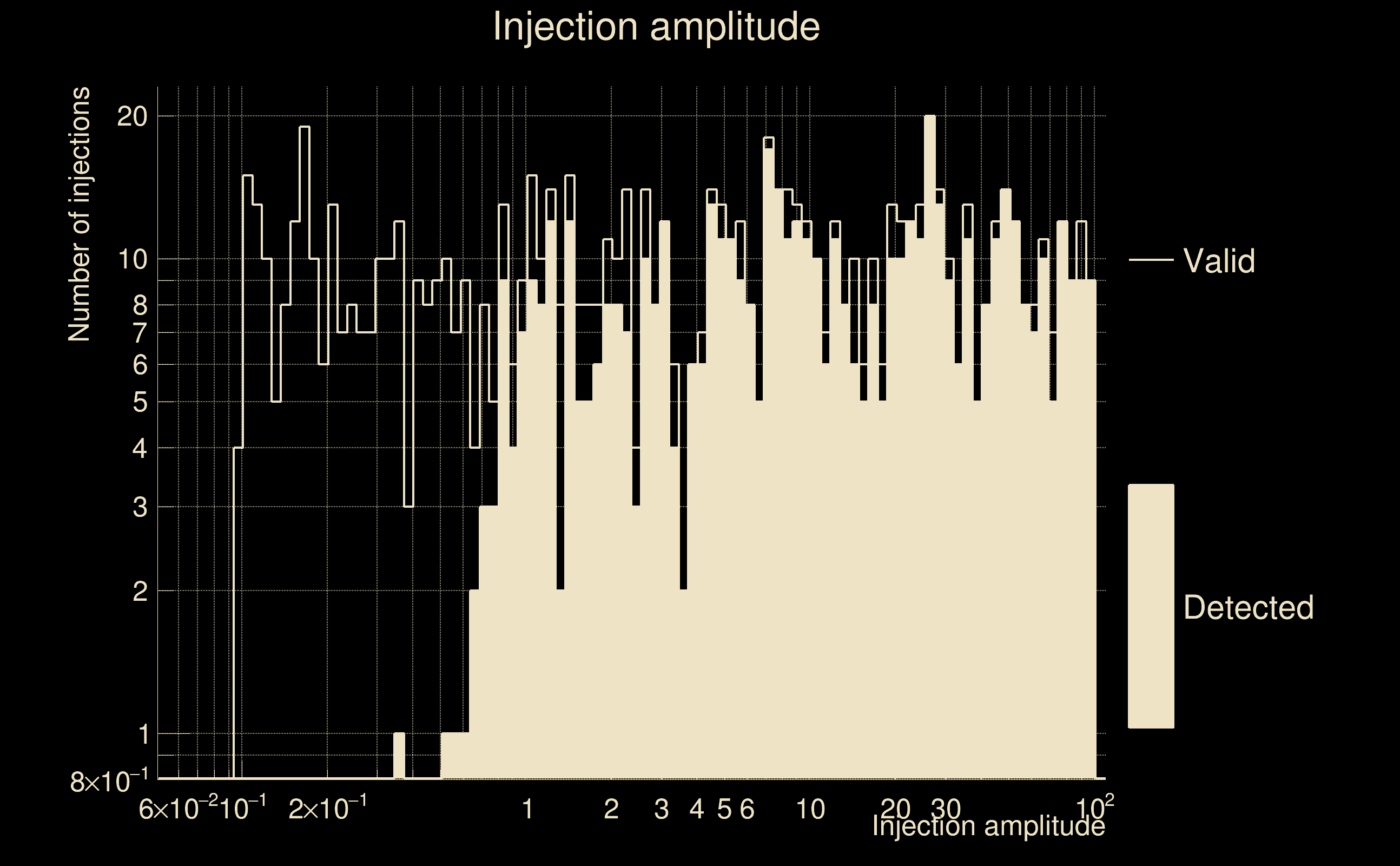

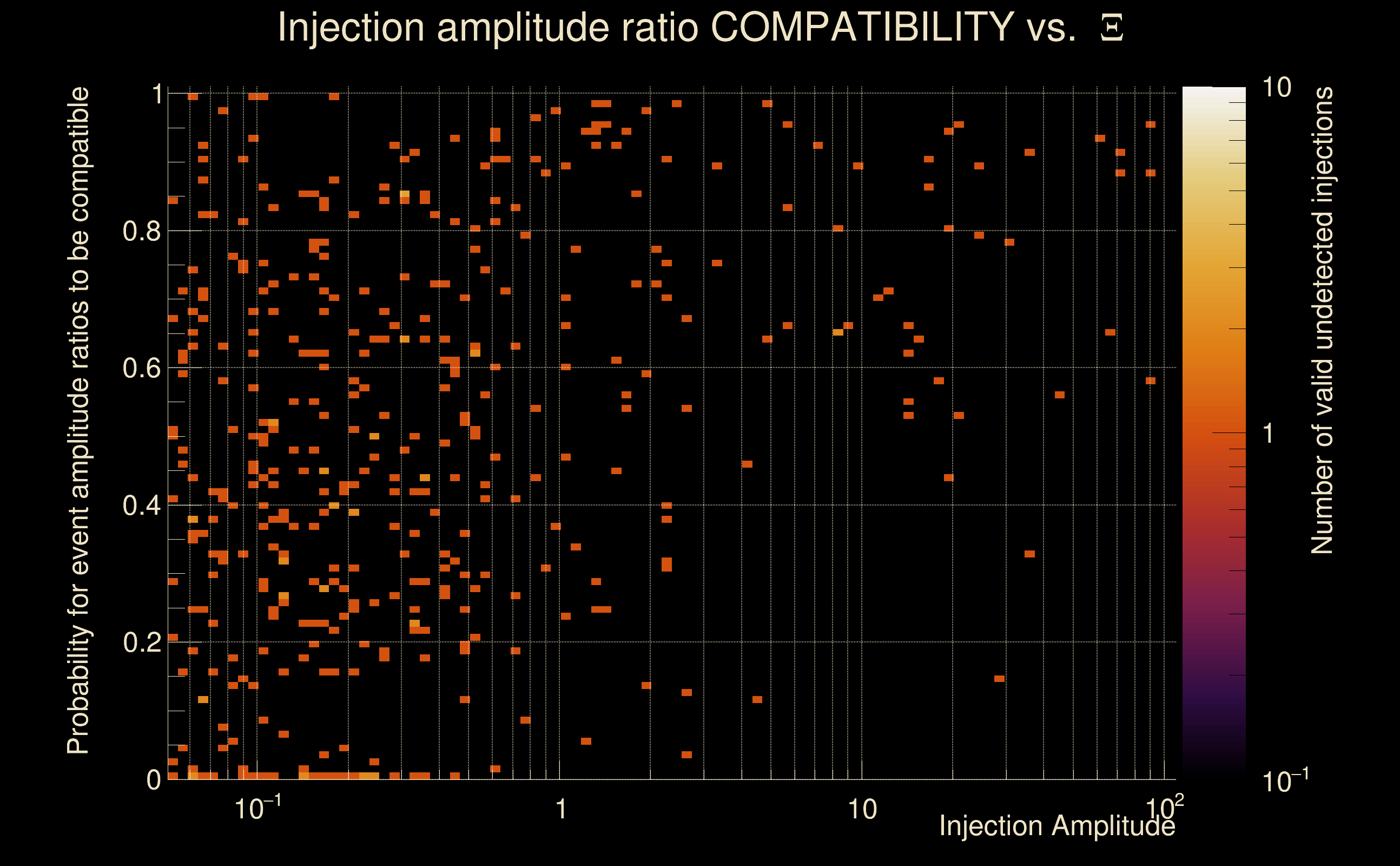

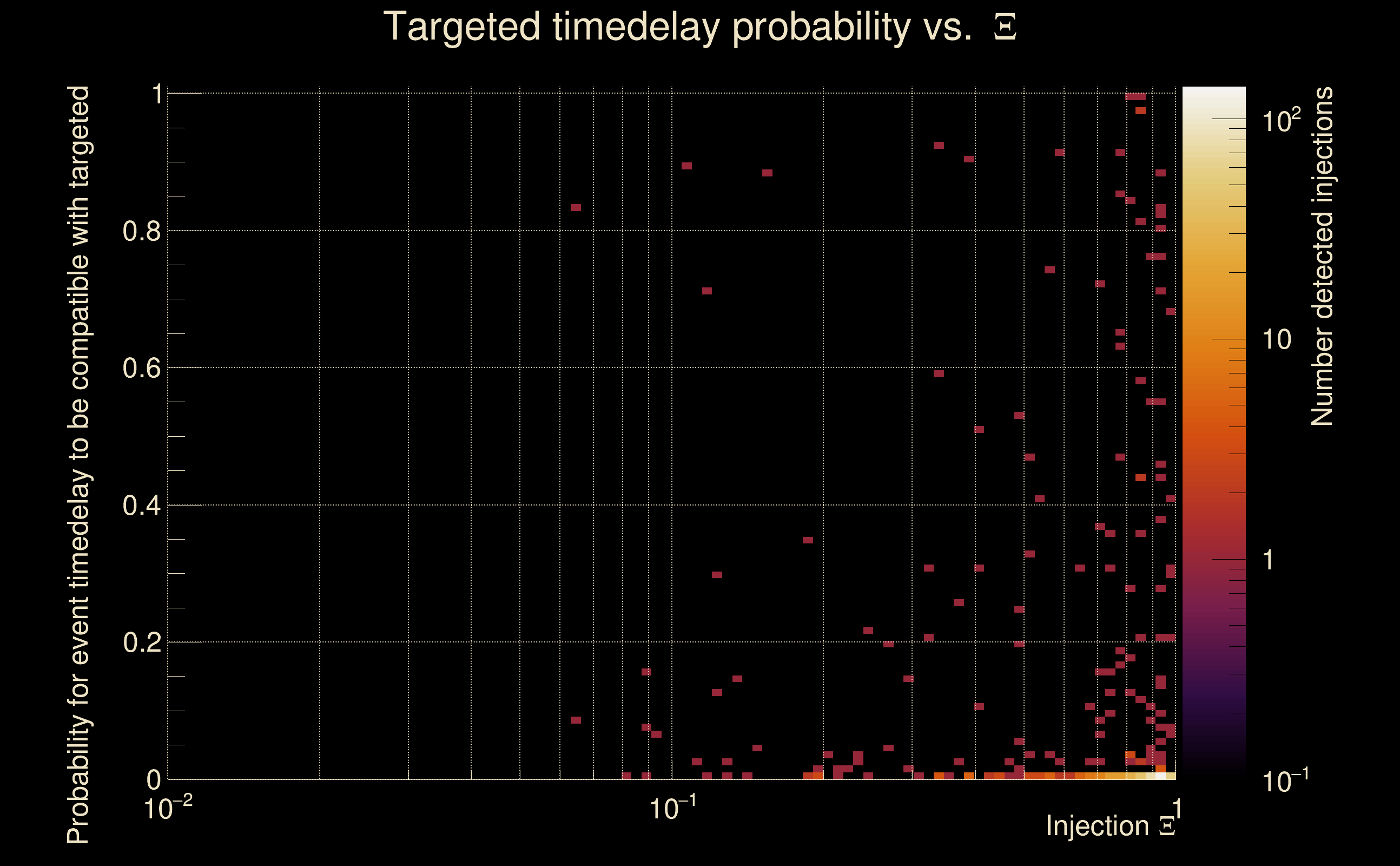

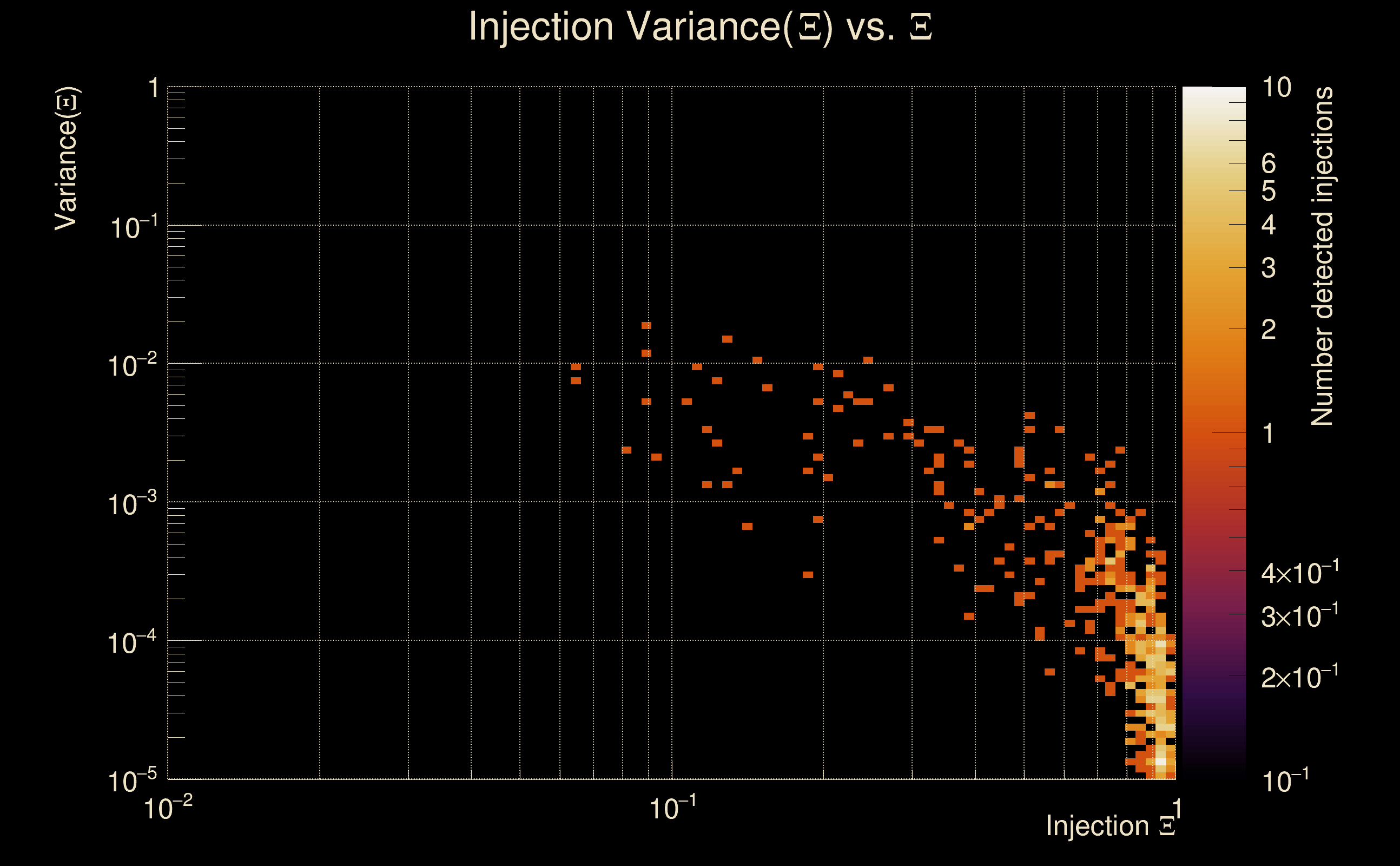

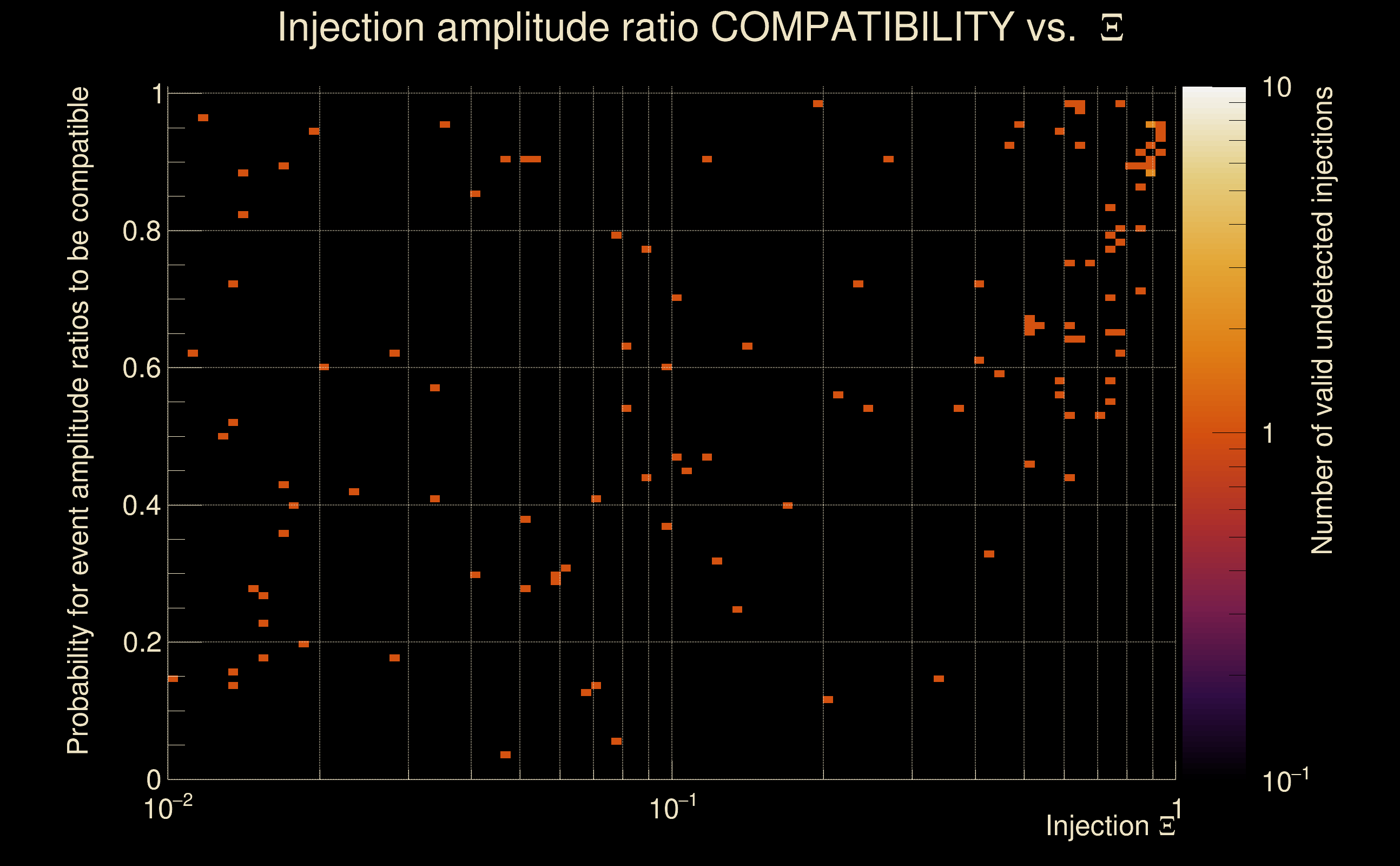

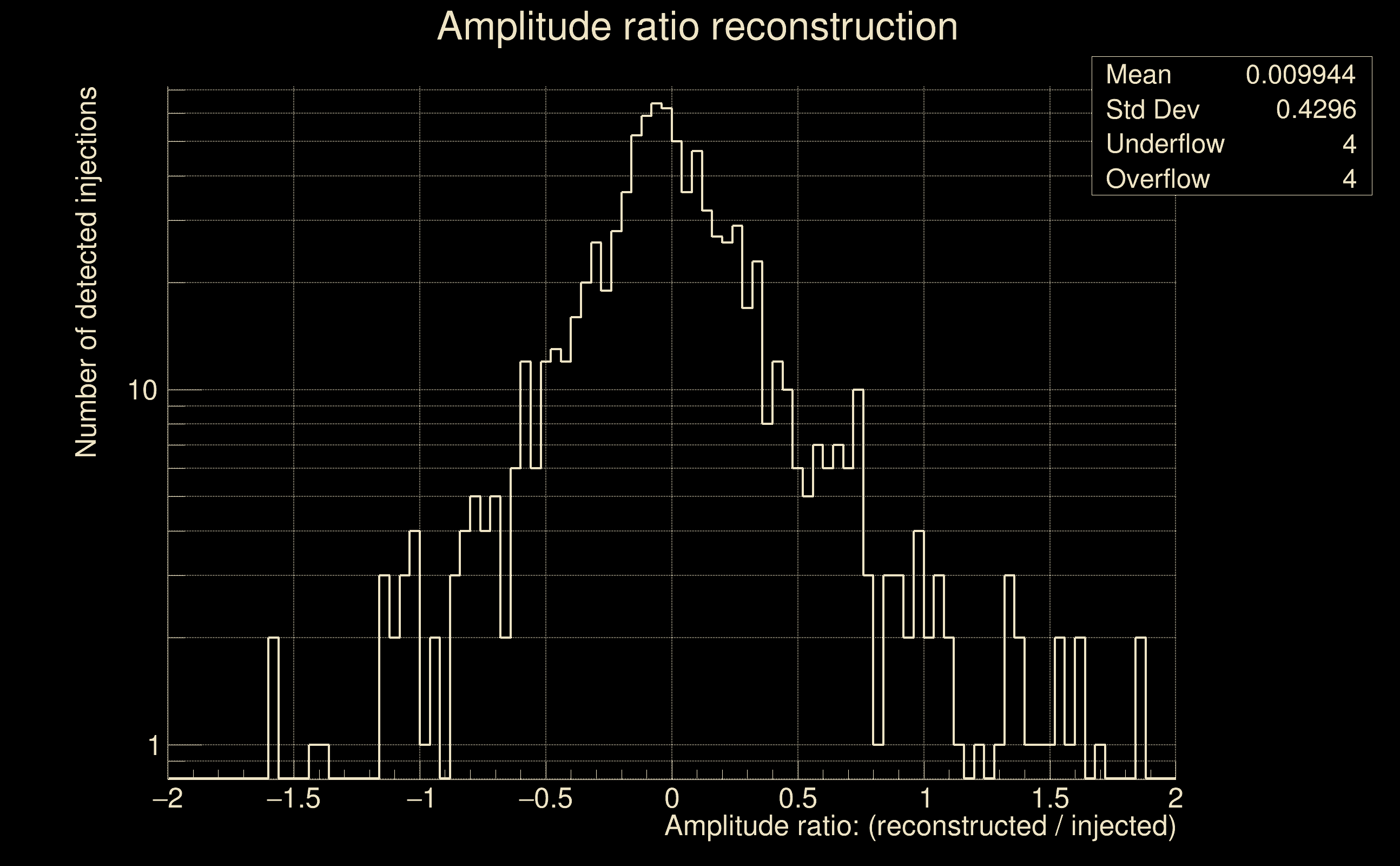

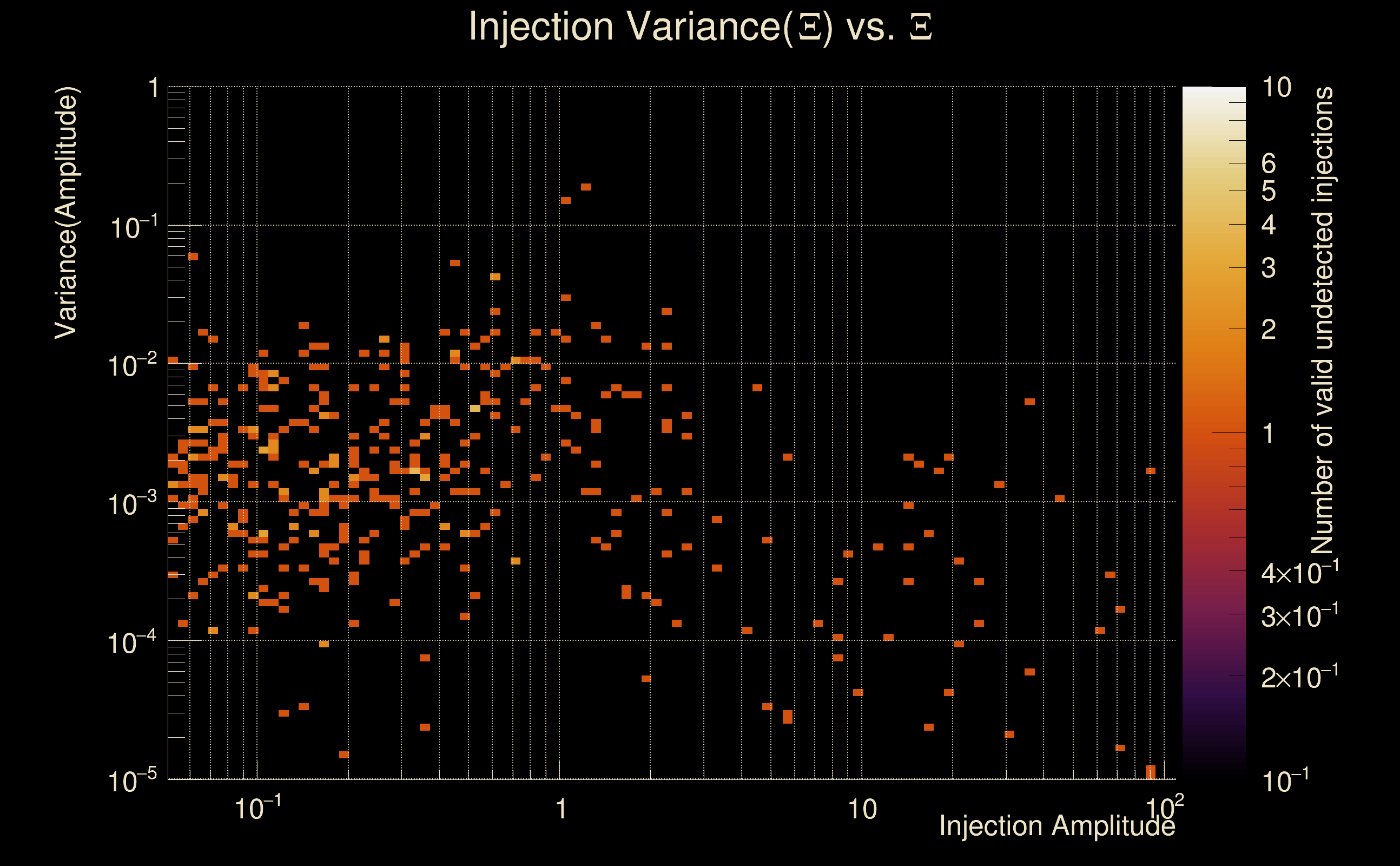

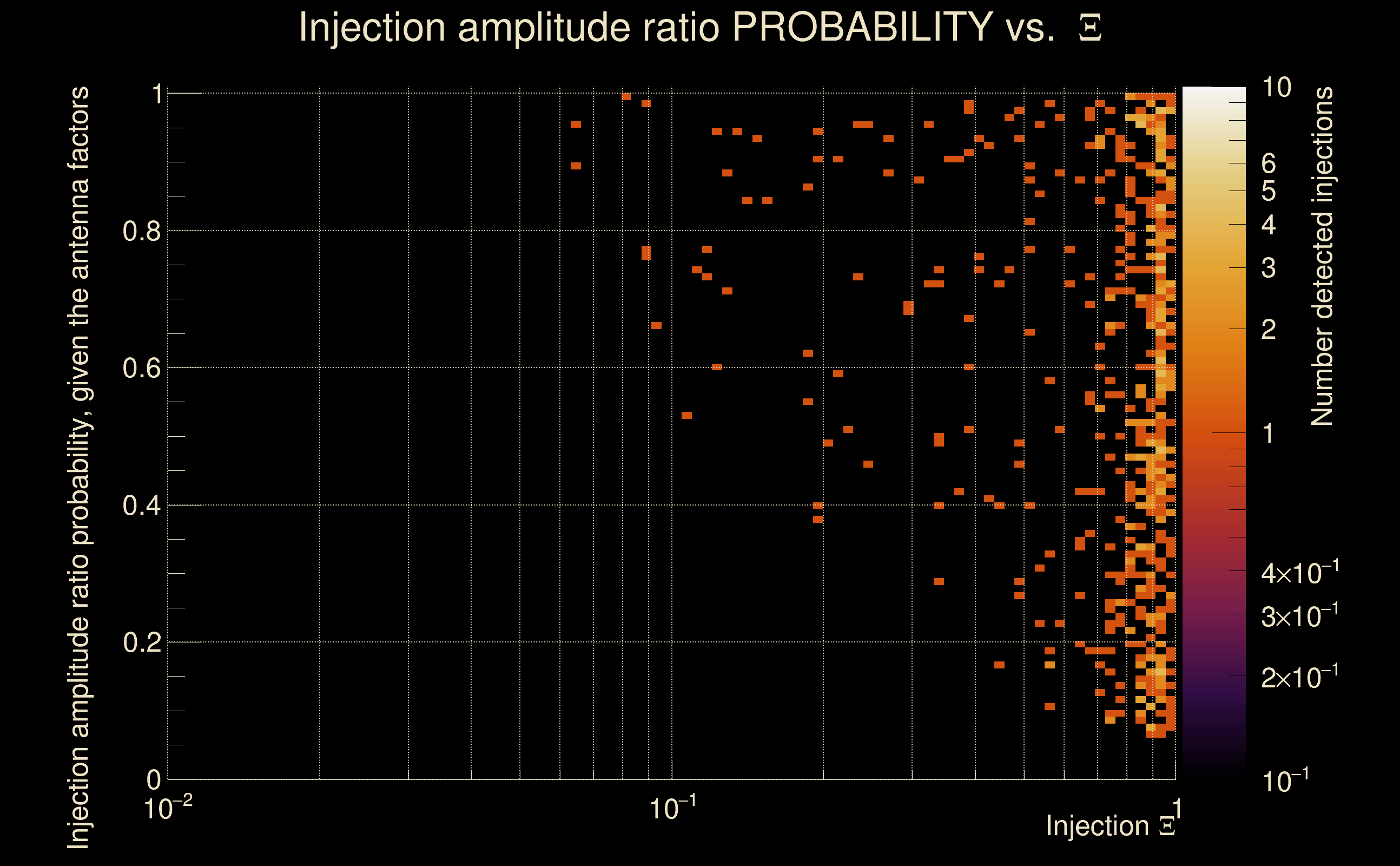

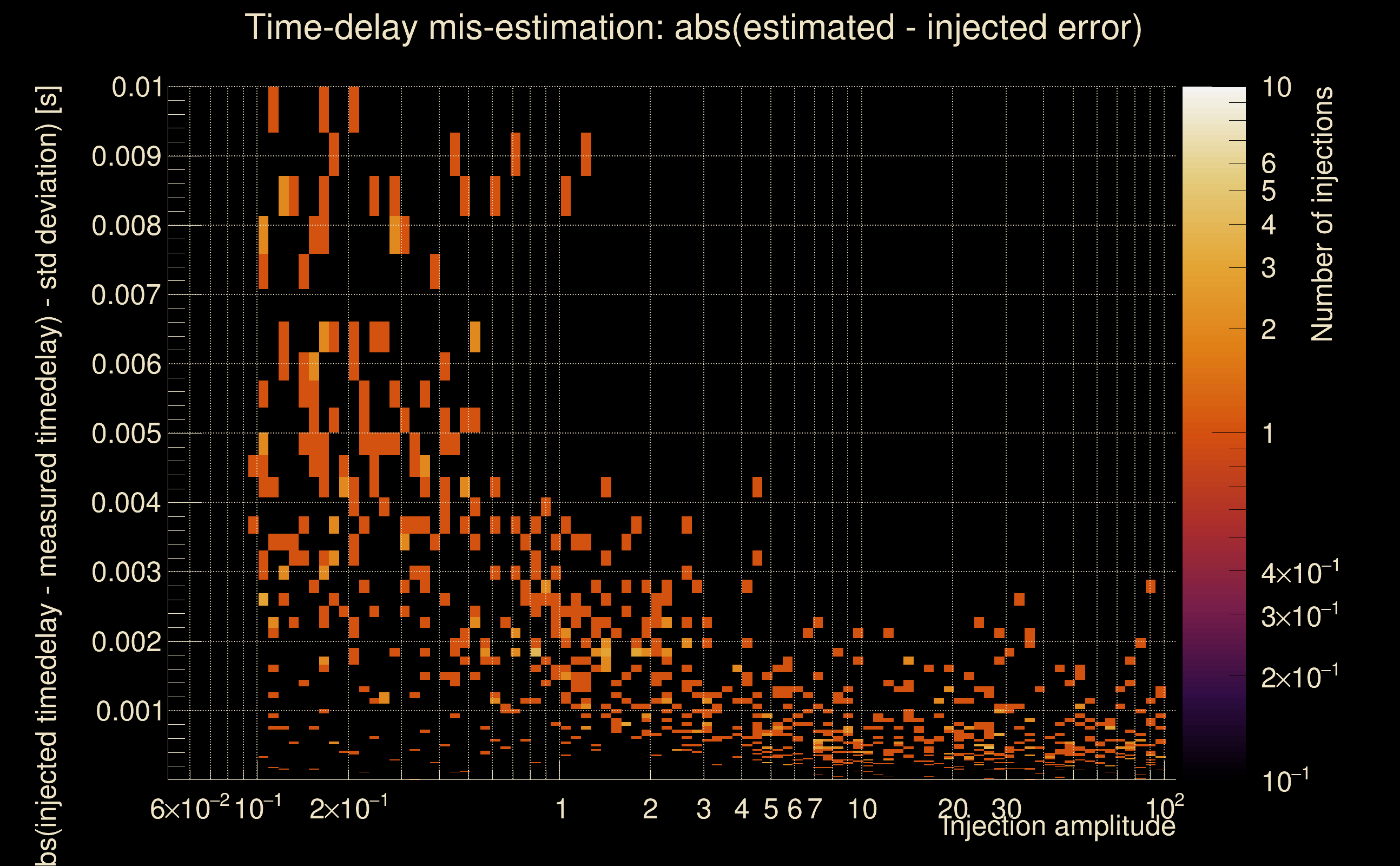

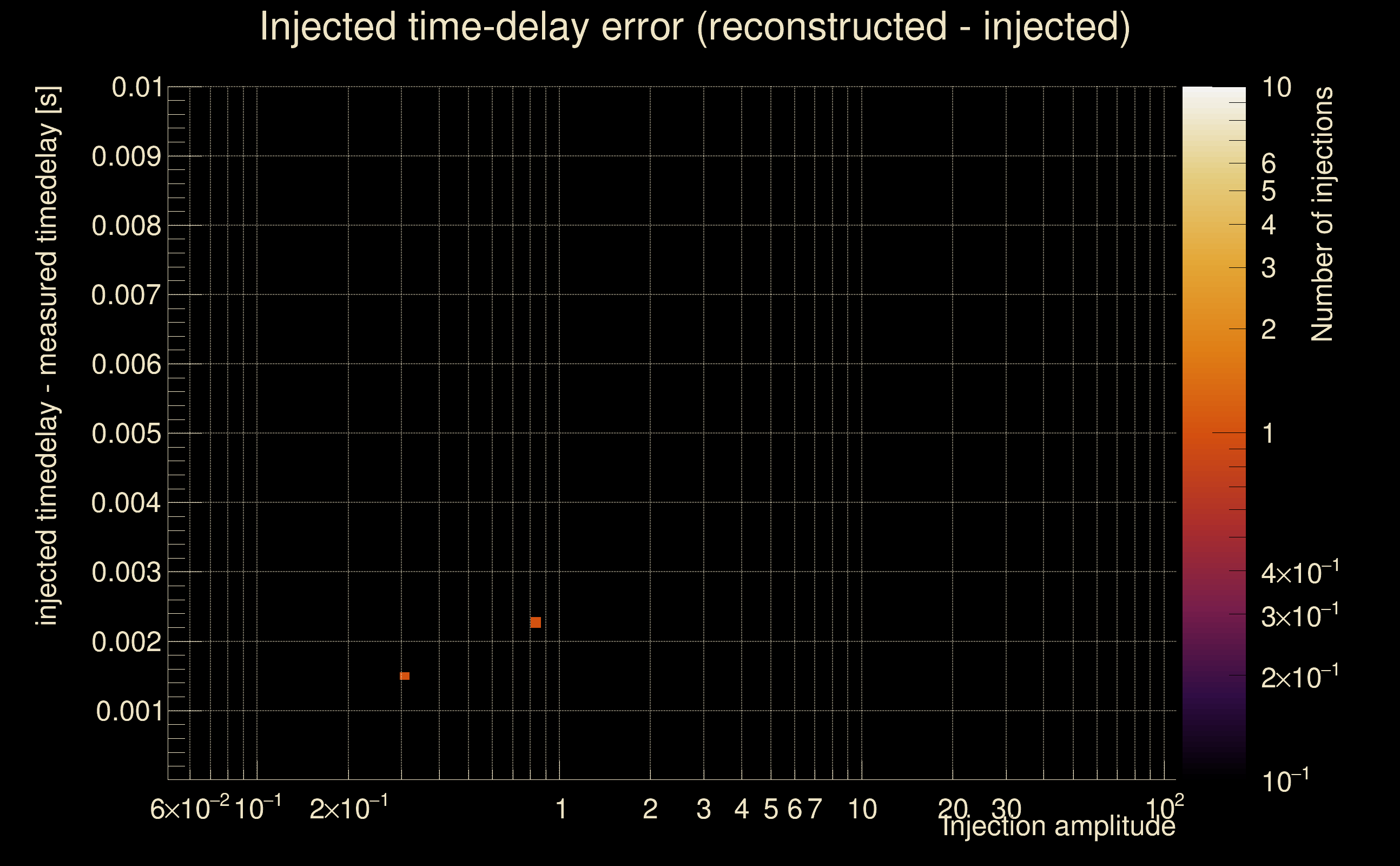

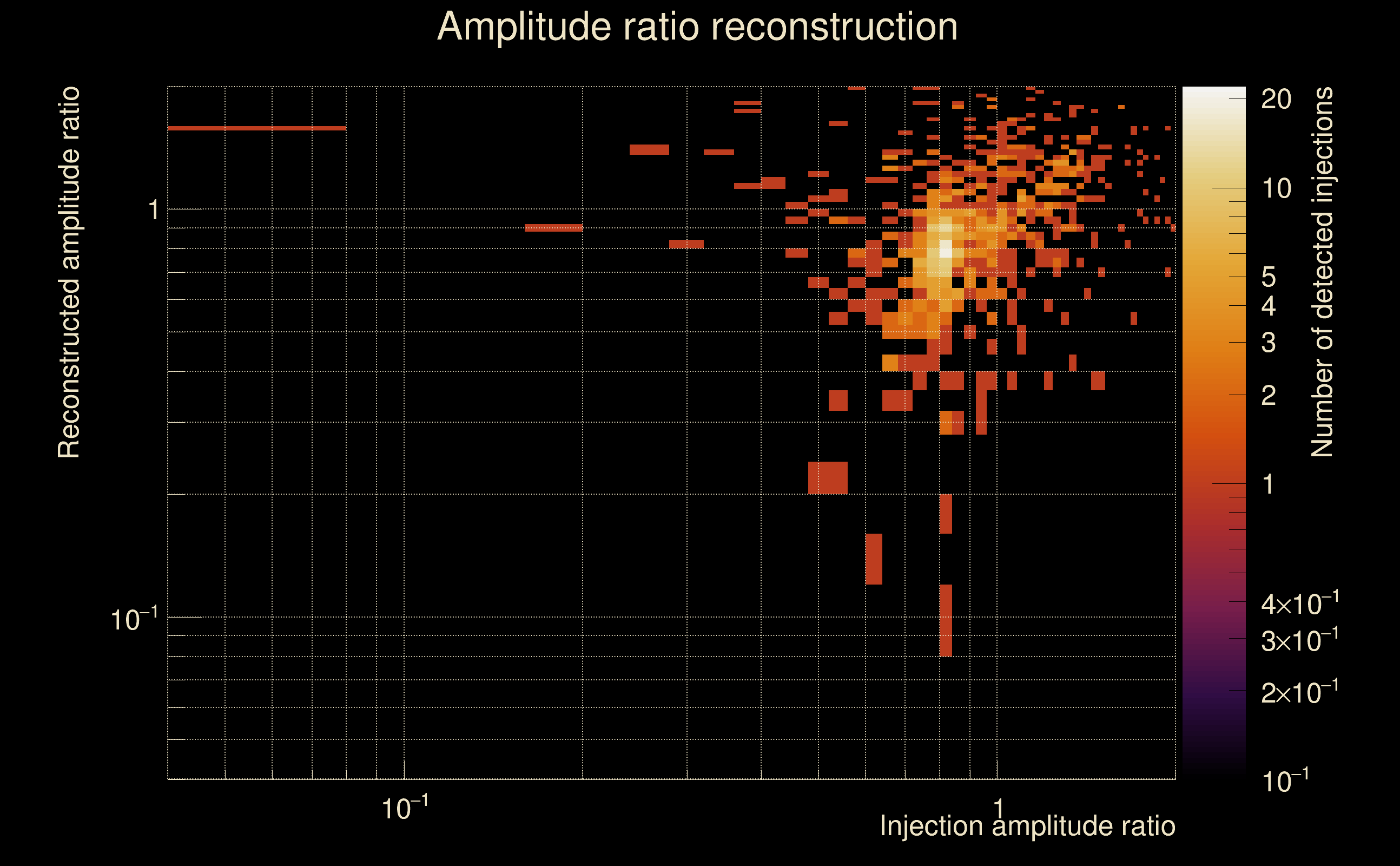

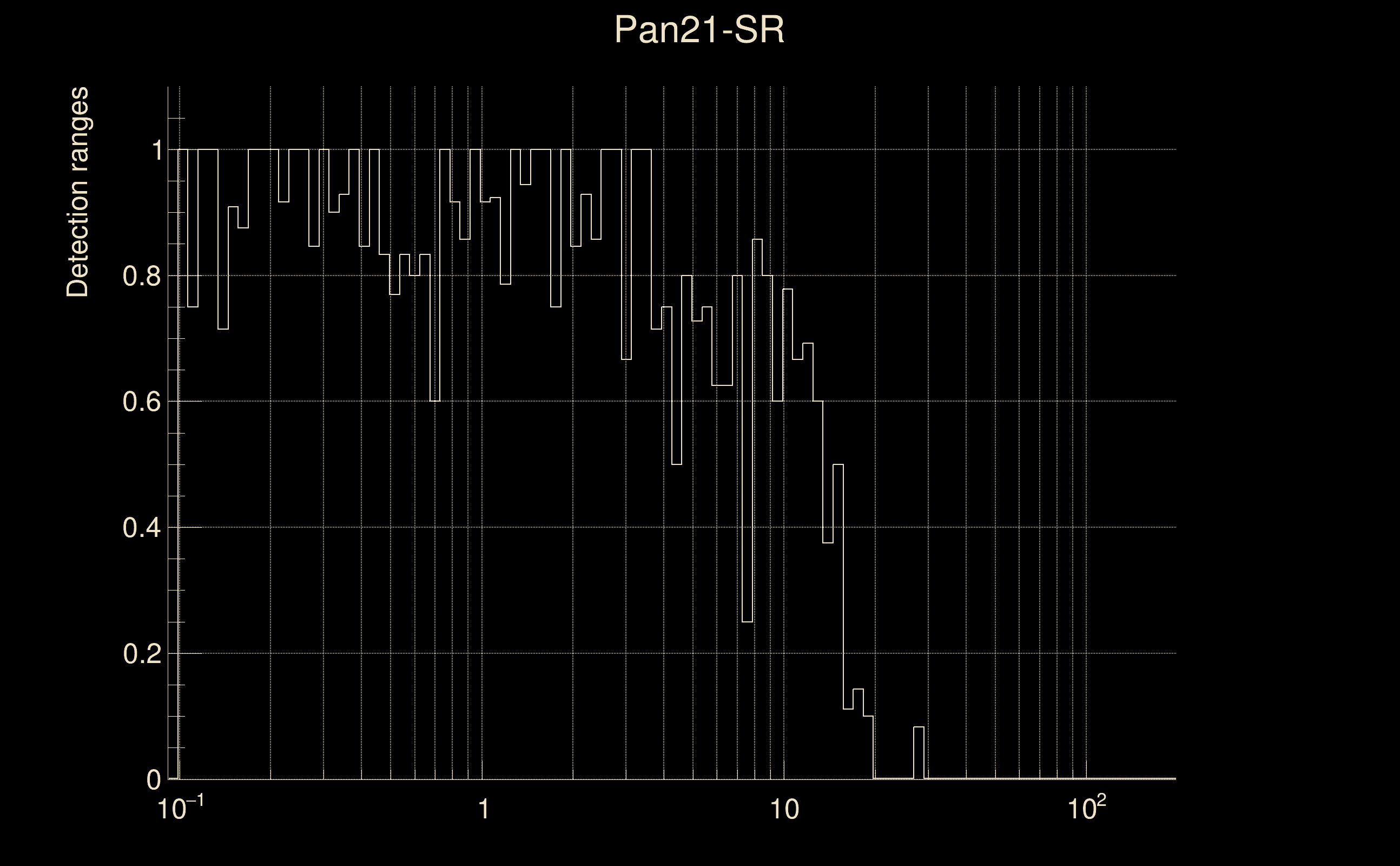

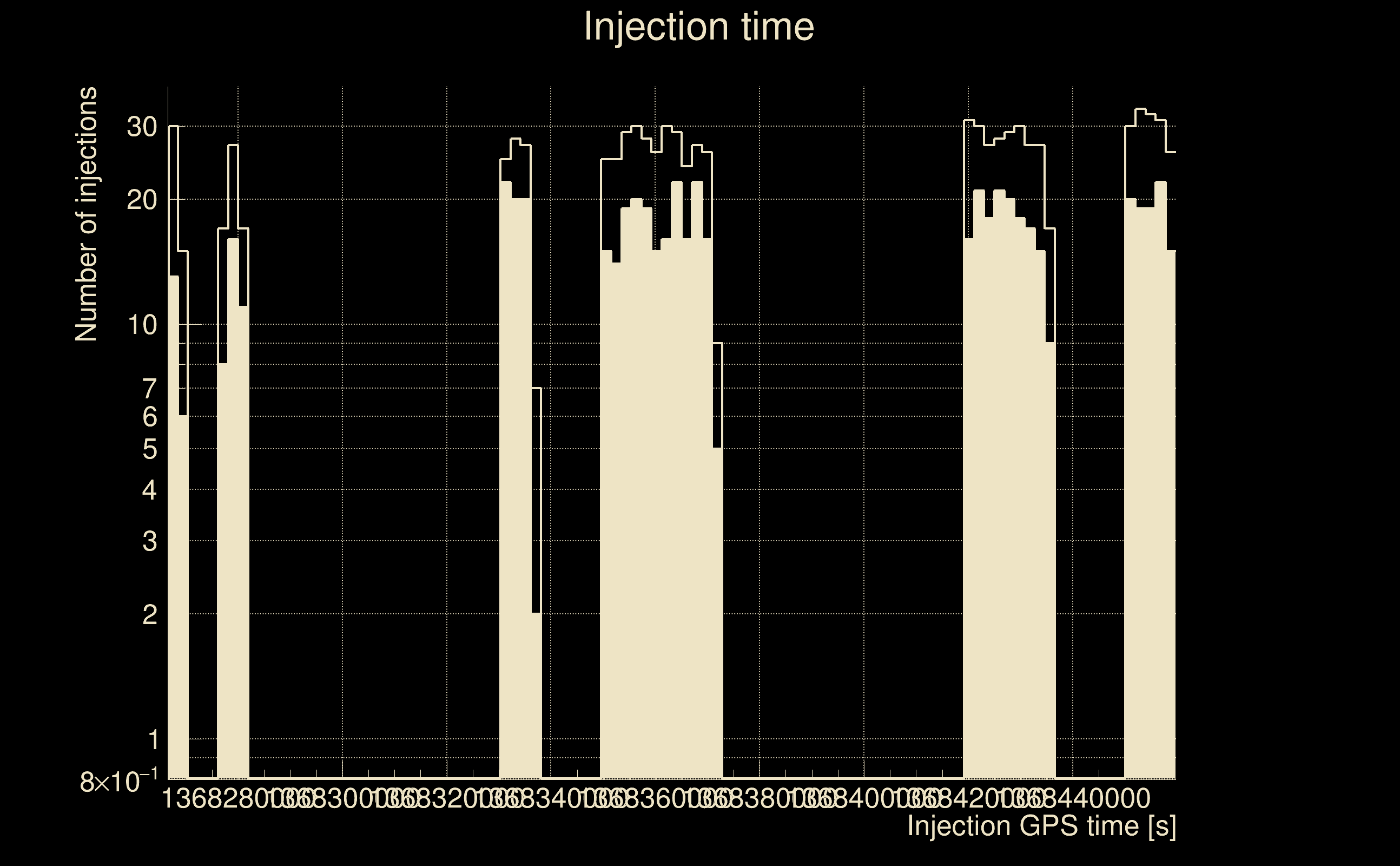

| Number of injections (total/valid/detected): | 1006 / 899 / 567 |
| List of missed injections: | ./Pan21-SR_missed.txt |

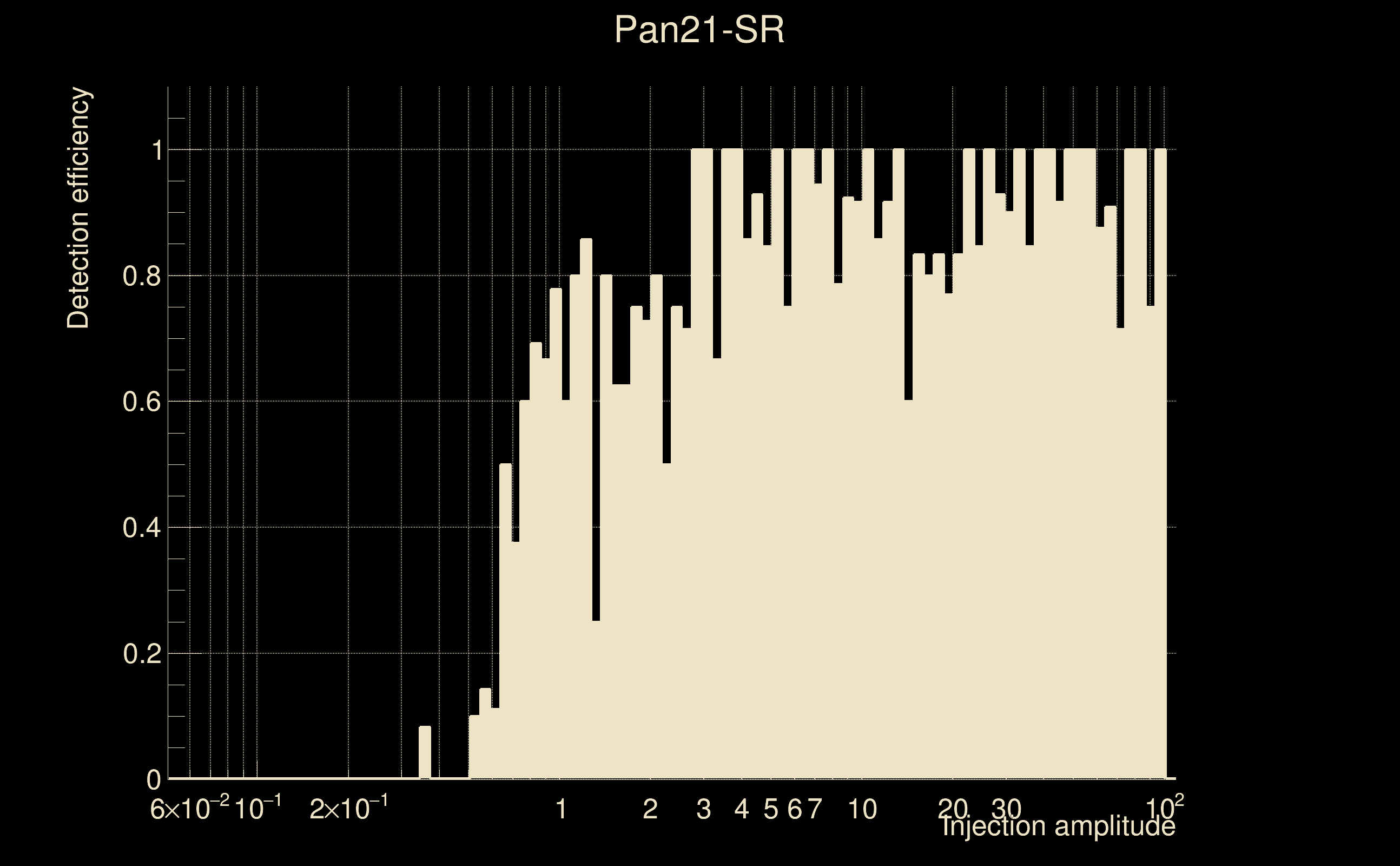

| Injection amplitude at 90% detection efficiency: | 2.77609 |
| Injection amplitude at 50% detection efficiency: | 1.37032 |
| Injection amplitude at 10% detection efficiency: | 0.526241 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

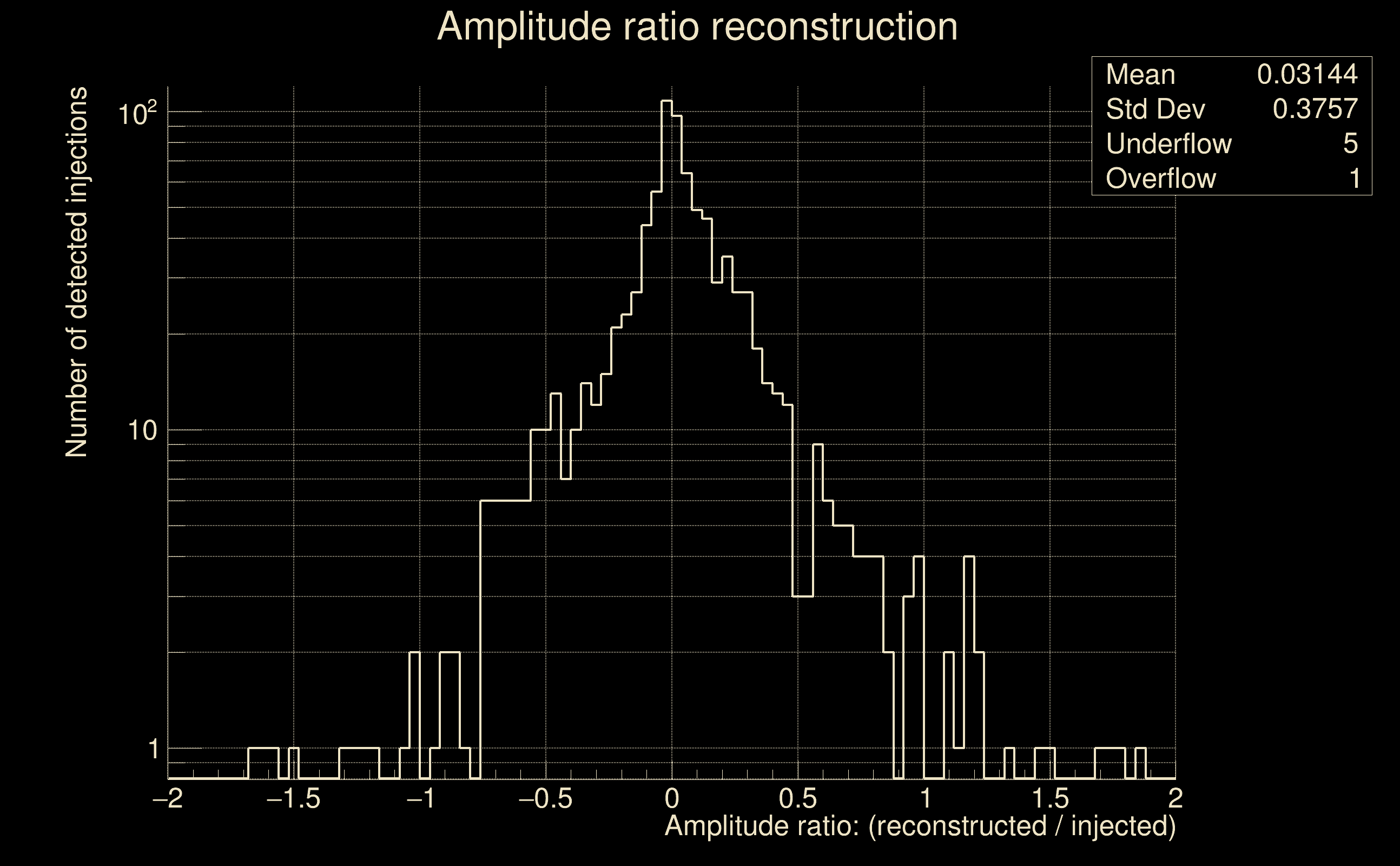

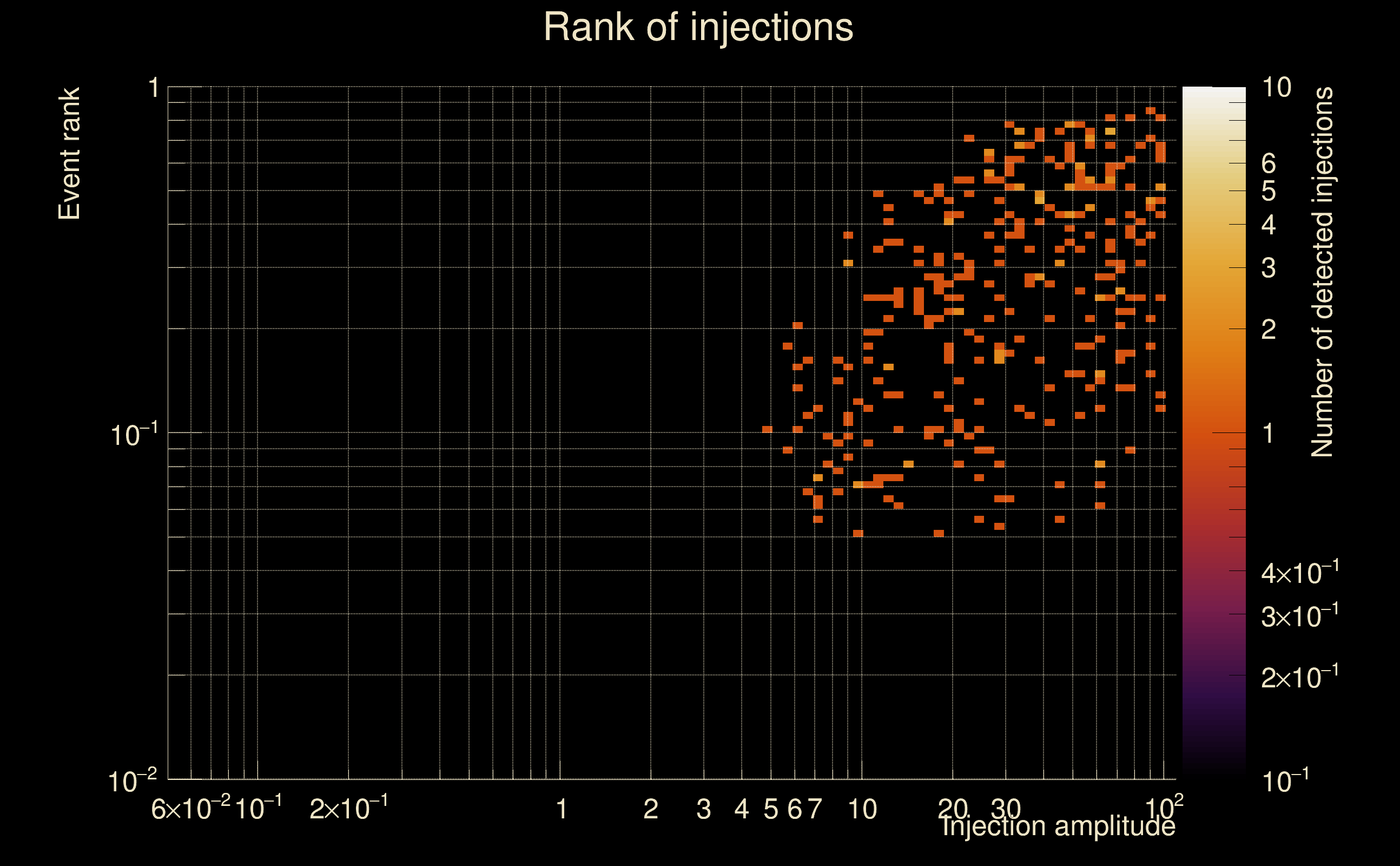

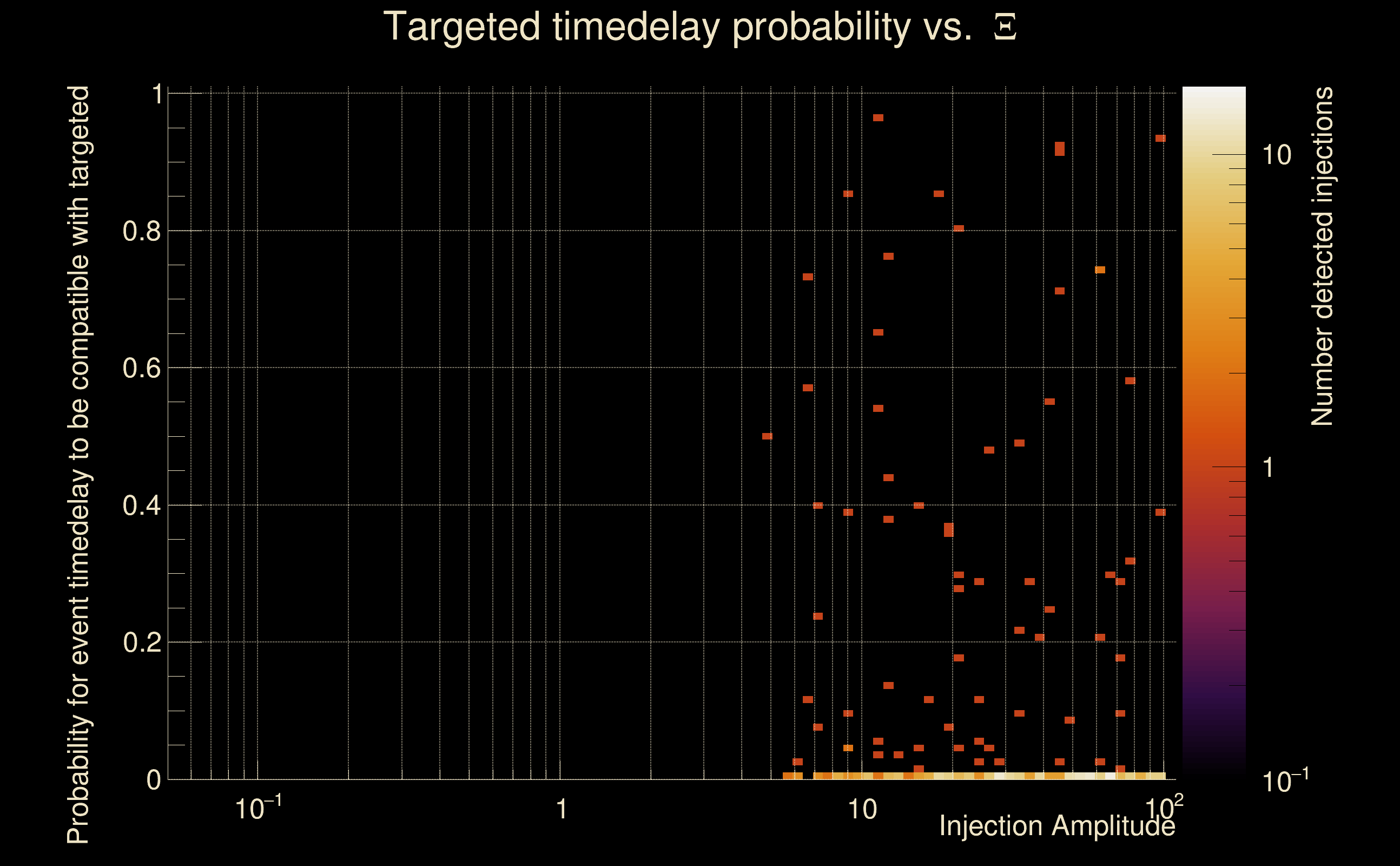

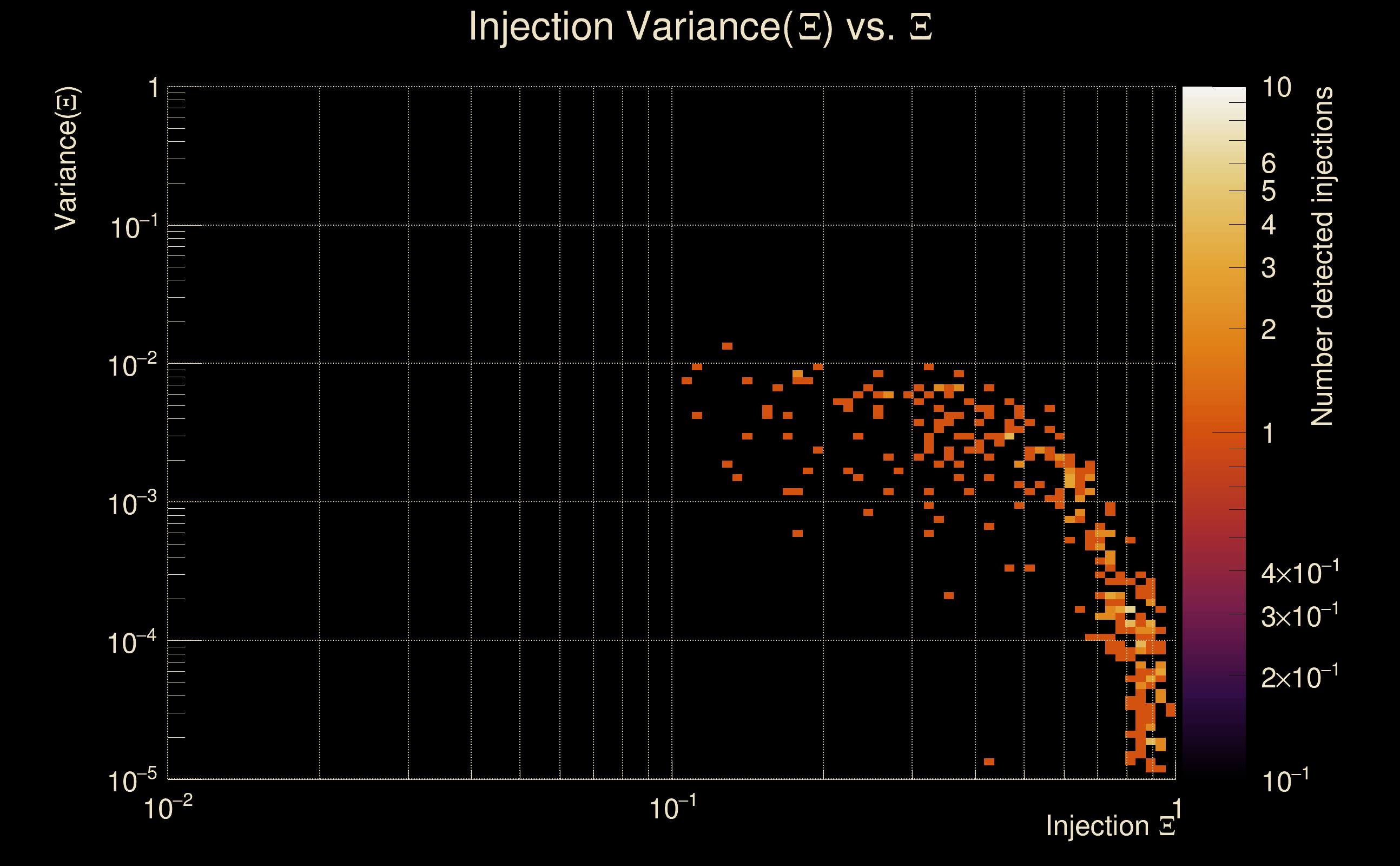

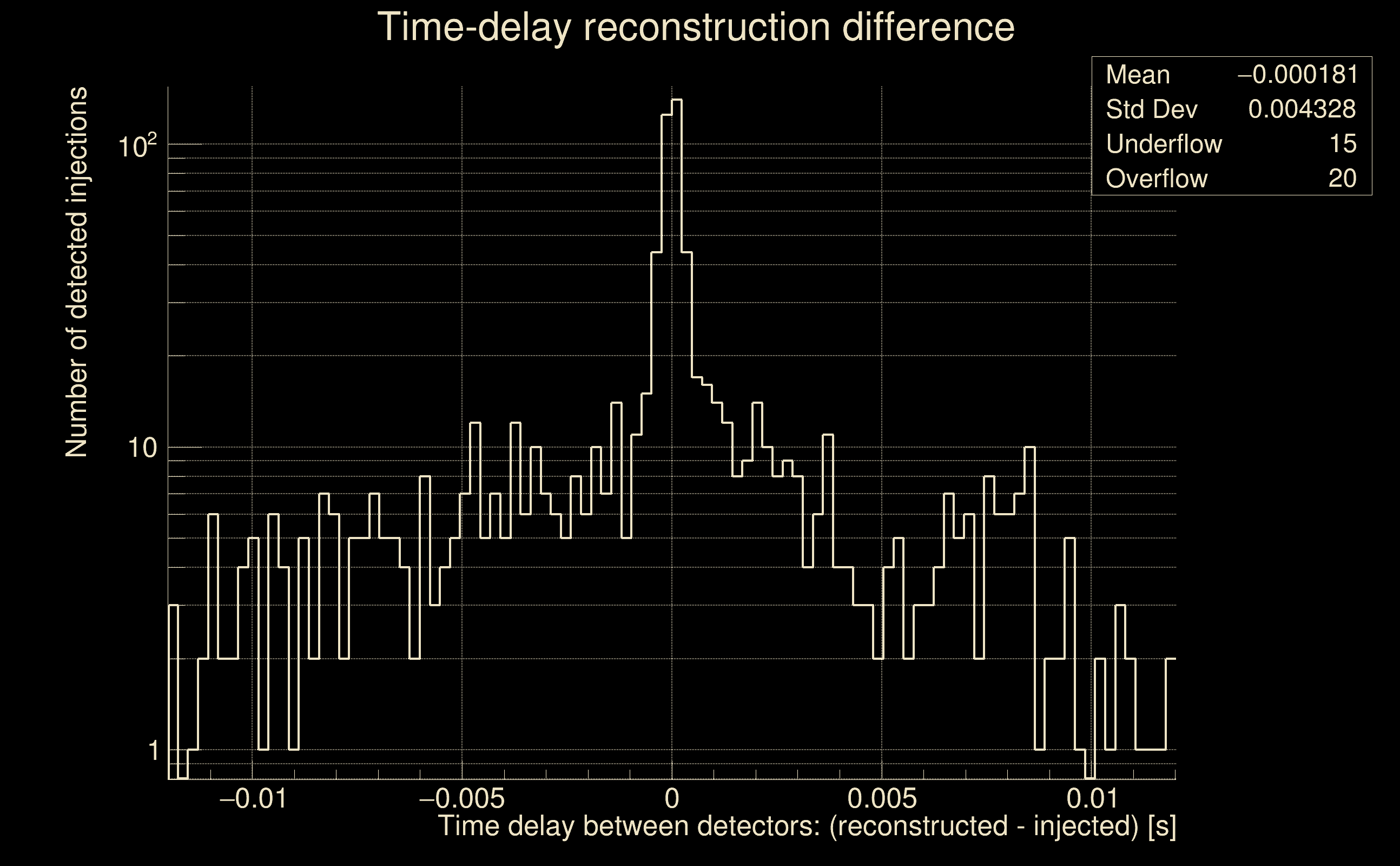

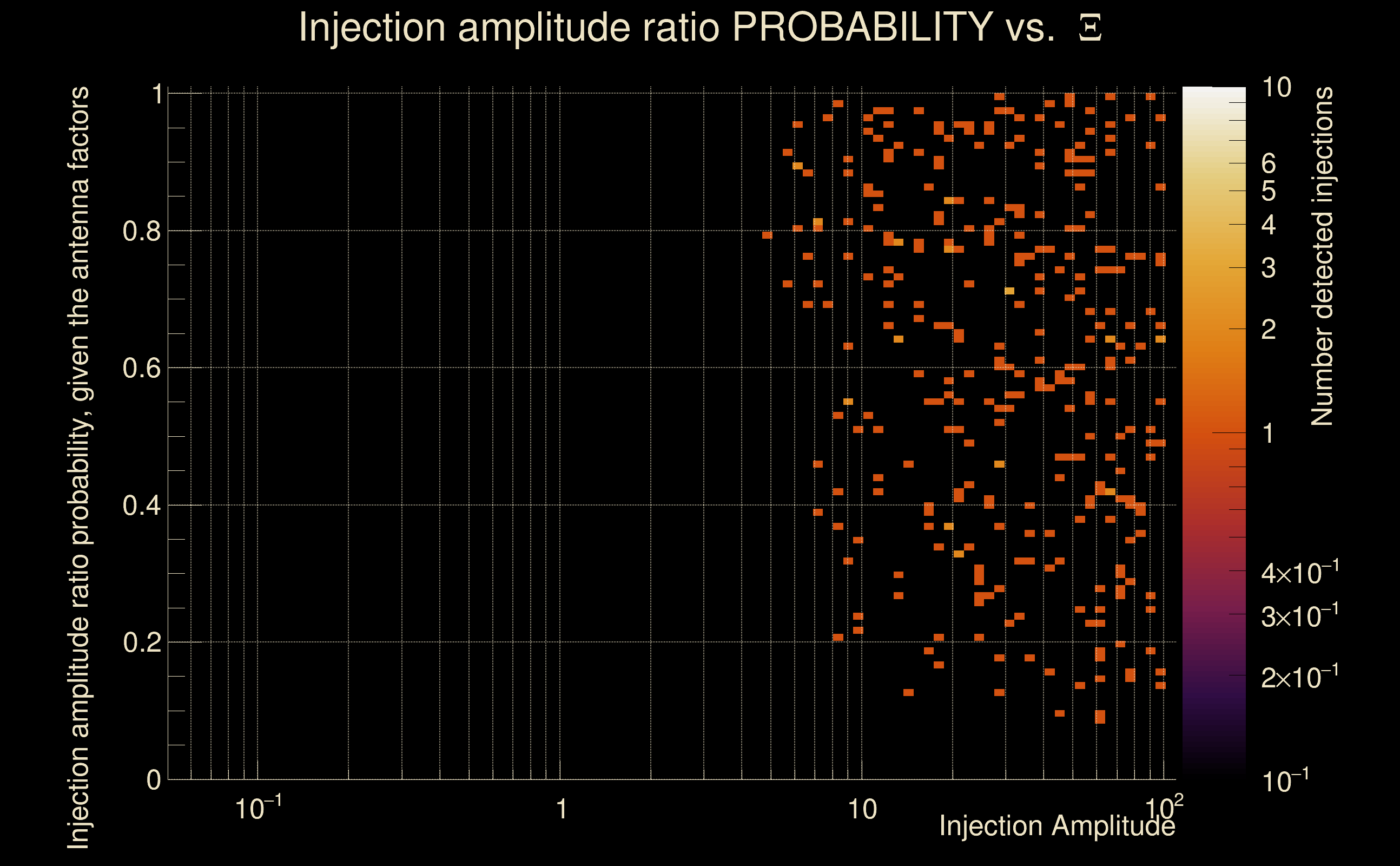

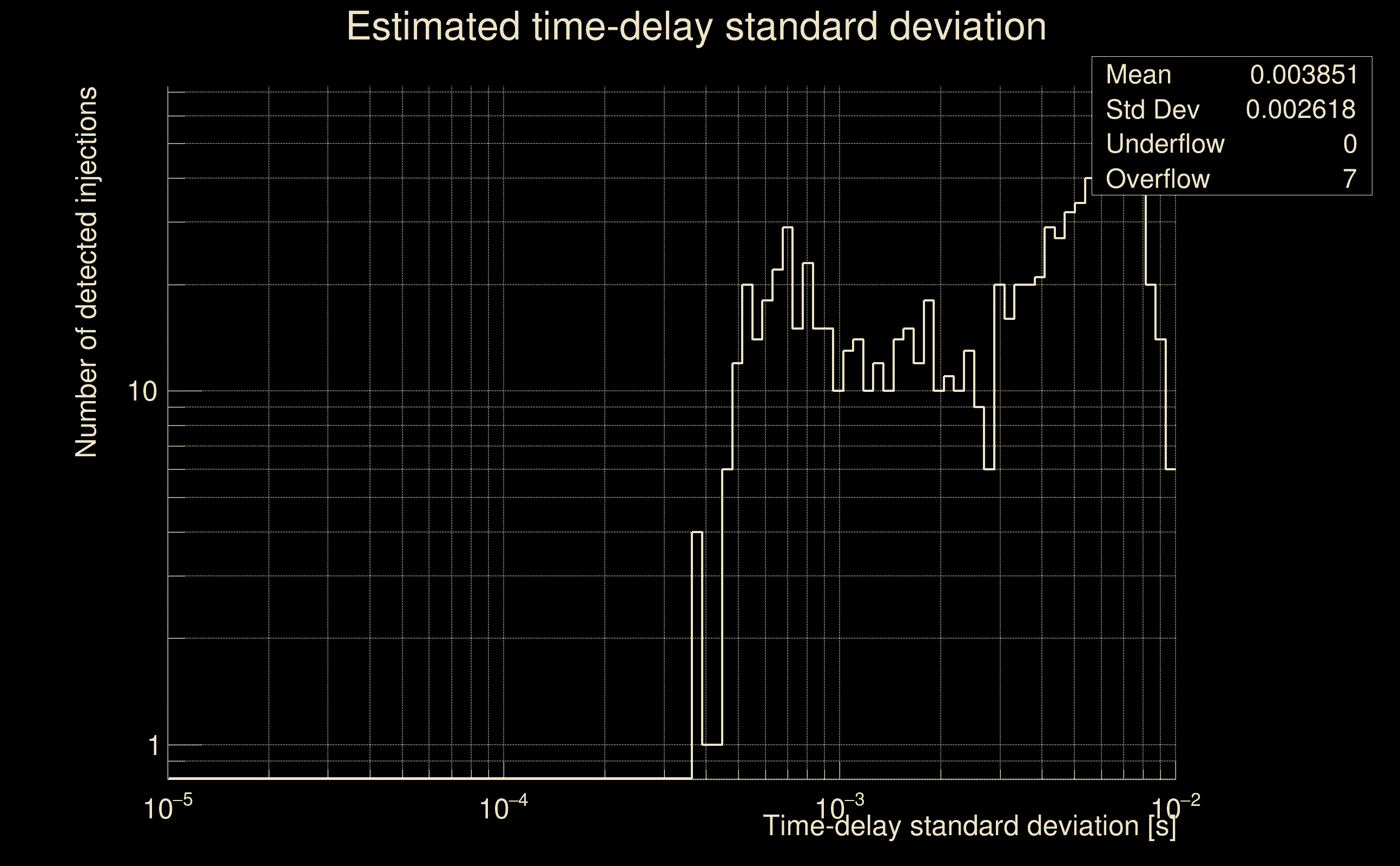

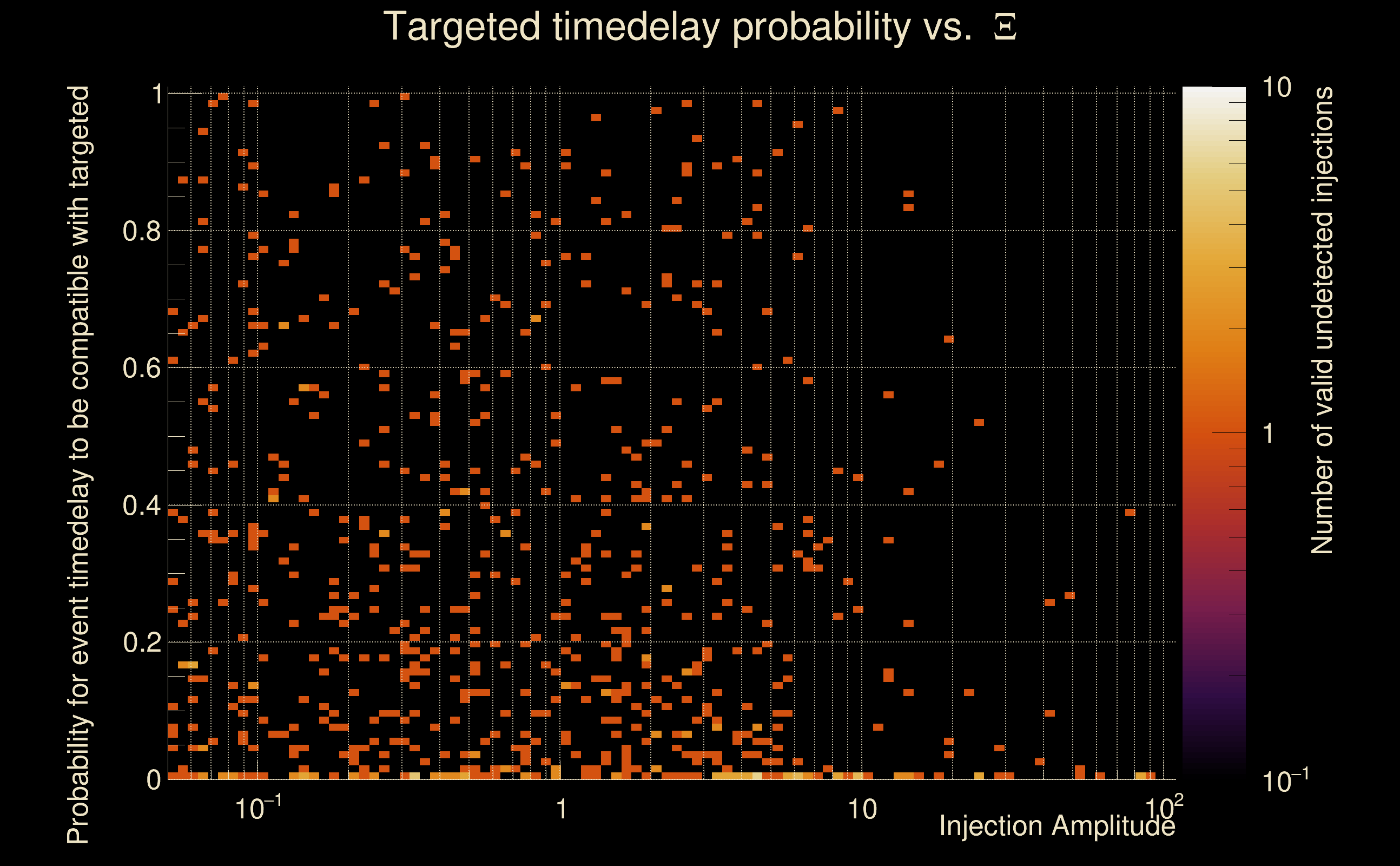

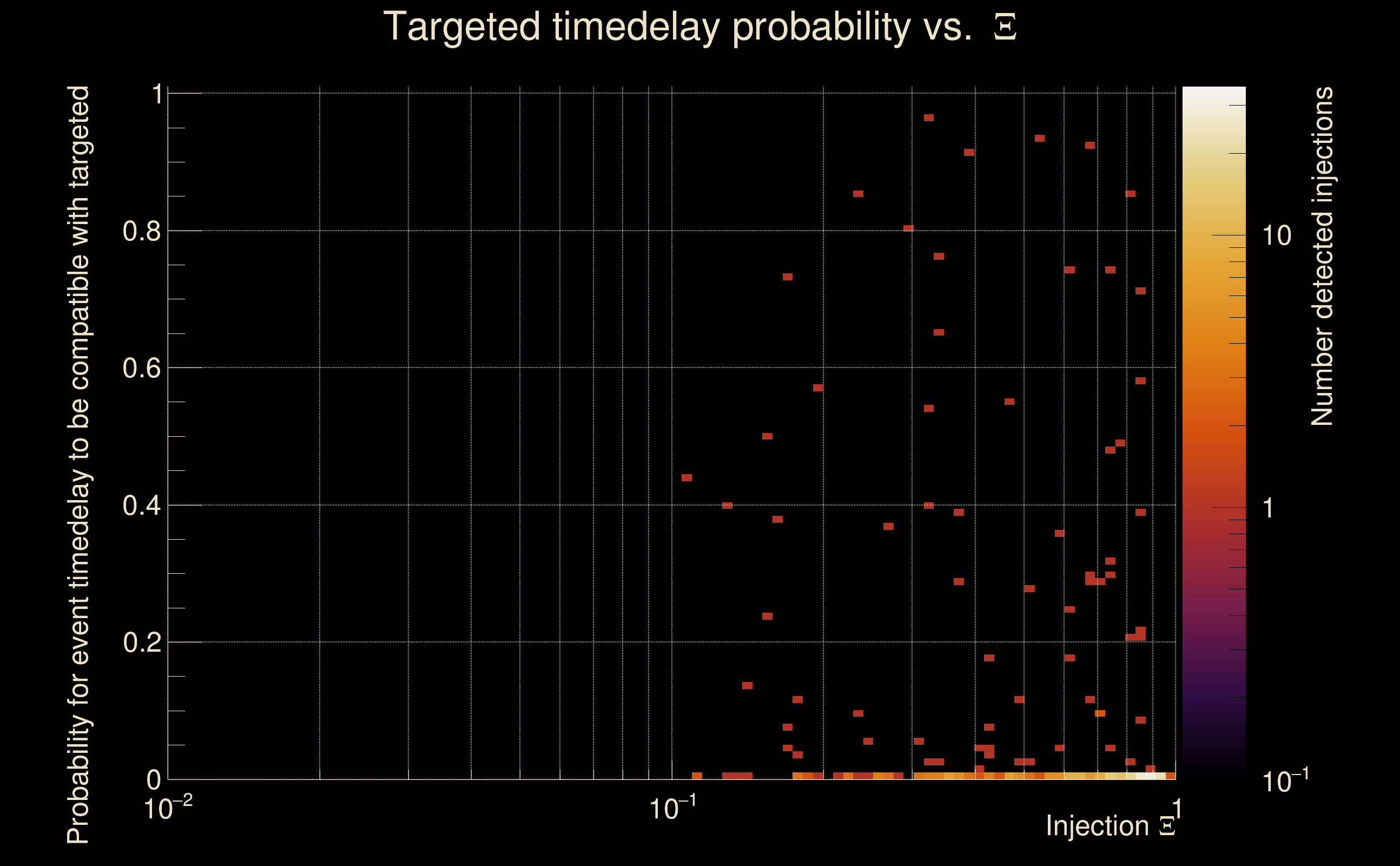

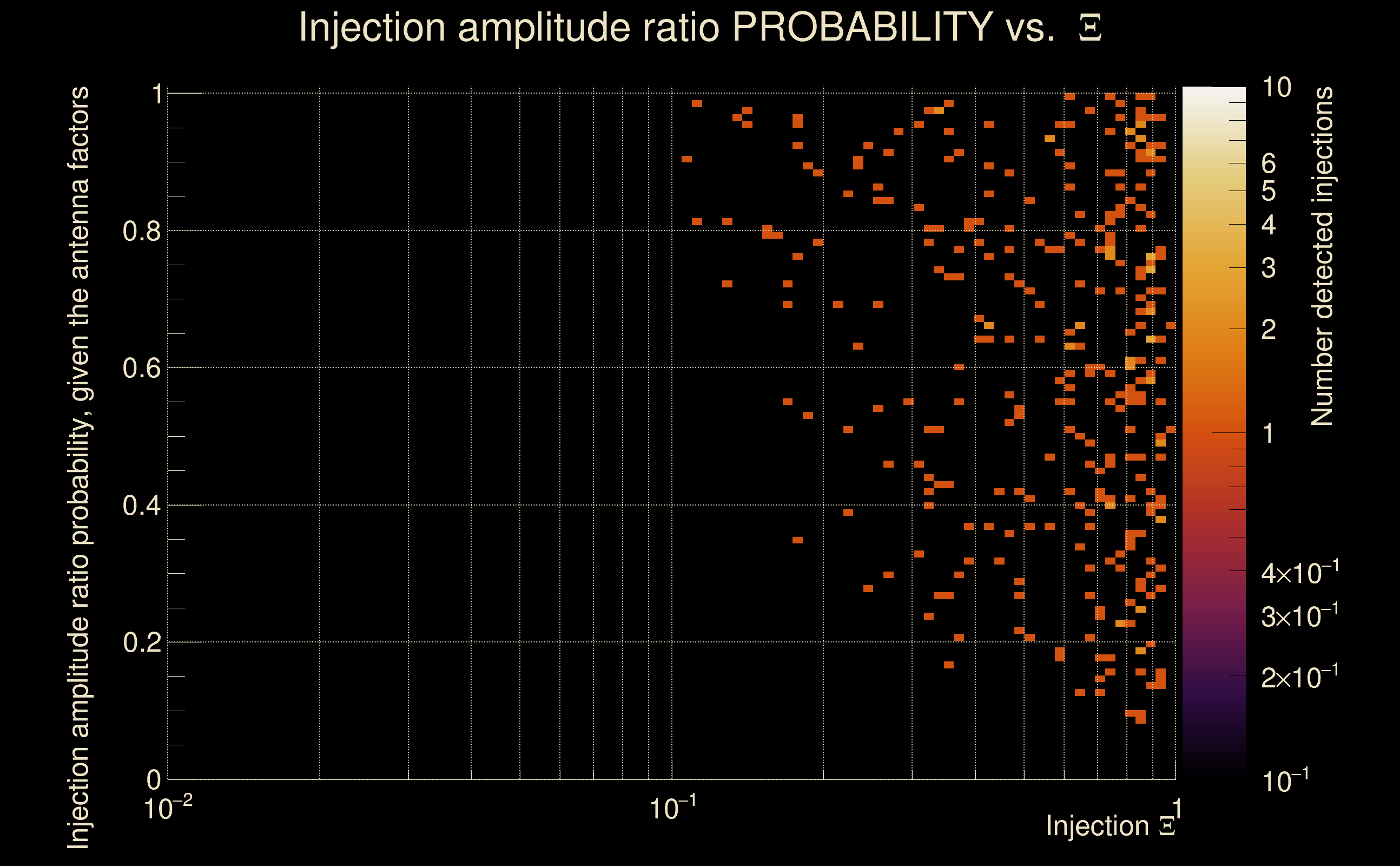

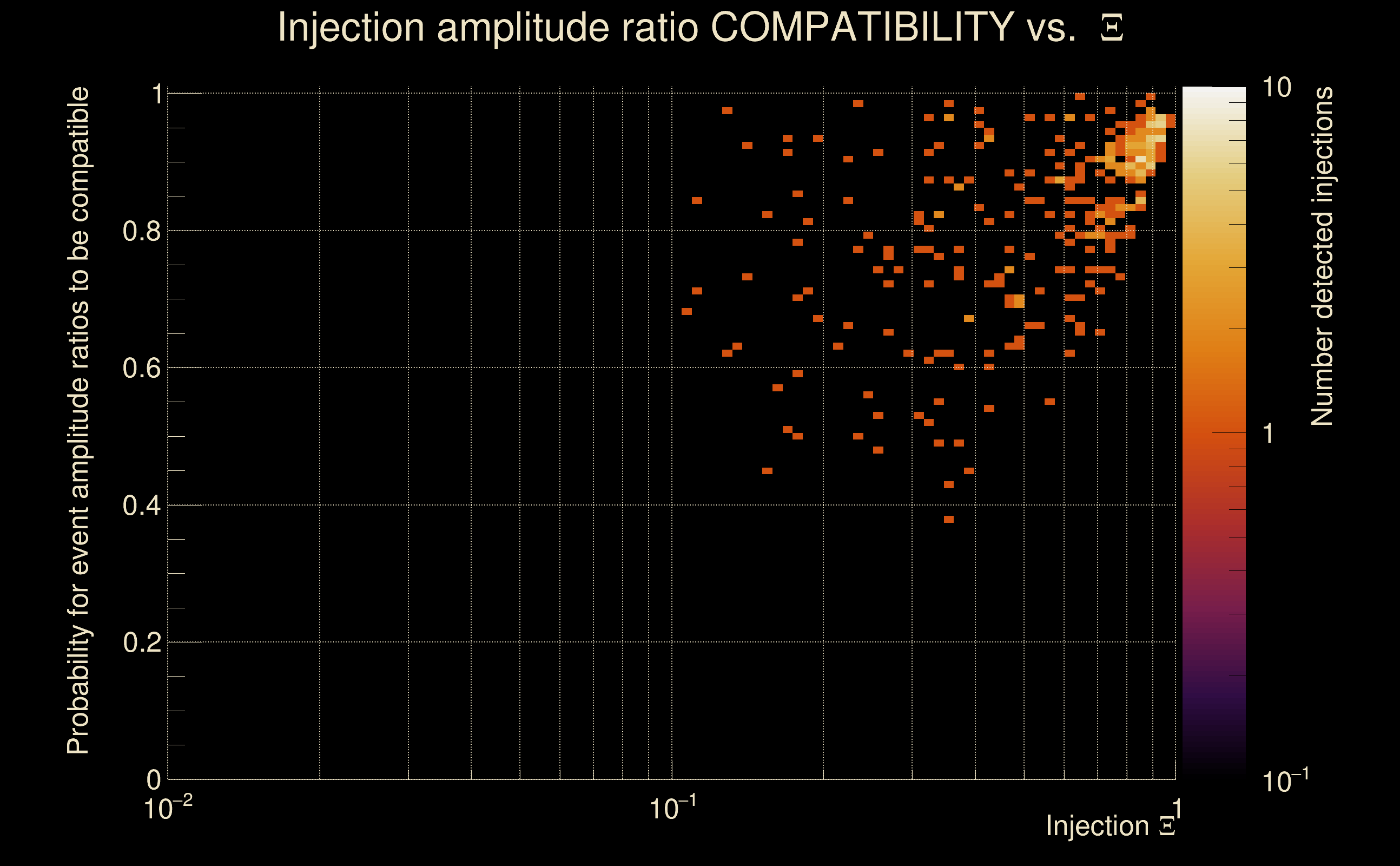

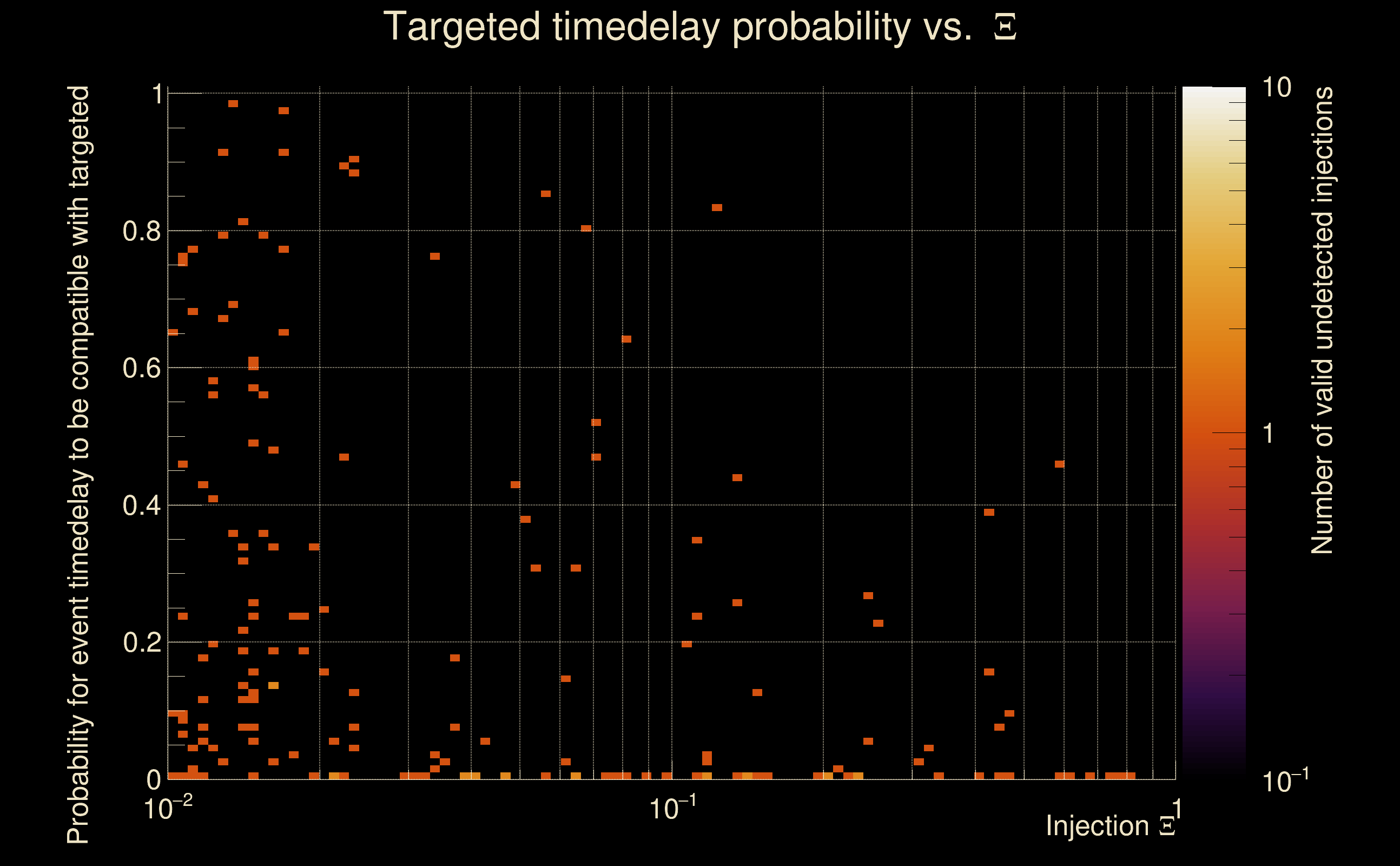

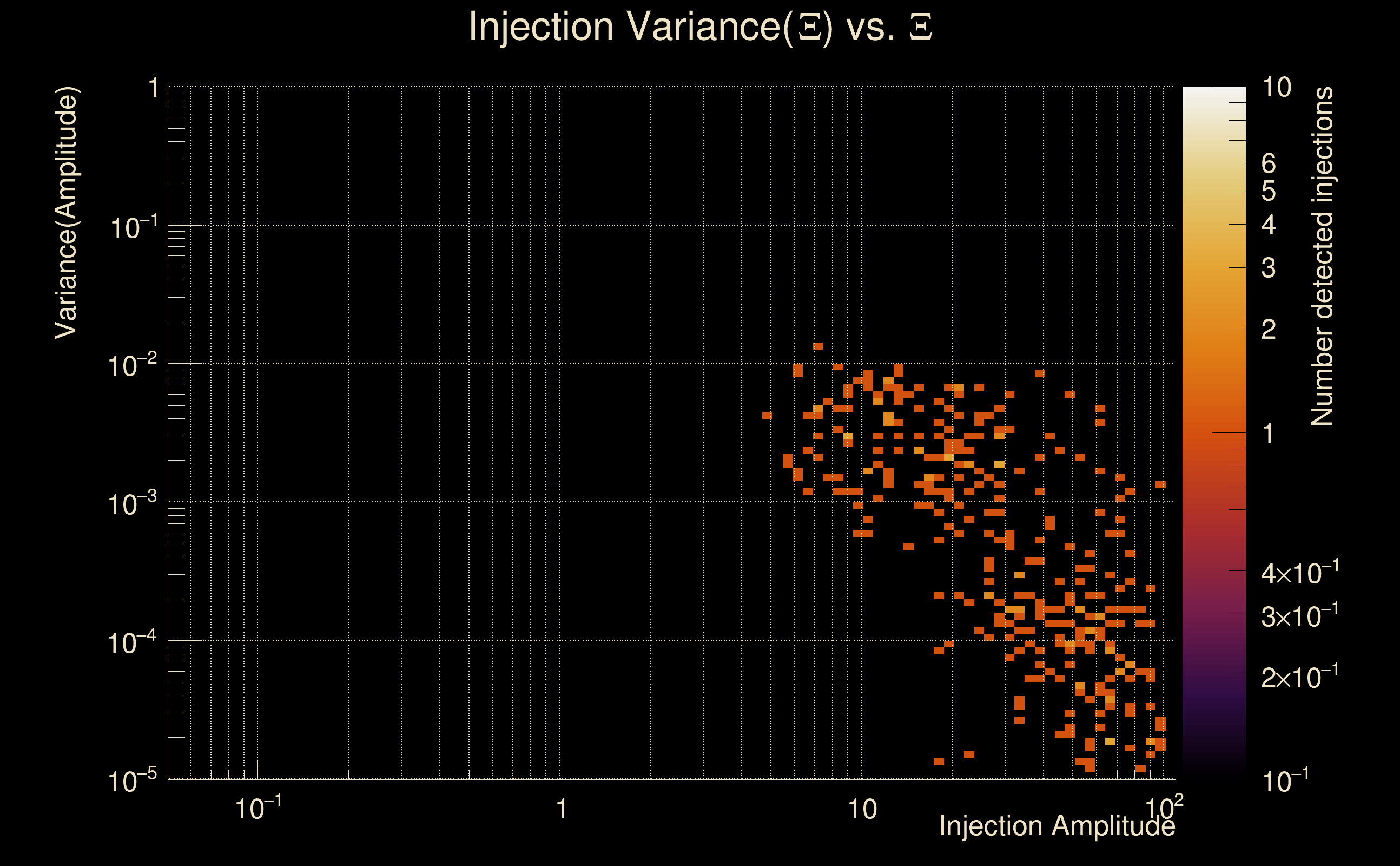

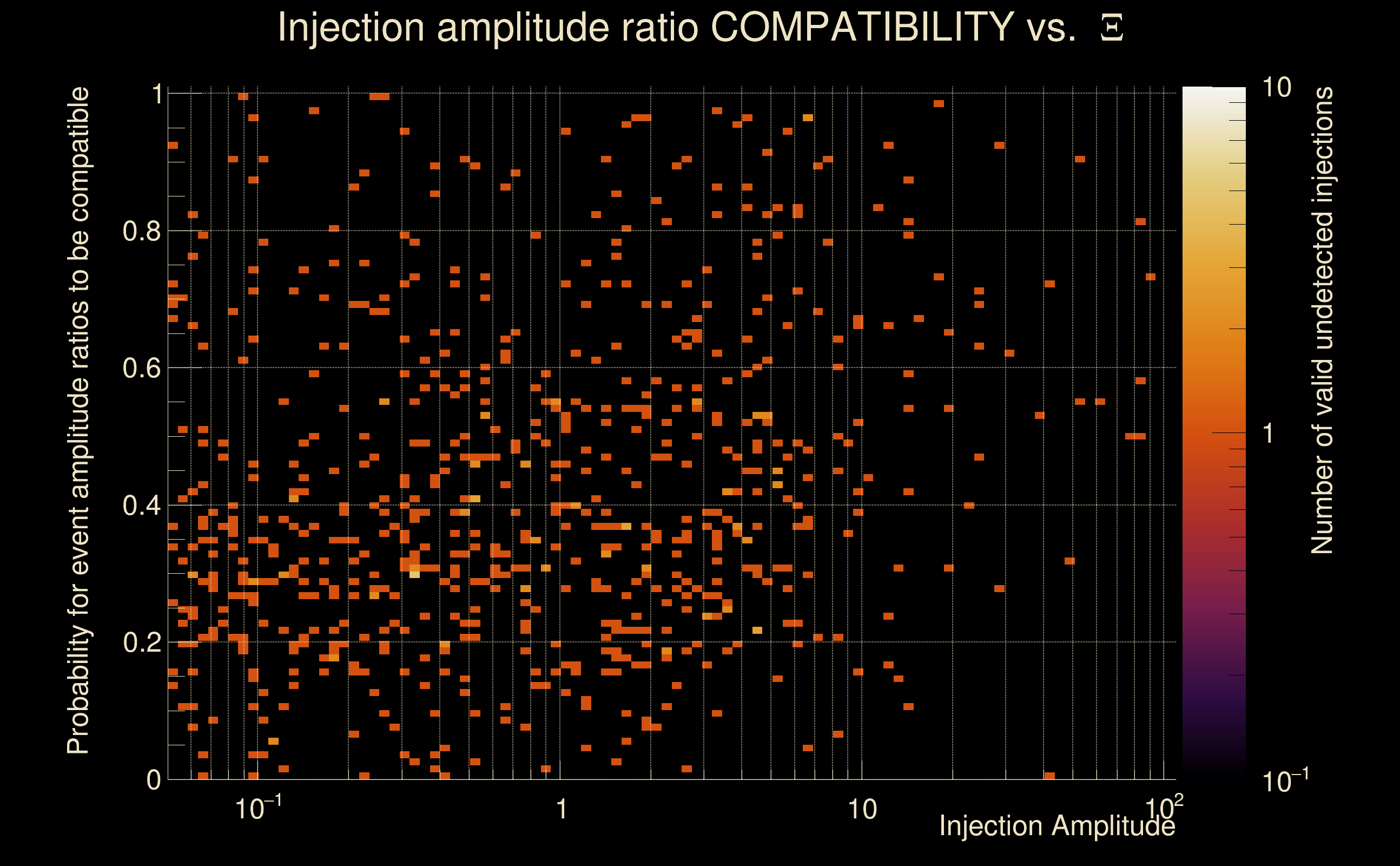

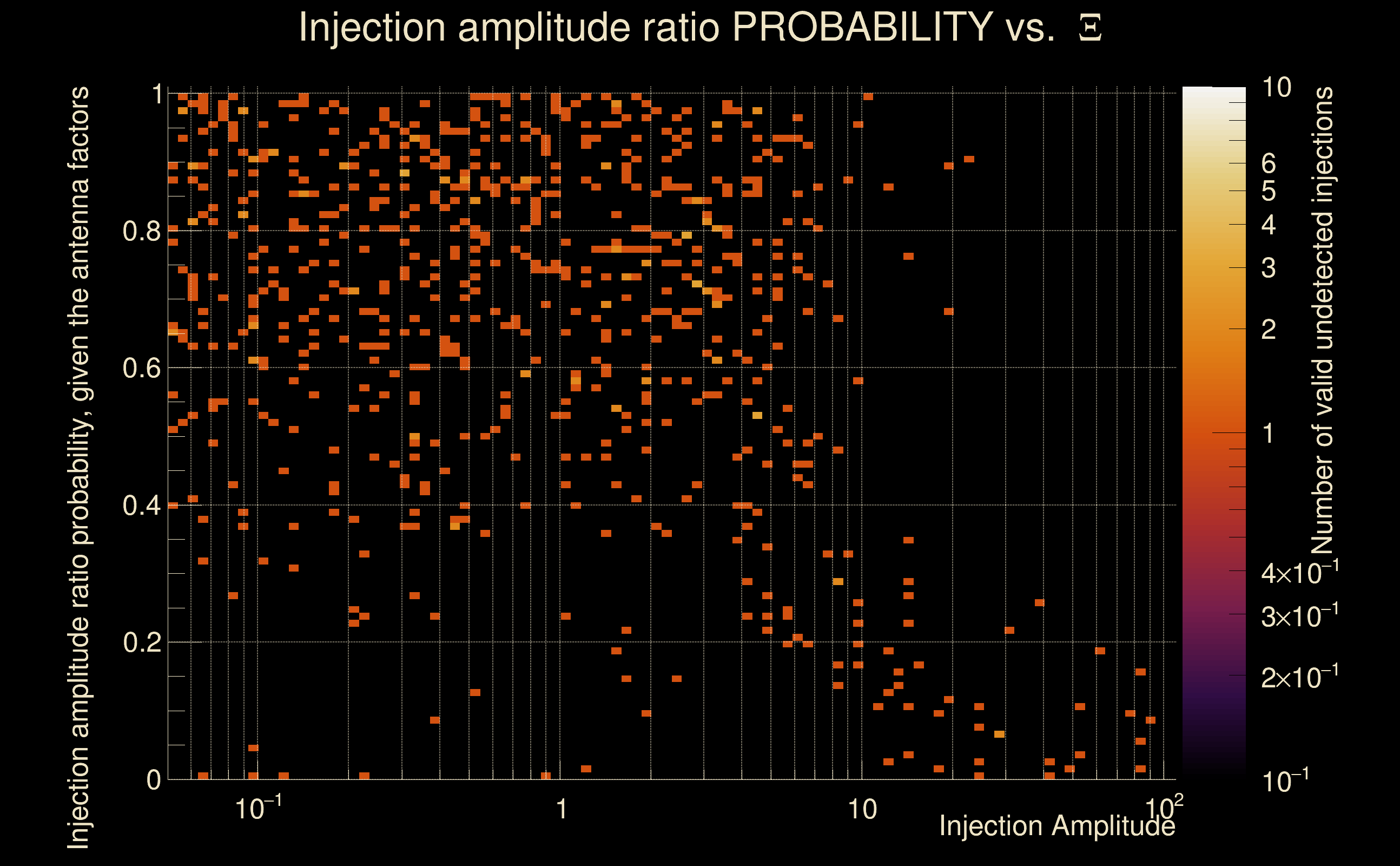

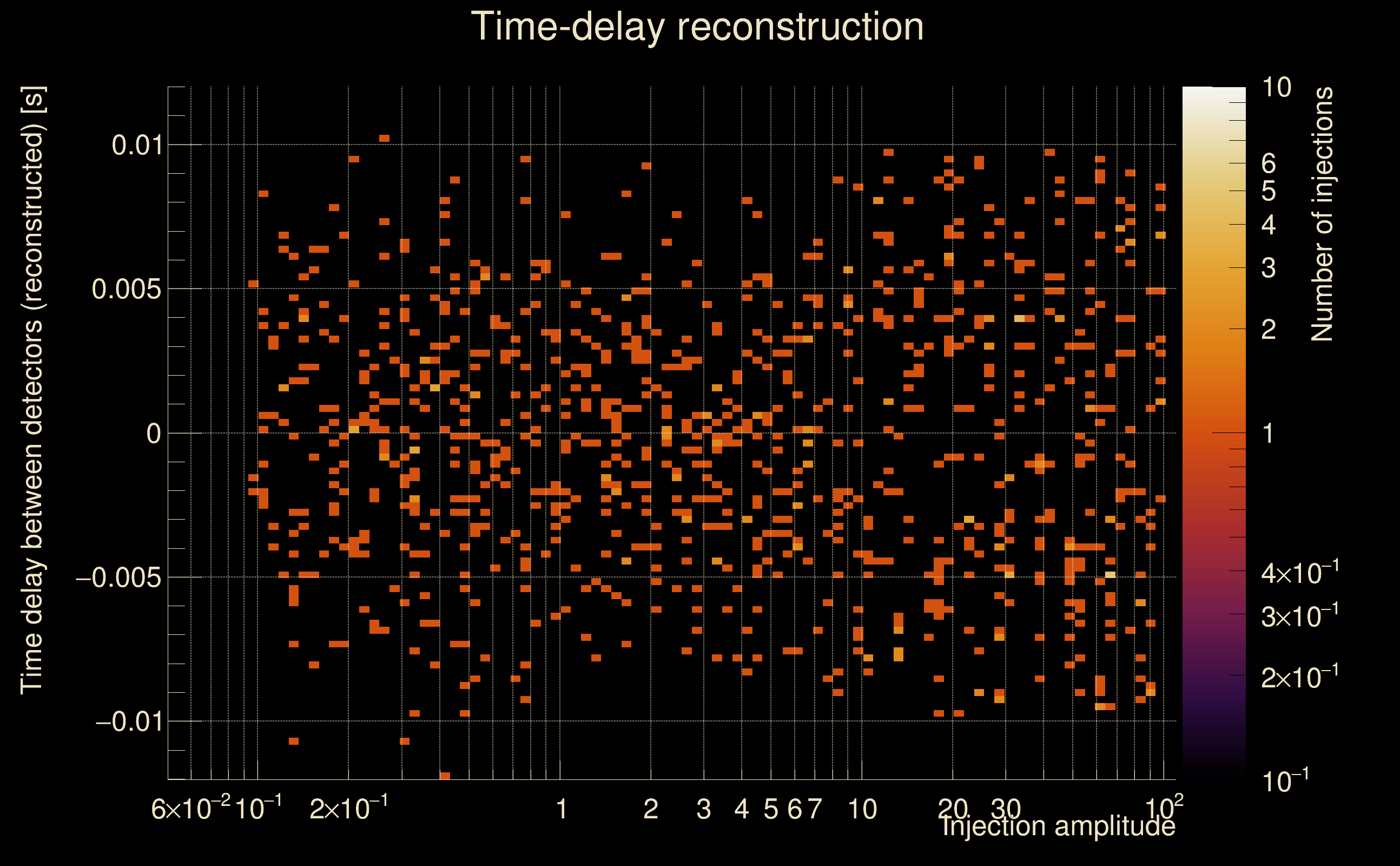

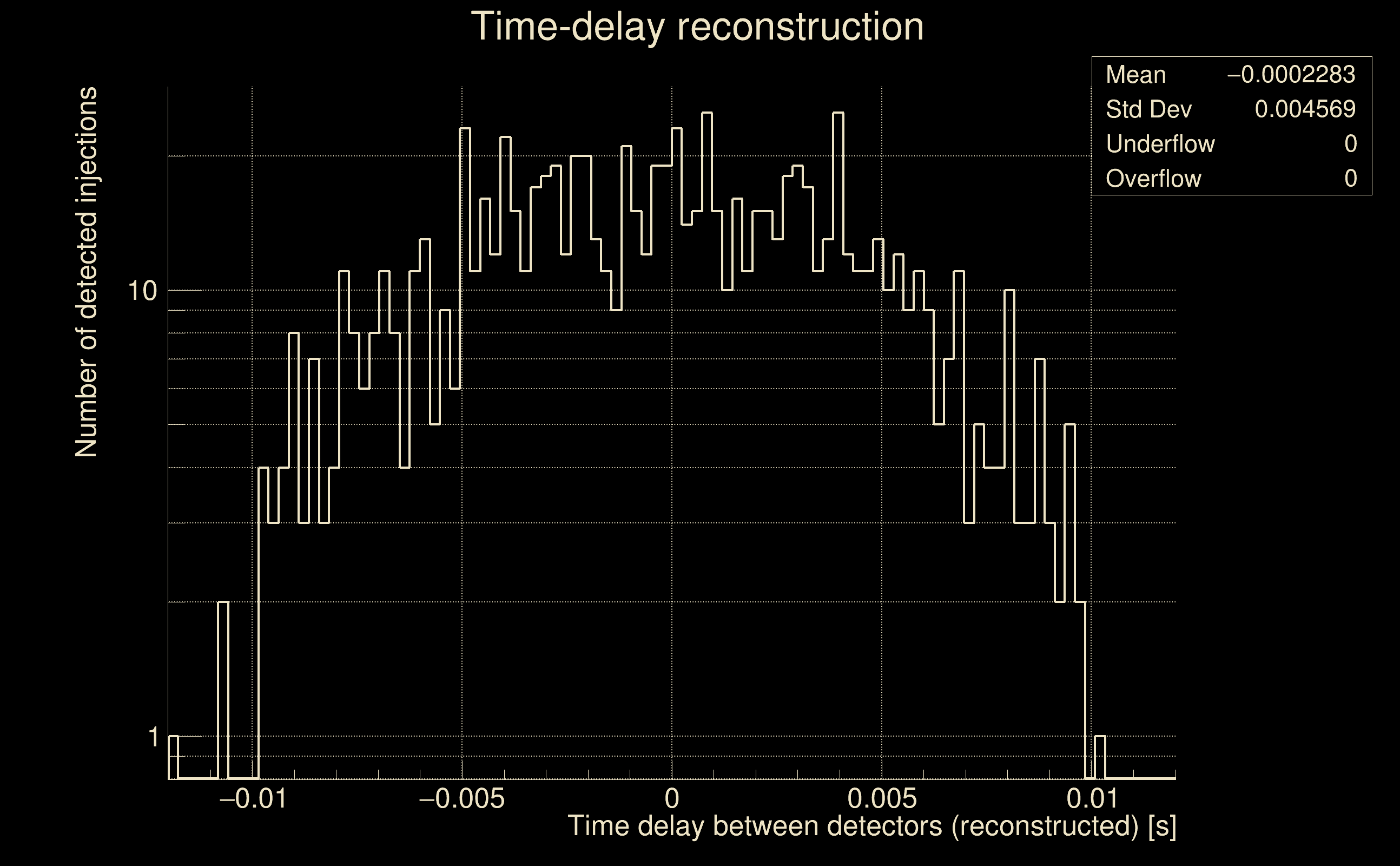

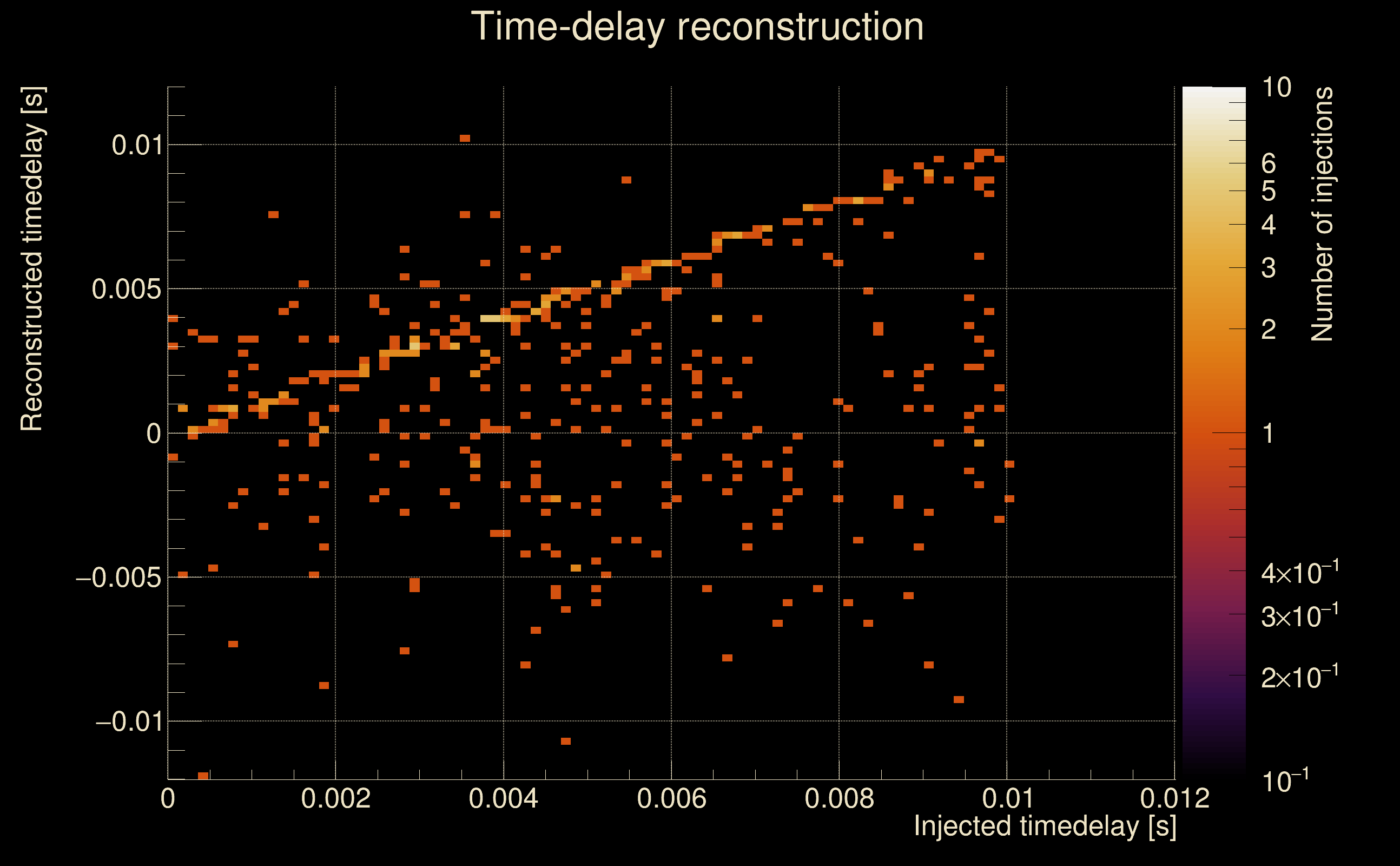

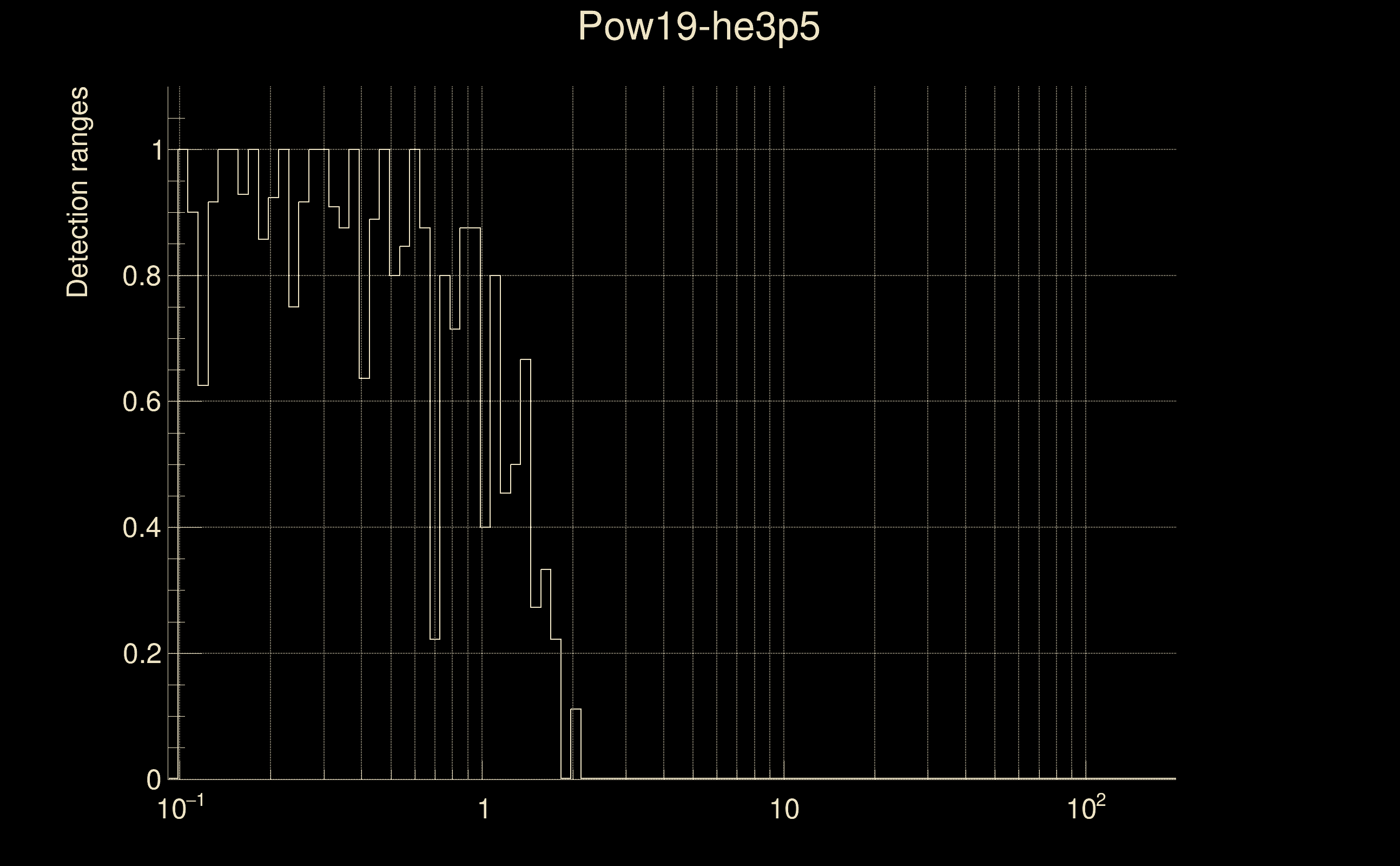

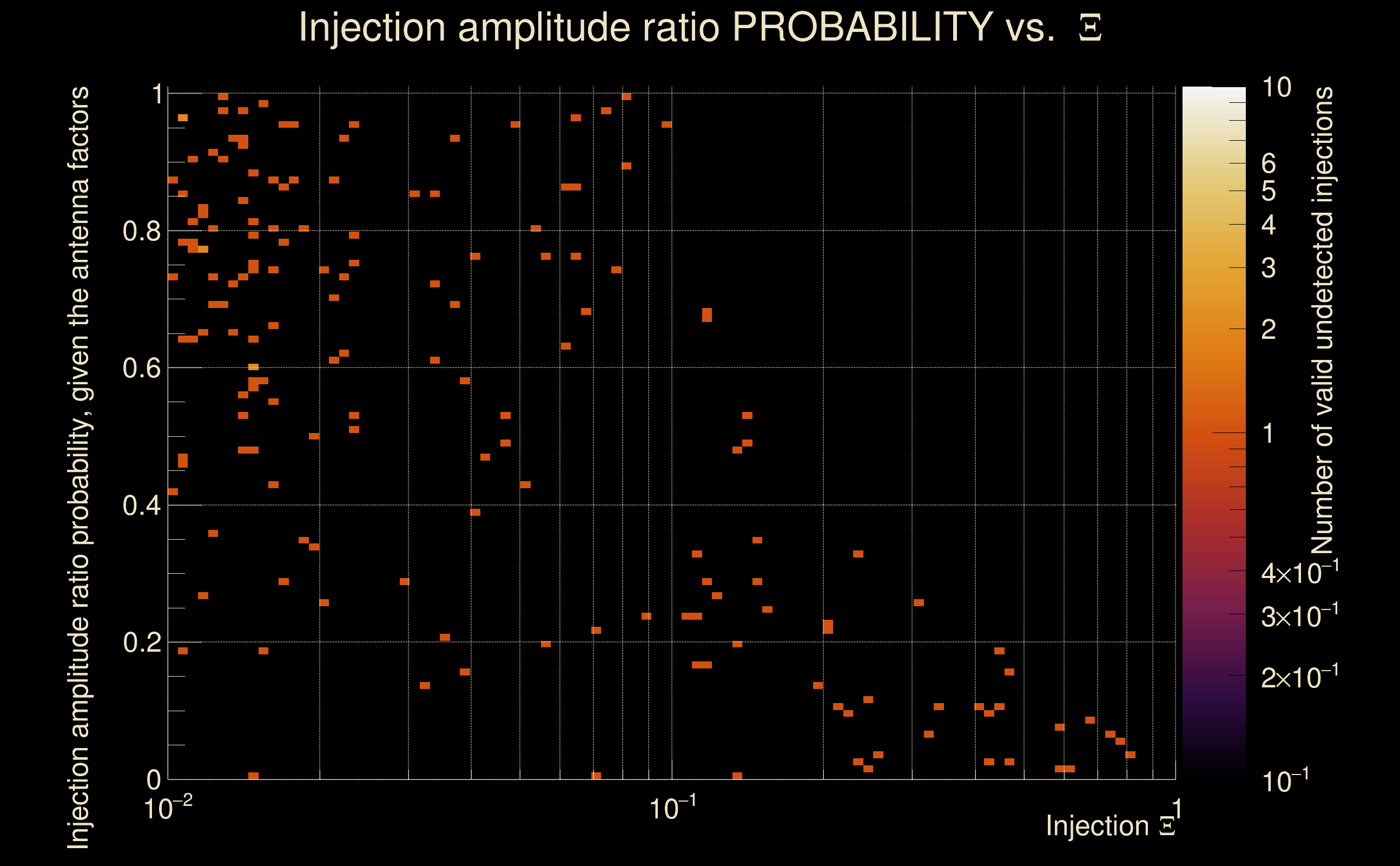

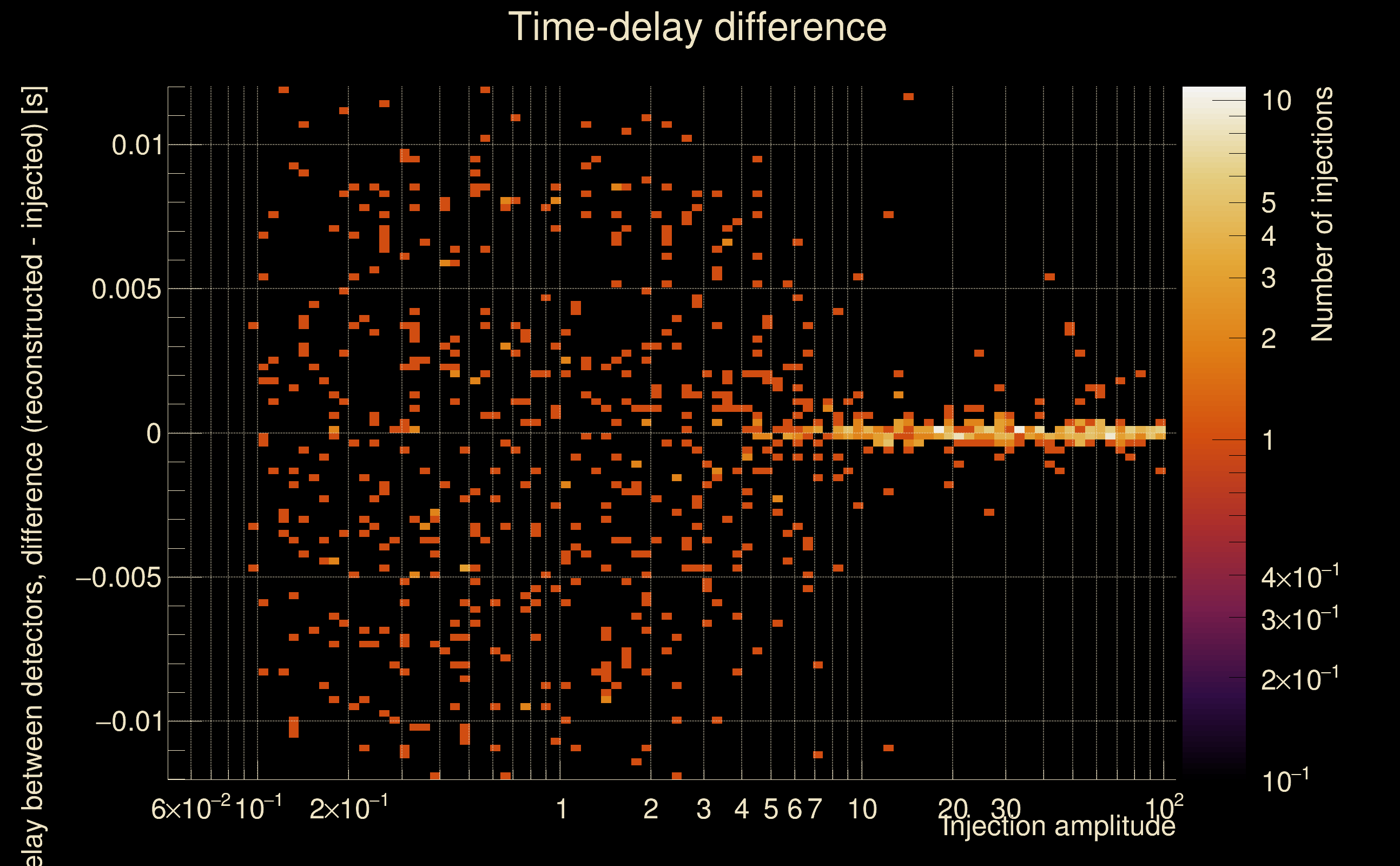

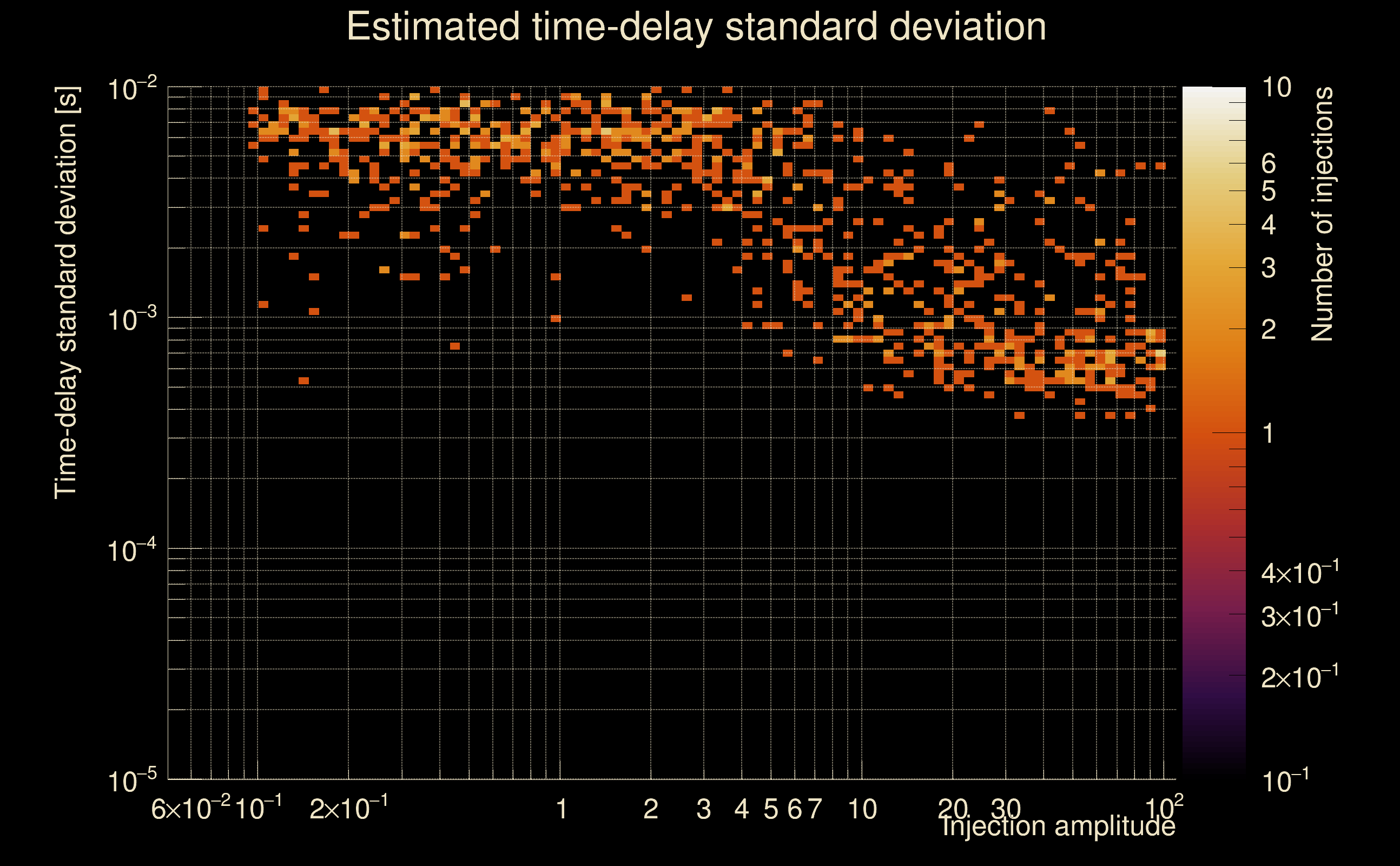

| Number of injections (total/valid/detected): | 1042 / 922 / 319 |
| List of missed injections: | ./Pow19-he3p5_missed.txt |
| Injection amplitude at 90% detection efficiency: | 15.6902 |
| Injection amplitude at 50% detection efficiency: | 14.7871 |
| Injection amplitude at 10% detection efficiency: | 5.45465 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
