| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:41:57 2026 UTC |
| Ox option file: | Ixf5_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |

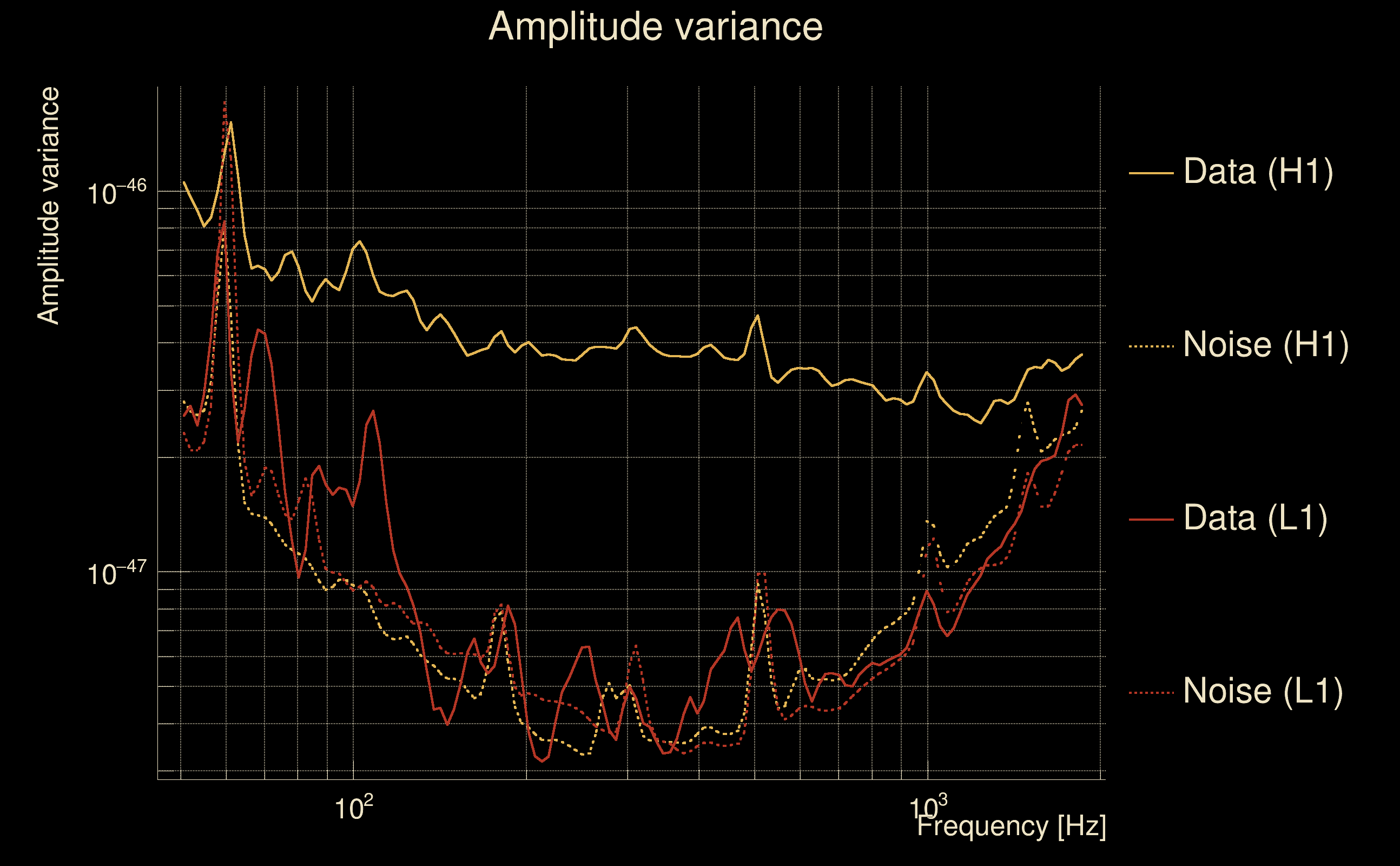

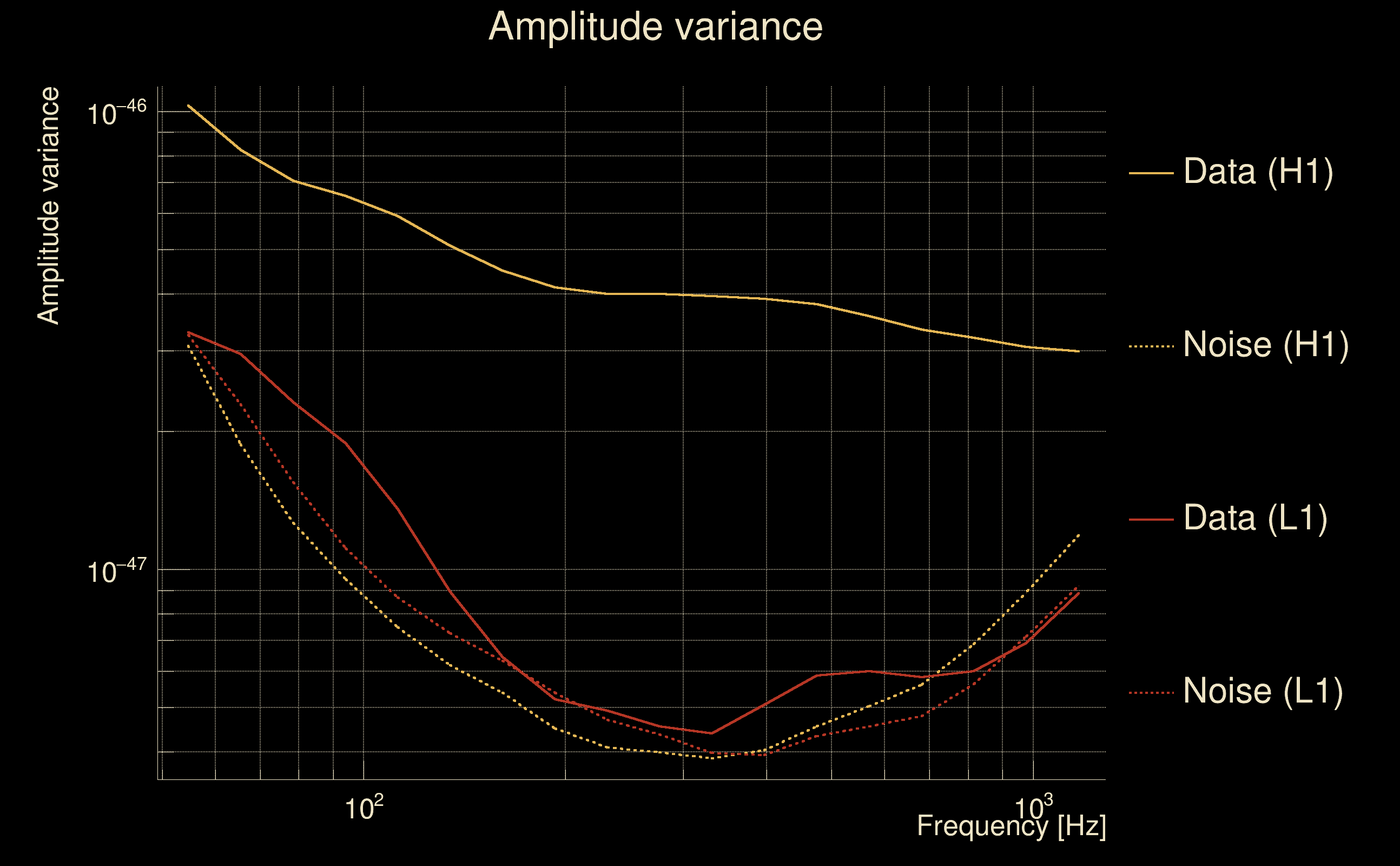

| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf5_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf5_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=169 (-2.806 s), time lag = 0 s |

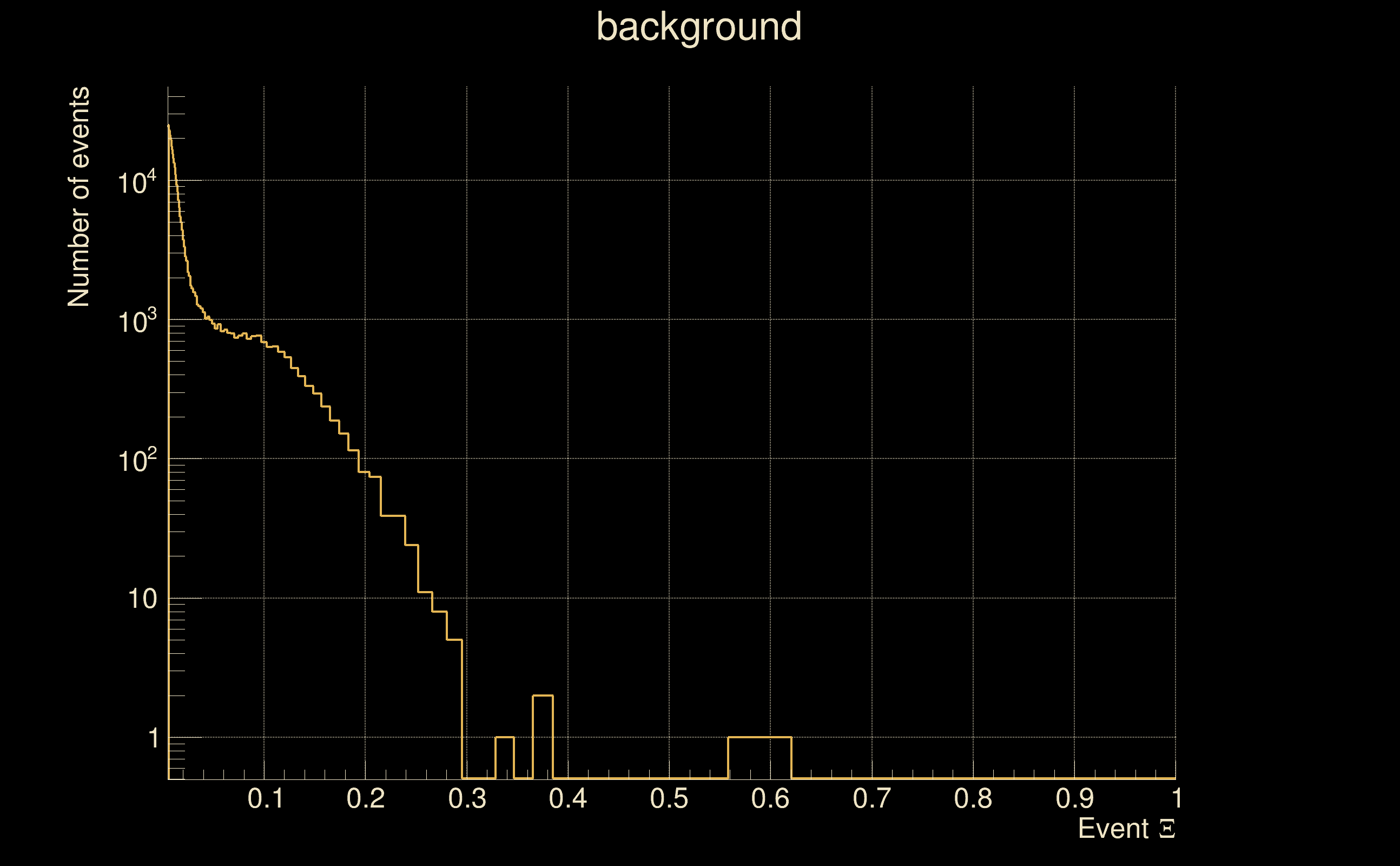

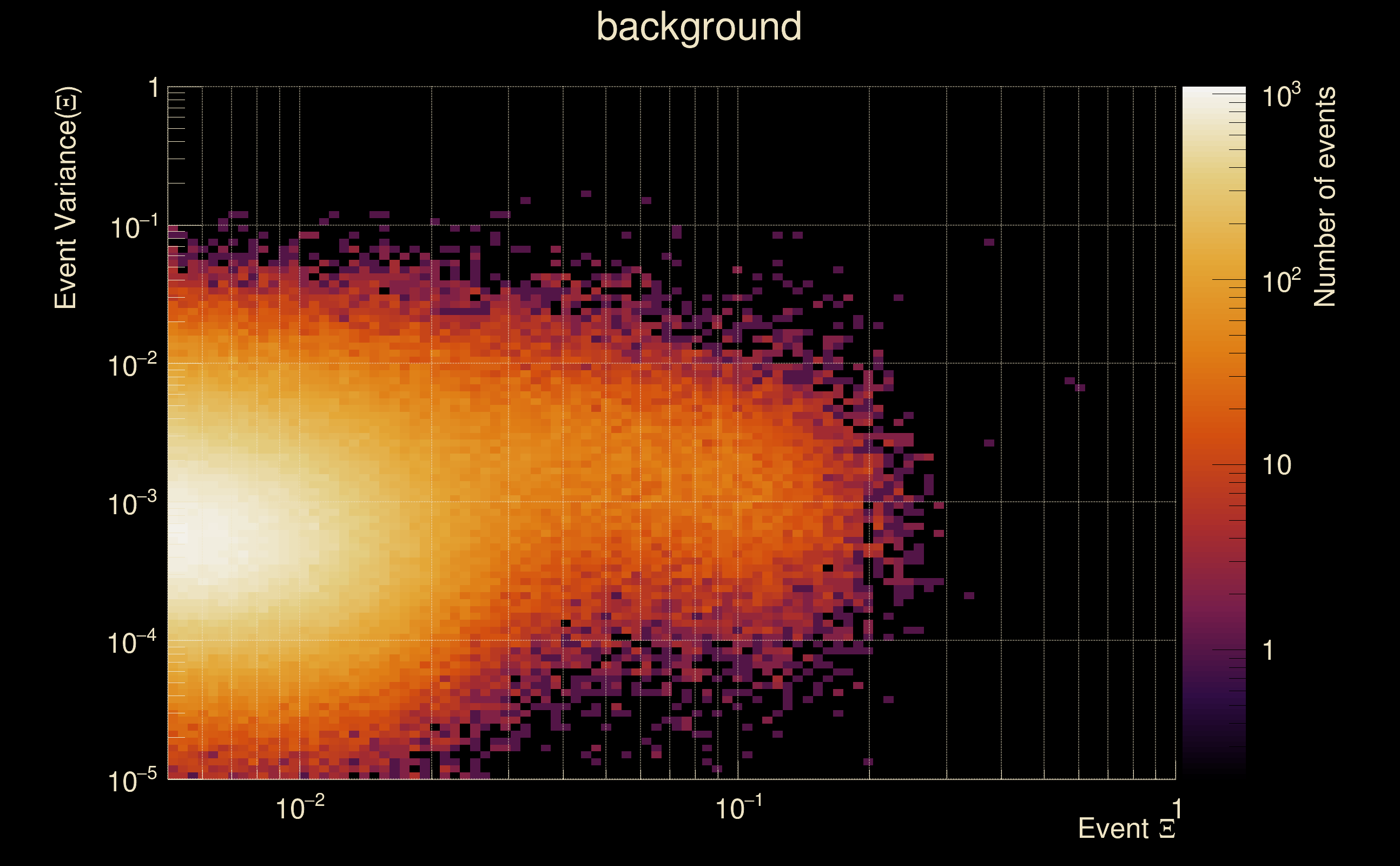

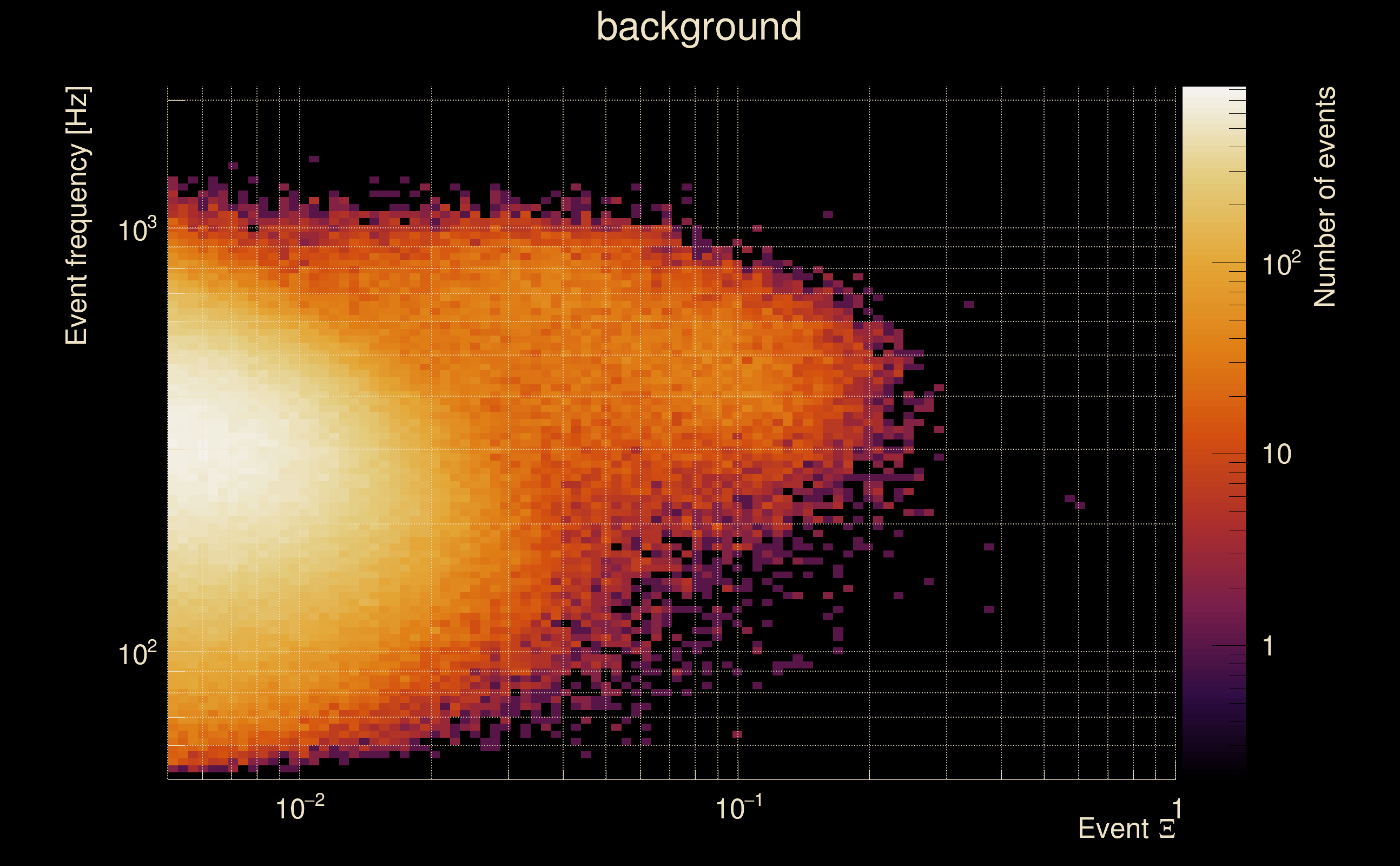

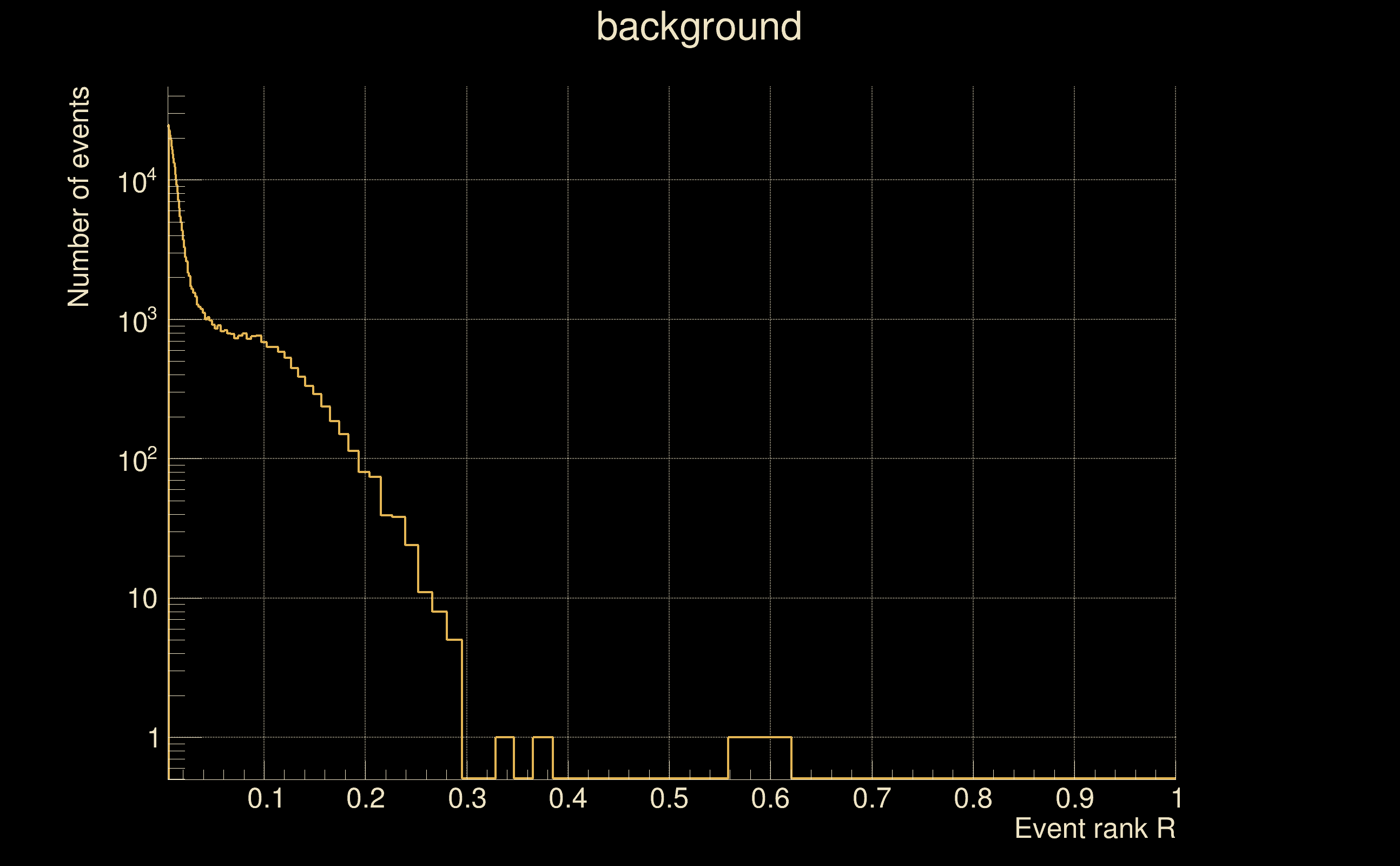

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

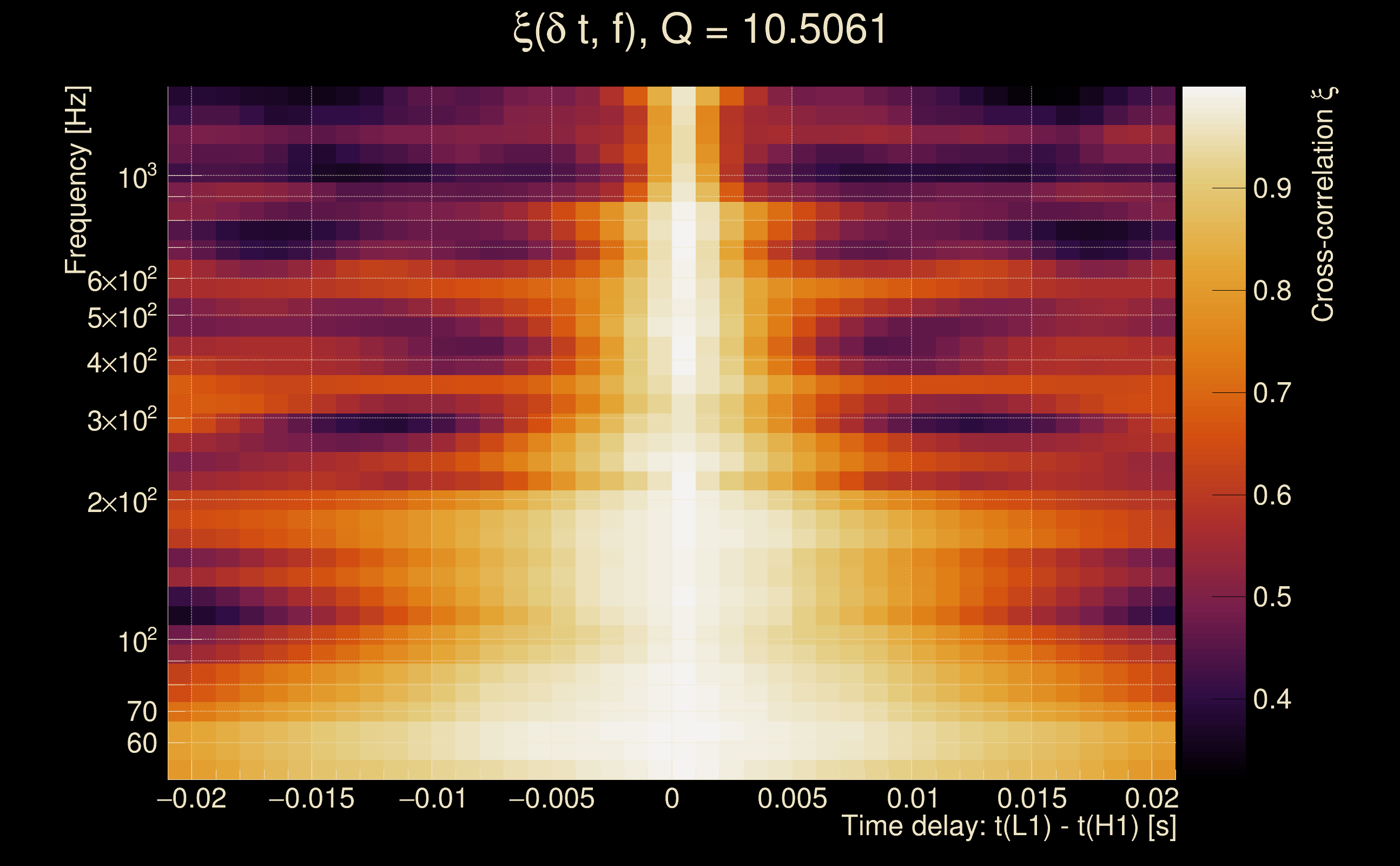

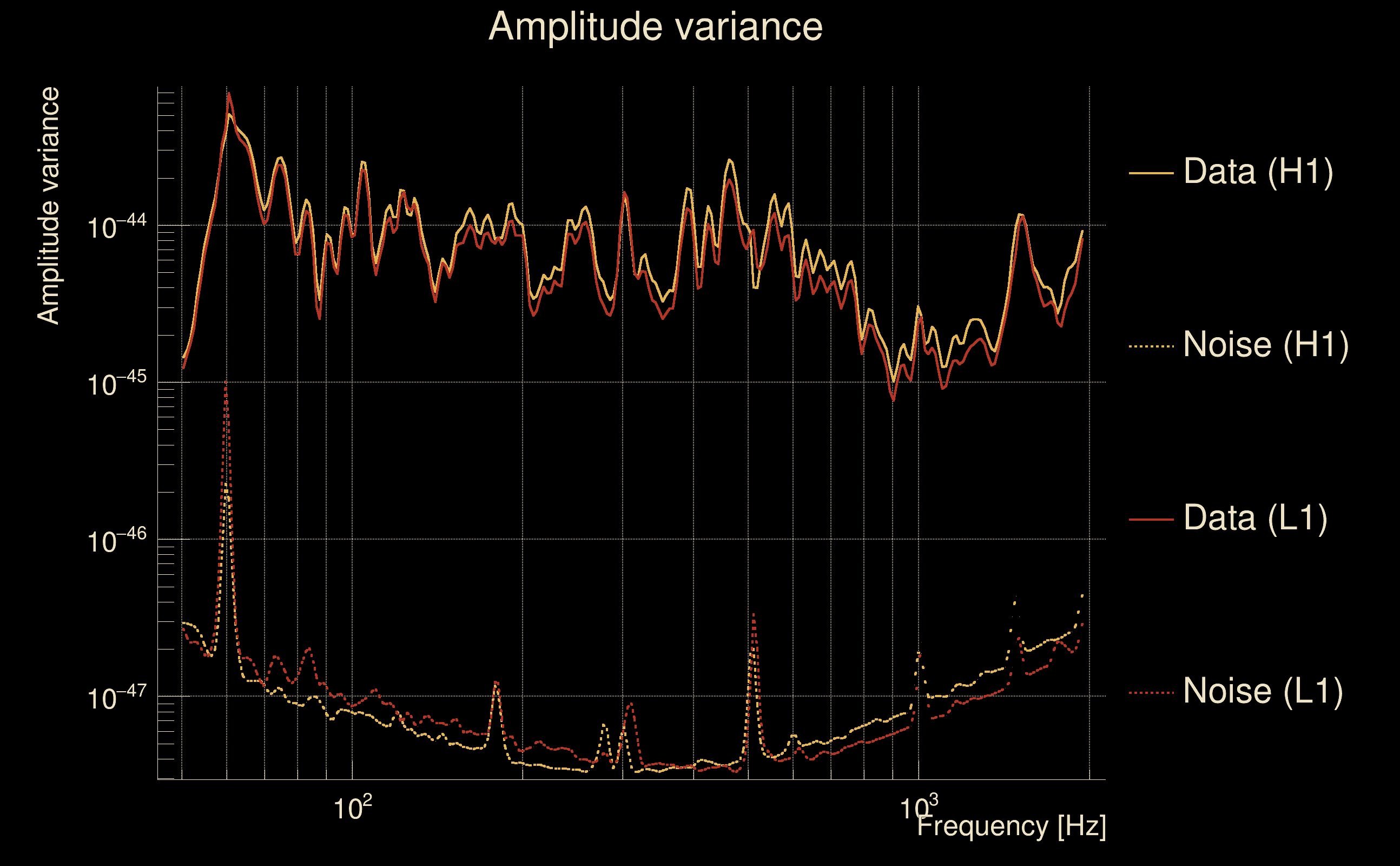

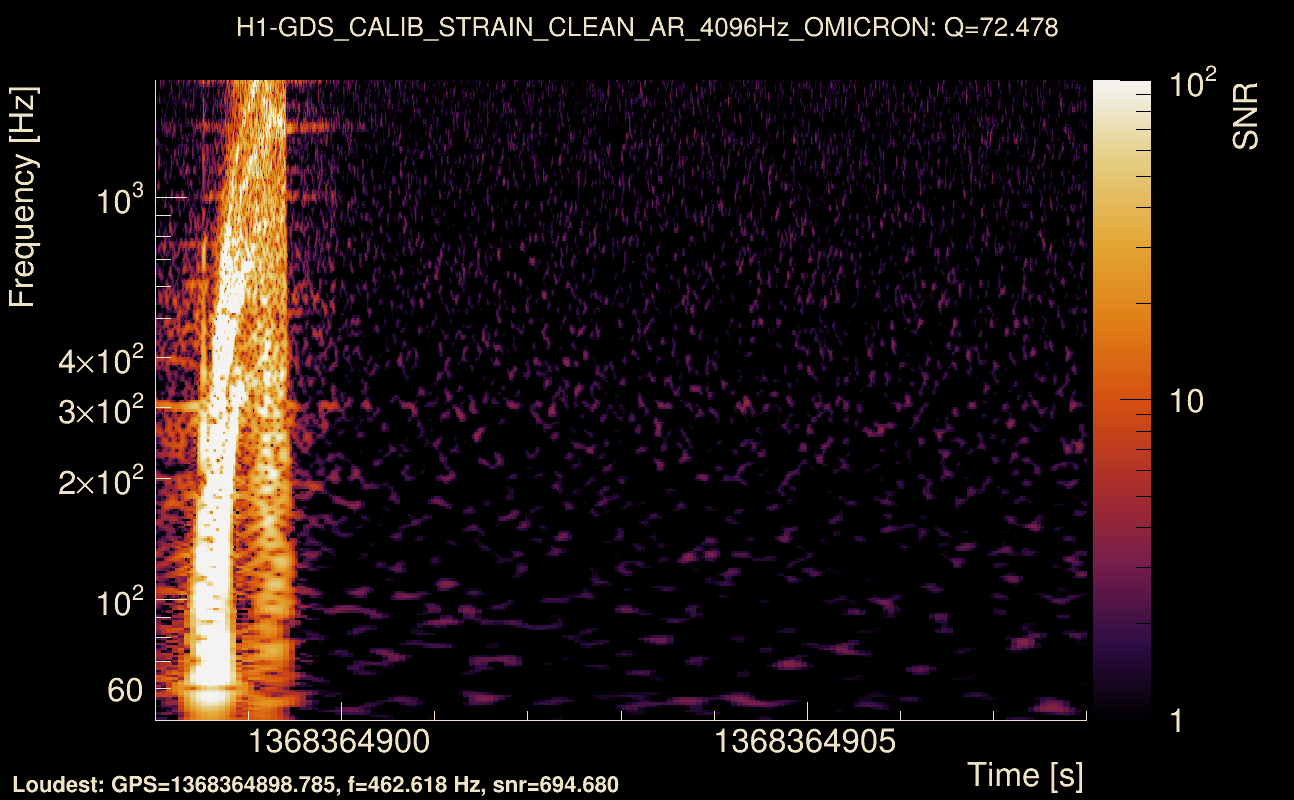

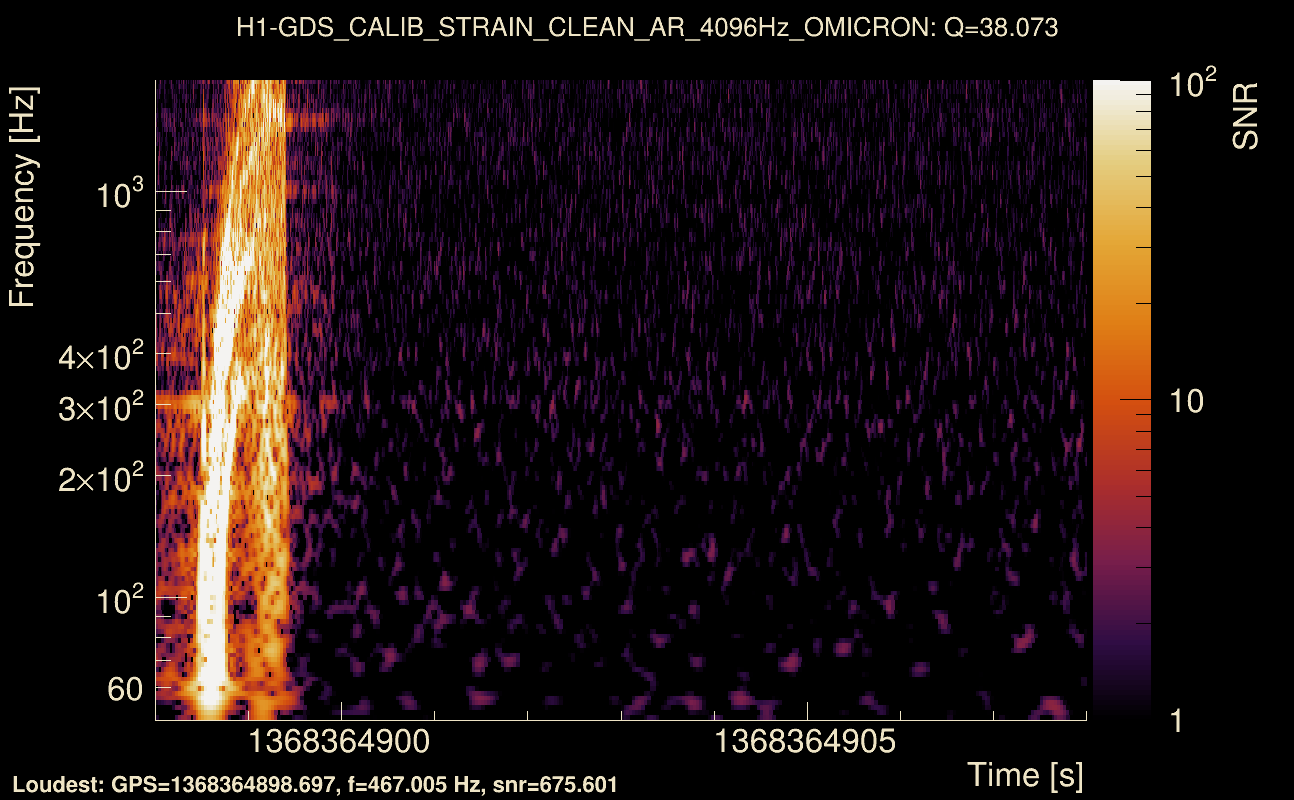

| Event time t(H1): | GPS = 1368364893 (Wed May 17 13:21:15 2023 ) → GPS = 1368364903 (Wed May 17 13:21:25 2023 ) |
| Event time t(L1): | GPS = 1368364893 (Wed May 17 13:21:25 2023 ) → GPS = 1368364903 (Wed May 17 13:21:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368364890 → GPS = 1368364906 |
| Omicron analysis time window (L1): | GPS = 1368364890 → GPS = 1368364906 |
| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 108 / 217), δt_gw = 0 s |
| Time delay standard deviation: | 0.00665137 s |
| [targeted mode] Time delay probability: | 0 (200.998 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 285.848 Hz |
| Ξ: | 0.98651 ± 0.00133139 (variance = 1.77259e-06): Q0: 0.986167, Q1: 0.98599, Q2: 0.987013, Q3: 0.988558, Q4: 0.989366 |
| Rank: | R_A = 0.98651 |
| Log of amplitude ratio (L1/H1): | -0.0982808, variance = 0.151492 (L1/H1: -0.107372, variance = 0.301559, H1/L1: 0.0879873, variance = 0.302159) |
| Amplitude ratio (L1/H1): | 0.906394 ⋇ 1.47583 (L1/H1: 0.898192 ⋇ 1.73177, H1/L1: 1.09197 ⋇ 1.73272) |

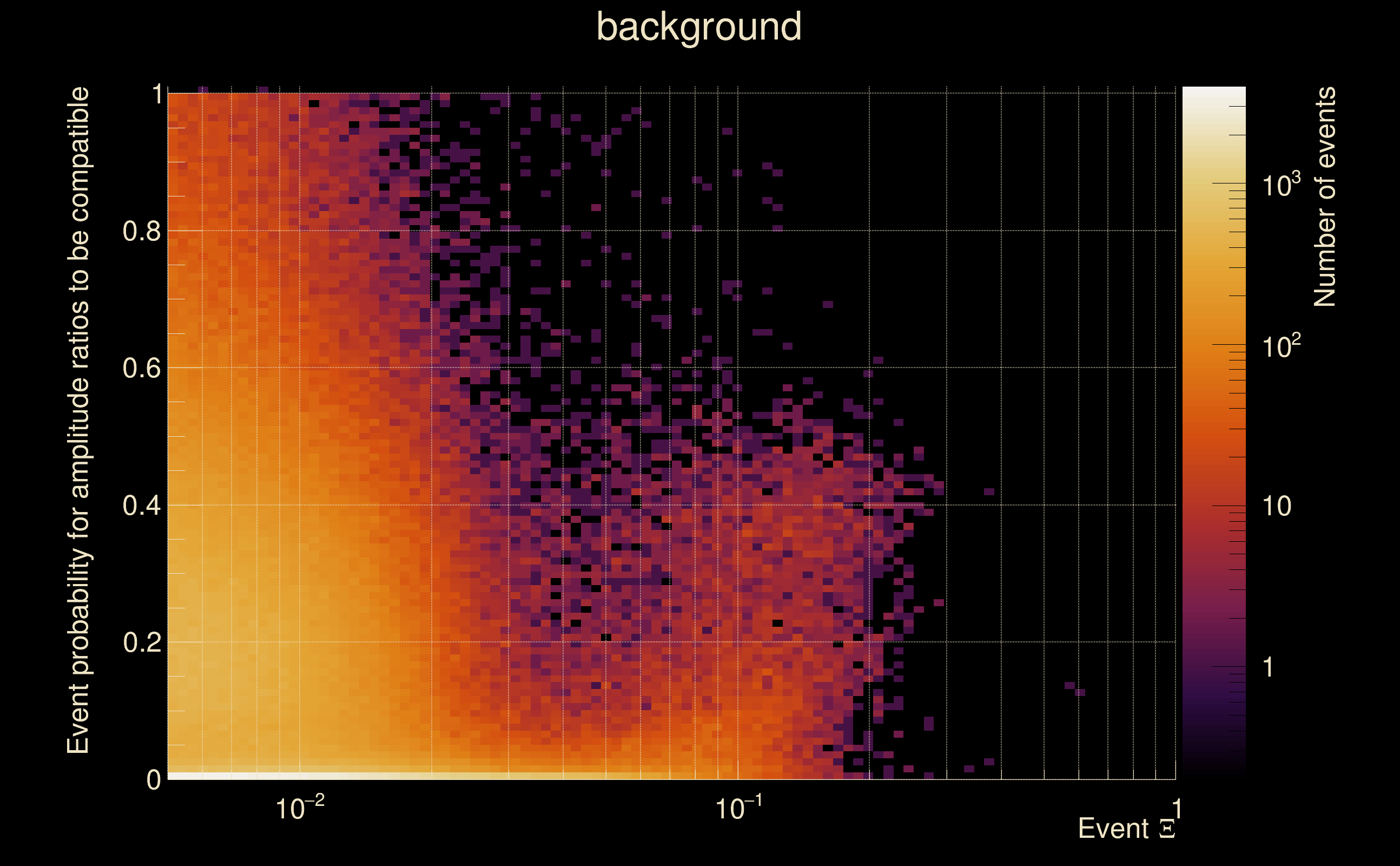

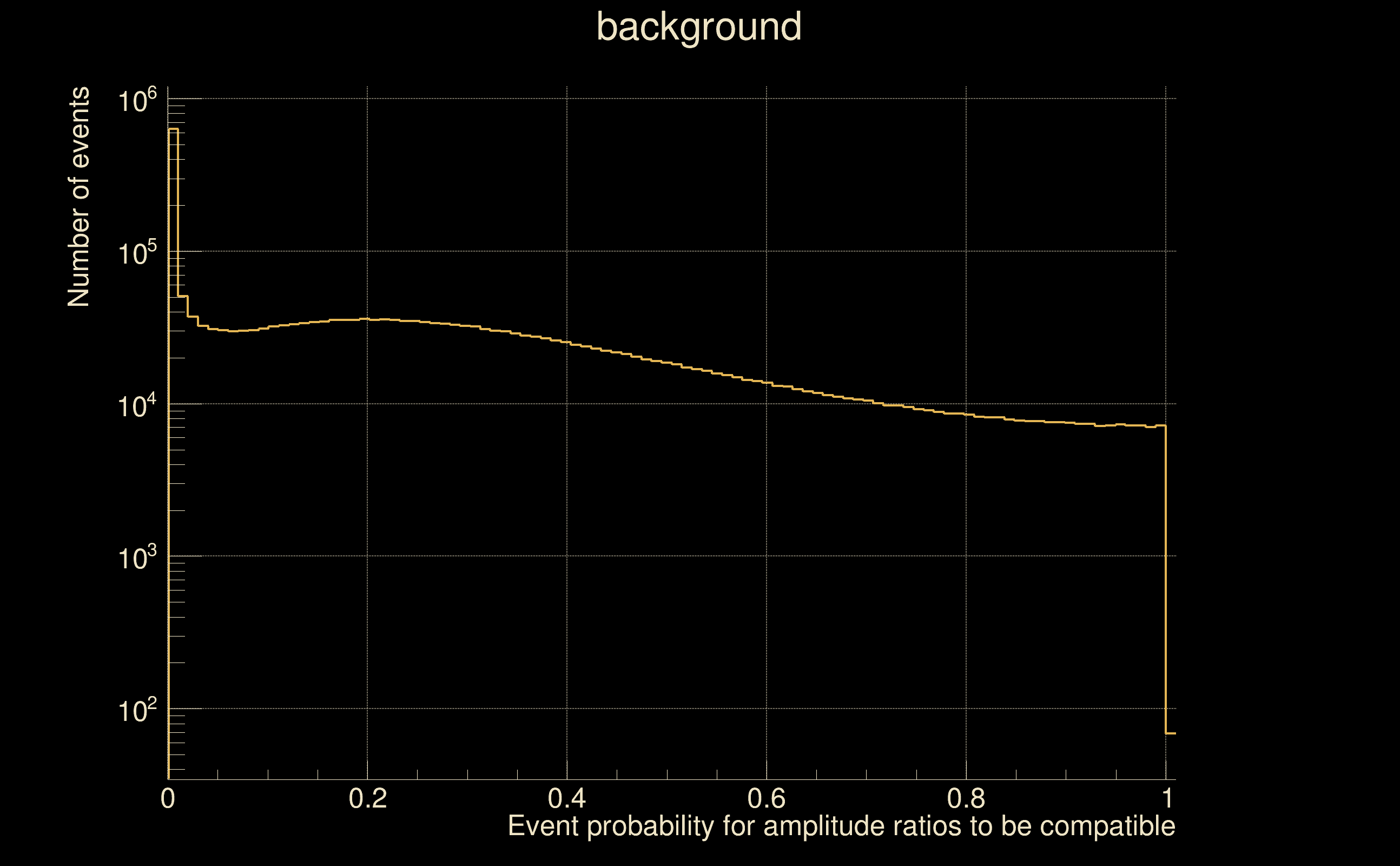

| Amplitude ratio H1|L1 compatibility (probability): | 0.980096 |

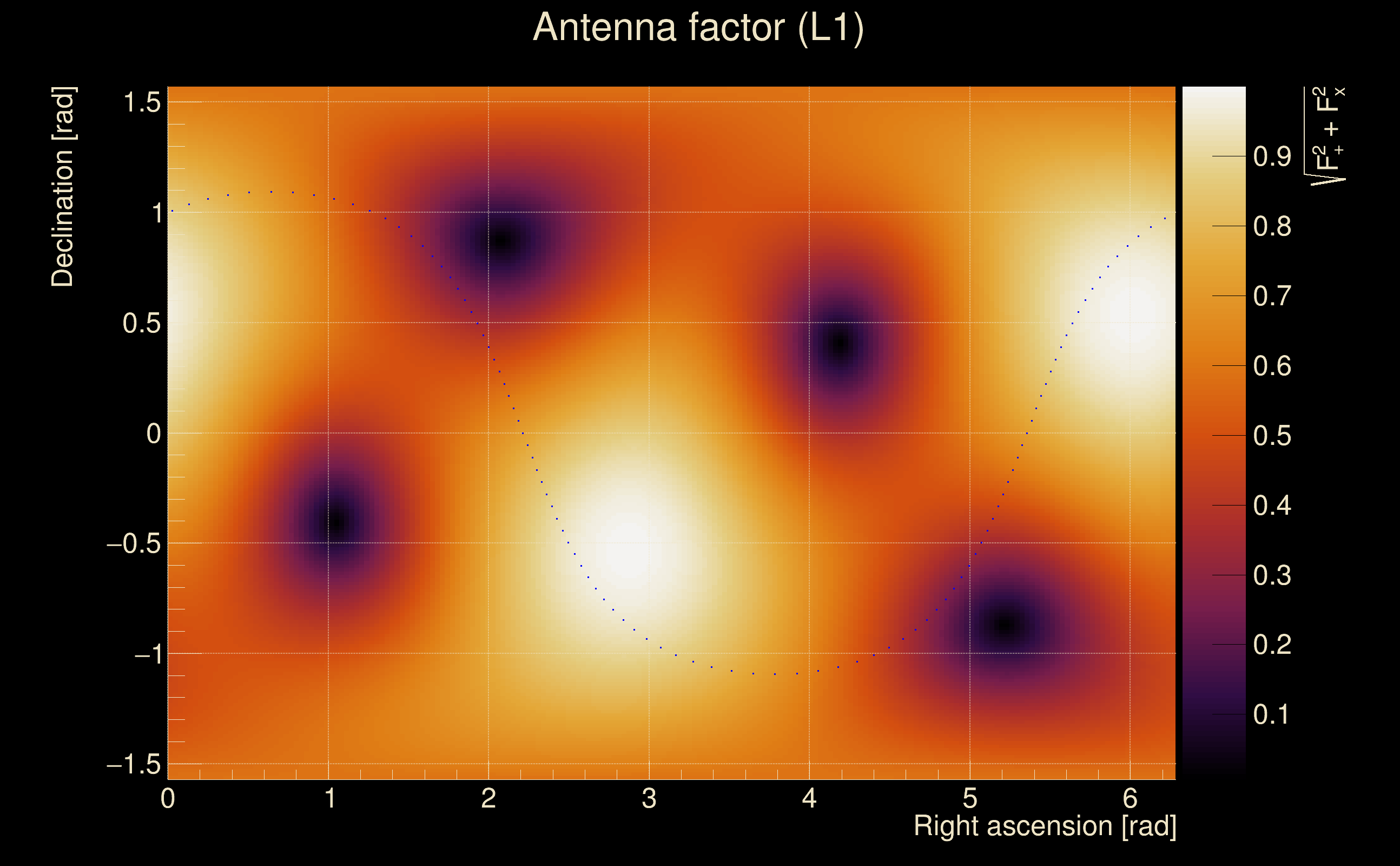

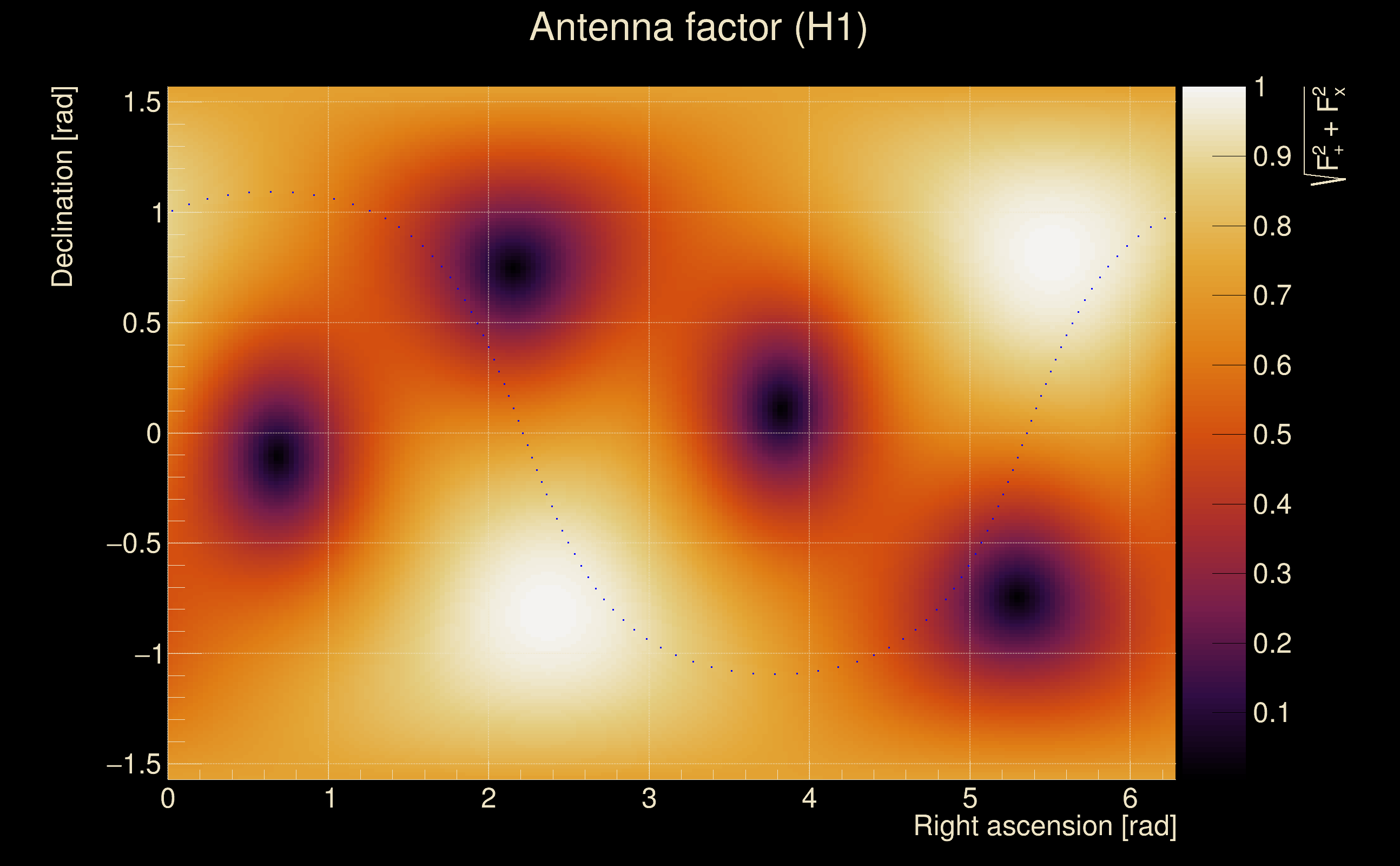

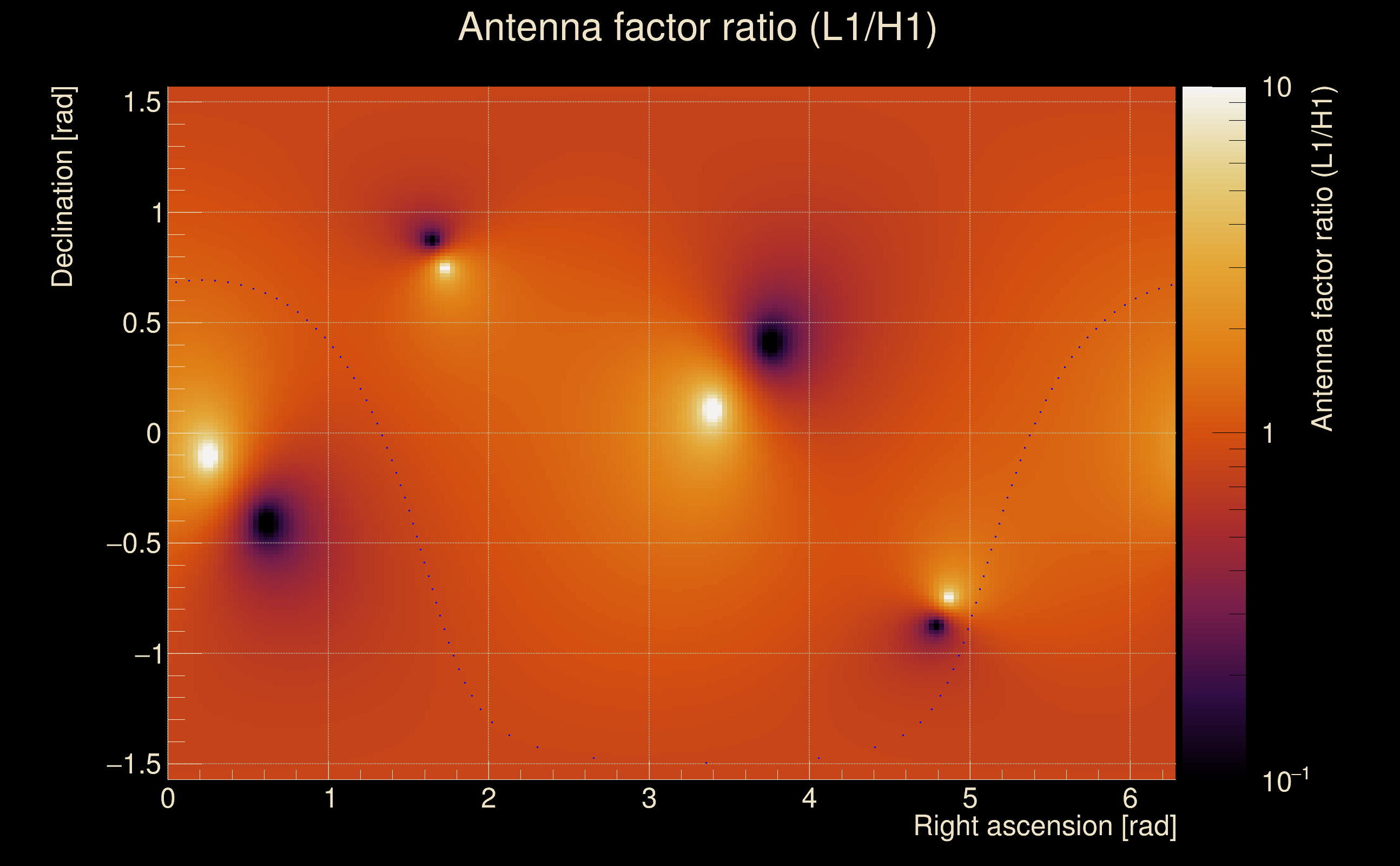

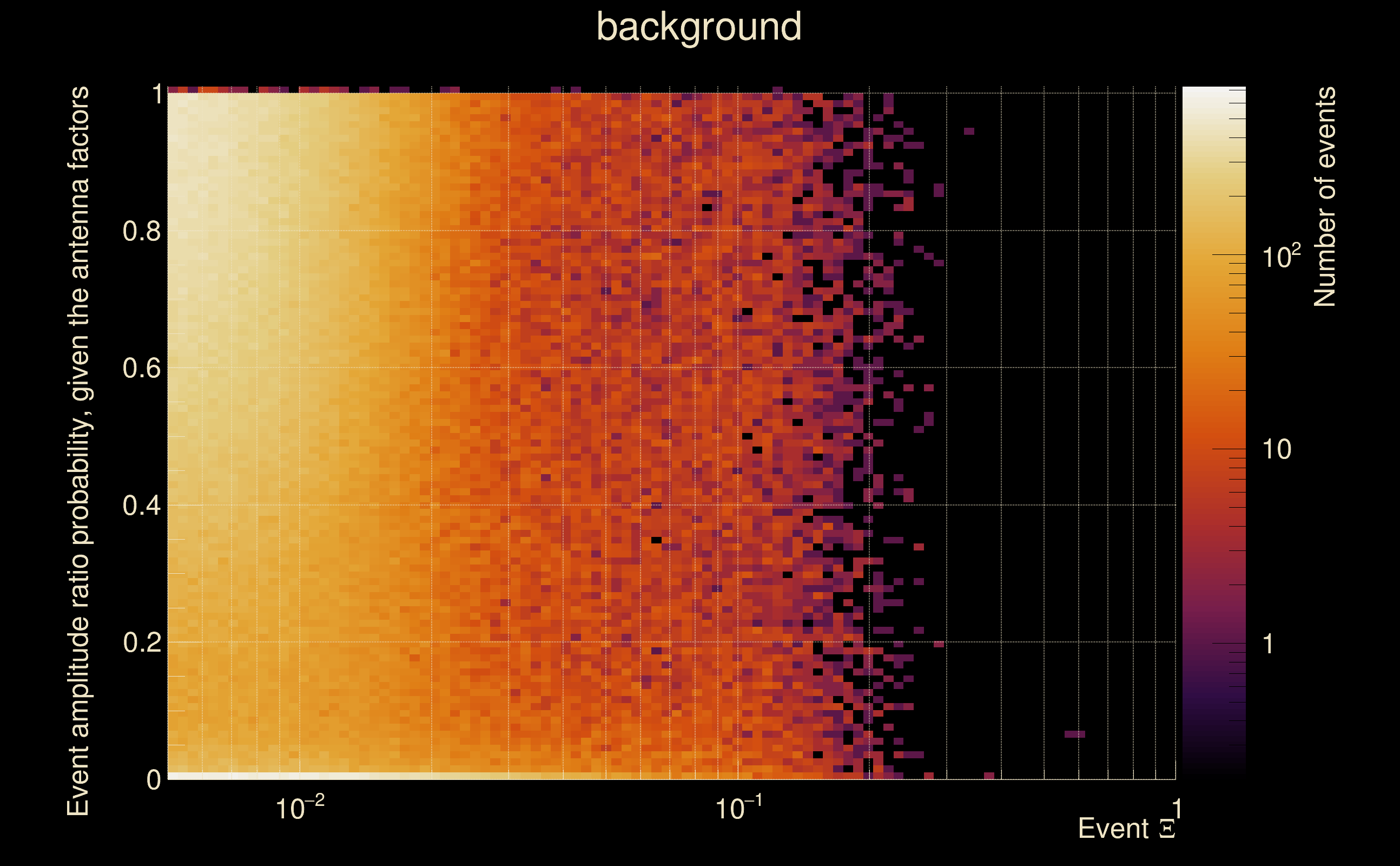

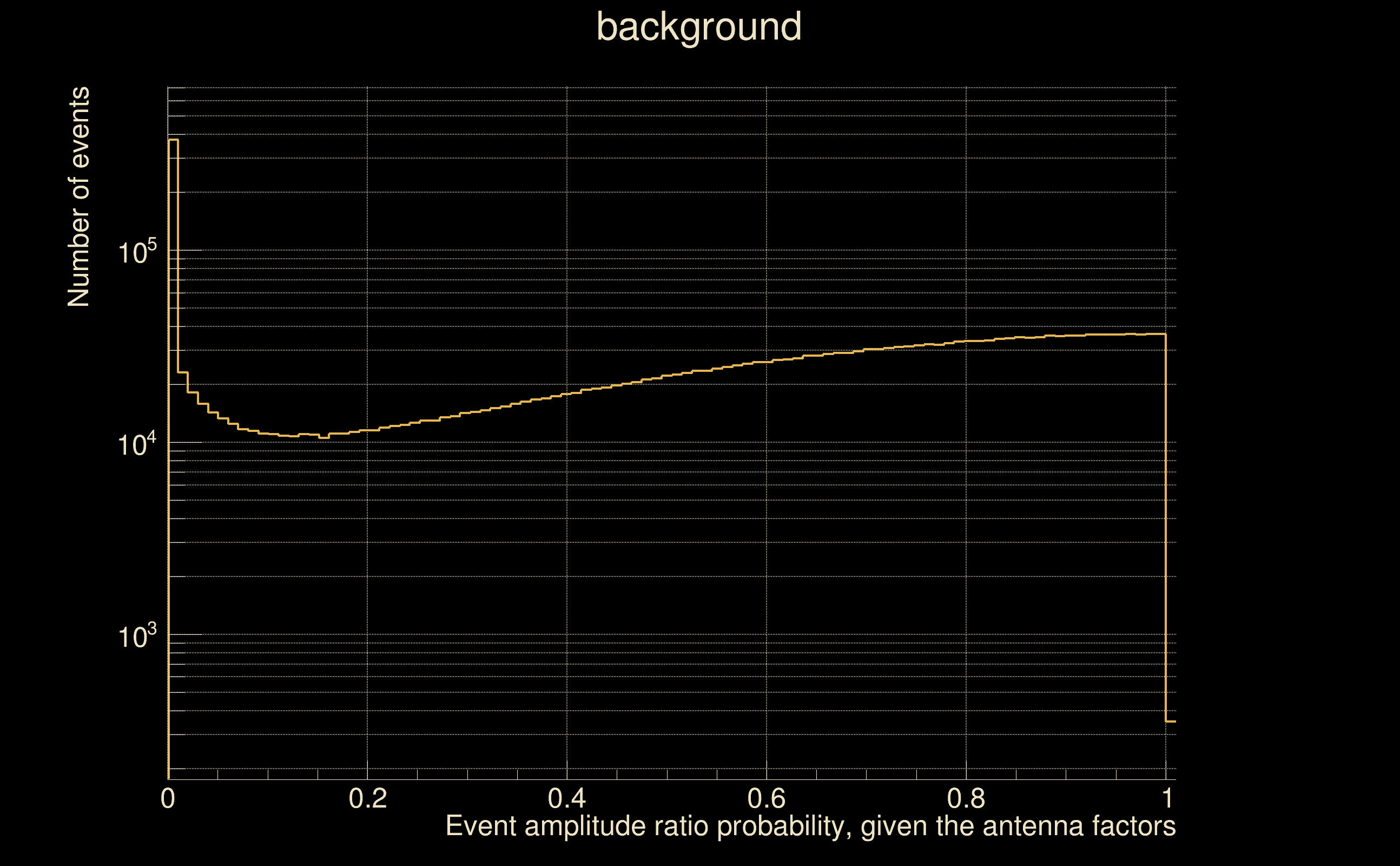

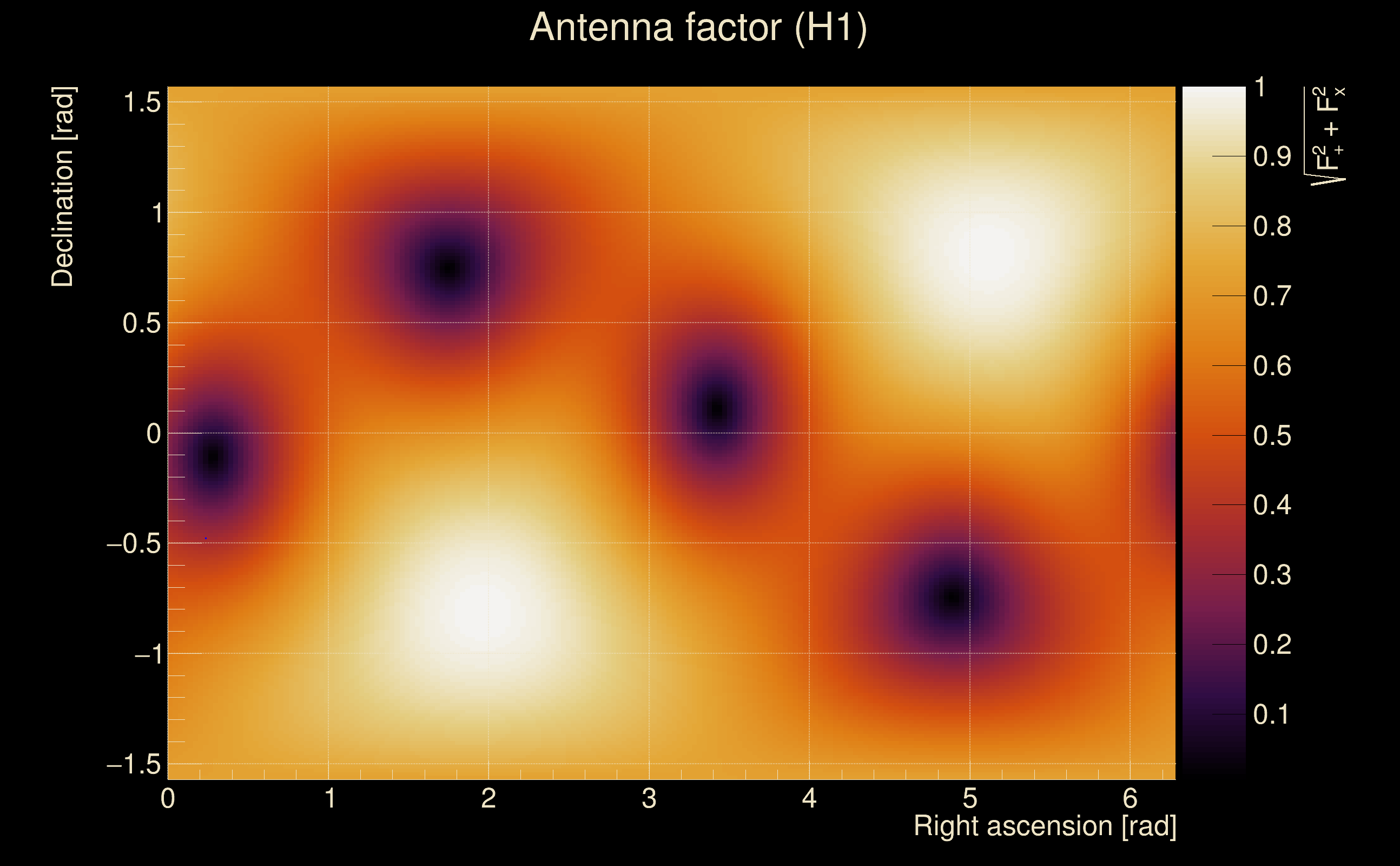

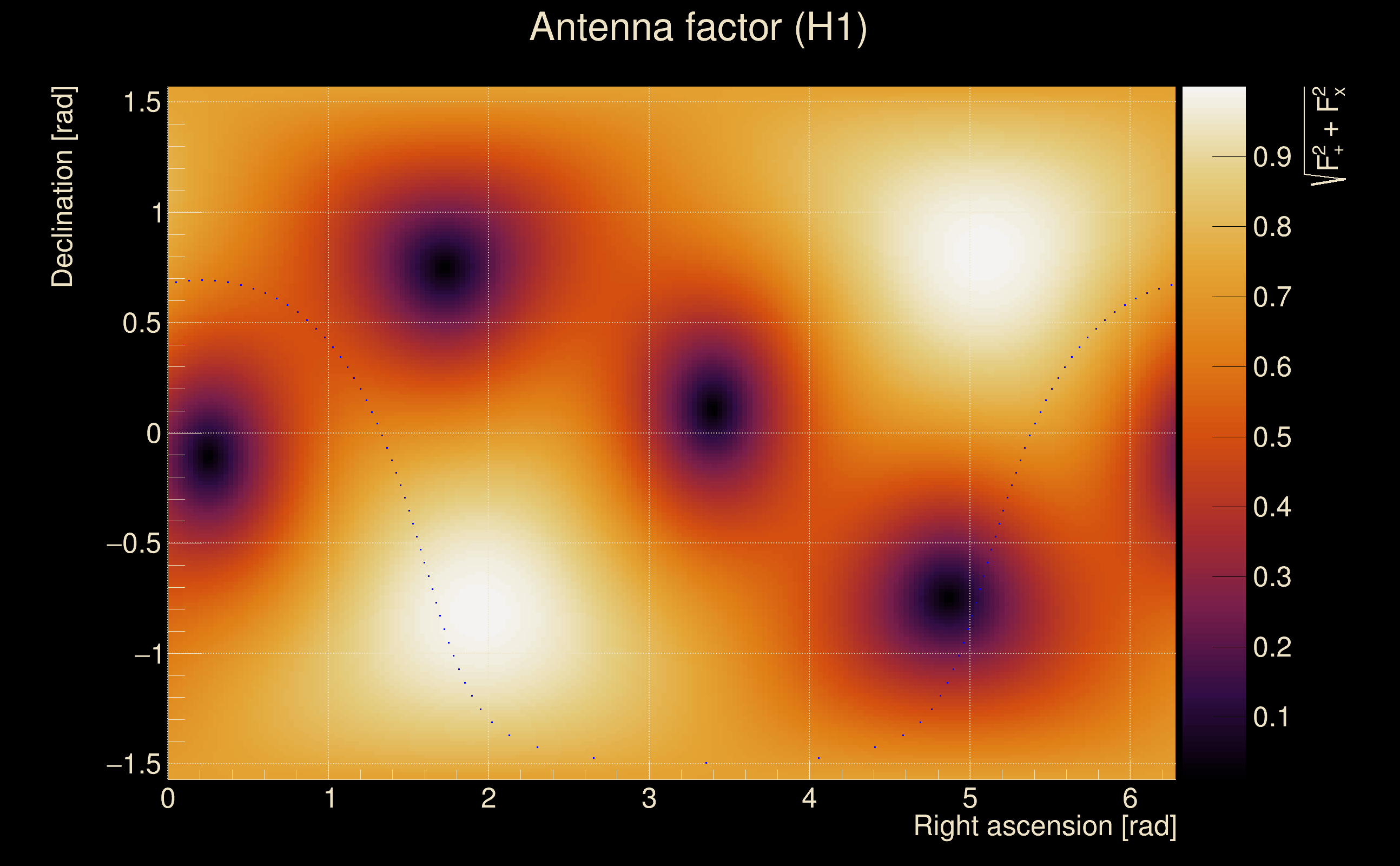

| Antenna factor probability: | 0.724011 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 698.253, L1: 656.201 |

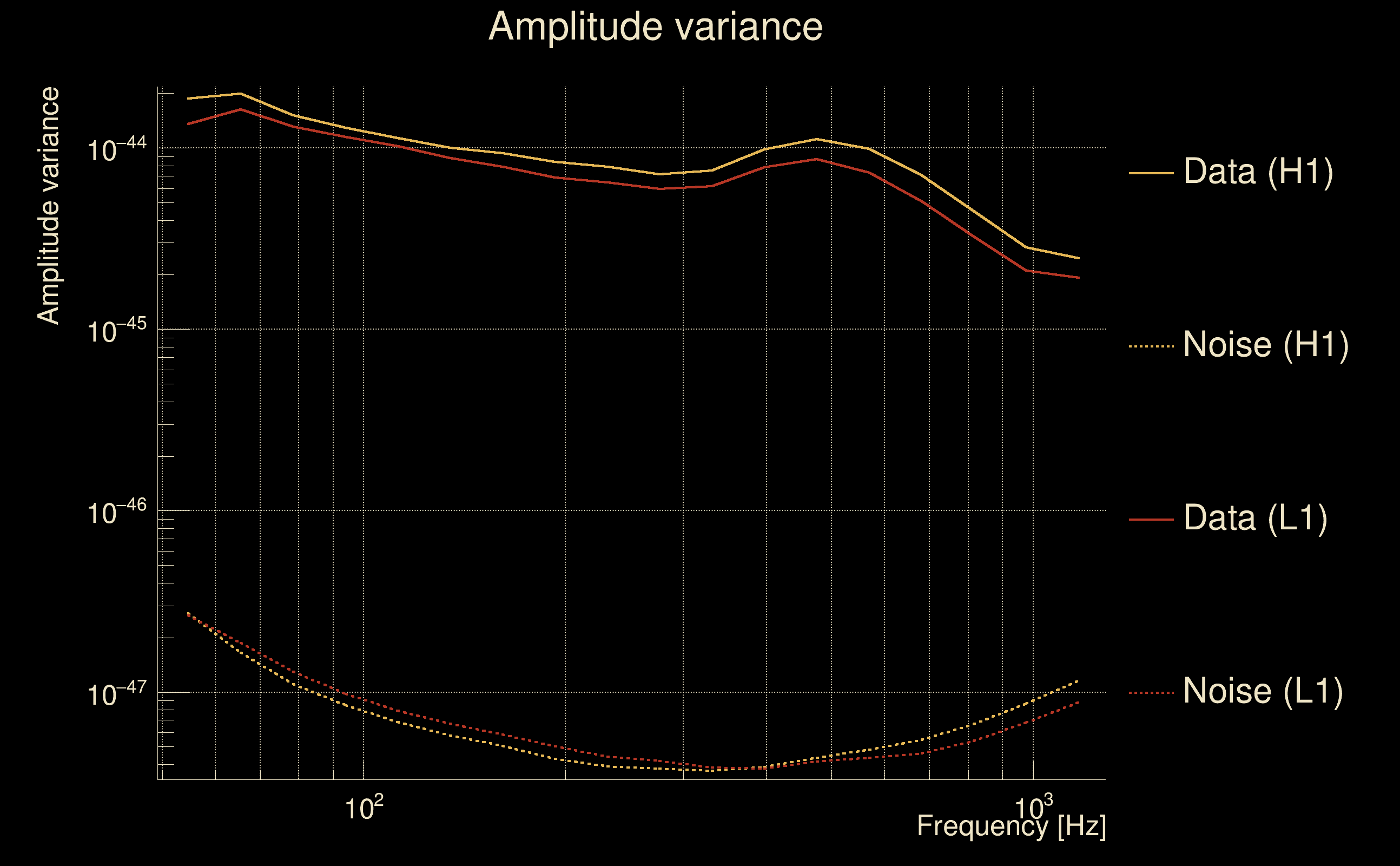

| SNR variance: | H1: 0.826562, L1: 0.740973 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

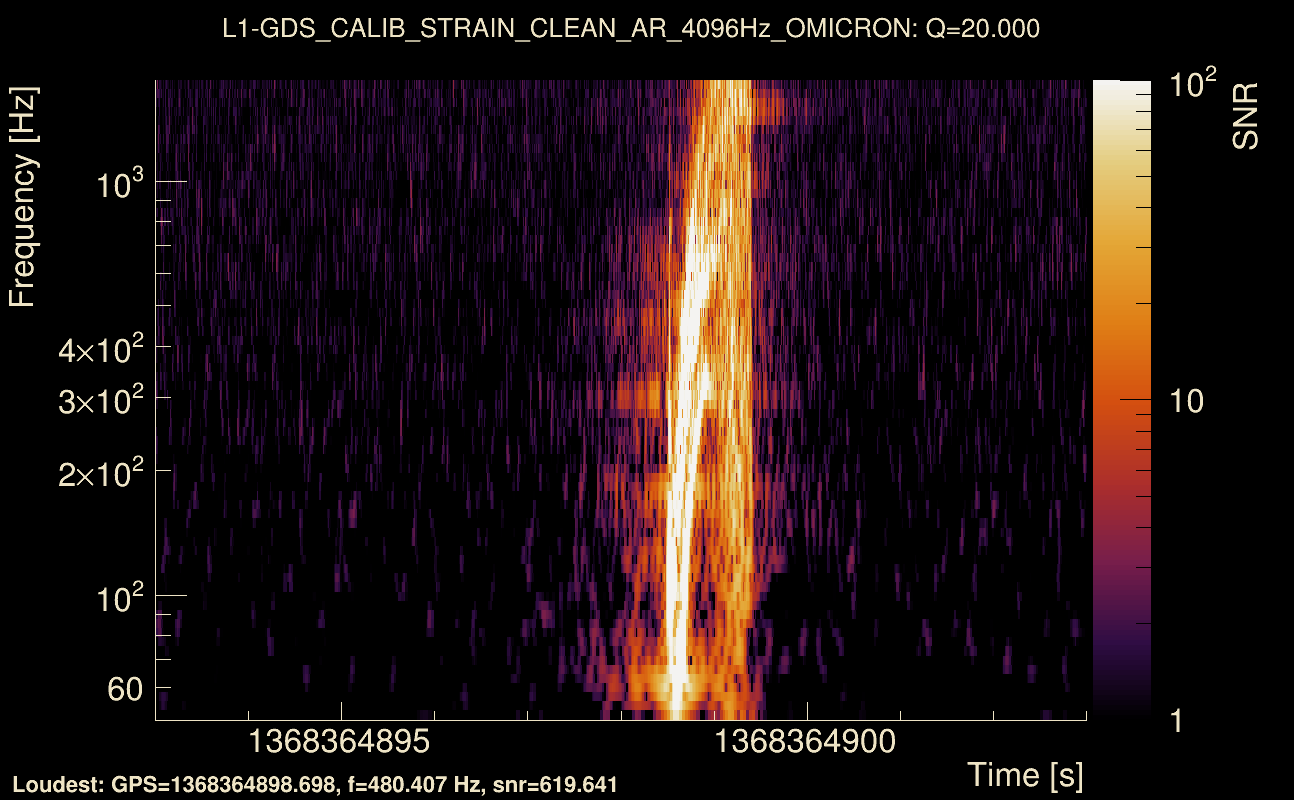

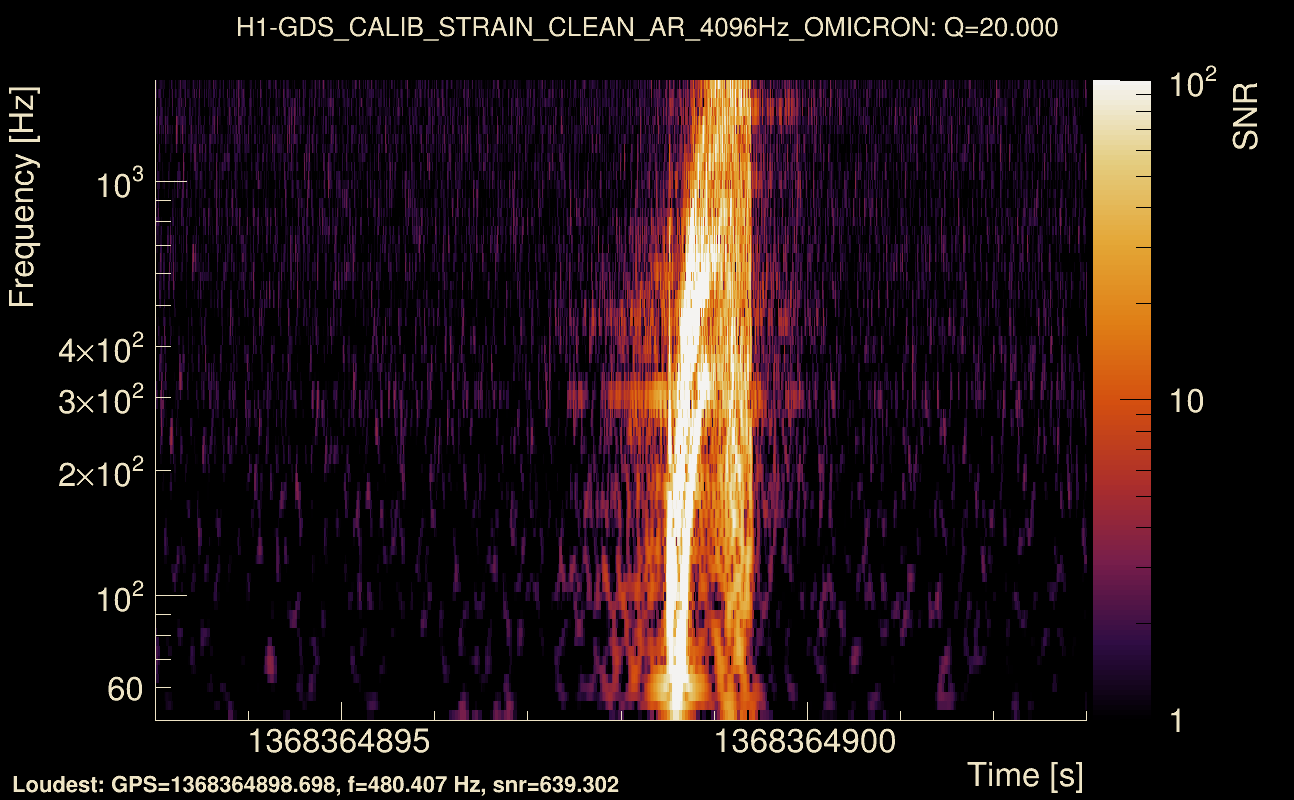

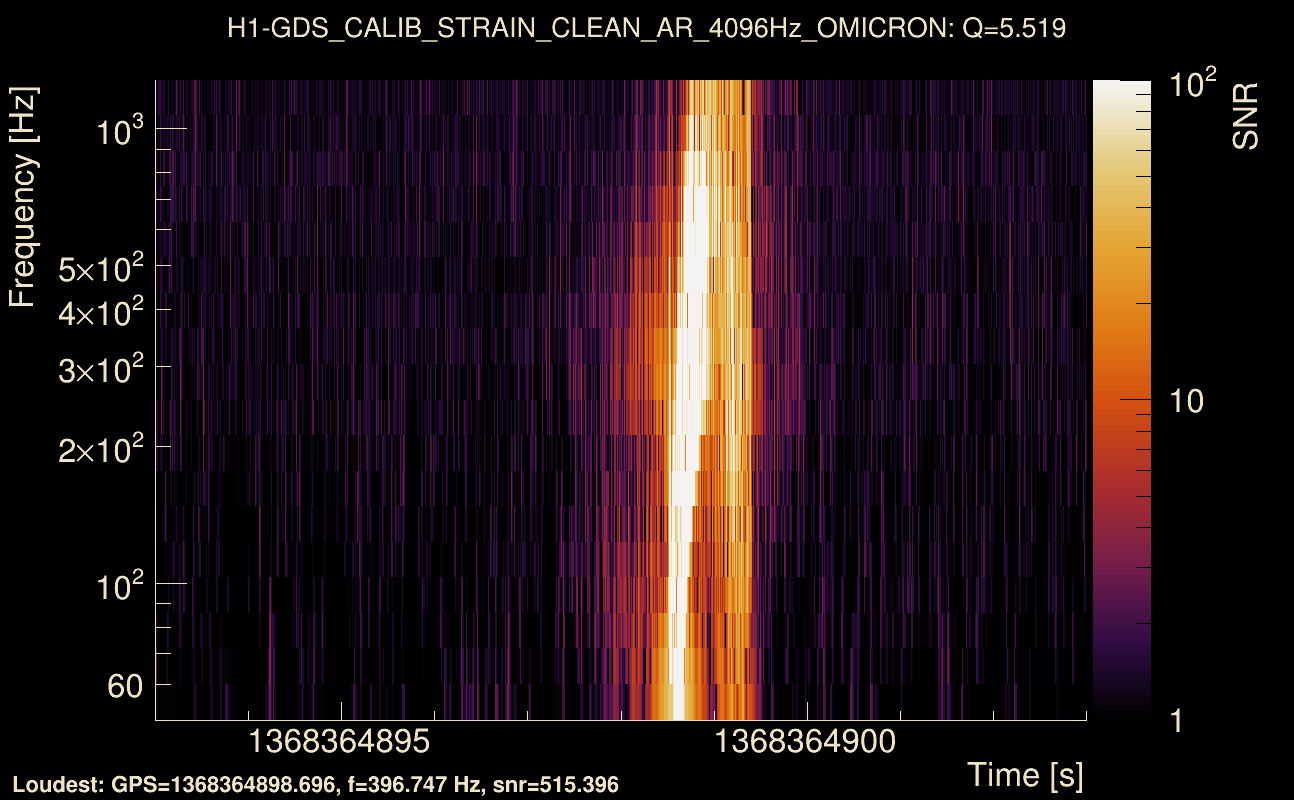

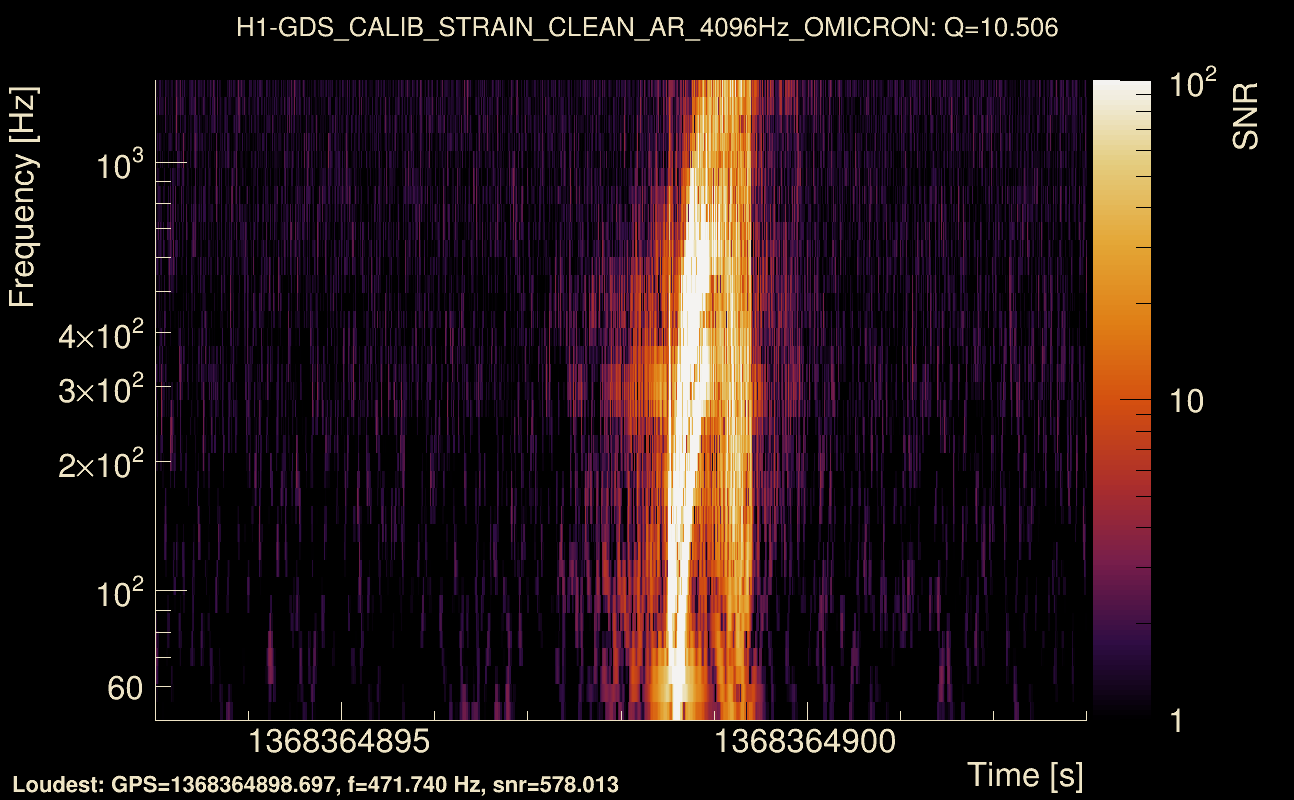

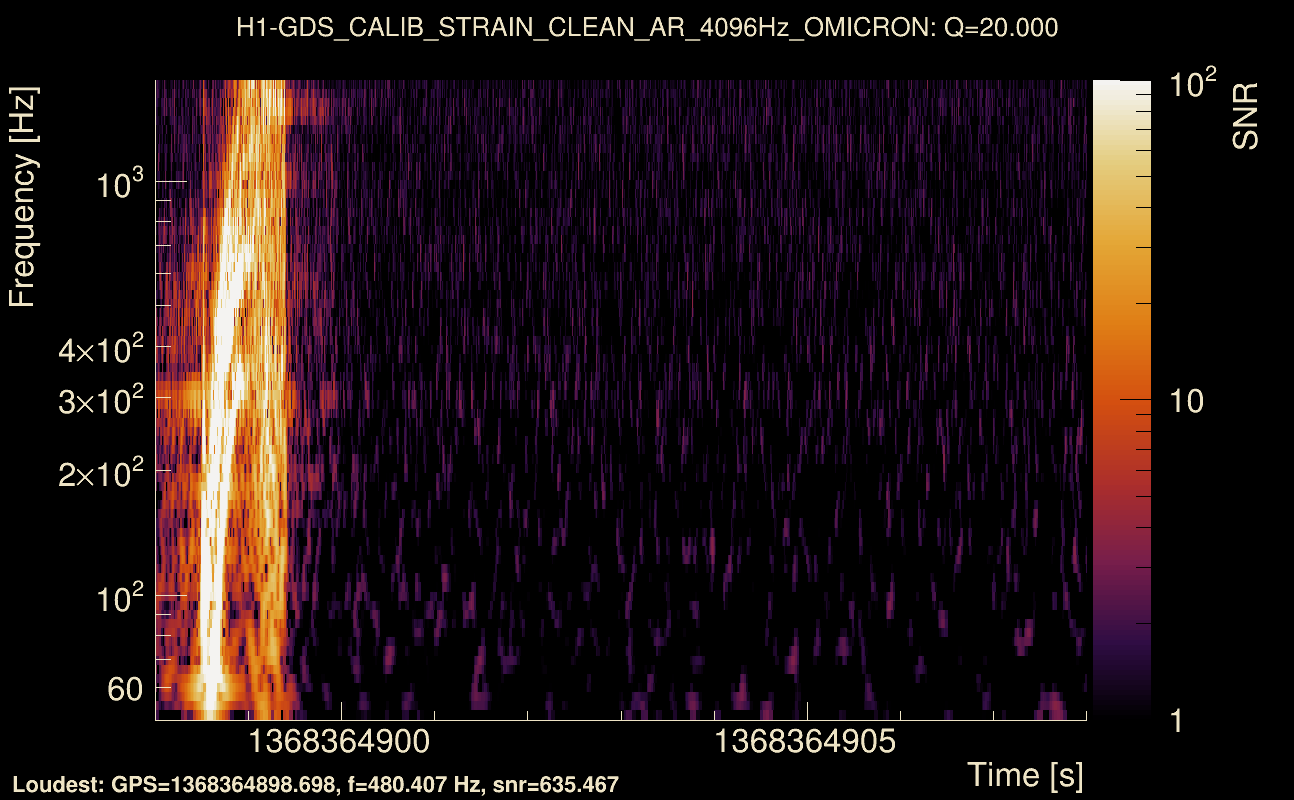

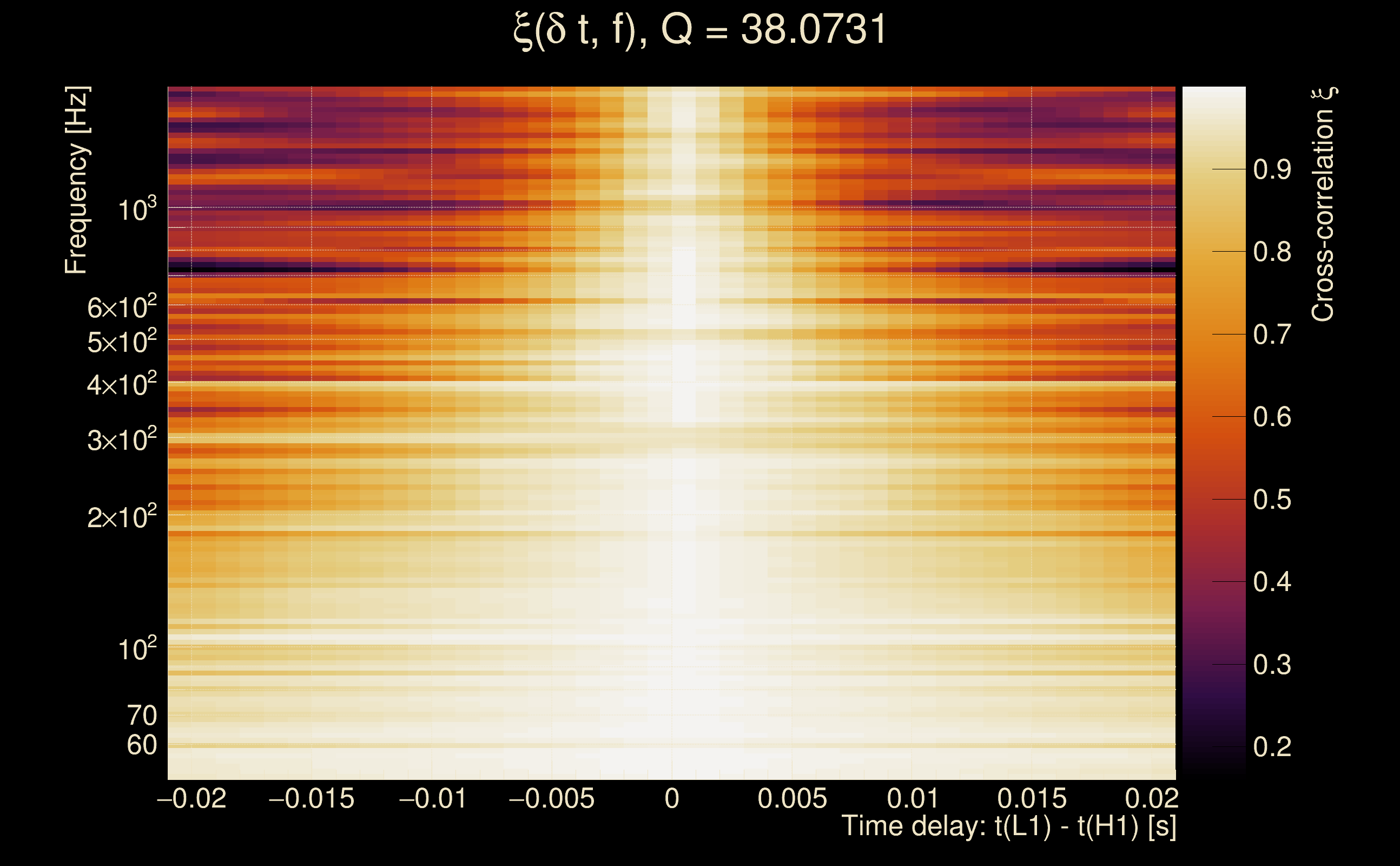

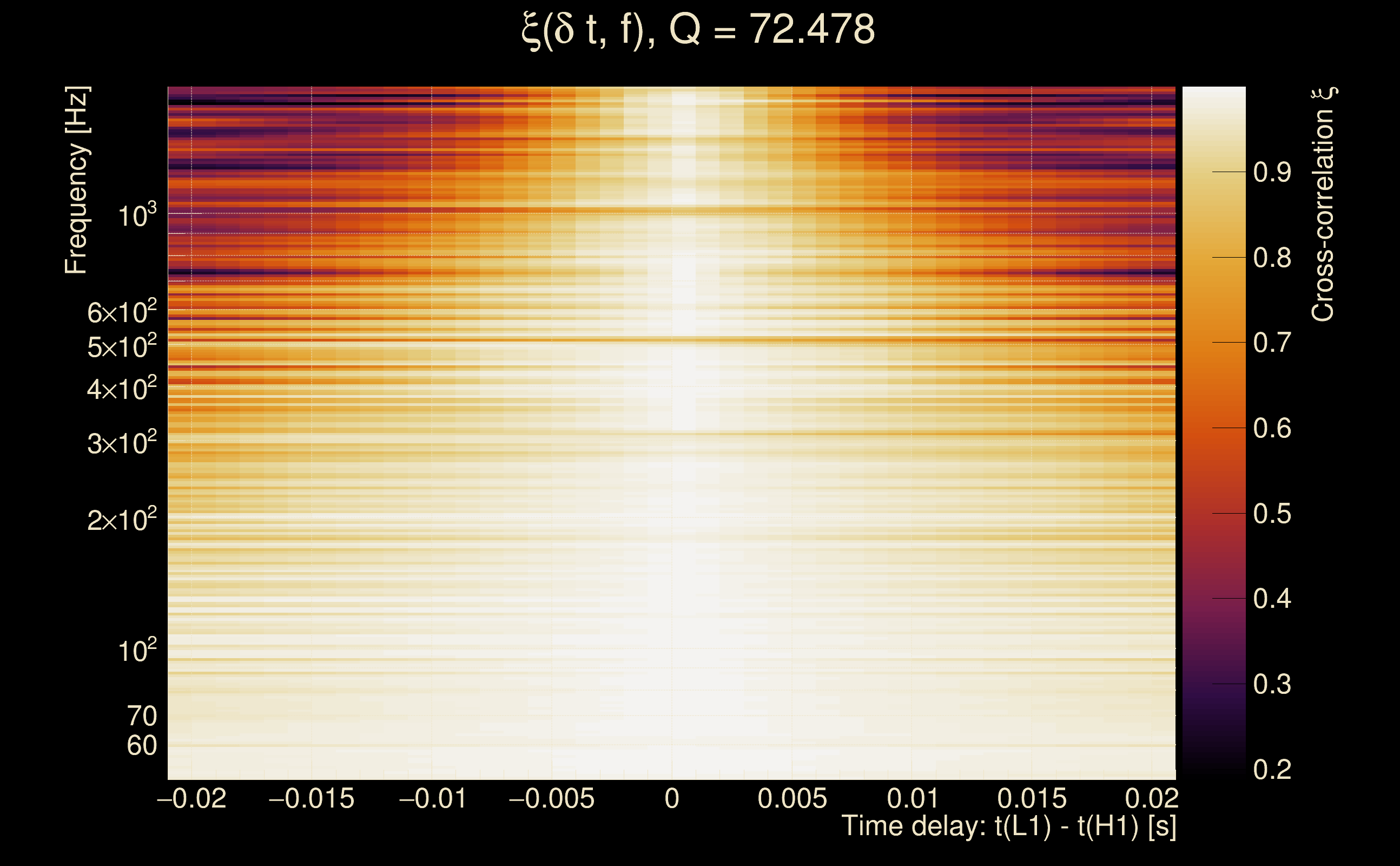

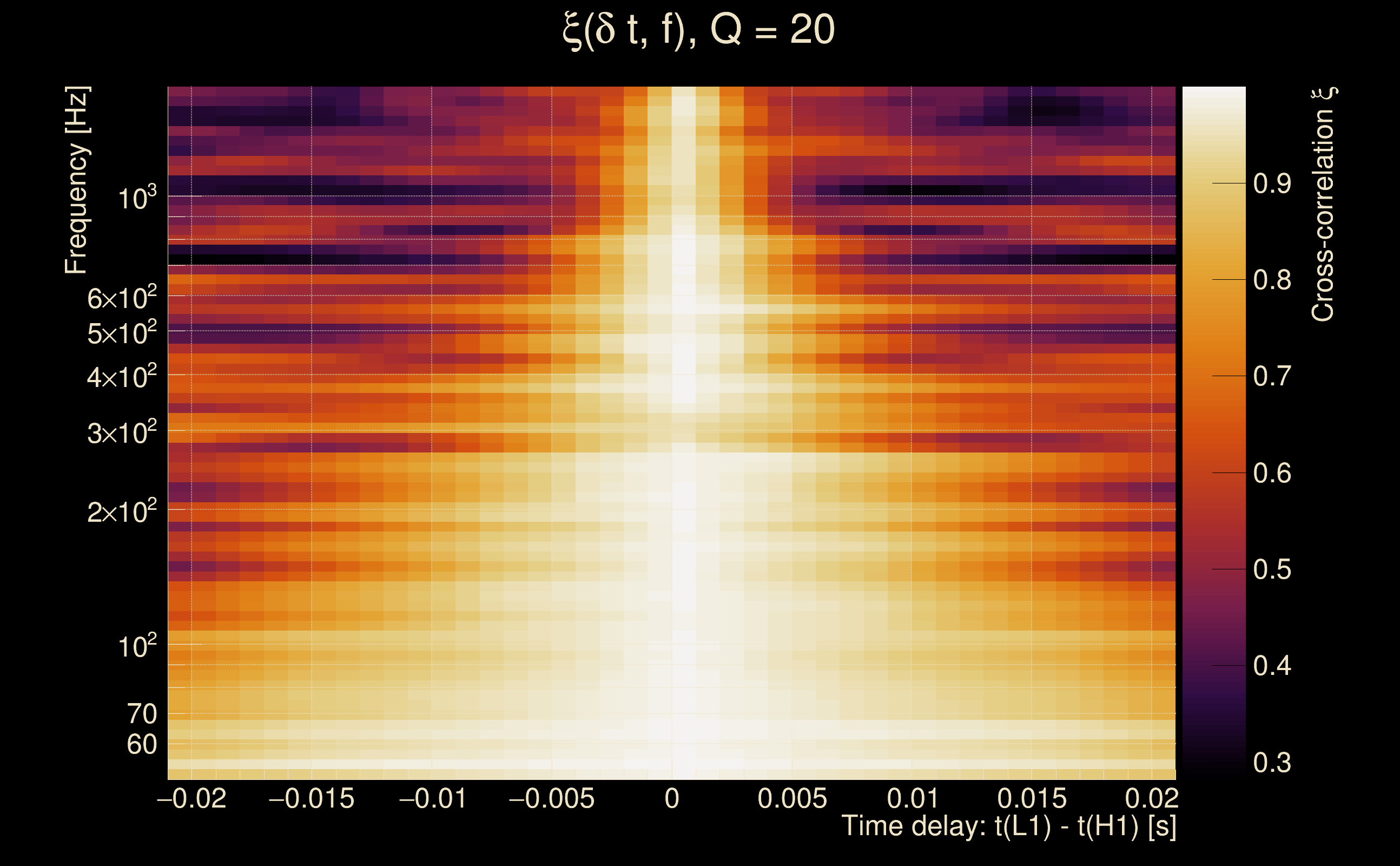

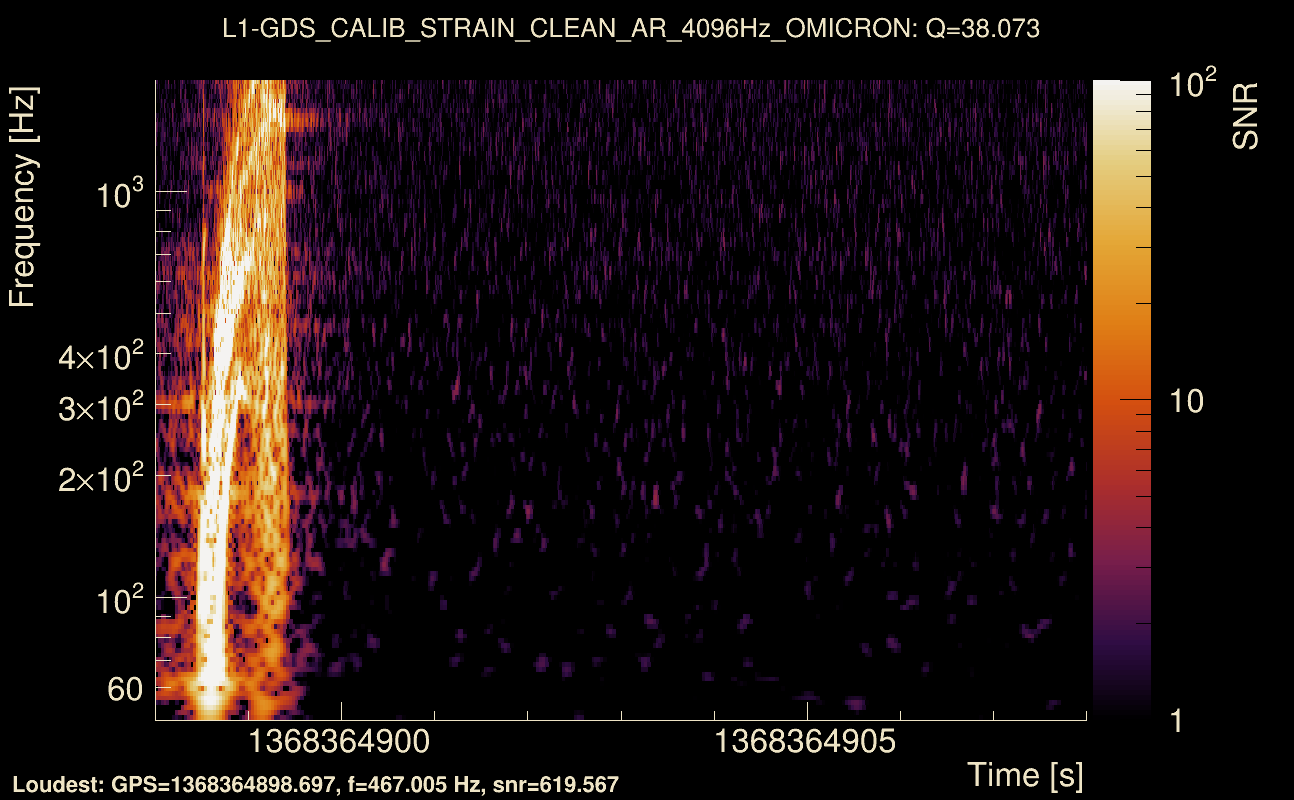

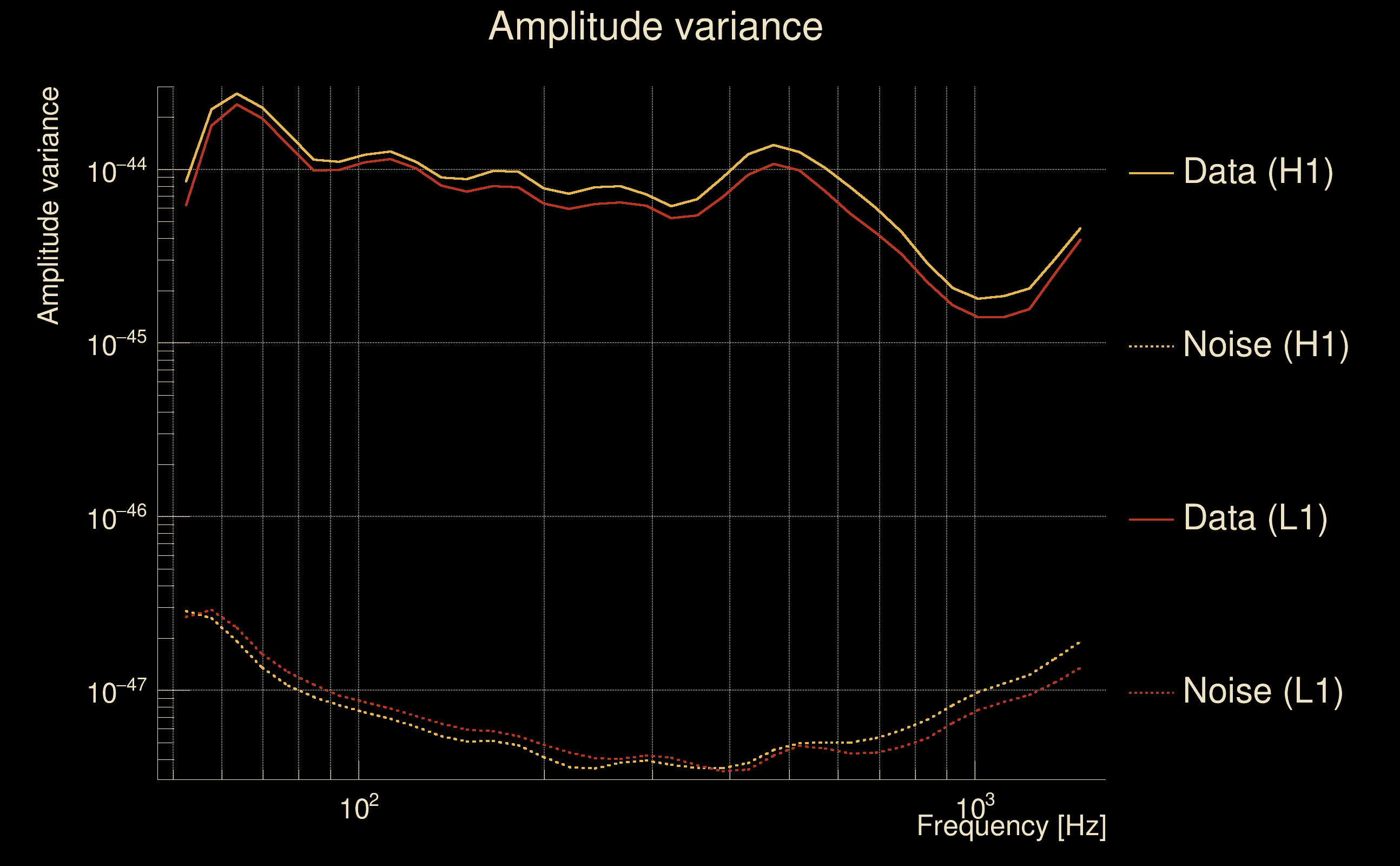

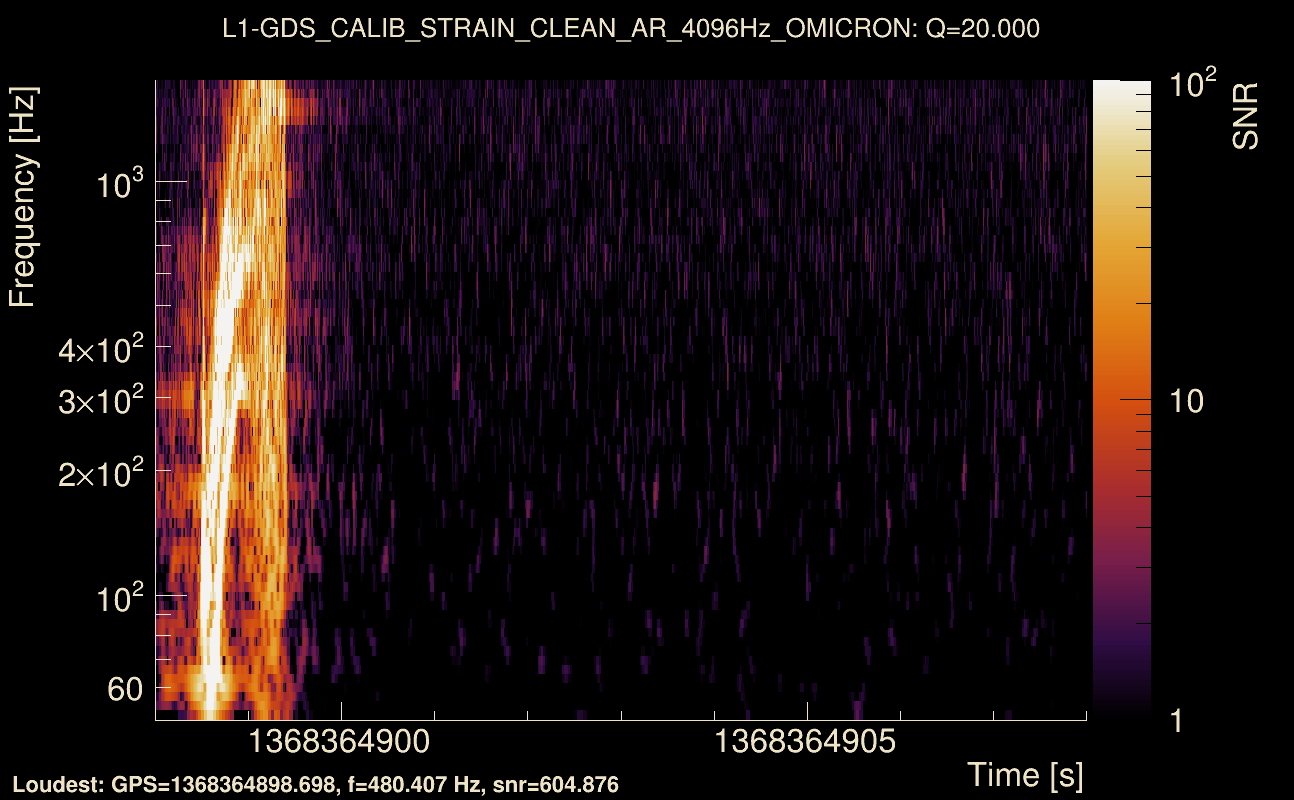

| Event time t(H1): | GPS = 1368364898 (Wed May 17 13:21:20 2023 ) → GPS = 1368364908 (Wed May 17 13:21:30 2023 ) |
| Event time t(L1): | GPS = 1368364898 (Wed May 17 13:21:30 2023 ) → GPS = 1368364908 (Wed May 17 13:21:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368364895 → GPS = 1368364911 |
| Omicron analysis time window (L1): | GPS = 1368364895 → GPS = 1368364911 |
| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 108 / 217), δt_gw = 0 s |
| Time delay standard deviation: | 0.00665137 s |
| [targeted mode] Time delay probability: | 0 (200.992 sigmas), δt_target = -0.0099473 s |
| Frequency: | 285.856 Hz |
| Ξ: | 0.986354 ± 0.001379 (variance = 1.90164e-06): Q0: 0.985981, Q1: 0.985867, Q2: 0.986845, Q3: 0.988446, Q4: 0.989348 |
| Rank: | R_A = 0.986354 |
| Log of amplitude ratio (L1/H1): | -0.0977583, variance = 0.151427 (L1/H1: -0.106862, variance = 0.301558, H1/L1: 0.0875231, variance = 0.302153) |
| Amplitude ratio (L1/H1): | 0.906868 ⋇ 1.47571 (L1/H1: 0.89865 ⋇ 1.73177, H1/L1: 1.09147 ⋇ 1.73271) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980143 |
| Antenna factor probability: | 0.723259 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 688.602, L1: 649.432 |

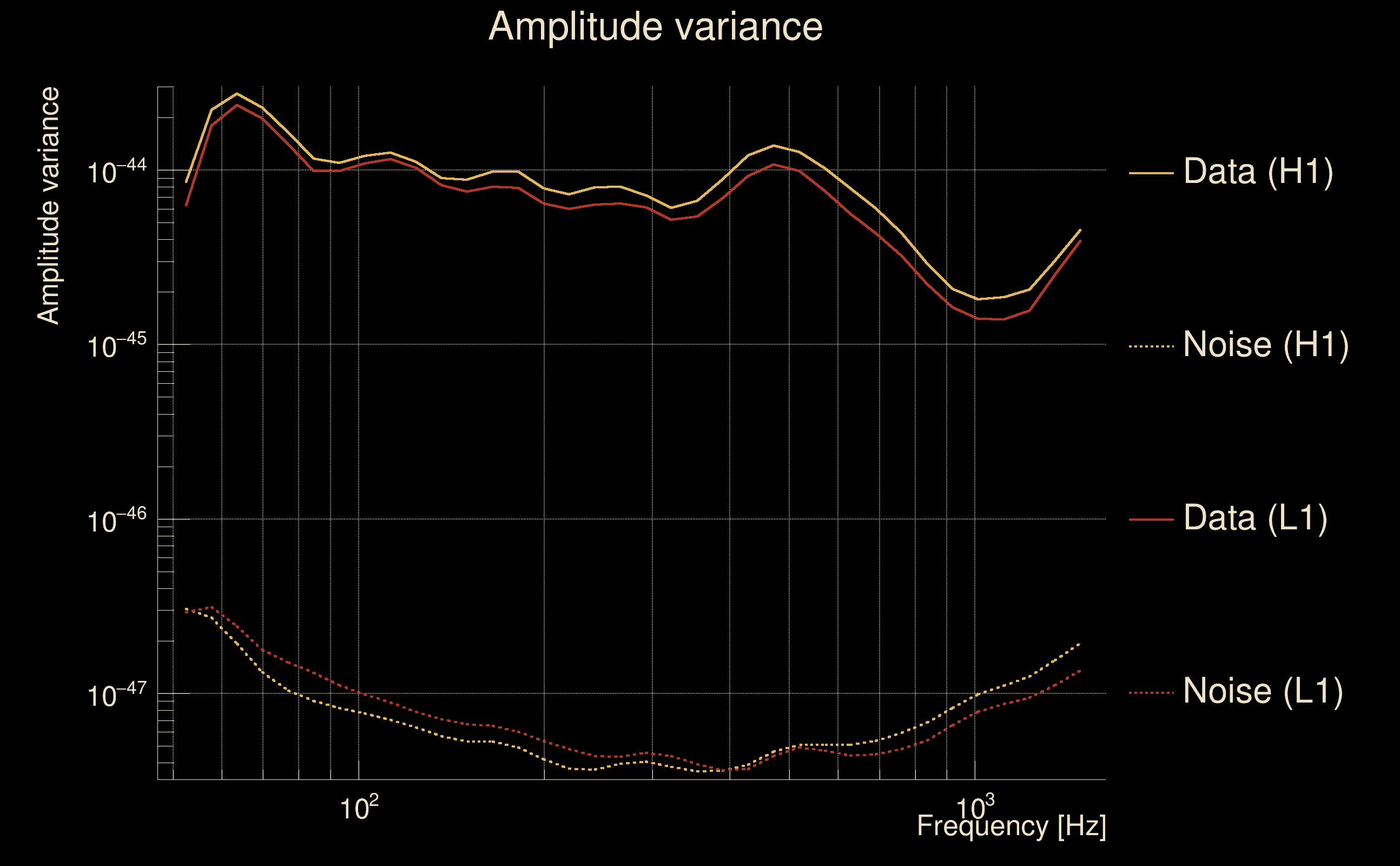

| SNR variance: | H1: 781.703, L1: 706.256 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

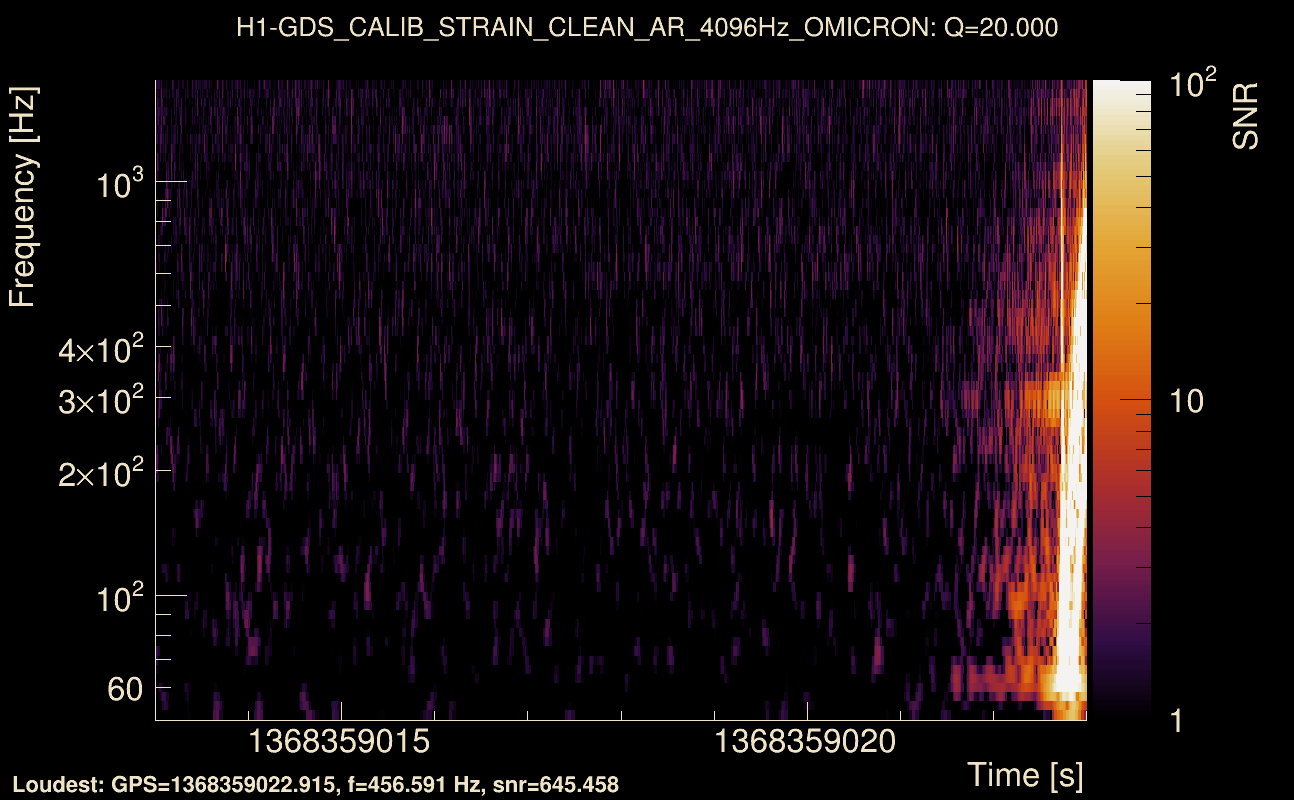

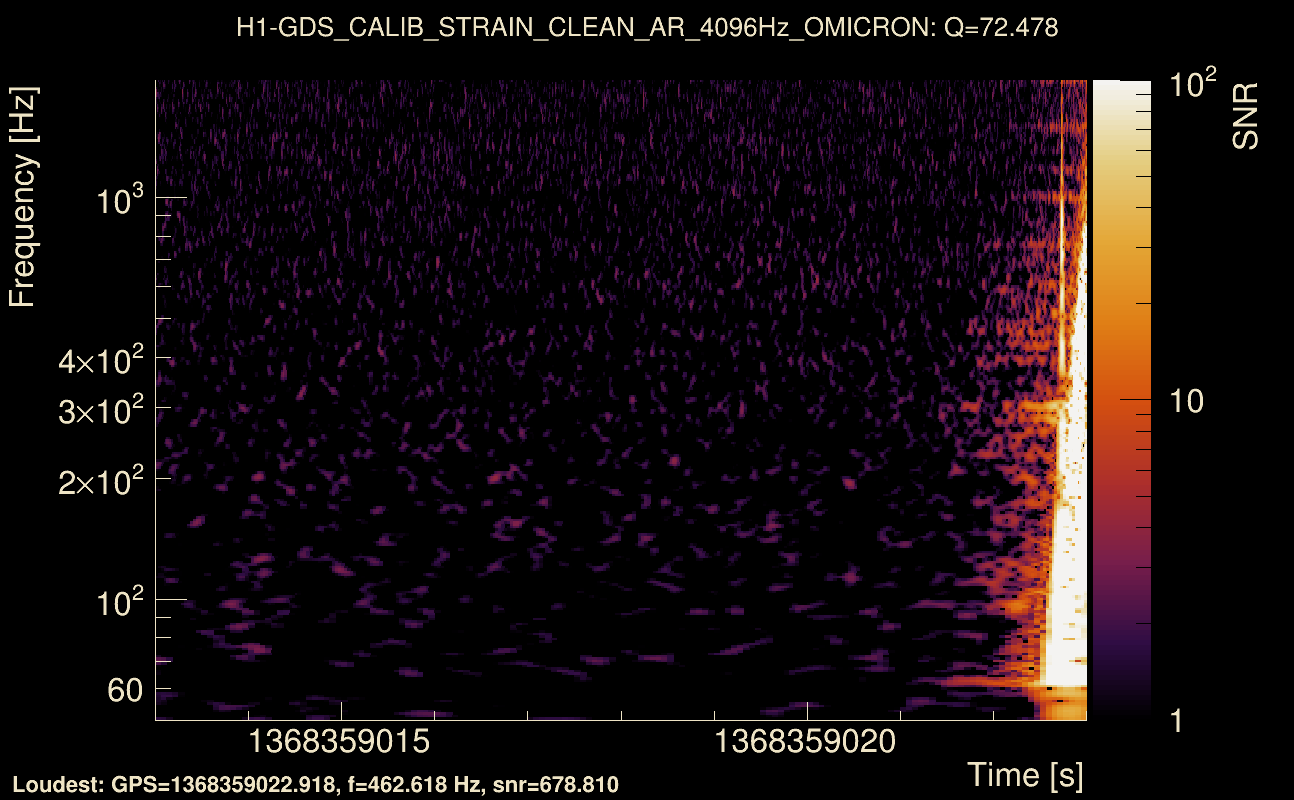

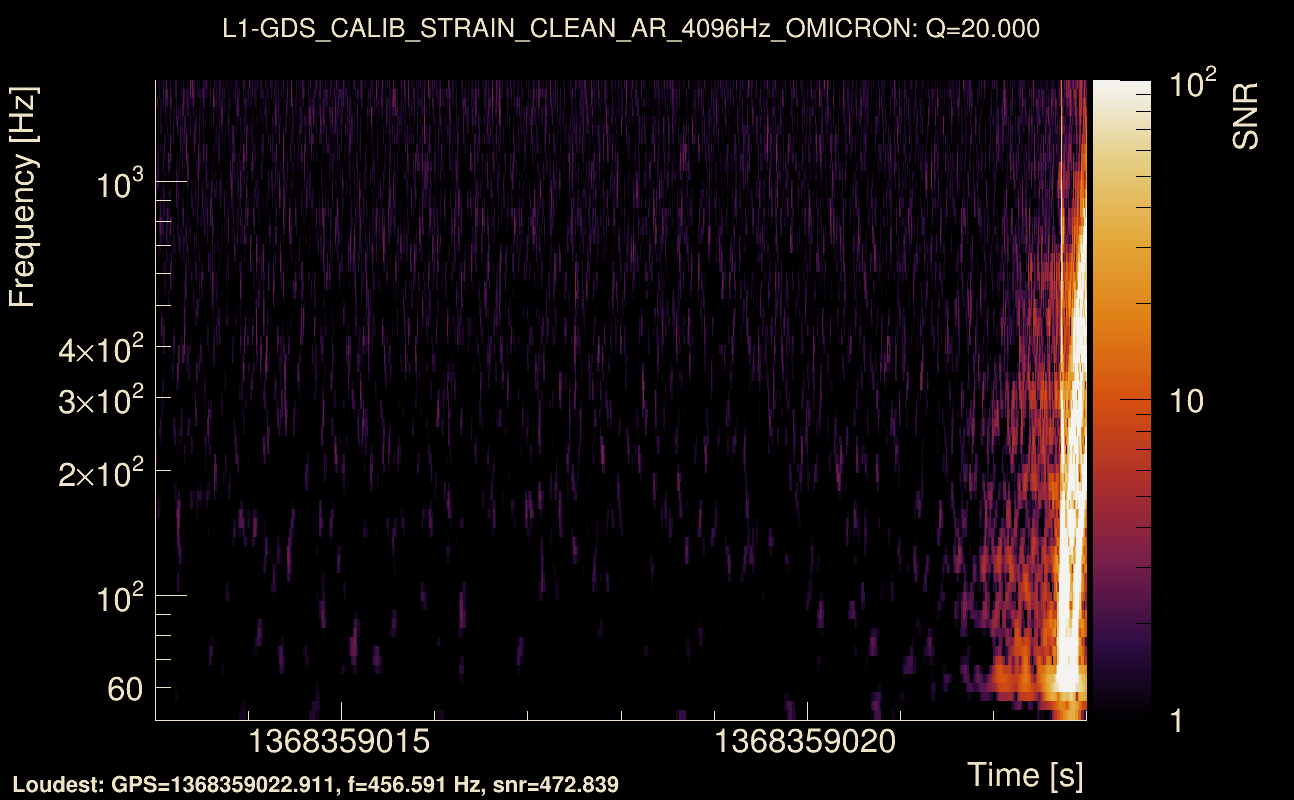

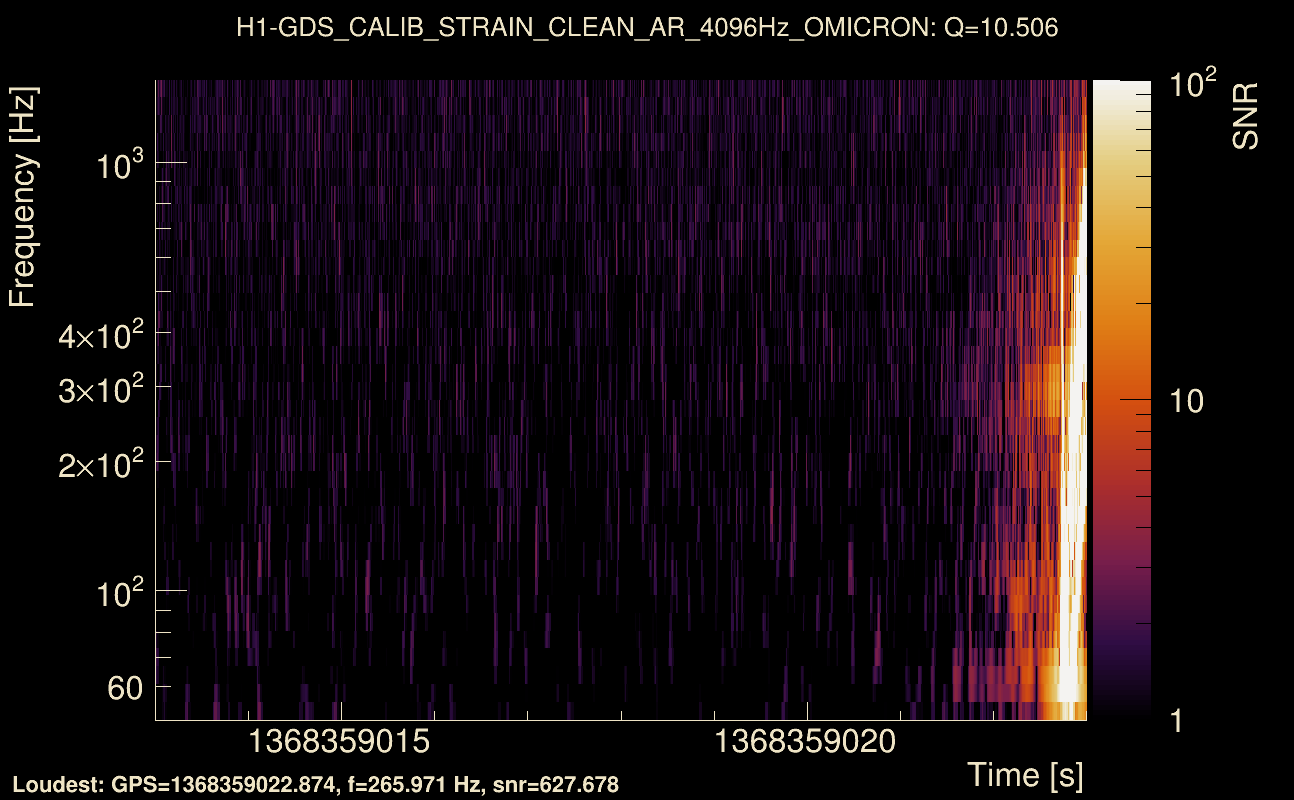

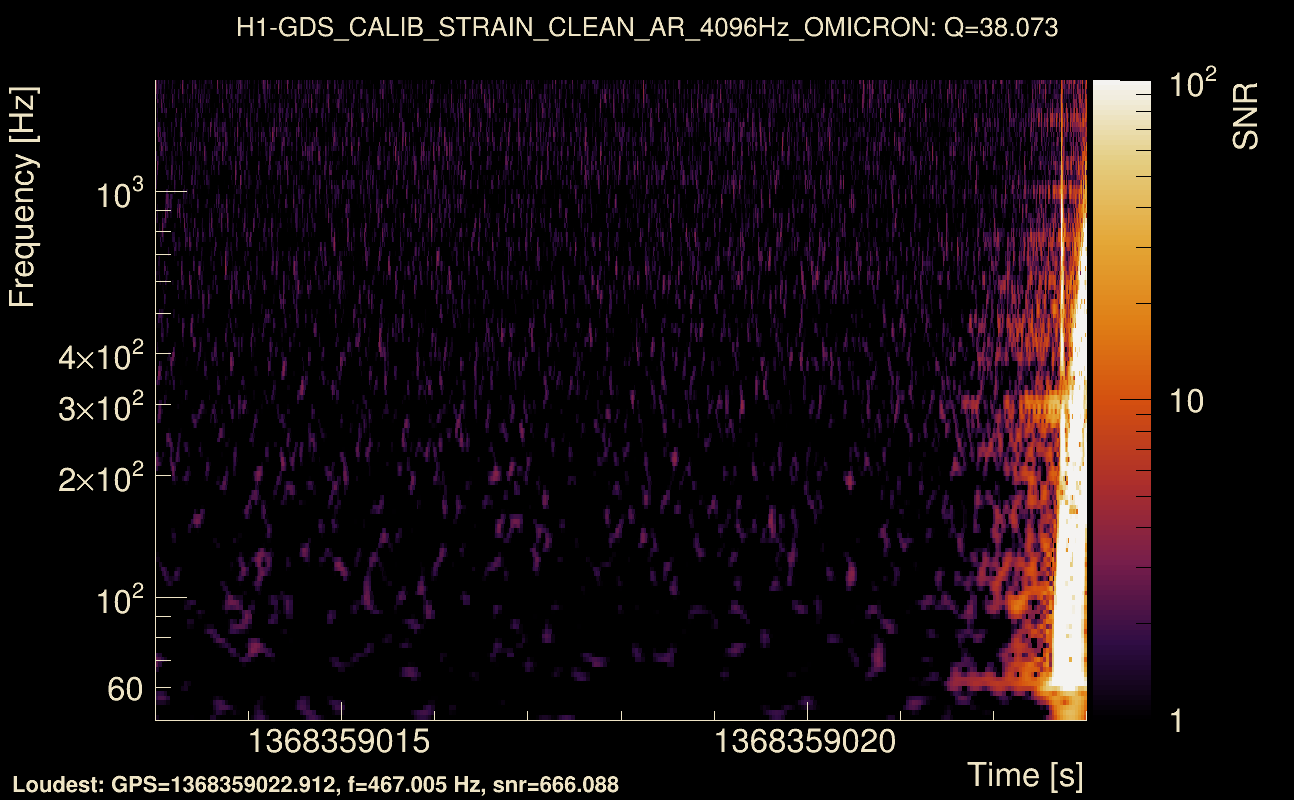

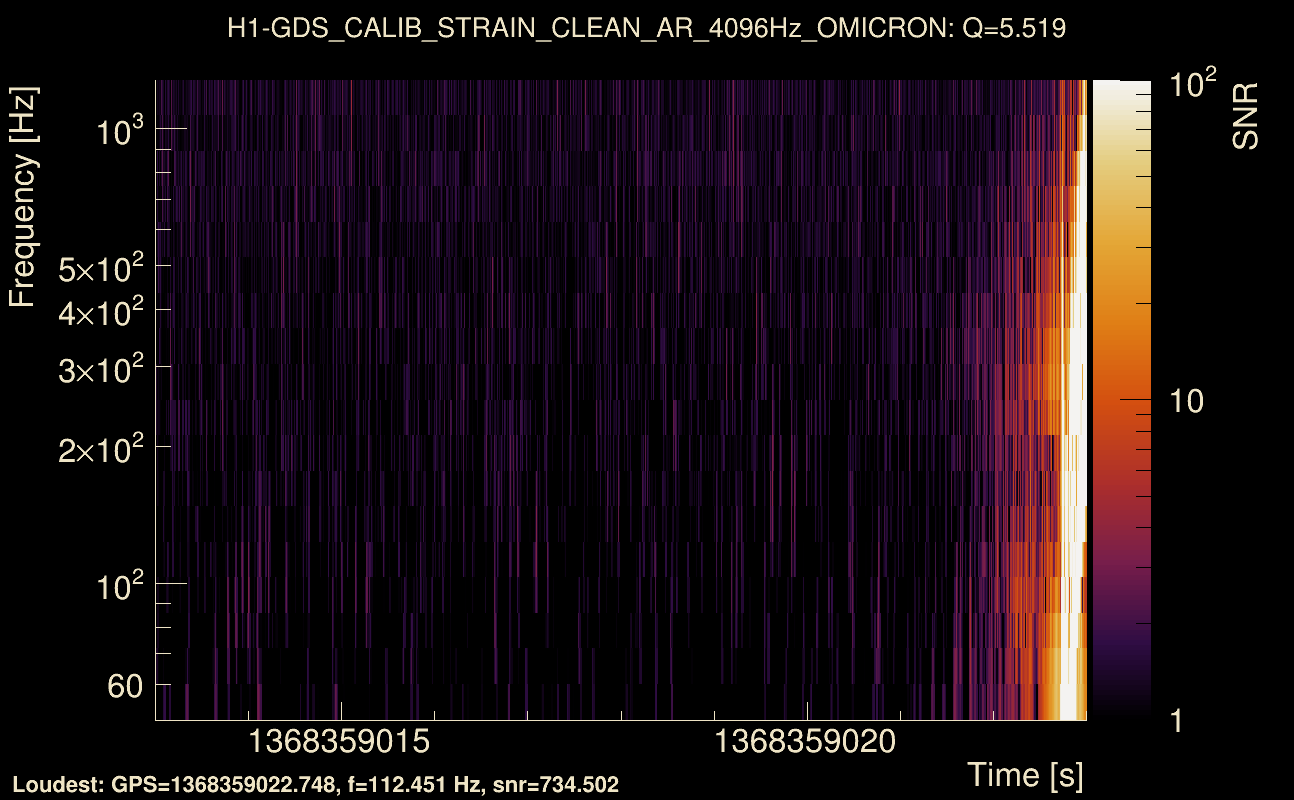

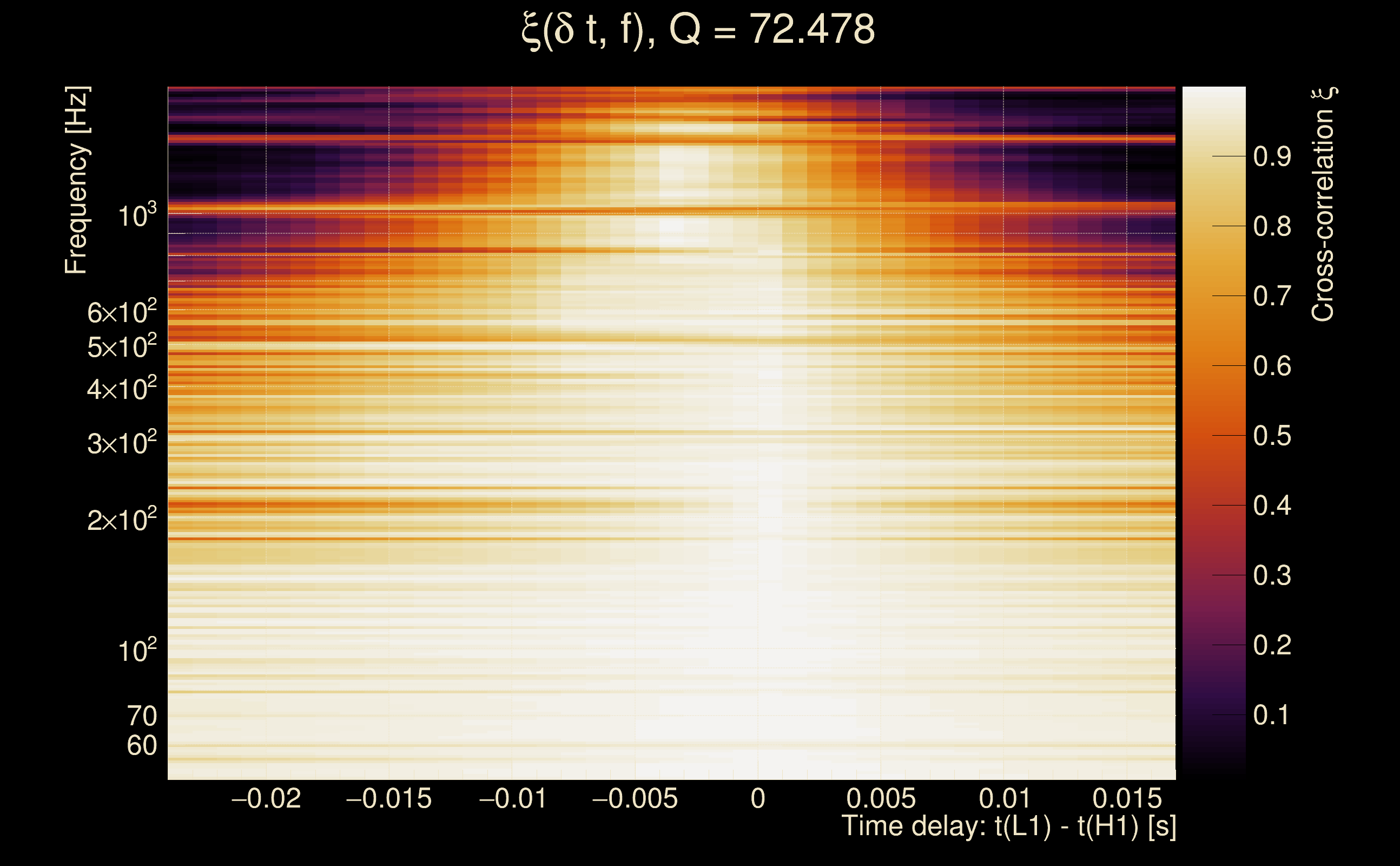

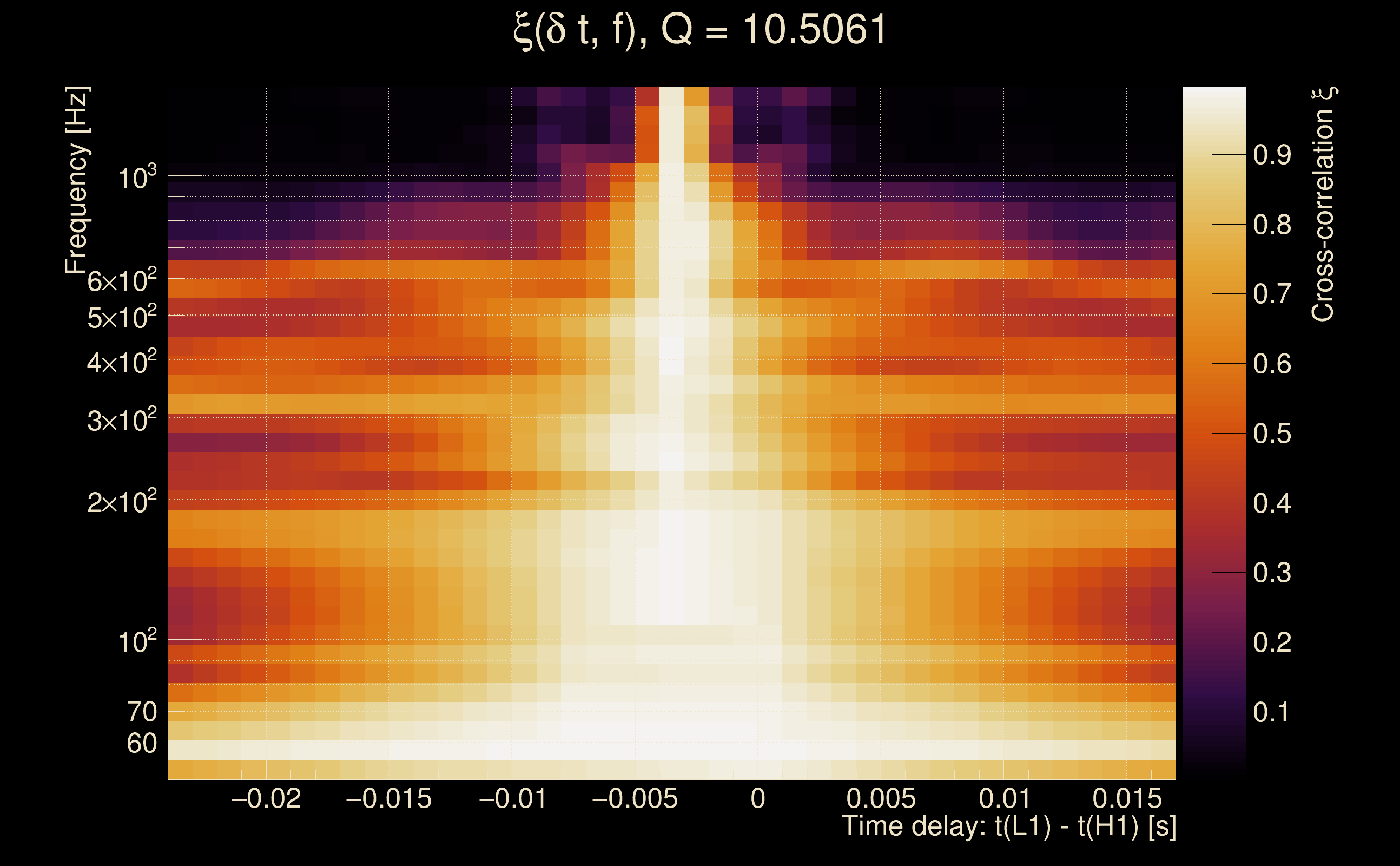

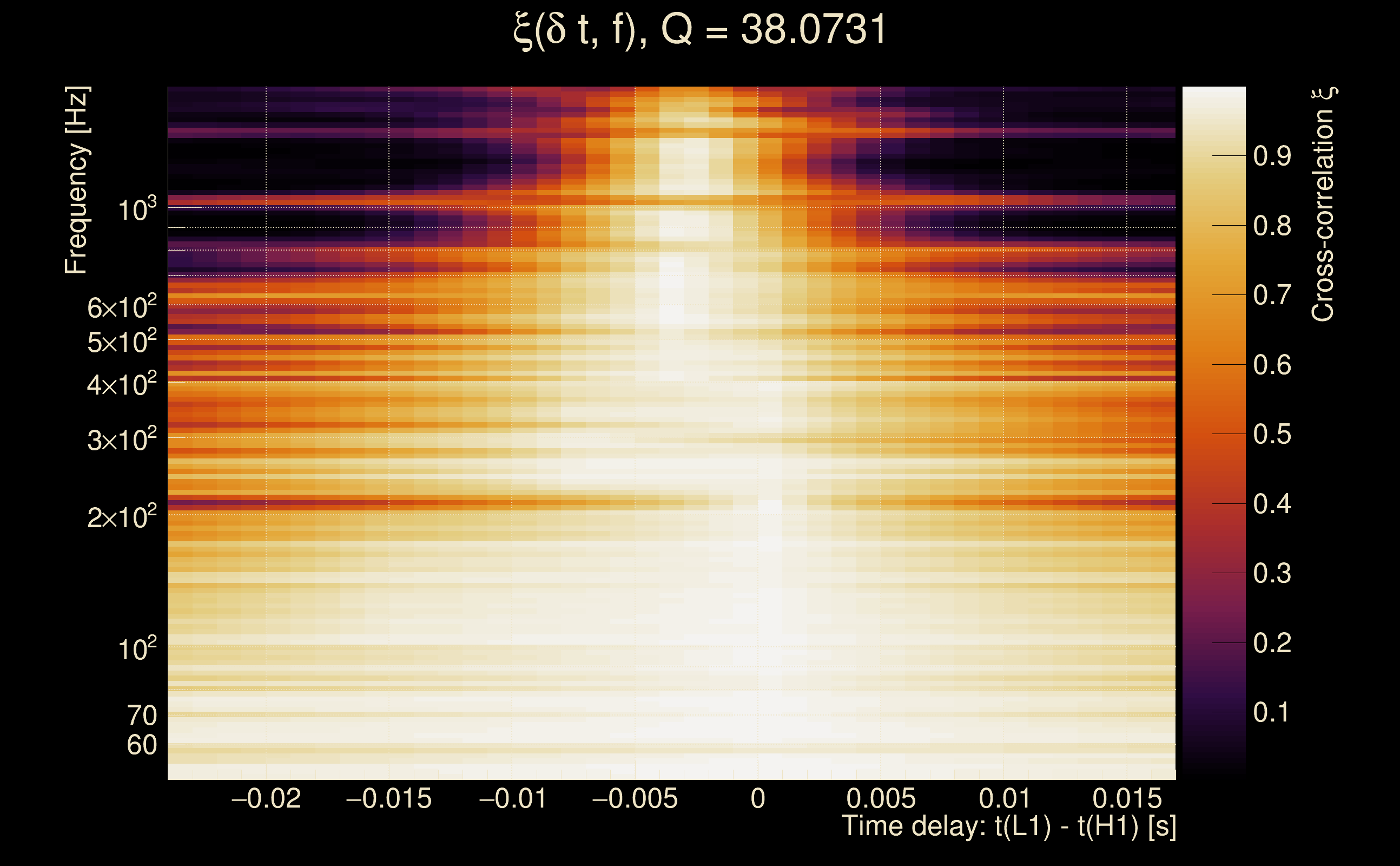

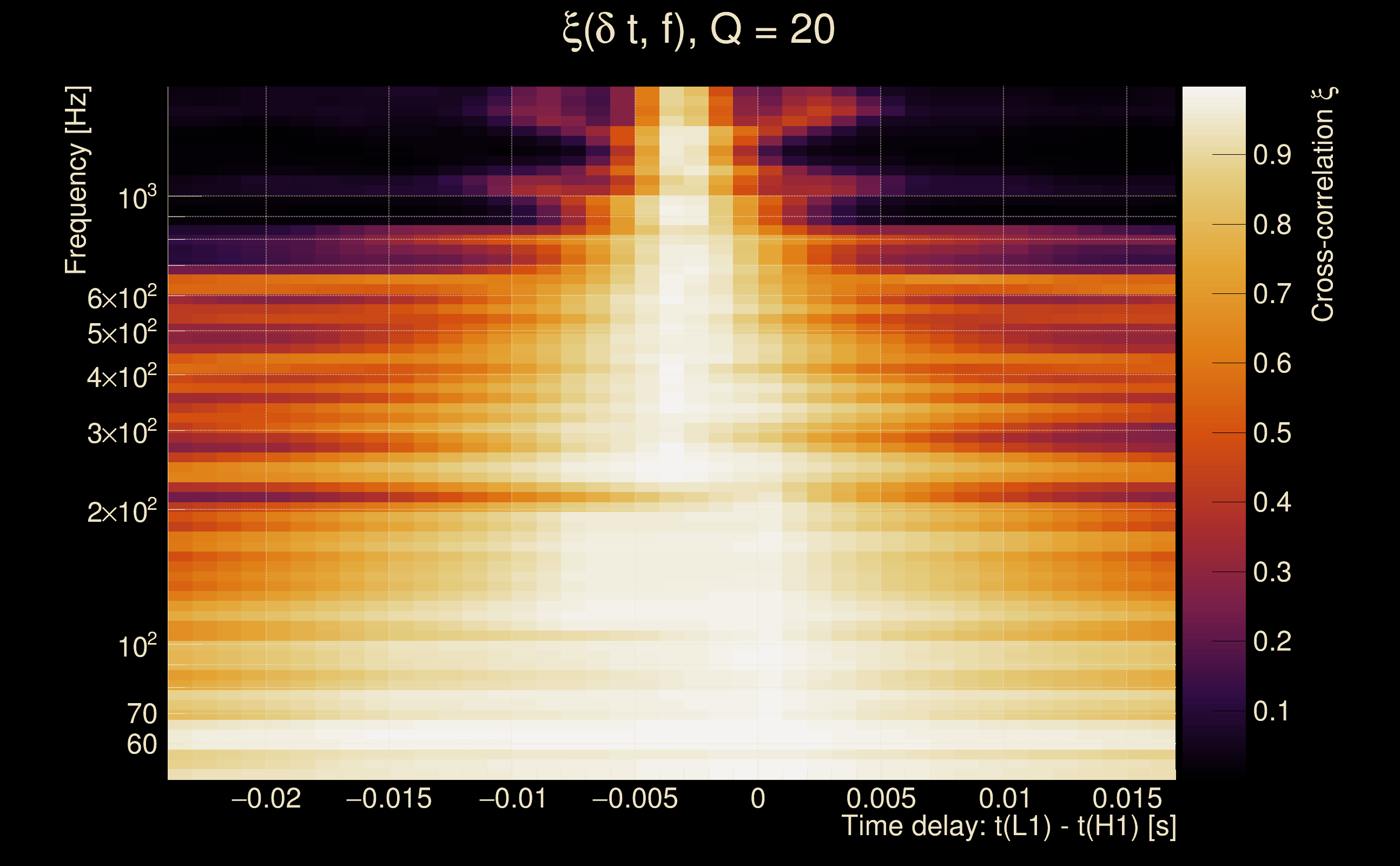

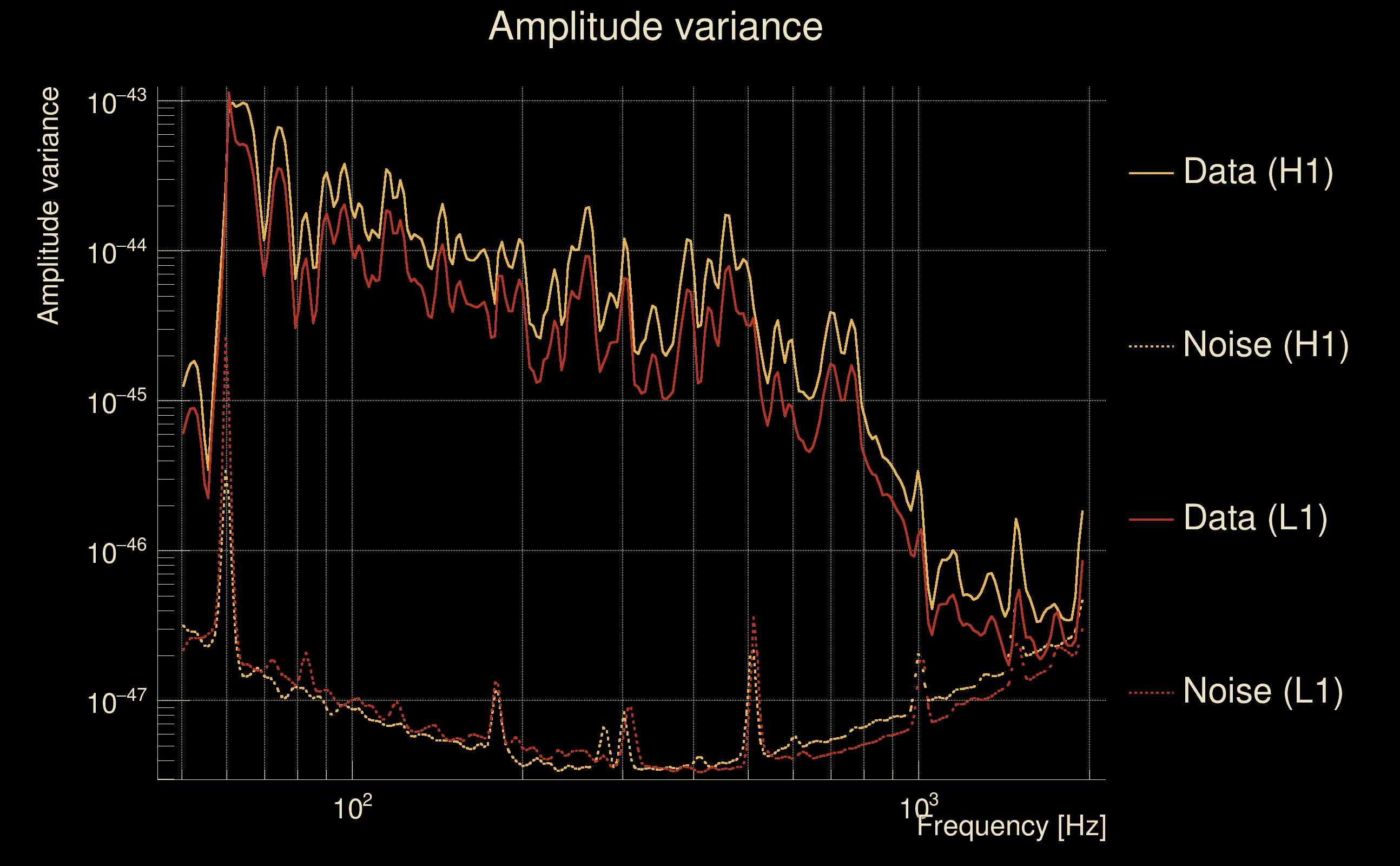

| Event time t(H1): | GPS = 1368359013 (Wed May 17 11:43:15 2023 ) → GPS = 1368359023 (Wed May 17 11:43:25 2023 ) |

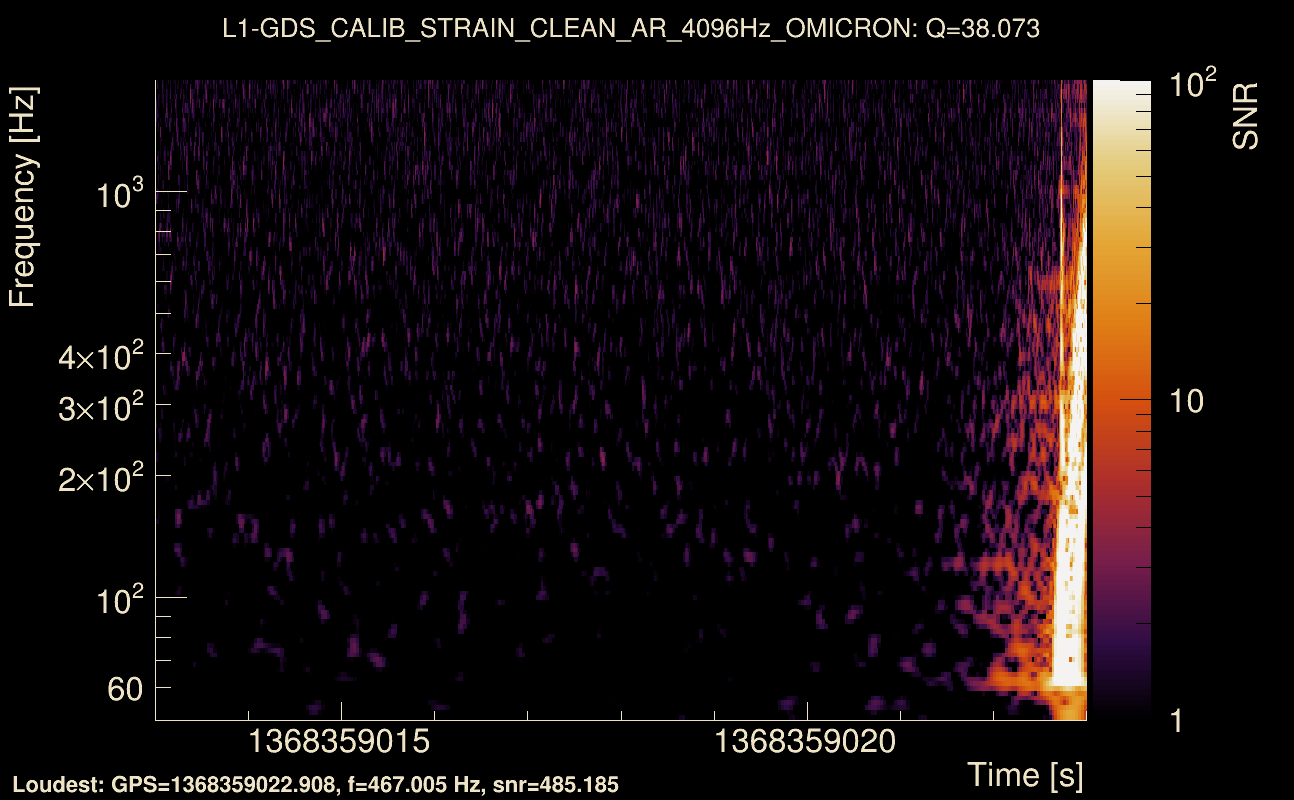

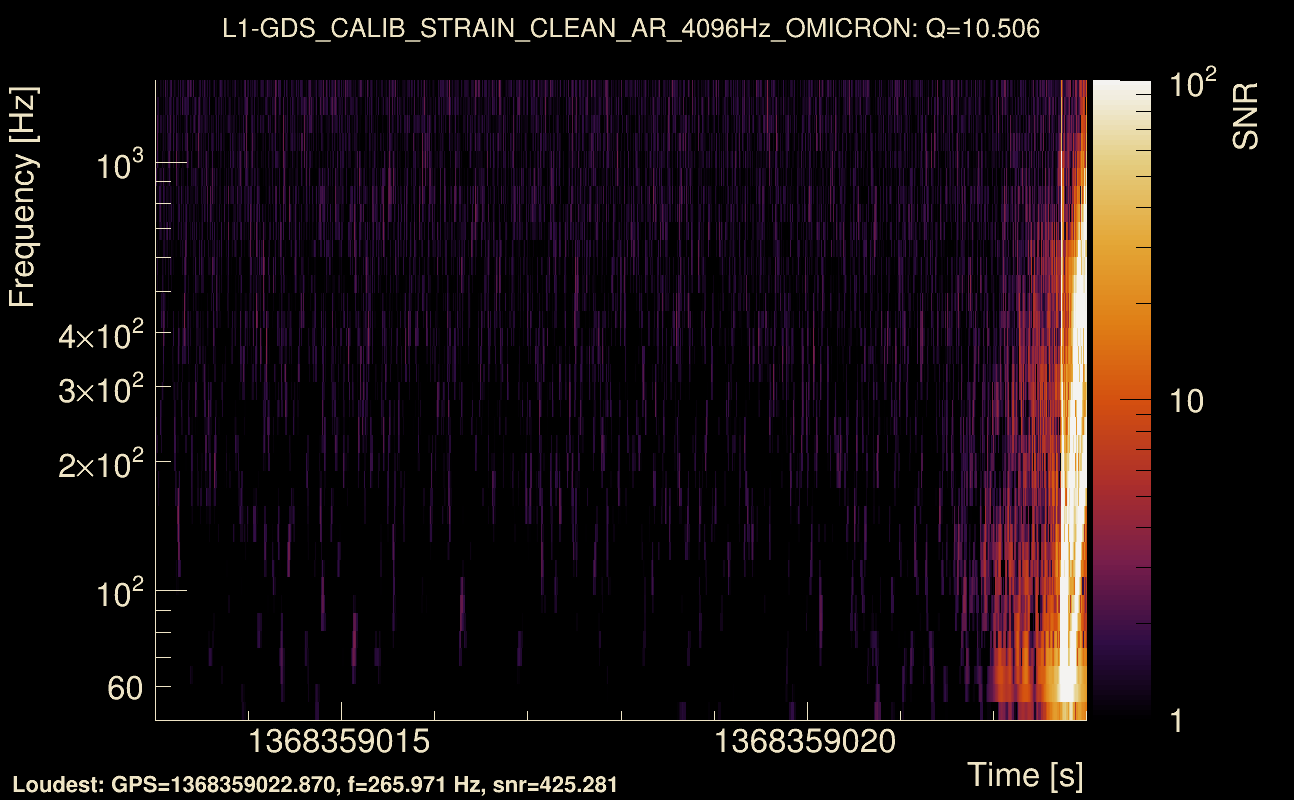

| Event time t(L1): | GPS = 1368359013 (Wed May 17 11:43:25 2023 ) → GPS = 1368359023 (Wed May 17 11:43:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368359010 → GPS = 1368359026 |
| Omicron analysis time window (L1): | GPS = 1368359010 → GPS = 1368359026 |
| Time delay between detectors t(L1) - t(H1): | -0.00390234 s (slice index = 108 / 217), δt_gw = -0.00390234 s |
| Time delay standard deviation: | 0.0211037 s |
| [targeted mode] Time delay probability: | 1.26781e-174 (28.1726 sigmas), δt_target = -0.00994706 s |
| Frequency: | 279.933 Hz |
| Ξ: | 0.976291 ± 0.00524236 (variance = 2.74823e-05): Q0: 0.977288, Q1: 0.980209, Q2: 0.972969, Q3: 0.967408, Q4: 0.967018 |
| Rank: | R_A = 0.976291 |
| Log of amplitude ratio (L1/H1): | -0.352334, variance = 0.159352 (L1/H1: -0.360543, variance = 0.301216, H1/L1: 0.338902, variance = 0.301033) |
| Amplitude ratio (L1/H1): | 0.703045 ⋇ 1.49062 (L1/H1: 0.697298 ⋇ 1.73123, H1/L1: 1.40341 ⋇ 1.73094) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.977753 |

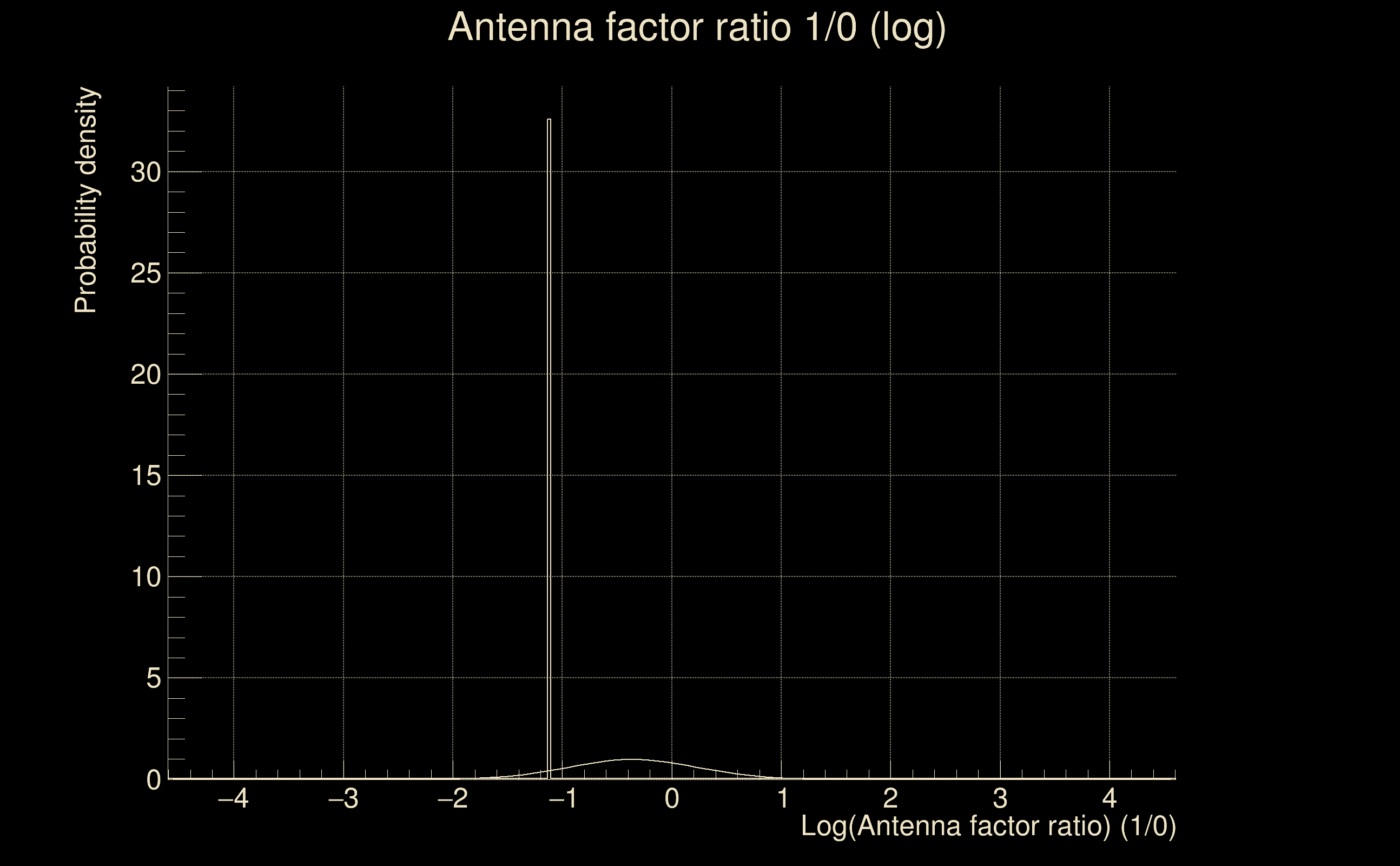

| Antenna factor probability: | 0.863853 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 797.62, L1: 623.565 |
| SNR variance: | H1: 0.529832, L1: 0.502914 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368459588 (Thu May 18 15:39:30 2023 ) → GPS = 1368459598 (Thu May 18 15:39:40 2023 ) |
| Event time t(L1): | GPS = 1368459588 (Thu May 18 15:39:40 2023 ) → GPS = 1368459598 (Thu May 18 15:39:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368459585 → GPS = 1368459601 |
| Omicron analysis time window (L1): | GPS = 1368459585 → GPS = 1368459601 |
| Time delay between detectors t(L1) - t(H1): | -2.80302 s (slice index = 169 / 217), δt_gw = 0.00298244 s |
| Time delay standard deviation: | 0.068051 s |
| [targeted mode] Time delay probability: | 0.317007 (1.00063 sigmas), δt_target = -0.00947881 s |
| Frequency: | 85.505 Hz |
| Ξ: | 0.0879374 ± 0.0328397 (variance = 0.00107845): Q0: 0.20154, Q1: 0.203861, Q2: 0.287085, Q3: 0.225102, Q4: 0.201606 |
| Rank: | R_A = 0.0879374 |
| Log of amplitude ratio (L1/H1): | -3.23597, variance = 1.15903 (L1/H1: -3.35328, variance = 1.21629, H1/L1: -1.41317, variance = 3.09829) |
| Amplitude ratio (L1/H1): | 0.0393222 ⋇ 2.93464 (L1/H1: 0.0349693 ⋇ 3.01276, H1/L1: 0.24337 ⋇ 5.81357) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0217501 |
| Antenna factor probability: | 0.00325563 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 23 / 36, Q2: 52 / 70, Q3: 117 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 69.7934, L1: 11.0869 |
| SNR variance: | H1: 1.76101, L1: 0.596373 |

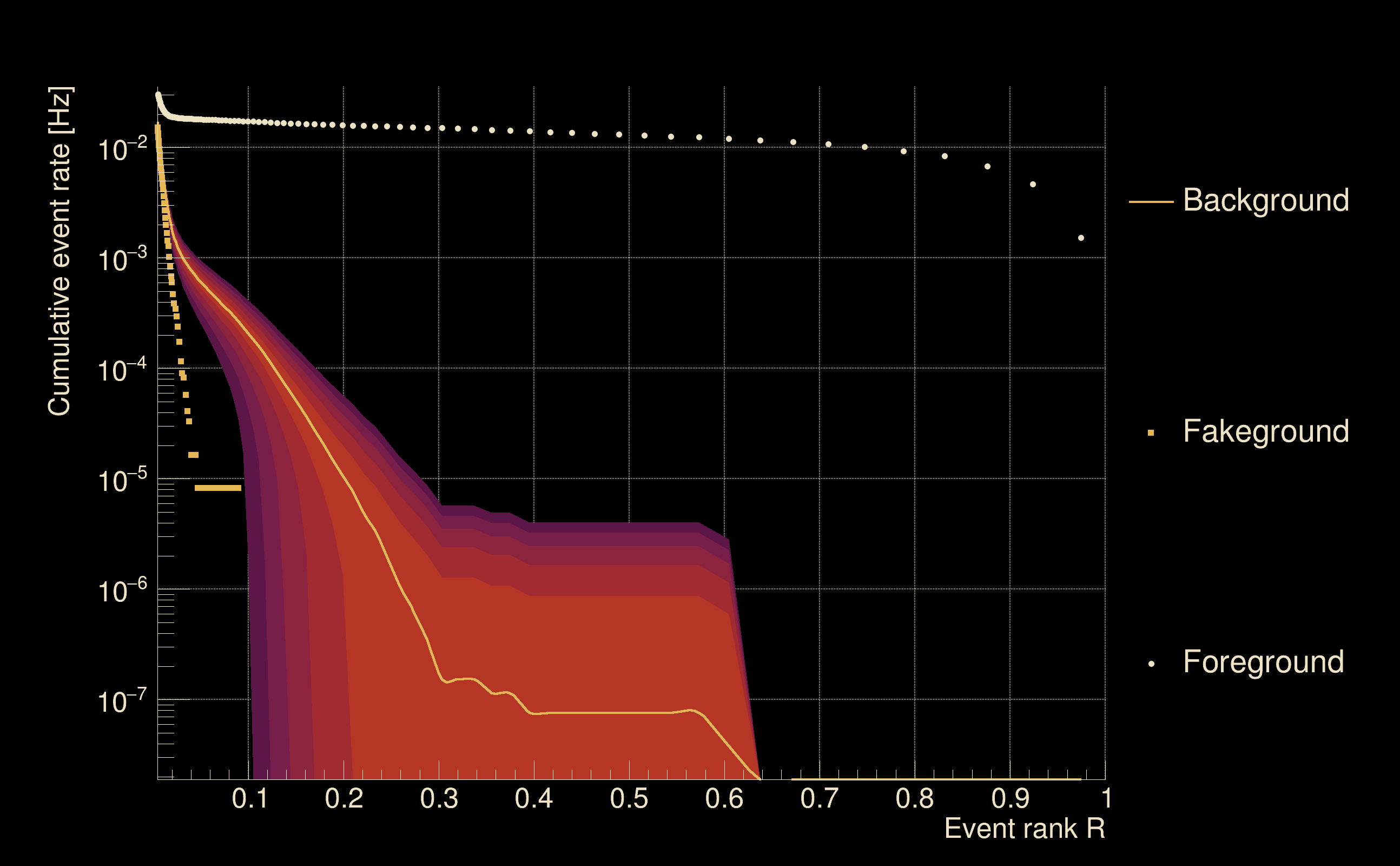

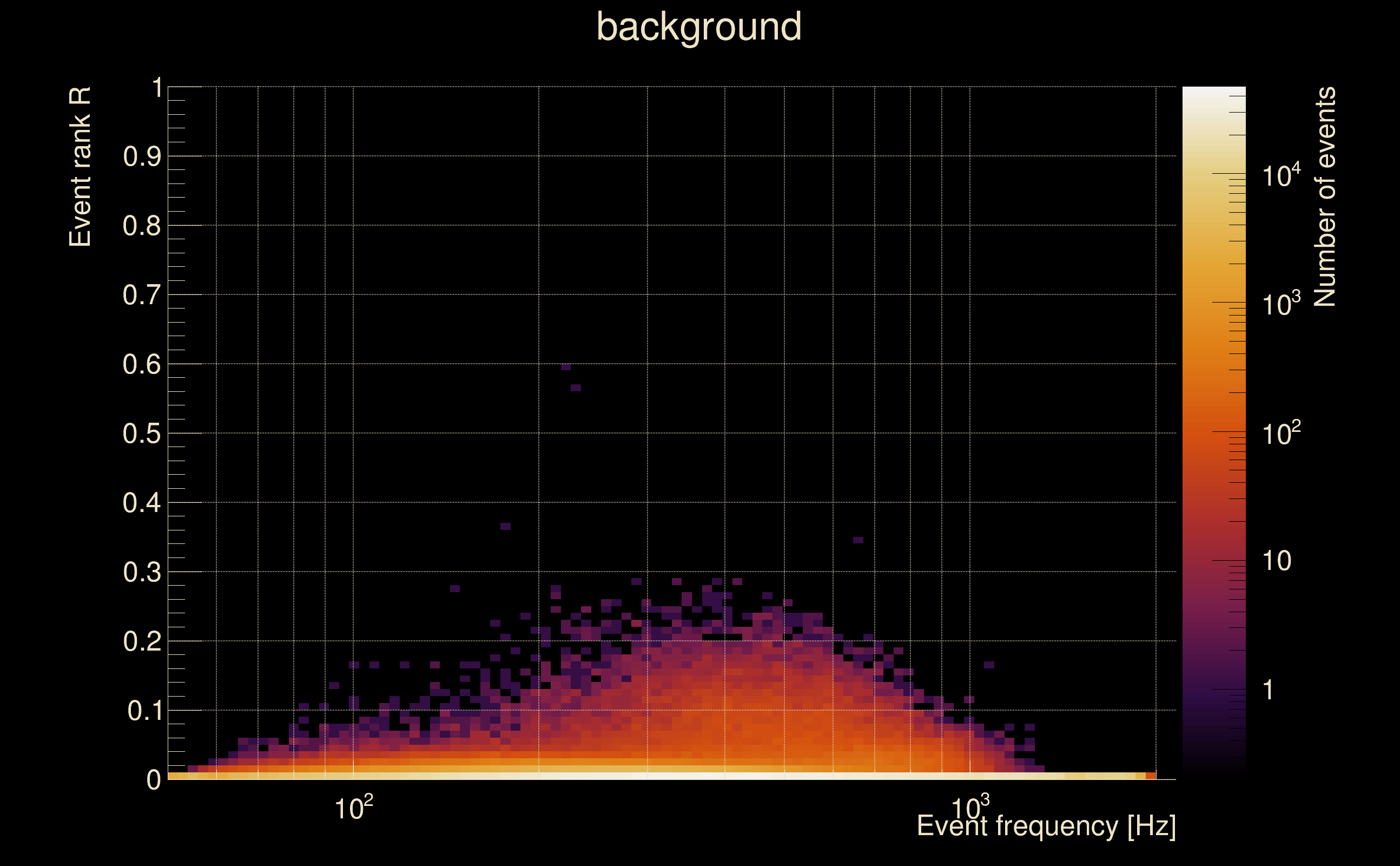

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.60472 |
| Alternative threshold at 1/100 yrs: | R > 0.60472 |
| Alternative threshold at 1/10 yrs: | R > 0.60472 |
| Alternative threshold at 1/1 yr: | R > 0.60472 |
| Alternative threshold at 1/1 d: | R > 0.189083 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

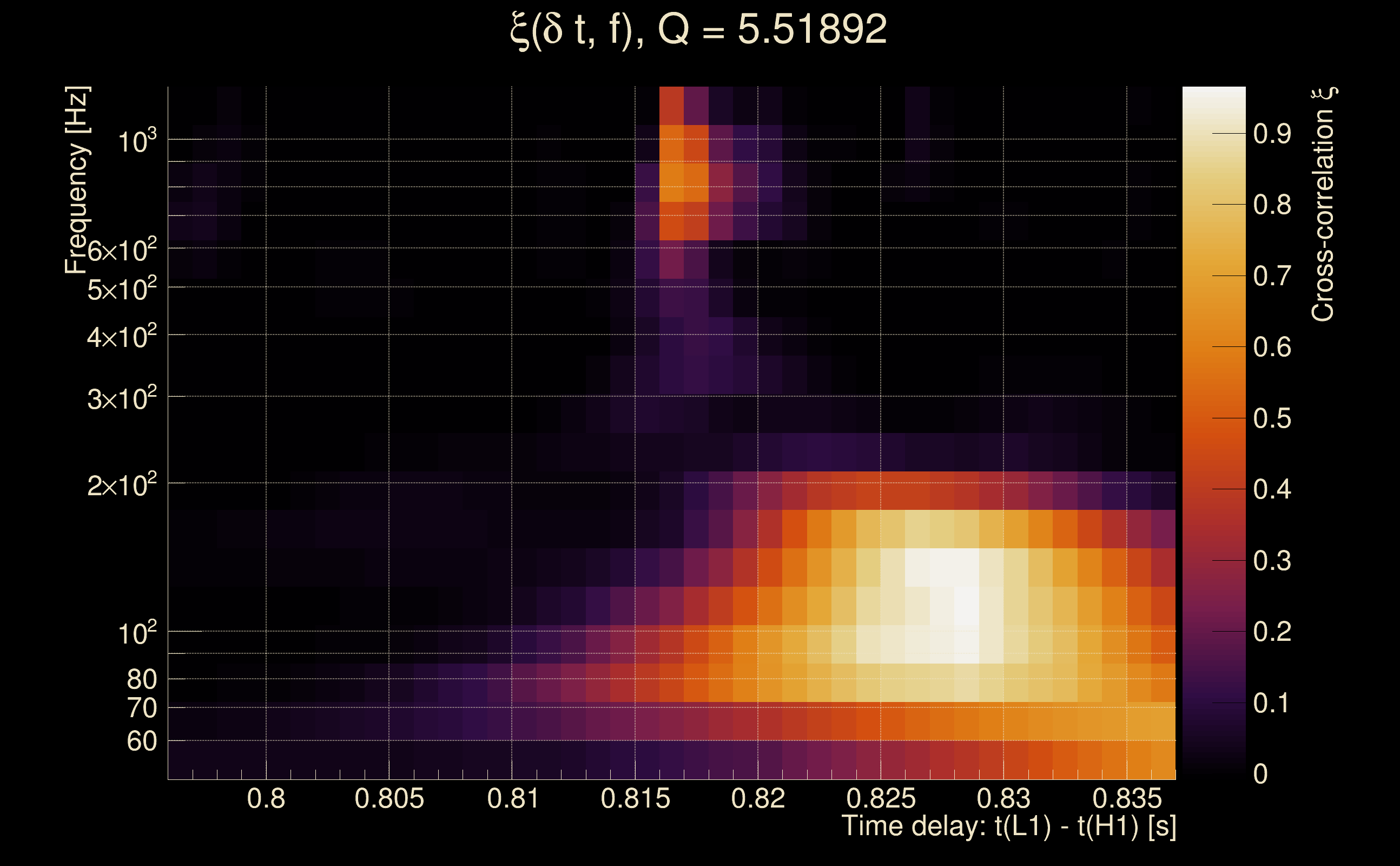

| Event time t(H1): | GPS = 1368359343 (Wed May 17 11:48:45 2023 ) → GPS = 1368359353 (Wed May 17 11:48:55 2023 ) |
| Event time t(L1): | GPS = 1368359343 (Wed May 17 11:48:55 2023 ) → GPS = 1368359353 (Wed May 17 11:48:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368359340 → GPS = 1368359356 |
| Omicron analysis time window (L1): | GPS = 1368359340 → GPS = 1368359356 |

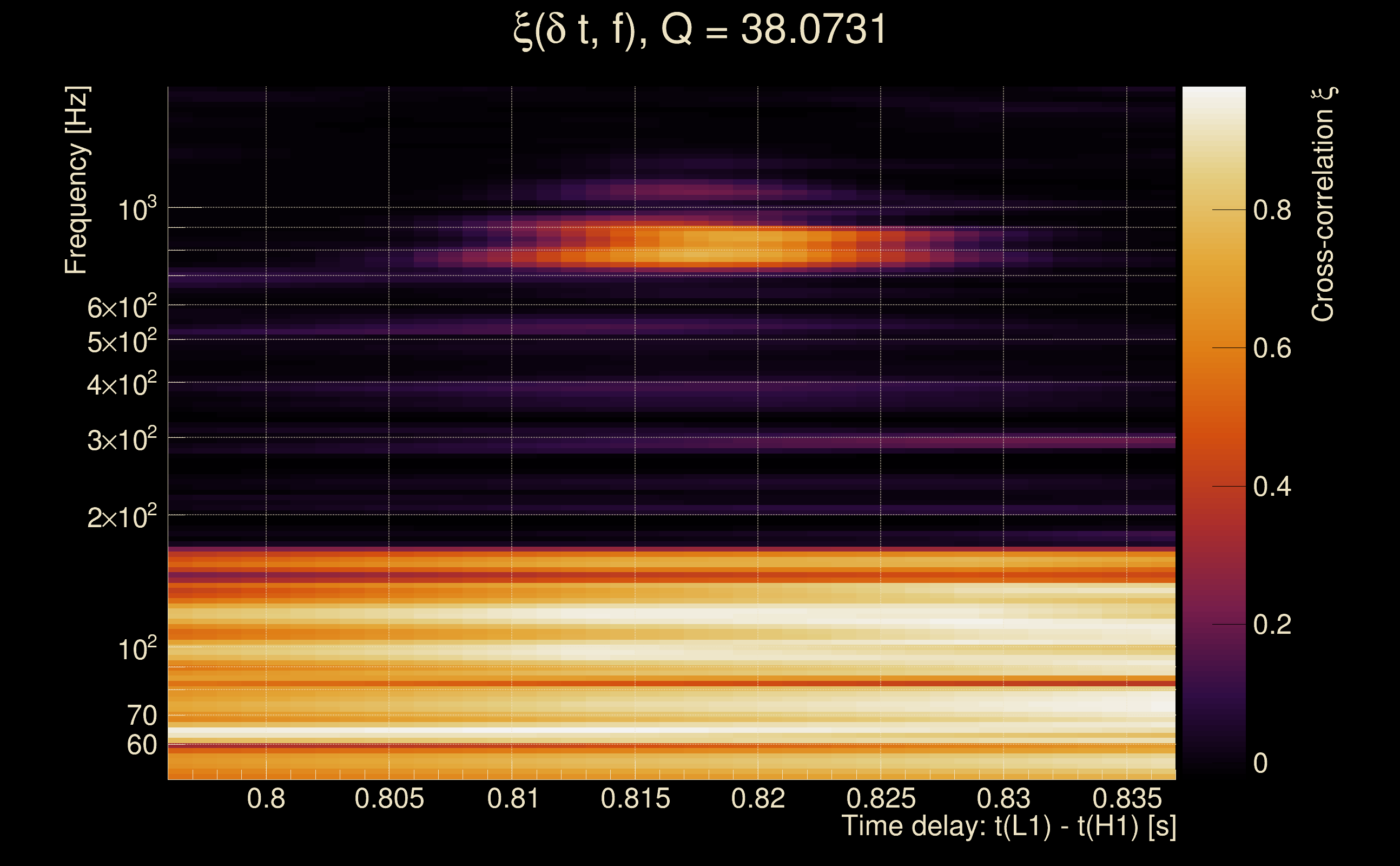

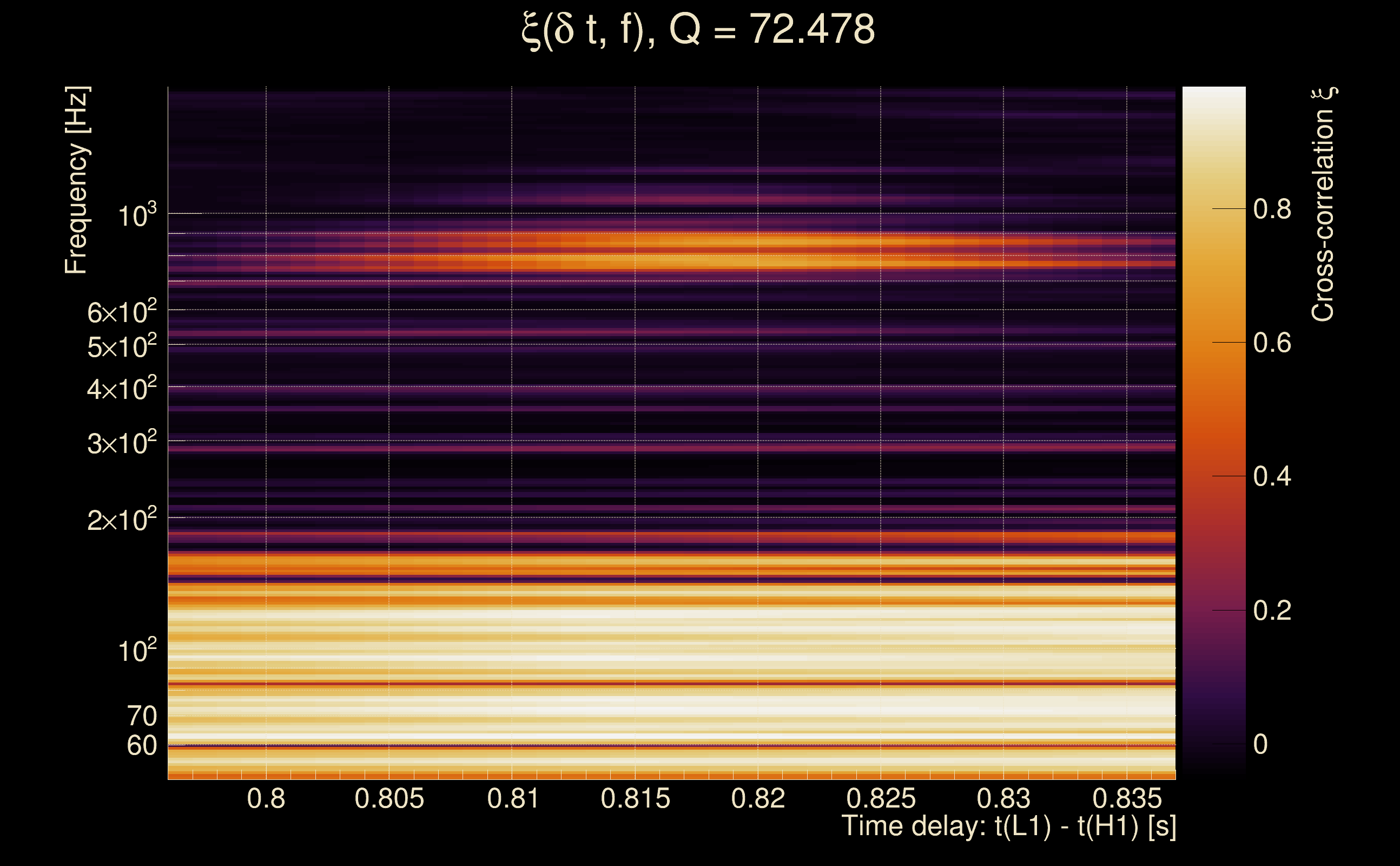

| Time delay between detectors t(L1) - t(H1): | 0.81685 s (slice index = 90 / 217), δt_gw = -0.0111499 s |
| Time delay standard deviation: | 0.051571 s |
| [targeted mode] Time delay probability: | 8.82079e-14 (7.45746 sigmas), δt_target = -0.00947881 s |
| Frequency: | 225.177 Hz |
| Ξ: | 0.590883 ± 0.0829595 (variance = 0.00688228): Q0: 0.717936, Q1: 0.723158, Q2: 0.737513, Q3: 0.666917, Q4: 0.51273 |
| Rank: | R_A = 0.590883 |
| Log of amplitude ratio (L1/H1): | -2.43997, variance = 1.21967 (L1/H1: -2.51555, variance = 1.30504, H1/L1: 0.269491, variance = 0.861847) |
| Amplitude ratio (L1/H1): | 0.0871634 ⋇ 3.01737 (L1/H1: 0.0808188 ⋇ 3.13423, H1/L1: 1.3093 ⋇ 2.53035) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.127055 |

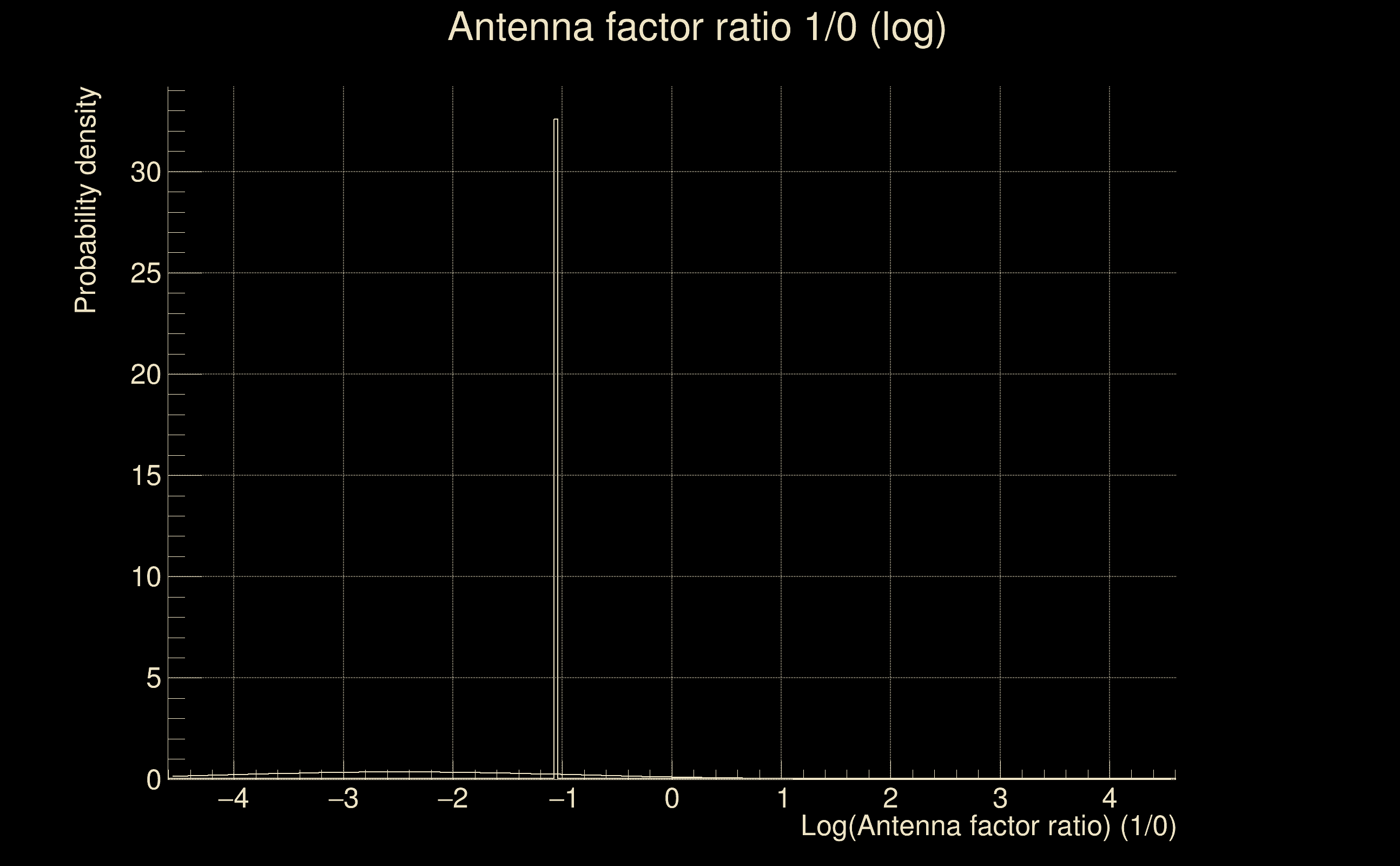

| Antenna factor probability: | 0.0664835 |
| Number of rejected frequency rows: | Q0: 1 / 18, Q1: 6 / 36, Q2: 21 / 70, Q3: 73 / 134, Q4: 215 / 258 |
| Maximum signal-to-noise ratio: | H1: 123.684, L1: 23.0796 |
| SNR variance: | H1: 0.496409, L1: 0.47009 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

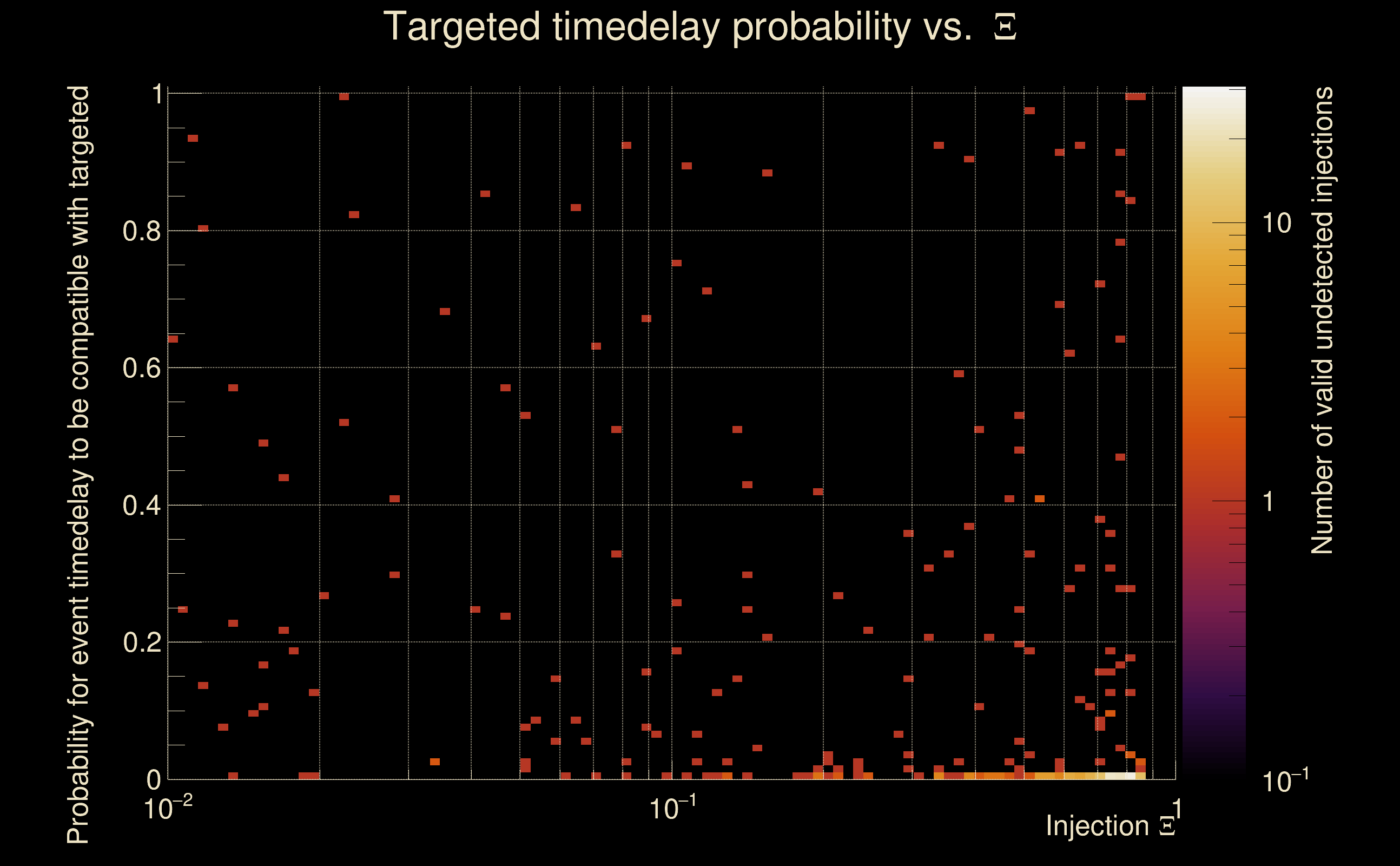

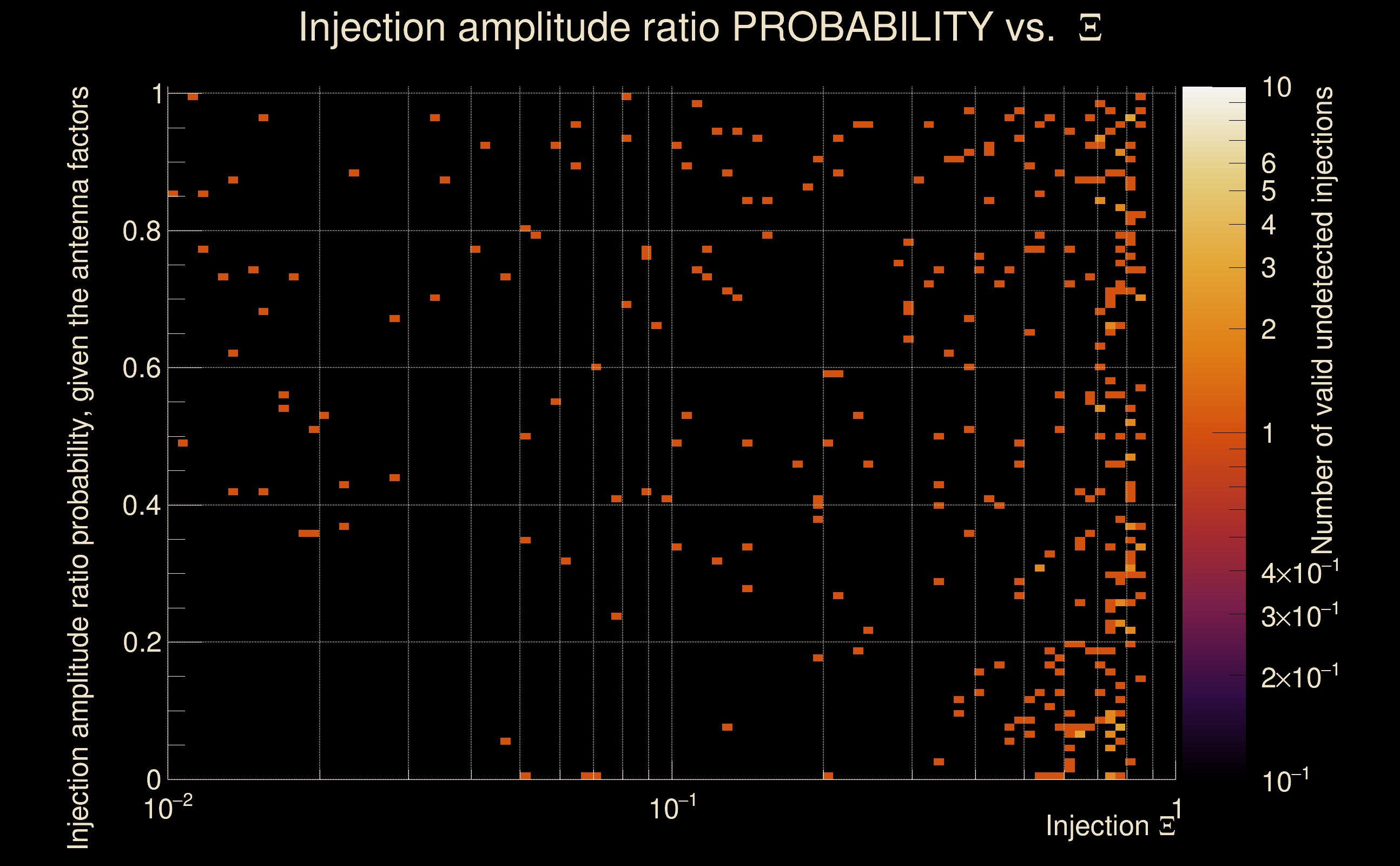

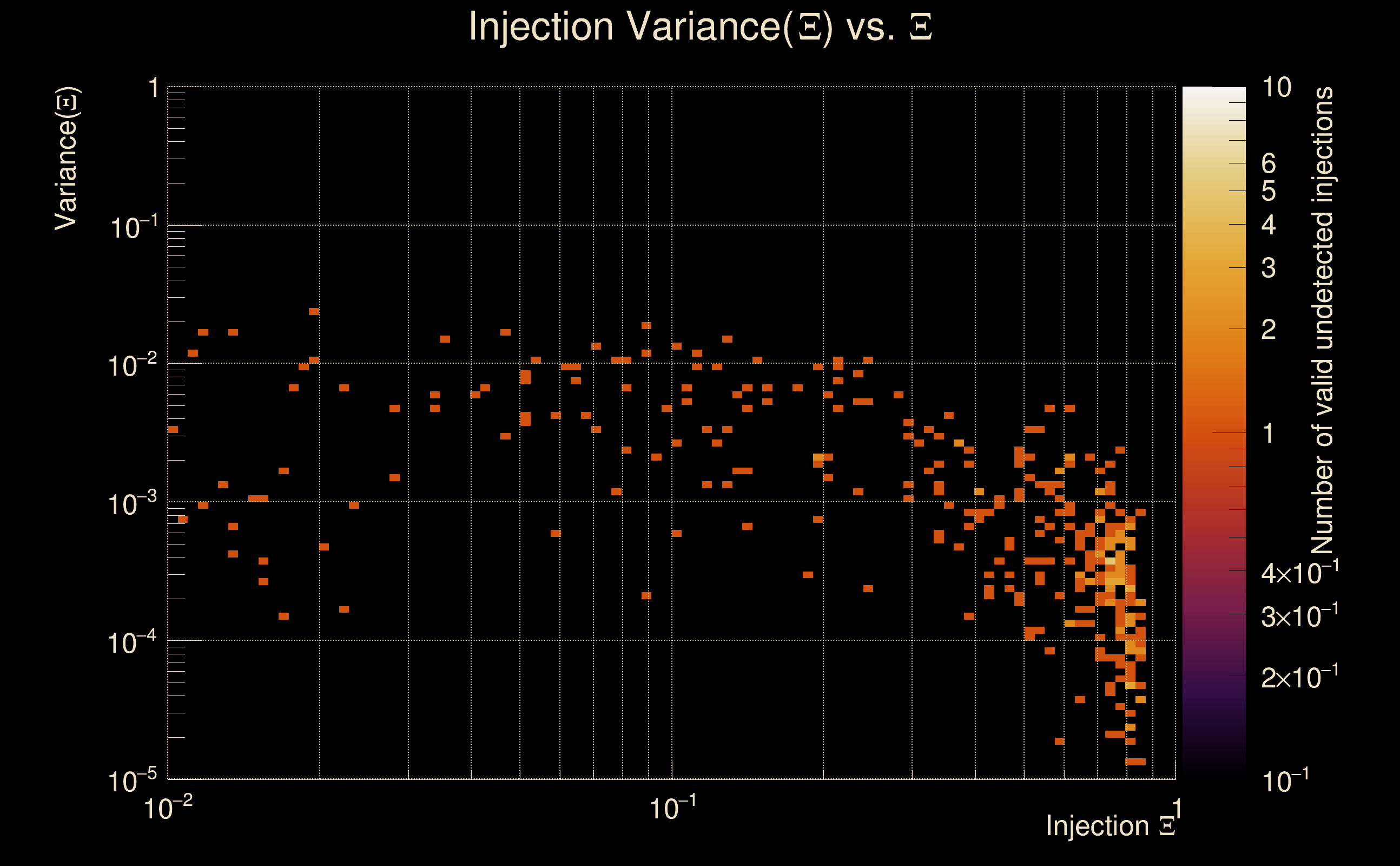

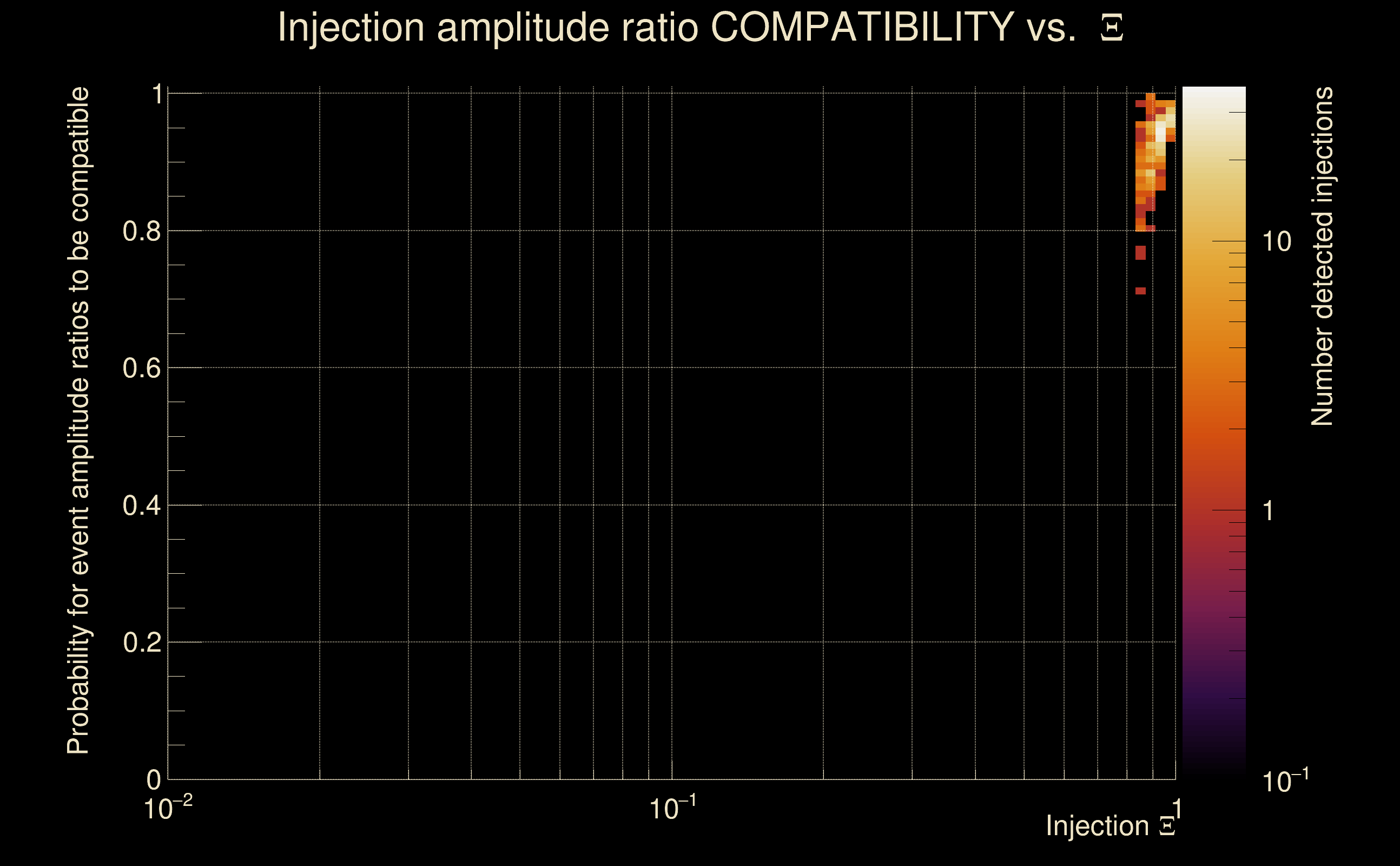

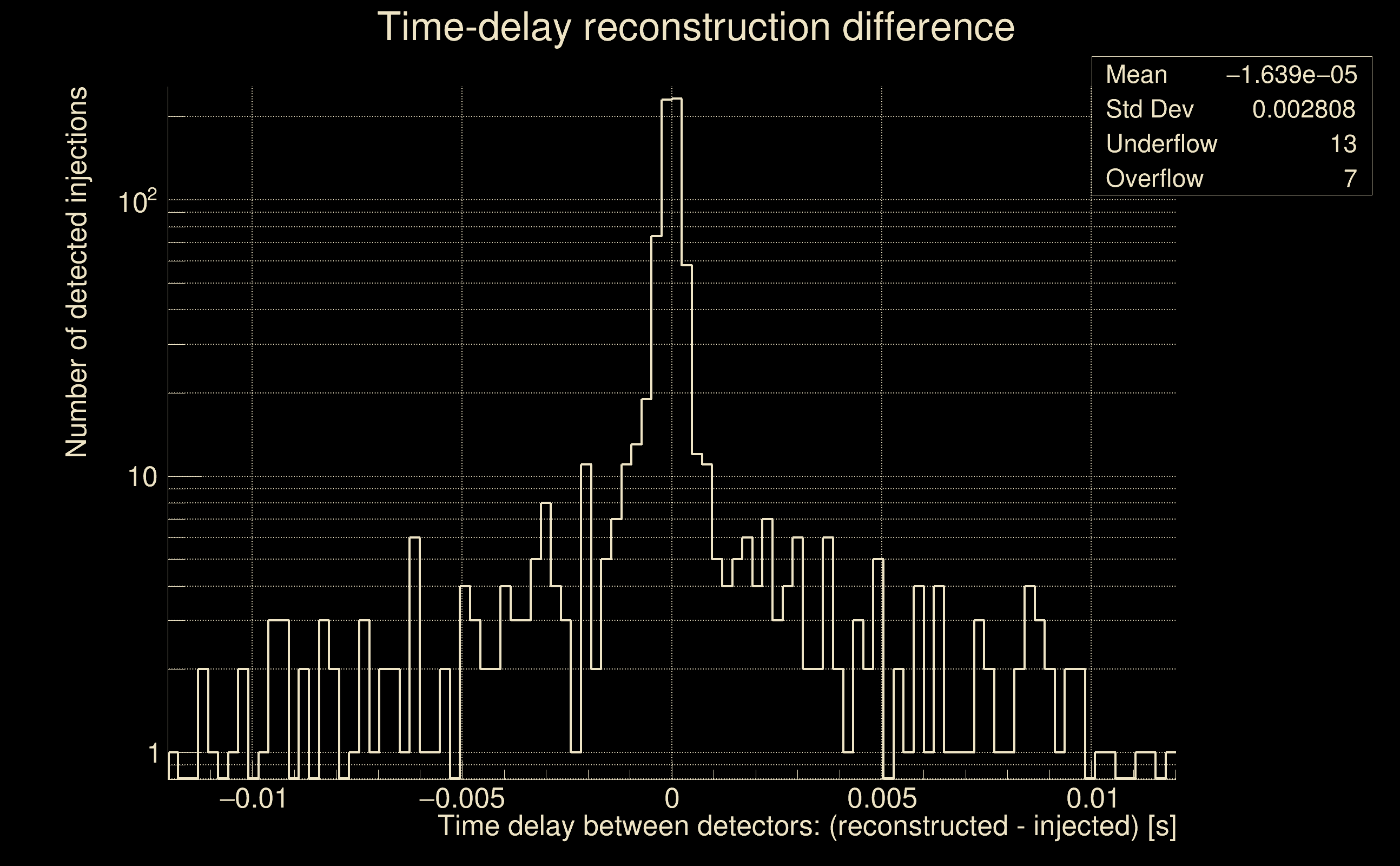

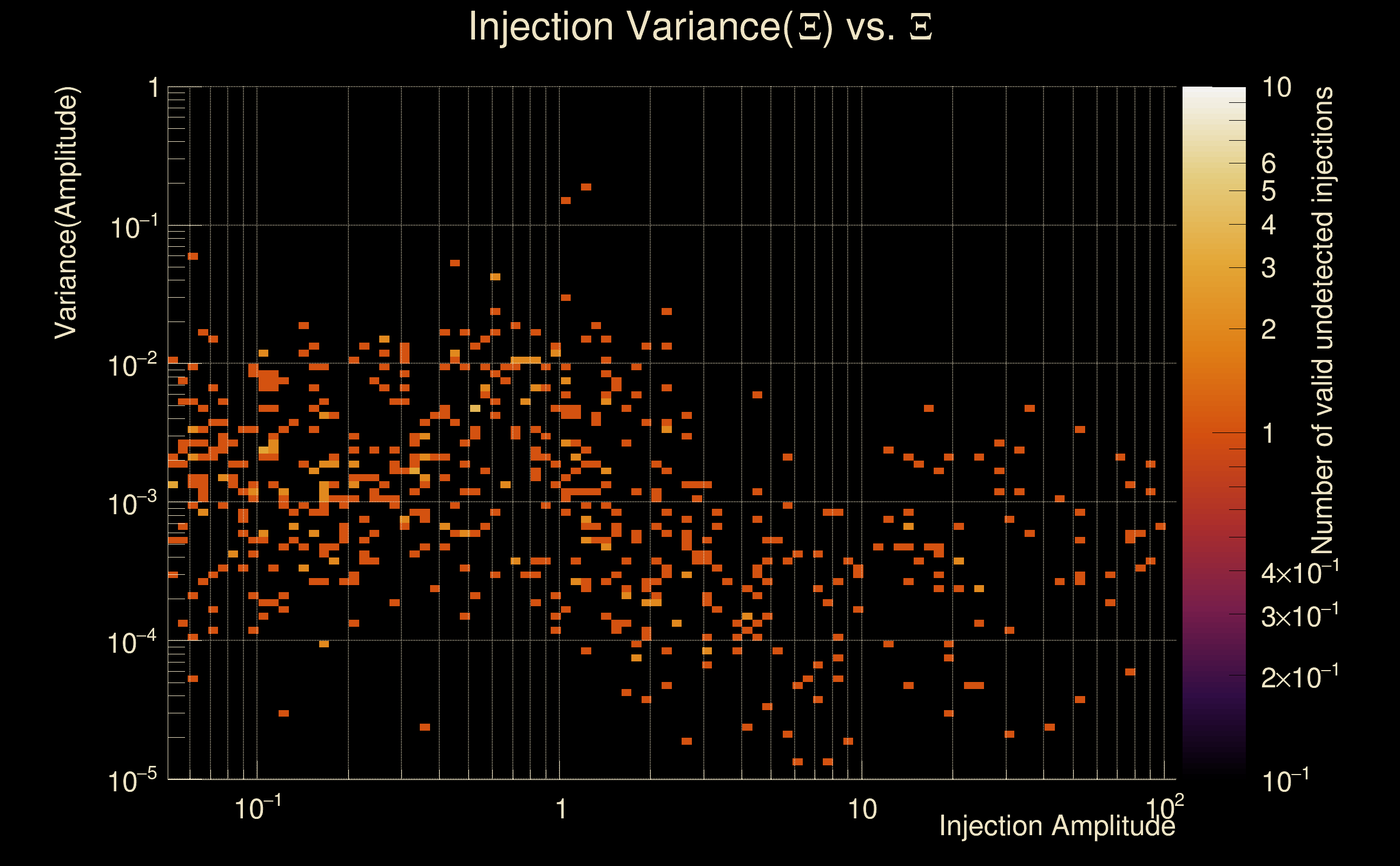

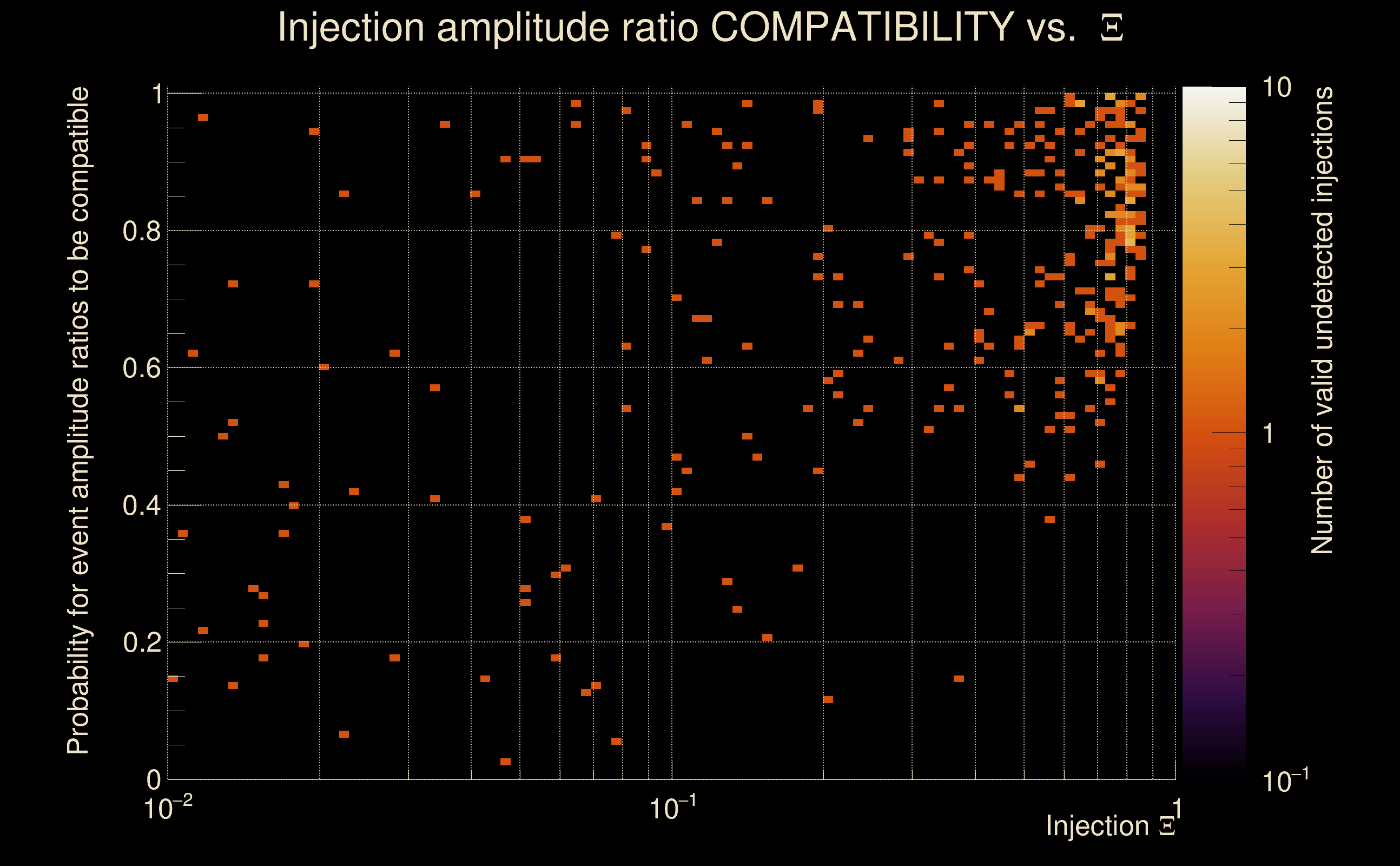

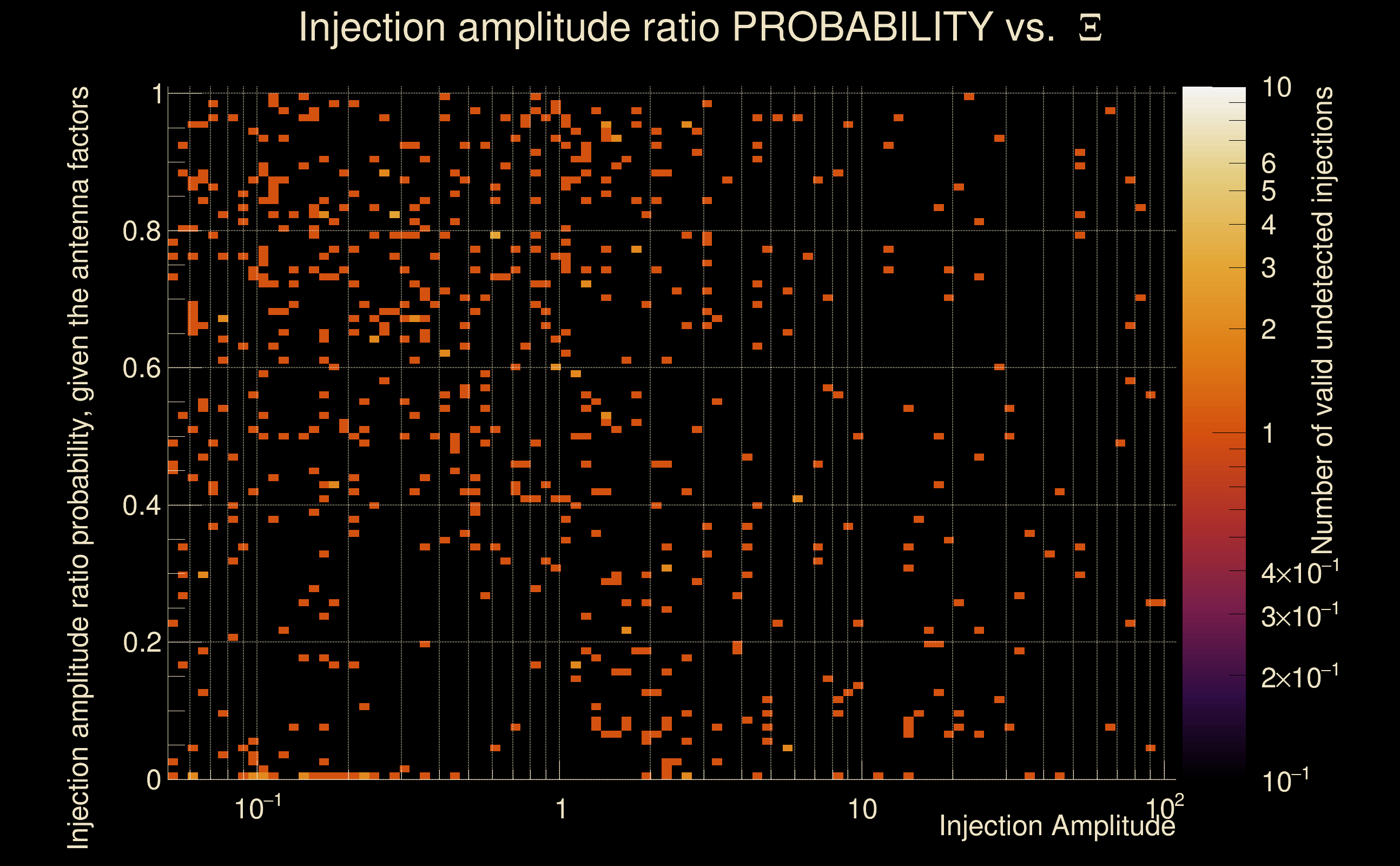

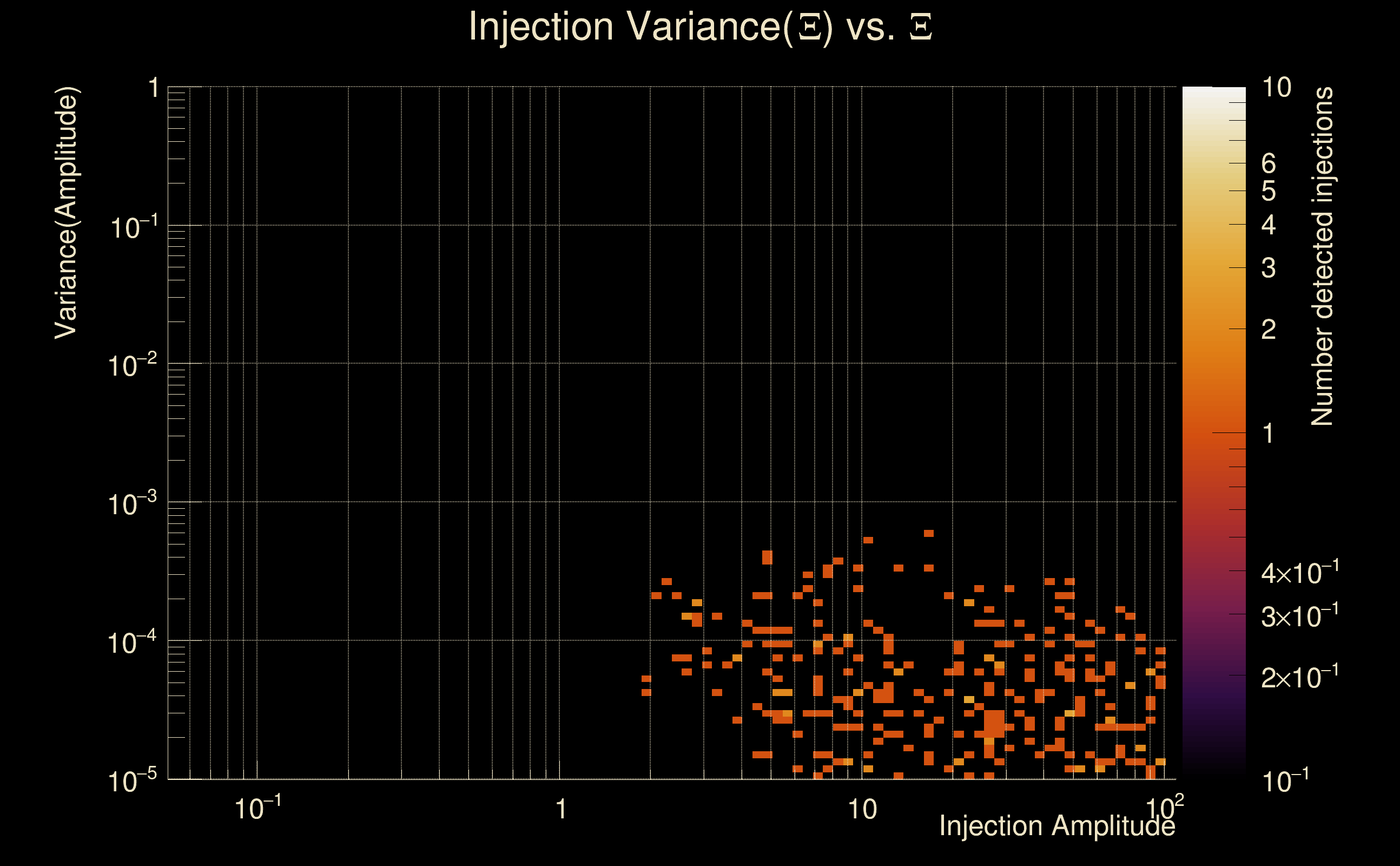

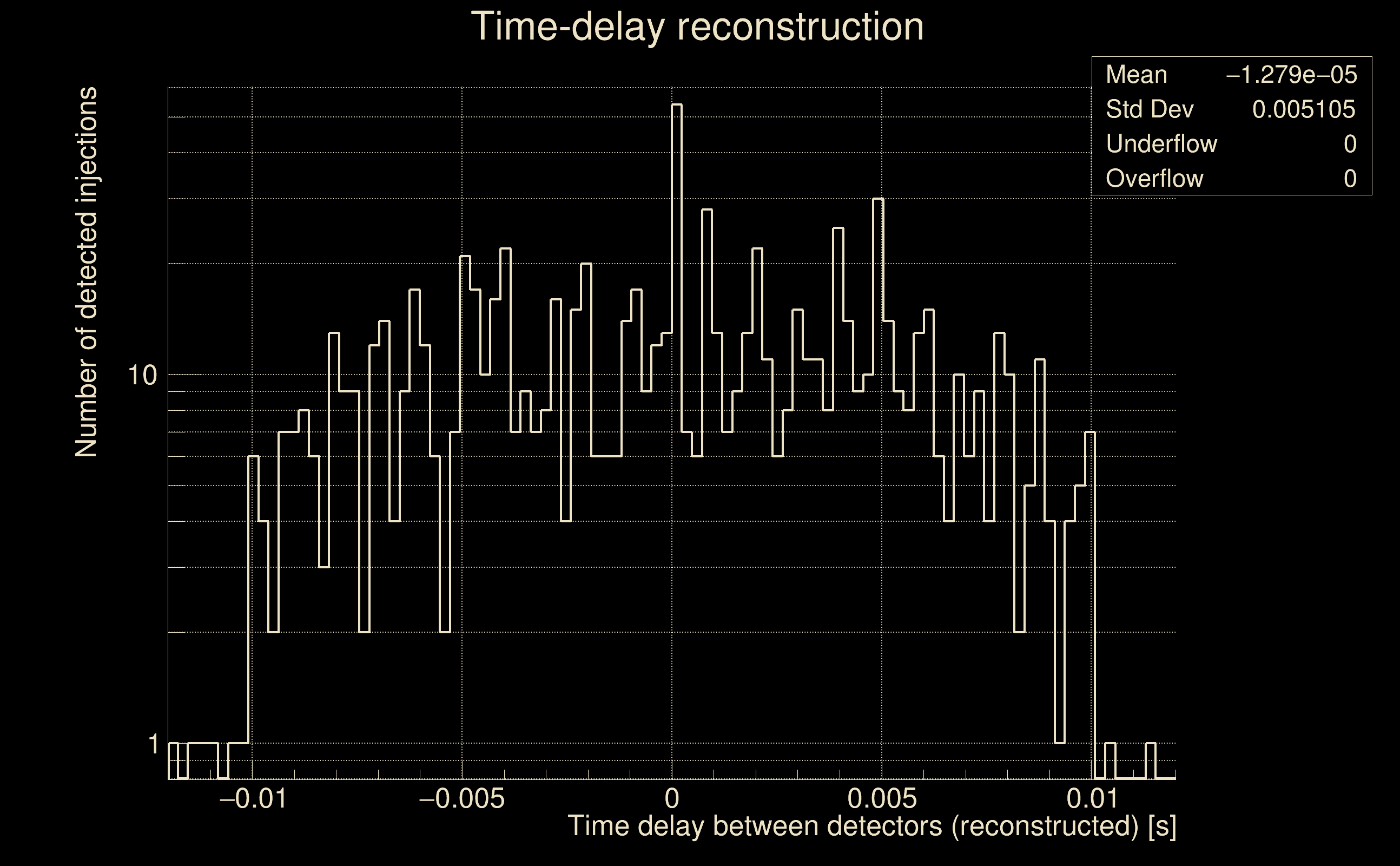

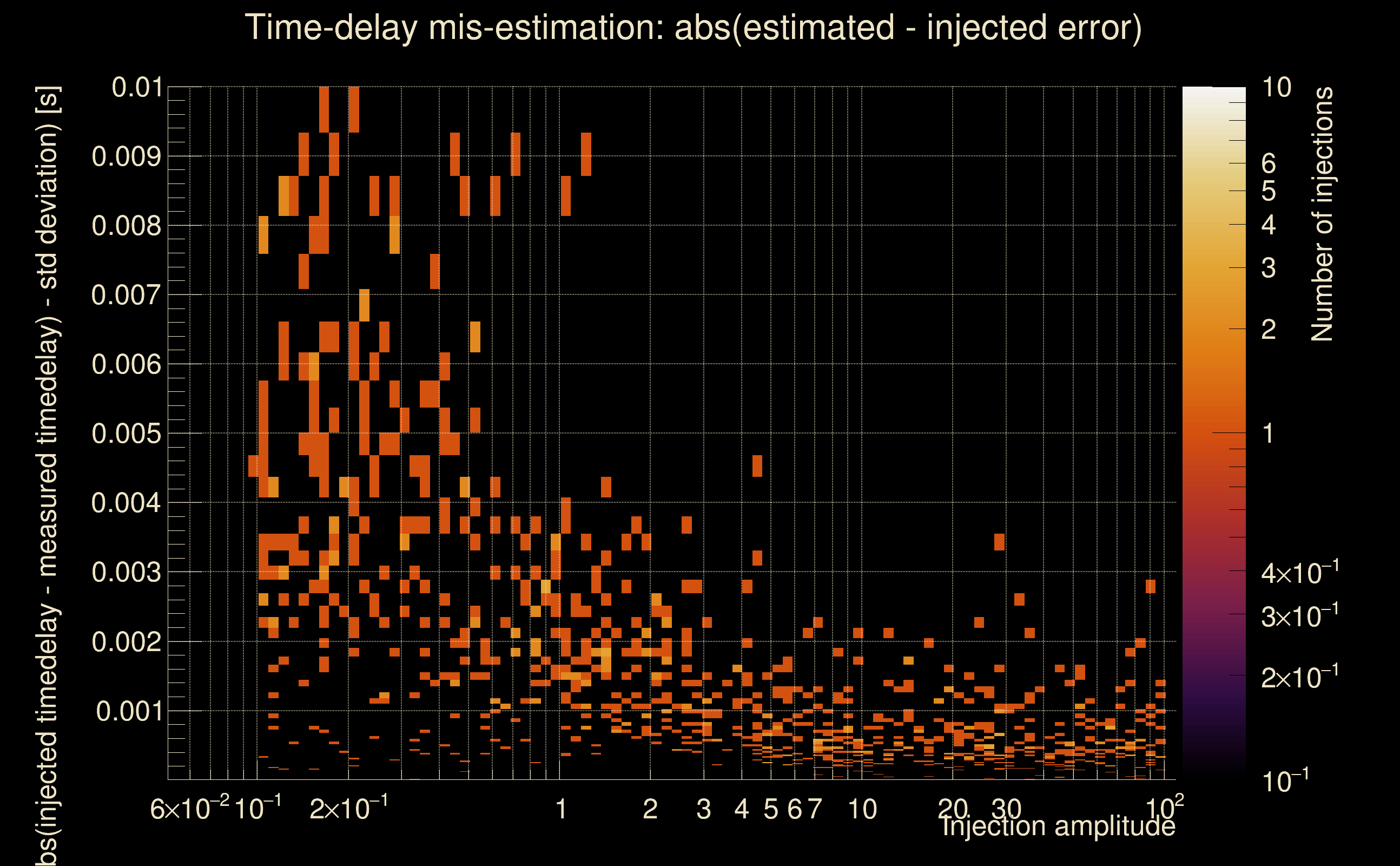

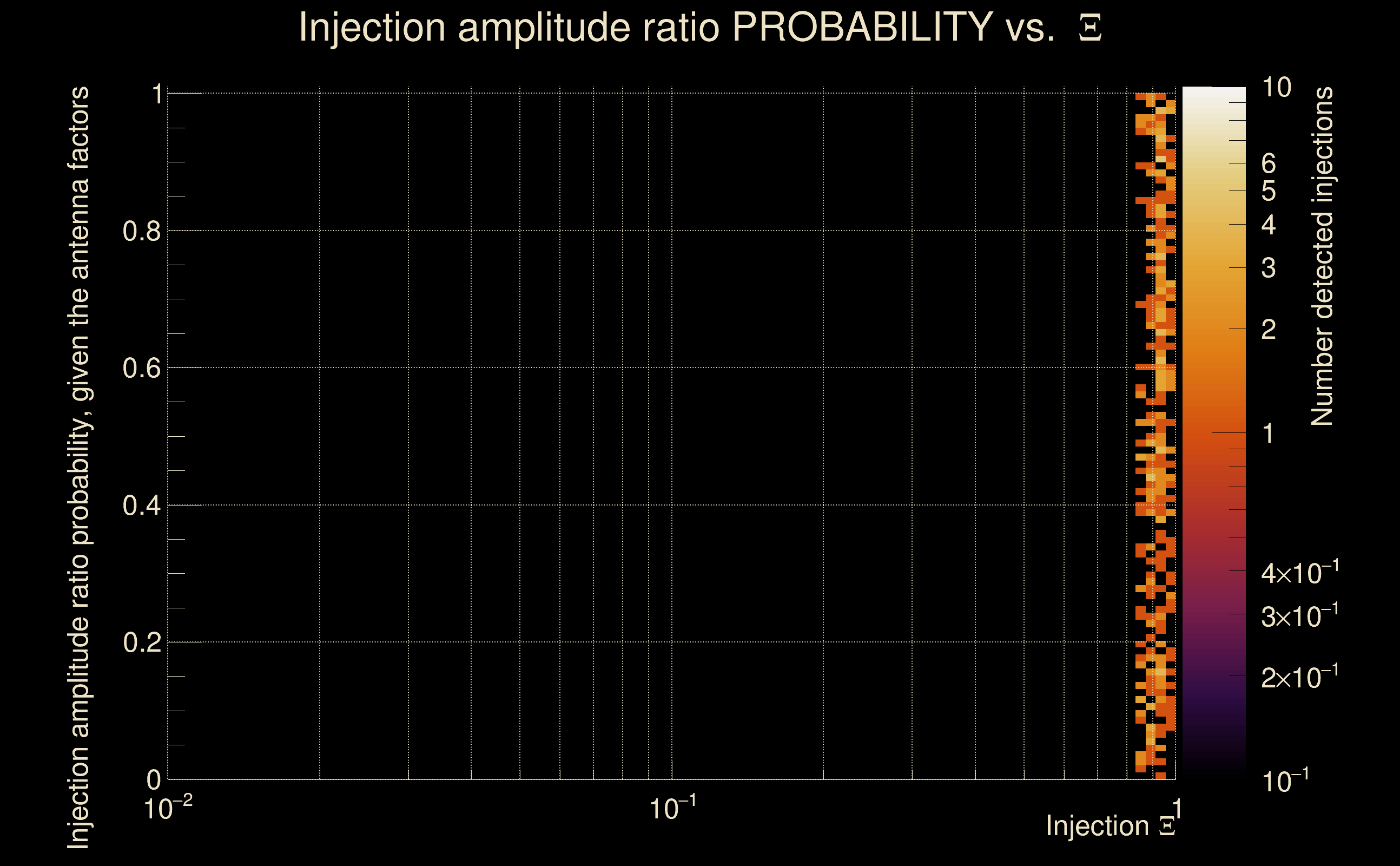

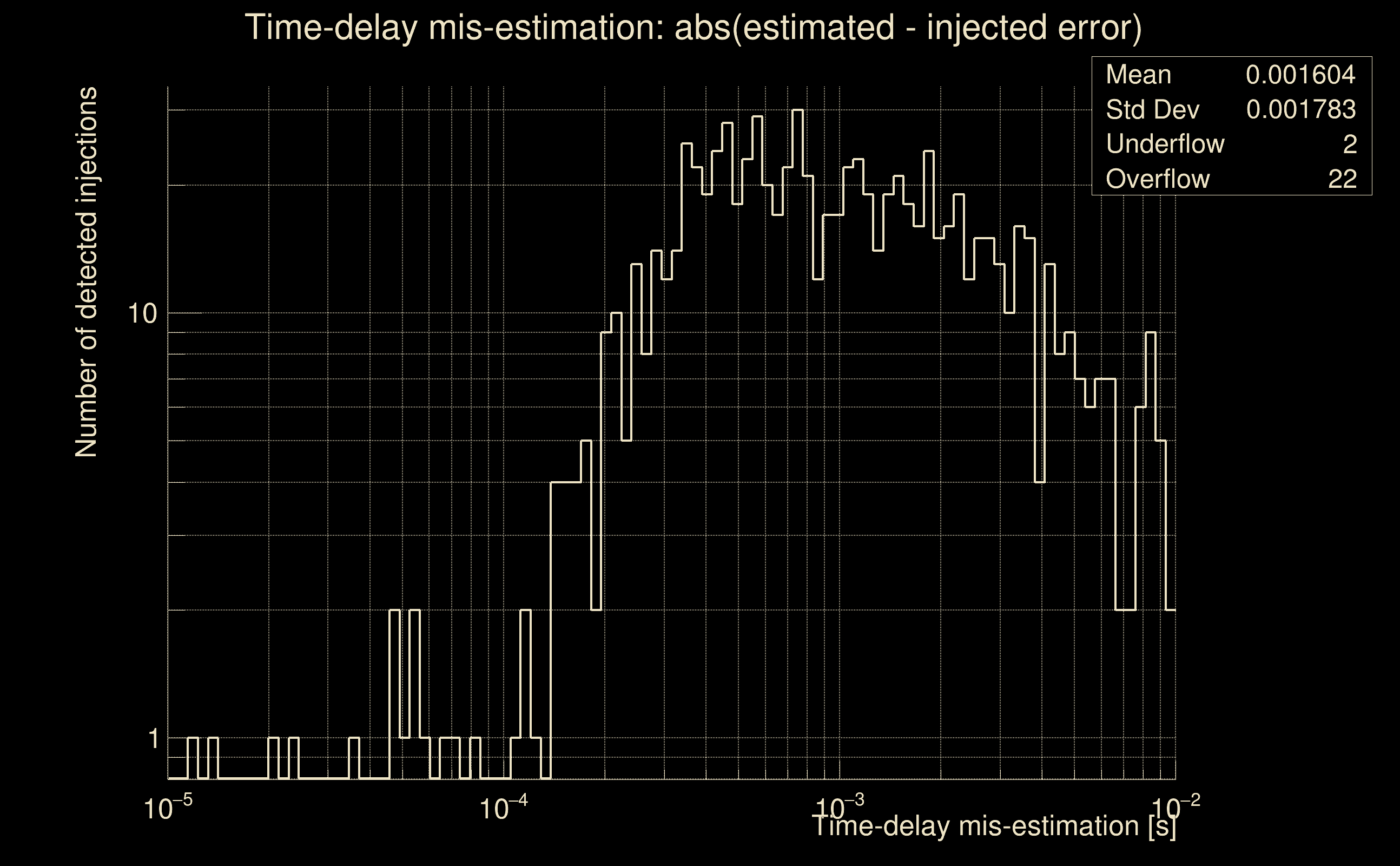

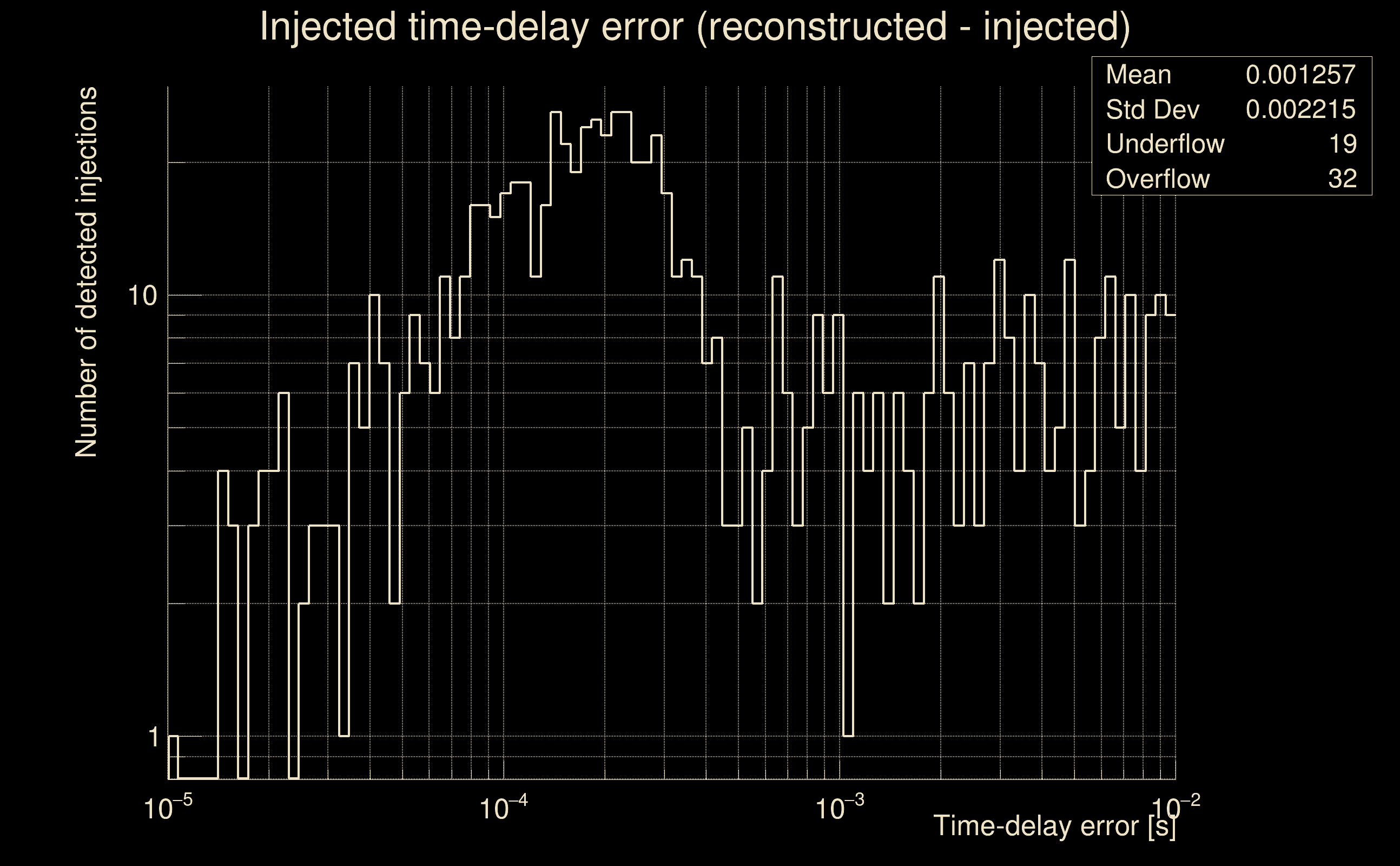

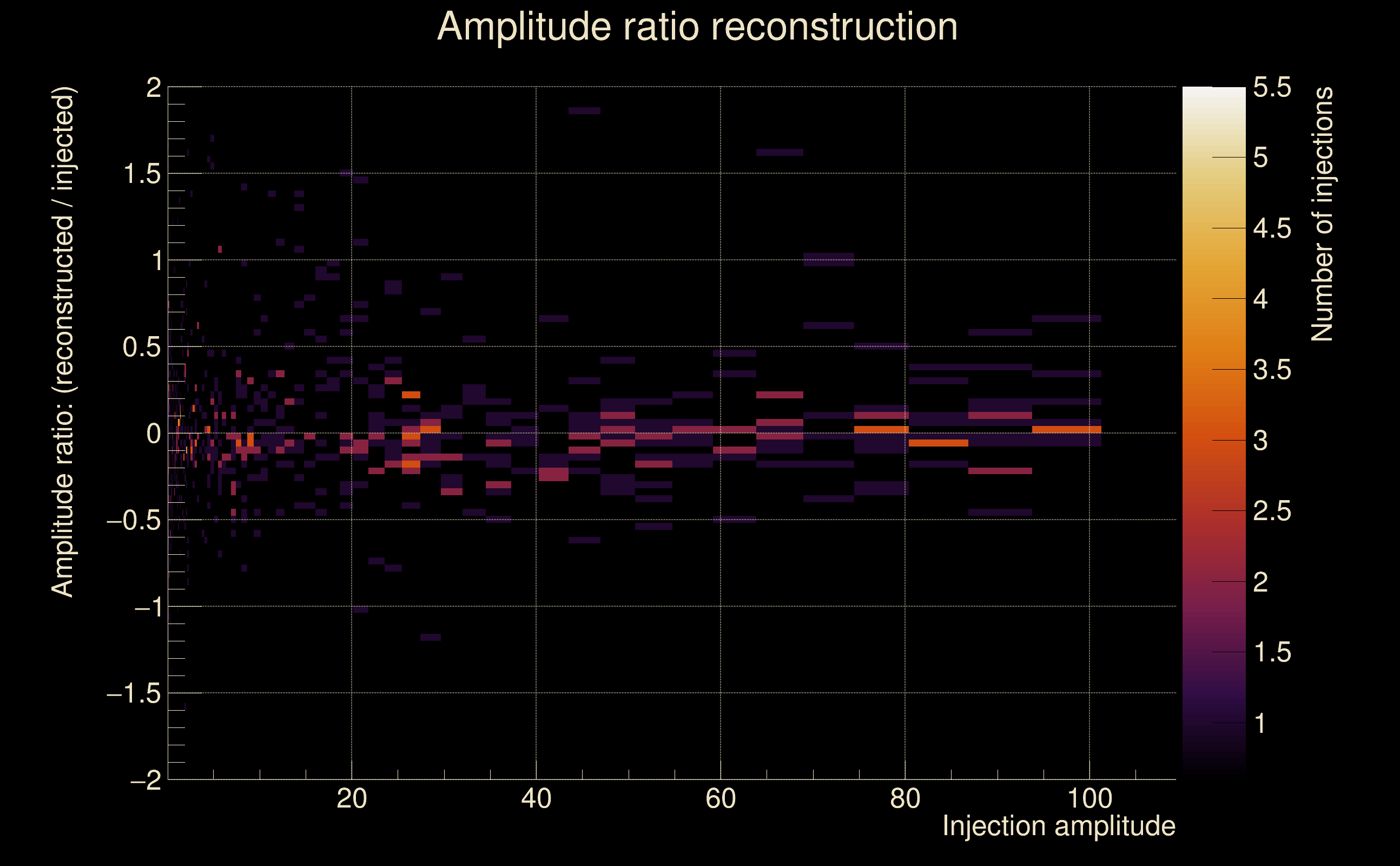

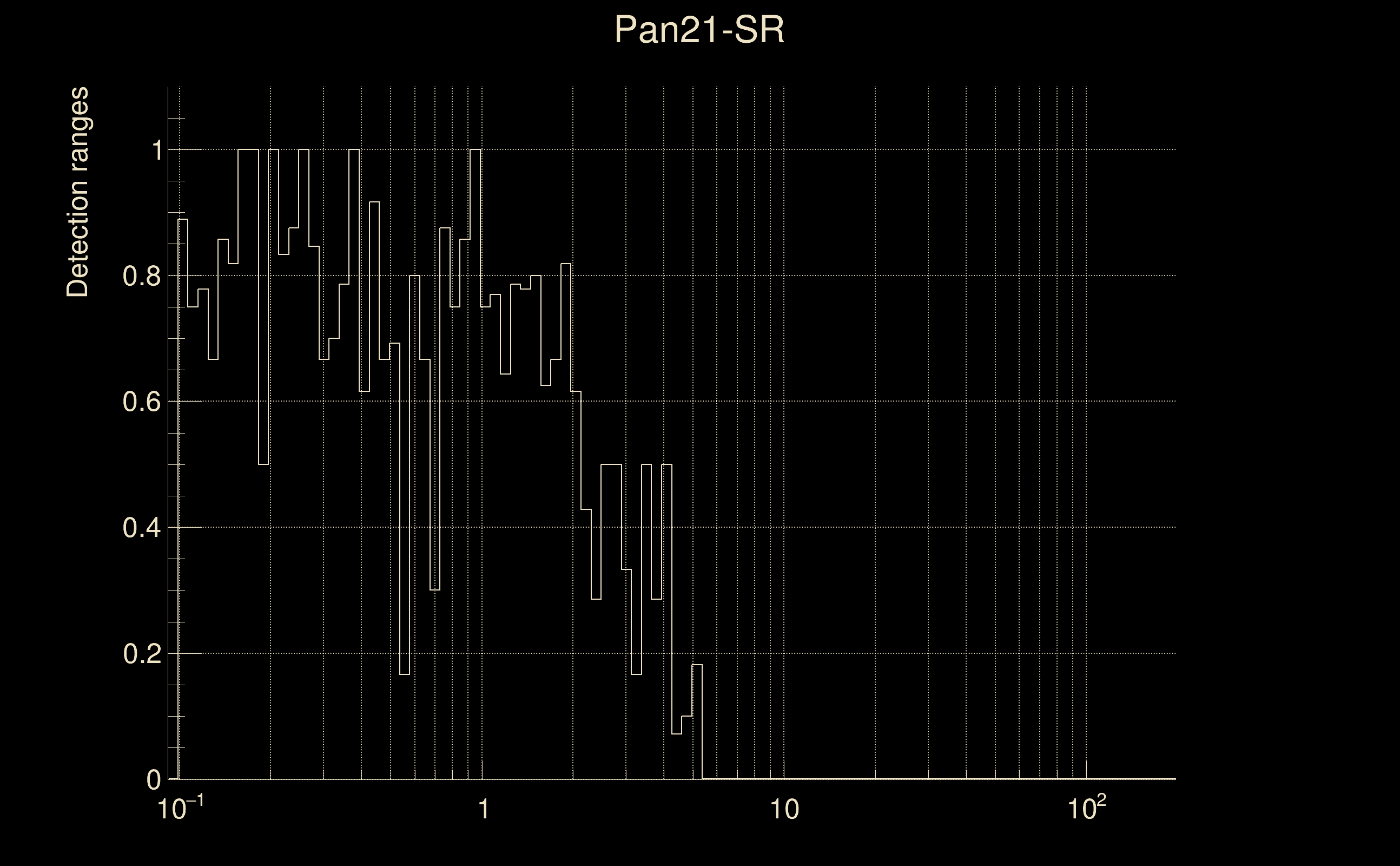

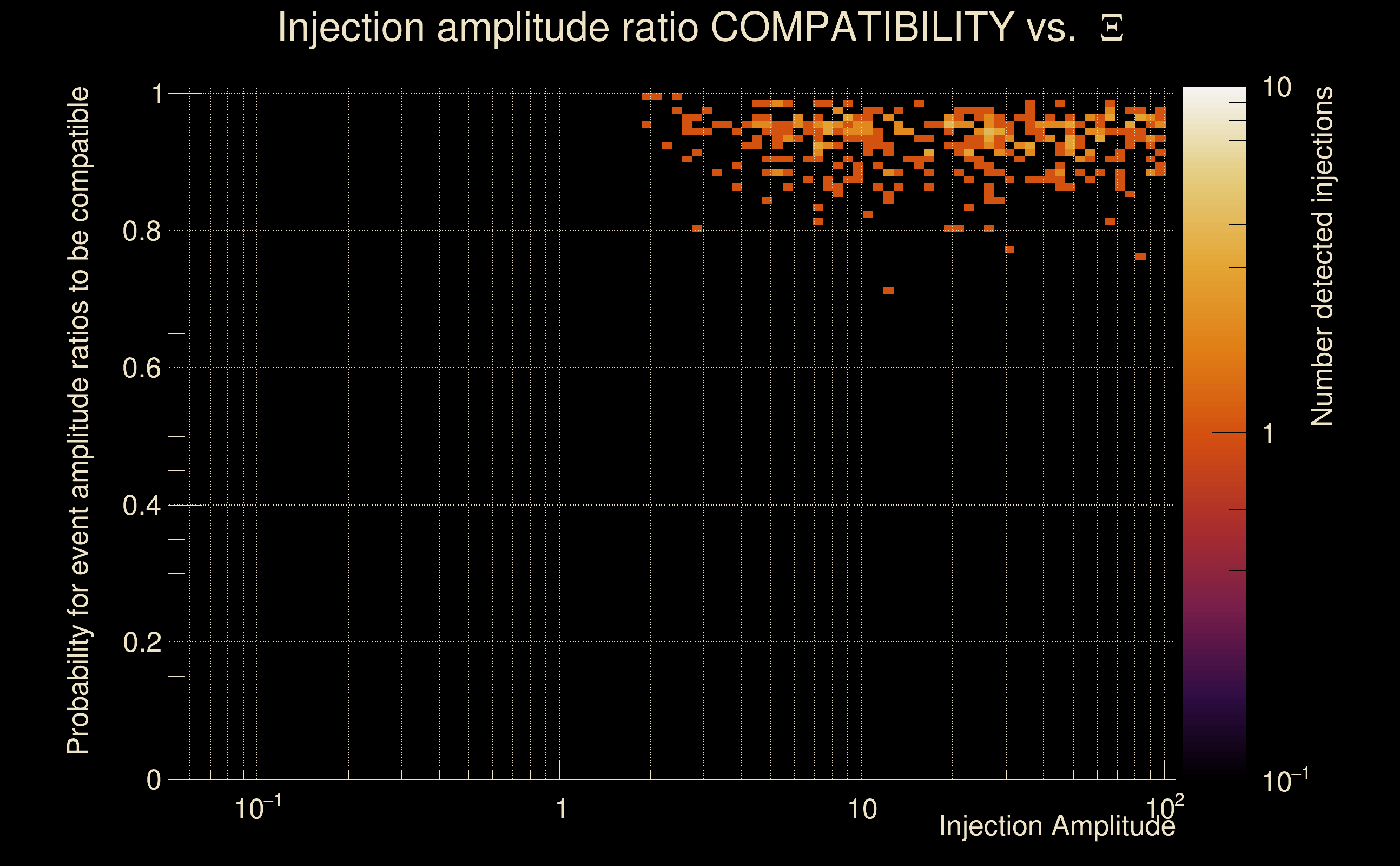

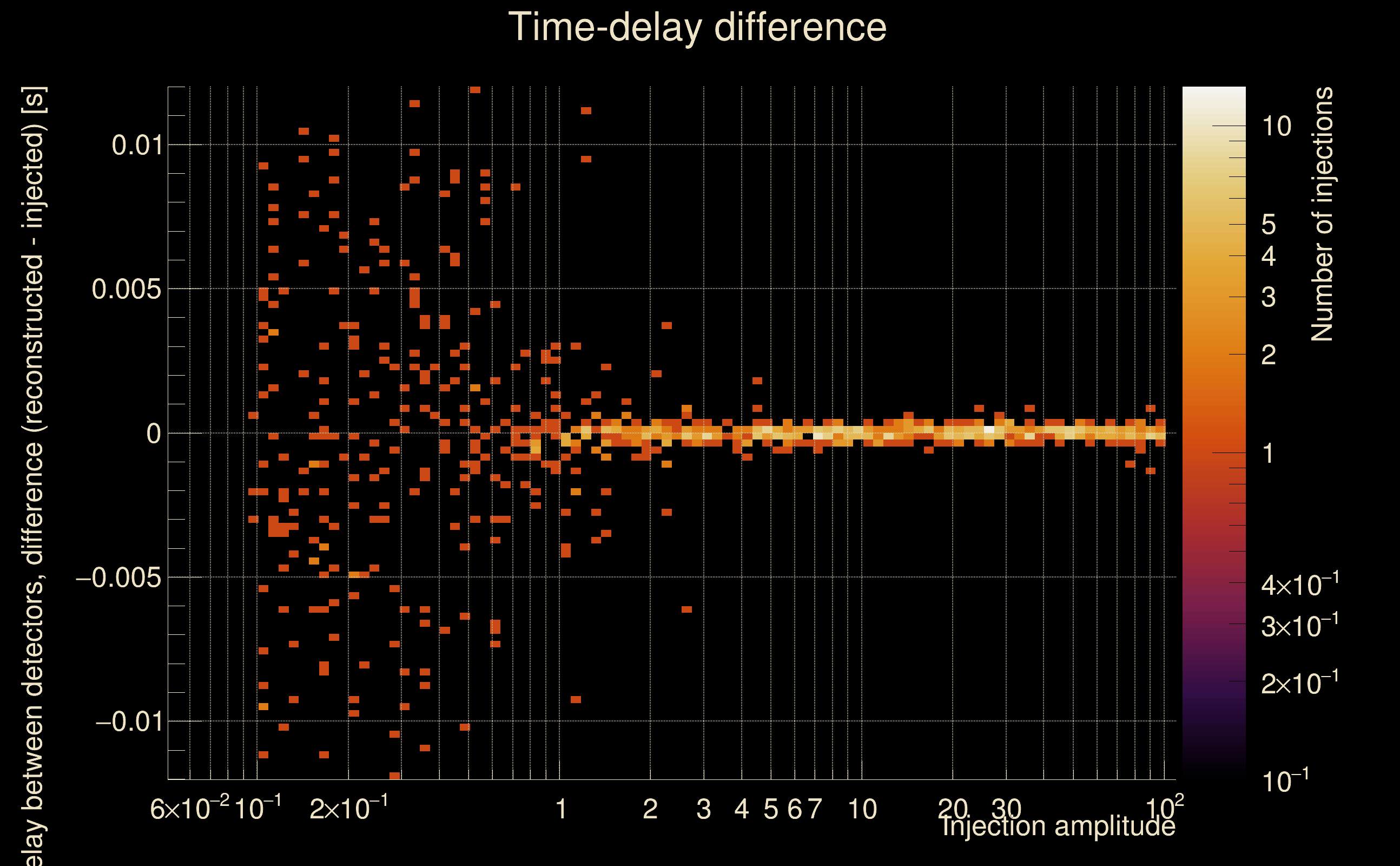

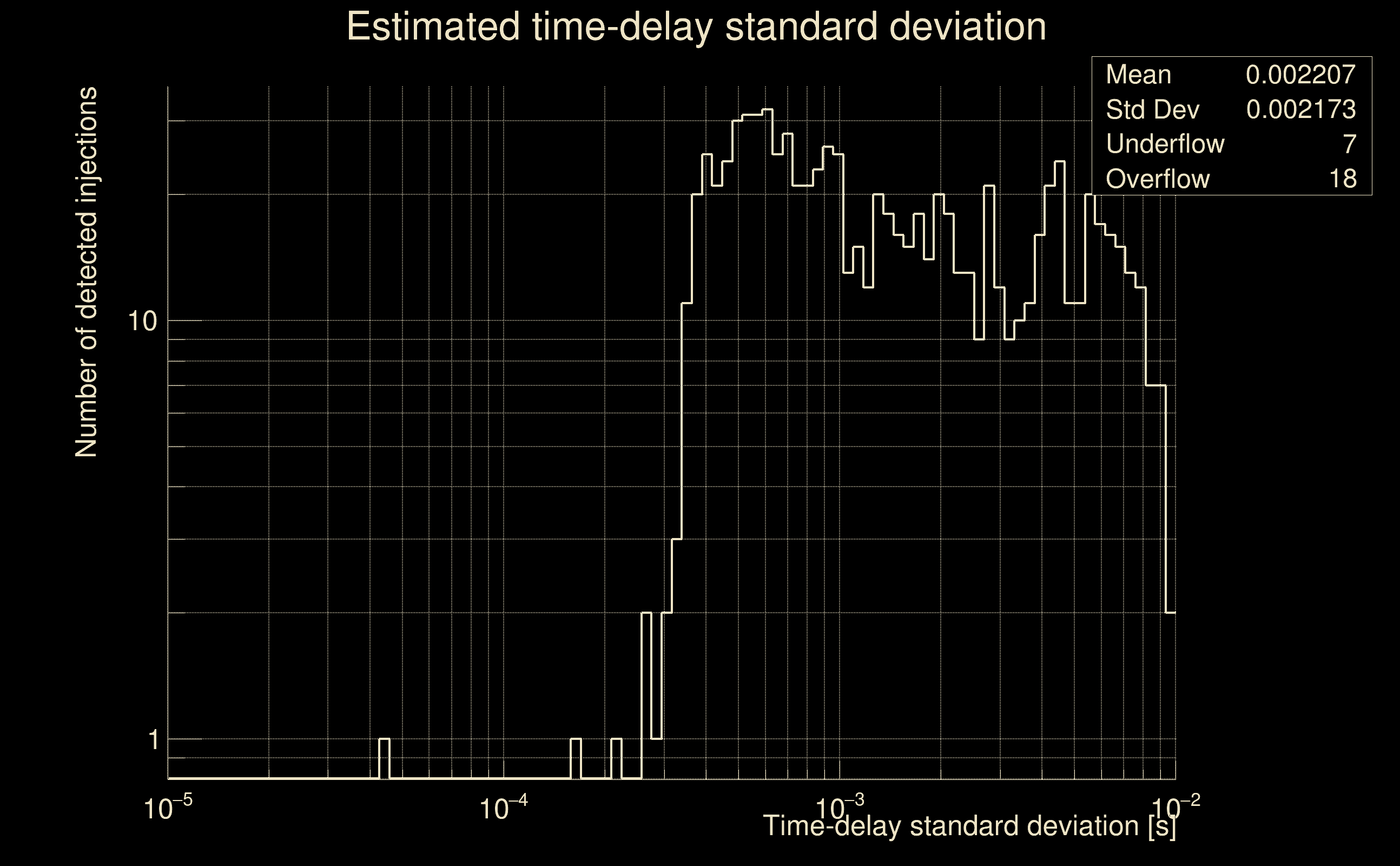

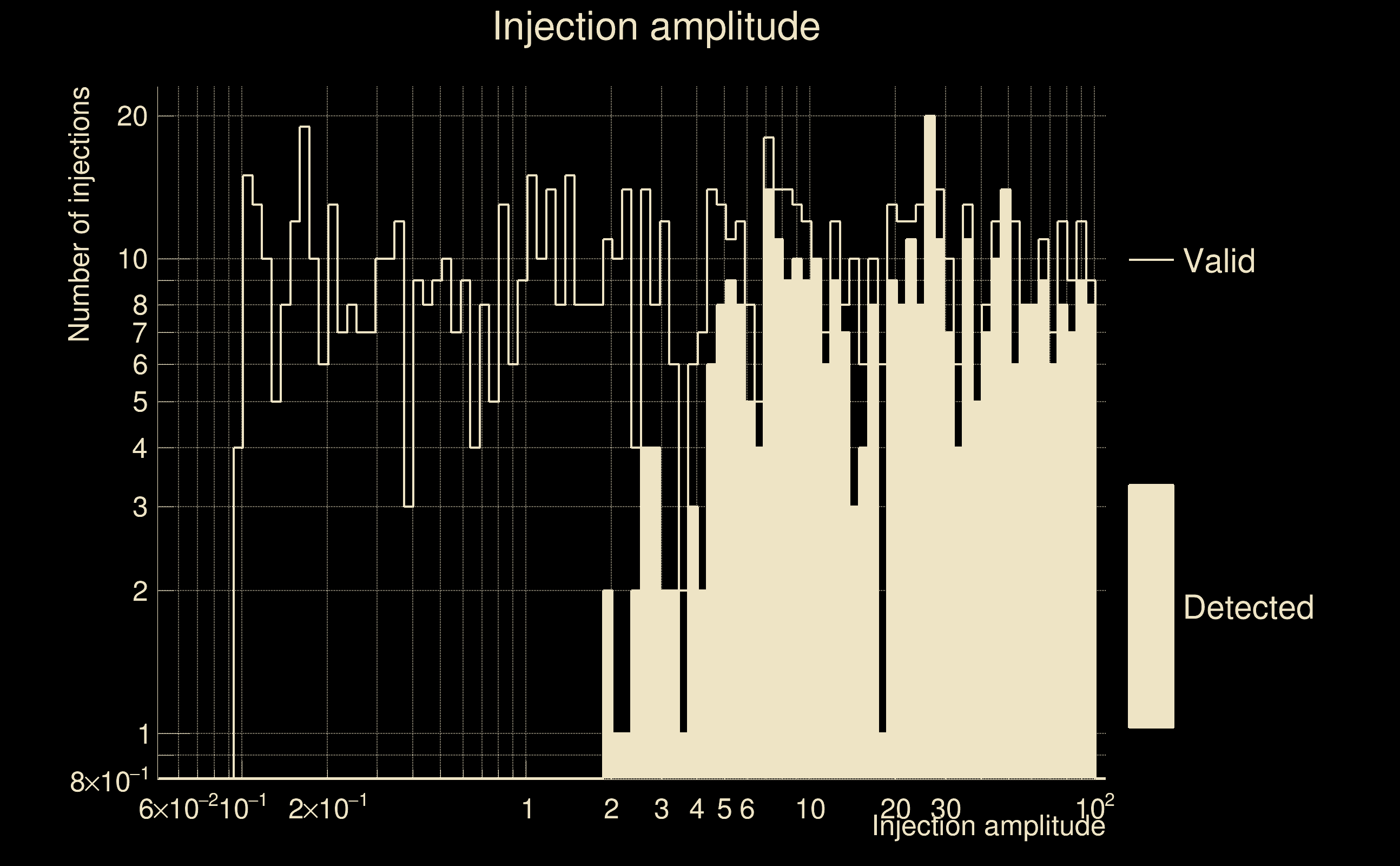

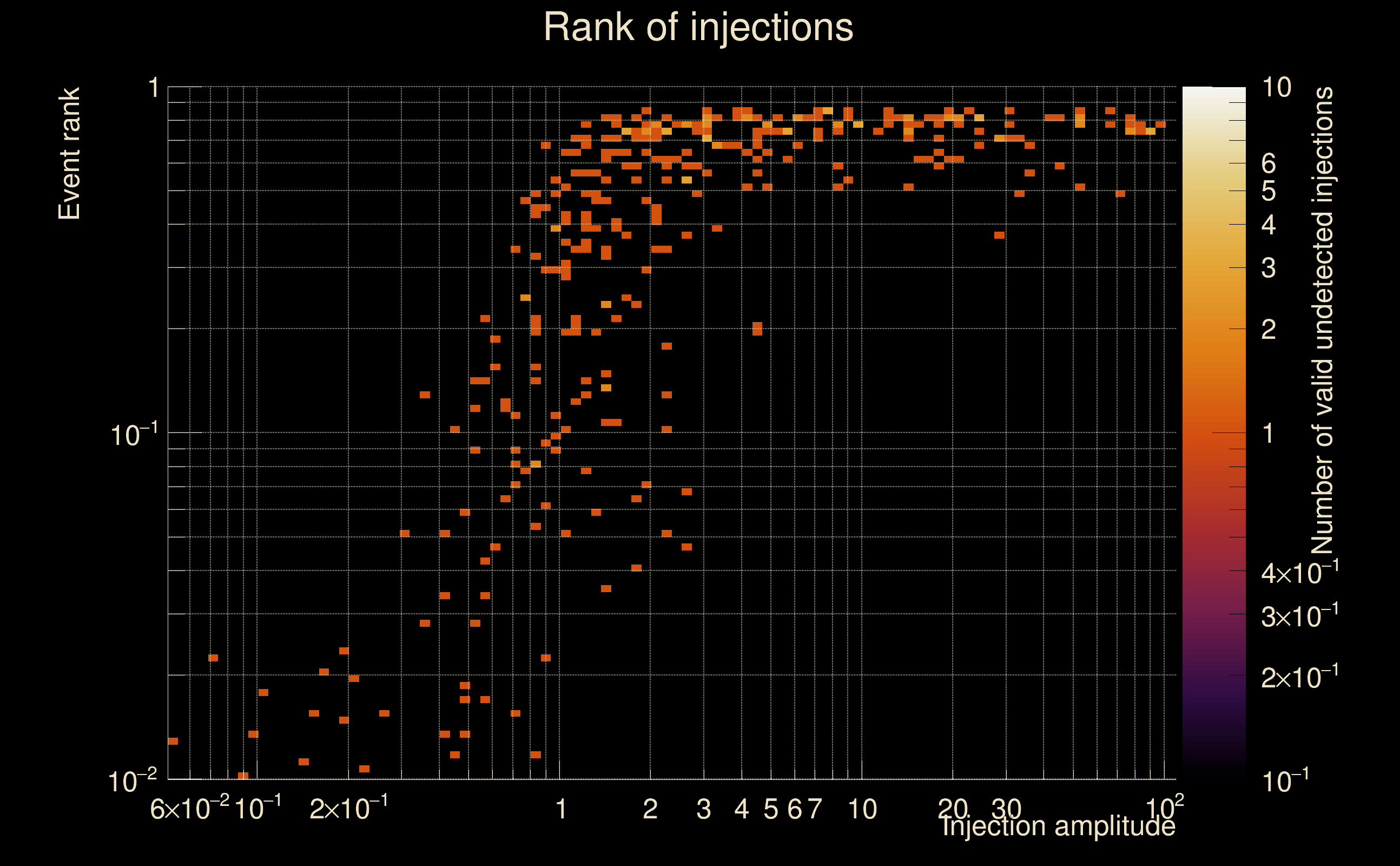

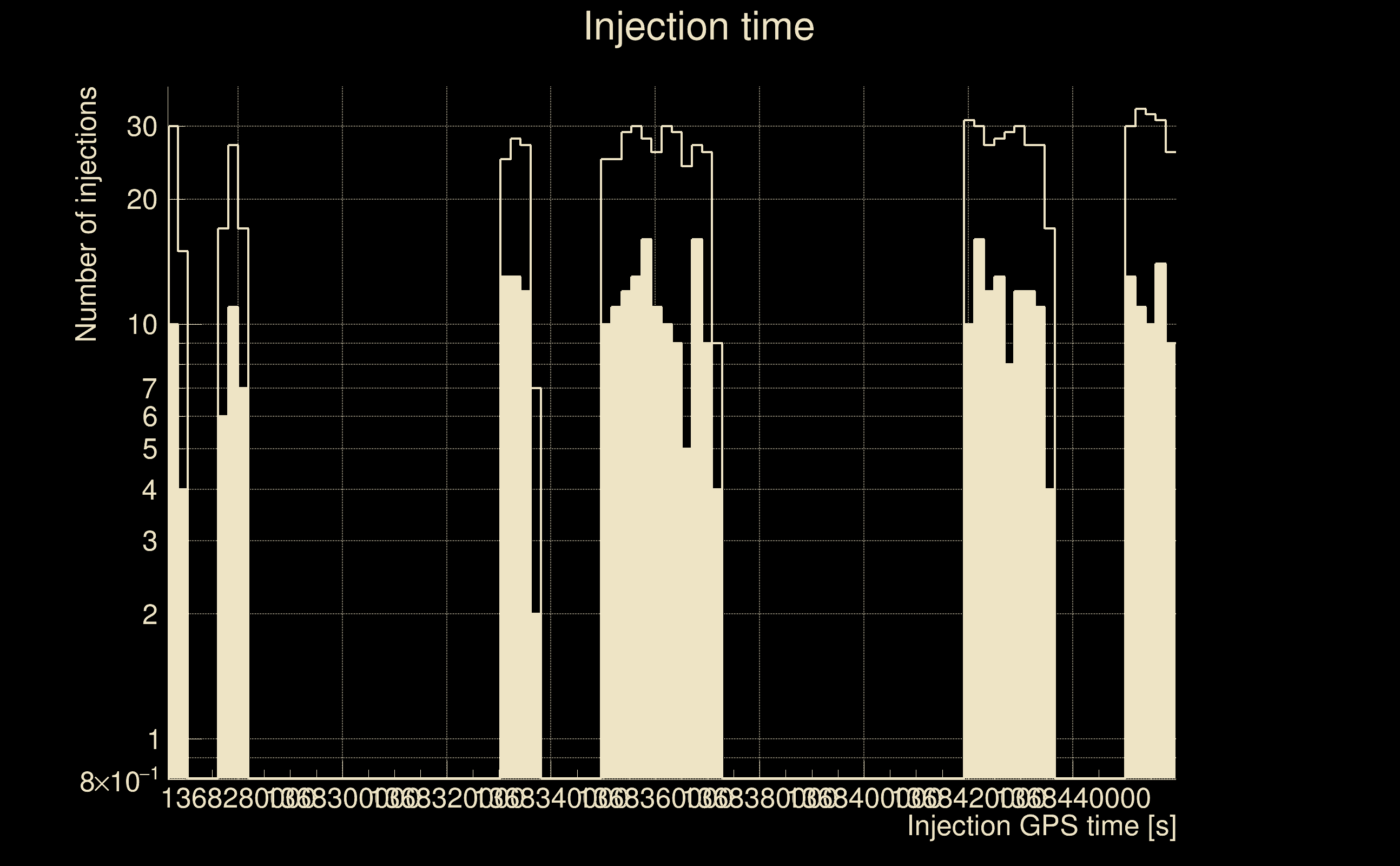

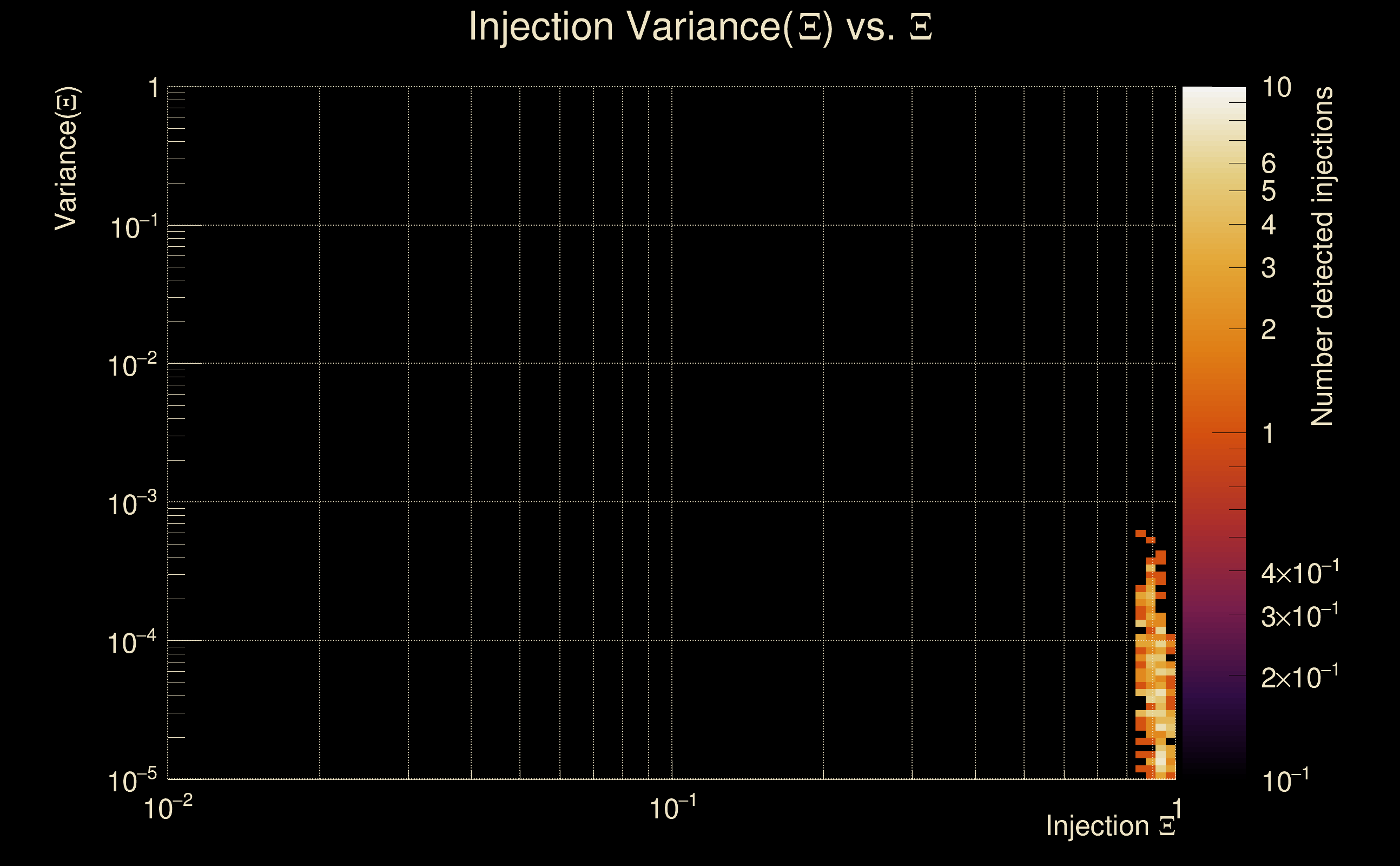

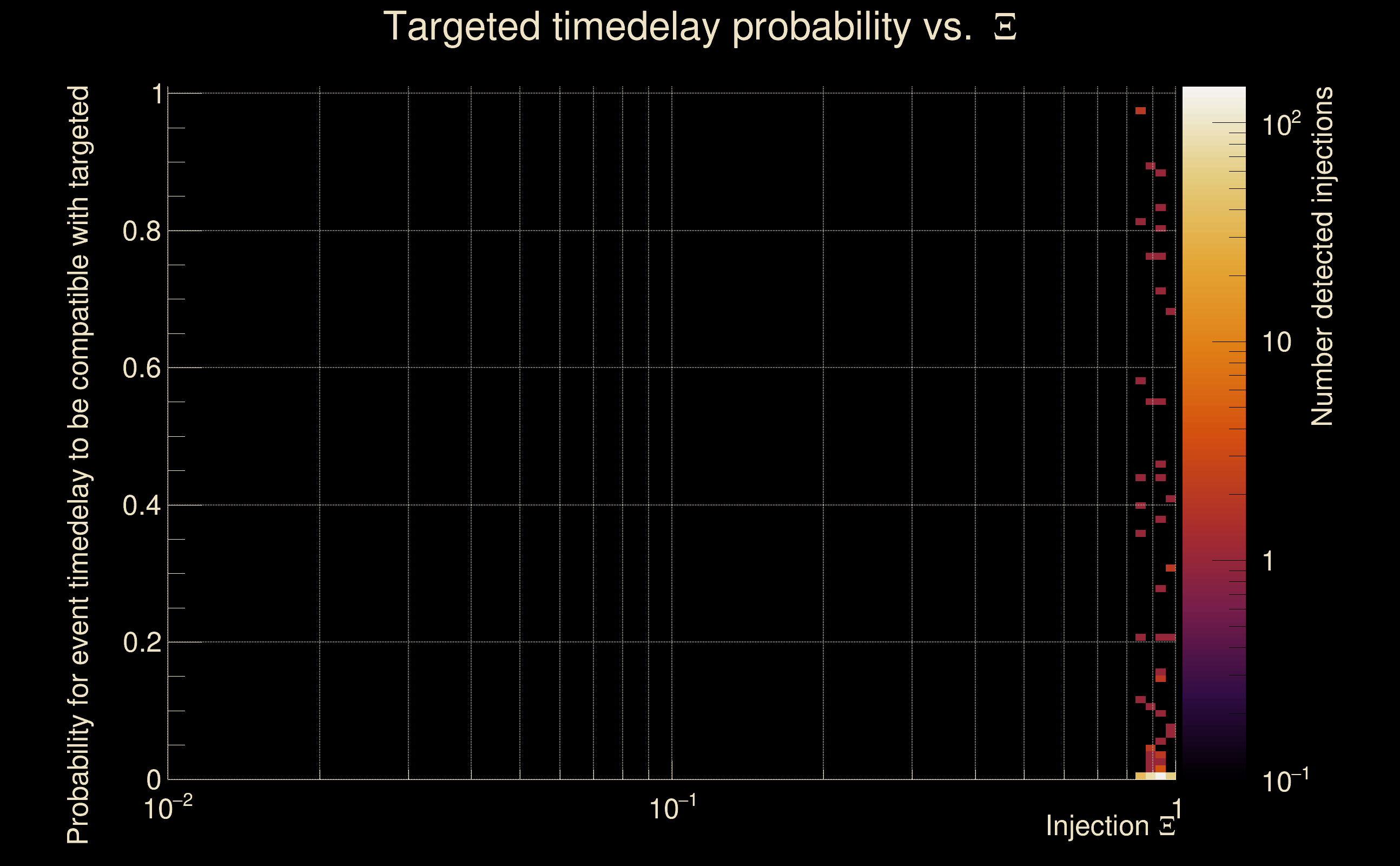

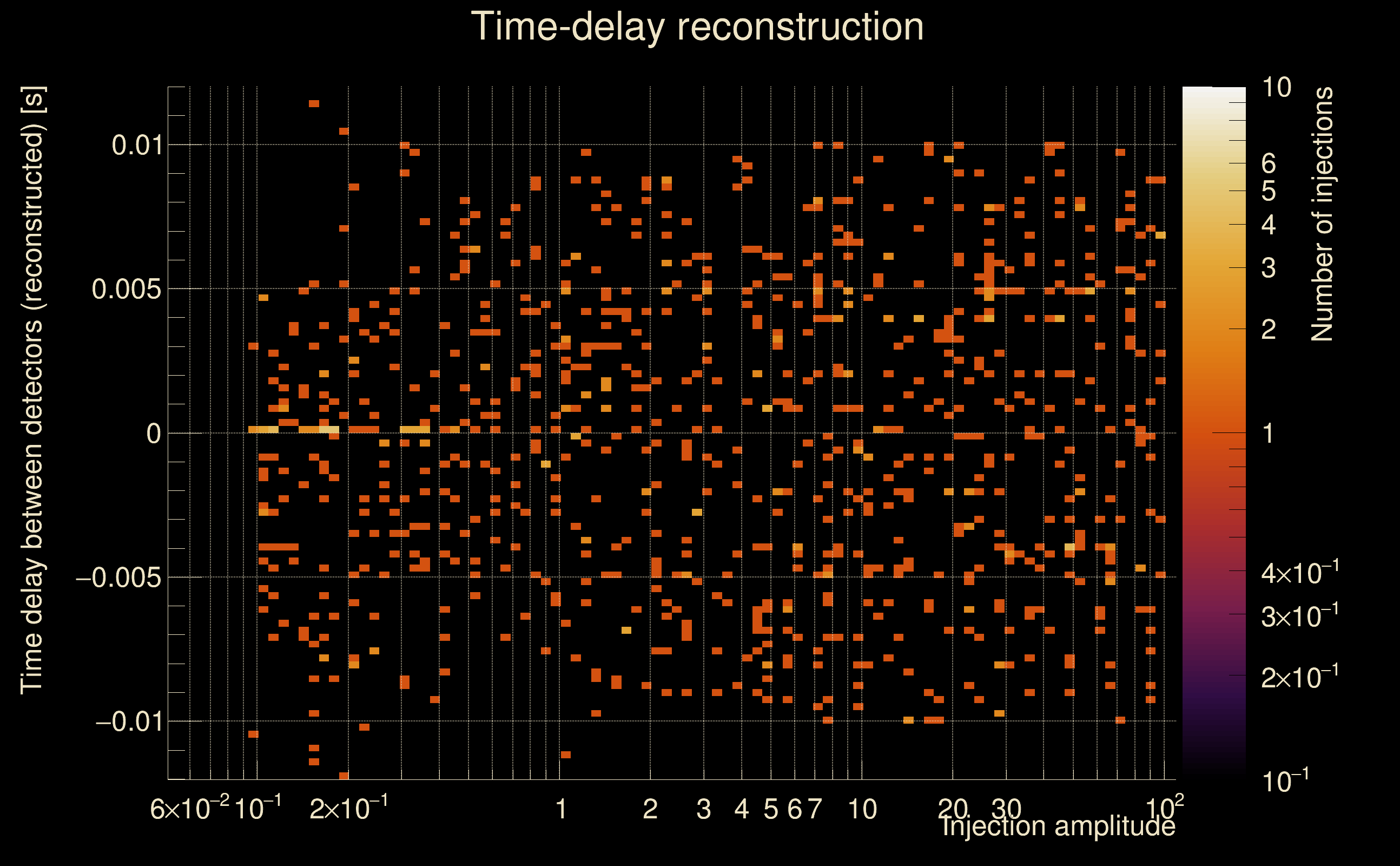

| Number of injections (total/valid/detected): | 1006 / 899 / 359 |
| List of missed injections: | ./Pan21-SR_missed.txt |

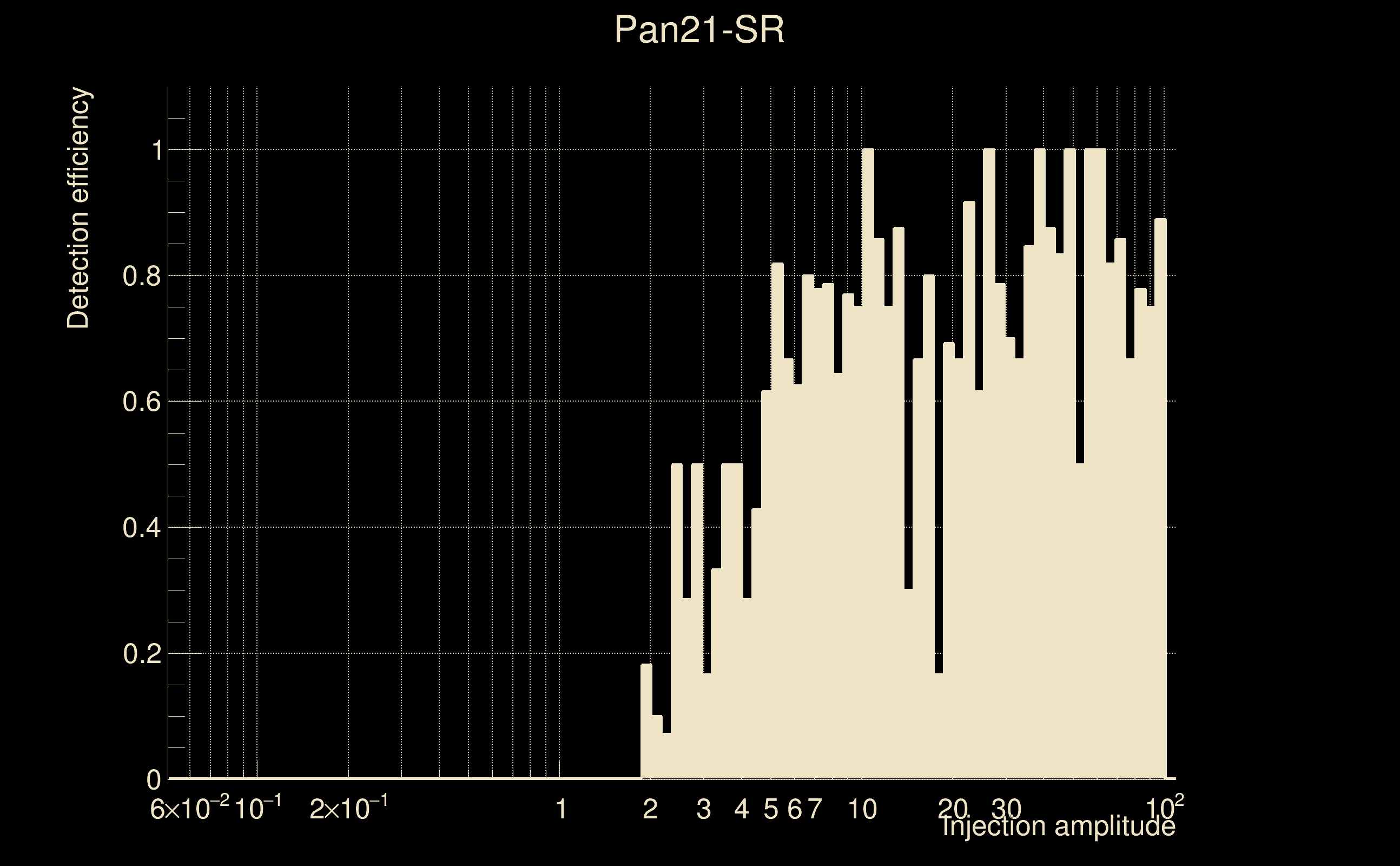

| Injection amplitude at 90% detection efficiency: | 10.2018 |
| Injection amplitude at 50% detection efficiency: | 4.65533 |
| Injection amplitude at 10% detection efficiency: | 2.27551 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

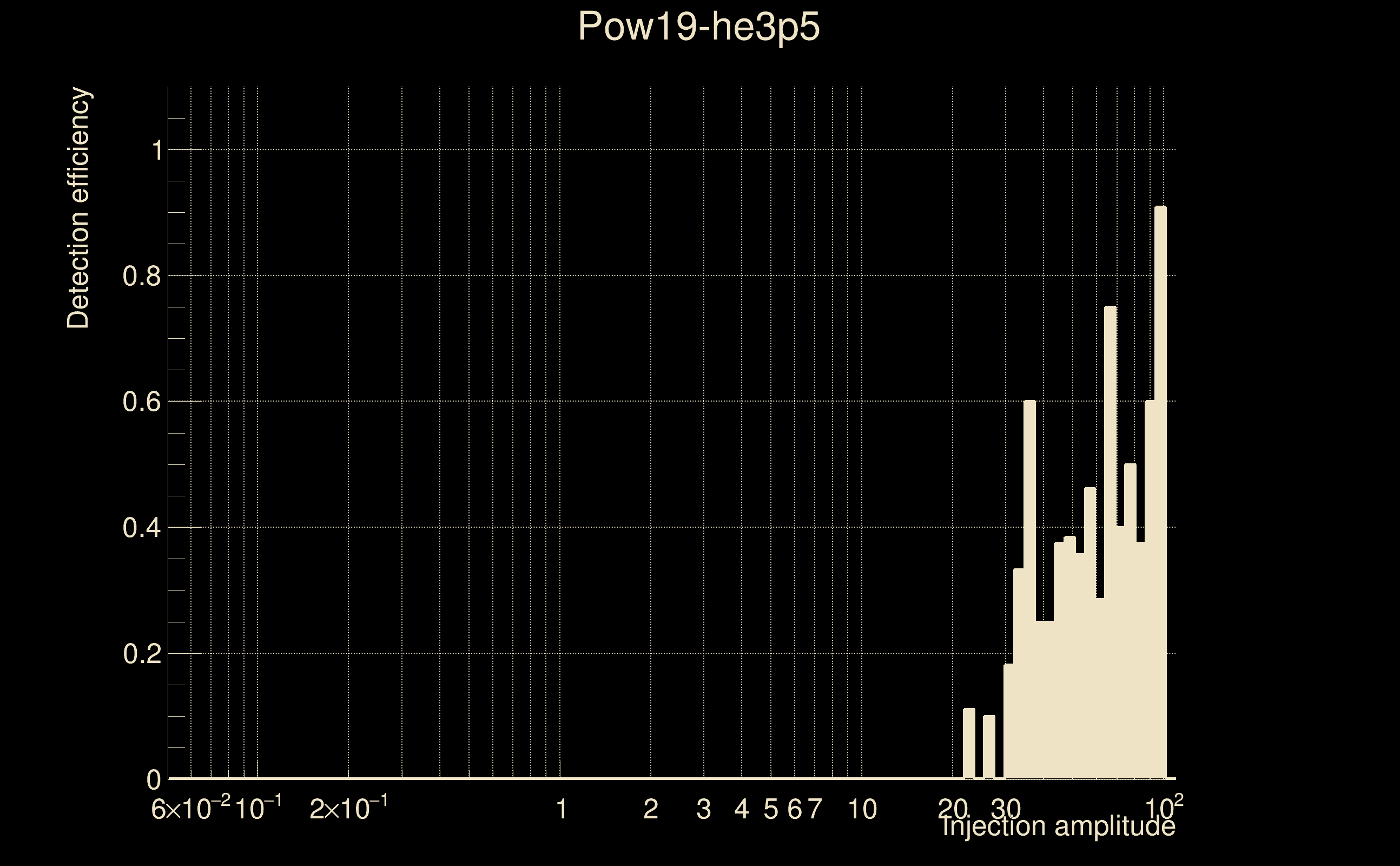

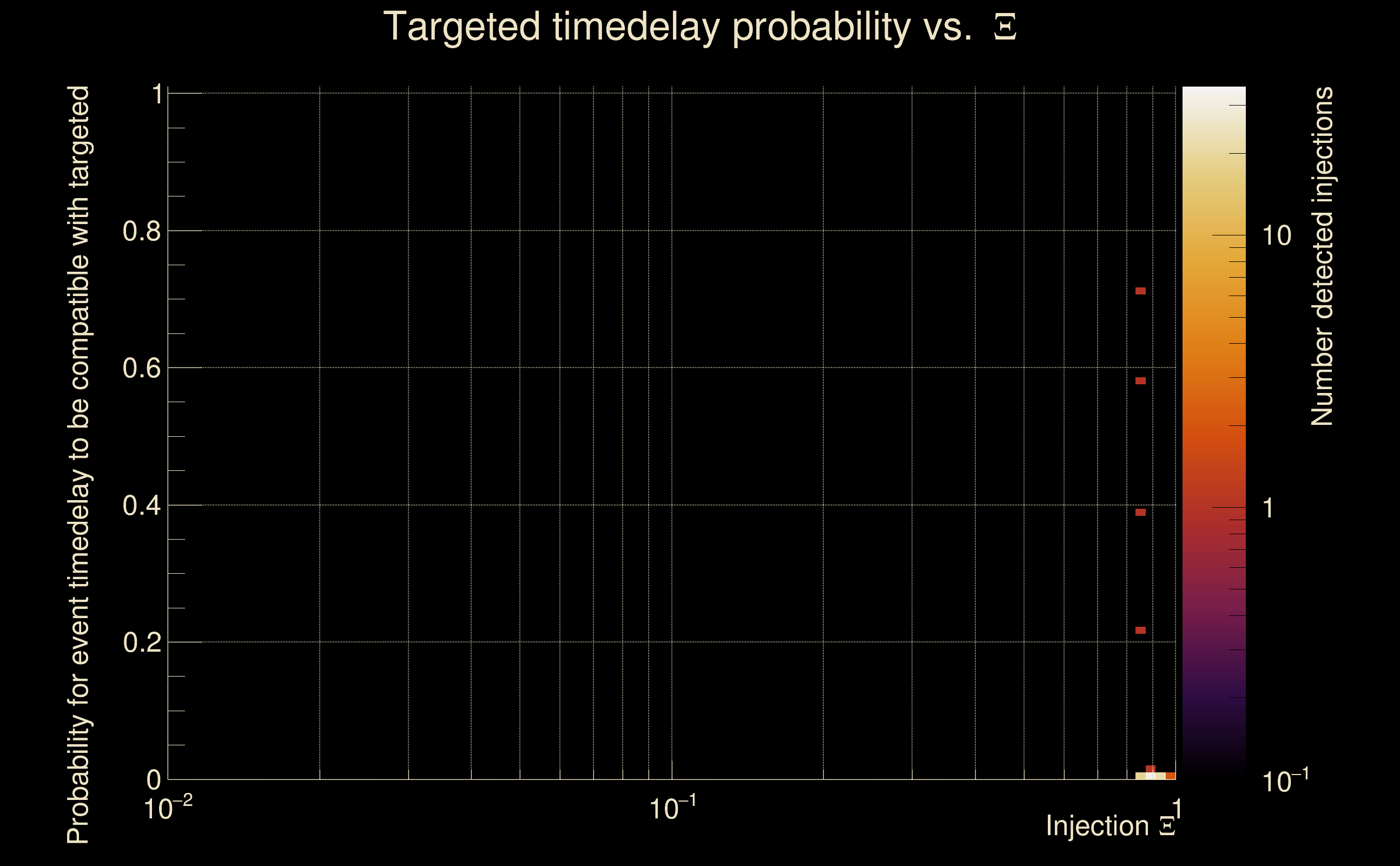

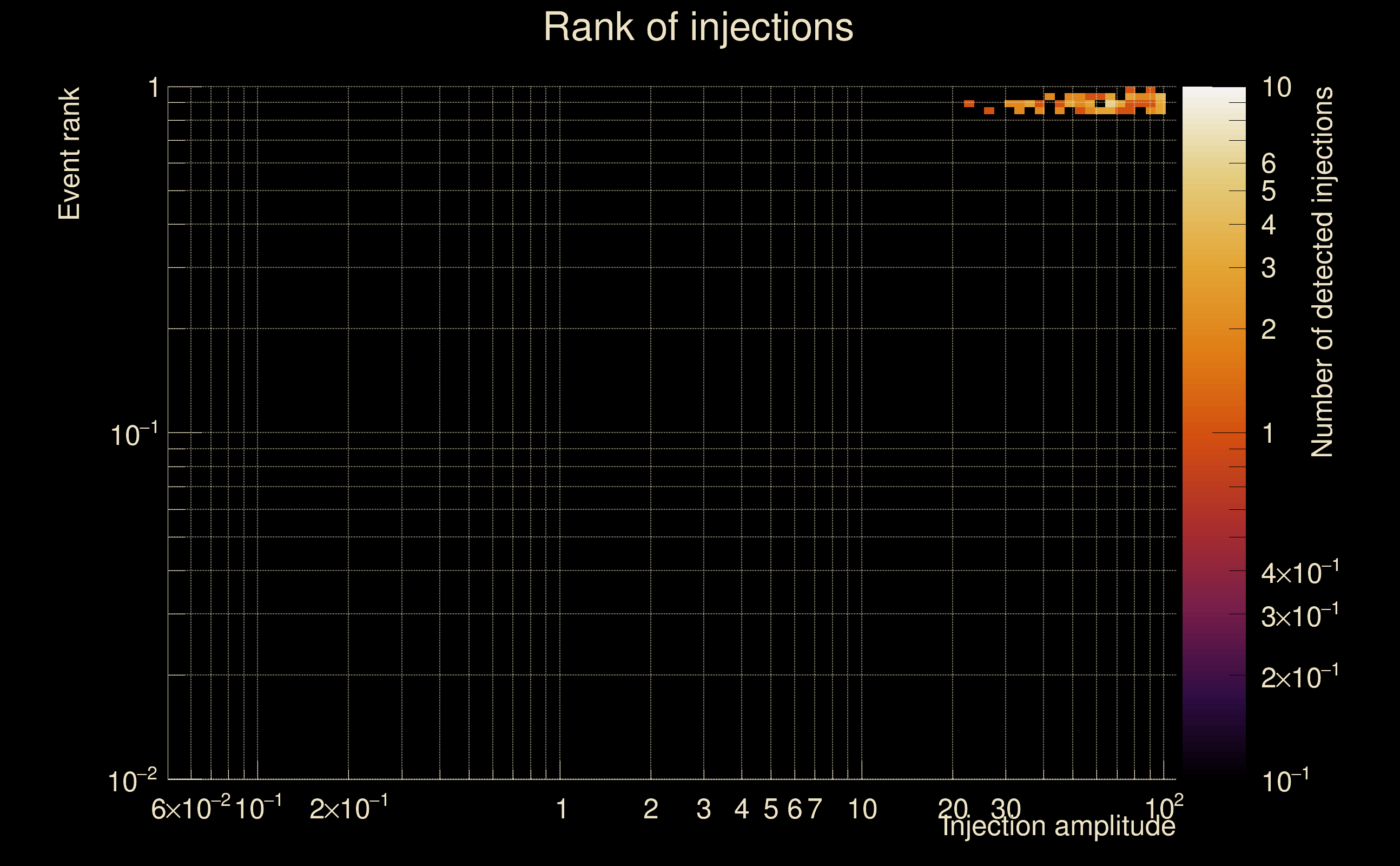

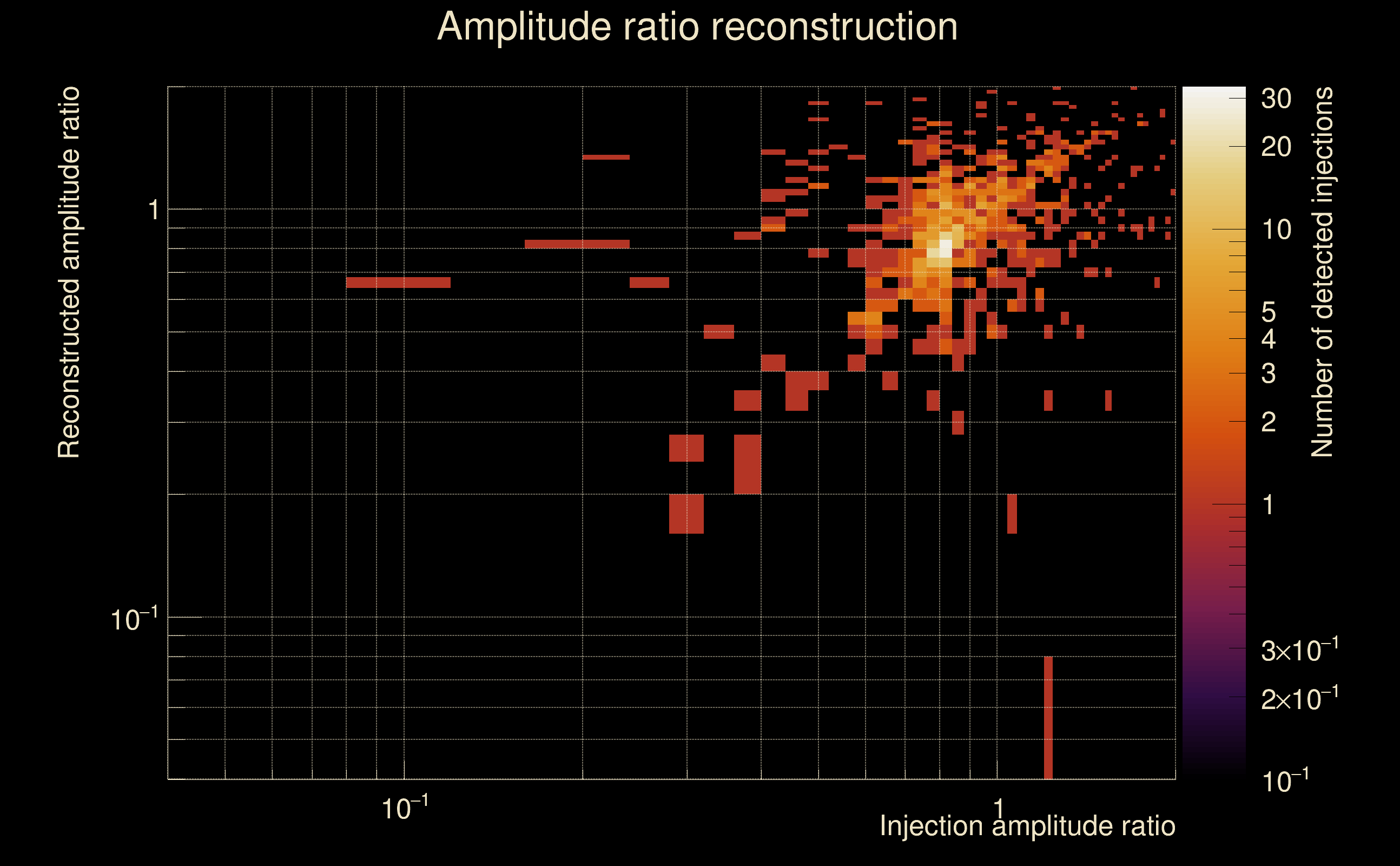

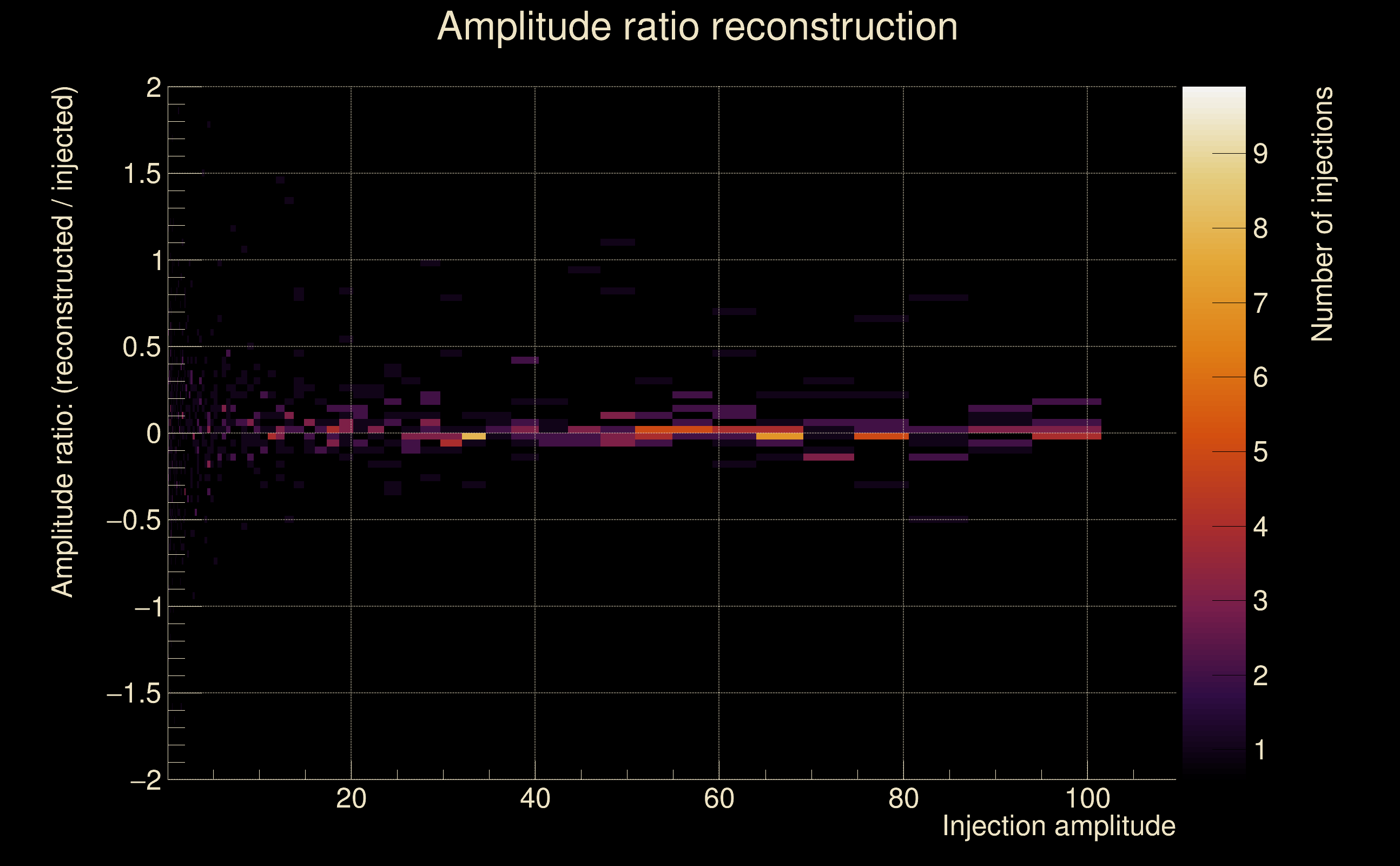

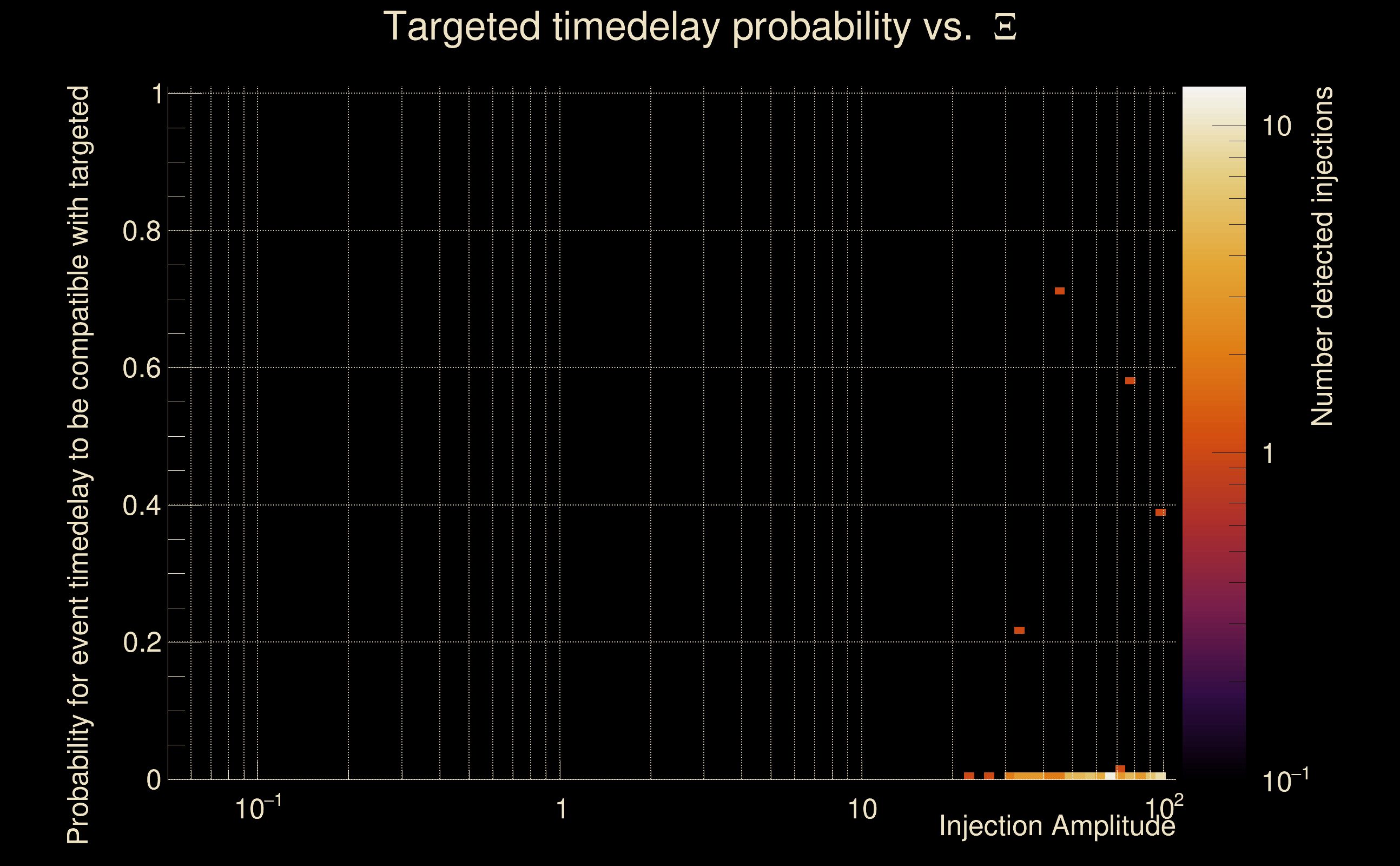

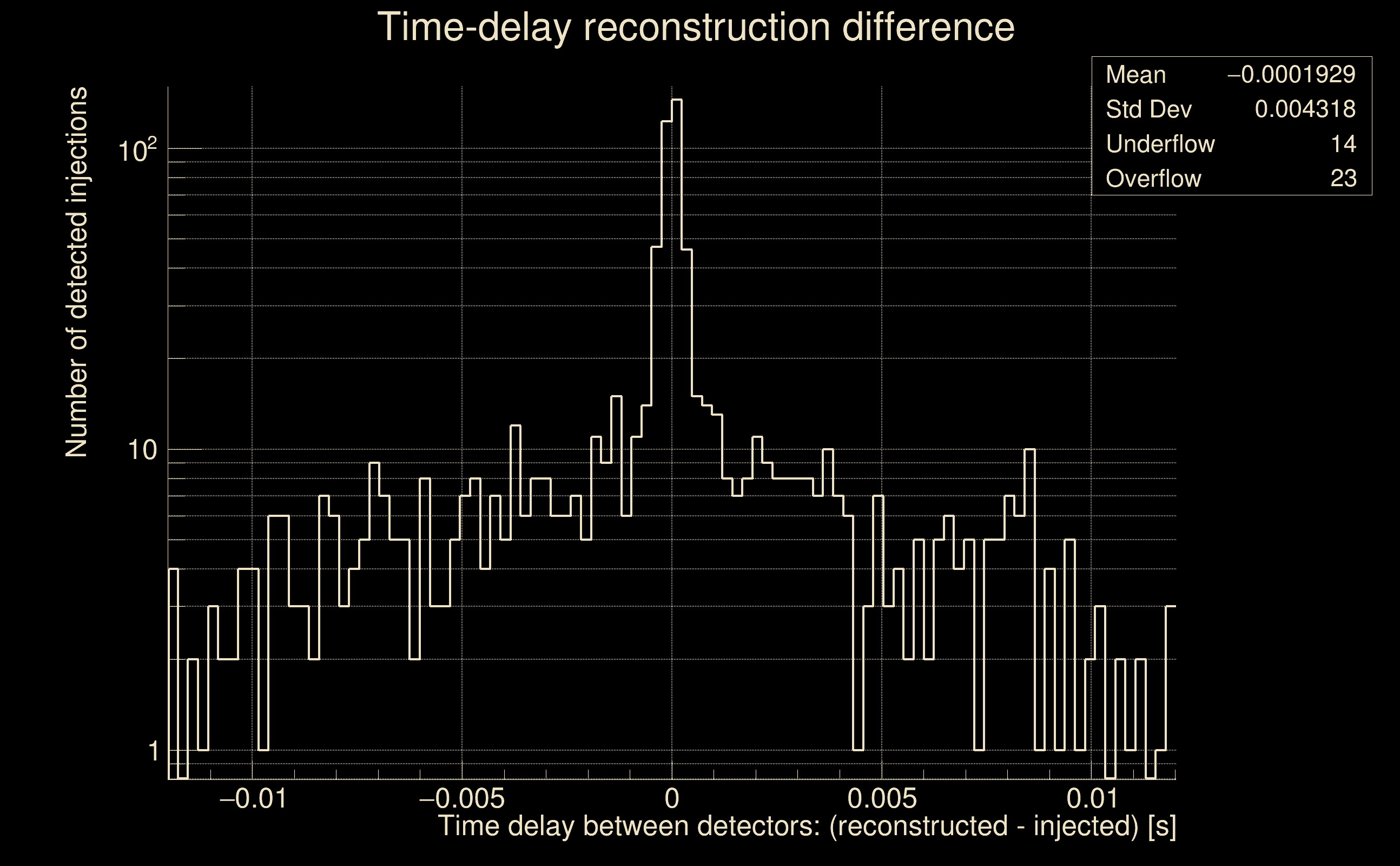

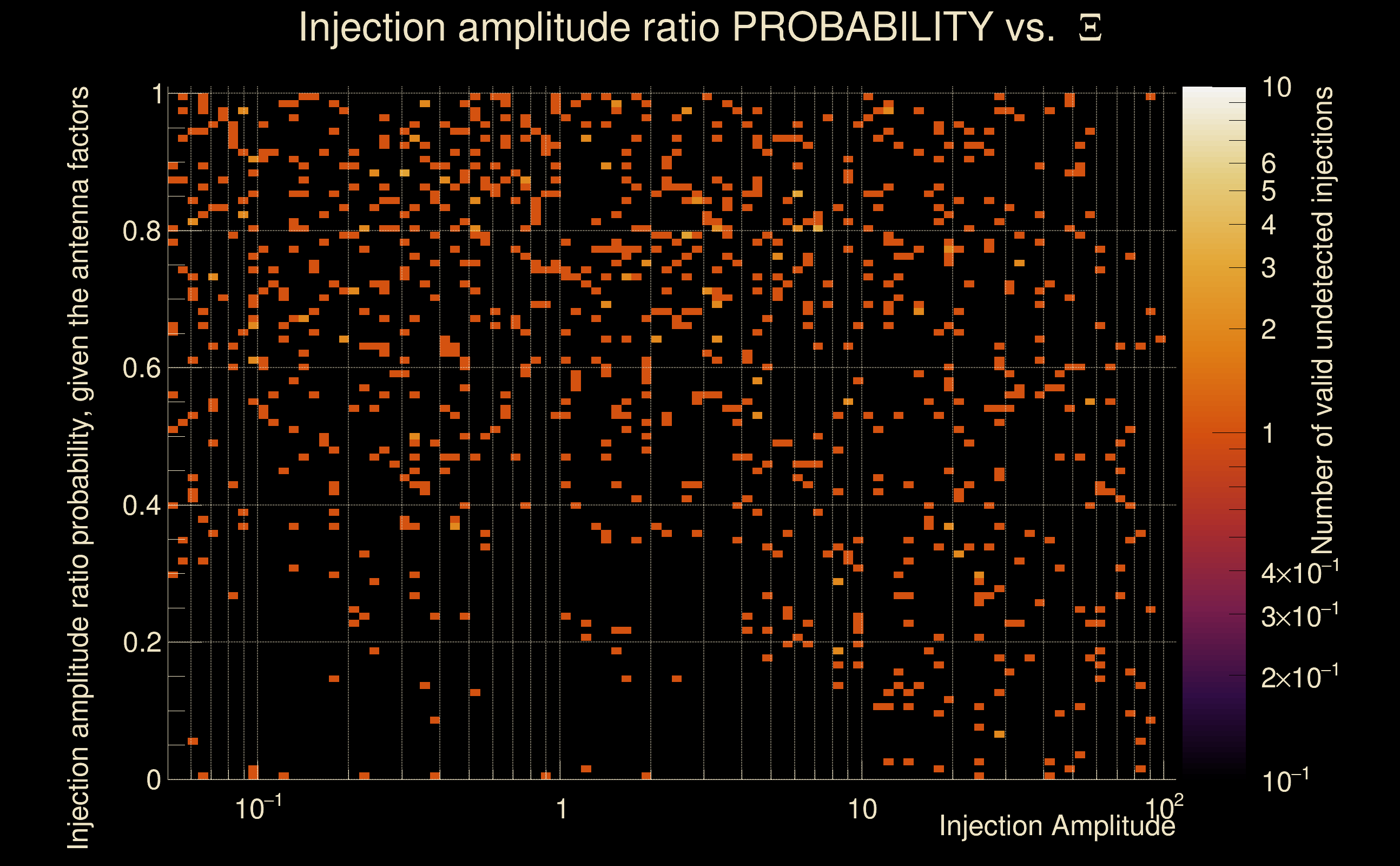

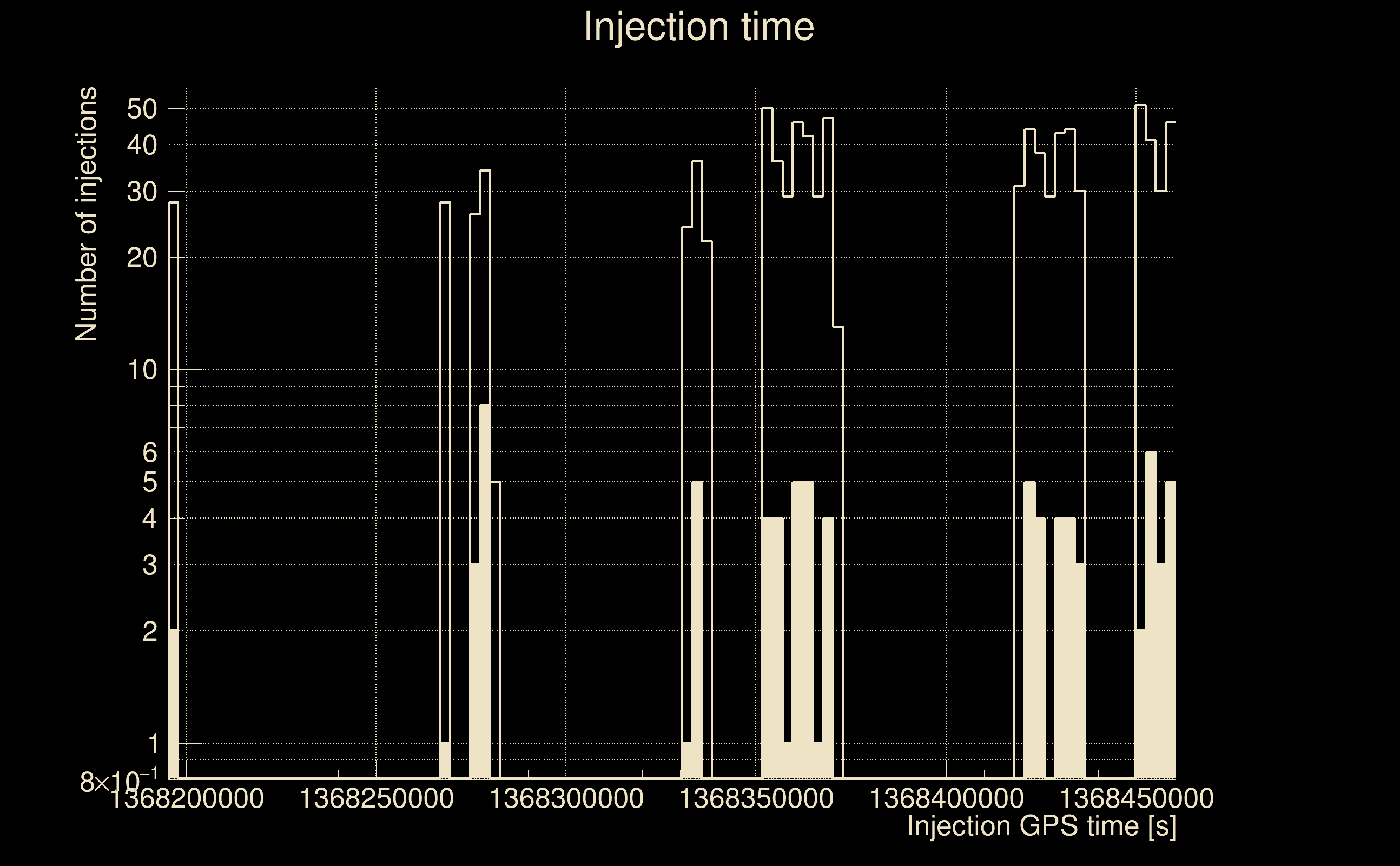

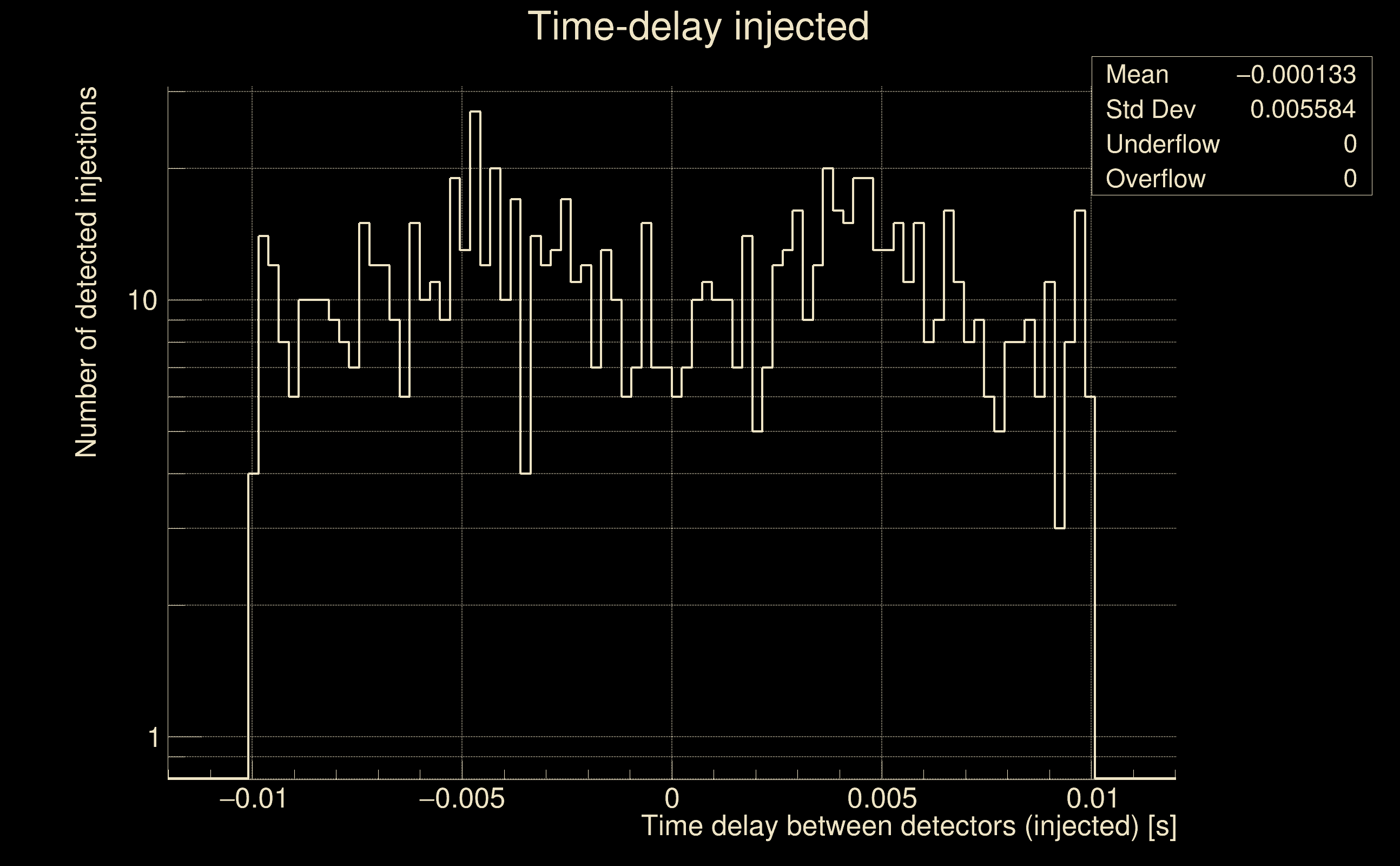

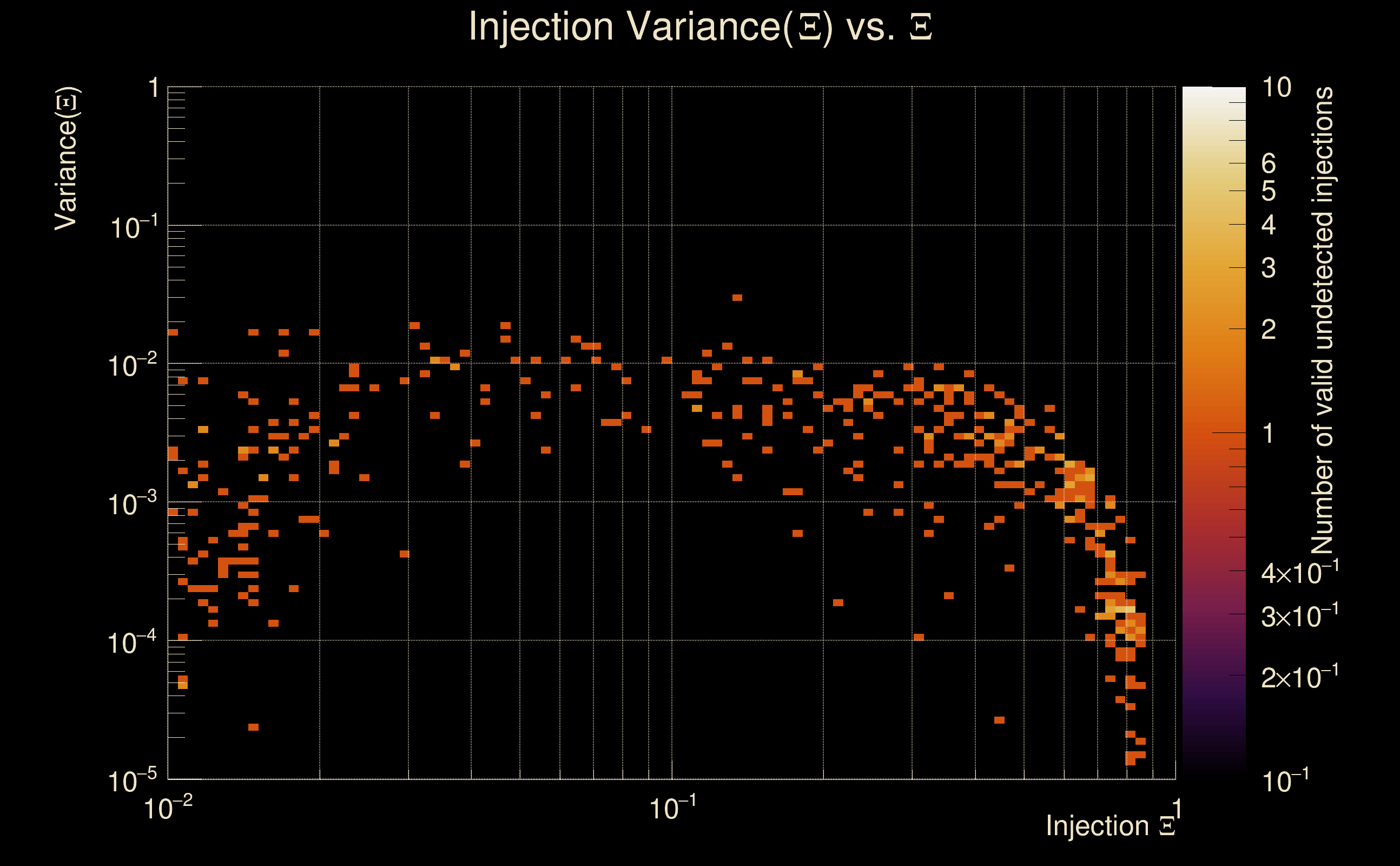

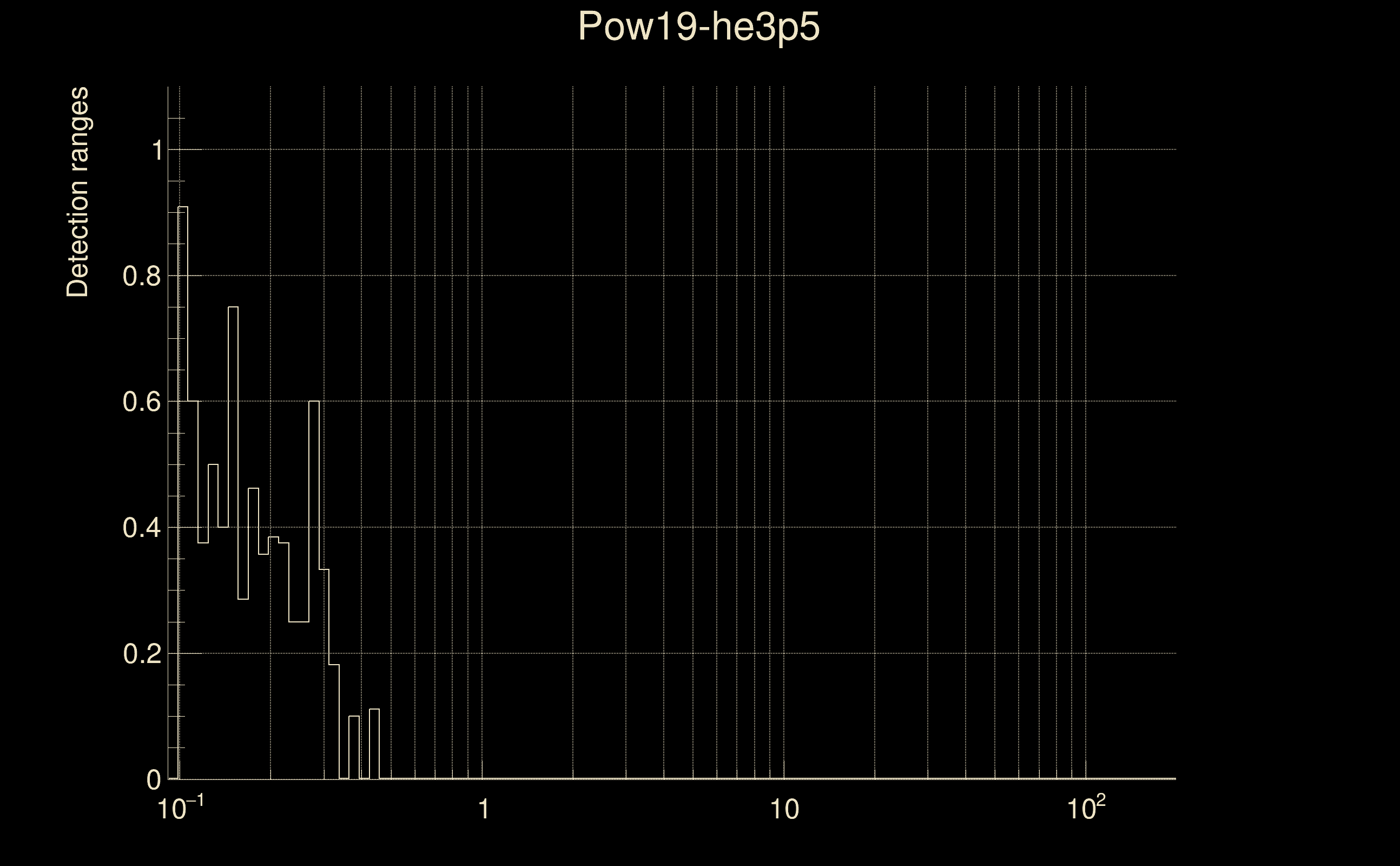

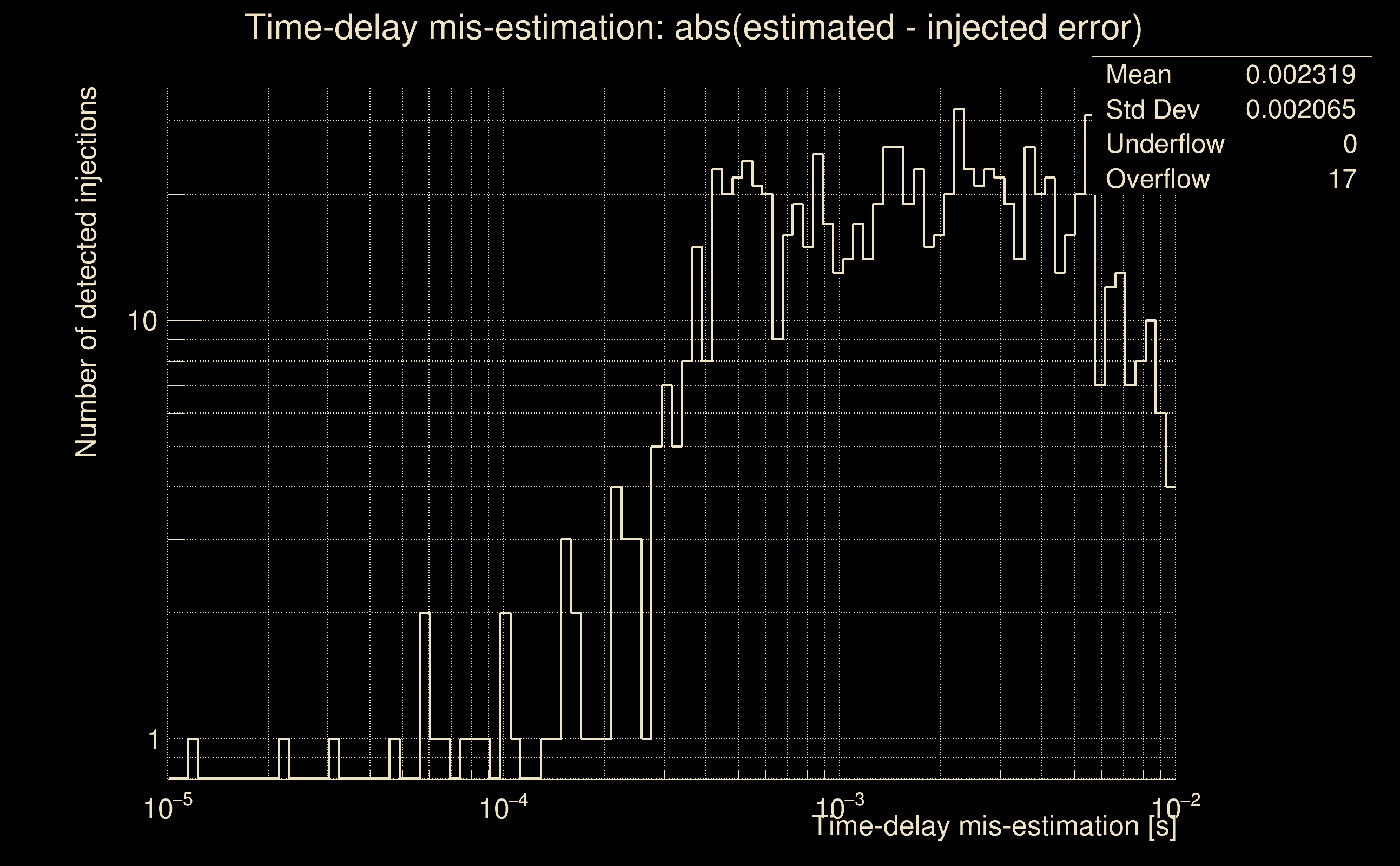

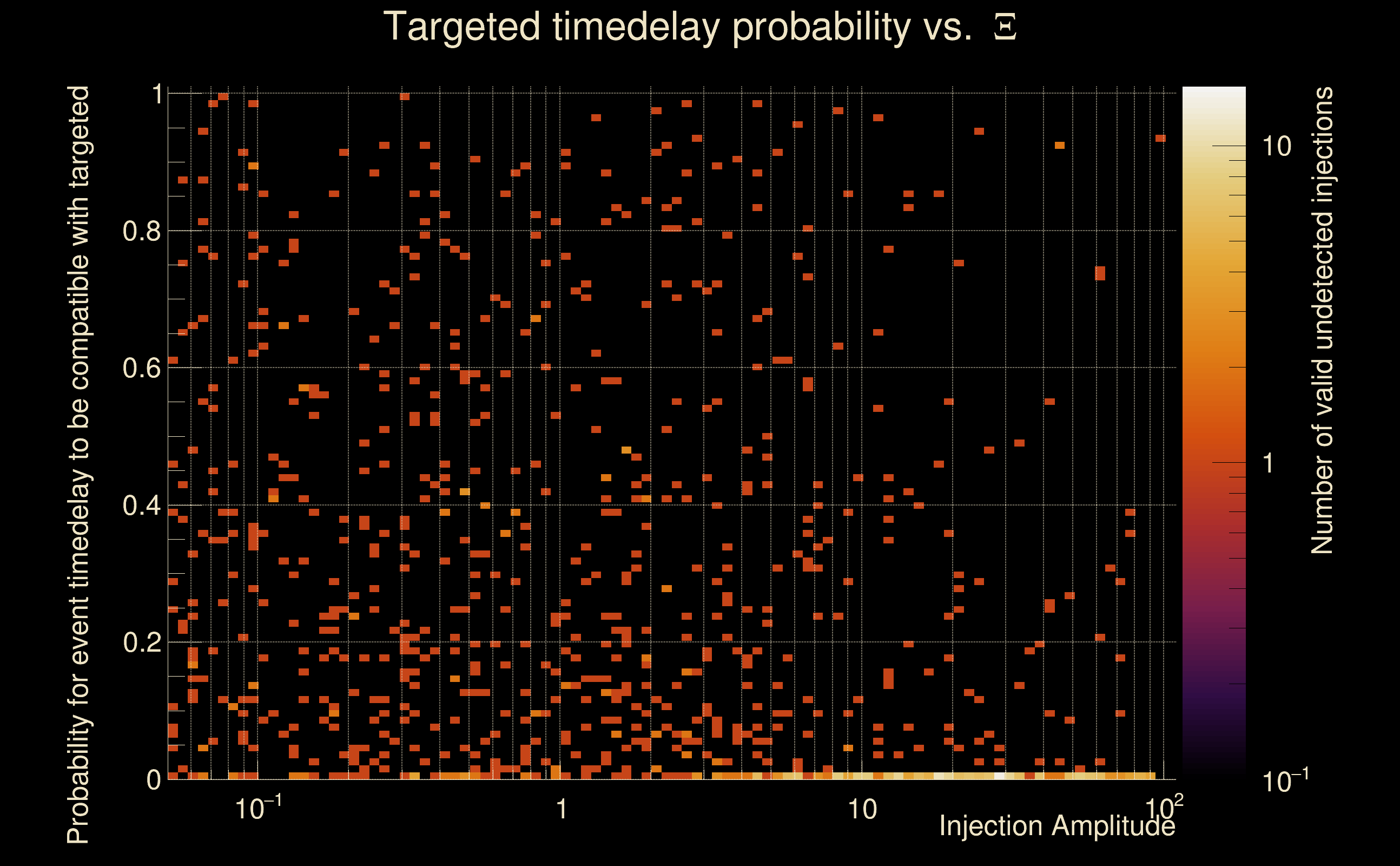

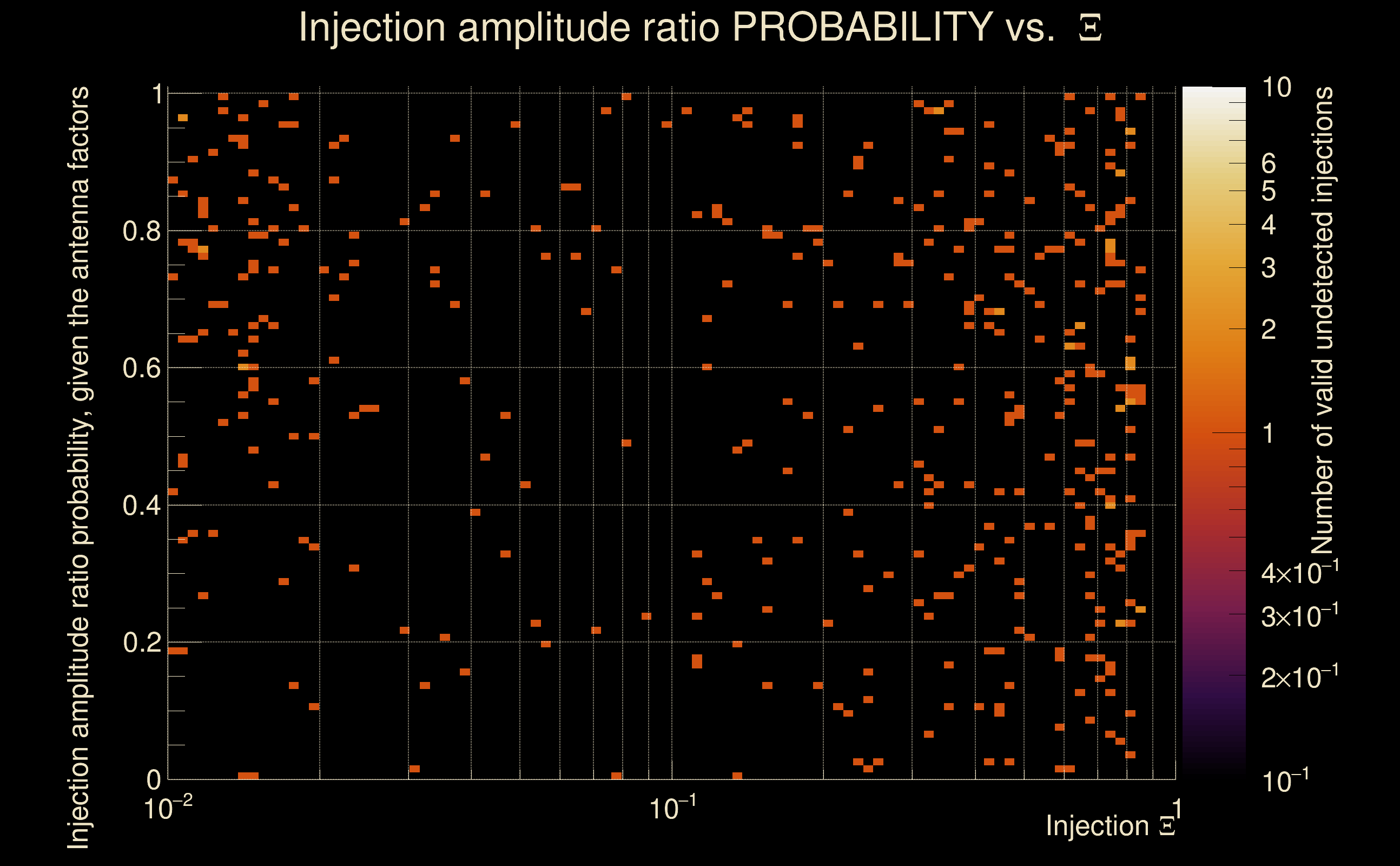

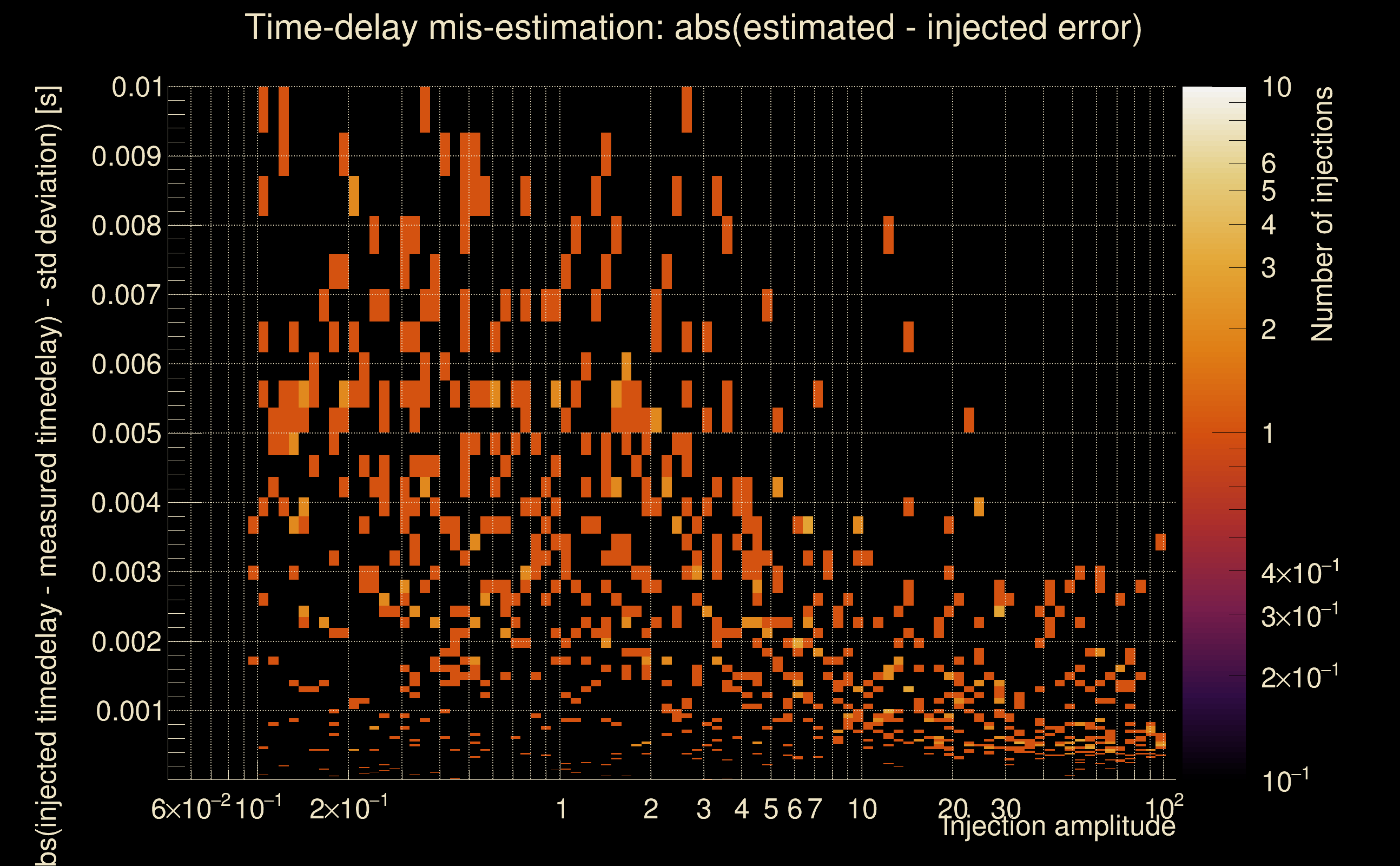

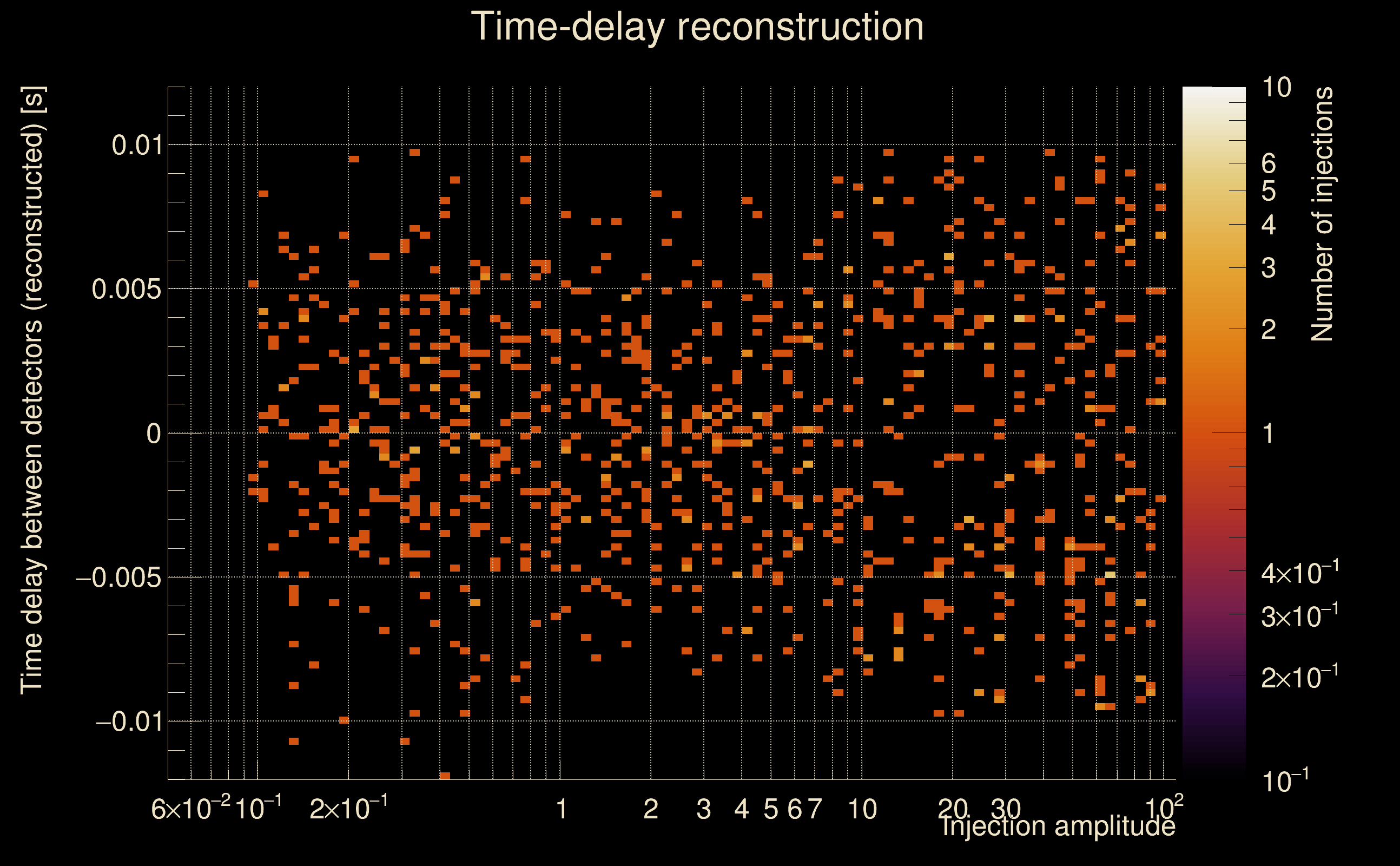

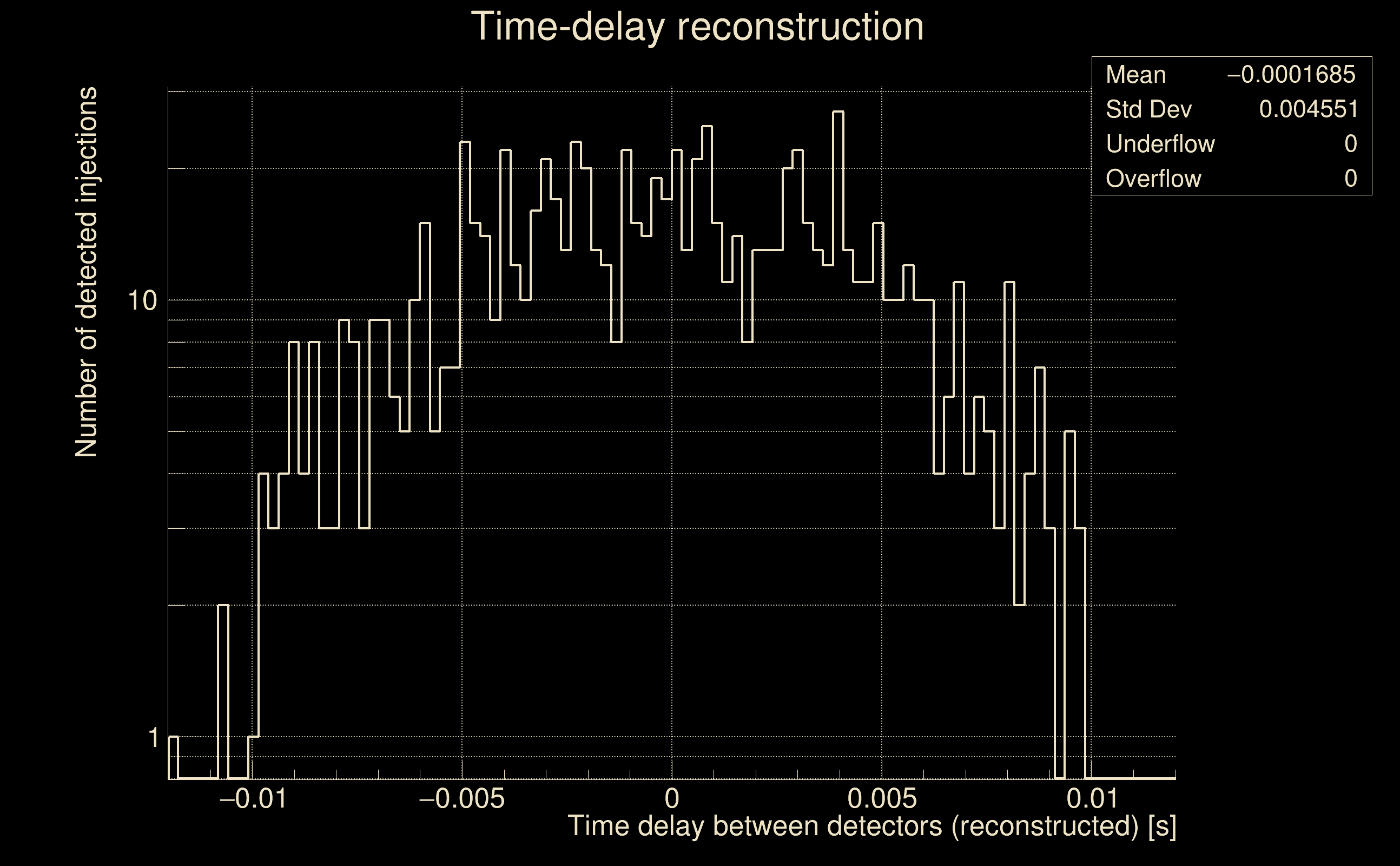

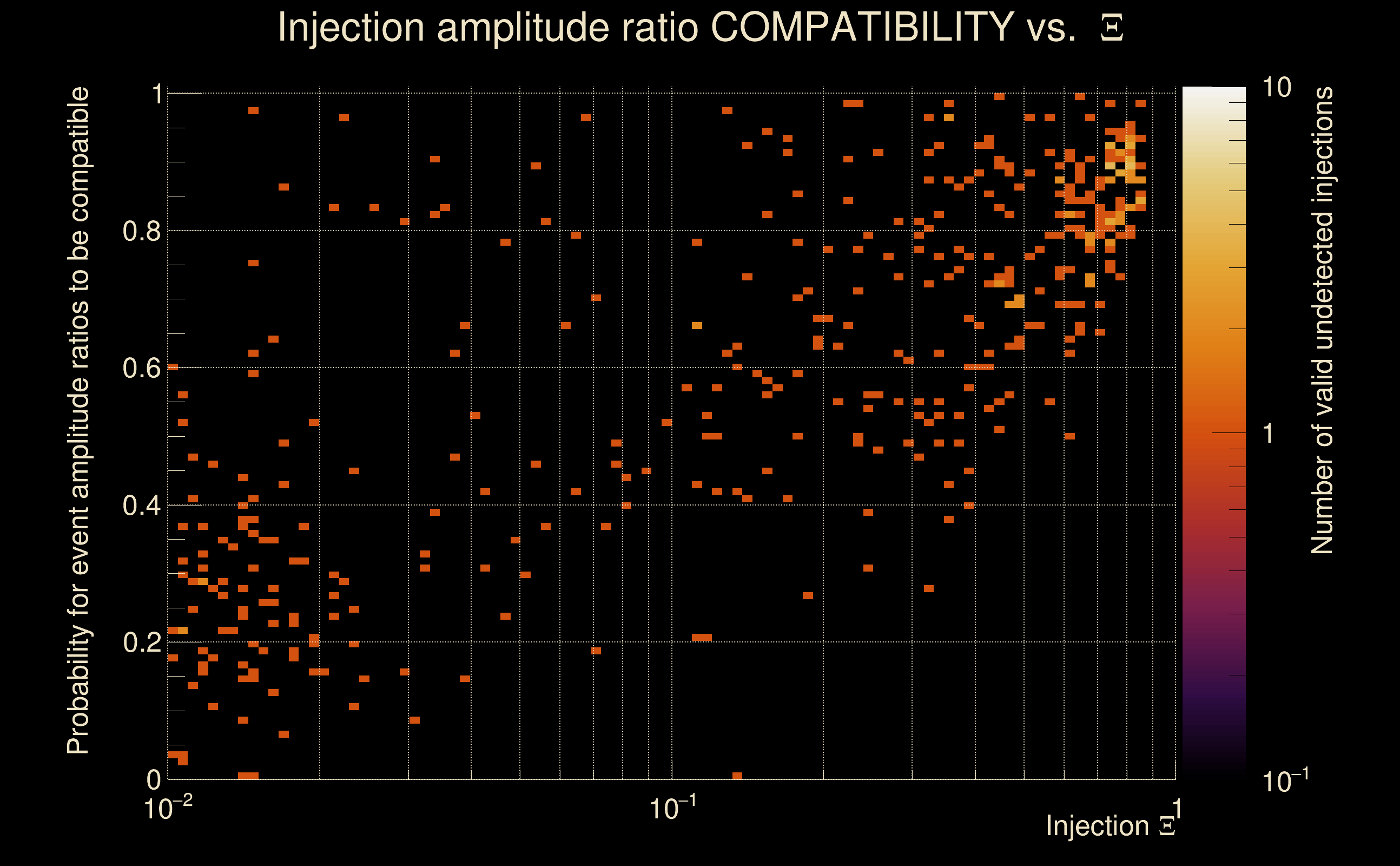

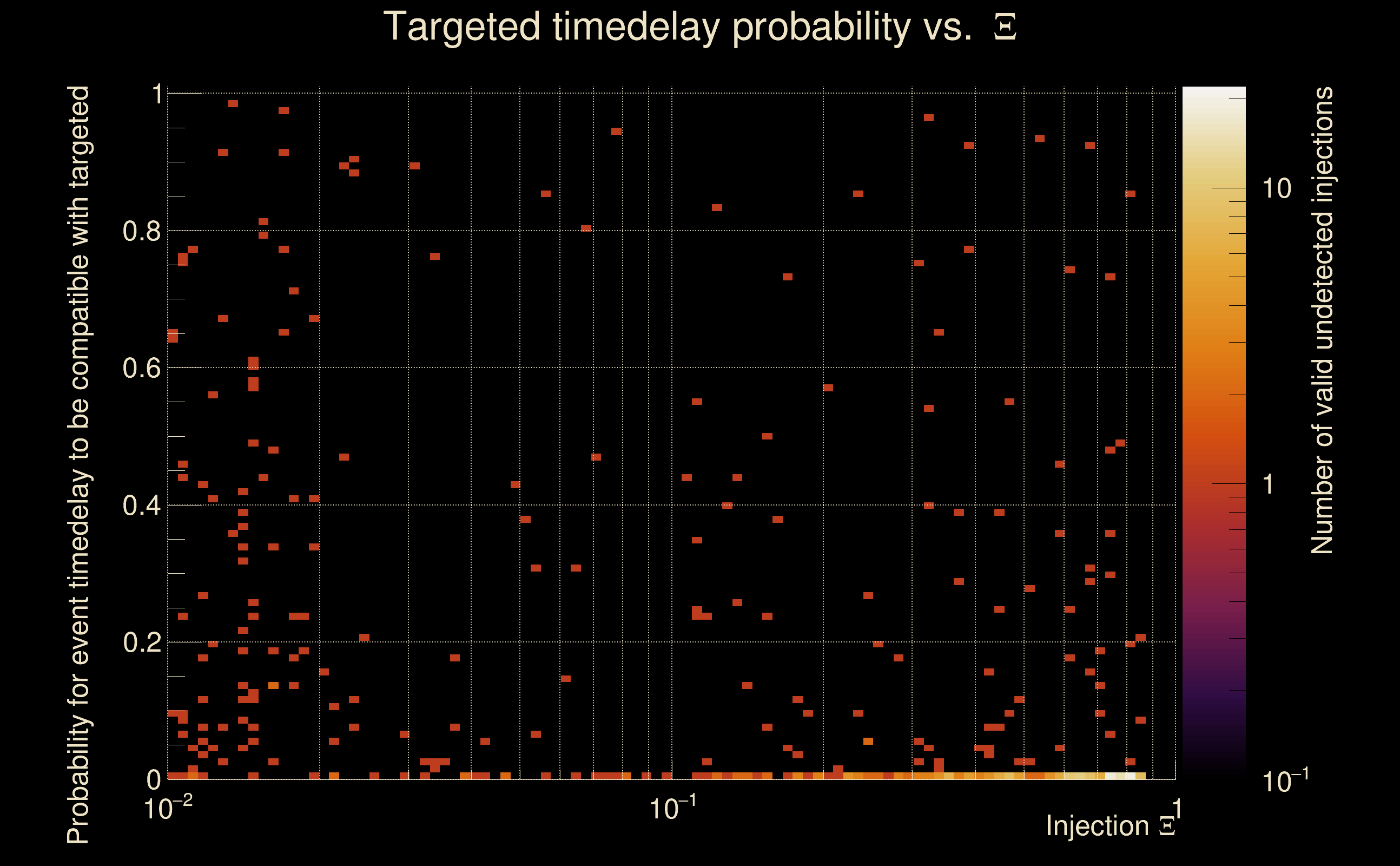

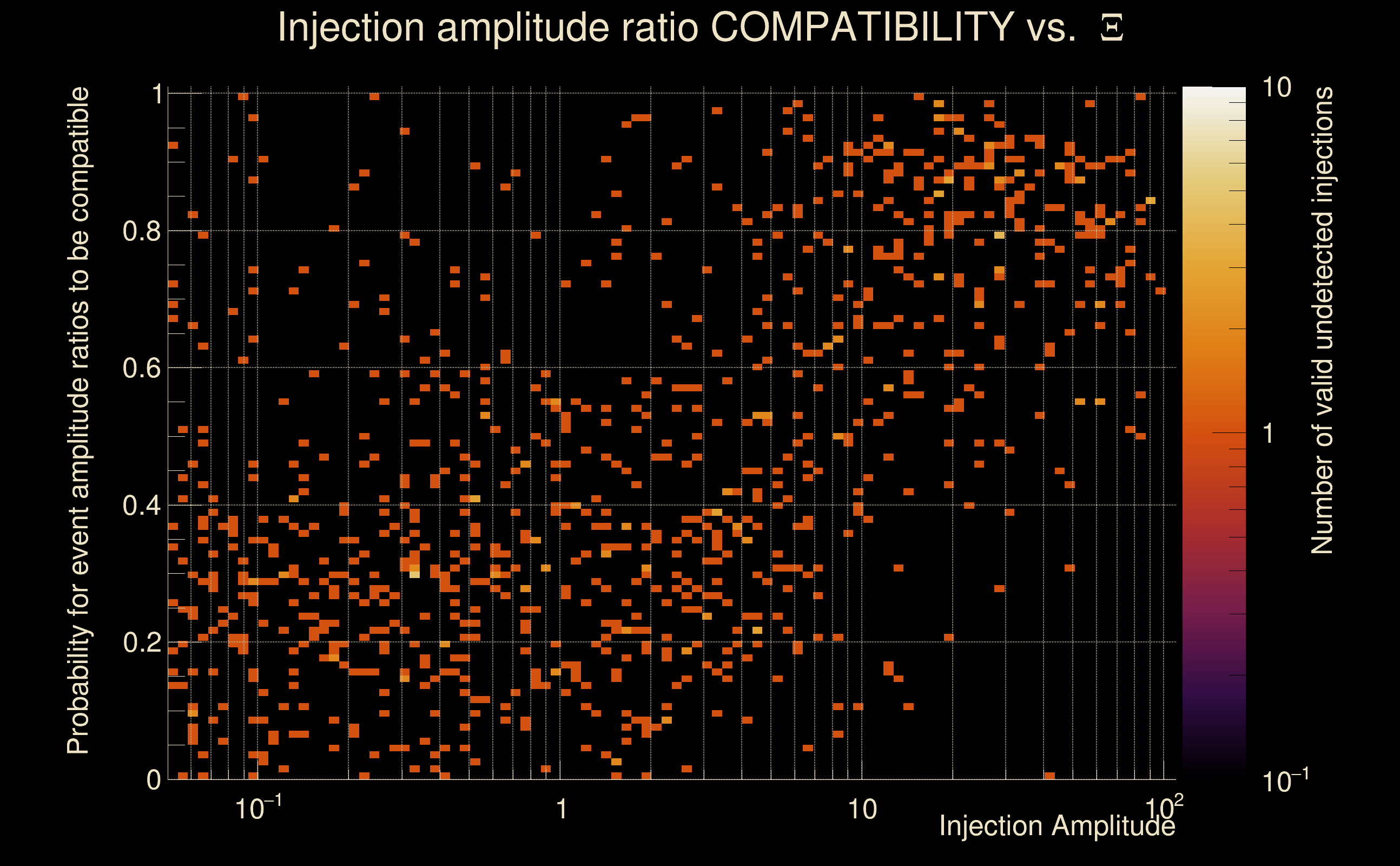

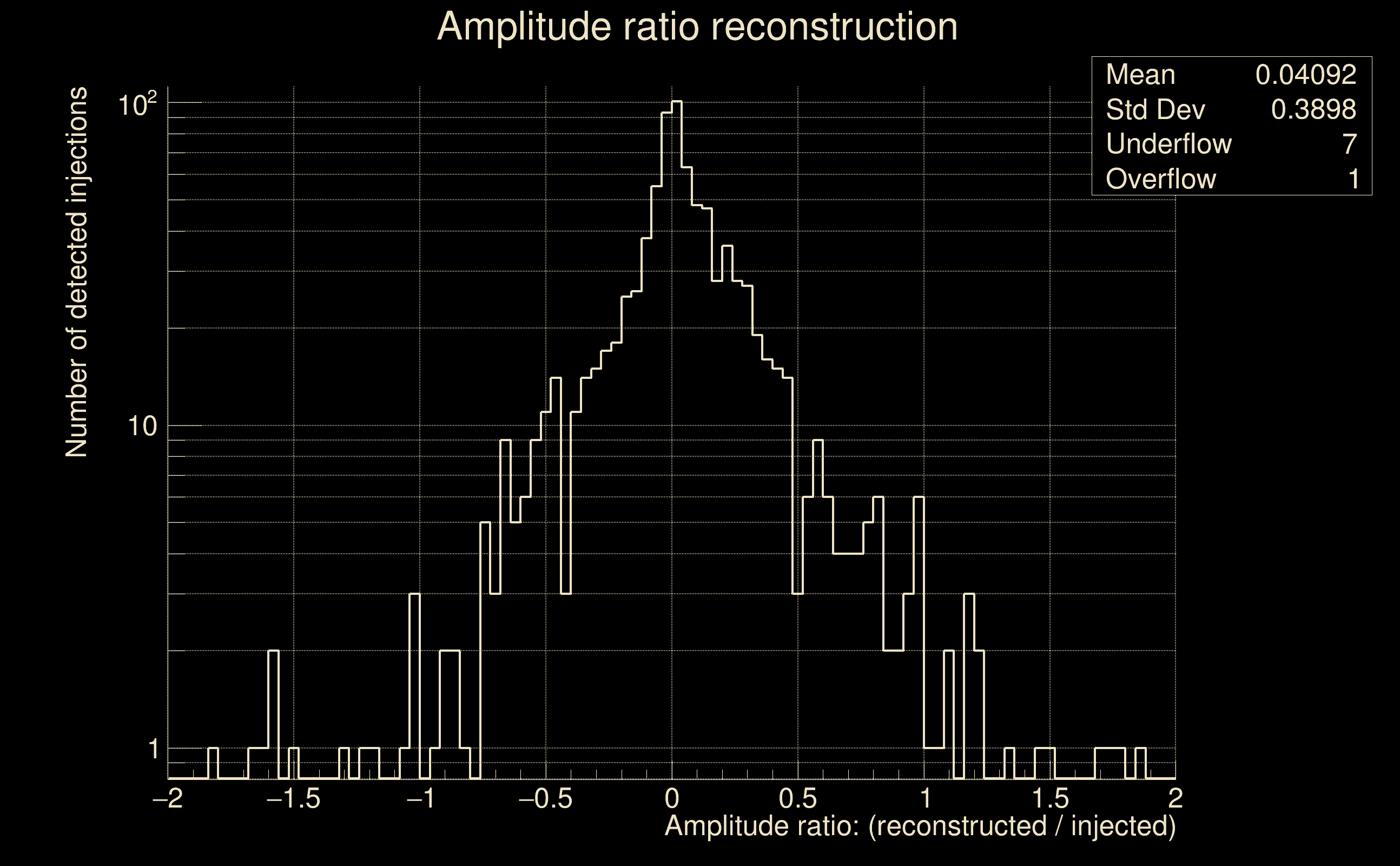

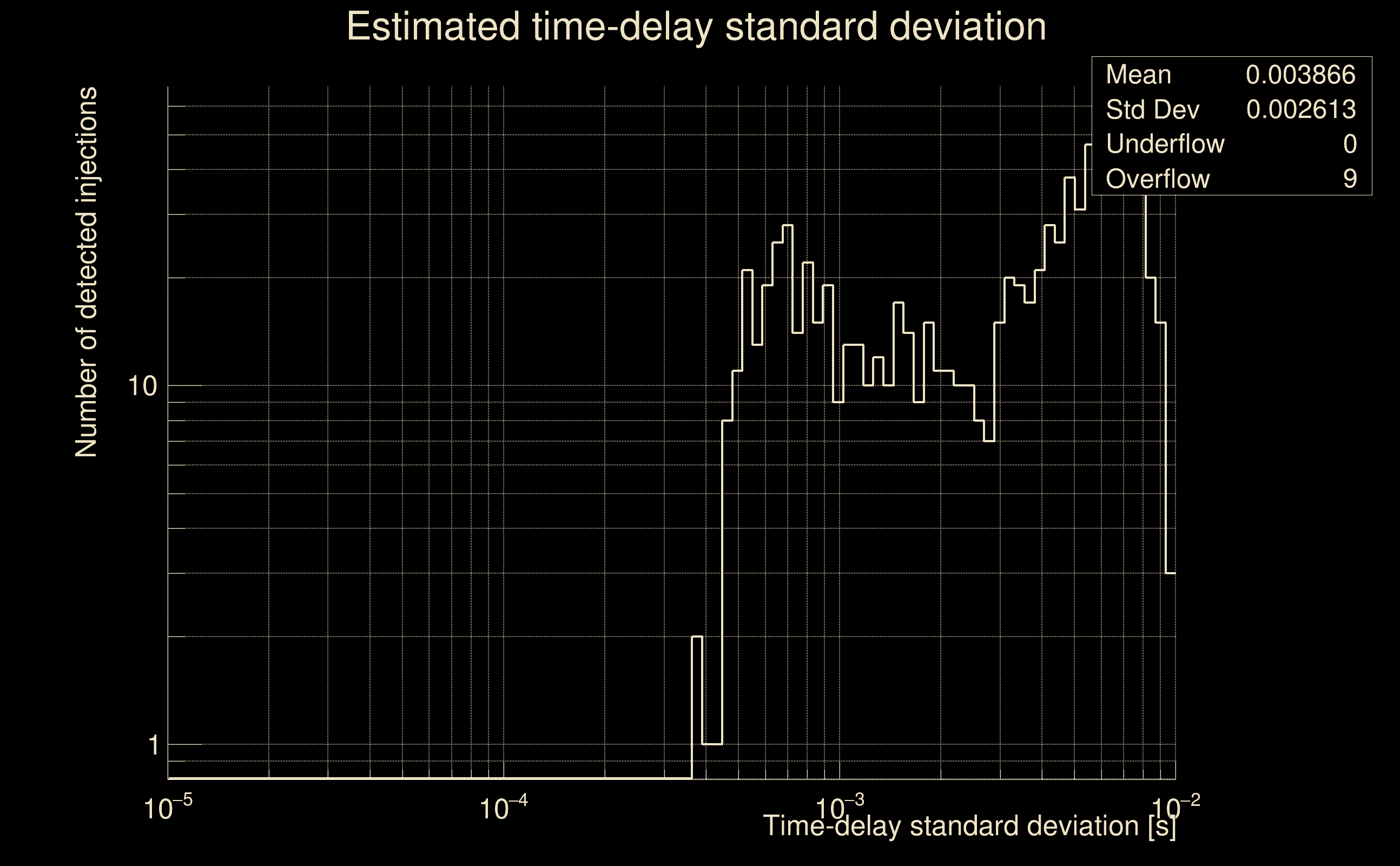

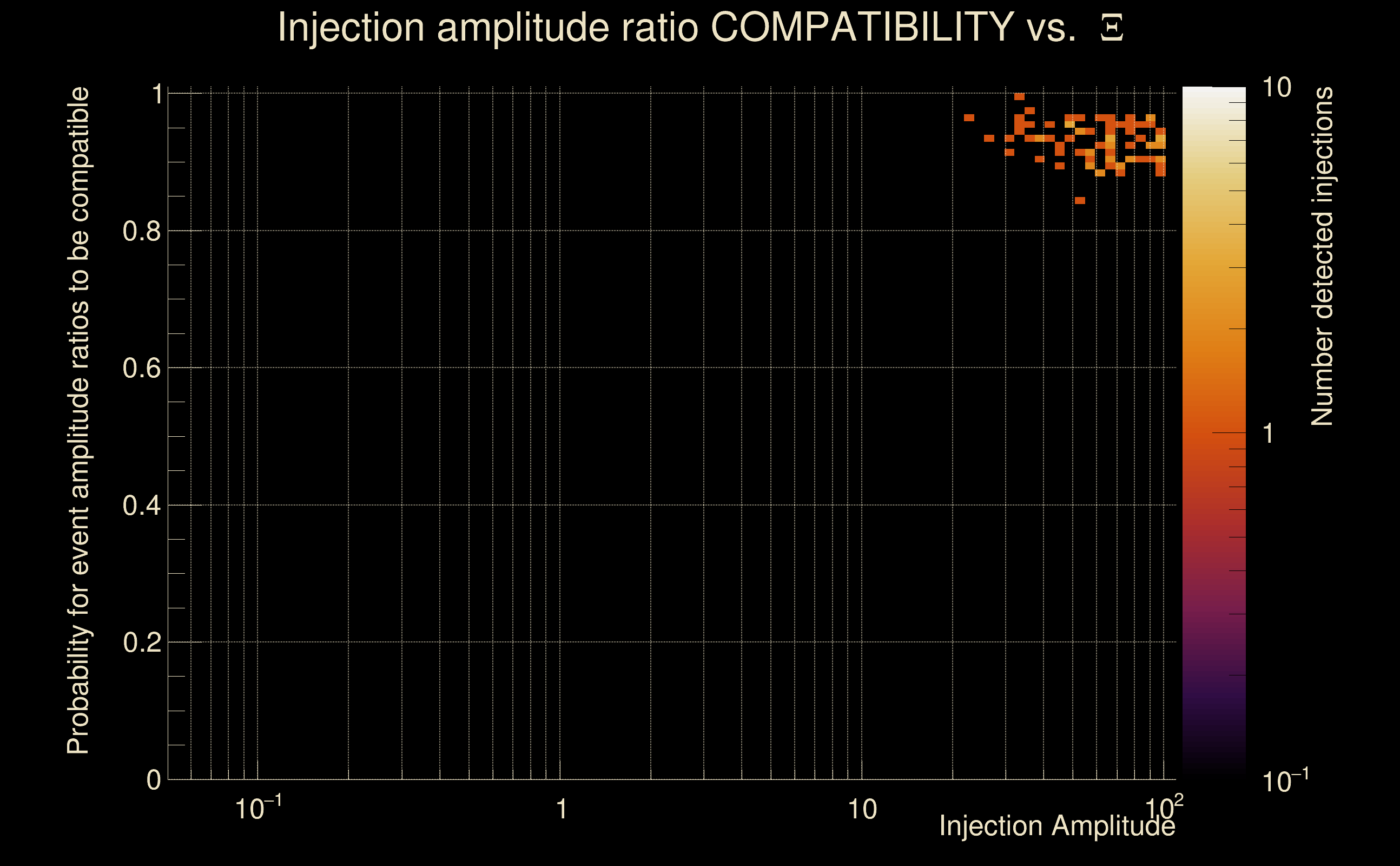

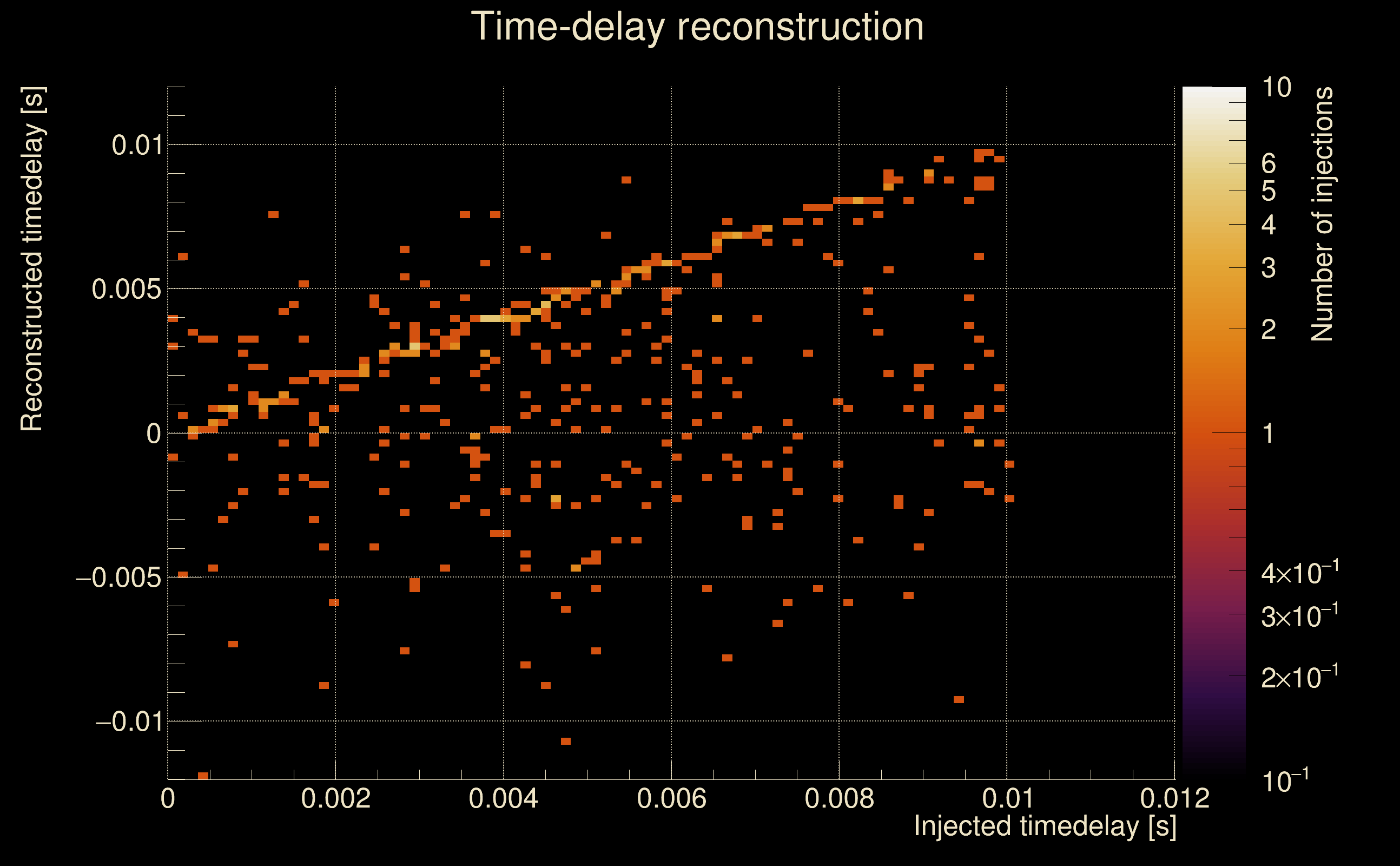

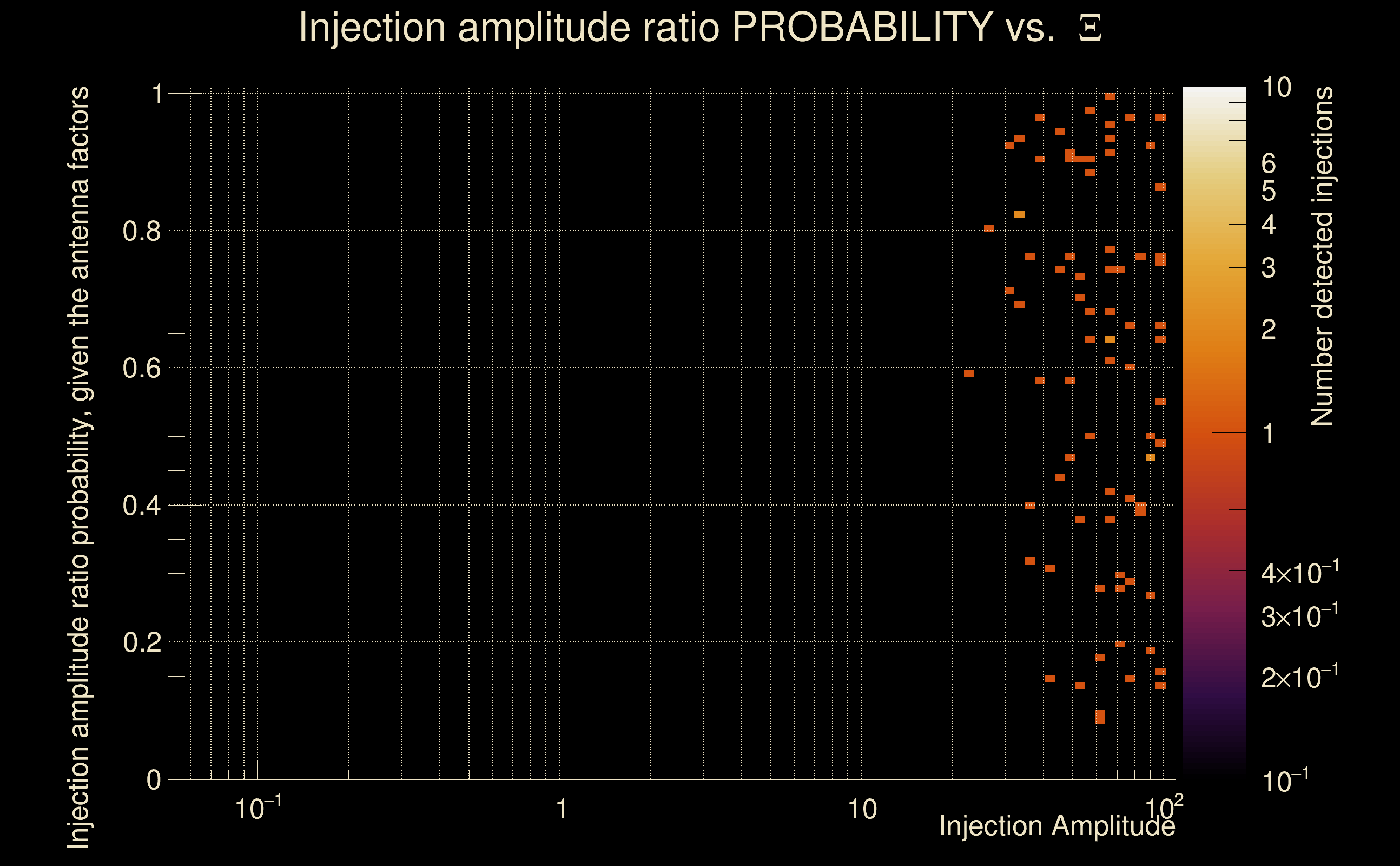

| Number of injections (total/valid/detected): | 1042 / 922 / 80 |
| List of missed injections: | ./Pow19-he3p5_missed.txt |
| Injection amplitude at 90% detection efficiency: | 97.4786 |
| Injection amplitude at 50% detection efficiency: | 87.4895 |
| Injection amplitude at 10% detection efficiency: | 29.8164 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
