| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:42:33 2026 UTC |
| Ox option file: | Ixf4_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf4_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf4_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=212 (-4.784 s), time lag = 0 s |

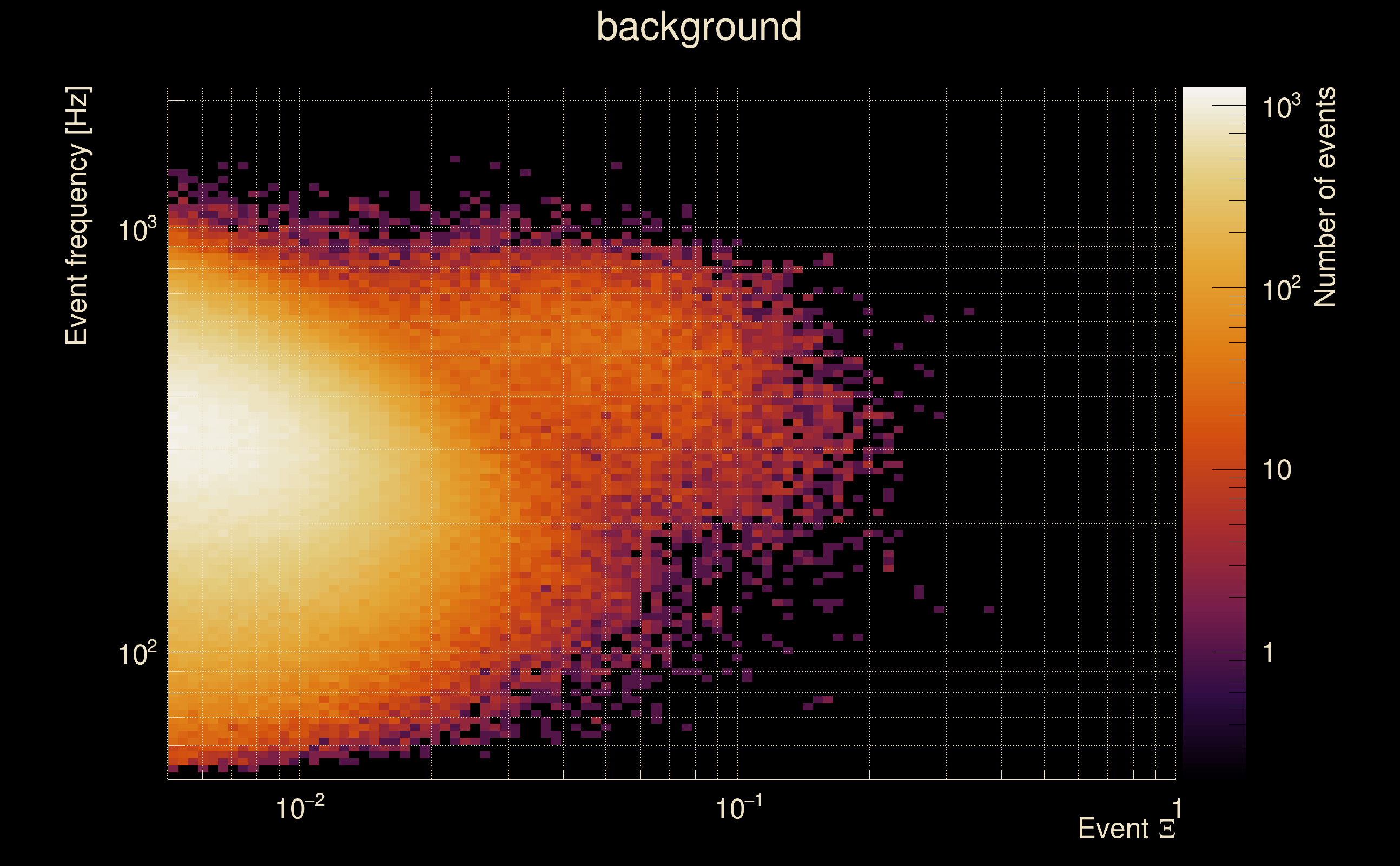

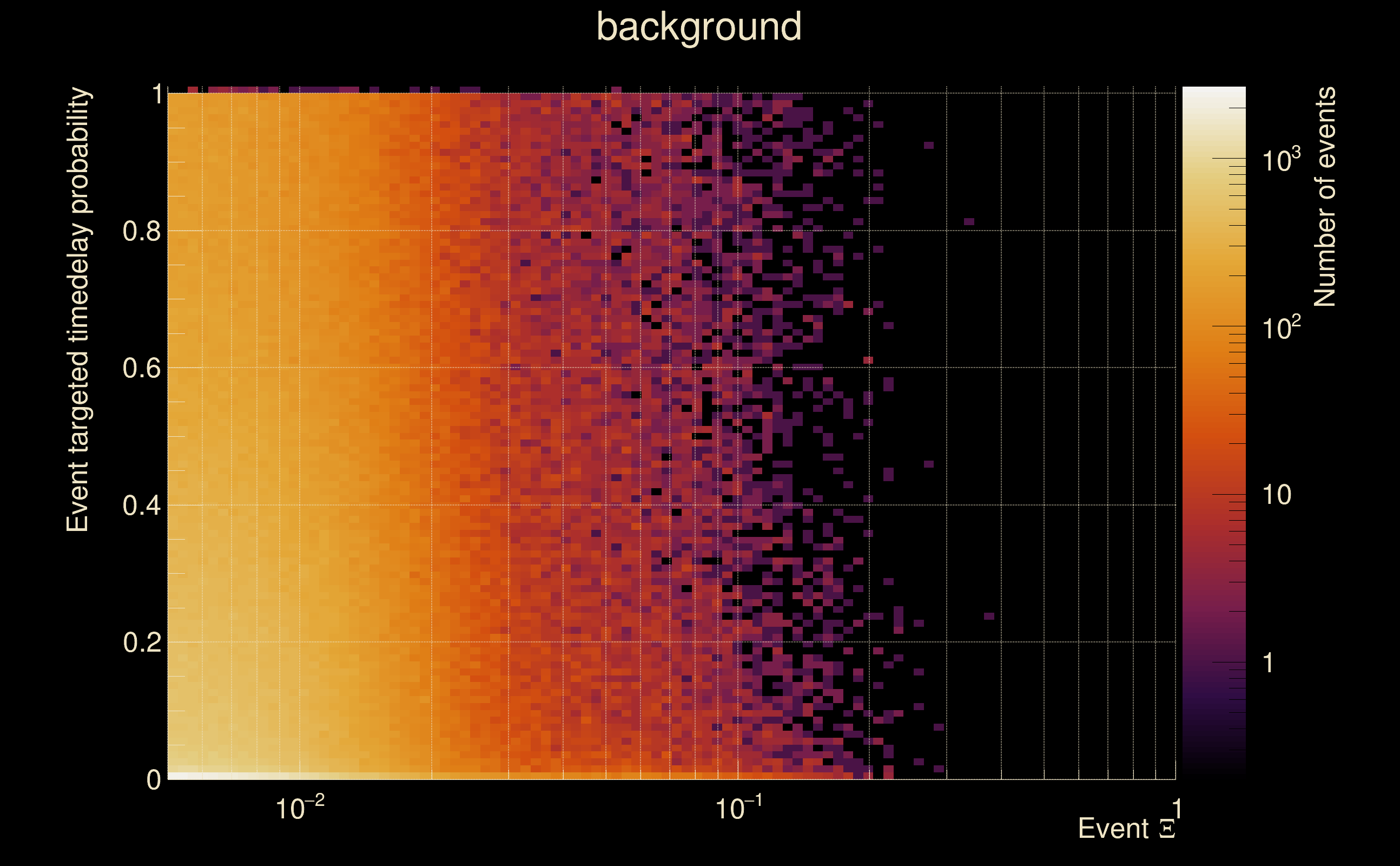

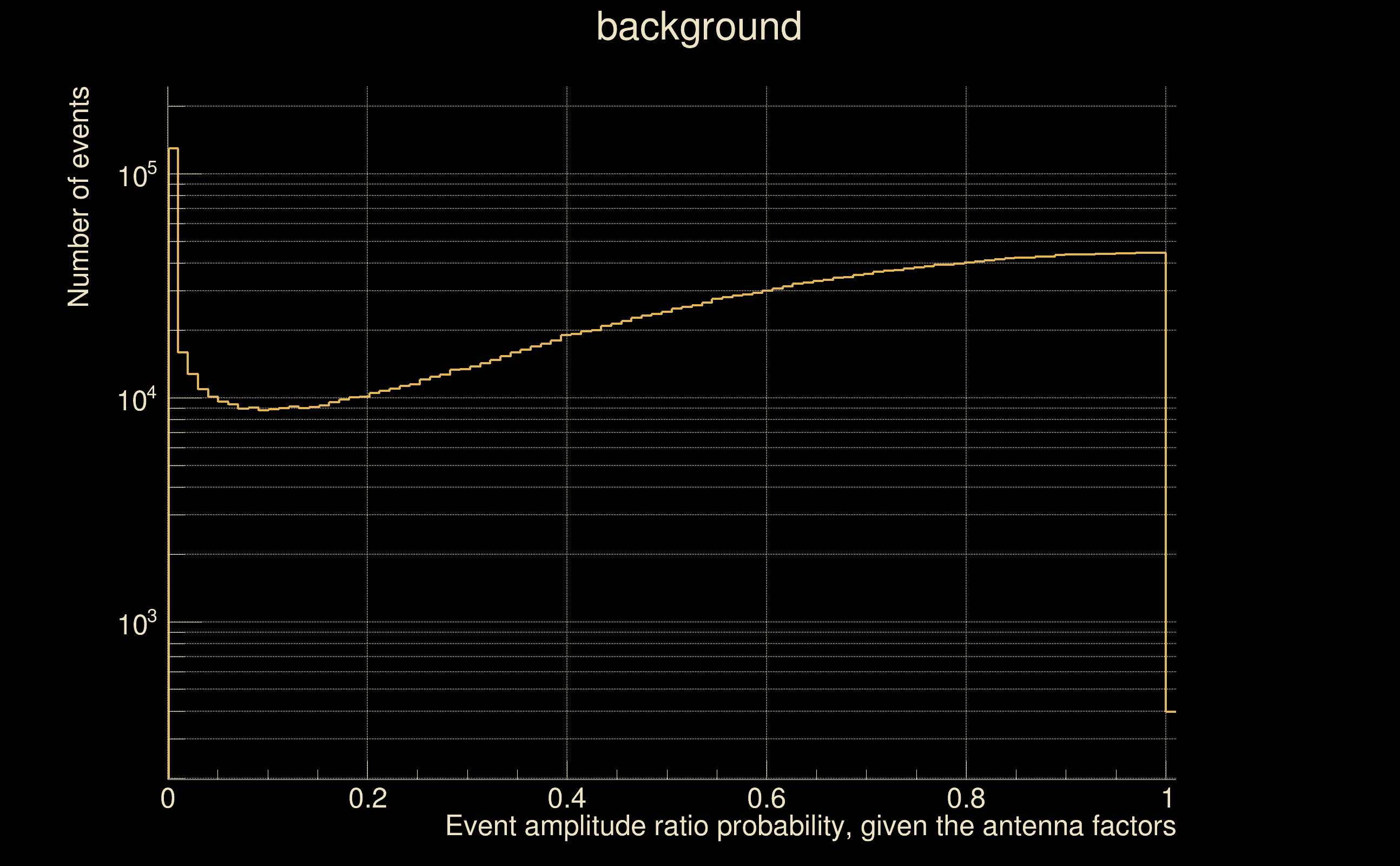

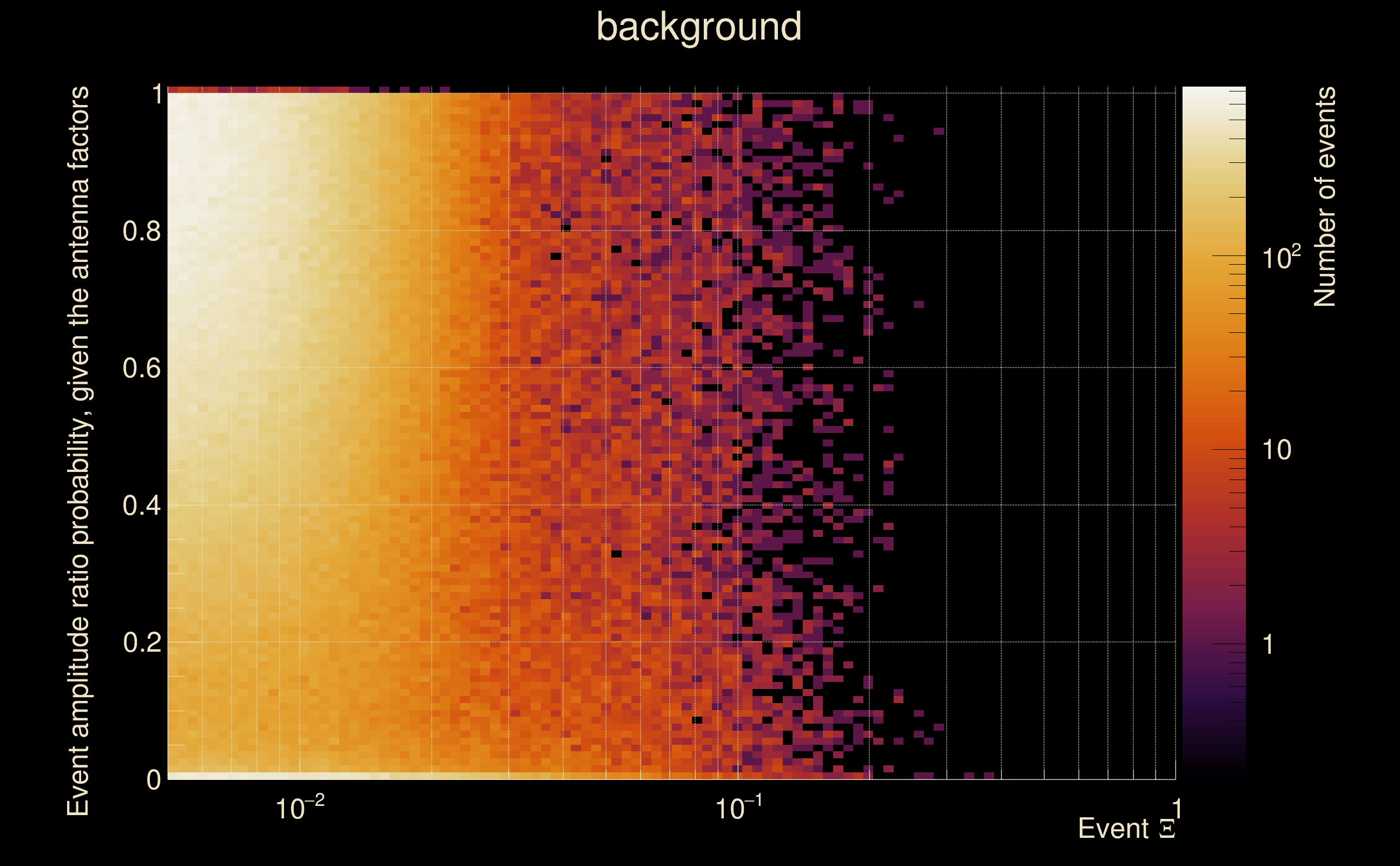

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

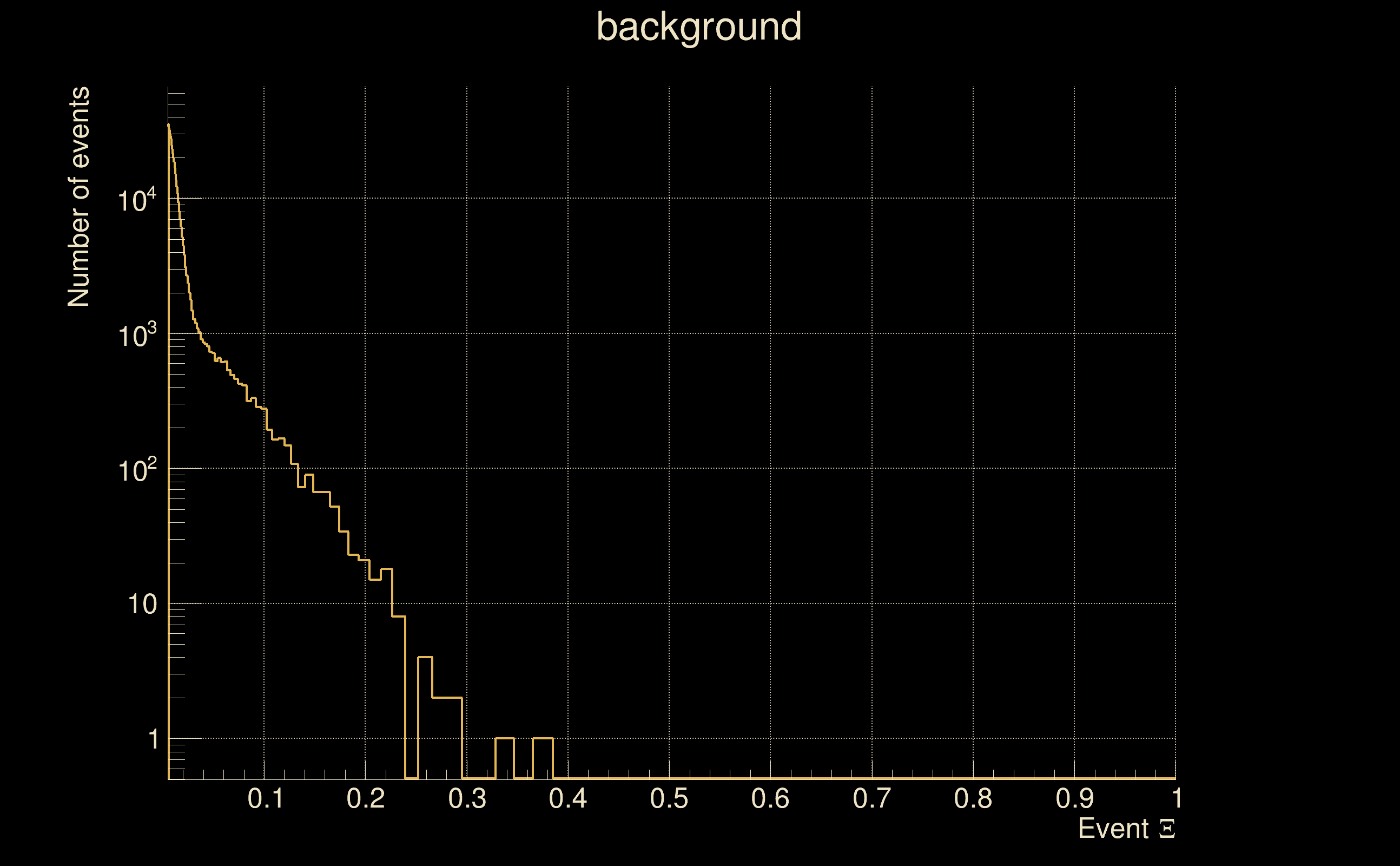

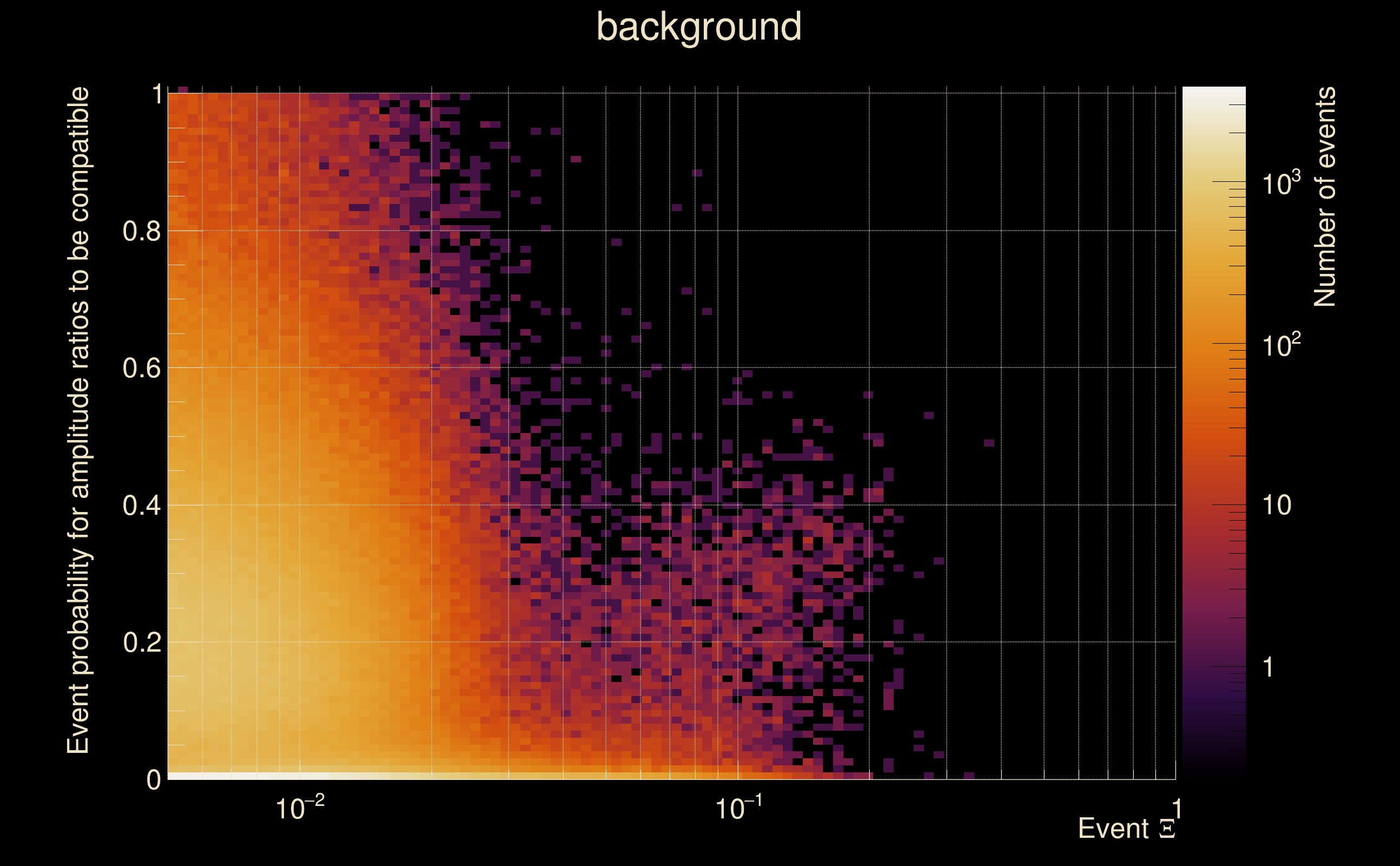

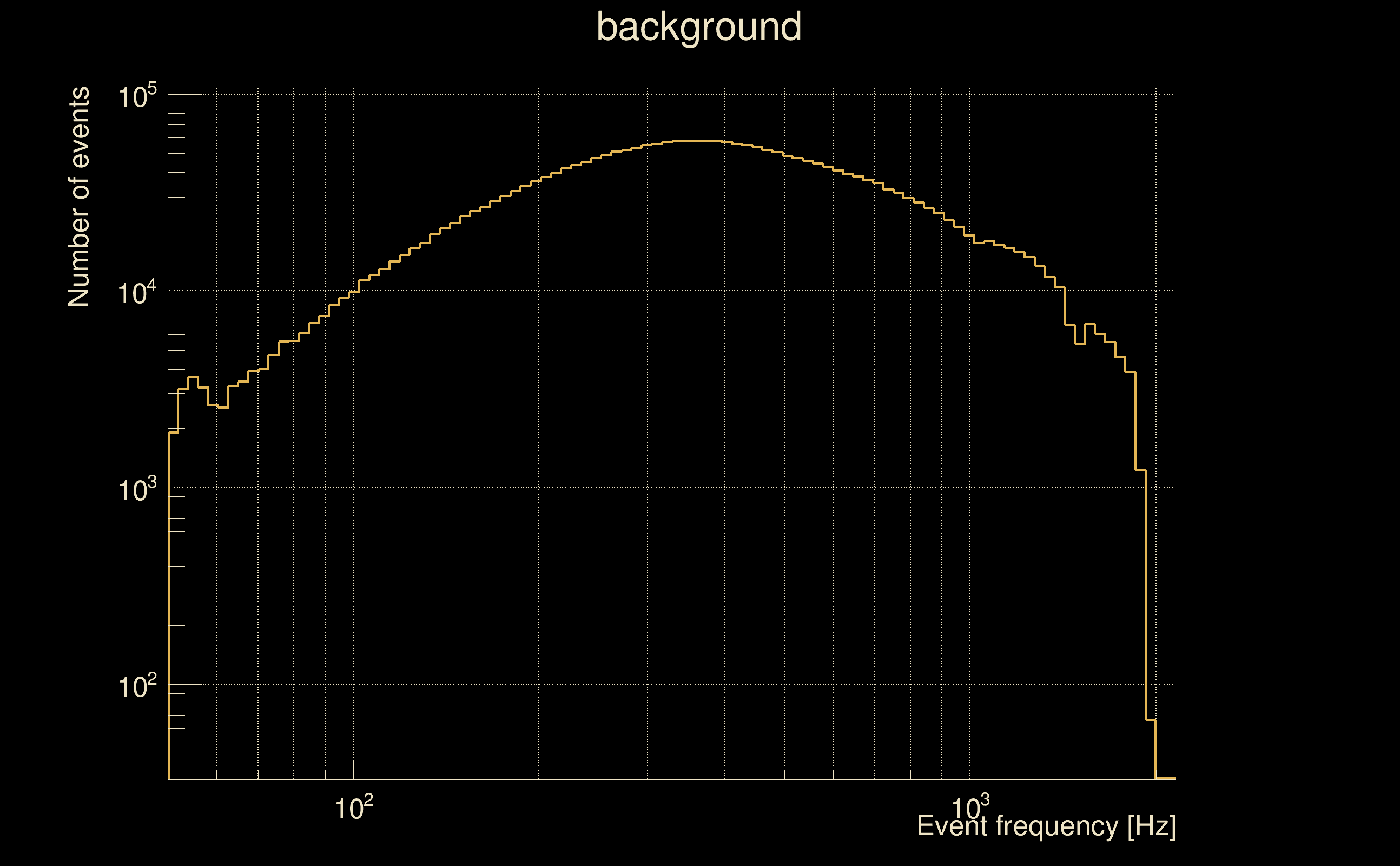

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

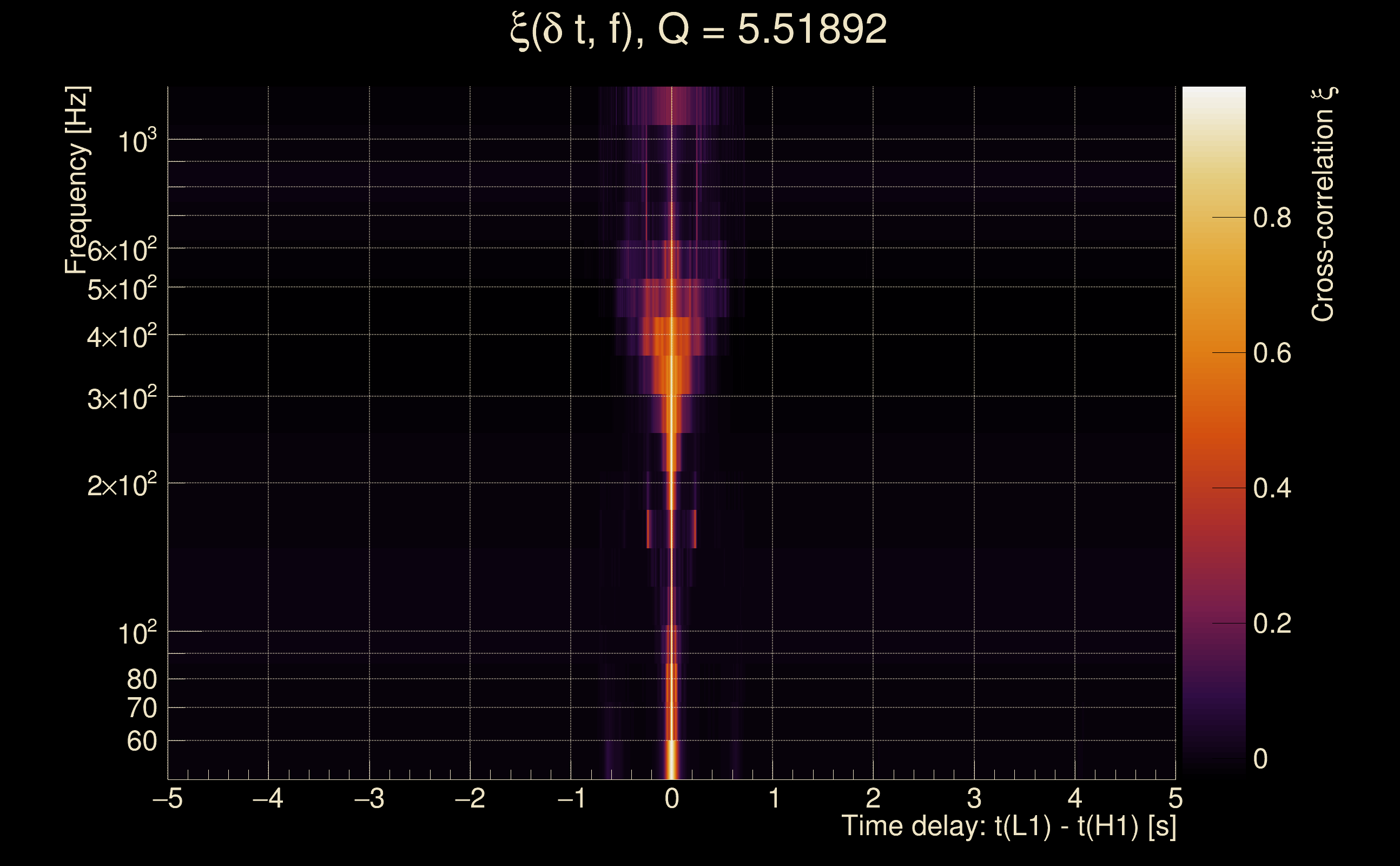

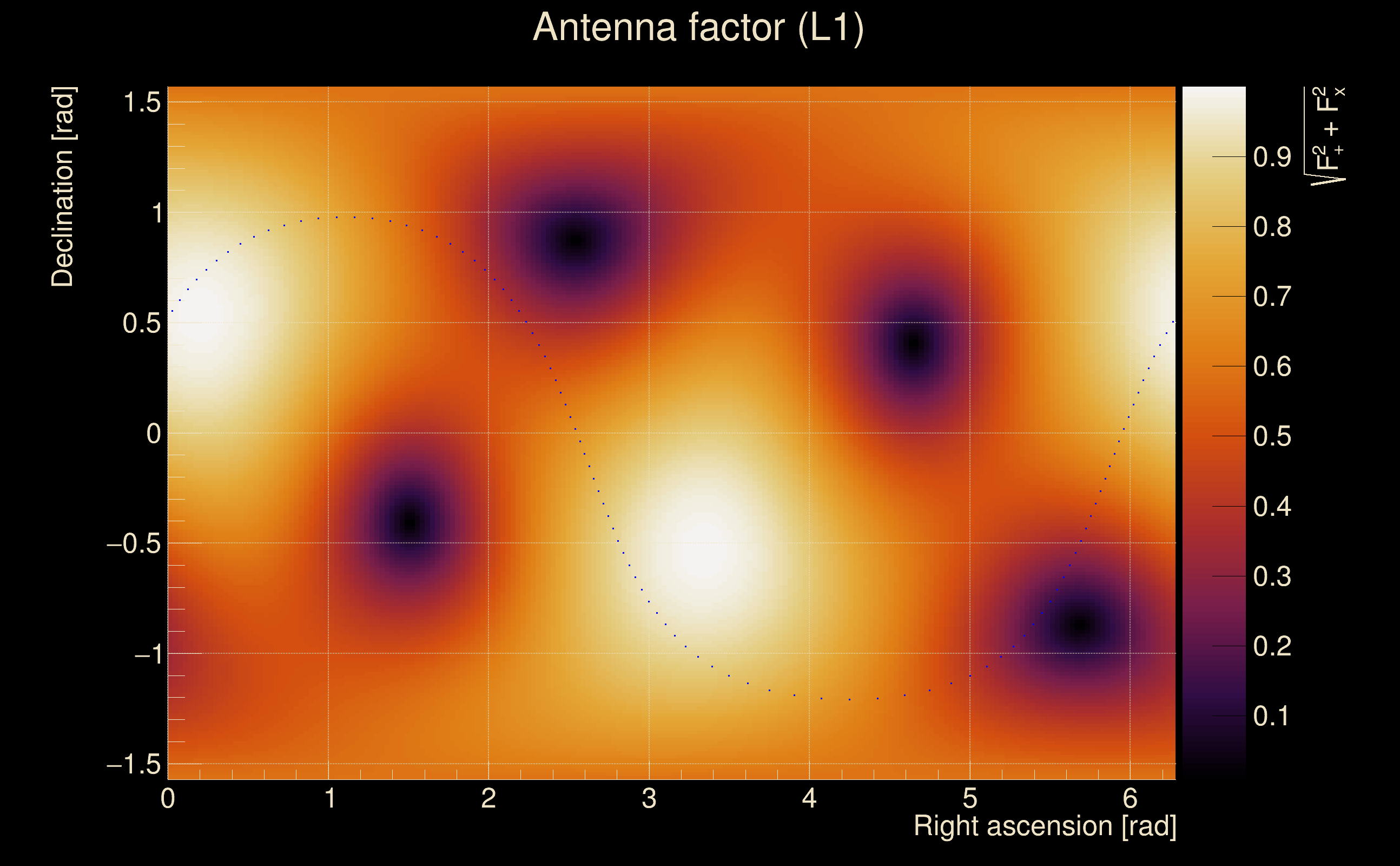

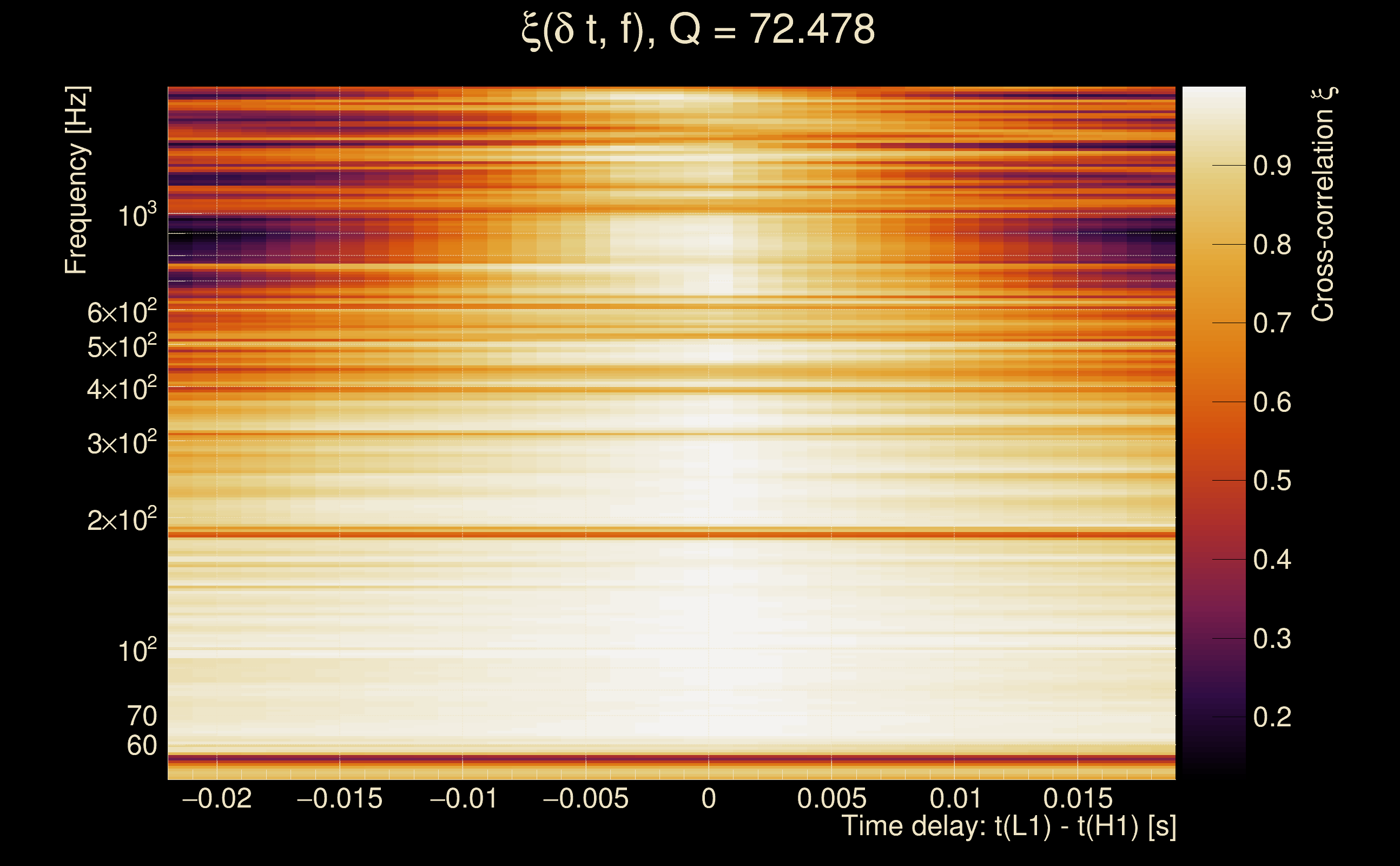

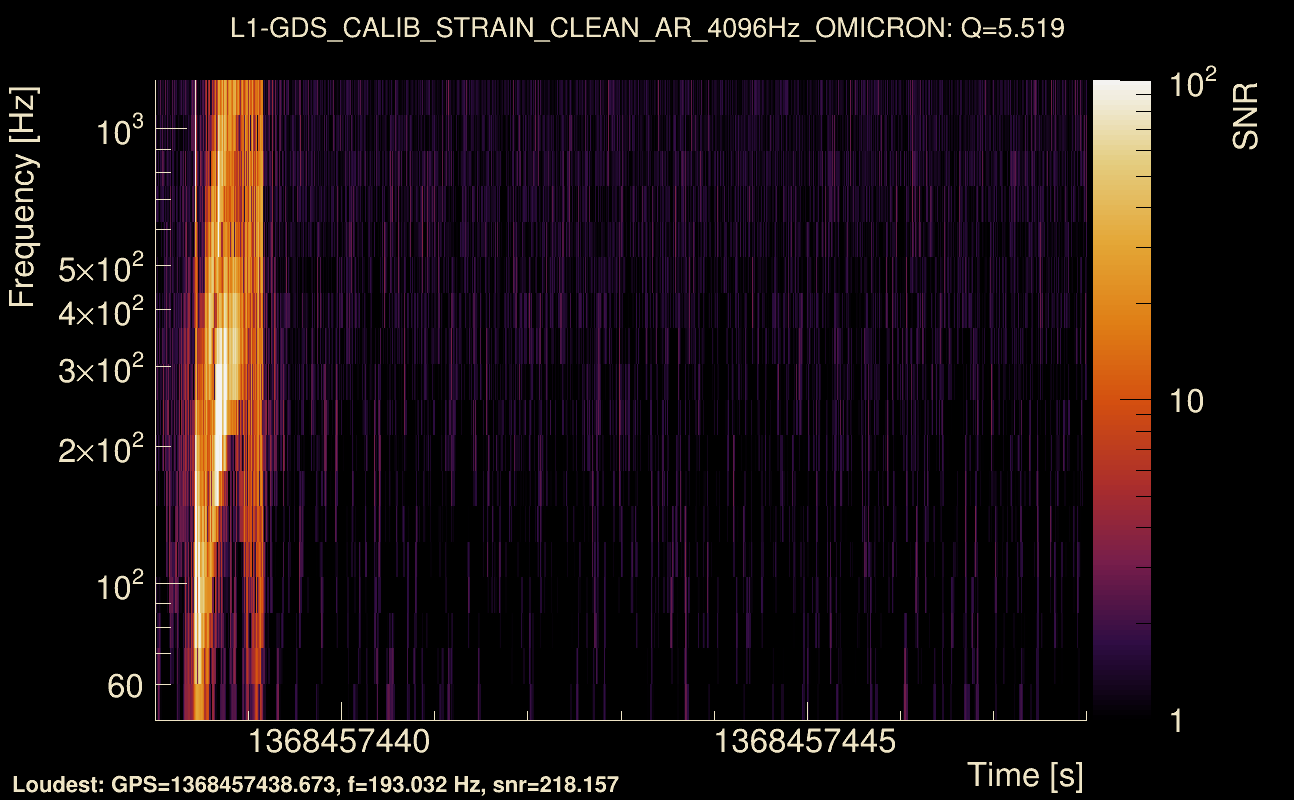

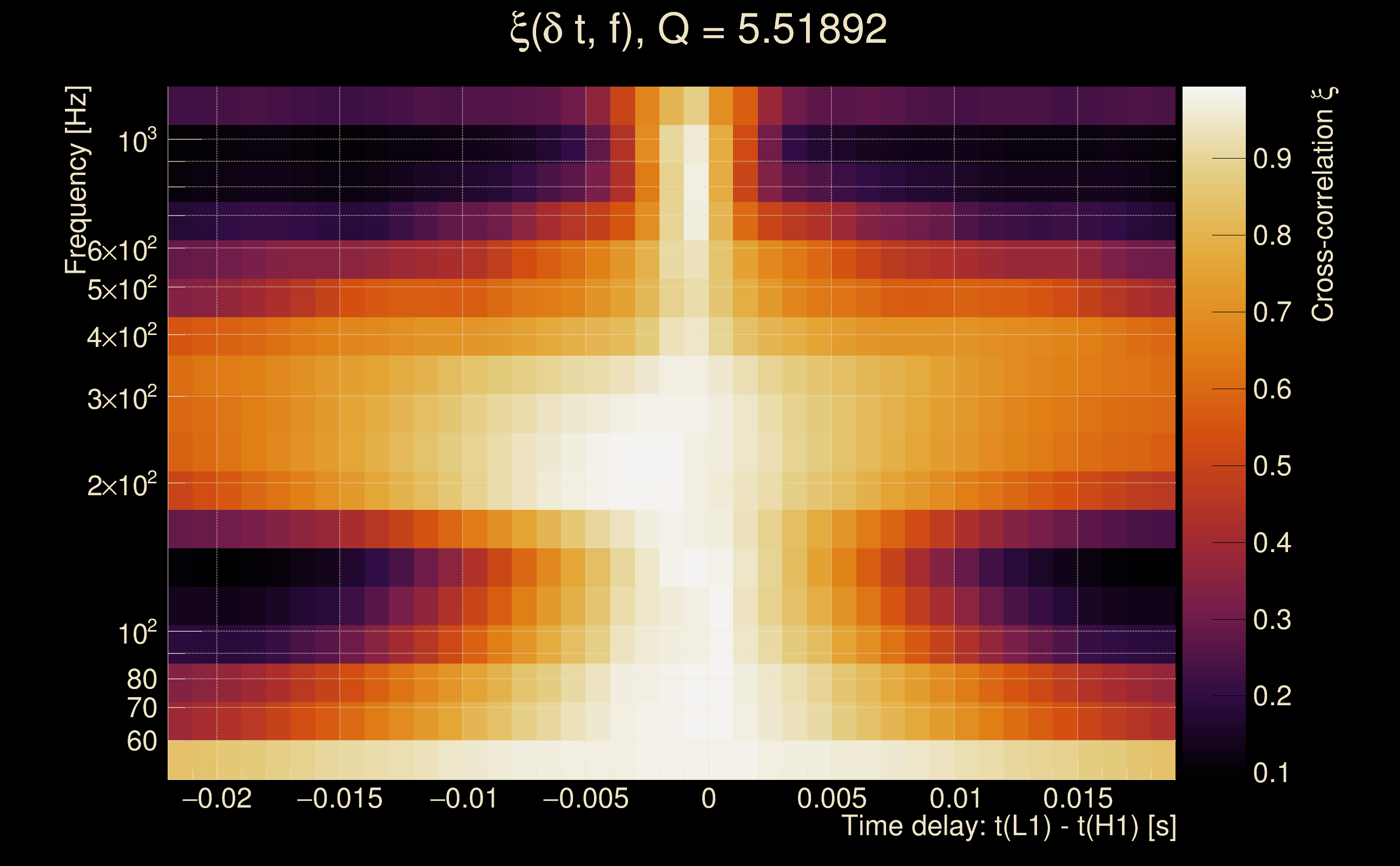

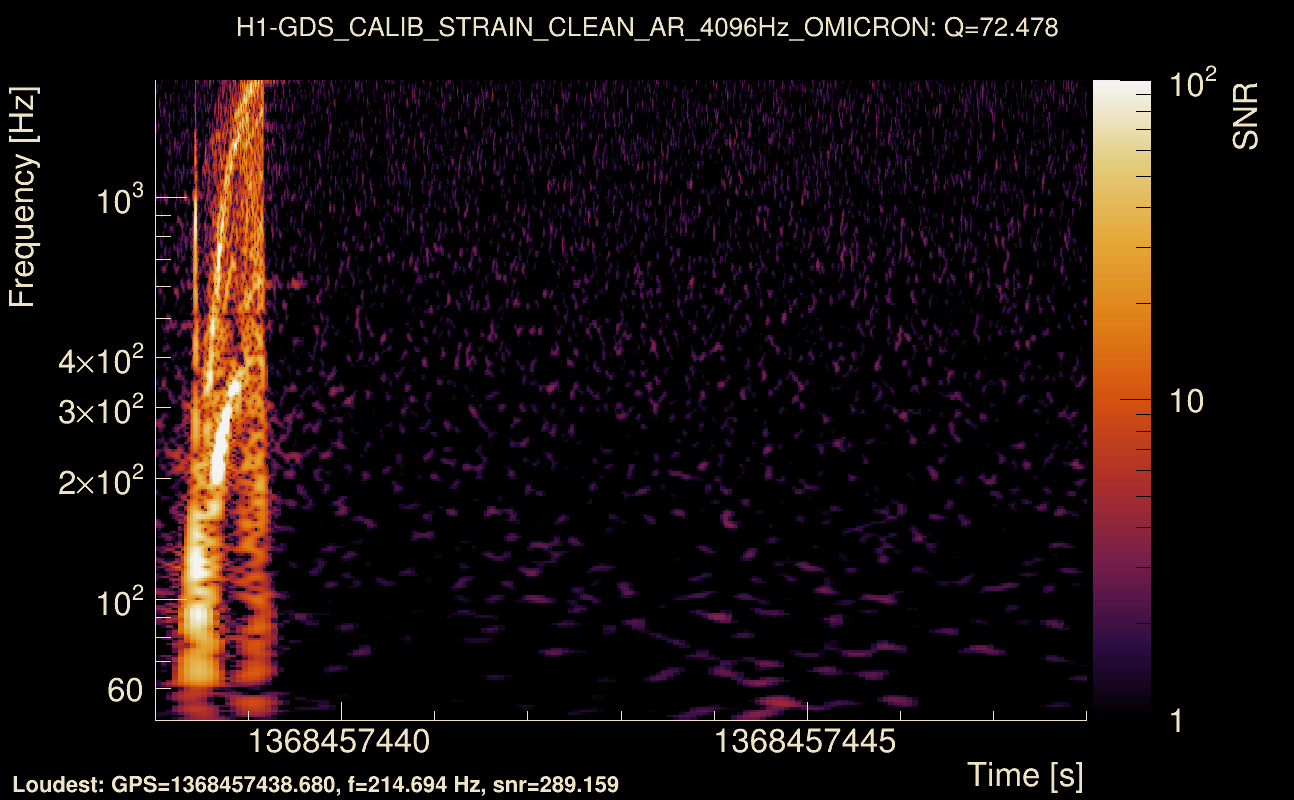

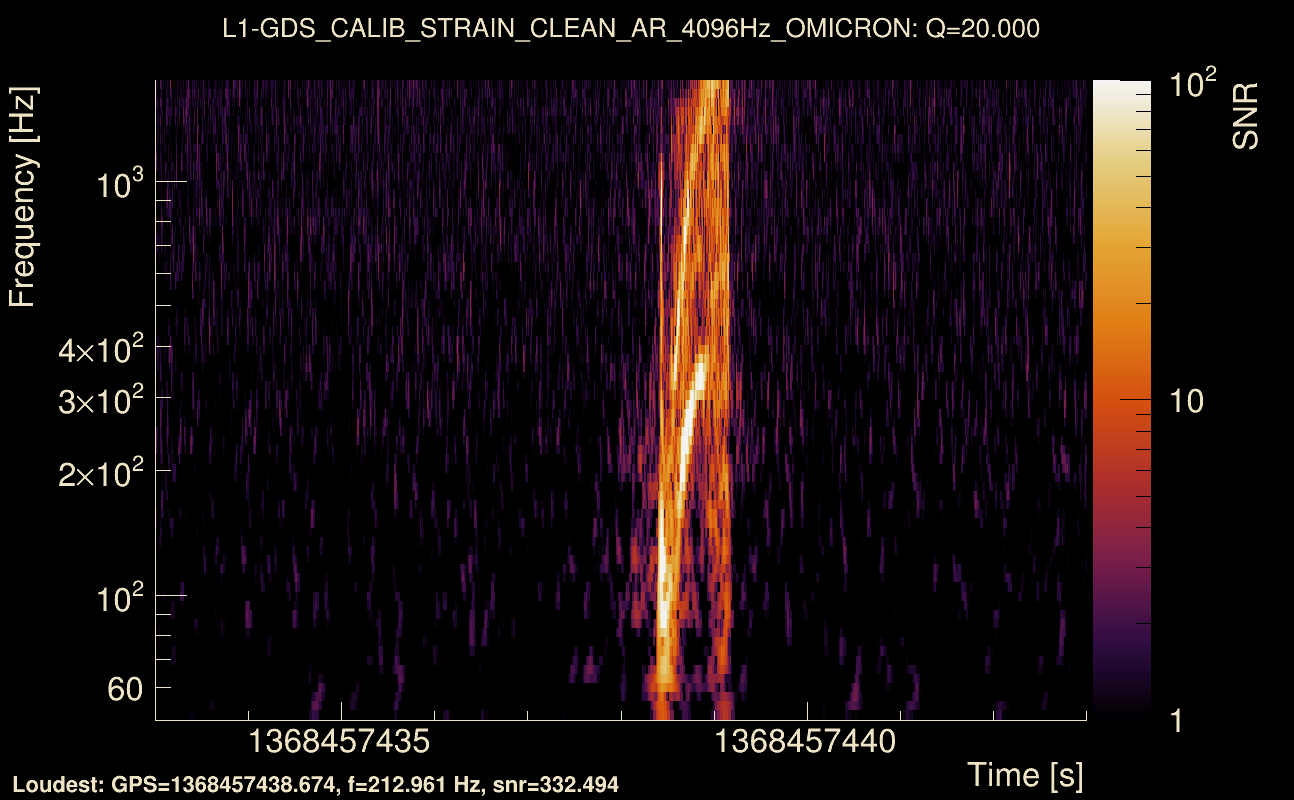

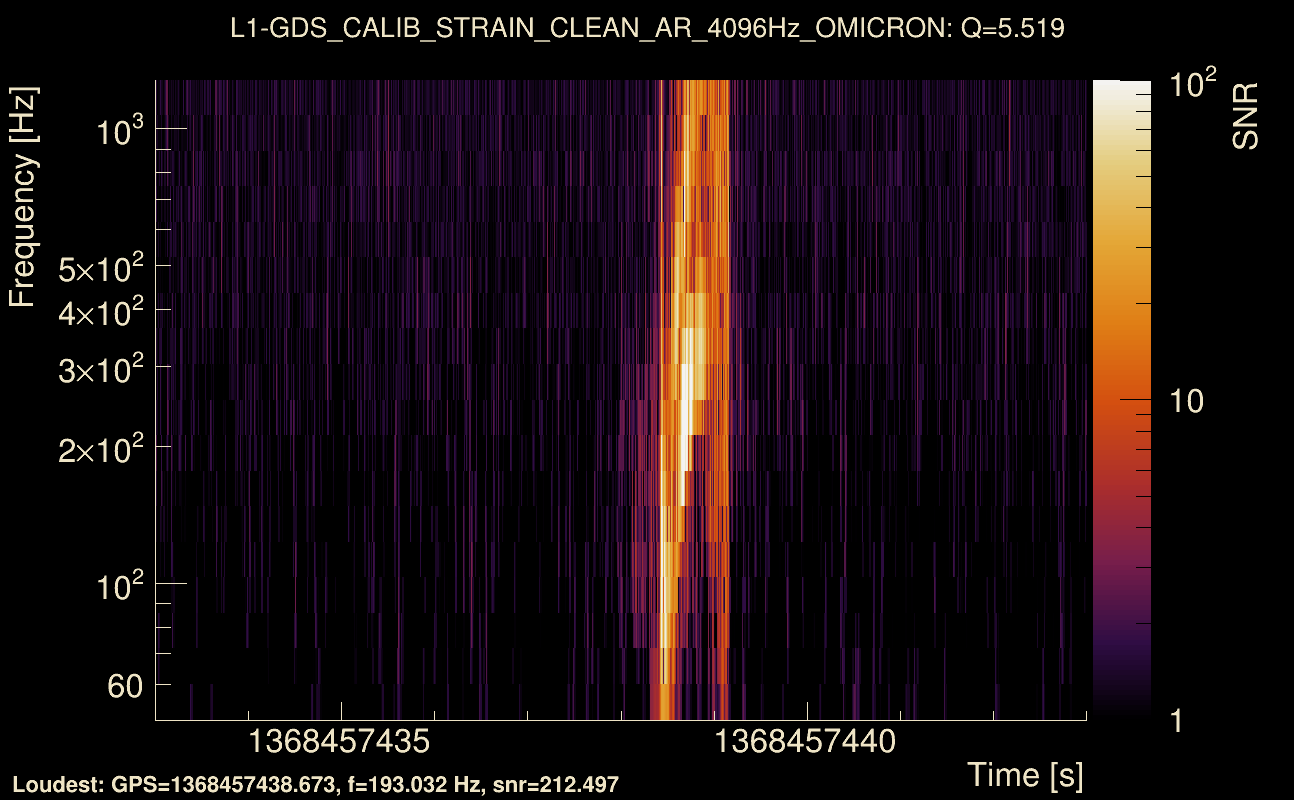

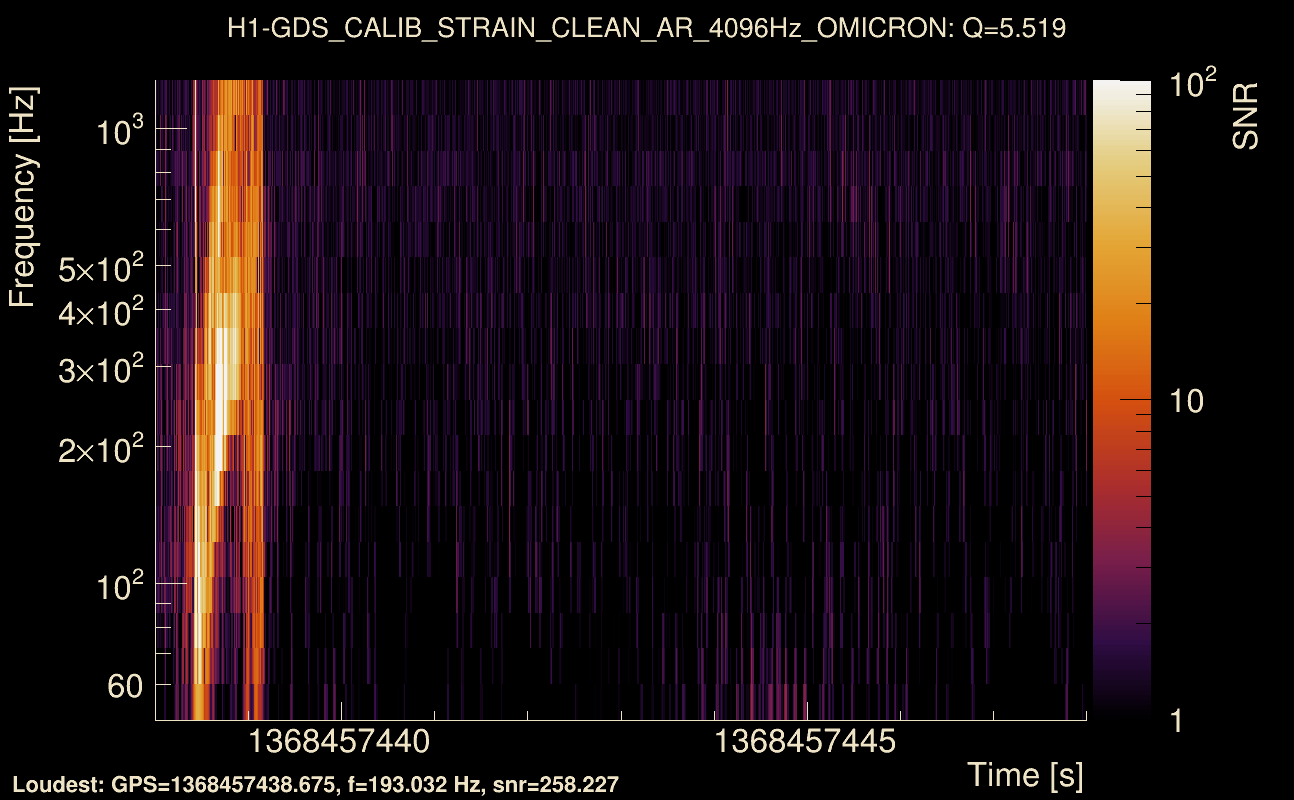

| Event time t(H1): | GPS = 1368457433 (Thu May 18 15:03:35 2023 ) → GPS = 1368457443 (Thu May 18 15:03:45 2023 ) |

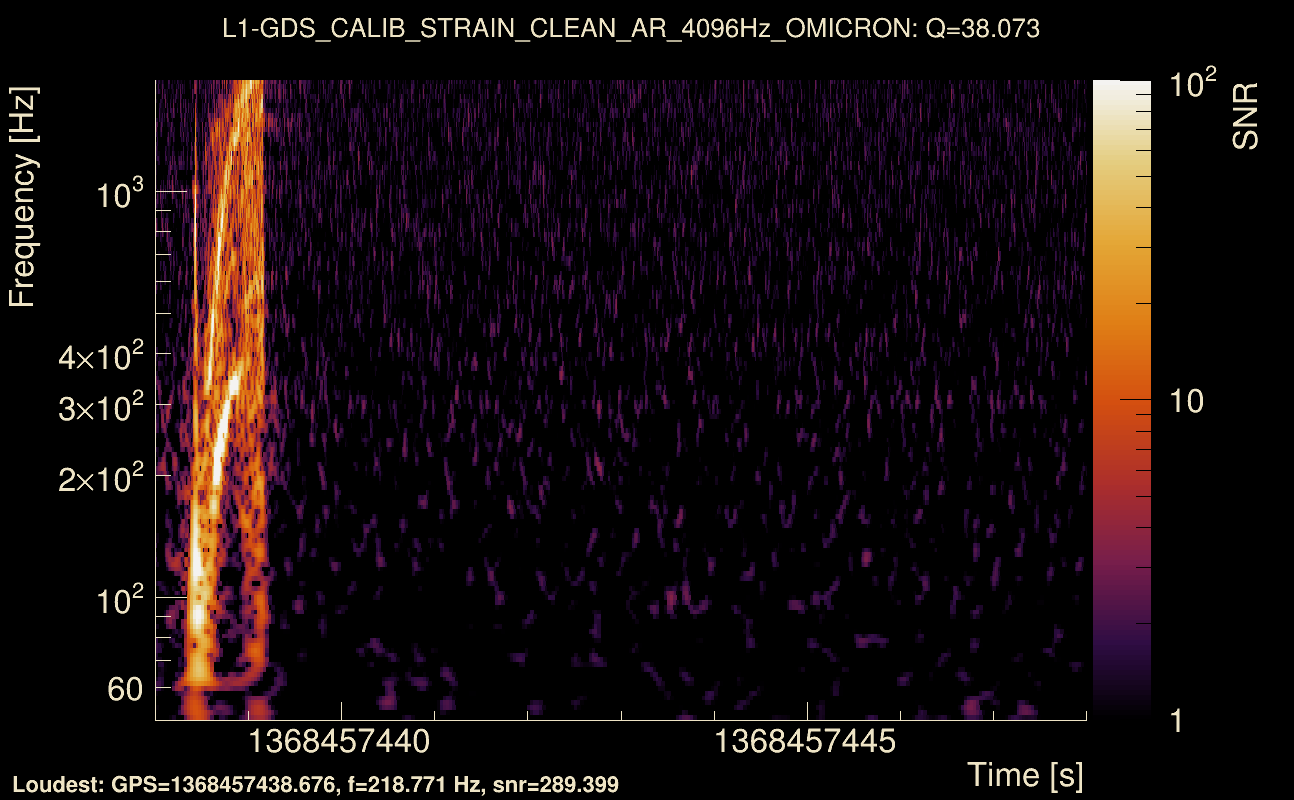

| Event time t(L1): | GPS = 1368457433 (Thu May 18 15:03:45 2023 ) → GPS = 1368457443 (Thu May 18 15:03:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368457430 → GPS = 1368457446 |
| Omicron analysis time window (L1): | GPS = 1368457430 → GPS = 1368457446 |
| Time delay between detectors t(L1) - t(H1): | -0.00115232 s (slice index = 108 / 217), δt_gw = -0.00115232 s |
| Time delay standard deviation: | 0.0233583 s |
| [targeted mode] Time delay probability: | 1.36825e-64 (16.97 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 283.815 Hz |
| Ξ: | 0.963362 ± 0.00592658 (variance = 3.51243e-05): Q0: 0.969968, Q1: 0.965789, Q2: 0.95835, Q3: 0.956073, Q4: 0.954599 |
| Rank: | R_A = 0.920309 |
| Log of amplitude ratio (L1/H1): | -0.0911299, variance = 0.155742 (L1/H1: -0.108406, variance = 0.303349, H1/L1: 0.0670104, variance = 0.302904) |
| Amplitude ratio (L1/H1): | 0.912899 ⋇ 1.48385 (L1/H1: 0.897263 ⋇ 1.73459, H1/L1: 1.06931 ⋇ 1.73389) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.9576 |

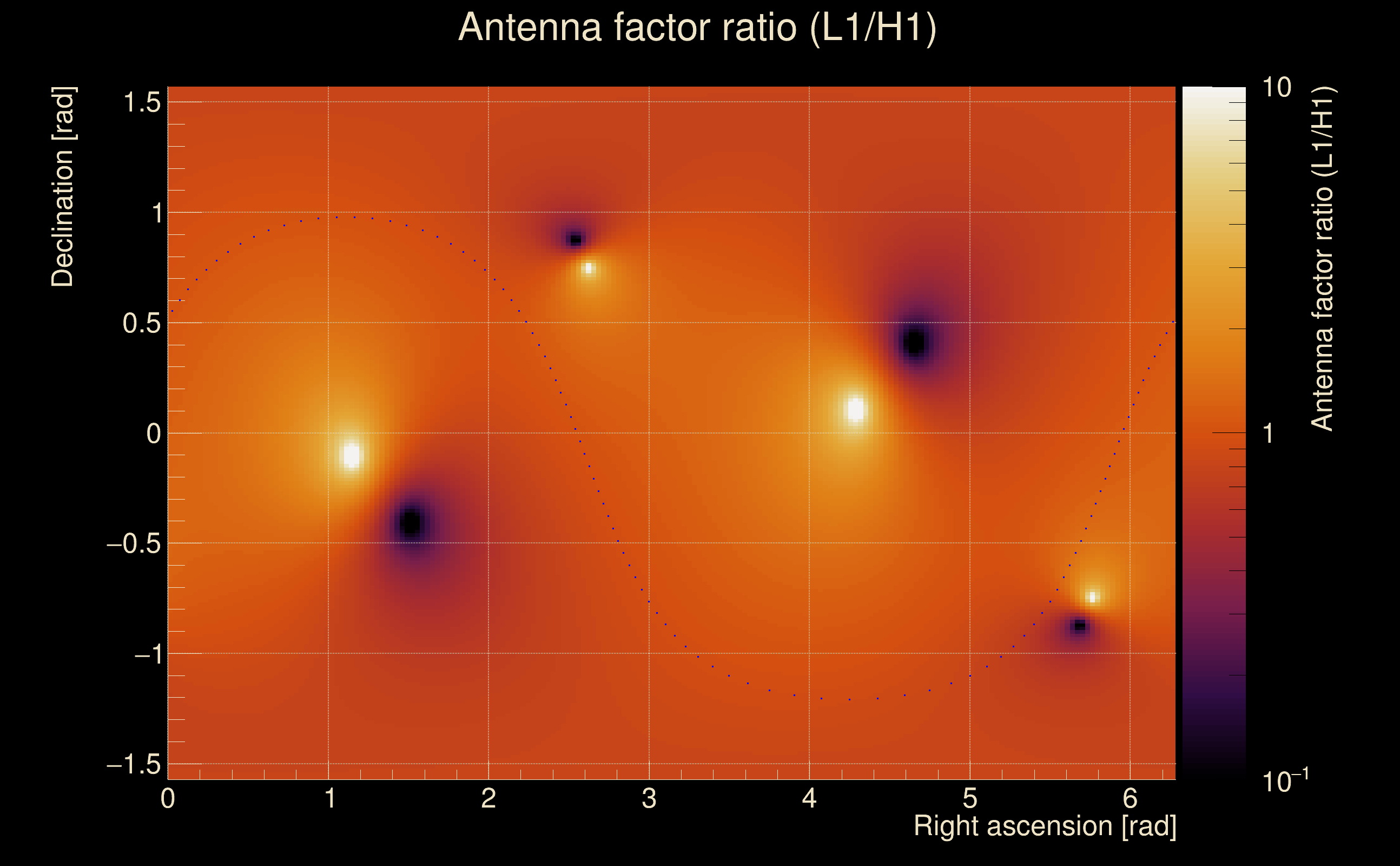

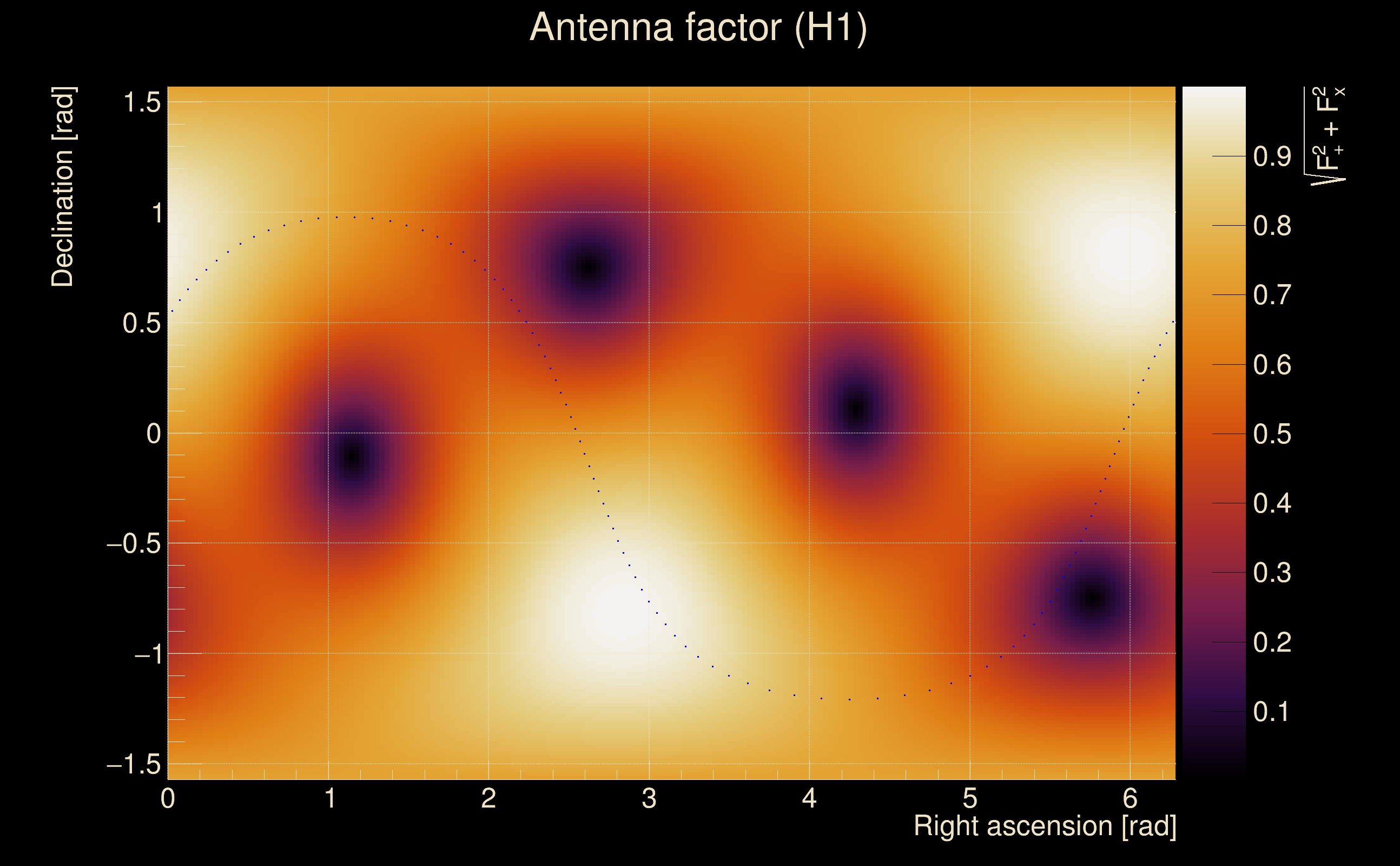

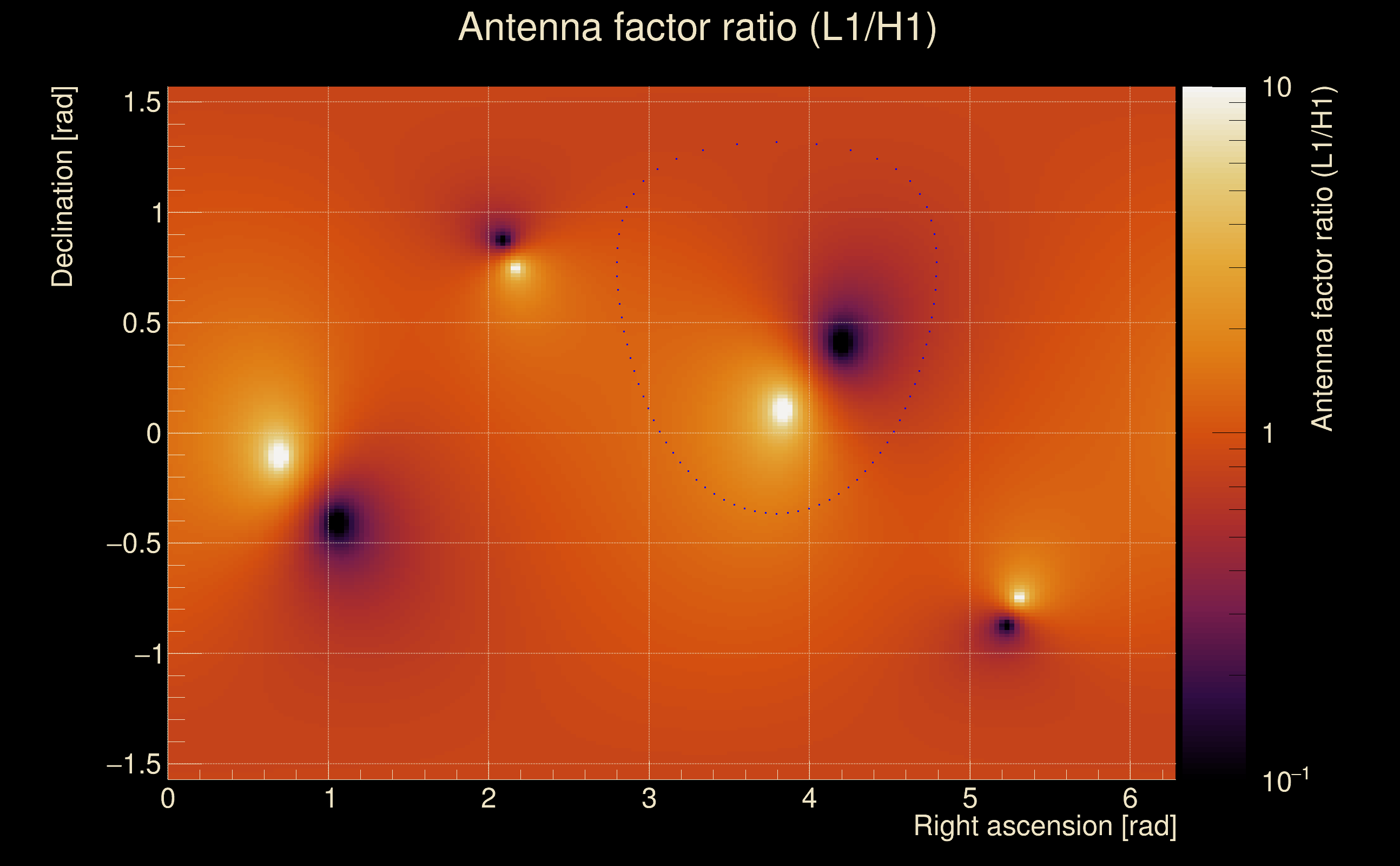

| Antenna factor probability: | 0.997608 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 3 / 134, Q4: 8 / 258 |
| Maximum signal-to-noise ratio: | H1: 446.136, L1: 377.579 |

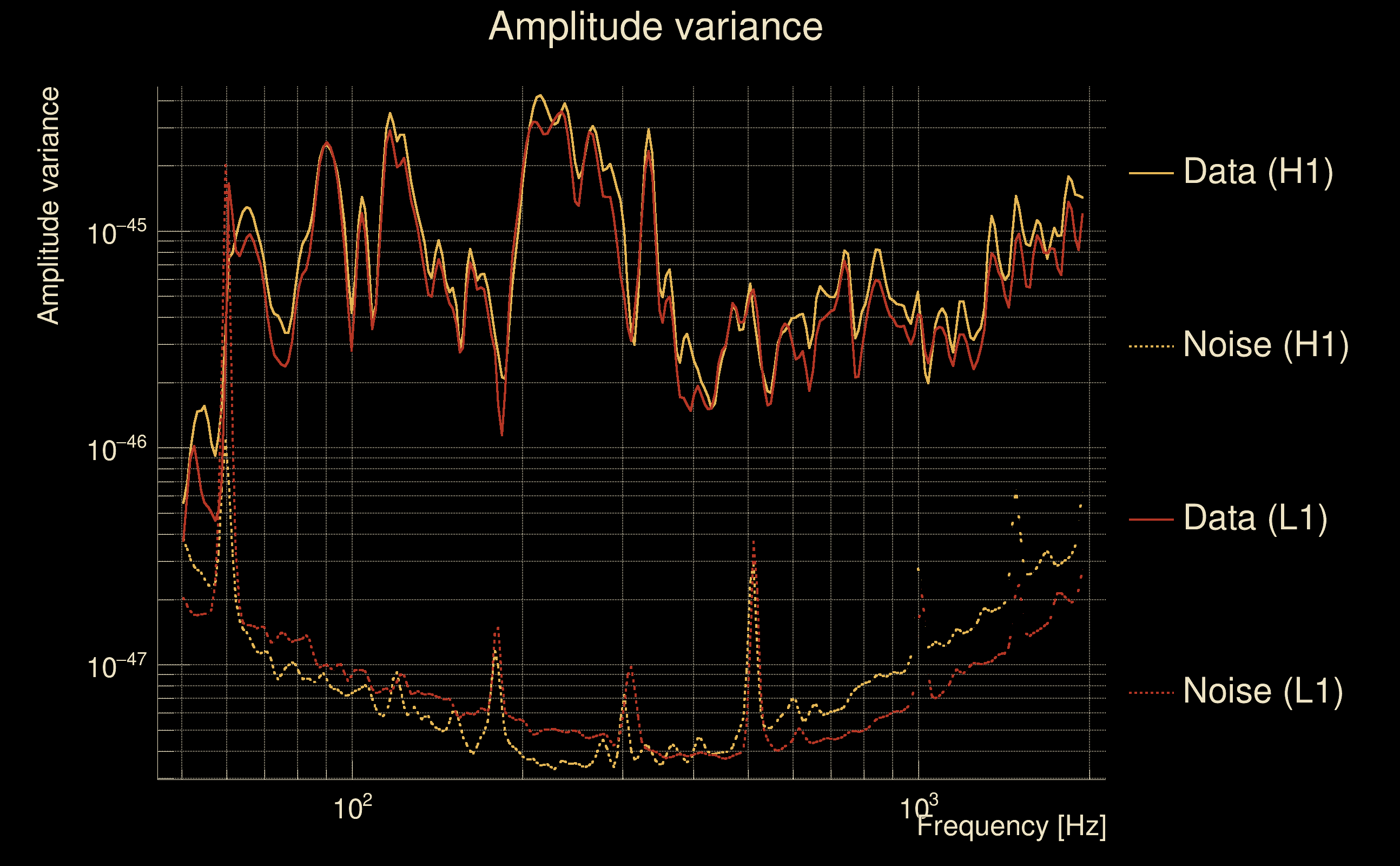

| SNR variance: | H1: 0.559099, L1: 0.571097 |

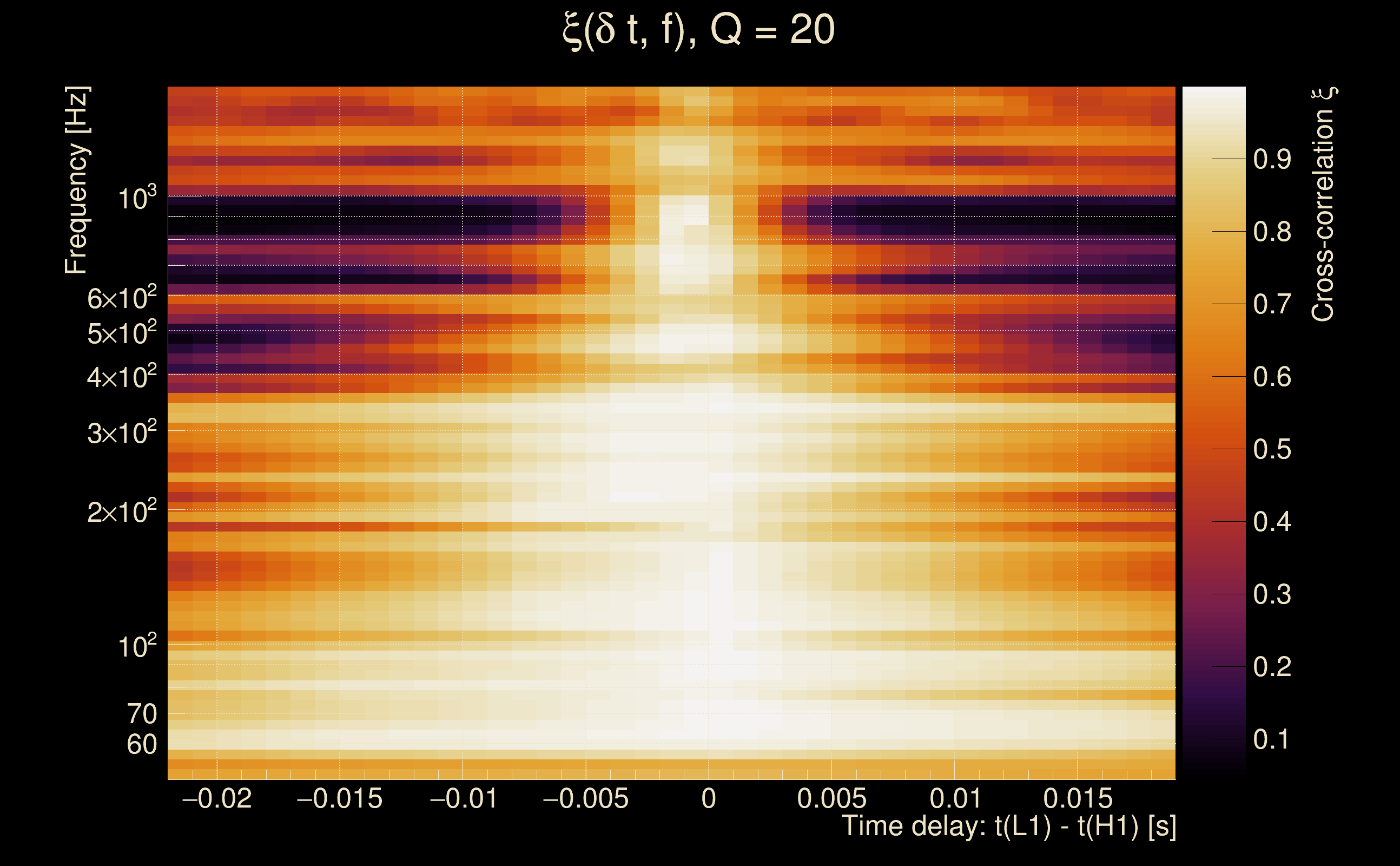

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

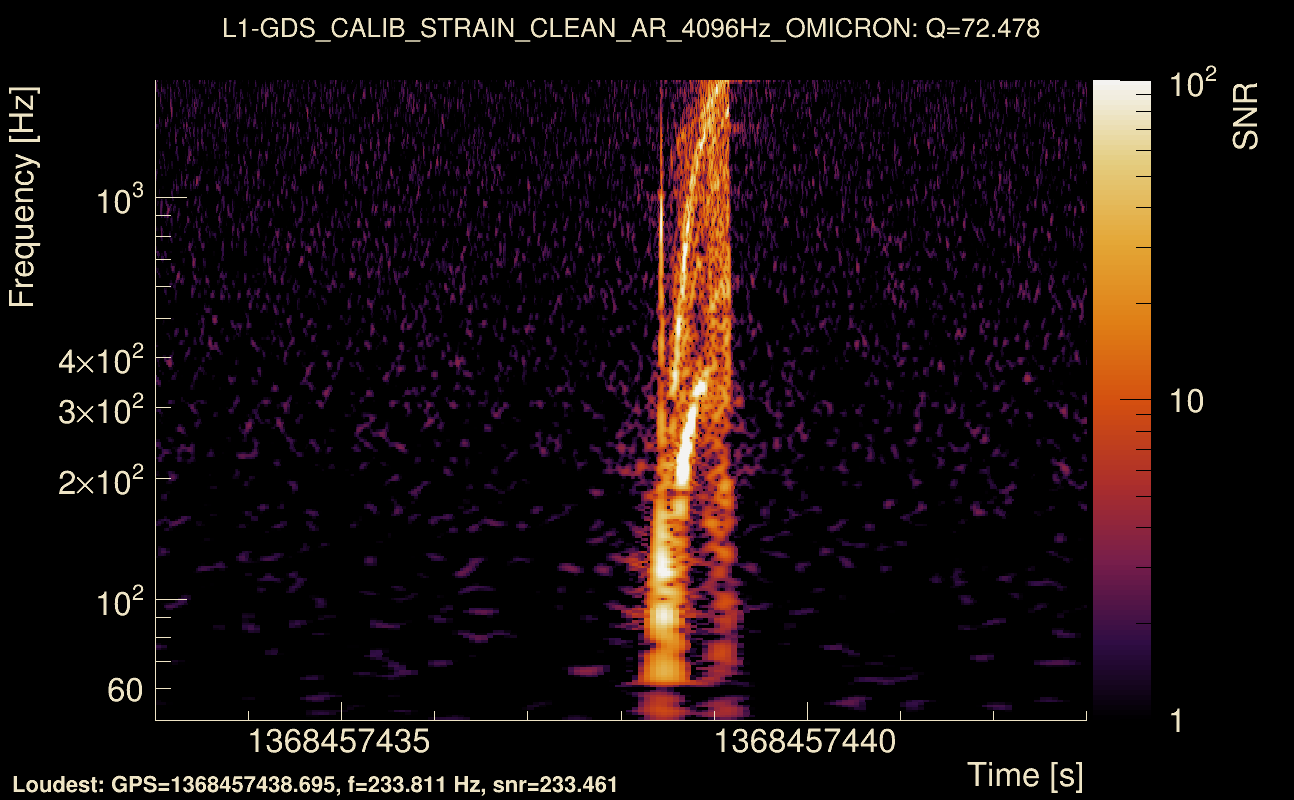

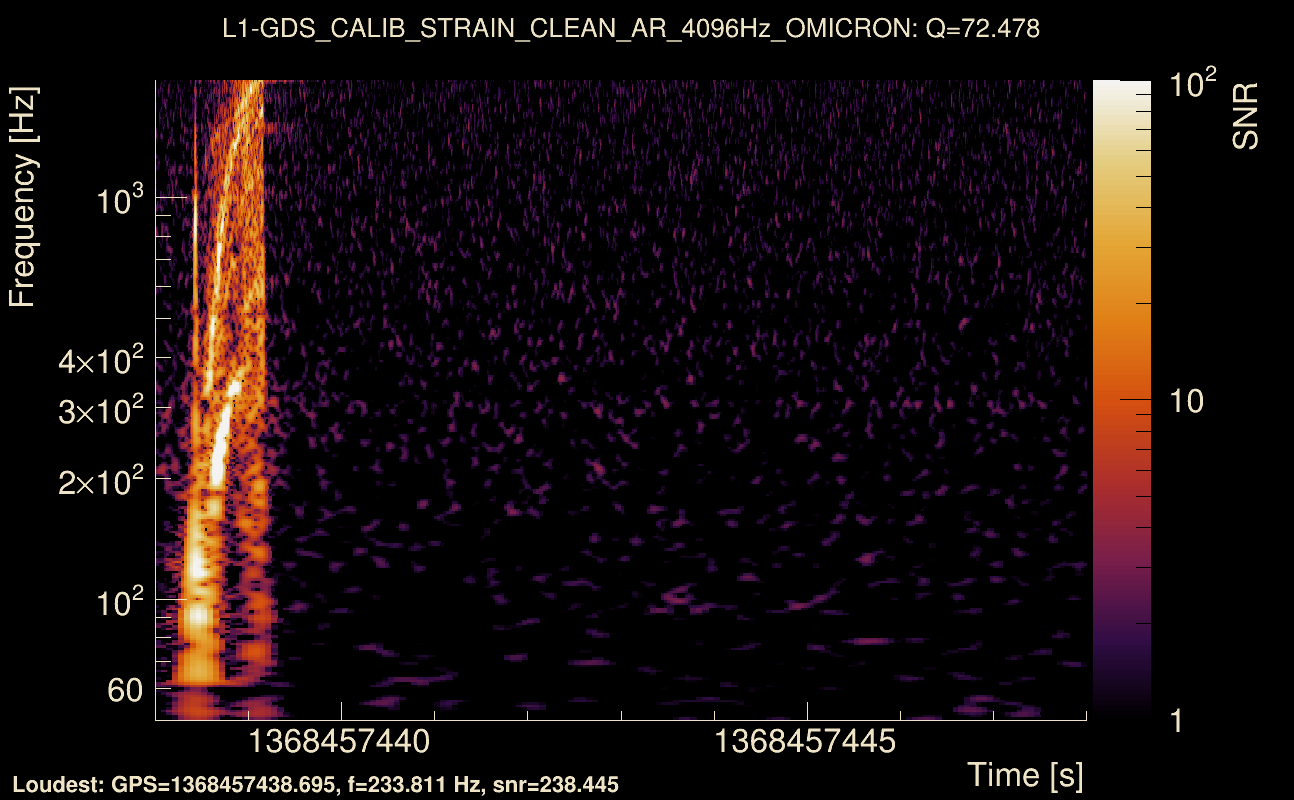

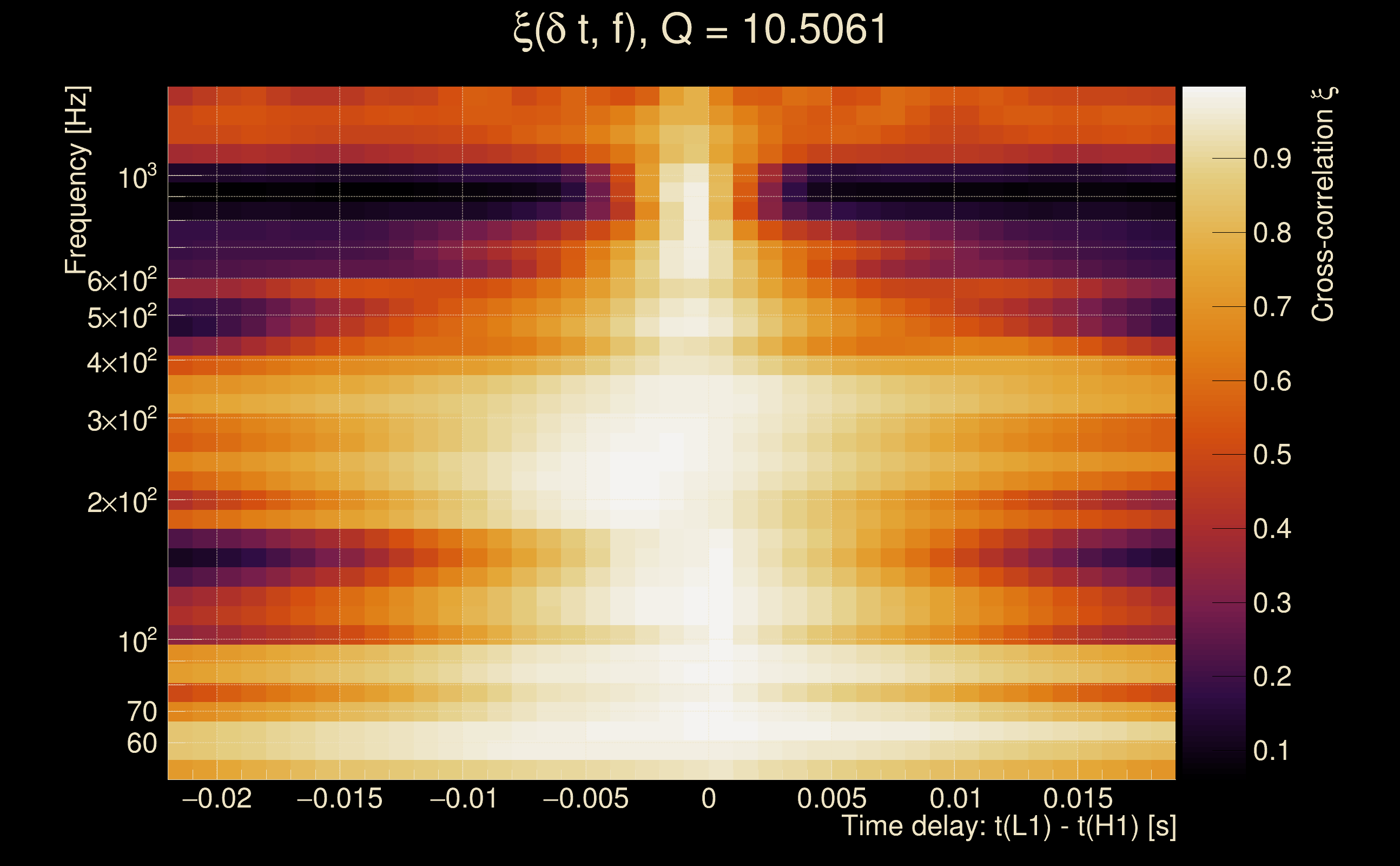

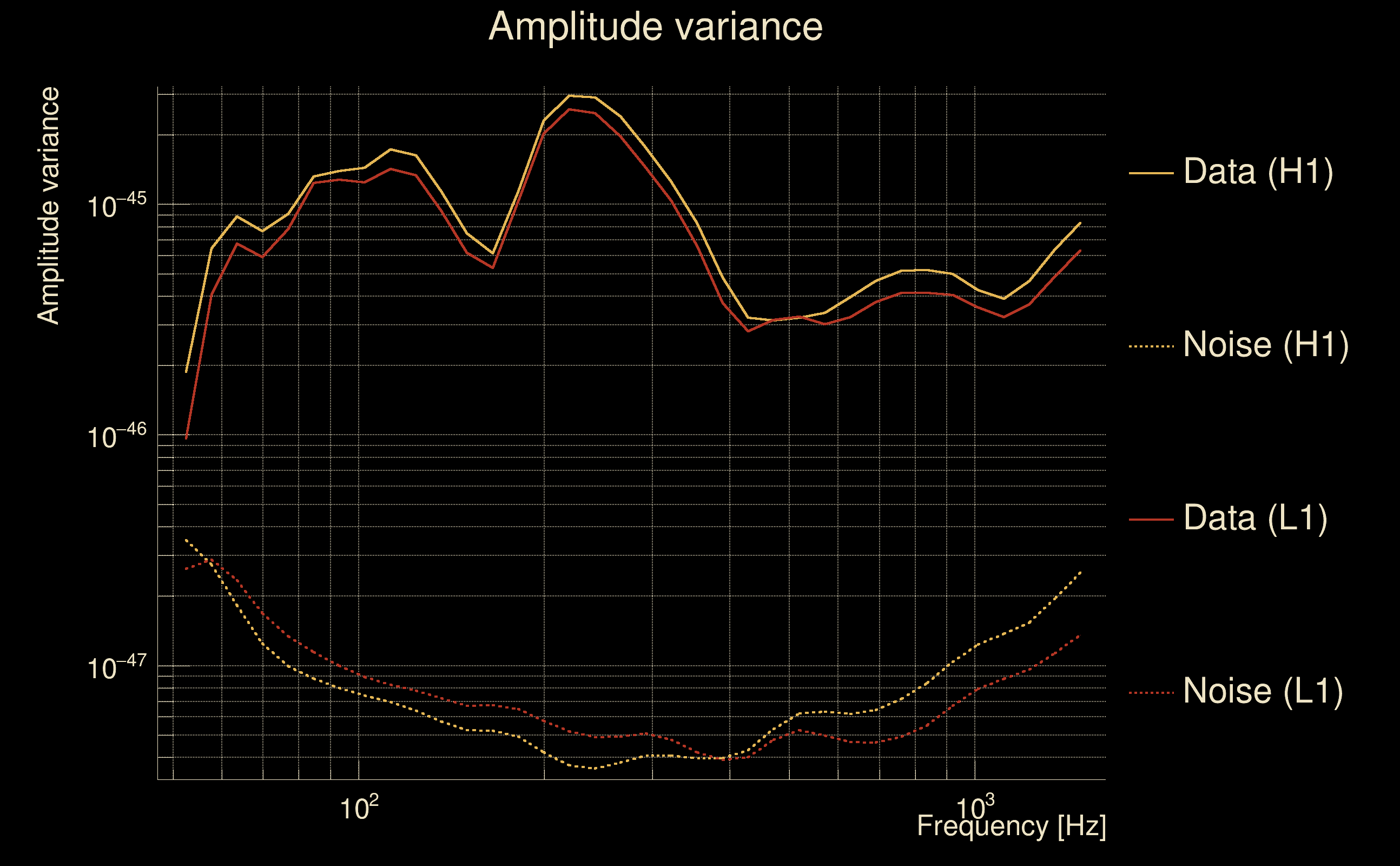

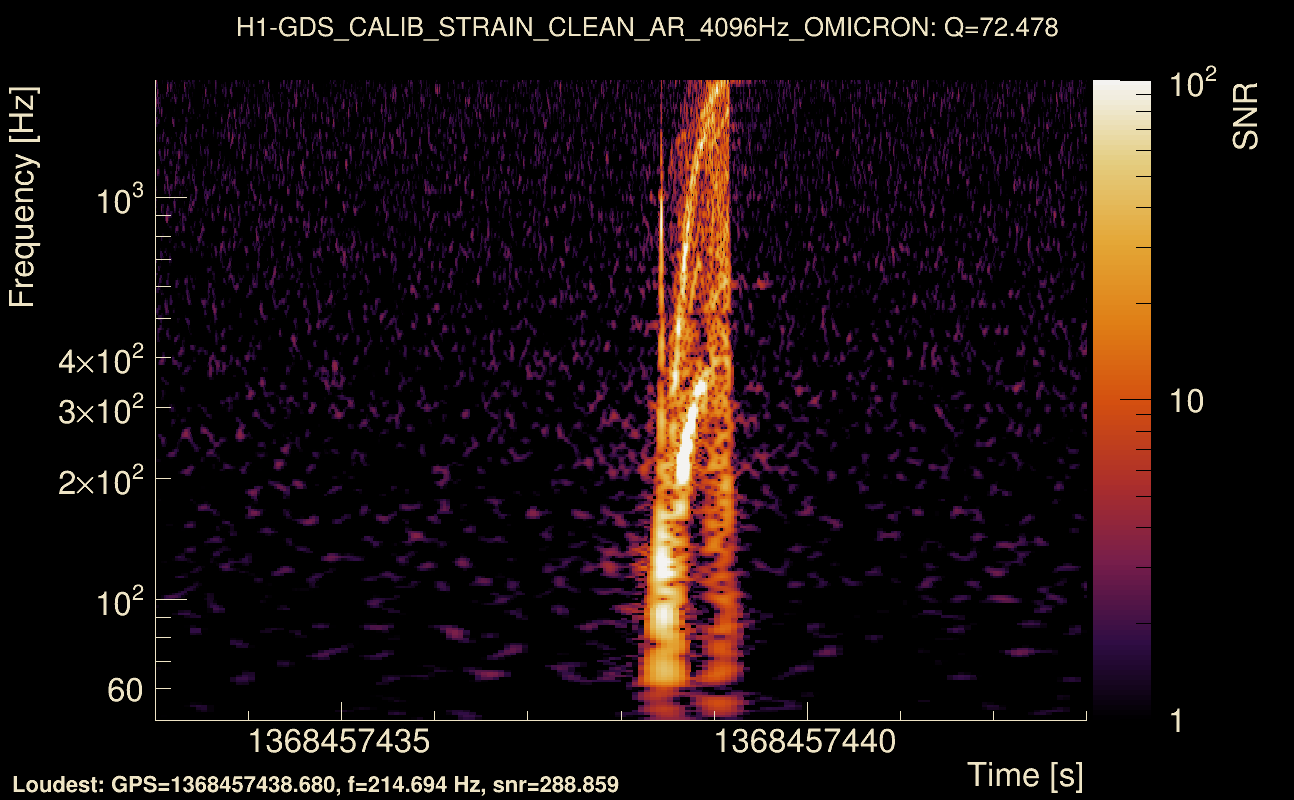

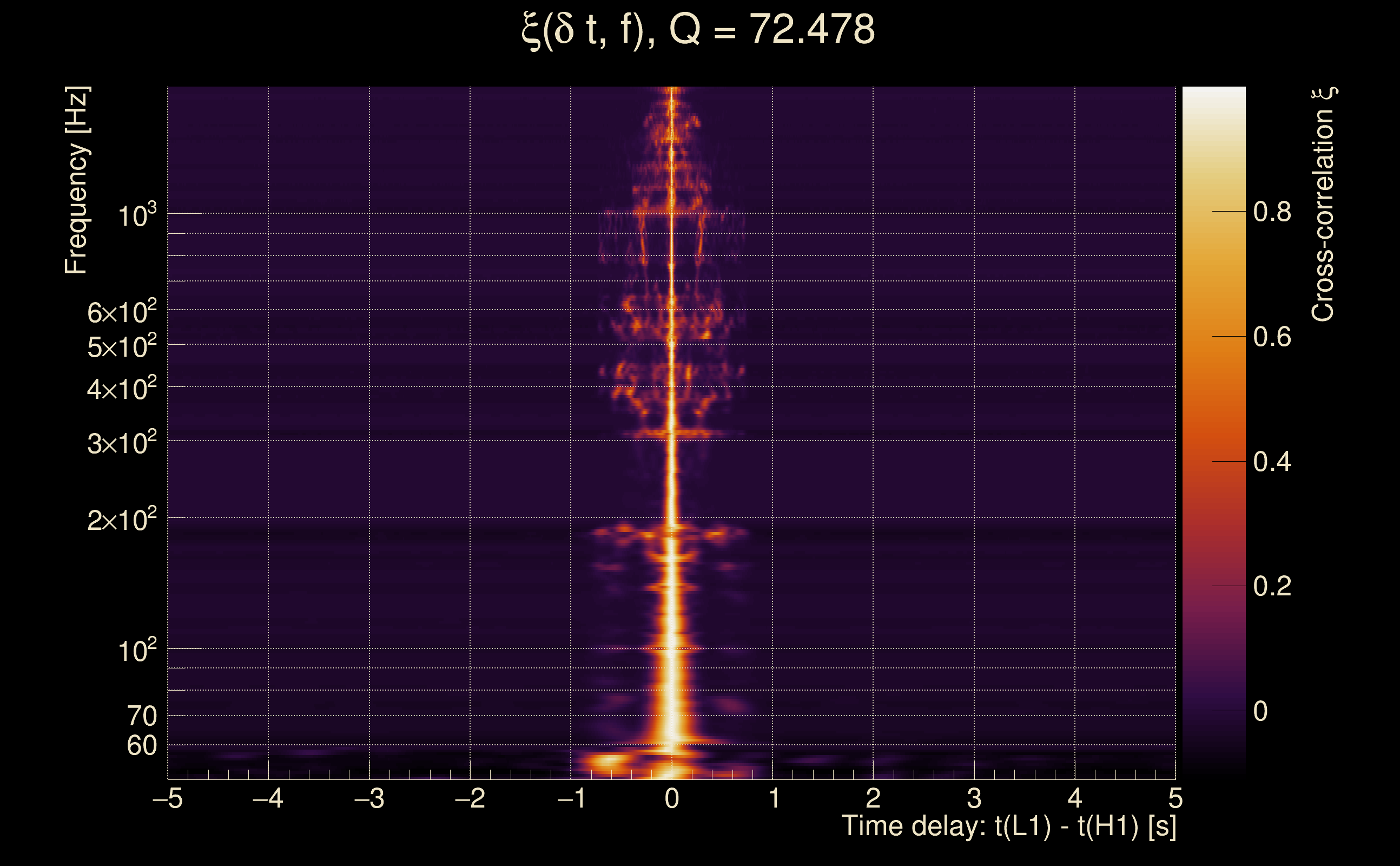

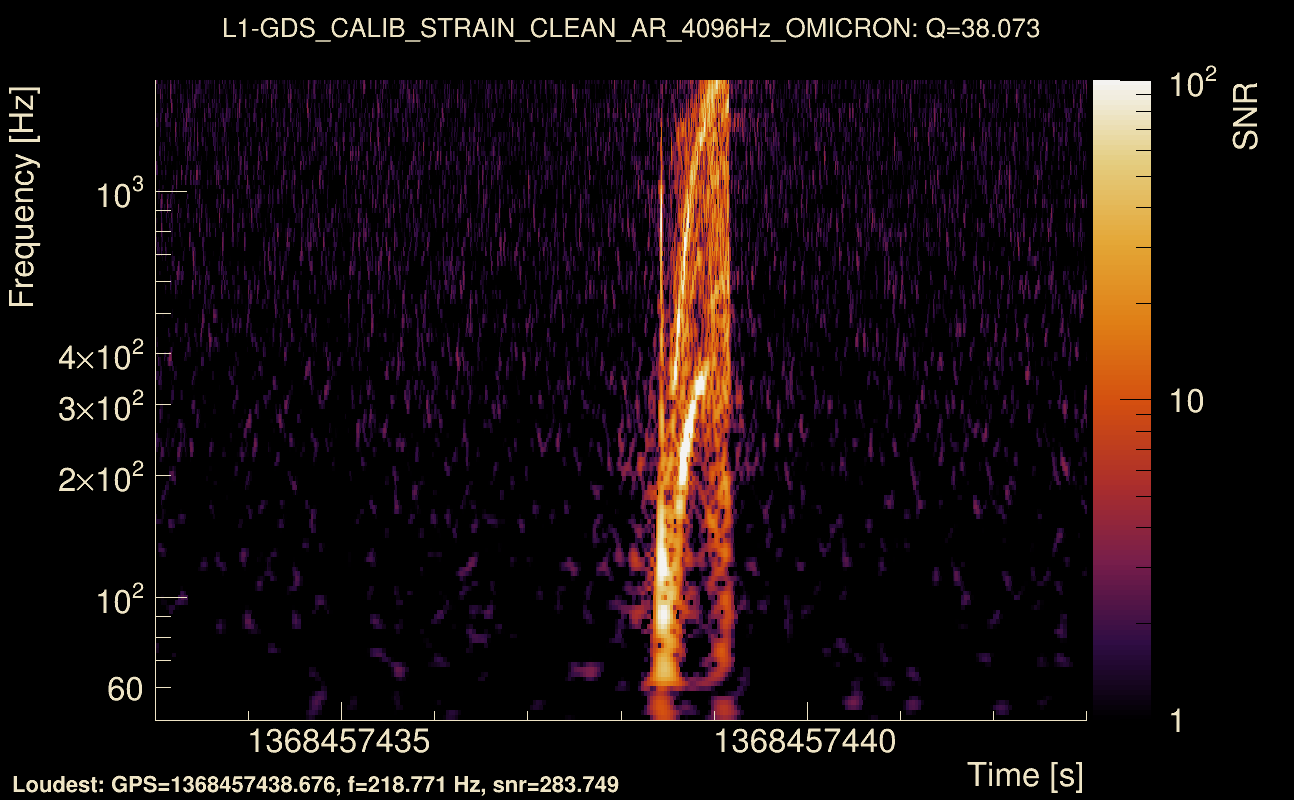

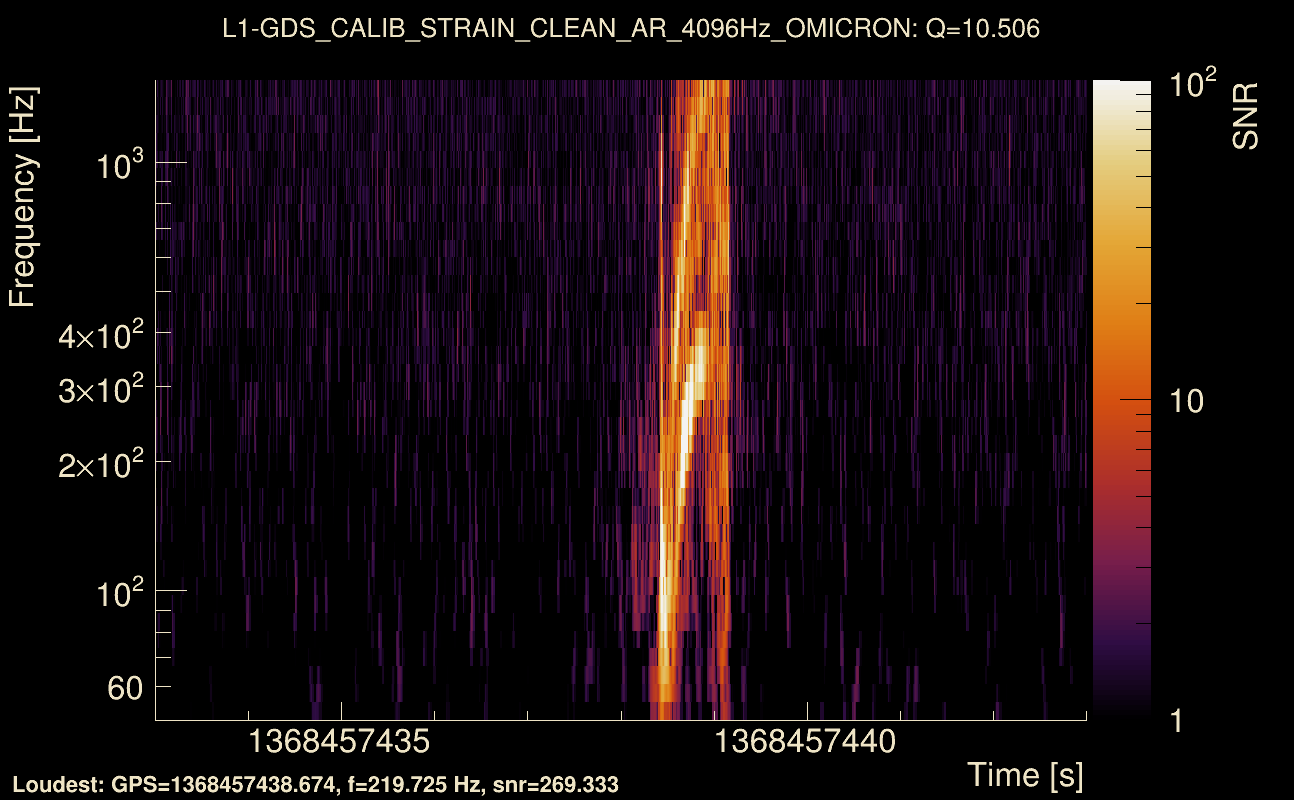

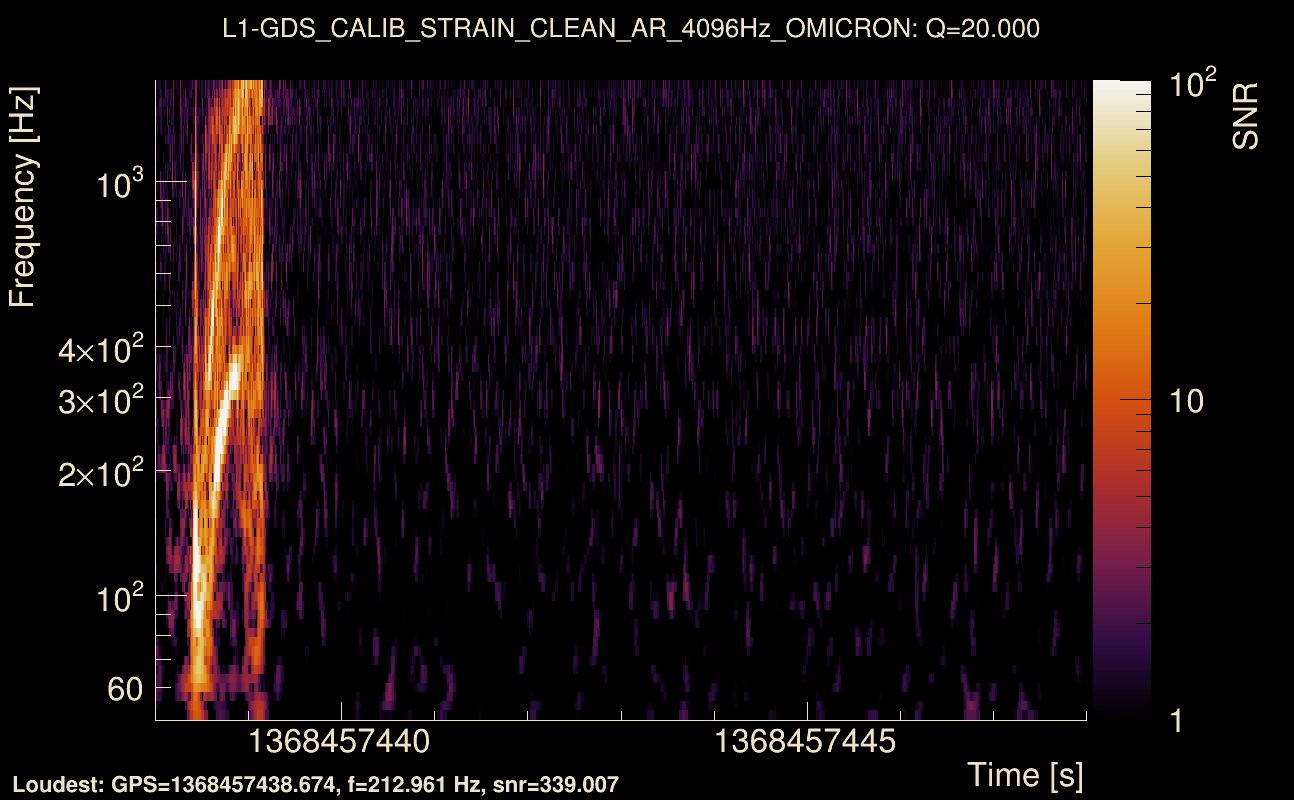

| Event time t(H1): | GPS = 1368457438 (Thu May 18 15:03:40 2023 ) → GPS = 1368457448 (Thu May 18 15:03:50 2023 ) |
| Event time t(L1): | GPS = 1368457438 (Thu May 18 15:03:50 2023 ) → GPS = 1368457448 (Thu May 18 15:03:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368457435 → GPS = 1368457451 |
| Omicron analysis time window (L1): | GPS = 1368457435 → GPS = 1368457451 |
| Time delay between detectors t(L1) - t(H1): | -0.0011514 s (slice index = 108 / 217), δt_gw = -0.0011514 s |
| Time delay standard deviation: | 0.023302 s |
| [targeted mode] Time delay probability: | 3.57743e-65 (17.0486 sigmas), δt_target = -0.00893426 s |
| Frequency: | 283.951 Hz |
| Ξ: | 0.963325 ± 0.0060268 (variance = 3.63223e-05): Q0: 0.969974, Q1: 0.965788, Q2: 0.958193, Q3: 0.955927, Q4: 0.954316 |
| Rank: | R_A = 0.919311 |
| Log of amplitude ratio (L1/H1): | -0.0917883, variance = 0.155838 (L1/H1: -0.108875, variance = 0.303435, H1/L1: 0.0678687, variance = 0.302909) |
| Amplitude ratio (L1/H1): | 0.912298 ⋇ 1.48403 (L1/H1: 0.896842 ⋇ 1.73473, H1/L1: 1.07022 ⋇ 1.7339) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.958002 |
| Antenna factor probability: | 0.996147 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 3 / 134, Q4: 8 / 258 |
| Maximum signal-to-noise ratio: | H1: 444.643, L1: 375.809 |
| SNR variance: | H1: 103.539, L1: 84.2472 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

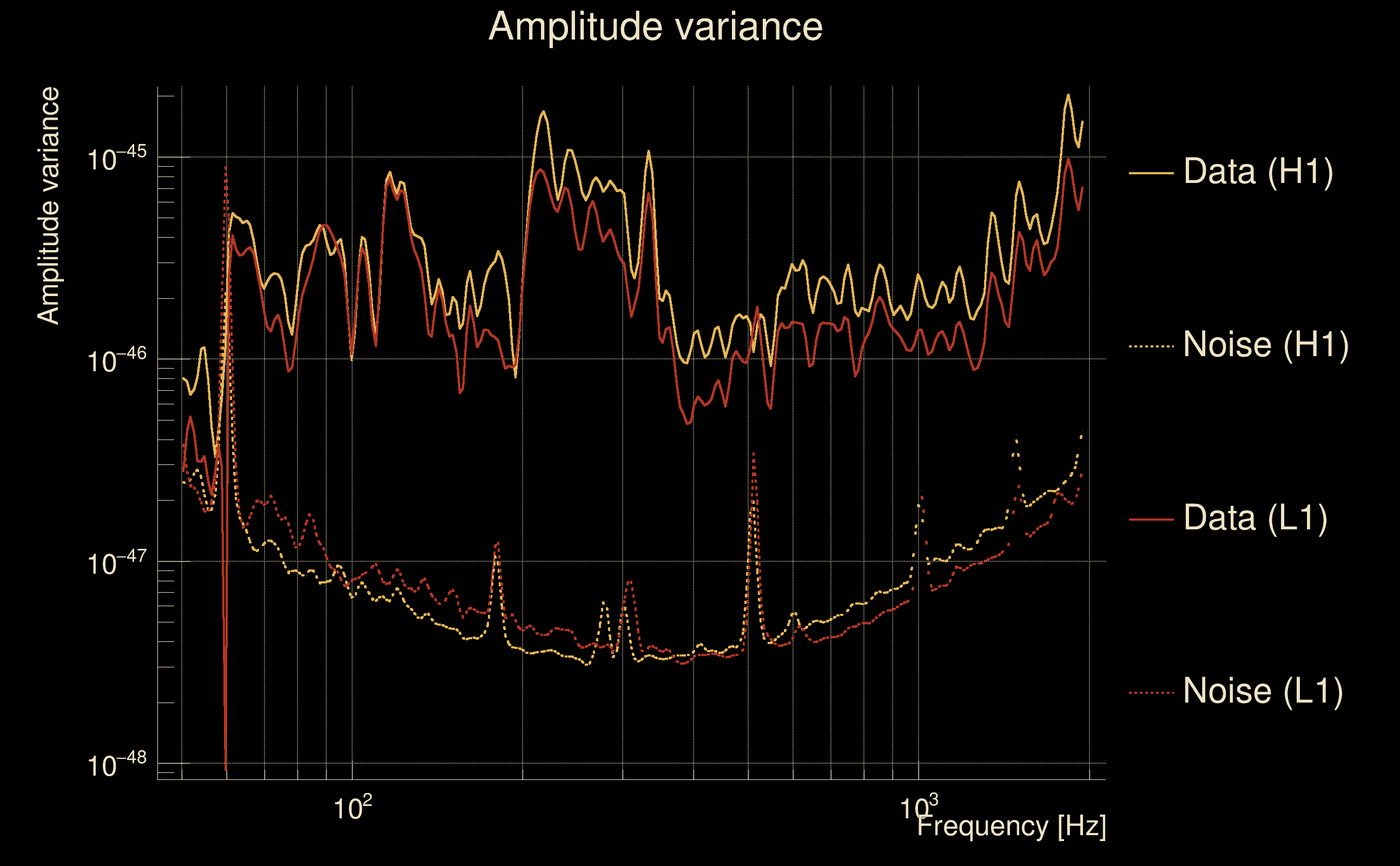

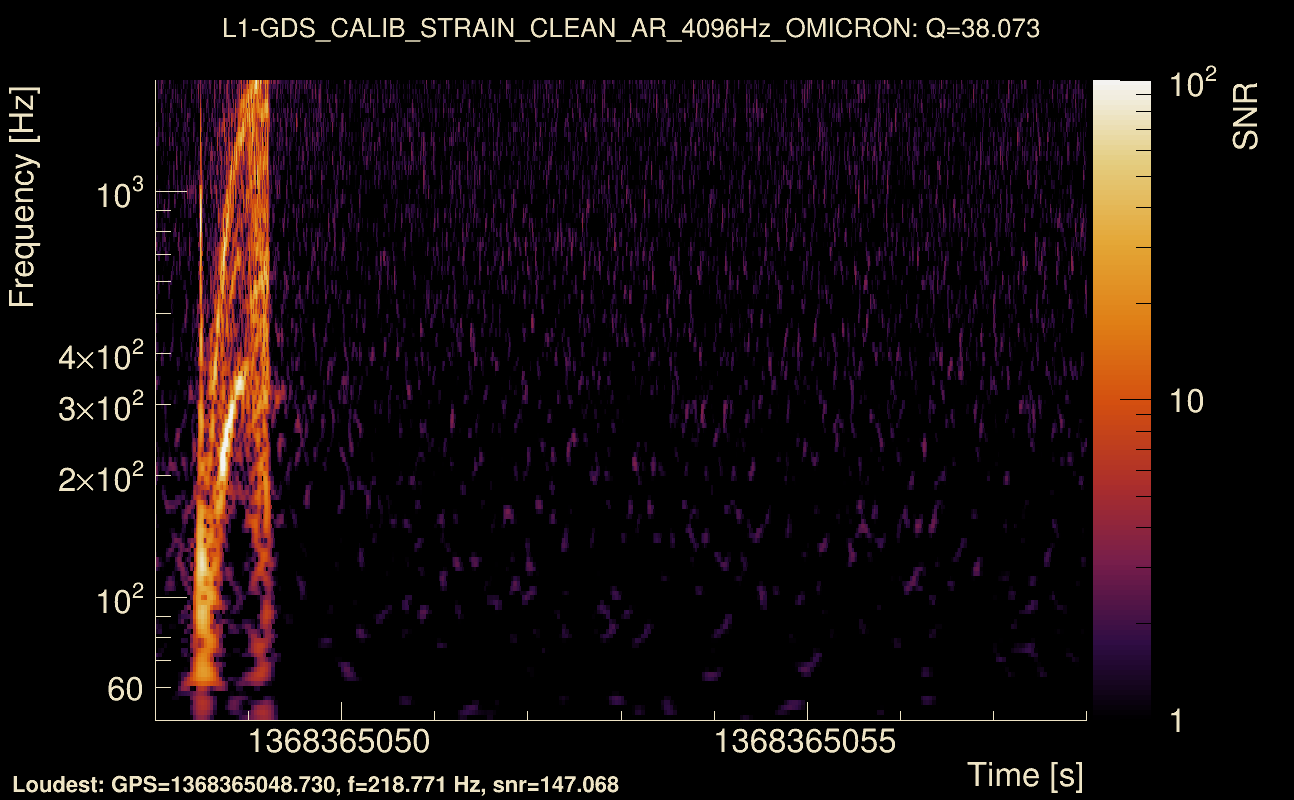

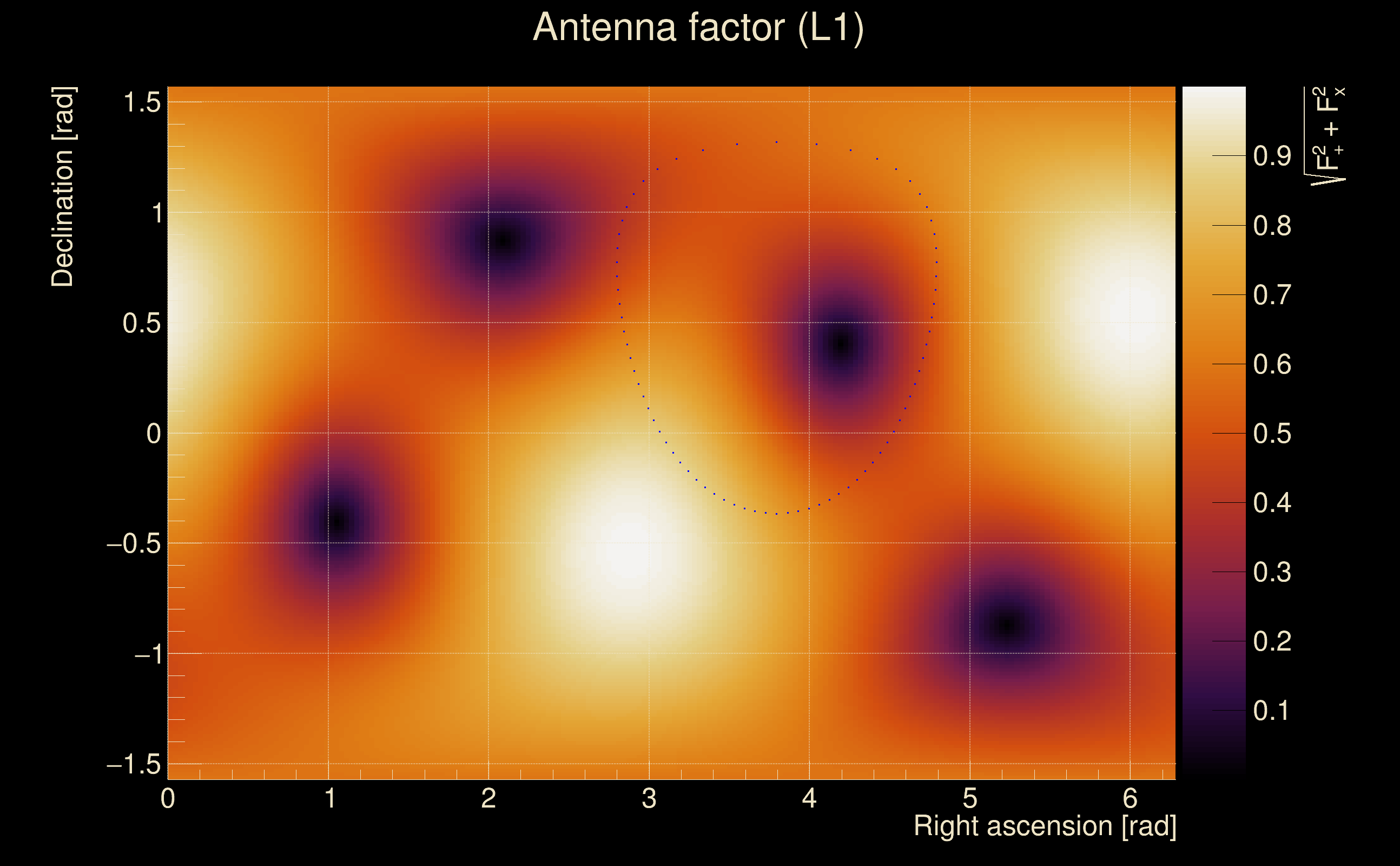

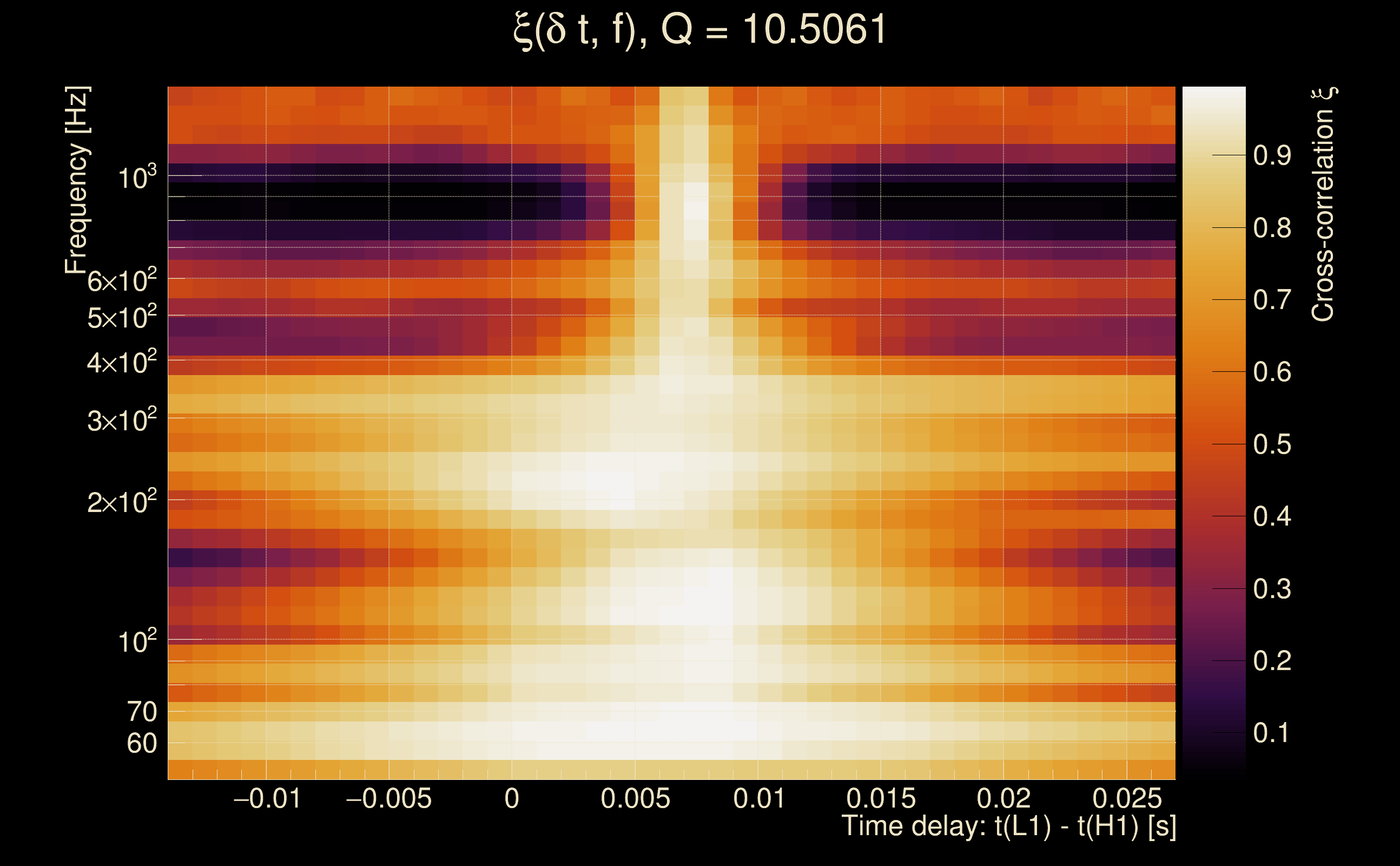

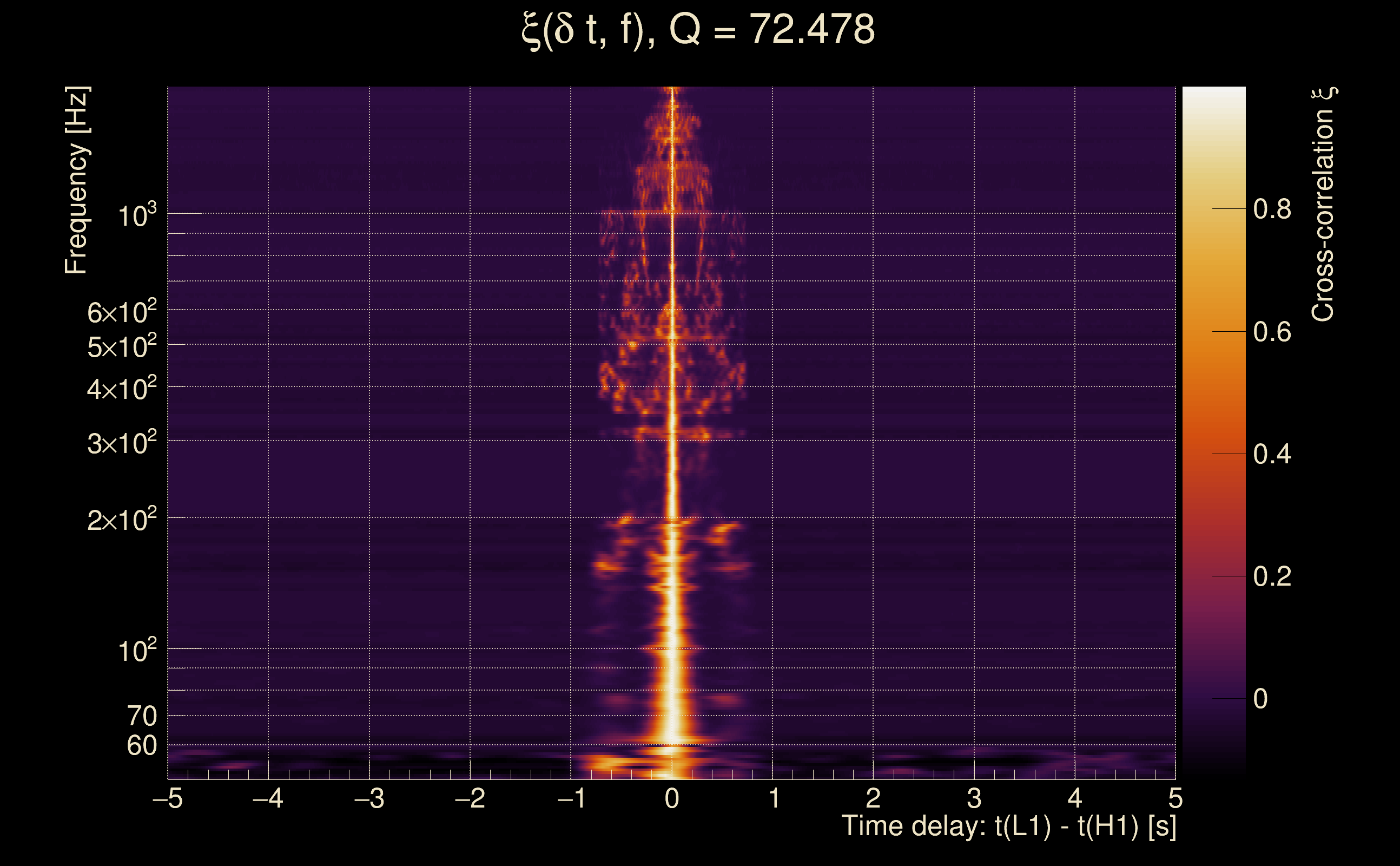

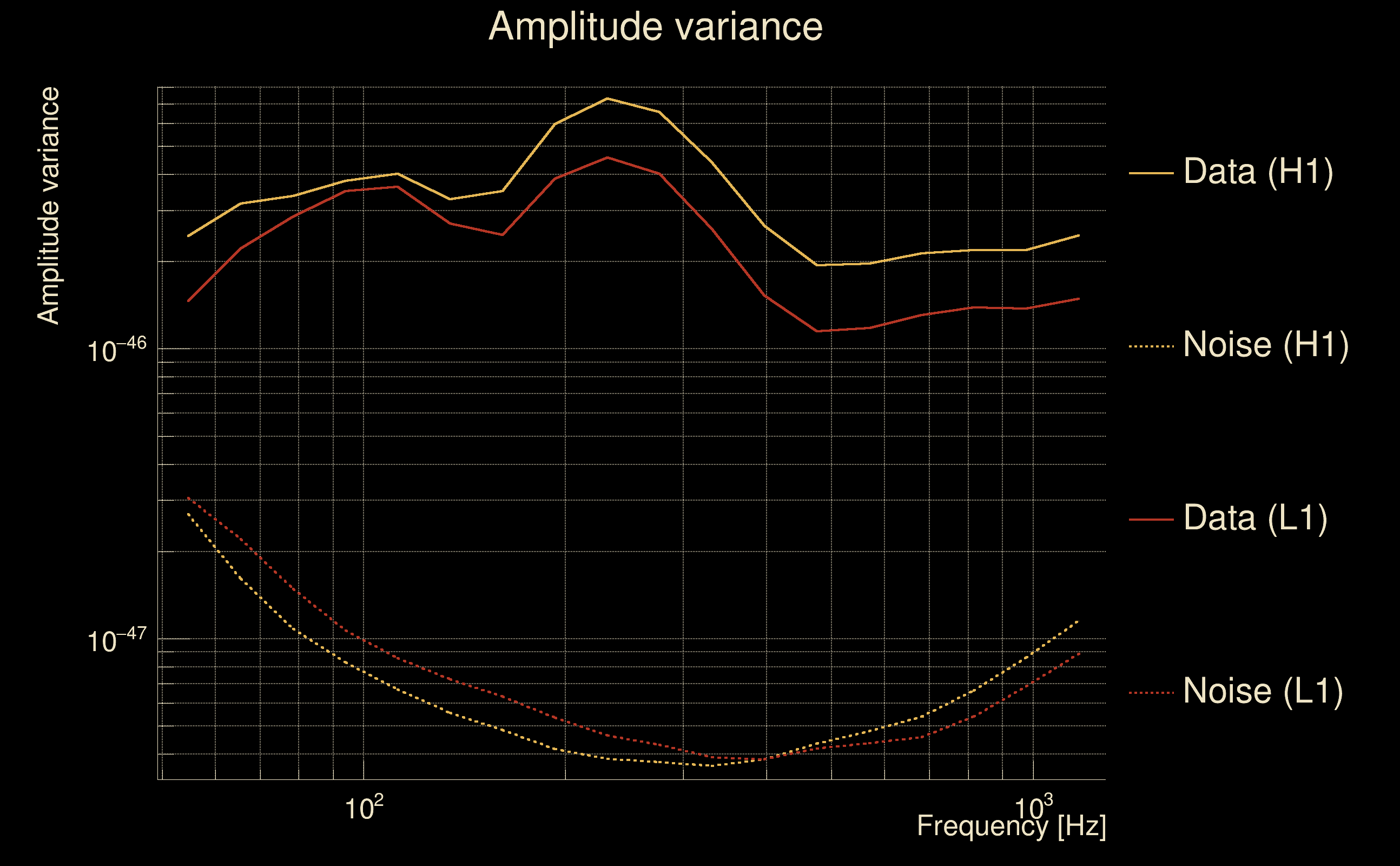

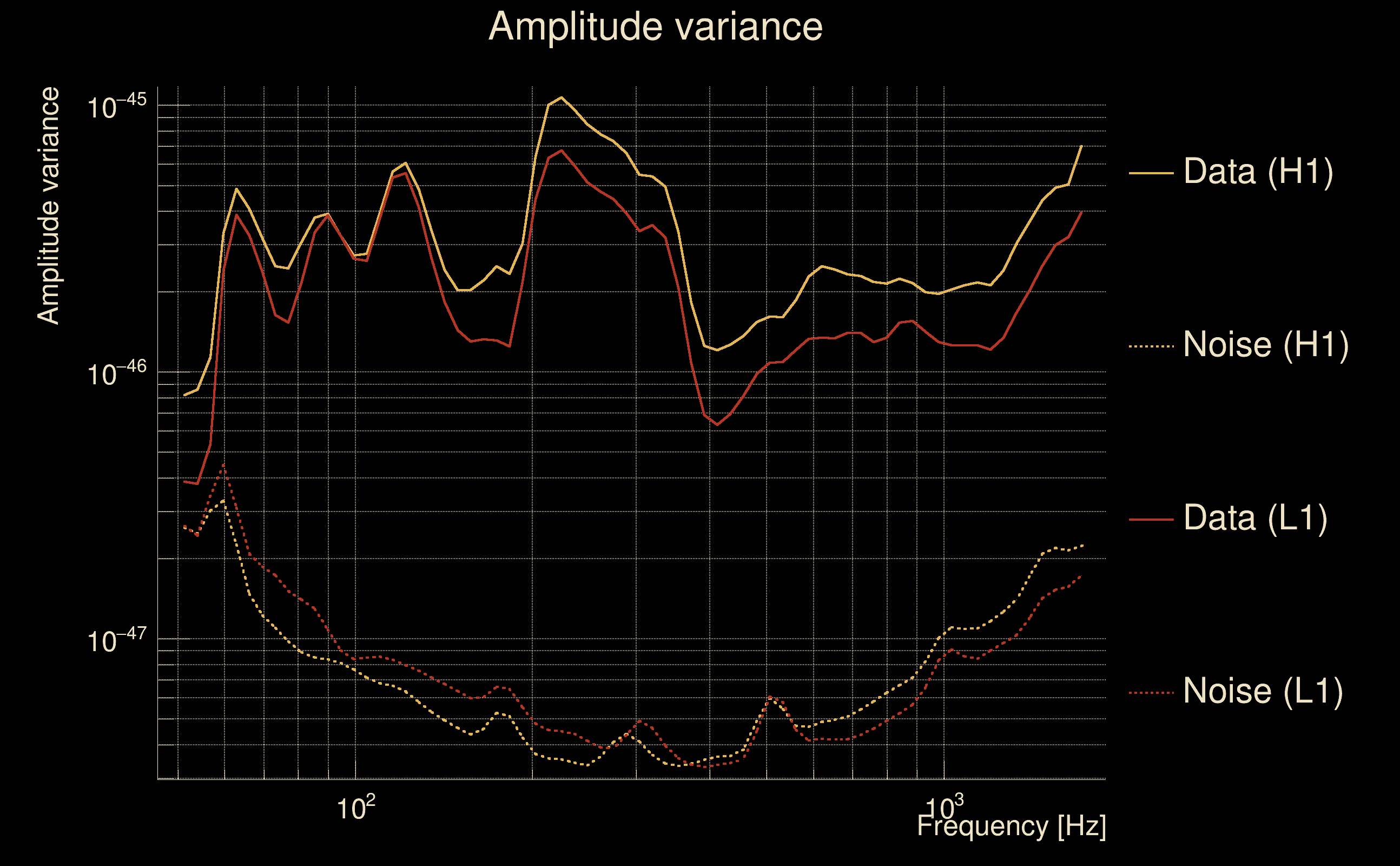

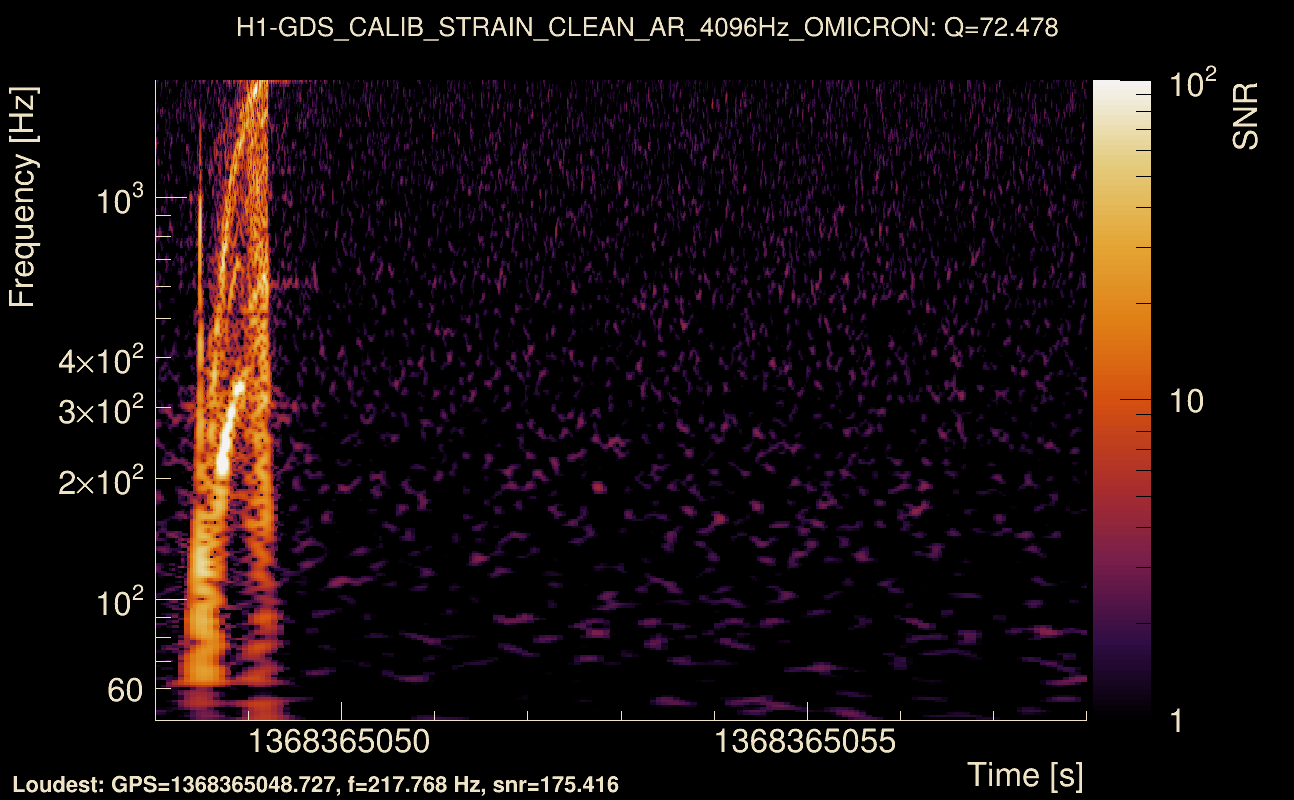

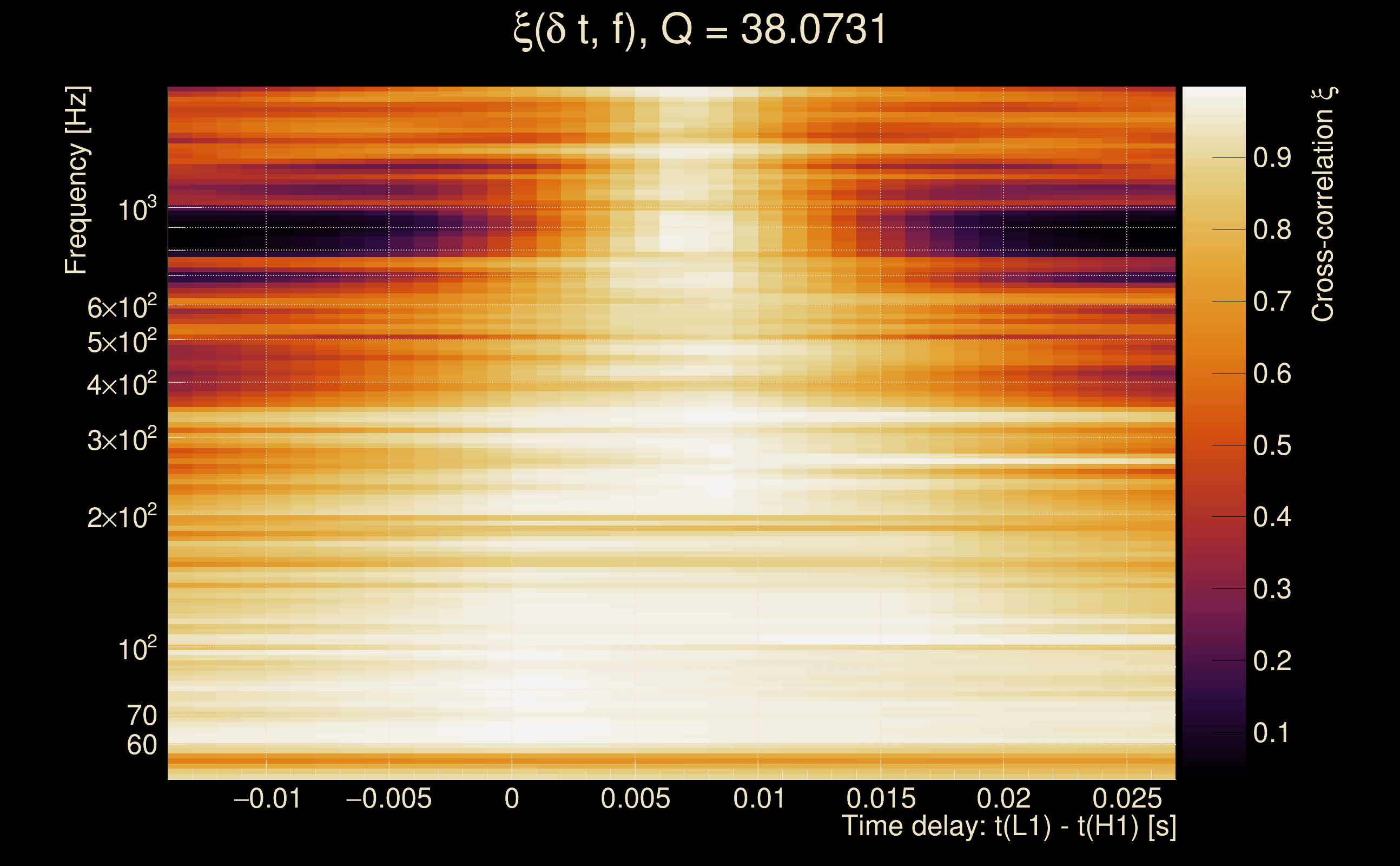

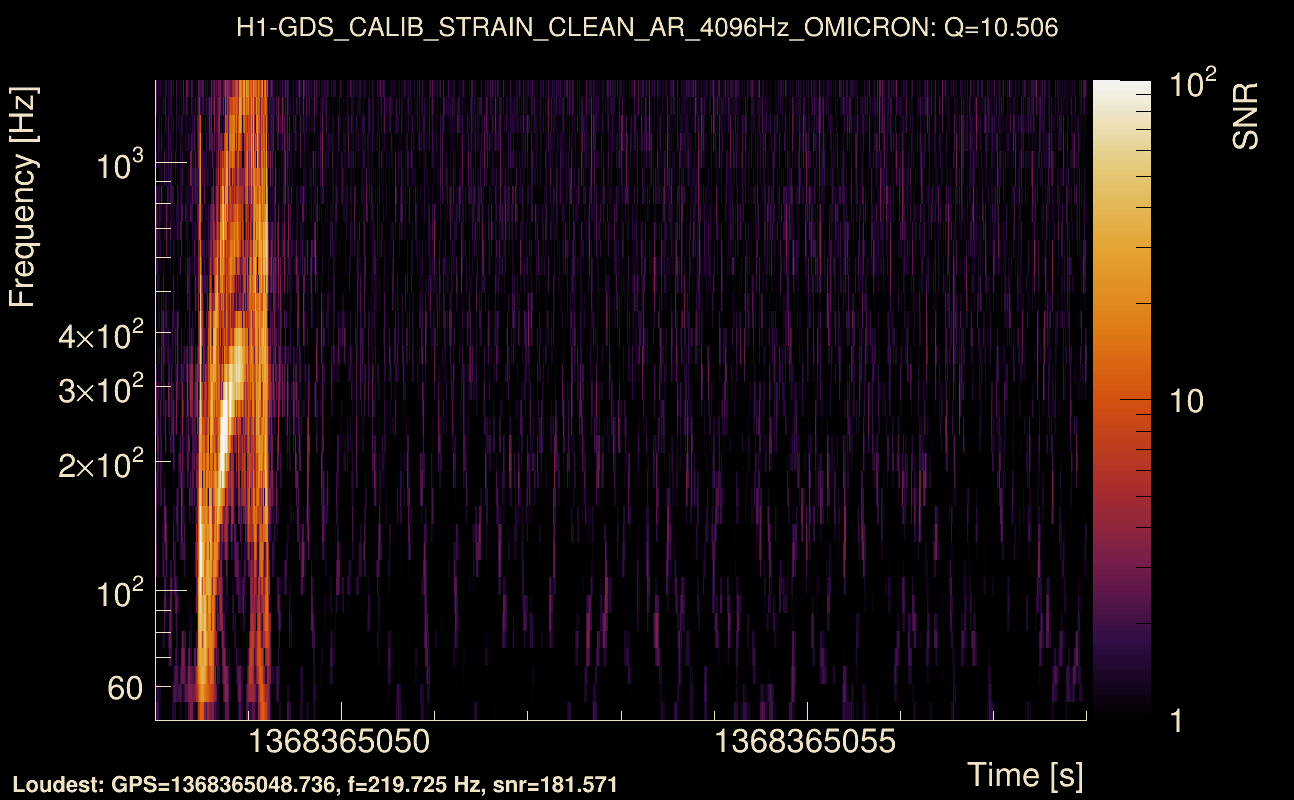

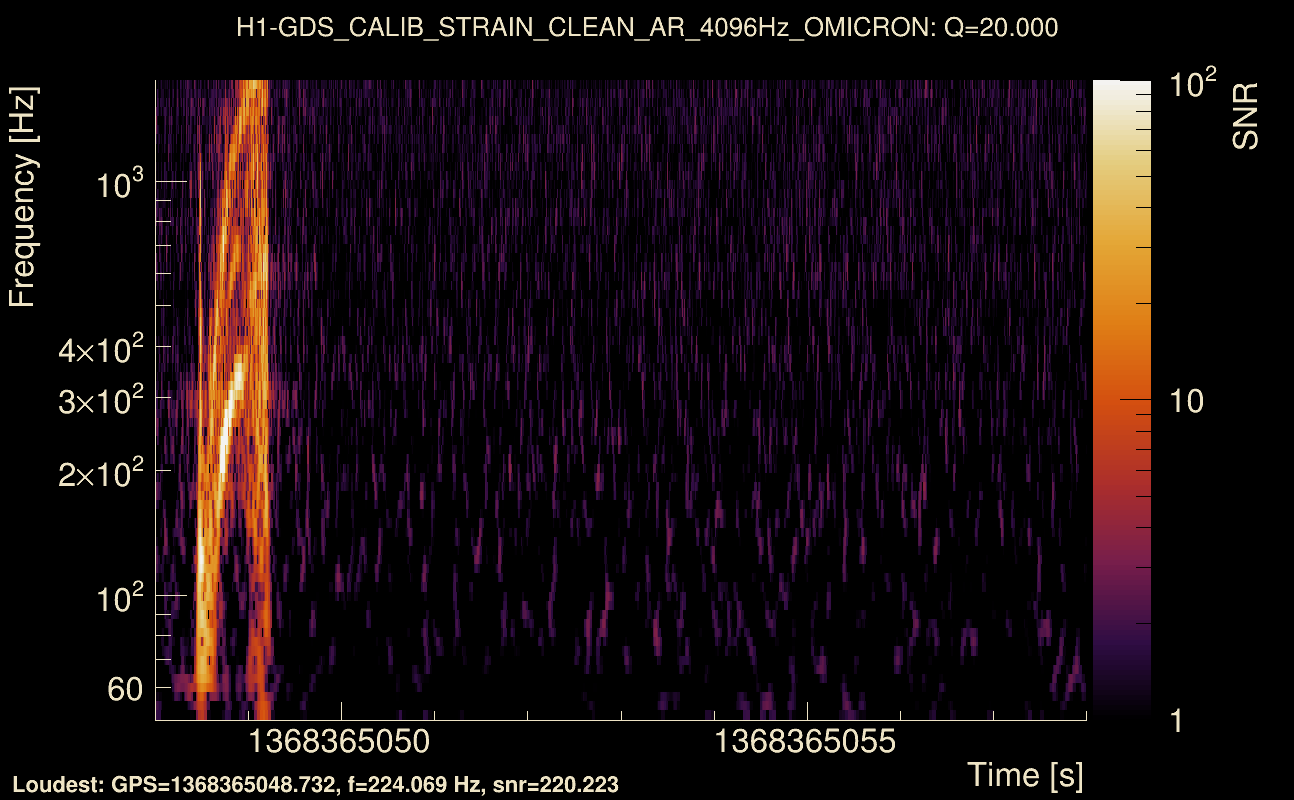

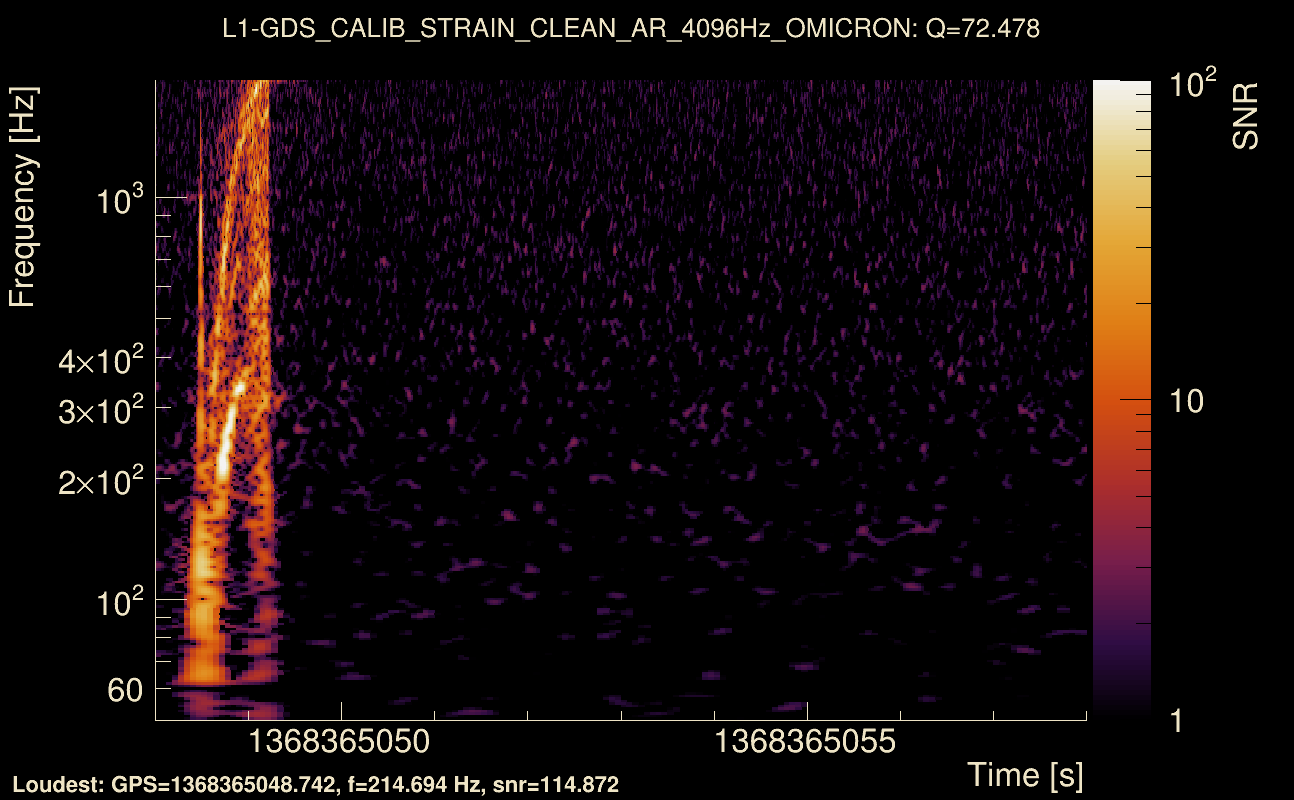

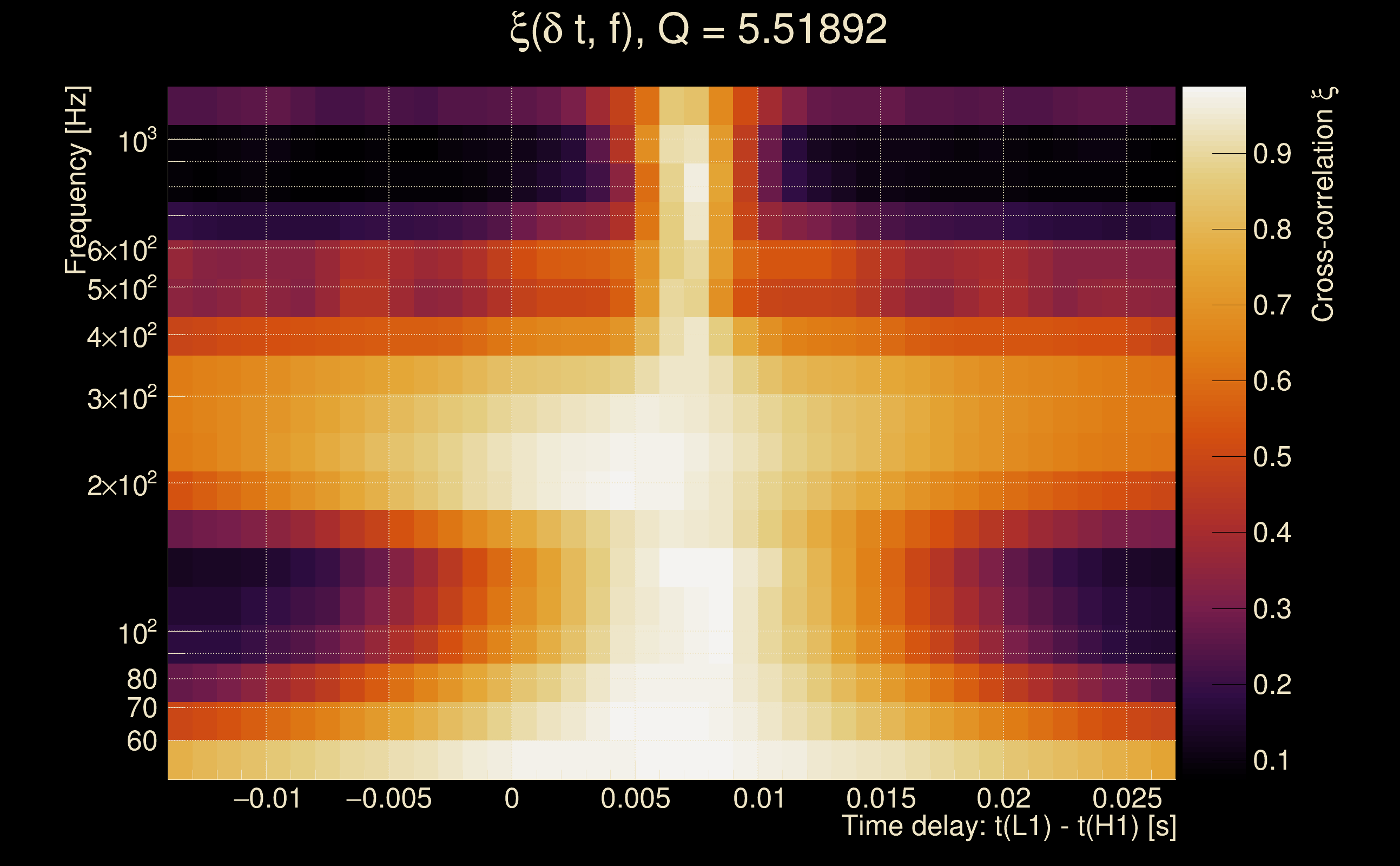

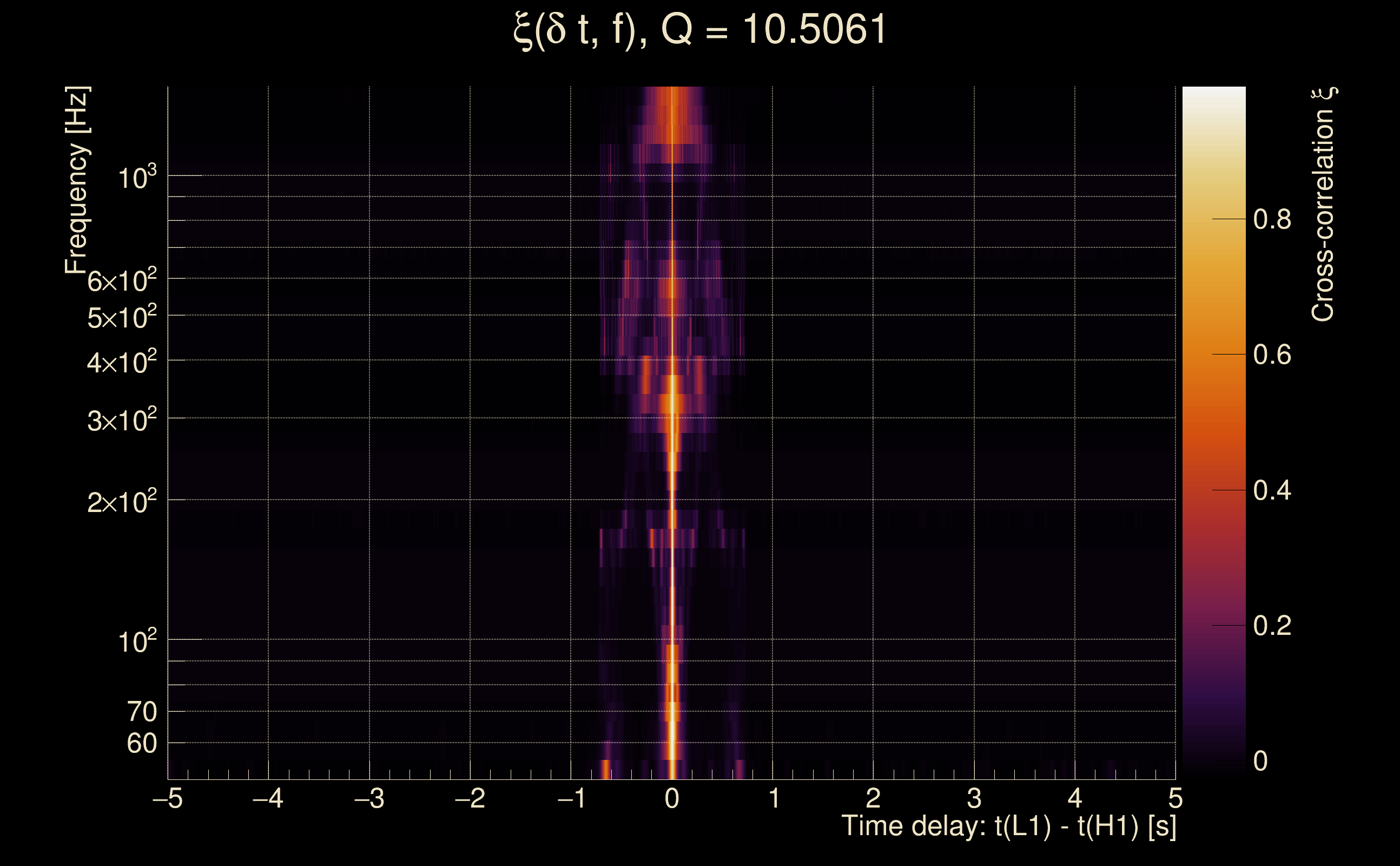

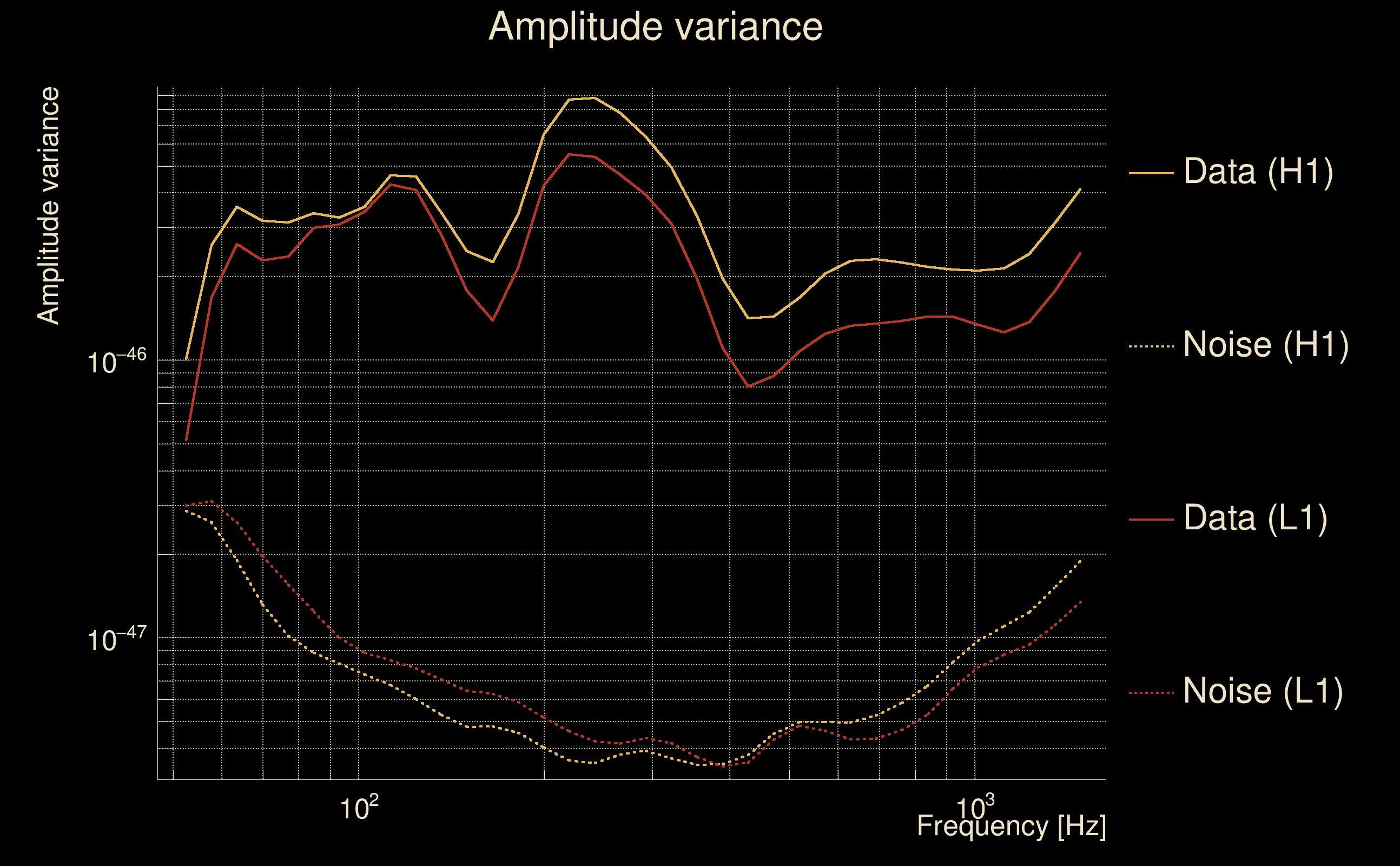

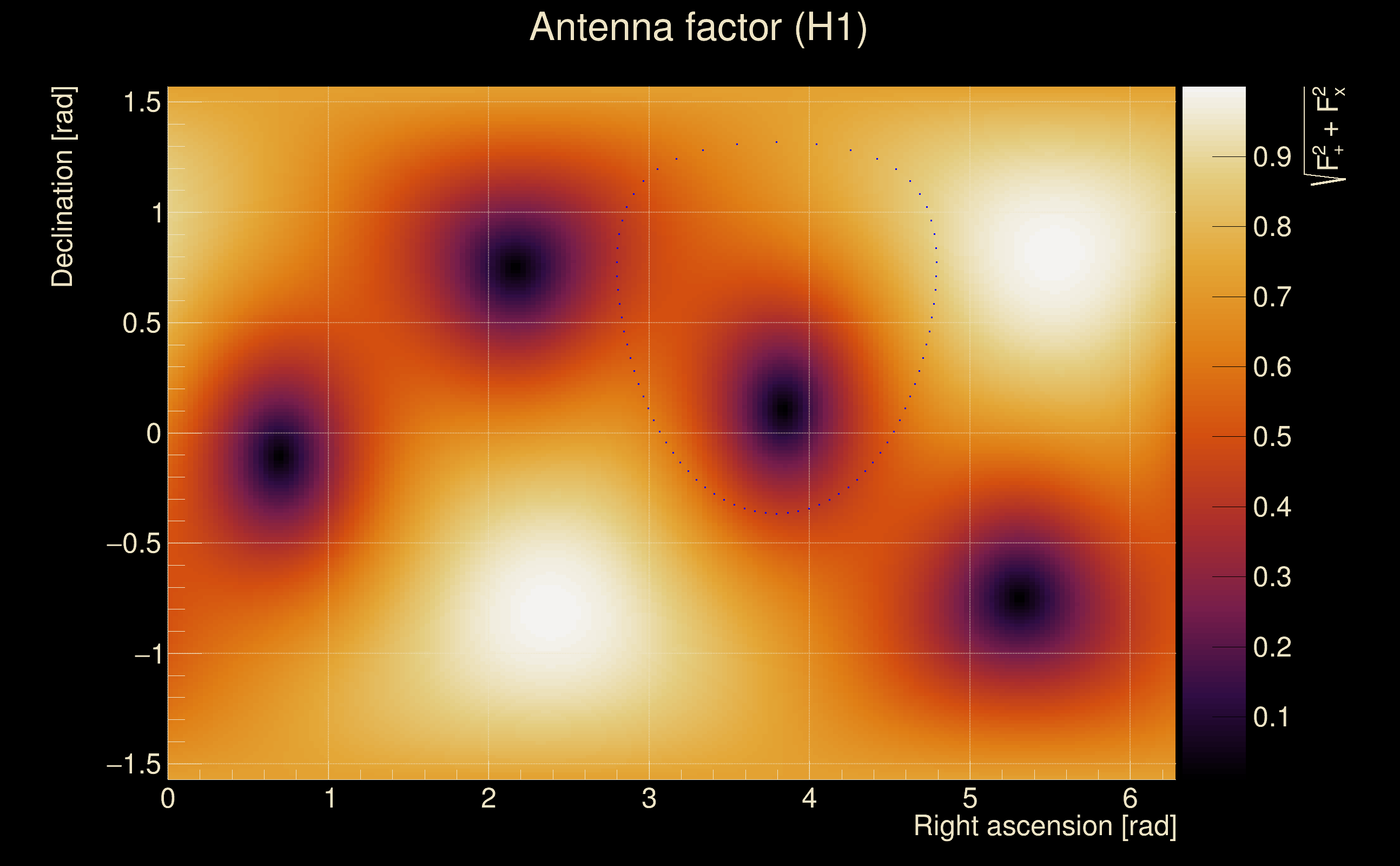

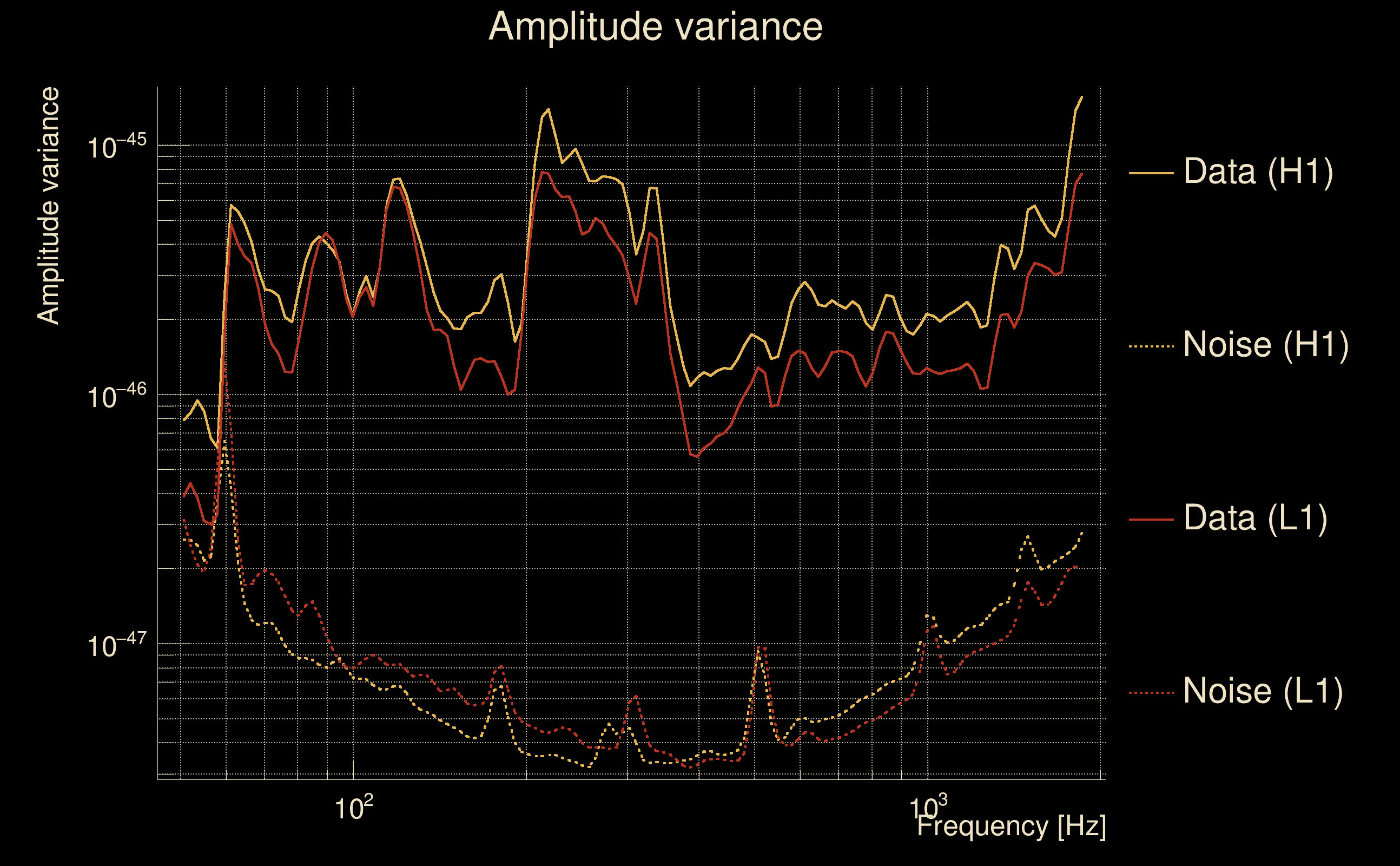

| Event time t(H1): | GPS = 1368365048 (Wed May 17 13:23:50 2023 ) → GPS = 1368365058 (Wed May 17 13:24:00 2023 ) |
| Event time t(L1): | GPS = 1368365048 (Wed May 17 13:24:00 2023 ) → GPS = 1368365058 (Wed May 17 13:24:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368365045 → GPS = 1368365061 |
| Omicron analysis time window (L1): | GPS = 1368365045 → GPS = 1368365061 |
| Time delay between detectors t(L1) - t(H1): | 0.00667157 s (slice index = 108 / 217), δt_gw = 0.00667157 s |
| Time delay standard deviation: | 0.0257194 s |
| [targeted mode] Time delay probability: | 0.000815559 (3.34746 sigmas), δt_target = -0.00893283 s |
| Frequency: | 292.182 Hz |
| Ξ: | 0.943962 ± 0.00125141 (variance = 1.56602e-06): Q0: 0.954707, Q1: 0.958566, Q2: 0.95658, Q3: 0.957158, Q4: 0.957202 |
| Rank: | R_A = 0.882195 |
| Log of amplitude ratio (L1/H1): | -0.228093, variance = 0.162255 (L1/H1: -0.250868, variance = 0.307604, H1/L1: 0.191319, variance = 0.30729) |
| Amplitude ratio (L1/H1): | 0.79605 ⋇ 1.49602 (L1/H1: 0.778125 ⋇ 1.74128, H1/L1: 1.21085 ⋇ 1.74079) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.939466 |
| Antenna factor probability: | 0.994784 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 3 / 70, Q3: 7 / 134, Q4: 26 / 258 |
| Maximum signal-to-noise ratio: | H1: 223.791, L1: 176.119 |
| SNR variance: | H1: 34.319, L1: 23.8835 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368457498 (Thu May 18 15:04:40 2023 ) → GPS = 1368457508 (Thu May 18 15:04:50 2023 ) |
| Event time t(L1): | GPS = 1368457498 (Thu May 18 15:04:50 2023 ) → GPS = 1368457508 (Thu May 18 15:04:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368457495 → GPS = 1368457511 |
| Omicron analysis time window (L1): | GPS = 1368457495 → GPS = 1368457511 |
| Time delay between detectors t(L1) - t(H1): | -4.78398 s (slice index = 212 / 217), δt_gw = 2.30143e-05 s |
| Time delay standard deviation: | 0.0669953 s |
| [targeted mode] Time delay probability: | 0.0721592 (1.79811 sigmas), δt_target = -0.00994134 s |
| Frequency: | 122.563 Hz |
| Ξ: | 0.0148805 ± 0.0765439 (variance = 0.00585897): Q0: 0.145673, Q1: 0.190866, Q2: 0.295045, Q3: 0.165429, Q4: 0.0576839 |
| Rank: | R_A = 0.0131504 |
| Log of amplitude ratio (L1/H1): | -0.0674942, variance = 0.361584 (L1/H1: -0.00650394, variance = 0.554379, H1/L1: 0.146581, variance = 0.975145) |
| Amplitude ratio (L1/H1): | 0.934733 ⋇ 1.82452 (L1/H1: 0.993517 ⋇ 2.10553, H1/L1: 1.15787 ⋇ 2.6845) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.909822 |
| Antenna factor probability: | 0.971327 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 33 / 36, Q2: 66 / 70, Q3: 130 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.52297, L1: 4.85011 |
| SNR variance: | H1: 0.595645, L1: 0.495056 |

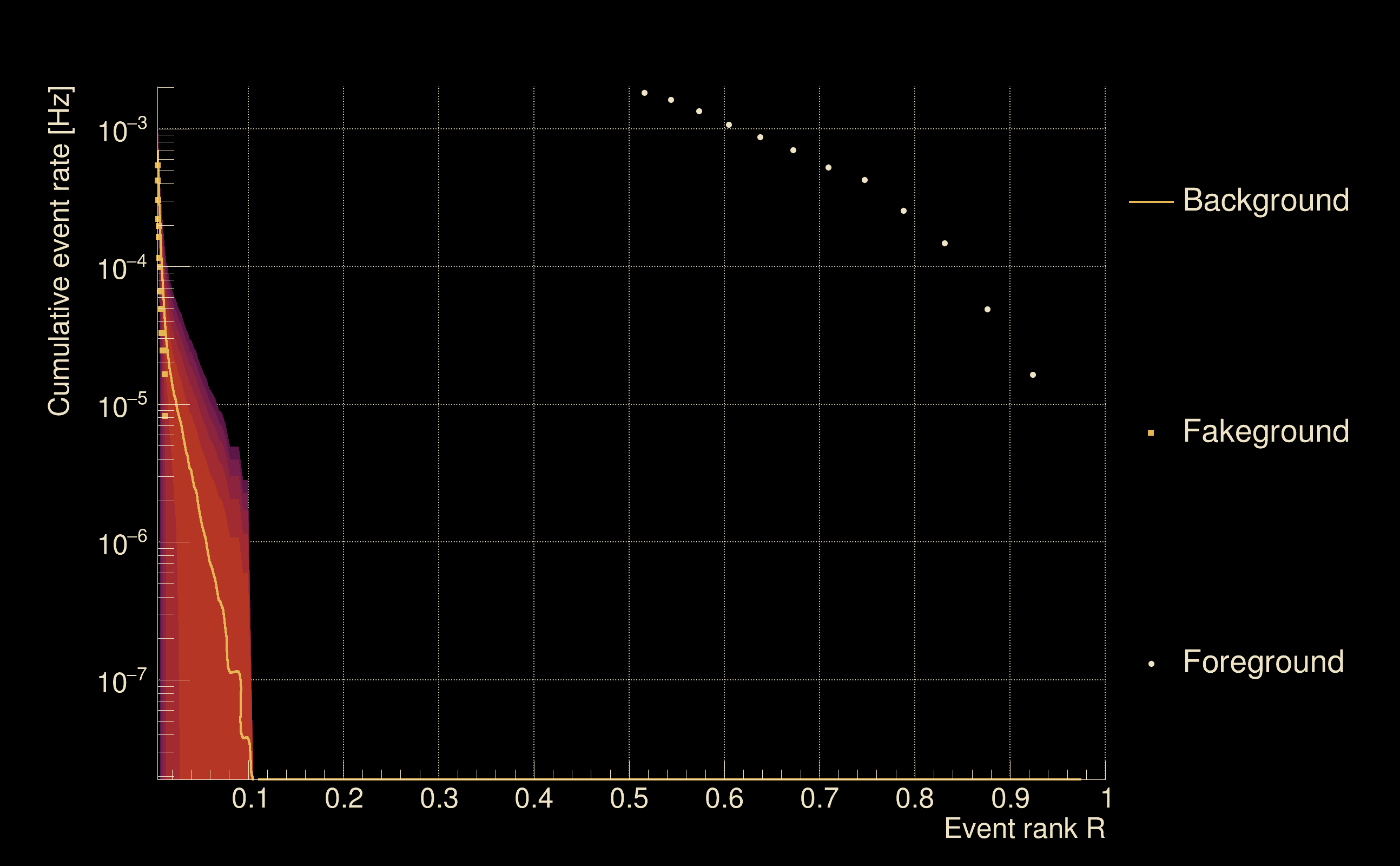

| Detection threshold: | R > 0.0503939 |

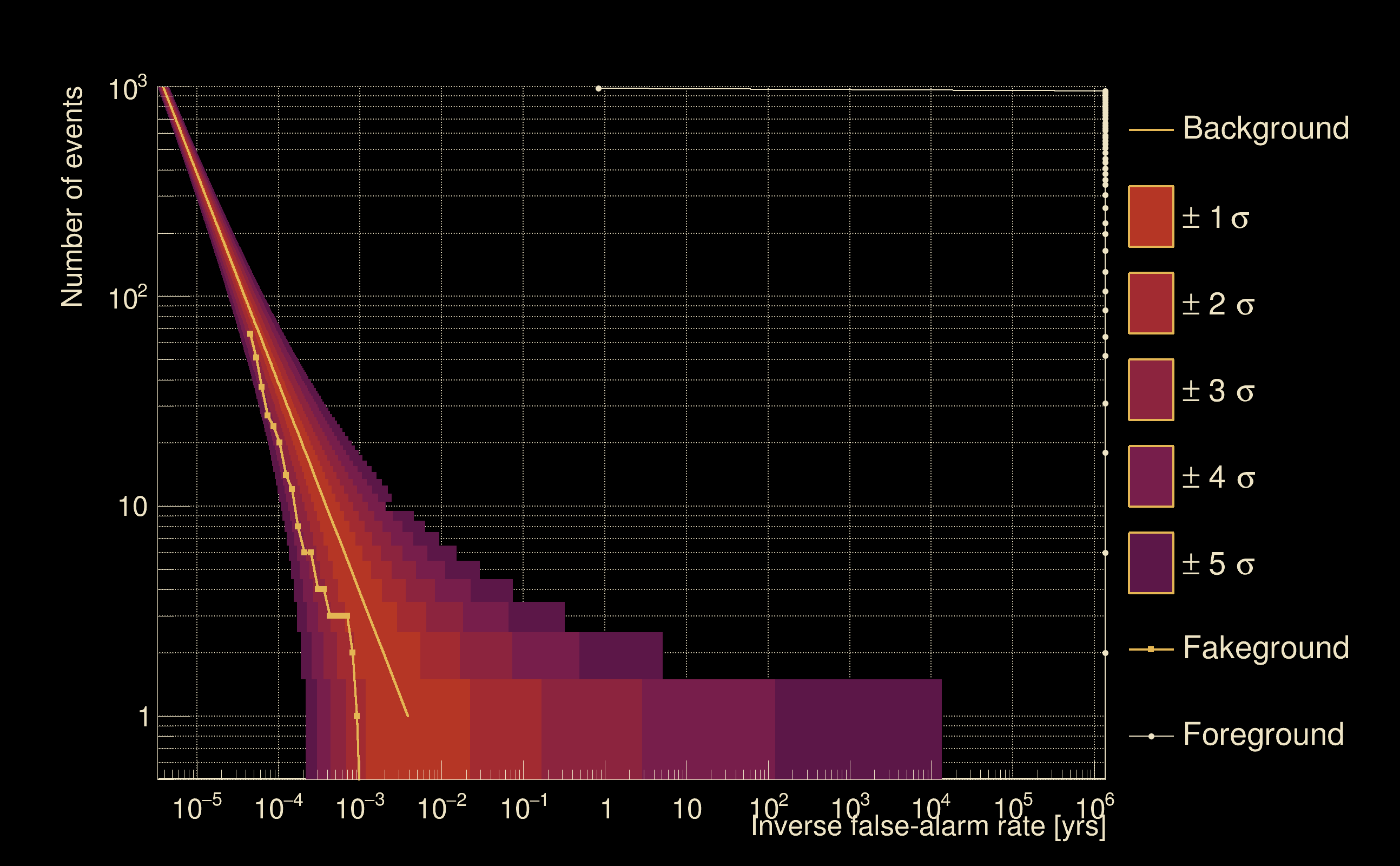

| False-alarm rate above that detection threshold: | 1.32321e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.099817 |
| Alternative threshold at 1/100 yrs: | R > 0.099817 |
| Alternative threshold at 1/10 yrs: | R > 0.099817 |
| Alternative threshold at 1/1 yr: | R > 0.099817 |
| Alternative threshold at 1/1 d: | R > 0.0226442 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

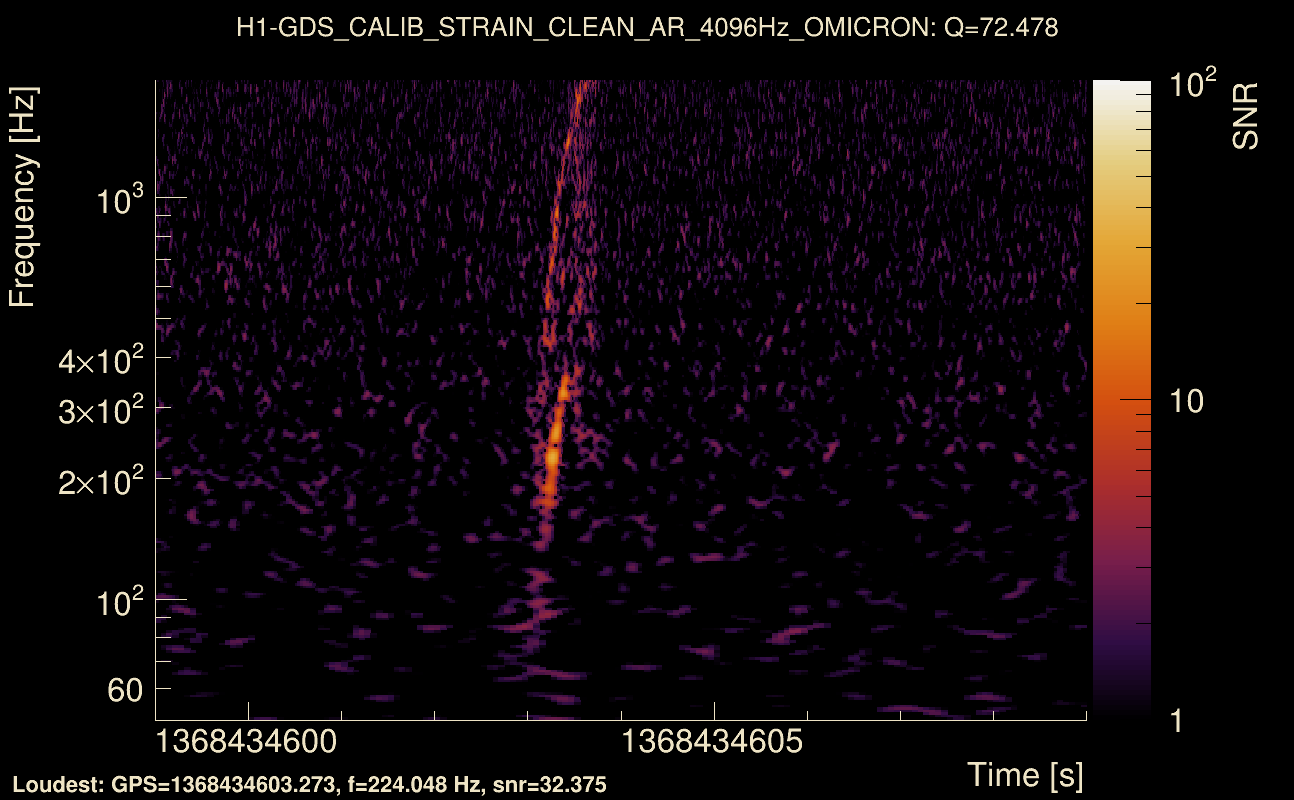

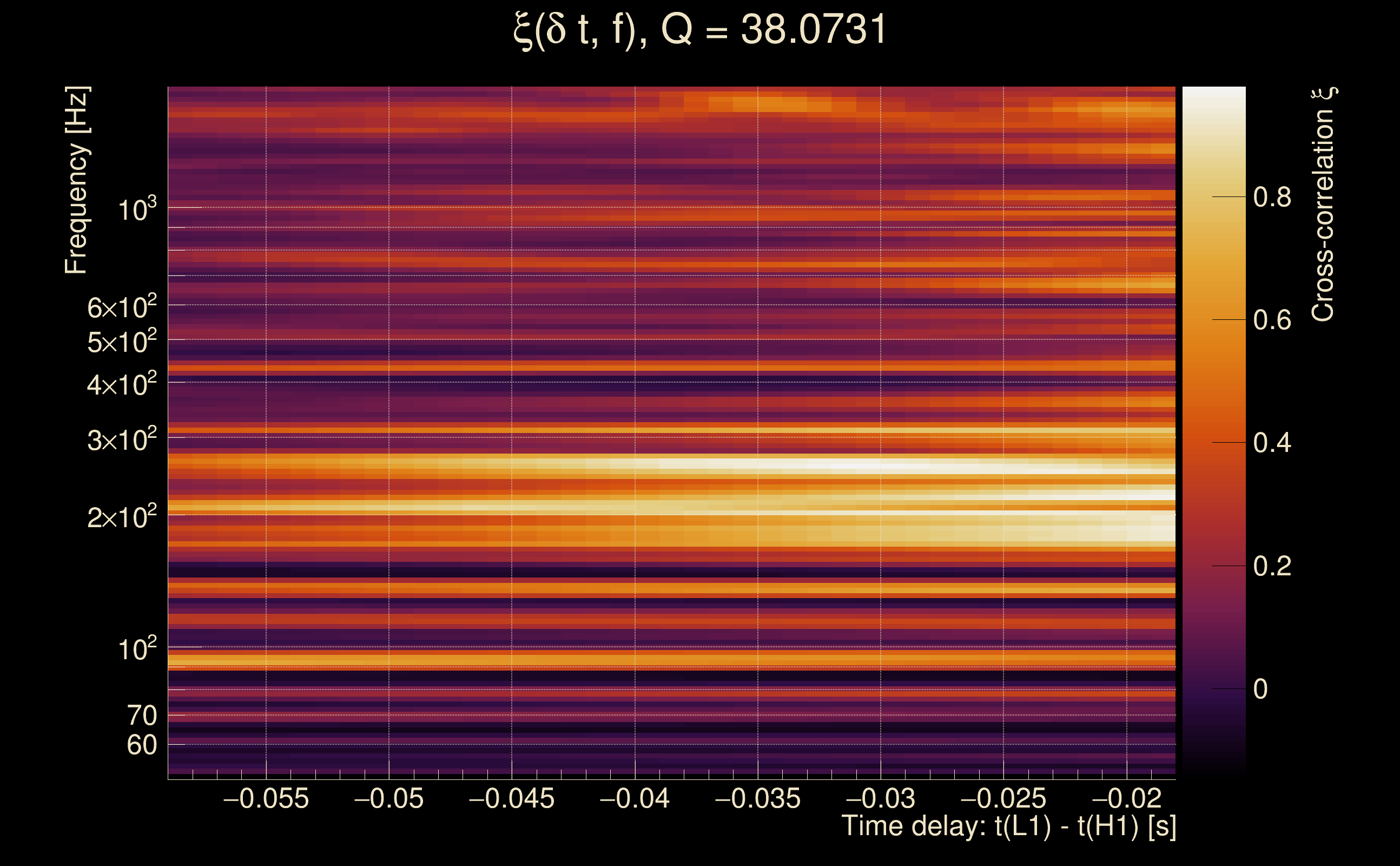

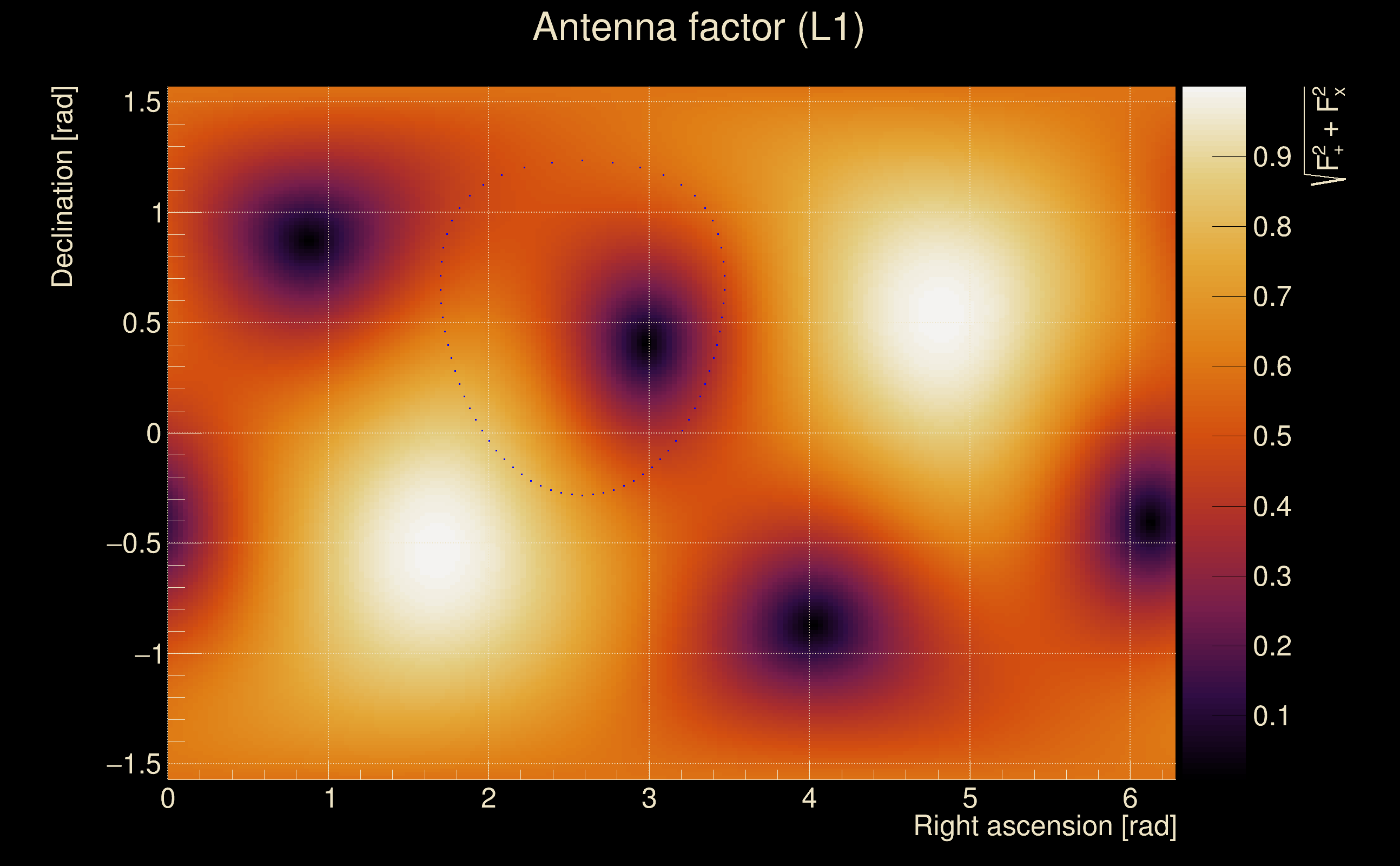

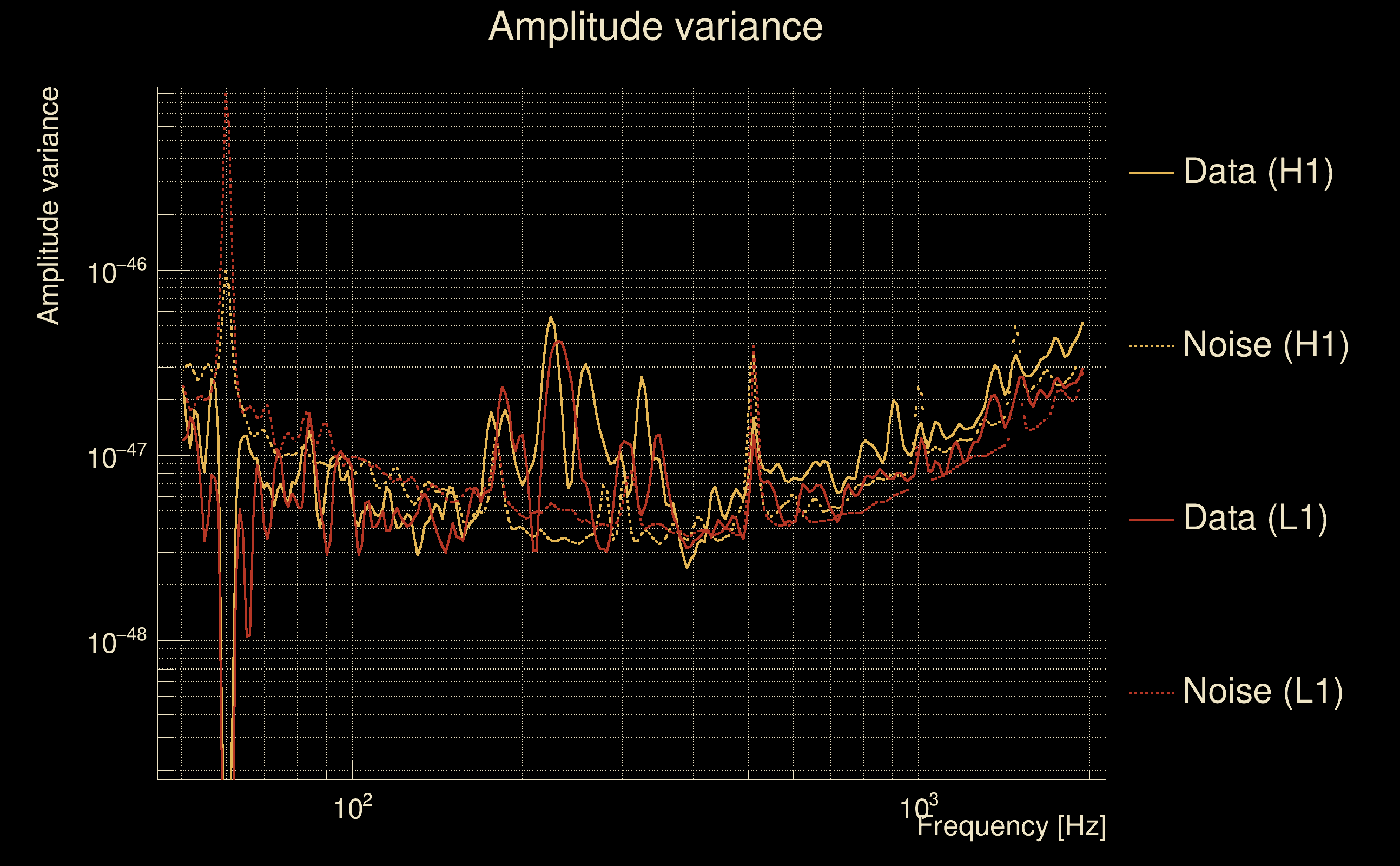

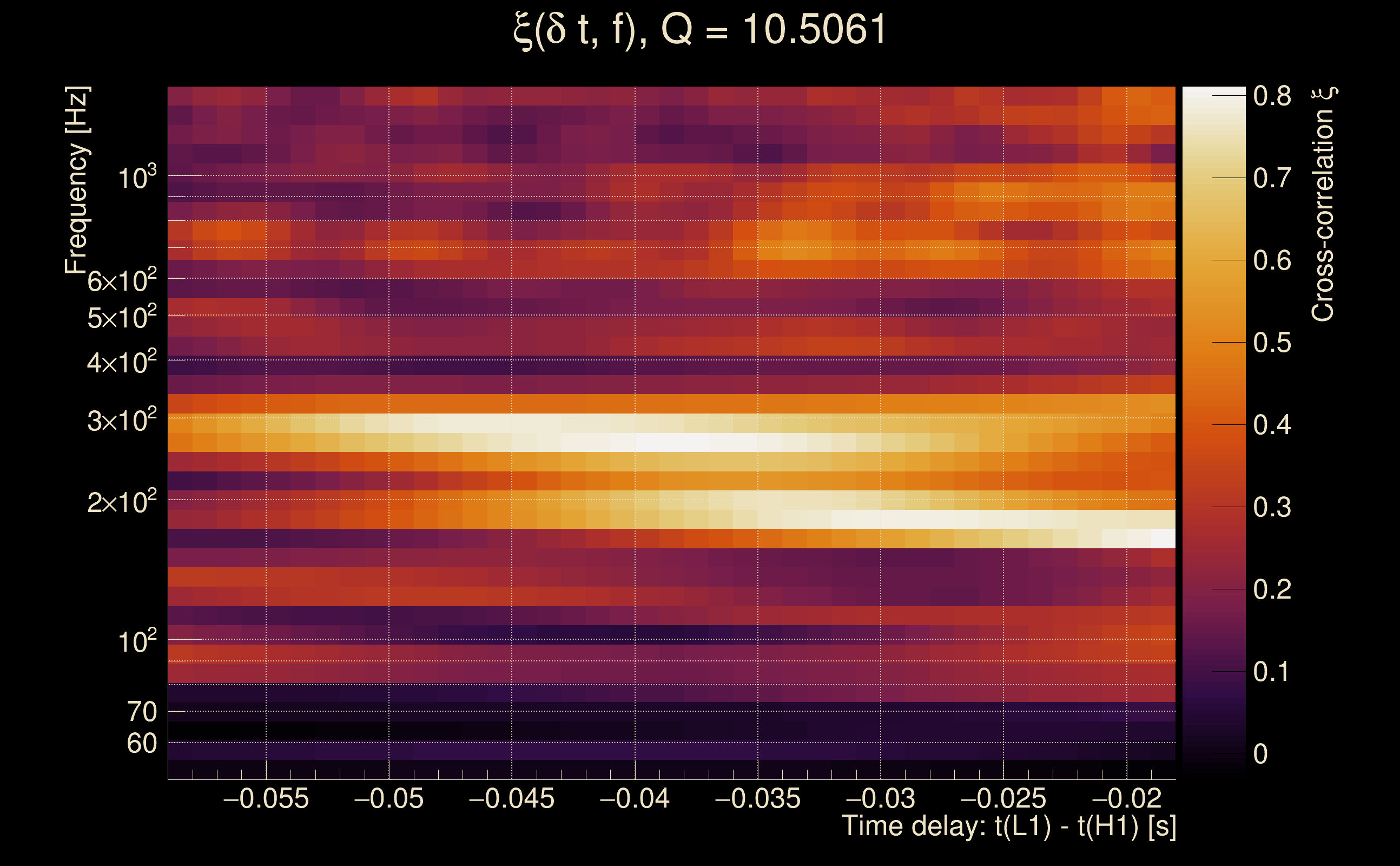

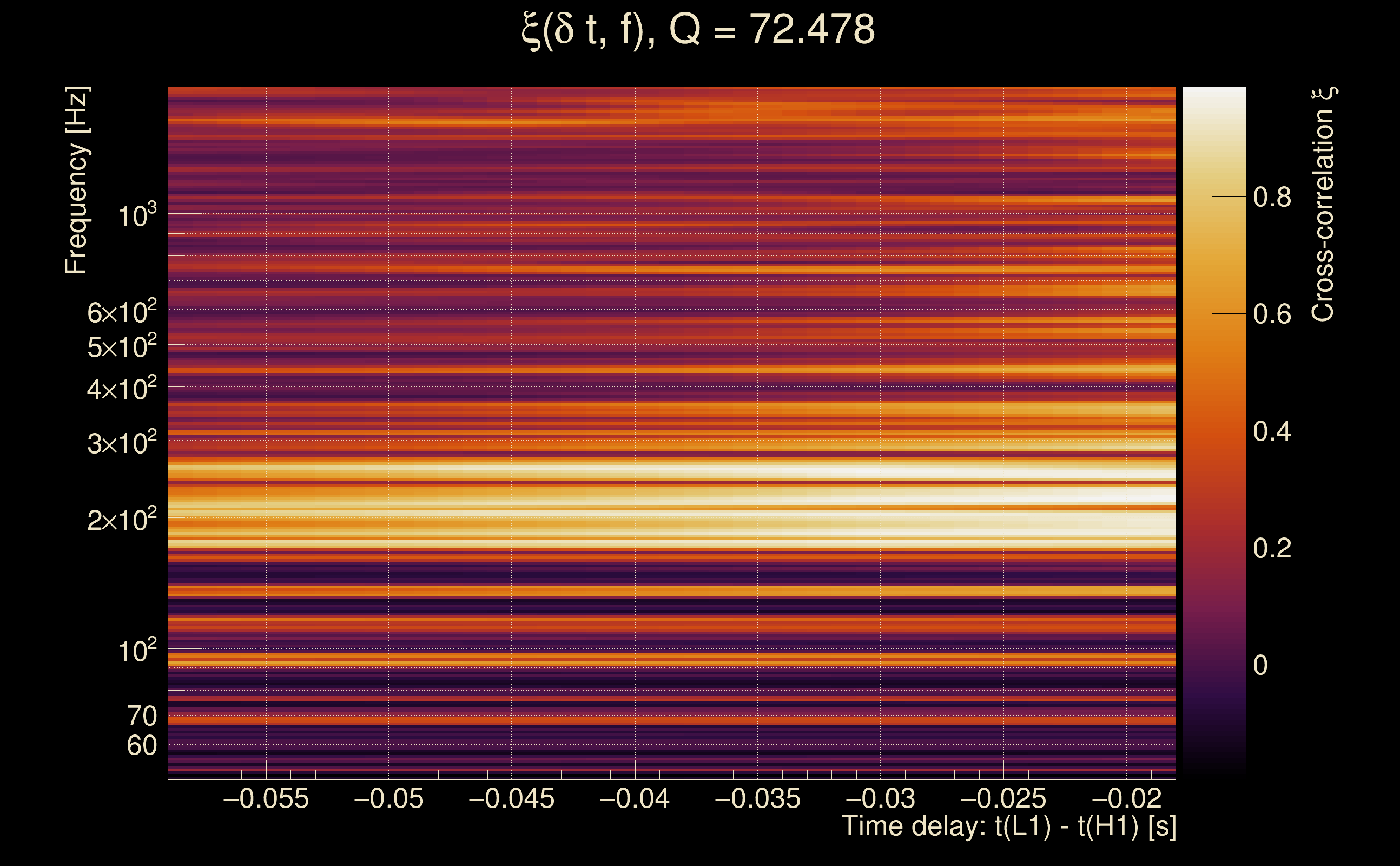

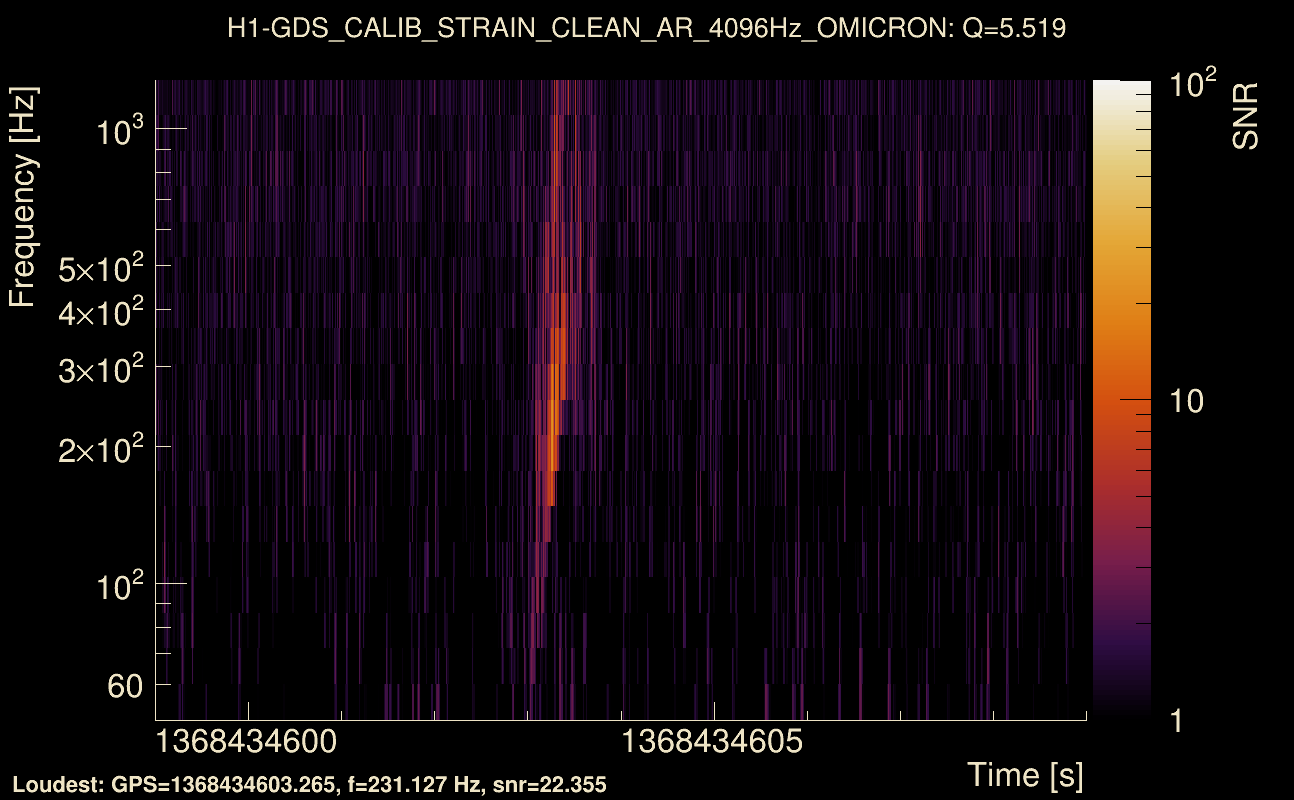

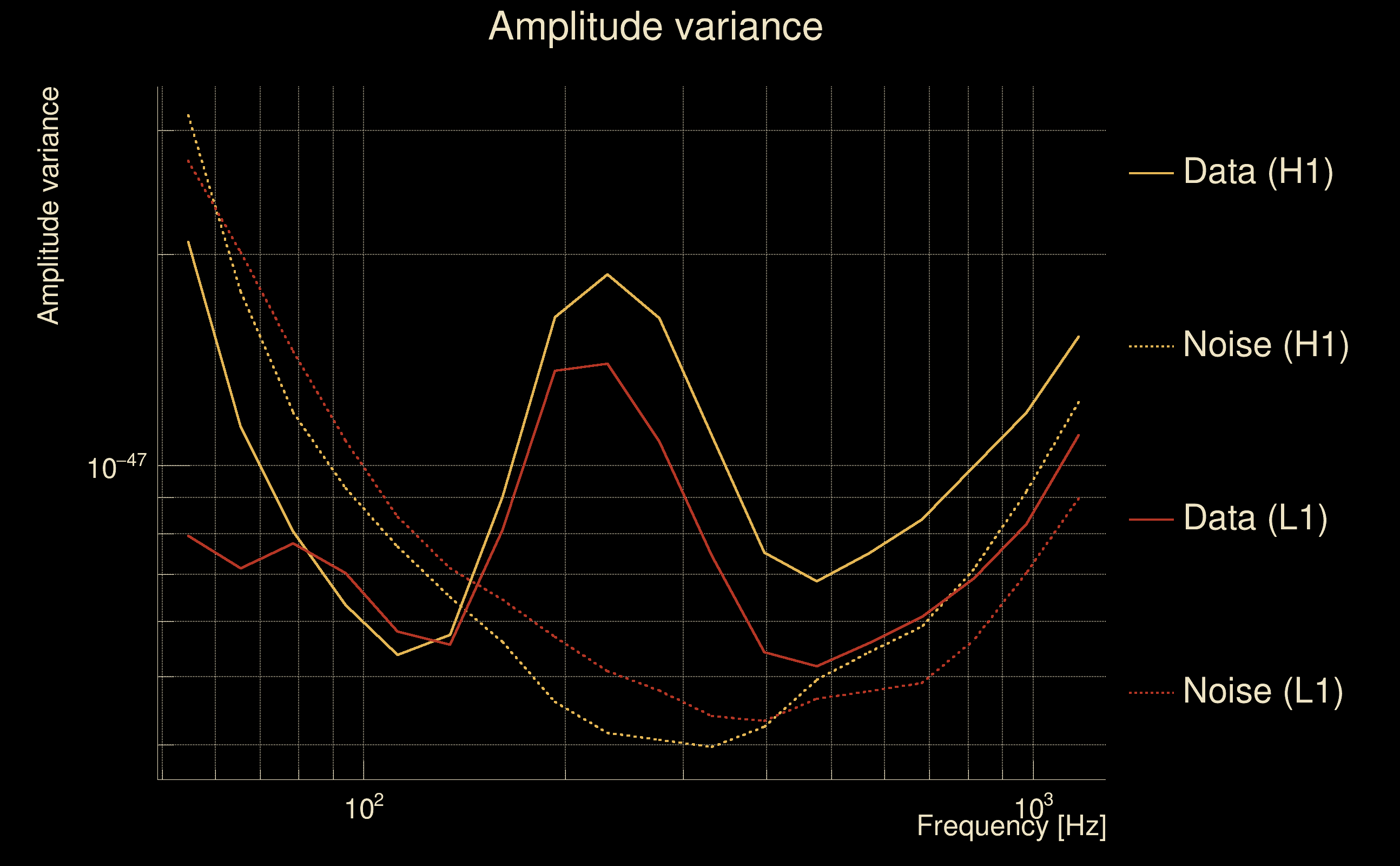

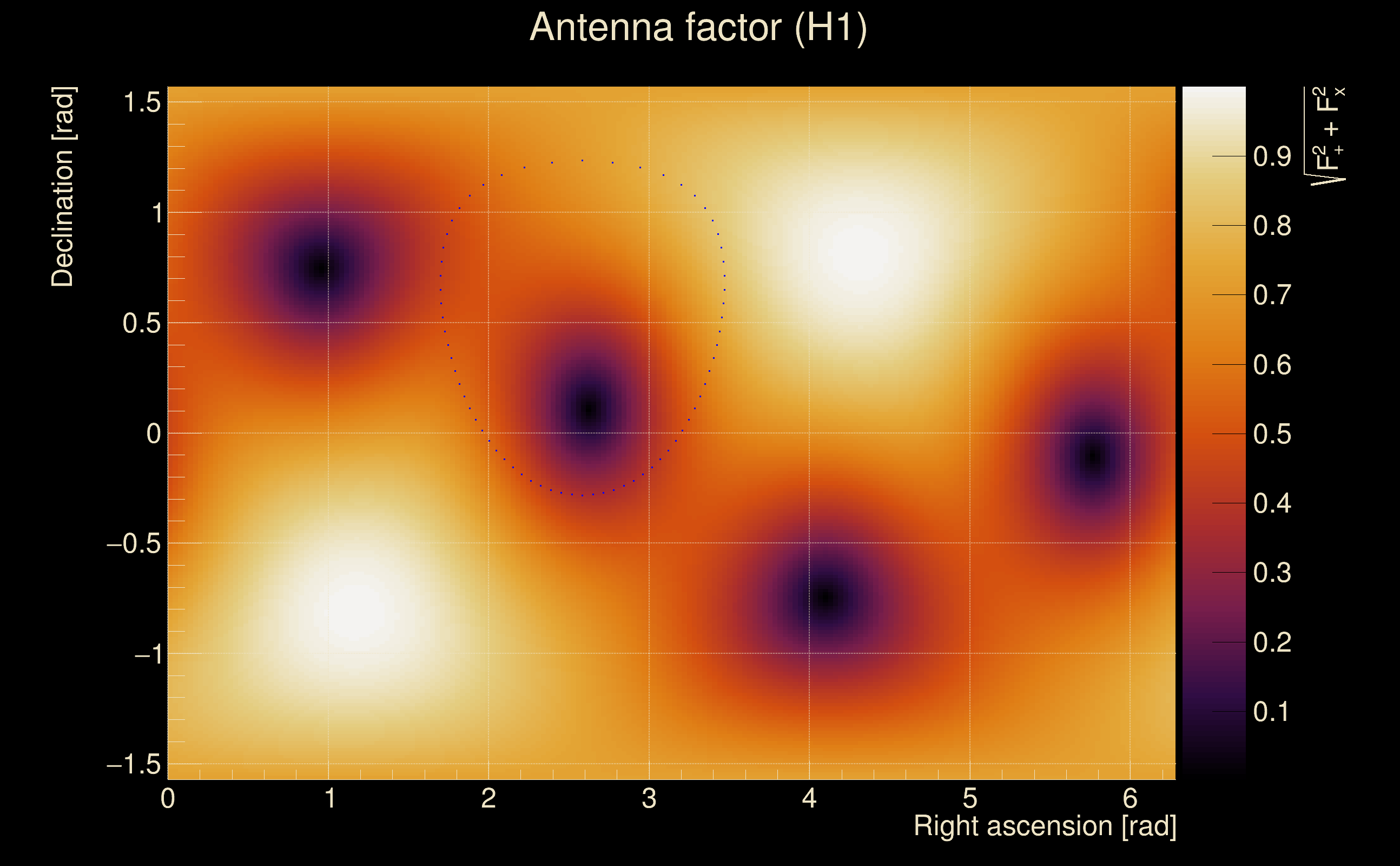

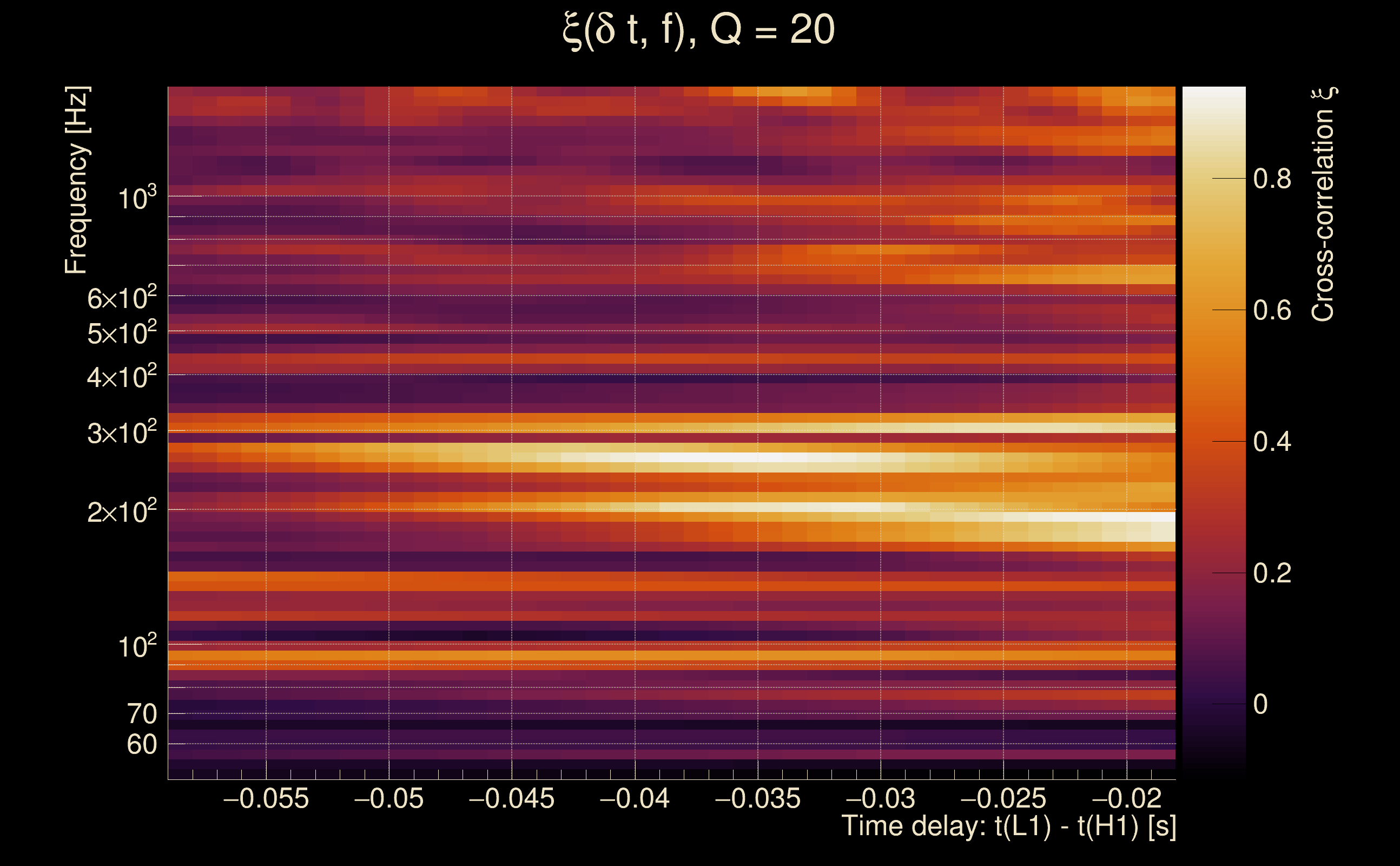

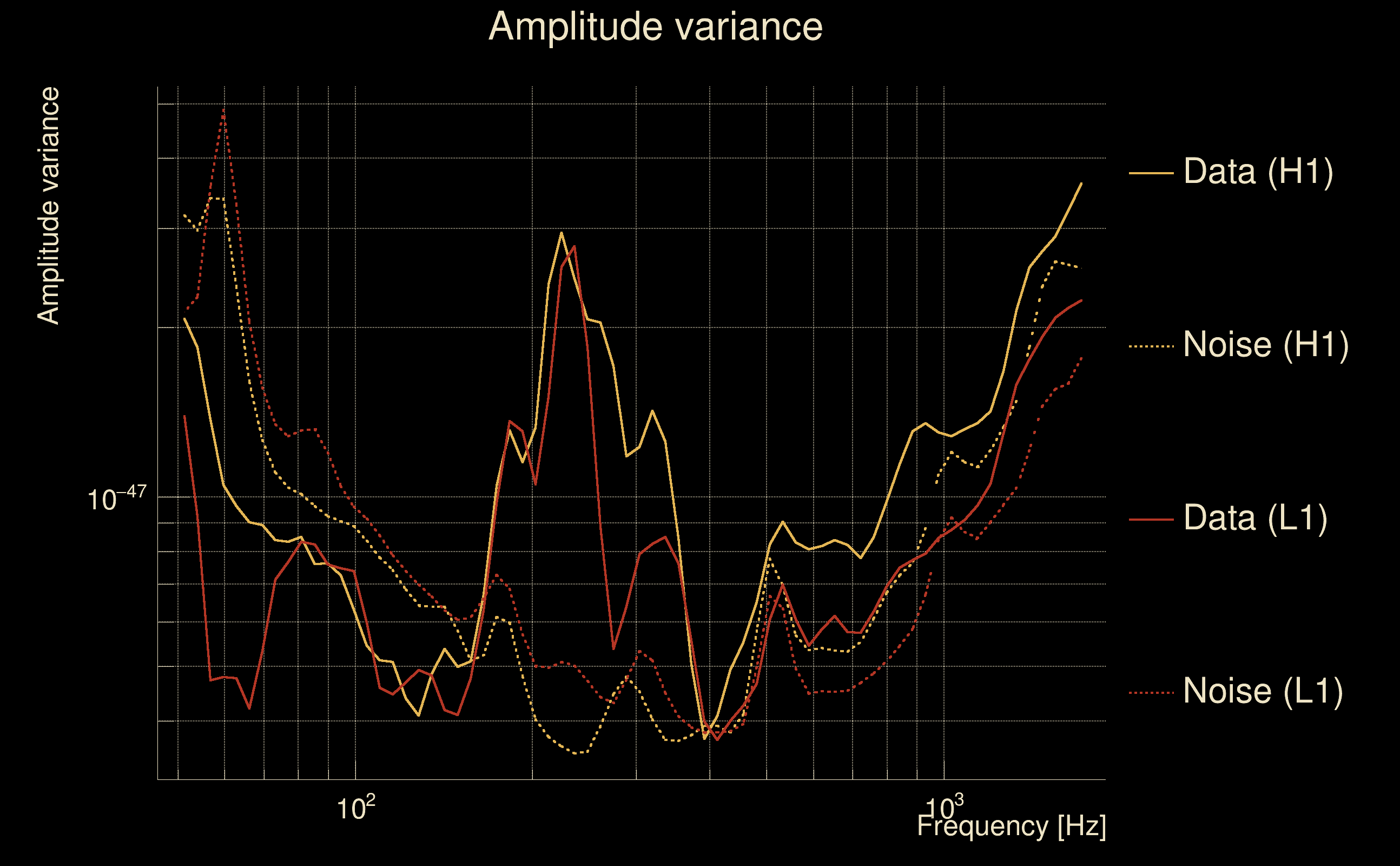

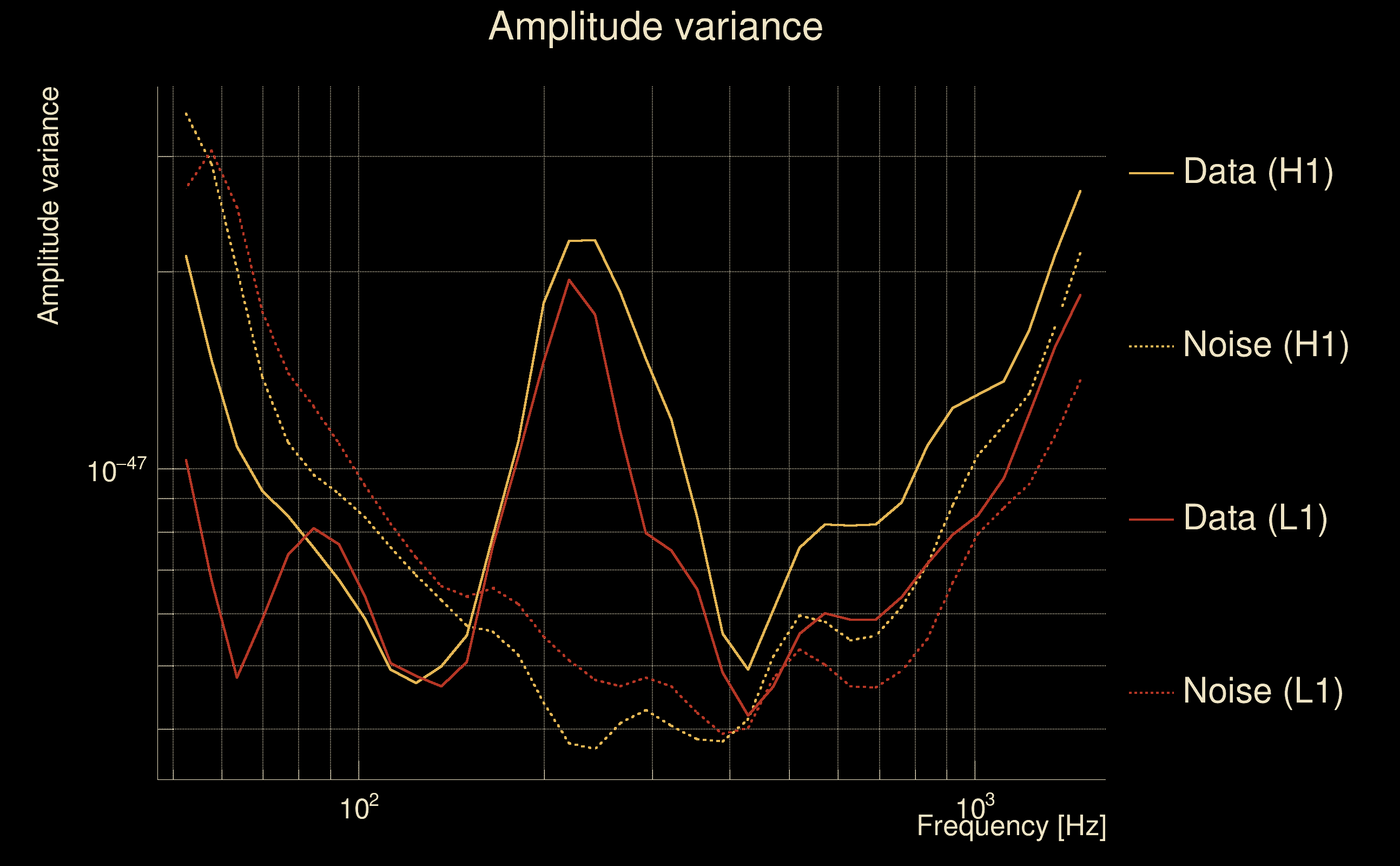

| Event time t(H1): | GPS = 1368434599 (Thu May 18 08:43:01 2023 ) → GPS = 1368434609 (Thu May 18 08:43:11 2023 ) |
| Event time t(L1): | GPS = 1368434599 (Thu May 18 08:43:11 2023 ) → GPS = 1368434609 (Thu May 18 08:43:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368434596 → GPS = 1368434612 |
| Omicron analysis time window (L1): | GPS = 1368434596 → GPS = 1368434612 |

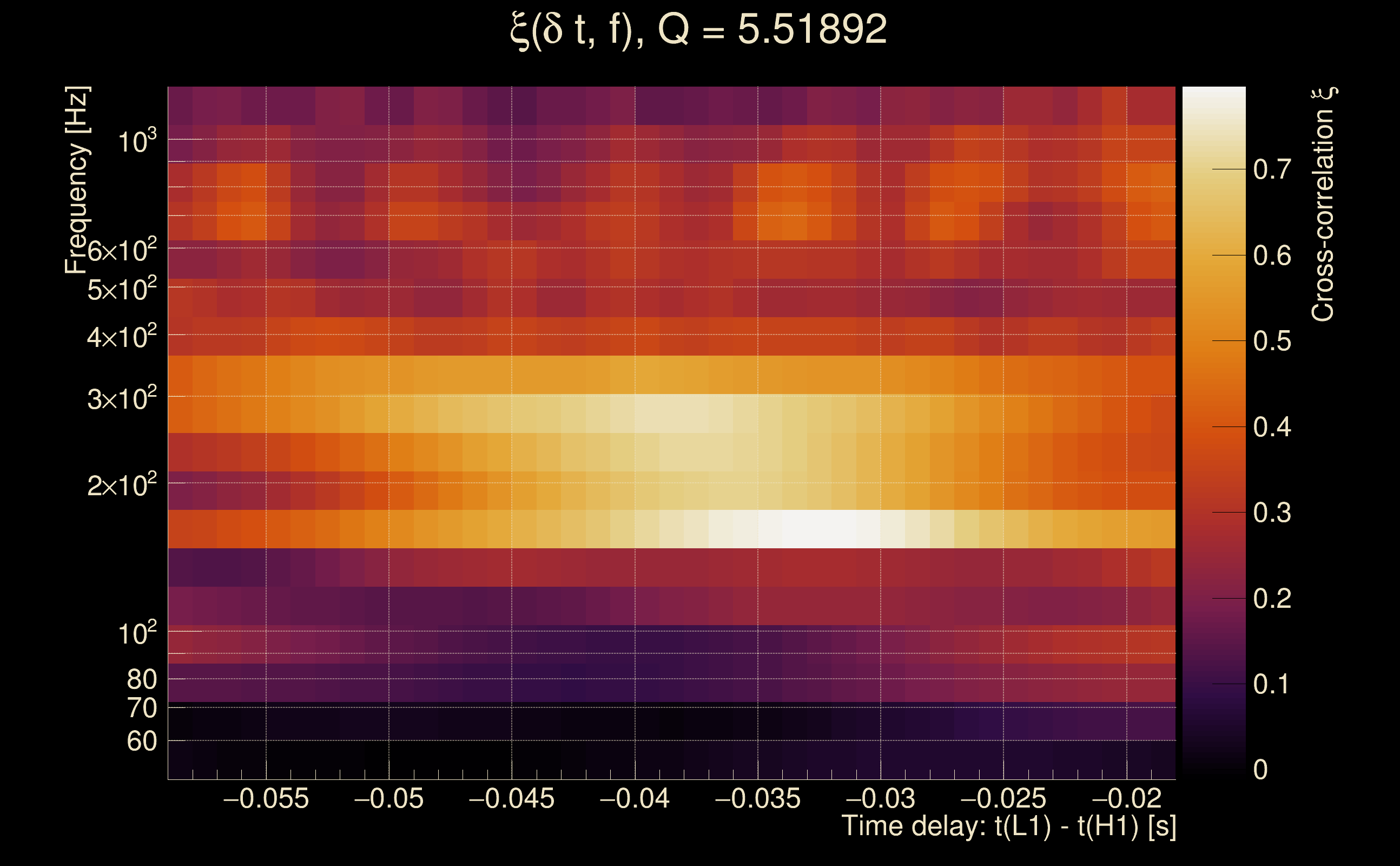

| Time delay between detectors t(L1) - t(H1): | -0.0387364 s (slice index = 109 / 217), δt_gw = 0.00726356 s |
| Time delay standard deviation: | 0.0771682 s |
| [targeted mode] Time delay probability: | 0.844073 (0.196686 sigmas), δt_target = -0.00994134 s |
| Frequency: | 364.628 Hz |
| Ξ: | 0.197635 ± 0.0832633 (variance = 0.00693278): Q0: 0.582669, Q1: 0.598893, Q2: 0.712798, Q3: 0.568471, Q4: 0.45127 |
| Rank: | R_A = 0.0985816 |
| Log of amplitude ratio (L1/H1): | -0.276019, variance = 0.188687 (L1/H1: -0.49594, variance = 0.392927, H1/L1: -0.00615005, variance = 0.336654) |
| Amplitude ratio (L1/H1): | 0.758798 ⋇ 1.54401 (L1/H1: 0.608998 ⋇ 1.87168, H1/L1: 0.993869 ⋇ 1.78643) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.556653 |
| Antenna factor probability: | 0.896083 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 24 / 36, Q2: 63 / 70, Q3: 119 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 38.14, L1: 33.6712 |
| SNR variance: | H1: 1.09765, L1: 0.918763 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

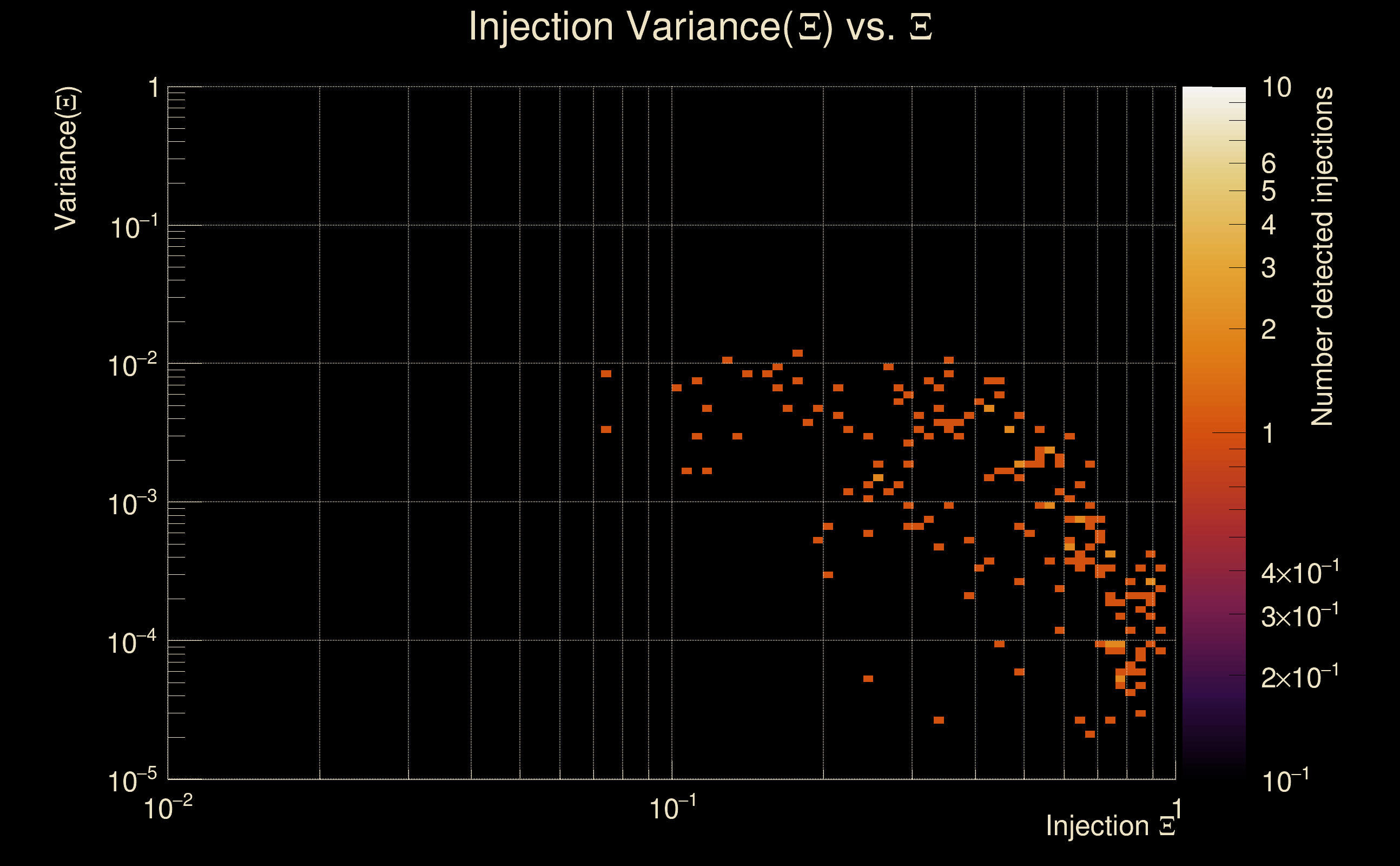

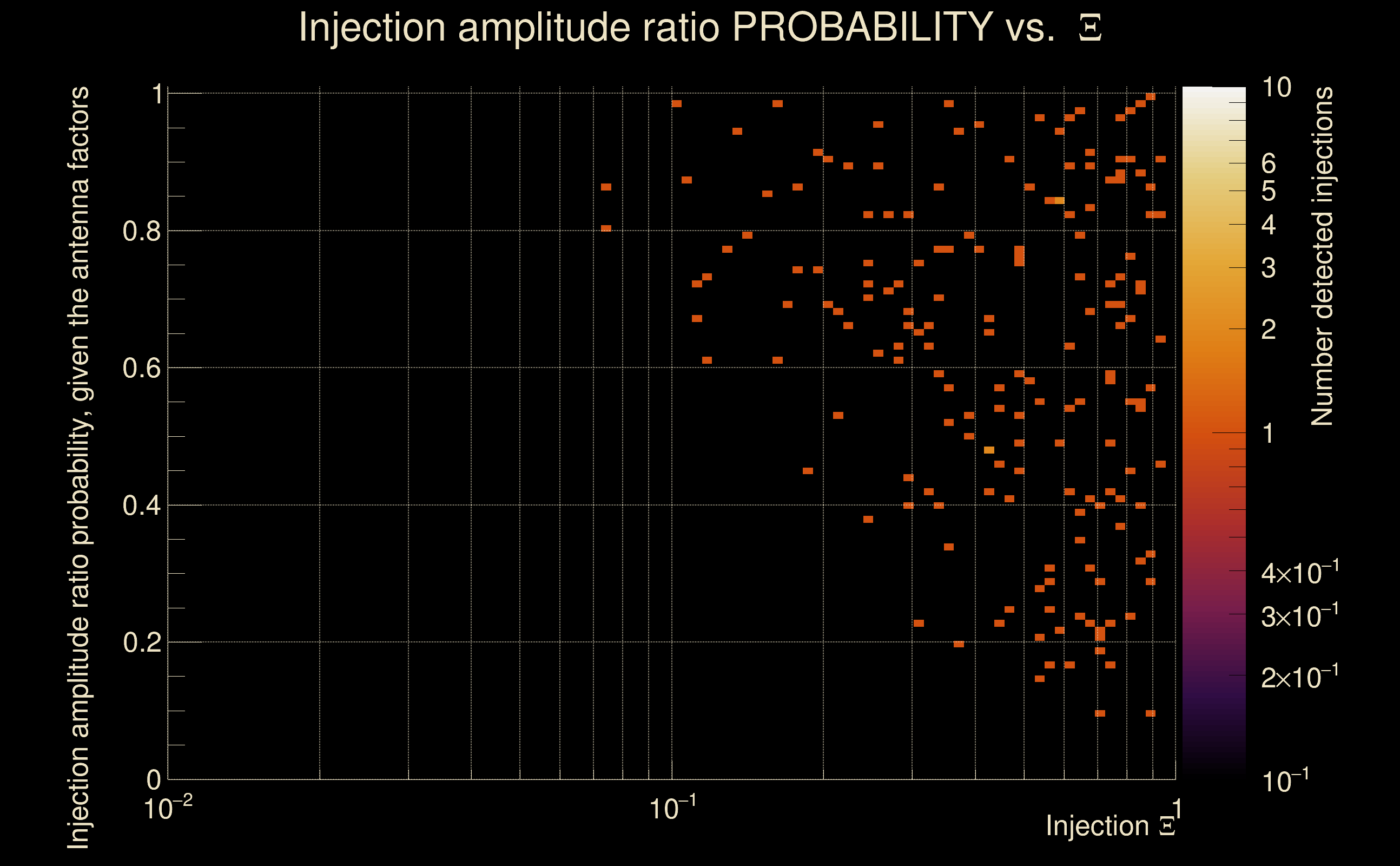

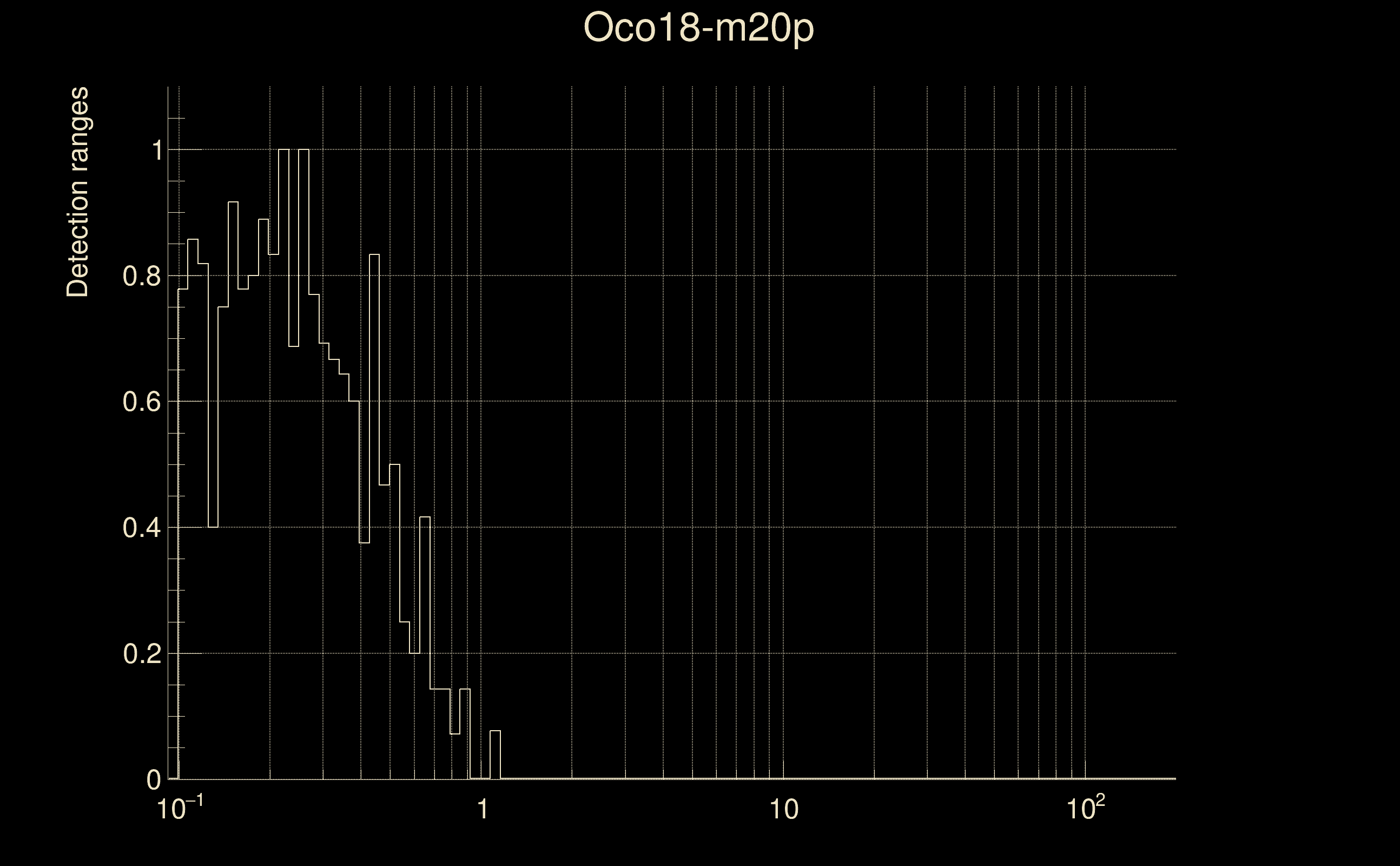

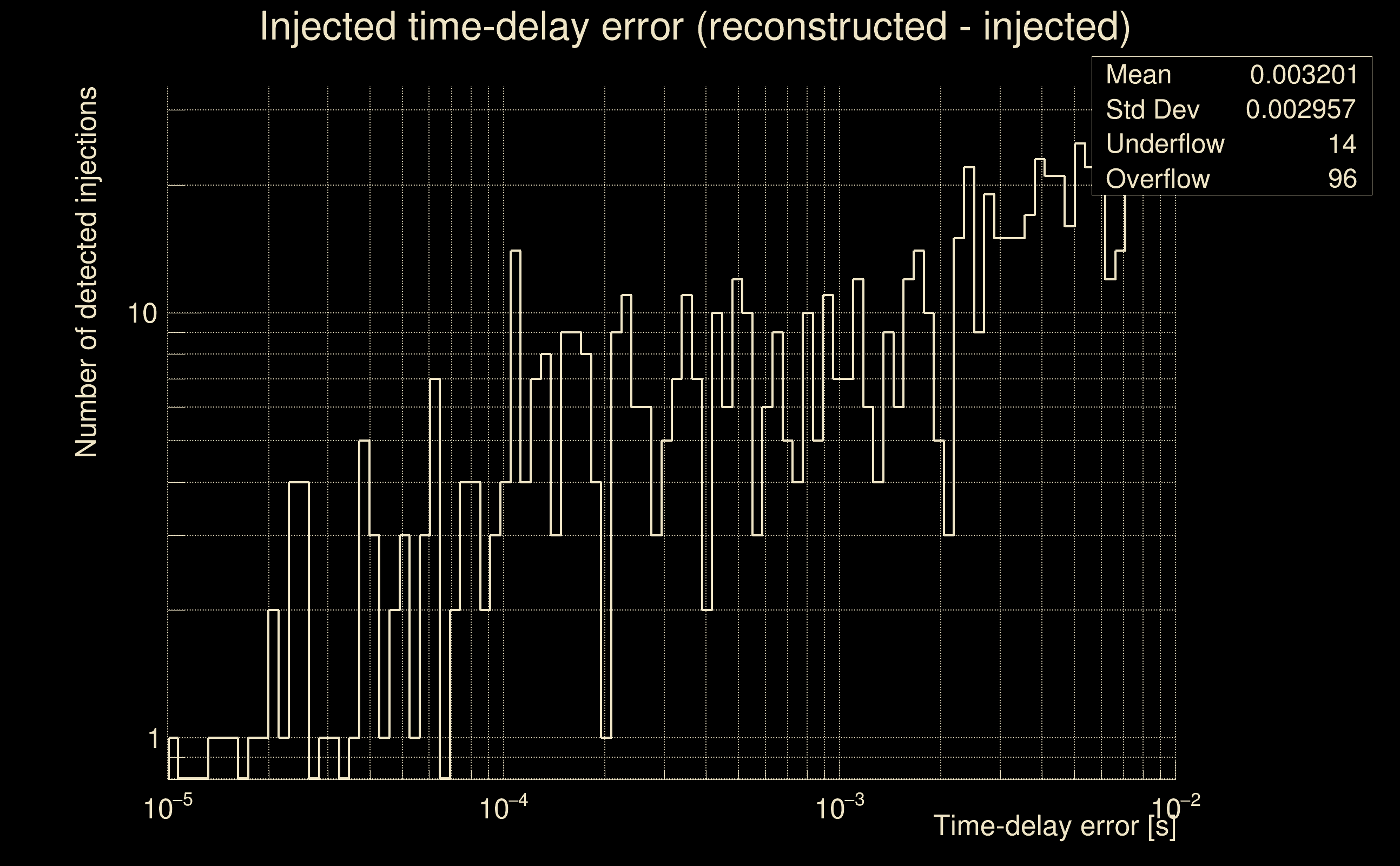

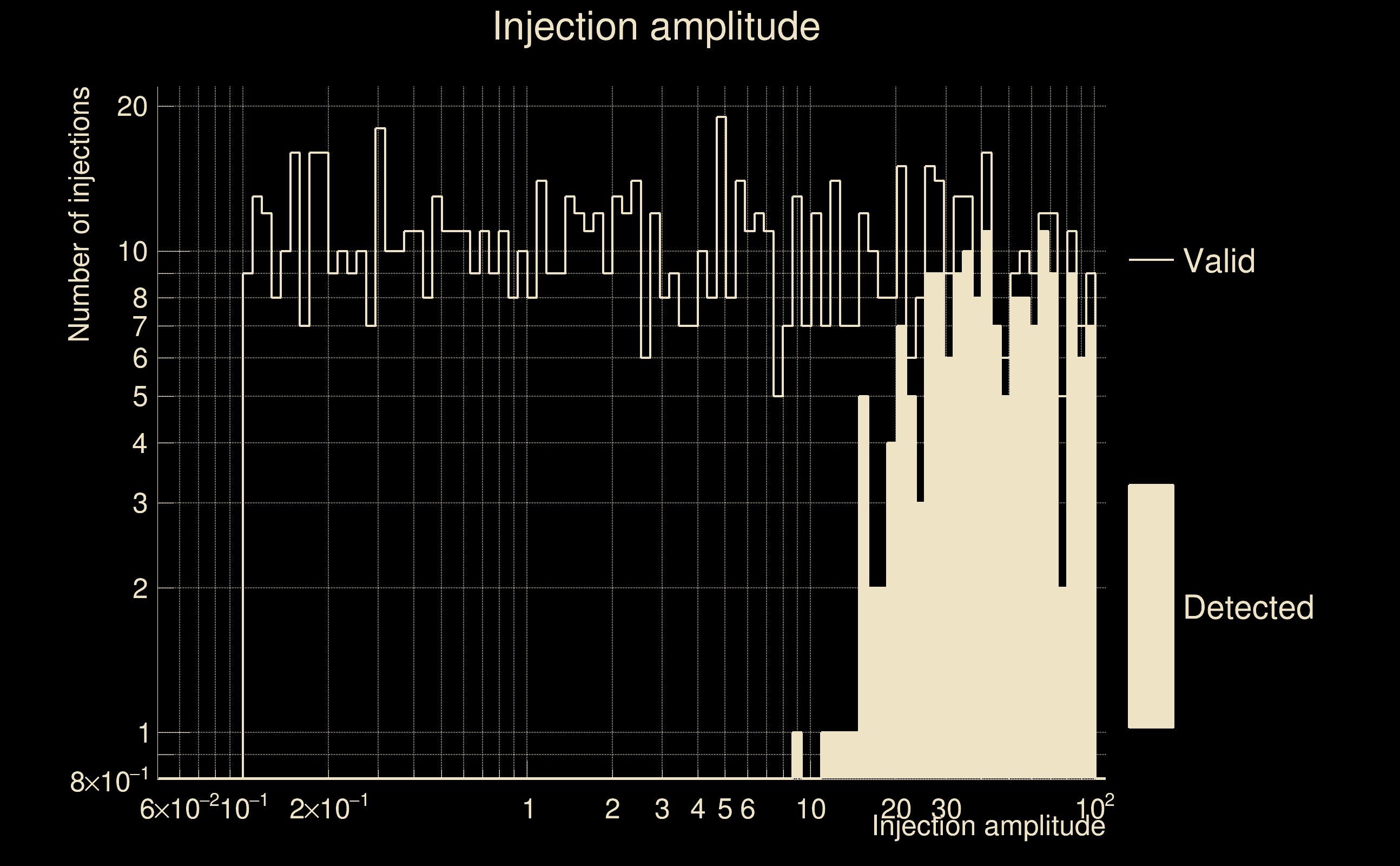

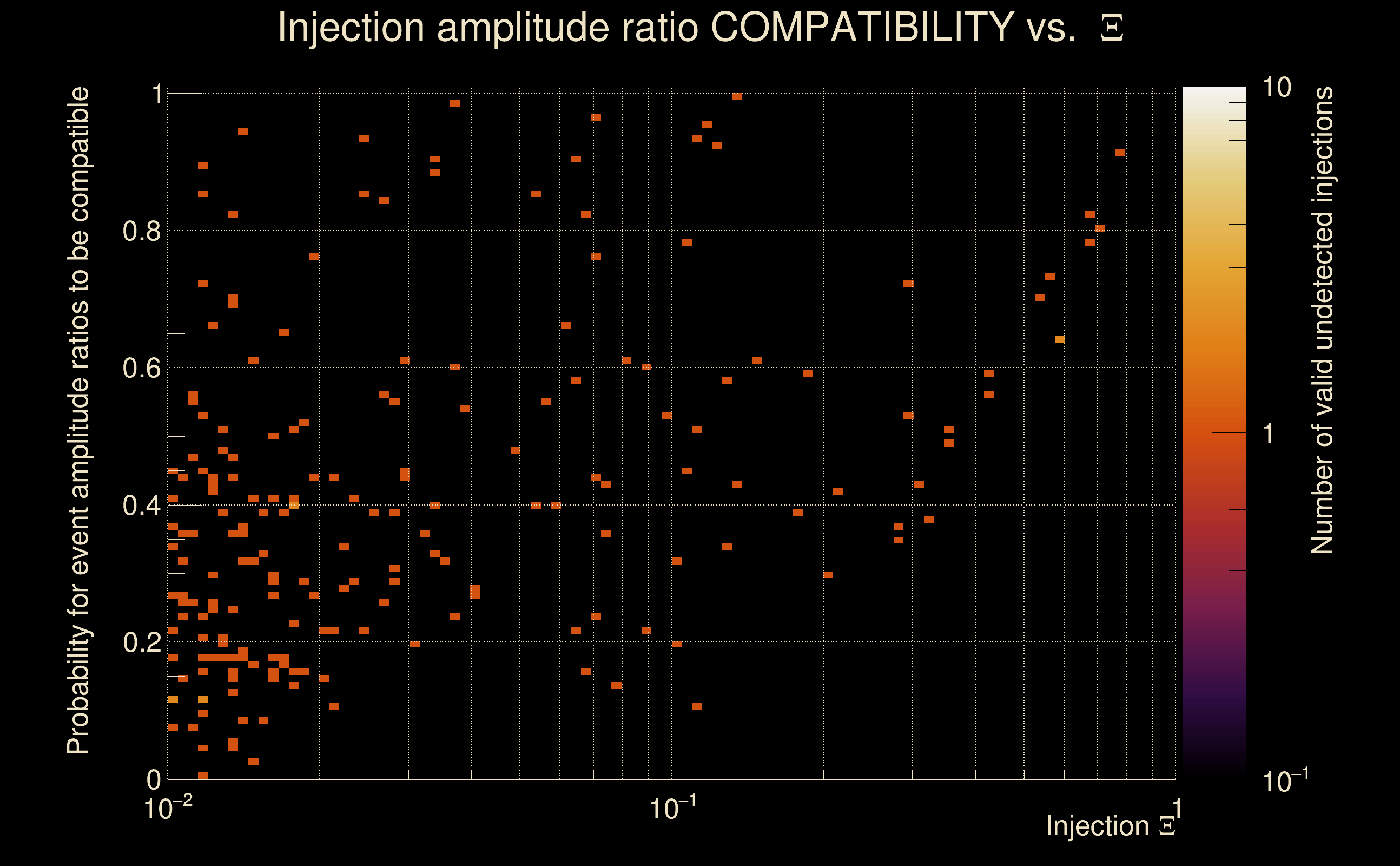

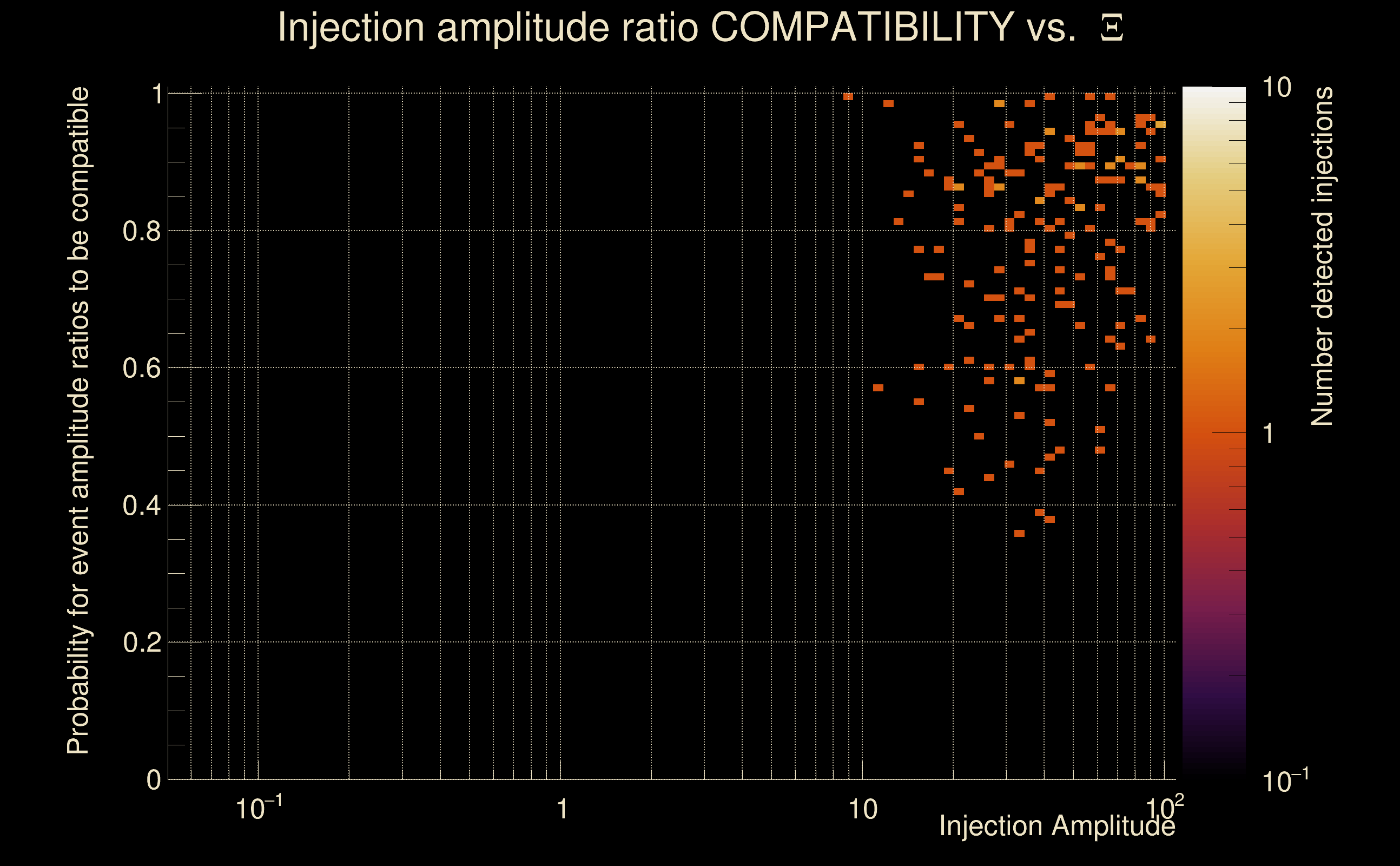

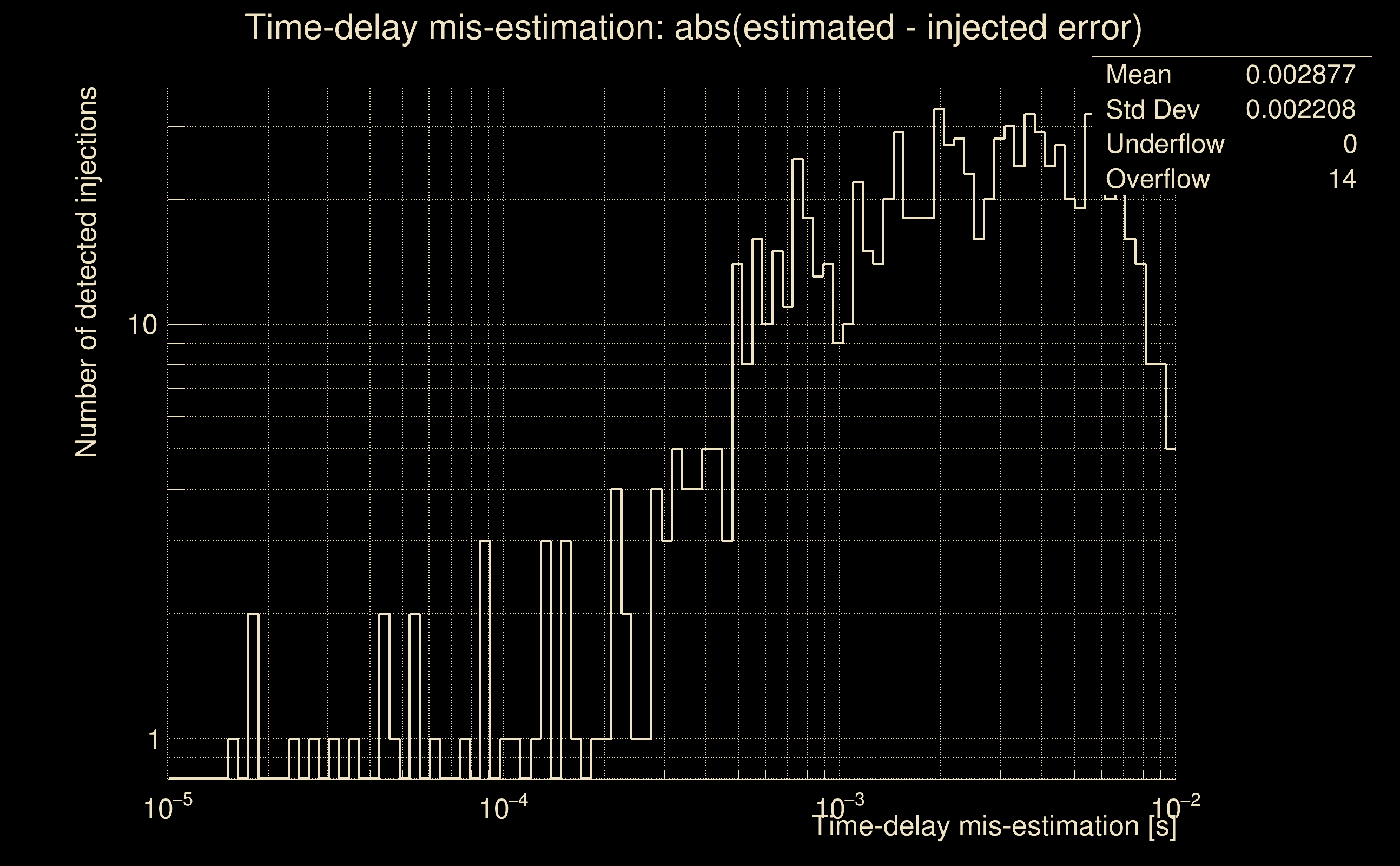

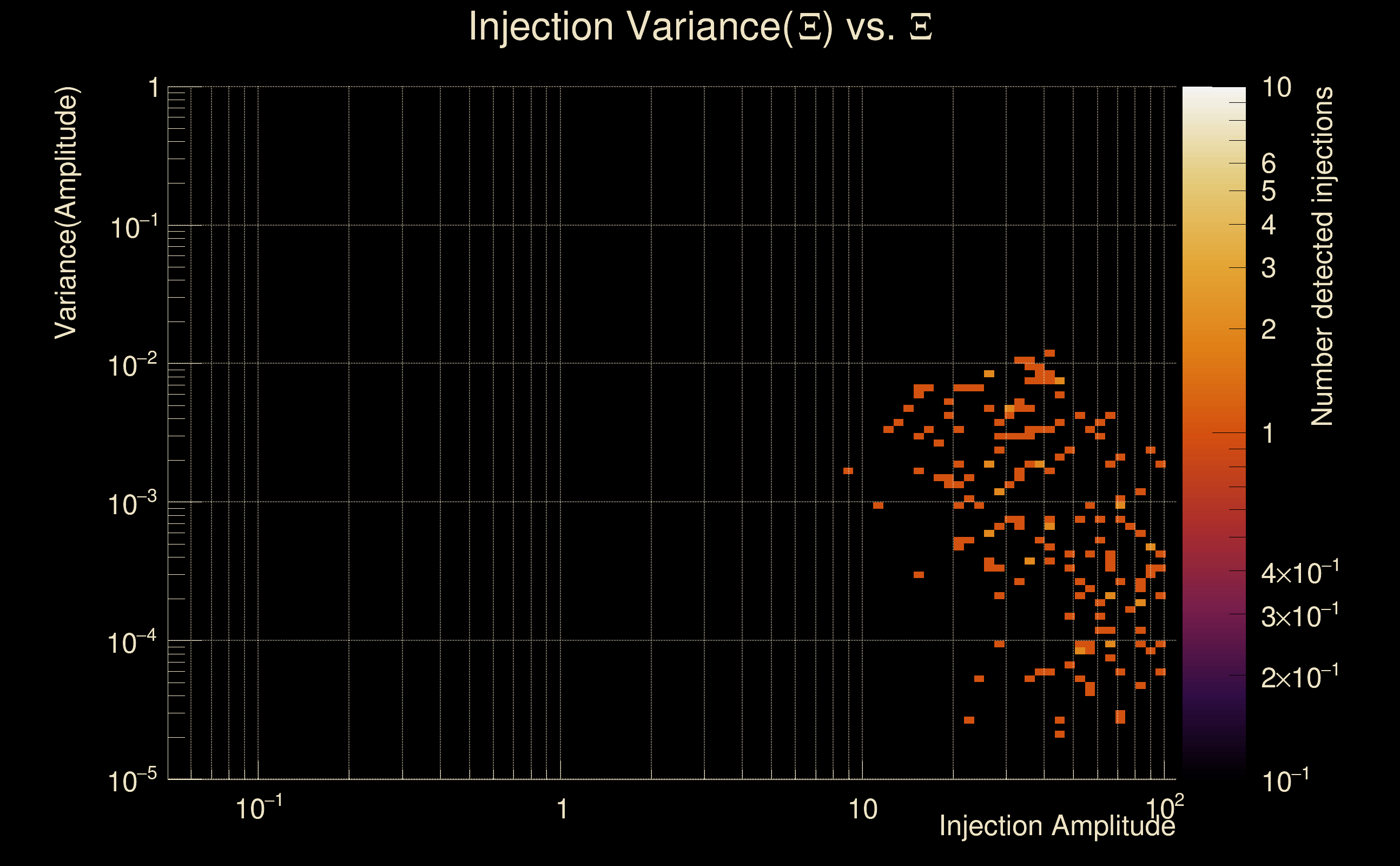

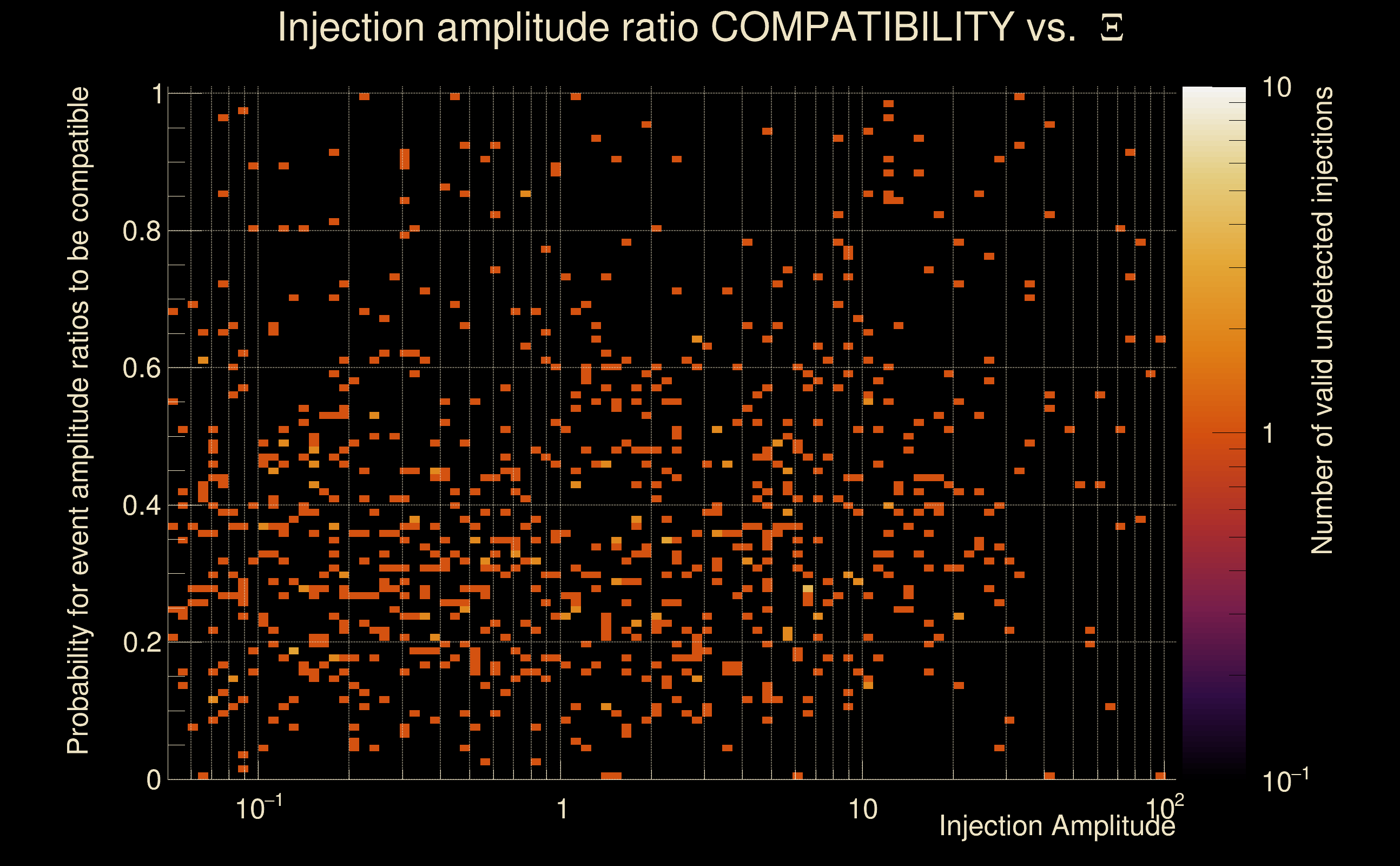

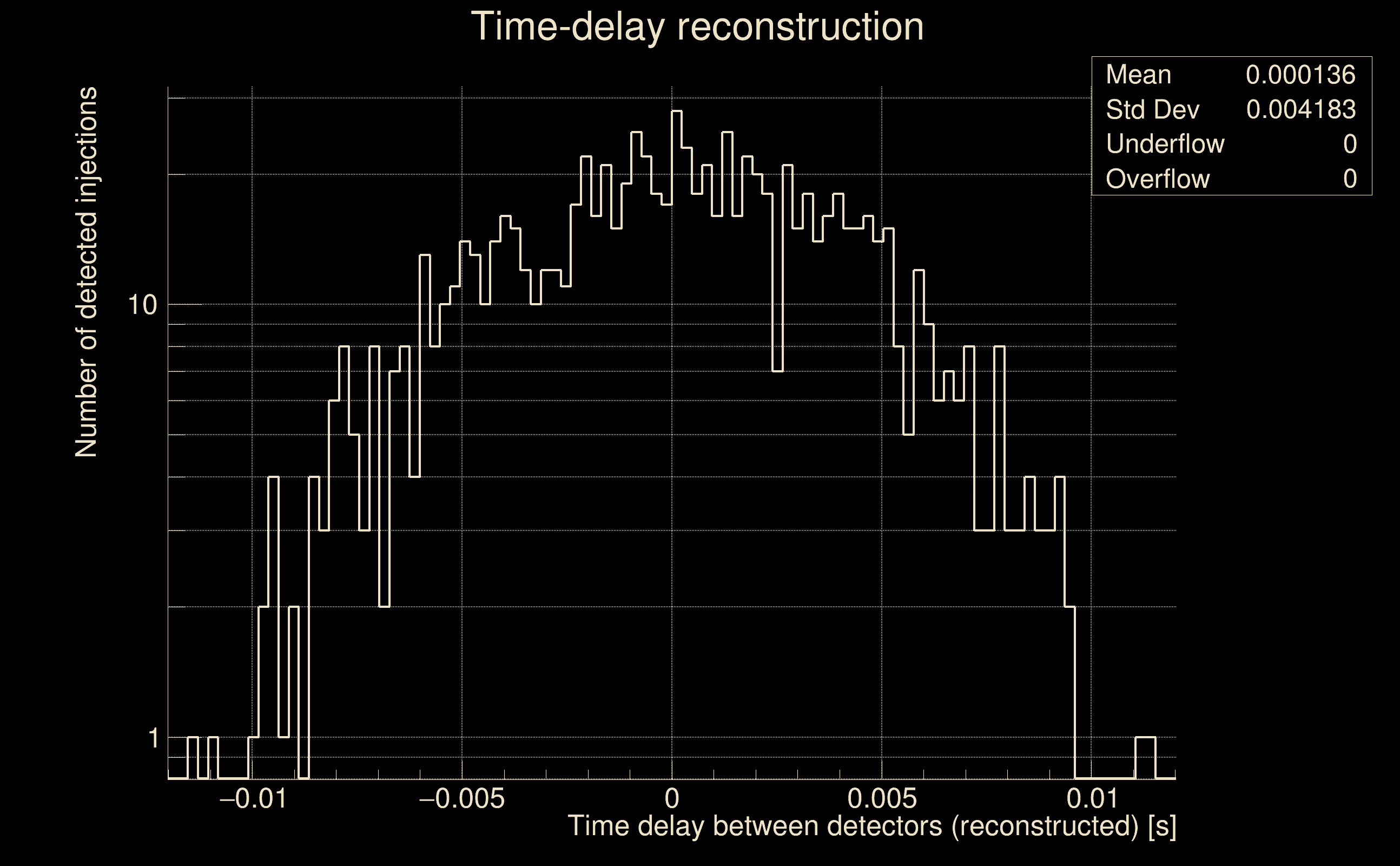

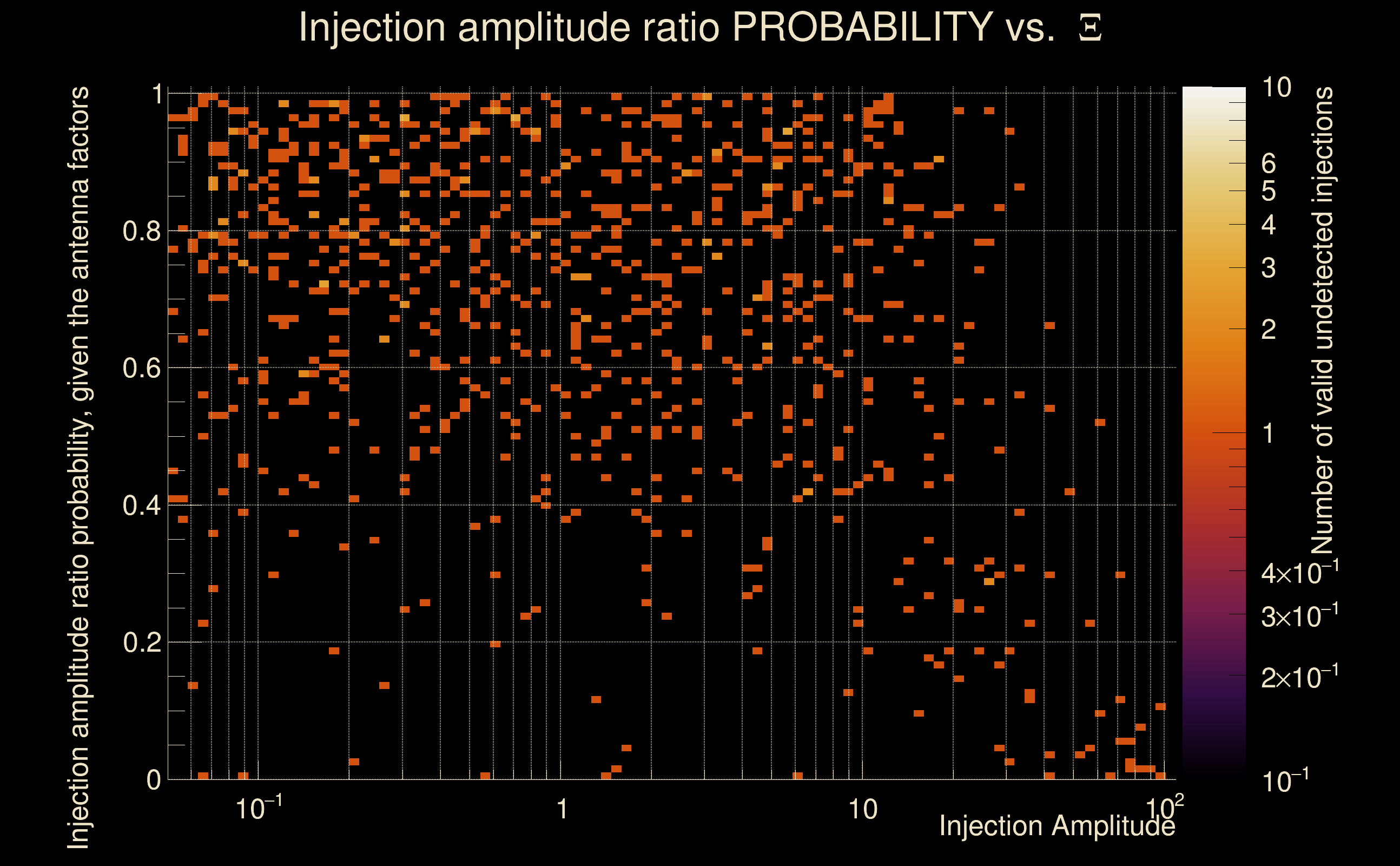

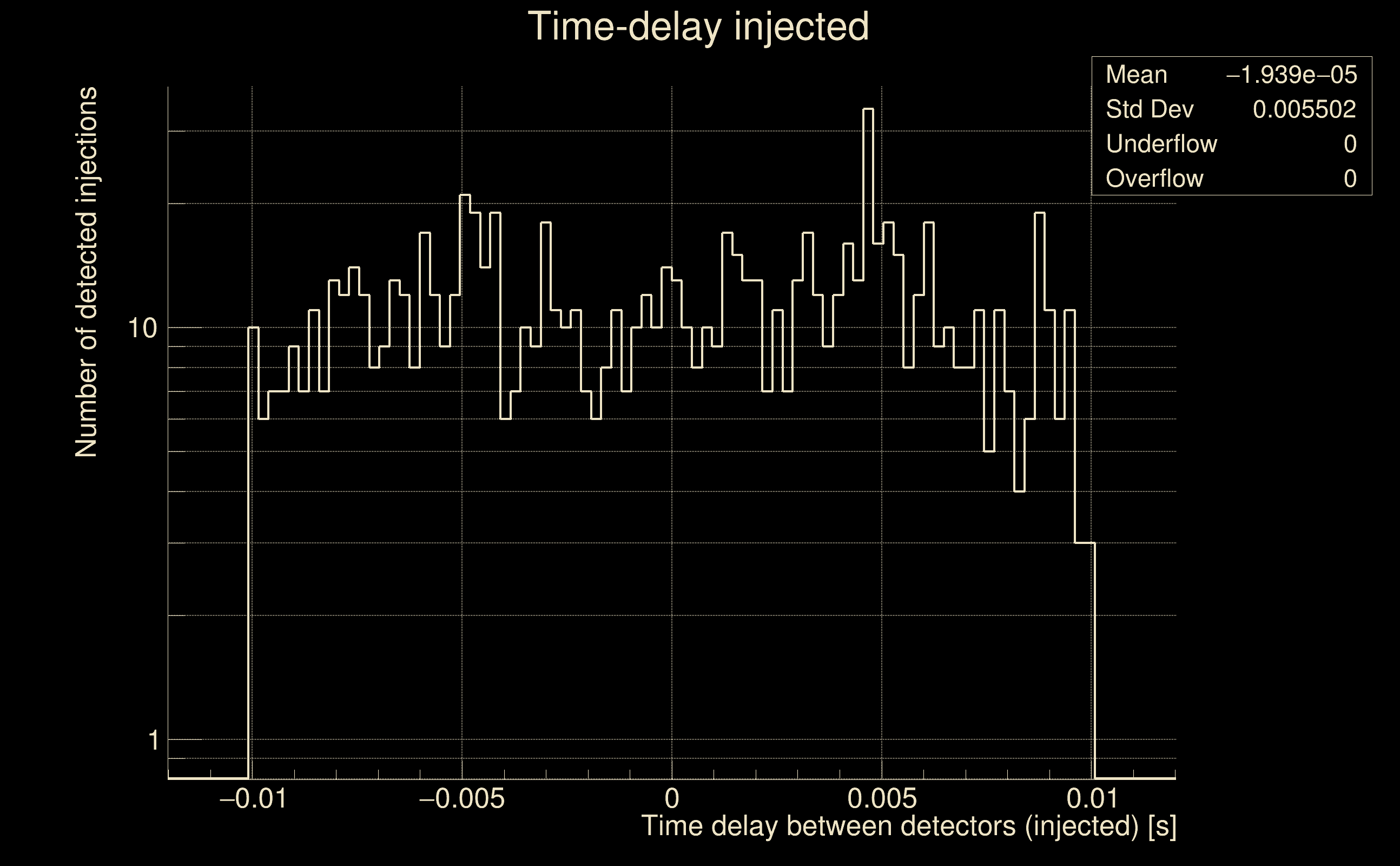

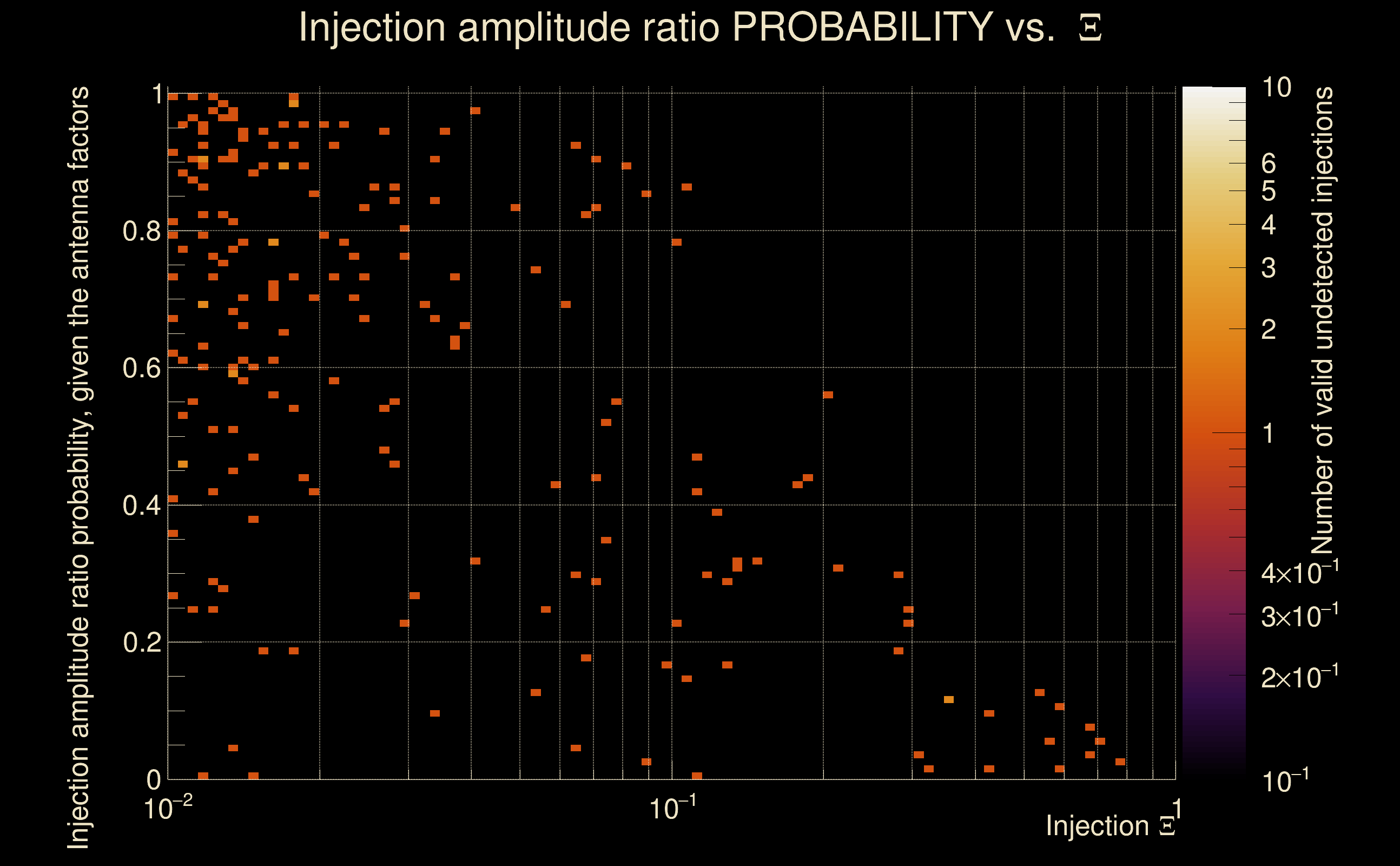

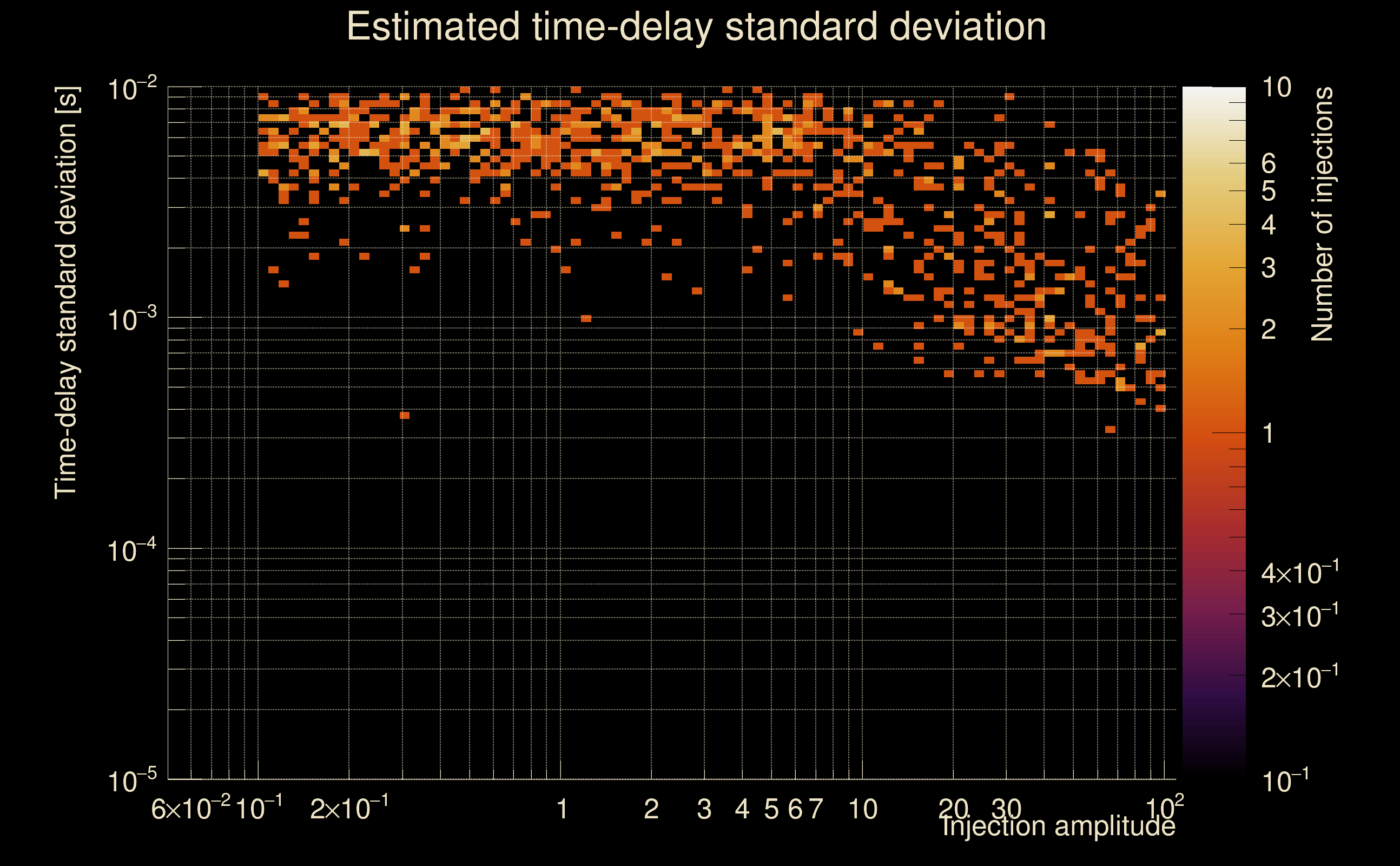

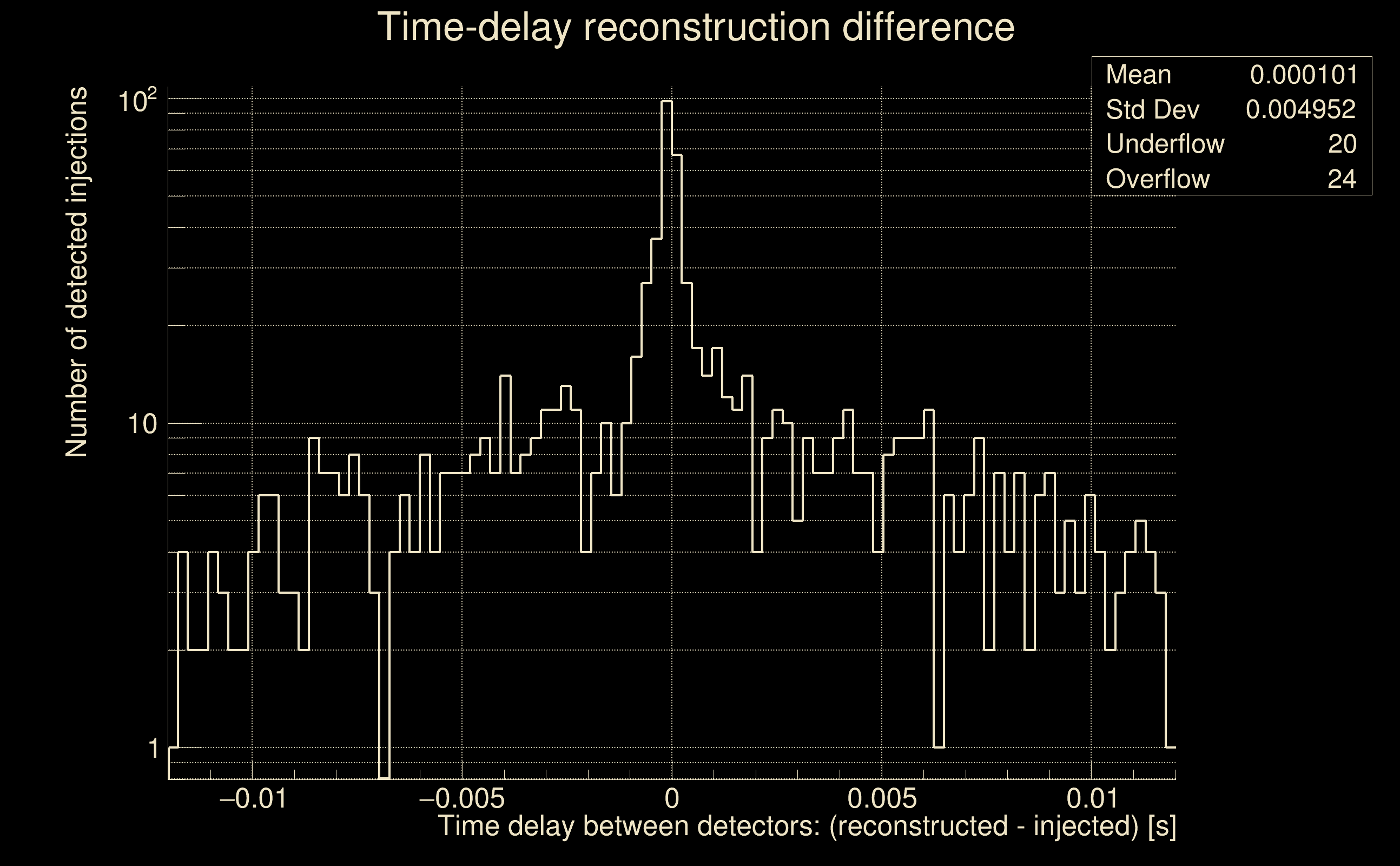

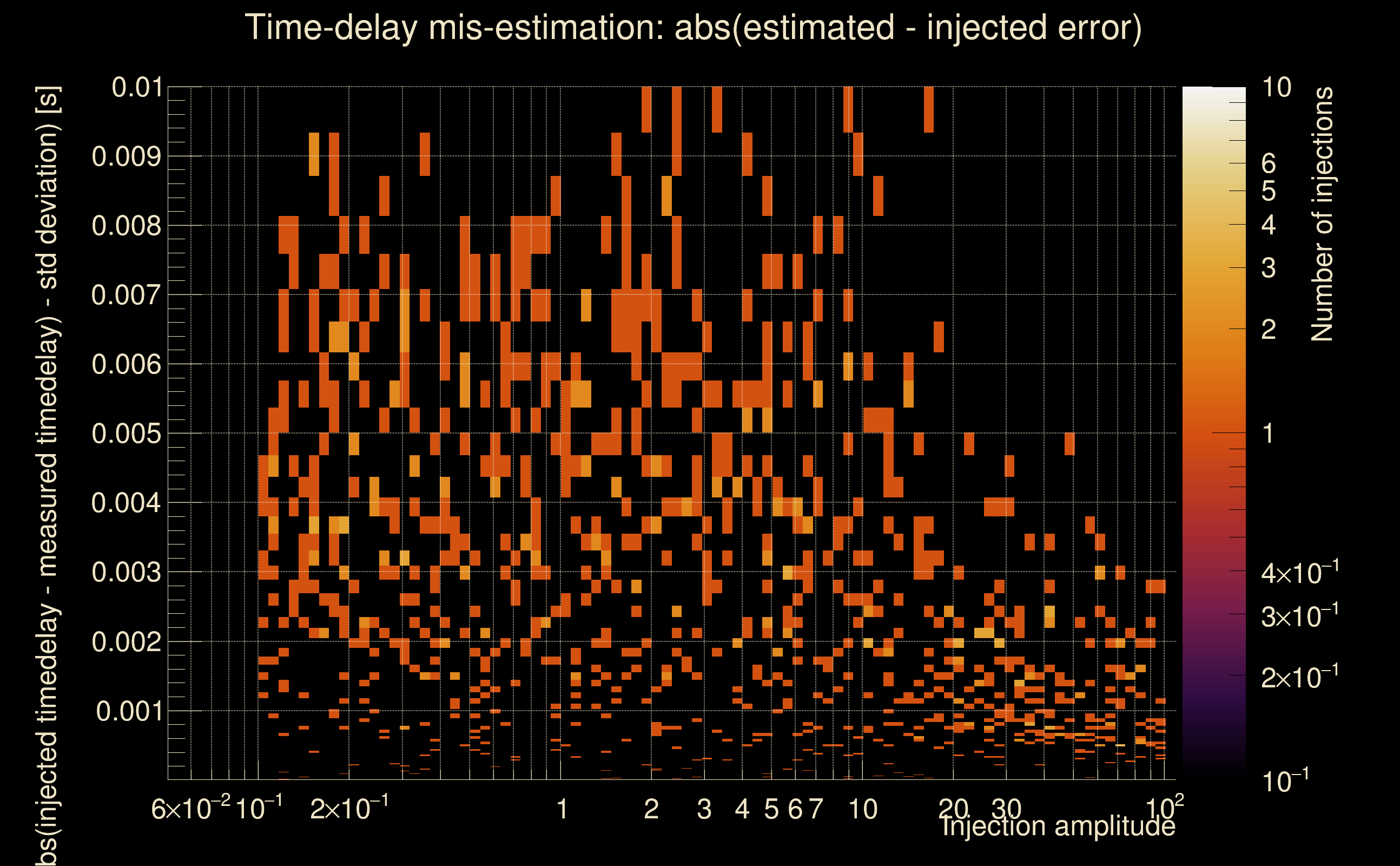

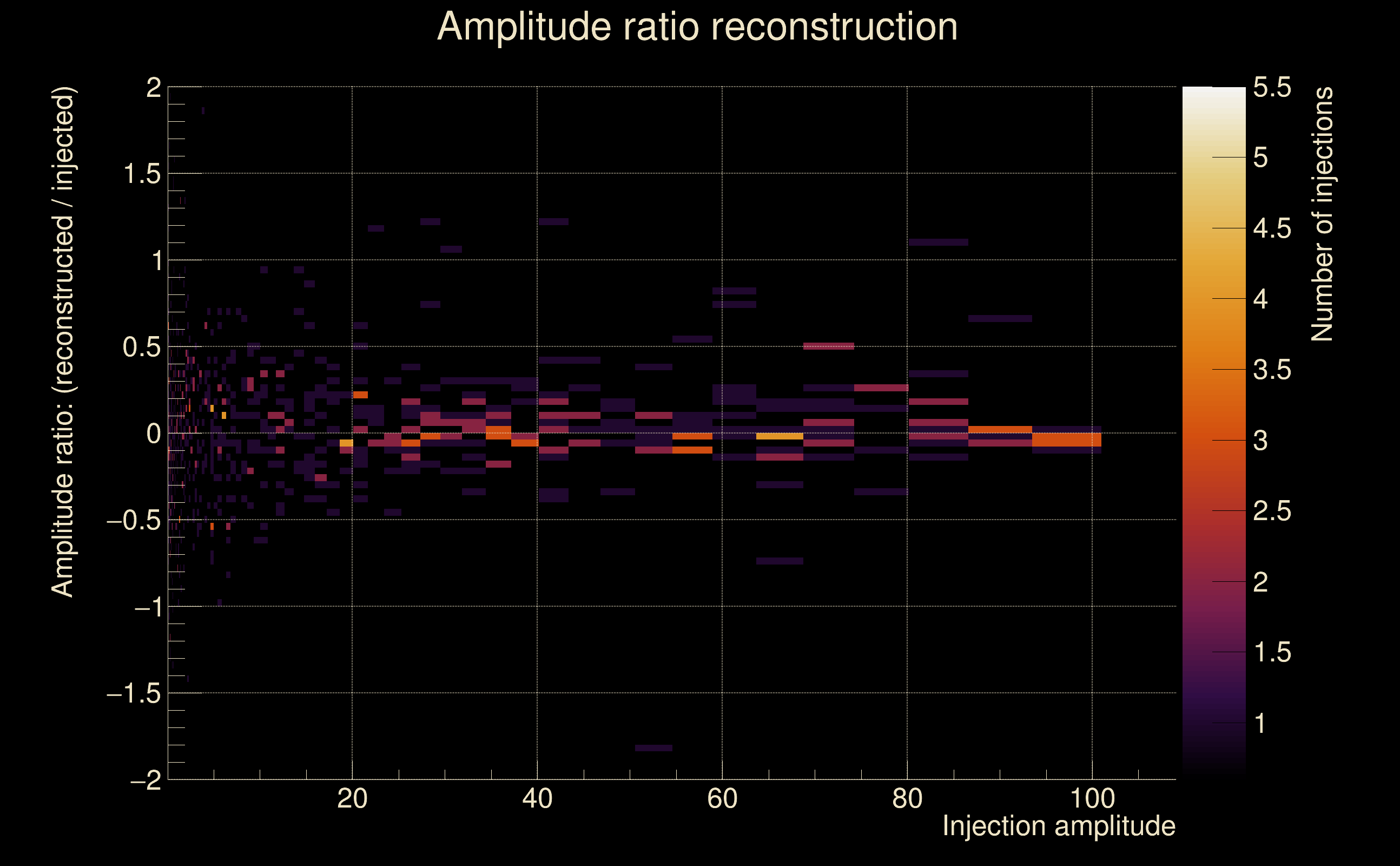

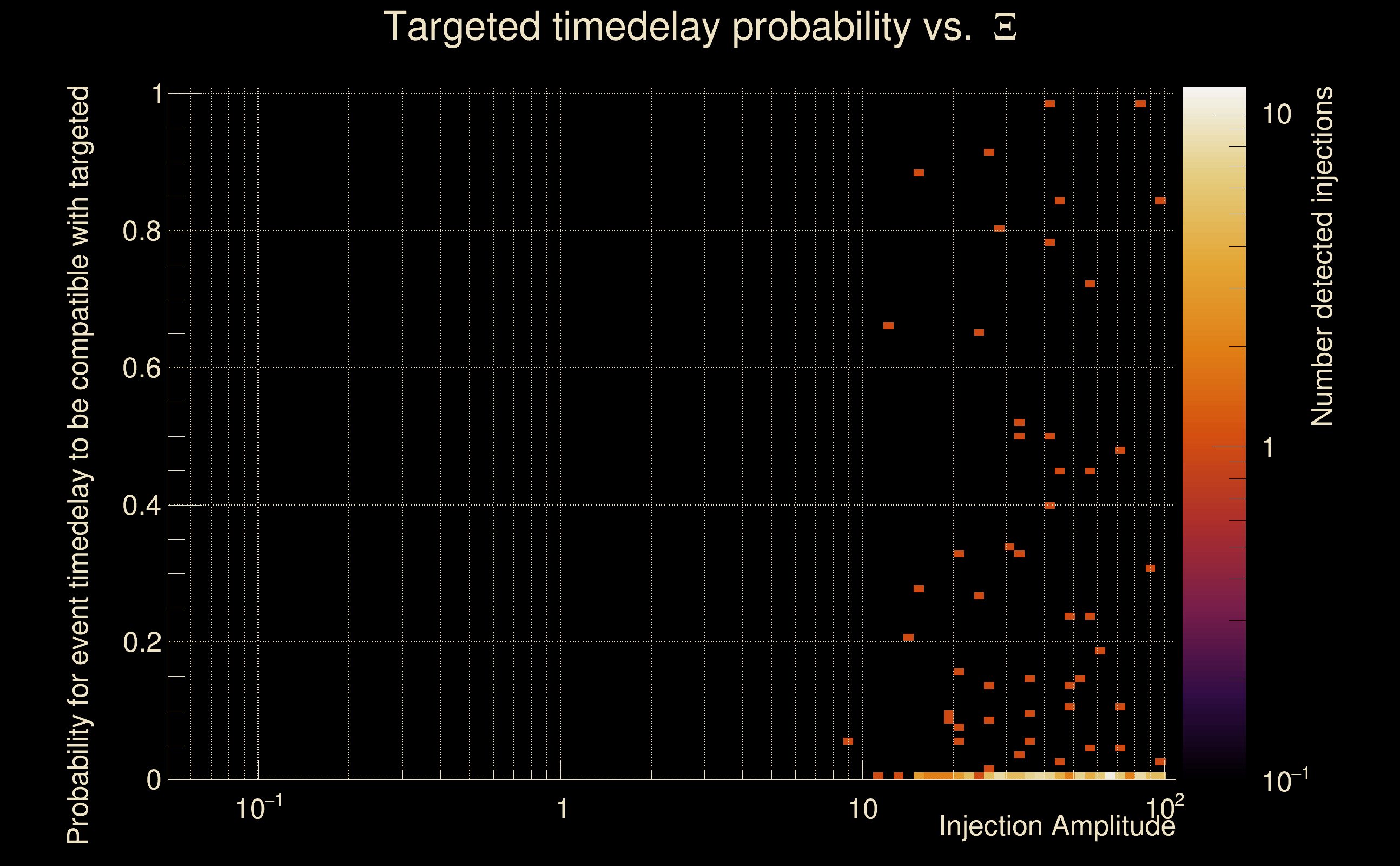

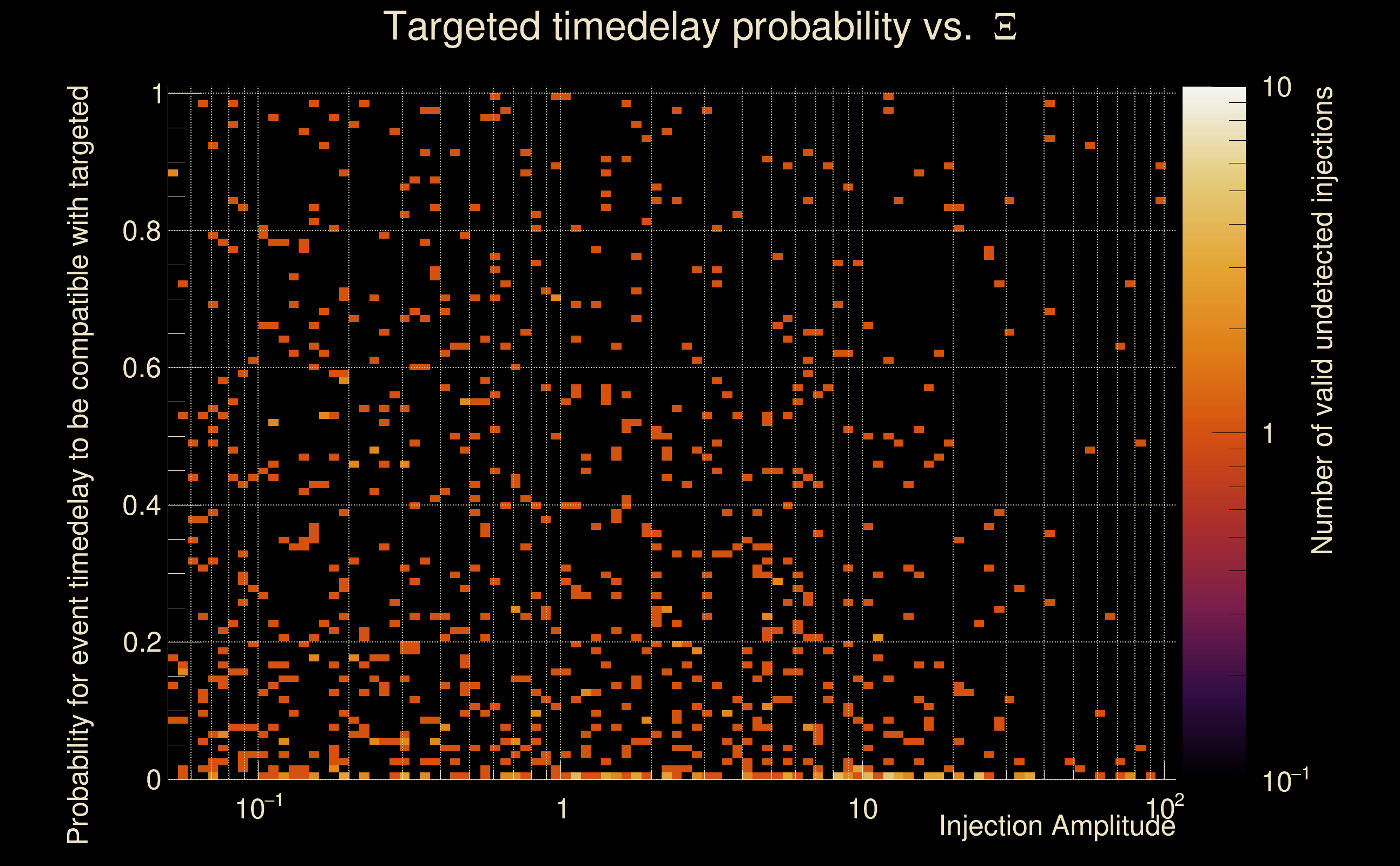

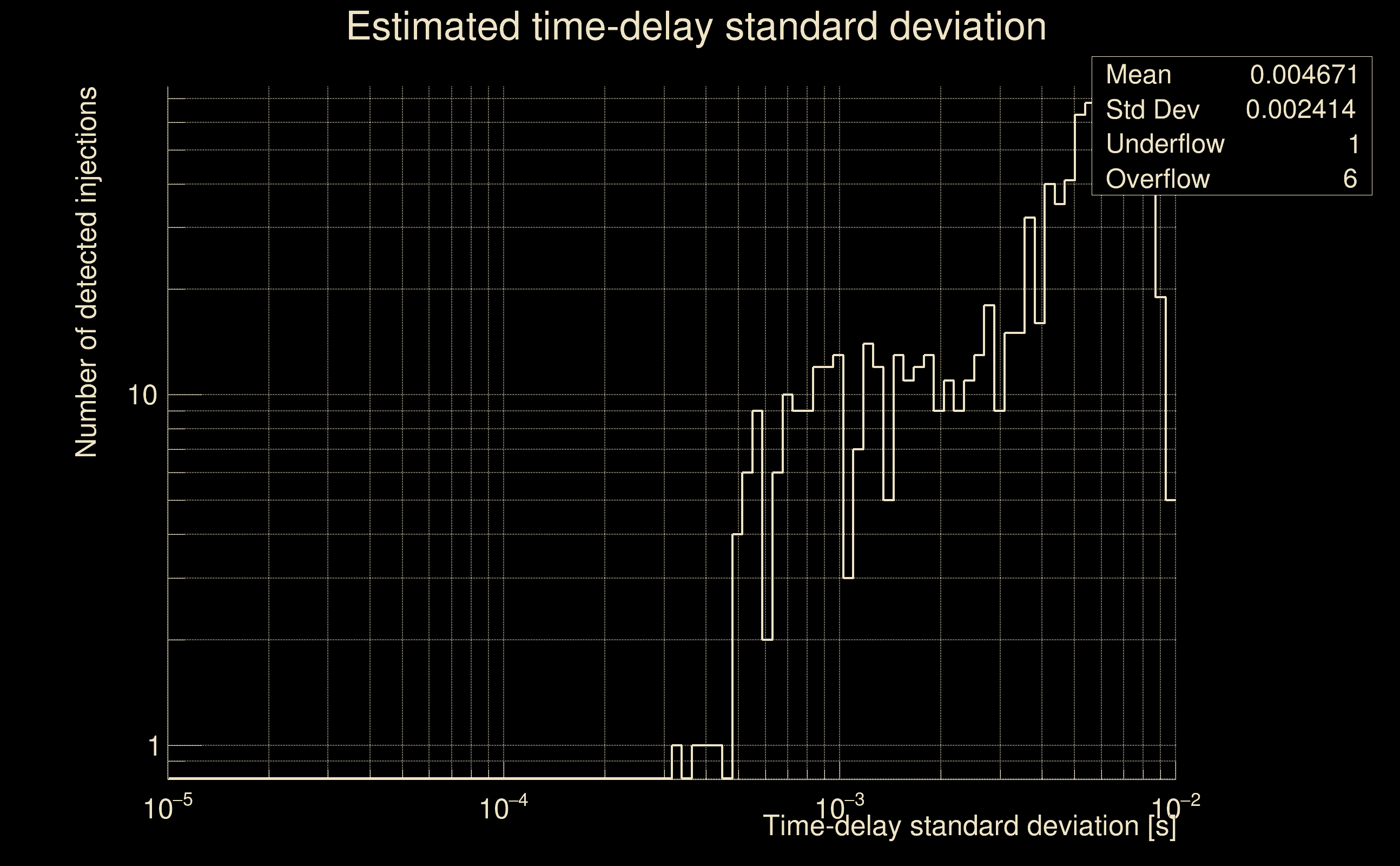

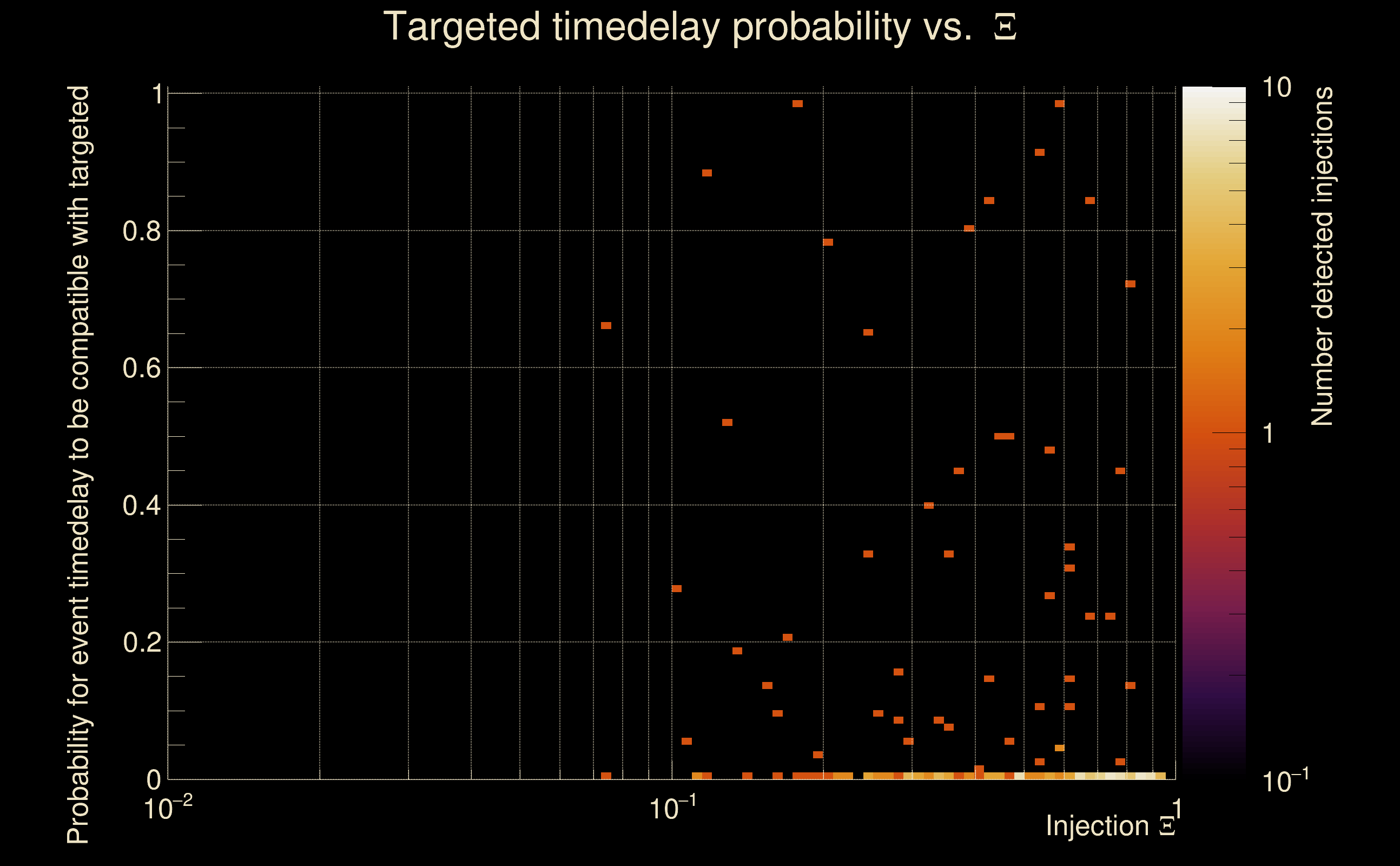

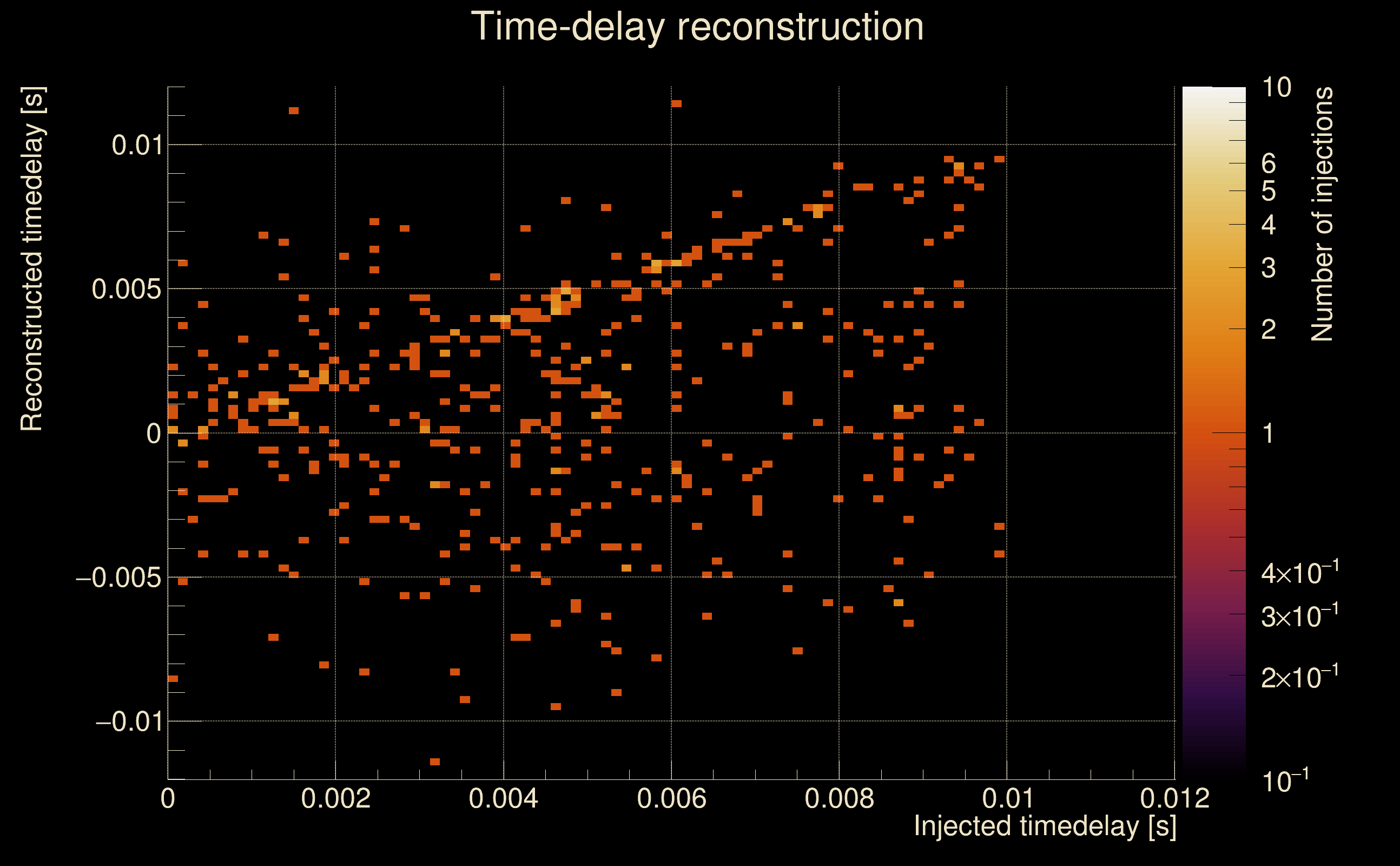

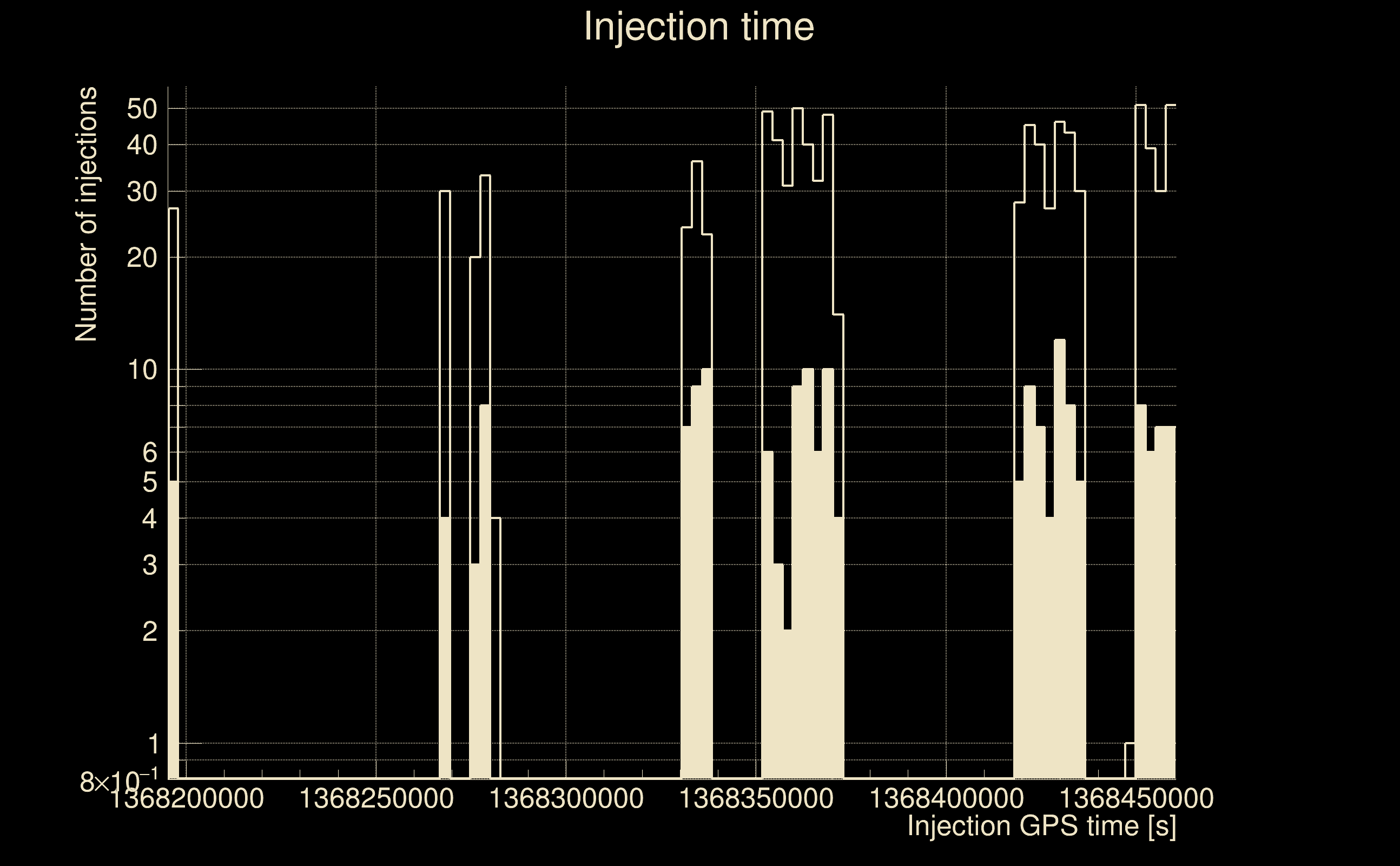

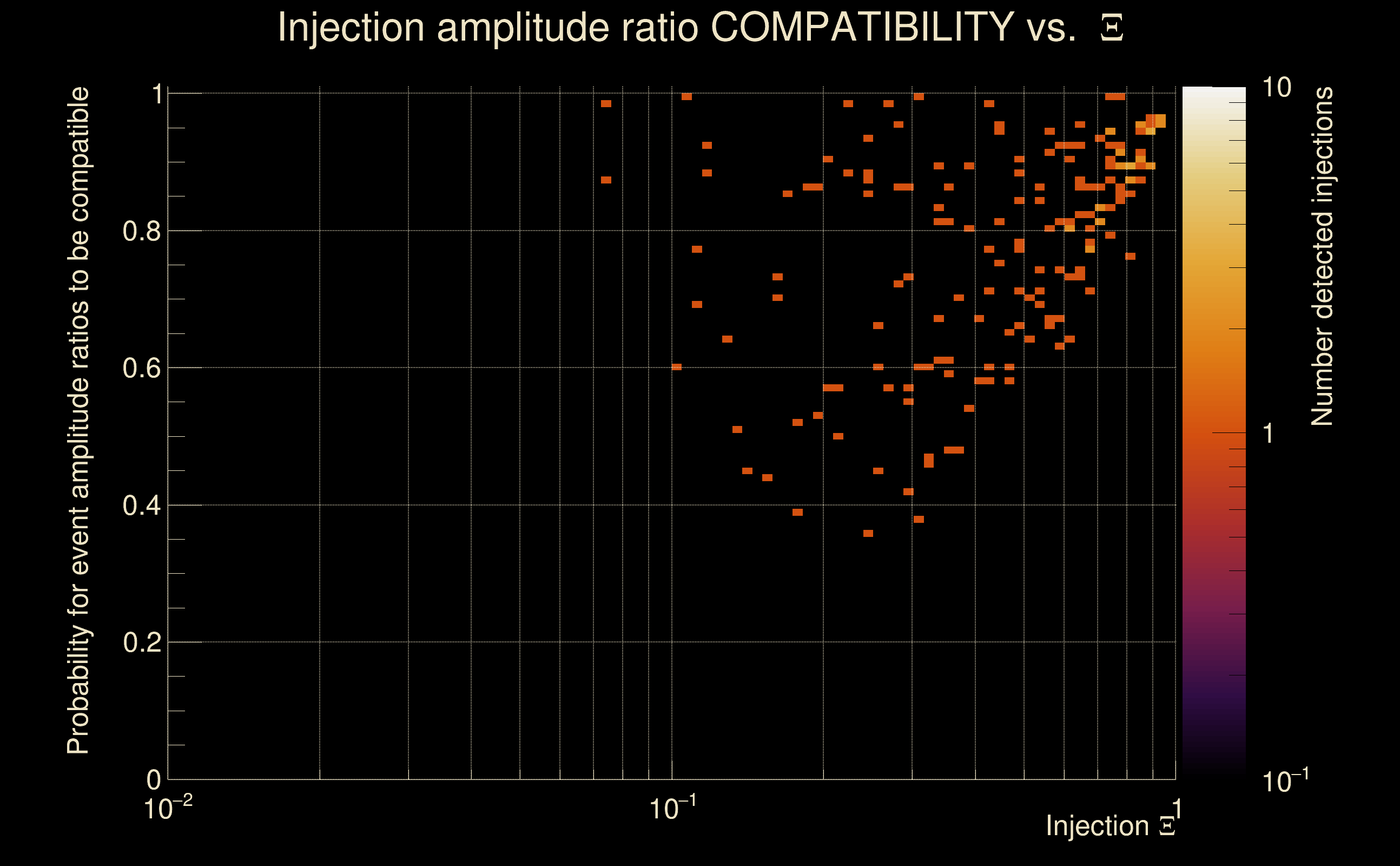

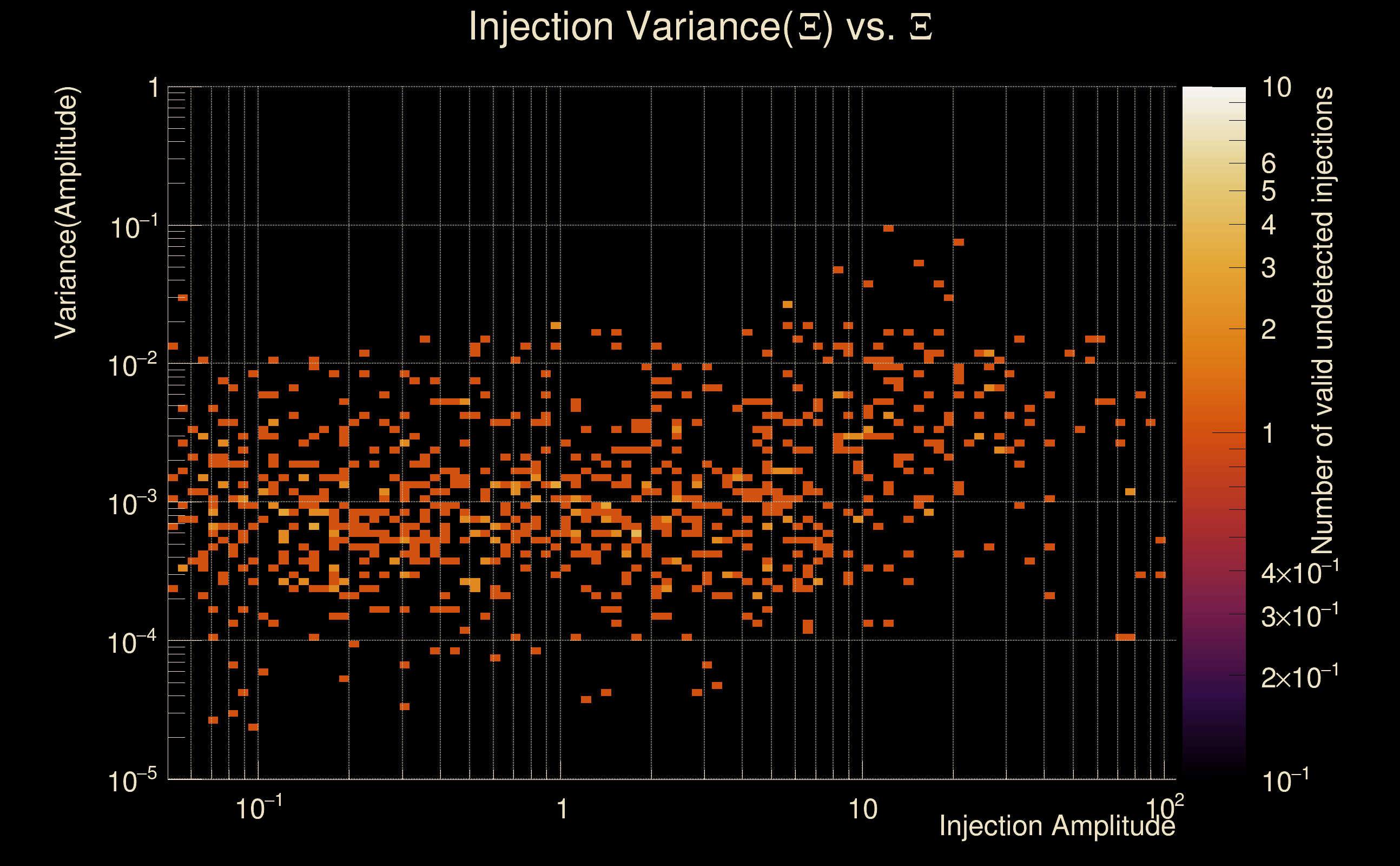

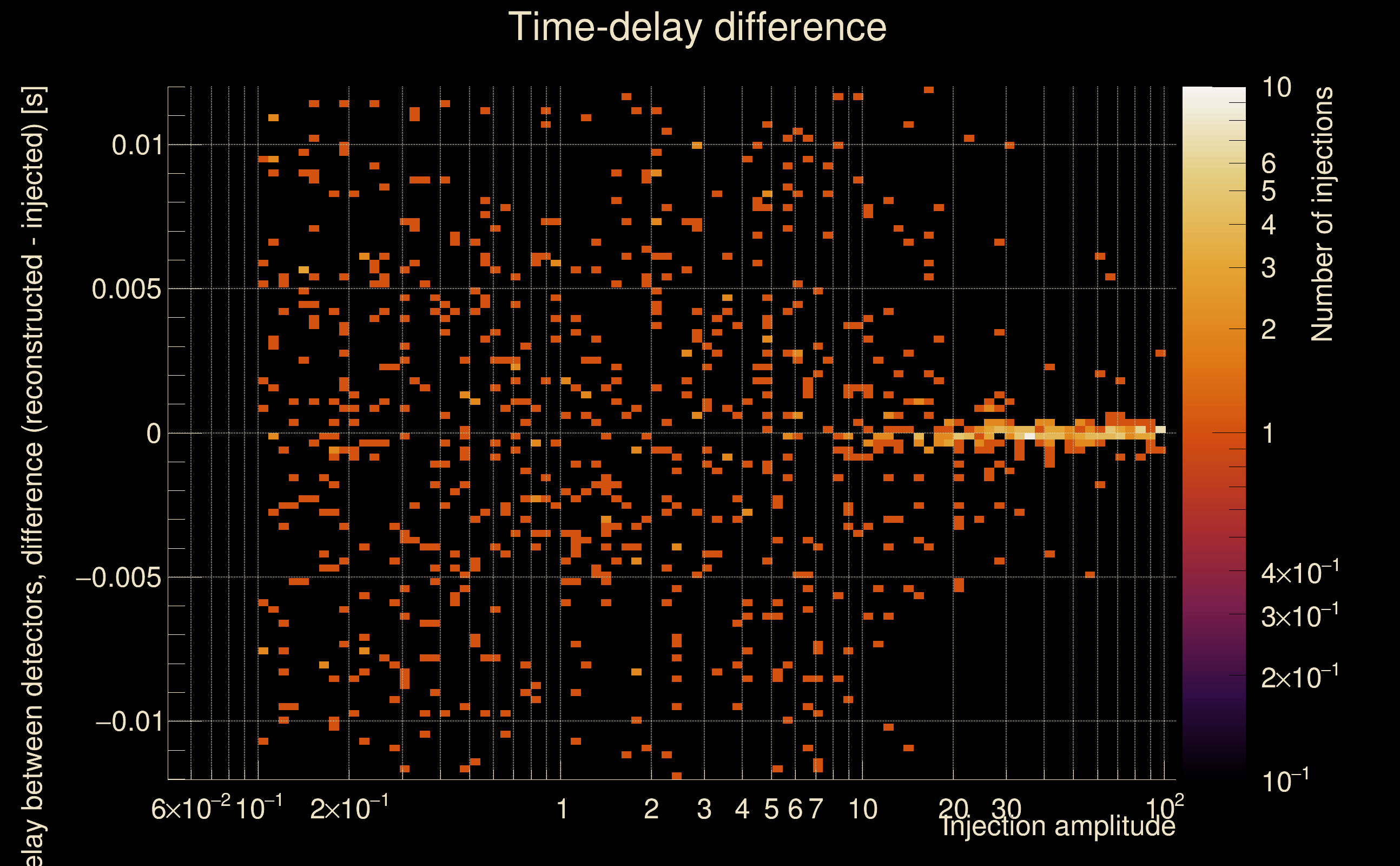

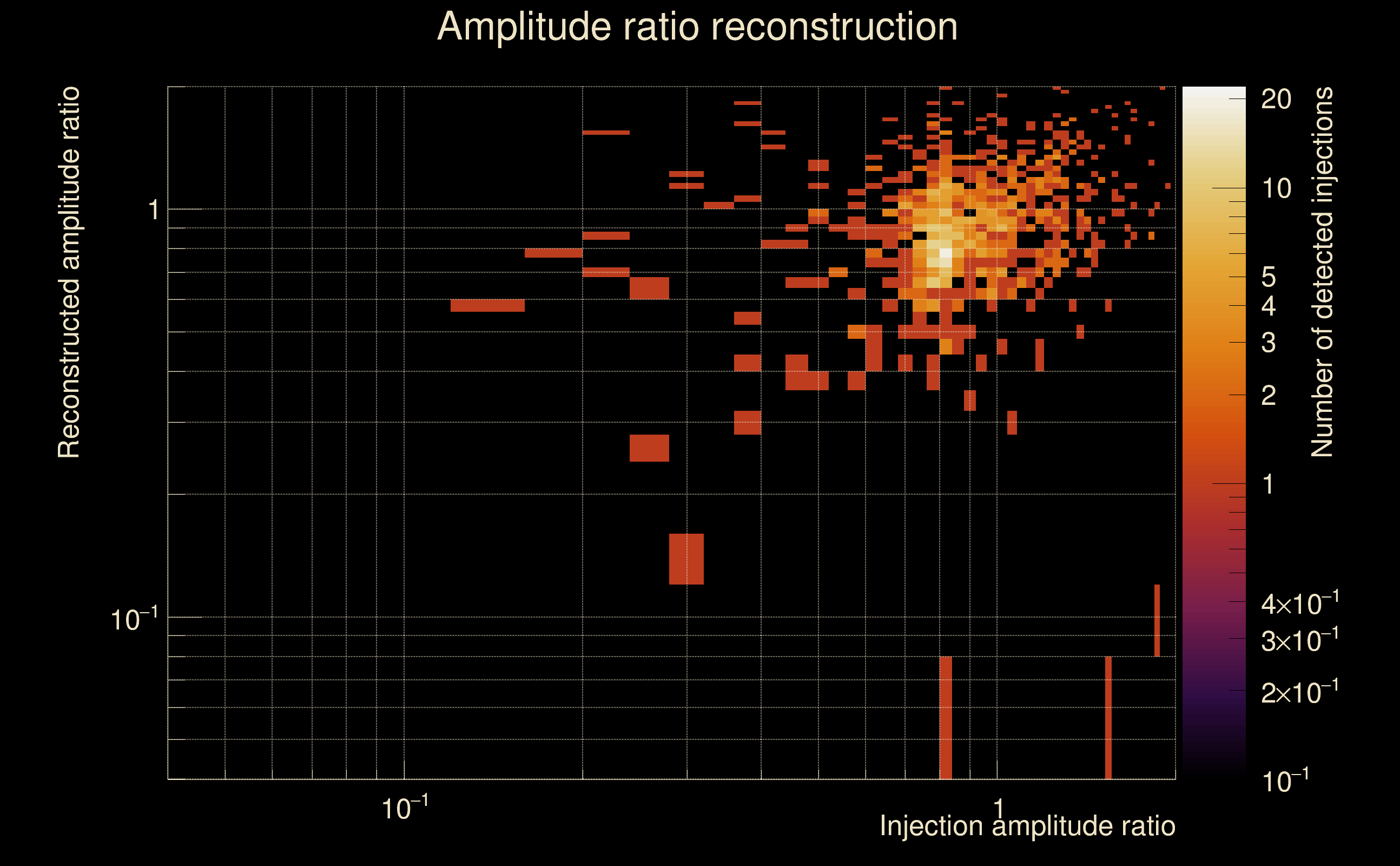

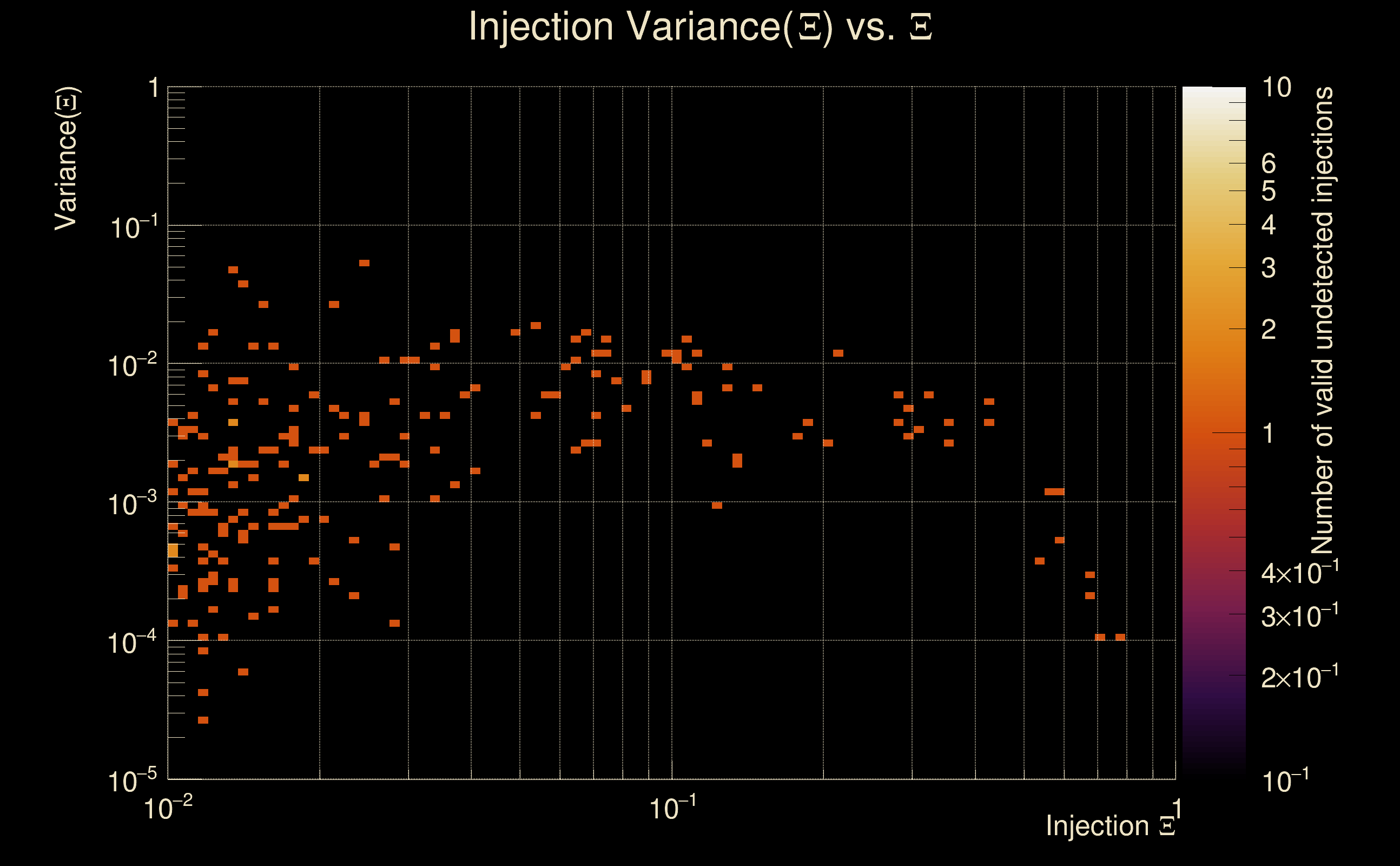

| Number of injections (total/valid/detected): | 1042 / 933 / 174 |
| List of missed injections: | ./Oco18-m20p_missed.txt |

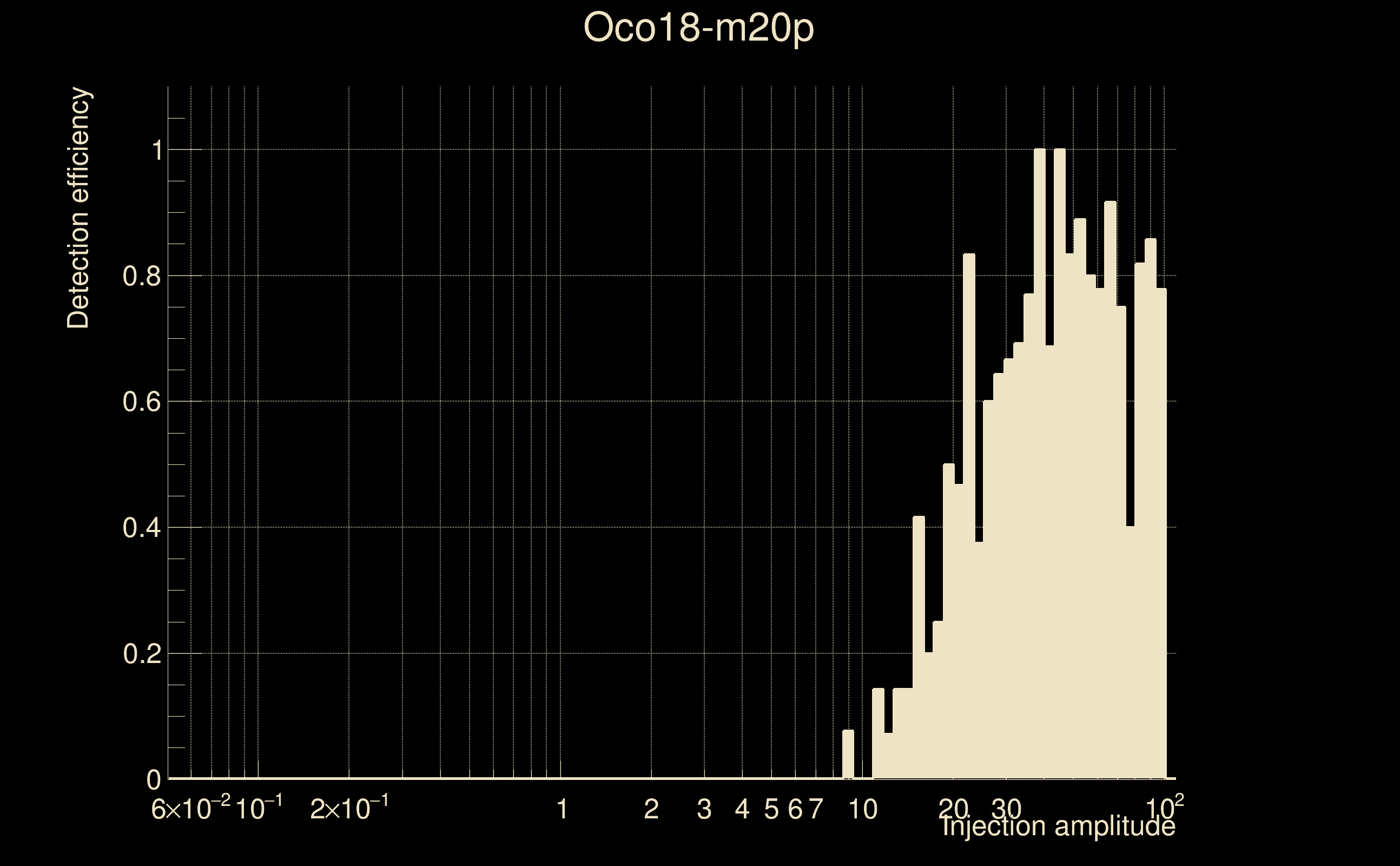

| Injection amplitude at 90% detection efficiency: | 37.4012 |
| Injection amplitude at 50% detection efficiency: | 25.4482 |
| Injection amplitude at 10% detection efficiency: | 12.5925 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

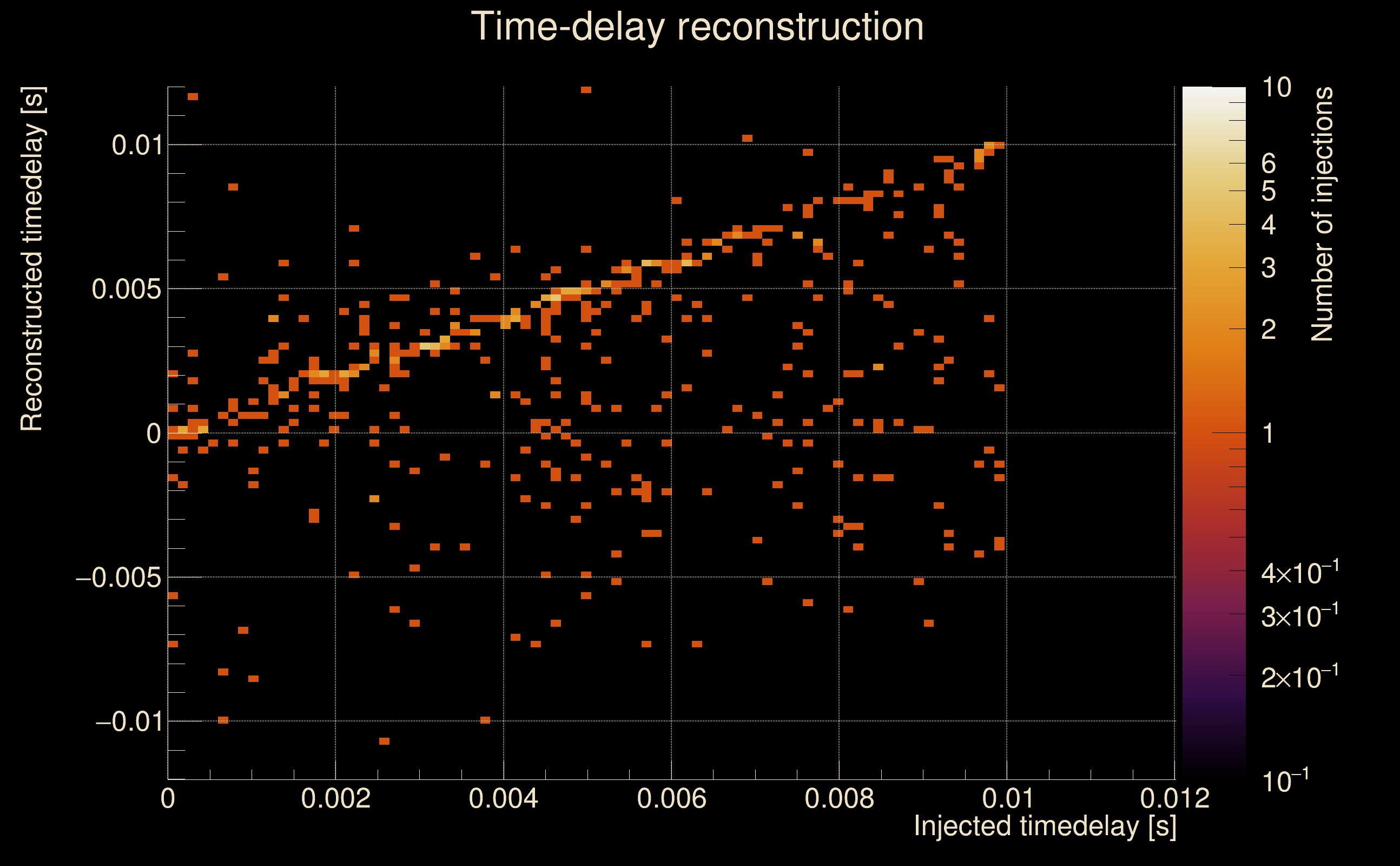

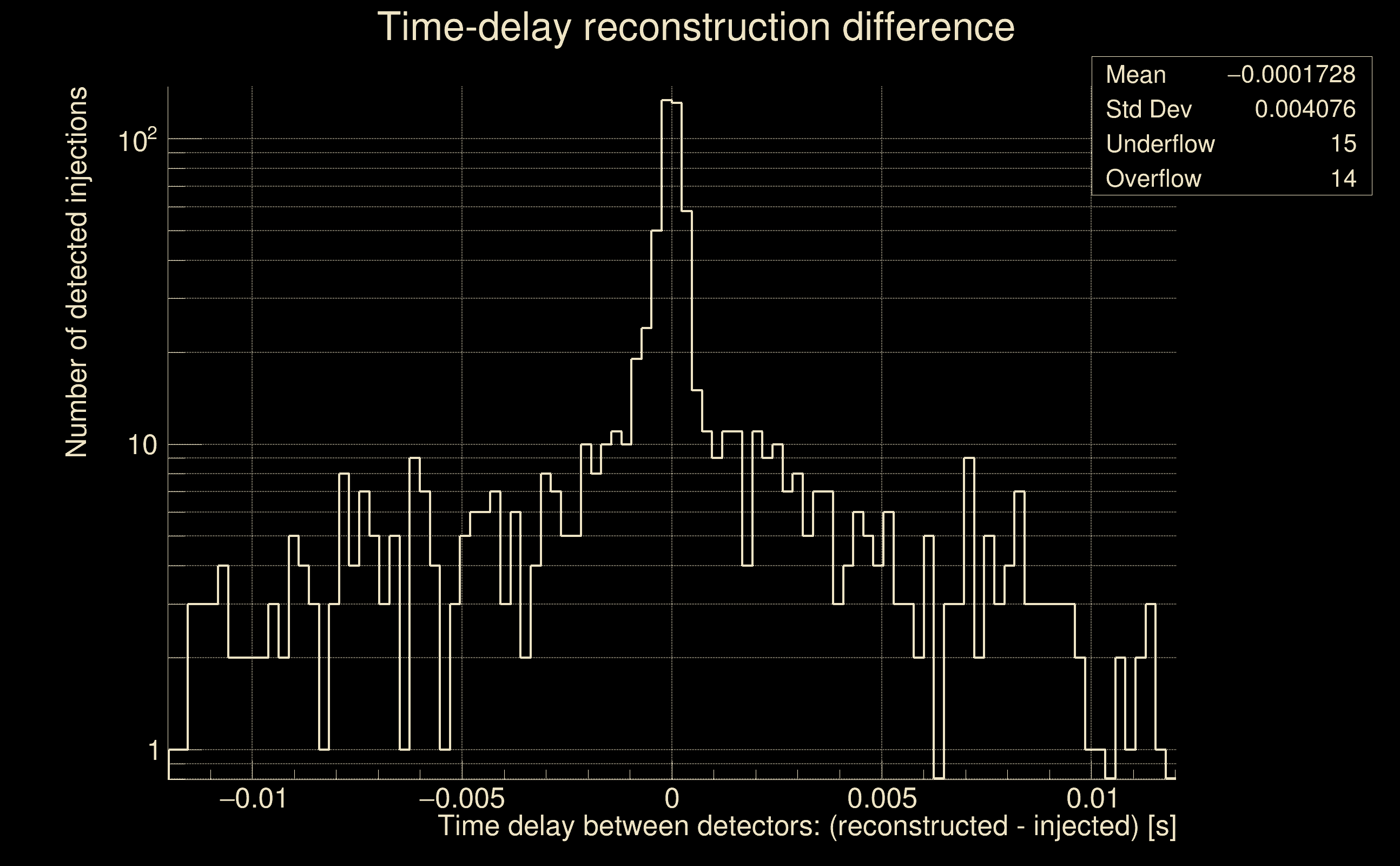

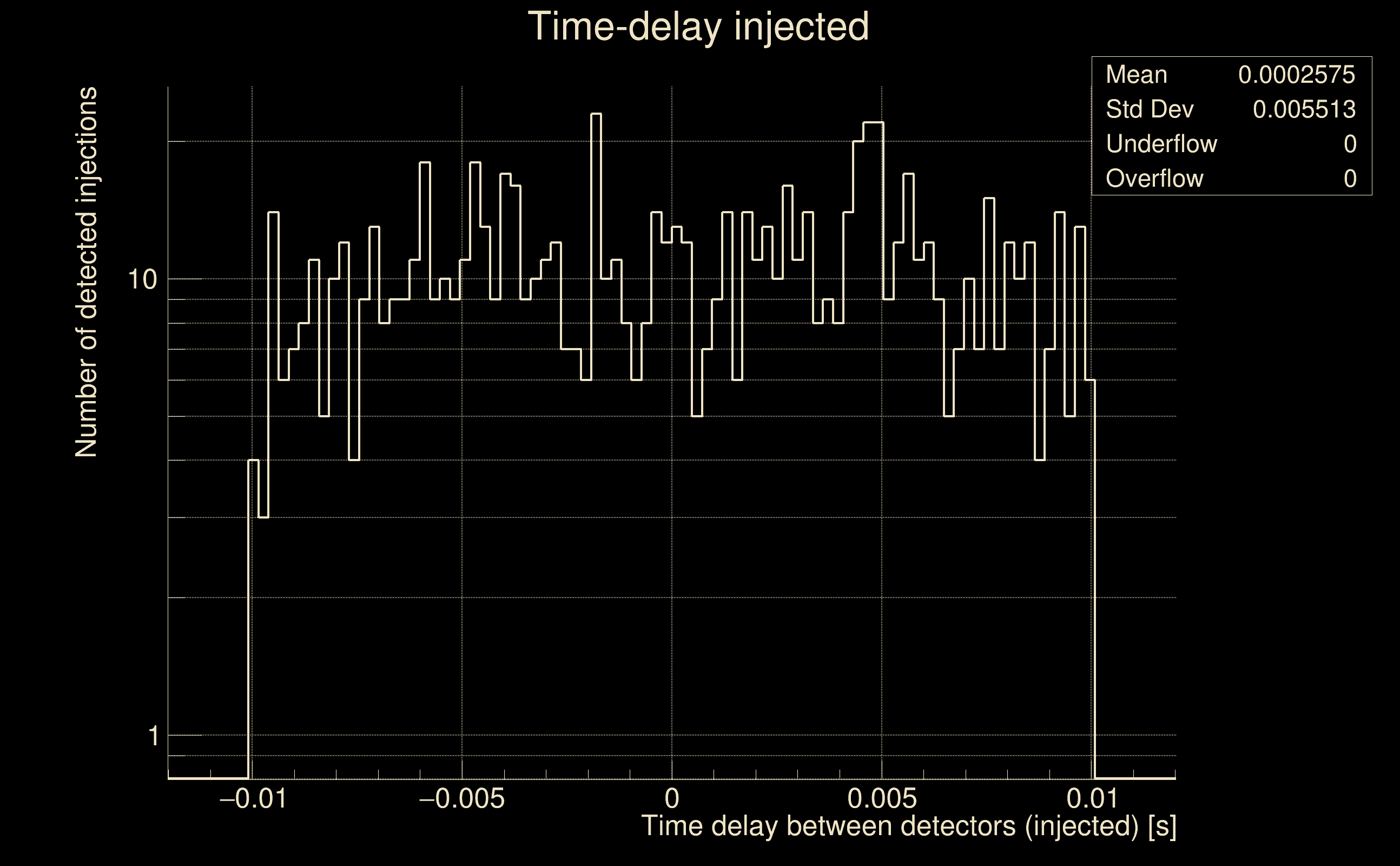

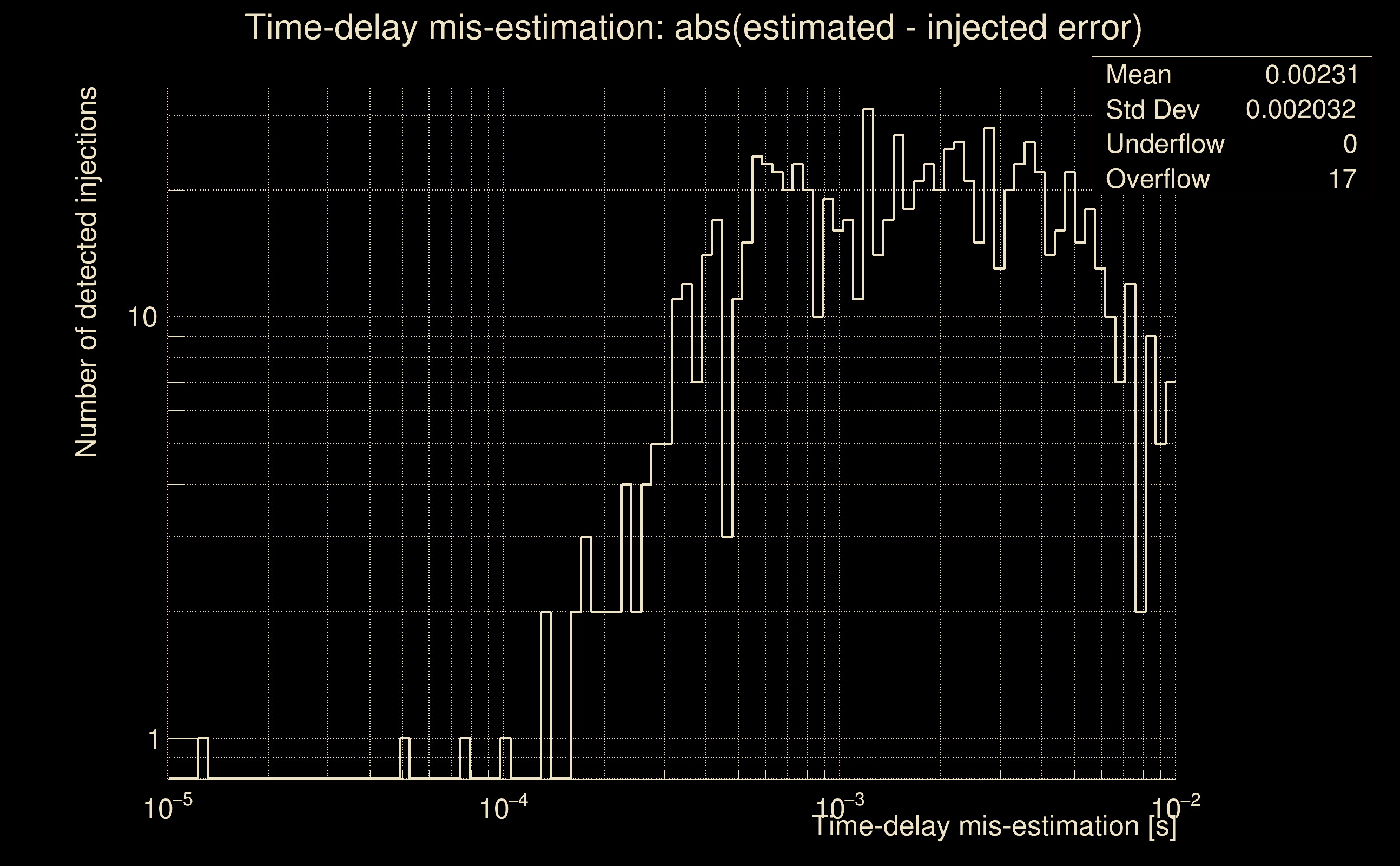

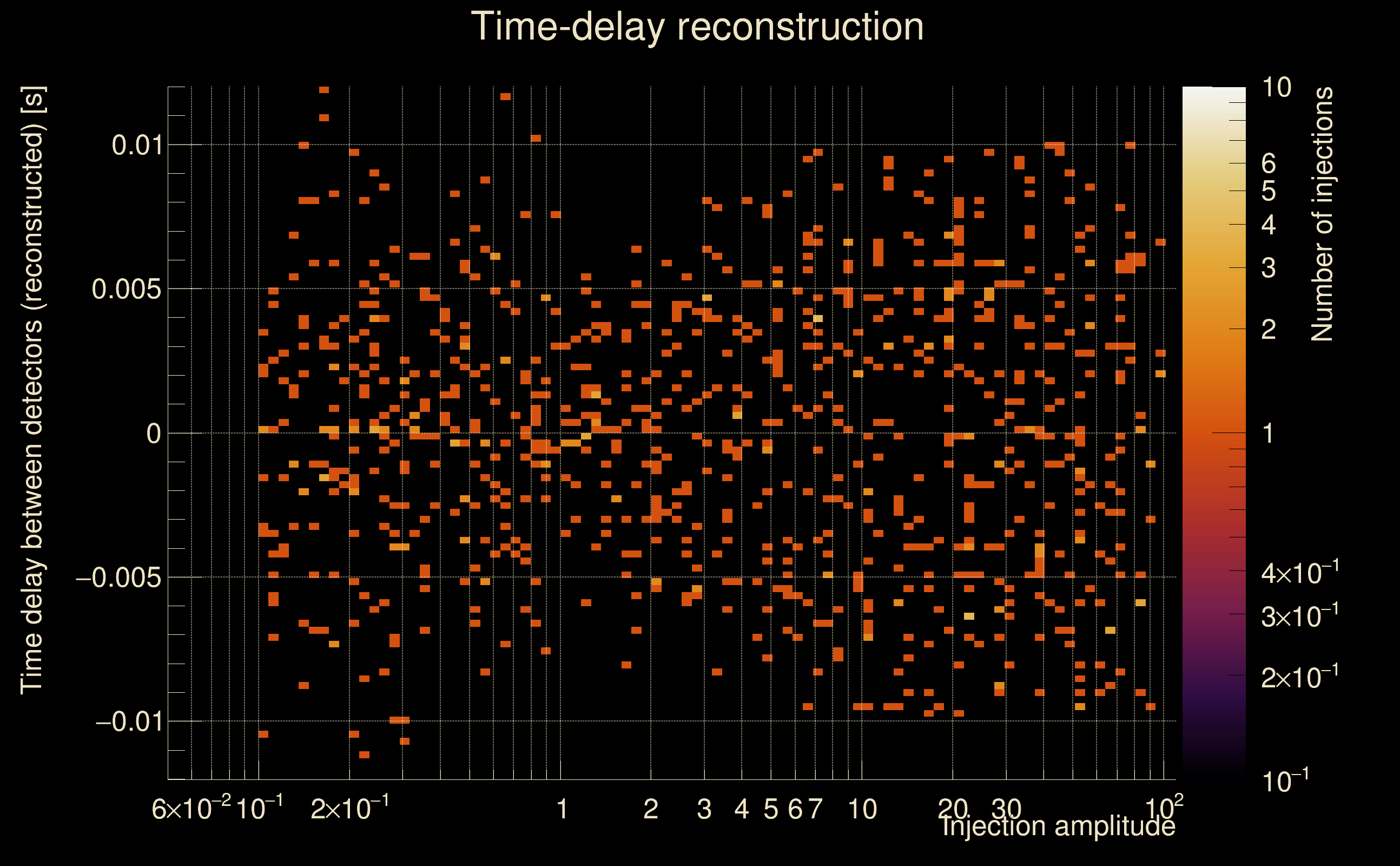

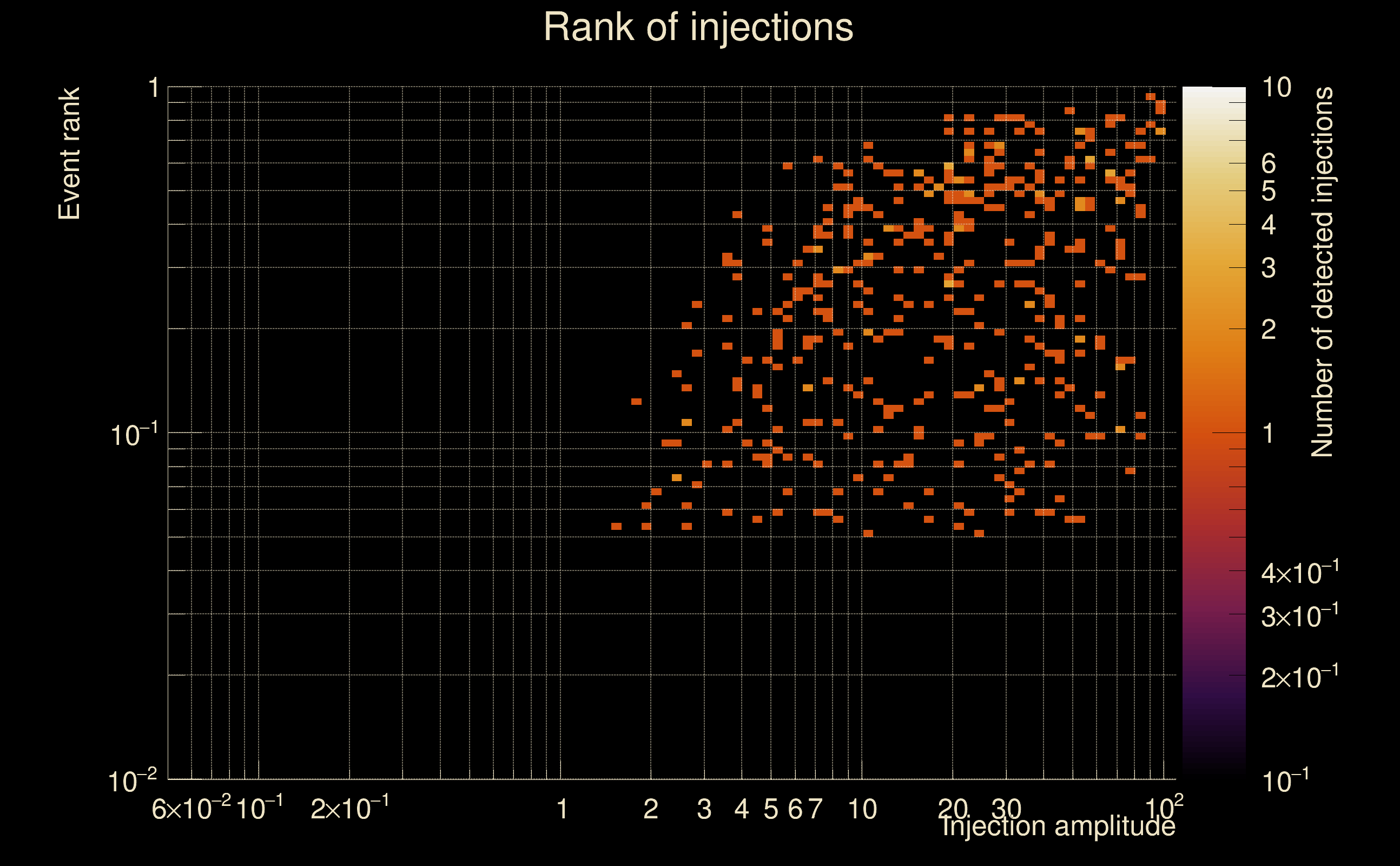

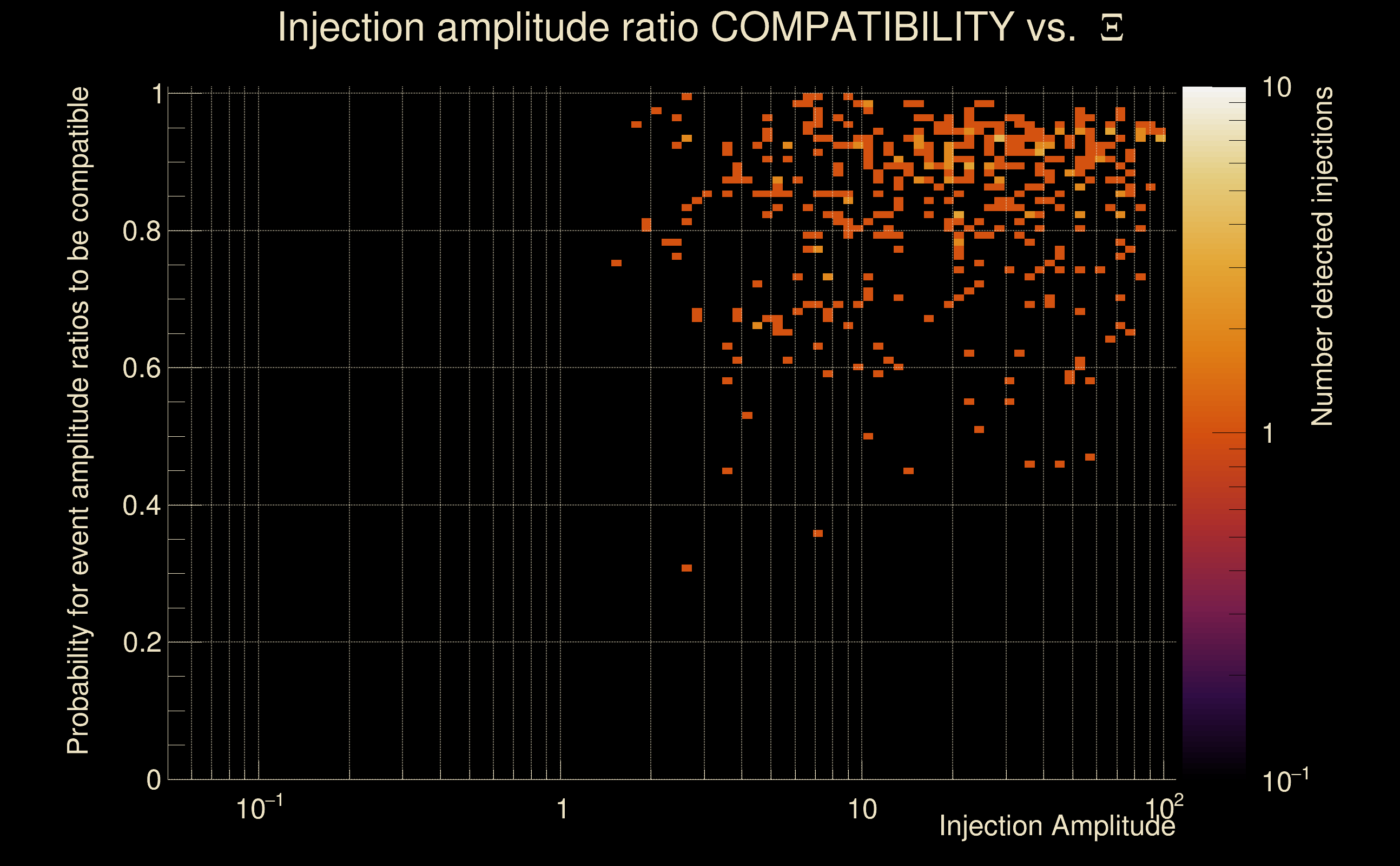

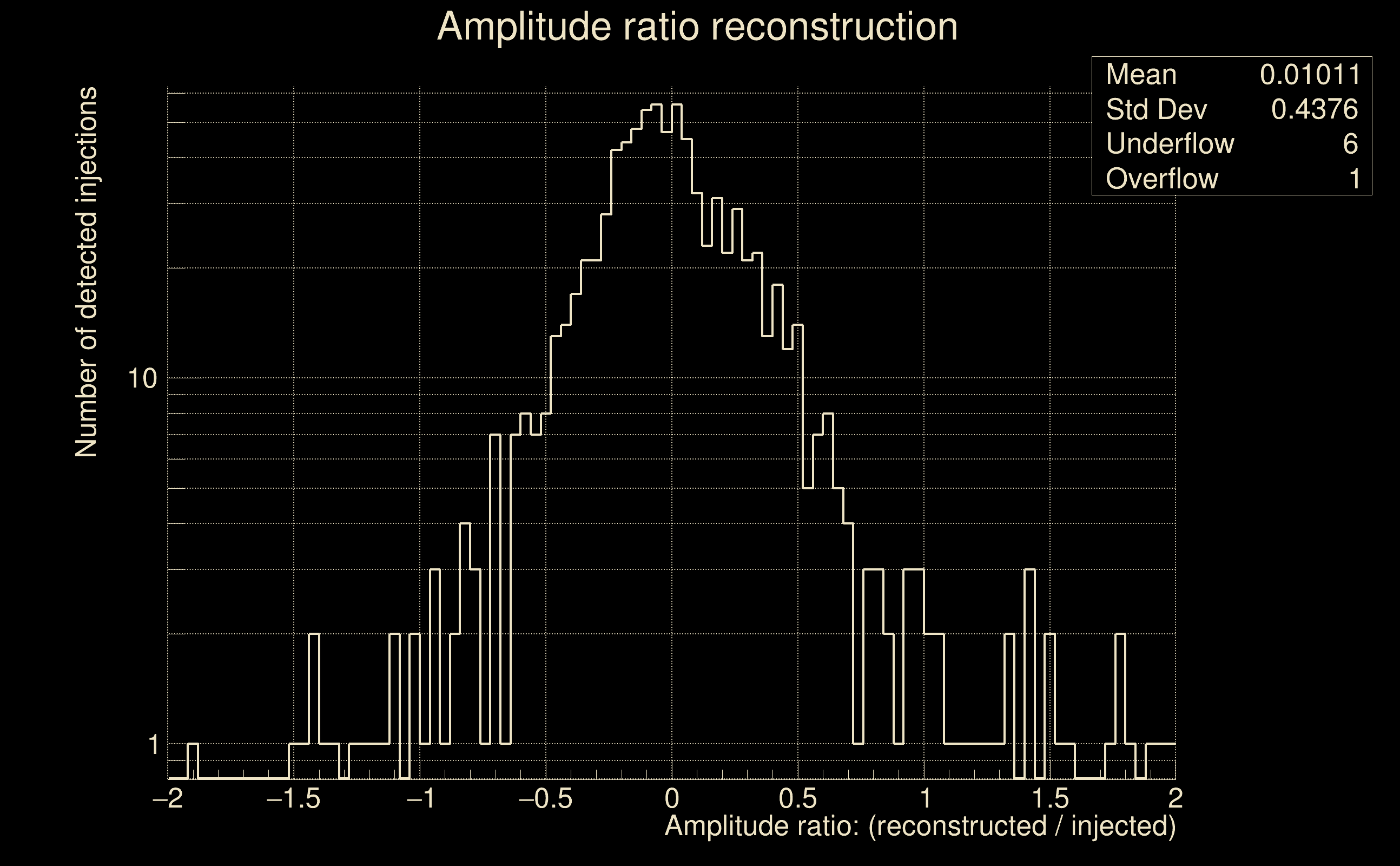

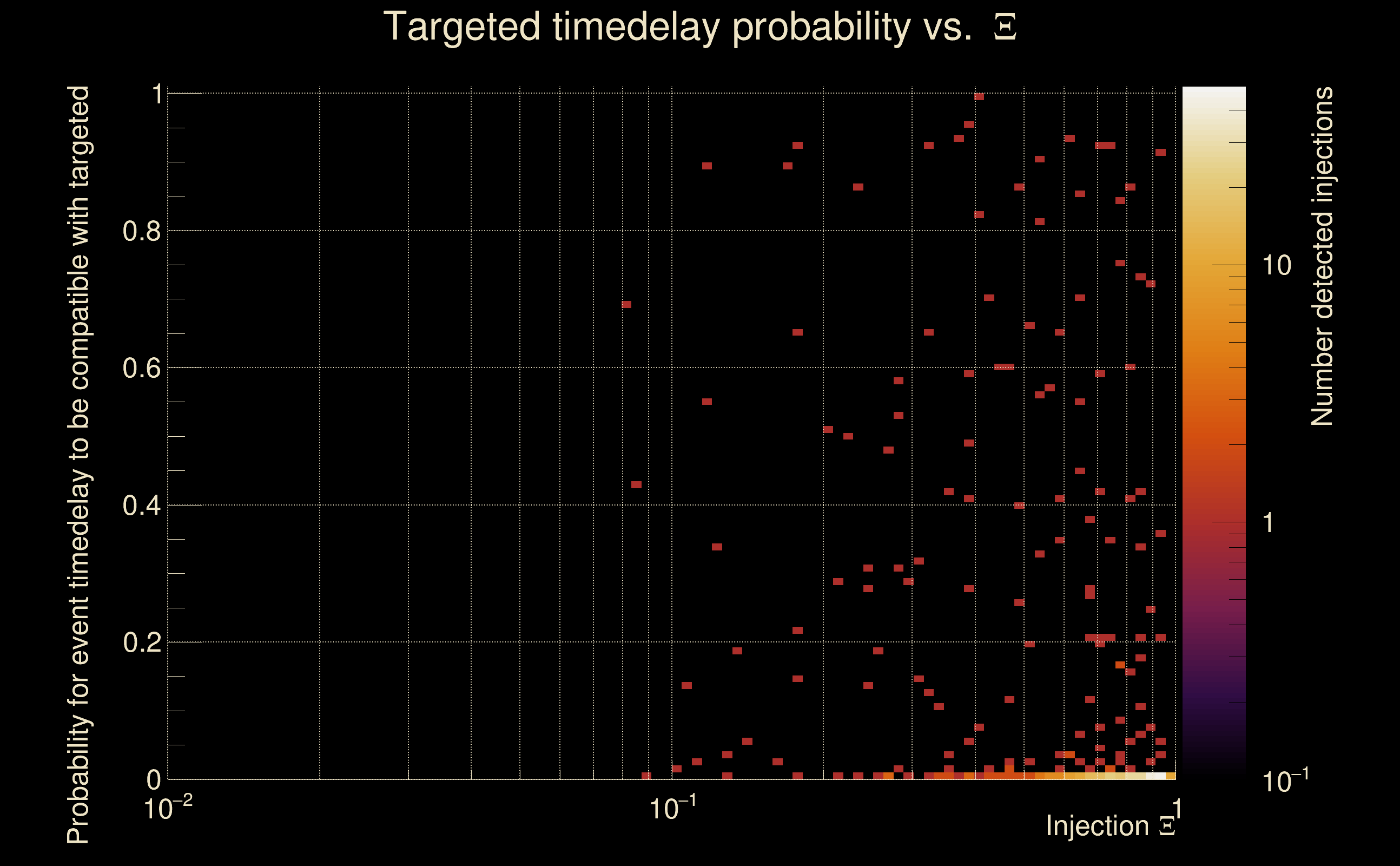

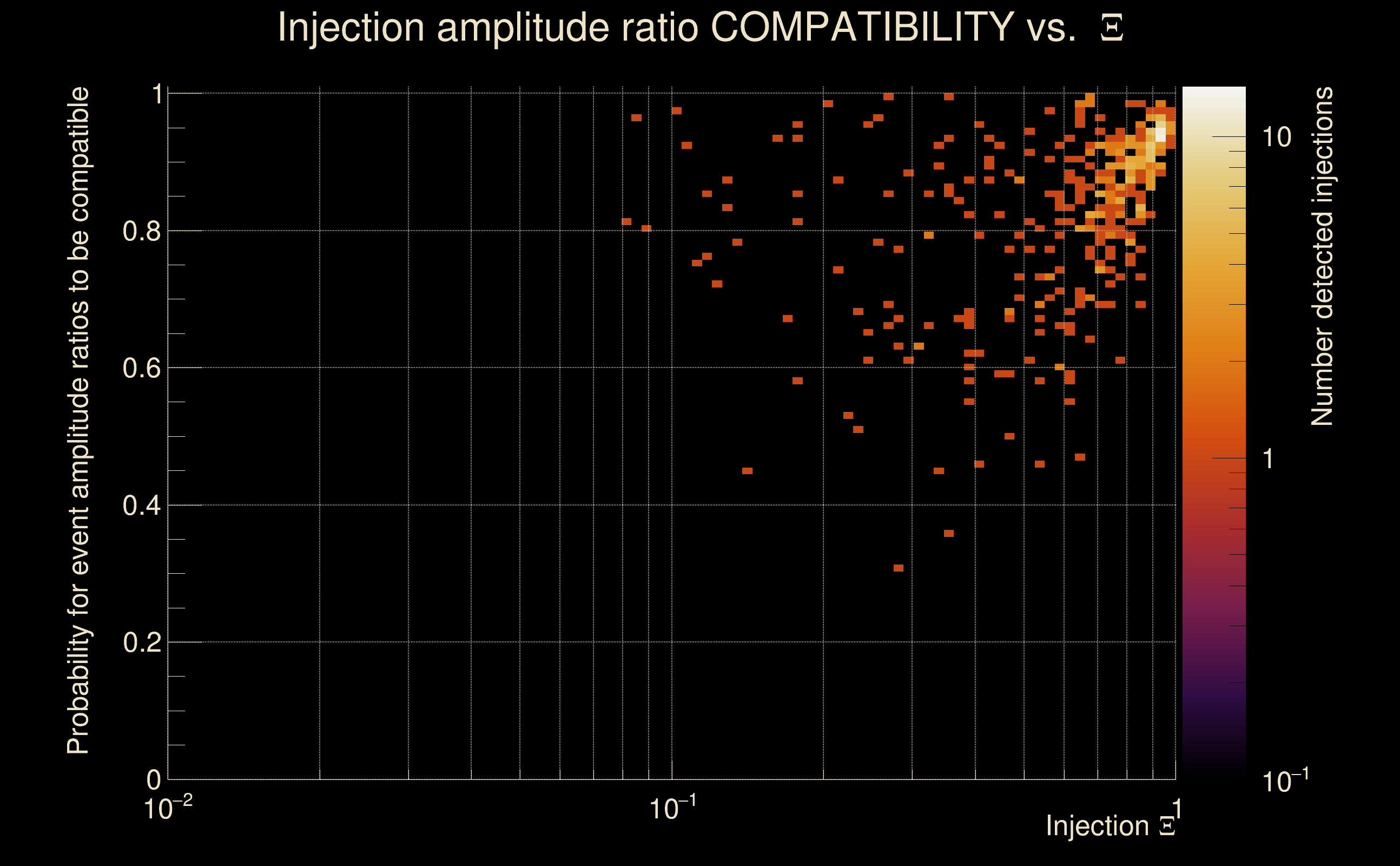

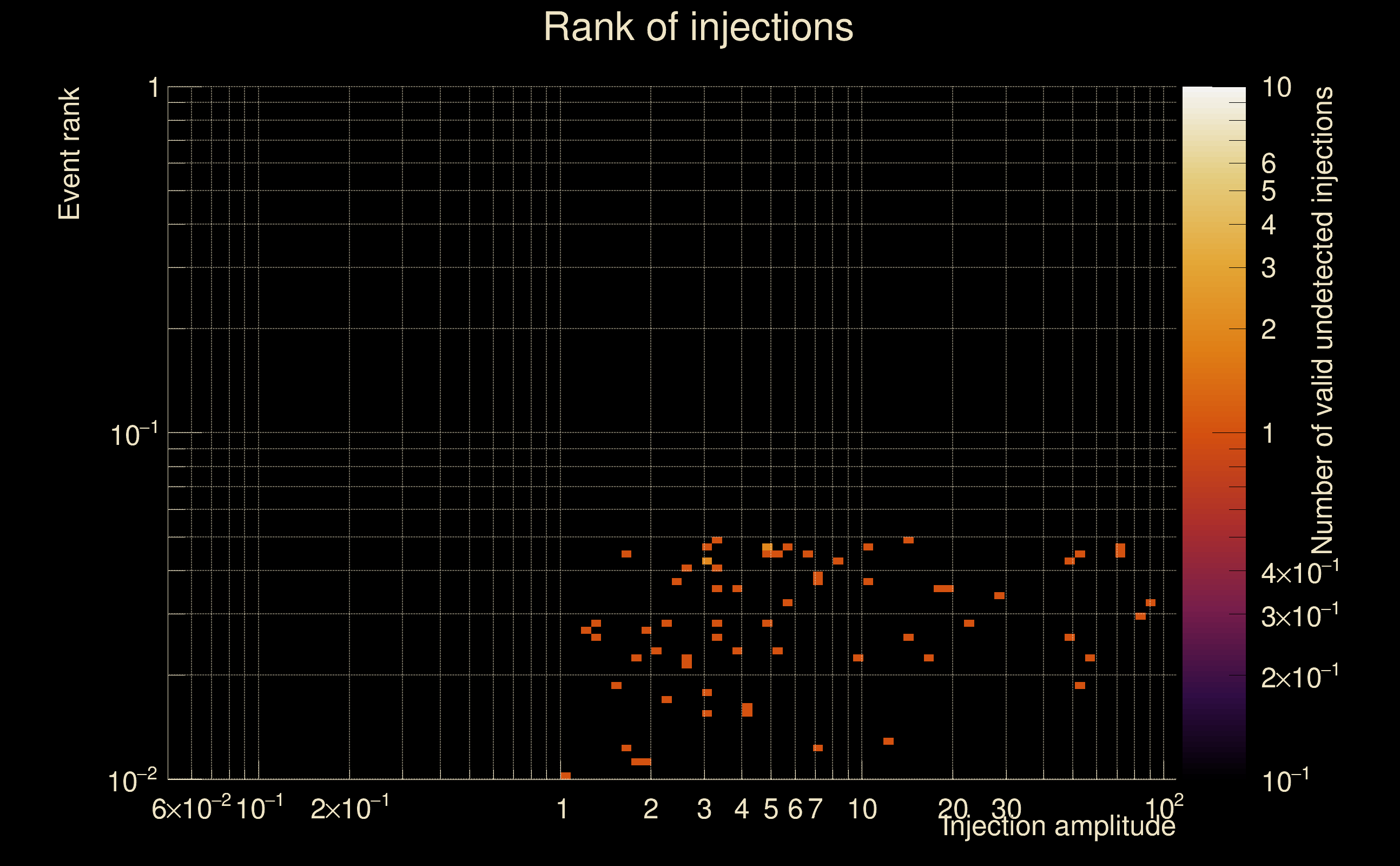

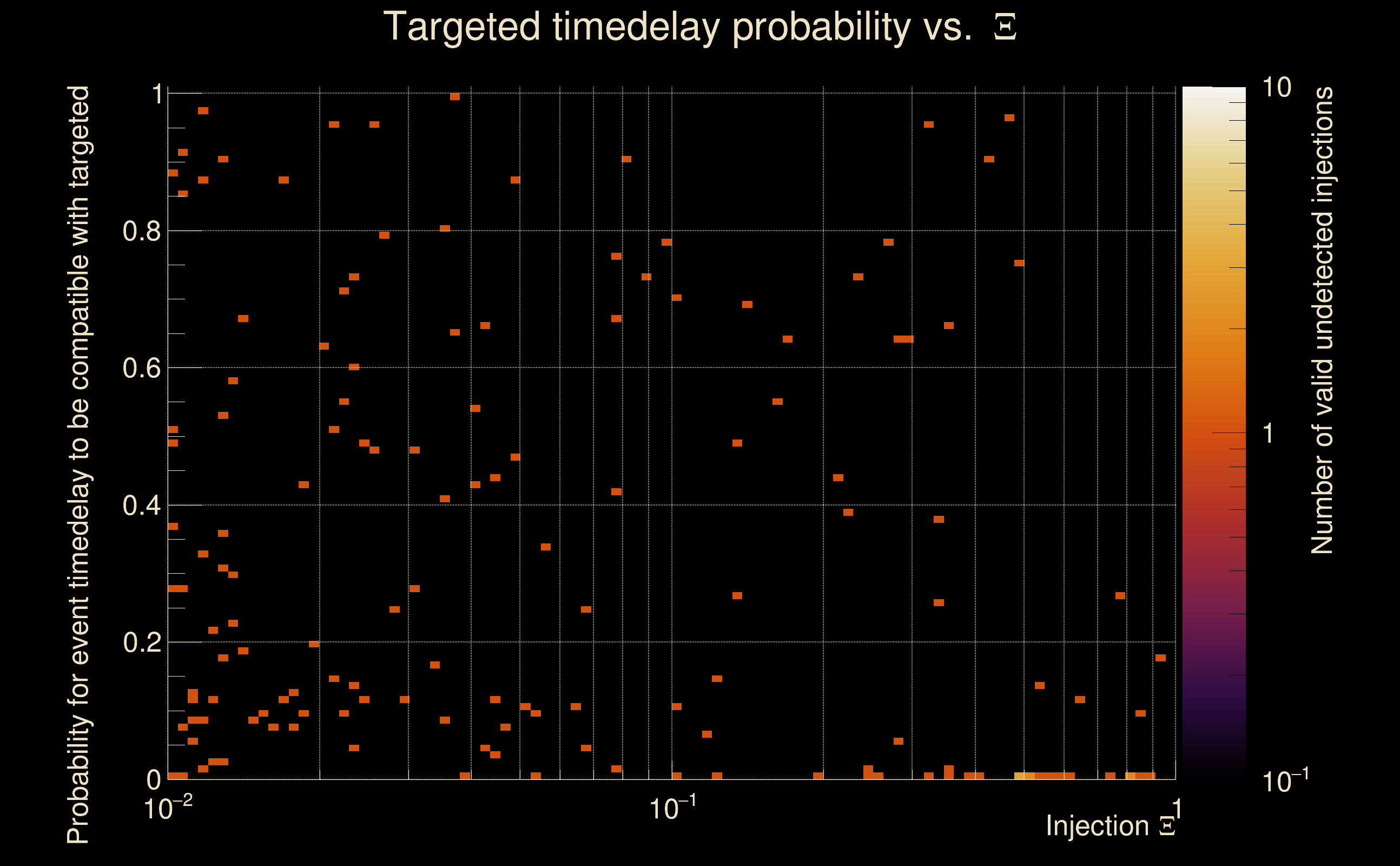

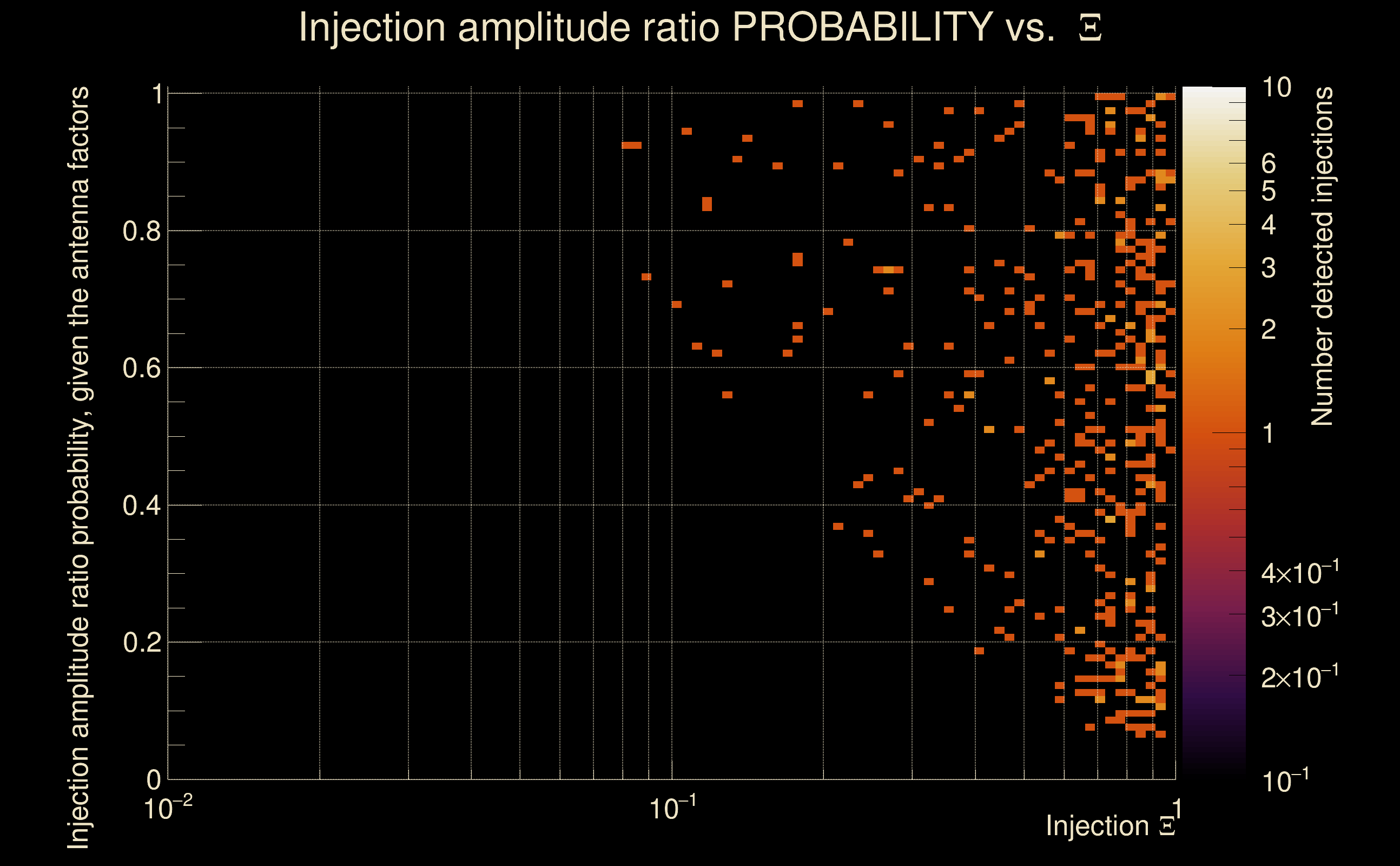

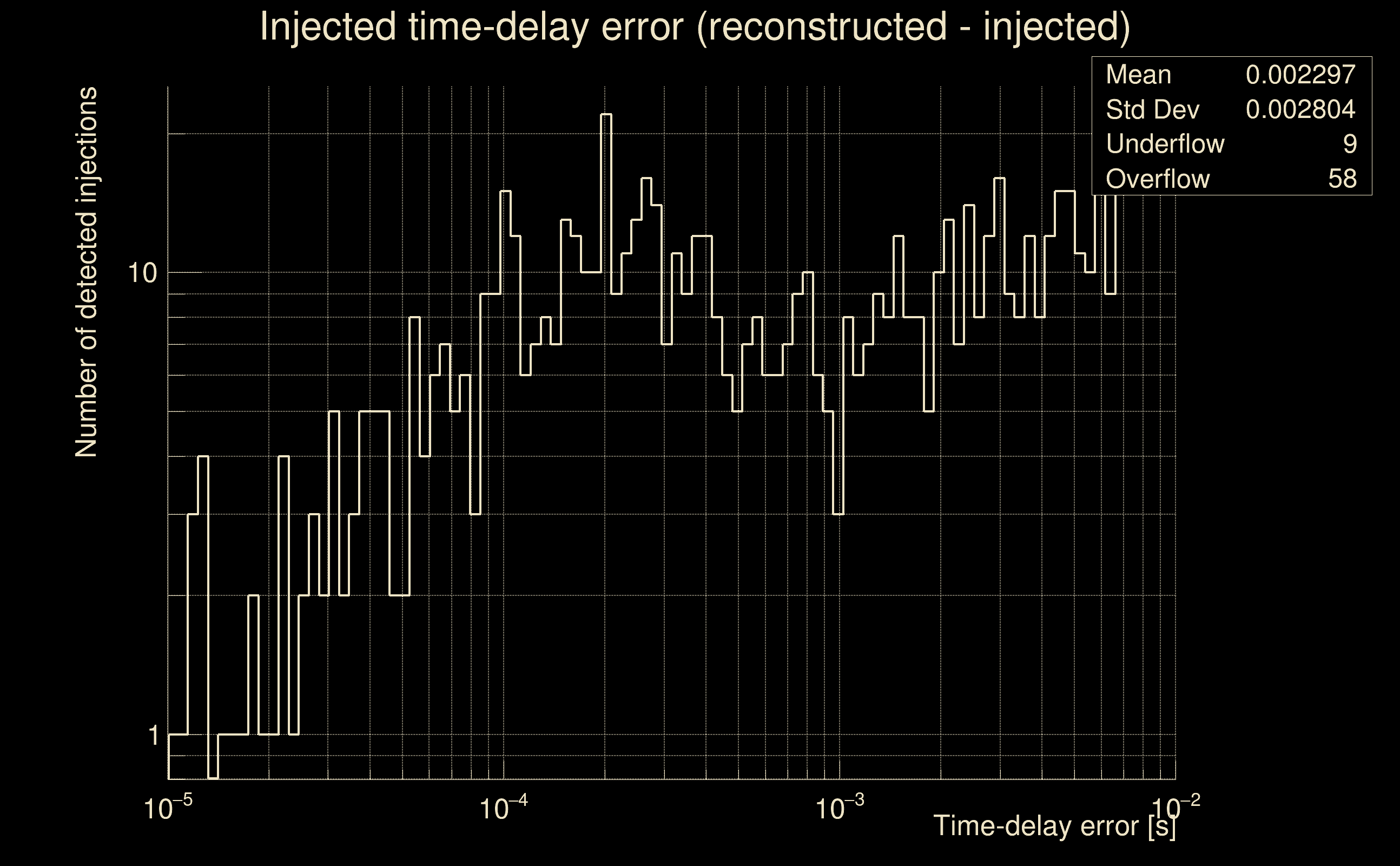

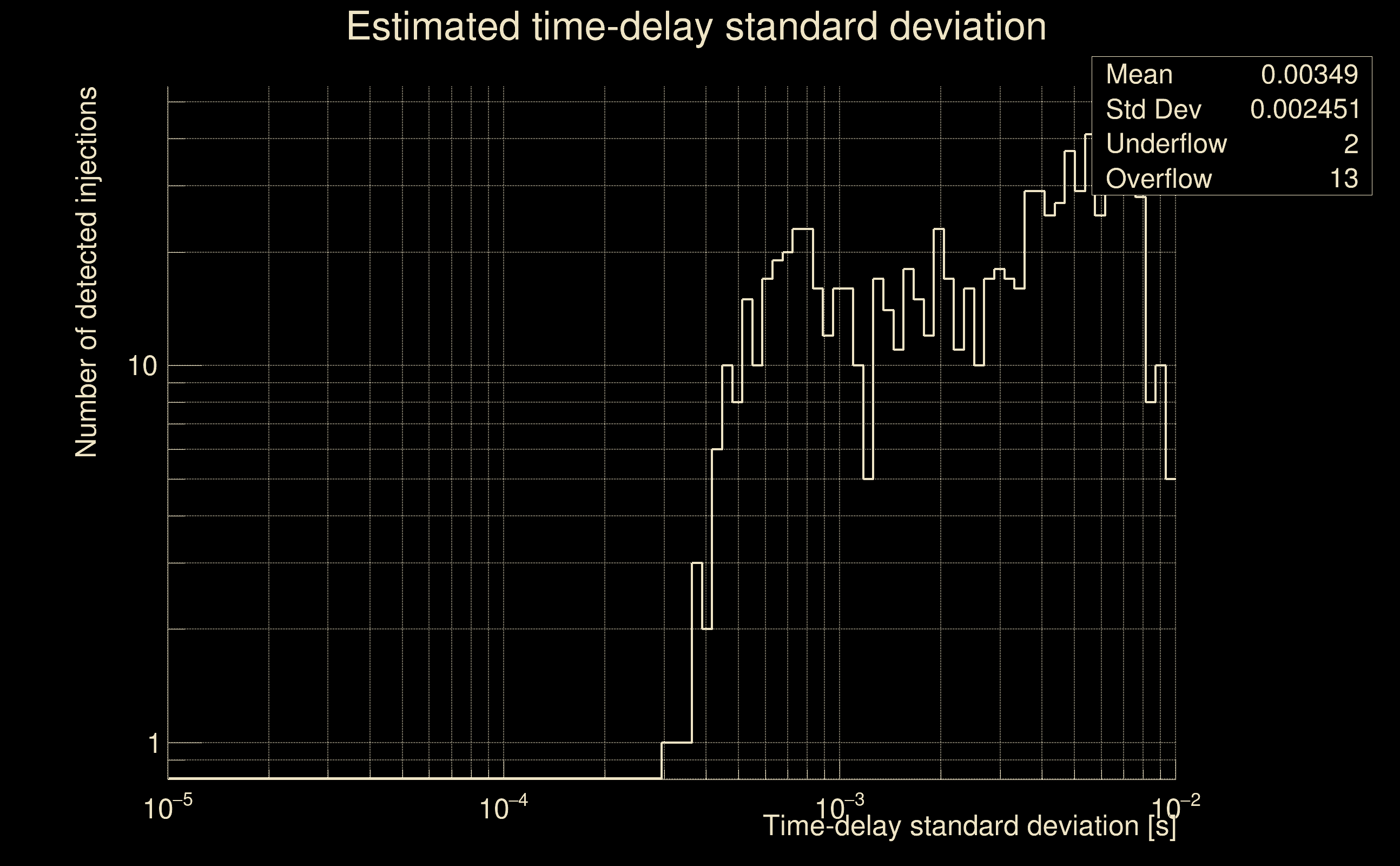

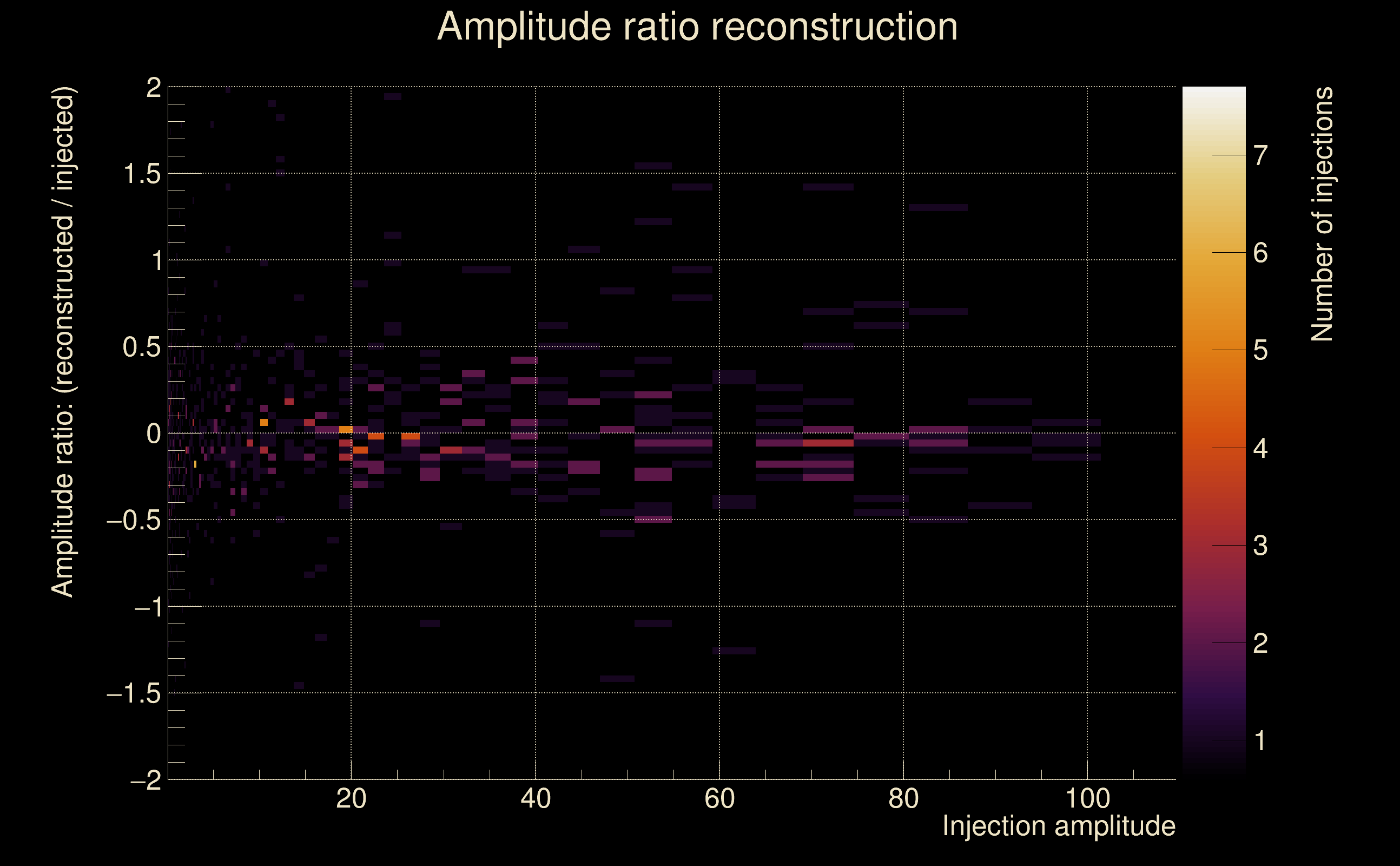

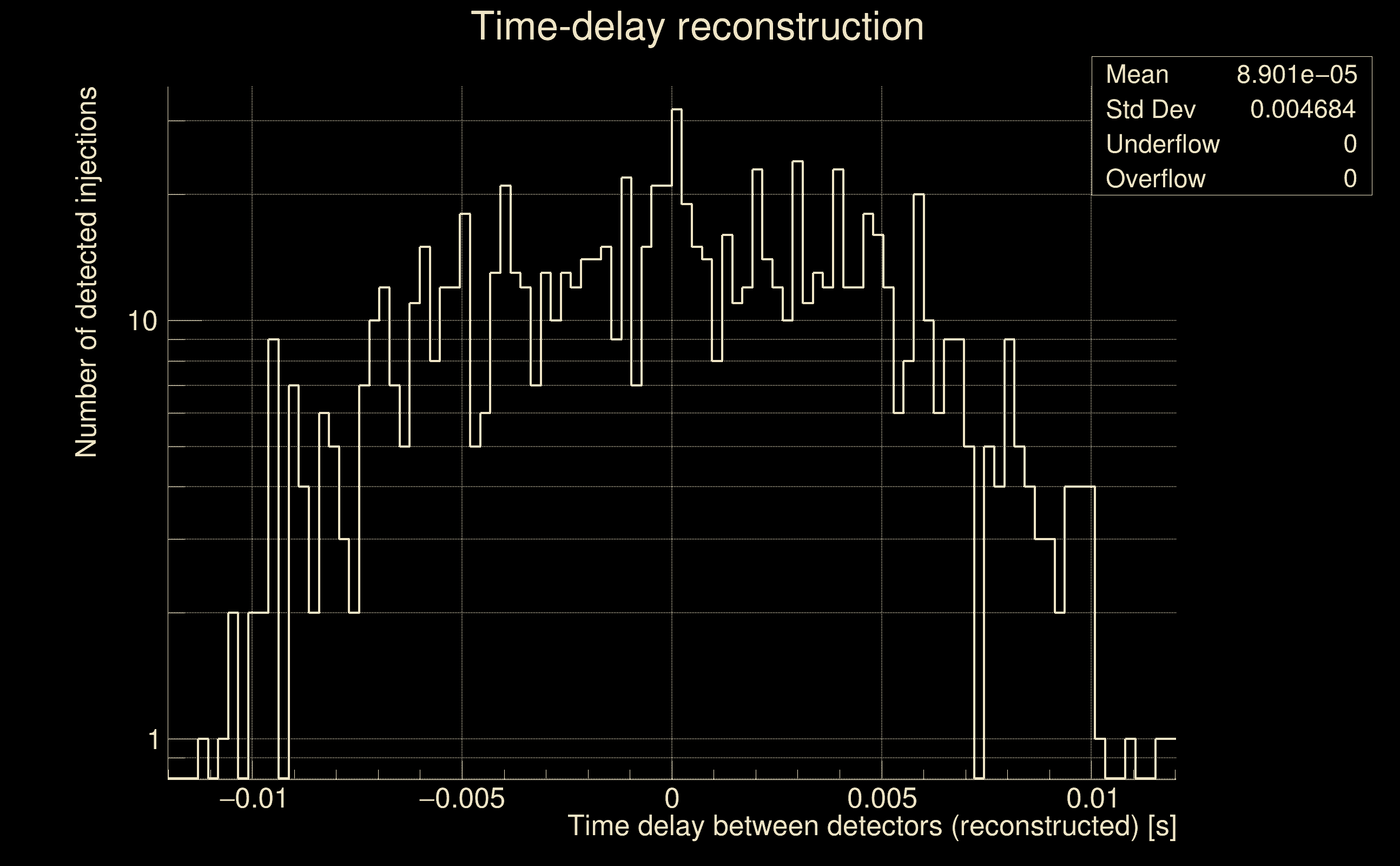

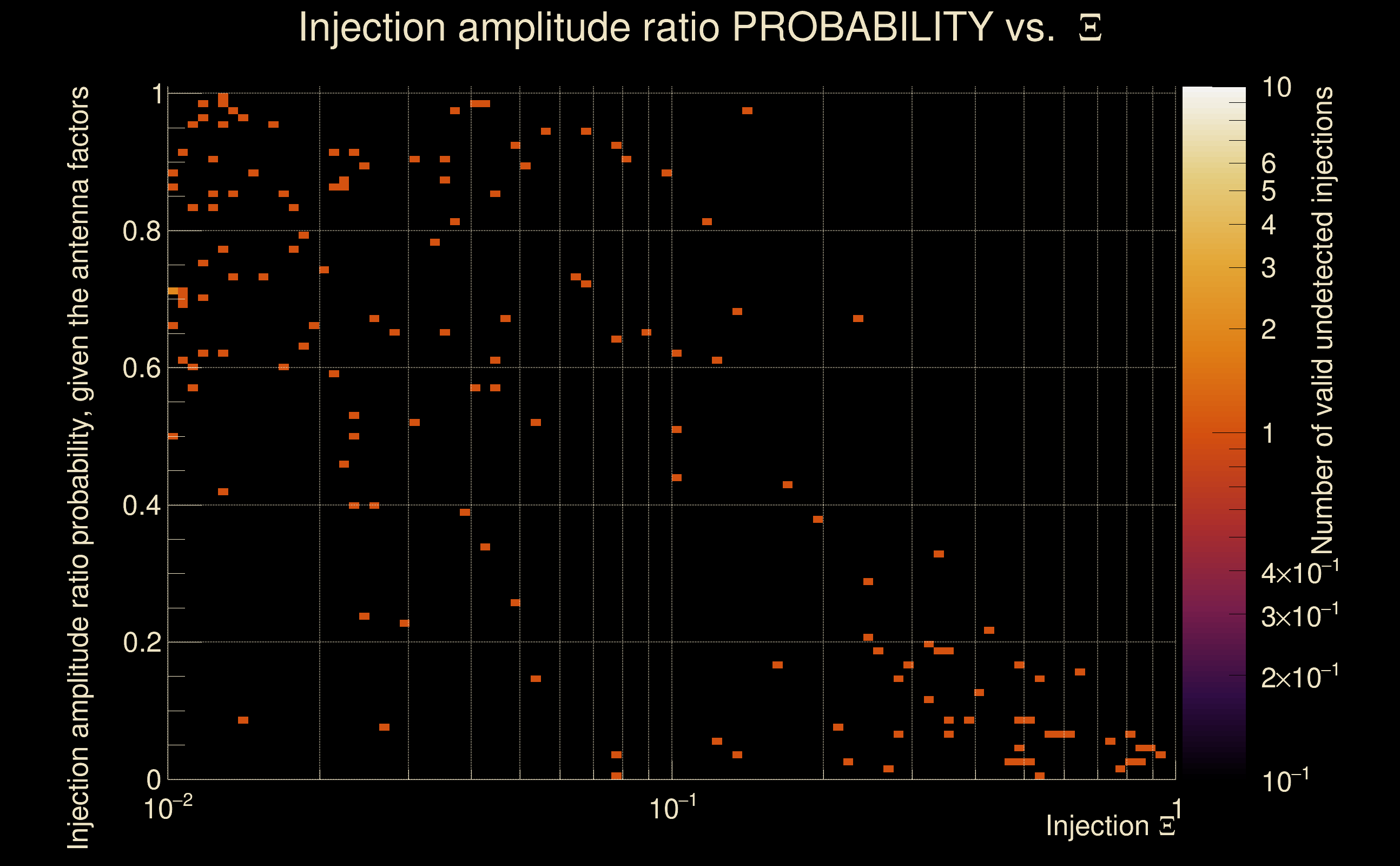

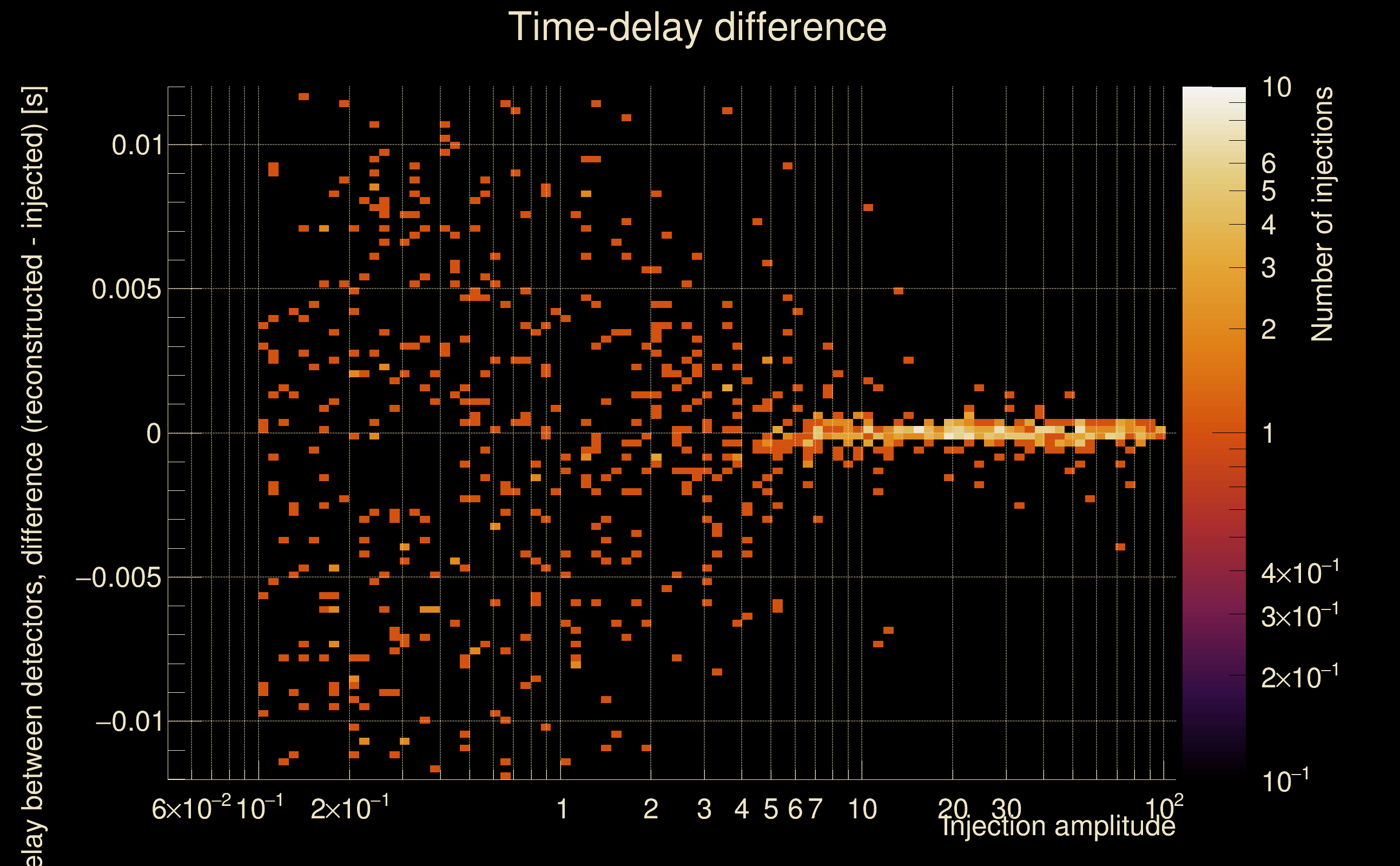

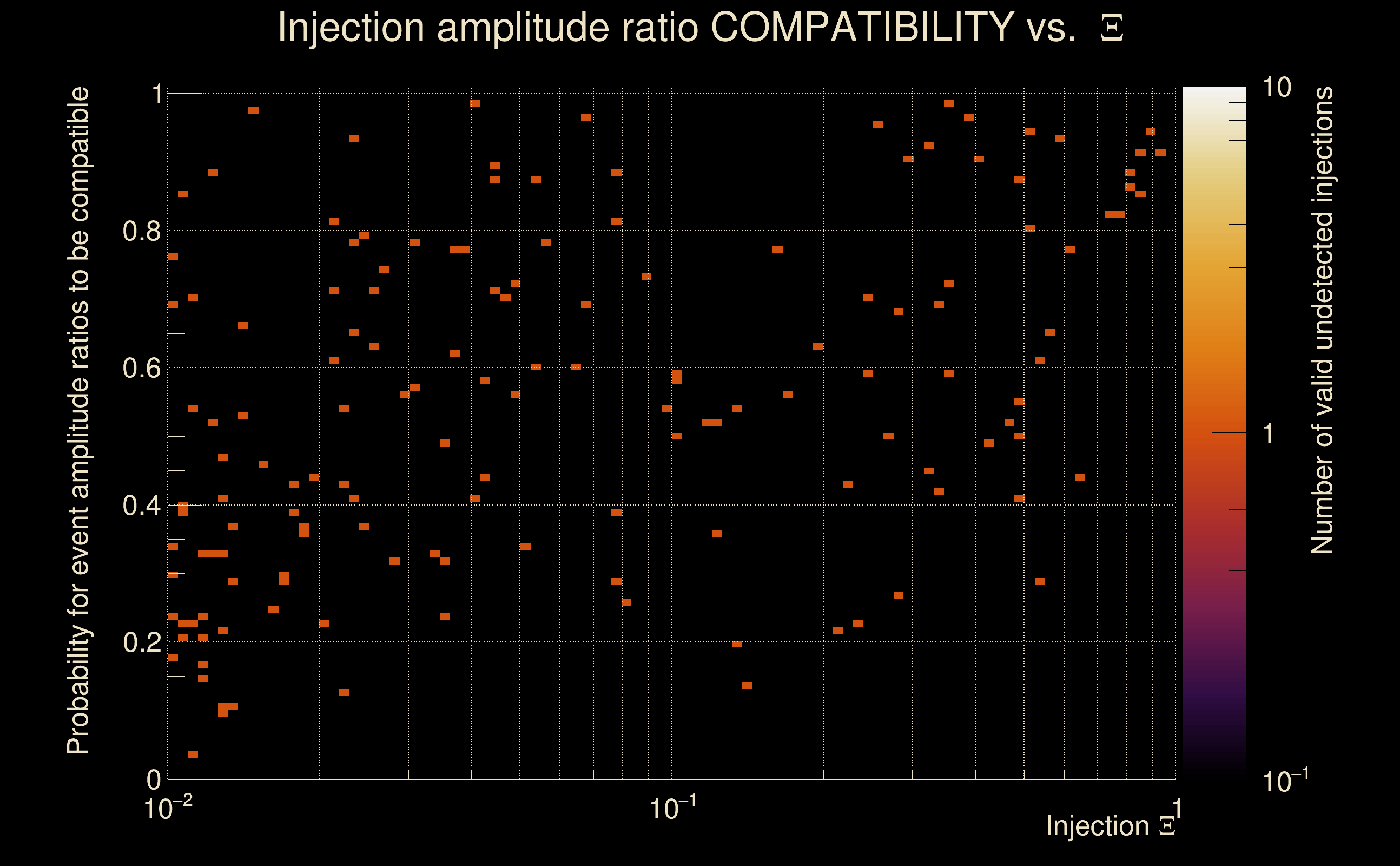

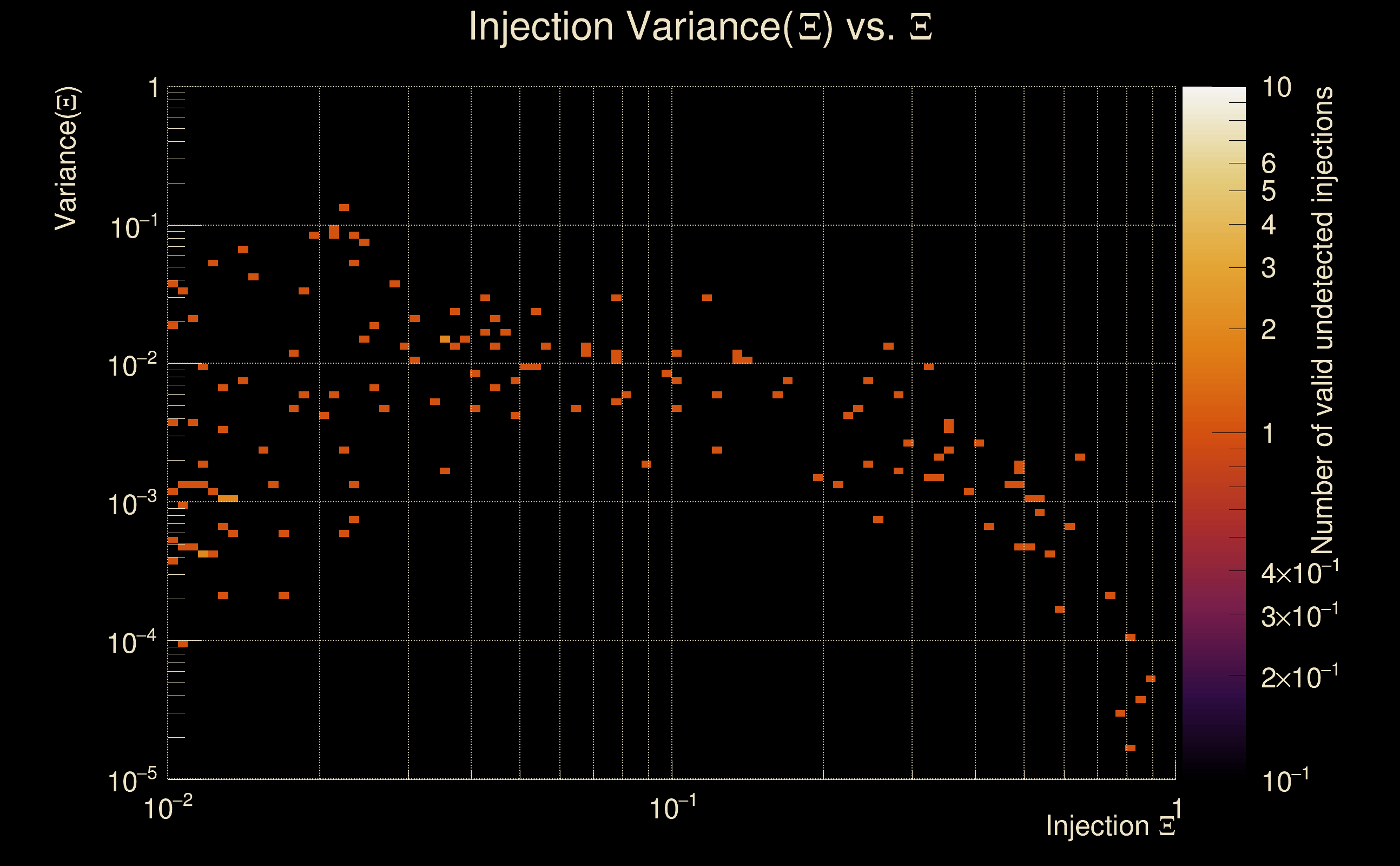

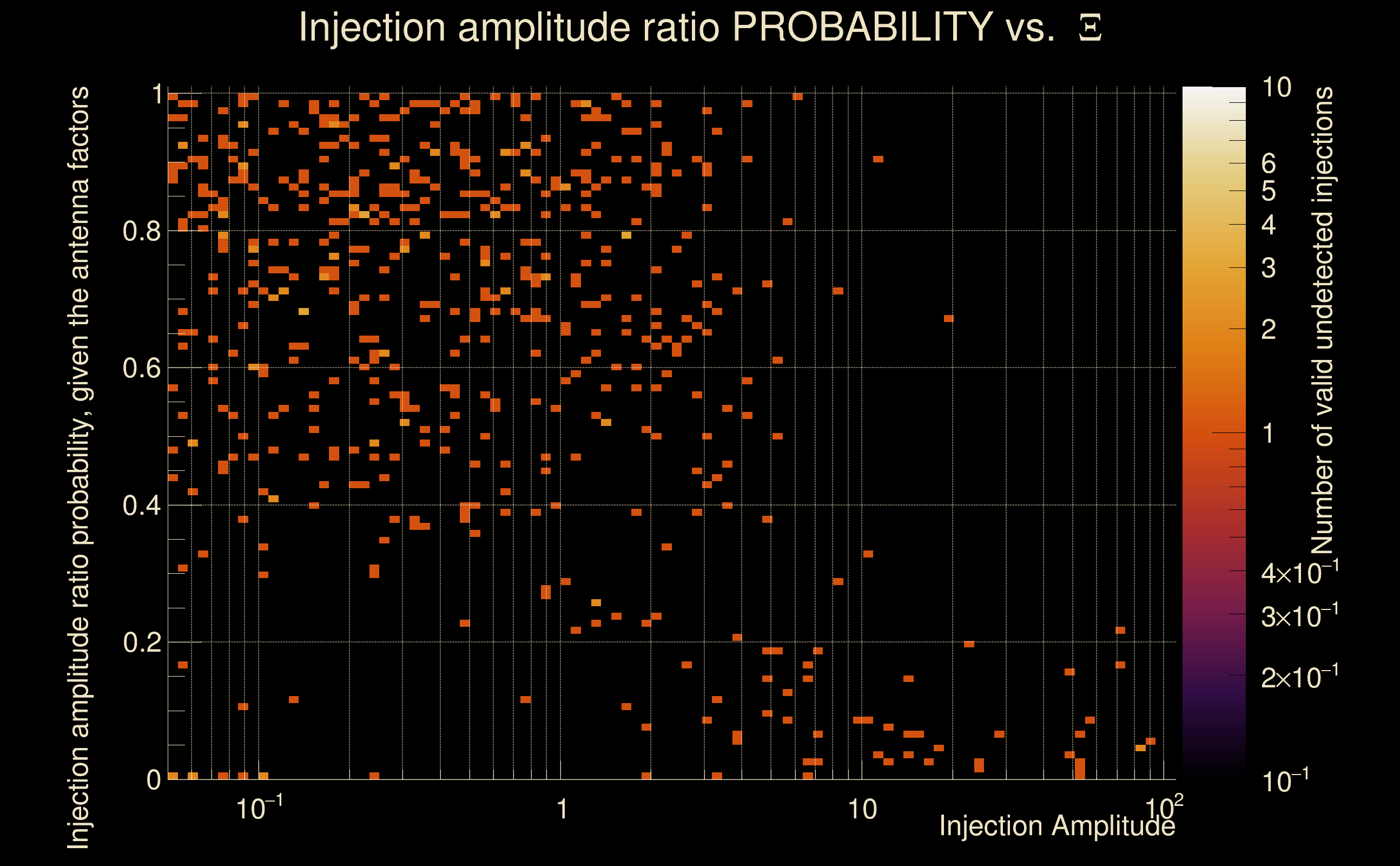

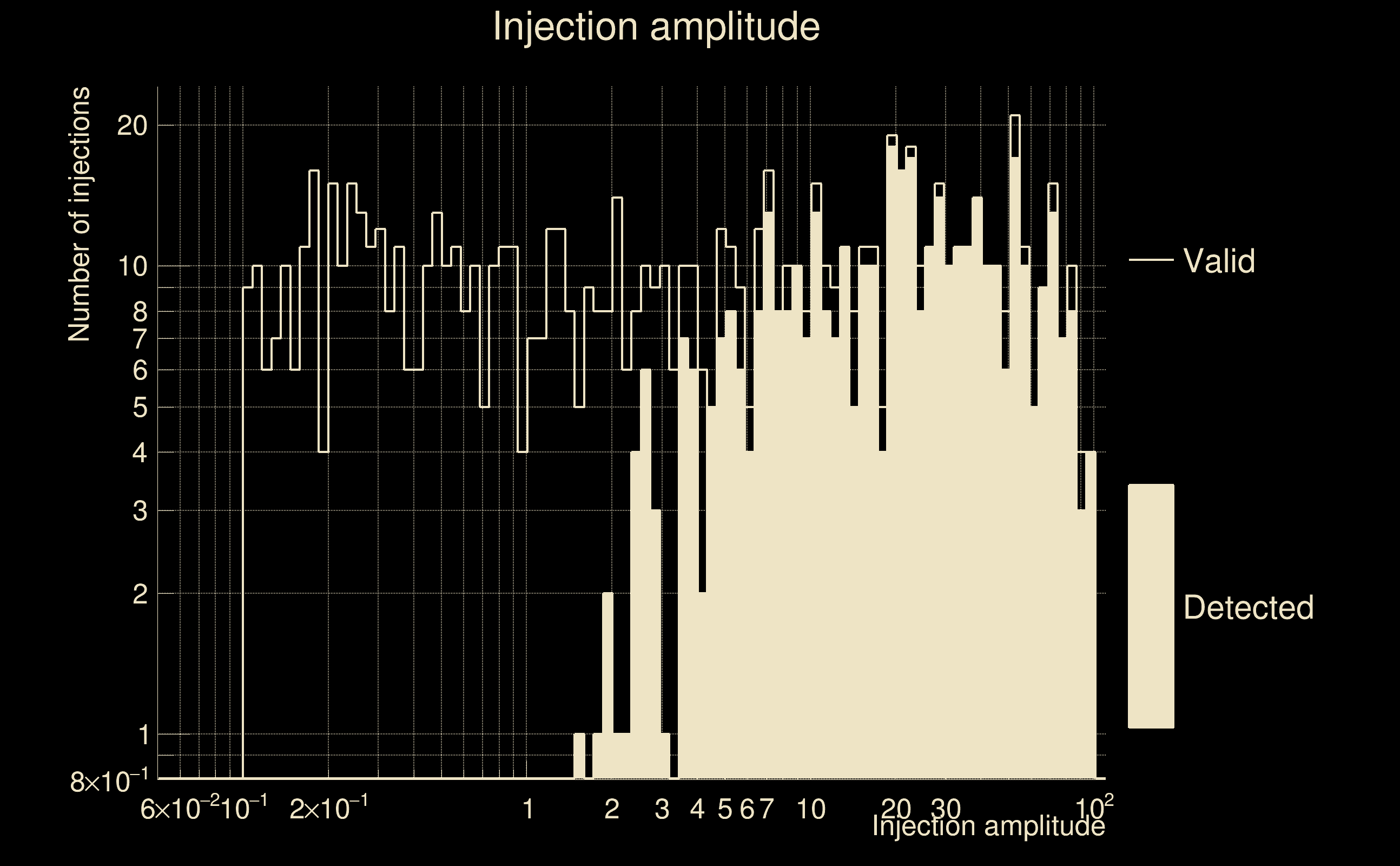

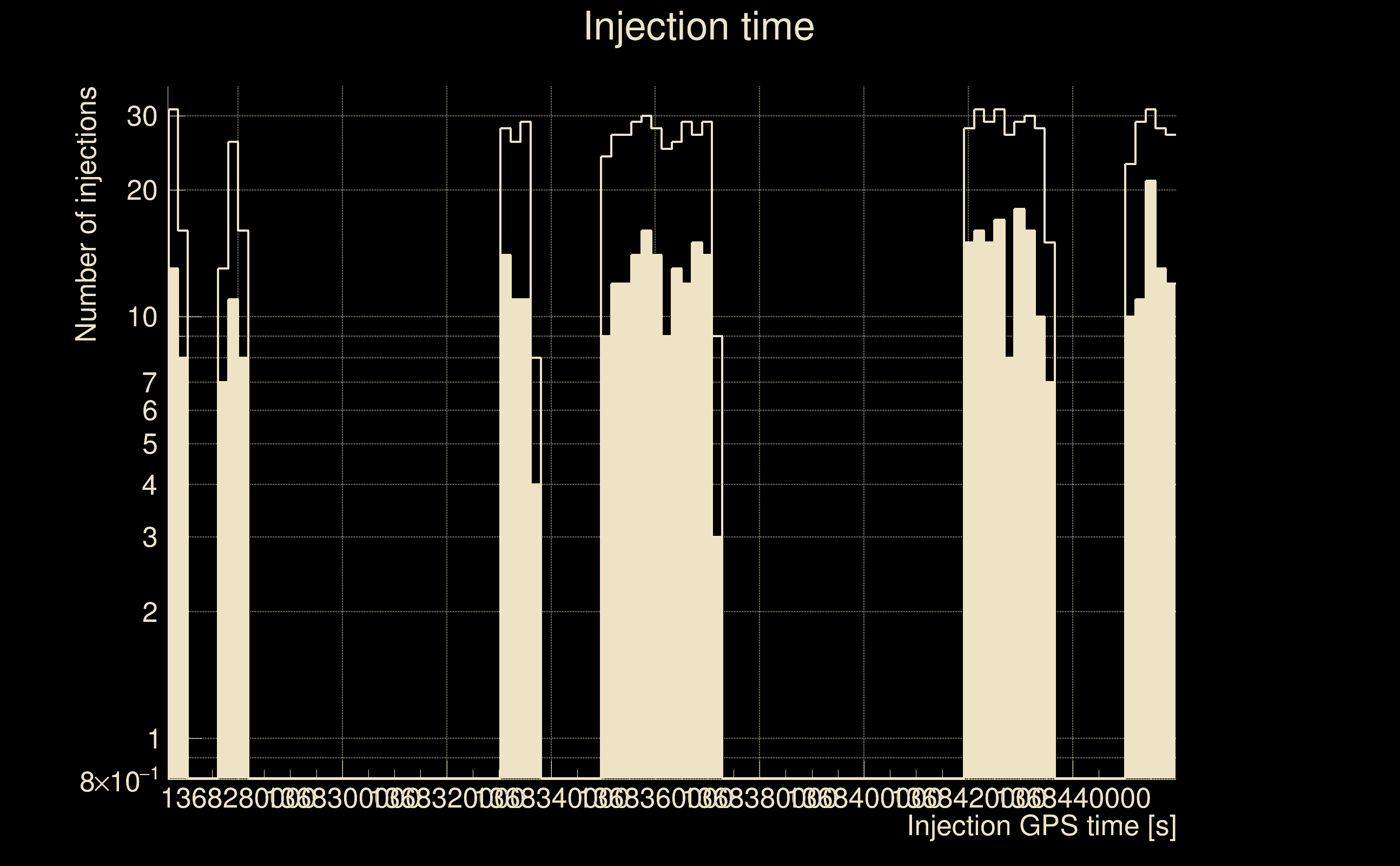

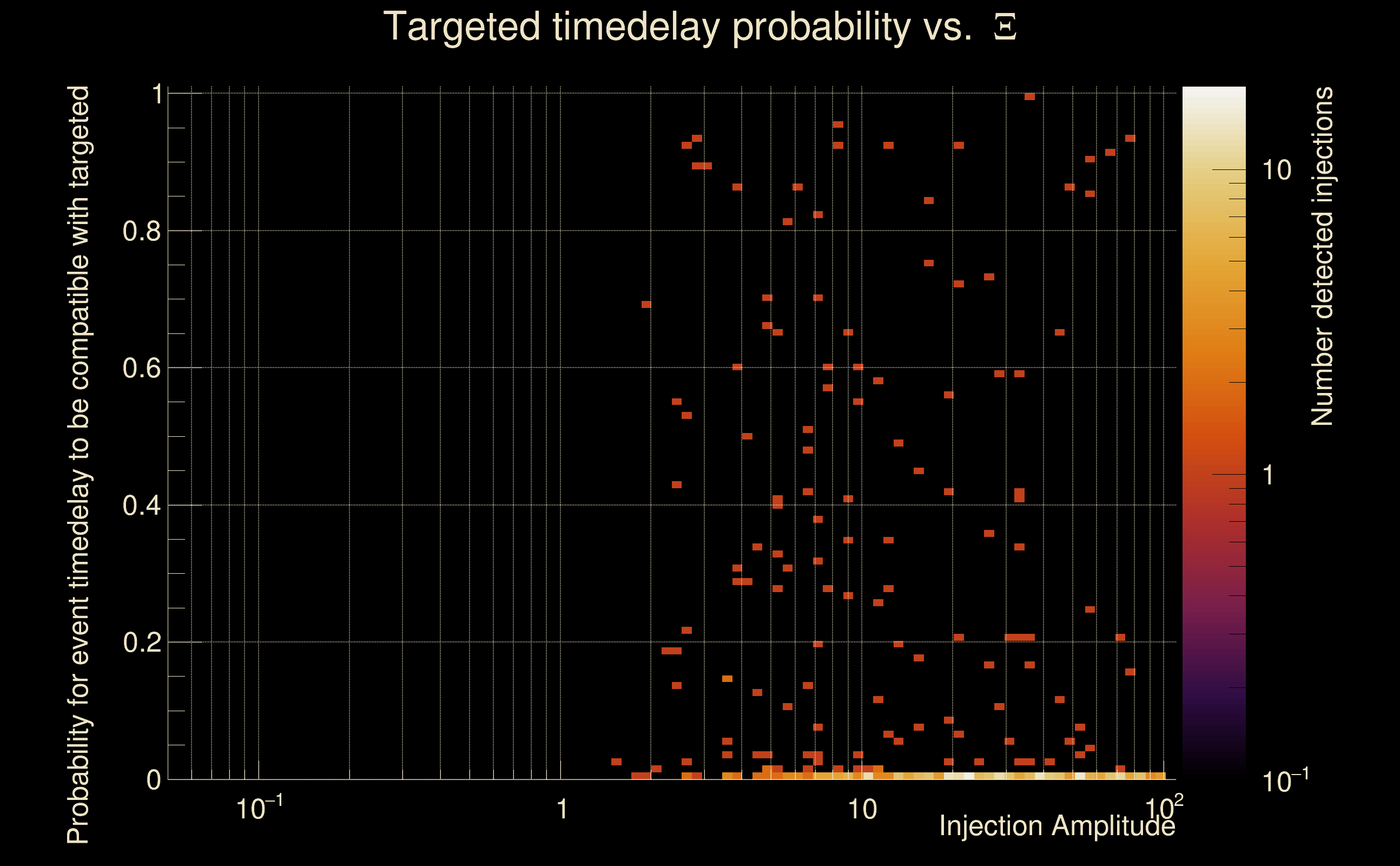

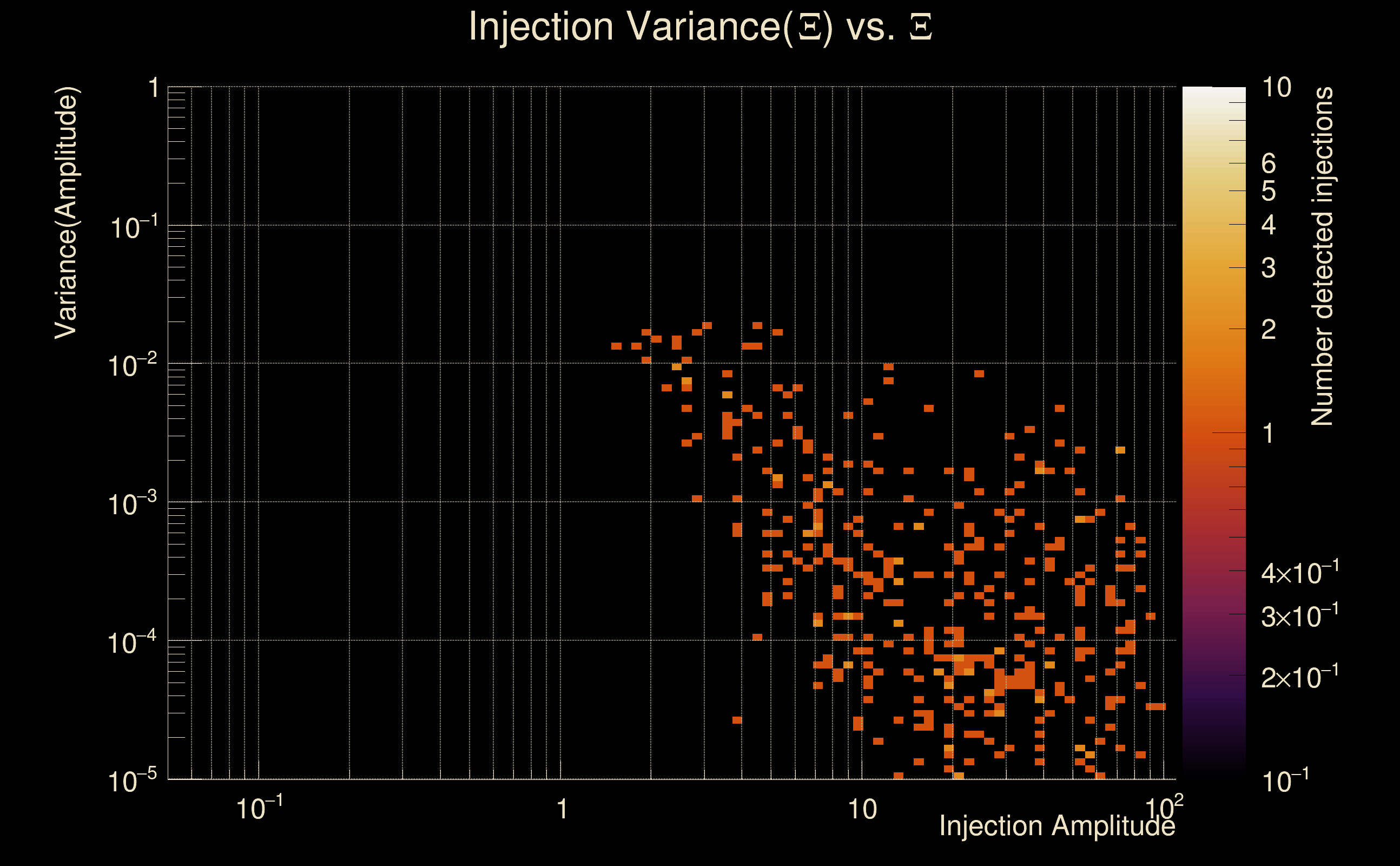

| Number of injections (total/valid/detected): | 1006 / 889 / 419 |
| List of missed injections: | ./Pan21-NR_missed.txt |
| Injection amplitude at 90% detection efficiency: | 4.45328 |
| Injection amplitude at 50% detection efficiency: | 4.25325 |
| Injection amplitude at 10% detection efficiency: | 3.34847 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
