| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 16:59:26 2026 UTC |
| Ox option file: | TargIxf_080426_SN4_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 10000 (detector 0), < 10000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | TargIxf_080426_SN4_file_list.txt (1245 files) |
| Analysis result file: | TargIxf_080426_SN4_results-1.root |
| Slice selected for the the fakeground: | slice index=94 (0.644 s), time lag = 0 s |

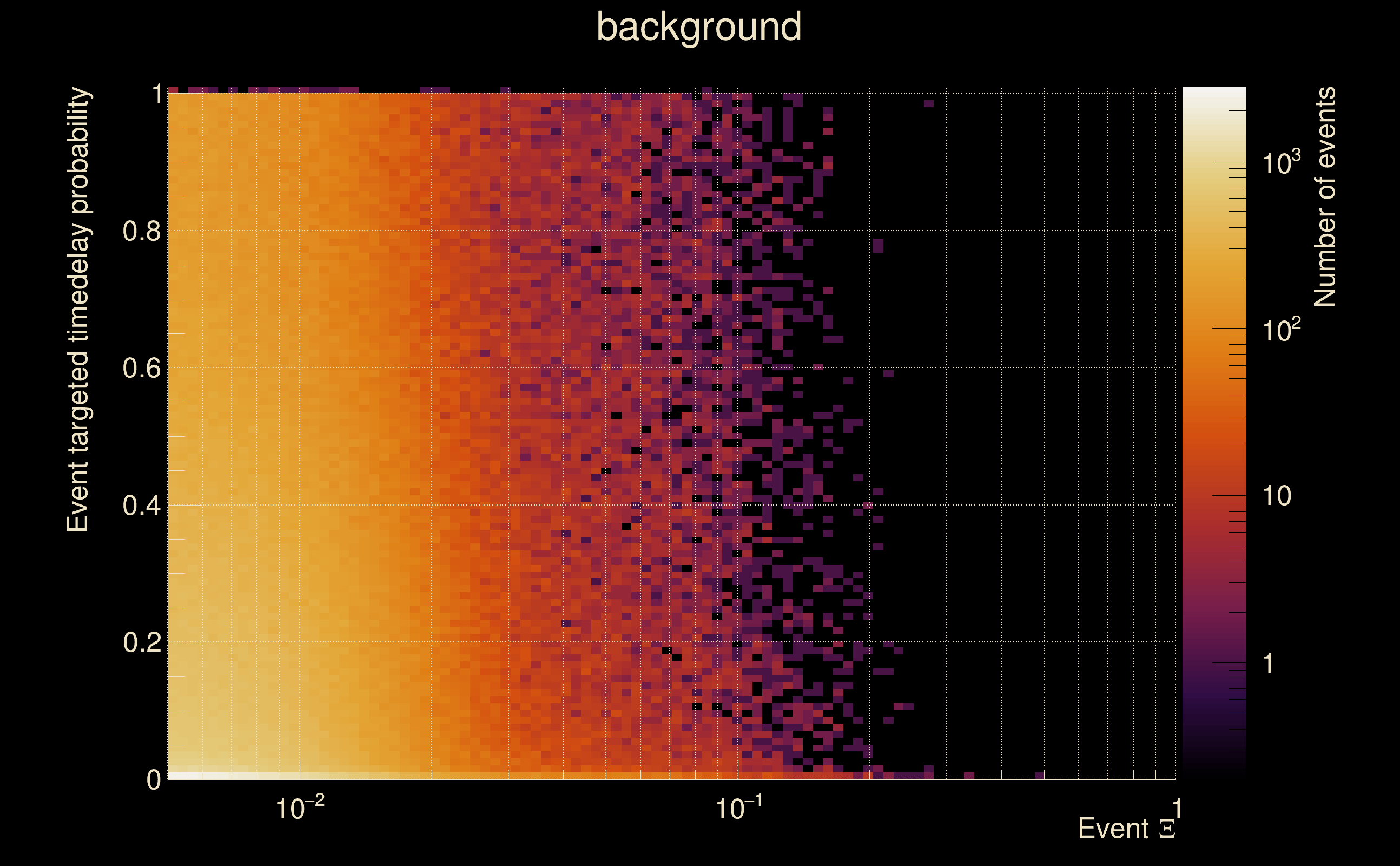

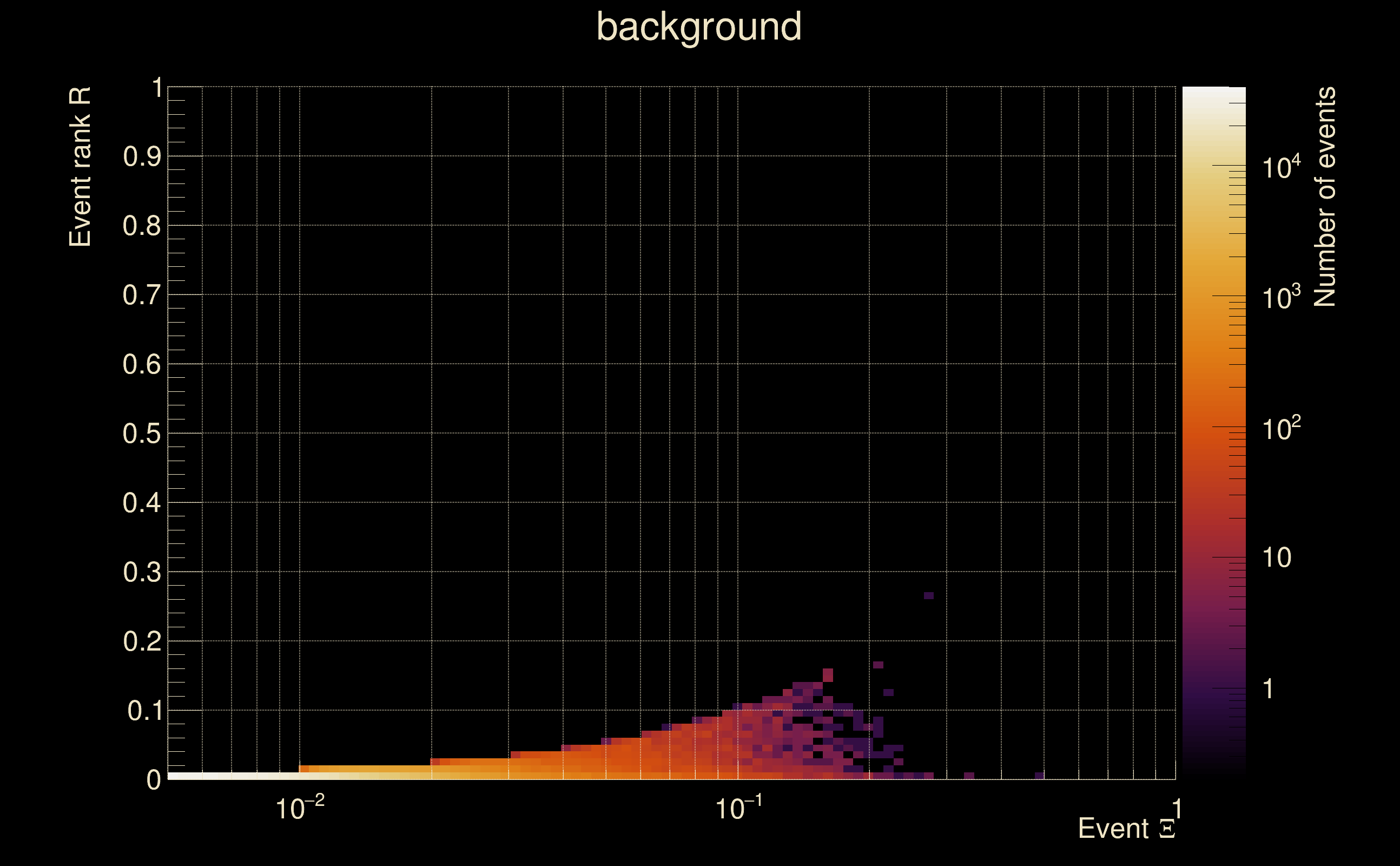

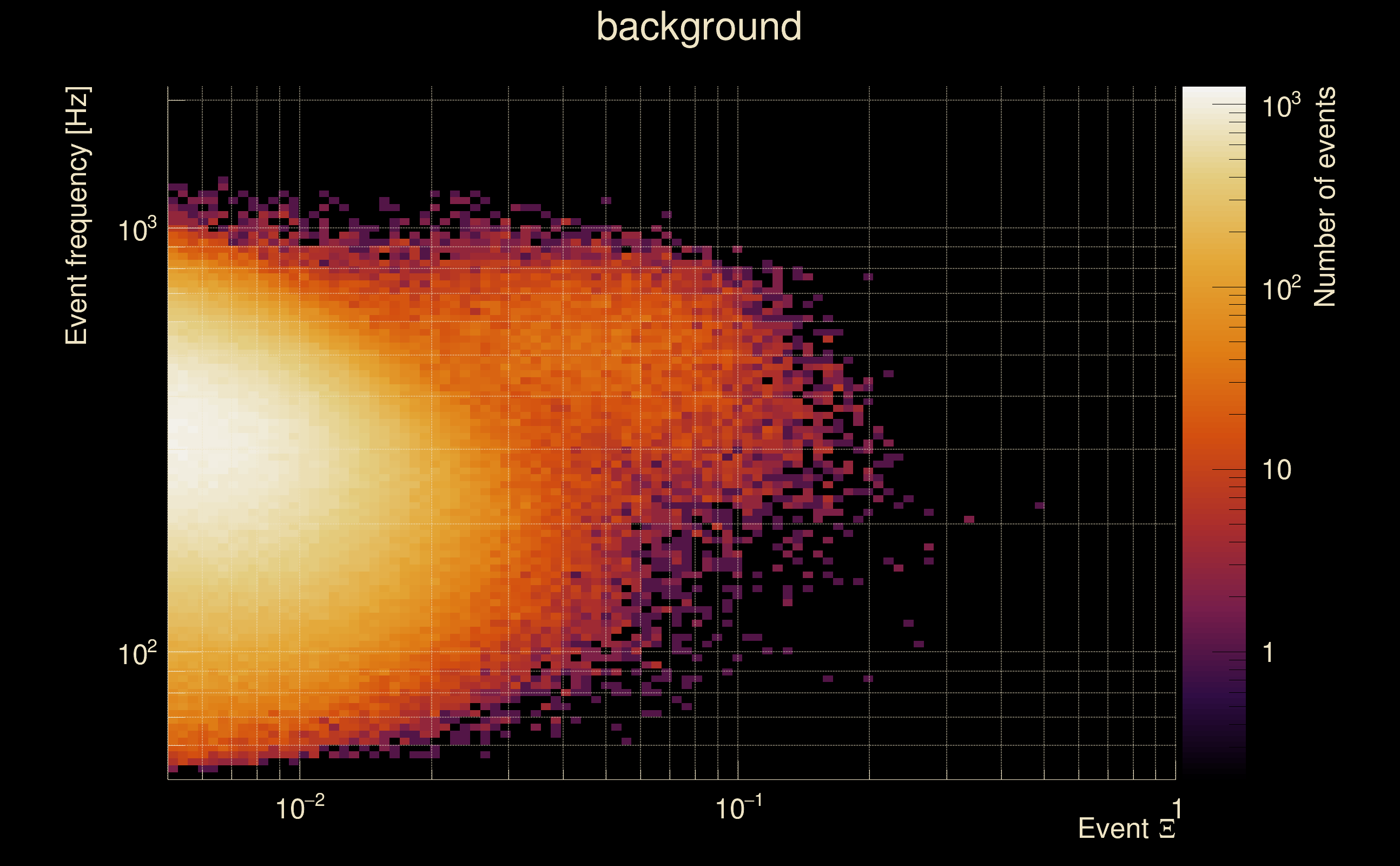

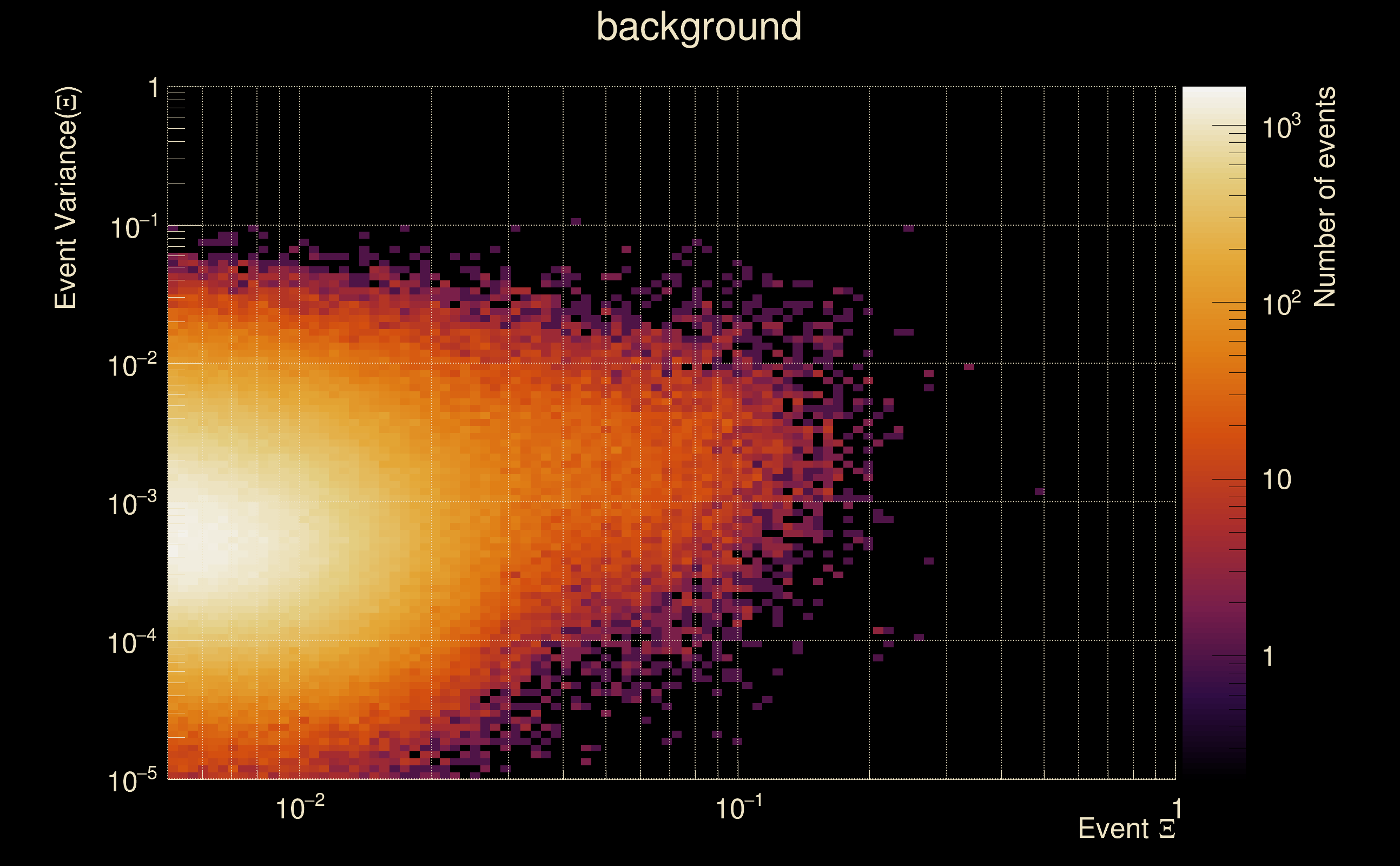

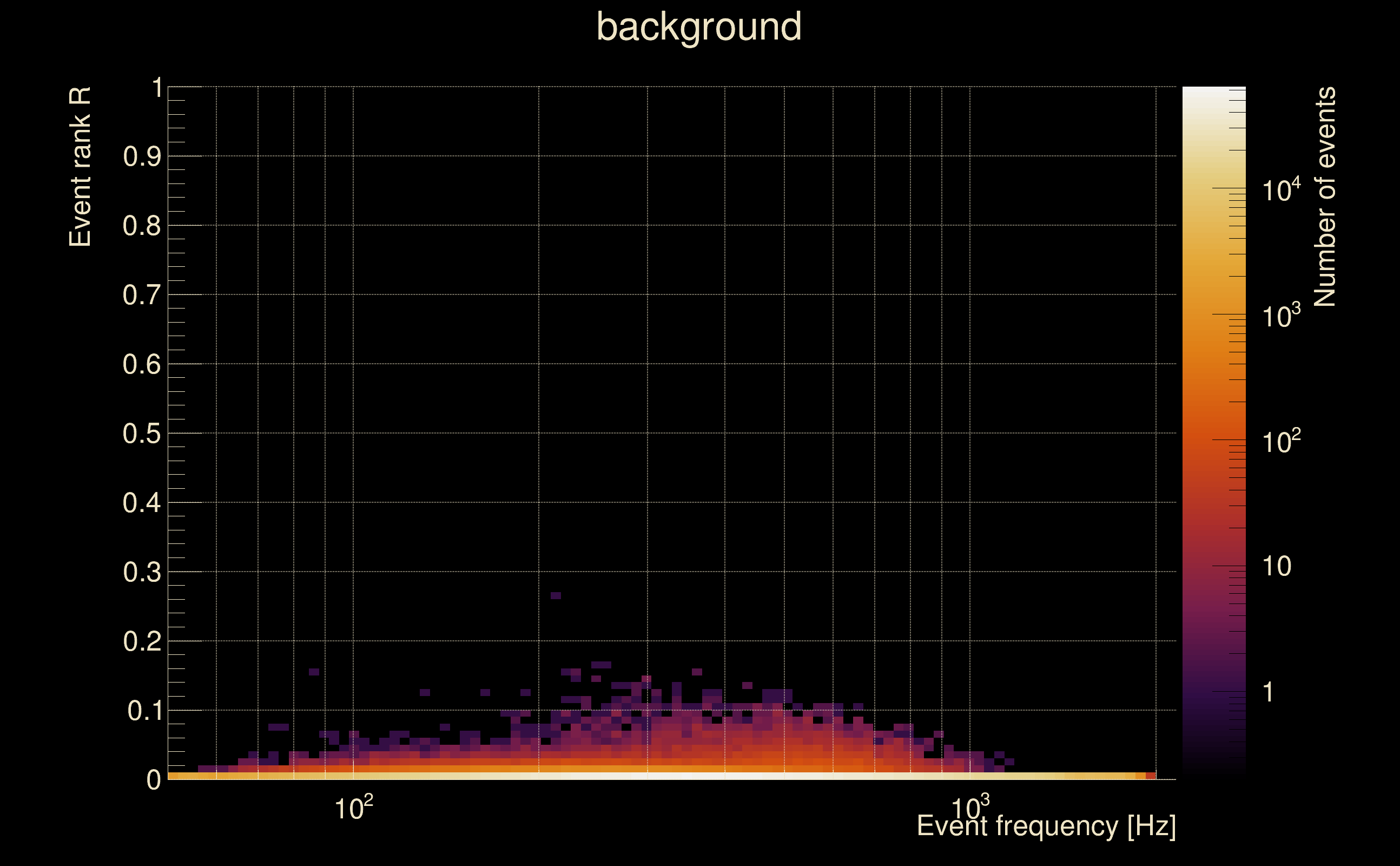

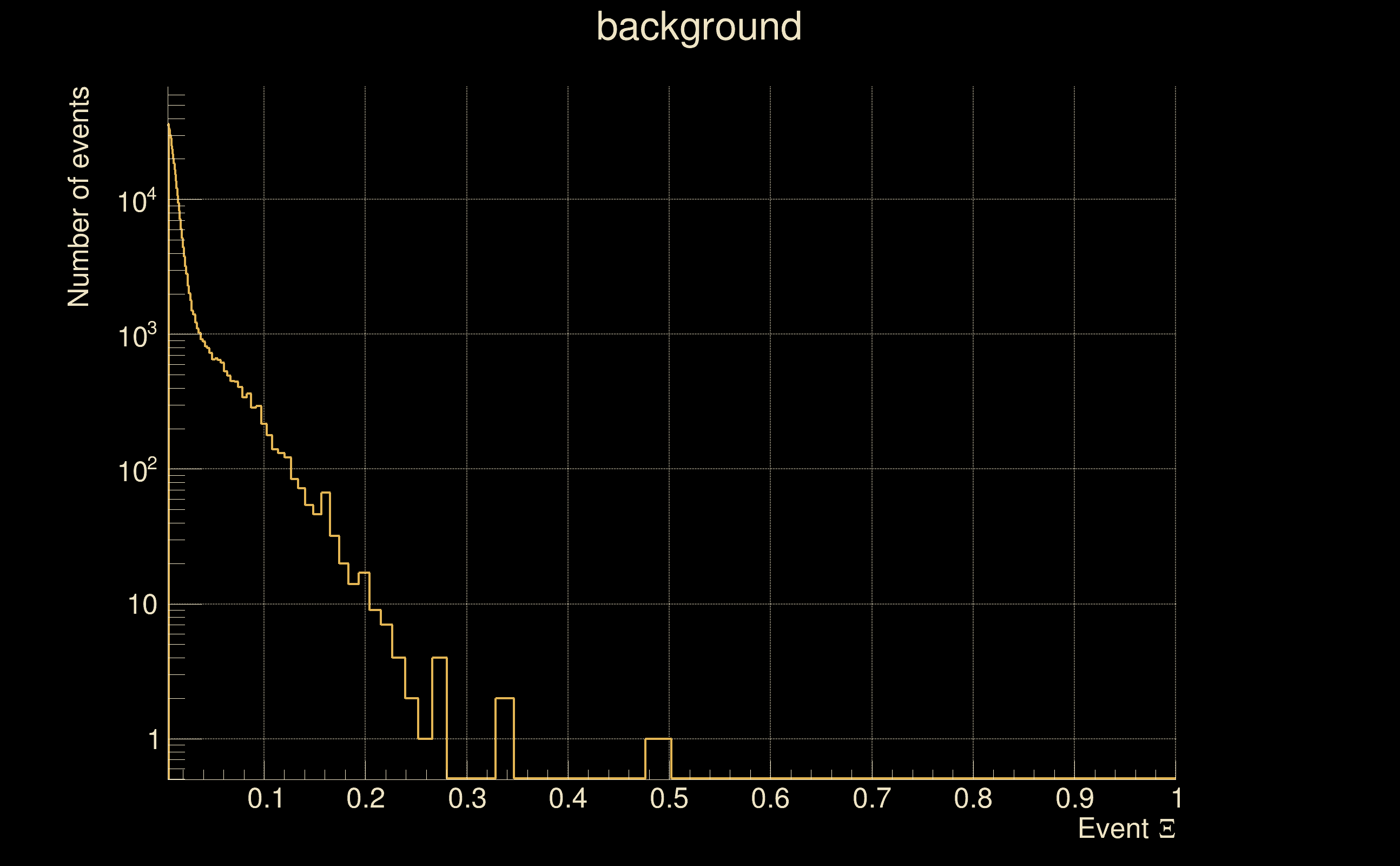

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

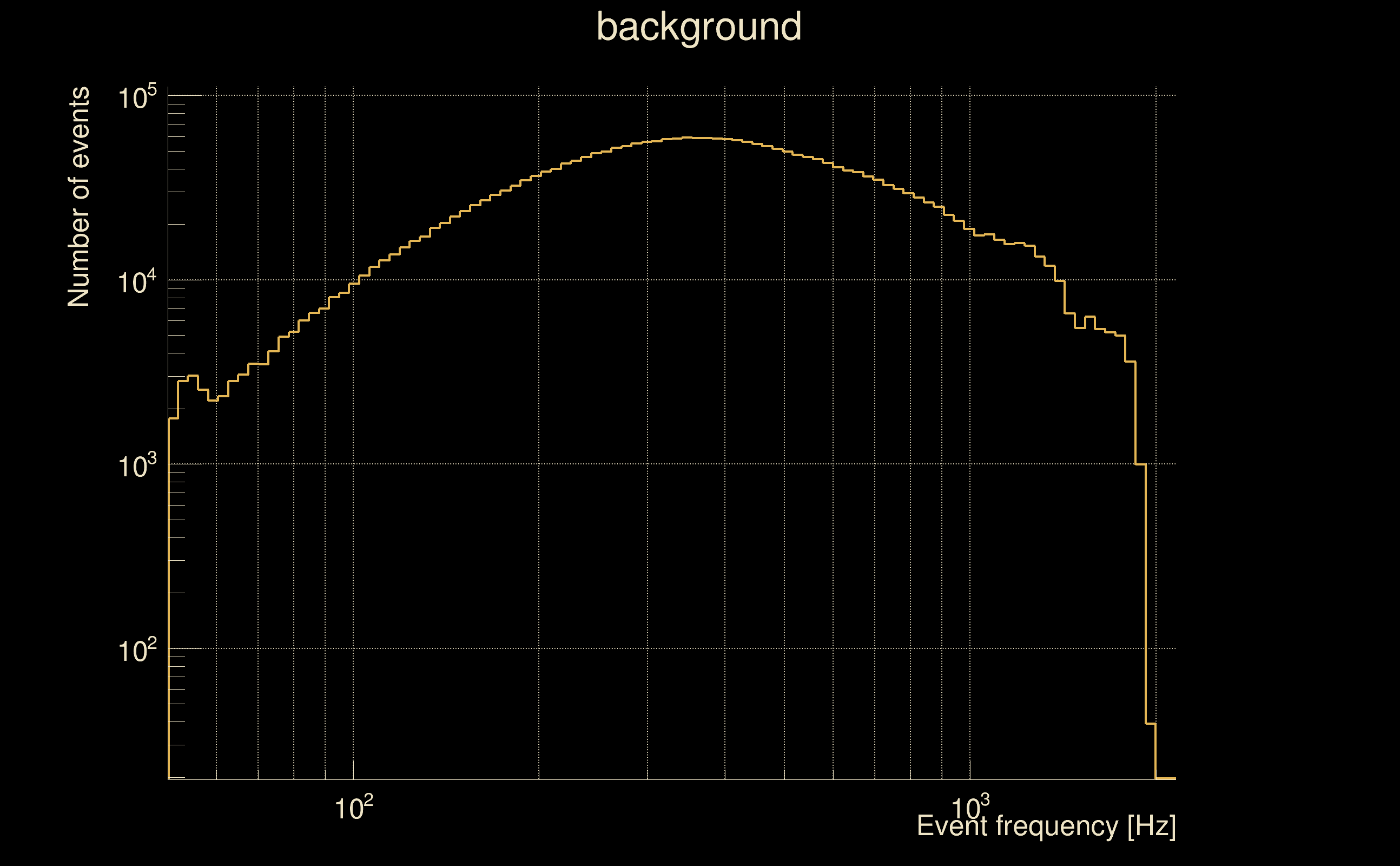

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

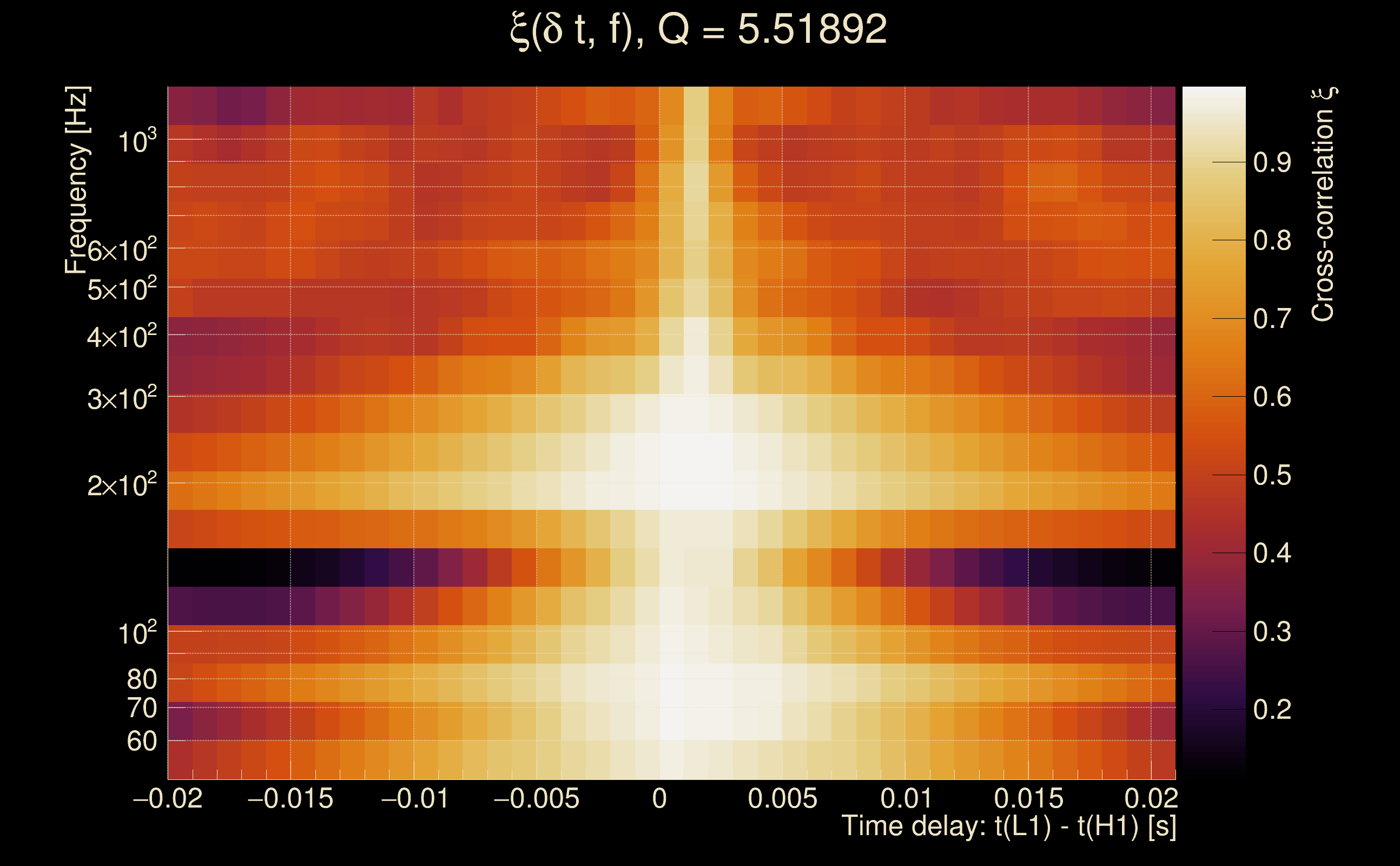

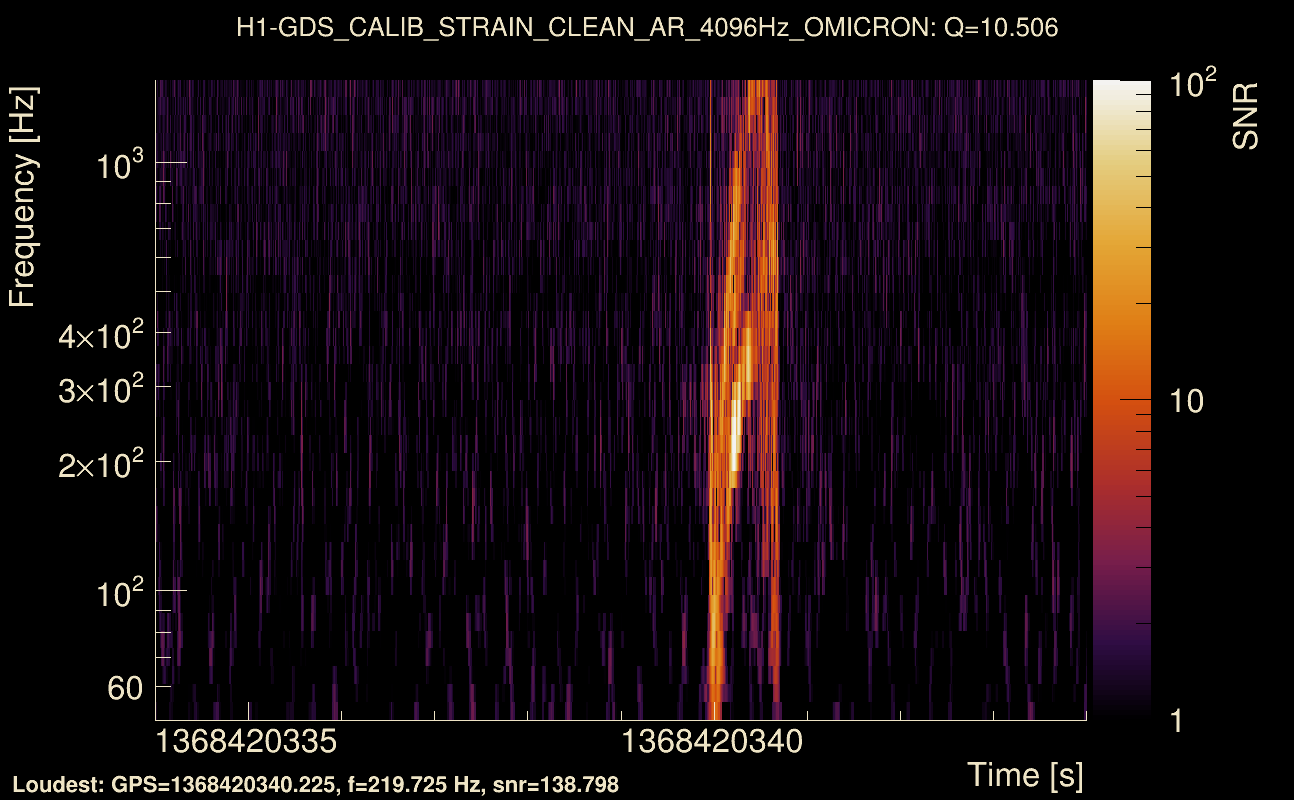

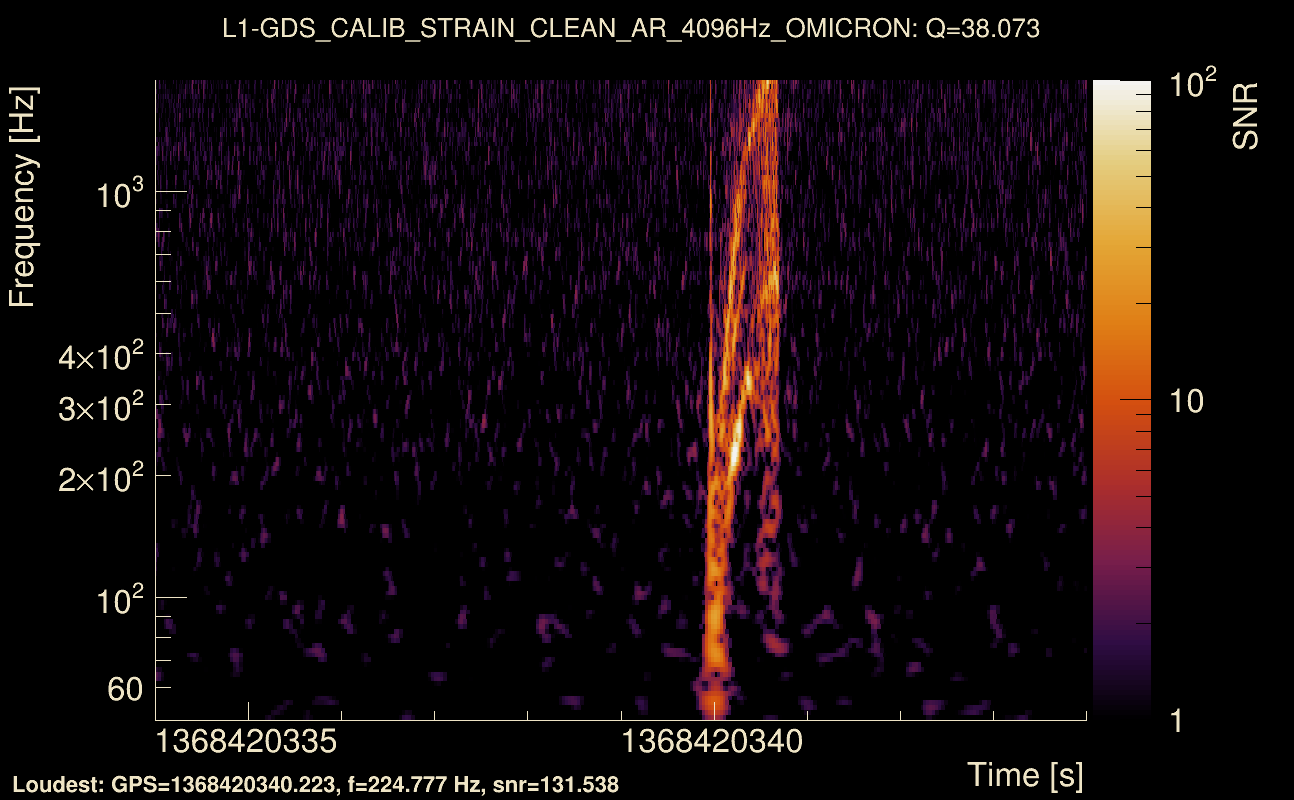

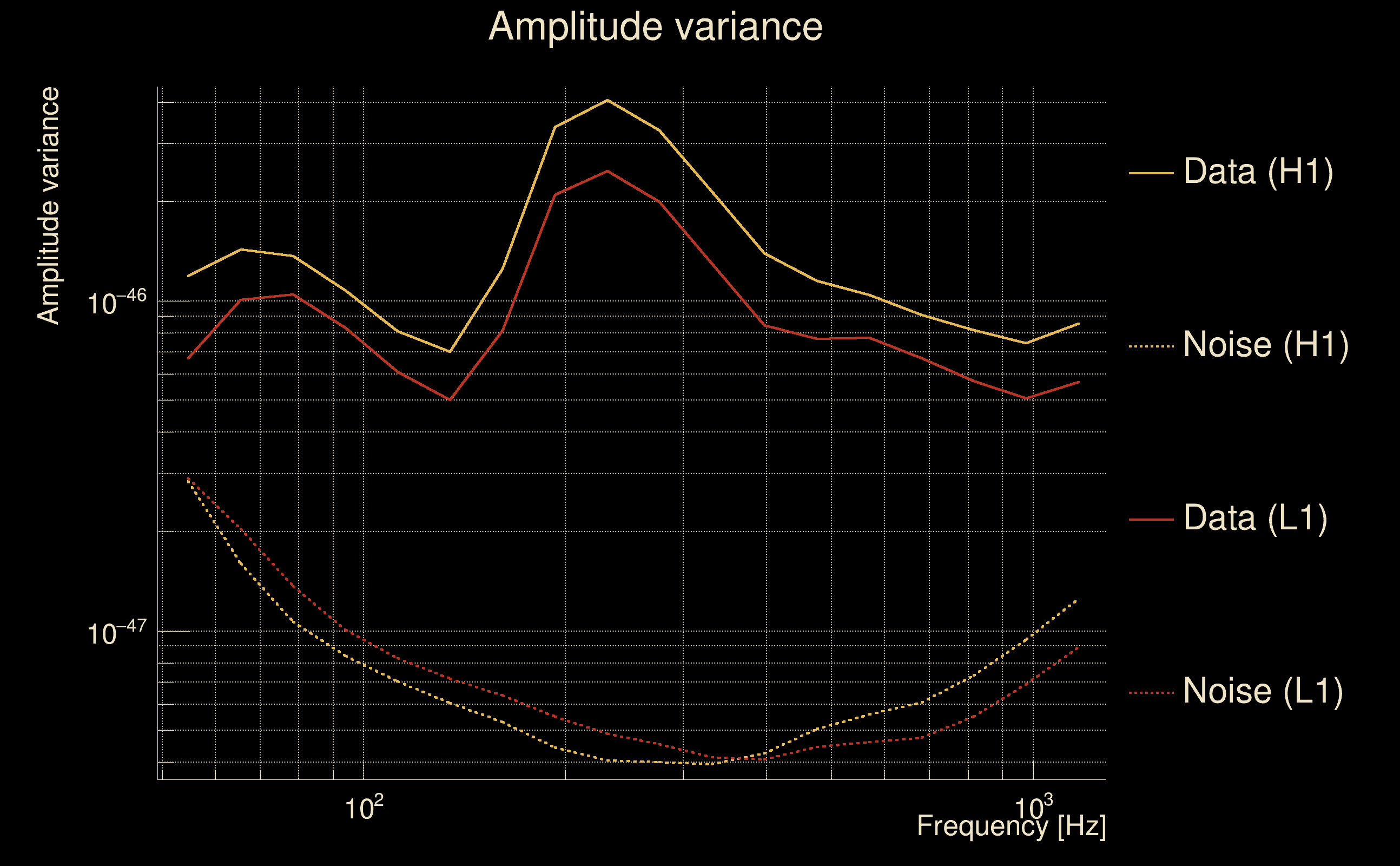

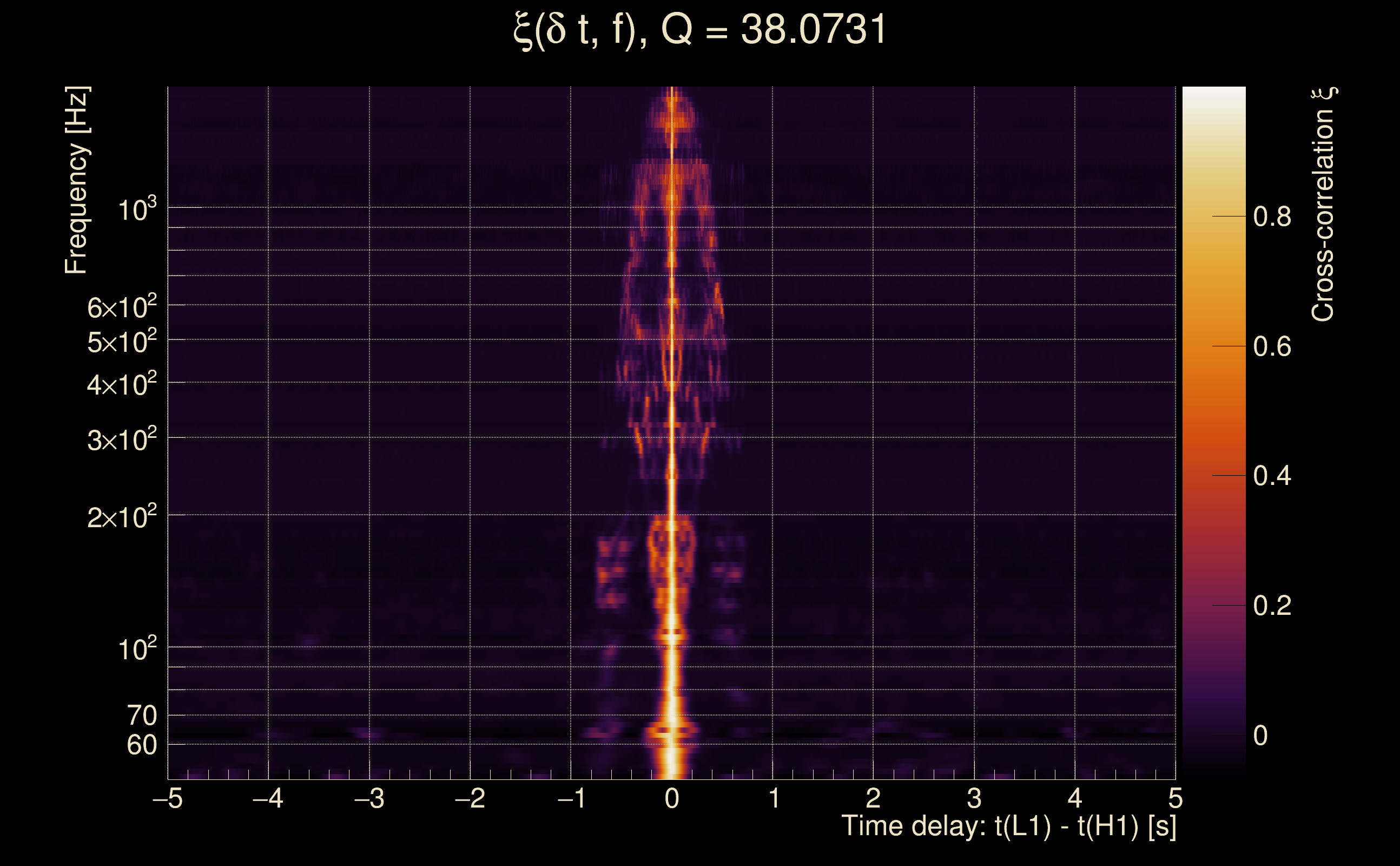

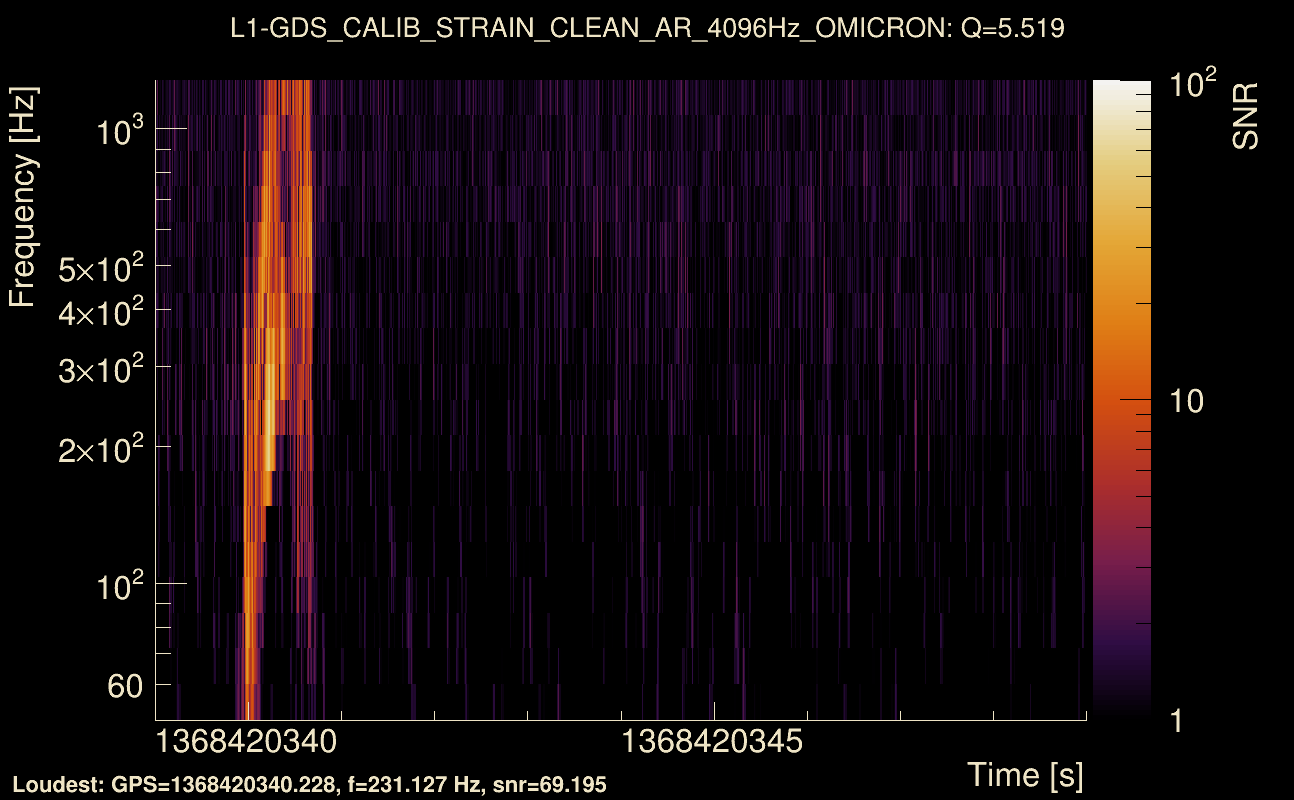

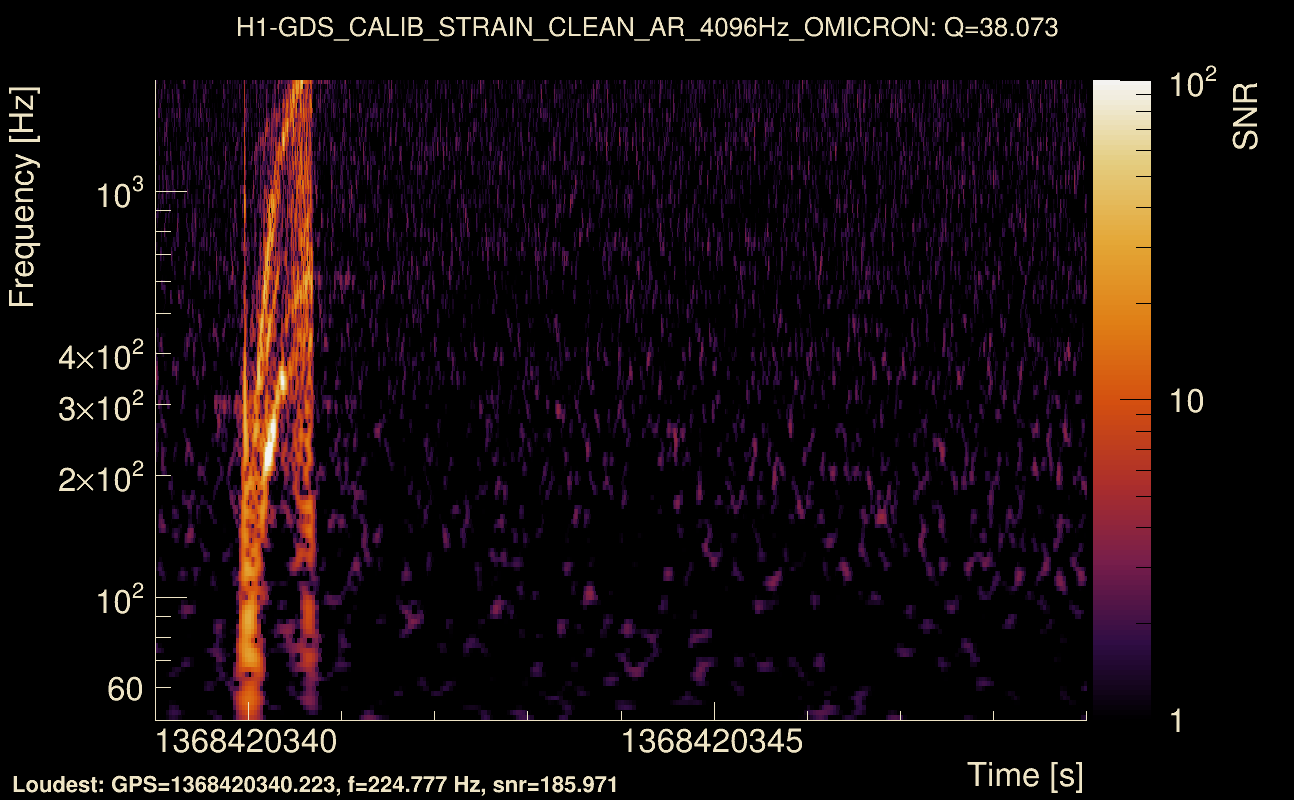

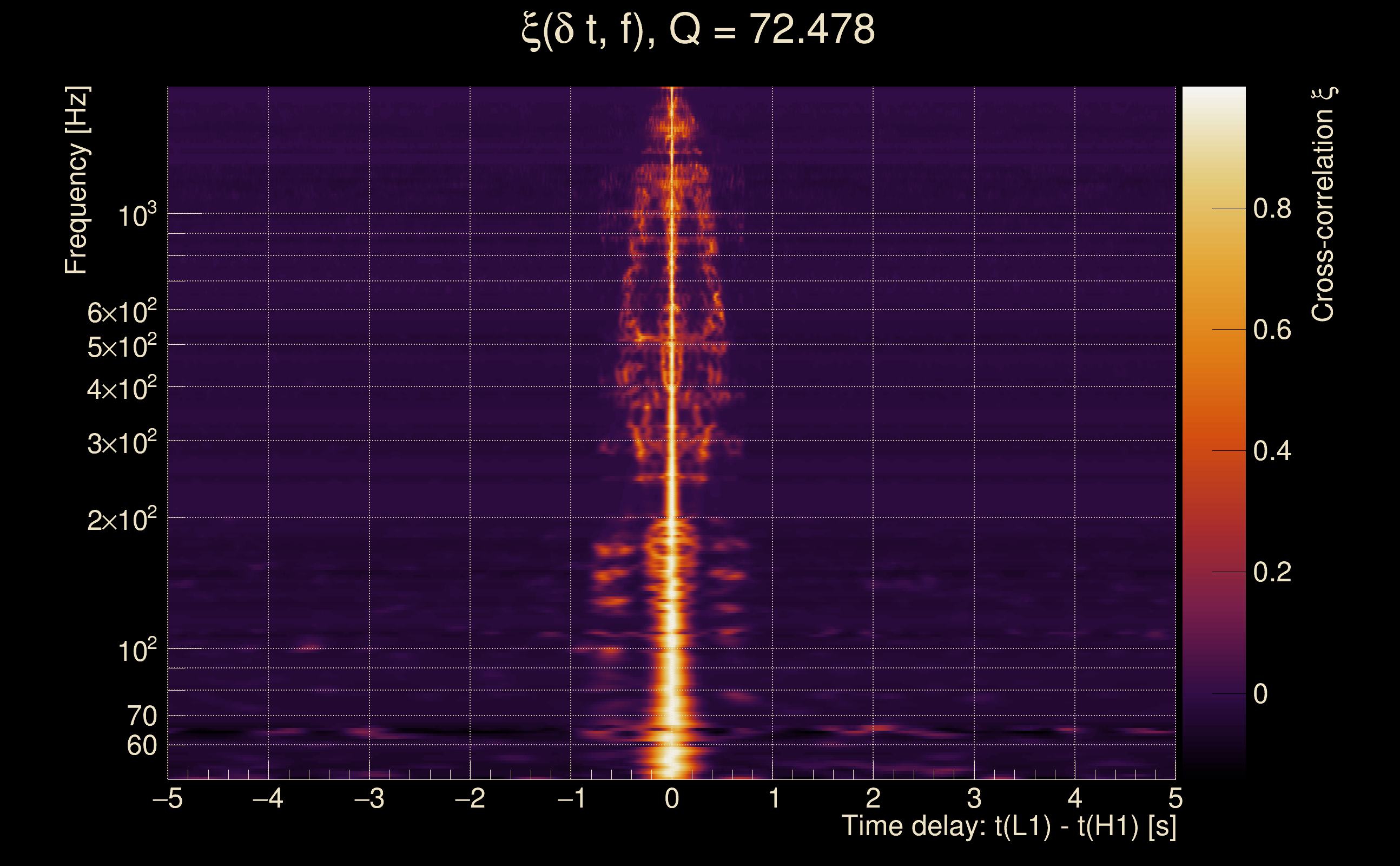

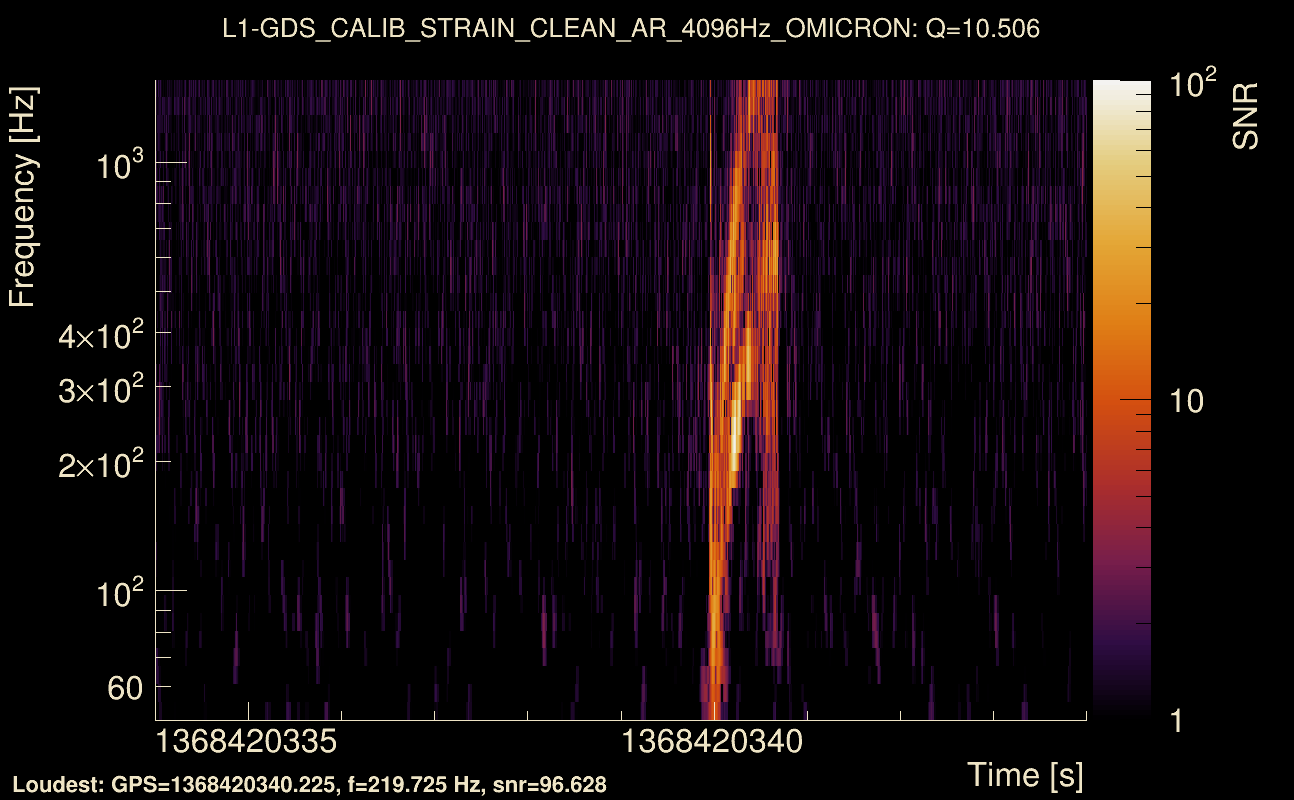

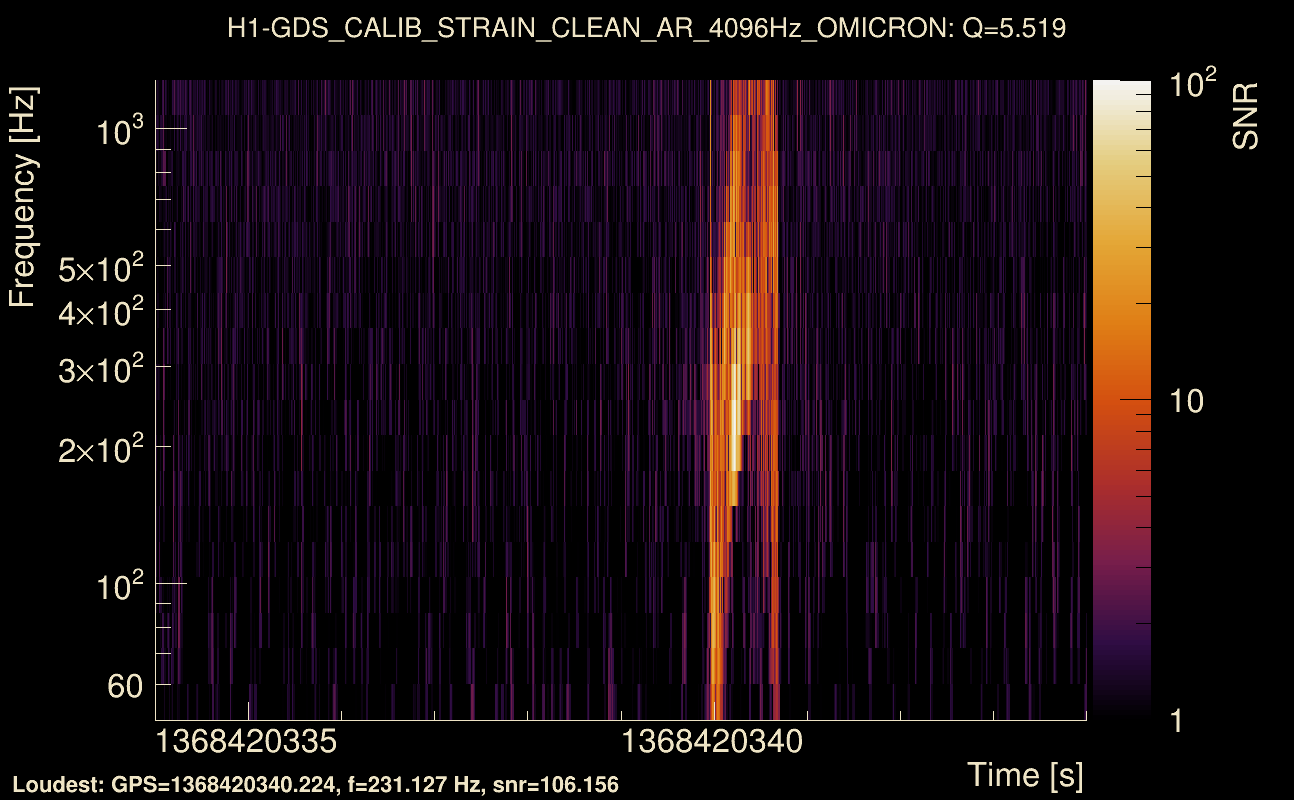

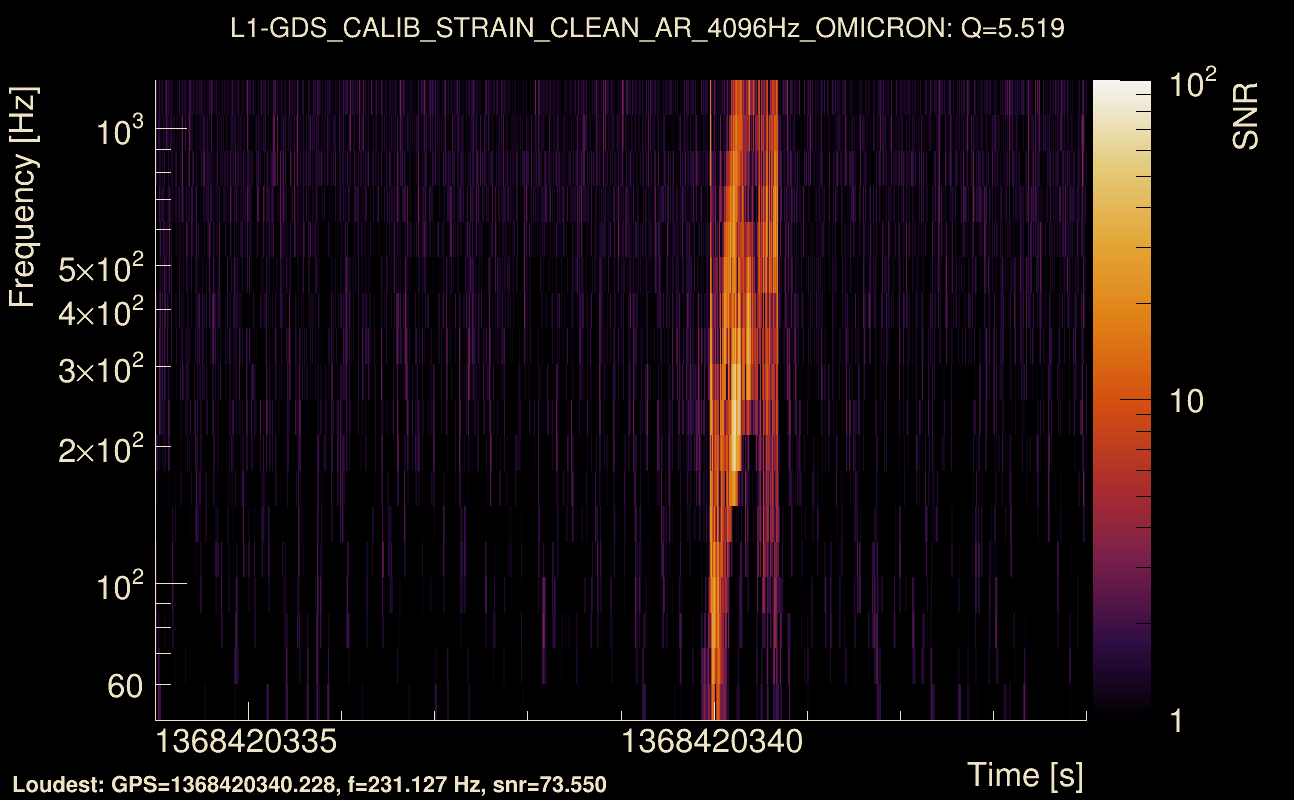

| Event time t(H1): | GPS = 1368420339 (Thu May 18 04:45:21 2023 ) → GPS = 1368420349 (Thu May 18 04:45:31 2023 ) |
| Event time t(L1): | GPS = 1368420339 (Thu May 18 04:45:31 2023 ) → GPS = 1368420349 (Thu May 18 04:45:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420336 → GPS = 1368420352 |
| Omicron analysis time window (L1): | GPS = 1368420336 → GPS = 1368420352 |
| Time delay between detectors t(L1) - t(H1): | 0.000934526 s (slice index = 108 / 217), δt_gw = 0.000934526 s |
| Time delay standard deviation: | 0.0192095 s |

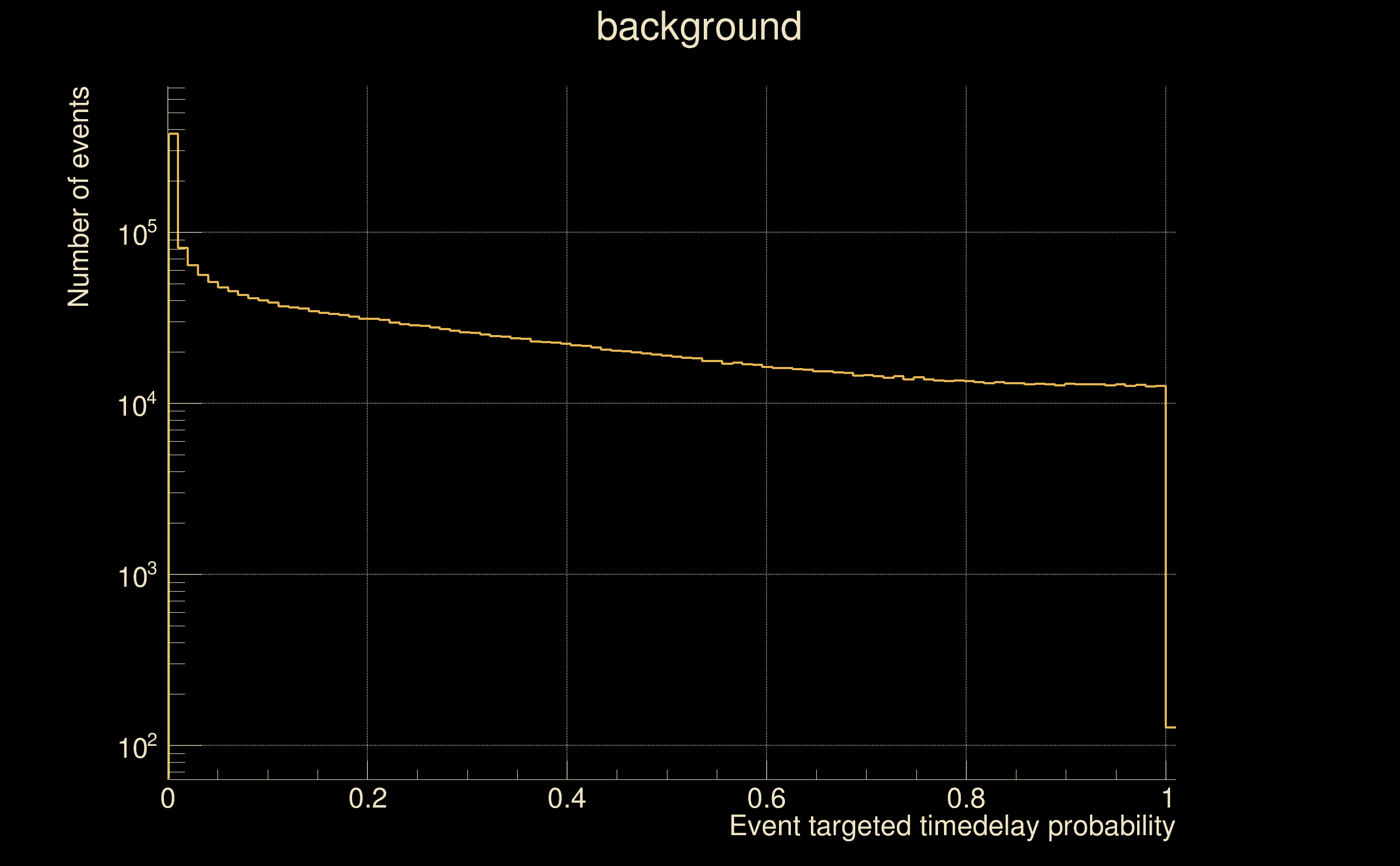

| [targeted mode] Time delay probability: | 0.989012 (0.0137723 sigmas), δt_target = 2.92391e-81 s |
| Frequency: | 284.445 Hz |
| Ξ: | 0.95405 ± 0.00146002 (variance = 2.13165e-06): Q0: 0.955702, Q1: 0.956221, Q2: 0.957332, Q3: 0.956193, Q4: 0.952964 |
| Rank: | R_A = 0.943566 |
| Log of amplitude ratio (L1/H1): | -0.227774, variance = 0.165331 (L1/H1: -0.243915, variance = 0.302871, H1/L1: 0.197735, variance = 0.304319) |
| Amplitude ratio (L1/H1): | 0.796304 ⋇ 1.50172 (L1/H1: 0.783554 ⋇ 1.73384, H1/L1: 1.21864 ⋇ 1.73612) |

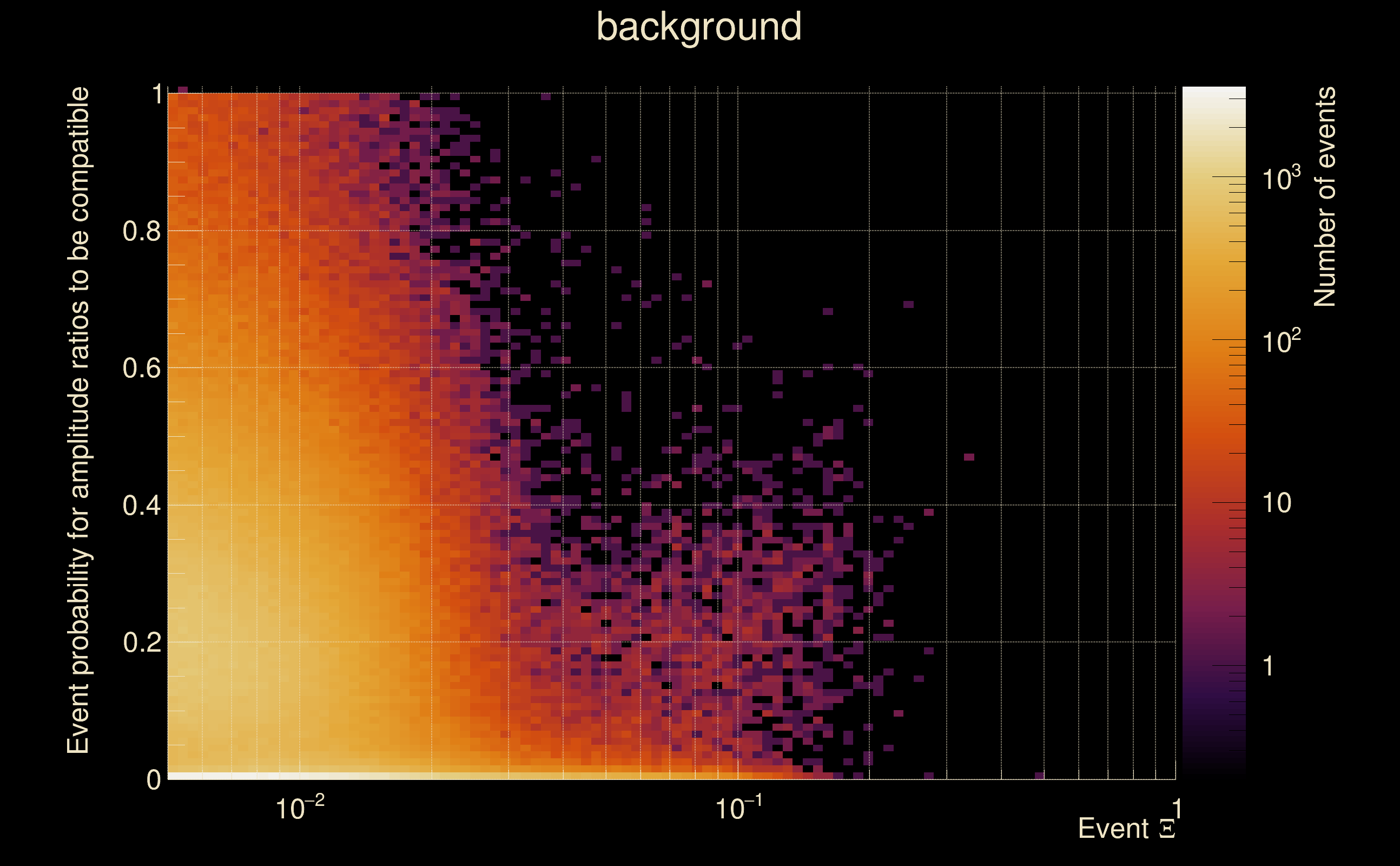

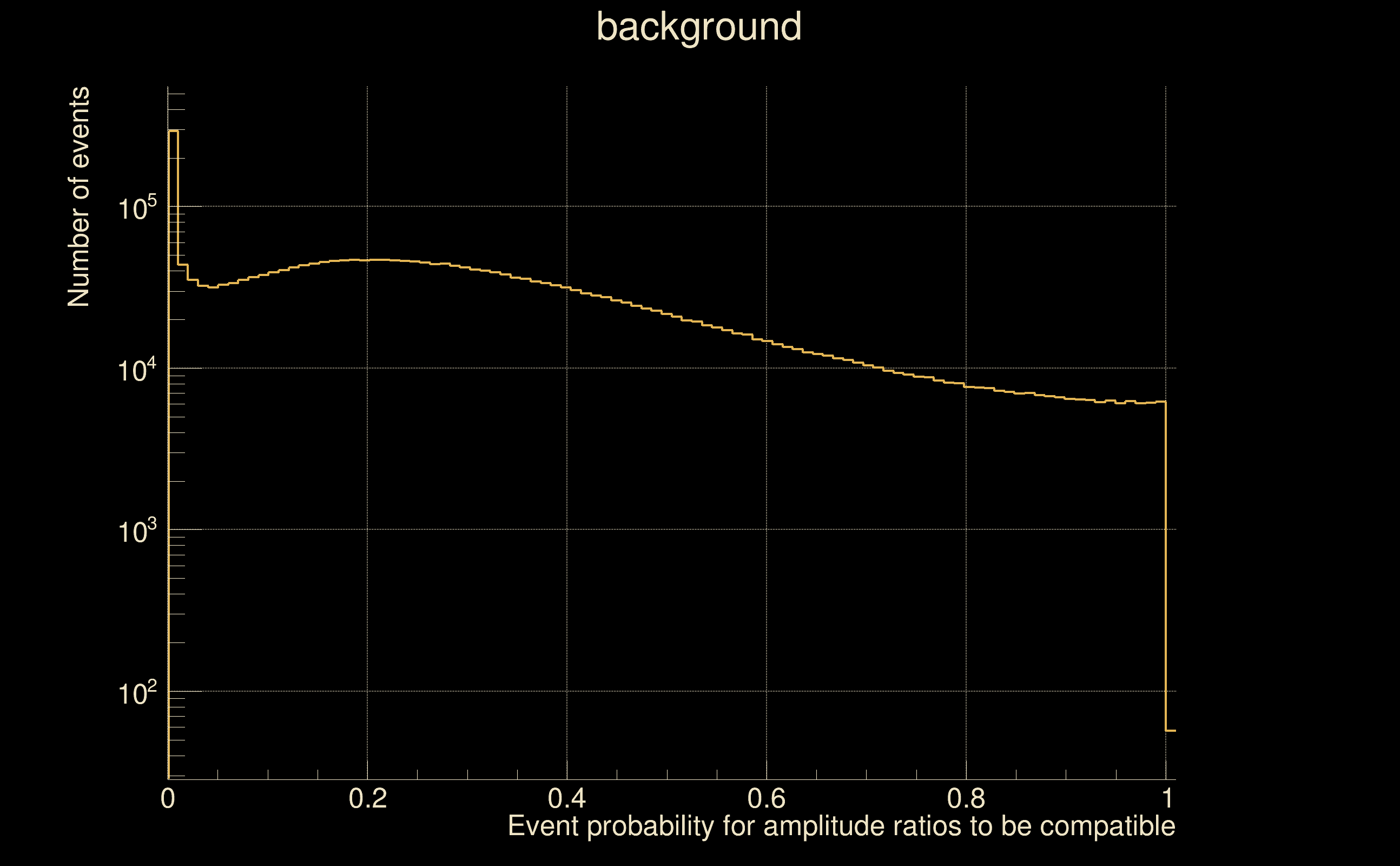

| Amplitude ratio H1|L1 compatibility (probability): | 0.952741 |

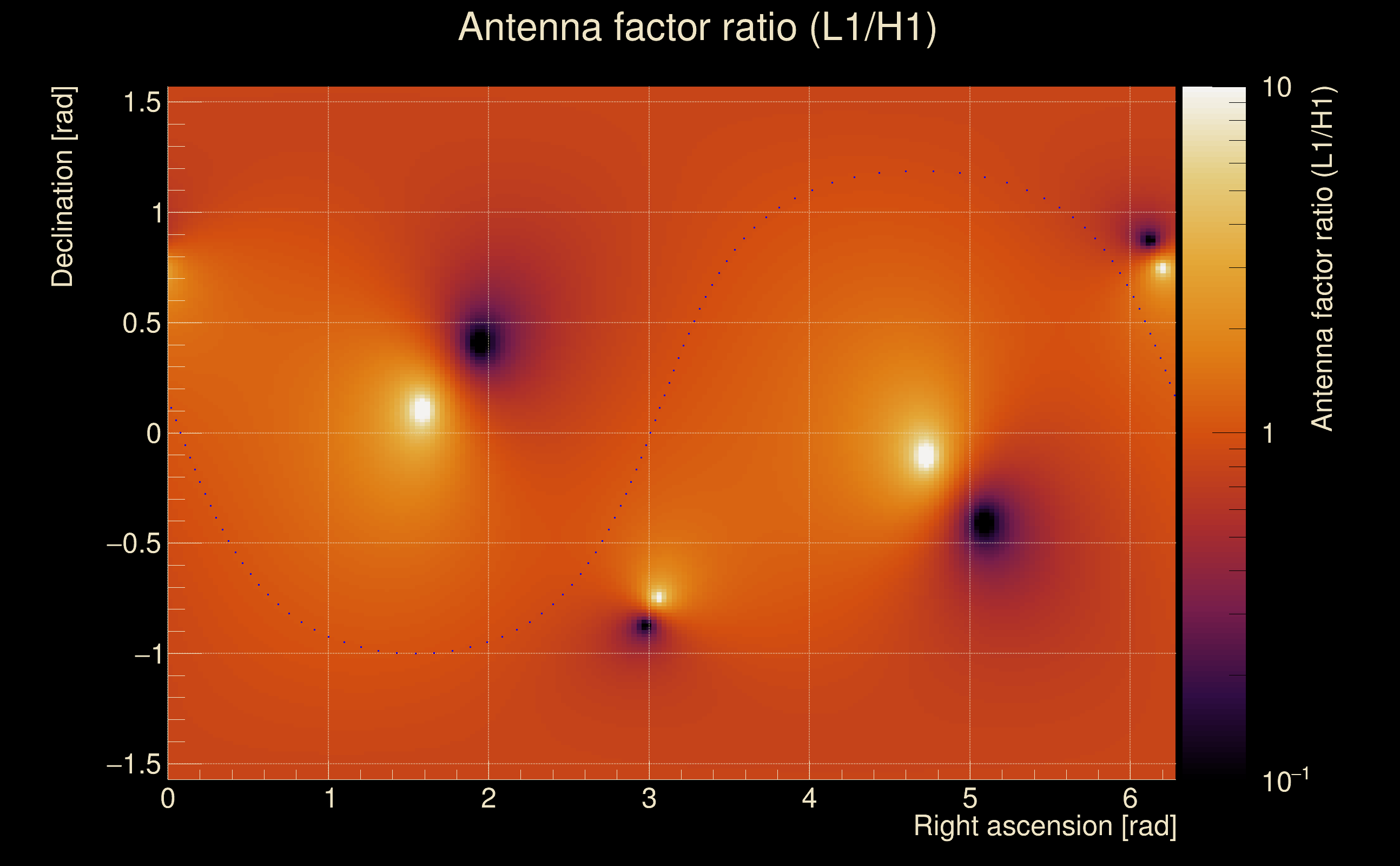

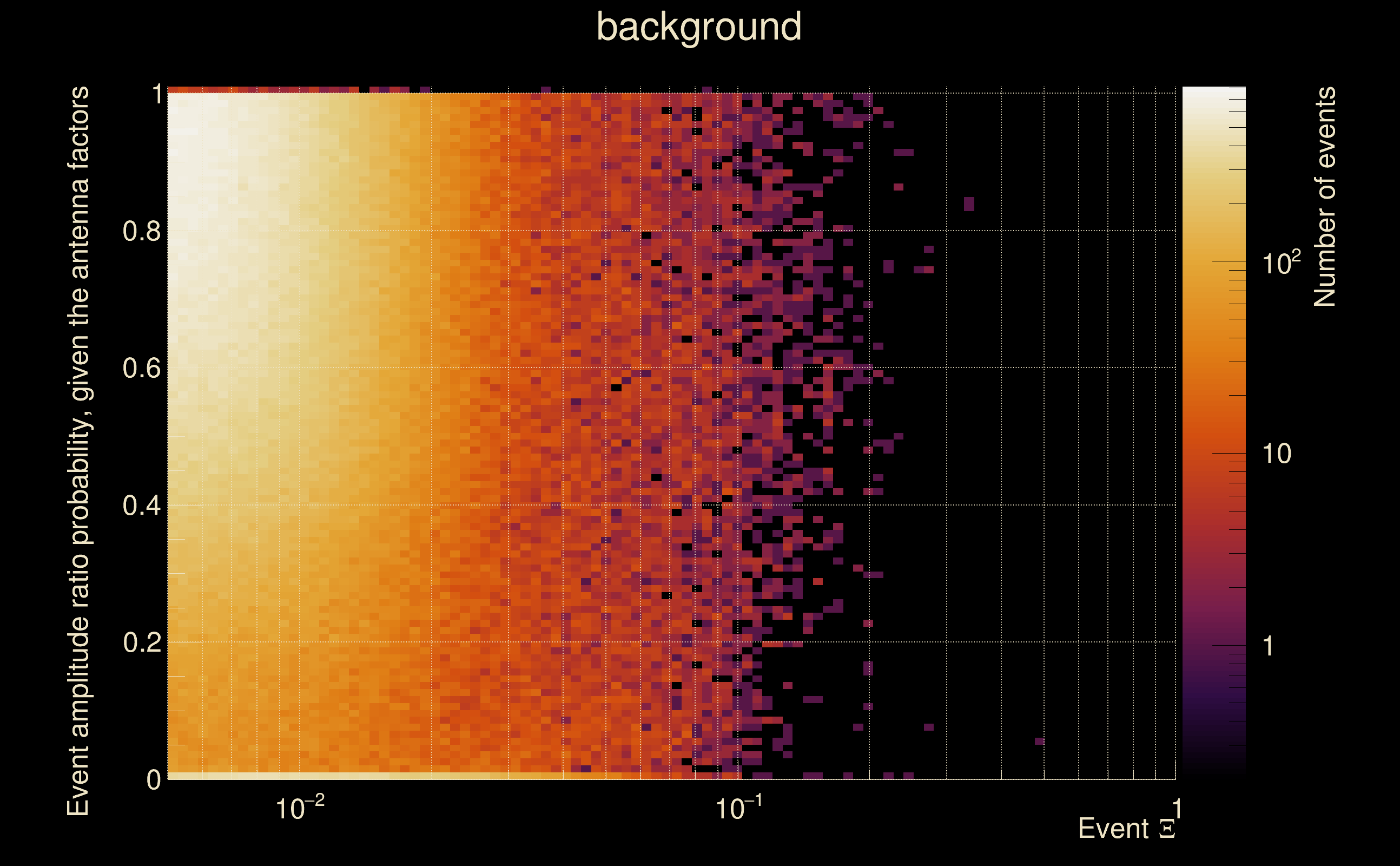

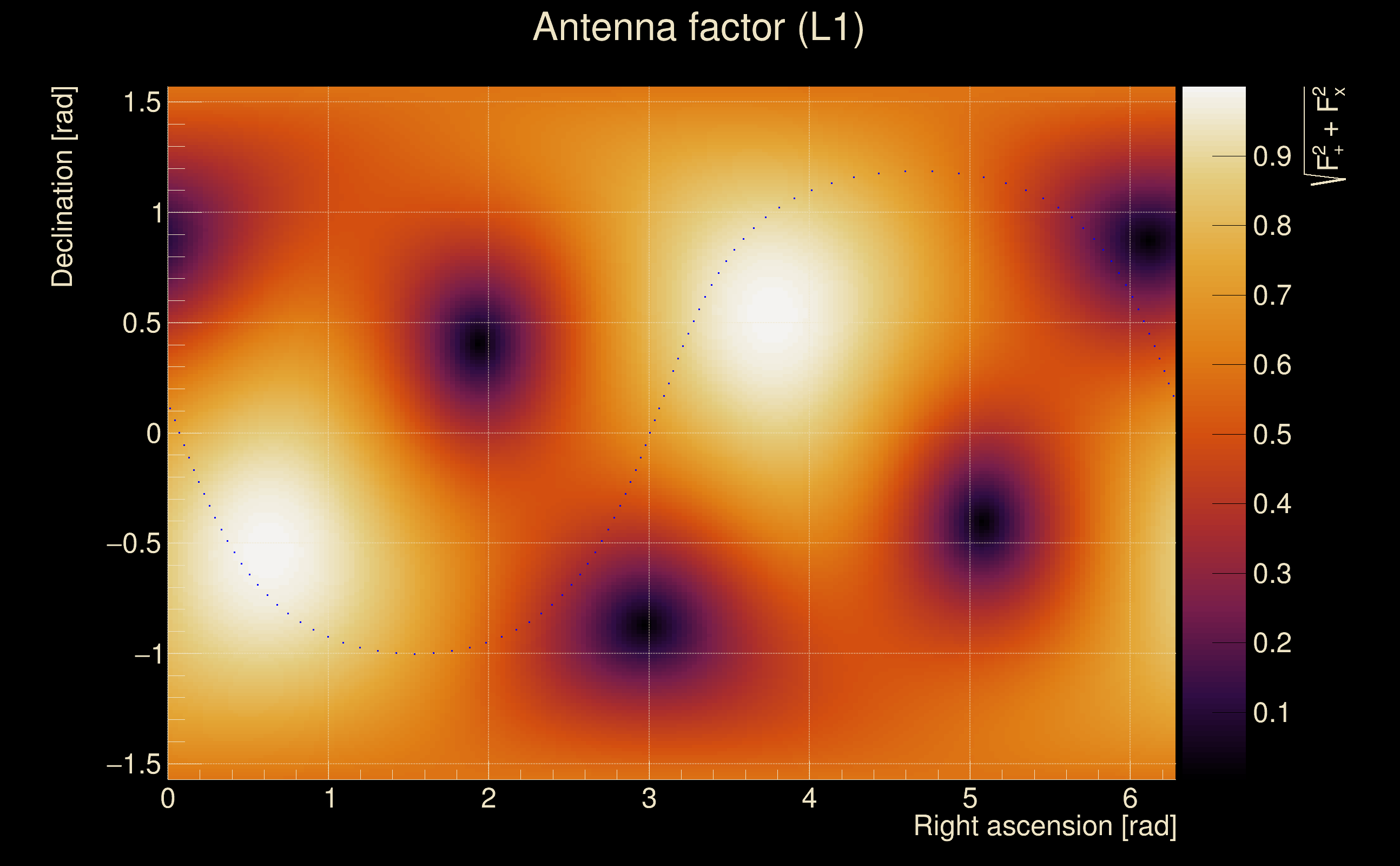

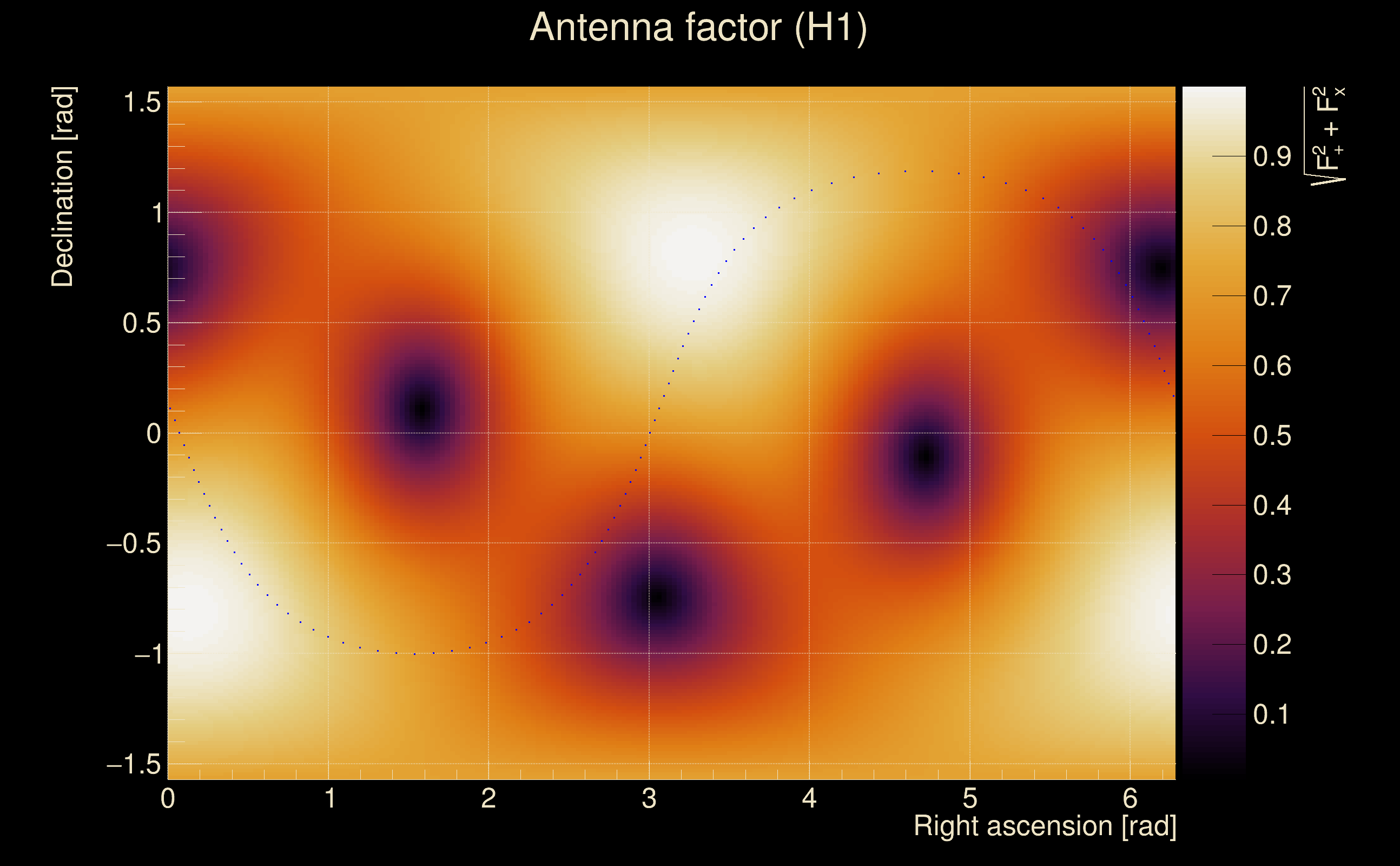

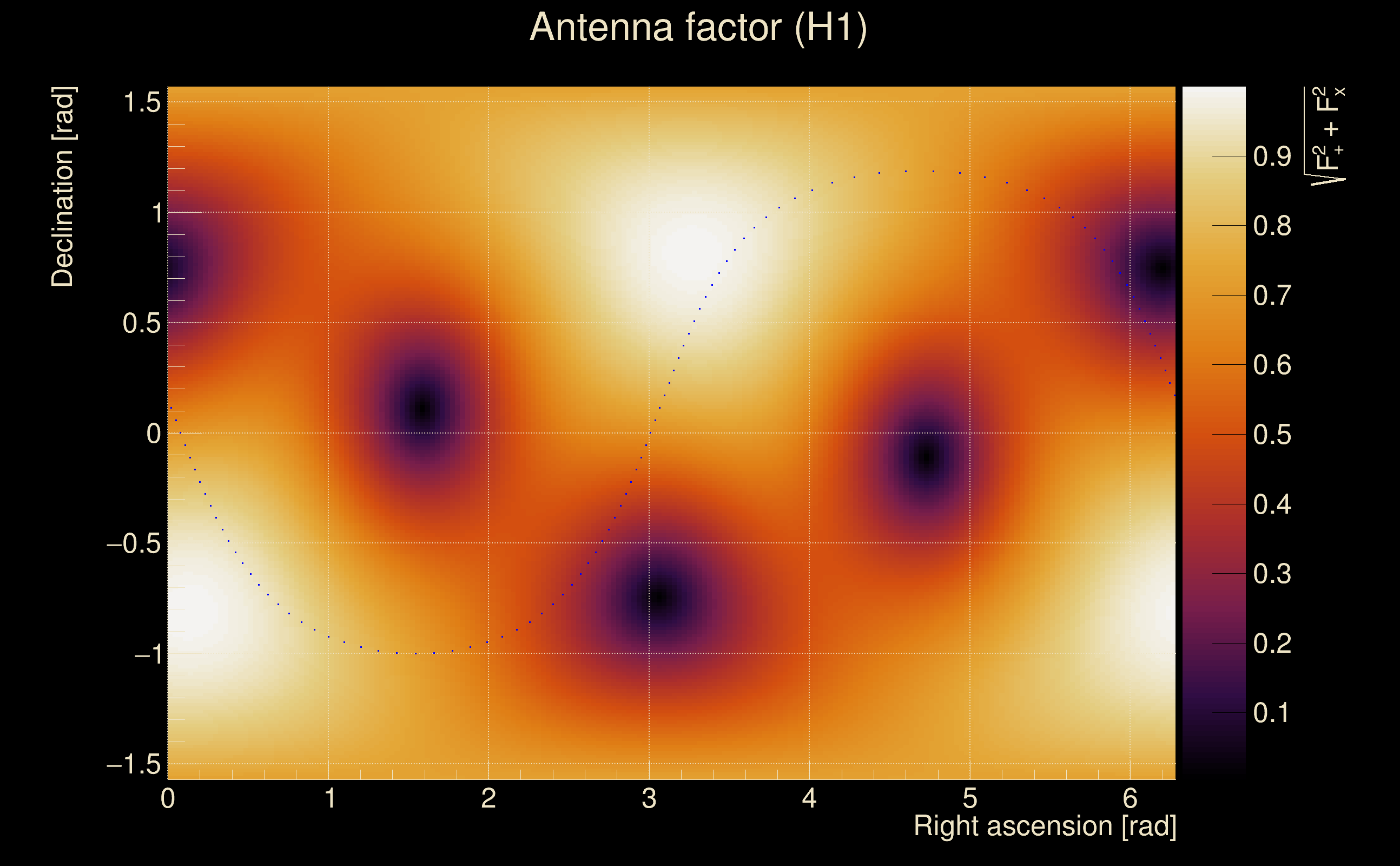

| Antenna factor probability: | 0.653318 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 1 / 134, Q4: 11 / 258 |
| Maximum signal-to-noise ratio: | H1: 189.754, L1: 139.091 |

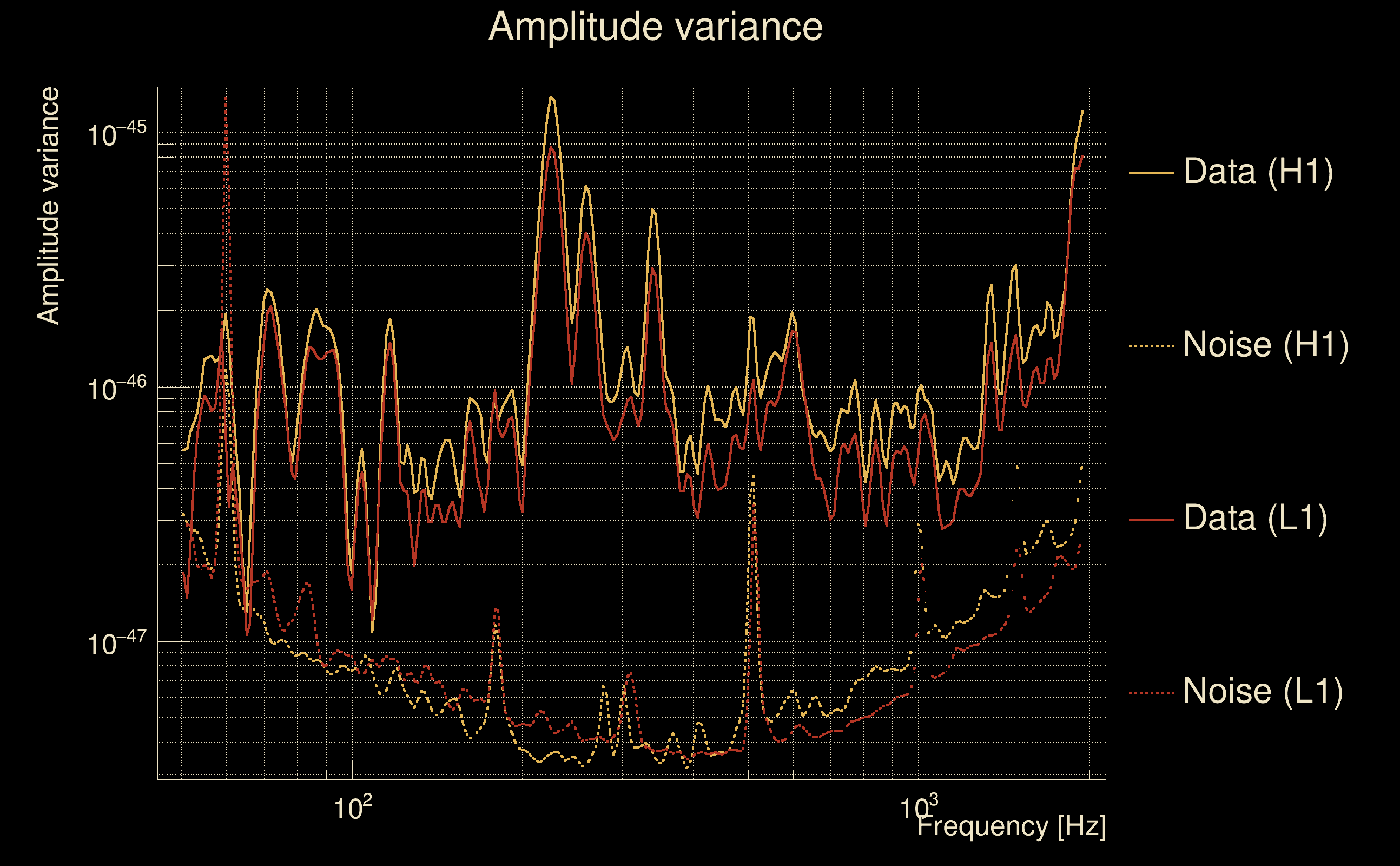

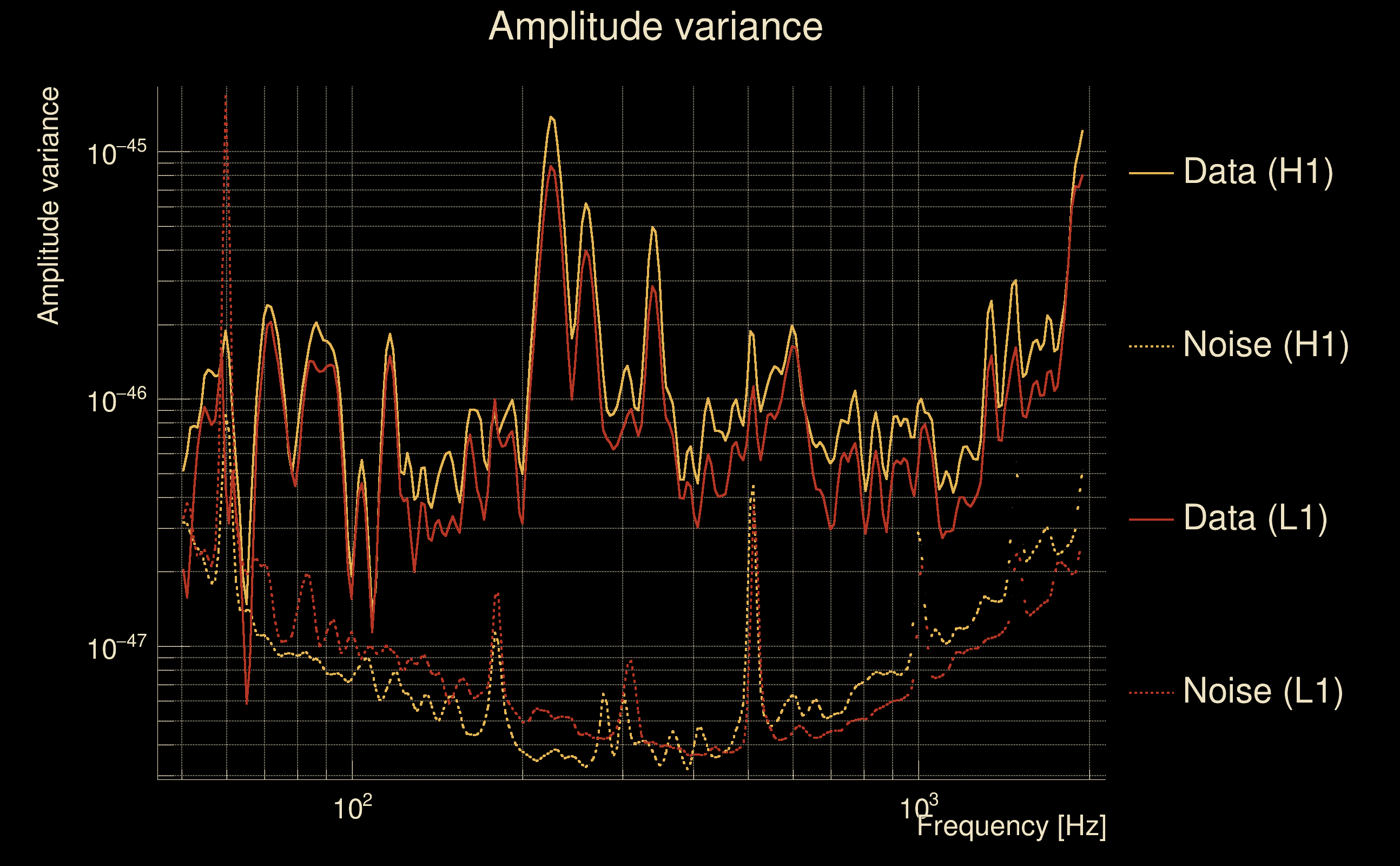

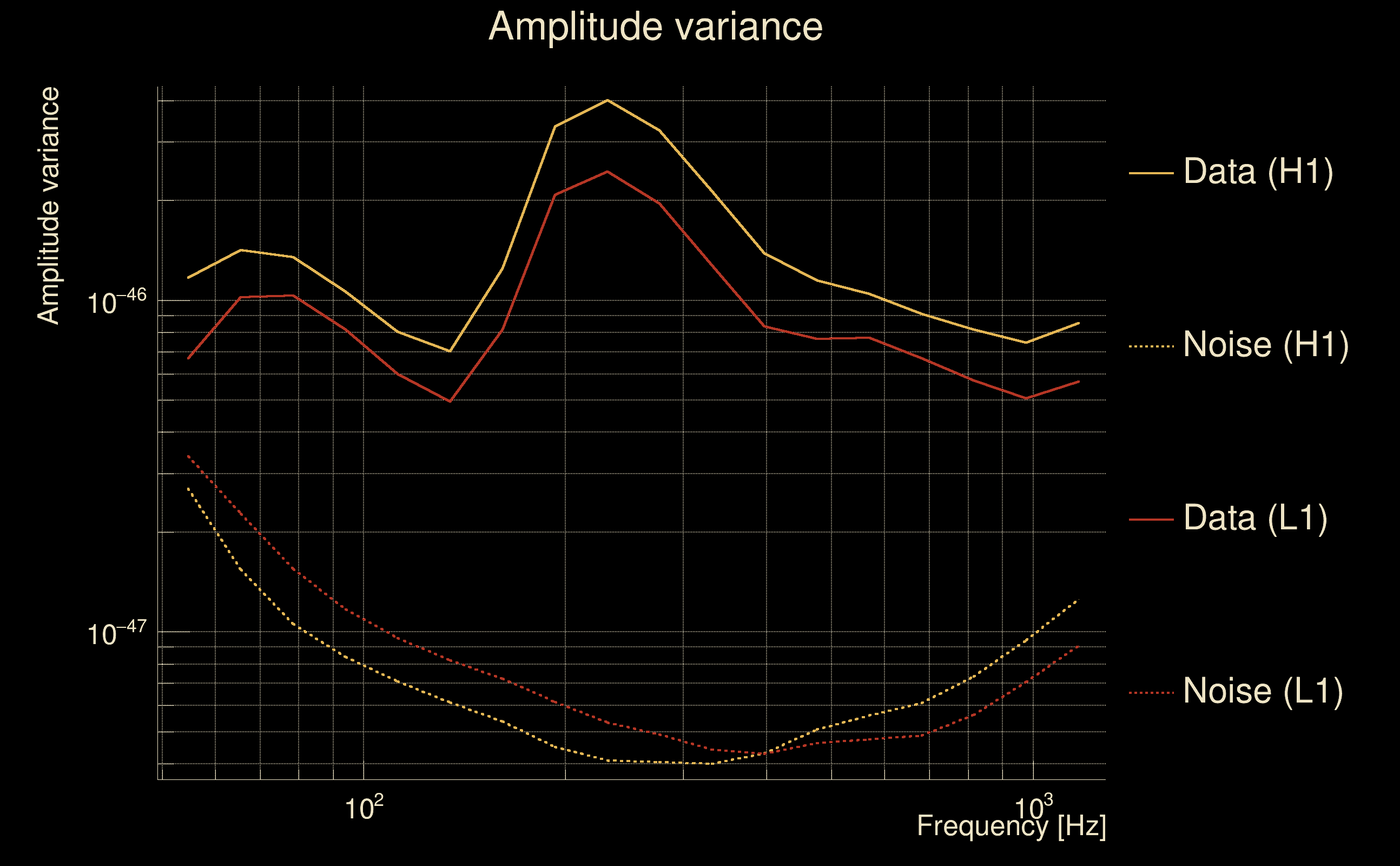

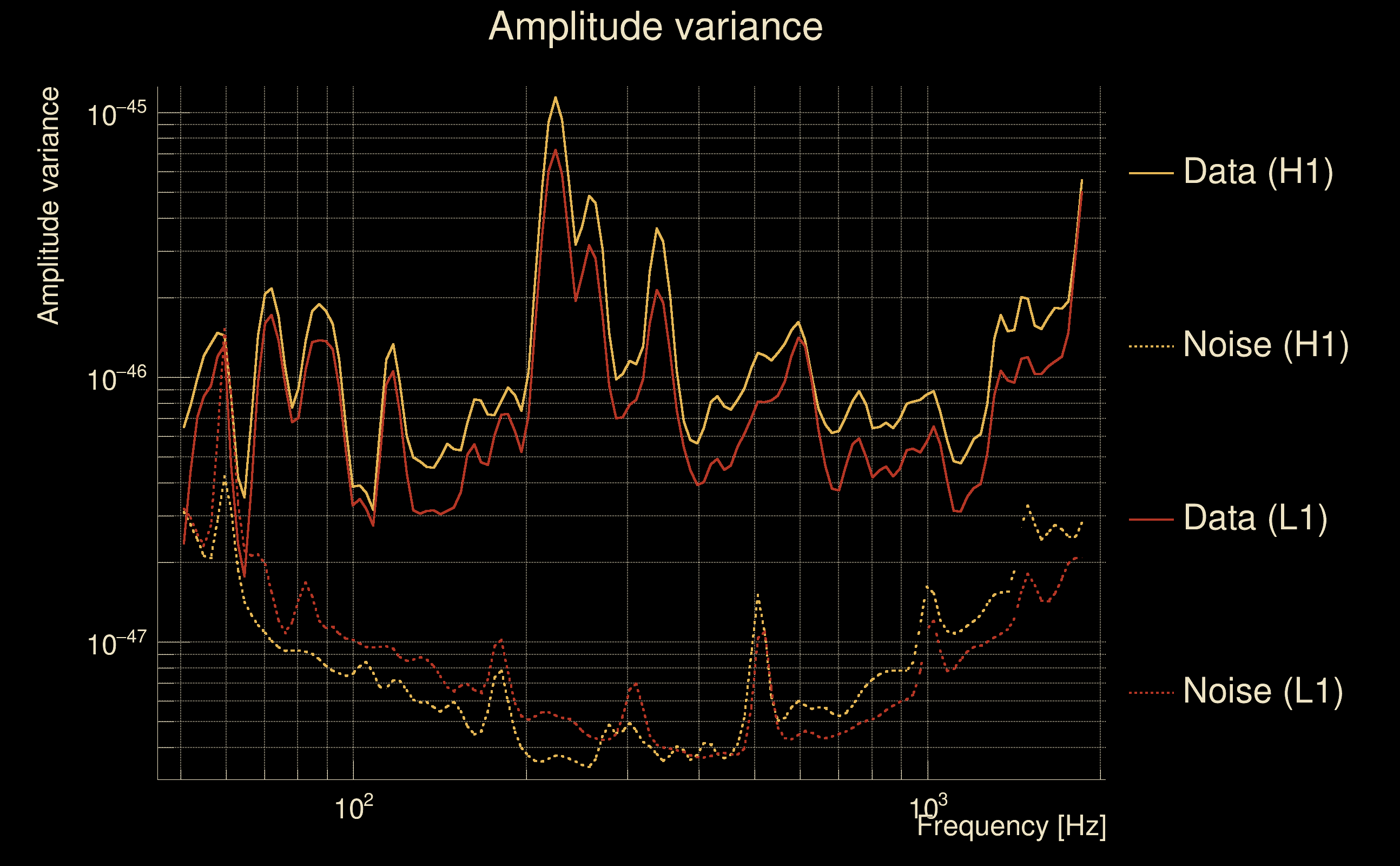

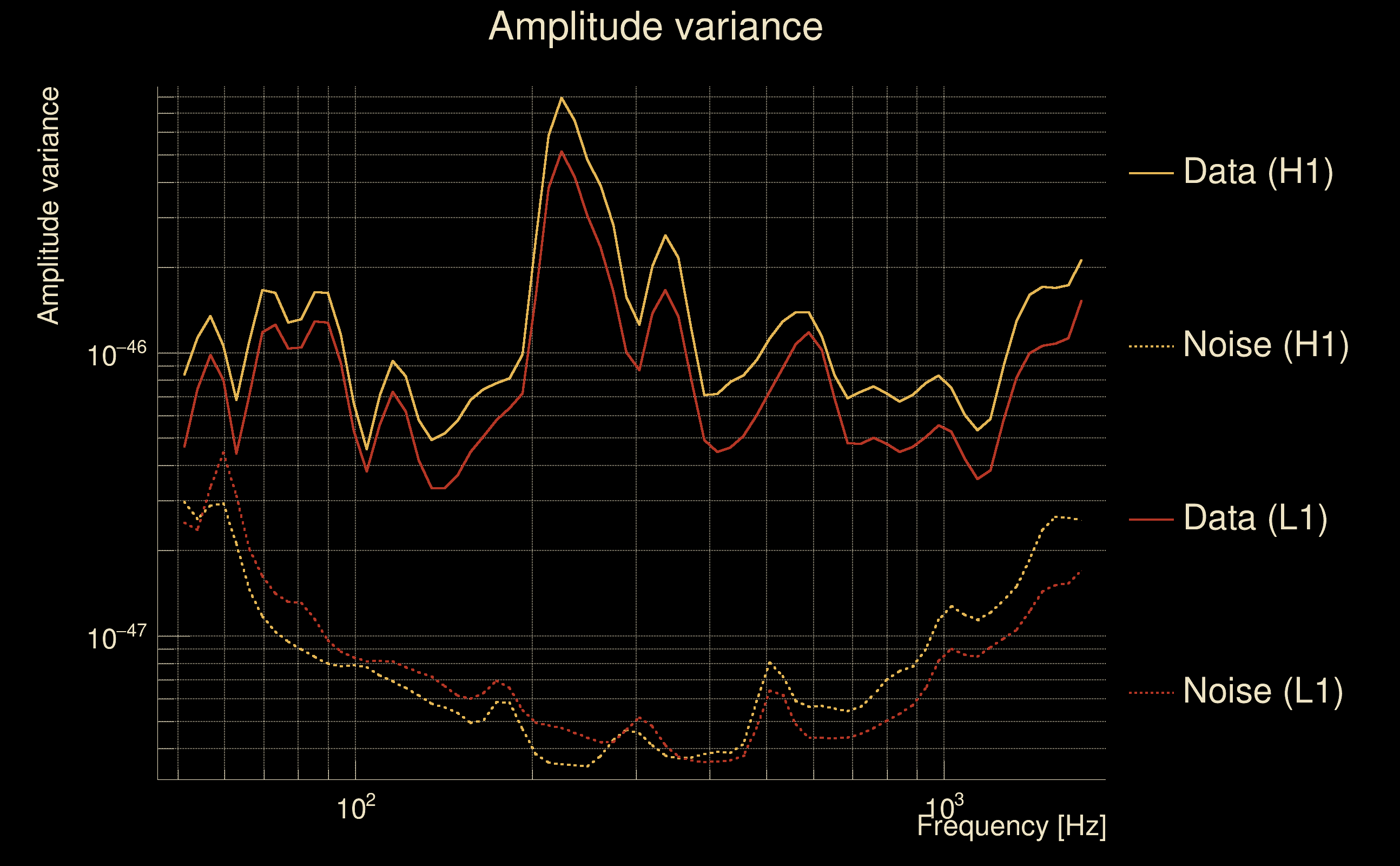

| SNR variance: | H1: 14.4686, L1: 9.64402 |

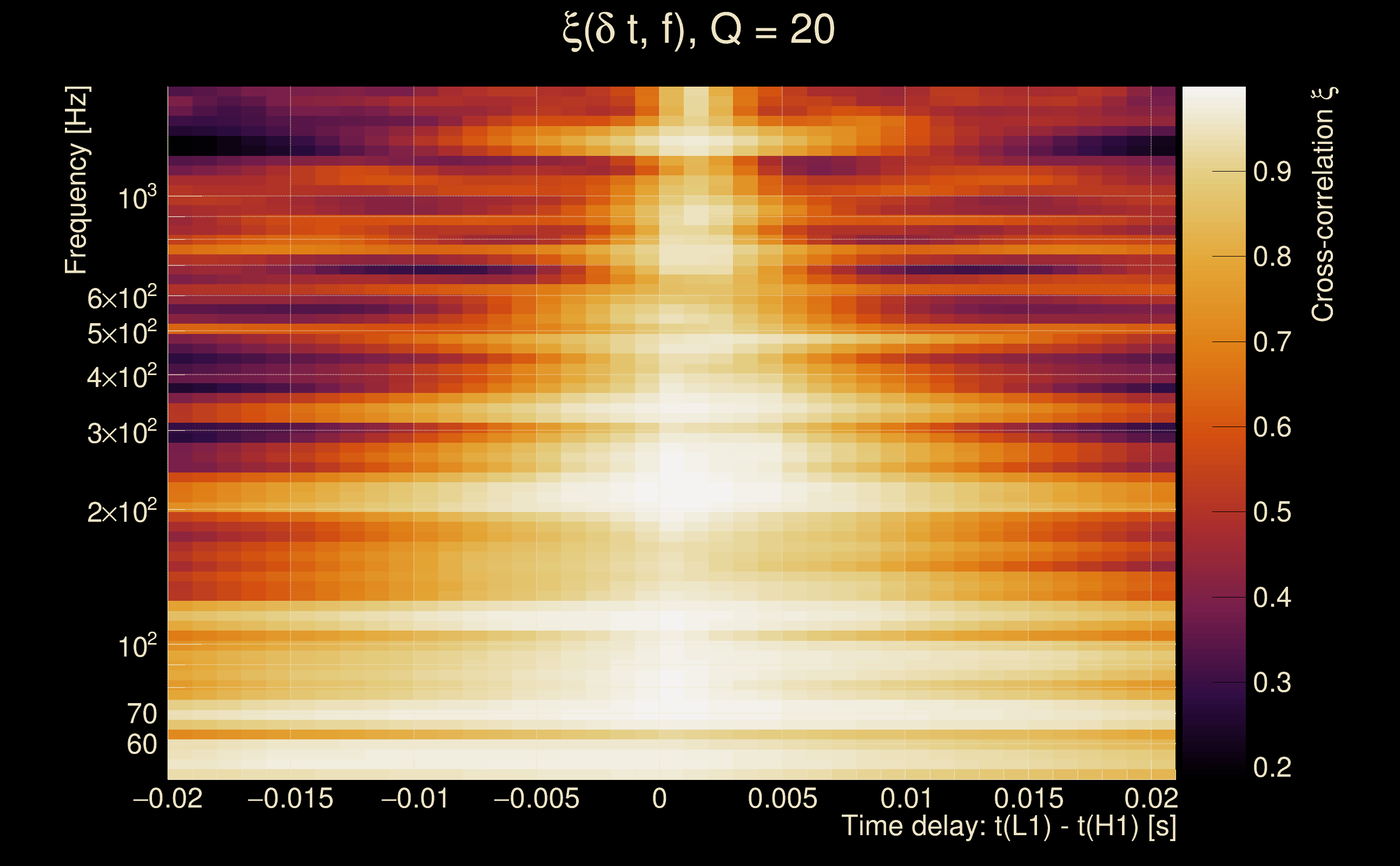

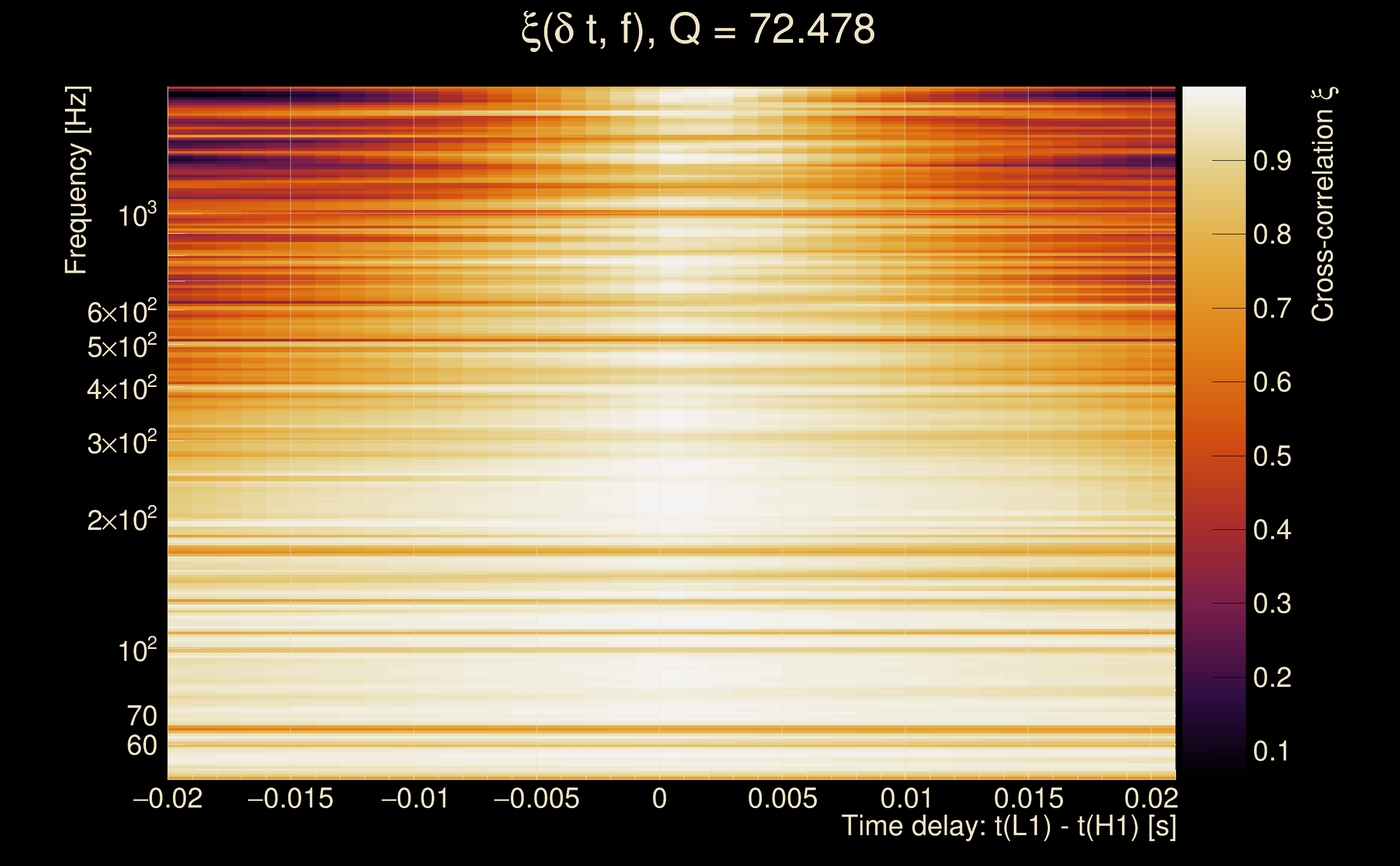

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

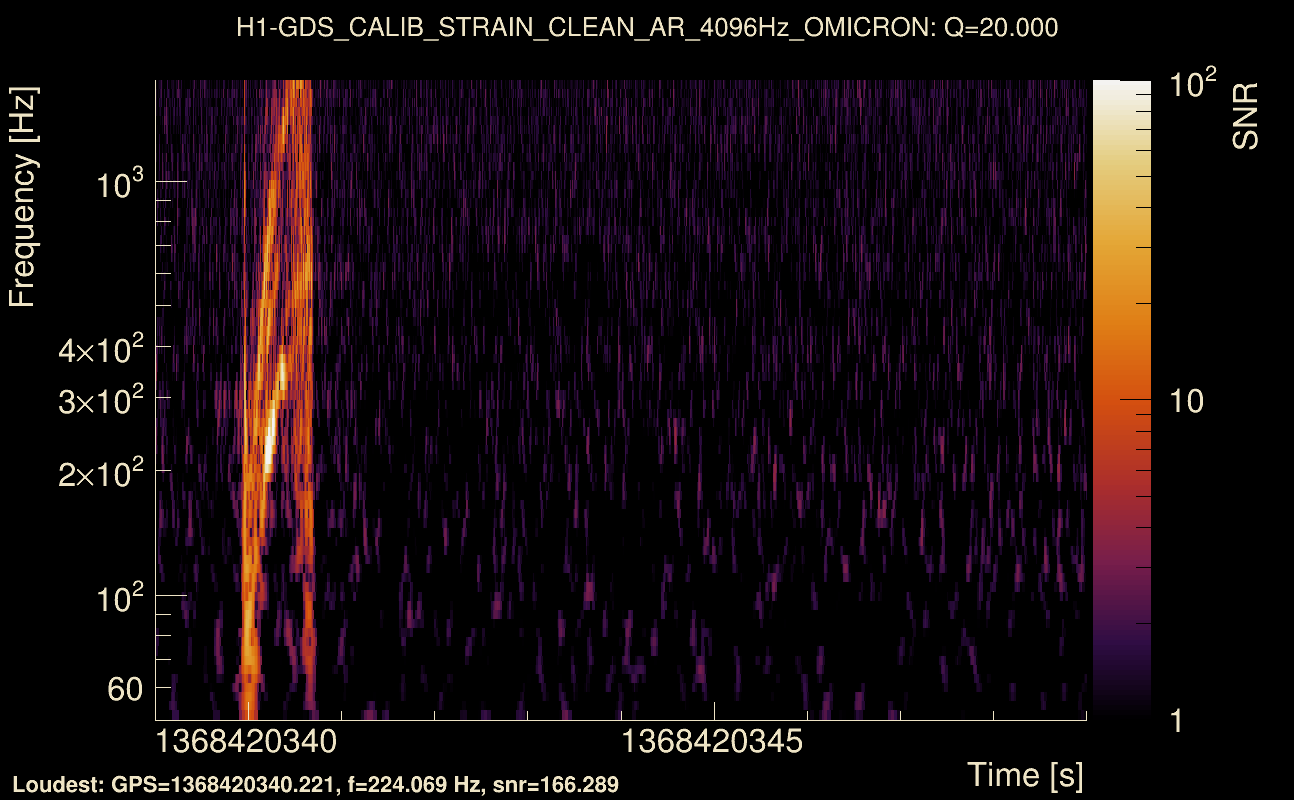

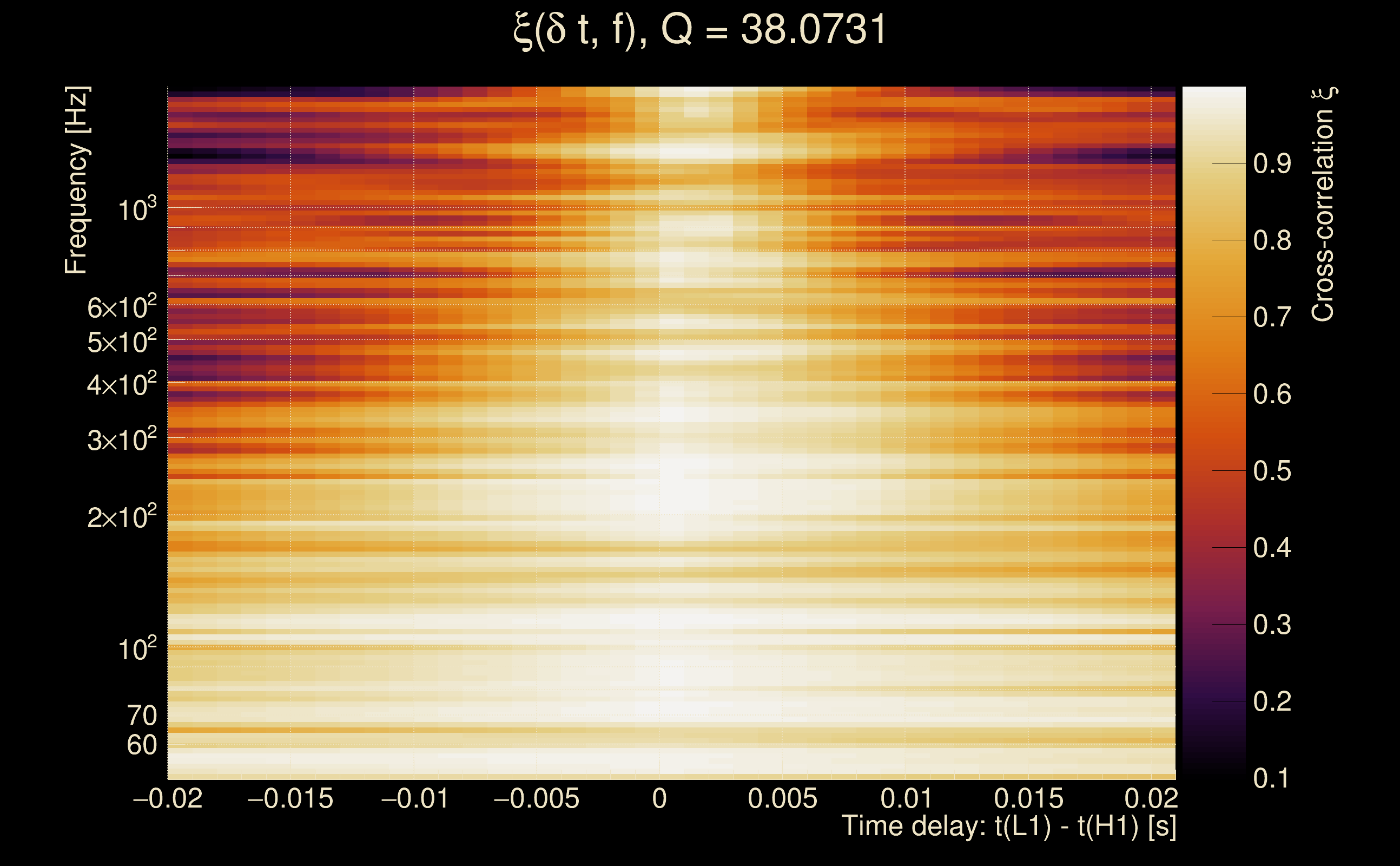

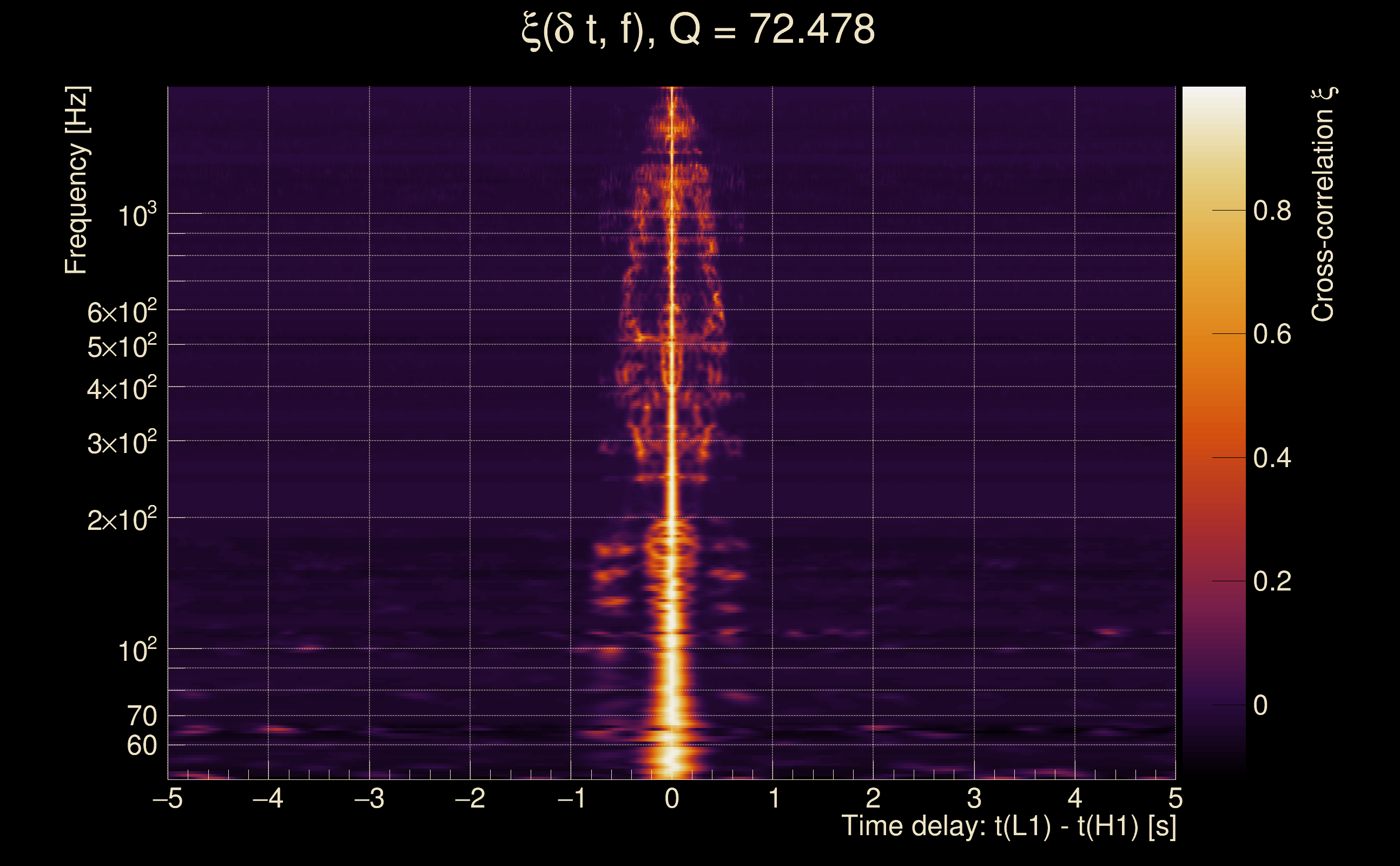

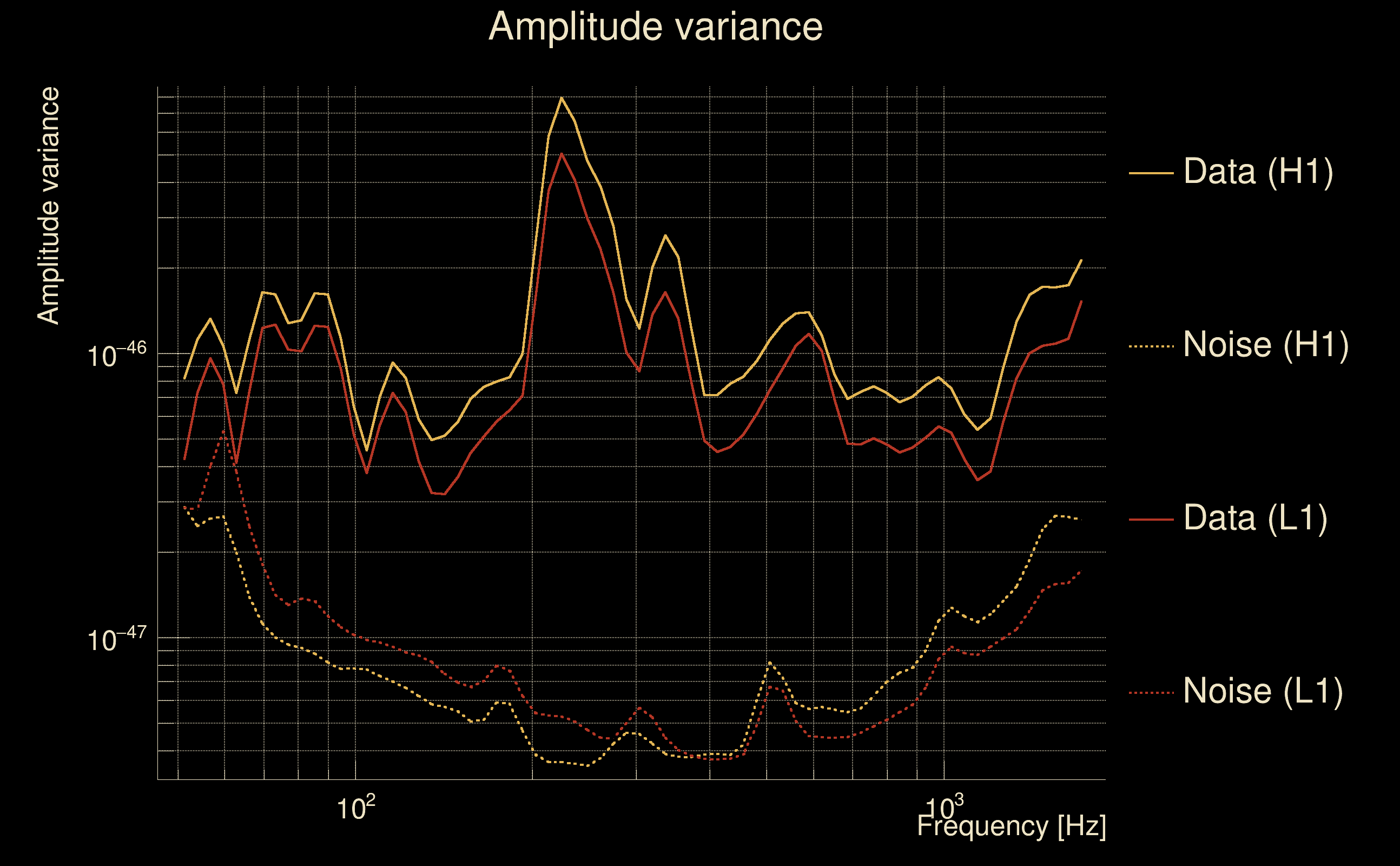

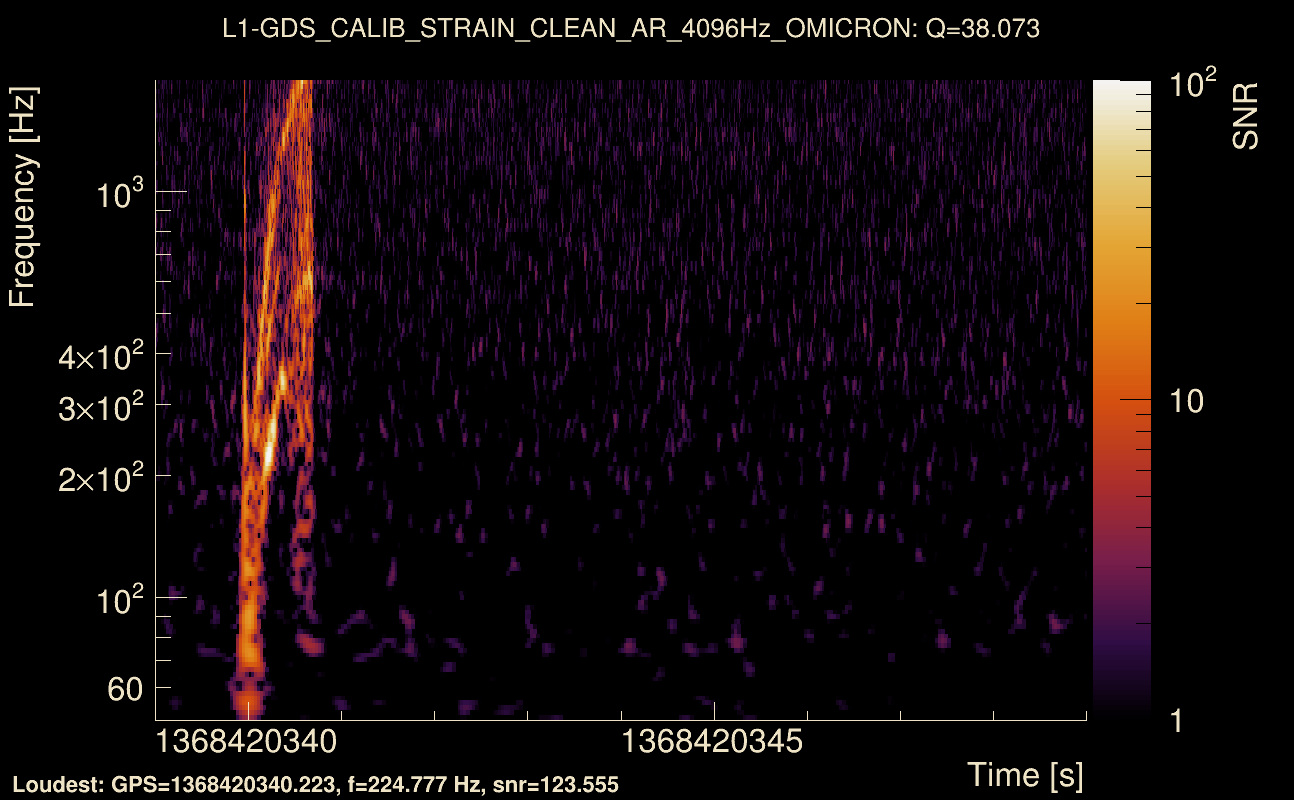

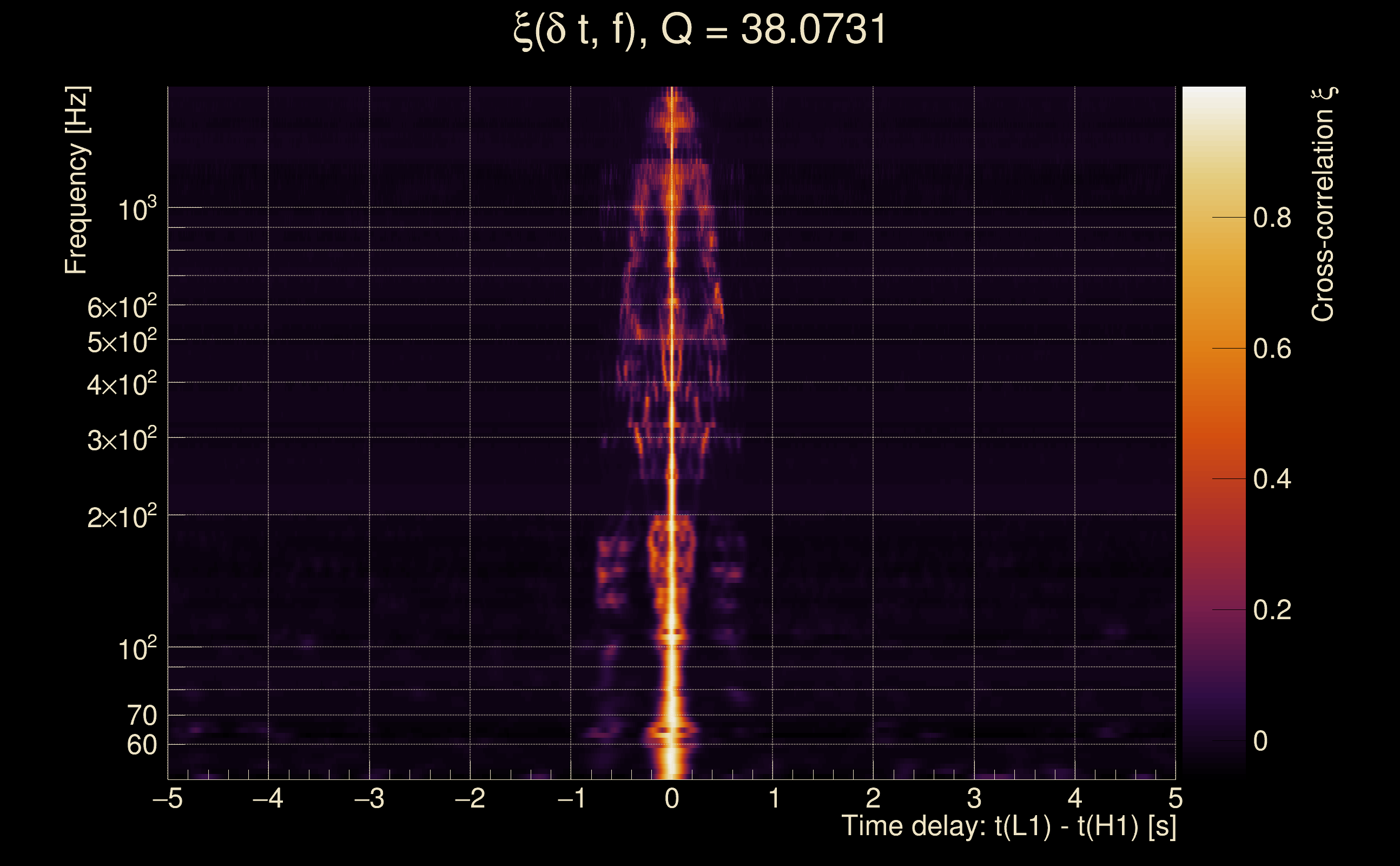

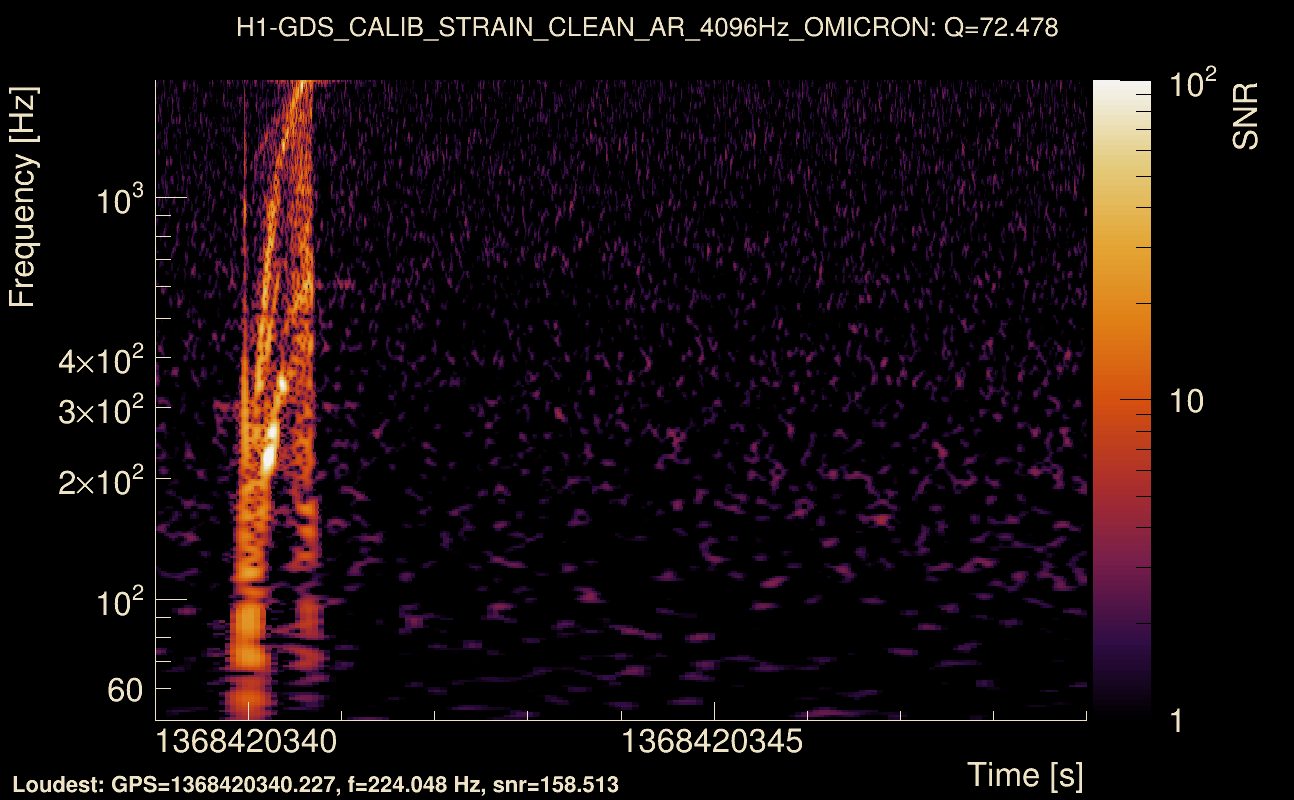

| Event time t(H1): | GPS = 1368420334 (Thu May 18 04:45:16 2023 ) → GPS = 1368420344 (Thu May 18 04:45:26 2023 ) |
| Event time t(L1): | GPS = 1368420334 (Thu May 18 04:45:26 2023 ) → GPS = 1368420344 (Thu May 18 04:45:26 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420331 → GPS = 1368420347 |
| Omicron analysis time window (L1): | GPS = 1368420331 → GPS = 1368420347 |
| Time delay between detectors t(L1) - t(H1): | 0.000932444 s (slice index = 108 / 217), δt_gw = 0.000932444 s |
| Time delay standard deviation: | 0.0192726 s |
| [targeted mode] Time delay probability: | 0.987685 (0.0154352 sigmas), δt_target = 0.000939608 s |
| Frequency: | 284.294 Hz |
| Ξ: | 0.954125 ± 0.000964069 (variance = 9.29428e-07): Q0: 0.955628, Q1: 0.956287, Q2: 0.957425, Q3: 0.956621, Q4: 0.954563 |
| Rank: | R_A = 0.942375 |
| Log of amplitude ratio (L1/H1): | -0.23084, variance = 0.166002 (L1/H1: -0.24694, variance = 0.302903, H1/L1: 0.20041, variance = 0.304462) |
| Amplitude ratio (L1/H1): | 0.793866 ⋇ 1.50296 (L1/H1: 0.781187 ⋇ 1.73389, H1/L1: 1.2219 ⋇ 1.73634) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.95239 |
| Antenna factor probability: | 0.648426 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 1 / 134, Q4: 11 / 258 |
| Maximum signal-to-noise ratio: | H1: 192.284, L1: 139.865 |

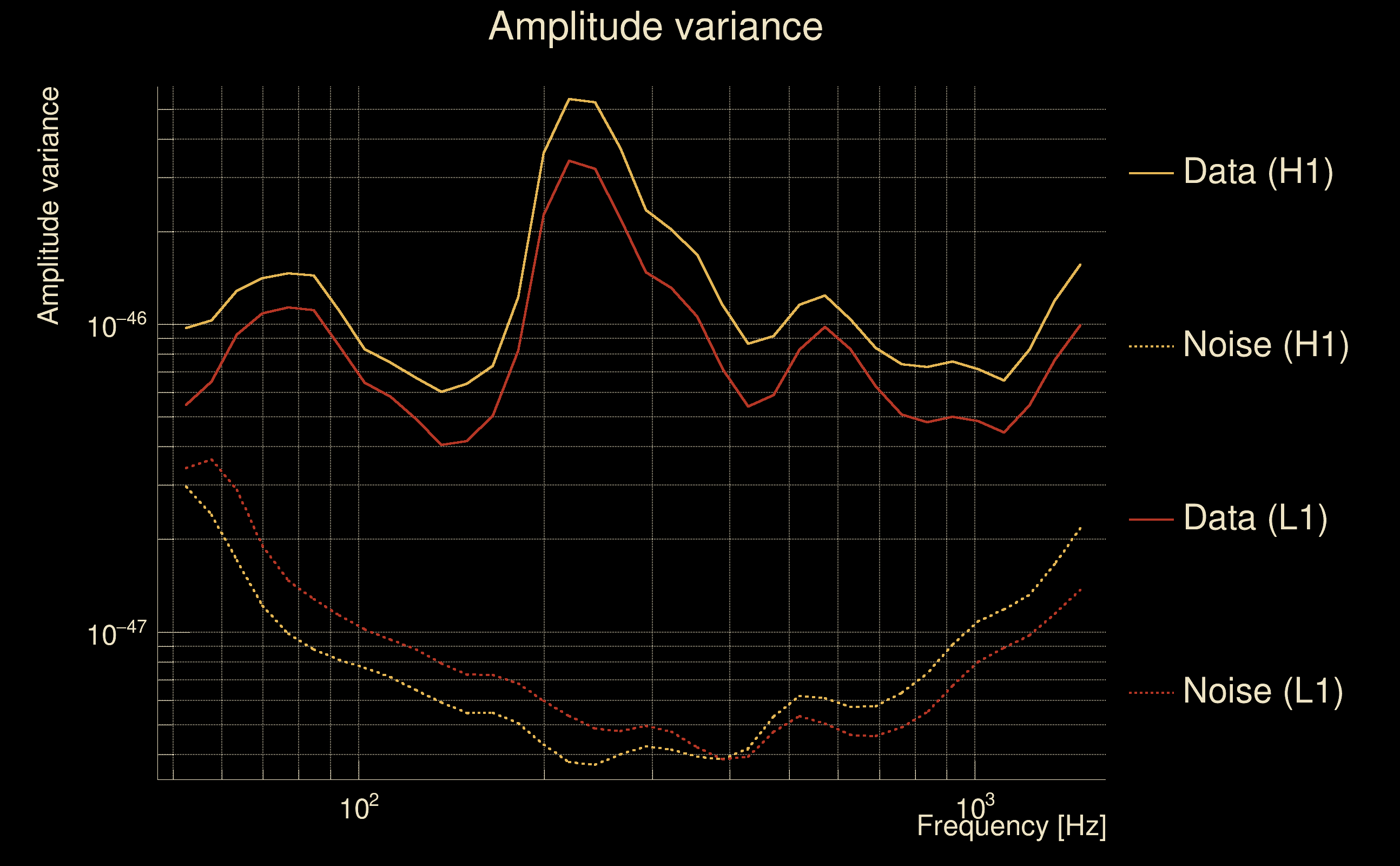

| SNR variance: | H1: 0.467121, L1: 0.479582 |

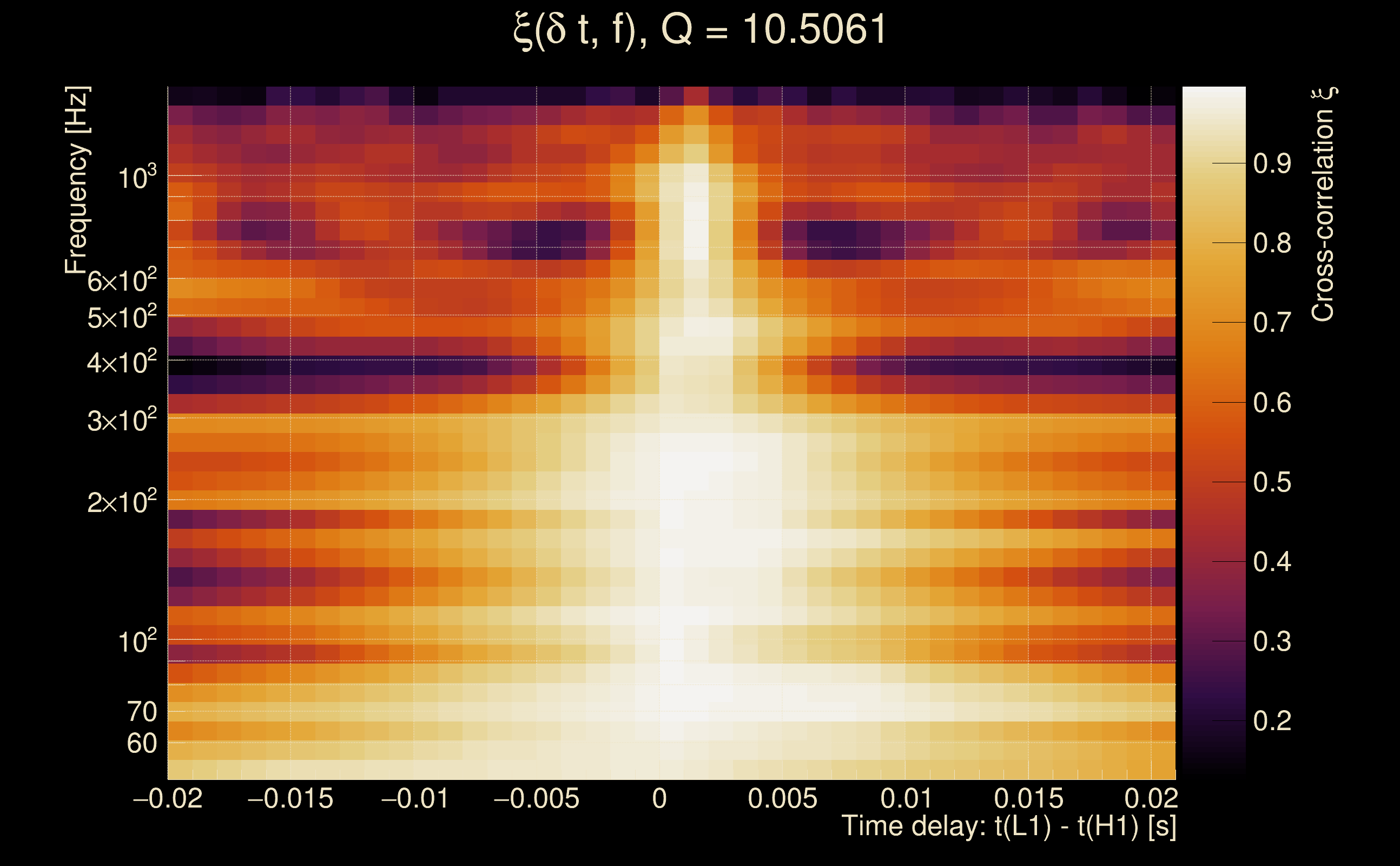

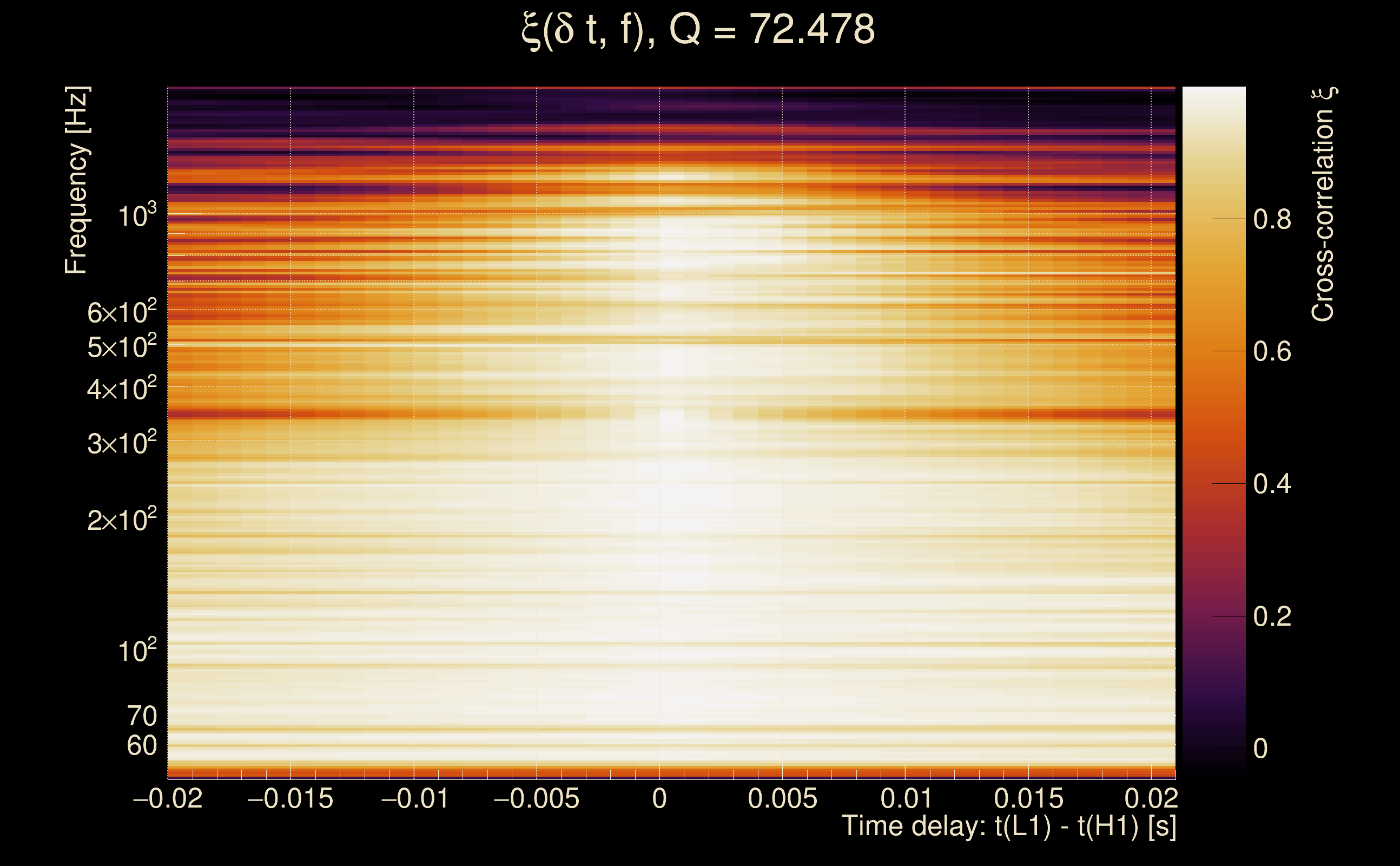

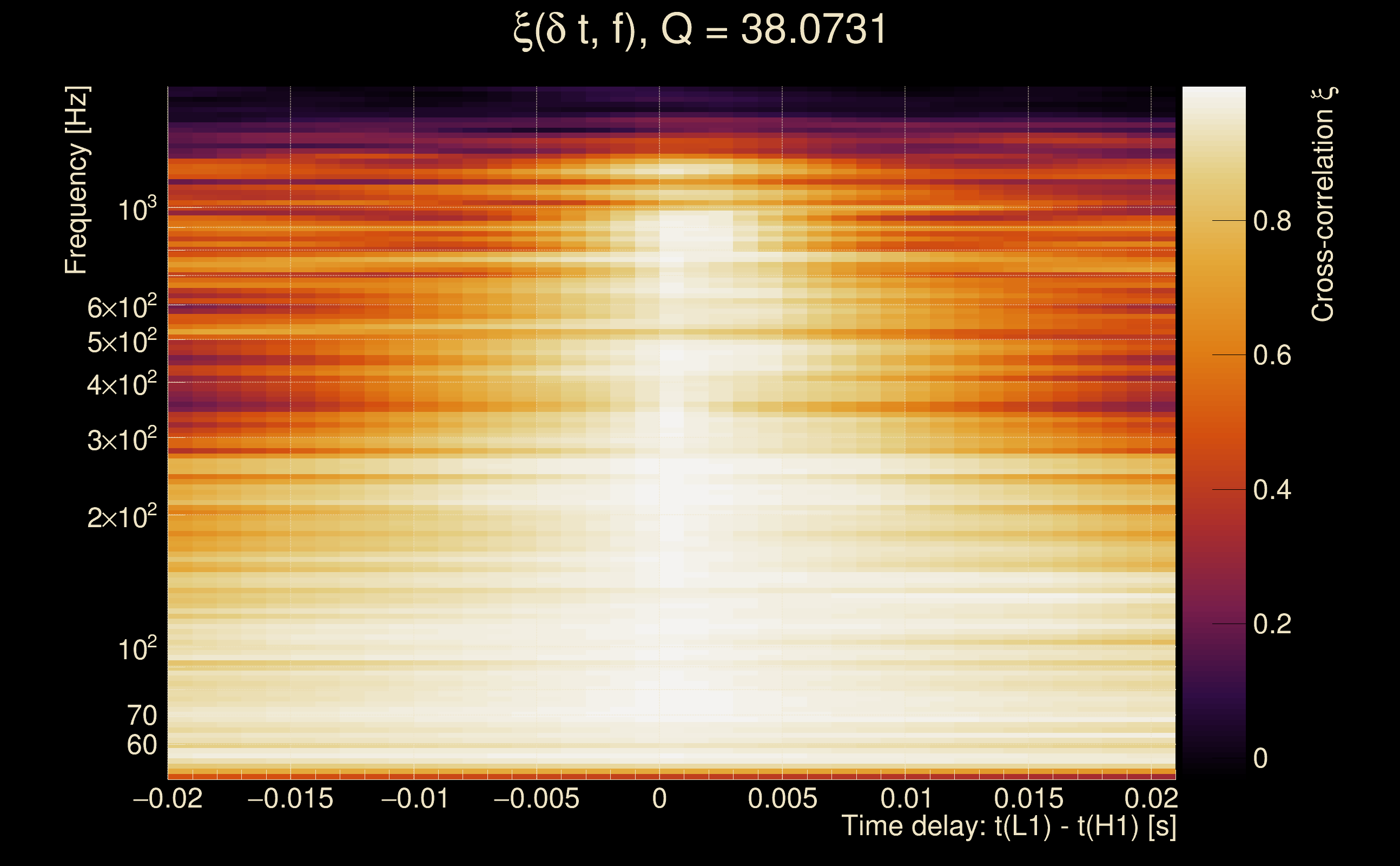

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

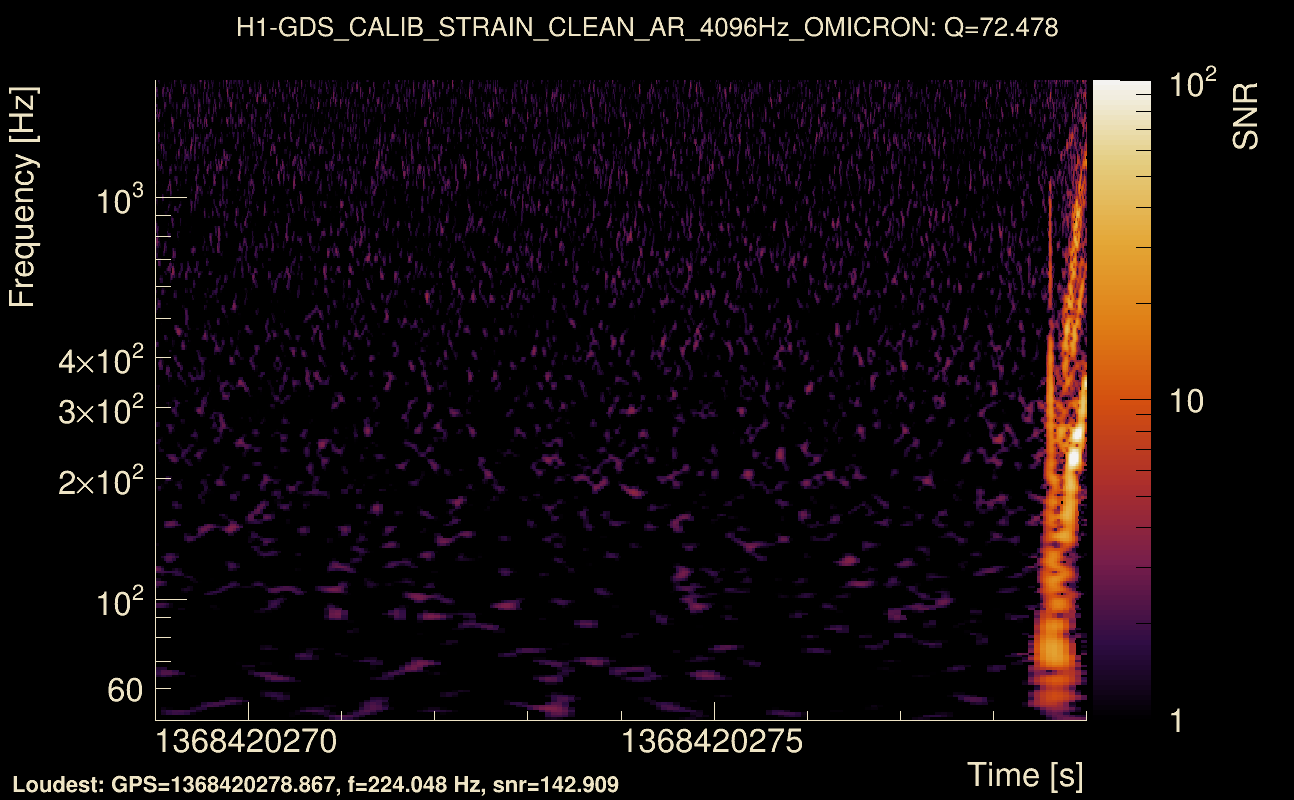

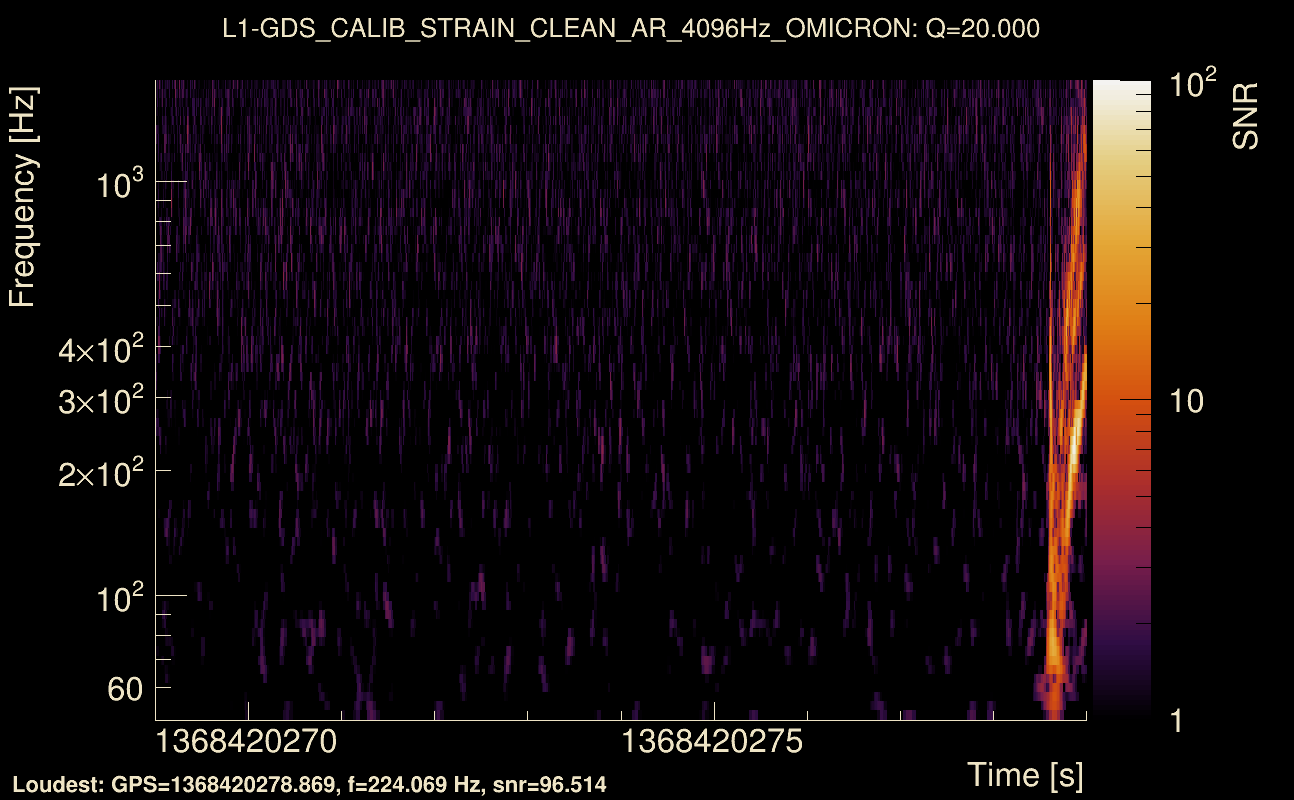

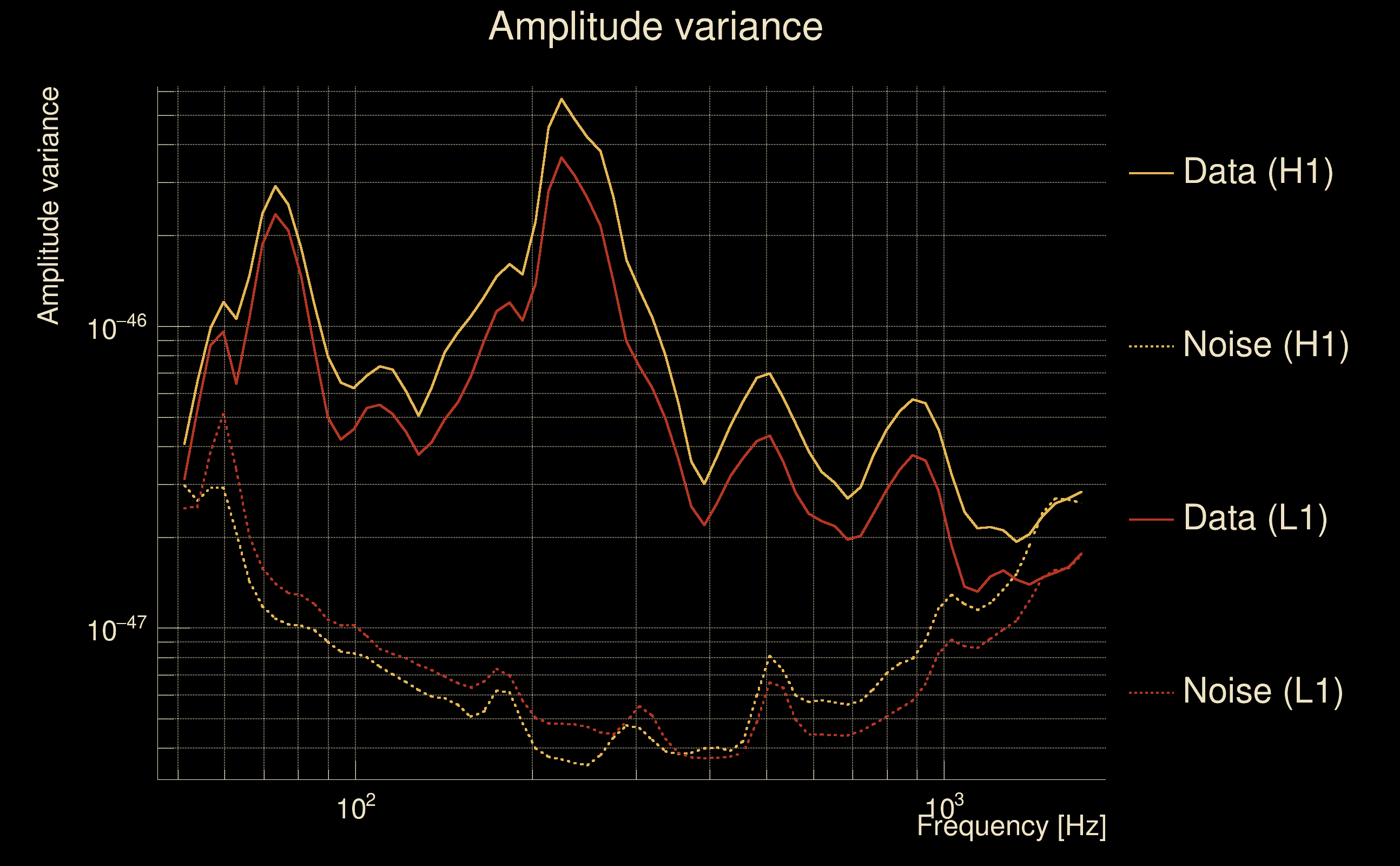

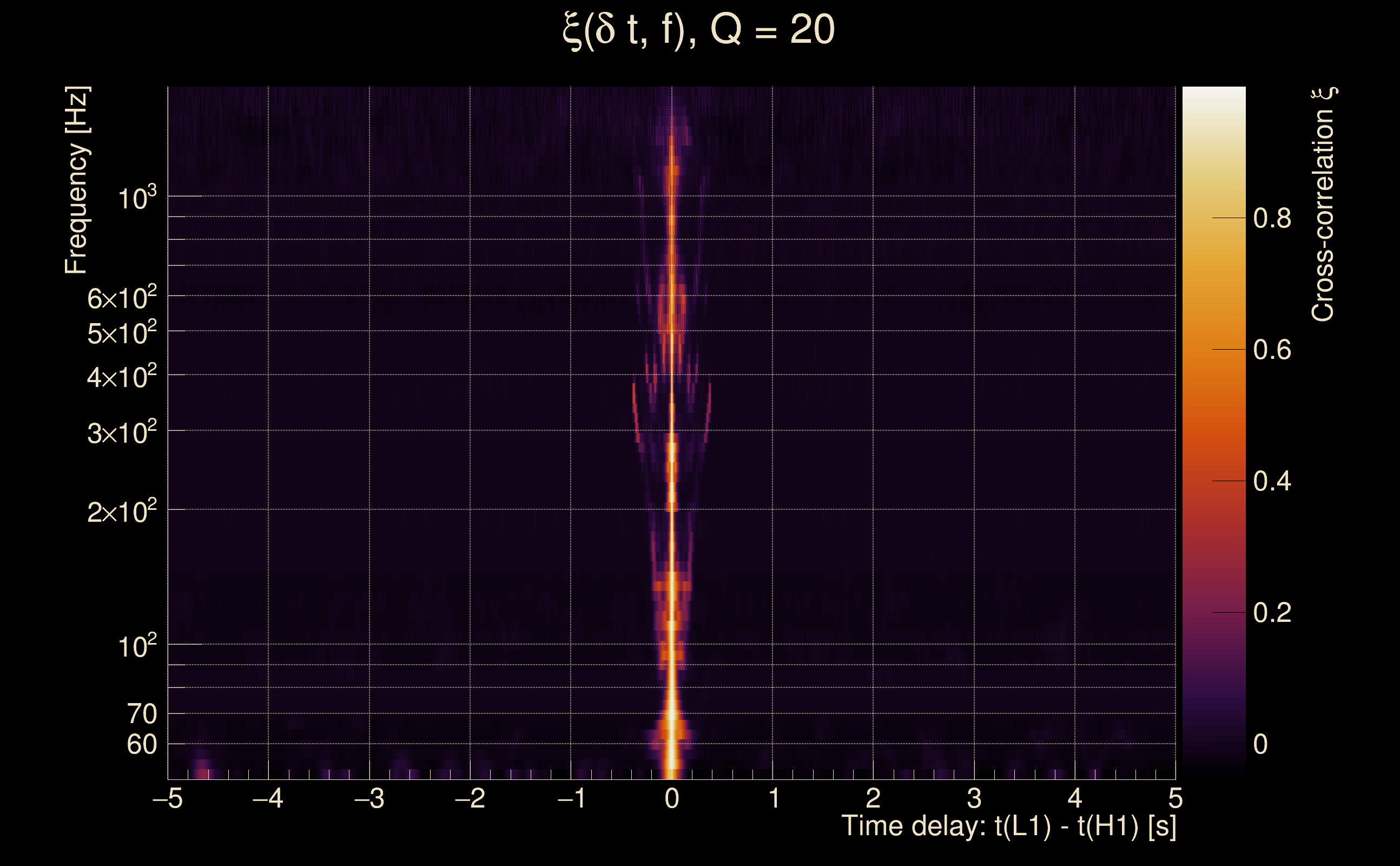

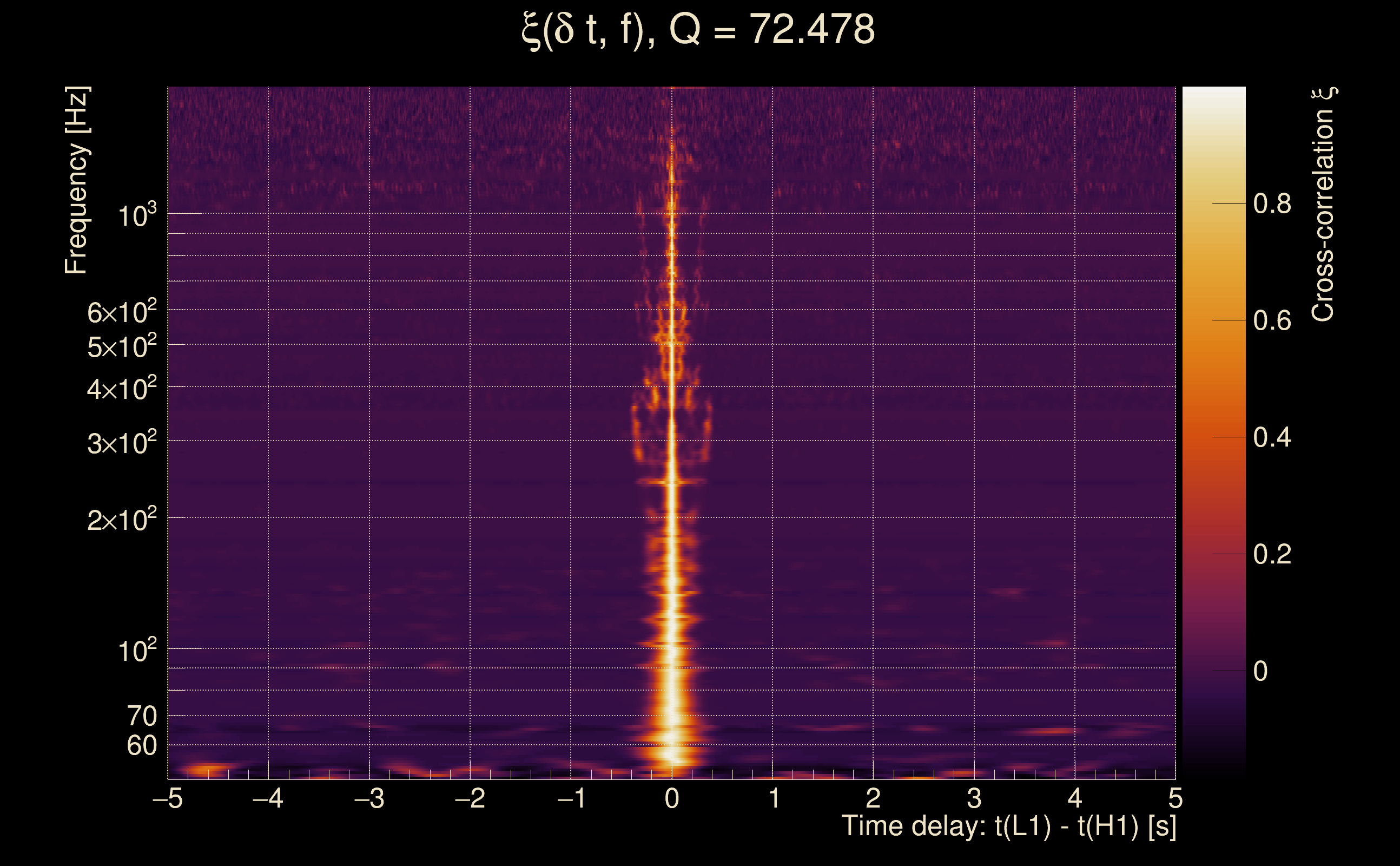

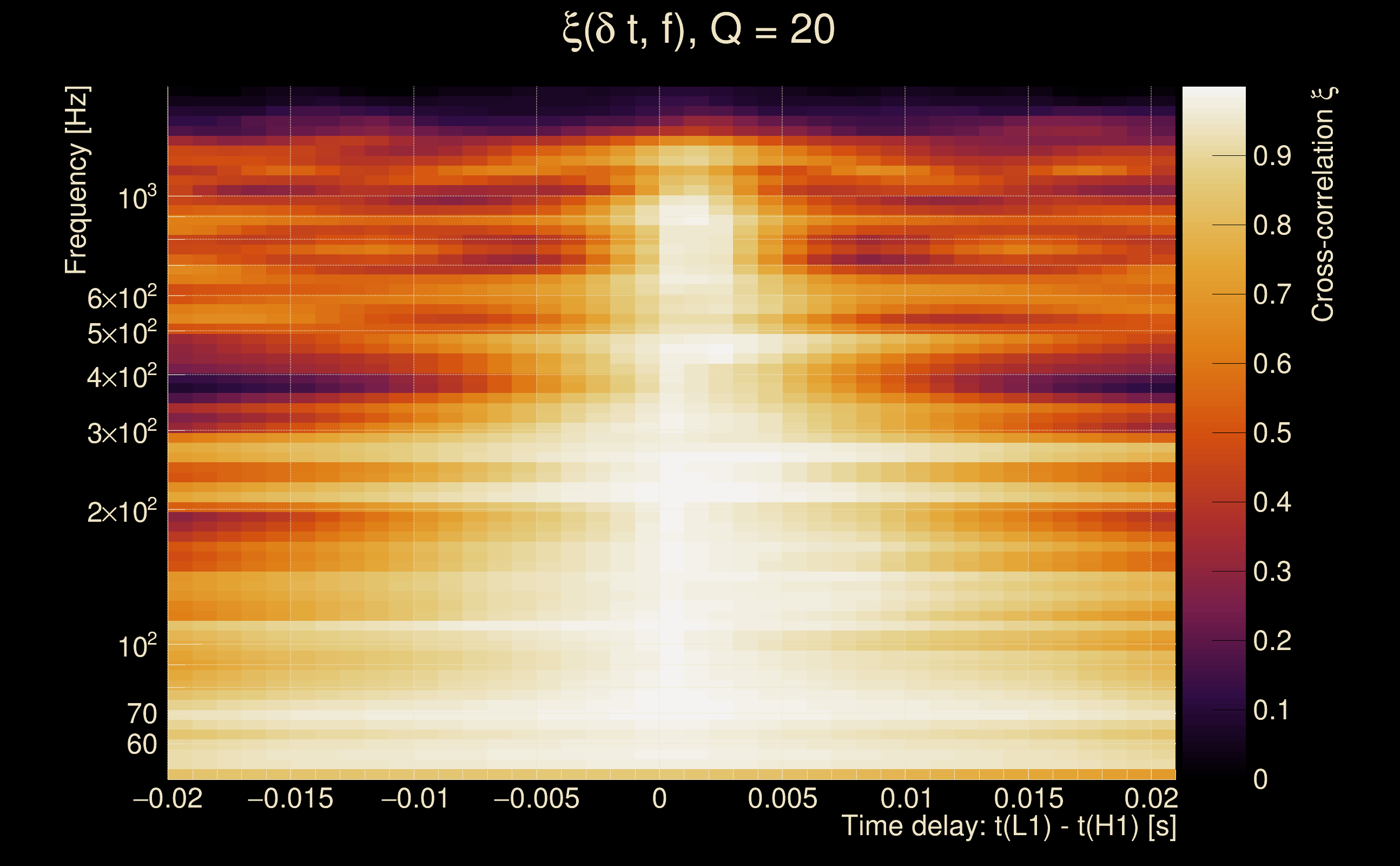

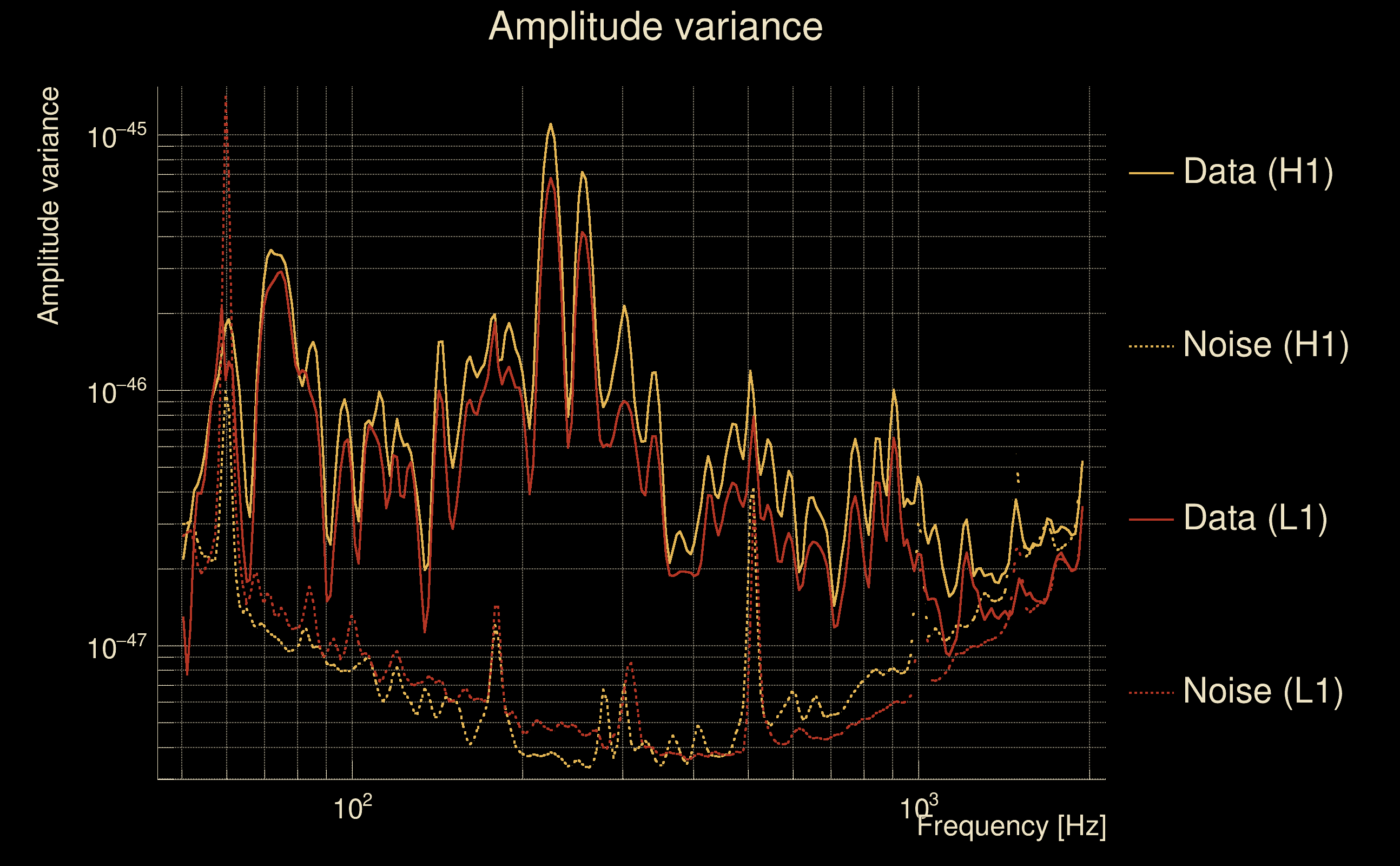

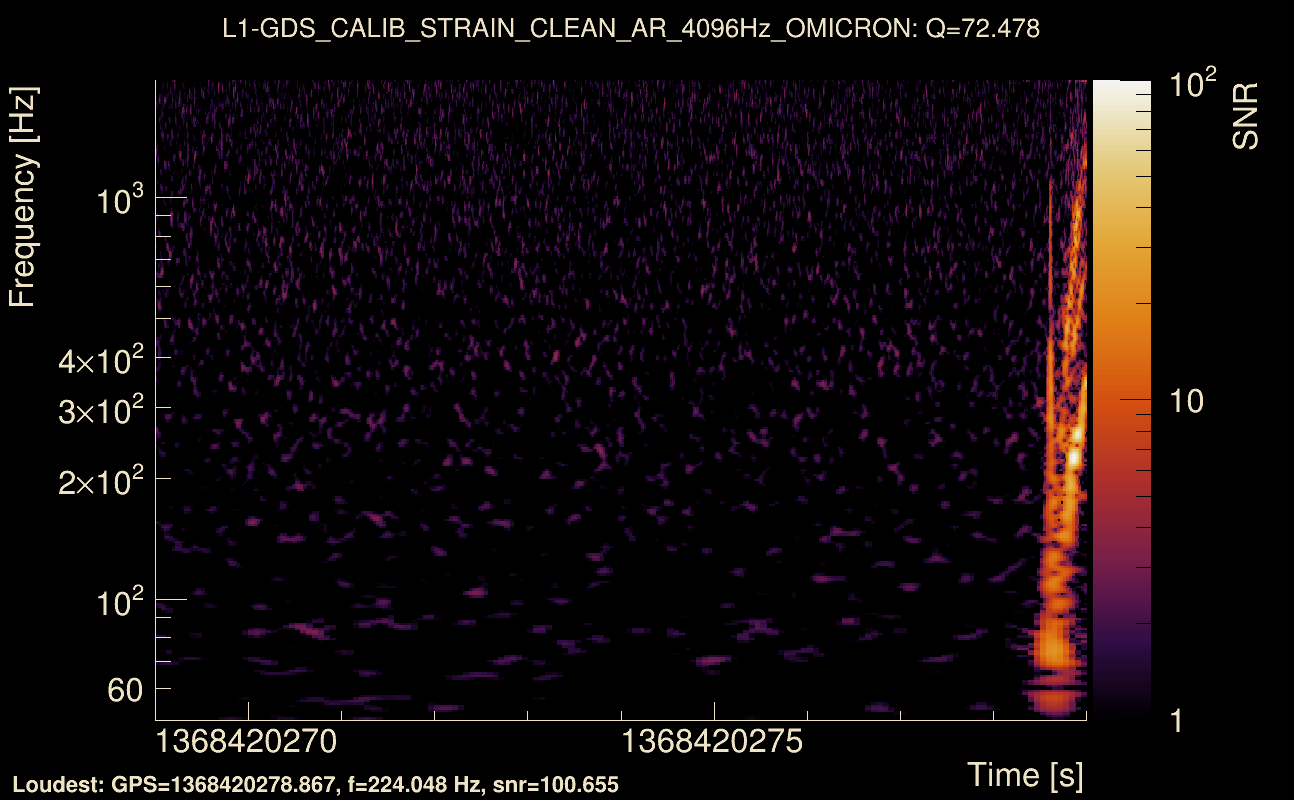

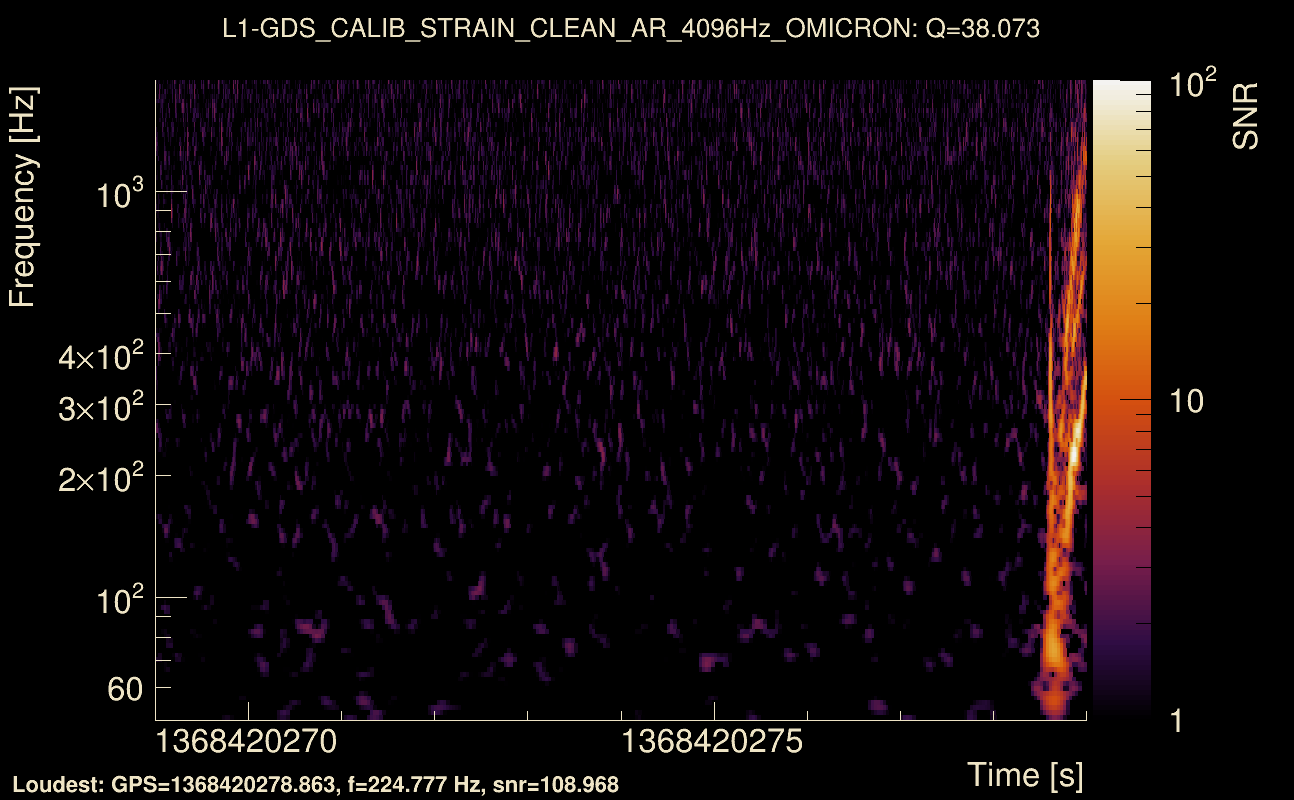

| Event time t(H1): | GPS = 1368420269 (Thu May 18 04:44:11 2023 ) → GPS = 1368420279 (Thu May 18 04:44:21 2023 ) |
| Event time t(L1): | GPS = 1368420269 (Thu May 18 04:44:21 2023 ) → GPS = 1368420279 (Thu May 18 04:44:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420266 → GPS = 1368420282 |
| Omicron analysis time window (L1): | GPS = 1368420266 → GPS = 1368420282 |

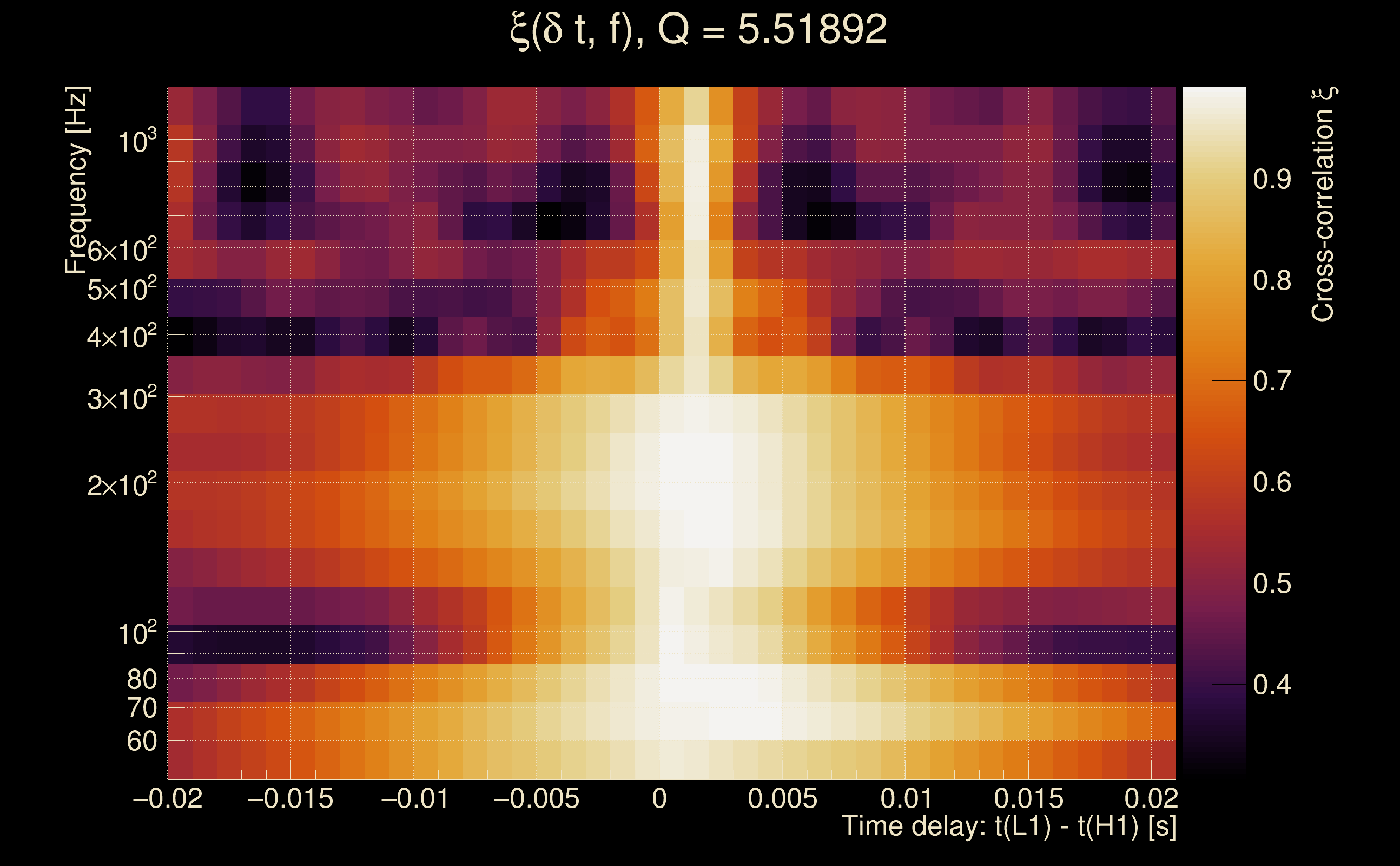

| Time delay between detectors t(L1) - t(H1): | 0.000928648 s (slice index = 108 / 217), δt_gw = 0.000928648 s |
| Time delay standard deviation: | 0.0204108 s |
| [targeted mode] Time delay probability: | 0.978526 (0.0269165 sigmas), δt_target = 0.000938177 s |
| Frequency: | 260.854 Hz |
| Ξ: | 0.958192 ± 0.00630459 (variance = 3.97478e-05): Q0: 0.974819, Q1: 0.961373, Q2: 0.960282, Q3: 0.962392, Q4: 0.956026 |
| Rank: | R_A = 0.937616 |
| Log of amplitude ratio (L1/H1): | -0.239732, variance = 0.165644 (L1/H1: -0.24696, variance = 0.303369, H1/L1: 0.226216, variance = 0.303549) |
| Amplitude ratio (L1/H1): | 0.786839 ⋇ 1.50229 (L1/H1: 0.781172 ⋇ 1.73462, H1/L1: 1.25385 ⋇ 1.73491) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.978757 |
| Antenna factor probability: | 0.630805 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 2 / 70, Q3: 8 / 134, Q4: 17 / 258 |
| Maximum signal-to-noise ratio: | H1: 163.415, L1: 119.502 |

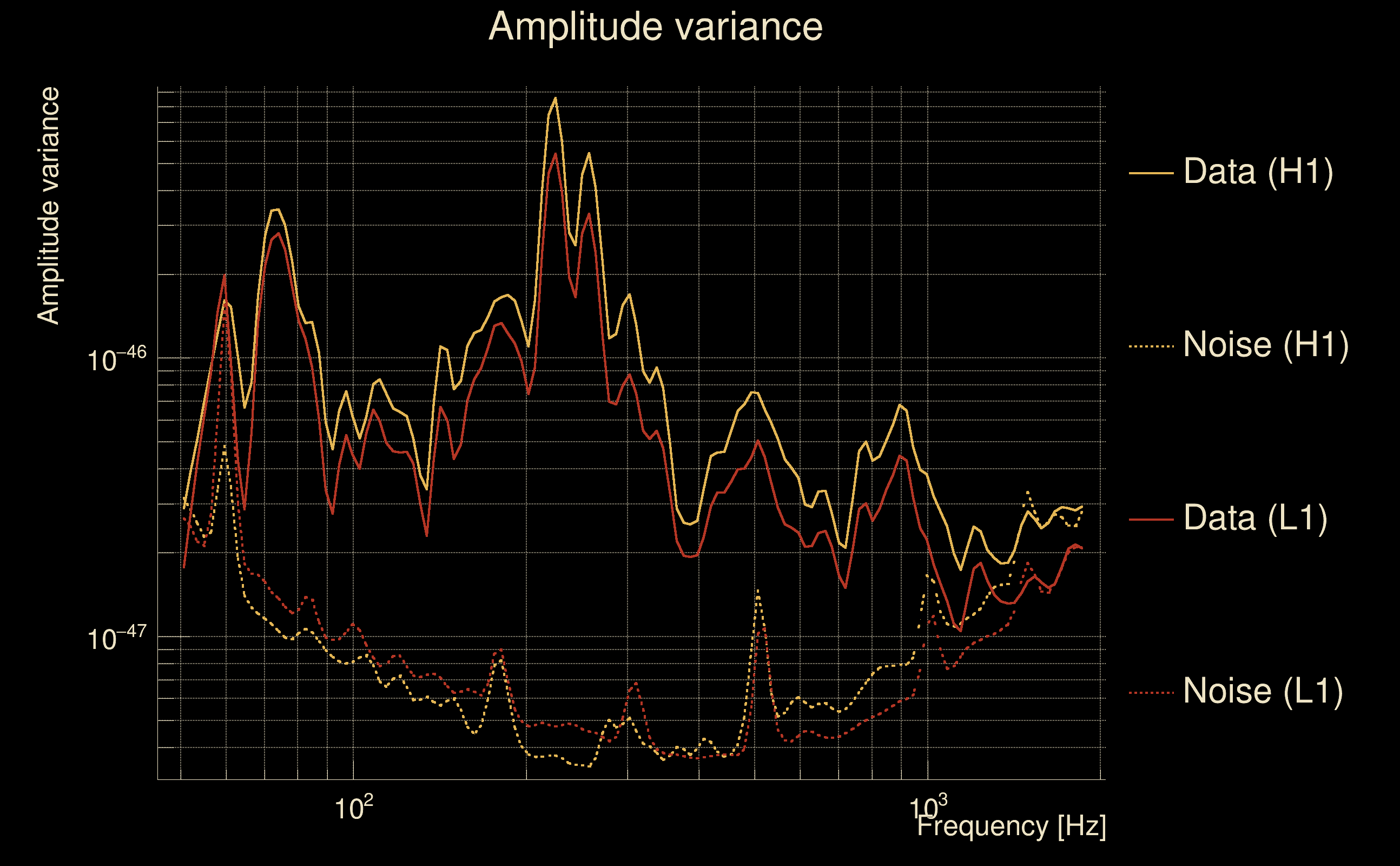

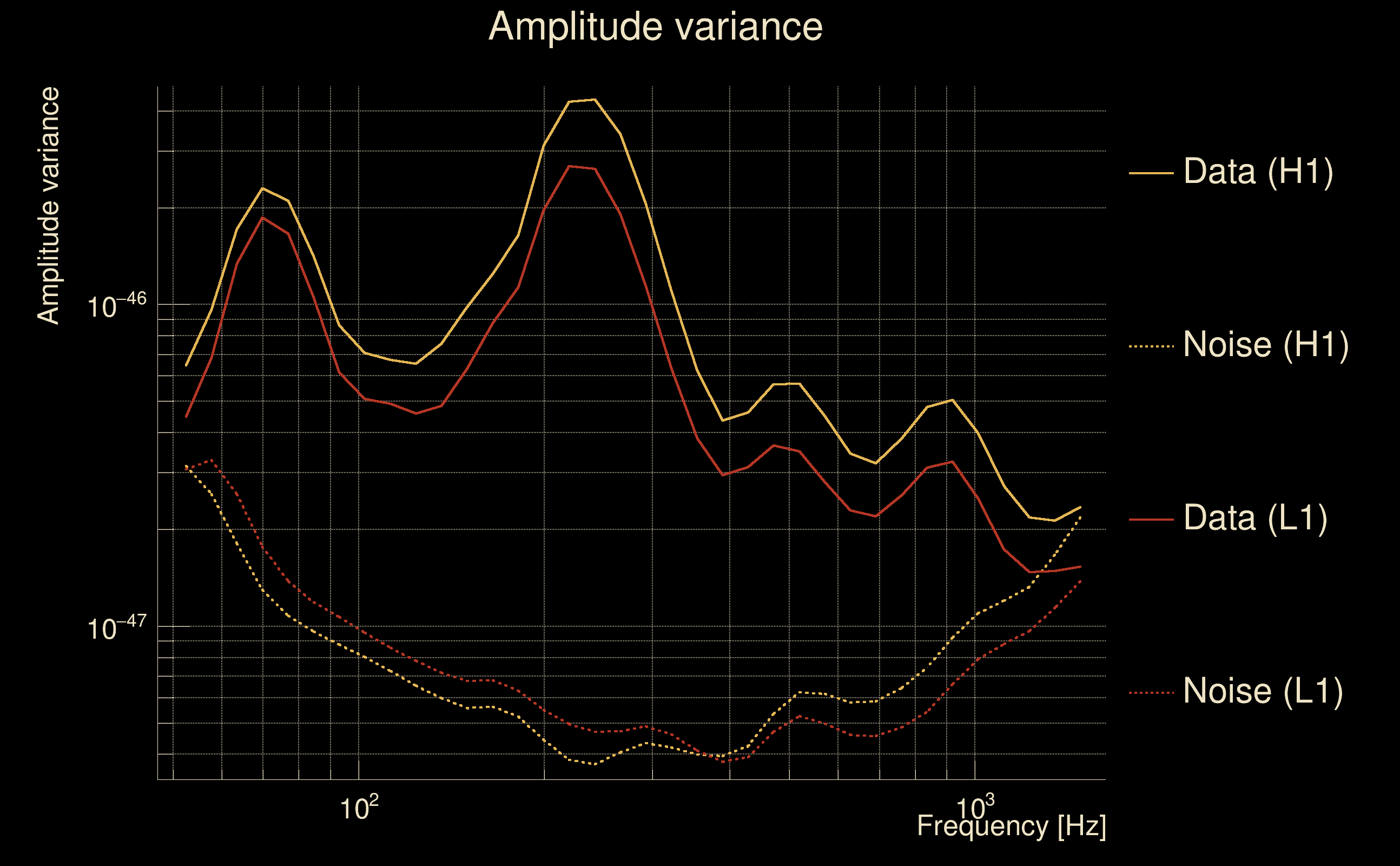

| SNR variance: | H1: 0.517528, L1: 0.513309 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368419499 (Thu May 18 04:31:21 2023 ) → GPS = 1368419509 (Thu May 18 04:31:31 2023 ) |
| Event time t(L1): | GPS = 1368419499 (Thu May 18 04:31:31 2023 ) → GPS = 1368419509 (Thu May 18 04:31:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368419496 → GPS = 1368419512 |
| Omicron analysis time window (L1): | GPS = 1368419496 → GPS = 1368419512 |
| Time delay between detectors t(L1) - t(H1): | 0.644693 s (slice index = 94 / 217), δt_gw = 0.000692795 s |
| Time delay standard deviation: | 0.0639231 s |
| [targeted mode] Time delay probability: | 0.996891 (0.00389715 sigmas), δt_target = 0.000917435 s |
| Frequency: | 116.431 Hz |
| Ξ: | 0.0548741 ± 0.0253225 (variance = 0.000641229): Q0: 0.178466, Q1: 0.195865, Q2: 0.243024, Q3: 0.236324, Q4: 0.194872 |
| Rank: | R_A = 0.0547035 |
| Log of amplitude ratio (L1/H1): | 5.88807, variance = 0.999759 (L1/H1: 2.30326, variance = 0.811678, H1/L1: -5.88822, variance = 0.999838) |
| Amplitude ratio (L1/H1): | 360.71 ⋇ 2.71795 (L1/H1: 10.0067 ⋇ 2.4619, H1/L1: 0.00277192 ⋇ 2.71806) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00773177 |
| Antenna factor probability: | 3.1782e-09 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 26 / 36, Q2: 63 / 70, Q3: 117 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.03666, L1: 797.565 |
| SNR variance: | H1: 0.544899, L1: 7.35749 |

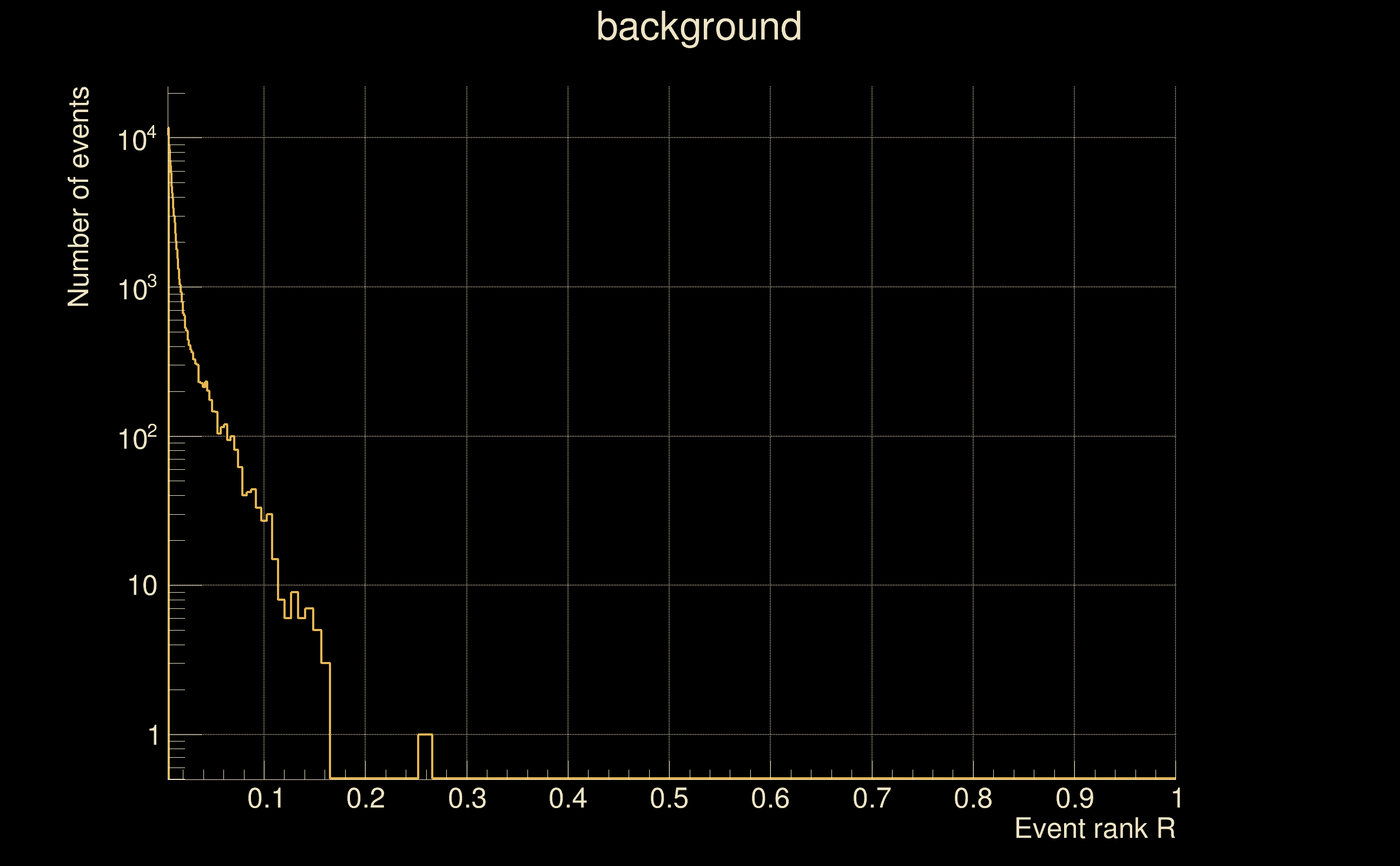

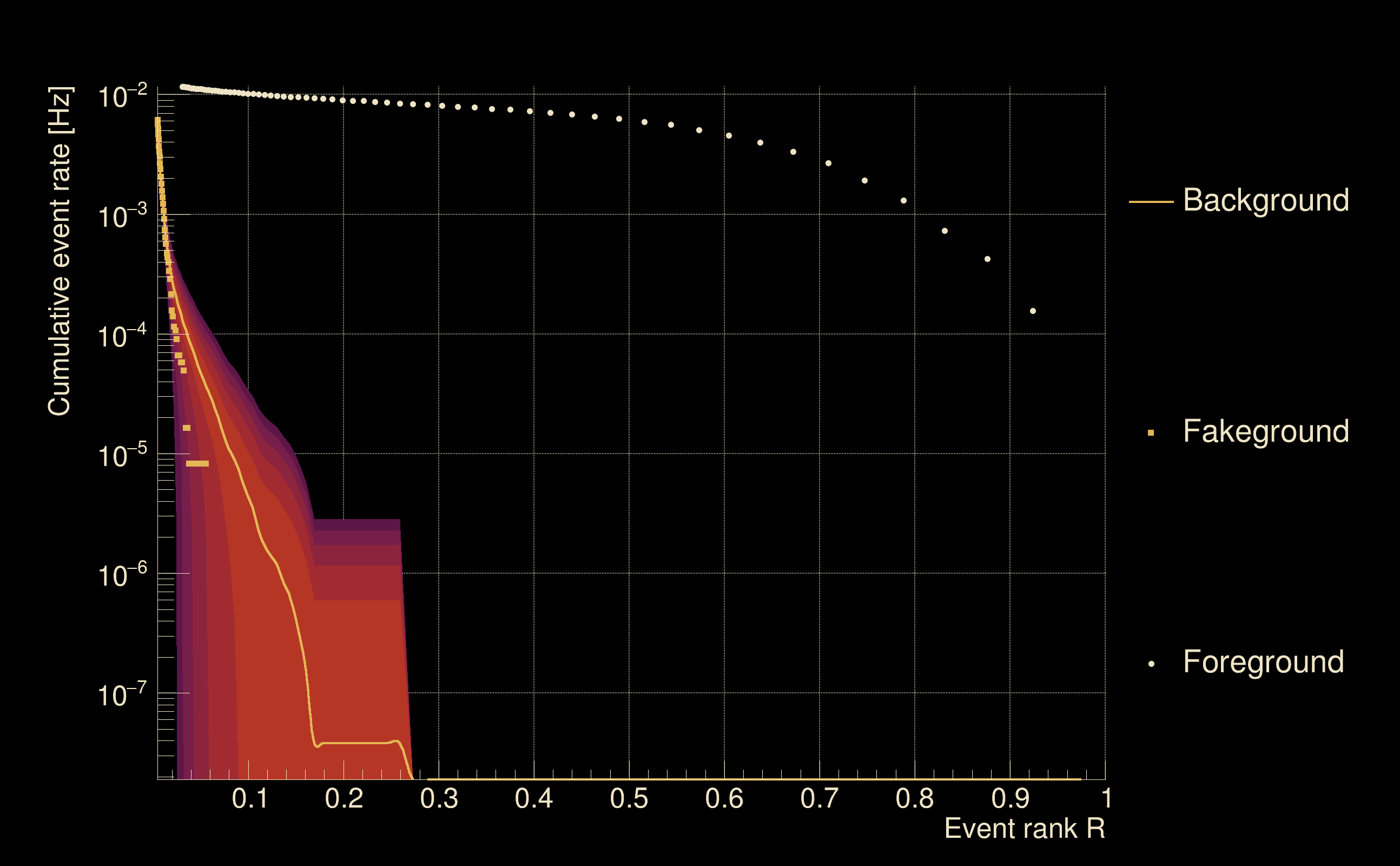

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 3.80277e-08 |
| Alternative threshold at 1/1000 yrs: | R > 0.259054 |
| Alternative threshold at 1/100 yrs: | R > 0.259054 |
| Alternative threshold at 1/10 yrs: | R > 0.259054 |
| Alternative threshold at 1/1 yr: | R > 0.259054 |
| Alternative threshold at 1/1 d: | R > 0.0766925 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

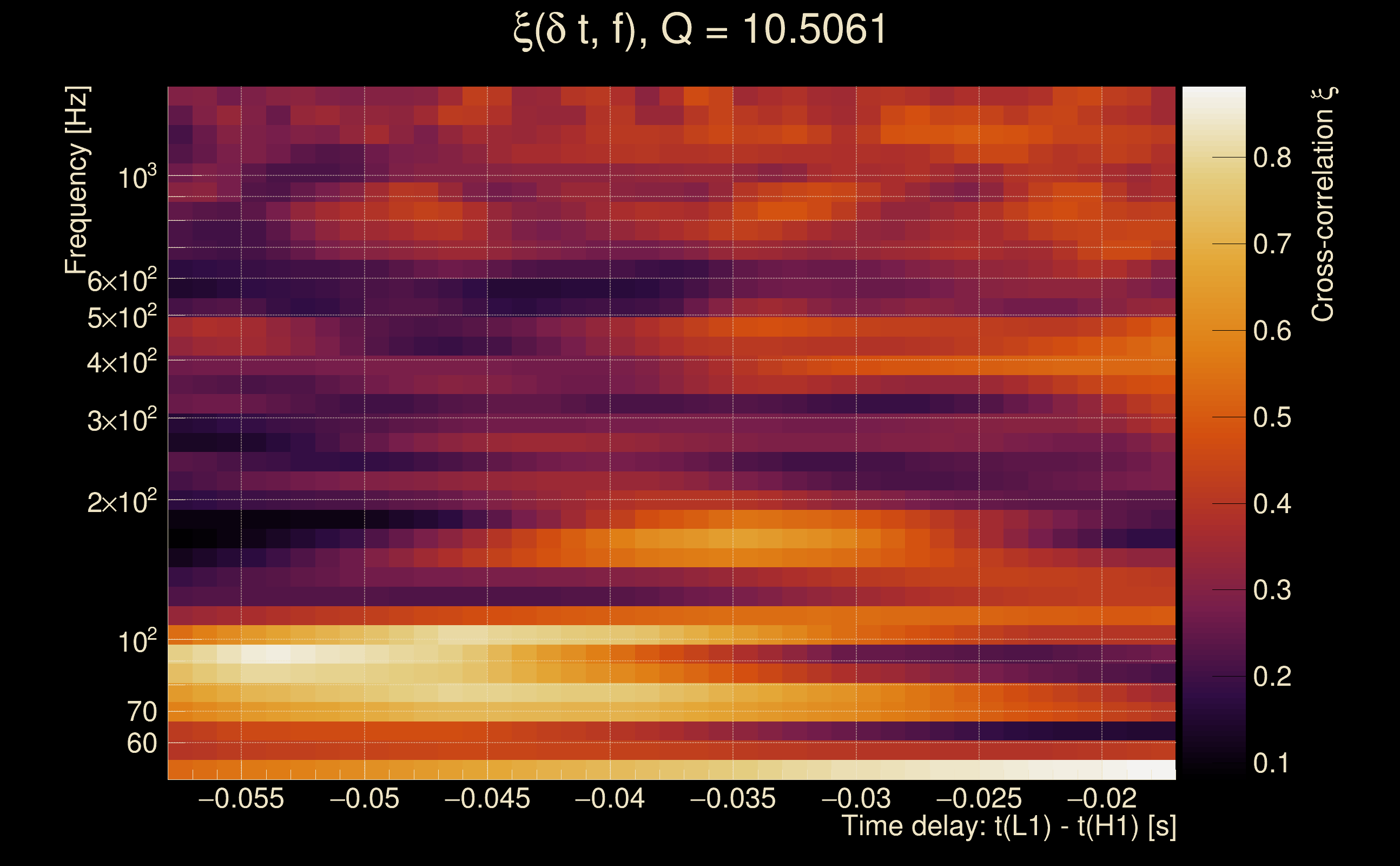

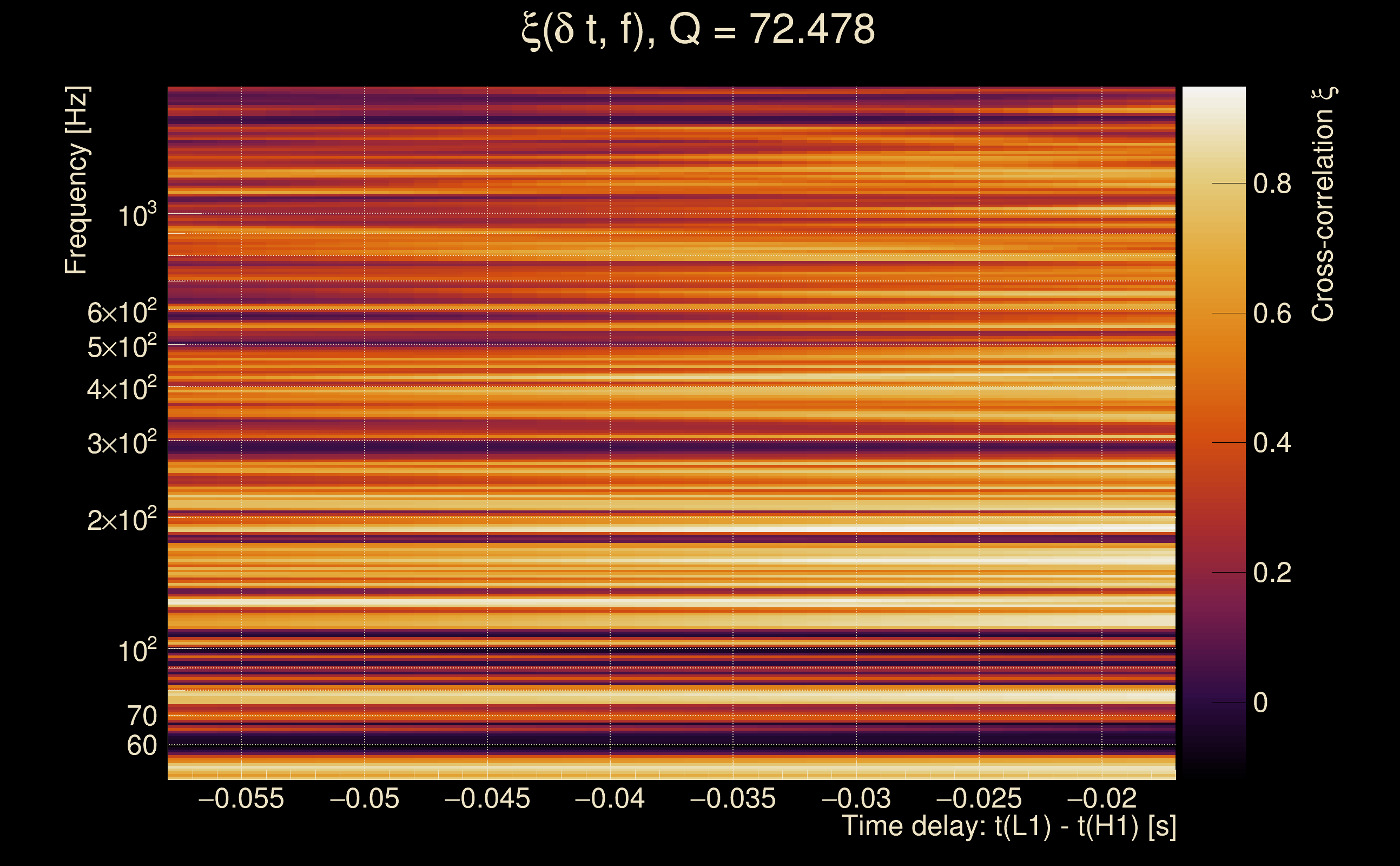

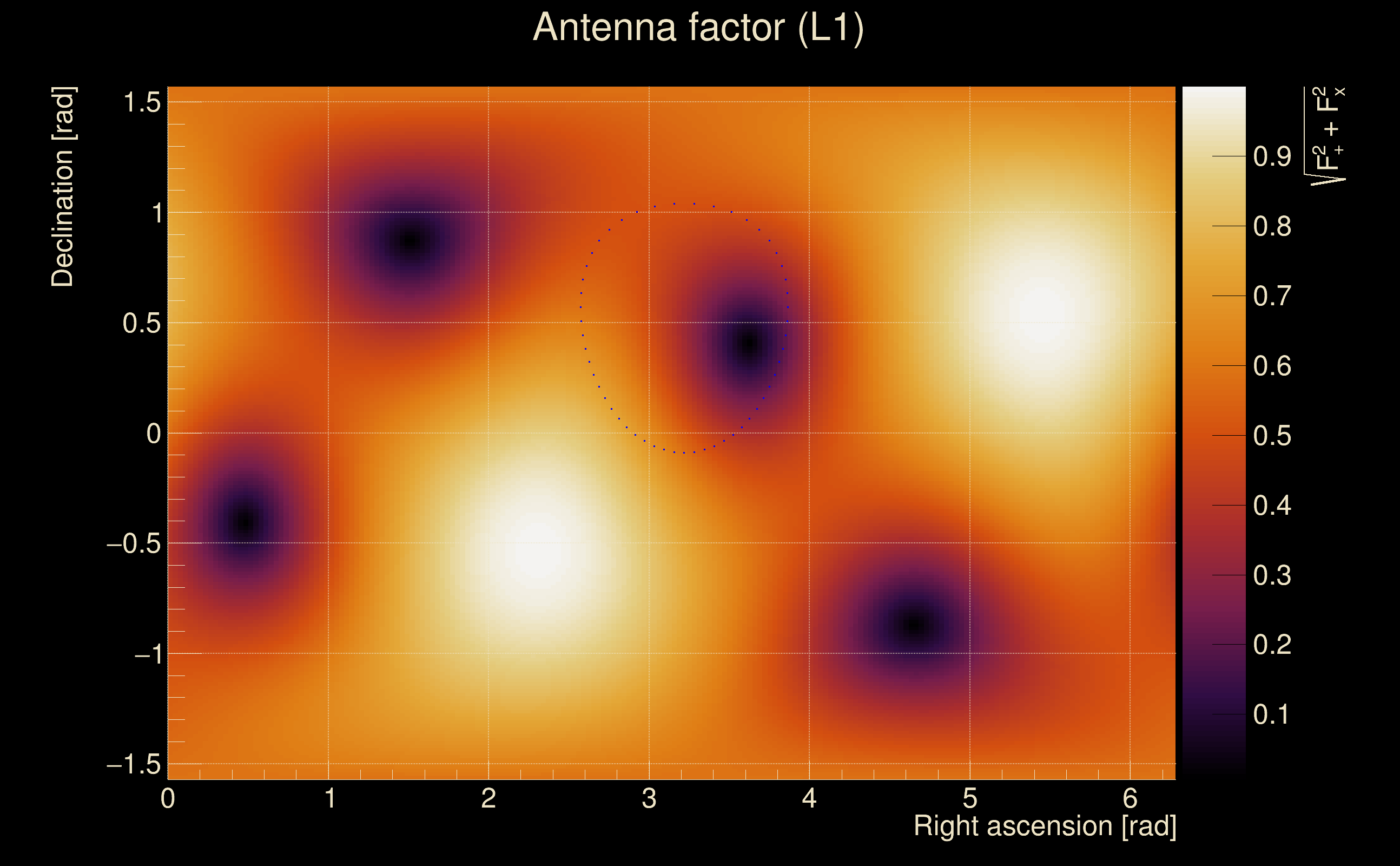

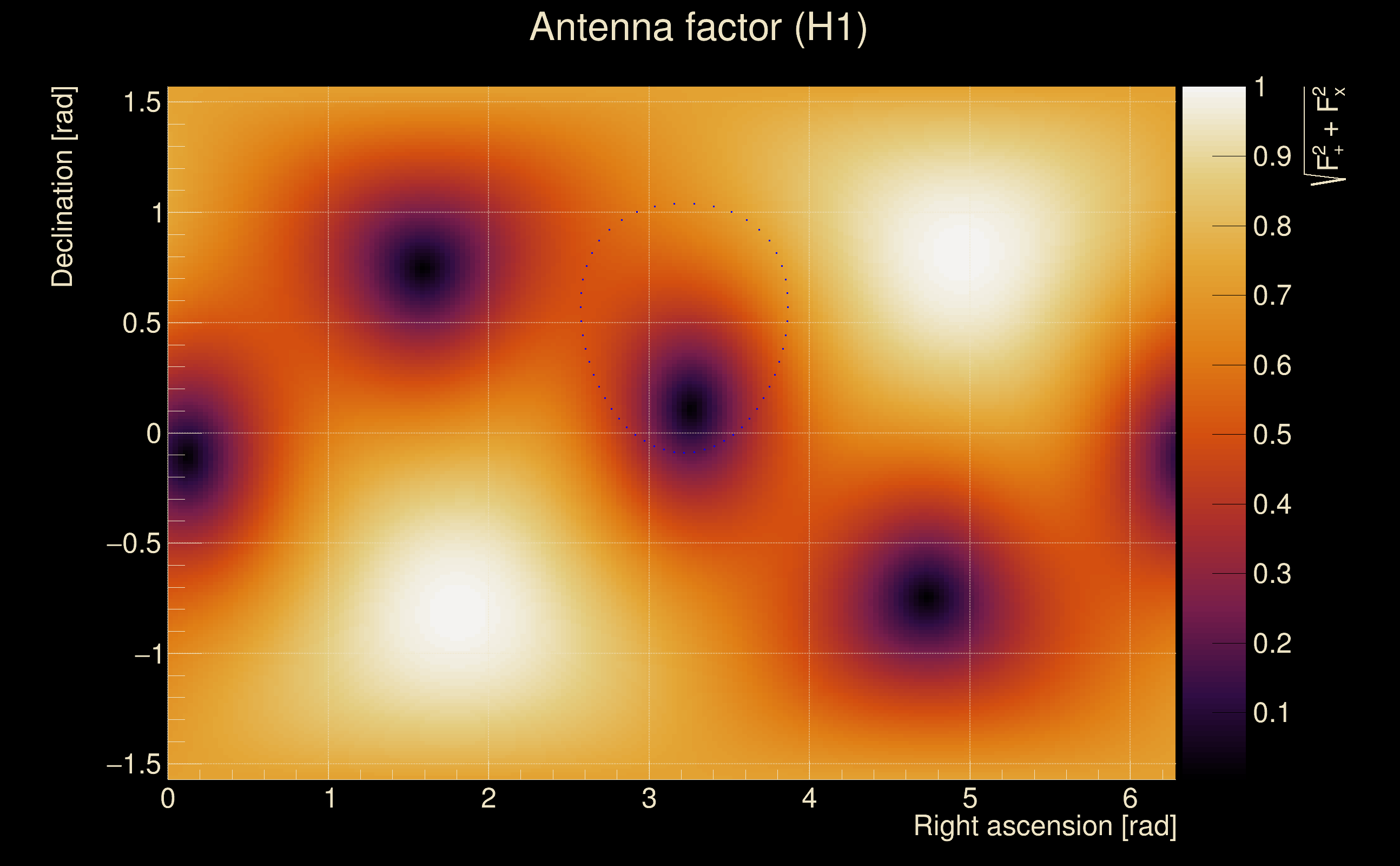

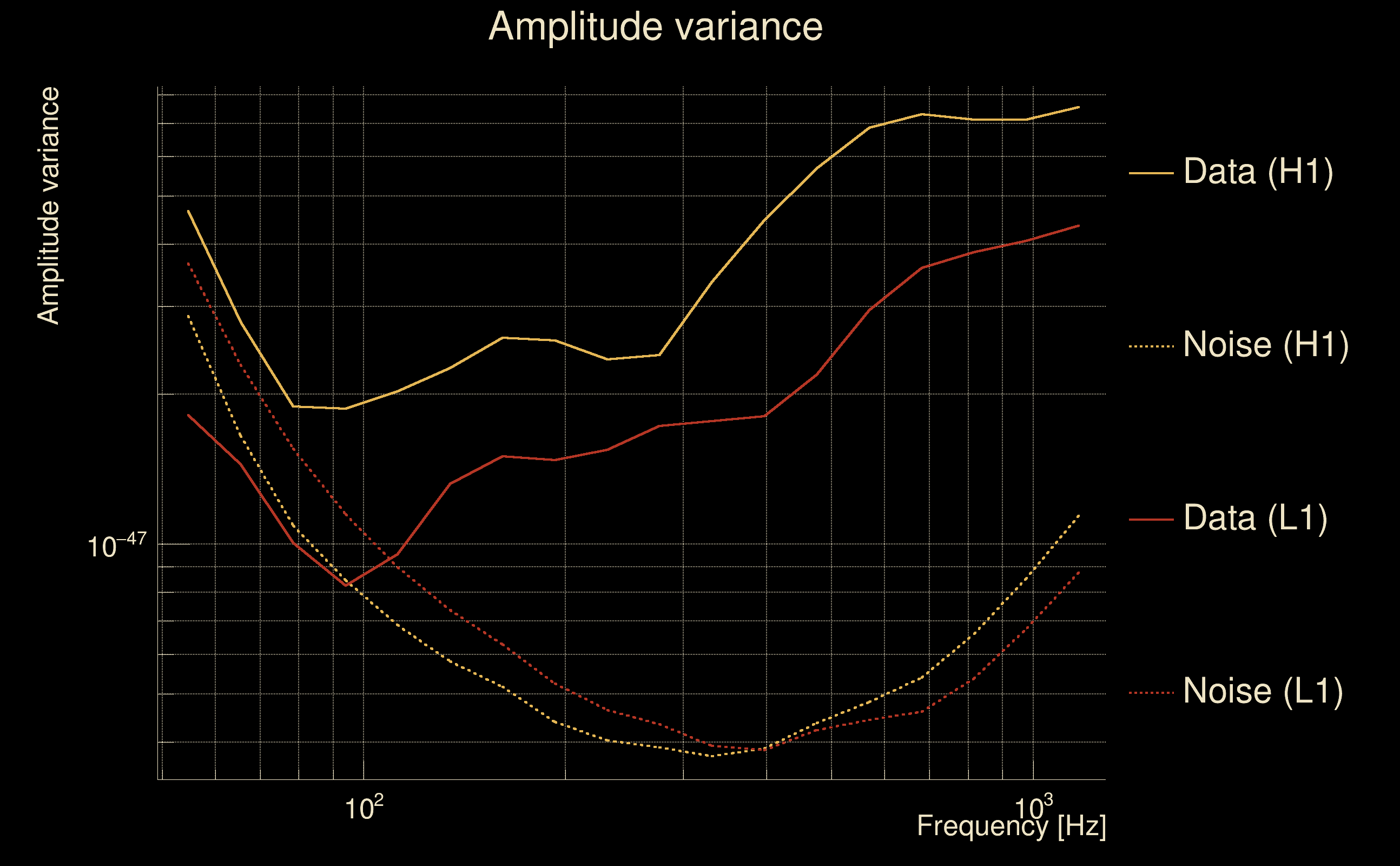

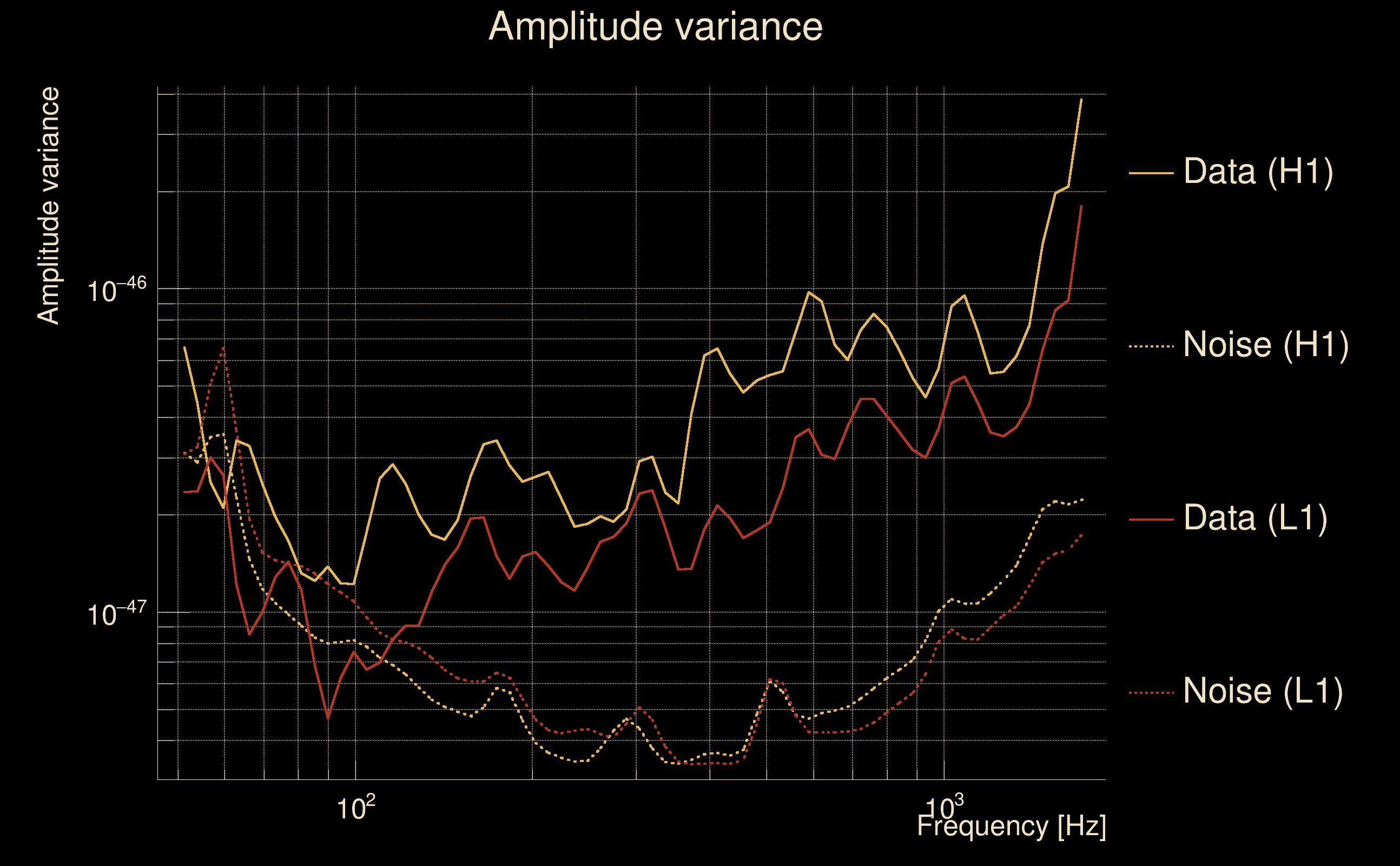

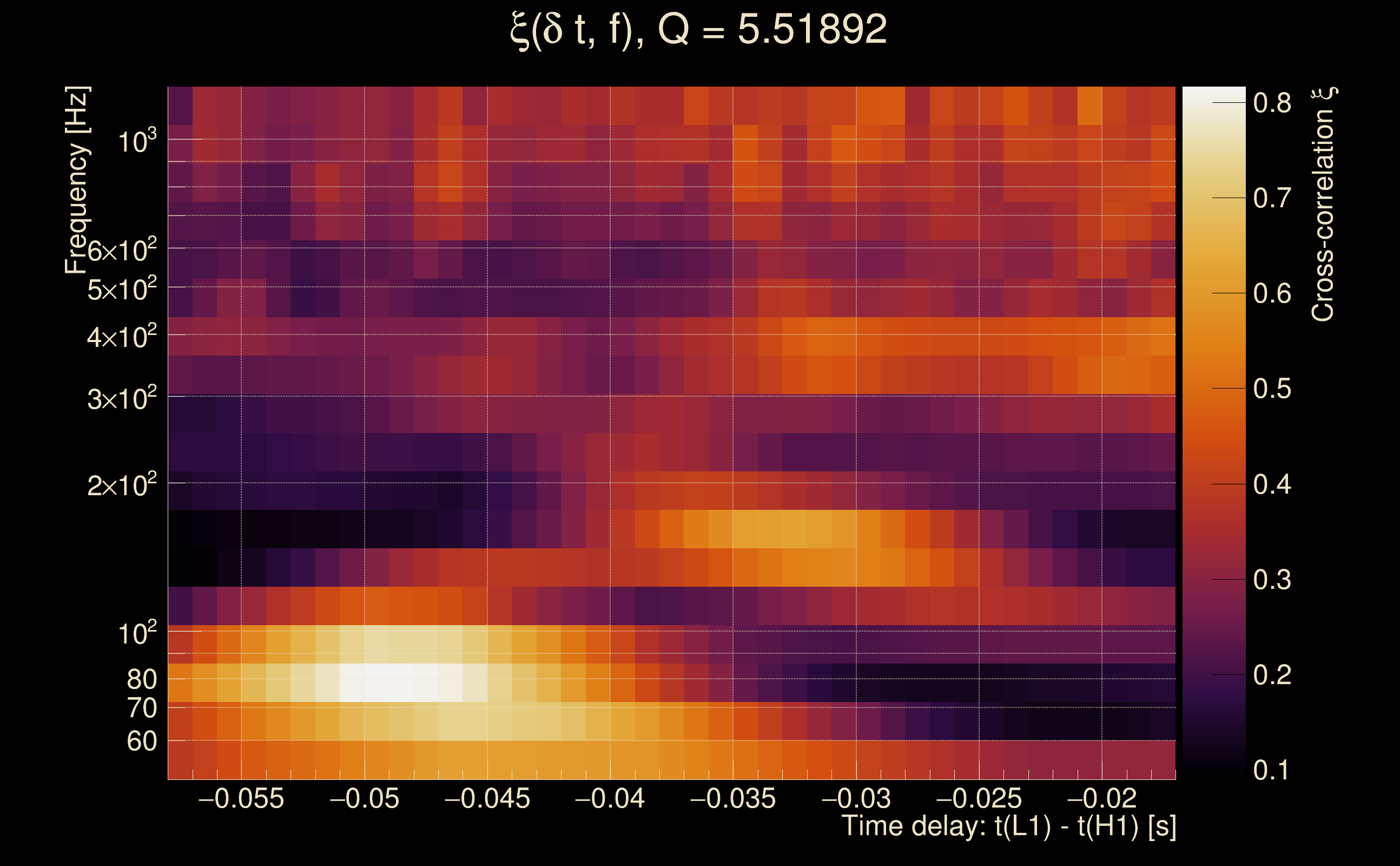

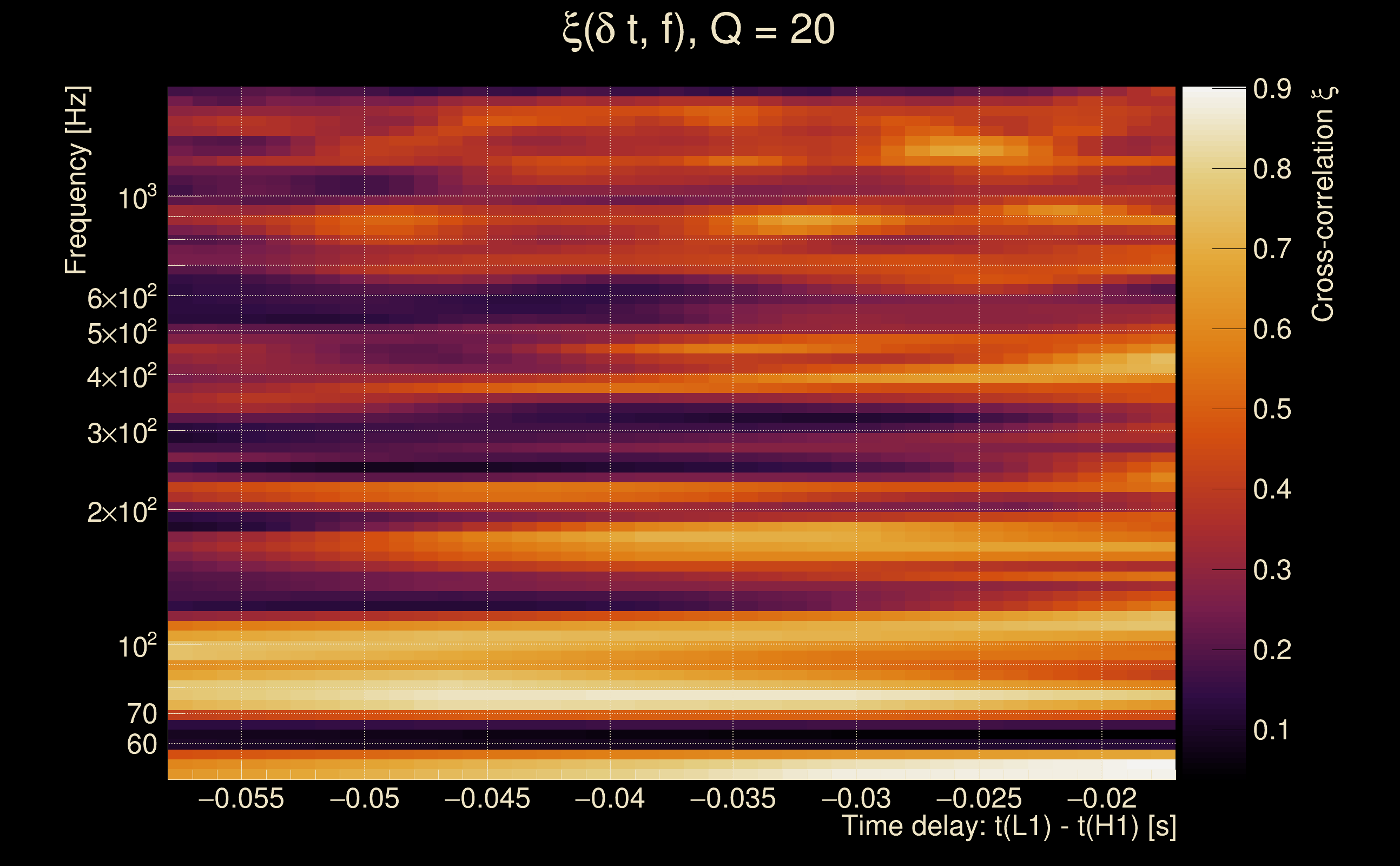

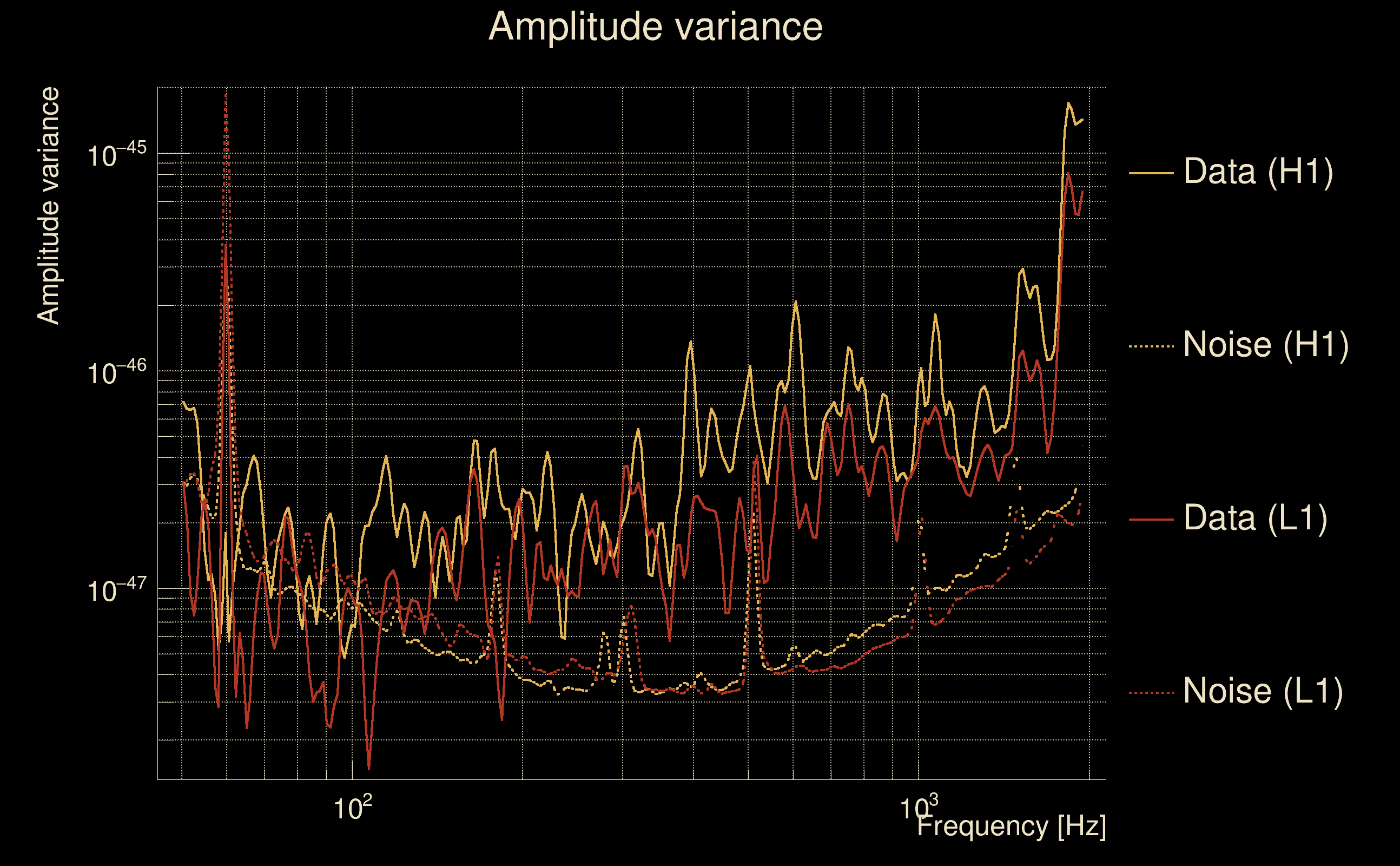

| Event time t(H1): | GPS = 1368357143 (Wed May 17 11:12:05 2023 ) → GPS = 1368357153 (Wed May 17 11:12:15 2023 ) |
| Event time t(L1): | GPS = 1368357143 (Wed May 17 11:12:15 2023 ) → GPS = 1368357153 (Wed May 17 11:12:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368357140 → GPS = 1368357156 |
| Omicron analysis time window (L1): | GPS = 1368357140 → GPS = 1368357156 |
| Time delay between detectors t(L1) - t(H1): | -0.0375459 s (slice index = 109 / 217), δt_gw = 0.00845415 s |
| Time delay standard deviation: | 0.0672377 s |
| [targeted mode] Time delay probability: | 0.985641 (0.0179973 sigmas), δt_target = 0.000917435 s |
| Frequency: | 210.048 Hz |
| Ξ: | 0.266454 ± 0.0197498 (variance = 0.000390053): Q0: 0.534169, Q1: 0.579604, Q2: 0.586299, Q3: 0.585412, Q4: 0.581274 |
| Rank: | R_A = 0.262628 |
| Log of amplitude ratio (L1/H1): | -0.576337, variance = 0.195078 (L1/H1: -0.925834, variance = 0.34302, H1/L1: -0.166476, variance = 0.356019) |
| Amplitude ratio (L1/H1): | 0.561953 ⋇ 1.55531 (L1/H1: 0.396201 ⋇ 1.79621, H1/L1: 0.846643 ⋇ 1.81607) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.191397 |

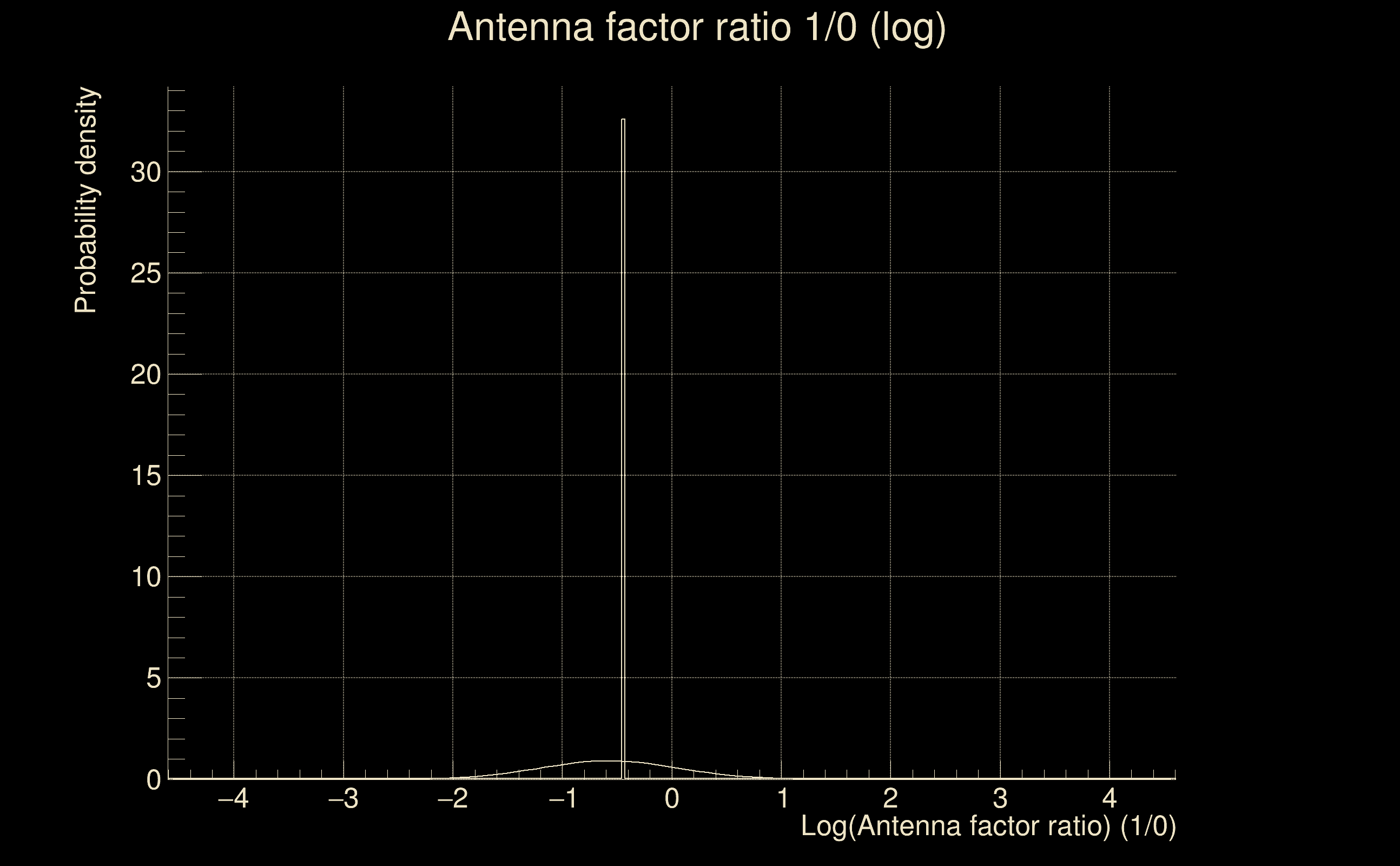

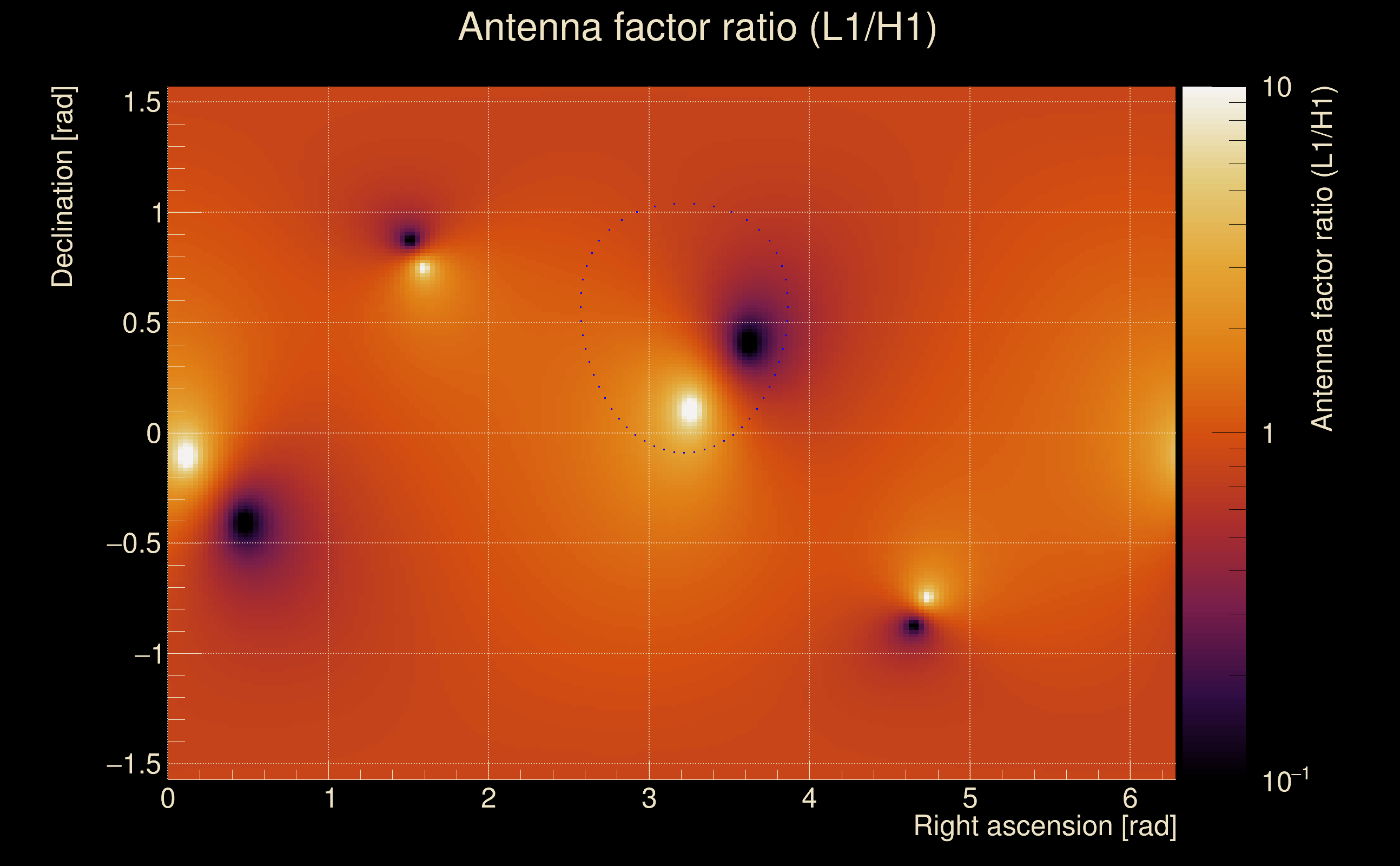

| Antenna factor probability: | 0.774425 |
| Number of rejected frequency rows: | Q0: 7 / 18, Q1: 19 / 36, Q2: 49 / 70, Q3: 117 / 134, Q4: 232 / 258 |
| Maximum signal-to-noise ratio: | H1: 134.433, L1: 92.2124 |

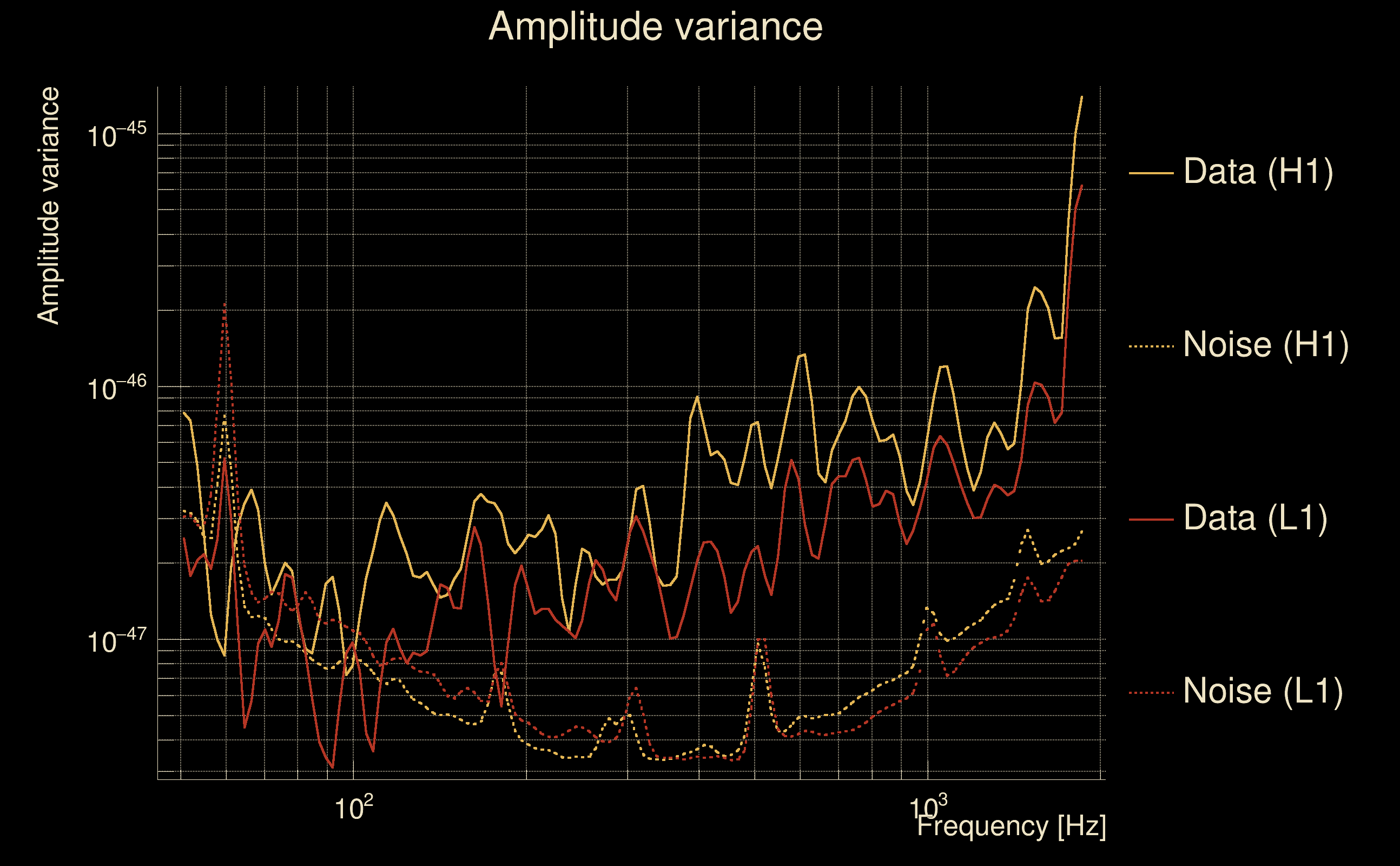

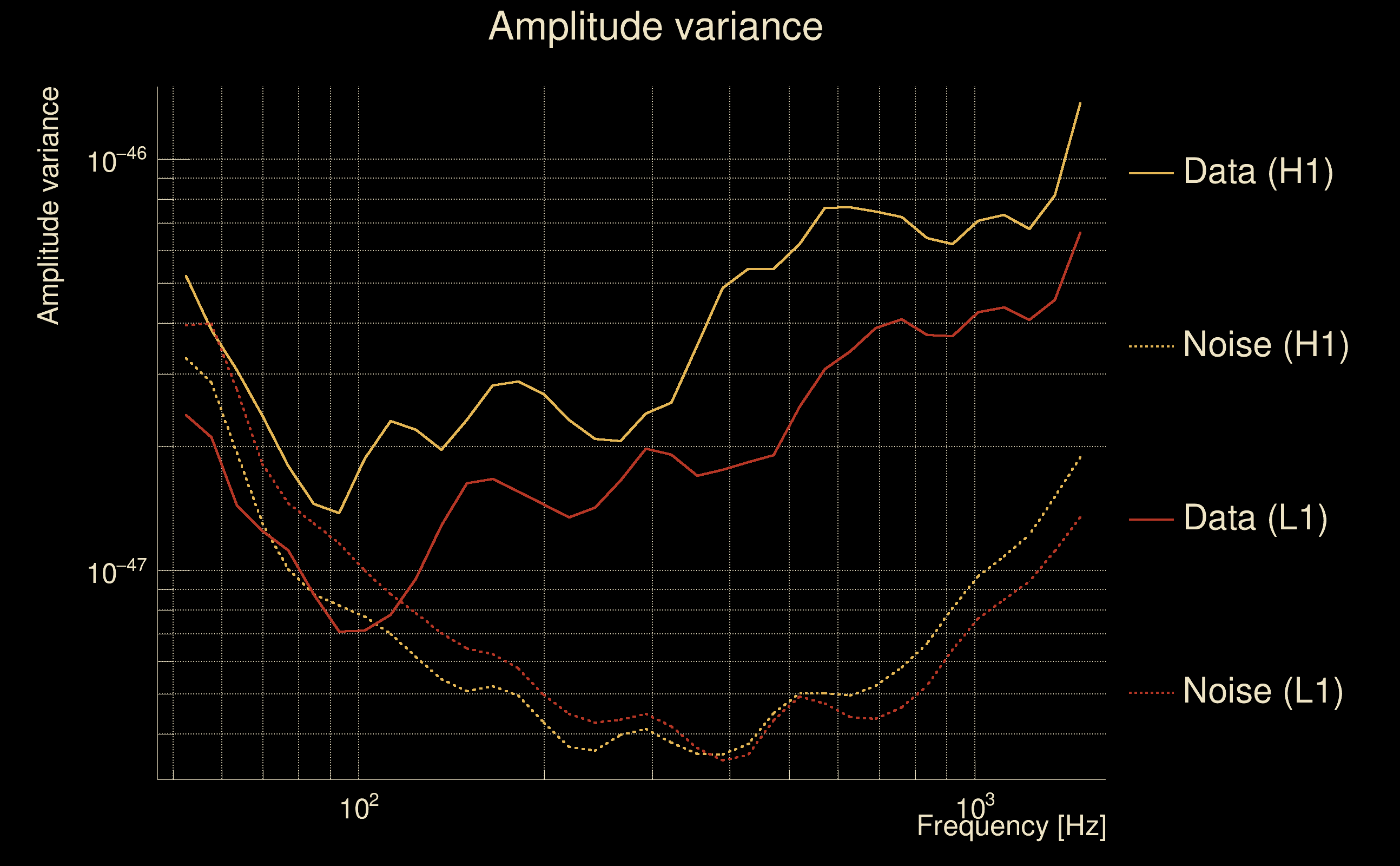

| SNR variance: | H1: 28.6629, L1: 21.1423 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

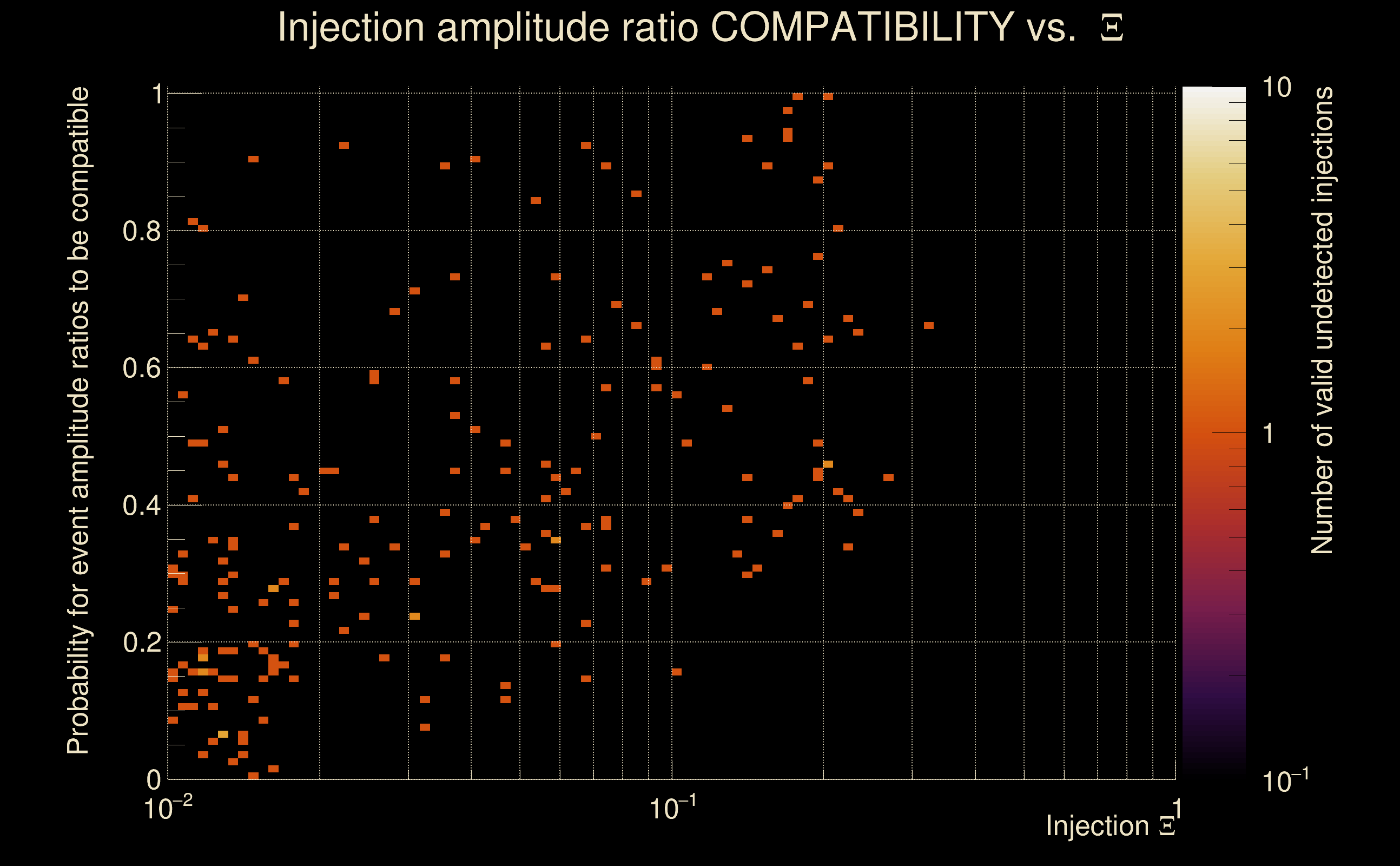

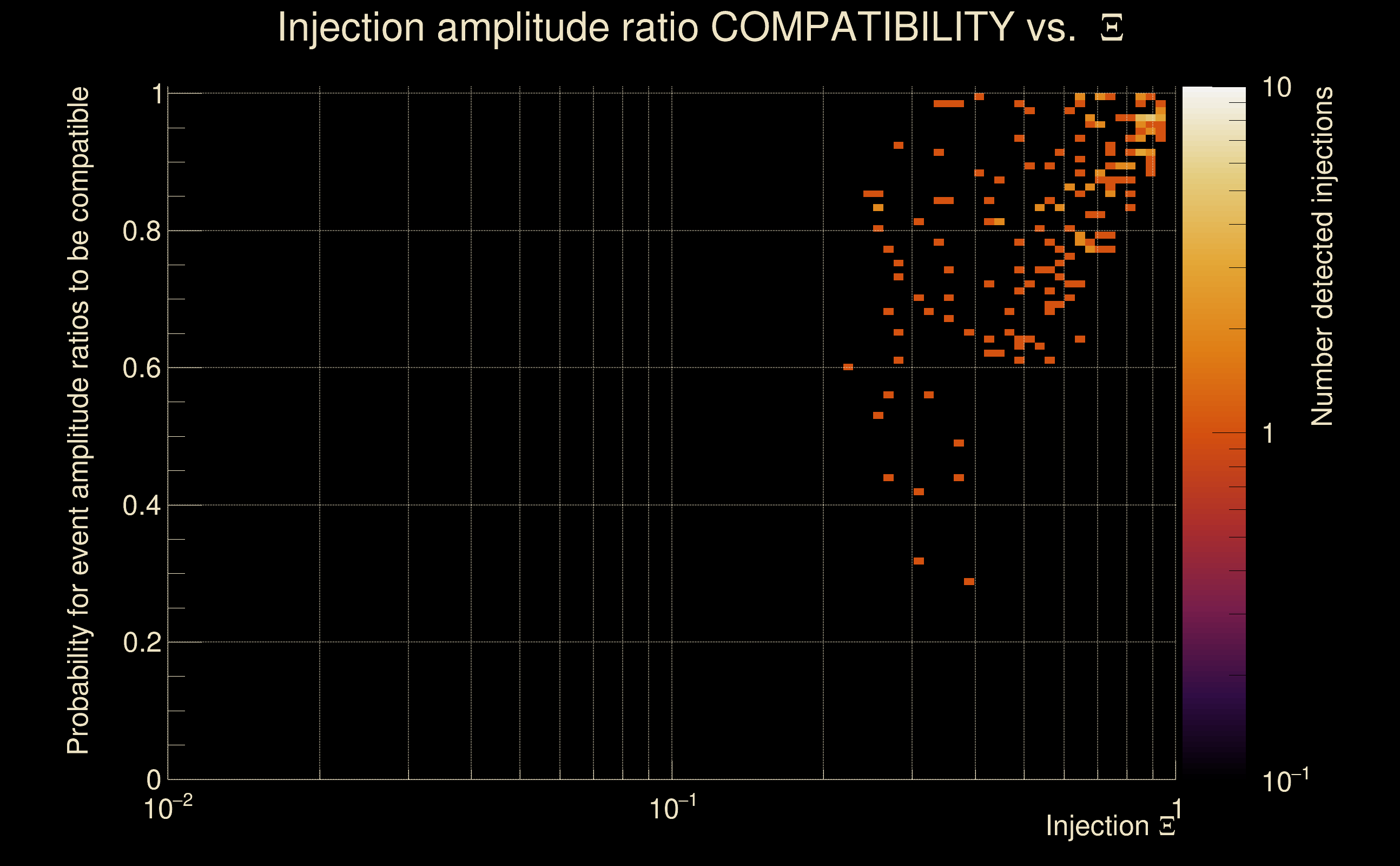

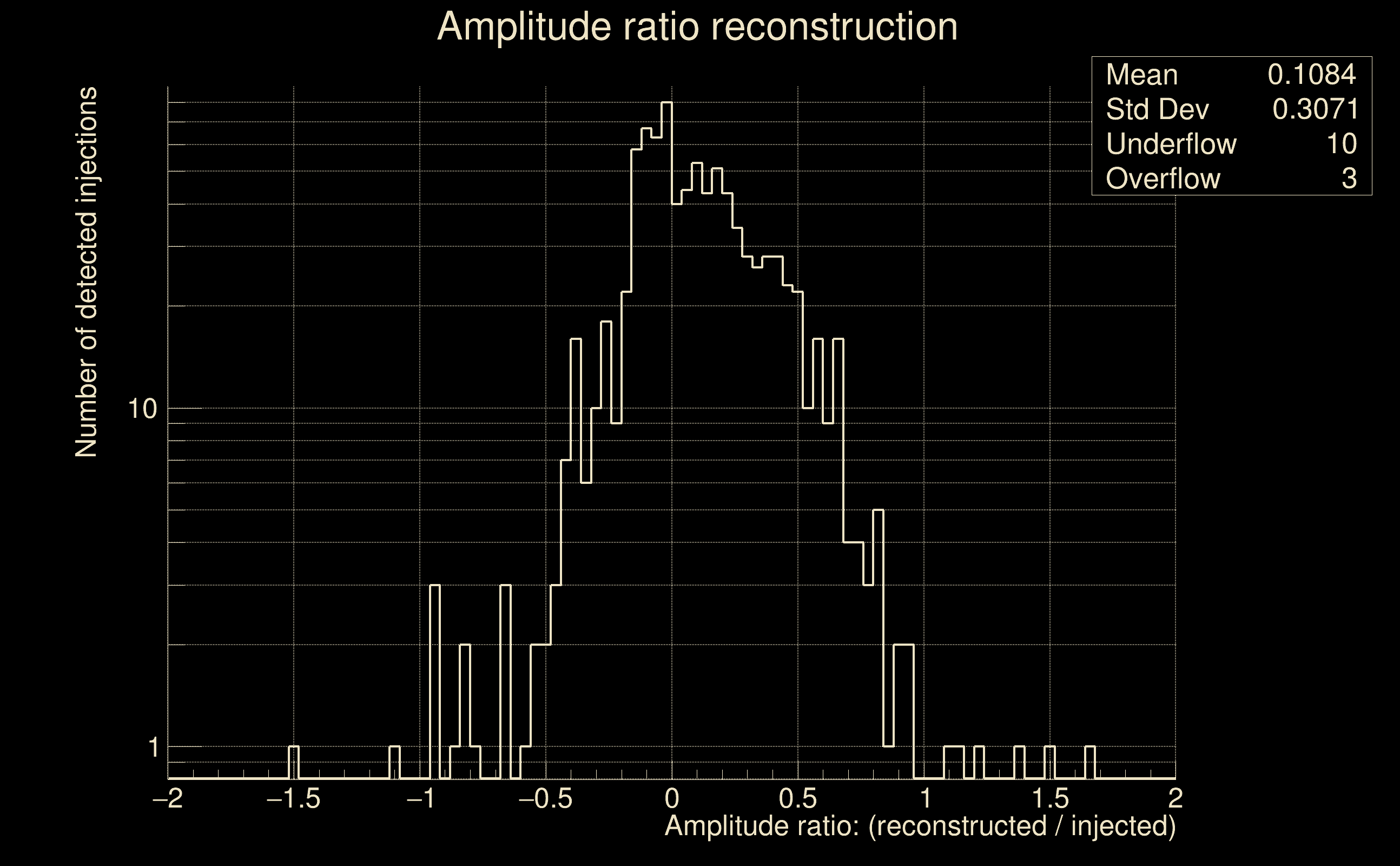

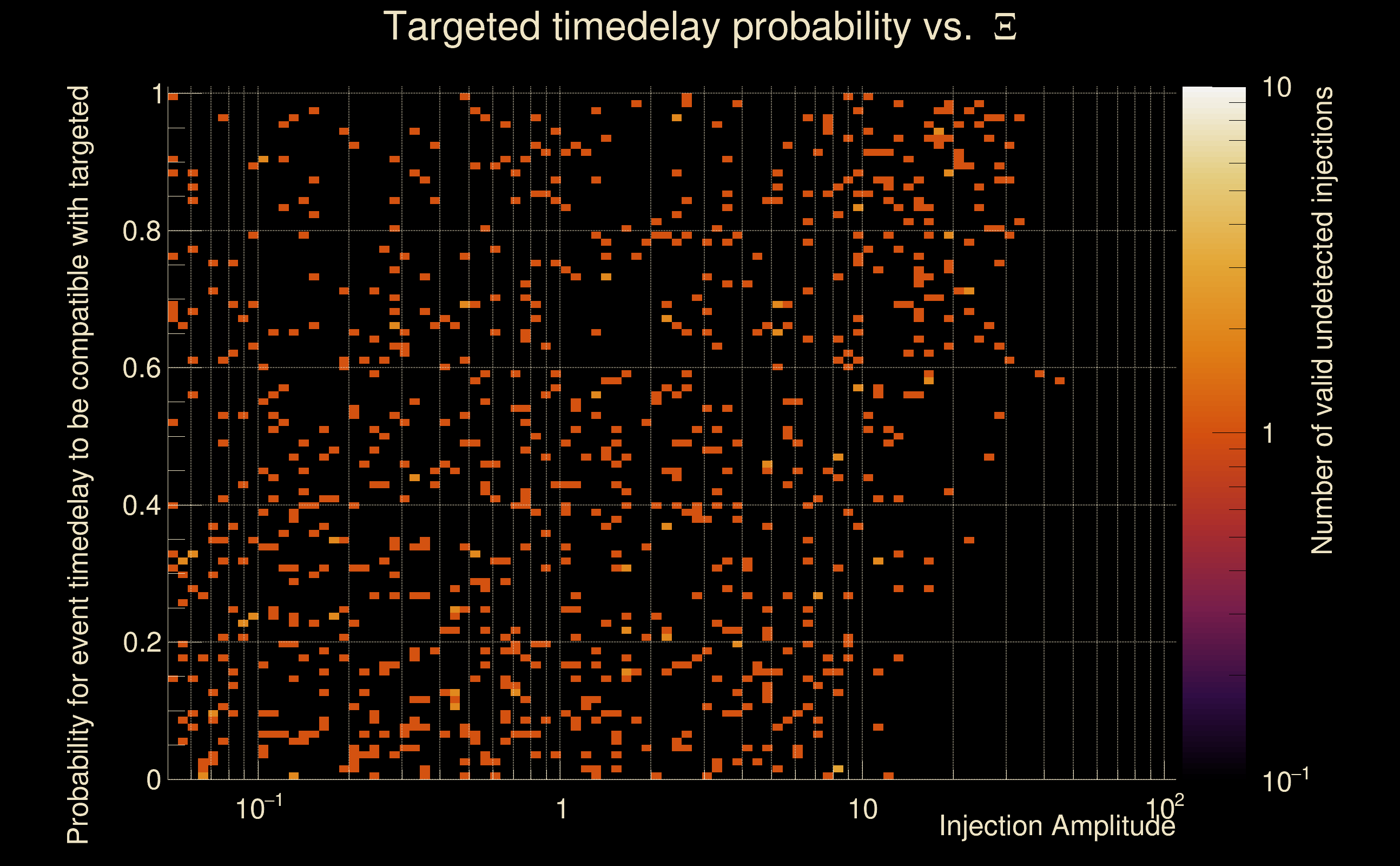

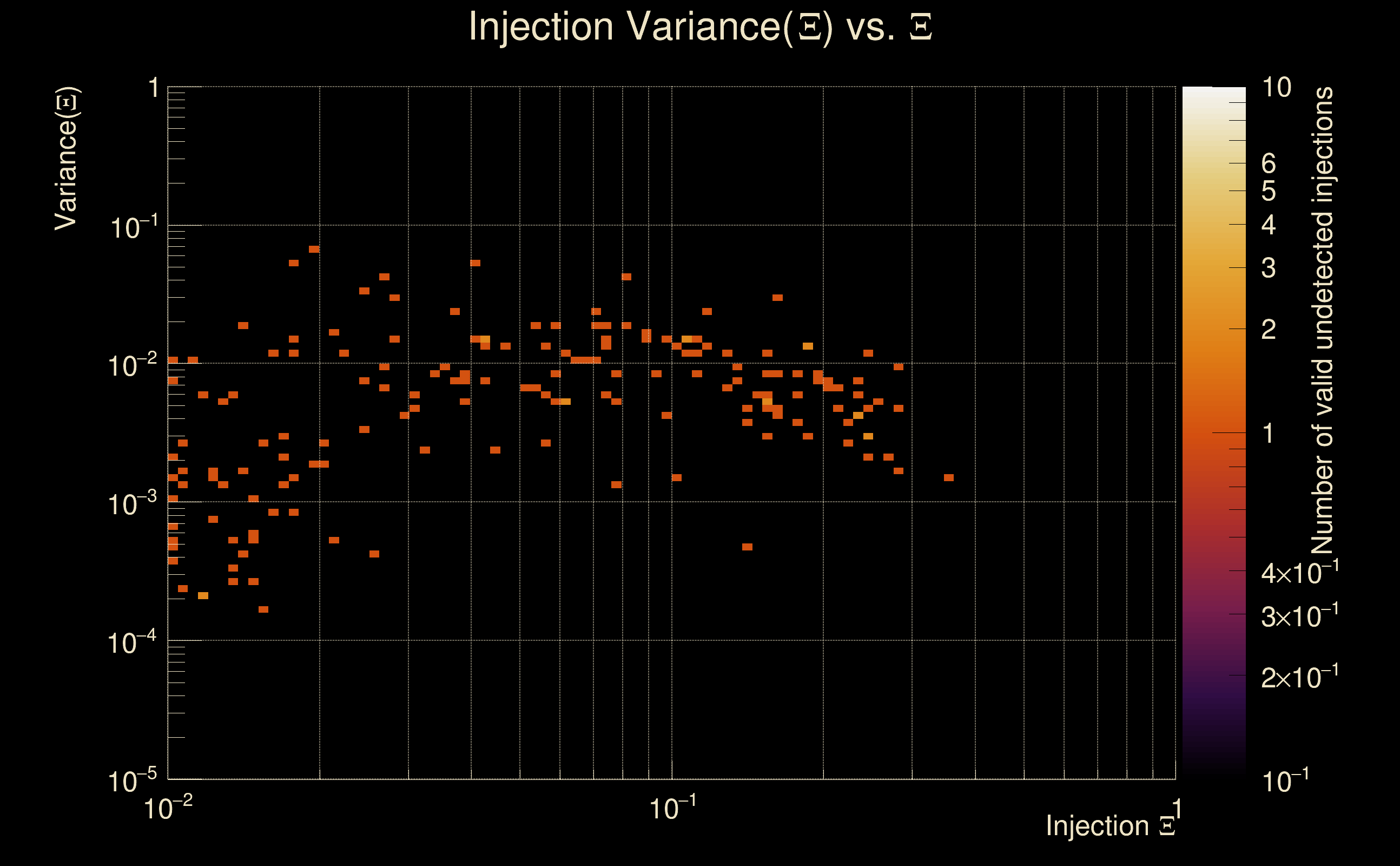

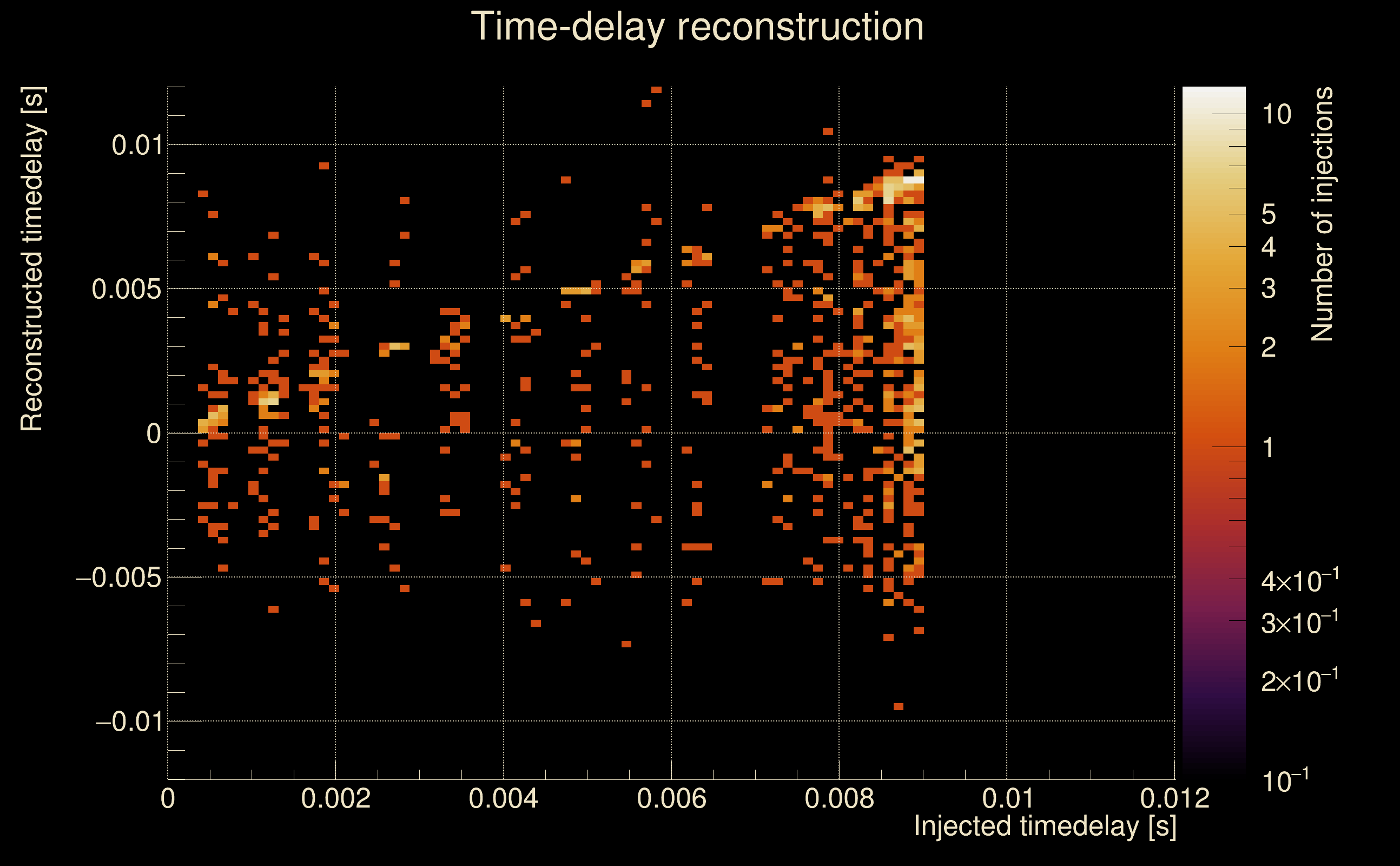

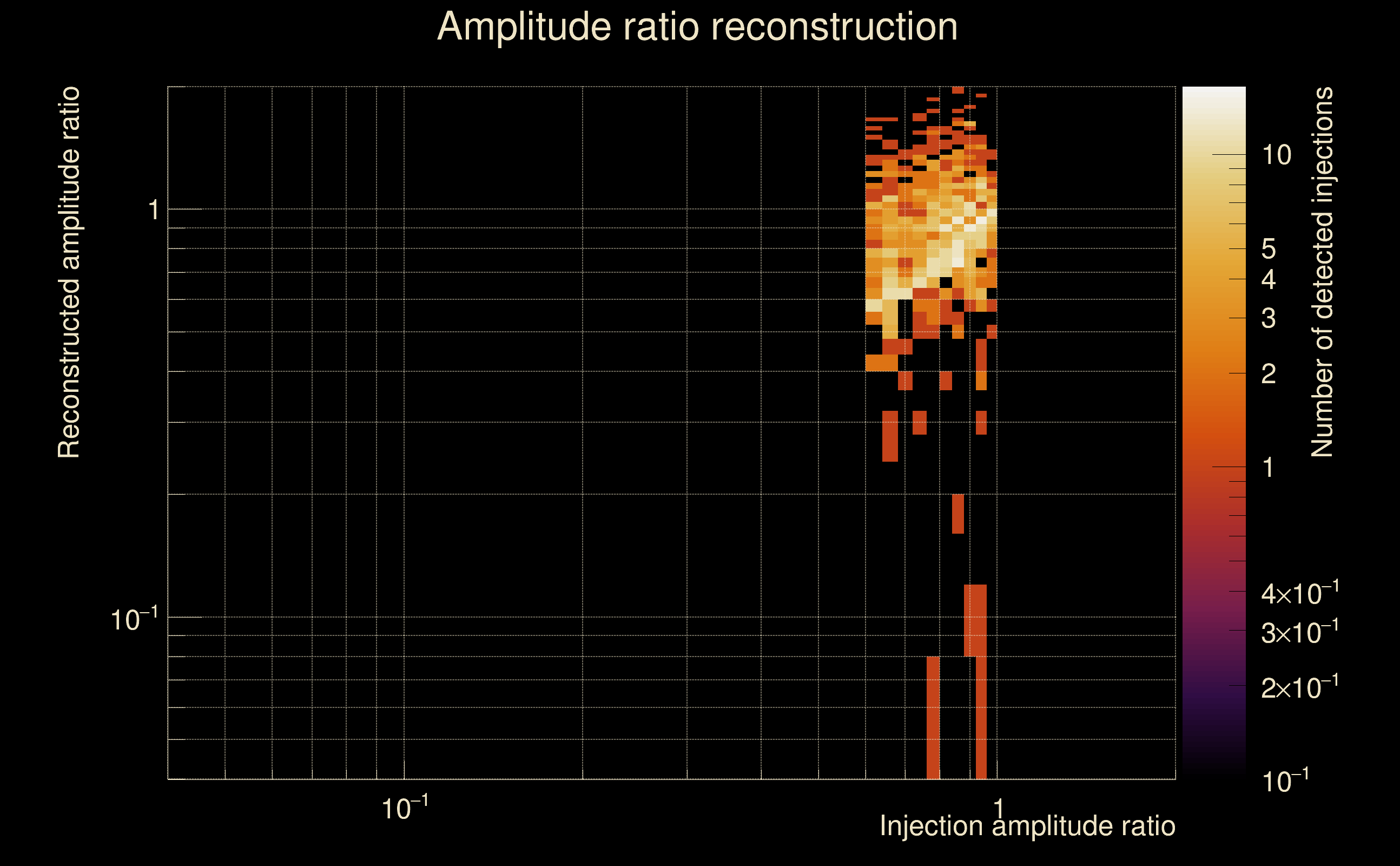

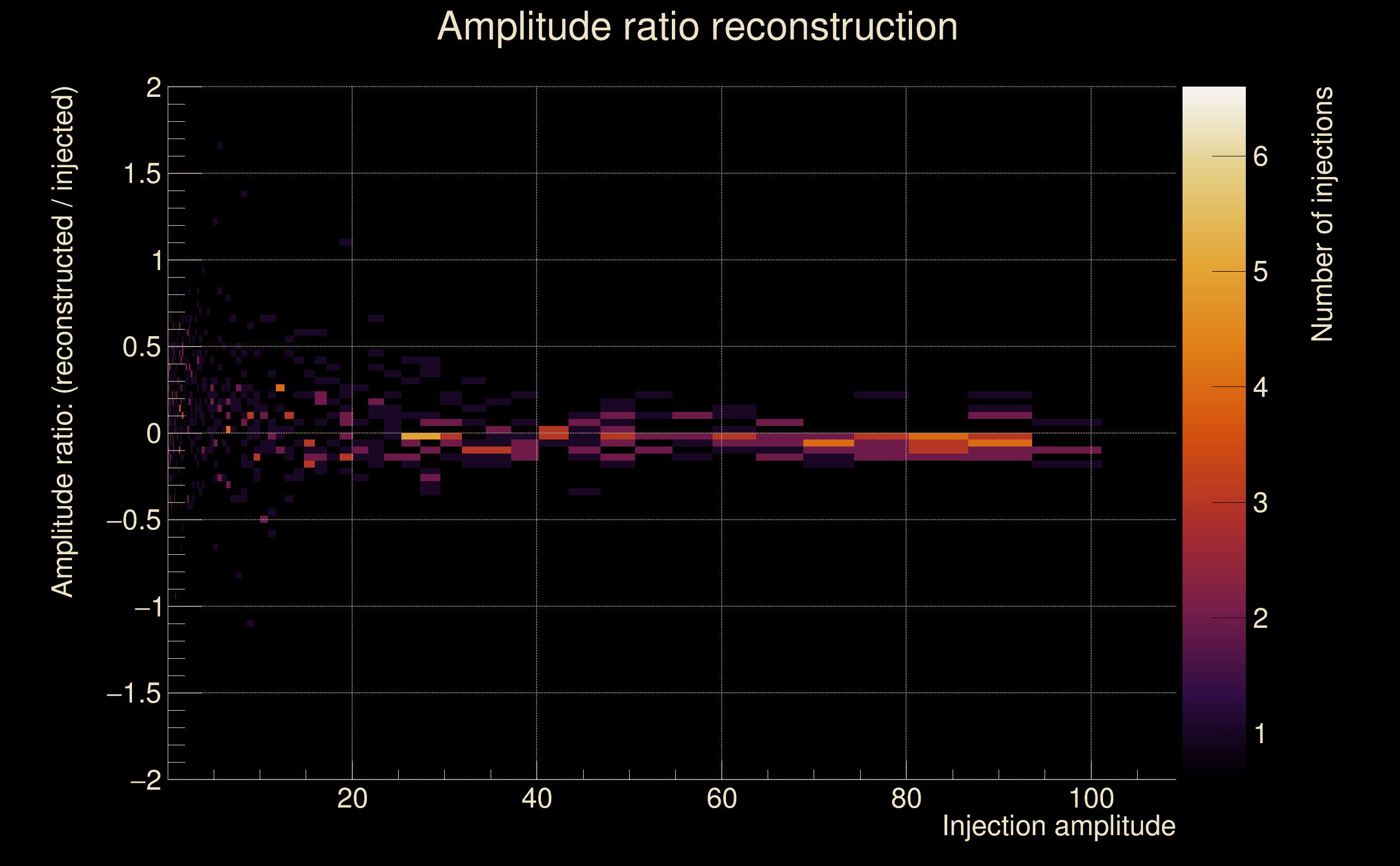

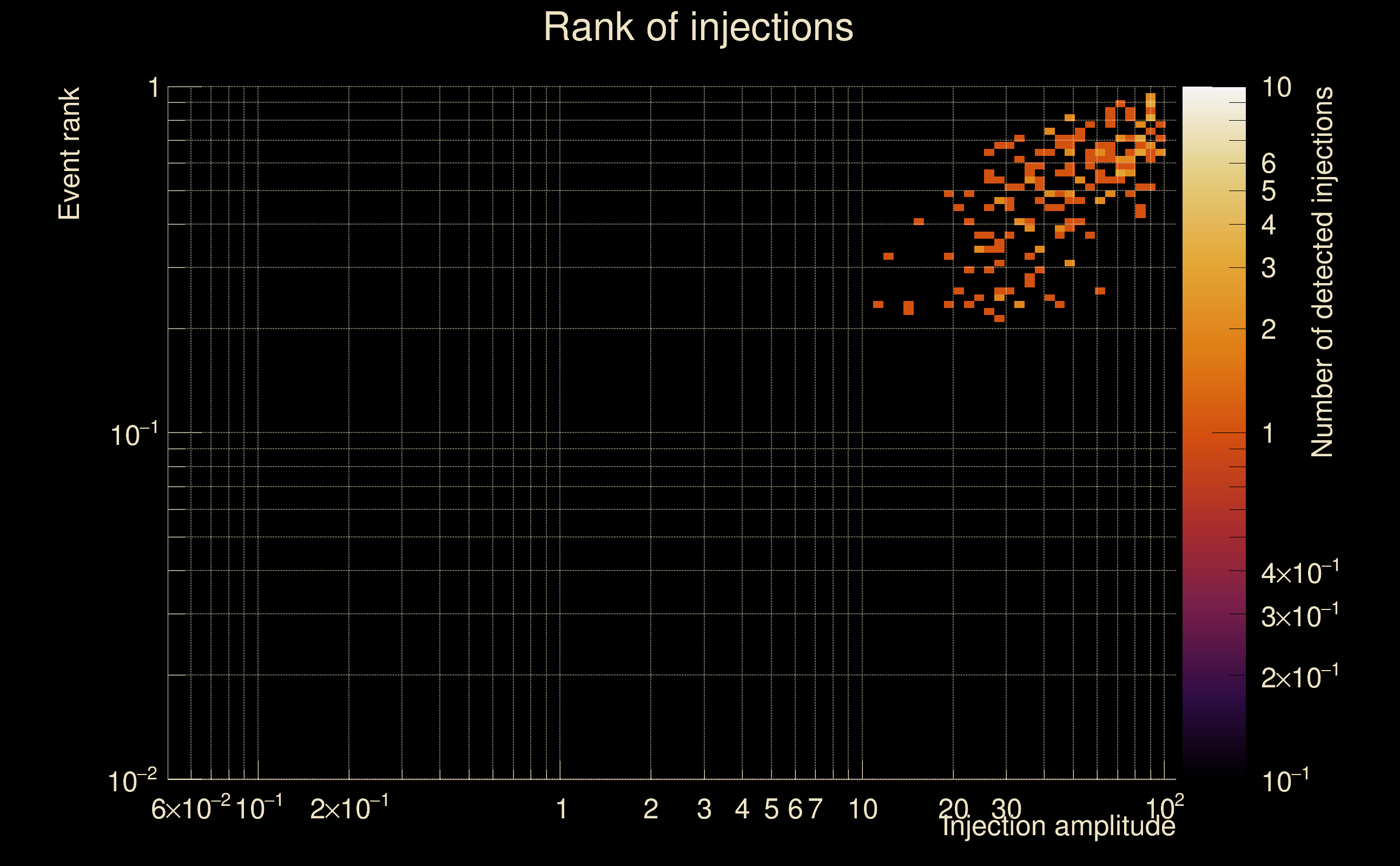

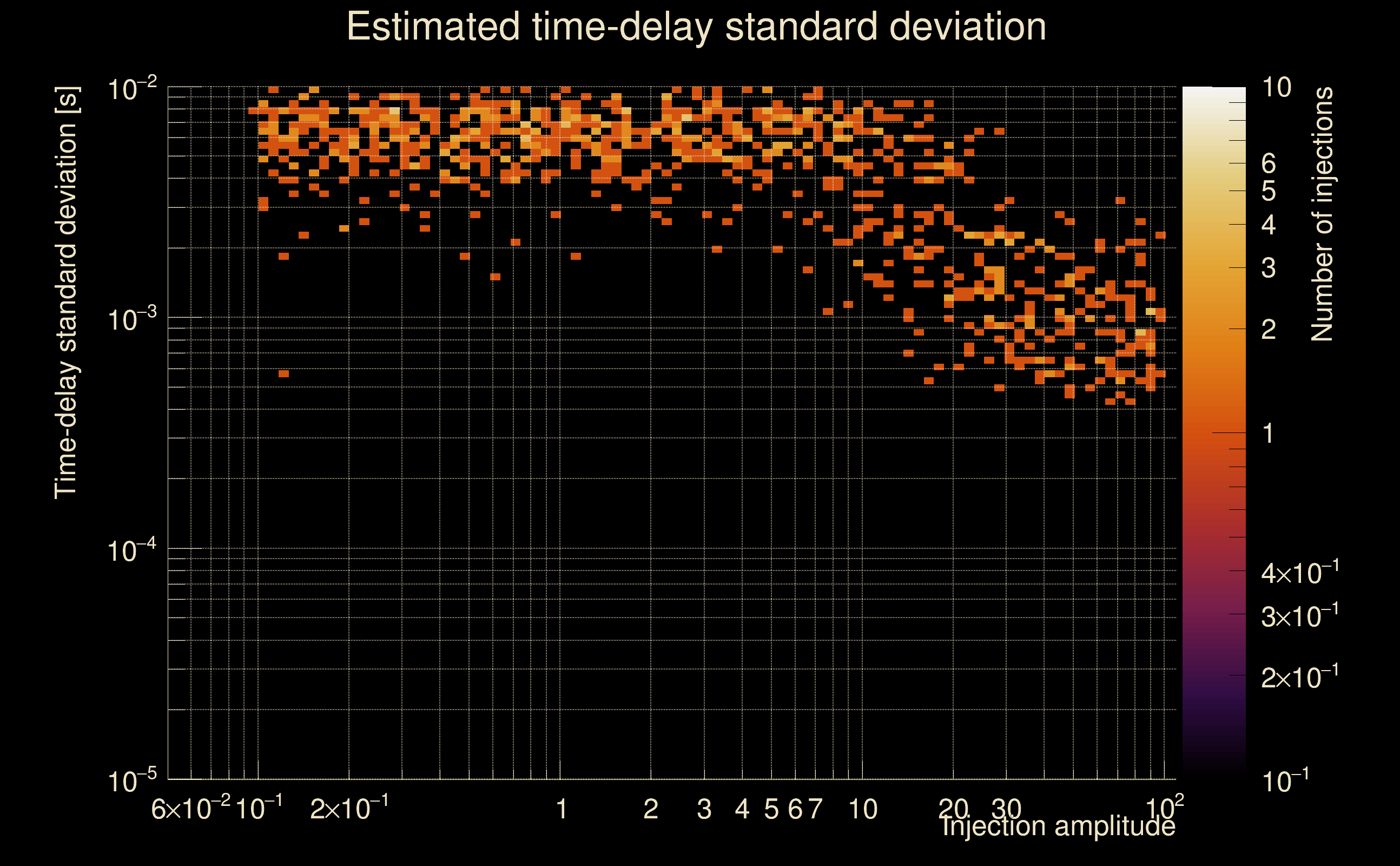

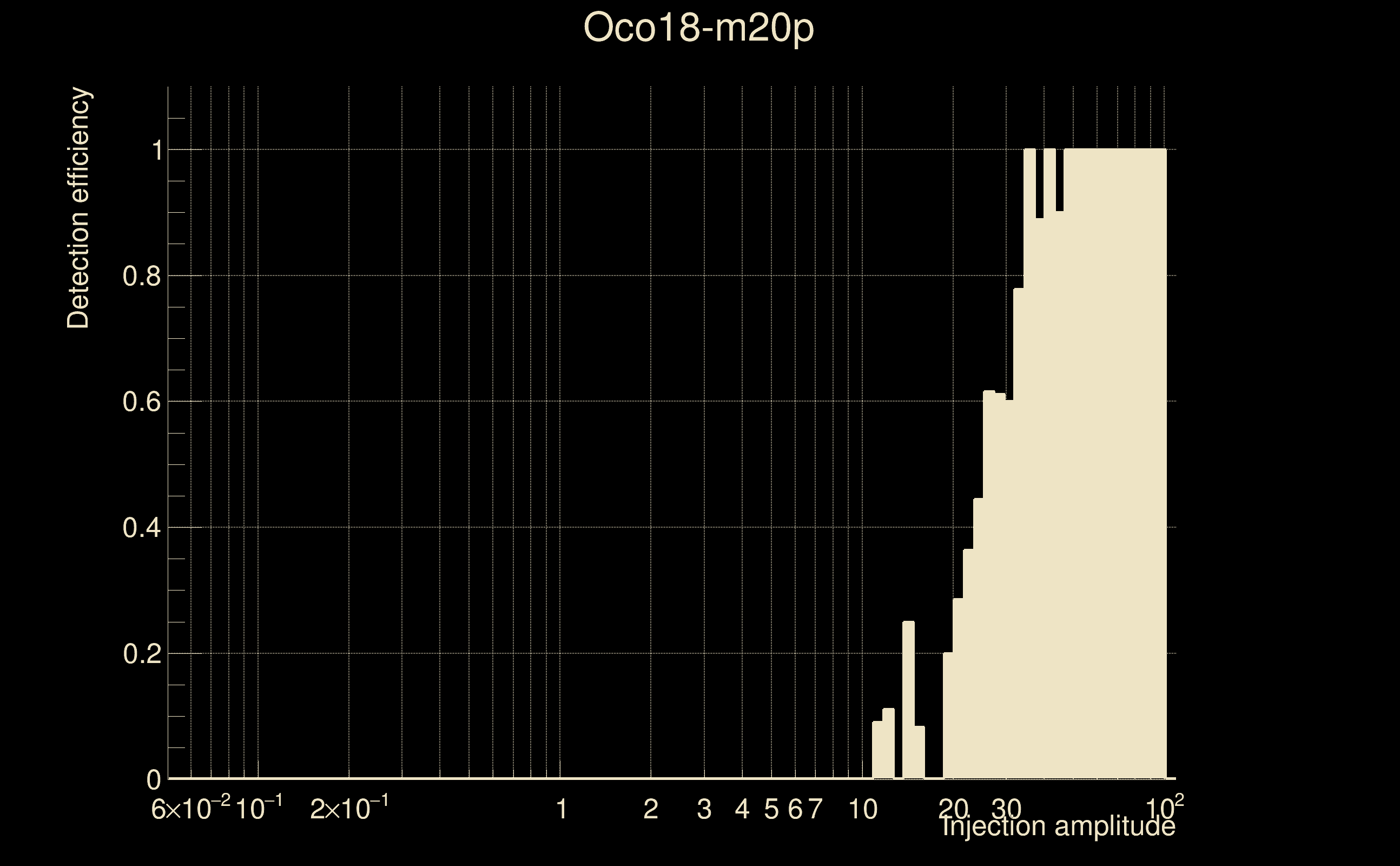

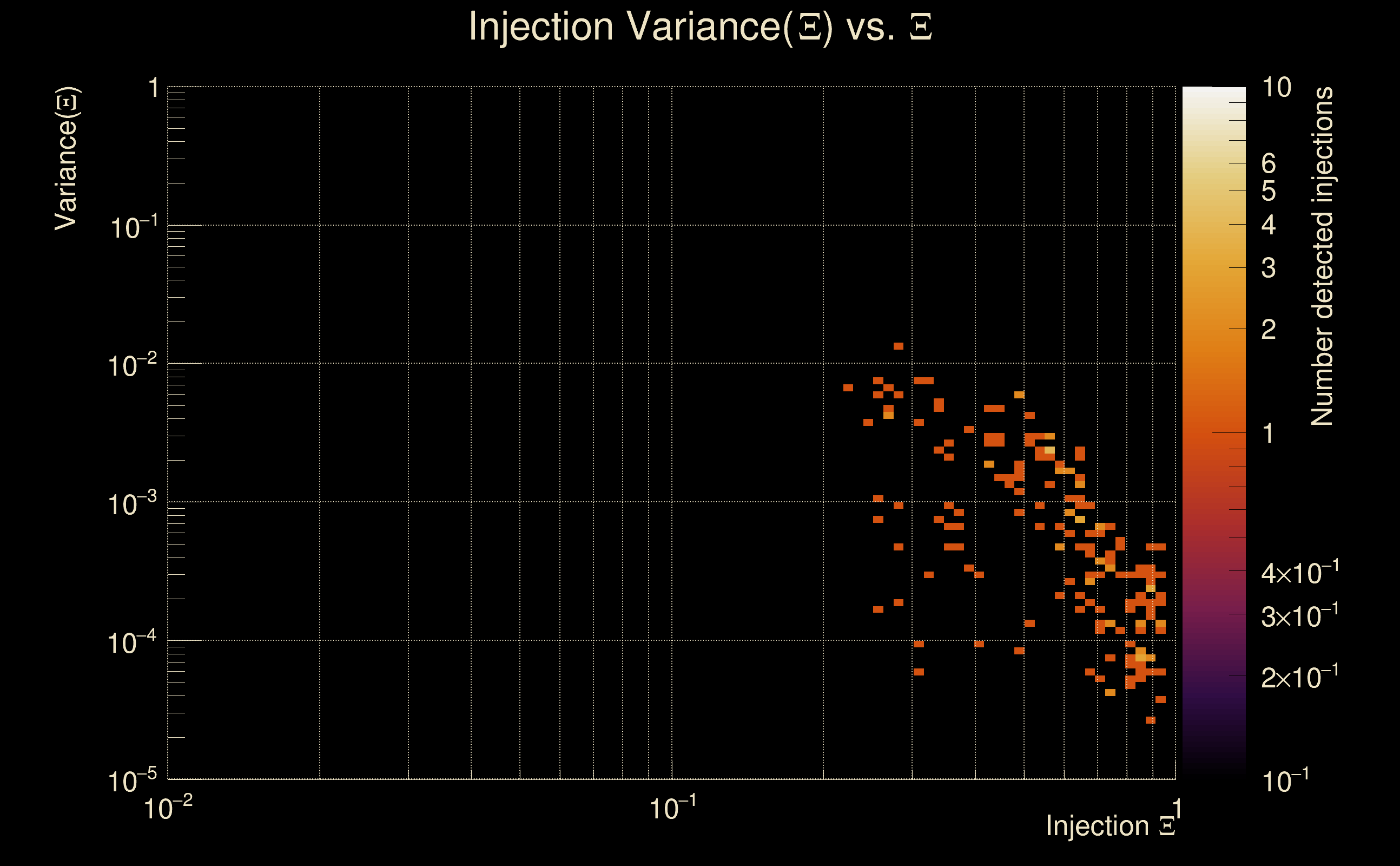

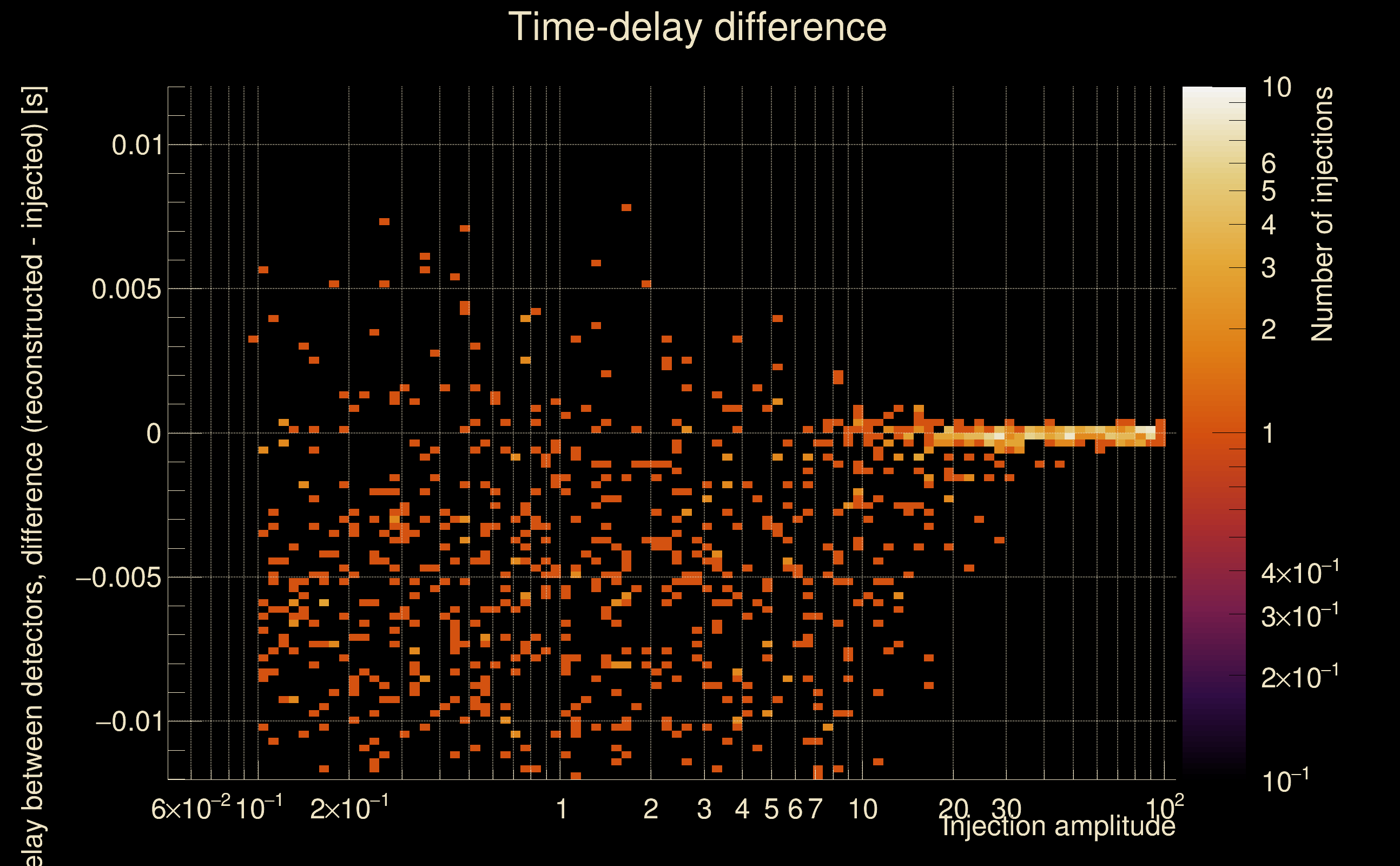

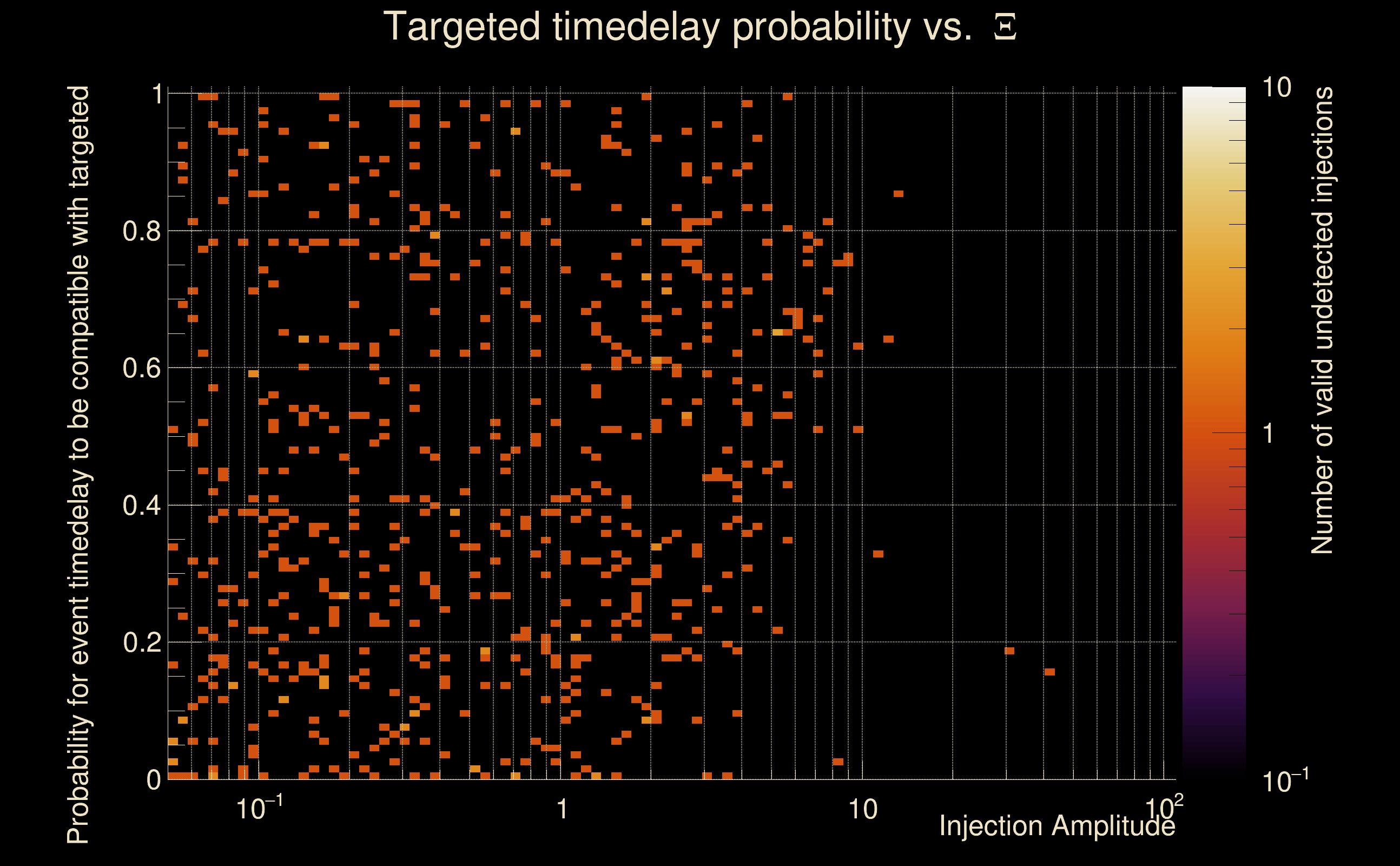

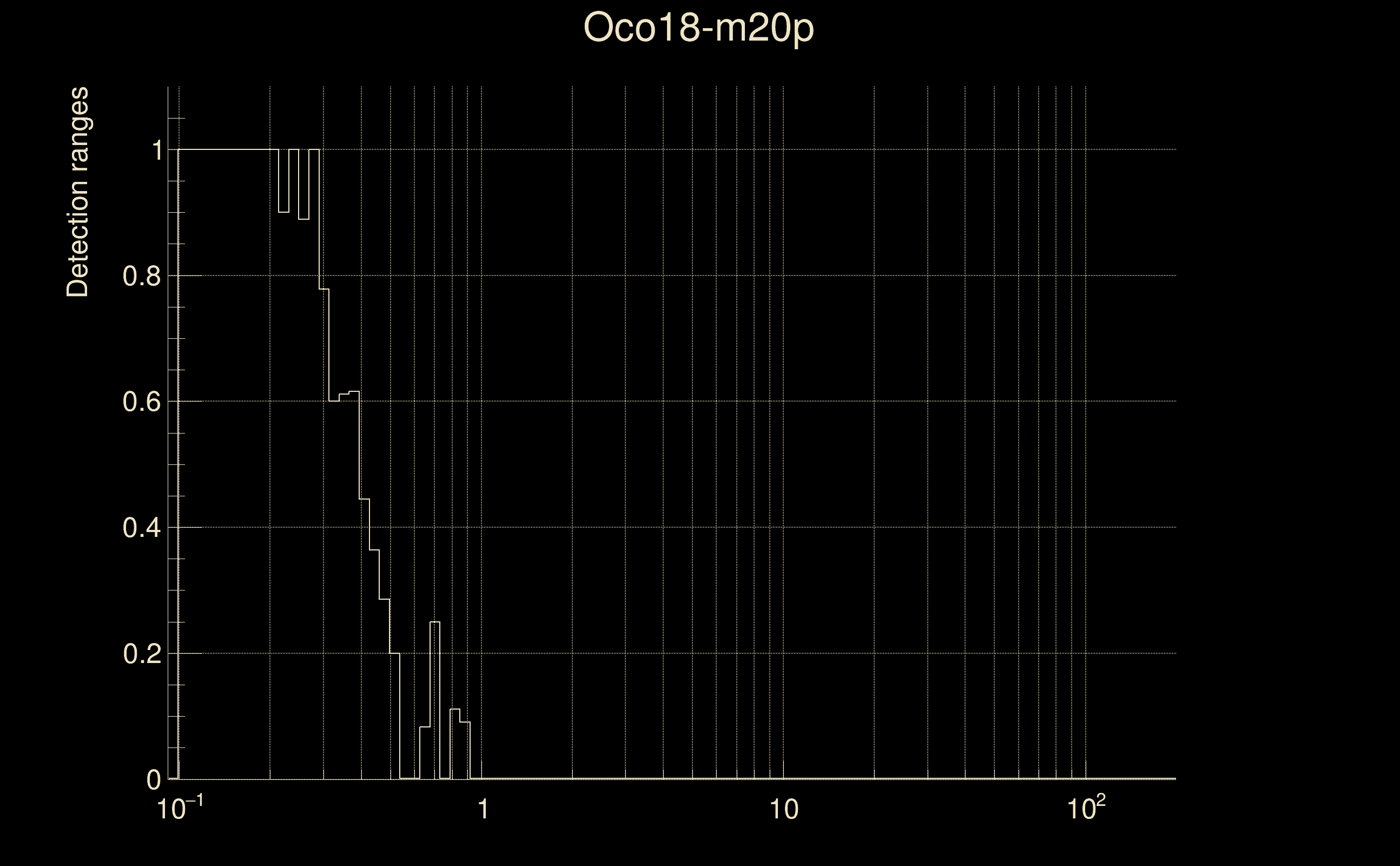

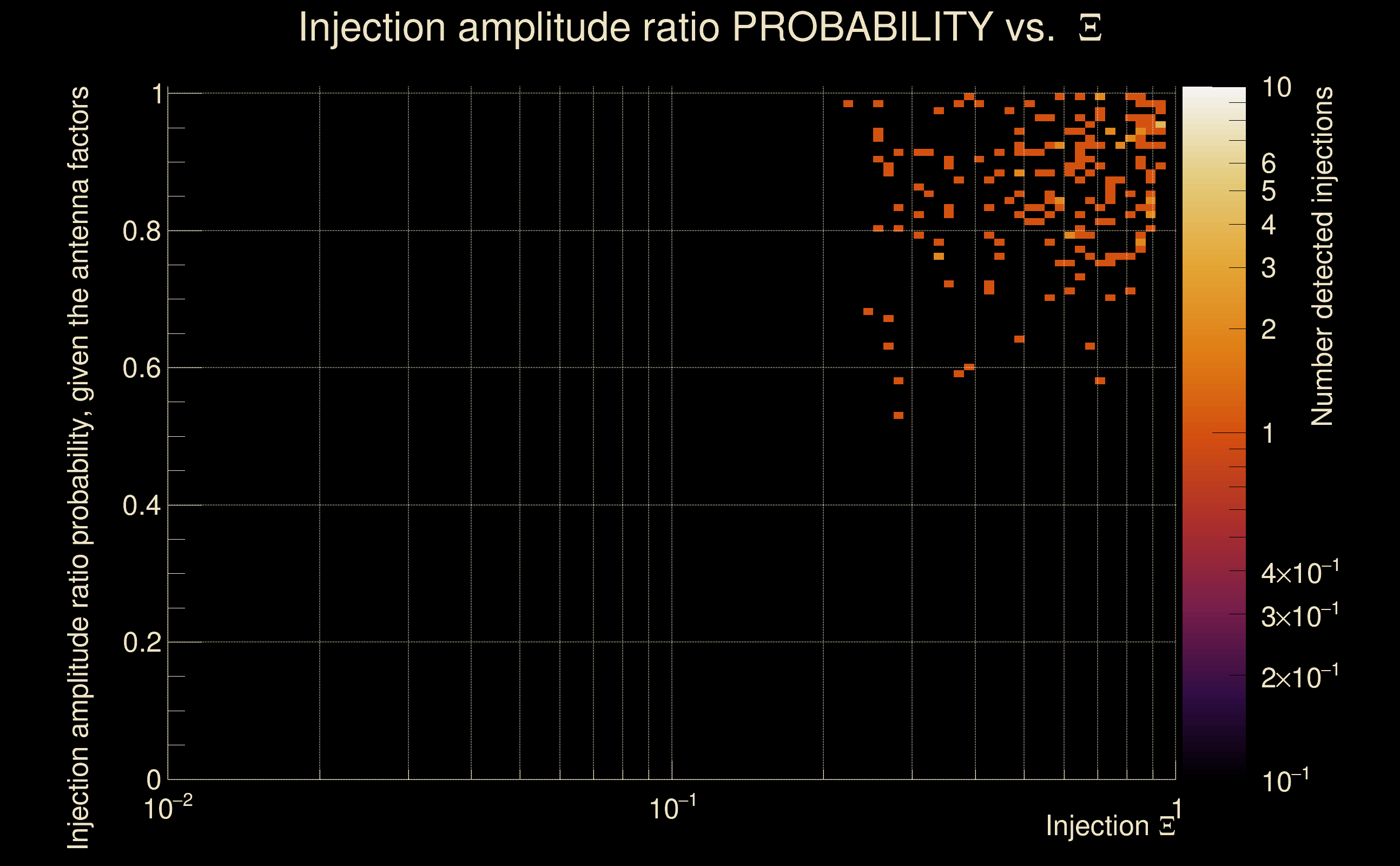

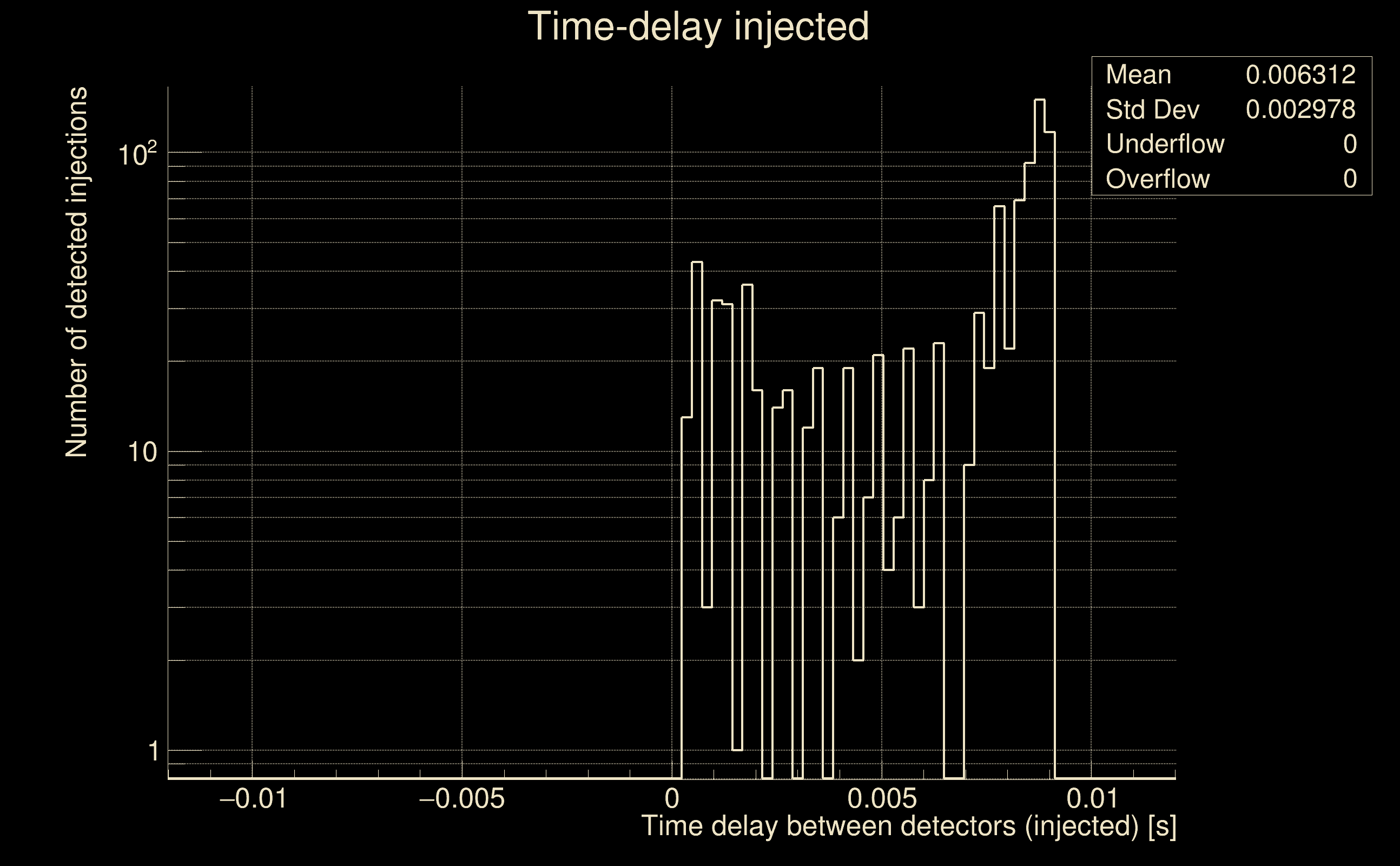

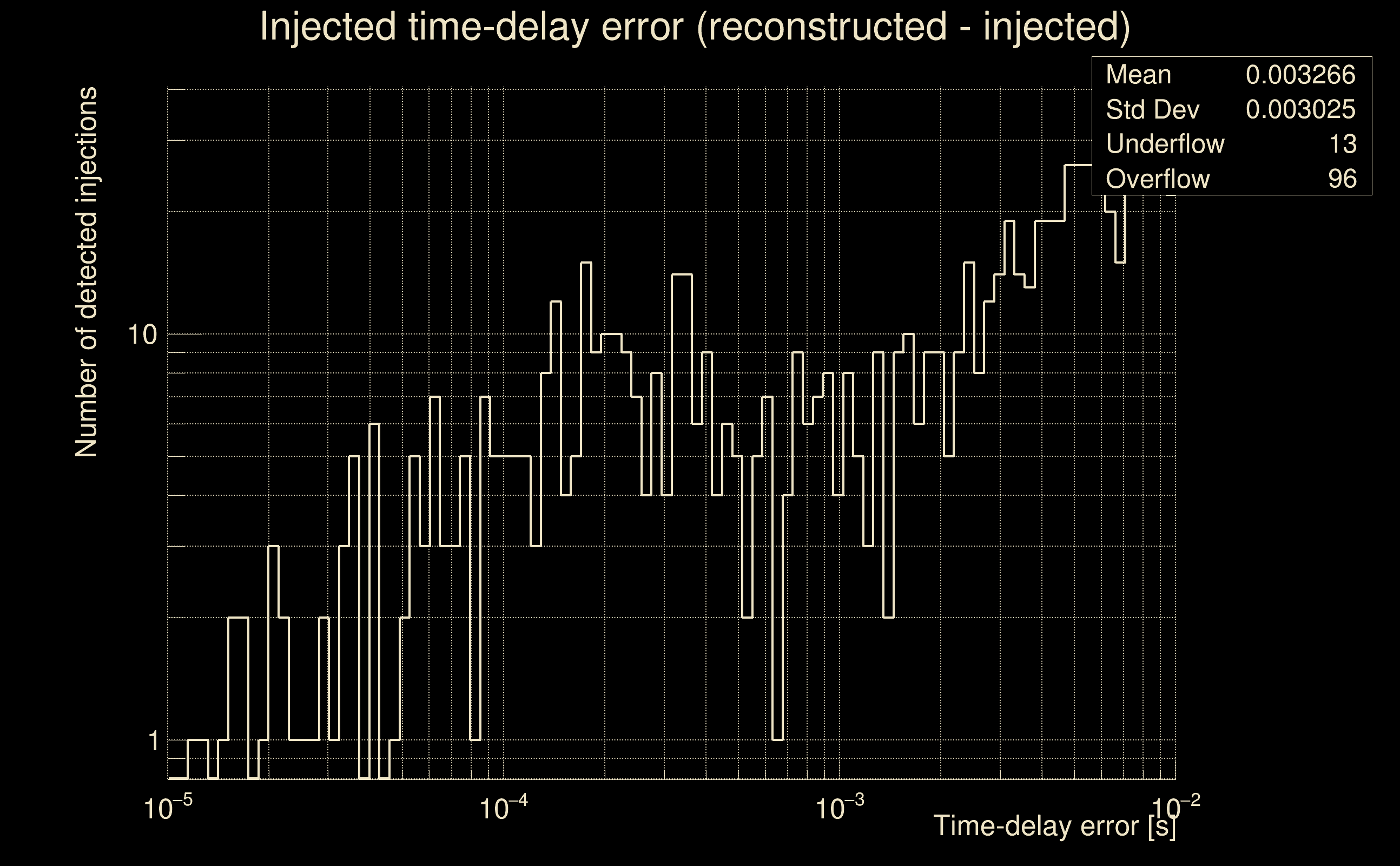

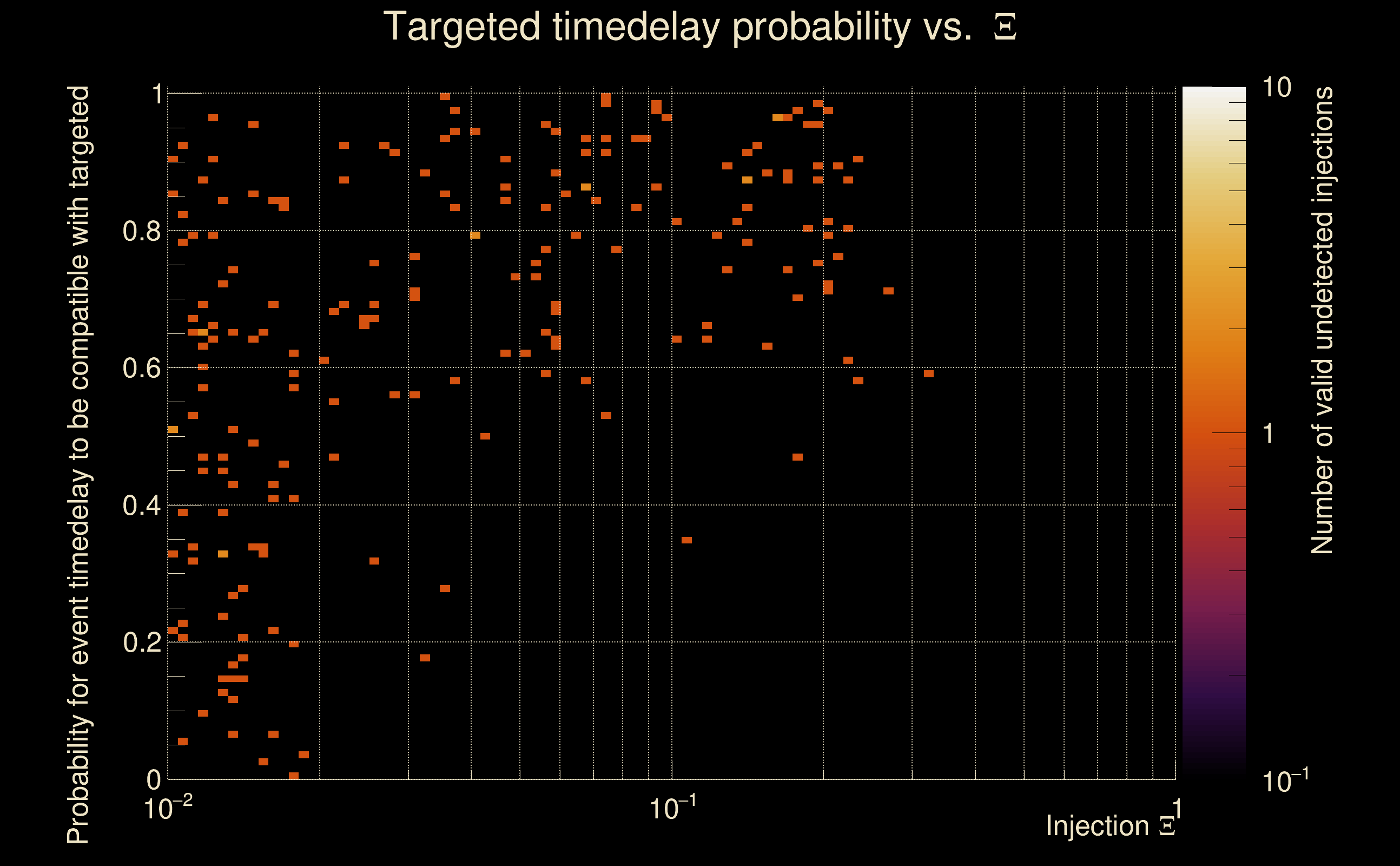

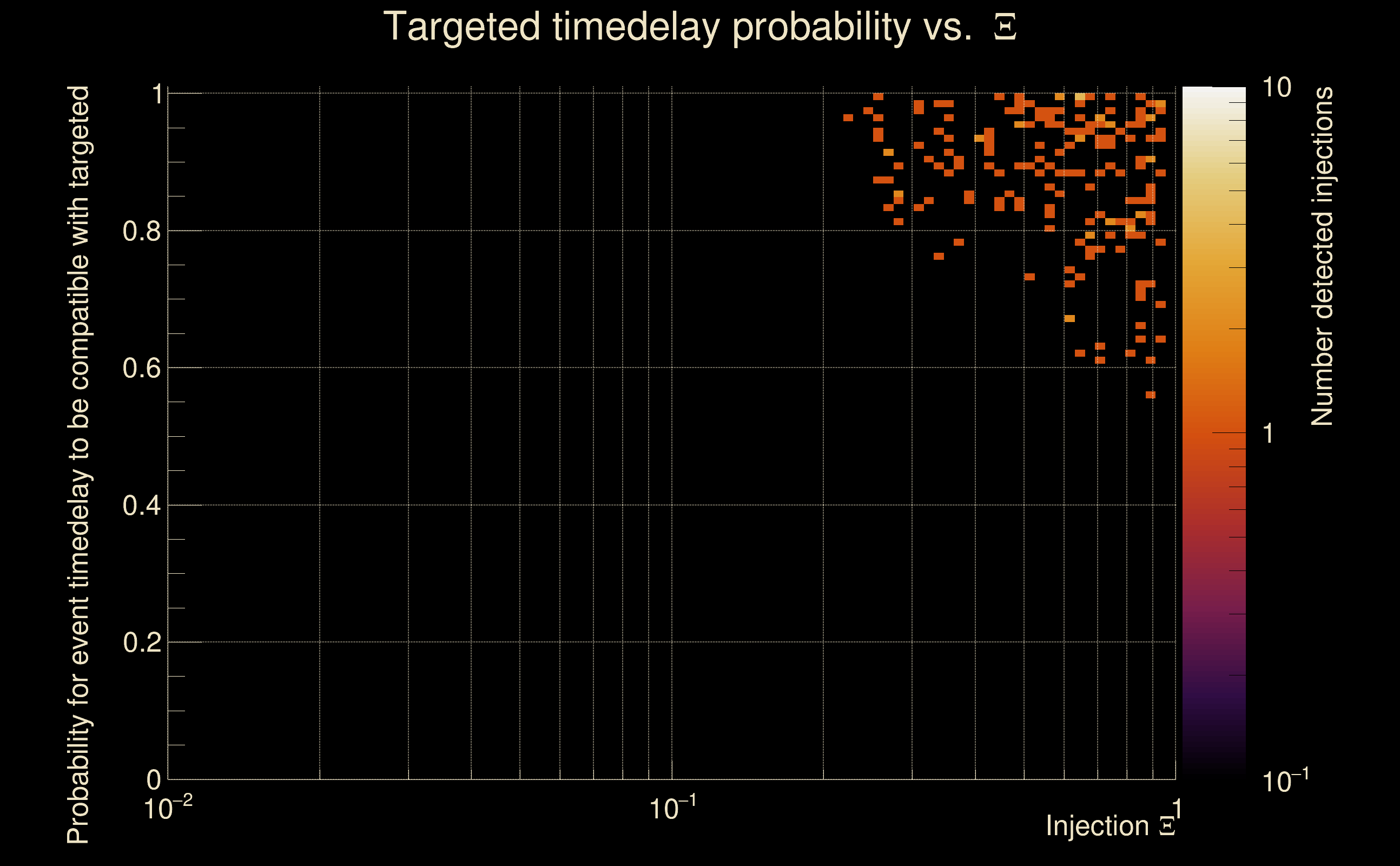

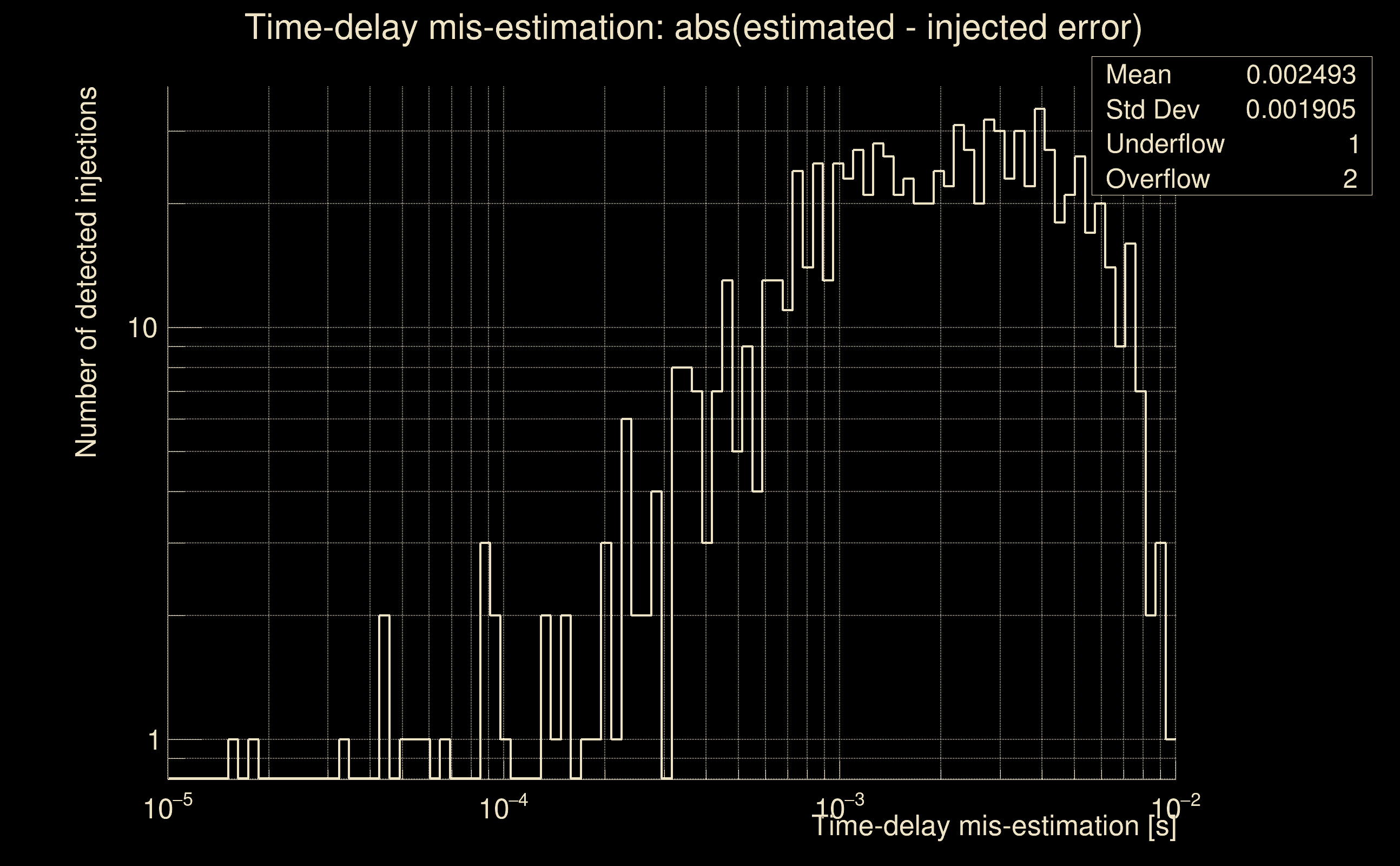

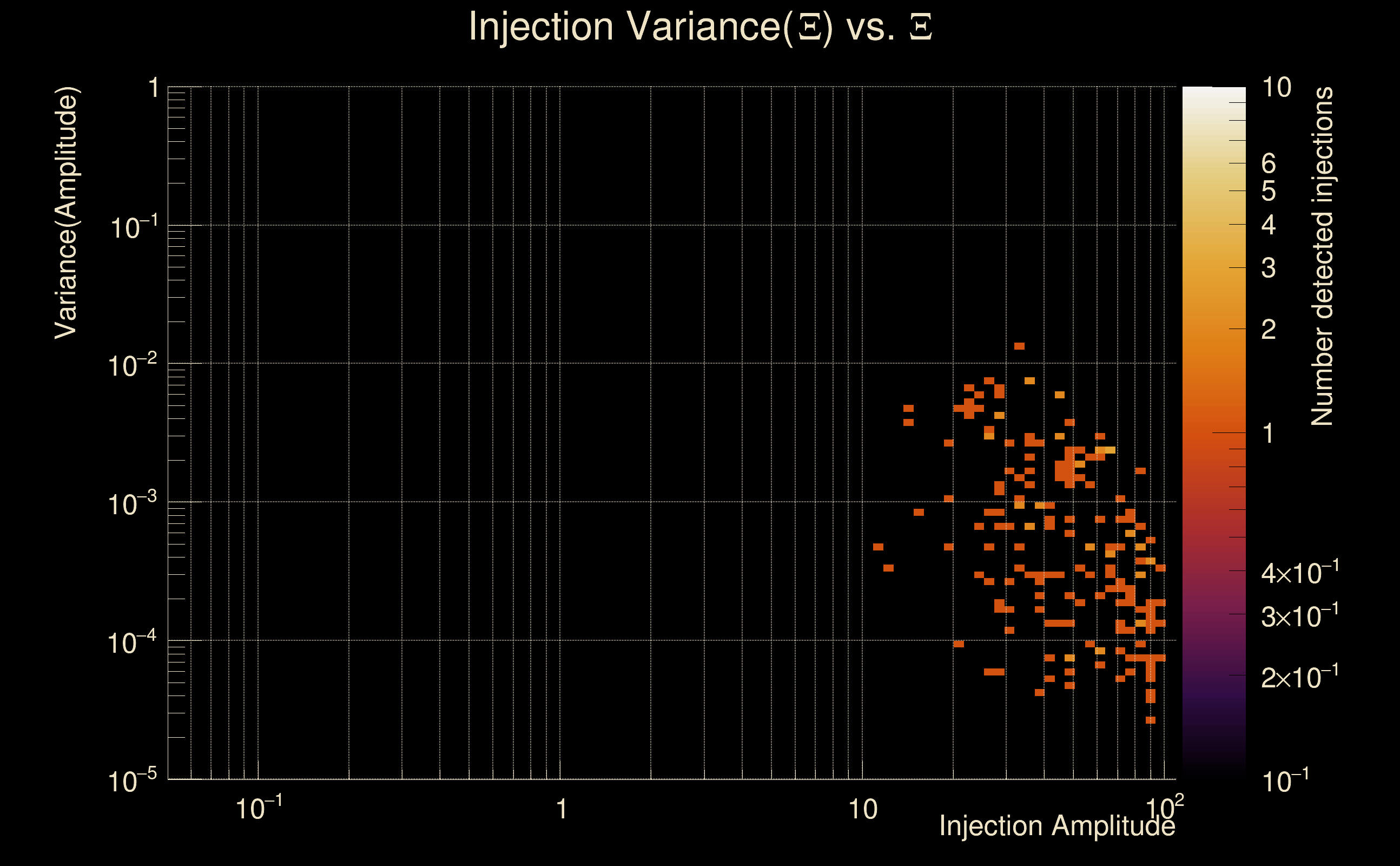

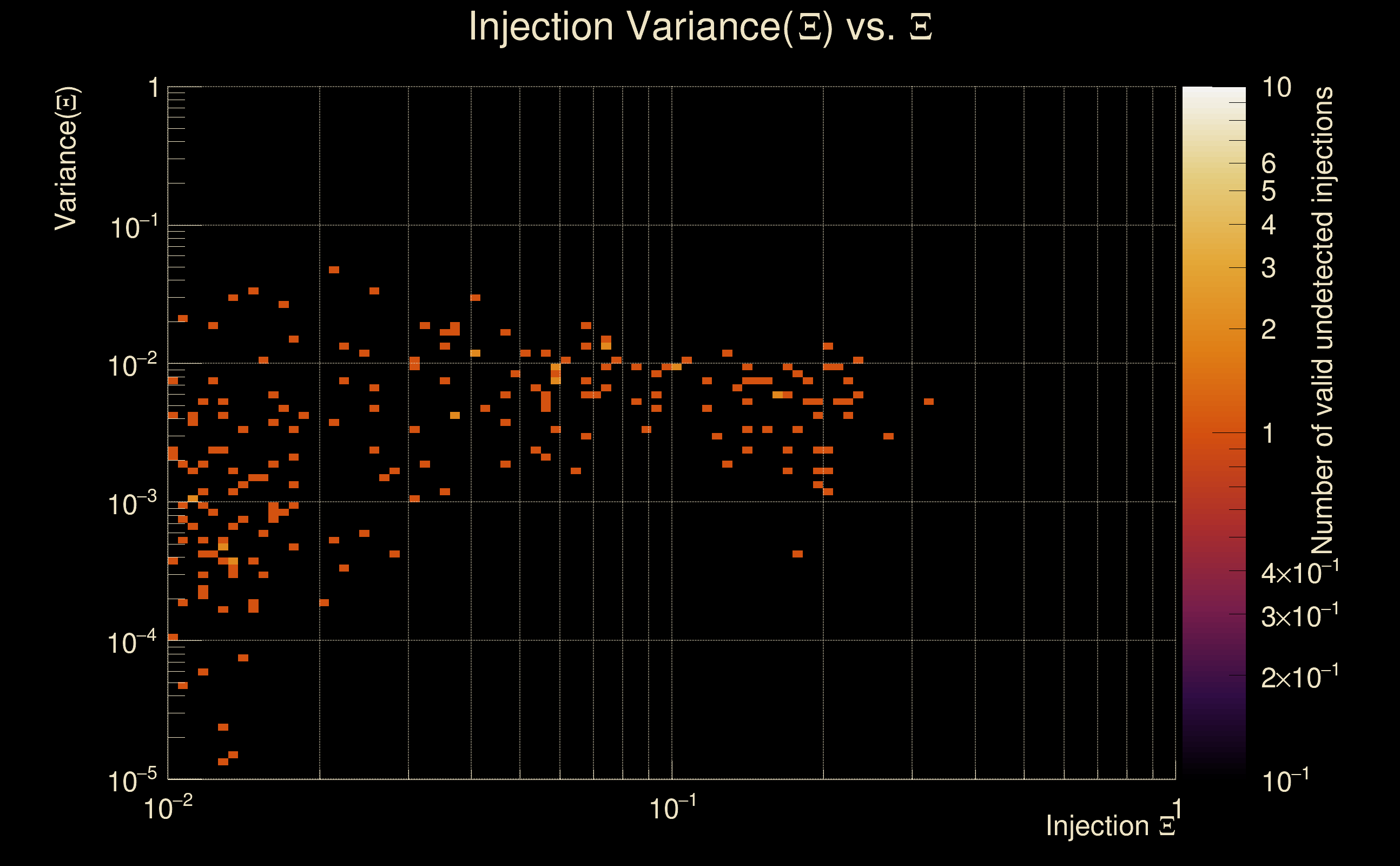

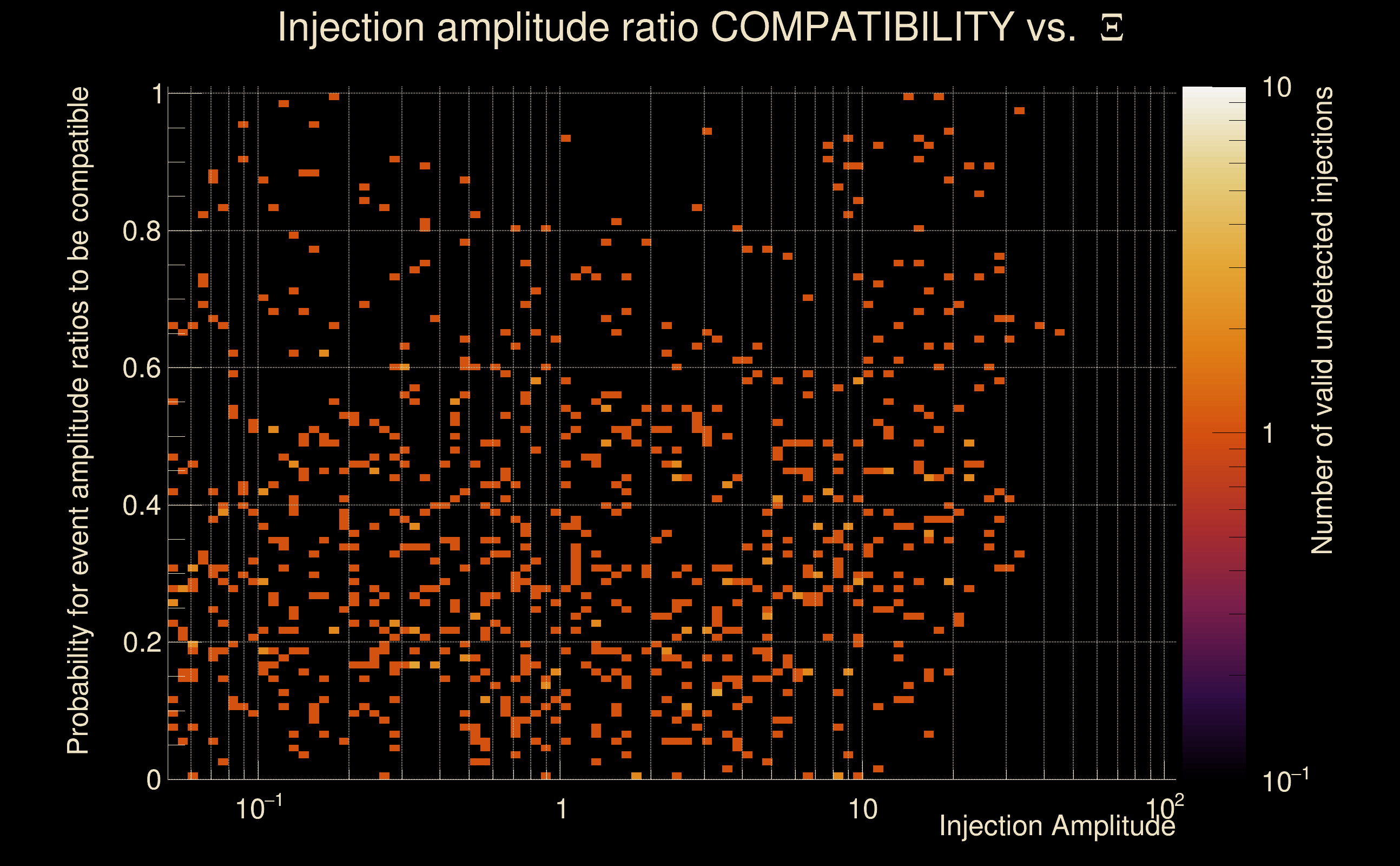

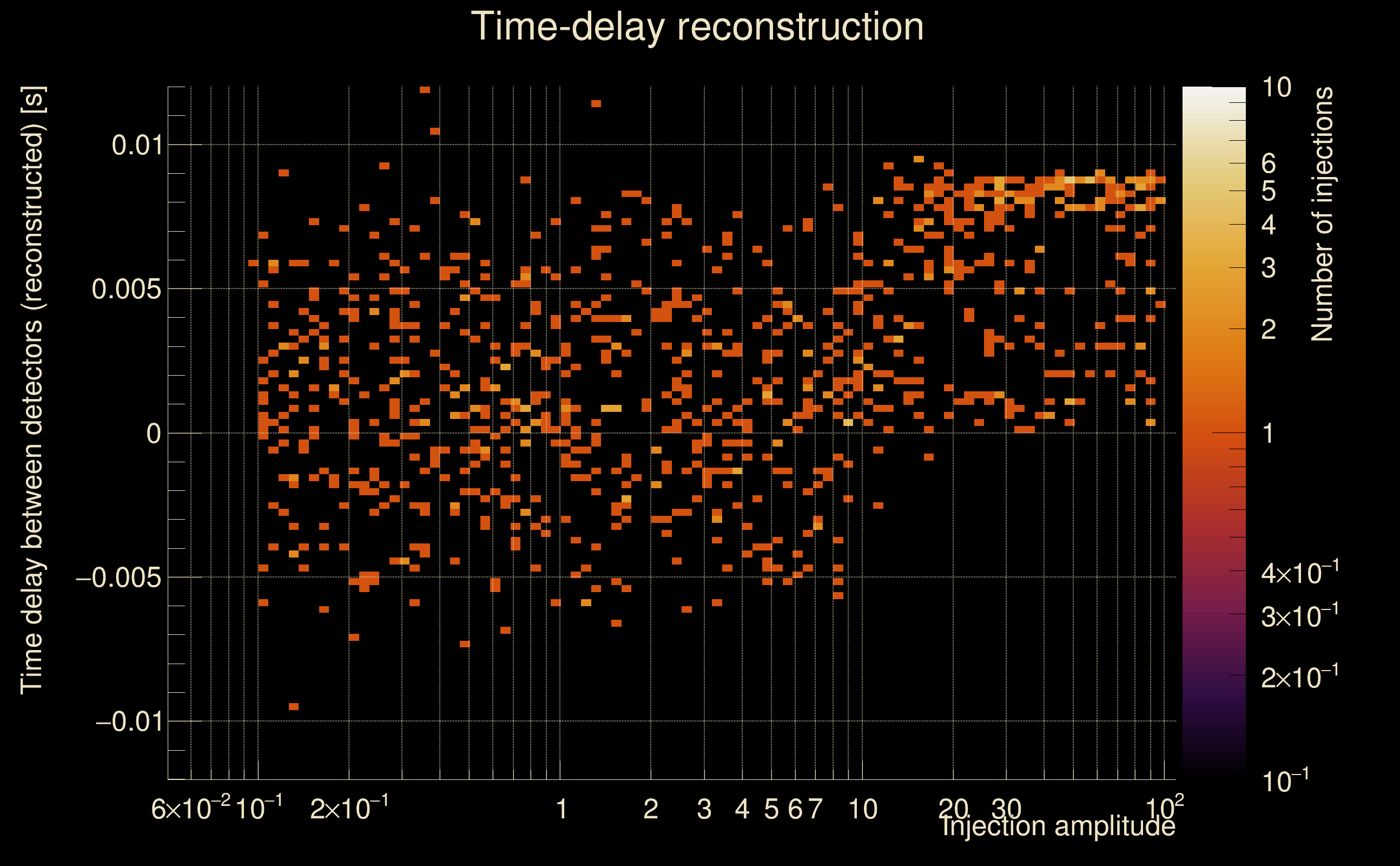

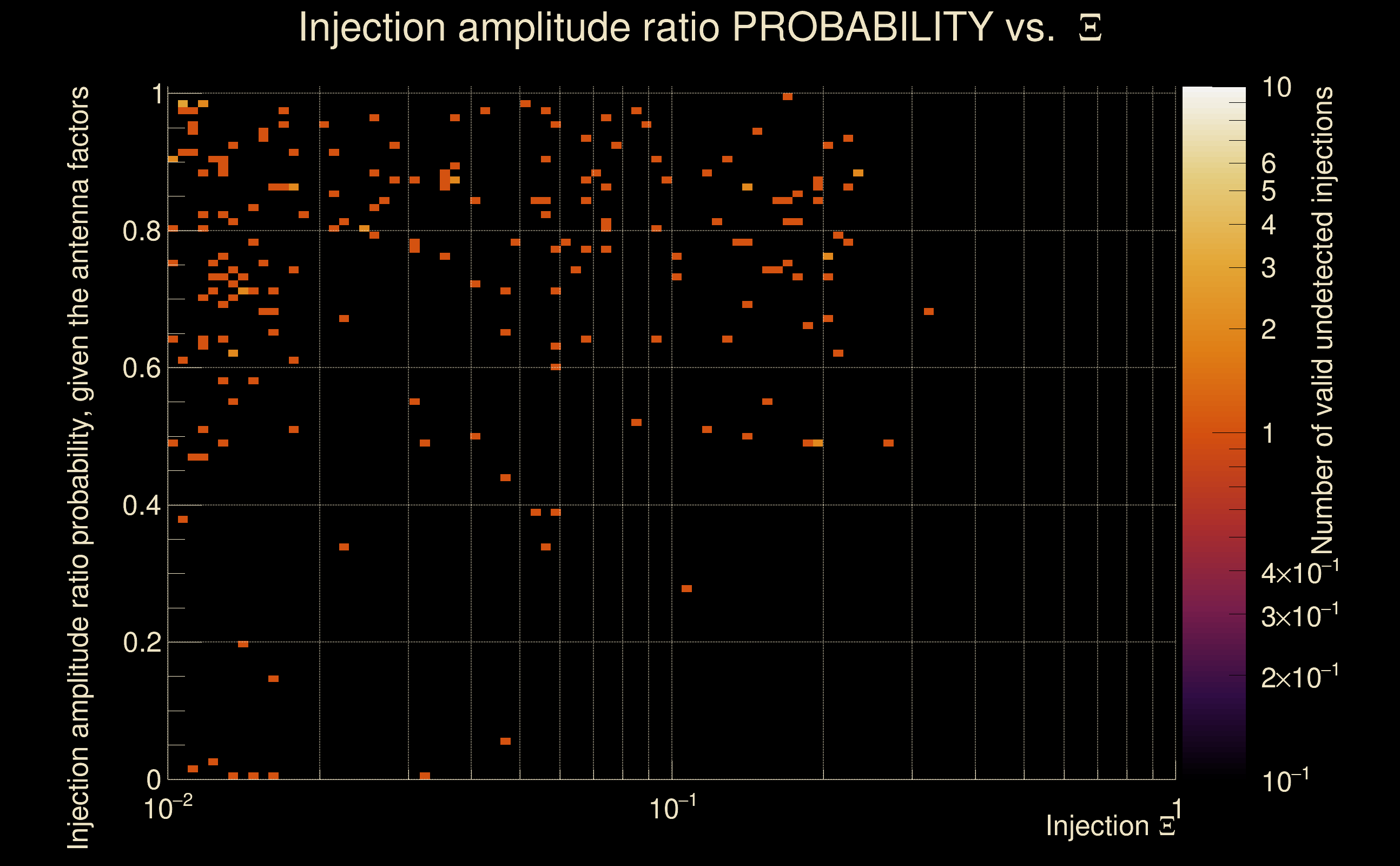

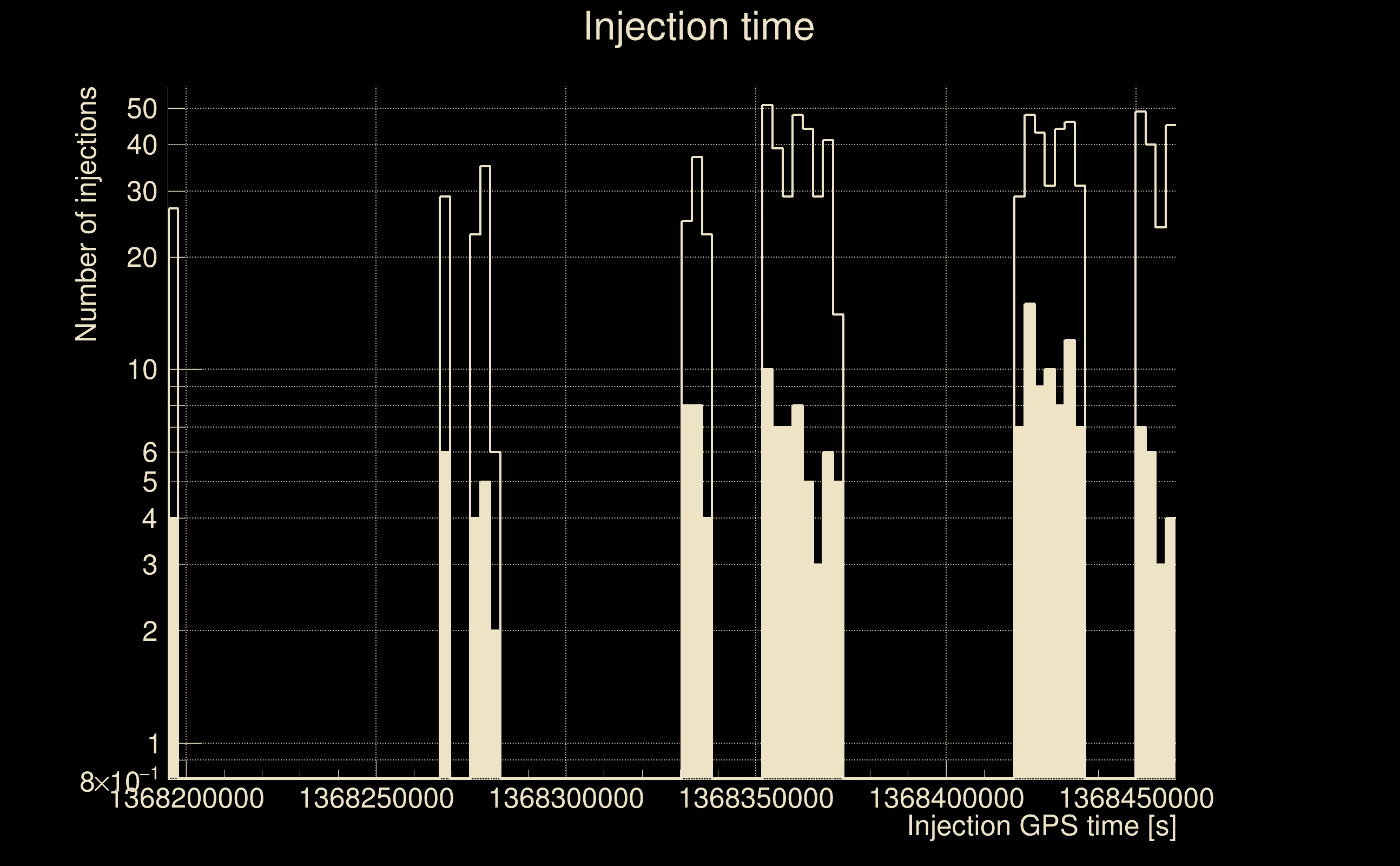

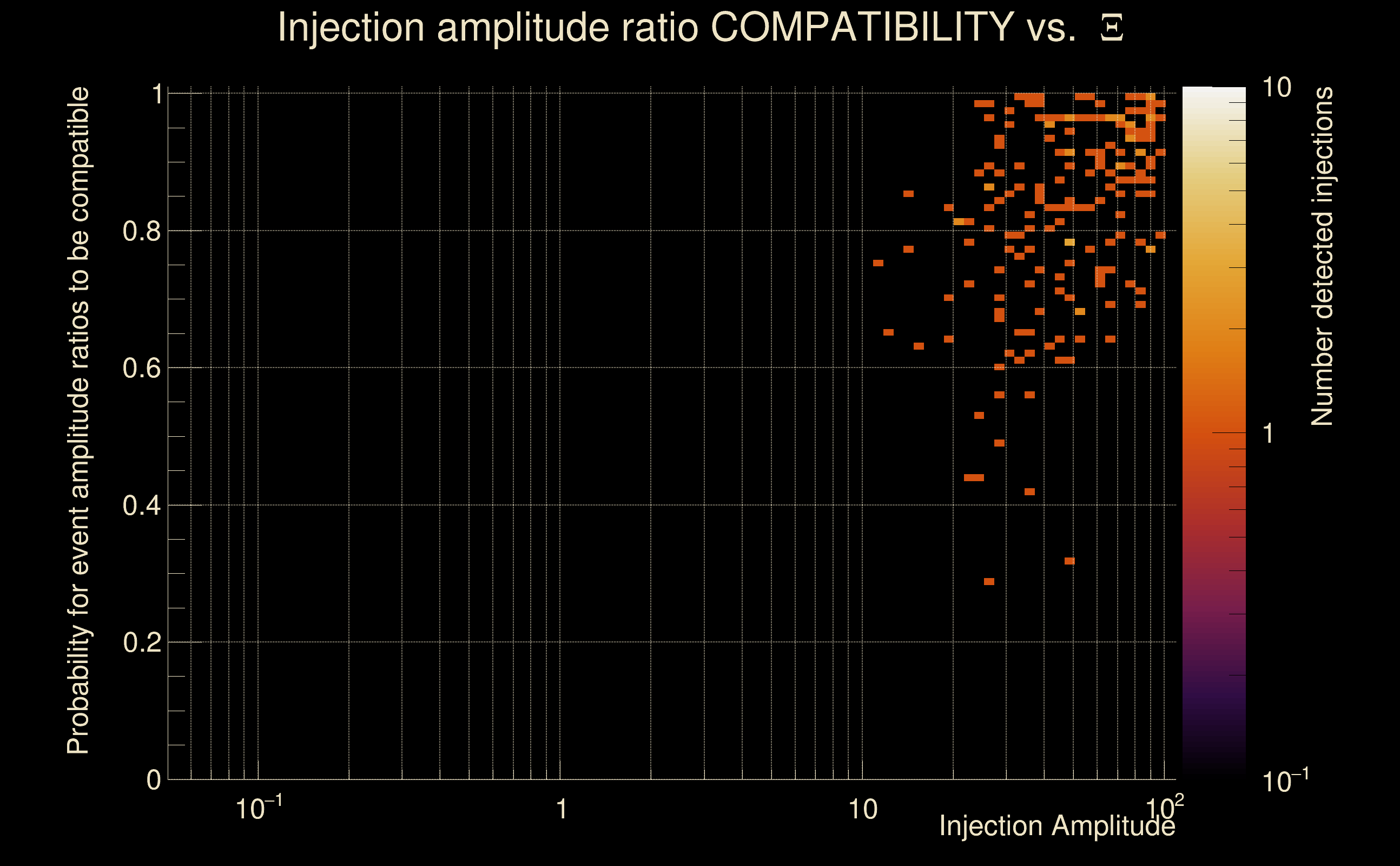

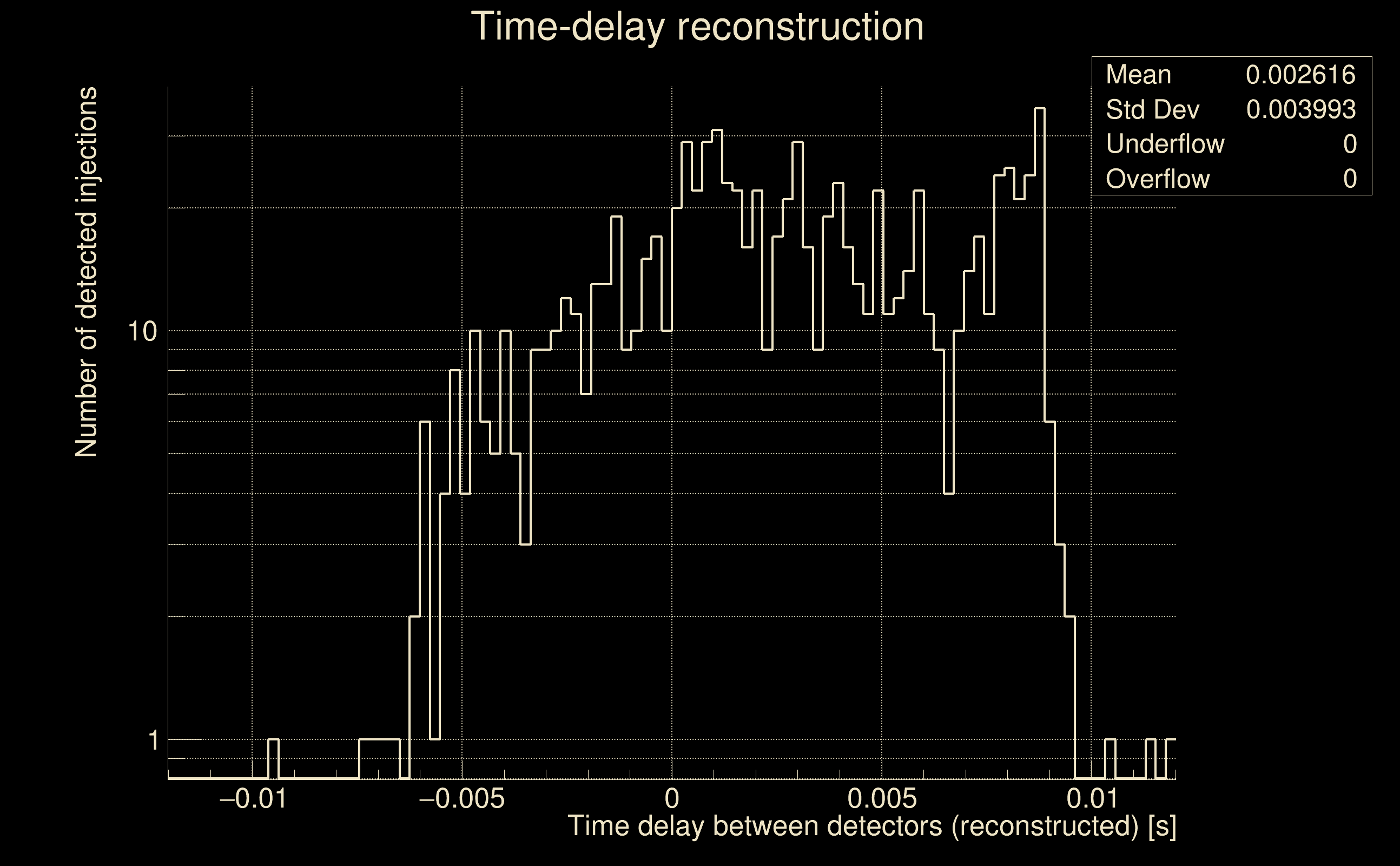

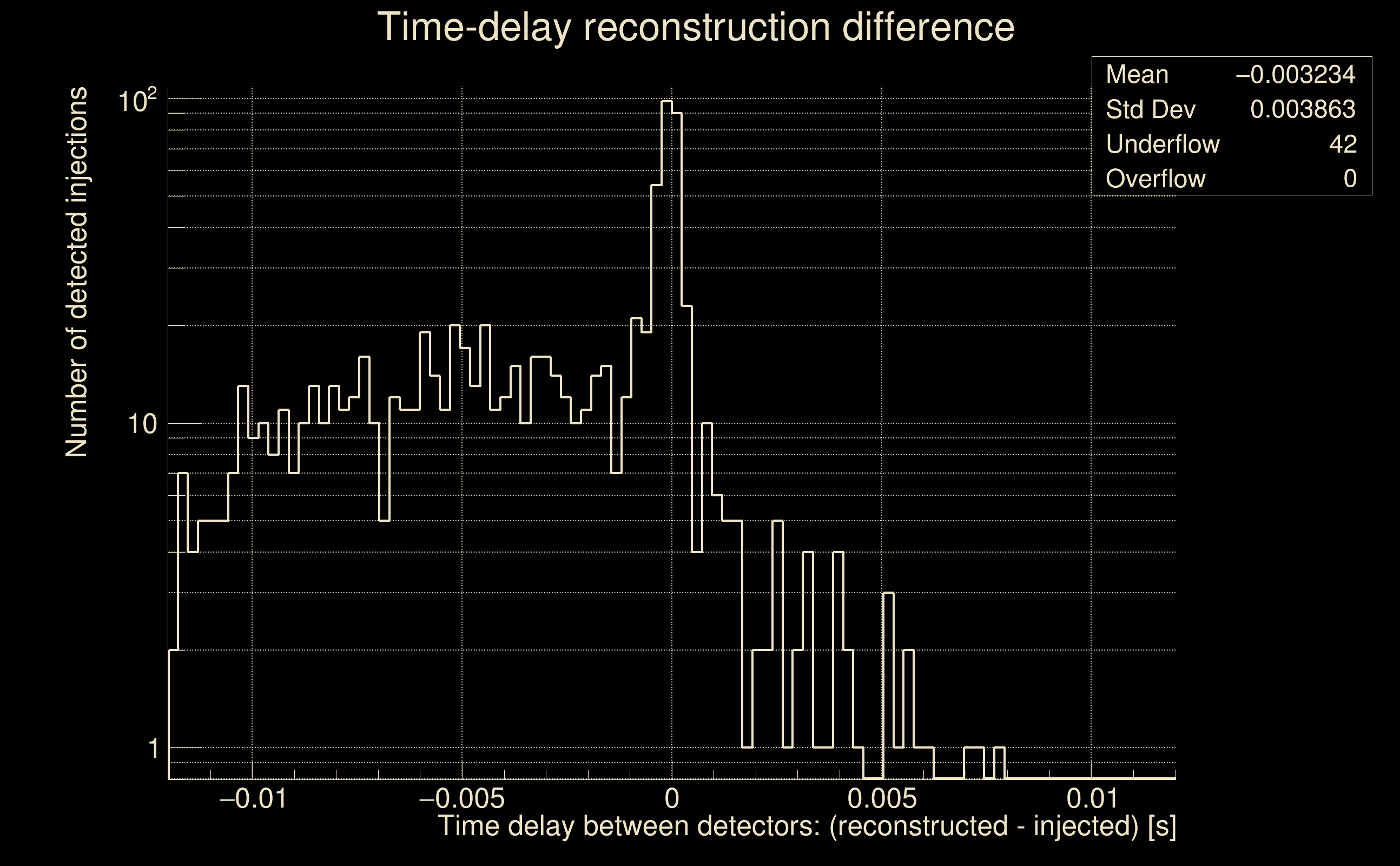

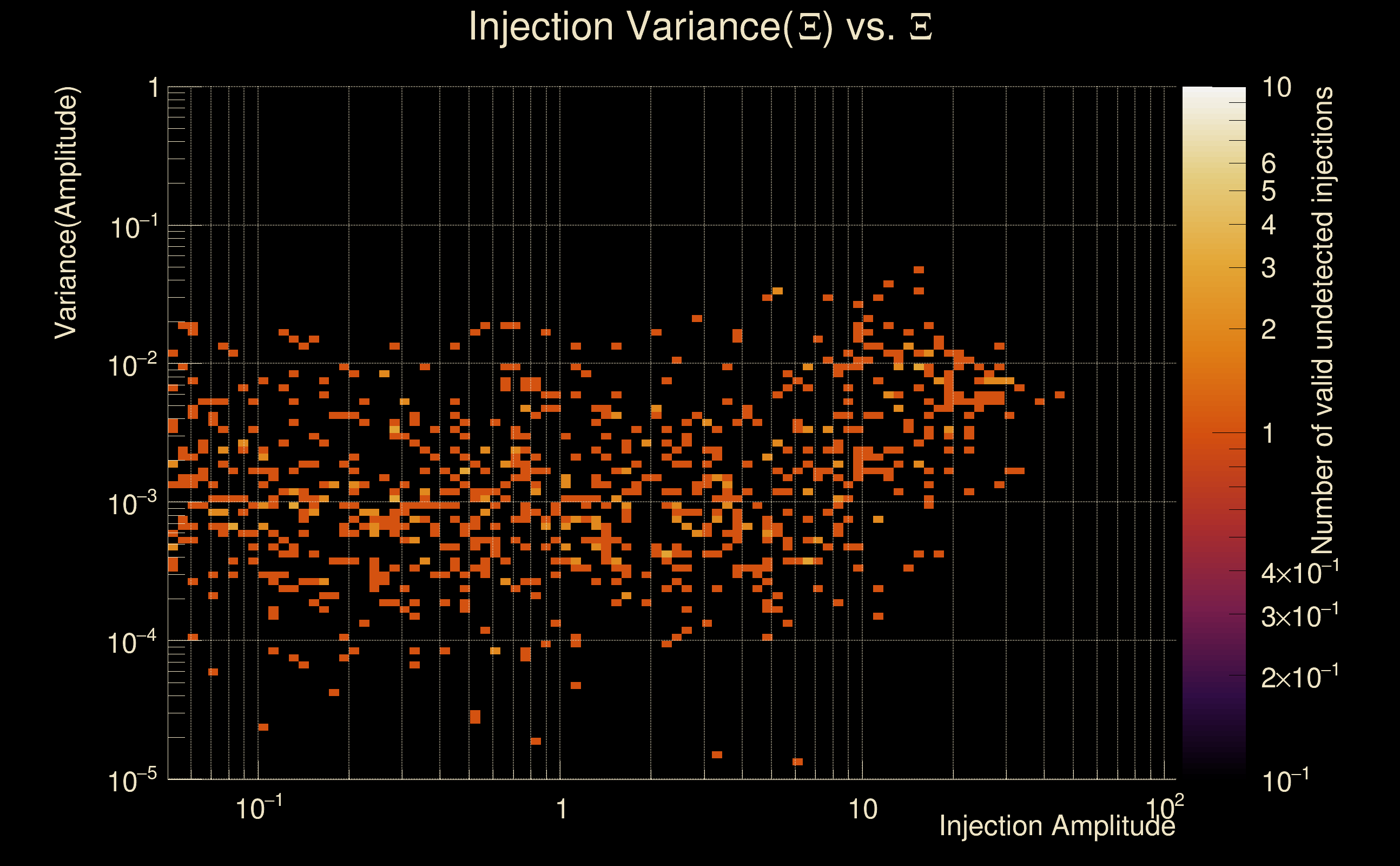

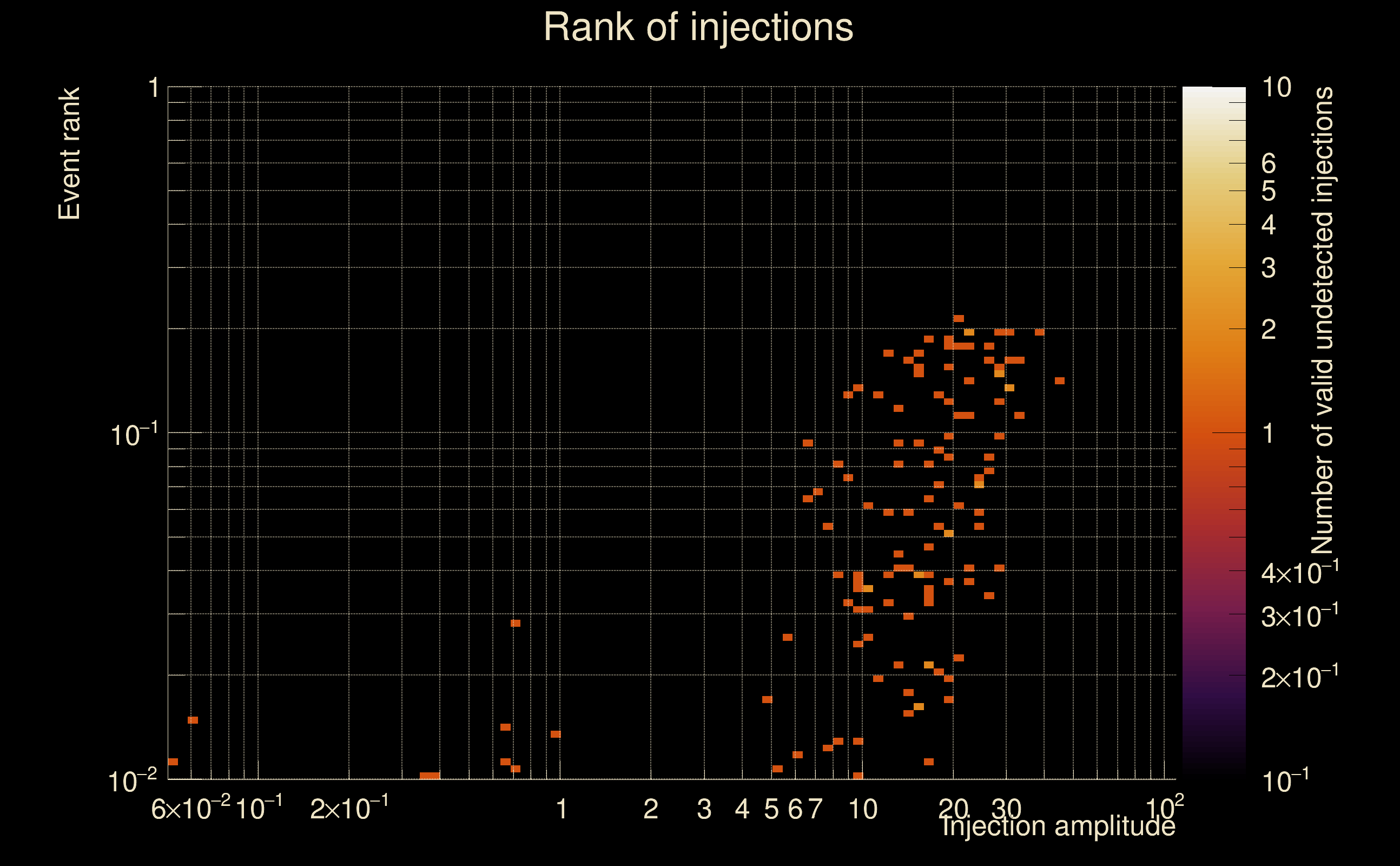

| Number of injections (total/valid/detected): | 1042 / 930 / 180 |
| List of missed injections: | ./Oco18-m20p_missed.txt |

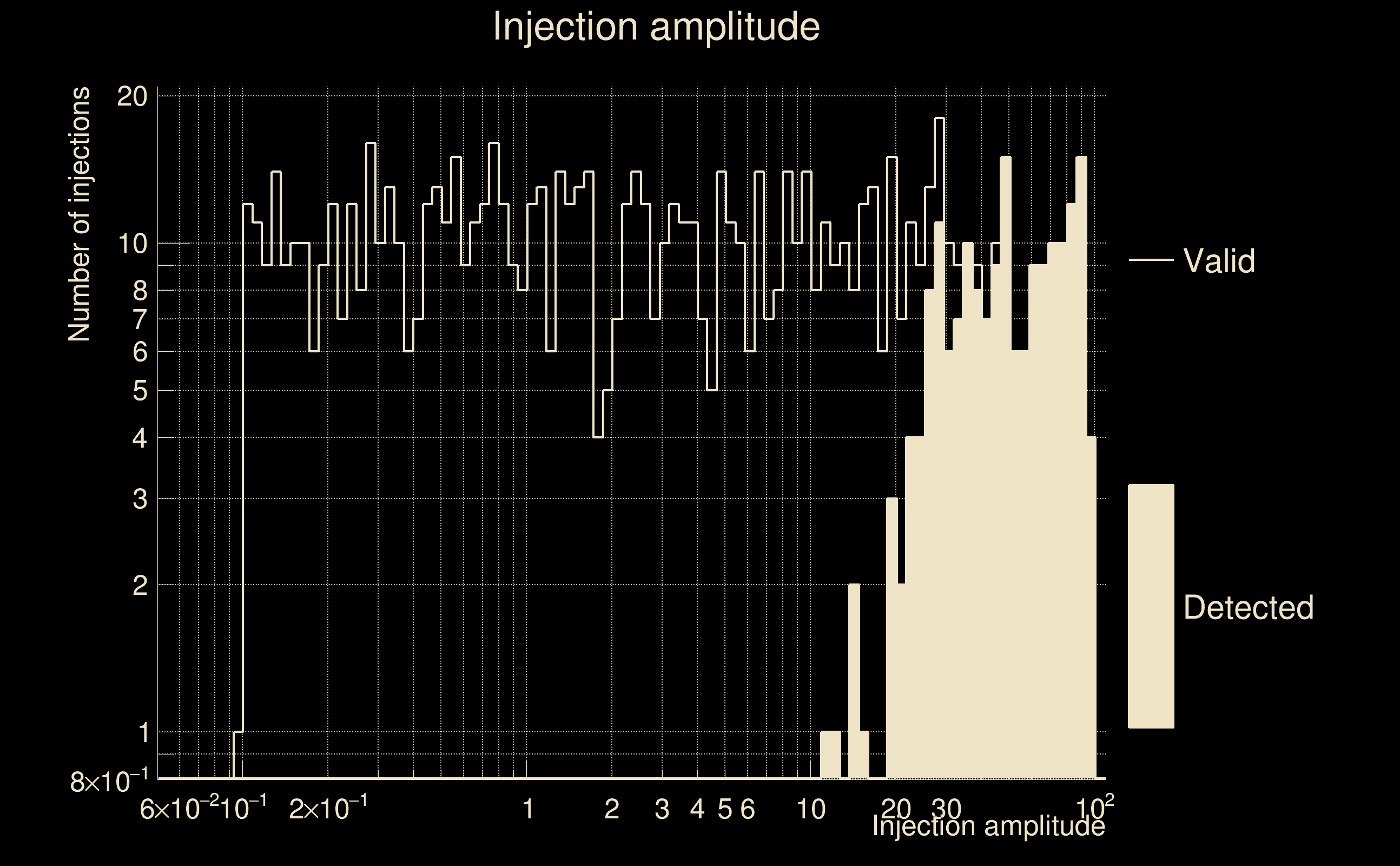

| Injection amplitude at 90% detection efficiency: | 34.6396 |
| Injection amplitude at 50% detection efficiency: | 25.0352 |
| Injection amplitude at 10% detection efficiency: | 18.6615 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

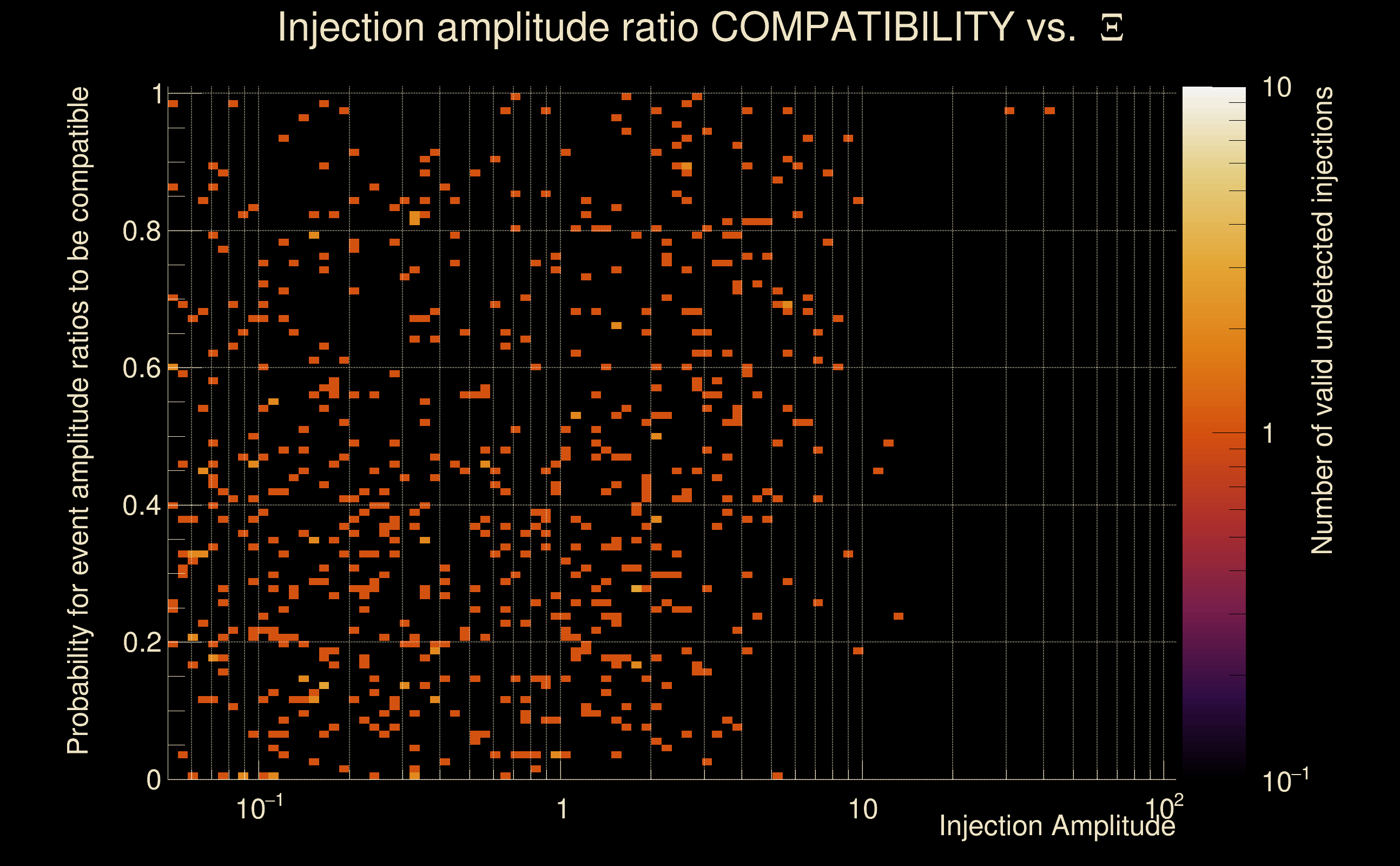

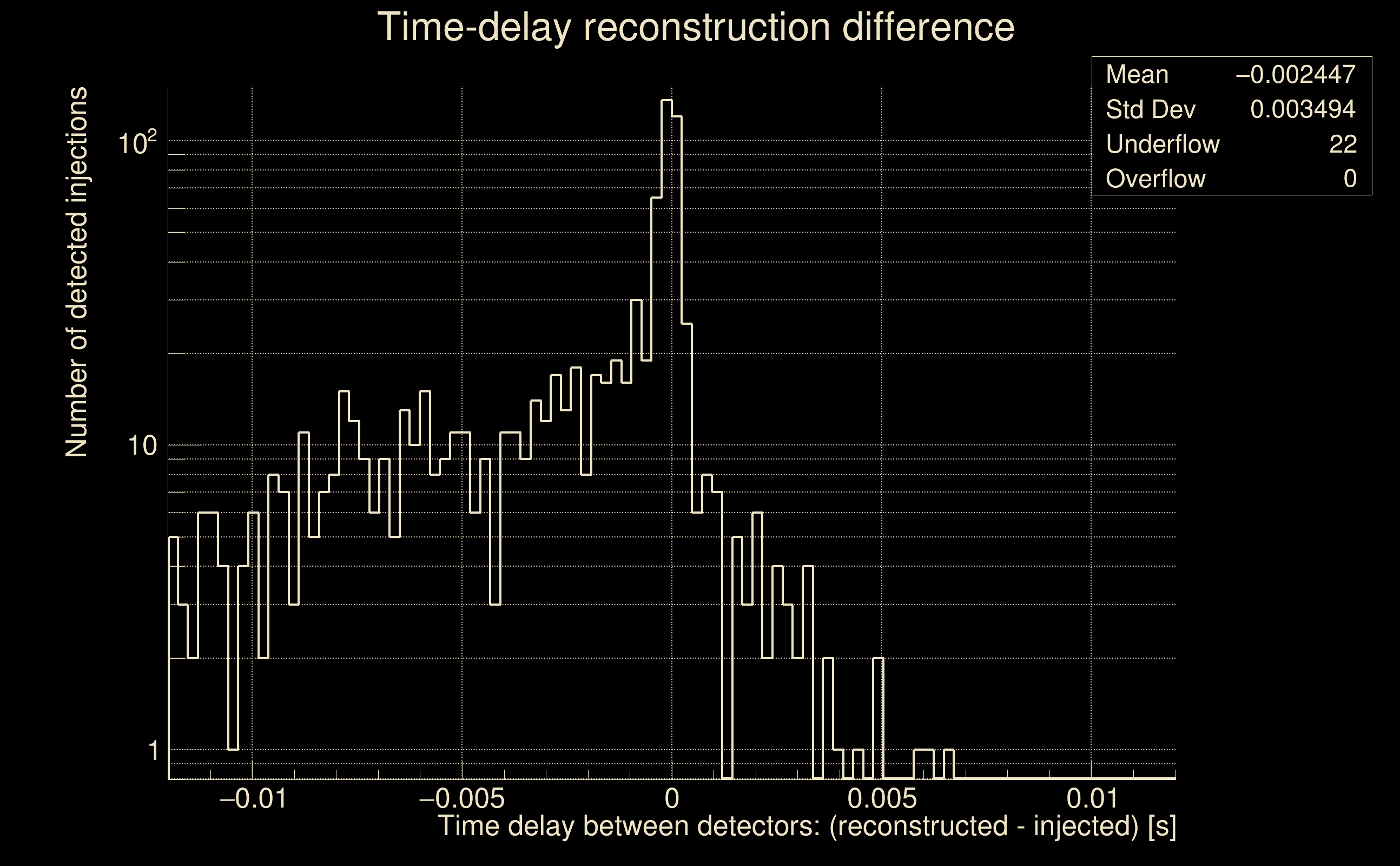

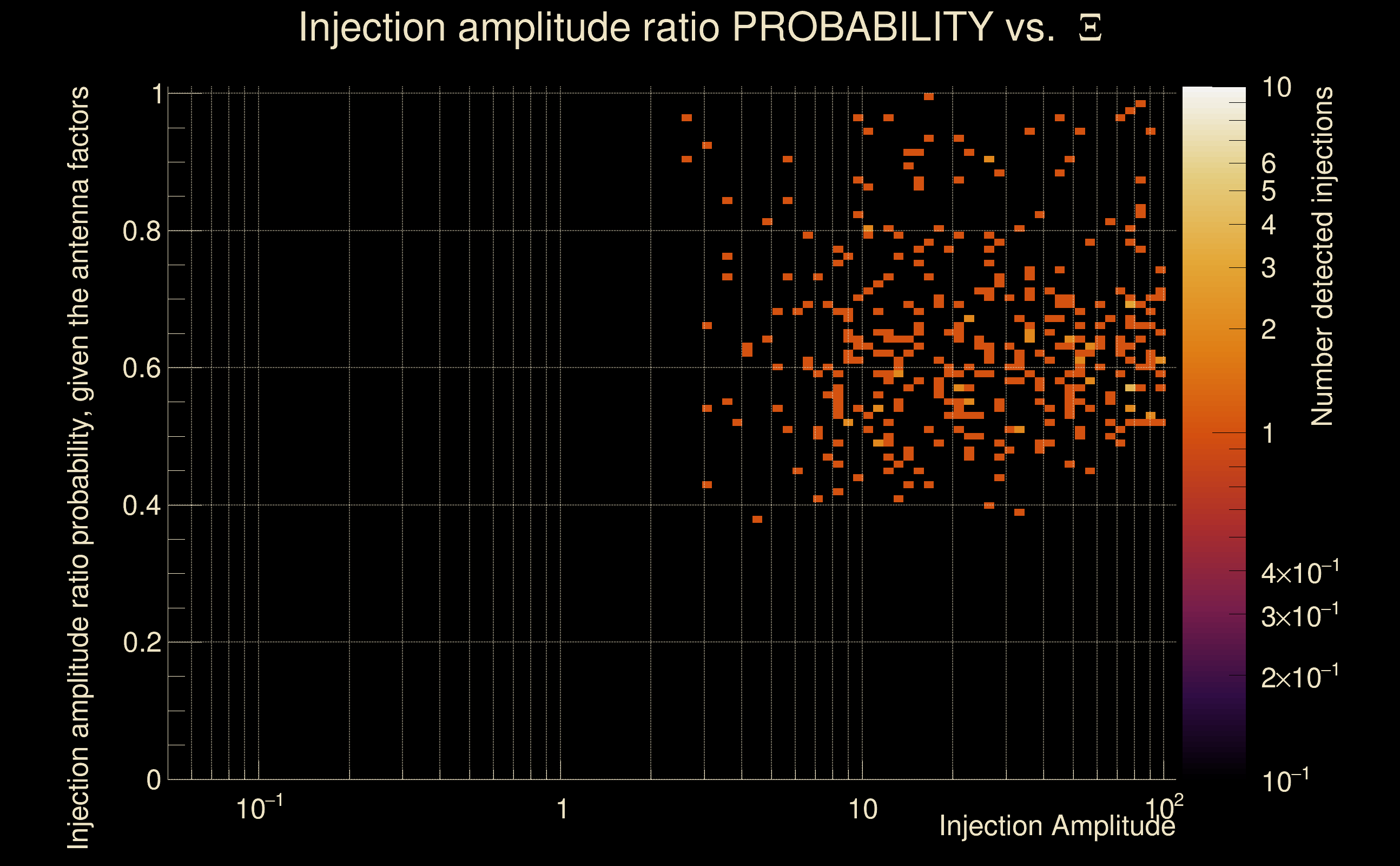

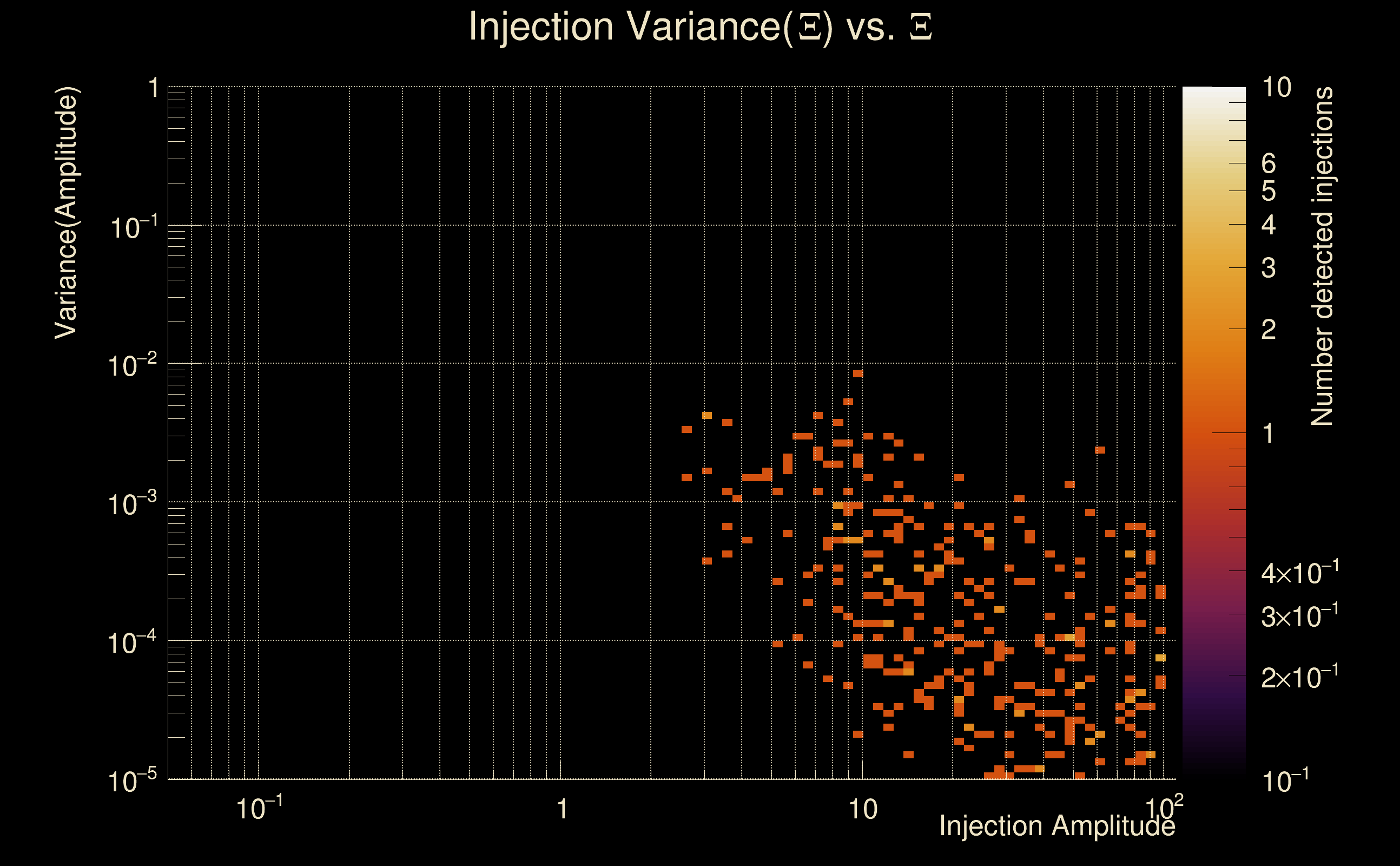

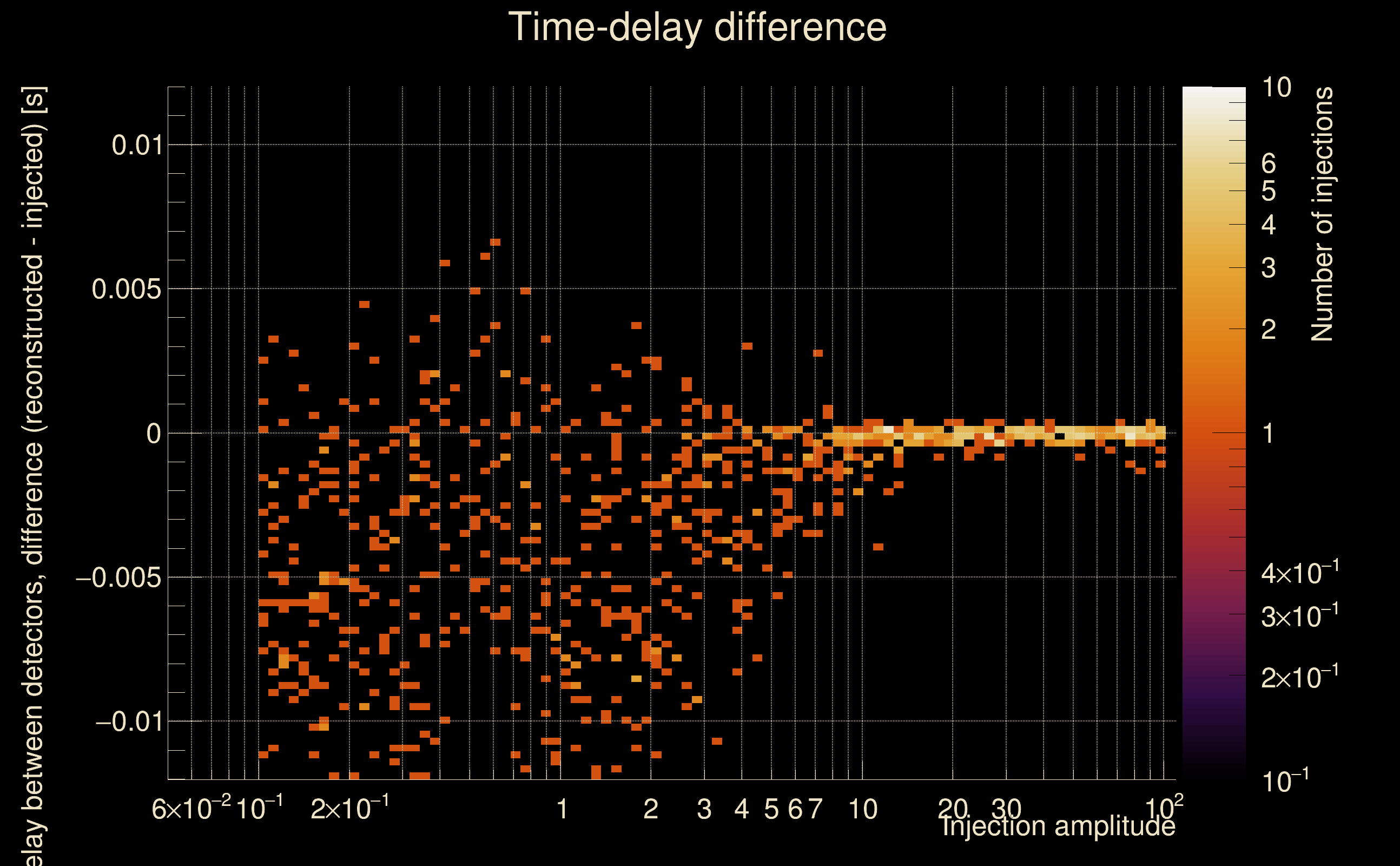

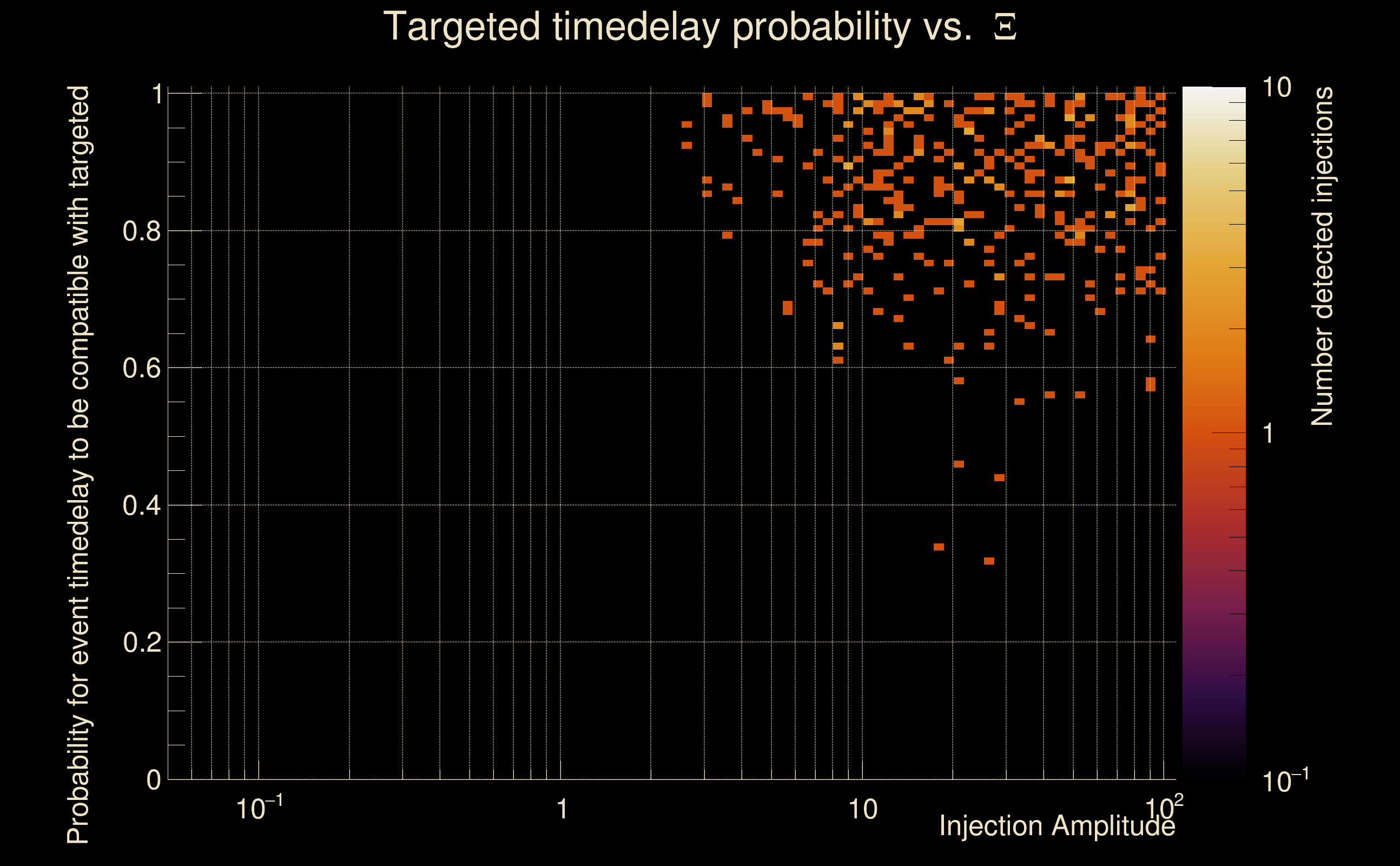

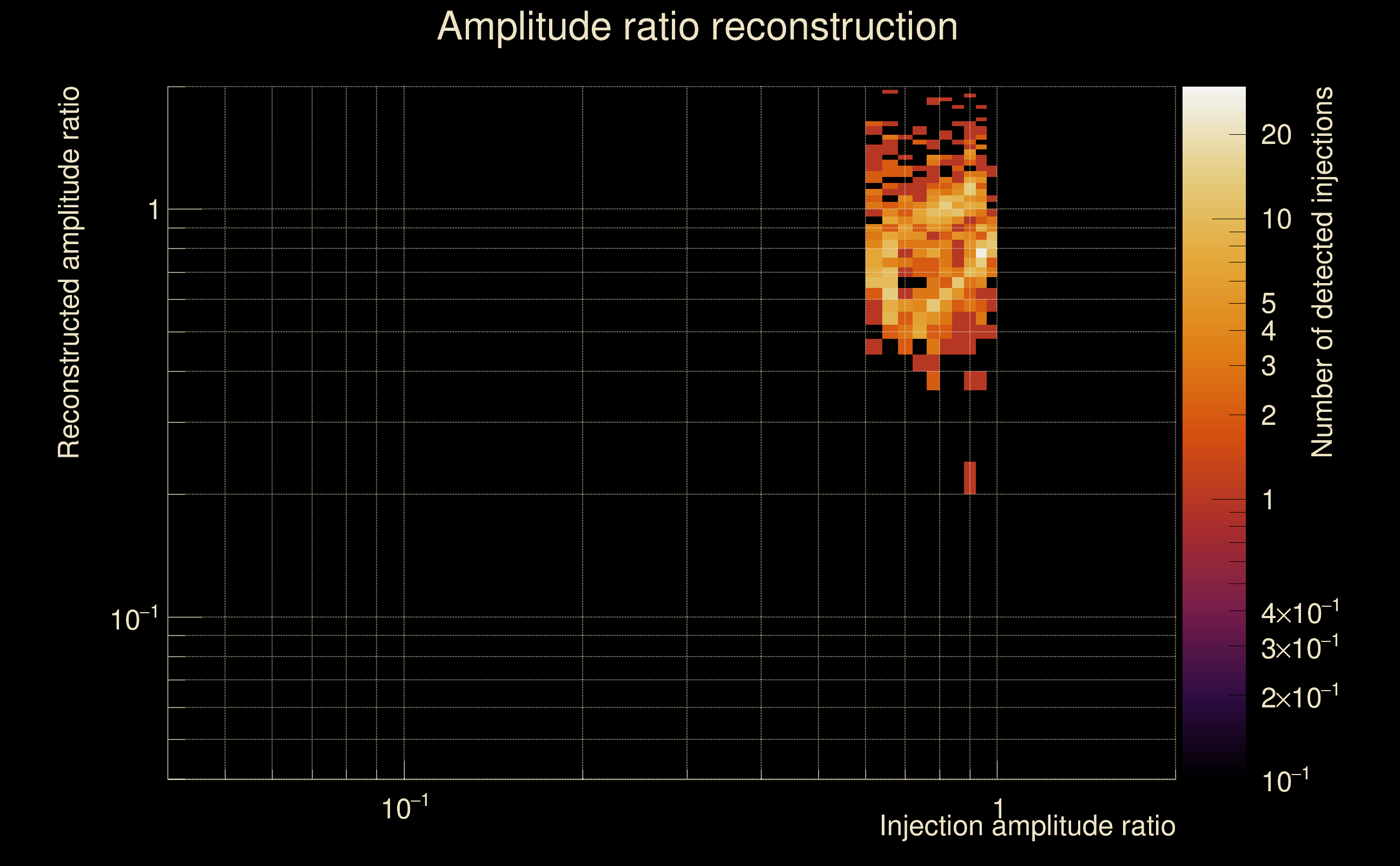

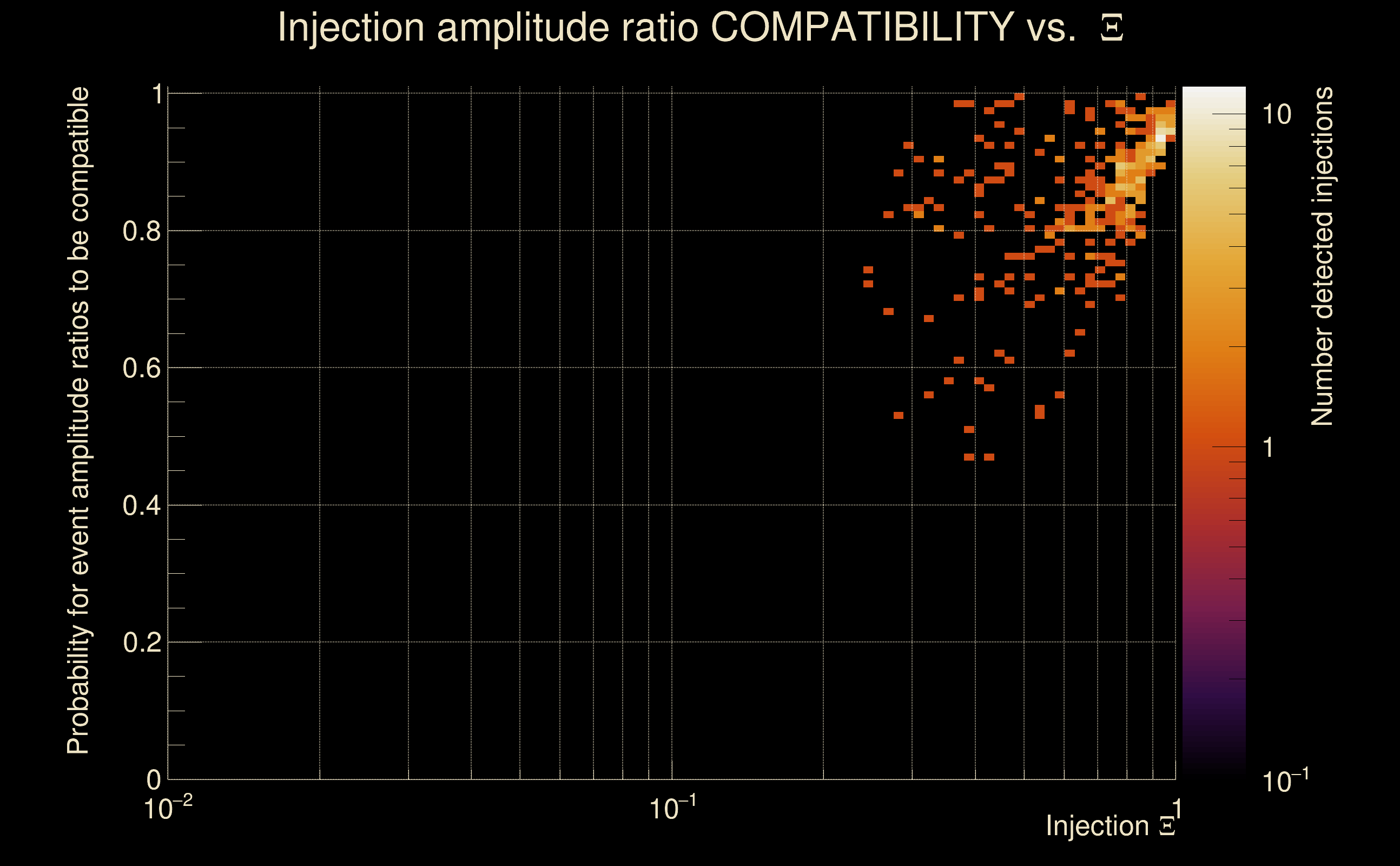

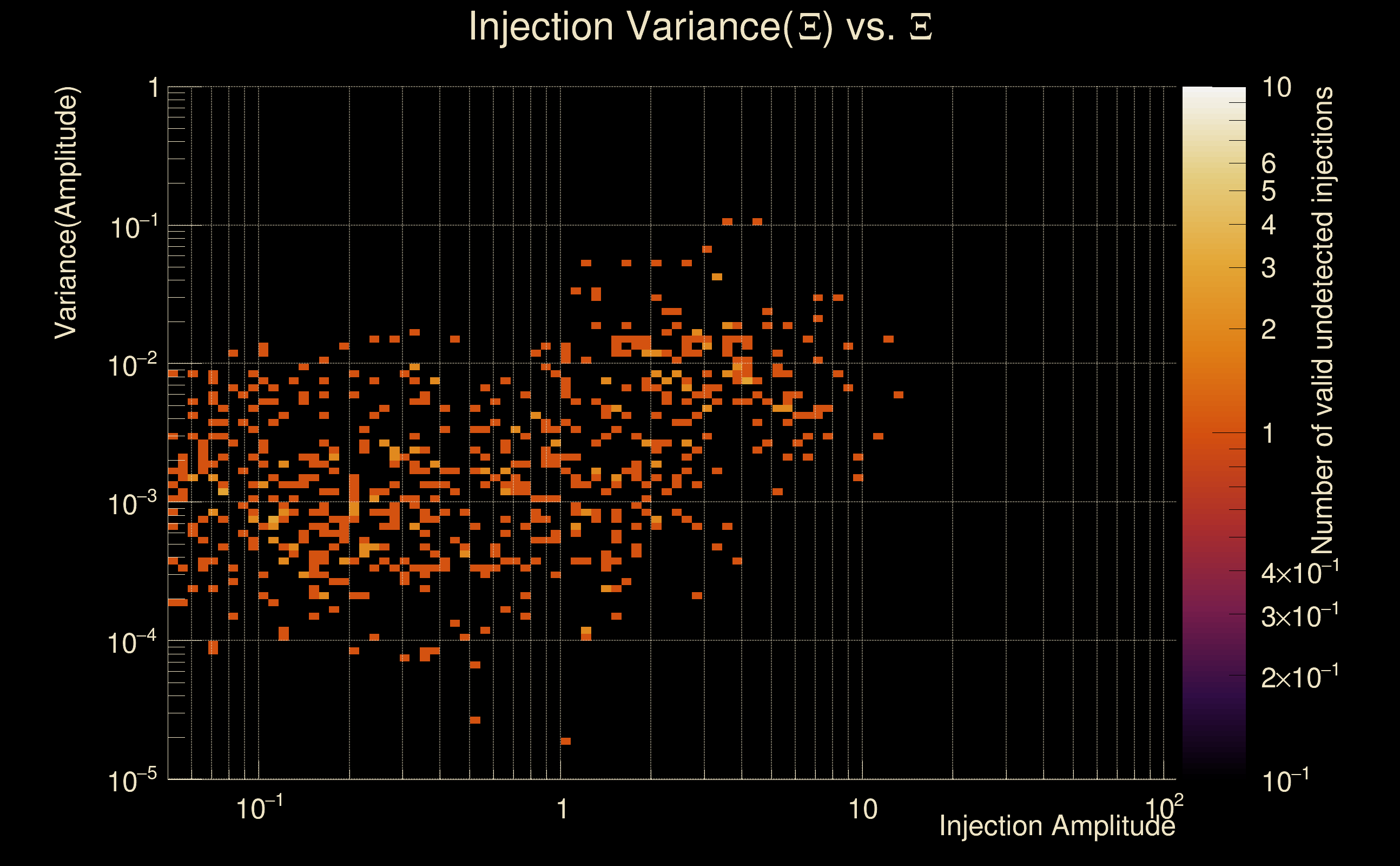

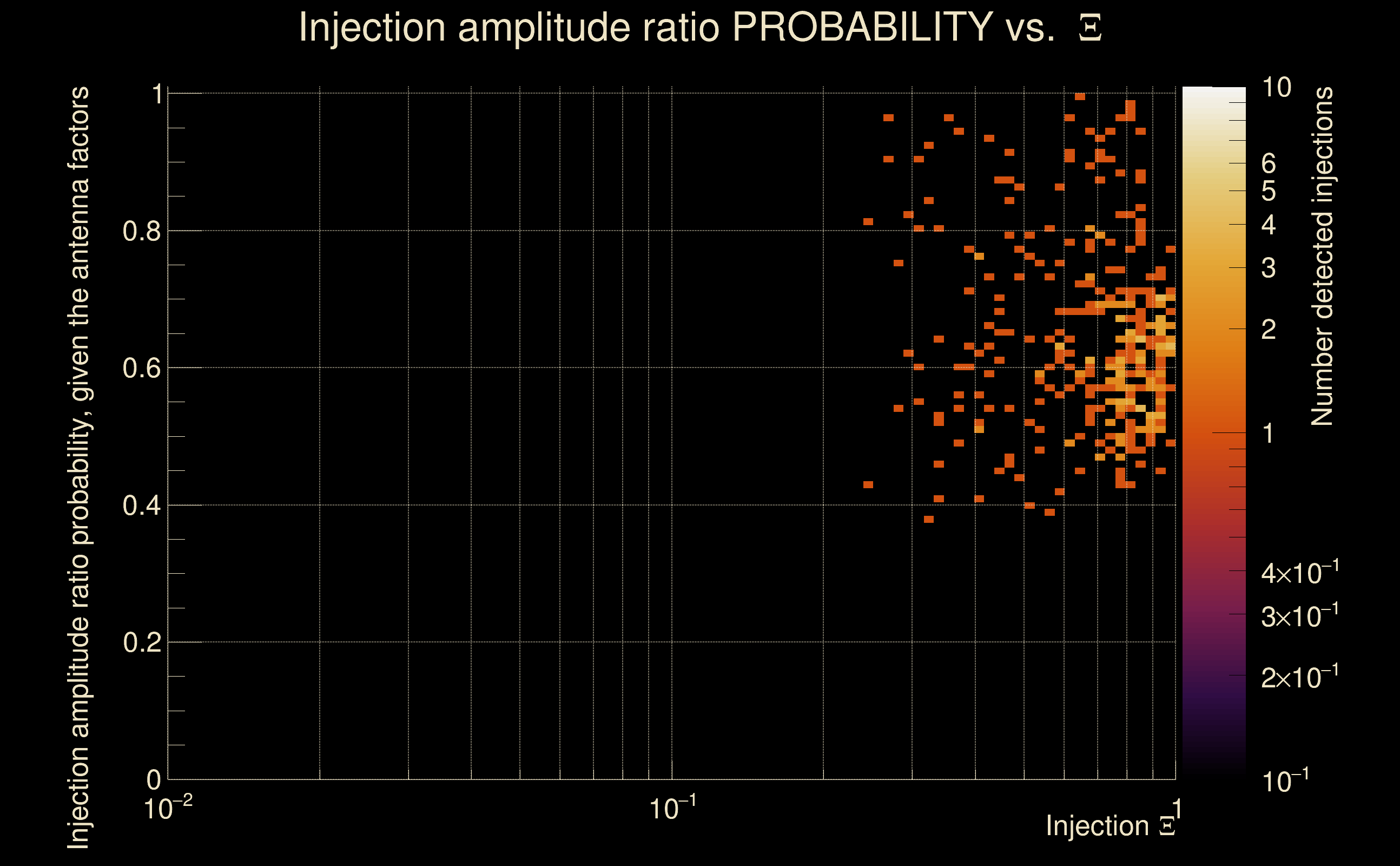

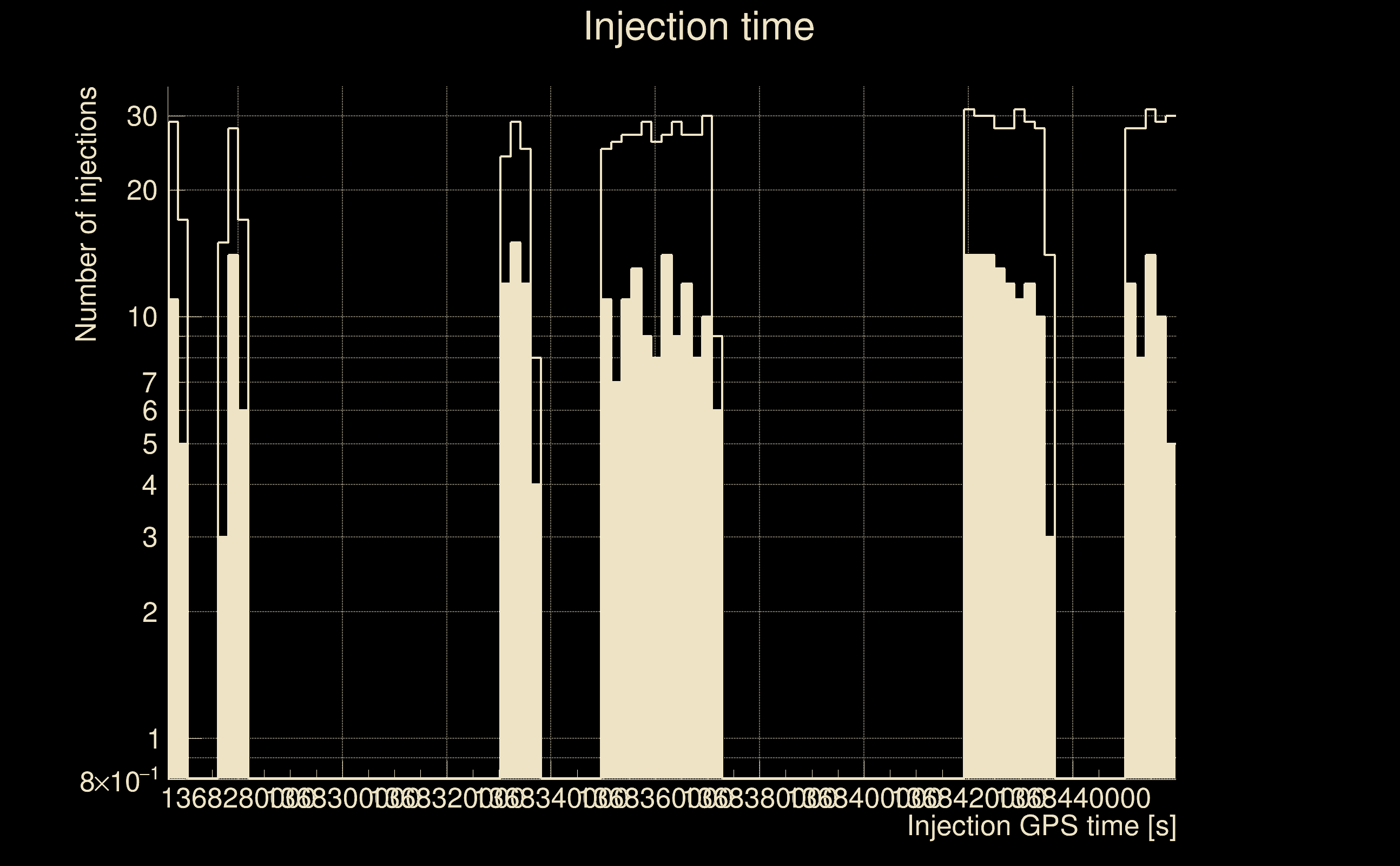

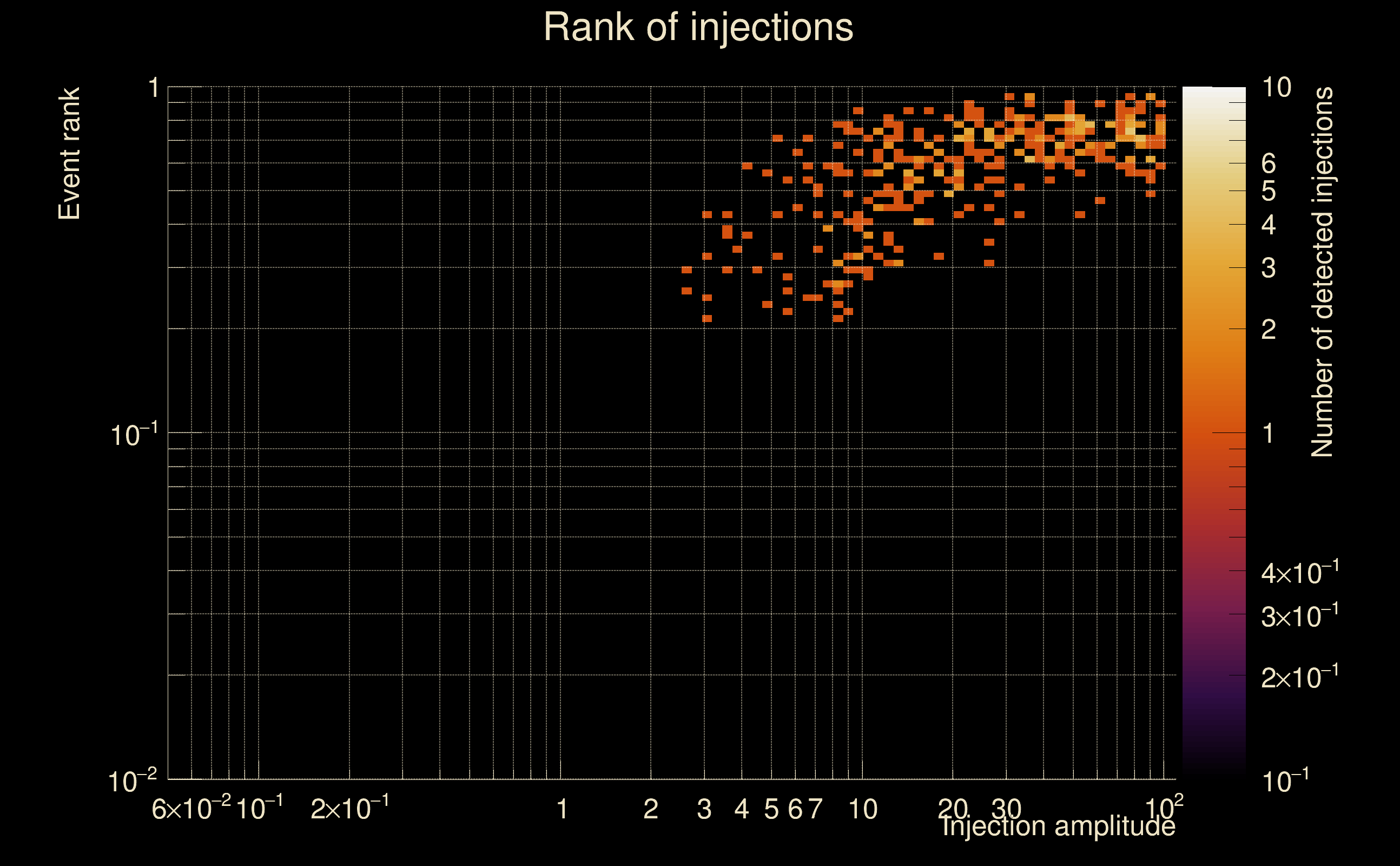

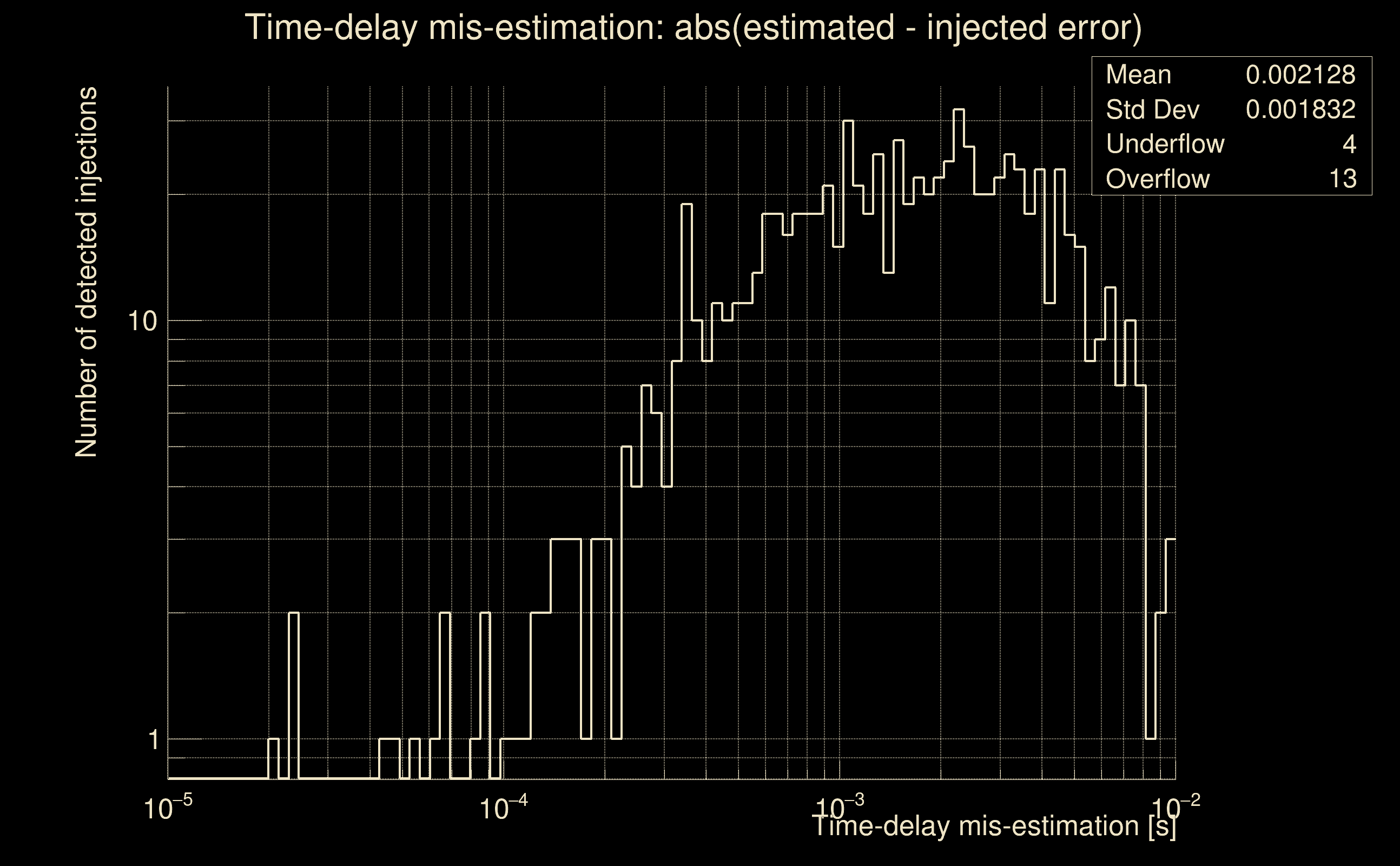

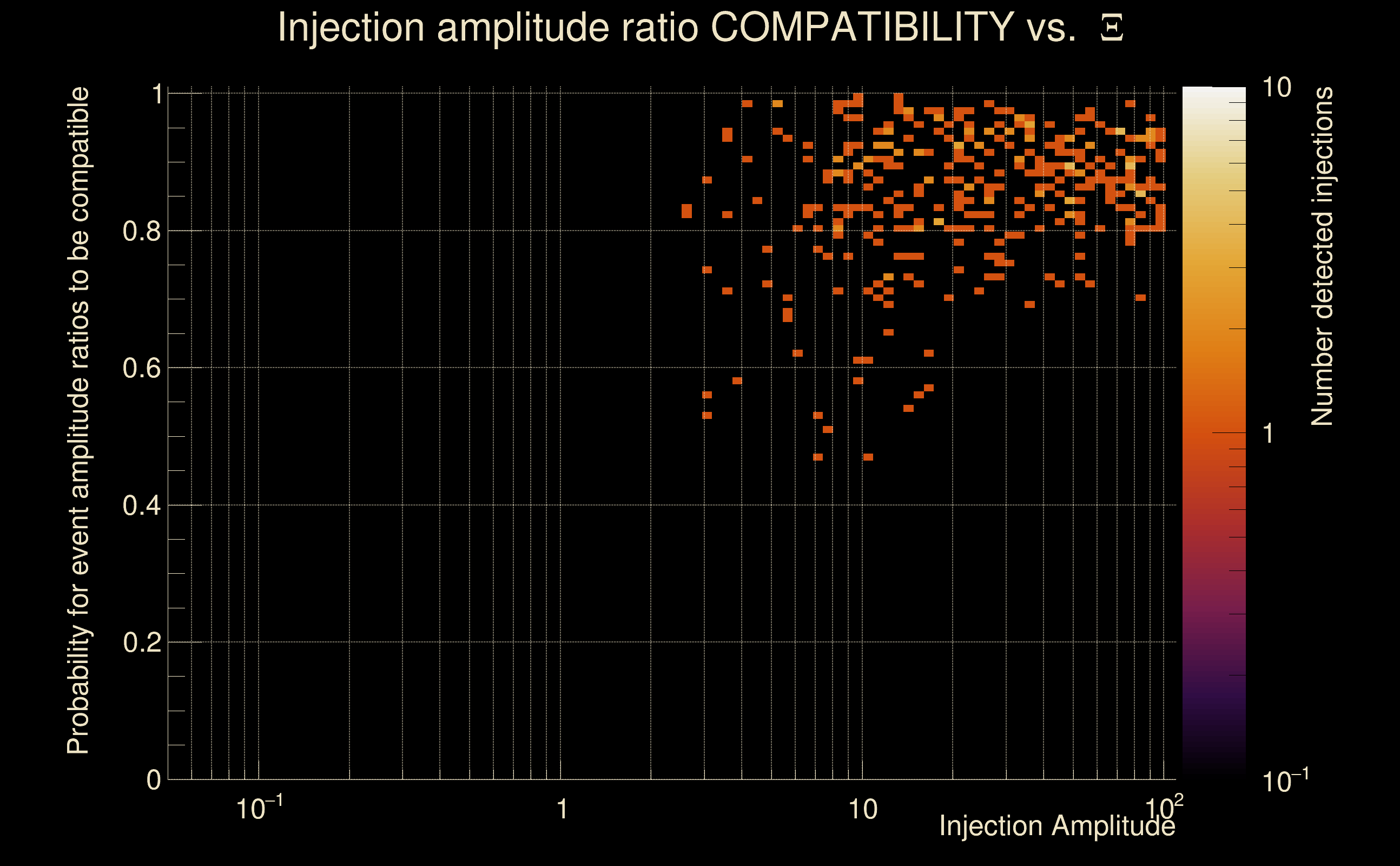

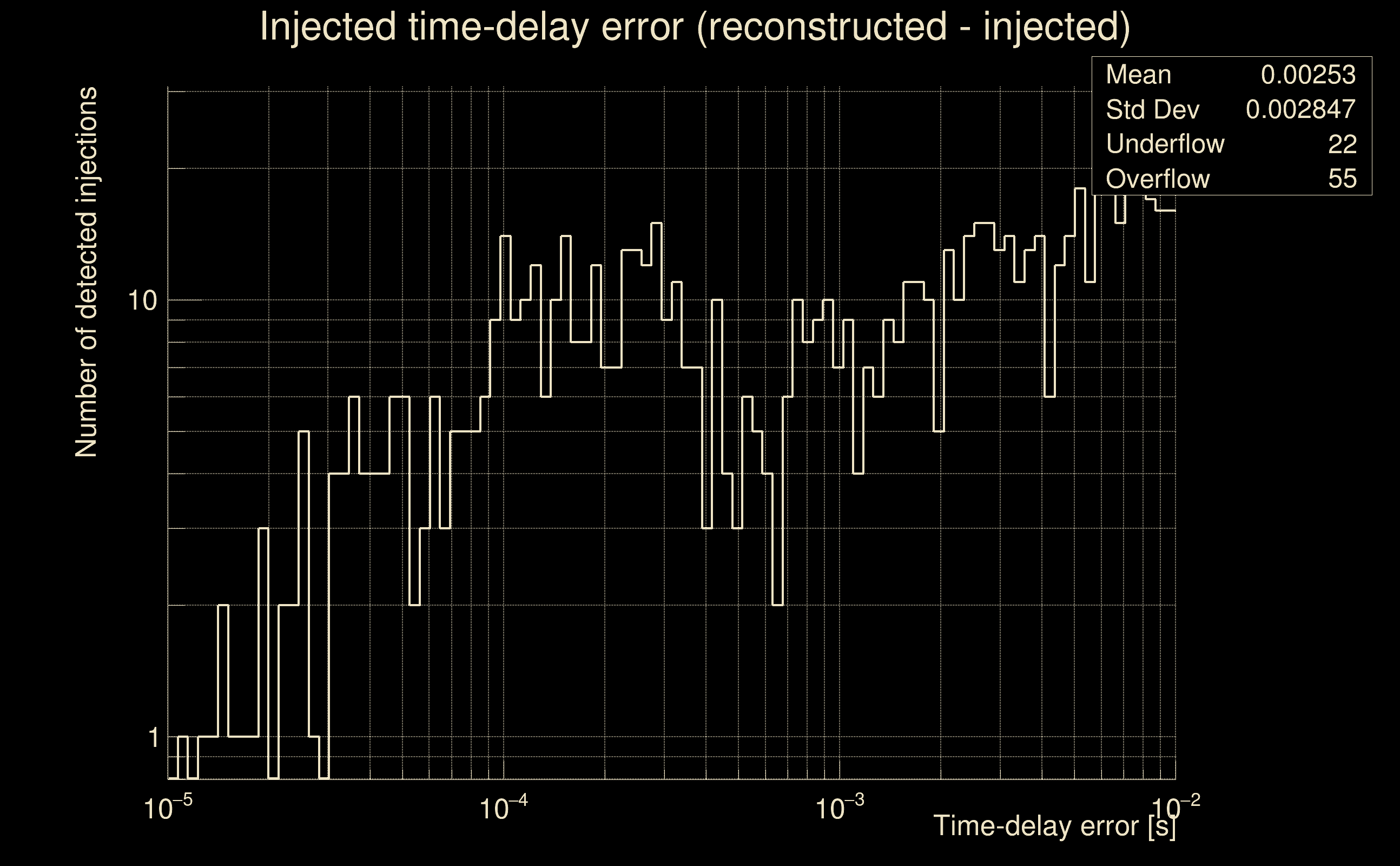

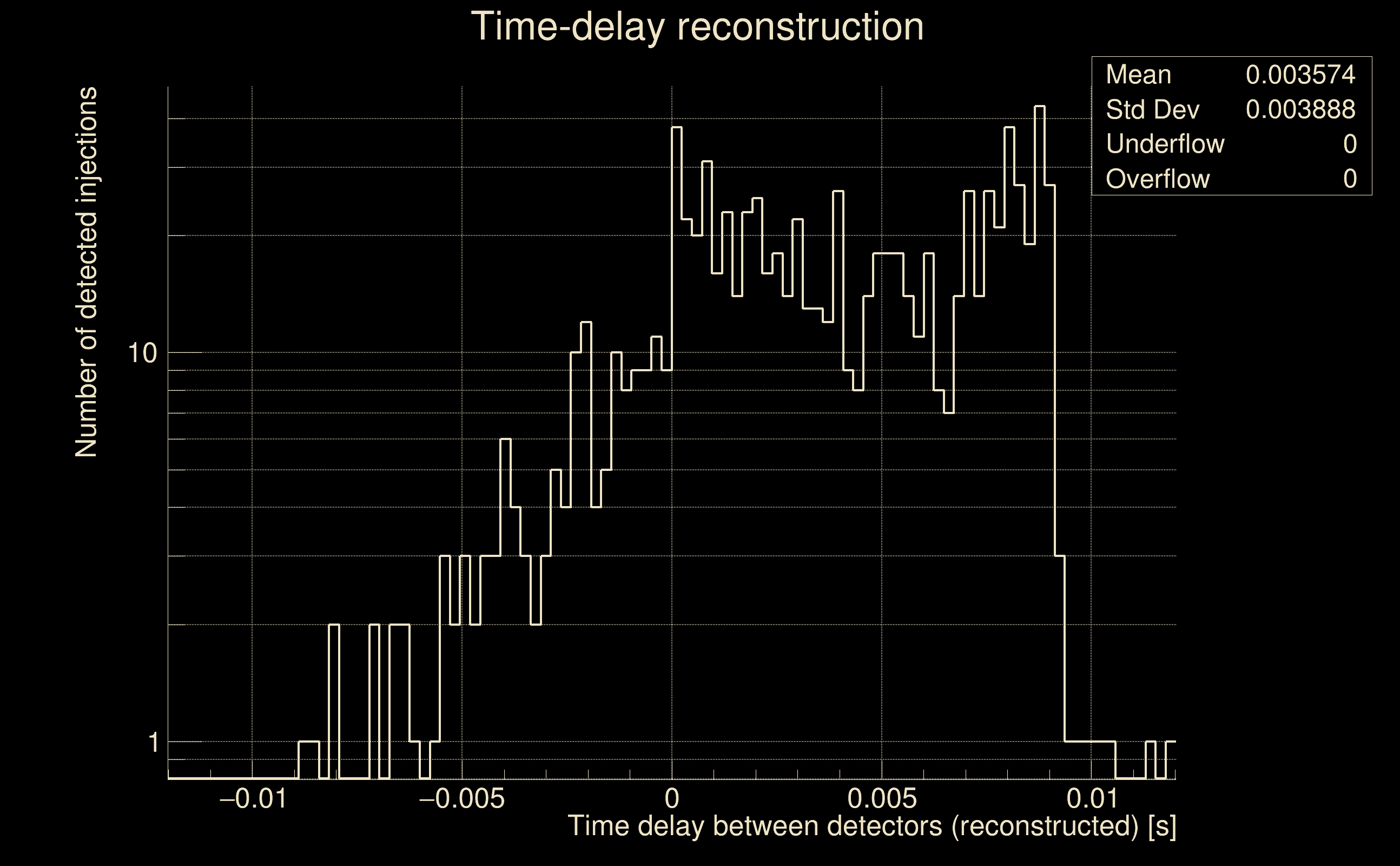

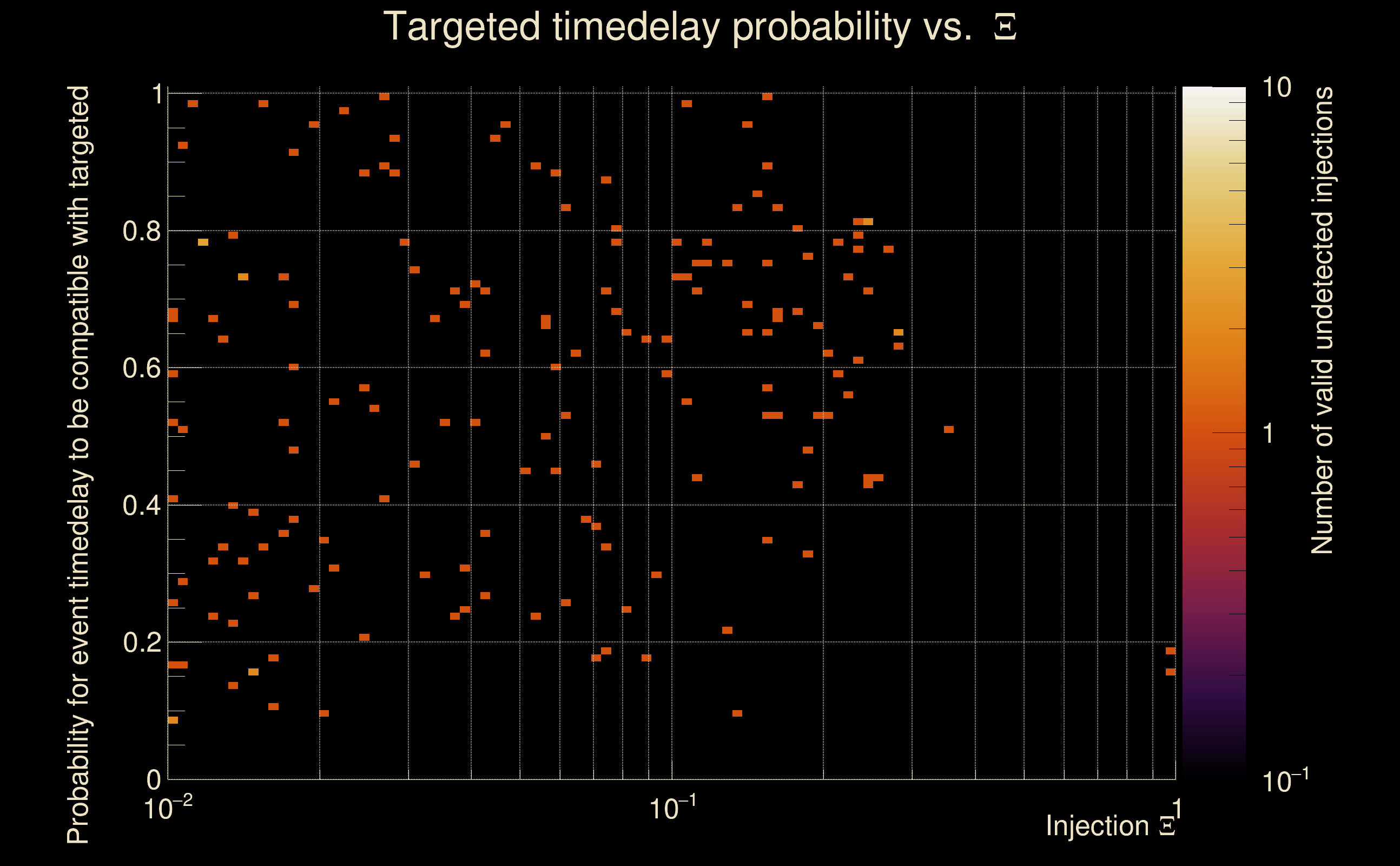

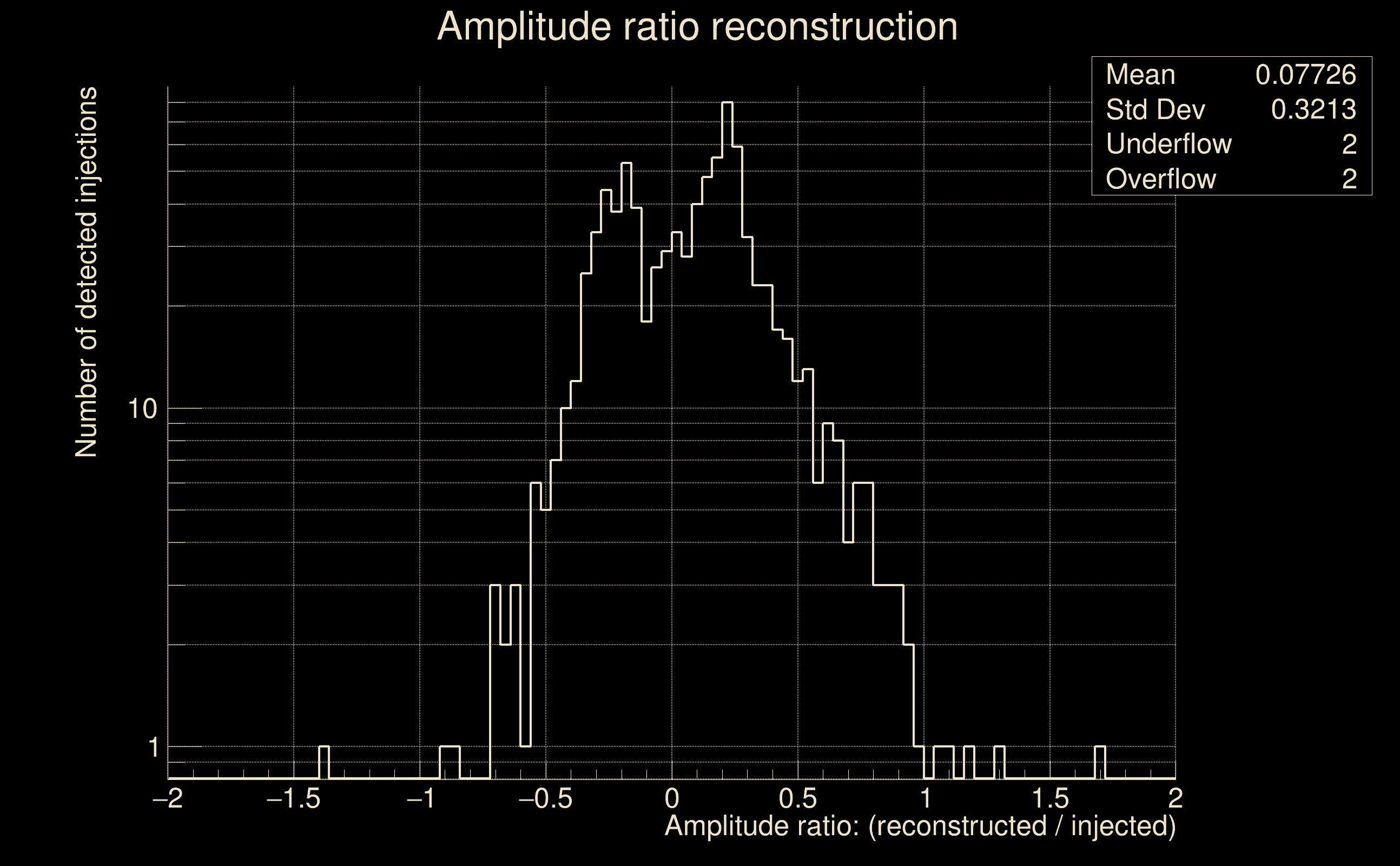

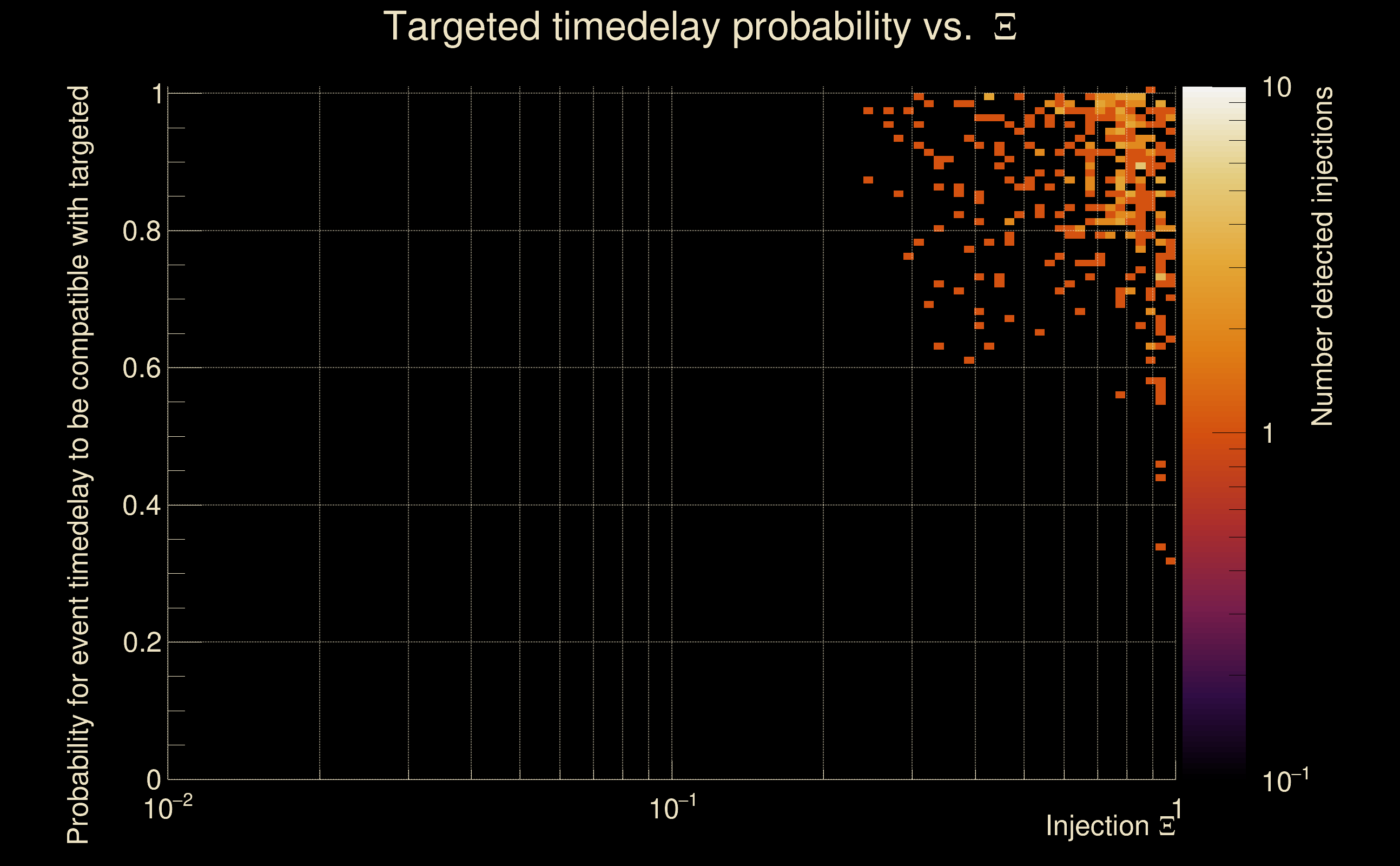

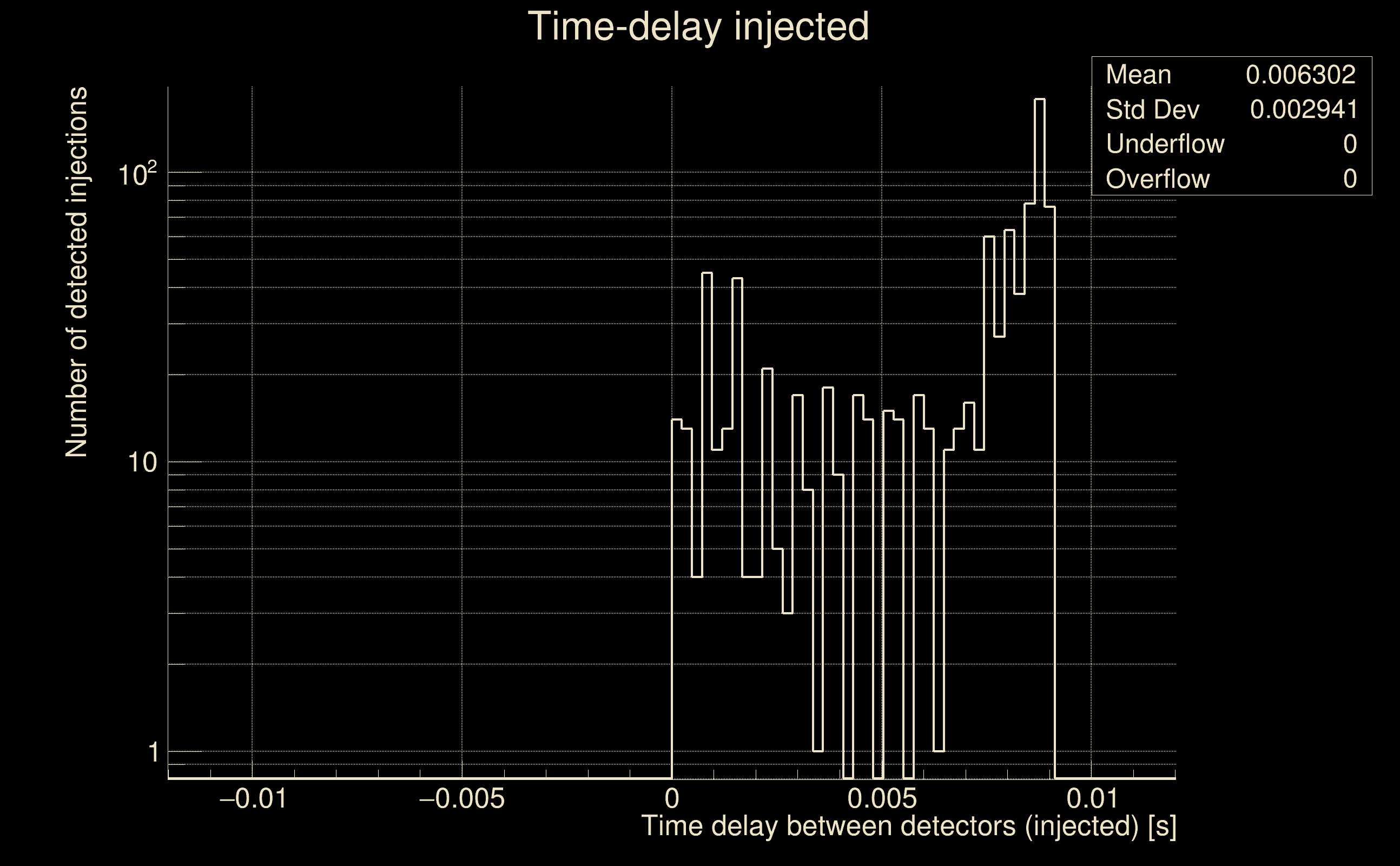

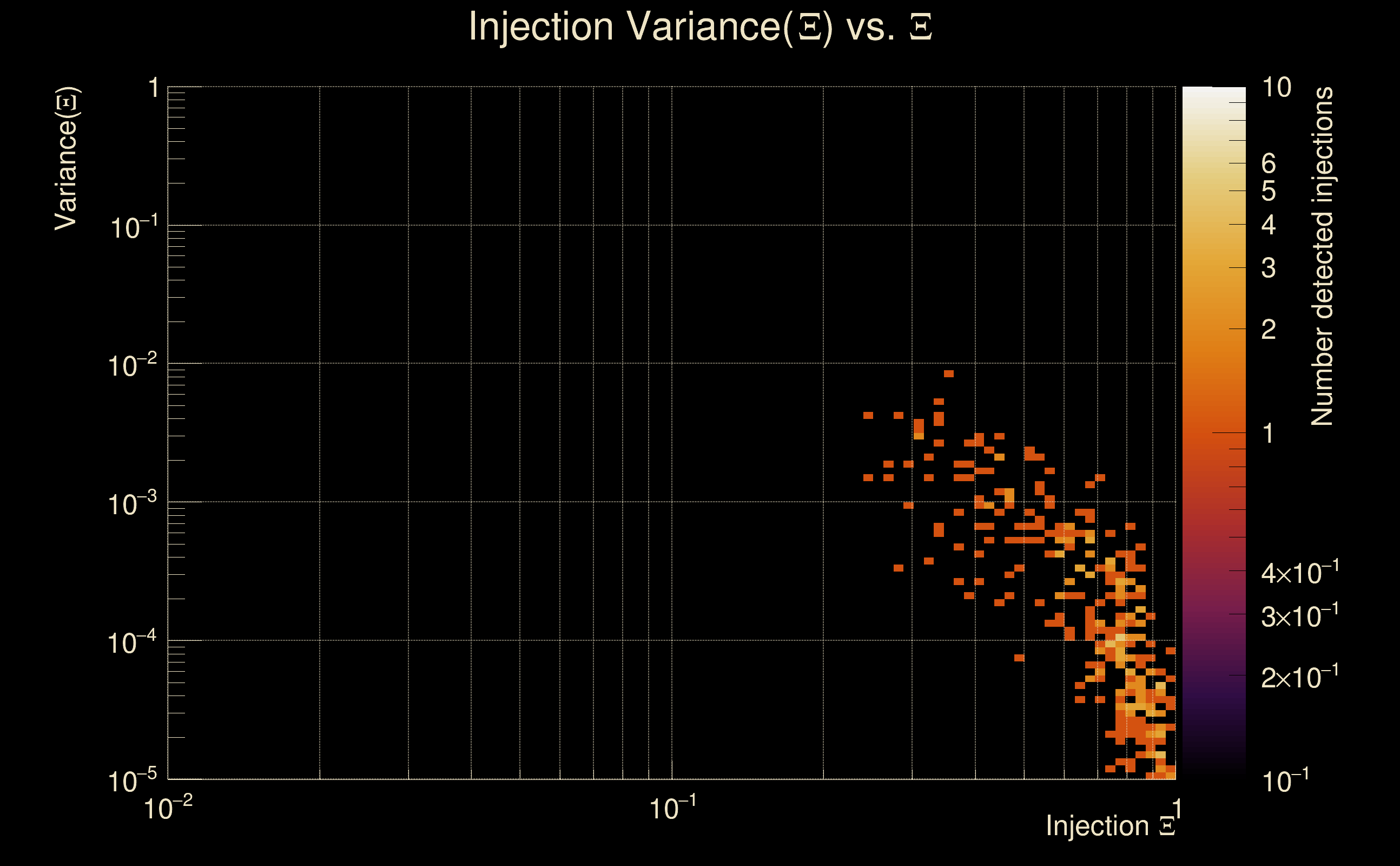

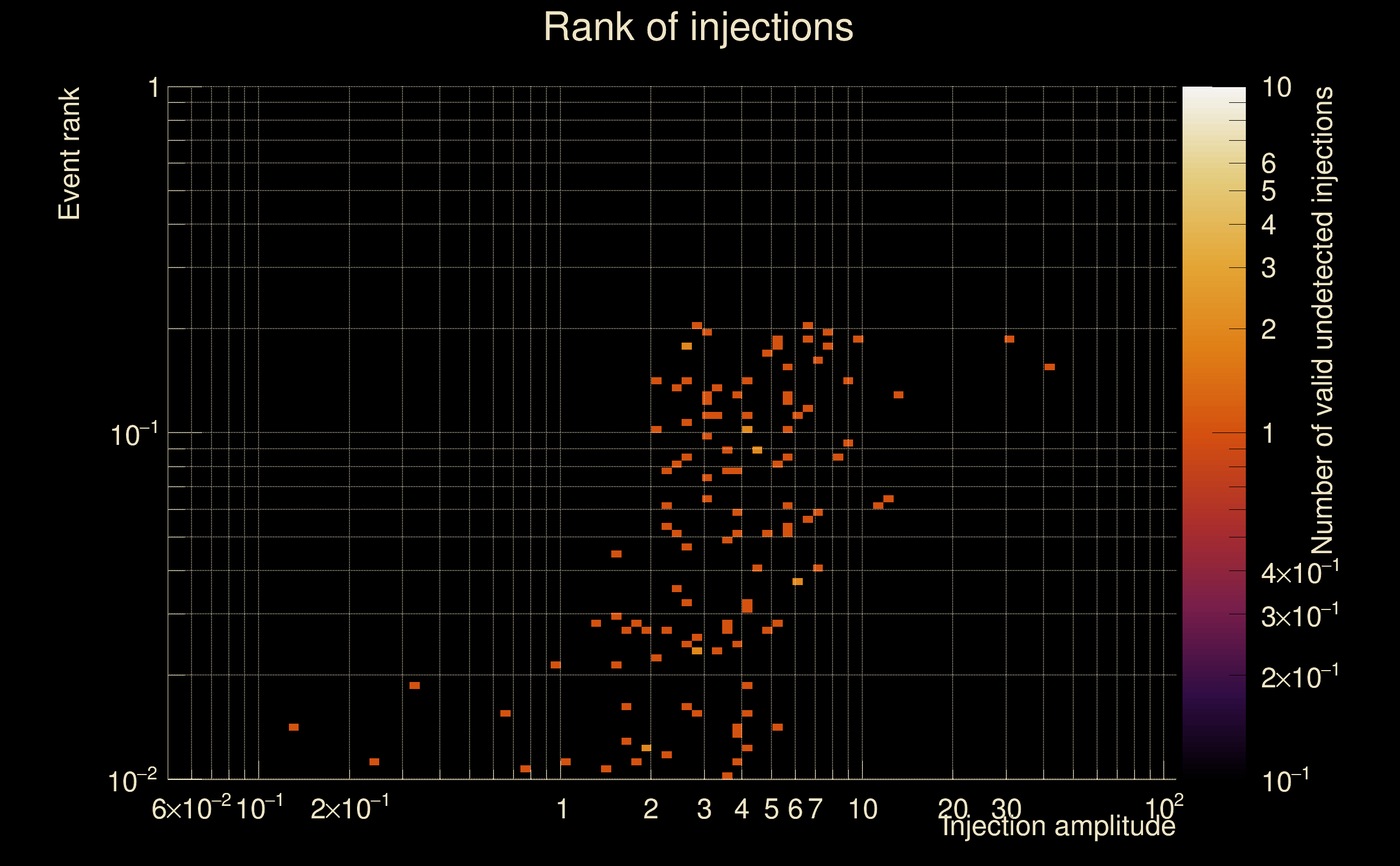

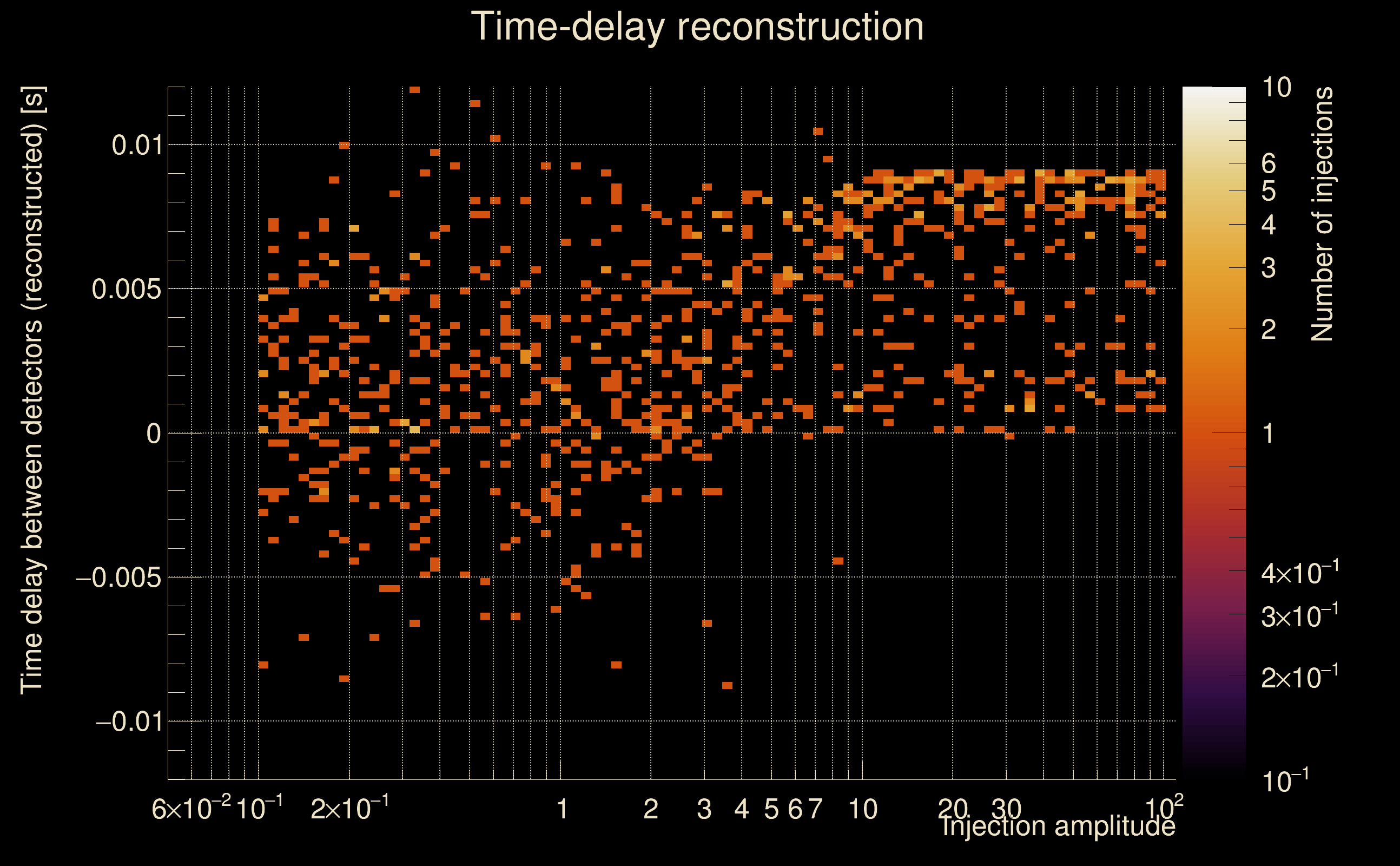

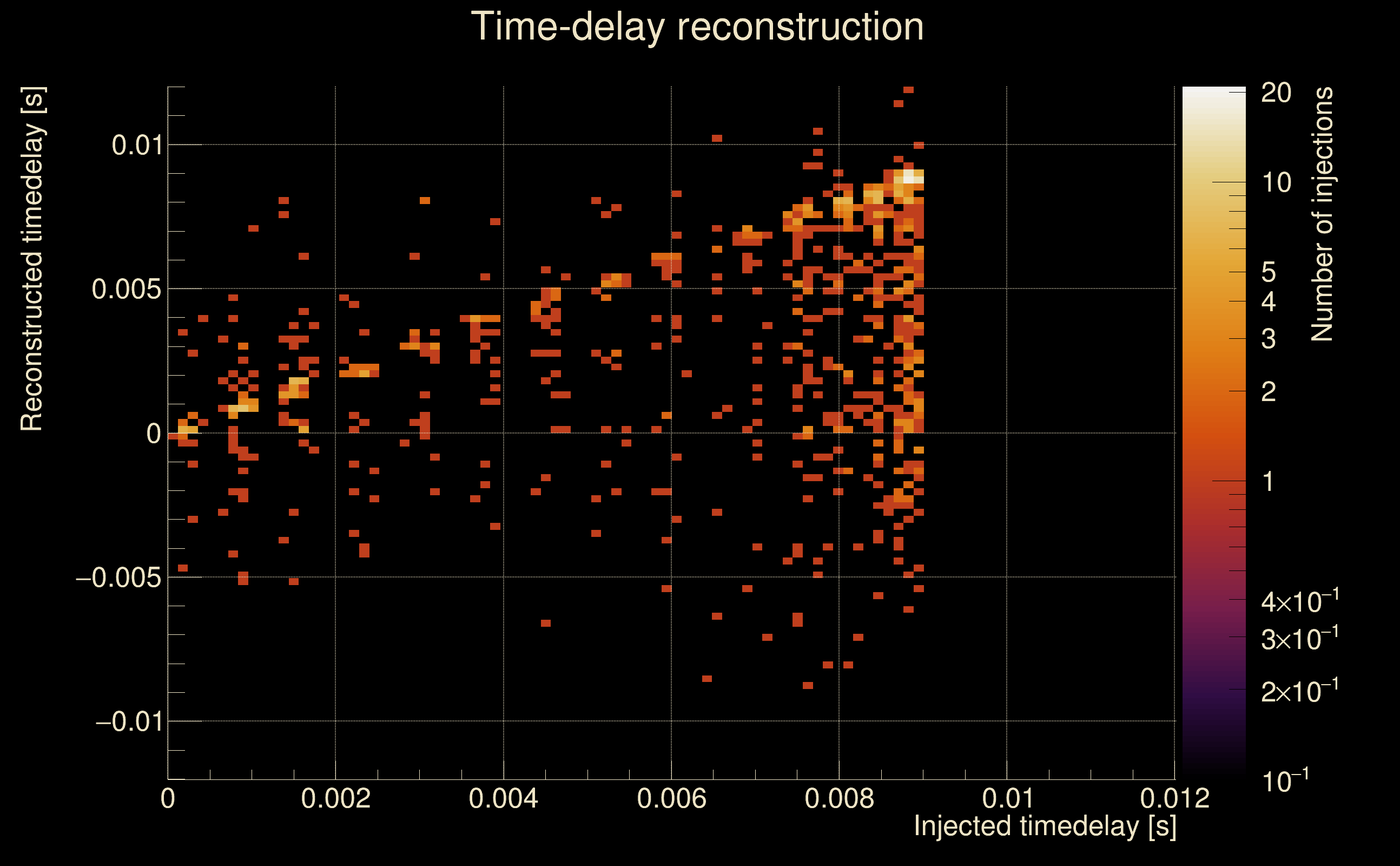

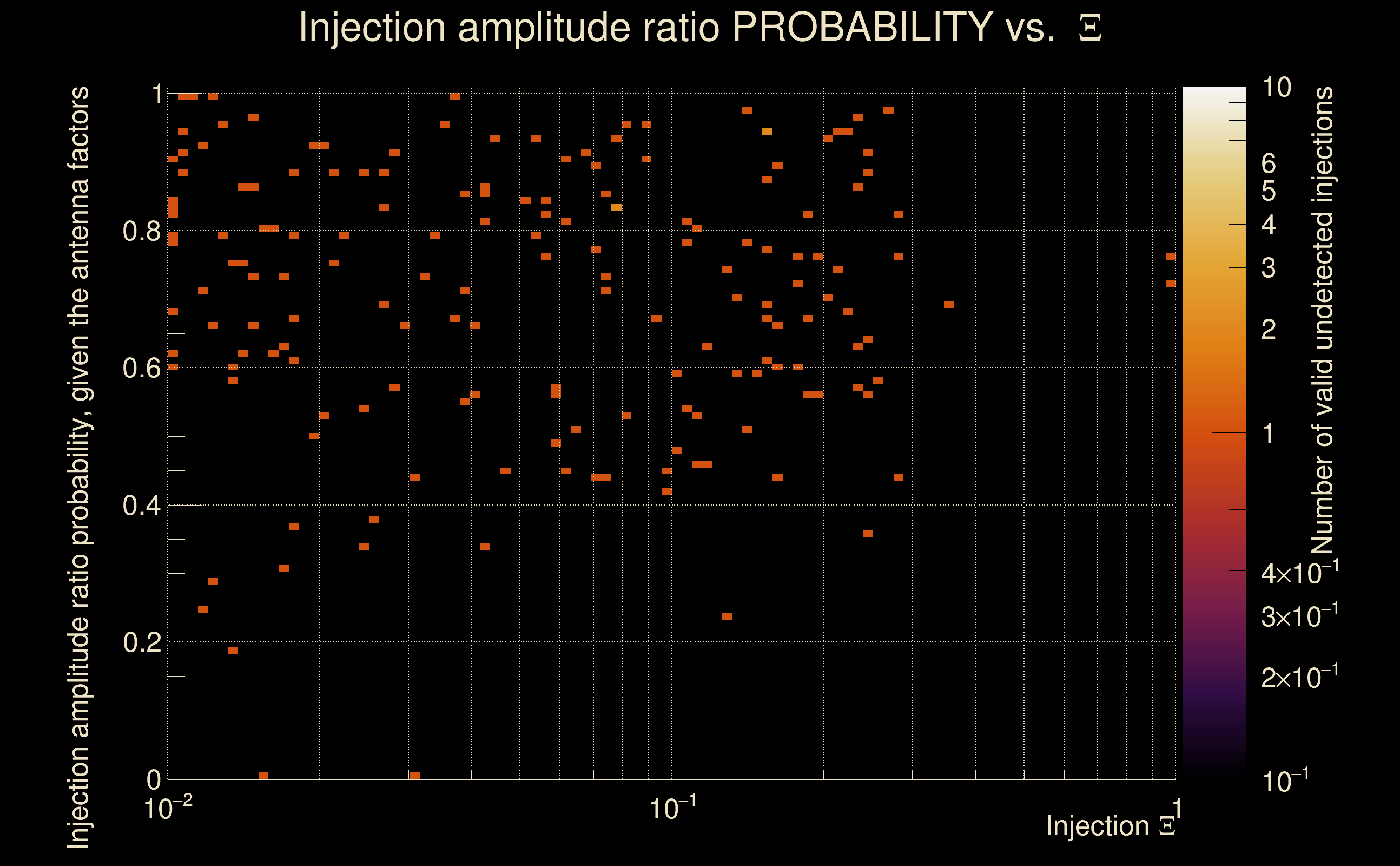

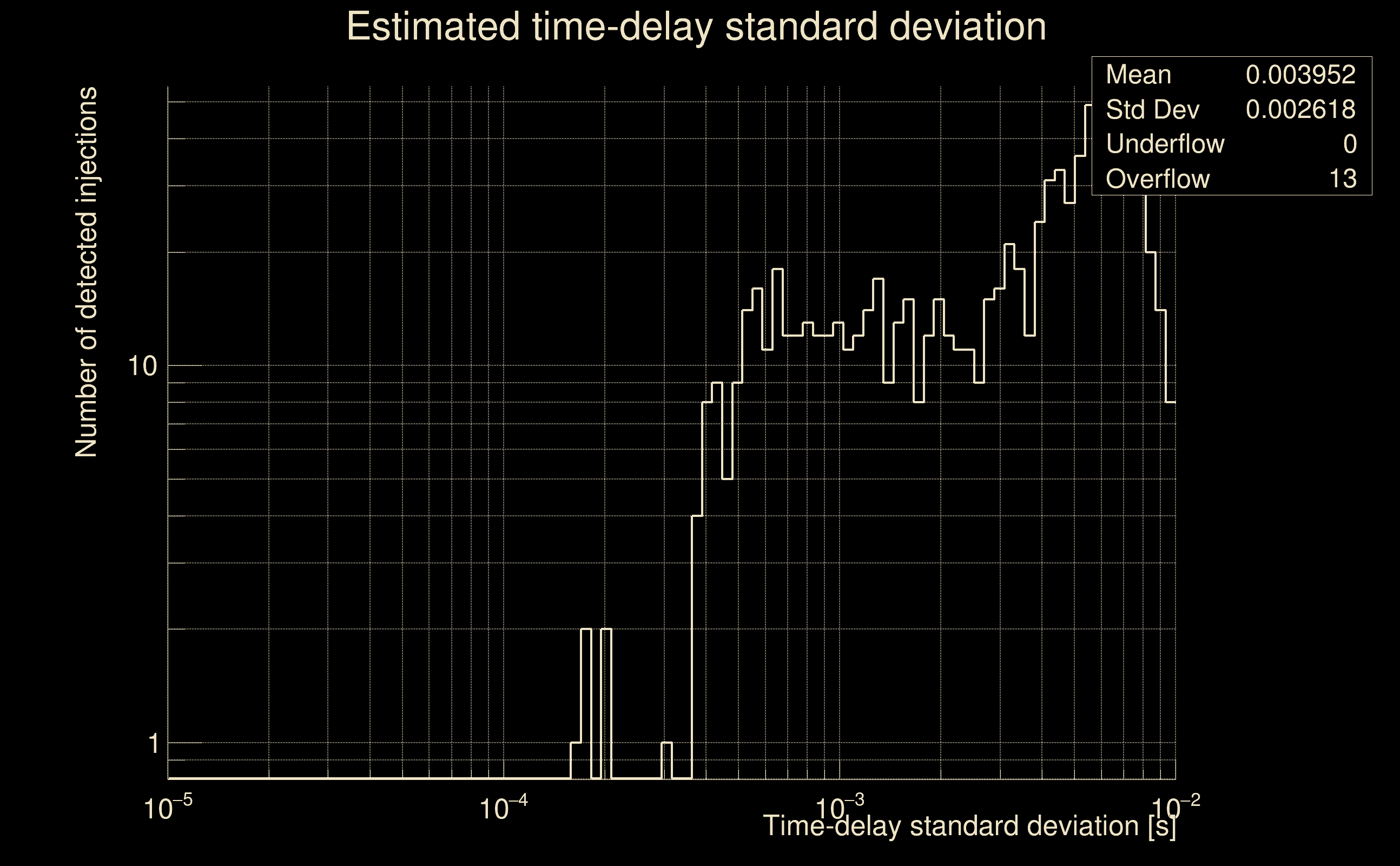

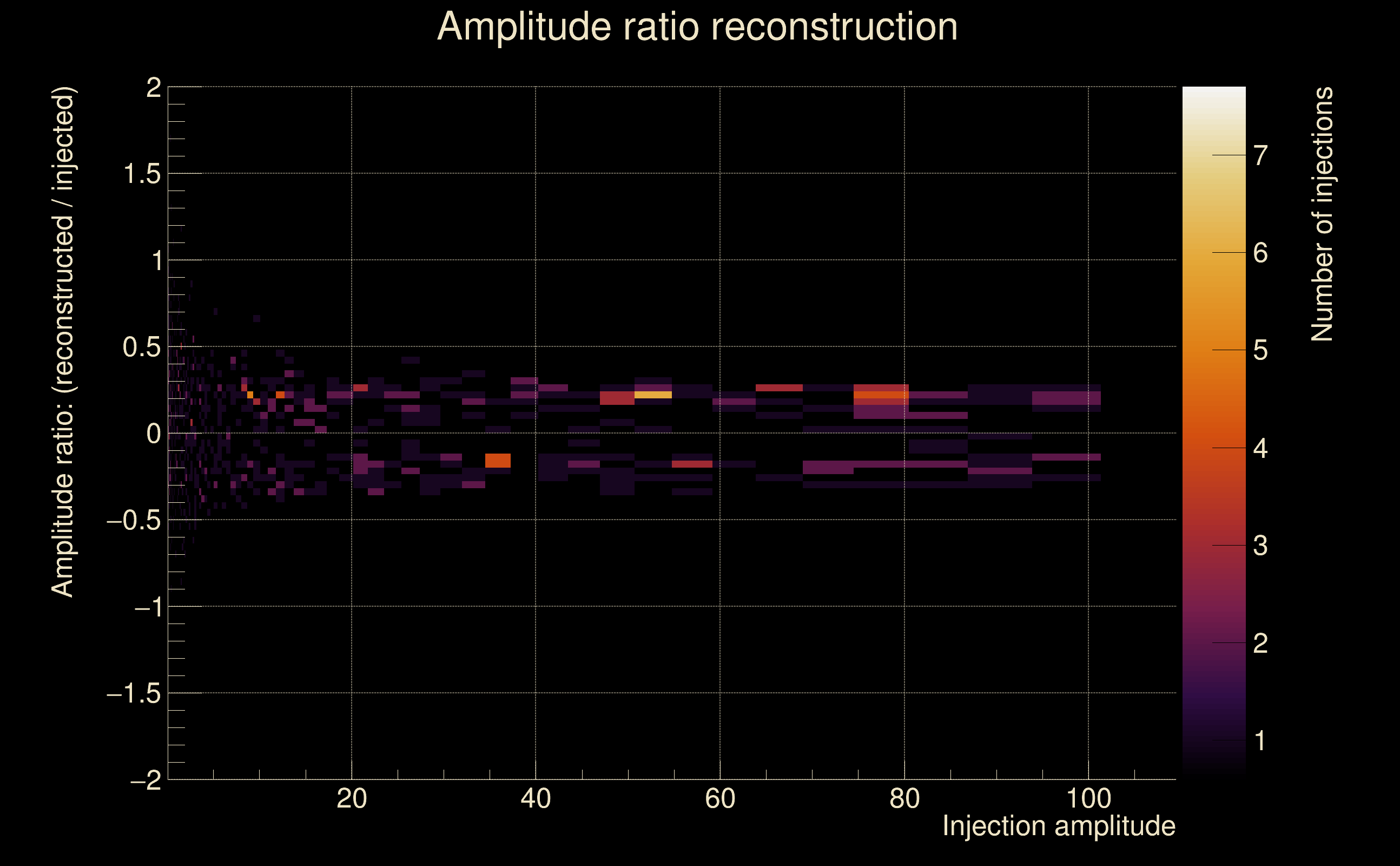

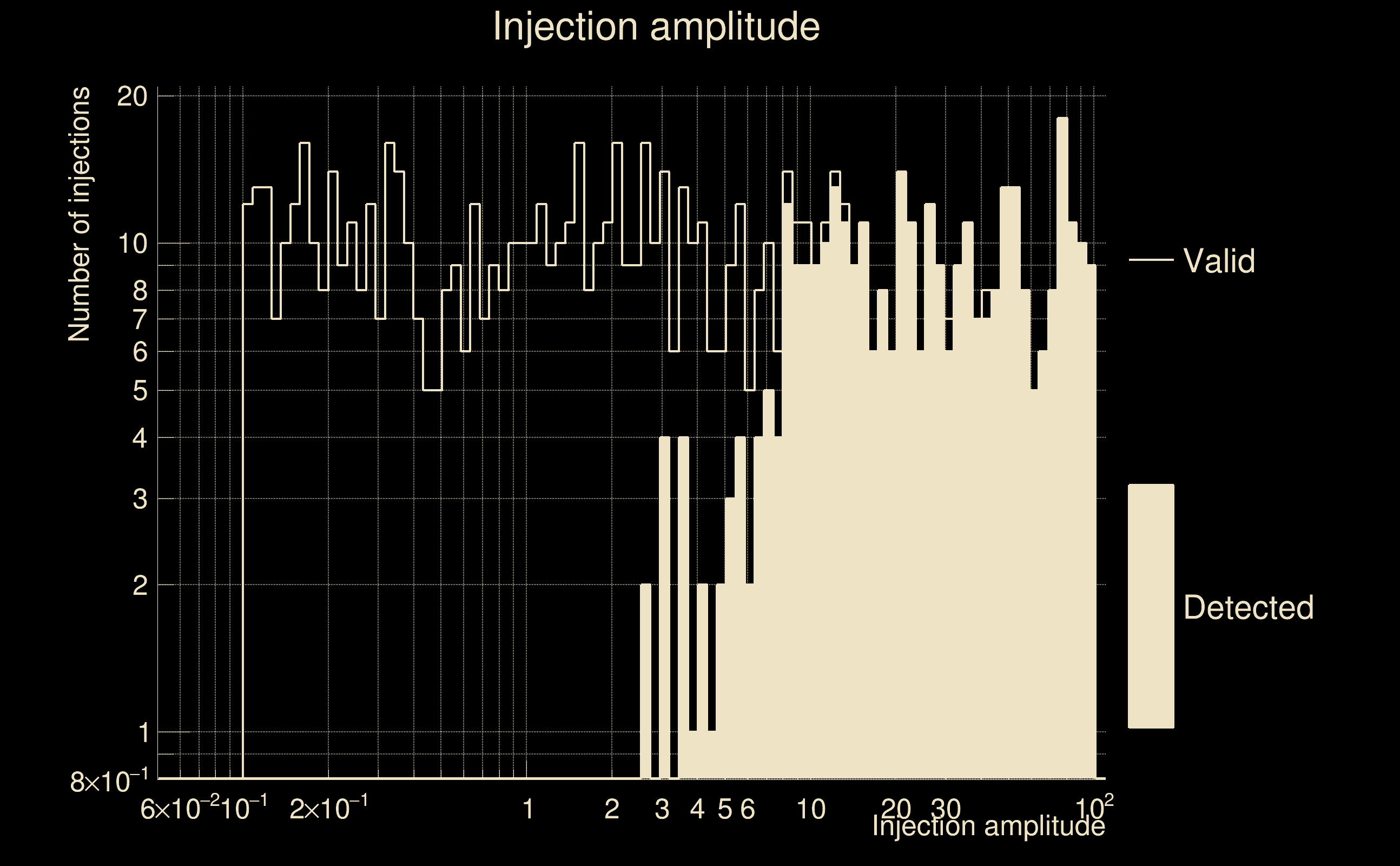

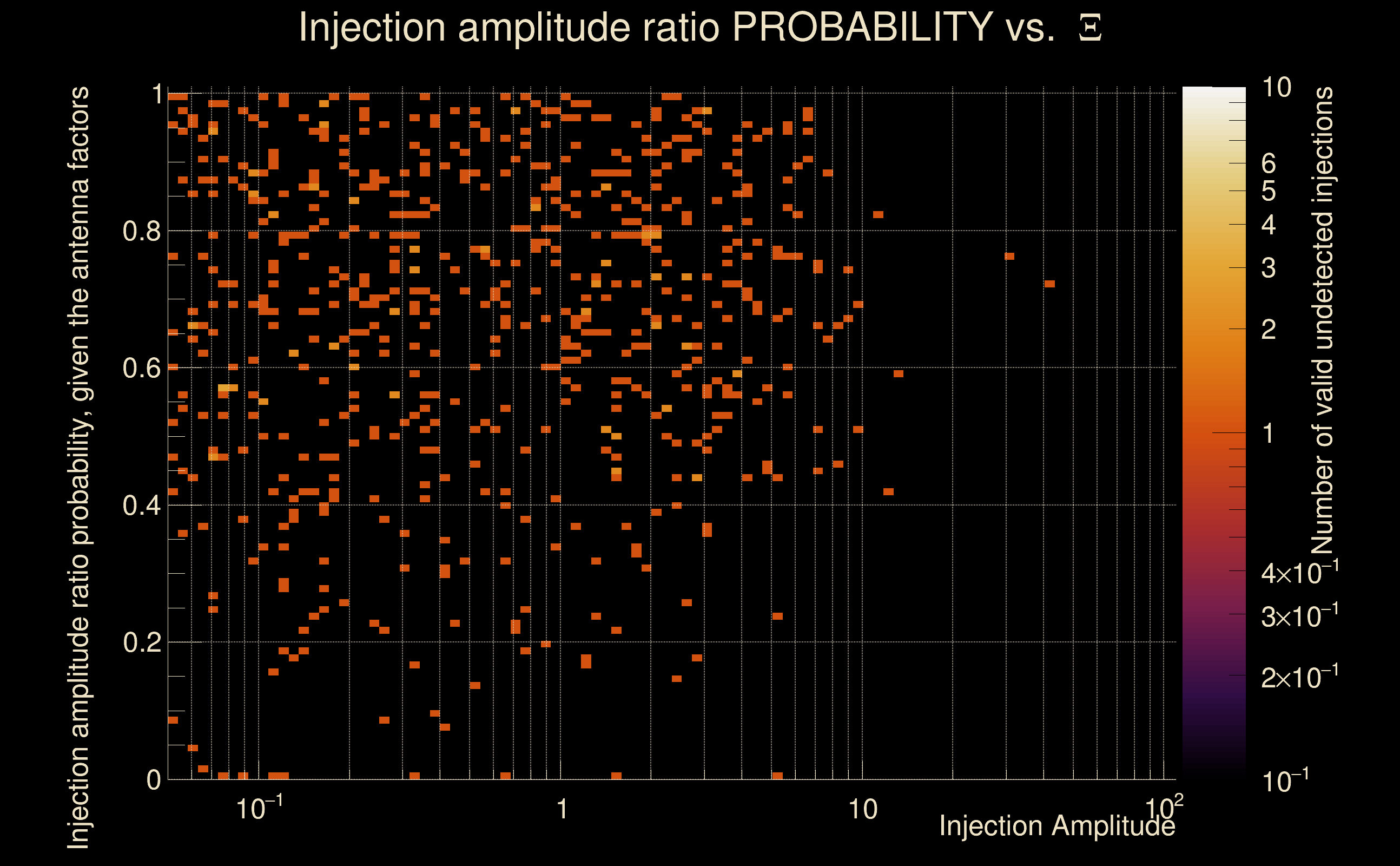

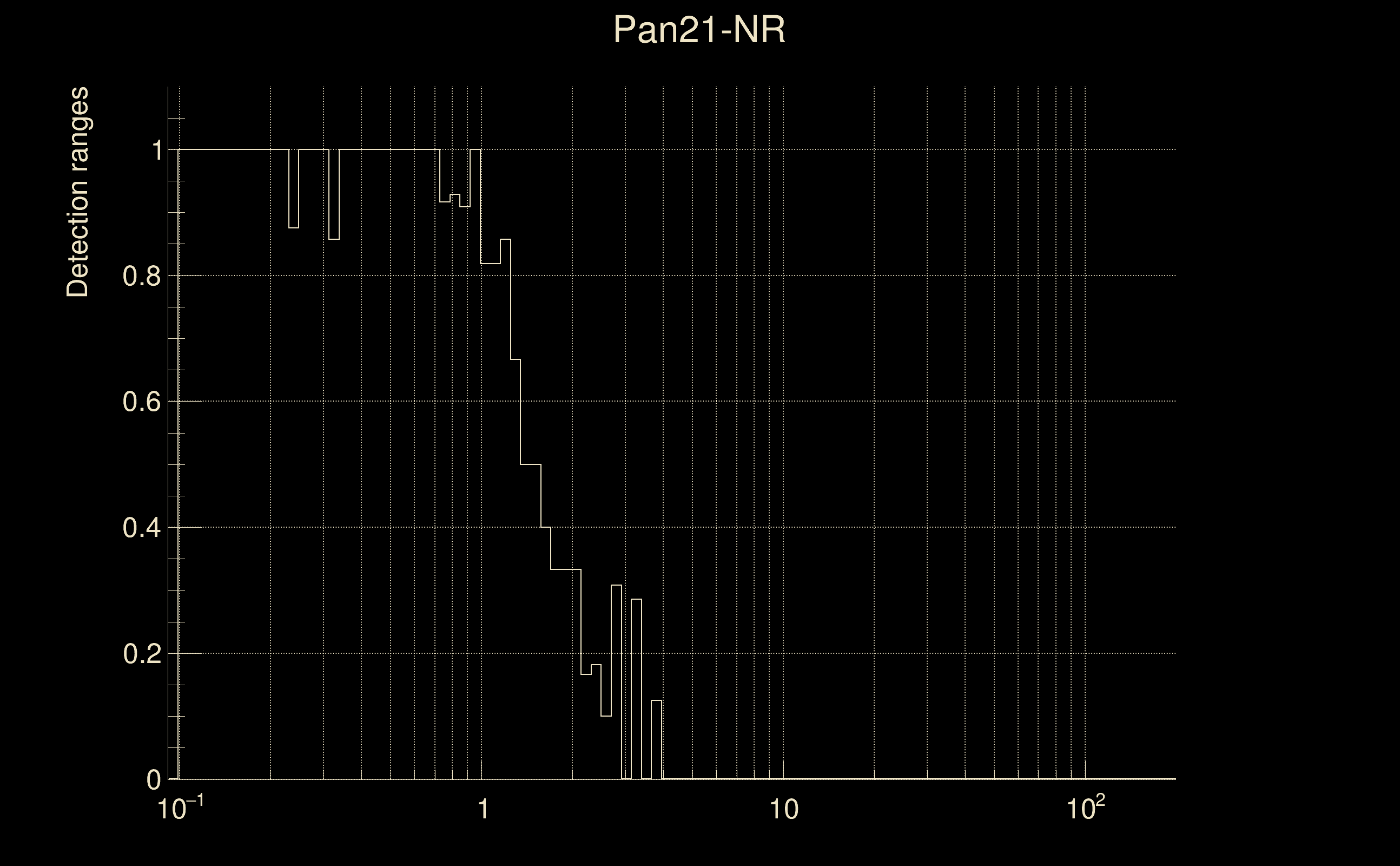

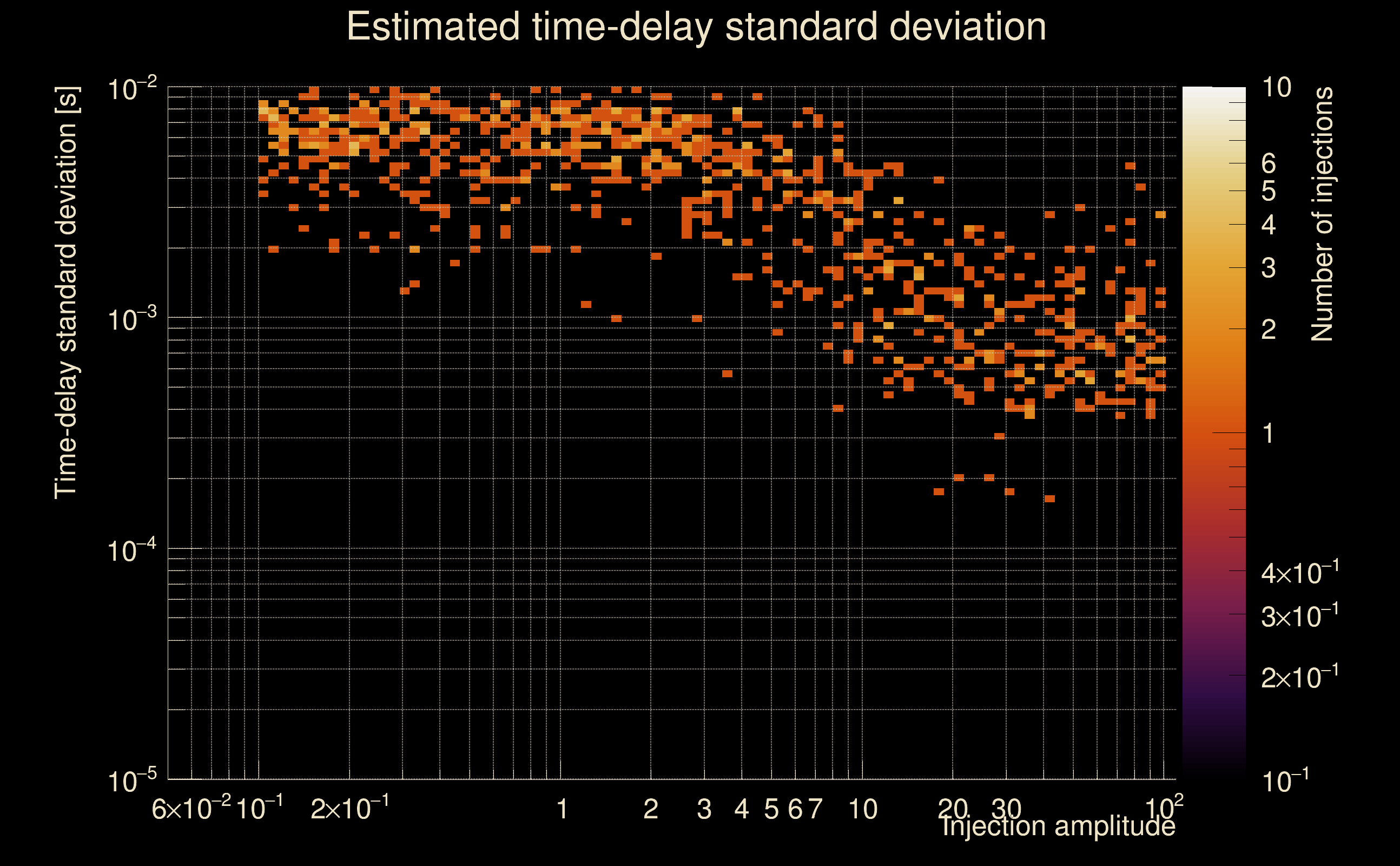

| Number of injections (total/valid/detected): | 1006 / 896 / 352 |
| List of missed injections: | ./Pan21-NR_missed.txt |
| Injection amplitude at 90% detection efficiency: | 10.0628 |
| Injection amplitude at 50% detection efficiency: | 6.61299 |
| Injection amplitude at 10% detection efficiency: | 3.39611 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
