| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:38:49 2026 UTC |
| Ox option file: | TargIxf_080426_SN3_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 10000 (detector 0), < 10000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |

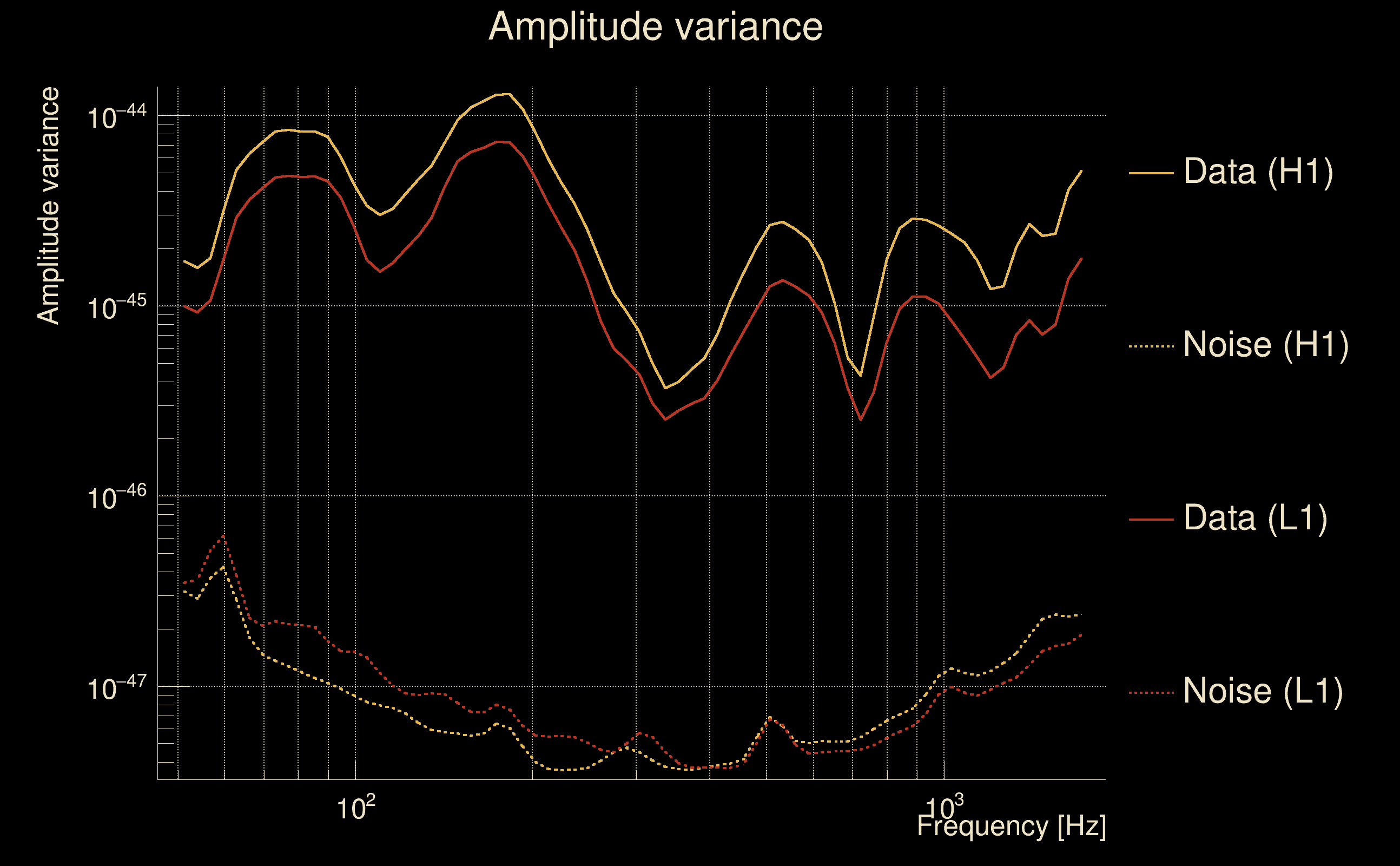

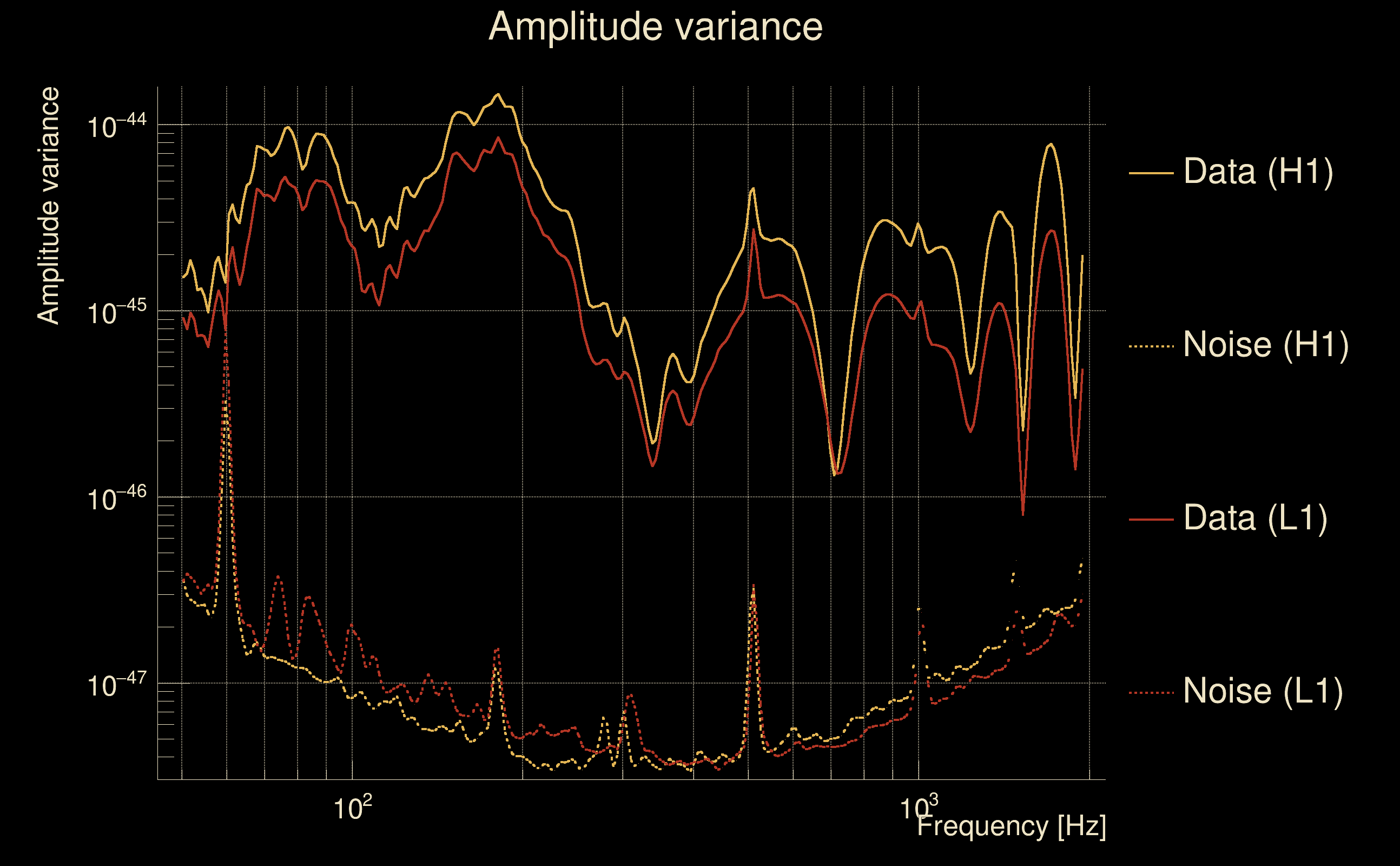

| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | TargIxf_080426_SN3_file_list.txt (1245 files) |
| Analysis result file: | TargIxf_080426_SN3_results-1.root |
| Slice selected for the the fakeground: | slice index=116 (-0.368 s), time lag = 0 s |

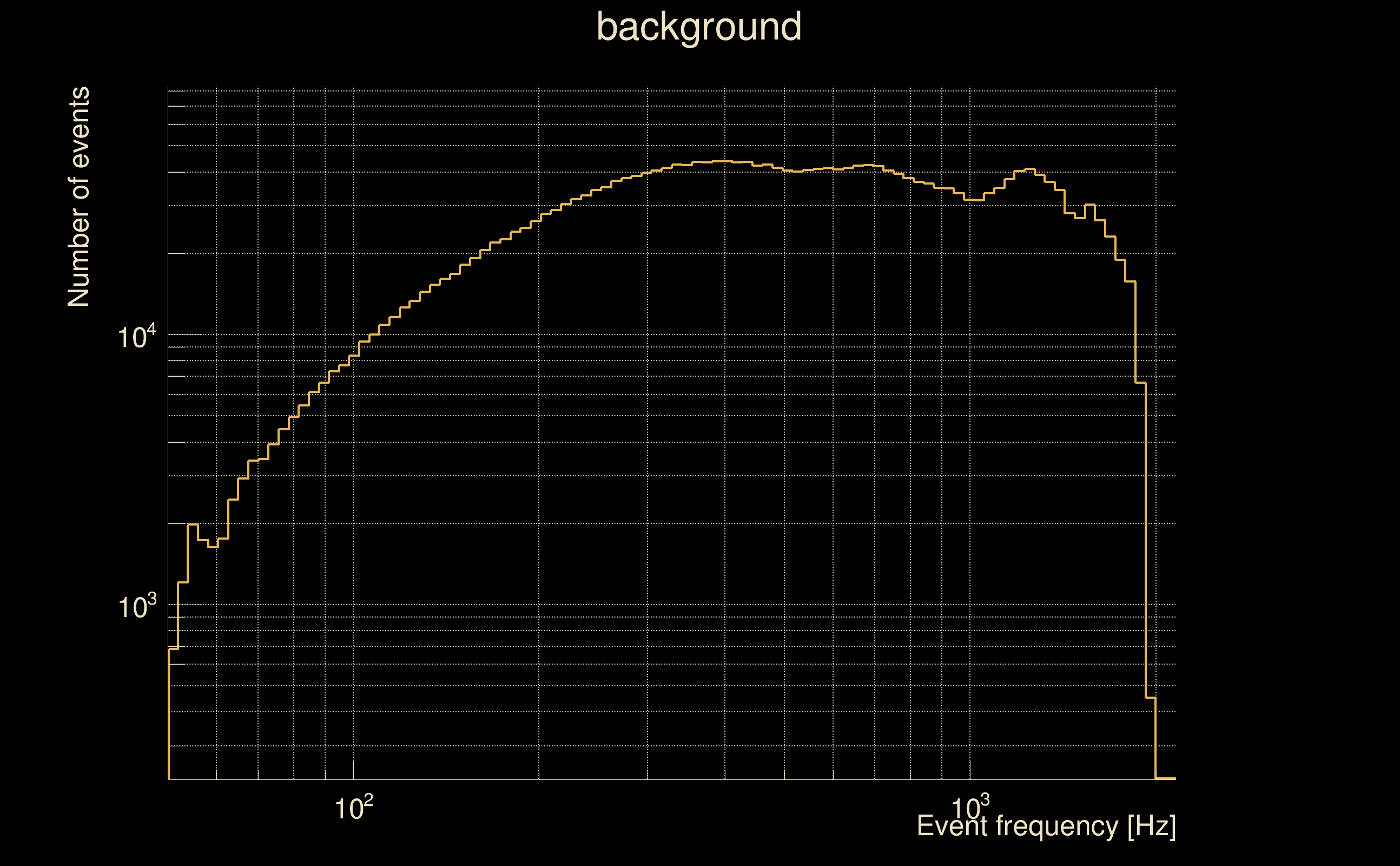

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

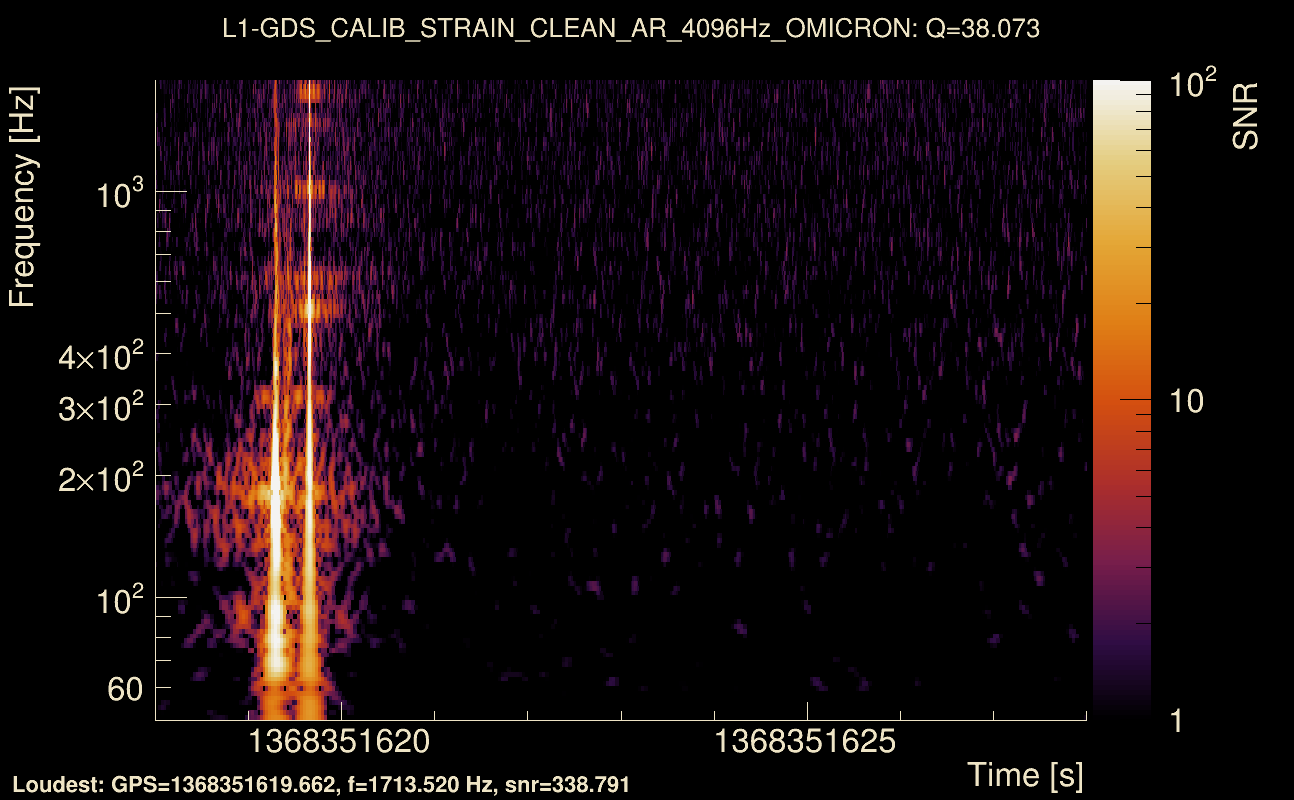

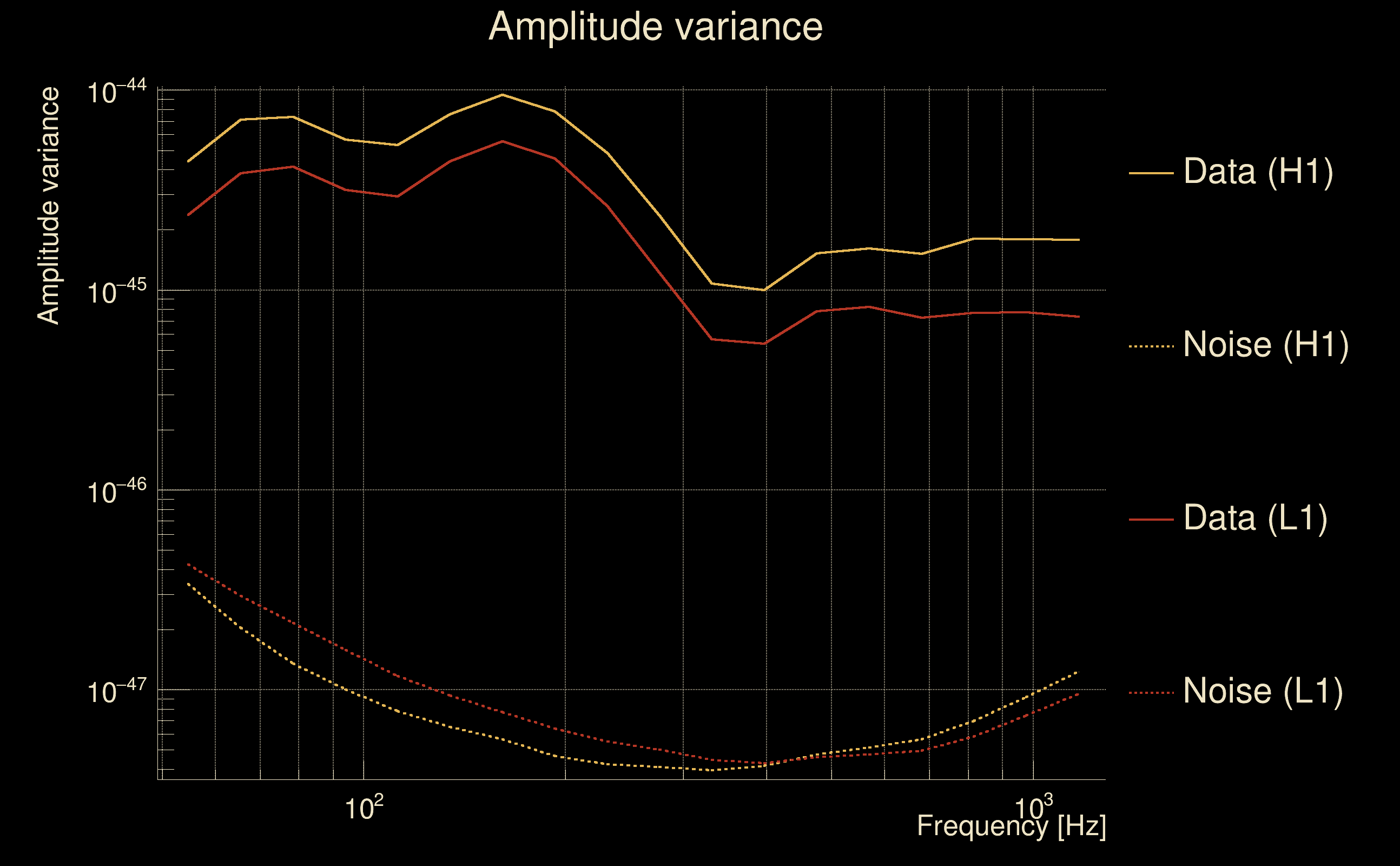

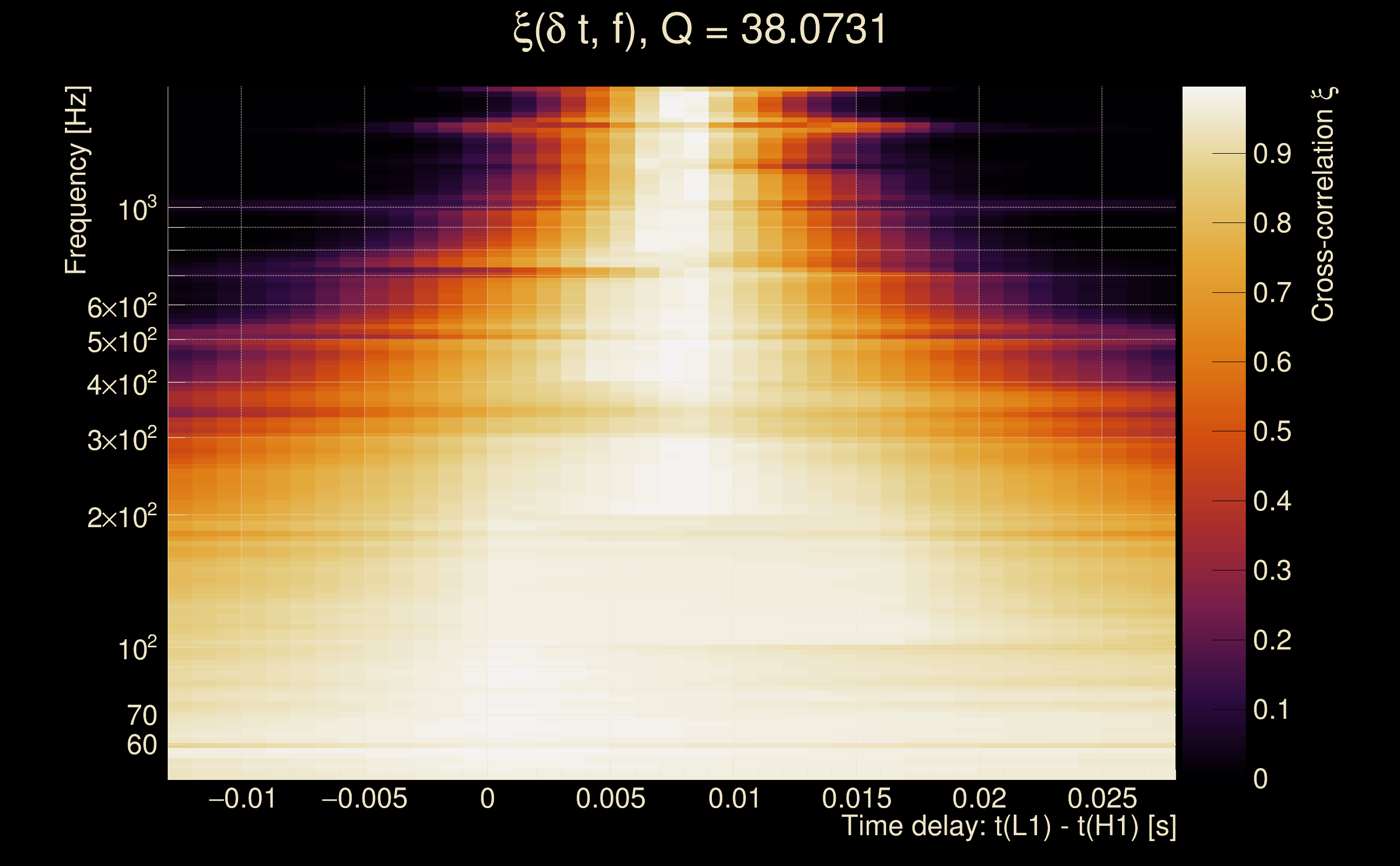

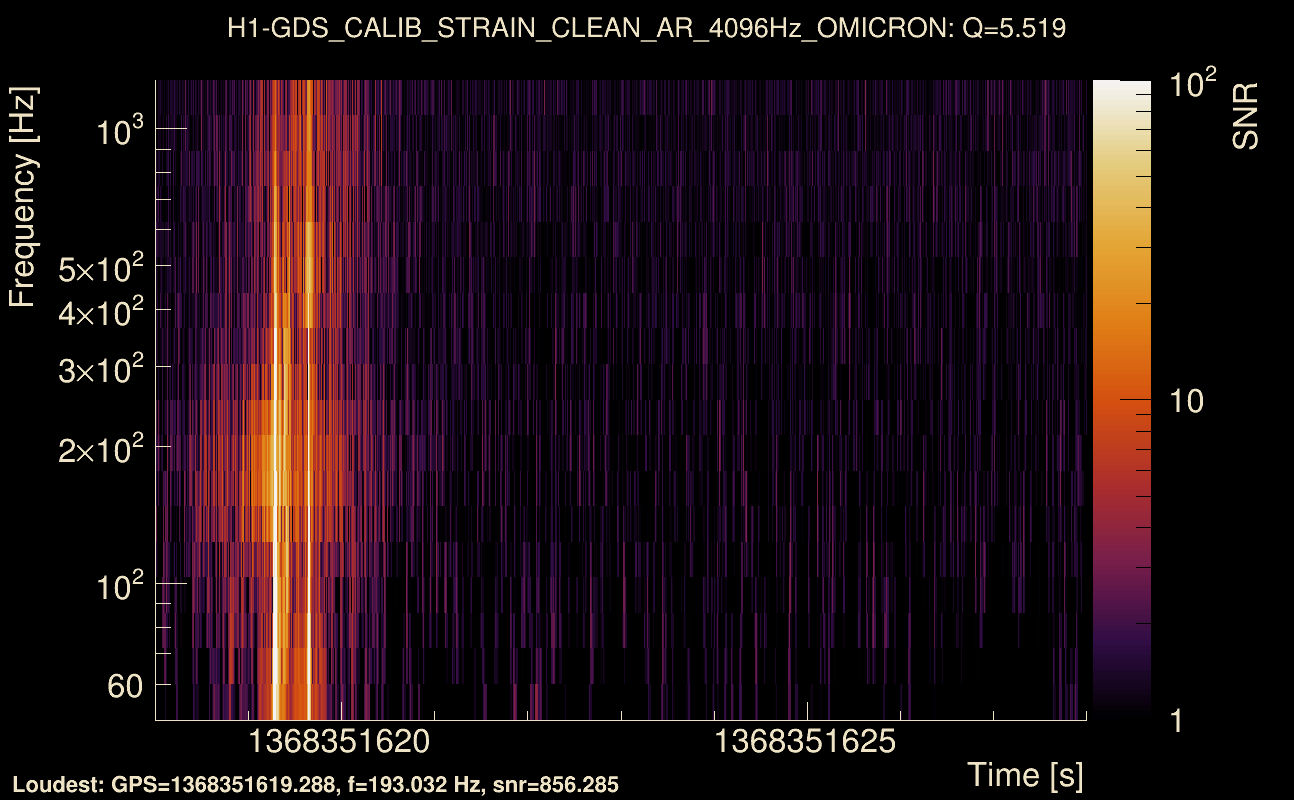

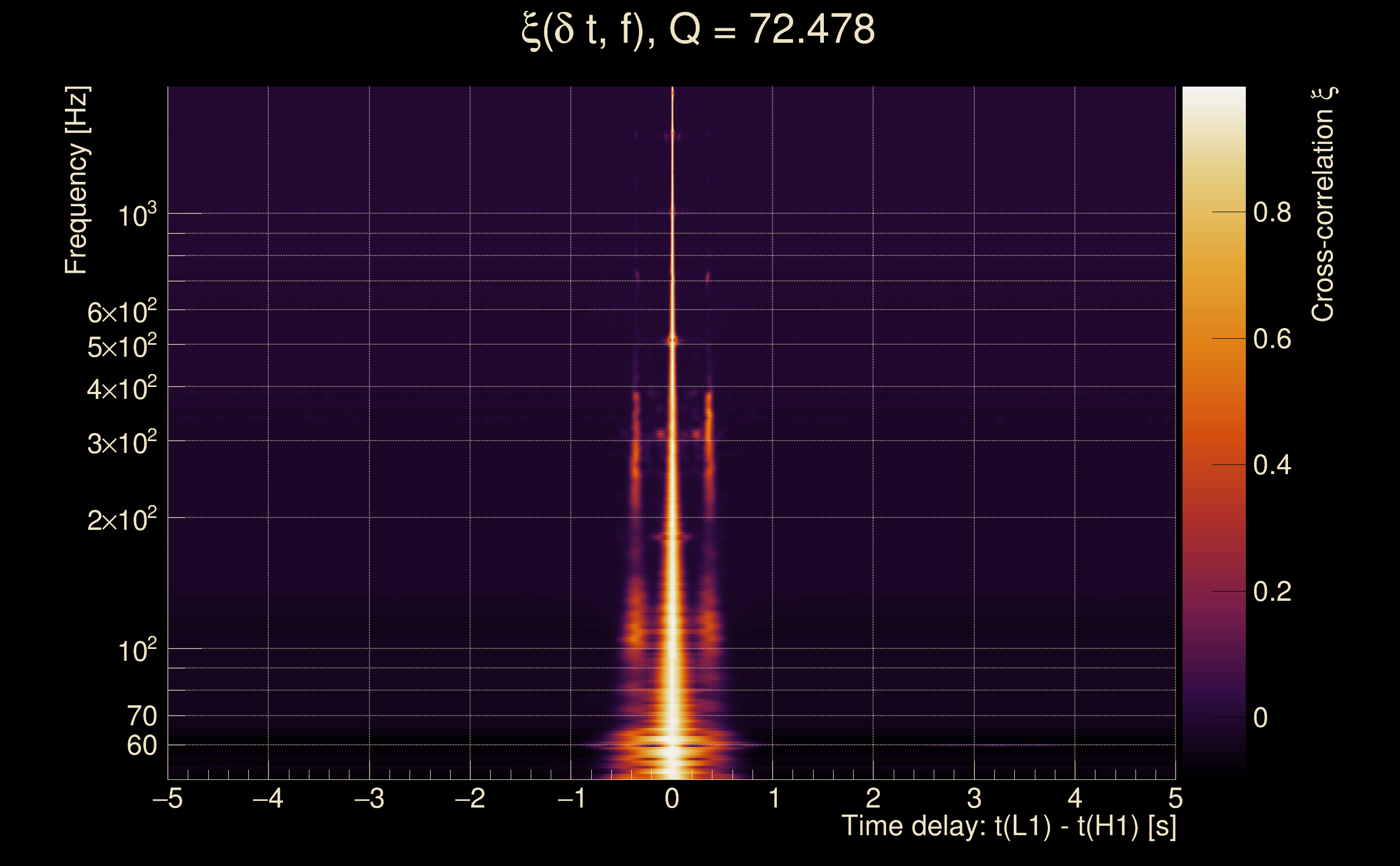

| Event time t(H1): | GPS = 1368351613 (Wed May 17 09:39:55 2023 ) → GPS = 1368351623 (Wed May 17 09:40:05 2023 ) |
| Event time t(L1): | GPS = 1368351613 (Wed May 17 09:40:05 2023 ) → GPS = 1368351623 (Wed May 17 09:40:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351610 → GPS = 1368351626 |
| Omicron analysis time window (L1): | GPS = 1368351610 → GPS = 1368351626 |
| Time delay between detectors t(L1) - t(H1): | 0.0070897 s (slice index = 108 / 217), δt_gw = 0.0070897 s |
| Time delay standard deviation: | 0.0212556 s |
| [targeted mode] Time delay probability: | 0.998468 (0.00192065 sigmas), δt_target = 3.4988e+64 s |
| Frequency: | 288.34 Hz |
| Ξ: | 0.980157 ± 0.00199703 (variance = 3.98812e-06): Q0: 0.982252, Q1: 0.984715, Q2: 0.981833, Q3: 0.981474, Q4: 0.986675 |
| Rank: | R_A = 0.978655 |
| Log of amplitude ratio (L1/H1): | -0.31794, variance = 0.160636 (L1/H1: -0.328417, variance = 0.303974, H1/L1: 0.300841, variance = 0.303175) |
| Amplitude ratio (L1/H1): | 0.727647 ⋇ 1.49301 (L1/H1: 0.720063 ⋇ 1.73557, H1/L1: 1.35099 ⋇ 1.73432) |

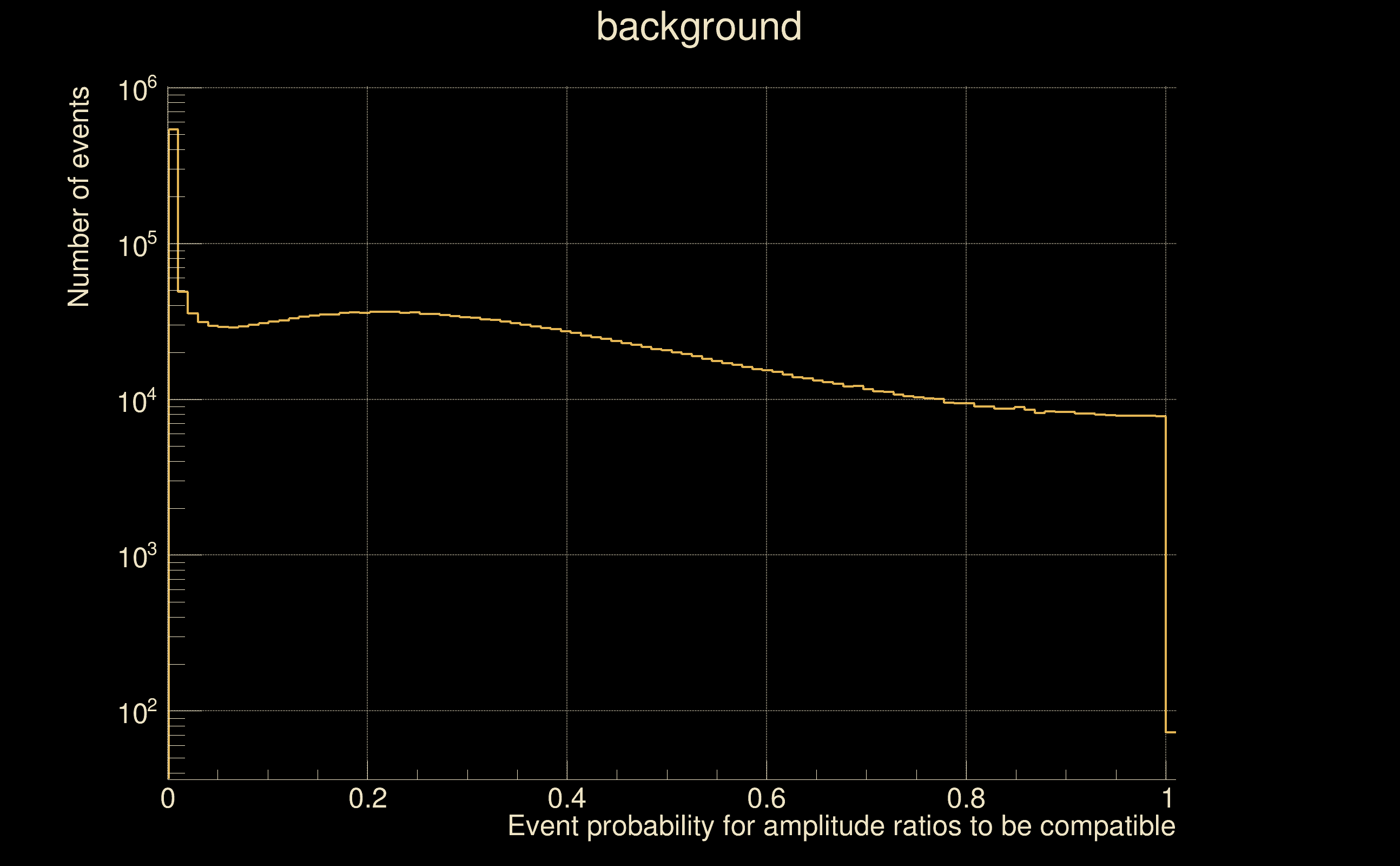

| Amplitude ratio H1|L1 compatibility (probability): | 0.971769 |

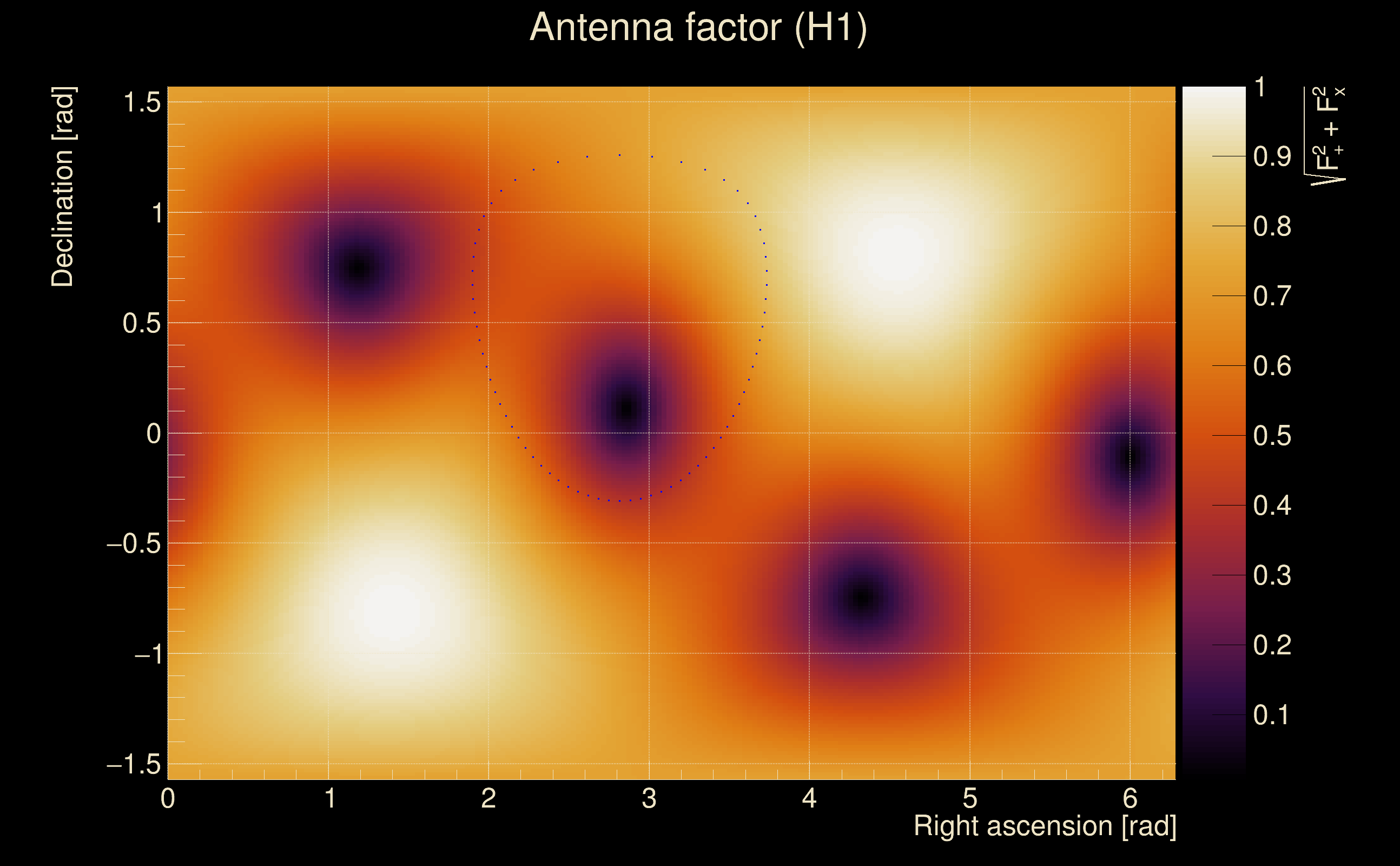

| Antenna factor probability: | 0.828201 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 13 / 258 |
| Maximum signal-to-noise ratio: | H1: 935.521, L1: 732.302 |
| SNR variance: | H1: 0.516511, L1: 0.513015 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

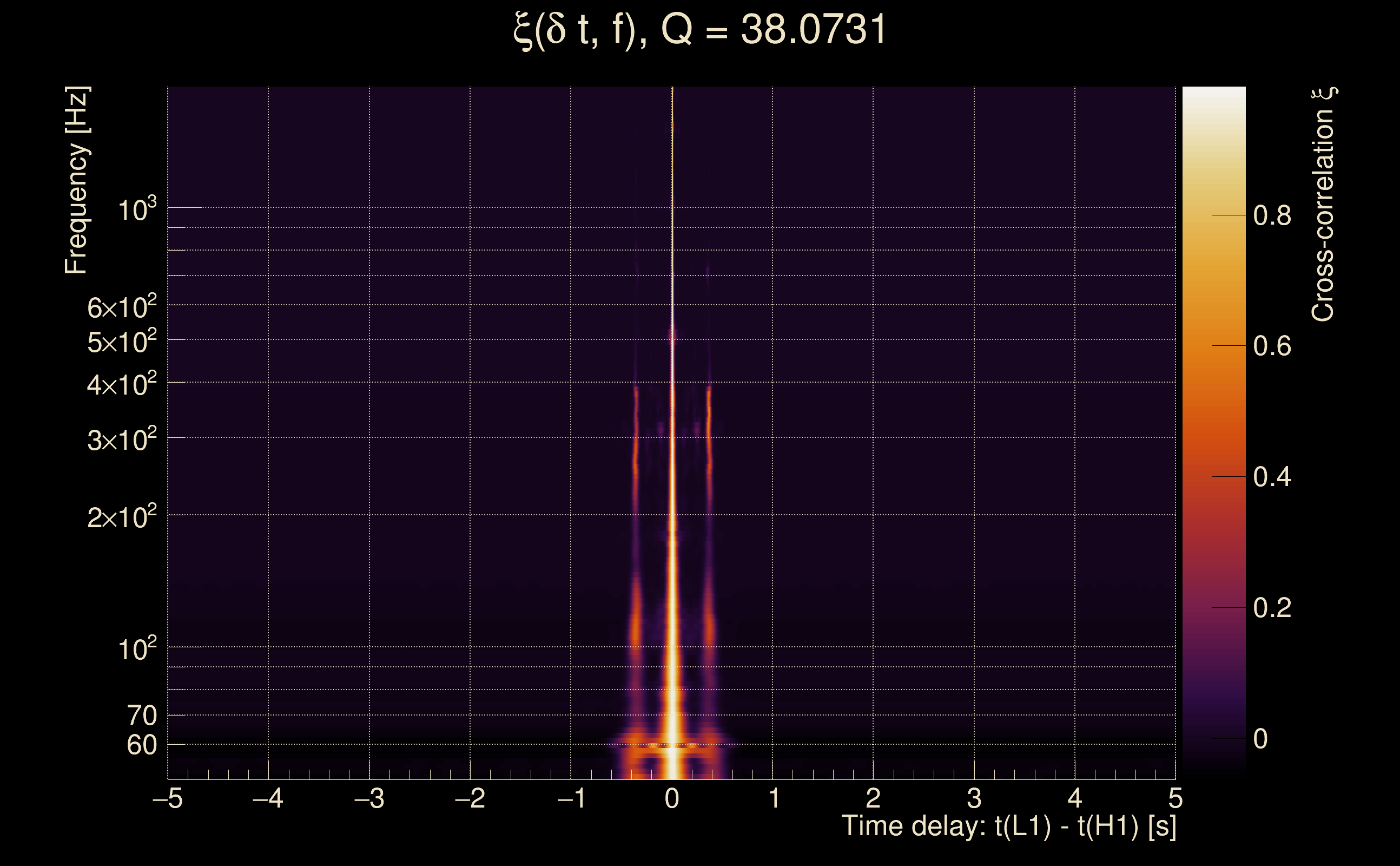

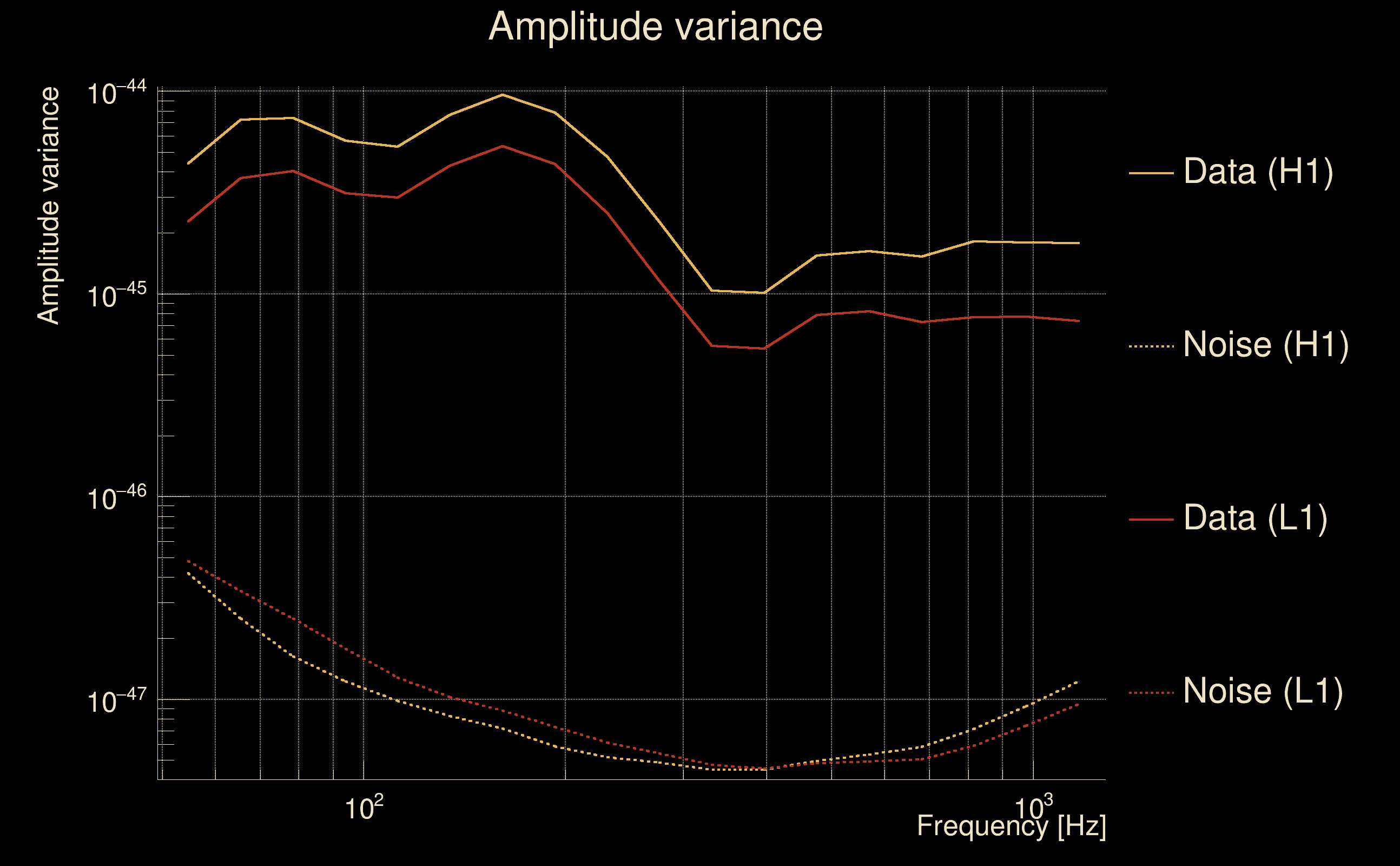

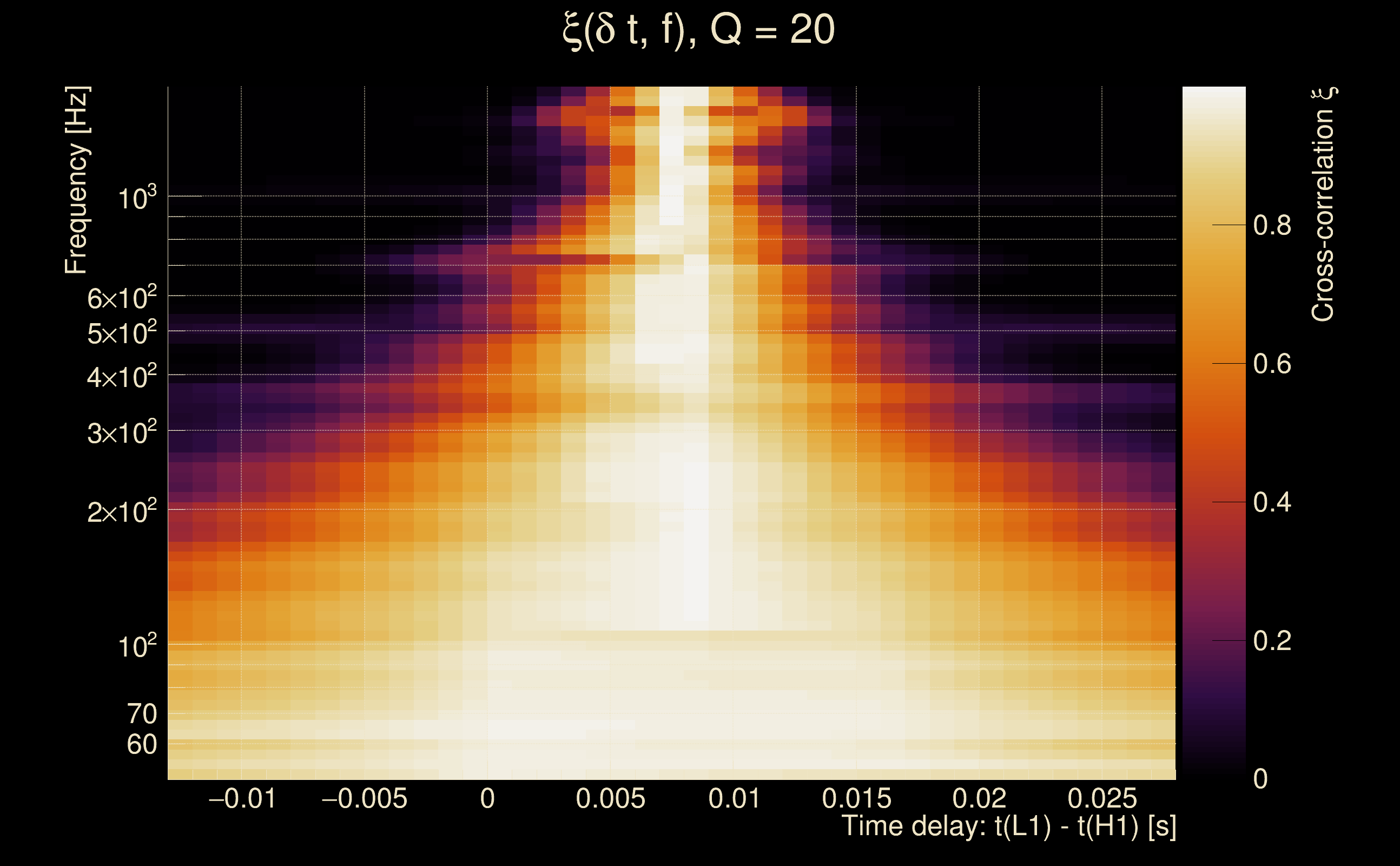

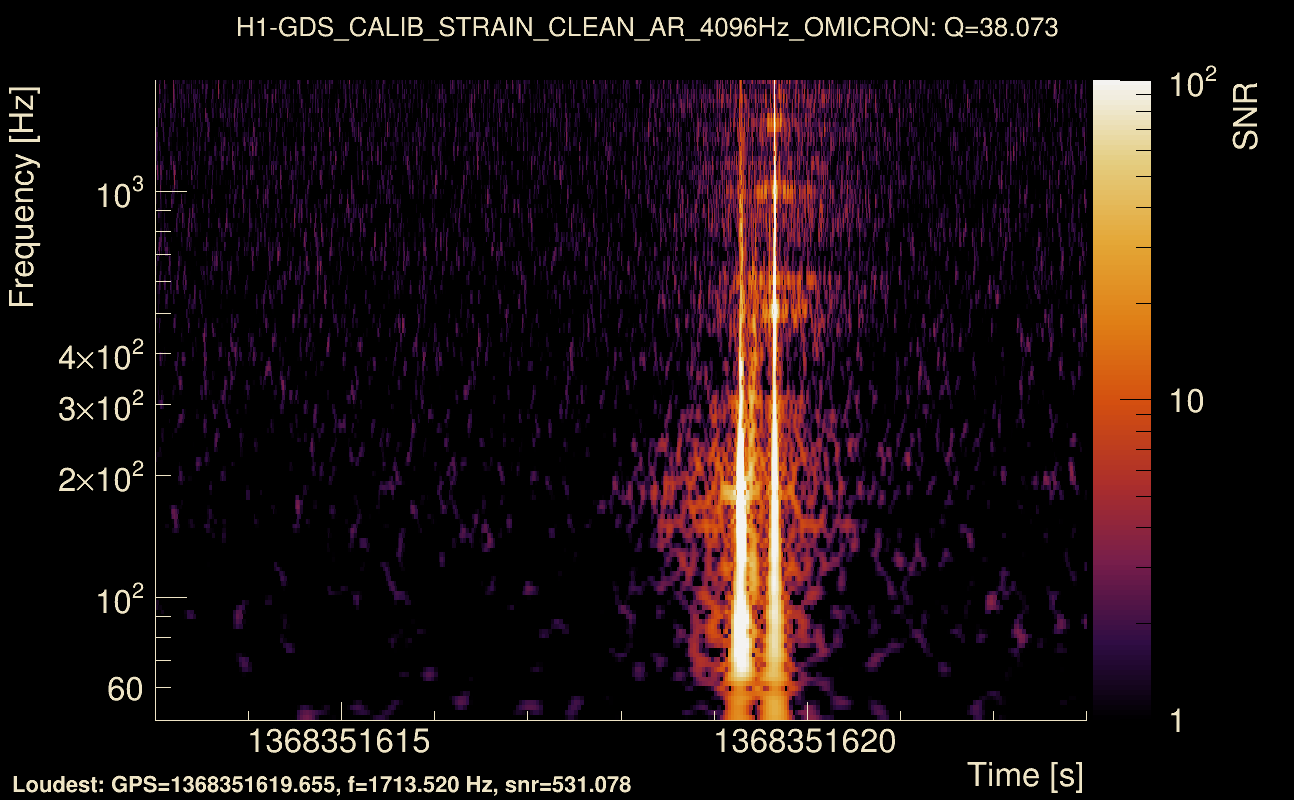

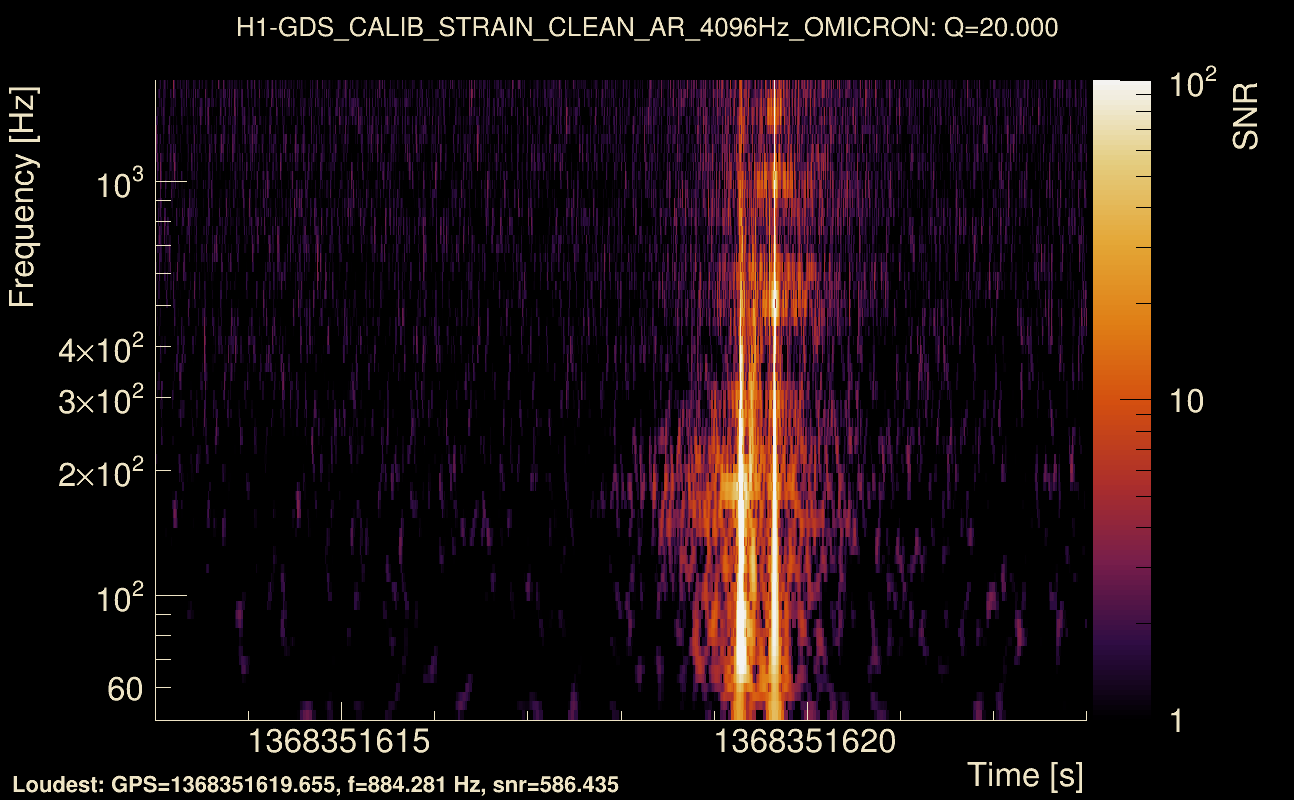

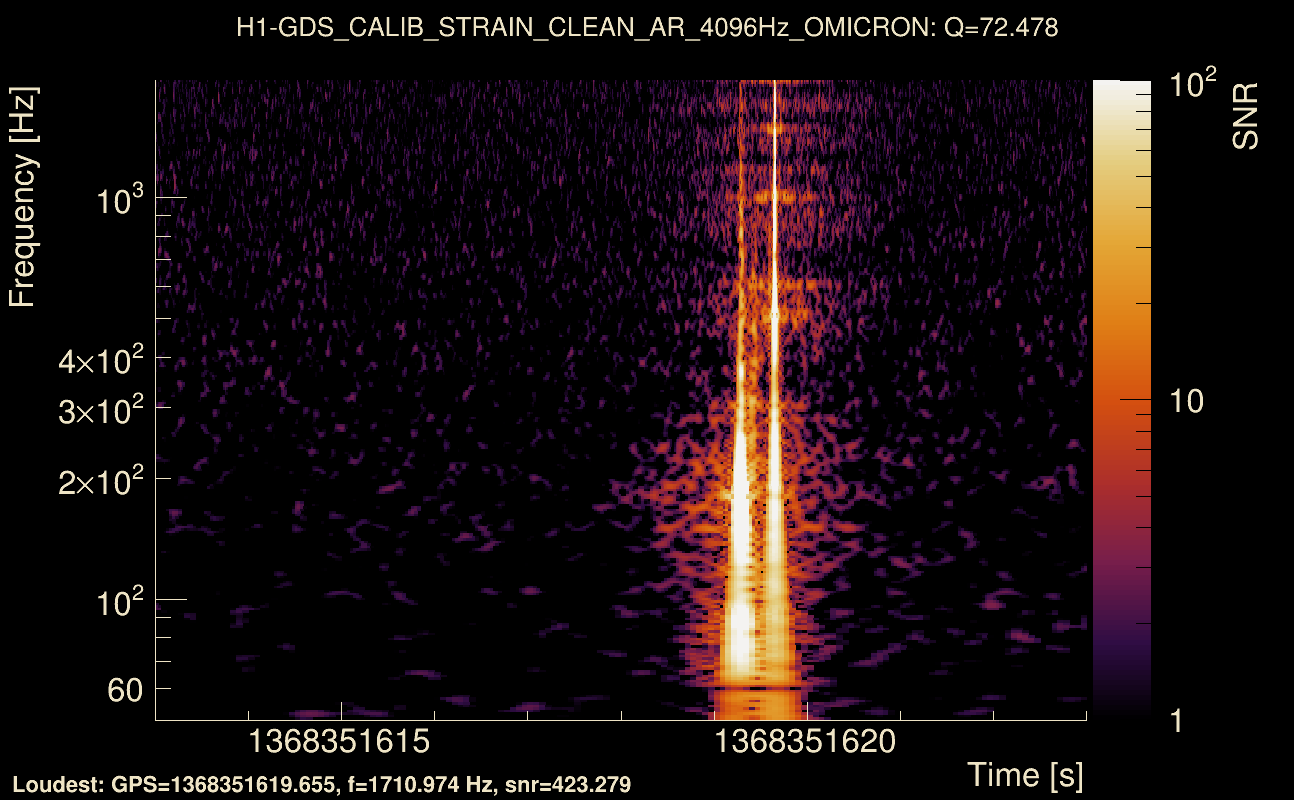

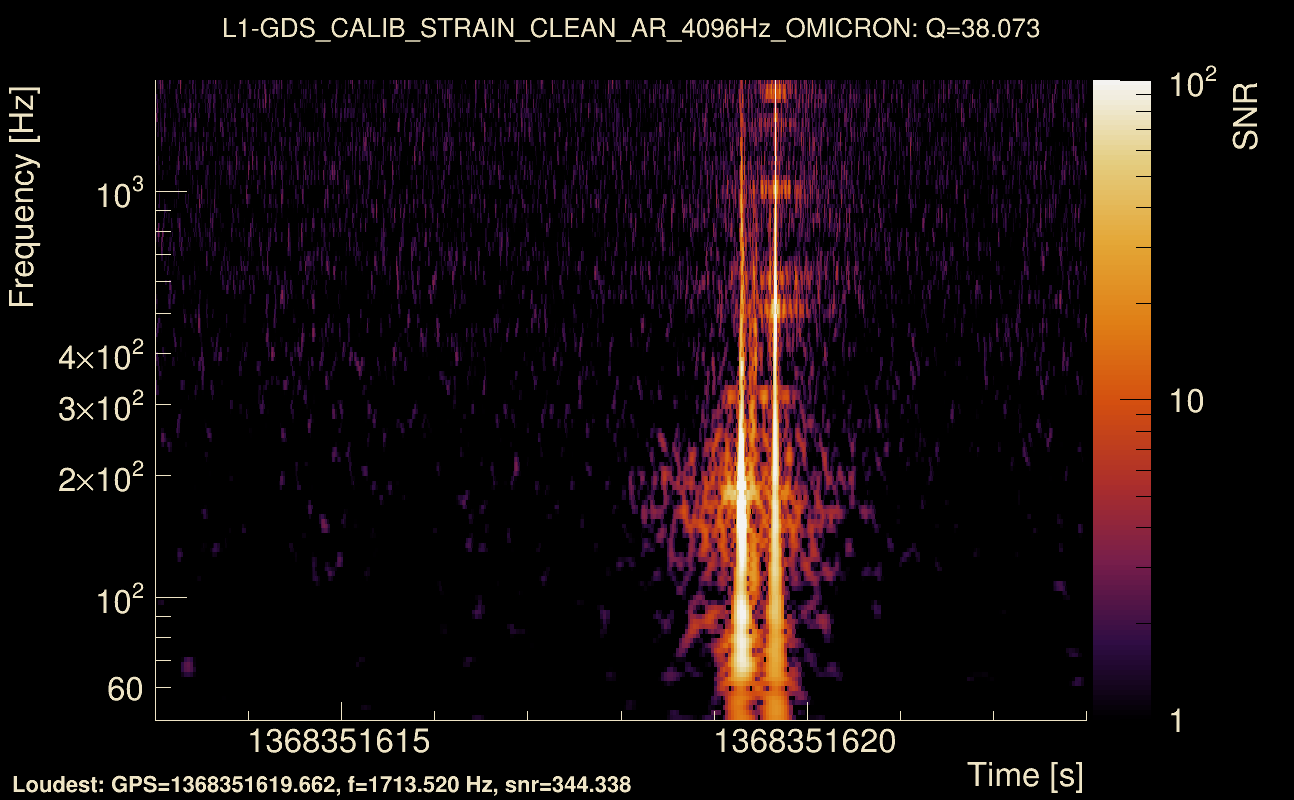

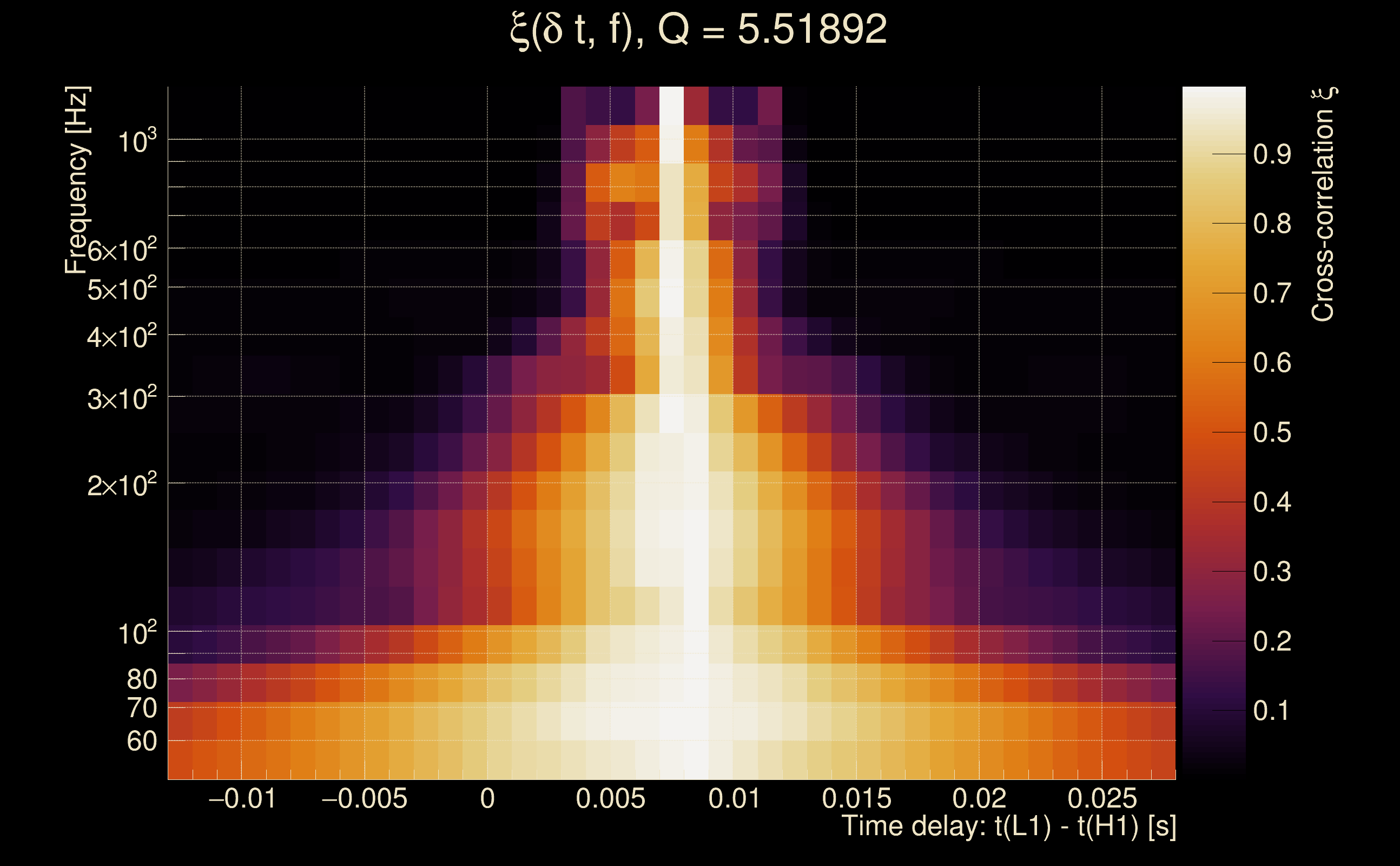

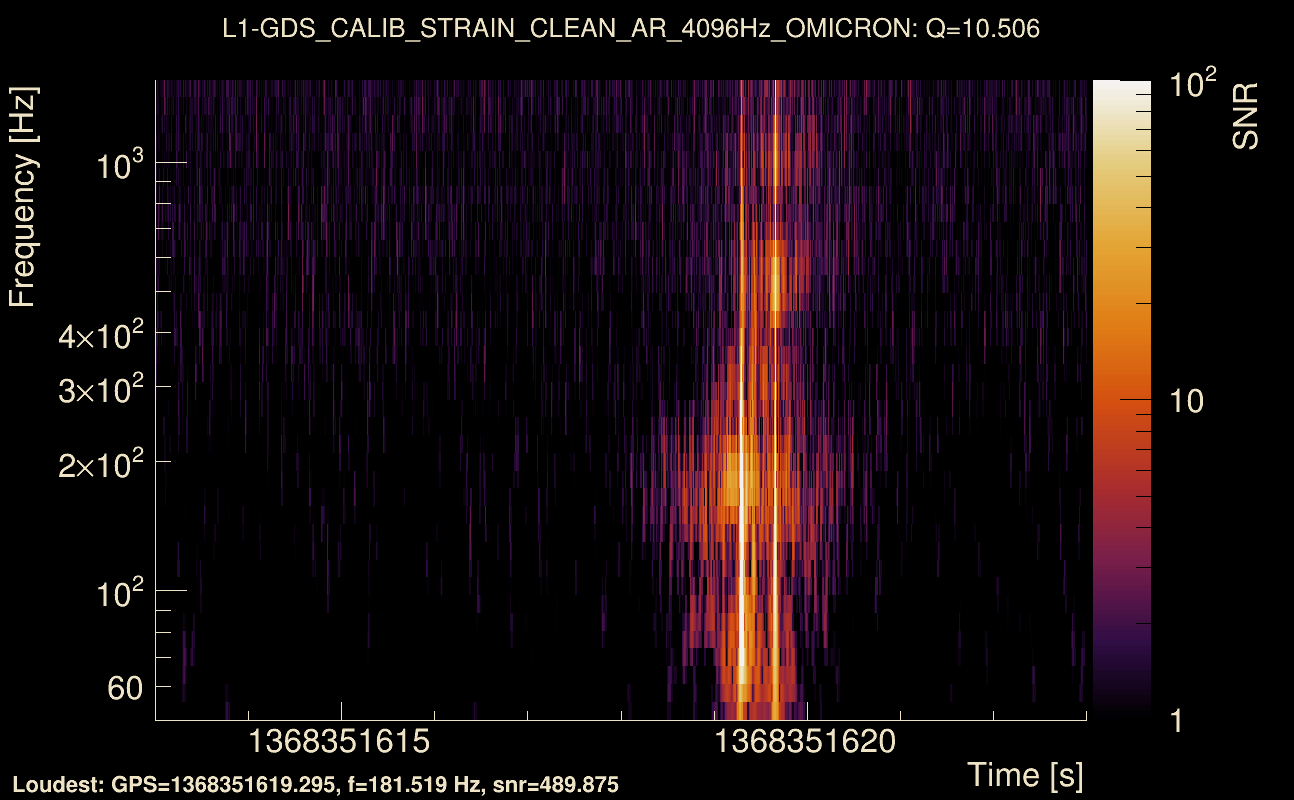

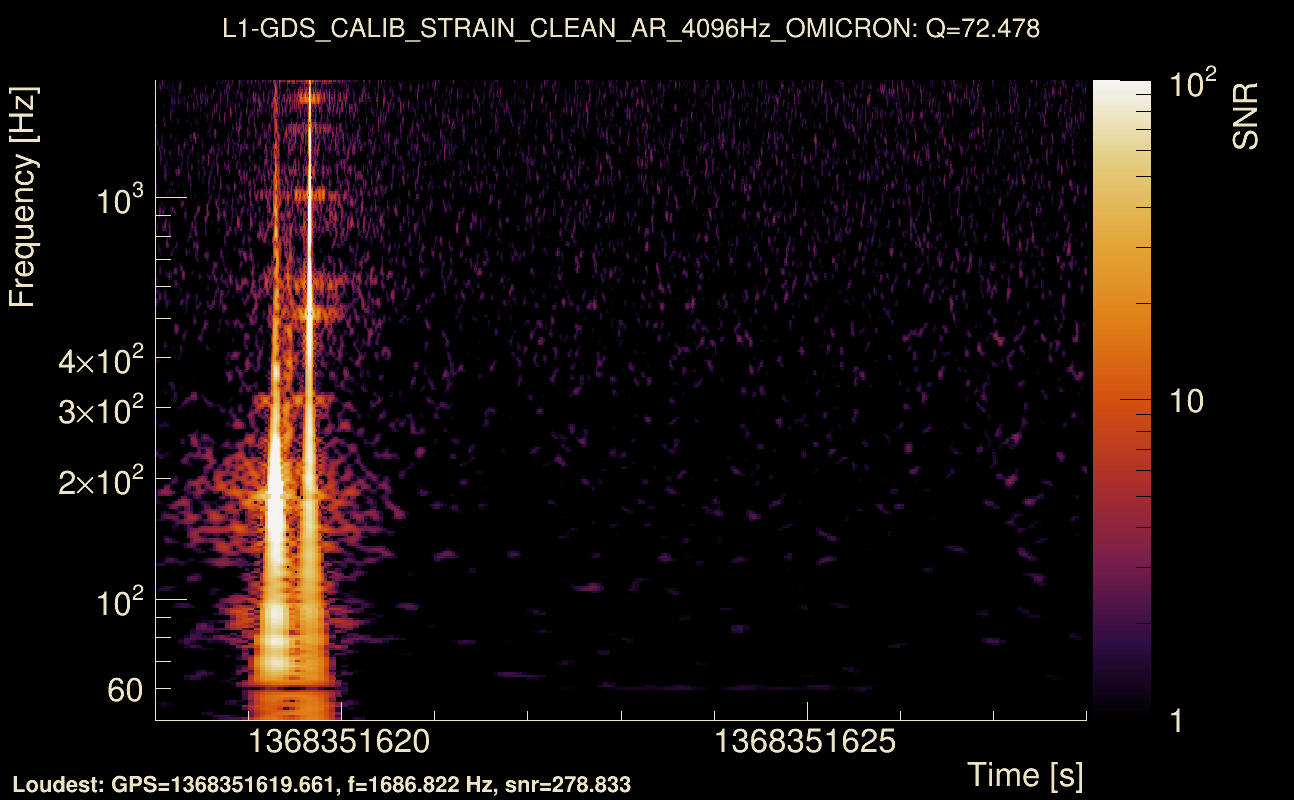

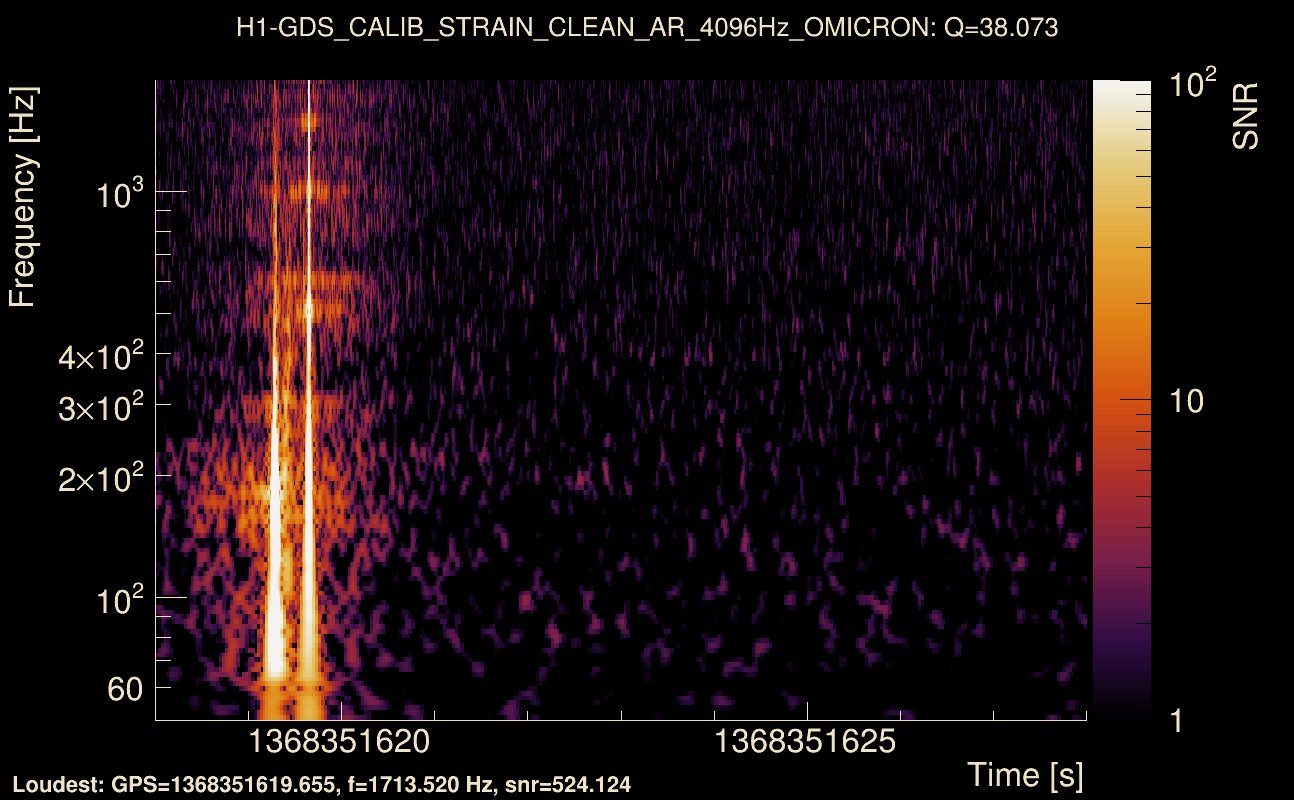

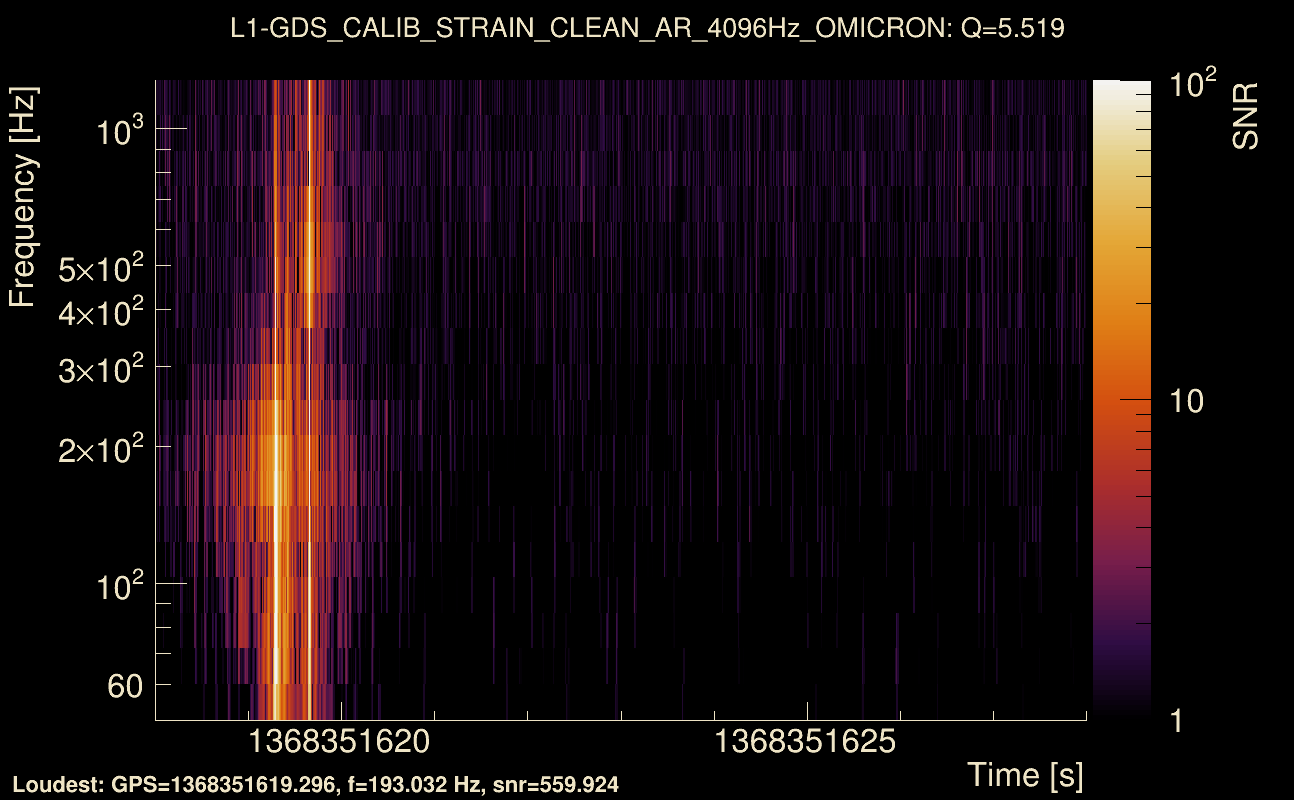

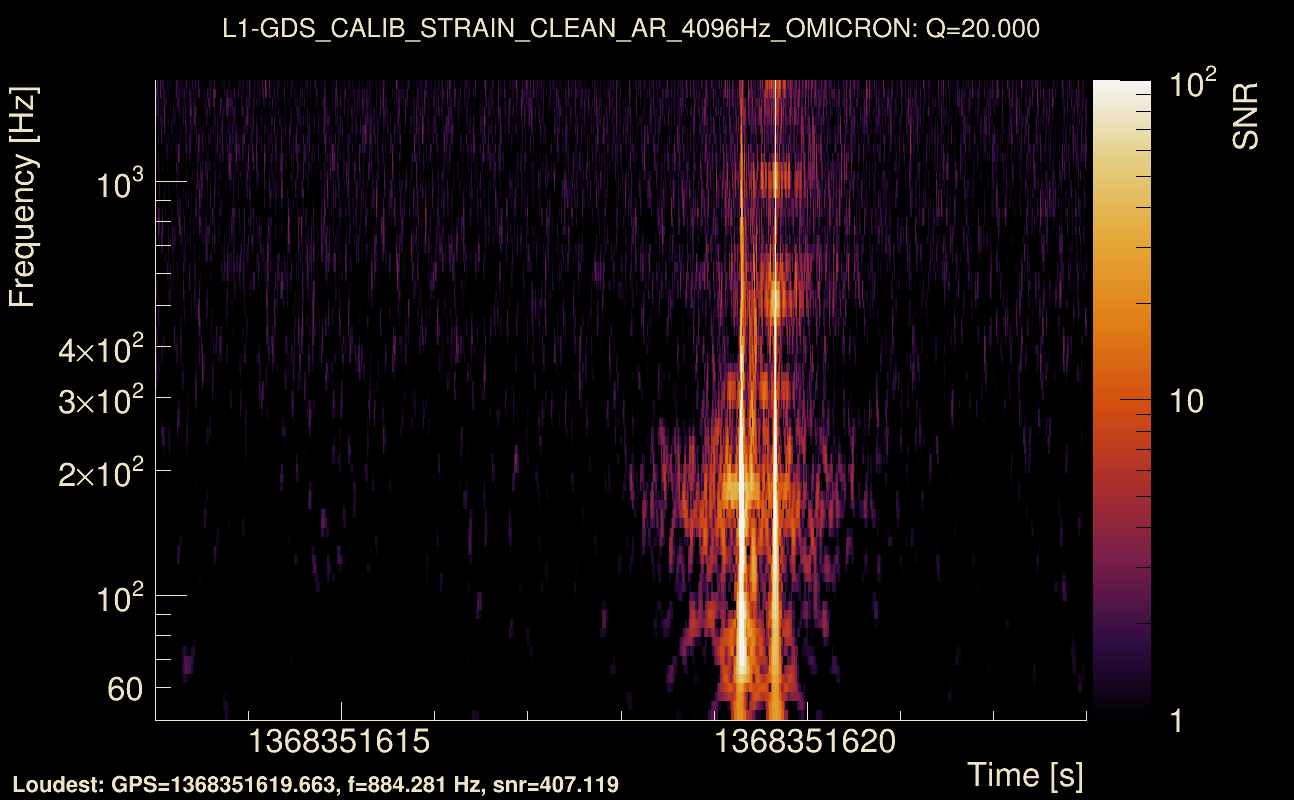

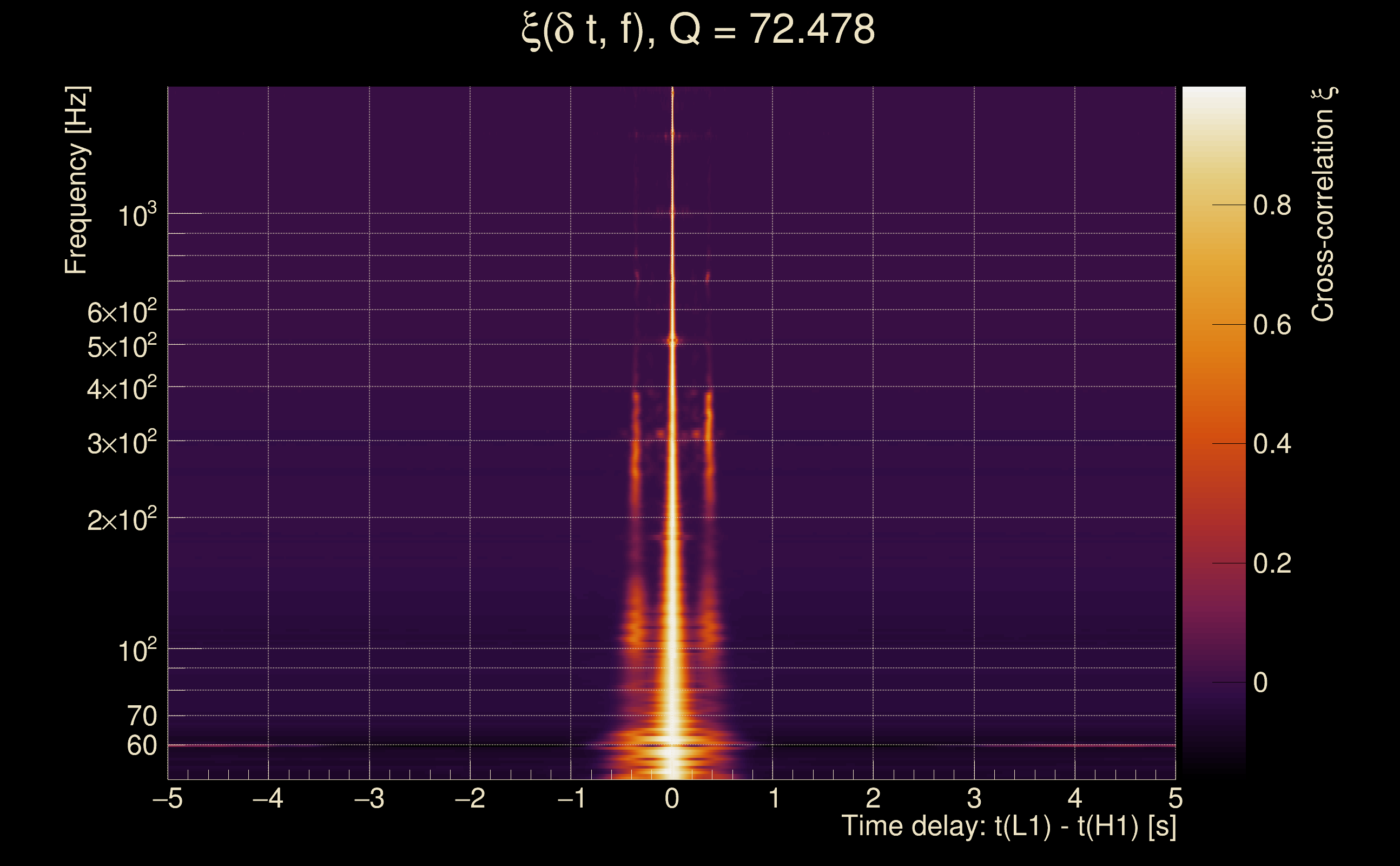

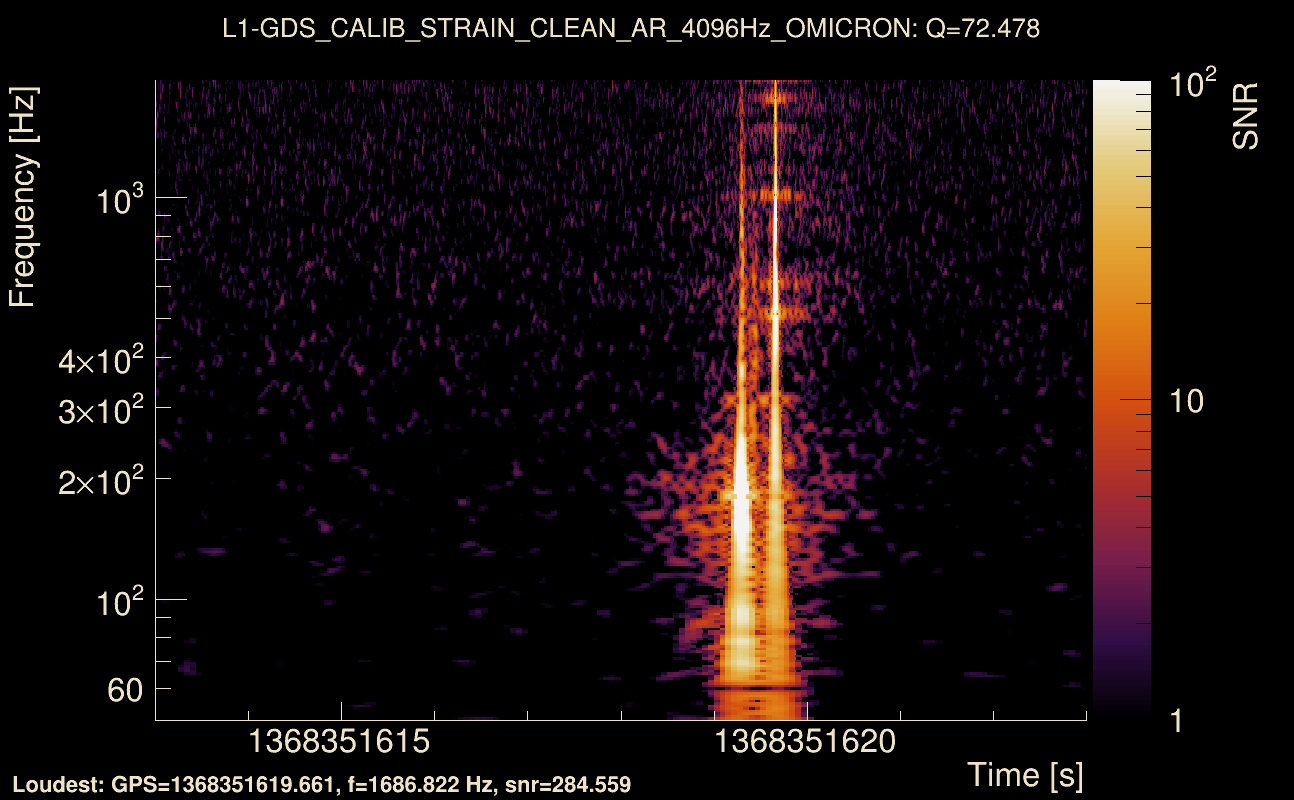

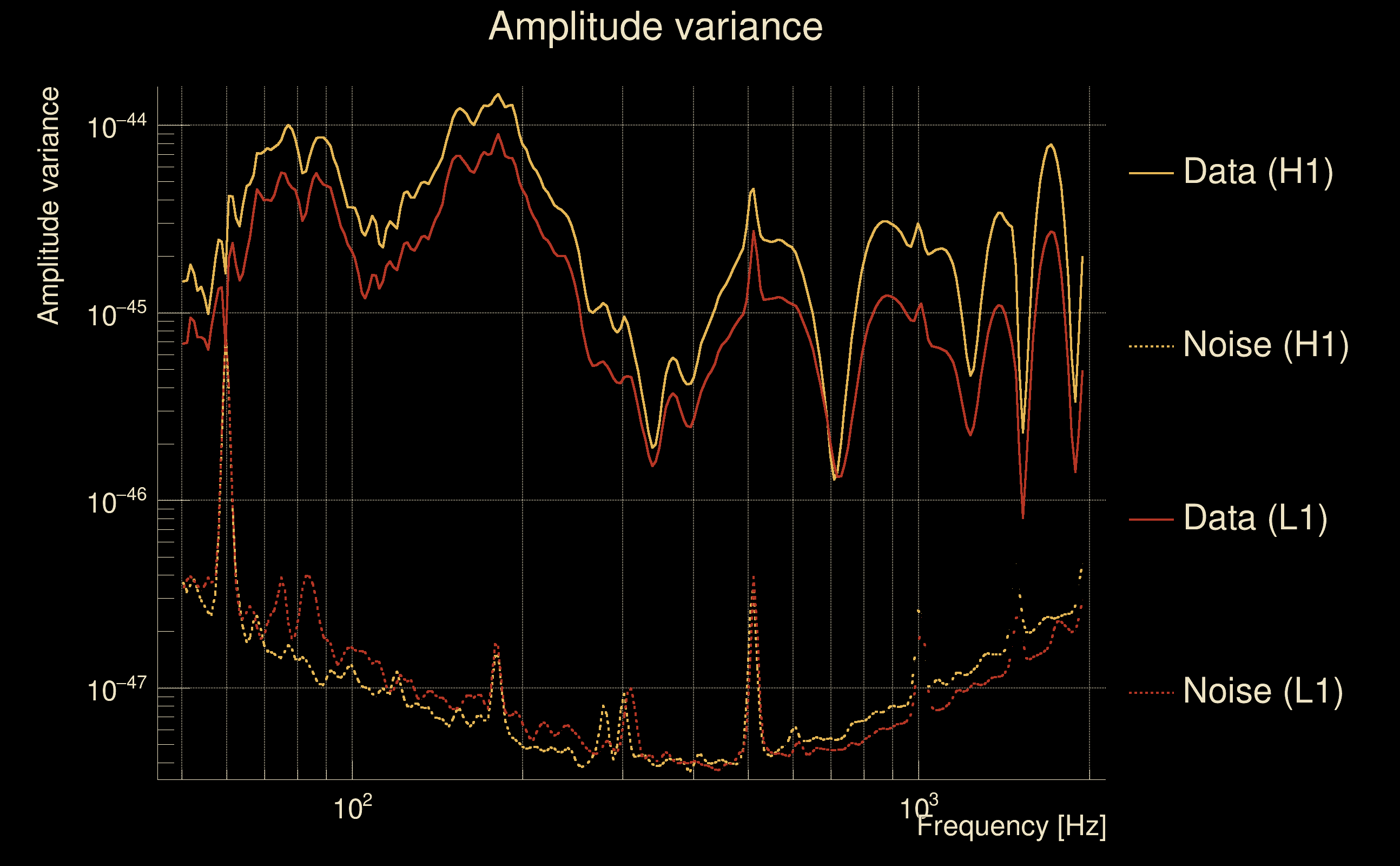

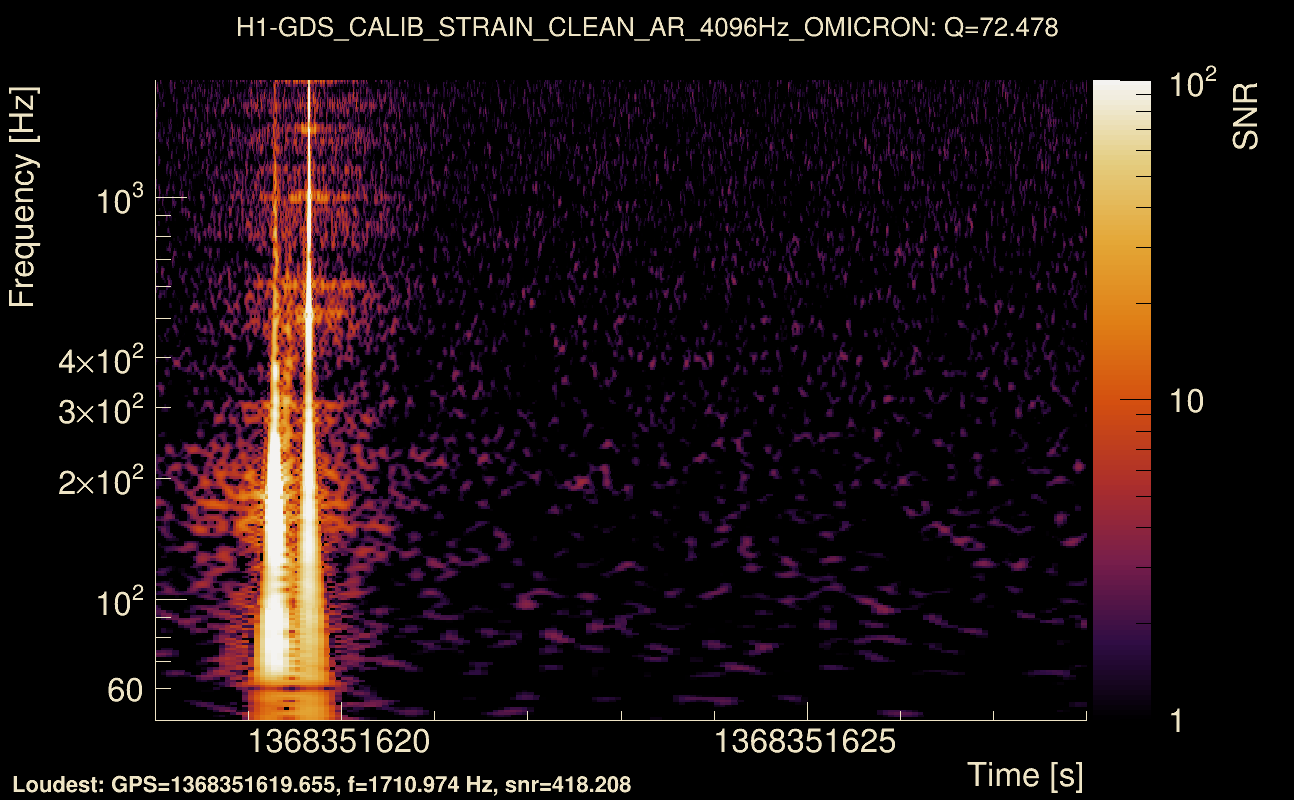

| Event time t(H1): | GPS = 1368351618 (Wed May 17 09:40:00 2023 ) → GPS = 1368351628 (Wed May 17 09:40:10 2023 ) |
| Event time t(L1): | GPS = 1368351618 (Wed May 17 09:40:10 2023 ) → GPS = 1368351628 (Wed May 17 09:40:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351615 → GPS = 1368351631 |
| Omicron analysis time window (L1): | GPS = 1368351615 → GPS = 1368351631 |

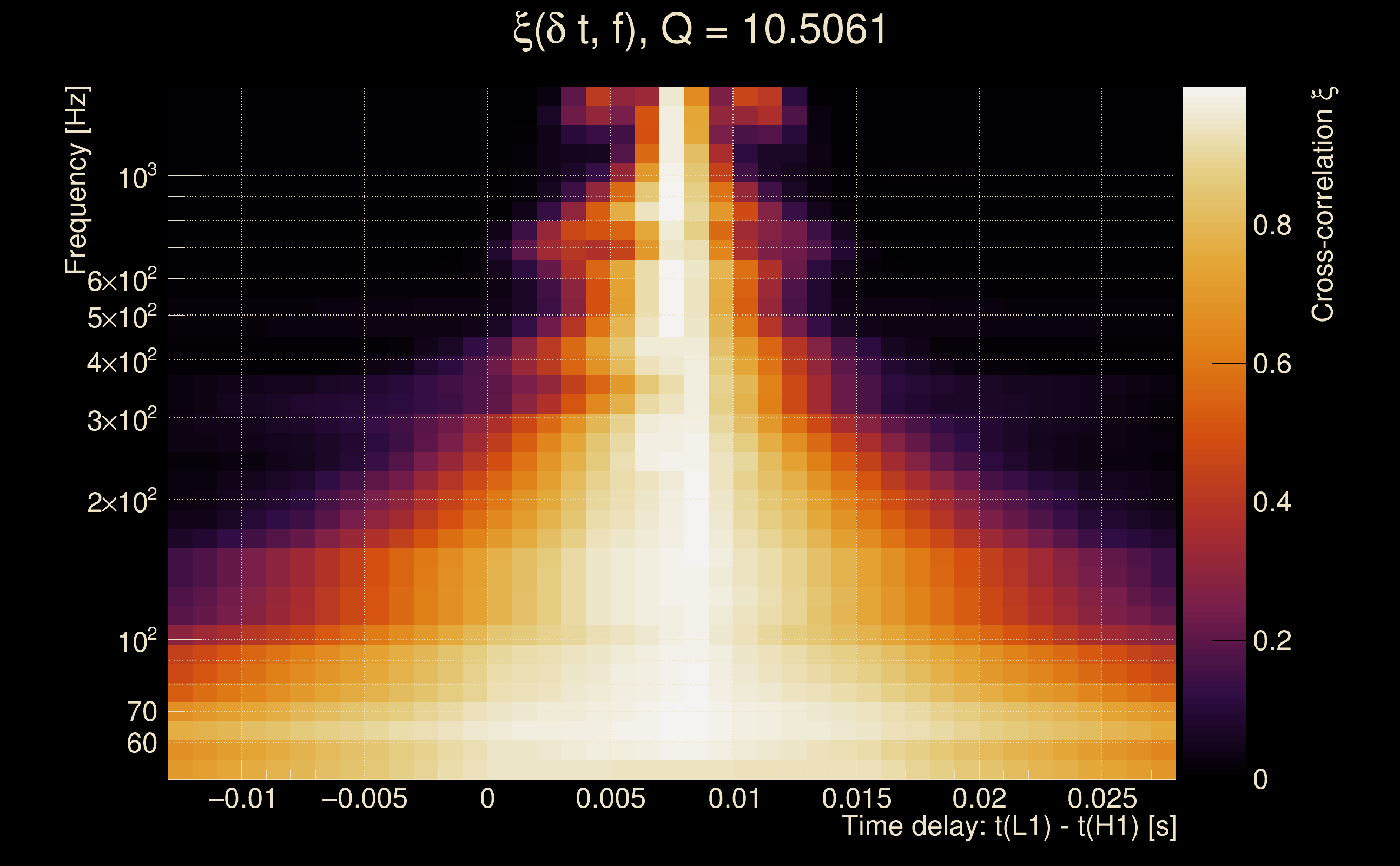

| Time delay between detectors t(L1) - t(H1): | 0.00708971 s (slice index = 108 / 217), δt_gw = 0.00708971 s |
| Time delay standard deviation: | 0.0212557 s |
| [targeted mode] Time delay probability: | 0.995953 (0.00507192 sigmas), δt_target = 0.00709057 s |
| Frequency: | 288.337 Hz |
| Ξ: | 0.980132 ± 0.00200506 (variance = 4.02027e-06): Q0: 0.982228, Q1: 0.984687, Q2: 0.981813, Q3: 0.981426, Q4: 0.986665 |
| Rank: | R_A = 0.976165 |
| Log of amplitude ratio (L1/H1): | -0.317301, variance = 0.160408 (L1/H1: -0.327802, variance = 0.304053, H1/L1: 0.300294, variance = 0.303198) |
| Amplitude ratio (L1/H1): | 0.728111 ⋇ 1.49259 (L1/H1: 0.720506 ⋇ 1.7357, H1/L1: 1.35026 ⋇ 1.73435) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.971841 |

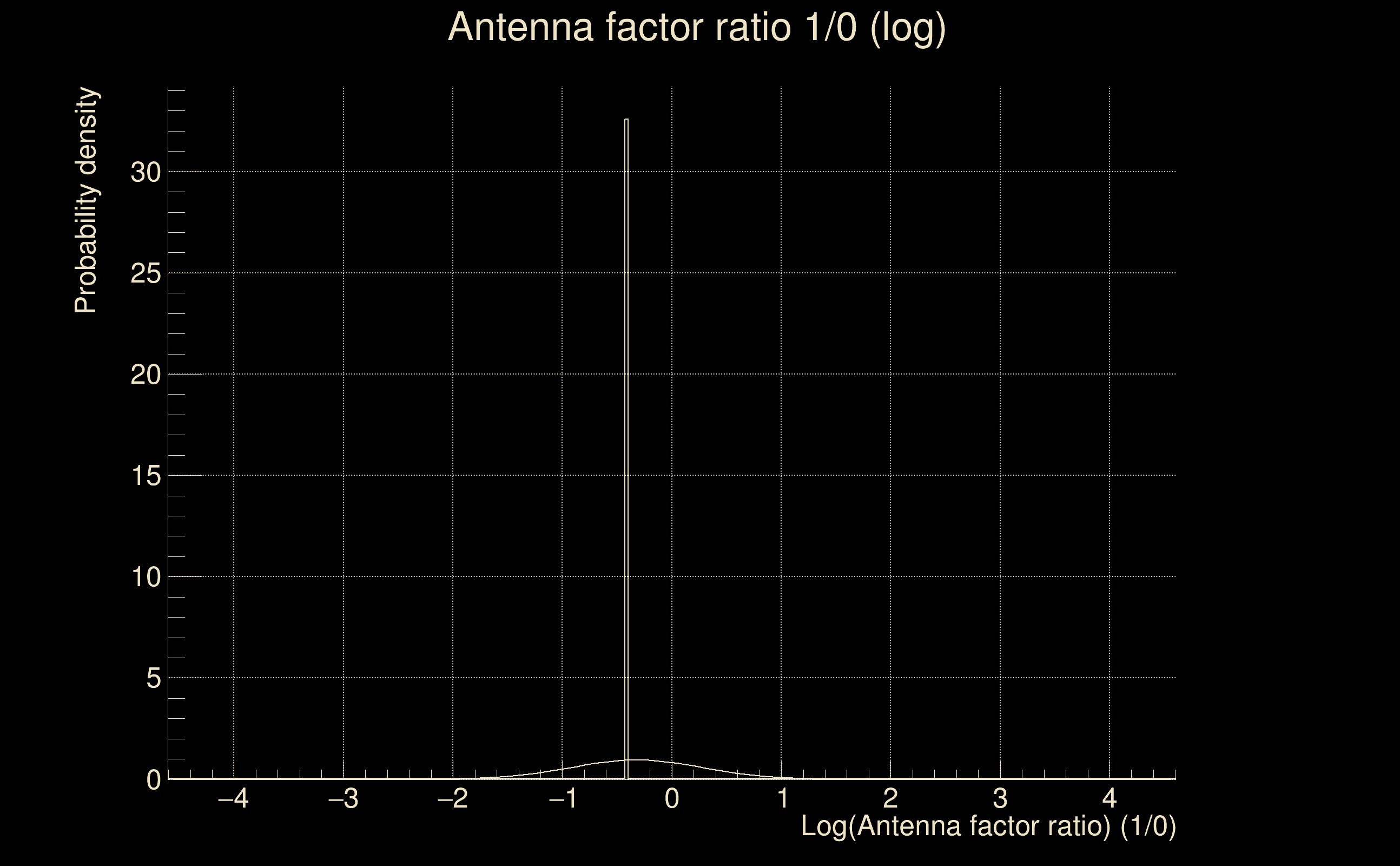

| Antenna factor probability: | 0.826643 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 13 / 258 |
| Maximum signal-to-noise ratio: | H1: 927.383, L1: 728.694 |
| SNR variance: | H1: 334.861, L1: 194.207 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

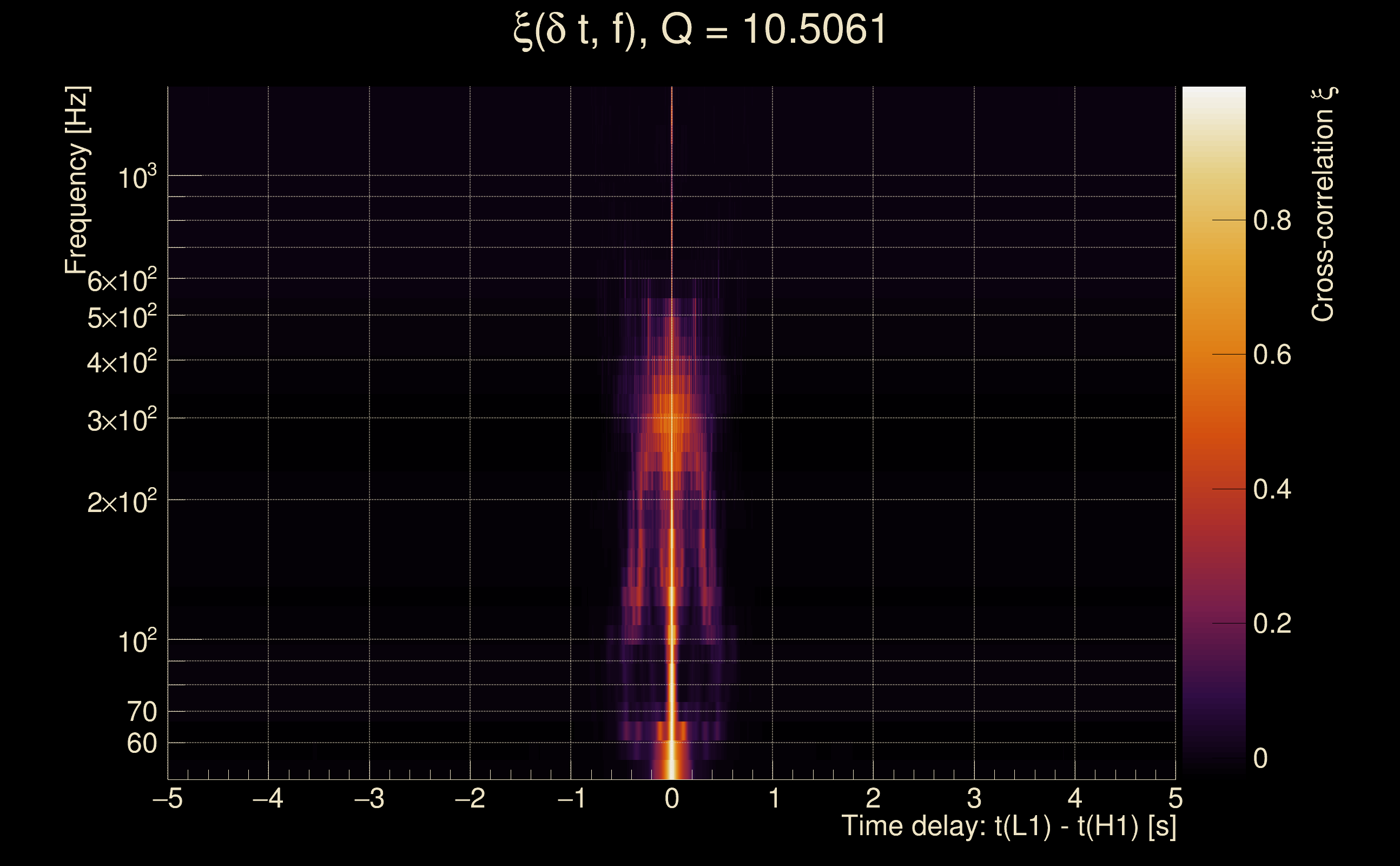

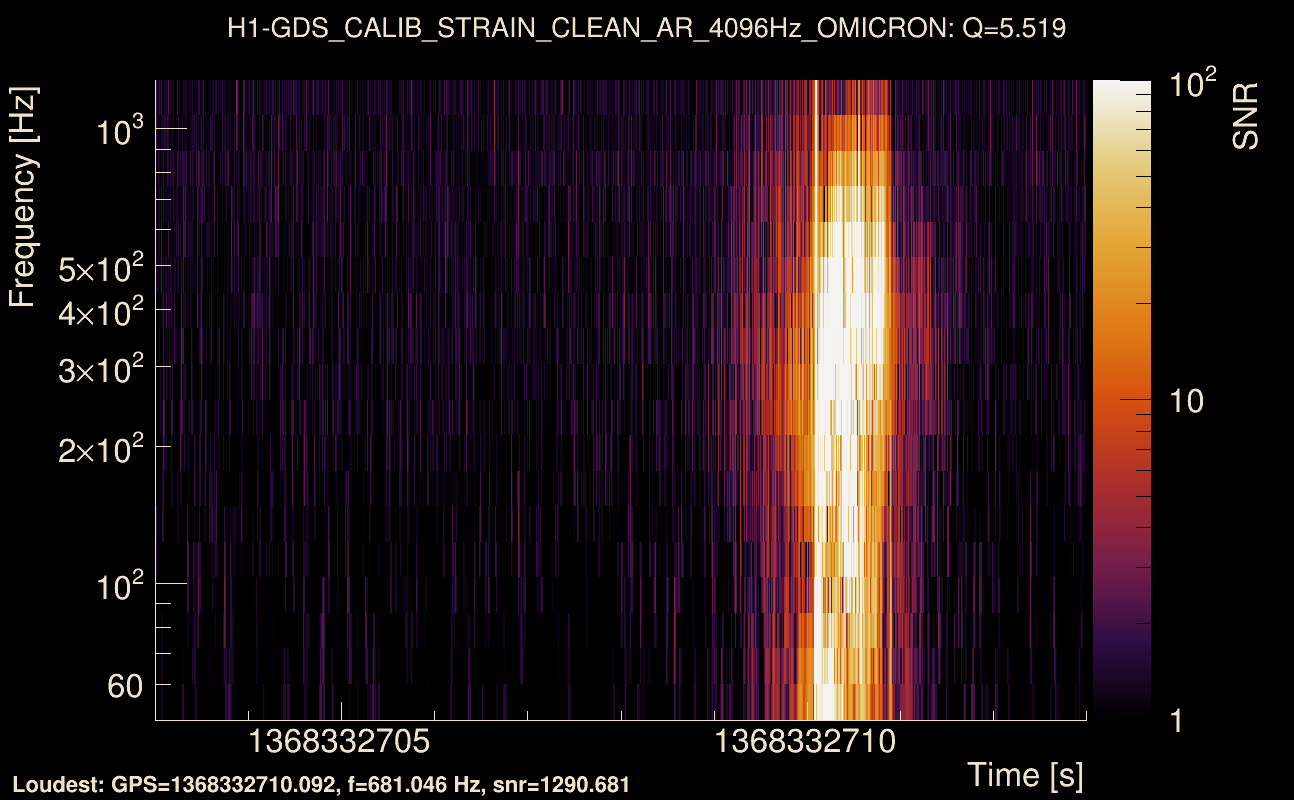

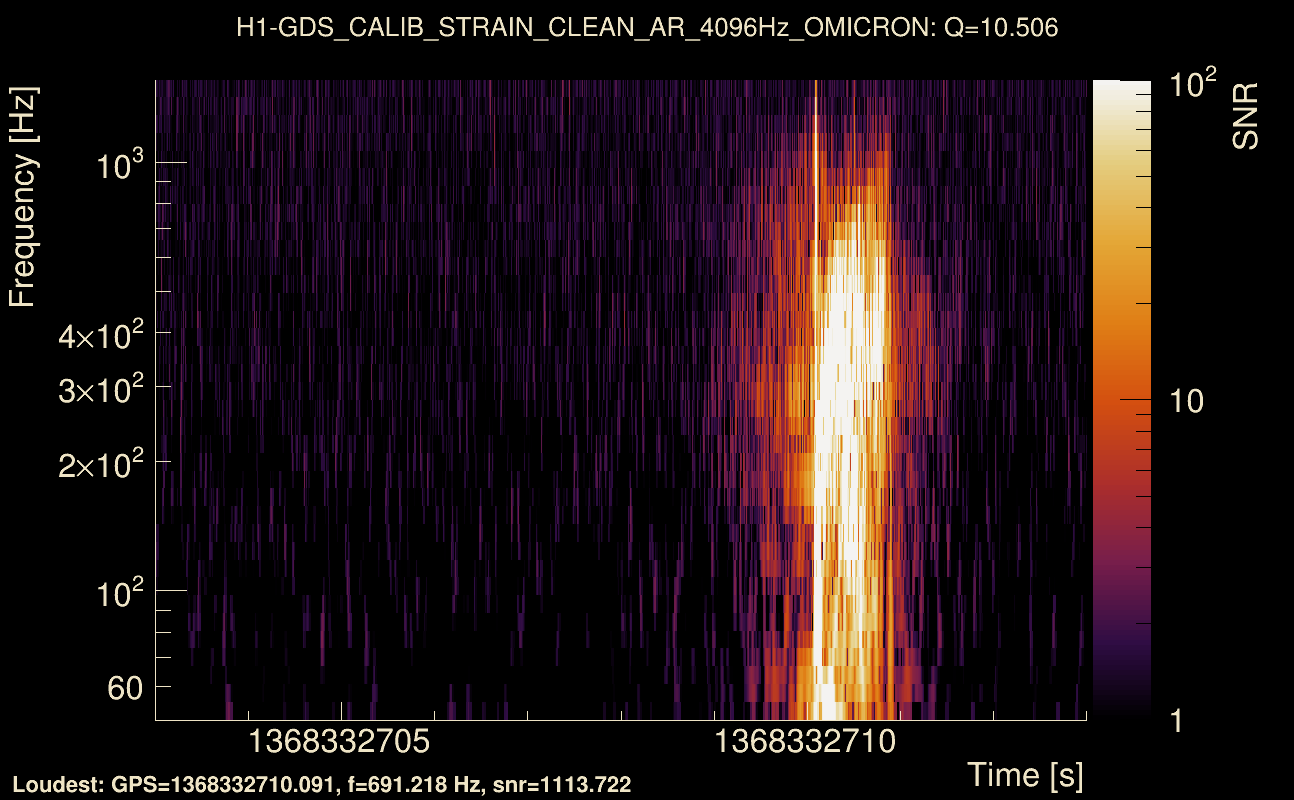

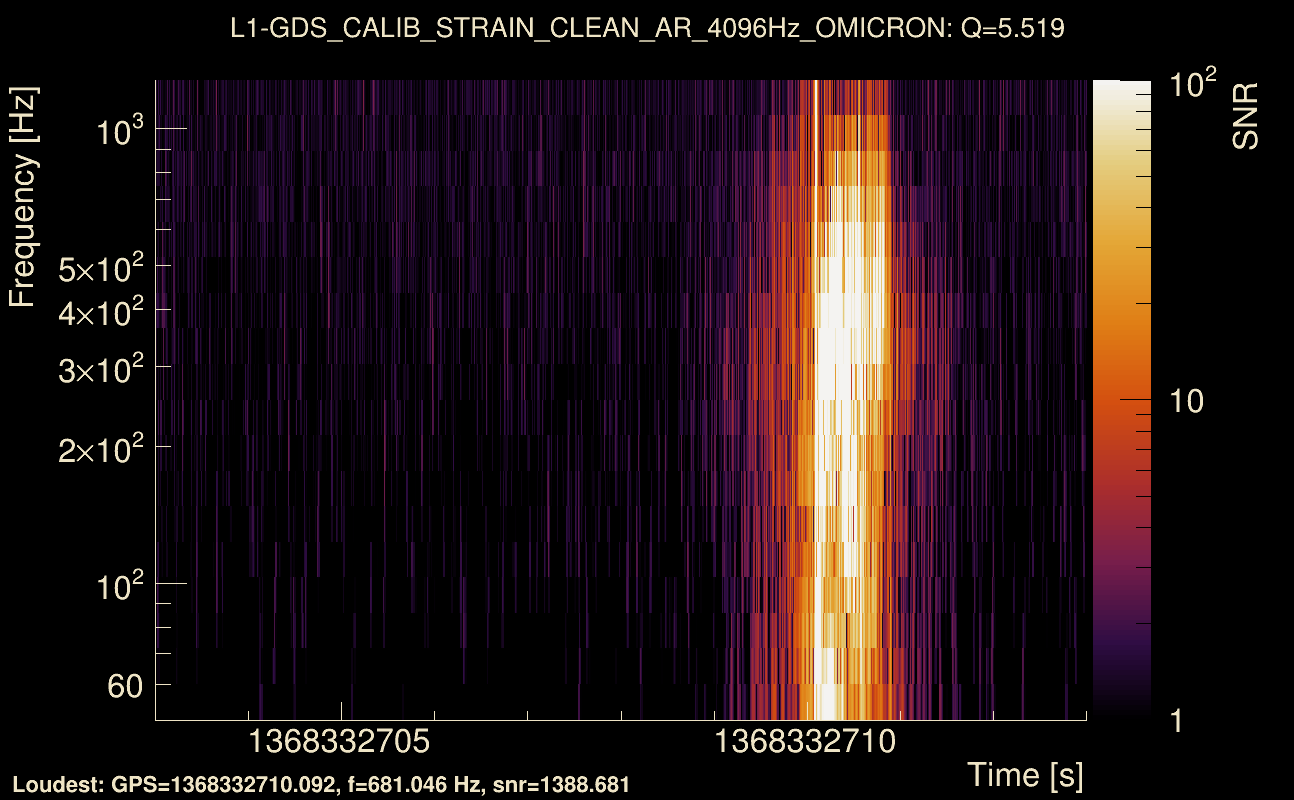

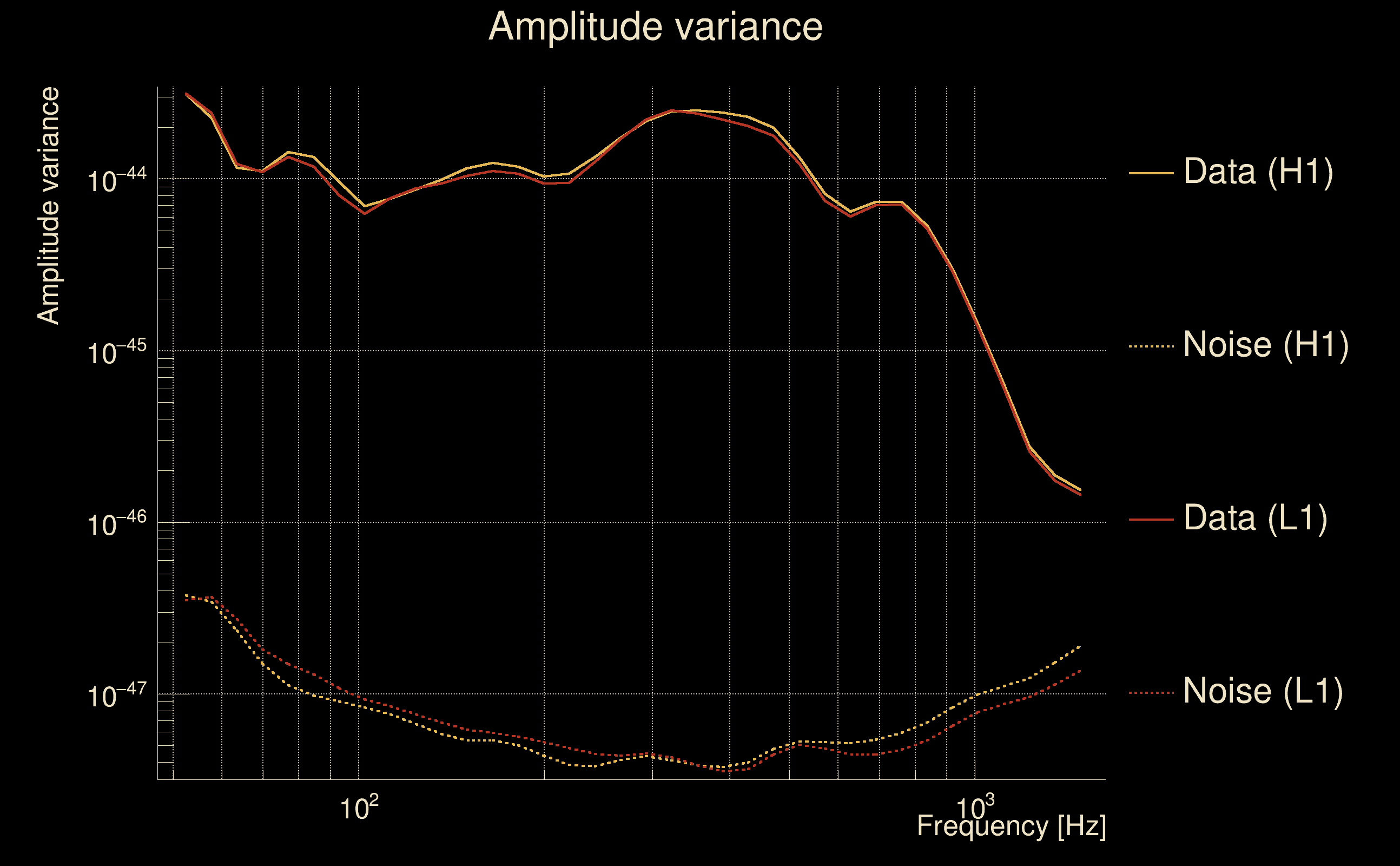

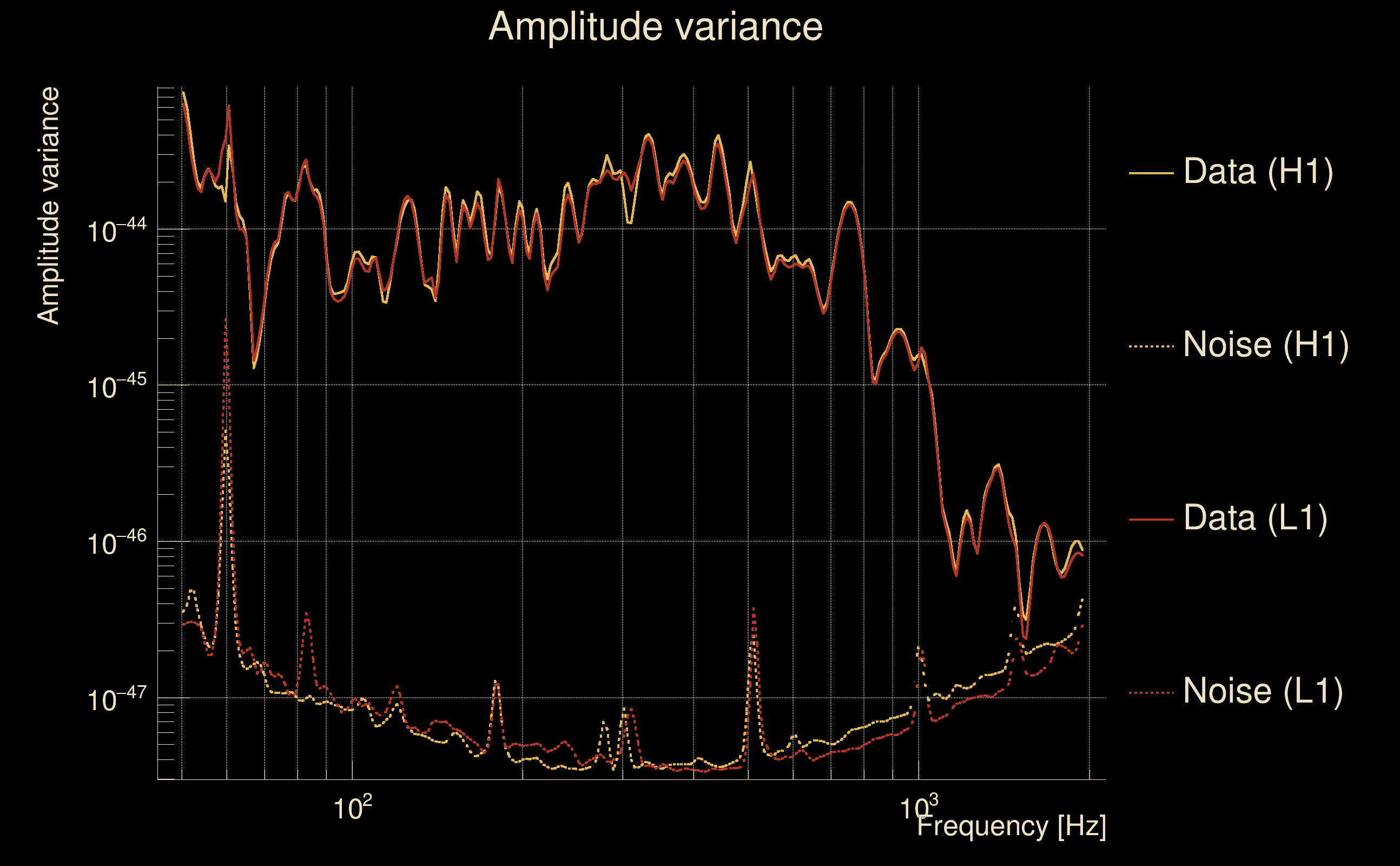

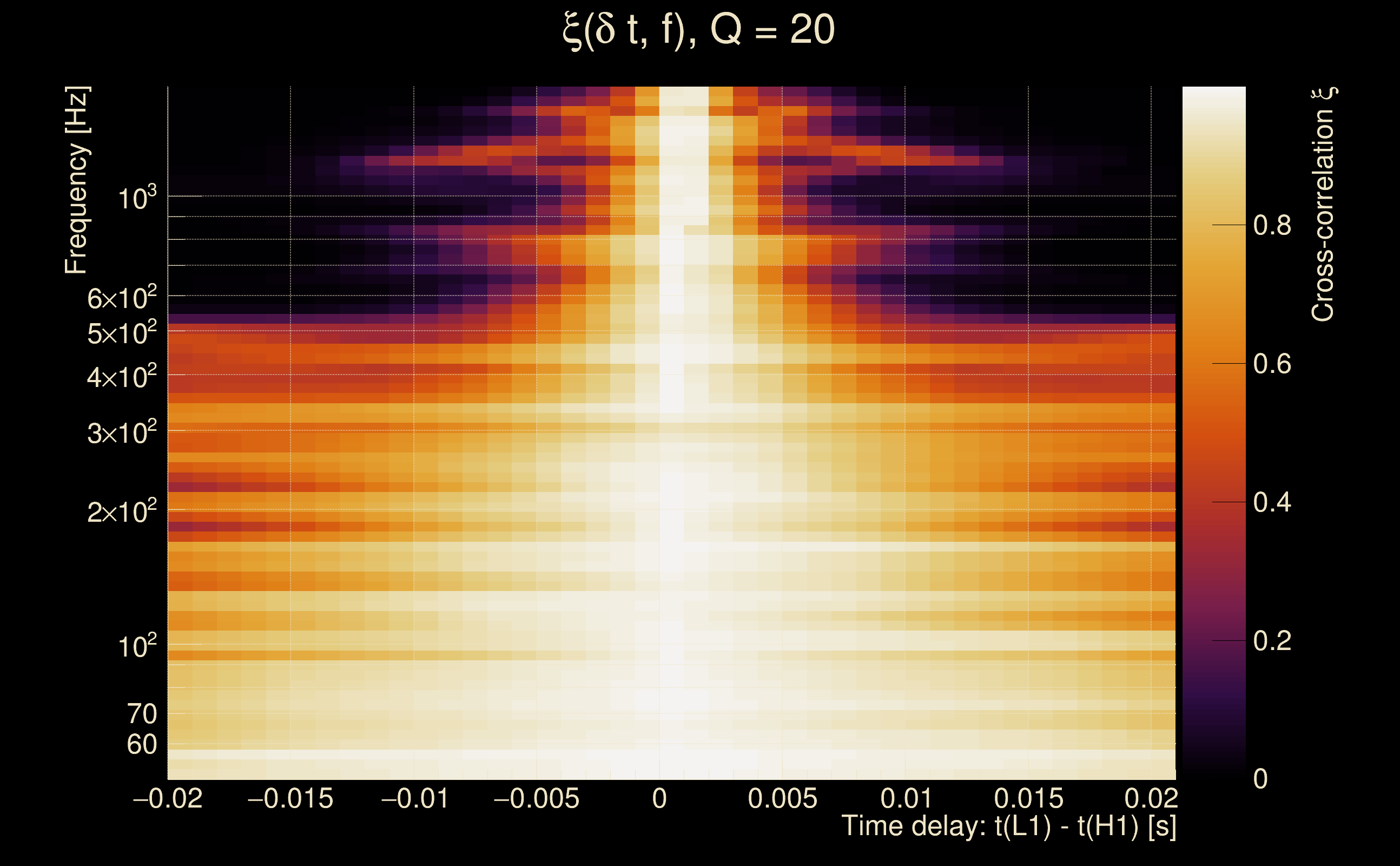

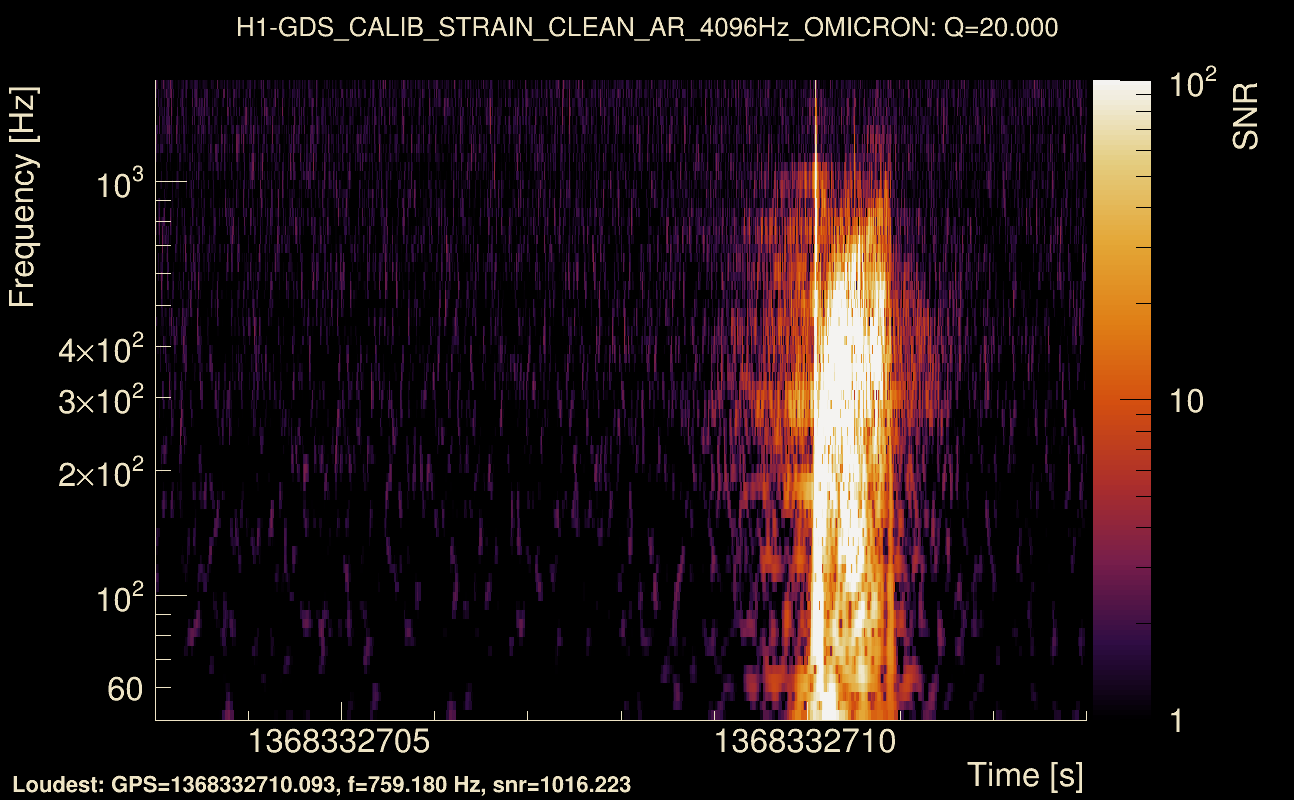

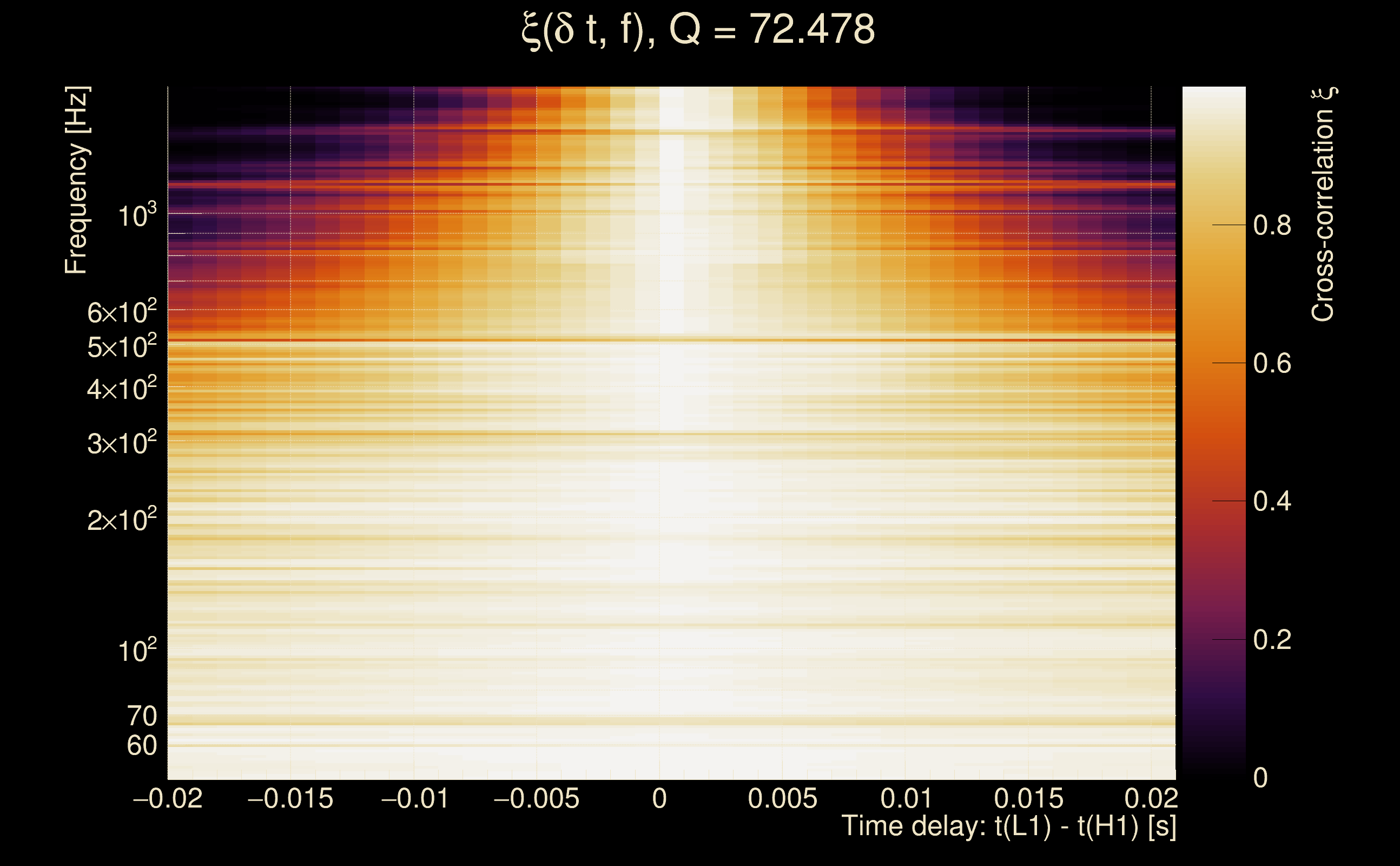

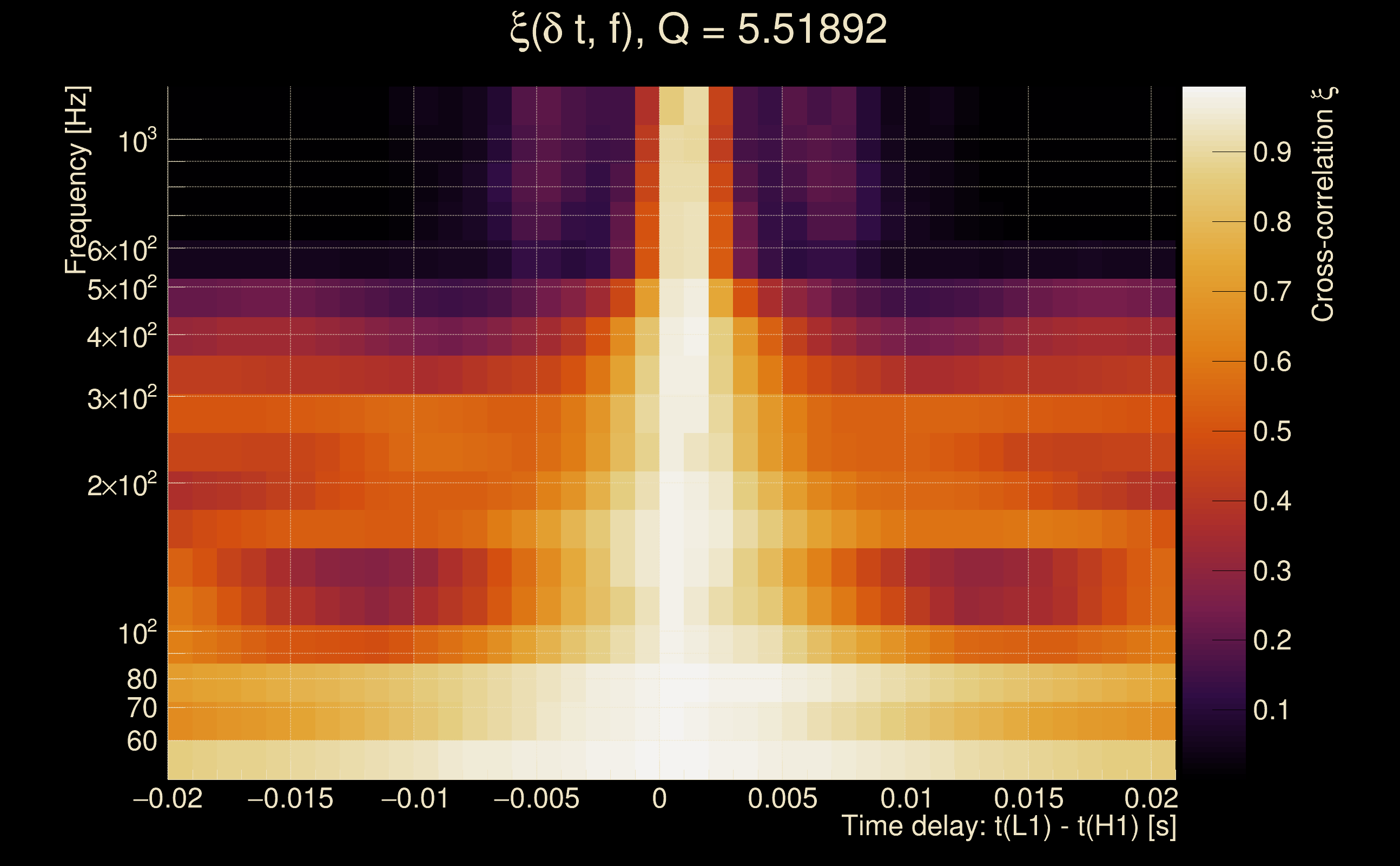

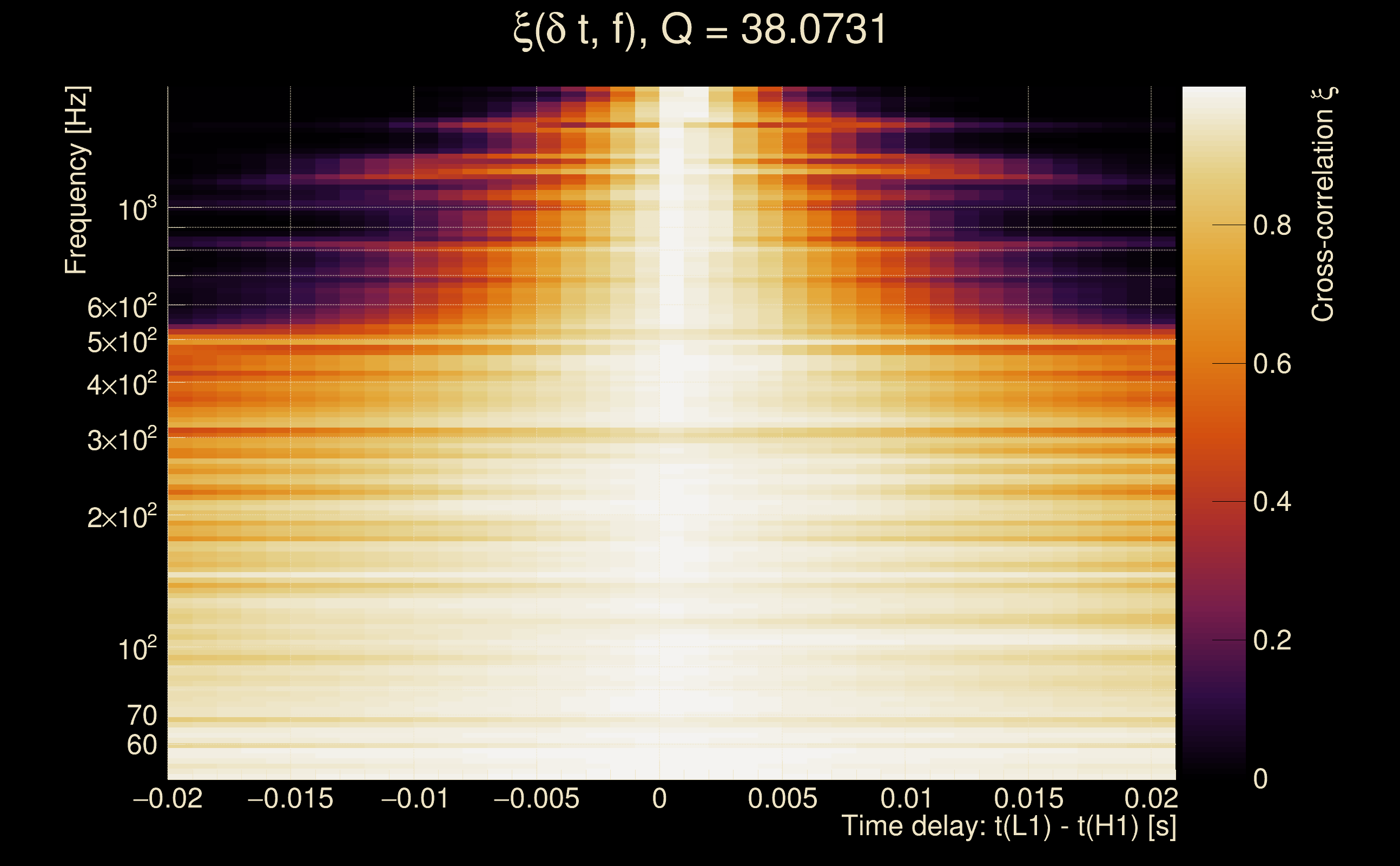

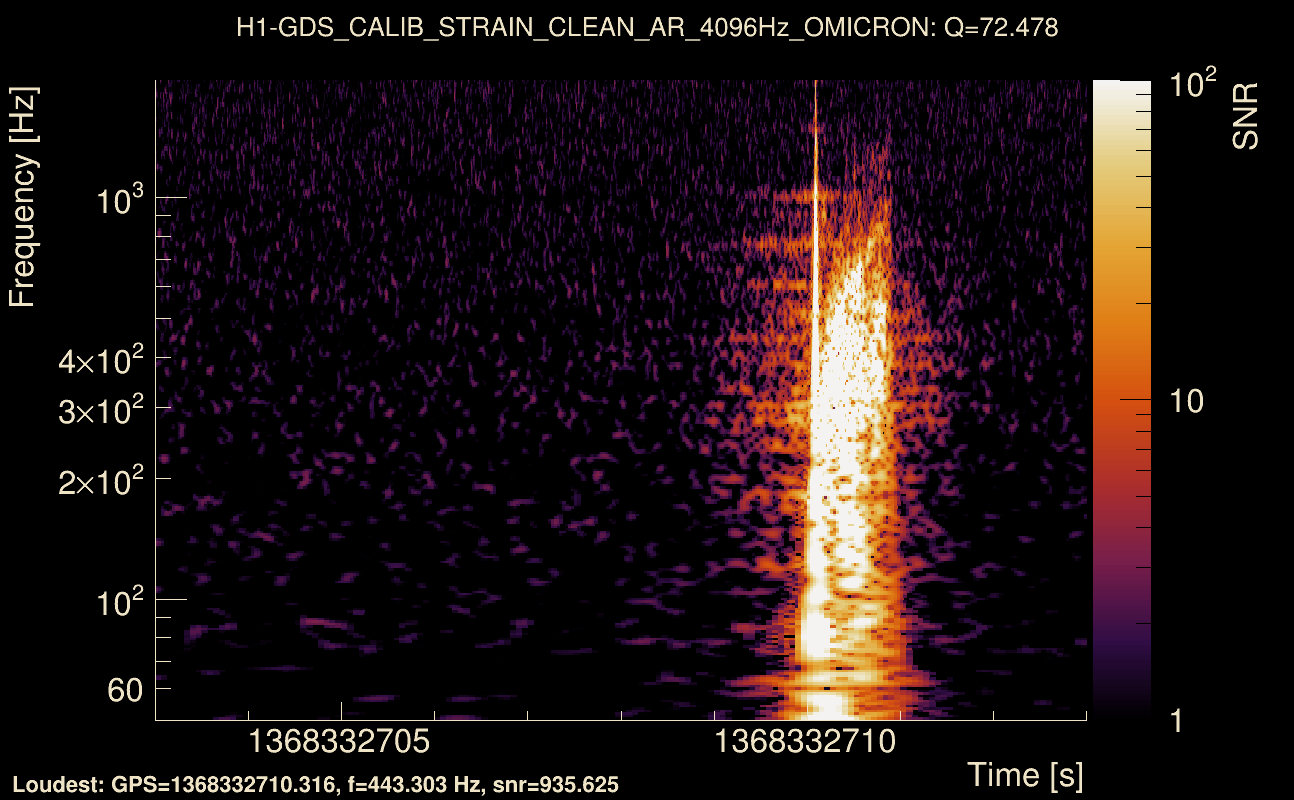

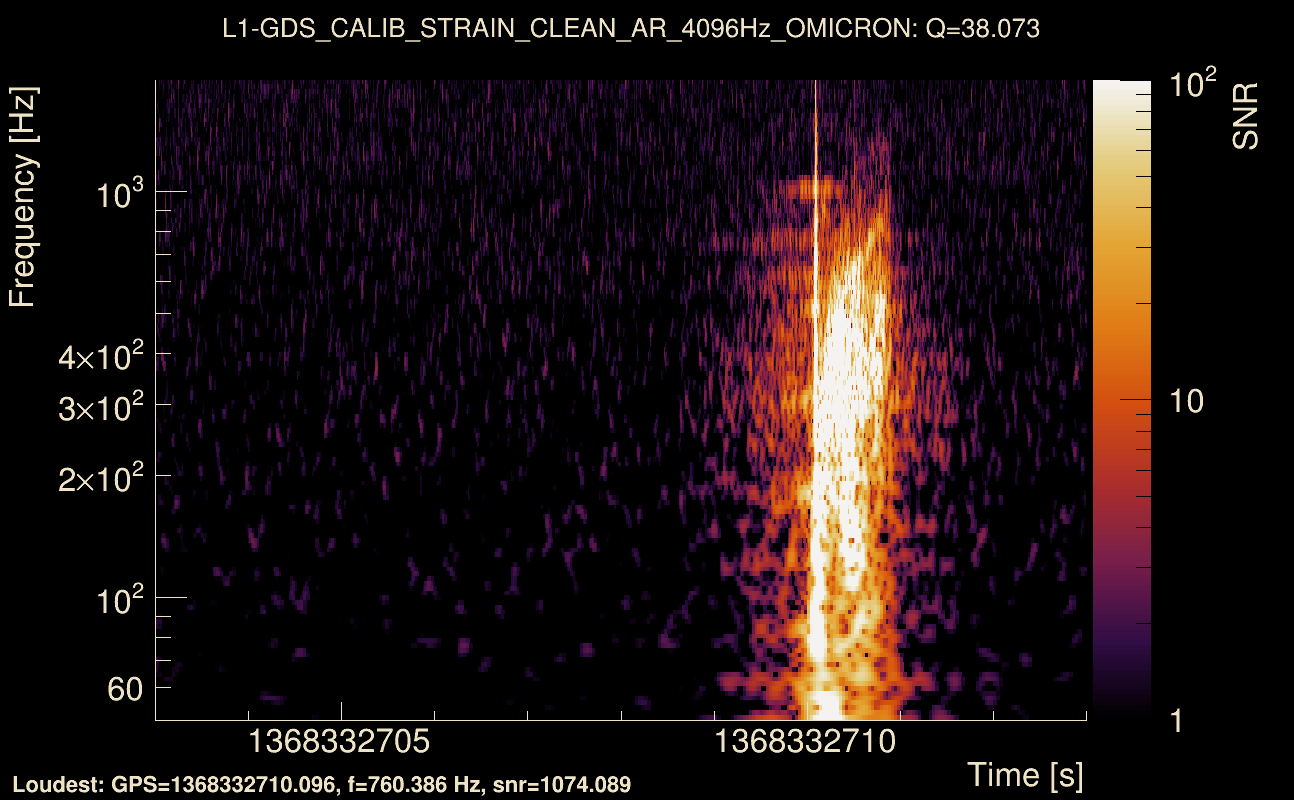

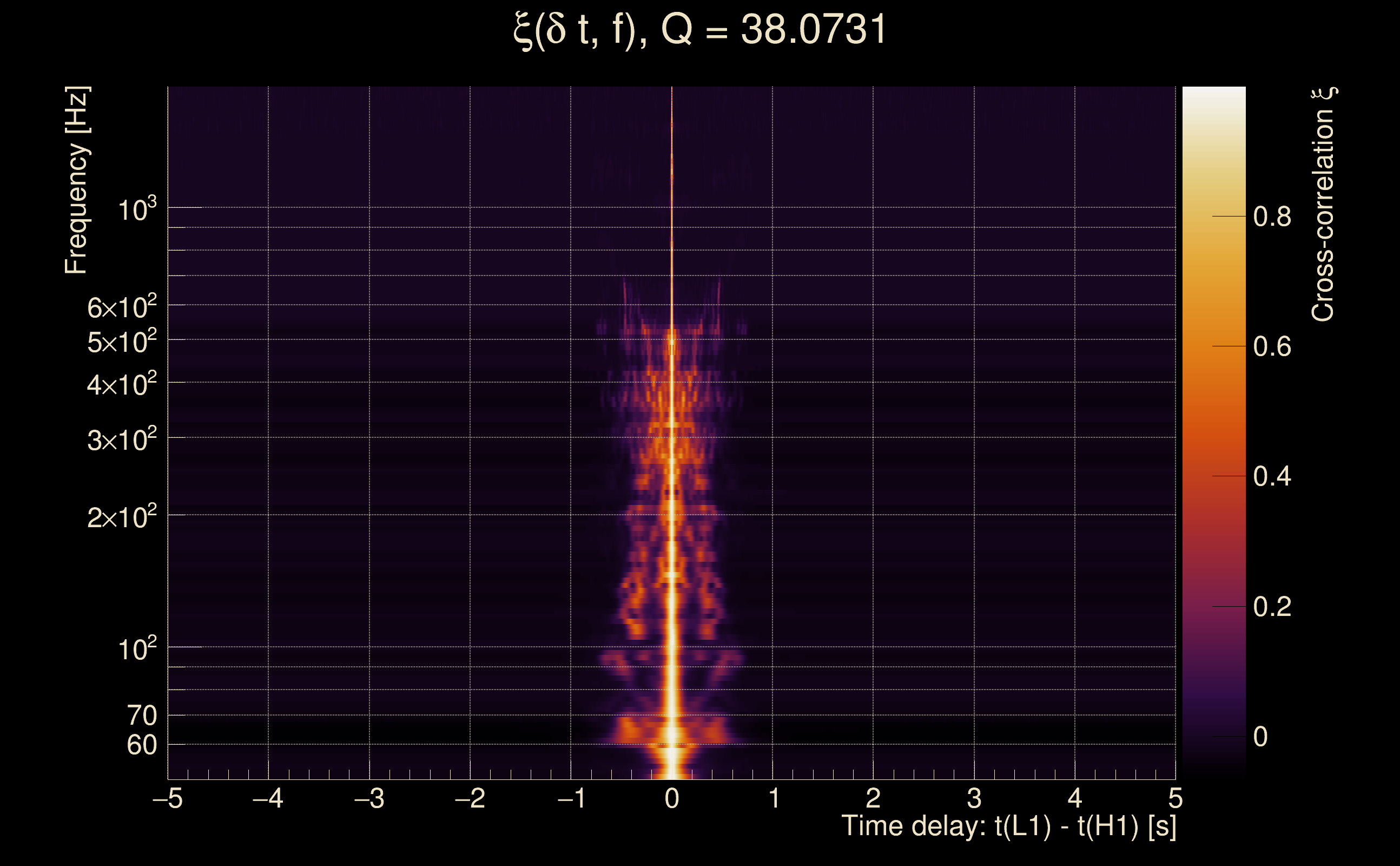

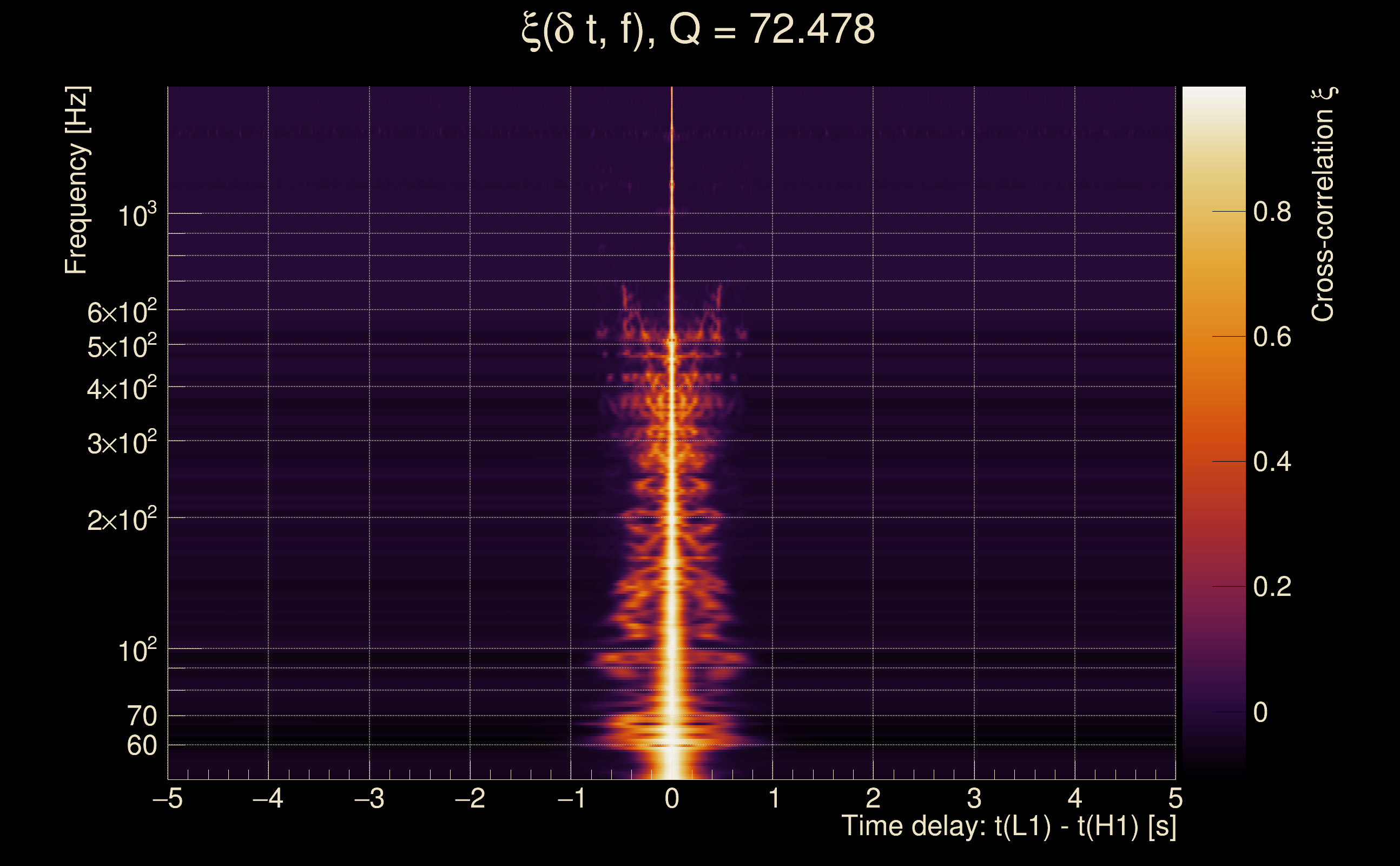

| Event time t(H1): | GPS = 1368332703 (Wed May 17 04:24:45 2023 ) → GPS = 1368332713 (Wed May 17 04:24:55 2023 ) |
| Event time t(L1): | GPS = 1368332703 (Wed May 17 04:24:55 2023 ) → GPS = 1368332713 (Wed May 17 04:24:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368332700 → GPS = 1368332716 |
| Omicron analysis time window (L1): | GPS = 1368332700 → GPS = 1368332716 |

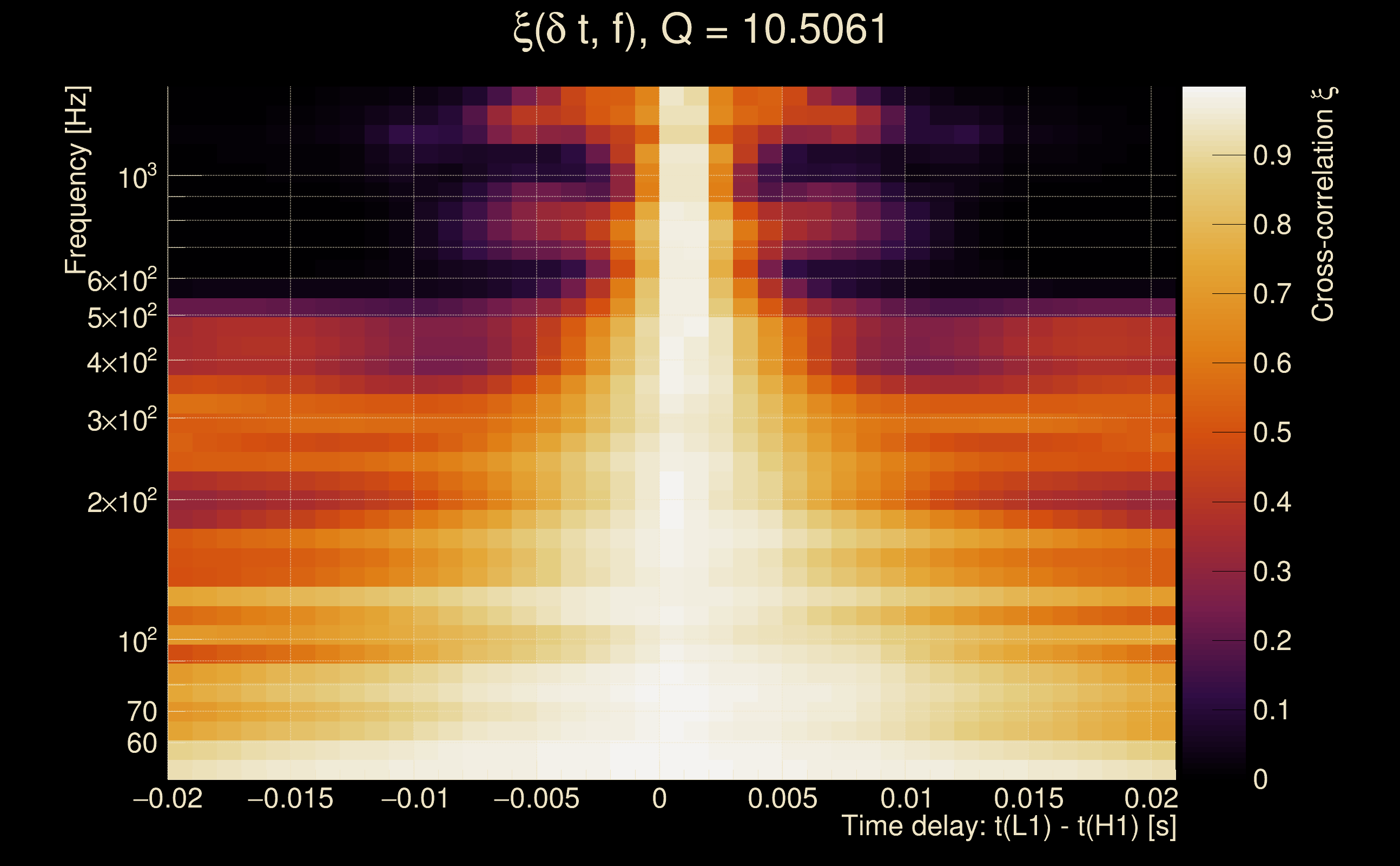

| Time delay between detectors t(L1) - t(H1): | 0.000483274 s (slice index = 108 / 217), δt_gw = 0.000483274 s |
| Time delay standard deviation: | 0.0223981 s |
| [targeted mode] Time delay probability: | 0.994312 (0.00712885 sigmas), δt_target = 0.007092 s |
| Frequency: | 286.136 Hz |
| Ξ: | 0.974425 ± 0.0107182 (variance = 0.00011488): Q0: 0.96442, Q1: 0.979474, Q2: 0.98917, Q3: 0.99249, Q4: 0.992514 |
| Rank: | R_A = 0.968883 |
| Log of amplitude ratio (L1/H1): | -0.0324149, variance = 0.151753 (L1/H1: -0.0445674, variance = 0.300969, H1/L1: 0.0221976, variance = 0.301453) |
| Amplitude ratio (L1/H1): | 0.968105 ⋇ 1.47632 (L1/H1: 0.956411 ⋇ 1.73084, H1/L1: 1.02245 ⋇ 1.7316) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.977007 |

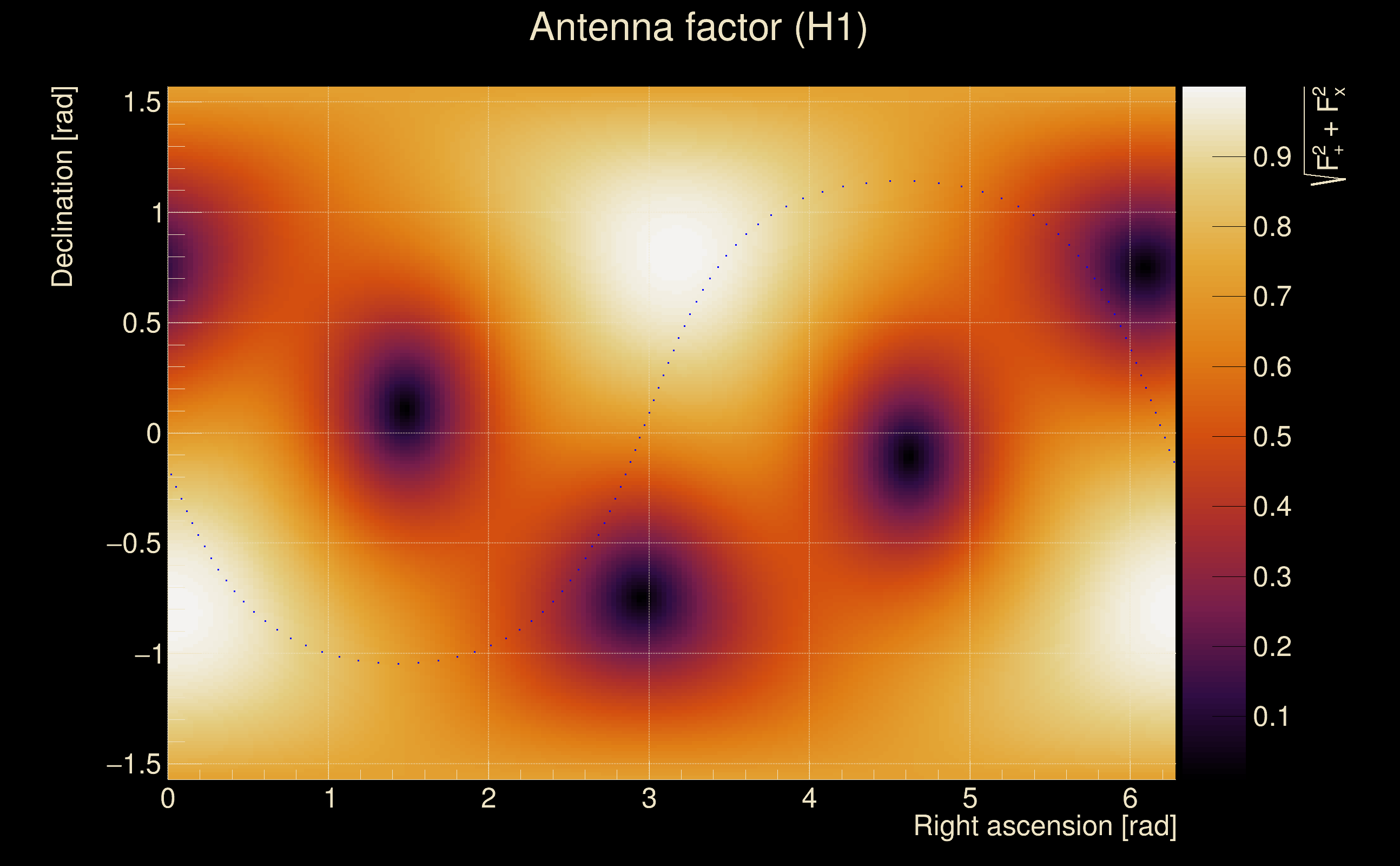

| Antenna factor probability: | 0.984588 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |

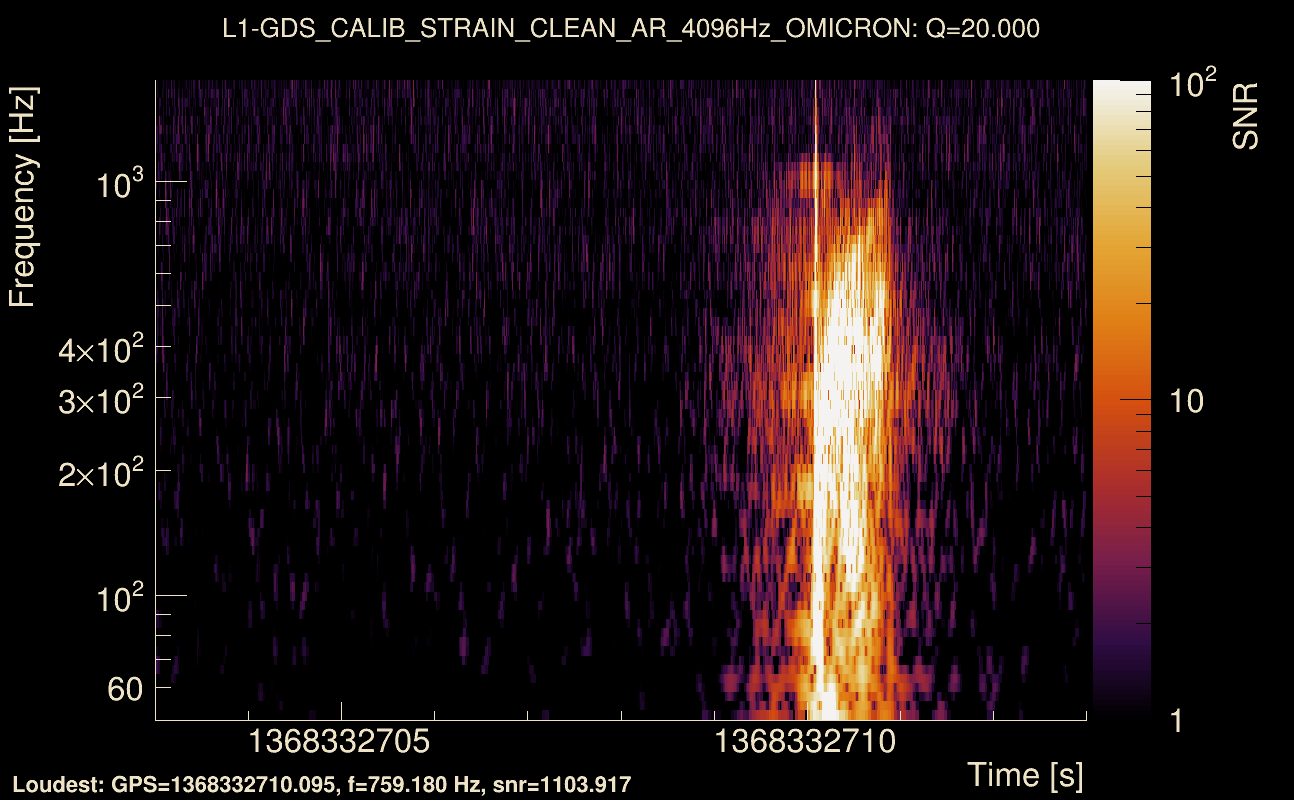

| Maximum signal-to-noise ratio: | H1: 1303.84, L1: 1421.96 |

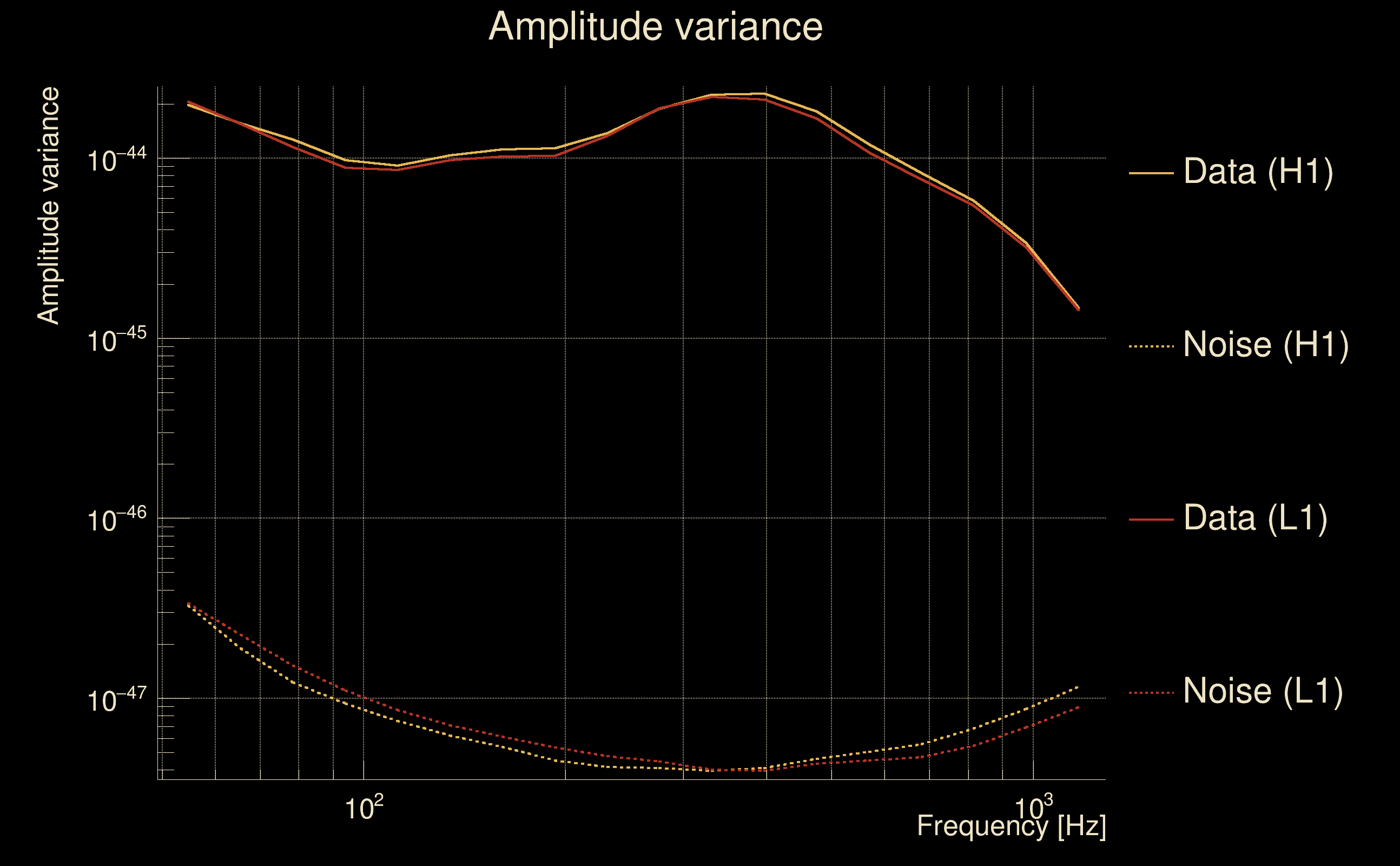

| SNR variance: | H1: 0.492442, L1: 0.489624 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368357043 (Wed May 17 11:10:25 2023 ) → GPS = 1368357053 (Wed May 17 11:10:35 2023 ) |
| Event time t(L1): | GPS = 1368357043 (Wed May 17 11:10:35 2023 ) → GPS = 1368357053 (Wed May 17 11:10:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368357040 → GPS = 1368357056 |
| Omicron analysis time window (L1): | GPS = 1368357040 → GPS = 1368357056 |
| Time delay between detectors t(L1) - t(H1): | -0.359656 s (slice index = 116 / 217), δt_gw = 0.00834437 s |
| Time delay standard deviation: | 0.0460388 s |
| [targeted mode] Time delay probability: | 0.995678 (0.00541704 sigmas), δt_target = 0.000486851 s |
| Frequency: | 137.537 Hz |
| Ξ: | 0.39844 ± 0.0343189 (variance = 0.00117779): Q0: 0.617654, Q1: 0.572967, Q2: 0.628896, Q3: 0.532905, Q4: 0.578372 |
| Rank: | R_A = 0.396718 |
| Log of amplitude ratio (L1/H1): | 1.23621, variance = 0.799603 (L1/H1: -1.28727, variance = 1.83577, H1/L1: -2.20221, variance = 1.25995) |
| Amplitude ratio (L1/H1): | 3.44254 ⋇ 2.44539 (L1/H1: 0.276023 ⋇ 3.8764, H1/L1: 0.110558 ⋇ 3.07245) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0473379 |
| Antenna factor probability: | 0.0592429 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 14 / 36, Q2: 25 / 70, Q3: 64 / 134, Q4: 137 / 258 |
| Maximum signal-to-noise ratio: | H1: 129.554, L1: 209.393 |
| SNR variance: | H1: 0.491048, L1: 0.483464 |

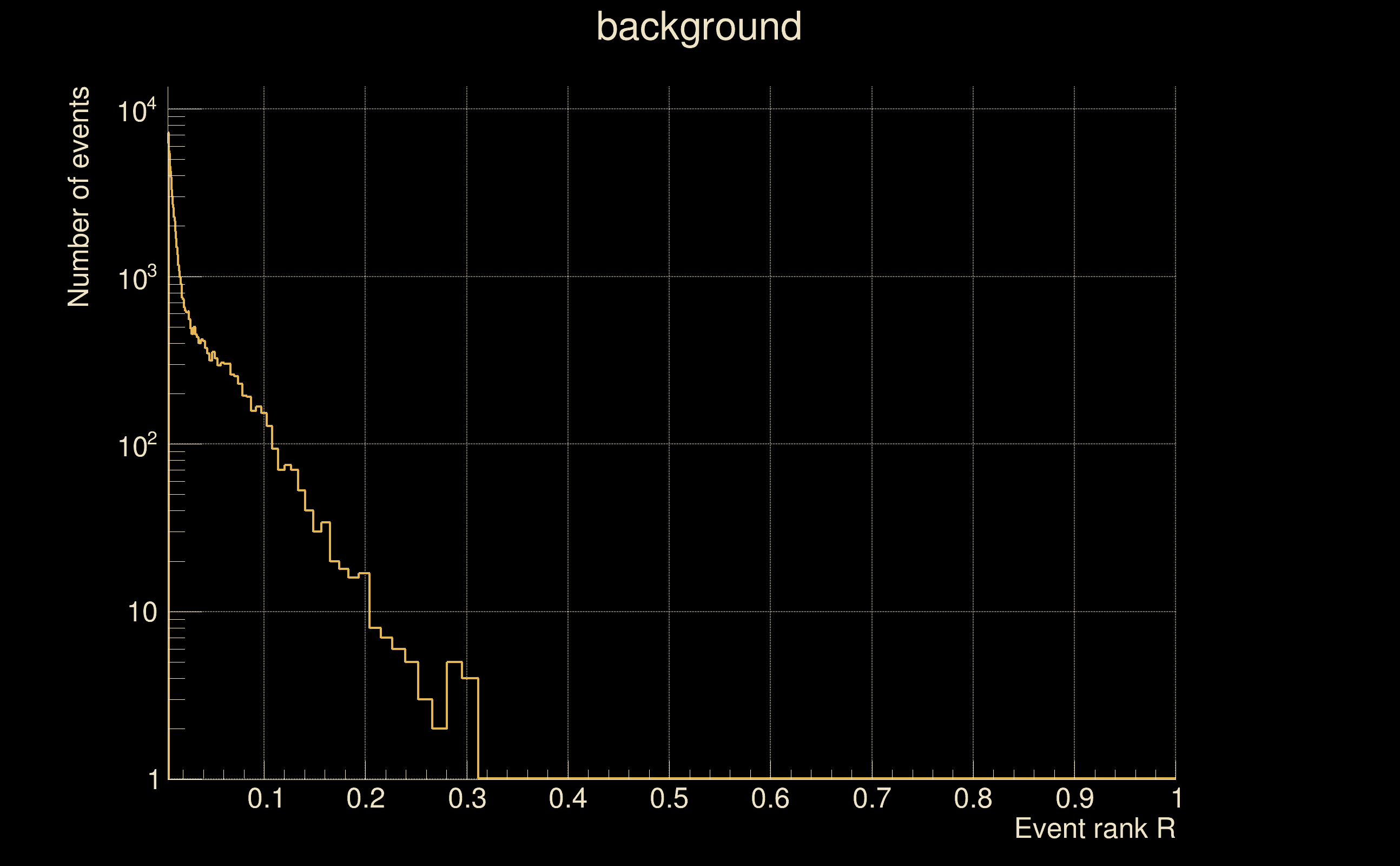

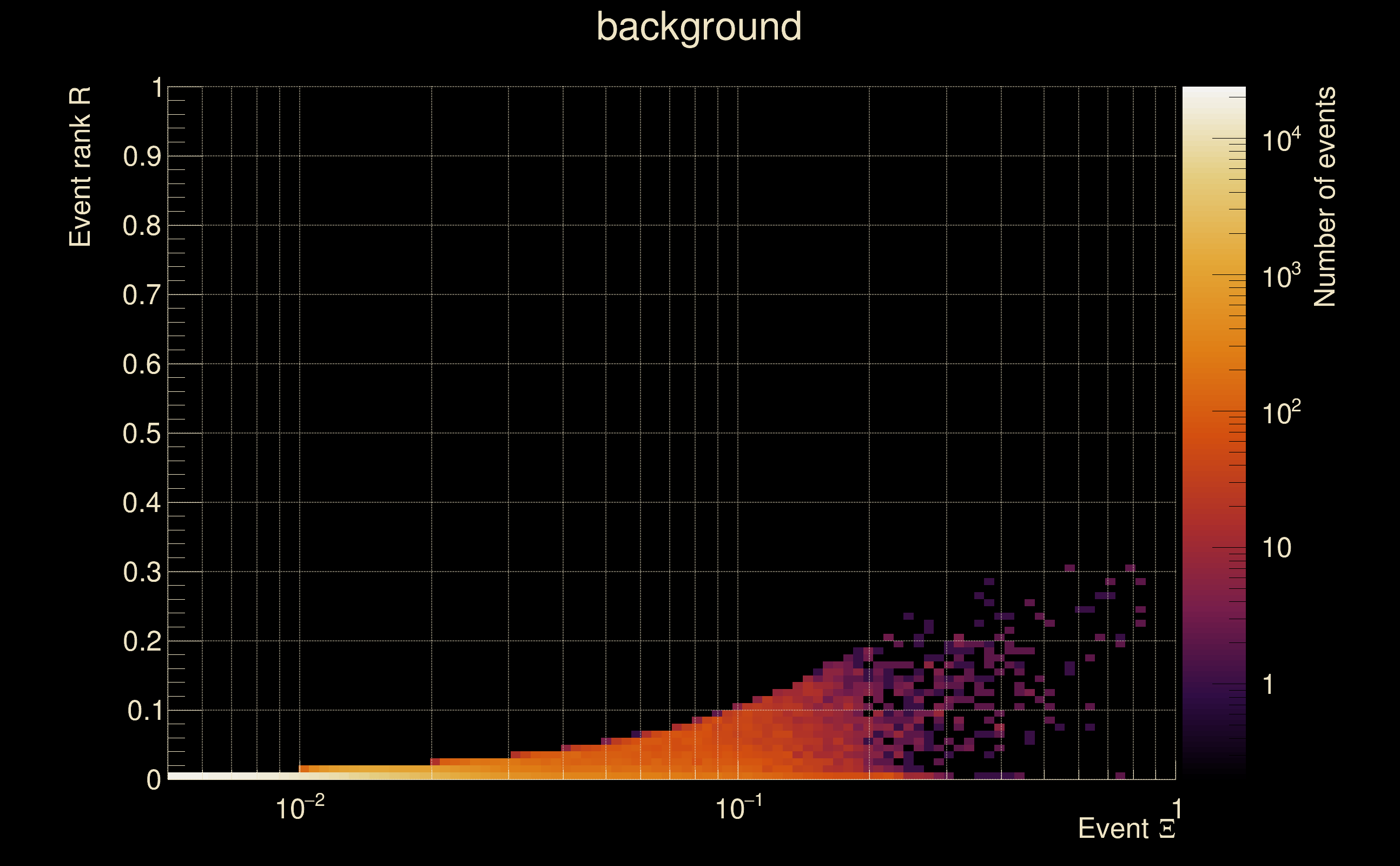

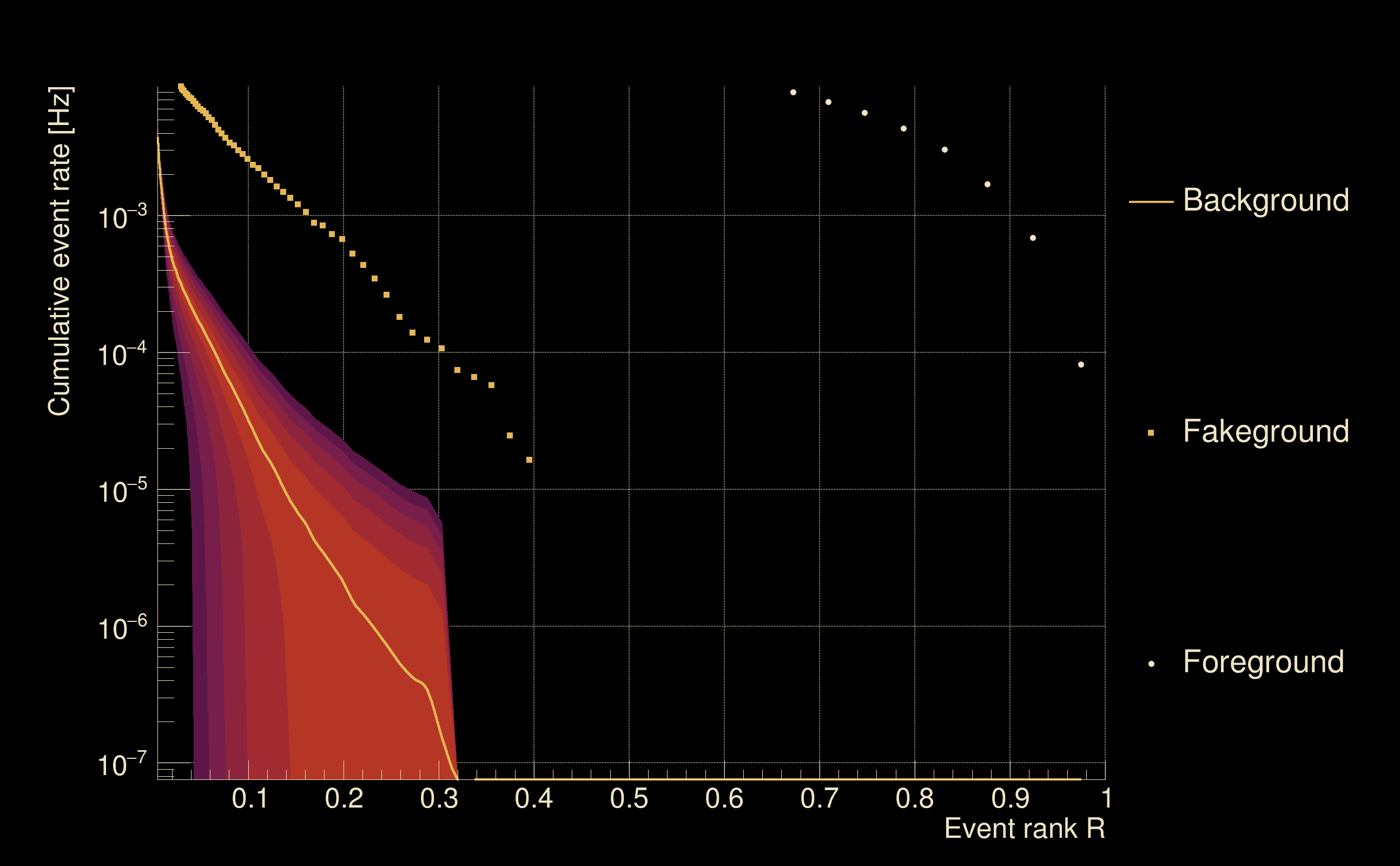

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 1.27301e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.303683 |
| Alternative threshold at 1/100 yrs: | R > 0.303683 |
| Alternative threshold at 1/10 yrs: | R > 0.303683 |
| Alternative threshold at 1/1 yr: | R > 0.303683 |
| Alternative threshold at 1/1 d: | R > 0.130268 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

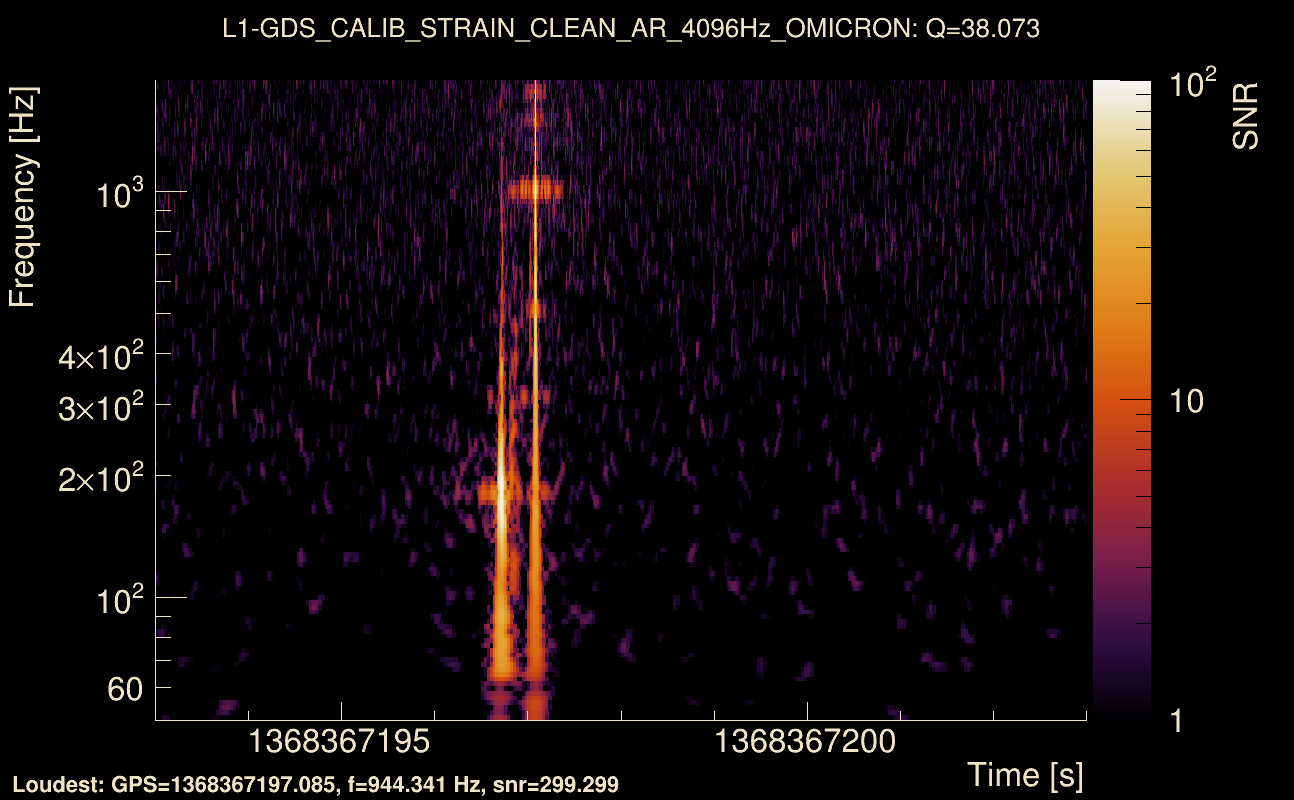

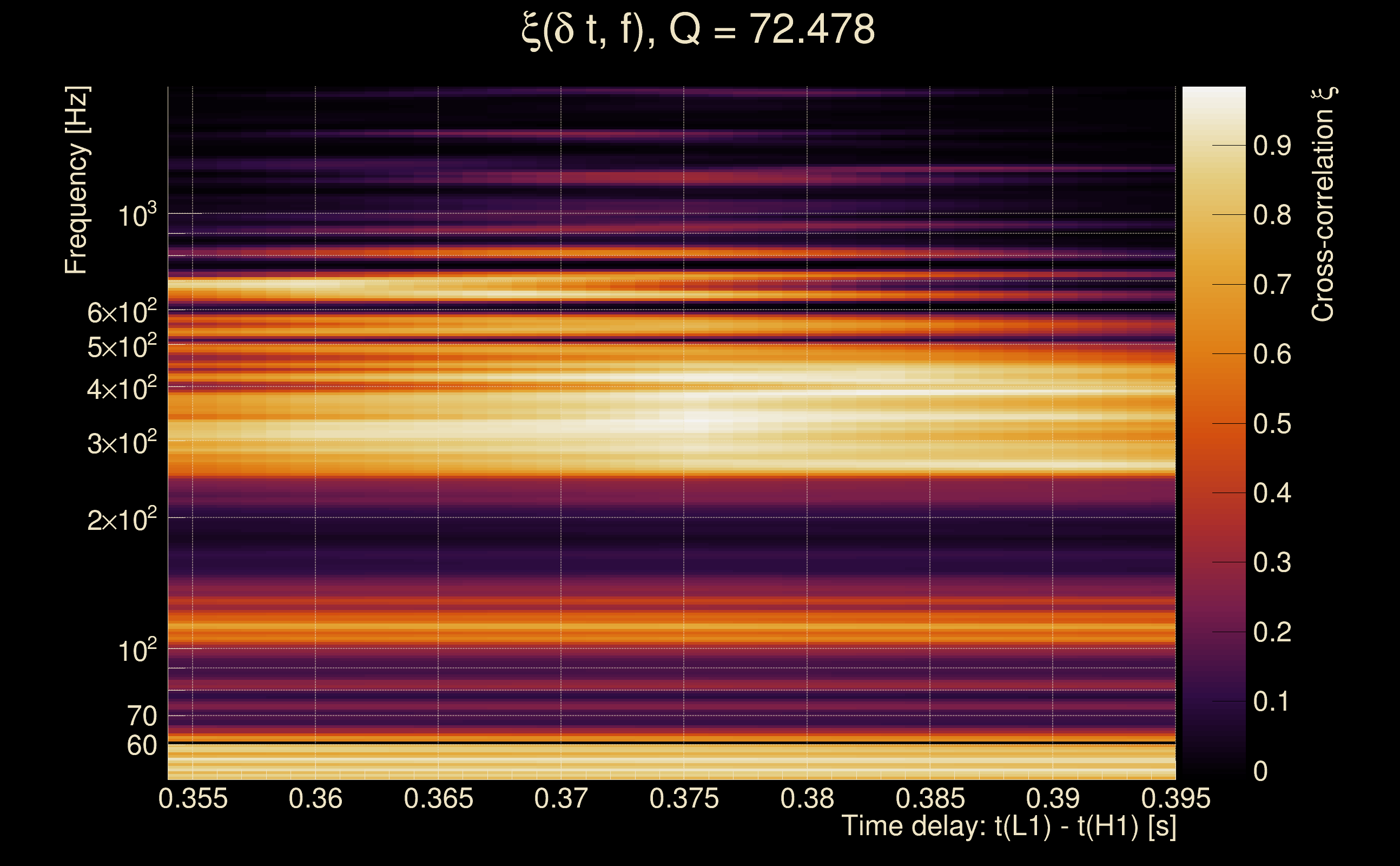

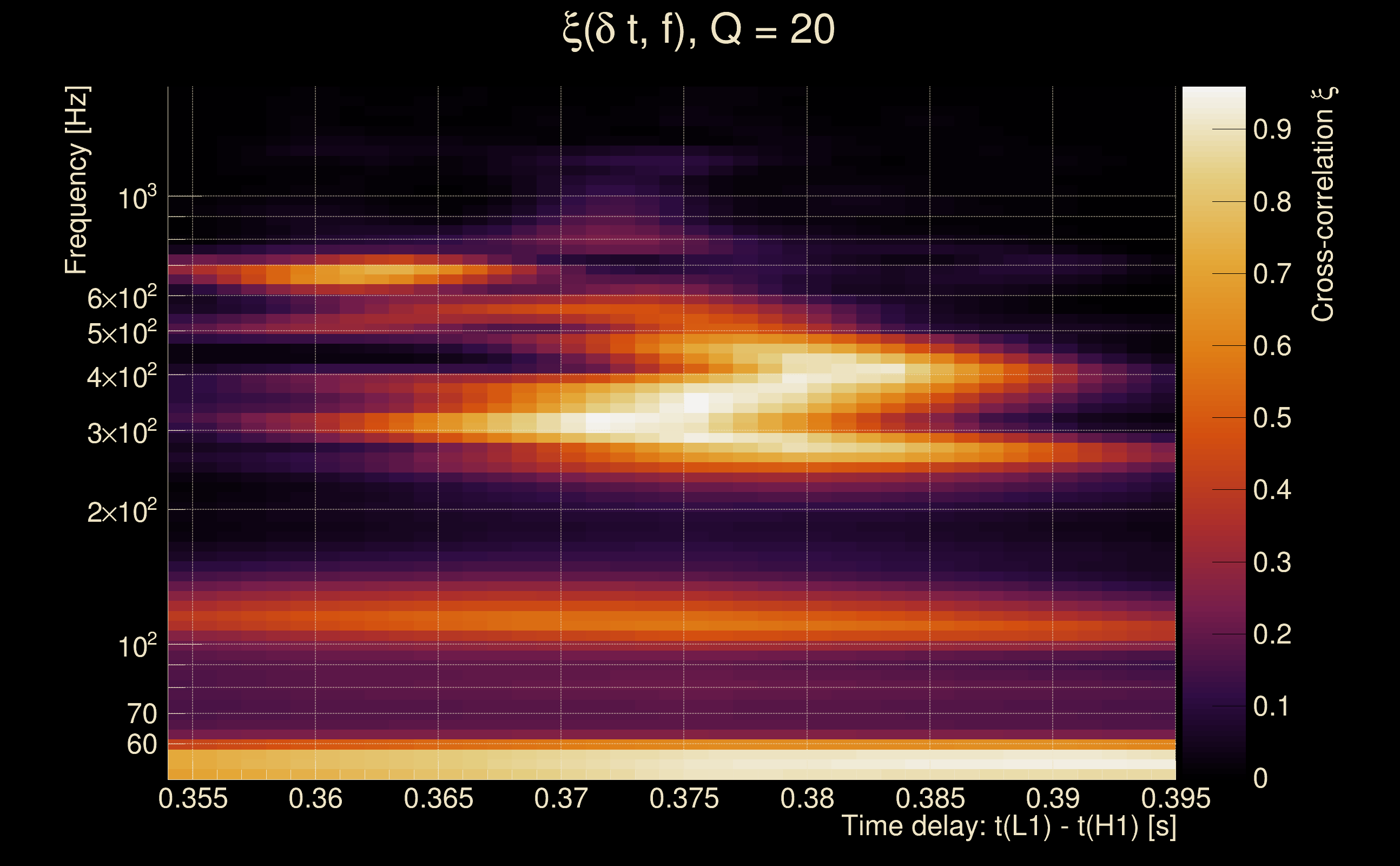

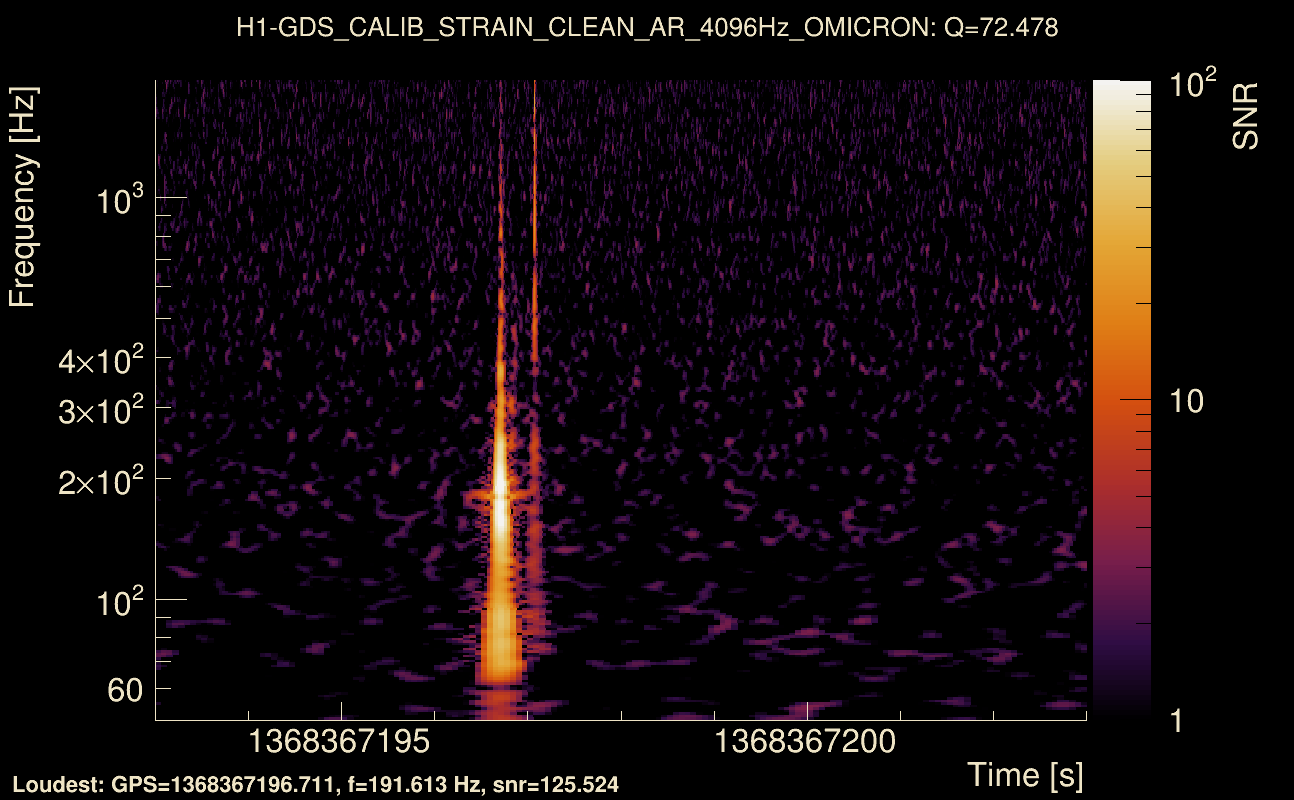

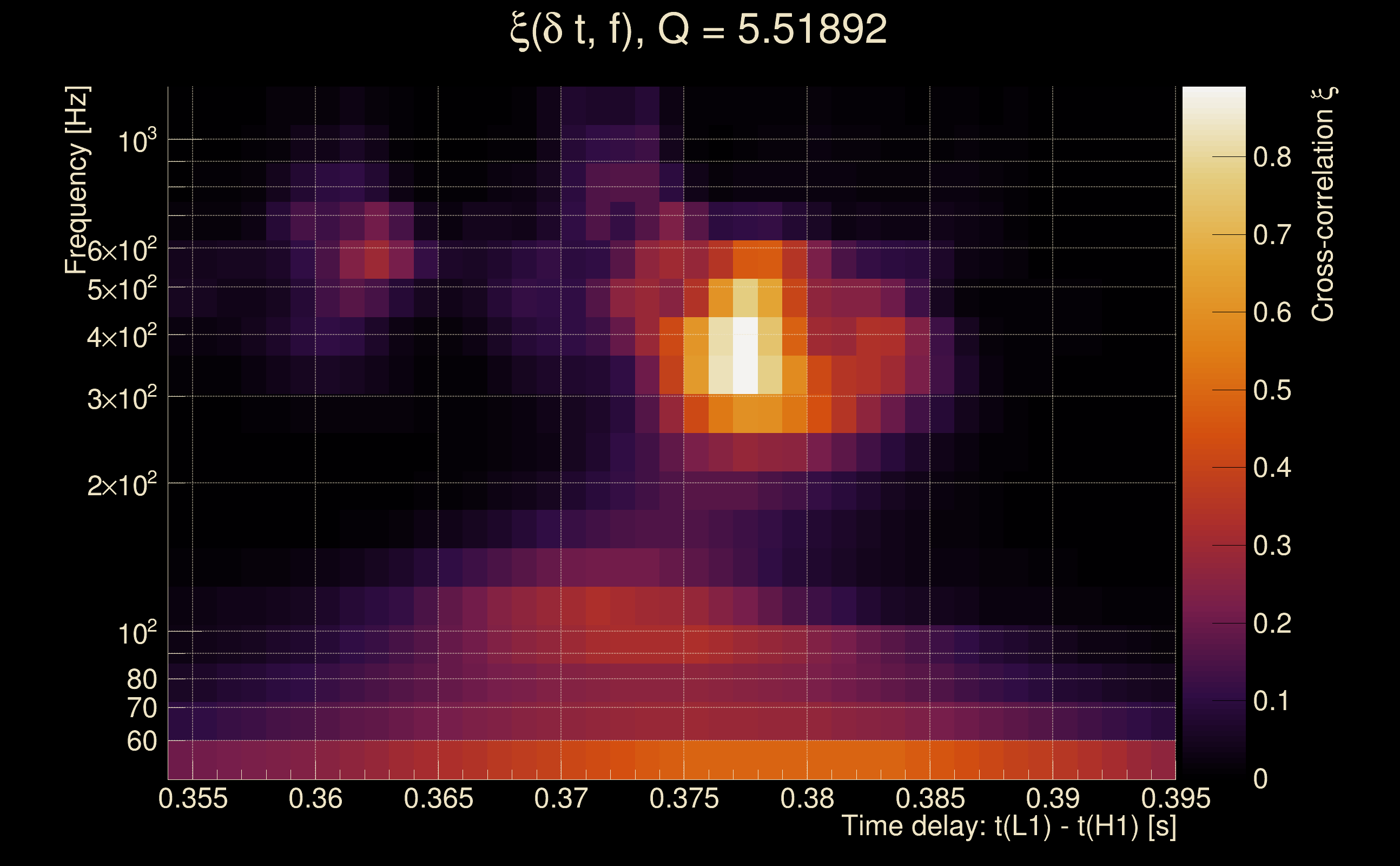

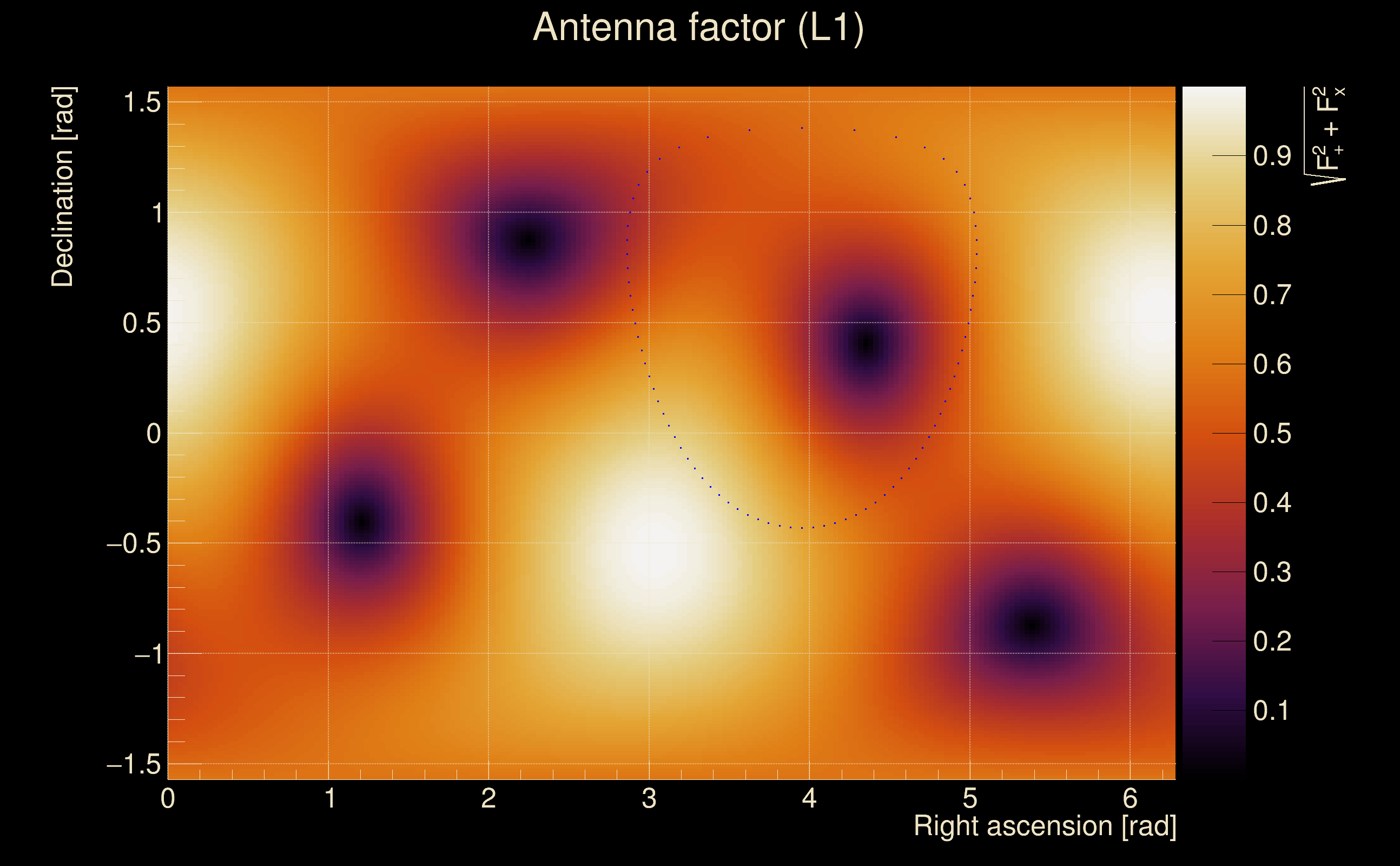

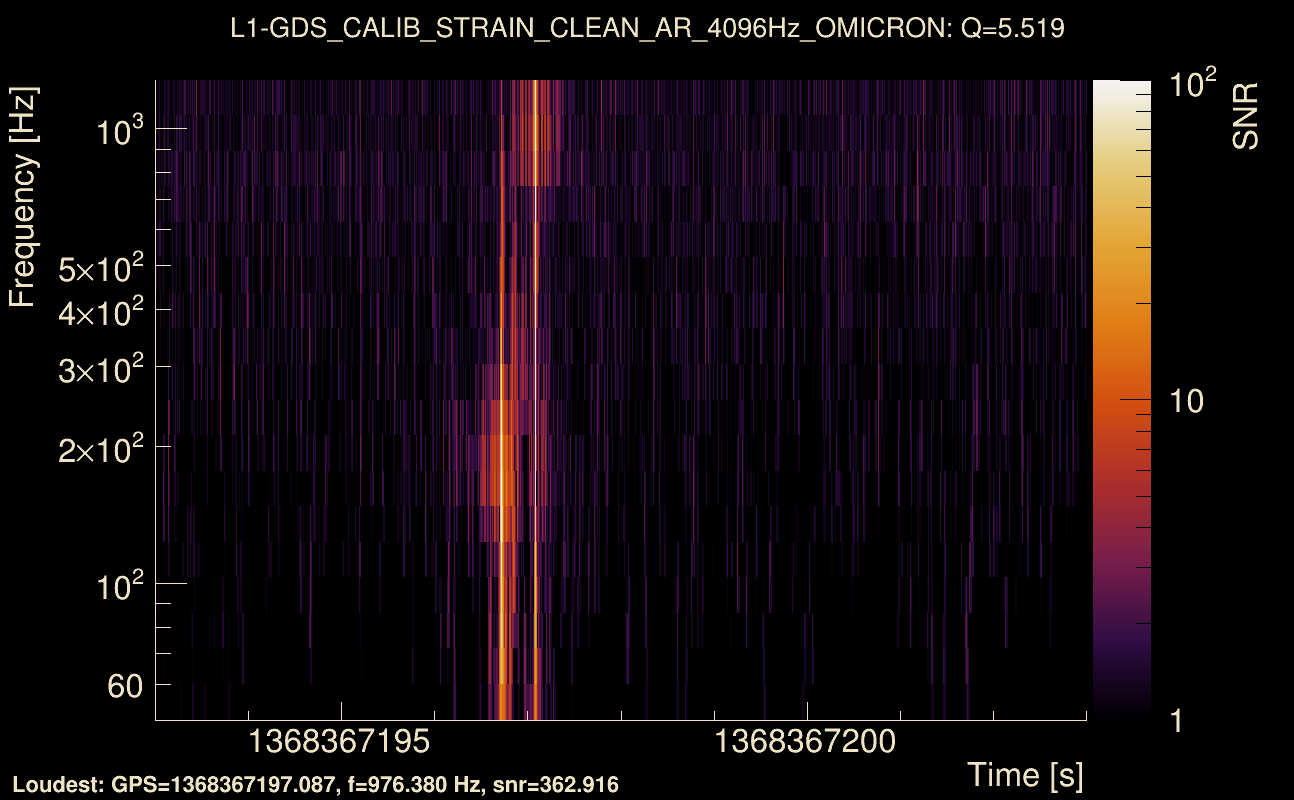

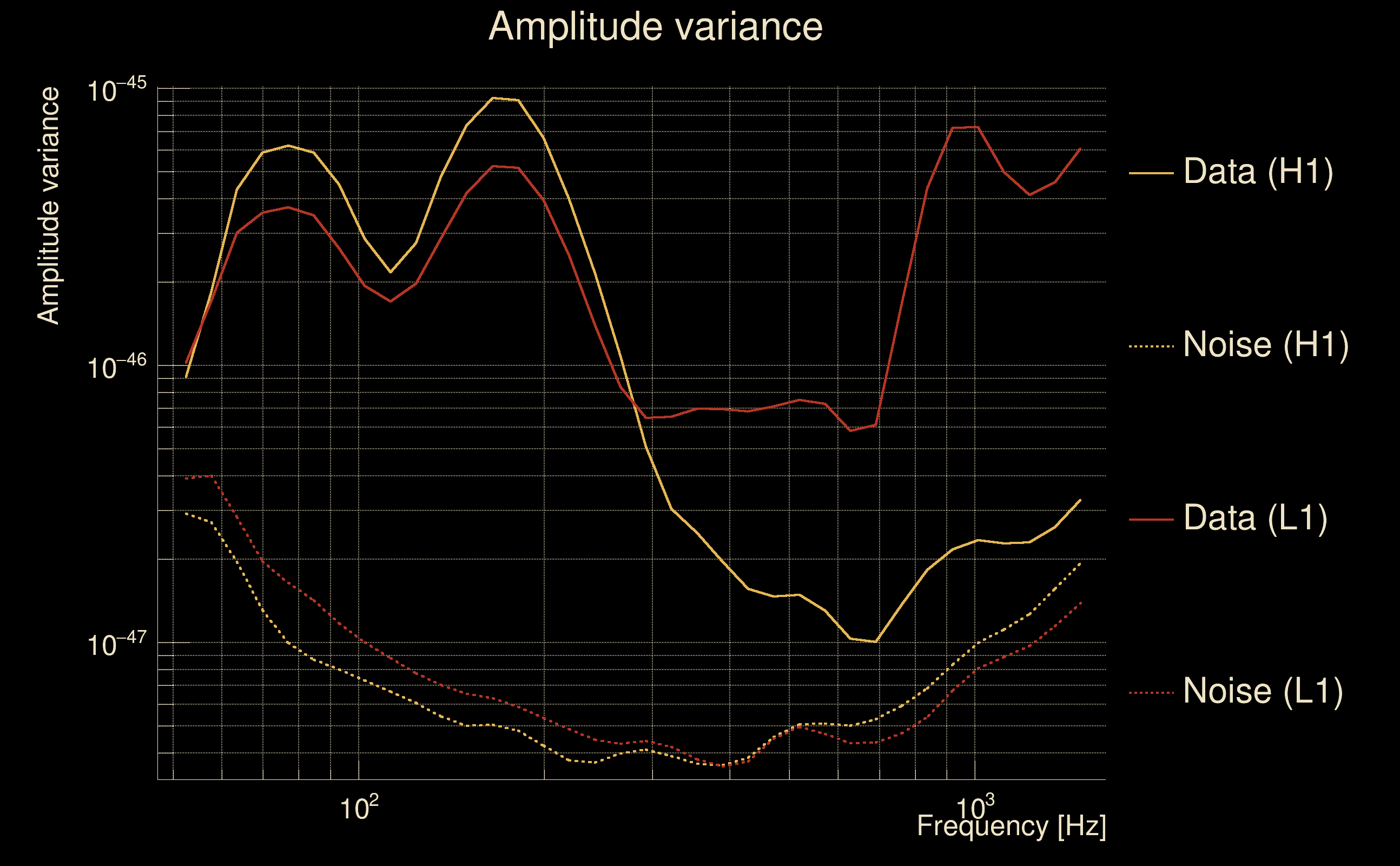

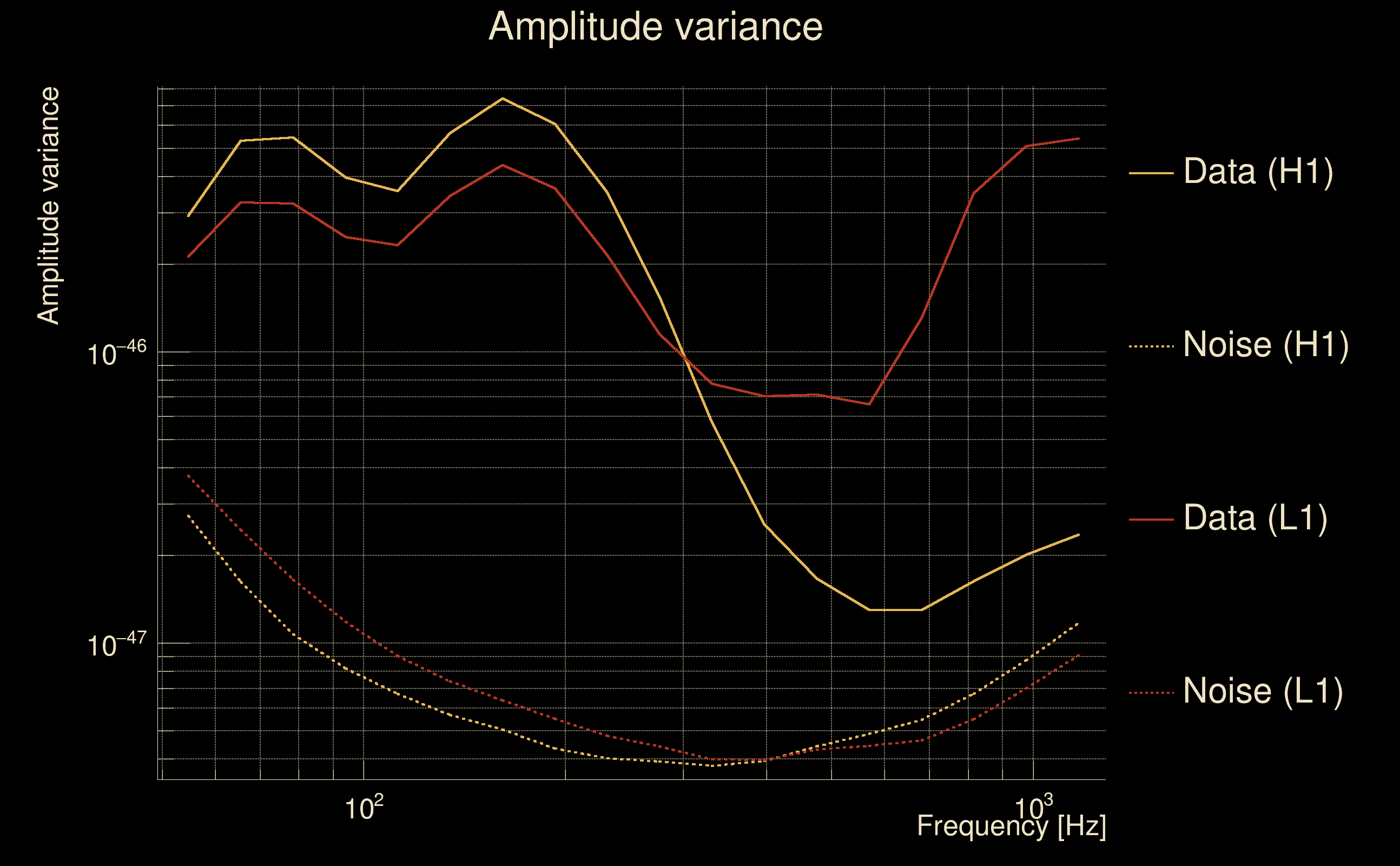

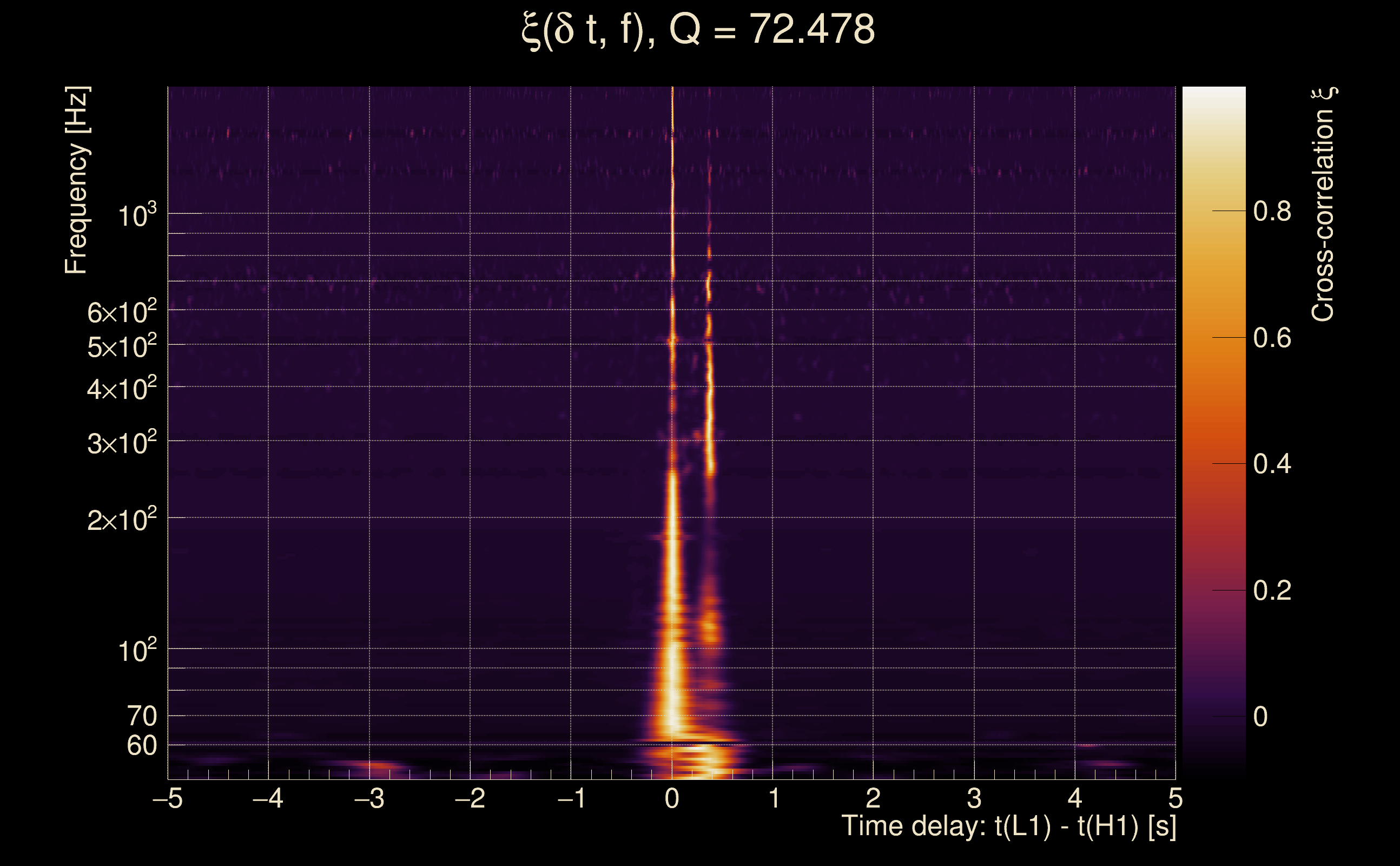

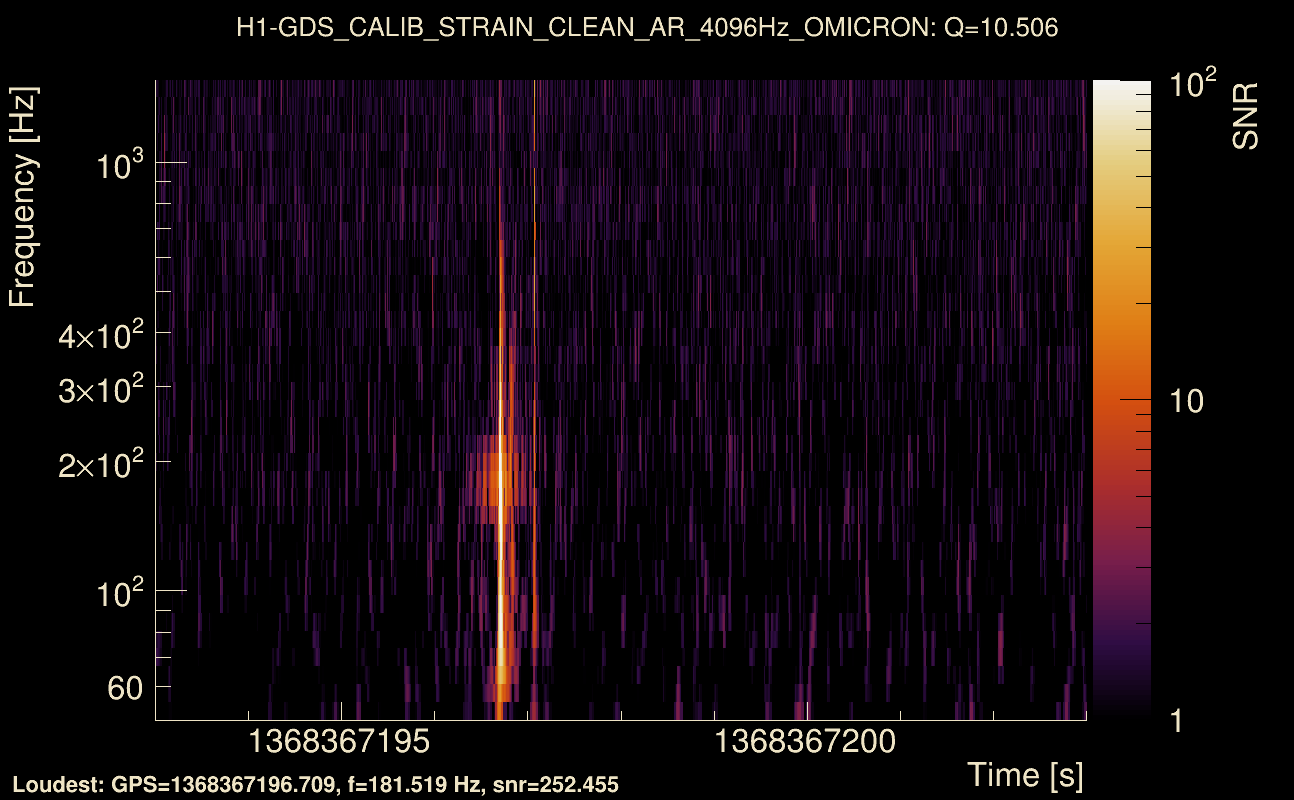

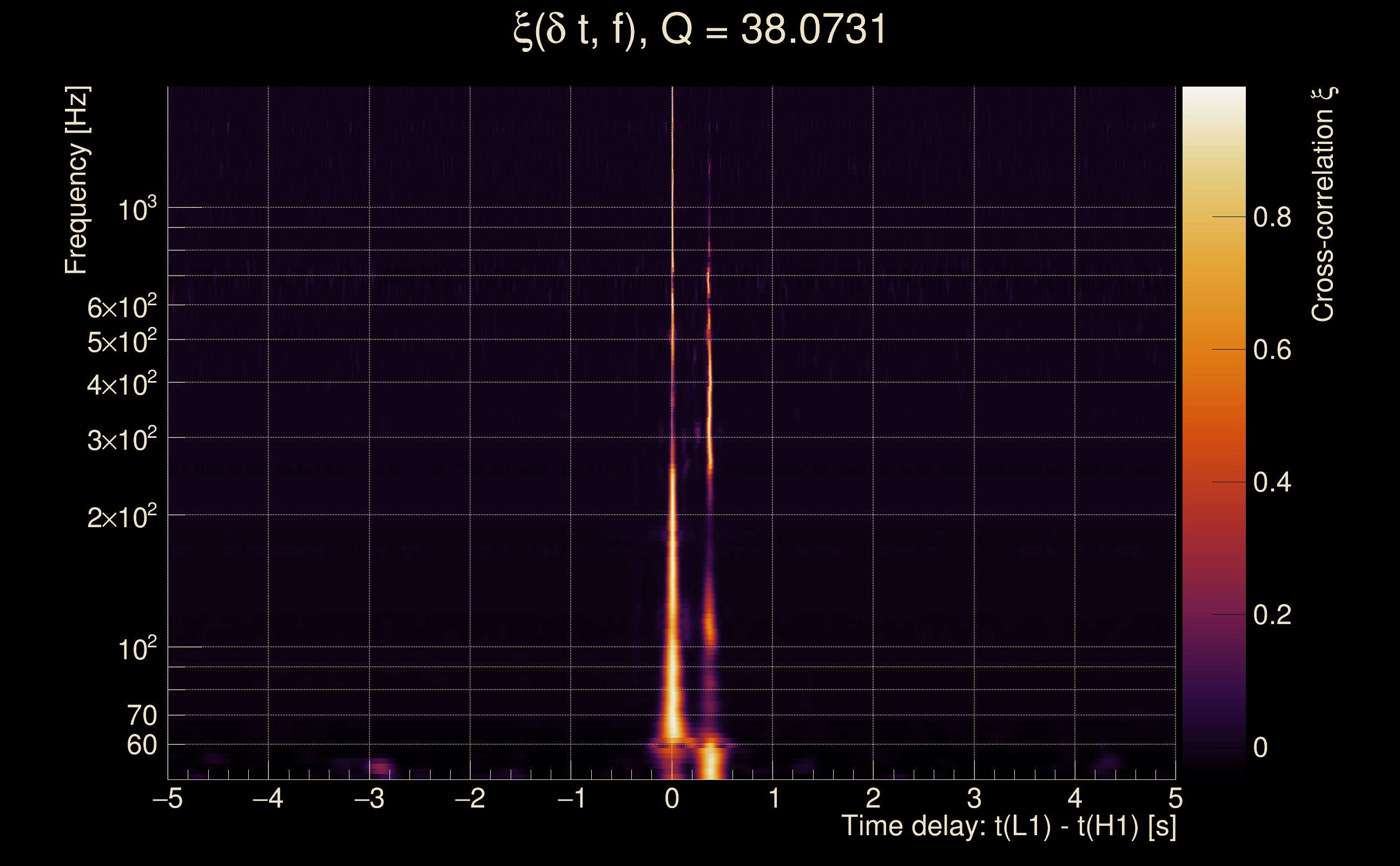

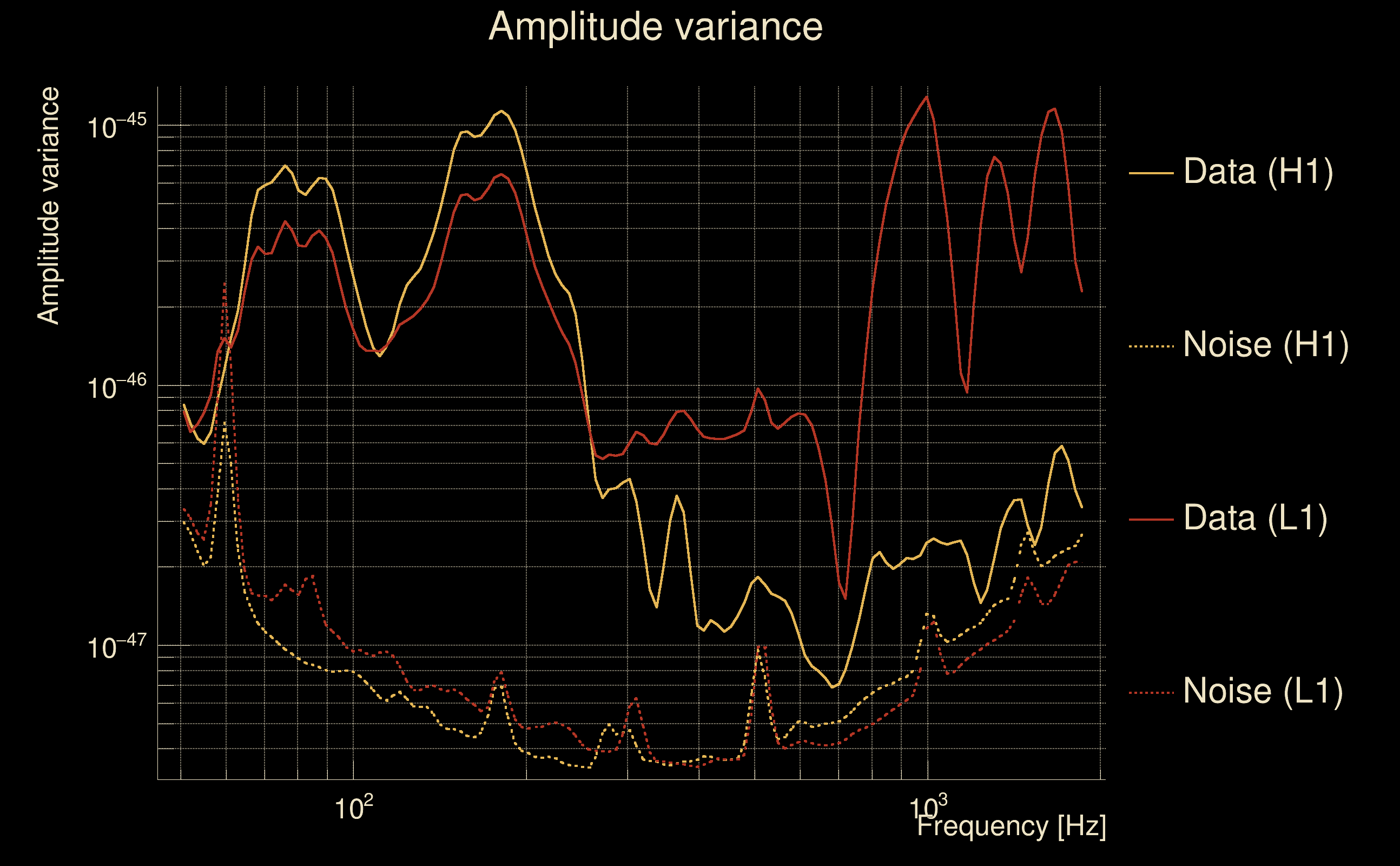

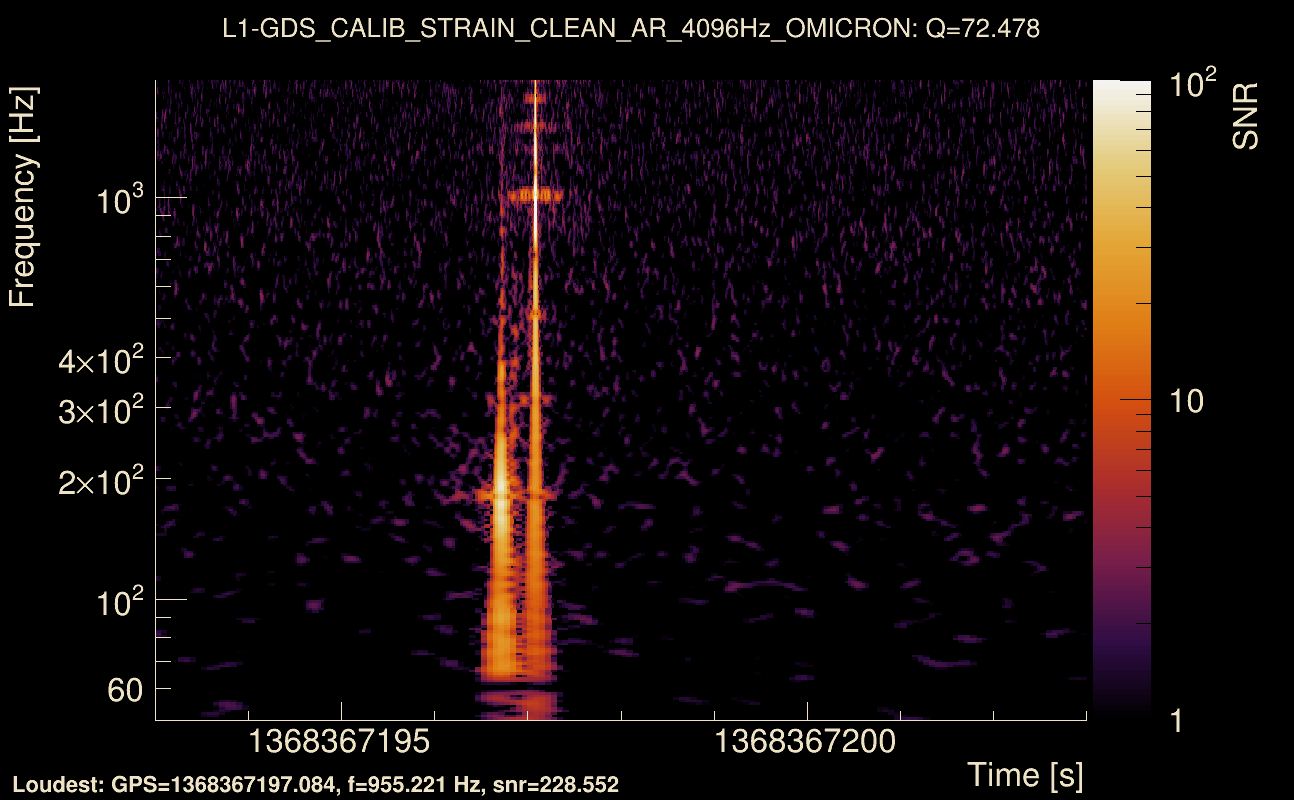

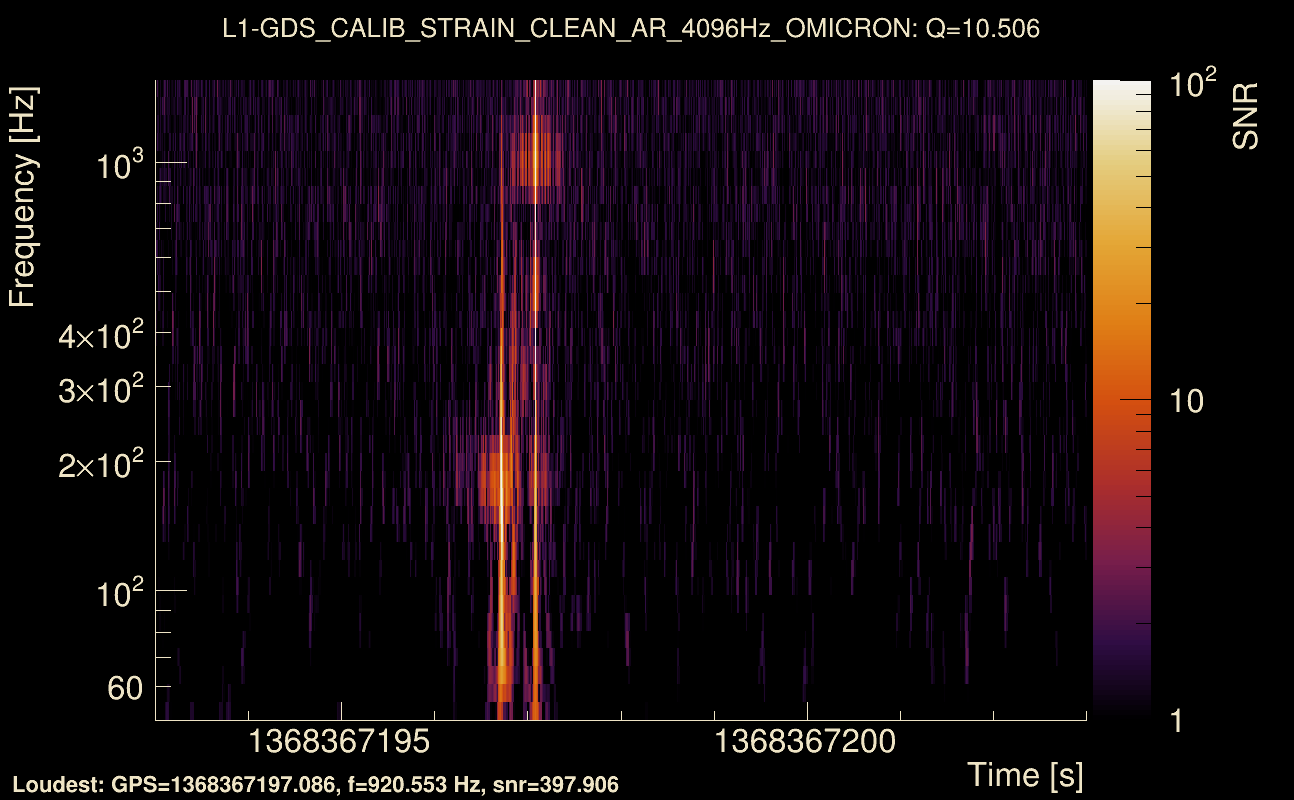

| Event time t(H1): | GPS = 1368367193 (Wed May 17 13:59:35 2023 ) → GPS = 1368367203 (Wed May 17 13:59:45 2023 ) |
| Event time t(L1): | GPS = 1368367193 (Wed May 17 13:59:45 2023 ) → GPS = 1368367203 (Wed May 17 13:59:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368367190 → GPS = 1368367206 |
| Omicron analysis time window (L1): | GPS = 1368367190 → GPS = 1368367206 |

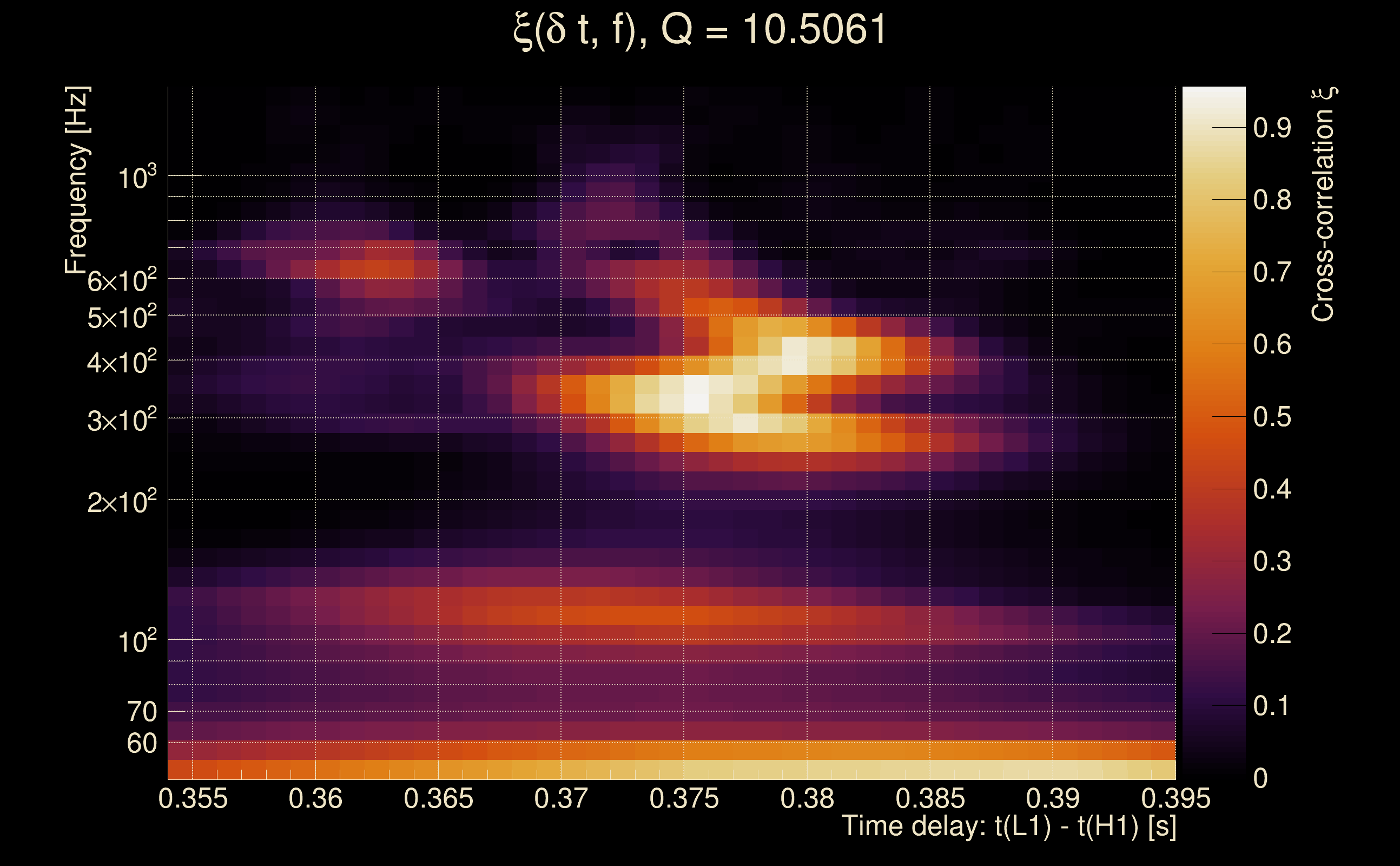

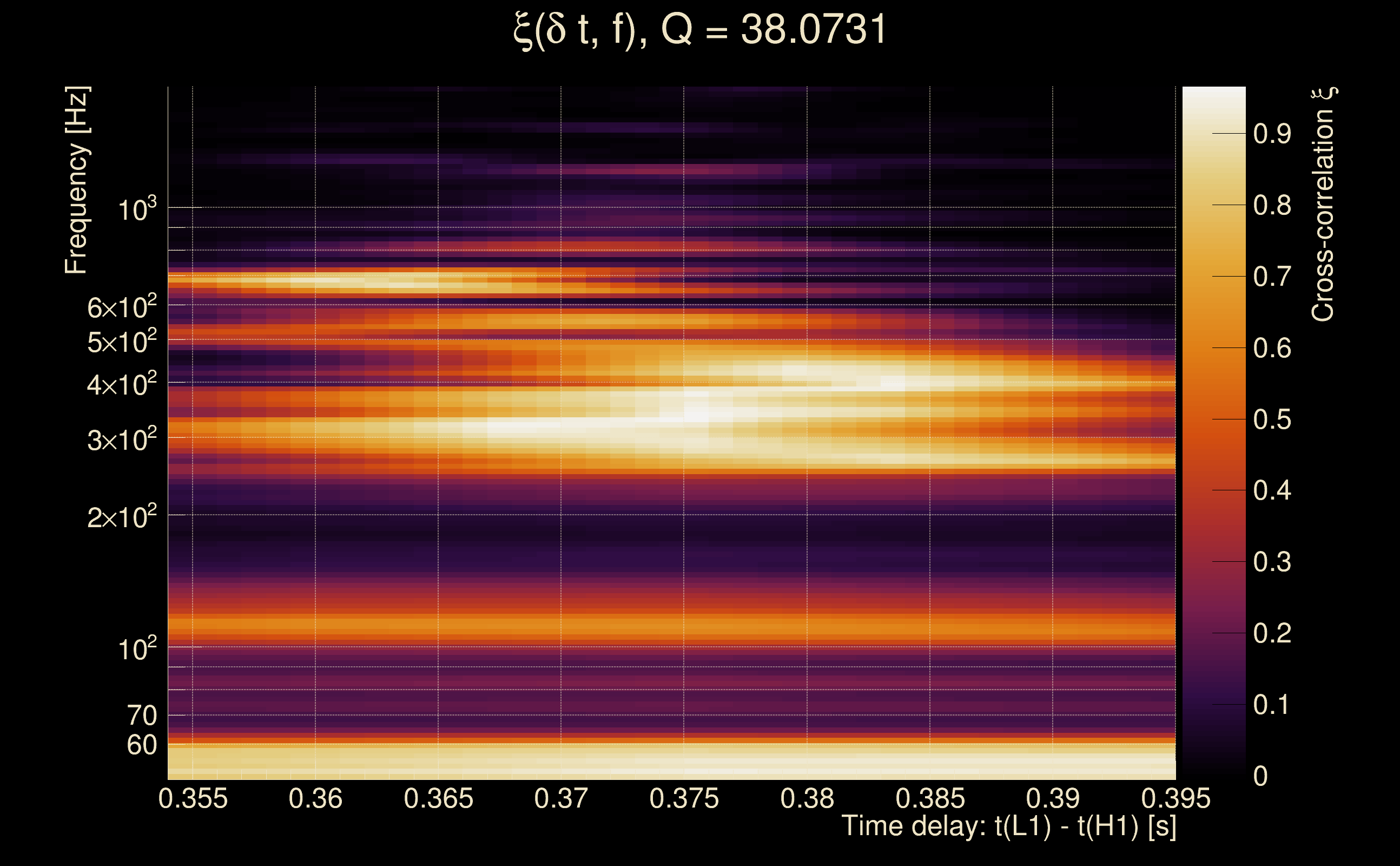

| Time delay between detectors t(L1) - t(H1): | 0.37416 s (slice index = 100 / 217), δt_gw = 0.00616031 s |
| Time delay standard deviation: | 0.0651641 s |
| [targeted mode] Time delay probability: | 0.544865 (0.605472 sigmas), δt_target = 0.000486851 s |
| Frequency: | 264.367 Hz |
| Ξ: | 0.560406 ± 0.0443385 (variance = 0.00196591): Q0: 0.545947, Q1: 0.589009, Q2: 0.631848, Q3: 0.648535, Q4: 0.66975 |
| Rank: | R_A = 0.305346 |
| Log of amplitude ratio (L1/H1): | 0.726152, variance = 0.837435 (L1/H1: -1.15875, variance = 0.438976, H1/L1: -1.59926, variance = 1.69875) |
| Amplitude ratio (L1/H1): | 2.06711 ⋇ 2.49706 (L1/H1: 0.31388 ⋇ 1.93974, H1/L1: 0.202046 ⋇ 3.68165) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0592498 |
| Antenna factor probability: | 0.328345 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 2 / 36, Q2: 2 / 70, Q3: 12 / 134, Q4: 49 / 258 |
| Maximum signal-to-noise ratio: | H1: 279.937, L1: 411.312 |

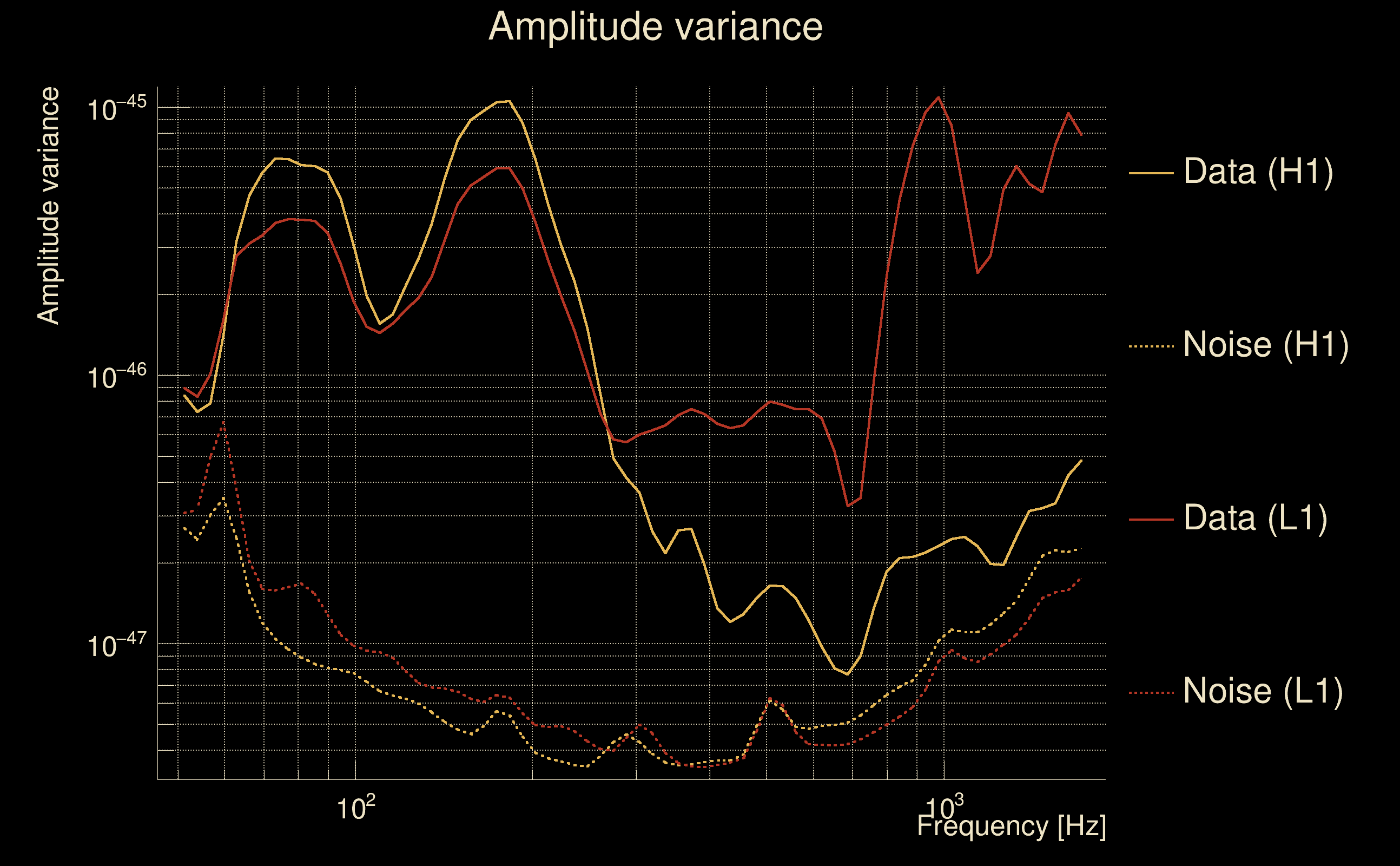

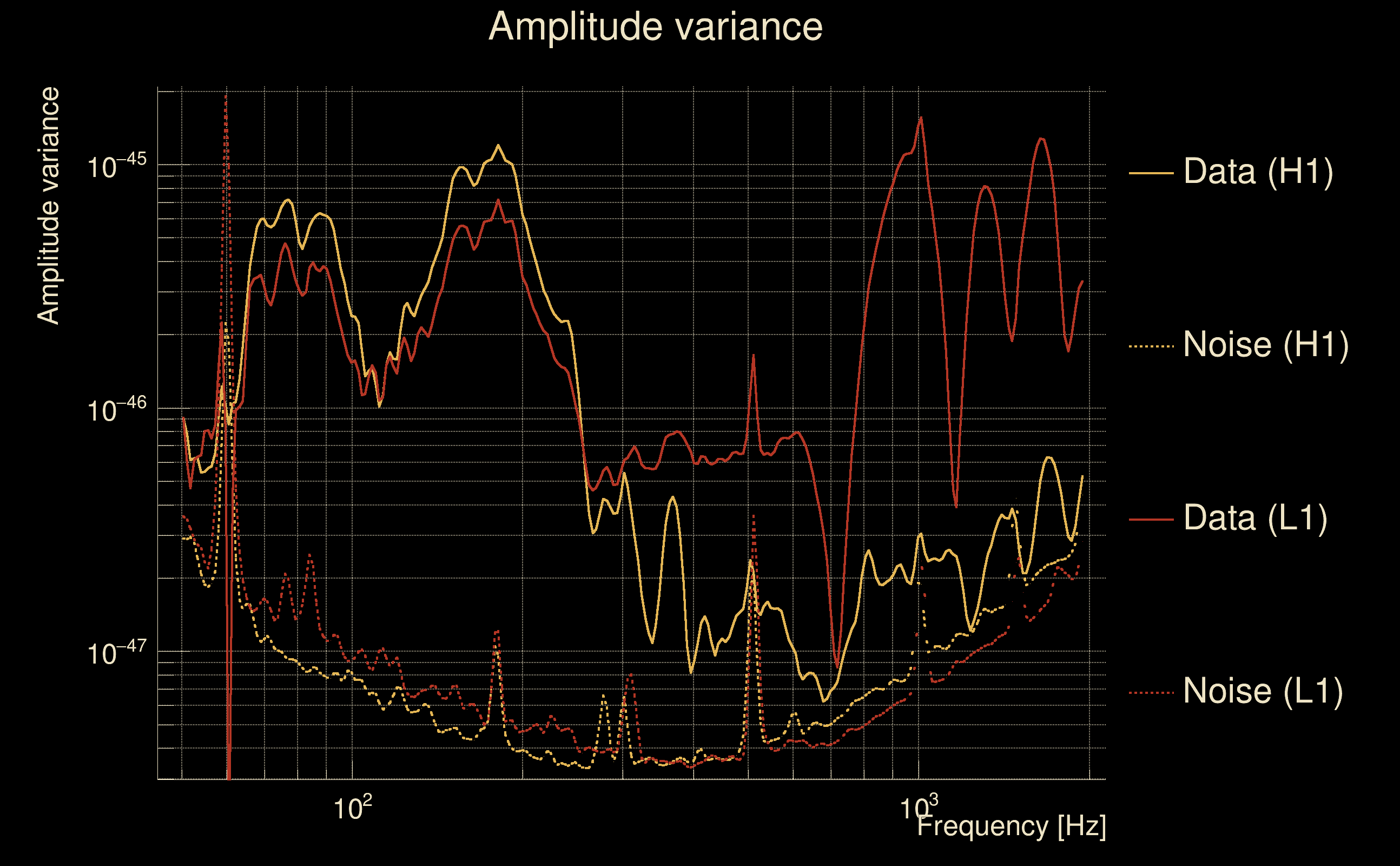

| SNR variance: | H1: 21.0467, L1: 23.2431 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

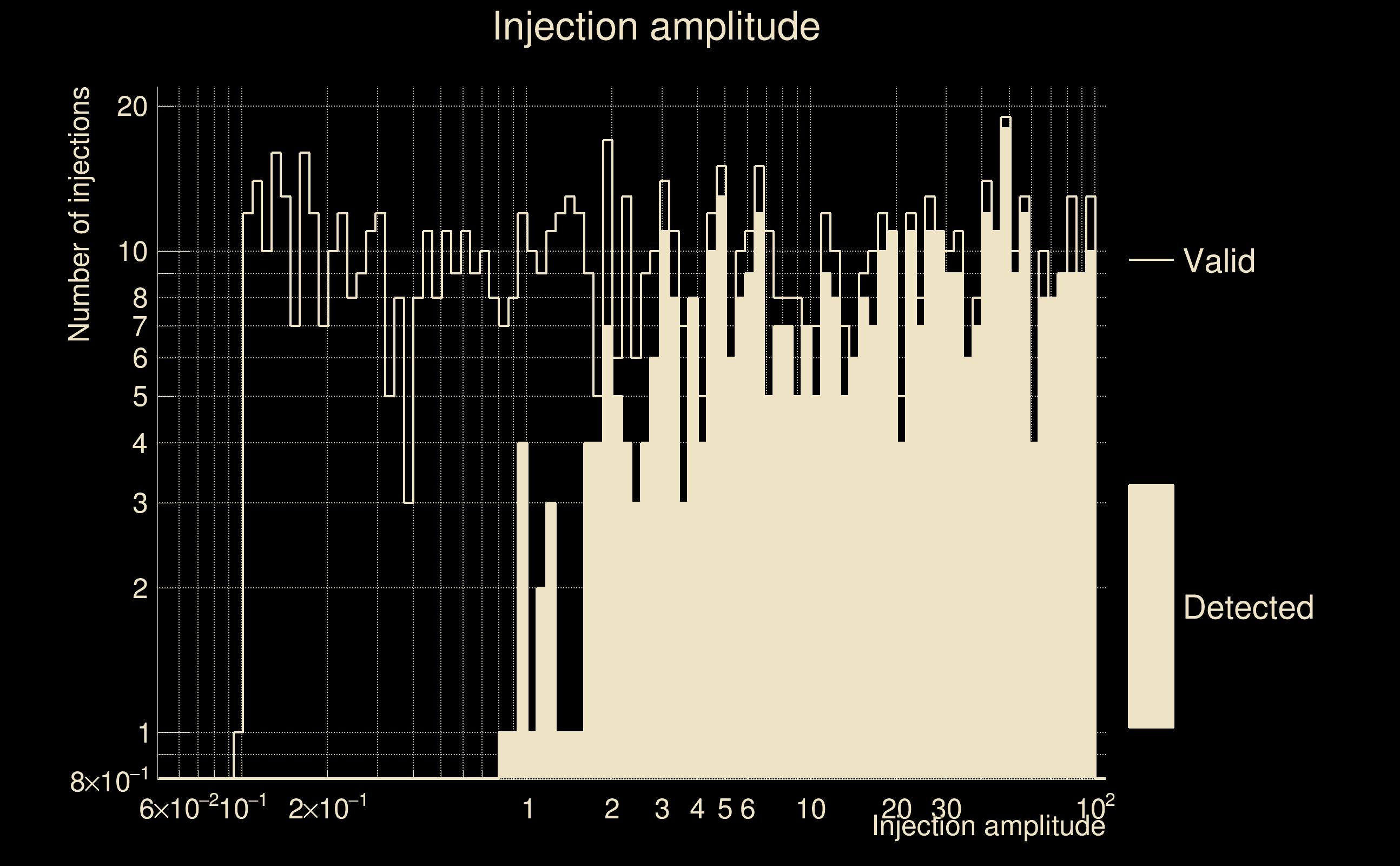

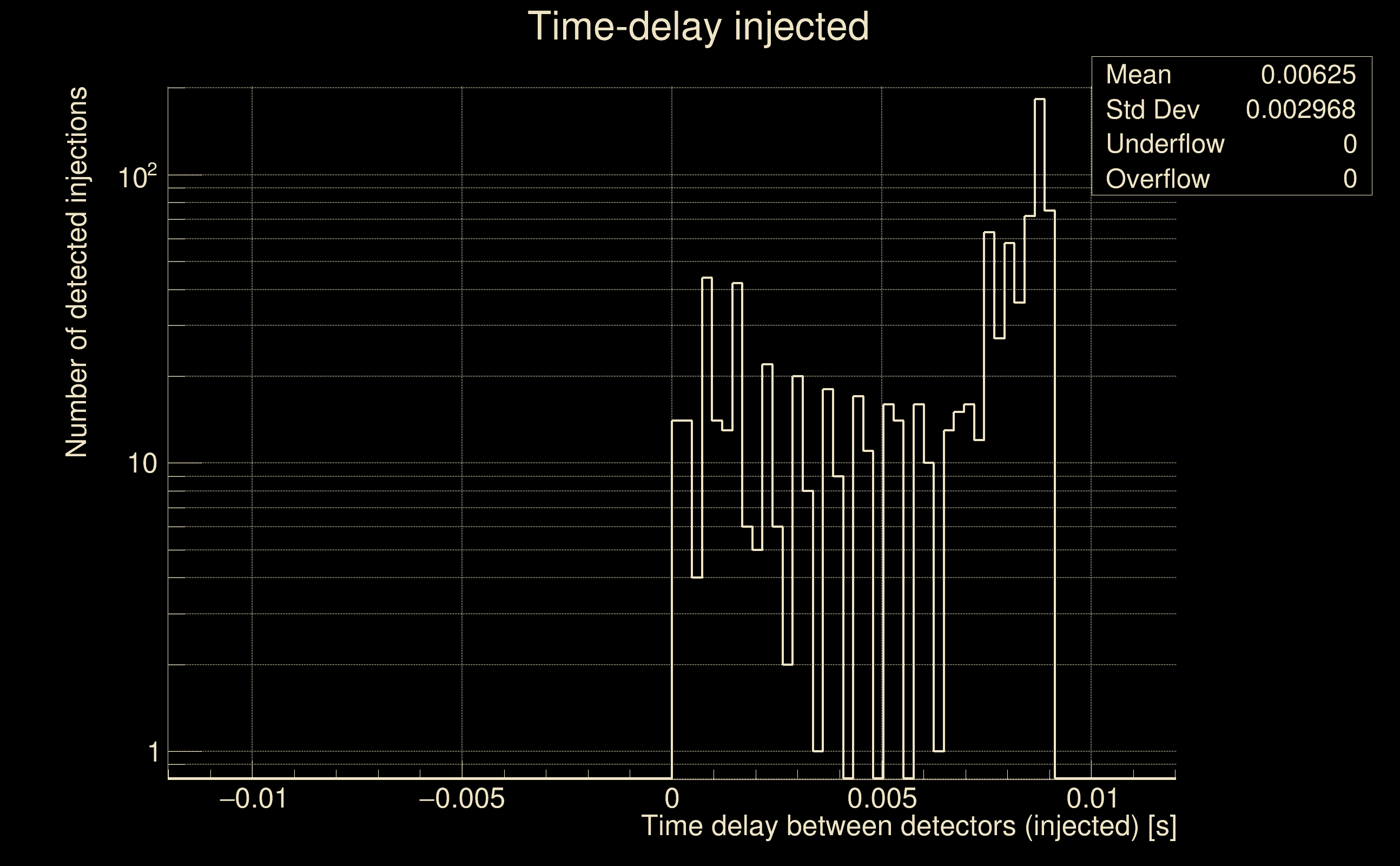

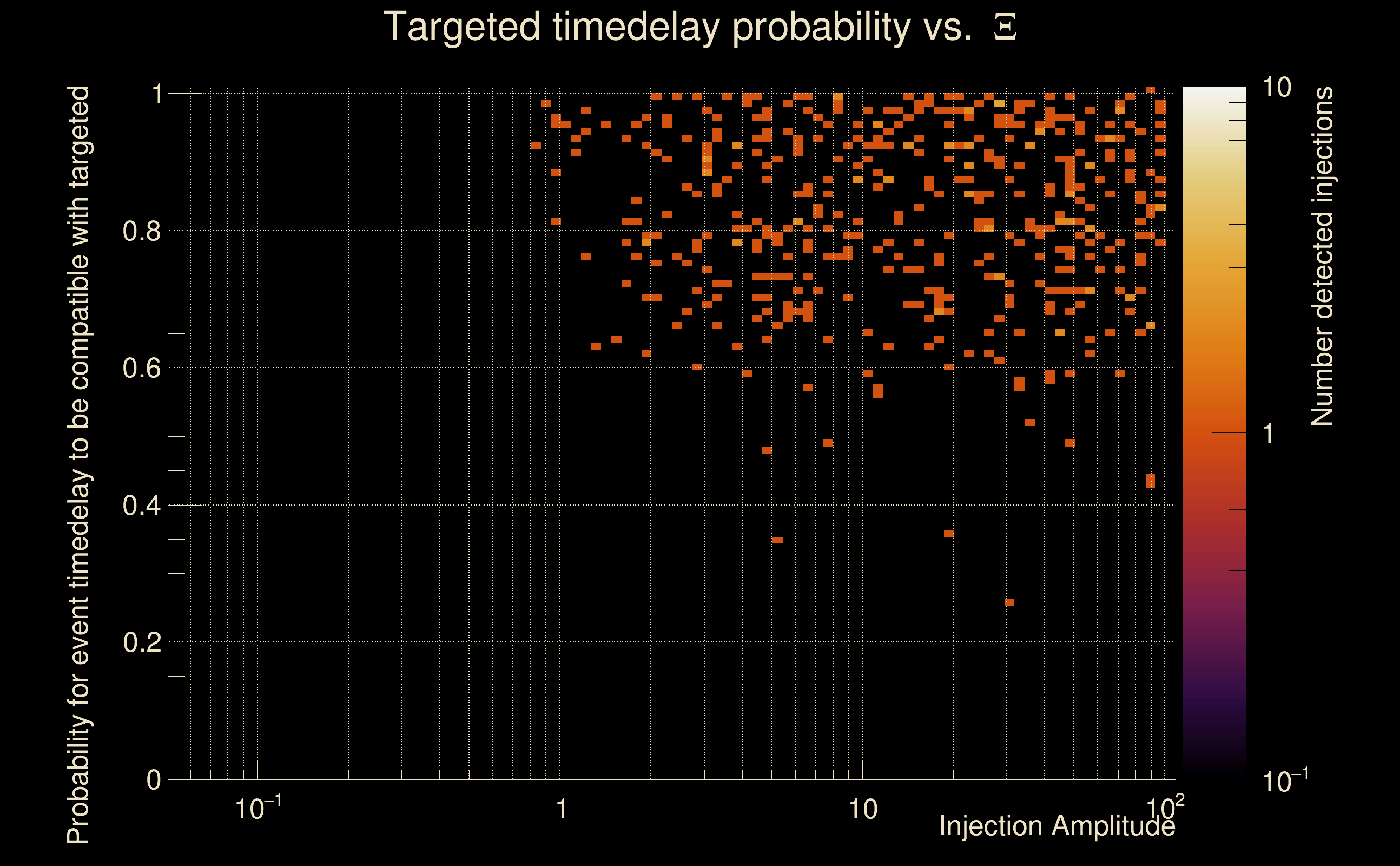

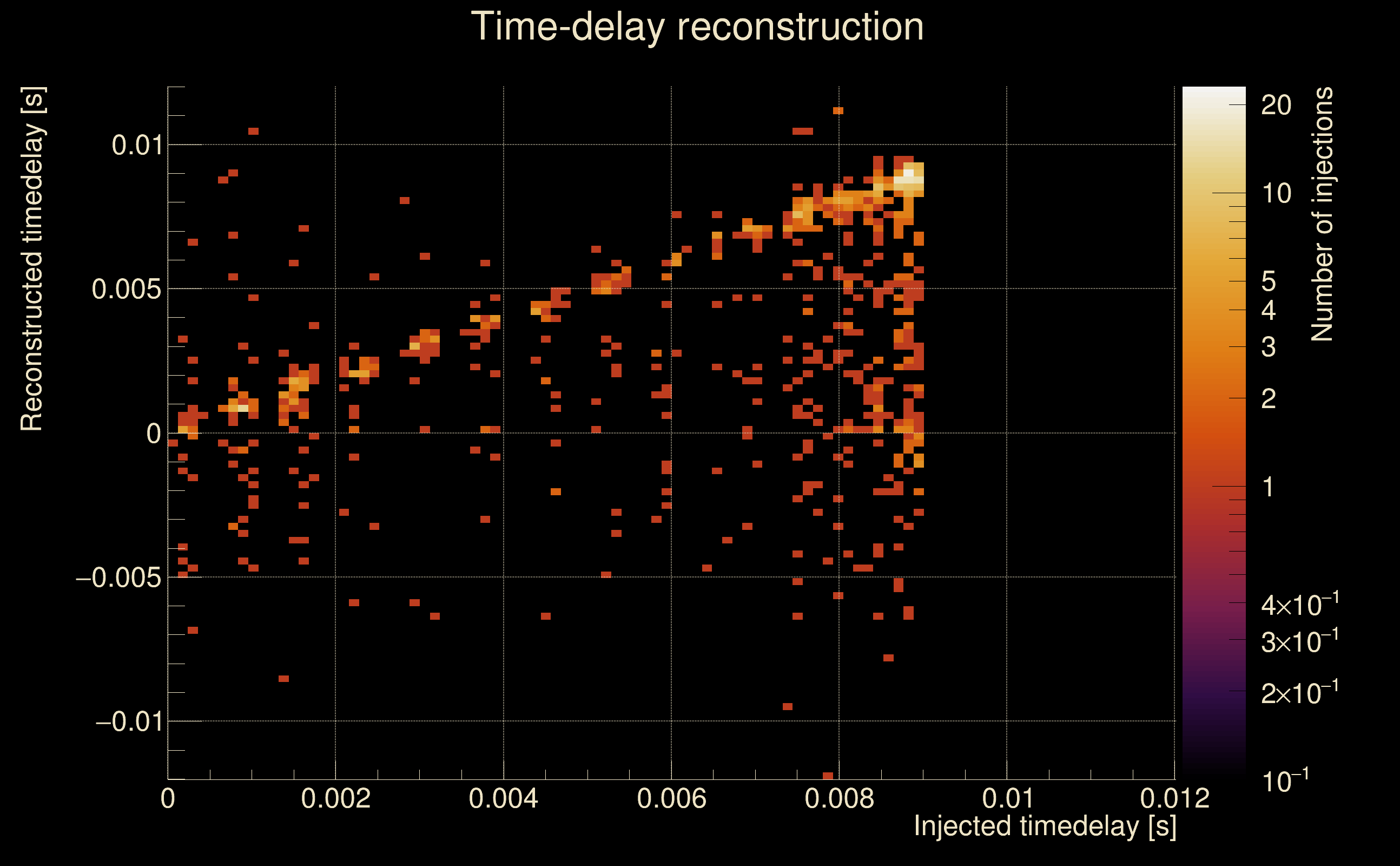

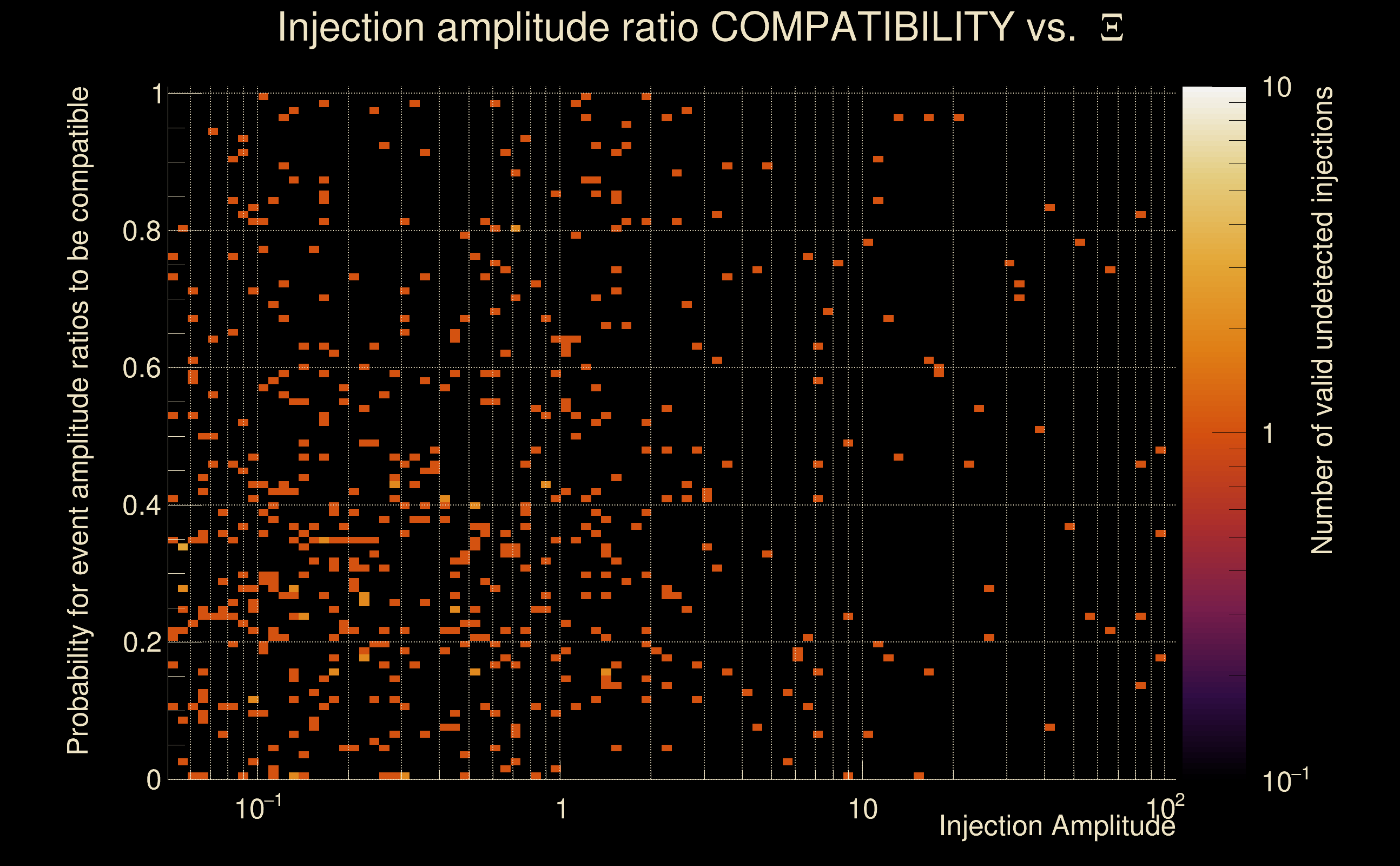

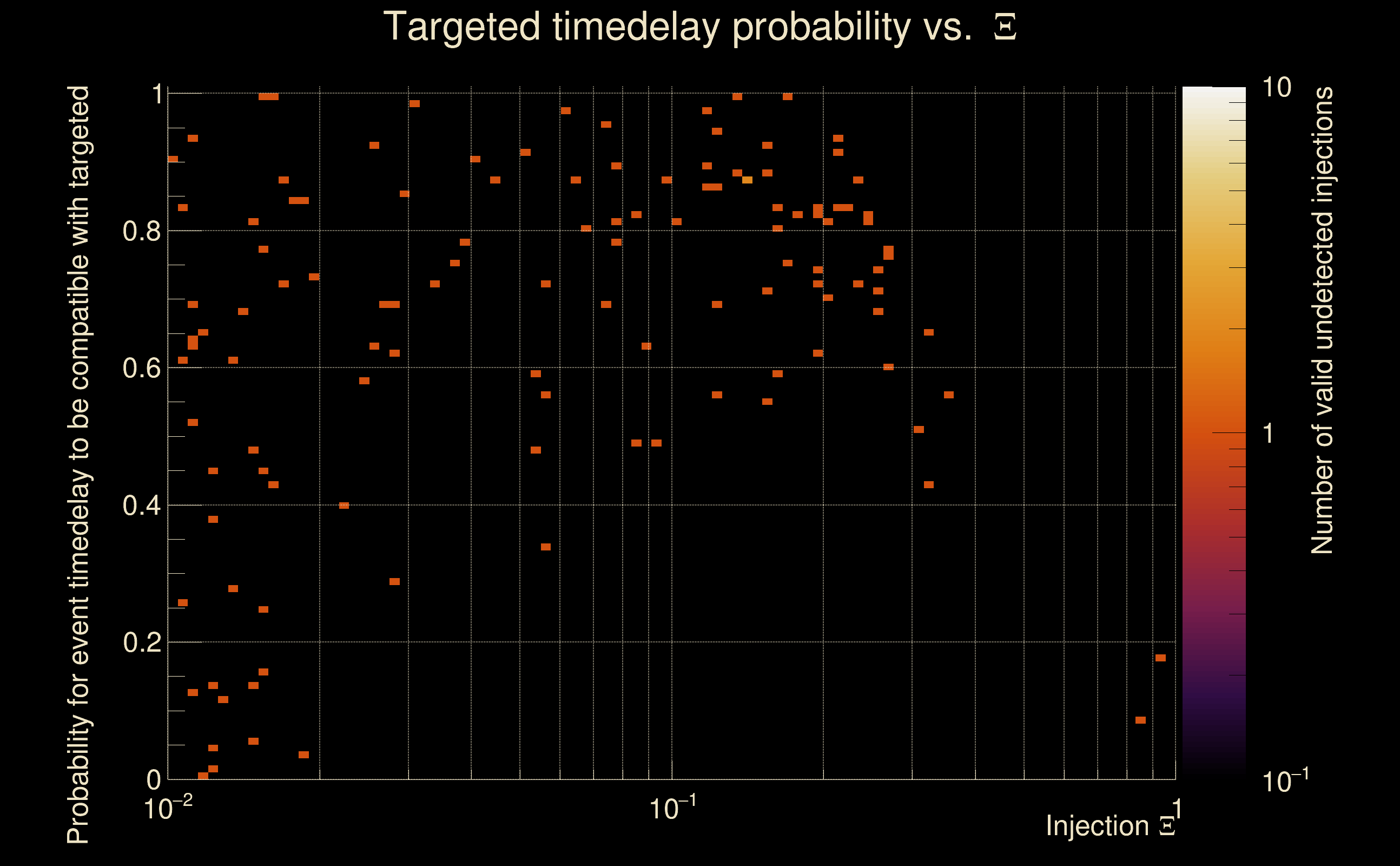

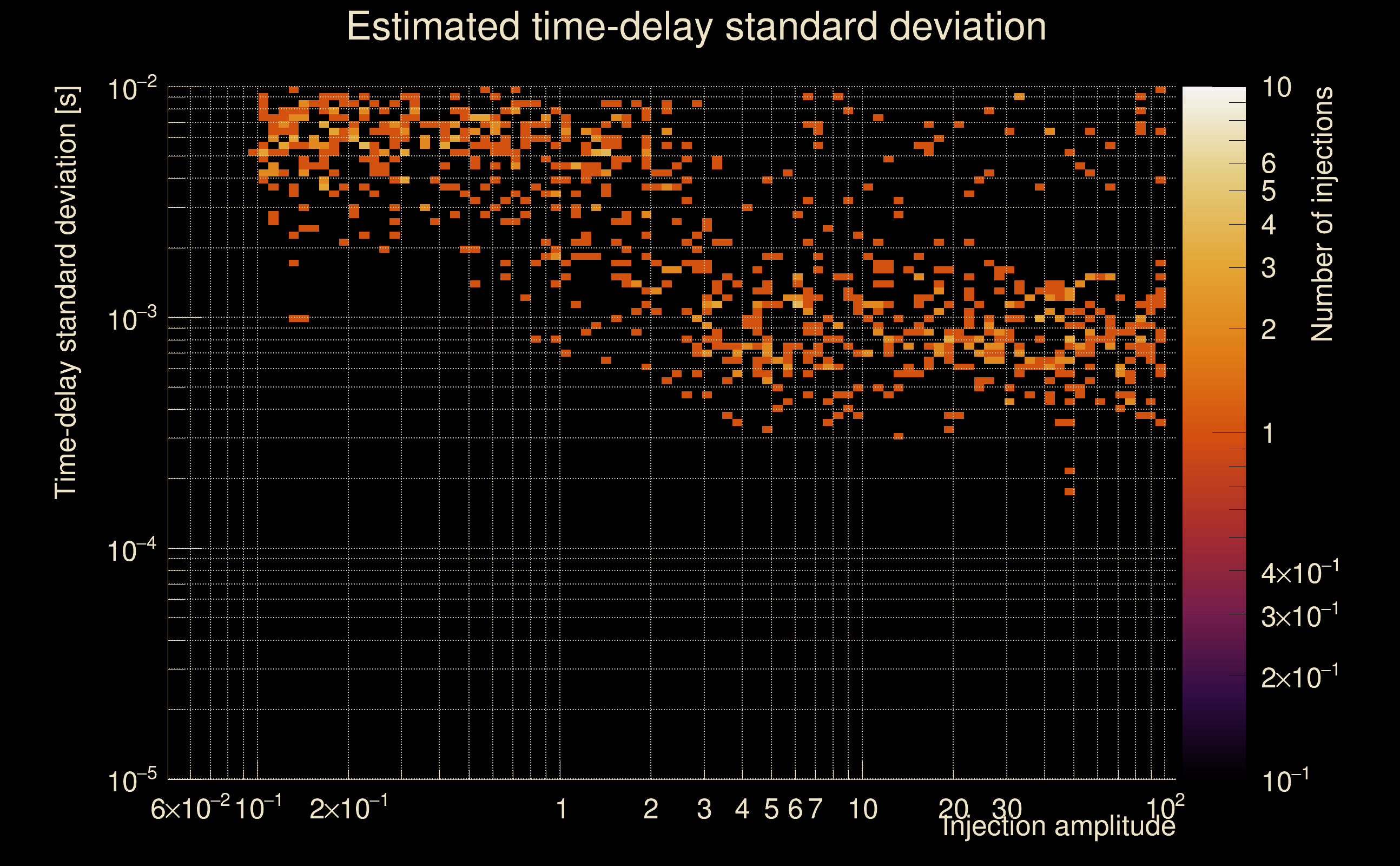

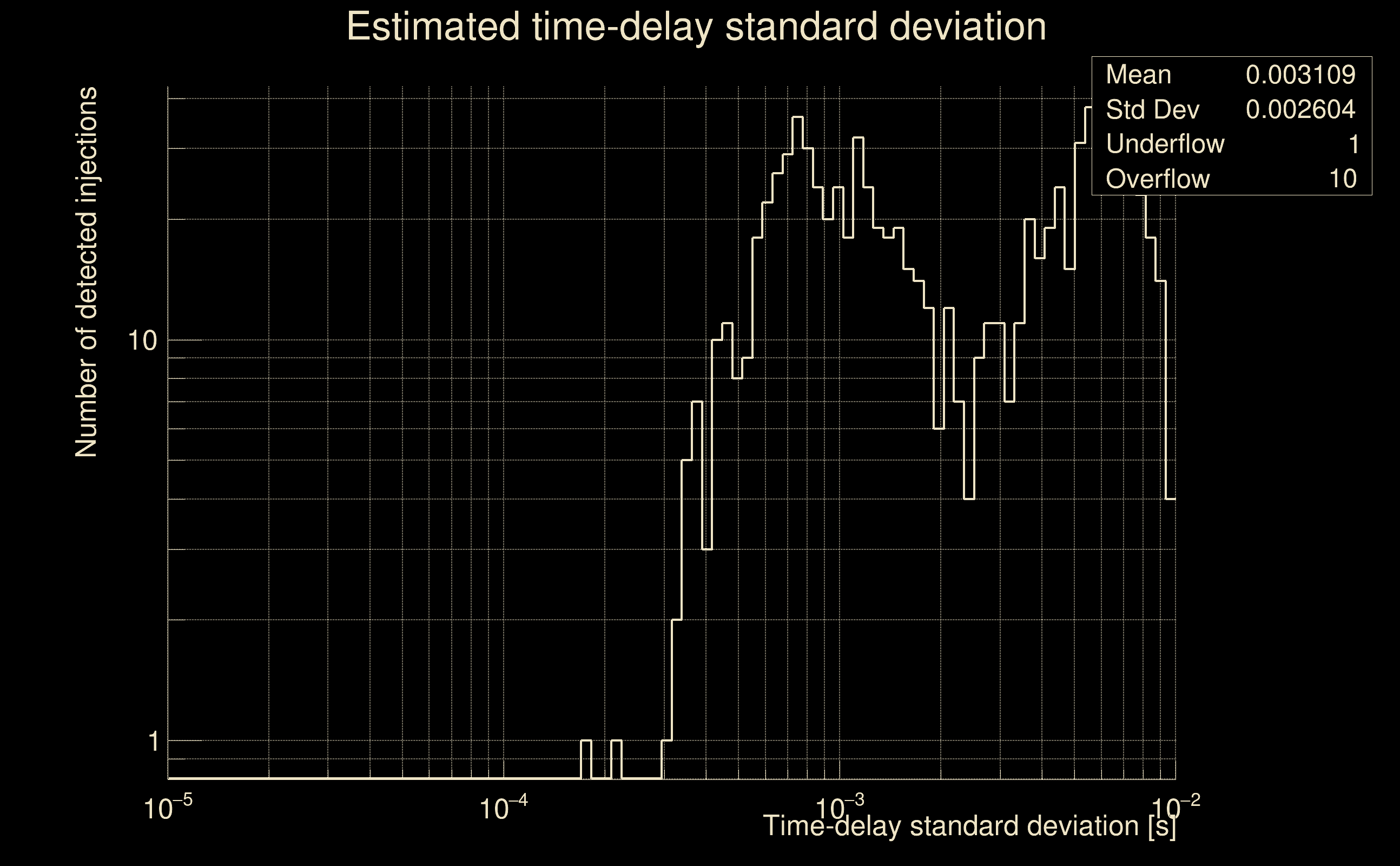

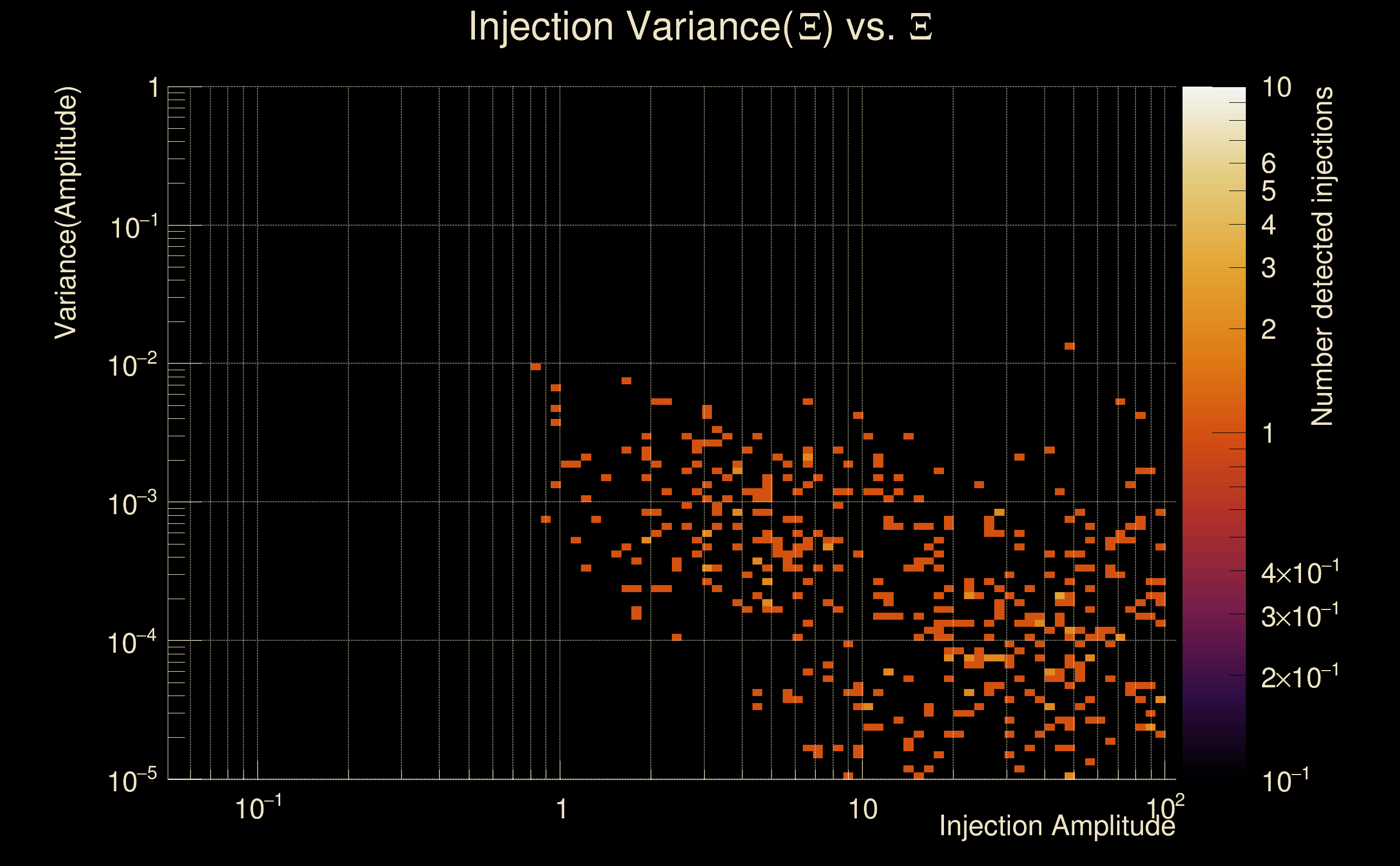

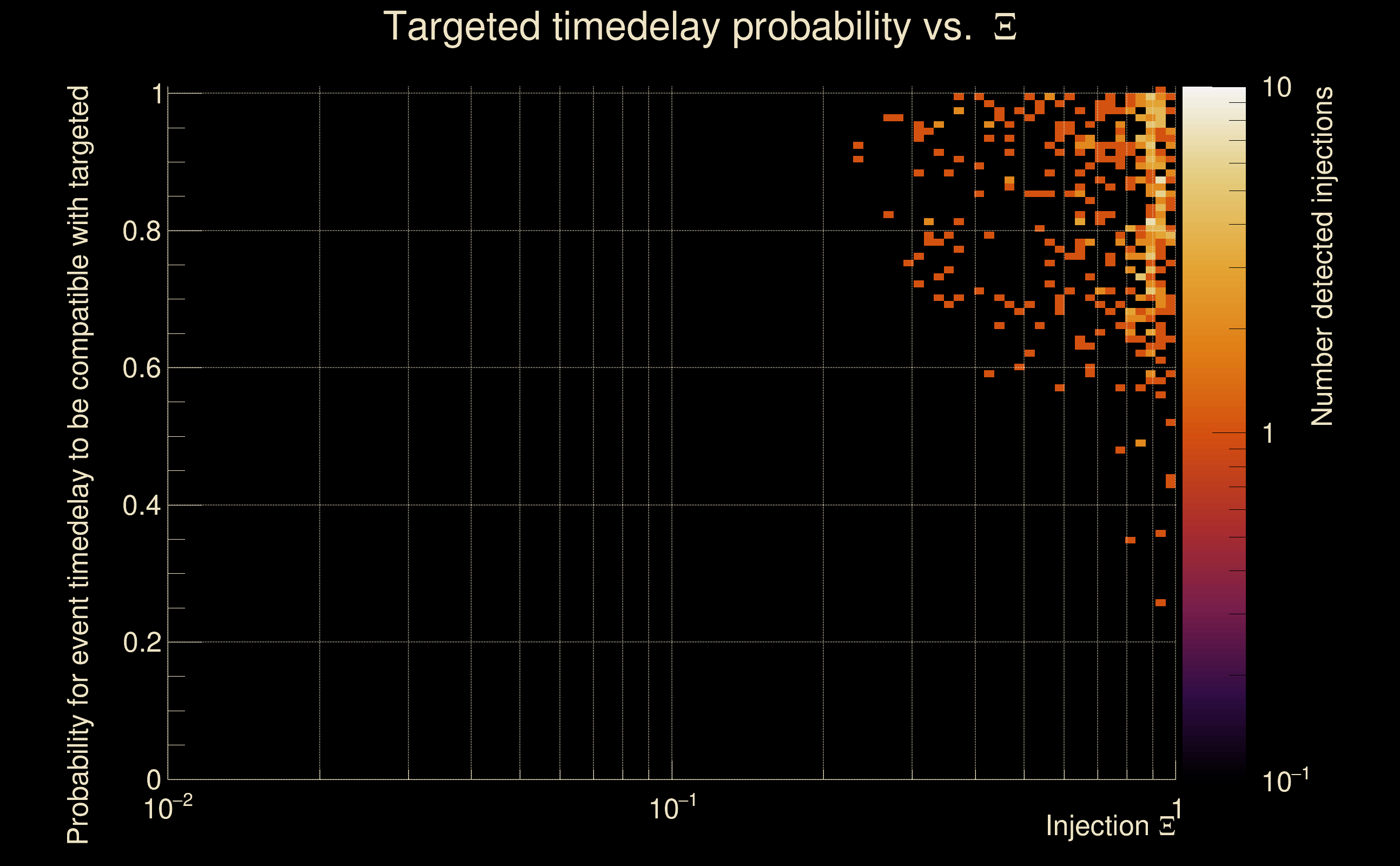

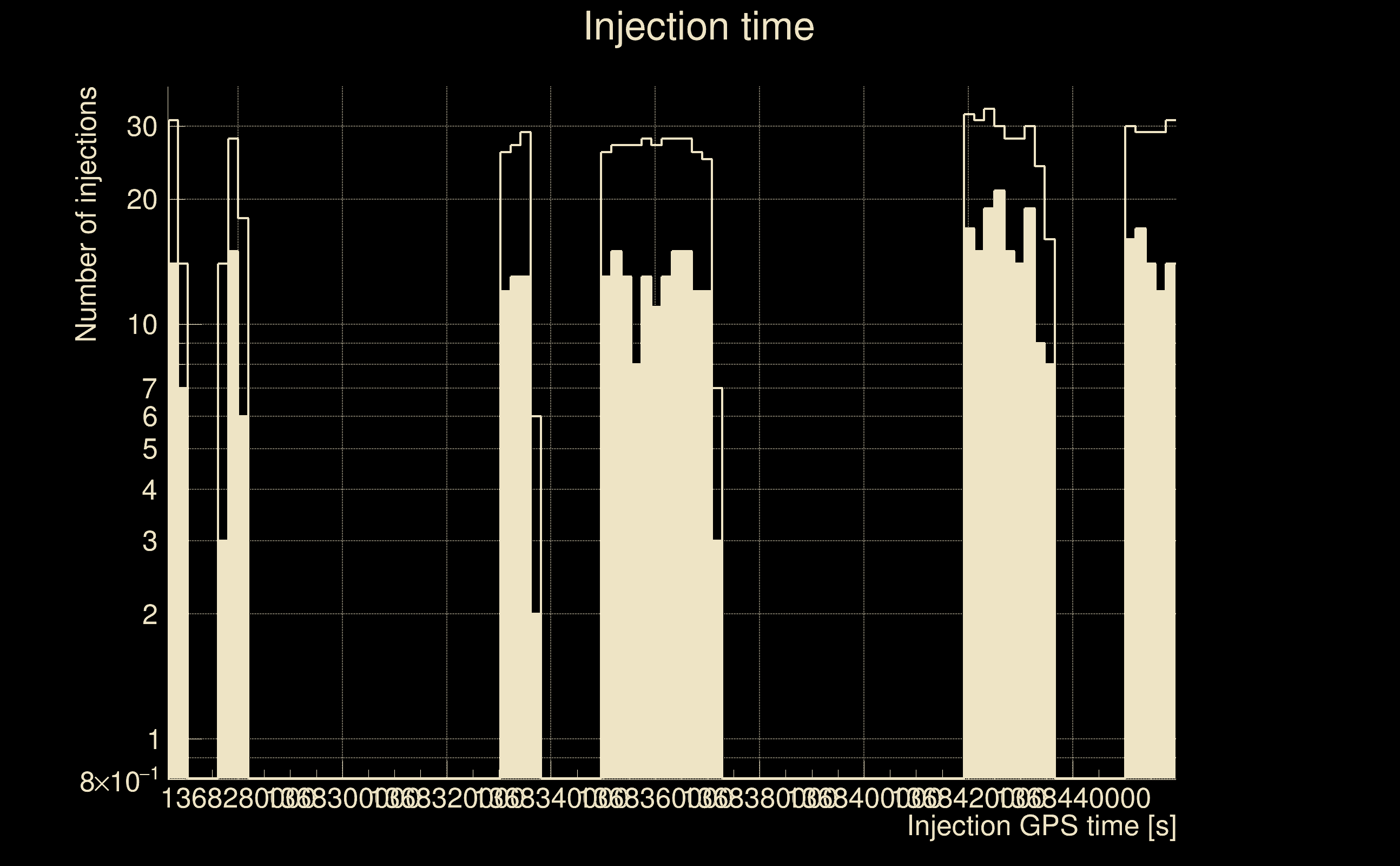

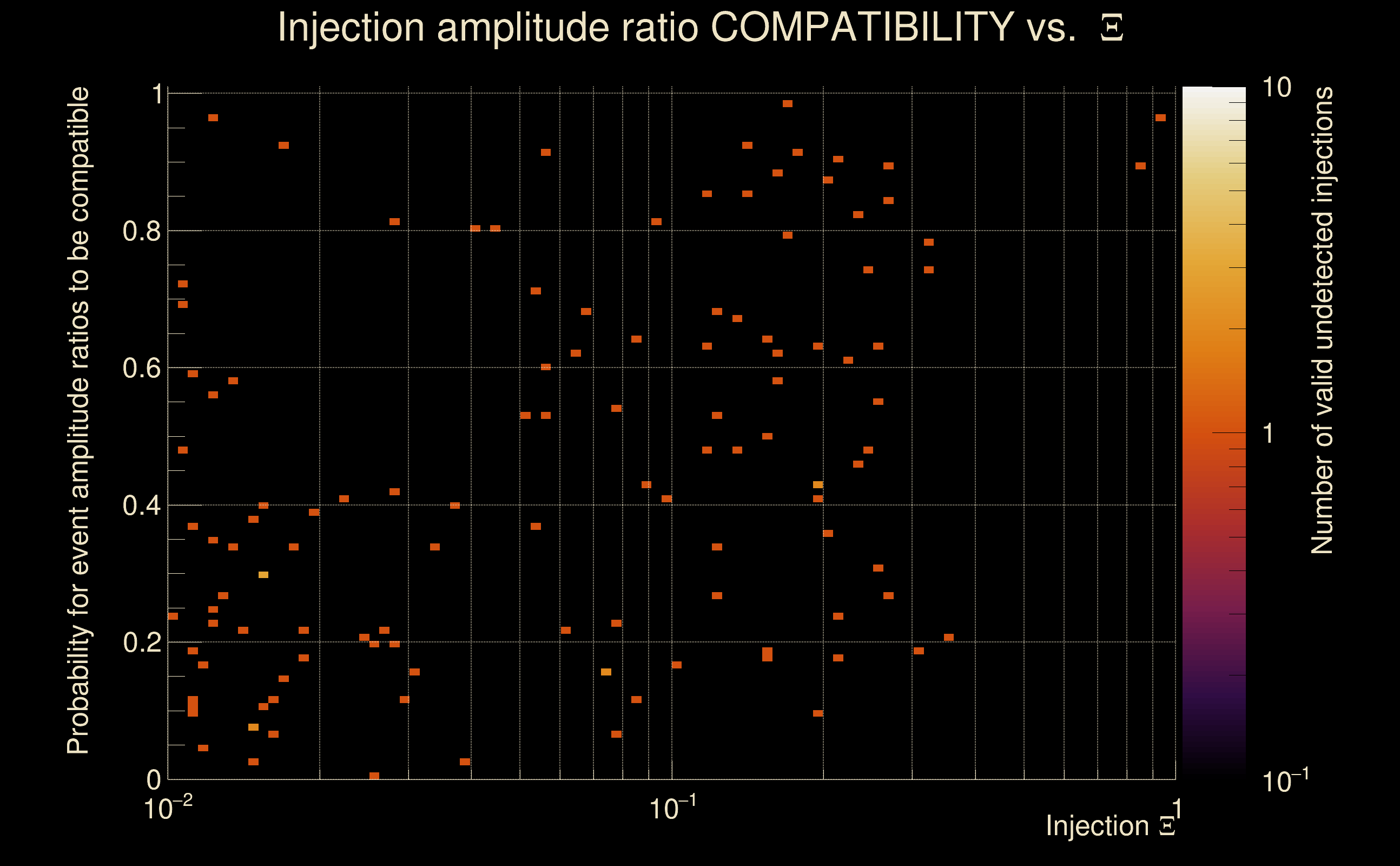

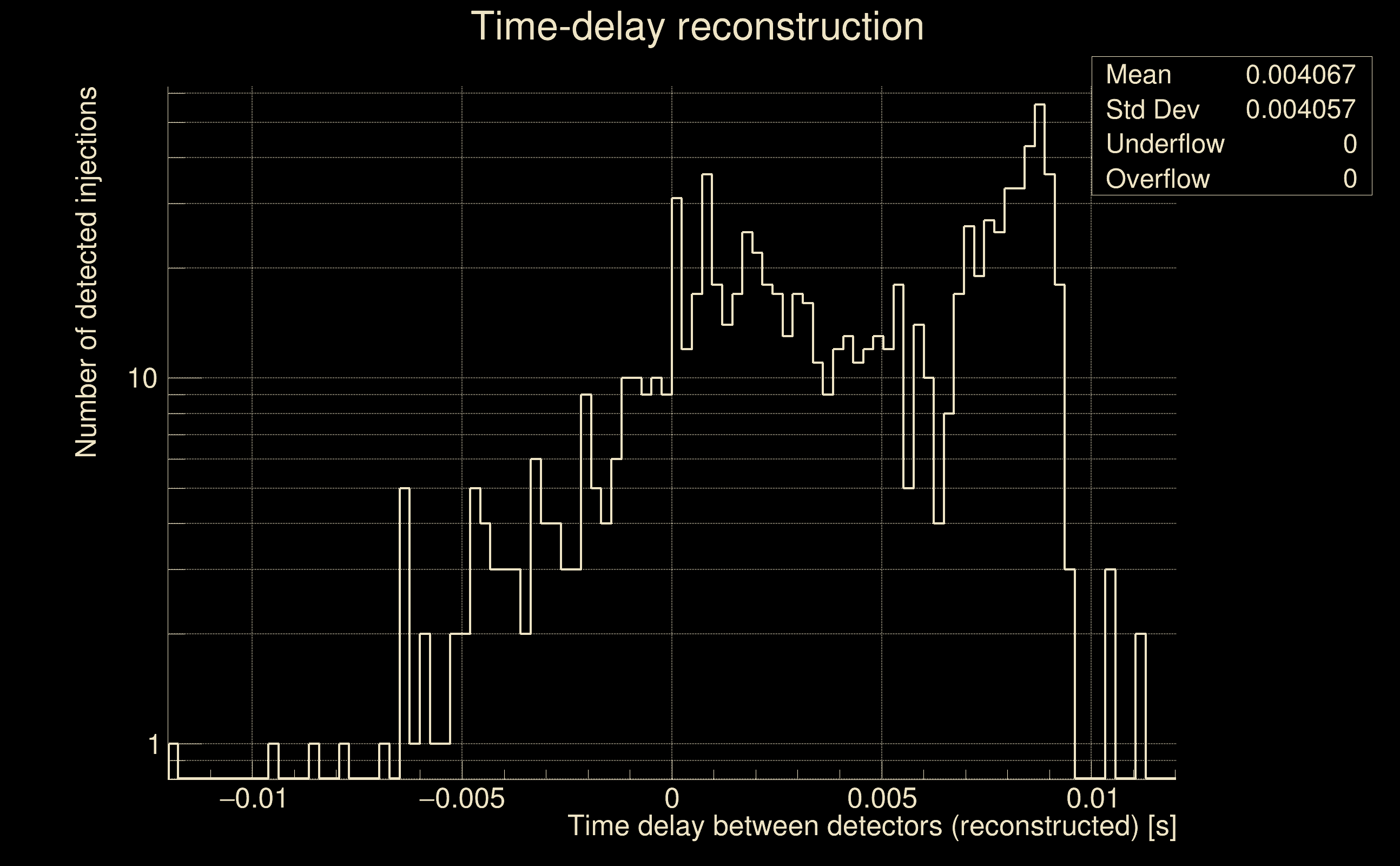

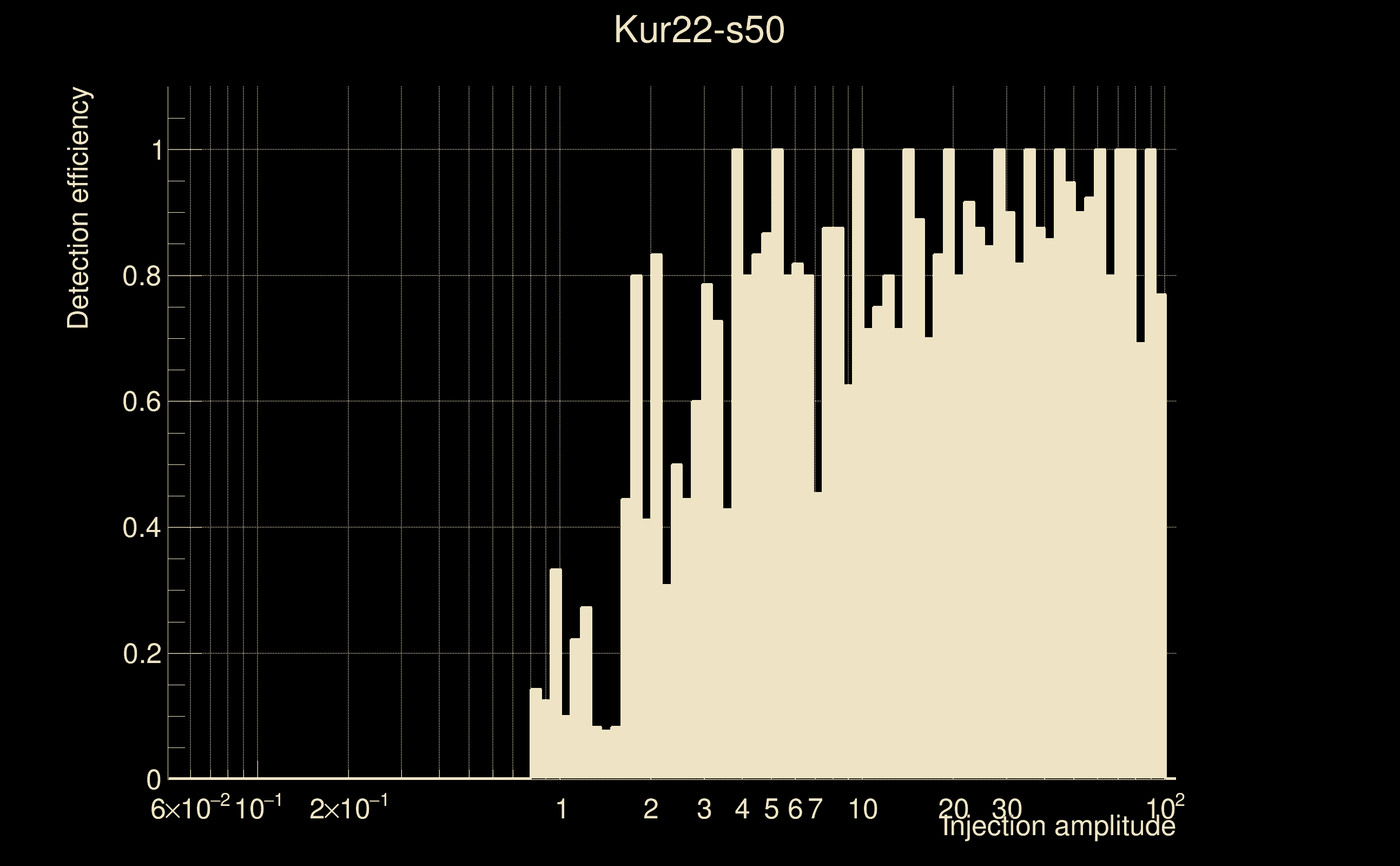

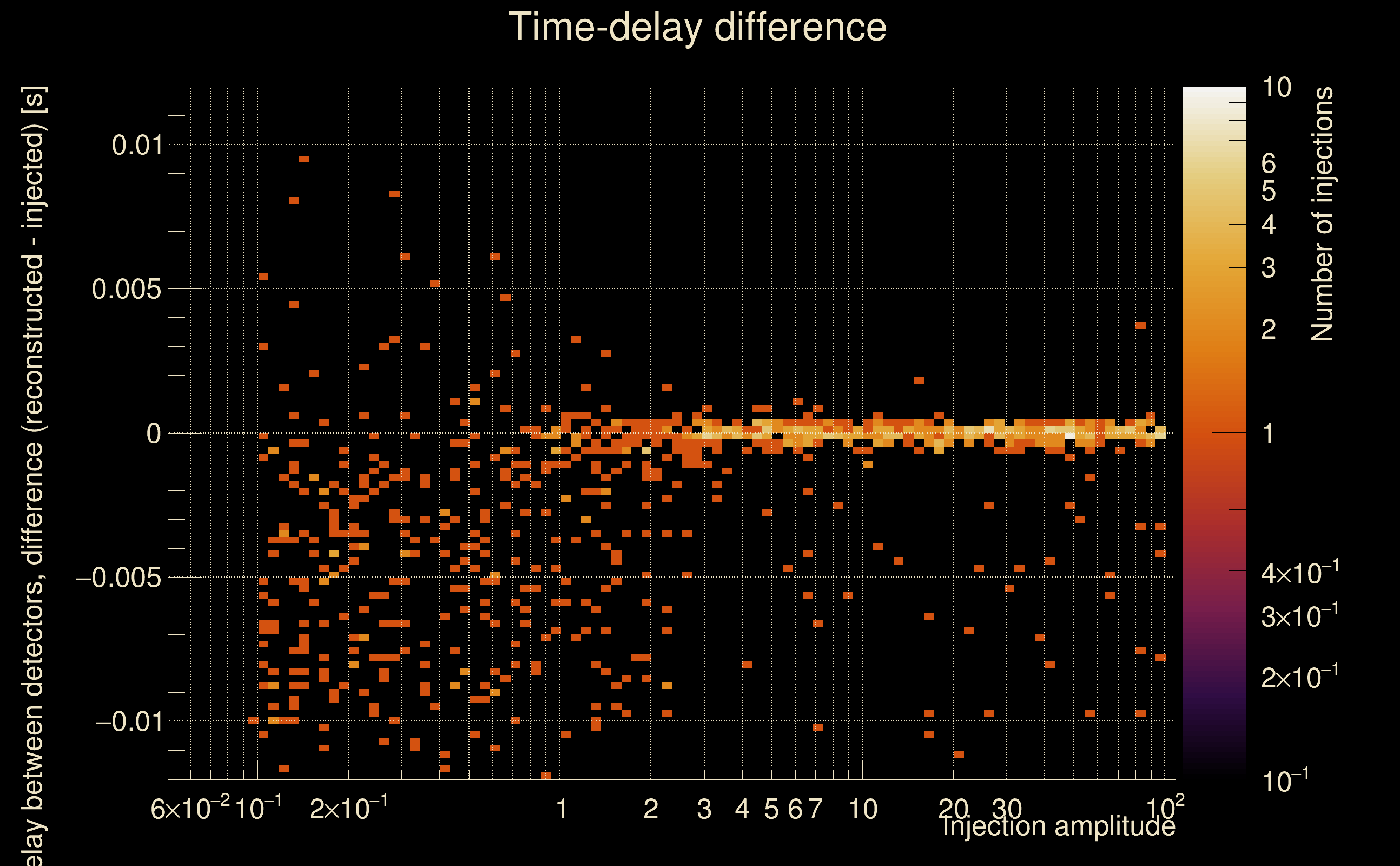

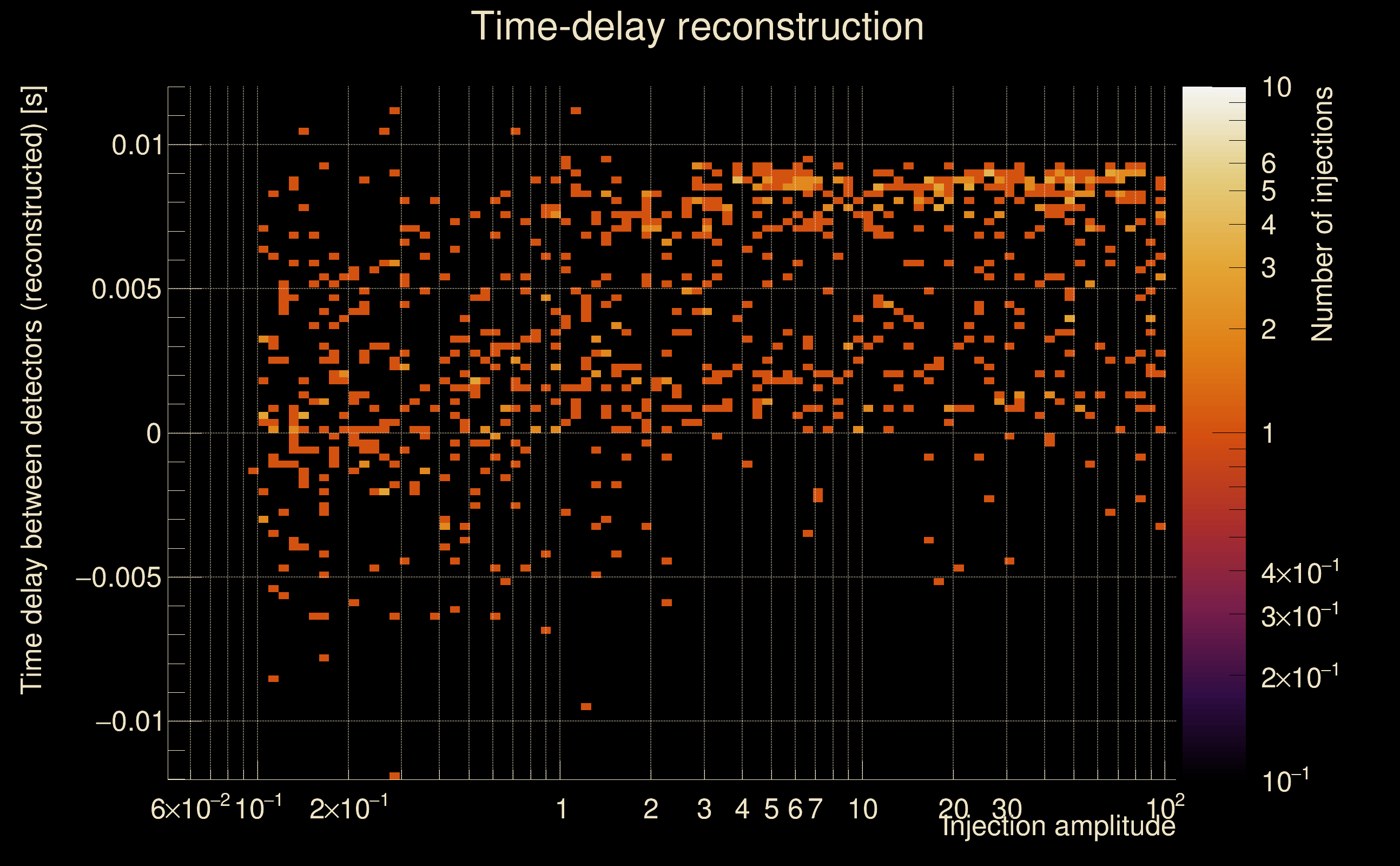

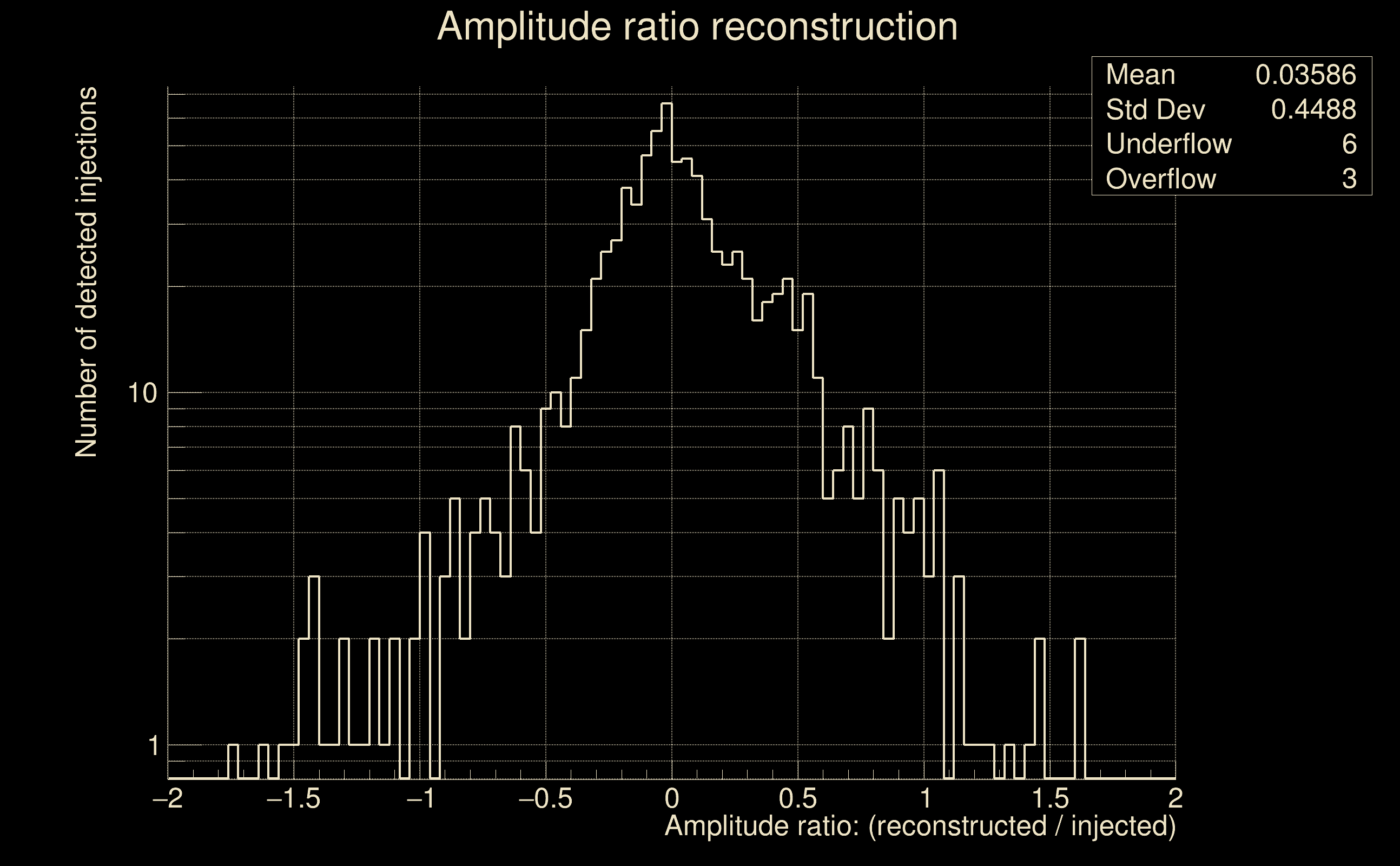

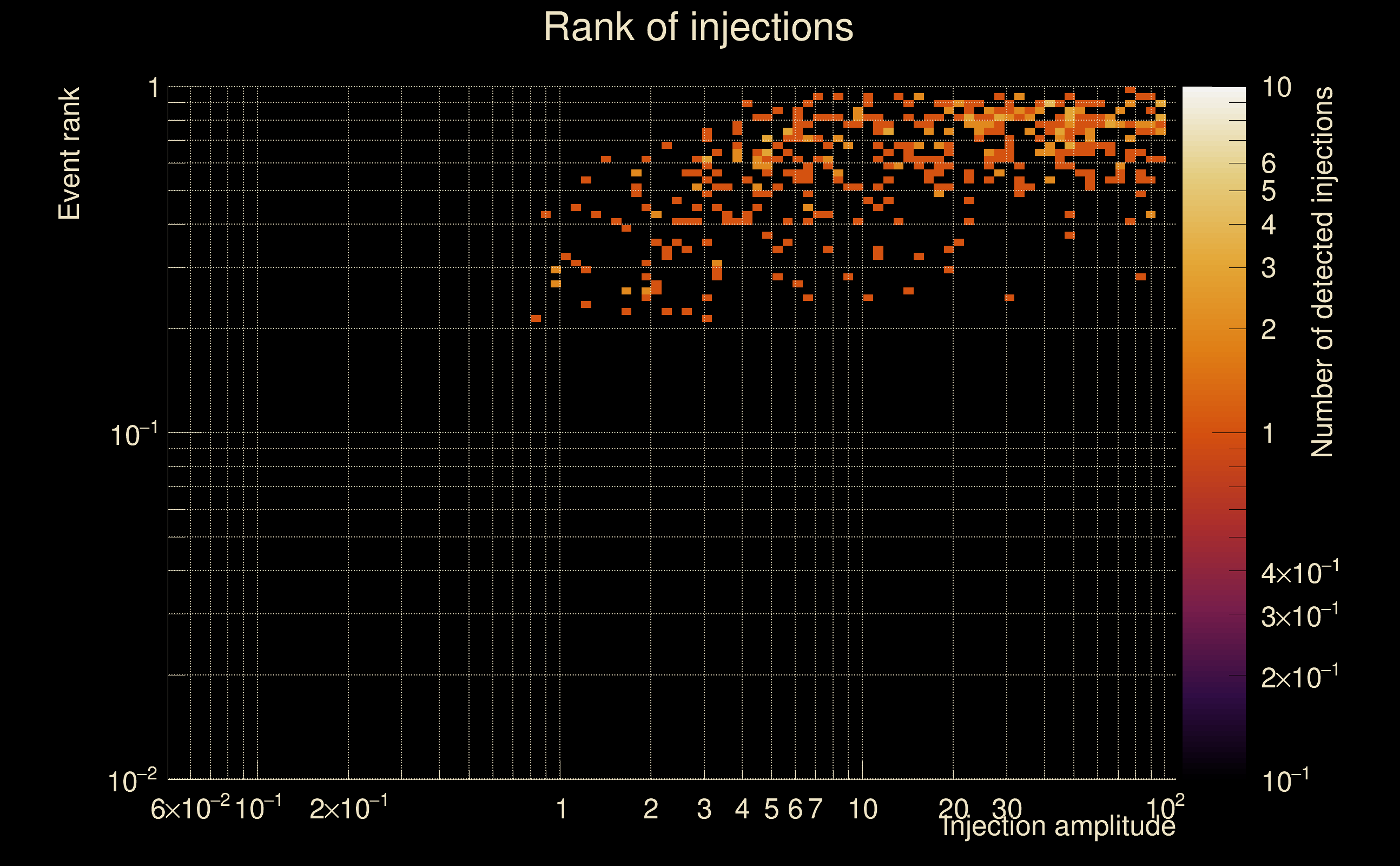

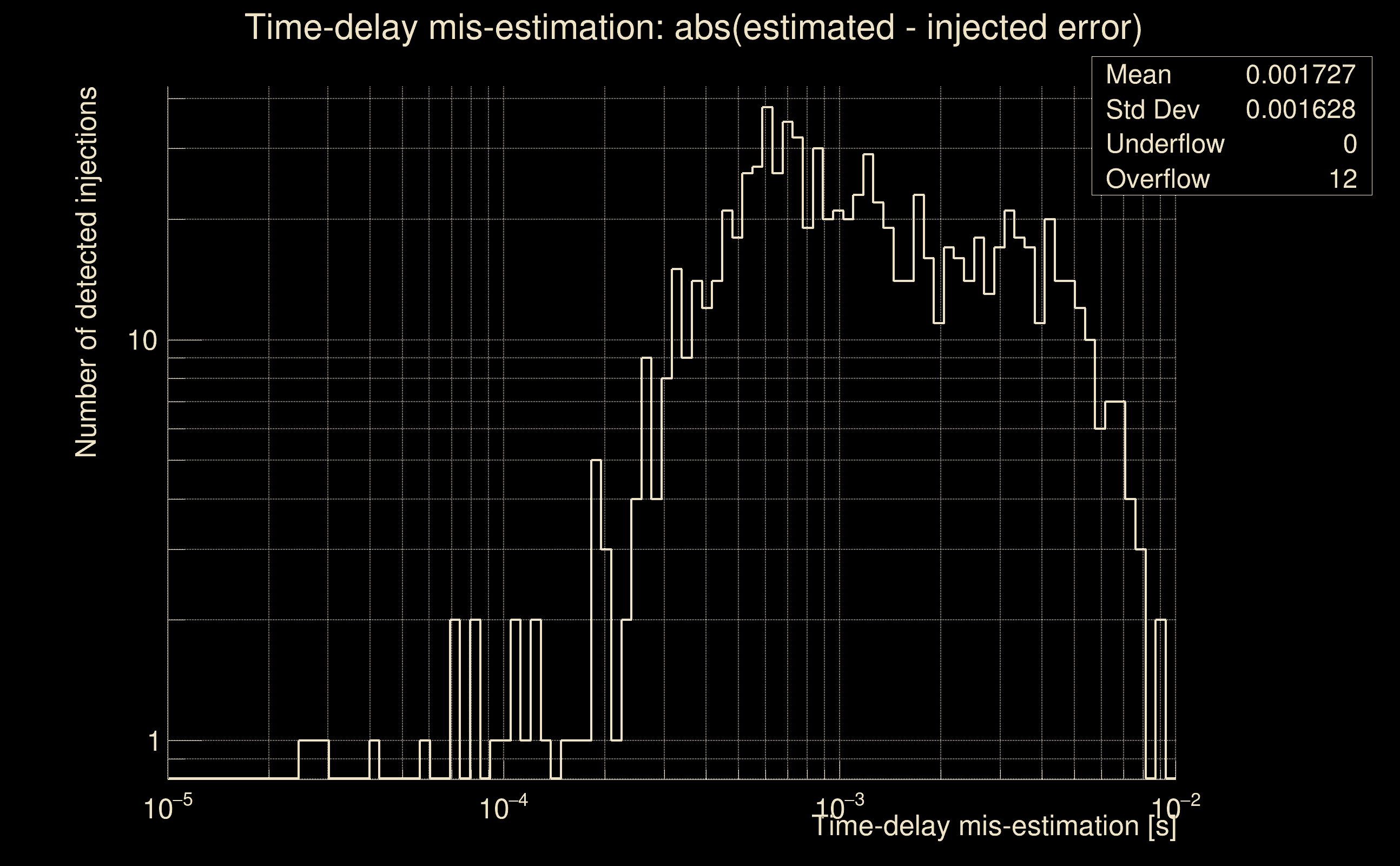

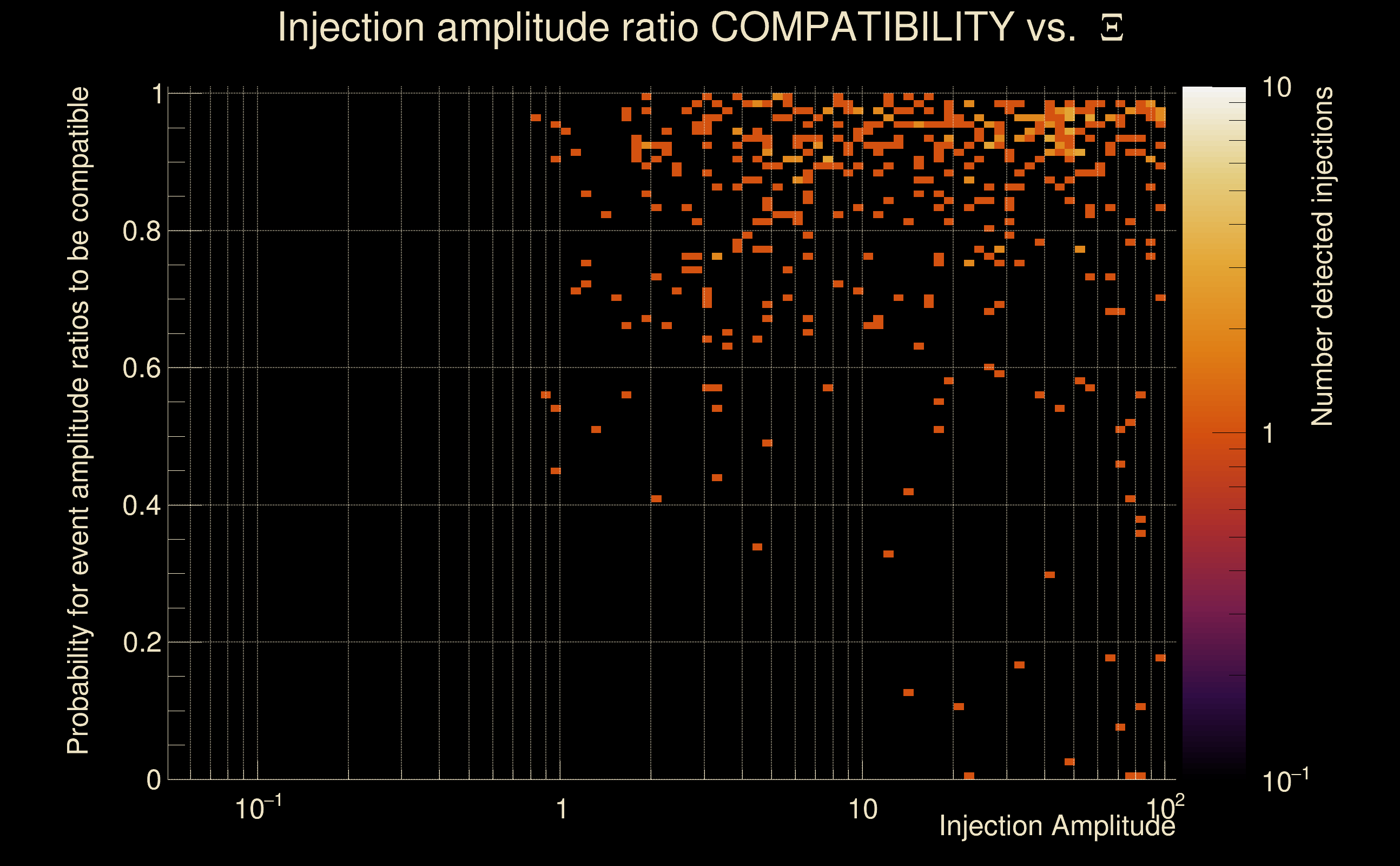

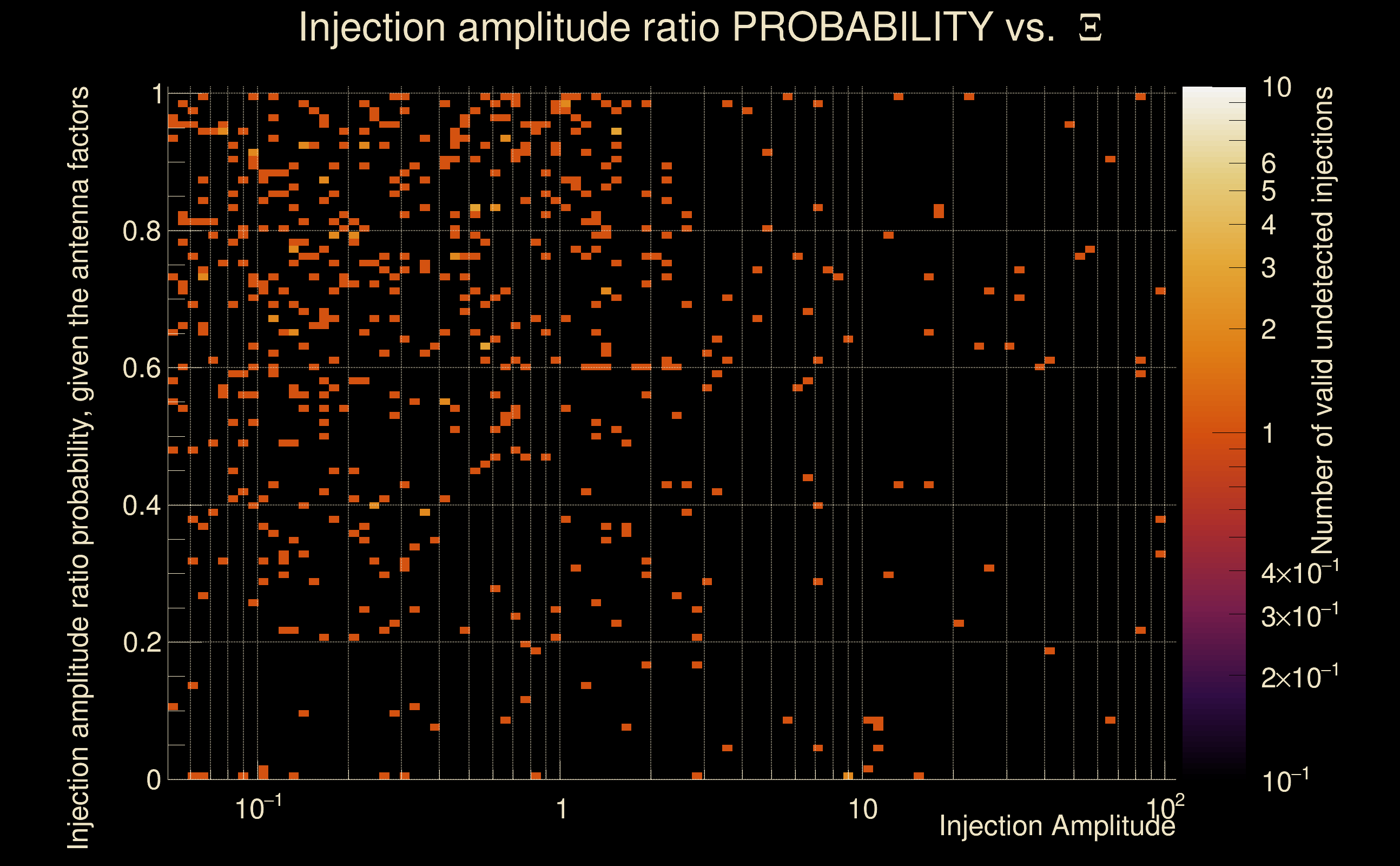

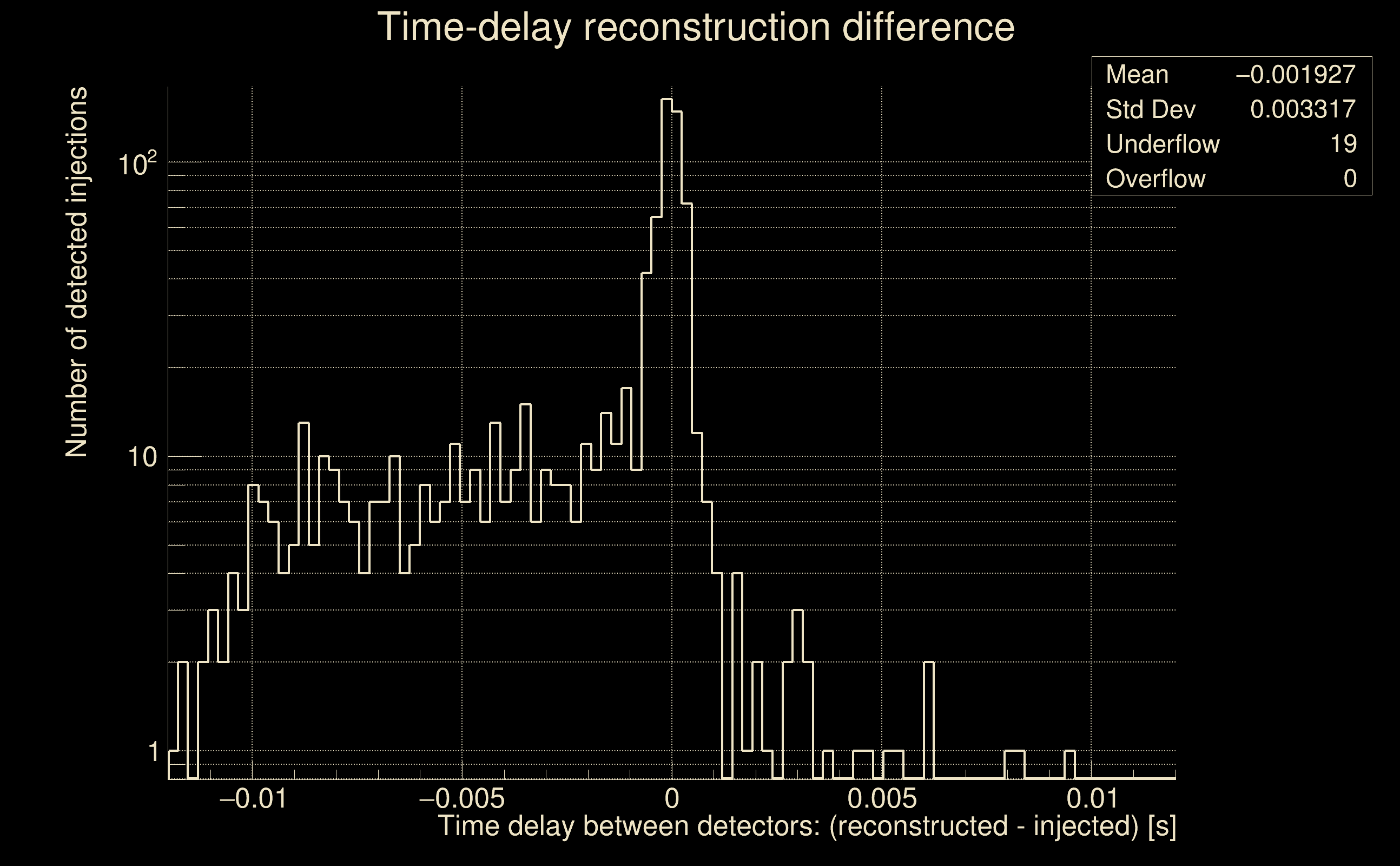

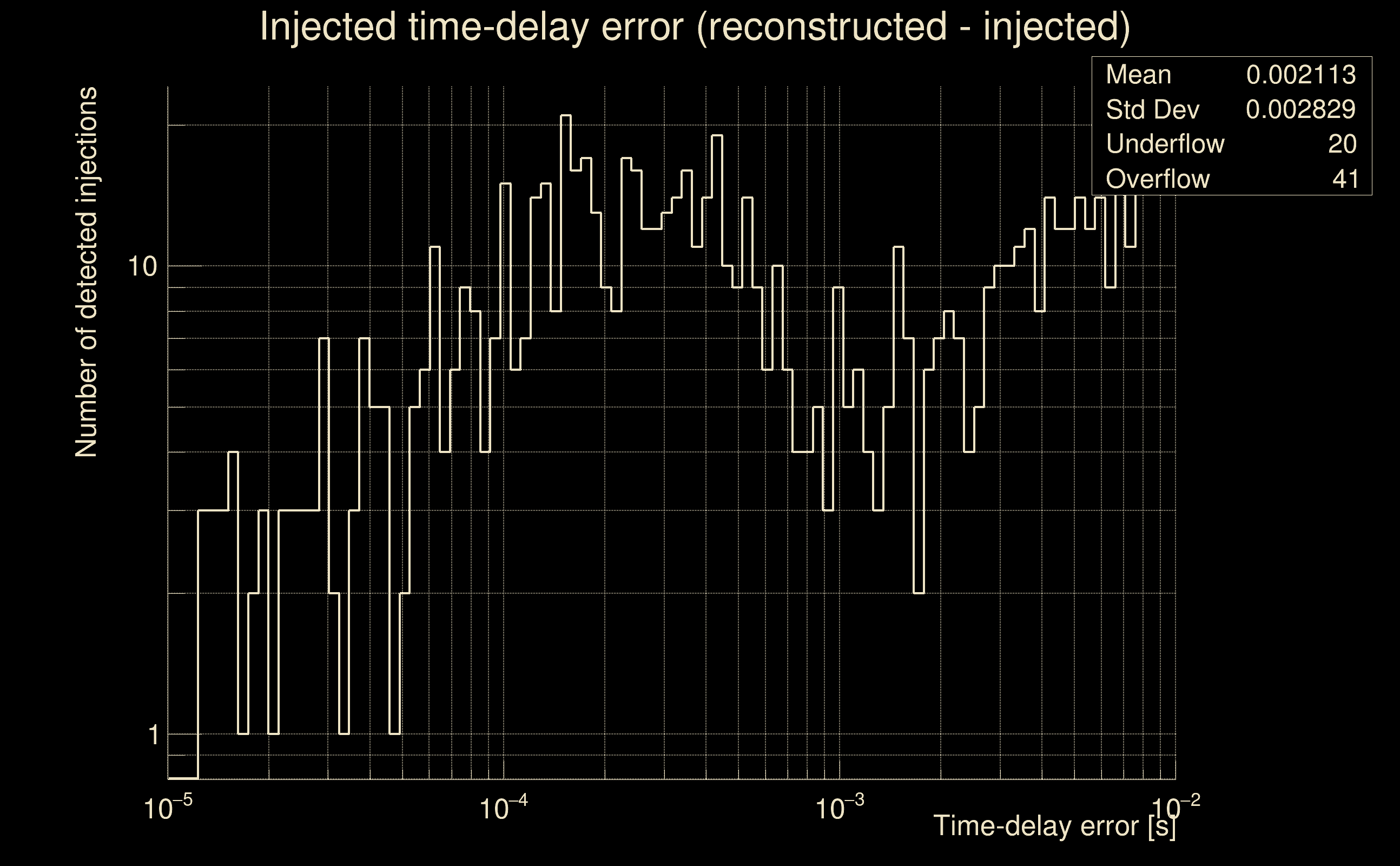

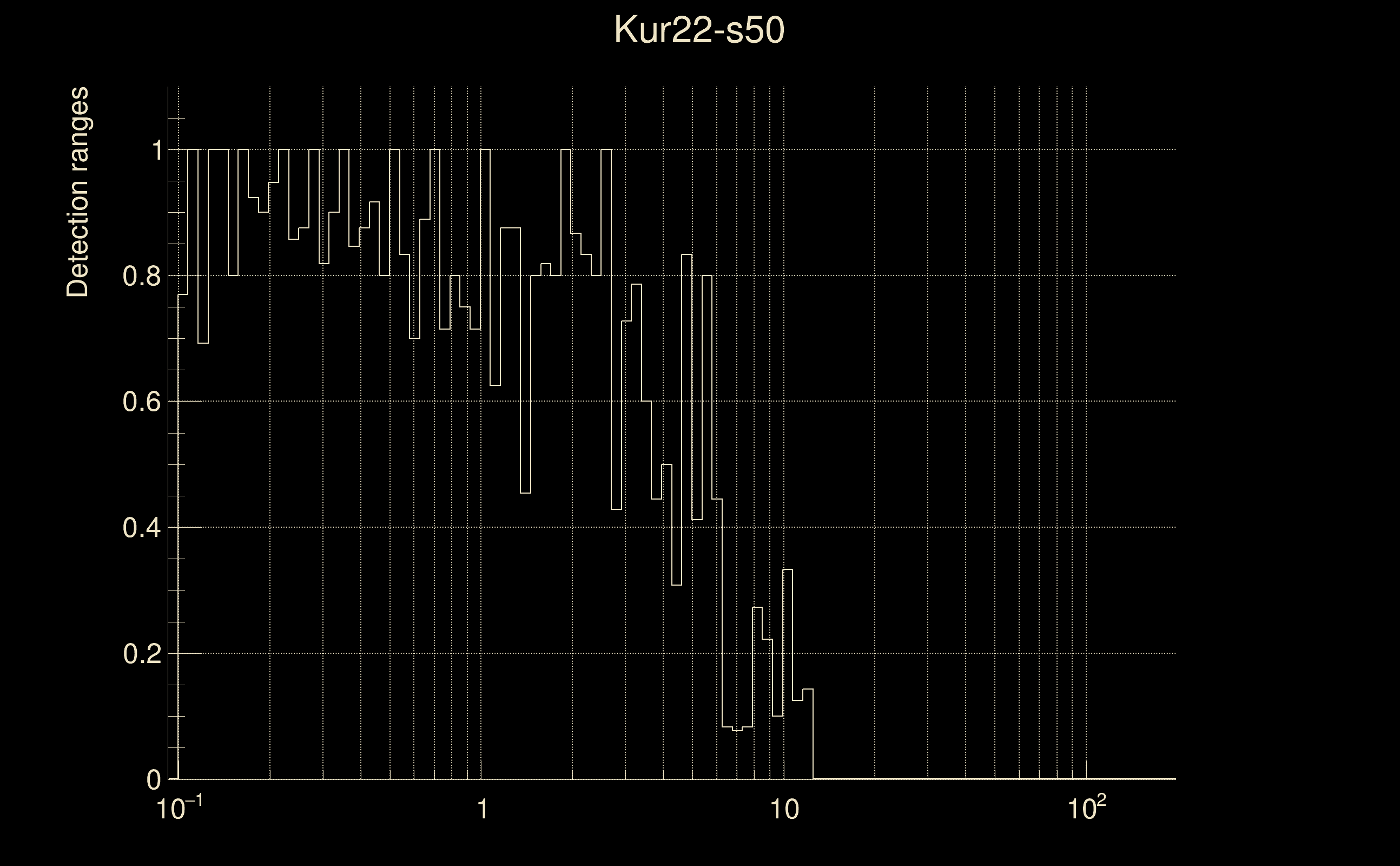

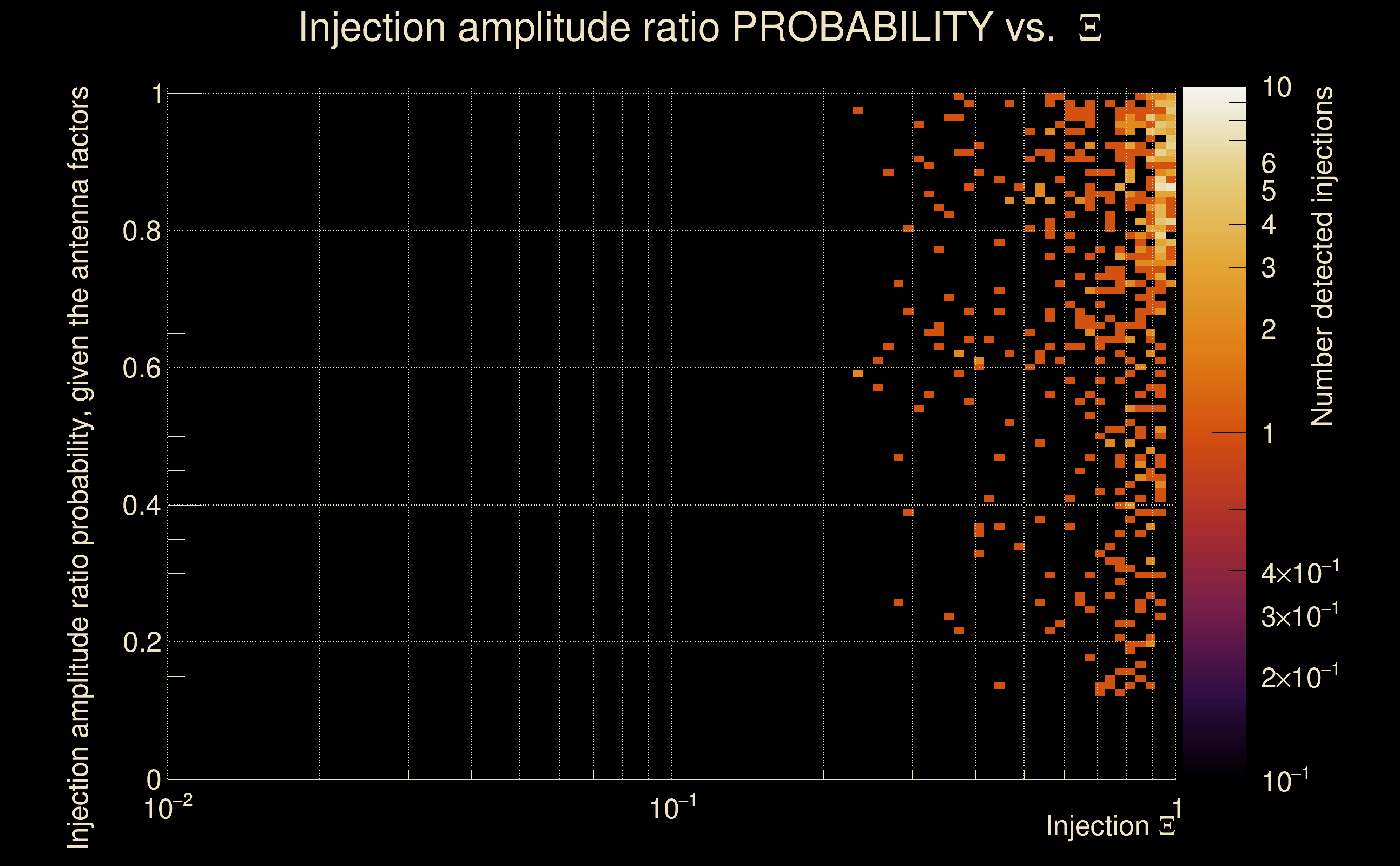

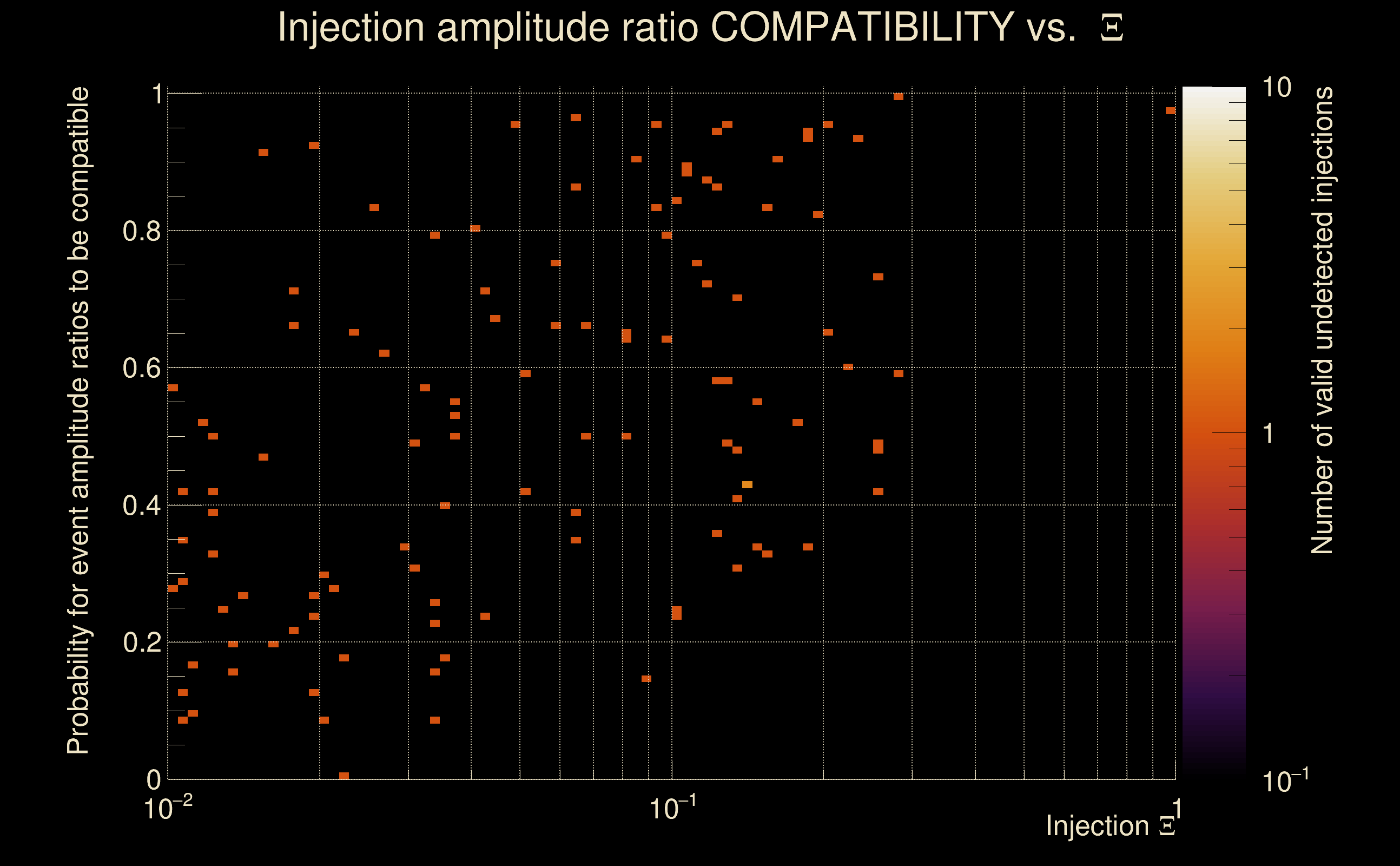

| Number of injections (total/valid/detected): | 1006 / 897 / 438 |
| List of missed injections: | ./Kur22-s50_missed.txt |
| Injection amplitude at 90% detection efficiency: | 3.80934 |
| Injection amplitude at 50% detection efficiency: | 3.60982 |
| Injection amplitude at 10% detection efficiency: | 1.54253 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

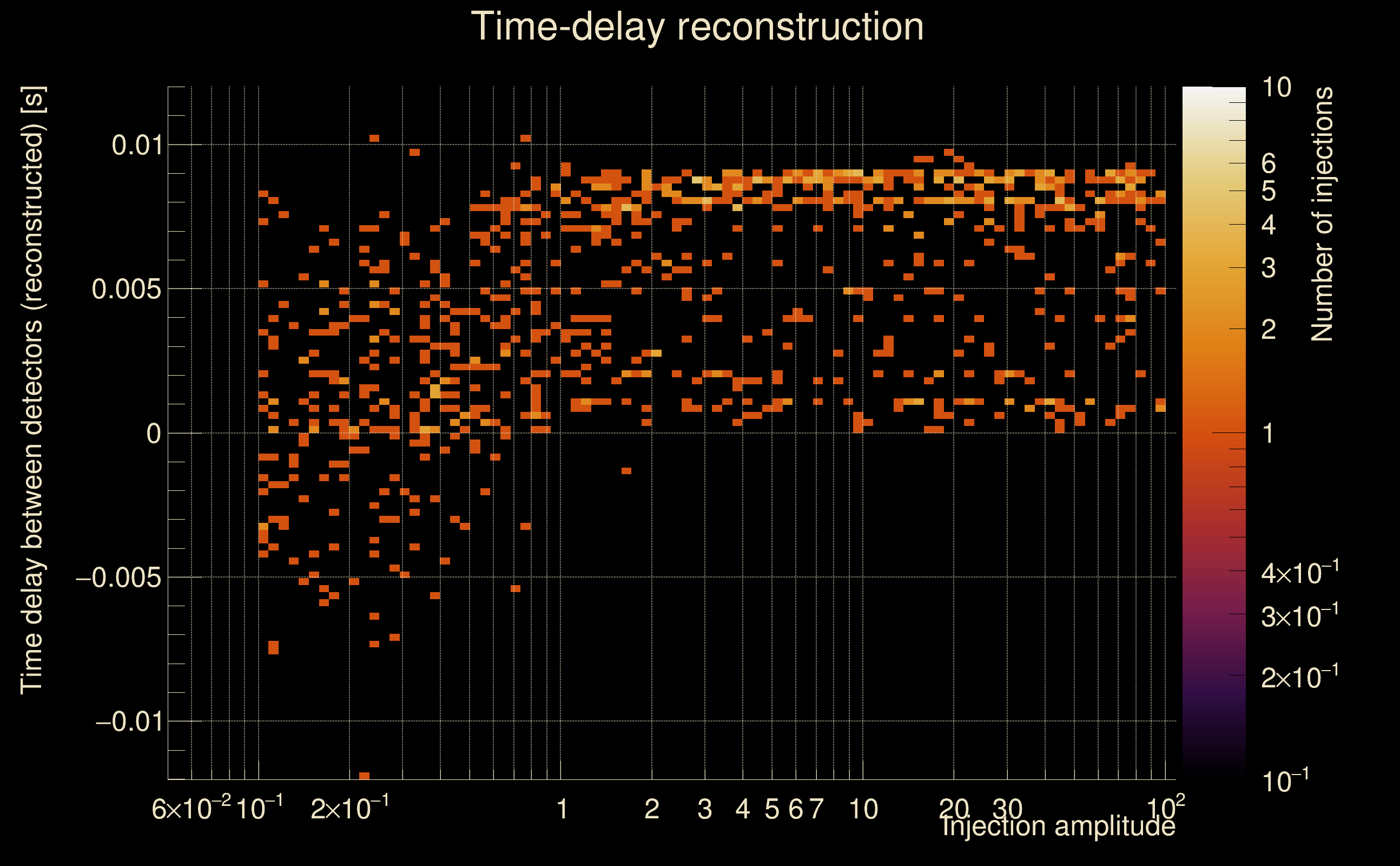

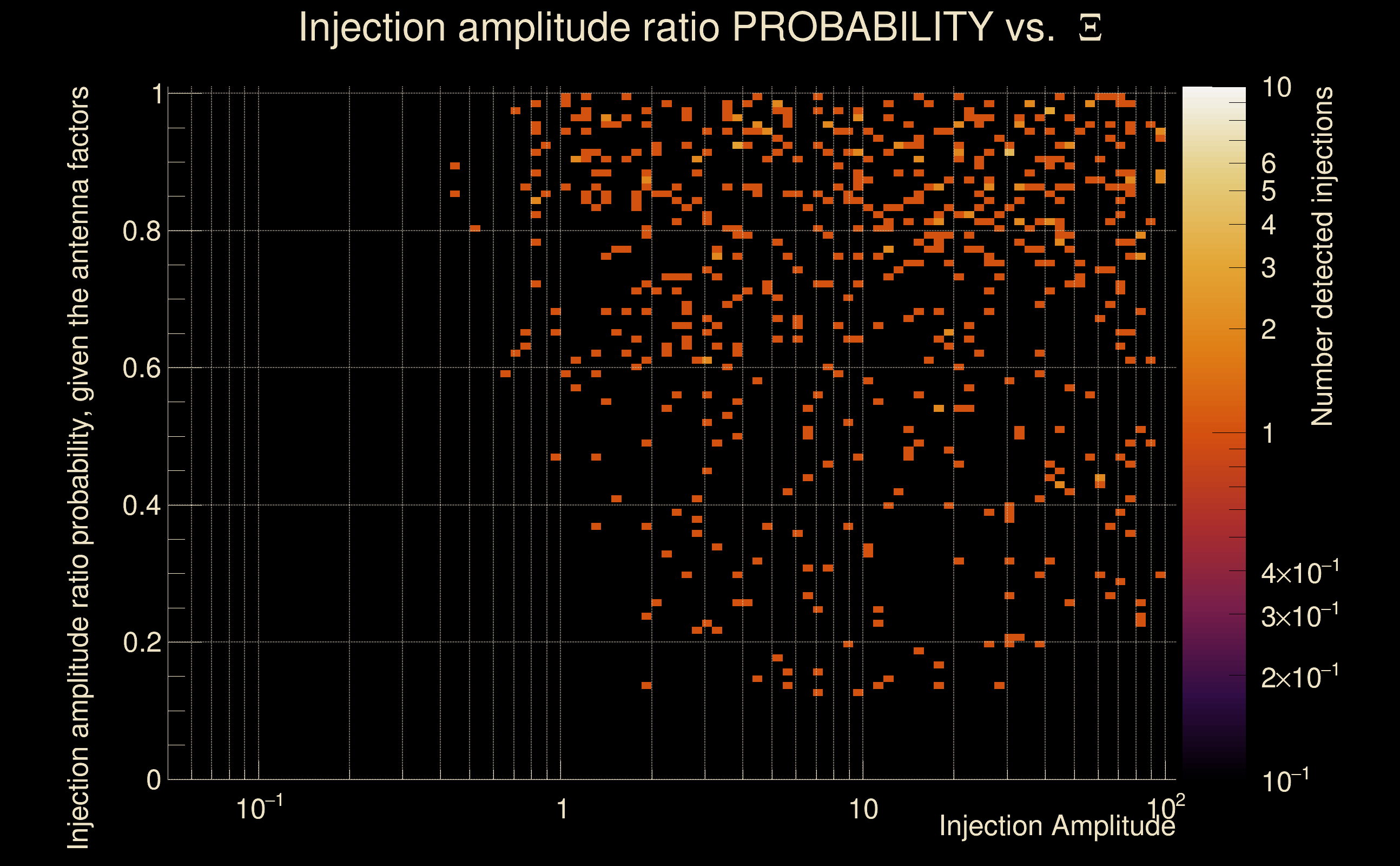

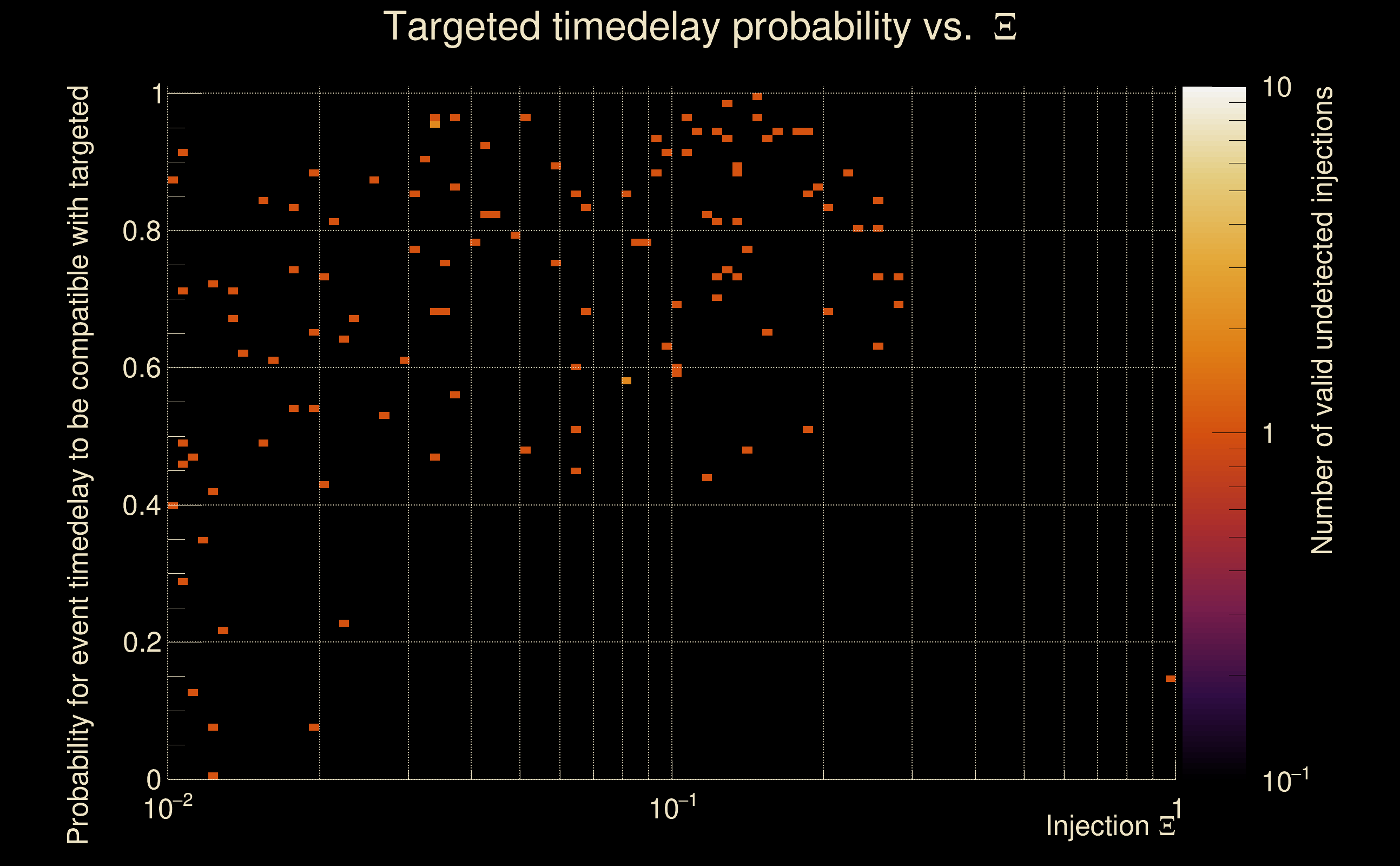

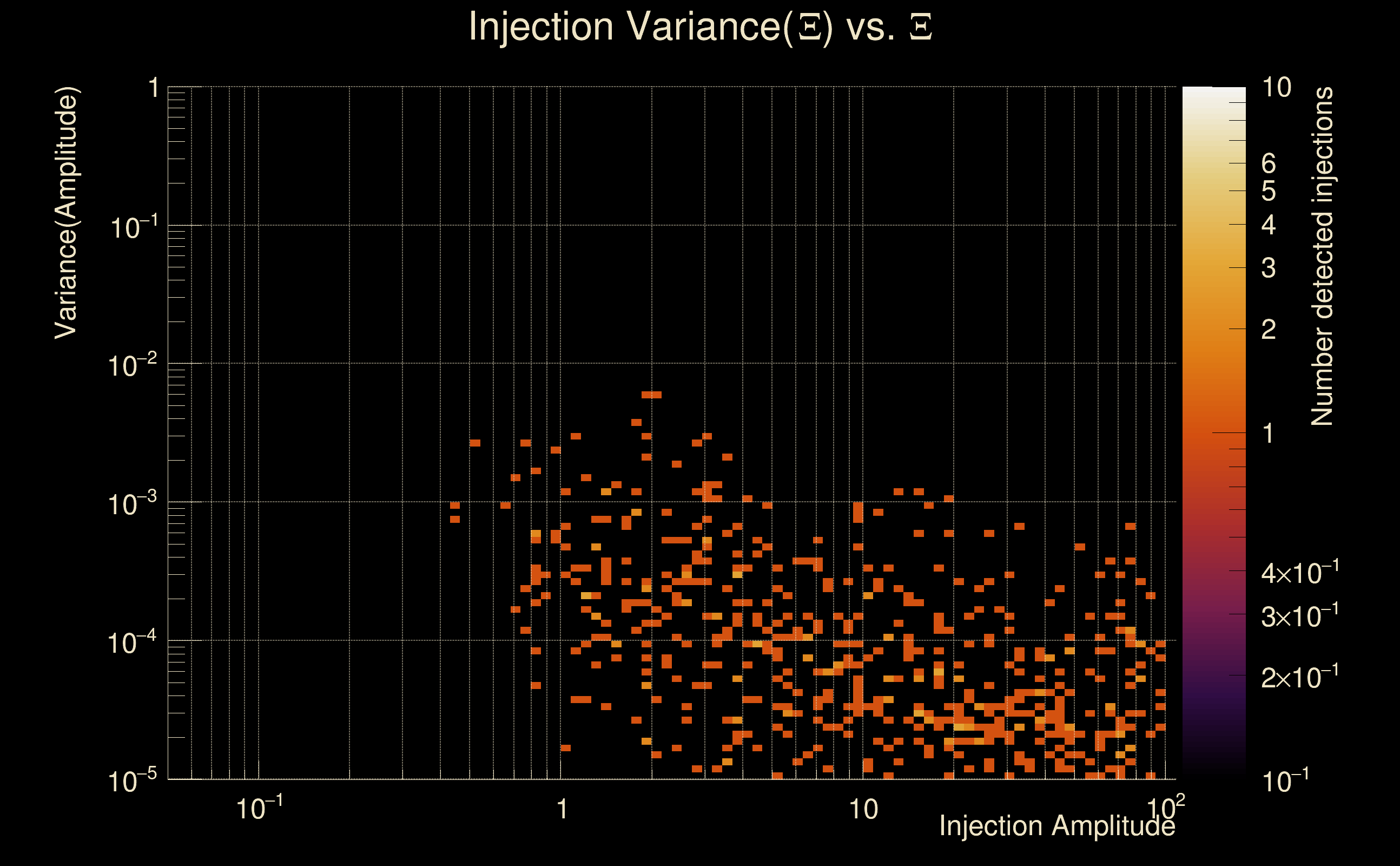

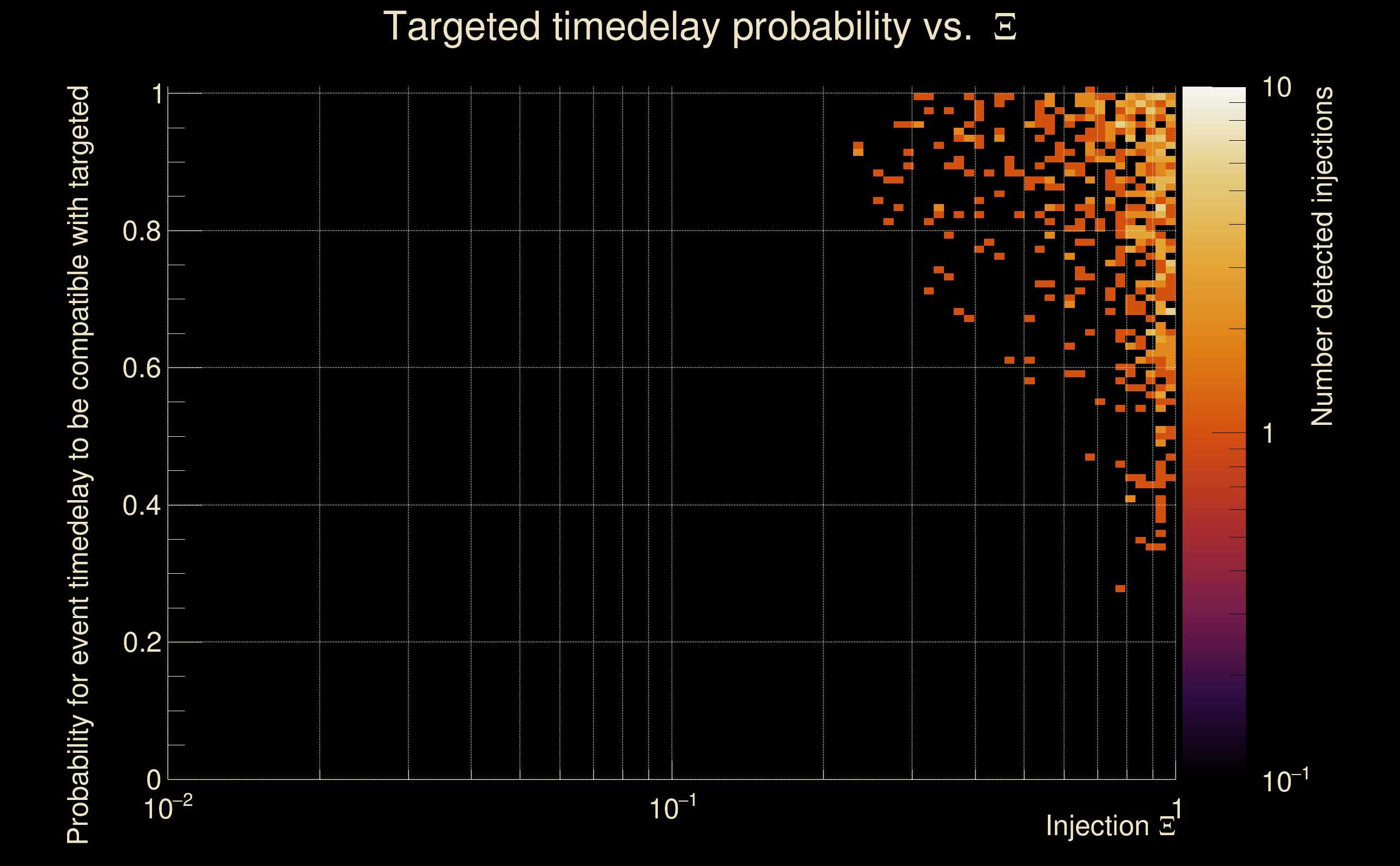

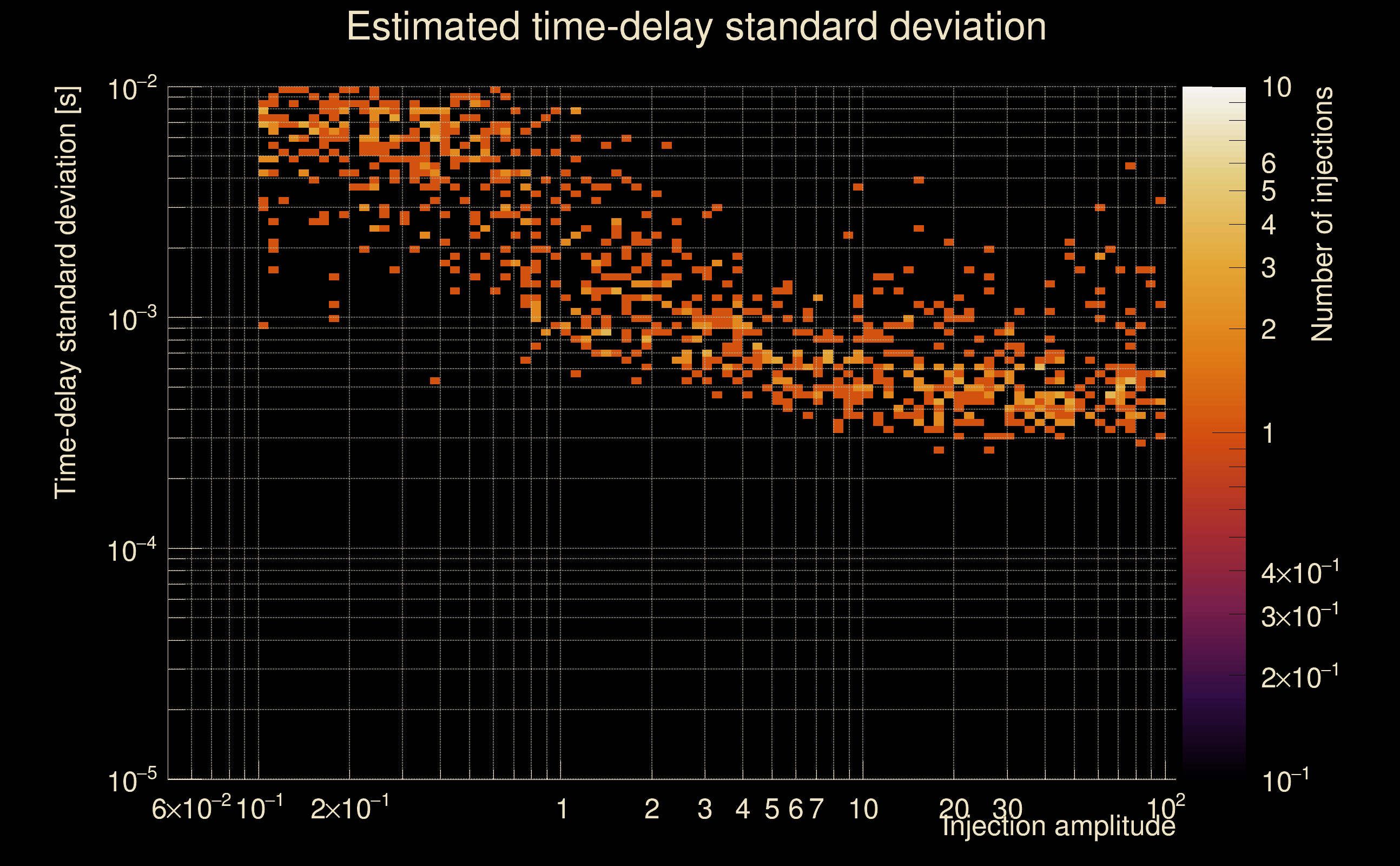

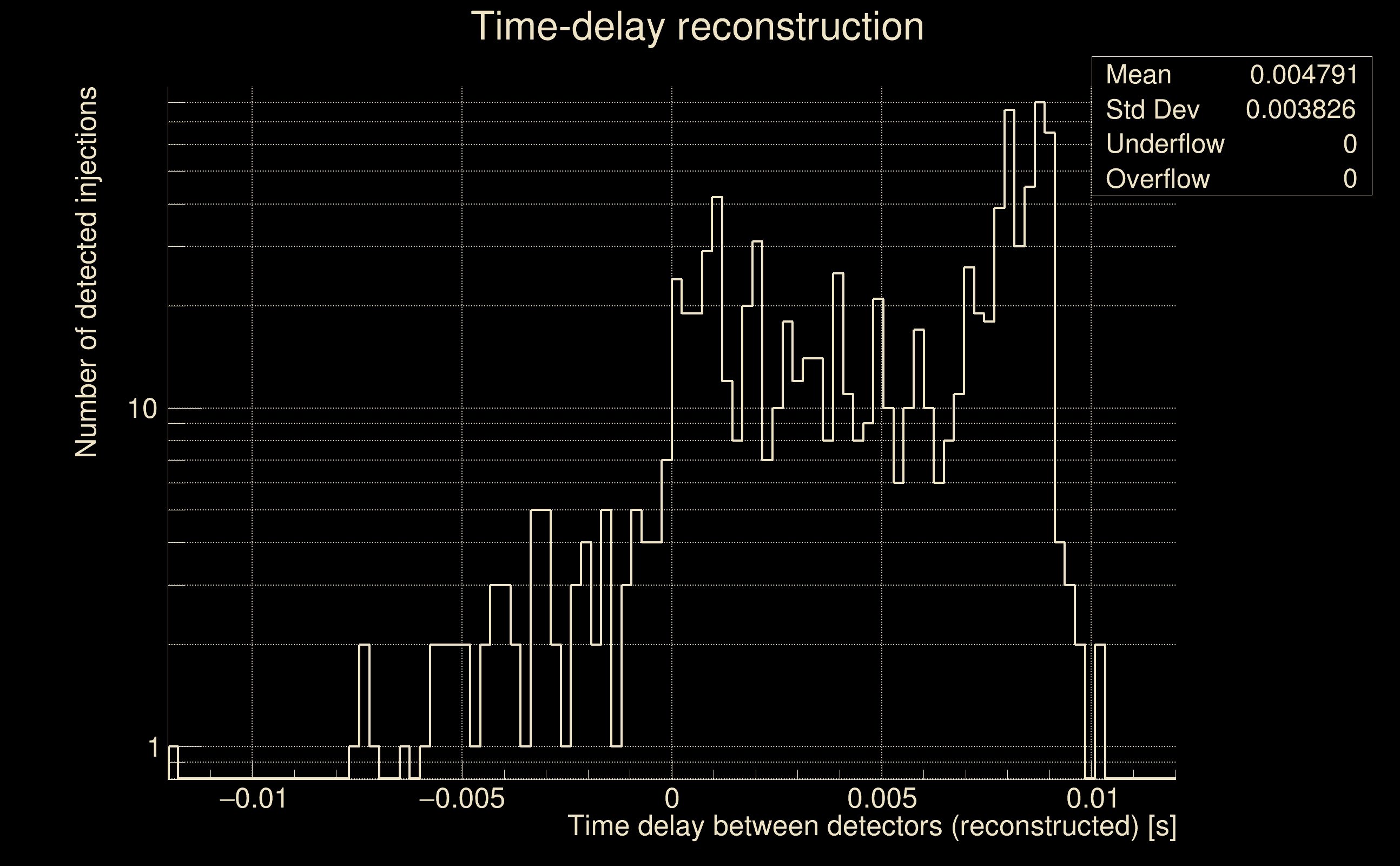

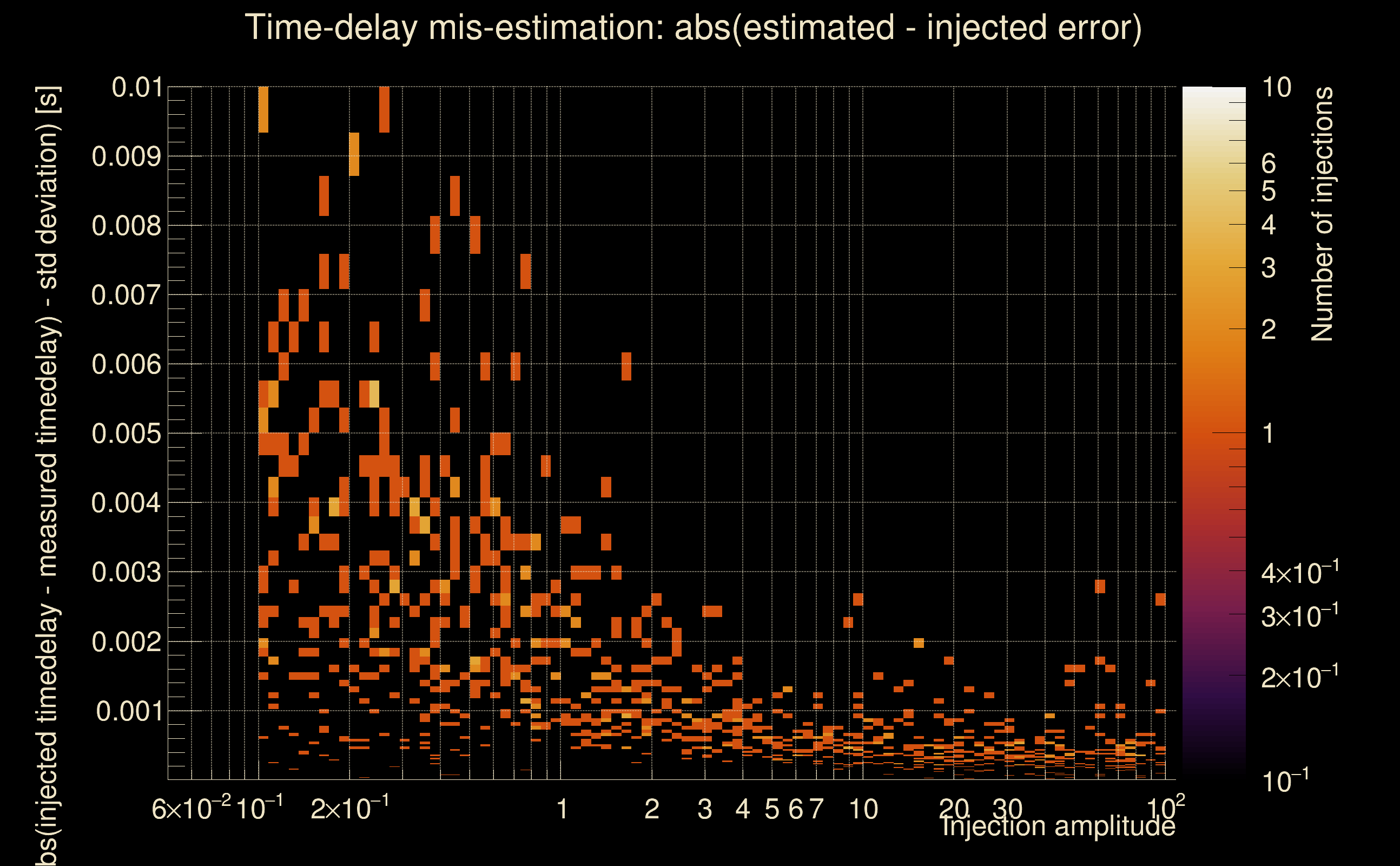

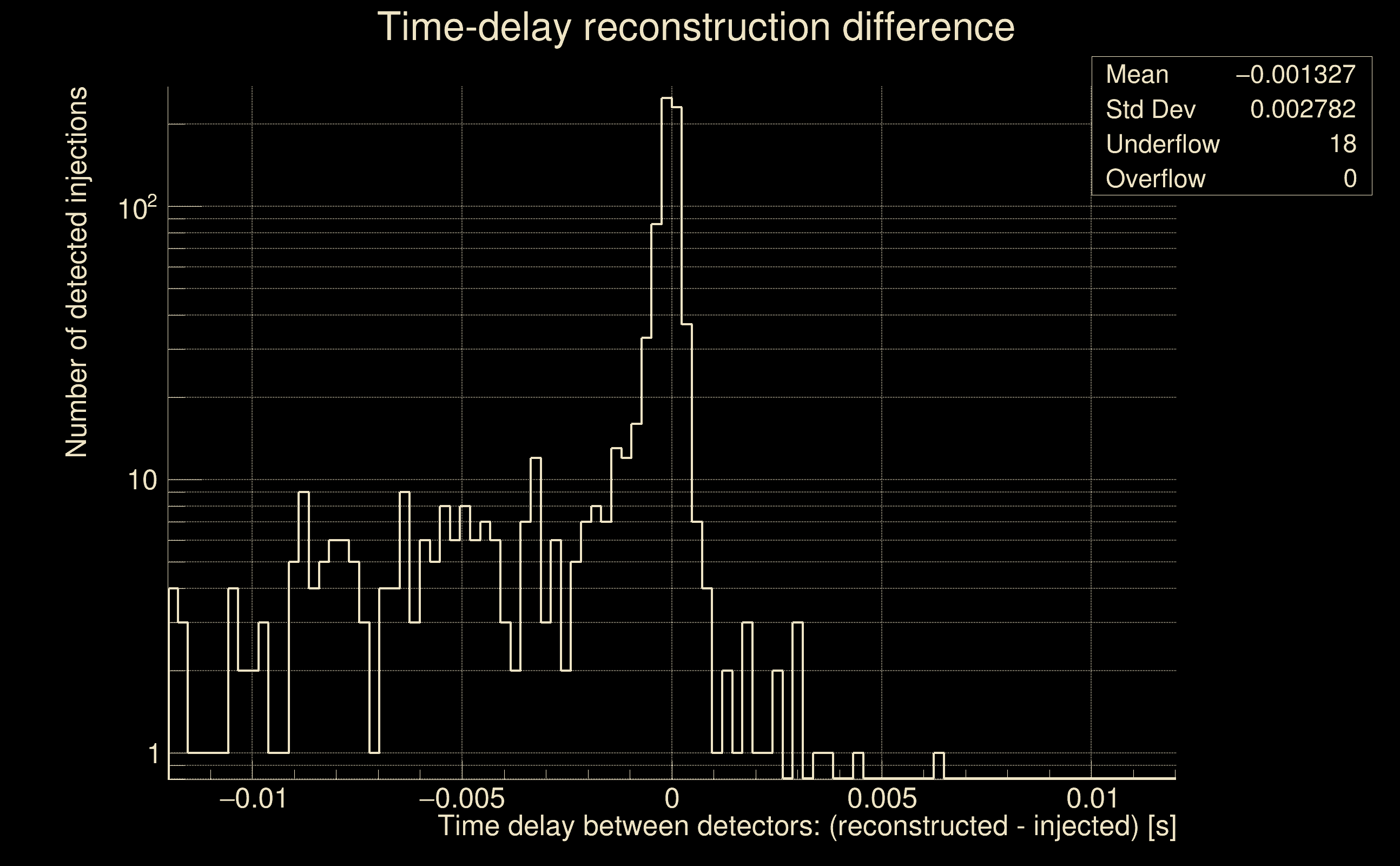

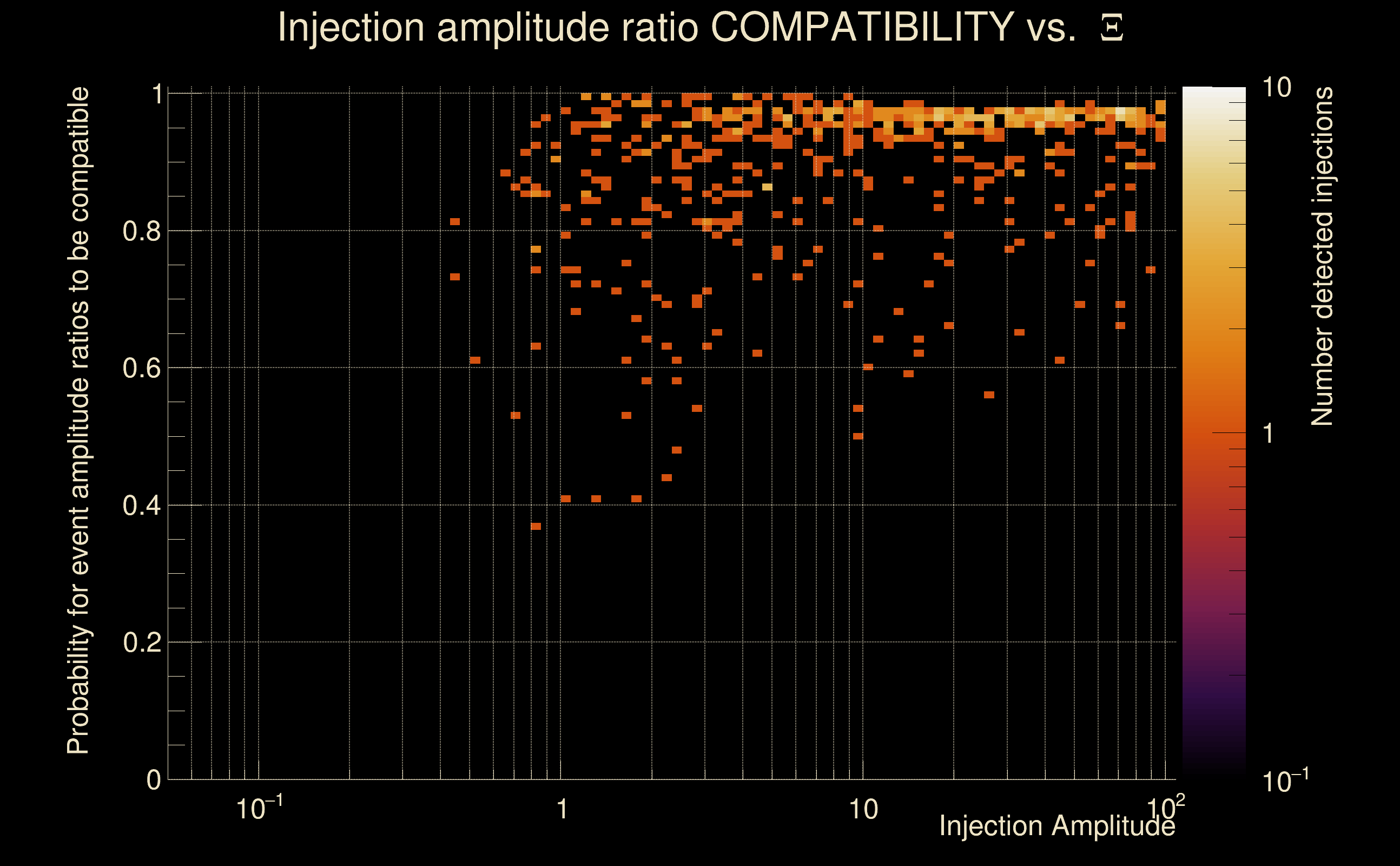

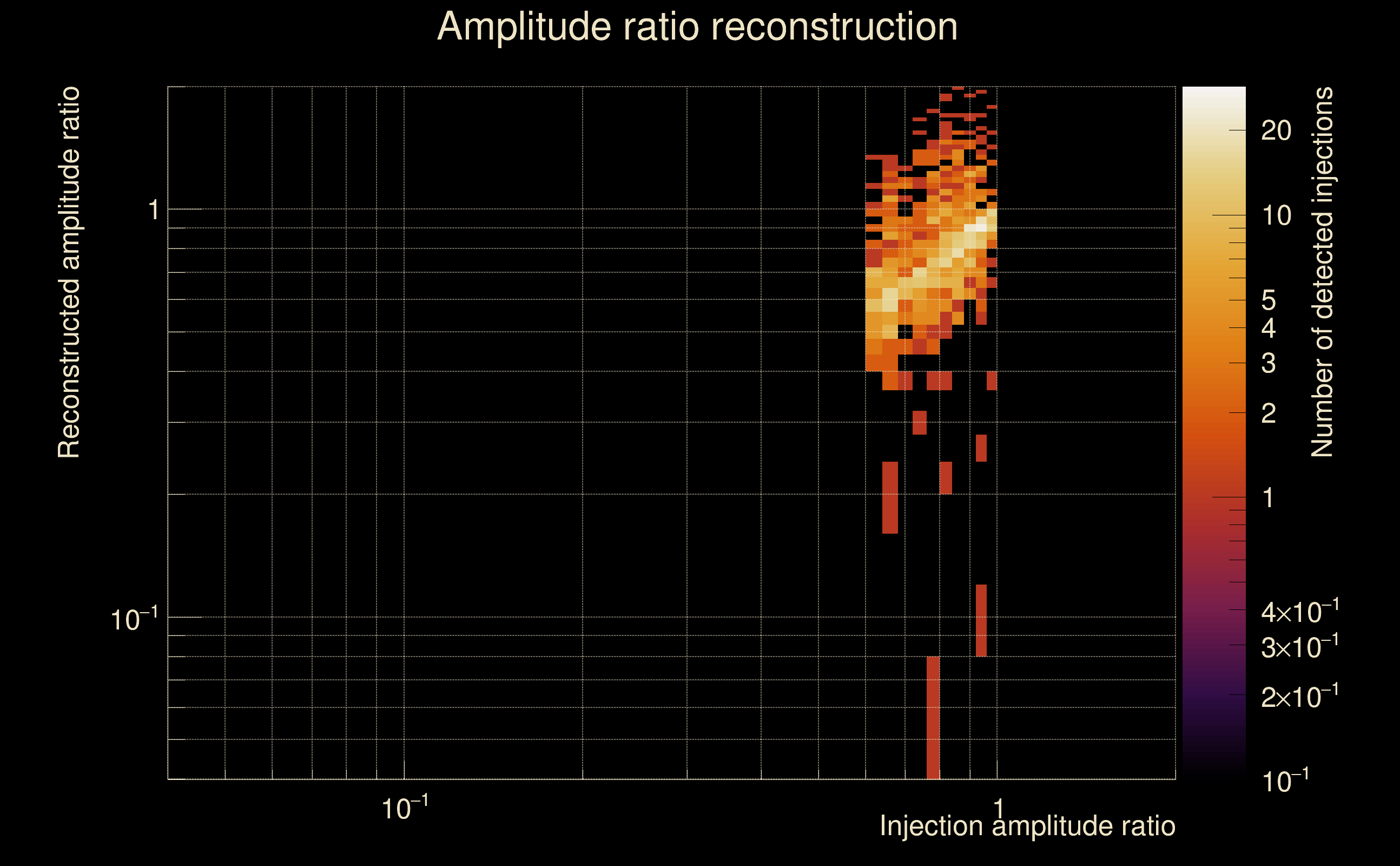

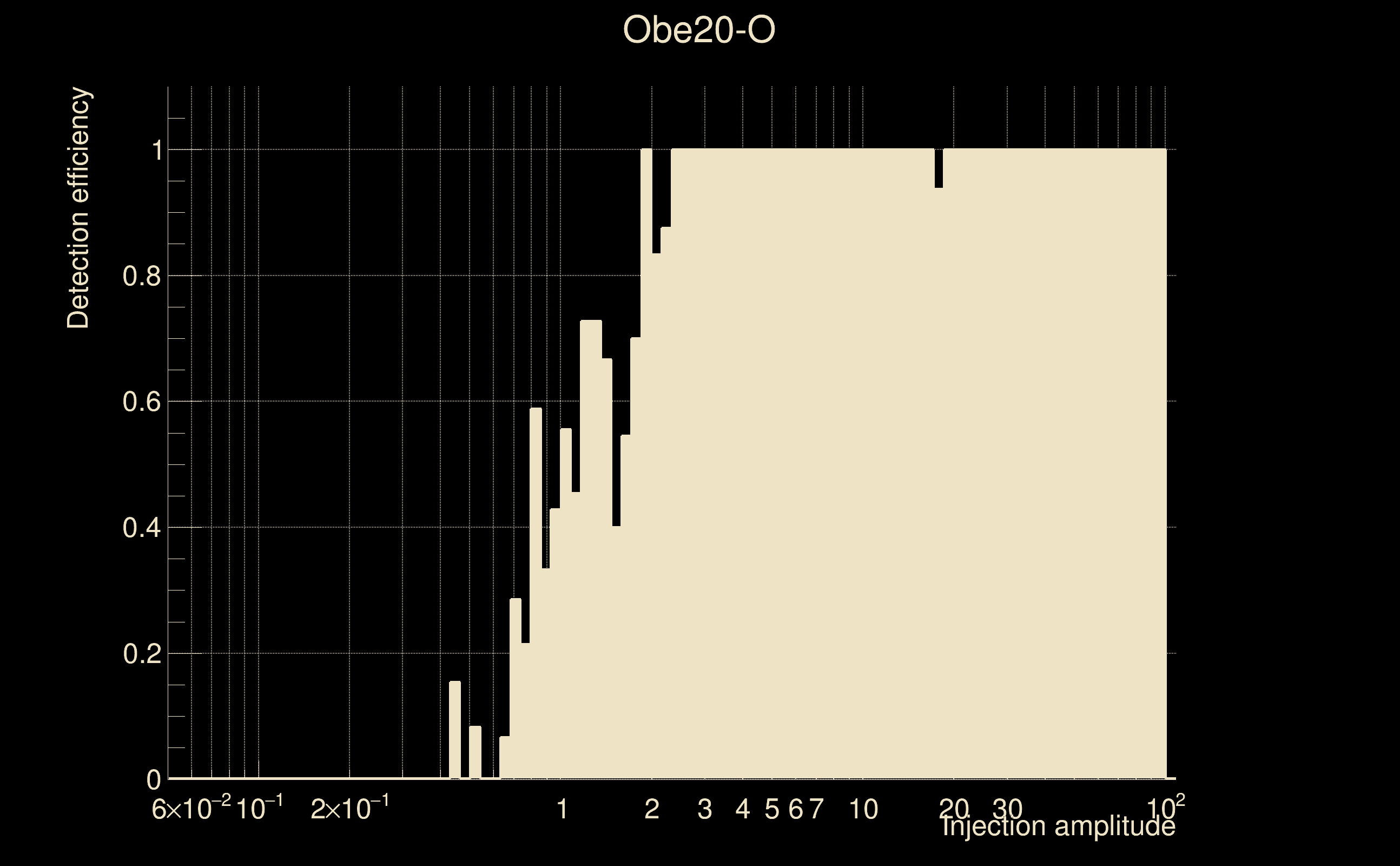

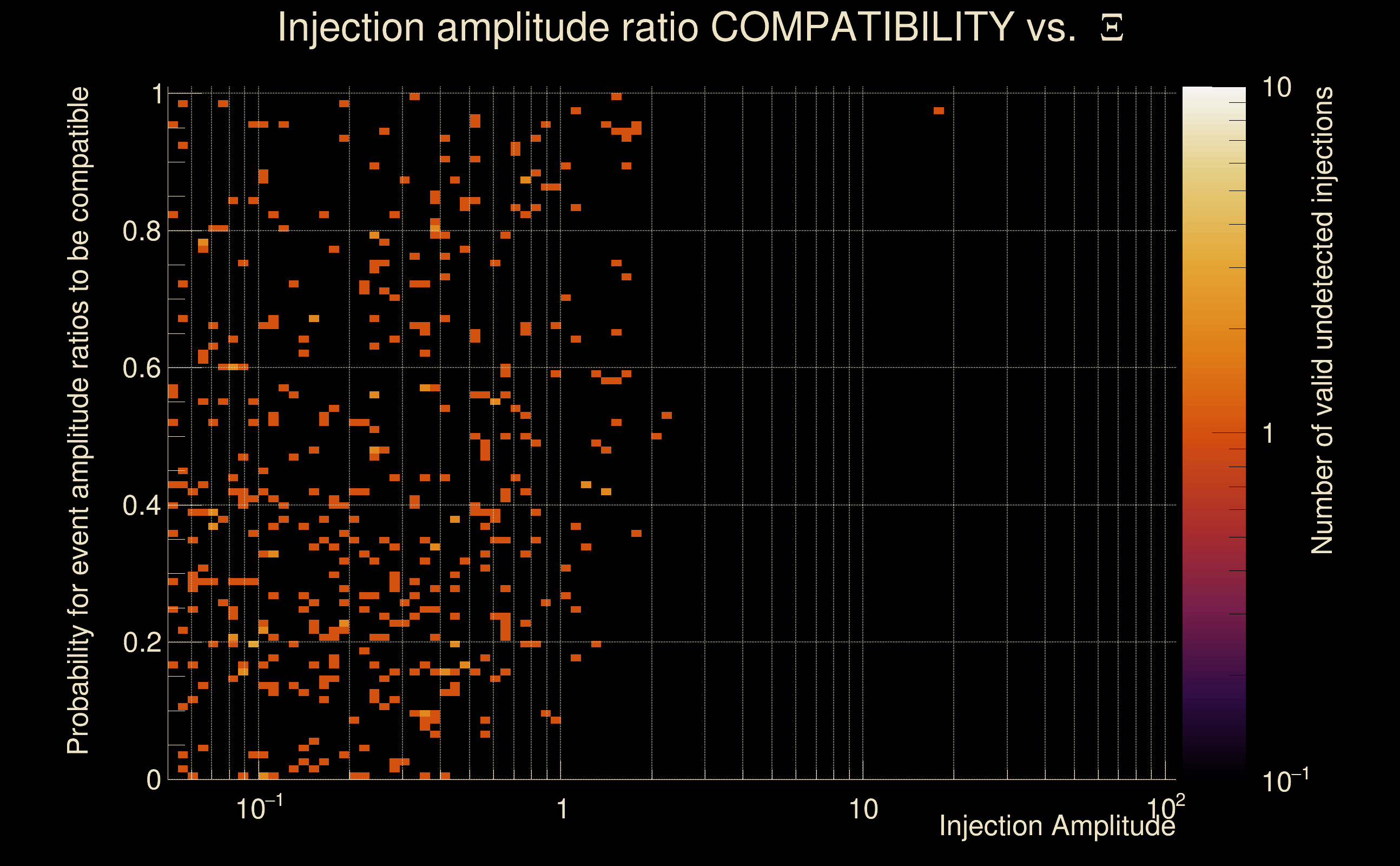

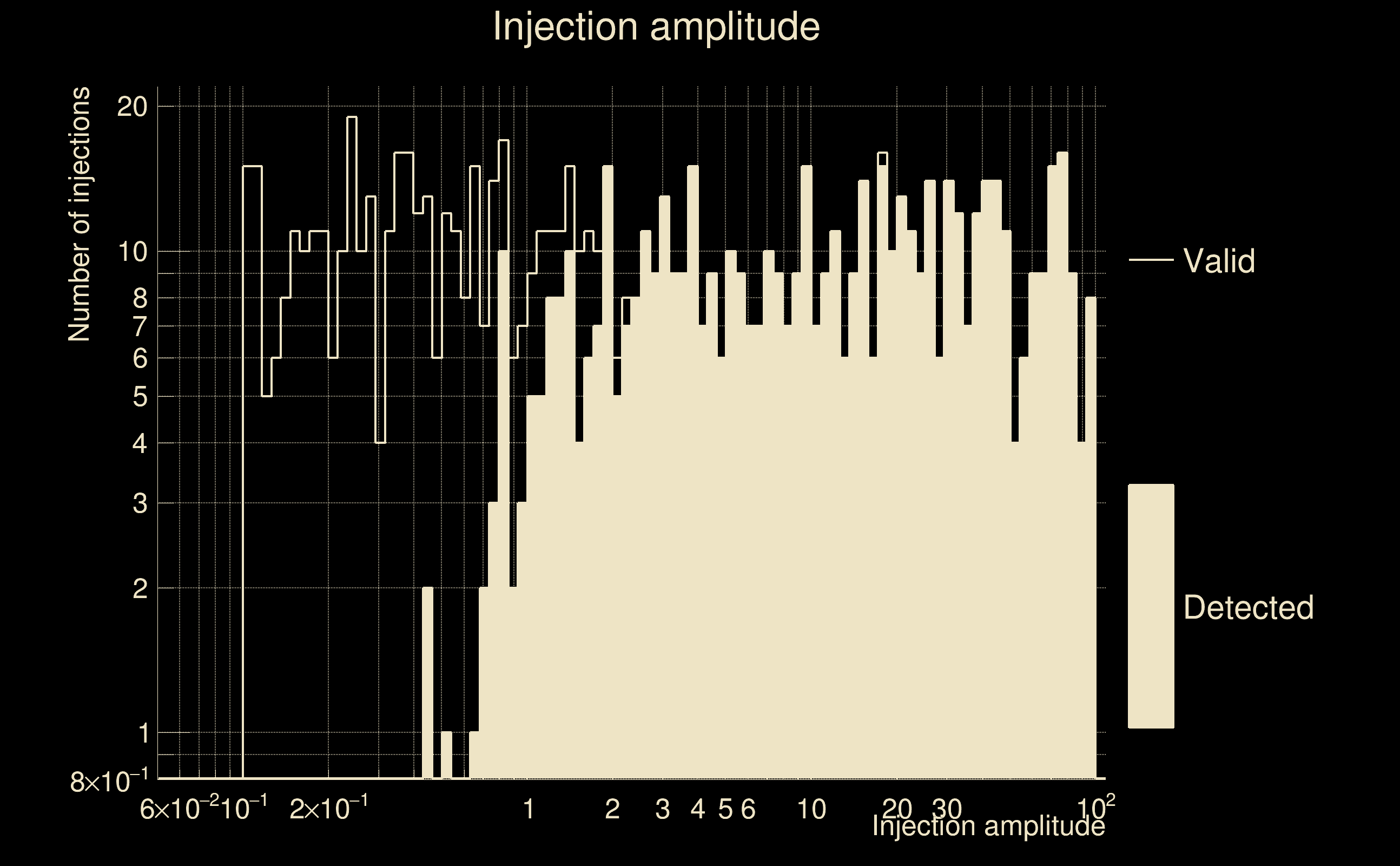

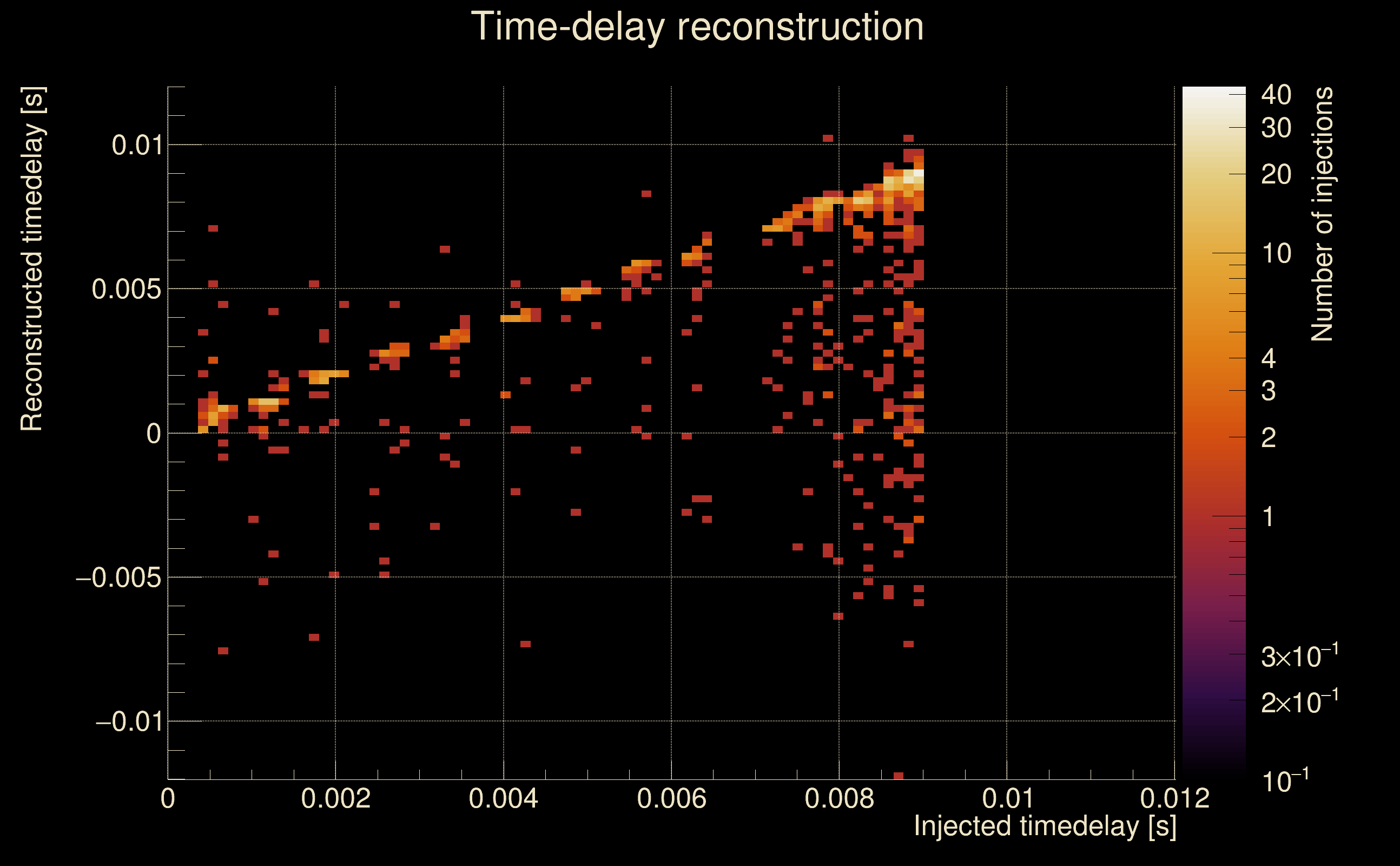

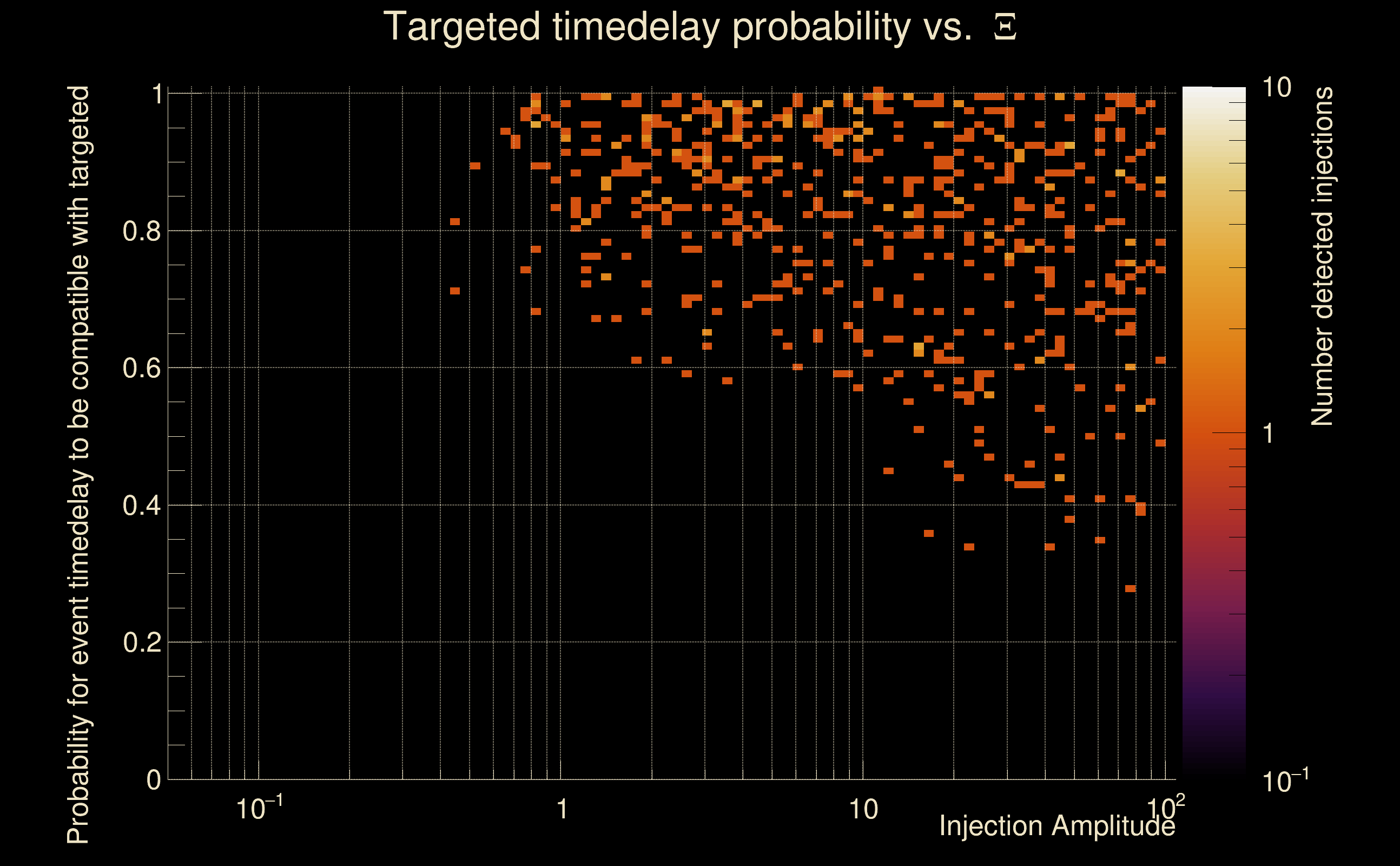

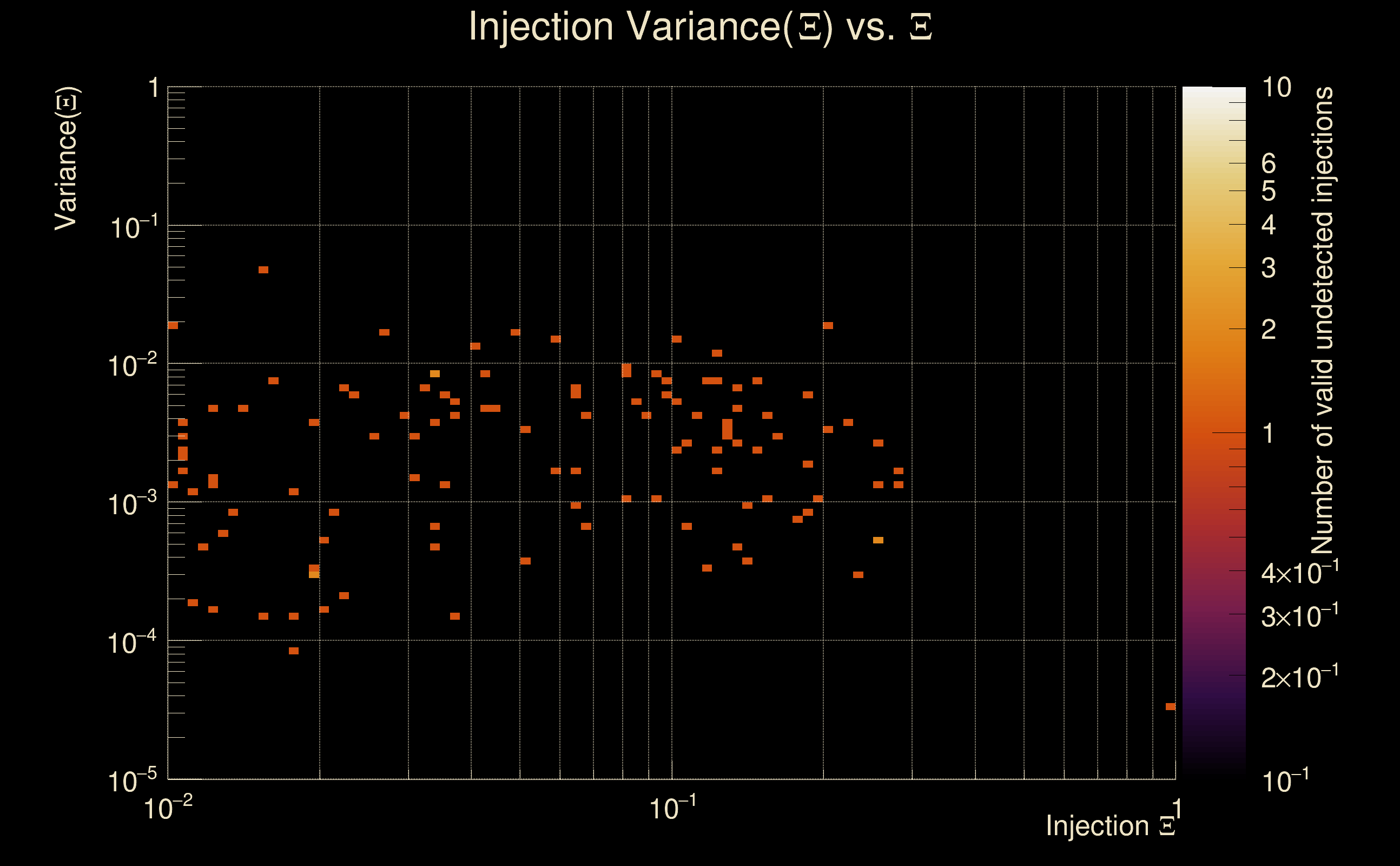

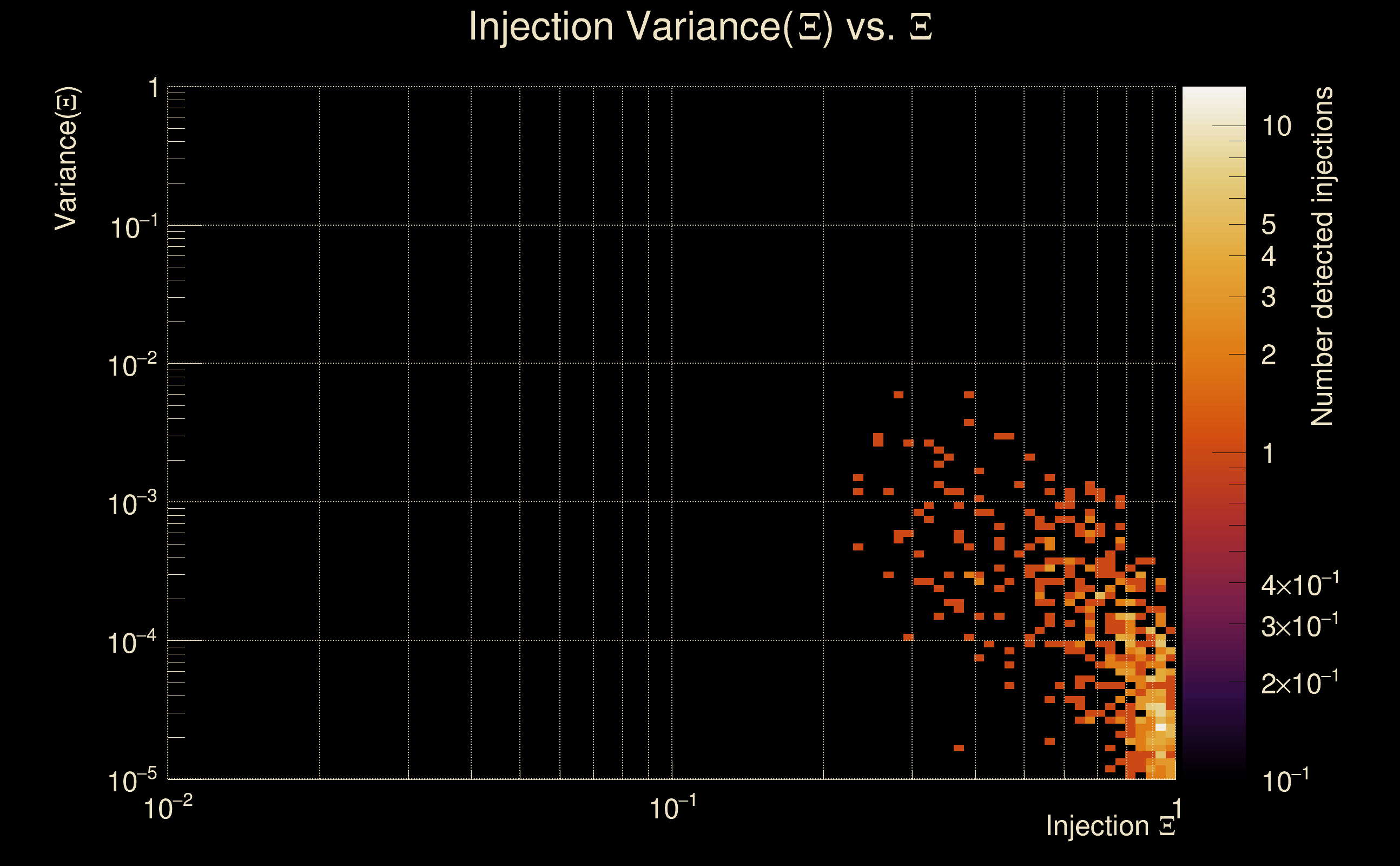

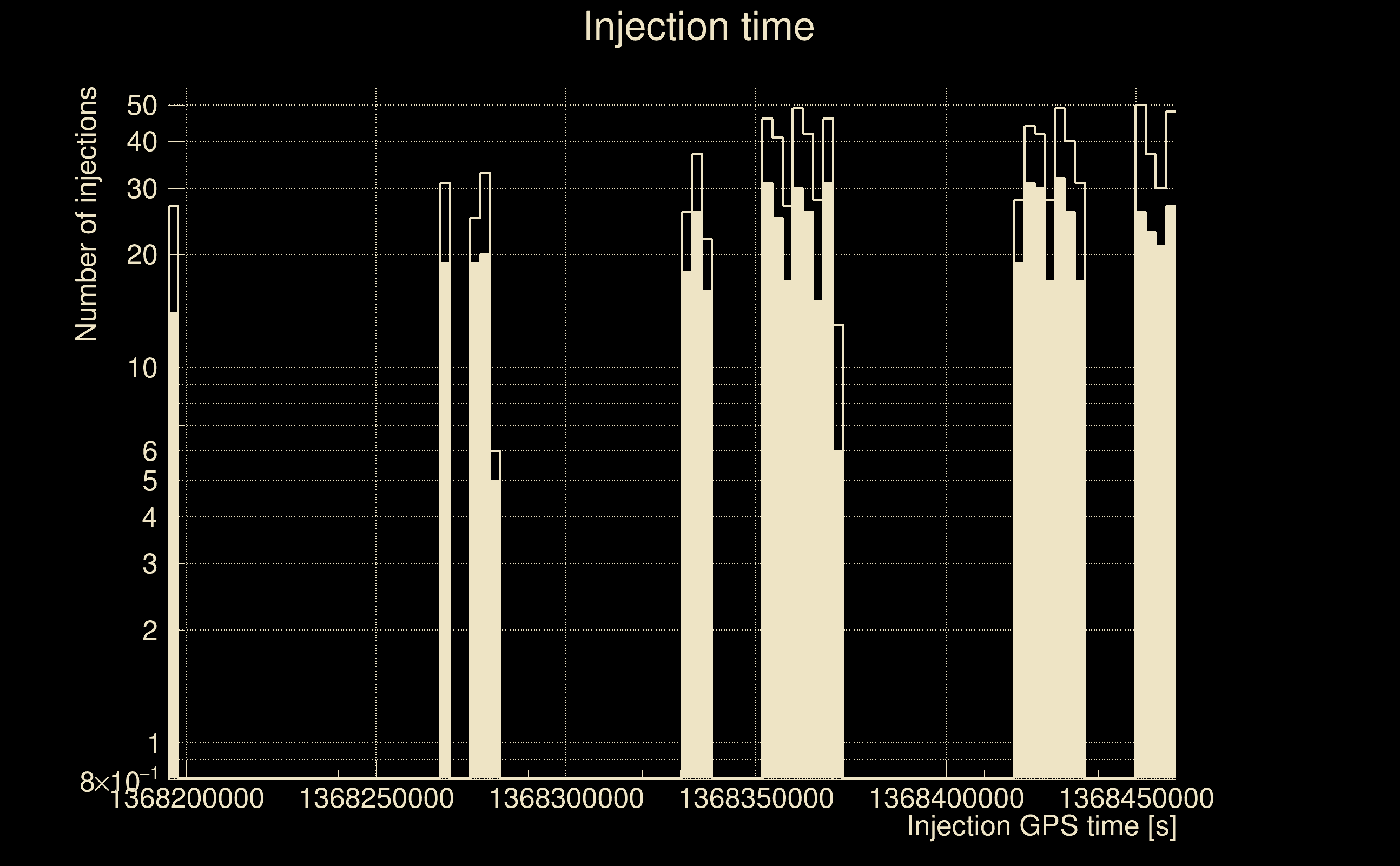

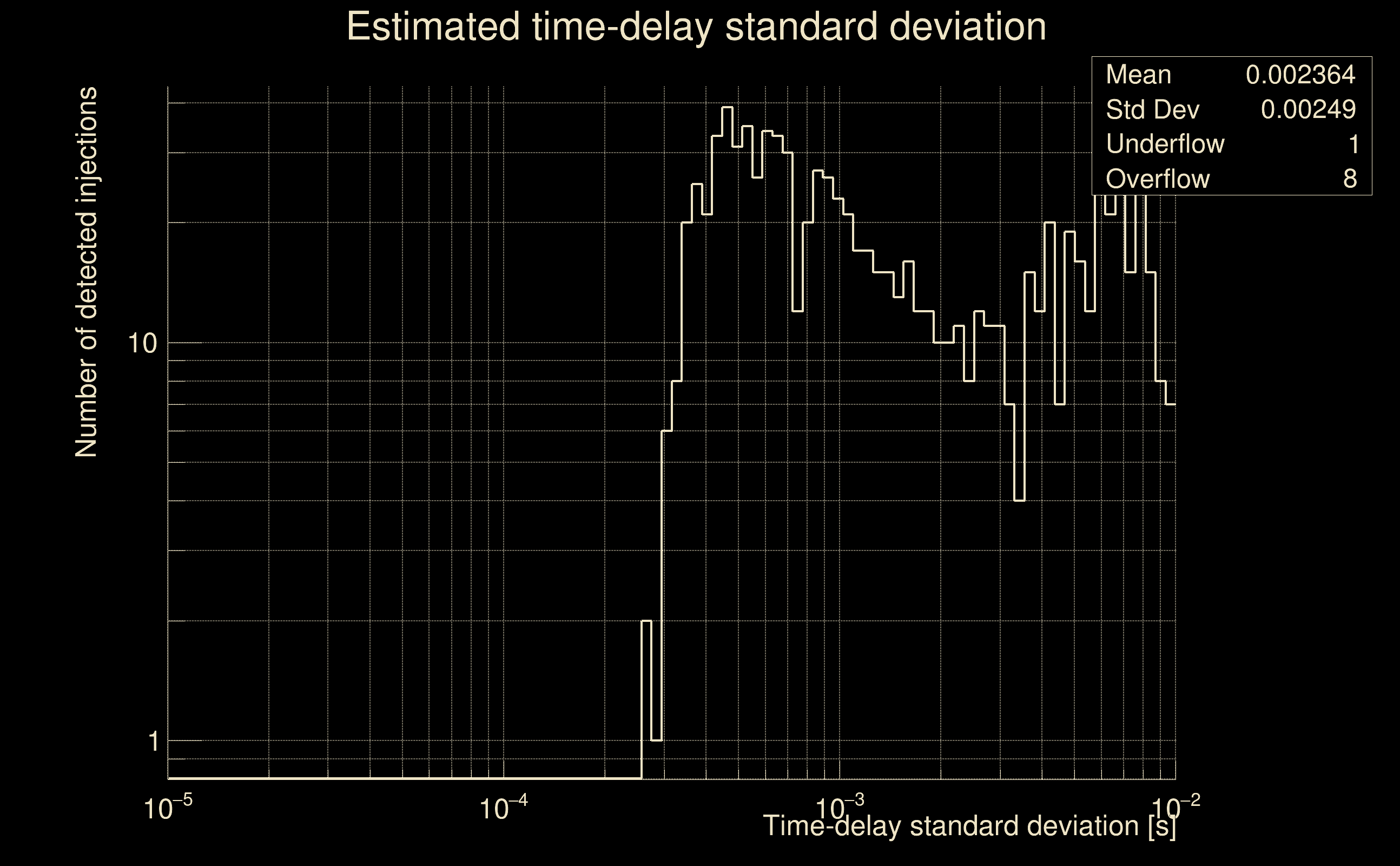

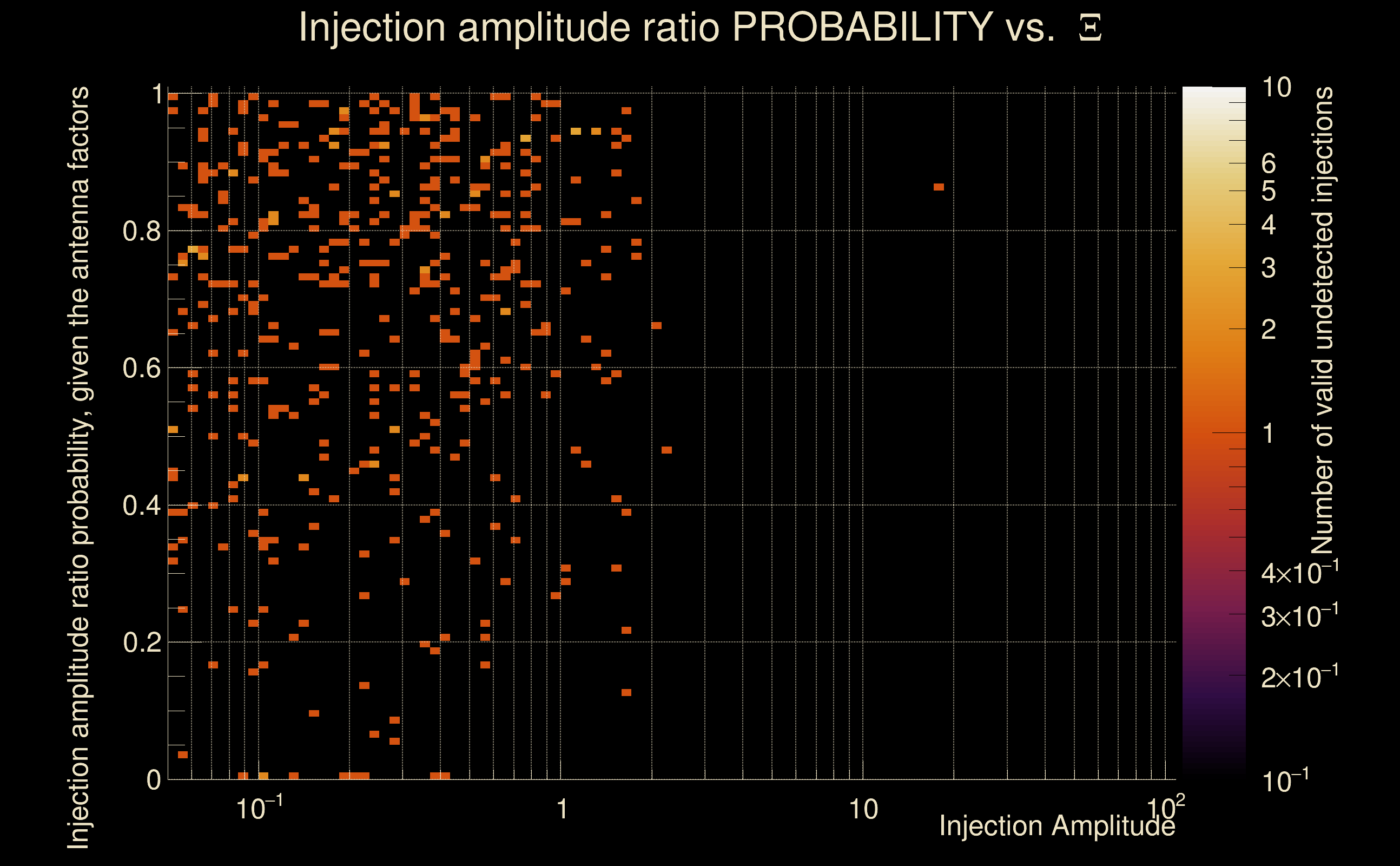

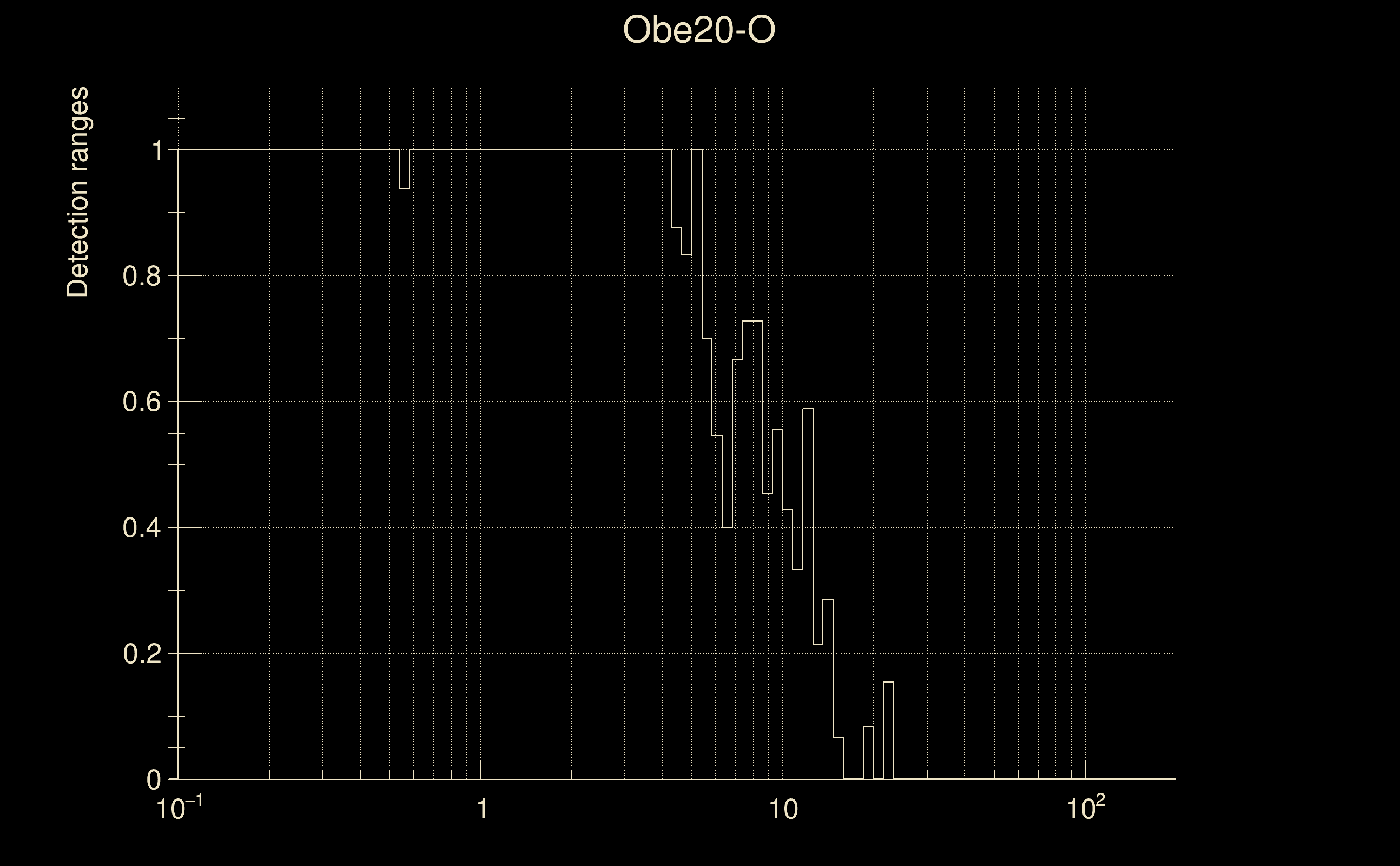

| Number of injections (total/valid/detected): | 1042 / 926 / 587 |
| List of missed injections: | ./Obe20-O_missed.txt |
| Injection amplitude at 90% detection efficiency: | 1.87598 |
| Injection amplitude at 50% detection efficiency: | 1.61145 |
| Injection amplitude at 10% detection efficiency: | 0.664398 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
