| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:42:16 2026 UTC |
| Ox option file: | Ixf3_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf3_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf3_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=54 (2.484 s), time lag = 0 s |

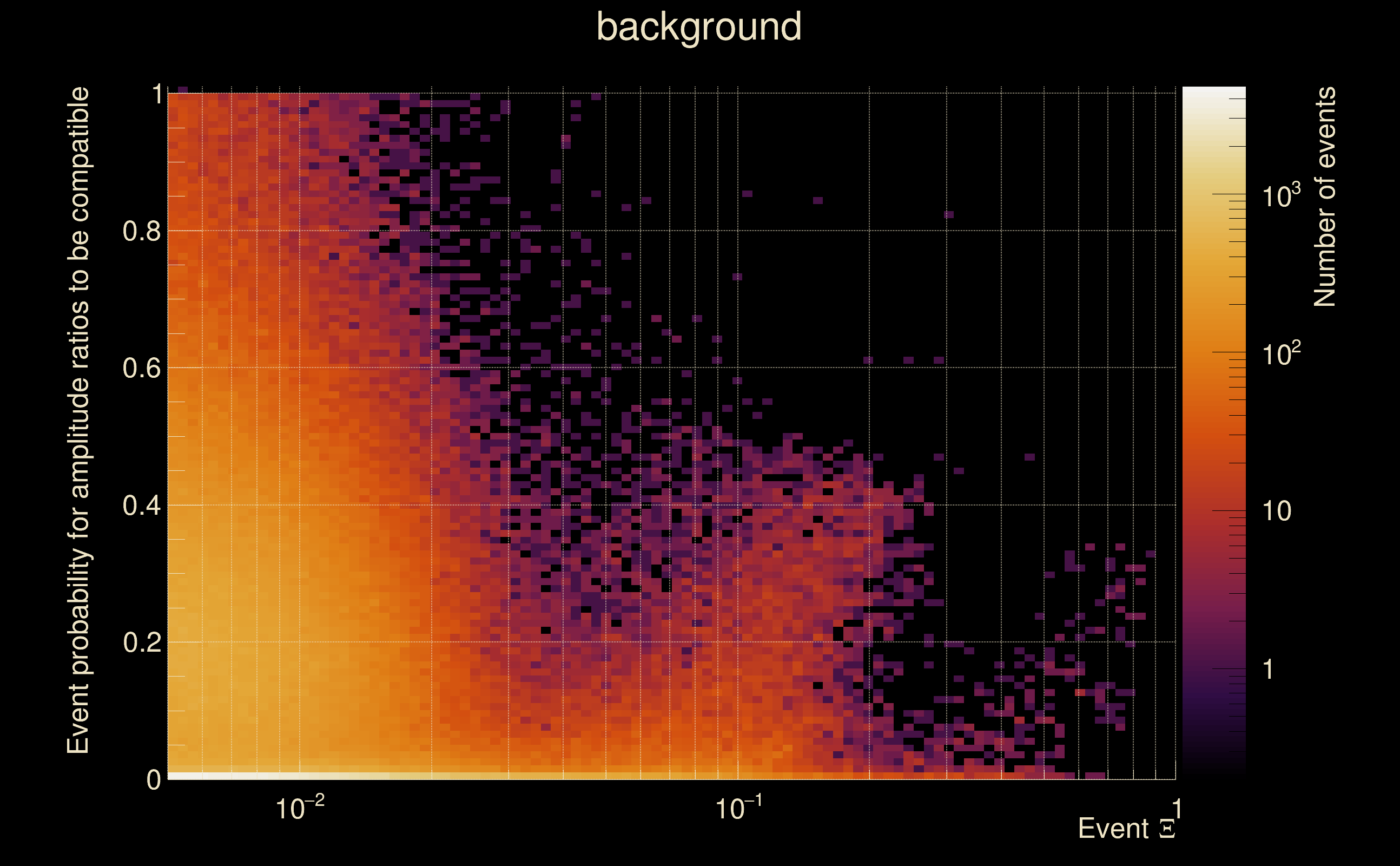

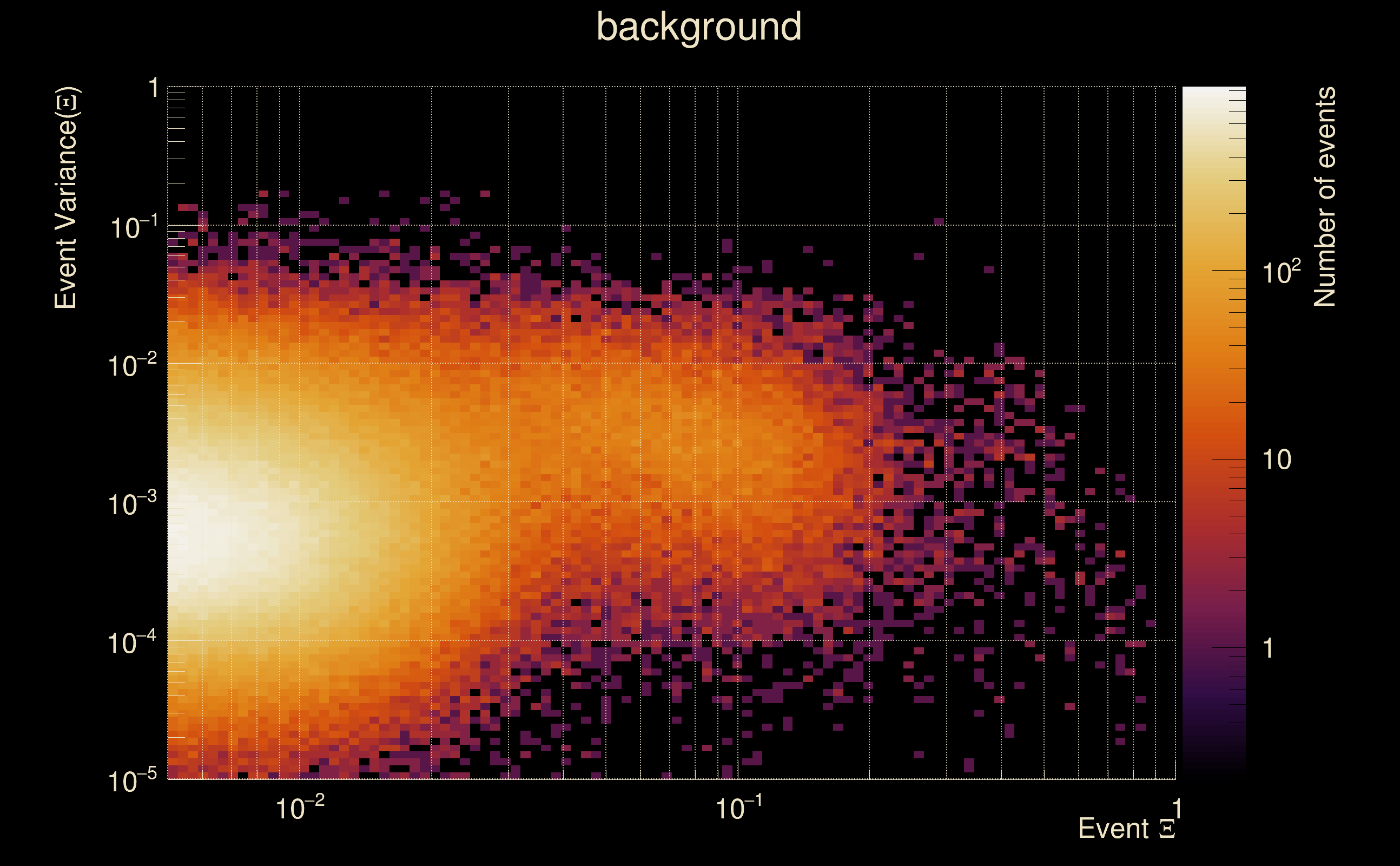

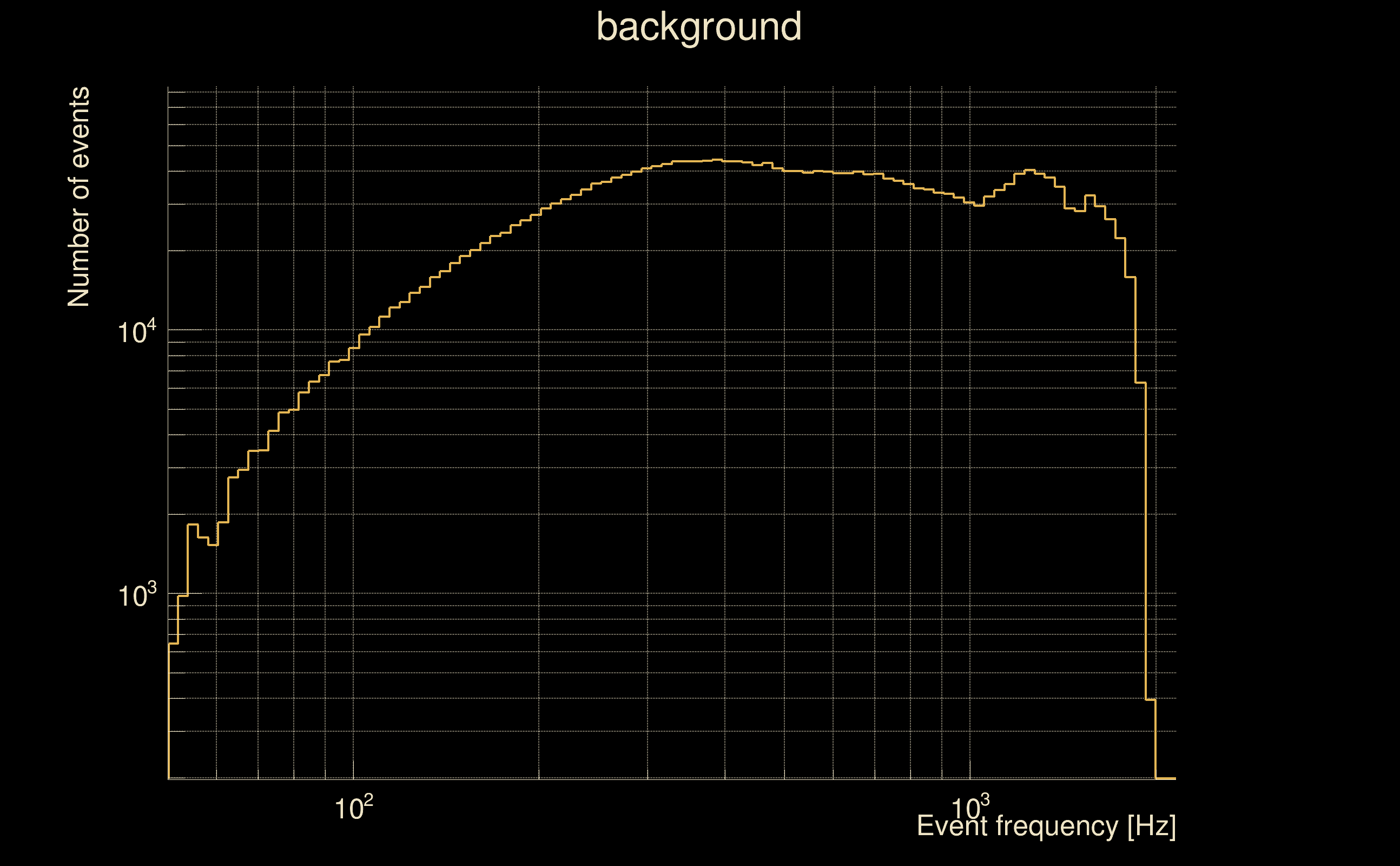

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

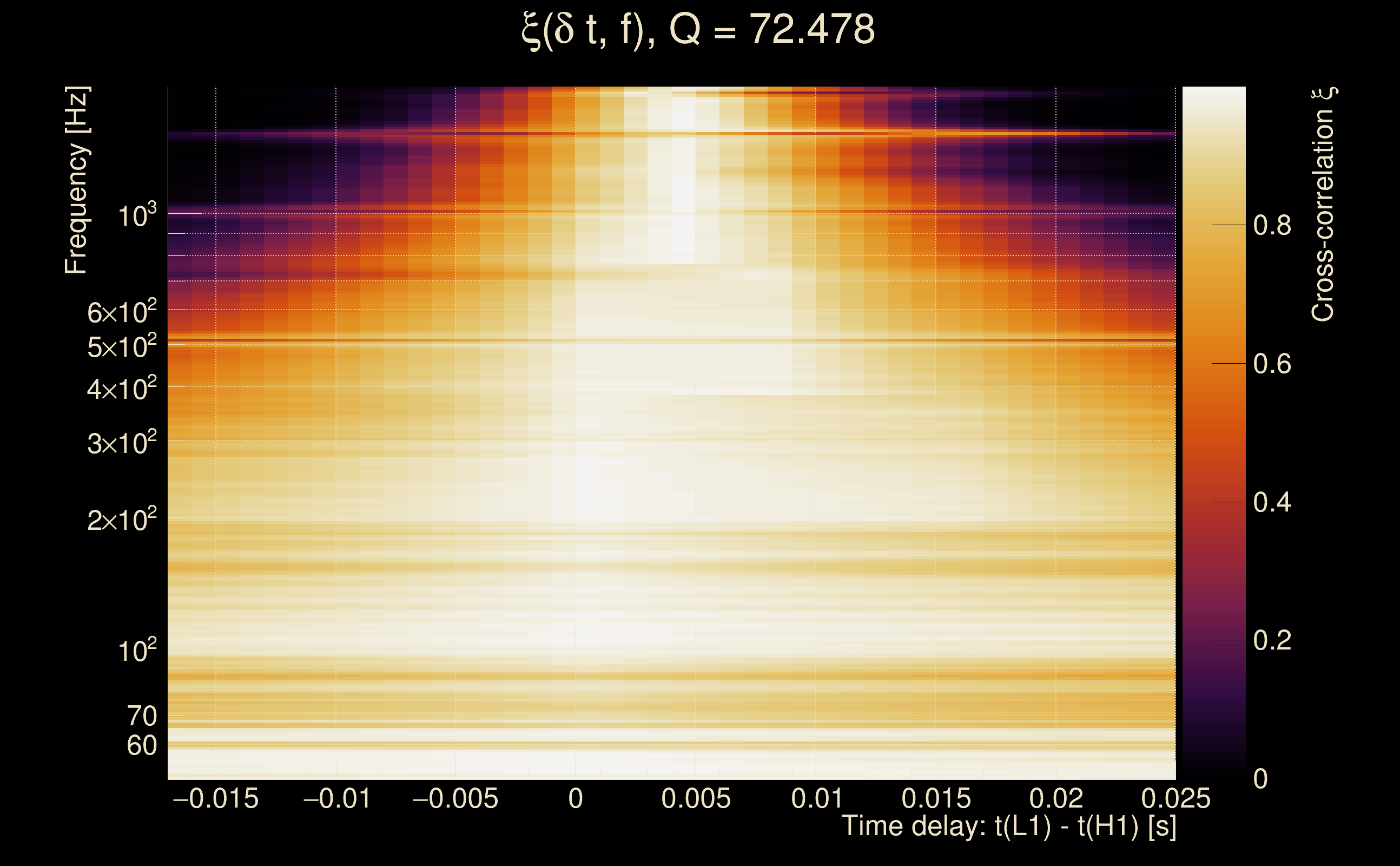

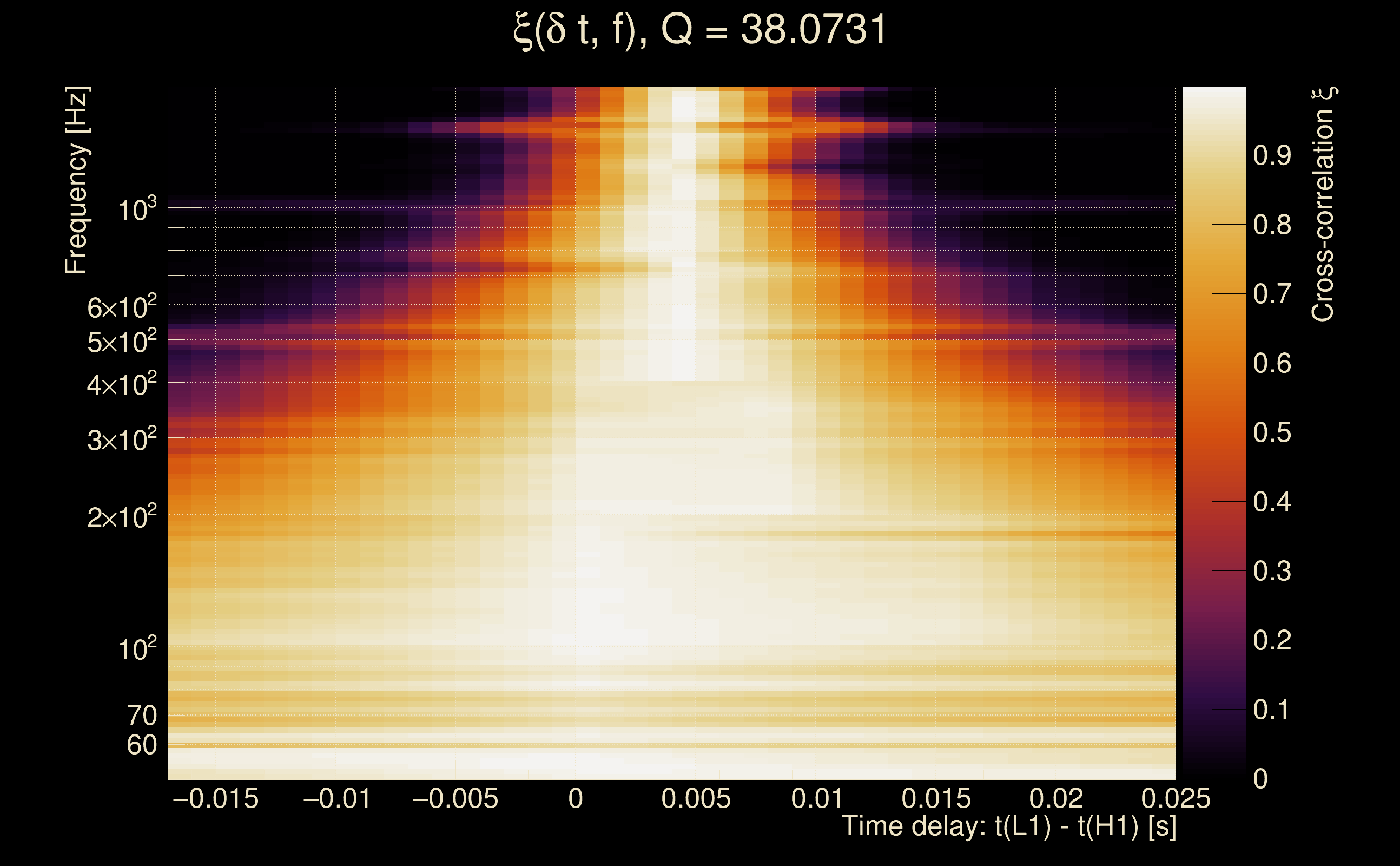

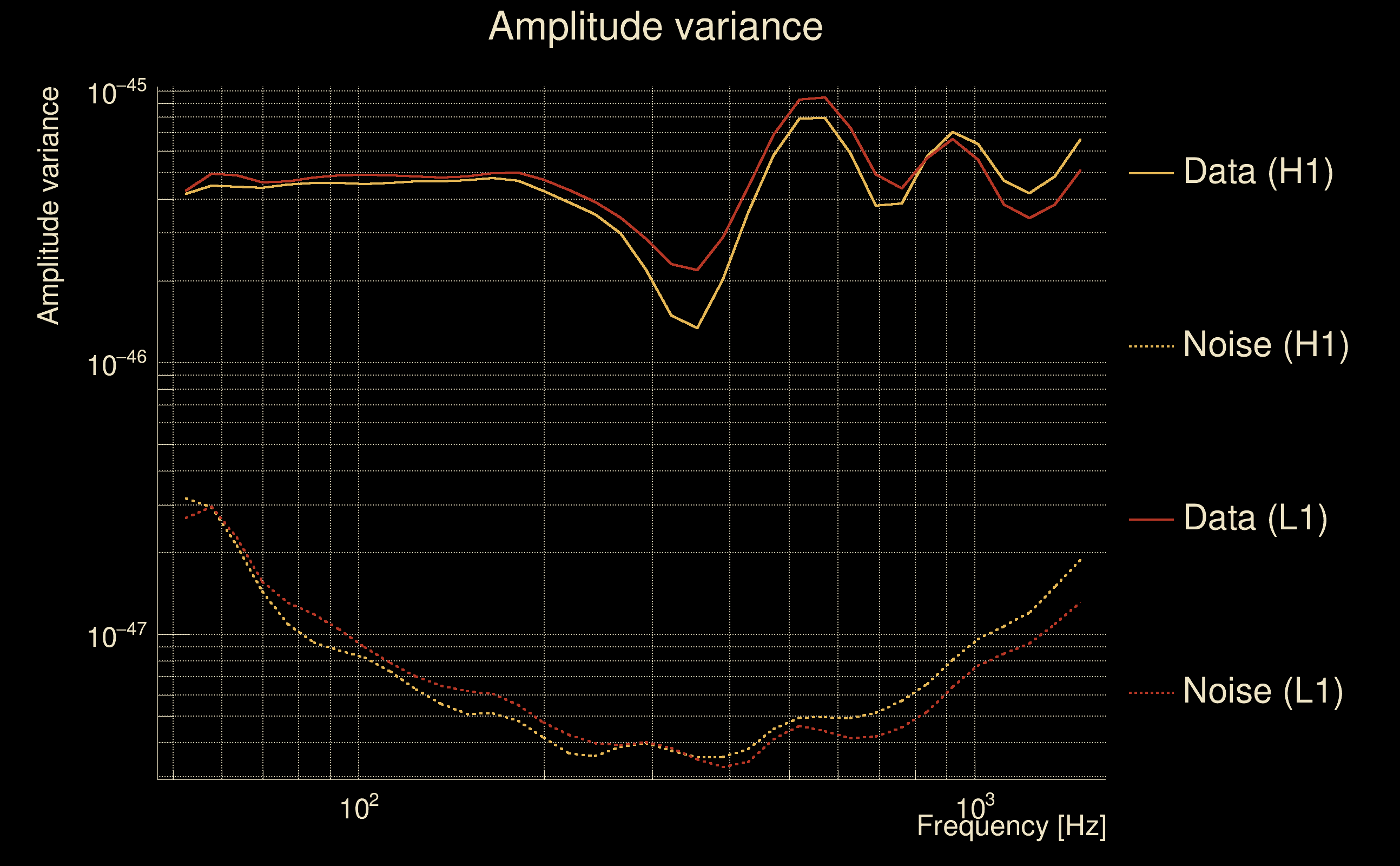

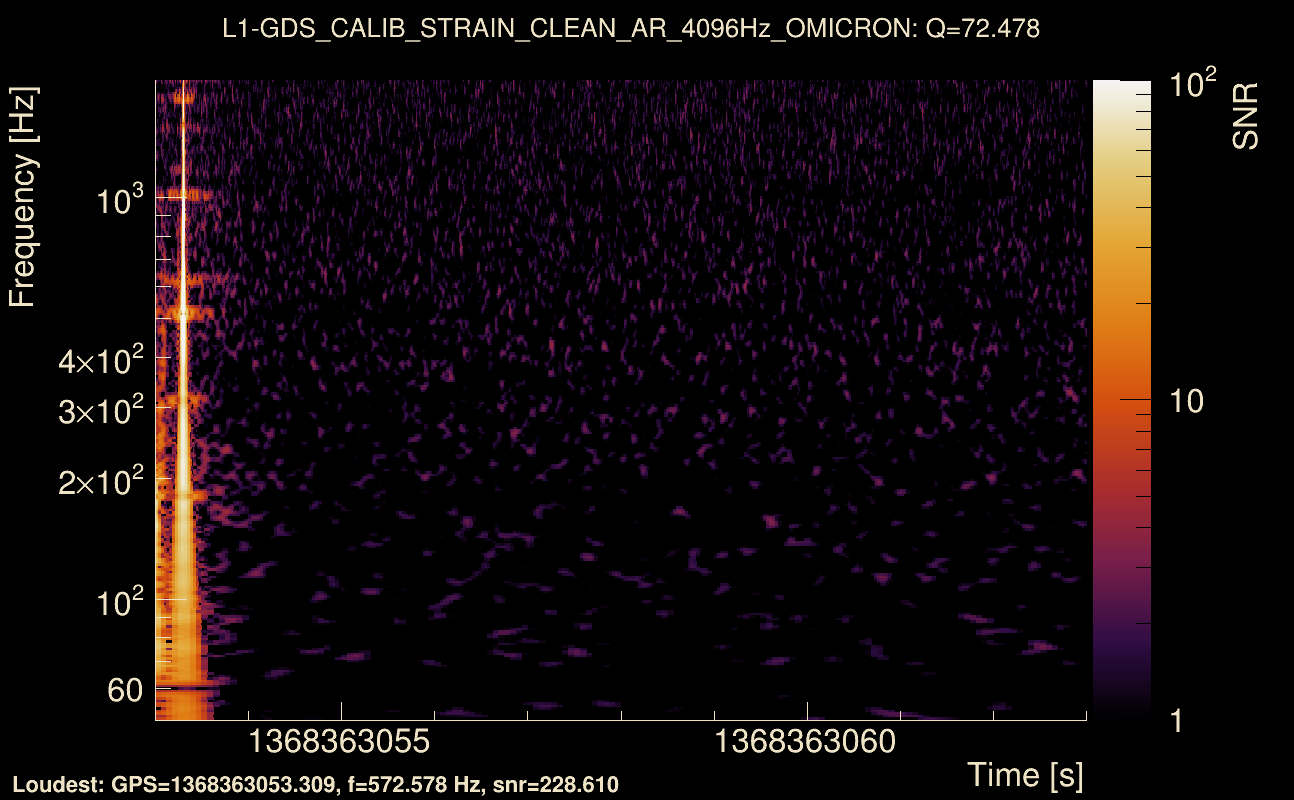

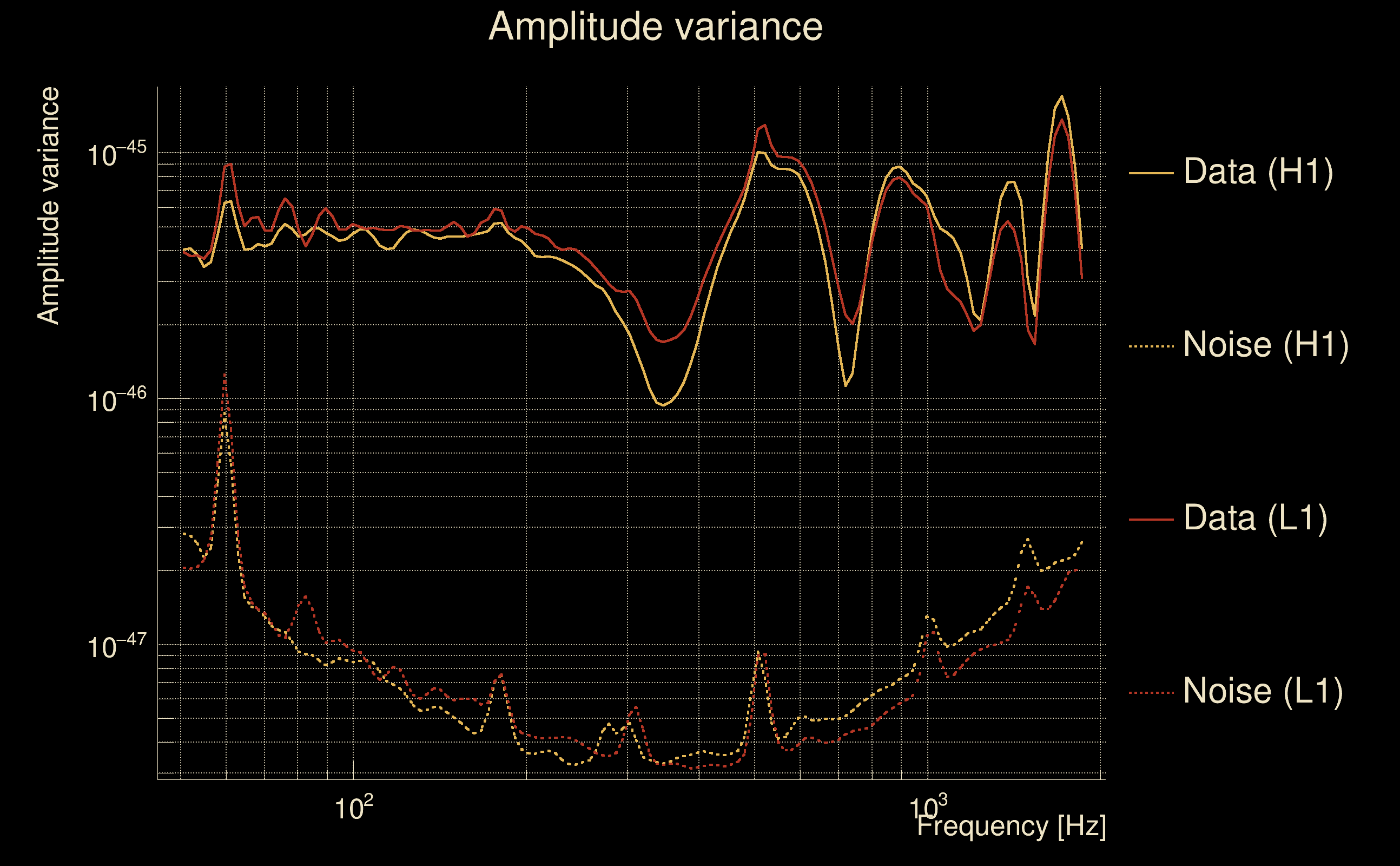

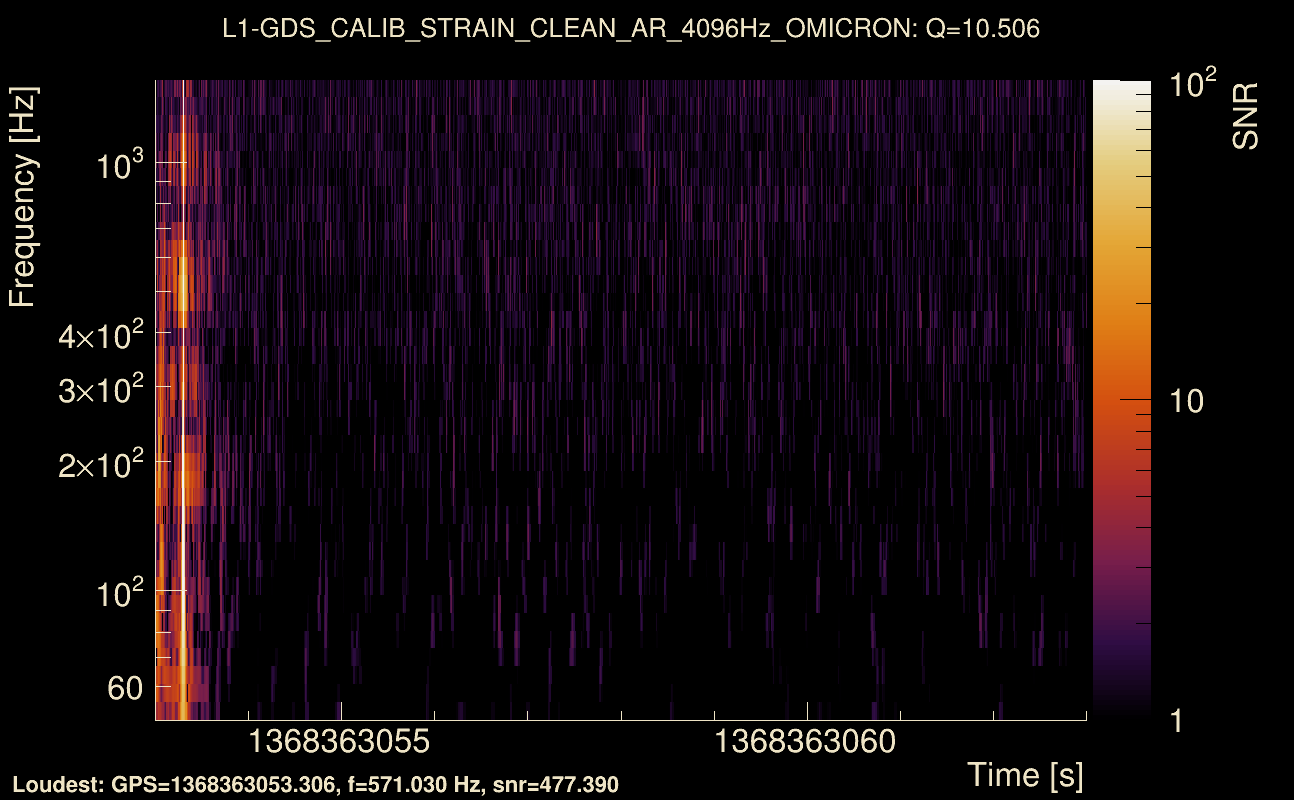

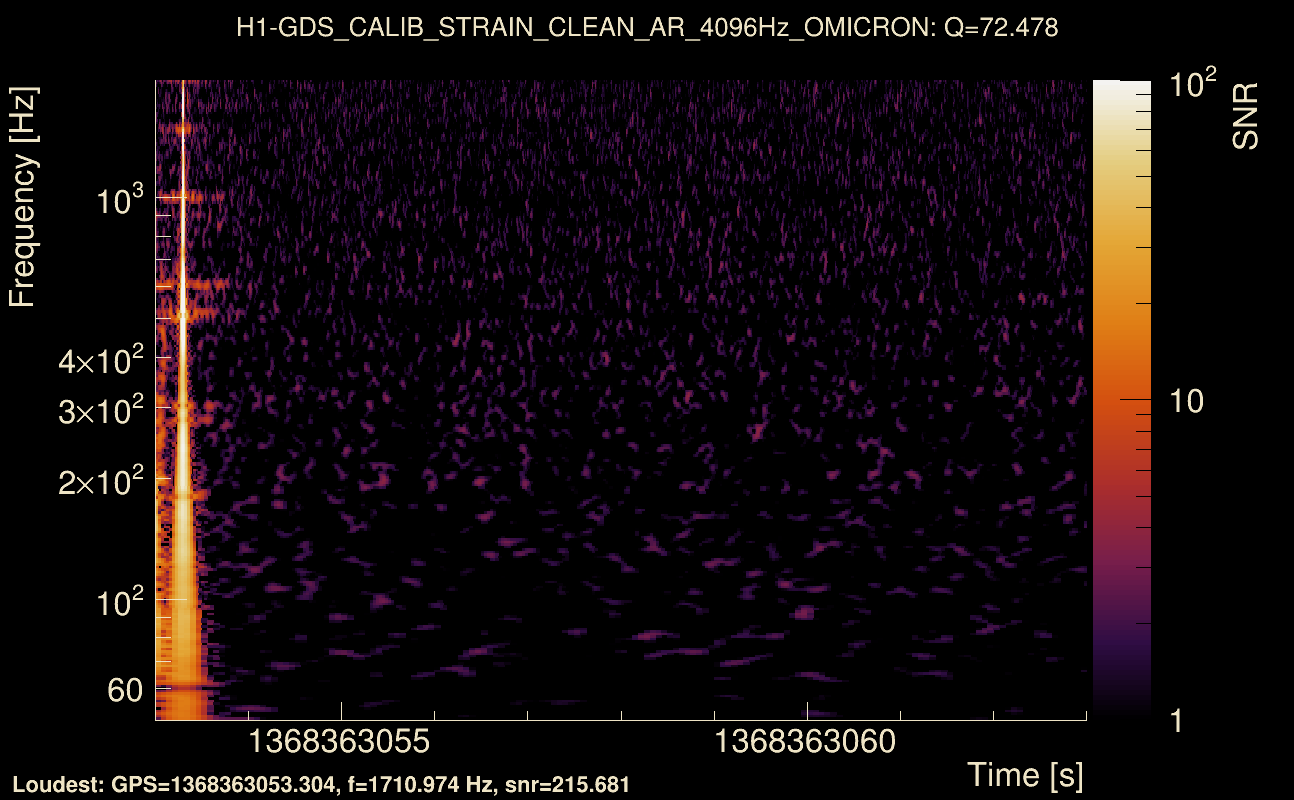

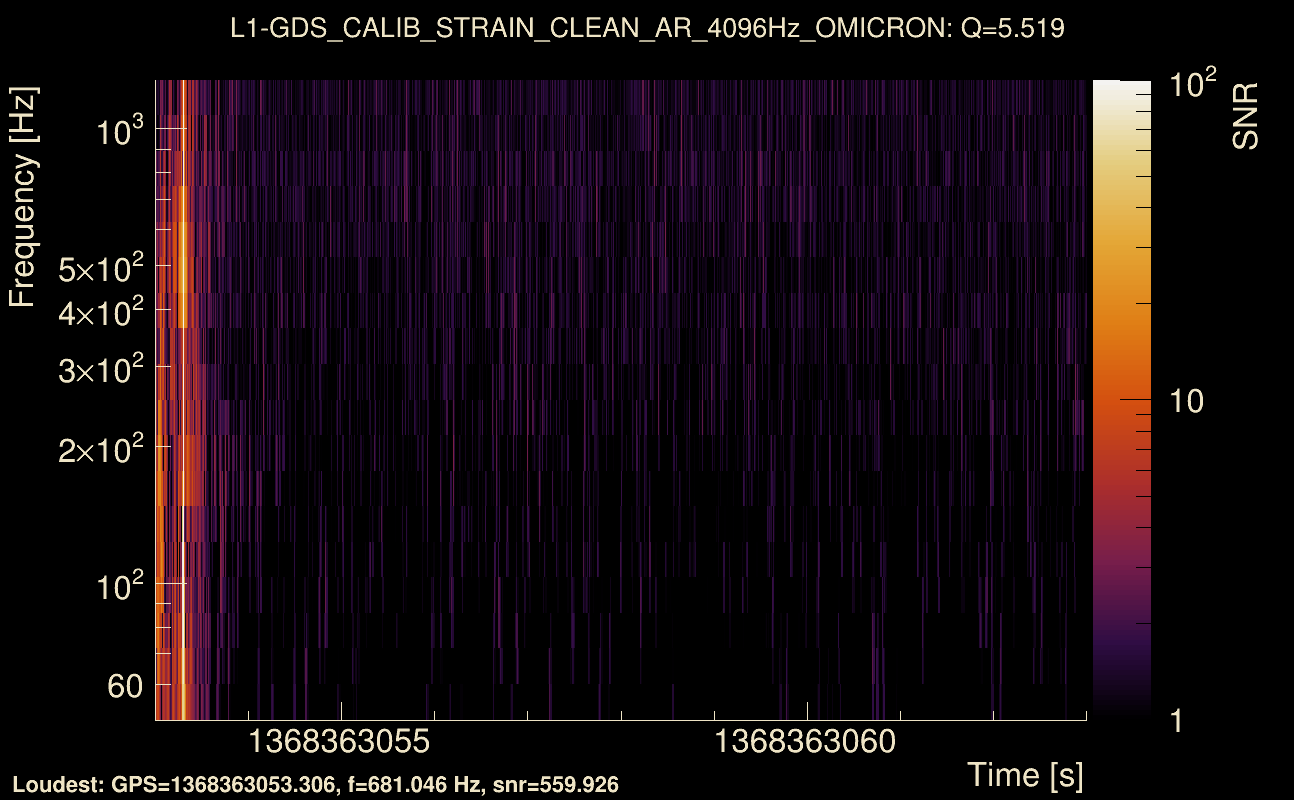

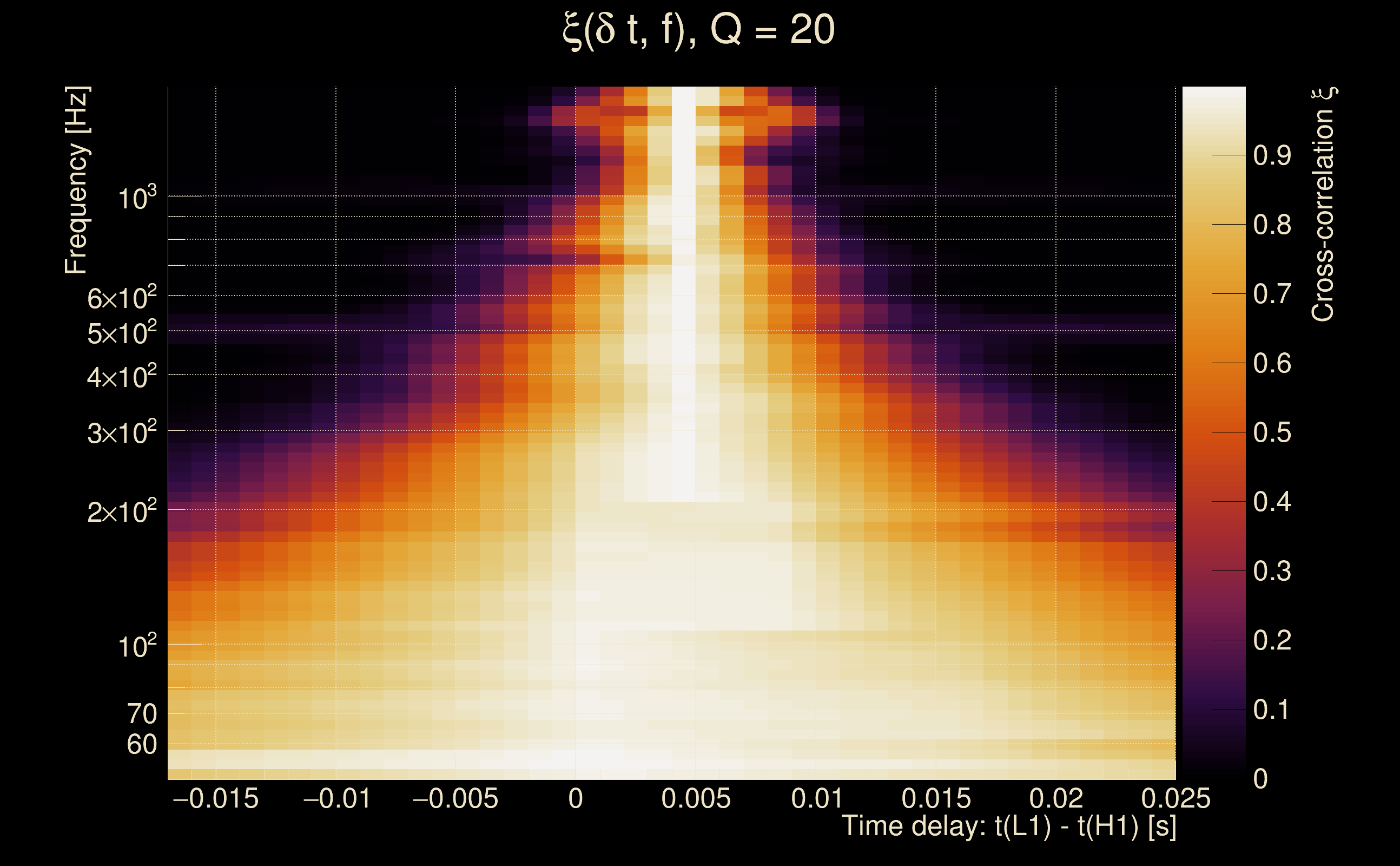

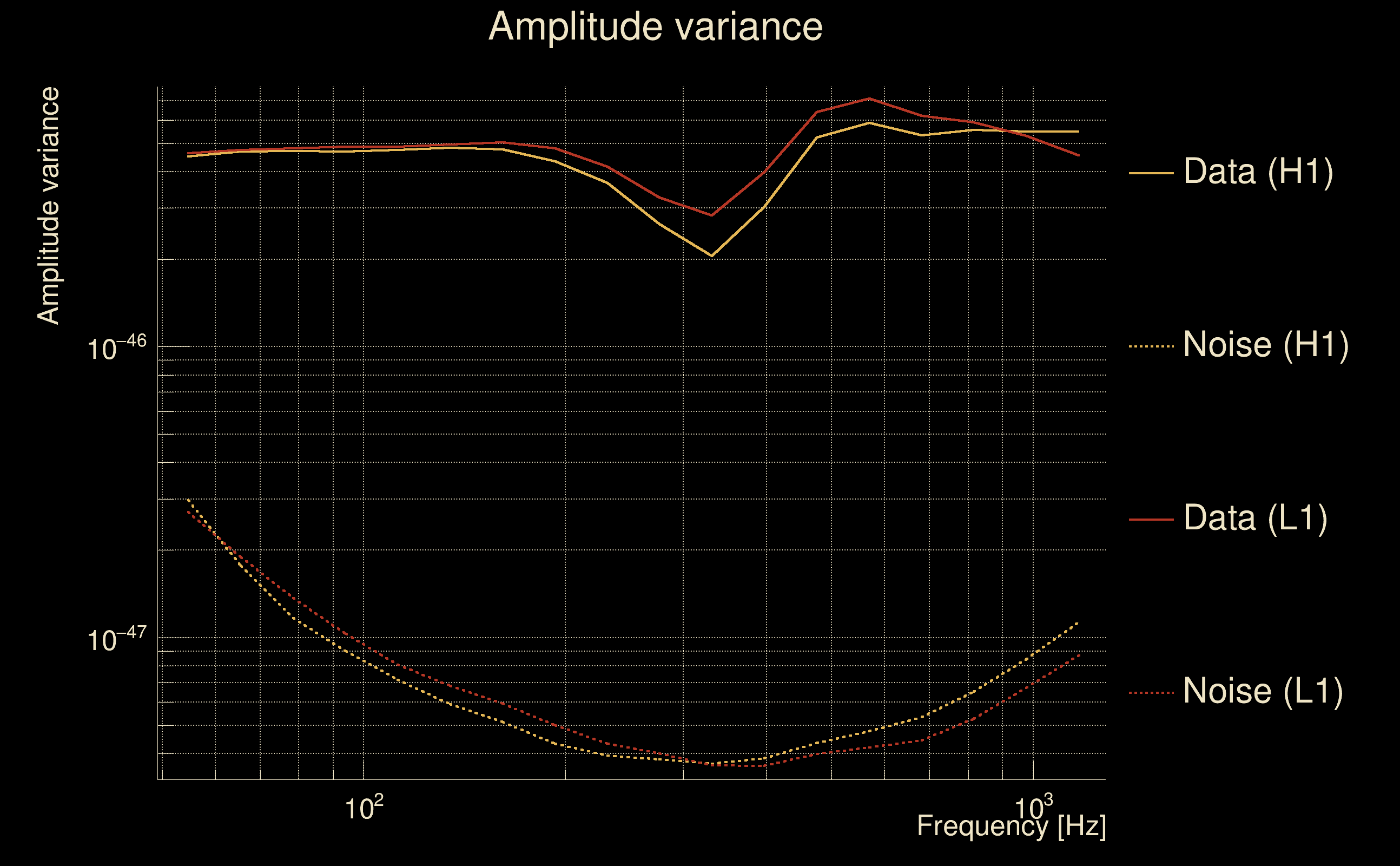

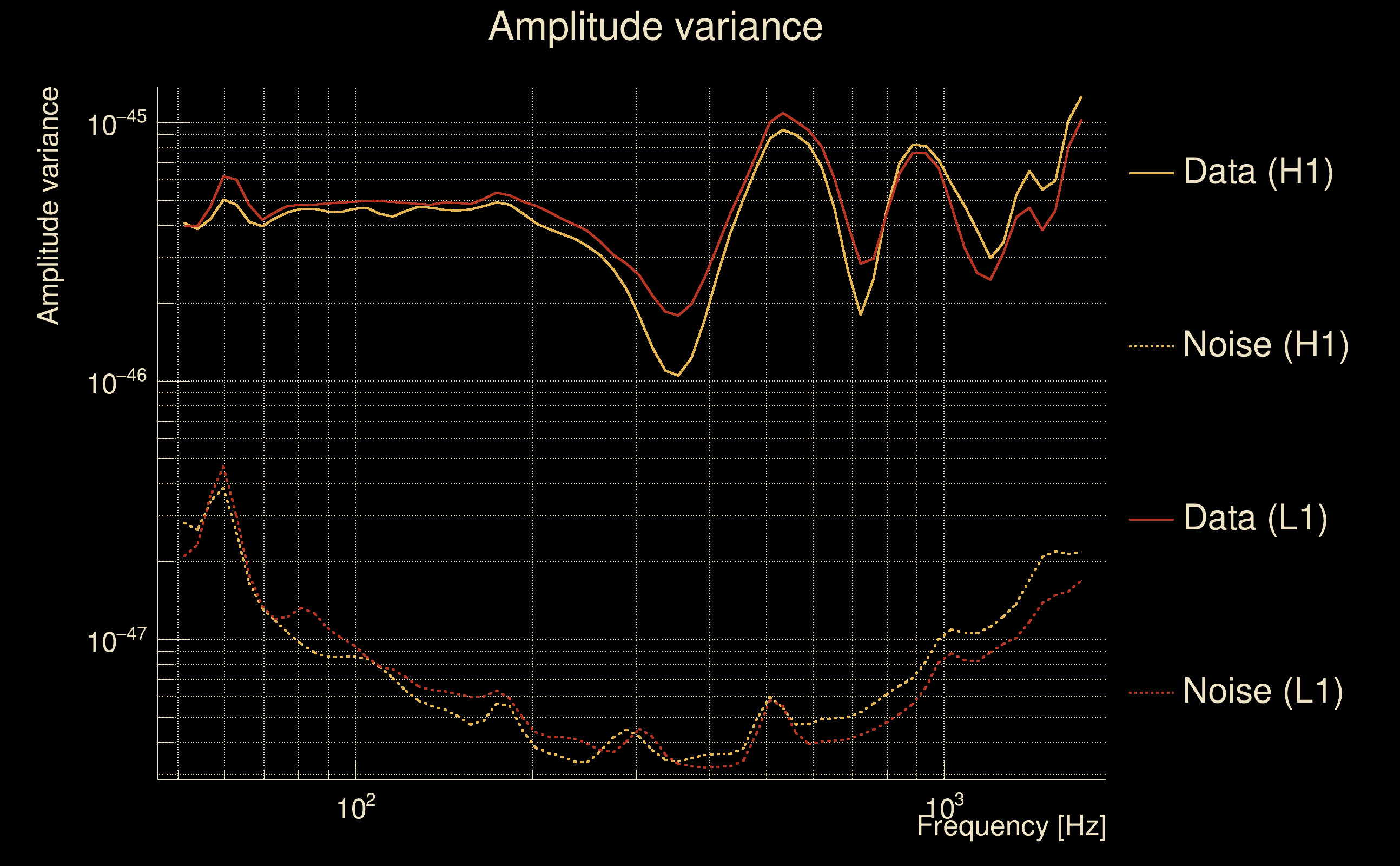

| Event time t(H1): | GPS = 1368363053 (Wed May 17 12:50:35 2023 ) → GPS = 1368363063 (Wed May 17 12:50:45 2023 ) |
| Event time t(L1): | GPS = 1368363053 (Wed May 17 12:50:45 2023 ) → GPS = 1368363063 (Wed May 17 12:50:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368363050 → GPS = 1368363066 |
| Omicron analysis time window (L1): | GPS = 1368363050 → GPS = 1368363066 |

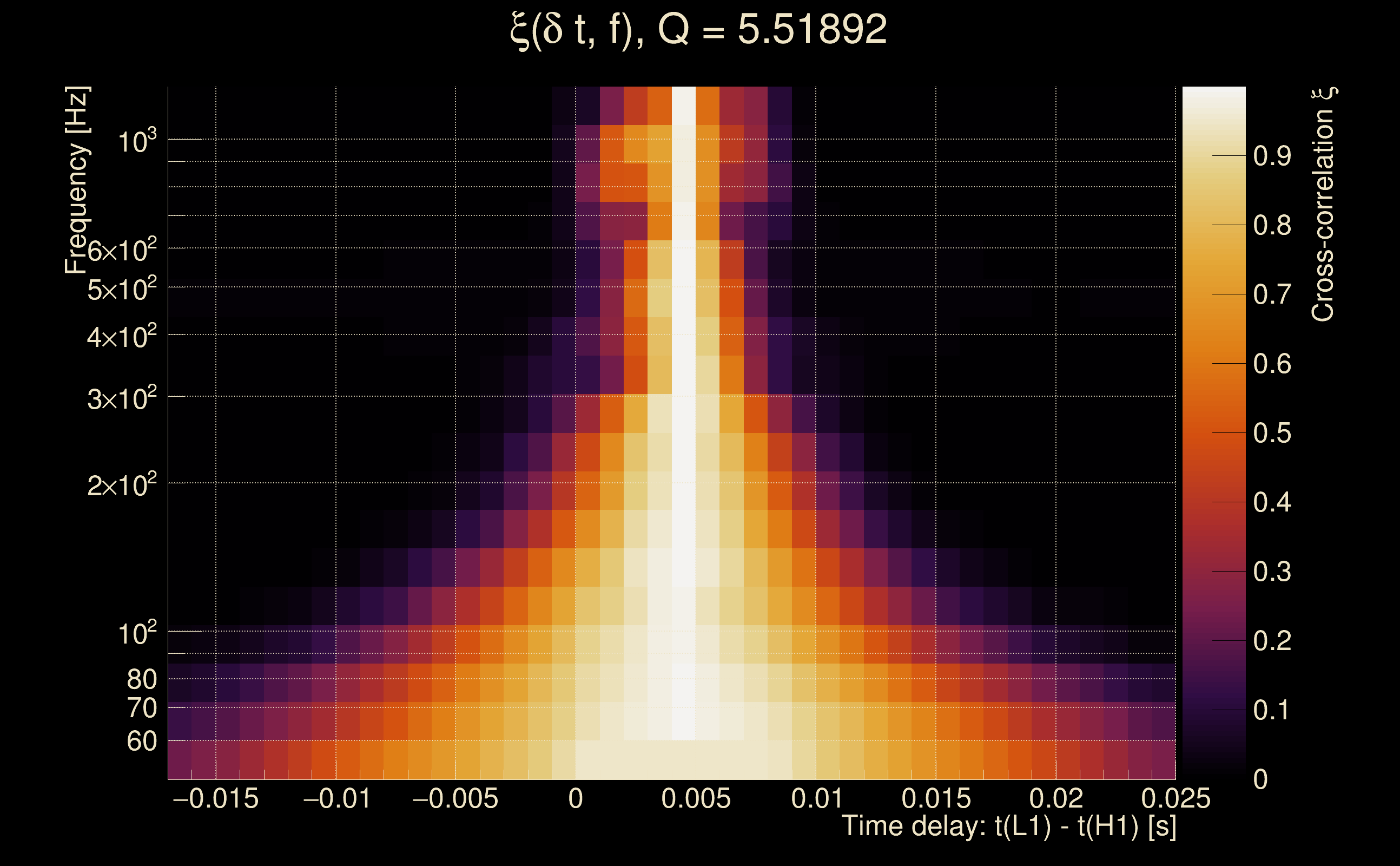

| Time delay between detectors t(L1) - t(H1): | 0.00398829 s (slice index = 108 / 217), δt_gw = 0.00398829 s |
| Time delay standard deviation: | 0.0179023 s |
| [targeted mode] Time delay probability: | 2.2973e-53 (15.3781 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 290.02 Hz |
| Ξ: | 0.988306 ± 0.00450914 (variance = 2.03324e-05): Q0: 0.989302, Q1: 0.98966, Q2: 0.988403, Q3: 0.982943, Q4: 0.978078 |
| Rank: | R_A = 0.988306 |
| Log of amplitude ratio (L1/H1): | 0.0590574, variance = 0.16027 (L1/H1: 0.038254, variance = 0.306238, H1/L1: -0.0725433, variance = 0.306721) |
| Amplitude ratio (L1/H1): | 1.06084 ⋇ 1.49233 (L1/H1: 1.039 ⋇ 1.73914, H1/L1: 0.930025 ⋇ 1.73989) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.965066 |

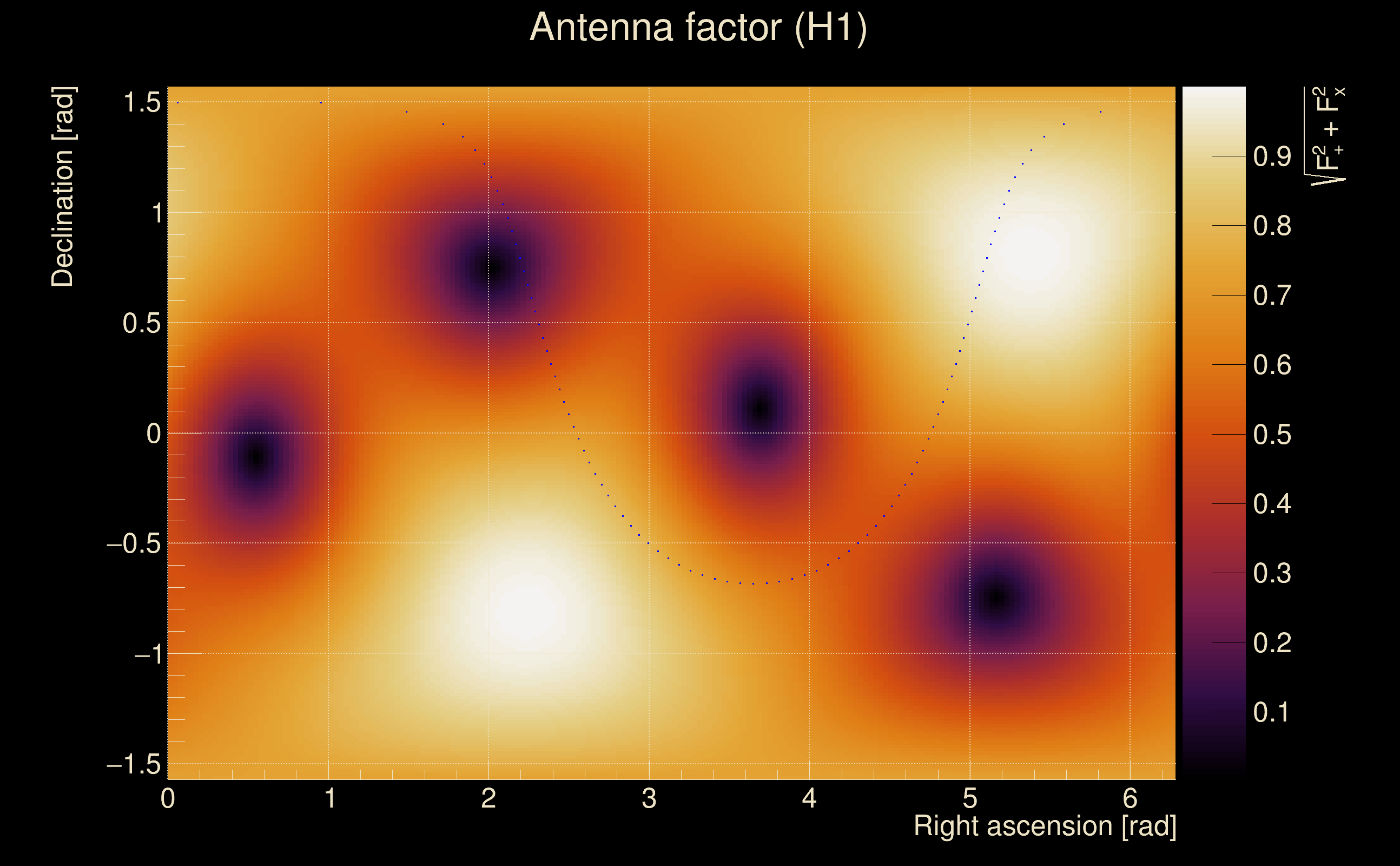

| Antenna factor probability: | 0.372543 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 456.621, L1: 567.131 |
| SNR variance: | H1: 53.7377, L1: 84.4345 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

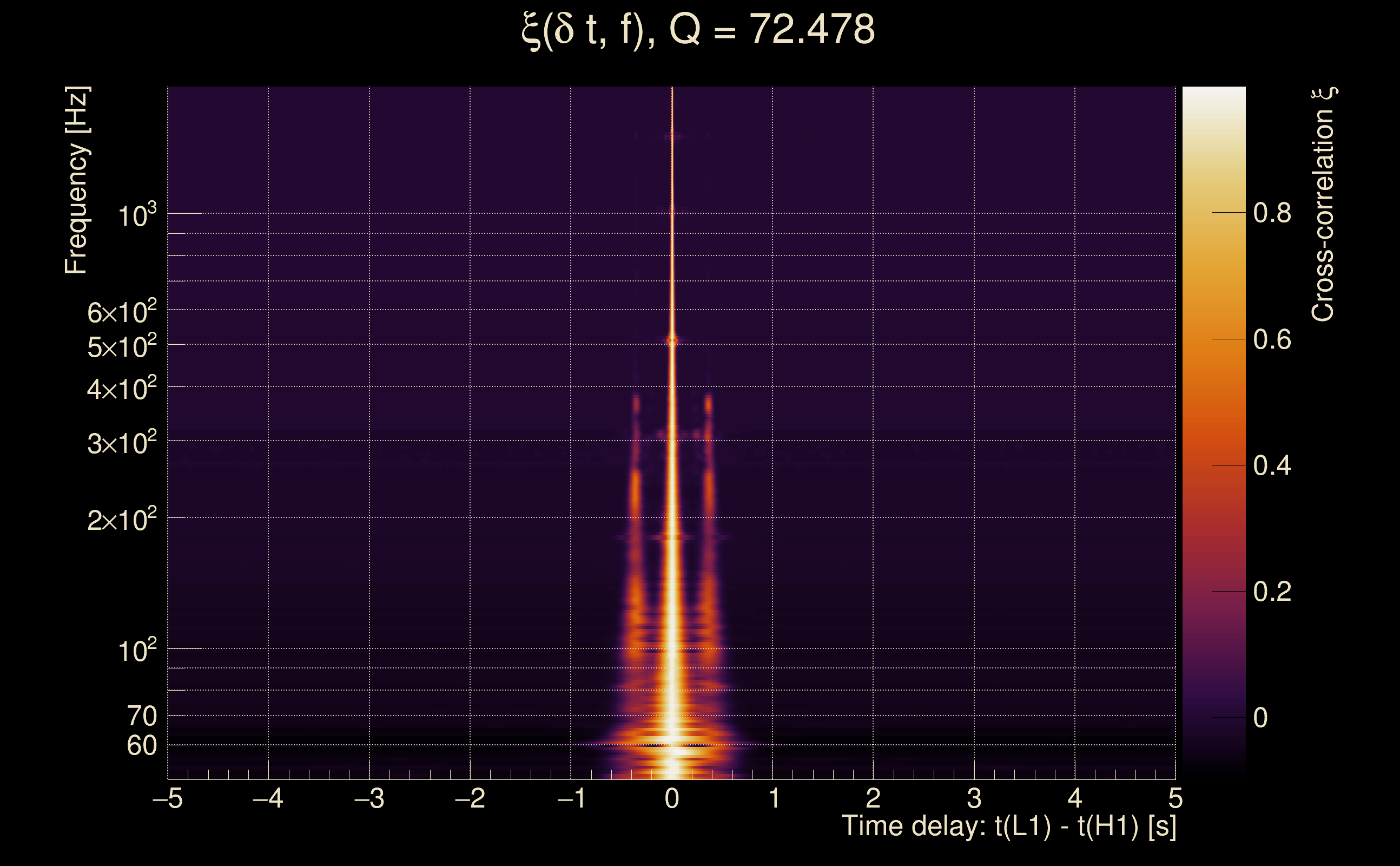

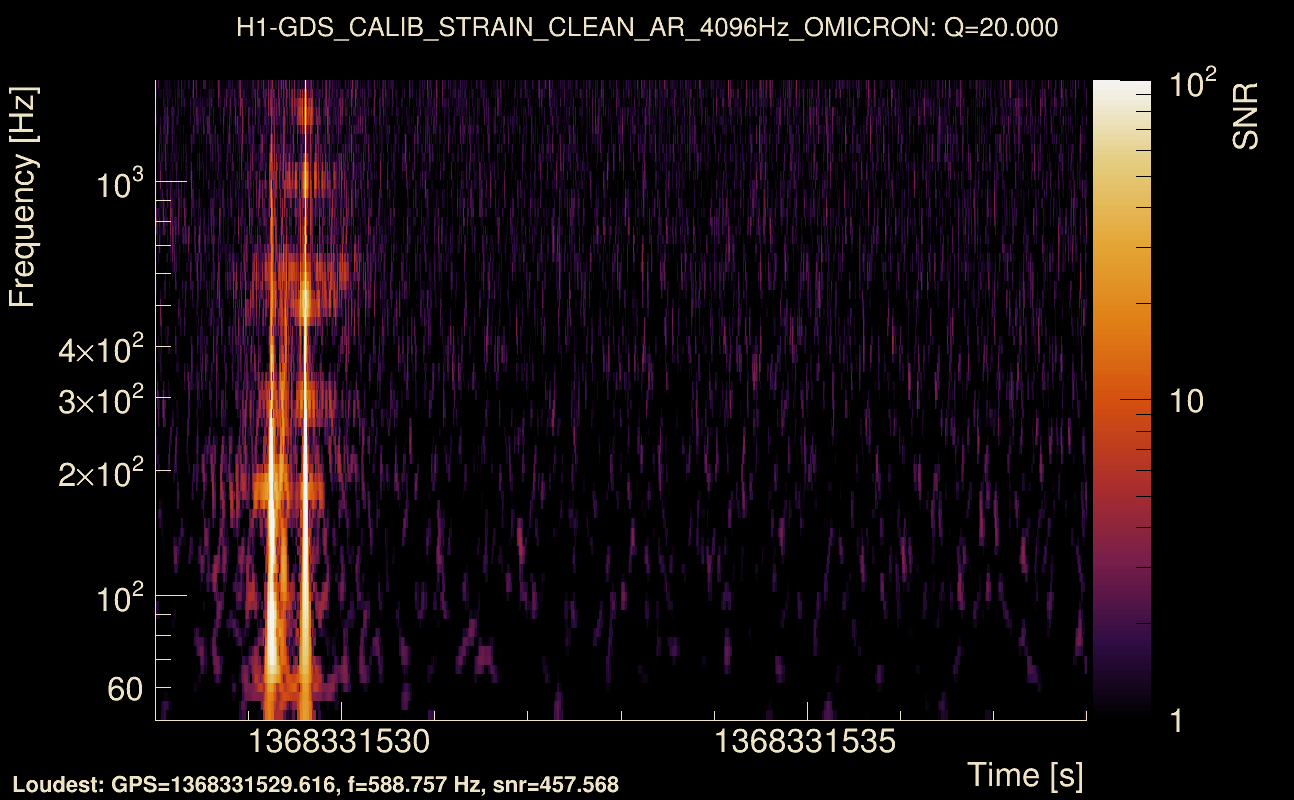

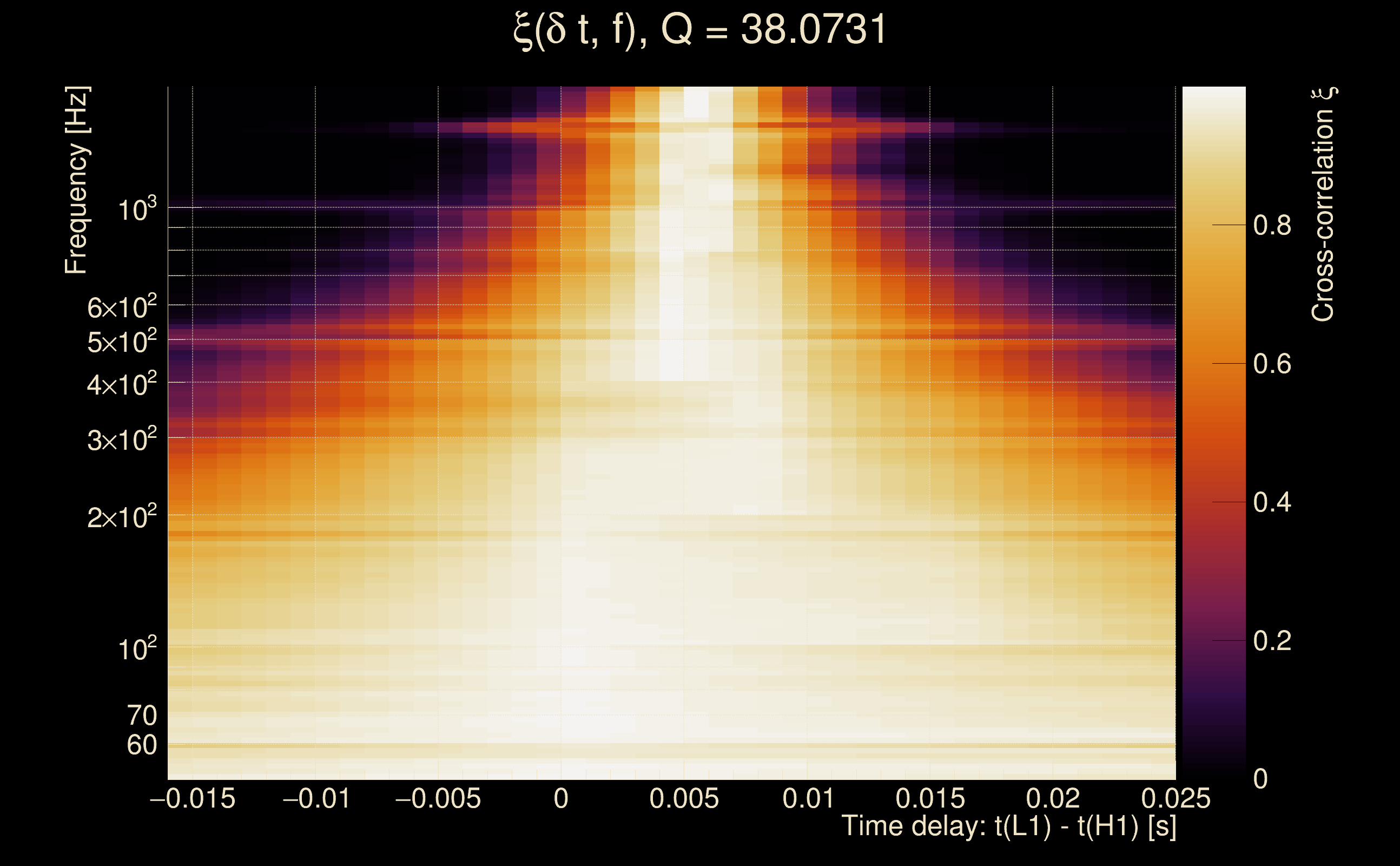

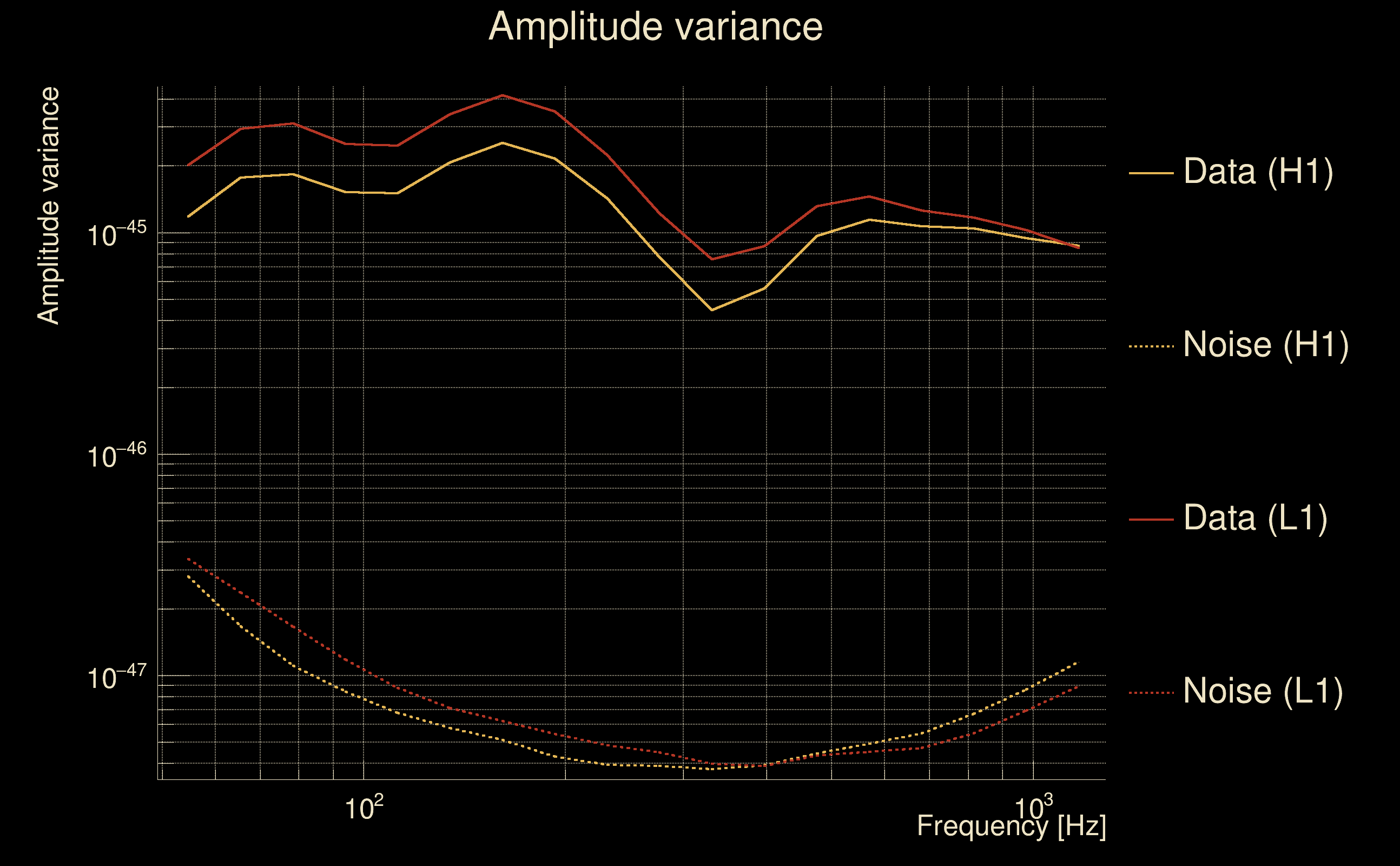

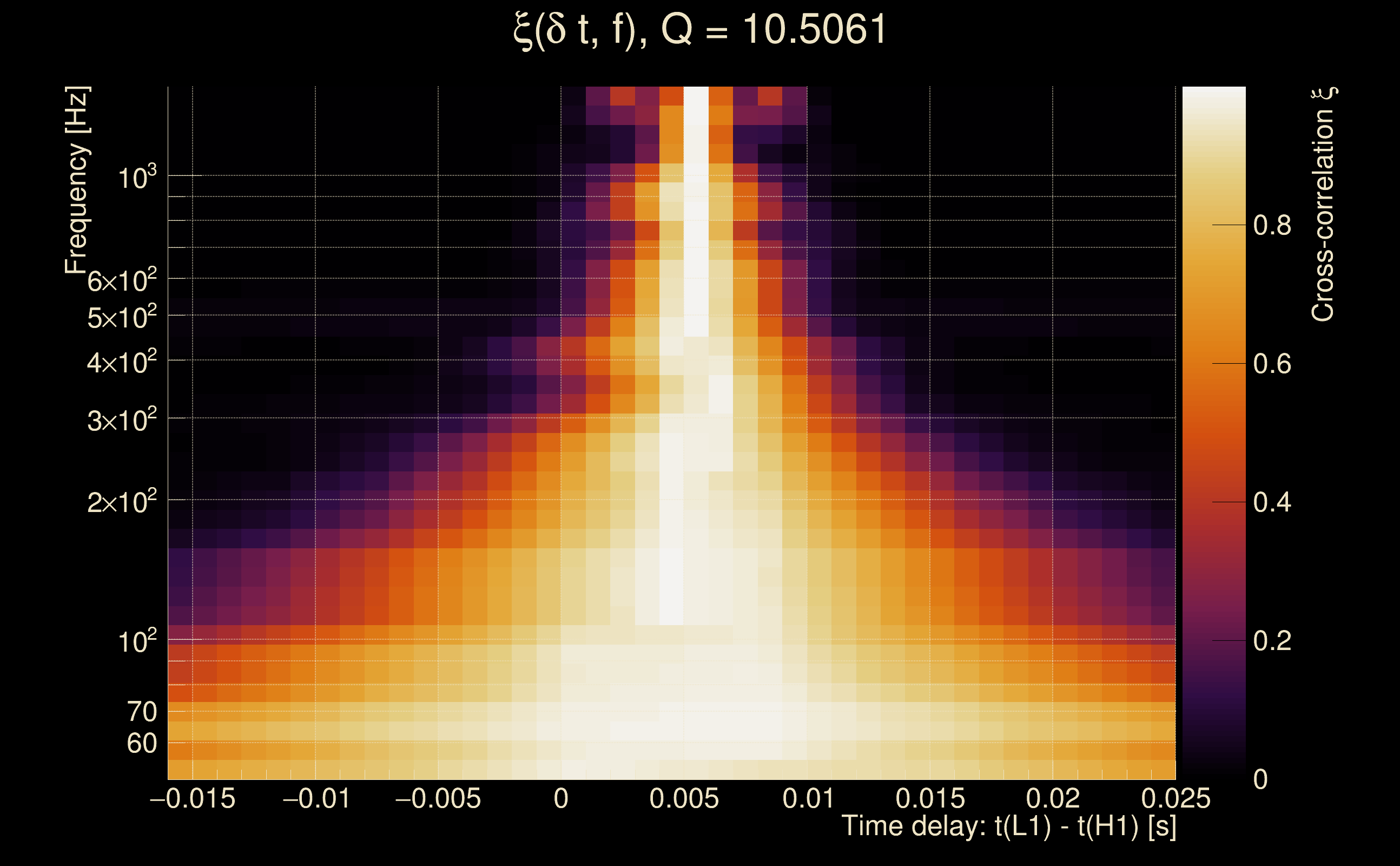

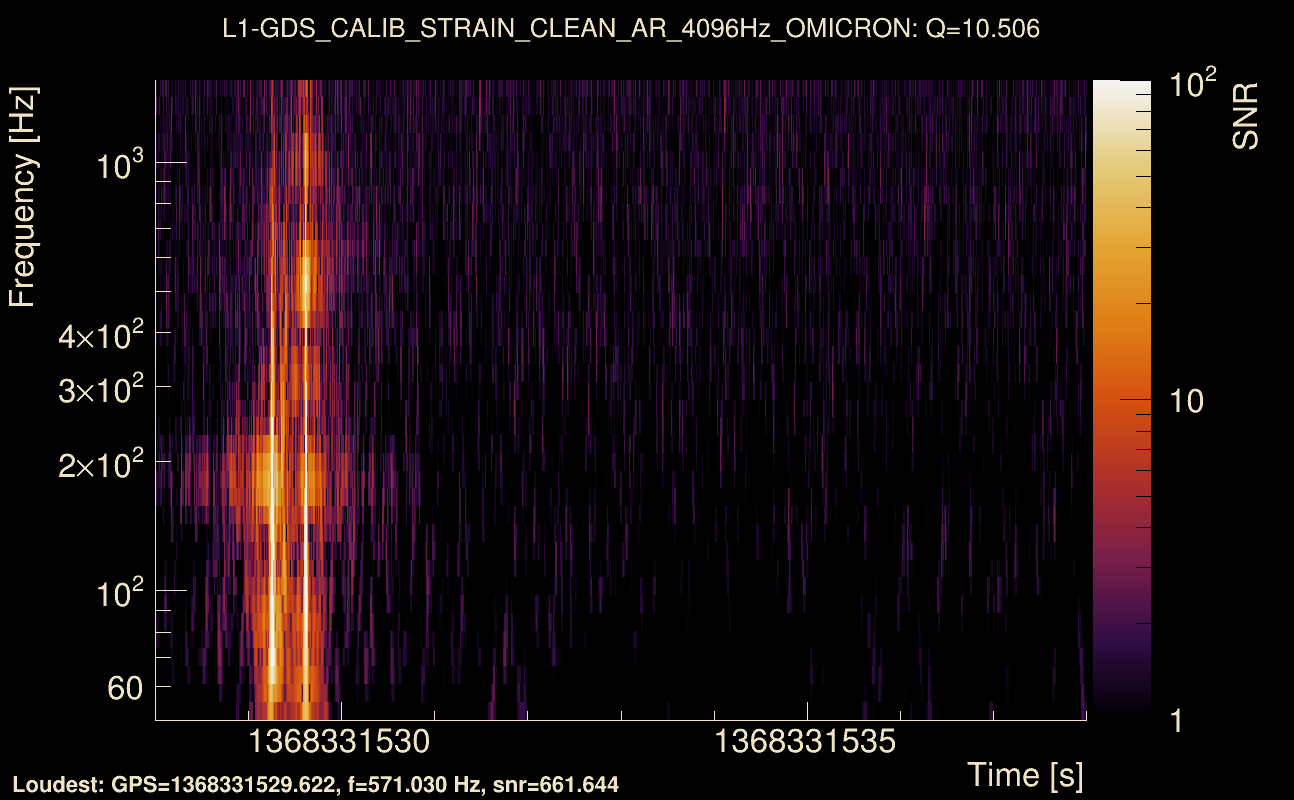

| Event time t(H1): | GPS = 1368331523 (Wed May 17 04:05:05 2023 ) → GPS = 1368331533 (Wed May 17 04:05:15 2023 ) |
| Event time t(L1): | GPS = 1368331523 (Wed May 17 04:05:15 2023 ) → GPS = 1368331533 (Wed May 17 04:05:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368331520 → GPS = 1368331536 |
| Omicron analysis time window (L1): | GPS = 1368331520 → GPS = 1368331536 |
| Time delay between detectors t(L1) - t(H1): | 0.00493977 s (slice index = 108 / 217), δt_gw = 0.00493977 s |
| Time delay standard deviation: | 0.0208367 s |
| [targeted mode] Time delay probability: | 2.67263e-28 (11.0322 sigmas), δt_target = -0.00994682 s |
| Frequency: | 289.26 Hz |
| Ξ: | 0.98804 ± 0.00156094 (variance = 2.43653e-06): Q0: 0.989222, Q1: 0.988464, Q2: 0.984875, Q3: 0.986155, Q4: 0.987175 |
| Rank: | R_A = 0.98804 |
| Log of amplitude ratio (L1/H1): | 0.206179, variance = 0.158044 (L1/H1: 0.186982, variance = 0.30779, H1/L1: -0.21978, variance = 0.306823) |
| Amplitude ratio (L1/H1): | 1.22897 ⋇ 1.48817 (L1/H1: 1.20561 ⋇ 1.74157, H1/L1: 0.802695 ⋇ 1.74005) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.966629 |

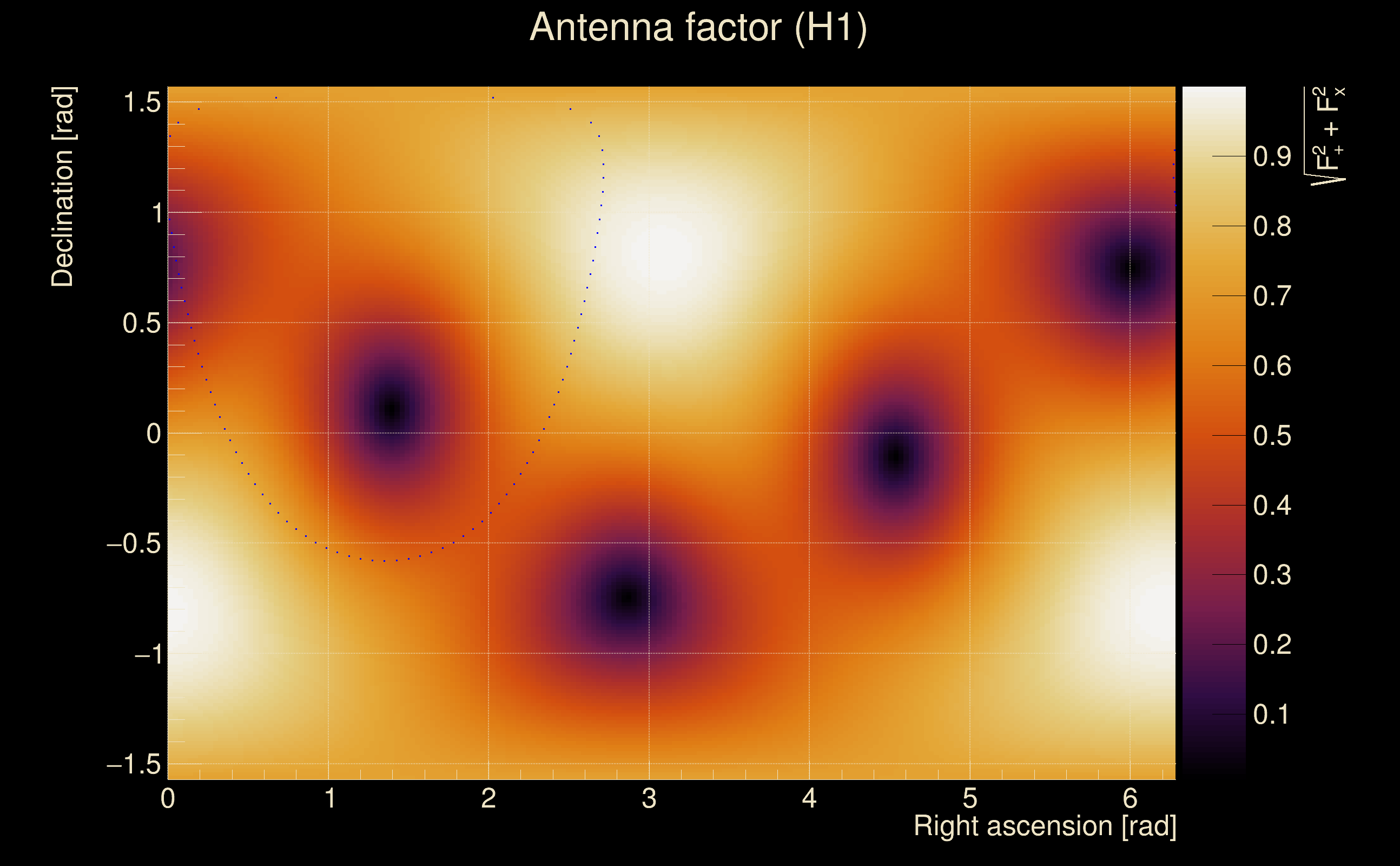

| Antenna factor probability: | 0.586219 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |

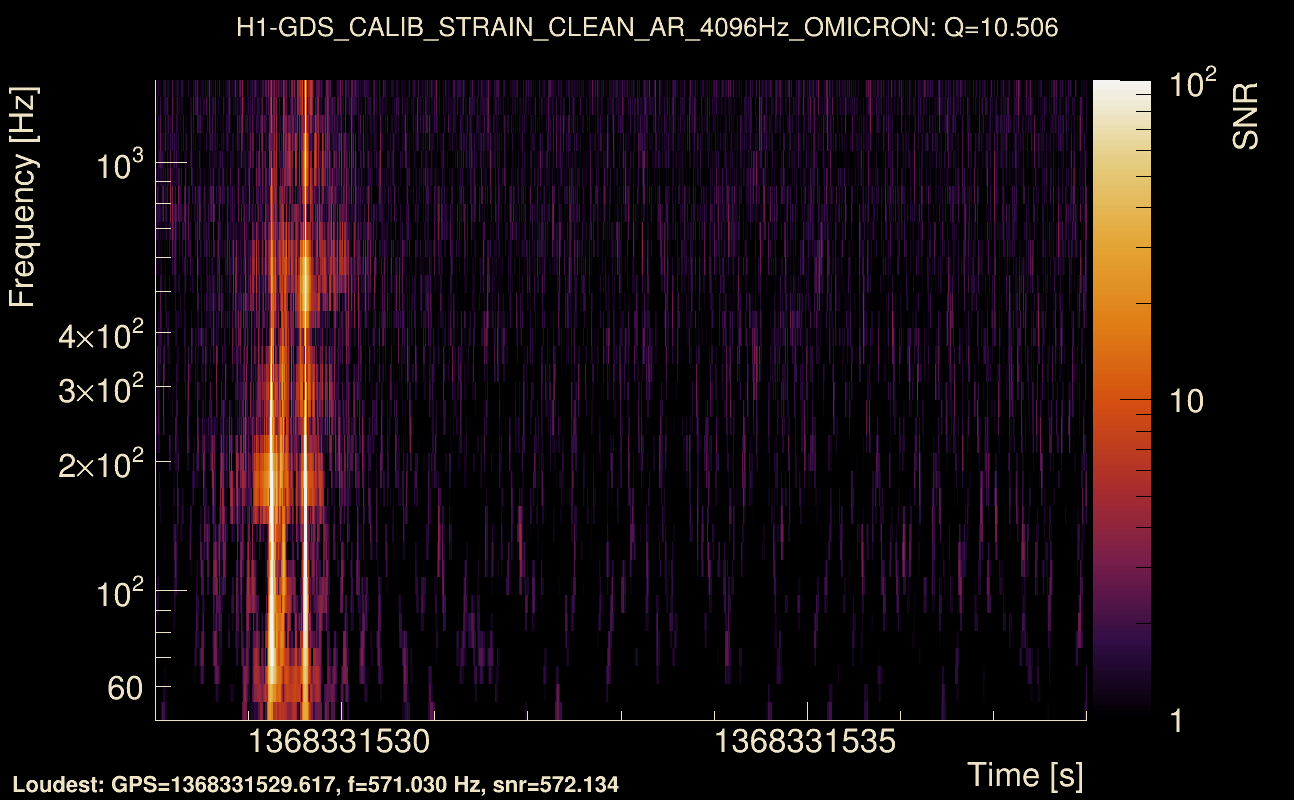

| Maximum signal-to-noise ratio: | H1: 671.884, L1: 798.231 |

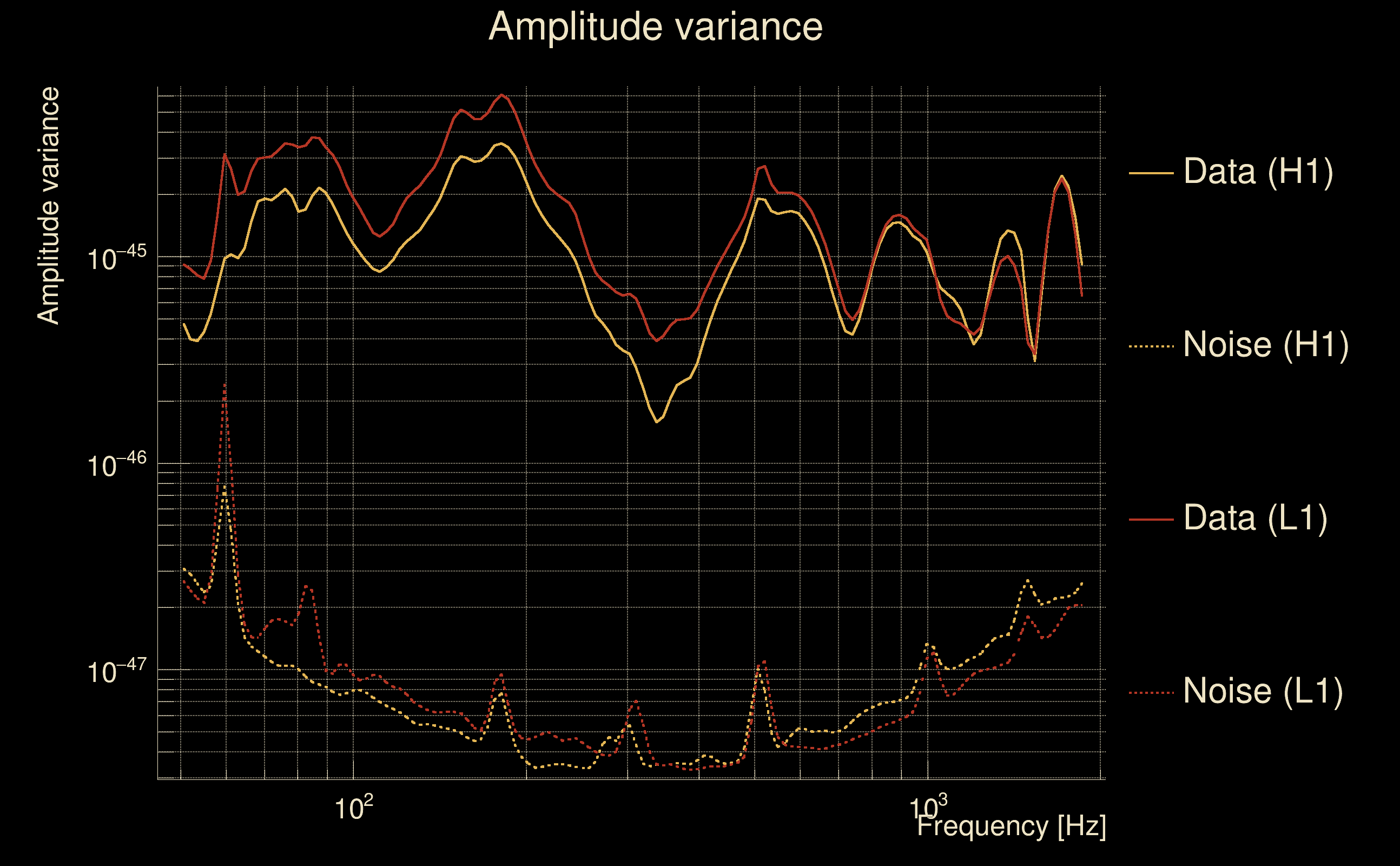

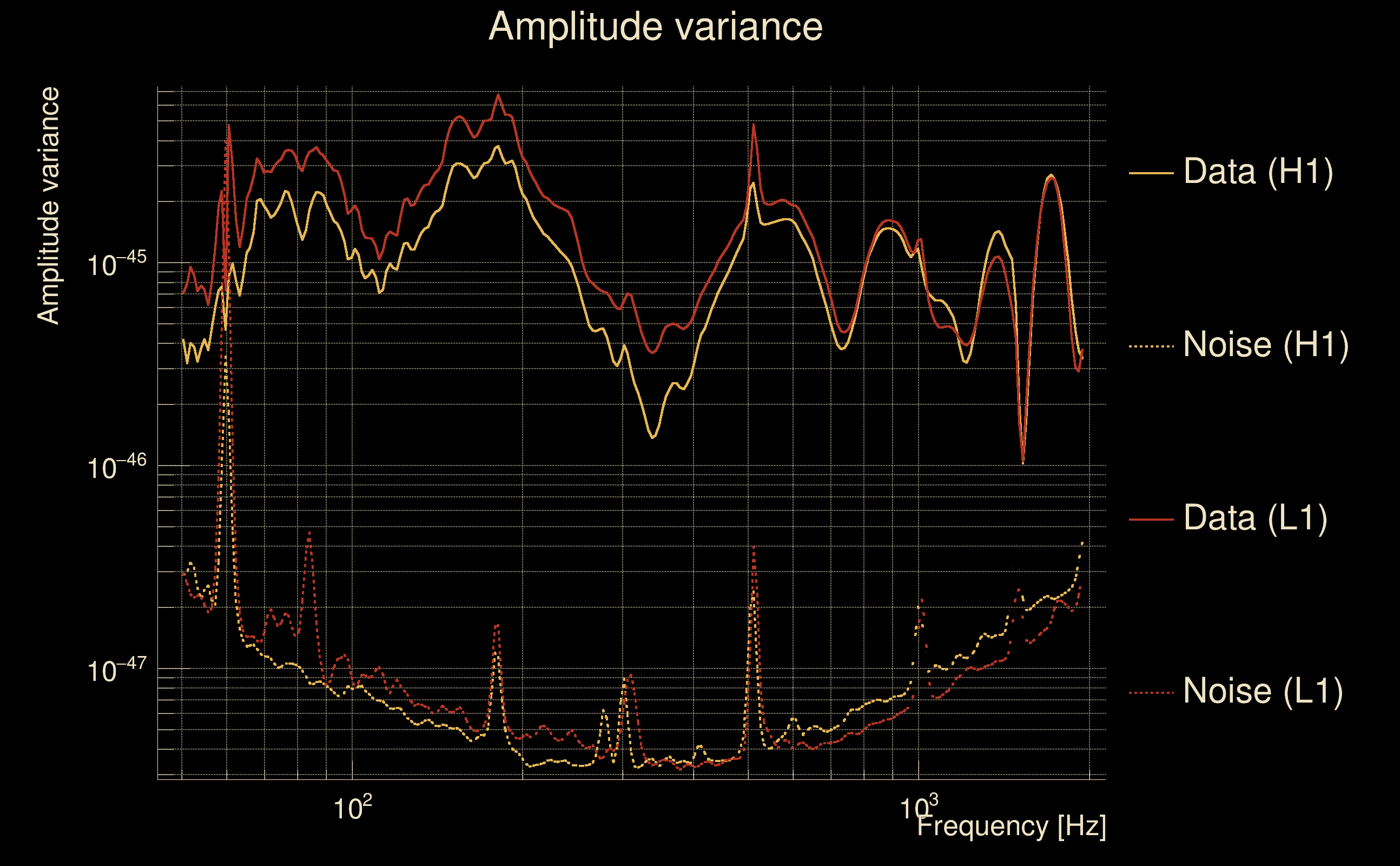

| SNR variance: | H1: 0.506793, L1: 0.481069 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

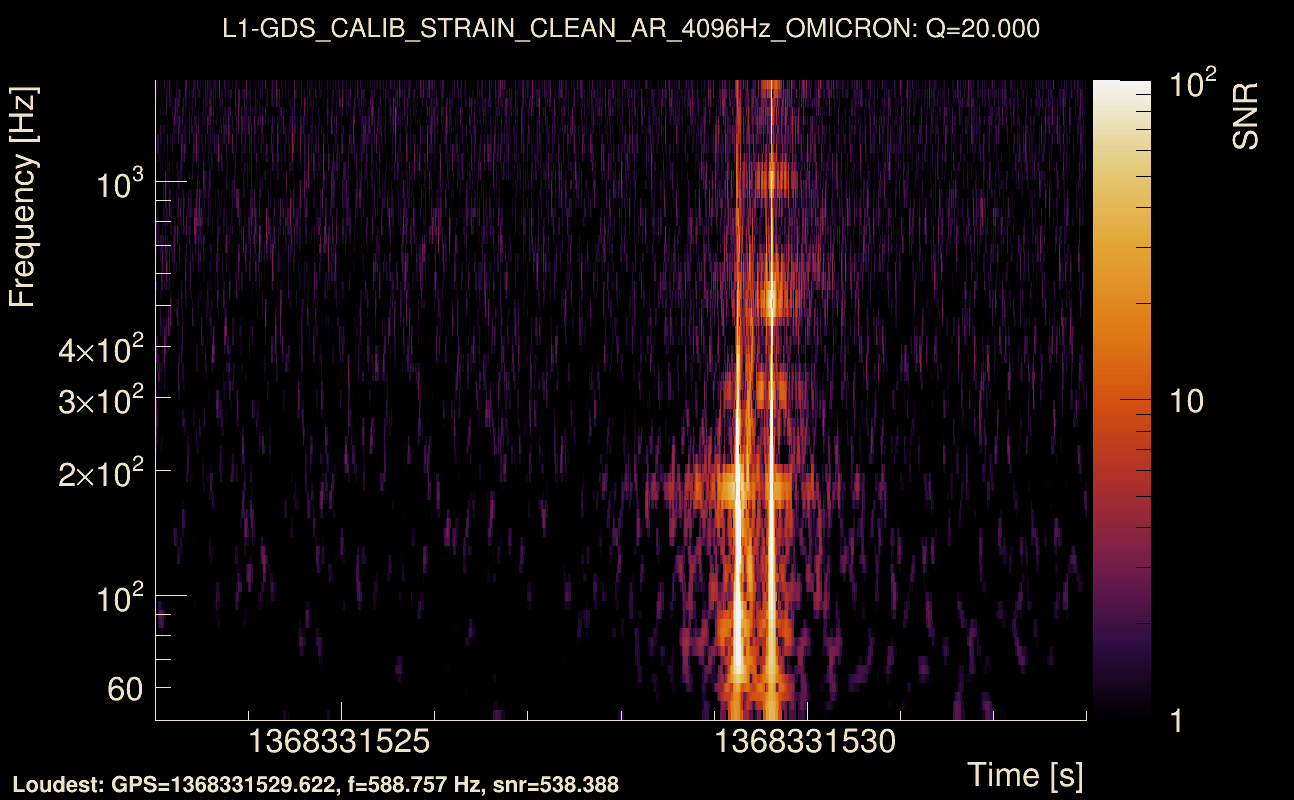

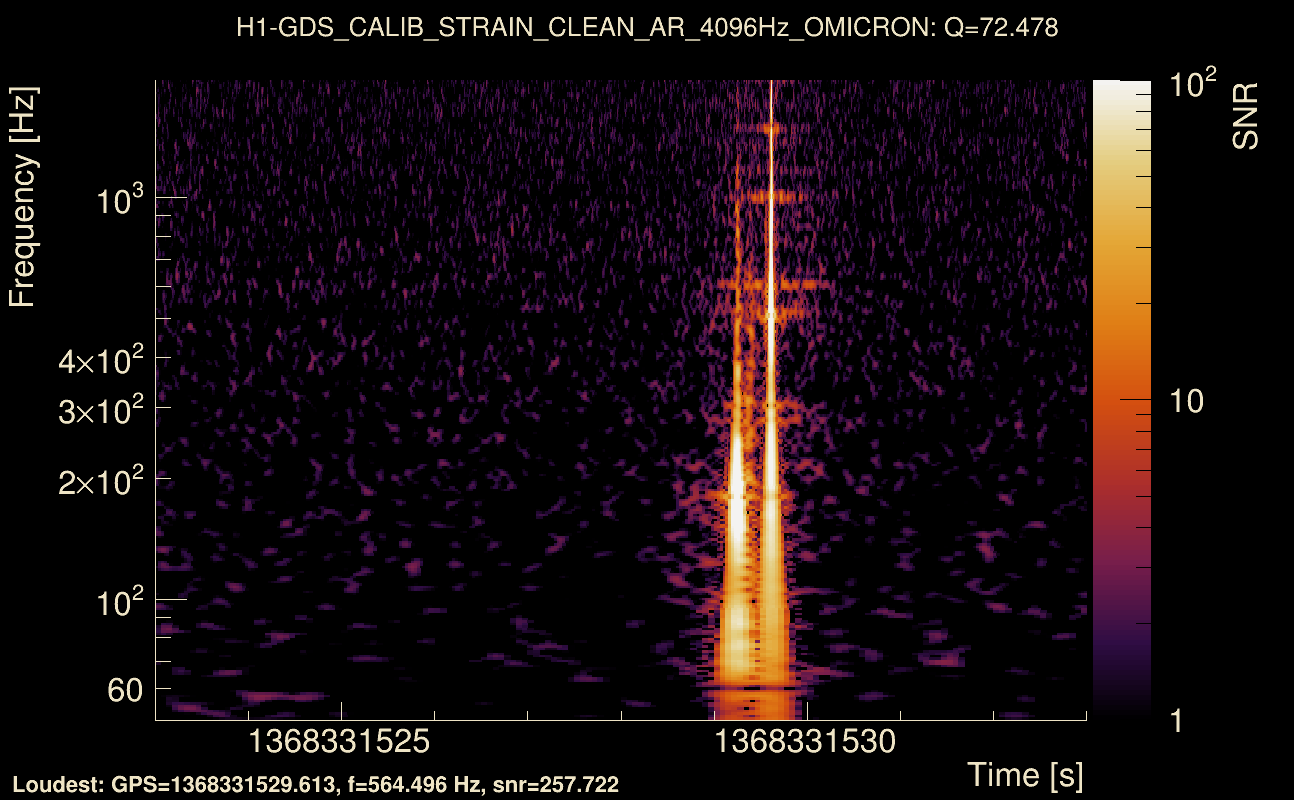

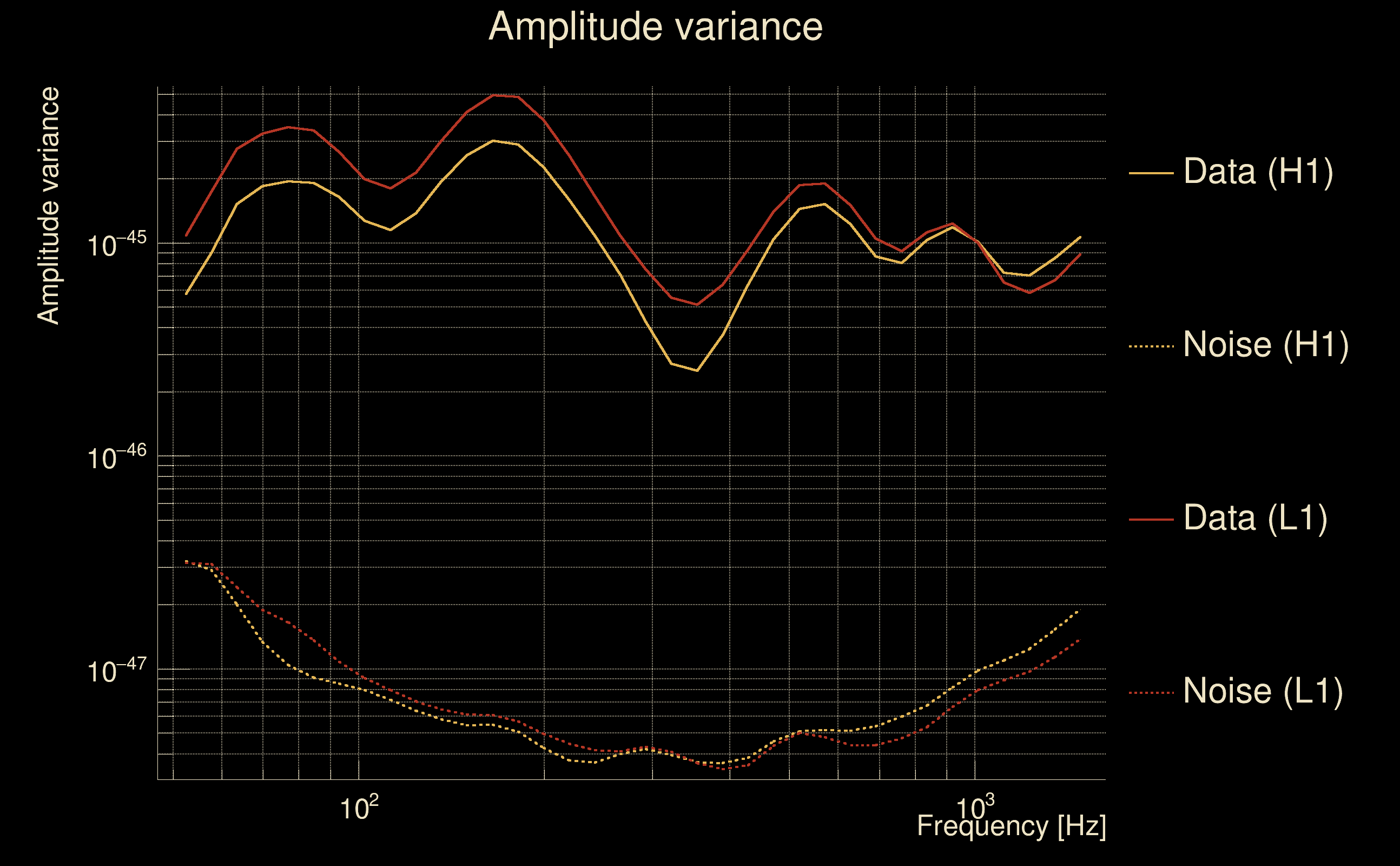

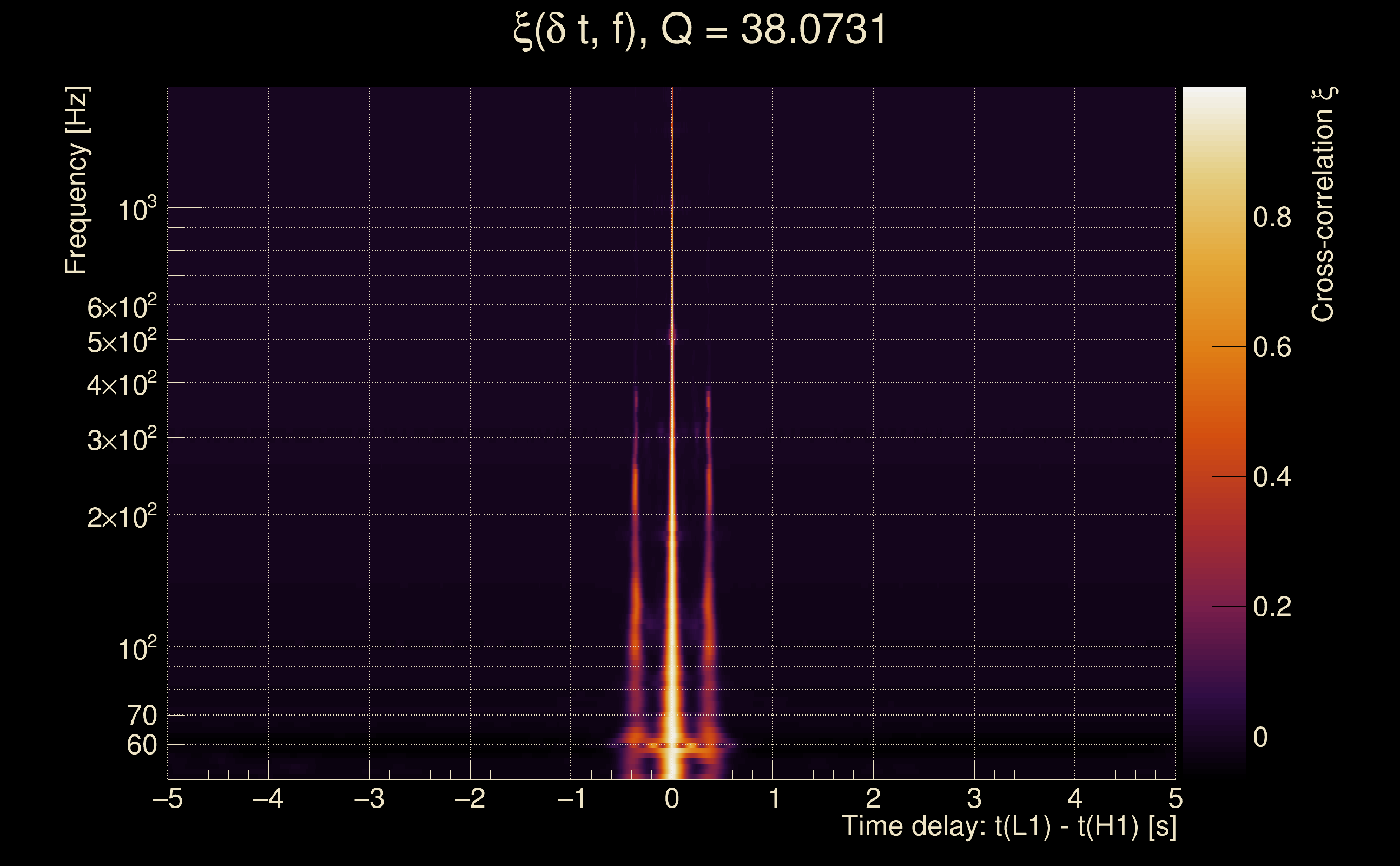

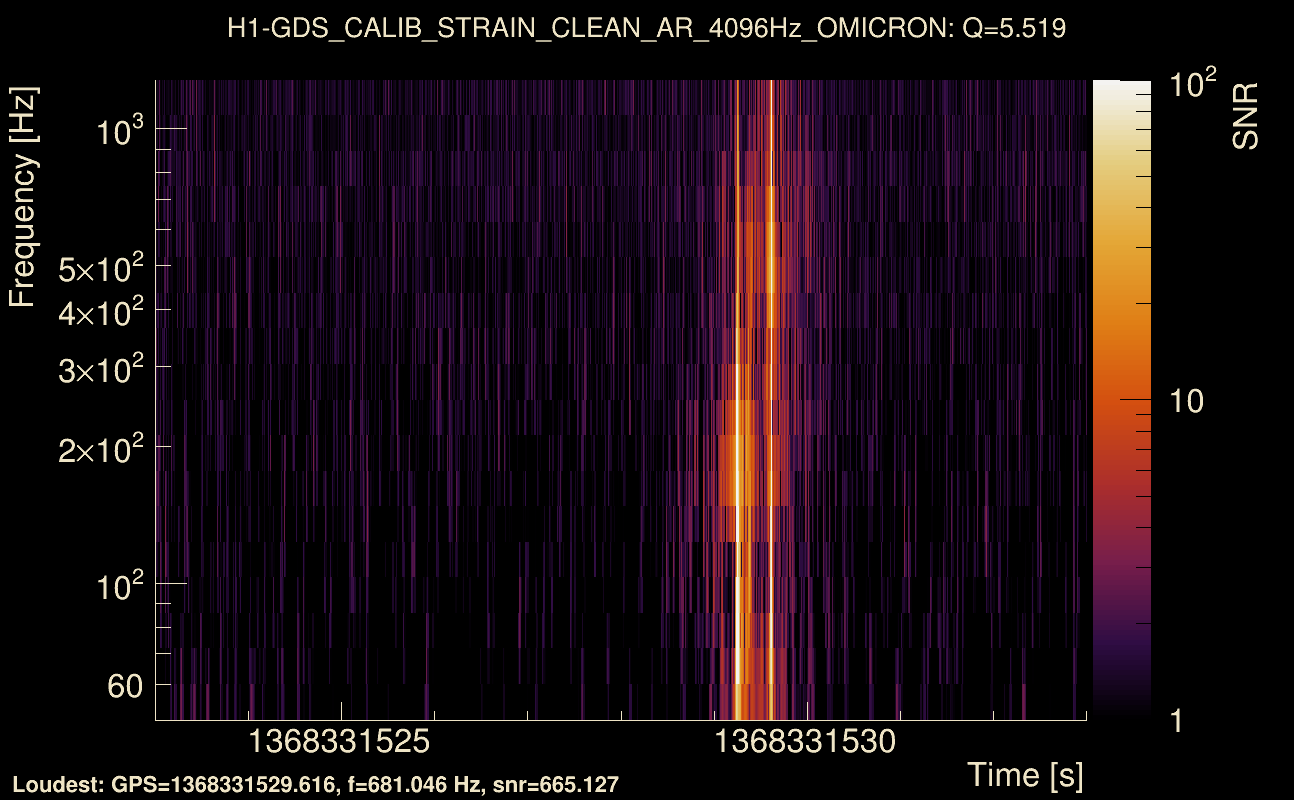

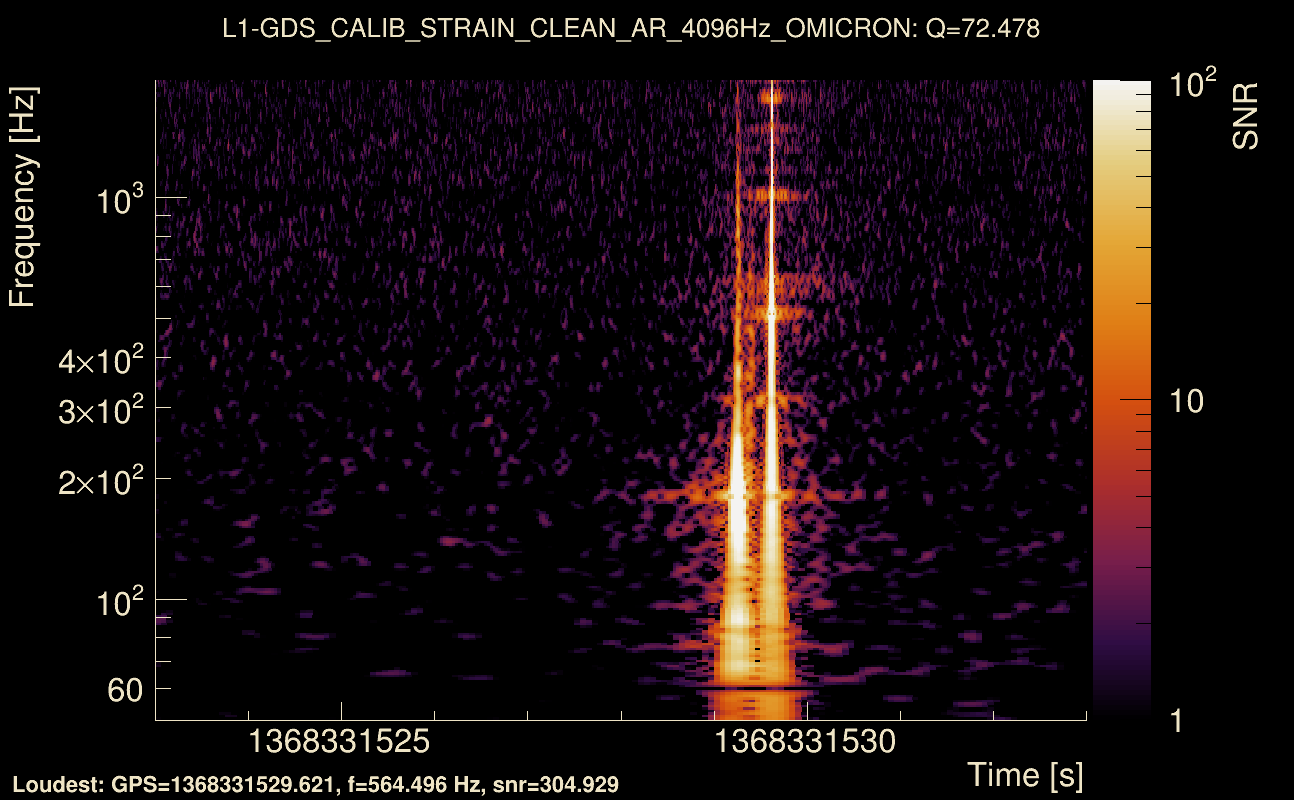

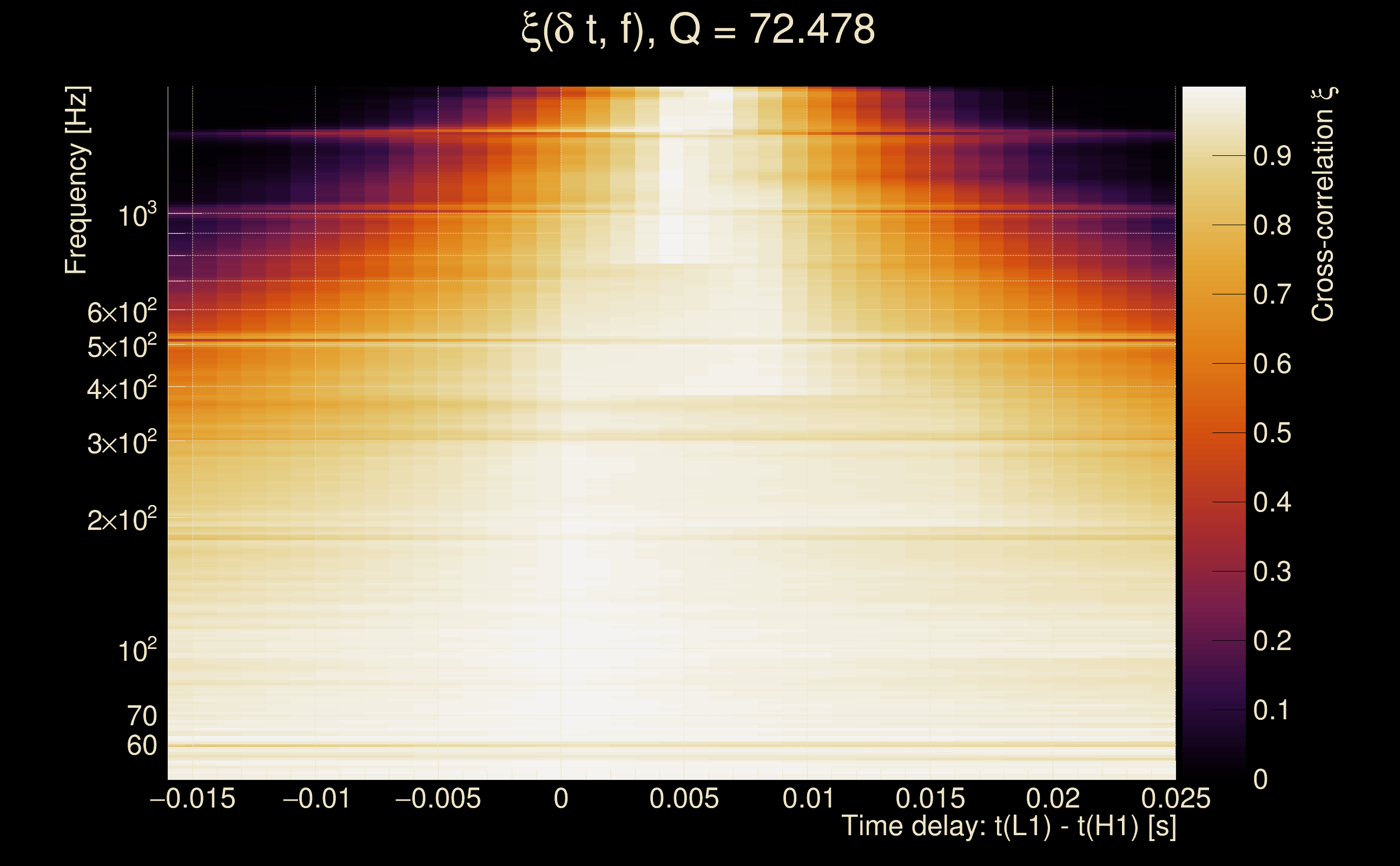

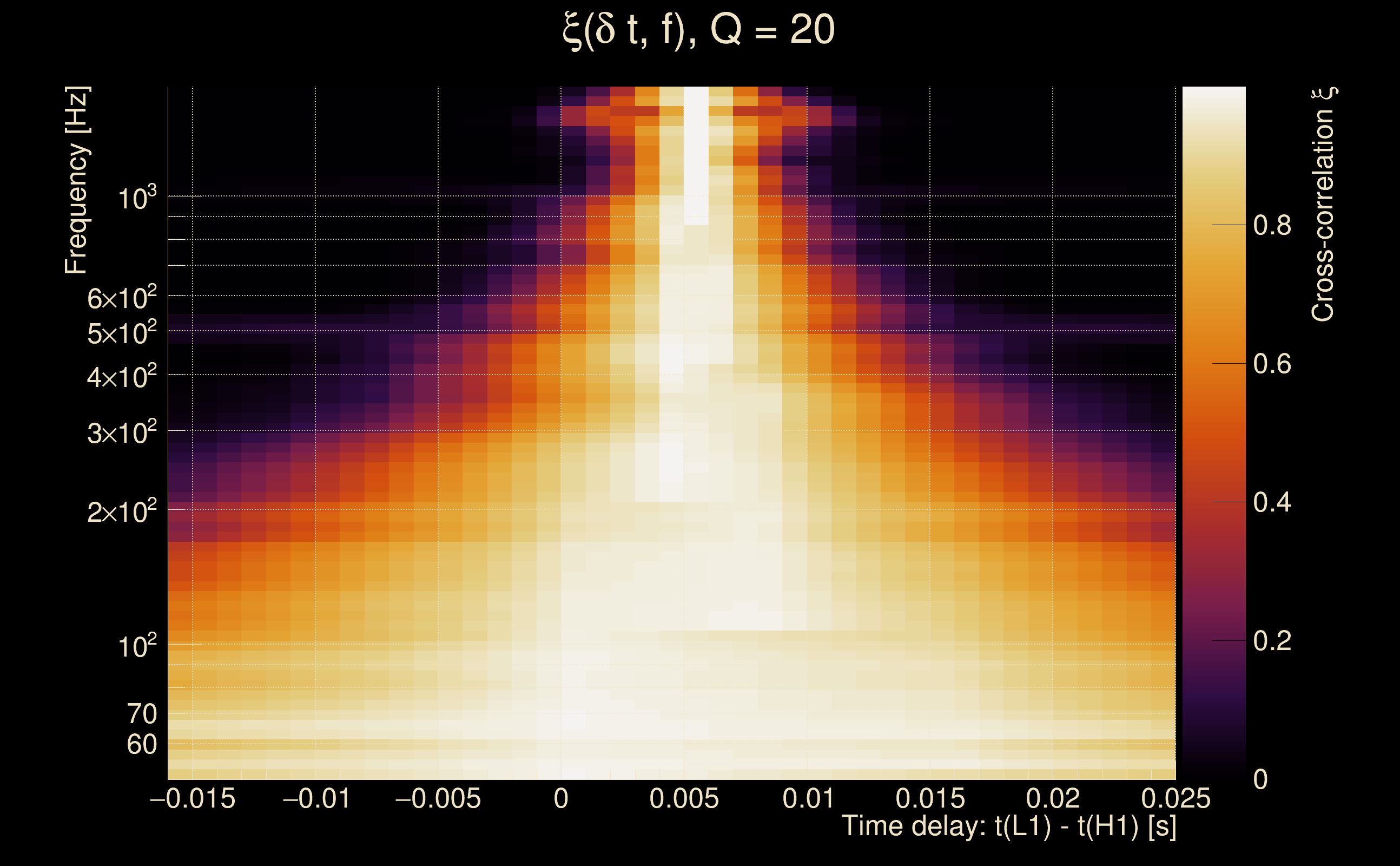

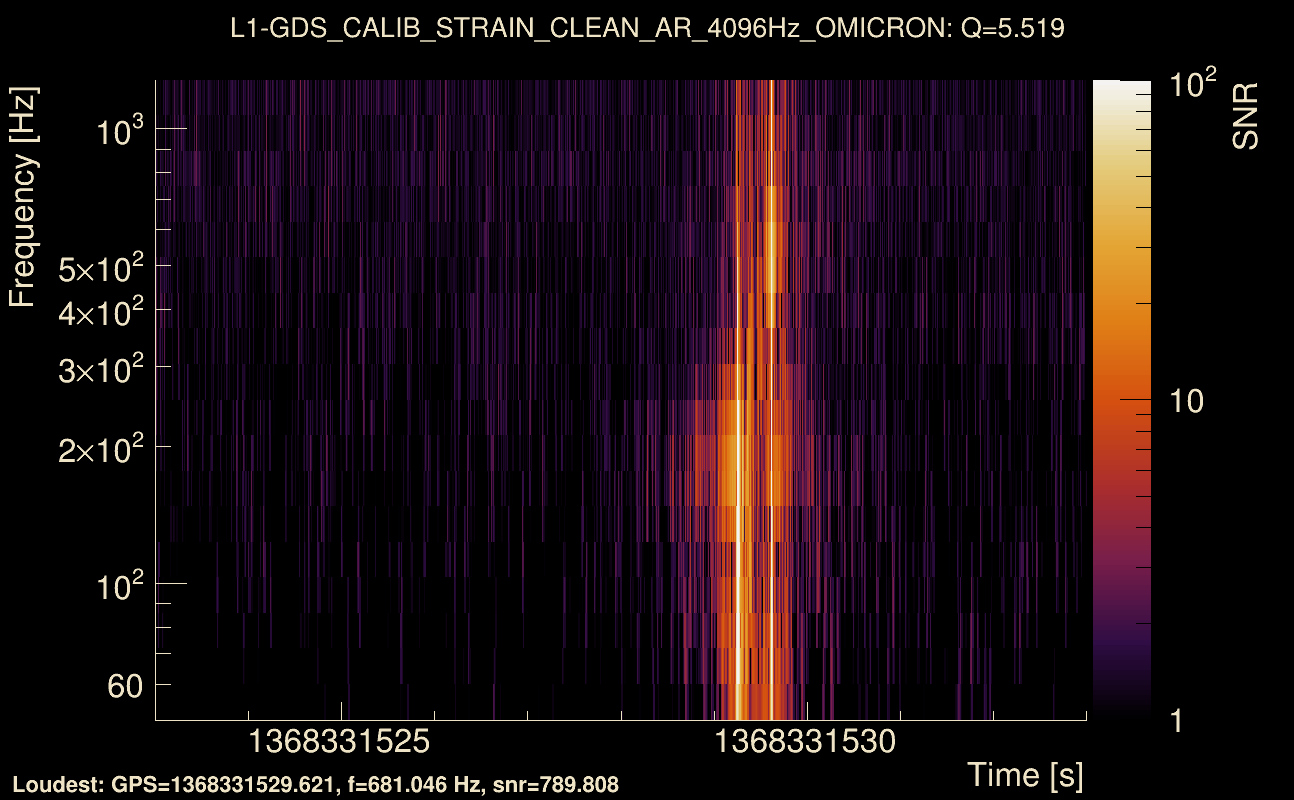

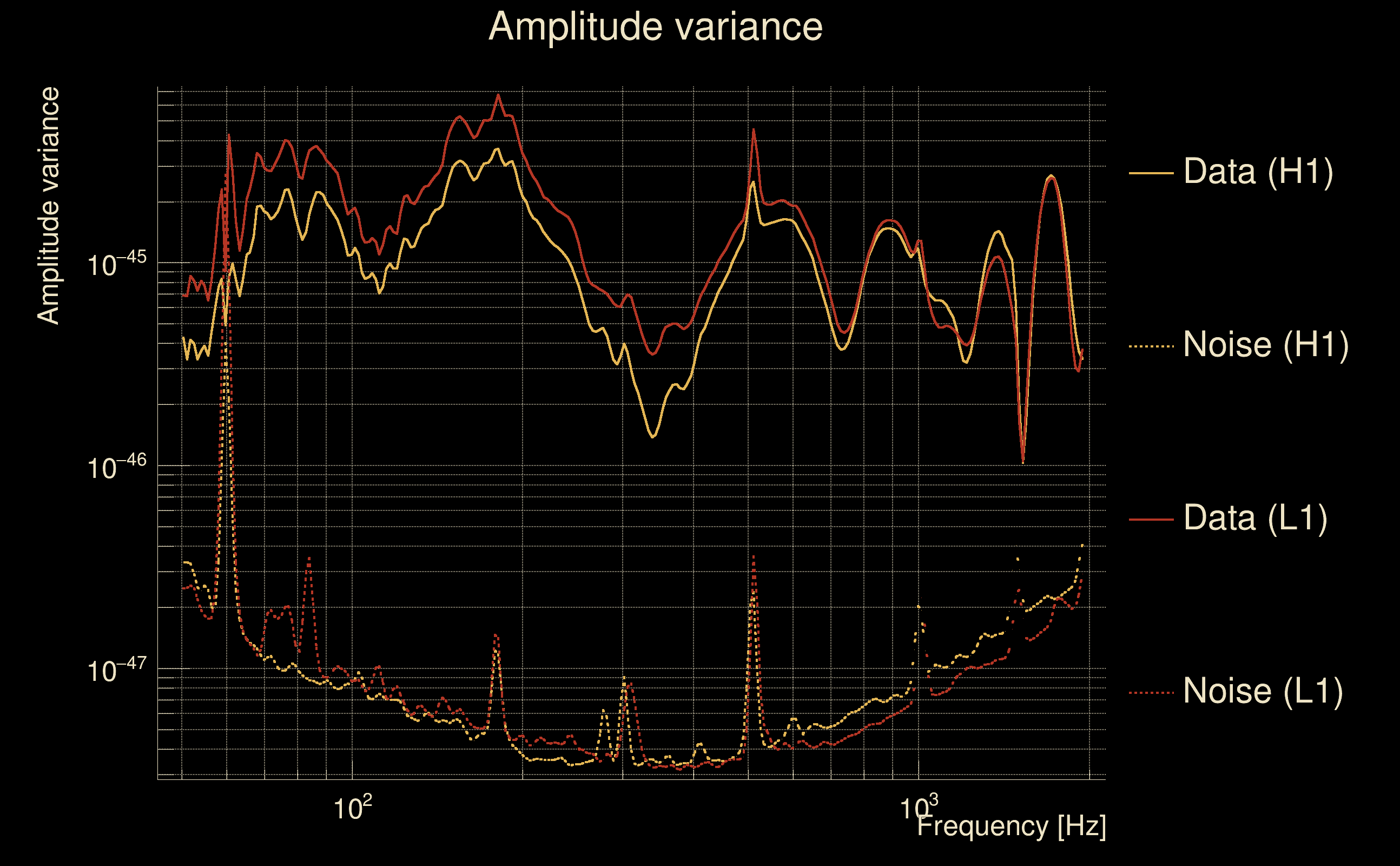

| Event time t(H1): | GPS = 1368331528 (Wed May 17 04:05:10 2023 ) → GPS = 1368331538 (Wed May 17 04:05:20 2023 ) |
| Event time t(L1): | GPS = 1368331528 (Wed May 17 04:05:20 2023 ) → GPS = 1368331538 (Wed May 17 04:05:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368331525 → GPS = 1368331541 |
| Omicron analysis time window (L1): | GPS = 1368331525 → GPS = 1368331541 |
| Time delay between detectors t(L1) - t(H1): | 0.00493977 s (slice index = 108 / 217), δt_gw = 0.00493977 s |
| Time delay standard deviation: | 0.0208367 s |
| [targeted mode] Time delay probability: | 2.79224e-28 (11.0283 sigmas), δt_target = 0.00283909 s |
| Frequency: | 289.609 Hz |
| Ξ: | 0.987882 ± 0.0015331 (variance = 2.35039e-06): Q0: 0.989162, Q1: 0.988474, Q2: 0.98491, Q3: 0.98618, Q4: 0.987174 |
| Rank: | R_A = 0.987882 |
| Log of amplitude ratio (L1/H1): | 0.206471, variance = 0.158096 (L1/H1: 0.187515, variance = 0.307756, H1/L1: -0.219868, variance = 0.306805) |
| Amplitude ratio (L1/H1): | 1.22933 ⋇ 1.48827 (L1/H1: 1.20625 ⋇ 1.74152, H1/L1: 0.802625 ⋇ 1.74003) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.967081 |
| Antenna factor probability: | 0.585672 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 664.647, L1: 790.624 |
| SNR variance: | H1: 107.099, L1: 175.028 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368453133 (Thu May 18 13:51:55 2023 ) → GPS = 1368453143 (Thu May 18 13:52:05 2023 ) |
| Event time t(L1): | GPS = 1368453133 (Thu May 18 13:52:05 2023 ) → GPS = 1368453143 (Thu May 18 13:52:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368453130 → GPS = 1368453146 |
| Omicron analysis time window (L1): | GPS = 1368453130 → GPS = 1368453146 |
| Time delay between detectors t(L1) - t(H1): | 2.48613 s (slice index = 54 / 217), δt_gw = 0.00213319 s |
| Time delay standard deviation: | 0.076694 s |
| [targeted mode] Time delay probability: | 0.26038 (1.12549 sigmas), δt_target = 0.00283718 s |
| Frequency: | 203.715 Hz |
| Ξ: | 0.0539487 ± 0.0350781 (variance = 0.00123047): Q0: 0.115608, Q1: 0.126672, Q2: 0.133717, Q3: 0.0580847, Q4: 0.0515775 |
| Rank: | R_A = 0.0539487 |
| Log of amplitude ratio (L1/H1): | 2.86873, variance = 1.64707 (L1/H1: -1.75819, variance = 1.6632, H1/L1: -3.56859, variance = 2.14497) |
| Amplitude ratio (L1/H1): | 17.6146 ⋇ 3.60883 (L1/H1: 0.172356 ⋇ 3.63152, H1/L1: 0.0281957 ⋇ 4.32569) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00634021 |
| Antenna factor probability: | 0.0177392 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 20 / 36, Q2: 48 / 70, Q3: 99 / 134, Q4: 216 / 258 |
| Maximum signal-to-noise ratio: | H1: 29.5921, L1: 76.088 |
| SNR variance: | H1: 0.547905, L1: 0.523792 |

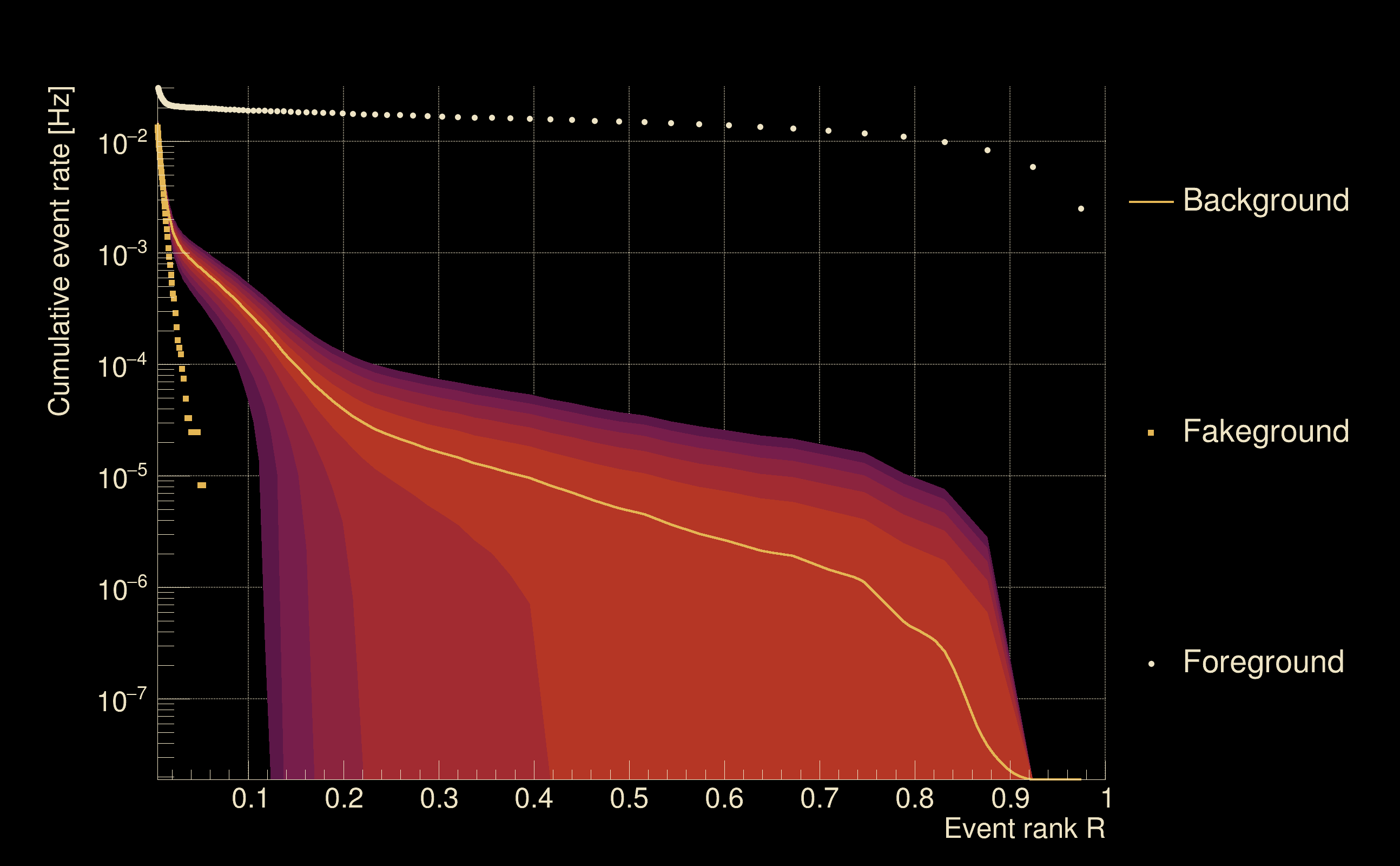

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 1.00508e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.876247 |
| Alternative threshold at 1/100 yrs: | R > 0.876247 |
| Alternative threshold at 1/10 yrs: | R > 0.876247 |
| Alternative threshold at 1/1 yr: | R > 0.876247 |
| Alternative threshold at 1/1 d: | R > 0.356139 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

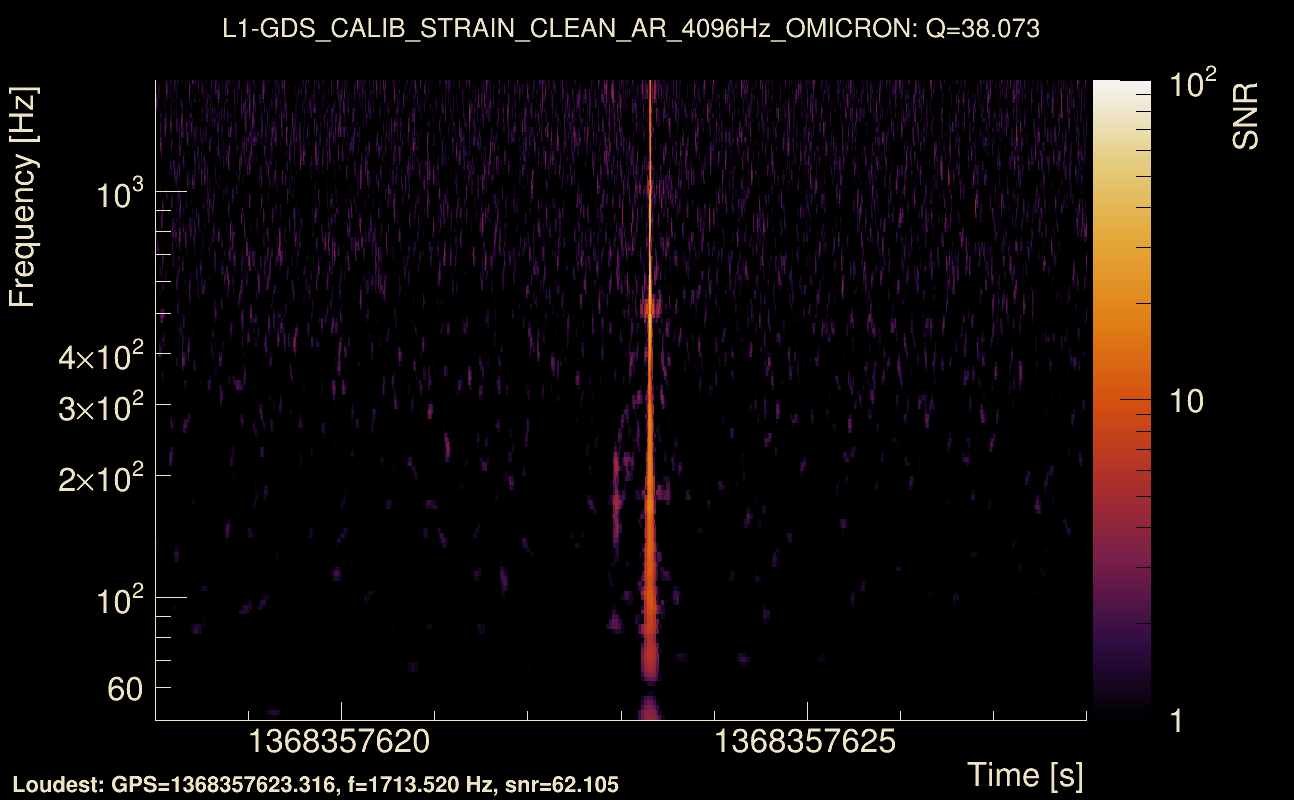

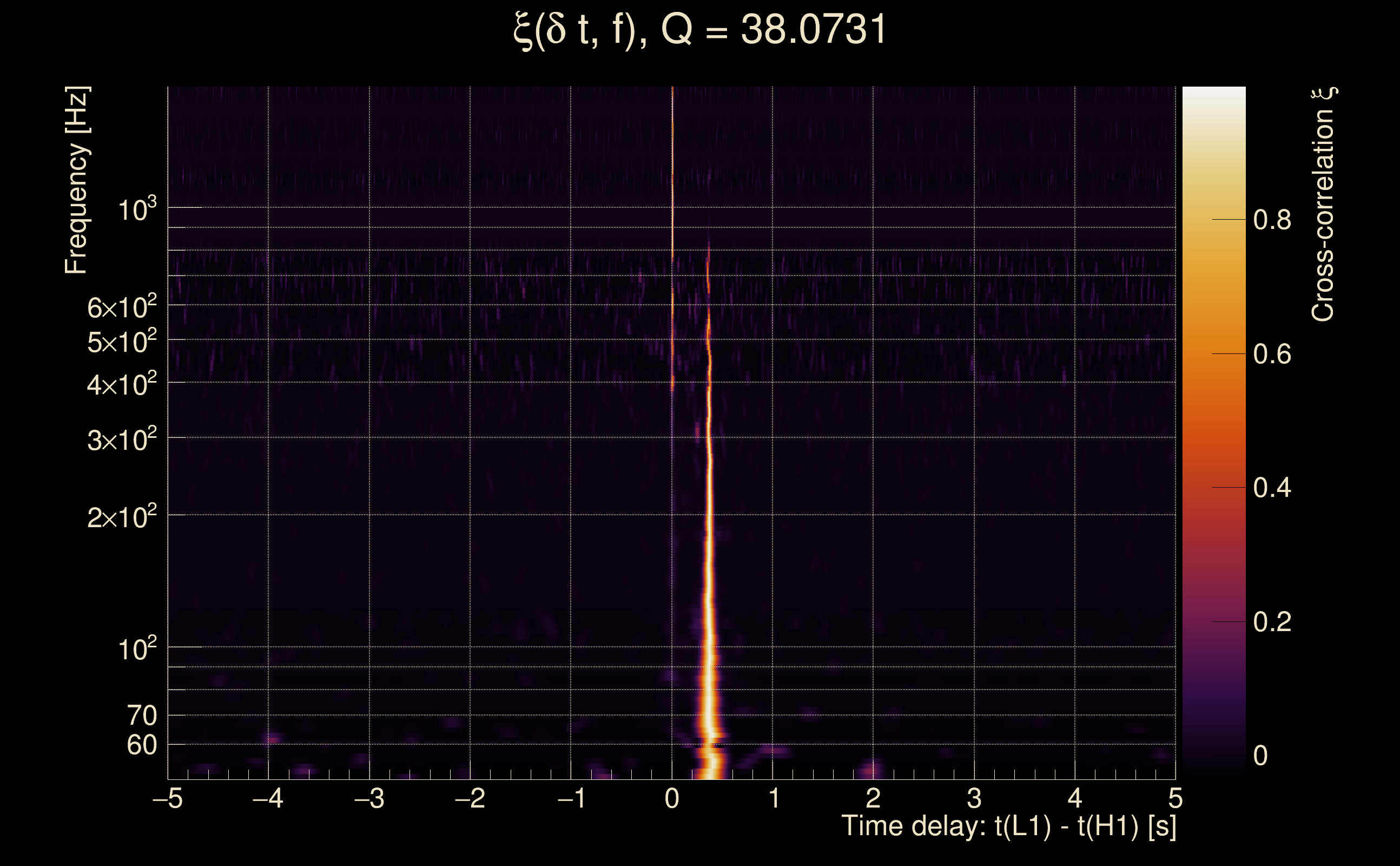

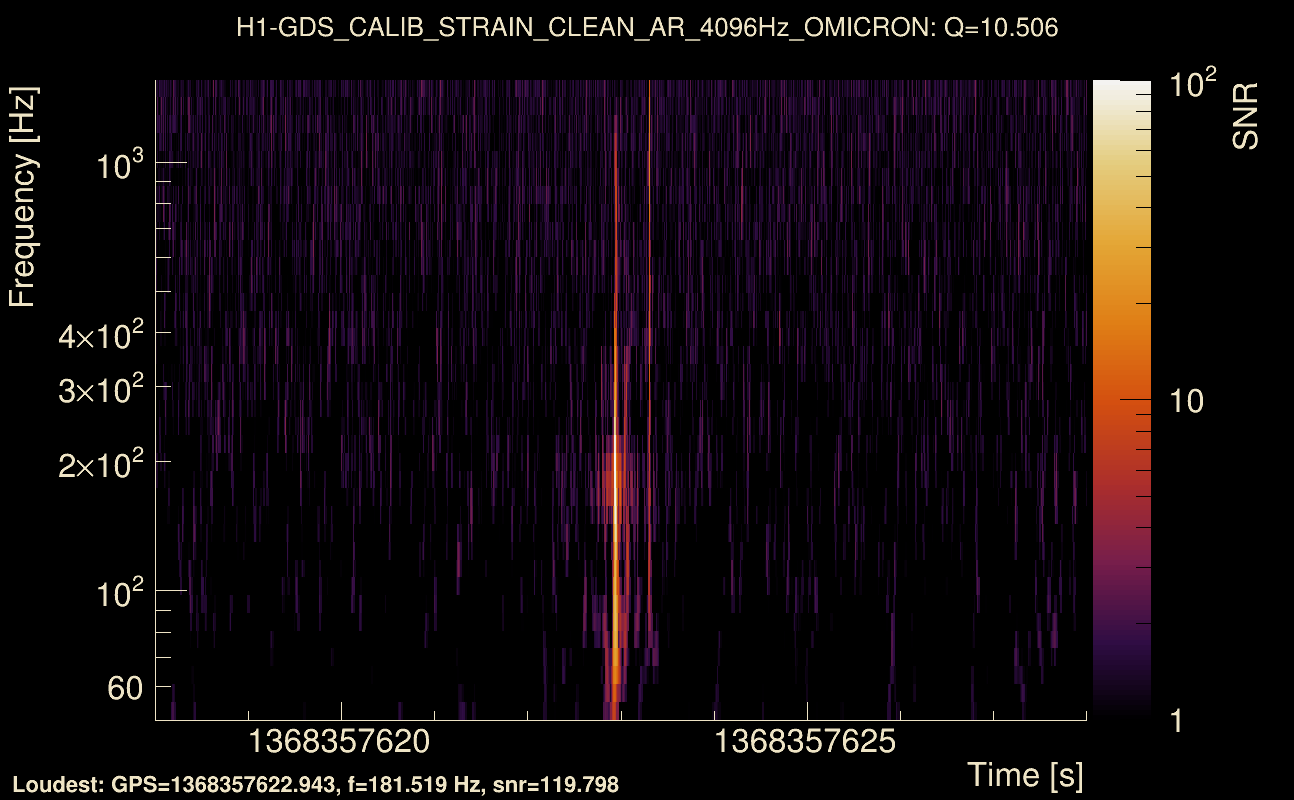

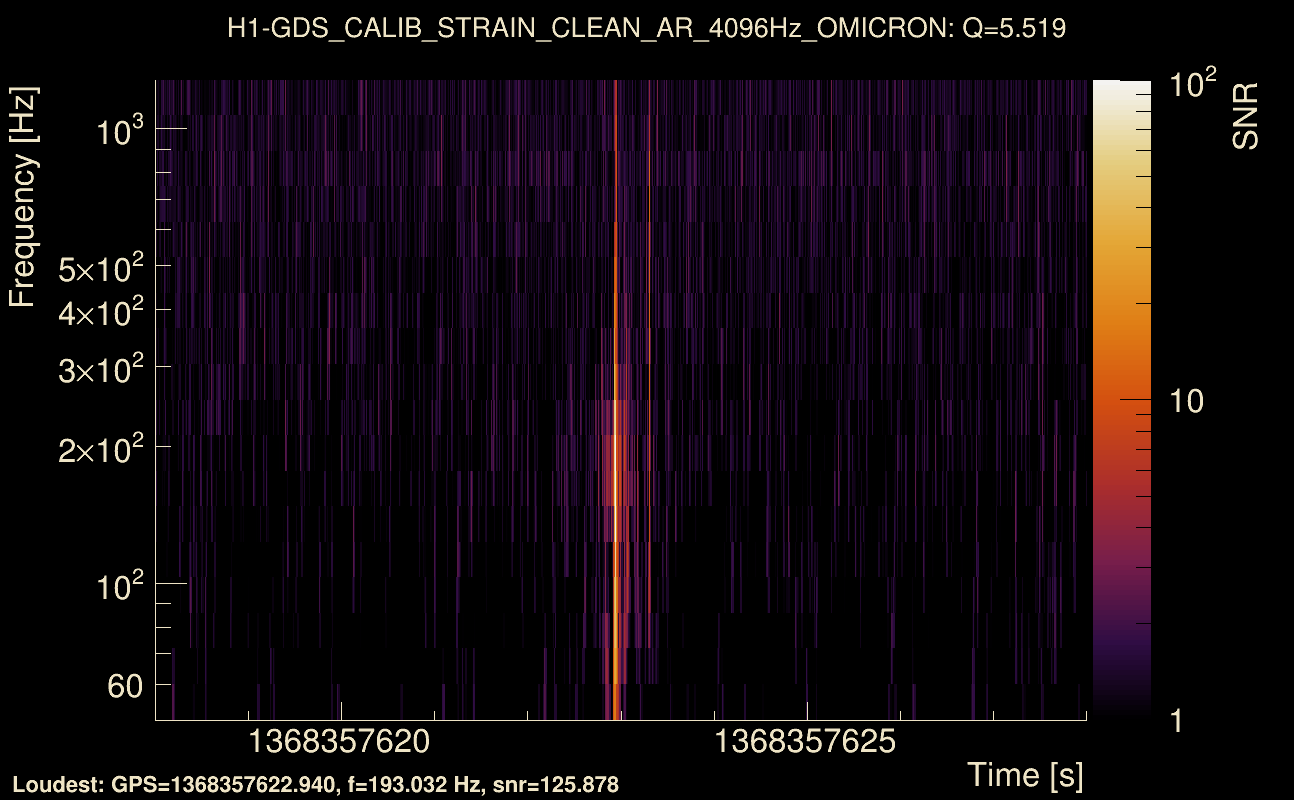

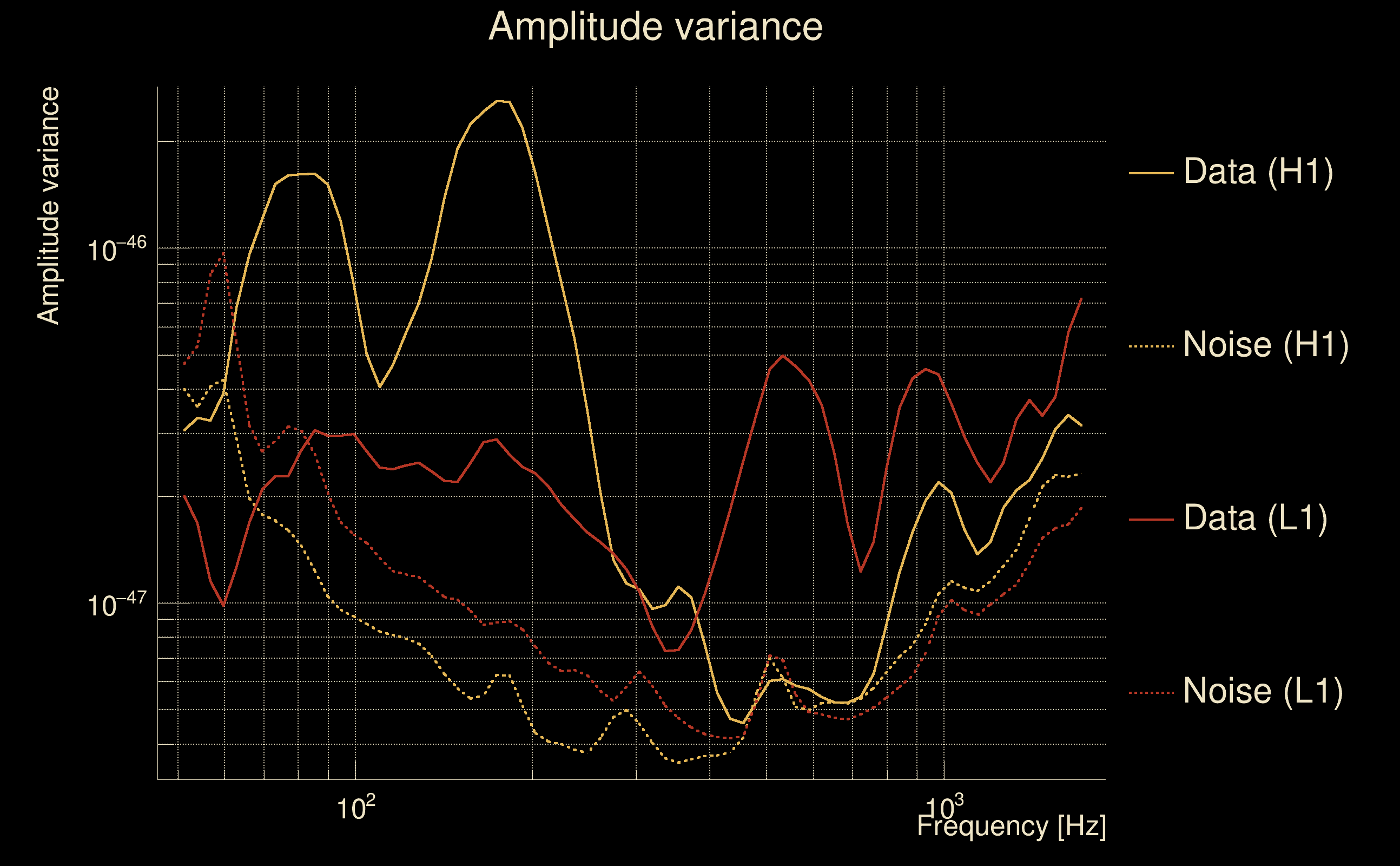

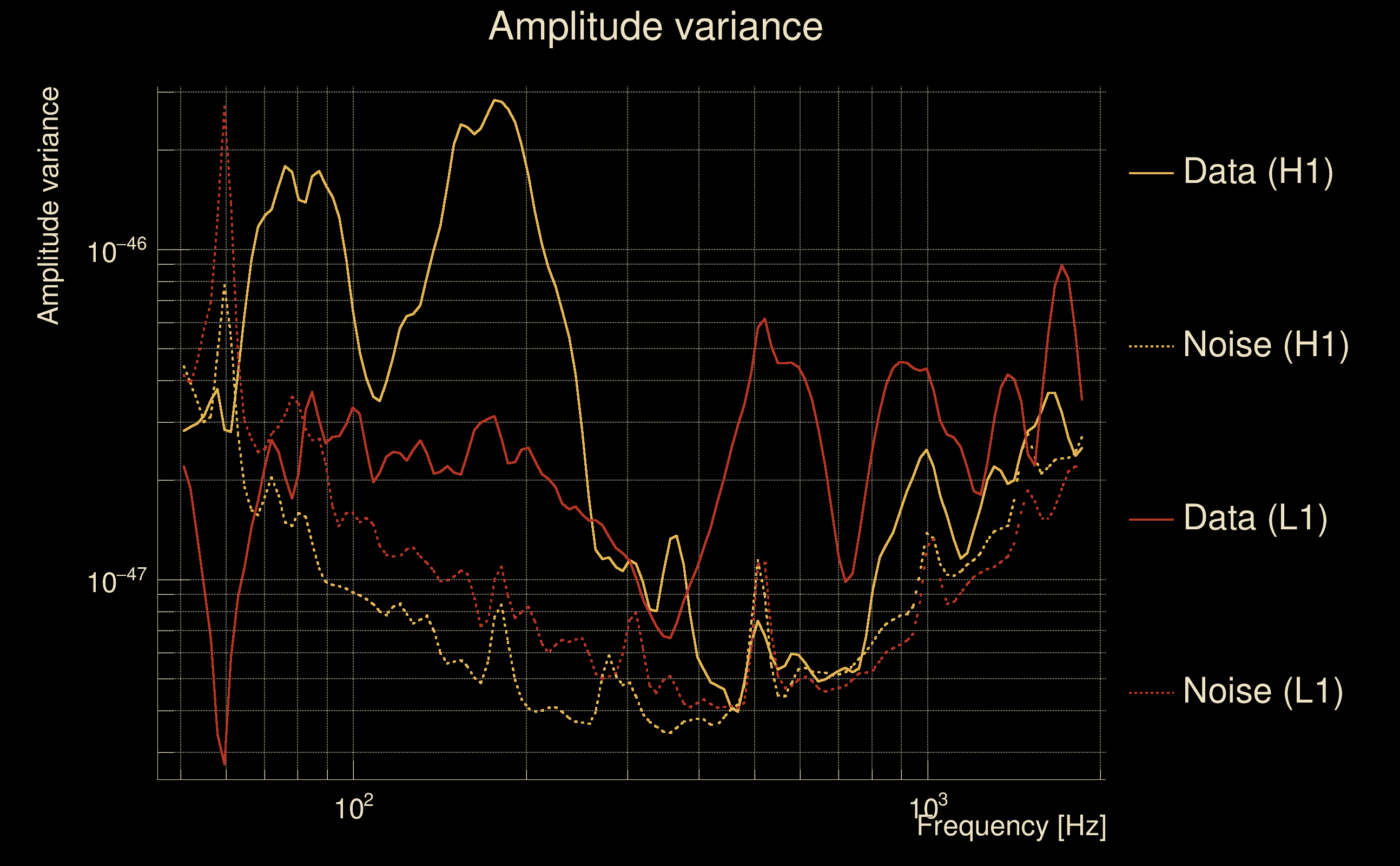

| Event time t(H1): | GPS = 1368357618 (Wed May 17 11:20:00 2023 ) → GPS = 1368357628 (Wed May 17 11:20:10 2023 ) |
| Event time t(L1): | GPS = 1368357618 (Wed May 17 11:20:10 2023 ) → GPS = 1368357628 (Wed May 17 11:20:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368357615 → GPS = 1368357631 |
| Omicron analysis time window (L1): | GPS = 1368357615 → GPS = 1368357631 |

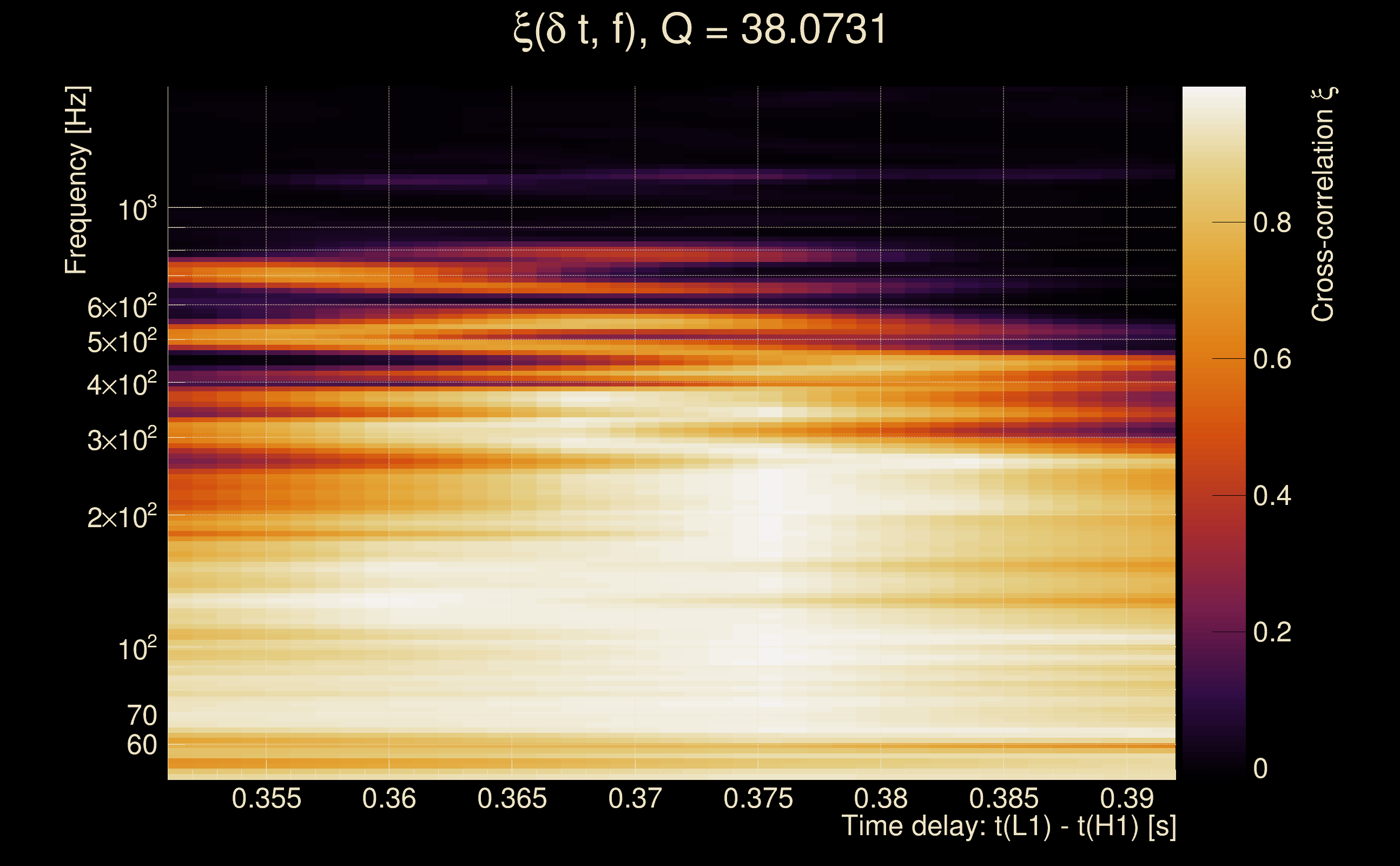

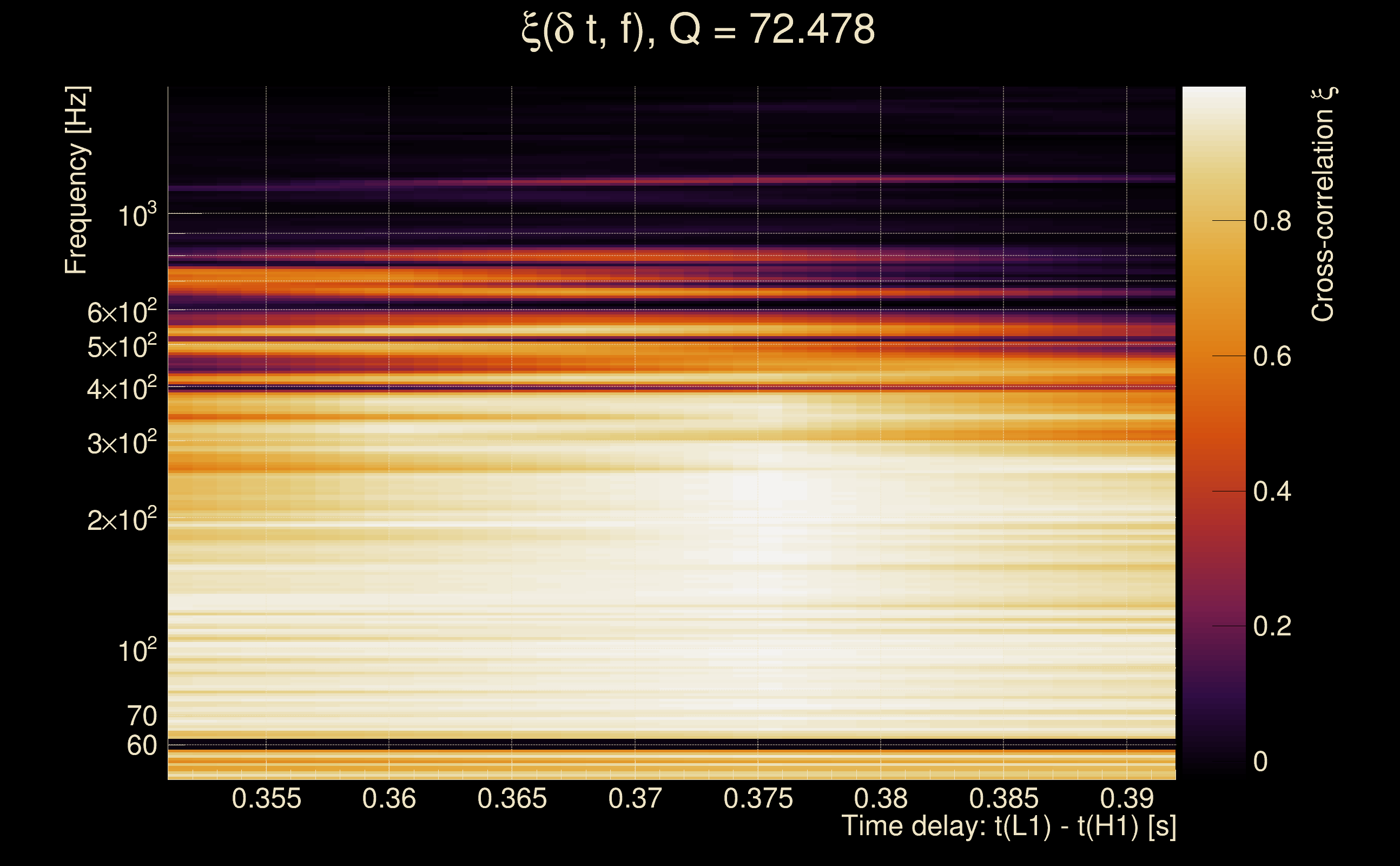

| Time delay between detectors t(L1) - t(H1): | 0.371483 s (slice index = 100 / 217), δt_gw = 0.00348314 s |
| Time delay standard deviation: | 0.0725087 s |
| [targeted mode] Time delay probability: | 0.344754 (0.944814 sigmas), δt_target = 0.00283718 s |
| Frequency: | 179.03 Hz |
| Ξ: | 0.867697 ± 0.0112972 (variance = 0.000127627): Q0: 0.888348, Q1: 0.898601, Q2: 0.906072, Q3: 0.915069, Q4: 0.9198 |
| Rank: | R_A = 0.867697 |
| Log of amplitude ratio (L1/H1): | -0.317888, variance = 0.521217 (L1/H1: -0.962238, variance = 0.386614, H1/L1: -0.697869, variance = 2.49902) |
| Amplitude ratio (L1/H1): | 0.727684 ⋇ 2.05845 (L1/H1: 0.382037 ⋇ 1.86224, H1/L1: 0.497645 ⋇ 4.85898) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.328434 |

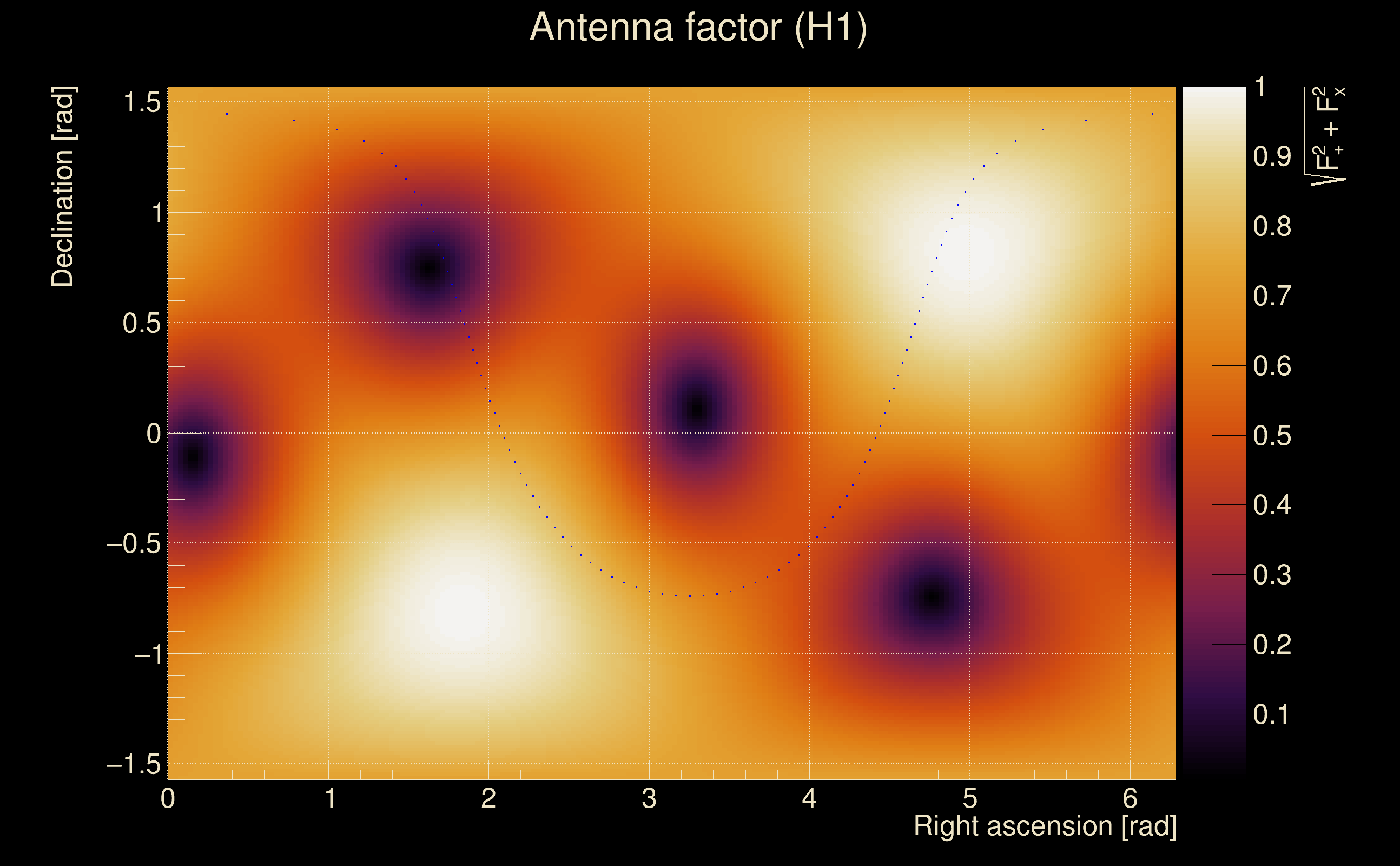

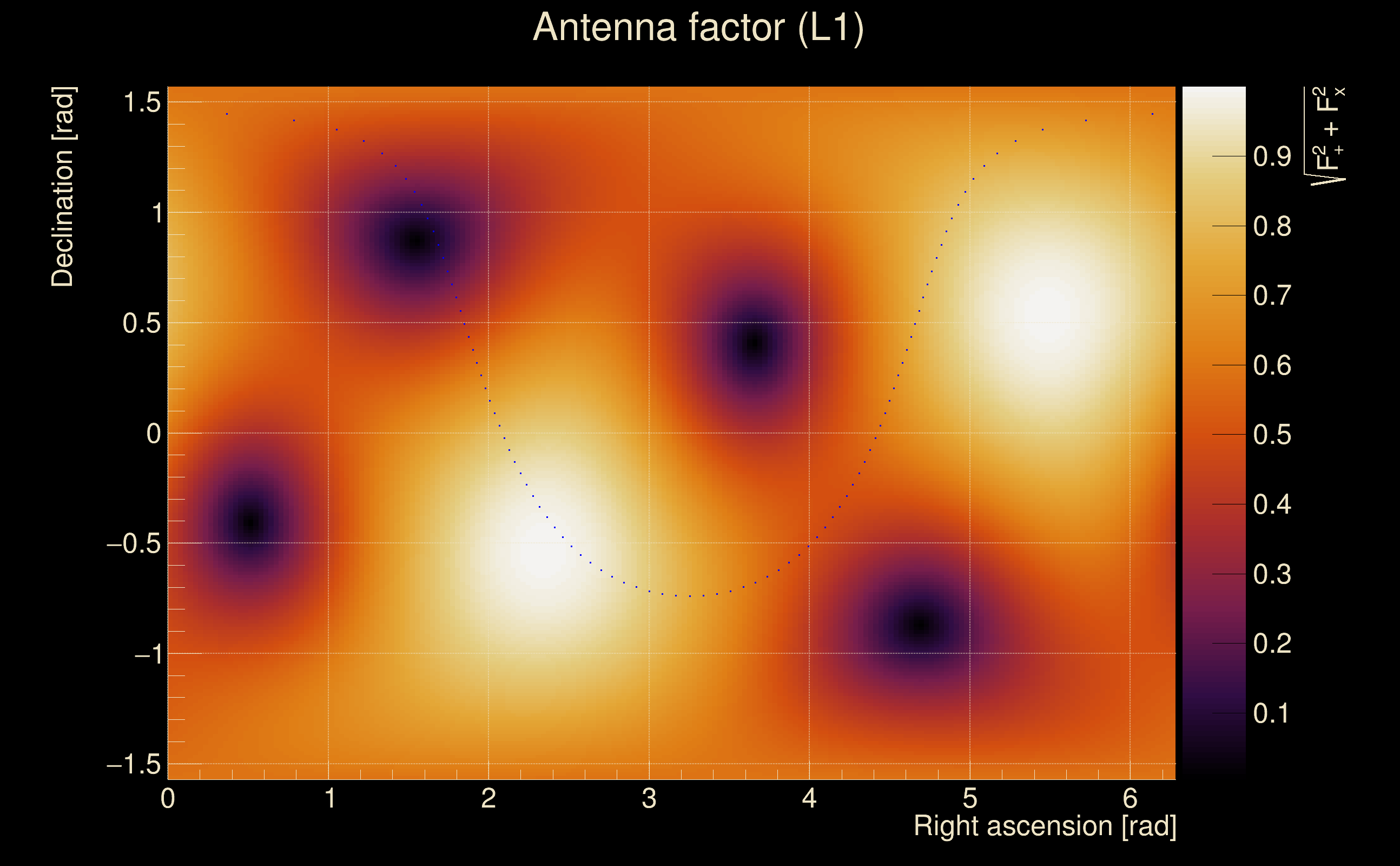

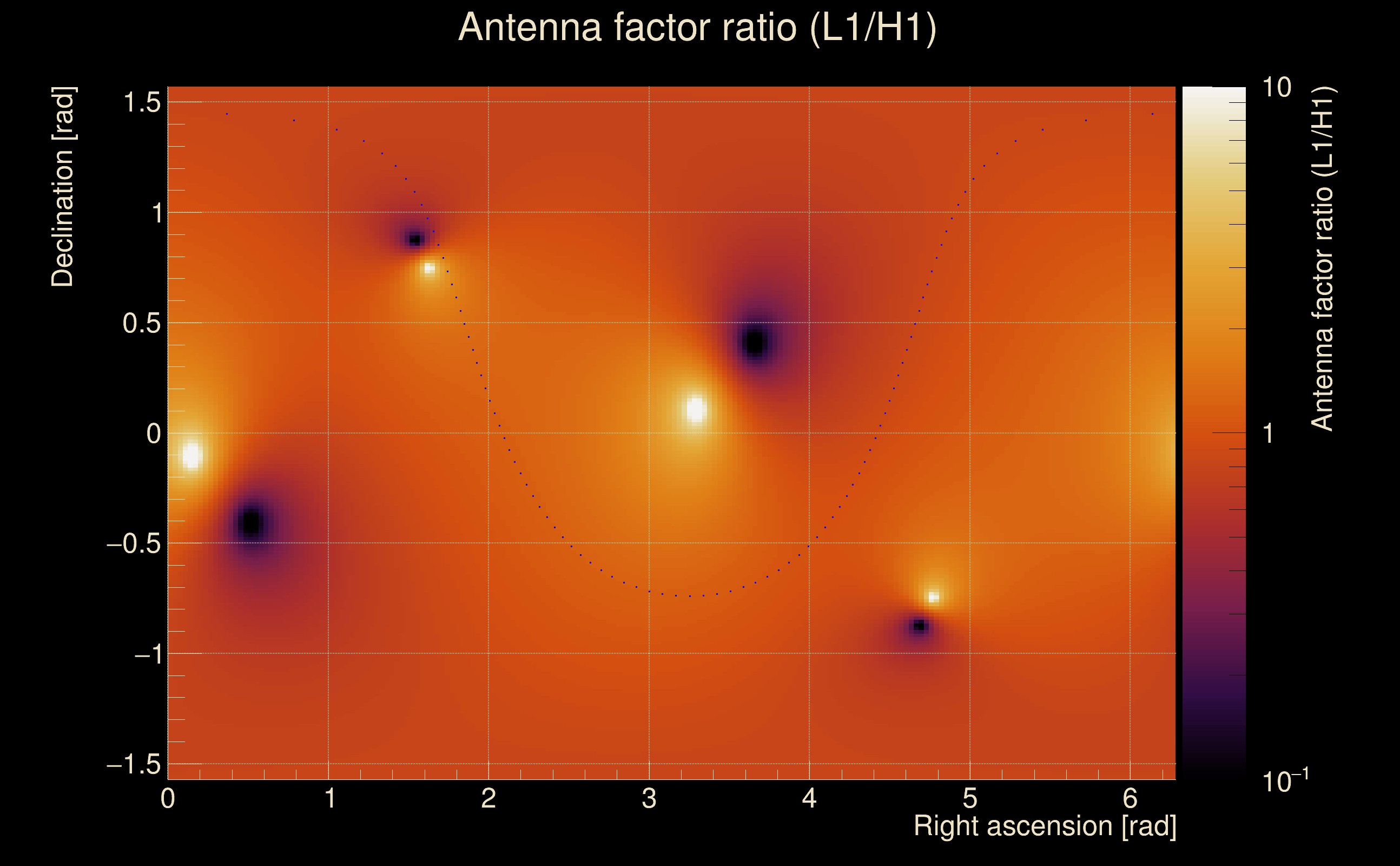

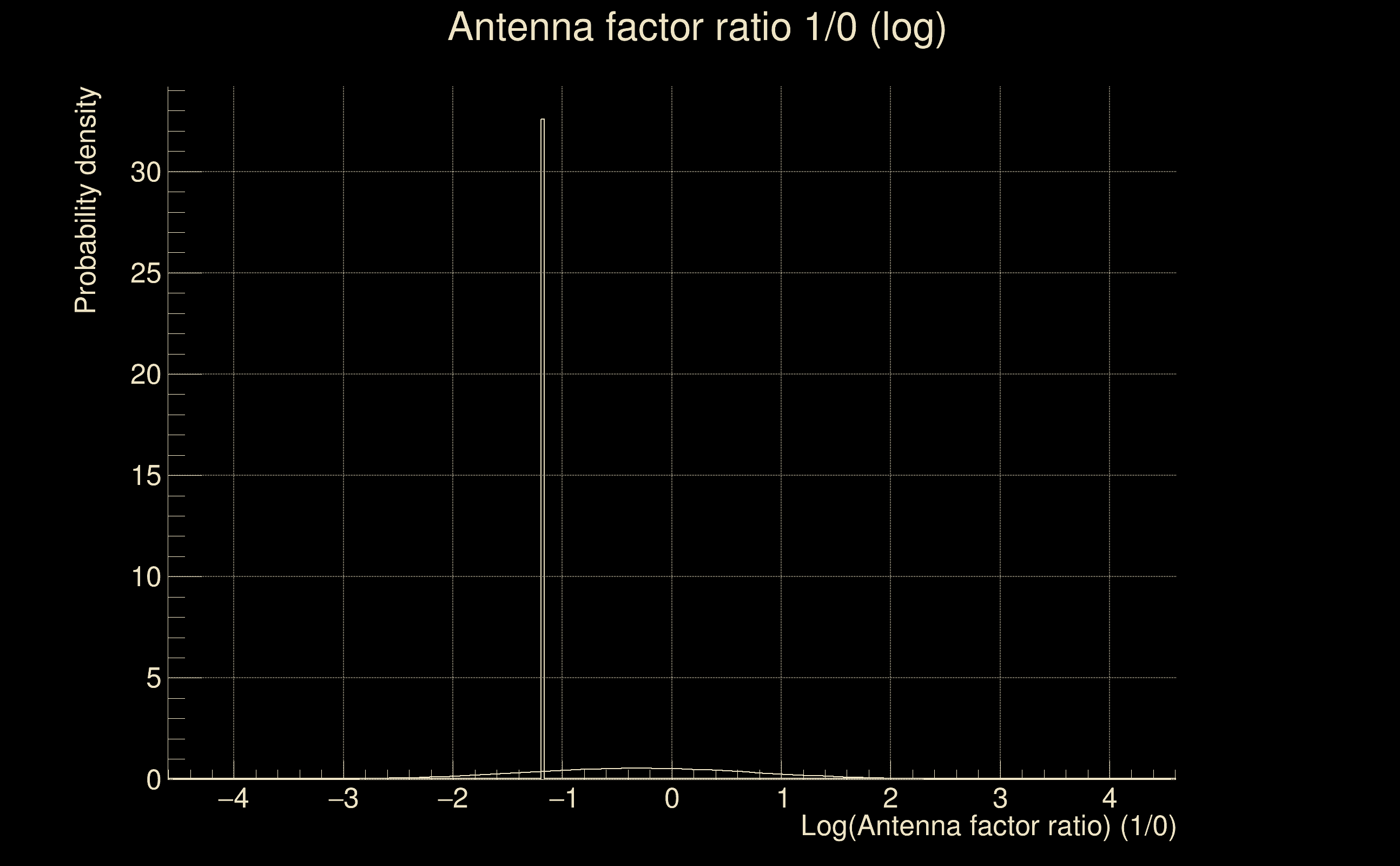

| Antenna factor probability: | 0.860536 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 3 / 70, Q3: 17 / 134, Q4: 72 / 258 |
| Maximum signal-to-noise ratio: | H1: 144.065, L1: 114.743 |

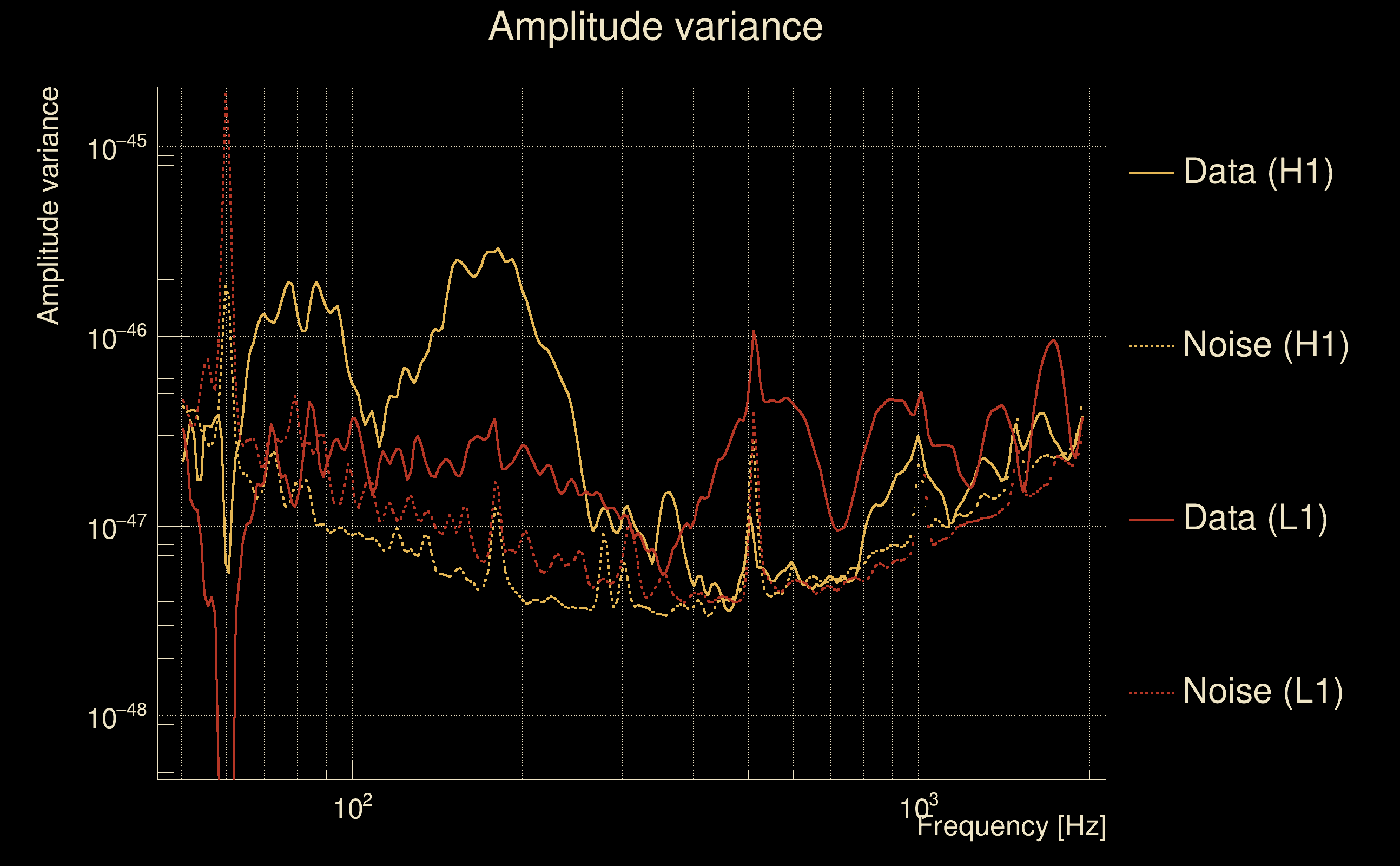

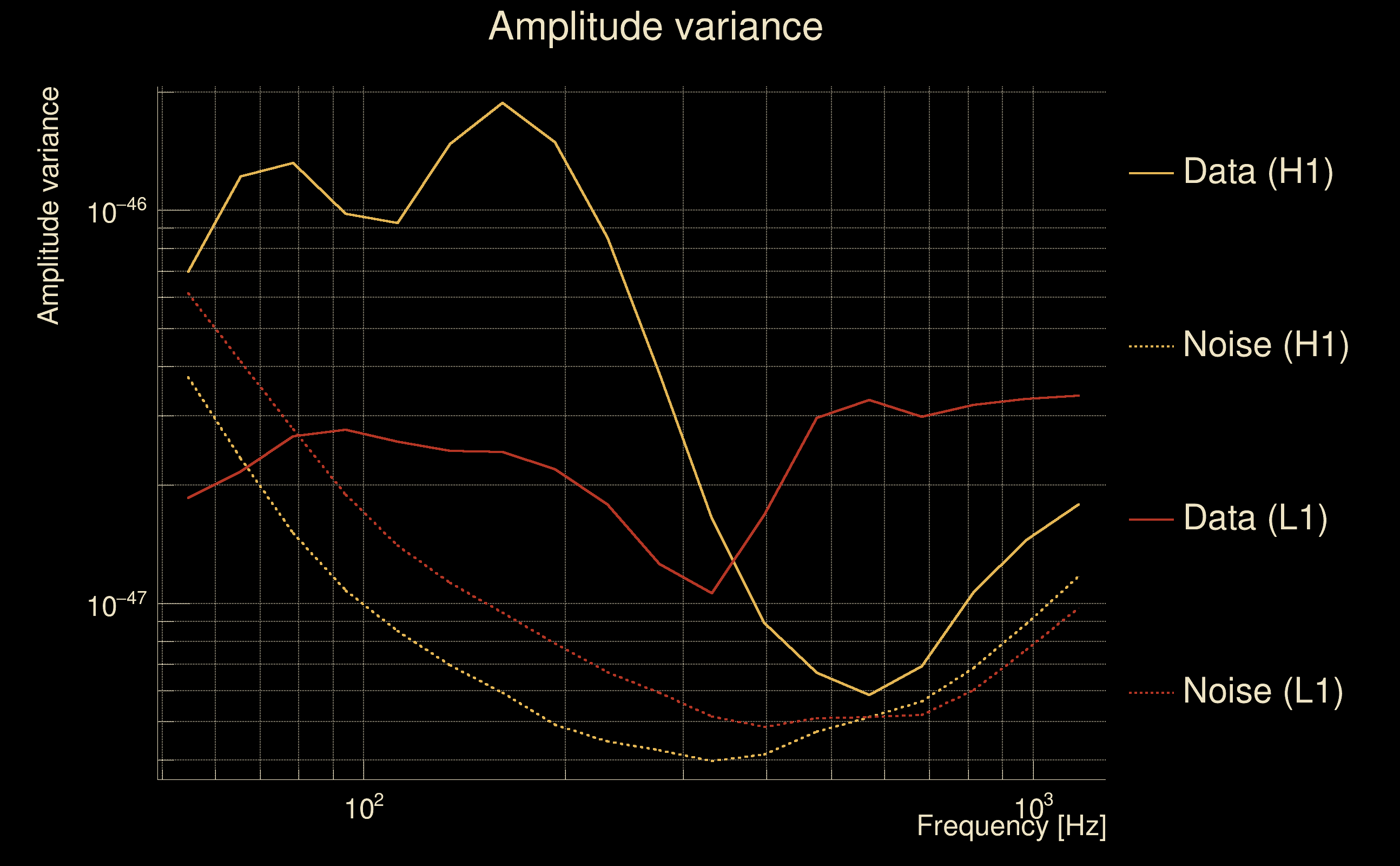

| SNR variance: | H1: 5.41384, L1: 0.540779 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

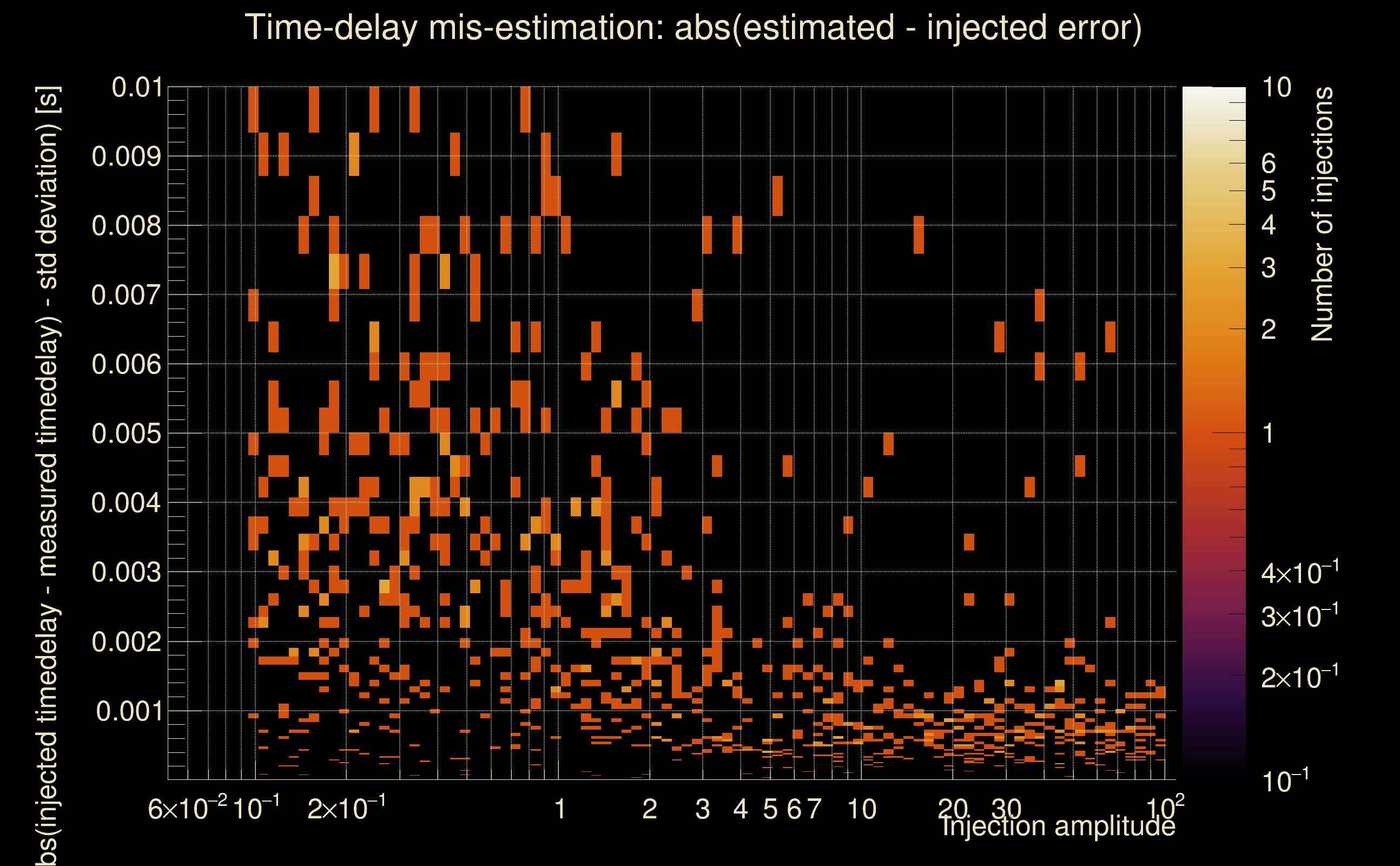

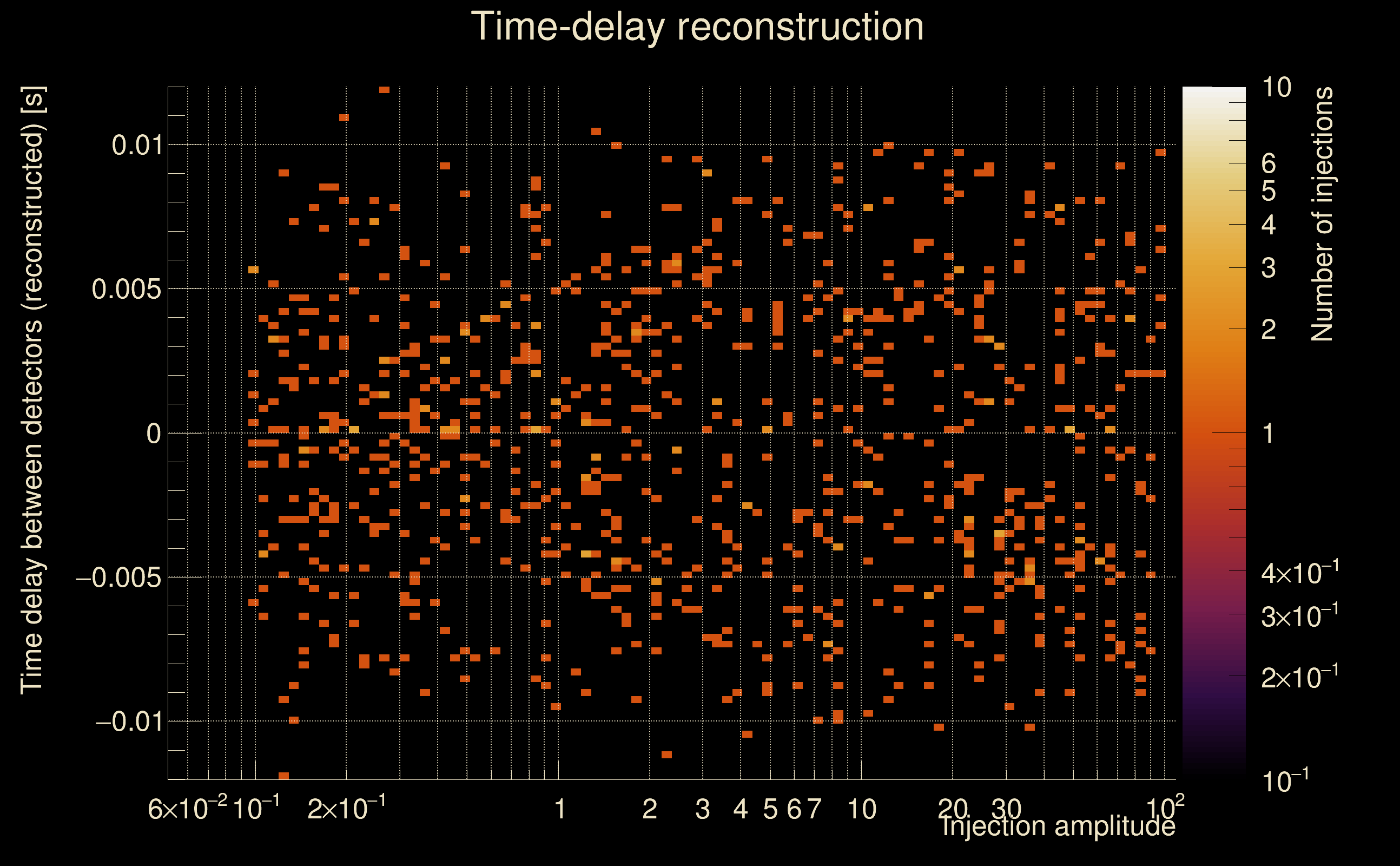

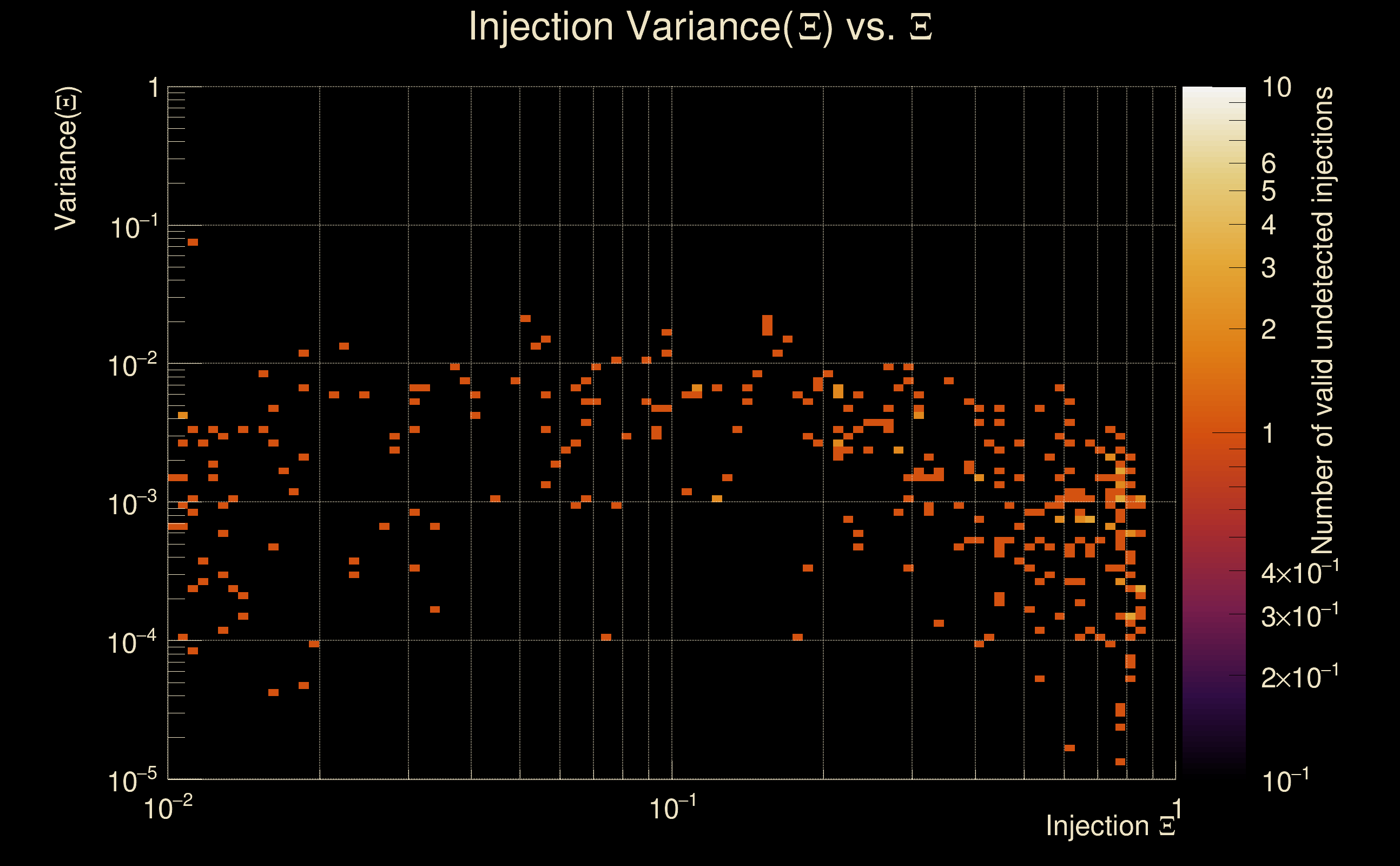

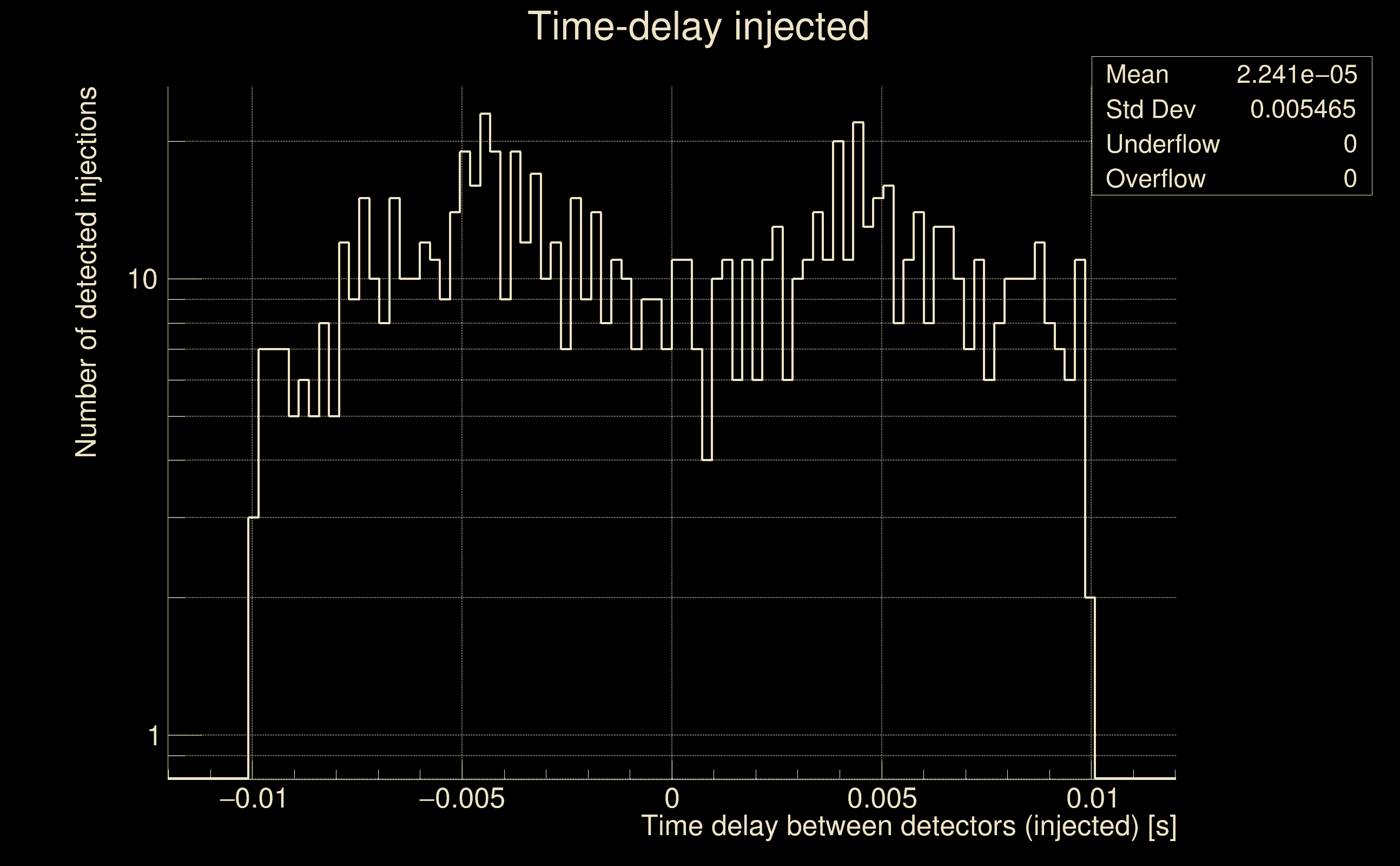

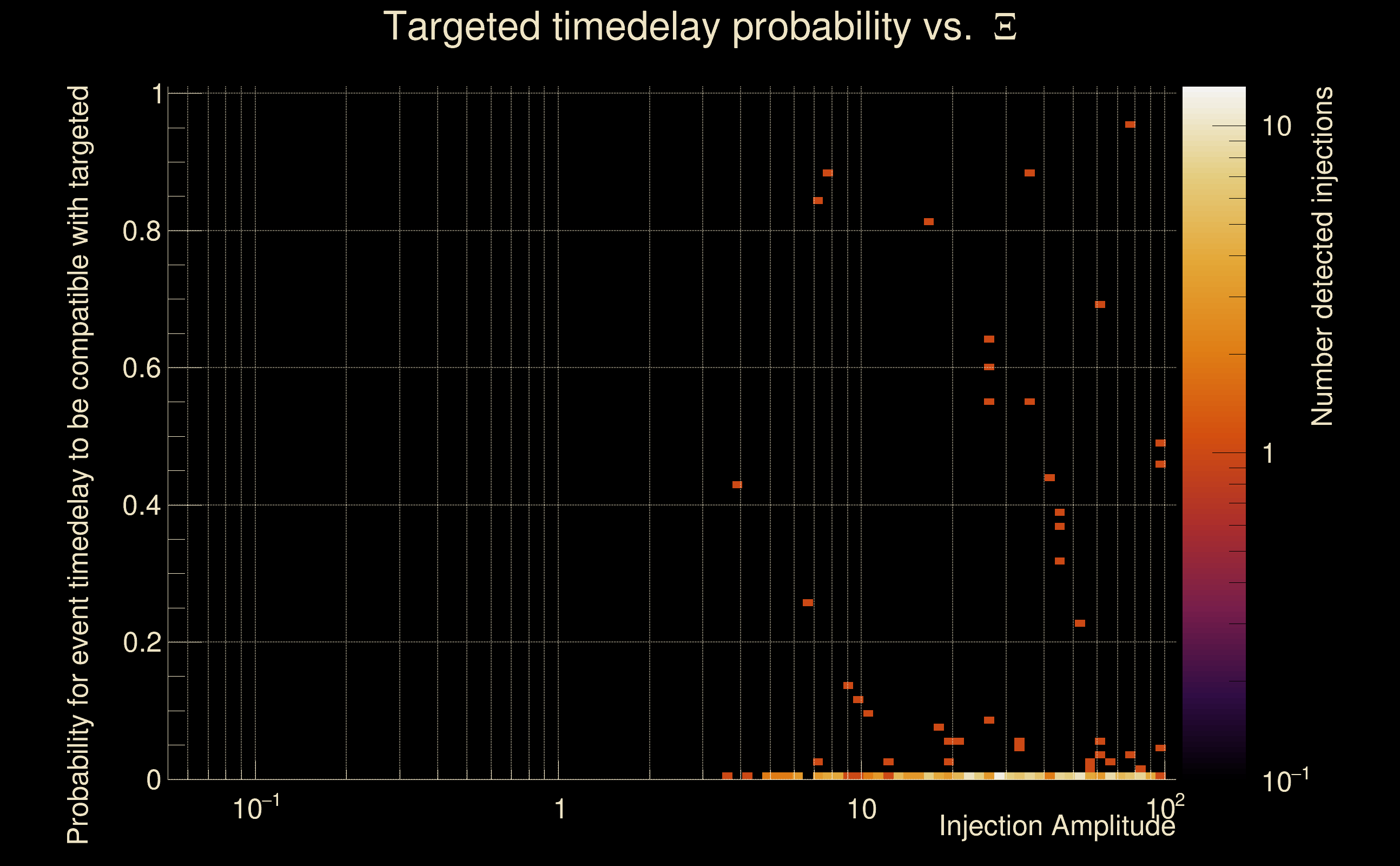

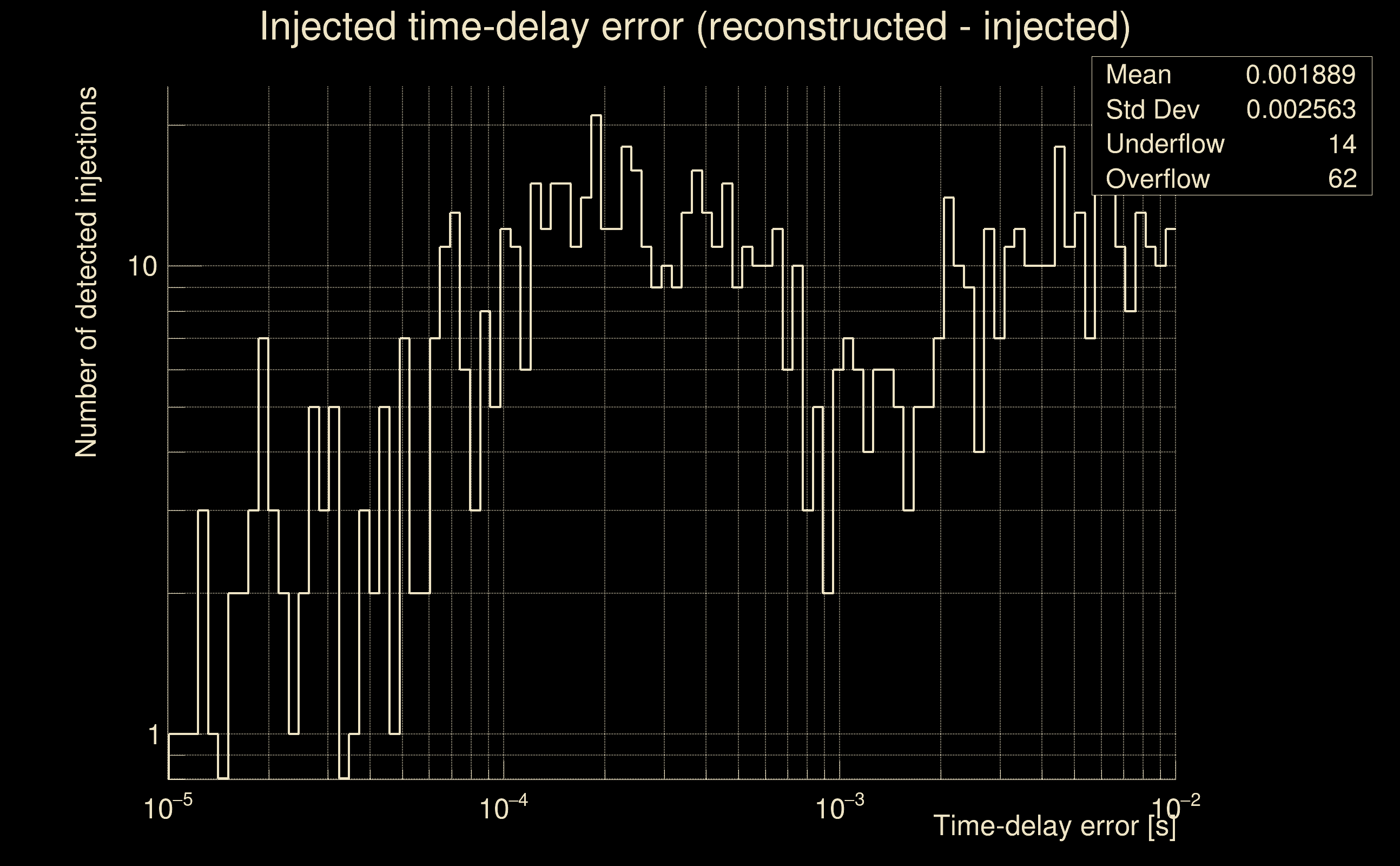

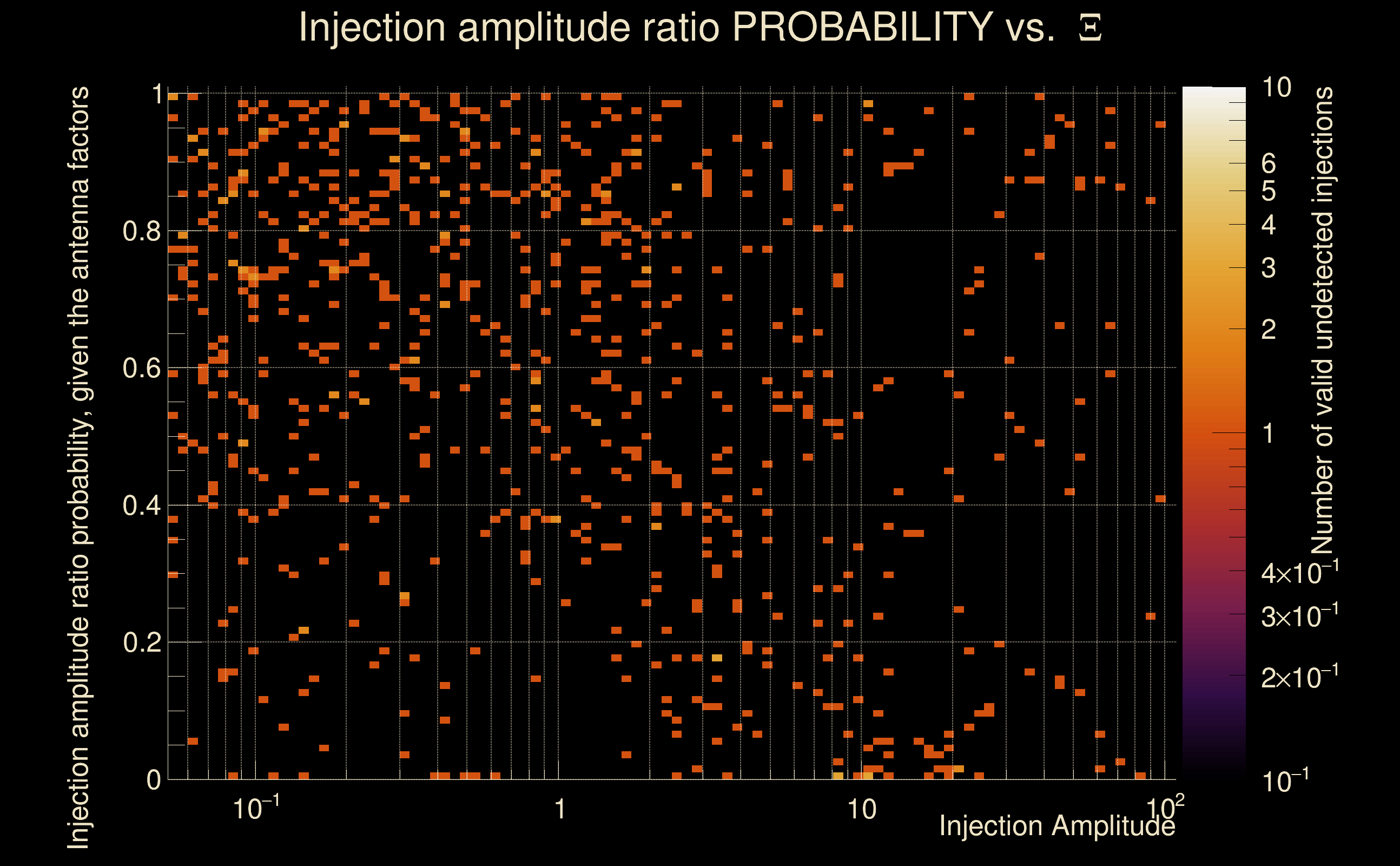

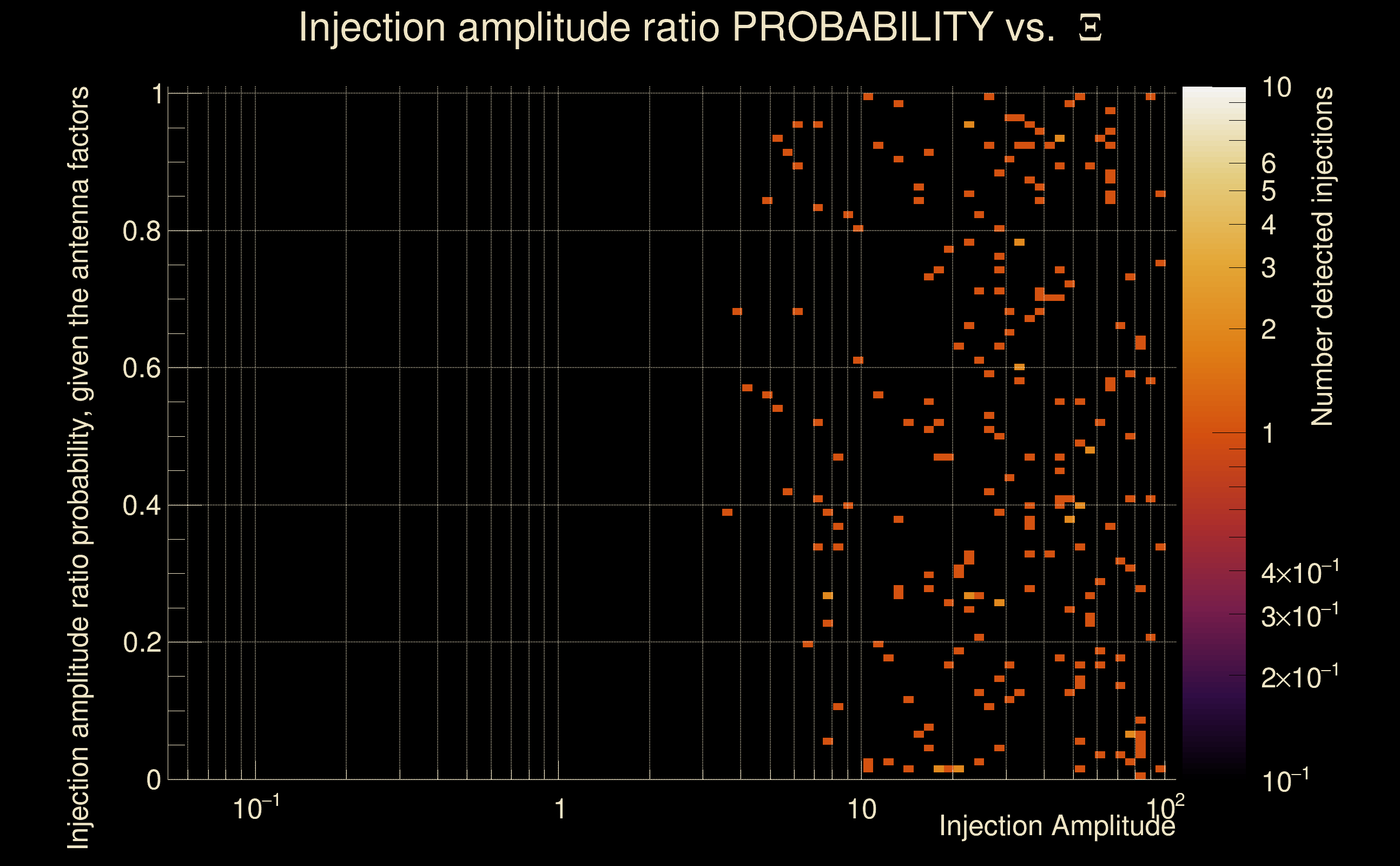

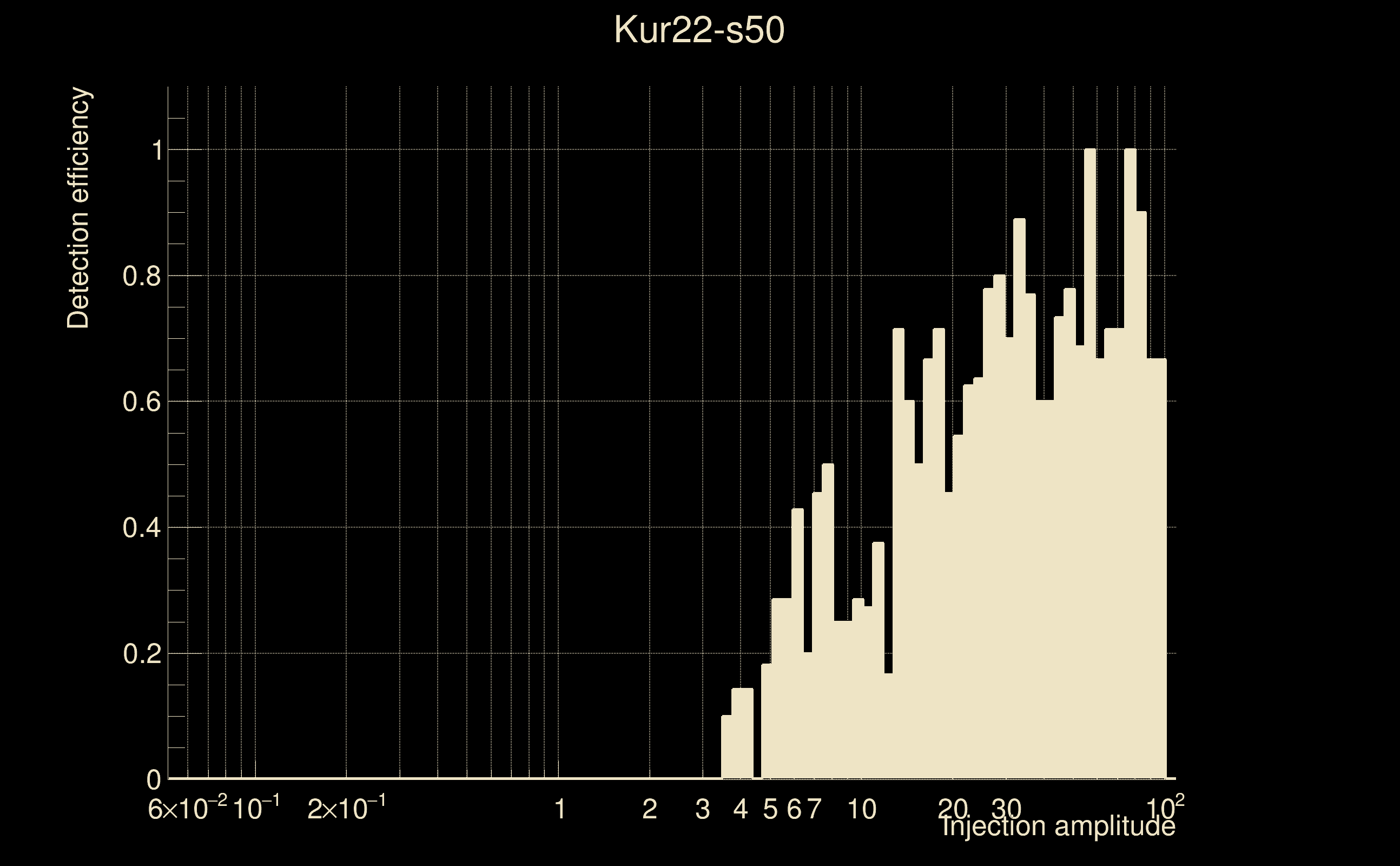

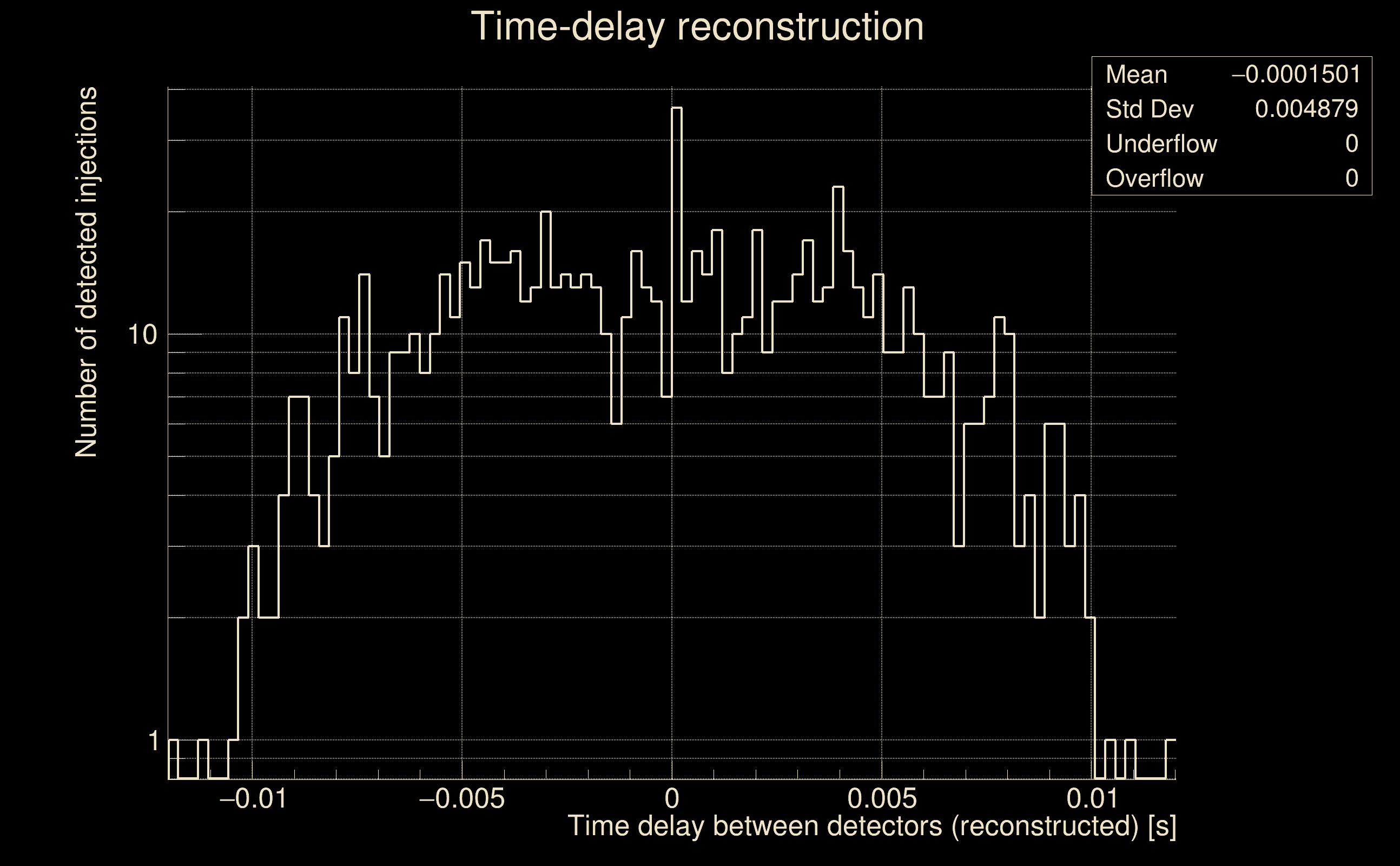

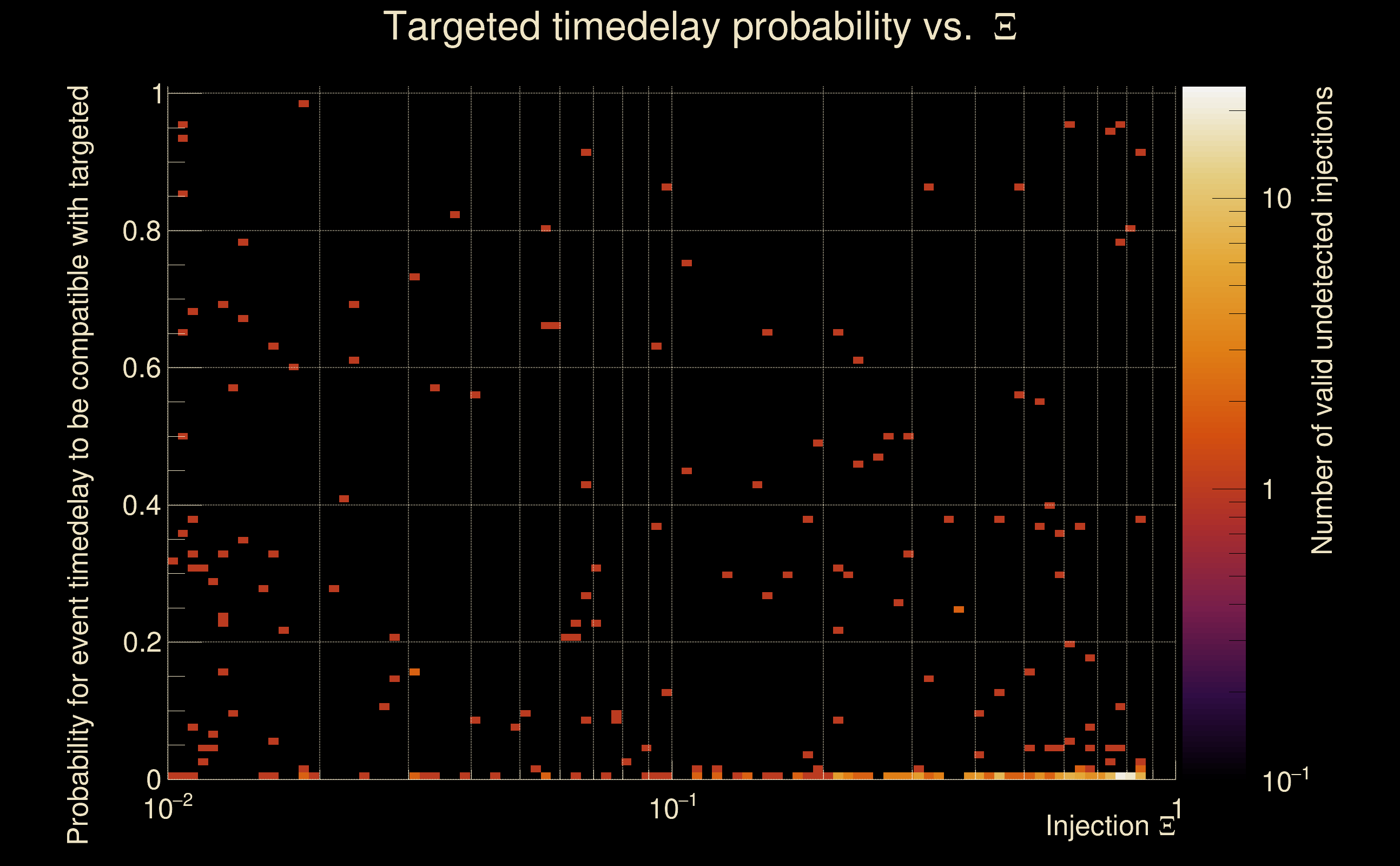

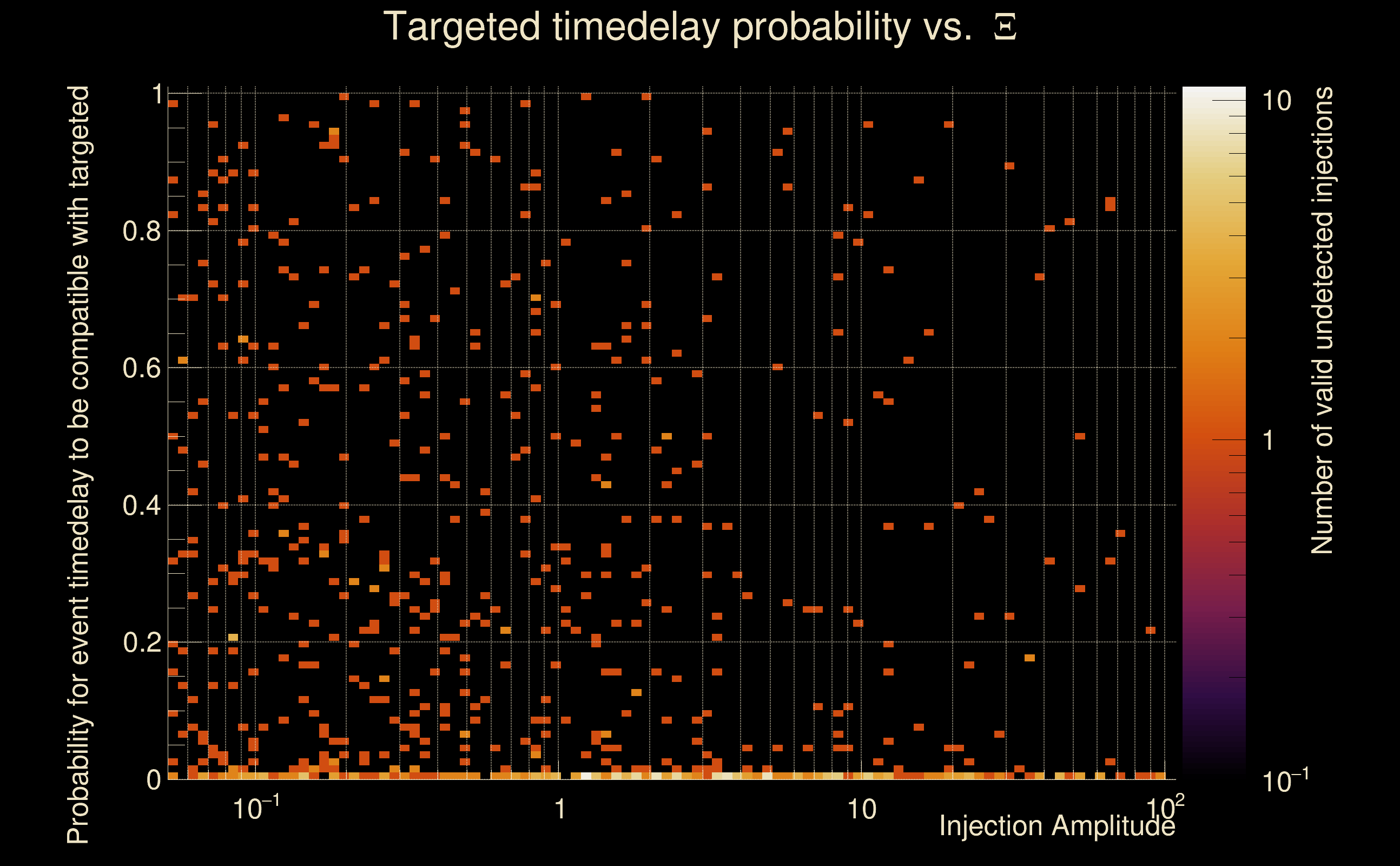

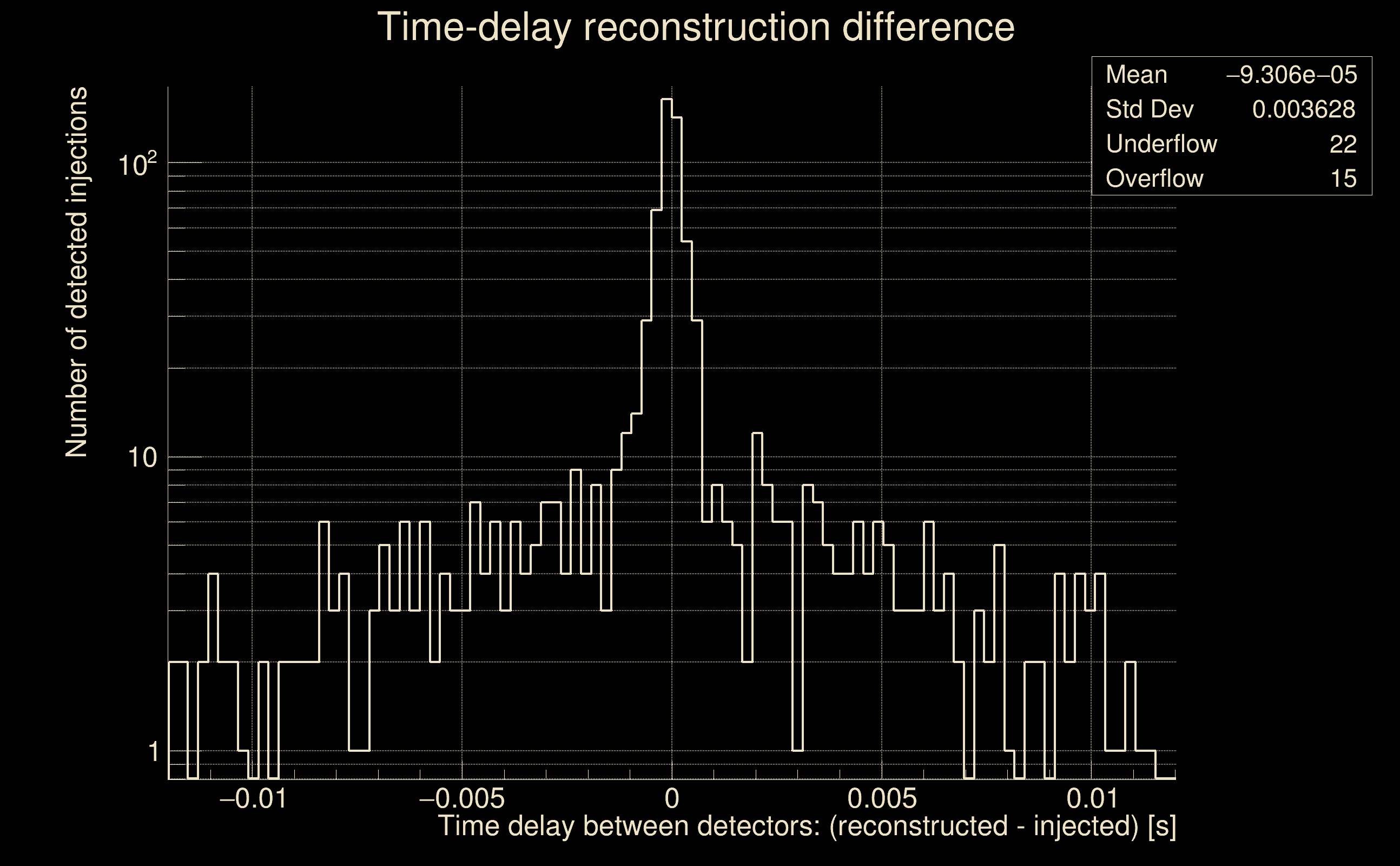

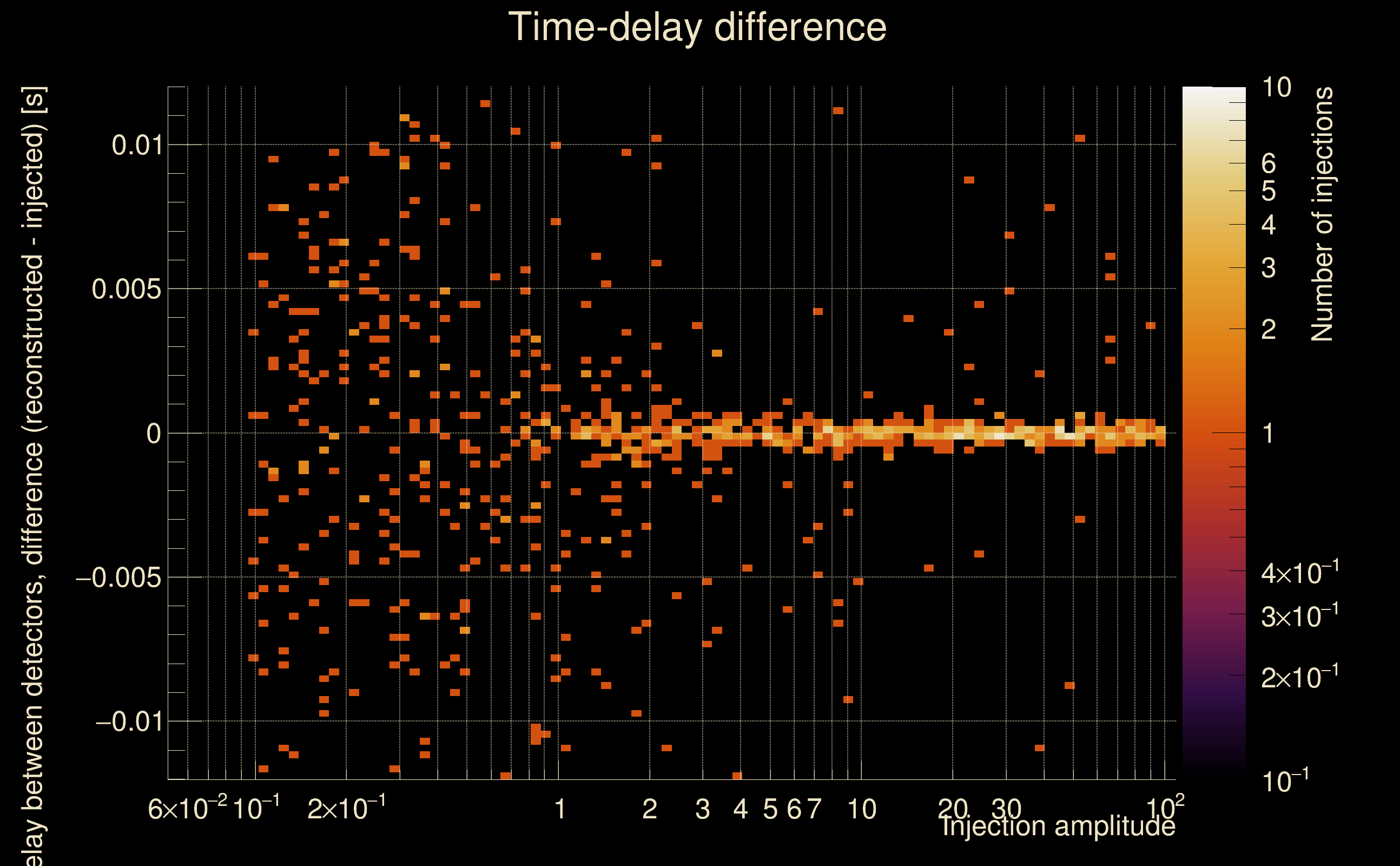

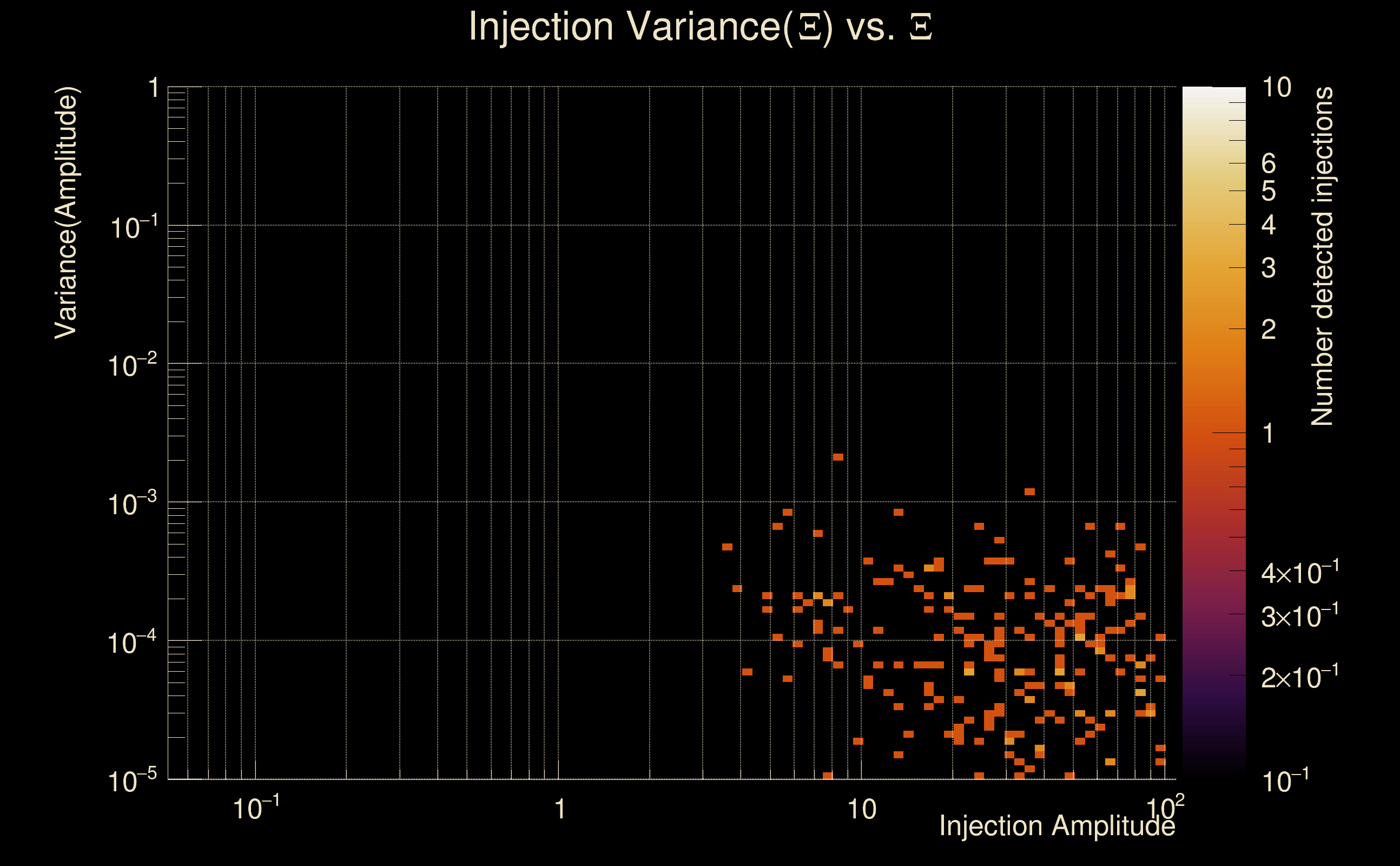

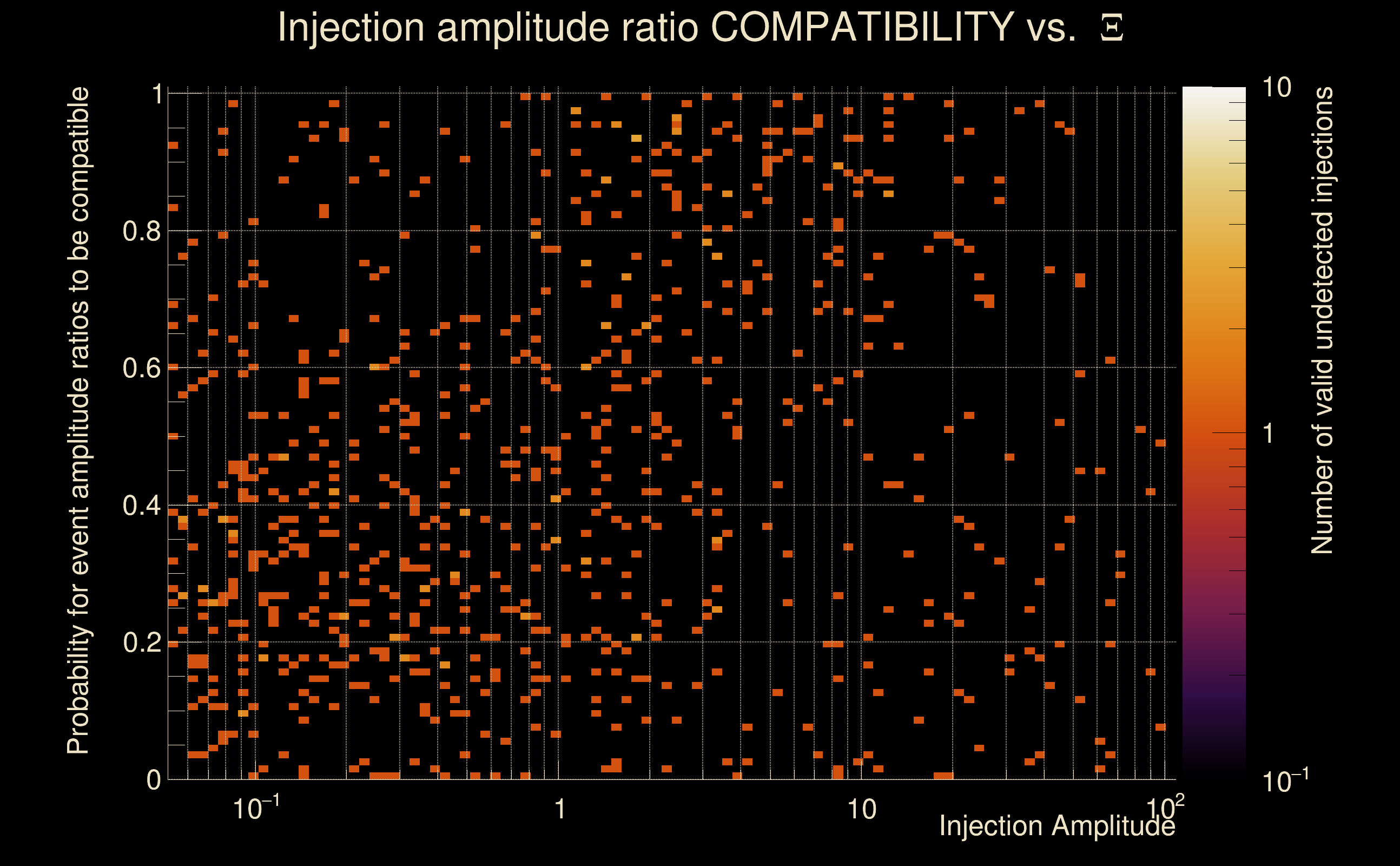

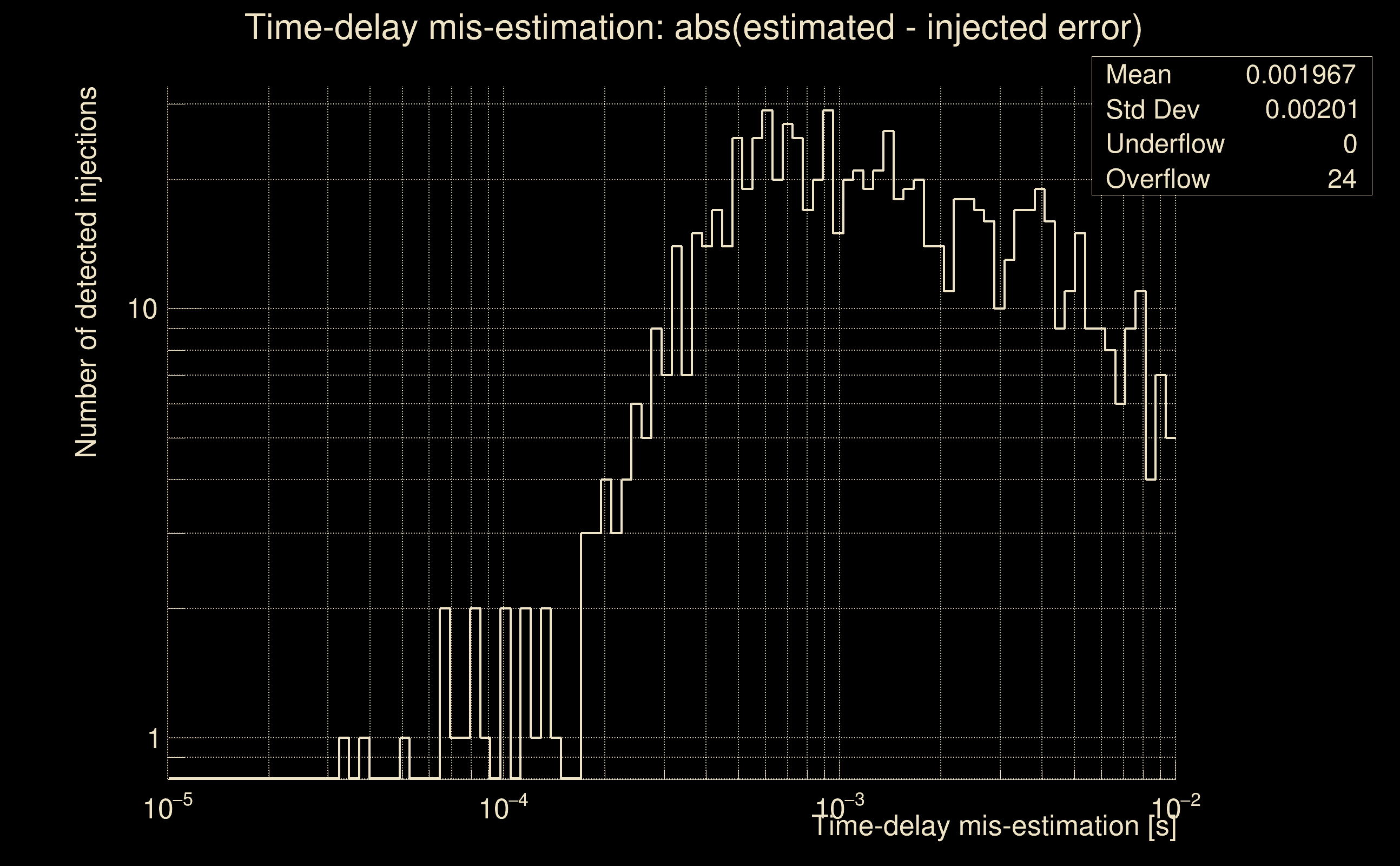

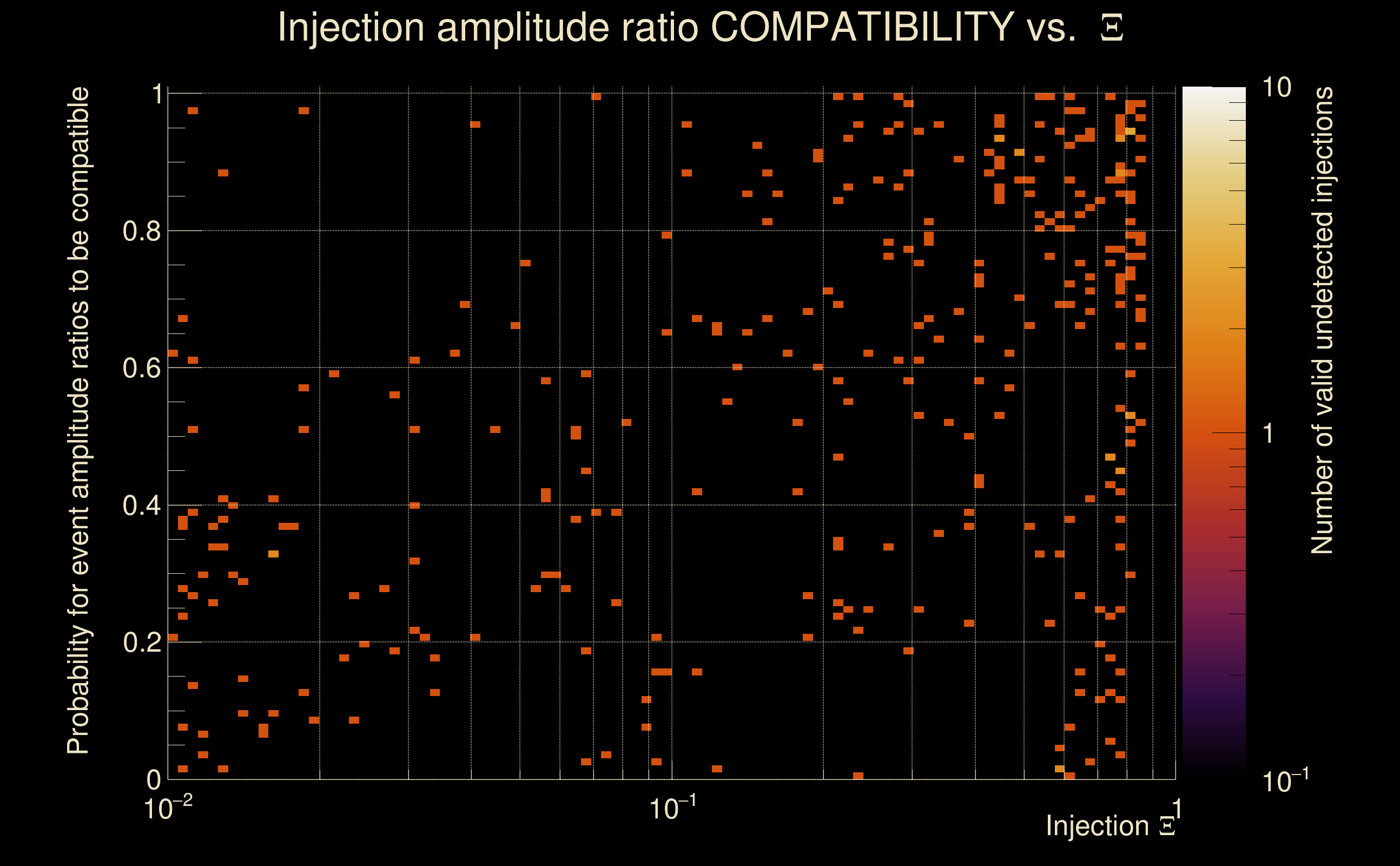

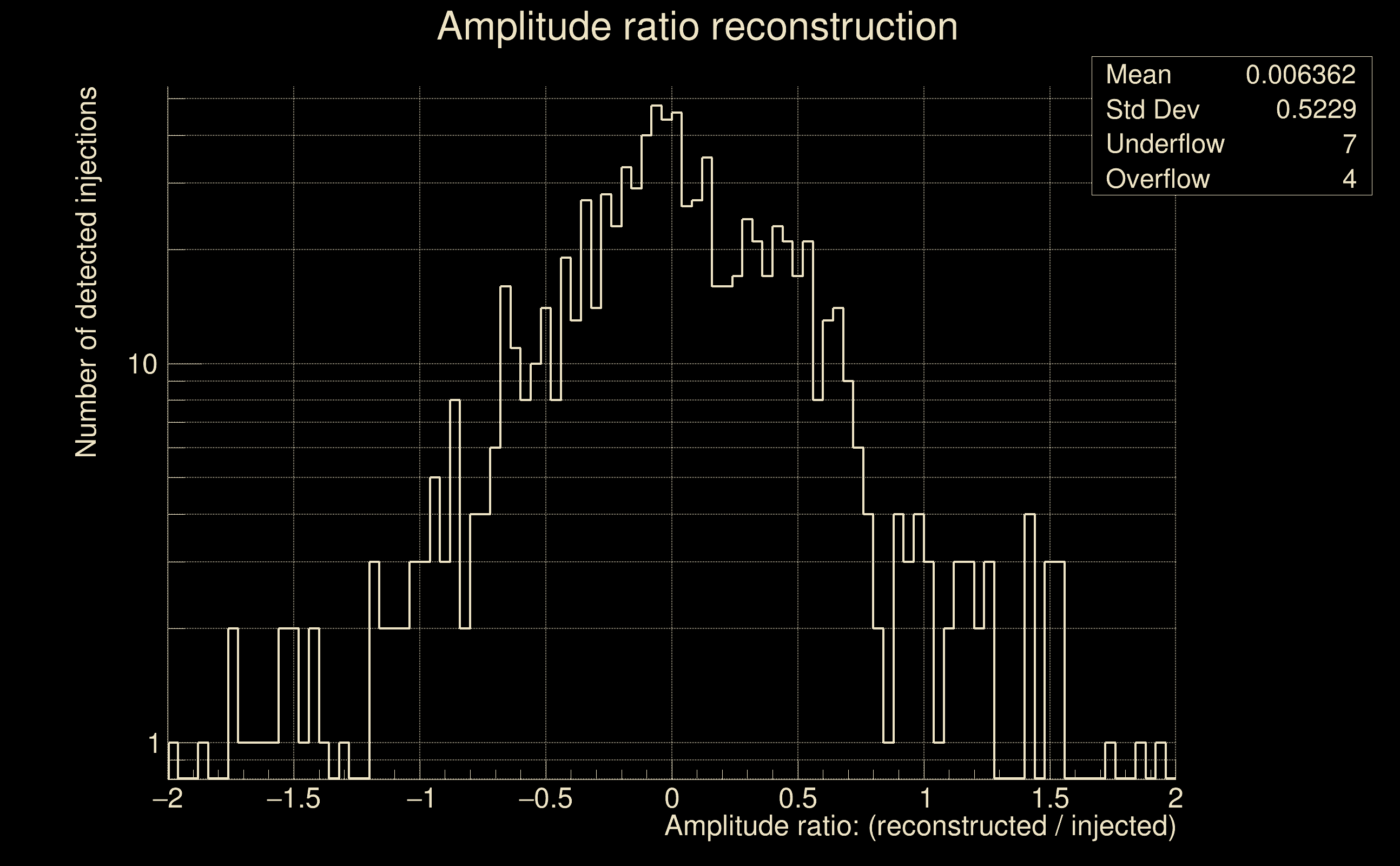

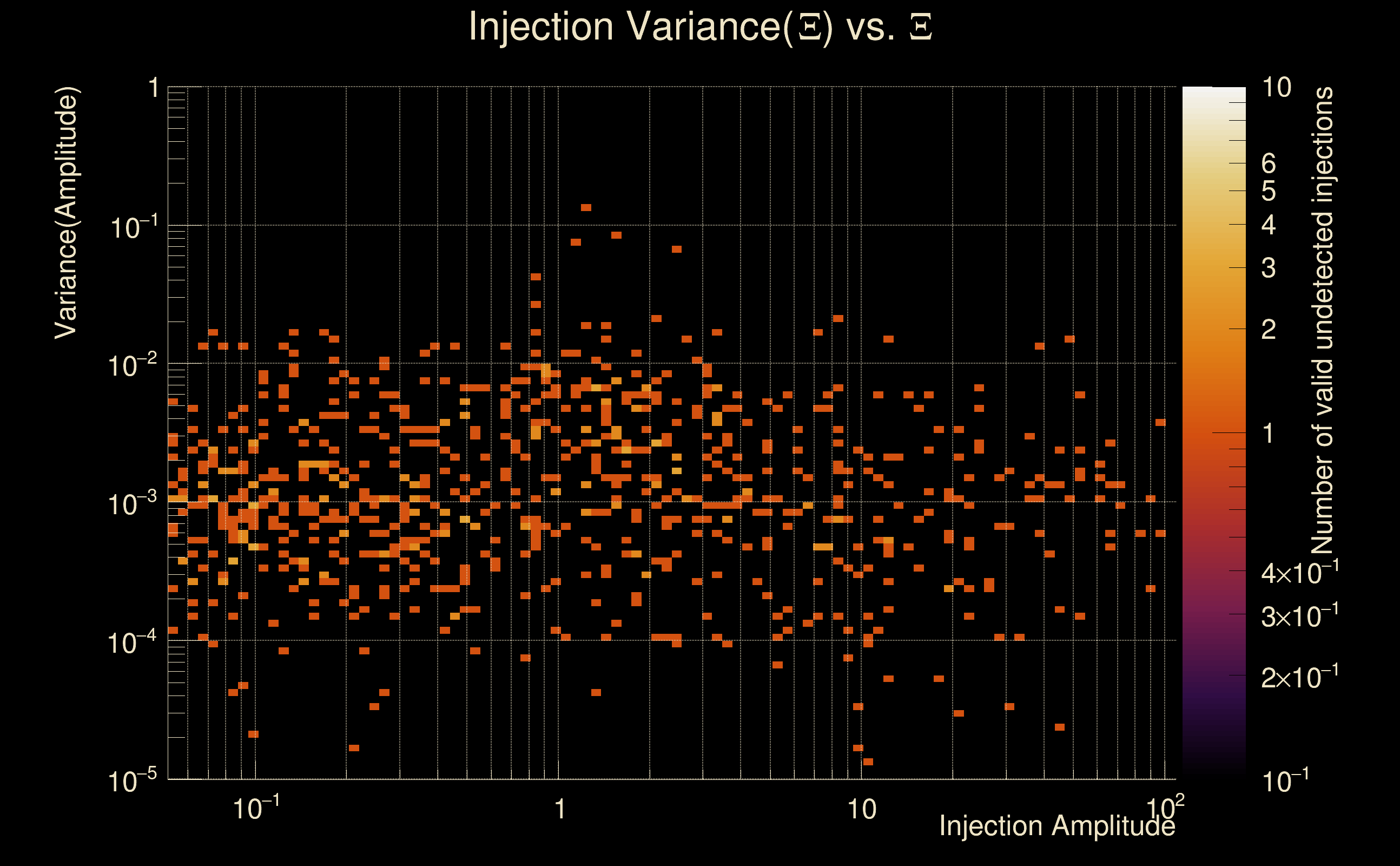

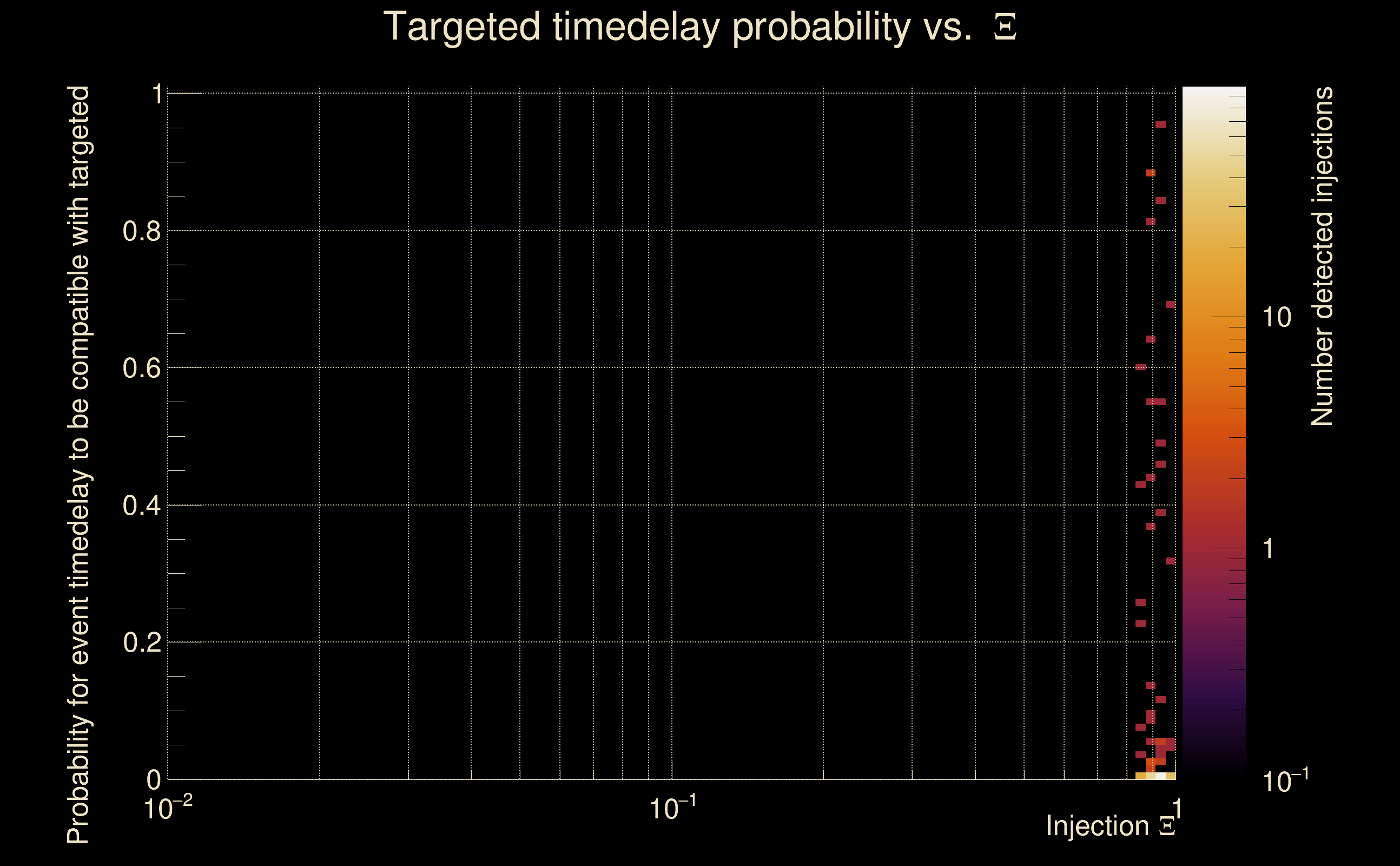

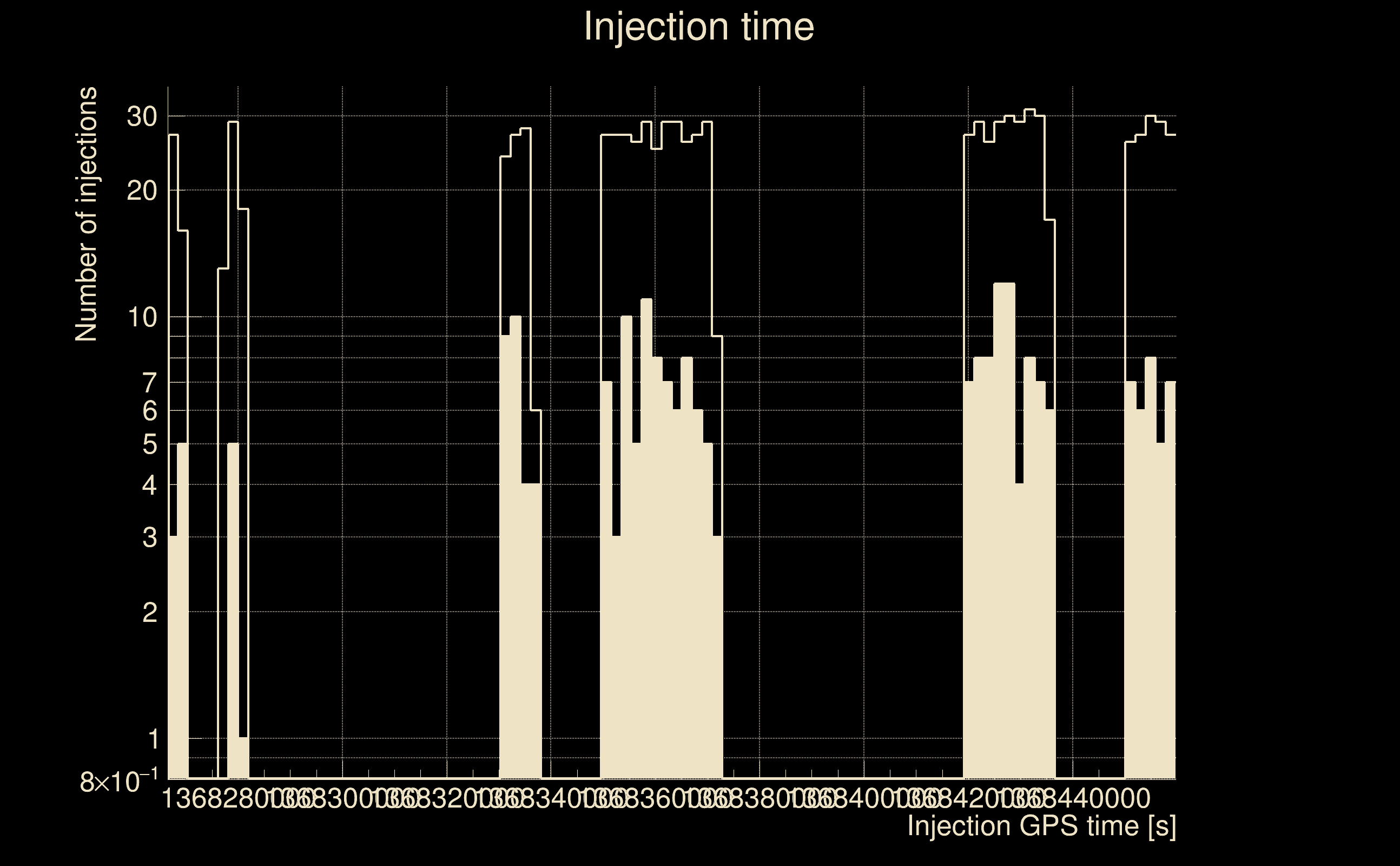

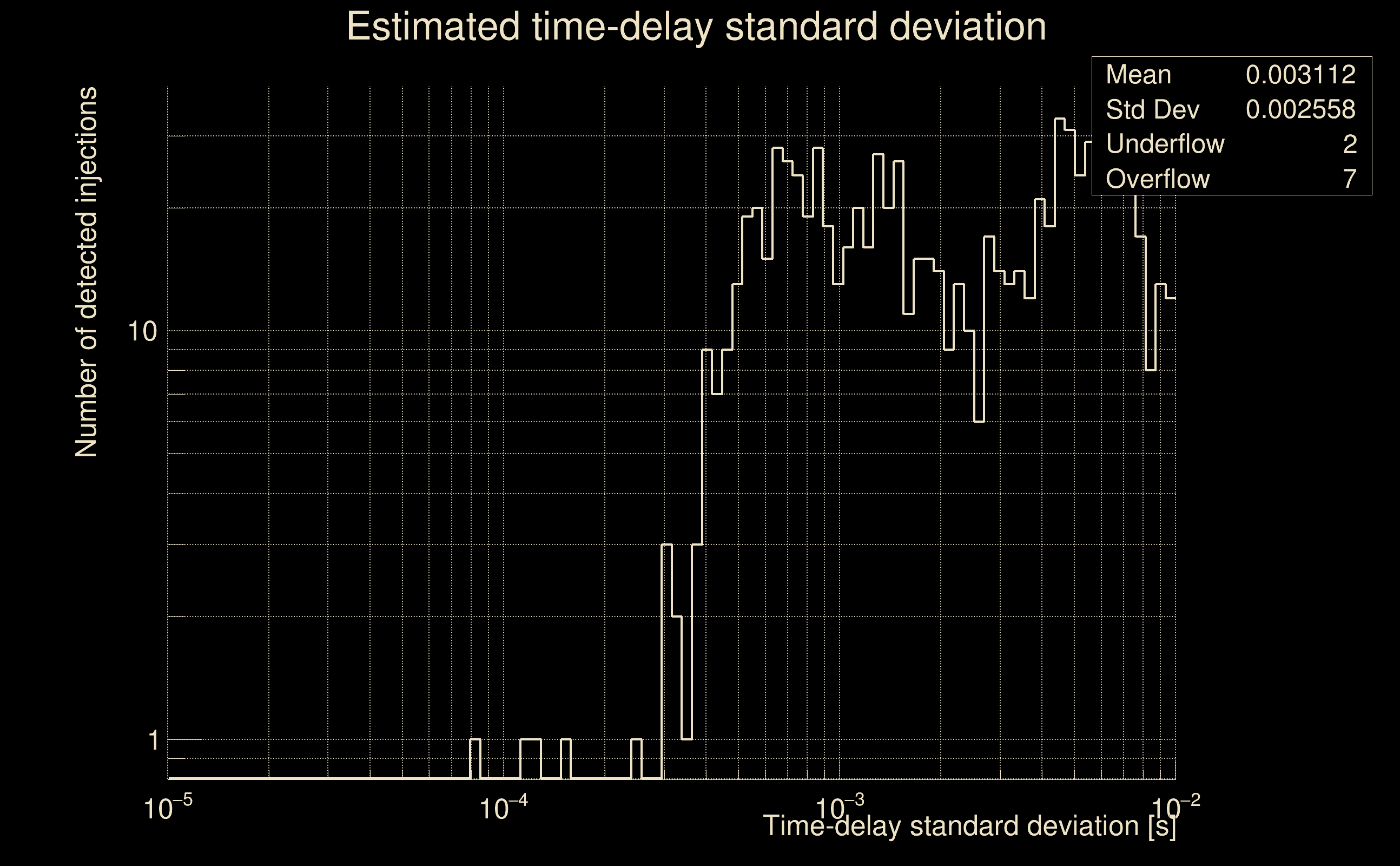

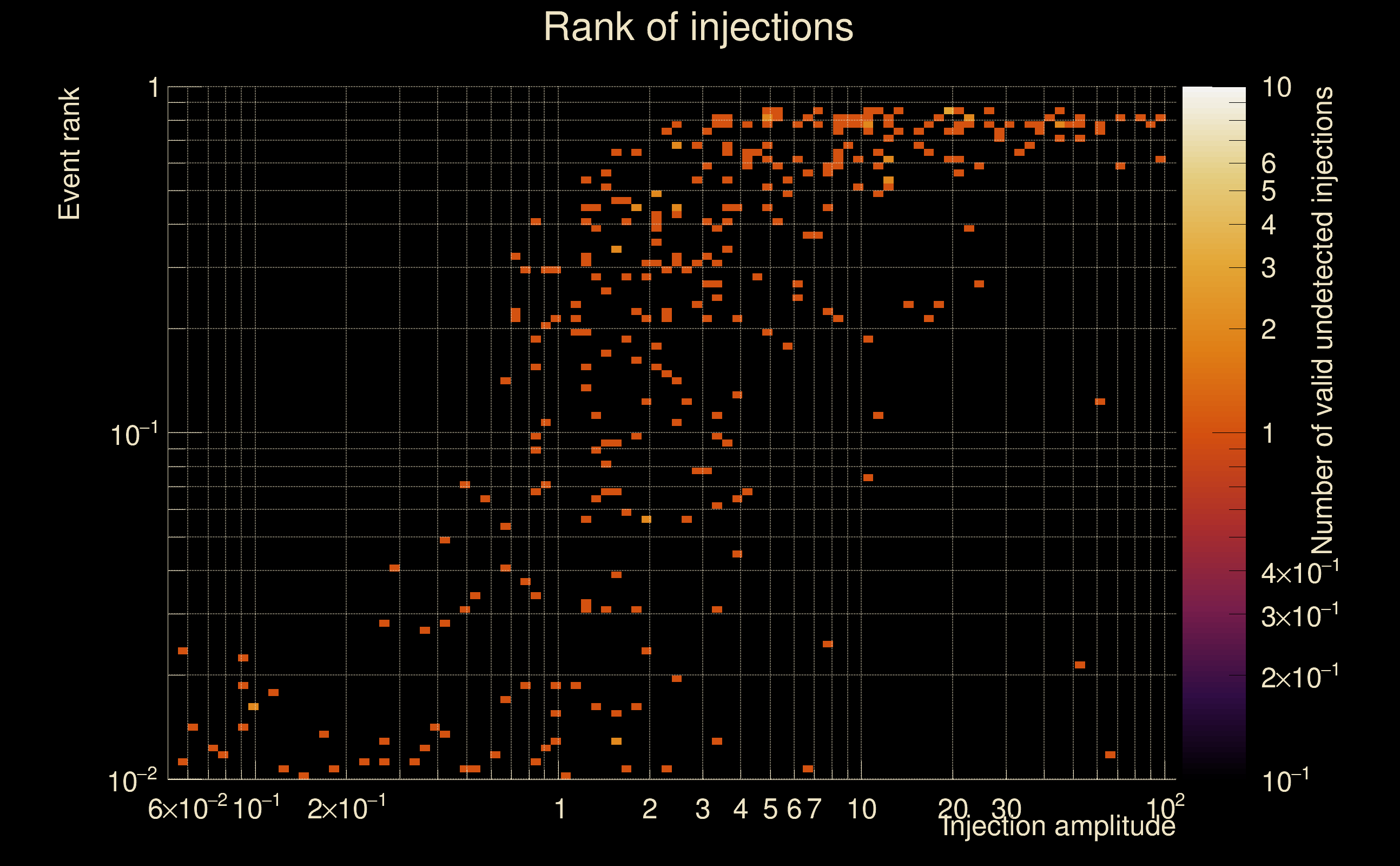

| Number of injections (total/valid/detected): | 1006 / 885 / 225 |
| List of missed injections: | ./Kur22-s50_missed.txt |
| Injection amplitude at 90% detection efficiency: | 55.4802 |
| Injection amplitude at 50% detection efficiency: | 20.2254 |
| Injection amplitude at 10% detection efficiency: | 4.73953 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

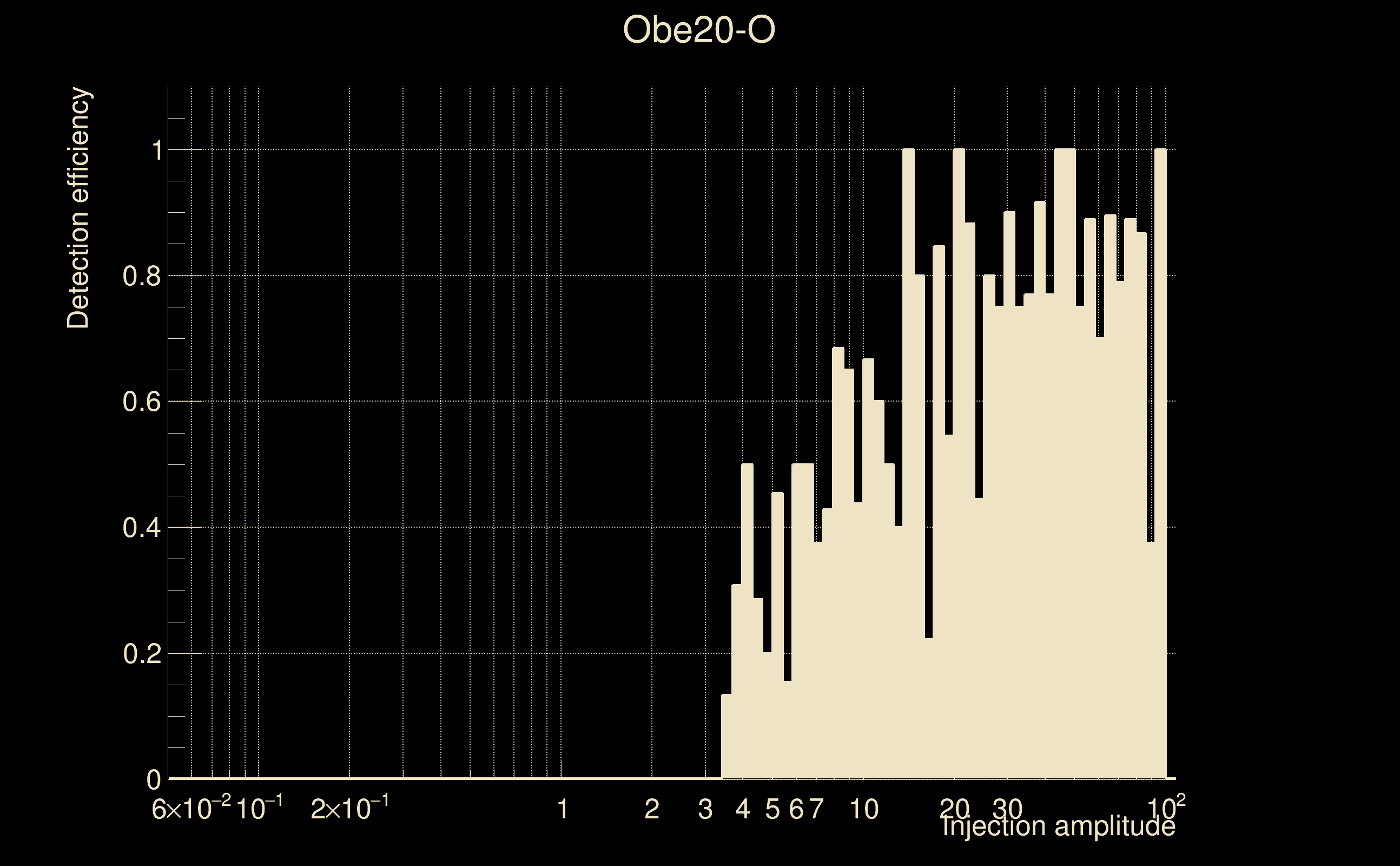

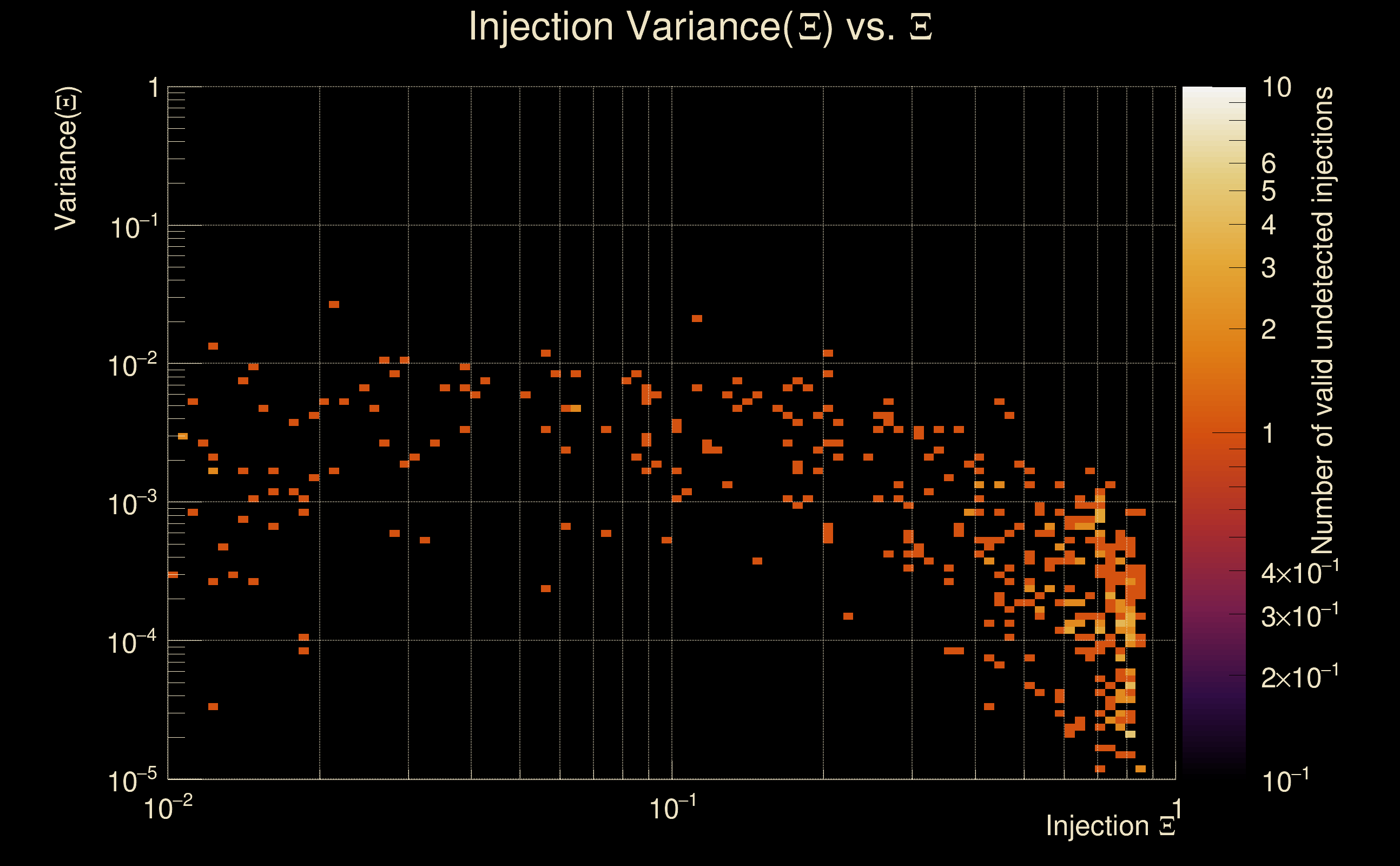

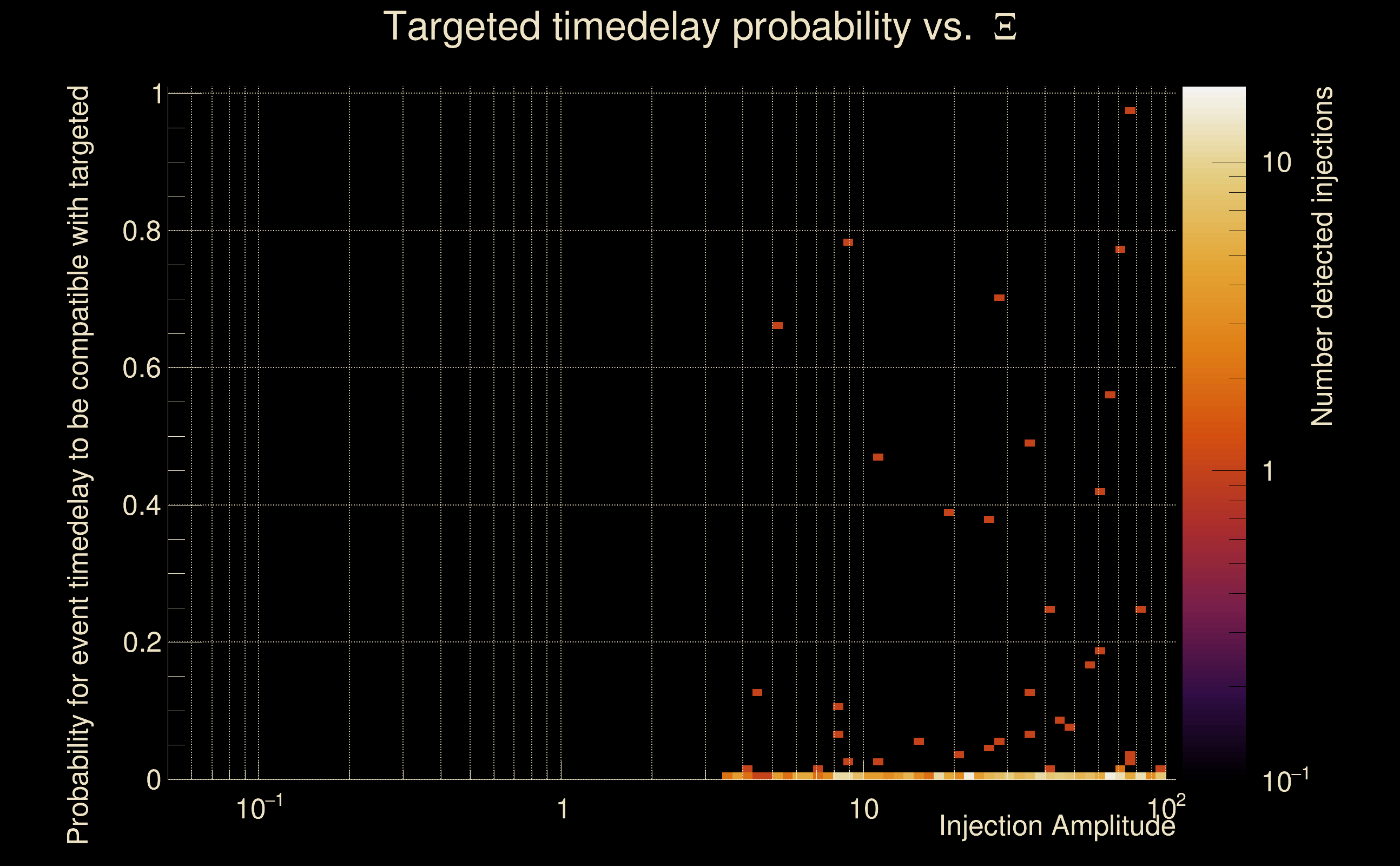

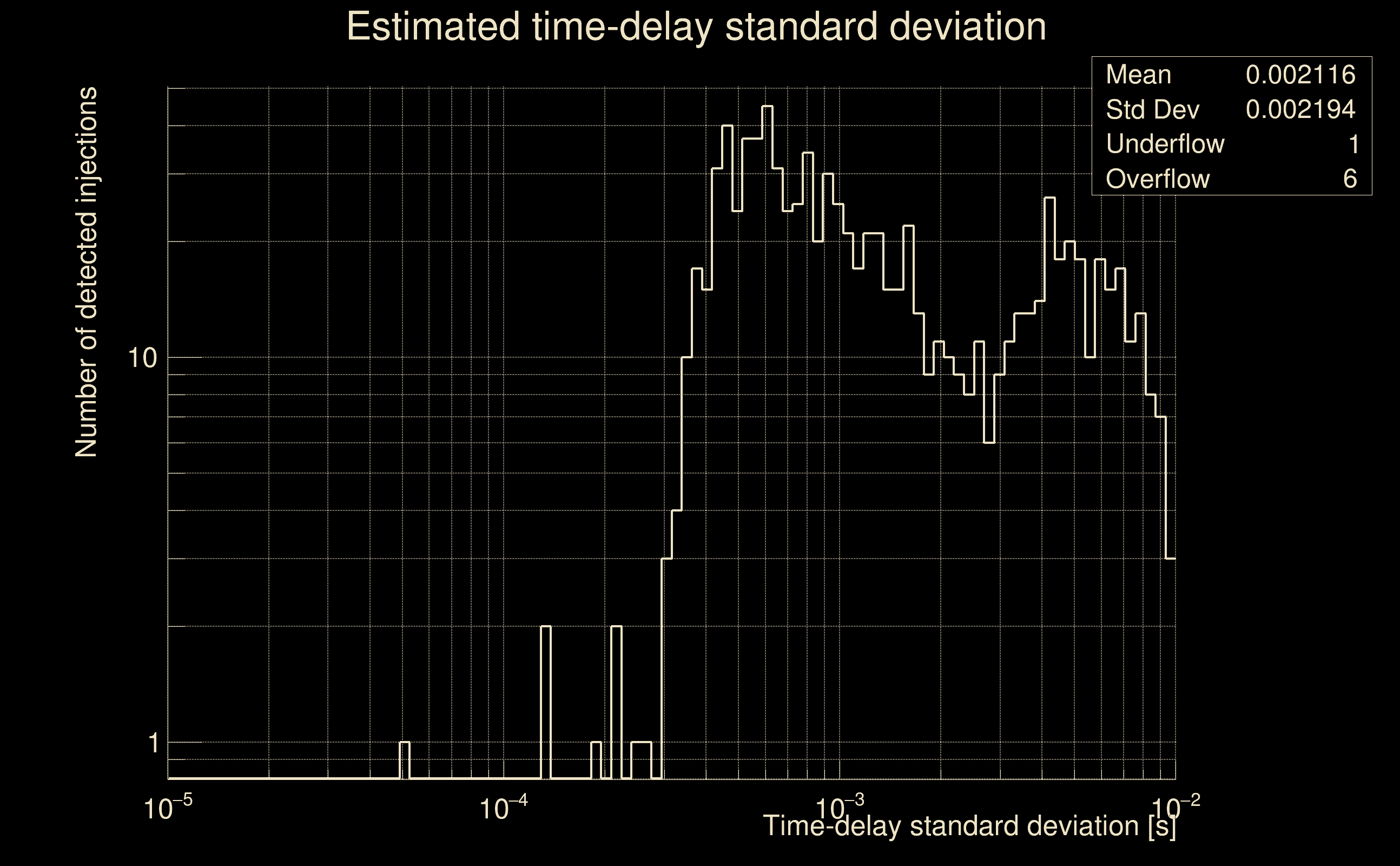

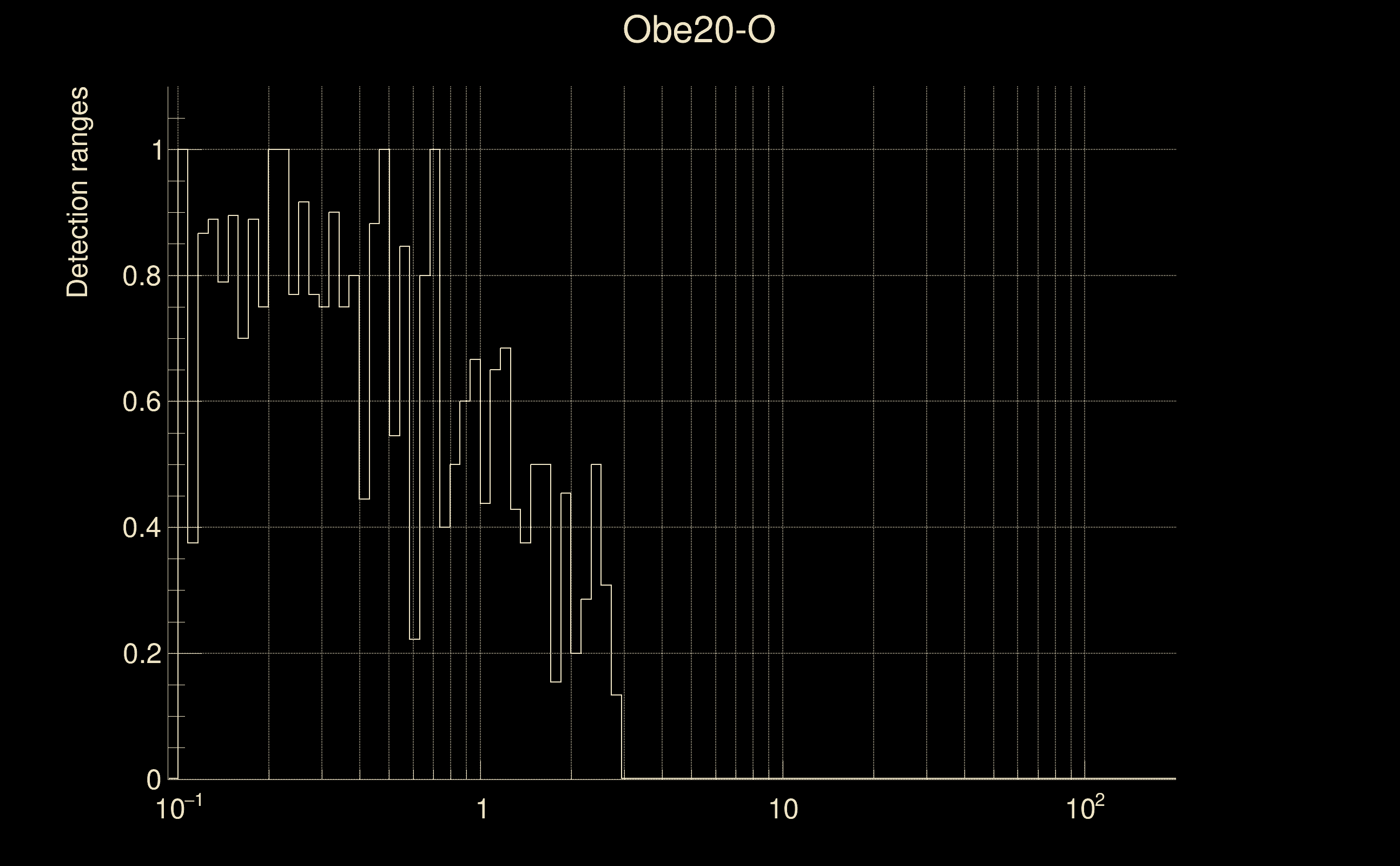

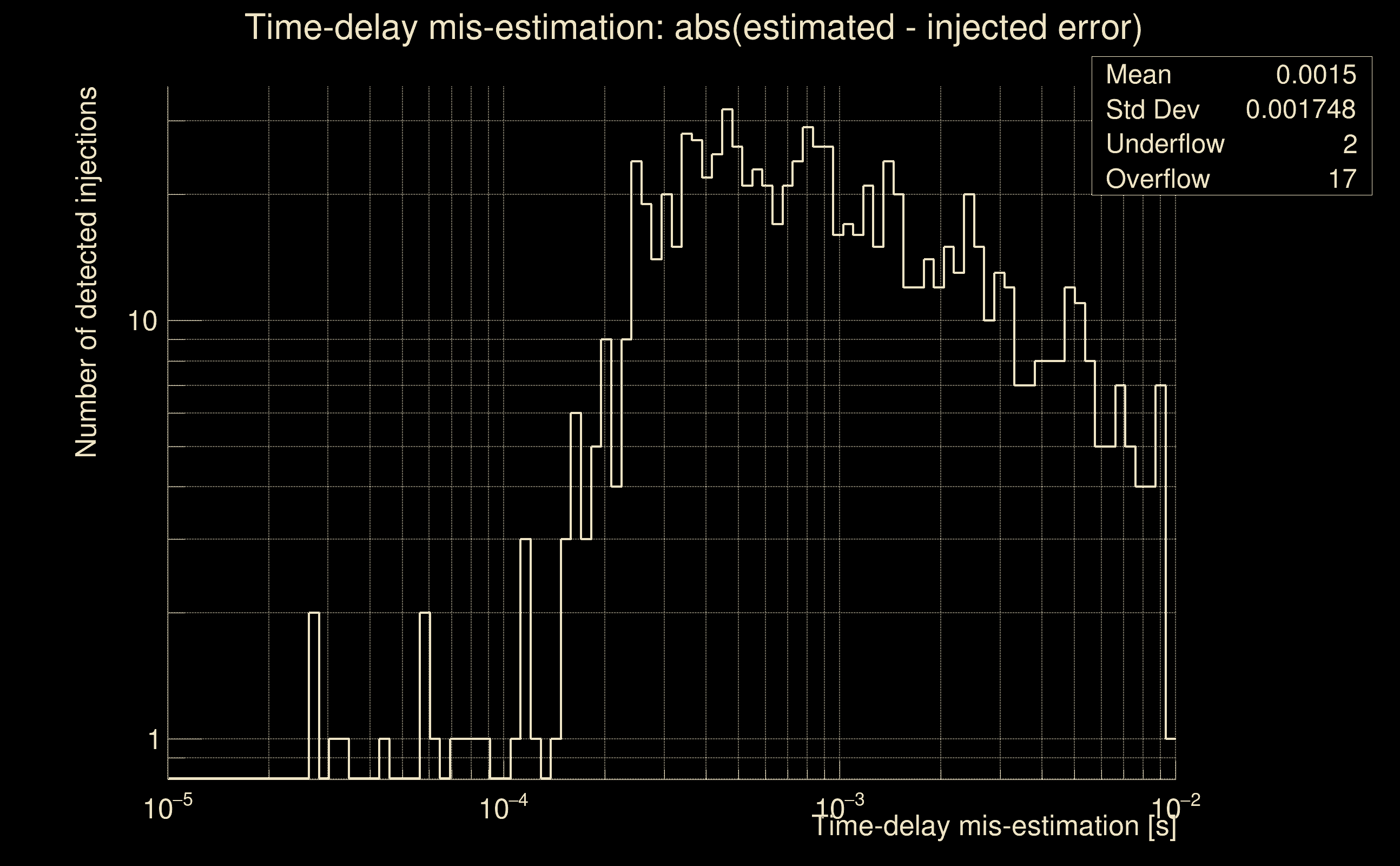

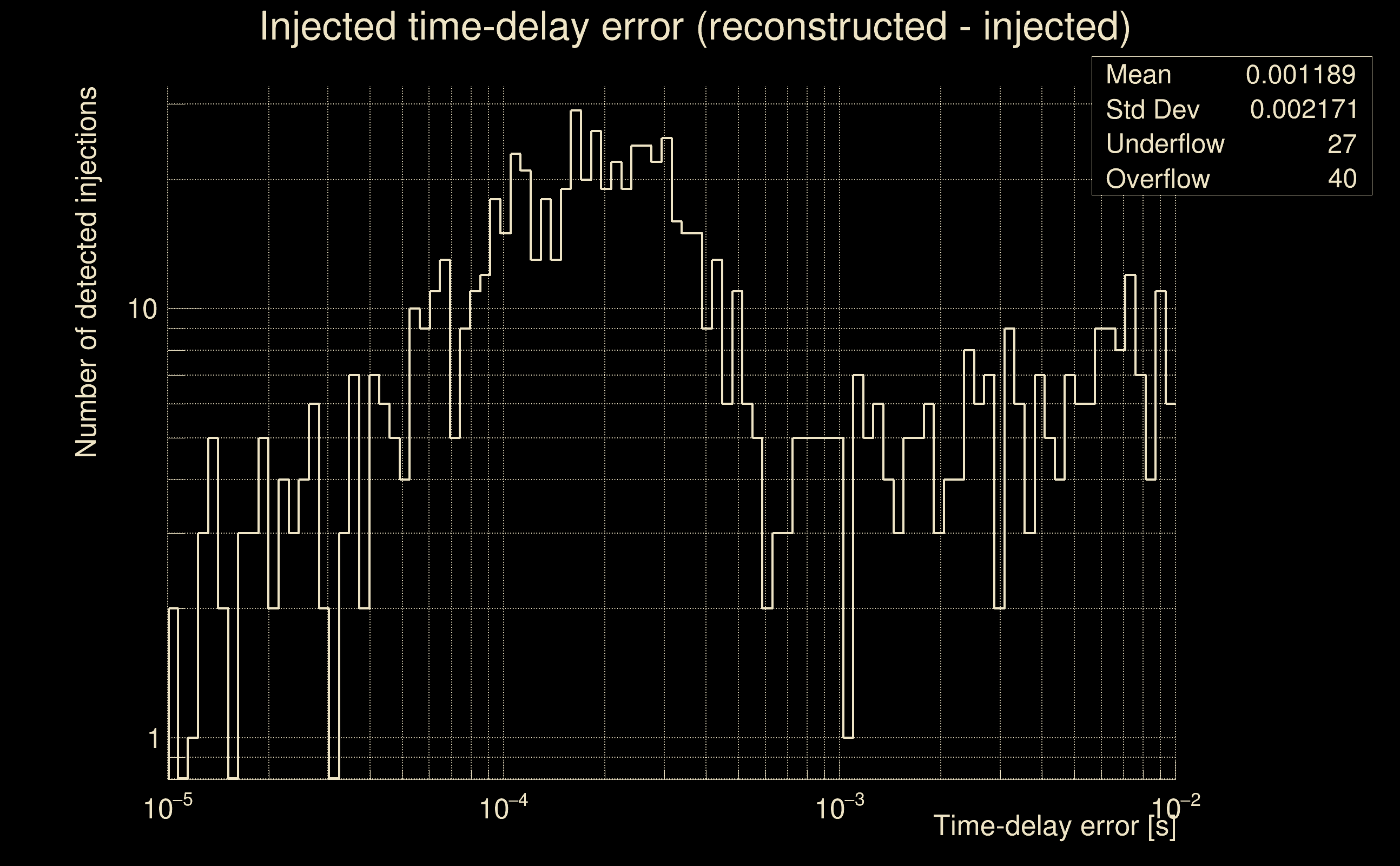

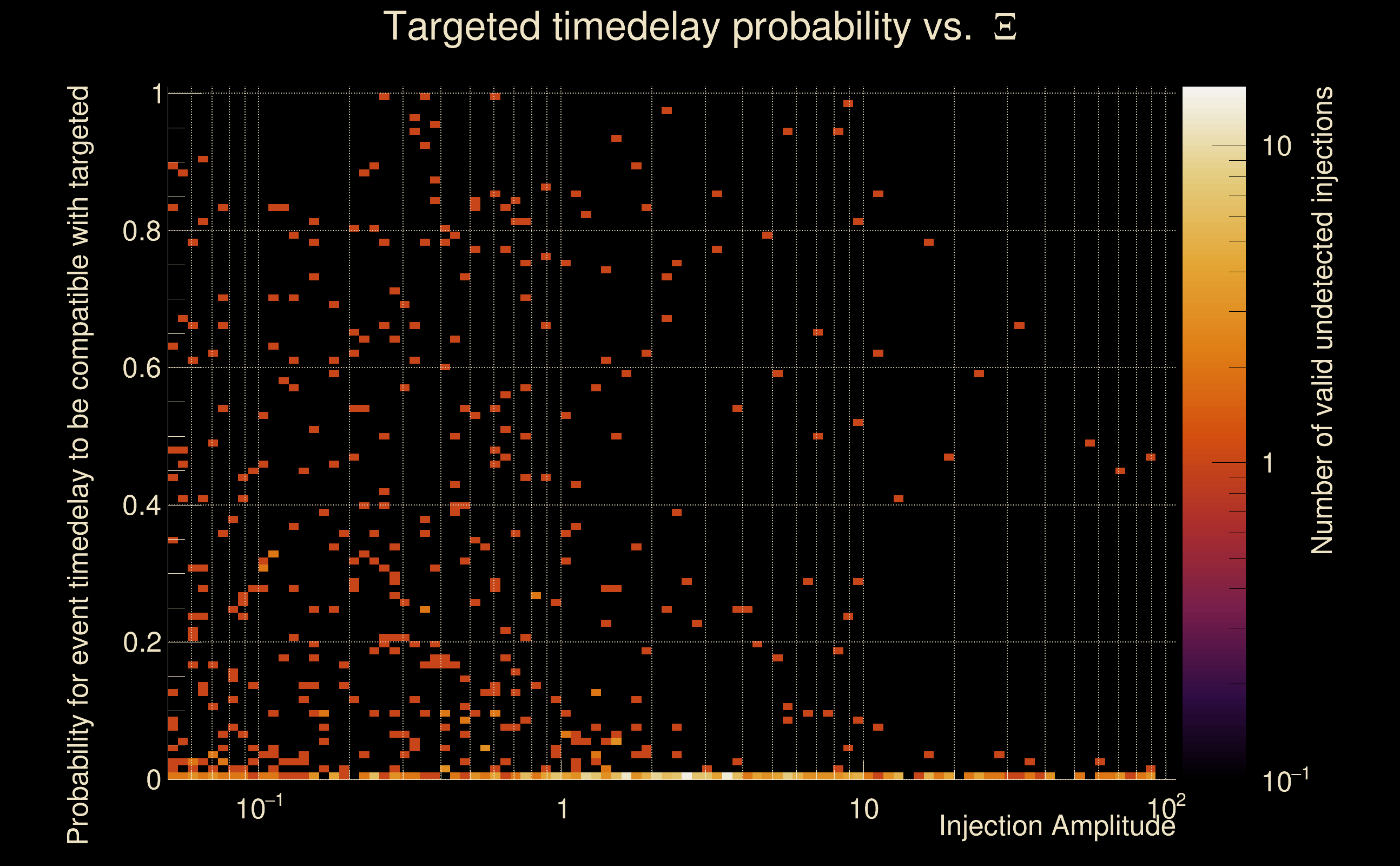

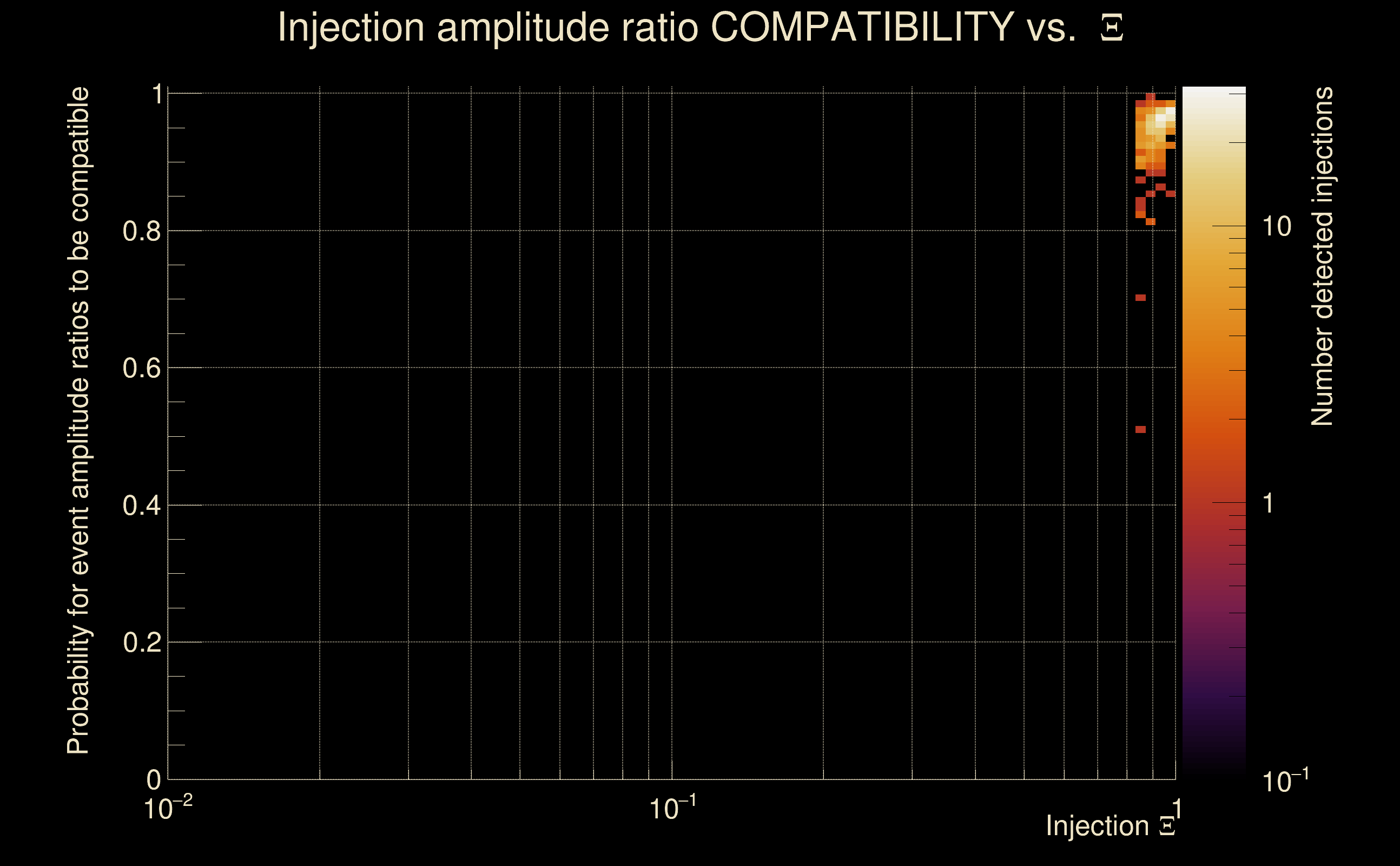

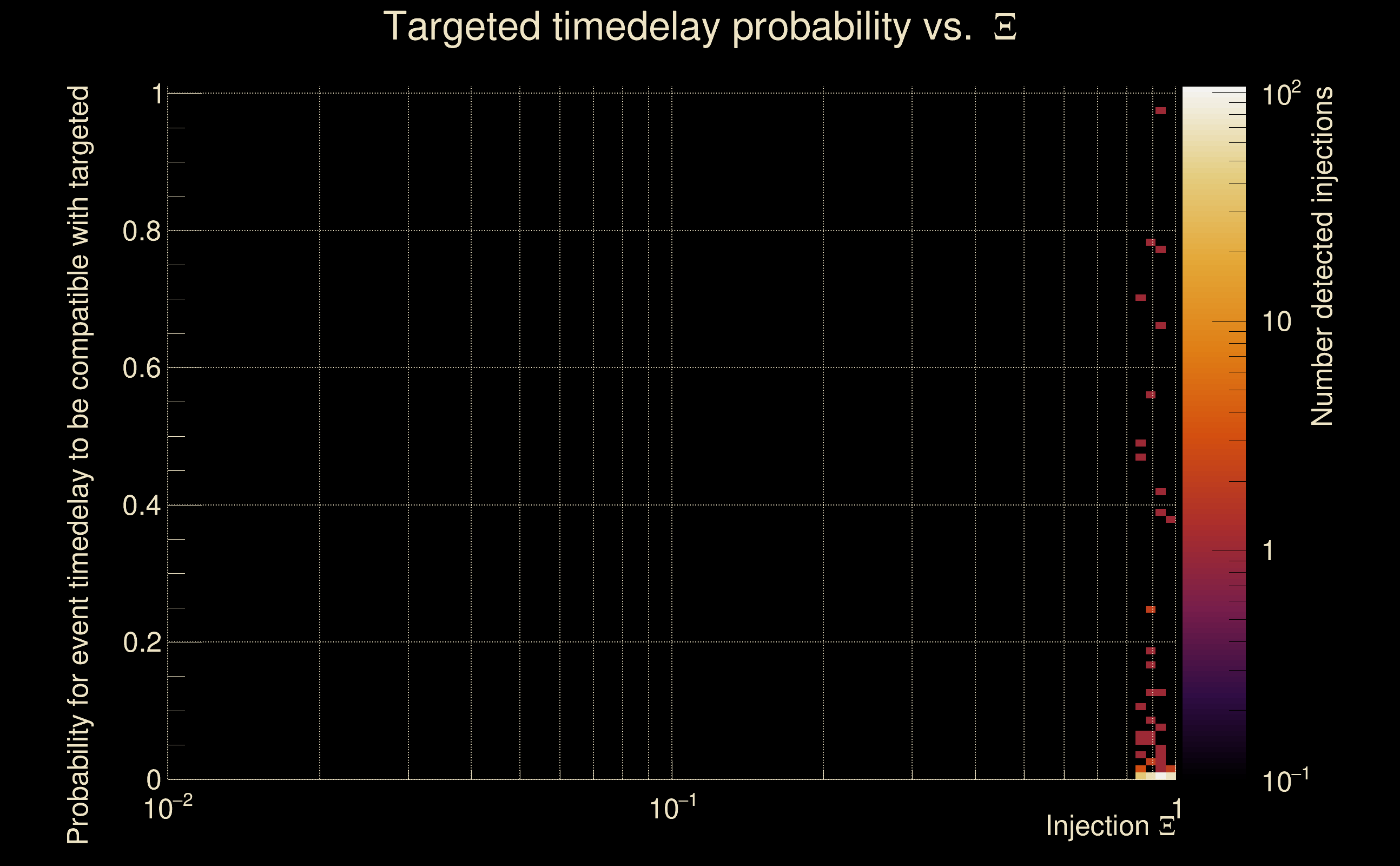

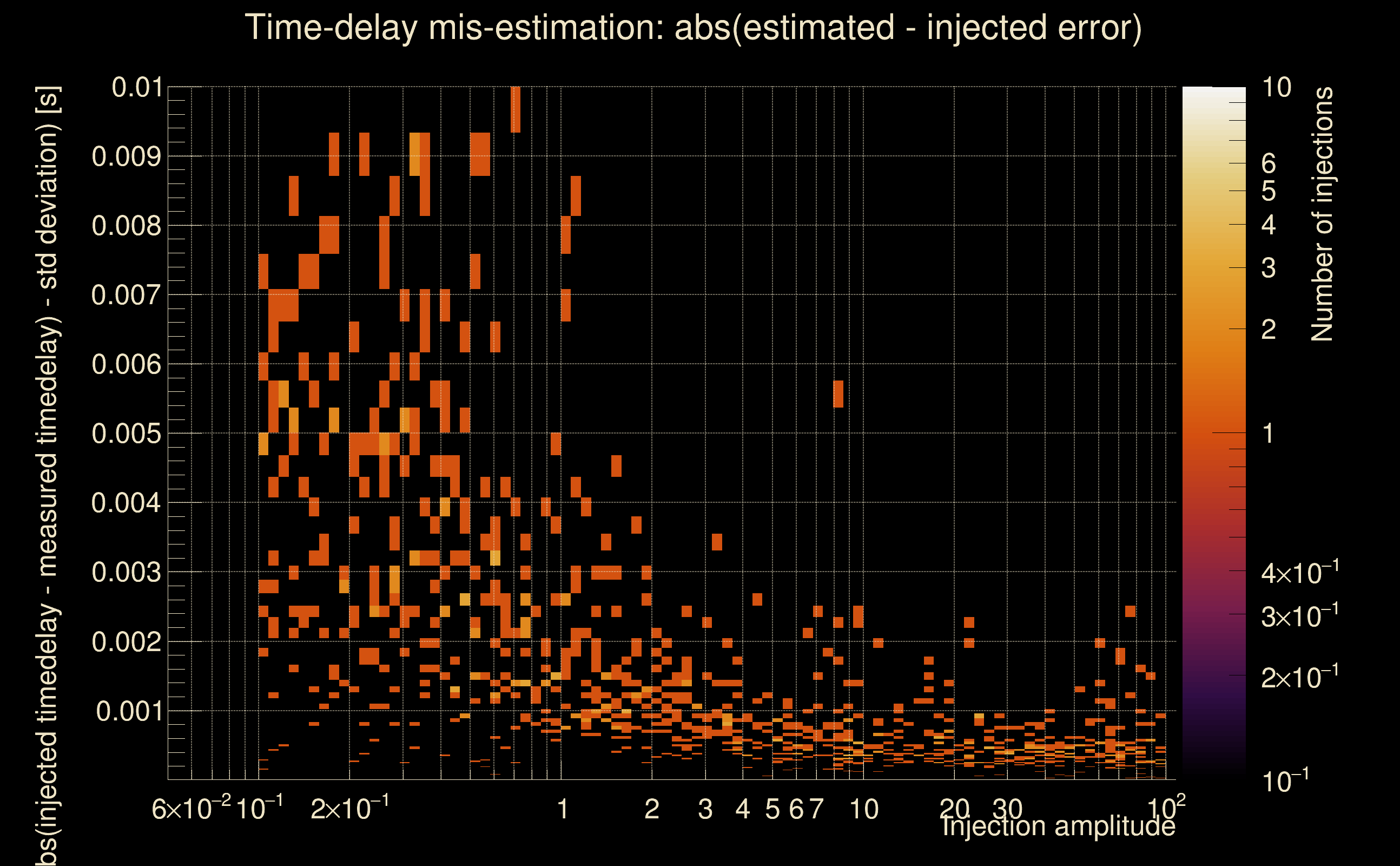

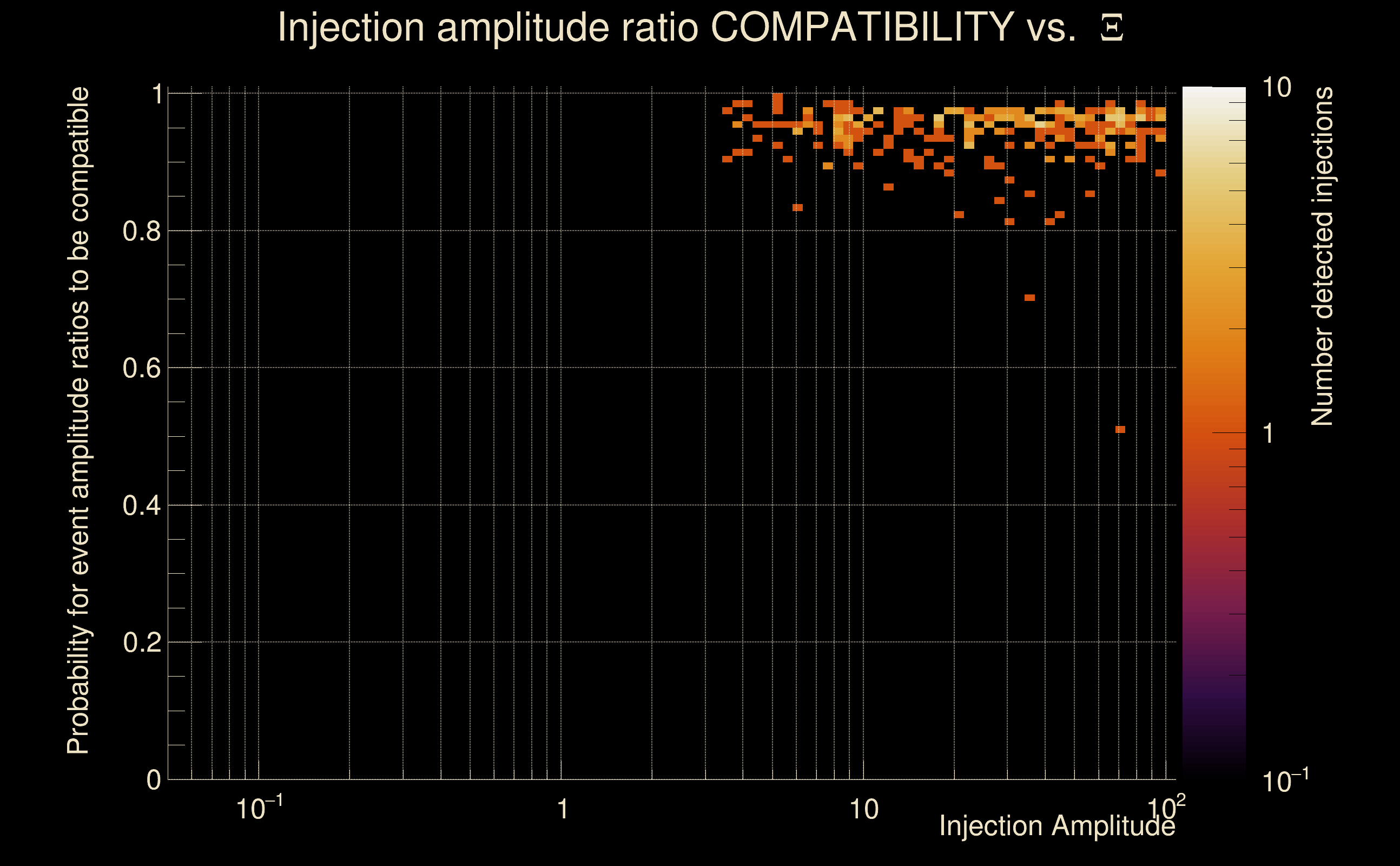

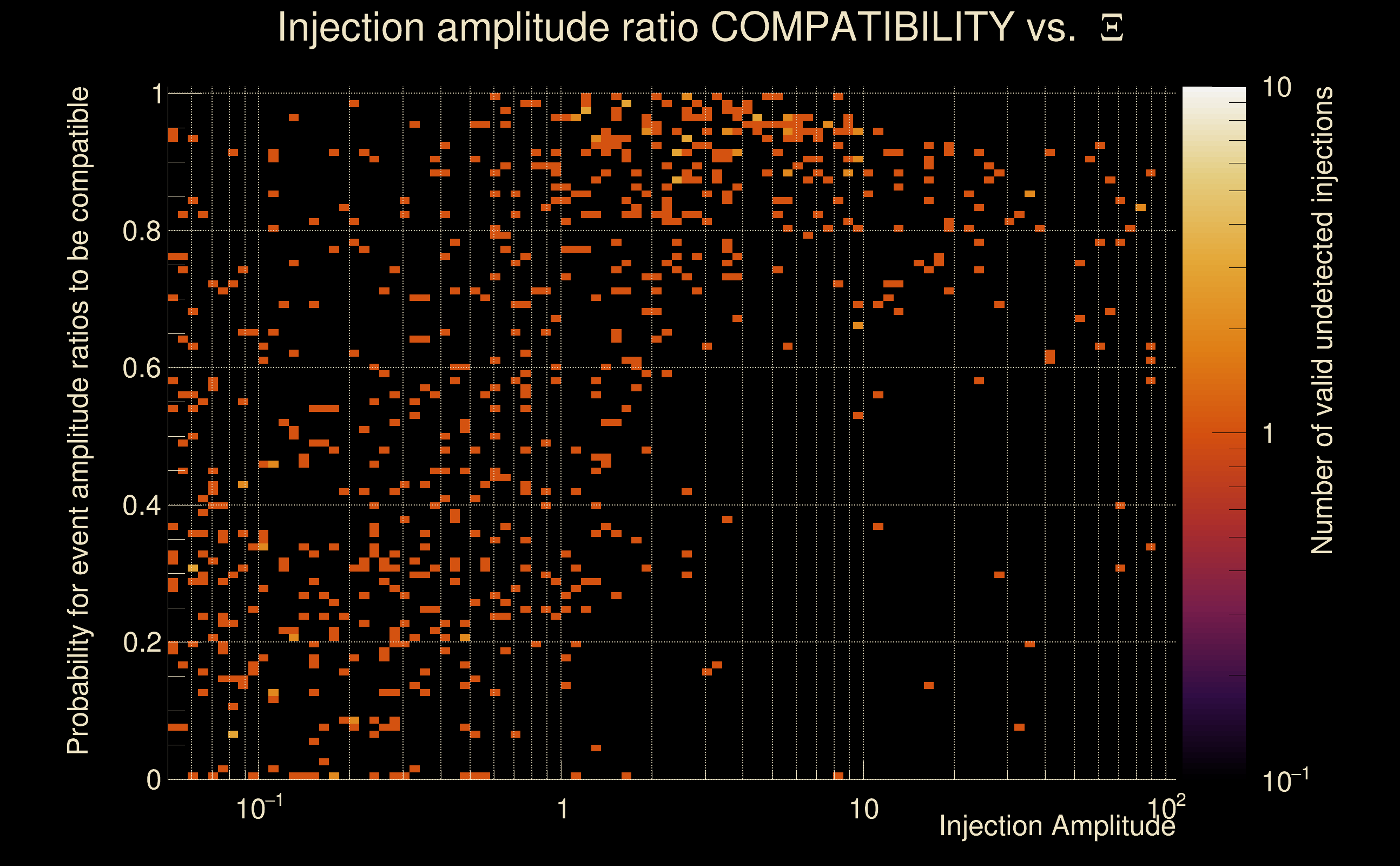

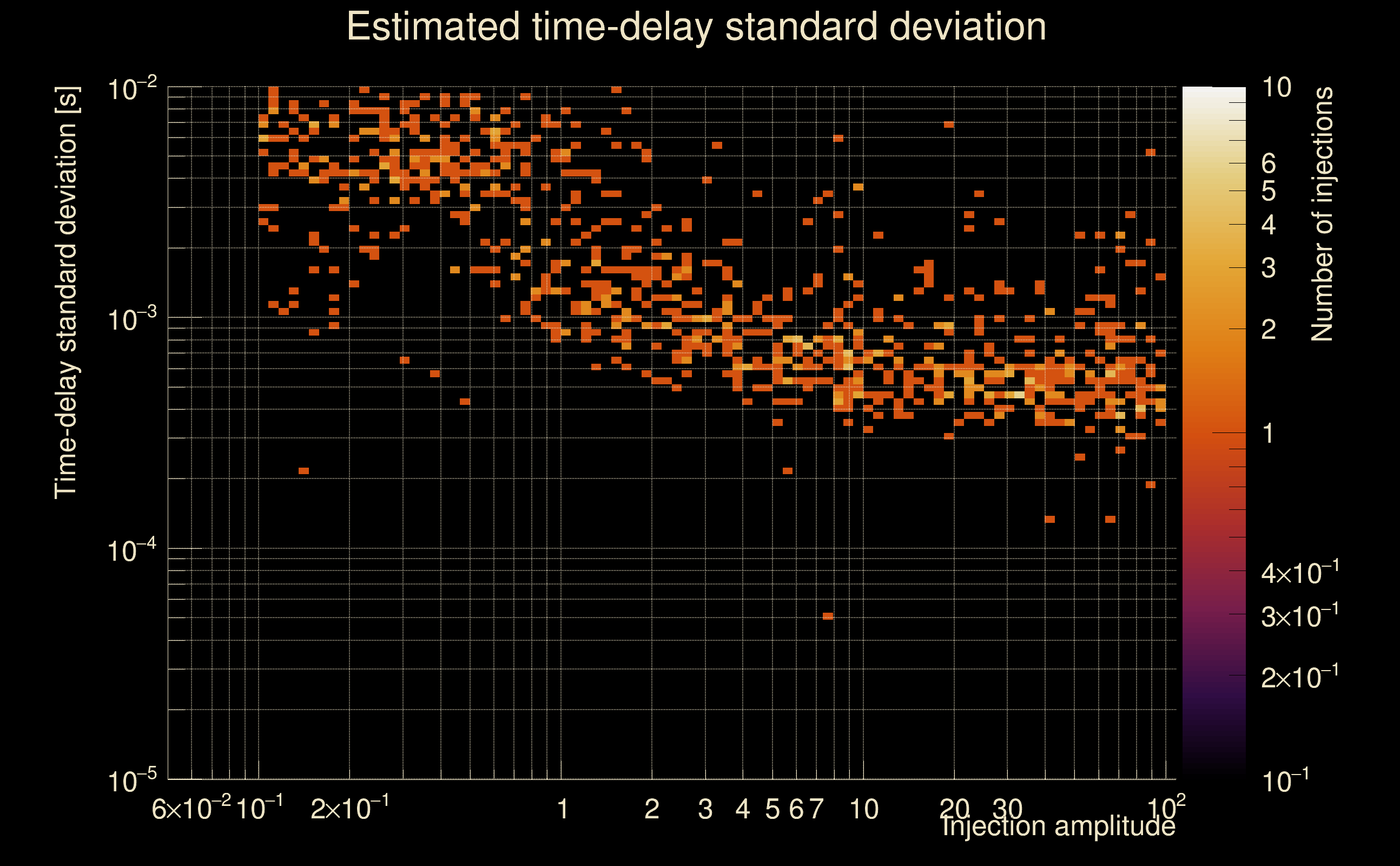

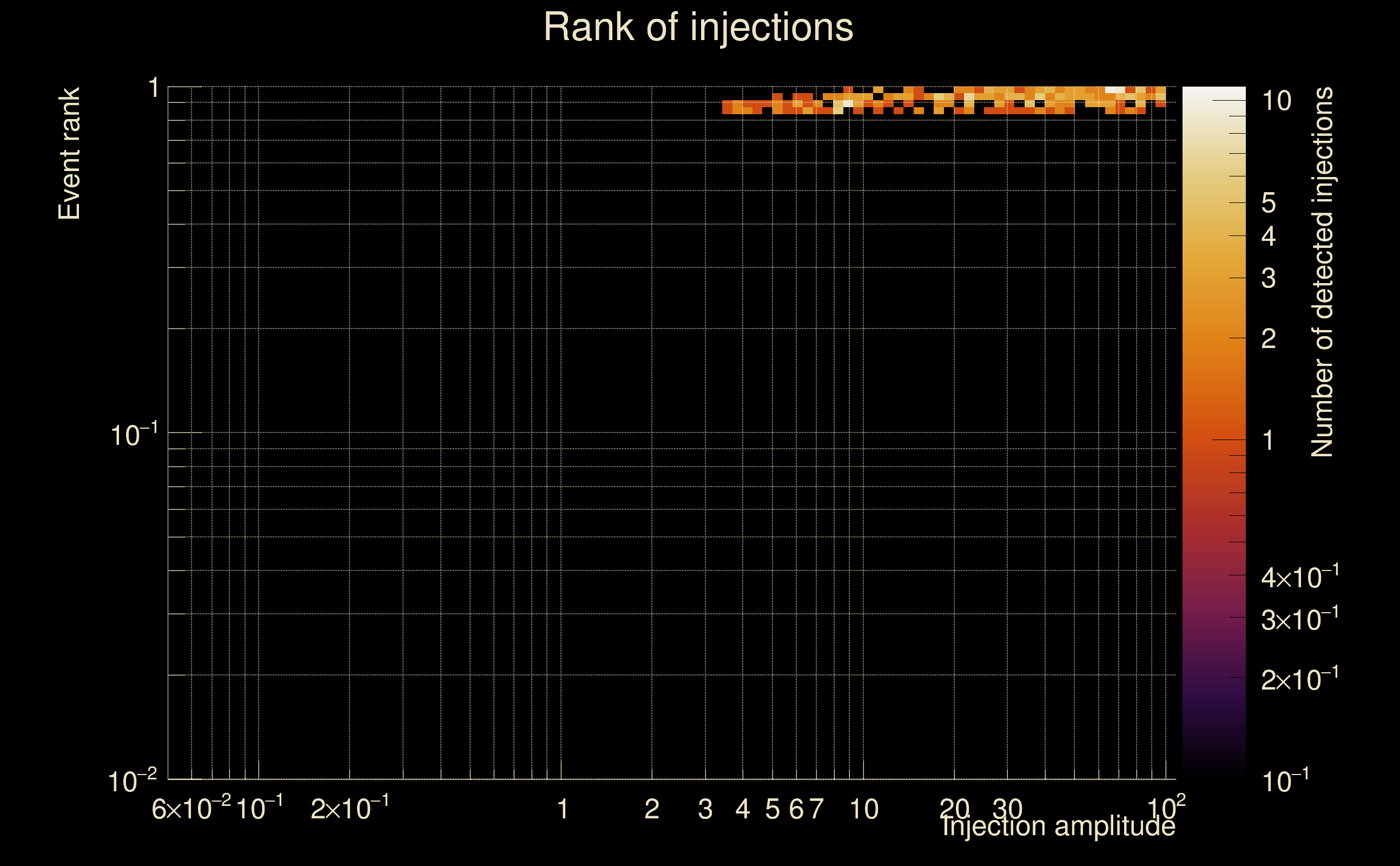

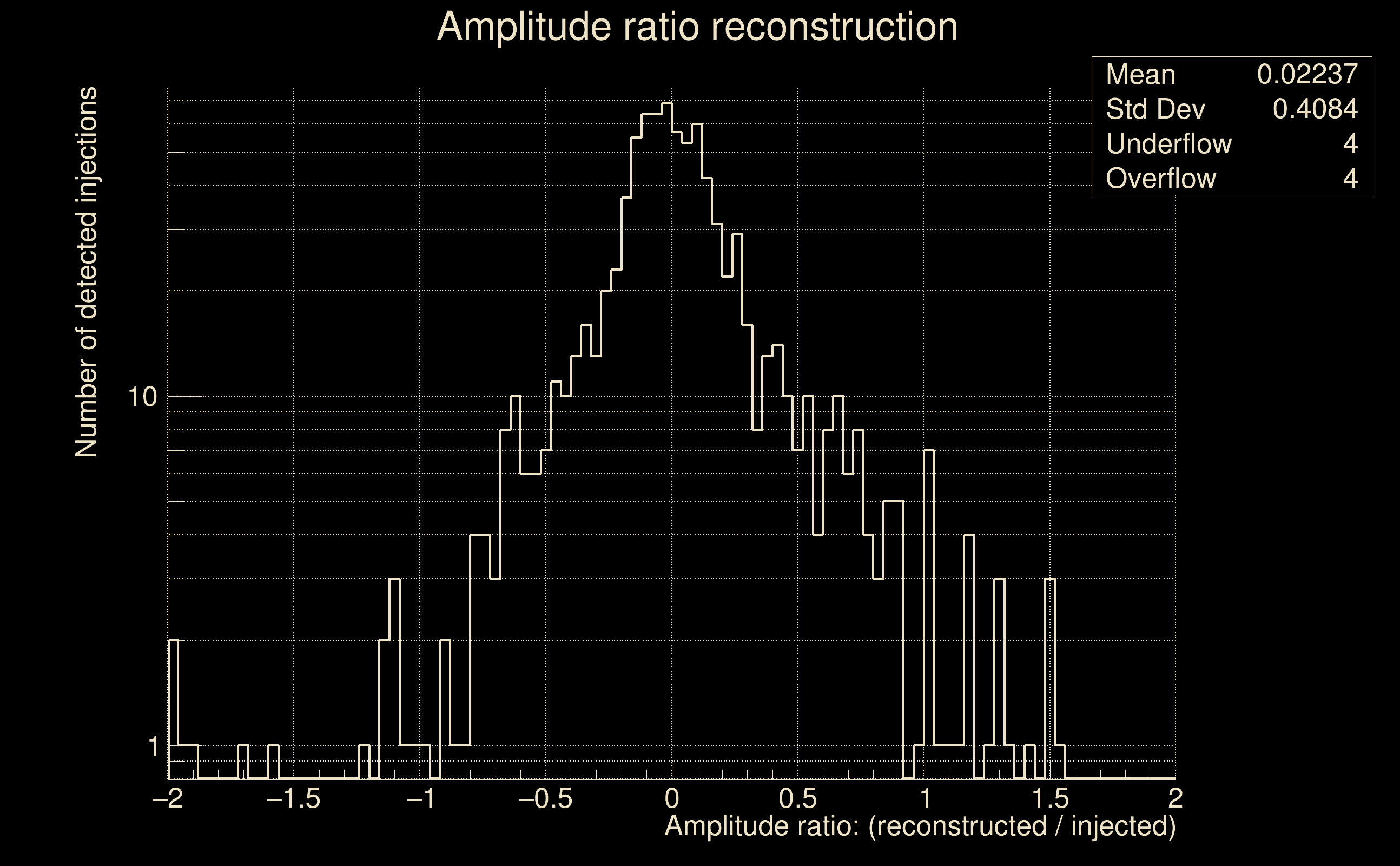

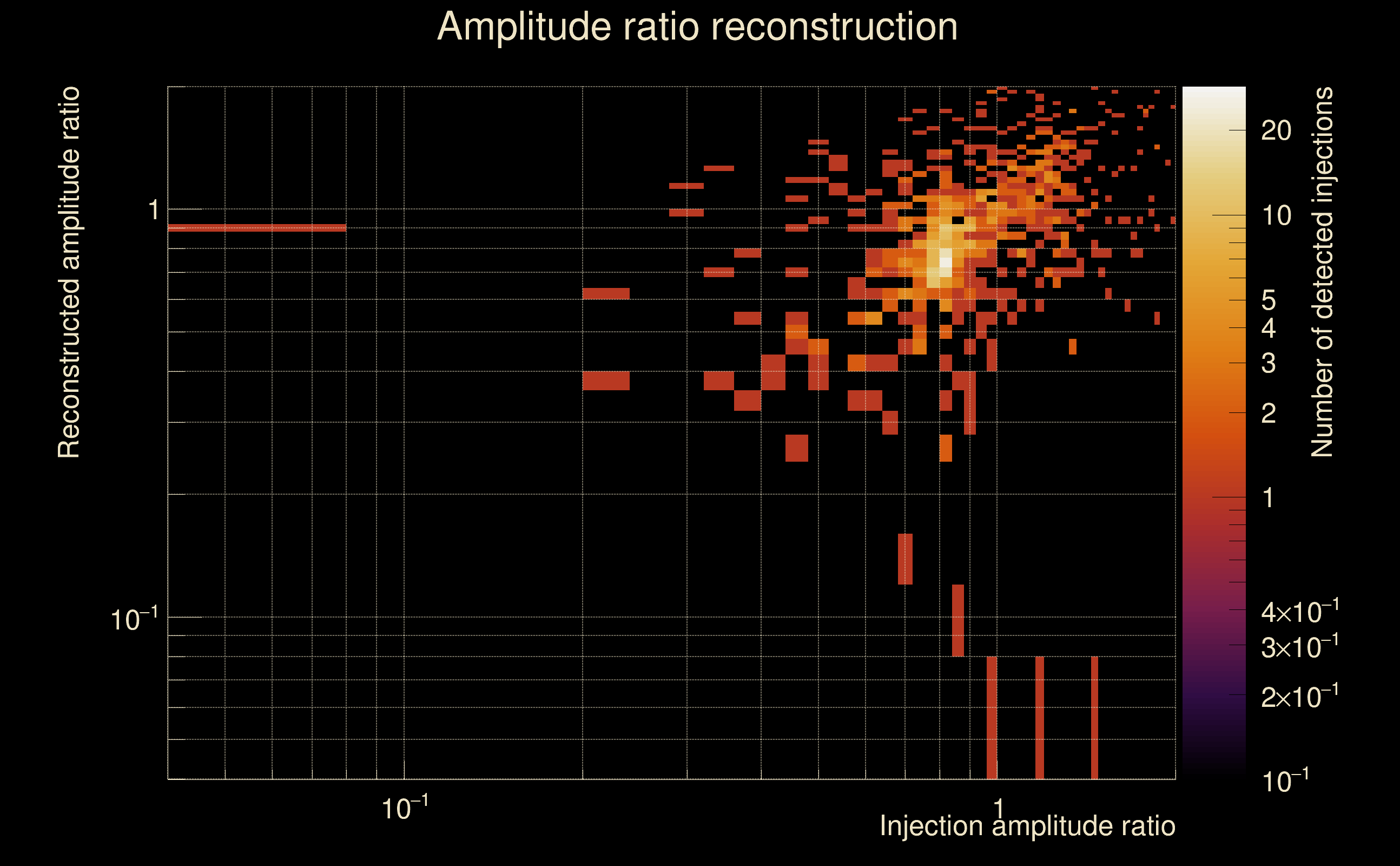

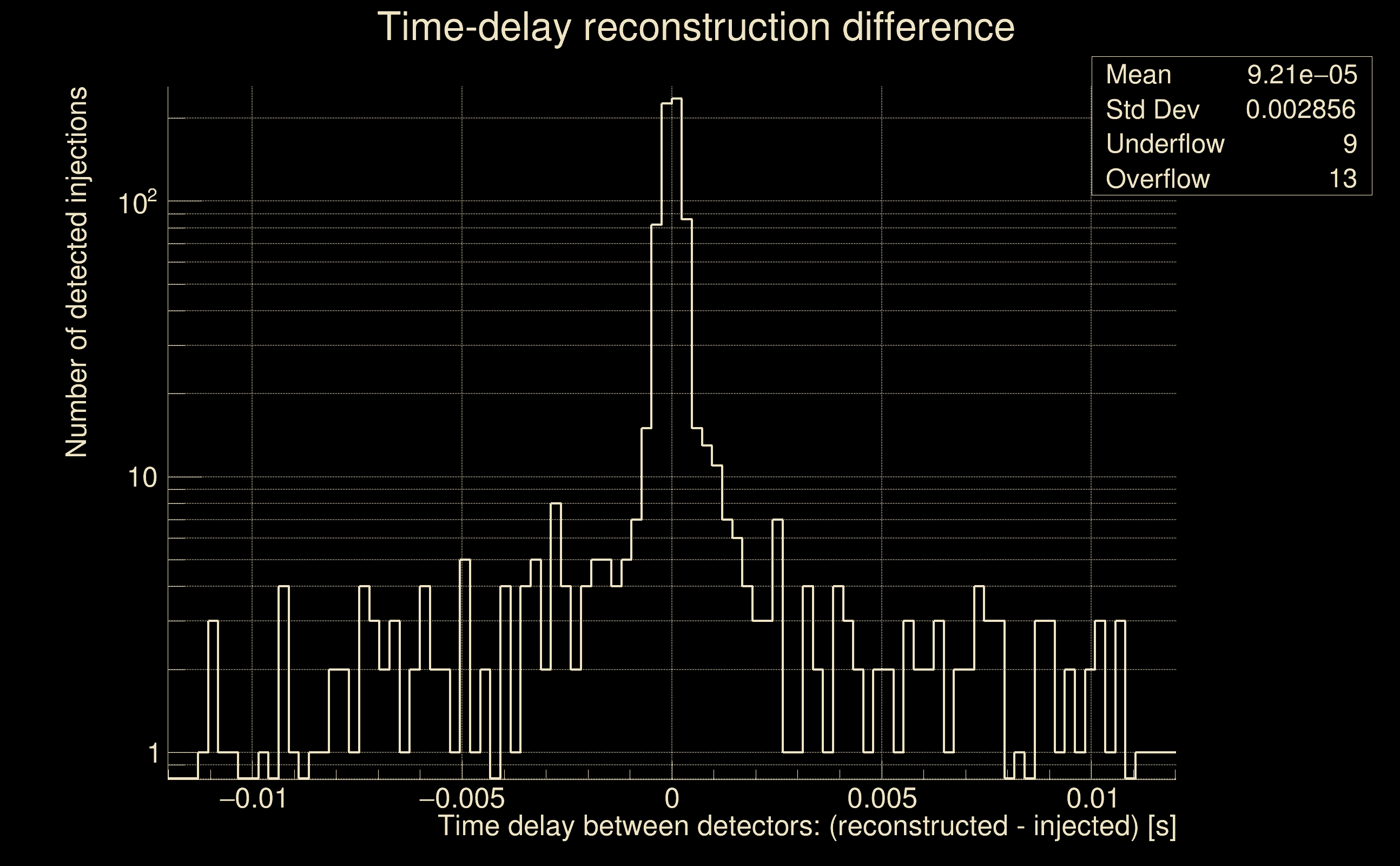

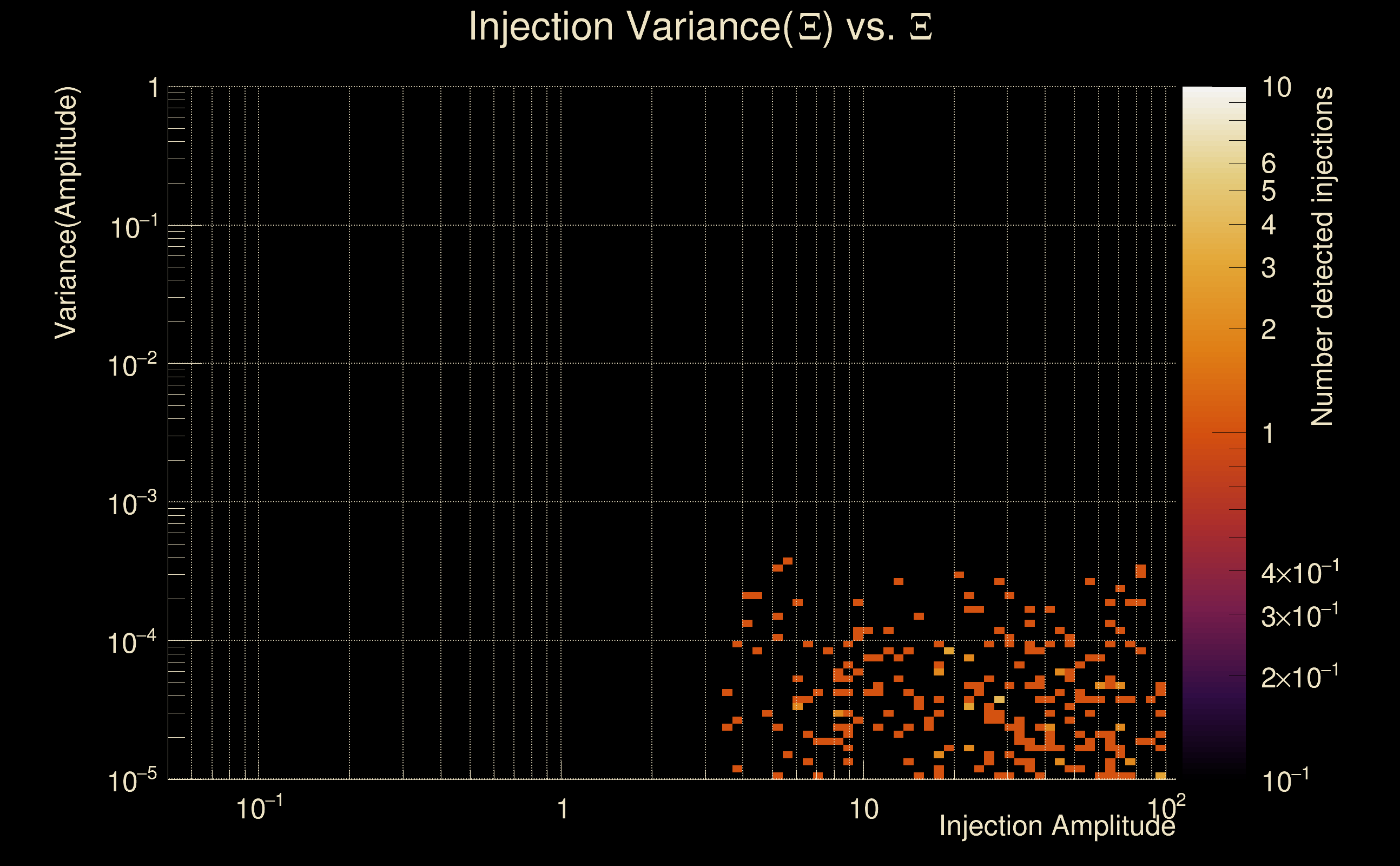

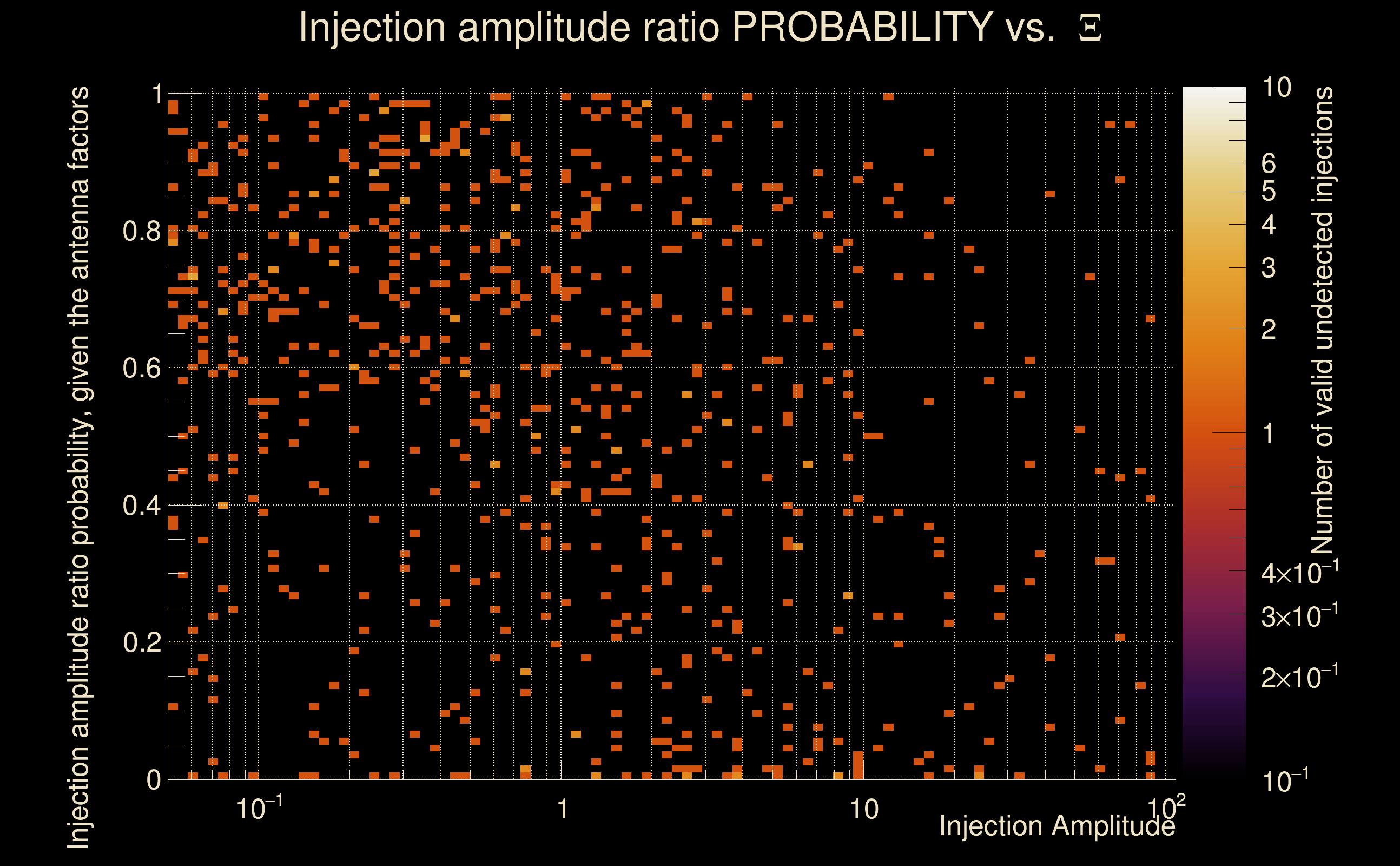

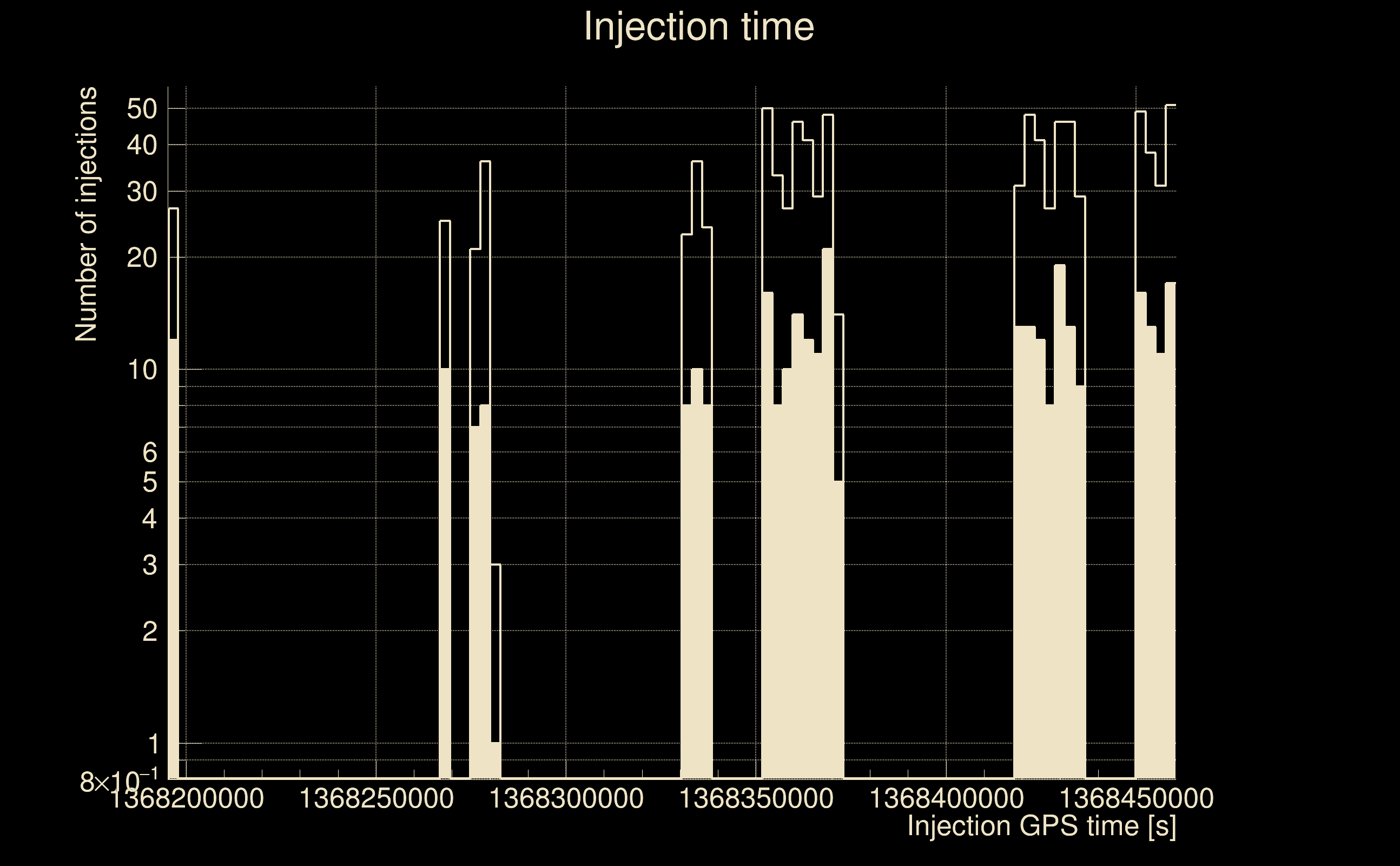

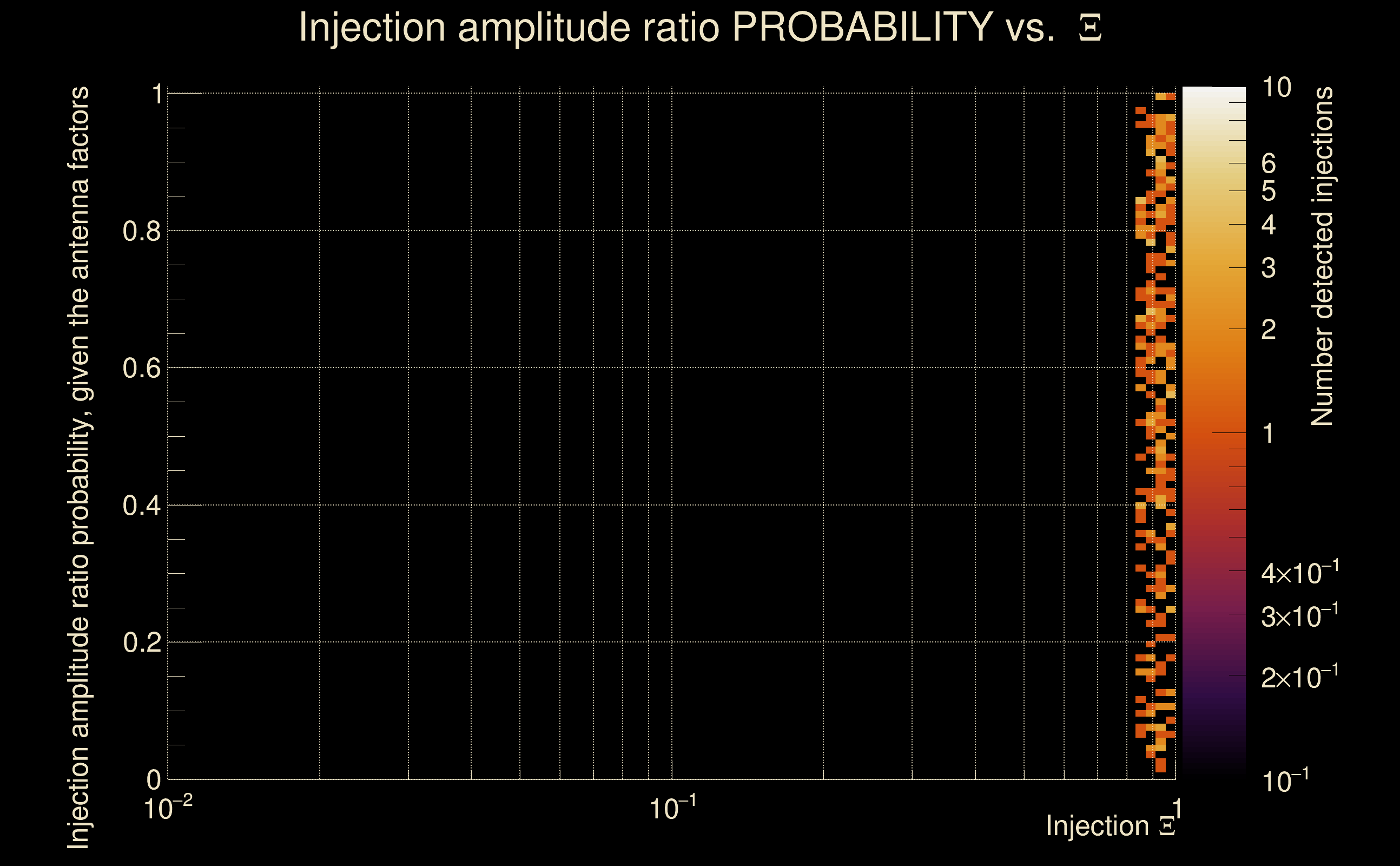

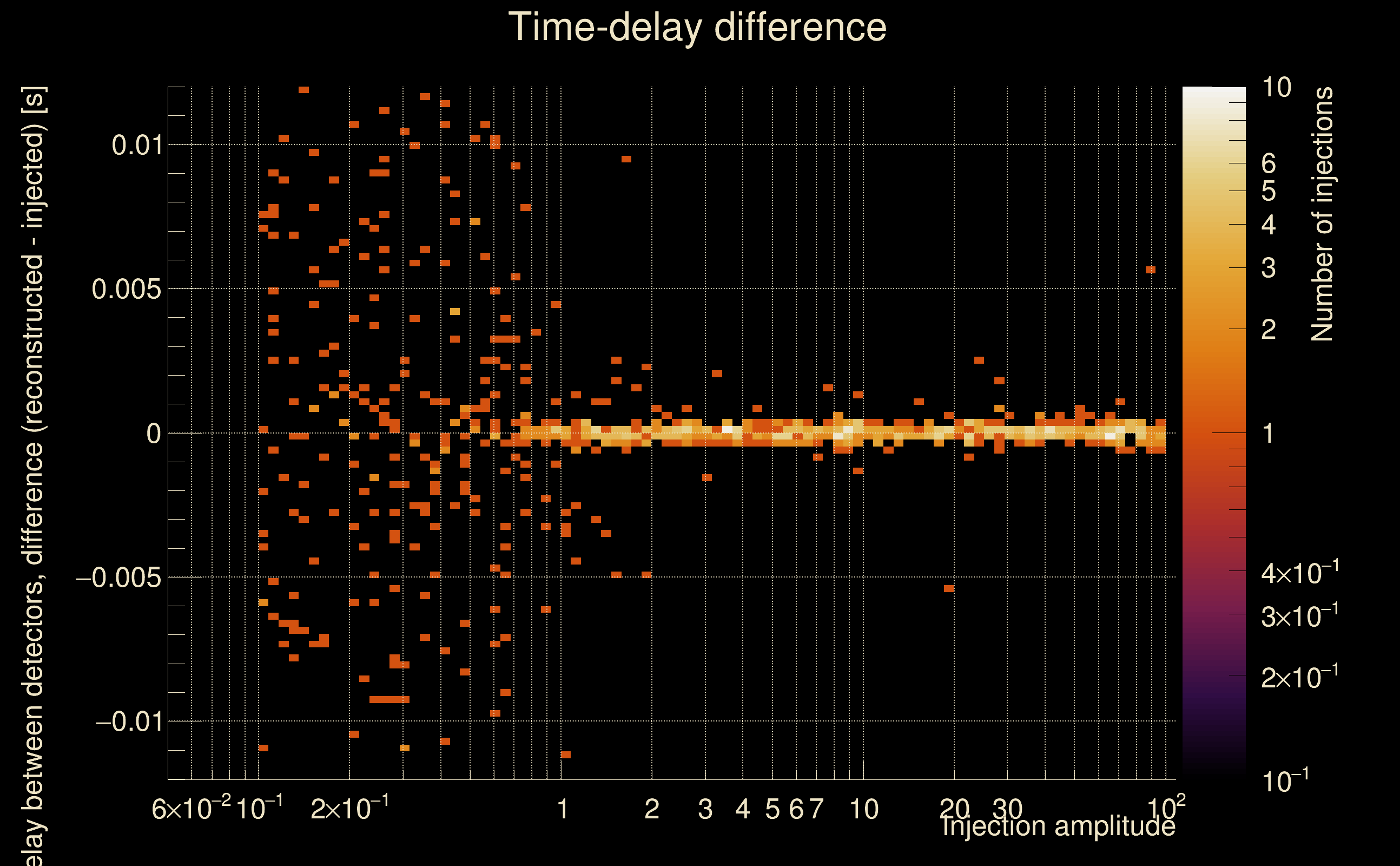

| Number of injections (total/valid/detected): | 1042 / 920 / 305 |
| List of missed injections: | ./Obe20-O_missed.txt |
| Injection amplitude at 90% detection efficiency: | 13.9497 |
| Injection amplitude at 50% detection efficiency: | 13.2539 |
| Injection amplitude at 10% detection efficiency: | 3.48087 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
