| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:41:51 2026 UTC |
| Ox option file: | Ixf1_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Ixf1_allsky_file_list.txt (65 files) |
| Analysis result file: | Ixf1_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=54 (2.484 s), time lag = 0 s |

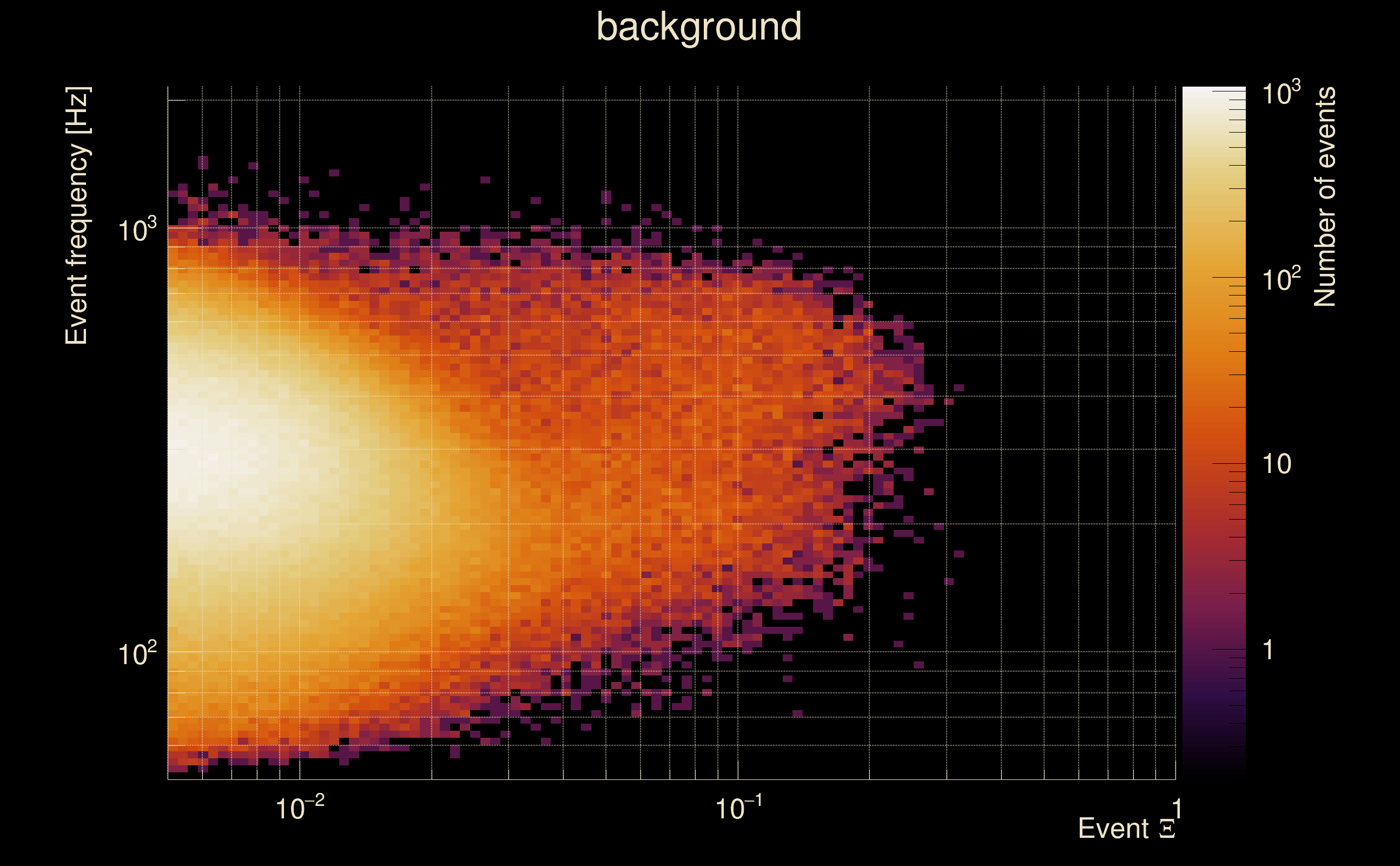

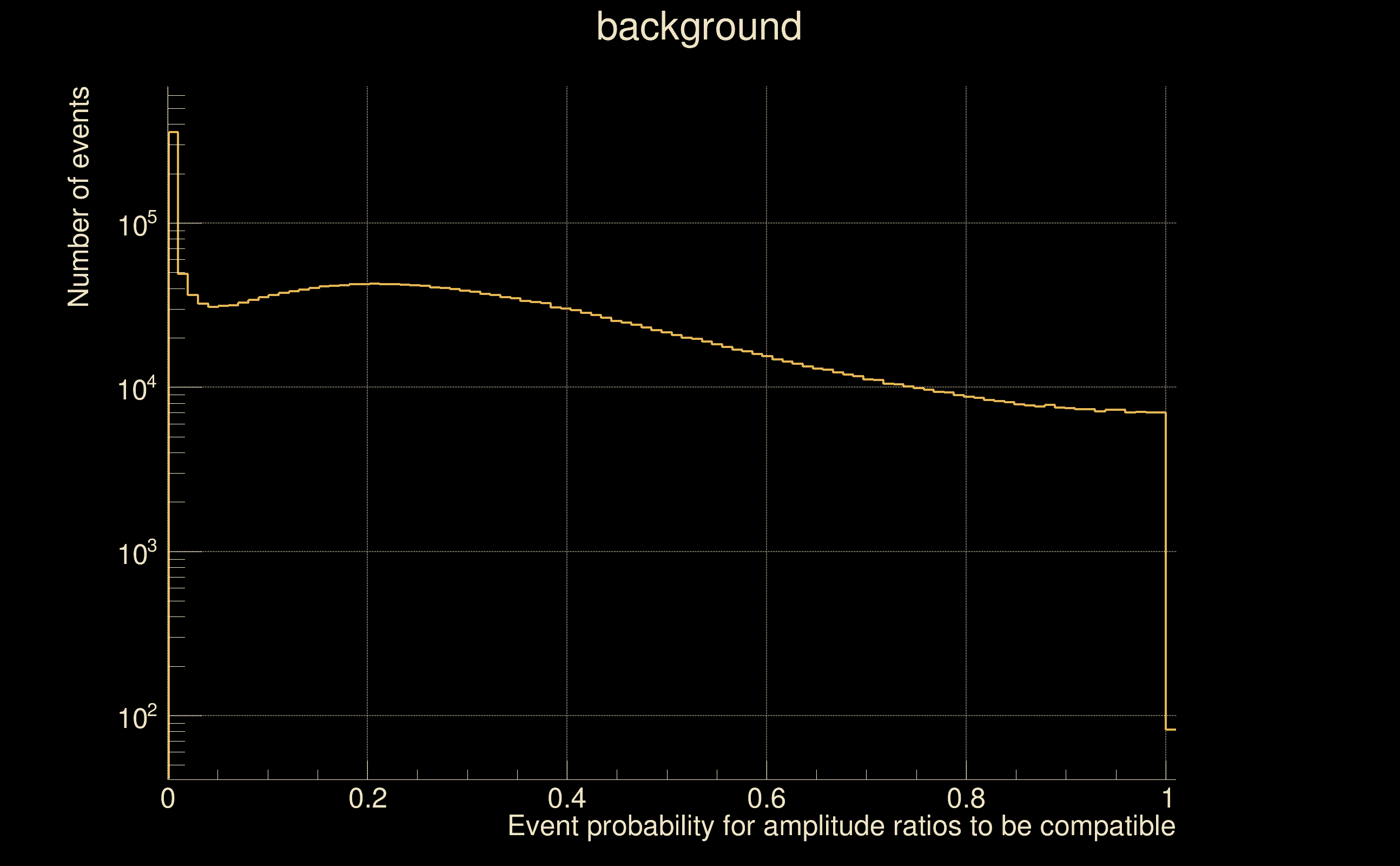

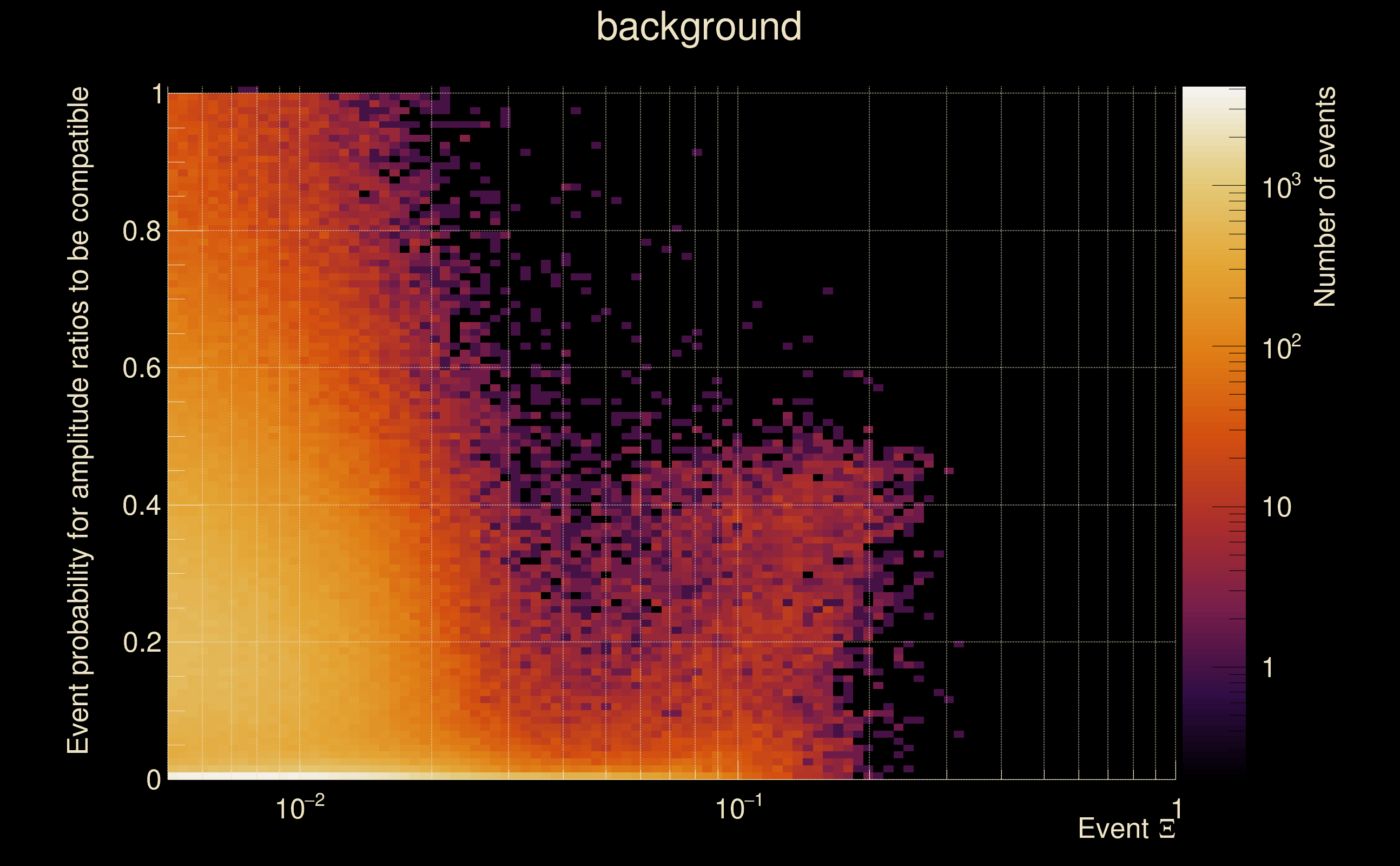

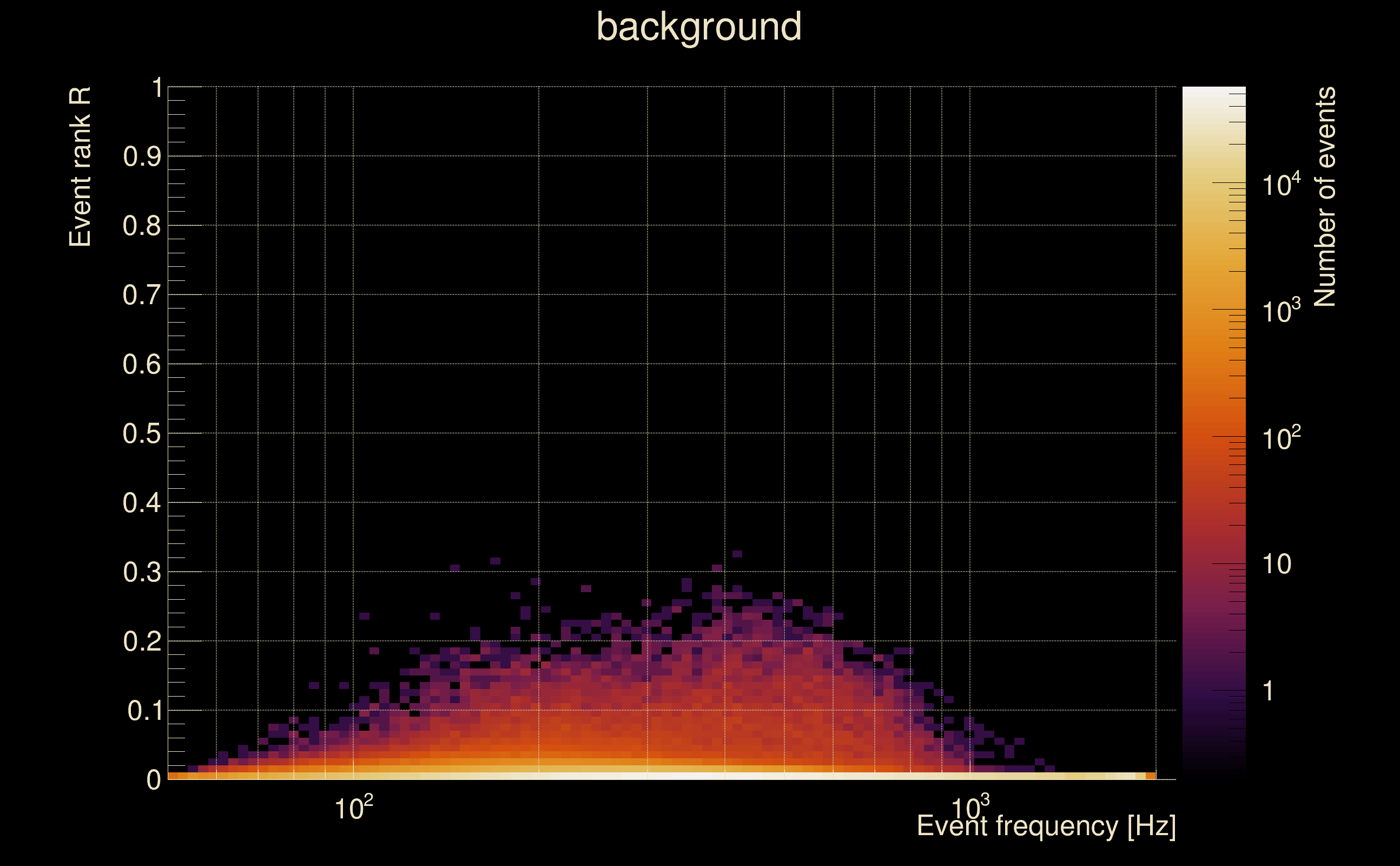

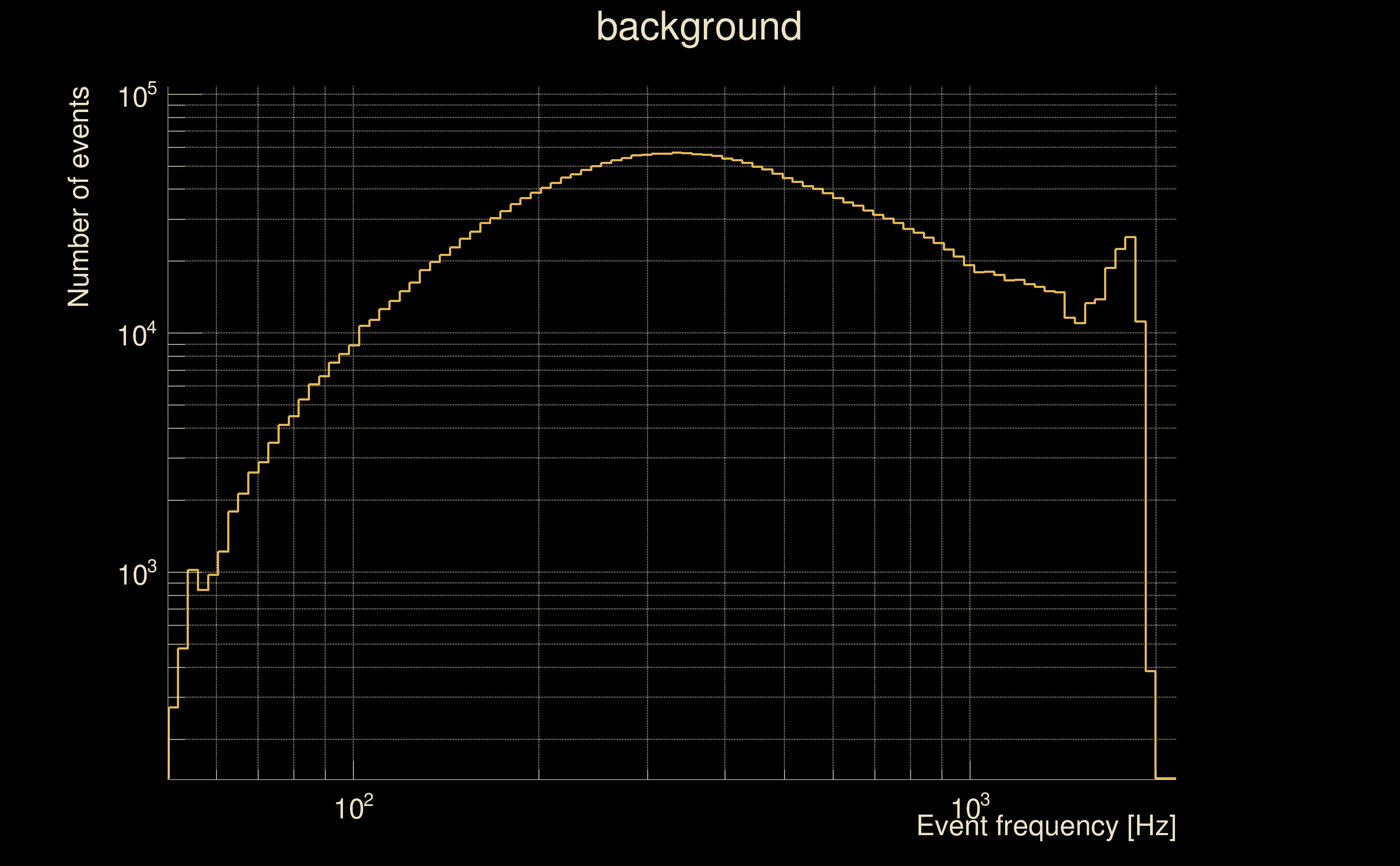

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

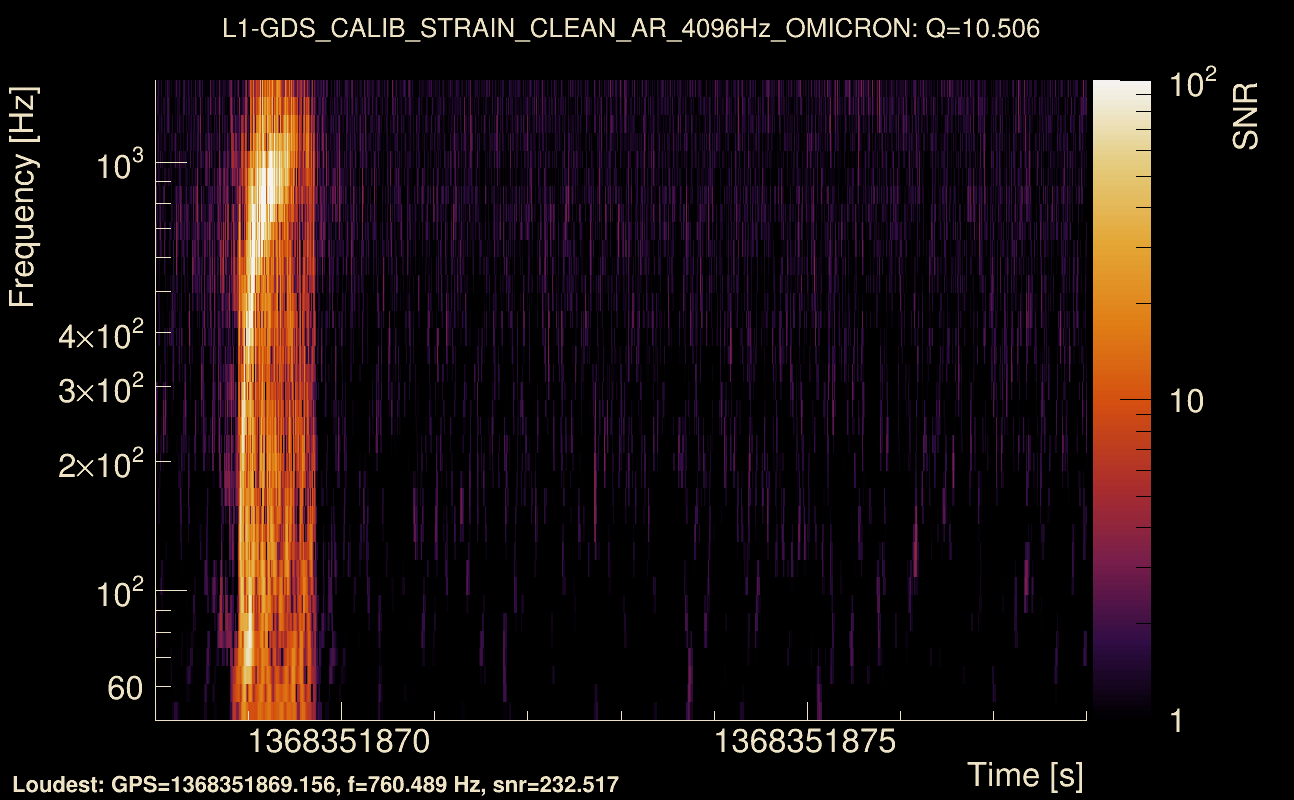

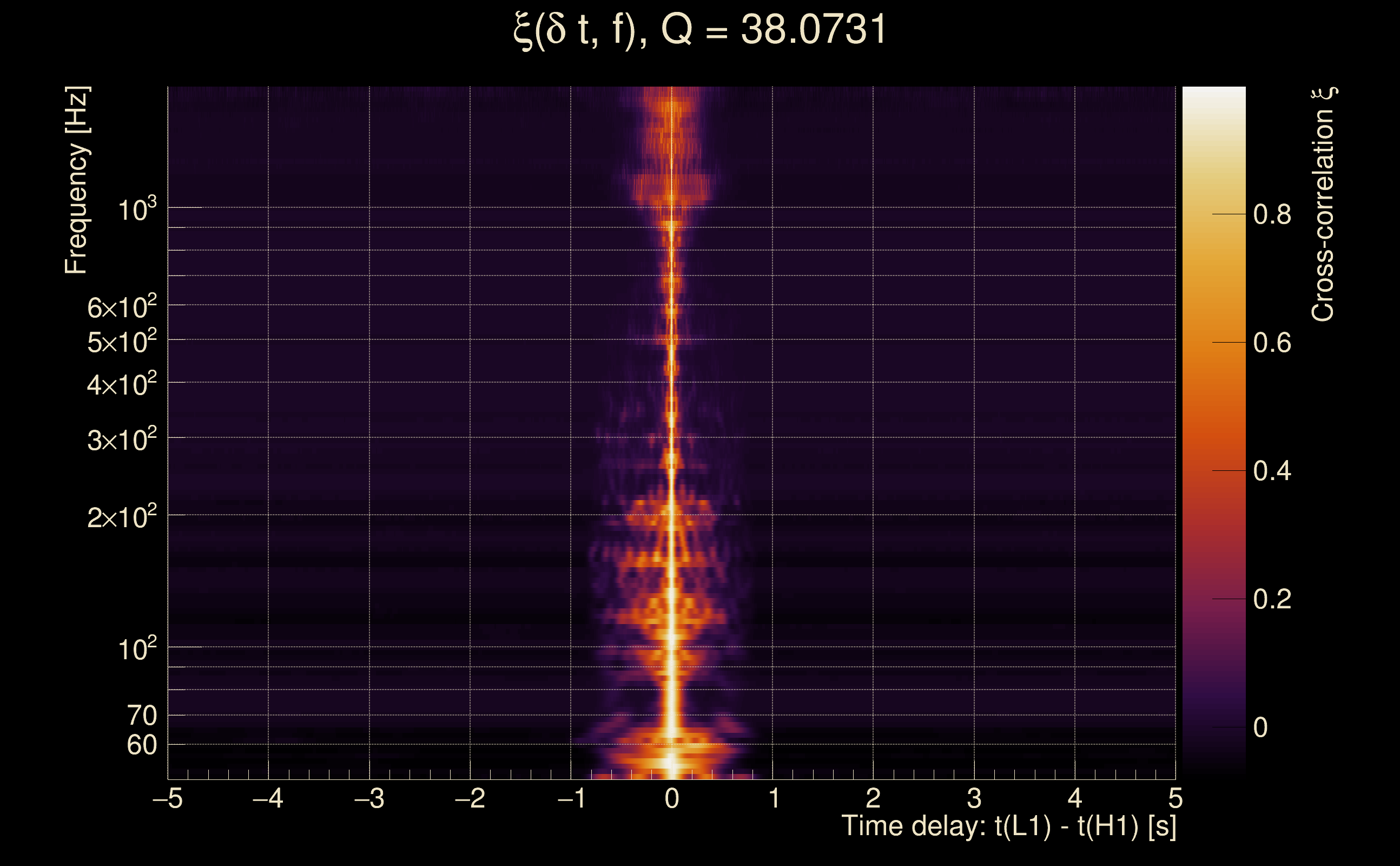

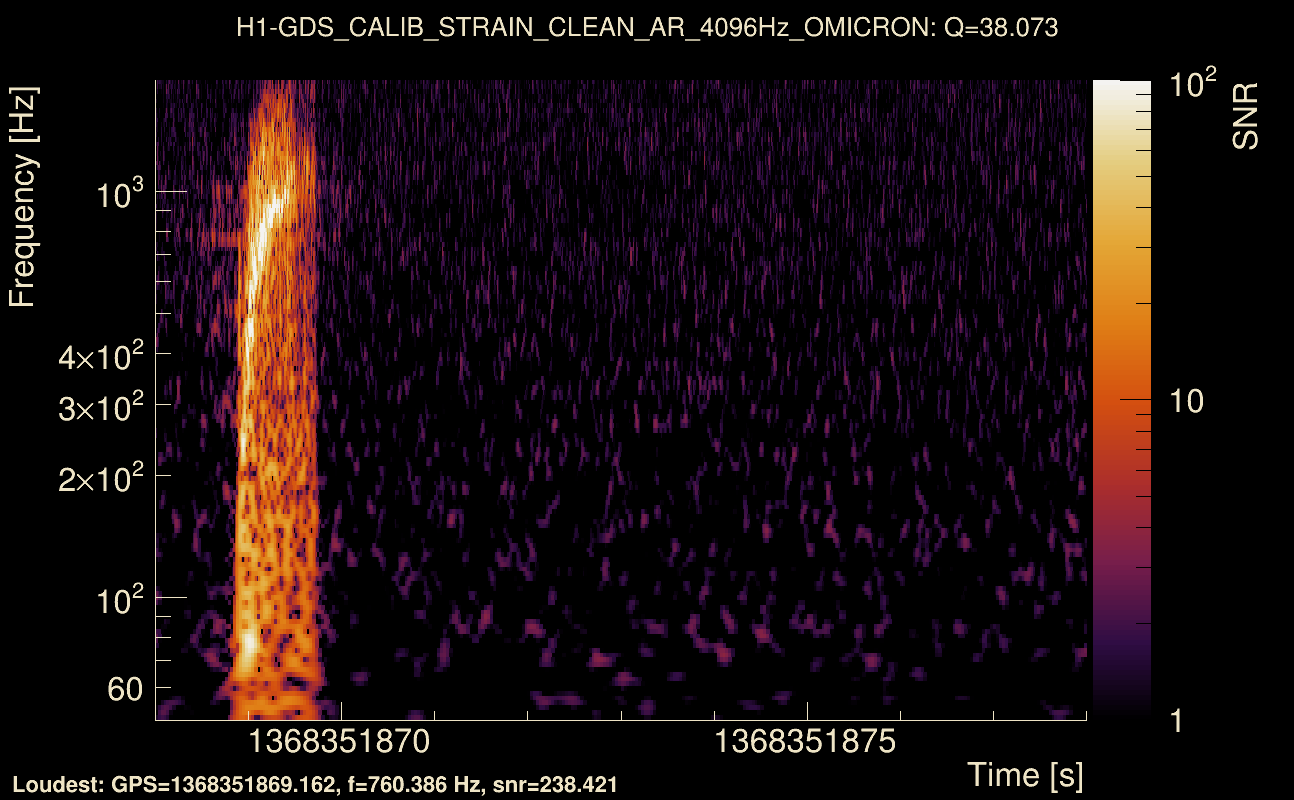

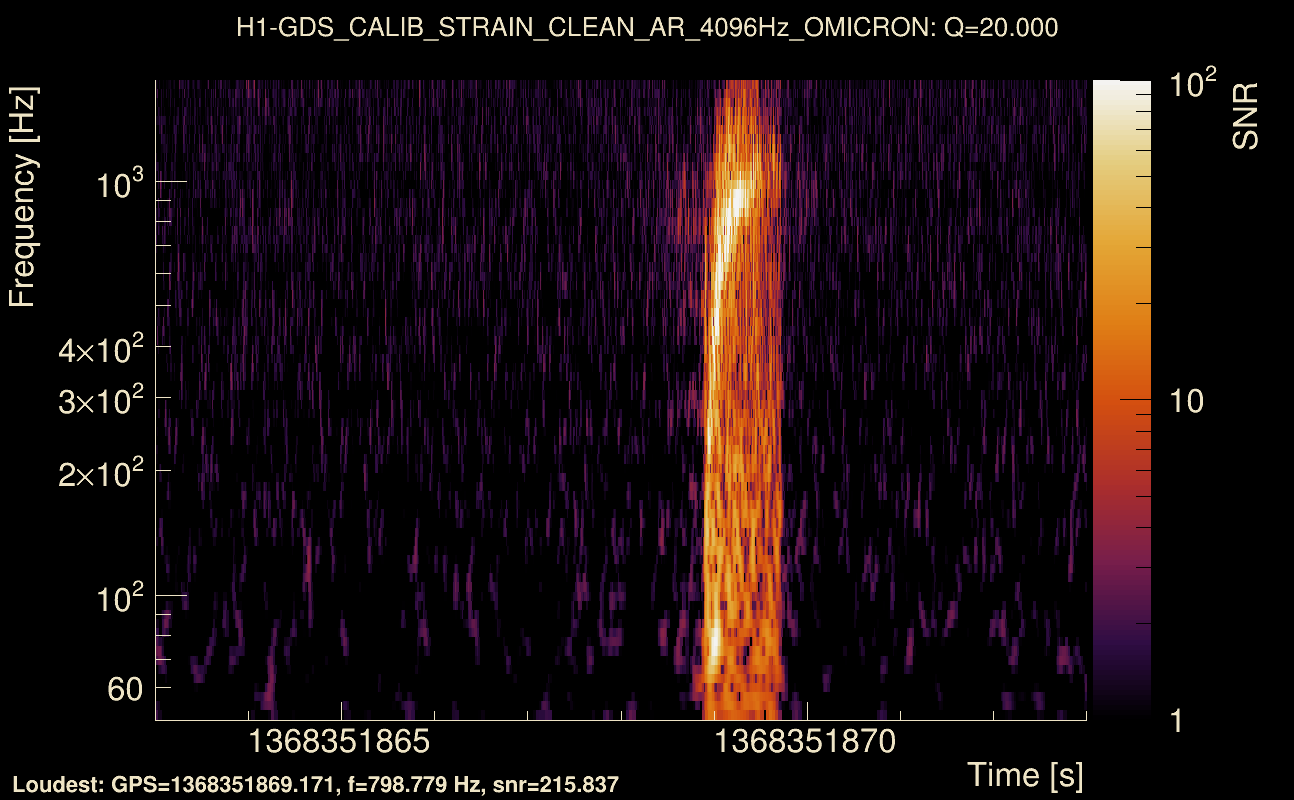

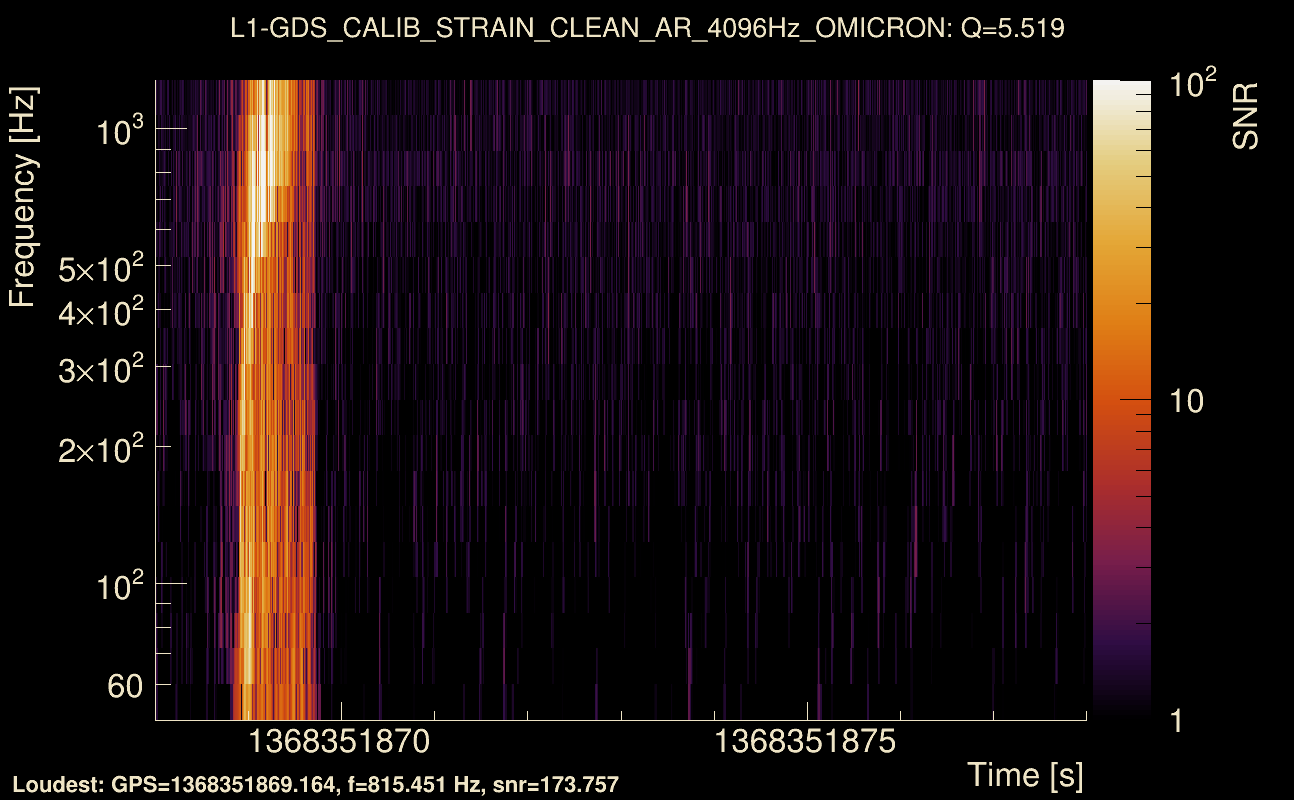

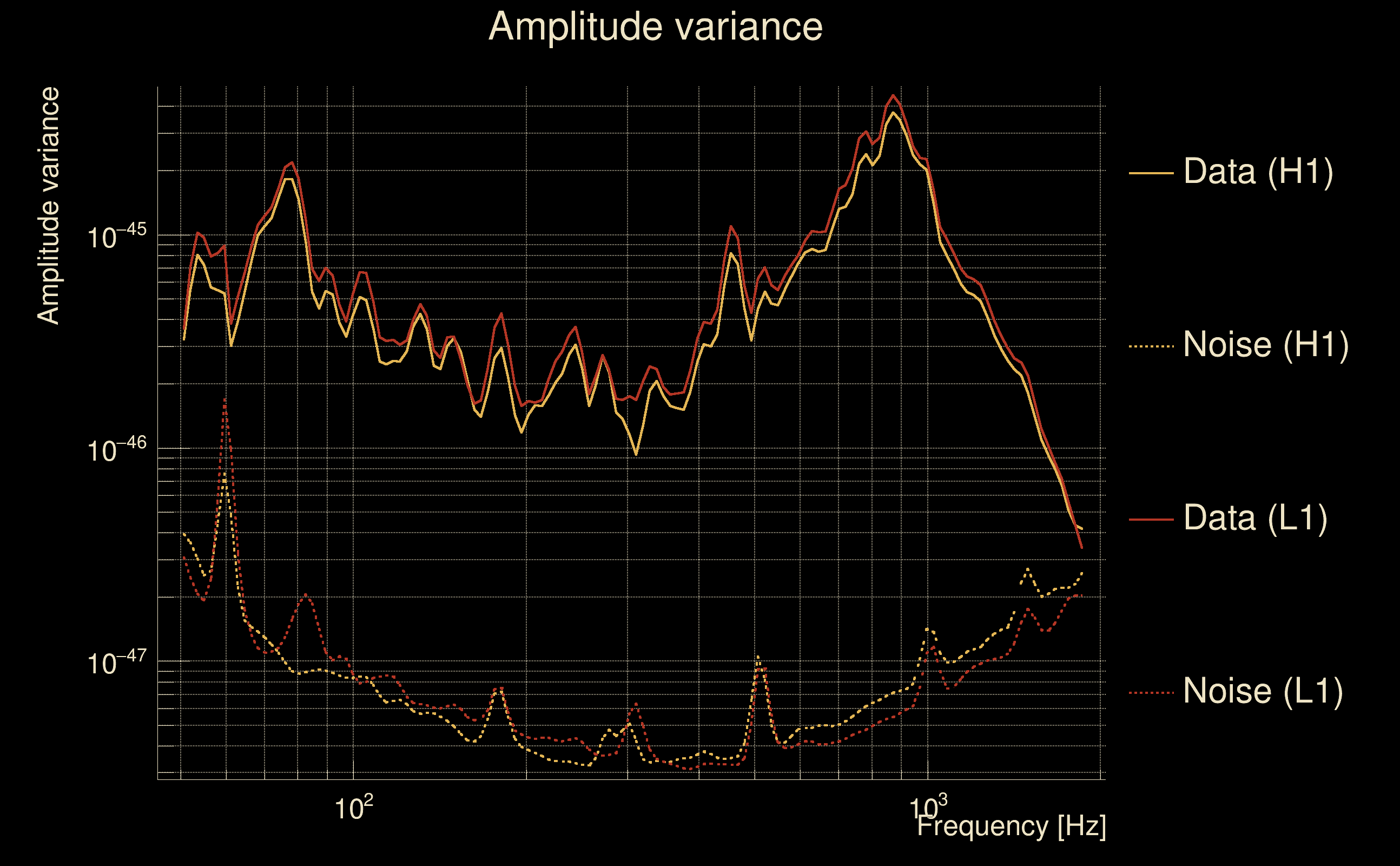

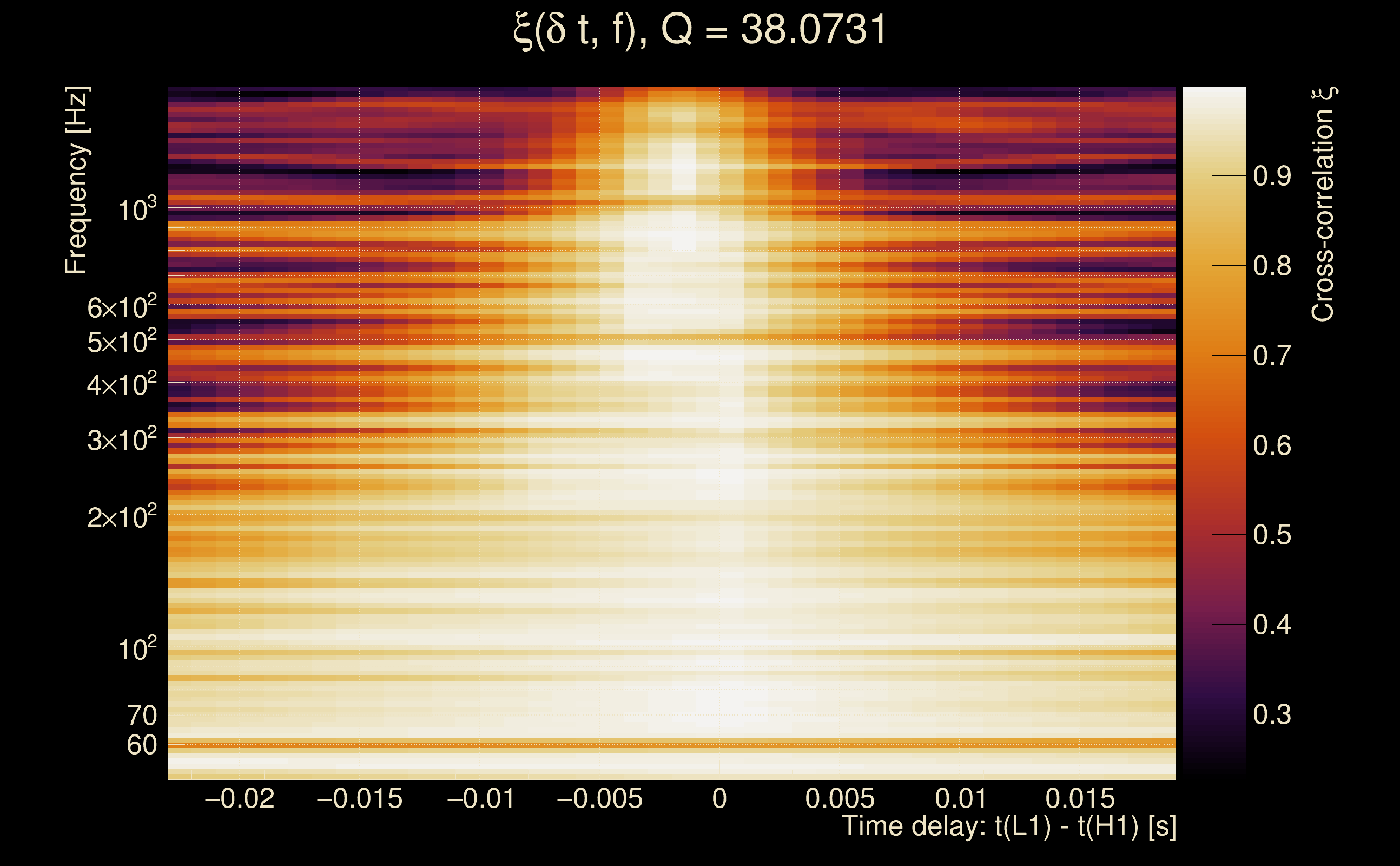

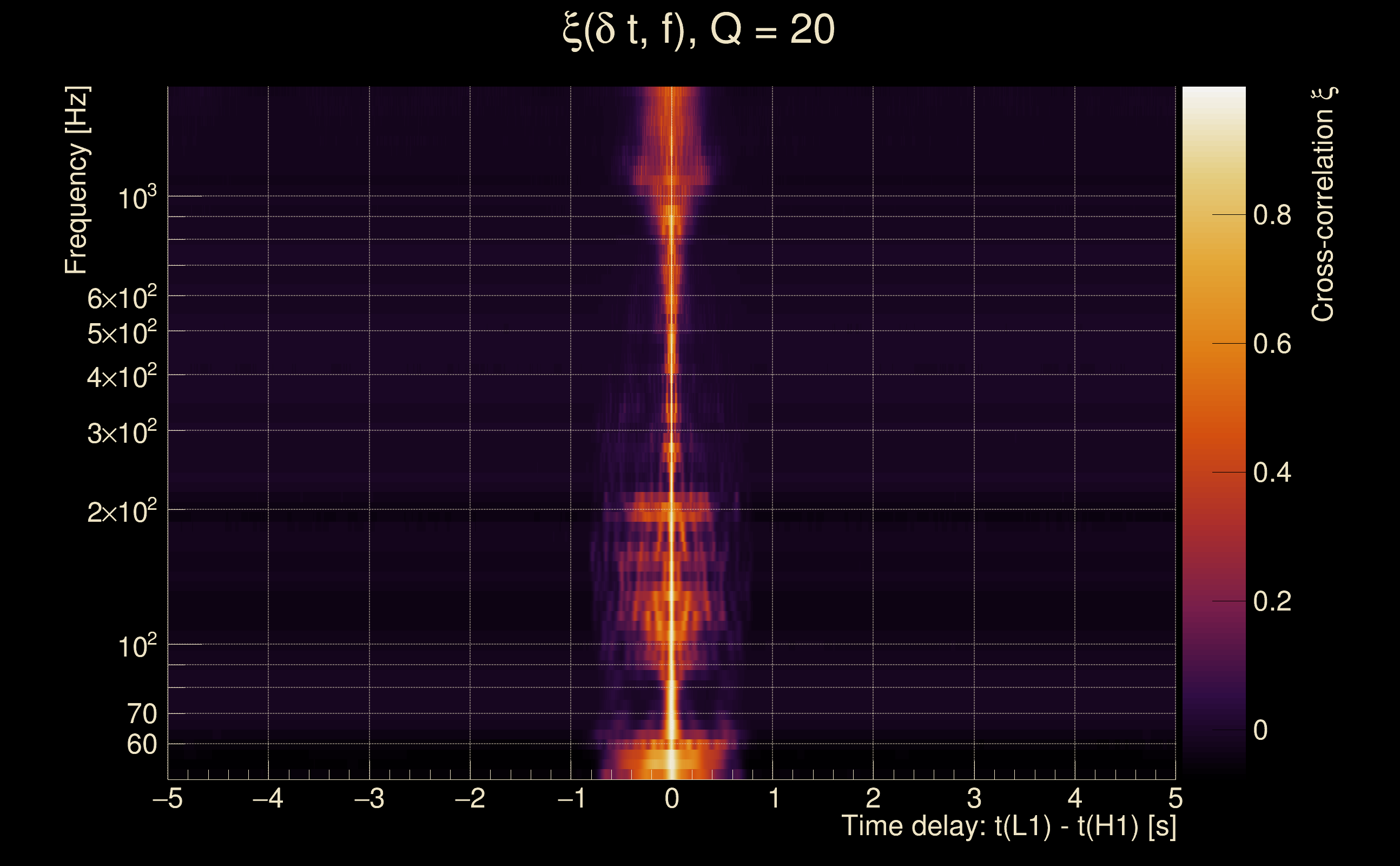

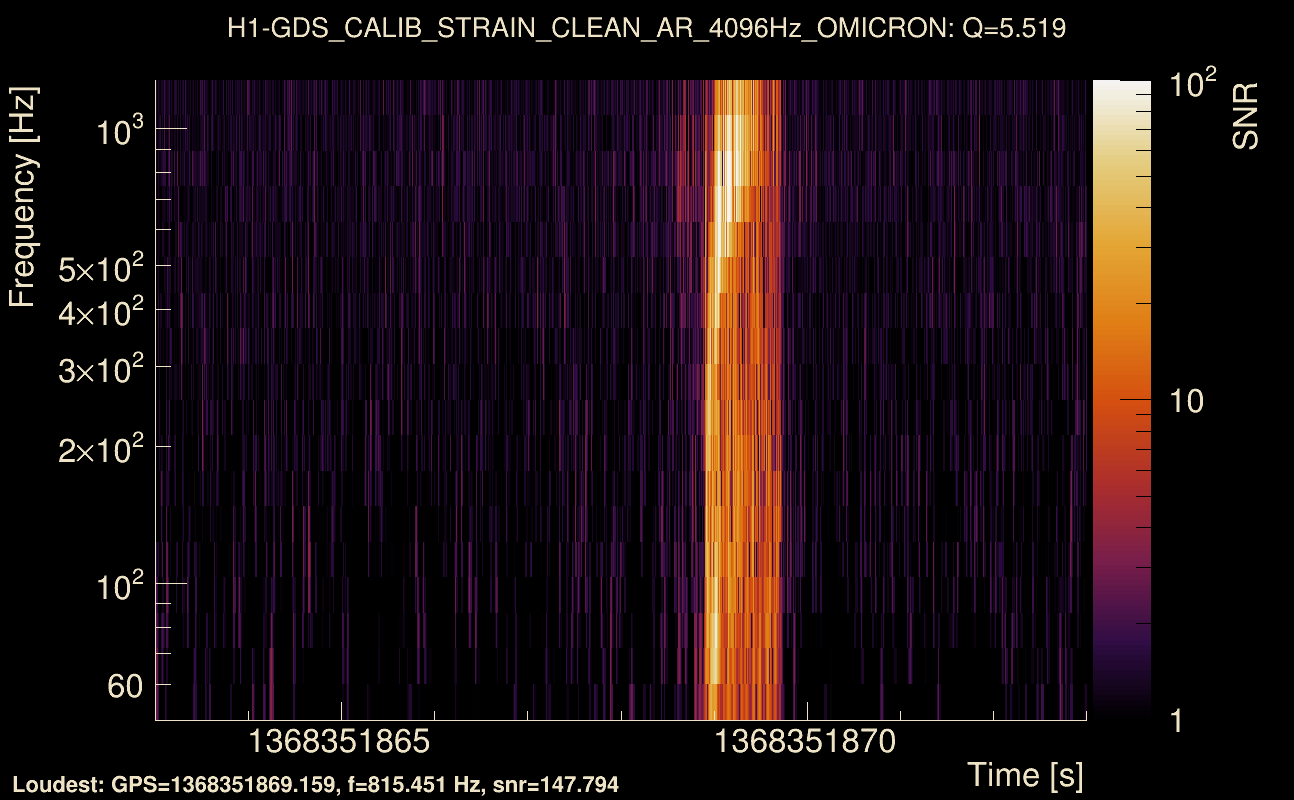

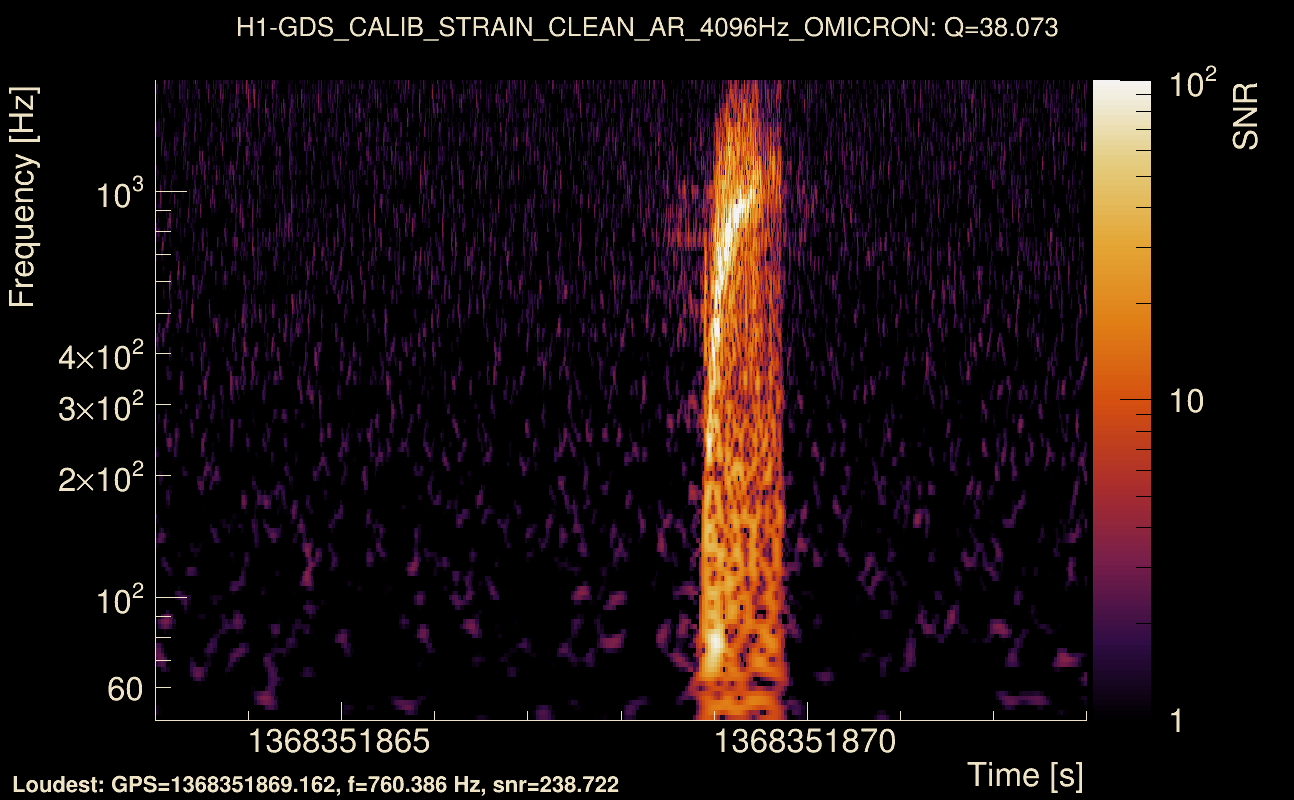

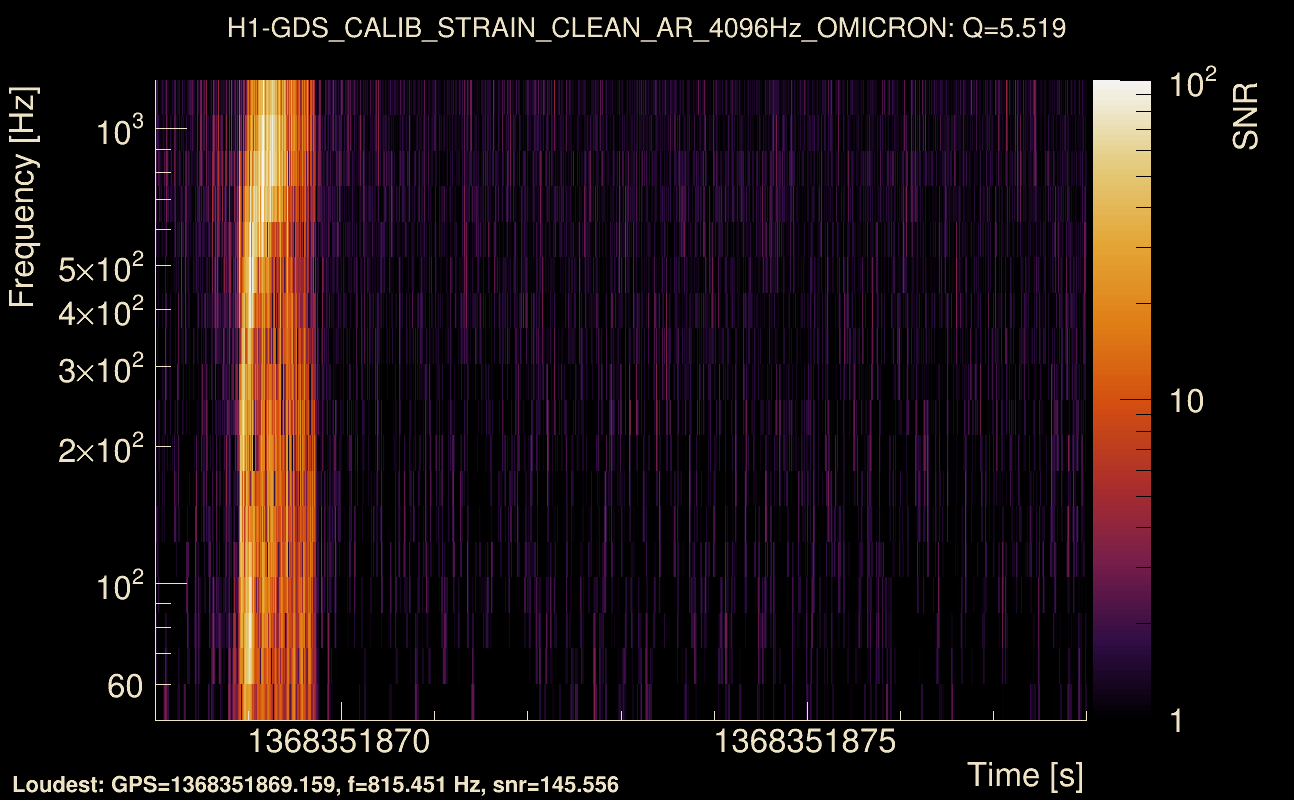

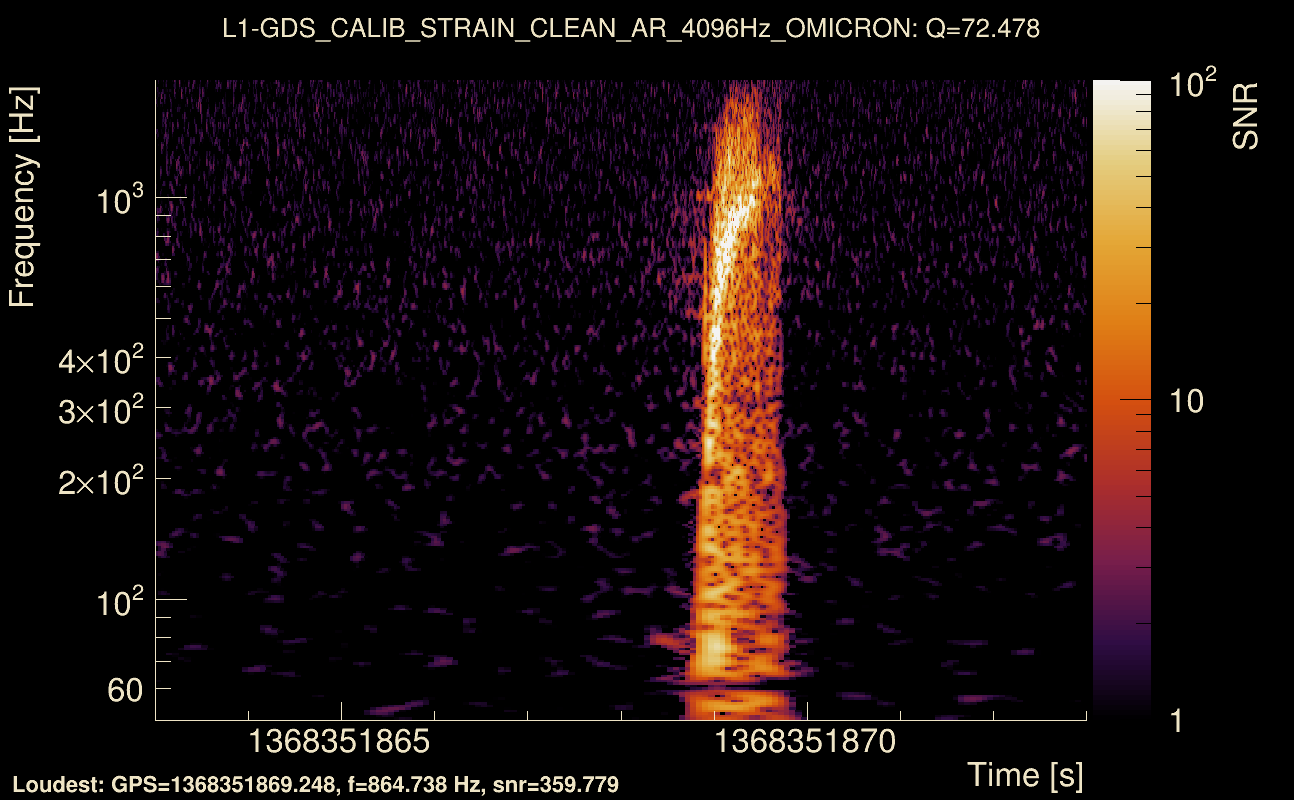

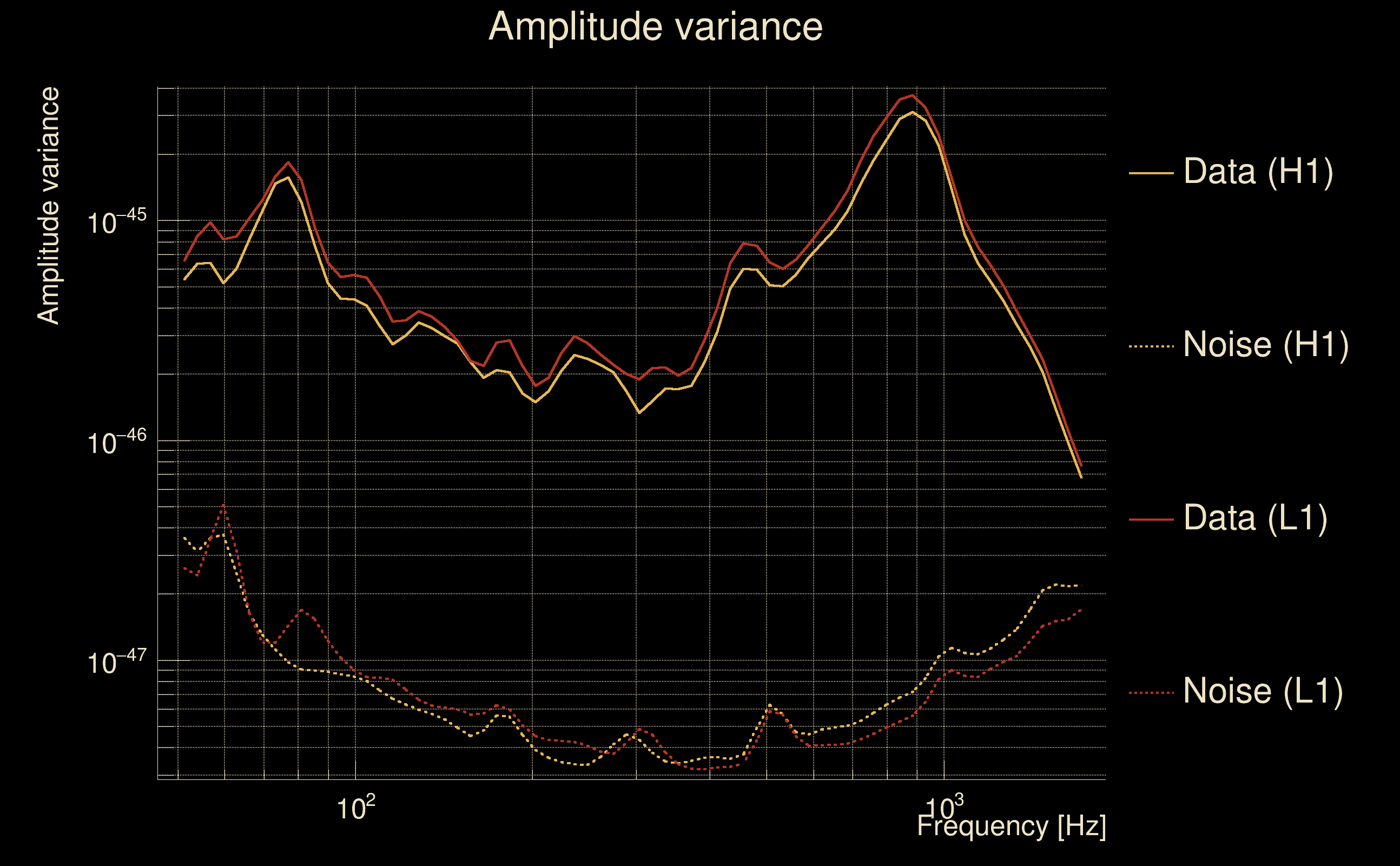

| Event time t(H1): | GPS = 1368351868 (Wed May 17 09:44:10 2023 ) → GPS = 1368351878 (Wed May 17 09:44:20 2023 ) |
| Event time t(L1): | GPS = 1368351868 (Wed May 17 09:44:20 2023 ) → GPS = 1368351878 (Wed May 17 09:44:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351865 → GPS = 1368351881 |
| Omicron analysis time window (L1): | GPS = 1368351865 → GPS = 1368351881 |
| Time delay between detectors t(L1) - t(H1): | -0.00201818 s (slice index = 108 / 217), δt_gw = -0.00201818 s |
| Time delay standard deviation: | 0.0187756 s |

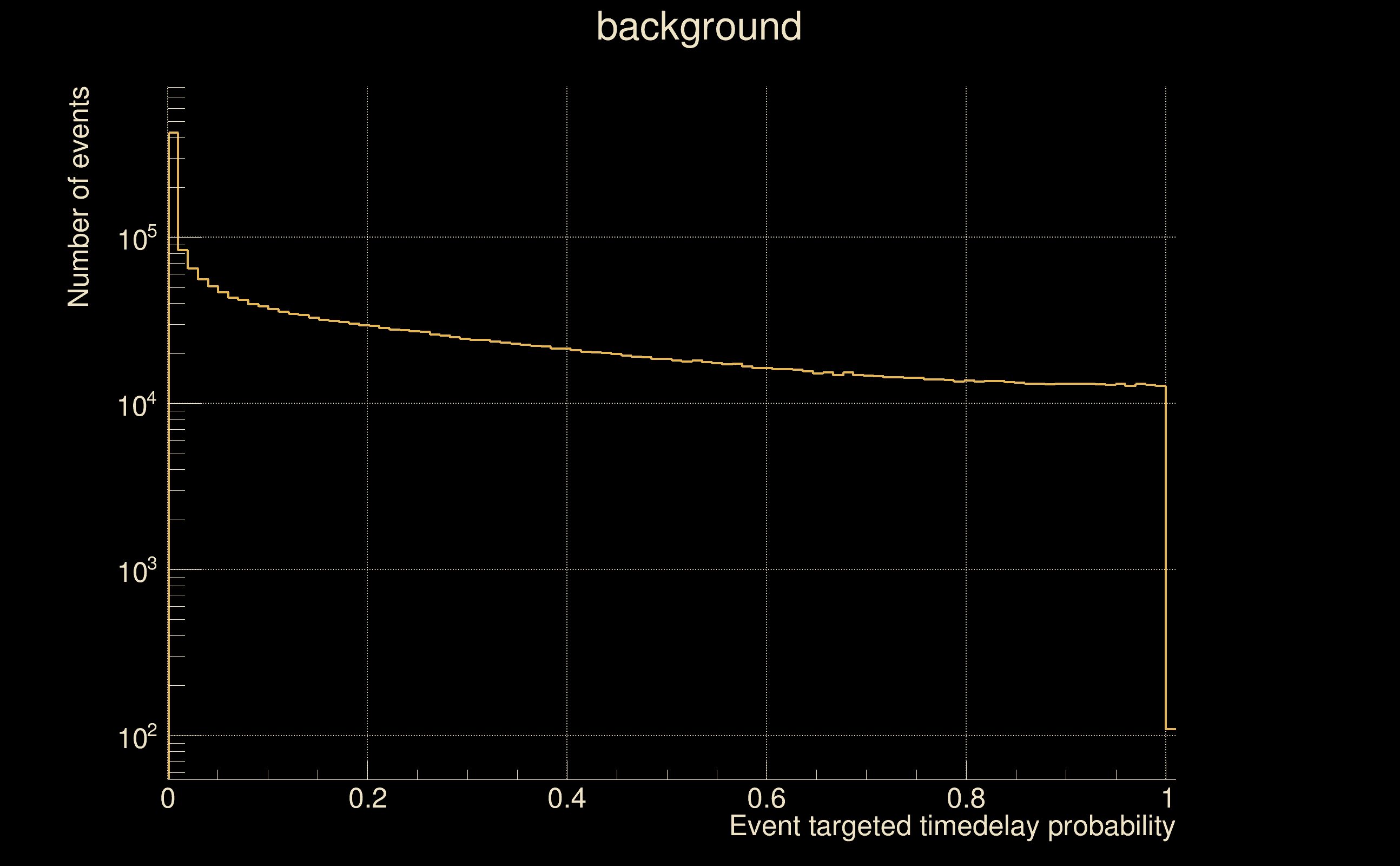

| [targeted mode] Time delay probability: | 1.50283e-149 (26.0458 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 284.378 Hz |
| Ξ: | 0.980735 ± 0.00439339 (variance = 1.93019e-05): Q0: 0.984027, Q1: 0.980108, Q2: 0.978372, Q3: 0.973494, Q4: 0.971991 |
| Rank: | R_A = 0.980735 |
| Log of amplitude ratio (L1/H1): | 0.0965289, variance = 0.156796 (L1/H1: 0.0788287, variance = 0.301094, H1/L1: -0.108228, variance = 0.301026) |
| Amplitude ratio (L1/H1): | 1.10134 ⋇ 1.48583 (L1/H1: 1.08202 ⋇ 1.73104, H1/L1: 0.897423 ⋇ 1.73093) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.969778 |

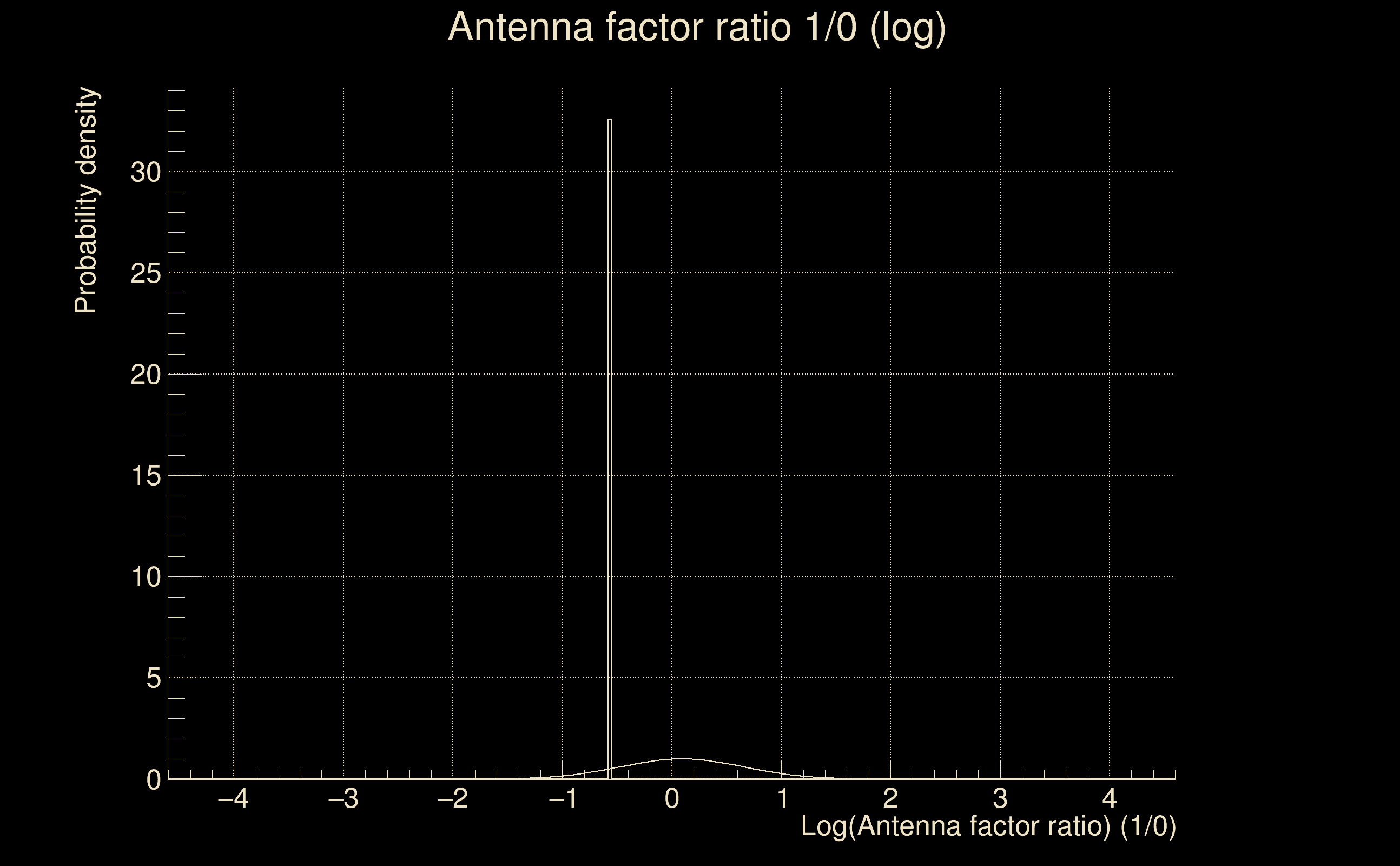

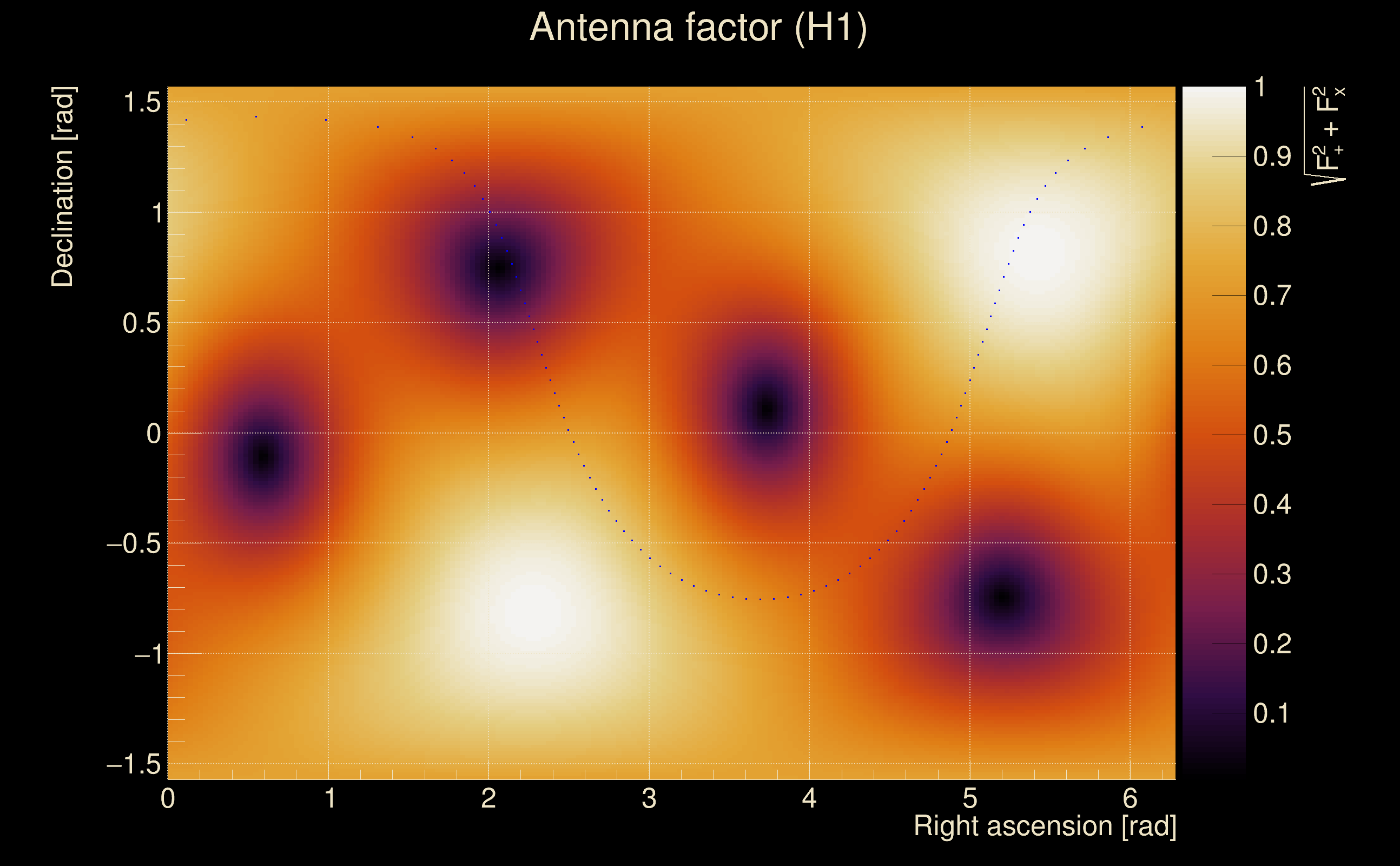

| Antenna factor probability: | 0.200842 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 295.256, L1: 363.177 |

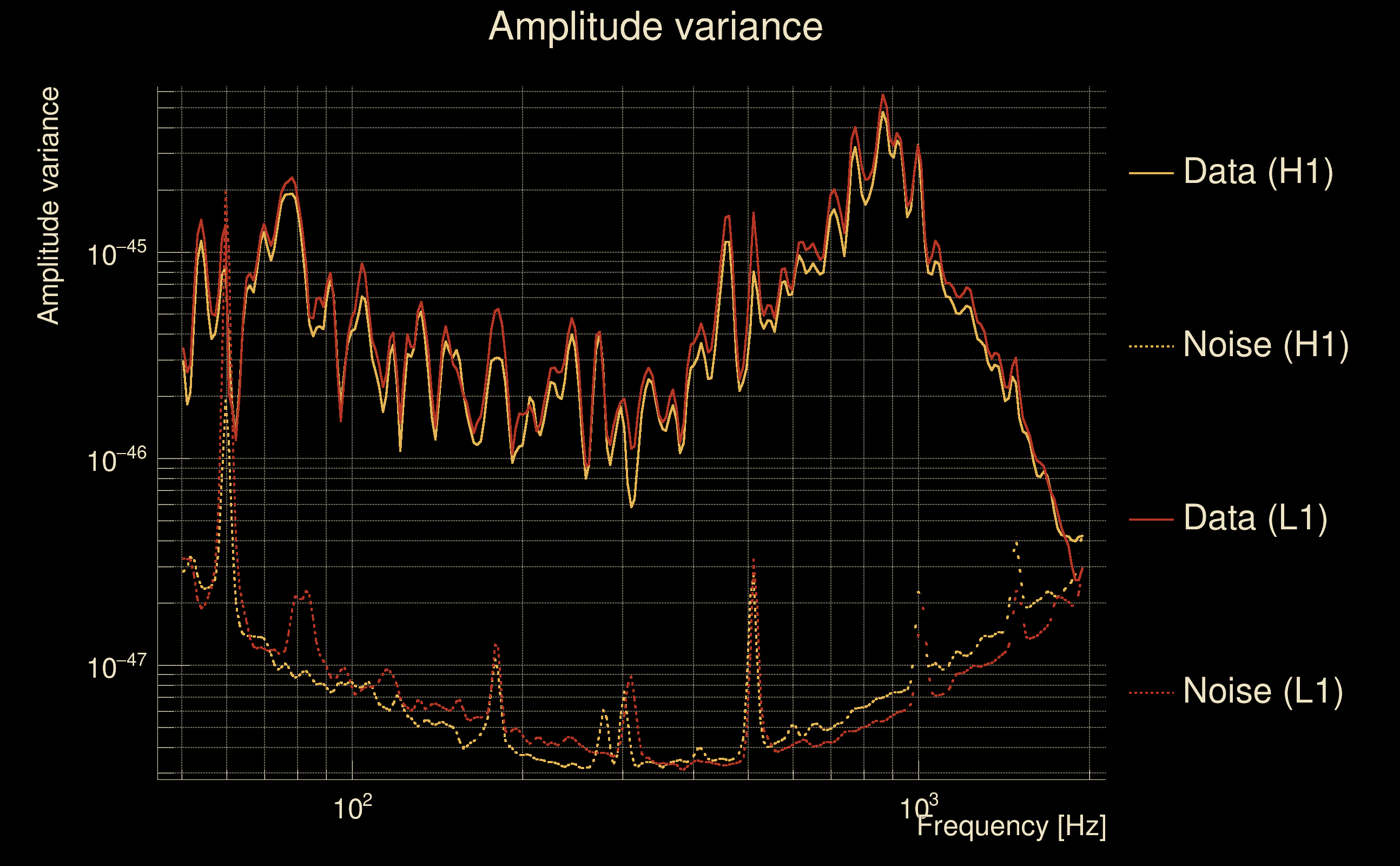

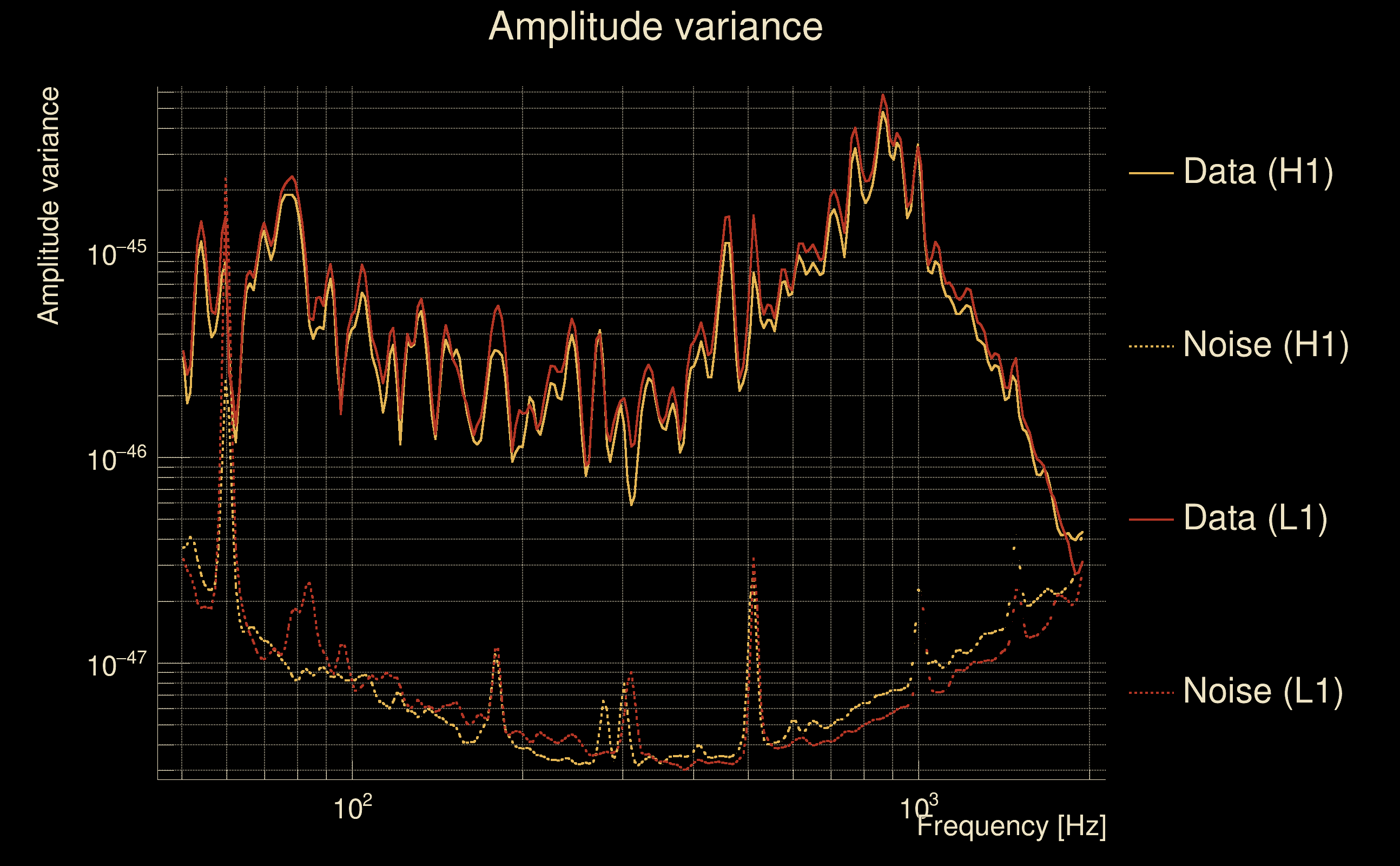

| SNR variance: | H1: 50.8411, L1: 71.2569 |

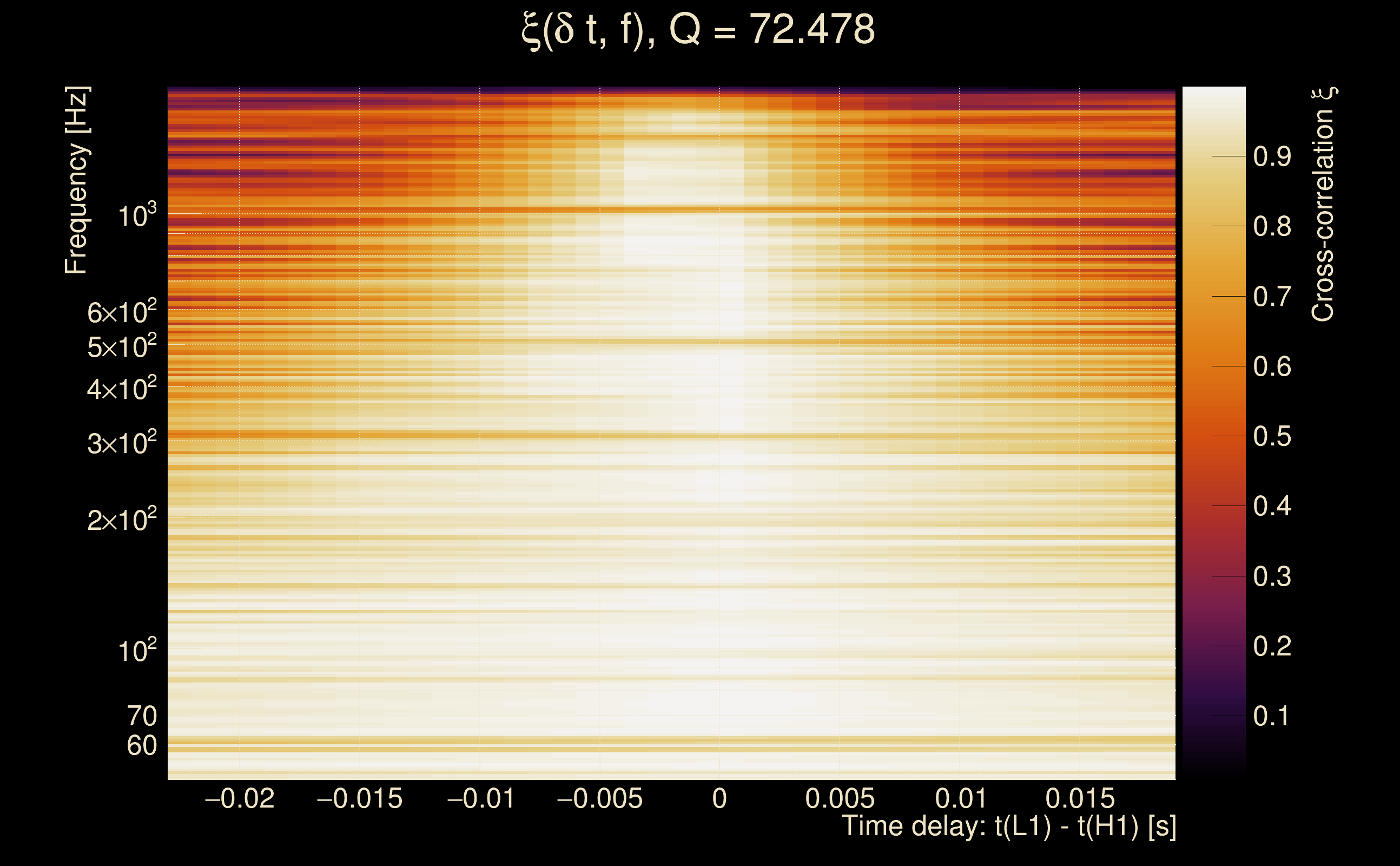

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

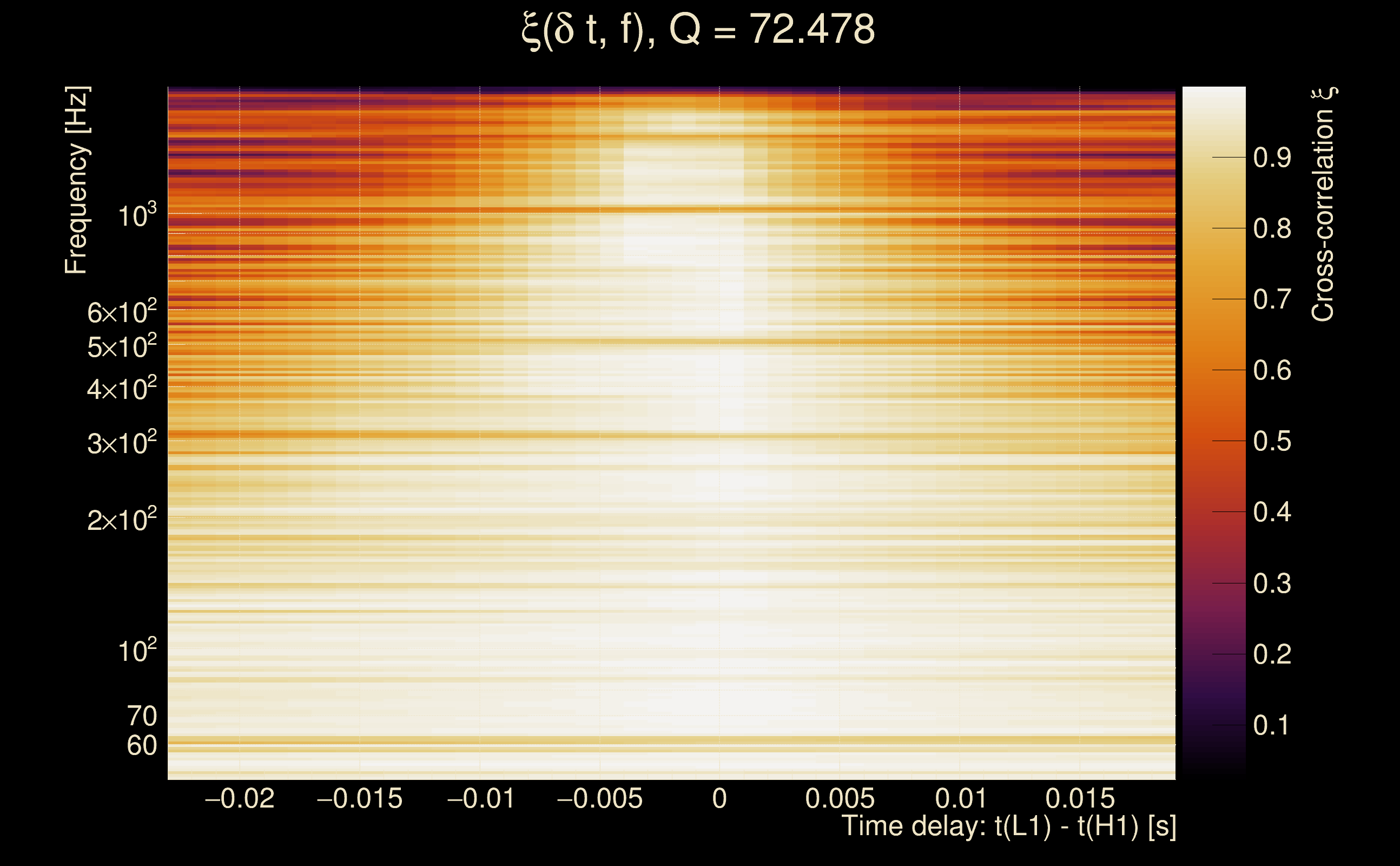

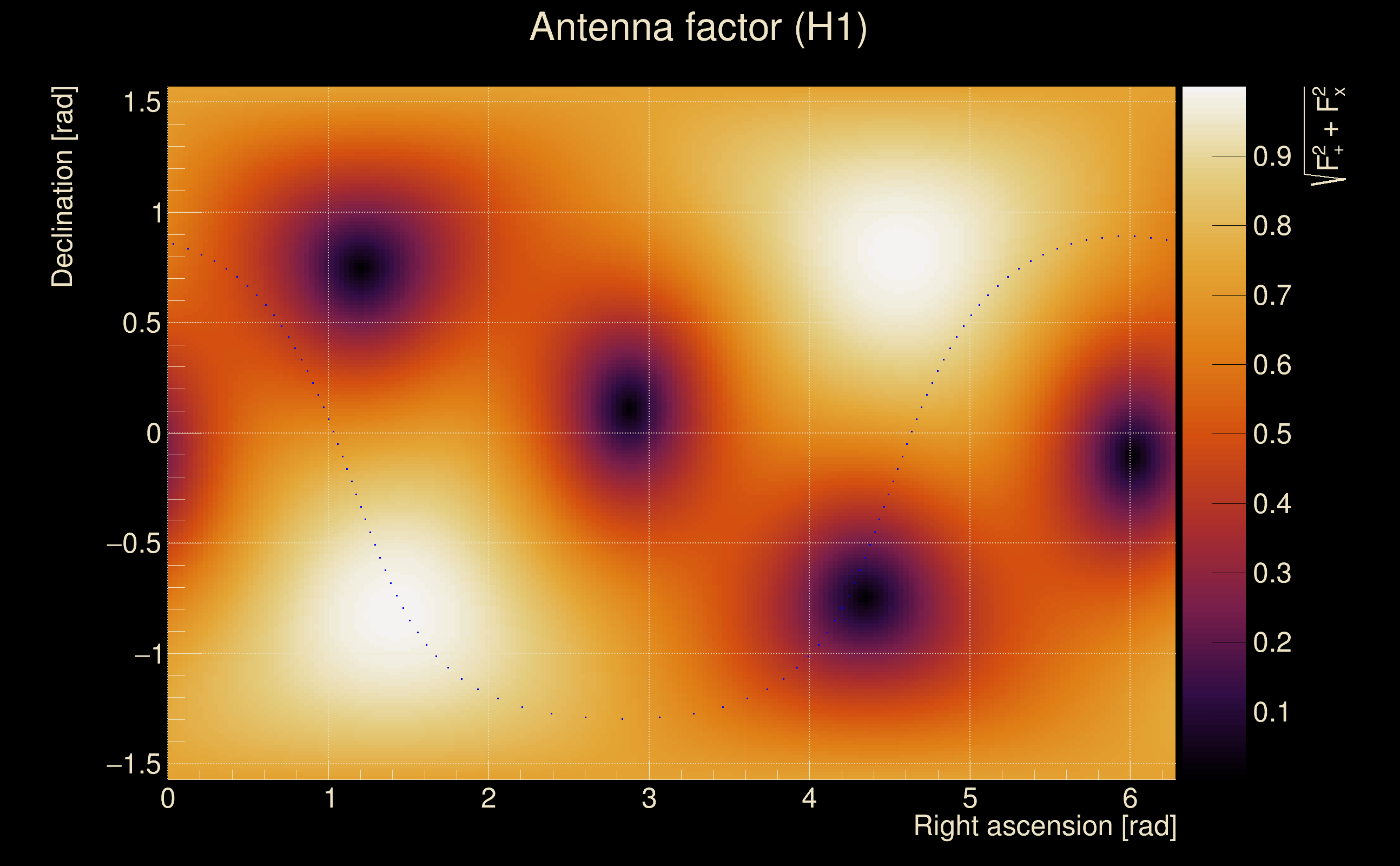

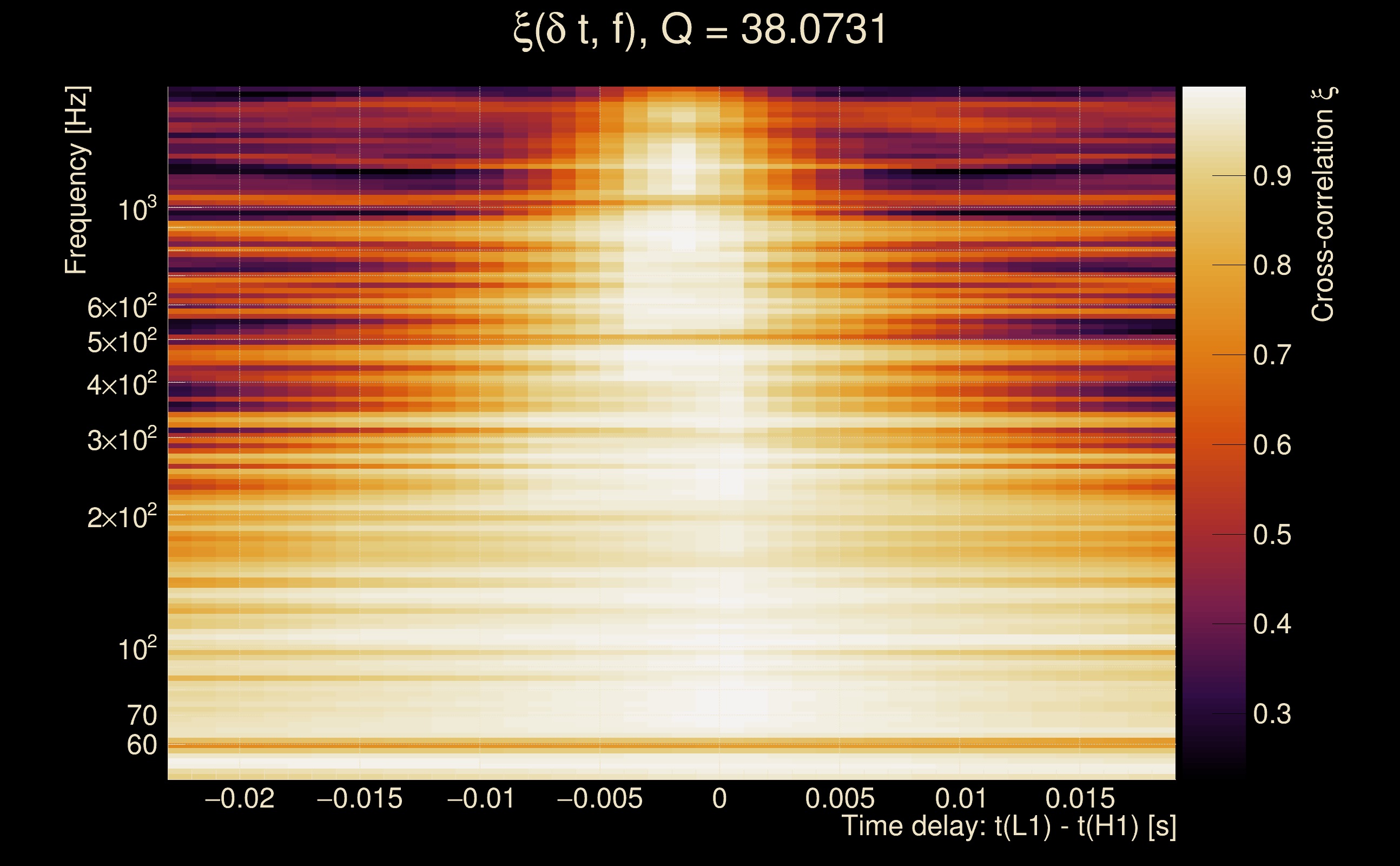

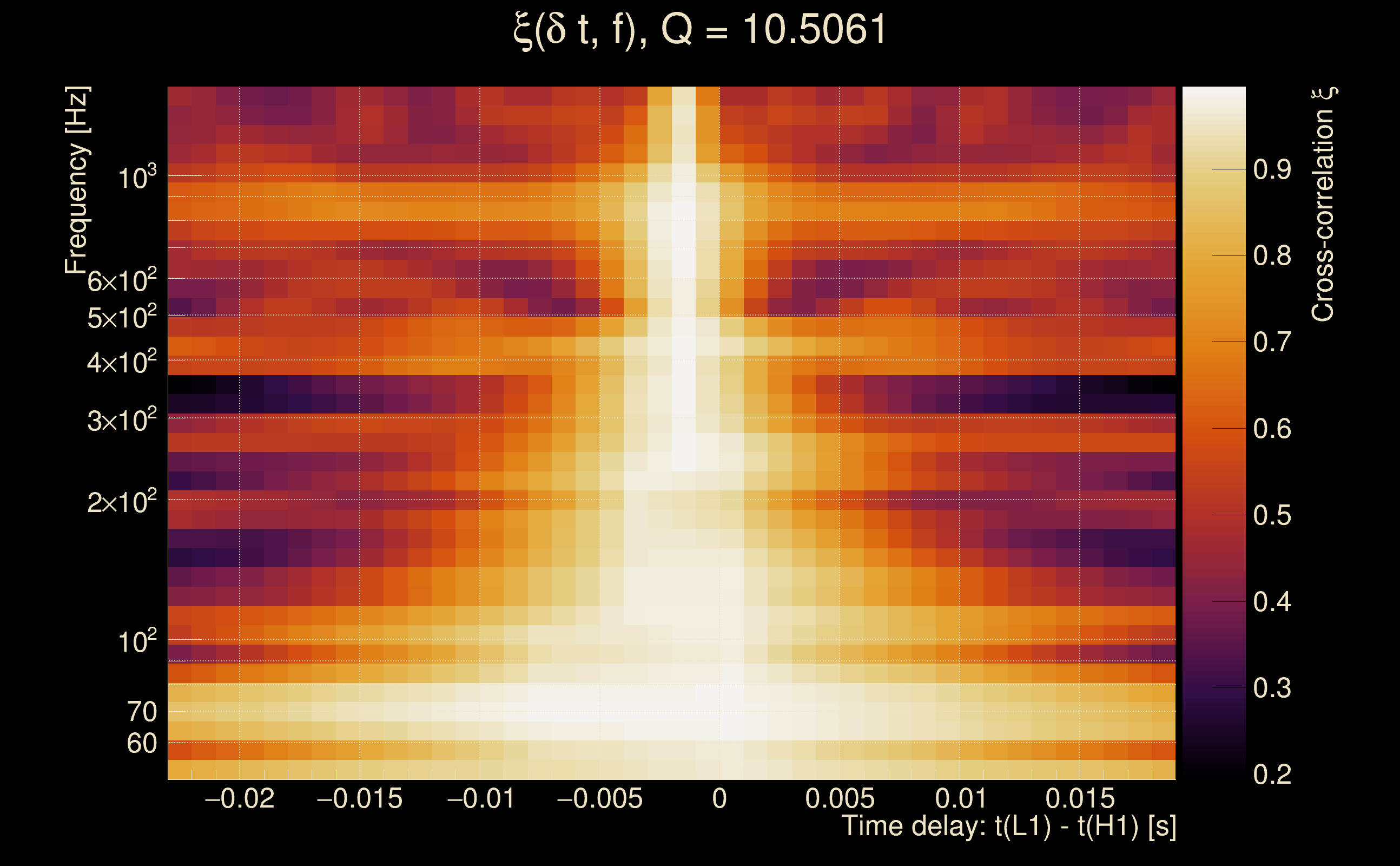

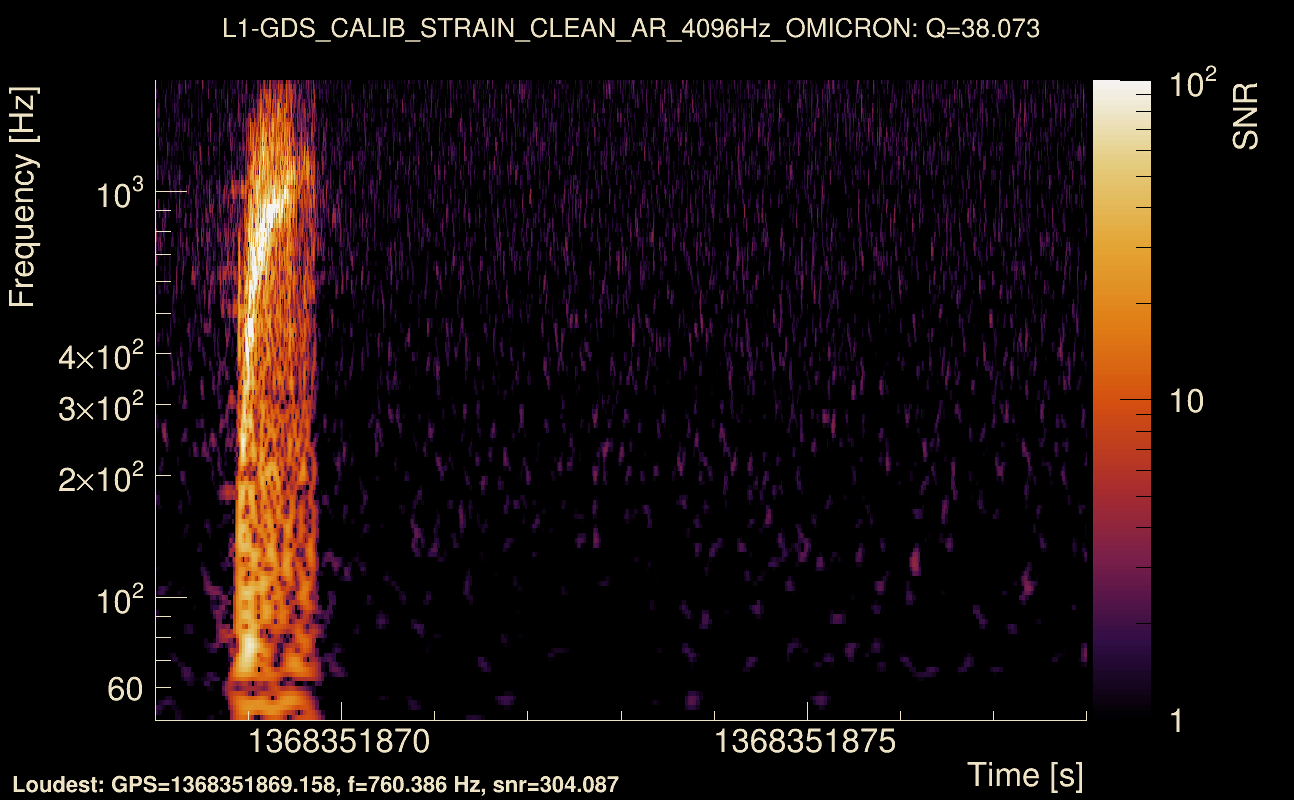

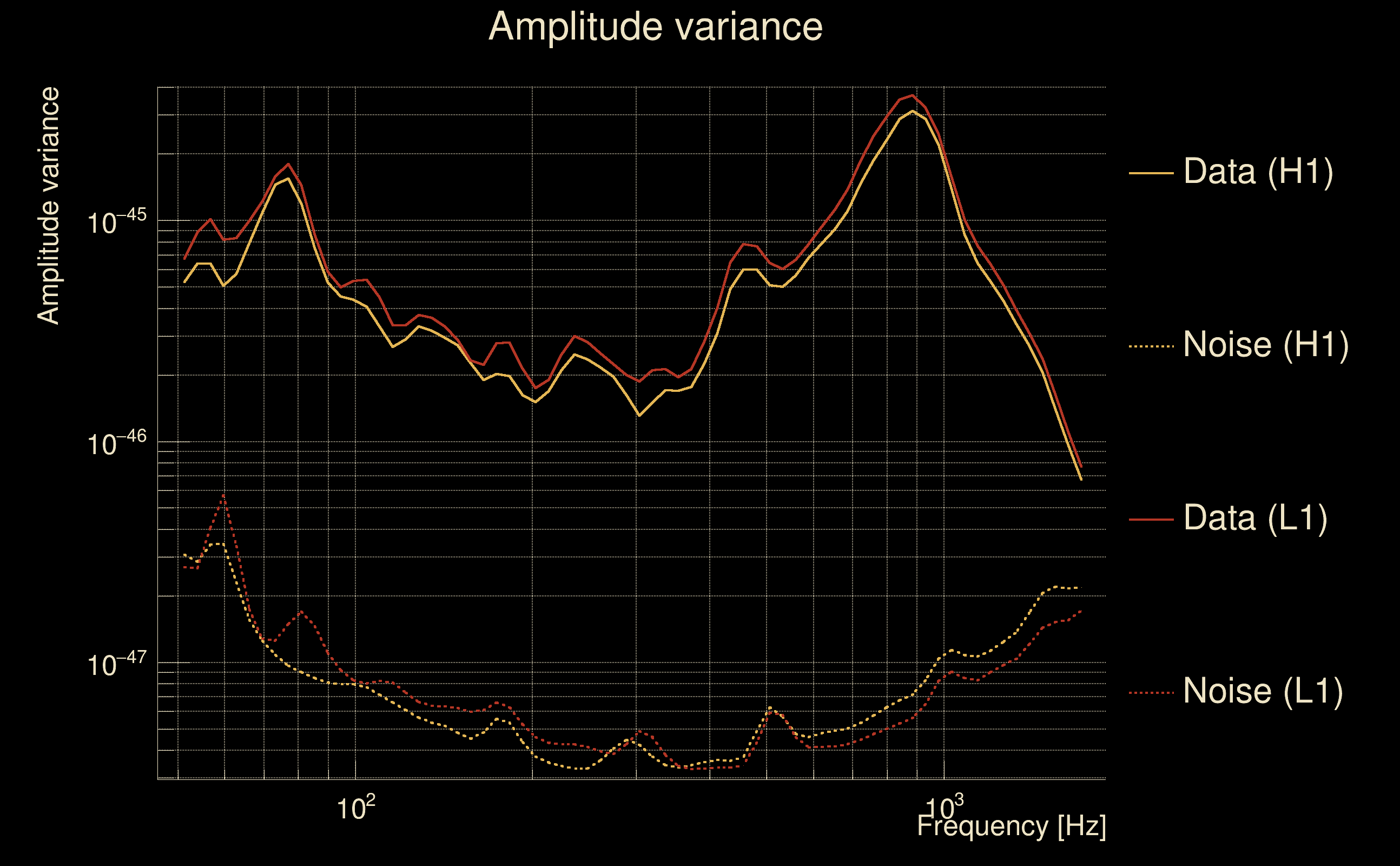

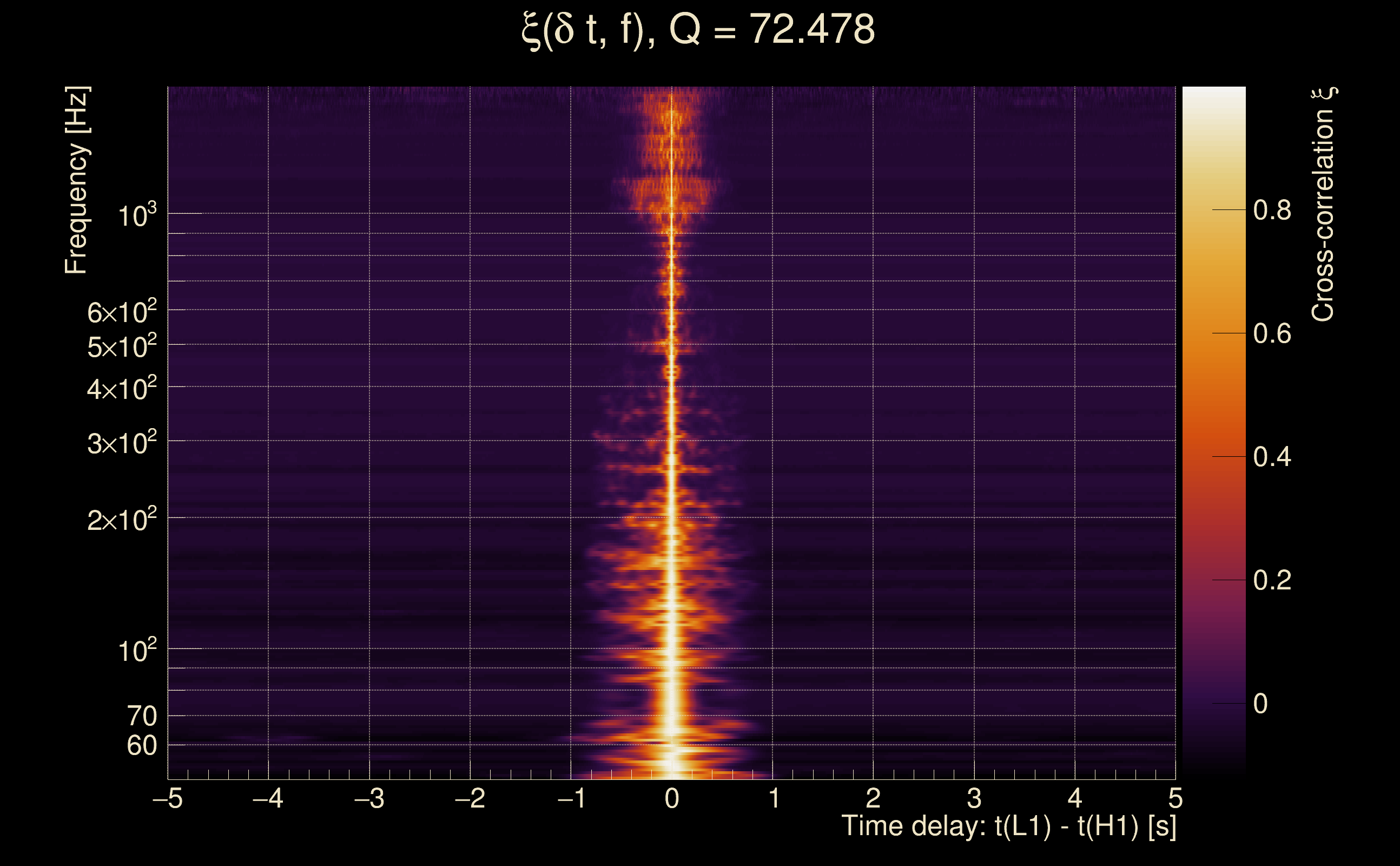

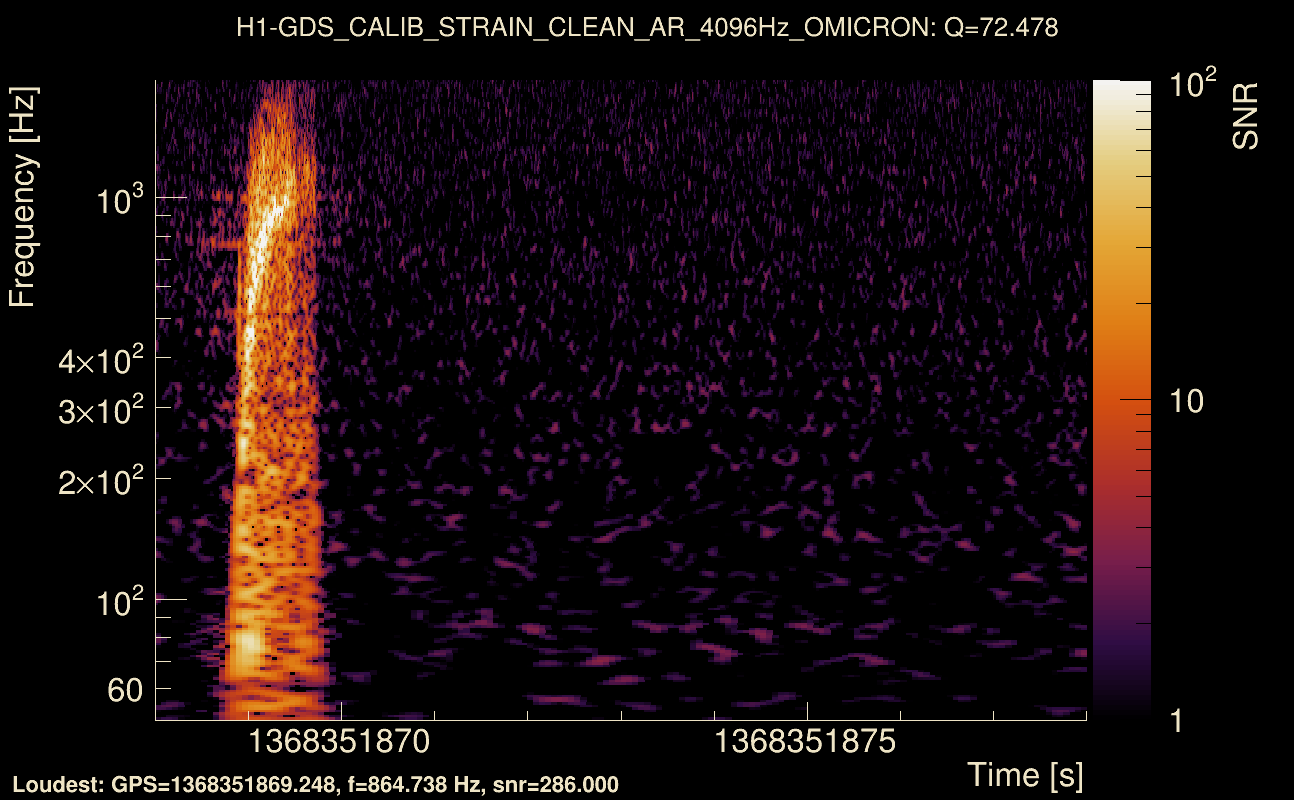

| Event time t(H1): | GPS = 1368351863 (Wed May 17 09:44:05 2023 ) → GPS = 1368351873 (Wed May 17 09:44:15 2023 ) |
| Event time t(L1): | GPS = 1368351863 (Wed May 17 09:44:15 2023 ) → GPS = 1368351873 (Wed May 17 09:44:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351860 → GPS = 1368351876 |
| Omicron analysis time window (L1): | GPS = 1368351860 → GPS = 1368351876 |
| Time delay between detectors t(L1) - t(H1): | -0.0020213 s (slice index = 108 / 217), δt_gw = -0.0020213 s |
| Time delay standard deviation: | 0.0186511 s |
| [targeted mode] Time delay probability: | 1.38959e-153 (26.3995 sigmas), δt_target = -0.00723505 s |
| Frequency: | 284.406 Hz |
| Ξ: | 0.980655 ± 0.00439362 (variance = 1.93039e-05): Q0: 0.983955, Q1: 0.979991, Q2: 0.97834, Q3: 0.973378, Q4: 0.971937 |
| Rank: | R_A = 0.980655 |
| Log of amplitude ratio (L1/H1): | 0.0957211, variance = 0.156903 (L1/H1: 0.0776762, variance = 0.301115, H1/L1: -0.10761, variance = 0.301053) |
| Amplitude ratio (L1/H1): | 1.10045 ⋇ 1.48603 (L1/H1: 1.08077 ⋇ 1.73107, H1/L1: 0.897978 ⋇ 1.73097) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.969229 |
| Antenna factor probability: | 0.201801 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 297.857, L1: 366.955 |
| SNR variance: | H1: 0.52517, L1: 0.515371 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

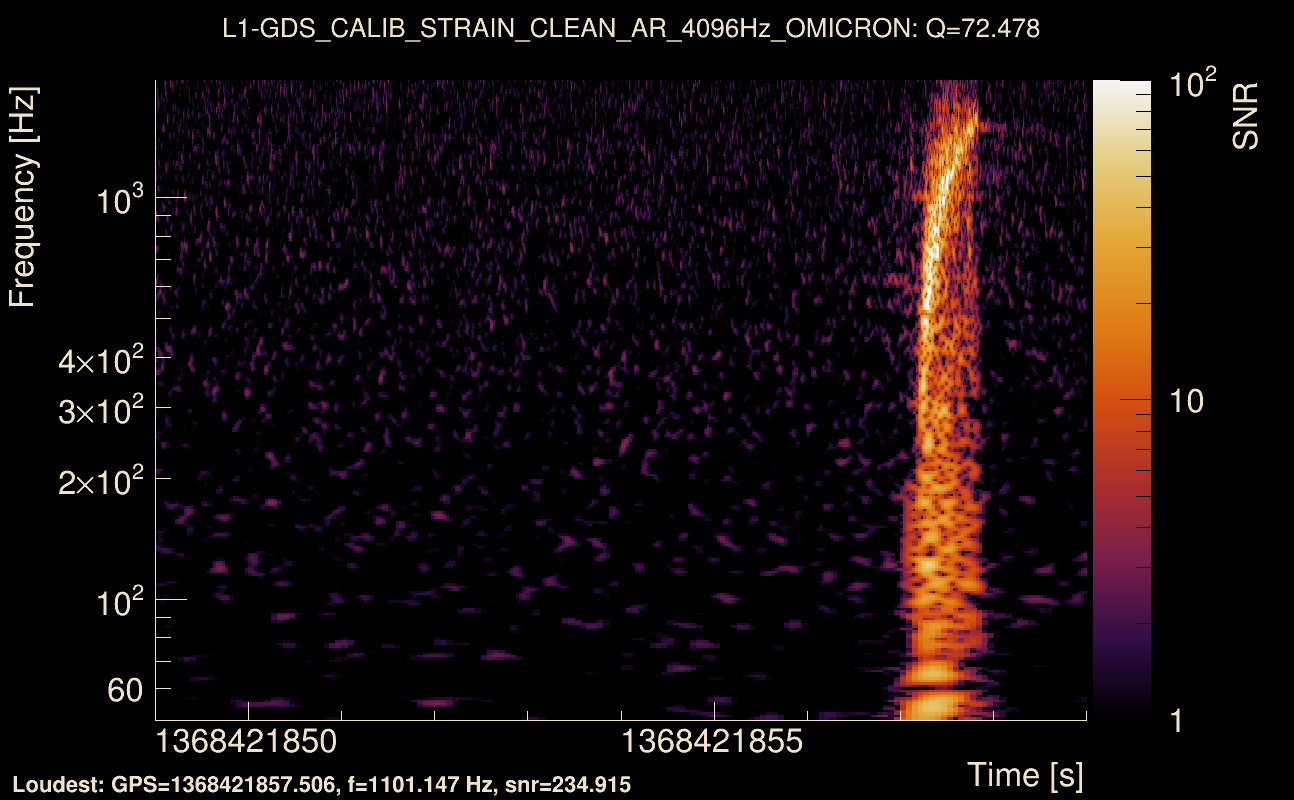

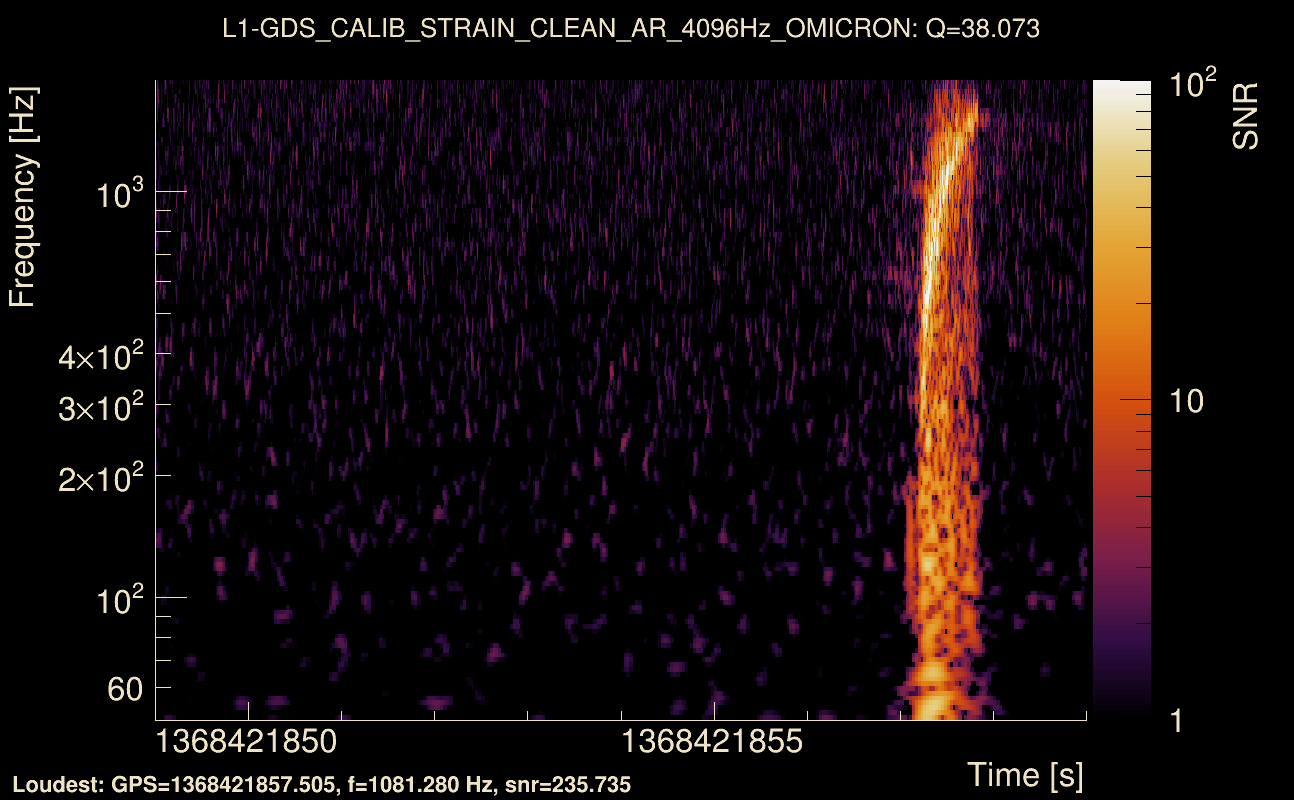

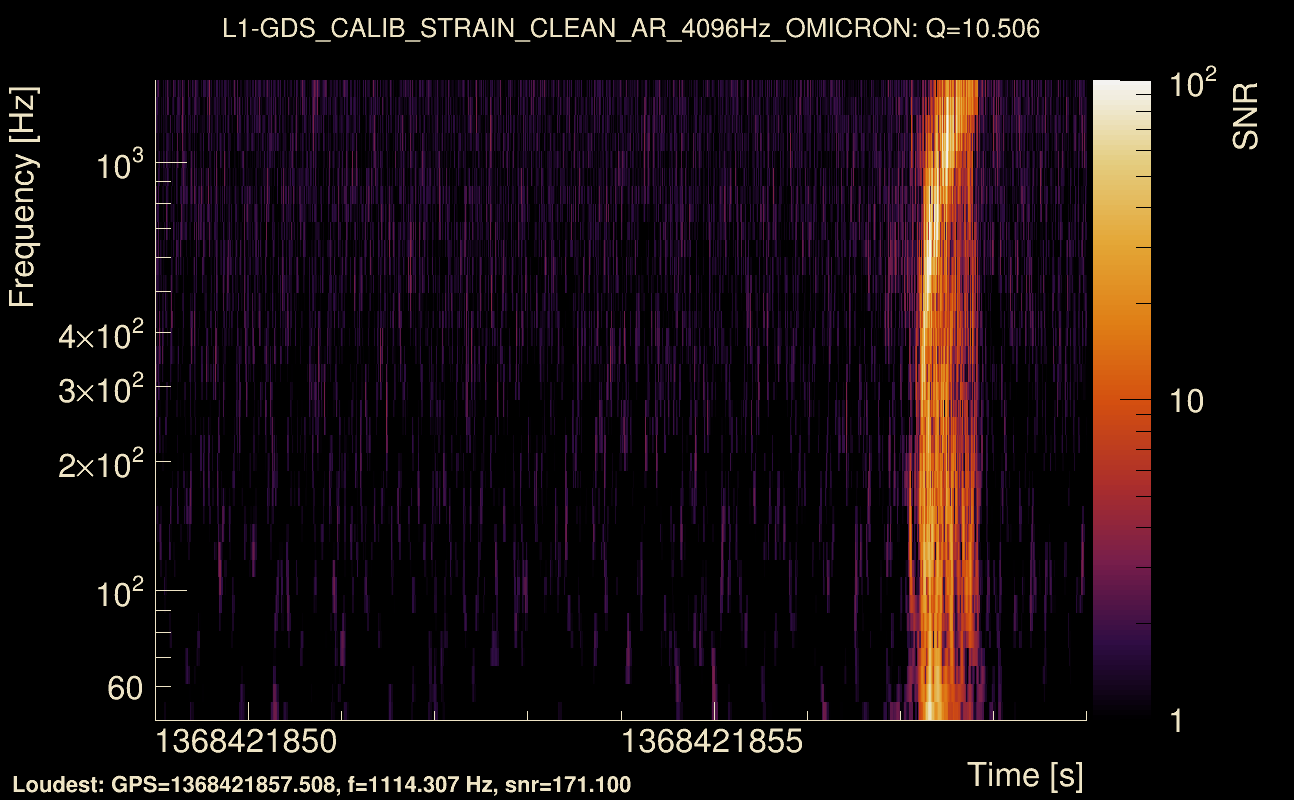

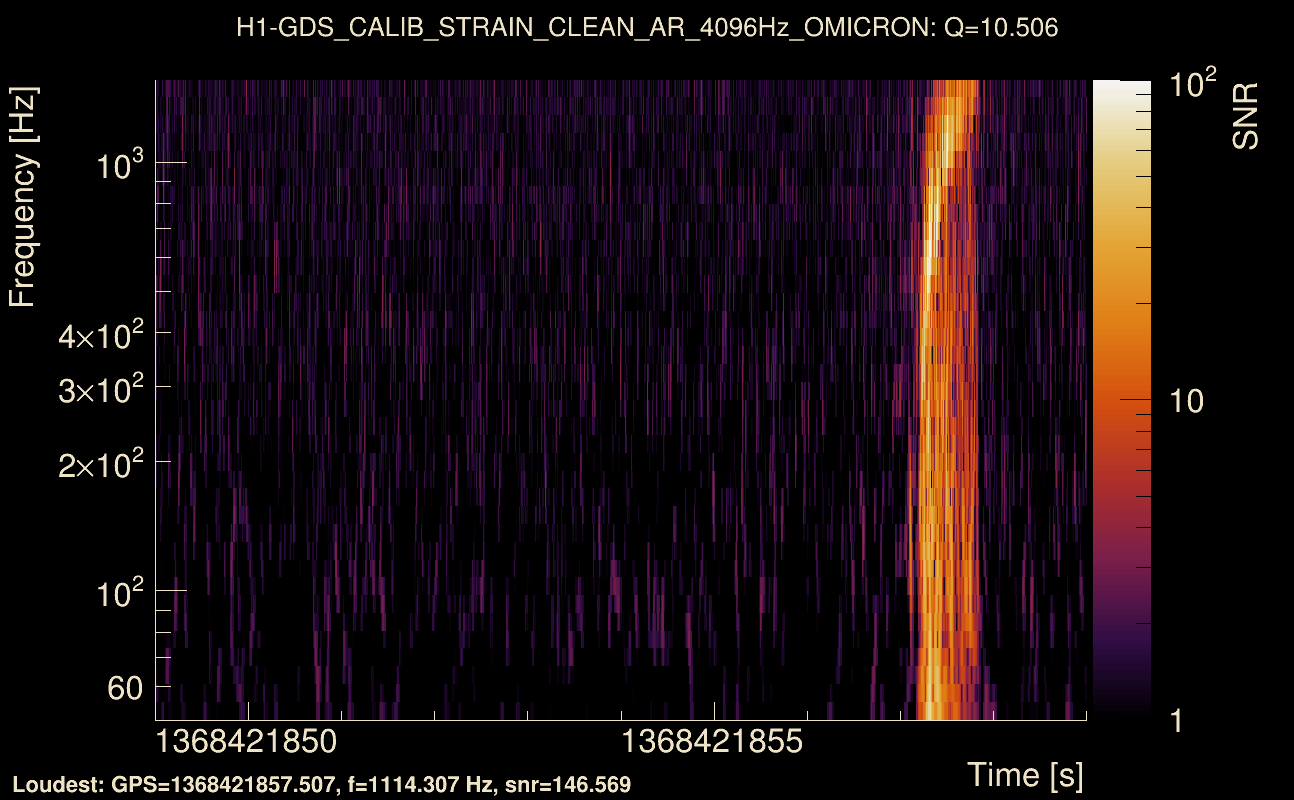

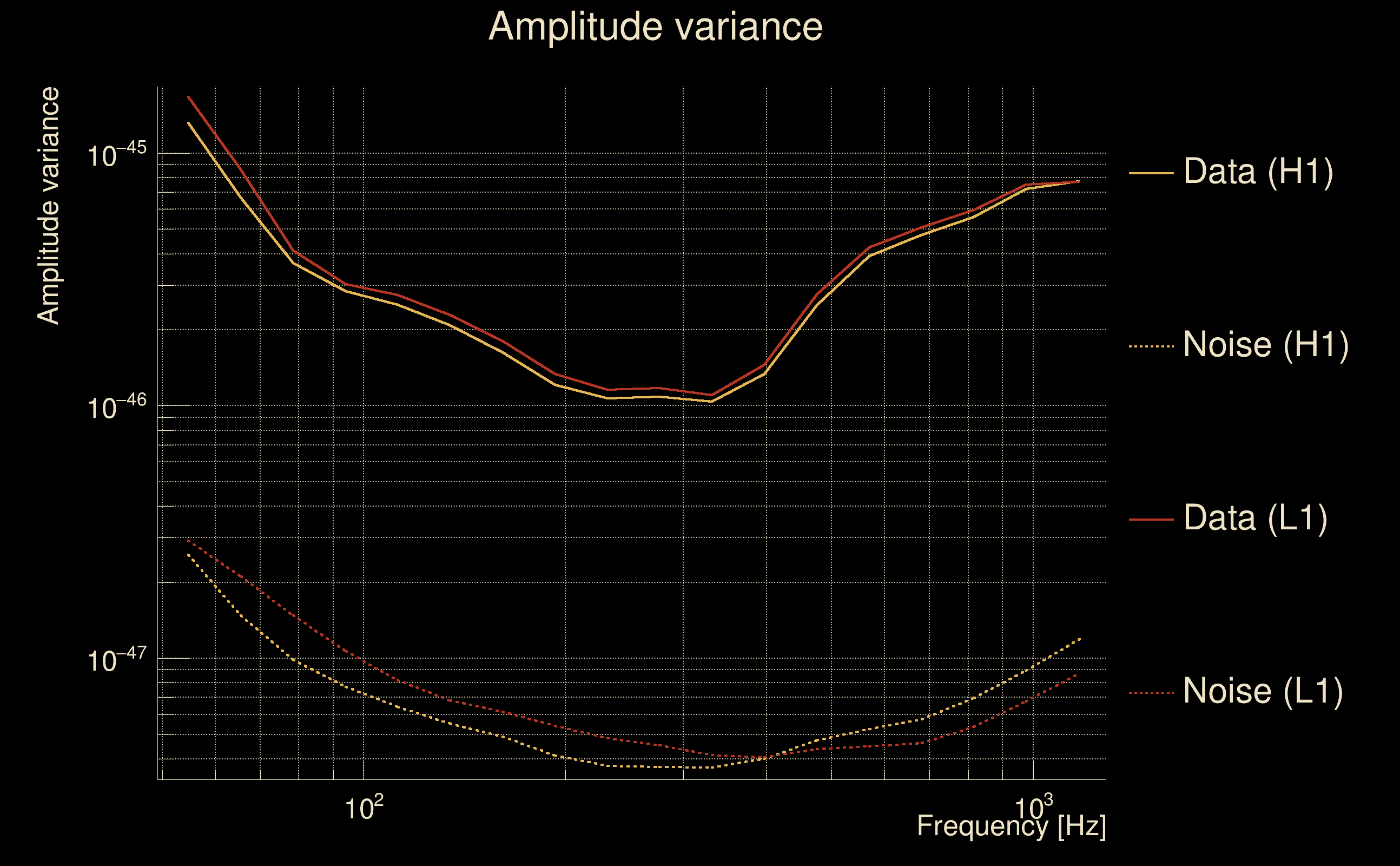

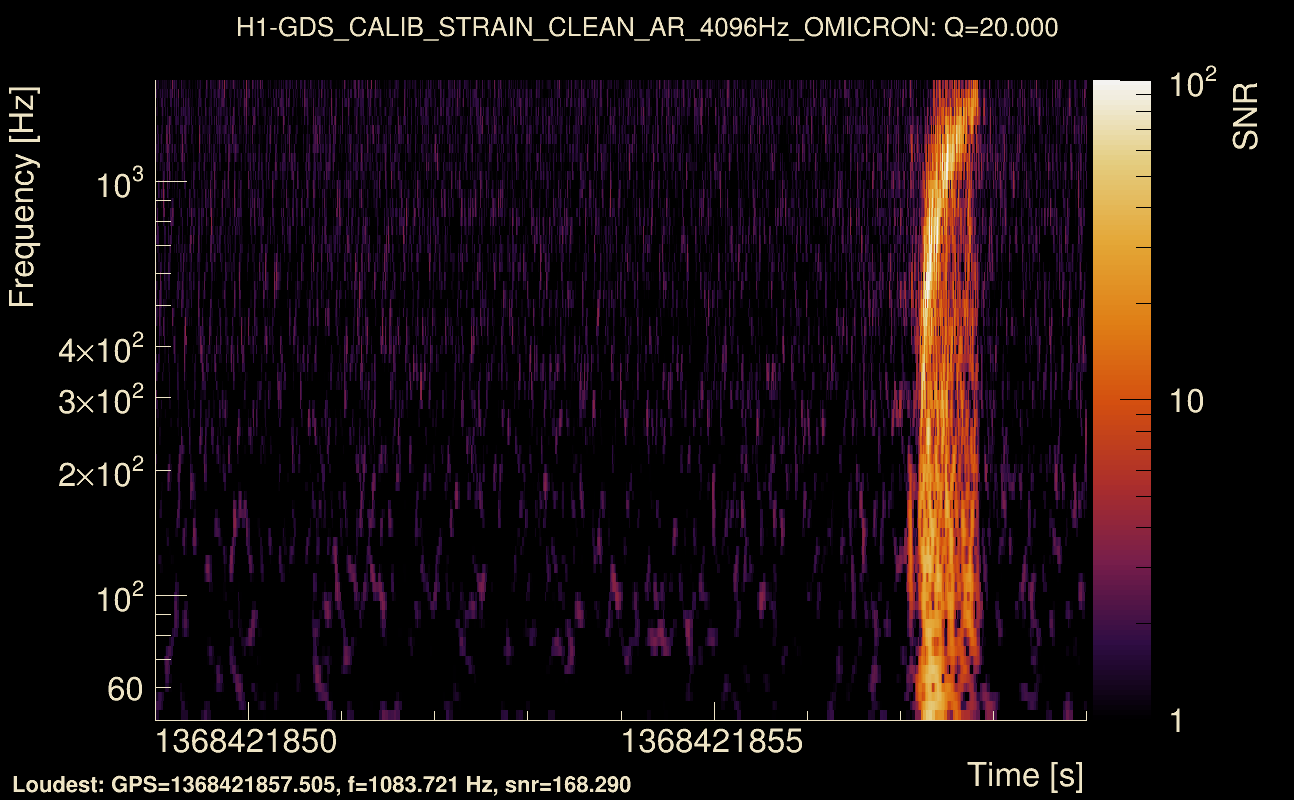

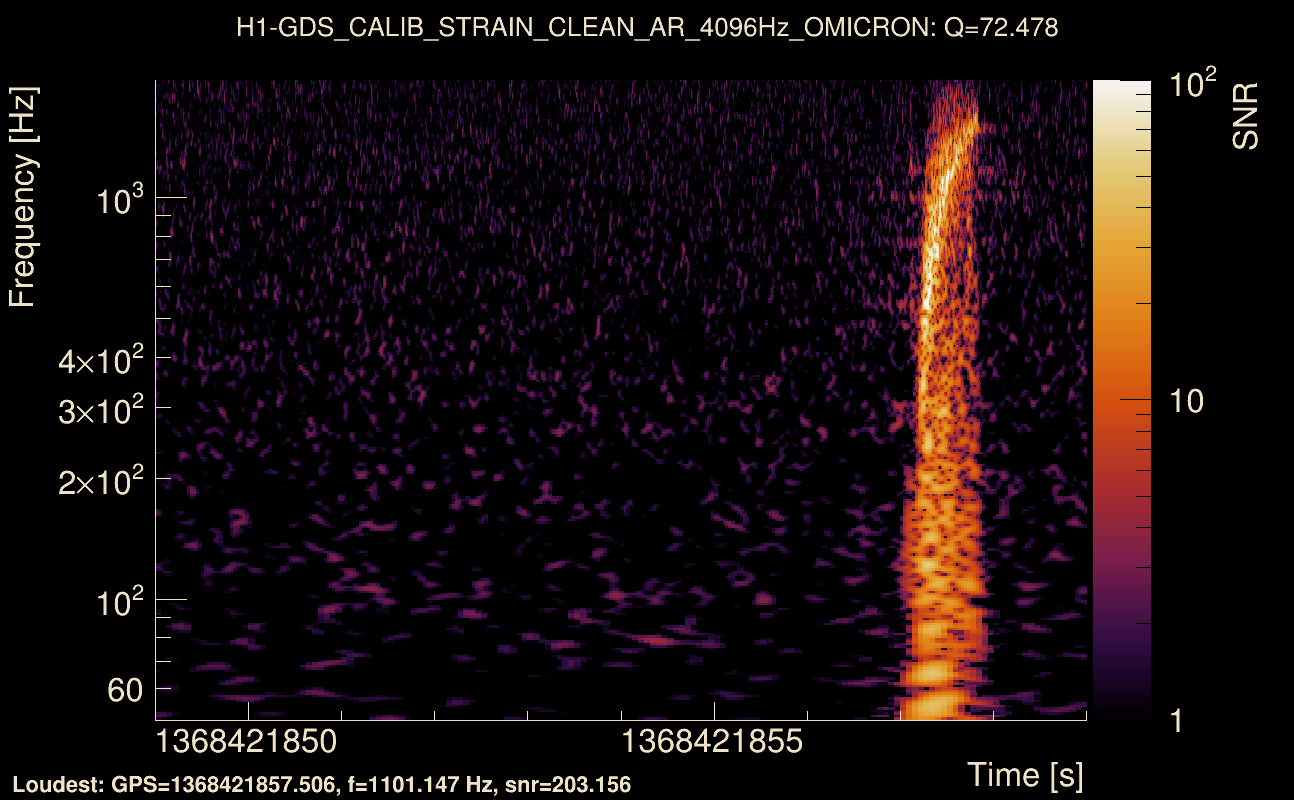

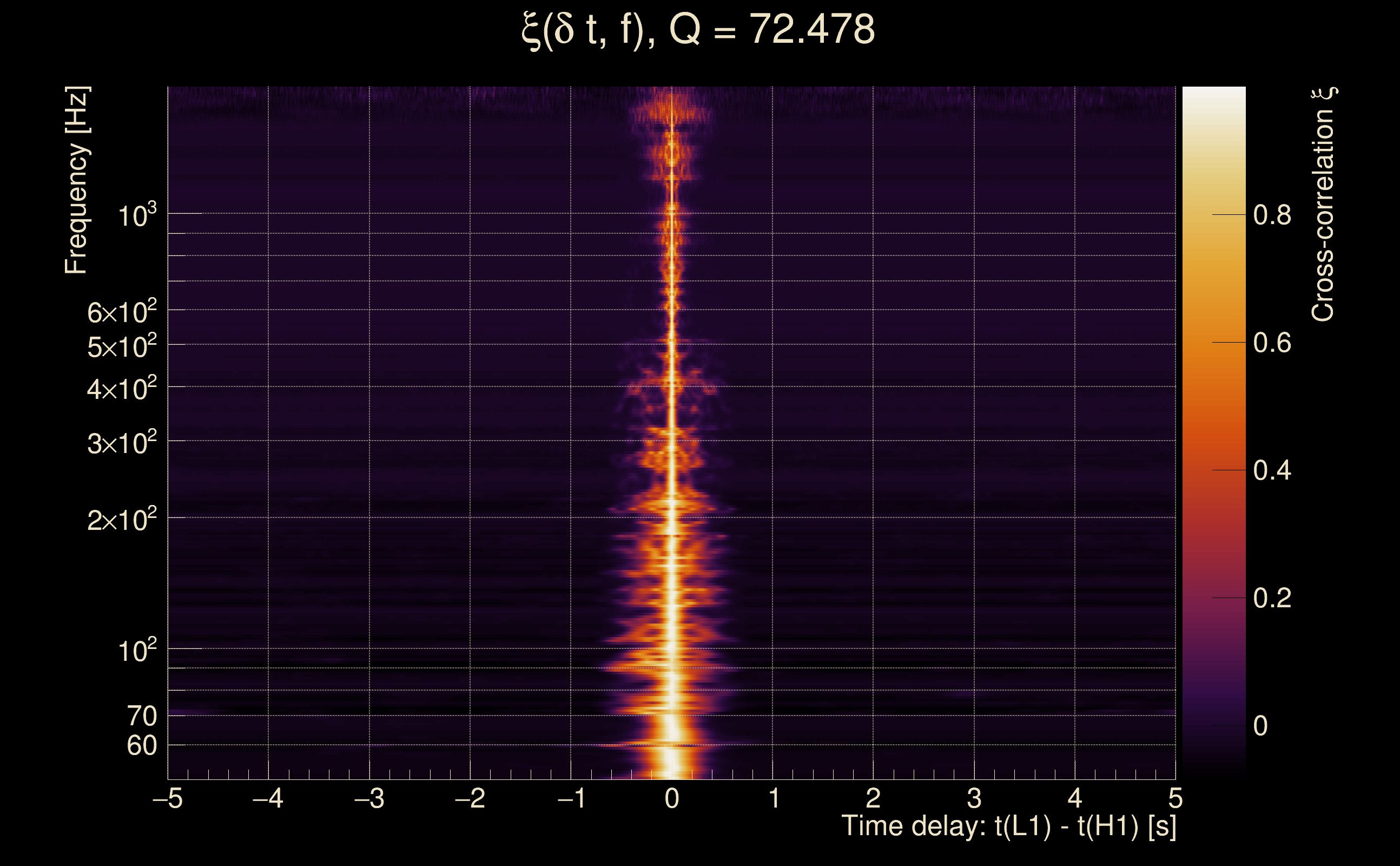

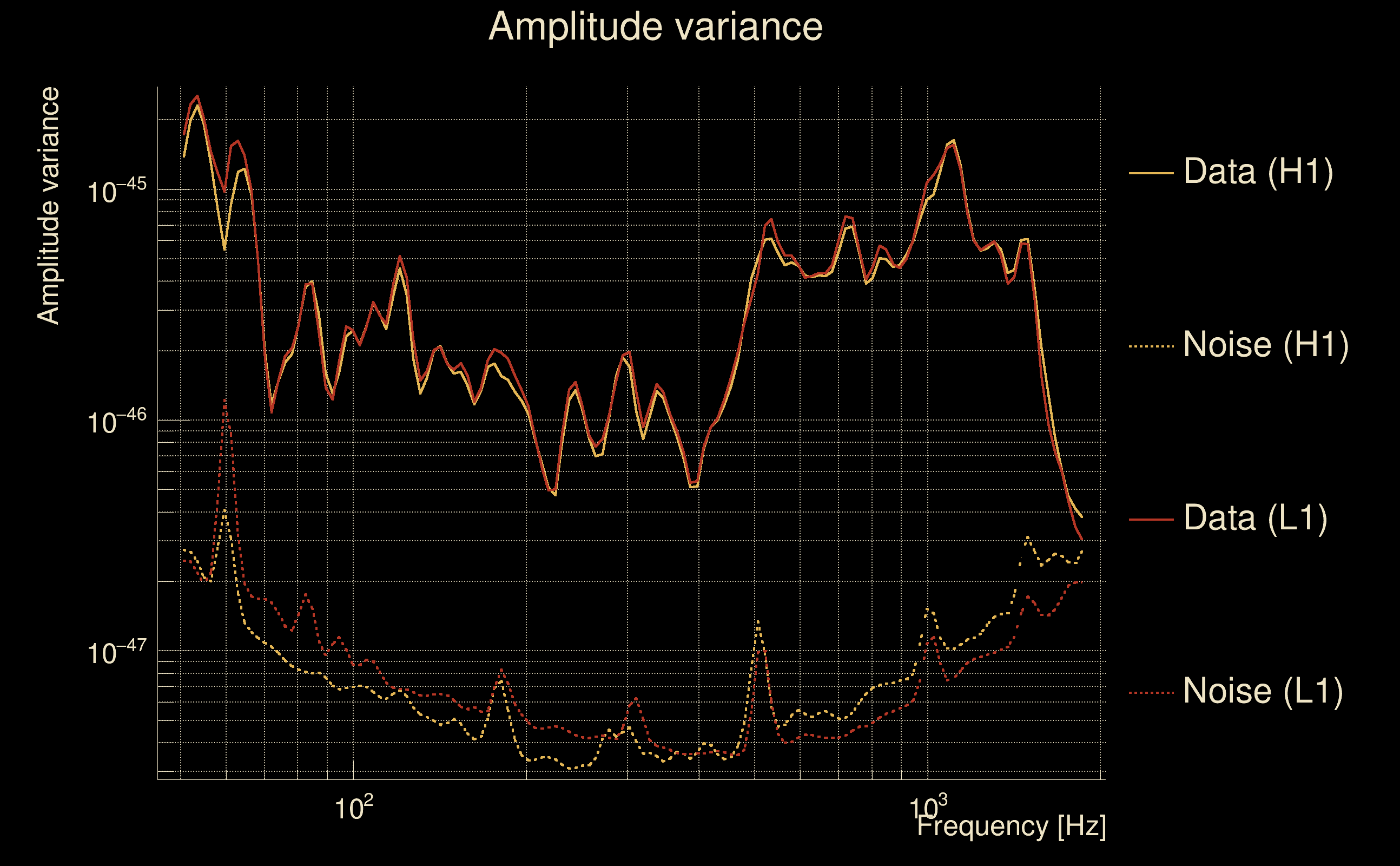

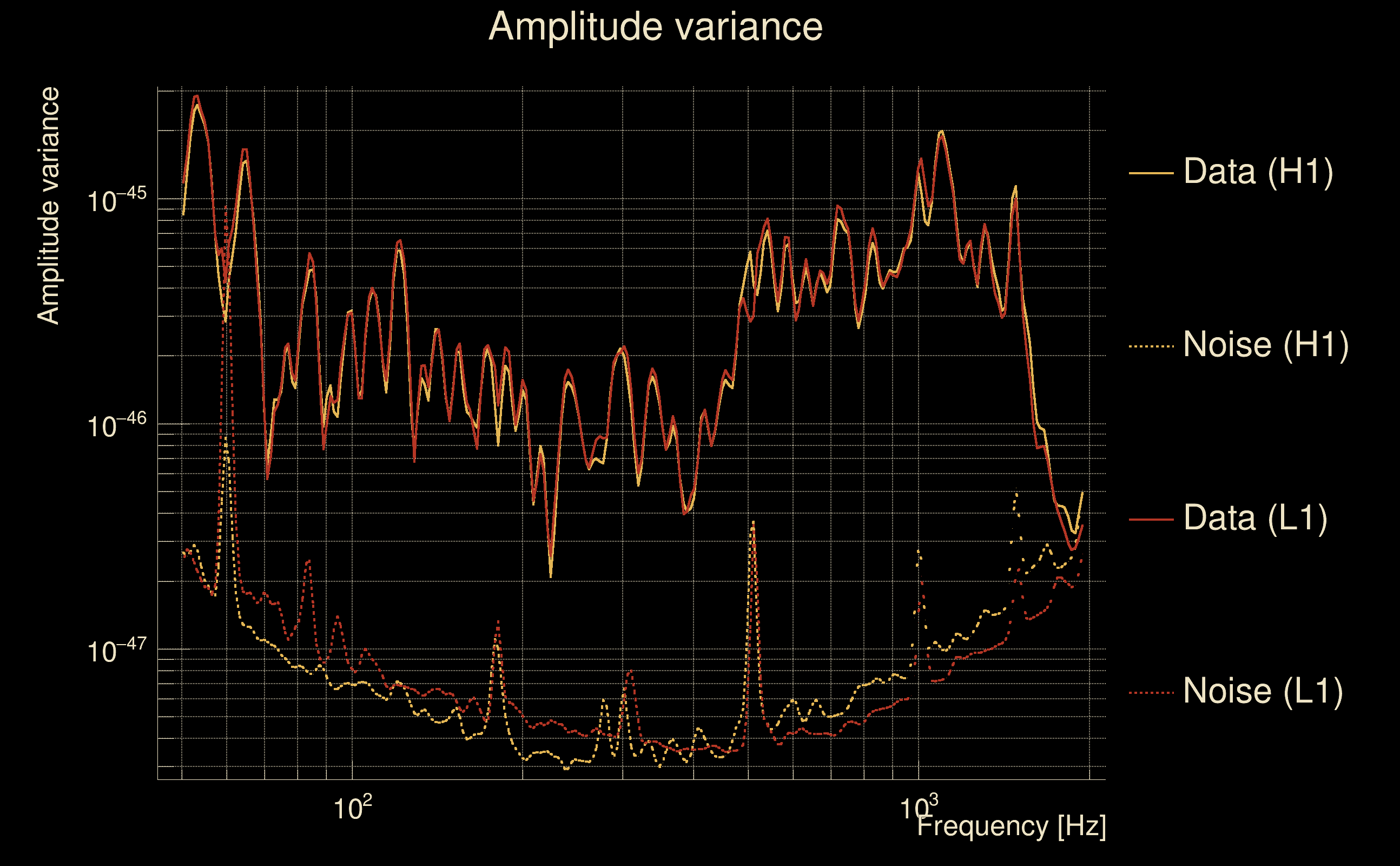

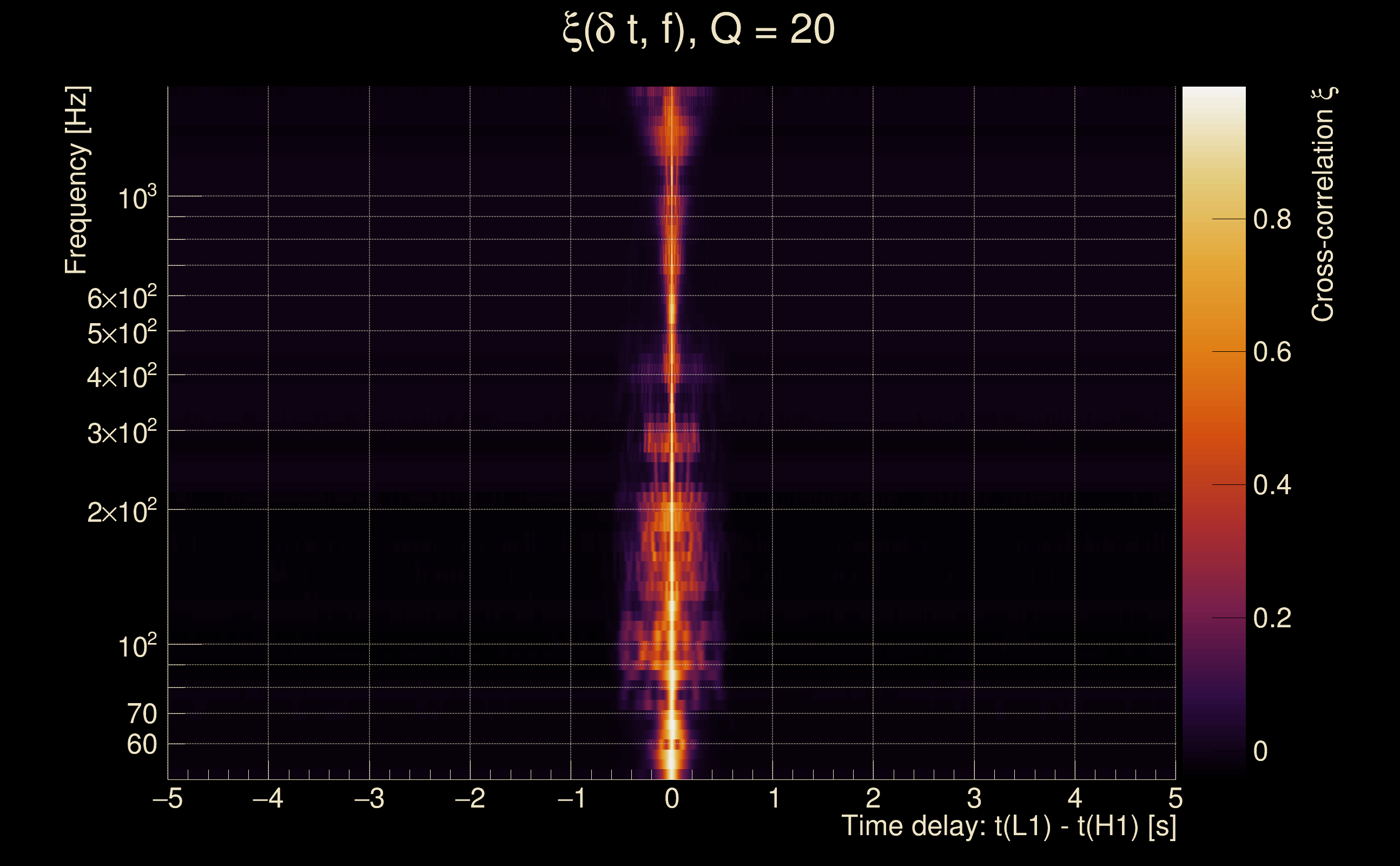

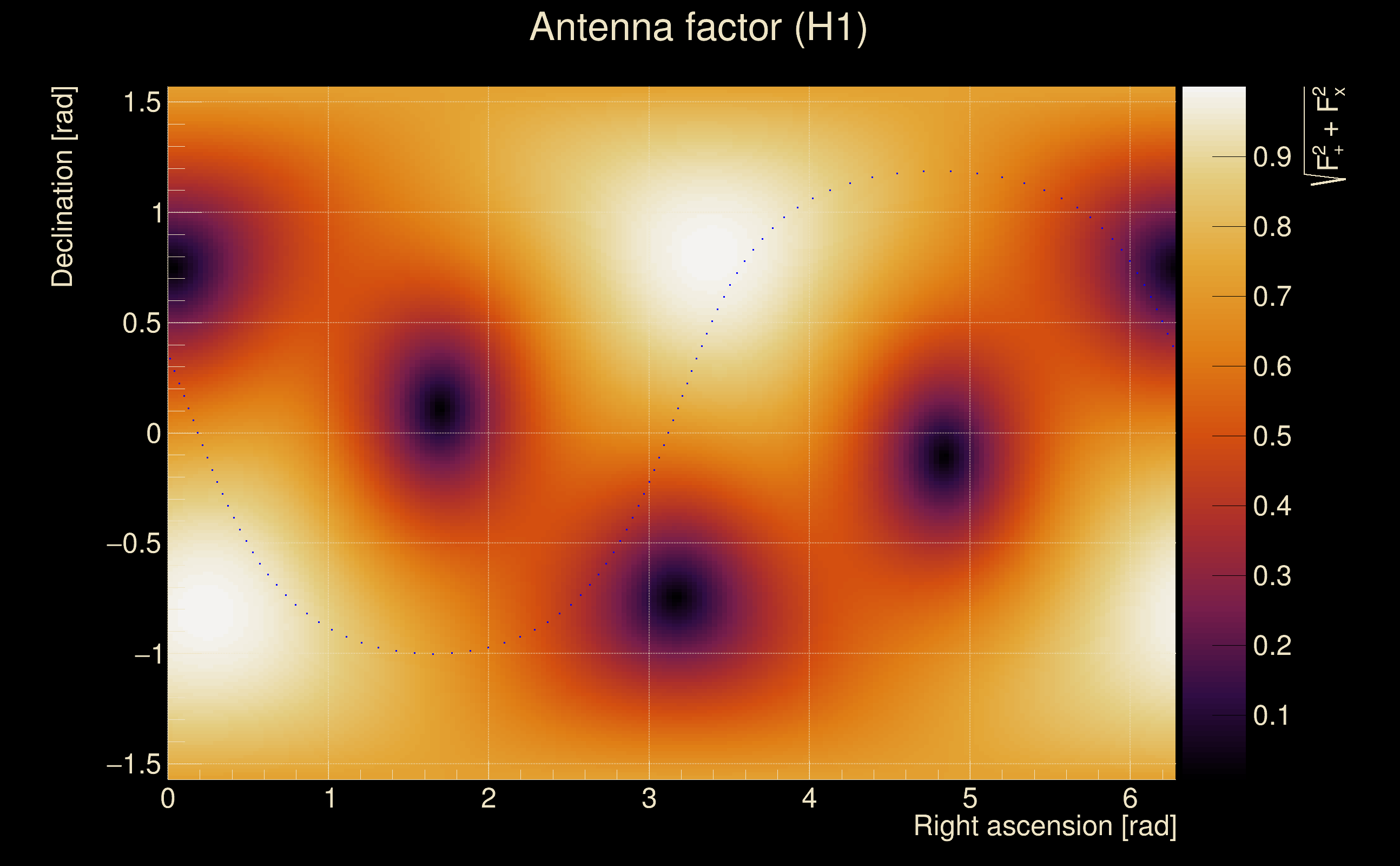

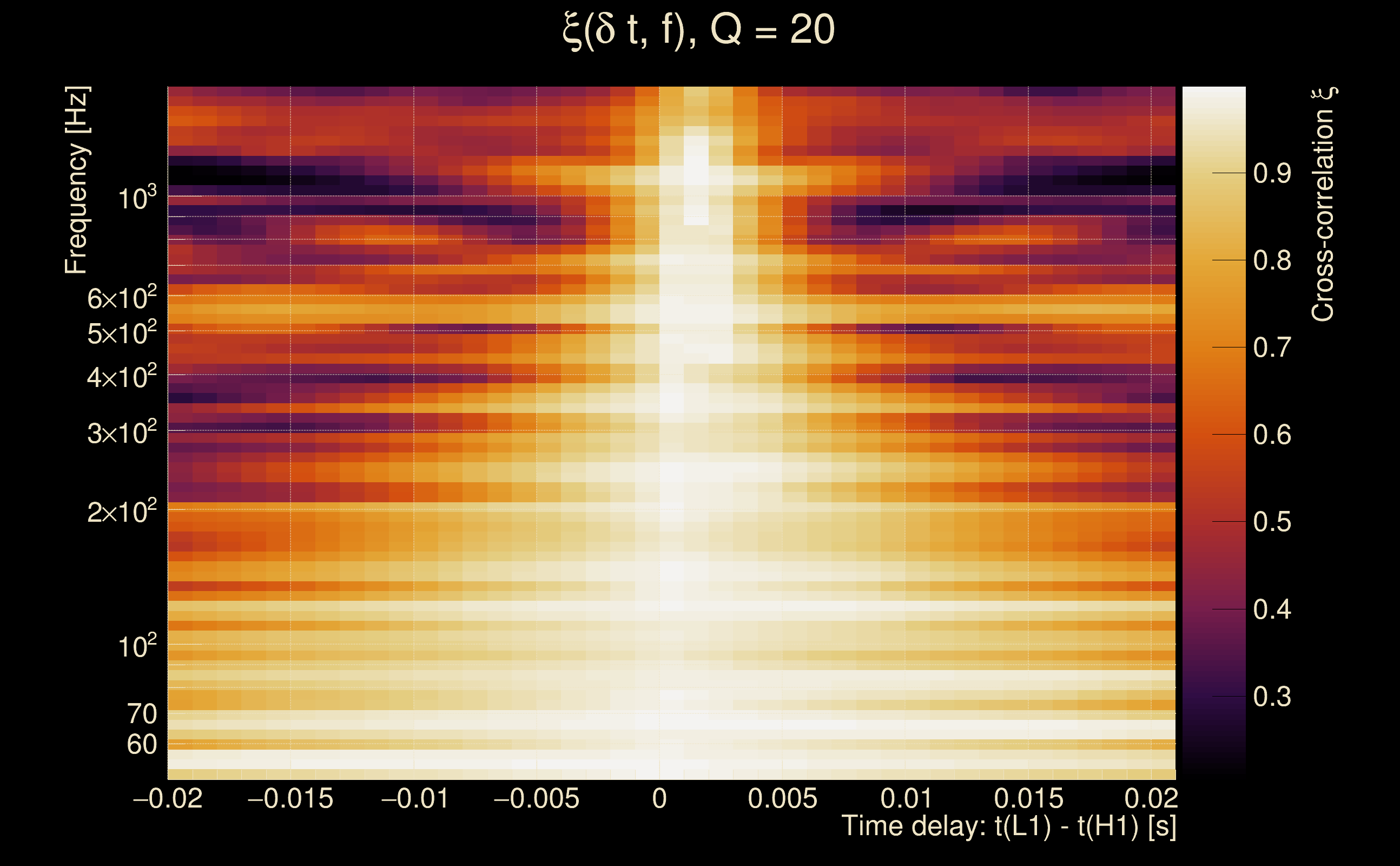

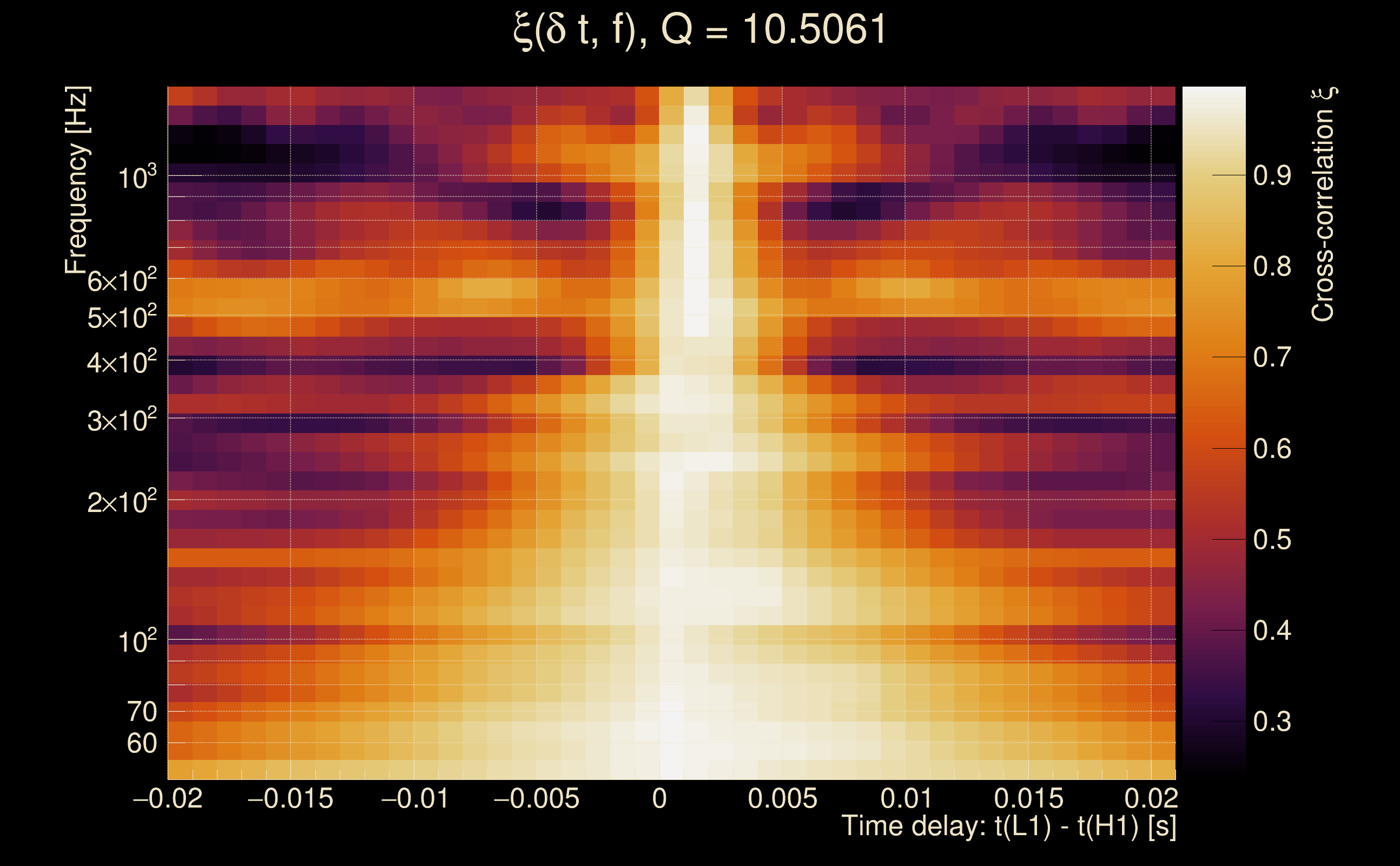

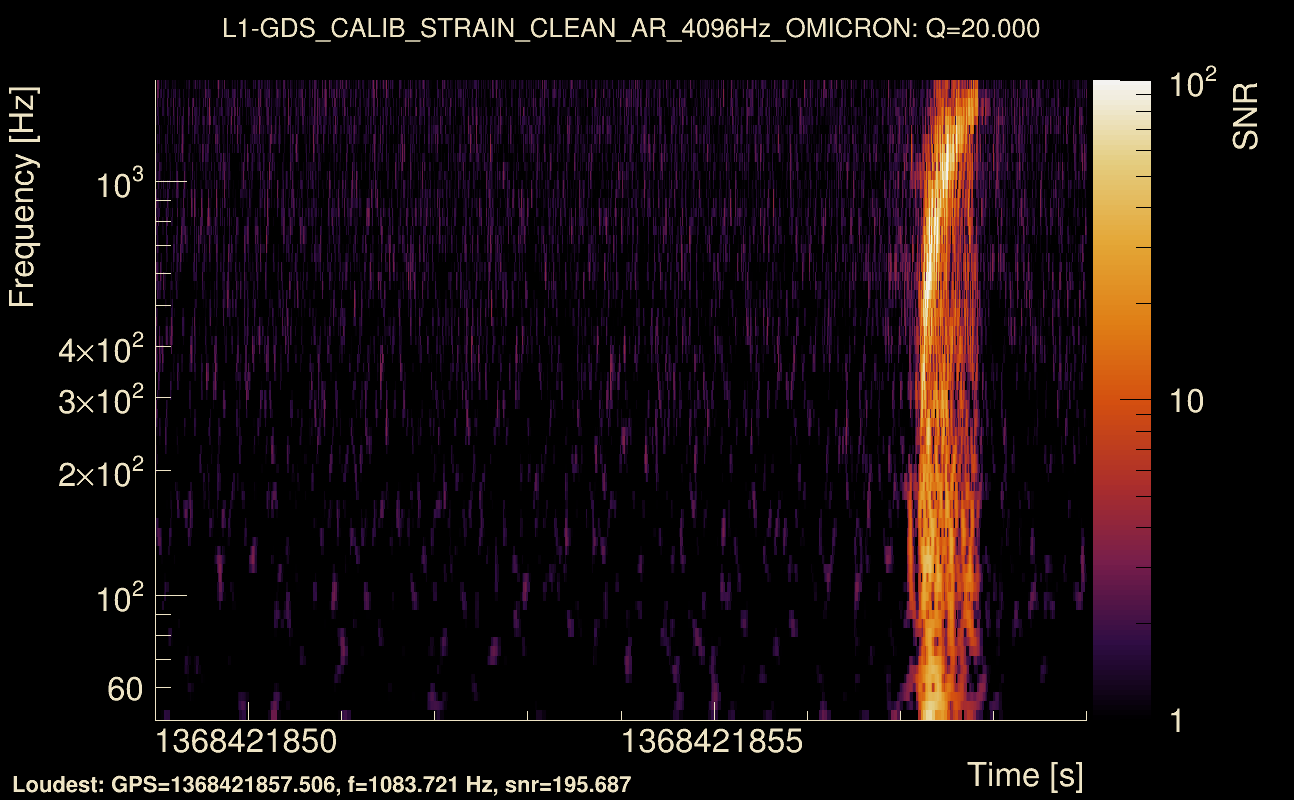

| Event time t(H1): | GPS = 1368421849 (Thu May 18 05:10:31 2023 ) → GPS = 1368421859 (Thu May 18 05:10:41 2023 ) |
| Event time t(L1): | GPS = 1368421849 (Thu May 18 05:10:41 2023 ) → GPS = 1368421859 (Thu May 18 05:10:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368421846 → GPS = 1368421862 |
| Omicron analysis time window (L1): | GPS = 1368421846 → GPS = 1368421862 |
| Time delay between detectors t(L1) - t(H1): | 0.000932492 s (slice index = 108 / 217), δt_gw = 0.000932492 s |
| Time delay standard deviation: | 0.0189907 s |
| [targeted mode] Time delay probability: | 0.161095 (1.4014 sigmas), δt_target = -0.00723314 s |
| Frequency: | 285.553 Hz |
| Ξ: | 0.979948 ± 0.00338999 (variance = 1.1492e-05): Q0: 0.981894, Q1: 0.982551, Q2: 0.978479, Q3: 0.974241, Q4: 0.975124 |
| Rank: | R_A = 0.979948 |
| Log of amplitude ratio (L1/H1): | 0.0272171, variance = 0.154185 (L1/H1: 0.0126118, variance = 0.30171, H1/L1: -0.038015, variance = 0.301534) |
| Amplitude ratio (L1/H1): | 1.02759 ⋇ 1.48092 (L1/H1: 1.01269 ⋇ 1.73201, H1/L1: 0.962698 ⋇ 1.73173) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.973908 |
| Antenna factor probability: | 0.808426 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 1 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 202.204, L1: 235.165 |
| SNR variance: | H1: 0.496007, L1: 0.473769 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368276958 (Tue May 16 12:55:40 2023 ) → GPS = 1368276968 (Tue May 16 12:55:50 2023 ) |
| Event time t(L1): | GPS = 1368276958 (Tue May 16 12:55:50 2023 ) → GPS = 1368276968 (Tue May 16 12:55:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368276955 → GPS = 1368276971 |
| Omicron analysis time window (L1): | GPS = 1368276955 → GPS = 1368276971 |
| Time delay between detectors t(L1) - t(H1): | 2.4828 s (slice index = 54 / 217), δt_gw = -0.00120251 s |
| Time delay standard deviation: | 0.0769291 s |
| [targeted mode] Time delay probability: | 0.0872609 (1.71003 sigmas), δt_target = 0.00103426 s |
| Frequency: | 127.35 Hz |
| Ξ: | 0.0477059 ± 0.0230244 (variance = 0.000530125): Q0: 0.12579, Q1: 0.114017, Q2: 0.0889195, Q3: 0.0613815, Q4: 0.081743 |
| Rank: | R_A = 0.0477059 |
| Log of amplitude ratio (L1/H1): | -5.14744, variance = 0.702225 (L1/H1: -5.14806, variance = 0.702464, H1/L1: 1.55325, variance = 0.418542) |
| Amplitude ratio (L1/H1): | 0.00581424 ⋇ 2.31171 (L1/H1: 0.00581069 ⋇ 2.31204, H1/L1: 4.72683 ⋇ 1.9097) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.000685672 |
| Antenna factor probability: | 7.0411e-09 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 23 / 36, Q2: 62 / 70, Q3: 128 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 414.966, L1: 5.4127 |
| SNR variance: | H1: 1693.83, L1: 0.559644 |

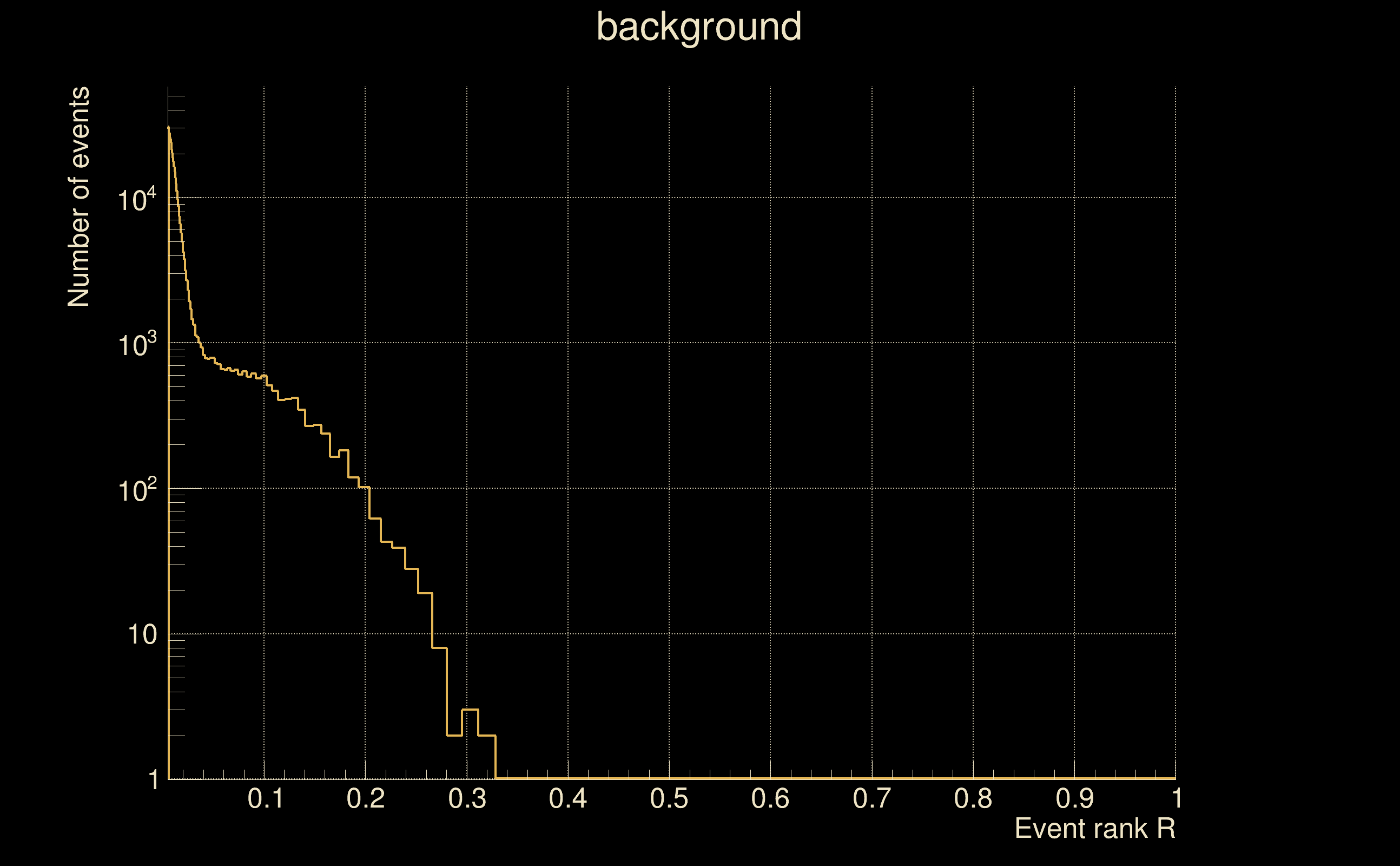

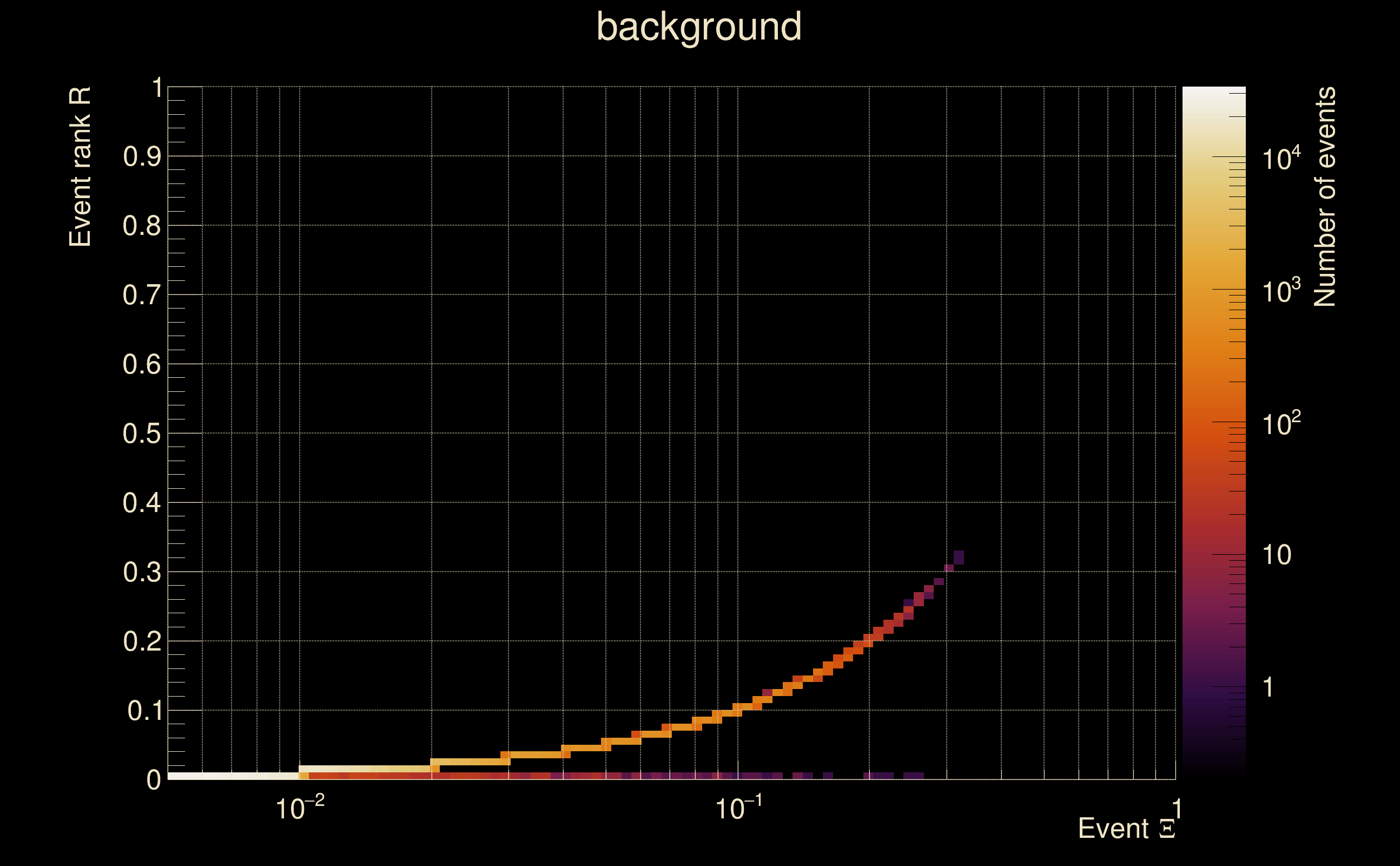

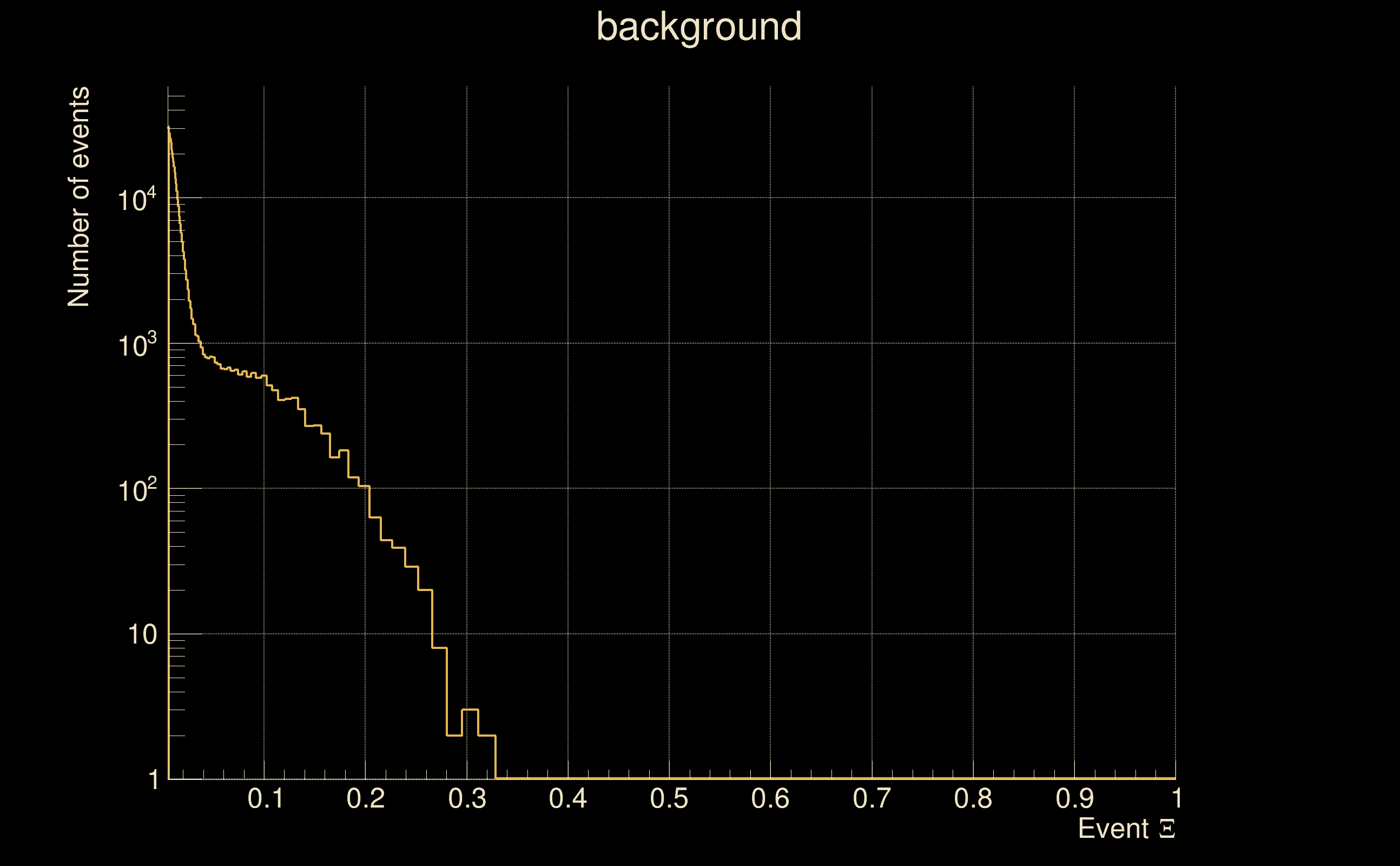

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.320207 |
| Alternative threshold at 1/100 yrs: | R > 0.320207 |
| Alternative threshold at 1/10 yrs: | R > 0.320207 |
| Alternative threshold at 1/1 yr: | R > 0.320207 |
| Alternative threshold at 1/1 d: | R > 0.198792 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

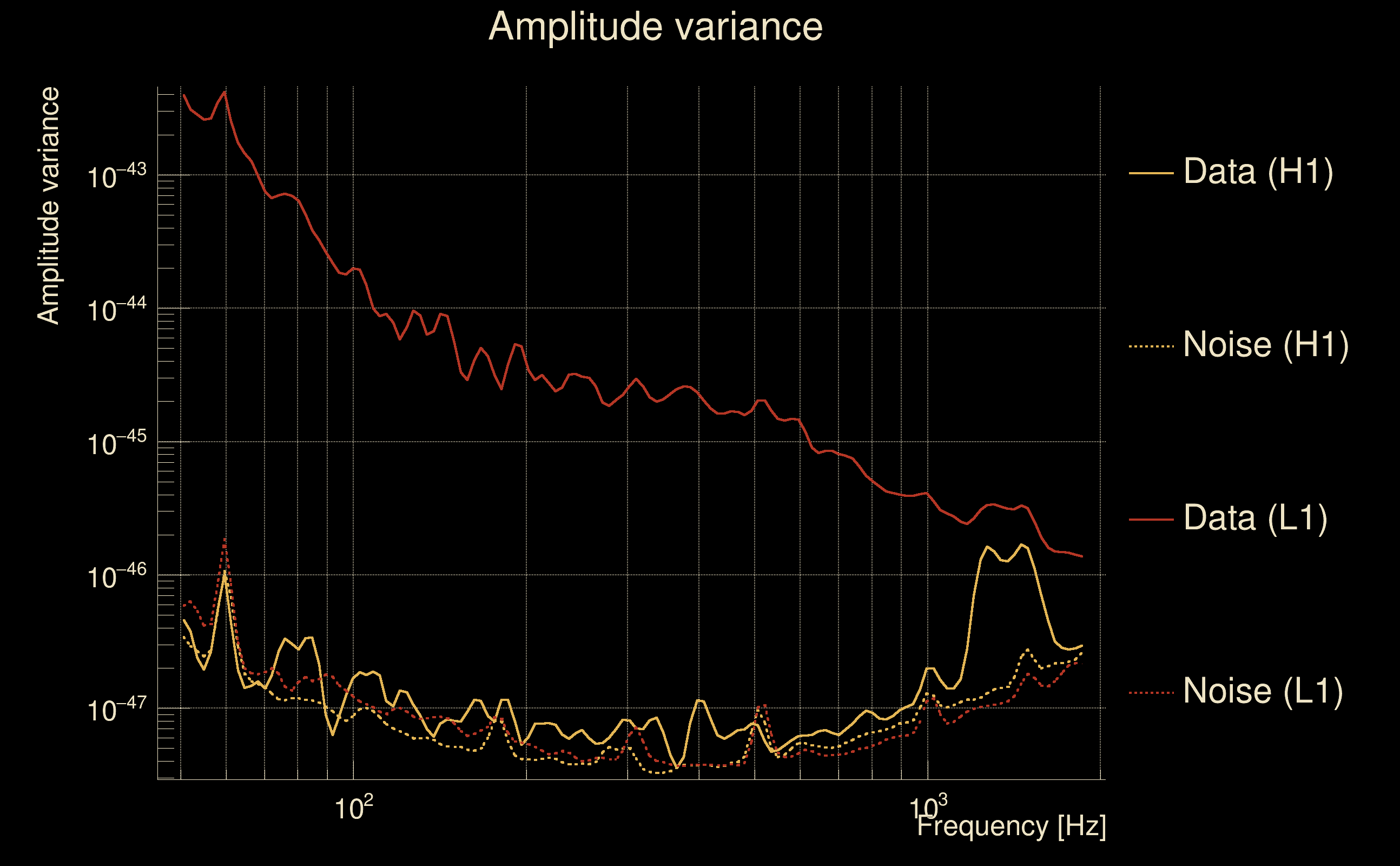

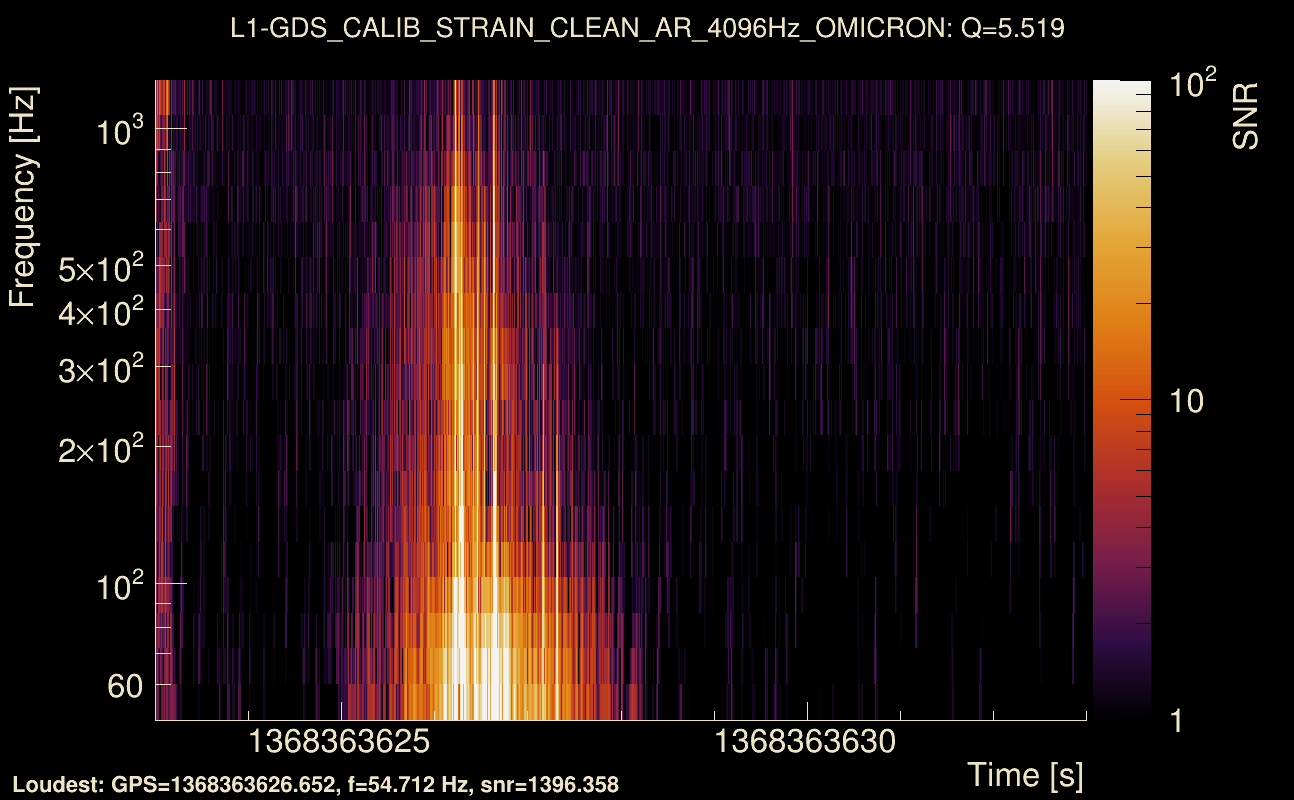

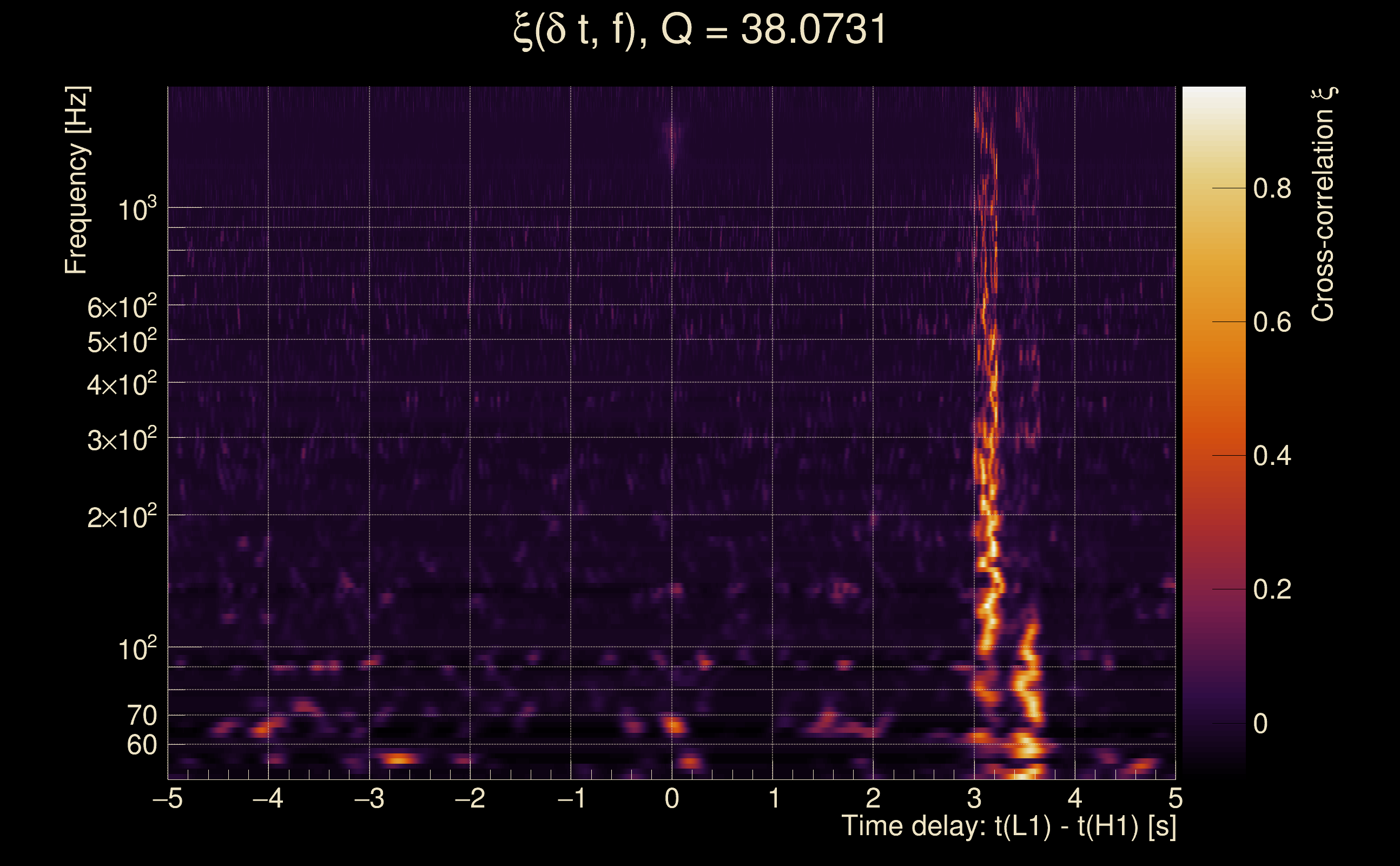

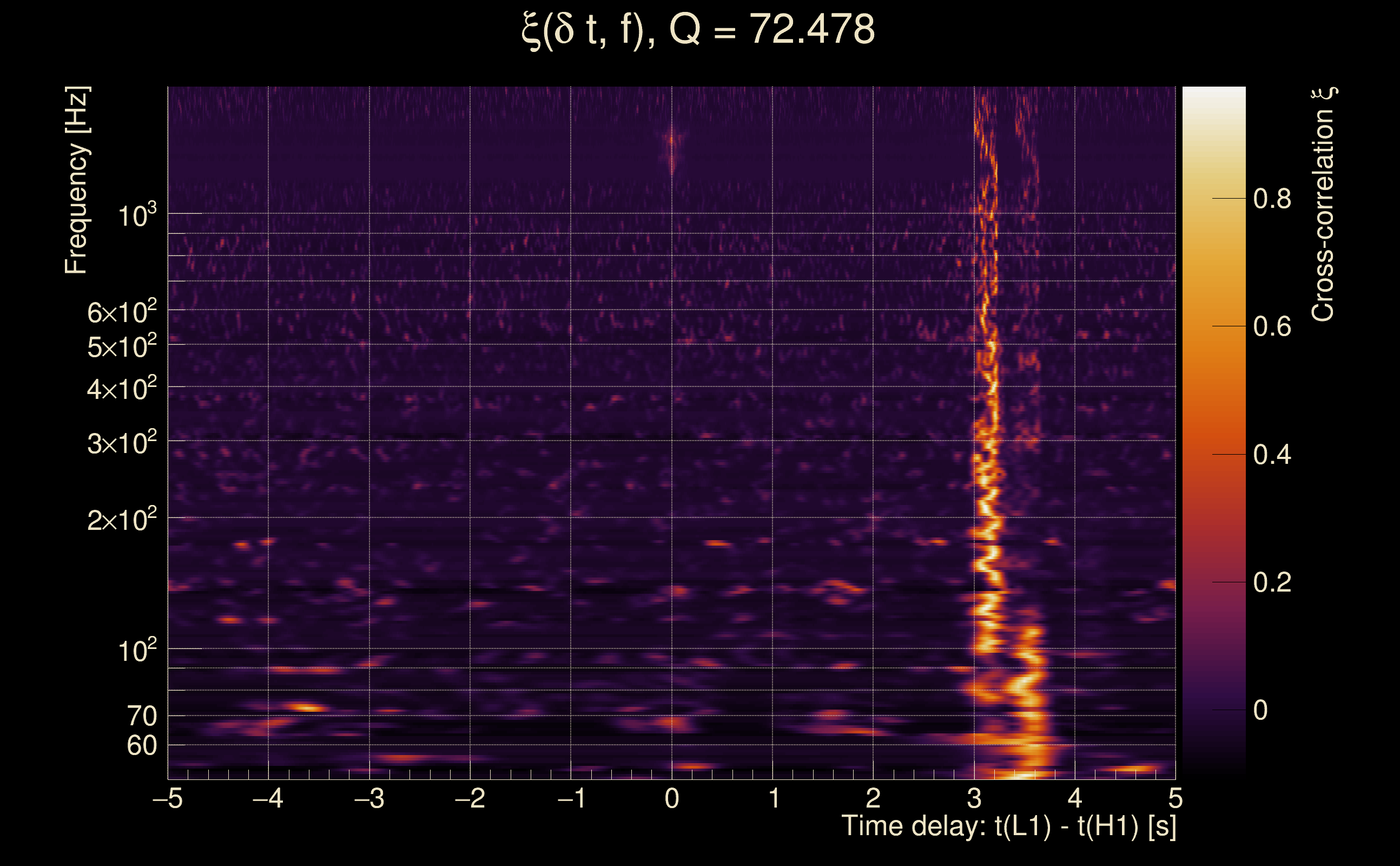

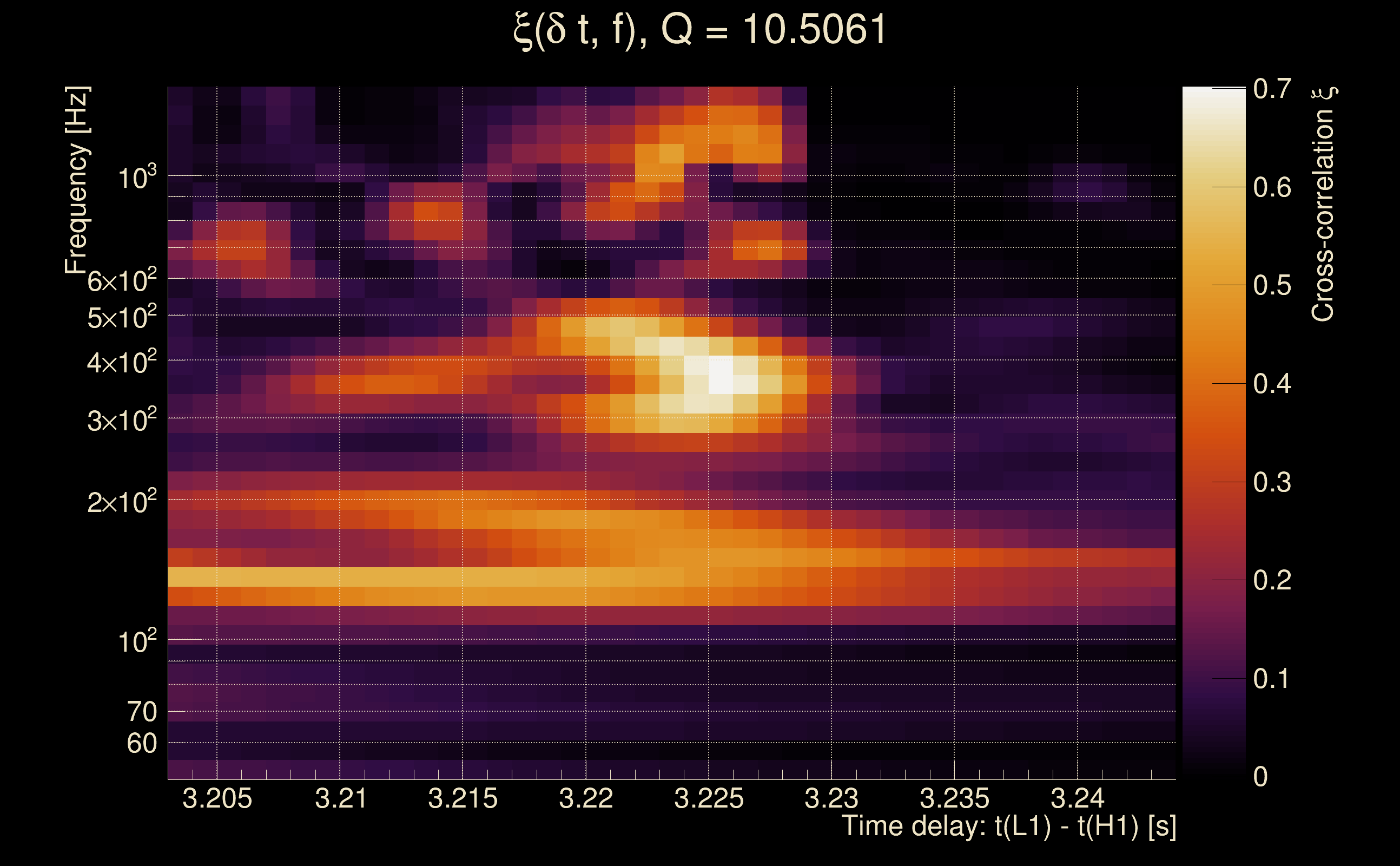

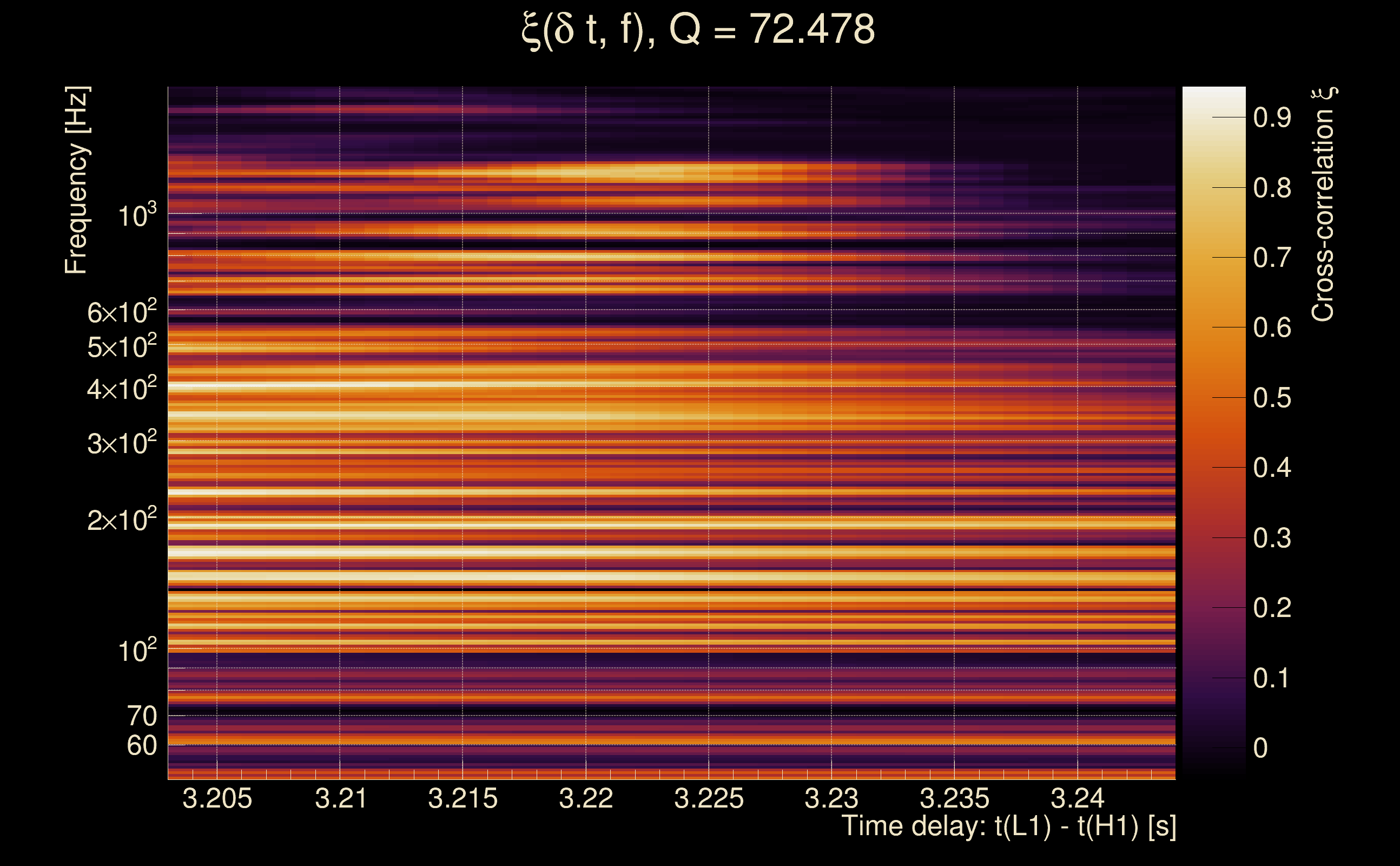

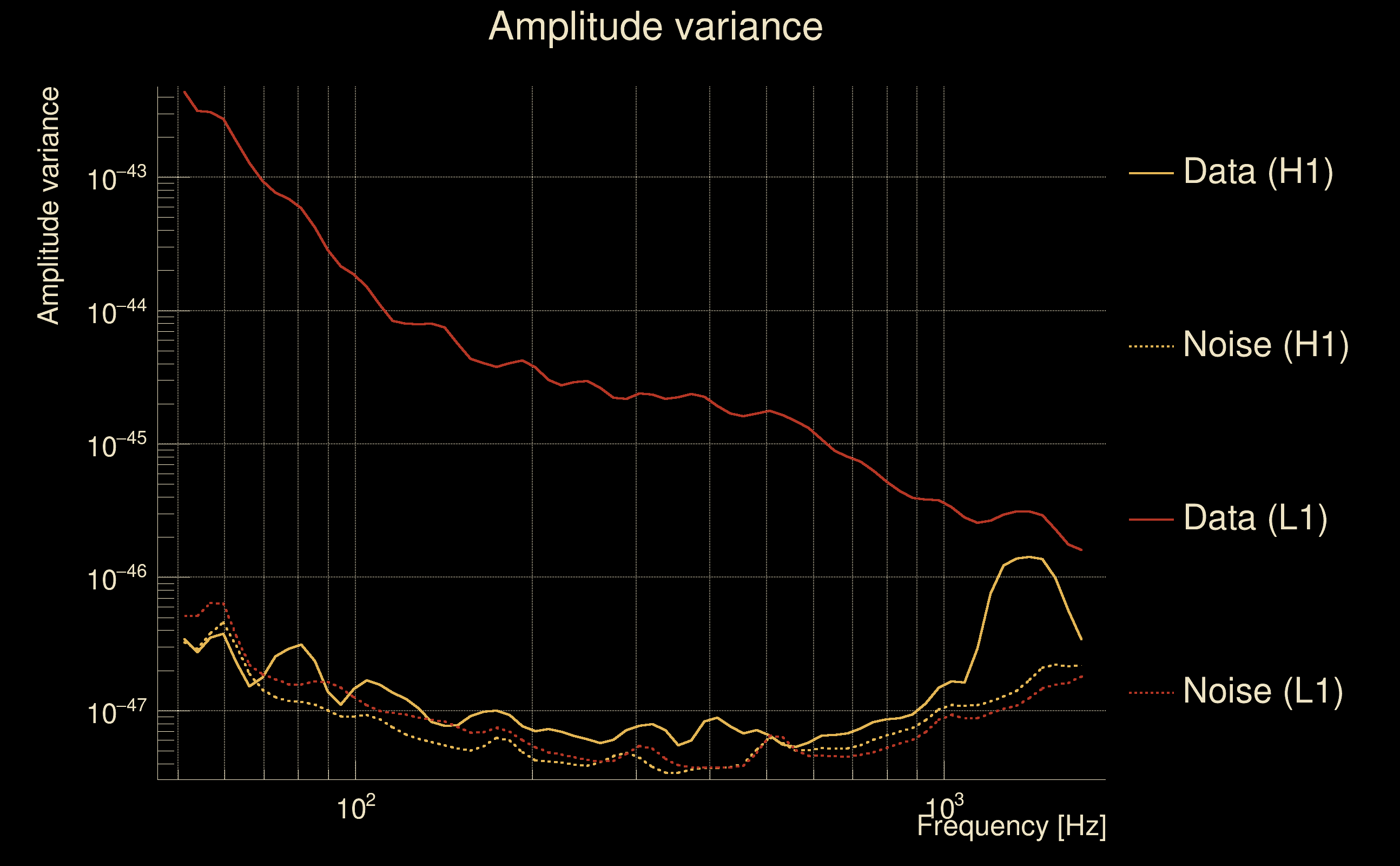

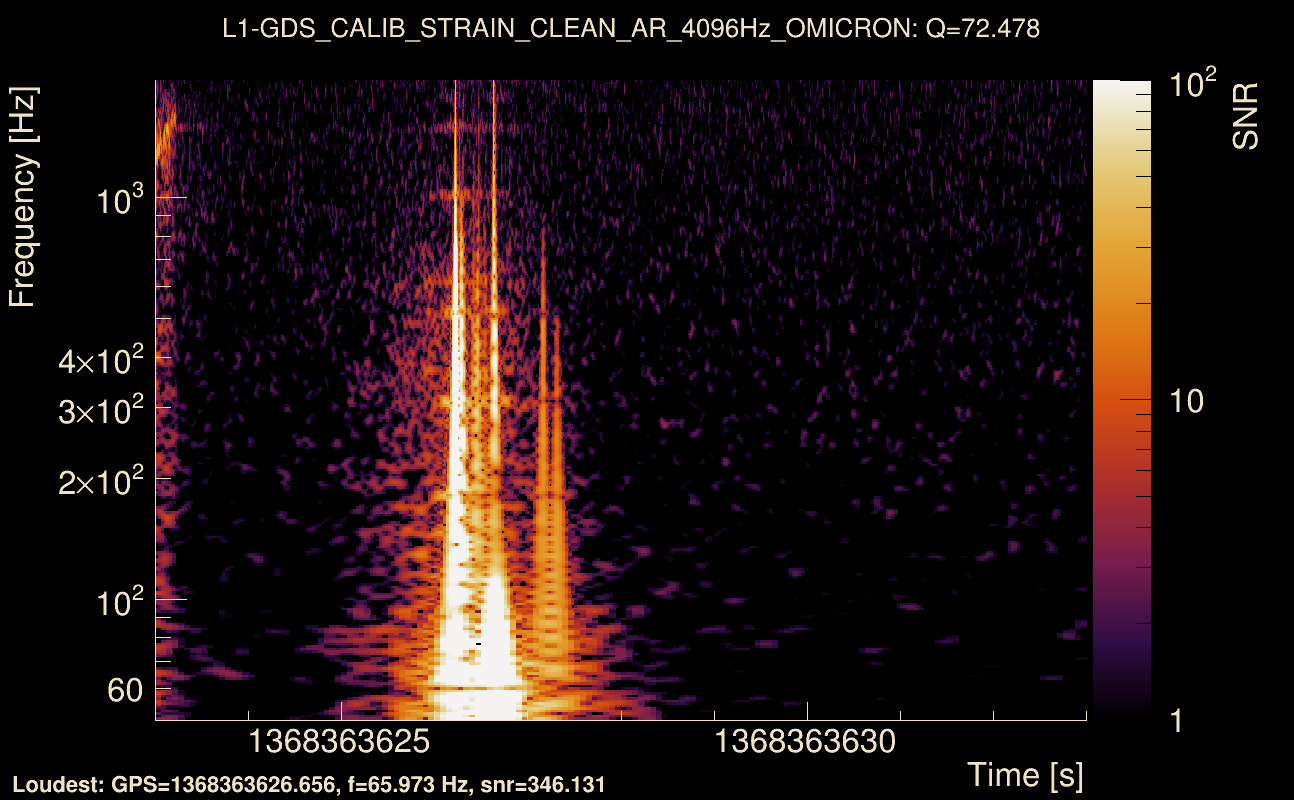

| Event time t(H1): | GPS = 1368363623 (Wed May 17 13:00:05 2023 ) → GPS = 1368363633 (Wed May 17 13:00:15 2023 ) |
| Event time t(L1): | GPS = 1368363623 (Wed May 17 13:00:15 2023 ) → GPS = 1368363633 (Wed May 17 13:00:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368363620 → GPS = 1368363636 |
| Omicron analysis time window (L1): | GPS = 1368363620 → GPS = 1368363636 |

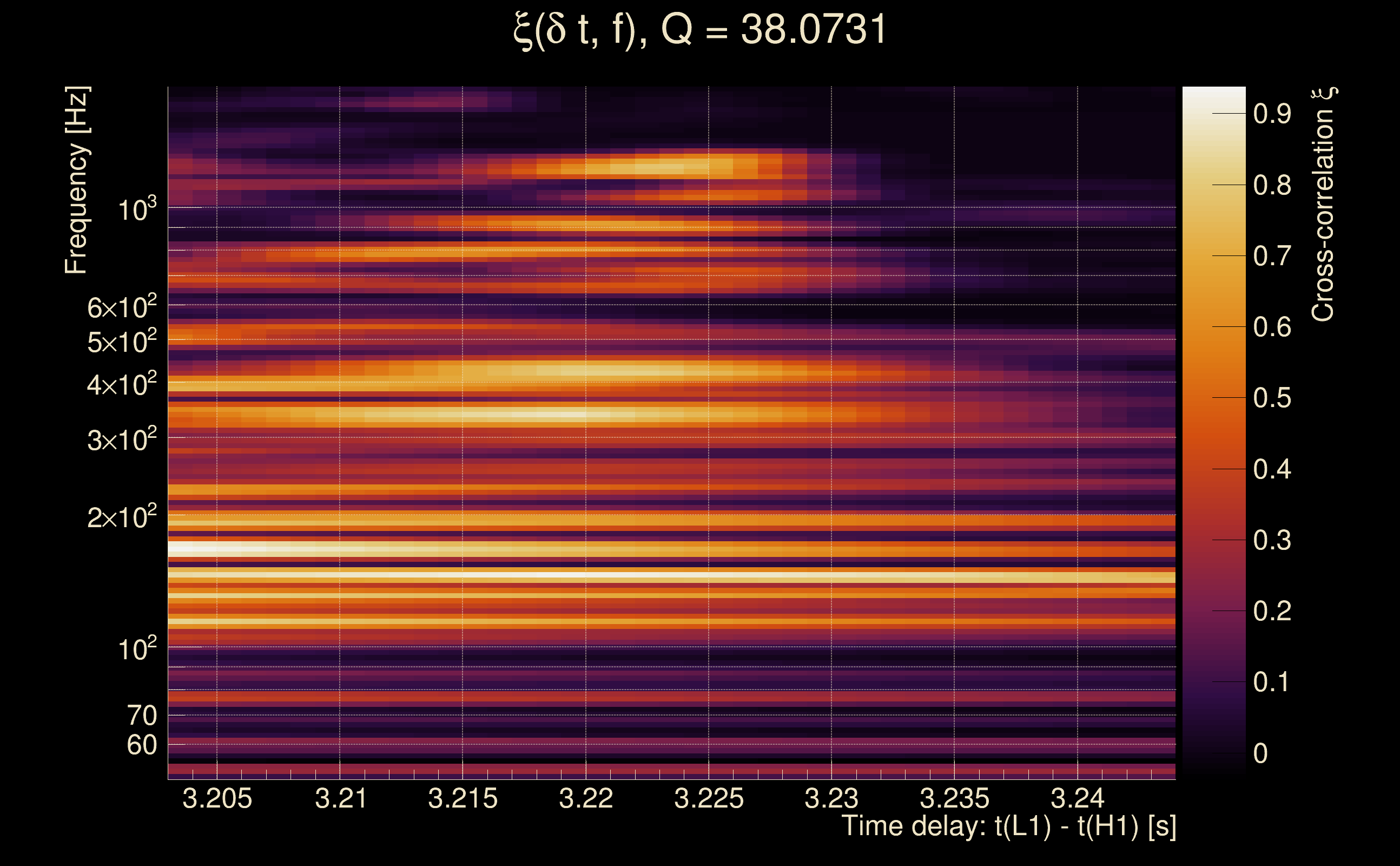

| Time delay between detectors t(L1) - t(H1): | 3.22333 s (slice index = 38 / 217), δt_gw = 0.00333192 s |
| Time delay standard deviation: | 0.0571324 s |
| [targeted mode] Time delay probability: | 0.0869442 (1.71174 sigmas), δt_target = 0.00103426 s |
| Frequency: | 416.112 Hz |
| Ξ: | 0.322816 ± 0.0546756 (variance = 0.00298943): Q0: 0.428439, Q1: 0.489724, Q2: 0.516047, Q3: 0.556787, Q4: 0.586198 |
| Rank: | R_A = 0.322816 |
| Log of amplitude ratio (L1/H1): | 4.90998, variance = 1.63487 (L1/H1: 1.00095, variance = 3.00769, H1/L1: -4.91265, variance = 1.63711) |
| Amplitude ratio (L1/H1): | 135.636 ⋇ 3.59169 (L1/H1: 2.72088 ⋇ 5.66478, H1/L1: 0.00735294 ⋇ 3.59483) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0695204 |
| Antenna factor probability: | 4.95637e-05 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 10 / 36, Q2: 31 / 70, Q3: 71 / 134, Q4: 170 / 258 |
| Maximum signal-to-noise ratio: | H1: 59.0663, L1: 2256.04 |
| SNR variance: | H1: 15.0647, L1: 1308.11 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

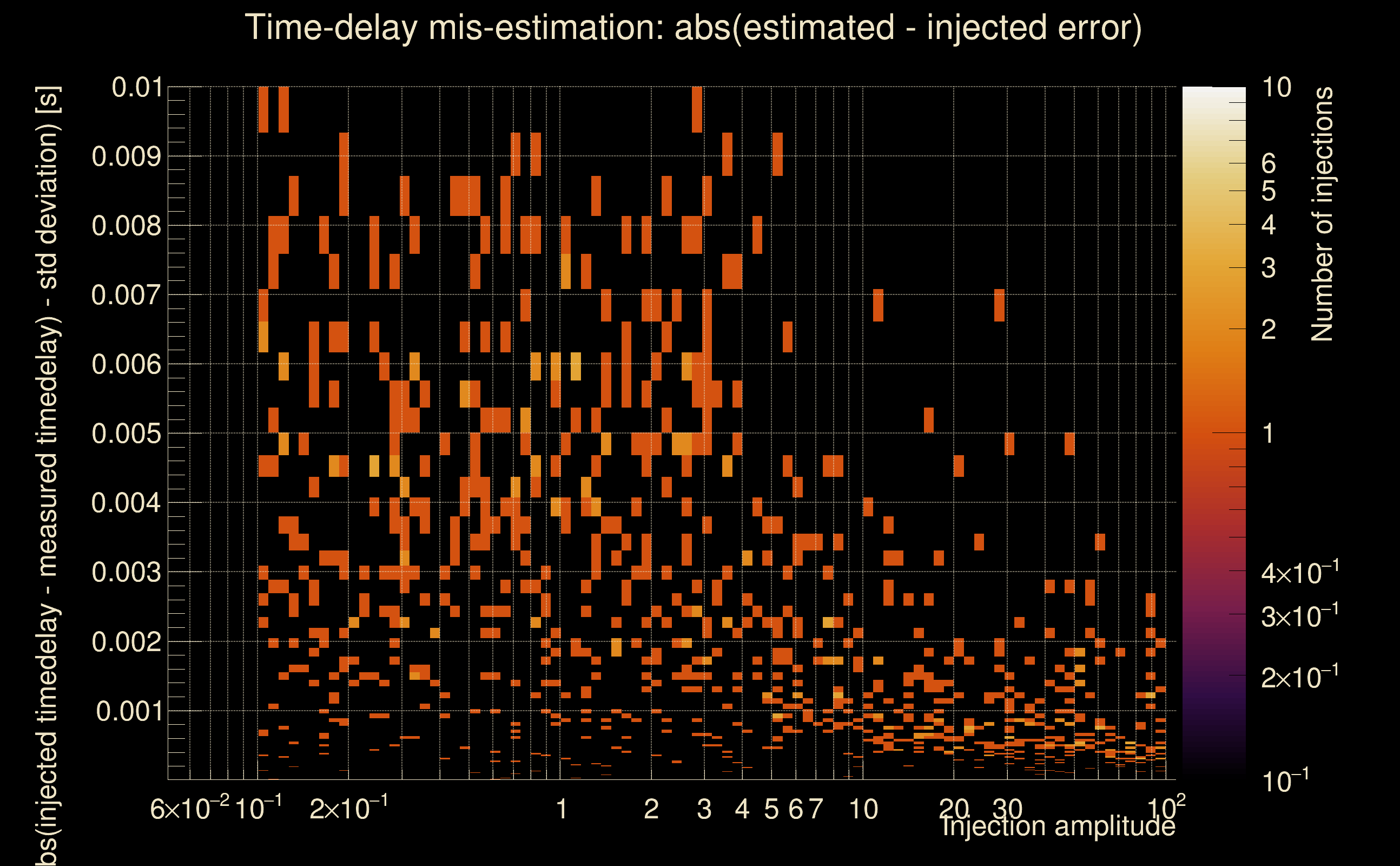

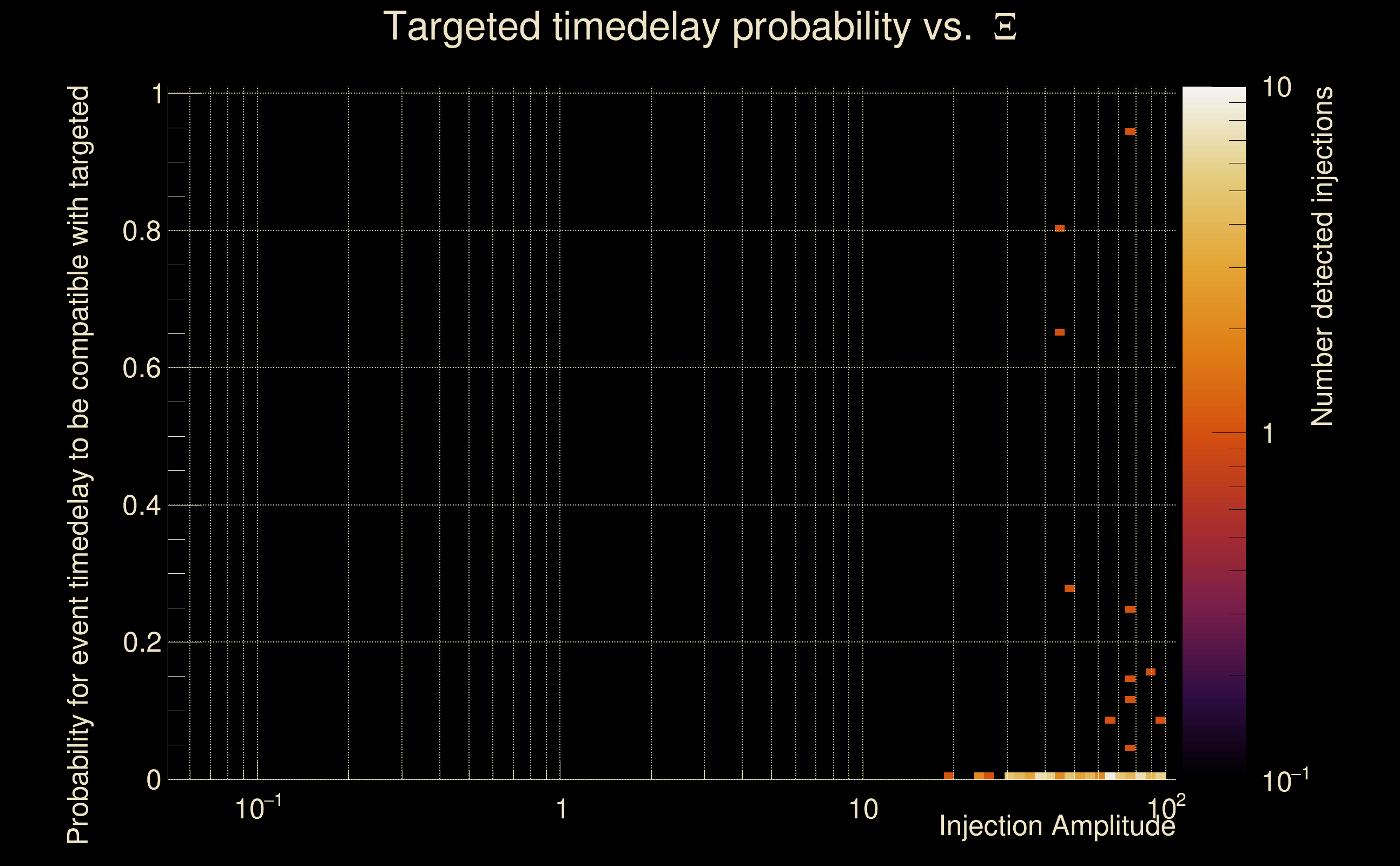

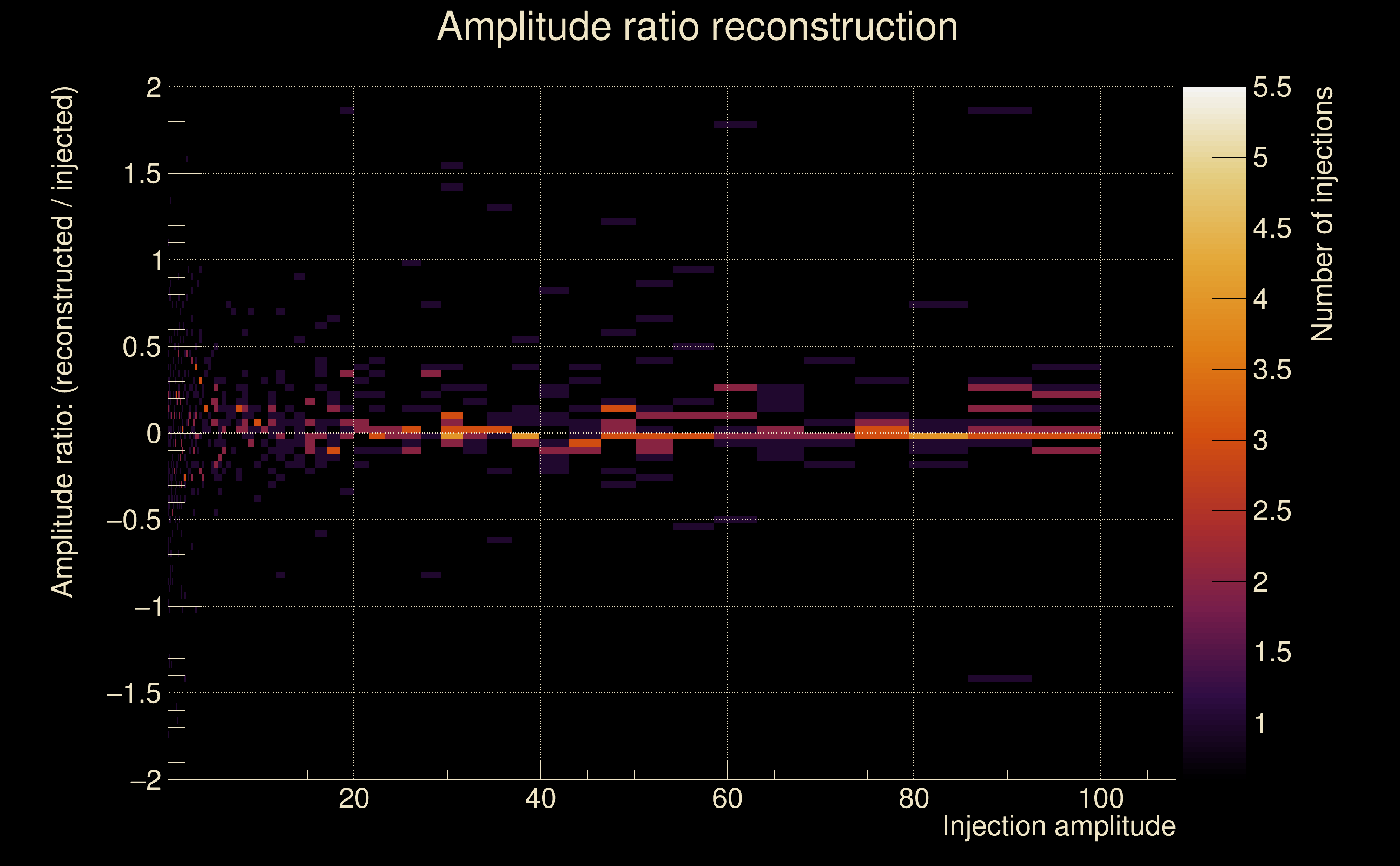

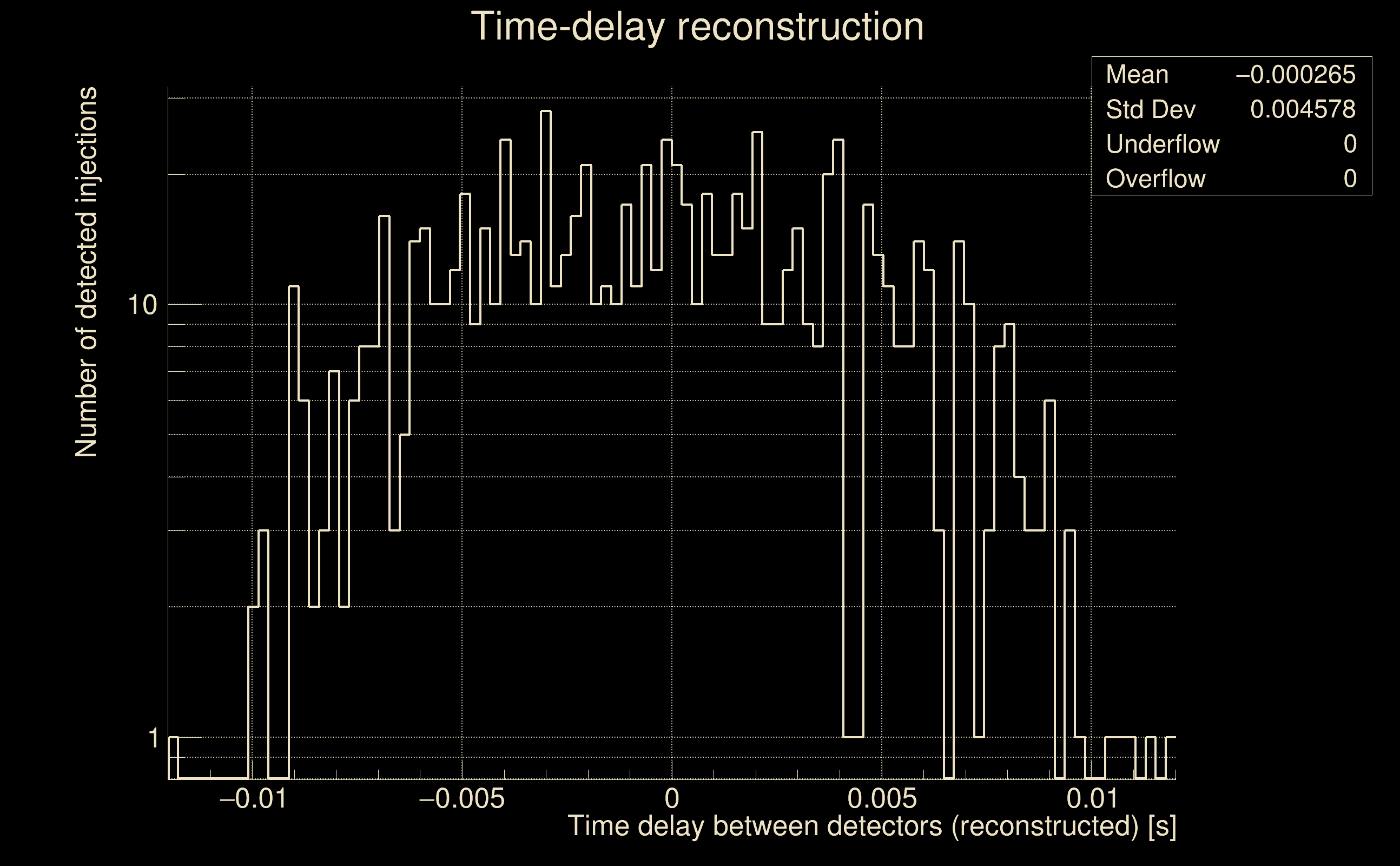

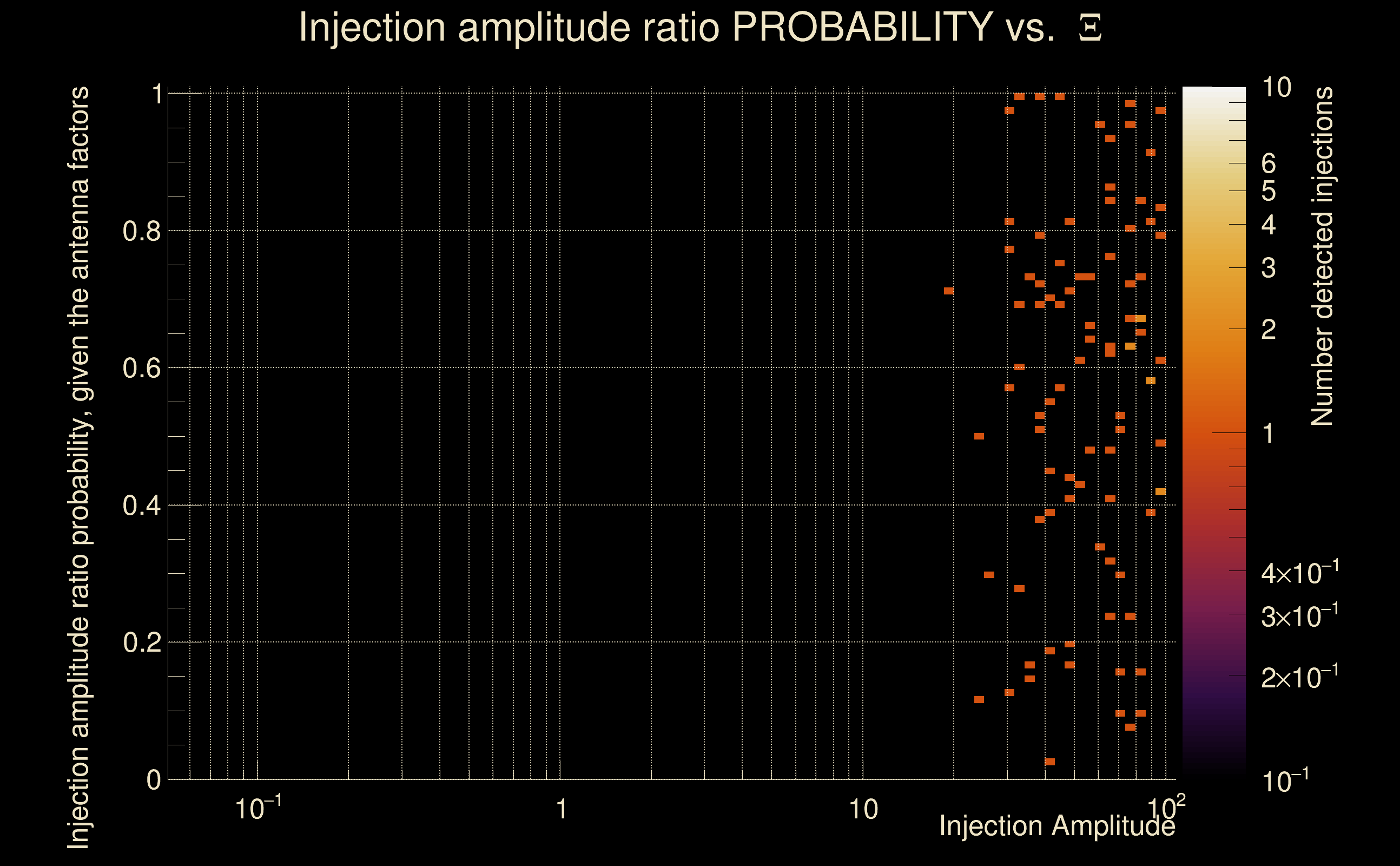

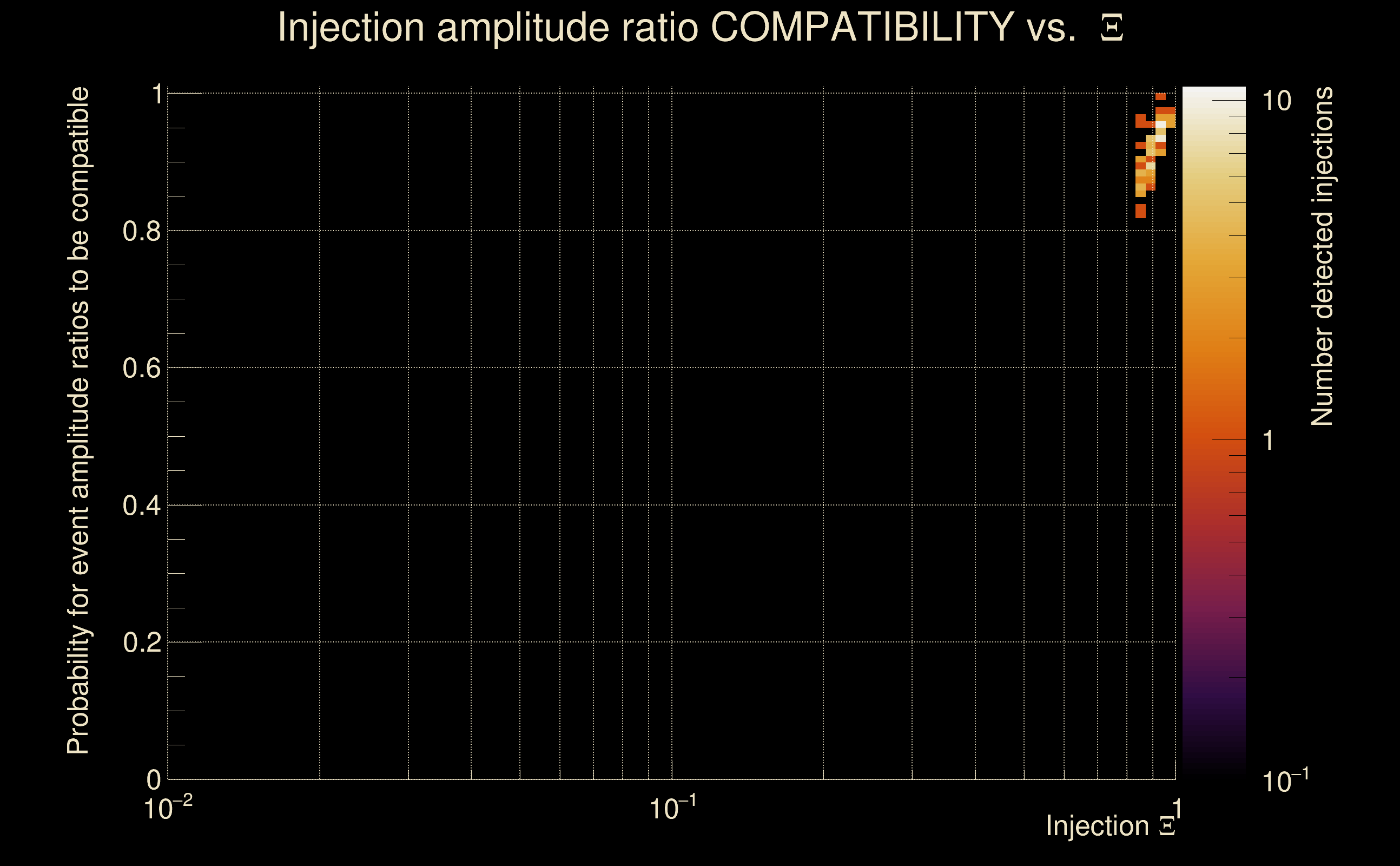

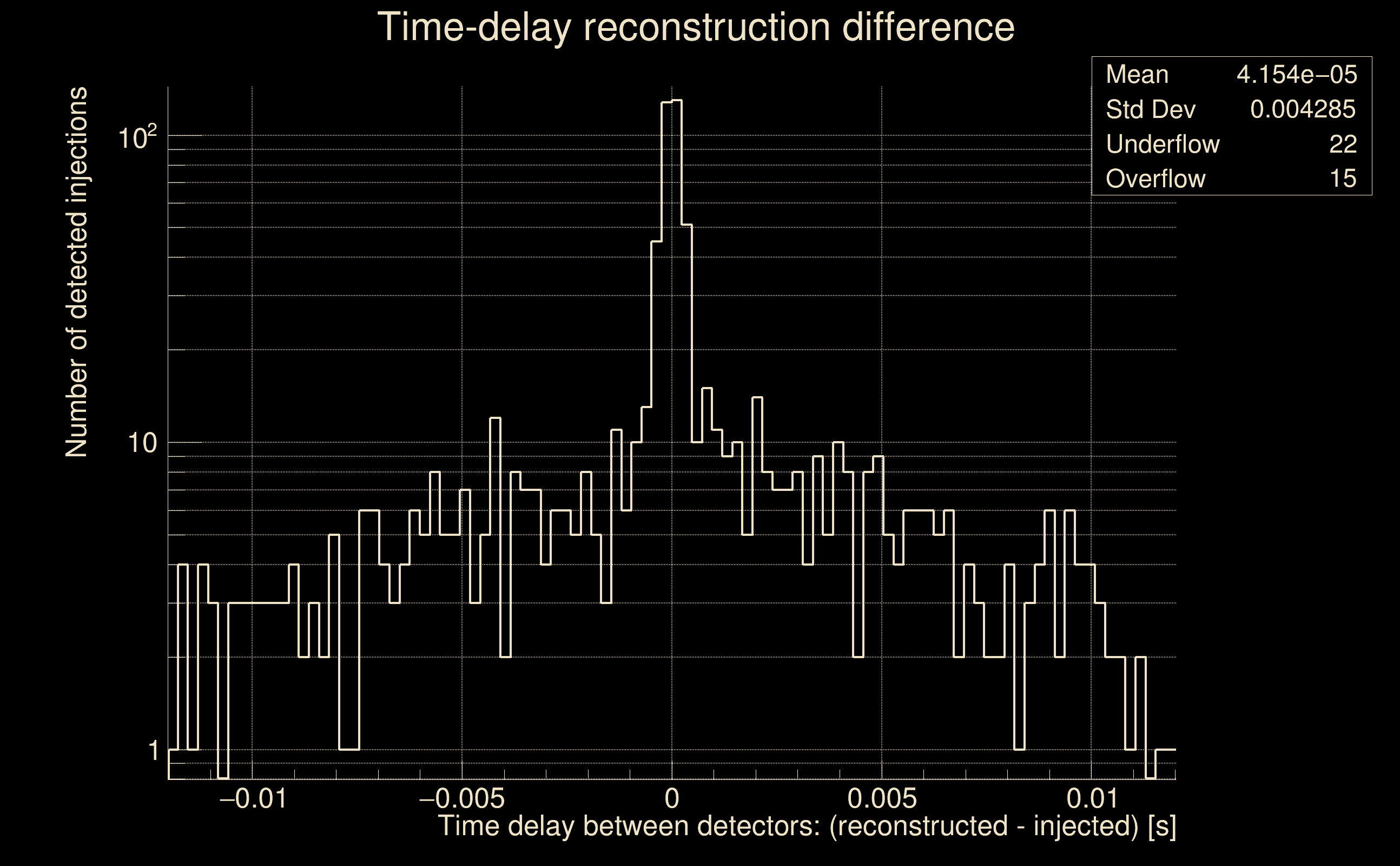

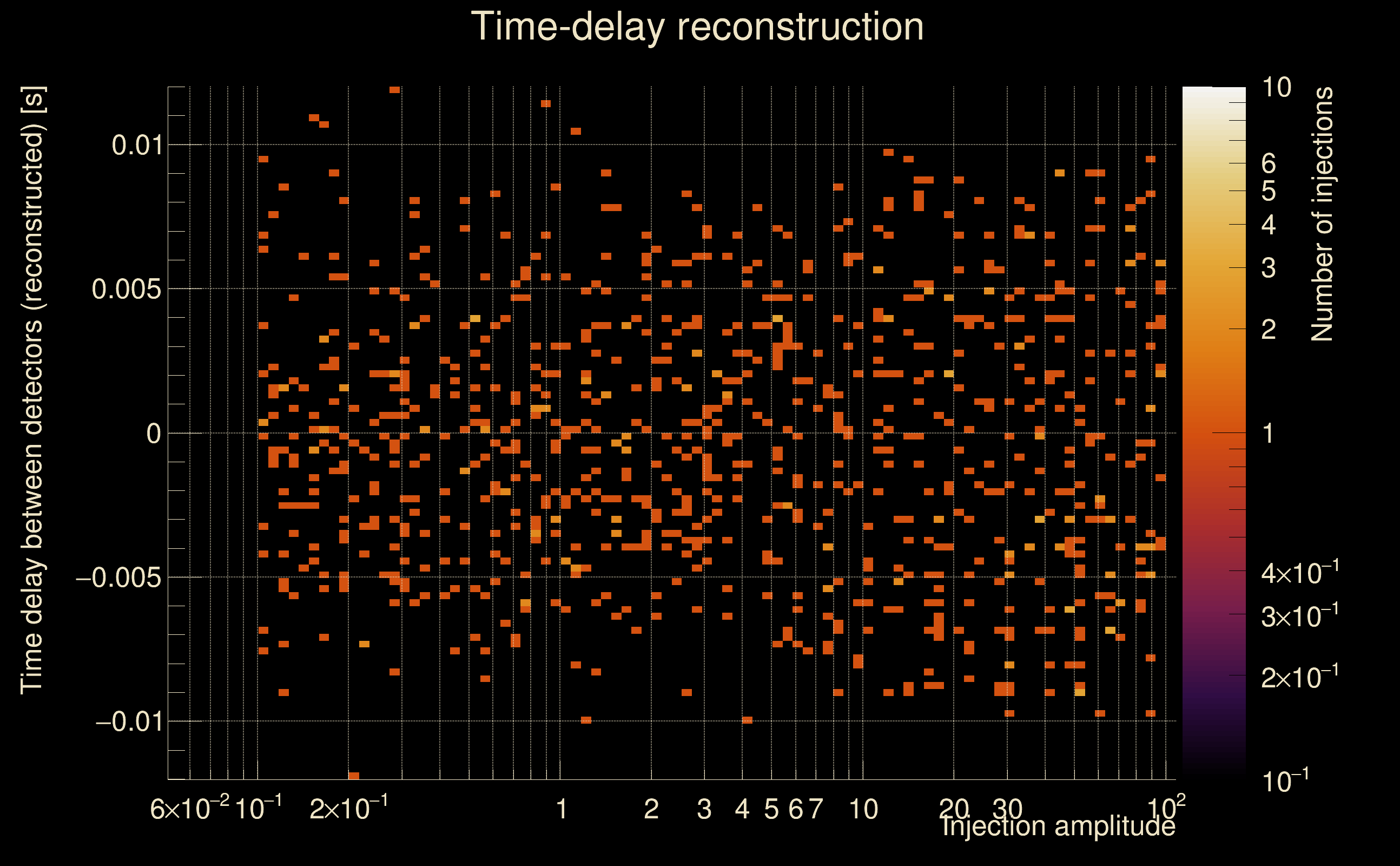

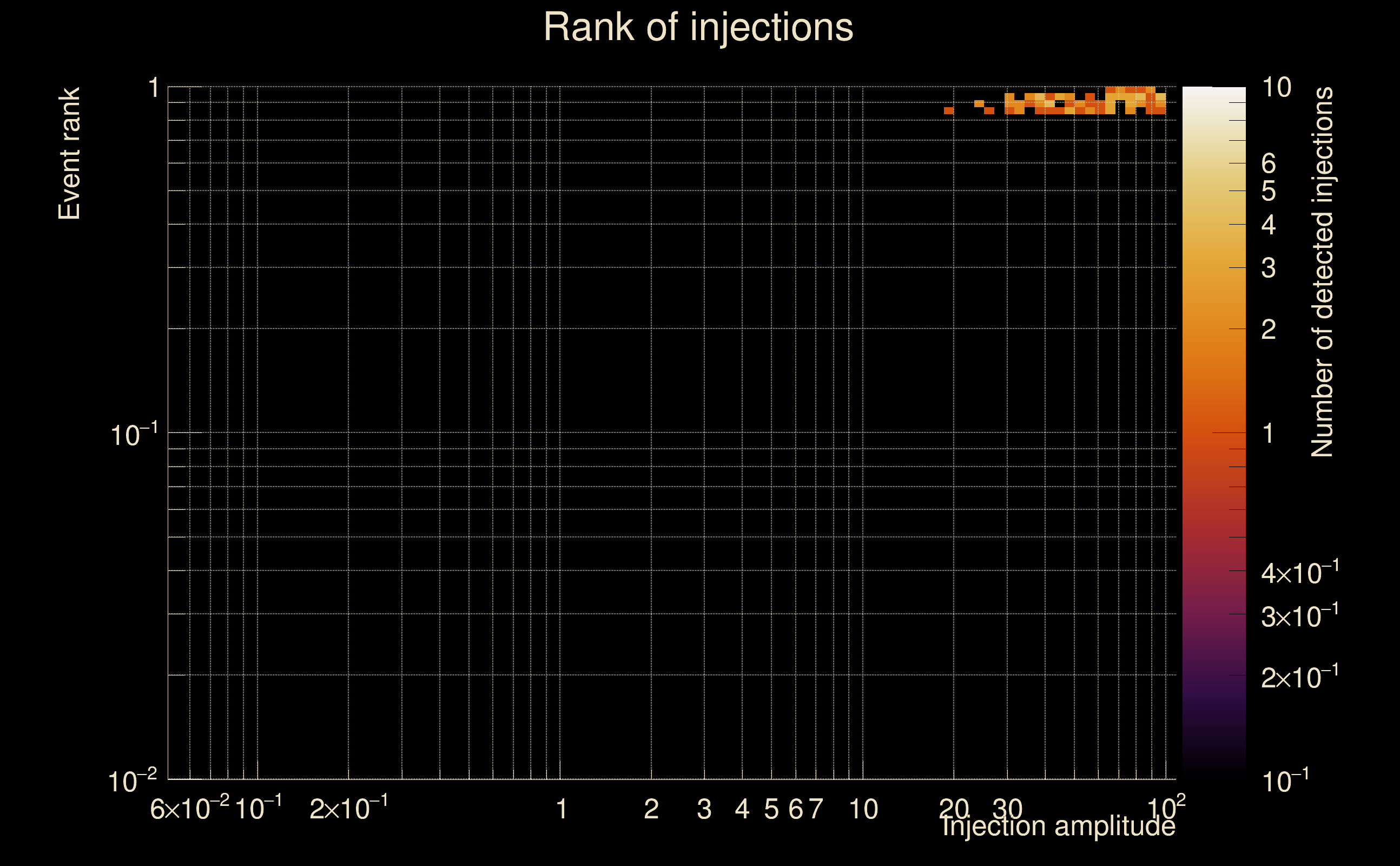

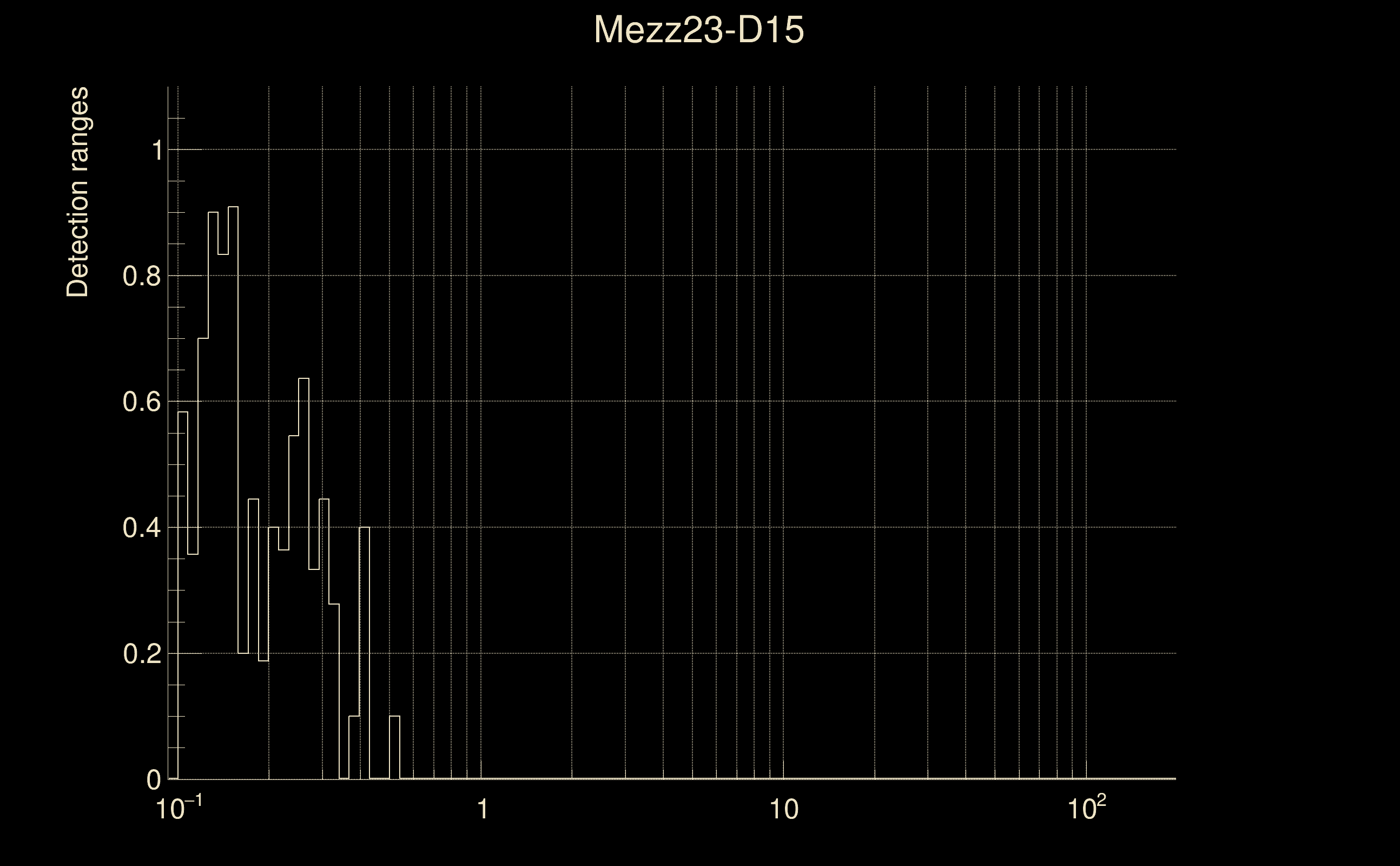

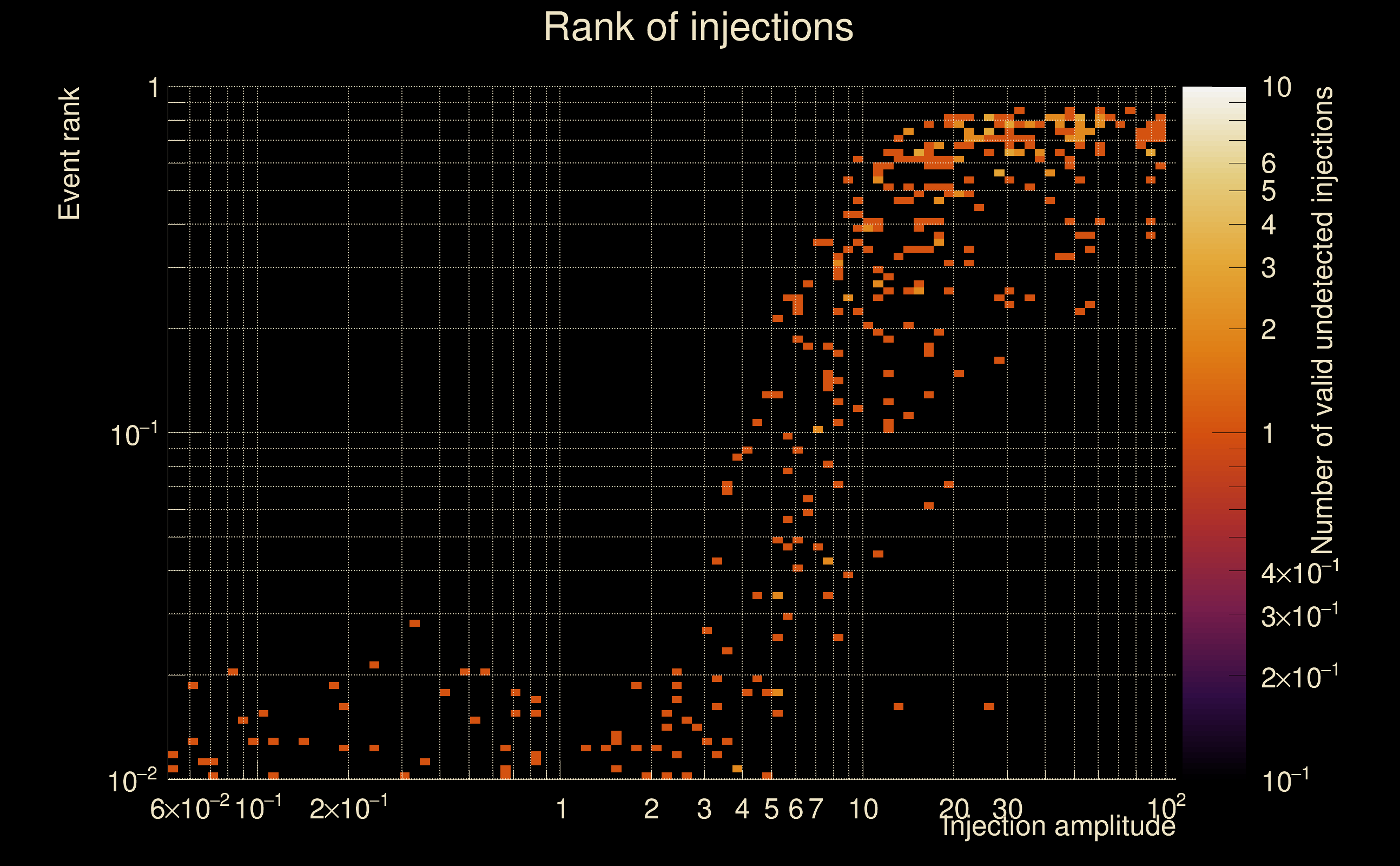

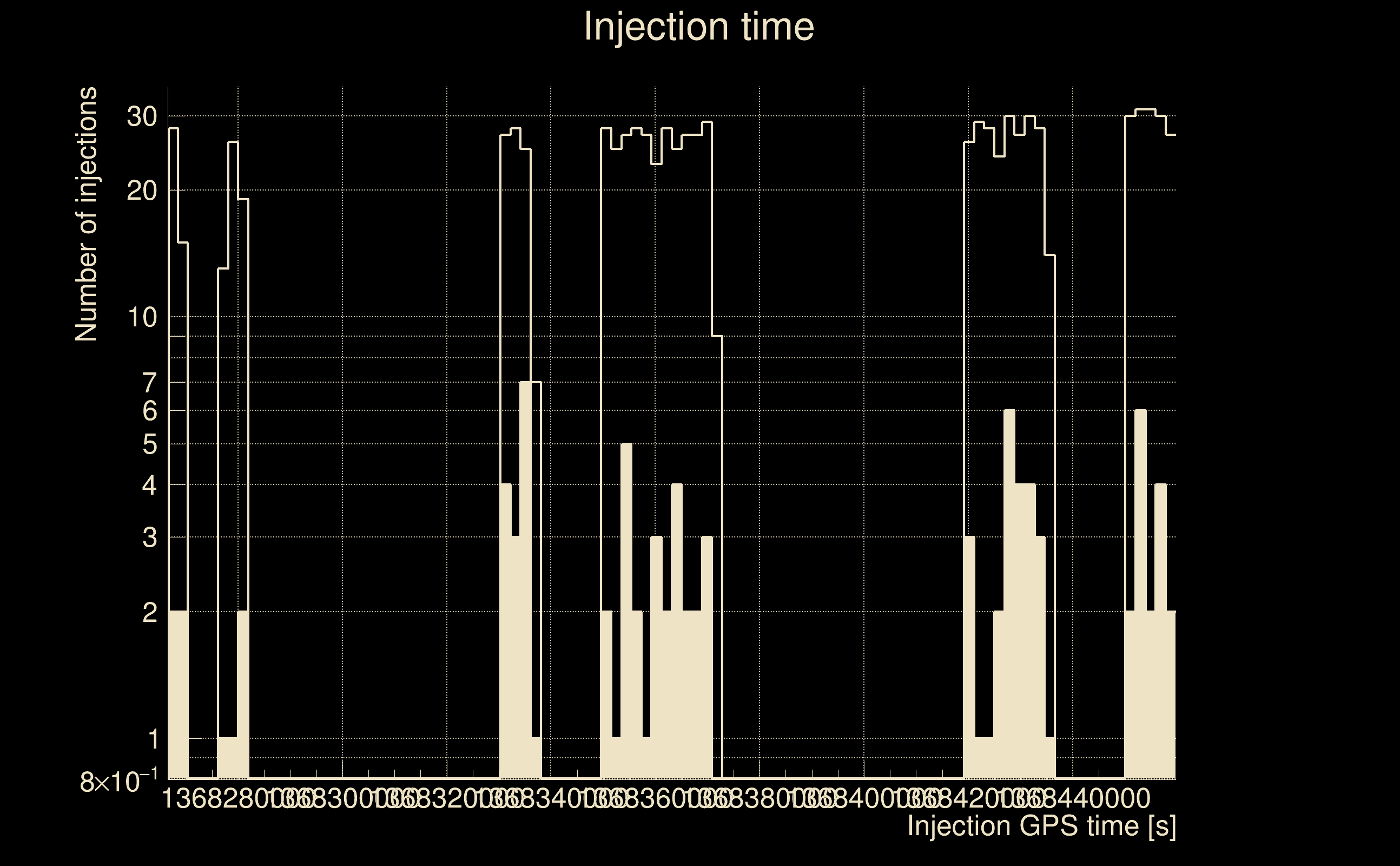

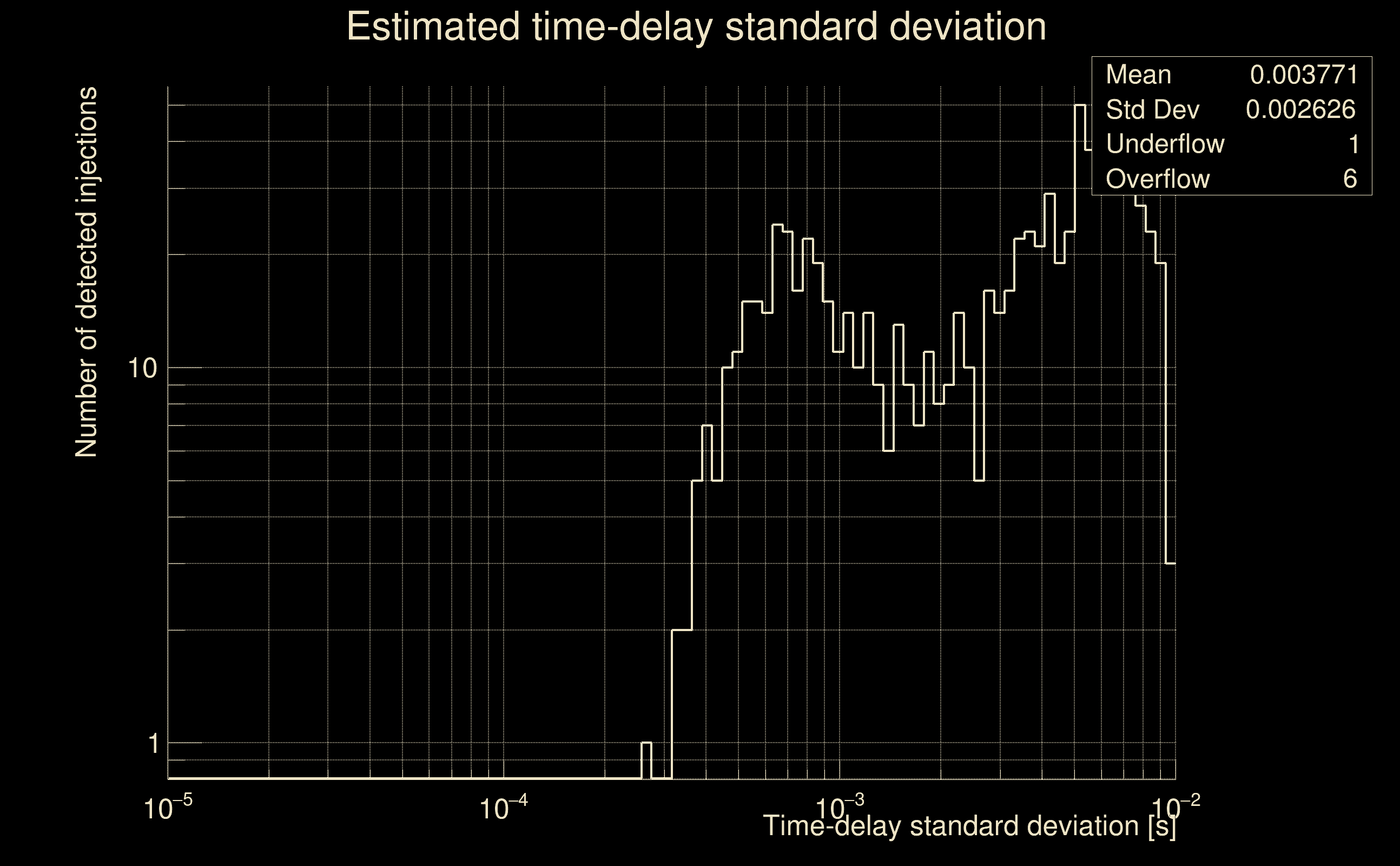

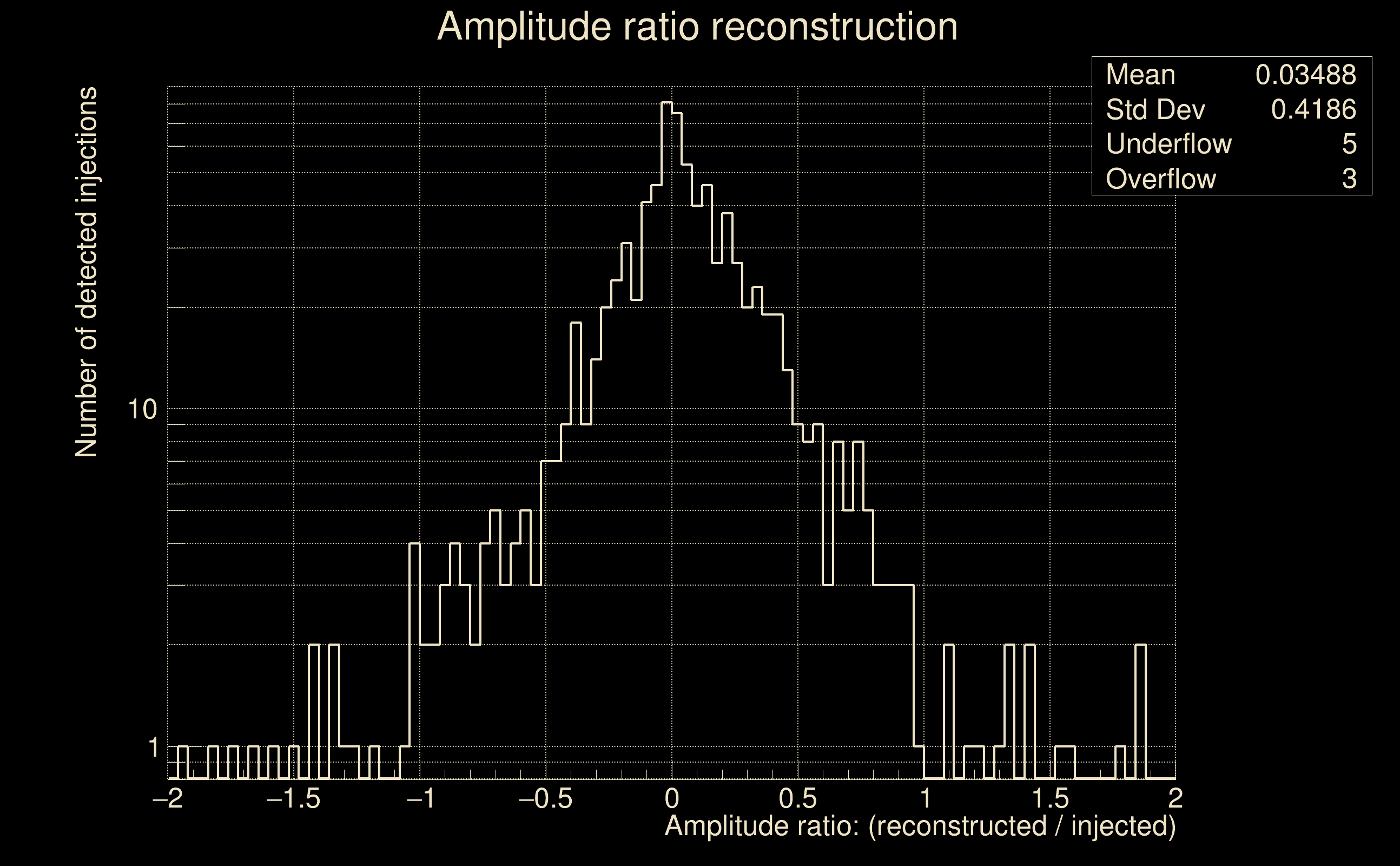

| Number of injections (total/valid/detected): | 1006 / 876 / 91 |
| List of missed injections: | ./Mezz23-D15_missed.txt |
| Injection amplitude at 90% detection efficiency: | 65.5845 |
| Injection amplitude at 50% detection efficiency: | 62.8518 |
| Injection amplitude at 10% detection efficiency: | 29.0582 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

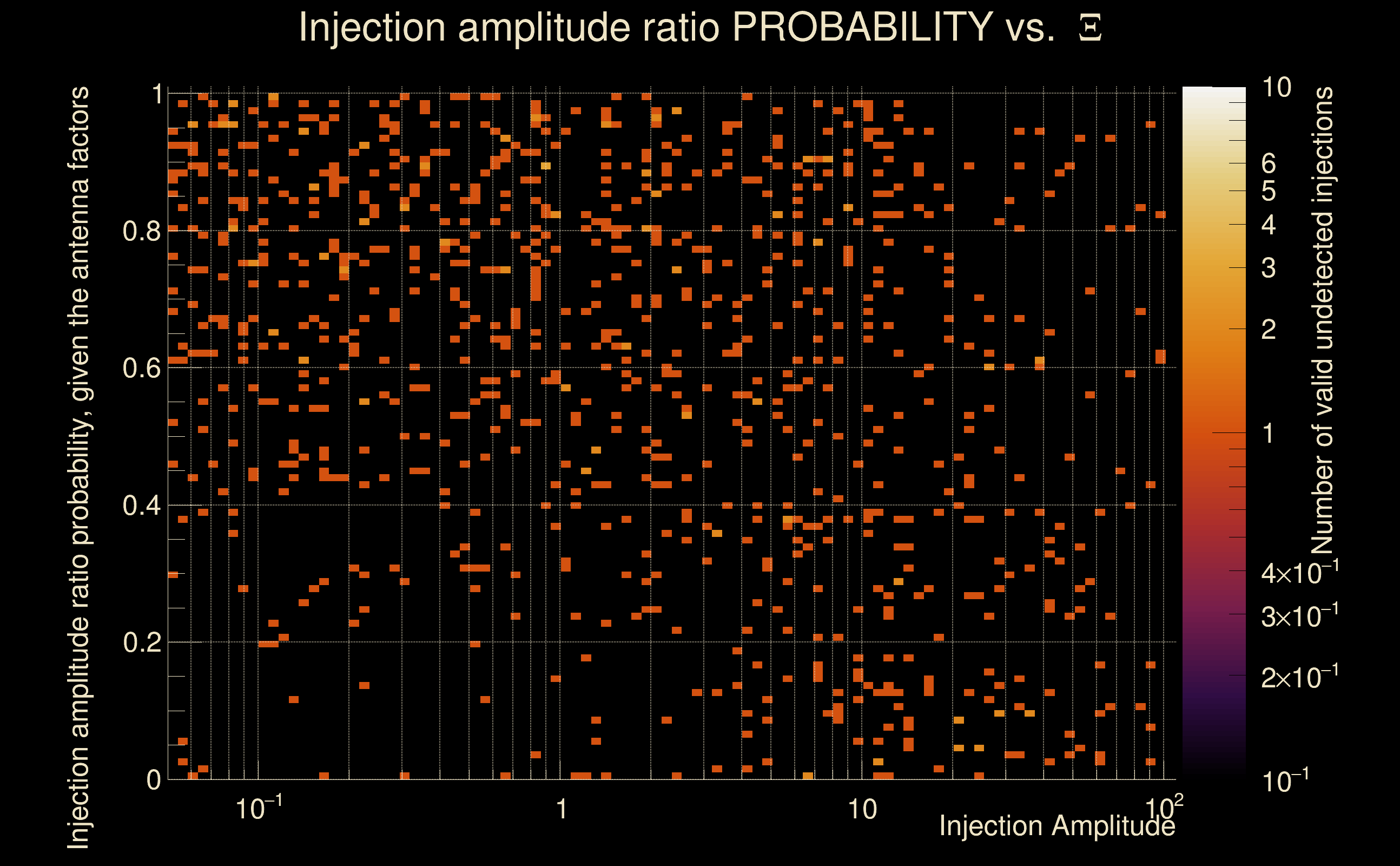

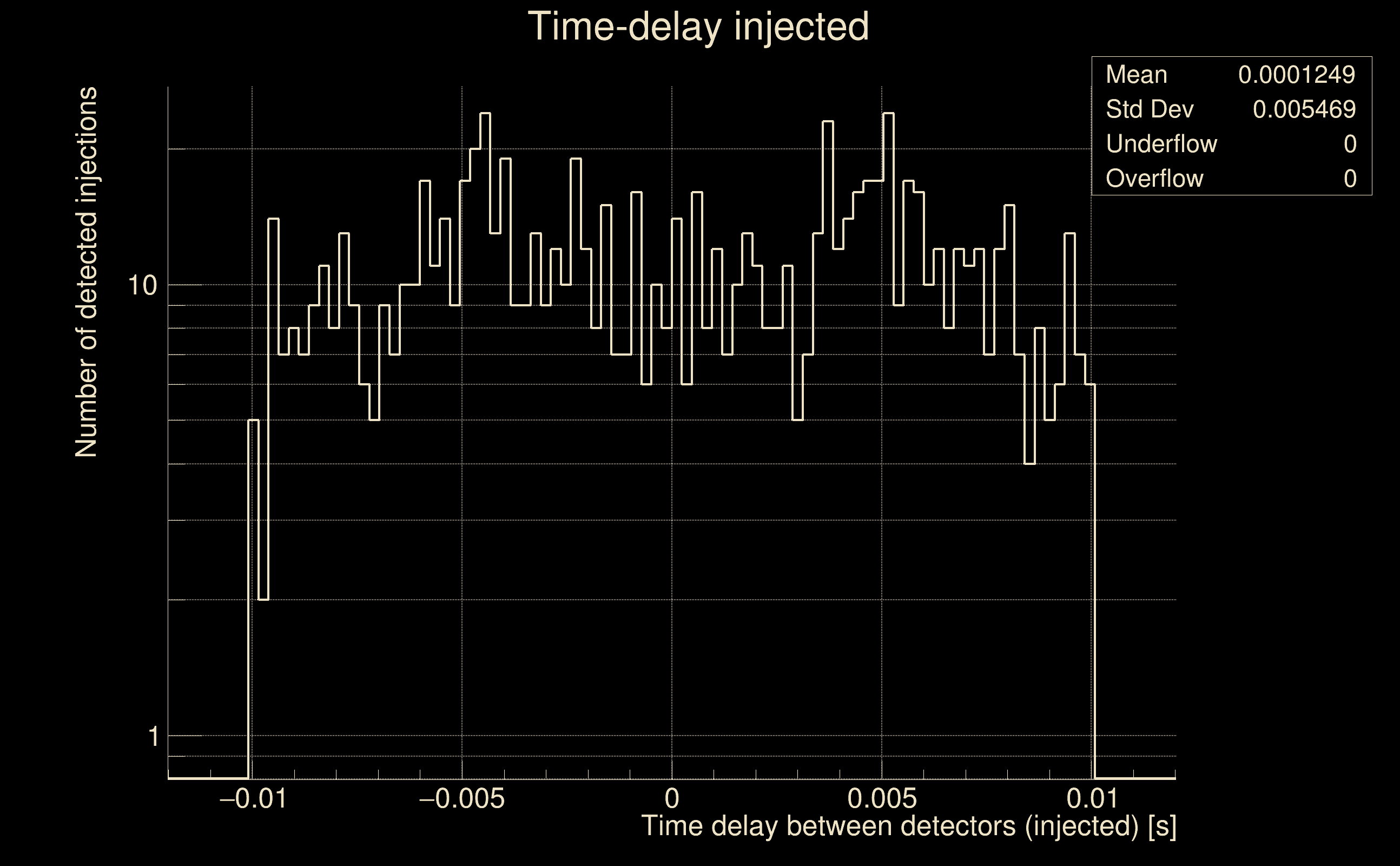

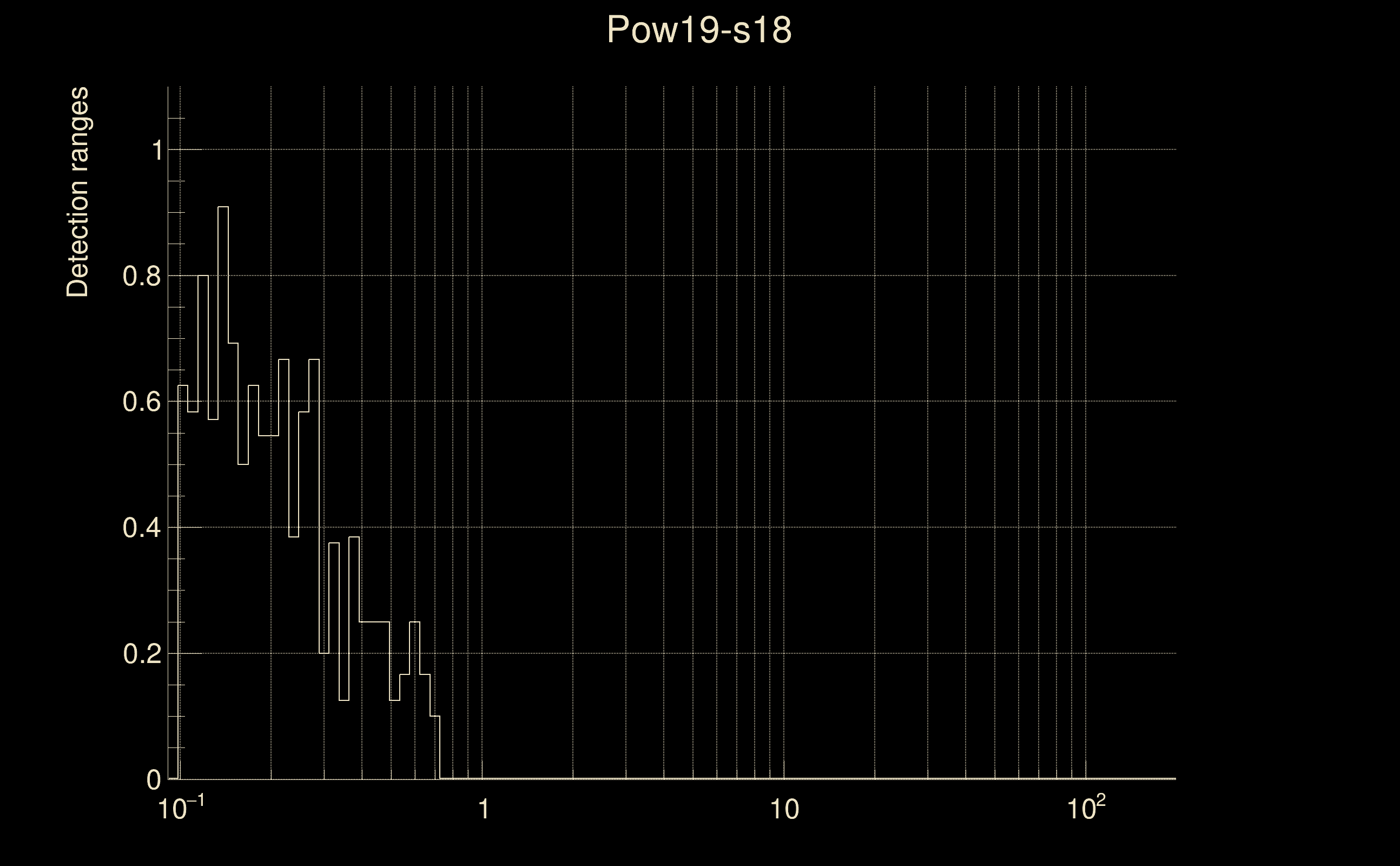

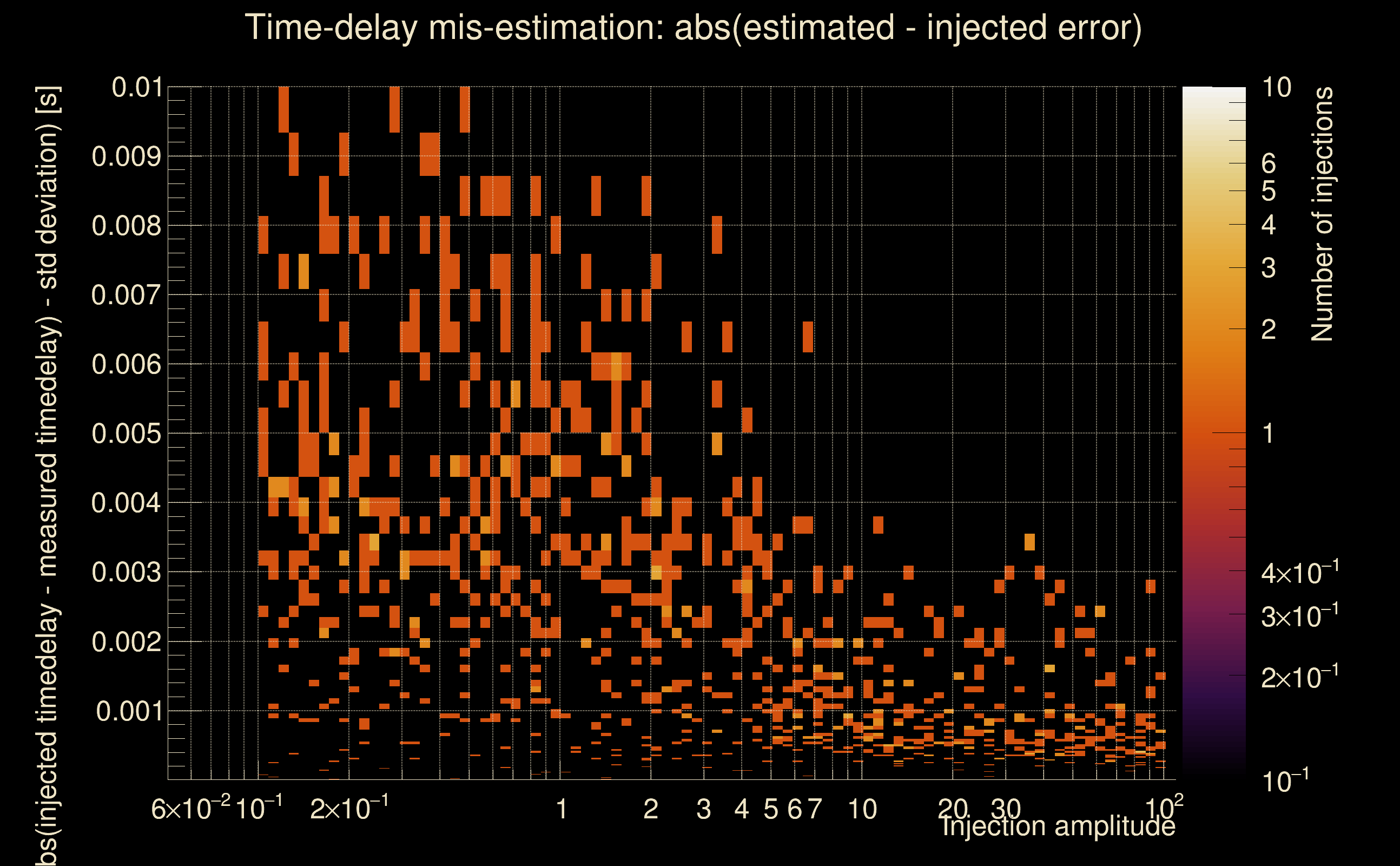

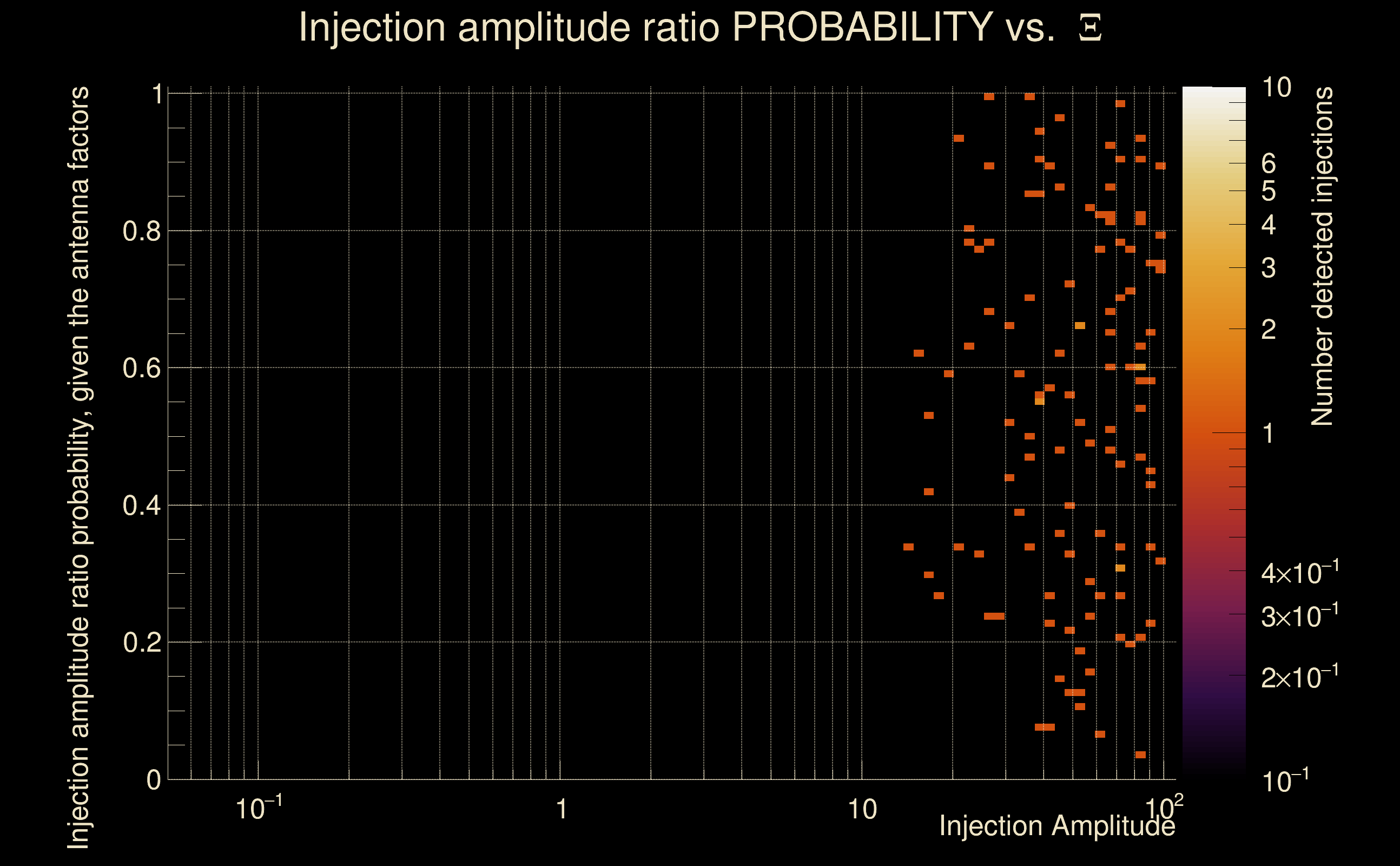

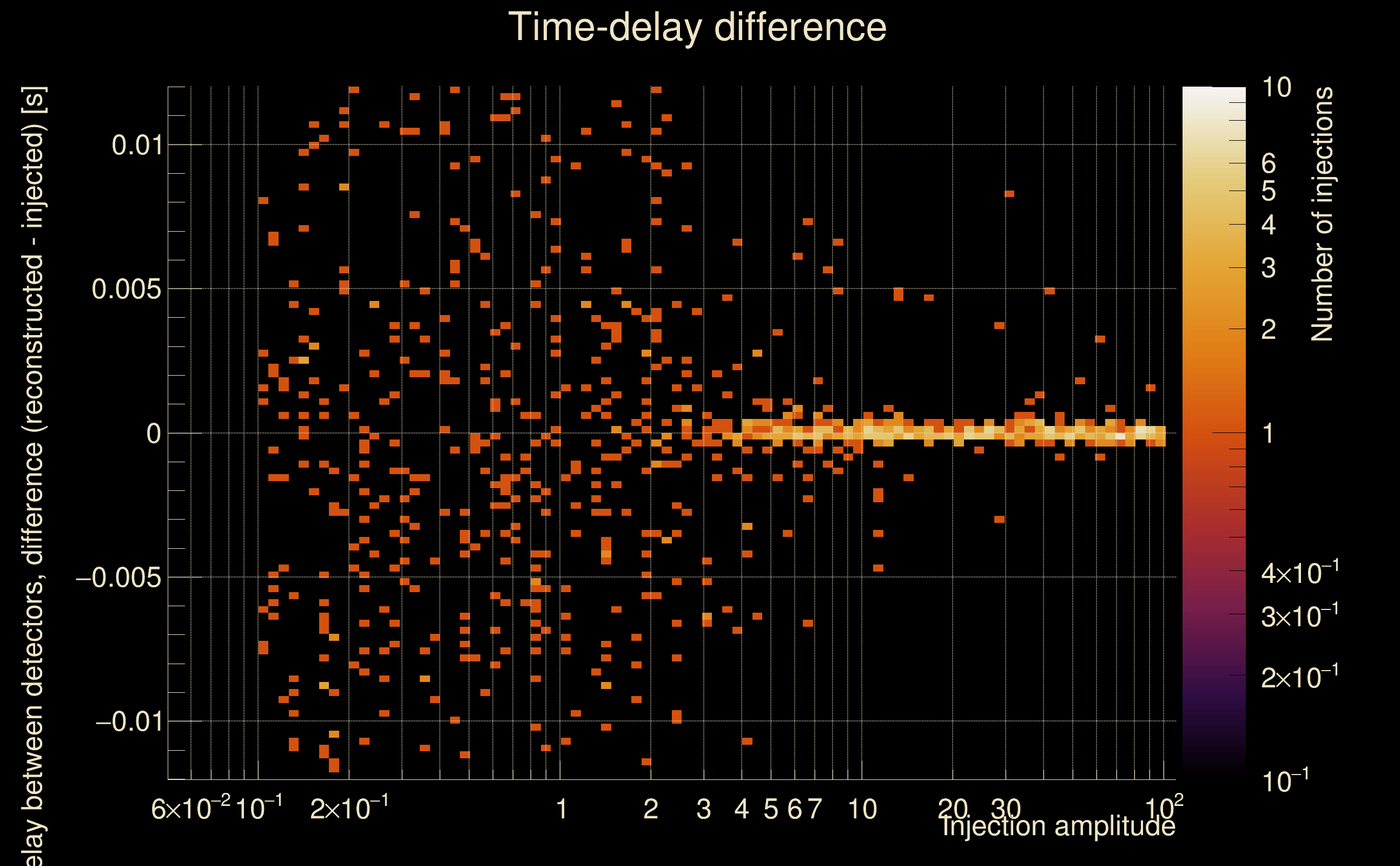

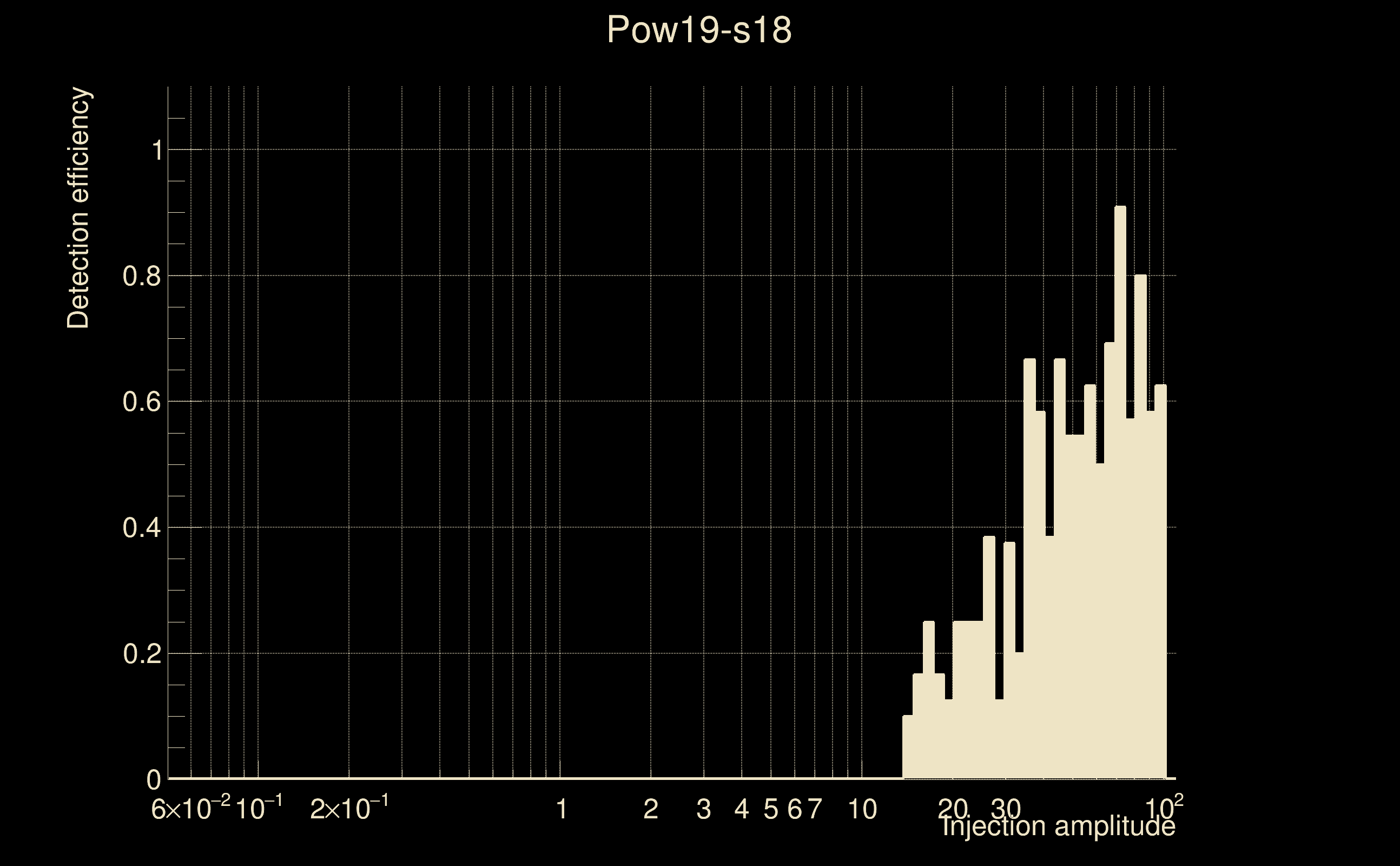

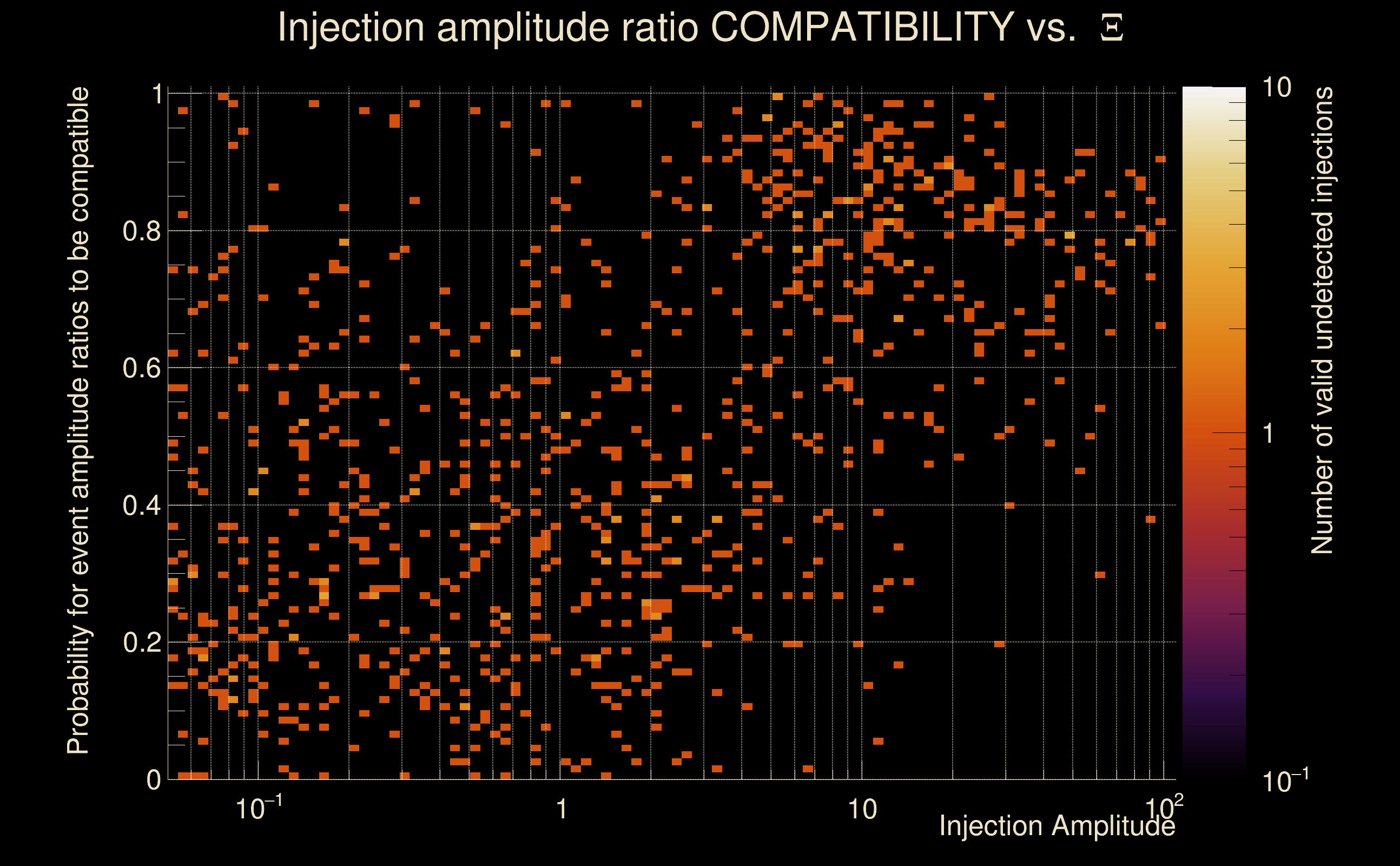

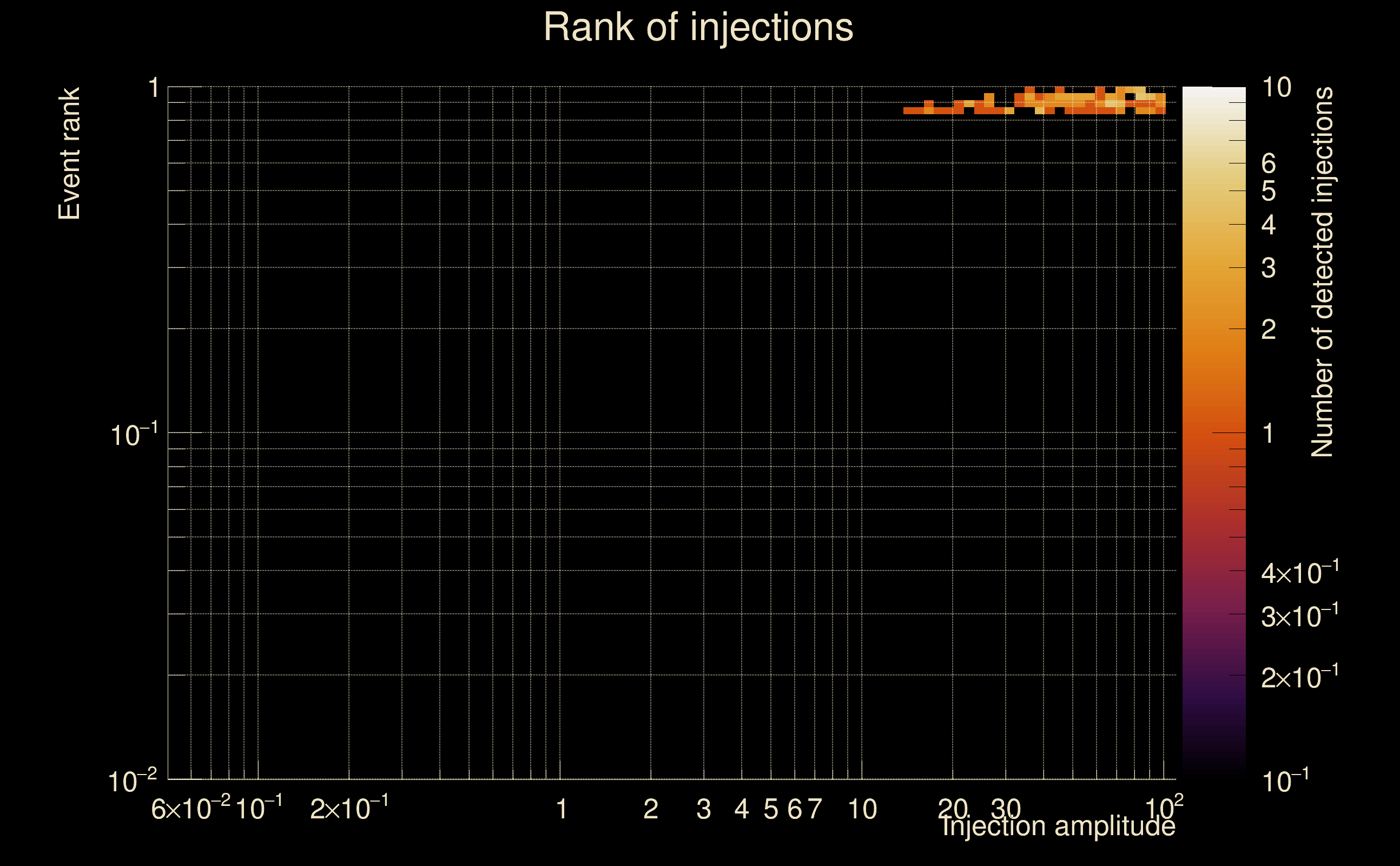

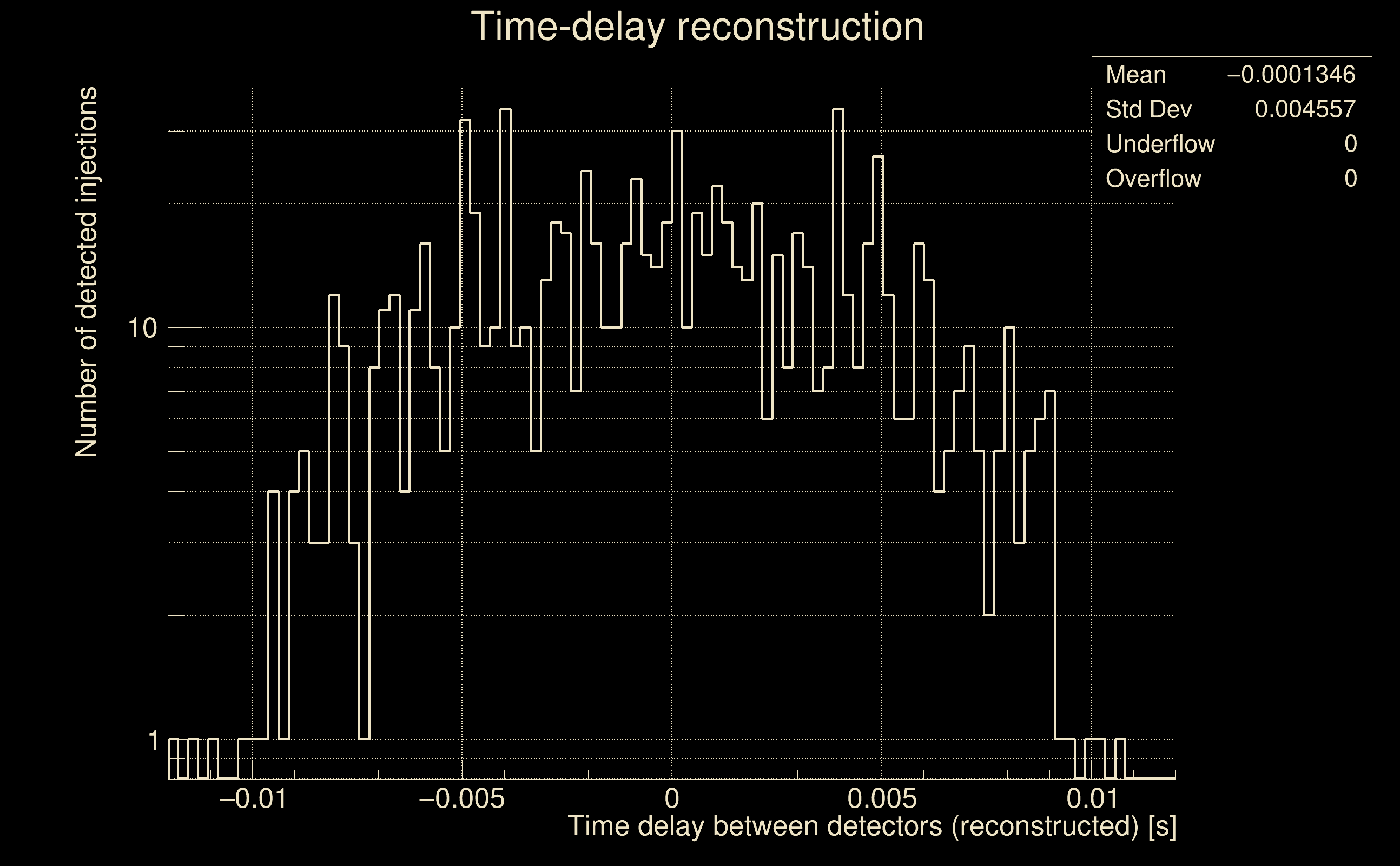

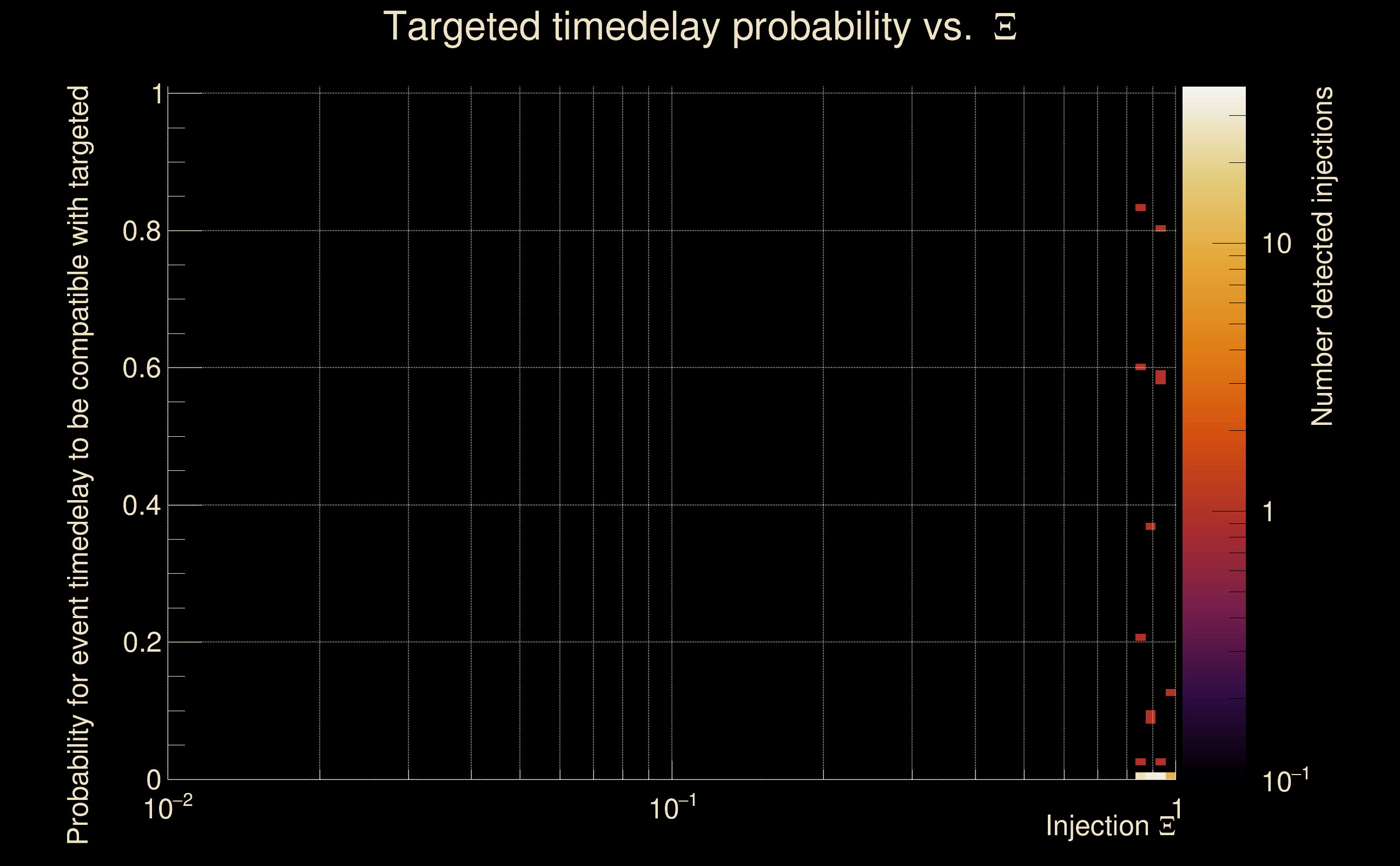

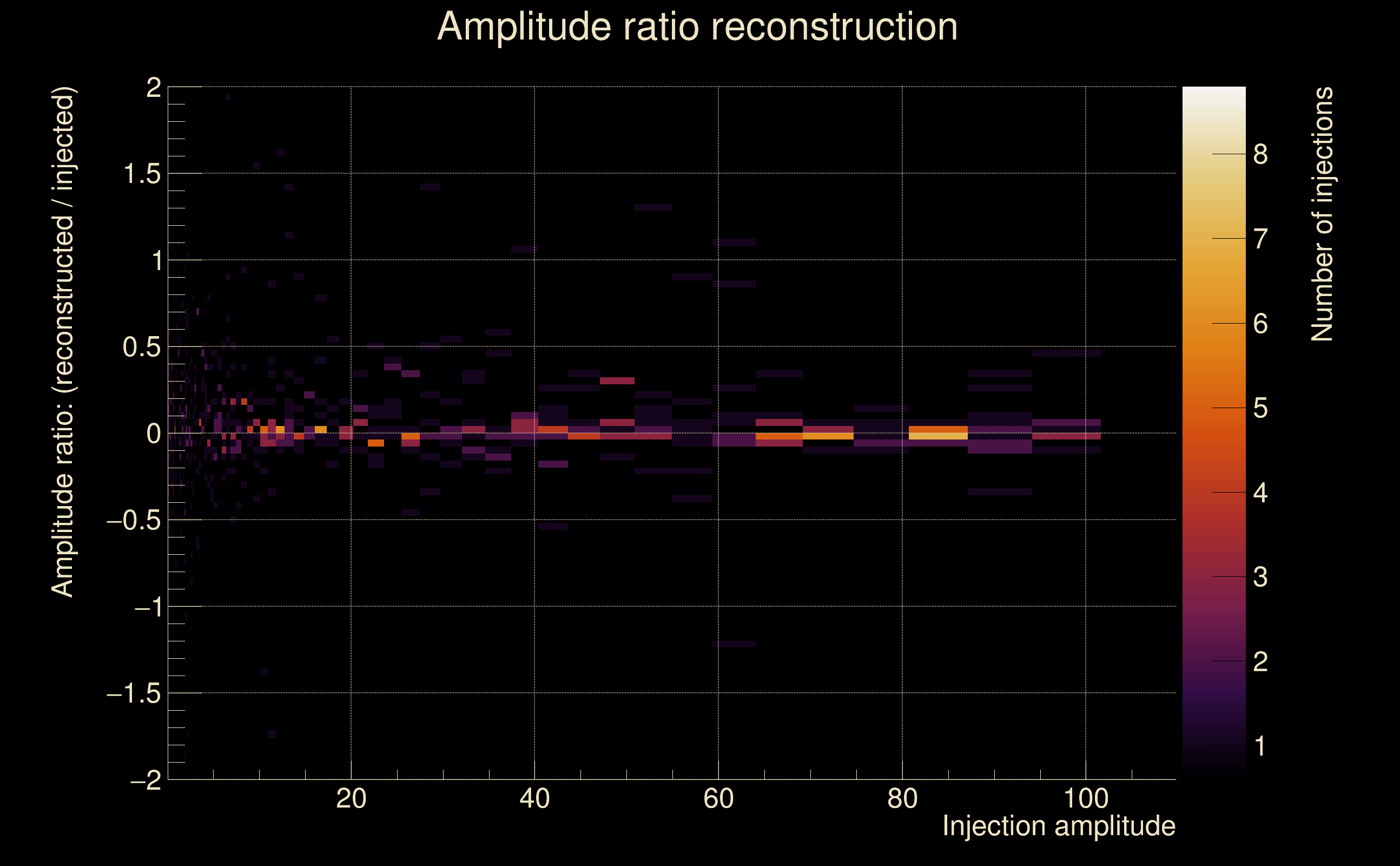

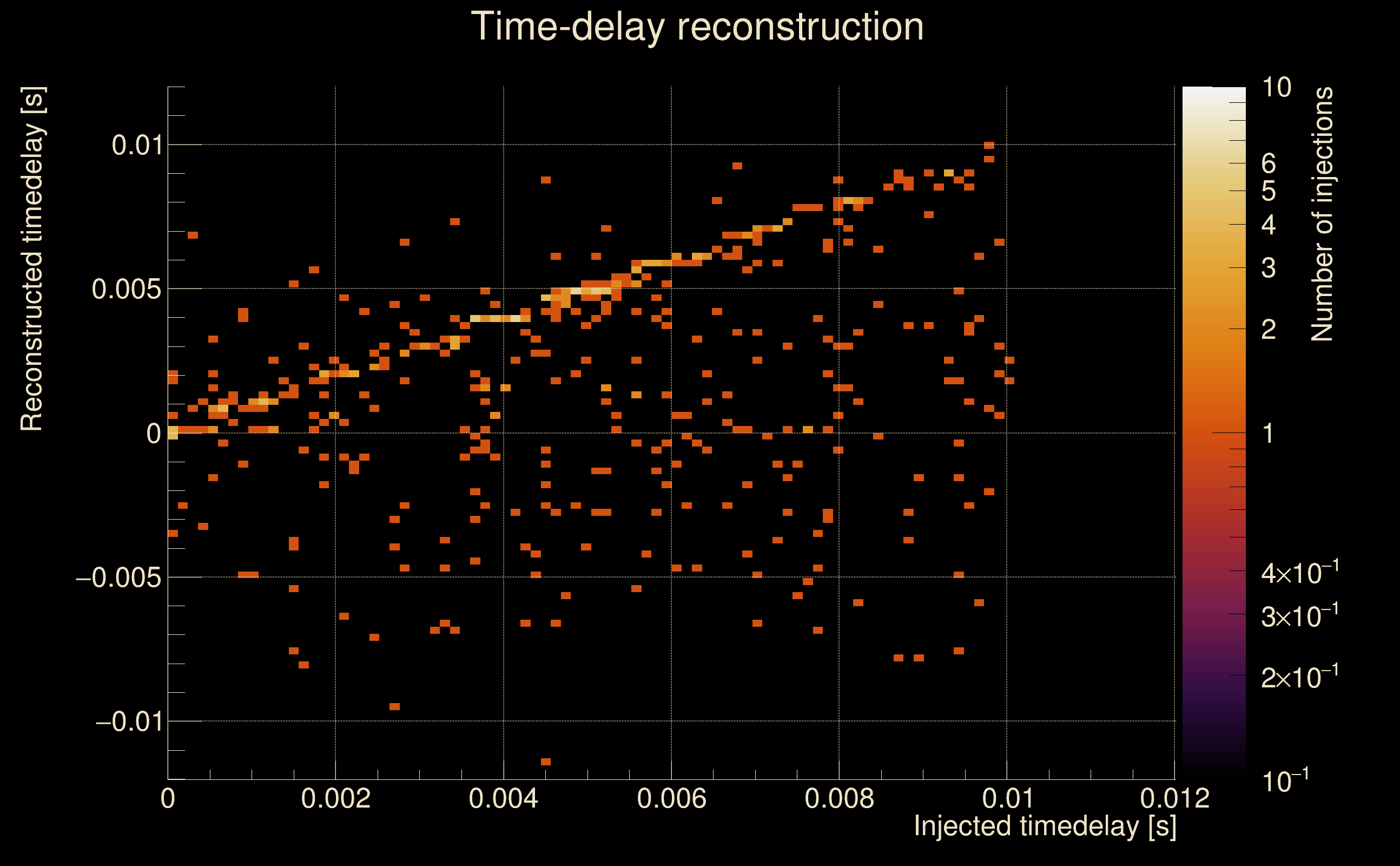

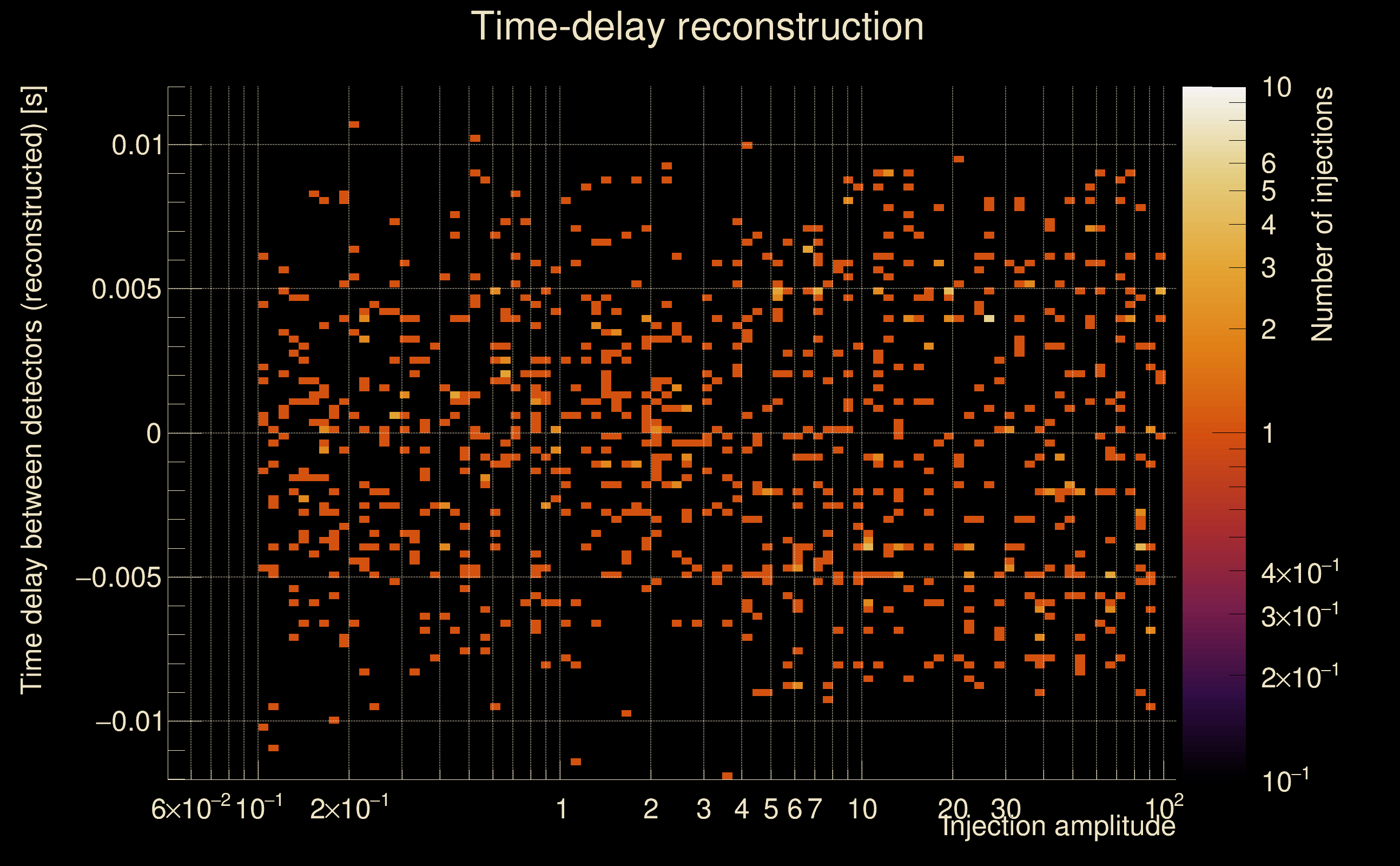

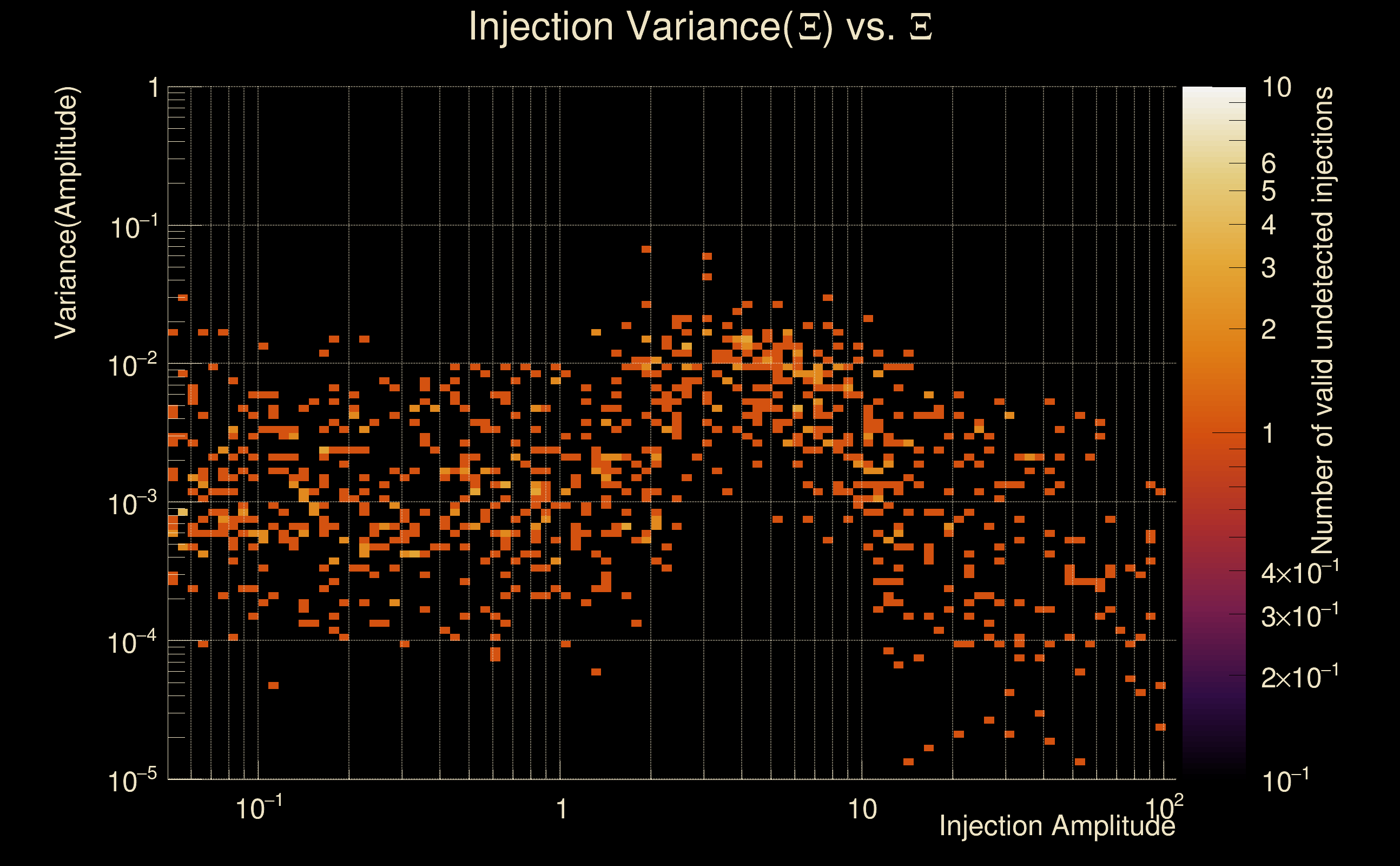

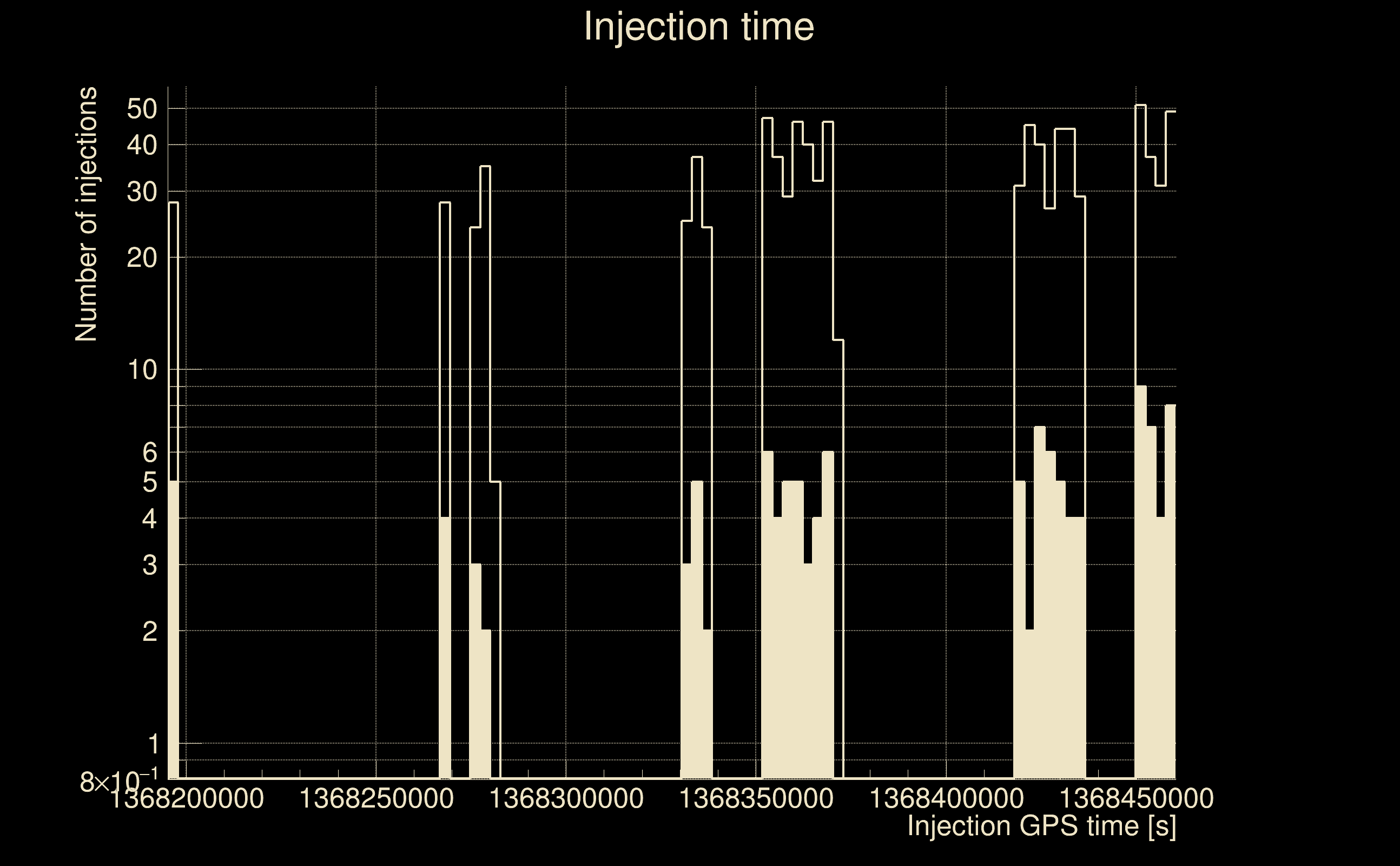

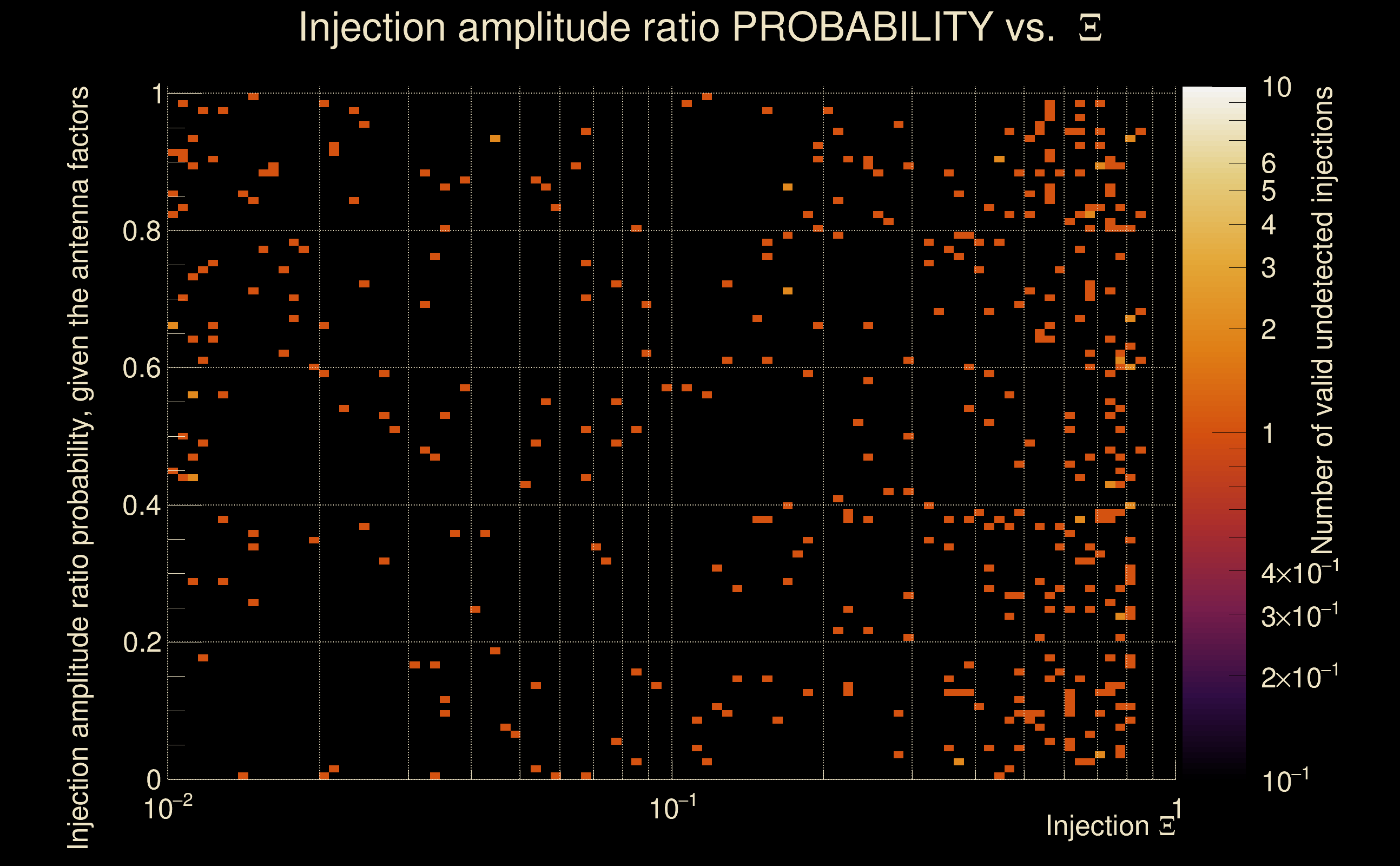

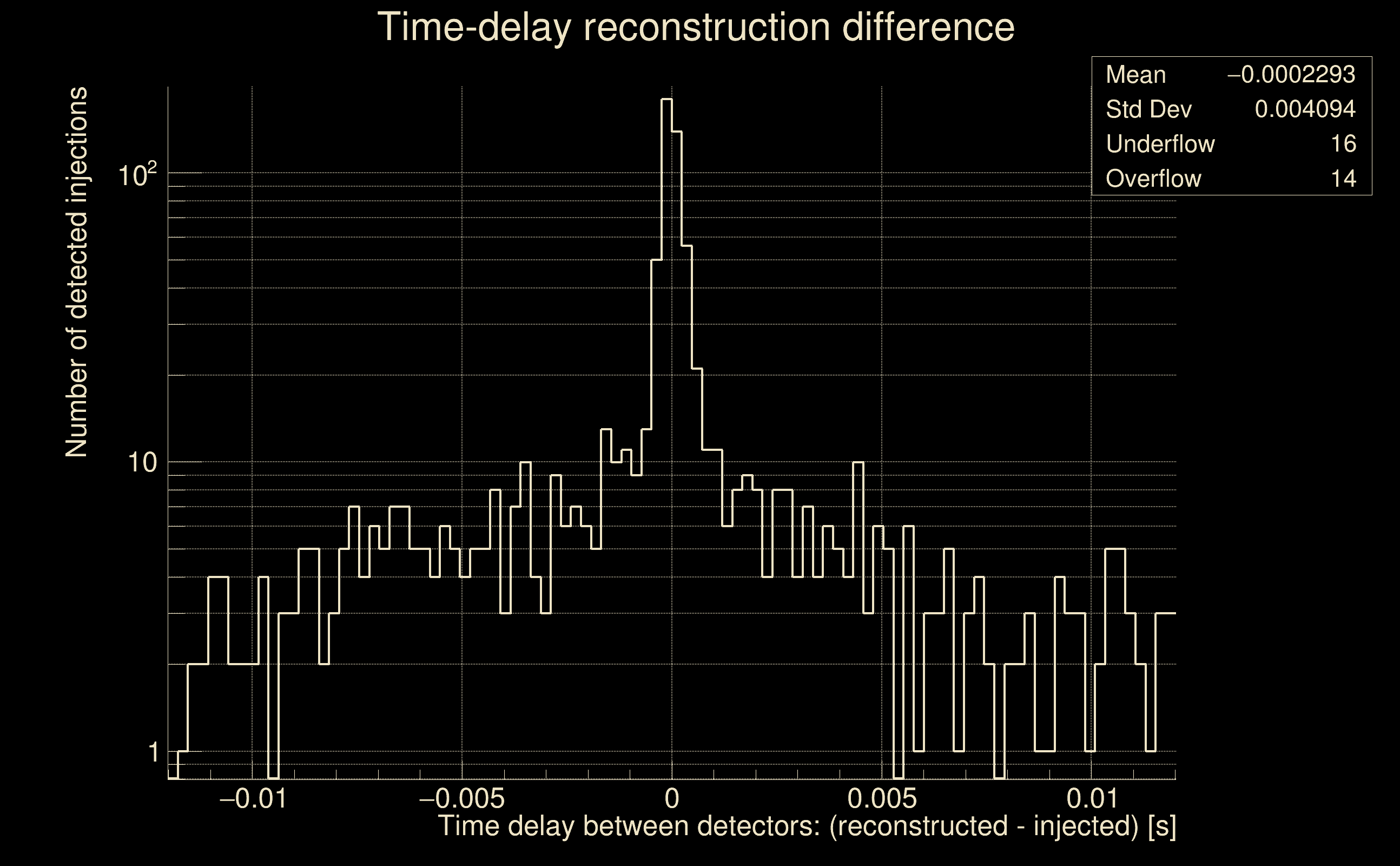

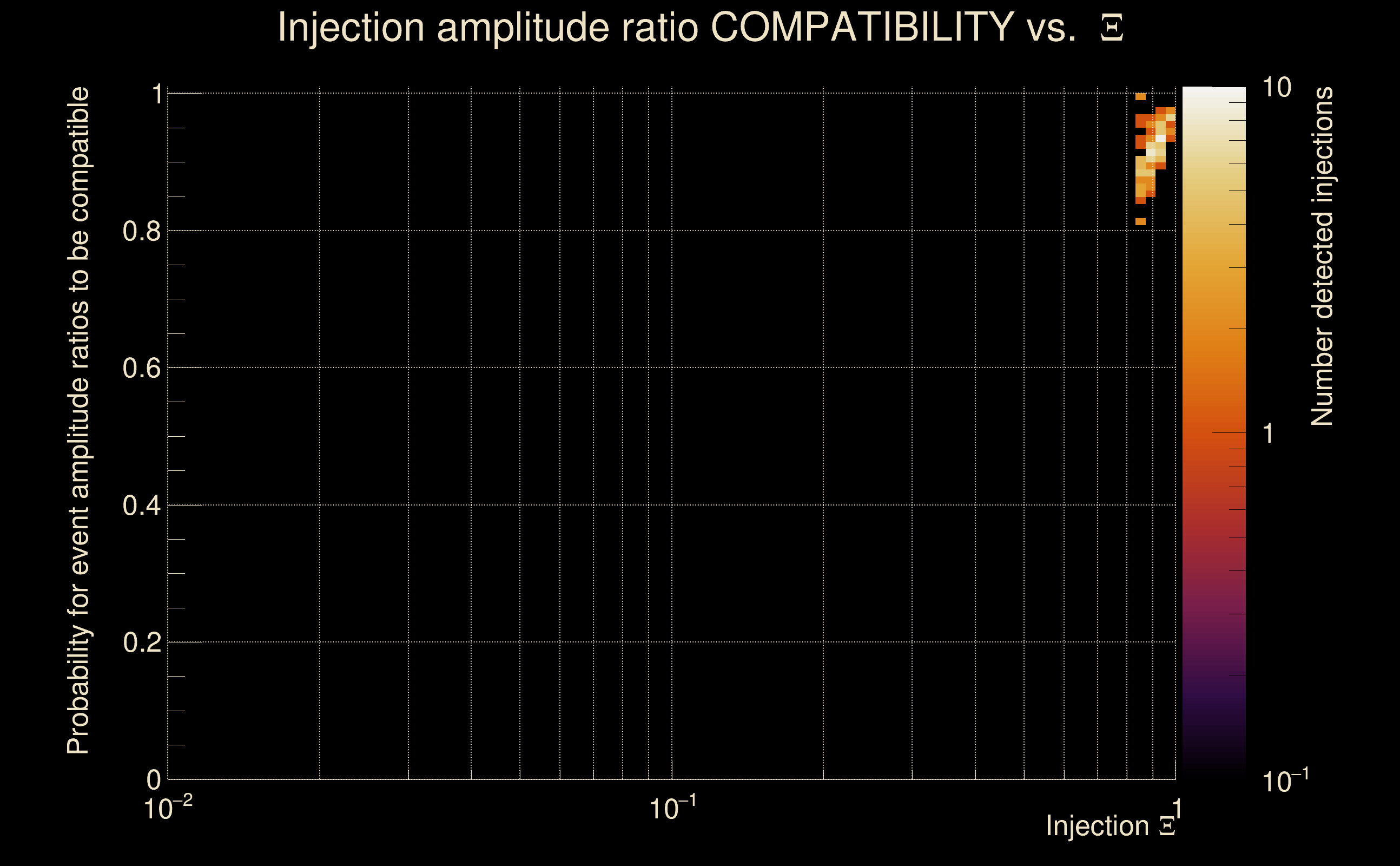

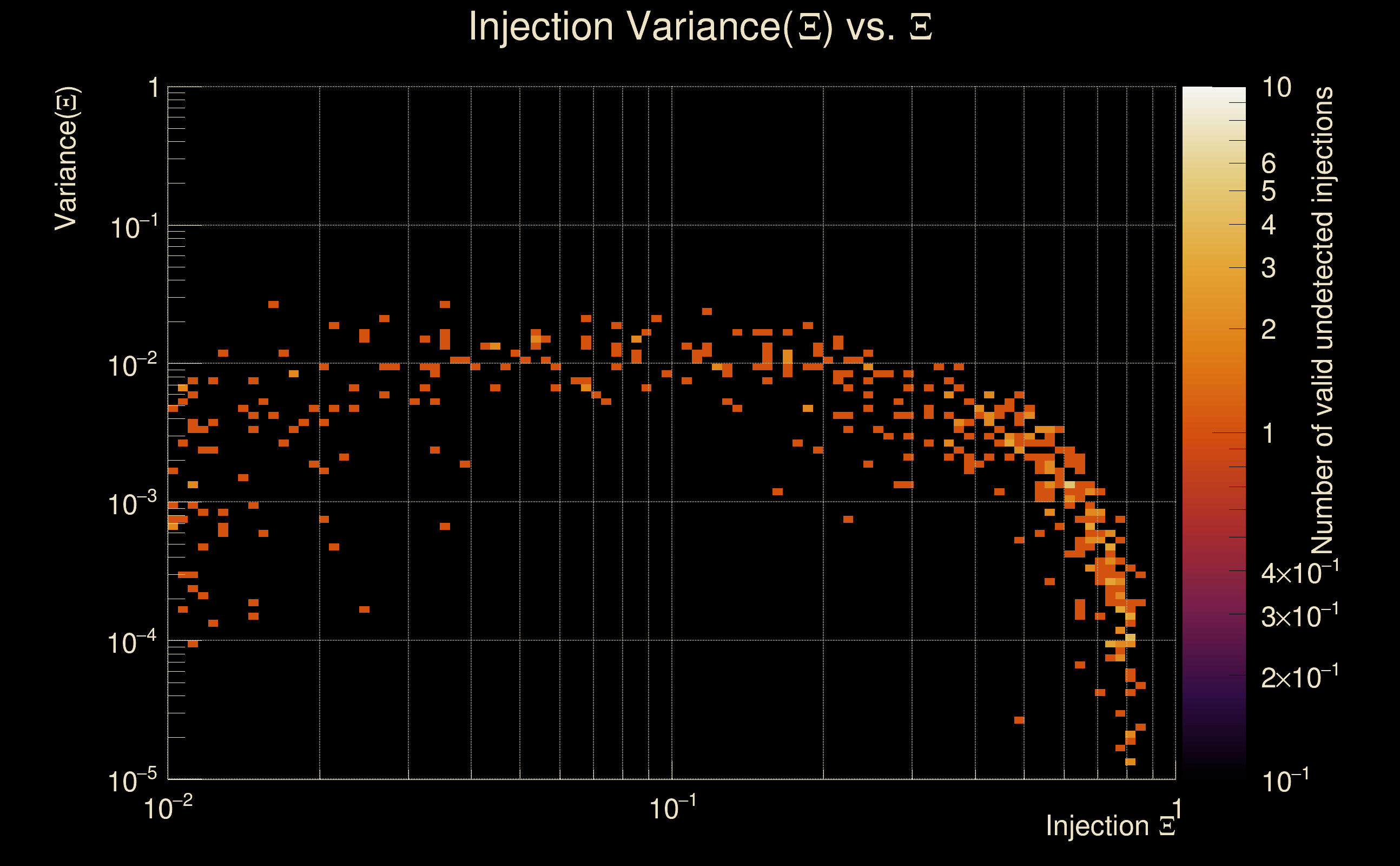

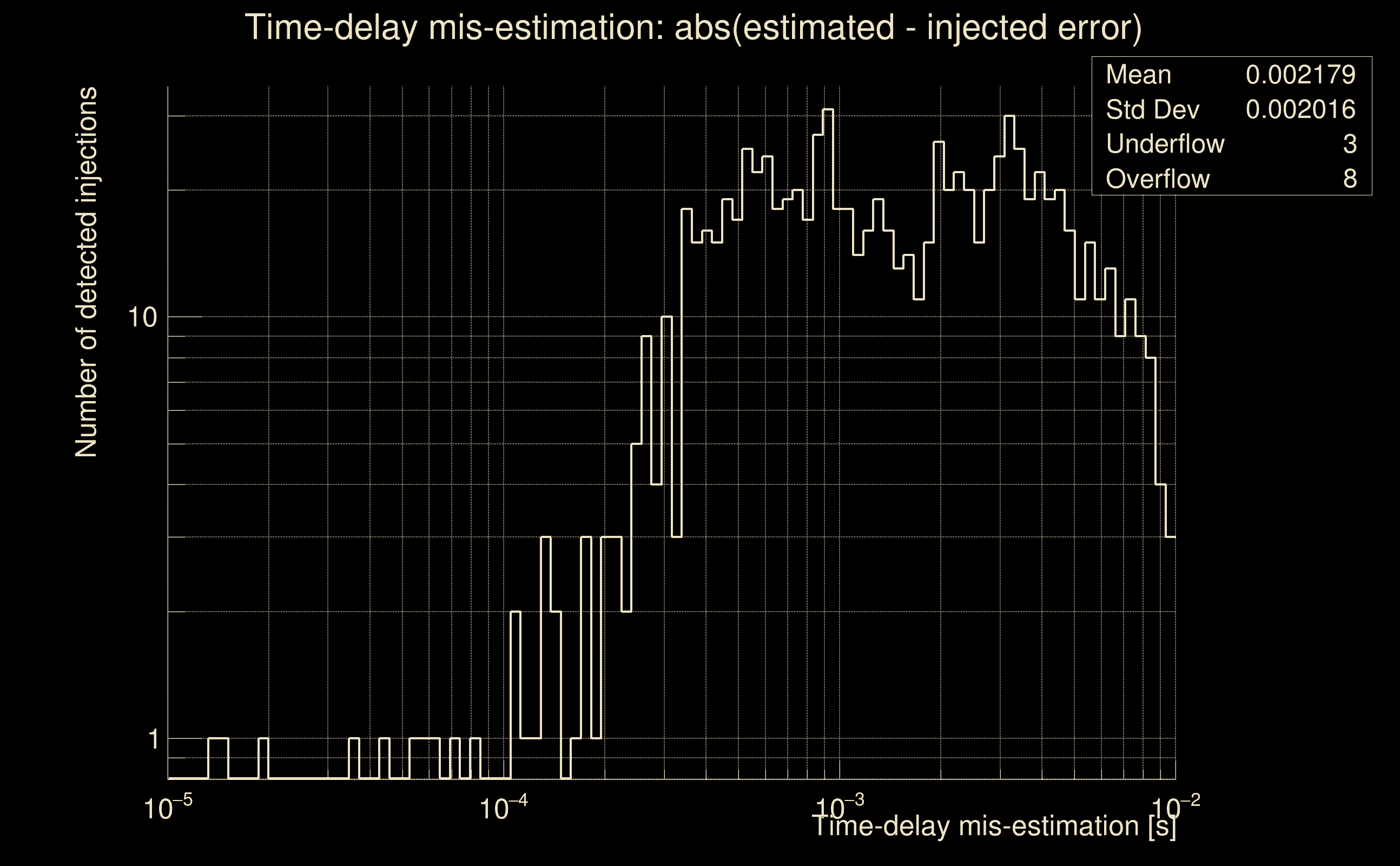

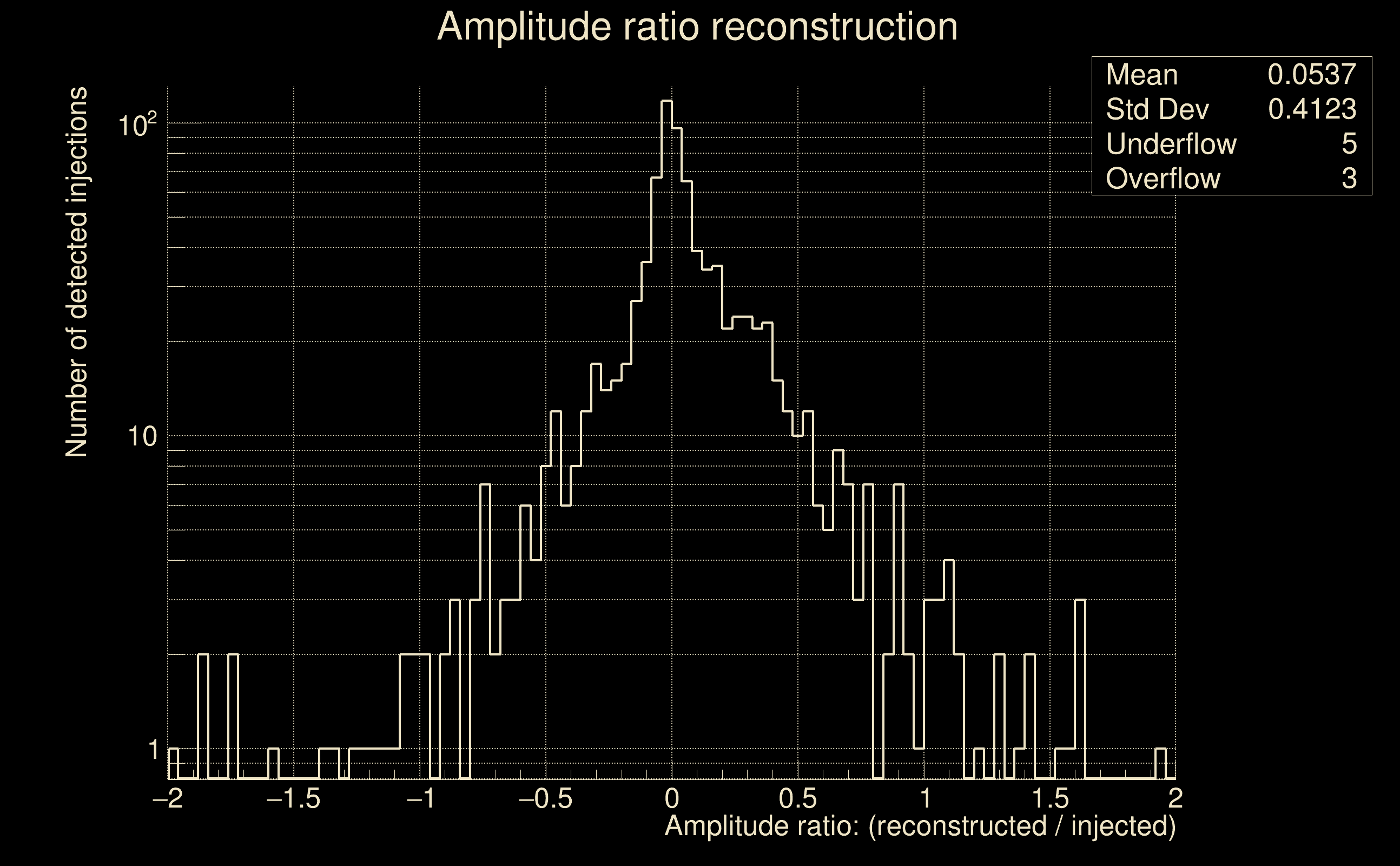

| Number of injections (total/valid/detected): | 1042 / 923 / 118 |
| List of missed injections: | ./Pow19-s18_missed.txt |
| Injection amplitude at 90% detection efficiency: | 71.6949 |
| Injection amplitude at 50% detection efficiency: | 43.3566 |
| Injection amplitude at 10% detection efficiency: | 14.3077 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
