| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 16:56:50 2026 UTC |
| Ox option file: | Bench5_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench5_targ_file_list.txt (65 files) |
| Analysis result file: | Bench5_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=57 (2.346 s), time lag = 0 s |

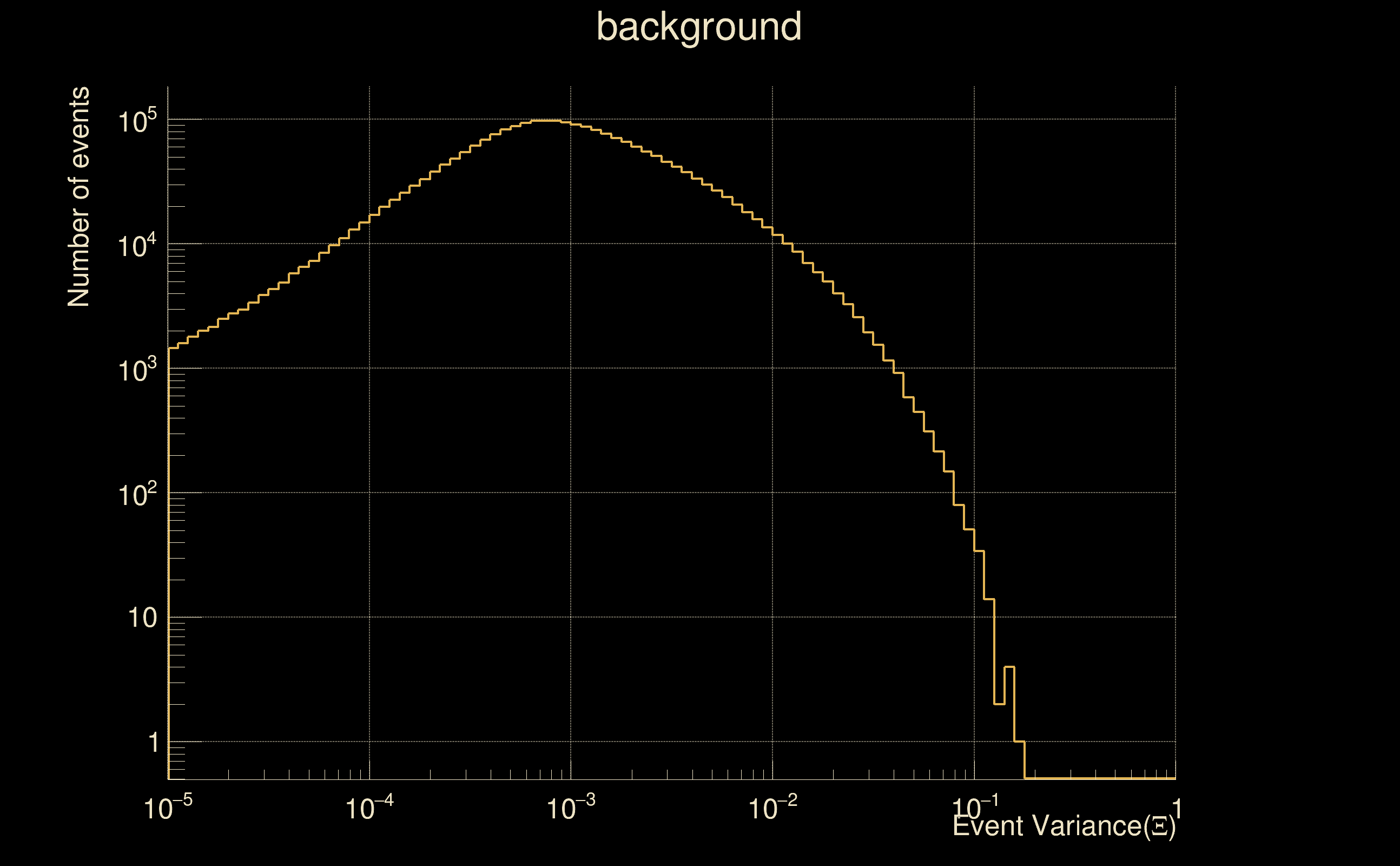

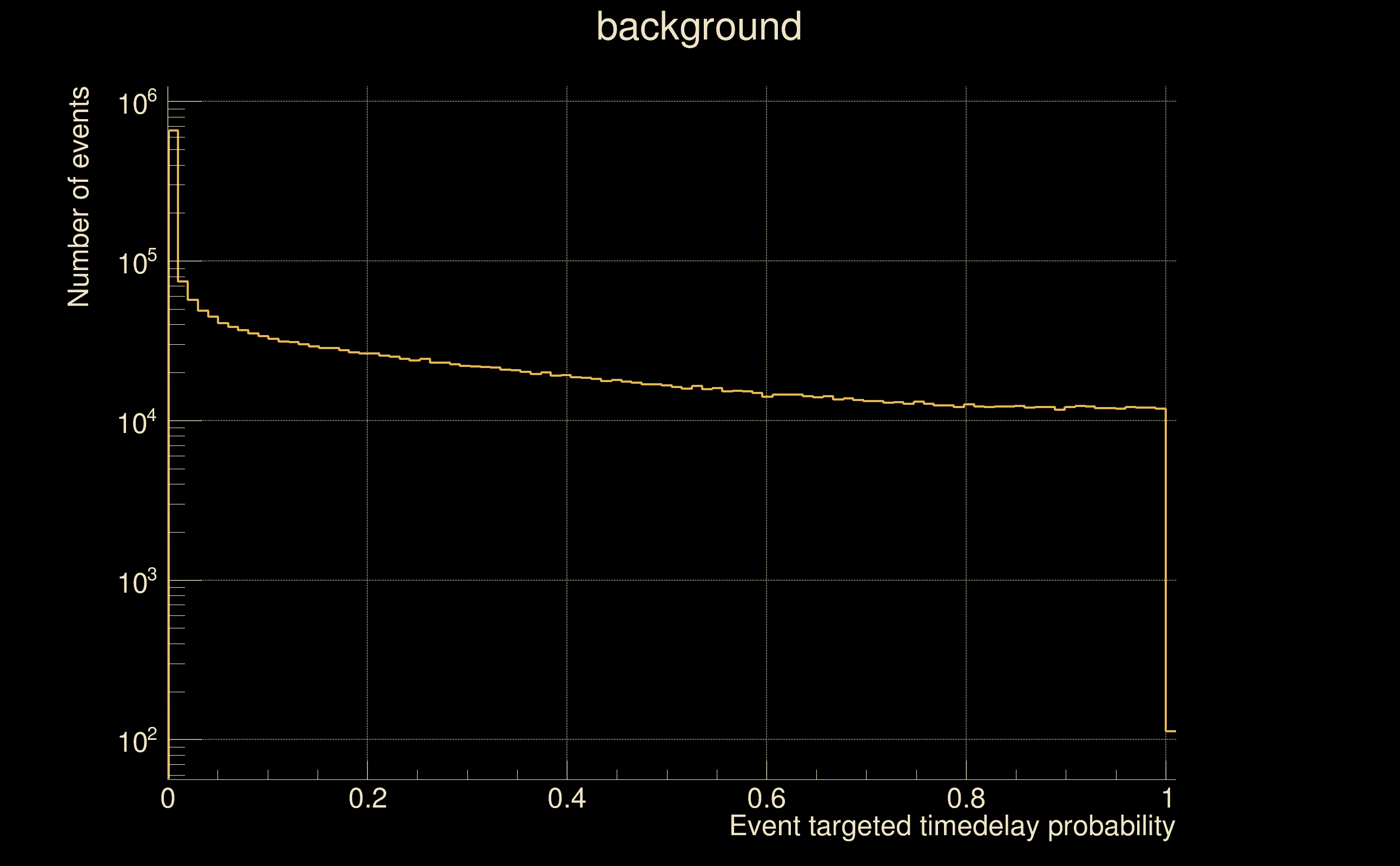

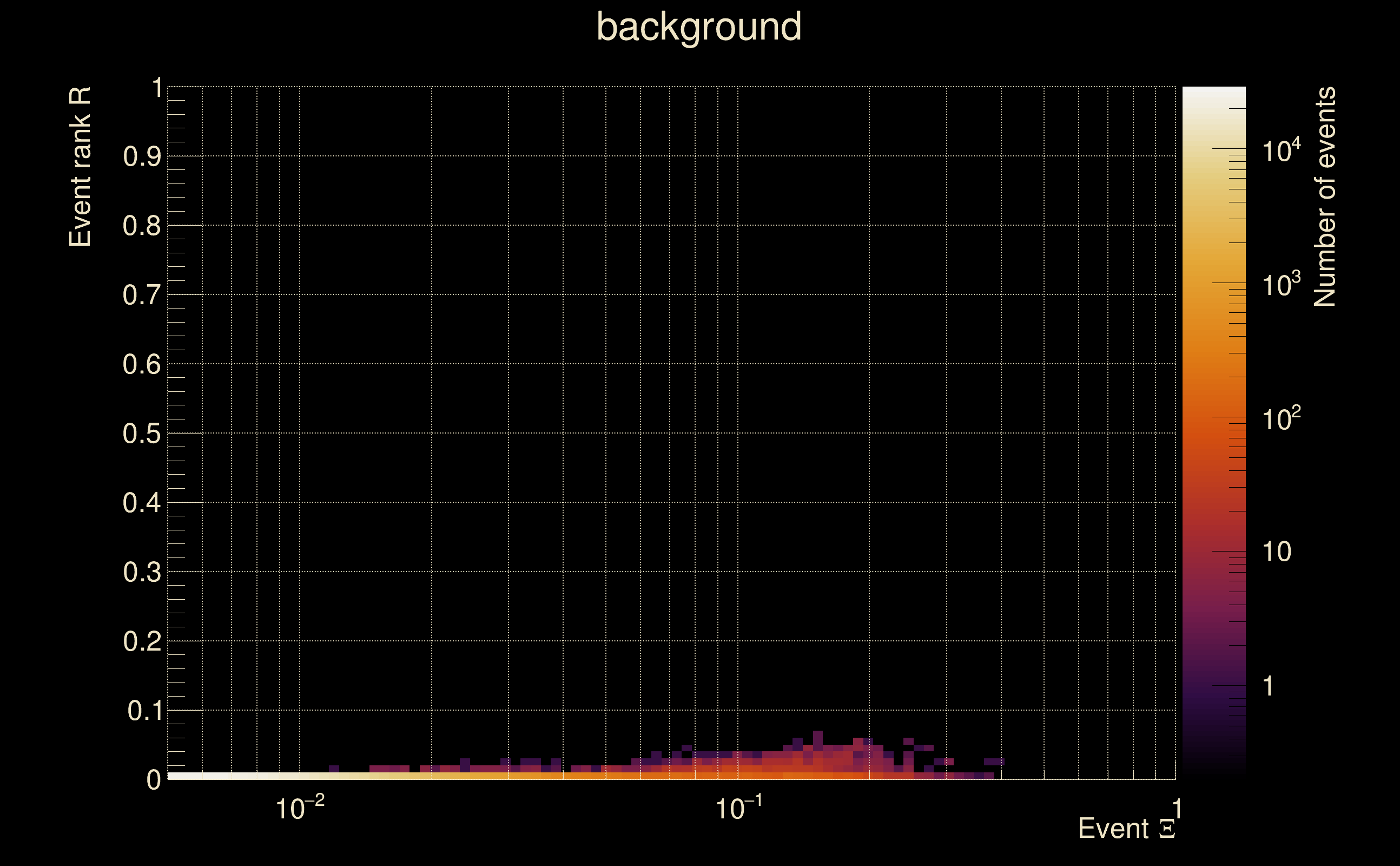

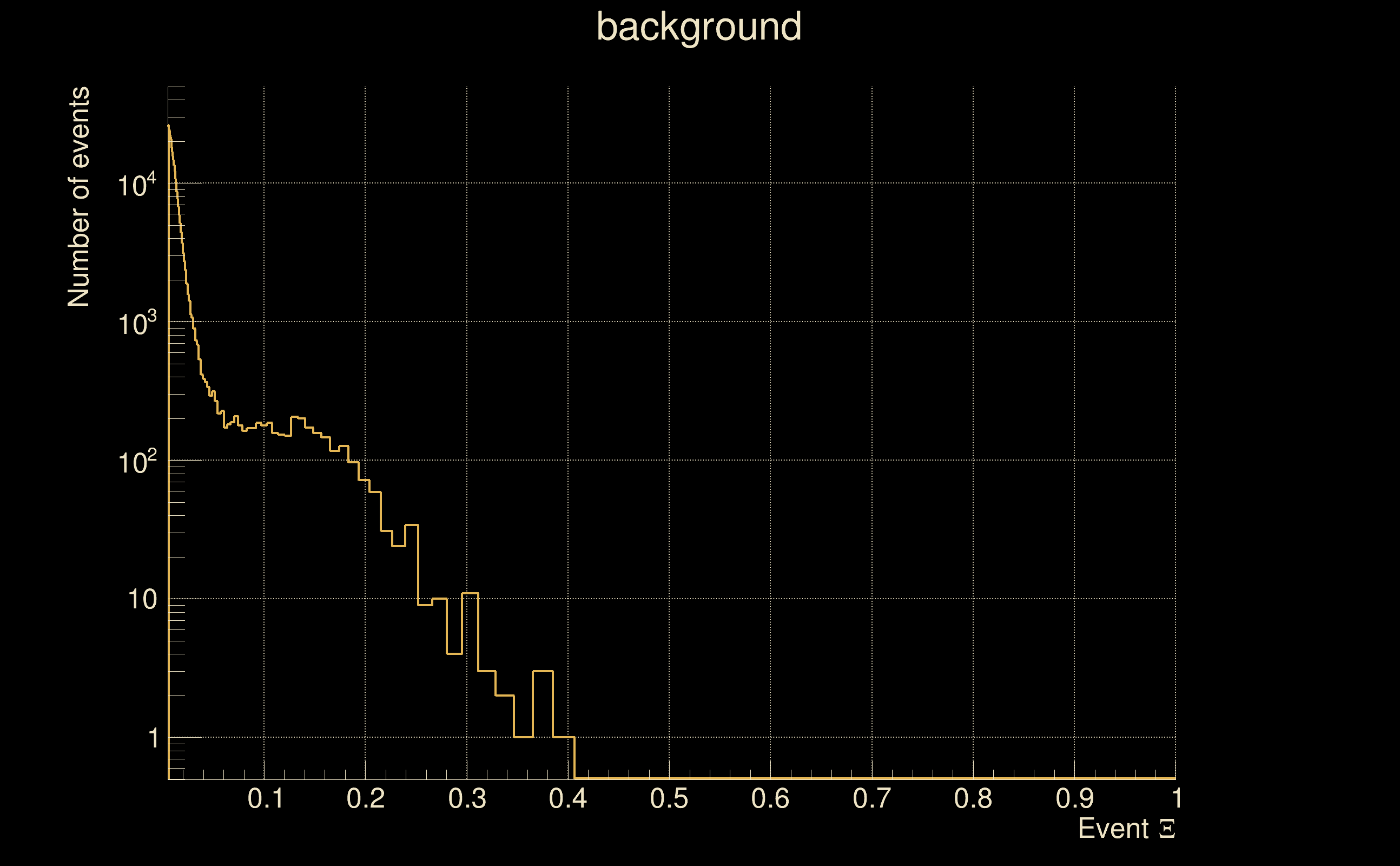

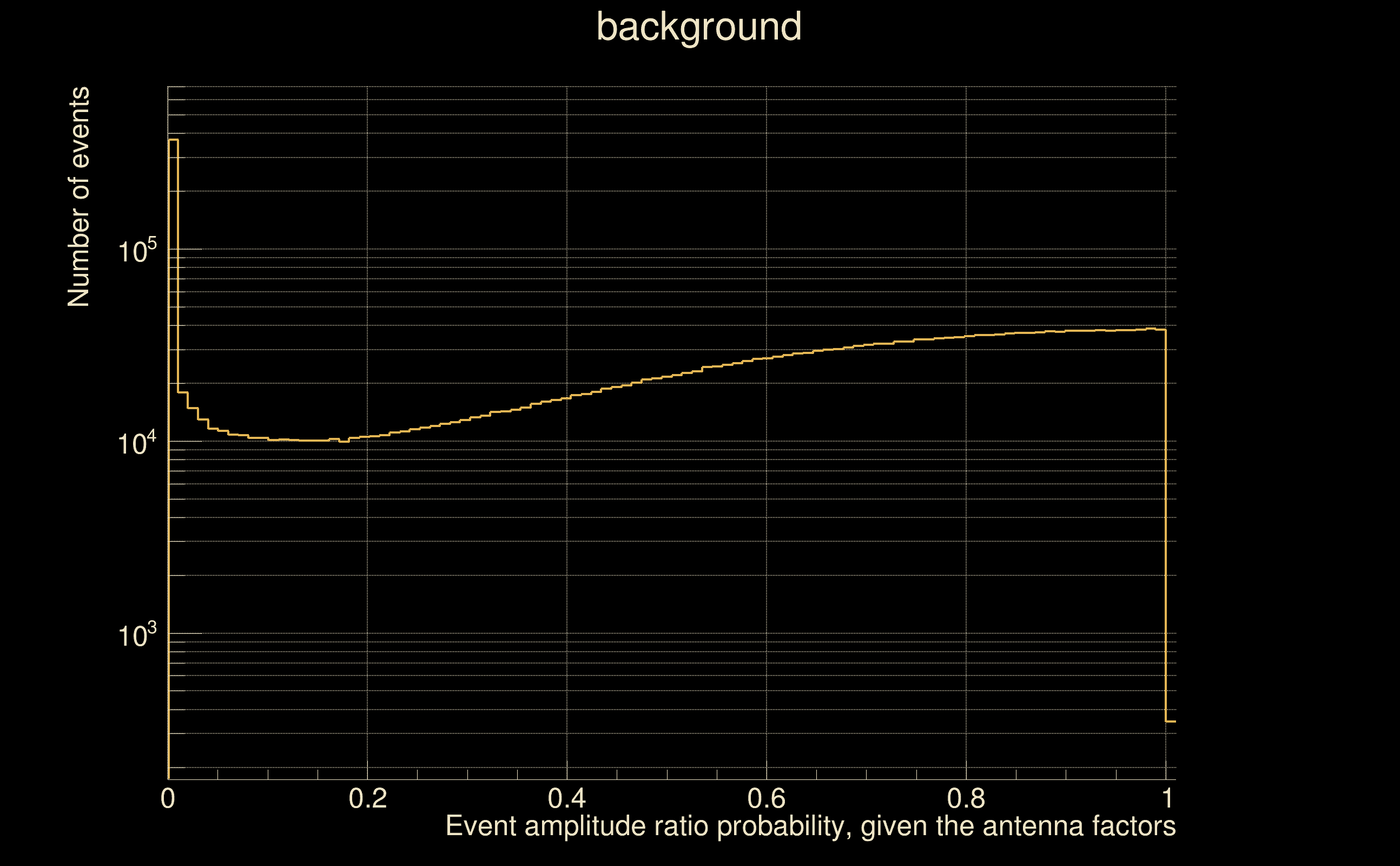

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

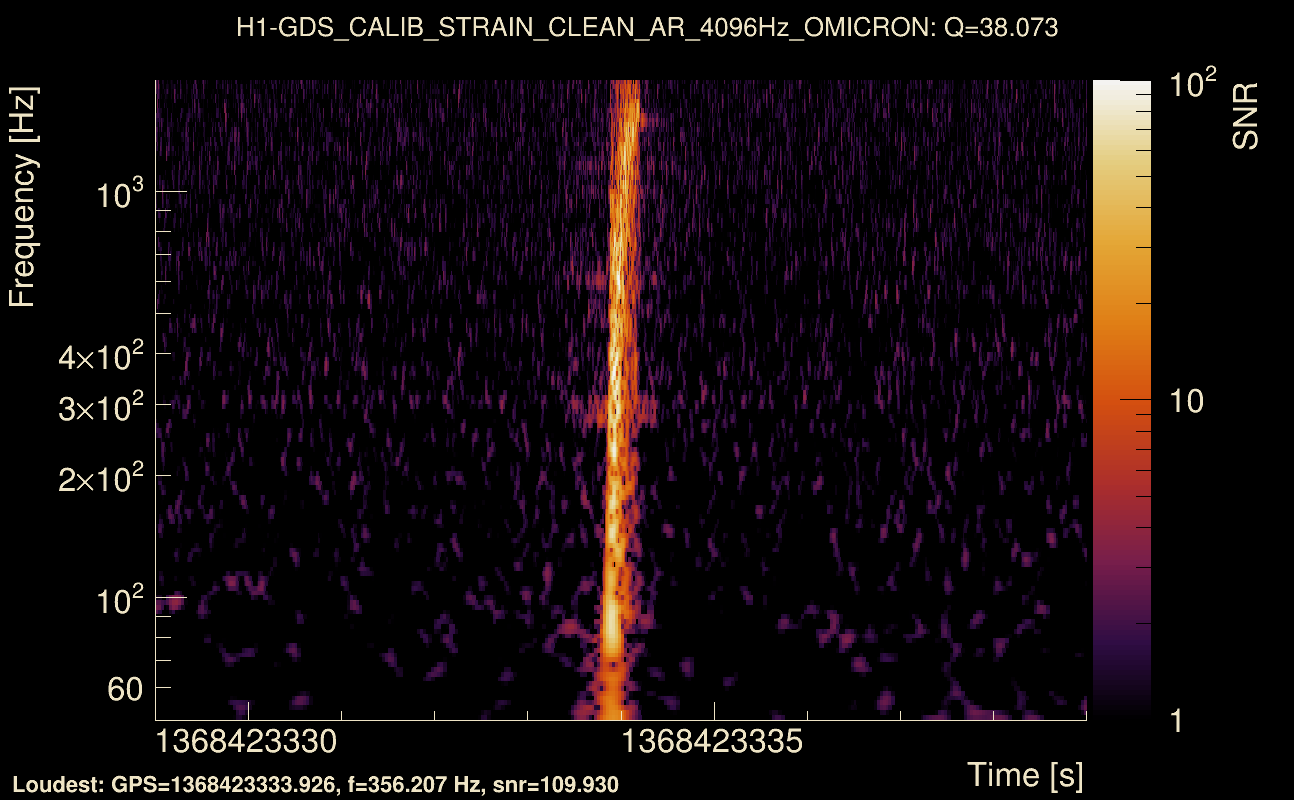

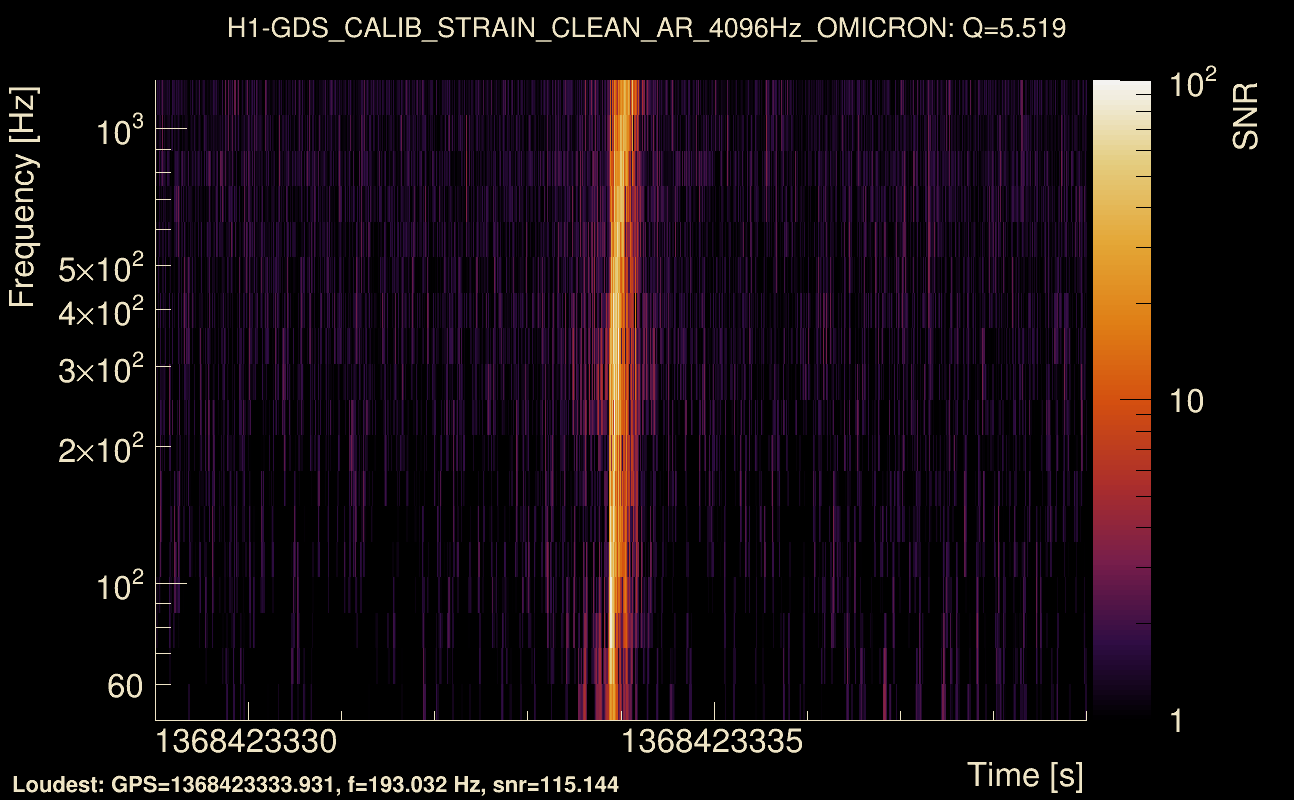

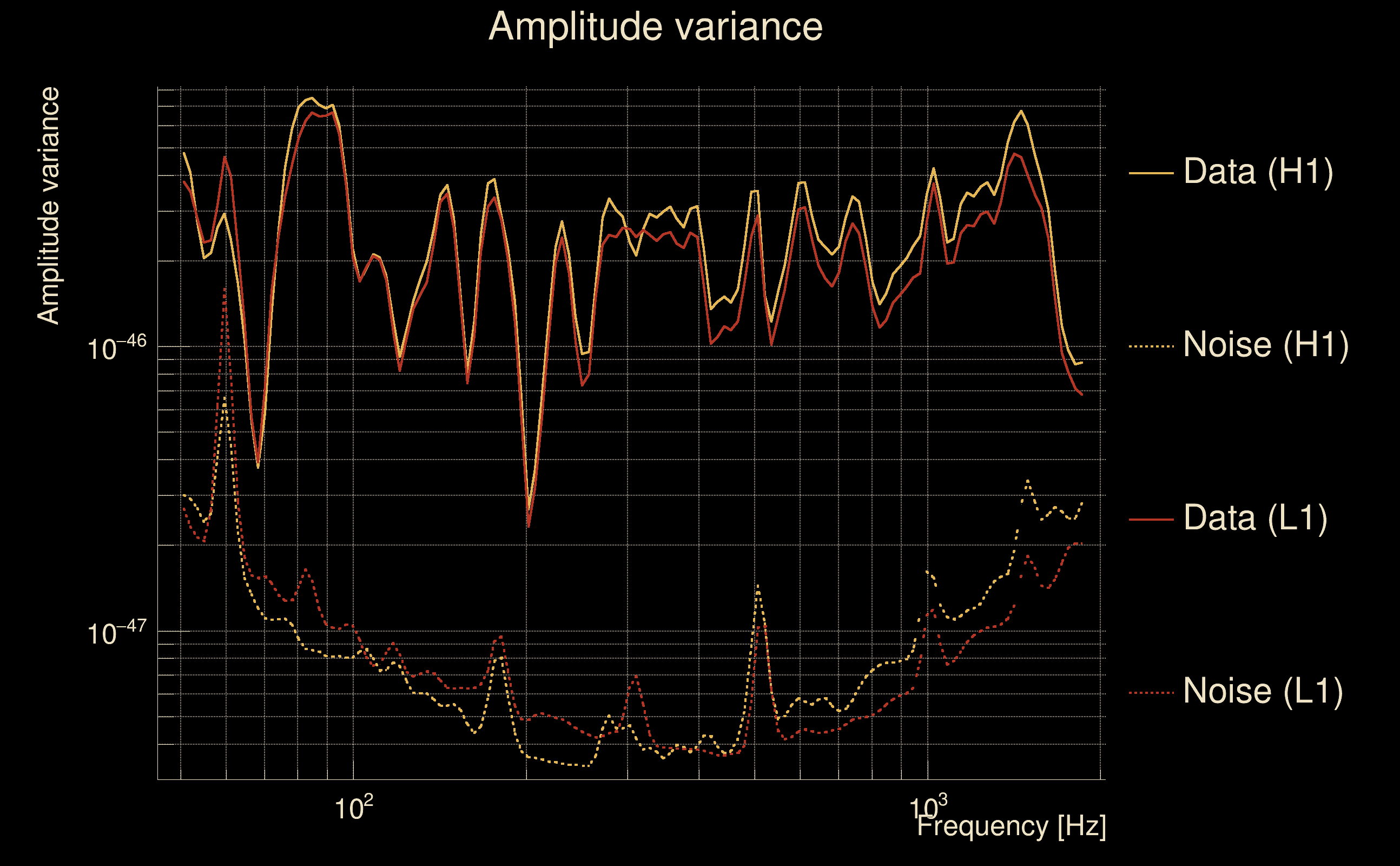

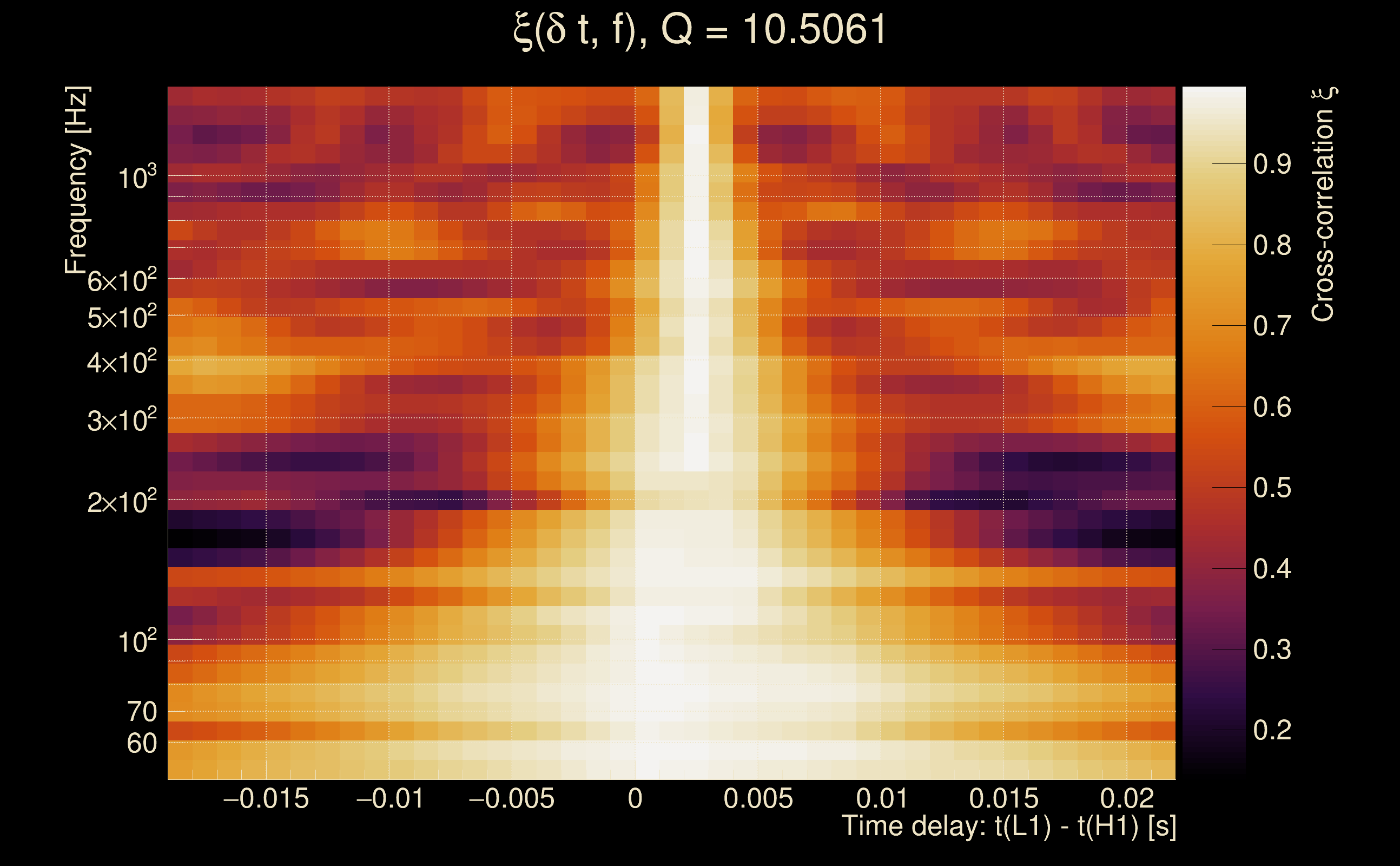

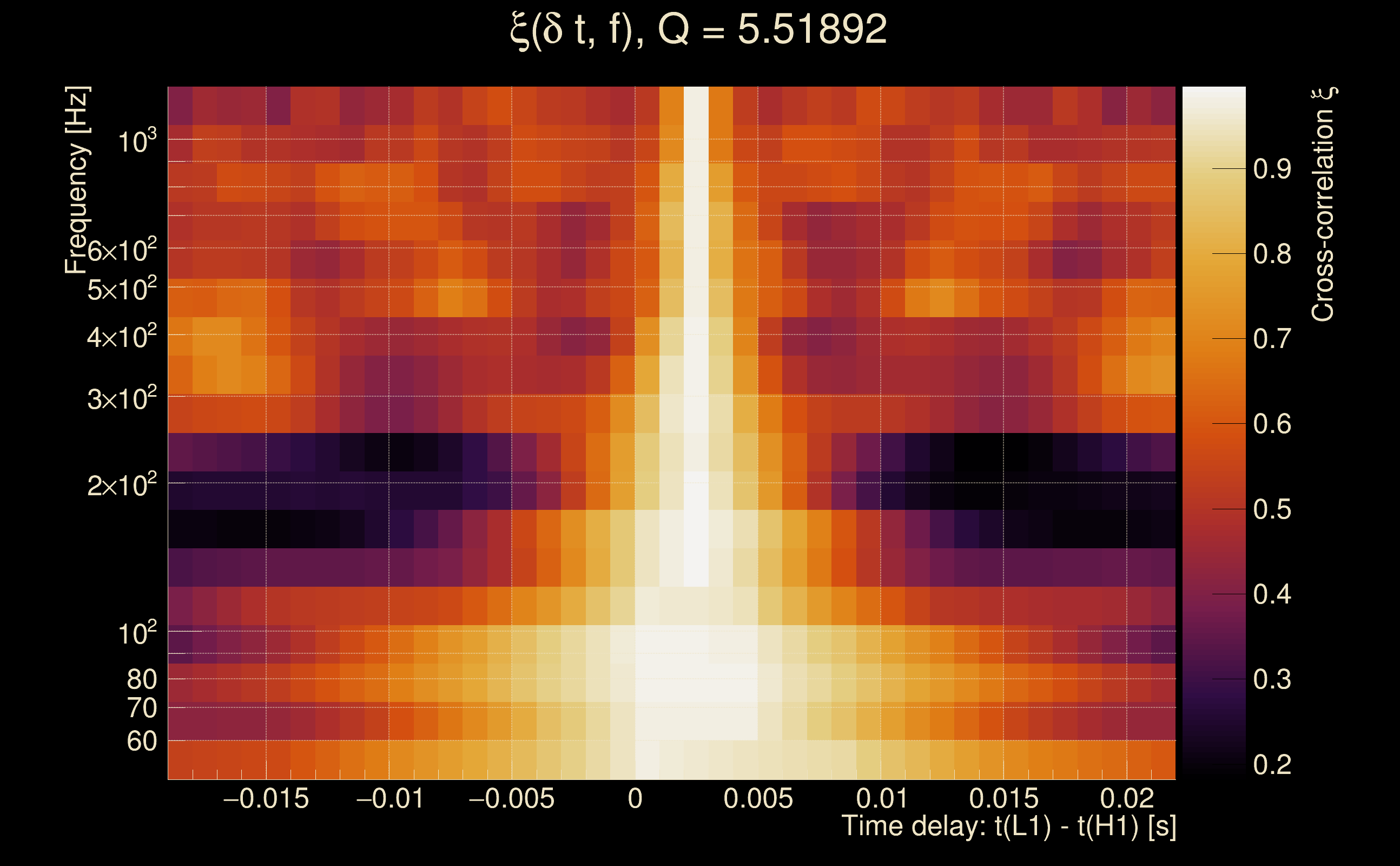

| Event time t(H1): | GPS = 1368423329 (Thu May 18 05:35:11 2023 ) → GPS = 1368423339 (Thu May 18 05:35:21 2023 ) |
| Event time t(L1): | GPS = 1368423329 (Thu May 18 05:35:21 2023 ) → GPS = 1368423339 (Thu May 18 05:35:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368423326 → GPS = 1368423342 |
| Omicron analysis time window (L1): | GPS = 1368423326 → GPS = 1368423342 |
| Time delay between detectors t(L1) - t(H1): | 0.00195806 s (slice index = 108 / 217), δt_gw = 0.00195806 s |
| Time delay standard deviation: | 0.0186013 s |
| [targeted mode] Time delay probability: | 0.988077 (0.0149443 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 289.754 Hz |
| Ξ: | 0.983813 ± 0.00147255 (variance = 2.16842e-06): Q0: 0.983786, Q1: 0.986038, Q2: 0.987642, Q3: 0.987226, Q4: 0.98465 |
| Rank: | R_A = 0.946095 |
| Log of amplitude ratio (L1/H1): | -0.0884733, variance = 0.151856 (L1/H1: -0.0985605, variance = 0.301485, H1/L1: 0.0800016, variance = 0.301386) |
| Amplitude ratio (L1/H1): | 0.915328 ⋇ 1.47652 (L1/H1: 0.906141 ⋇ 1.73165, H1/L1: 1.08329 ⋇ 1.7315) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980931 |

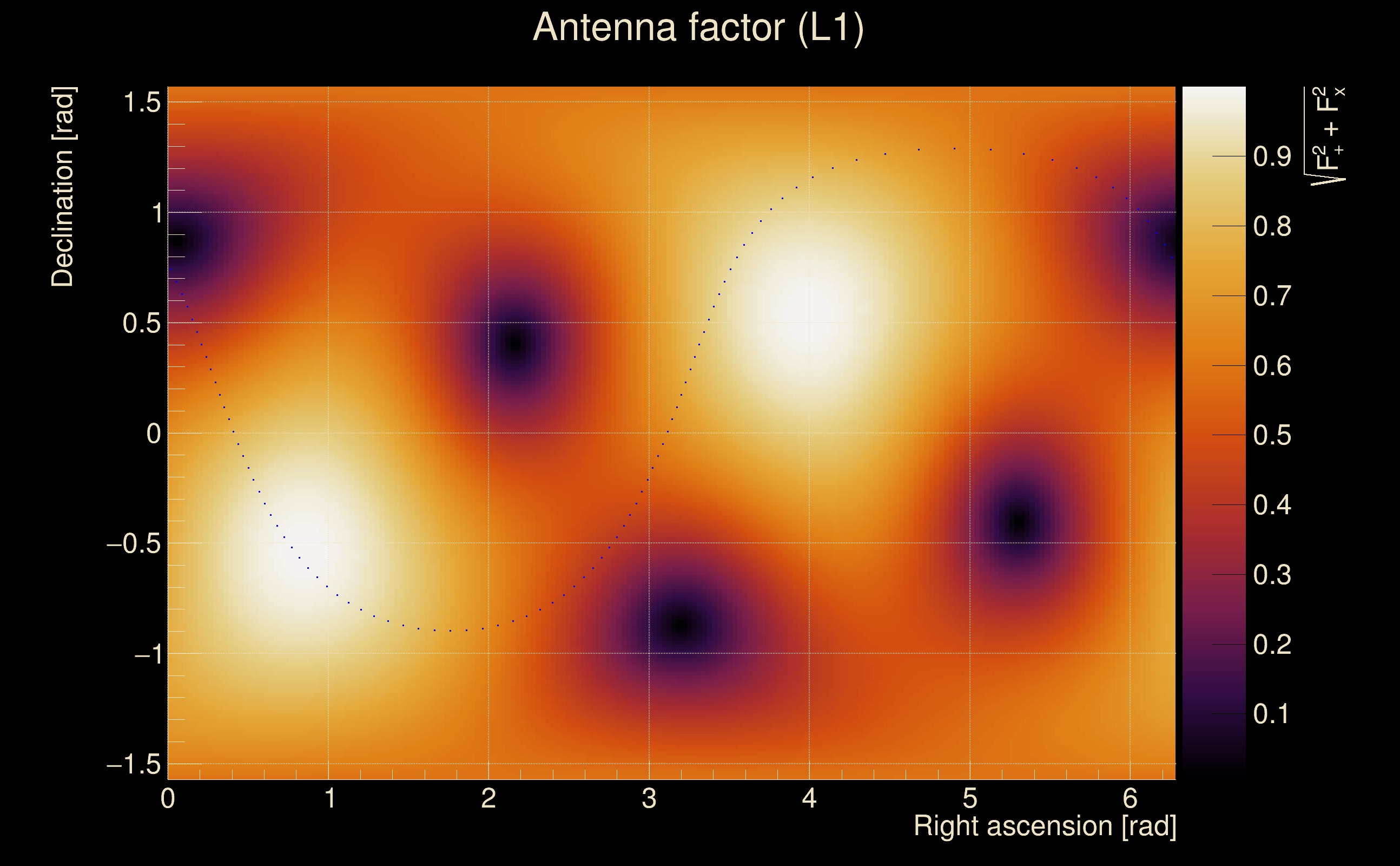

| Antenna factor probability: | 0.992187 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 1 / 134, Q4: 6 / 258 |
| Maximum signal-to-noise ratio: | H1: 119.466, L1: 130.36 |

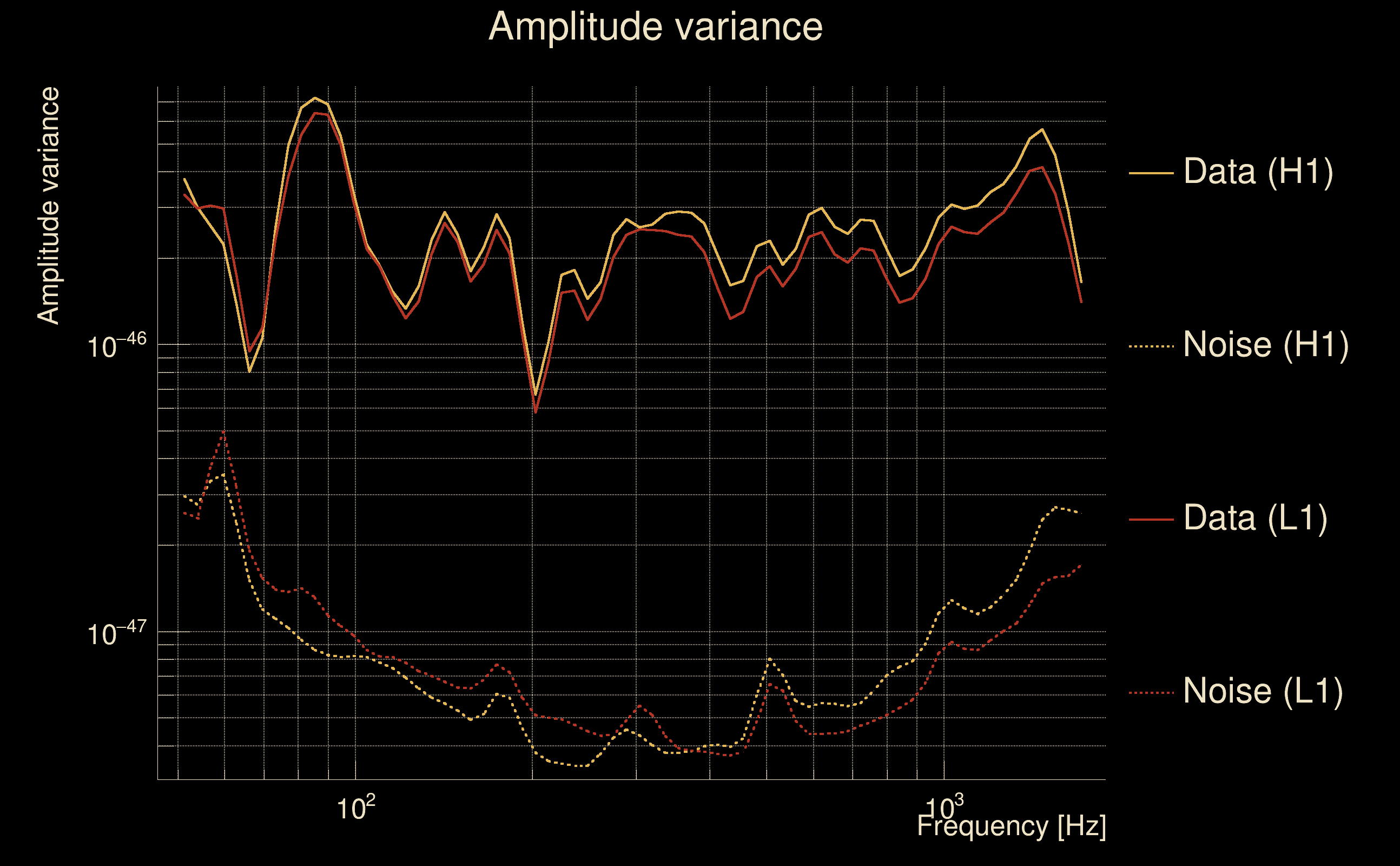

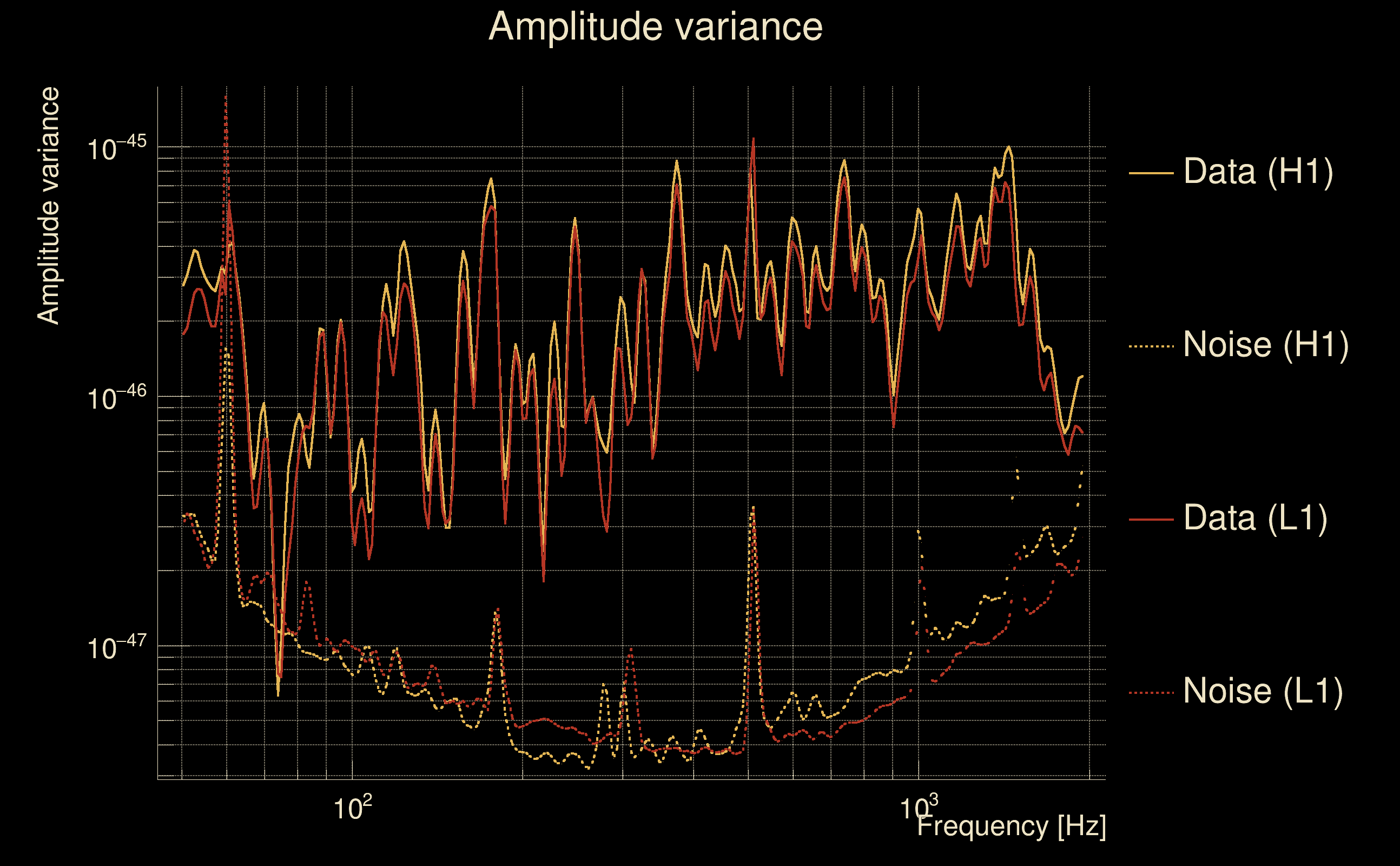

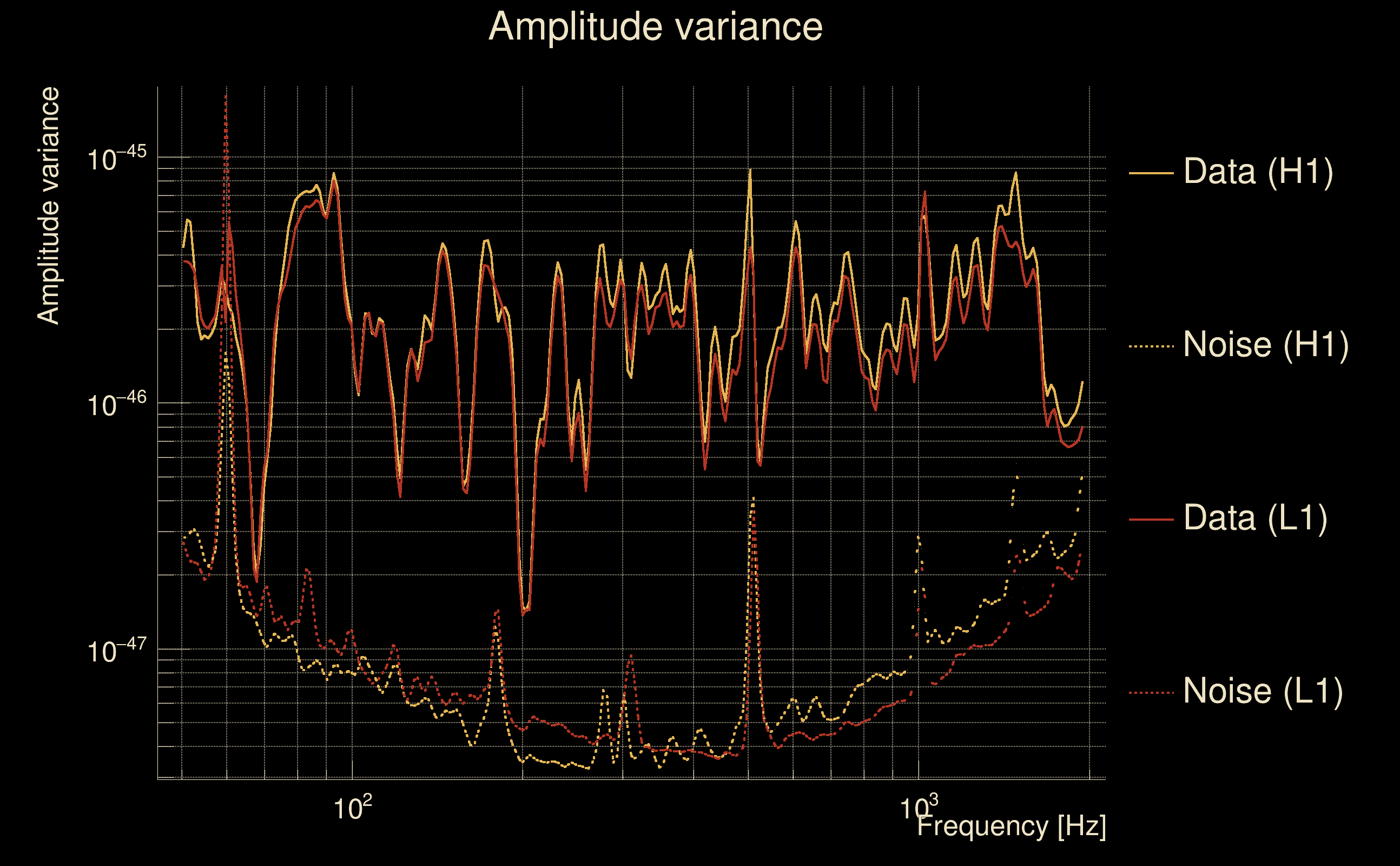

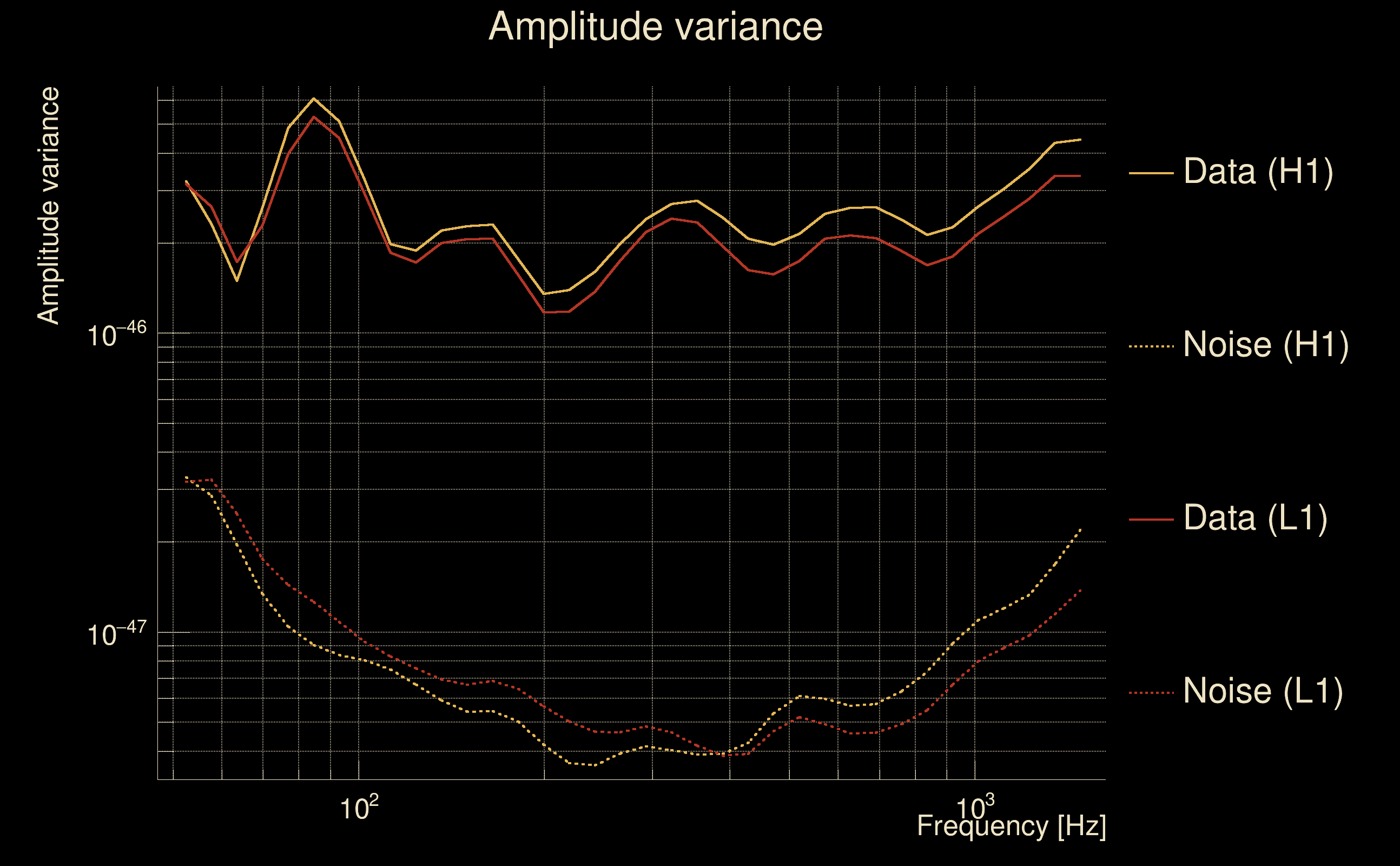

| SNR variance: | H1: 16.8573, L1: 14.9445 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

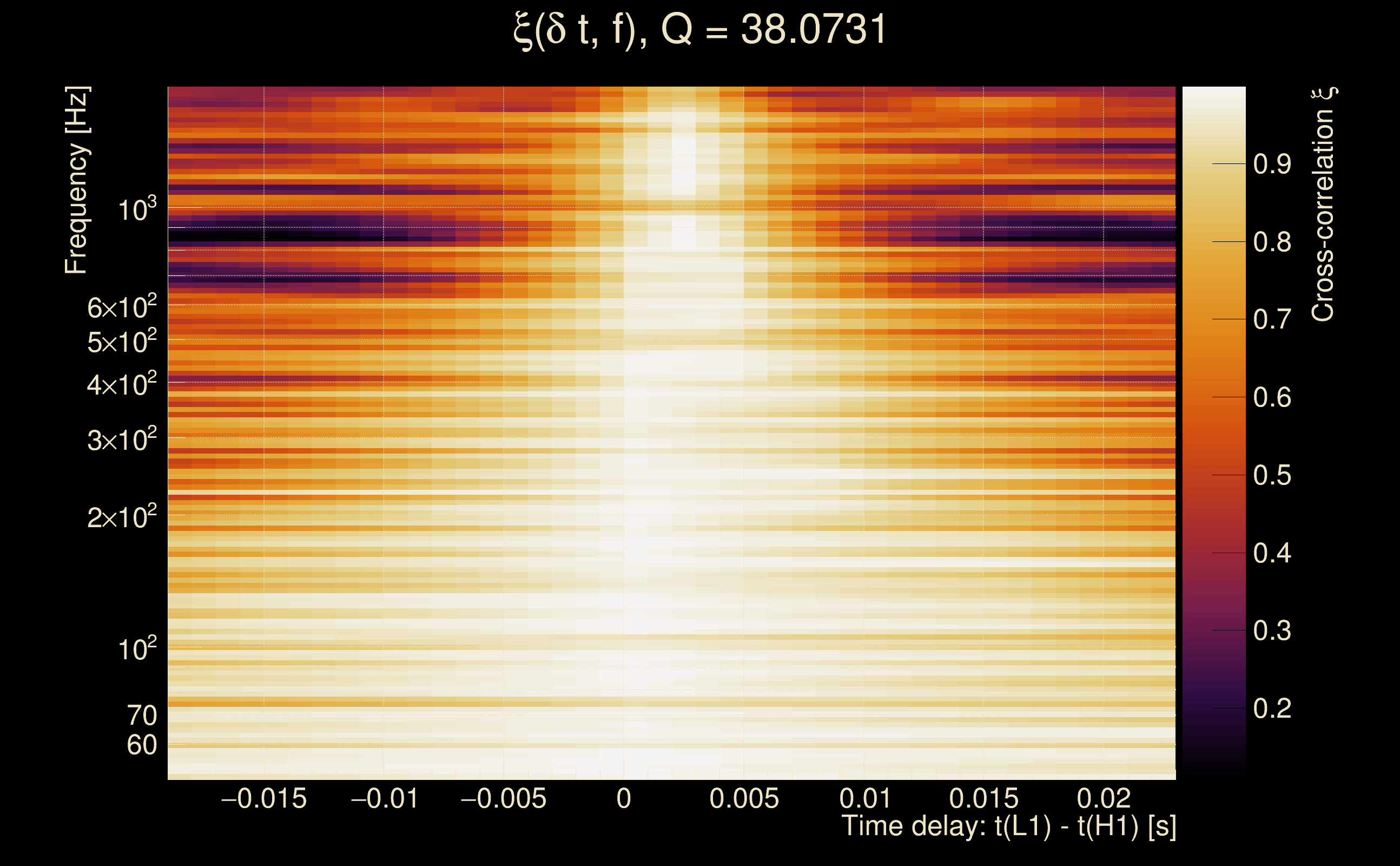

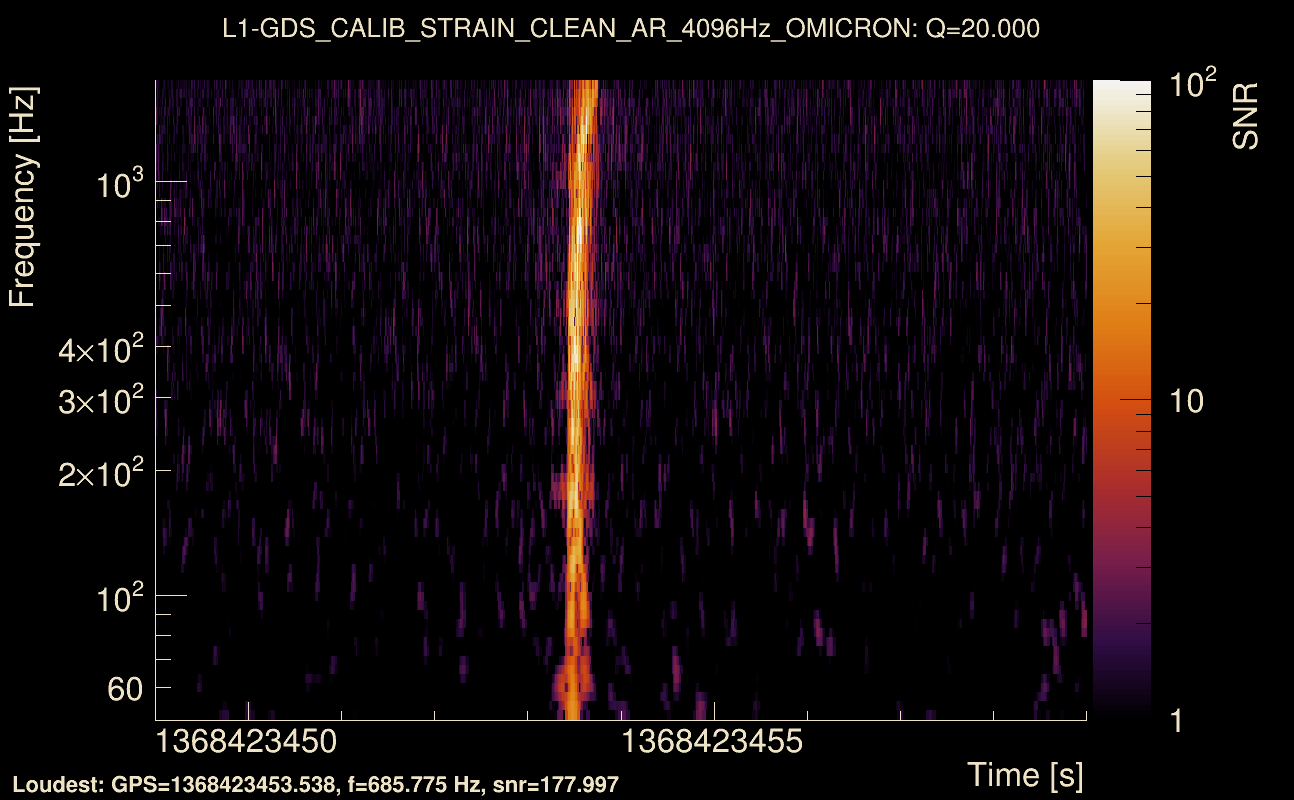

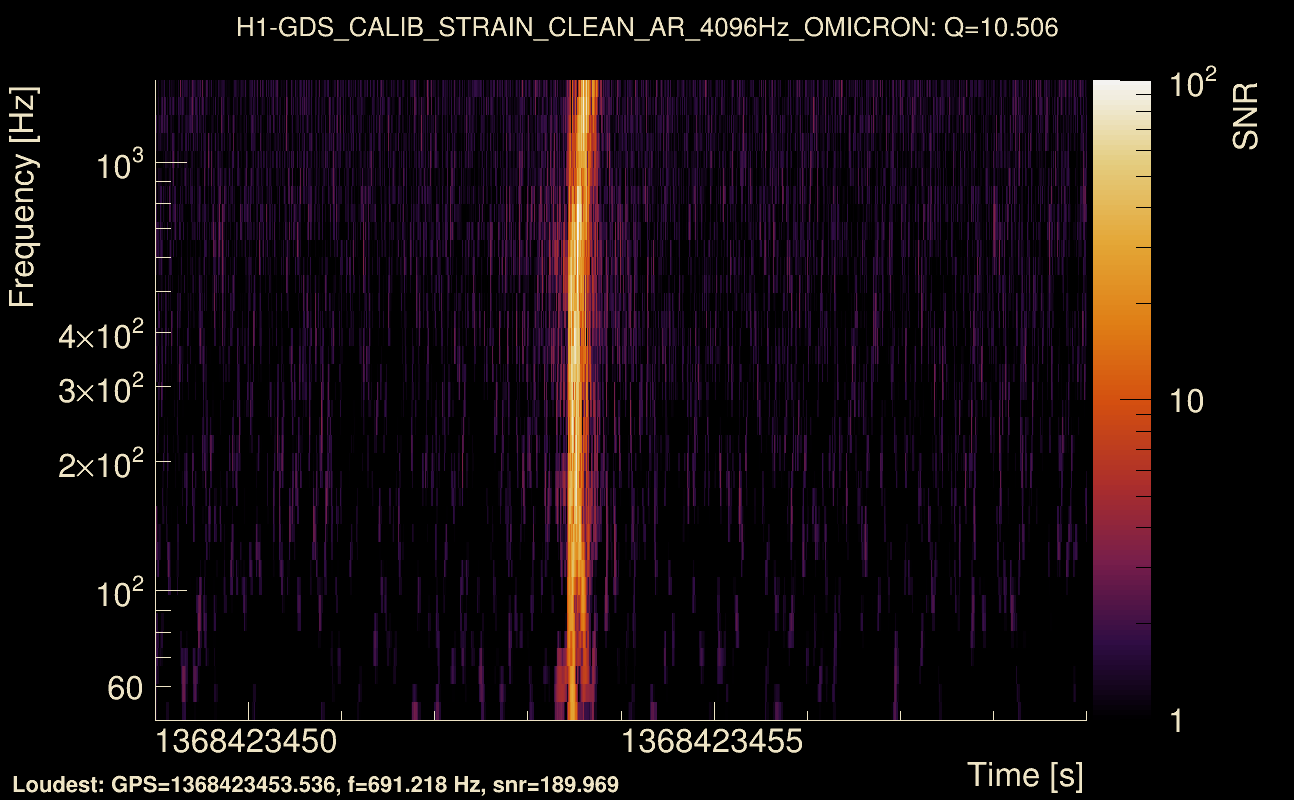

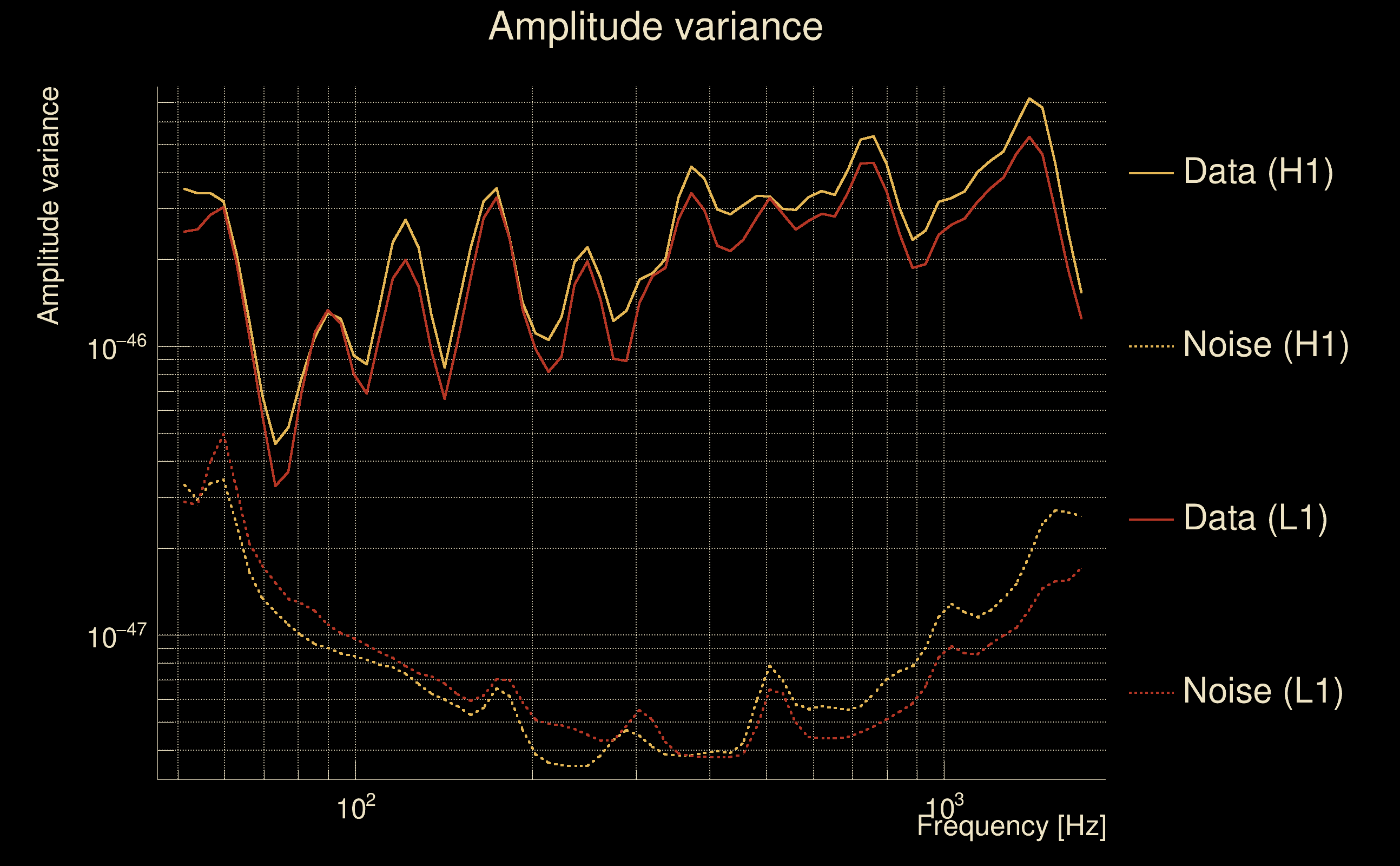

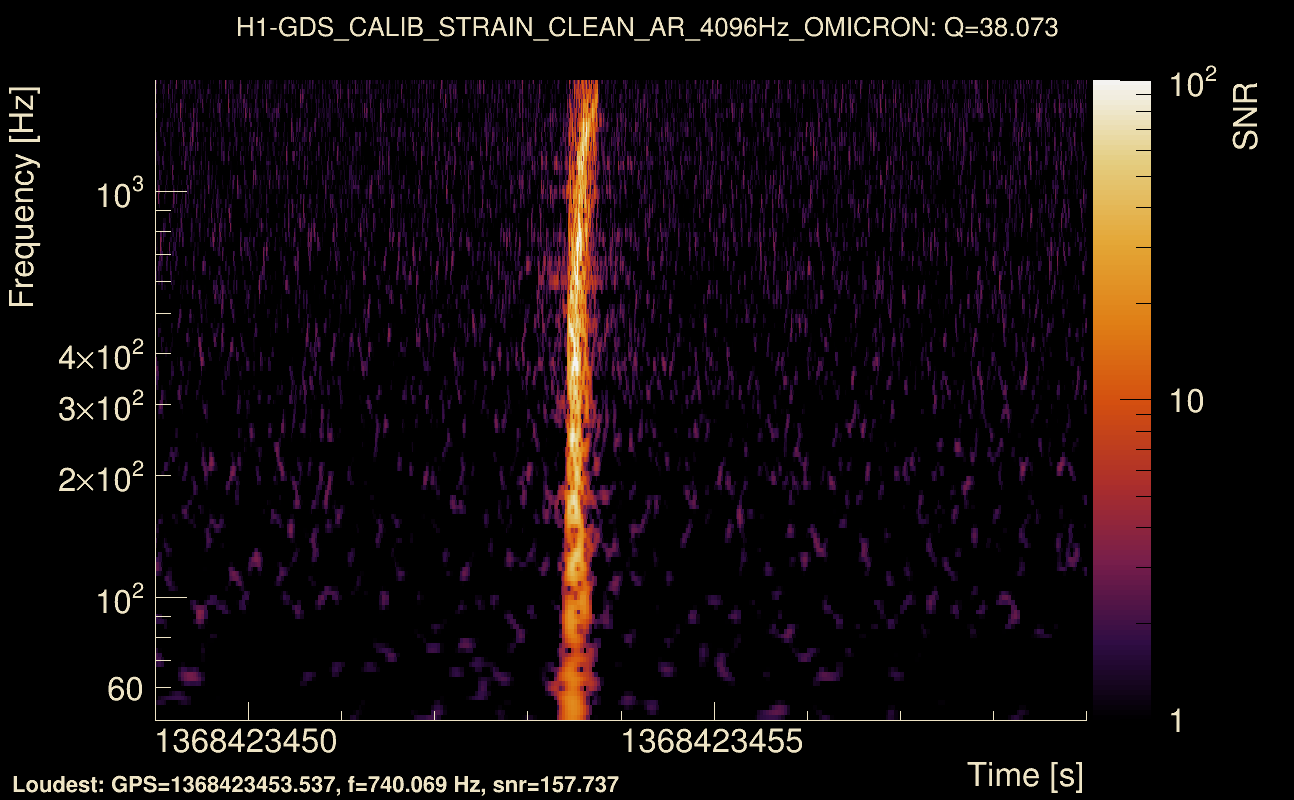

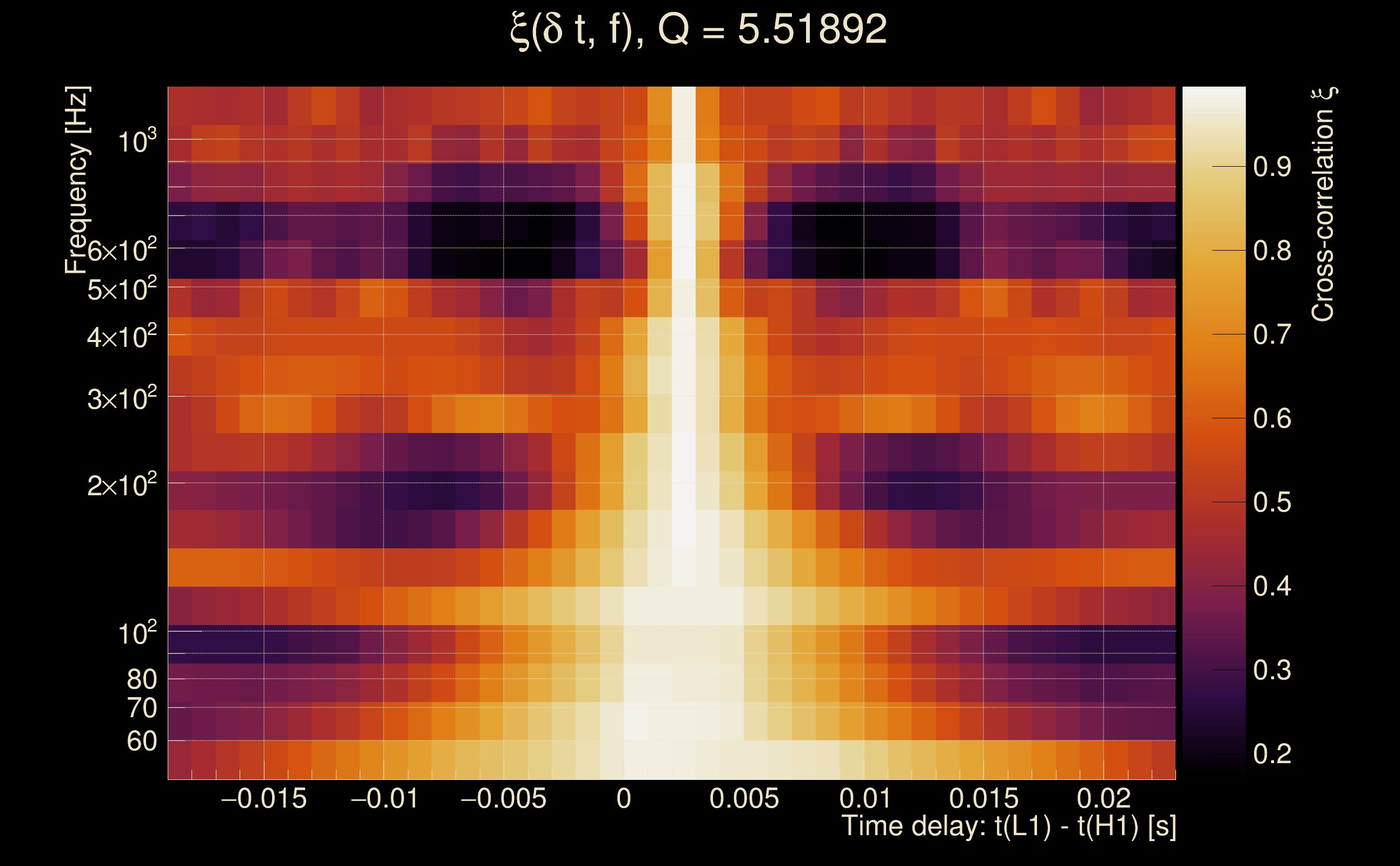

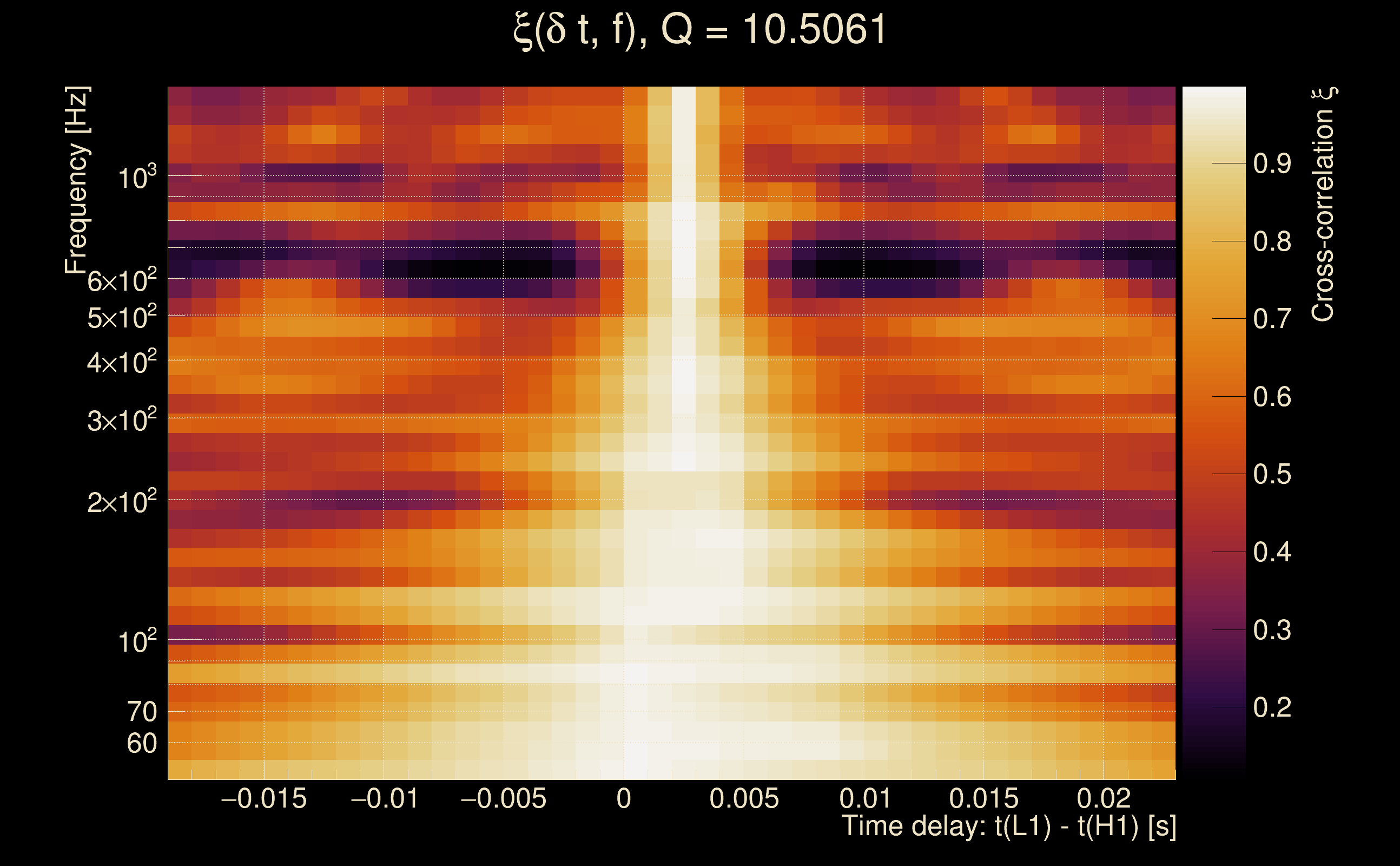

| Event time t(H1): | GPS = 1368423444 (Thu May 18 05:37:06 2023 ) → GPS = 1368423454 (Thu May 18 05:37:16 2023 ) |
| Event time t(L1): | GPS = 1368423444 (Thu May 18 05:37:16 2023 ) → GPS = 1368423454 (Thu May 18 05:37:16 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368423441 → GPS = 1368423457 |
| Omicron analysis time window (L1): | GPS = 1368423441 → GPS = 1368423457 |
| Time delay between detectors t(L1) - t(H1): | 0.00198747 s (slice index = 108 / 217), δt_gw = 0.00198747 s |
| Time delay standard deviation: | 0.0185312 s |
| [targeted mode] Time delay probability: | 0.985074 (0.0187082 sigmas), δt_target = 0.00195289 s |
| Frequency: | 290.169 Hz |
| Ξ: | 0.981094 ± 0.00227493 (variance = 5.17529e-06): Q0: 0.984161, Q1: 0.984096, Q2: 0.984181, Q3: 0.980709, Q4: 0.978675 |
| Rank: | R_A = 0.931011 |
| Log of amplitude ratio (L1/H1): | -0.0992843, variance = 0.151629 (L1/H1: -0.113024, variance = 0.302326, H1/L1: 0.0870616, variance = 0.302148) |
| Amplitude ratio (L1/H1): | 0.905485 ⋇ 1.47609 (L1/H1: 0.893129 ⋇ 1.73298, H1/L1: 1.09096 ⋇ 1.7327) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.973361 |
| Antenna factor probability: | 0.989695 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 12 / 258 |
| Maximum signal-to-noise ratio: | H1: 190.185, L1: 201.644 |

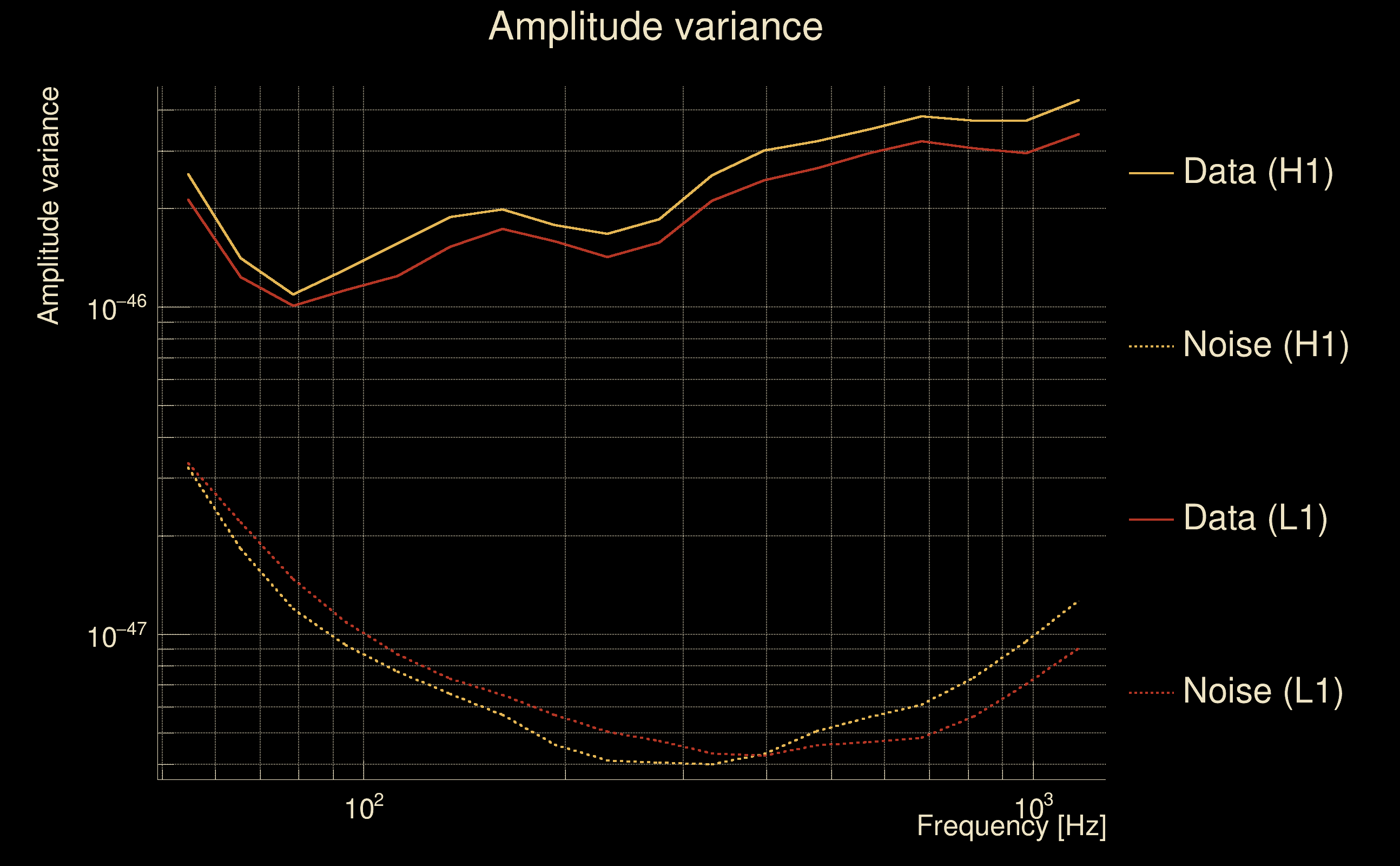

| SNR variance: | H1: 0.49781, L1: 0.507624 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

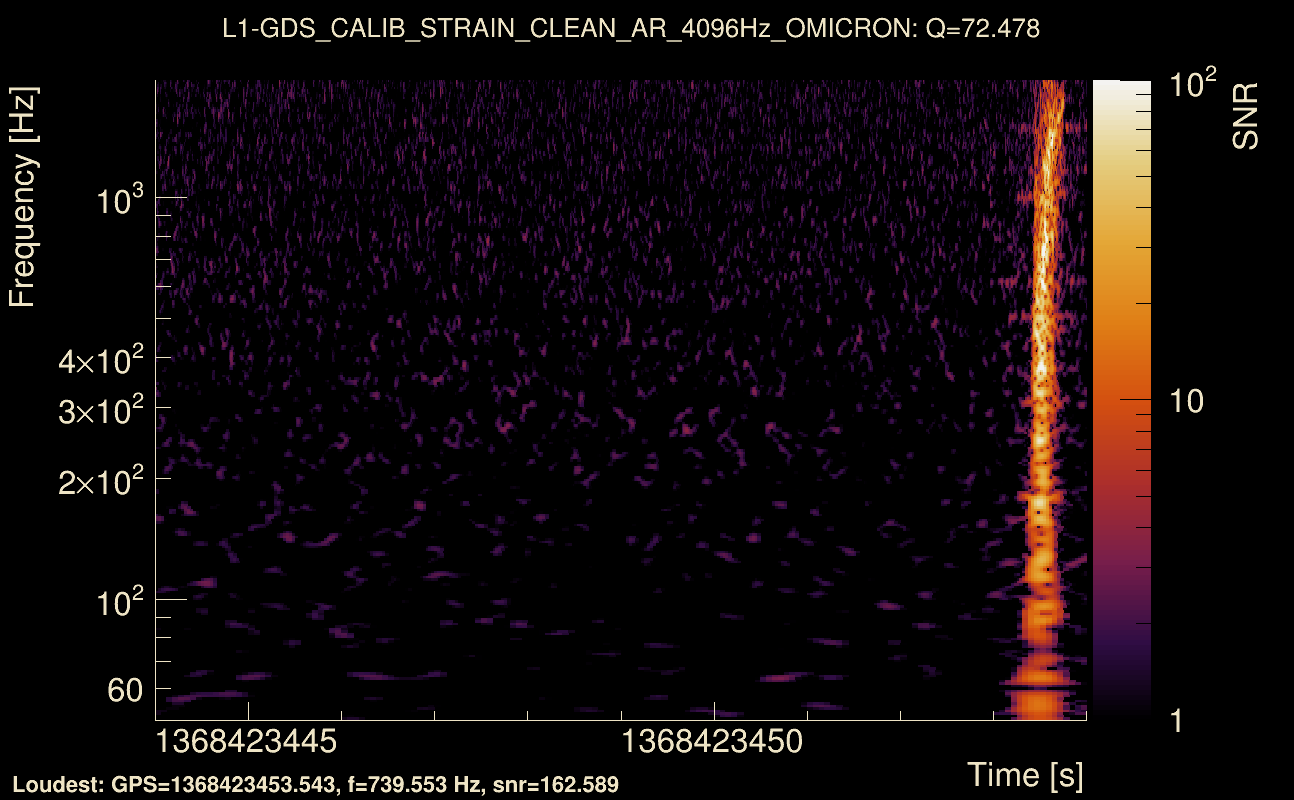

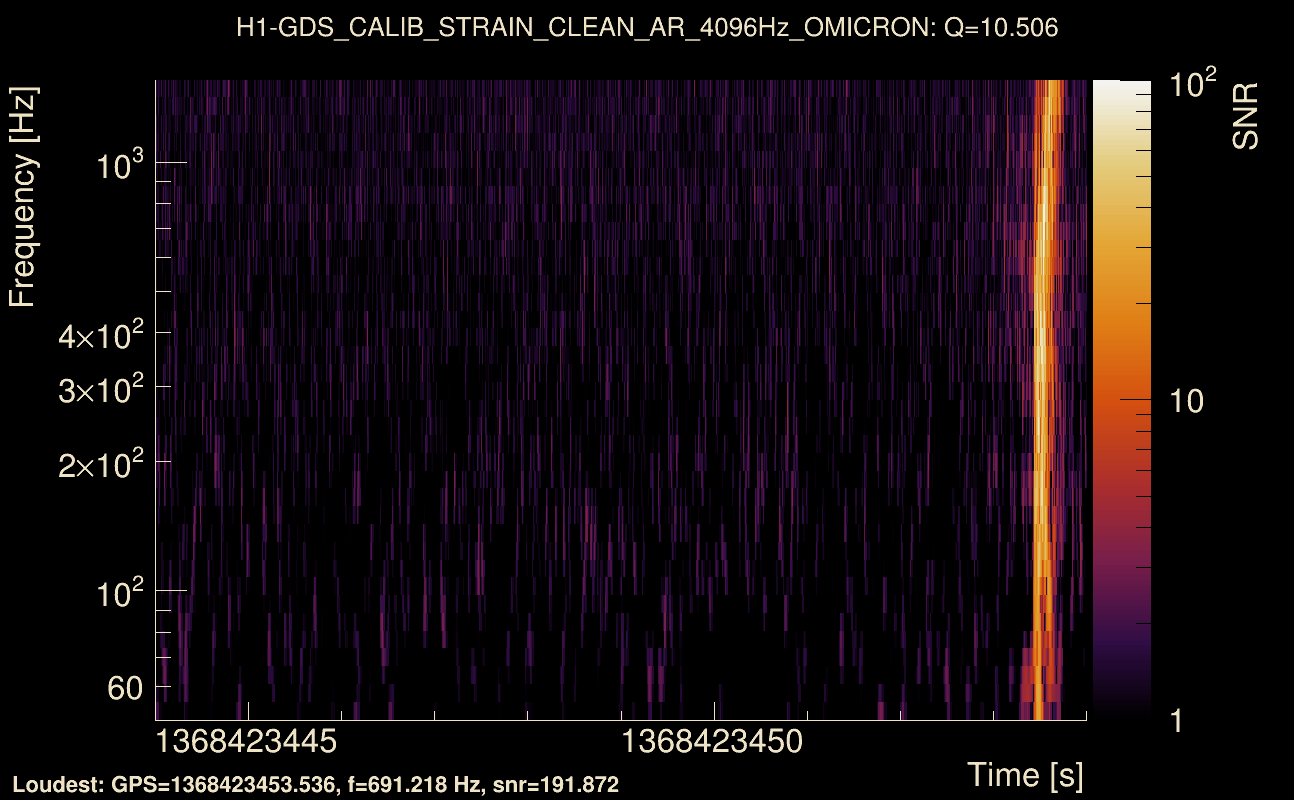

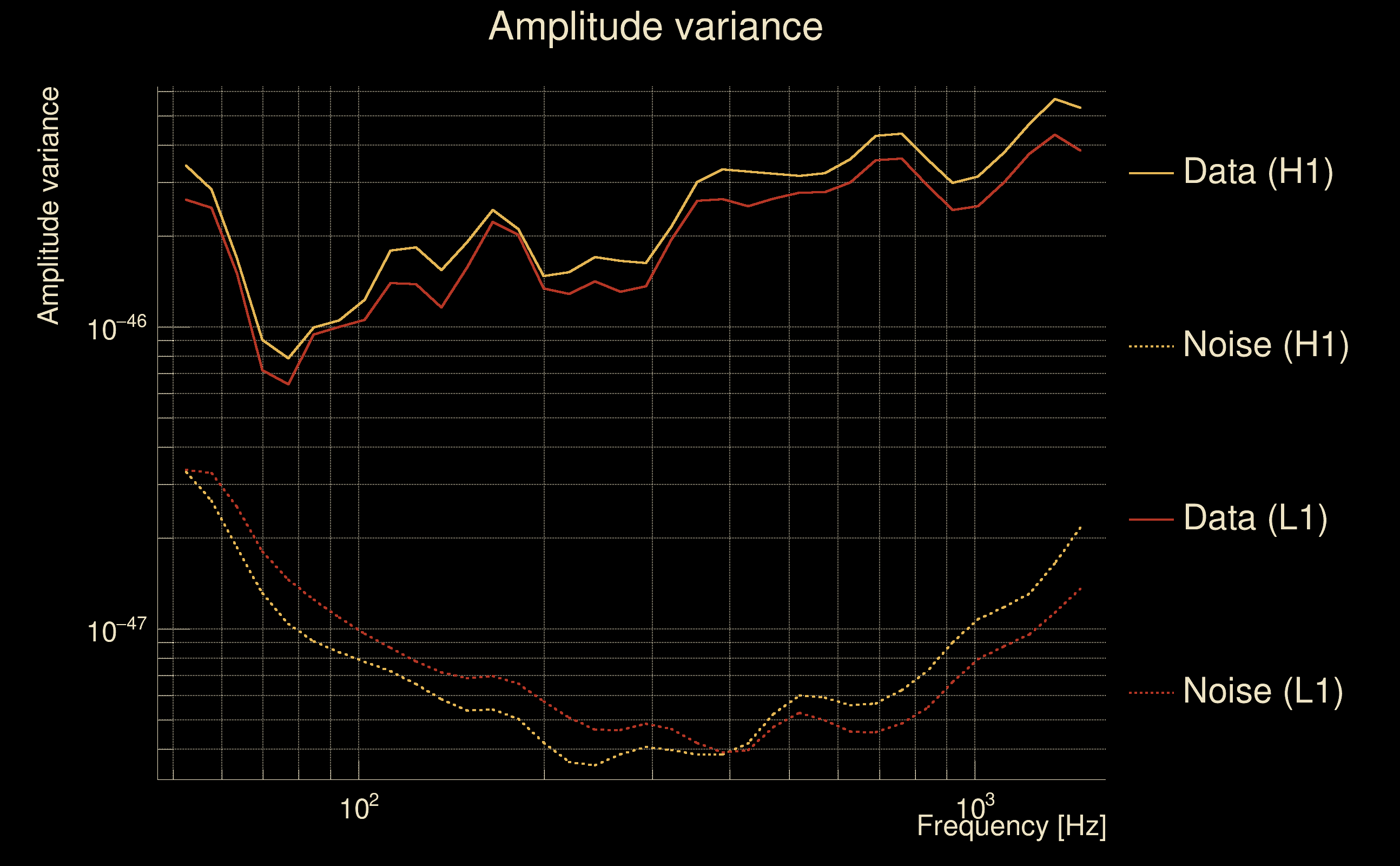

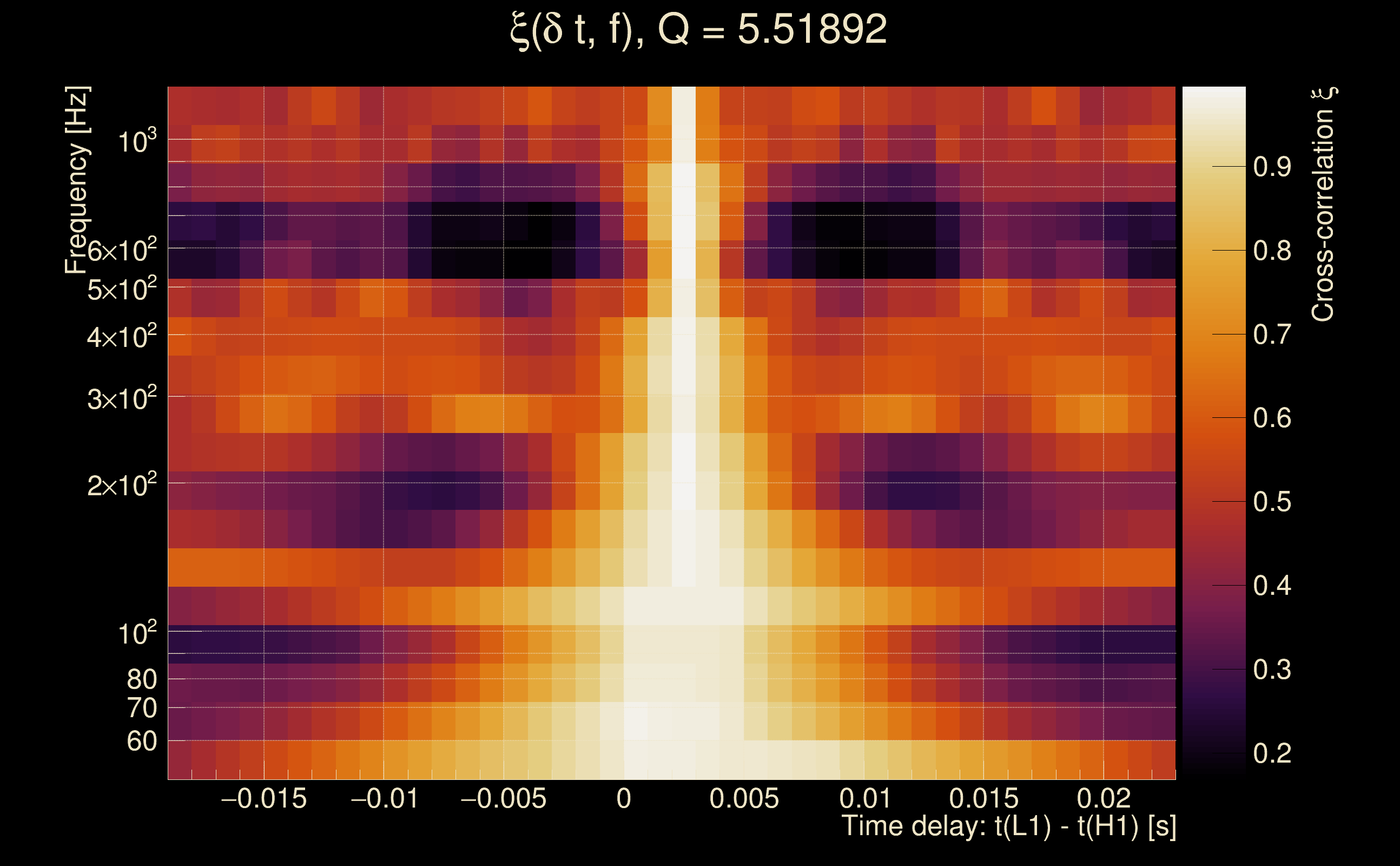

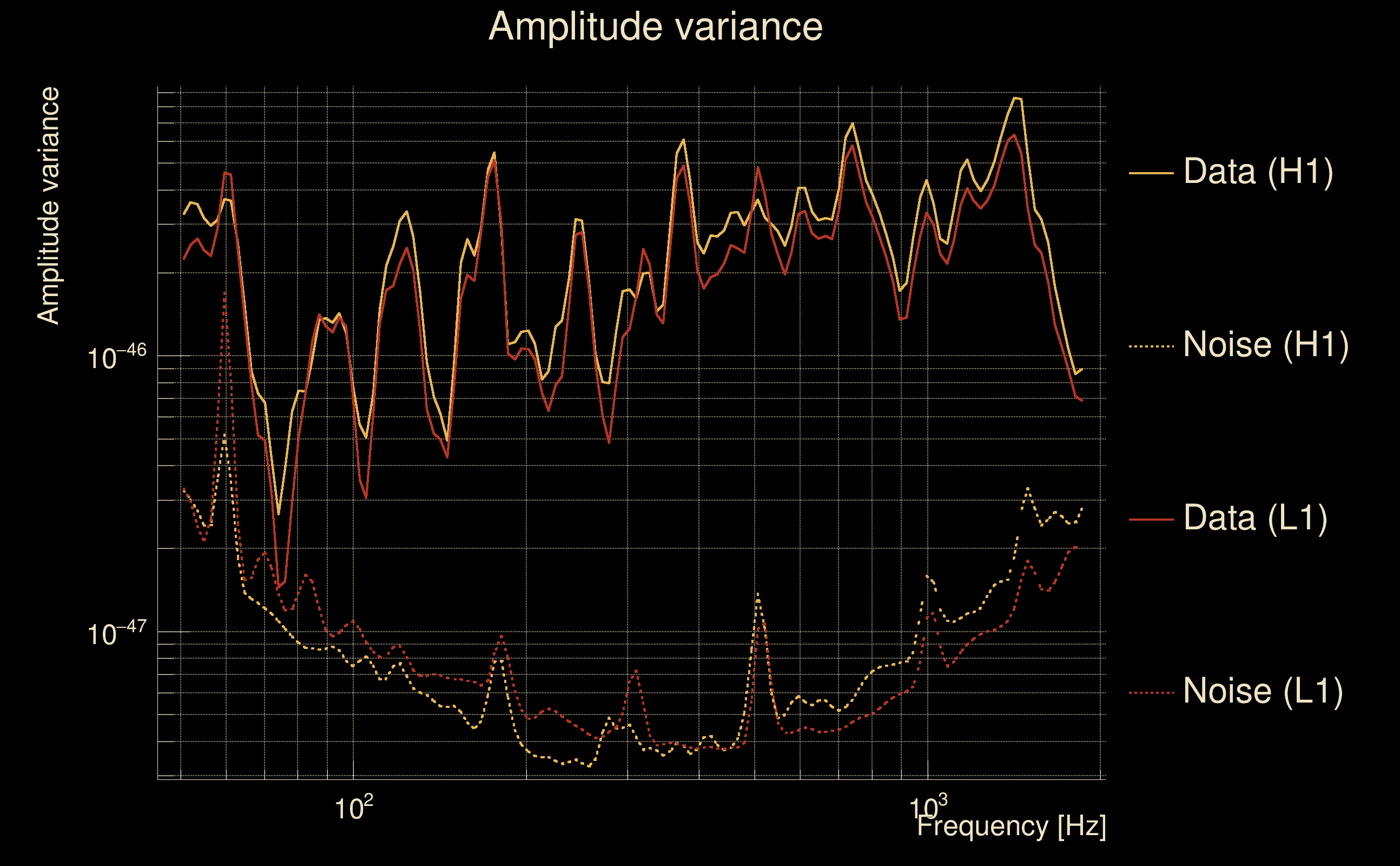

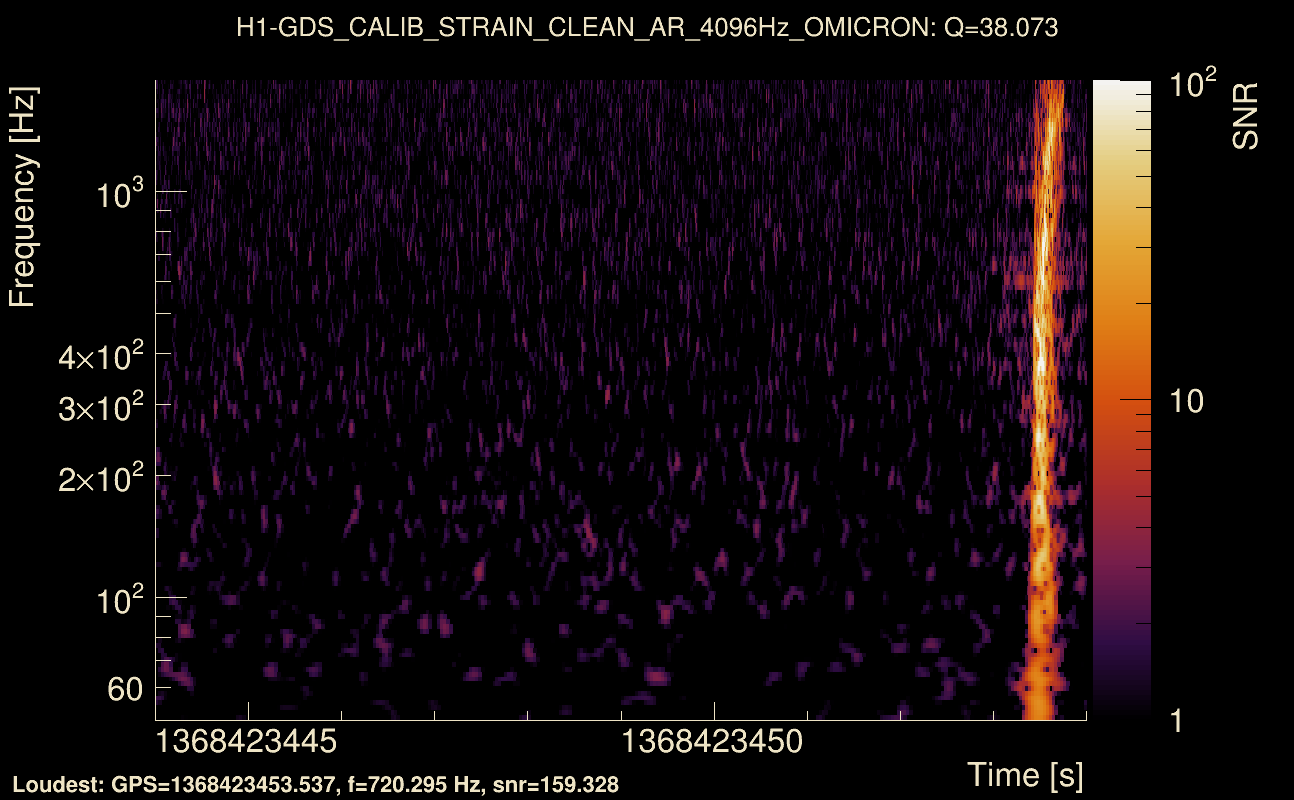

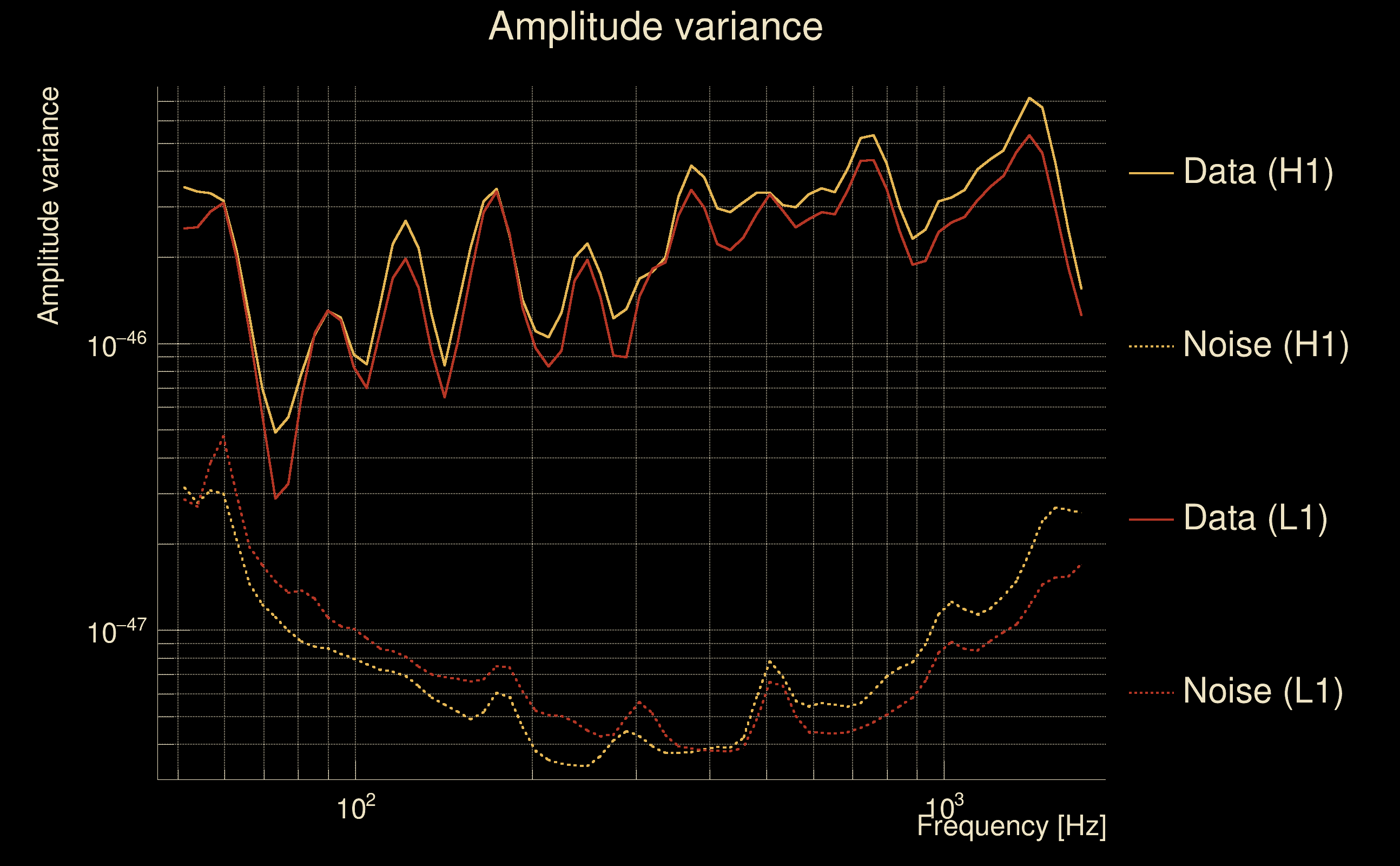

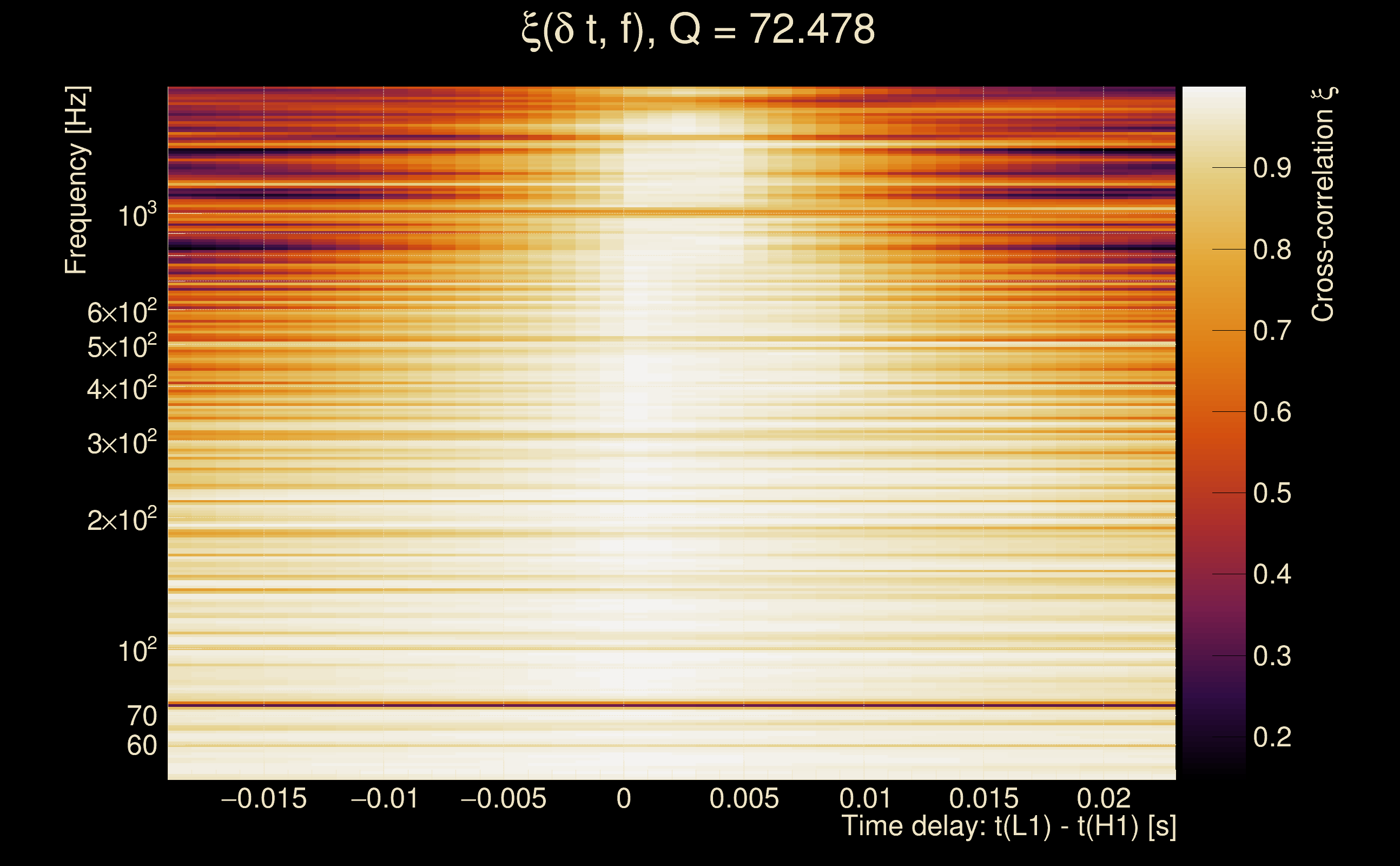

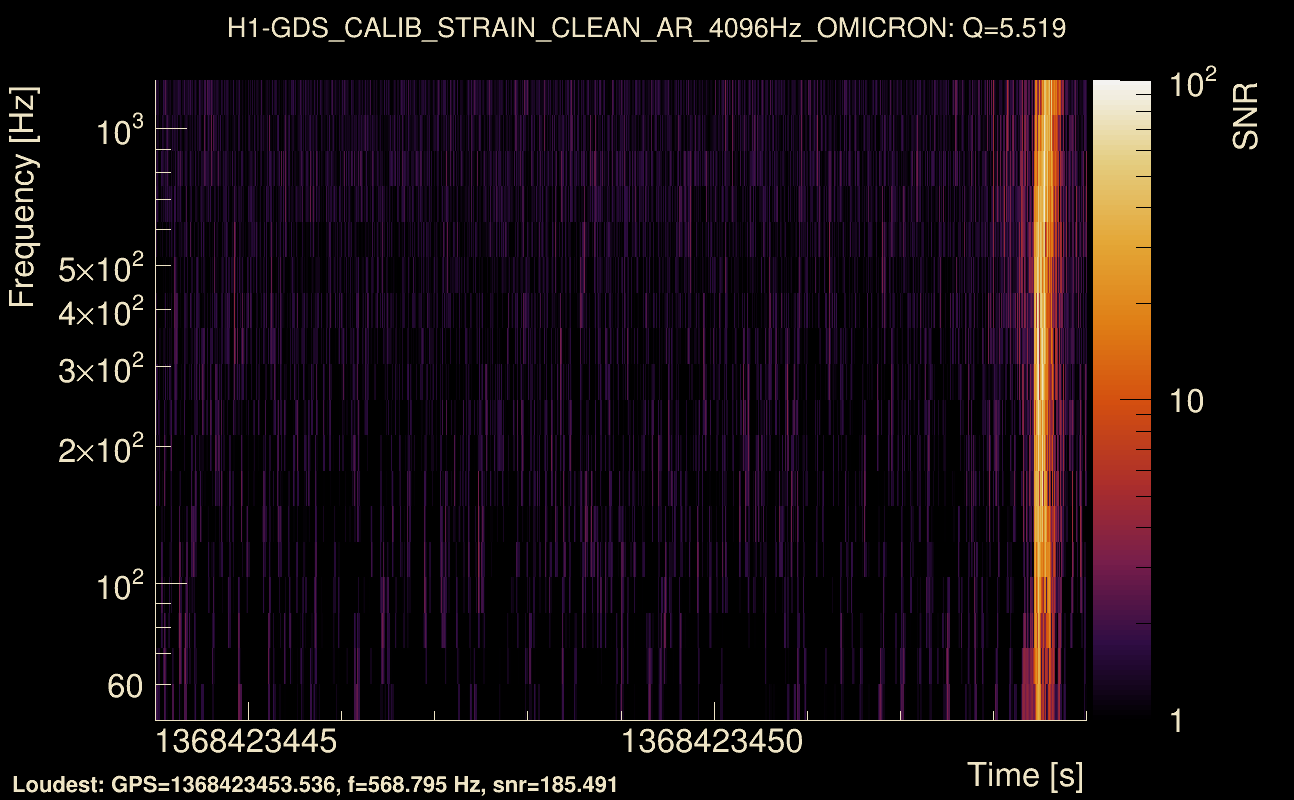

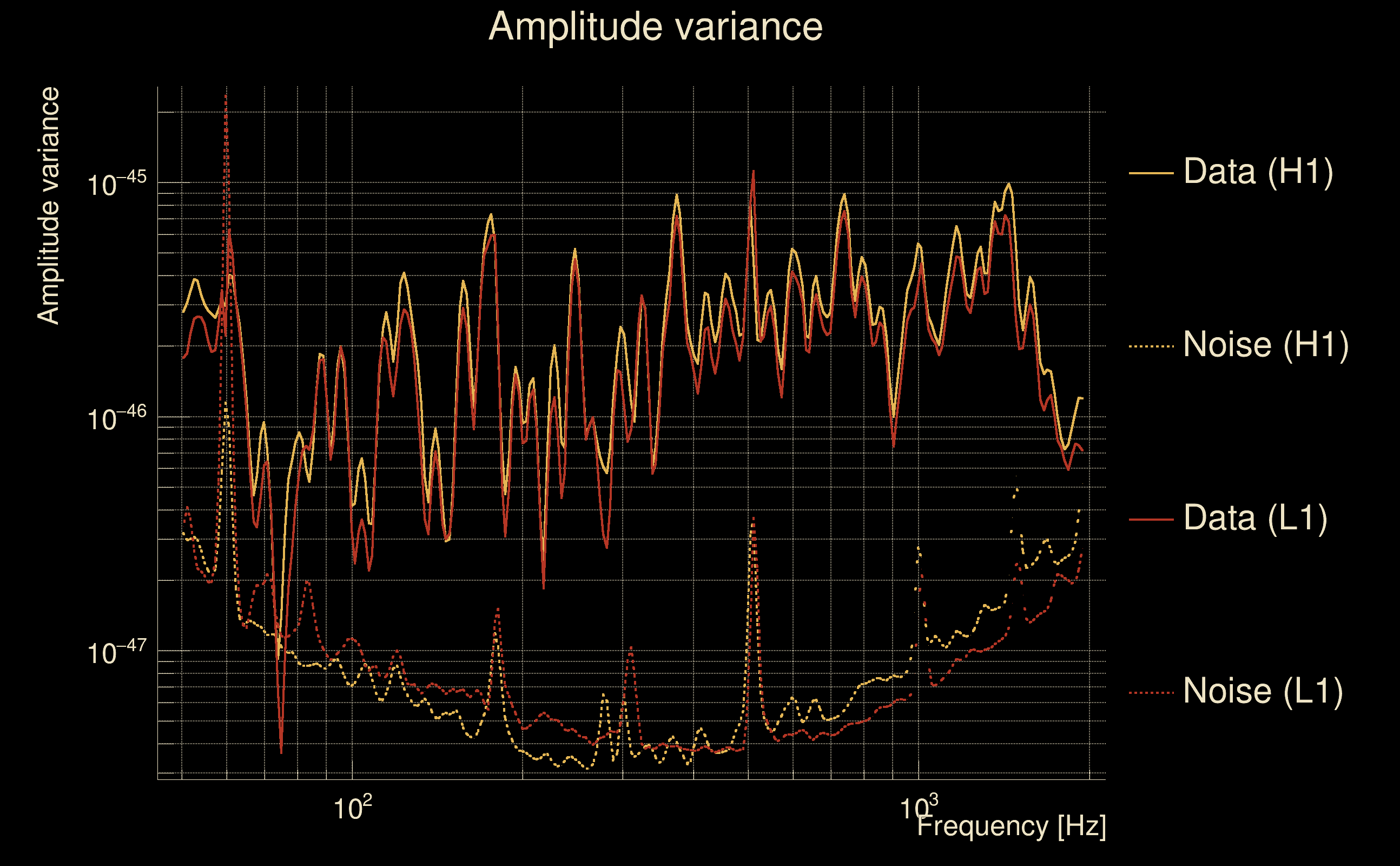

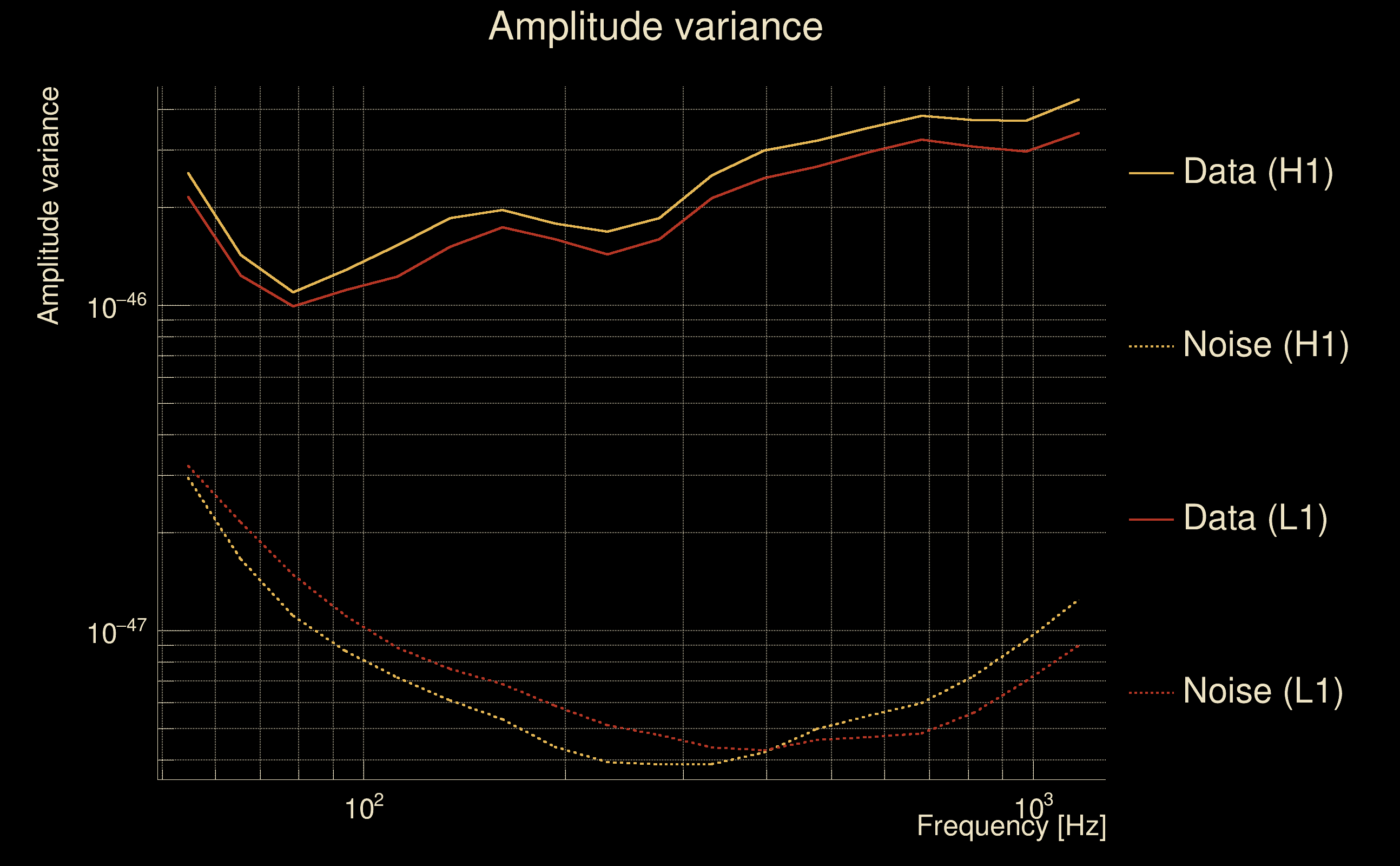

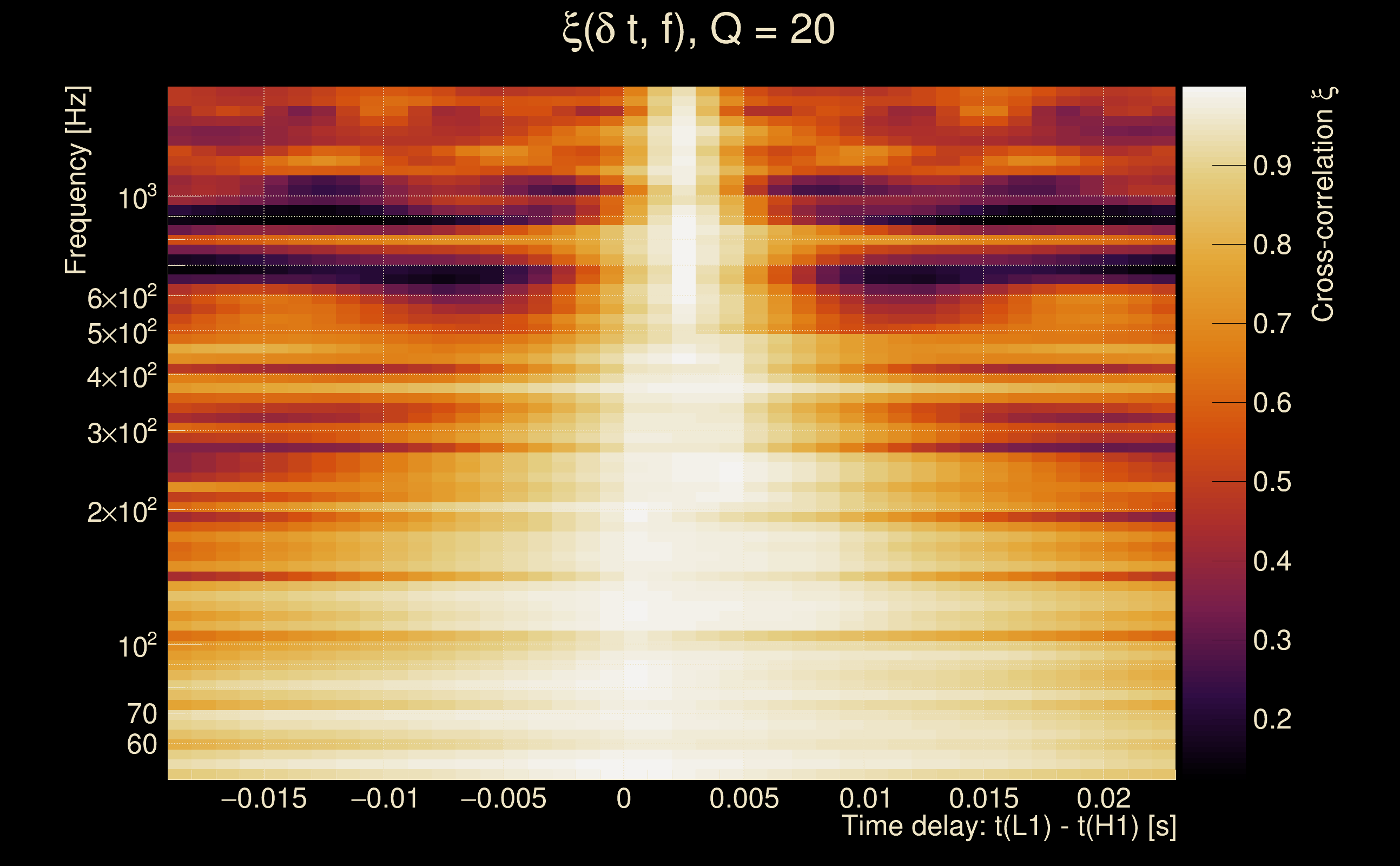

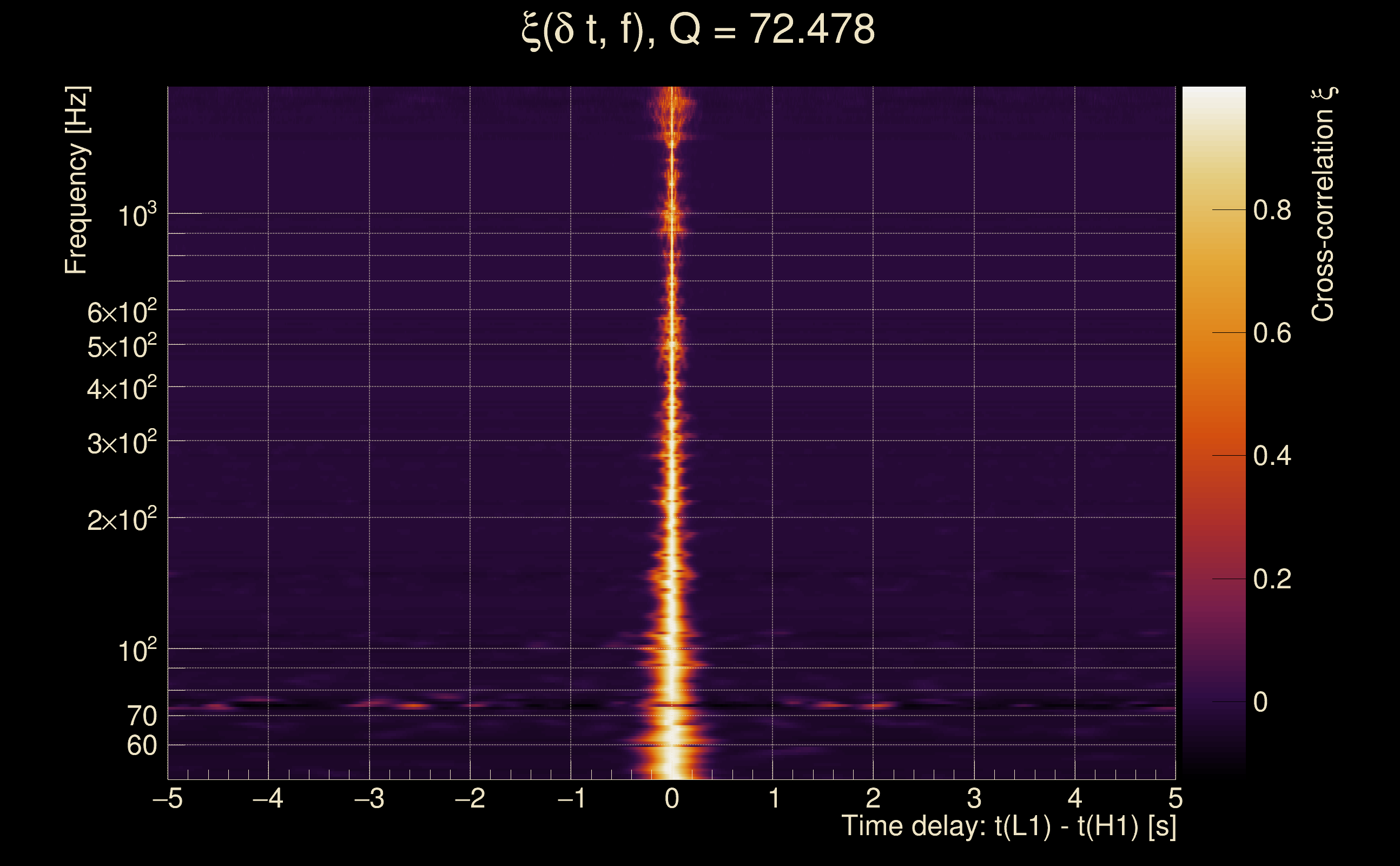

| Event time t(H1): | GPS = 1368423449 (Thu May 18 05:37:11 2023 ) → GPS = 1368423459 (Thu May 18 05:37:21 2023 ) |
| Event time t(L1): | GPS = 1368423449 (Thu May 18 05:37:21 2023 ) → GPS = 1368423459 (Thu May 18 05:37:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368423446 → GPS = 1368423462 |
| Omicron analysis time window (L1): | GPS = 1368423446 → GPS = 1368423462 |
| Time delay between detectors t(L1) - t(H1): | 0.00198702 s (slice index = 108 / 217), δt_gw = 0.00198702 s |
| Time delay standard deviation: | 0.0184663 s |
| [targeted mode] Time delay probability: | 0.97945 (0.0257581 sigmas), δt_target = 0.00199389 s |
| Frequency: | 290.343 Hz |
| Ξ: | 0.98094 ± 0.00253949 (variance = 6.44901e-06): Q0: 0.984068, Q1: 0.983965, Q2: 0.984024, Q3: 0.980347, Q4: 0.977842 |
| Rank: | R_A = 0.92654 |
| Log of amplitude ratio (L1/H1): | -0.0989744, variance = 0.151578 (L1/H1: -0.112544, variance = 0.302451, H1/L1: 0.0868198, variance = 0.302072) |
| Amplitude ratio (L1/H1): | 0.905766 ⋇ 1.47599 (L1/H1: 0.893558 ⋇ 1.73318, H1/L1: 1.0907 ⋇ 1.73258) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.973606 |
| Antenna factor probability: | 0.990504 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 12 / 258 |
| Maximum signal-to-noise ratio: | H1: 188.521, L1: 199.195 |
| SNR variance: | H1: 20.9005, L1: 19.3464 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368361673 (Wed May 17 12:27:35 2023 ) → GPS = 1368361683 (Wed May 17 12:27:45 2023 ) |
| Event time t(L1): | GPS = 1368361673 (Wed May 17 12:27:45 2023 ) → GPS = 1368361683 (Wed May 17 12:27:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368361670 → GPS = 1368361686 |
| Omicron analysis time window (L1): | GPS = 1368361670 → GPS = 1368361686 |
| Time delay between detectors t(L1) - t(H1): | 2.35275 s (slice index = 57 / 217), δt_gw = 0.00675201 s |
| Time delay standard deviation: | 0.0738318 s |
| [targeted mode] Time delay probability: | 0.697082 (0.389263 sigmas), δt_target = 0.0019958 s |
| Frequency: | 102.563 Hz |
| Ξ: | 0.0180932 ± 0.020721 (variance = 0.000429361): Q0: 0.118572, Q1: 0.0790206, Q2: 0.0633535, Q3: 0.0745769, Q4: 0.0611927 |
| Rank: | R_A = 0.00905455 |
| Log of amplitude ratio (L1/H1): | -0.385218, variance = 0.512298 (L1/H1: -0.623918, variance = 0.777944, H1/L1: 0.178507, variance = 1.20037) |
| Amplitude ratio (L1/H1): | 0.680302 ⋇ 2.04572 (L1/H1: 0.535841 ⋇ 2.41575, H1/L1: 1.19543 ⋇ 2.99102) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.75149 |
| Antenna factor probability: | 0.955311 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 30 / 36, Q2: 63 / 70, Q3: 123 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.94035, L1: 5.30886 |
| SNR variance: | H1: 0.549992, L1: 0.526874 |

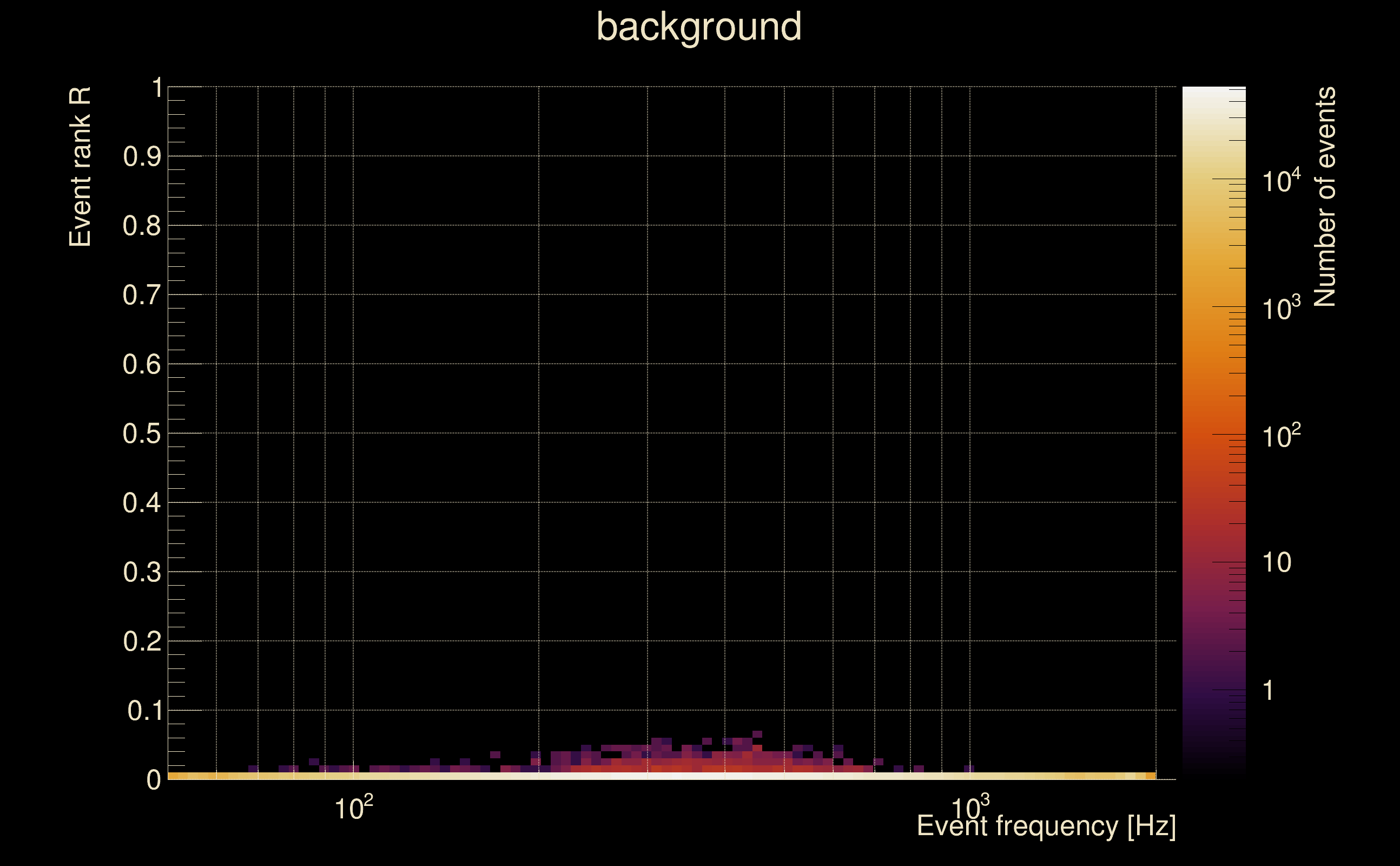

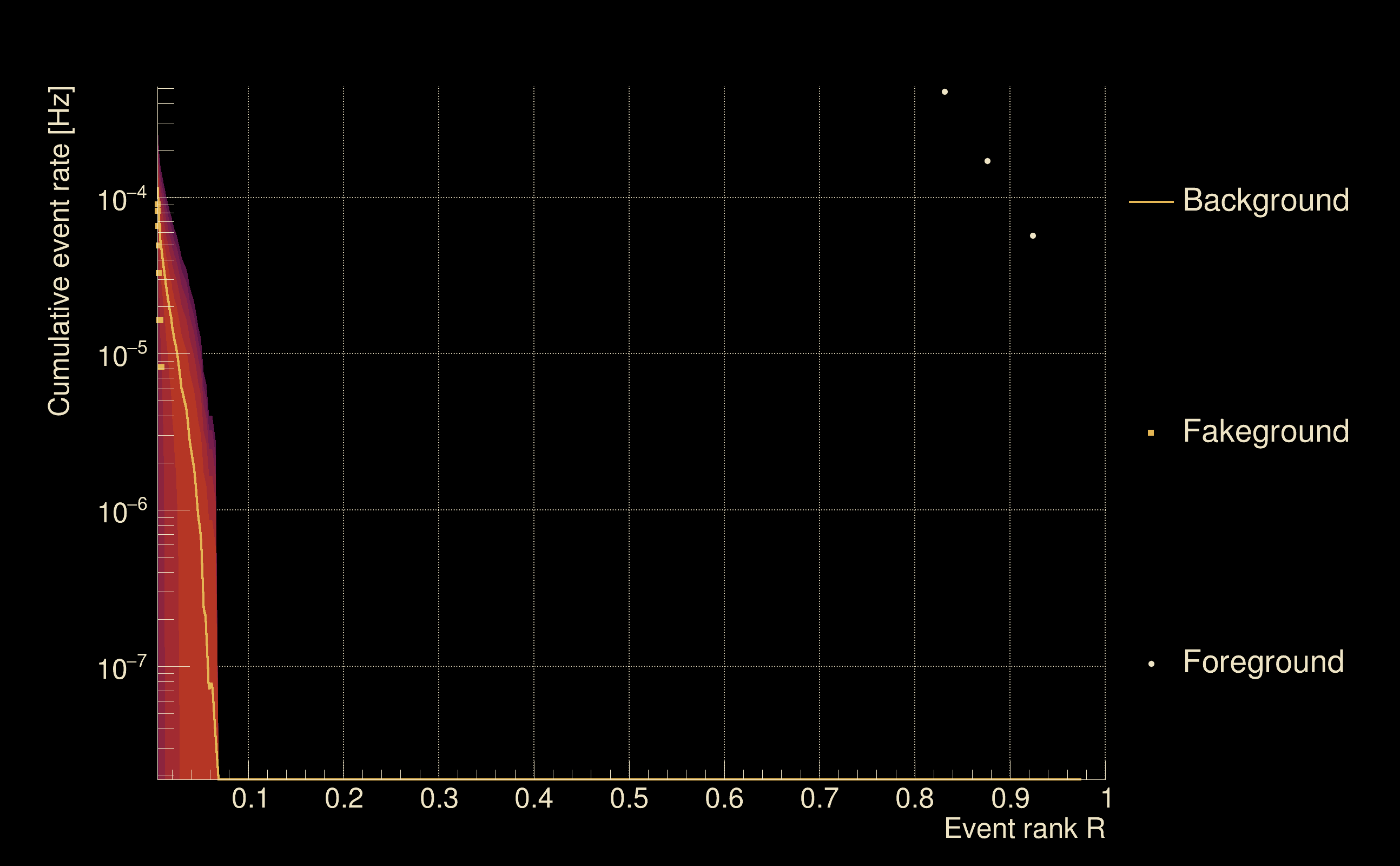

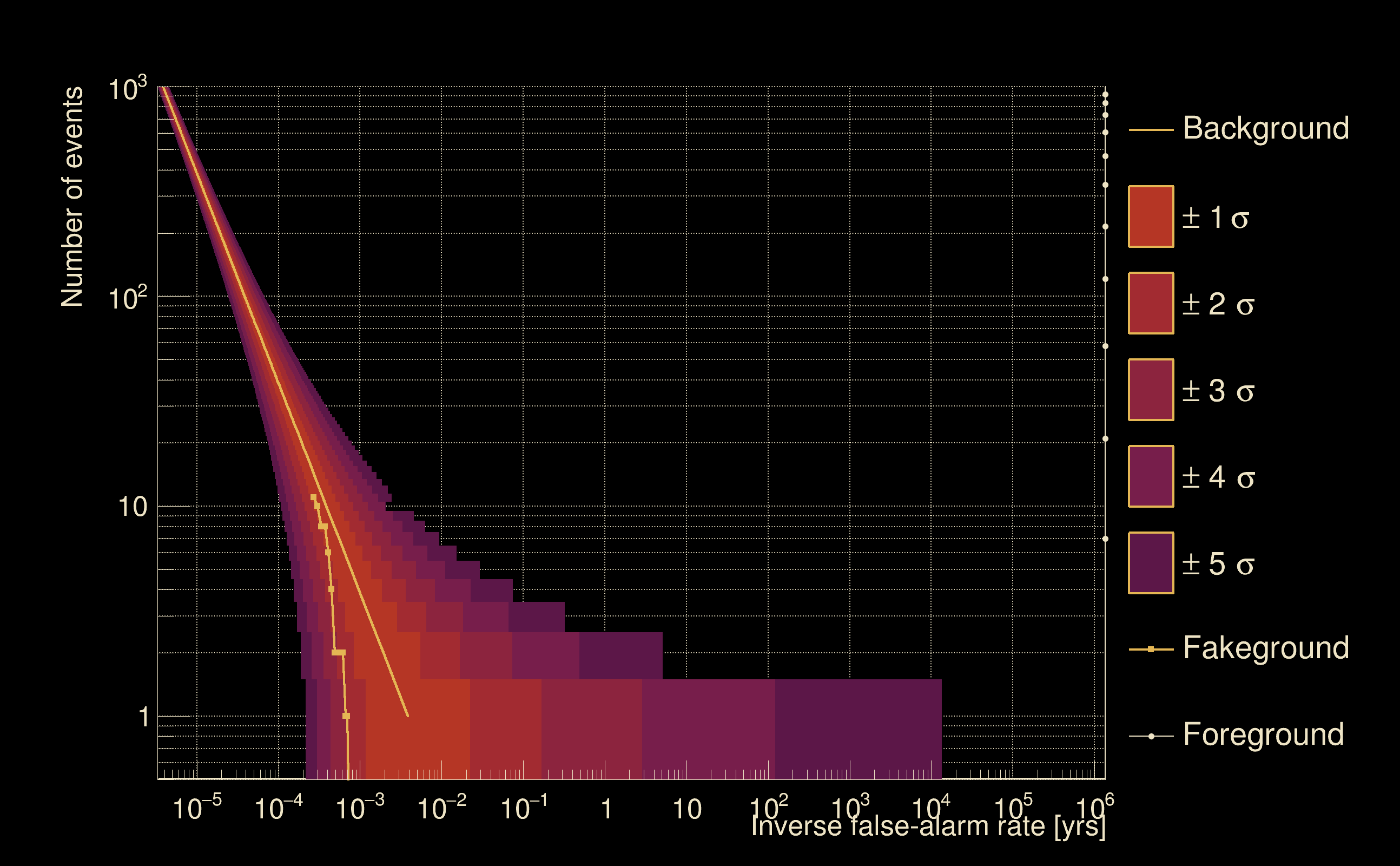

| Detection threshold: | R > 0.0316611 |
| False-alarm rate above that detection threshold: | 5.2746e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.0653314 |
| Alternative threshold at 1/100 yrs: | R > 0.0653314 |
| Alternative threshold at 1/10 yrs: | R > 0.0653314 |
| Alternative threshold at 1/1 yr: | R > 0.0653314 |
| Alternative threshold at 1/1 d: | R > 0.022668 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

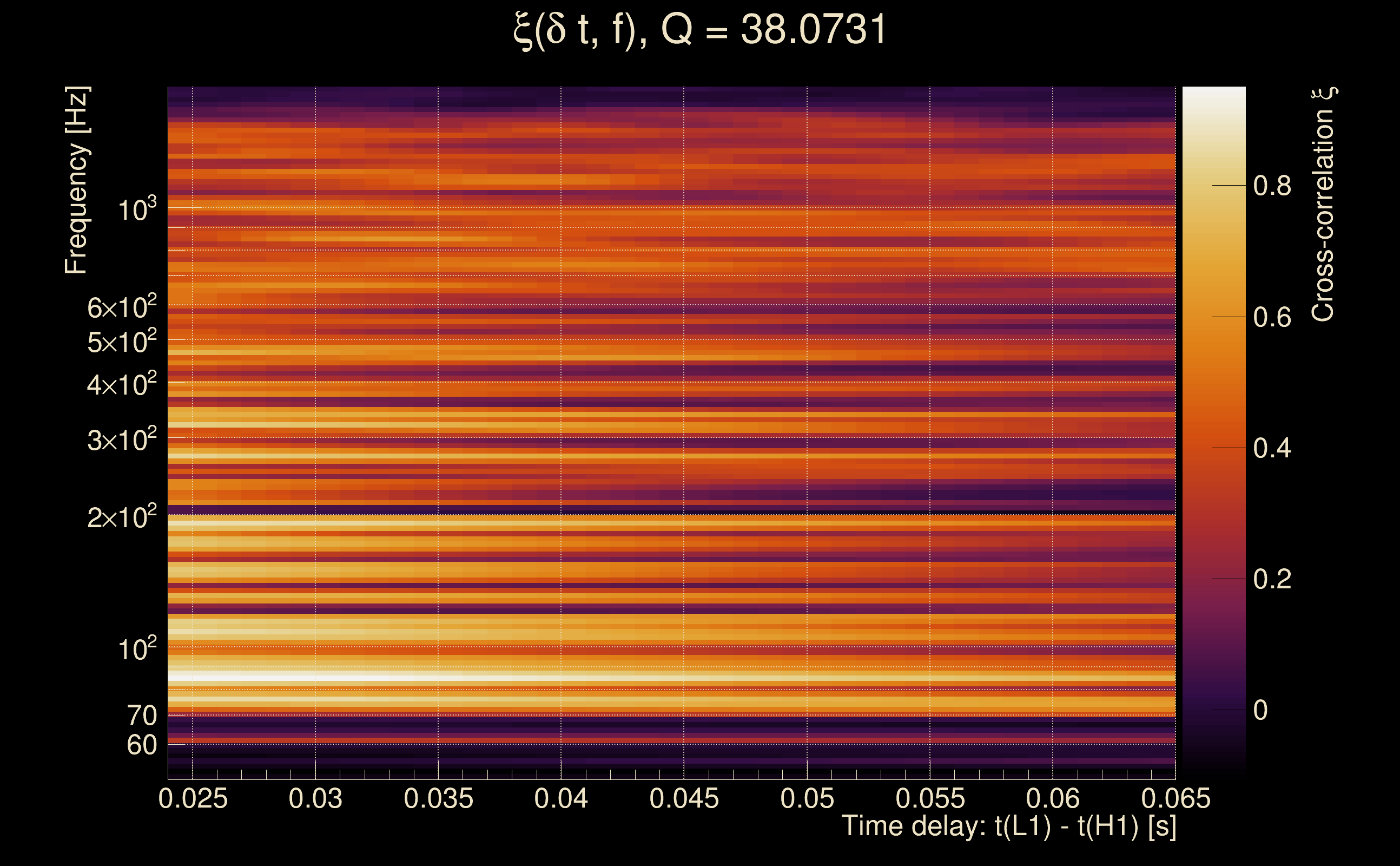

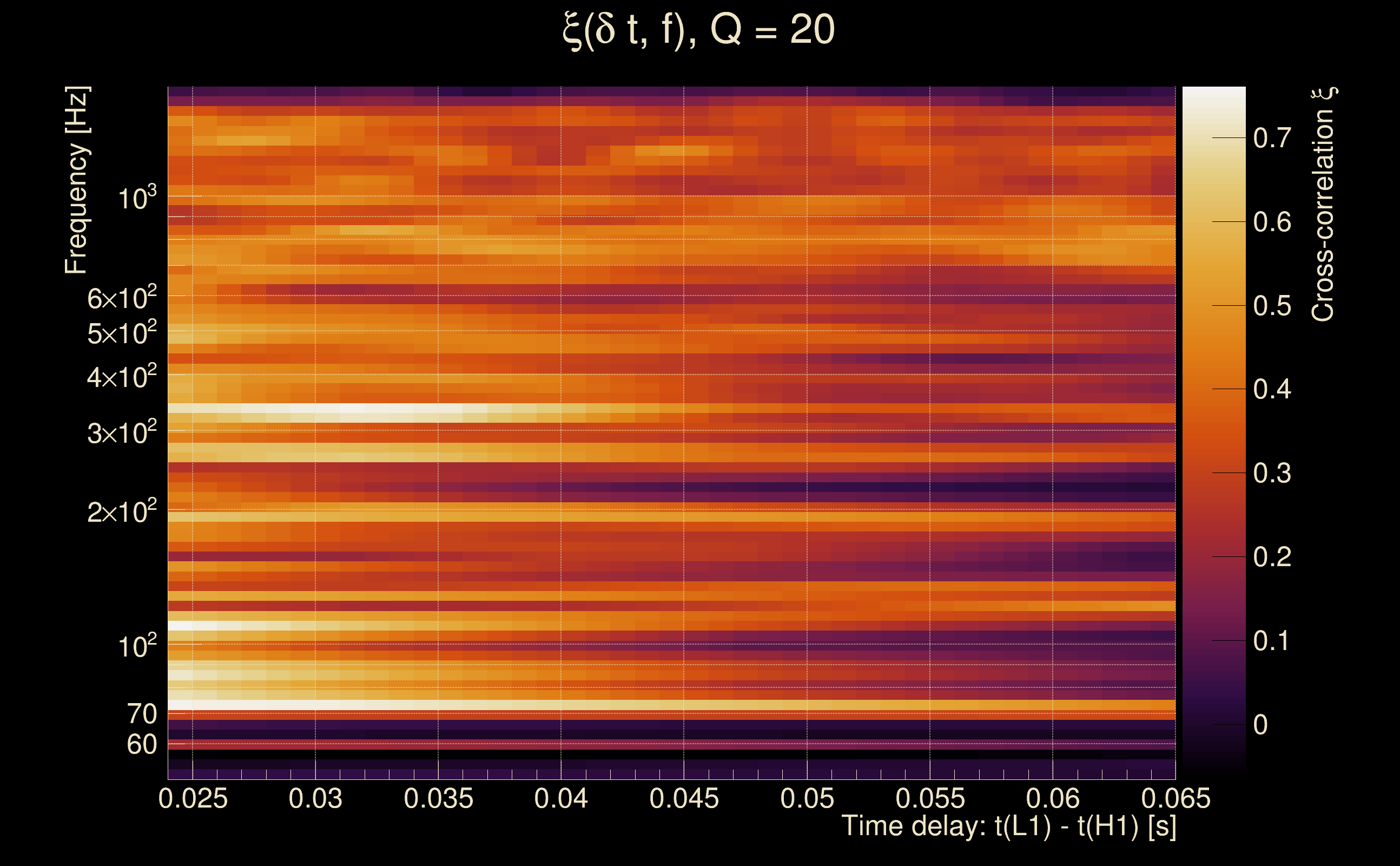

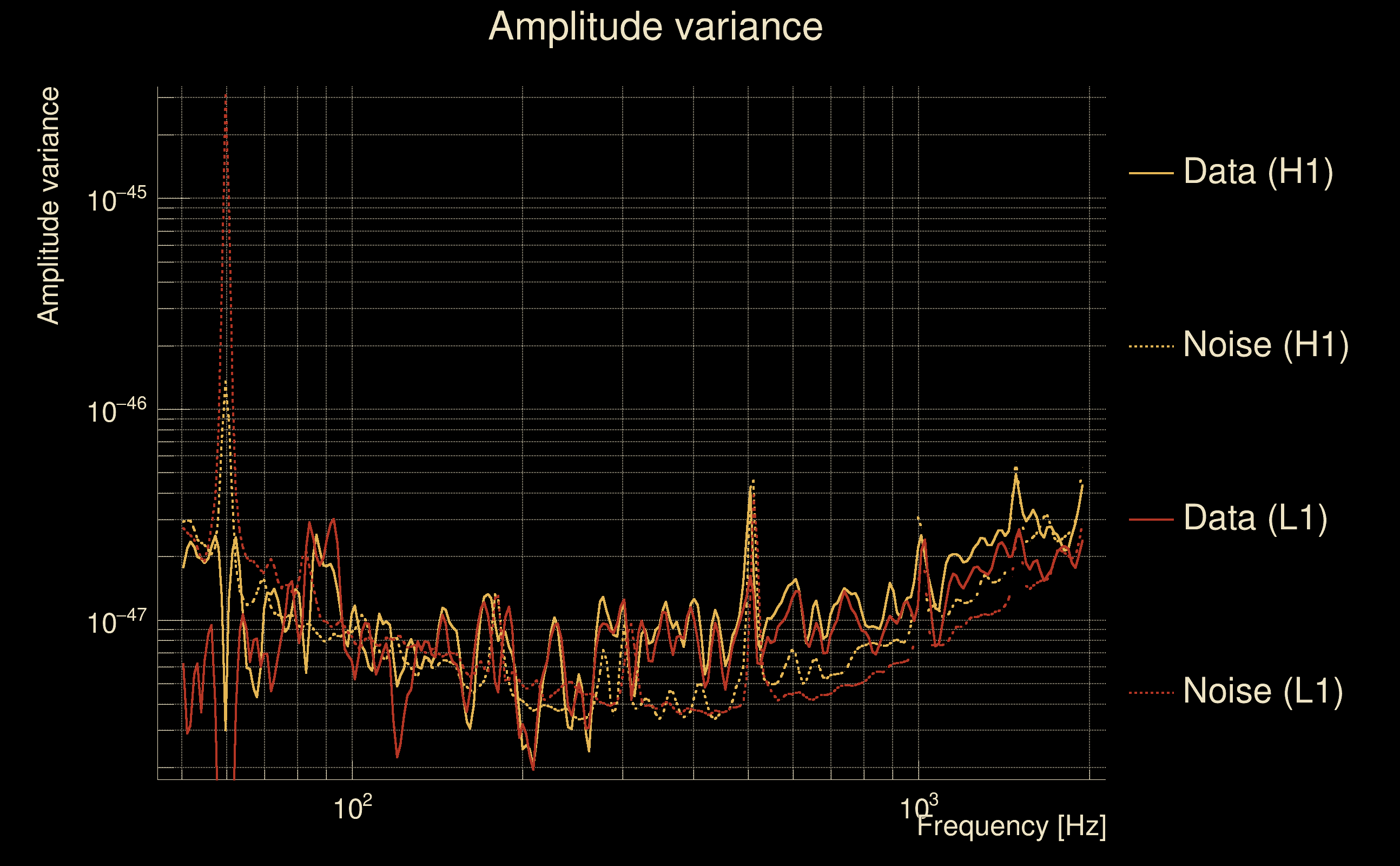

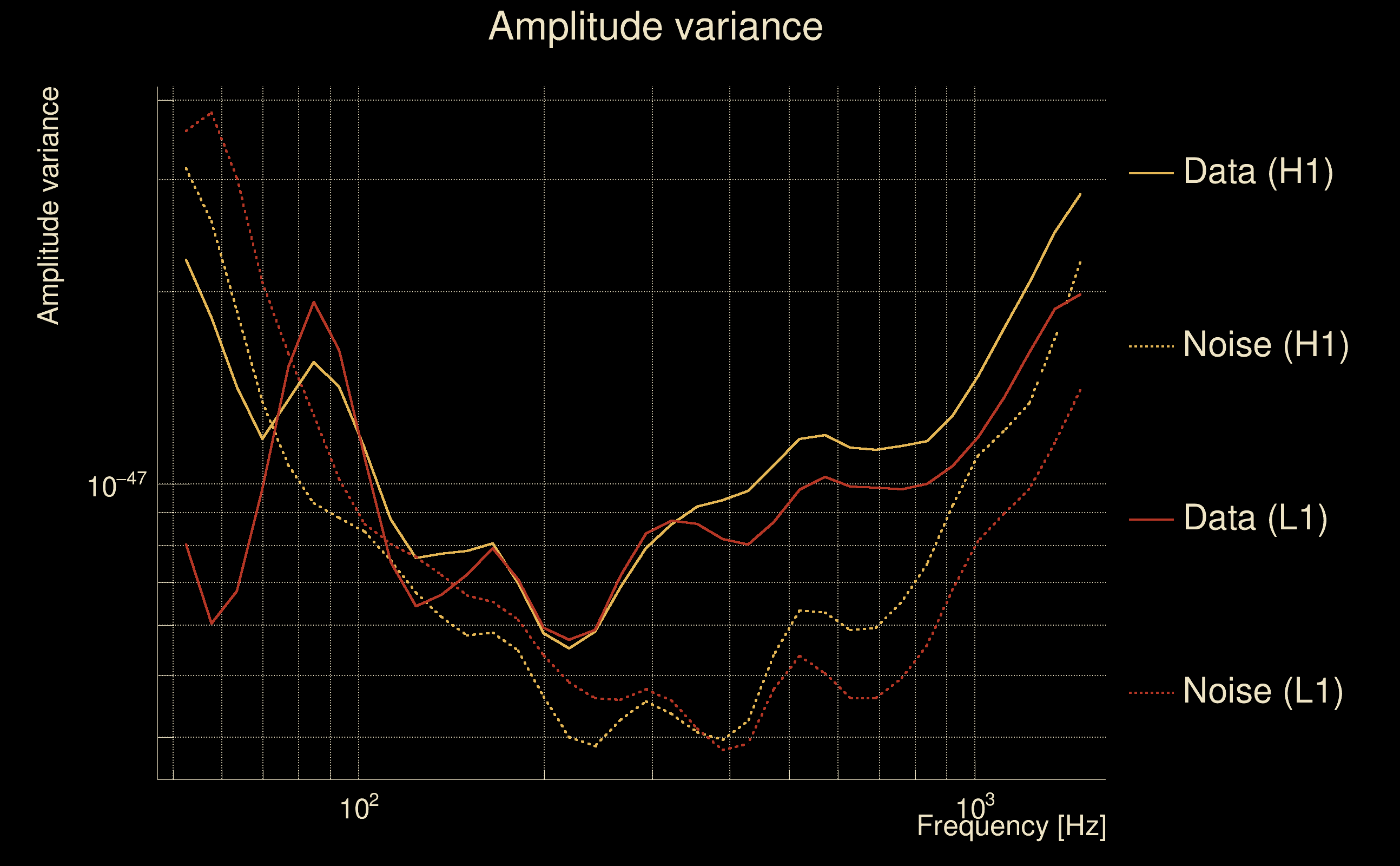

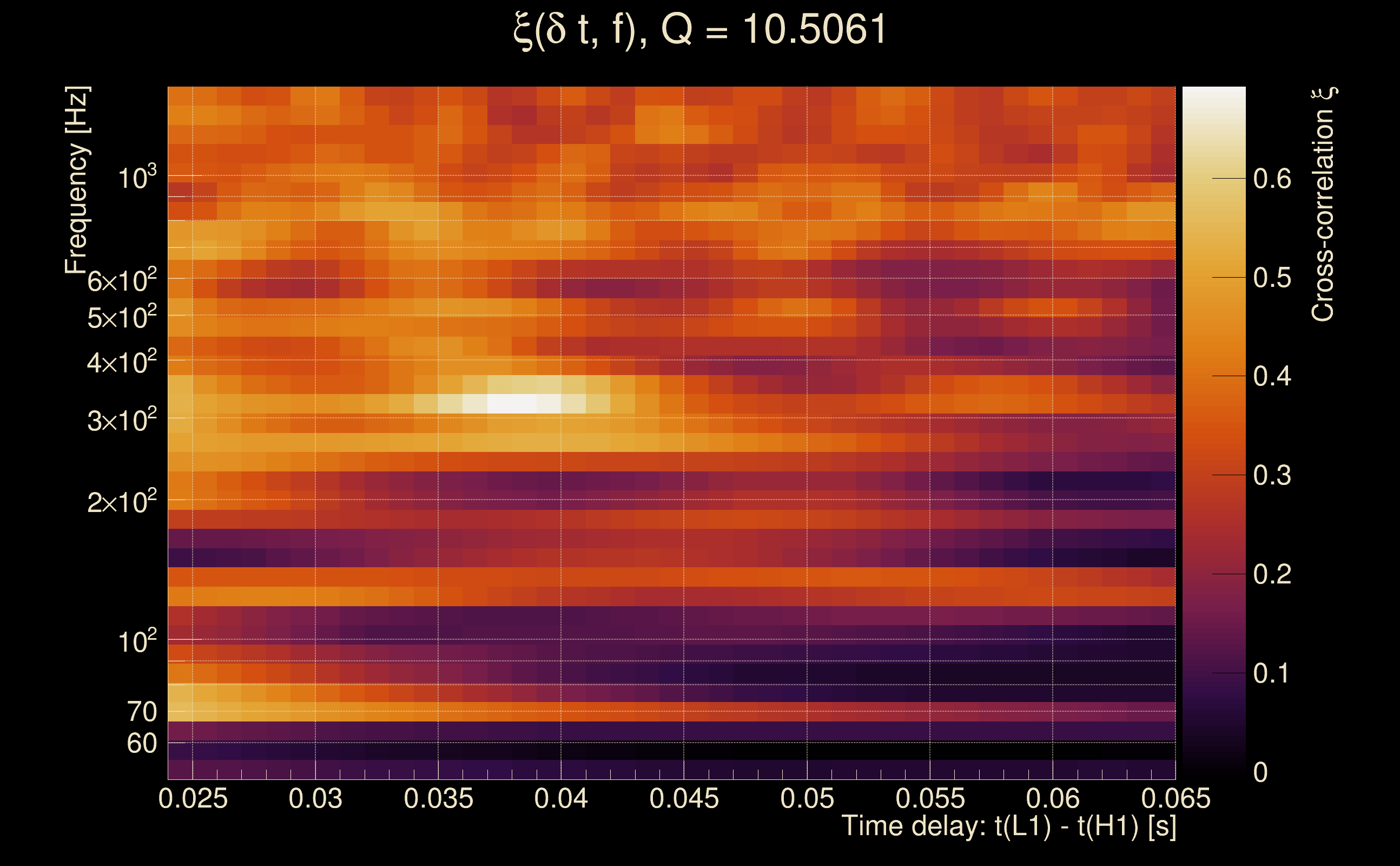

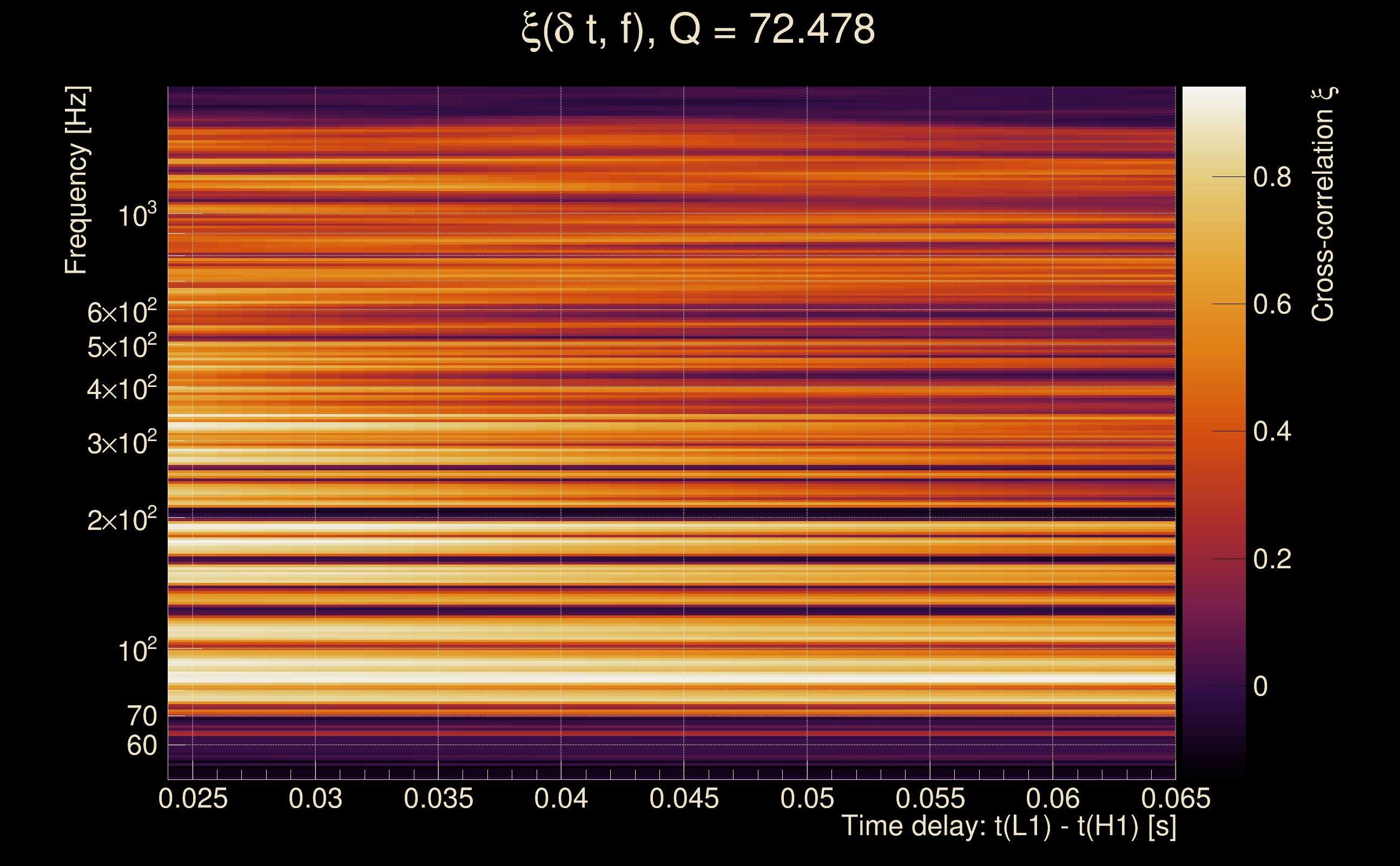

| Event time t(H1): | GPS = 1368418814 (Thu May 18 04:19:56 2023 ) → GPS = 1368418824 (Thu May 18 04:20:06 2023 ) |
| Event time t(L1): | GPS = 1368418814 (Thu May 18 04:20:06 2023 ) → GPS = 1368418824 (Thu May 18 04:20:06 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368418811 → GPS = 1368418827 |
| Omicron analysis time window (L1): | GPS = 1368418811 → GPS = 1368418827 |
| Time delay between detectors t(L1) - t(H1): | 0.0447602 s (slice index = 107 / 217), δt_gw = -0.00123984 s |
| Time delay standard deviation: | 0.0886215 s |
| [targeted mode] Time delay probability: | 0.827545 (0.217851 sigmas), δt_target = 0.0019958 s |
| Frequency: | 453.321 Hz |
| Ξ: | 0.154466 ± 0.0184503 (variance = 0.000340412): Q0: 0.477263, Q1: 0.473773, Q2: 0.428847, Q3: 0.477879, Q4: 0.462492 |
| Rank: | R_A = 0.0656166 |
| Log of amplitude ratio (L1/H1): | -0.0687341, variance = 0.167636 (L1/H1: -0.315606, variance = 0.320859, H1/L1: -0.158042, variance = 0.346325) |
| Amplitude ratio (L1/H1): | 0.933575 ⋇ 1.50597 (L1/H1: 0.729347 ⋇ 1.76199, H1/L1: 0.853814 ⋇ 1.80127) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.562 |

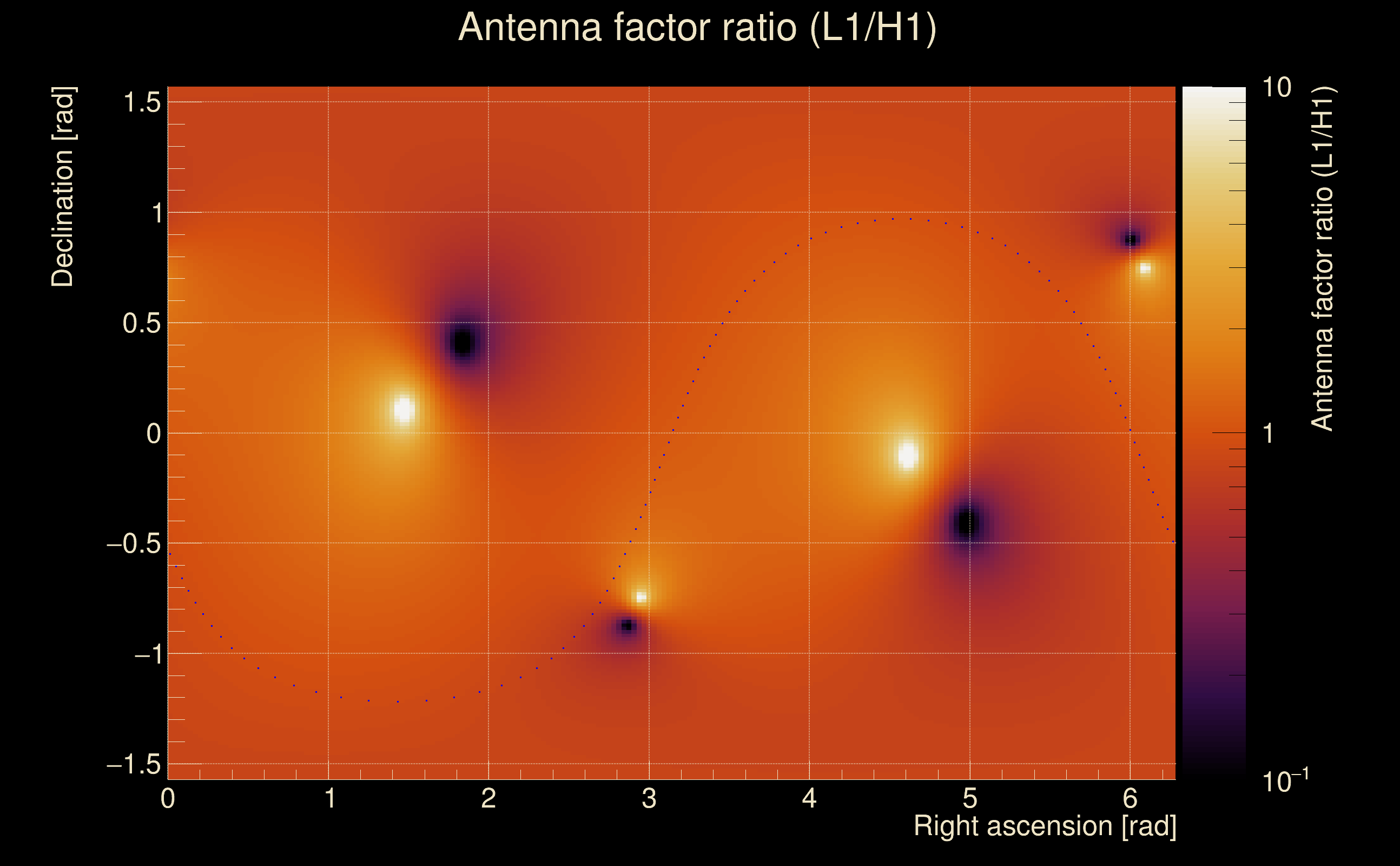

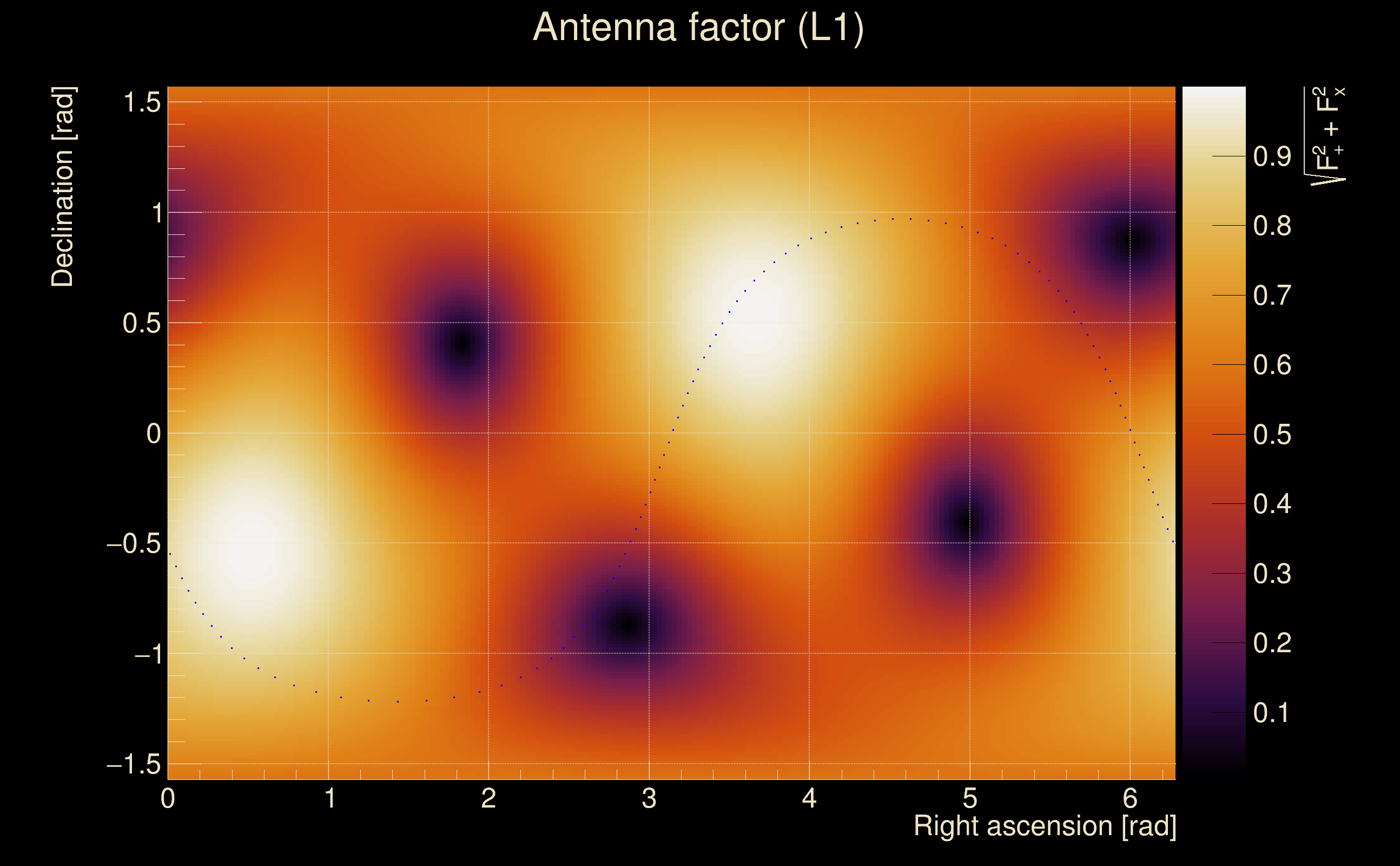

| Antenna factor probability: | 0.913382 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 22 / 36, Q2: 61 / 70, Q3: 118 / 134, Q4: 231 / 258 |
| Maximum signal-to-noise ratio: | H1: 19.4578, L1: 20.3016 |
| SNR variance: | H1: 0.430068, L1: 0.352407 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

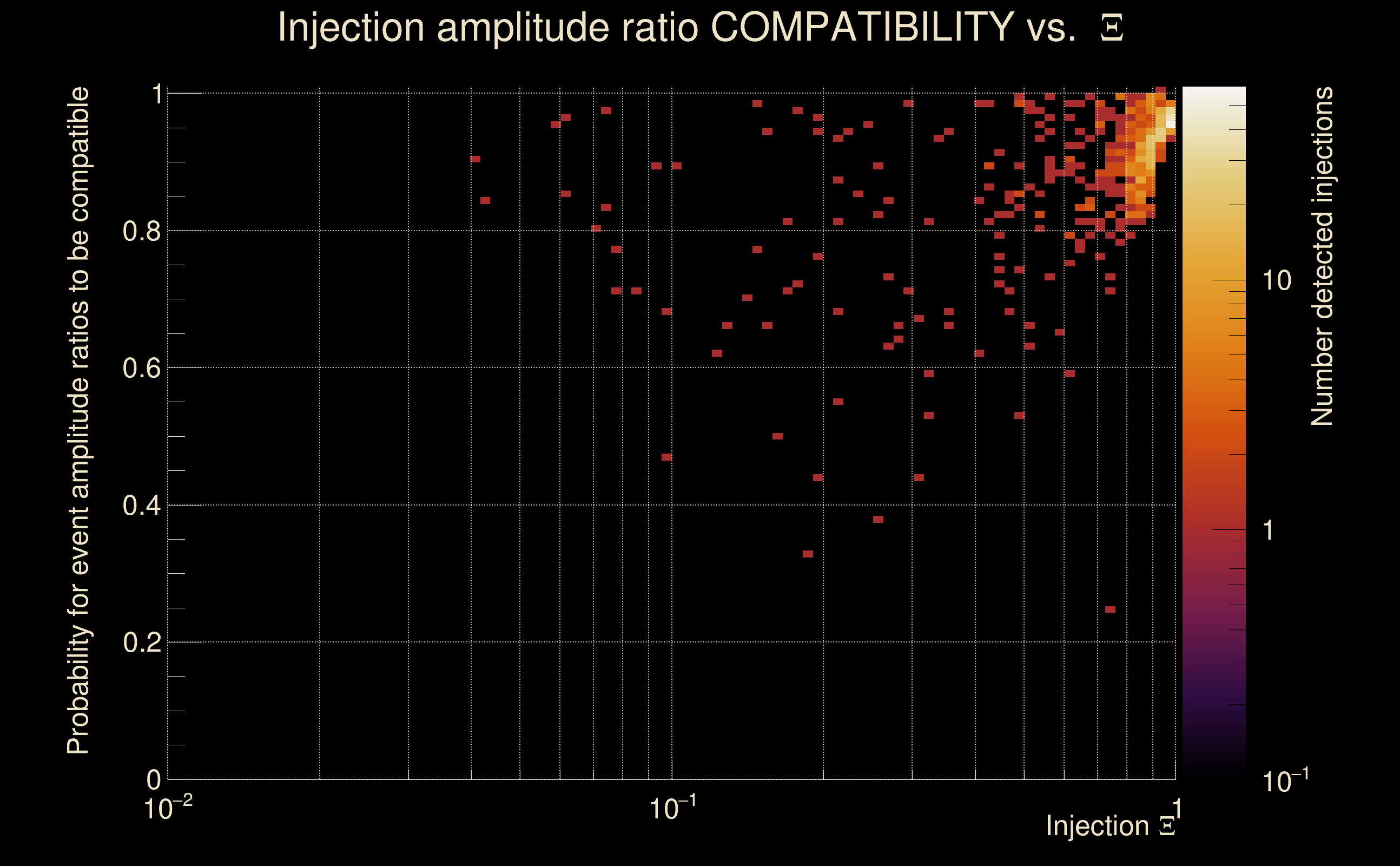

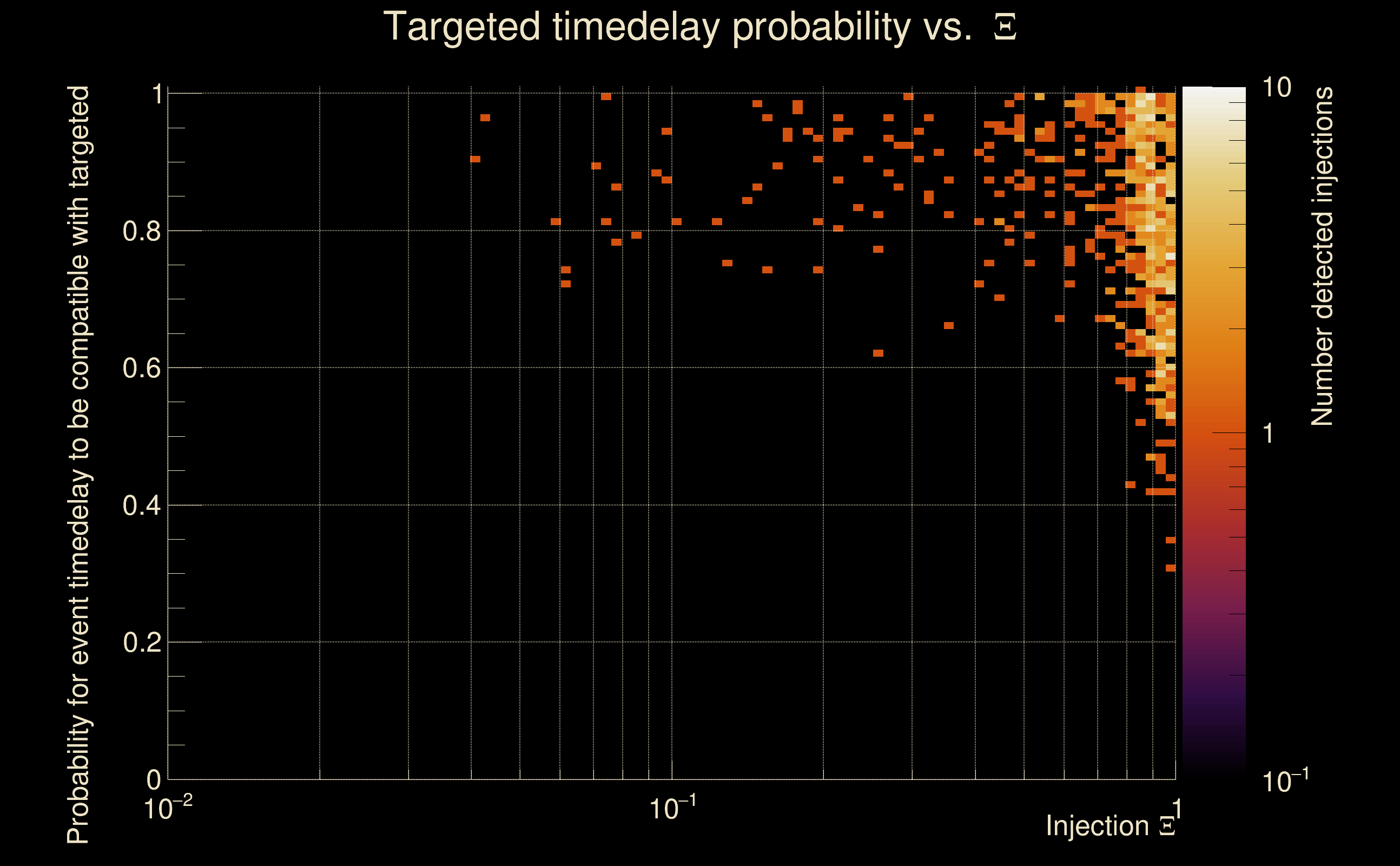

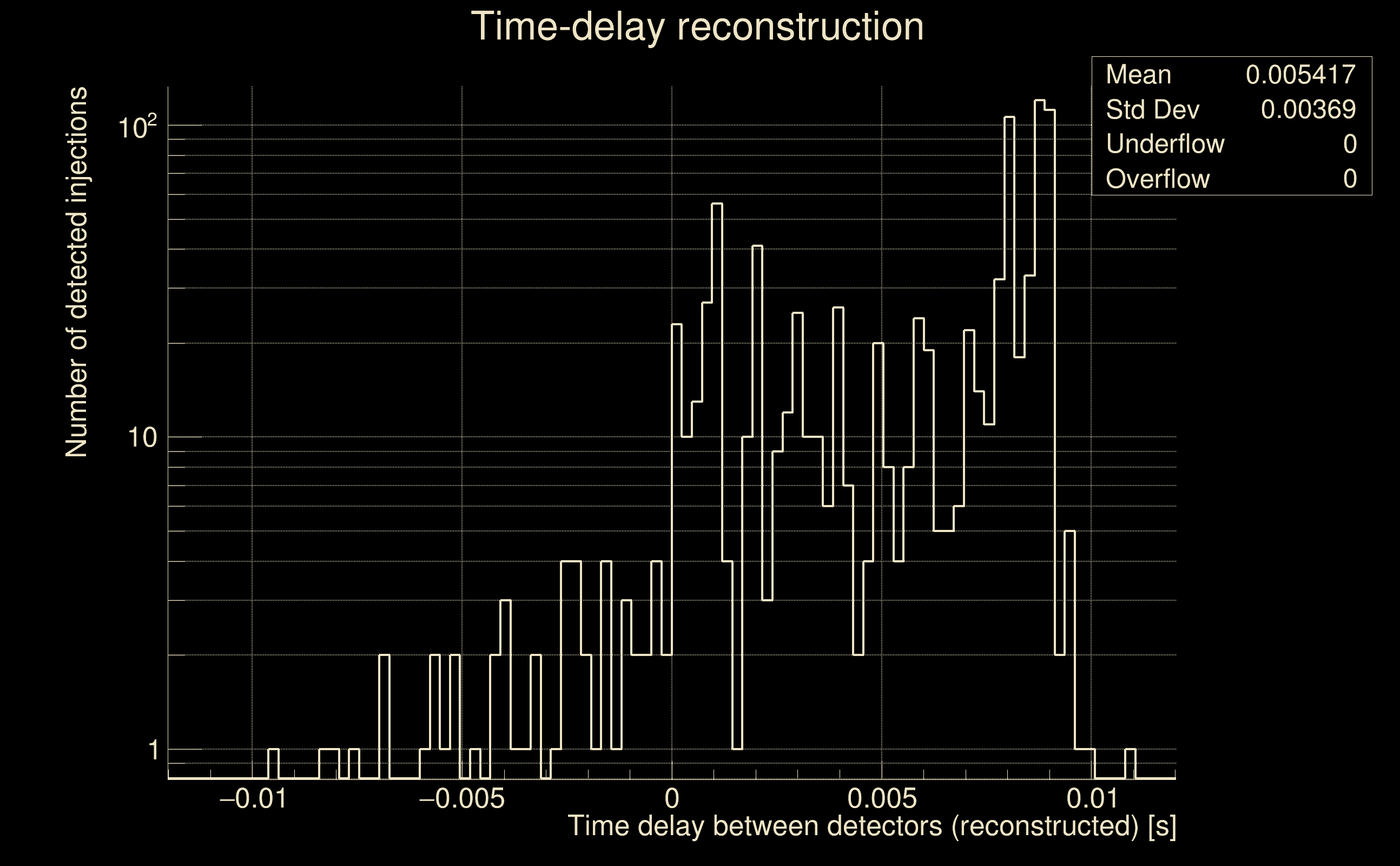

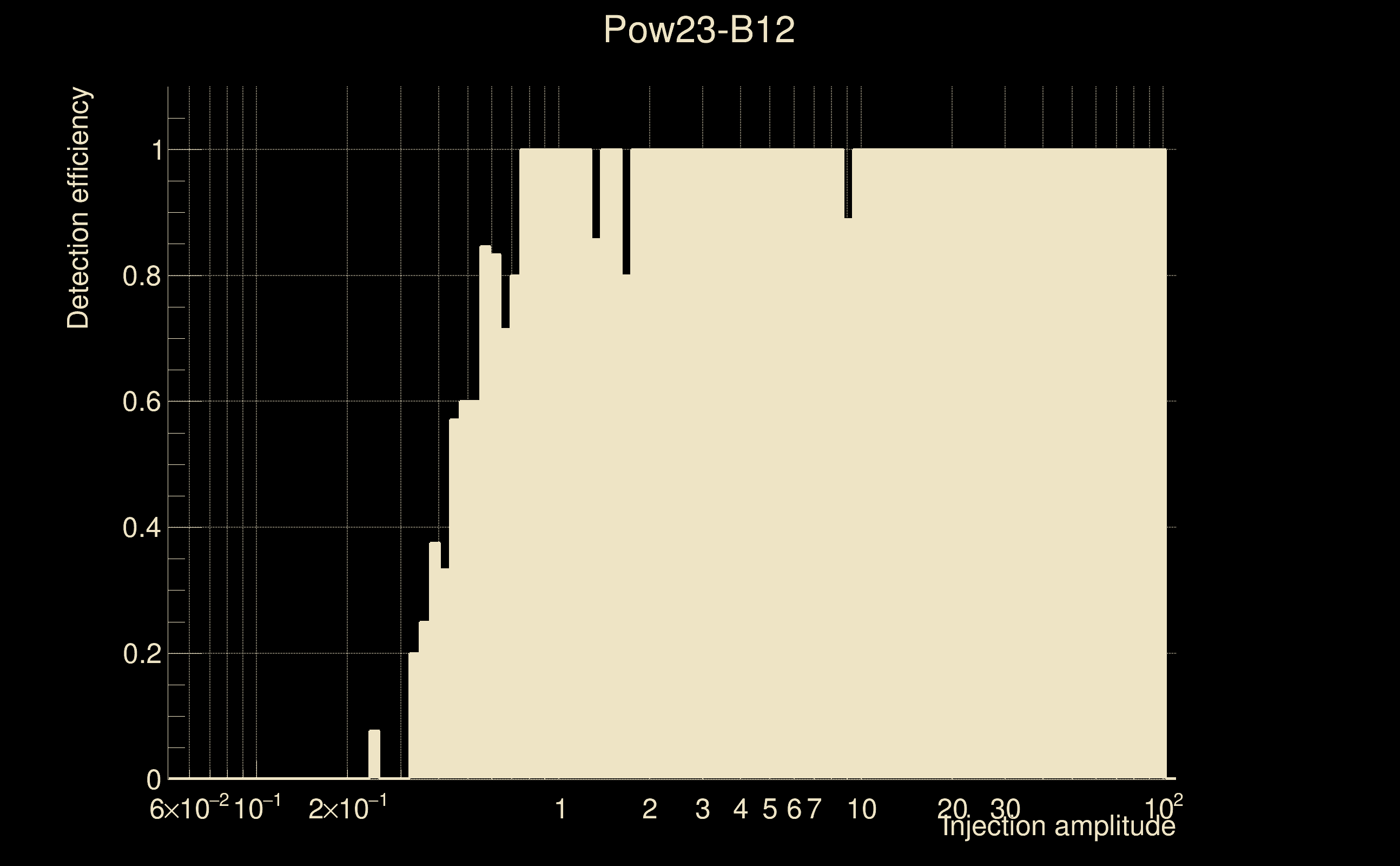

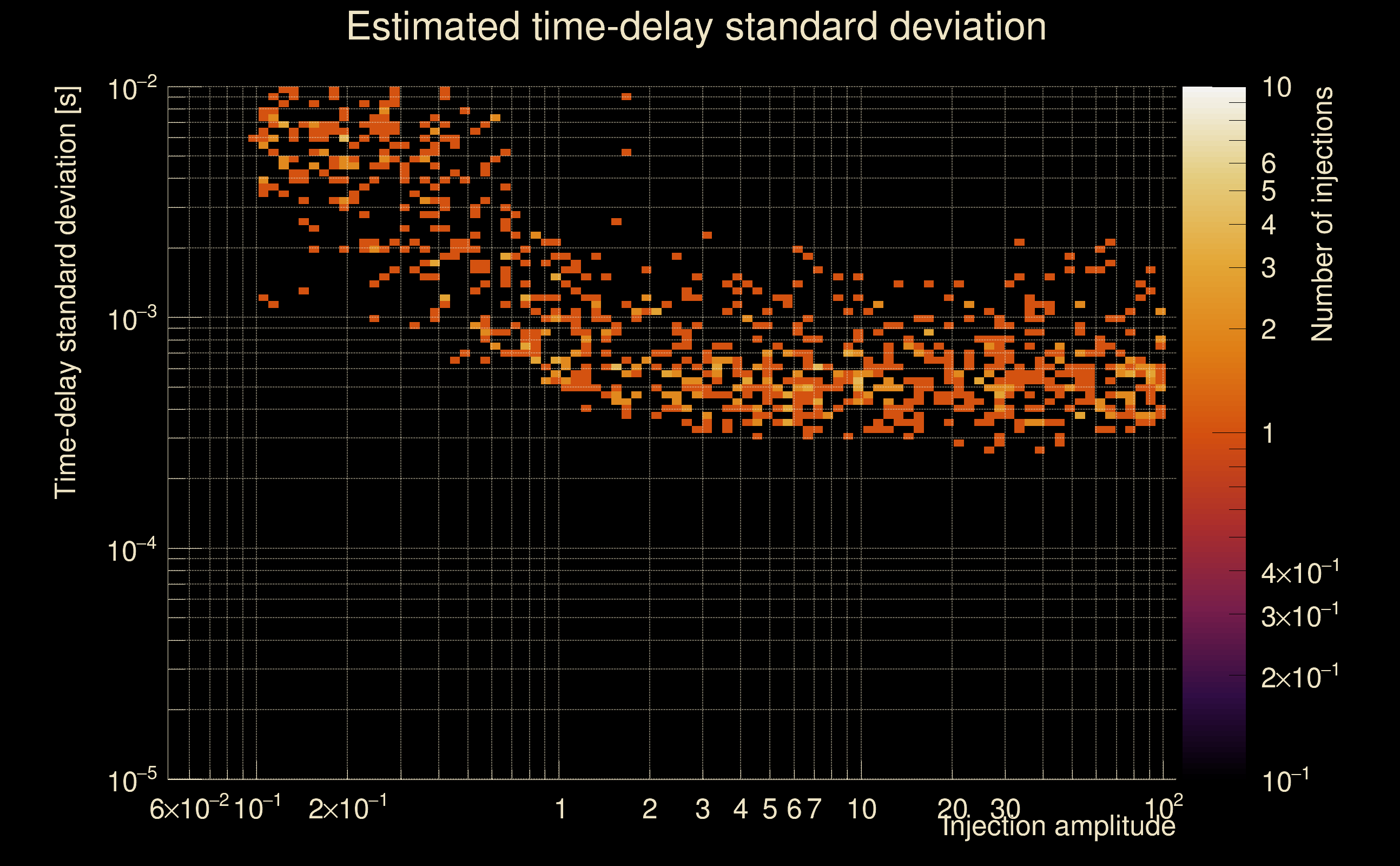

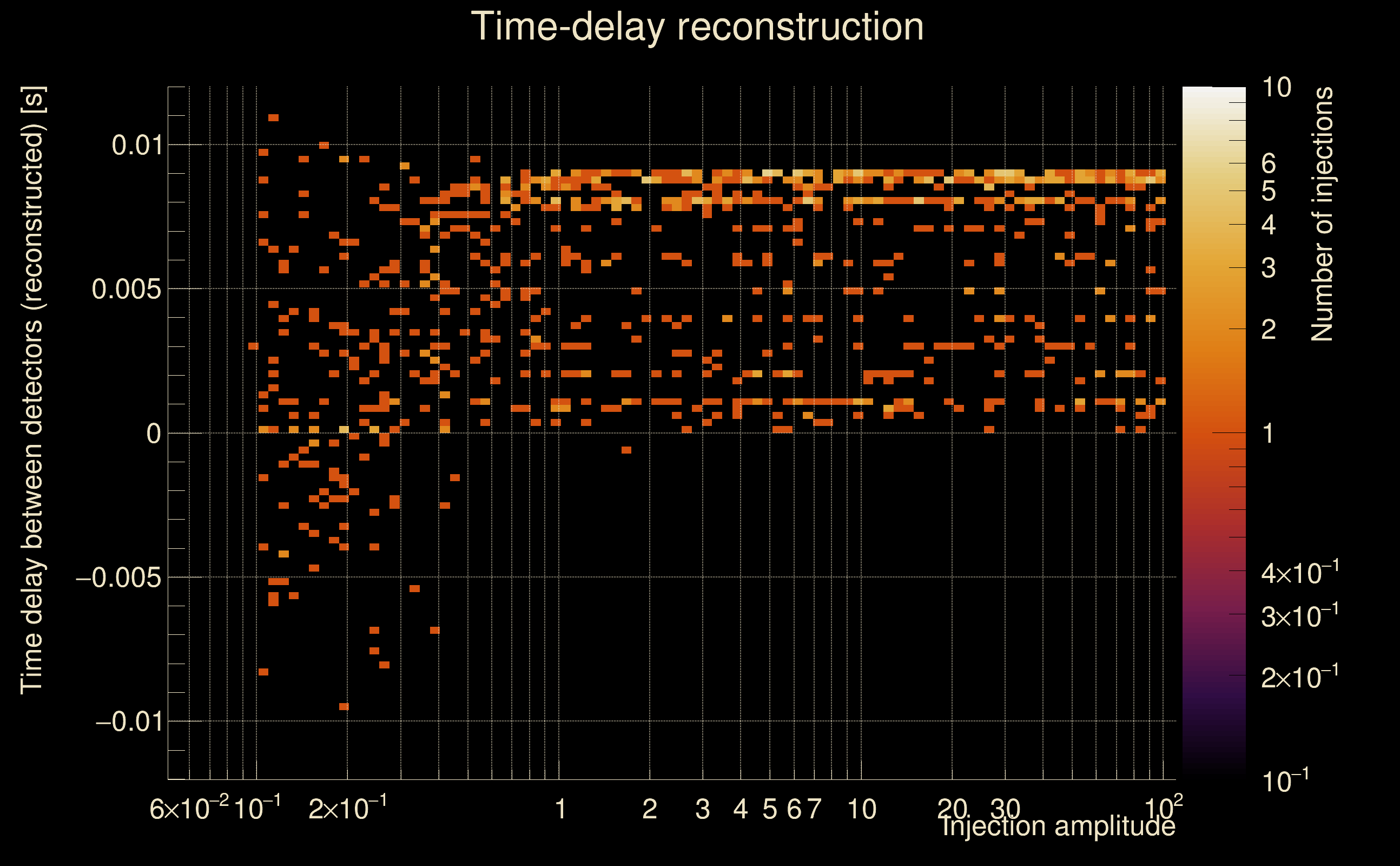

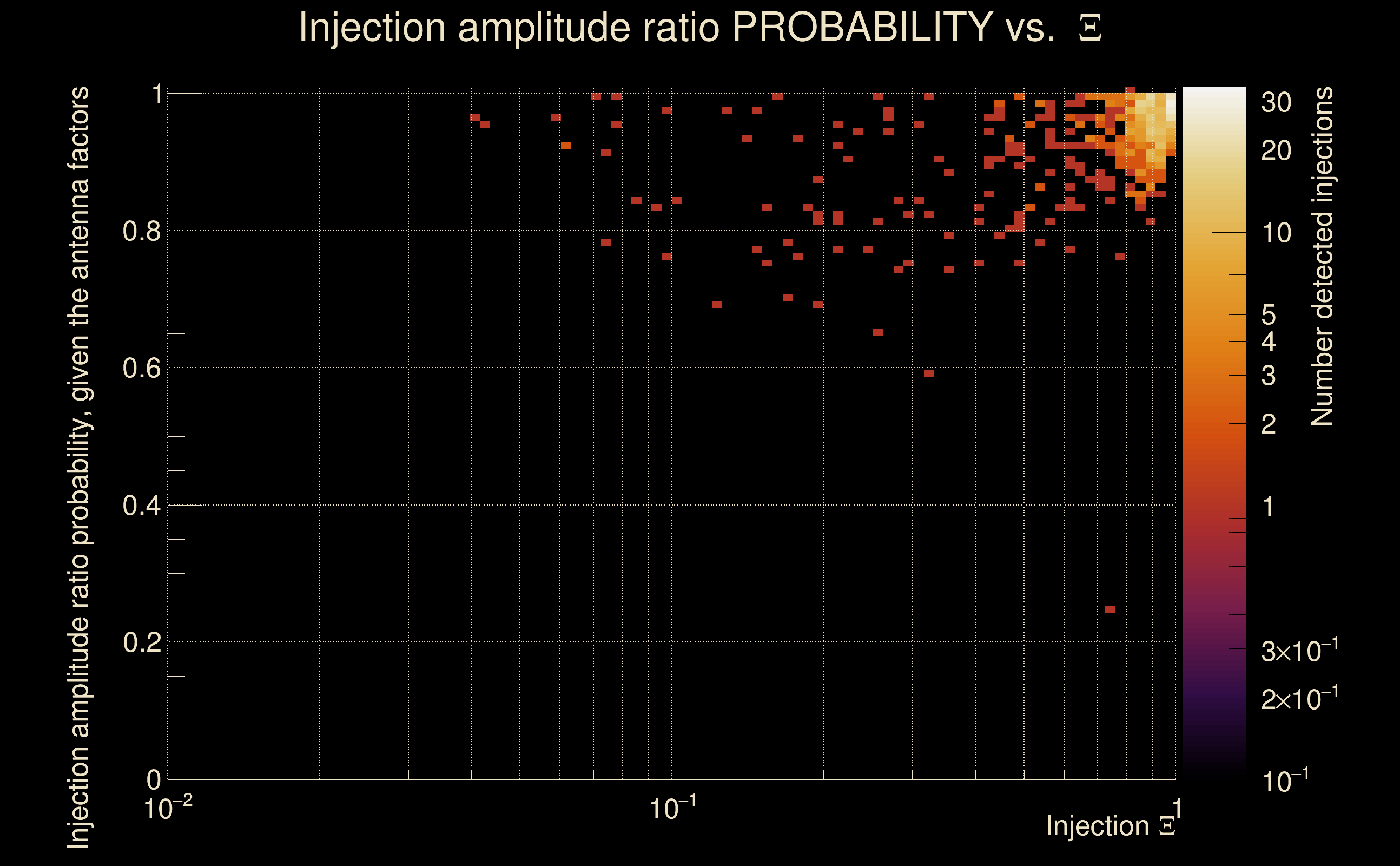

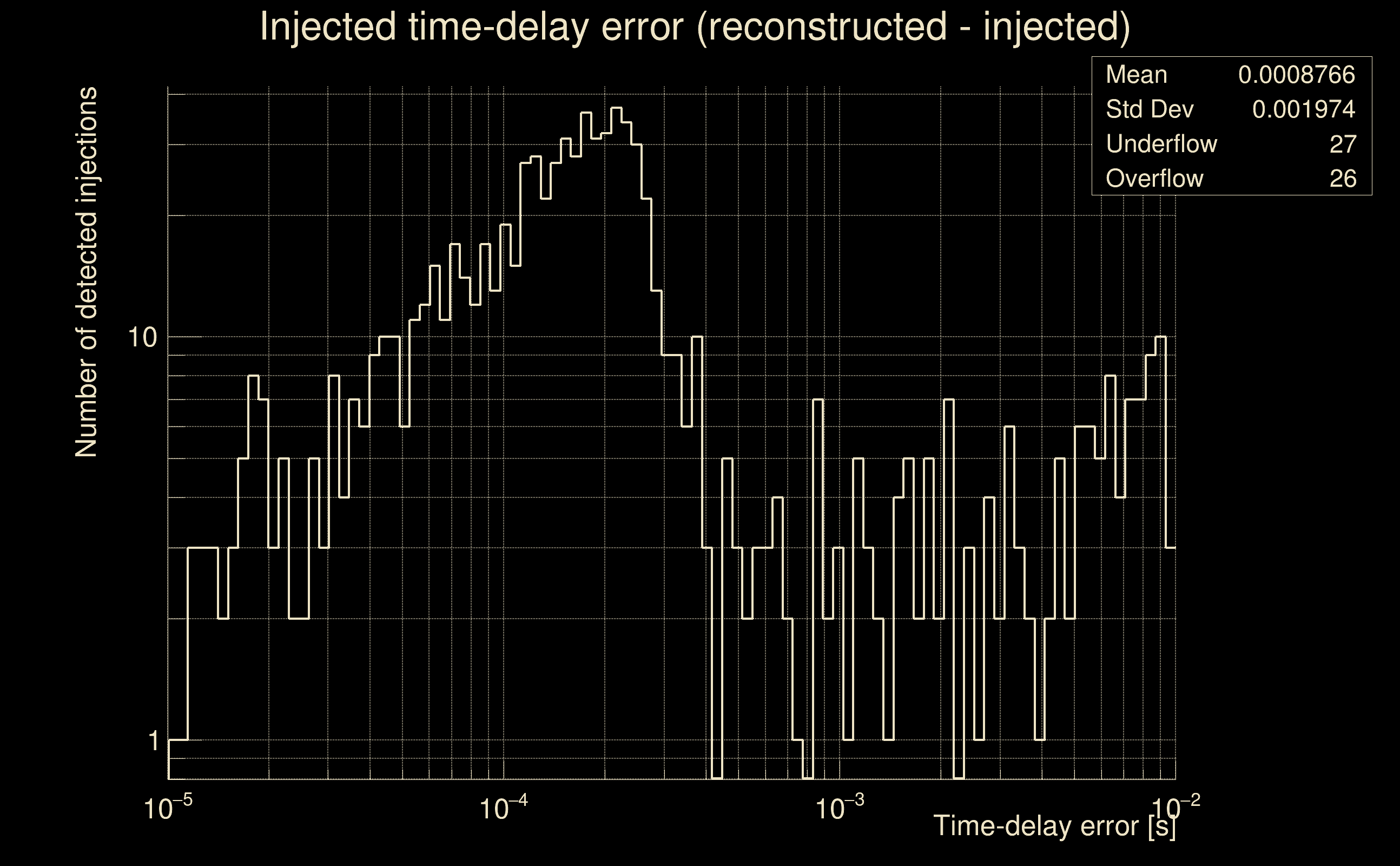

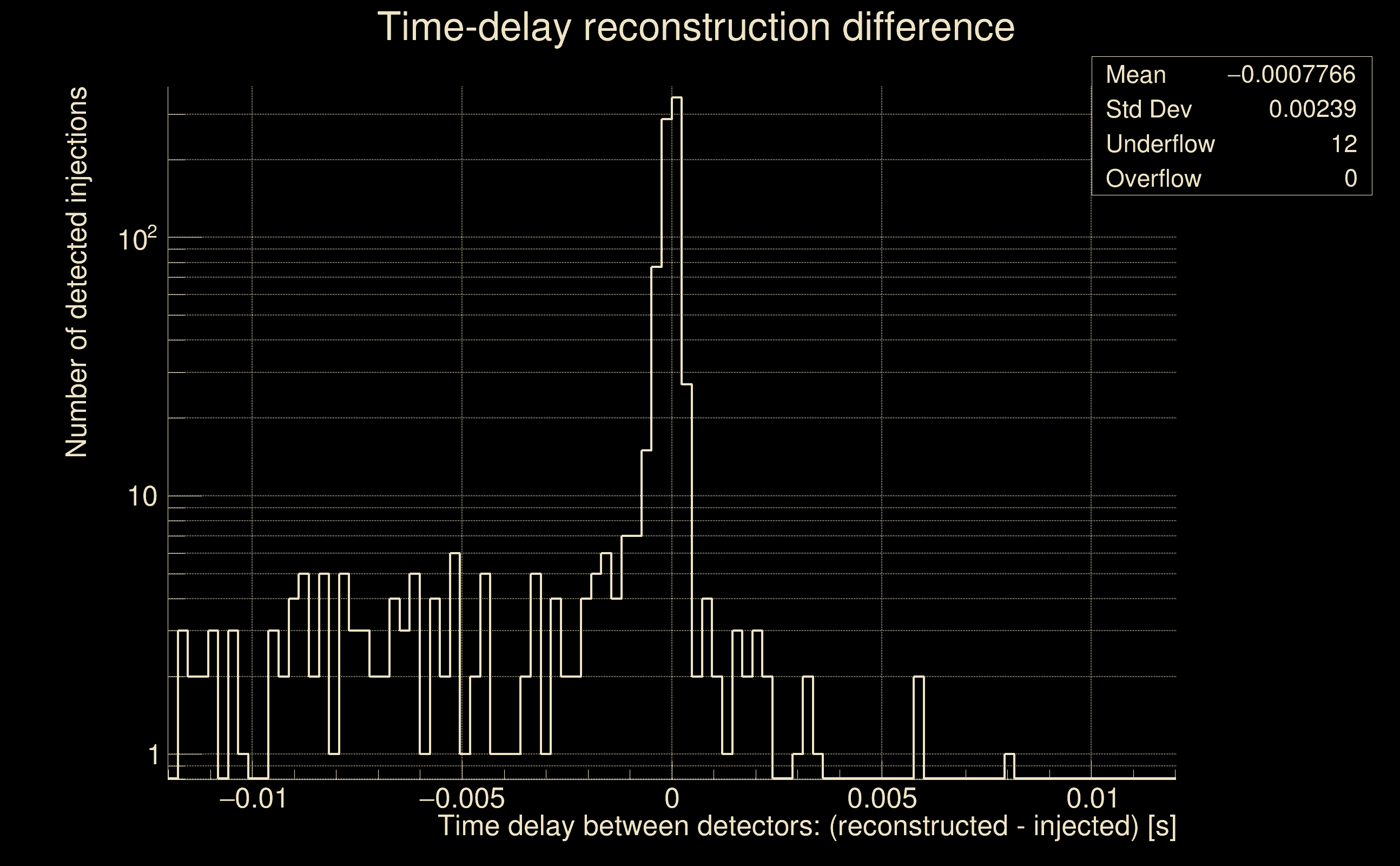

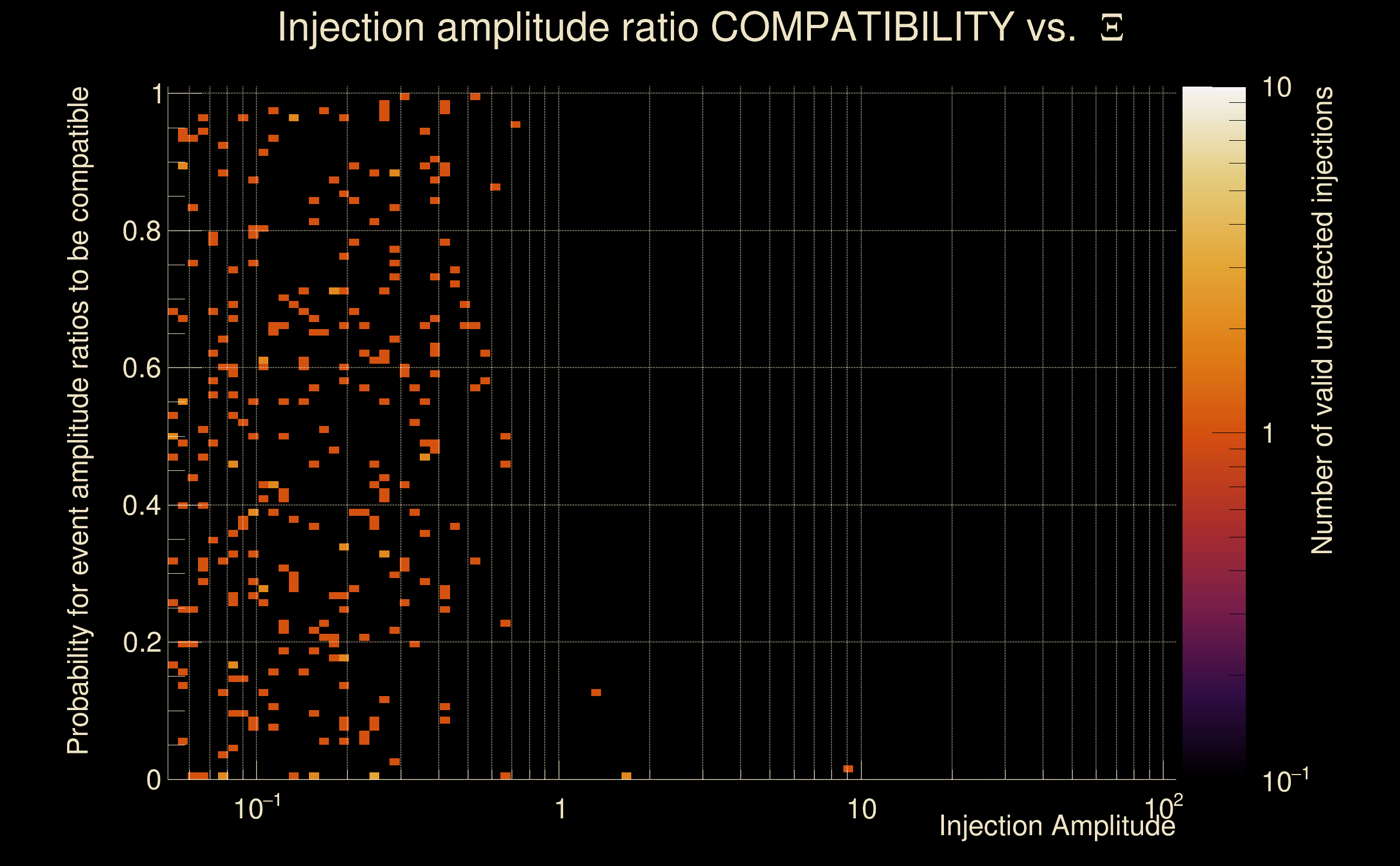

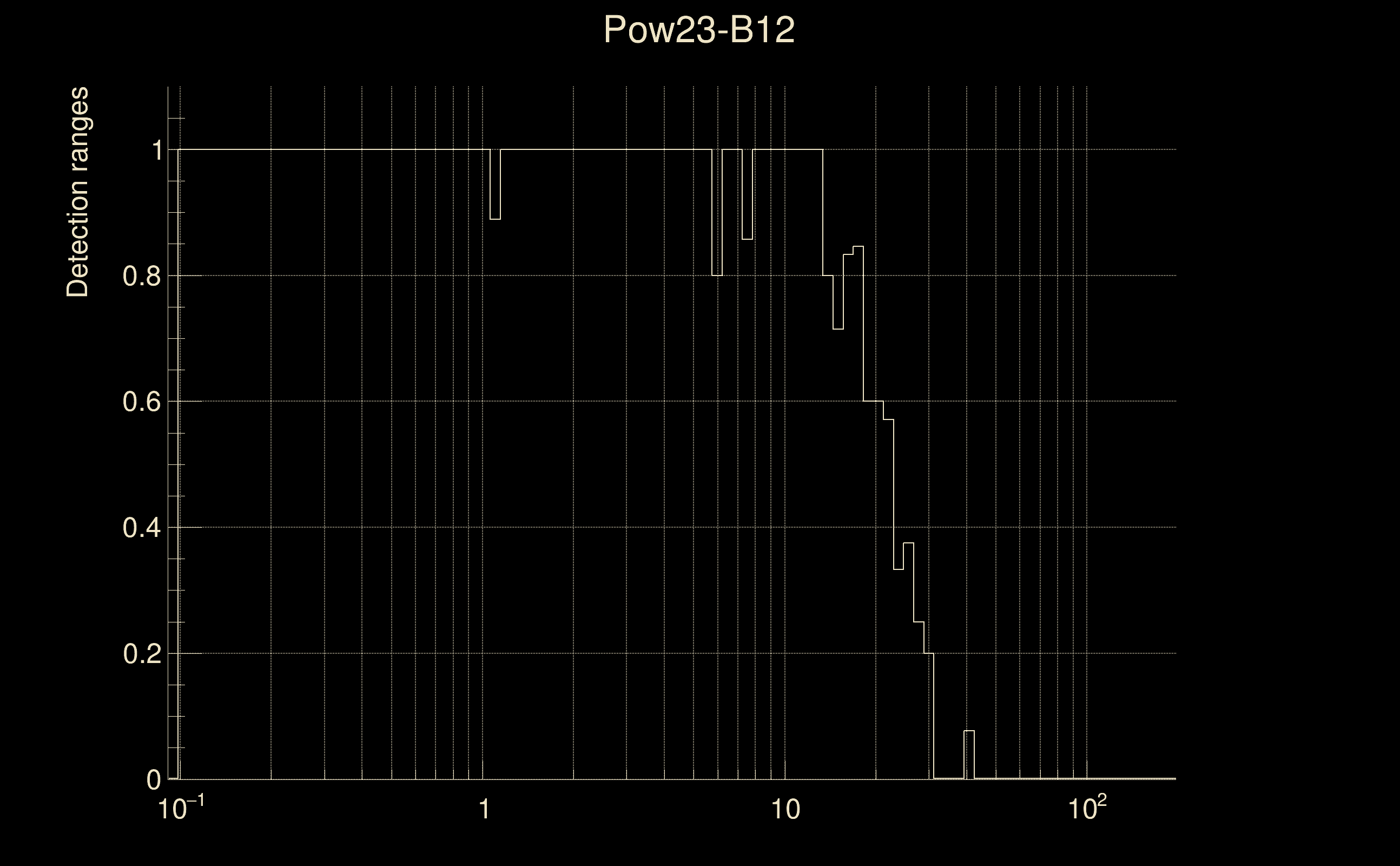

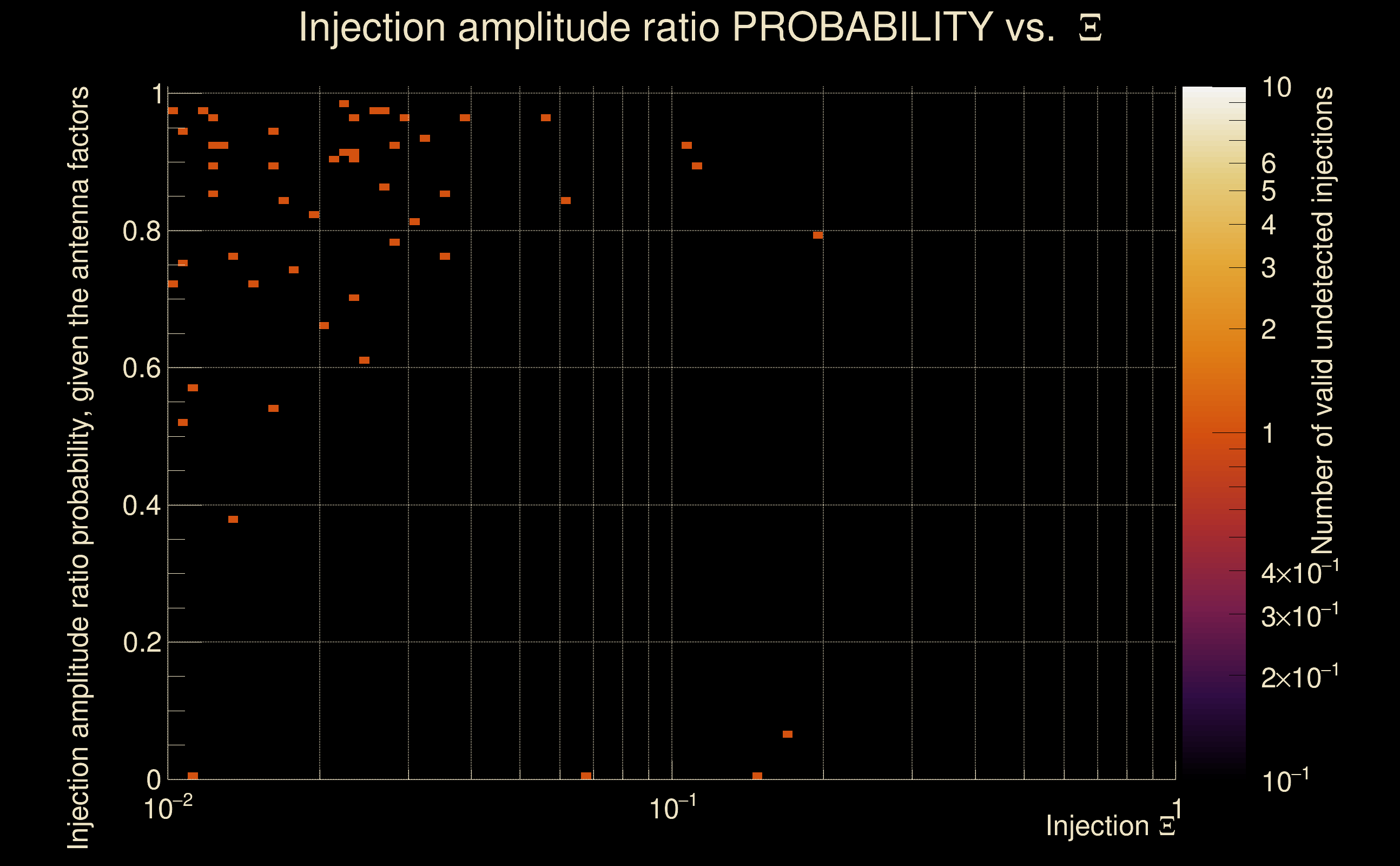

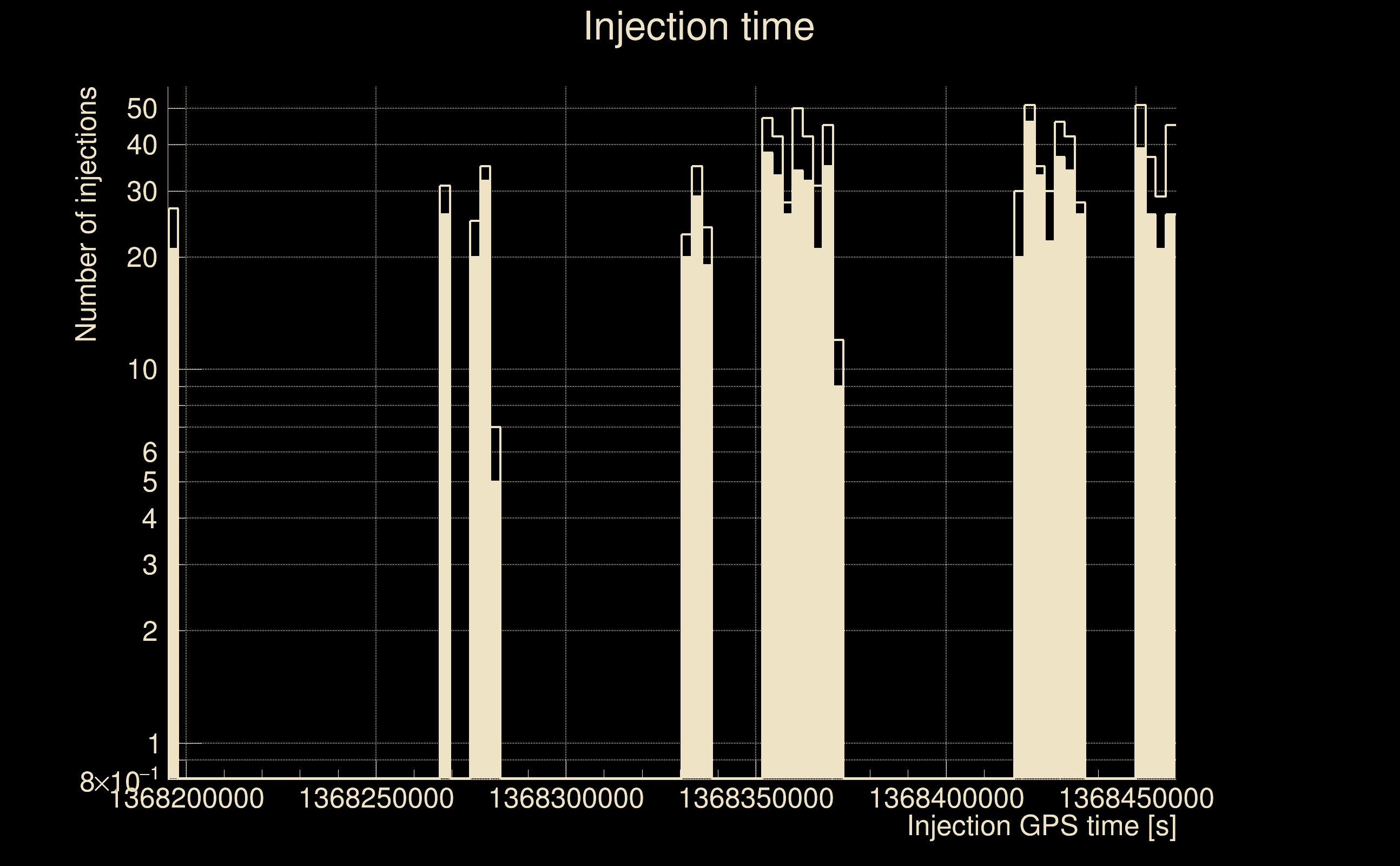

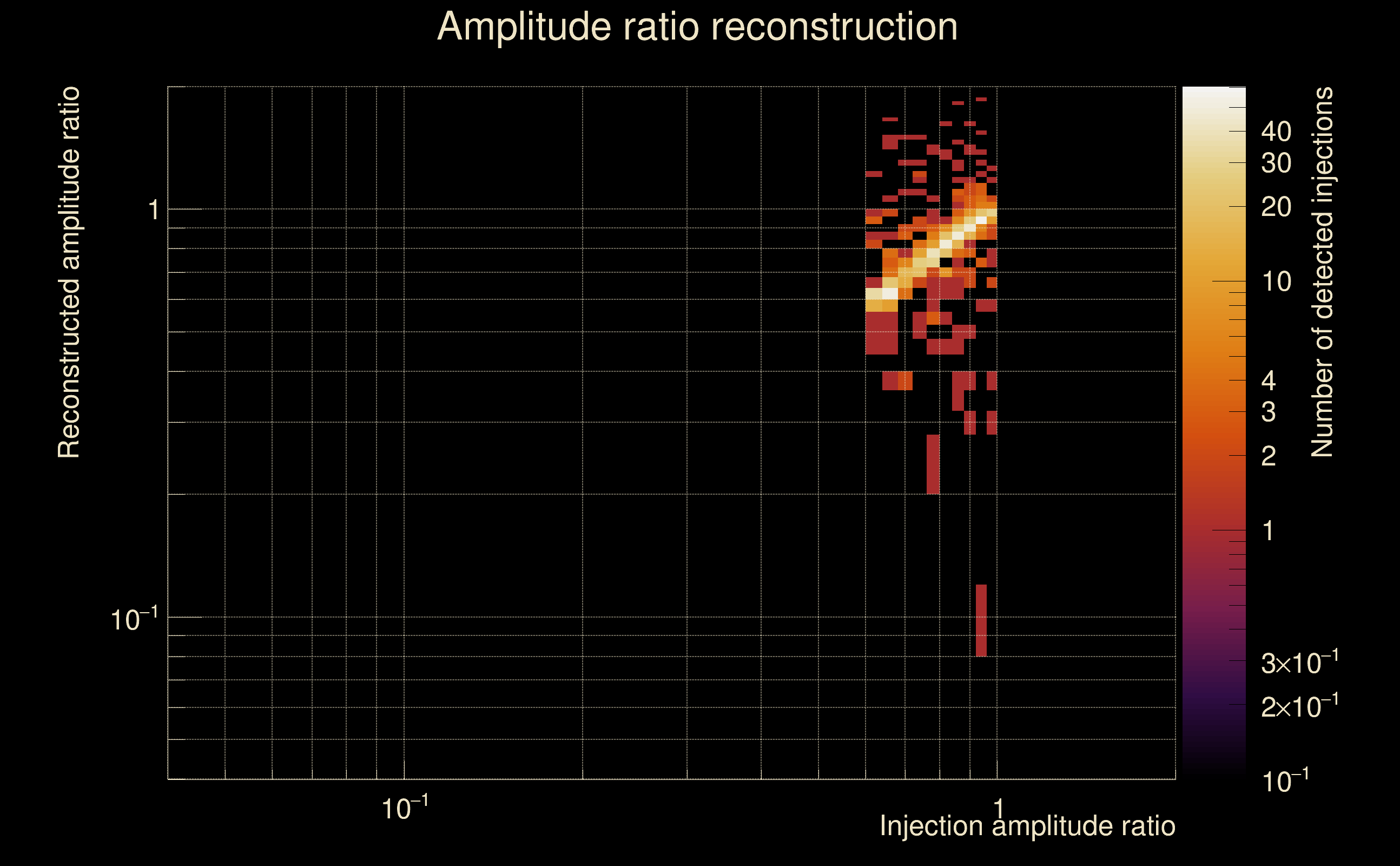

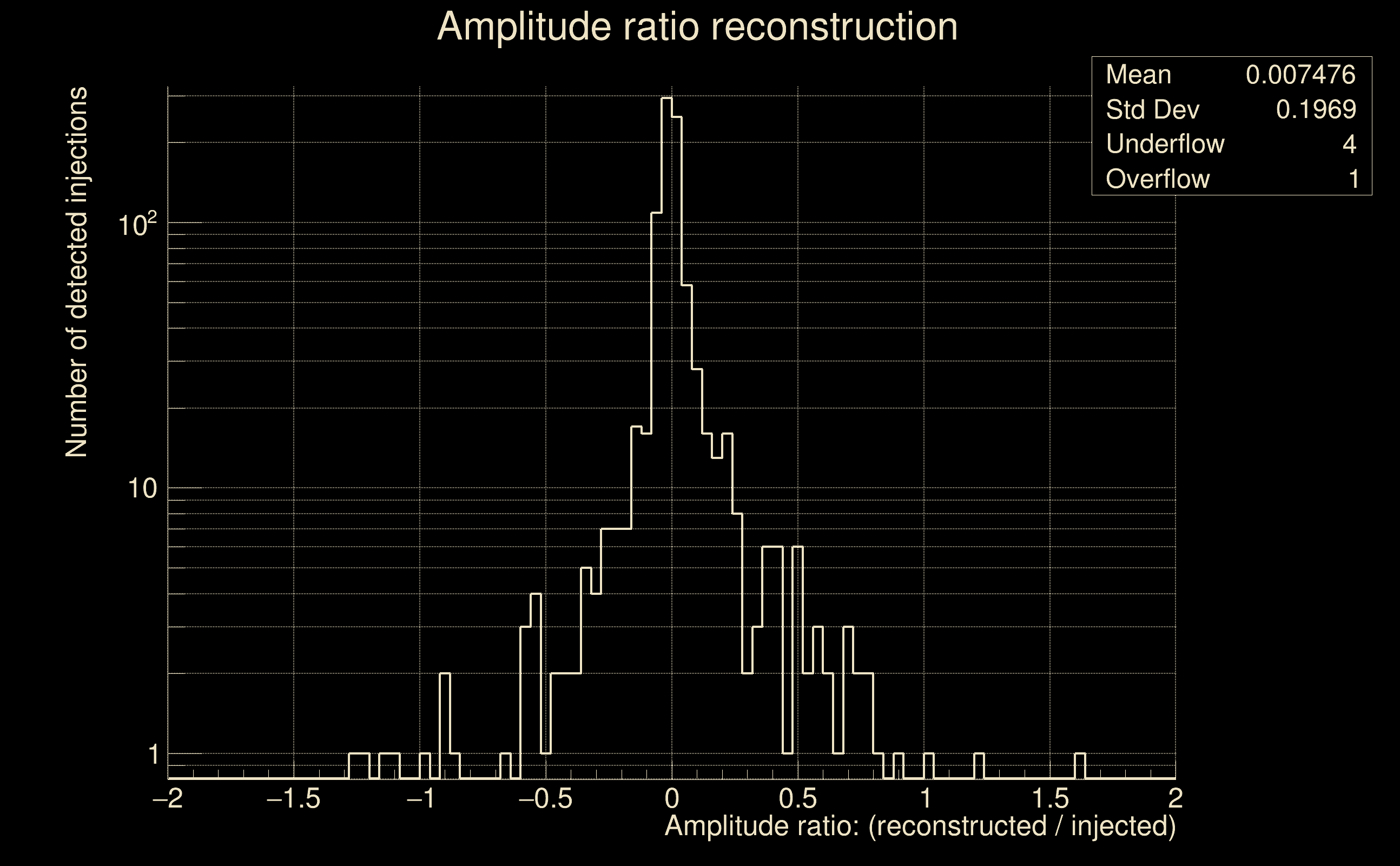

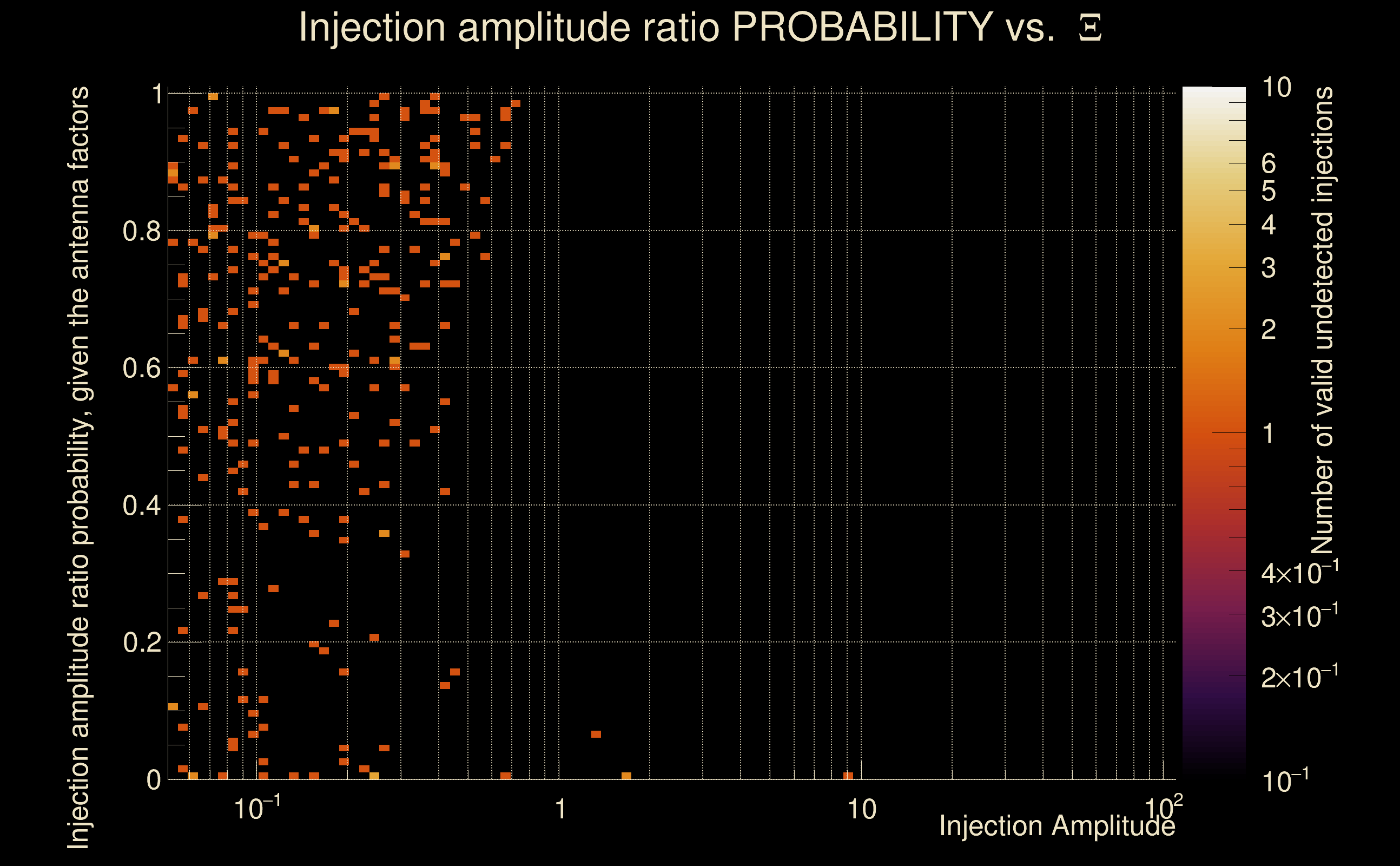

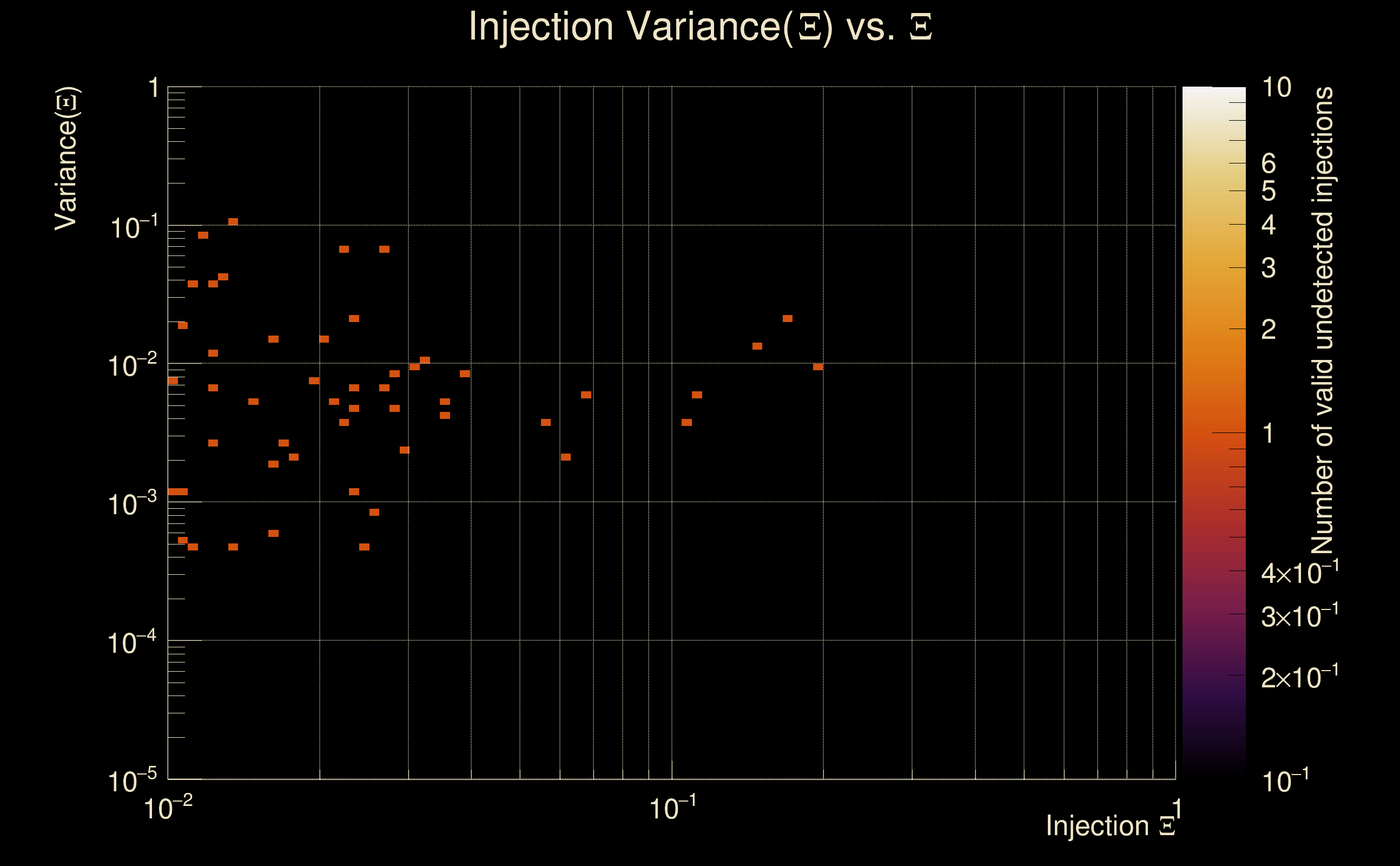

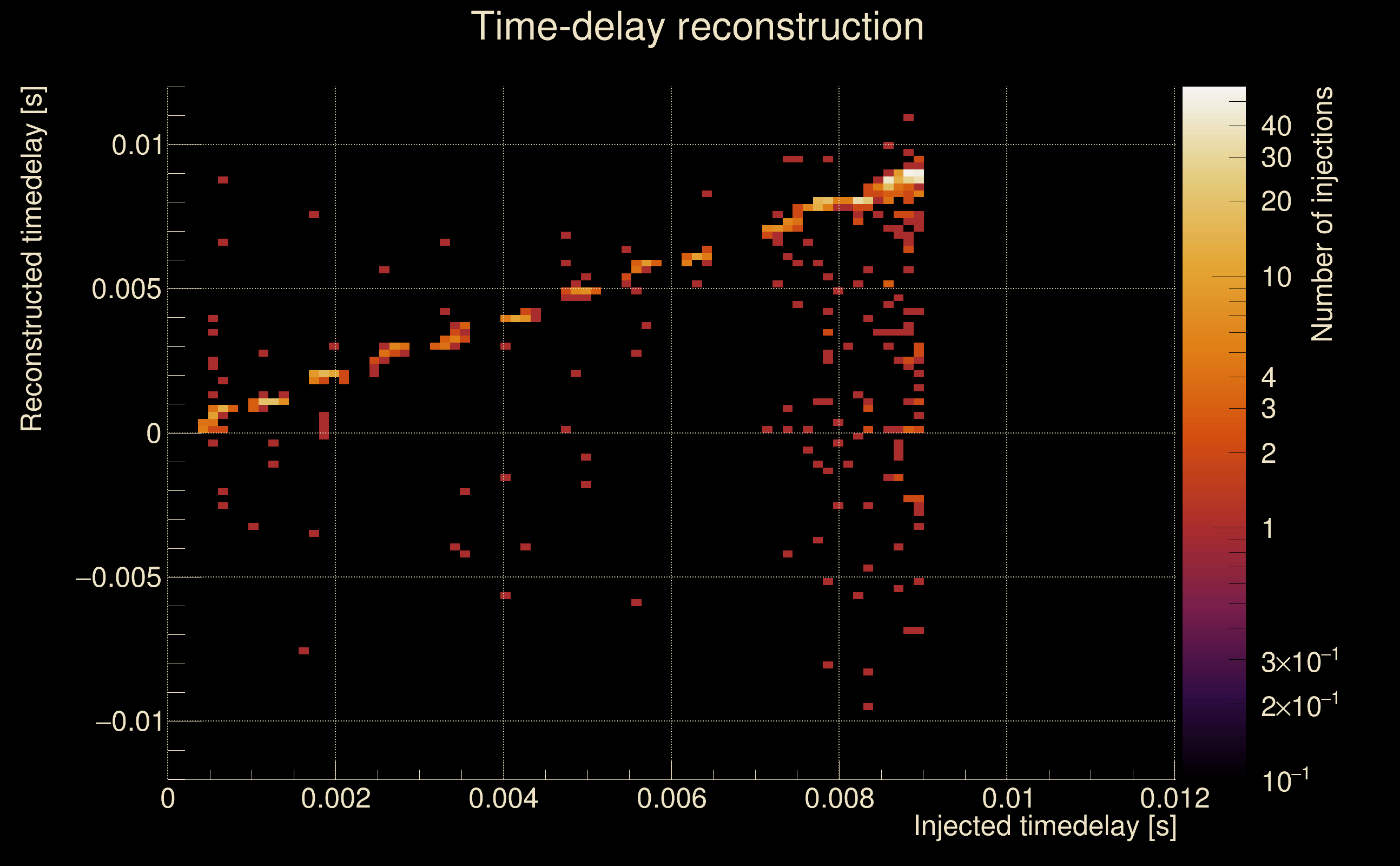

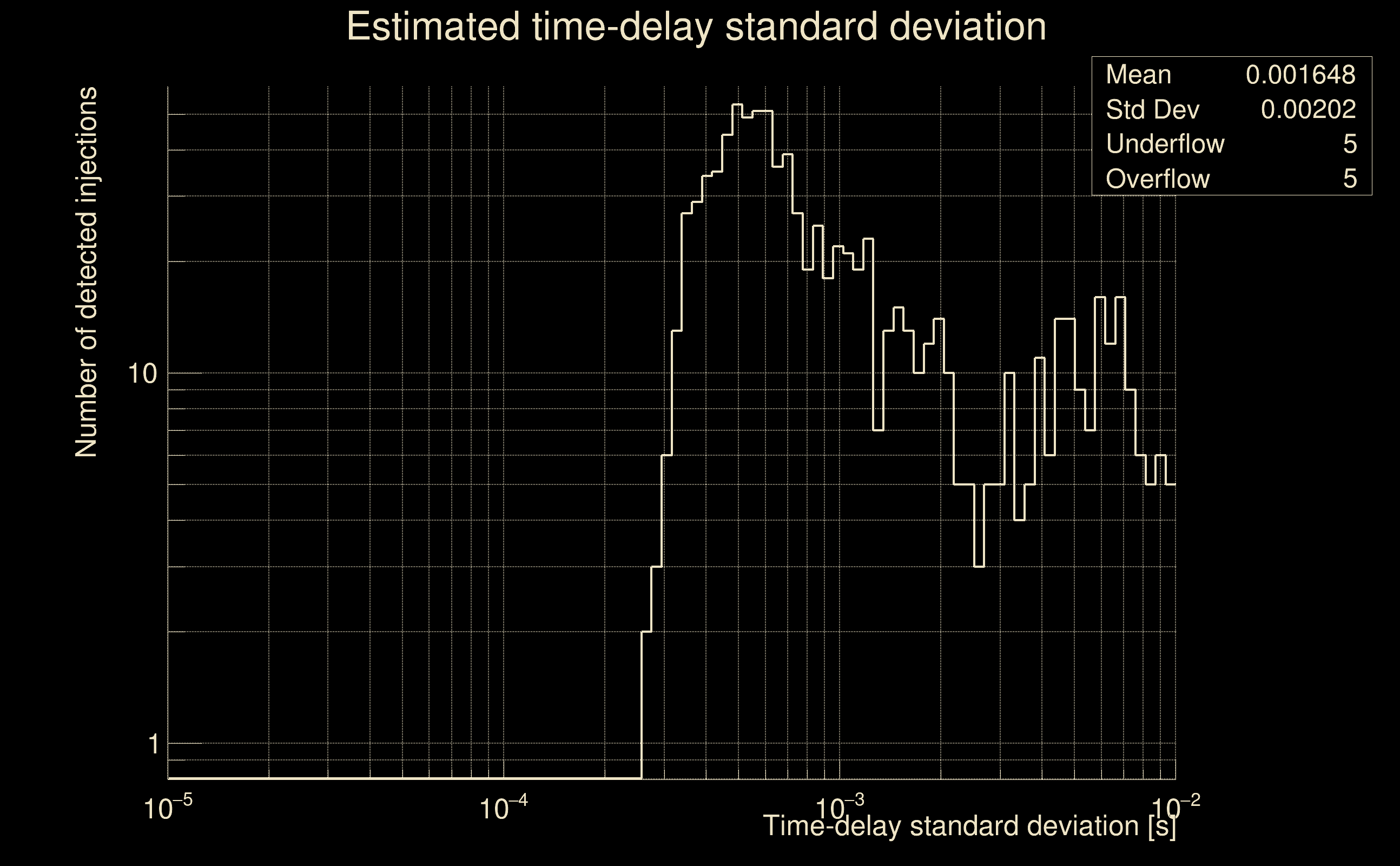

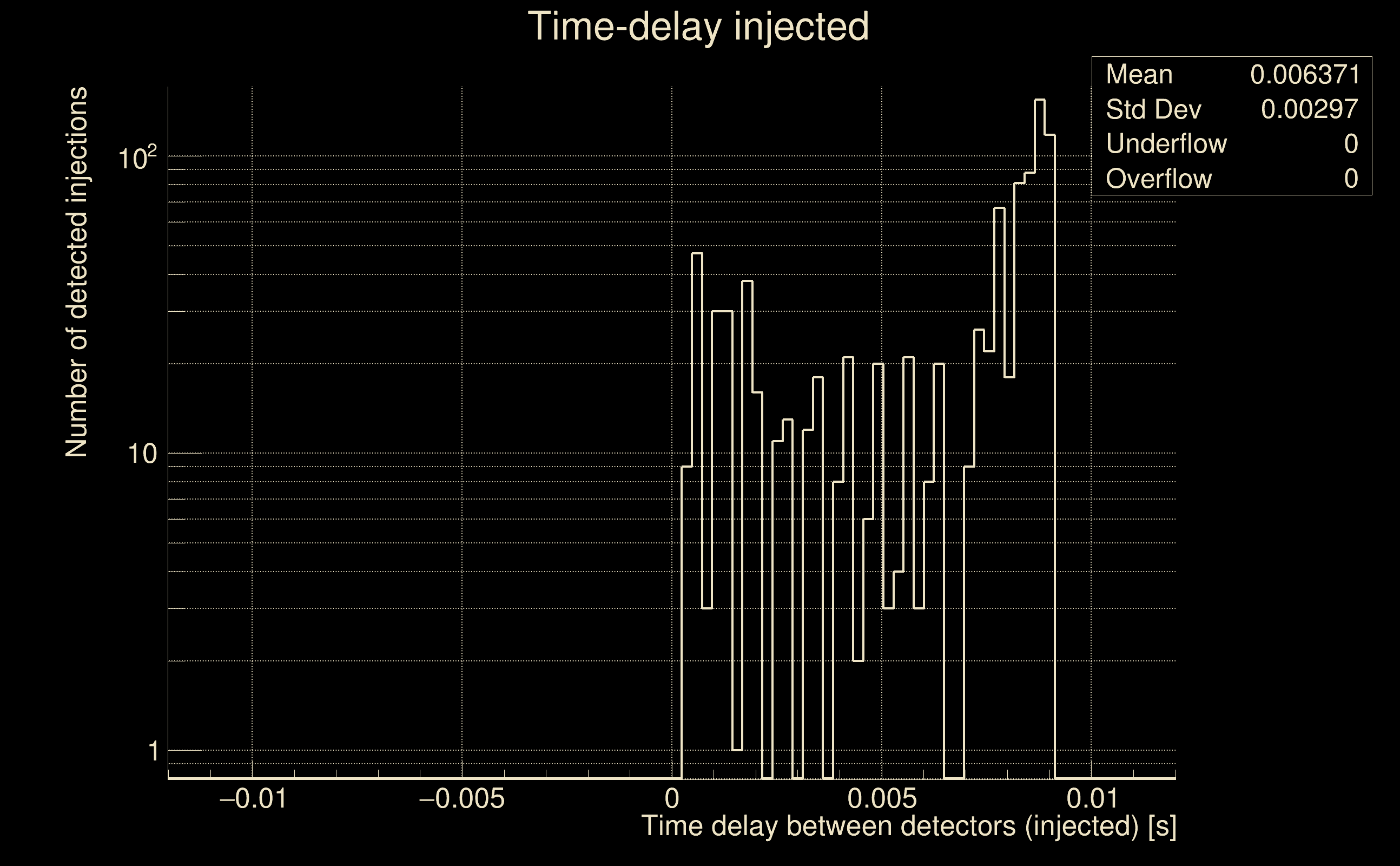

| Number of injections (total/valid/detected): | 1042 / 928 / 730 |
| List of missed injections: | ./Pow23-B12_missed.txt |
| Injection amplitude at 90% detection efficiency: | 0.747929 |
| Injection amplitude at 50% detection efficiency: | 0.443646 |
| Injection amplitude at 10% detection efficiency: | 0.321385 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

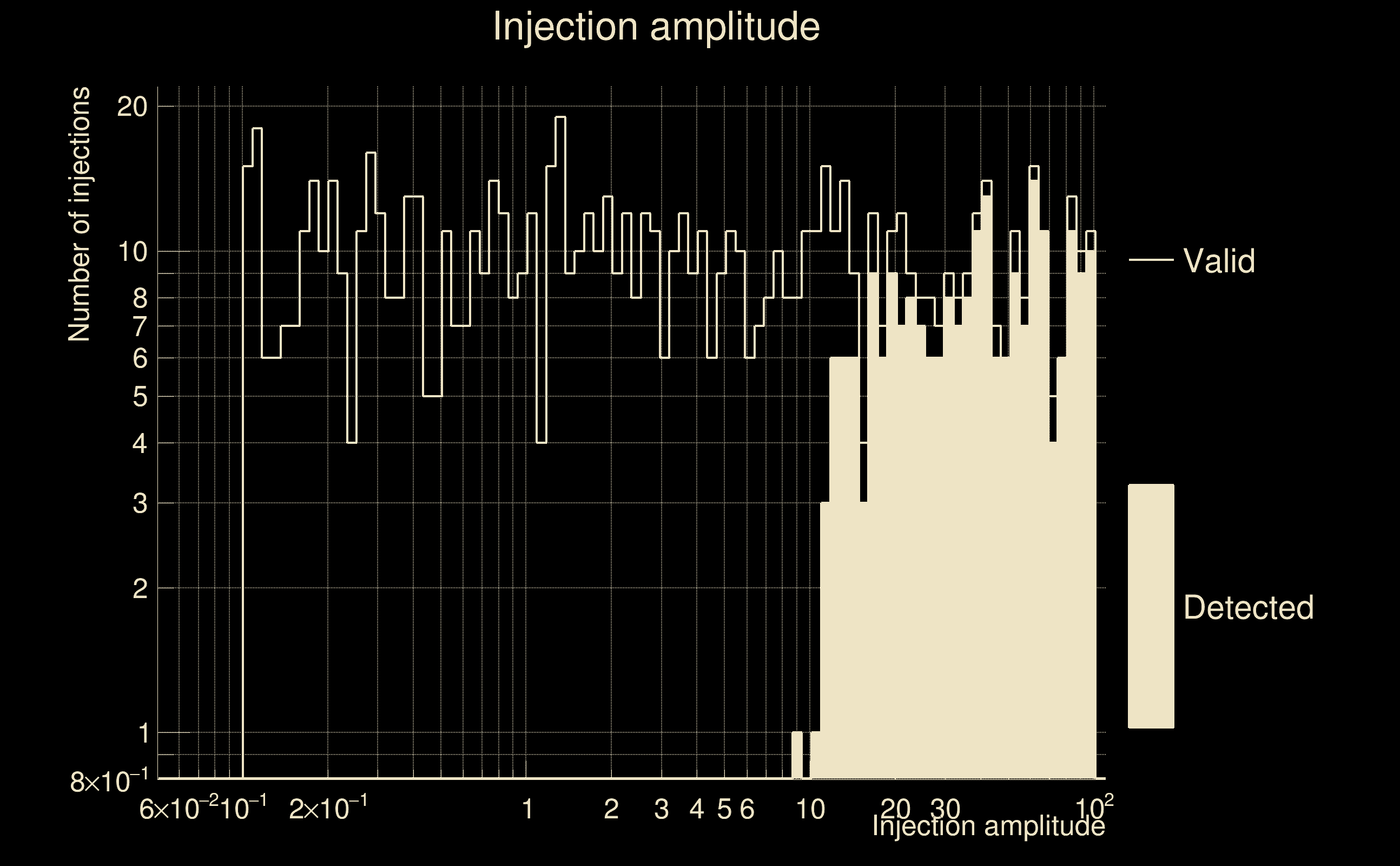

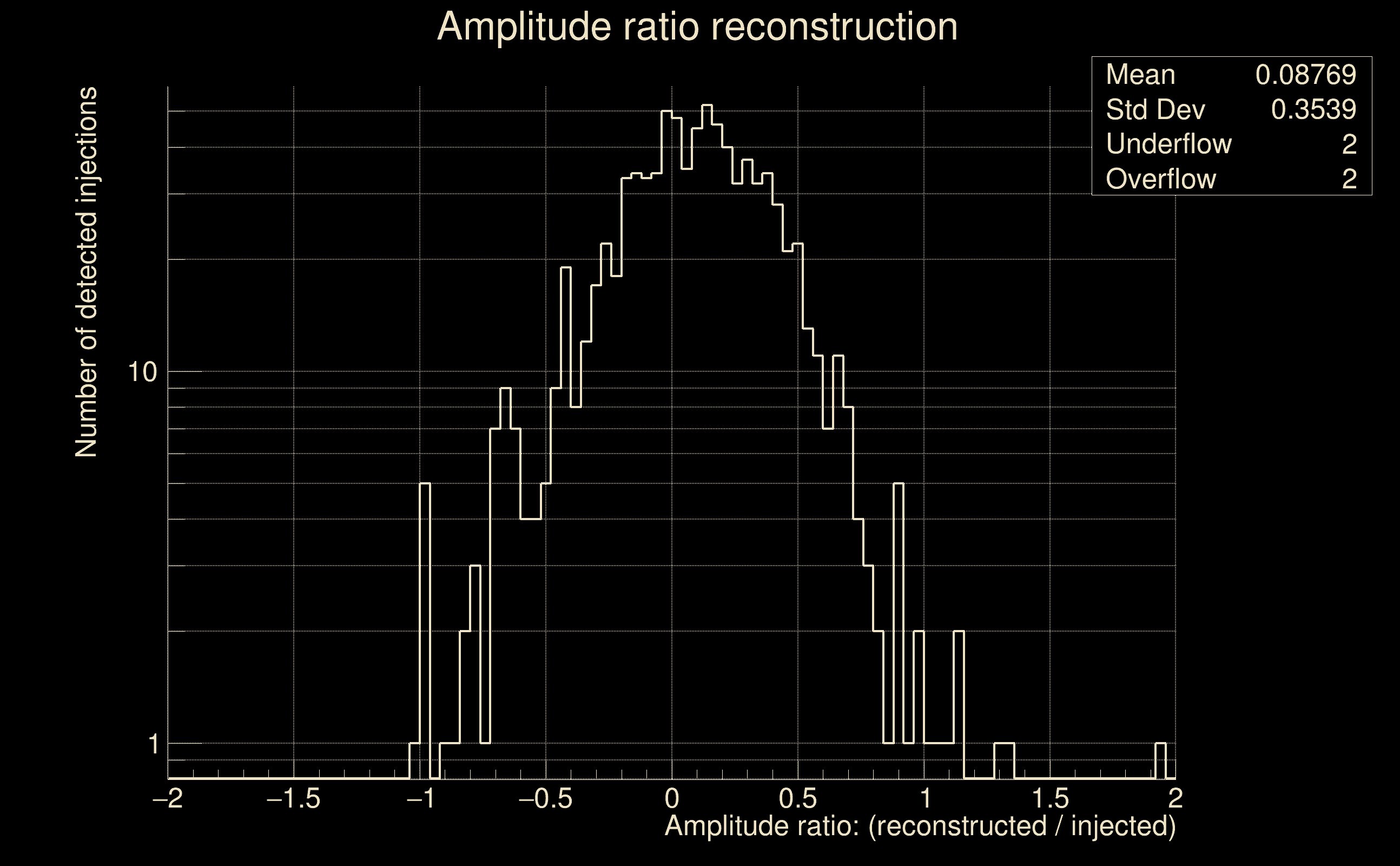

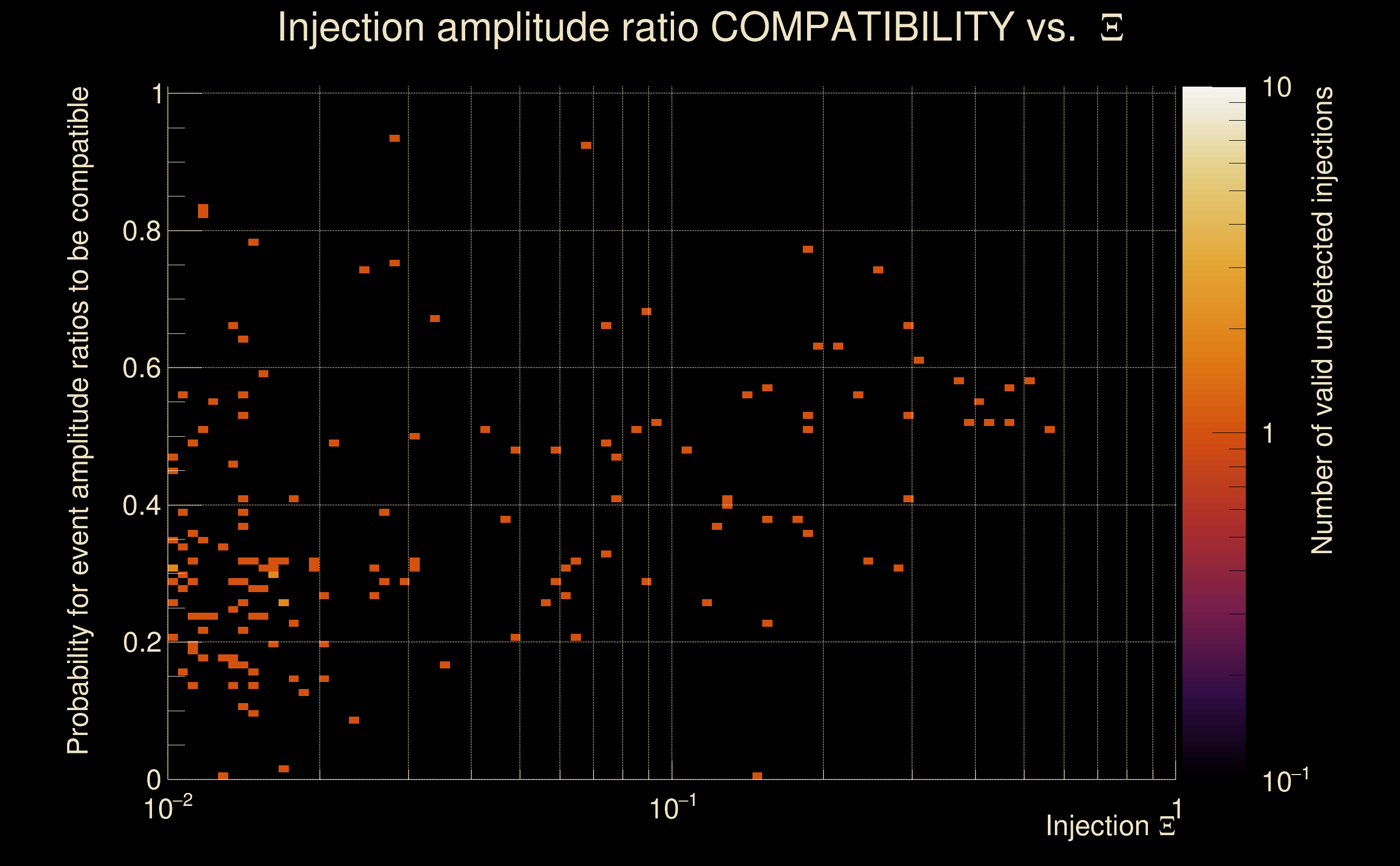

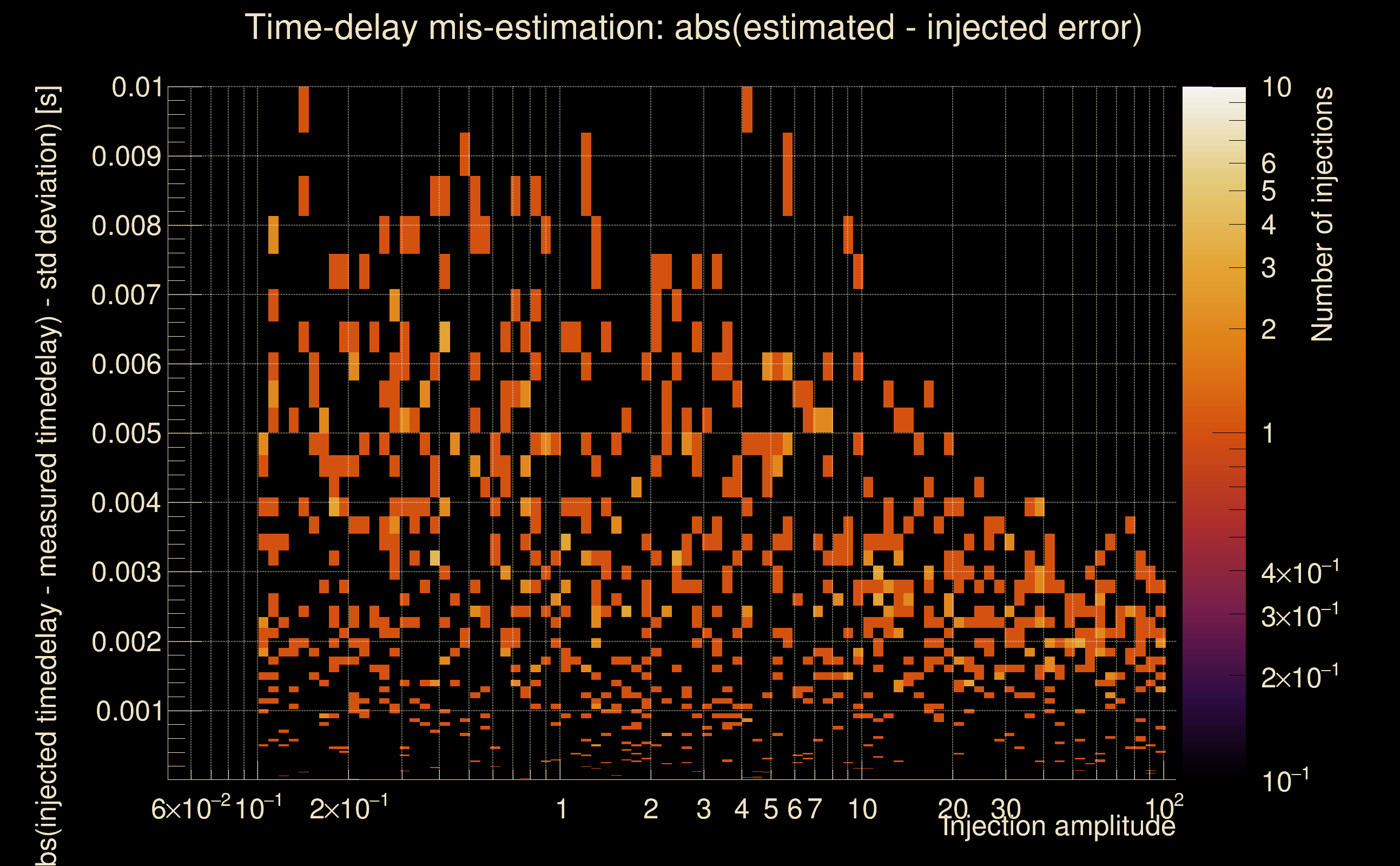

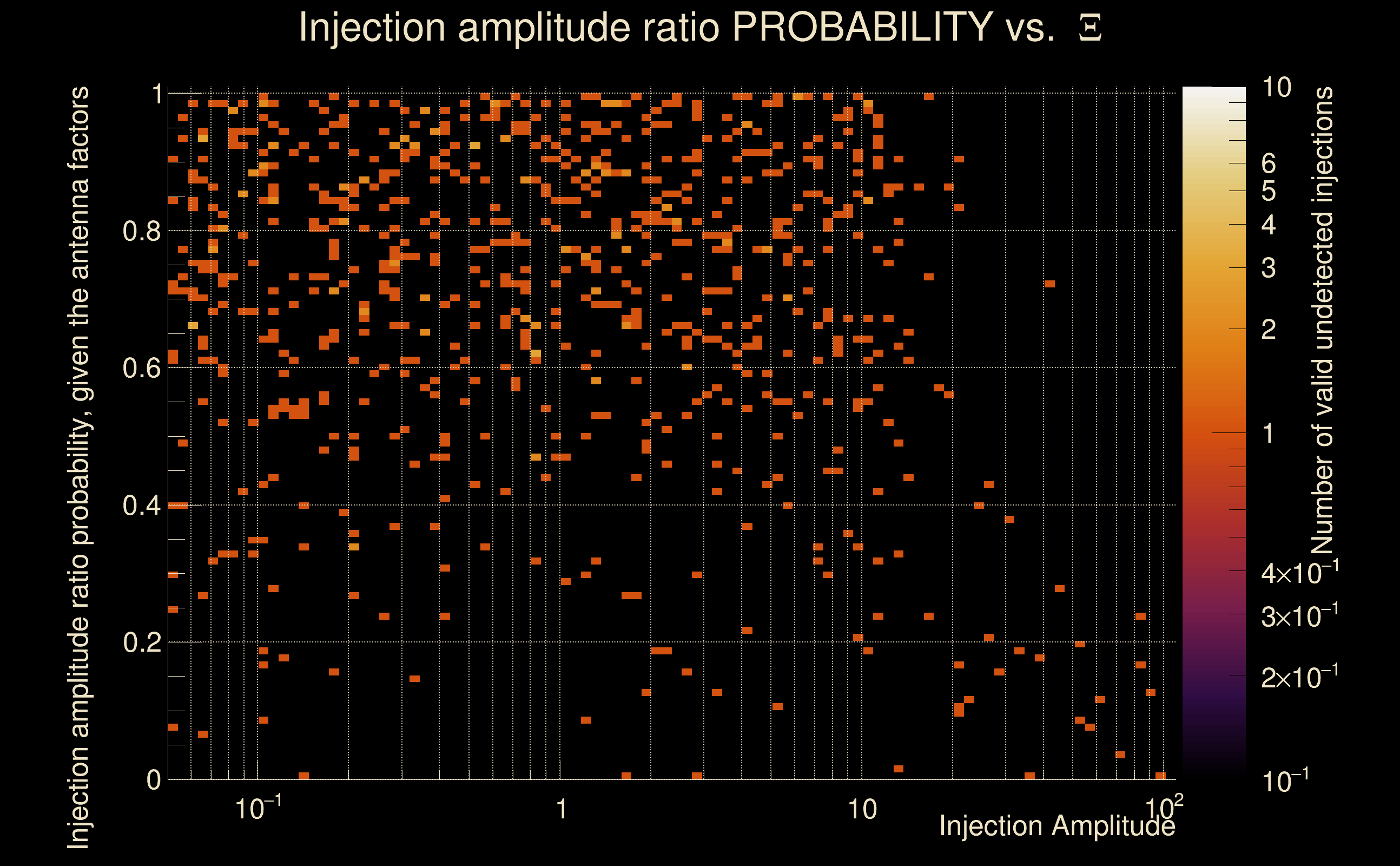

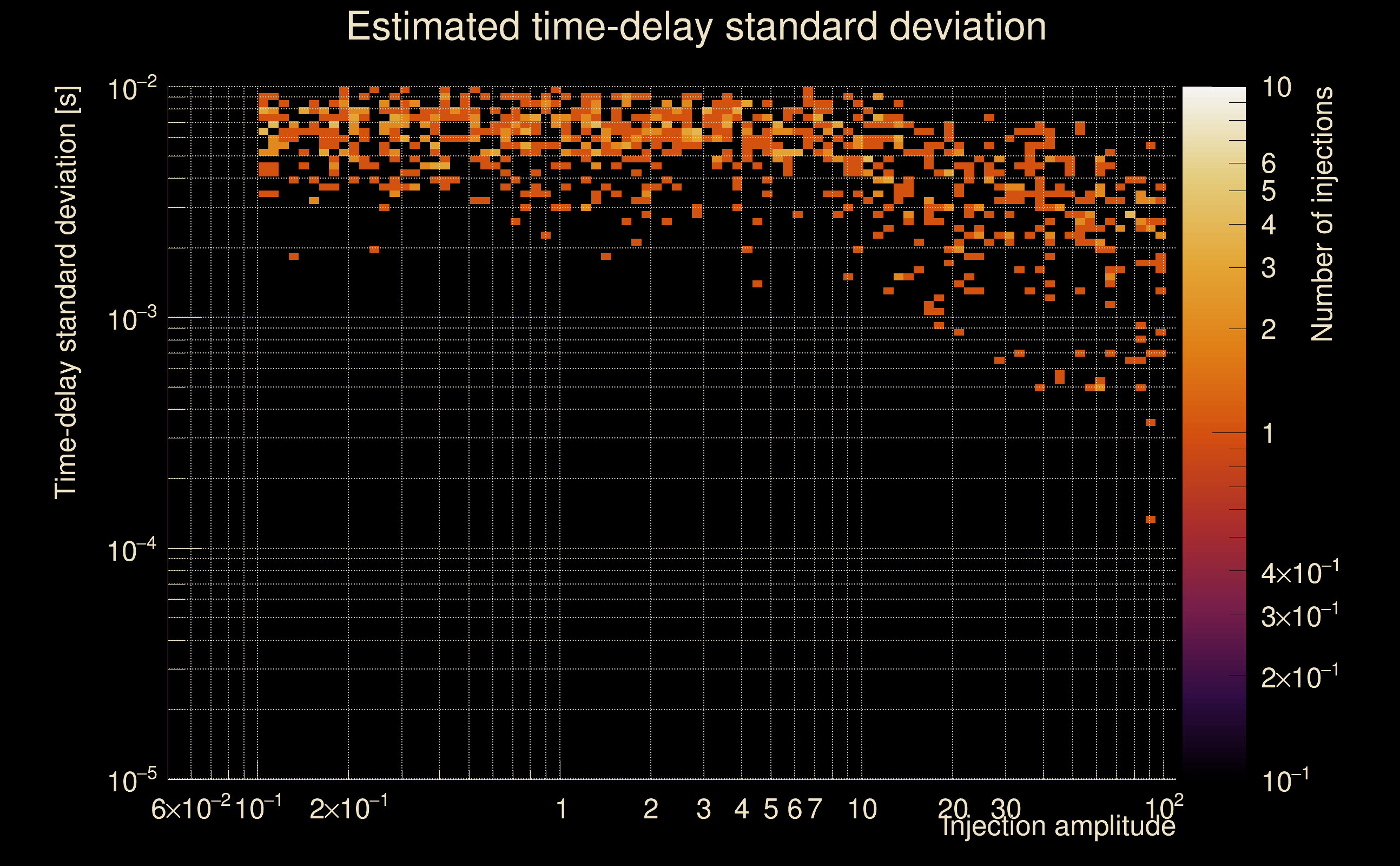

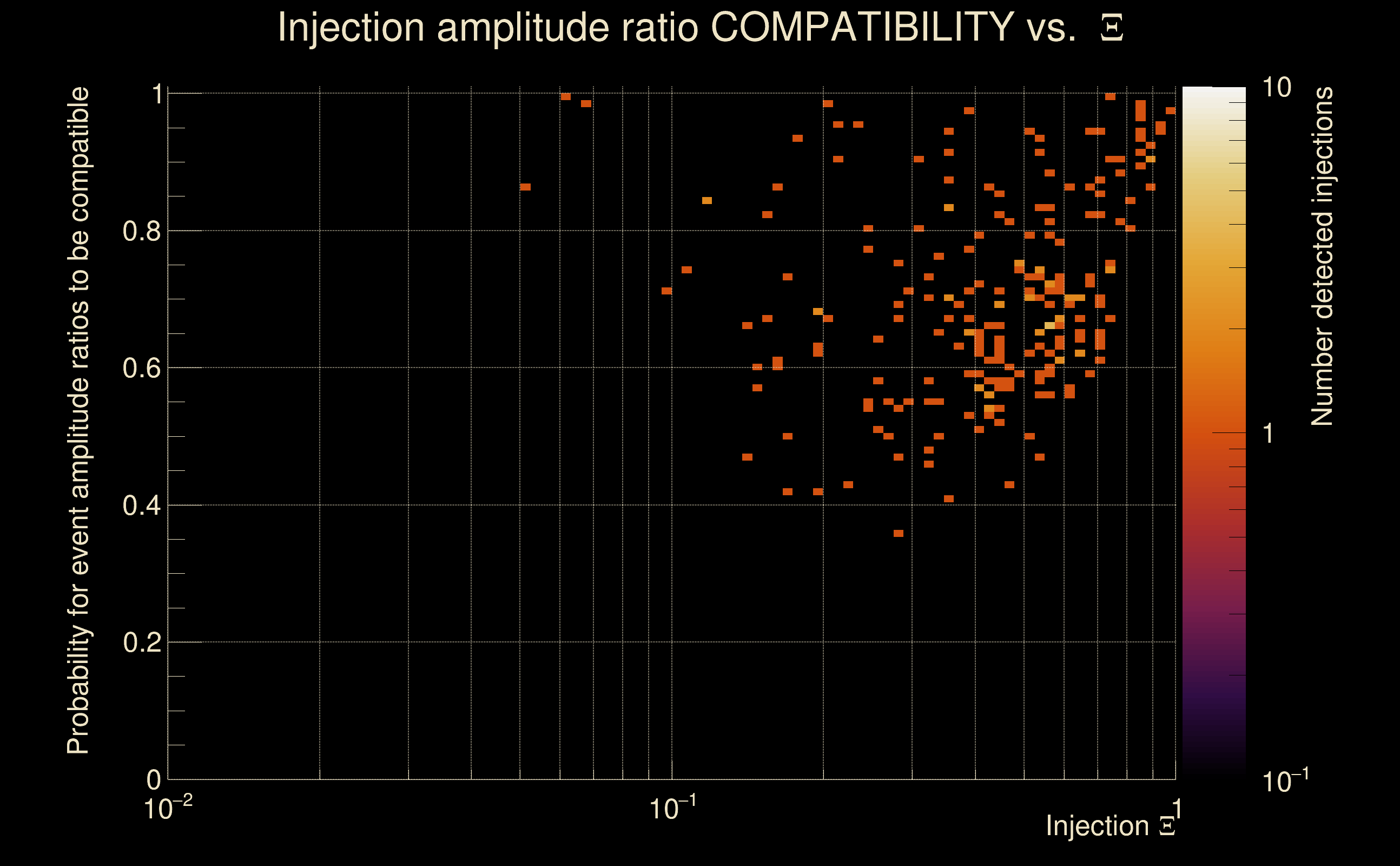

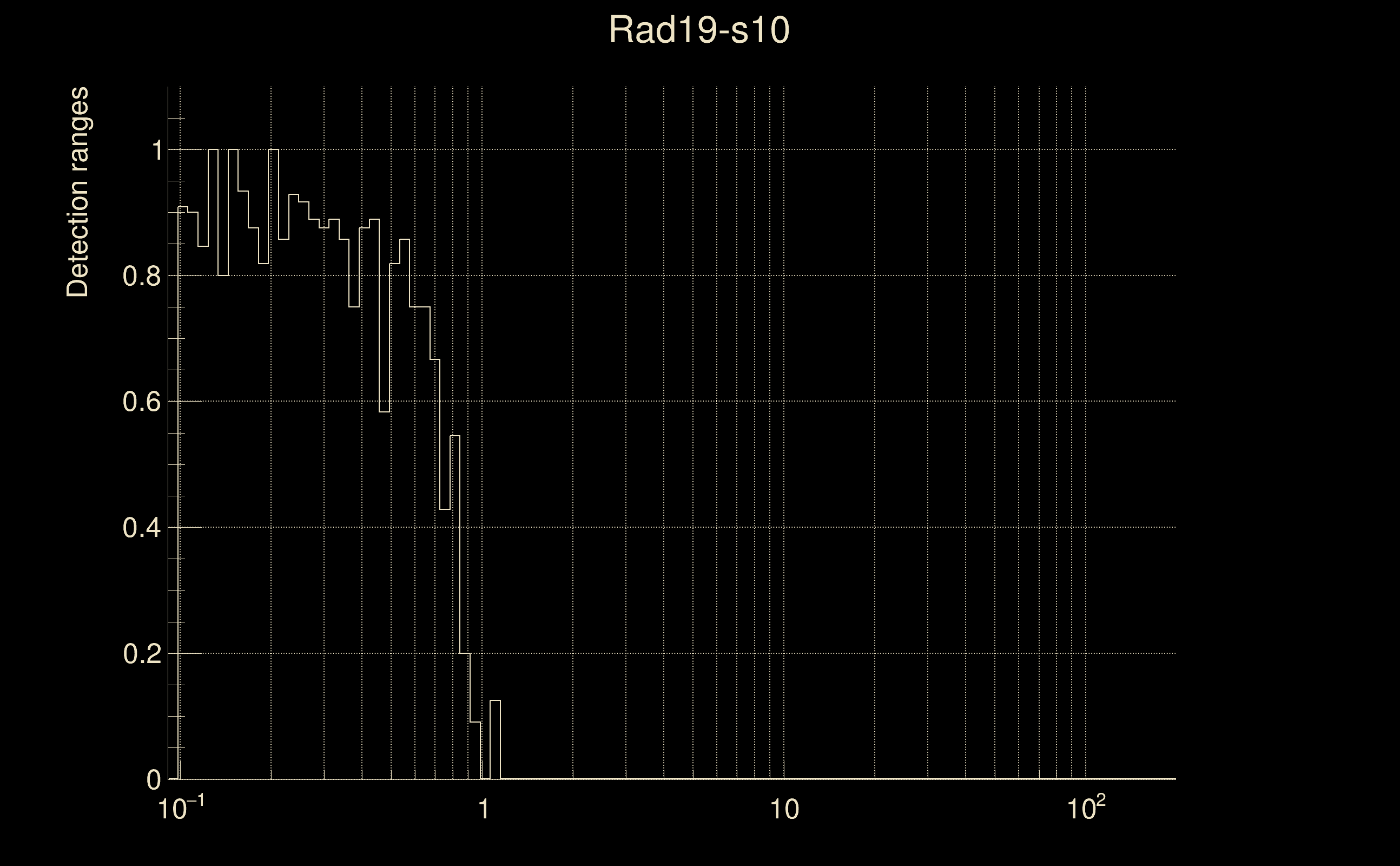

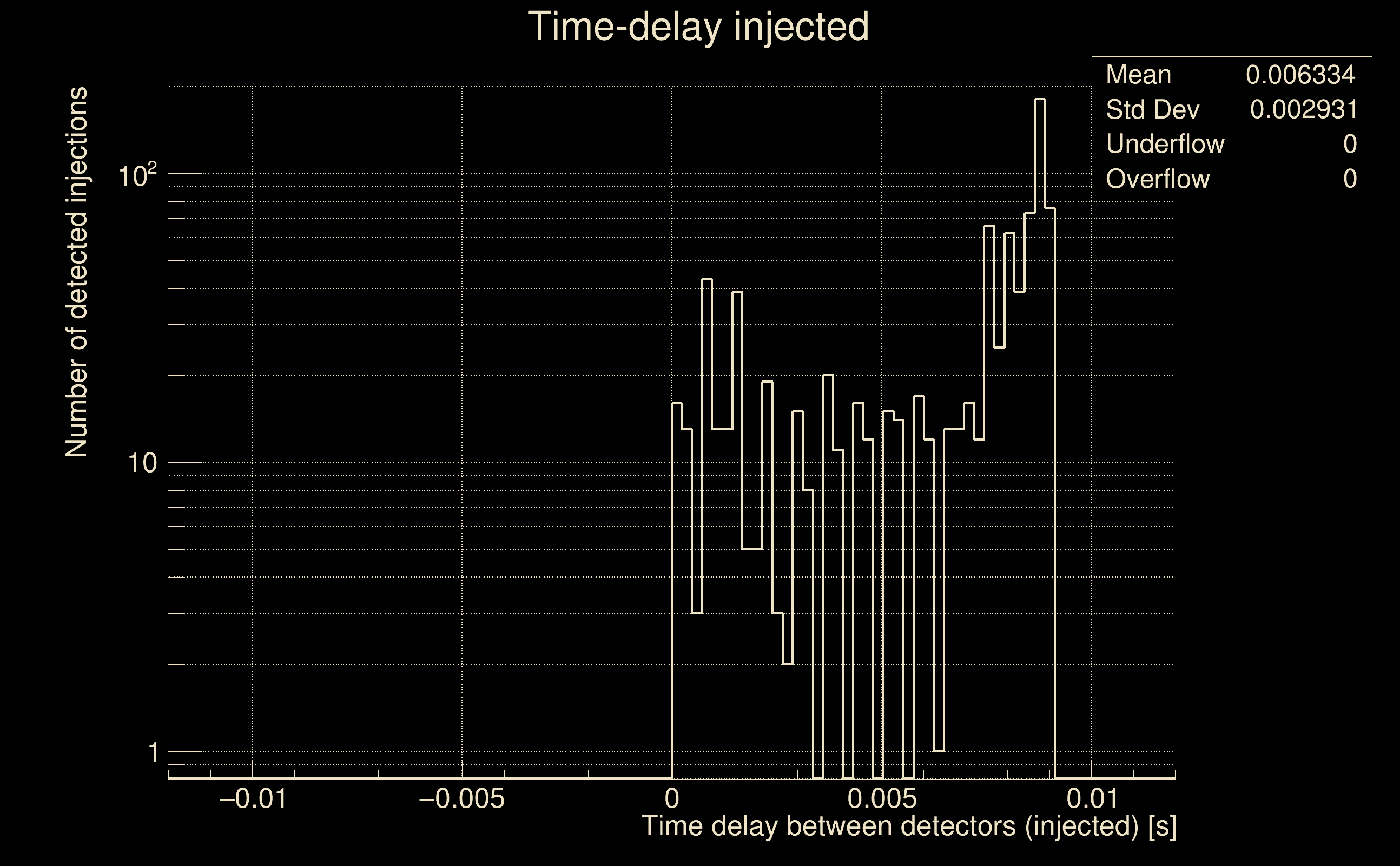

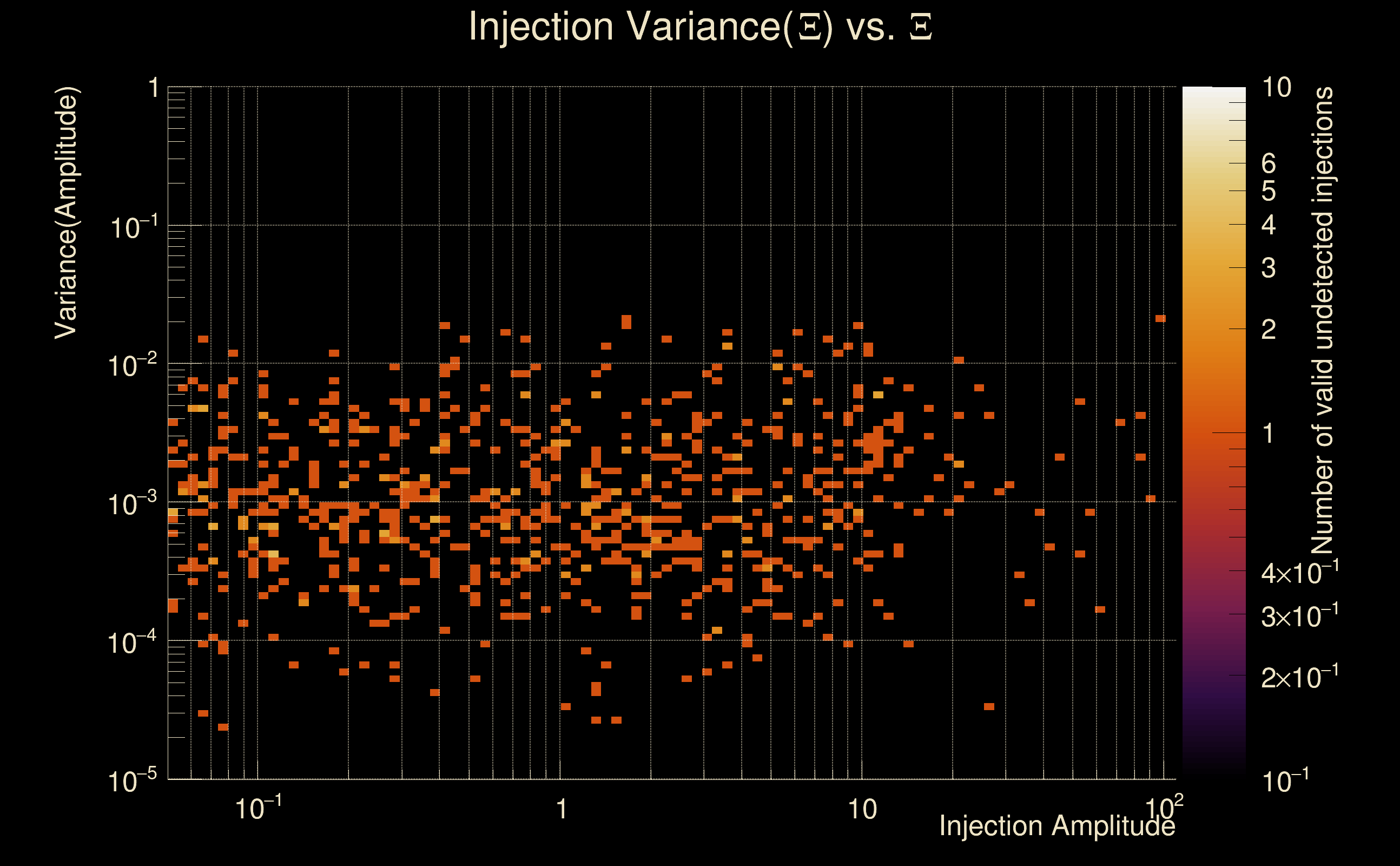

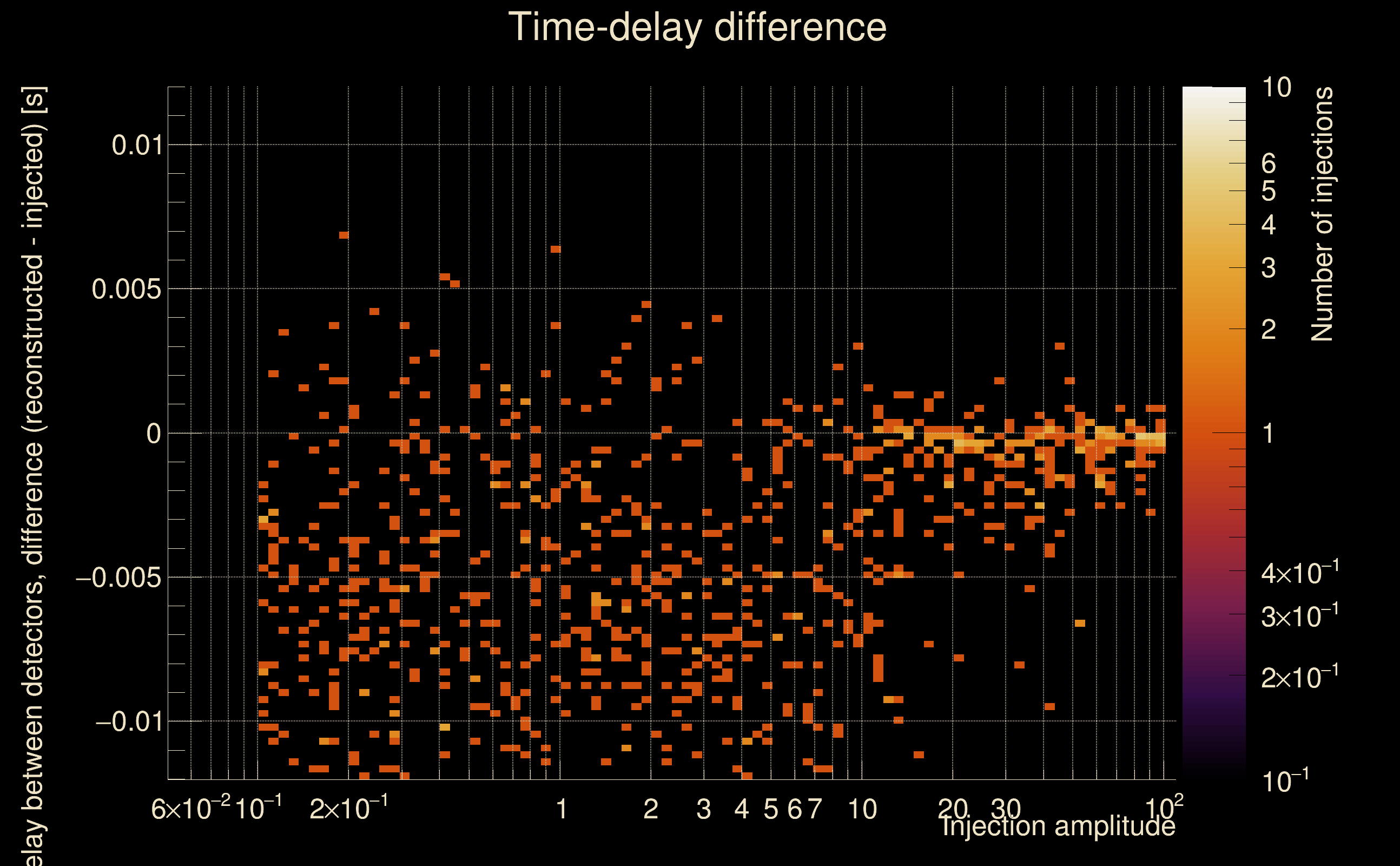

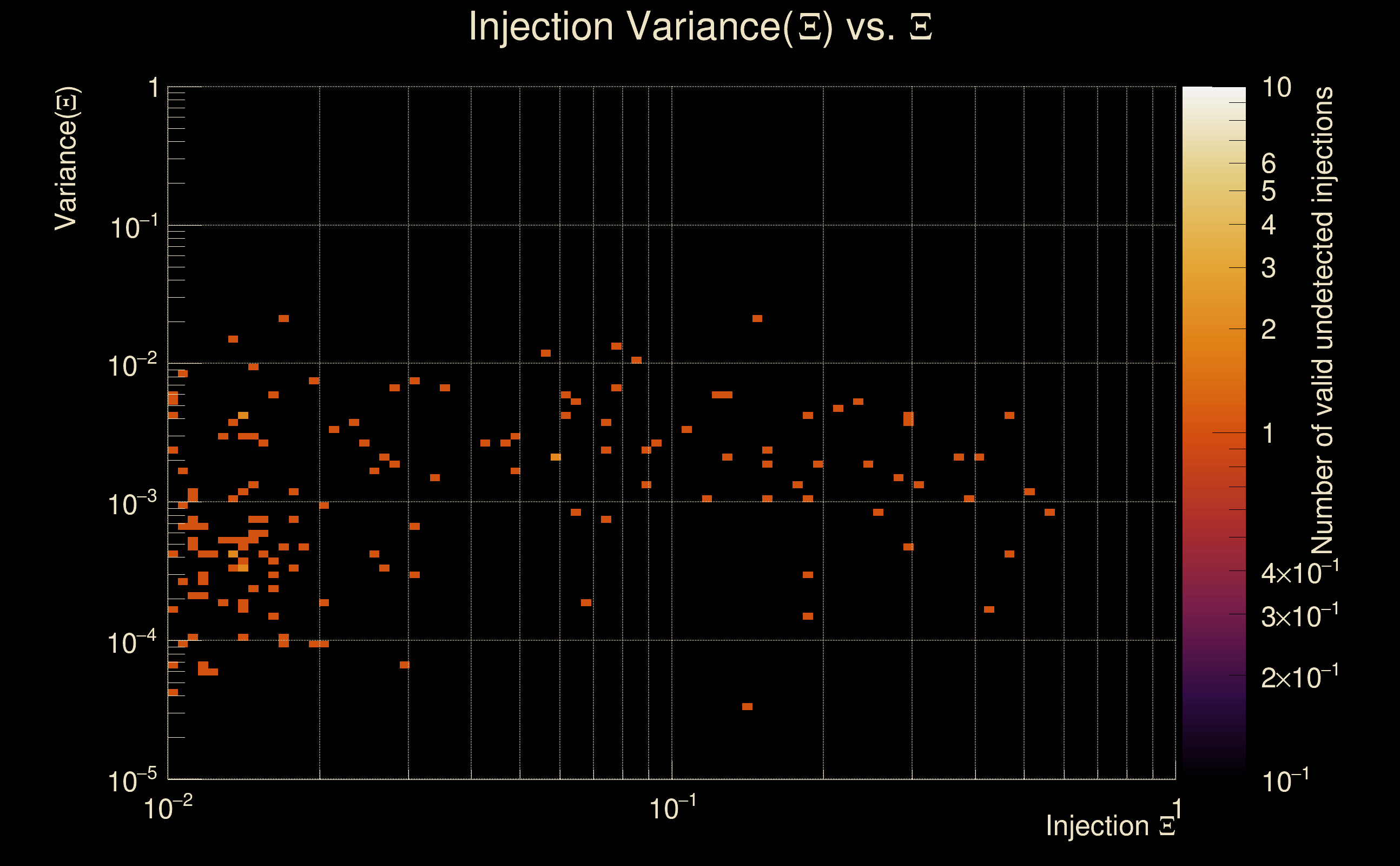

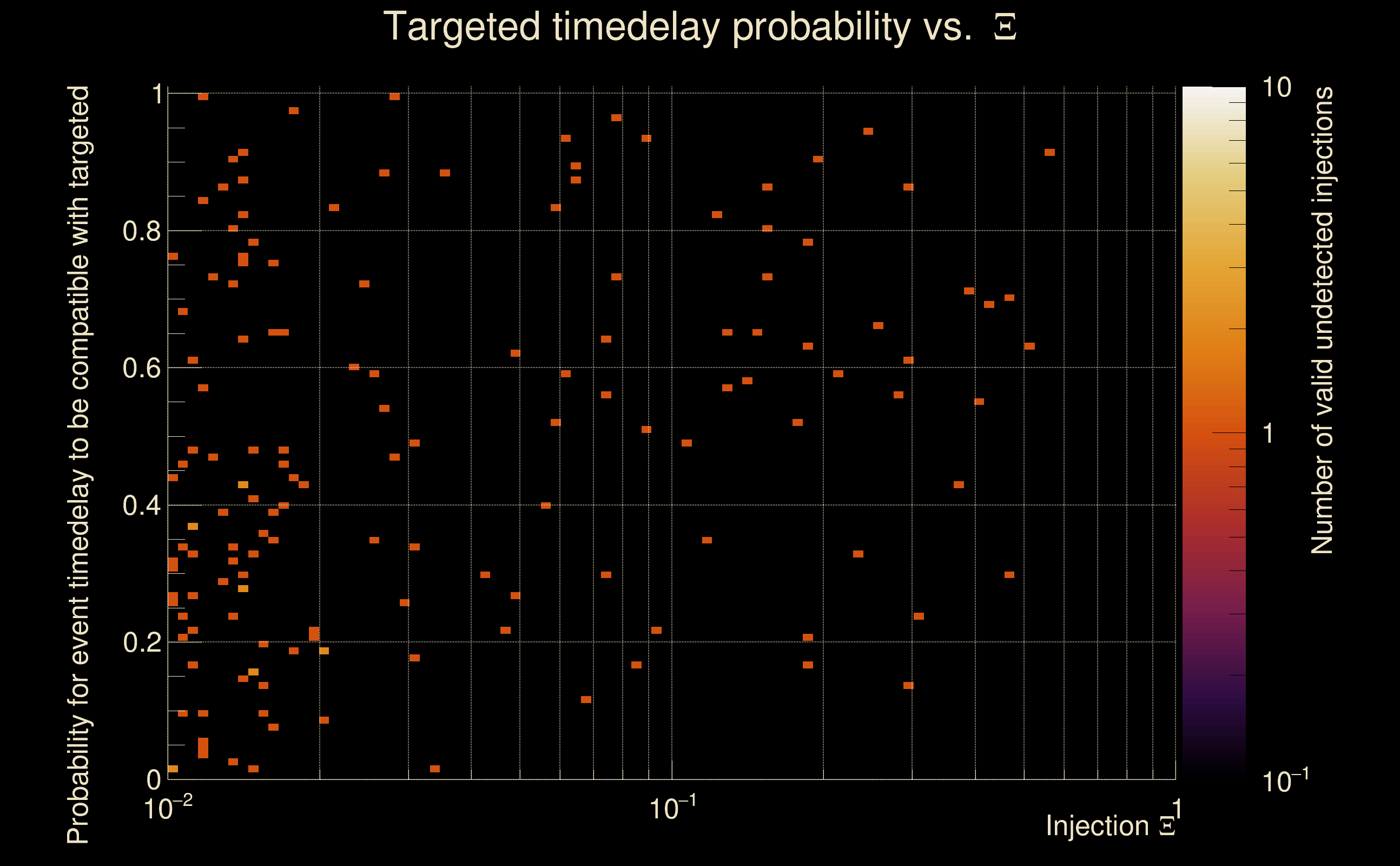

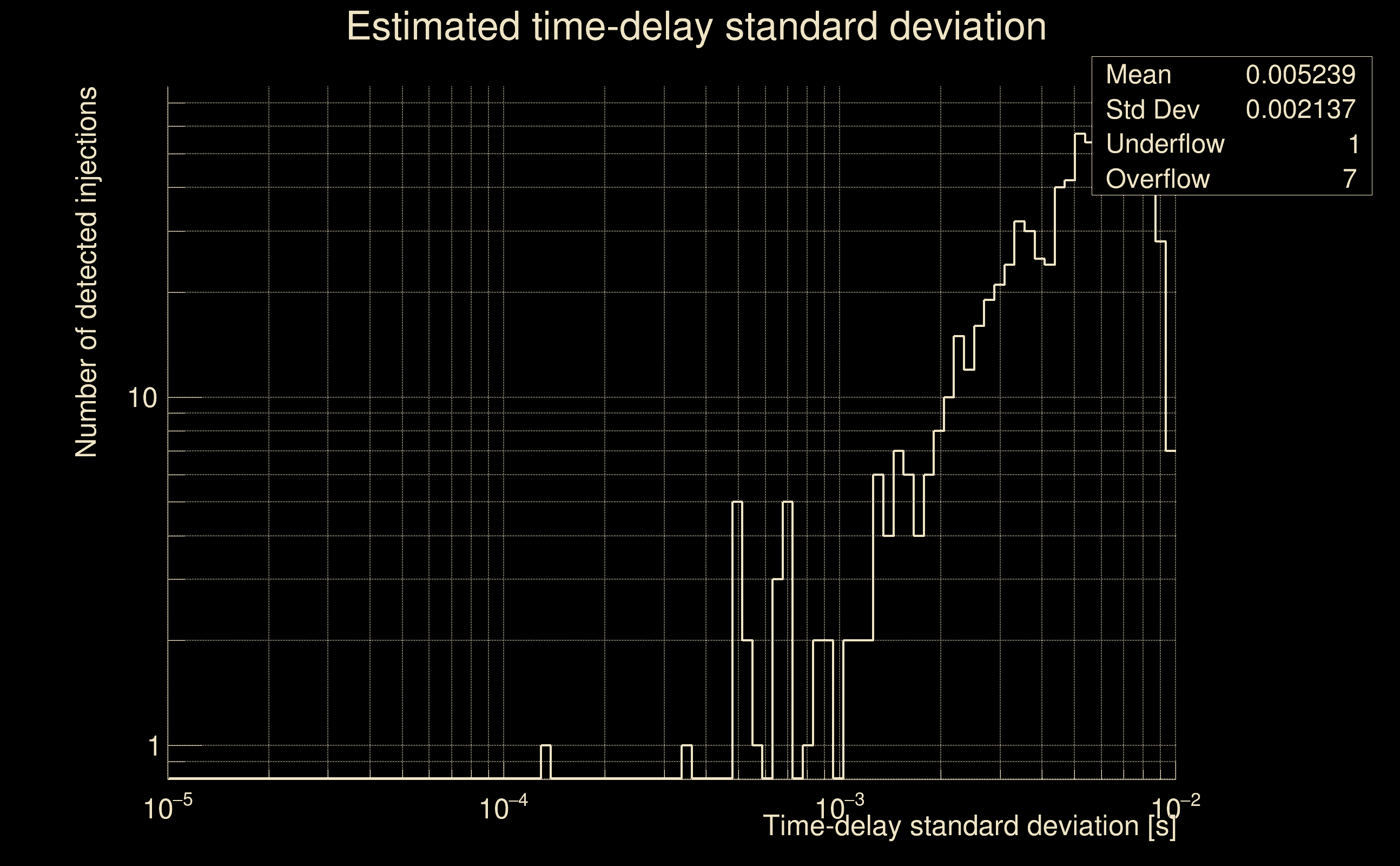

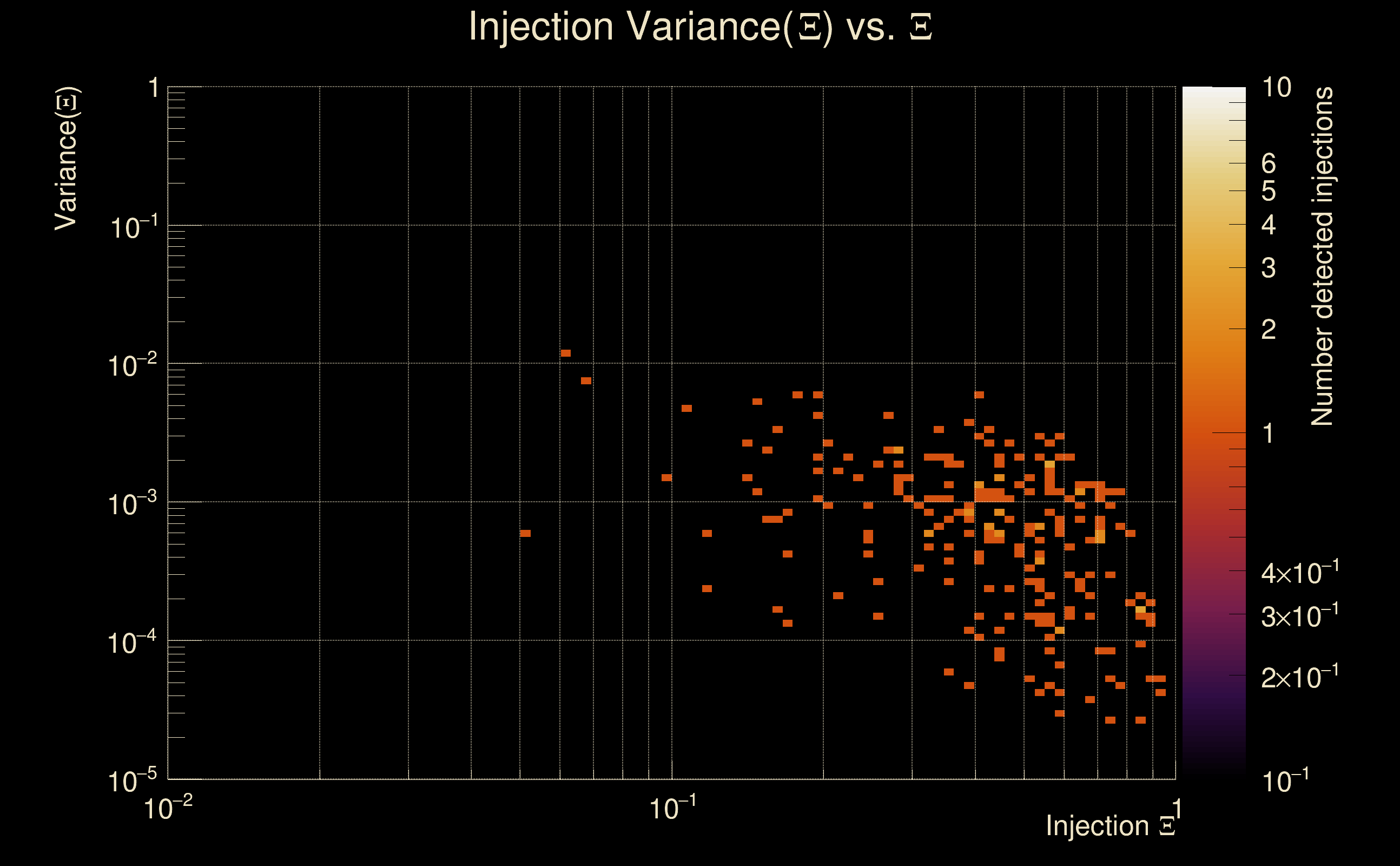

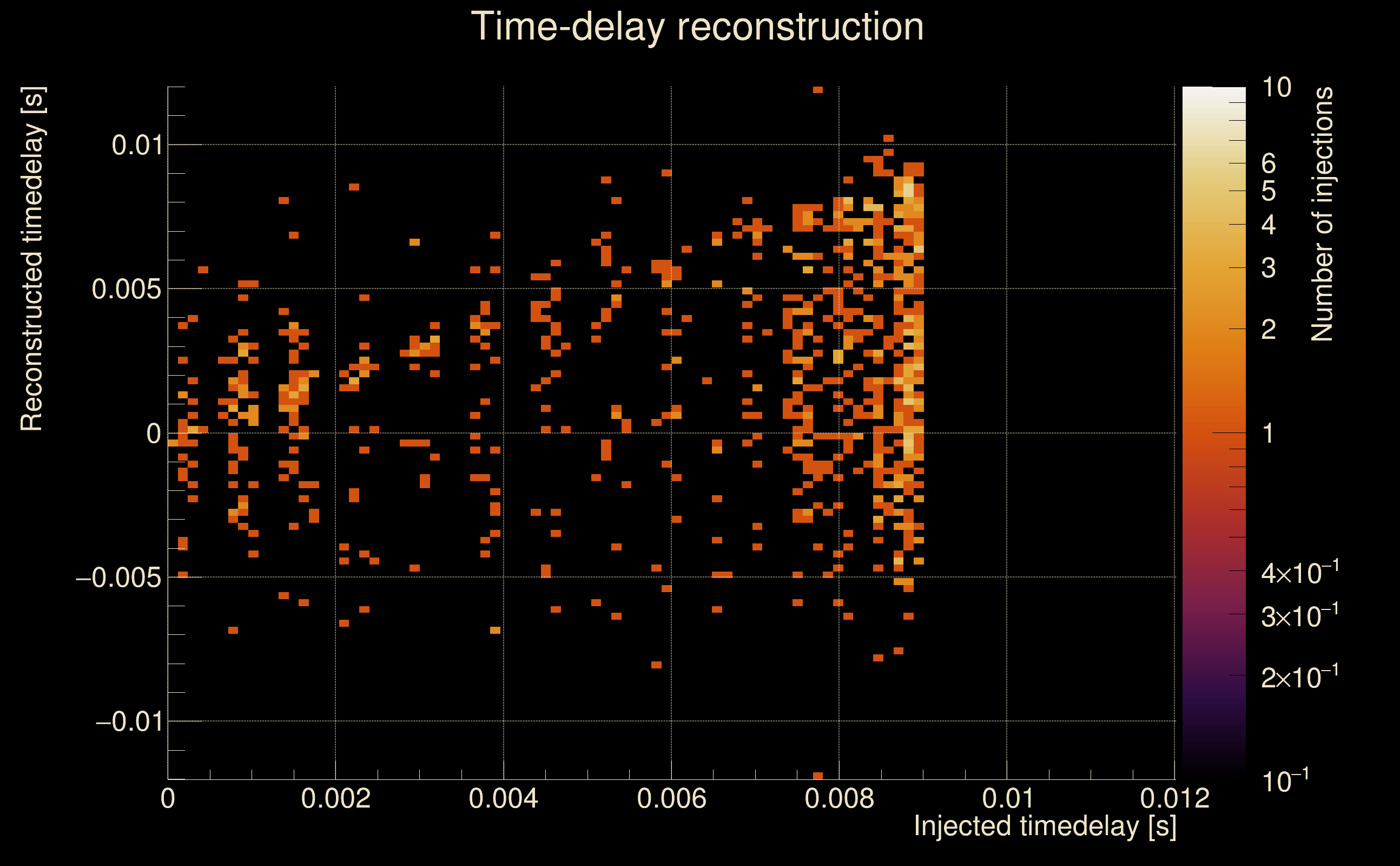

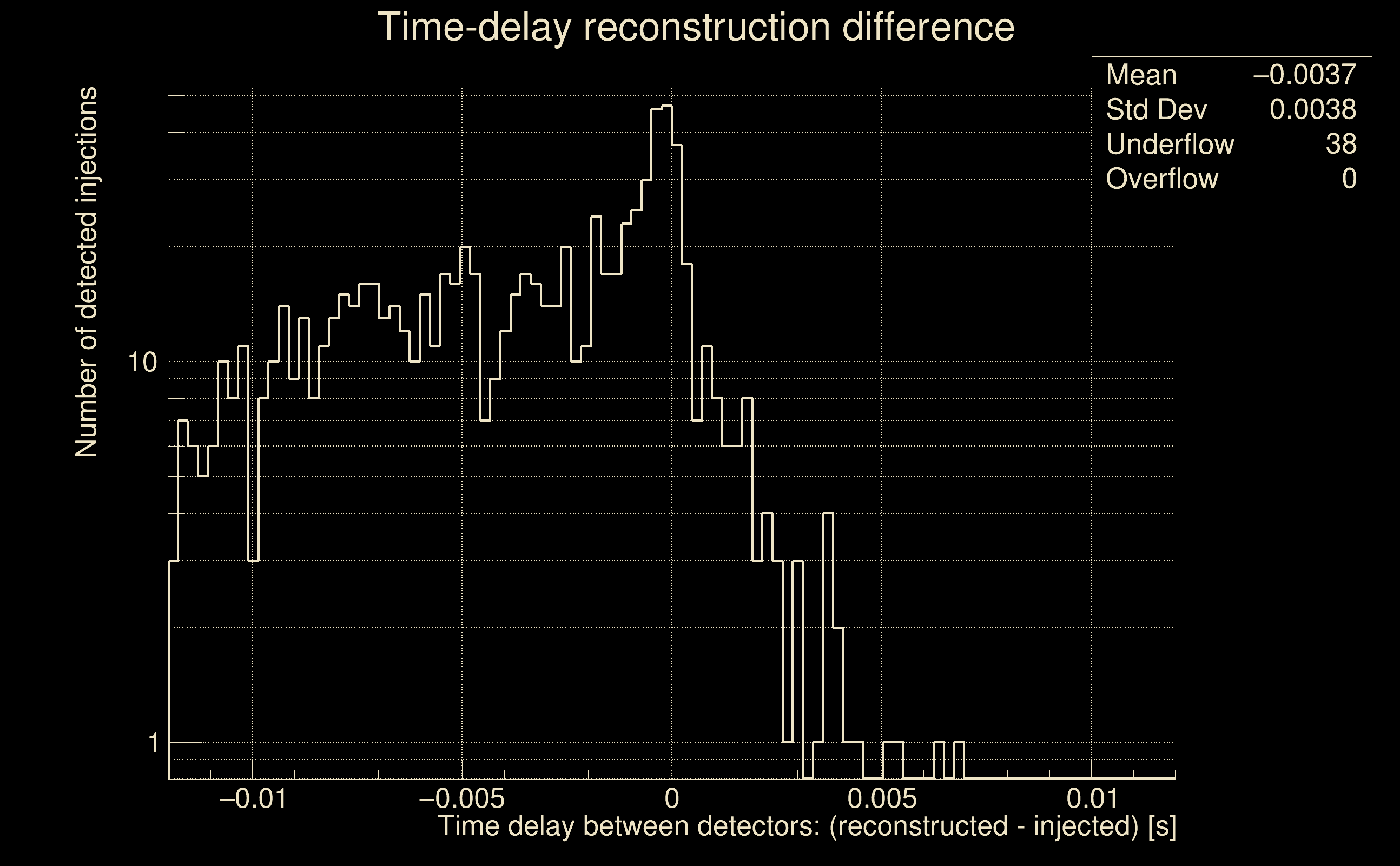

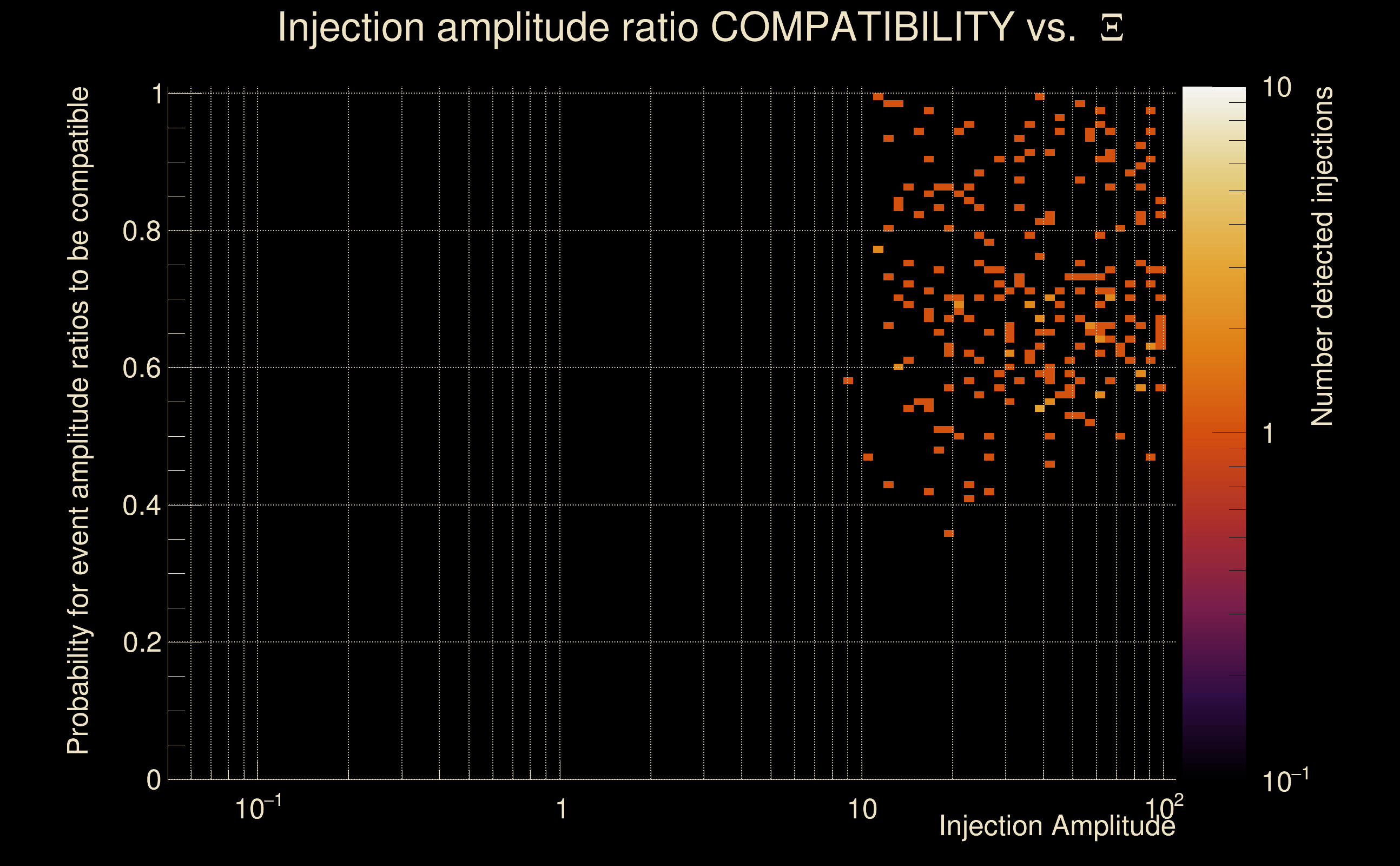

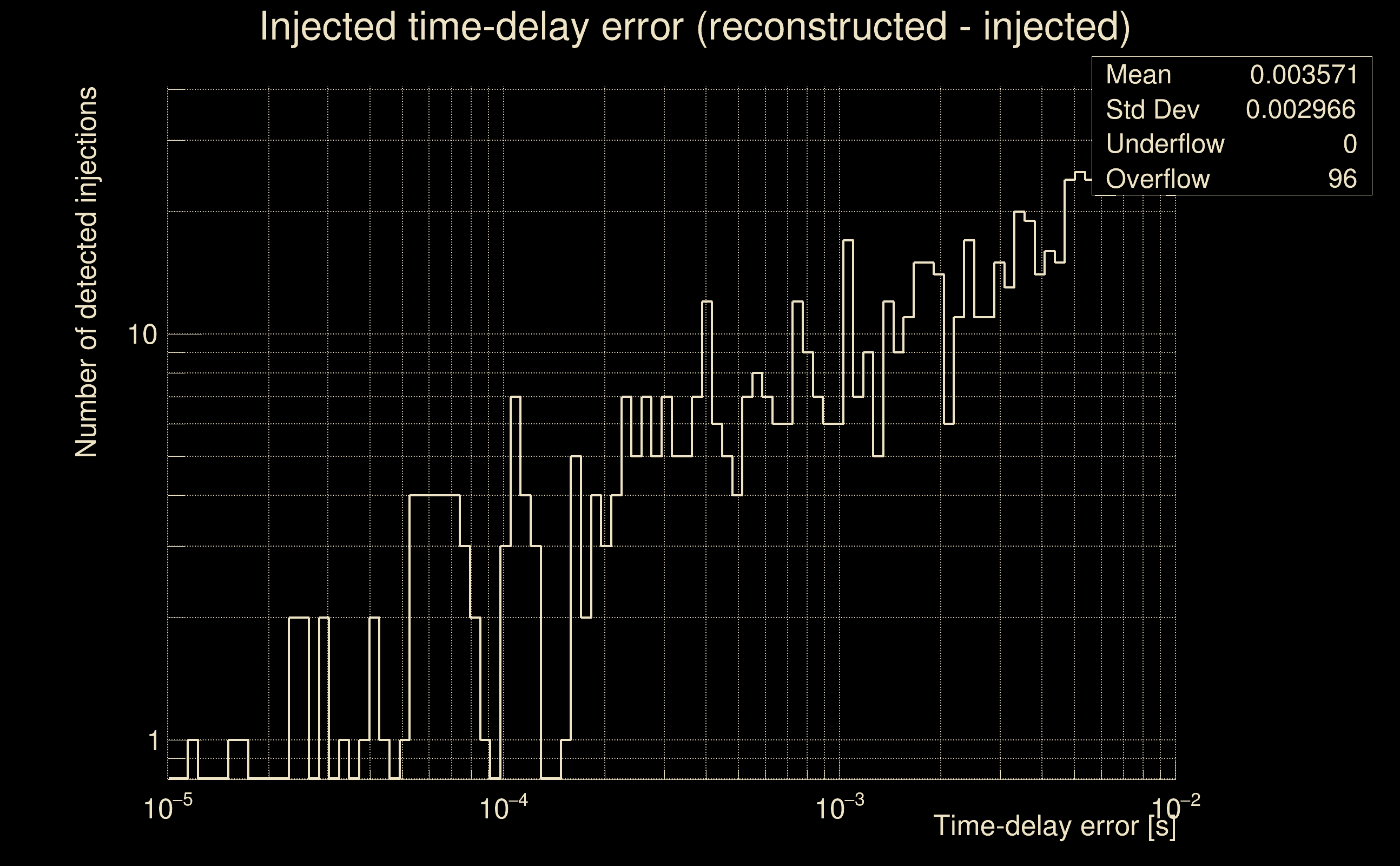

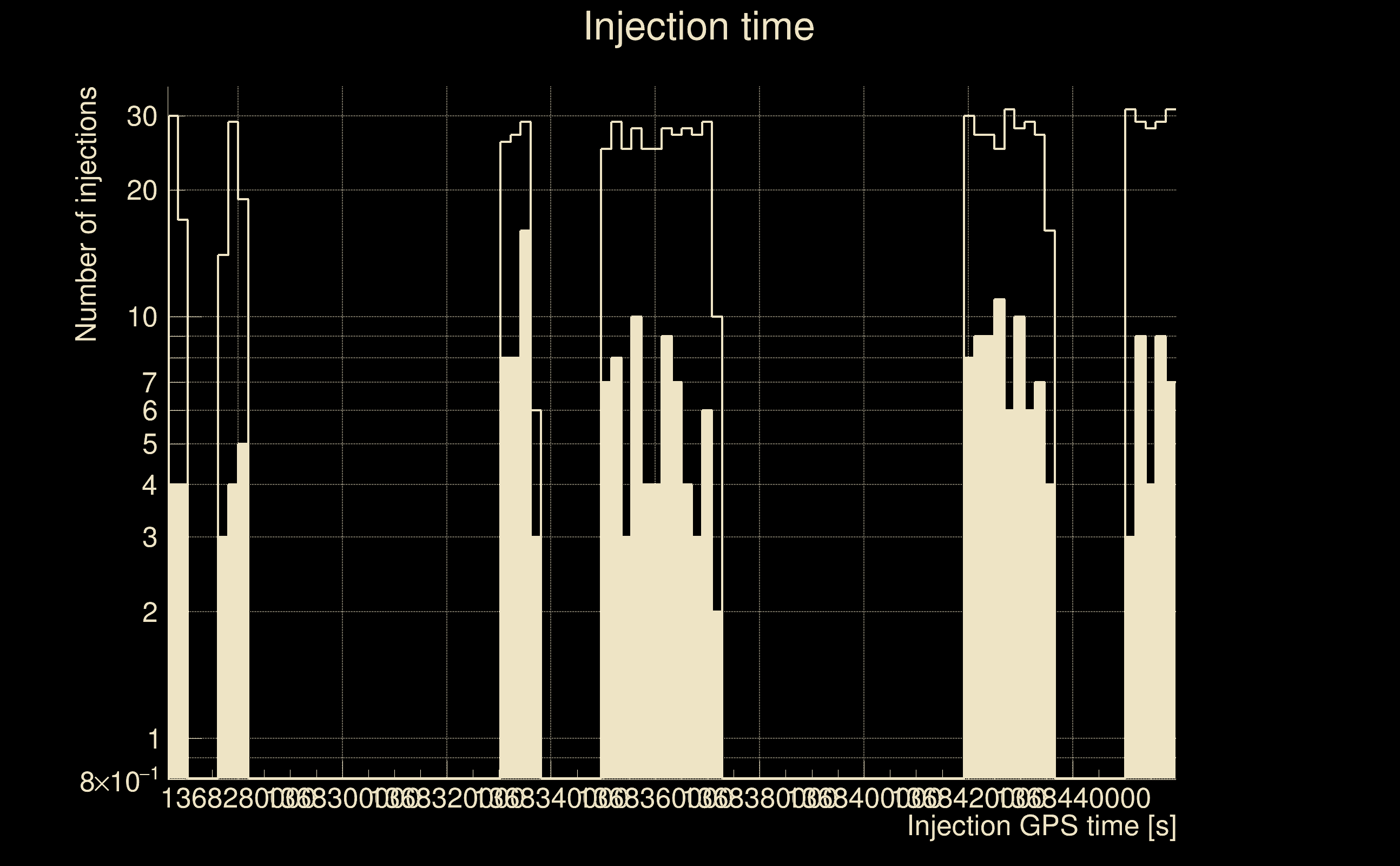

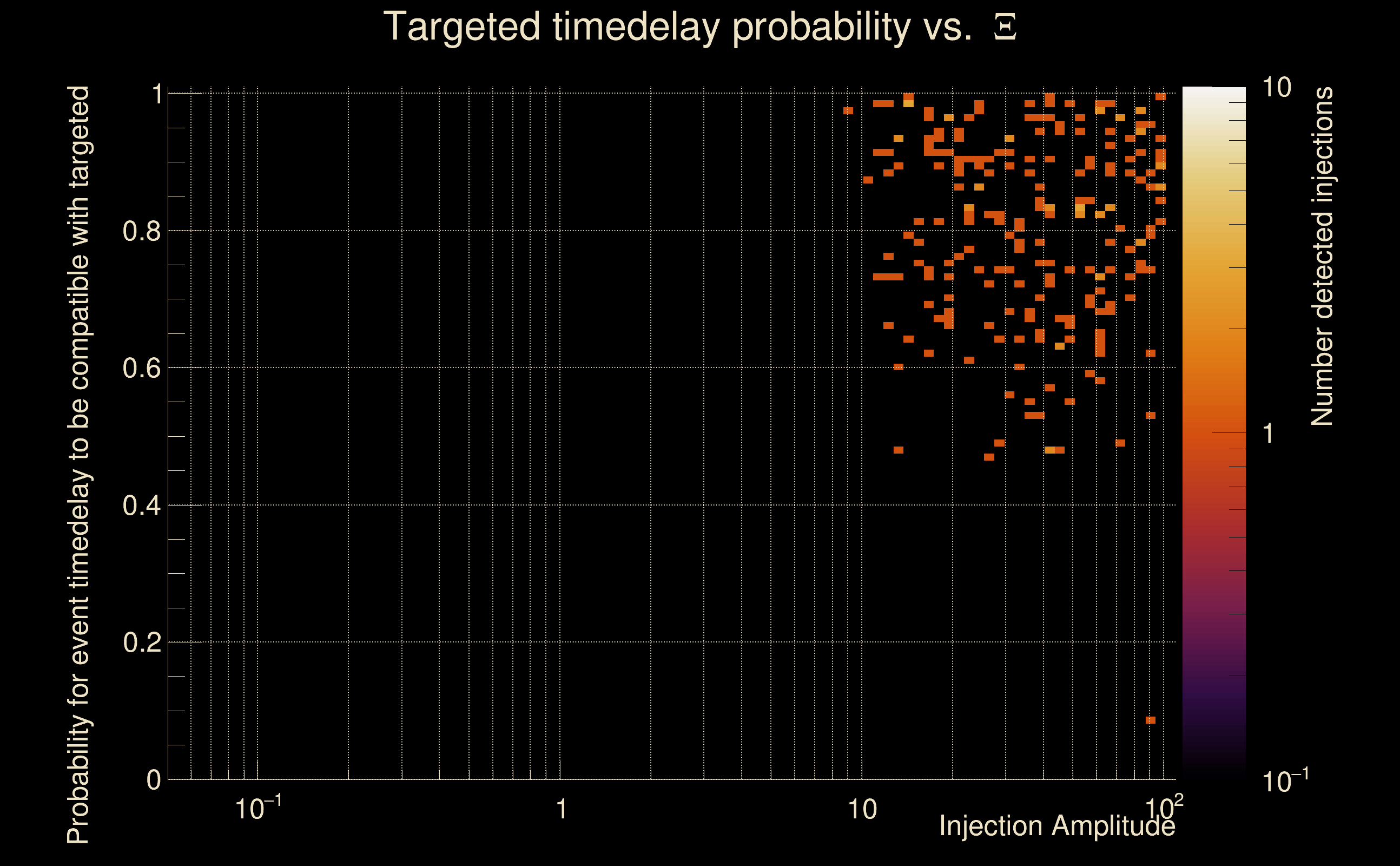

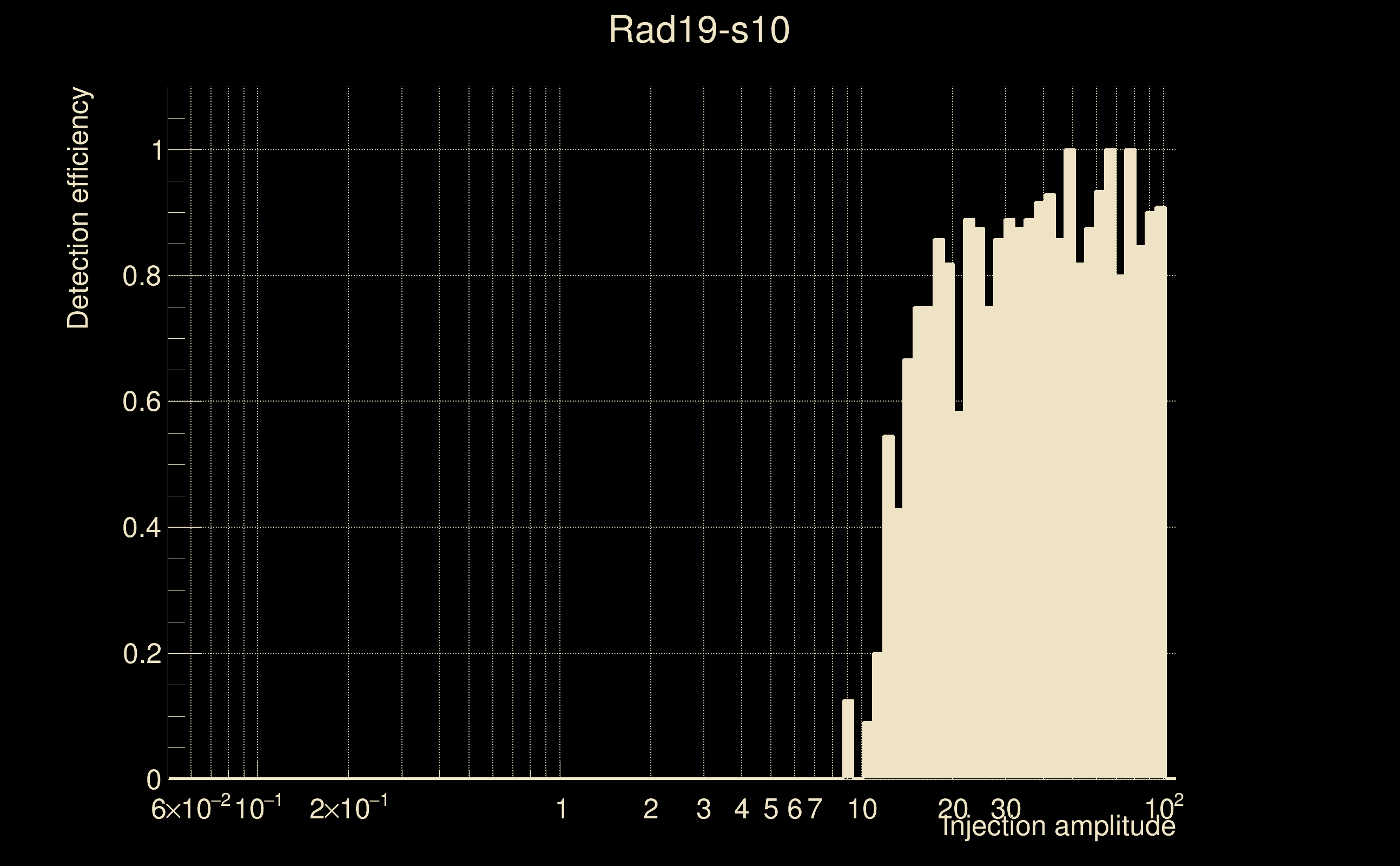

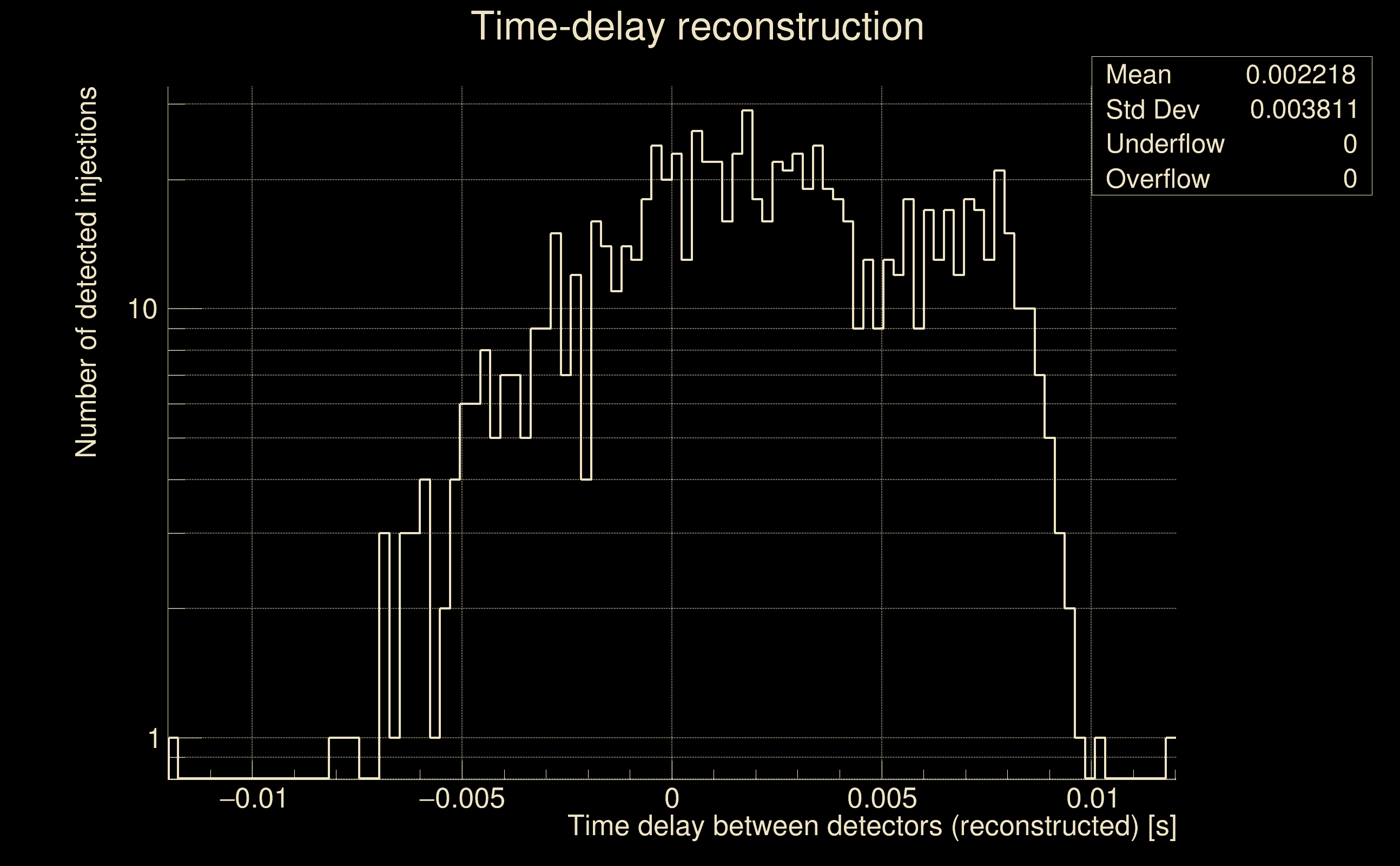

| Number of injections (total/valid/detected): | 1006 / 891 / 224 |
| List of missed injections: | ./Rad19-s10_missed.txt |
| Injection amplitude at 90% detection efficiency: | 46.4393 |
| Injection amplitude at 50% detection efficiency: | 13.5734 |
| Injection amplitude at 10% detection efficiency: | 10.5955 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
