| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Wed Sep 23 08:56:13 2026 UTC |
| Ox option file: | Bench5_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench5_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench5_allsky_results-4.root |
| Slice selected for the the fakeground: | slice index=94 (0.644 s), time lag = 0 s |

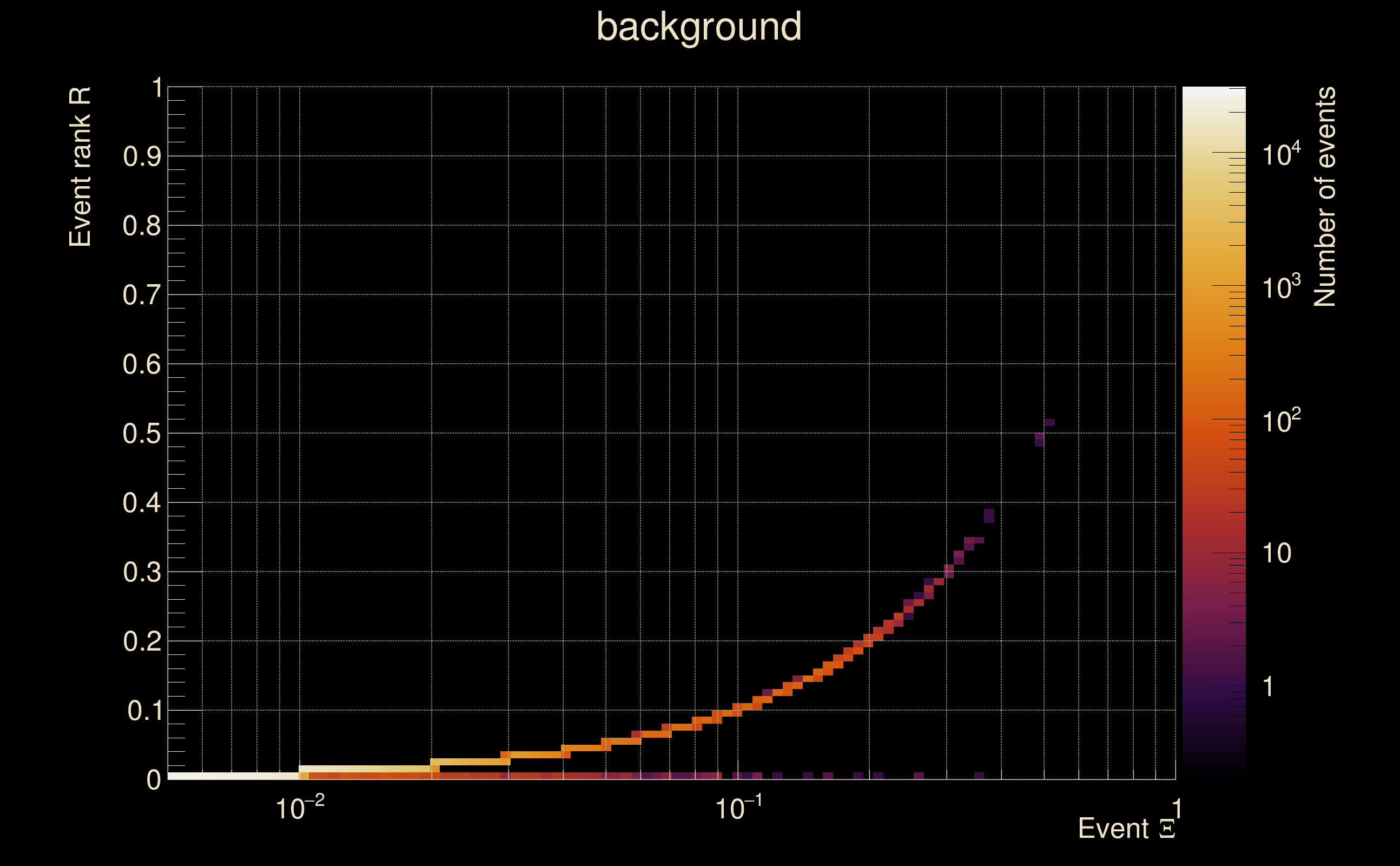

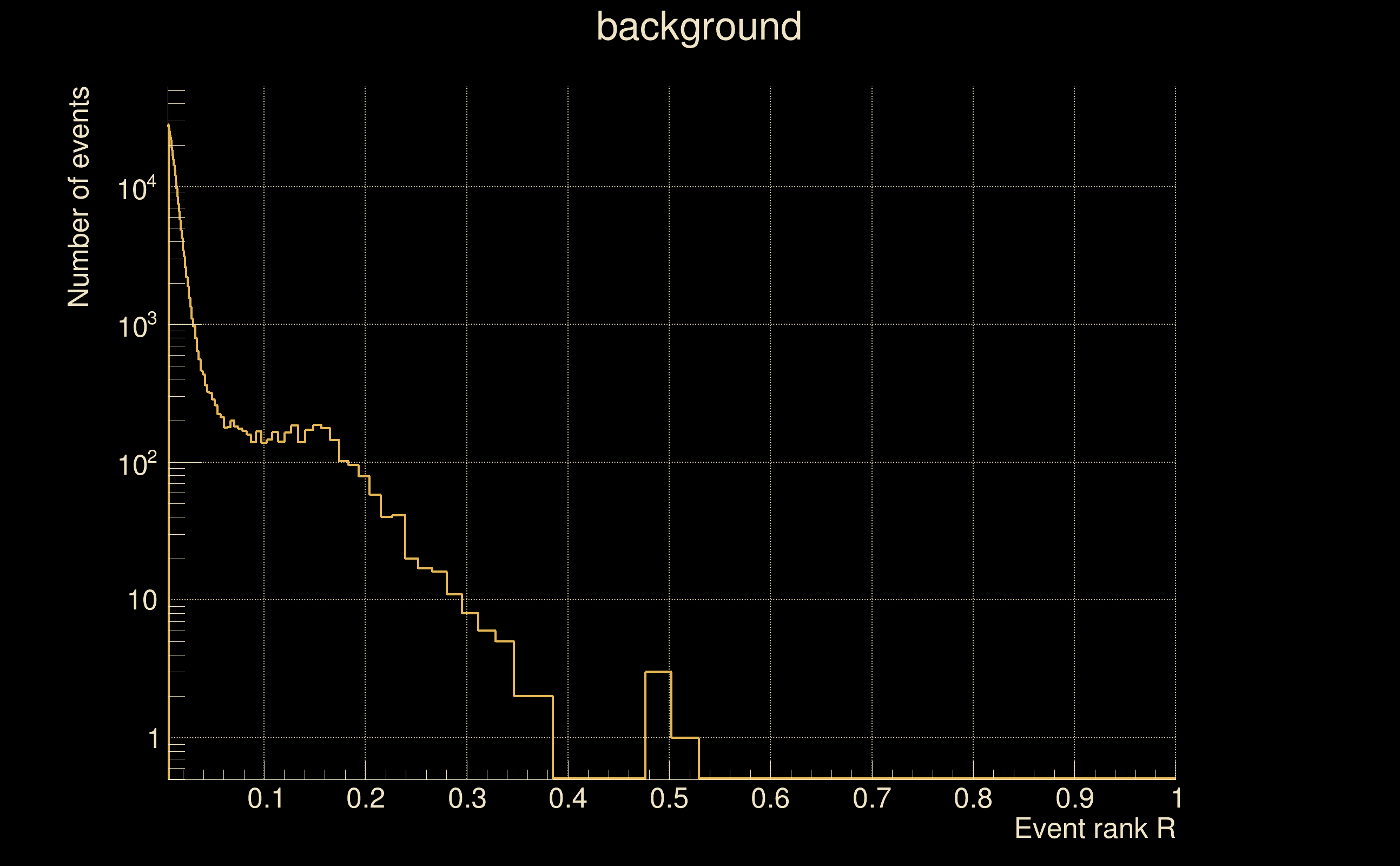

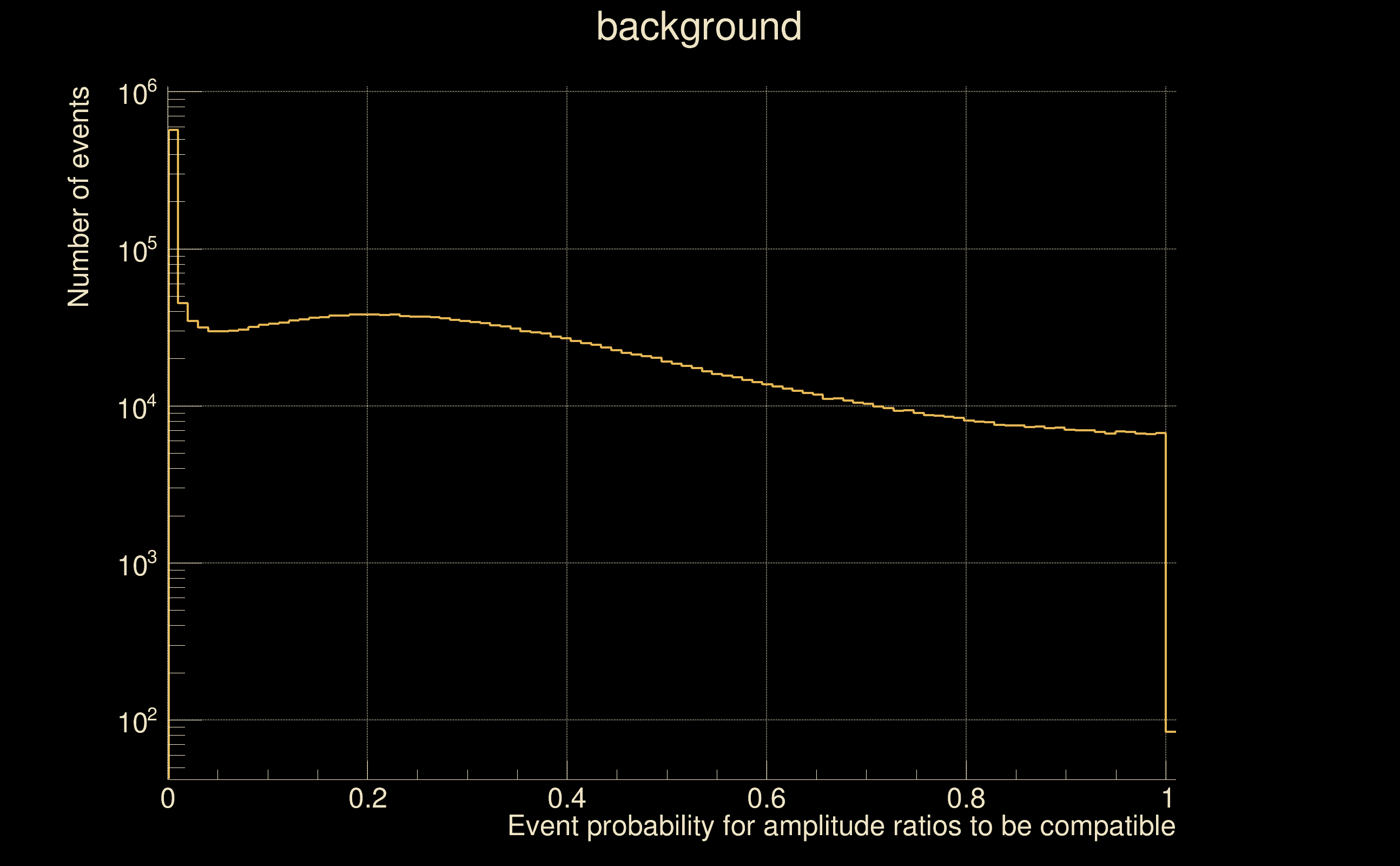

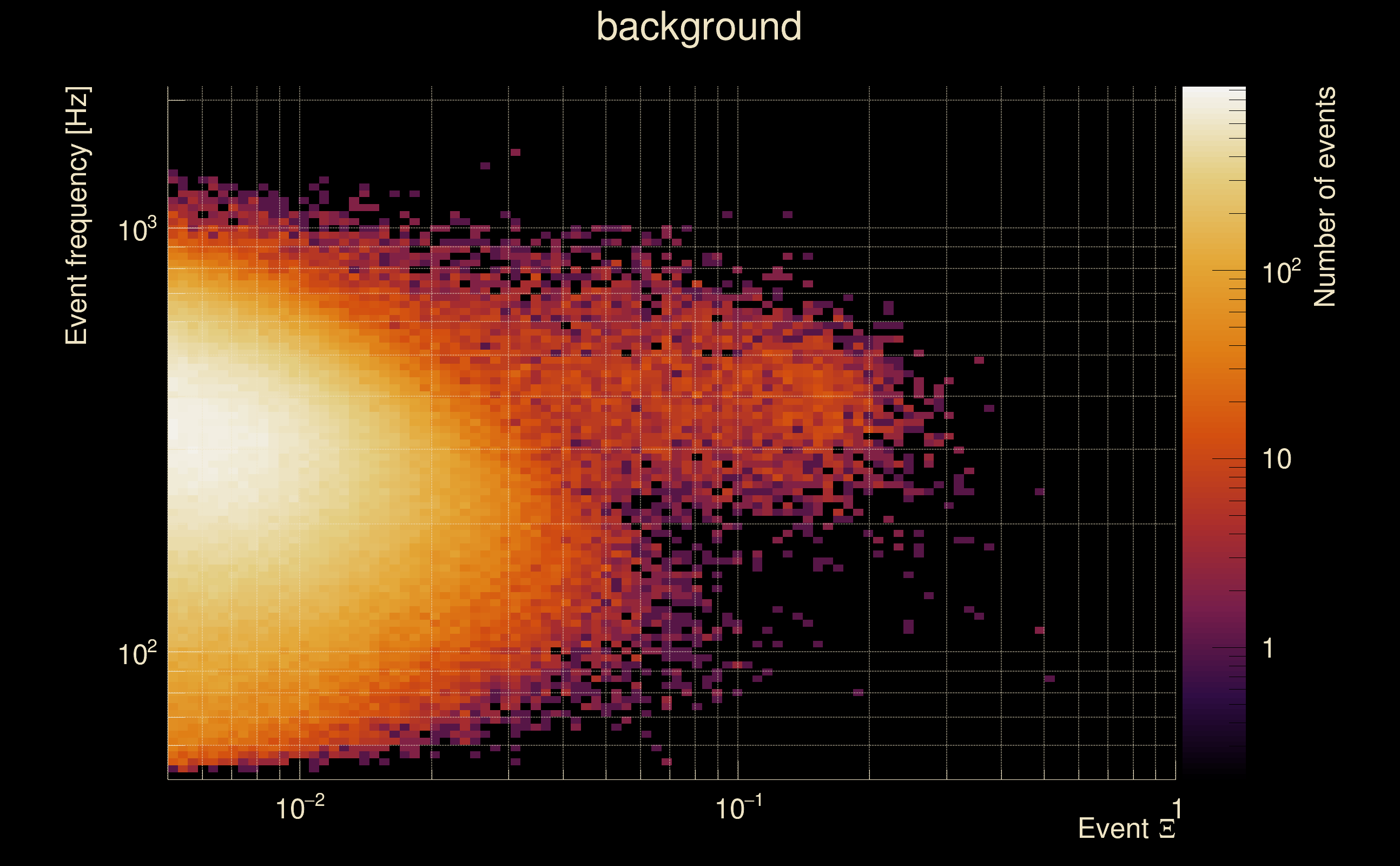

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

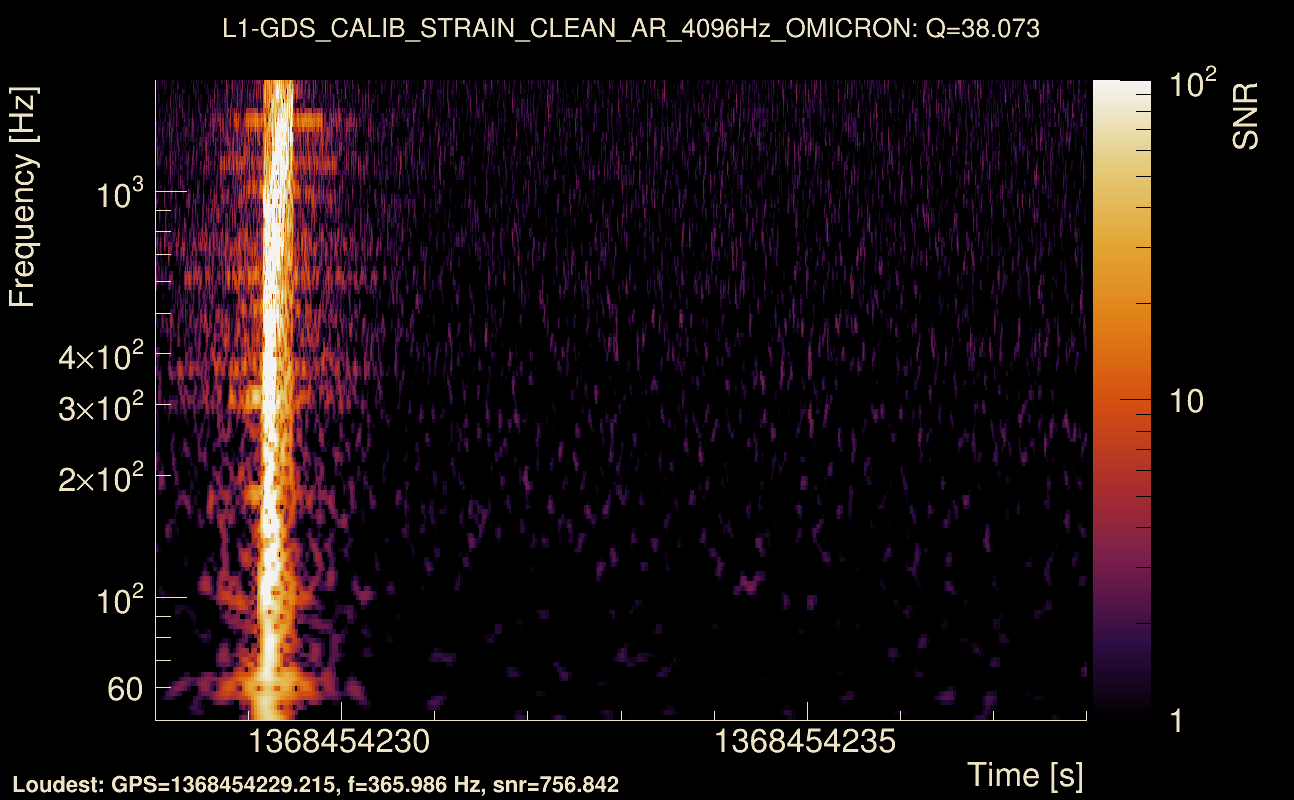

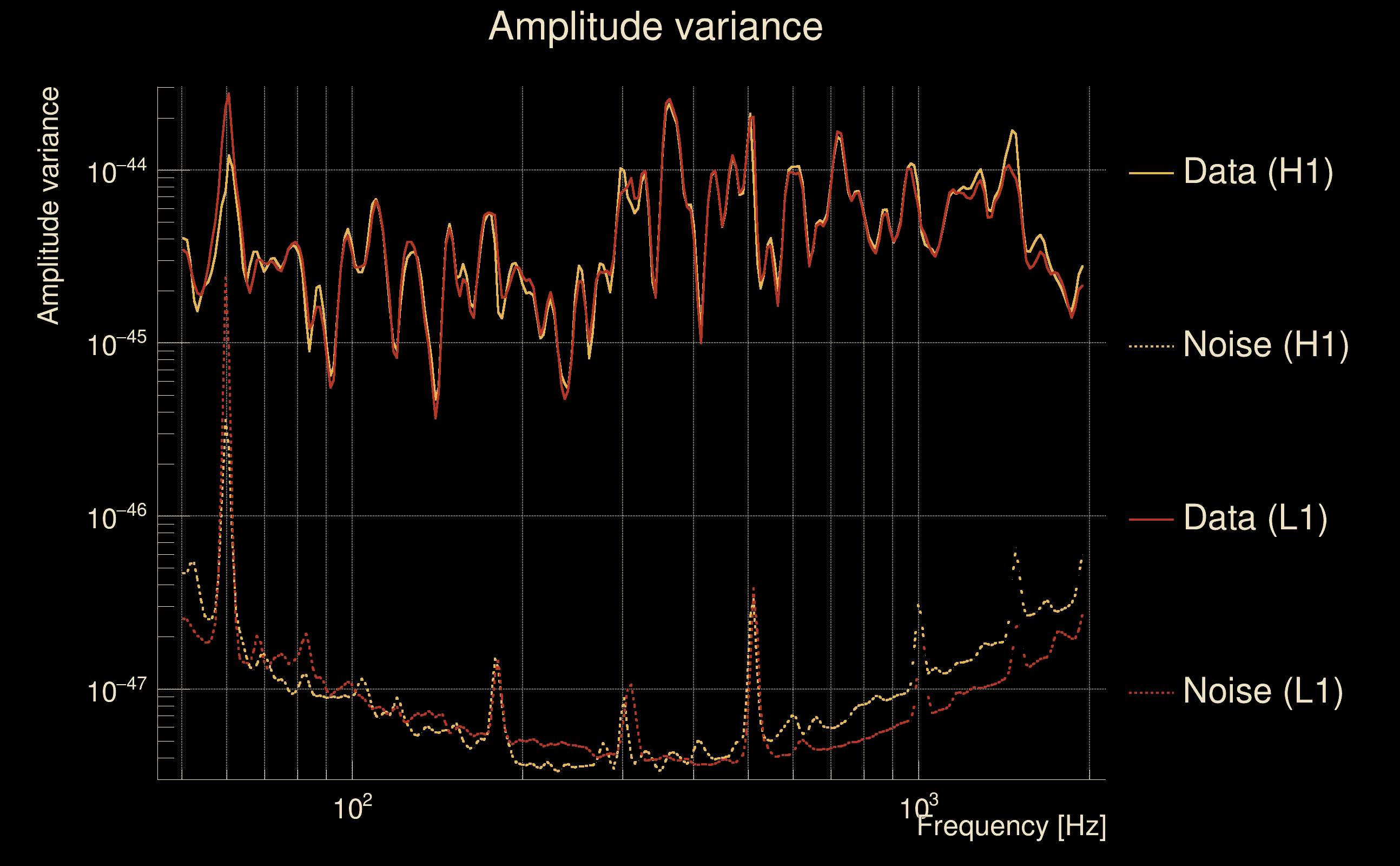

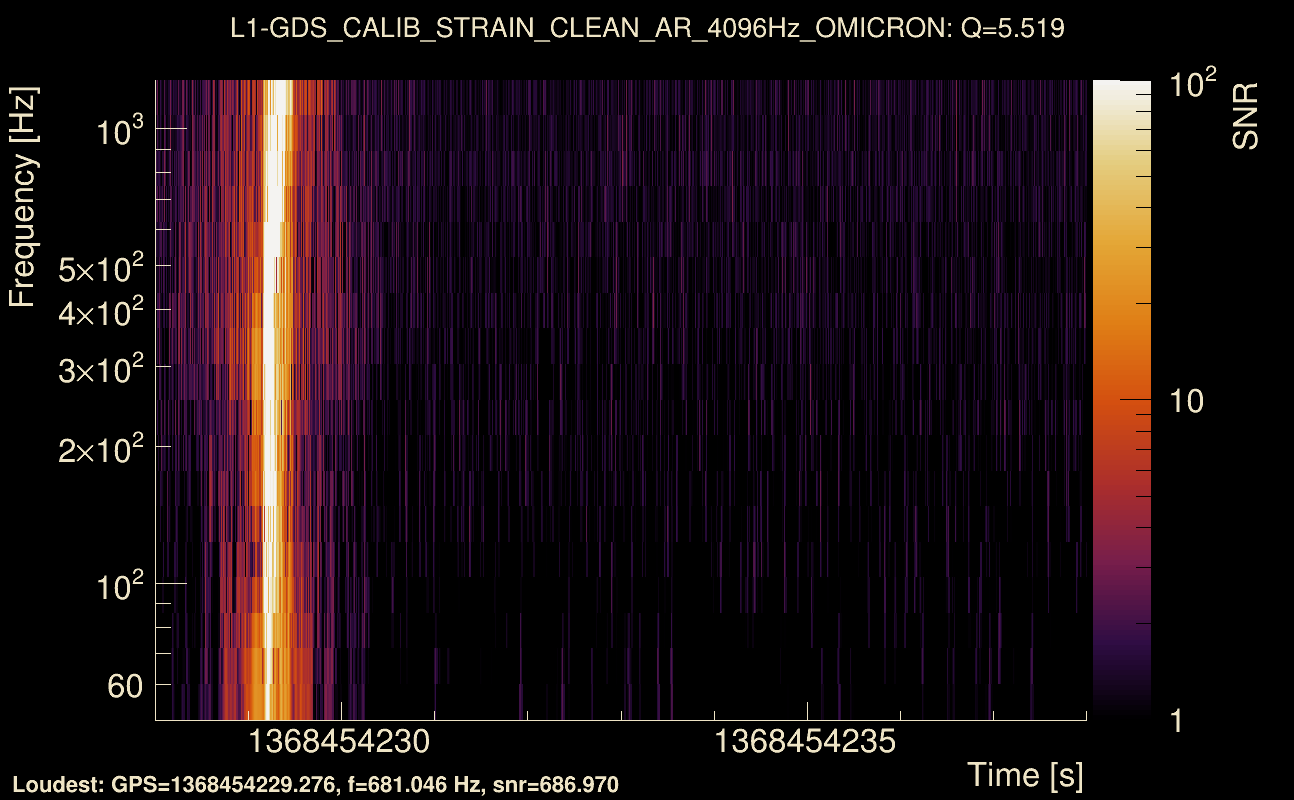

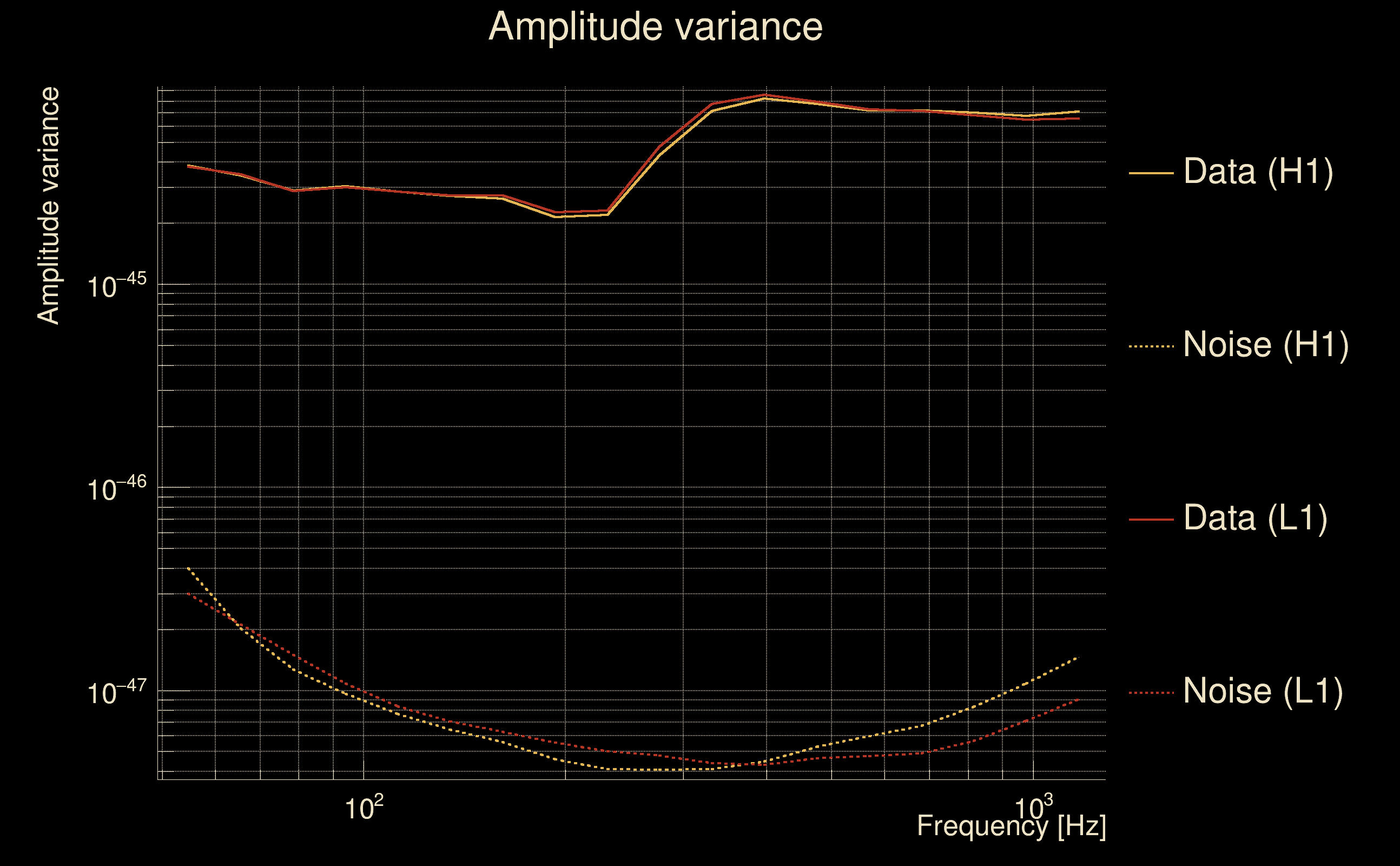

| Event time t(H1): | GPS = 1368454223 (Thu May 18 14:10:05 2023 ) → GPS = 1368454233 (Thu May 18 14:10:15 2023 ) |
| Event time t(L1): | GPS = 1368454223 (Thu May 18 14:10:15 2023 ) → GPS = 1368454233 (Thu May 18 14:10:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368454220 → GPS = 1368454236 |
| Omicron analysis time window (L1): | GPS = 1368454220 → GPS = 1368454236 |

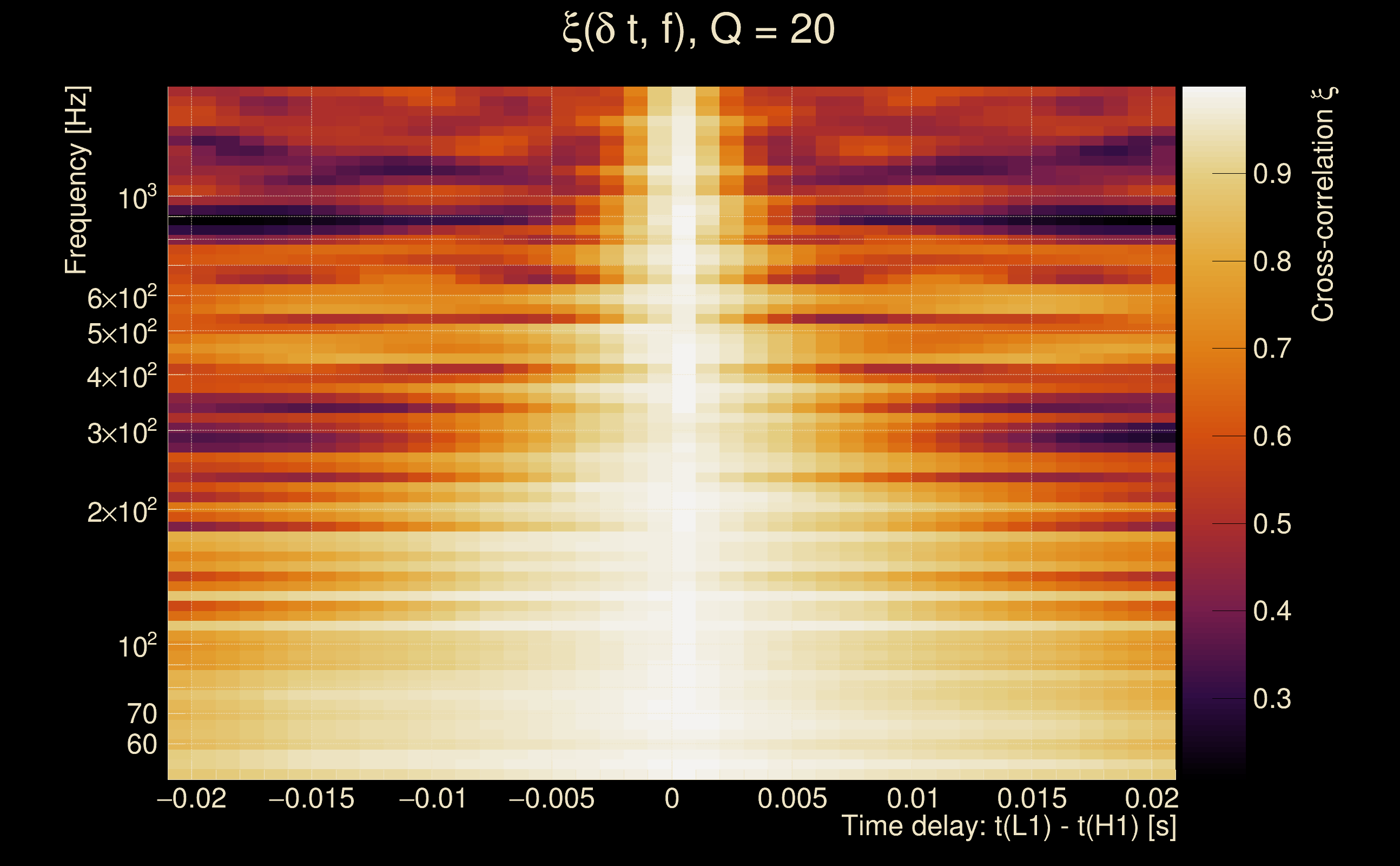

| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 108 / 217), δt_gw = 0 s |
| Time delay standard deviation: | 0.00665115 s |
| [targeted mode] Time delay probability: | 0 (195.18 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 287.19 Hz |
| Ξ: | 0.988192 ± 0.00157426 (variance = 2.4783e-06): Q0: 0.986721, Q1: 0.990099, Q2: 0.990874, Q3: 0.990722, Q4: 0.988501 |
| Rank: | R_A = 0.988192 |
| Log of amplitude ratio (L1/H1): | 0.00391868, variance = 0.150672 (L1/H1: -0.00543261, variance = 0.301306, H1/L1: -0.0129505, variance = 0.301202) |
| Amplitude ratio (L1/H1): | 1.00393 ⋇ 1.47427 (L1/H1: 0.994582 ⋇ 1.73137, H1/L1: 0.987133 ⋇ 1.73121) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.981105 |
| Antenna factor probability: | 0.697043 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 760.221, L1: 773.549 |

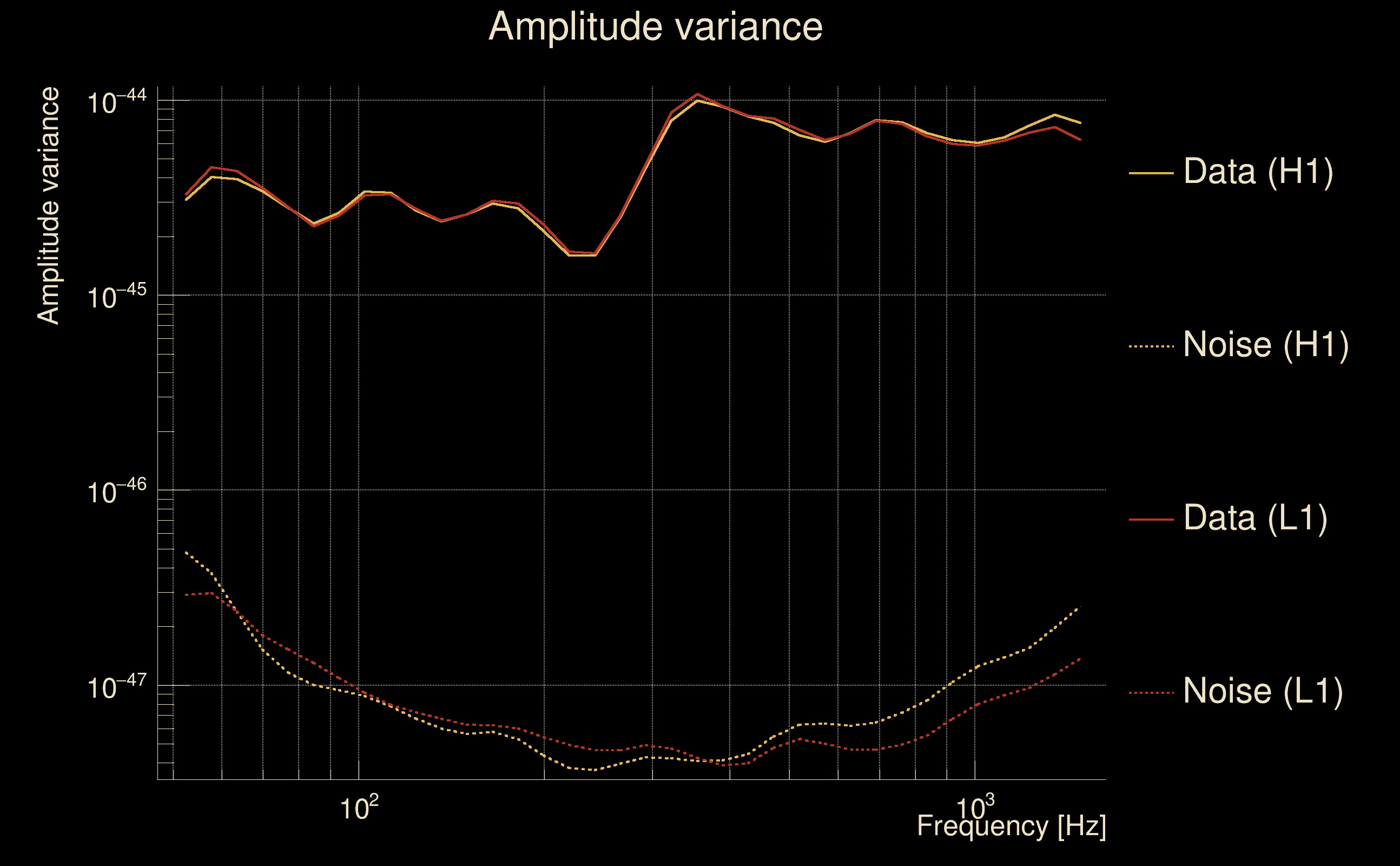

| SNR variance: | H1: 0.460318, L1: 0.472219 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

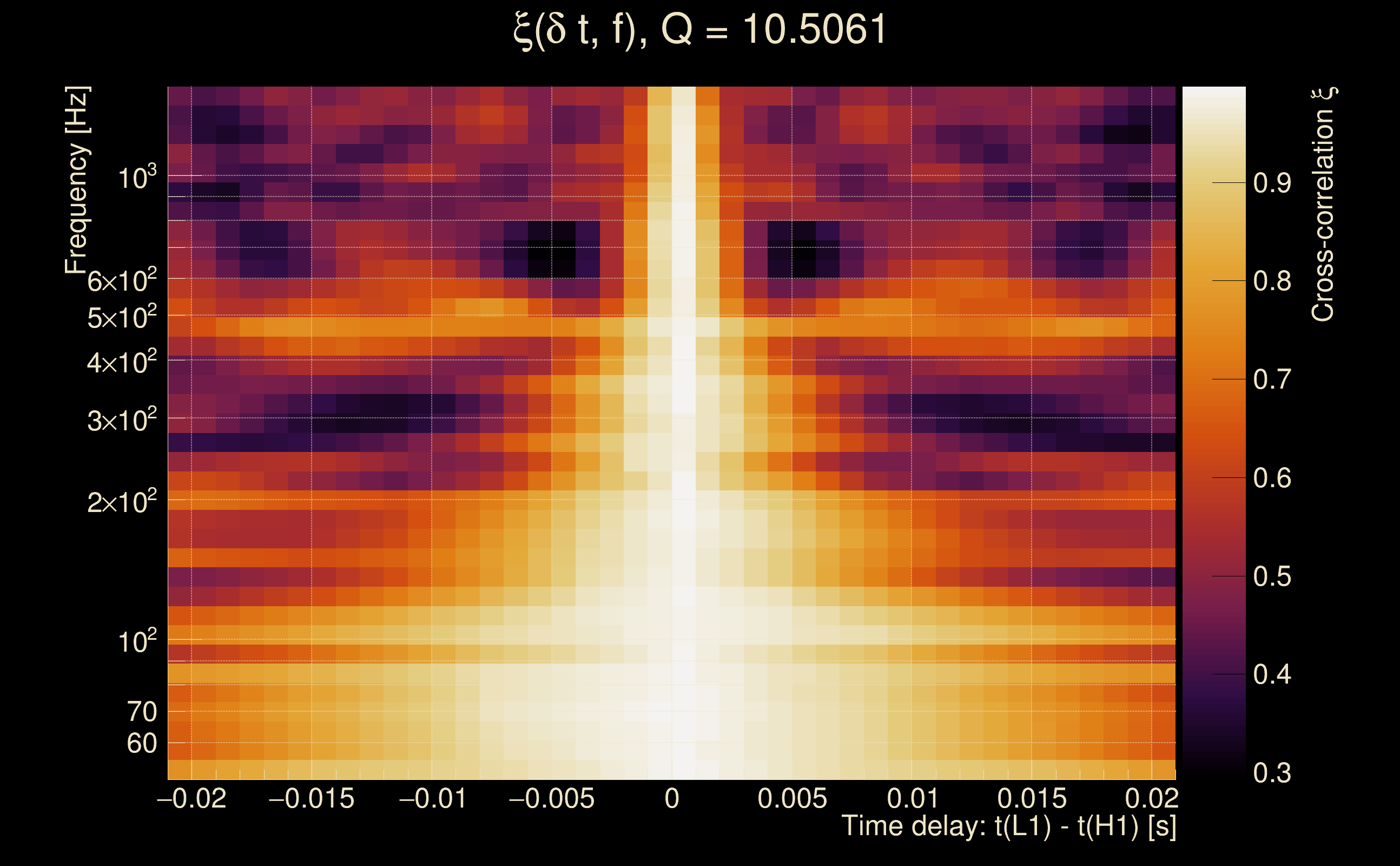

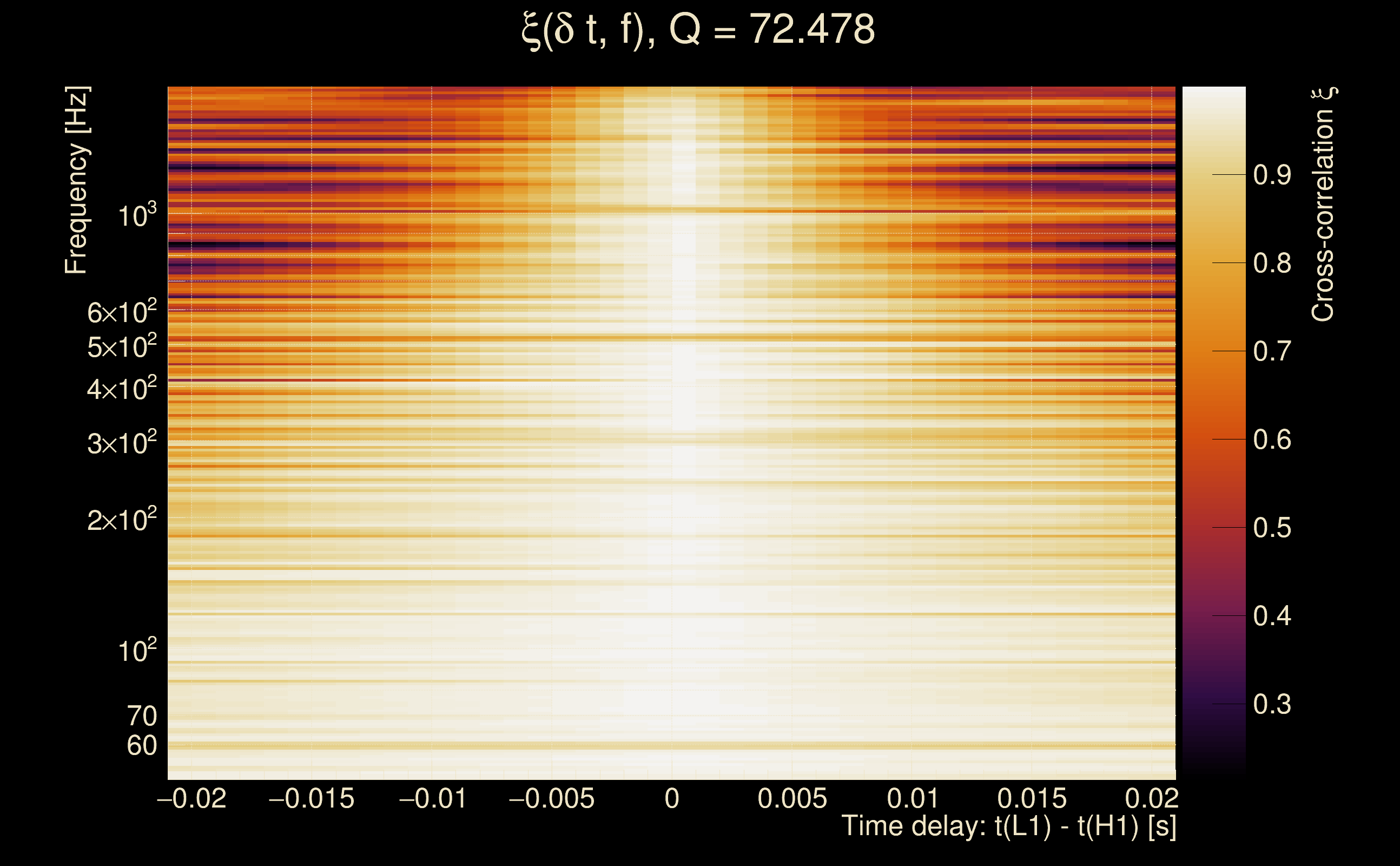

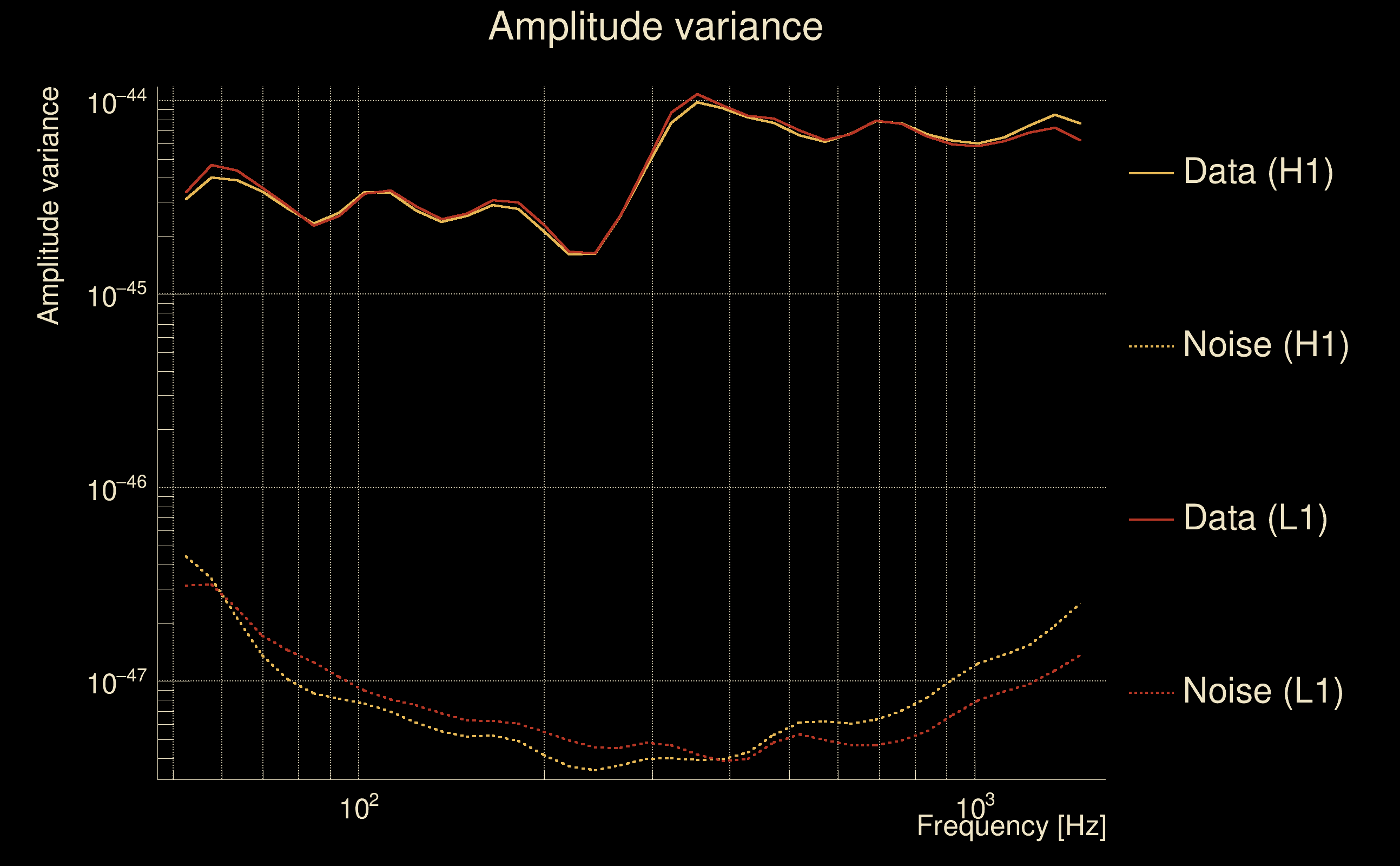

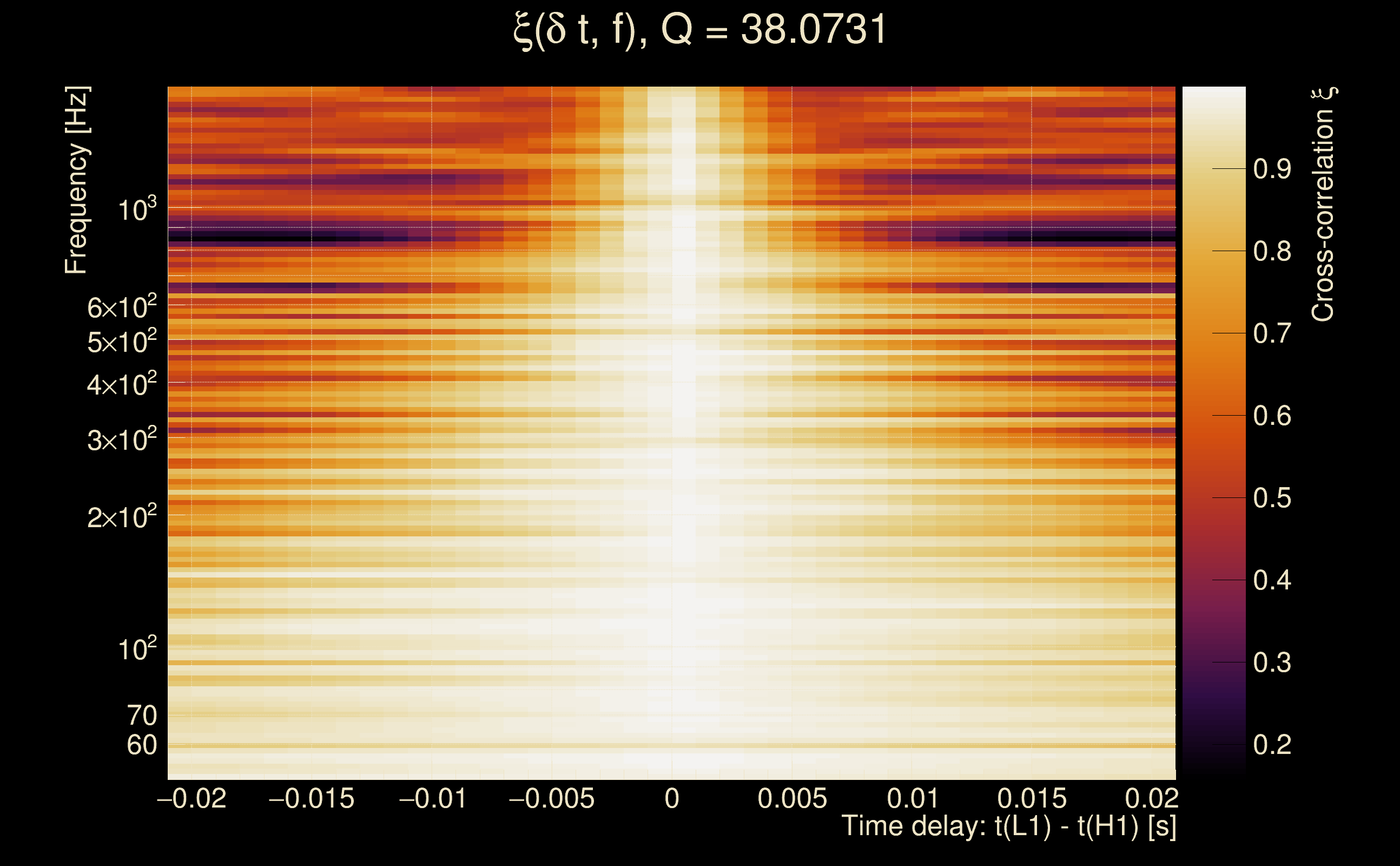

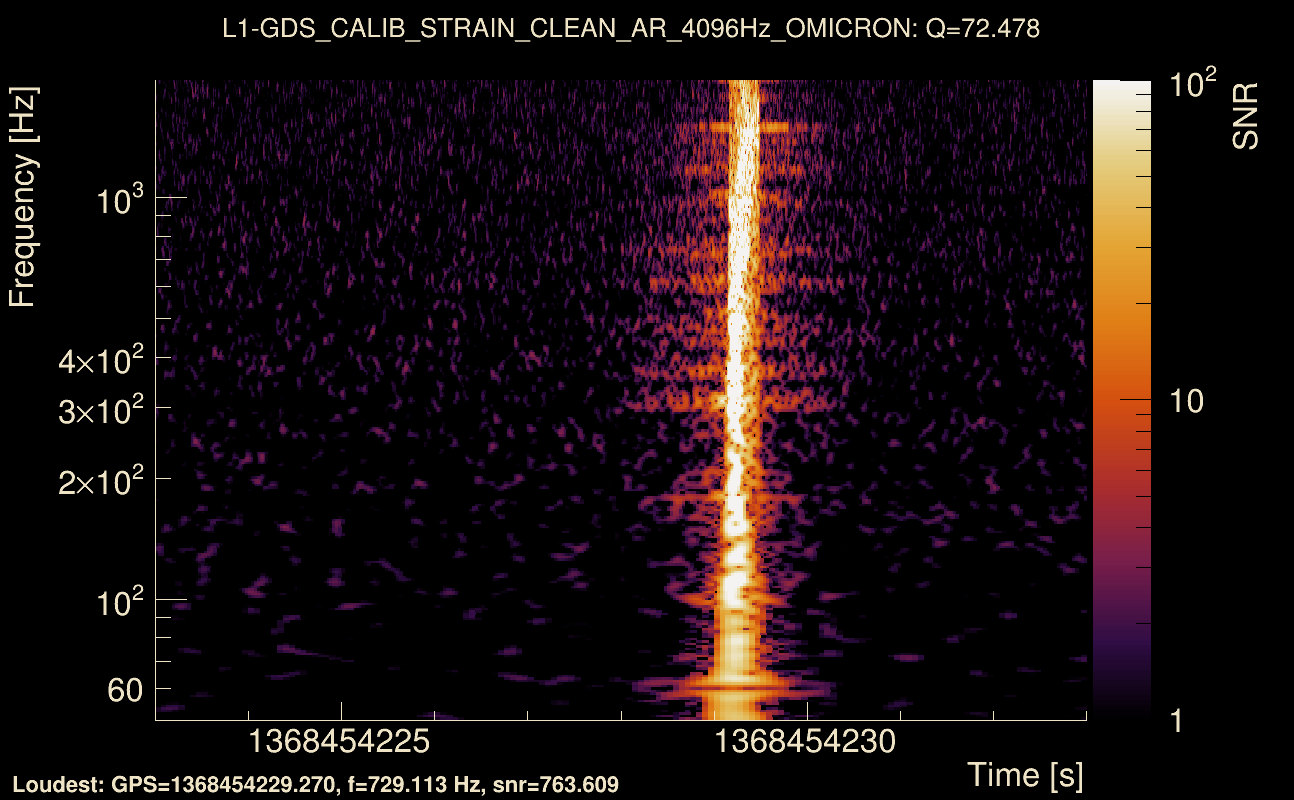

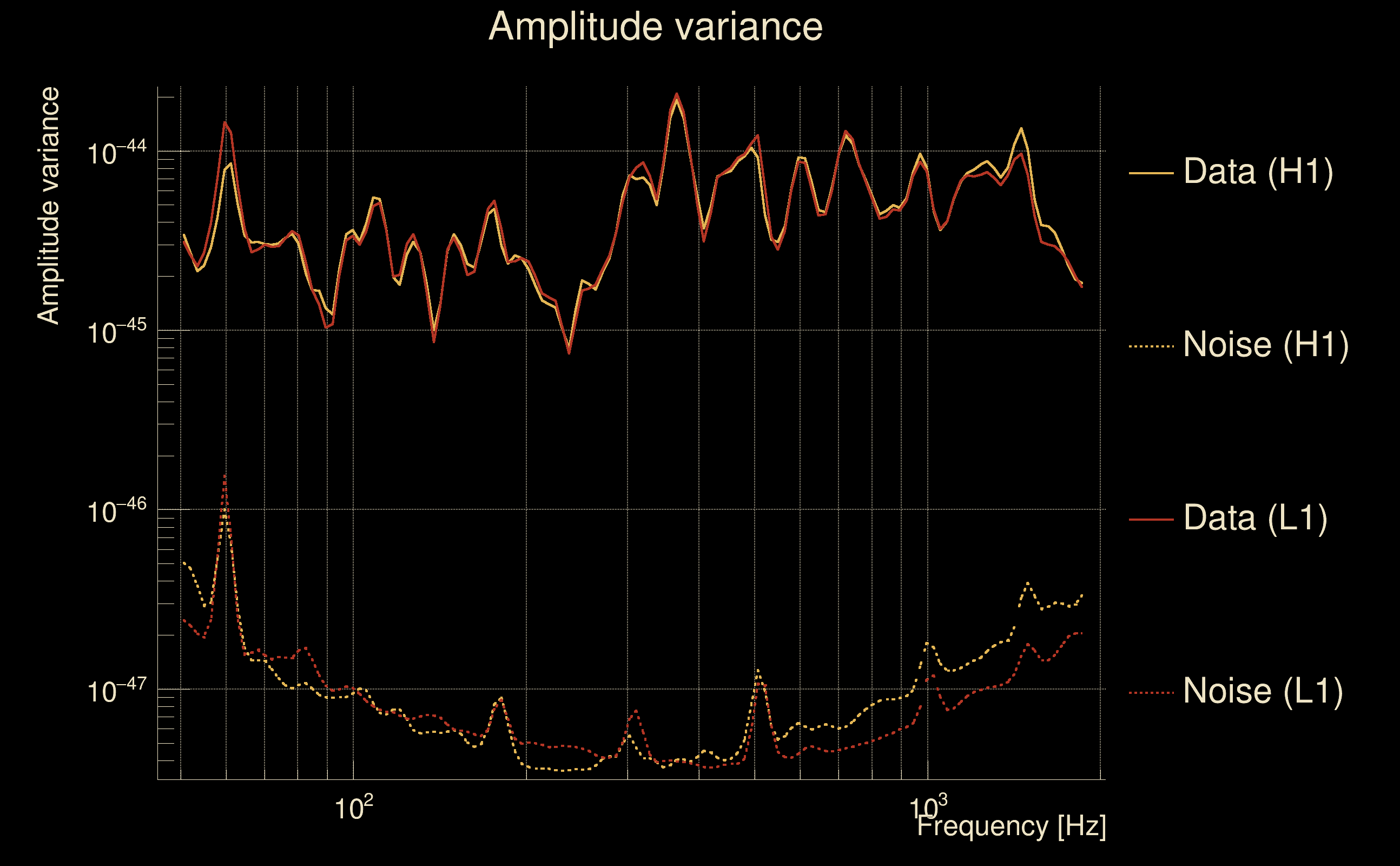

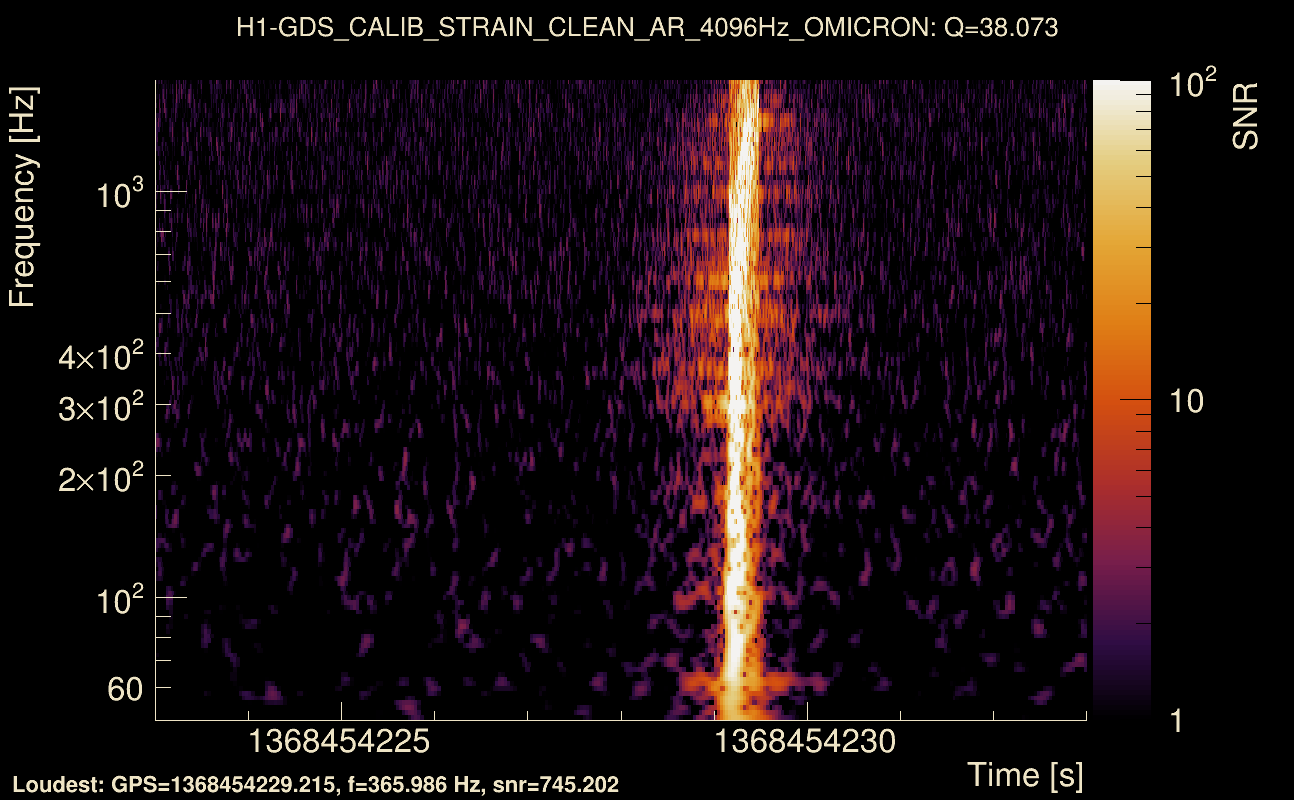

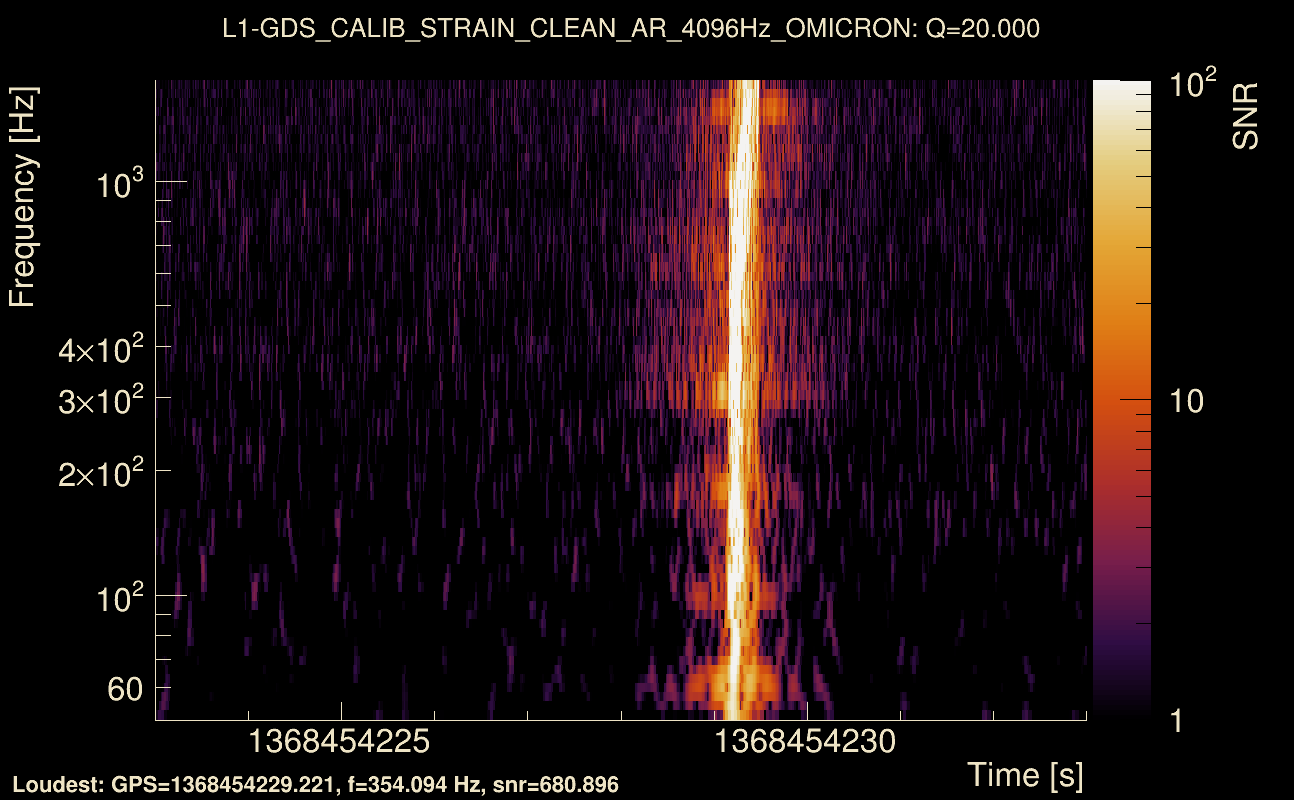

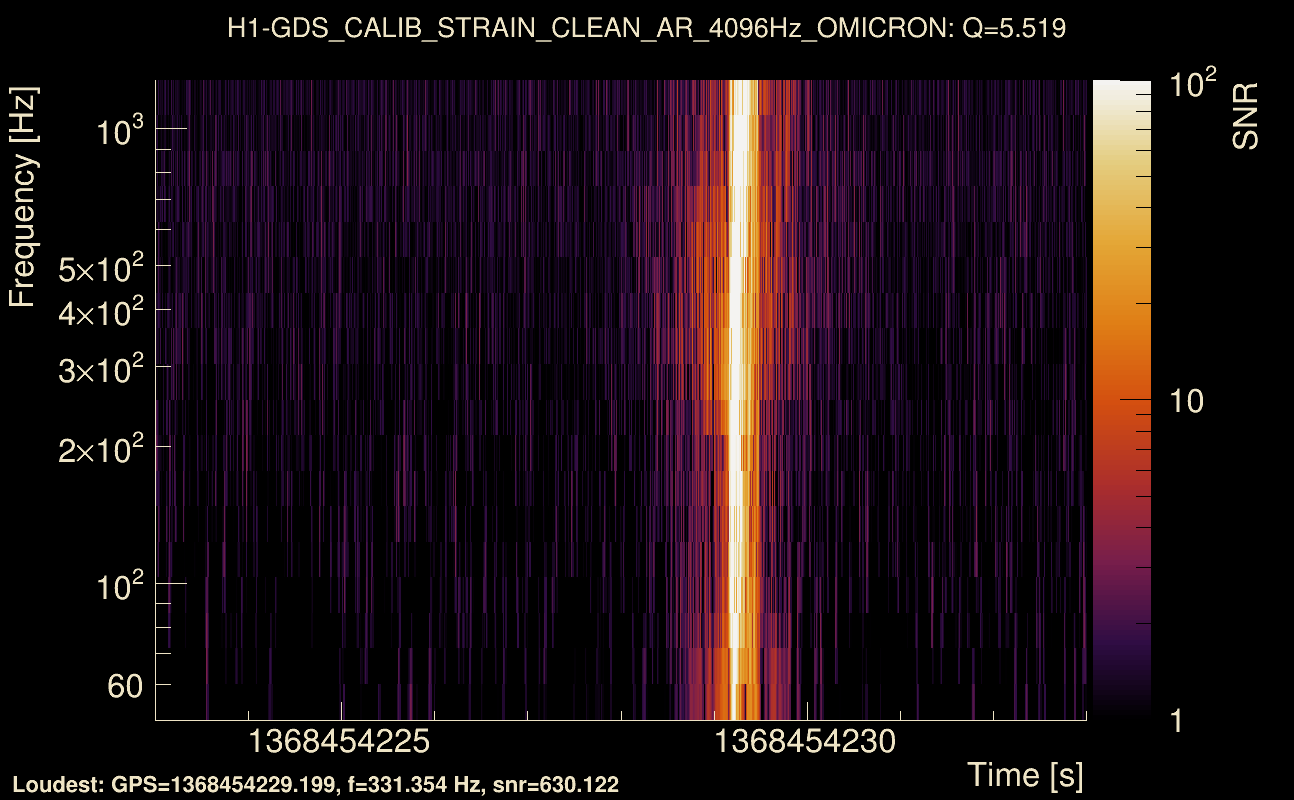

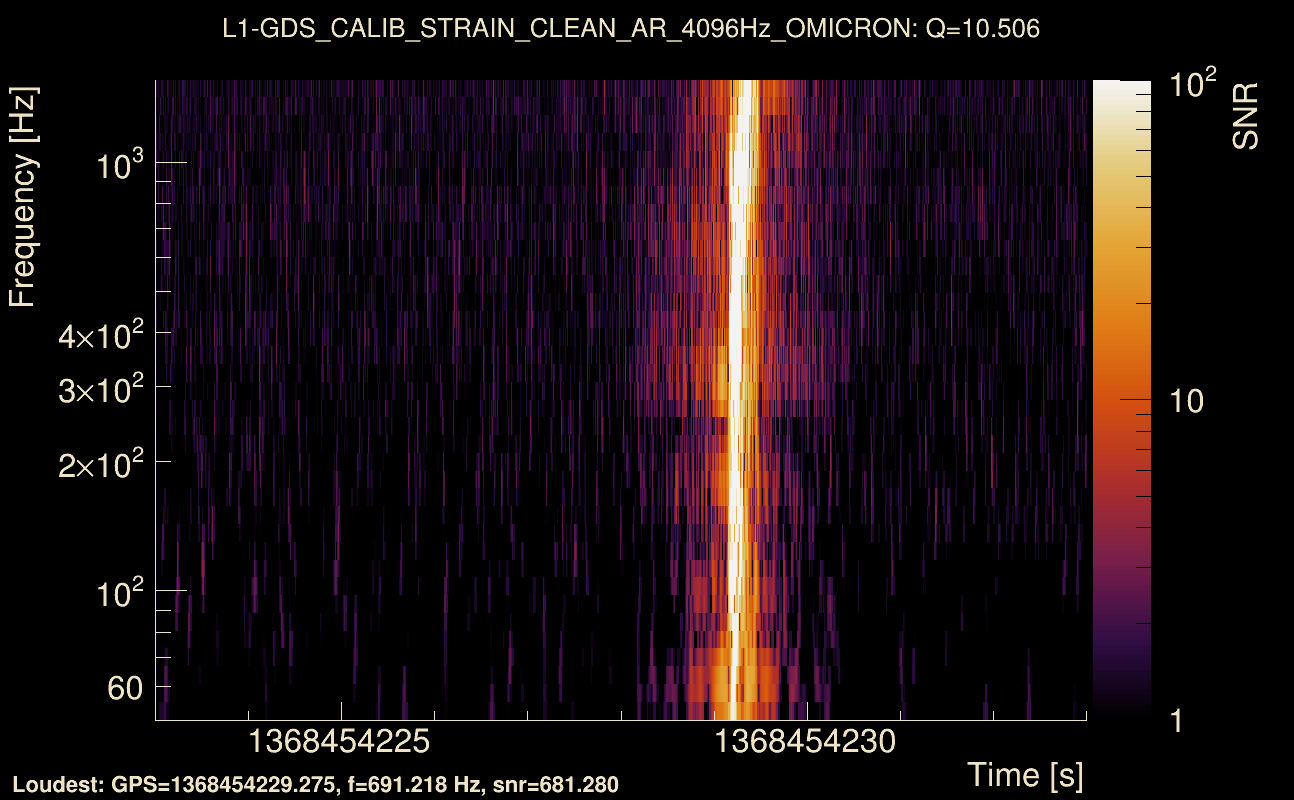

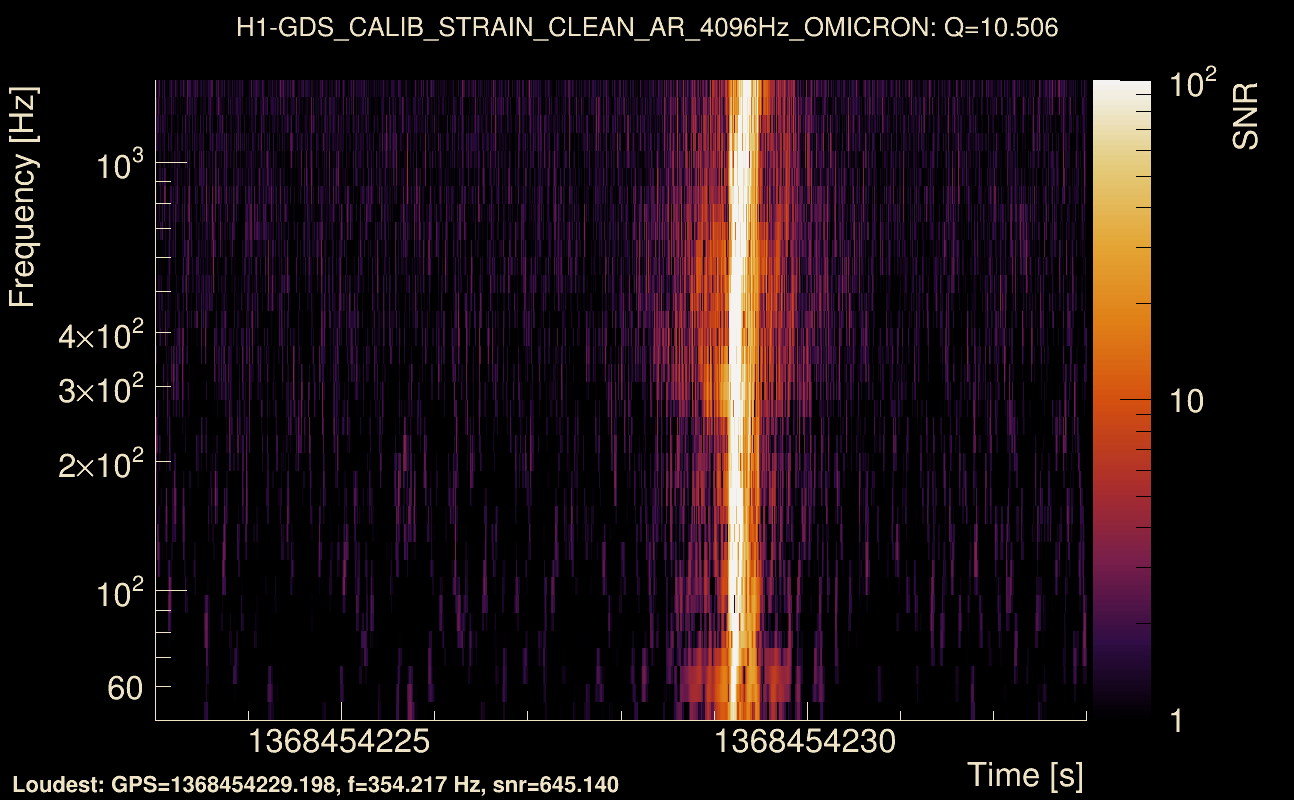

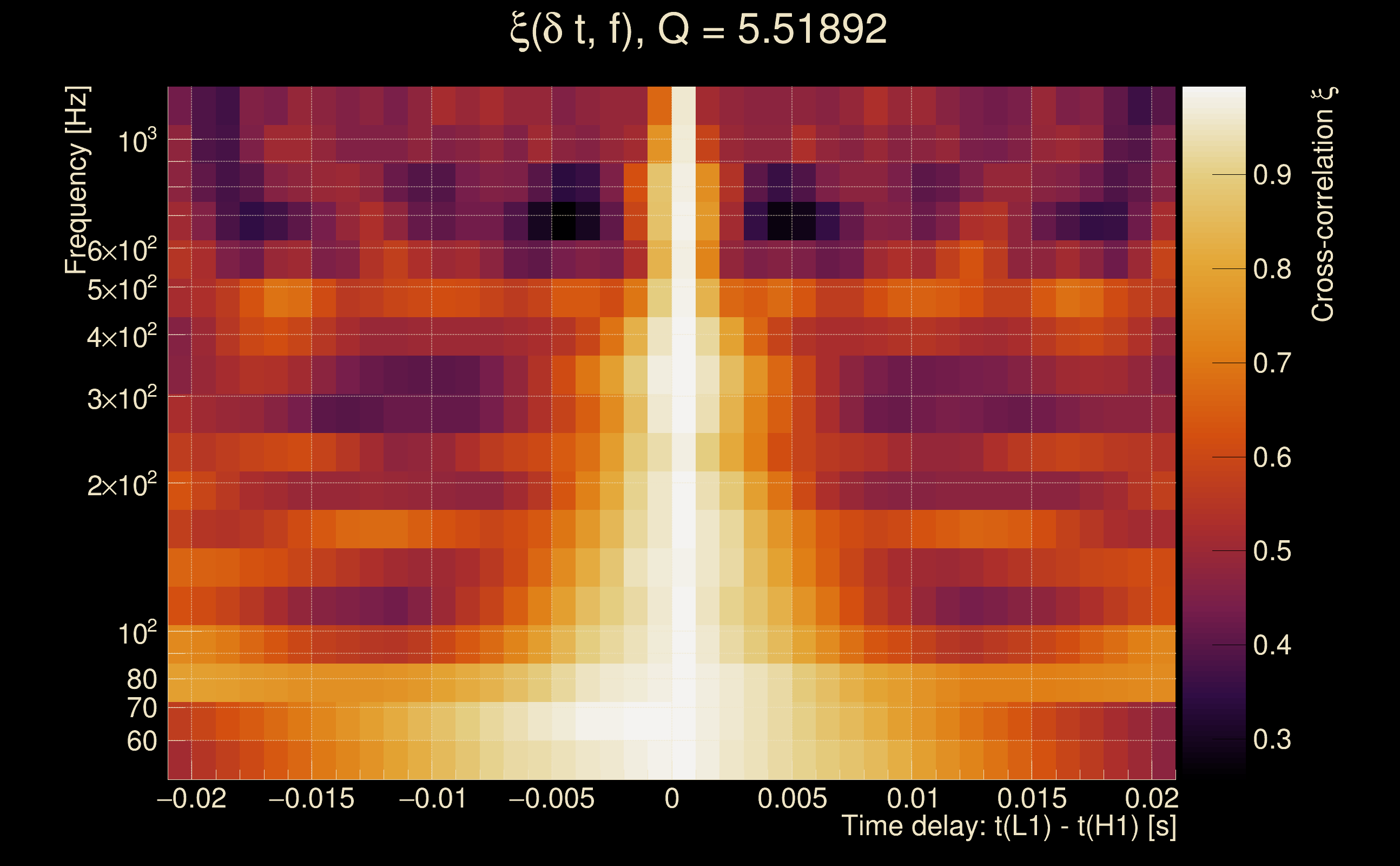

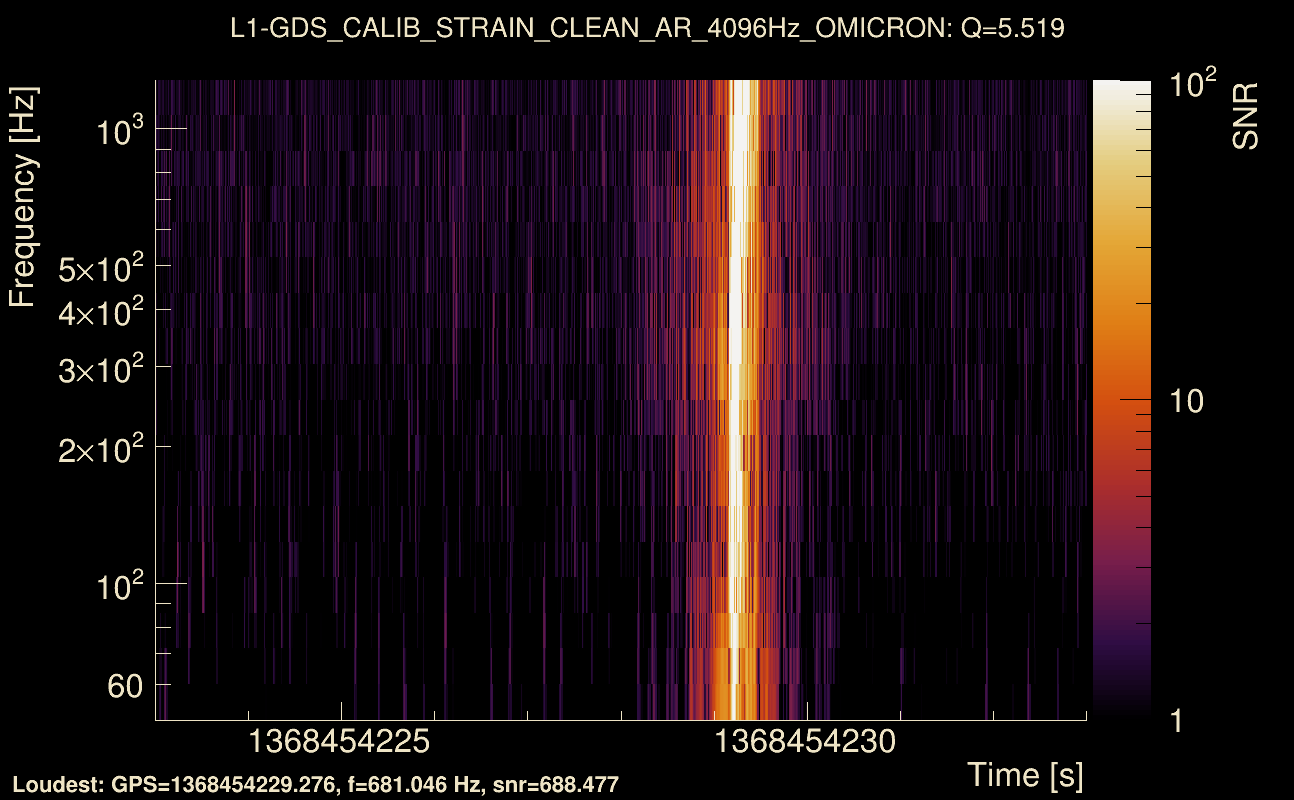

| Event time t(H1): | GPS = 1368454228 (Thu May 18 14:10:10 2023 ) → GPS = 1368454238 (Thu May 18 14:10:20 2023 ) |
| Event time t(L1): | GPS = 1368454228 (Thu May 18 14:10:20 2023 ) → GPS = 1368454238 (Thu May 18 14:10:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368454225 → GPS = 1368454241 |
| Omicron analysis time window (L1): | GPS = 1368454225 → GPS = 1368454241 |
| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 108 / 217), δt_gw = 0 s |
| Time delay standard deviation: | 0.00665114 s |
| [targeted mode] Time delay probability: | 0 (195.164 sigmas), δt_target = -0.00963616 s |
| Frequency: | 287.194 Hz |
| Ξ: | 0.98819 ± 0.00161457 (variance = 2.60683e-06): Q0: 0.986672, Q1: 0.990121, Q2: 0.990943, Q3: 0.990815, Q4: 0.988567 |
| Rank: | R_A = 0.98819 |
| Log of amplitude ratio (L1/H1): | 0.00526945, variance = 0.150705 (L1/H1: -0.00404461, variance = 0.301328, H1/L1: -0.014191, variance = 0.301217) |
| Amplitude ratio (L1/H1): | 1.00528 ⋇ 1.47434 (L1/H1: 0.995964 ⋇ 1.73141, H1/L1: 0.985909 ⋇ 1.73123) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.981258 |
| Antenna factor probability: | 0.694721 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 755.836, L1: 772.284 |
| SNR variance: | H1: 386.828, L1: 447.155 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

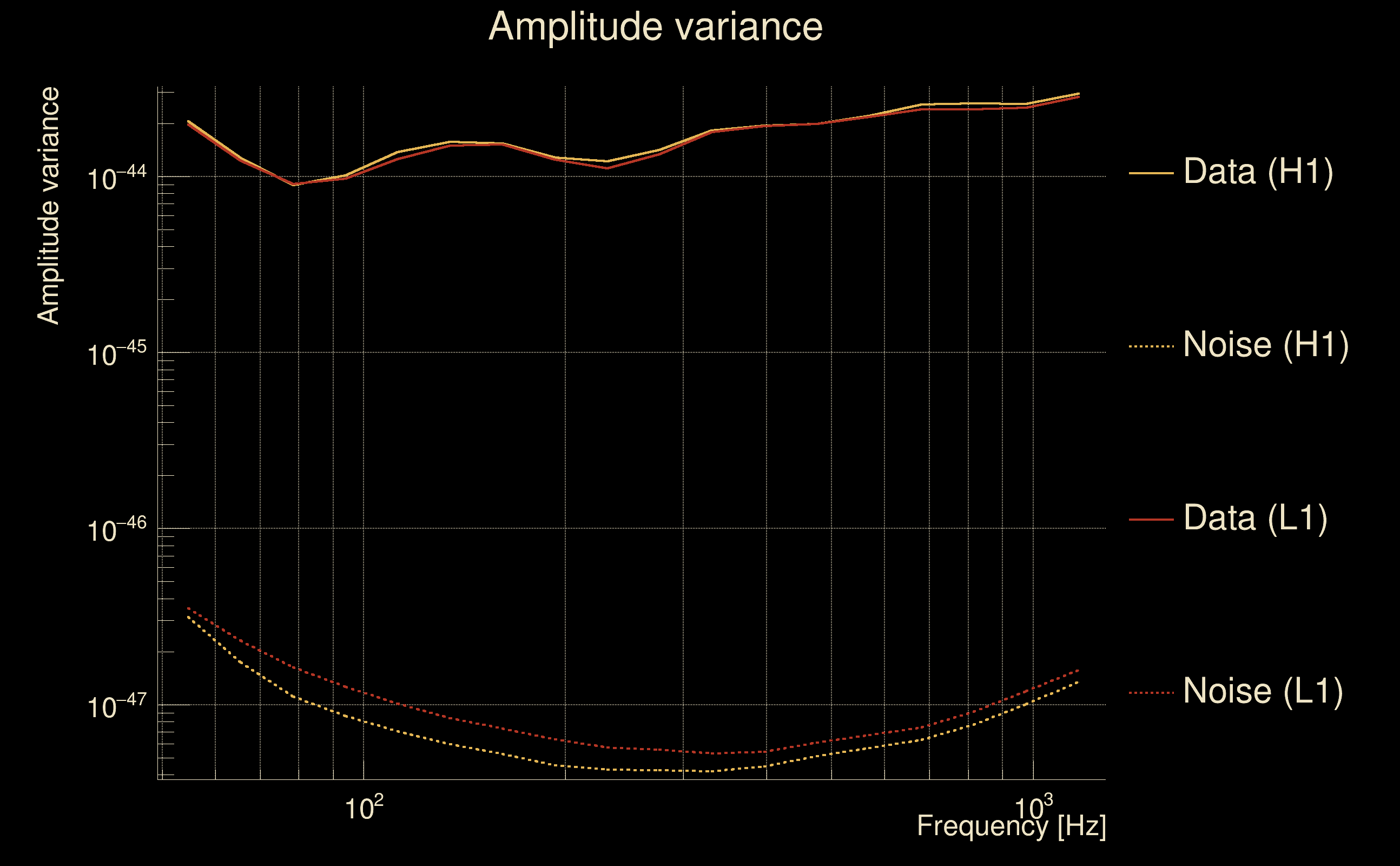

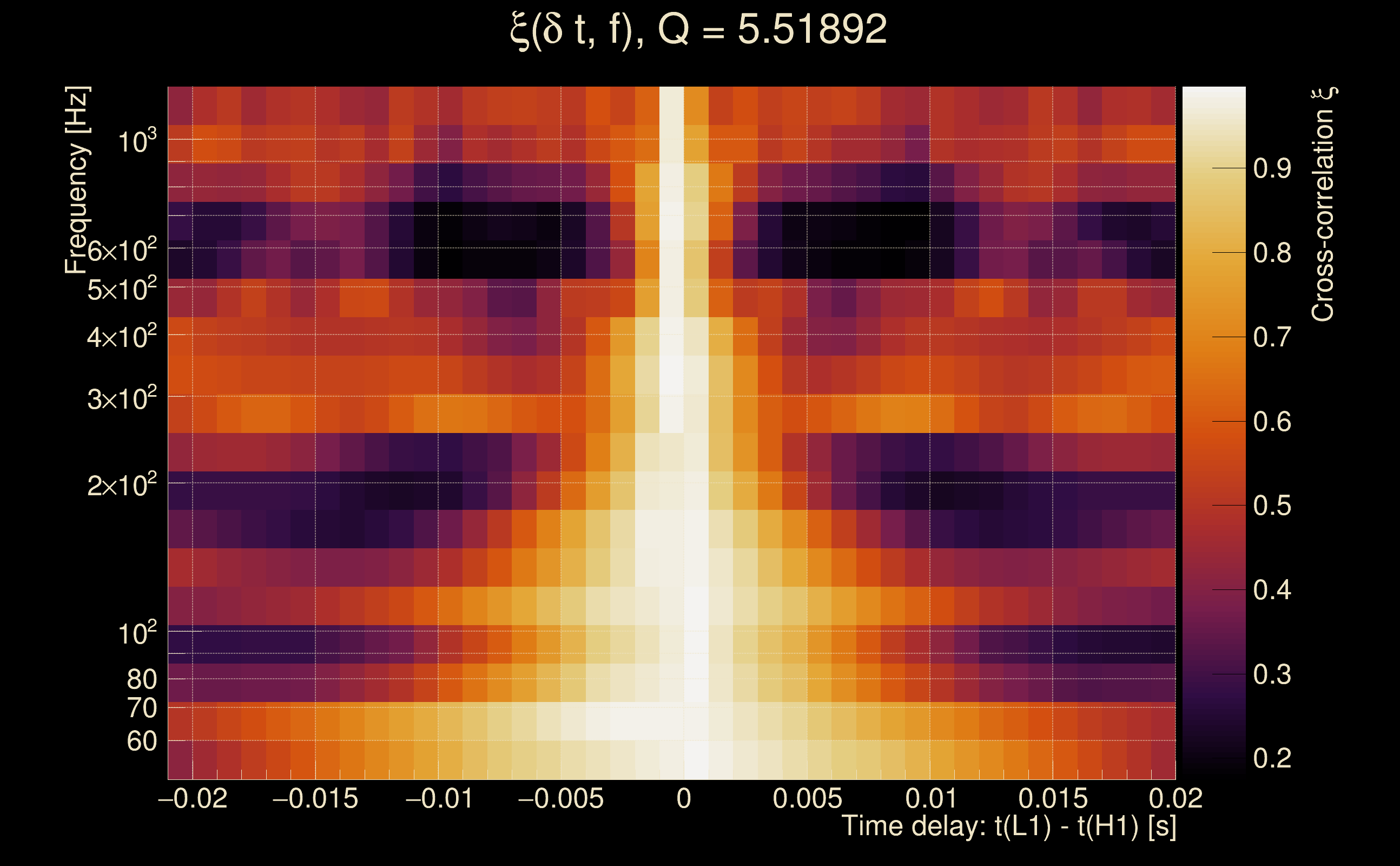

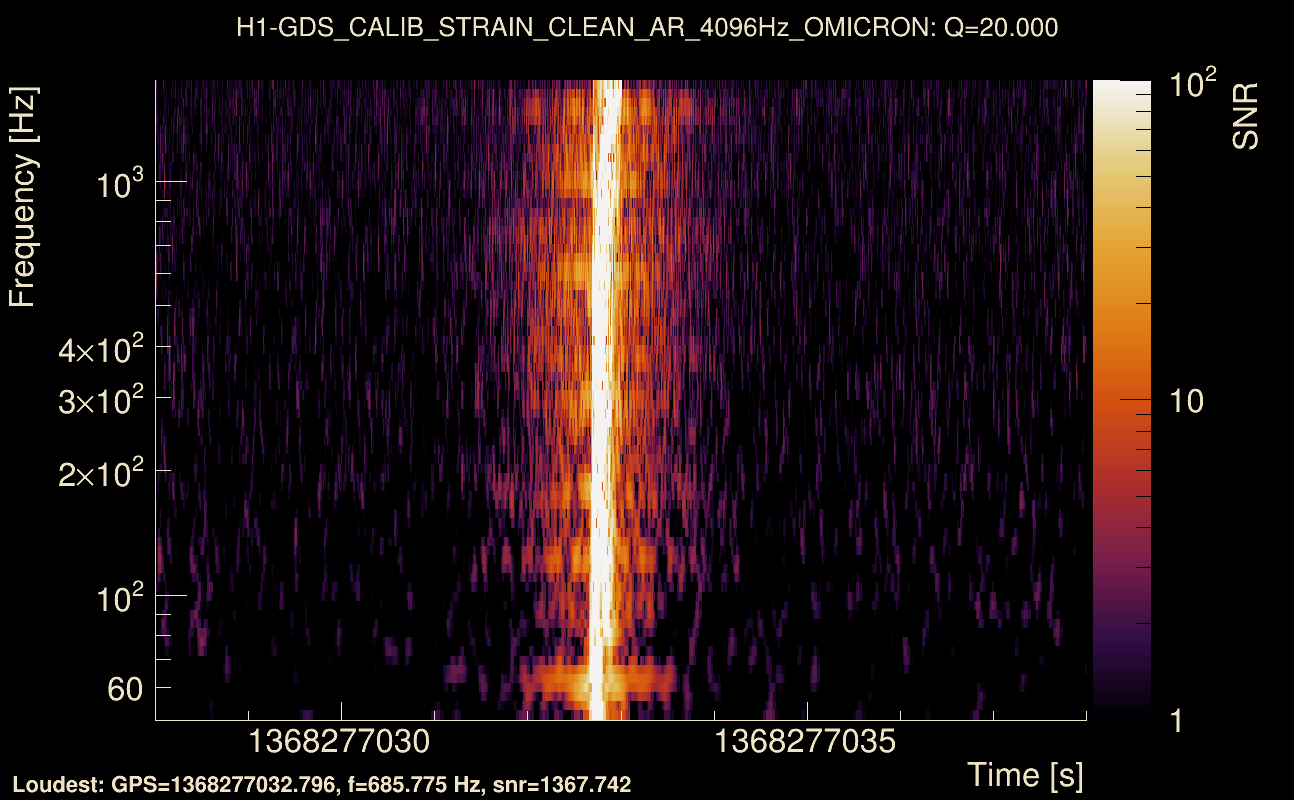

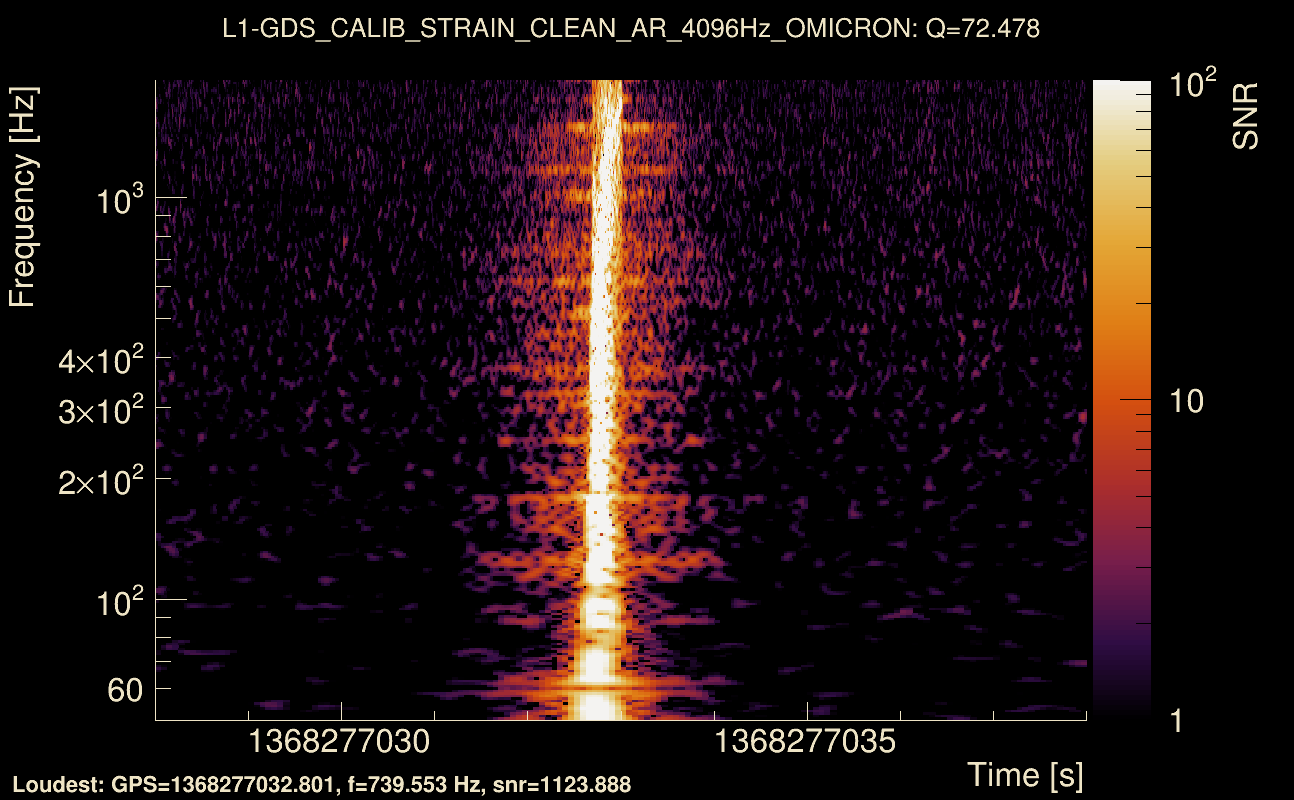

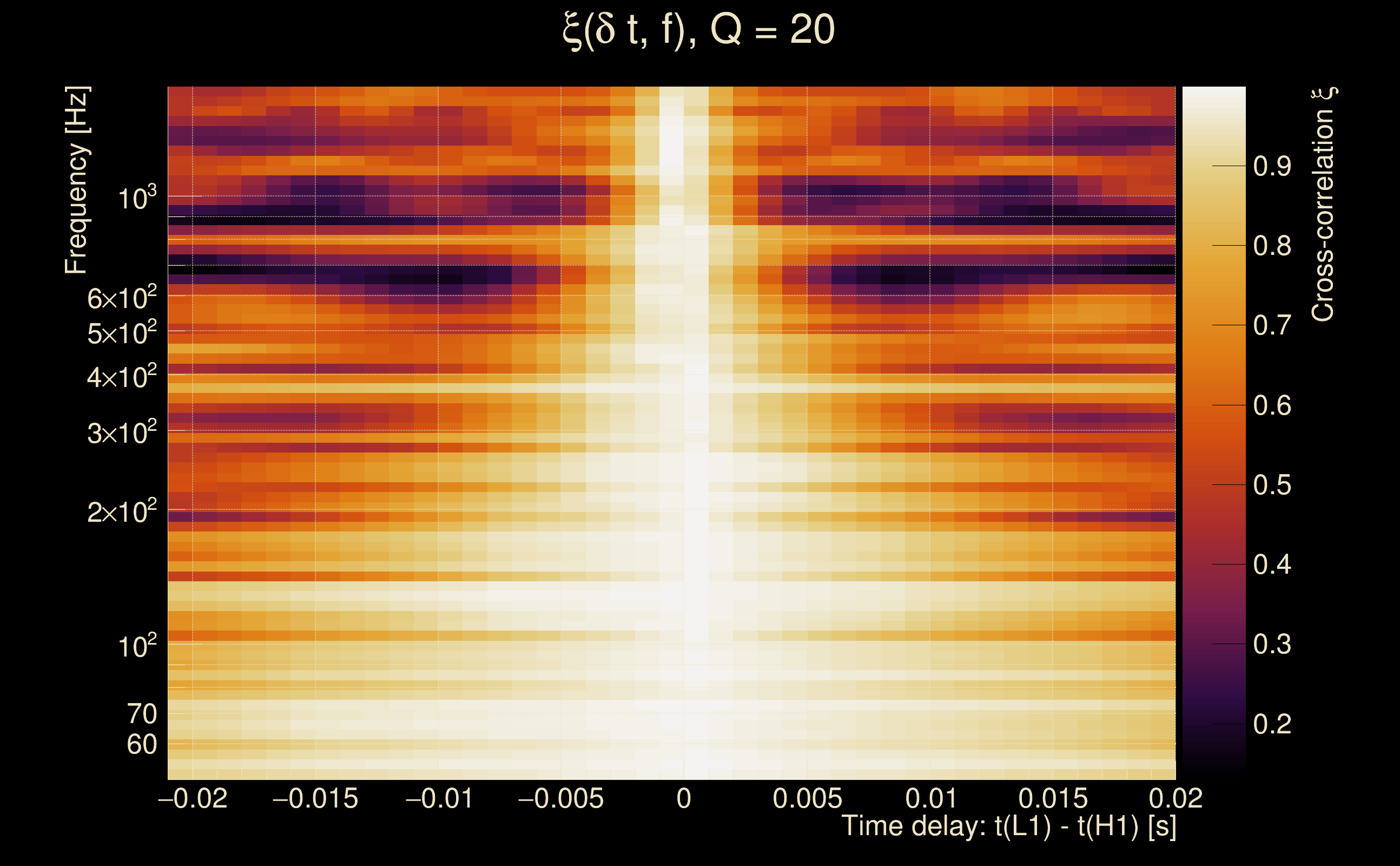

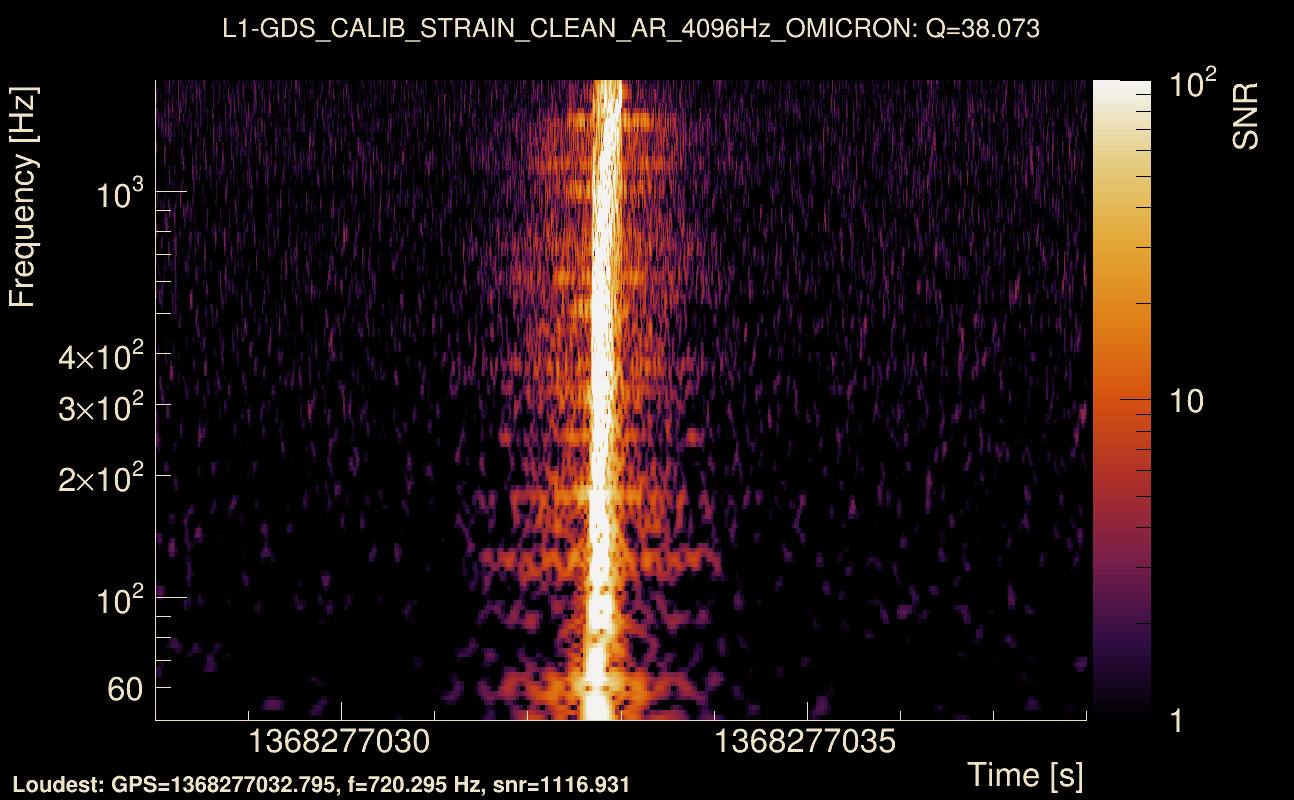

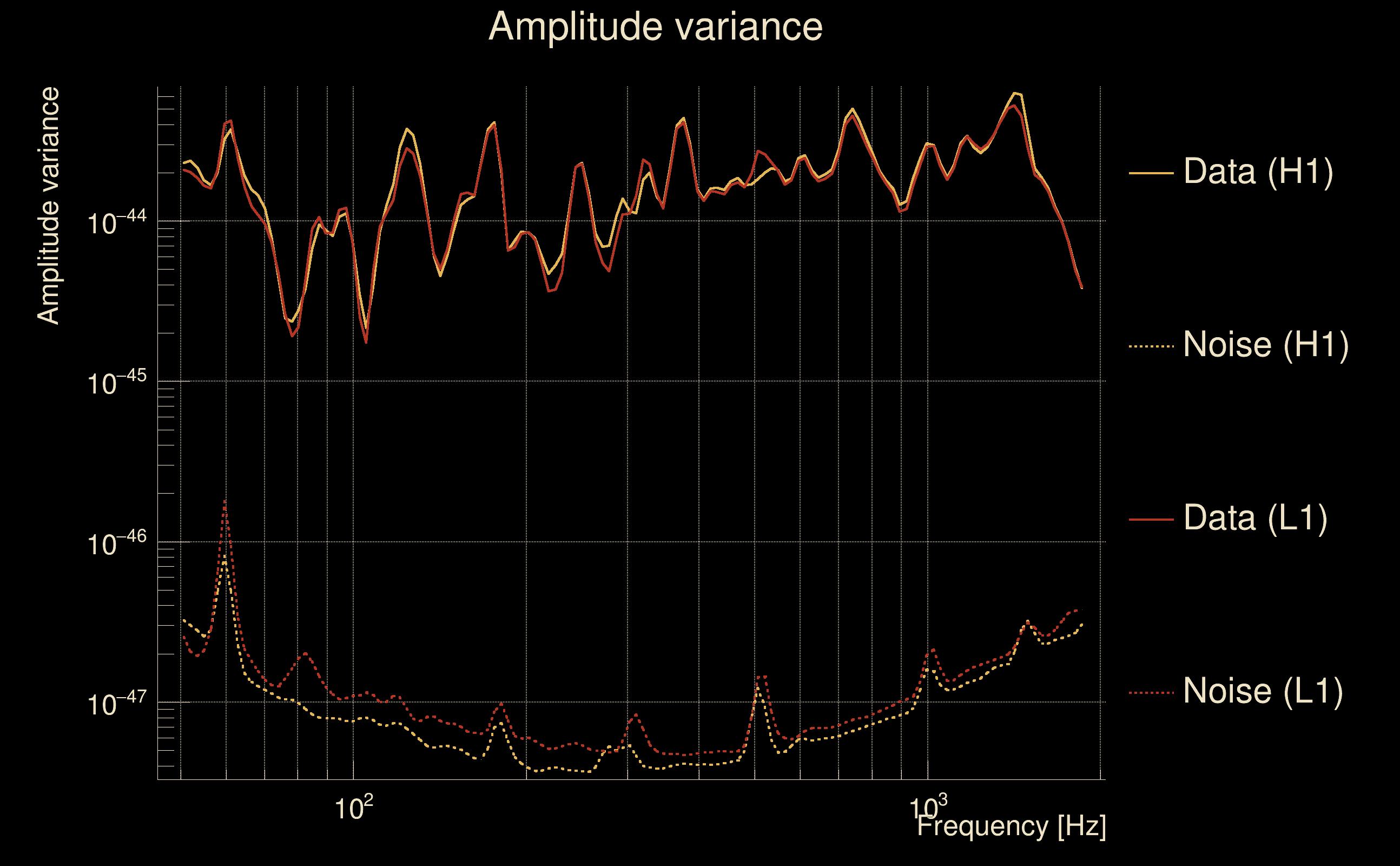

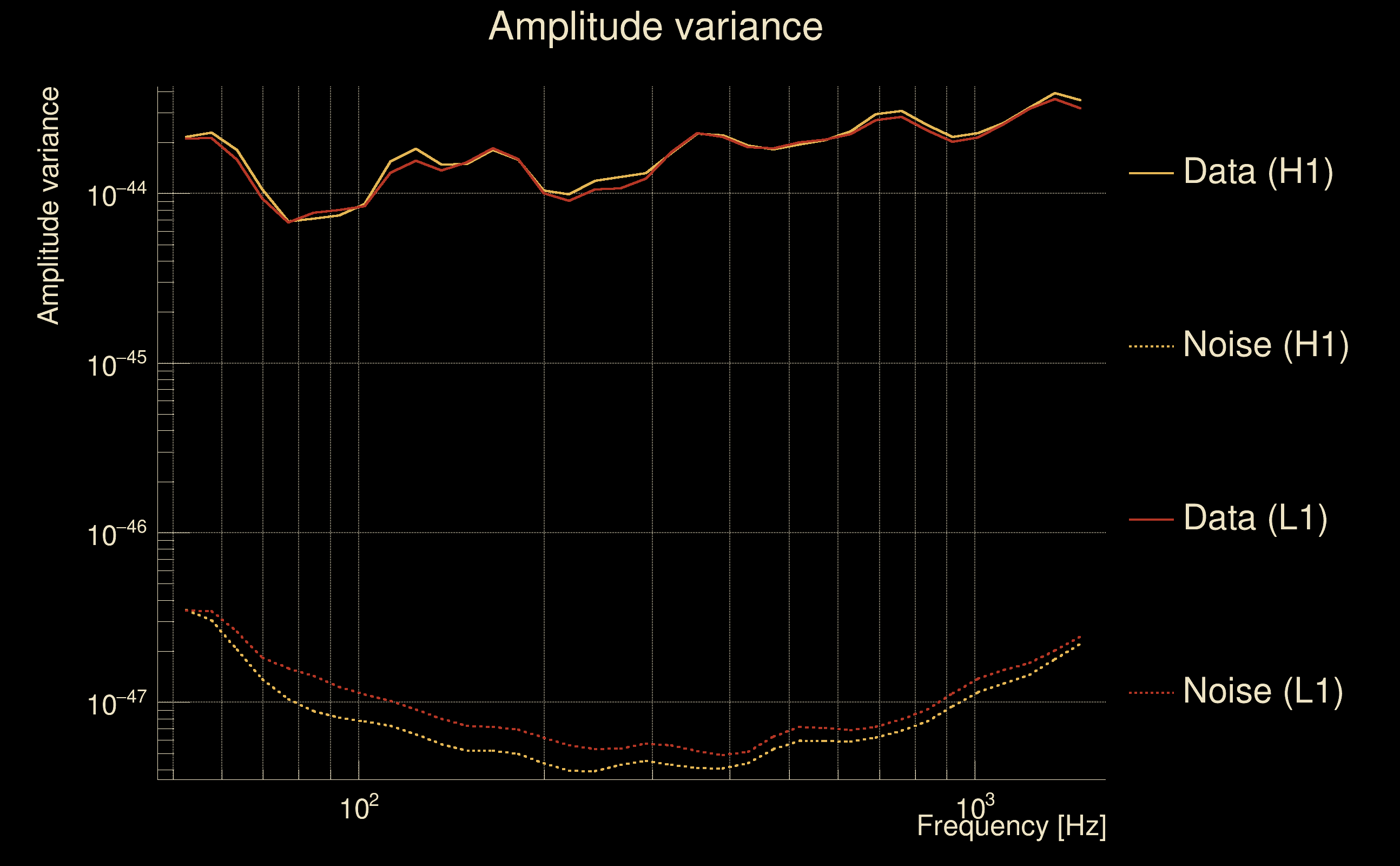

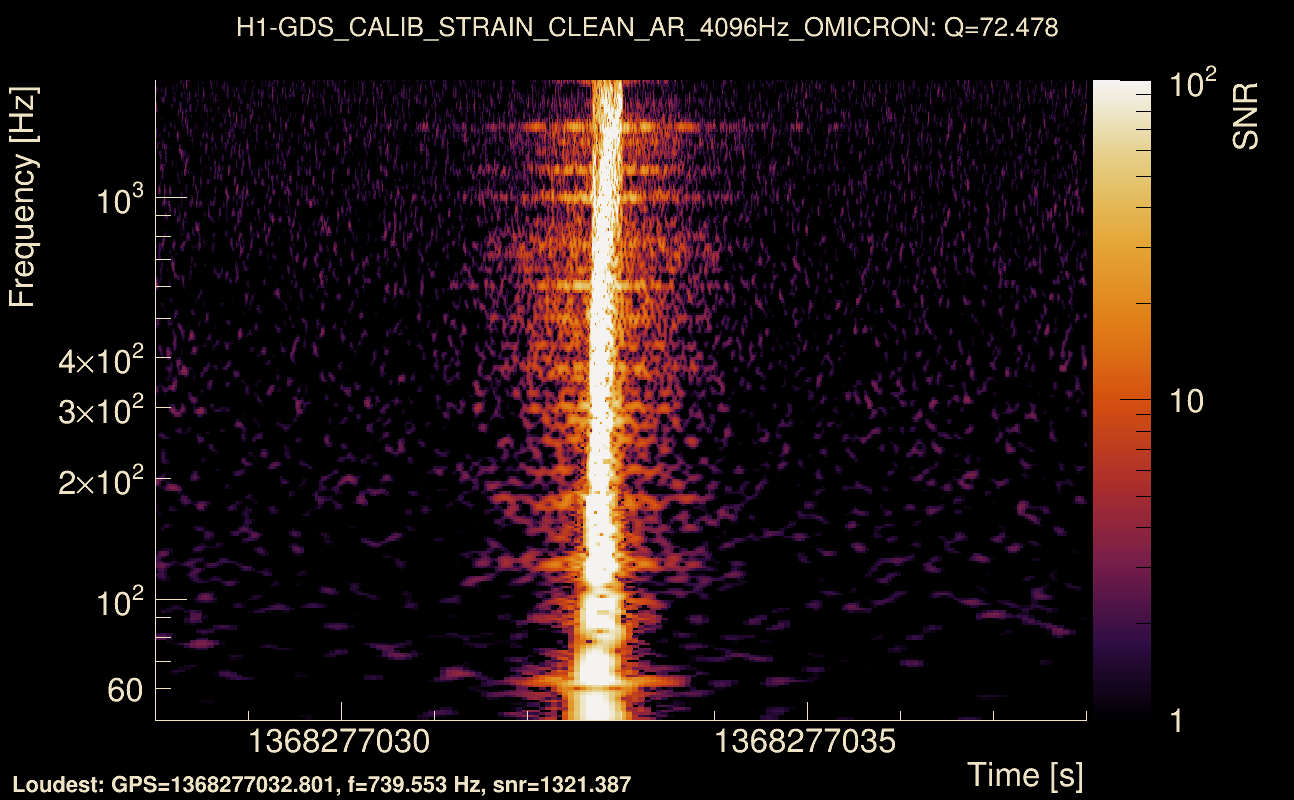

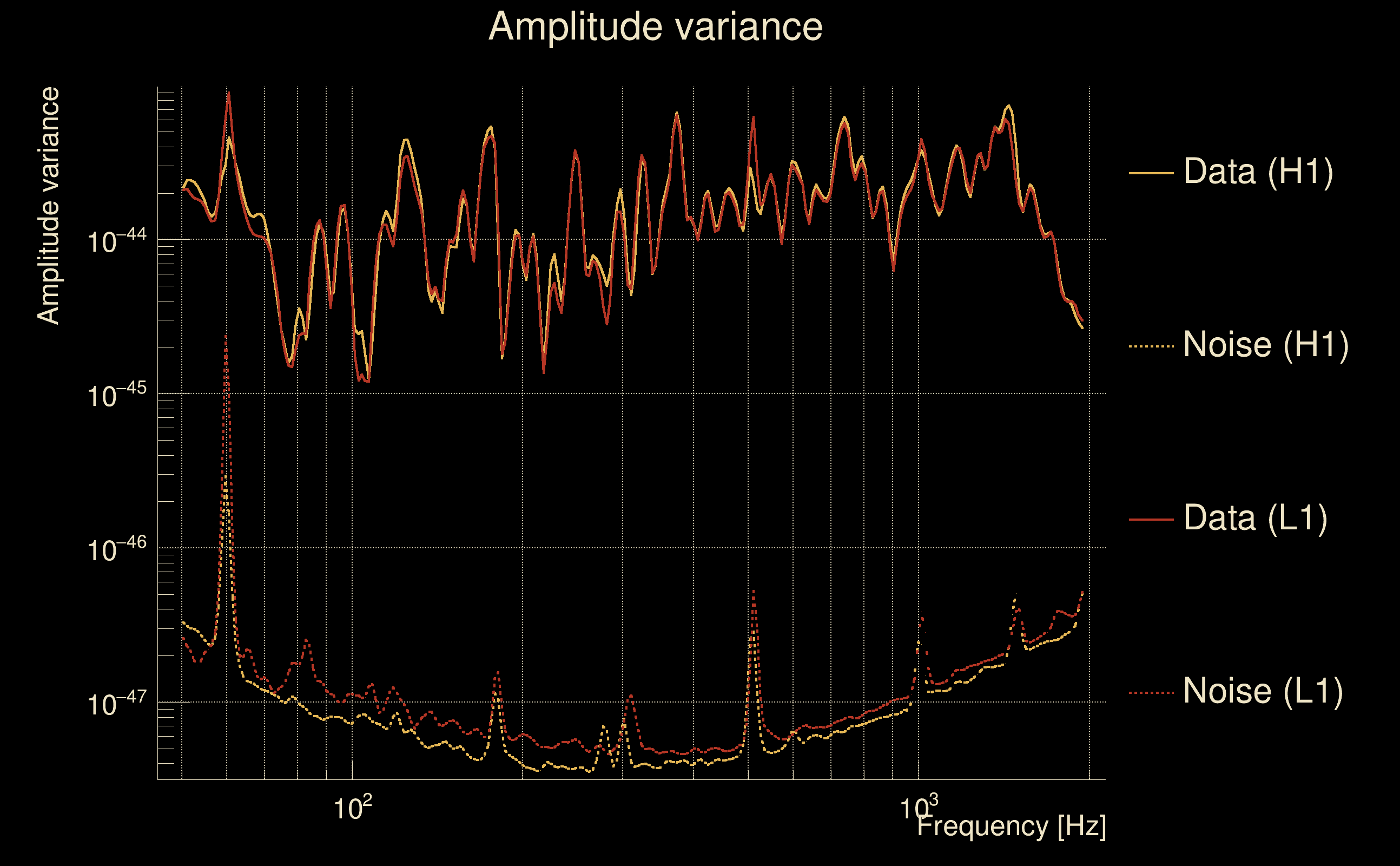

| Event time t(H1): | GPS = 1368277028 (Tue May 16 12:56:50 2023 ) → GPS = 1368277038 (Tue May 16 12:57:00 2023 ) |
| Event time t(L1): | GPS = 1368277028 (Tue May 16 12:57:00 2023 ) → GPS = 1368277038 (Tue May 16 12:57:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368277025 → GPS = 1368277041 |
| Omicron analysis time window (L1): | GPS = 1368277025 → GPS = 1368277041 |

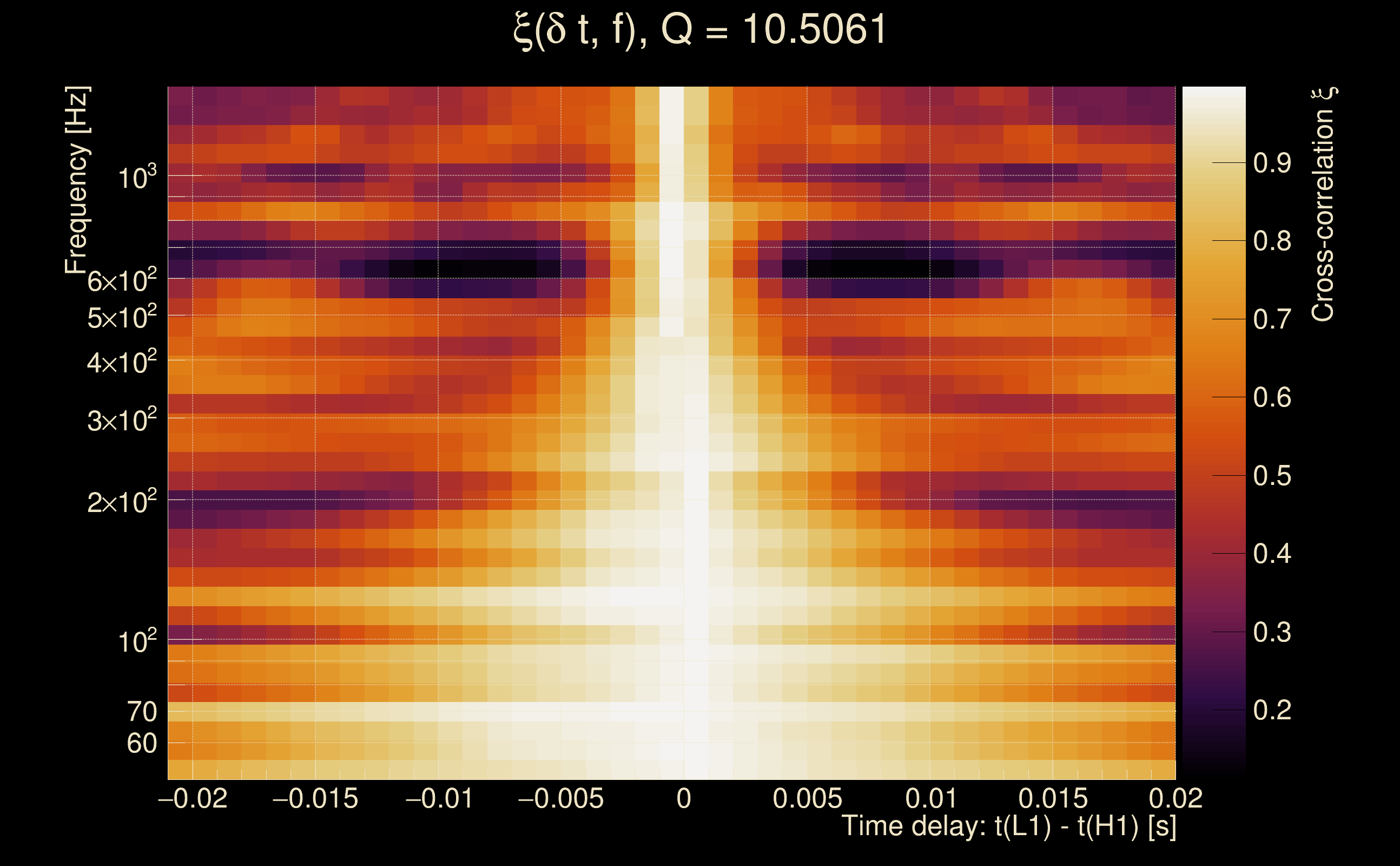

| Time delay between detectors t(L1) - t(H1): | -0.000850157 s (slice index = 108 / 217), δt_gw = -0.000850157 s |
| Time delay standard deviation: | 0.0193974 s |
| [targeted mode] Time delay probability: | 1.35436e-148 (25.9613 sigmas), δt_target = -0.00963545 s |
| Frequency: | 286.994 Hz |
| Ξ: | 0.98704 ± 0.00129905 (variance = 1.68754e-06): Q0: 0.985899, Q1: 0.989583, Q2: 0.989146, Q3: 0.987653, Q4: 0.98771 |
| Rank: | R_A = 0.98704 |
| Log of amplitude ratio (L1/H1): | -0.0310436, variance = 0.153036 (L1/H1: -0.0405384, variance = 0.301774, H1/L1: 0.0190014, variance = 0.301969) |
| Amplitude ratio (L1/H1): | 0.969433 ⋇ 1.47875 (L1/H1: 0.960272 ⋇ 1.73211, H1/L1: 1.01918 ⋇ 1.73242) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.977887 |
| Antenna factor probability: | 0.502903 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 1465.13, L1: 1300.97 |
| SNR variance: | H1: 1295.89, L1: 1084.2 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368350923 (Wed May 17 09:28:25 2023 ) → GPS = 1368350933 (Wed May 17 09:28:35 2023 ) |
| Event time t(L1): | GPS = 1368350923 (Wed May 17 09:28:35 2023 ) → GPS = 1368350933 (Wed May 17 09:28:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368350920 → GPS = 1368350936 |
| Omicron analysis time window (L1): | GPS = 1368350920 → GPS = 1368350936 |
| Time delay between detectors t(L1) - t(H1): | 0.644291 s (slice index = 94 / 217), δt_gw = 0.000290889 s |
| Time delay standard deviation: | 0.0730504 s |
| [targeted mode] Time delay probability: | 0.216402 (1.23615 sigmas), δt_target = -0.00995135 s |
| Frequency: | 123.749 Hz |
| Ξ: | 0.080794 ± 0.054547 (variance = 0.00297537): Q0: 0.10679, Q1: 0.187441, Q2: 0.221451, Q3: 0.263127, Q4: 0.148628 |
| Rank: | R_A = 0.080794 |
| Log of amplitude ratio (L1/H1): | -2.33494, variance = 0.824281 (L1/H1: -3.55719, variance = 1.28052, H1/L1: -1.8113, variance = 1.16643) |
| Amplitude ratio (L1/H1): | 0.0968164 ⋇ 2.47911 (L1/H1: 0.0285189 ⋇ 3.10061, H1/L1: 0.163442 ⋇ 2.94473) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.000599295 |
| Antenna factor probability: | 0.0322136 |
| Number of rejected frequency rows: | Q0: 2 / 18, Q1: 21 / 36, Q2: 49 / 70, Q3: 109 / 134, Q4: 238 / 258 |
| Maximum signal-to-noise ratio: | H1: 32.1665, L1: 17.4645 |
| SNR variance: | H1: 1.38109, L1: 0.664981 |

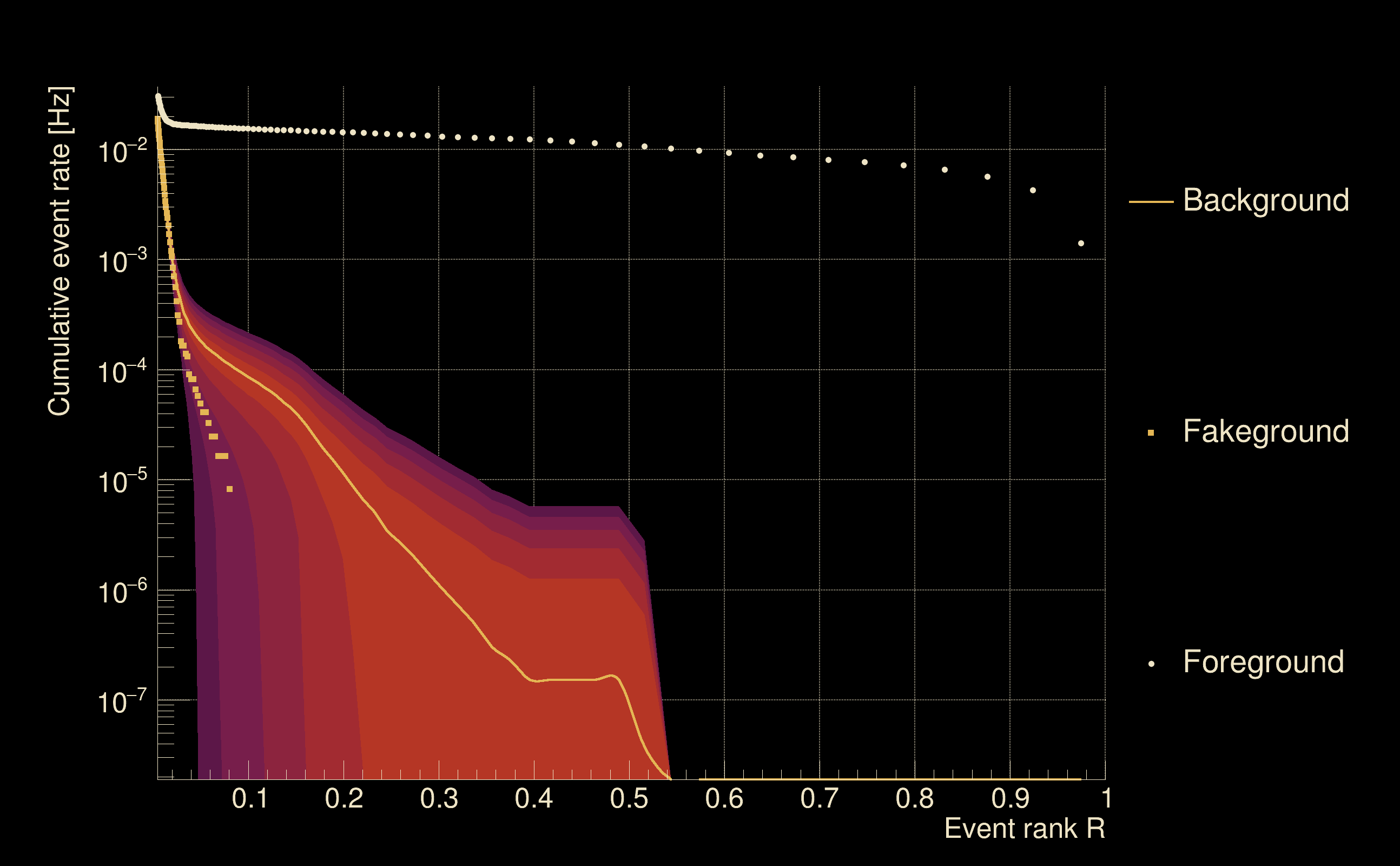

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.51585 |
| Alternative threshold at 1/100 yrs: | R > 0.51585 |
| Alternative threshold at 1/10 yrs: | R > 0.51585 |
| Alternative threshold at 1/1 yr: | R > 0.51585 |
| Alternative threshold at 1/1 d: | R > 0.198802 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

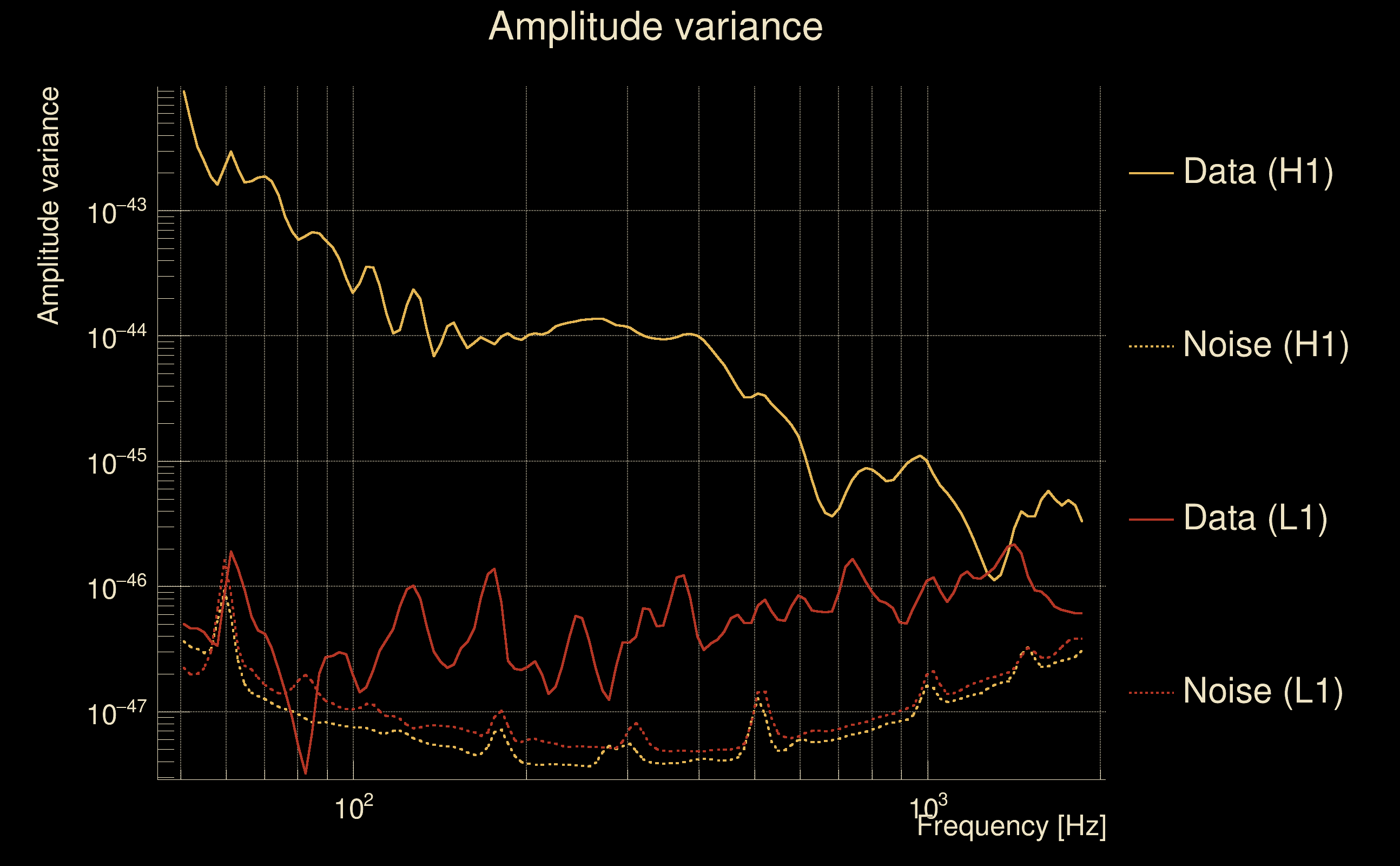

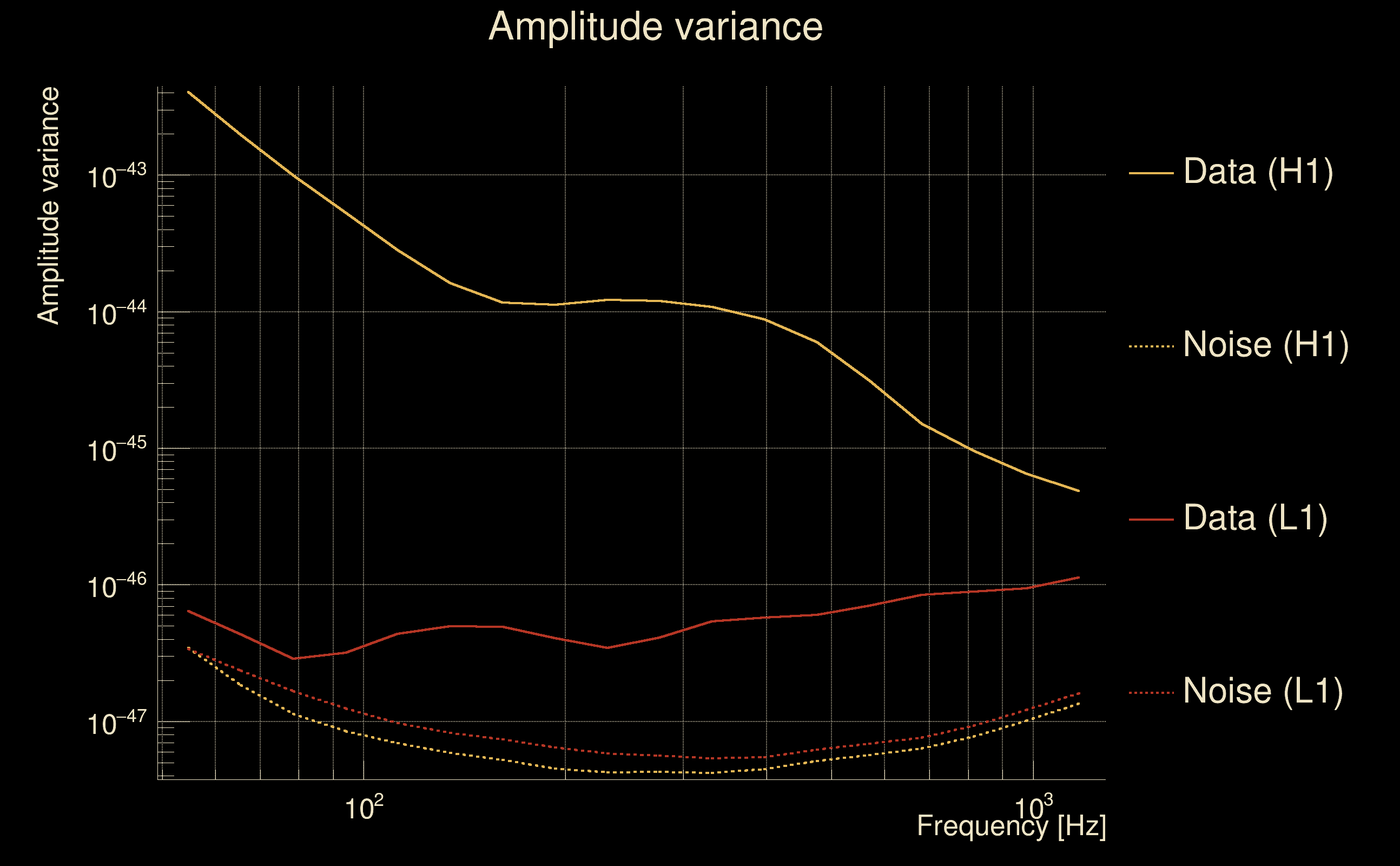

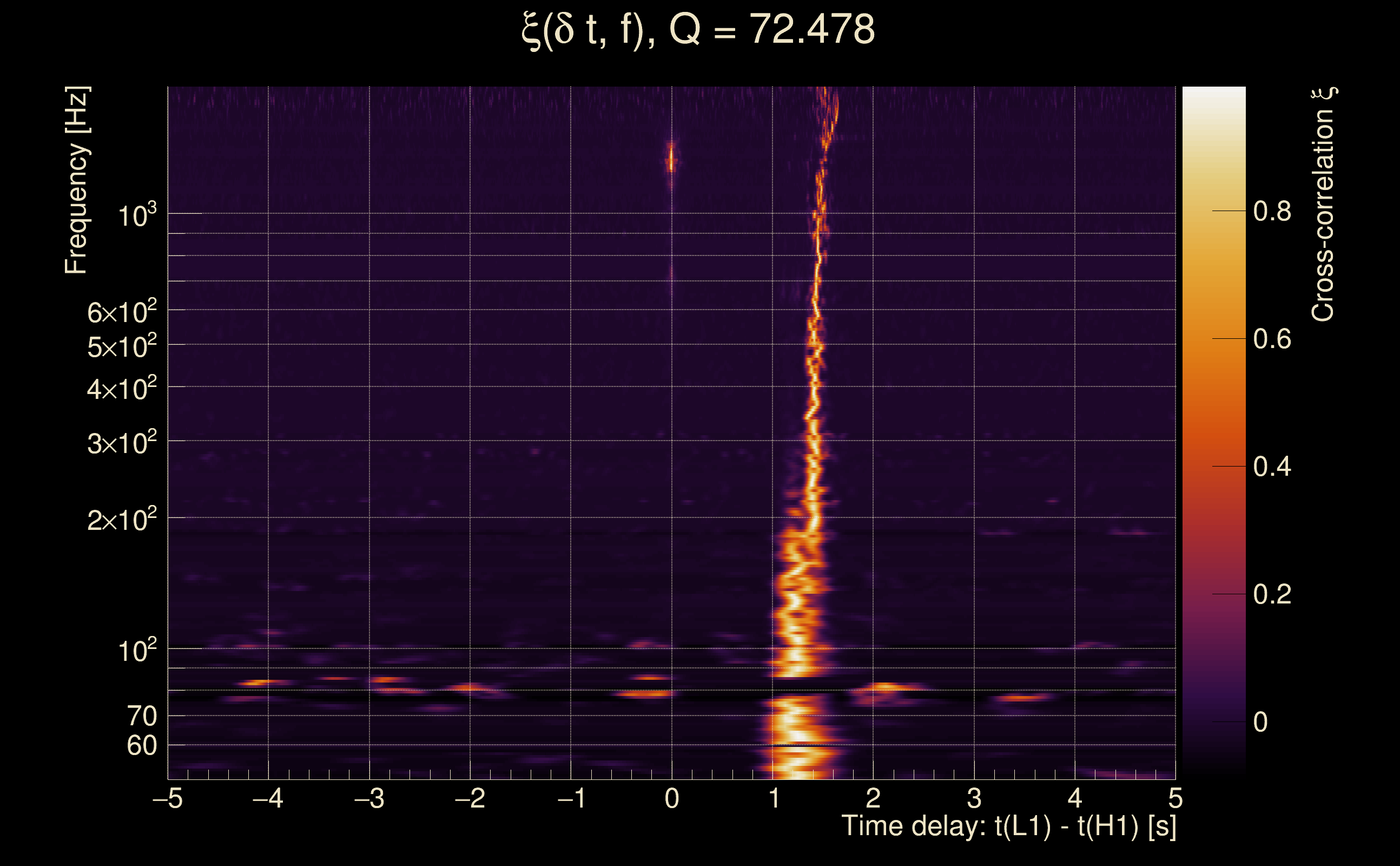

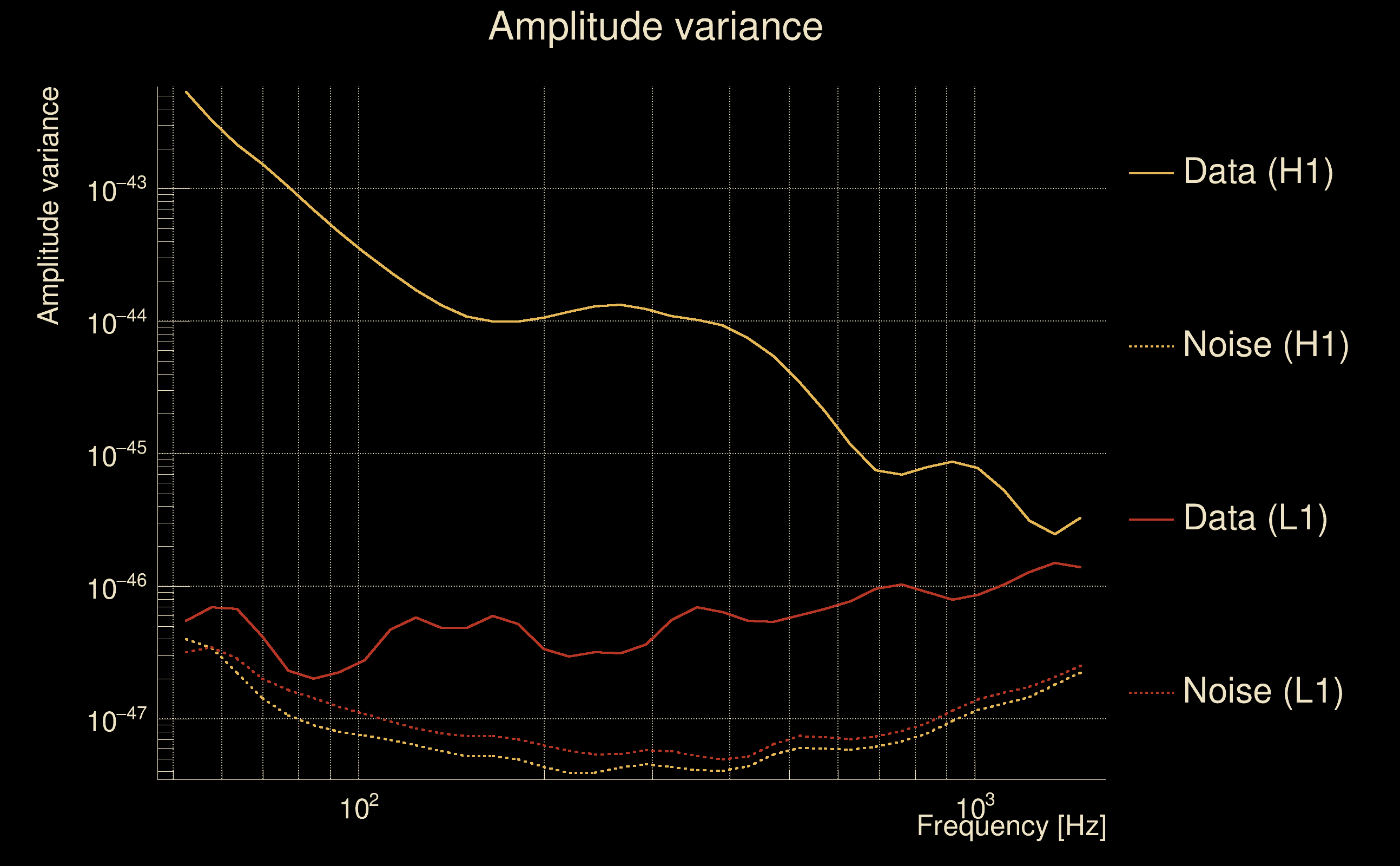

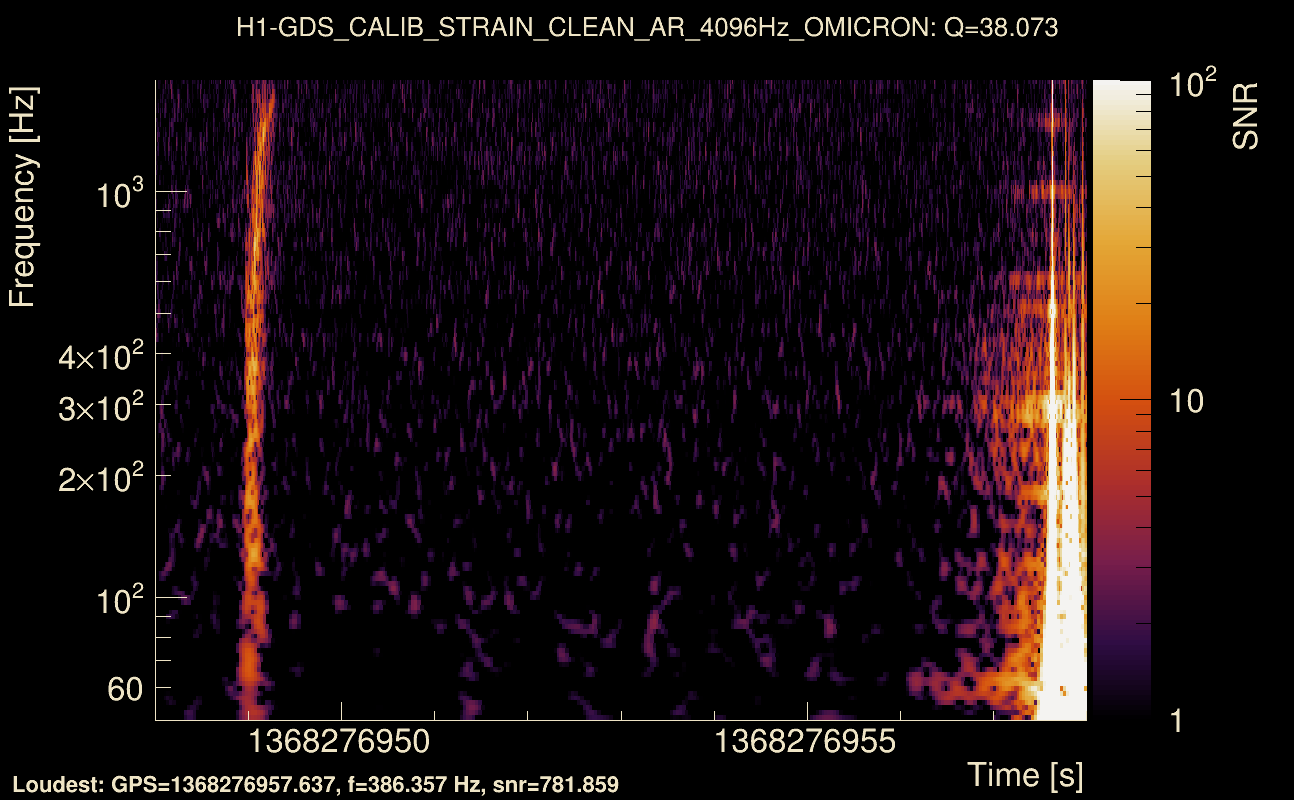

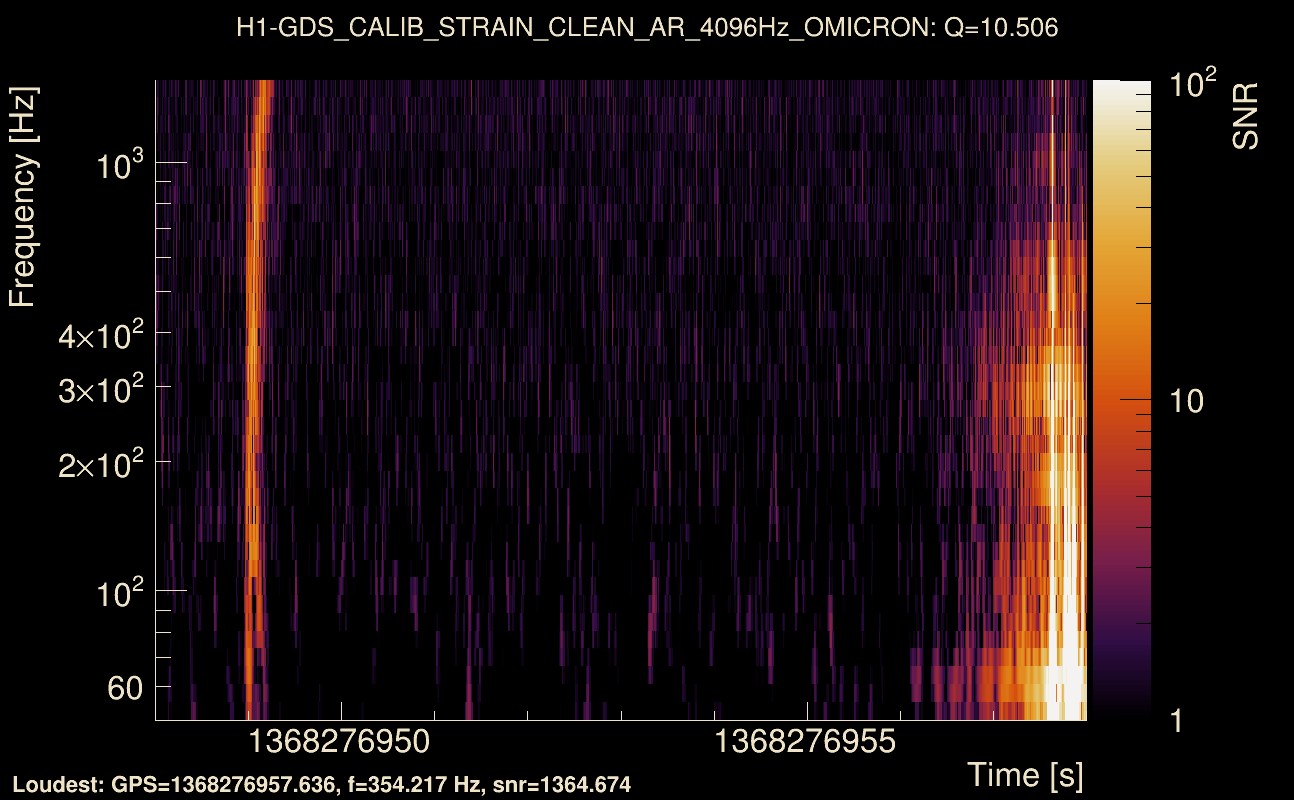

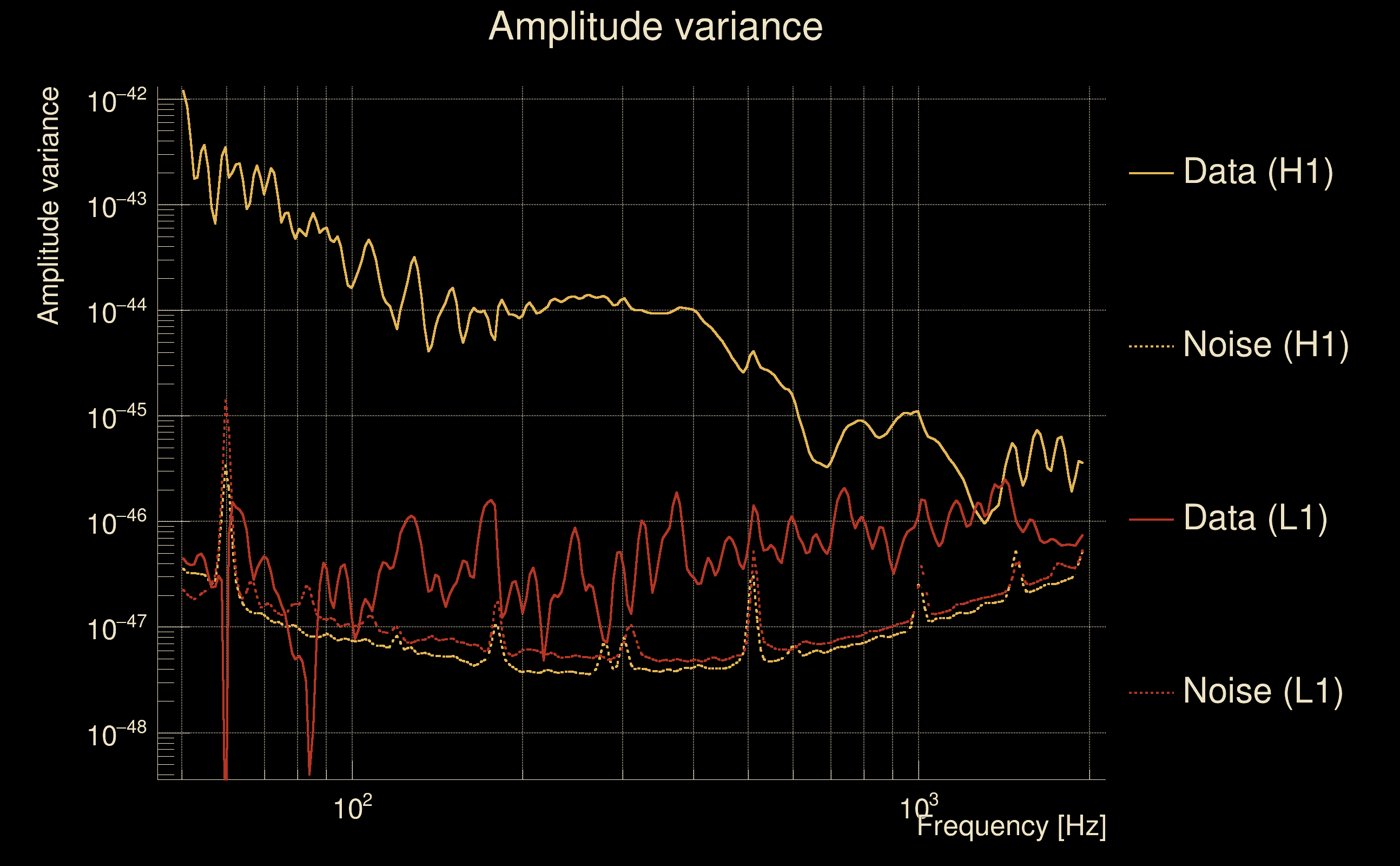

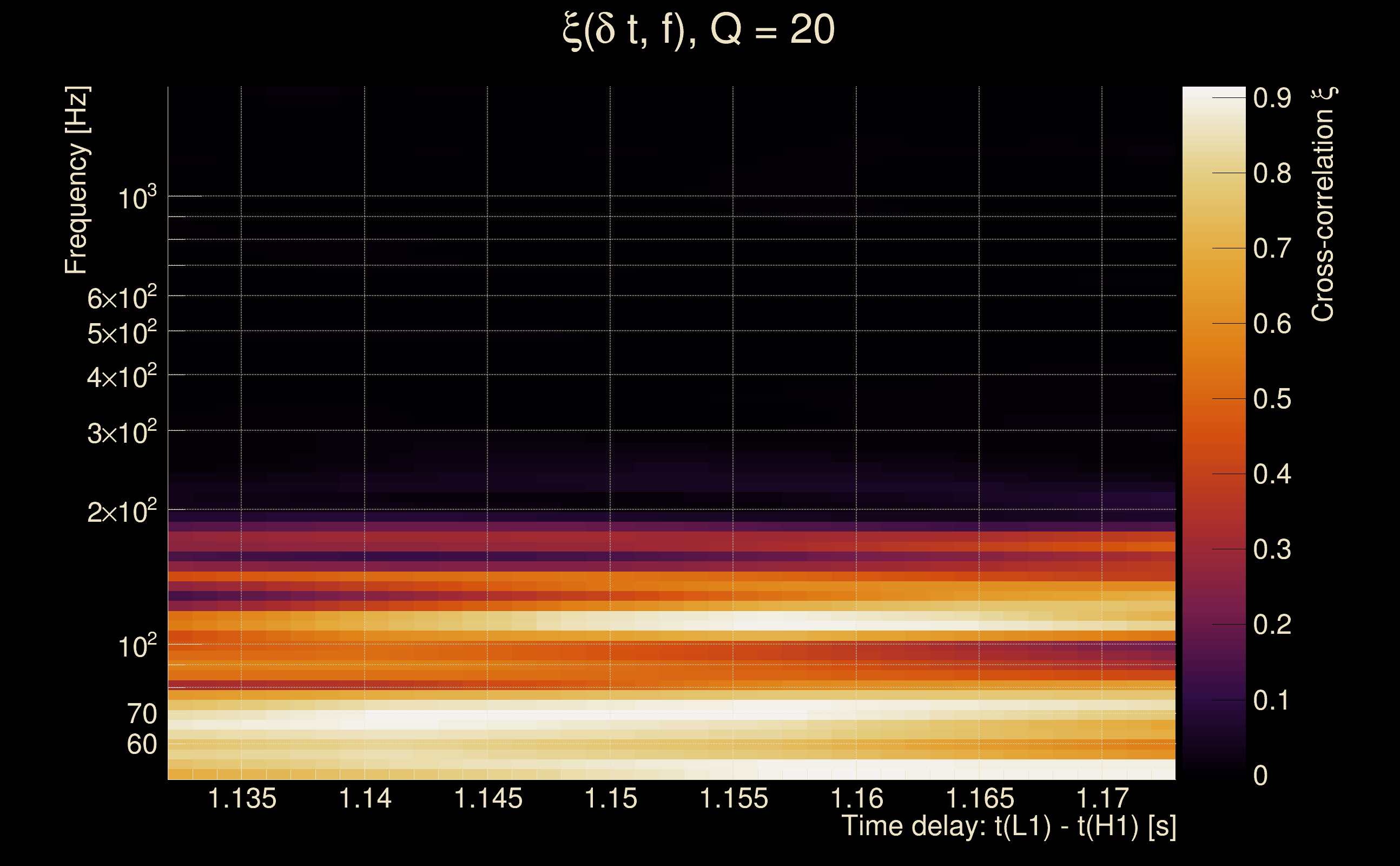

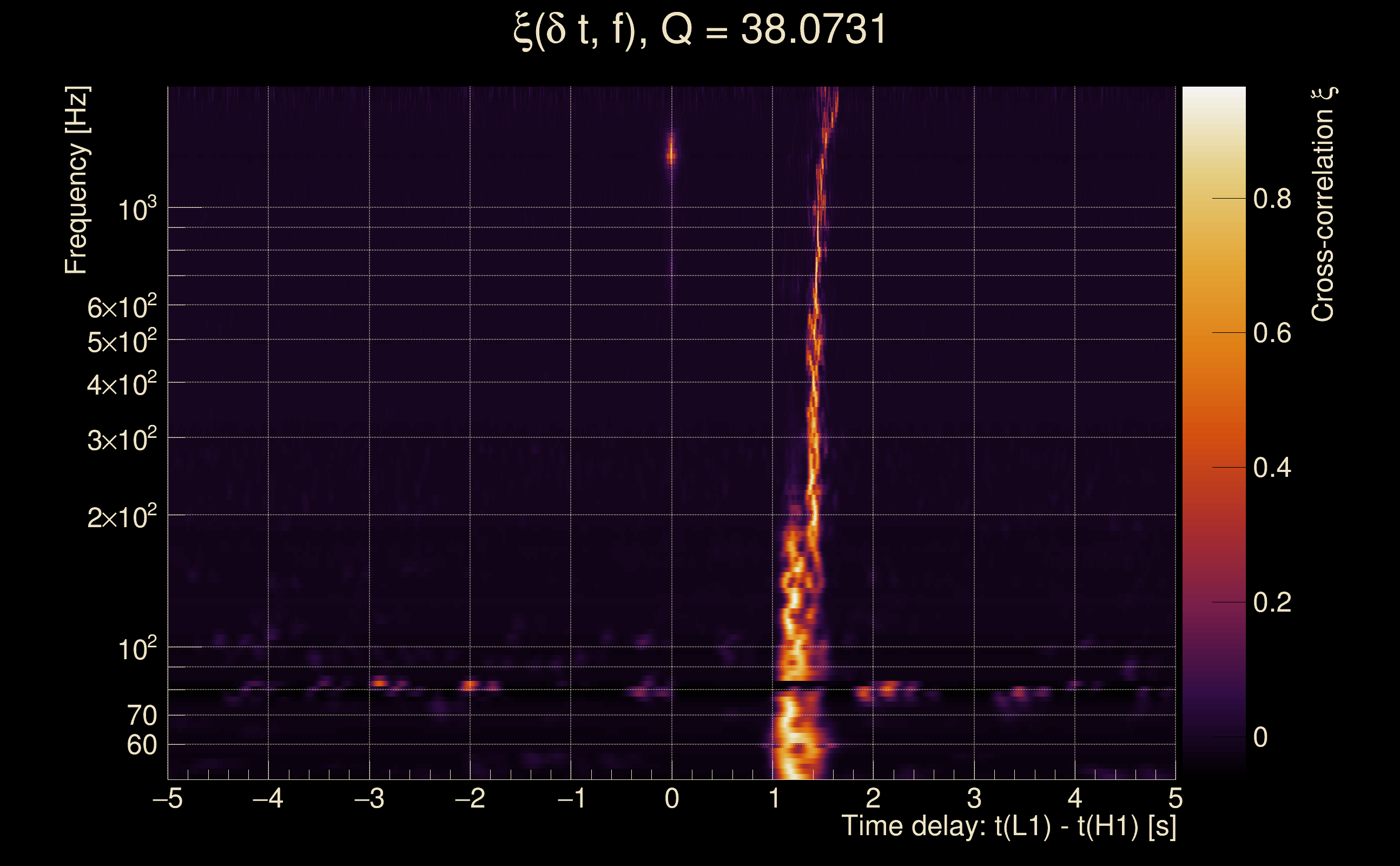

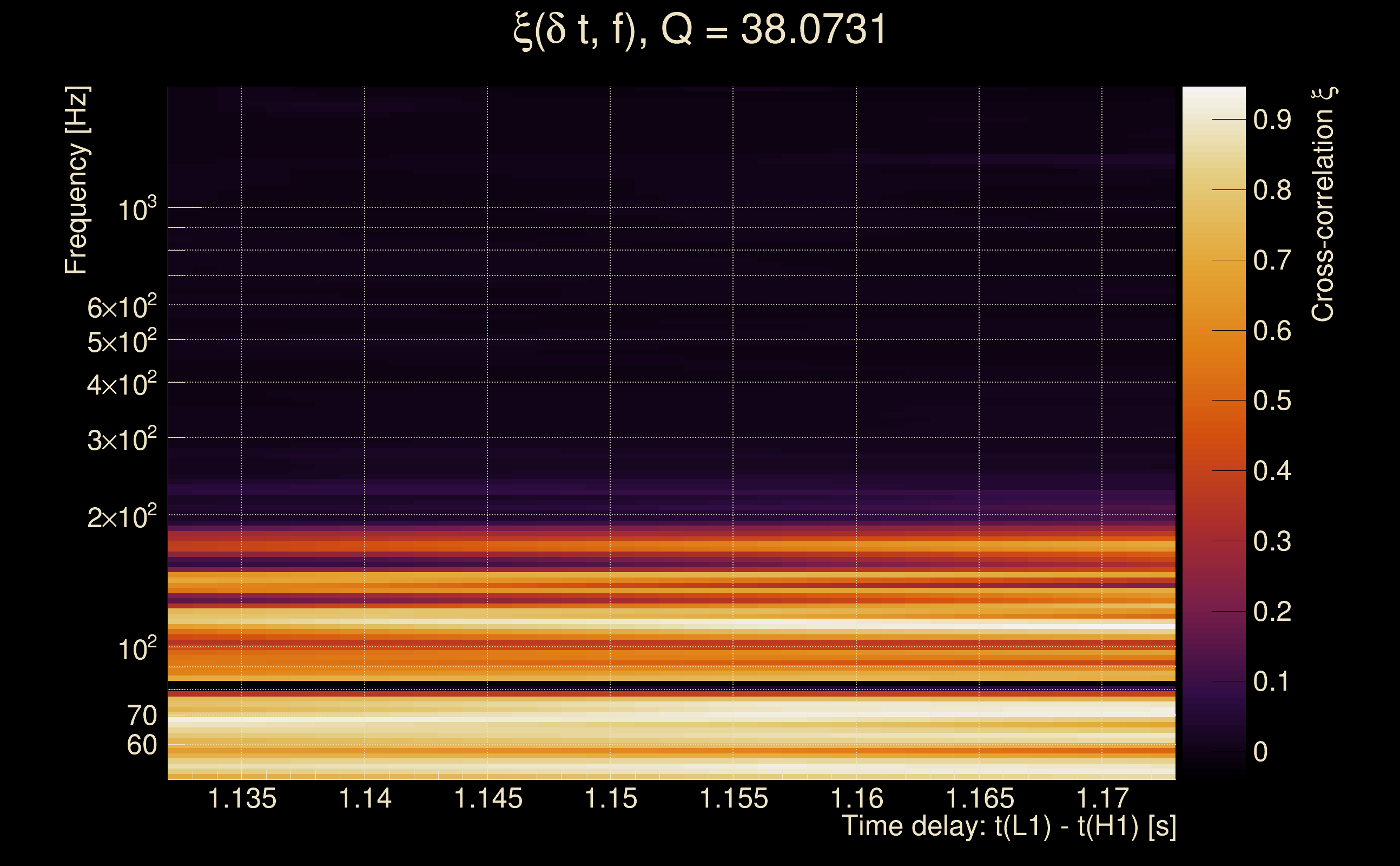

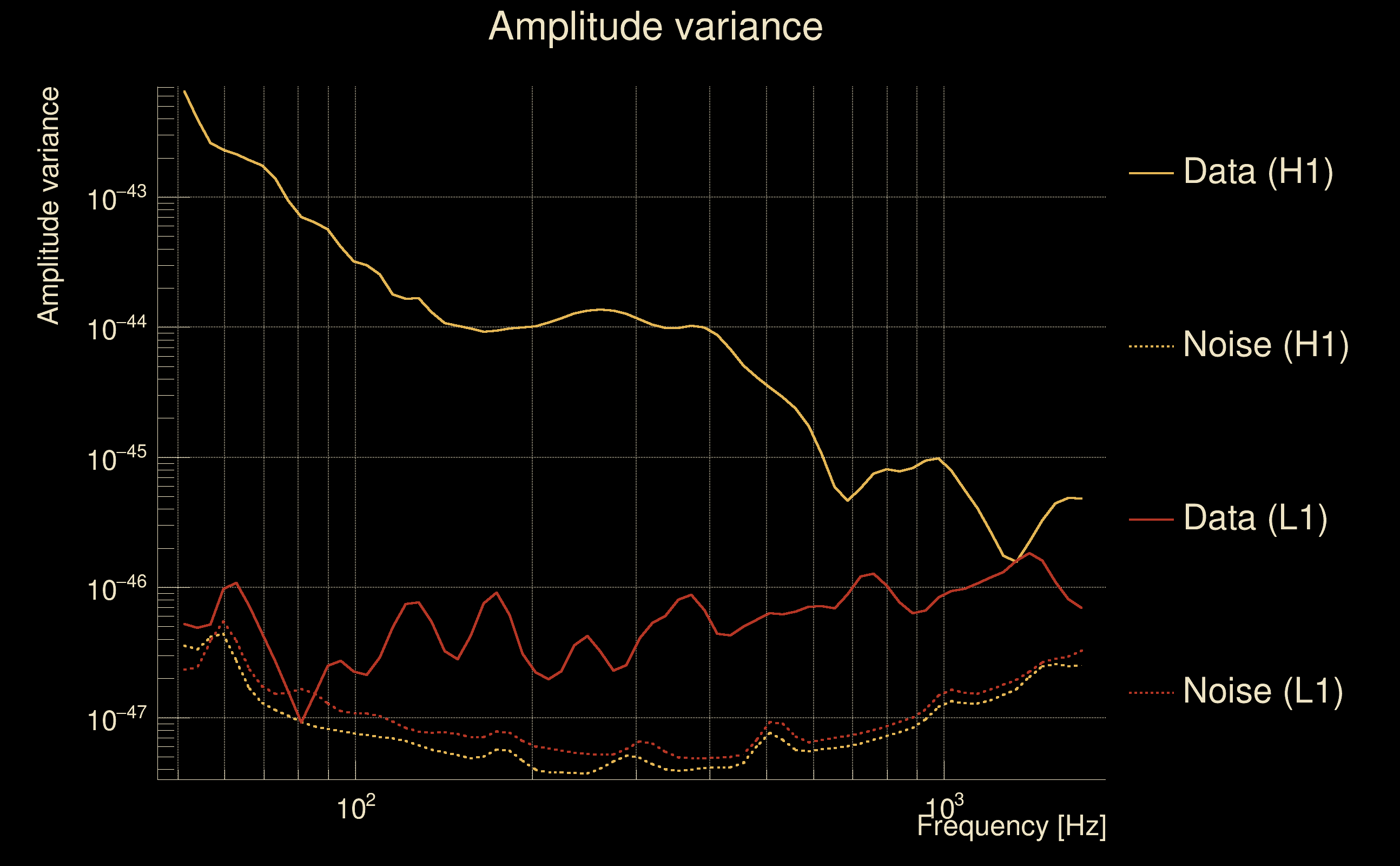

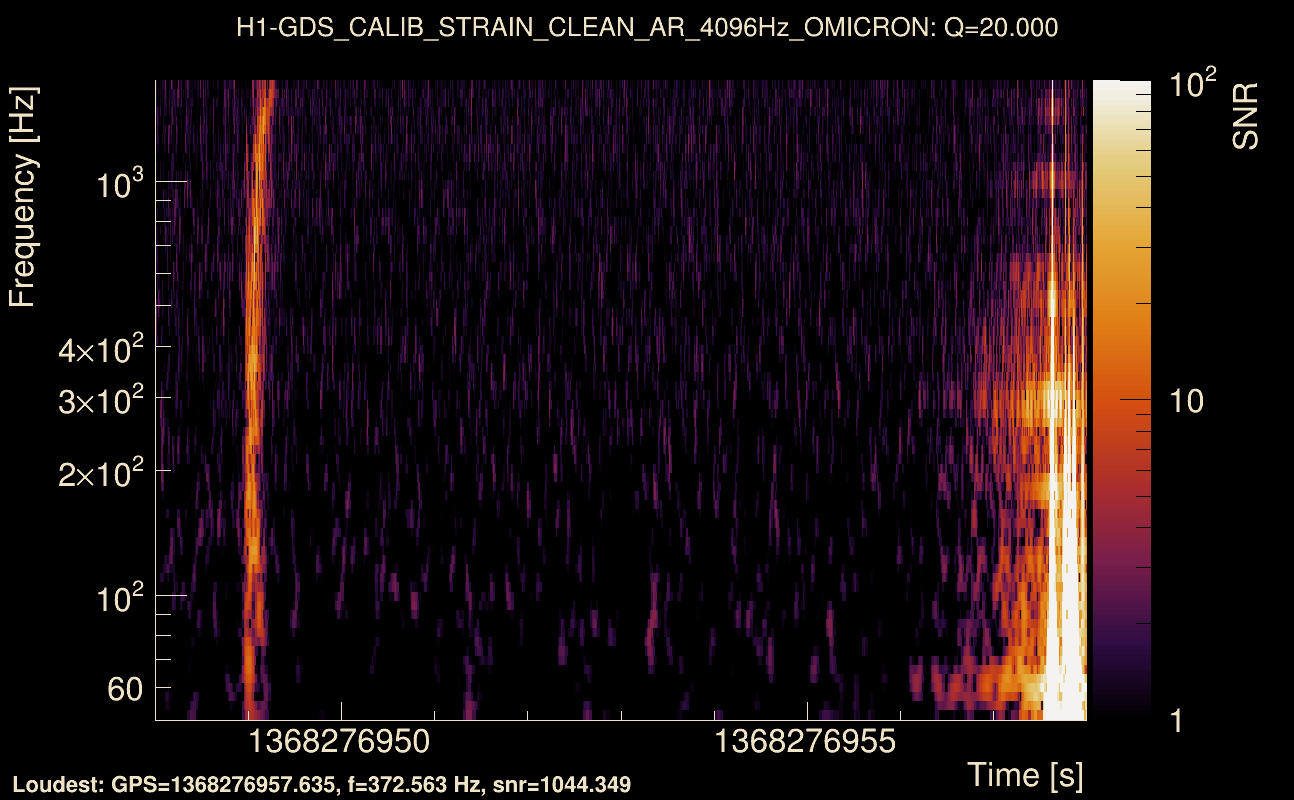

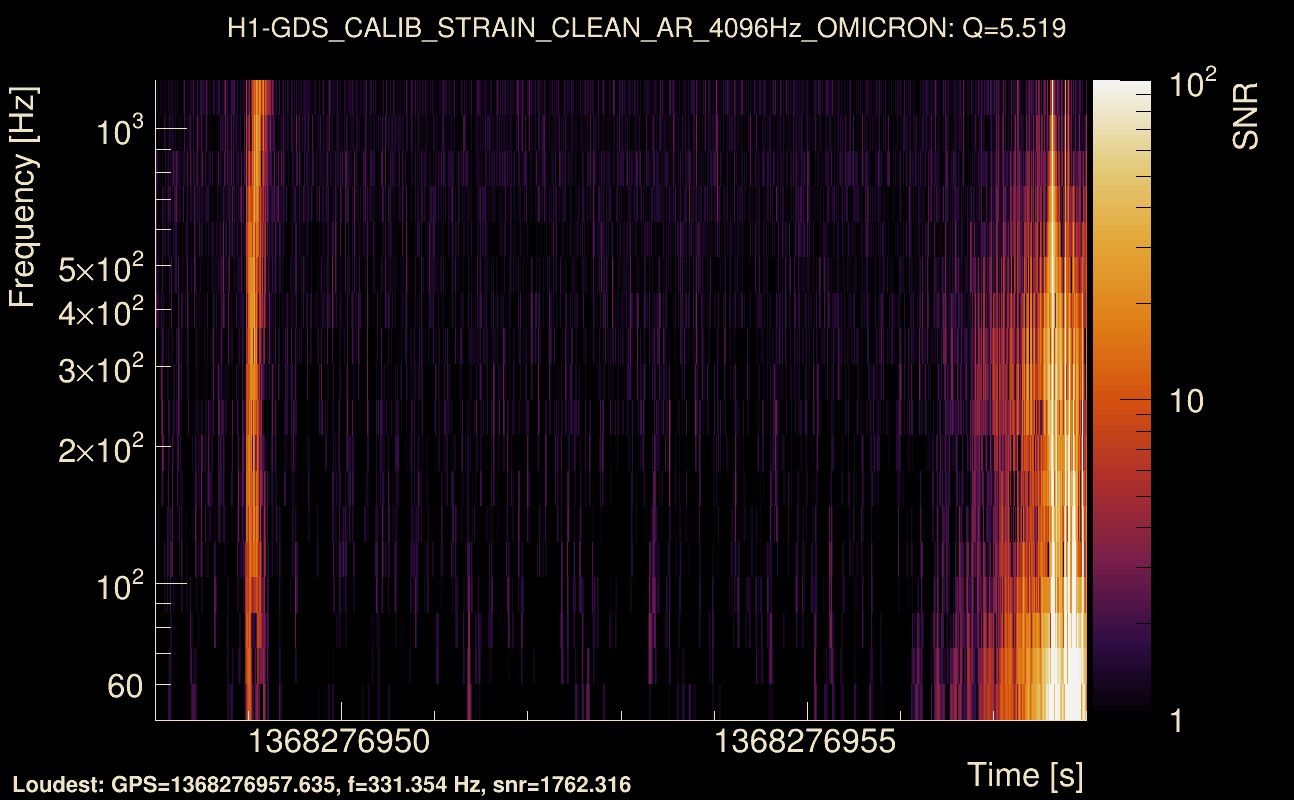

| Event time t(H1): | GPS = 1368276948 (Tue May 16 12:55:30 2023 ) → GPS = 1368276958 (Tue May 16 12:55:40 2023 ) |
| Event time t(L1): | GPS = 1368276948 (Tue May 16 12:55:40 2023 ) → GPS = 1368276958 (Tue May 16 12:55:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368276945 → GPS = 1368276961 |
| Omicron analysis time window (L1): | GPS = 1368276945 → GPS = 1368276961 |
| Time delay between detectors t(L1) - t(H1): | 1.15264 s (slice index = 83 / 217), δt_gw = 0.00263808 s |
| Time delay standard deviation: | 0.0763571 s |
| [targeted mode] Time delay probability: | 0.281488 (1.07698 sigmas), δt_target = -0.00995135 s |
| Frequency: | 86.7869 Hz |
| Ξ: | 0.512988 ± 0.0280701 (variance = 0.00078793): Q0: 0.724898, Q1: 0.749363, Q2: 0.773375, Q3: 0.78658, Q4: 0.712222 |
| Rank: | R_A = 0.512988 |
| Log of amplitude ratio (L1/H1): | -4.51145, variance = 0.459146 (L1/H1: -4.51831, variance = 0.460693, H1/L1: 0.468531, variance = 4.56089) |
| Amplitude ratio (L1/H1): | 0.0109825 ⋇ 1.96915 (L1/H1: 0.0109074 ⋇ 1.9714, H1/L1: 1.59765 ⋇ 8.46232) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0707279 |

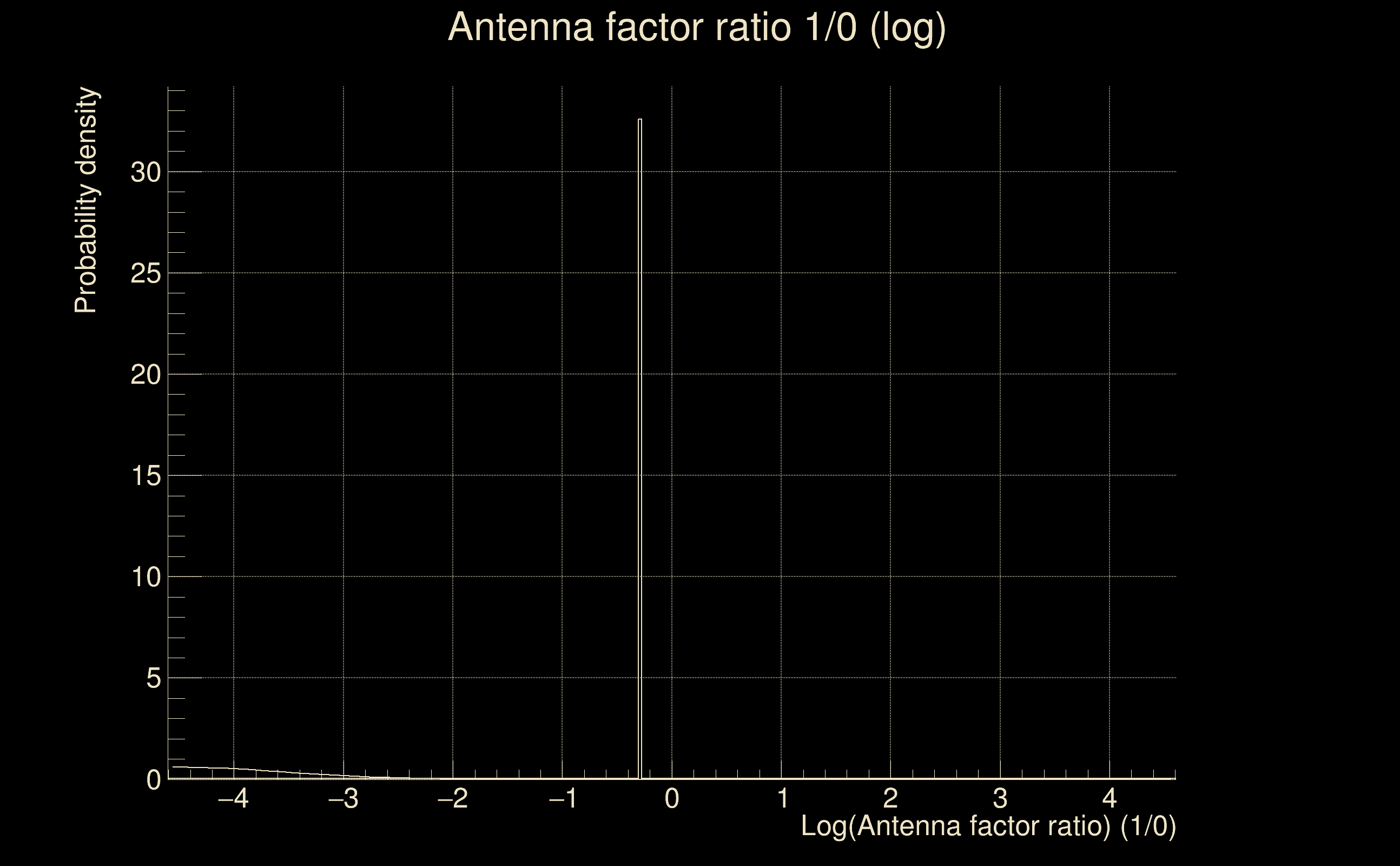

| Antenna factor probability: | 4.93098e-10 |
| Number of rejected frequency rows: | Q0: 3 / 18, Q1: 11 / 36, Q2: 35 / 70, Q3: 91 / 134, Q4: 214 / 258 |
| Maximum signal-to-noise ratio: | H1: 1834.28, L1: 75.5627 |
| SNR variance: | H1: 2.95132, L1: 3.92064 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

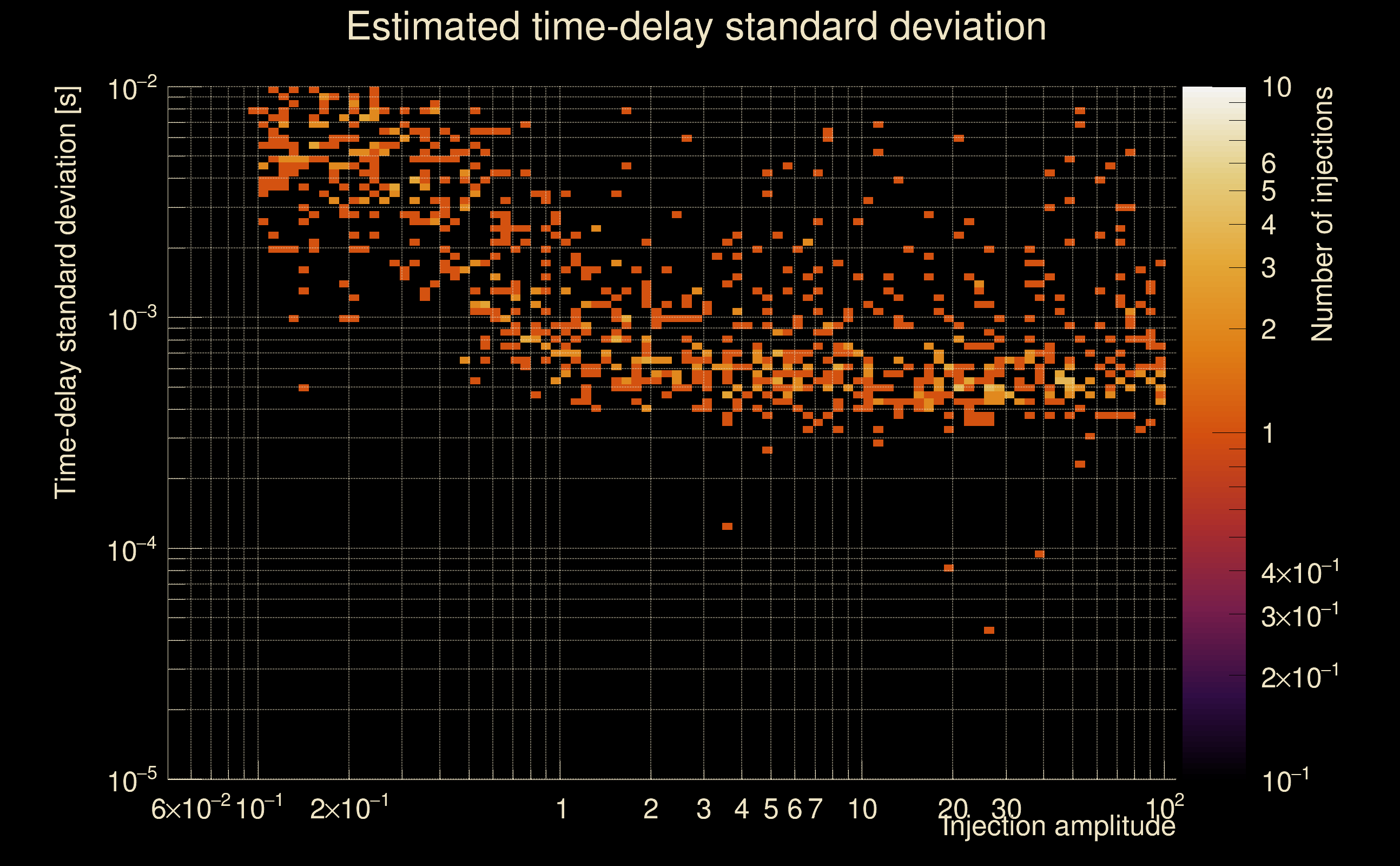

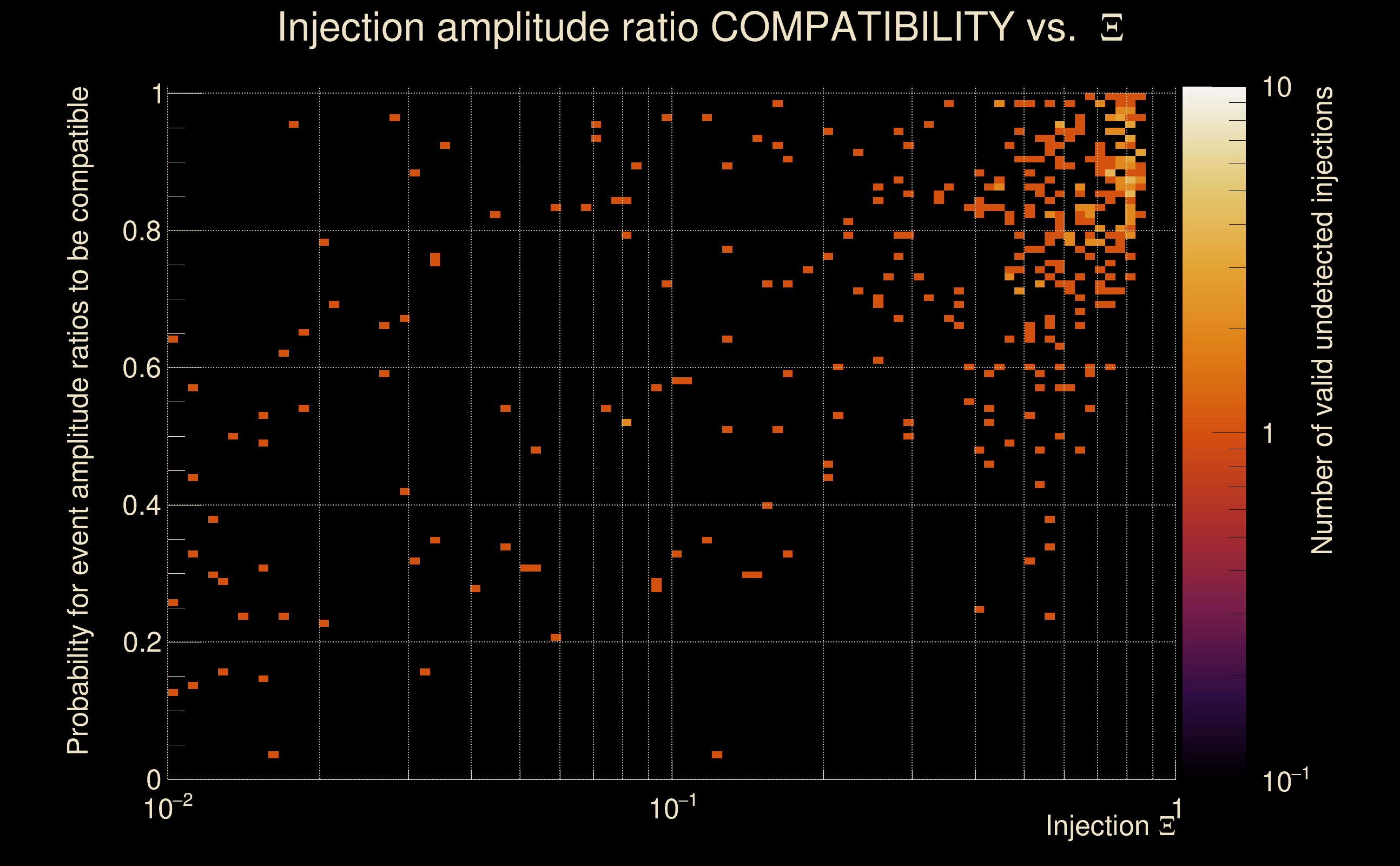

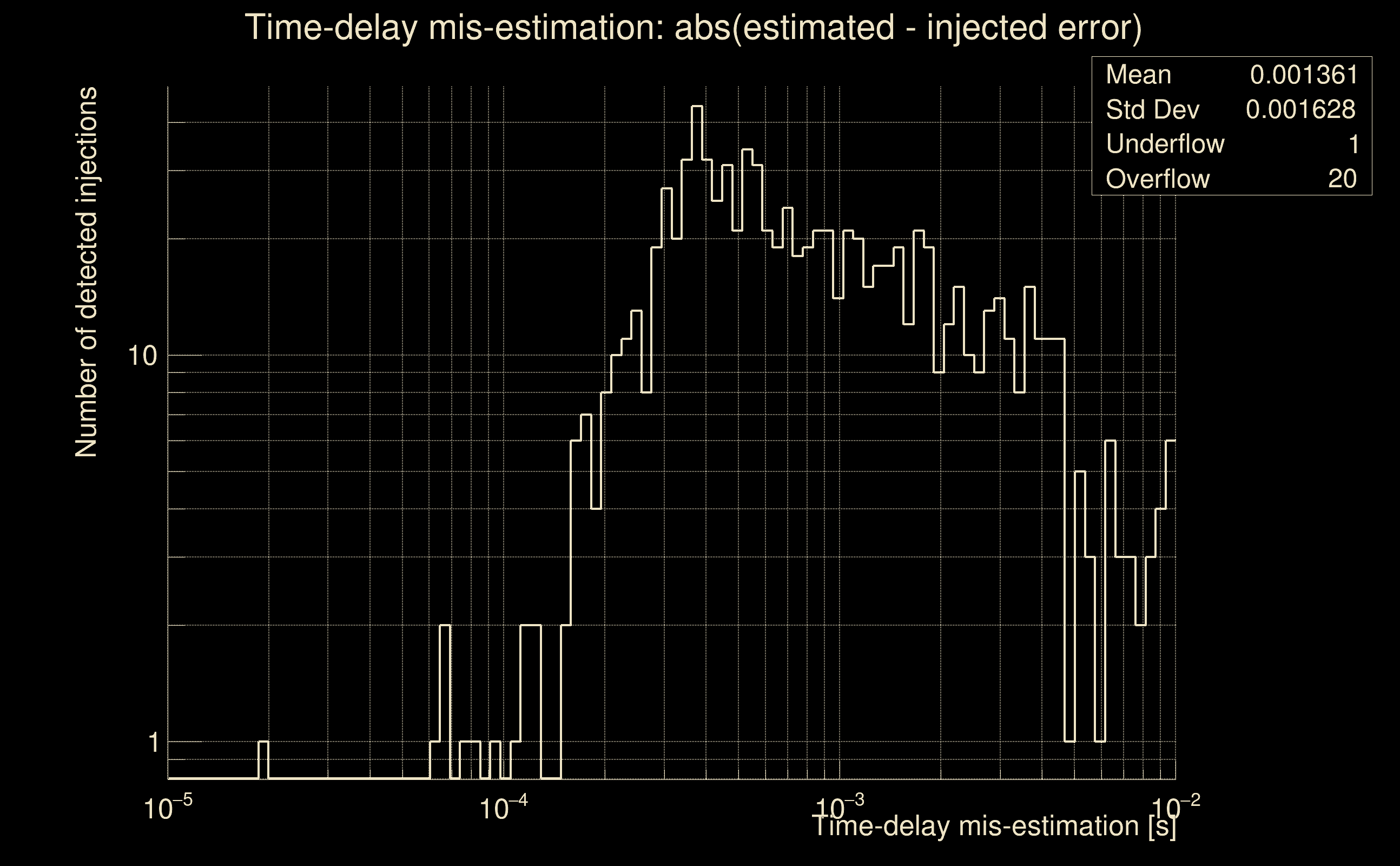

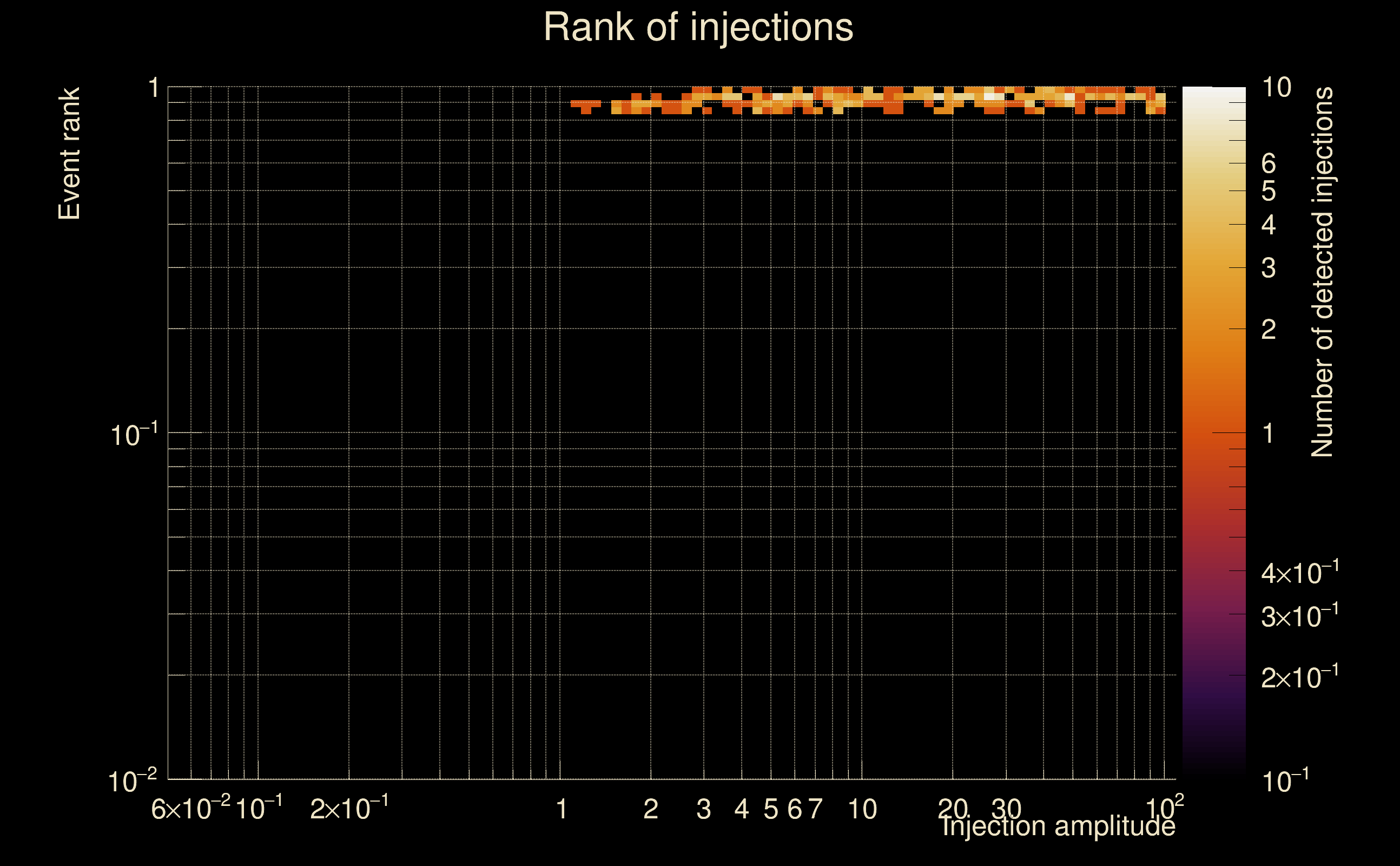

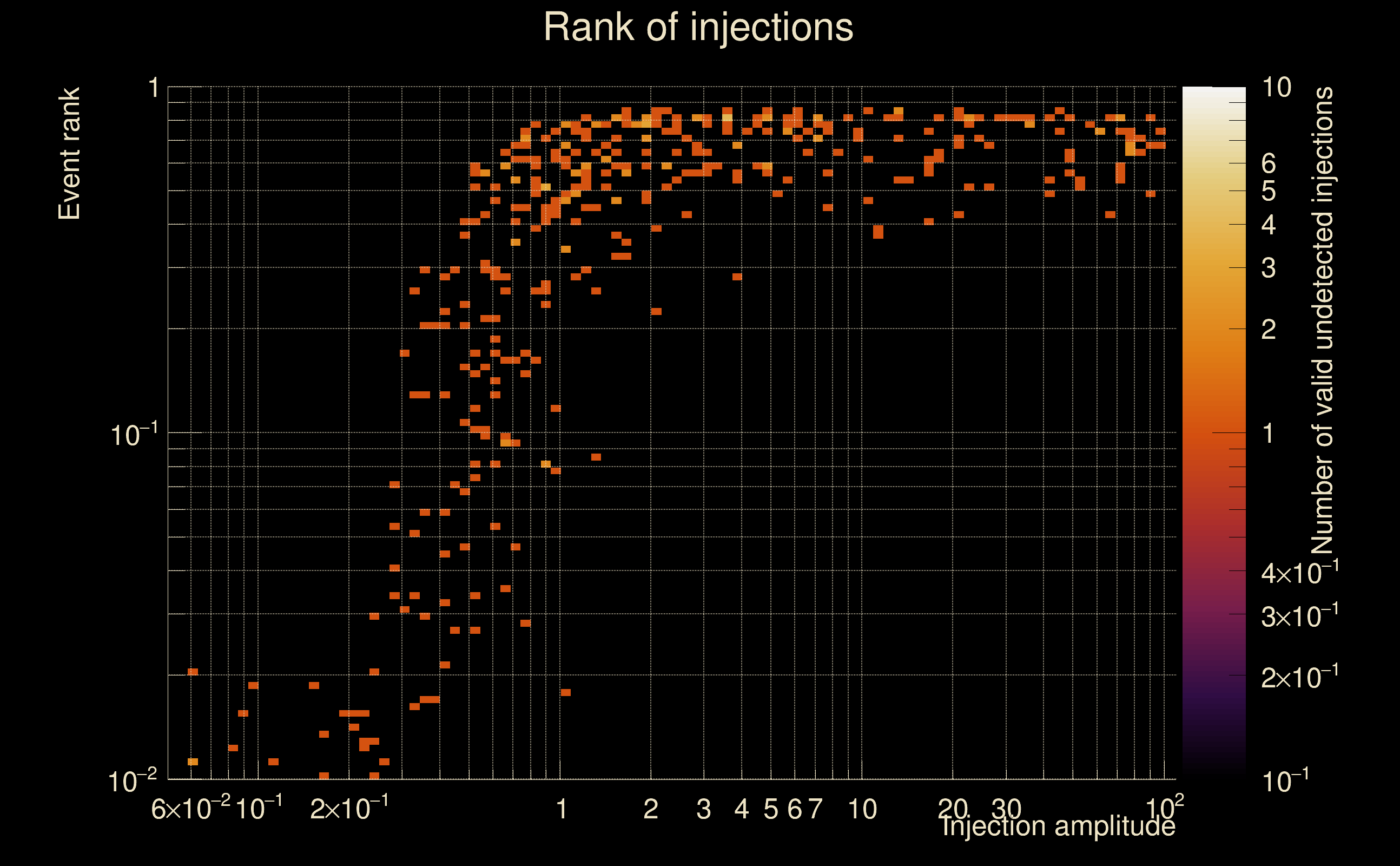

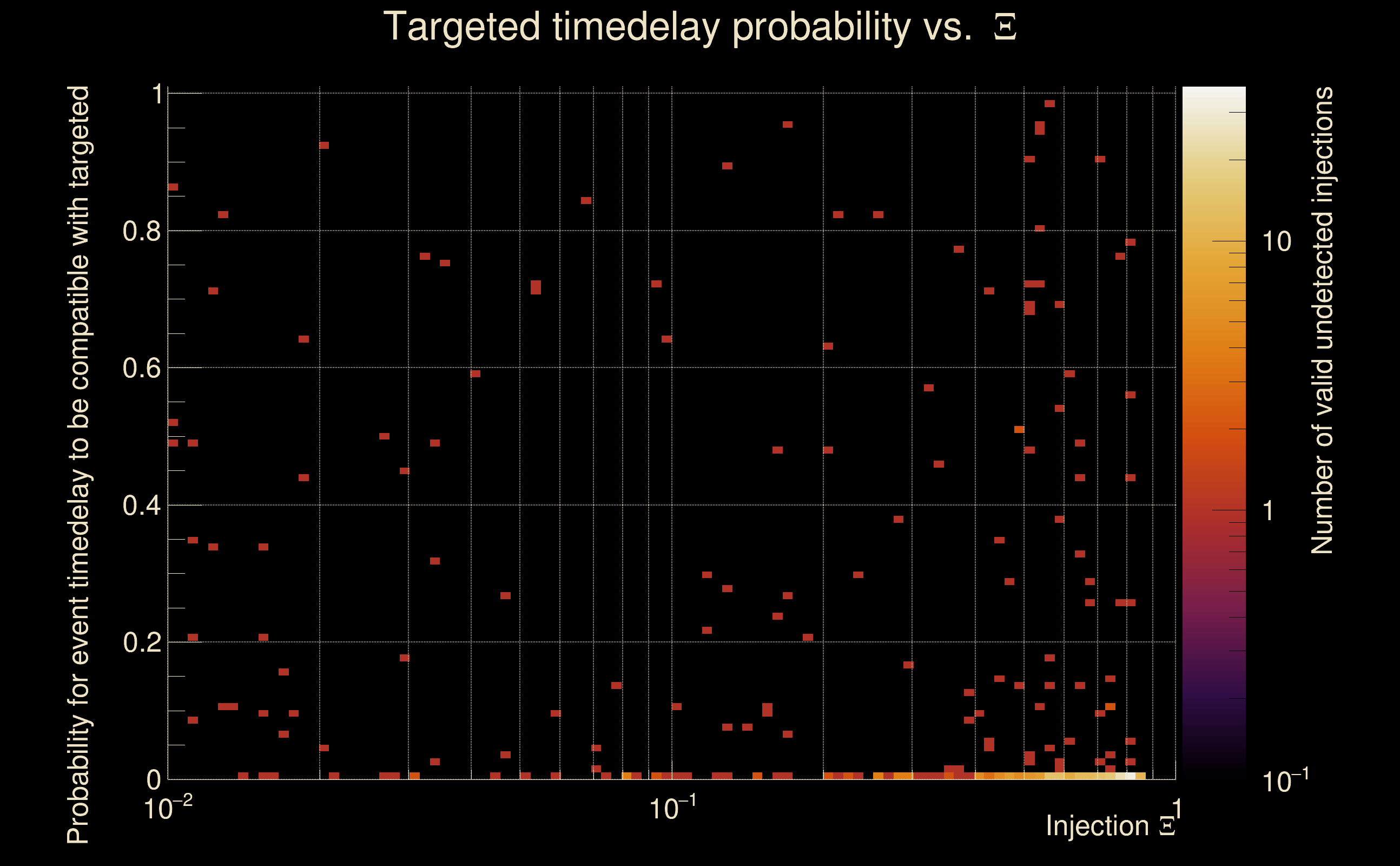

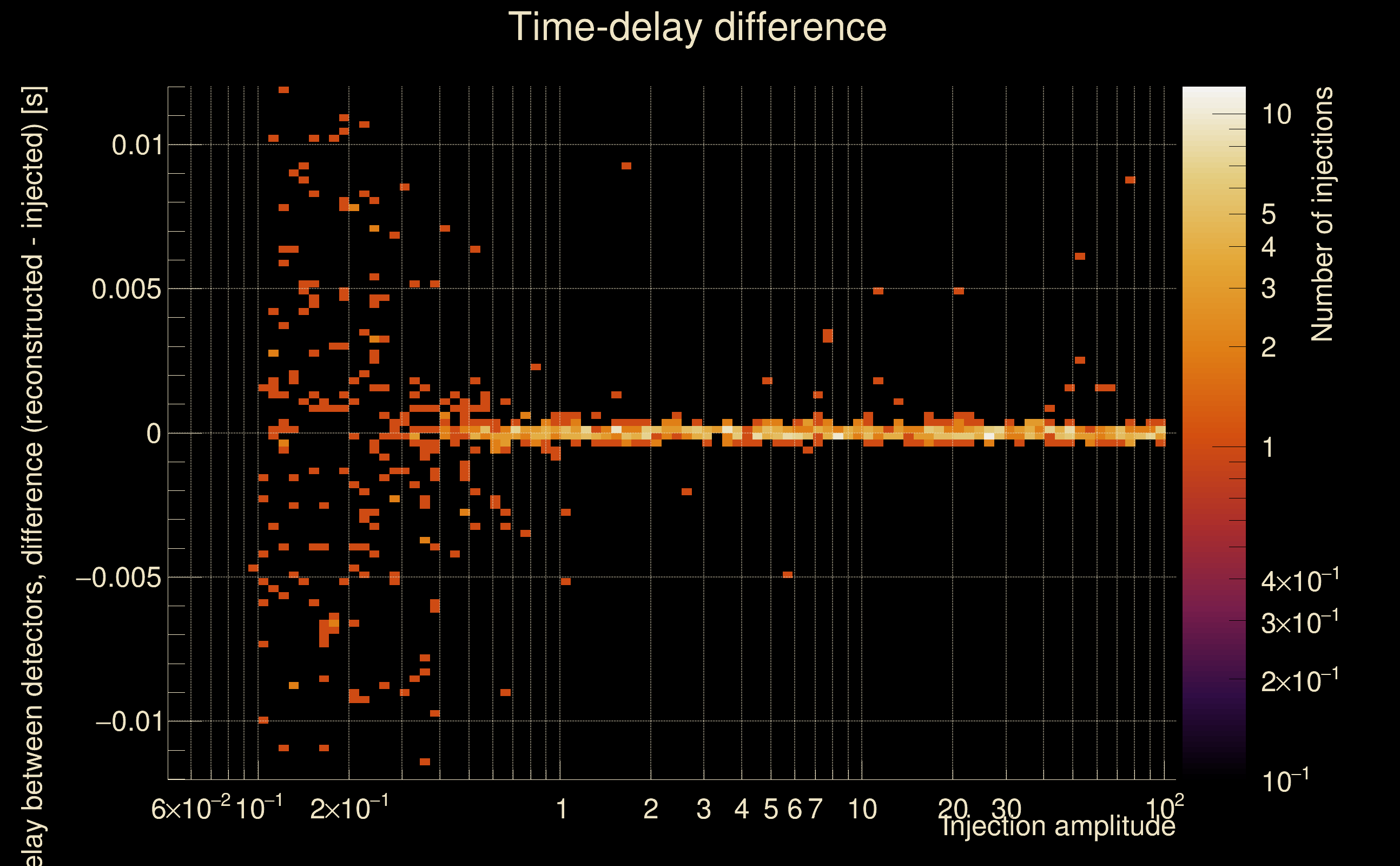

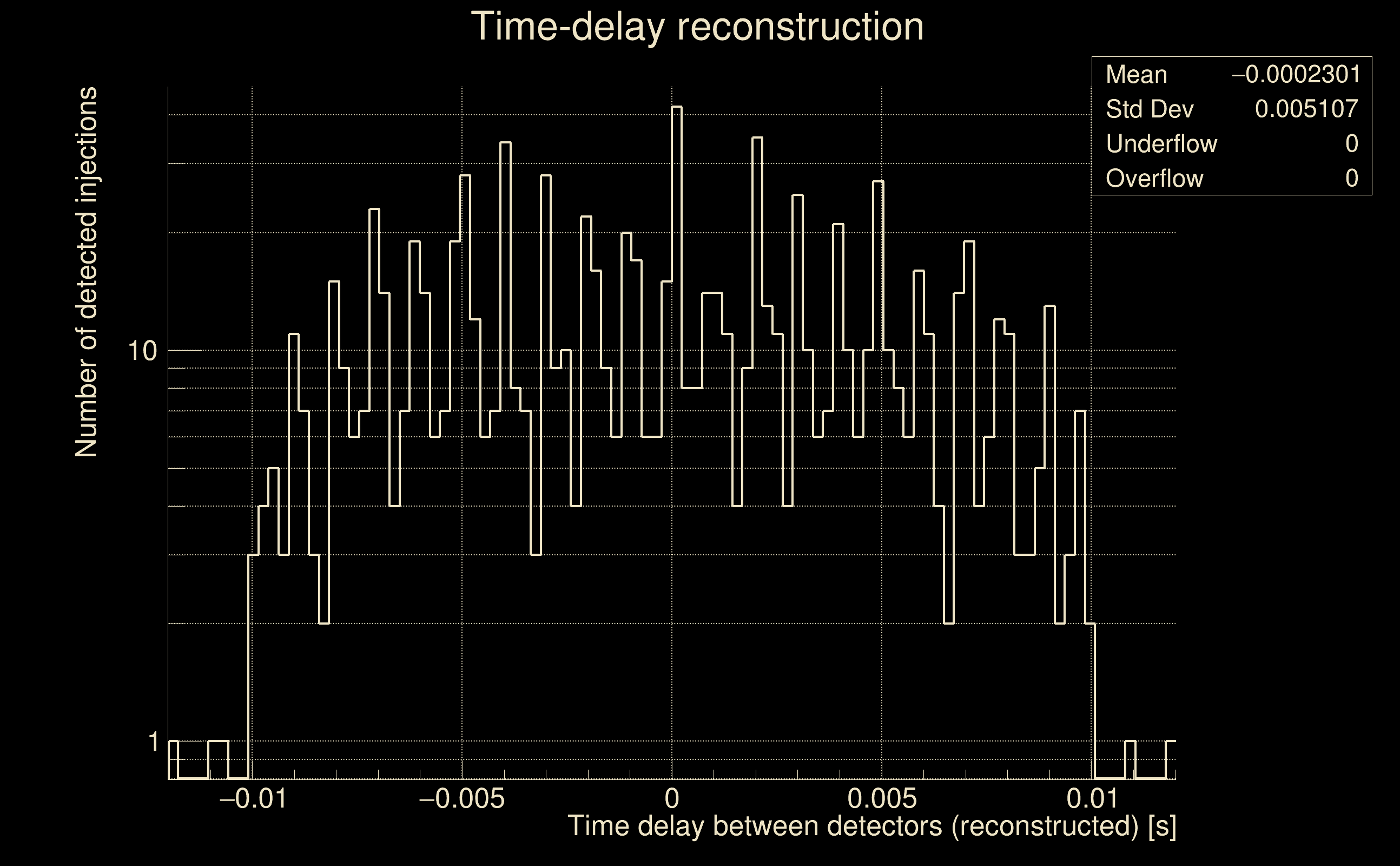

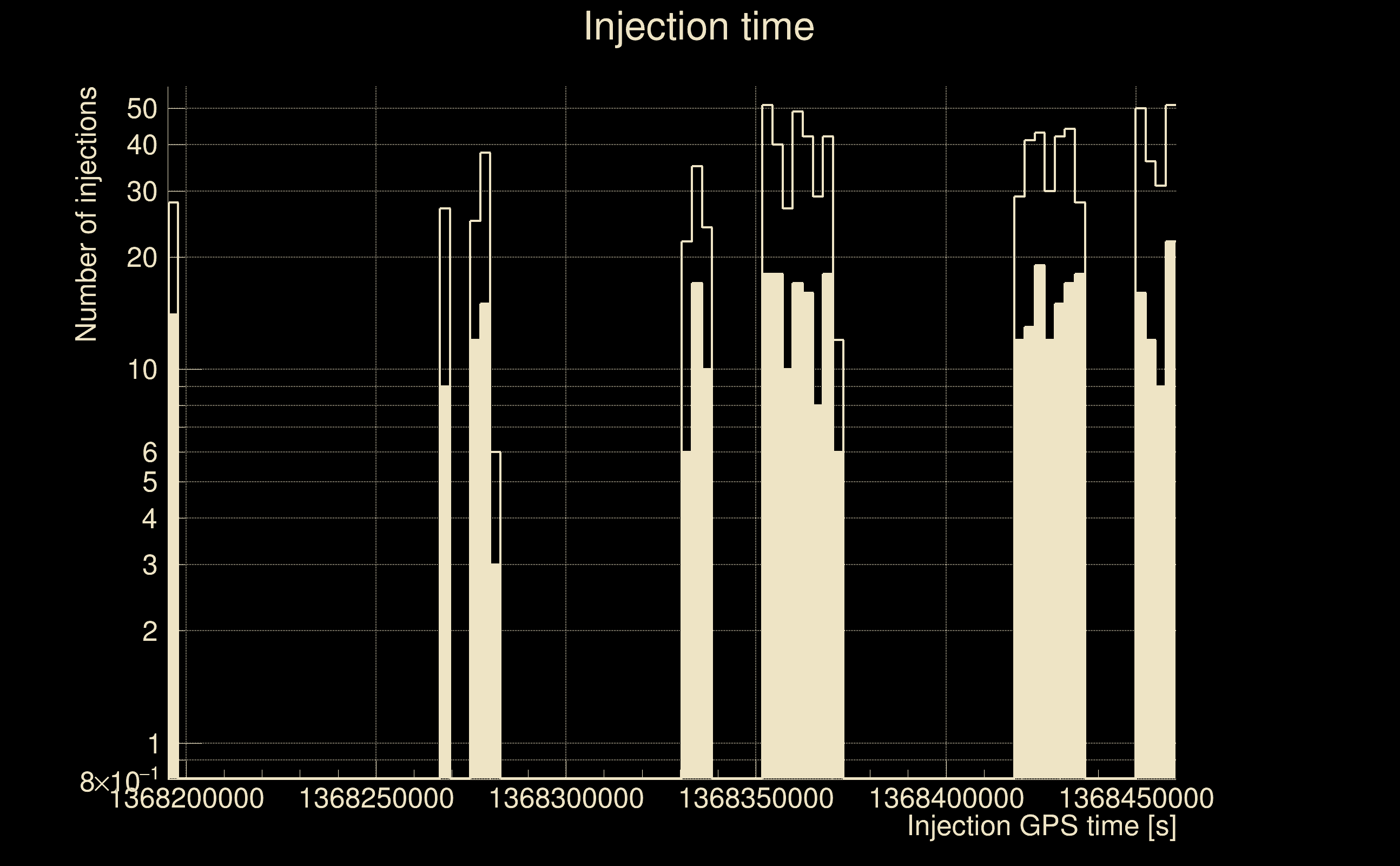

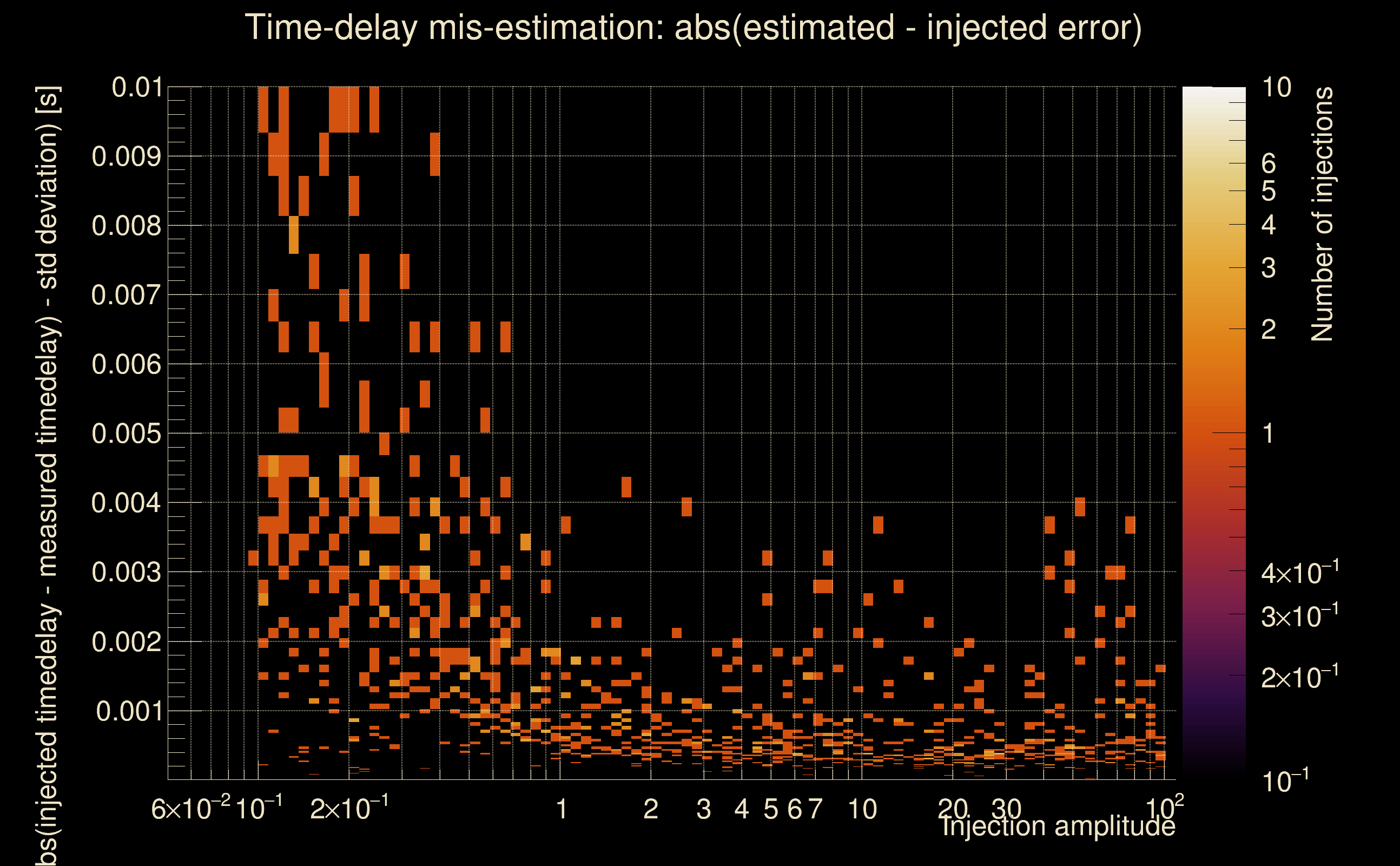

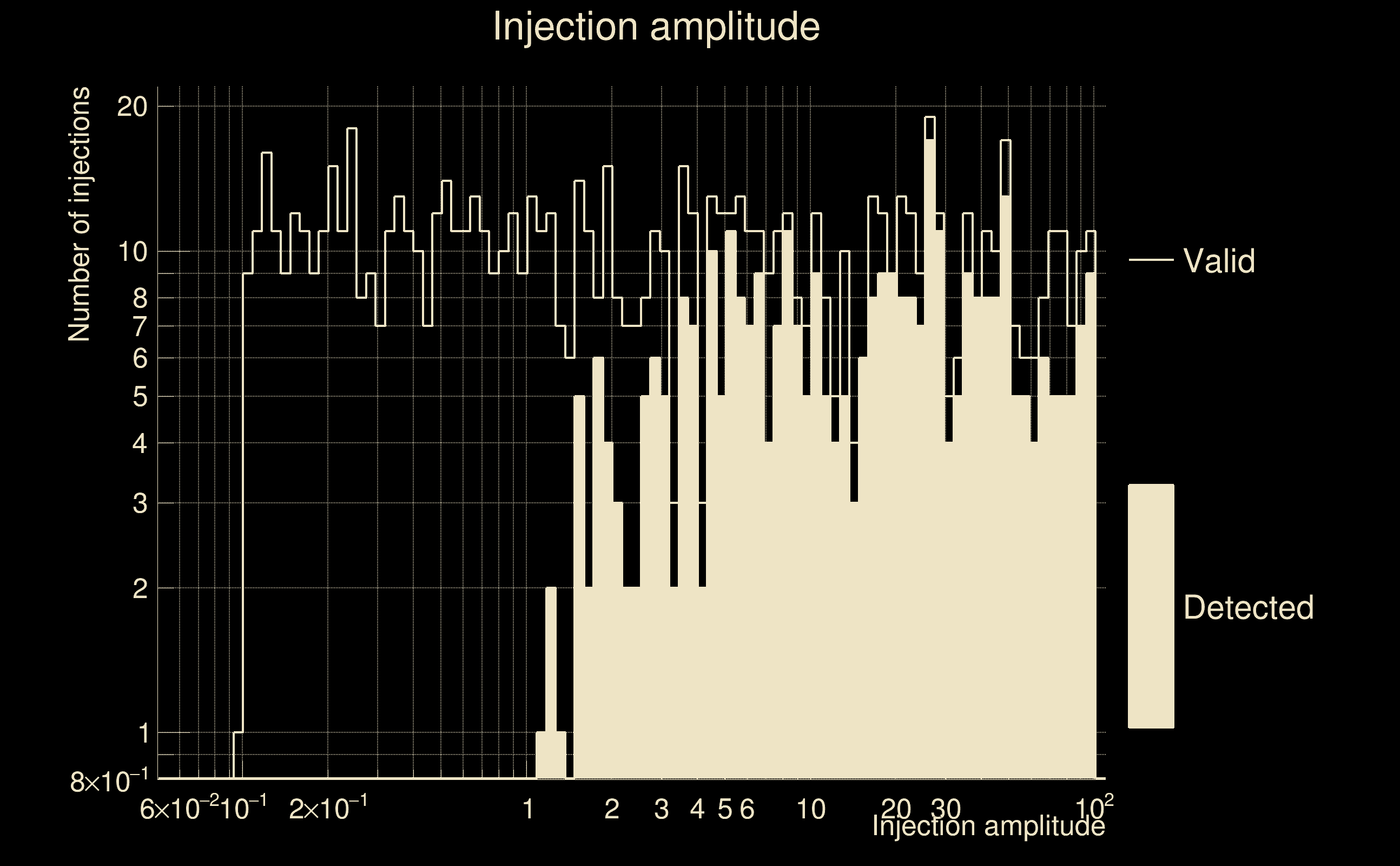

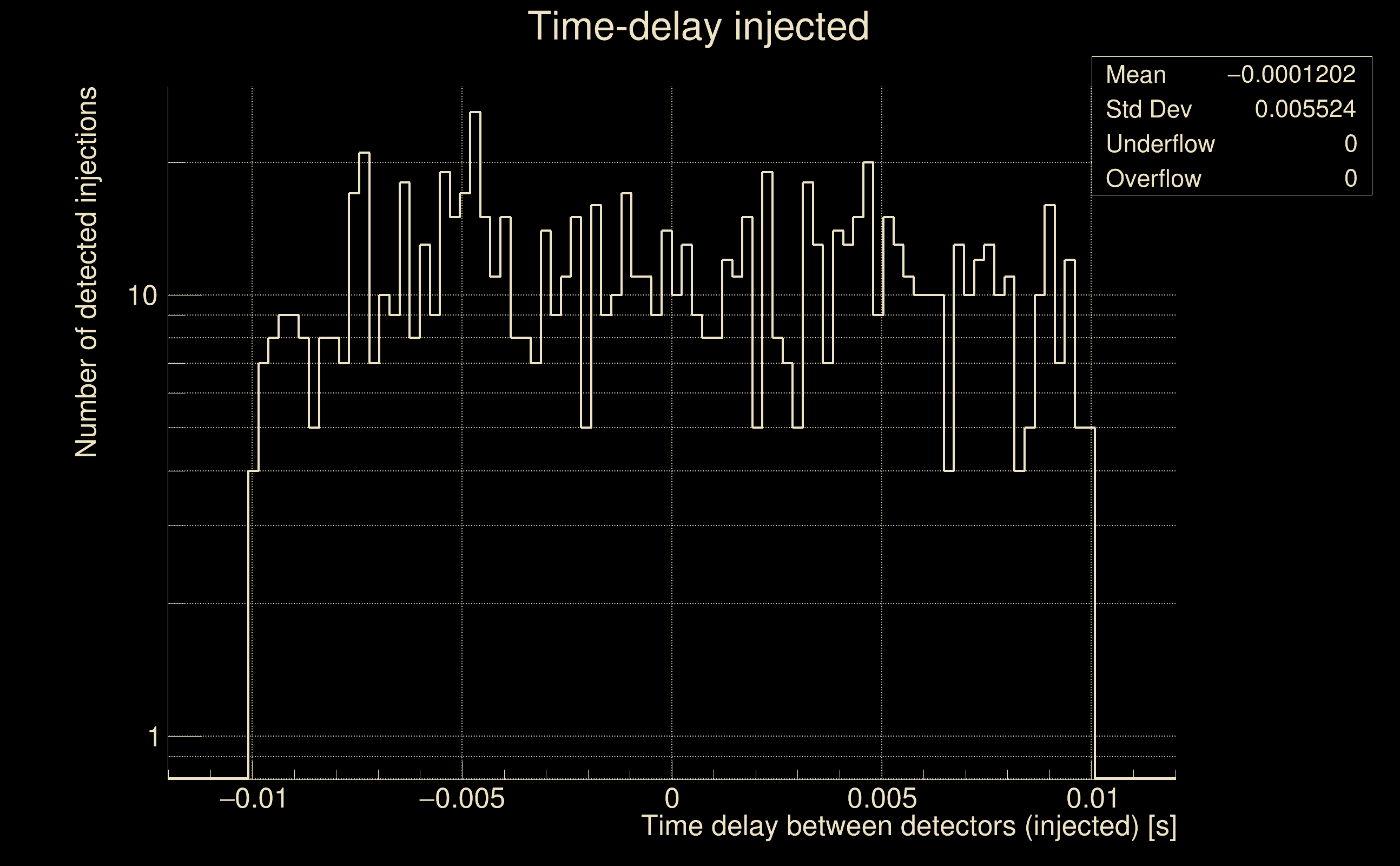

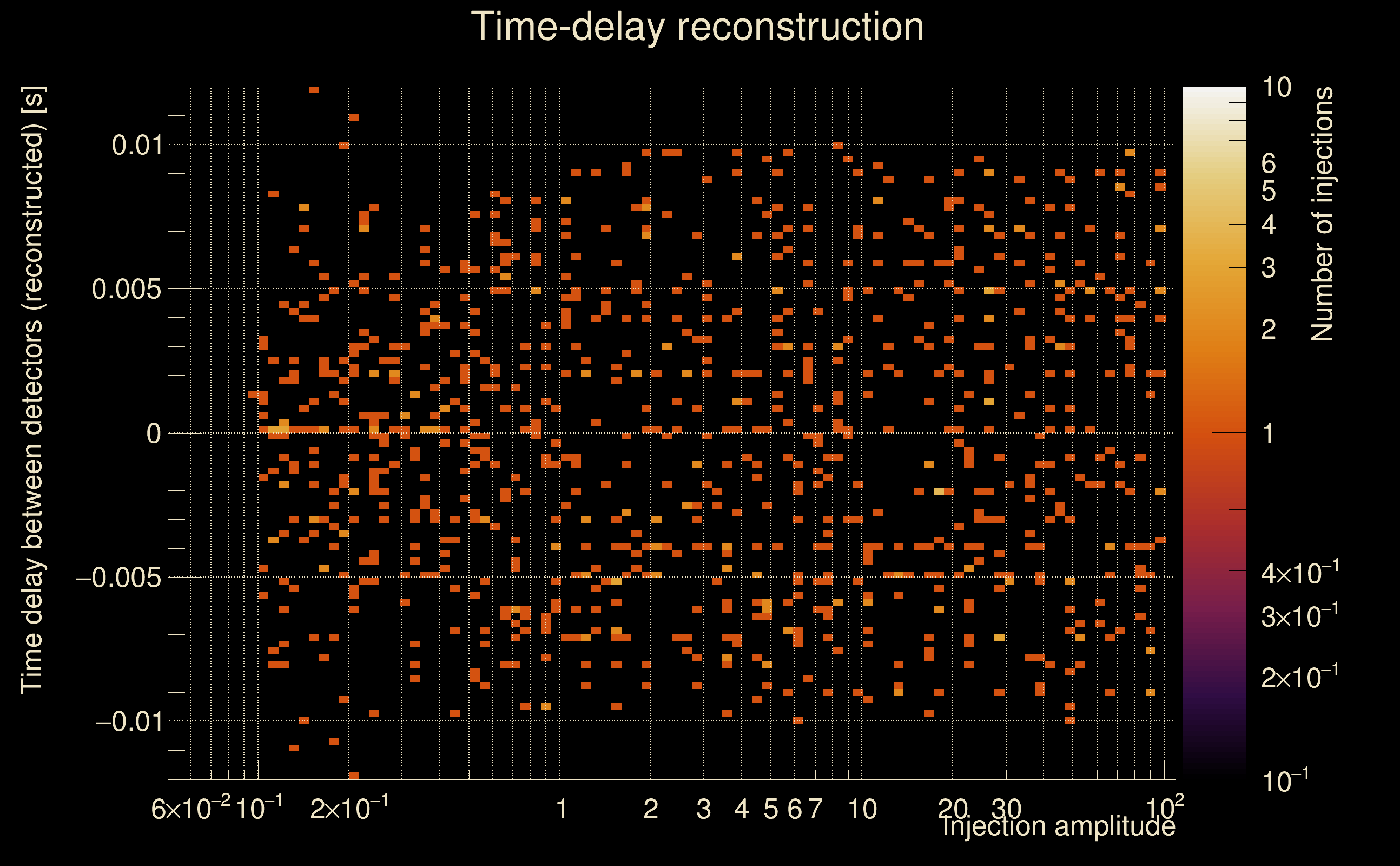

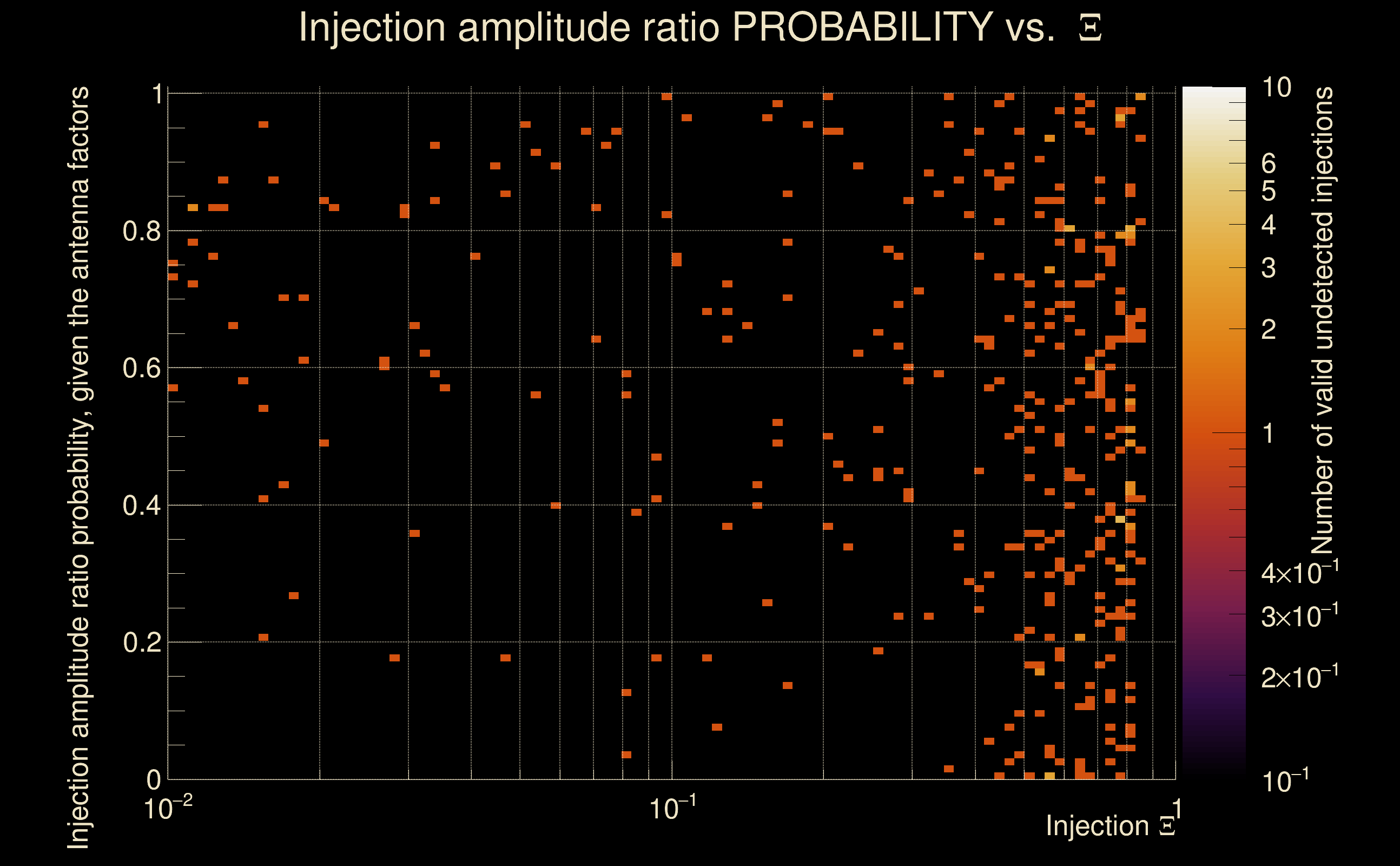

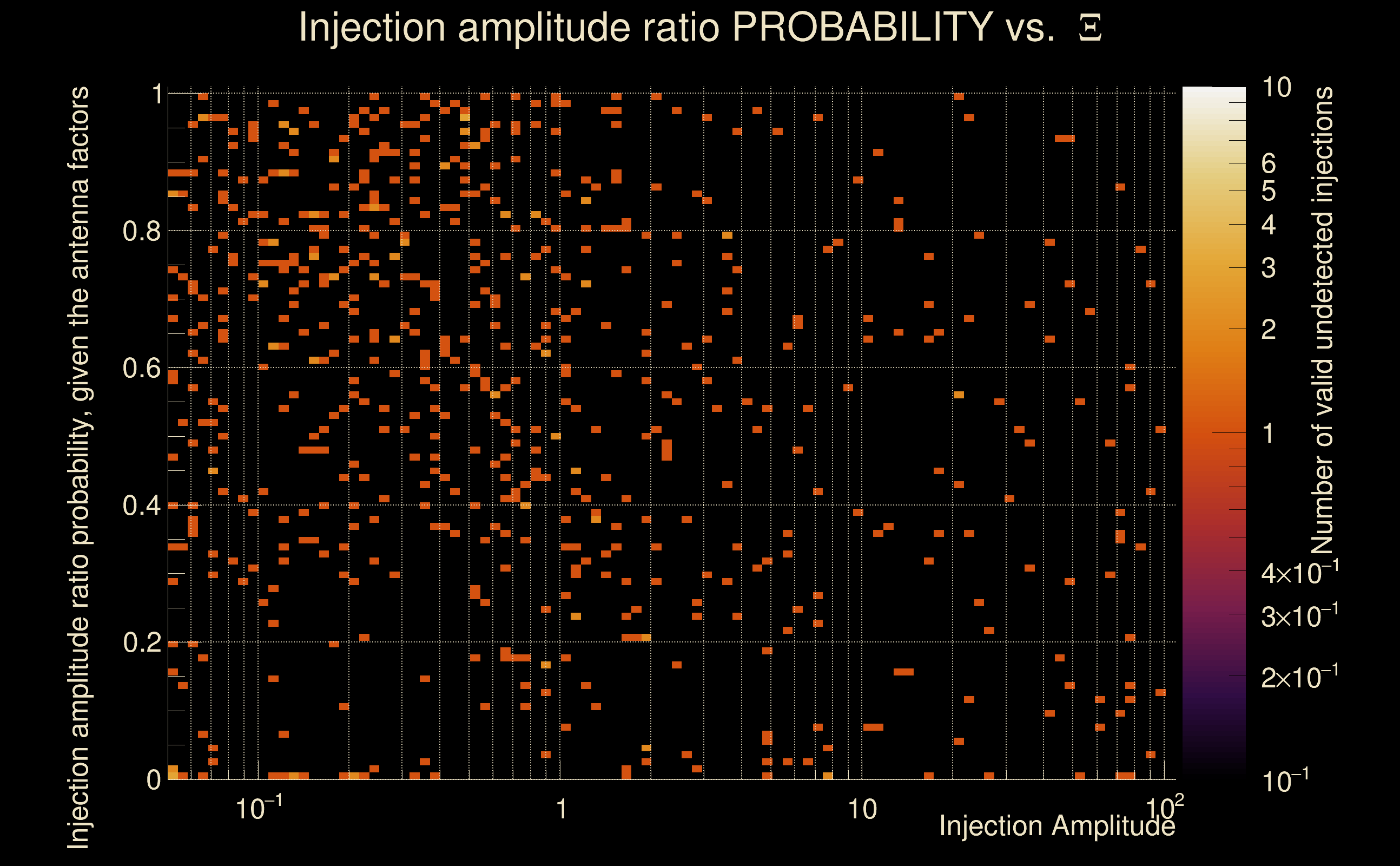

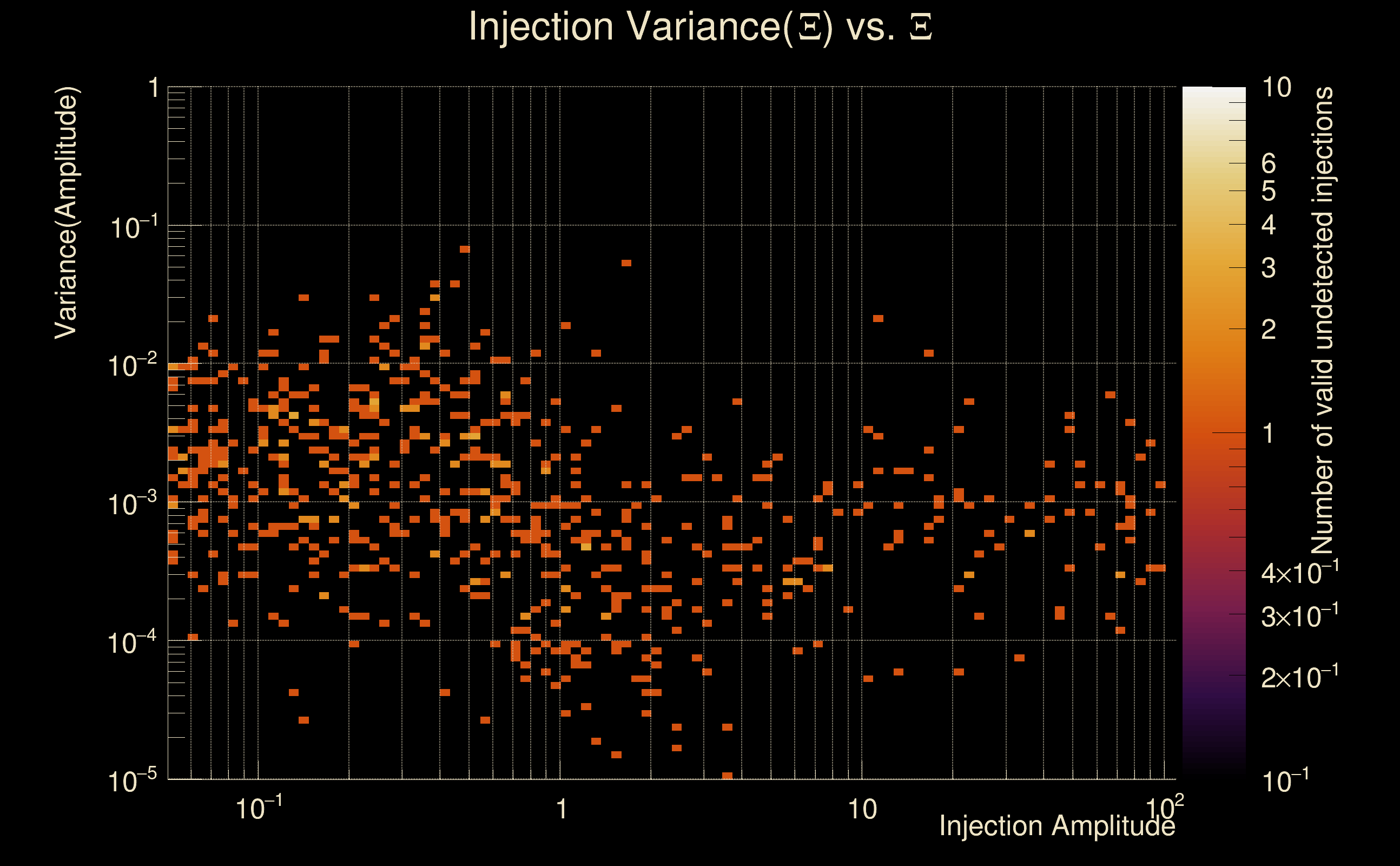

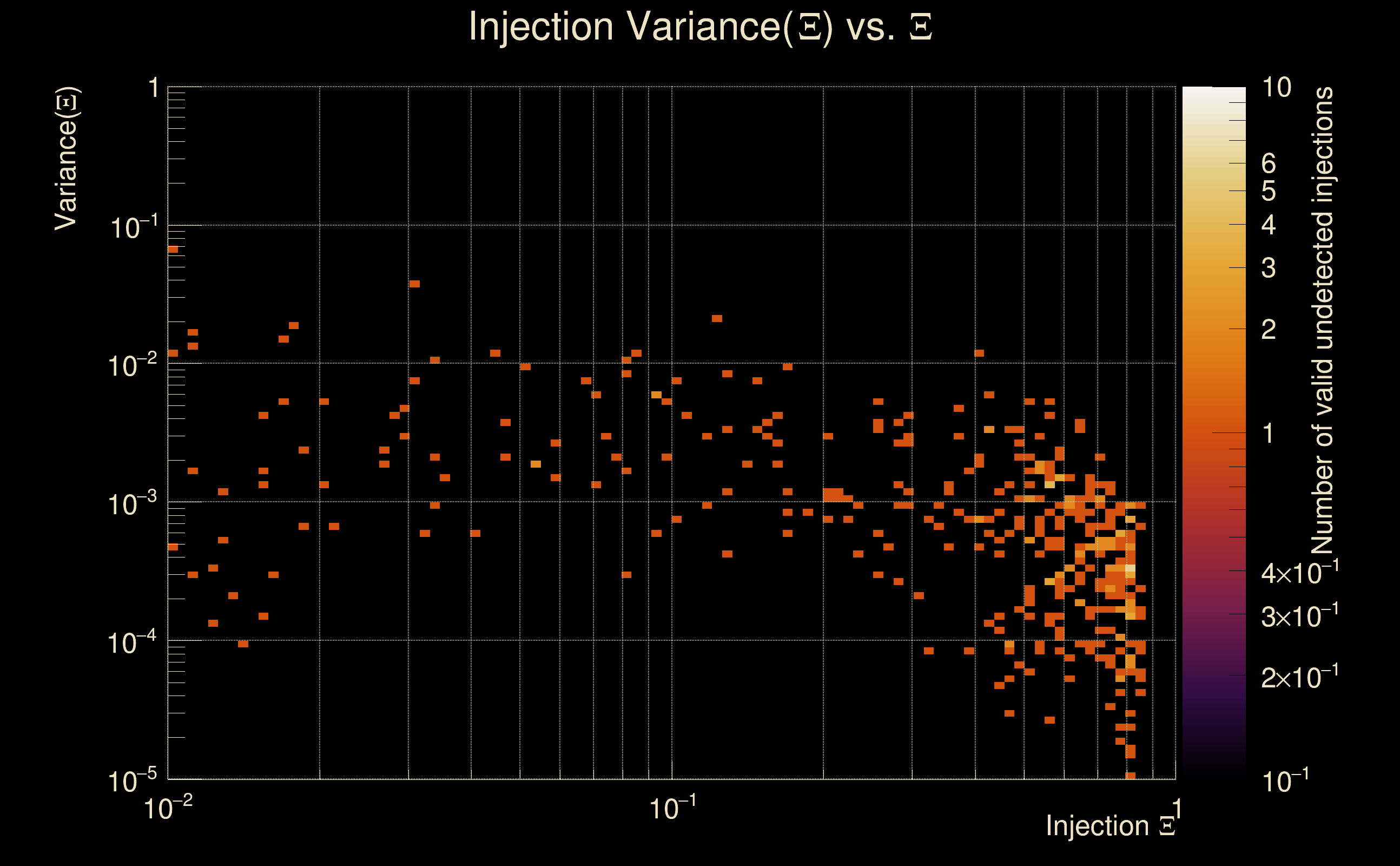

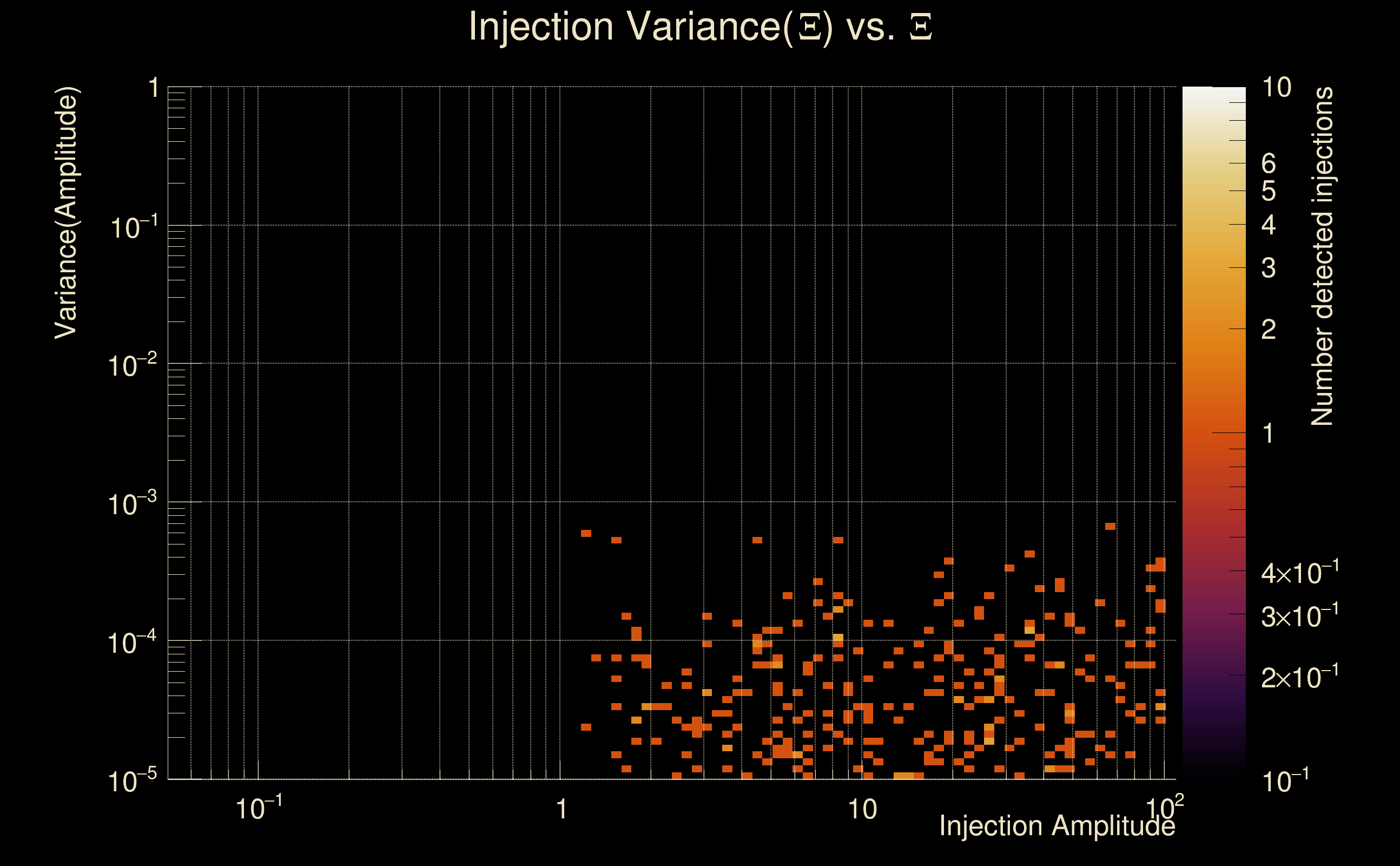

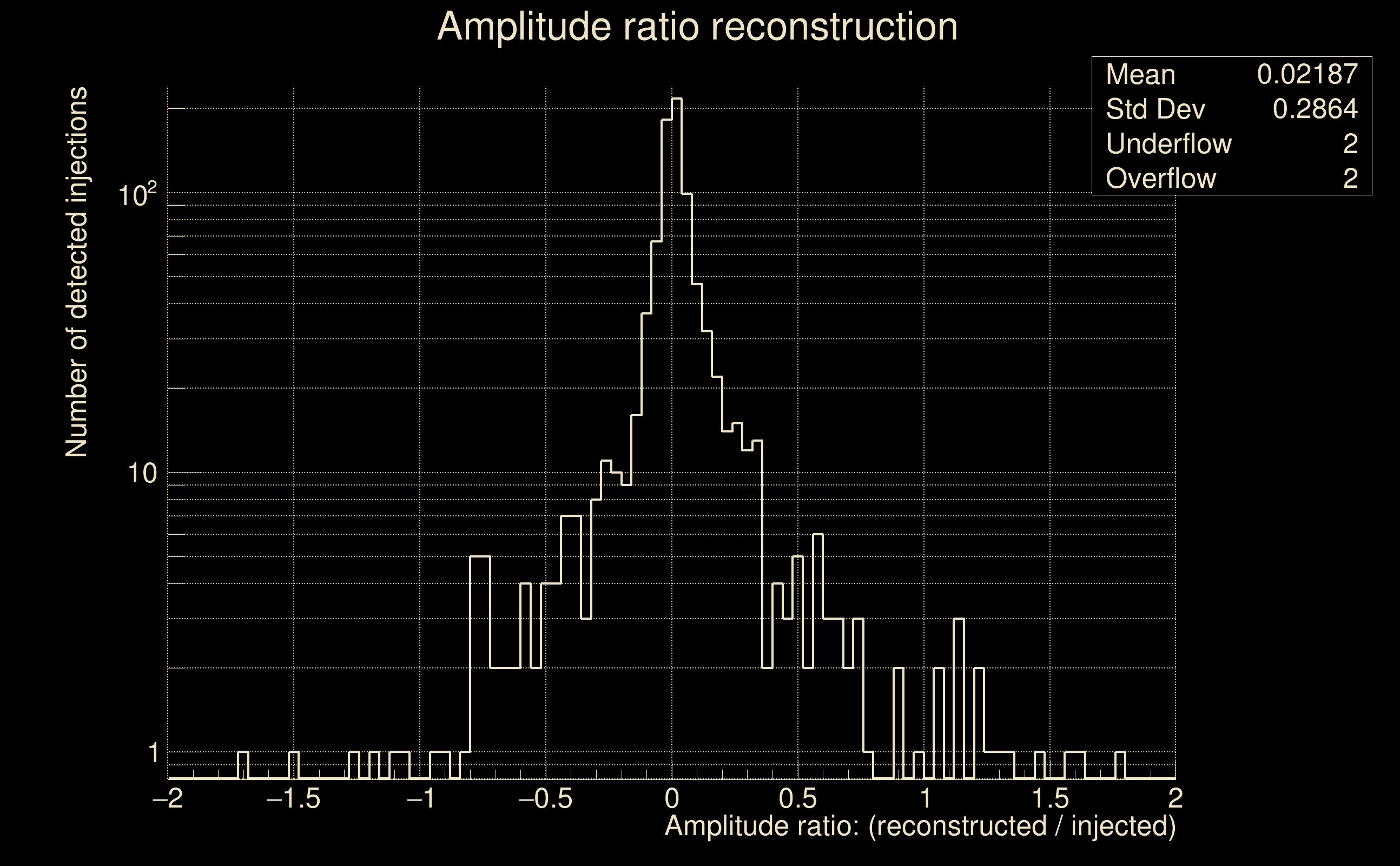

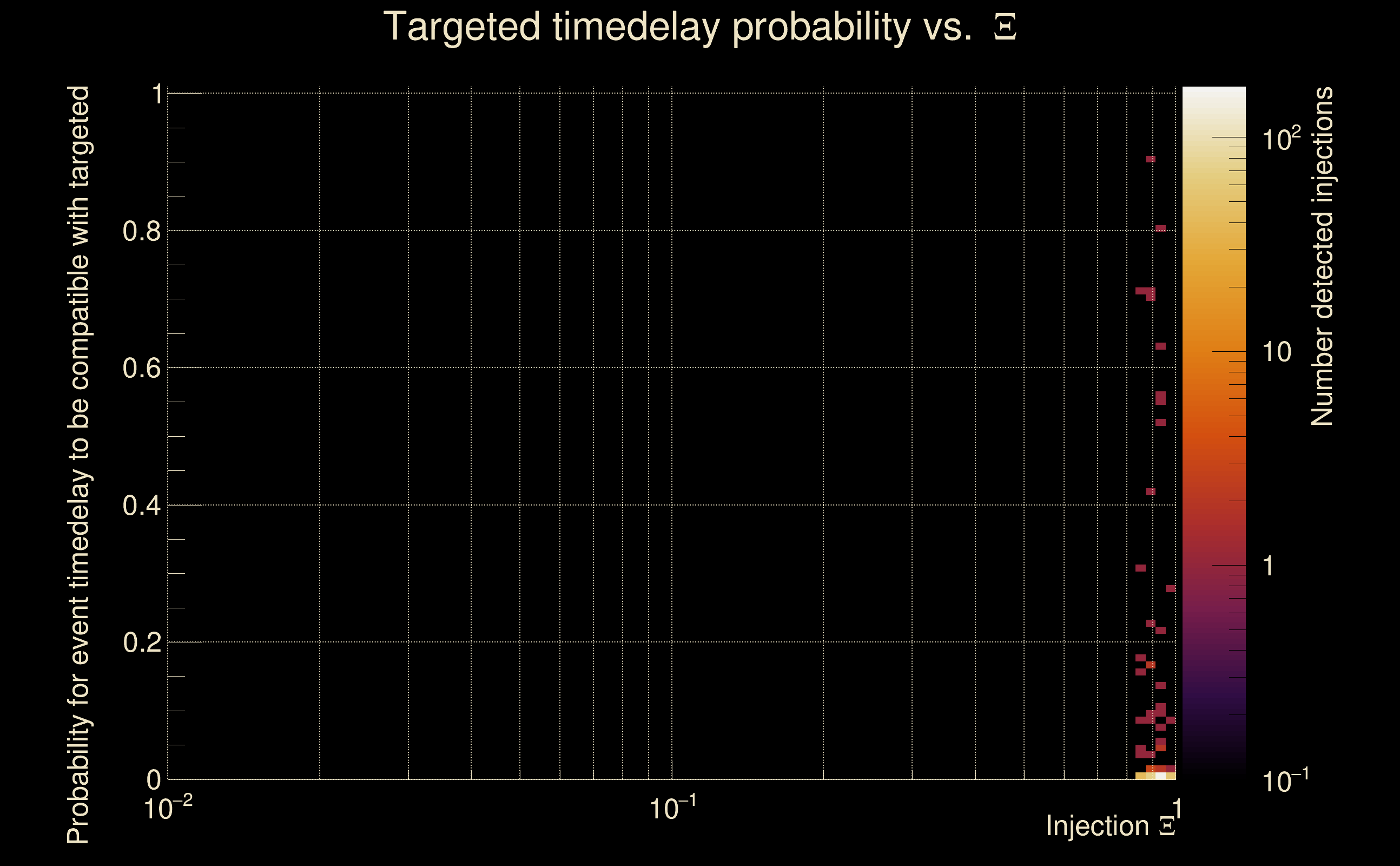

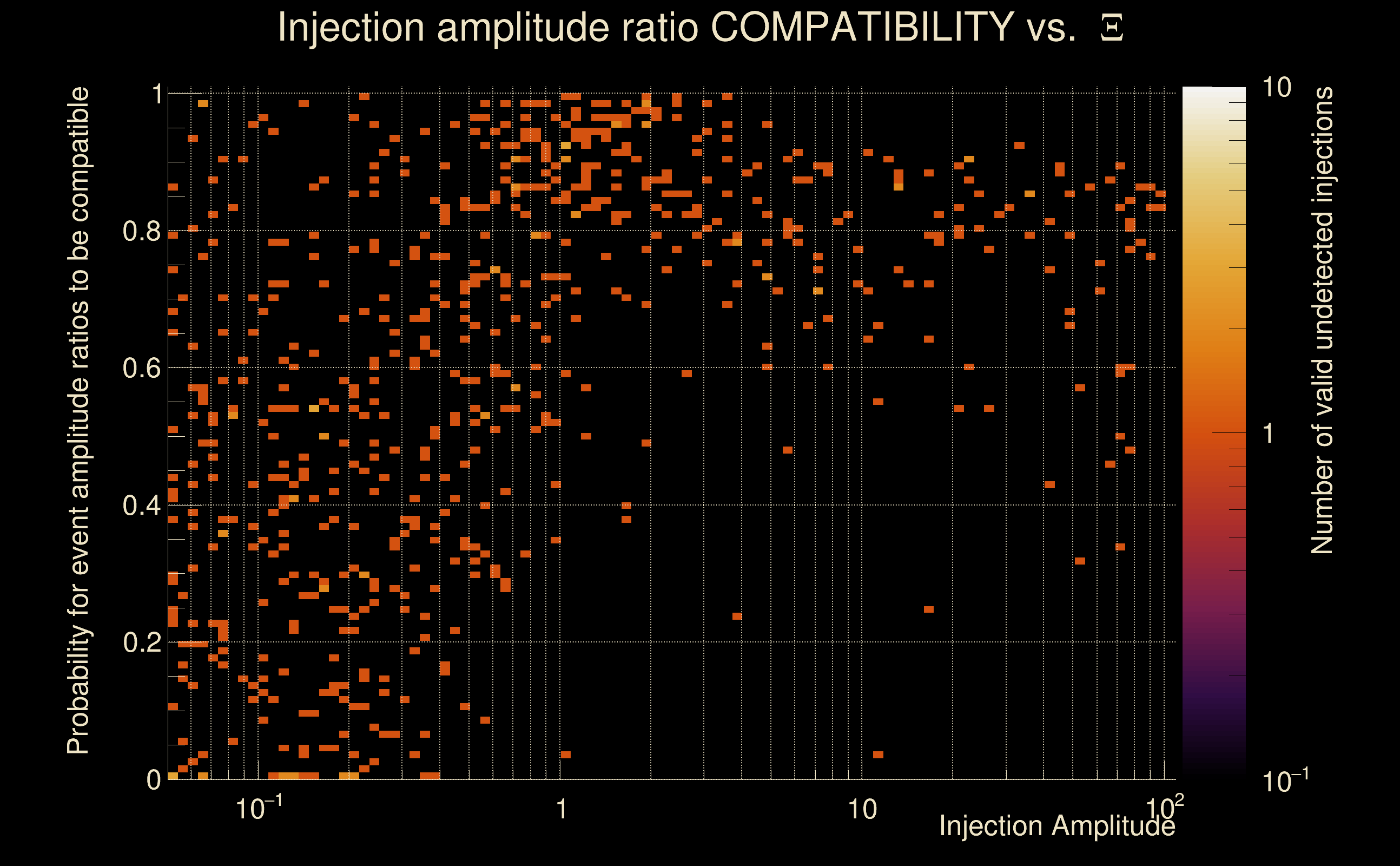

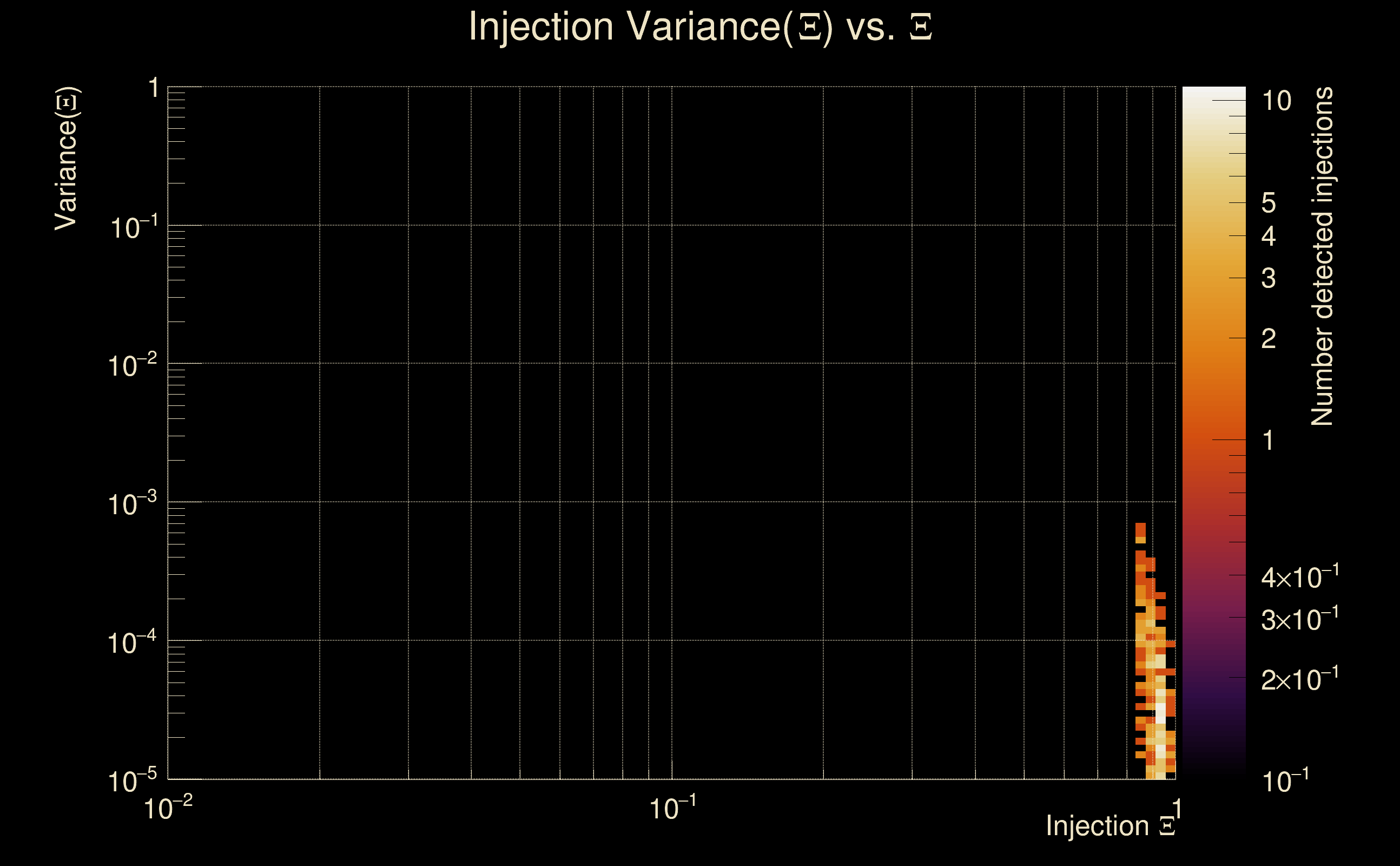

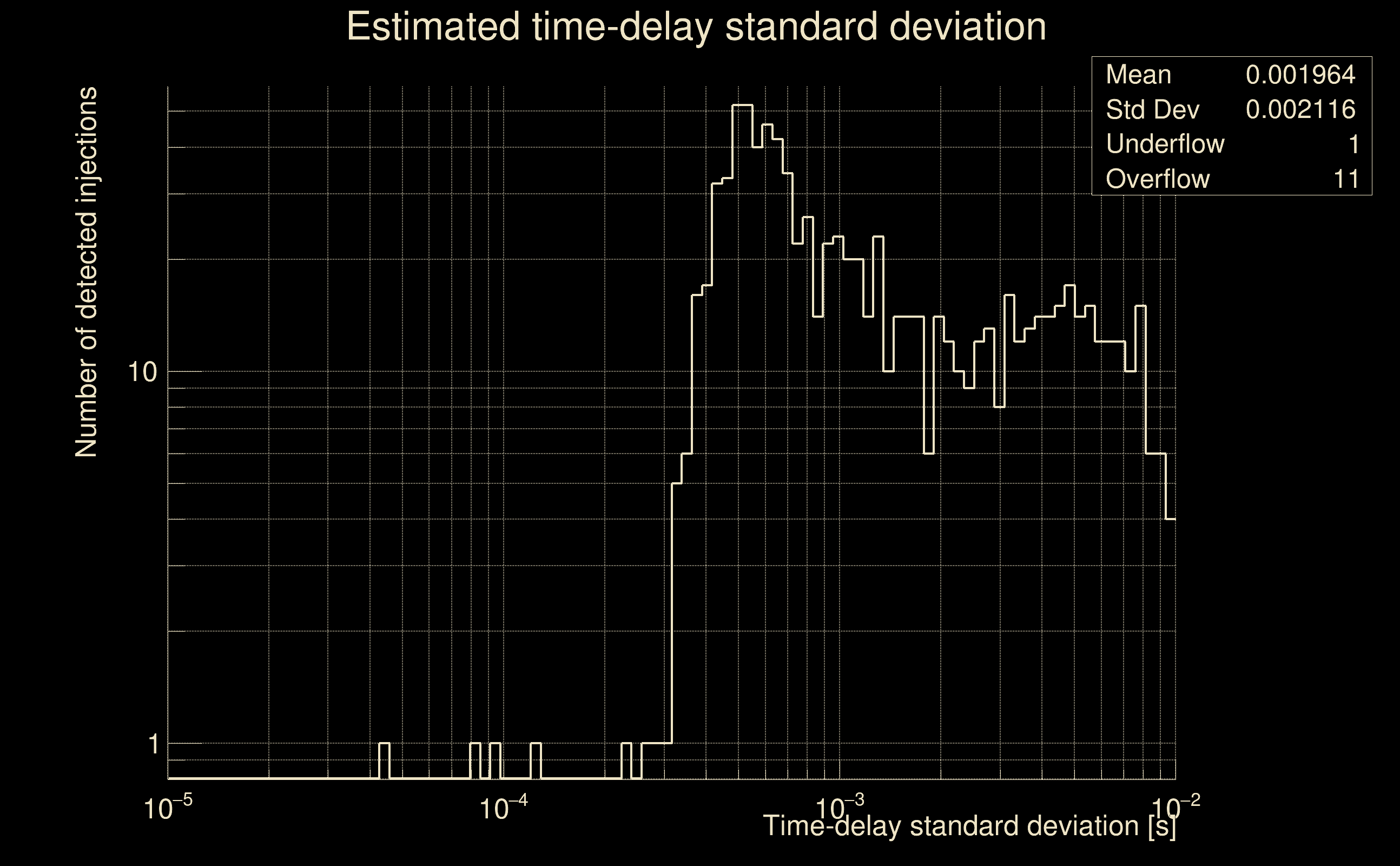

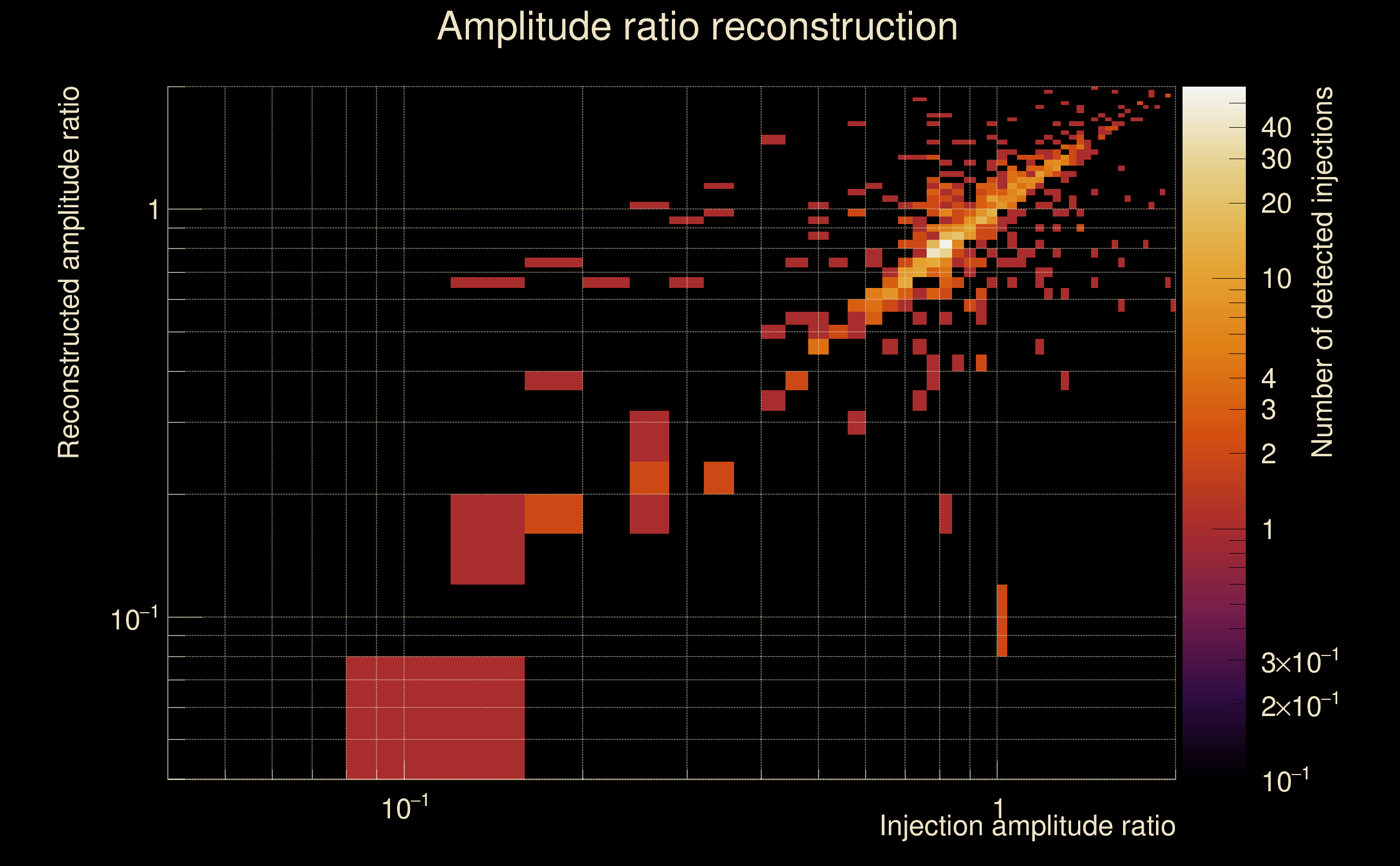

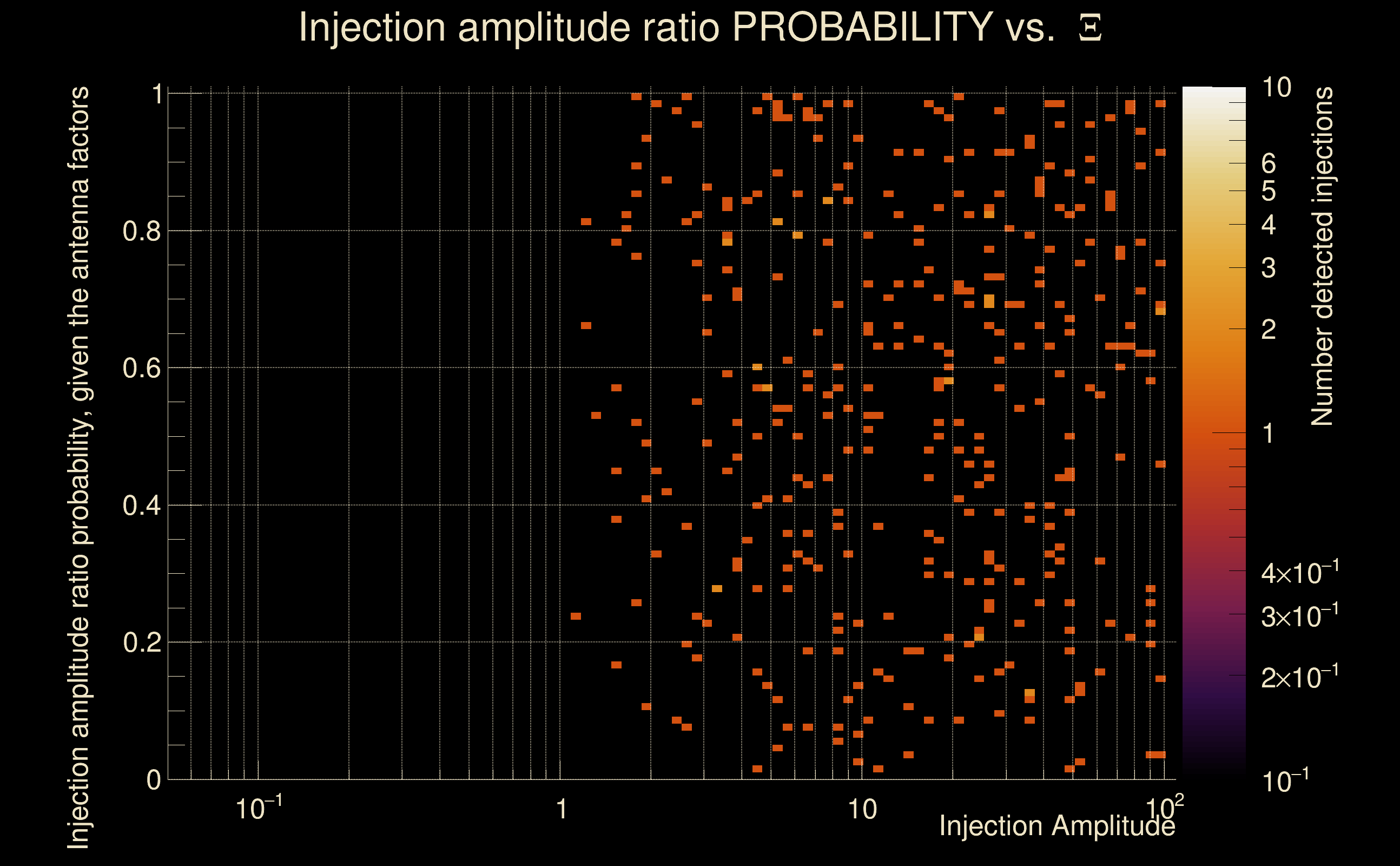

| Number of injections (total/valid/detected): | 1042 / 922 / 362 |
| List of missed injections: | ./Pow23-B12_missed.txt |
| Injection amplitude at 90% detection efficiency: | 14.9669 |
| Injection amplitude at 50% detection efficiency: | 7.31733 |
| Injection amplitude at 10% detection efficiency: | 1.45599 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

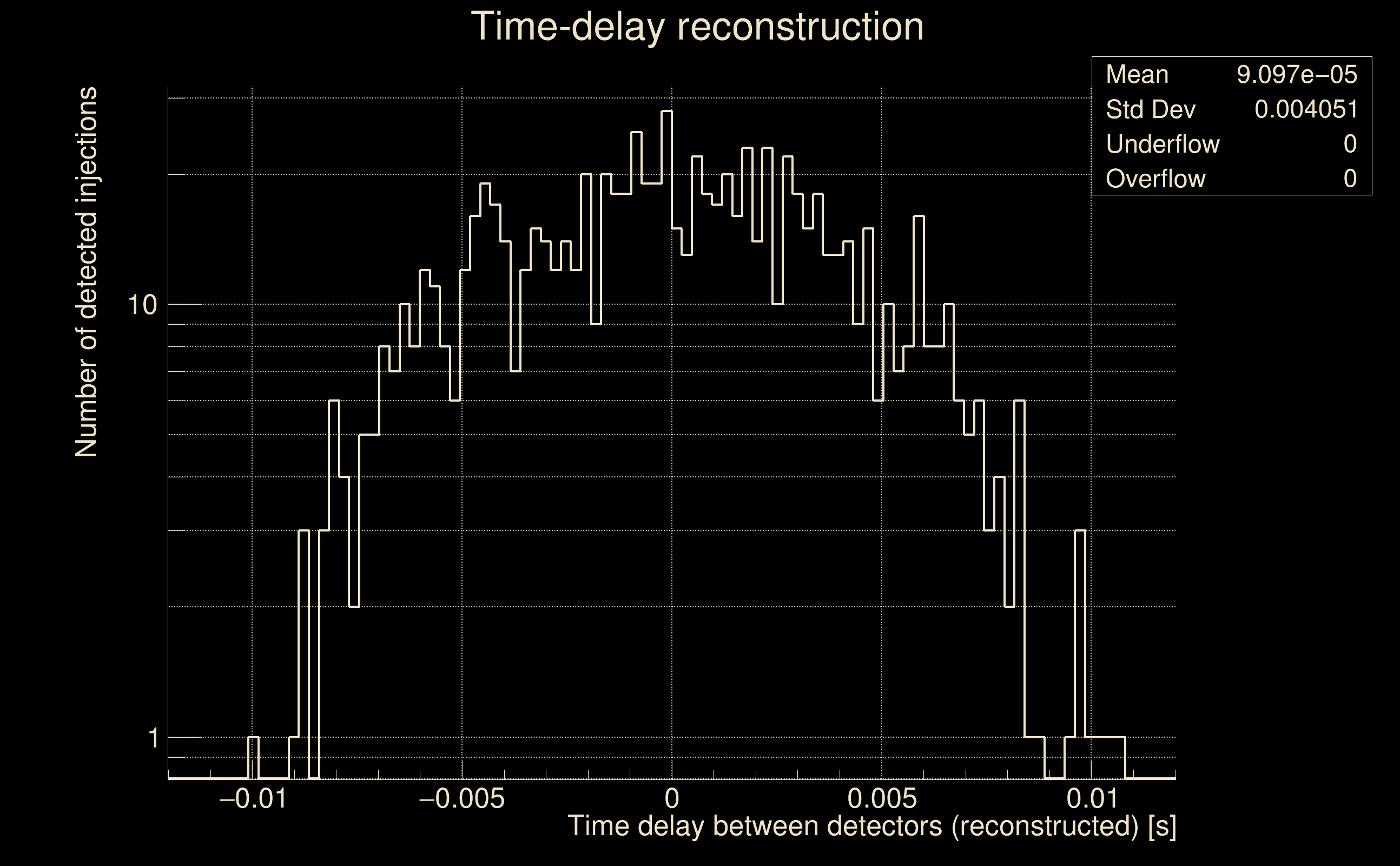

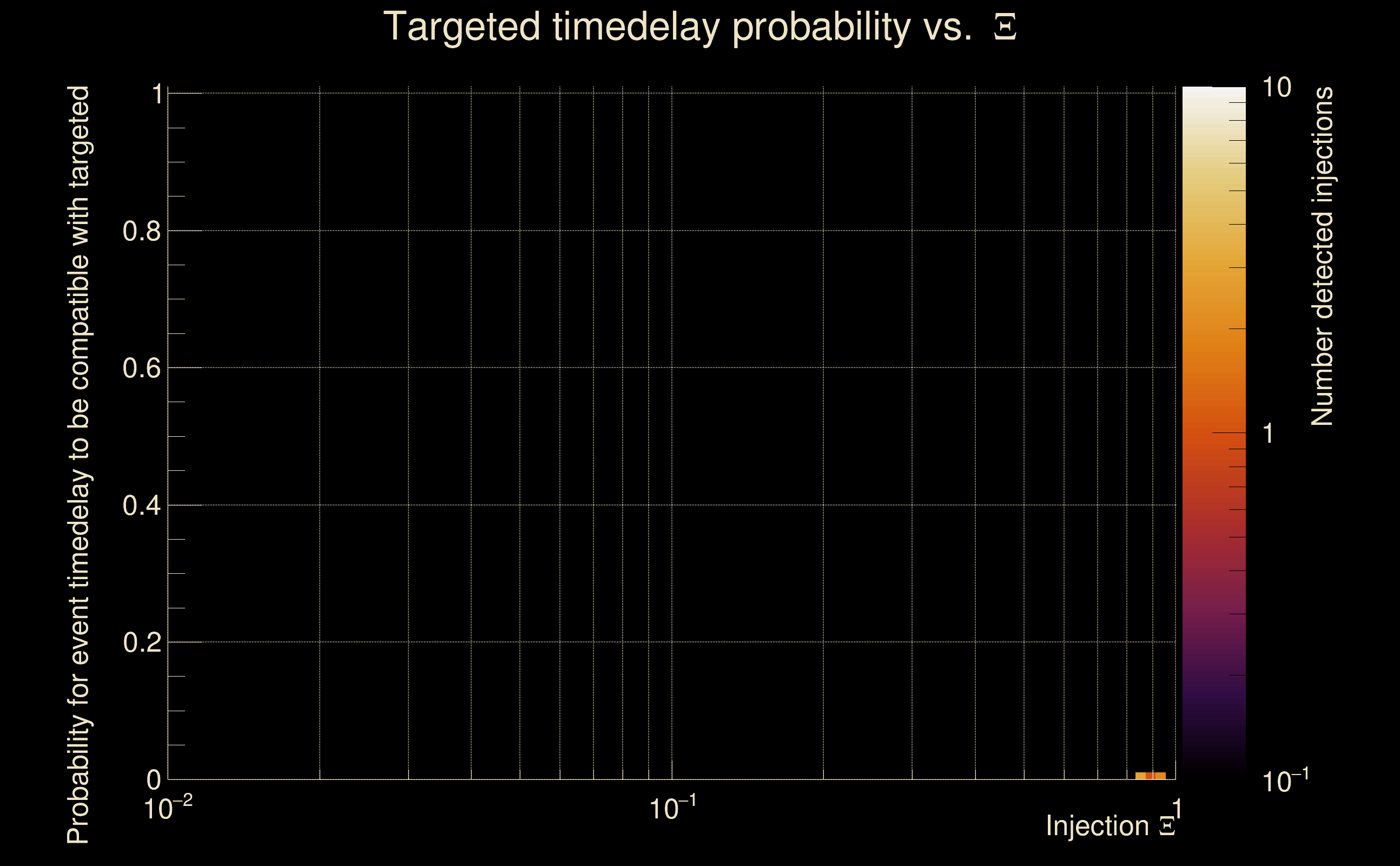

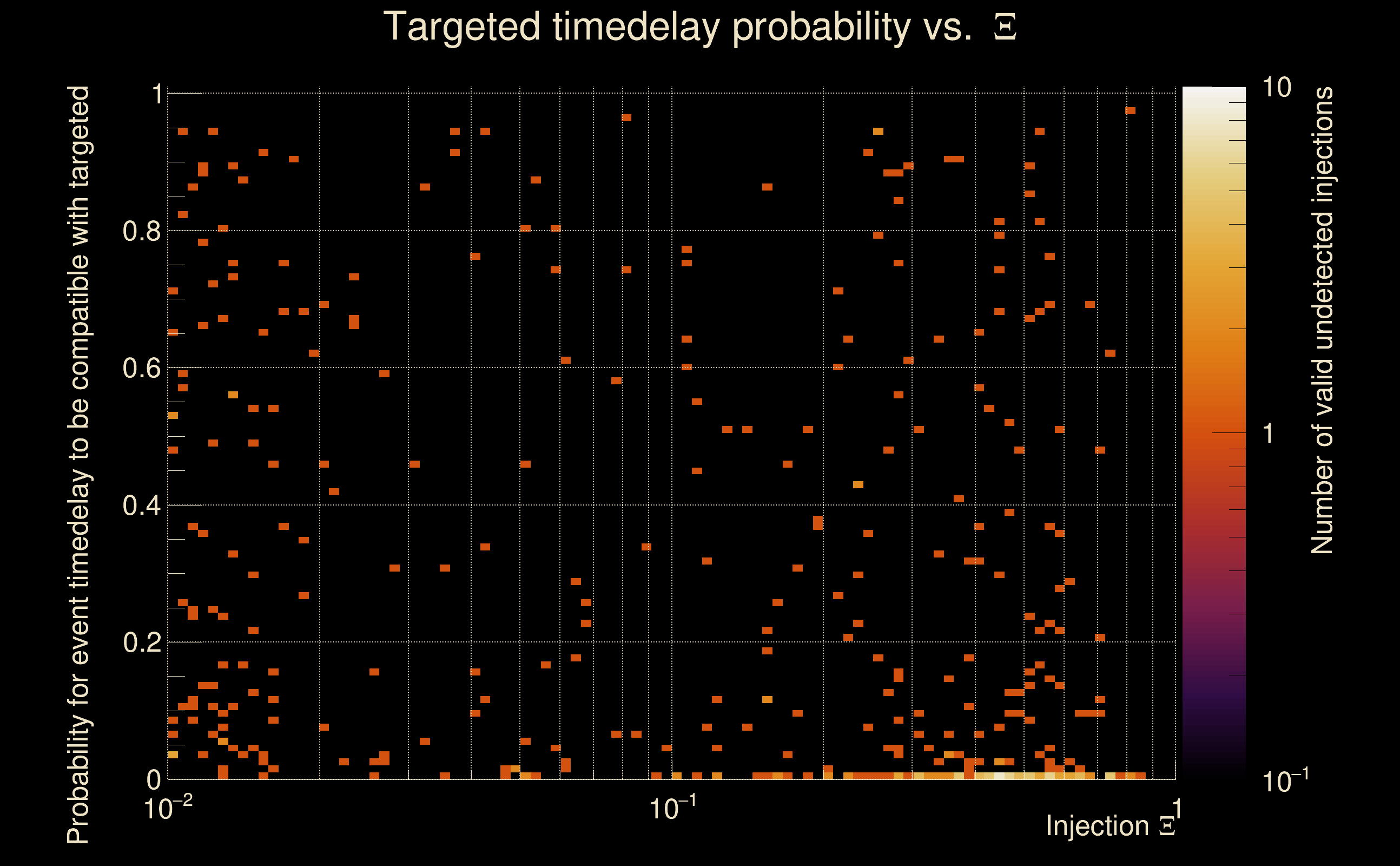

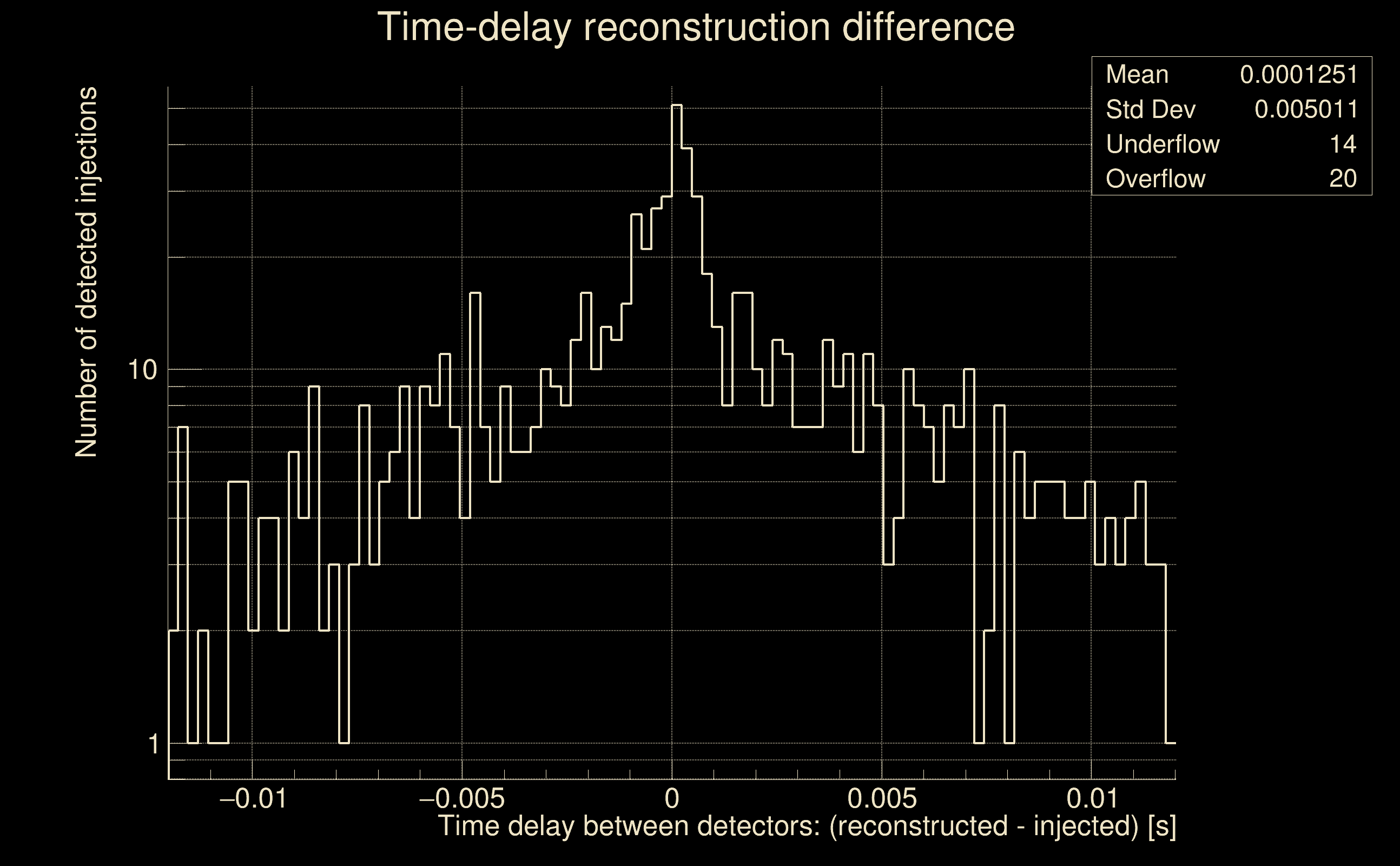

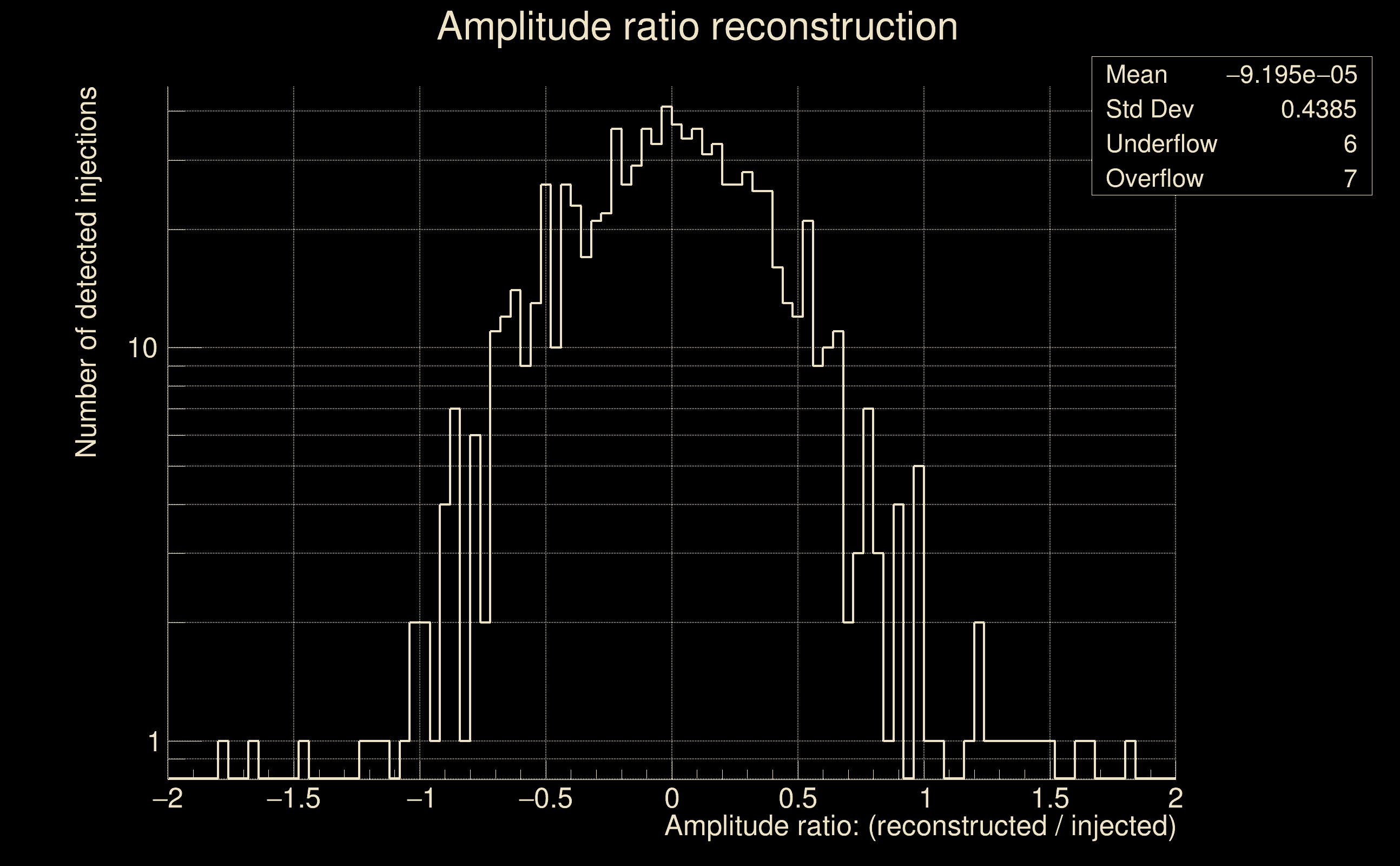

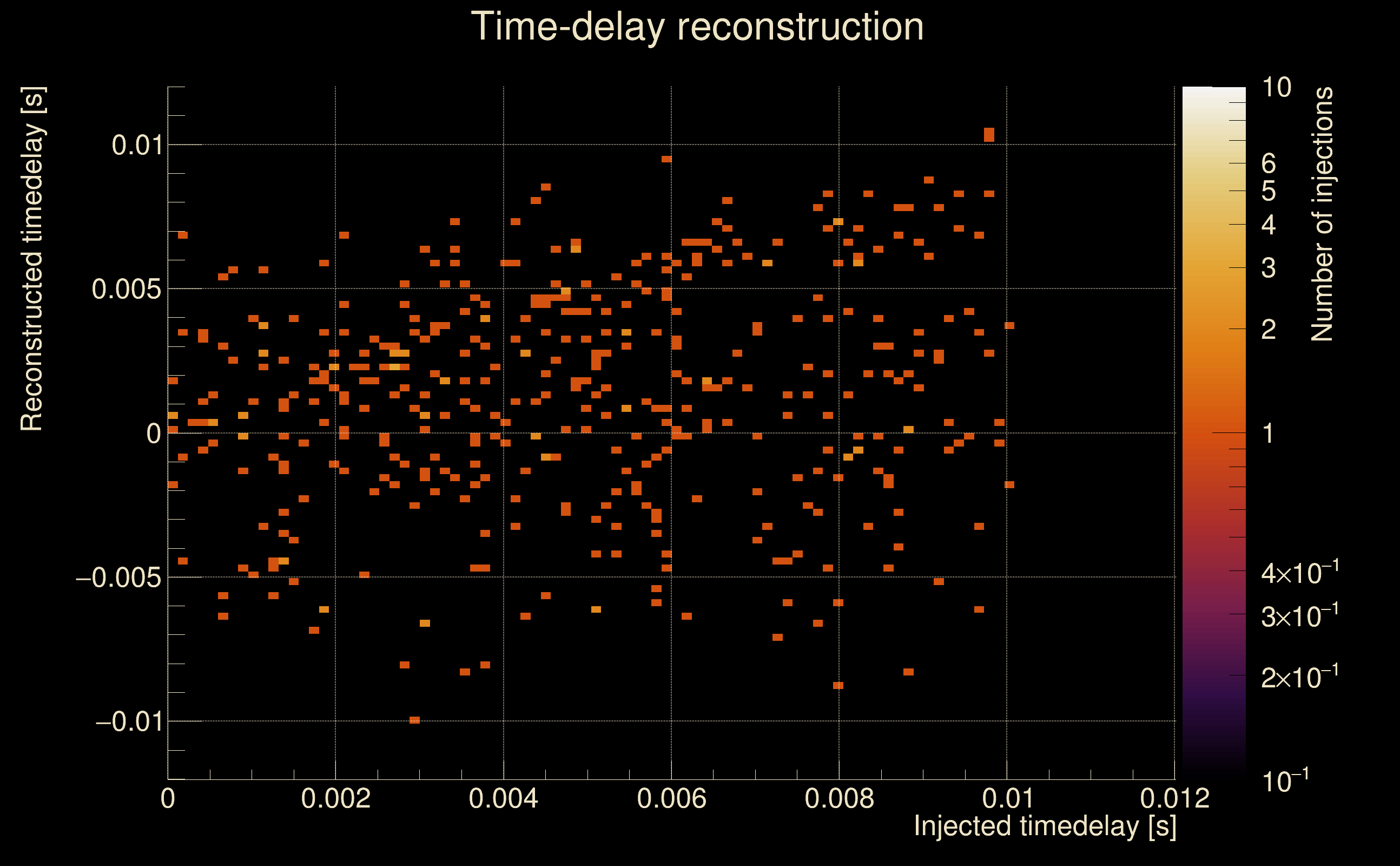

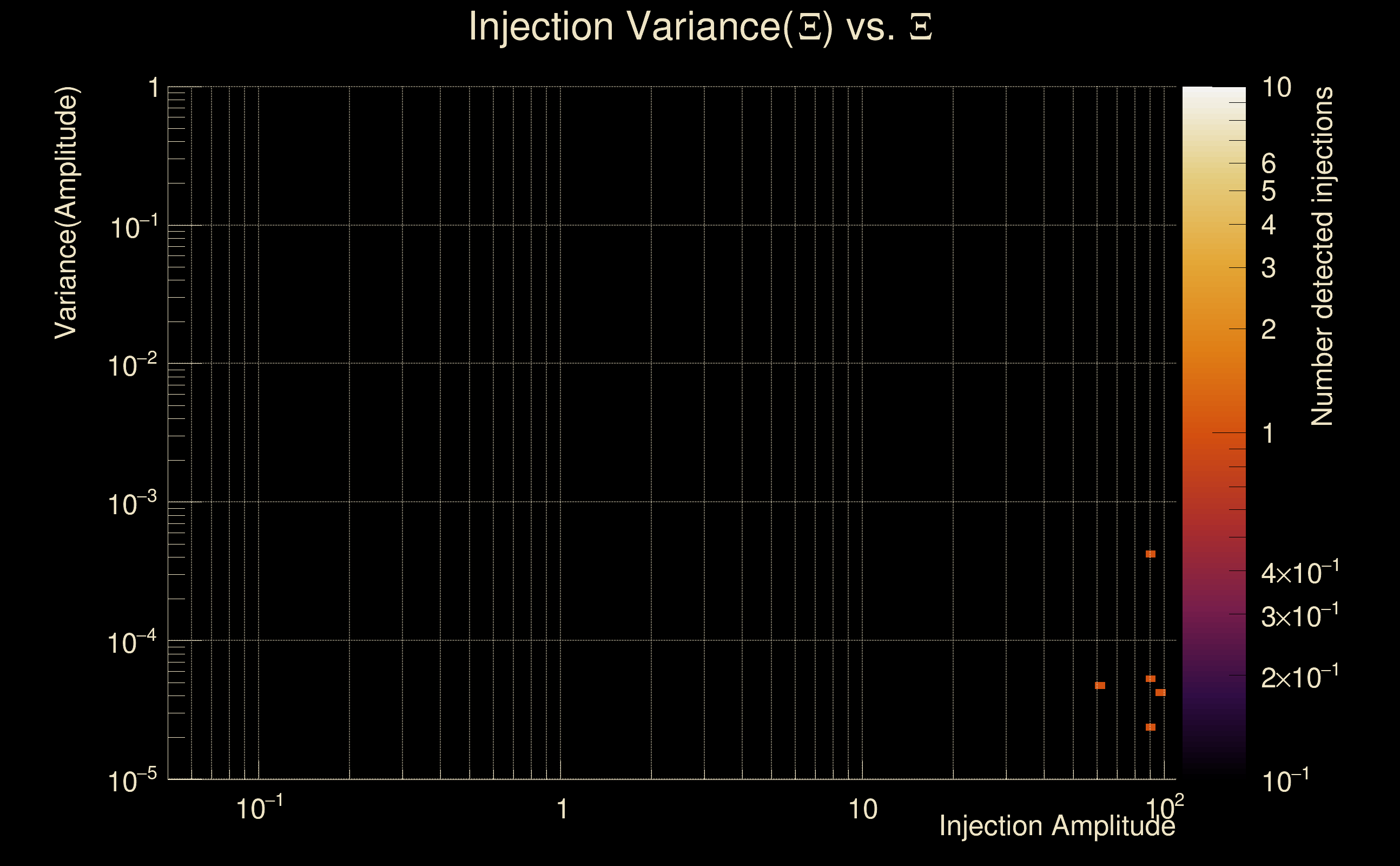

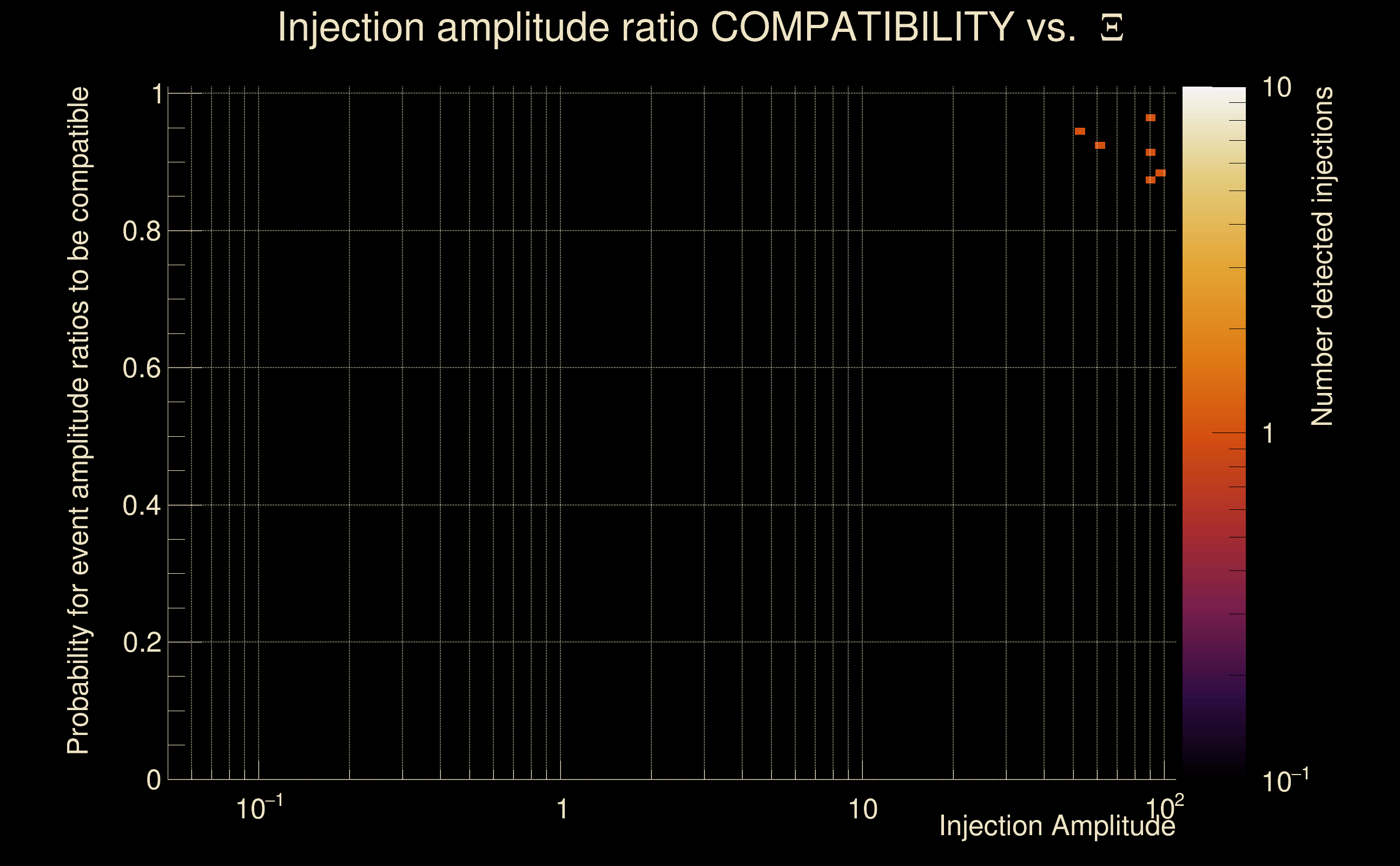

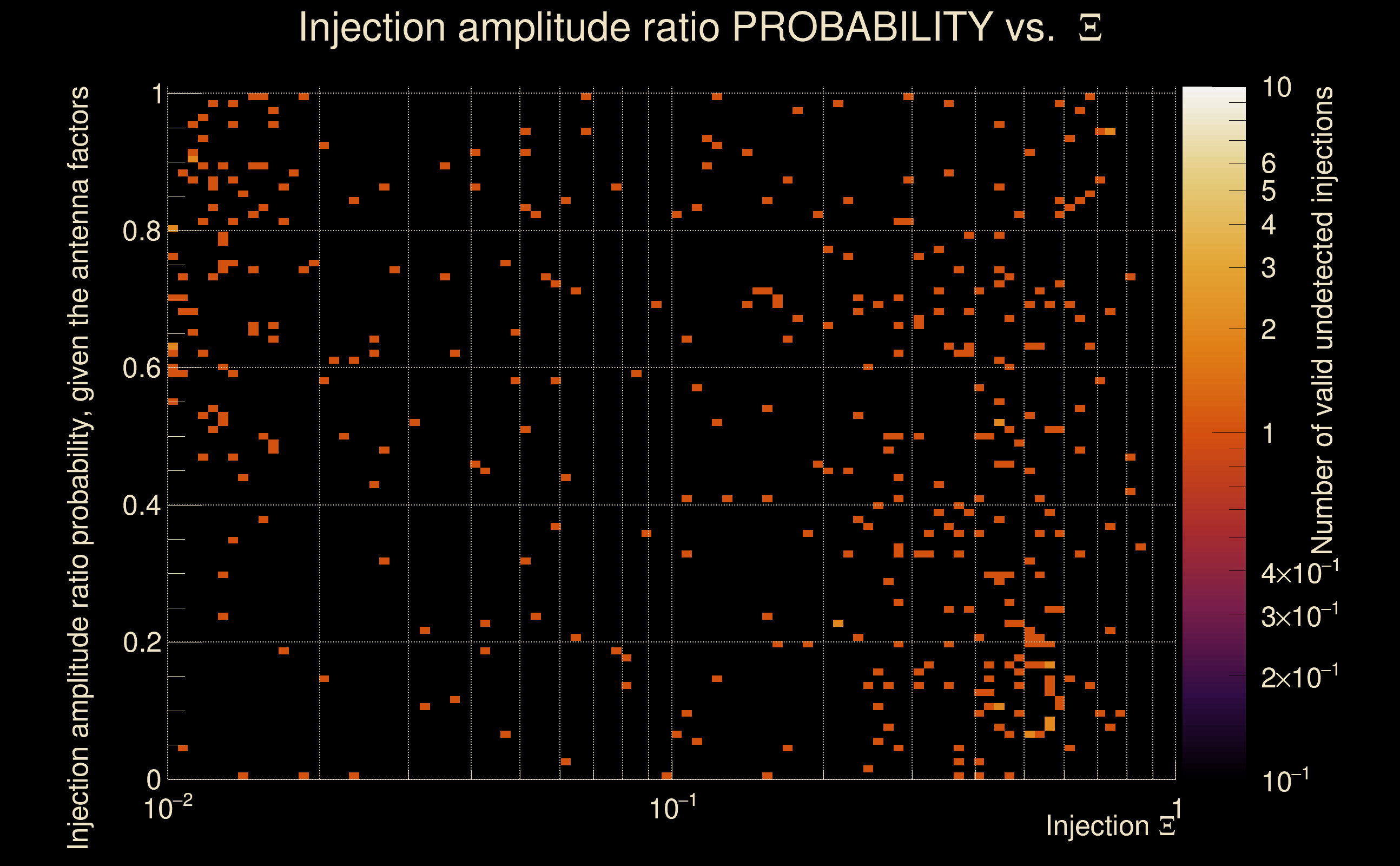

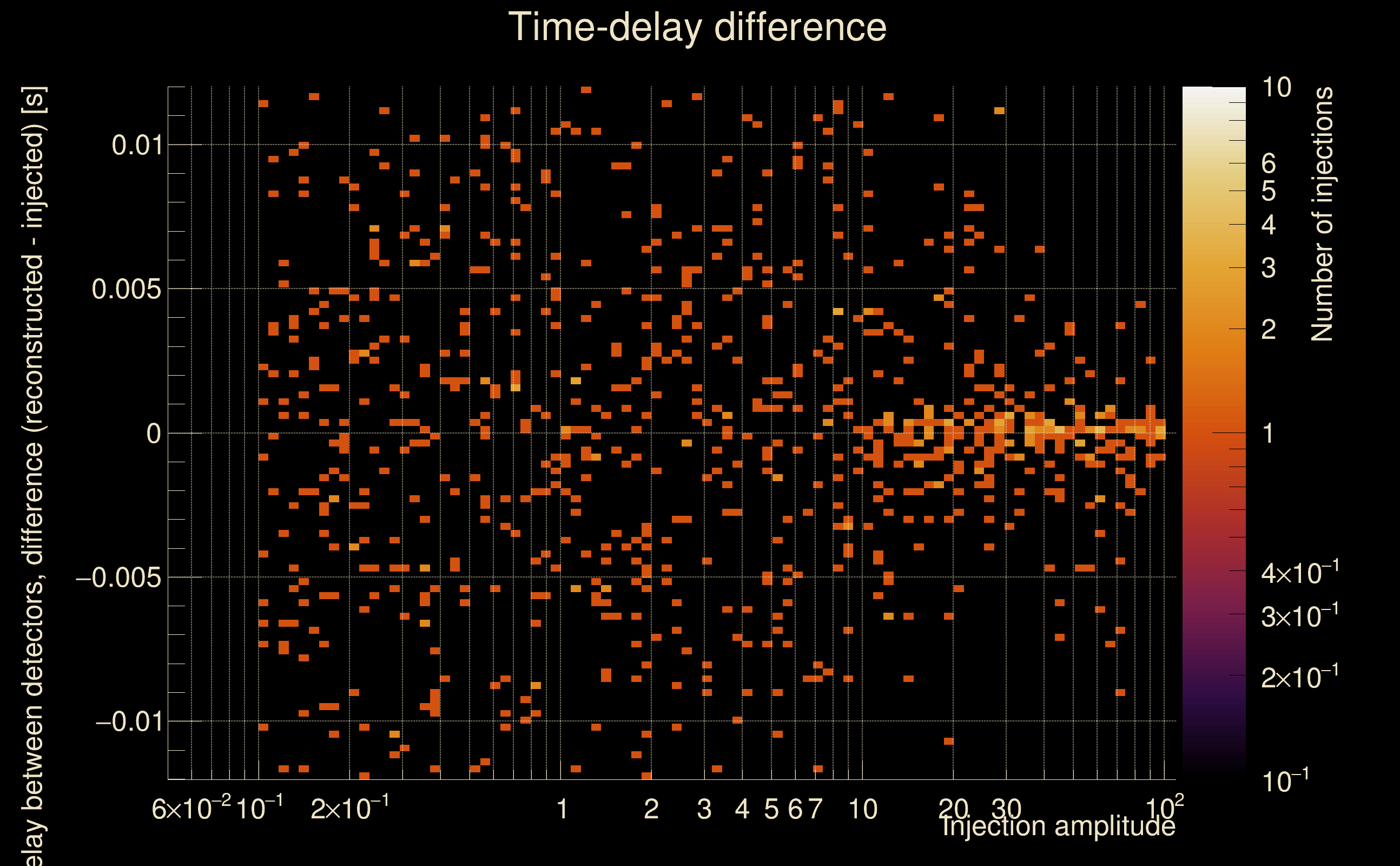

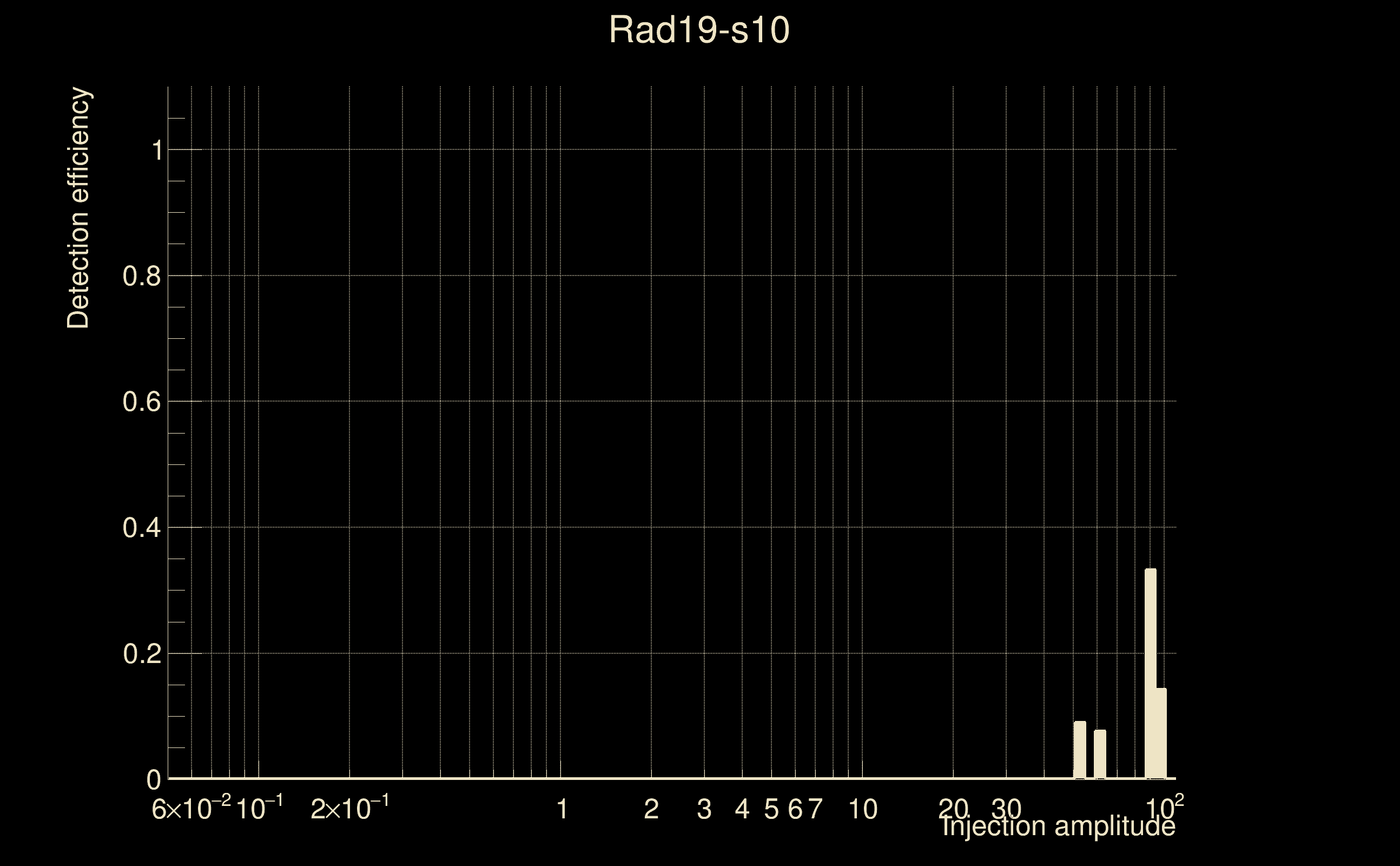

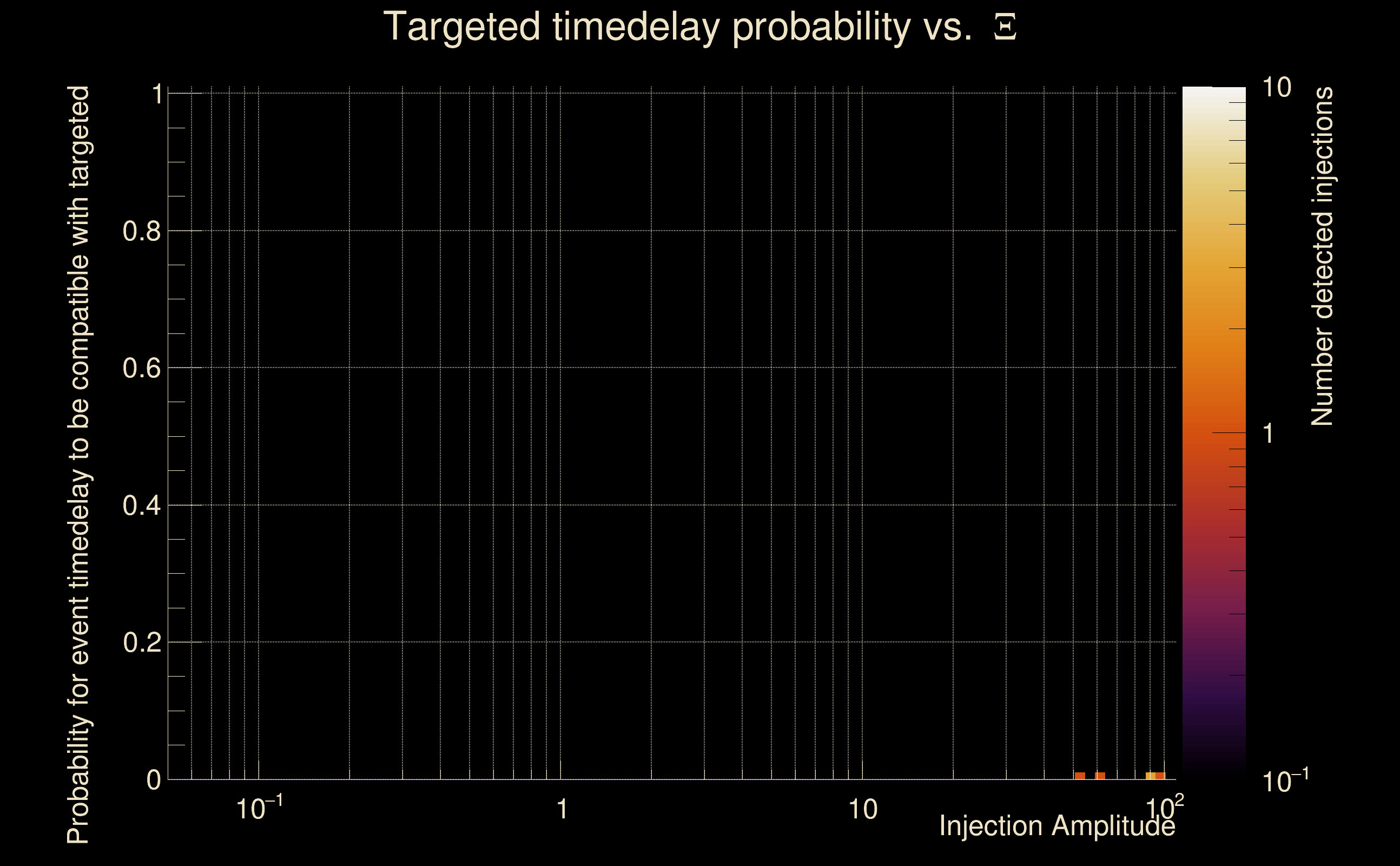

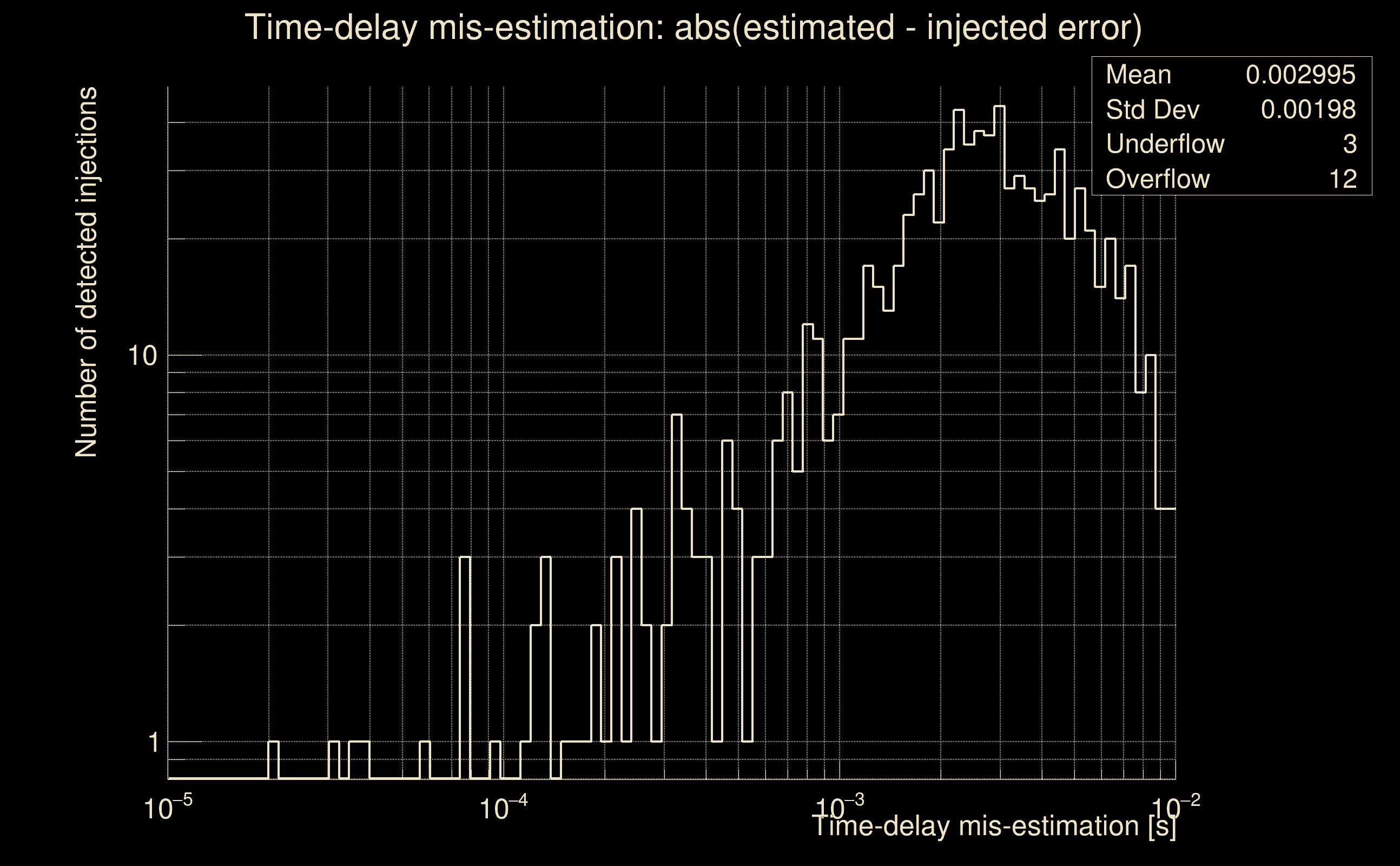

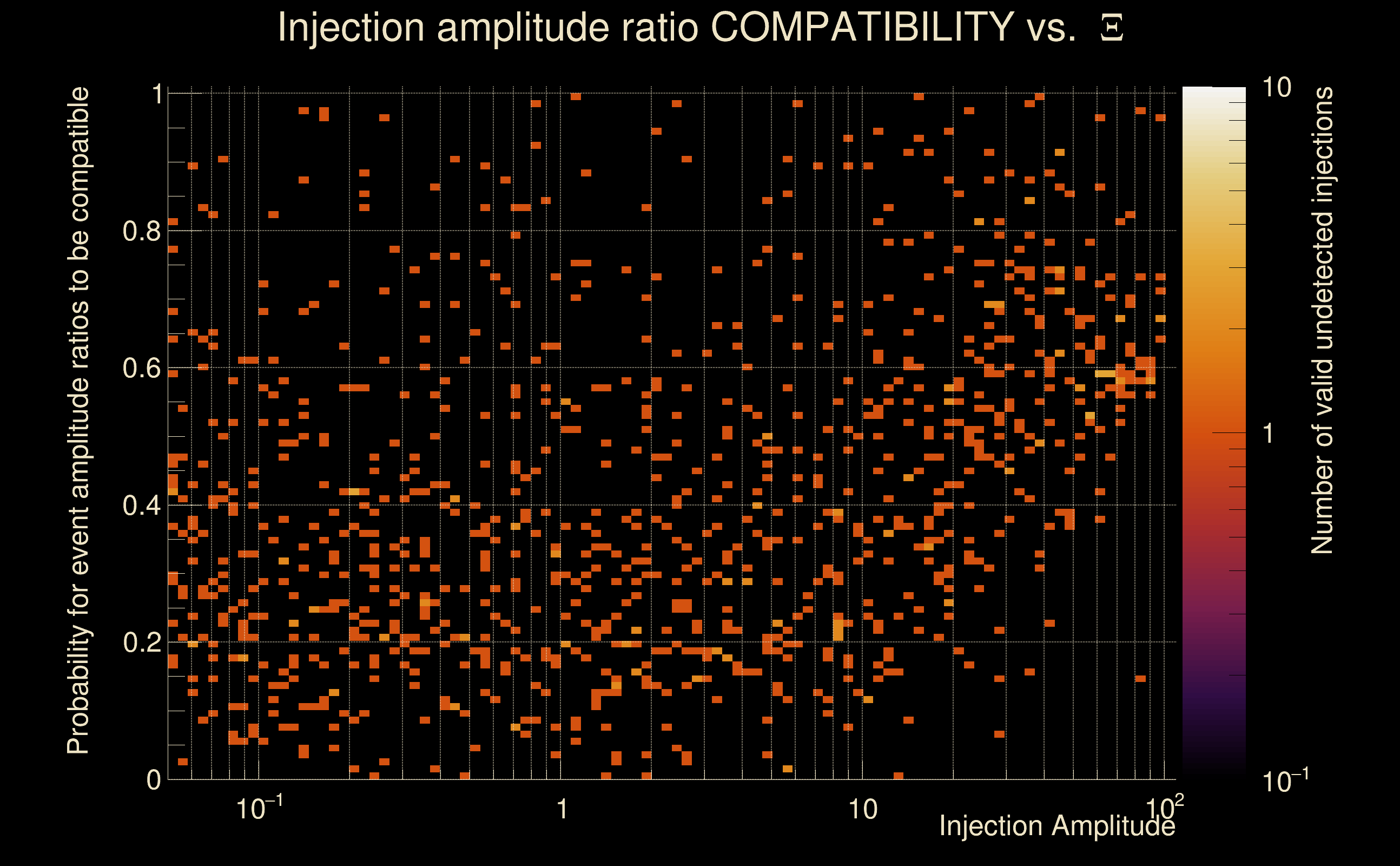

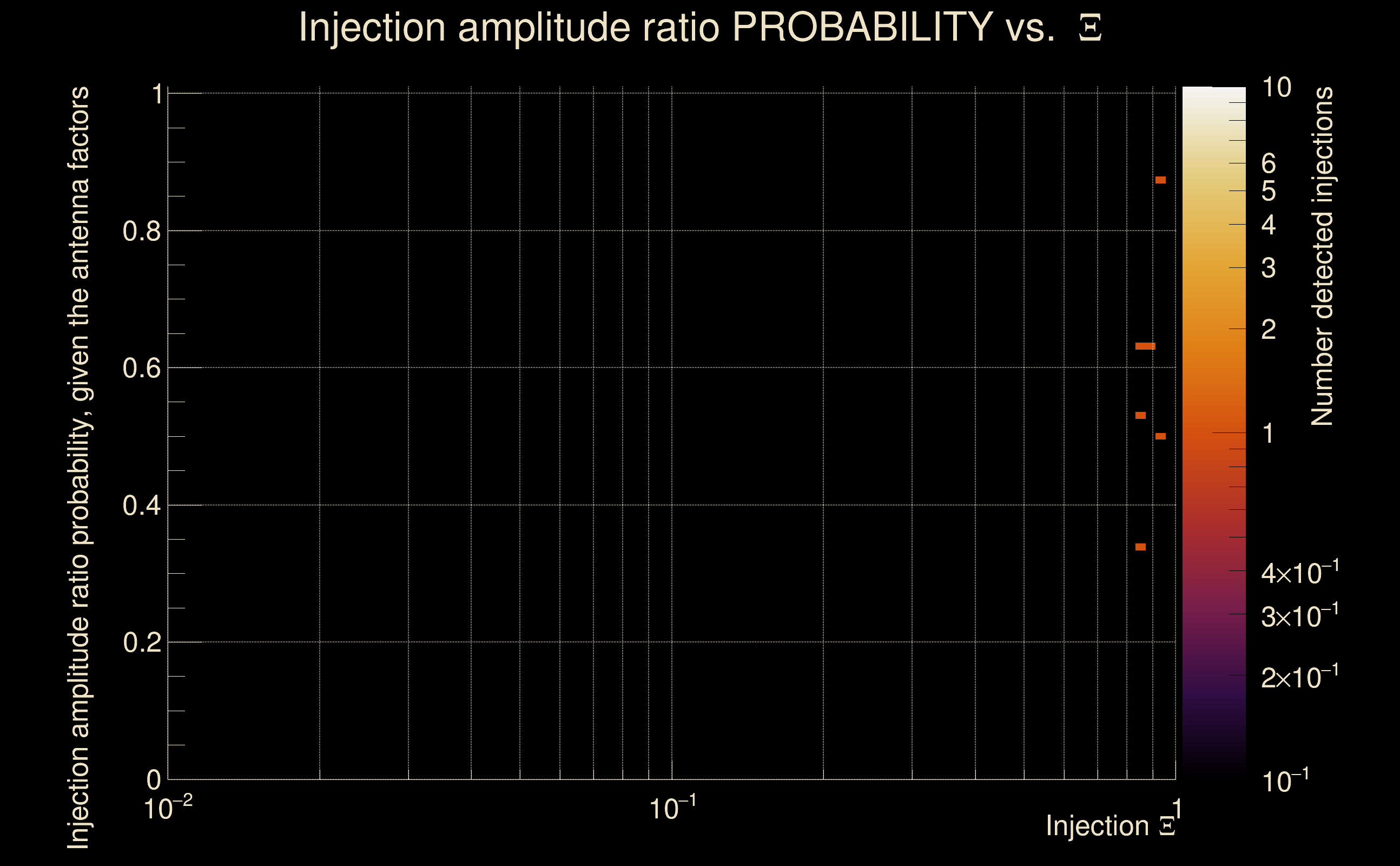

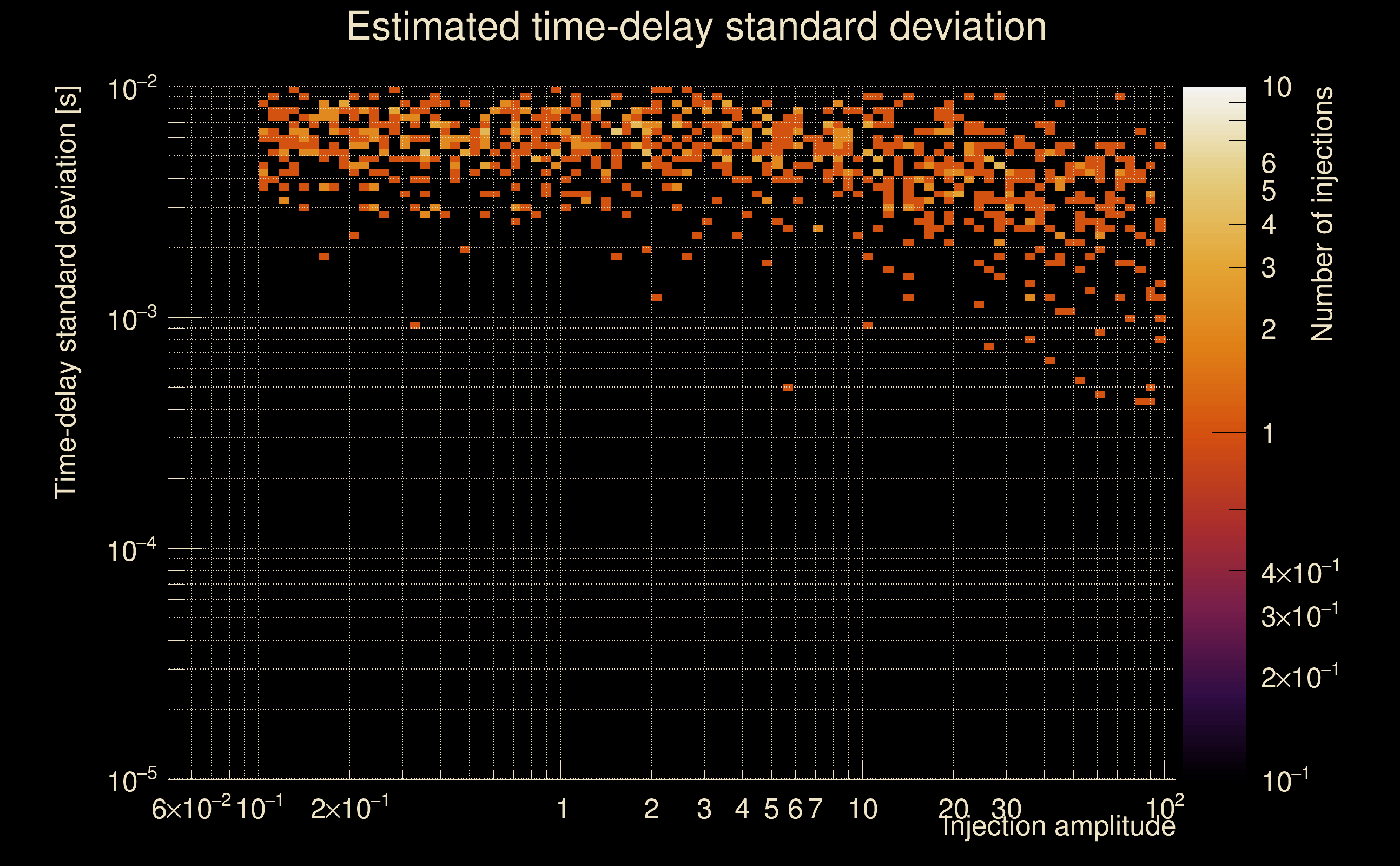

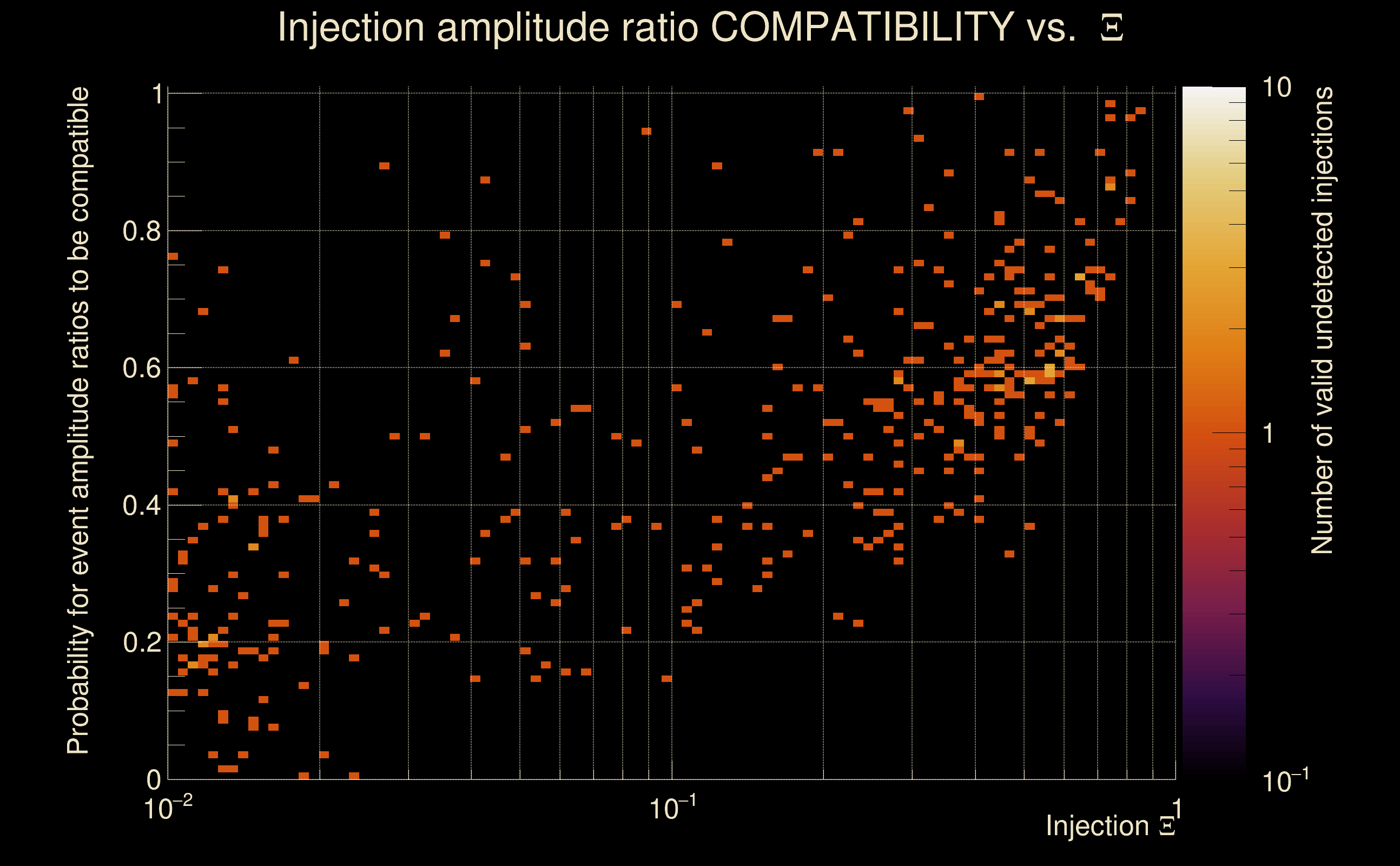

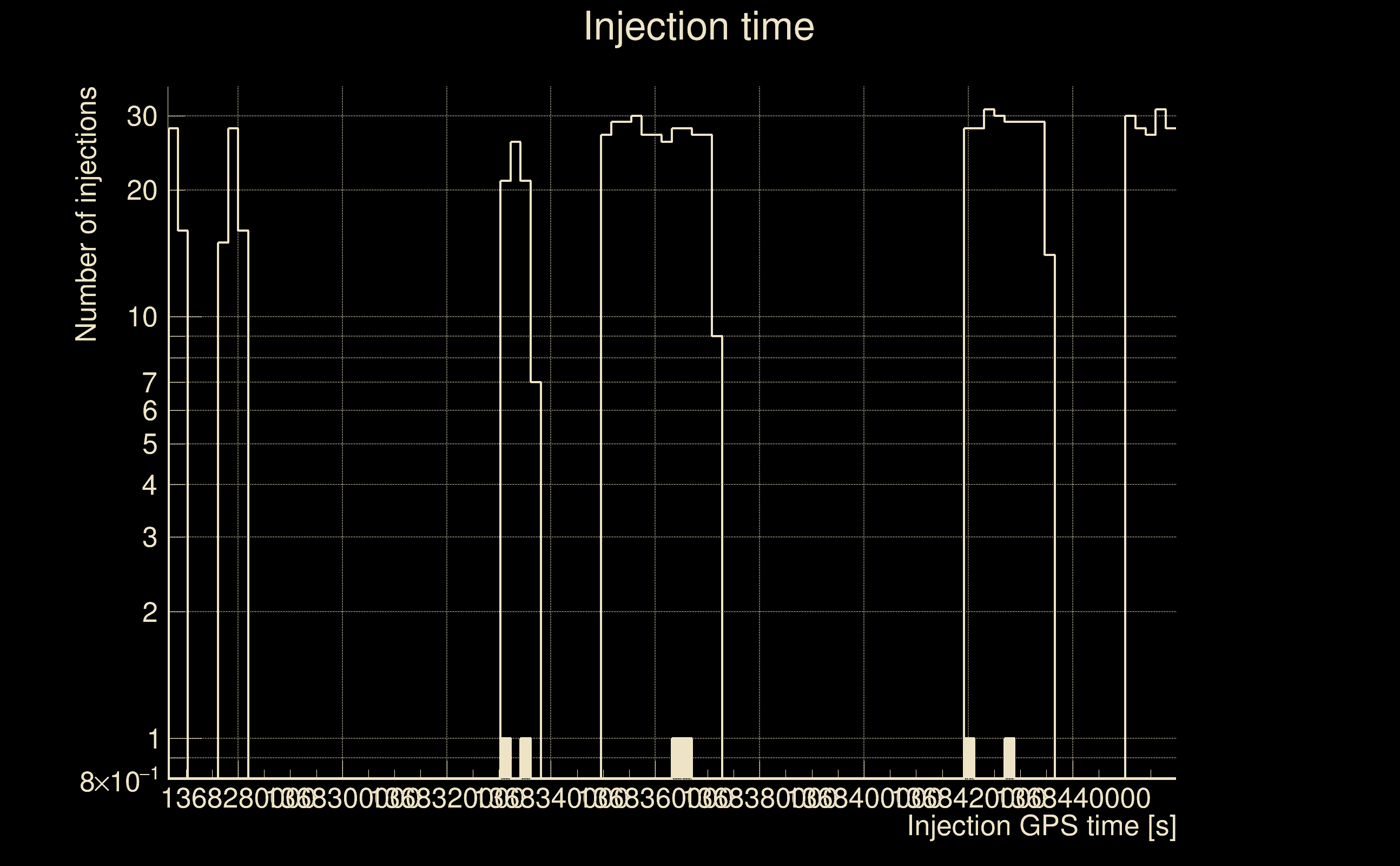

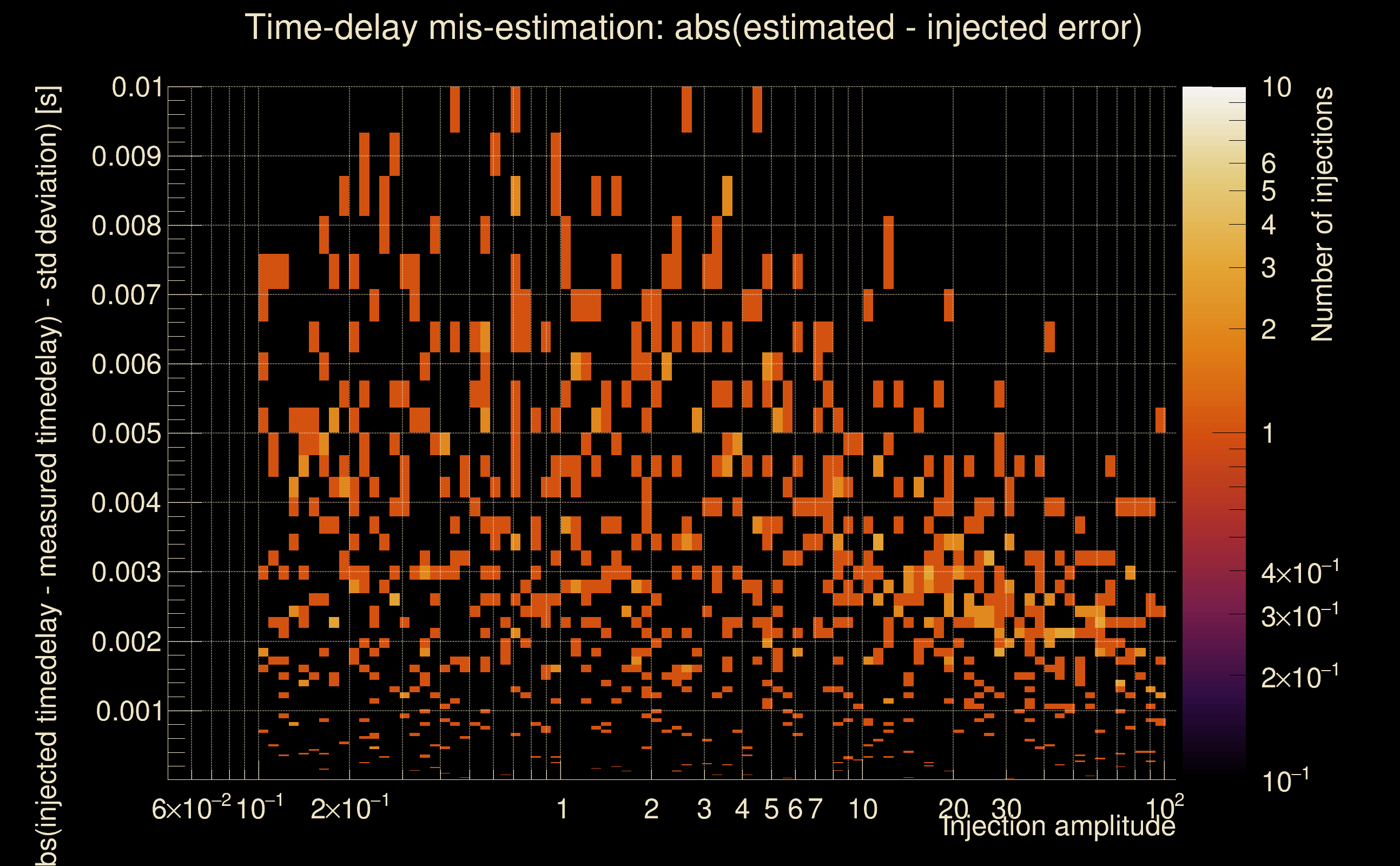

| Number of injections (total/valid/detected): | 1006 / 883 / 6 |
| List of missed injections: | ./Rad19-s10_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | 85.5479 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
