| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:45:39 2026 UTC |
| Ox option file: | Bench4_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |

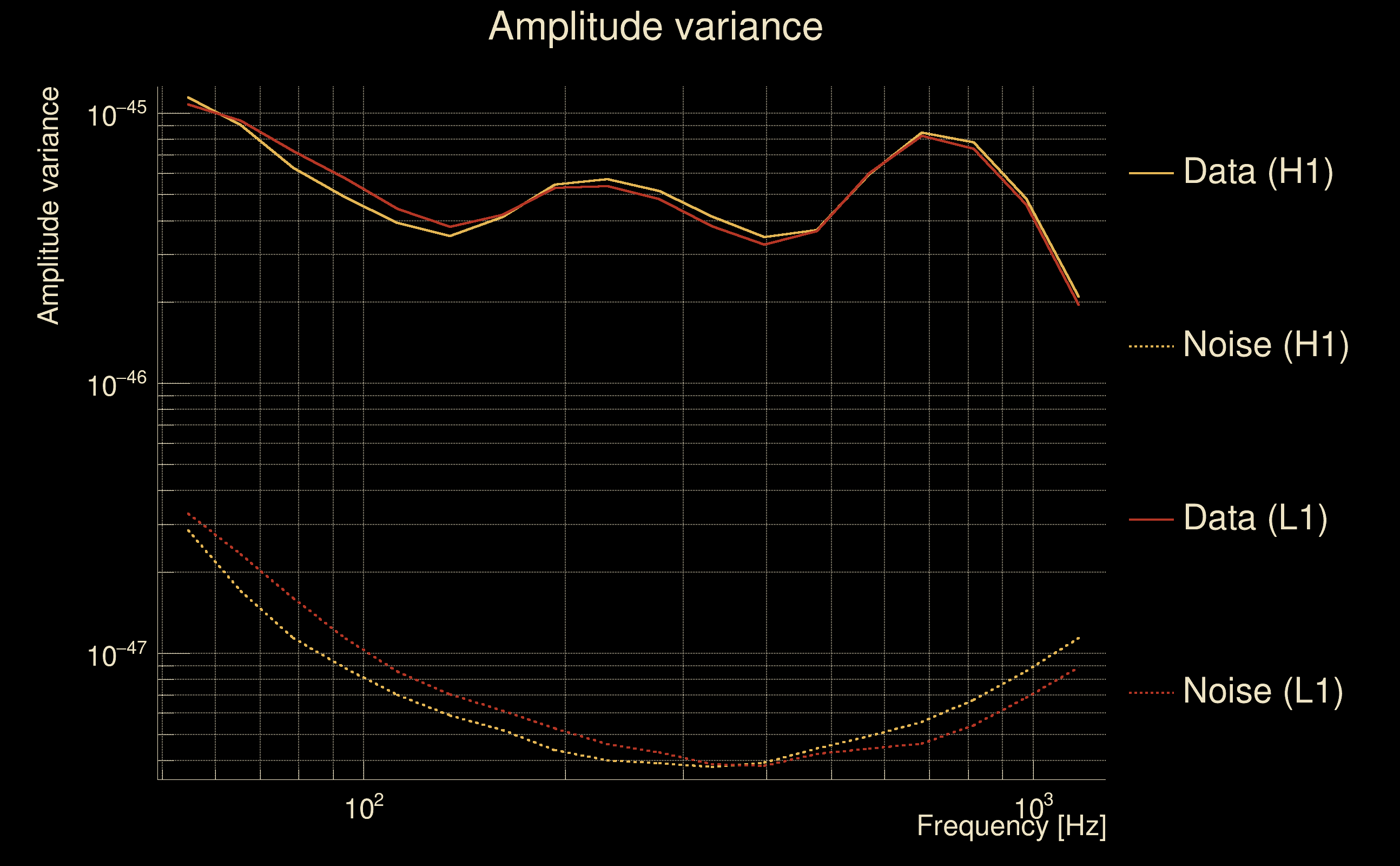

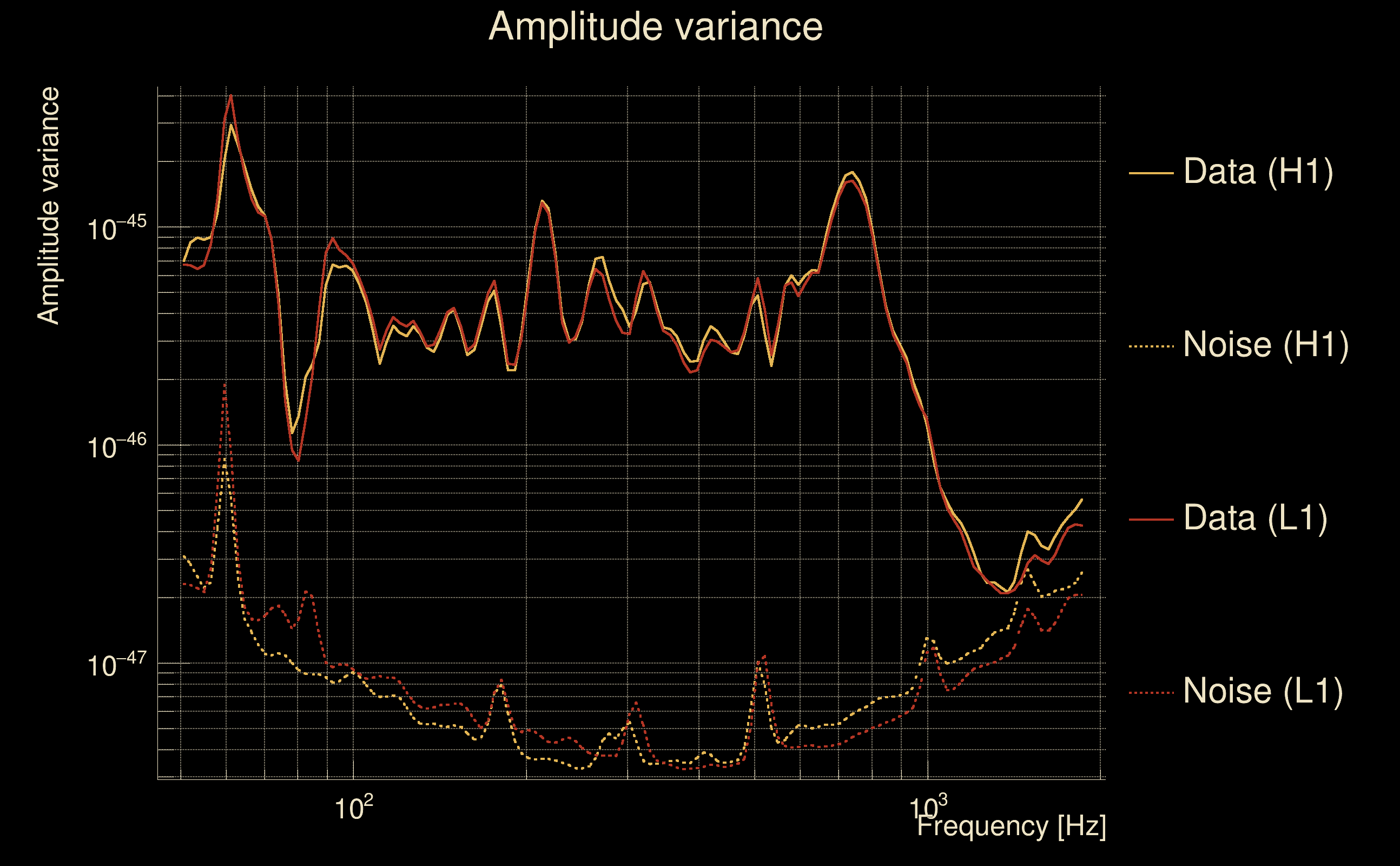

| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |

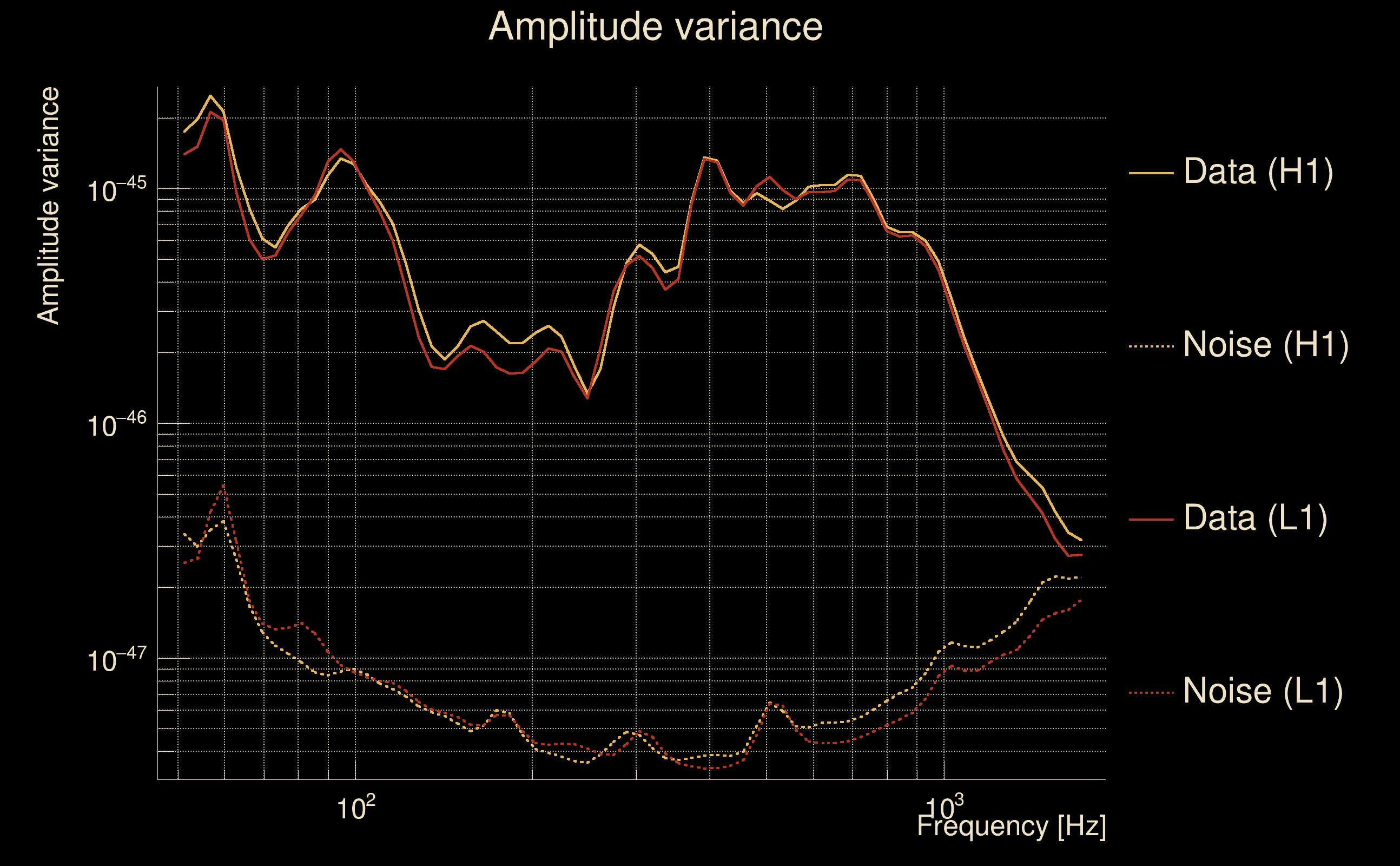

| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench4_targ_file_list.txt (65 files) |
| Analysis result file: | Bench4_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=127 (-0.874 s), time lag = 0 s |

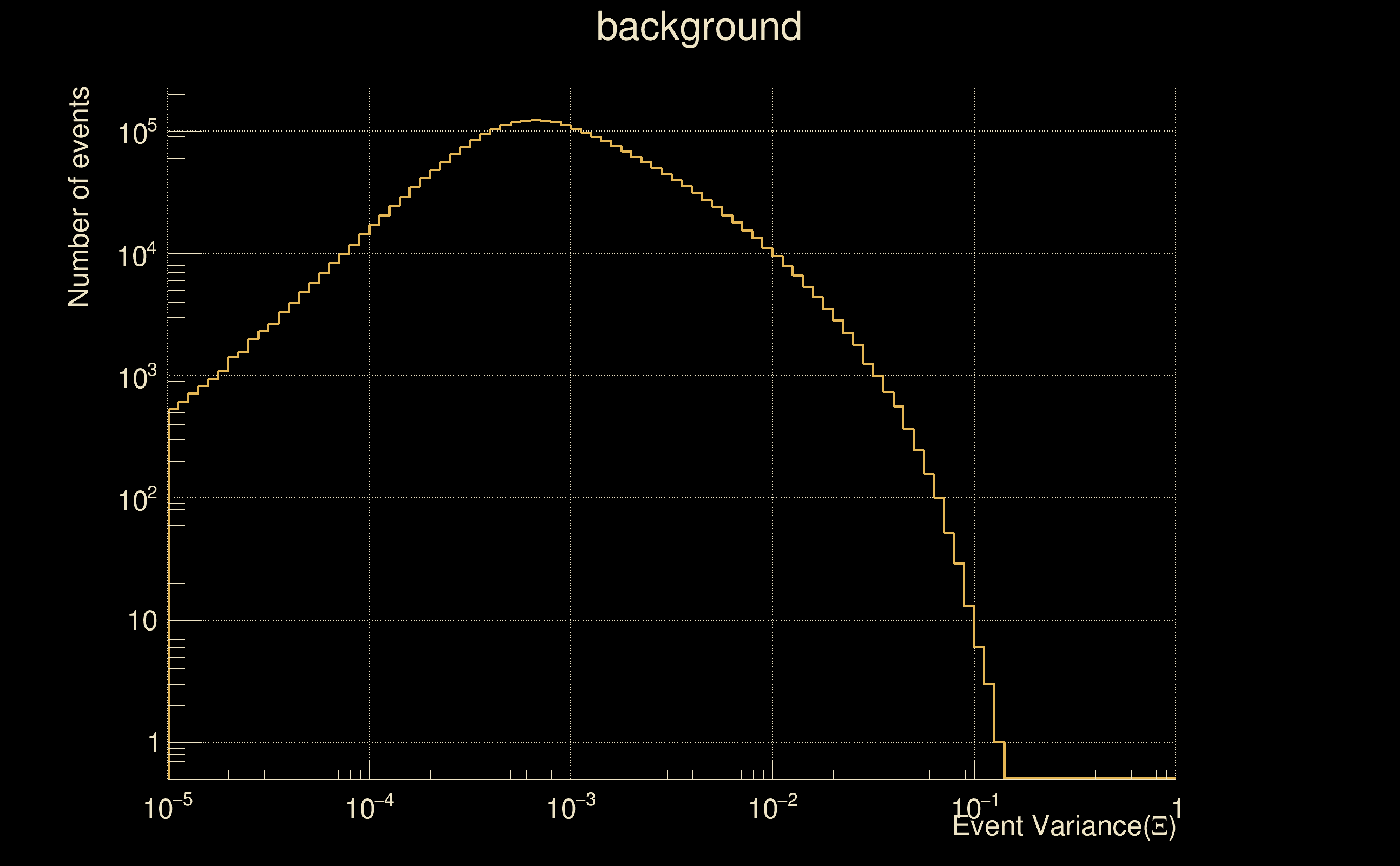

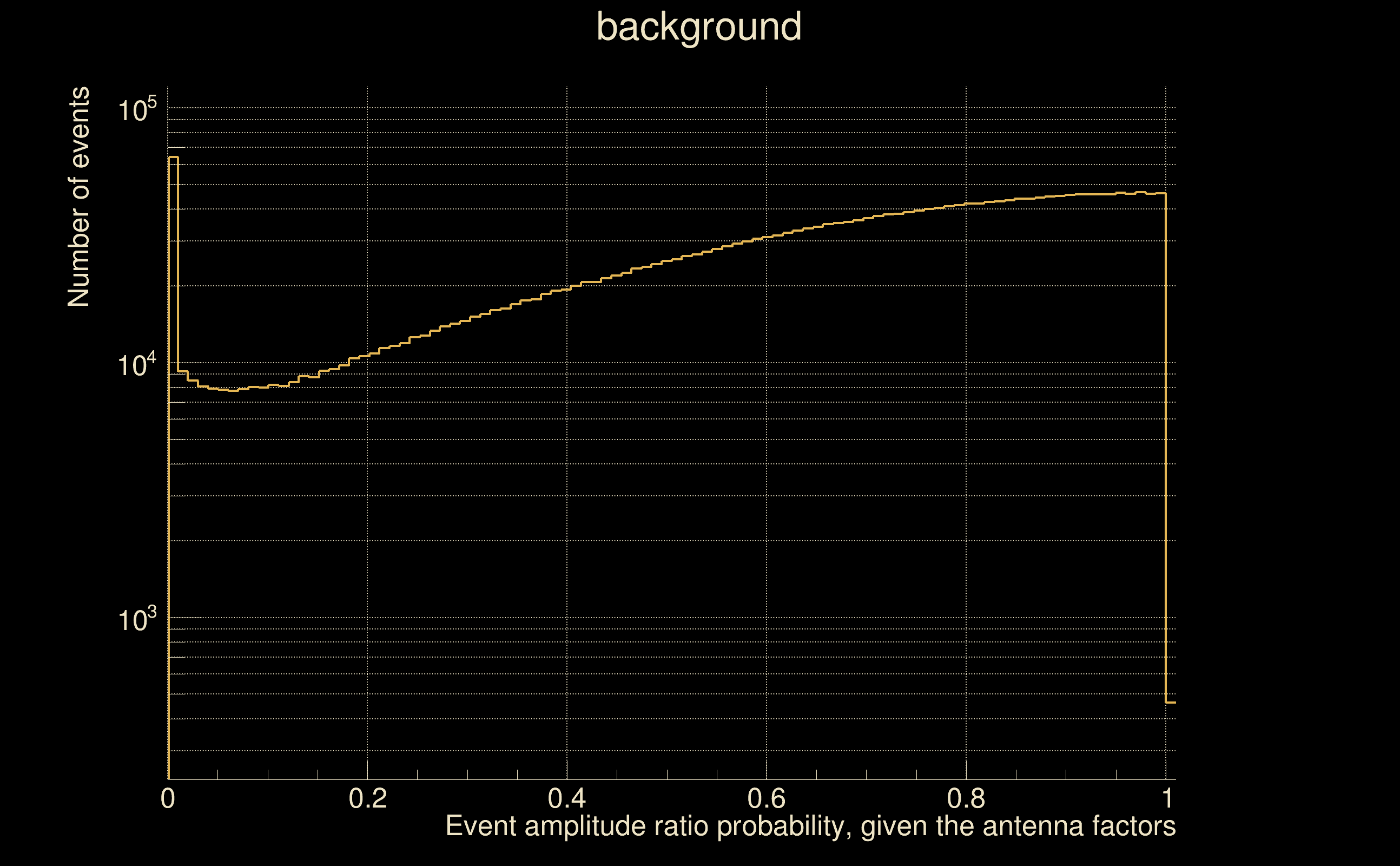

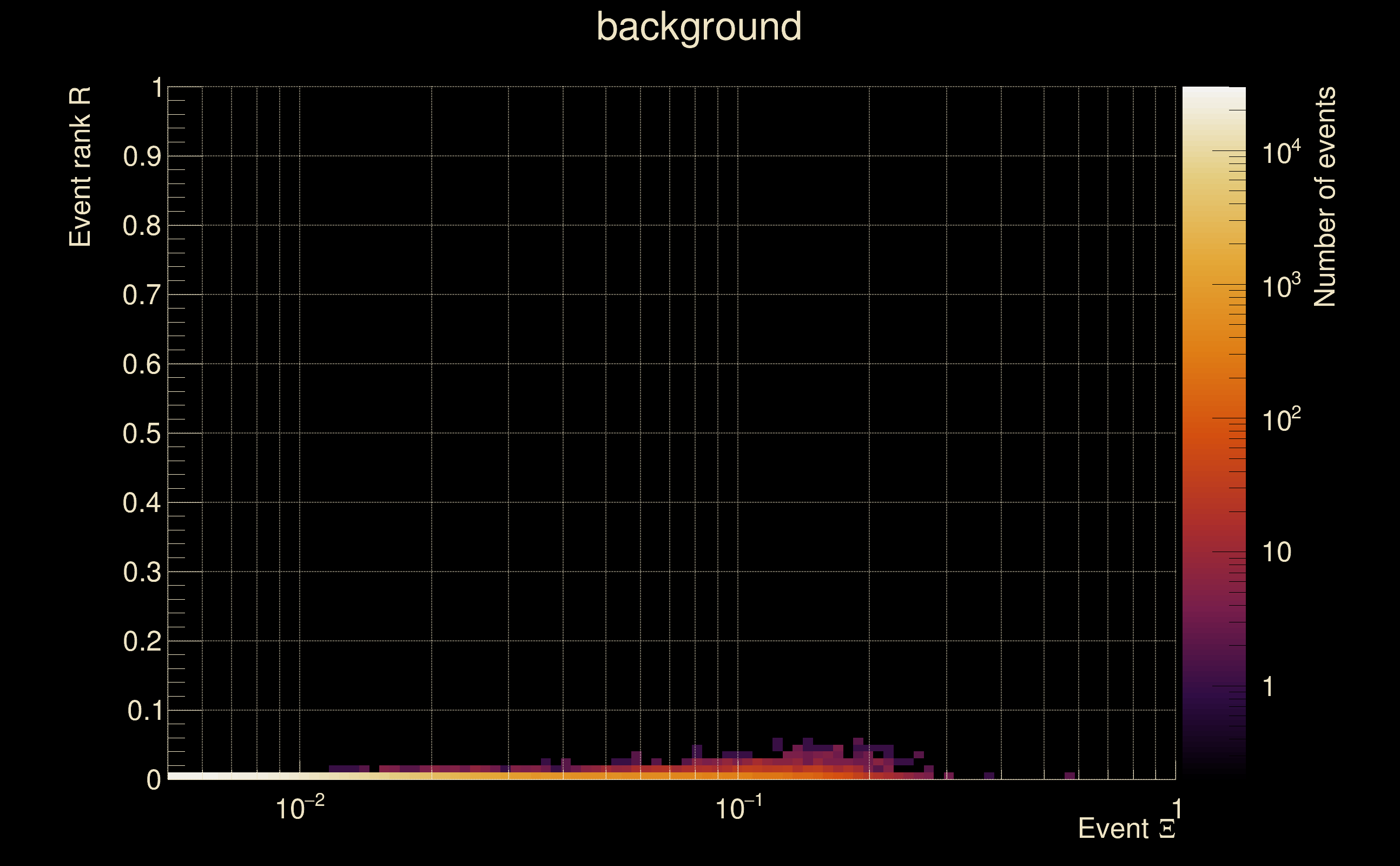

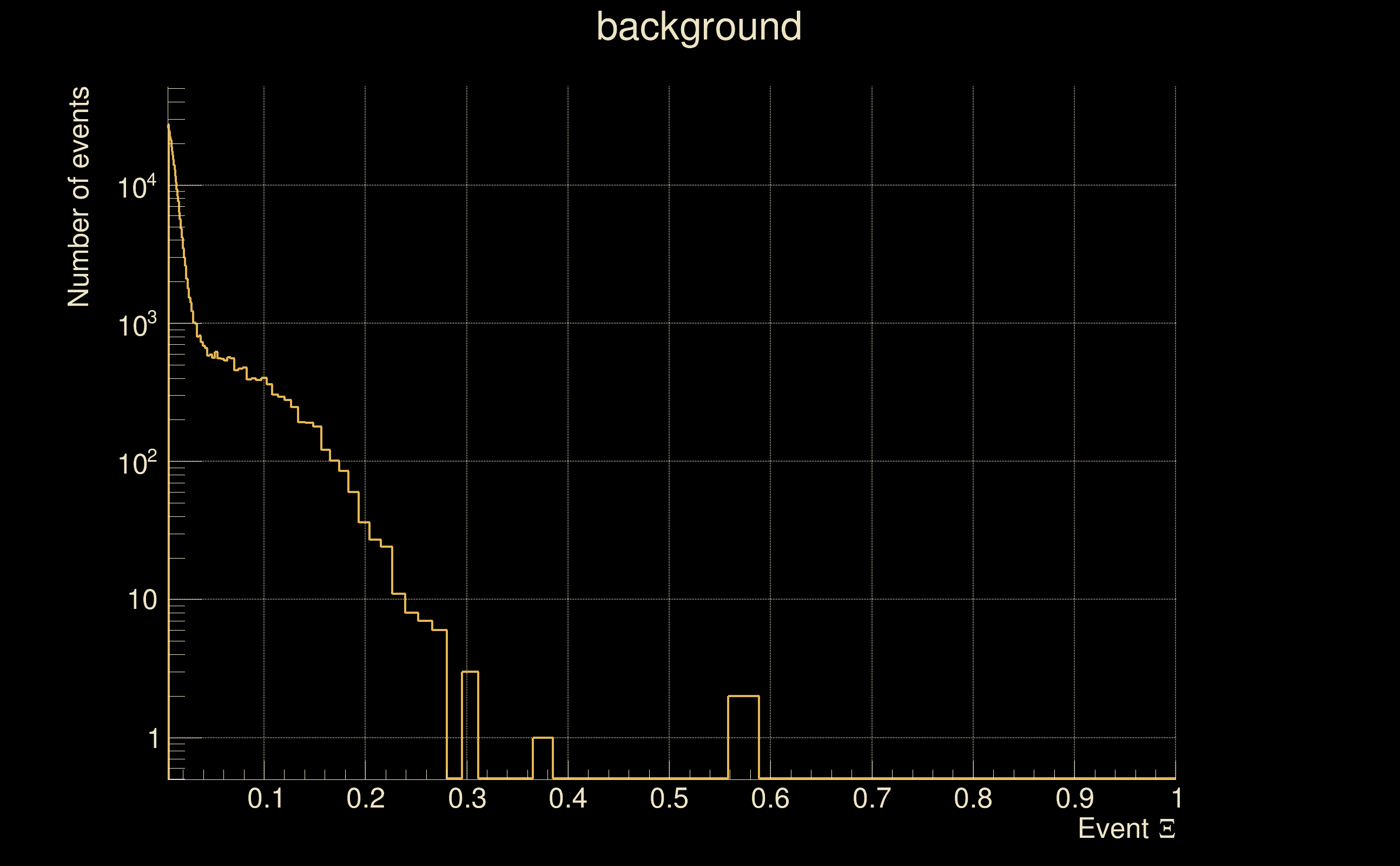

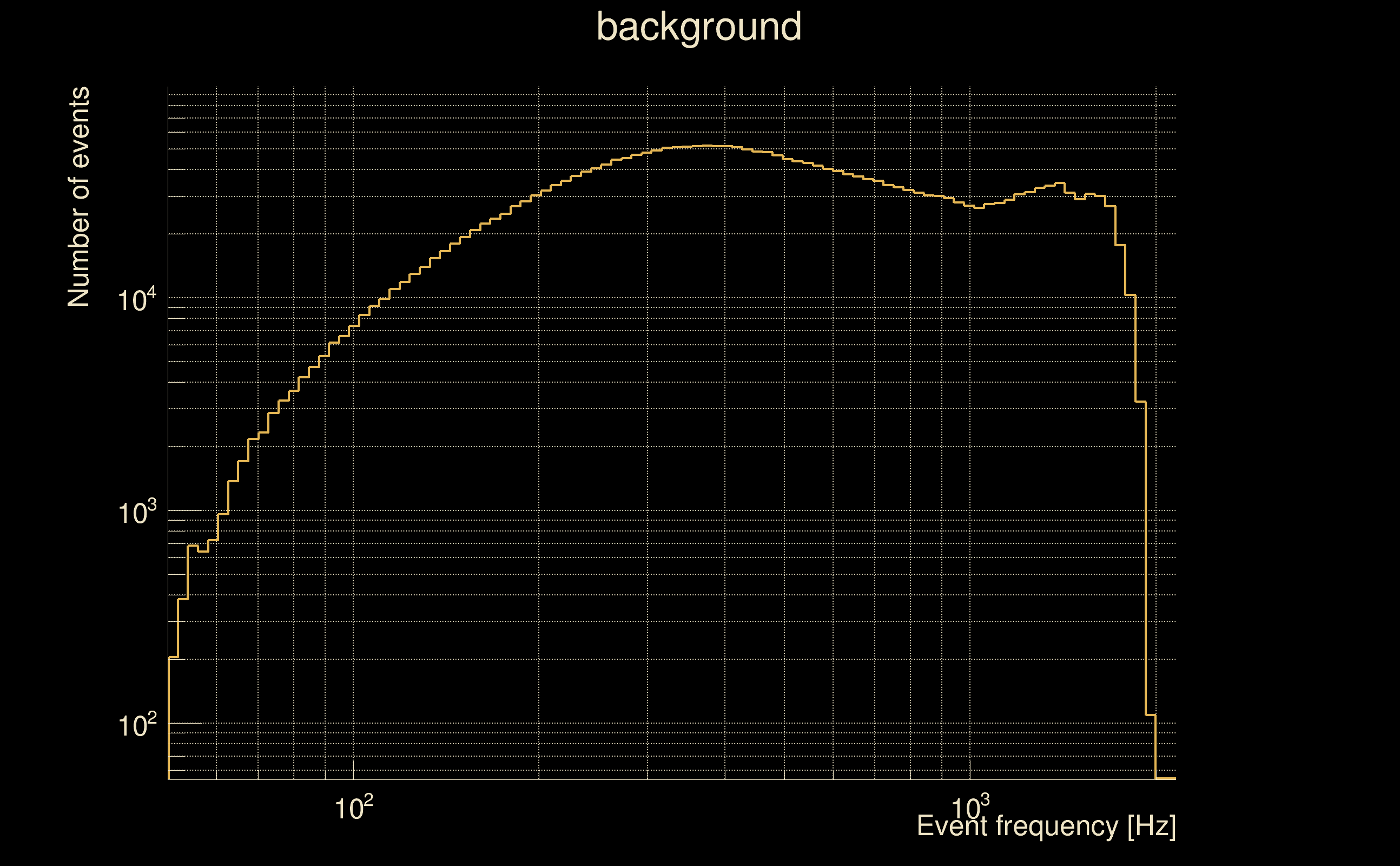

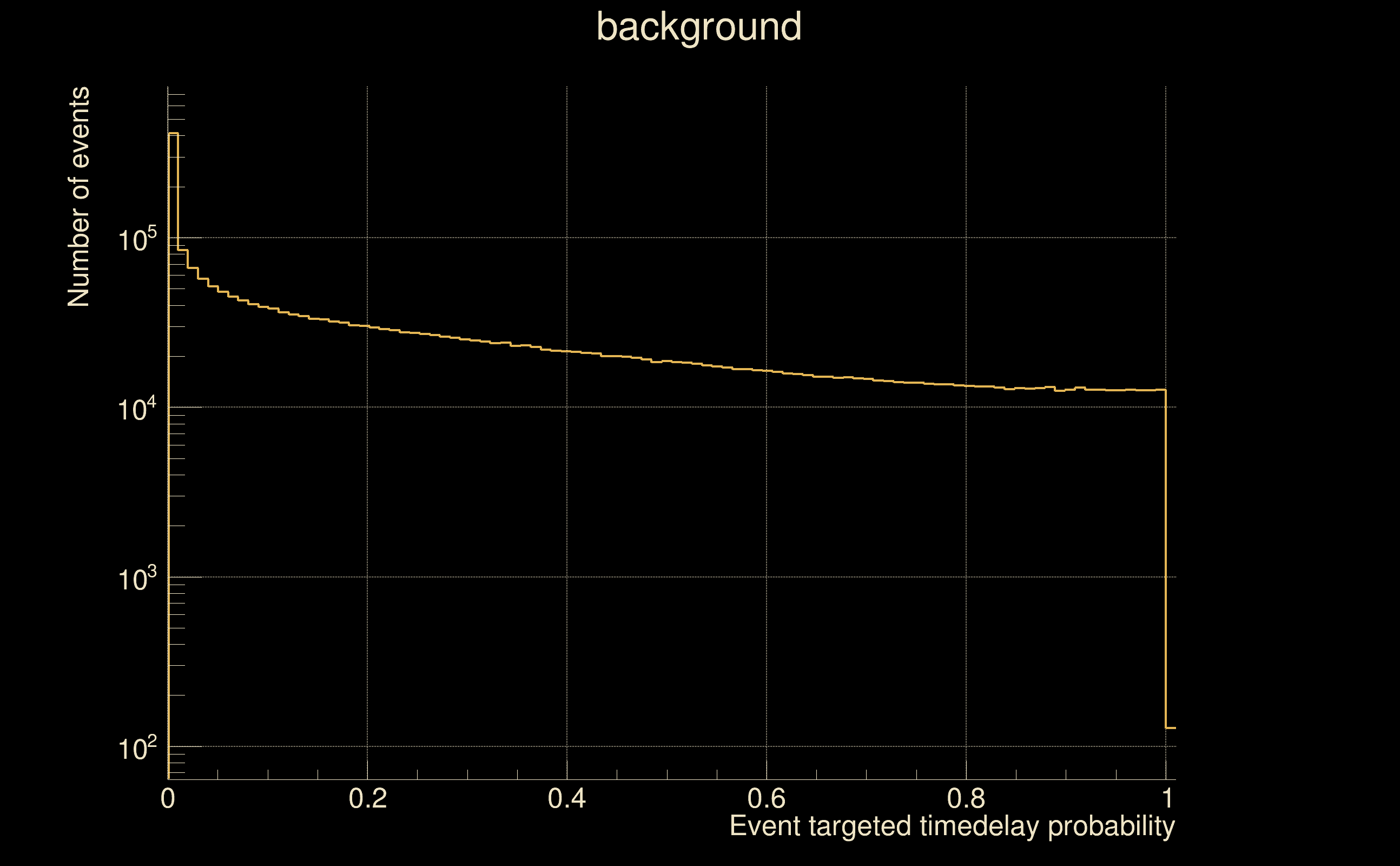

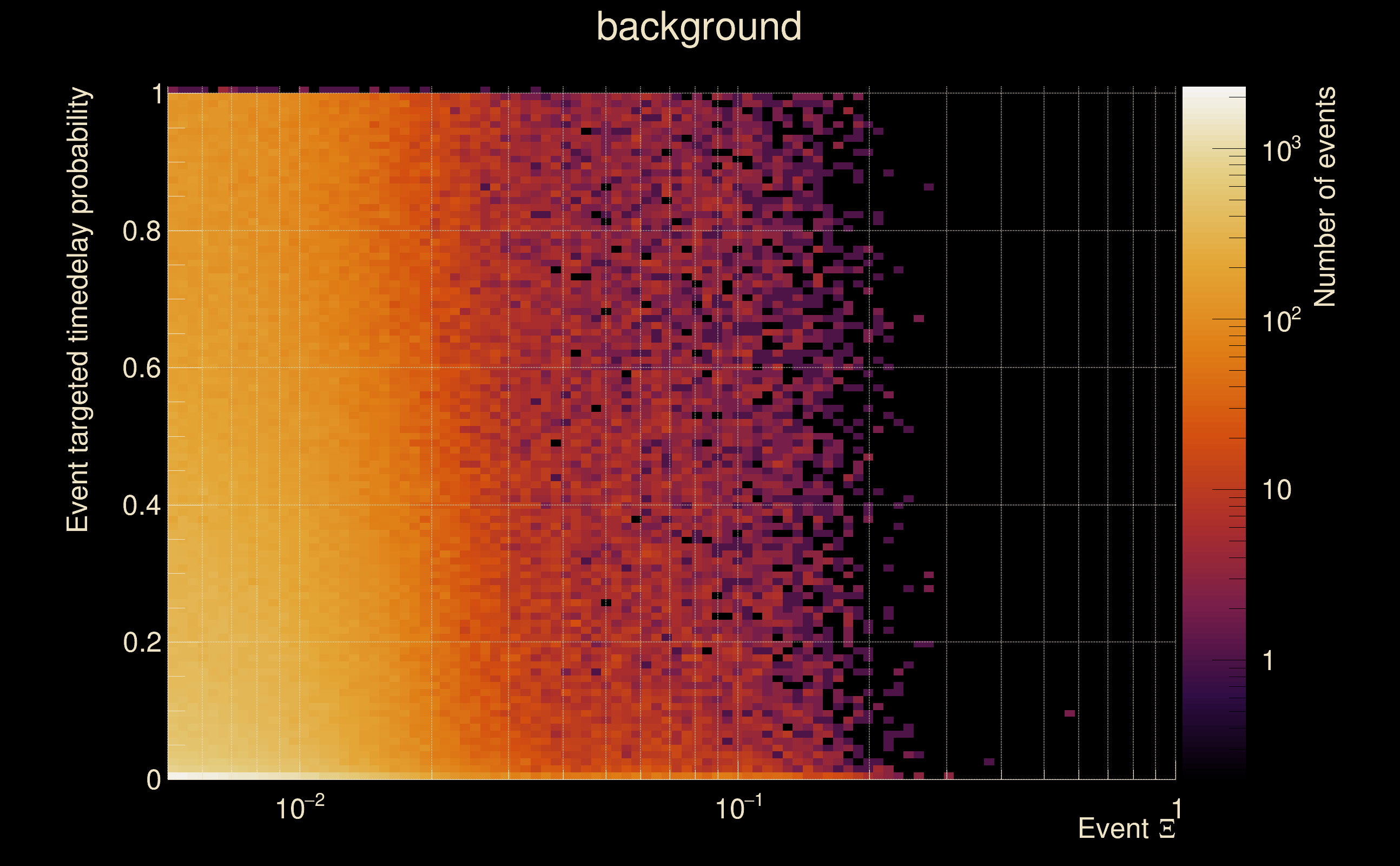

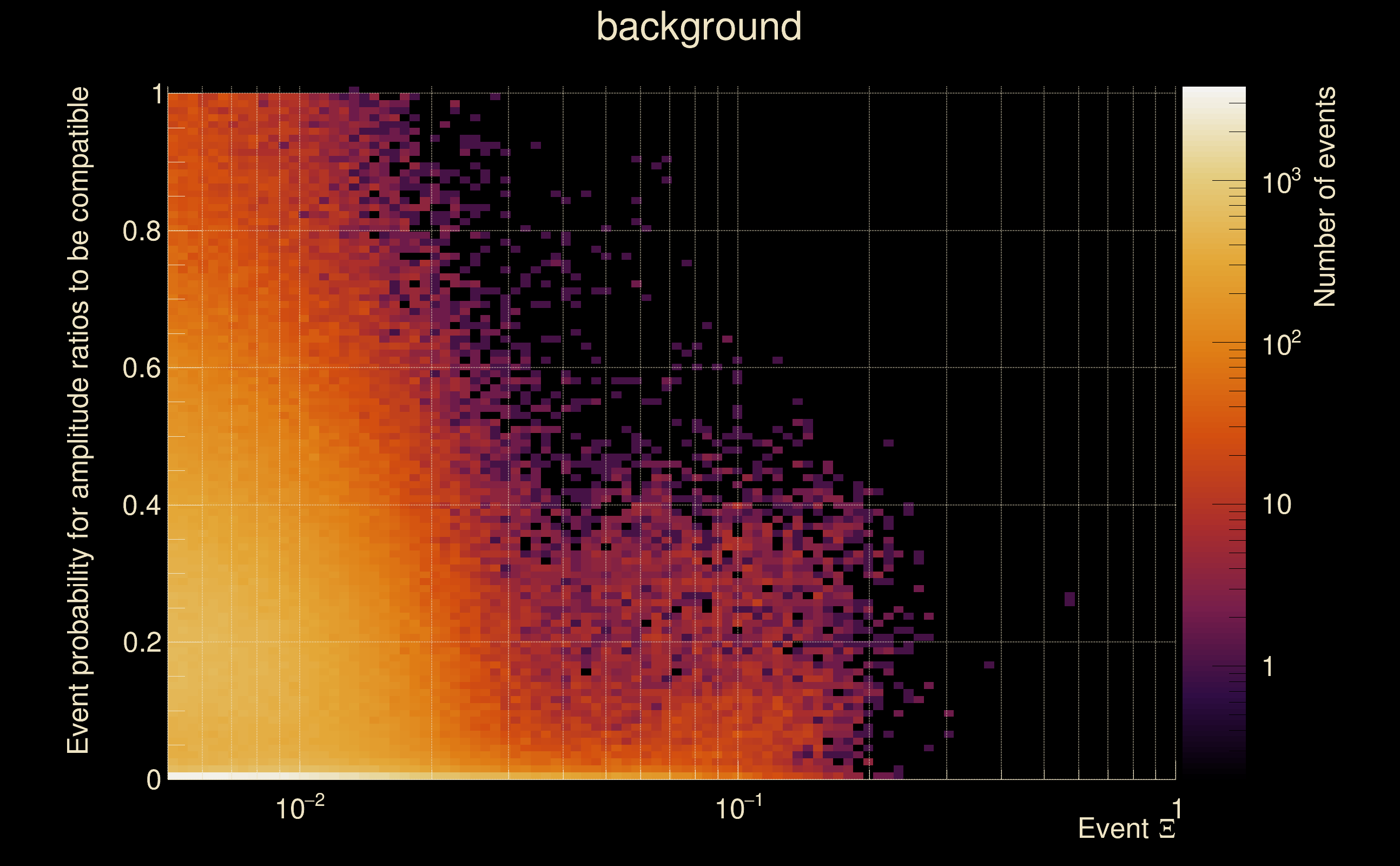

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

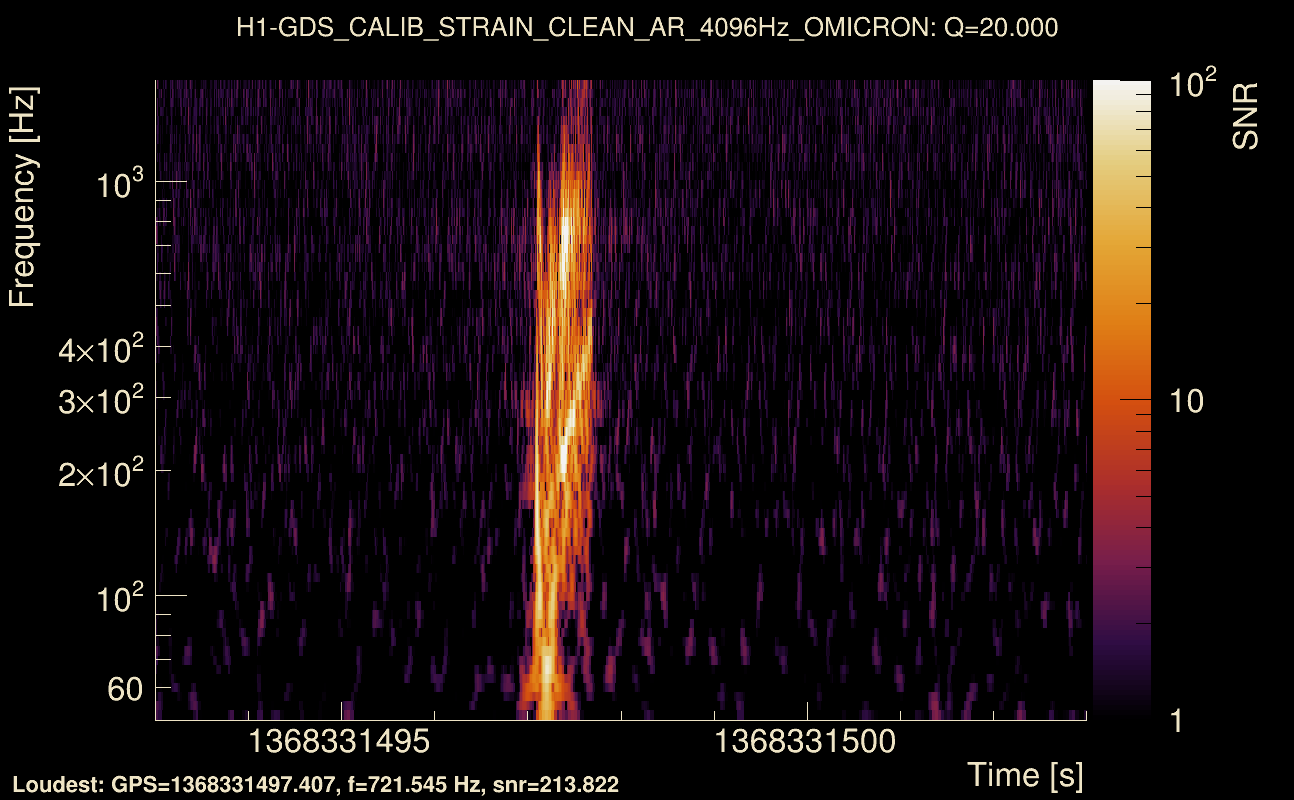

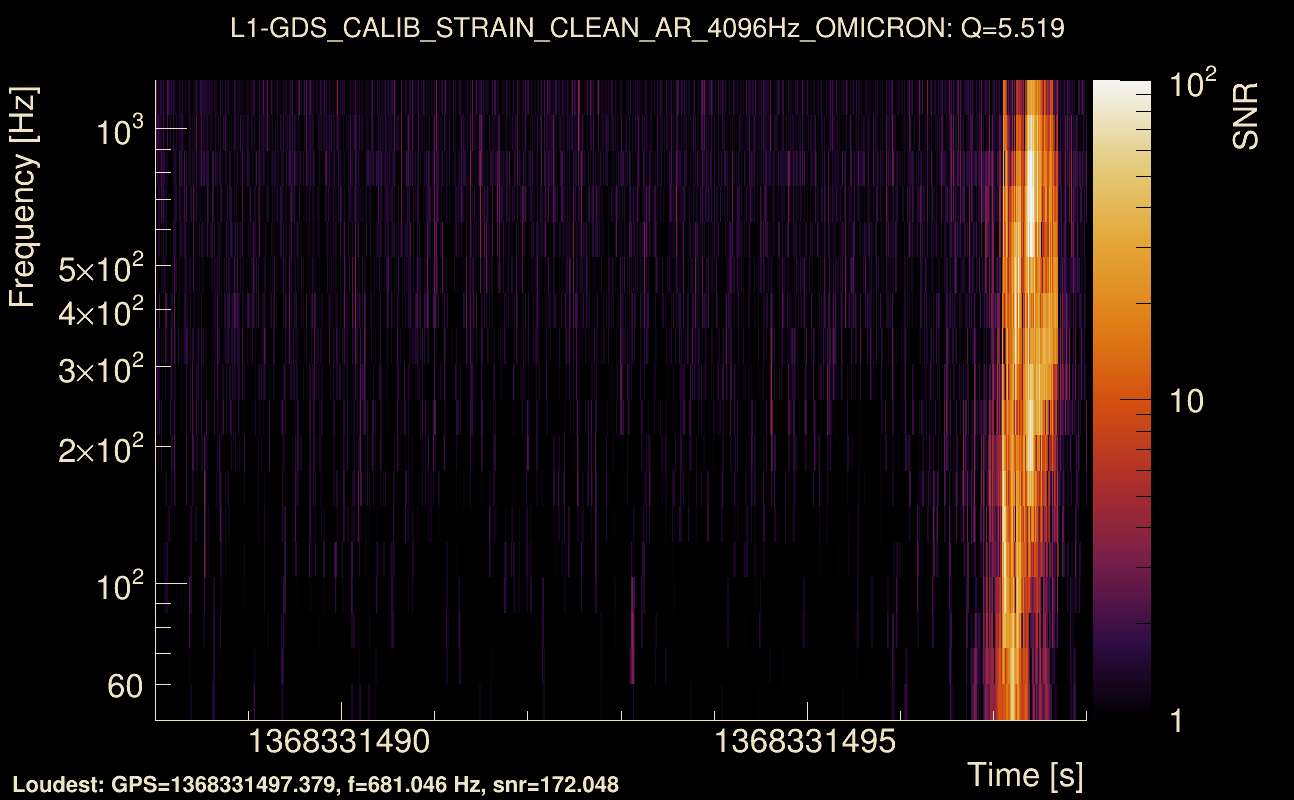

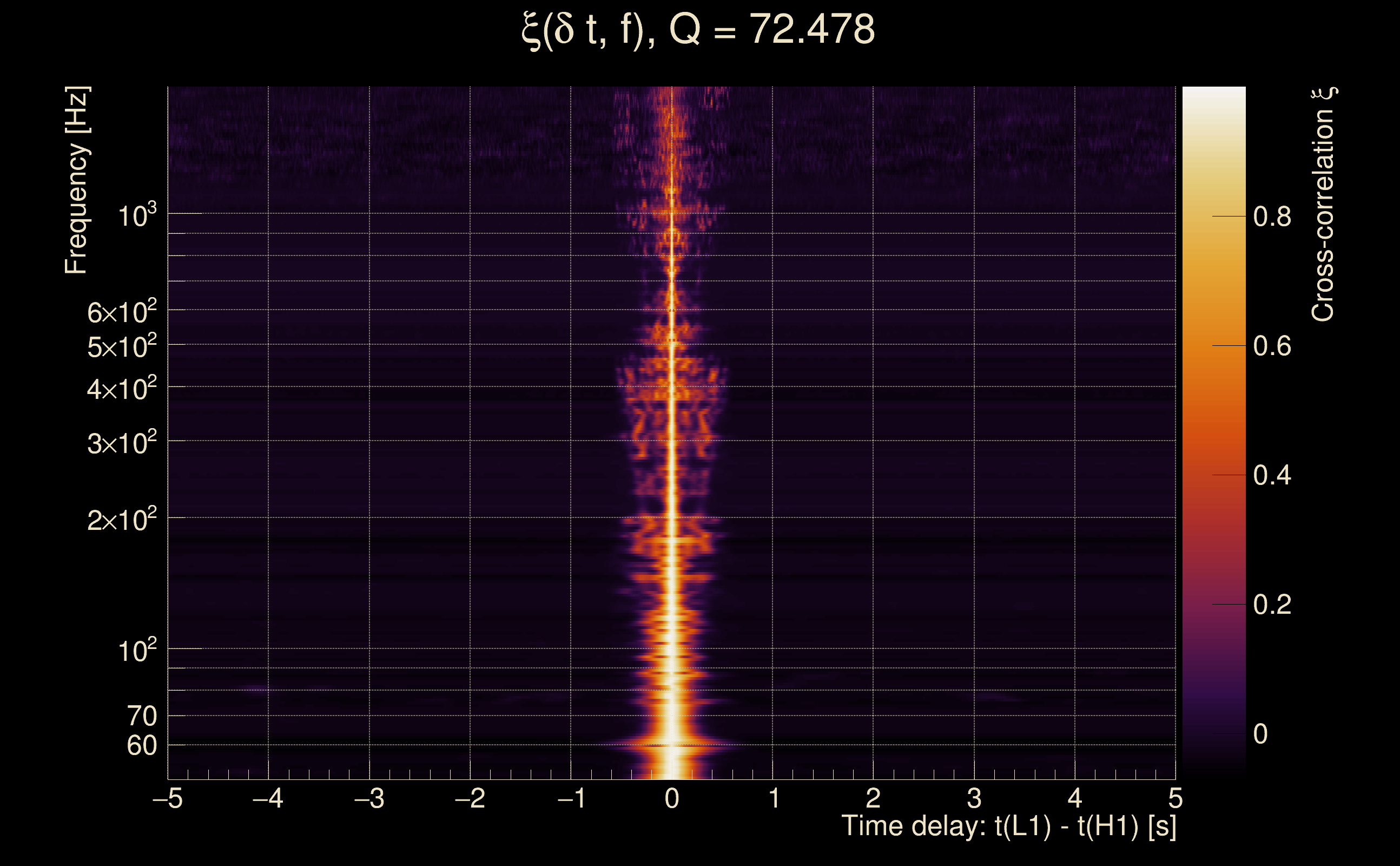

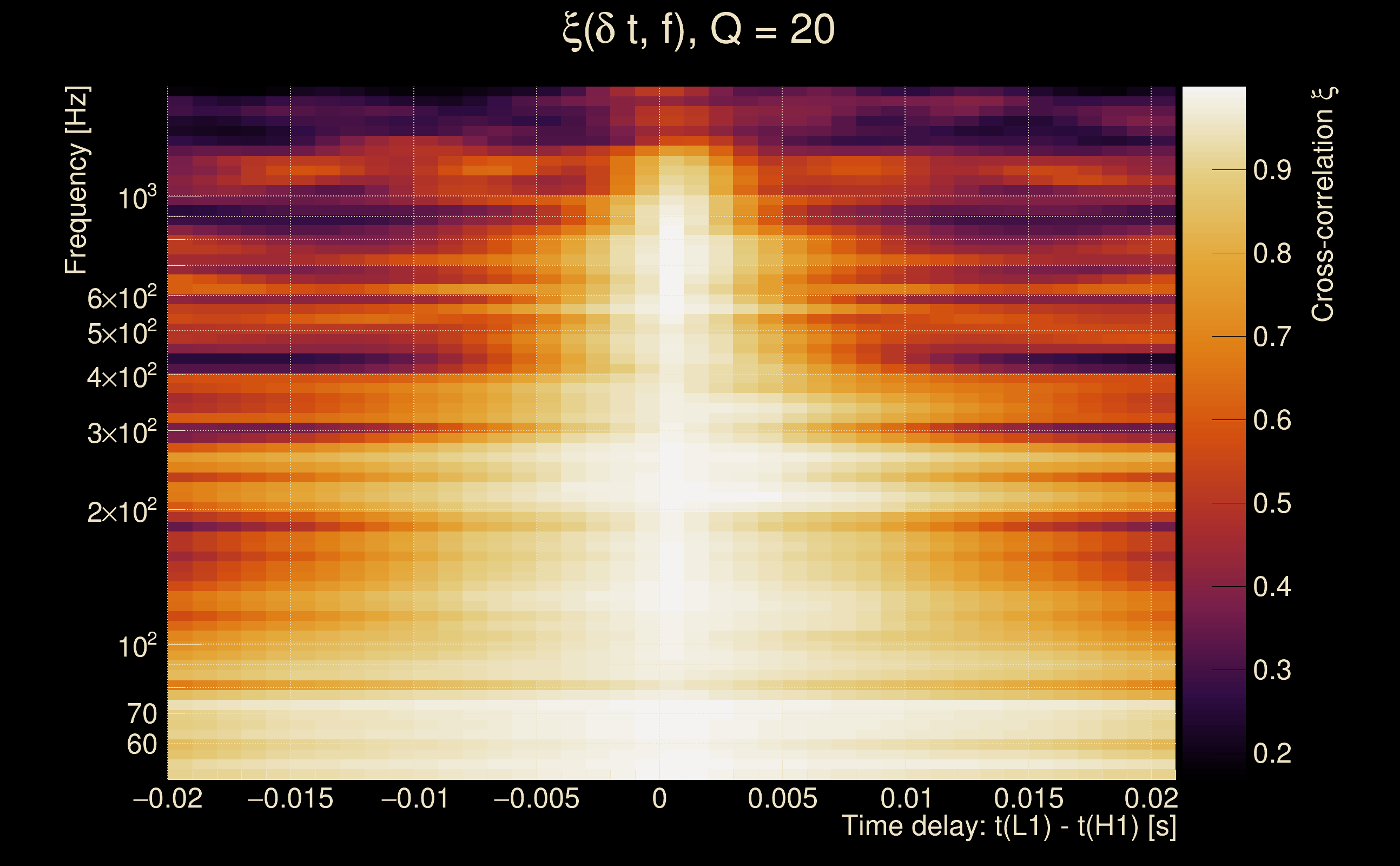

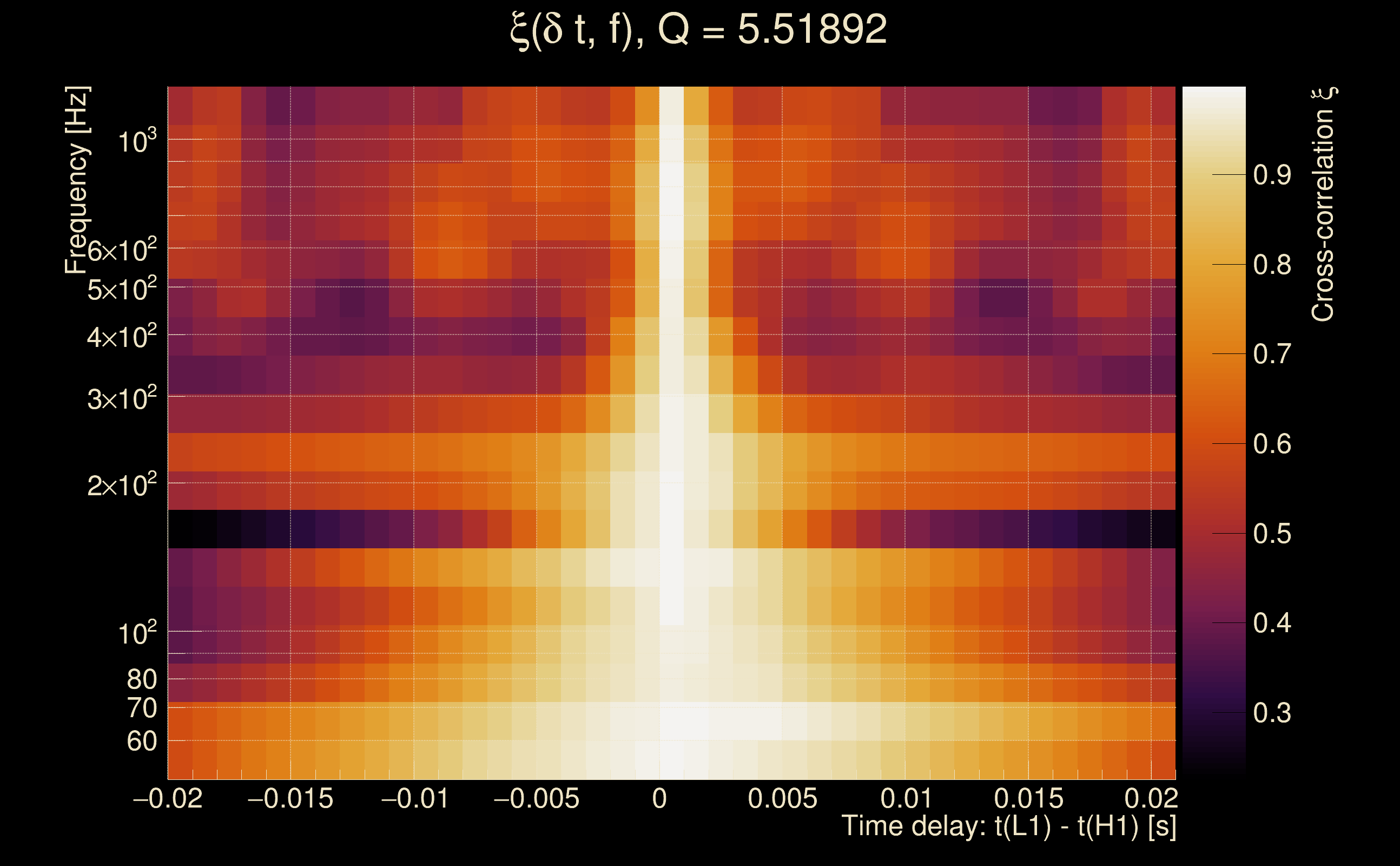

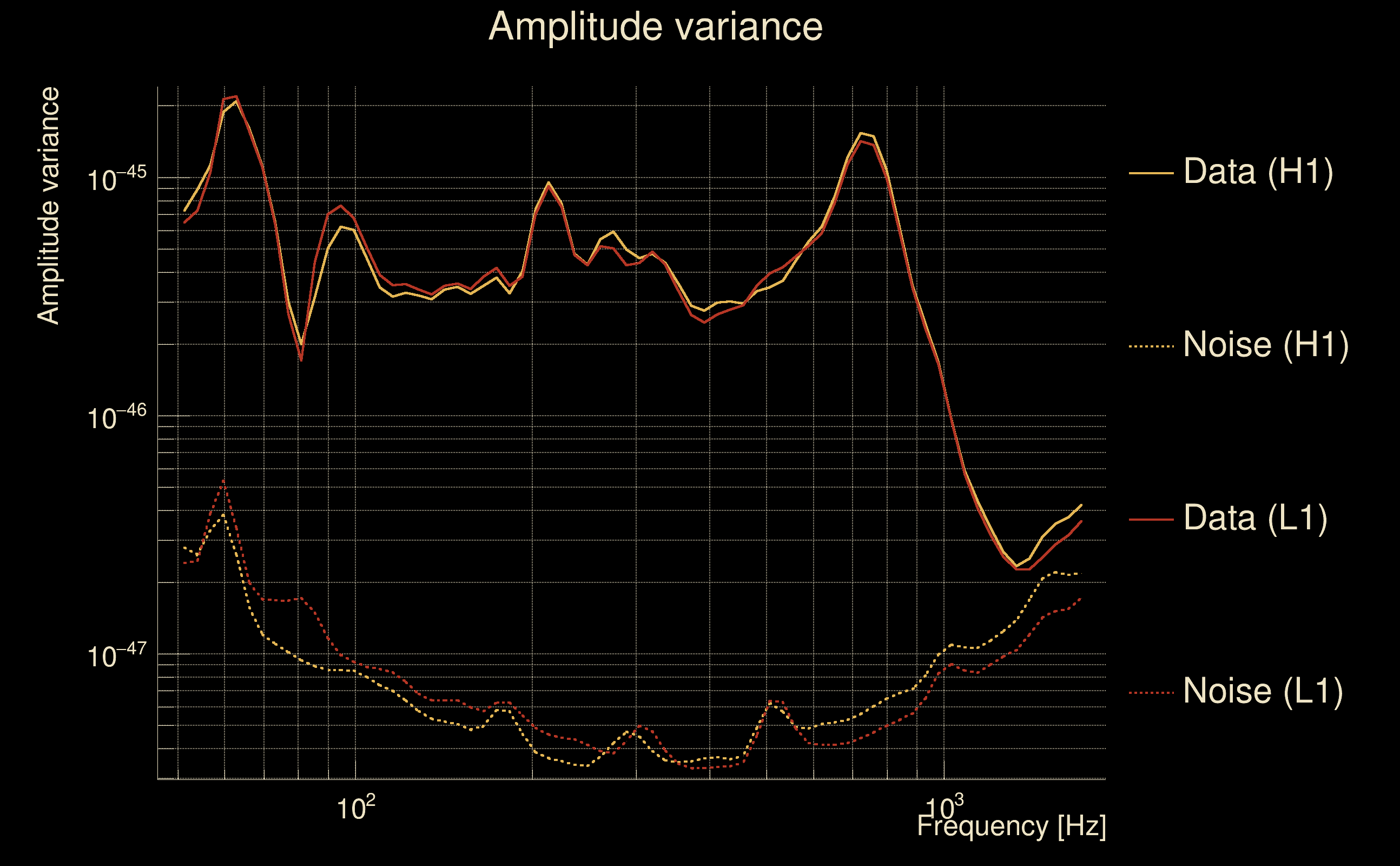

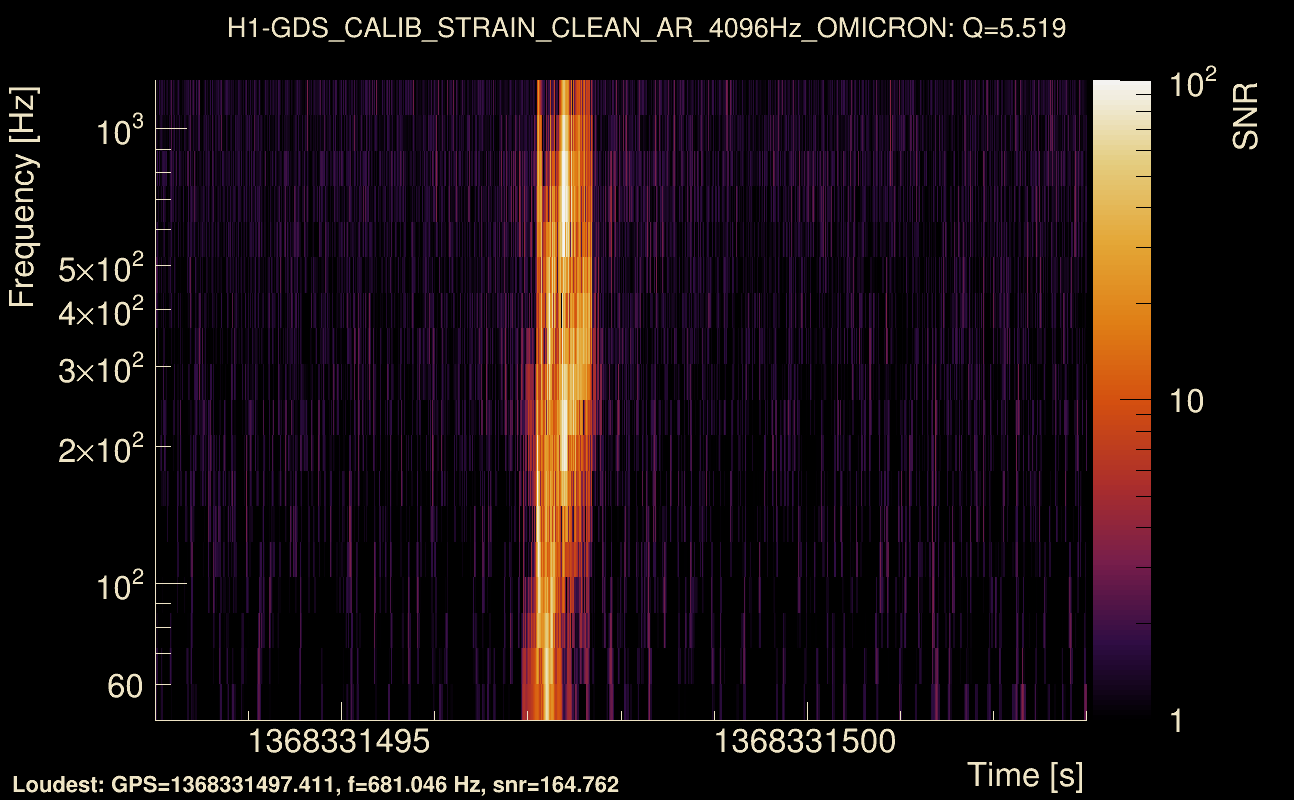

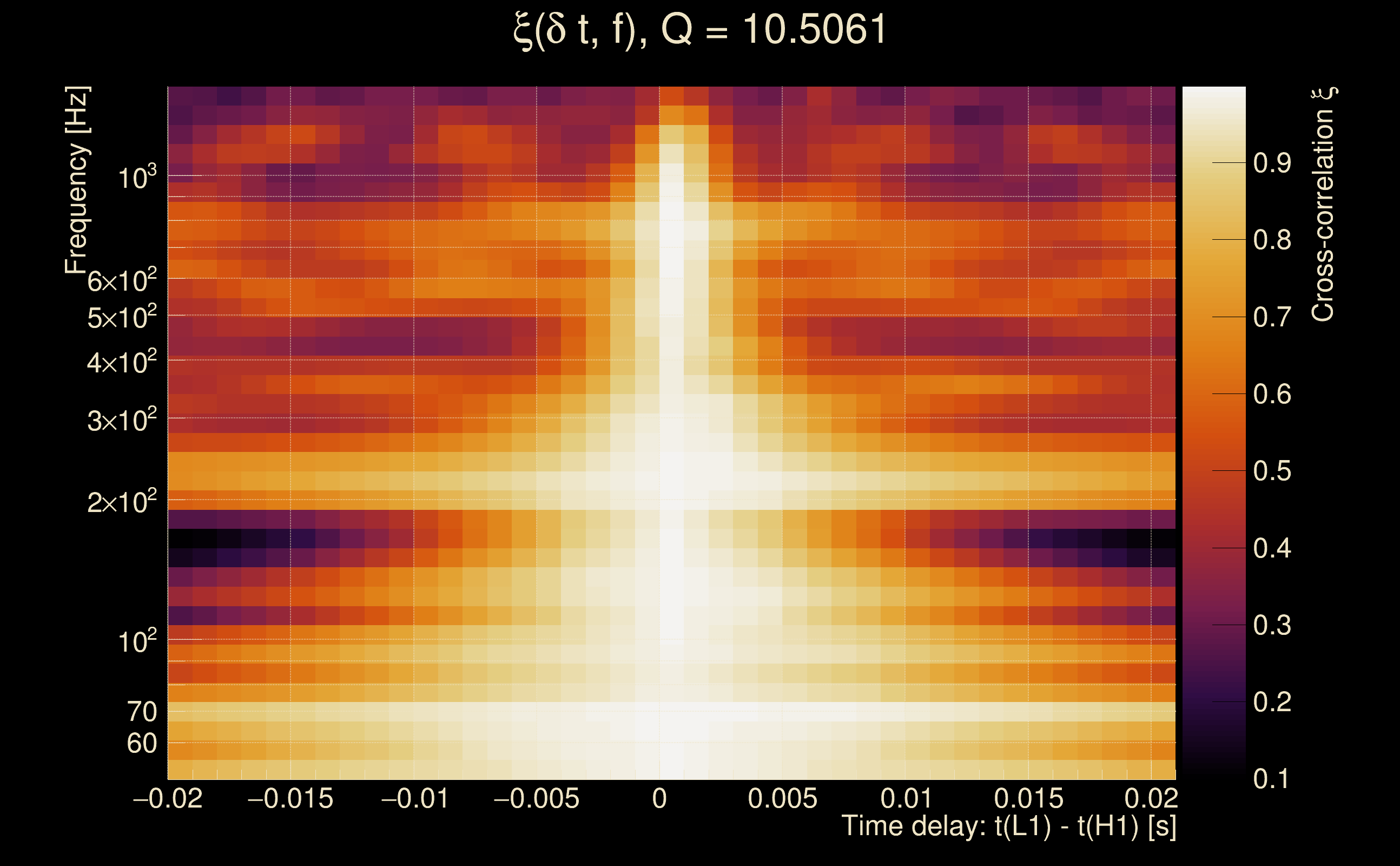

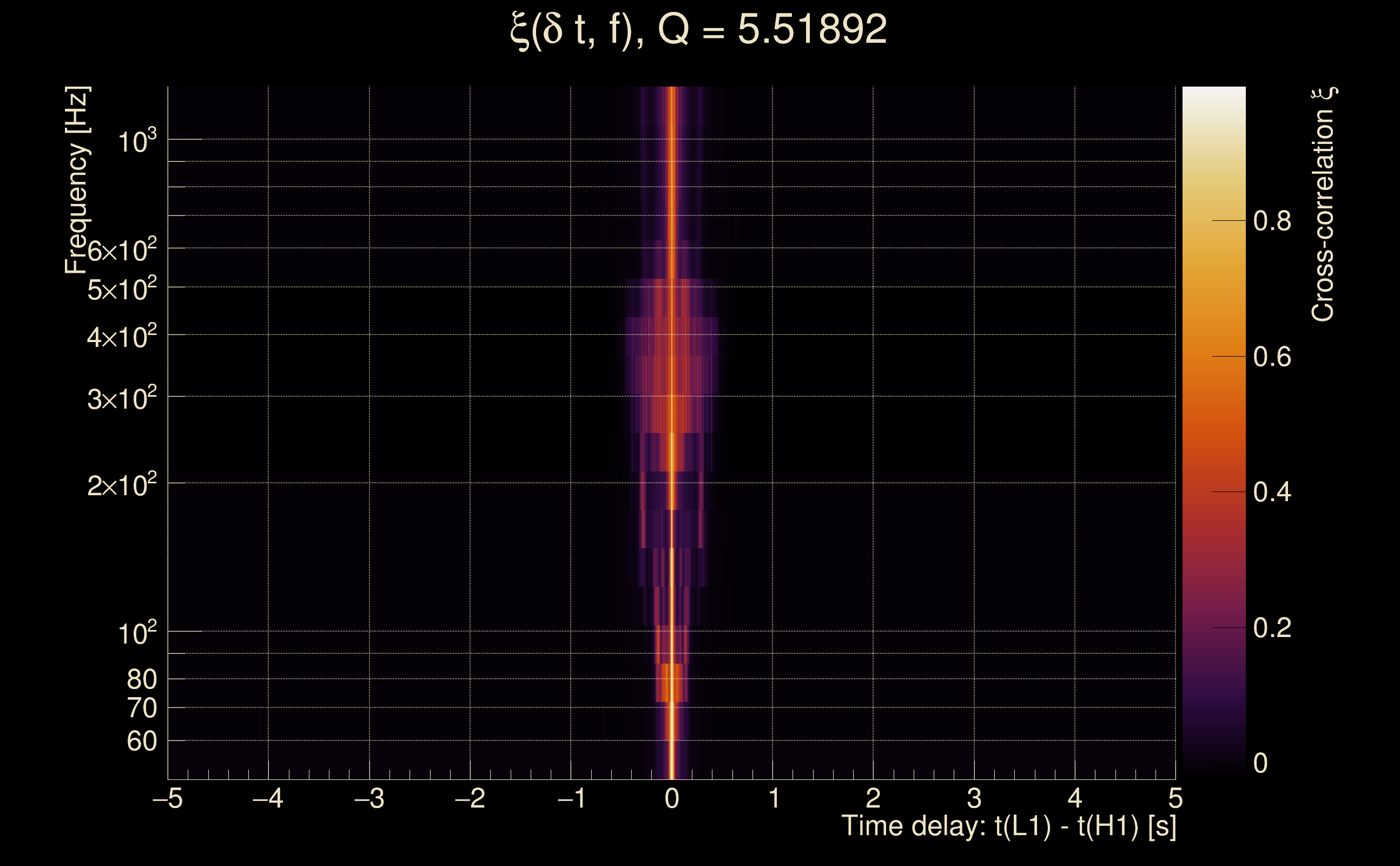

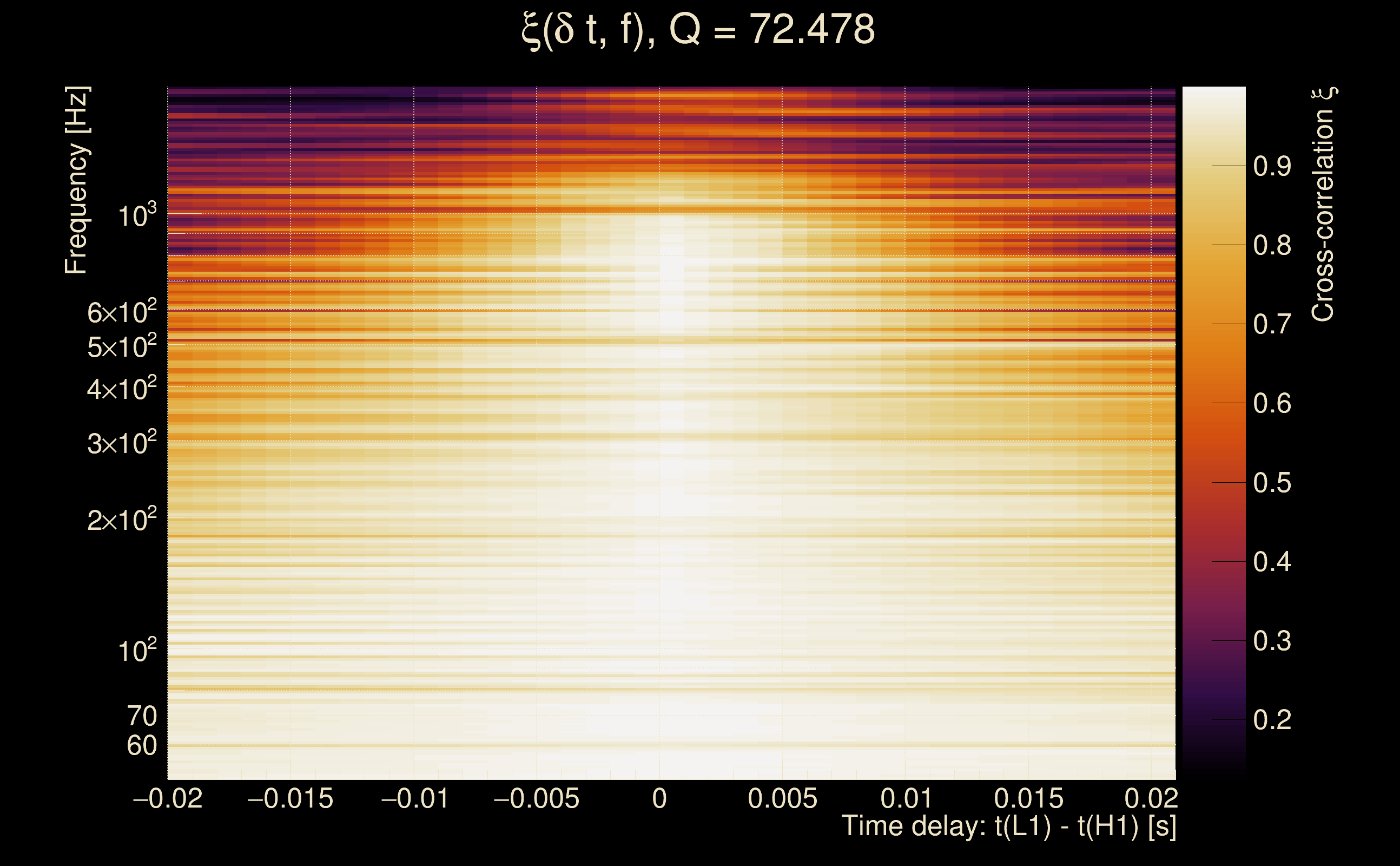

| Event time t(H1): | GPS = 1368331488 (Wed May 17 04:04:30 2023 ) → GPS = 1368331498 (Wed May 17 04:04:40 2023 ) |
| Event time t(L1): | GPS = 1368331488 (Wed May 17 04:04:40 2023 ) → GPS = 1368331498 (Wed May 17 04:04:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368331485 → GPS = 1368331501 |
| Omicron analysis time window (L1): | GPS = 1368331485 → GPS = 1368331501 |
| Time delay between detectors t(L1) - t(H1): | 0.000112 s (slice index = 108 / 217), δt_gw = 0.000112 s |

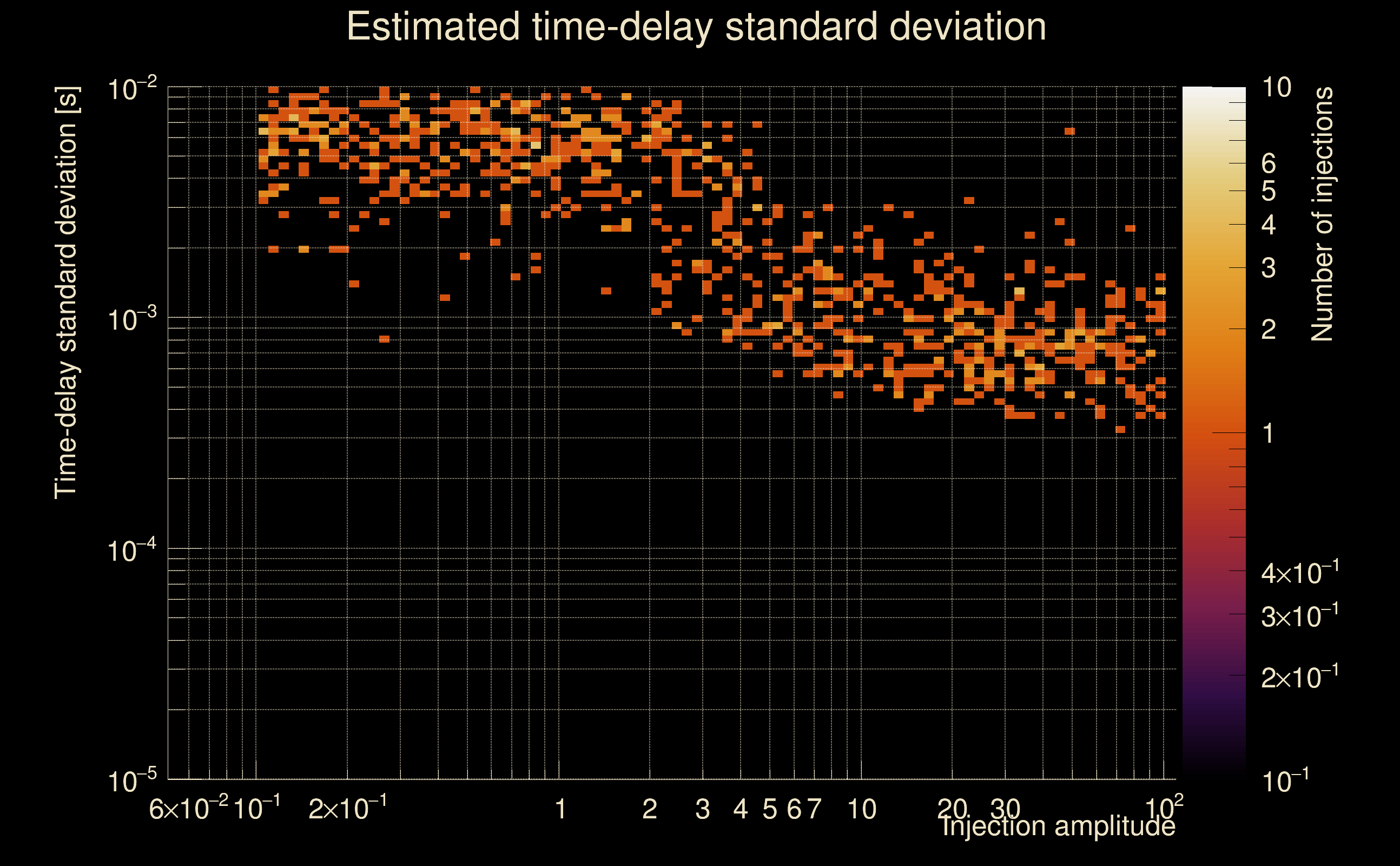

| Time delay standard deviation: | 0.0307509 s |
| [targeted mode] Time delay probability: | 0.976016 (0.0300638 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 269.306 Hz |

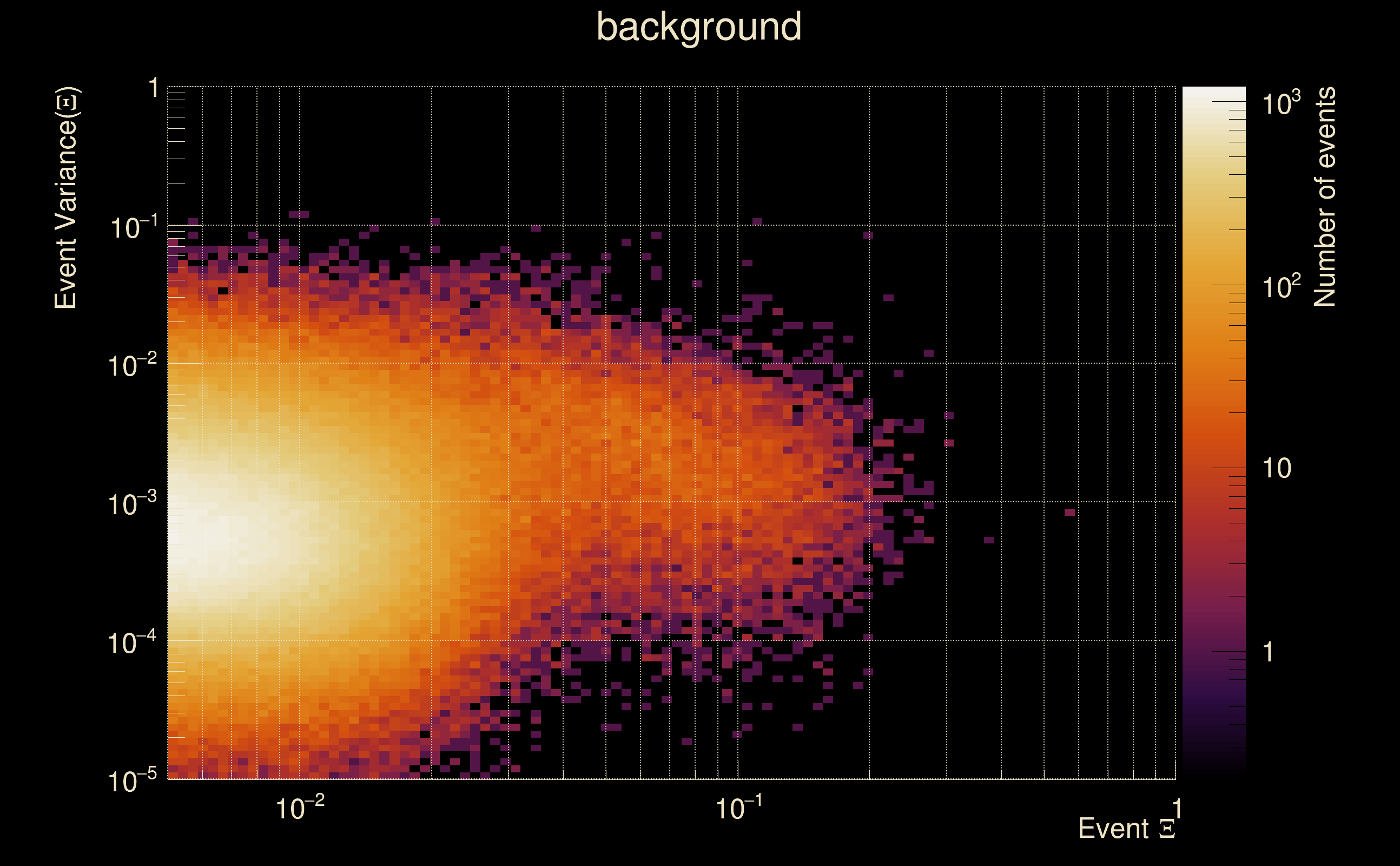

| Ξ: | 0.977839 ± 0.0133282 (variance = 0.000177641): Q0: 0.989348, Q1: 0.973132, Q2: 0.961656, Q3: 0.955324, Q4: 0.953315 |
| Rank: | R_A = 0.920585 |
| Log of amplitude ratio (L1/H1): | -0.0171417, variance = 0.151189 (L1/H1: -0.0277042, variance = 0.301498, H1/L1: 0.00758002, variance = 0.301743) |
| Amplitude ratio (L1/H1): | 0.983004 ⋇ 1.47526 (L1/H1: 0.972676 ⋇ 1.73167, H1/L1: 1.00761 ⋇ 1.73206) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.979329 |

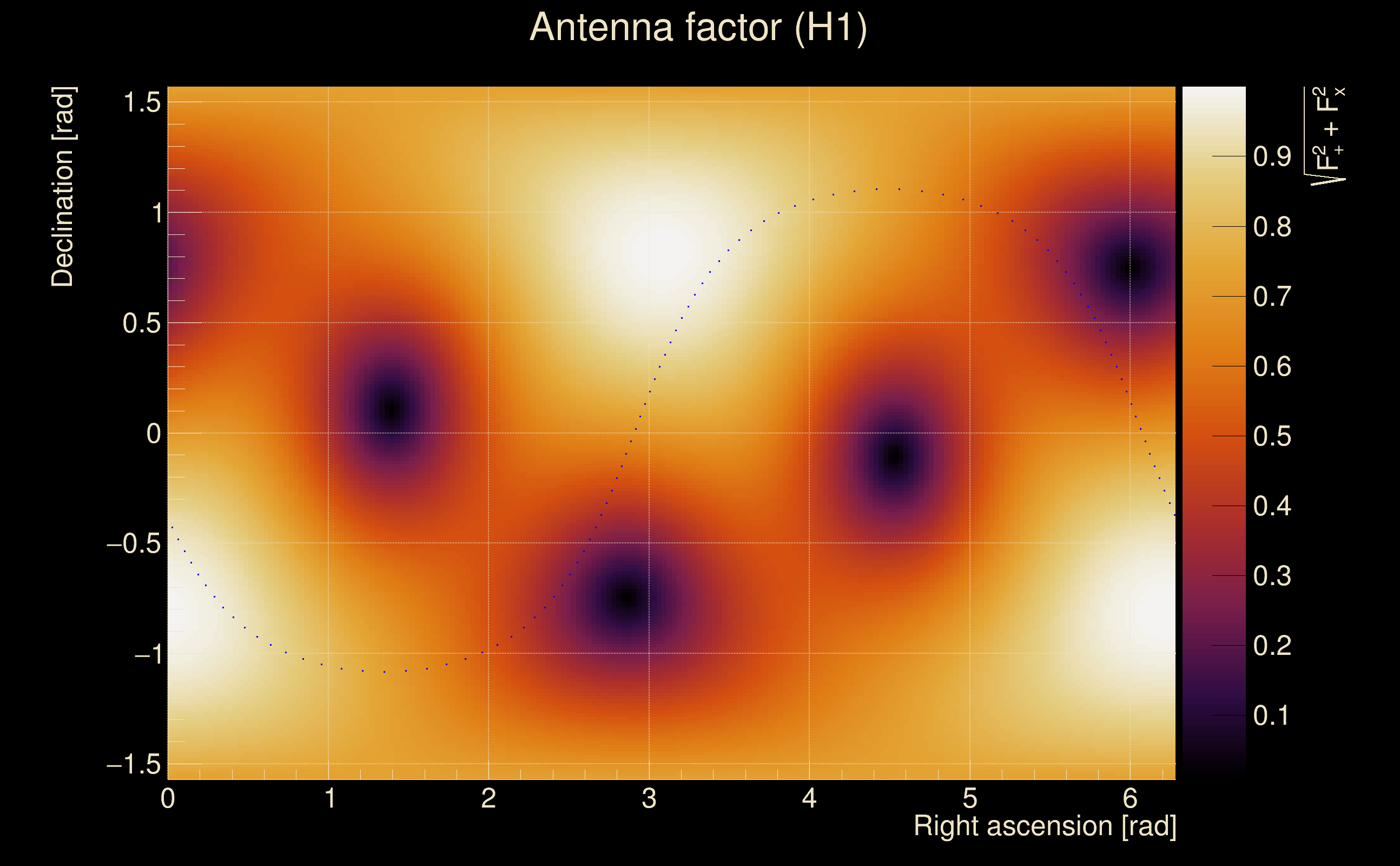

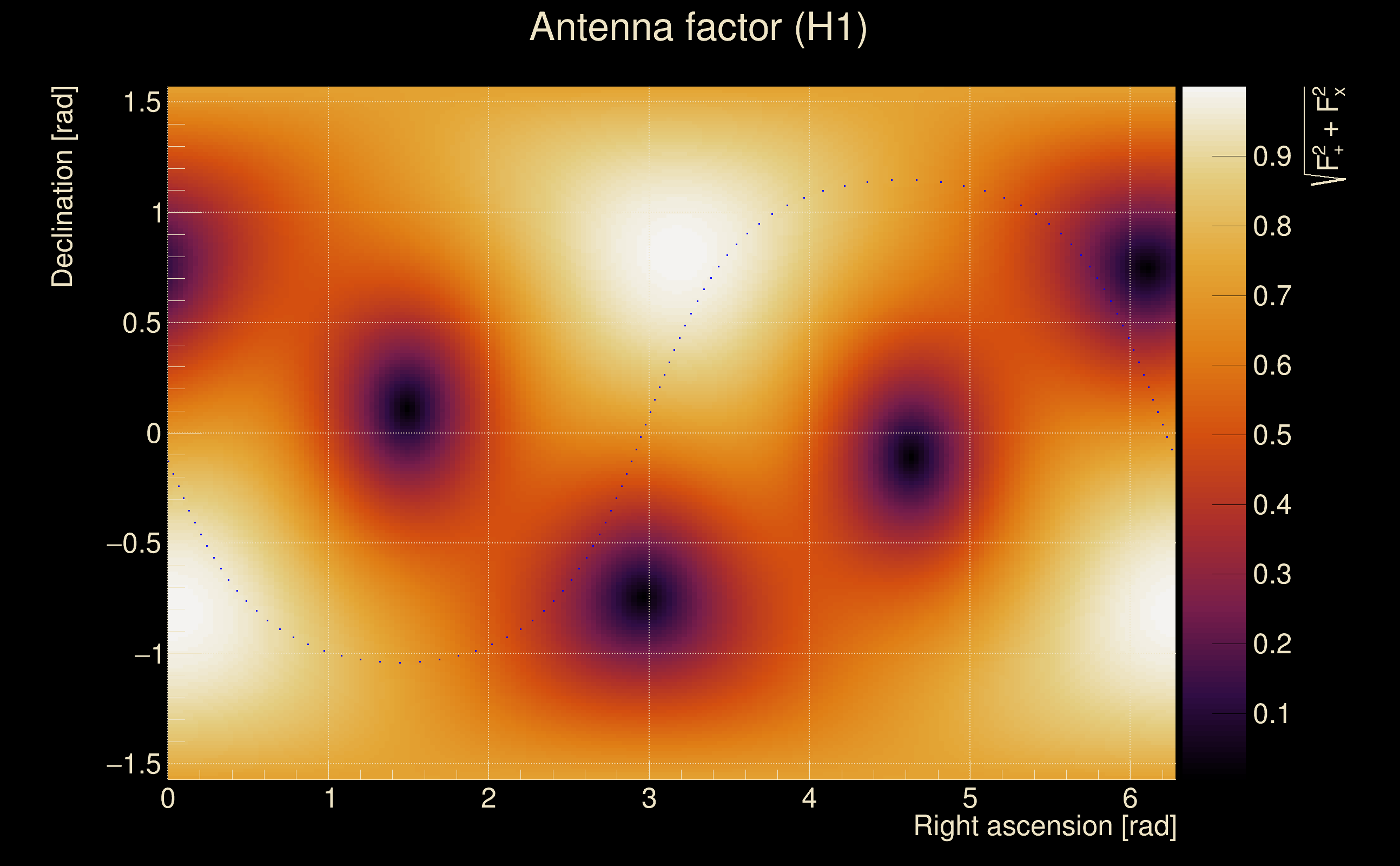

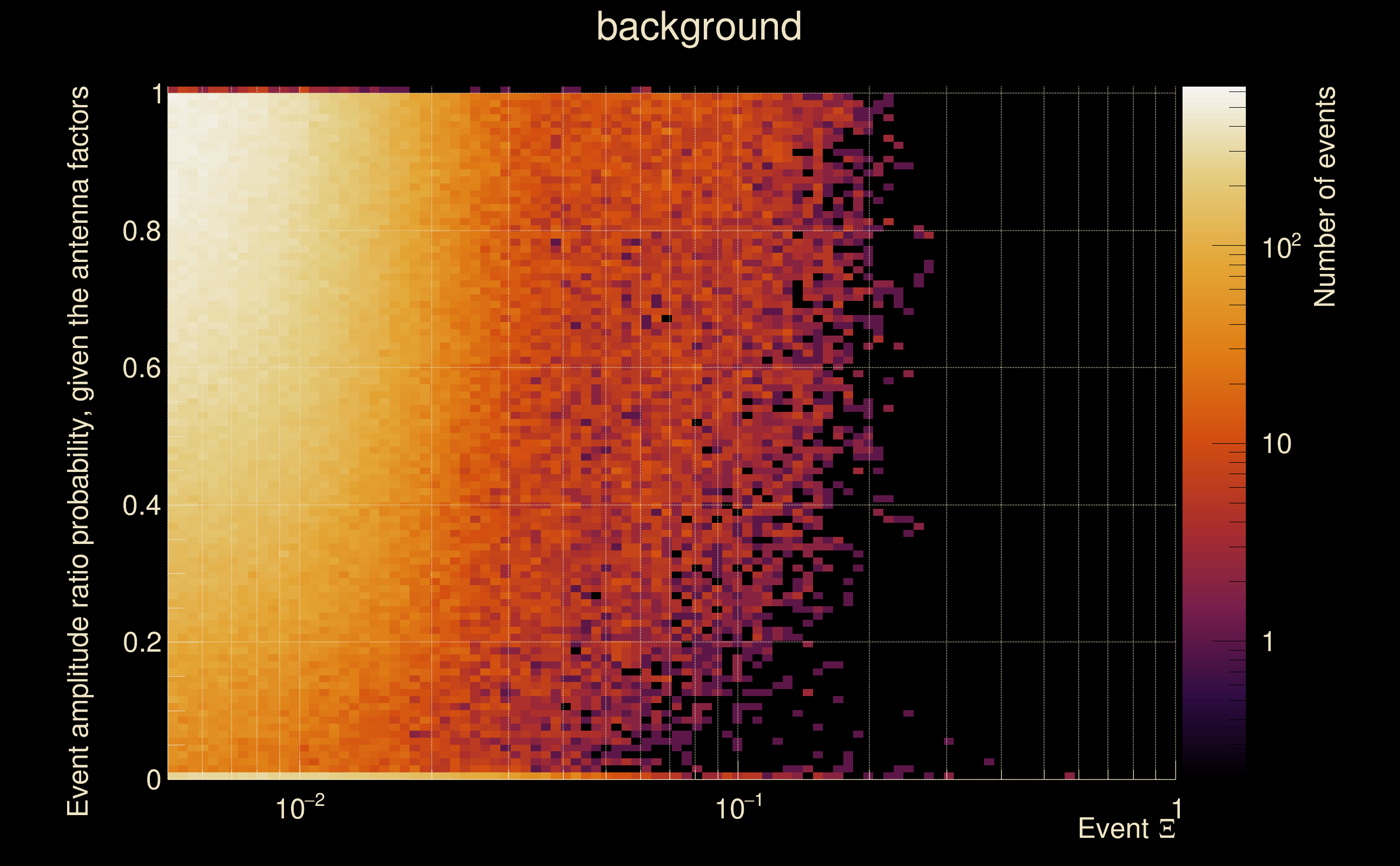

| Antenna factor probability: | 0.984942 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 252.186, L1: 265.056 |

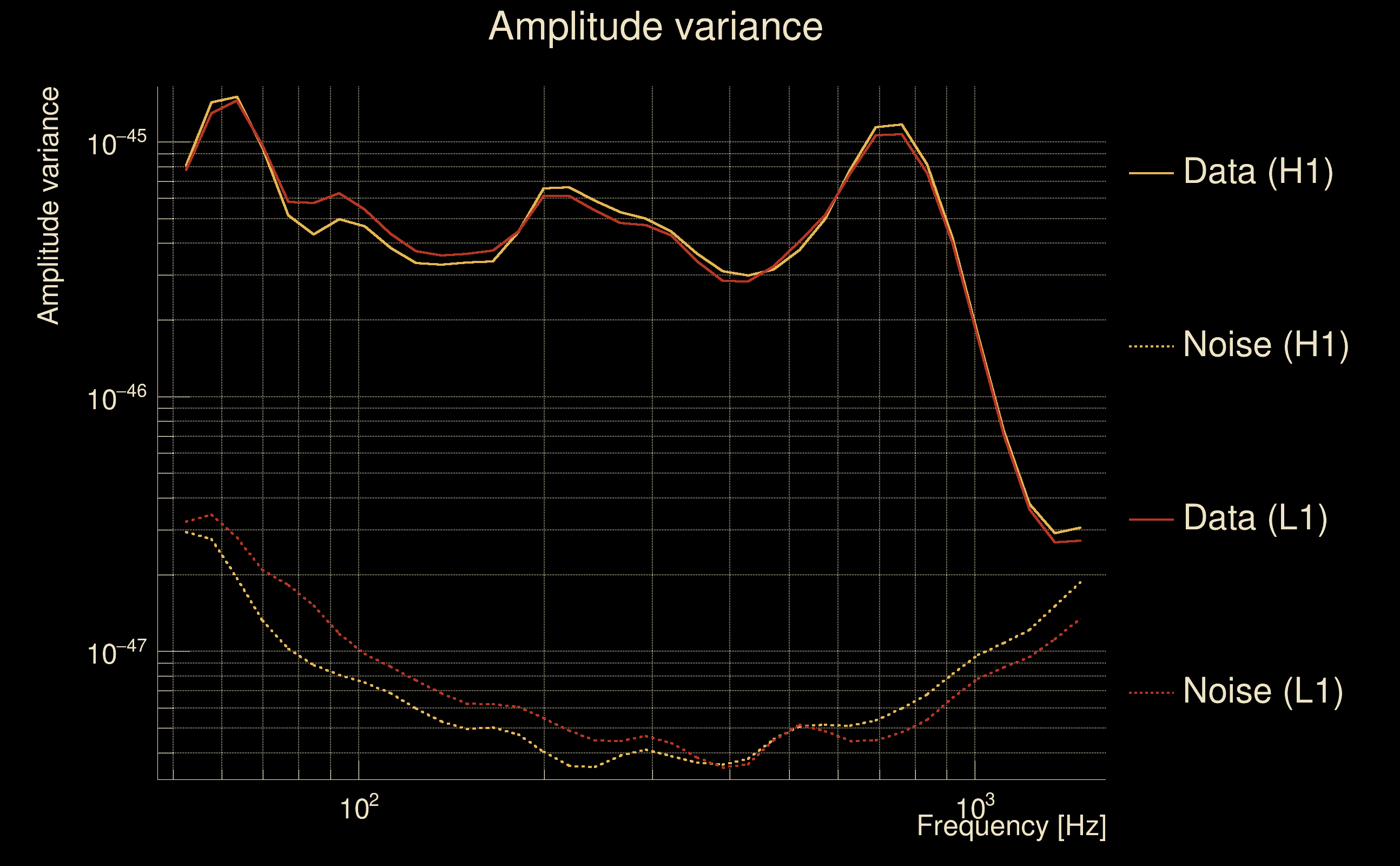

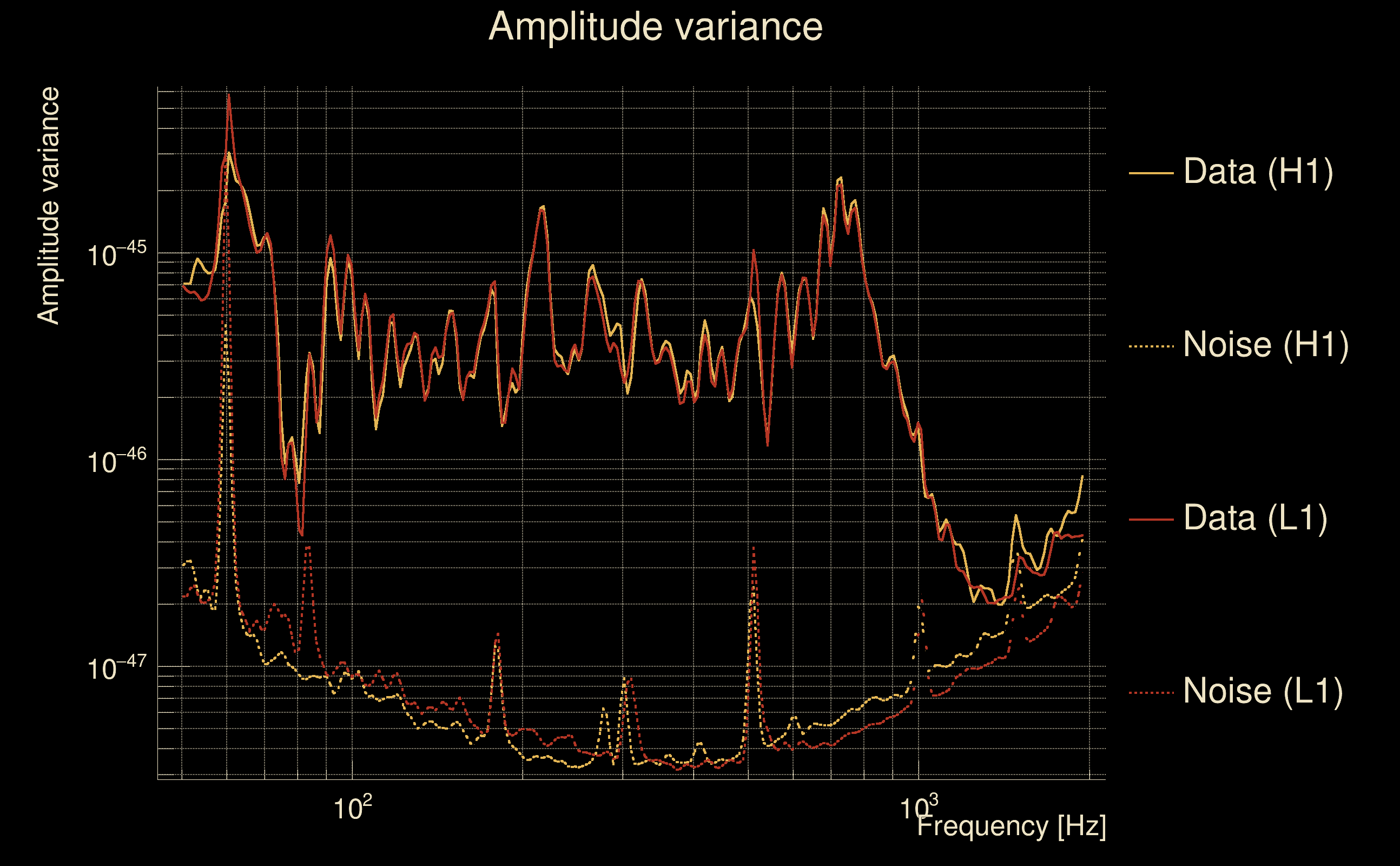

| SNR variance: | H1: 0.513259, L1: 0.495886 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

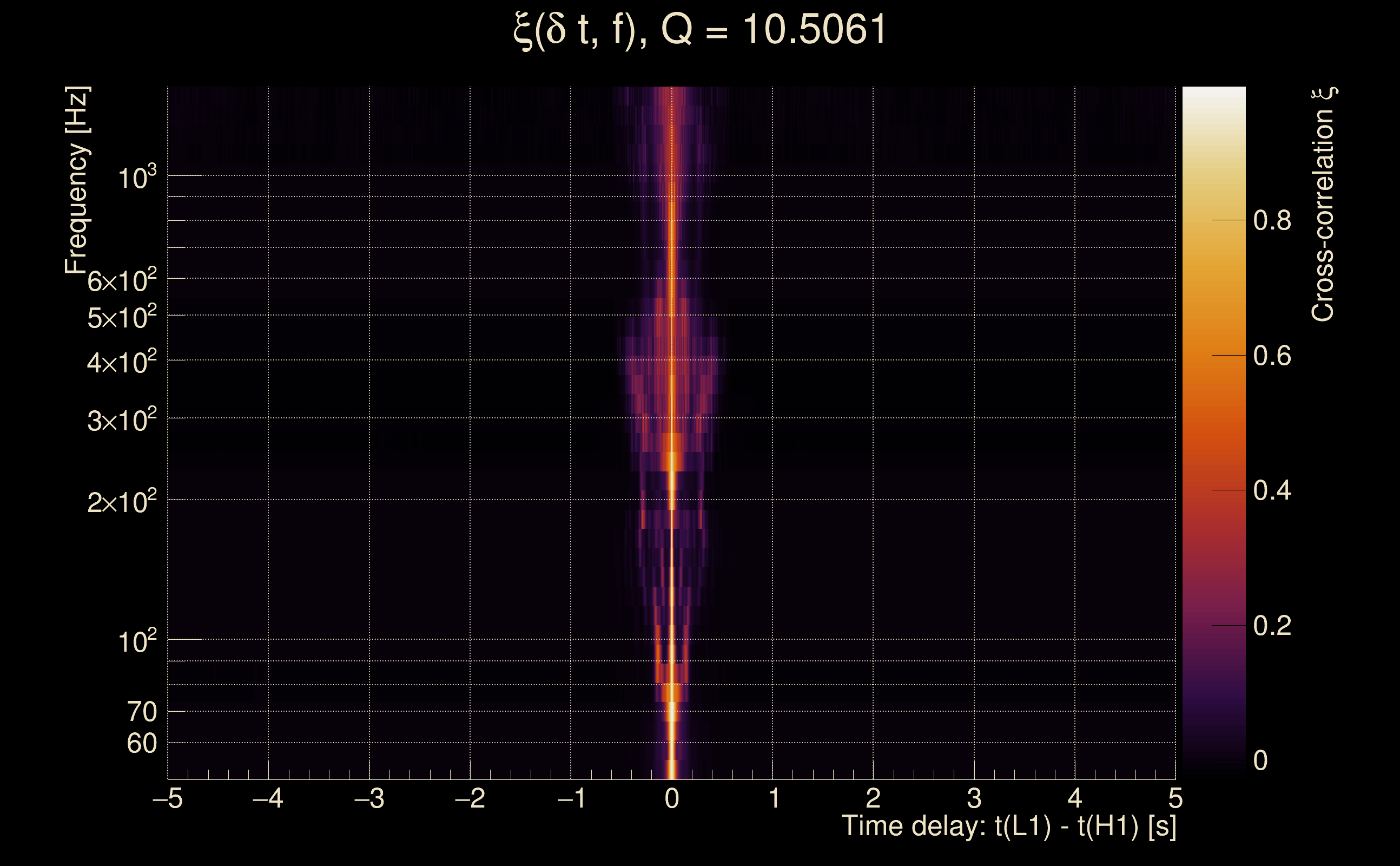

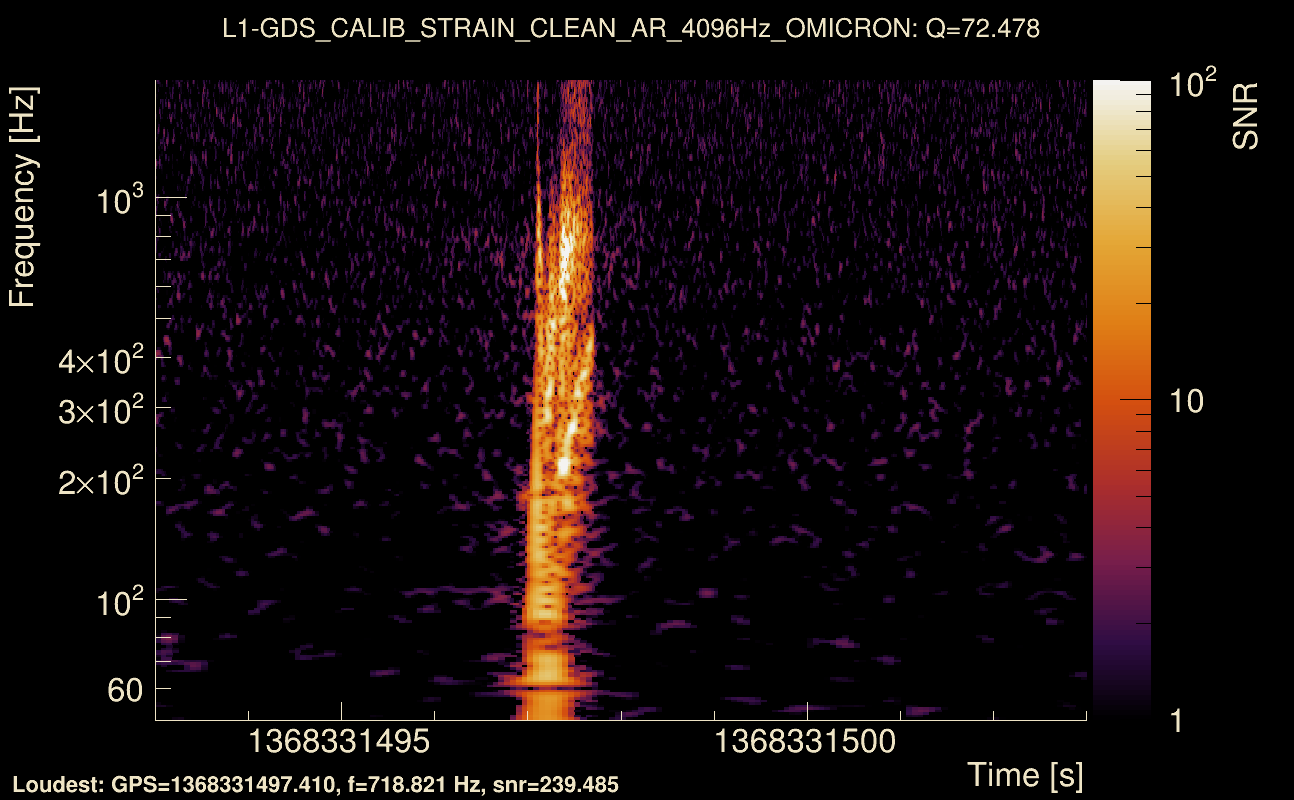

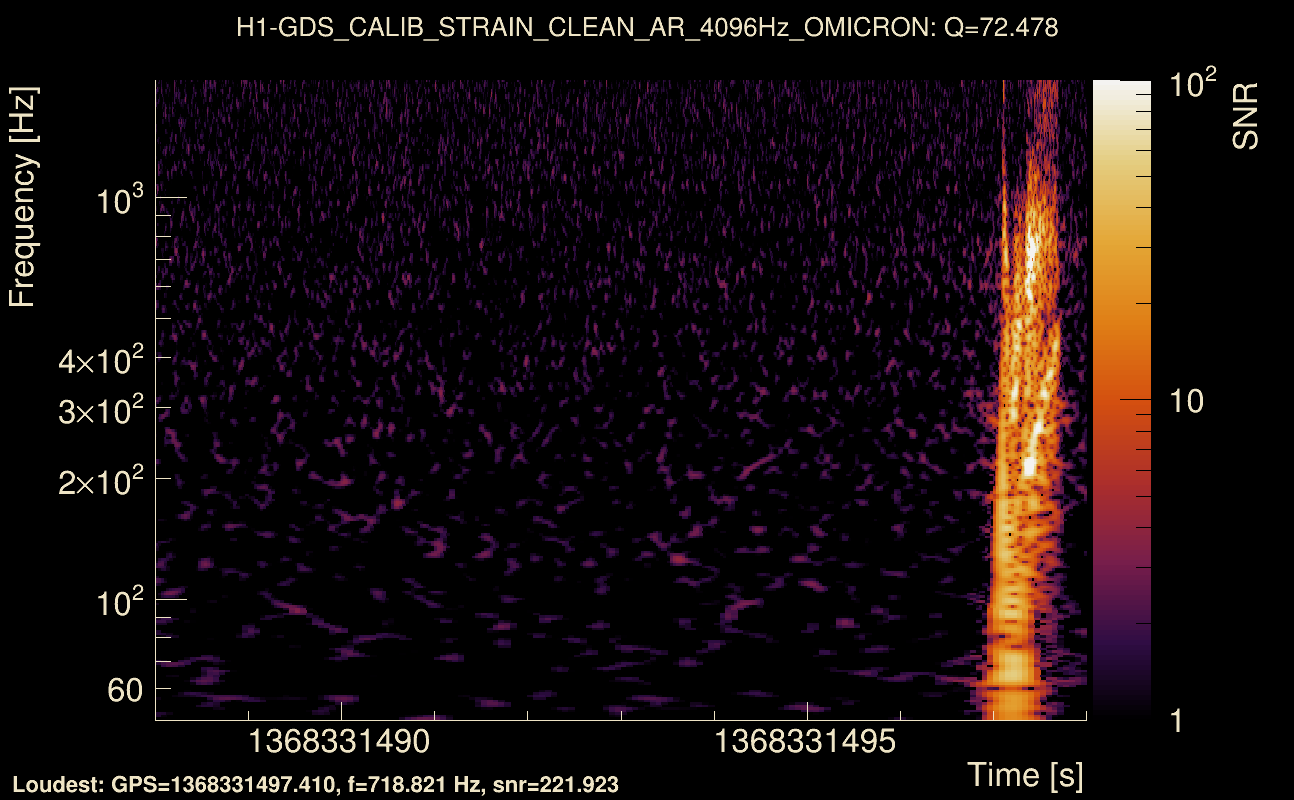

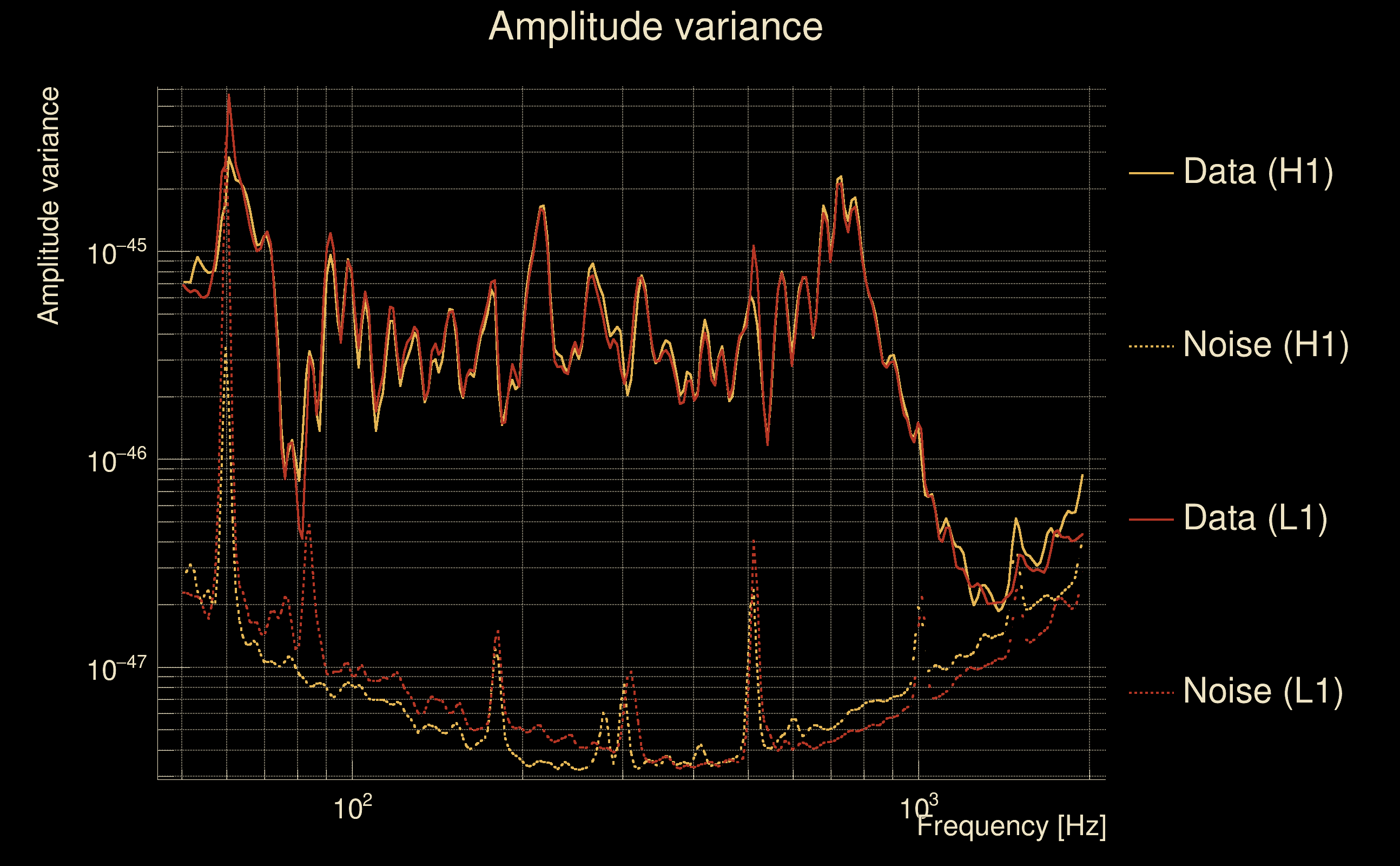

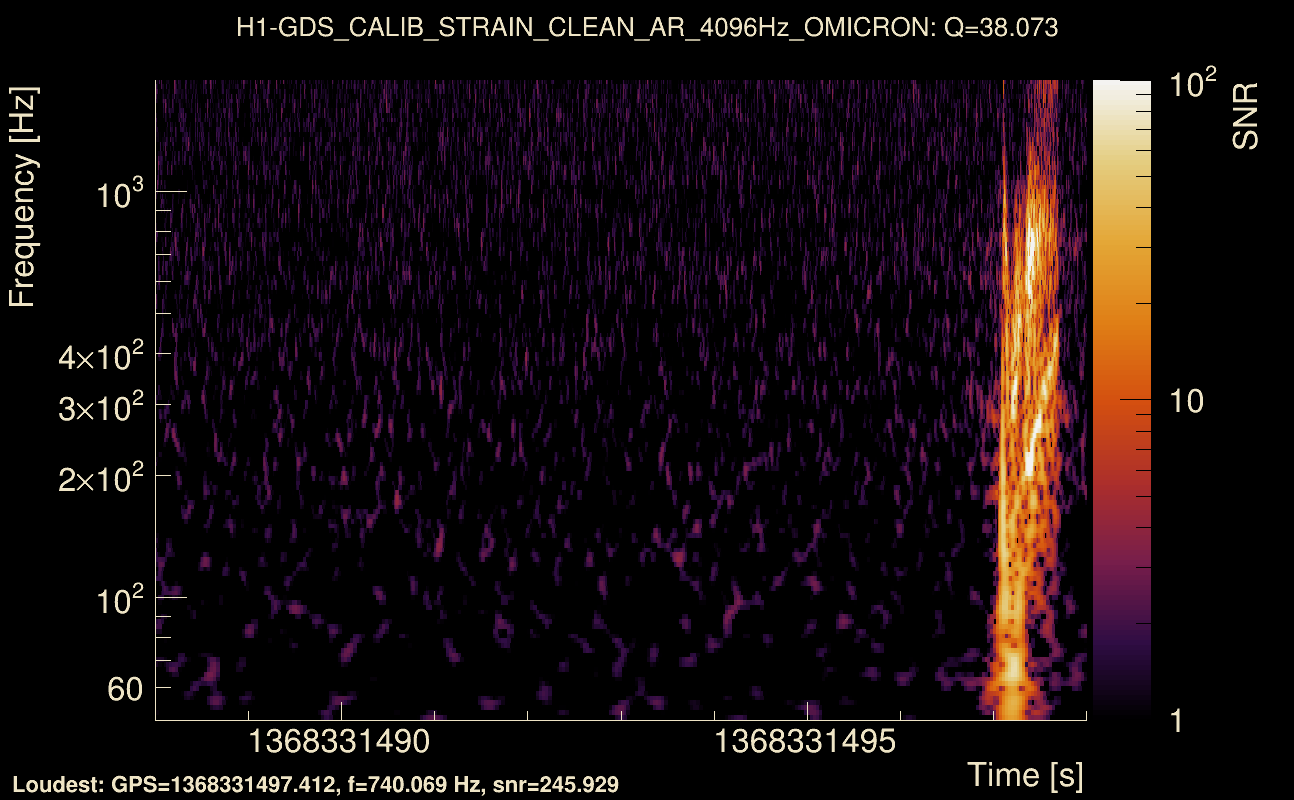

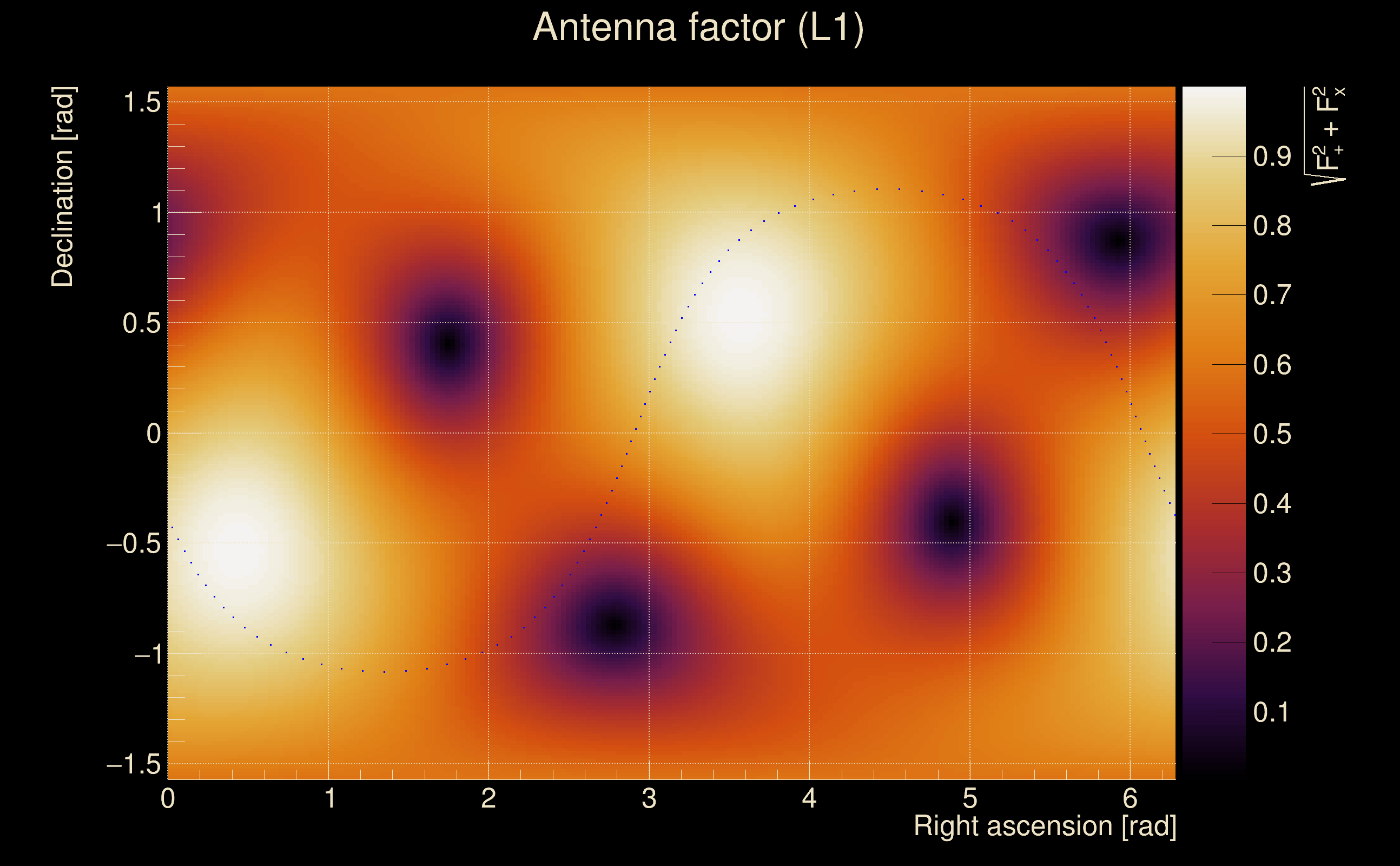

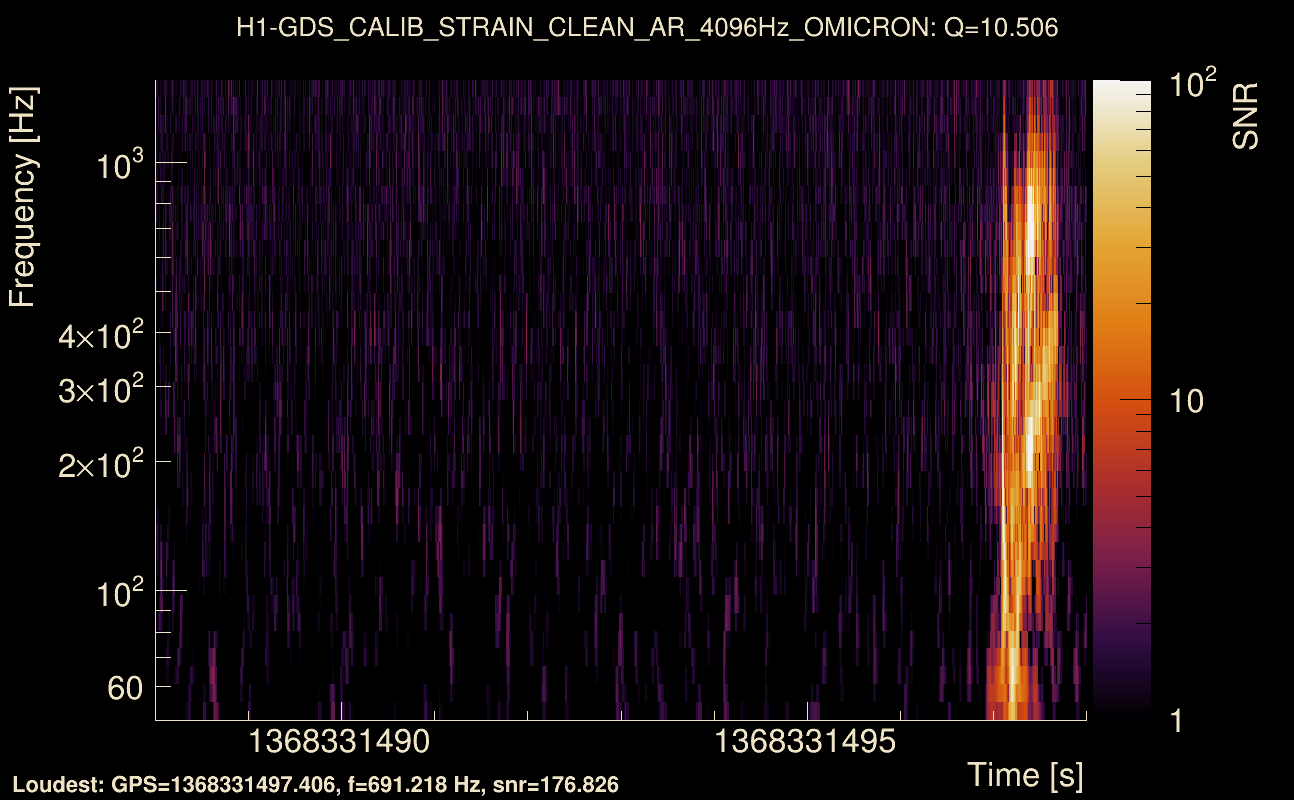

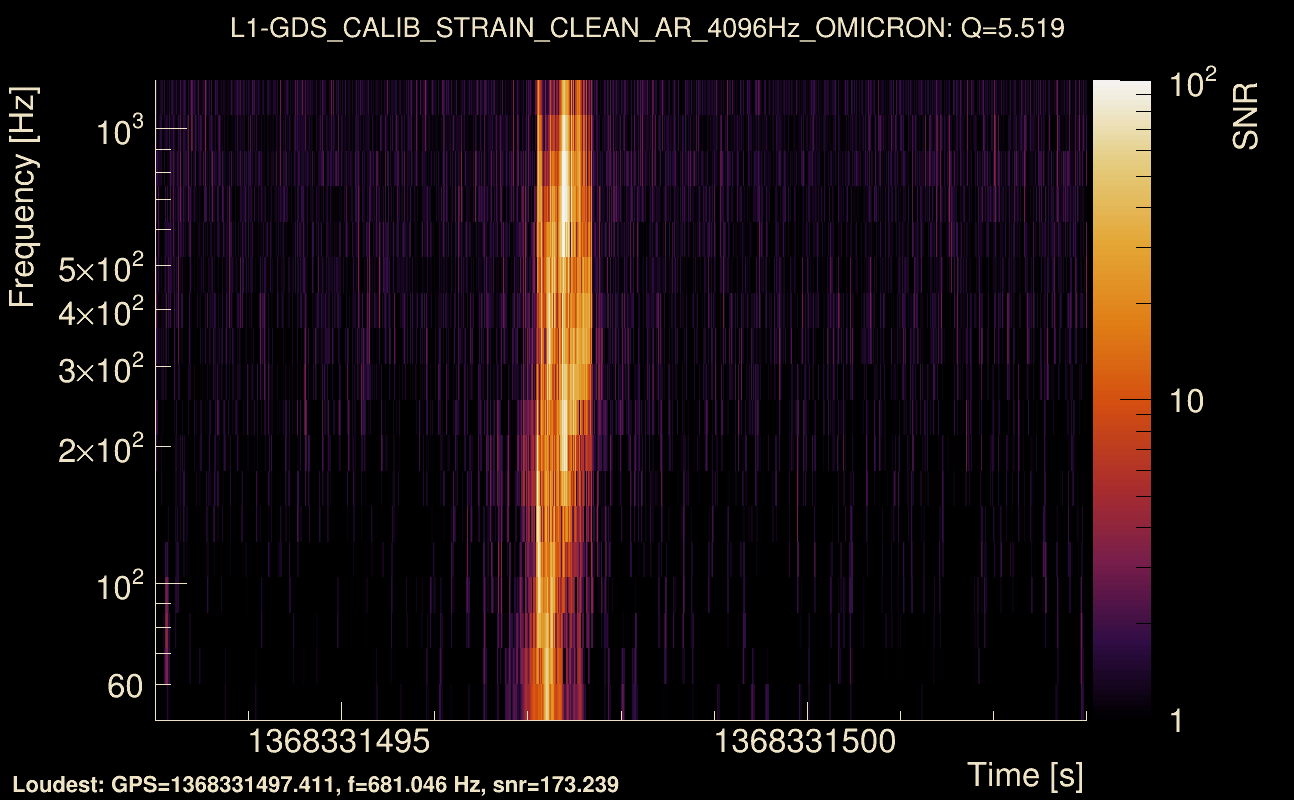

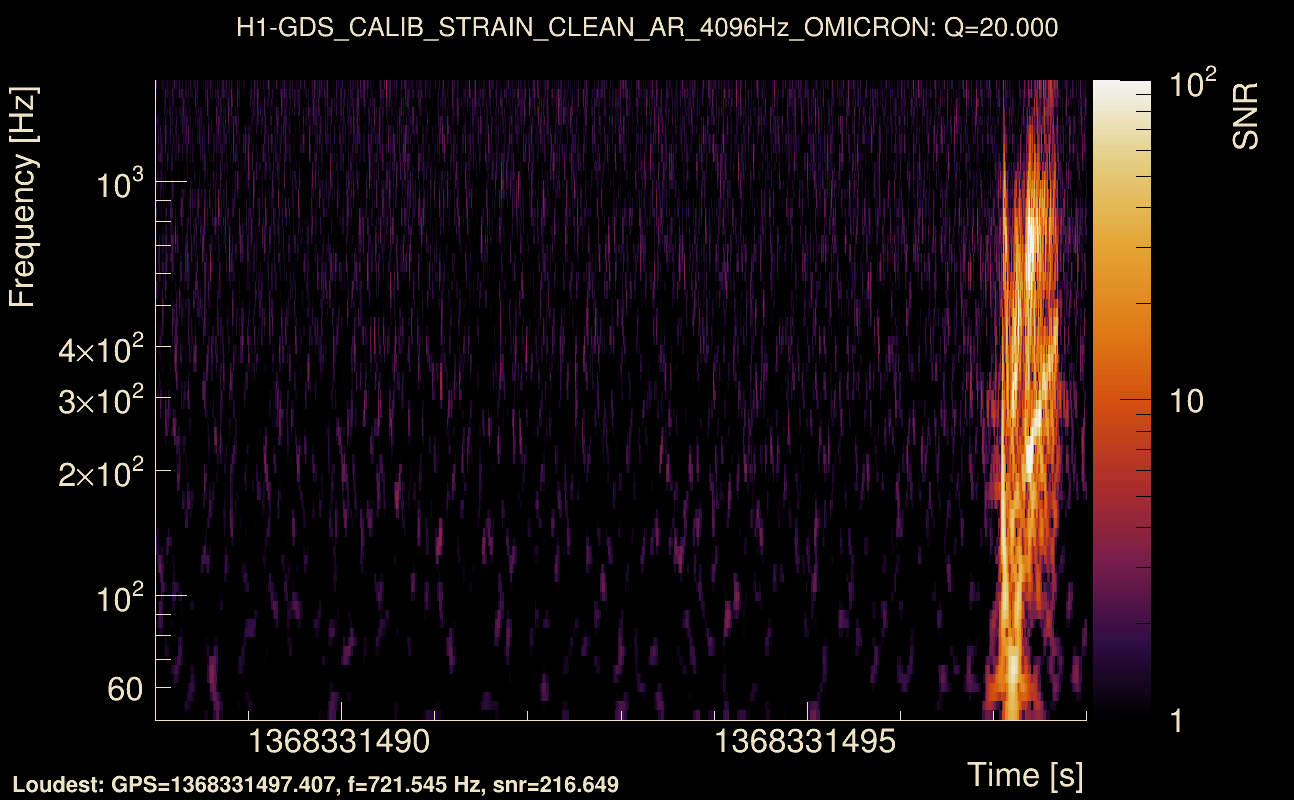

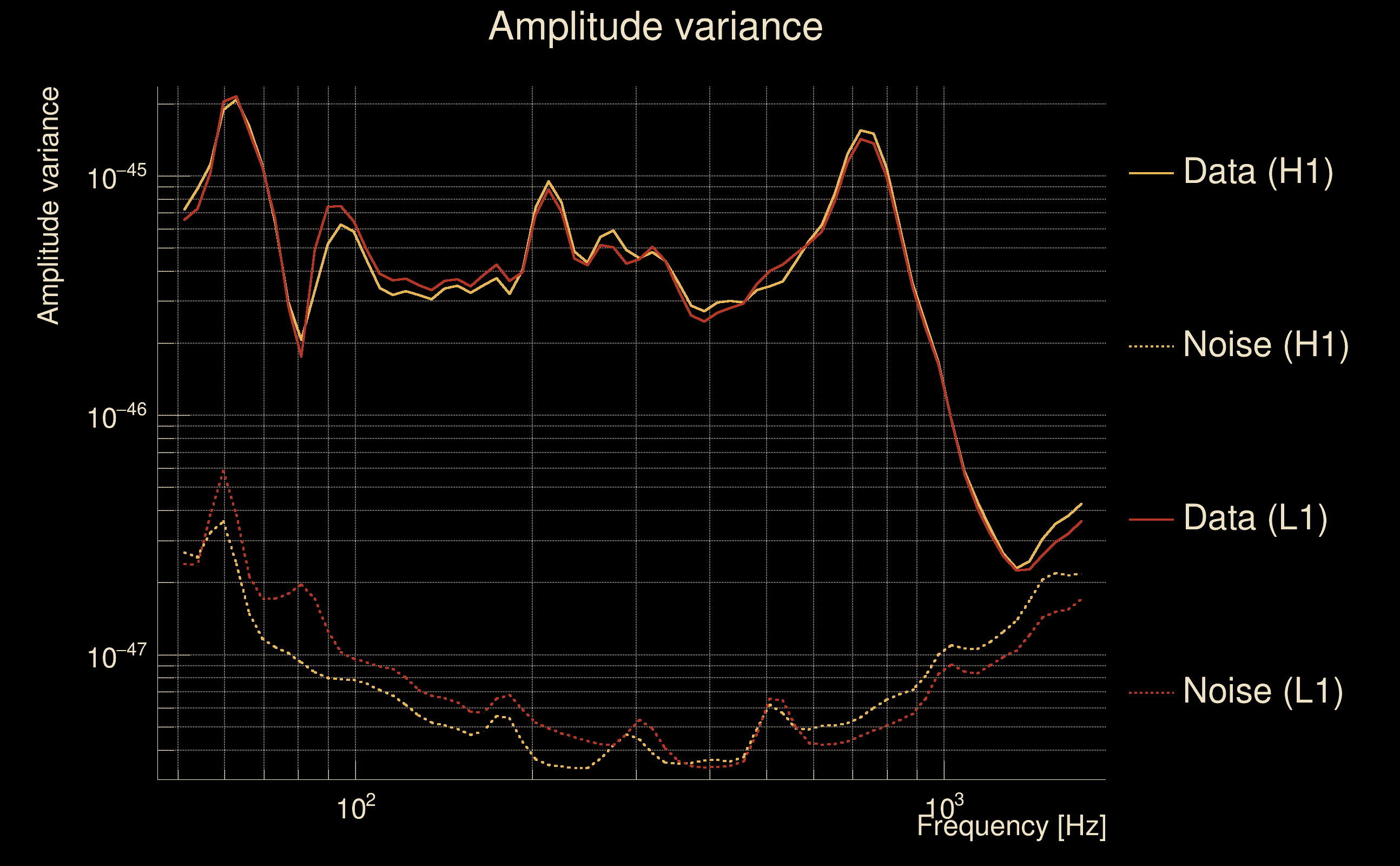

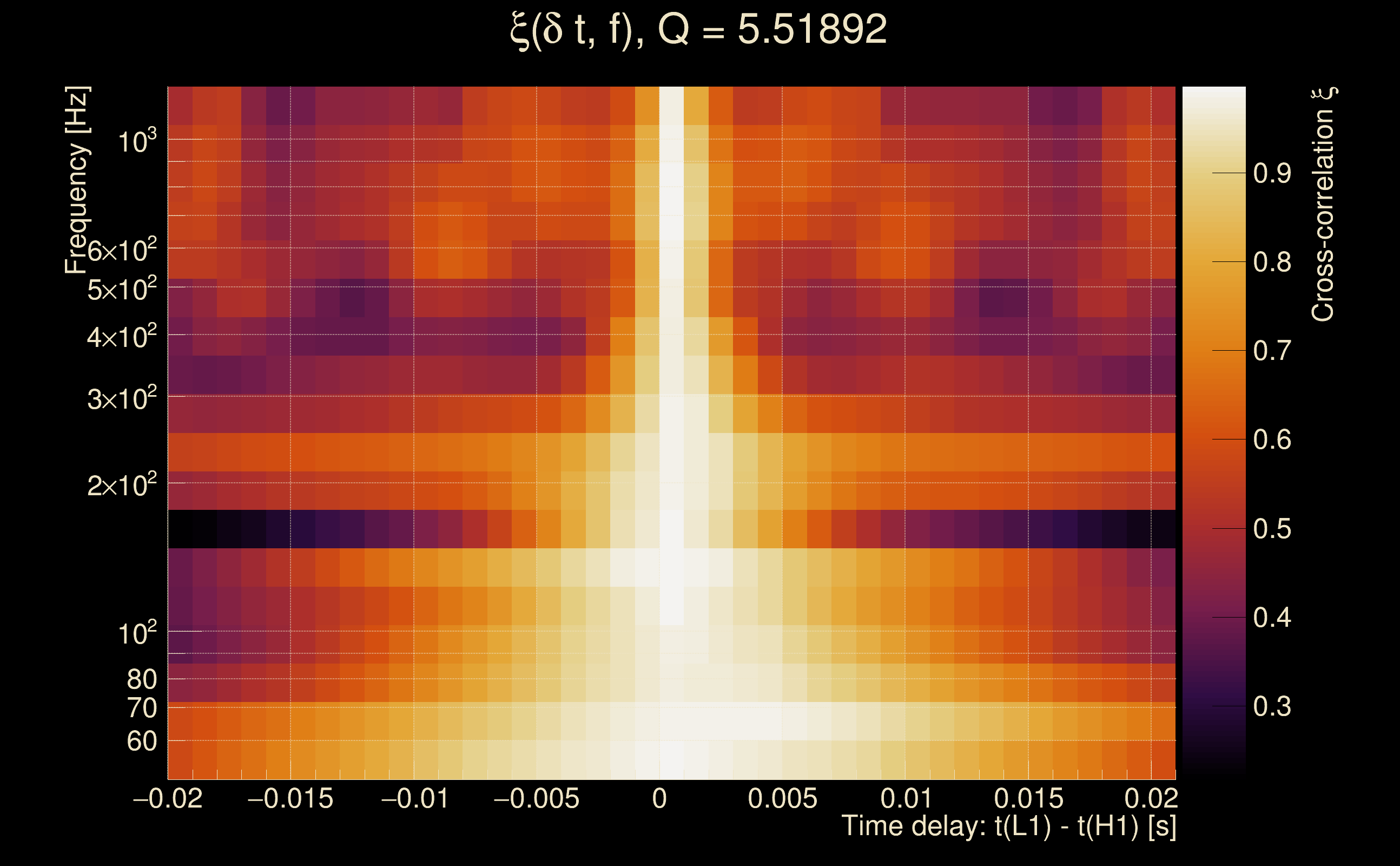

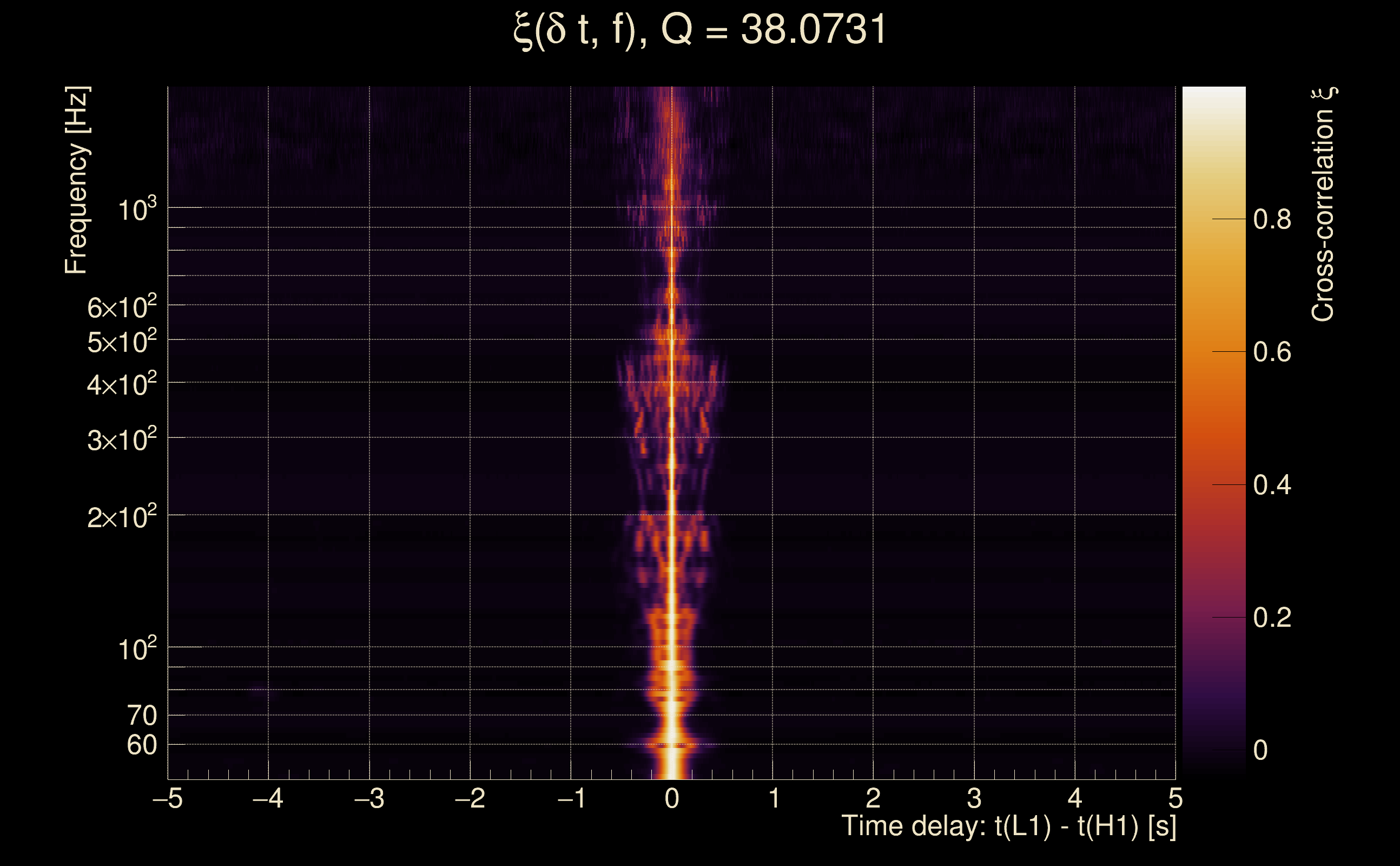

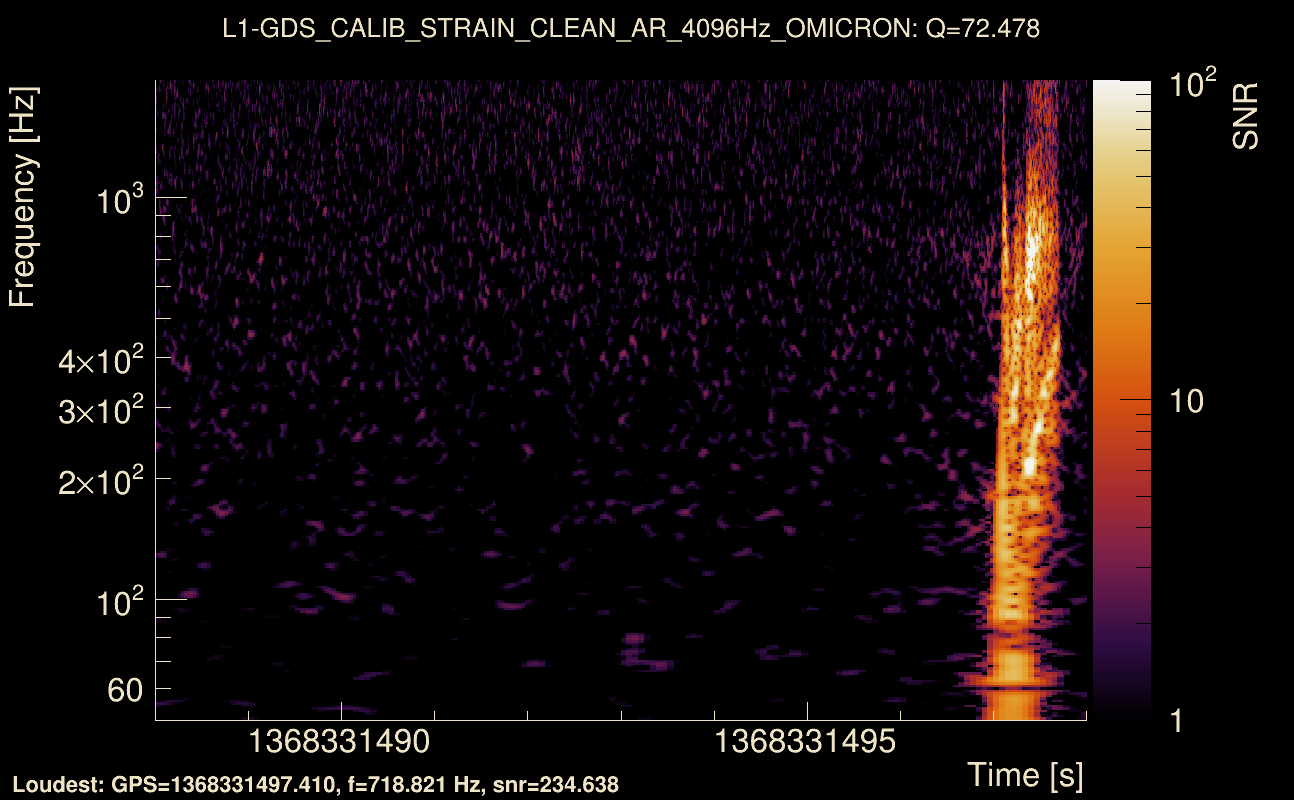

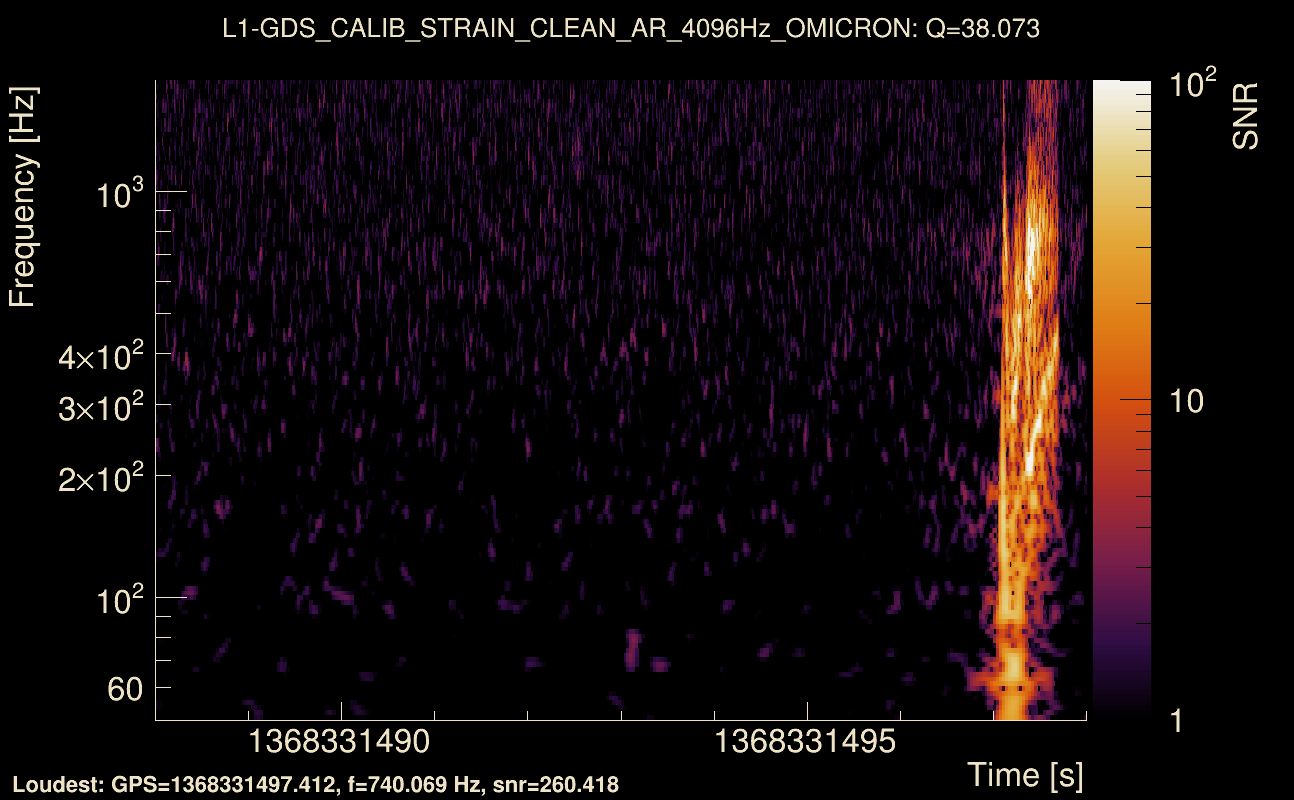

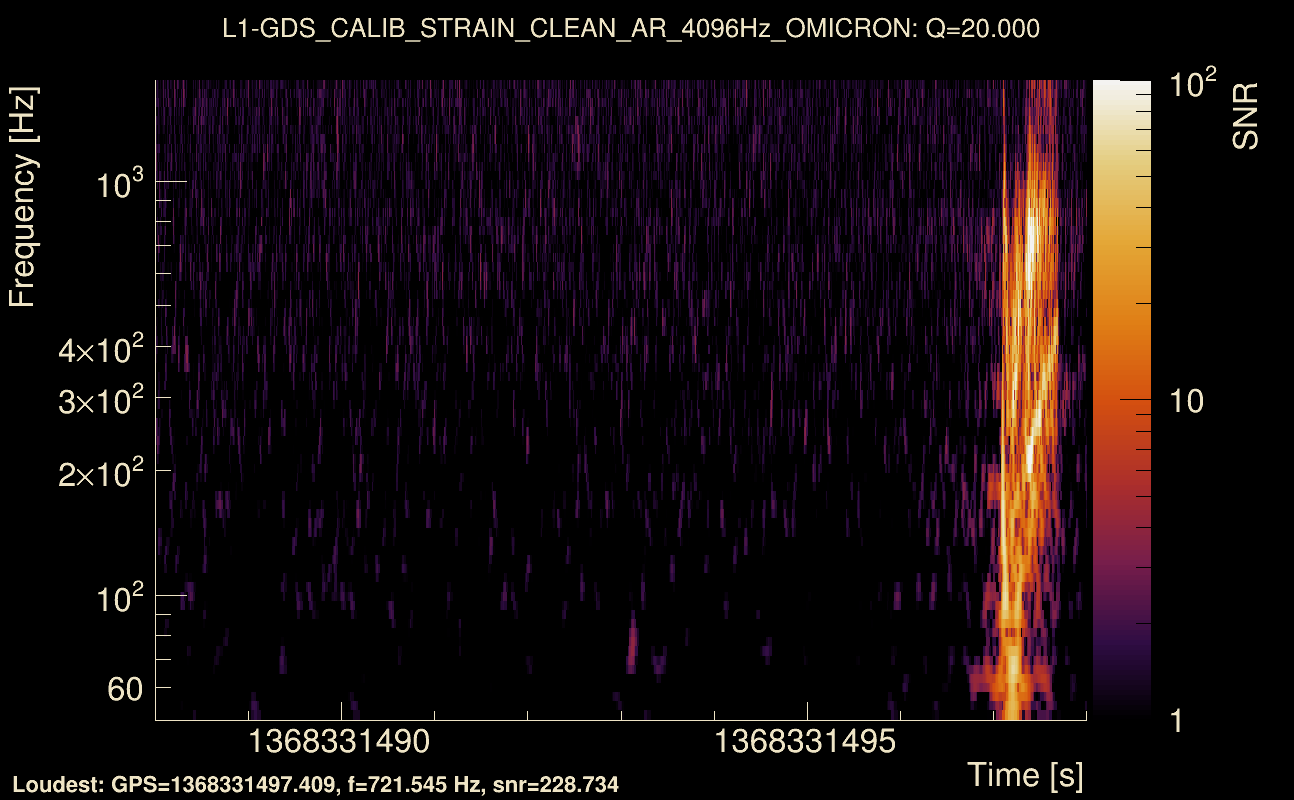

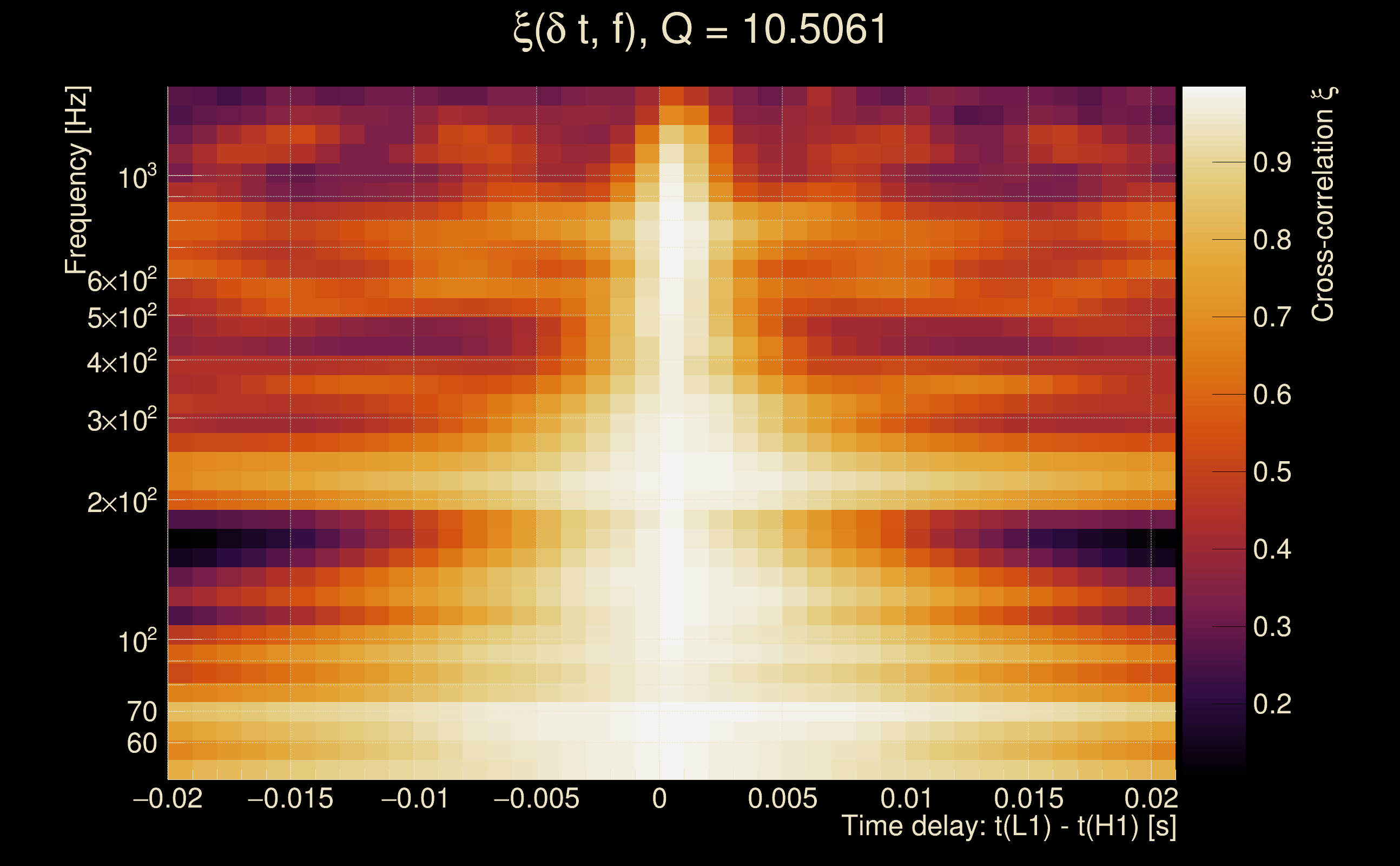

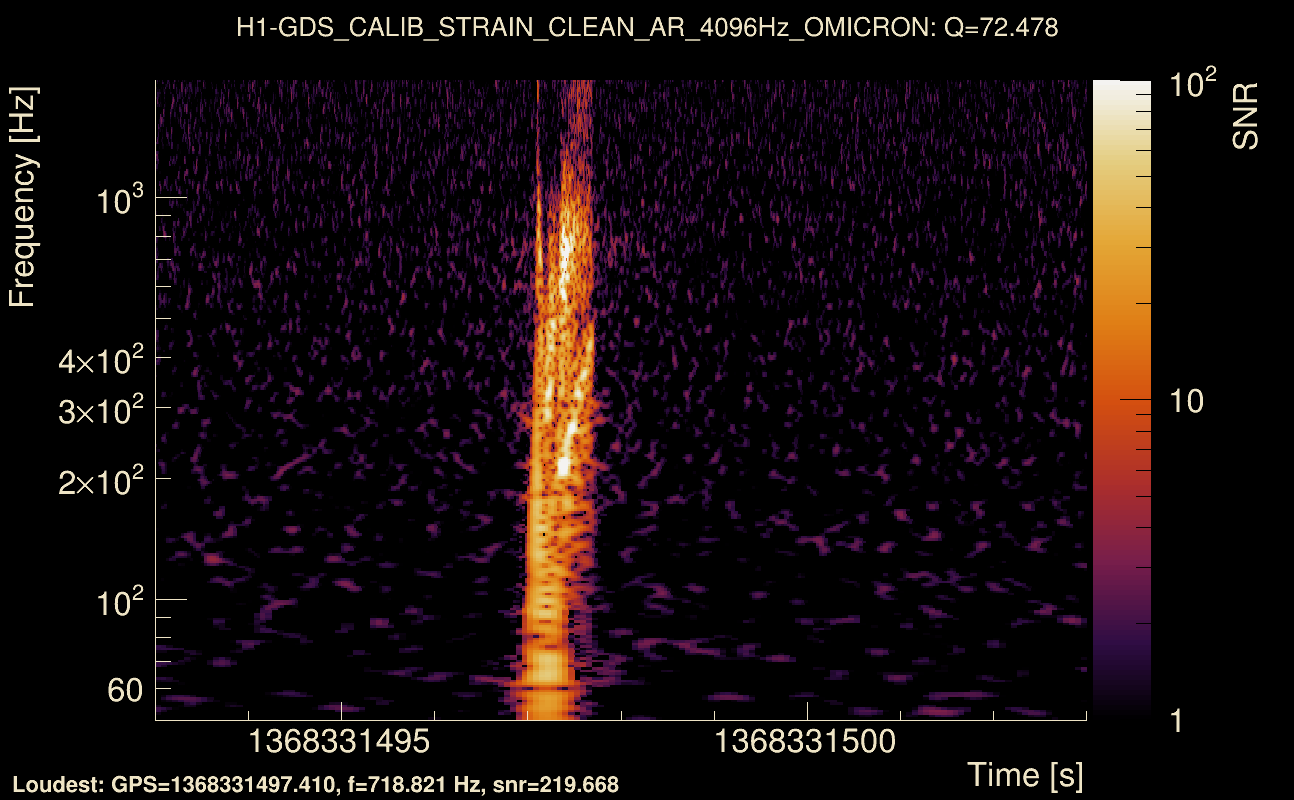

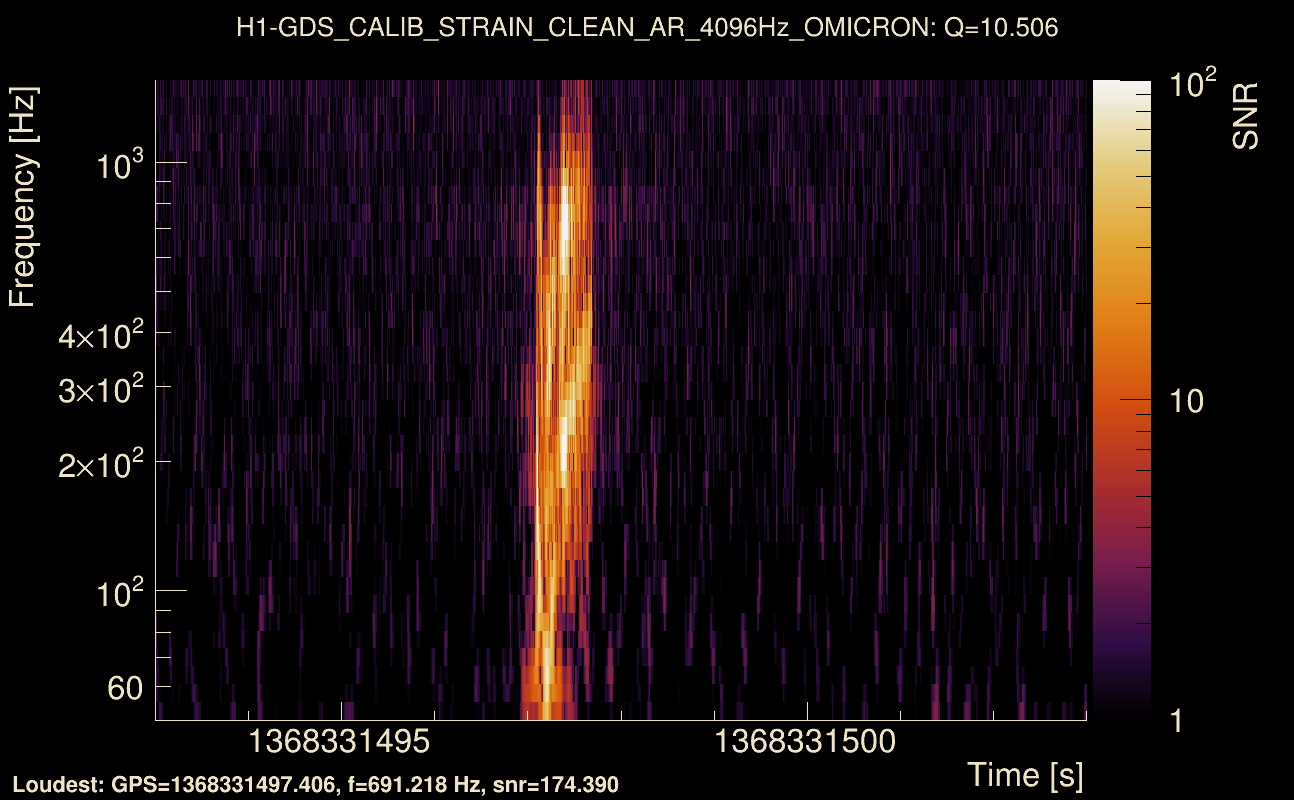

| Event time t(H1): | GPS = 1368331493 (Wed May 17 04:04:35 2023 ) → GPS = 1368331503 (Wed May 17 04:04:45 2023 ) |
| Event time t(L1): | GPS = 1368331493 (Wed May 17 04:04:45 2023 ) → GPS = 1368331503 (Wed May 17 04:04:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368331490 → GPS = 1368331506 |
| Omicron analysis time window (L1): | GPS = 1368331490 → GPS = 1368331506 |

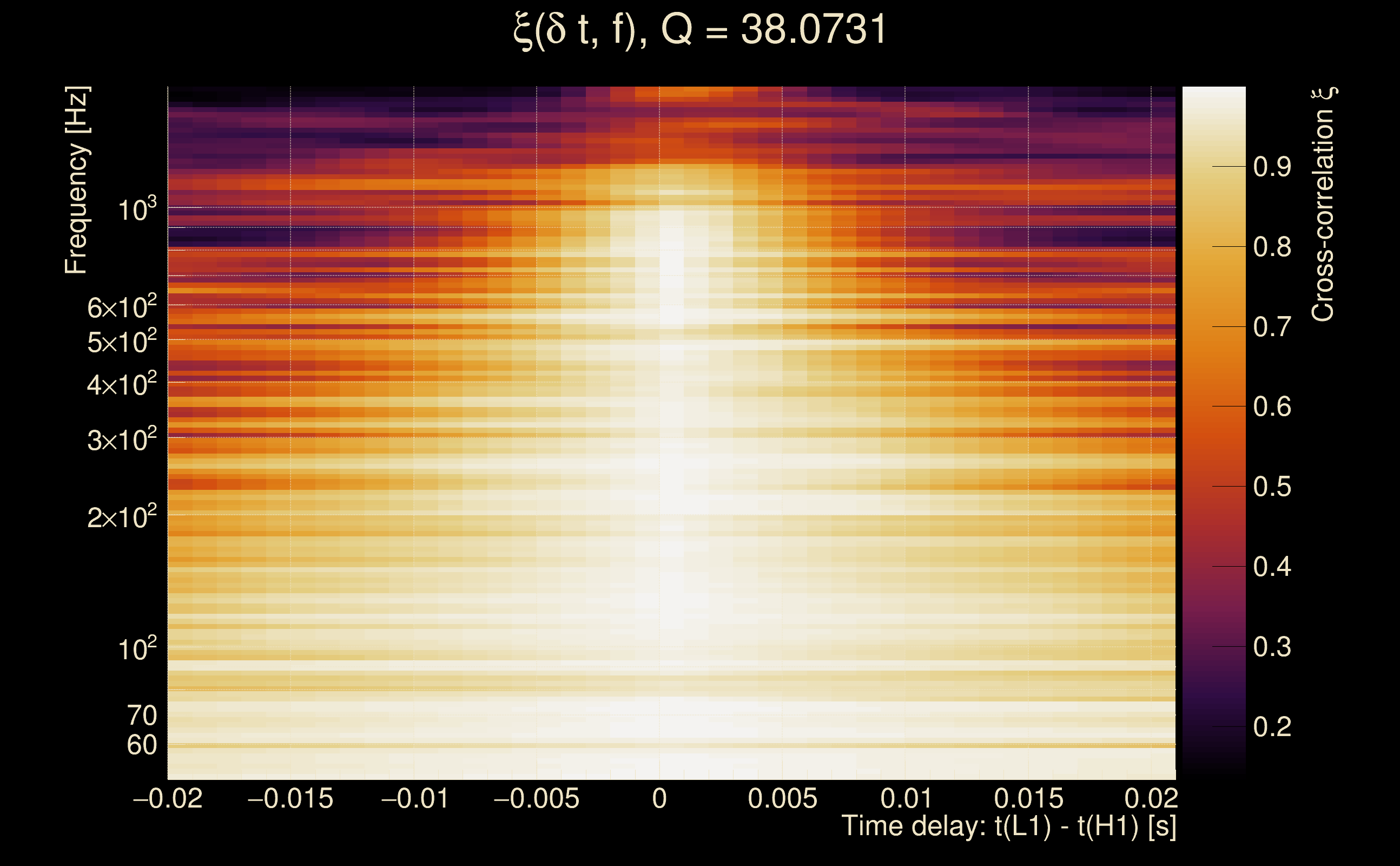

| Time delay between detectors t(L1) - t(H1): | 0.000113595 s (slice index = 108 / 217), δt_gw = 0.000113595 s |
| Time delay standard deviation: | 0.030892 s |
| [targeted mode] Time delay probability: | 0.976372 (0.0296171 sigmas), δt_target = 0.000140429 s |
| Frequency: | 269.227 Hz |

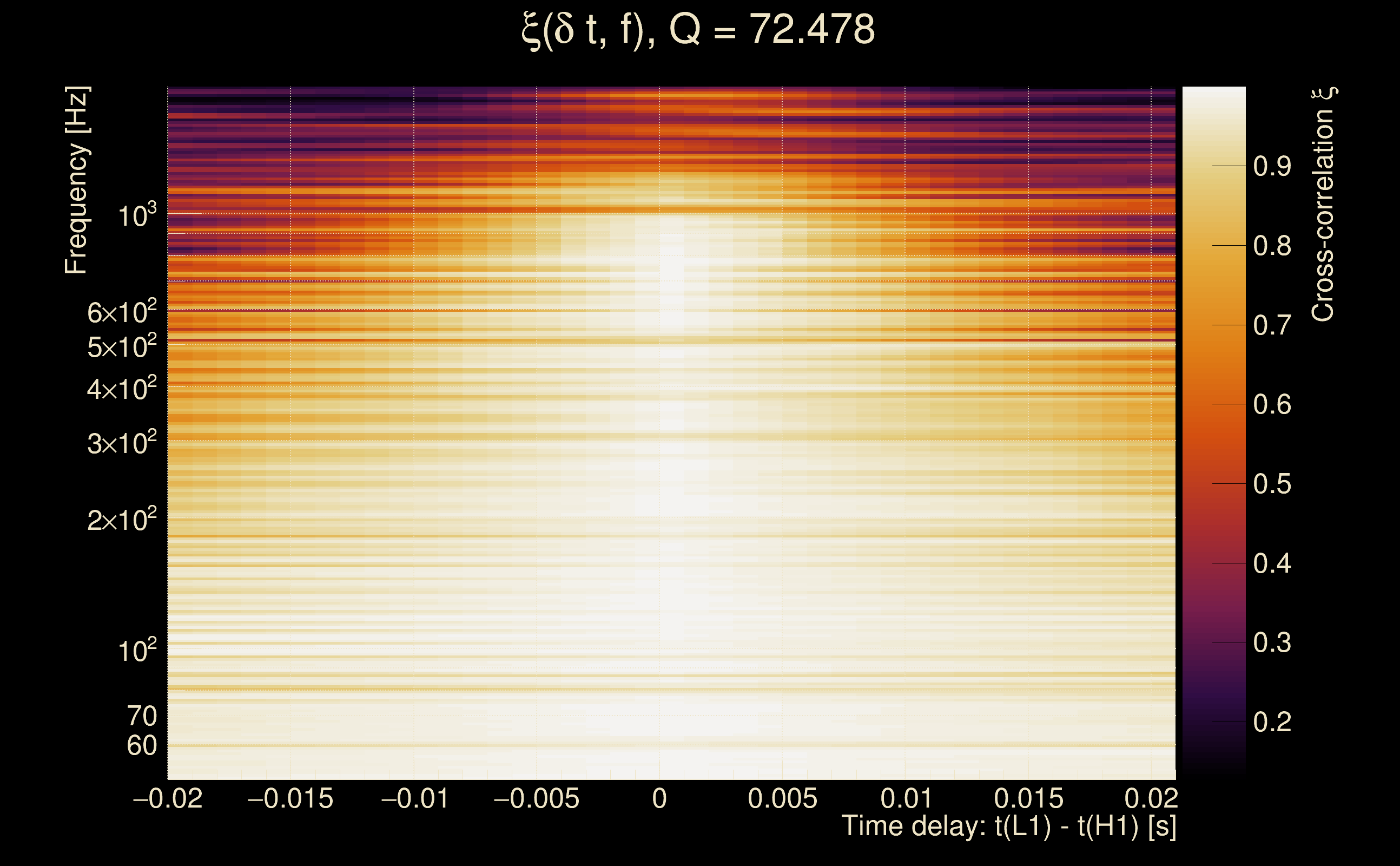

| Ξ: | 0.977779 ± 0.0133799 (variance = 0.000179023): Q0: 0.989292, Q1: 0.973083, Q2: 0.961639, Q3: 0.955229, Q4: 0.953022 |
| Rank: | R_A = 0.919844 |
| Log of amplitude ratio (L1/H1): | -0.0171974, variance = 0.15115 (L1/H1: -0.0282909, variance = 0.30152, H1/L1: 0.00710626, variance = 0.30171) |
| Amplitude ratio (L1/H1): | 0.98295 ⋇ 1.47518 (L1/H1: 0.972106 ⋇ 1.73171, H1/L1: 1.00713 ⋇ 1.73201) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.97824 |
| Antenna factor probability: | 0.984947 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 250.941, L1: 263.11 |
| SNR variance: | H1: 45.6918, L1: 47.4095 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

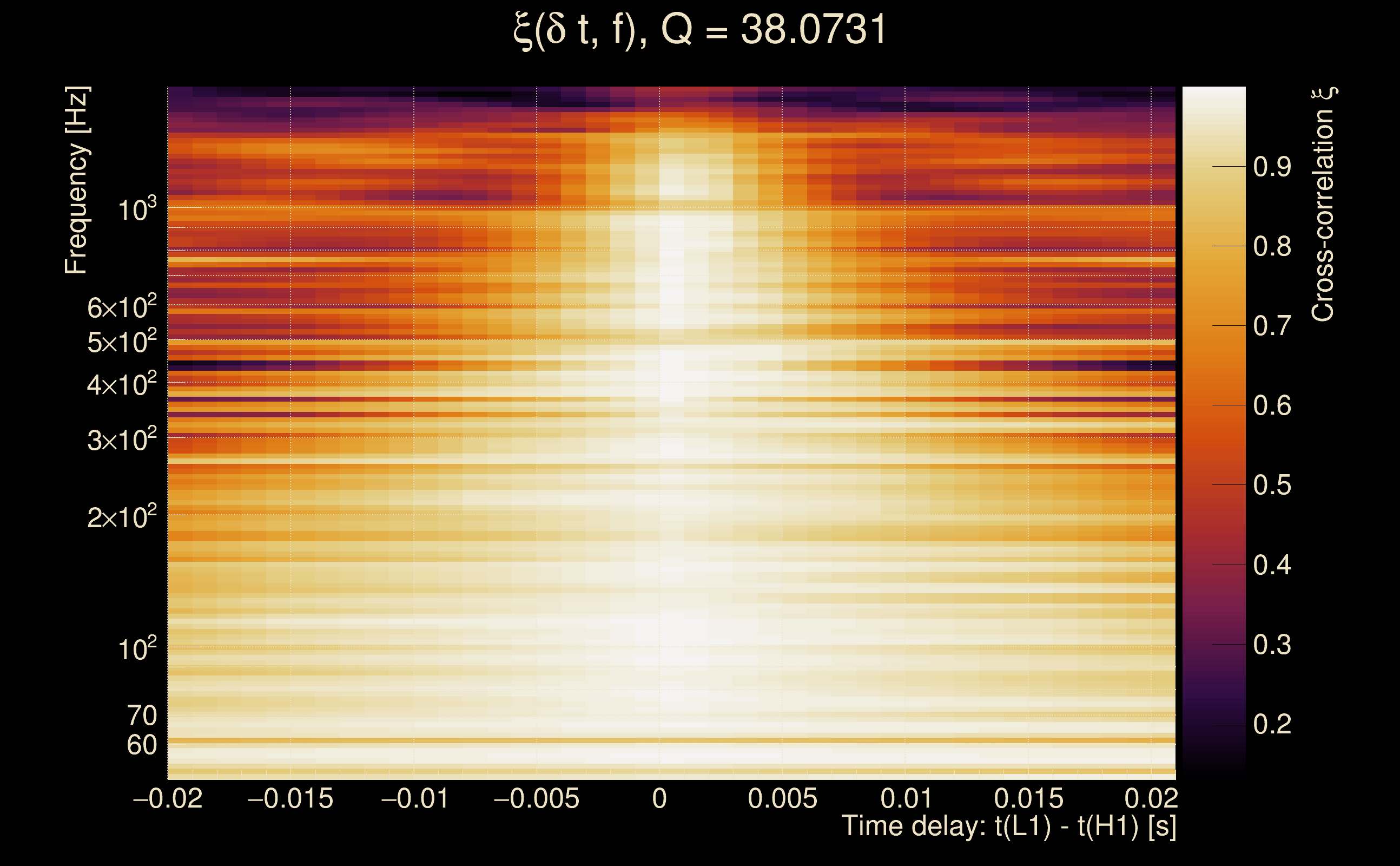

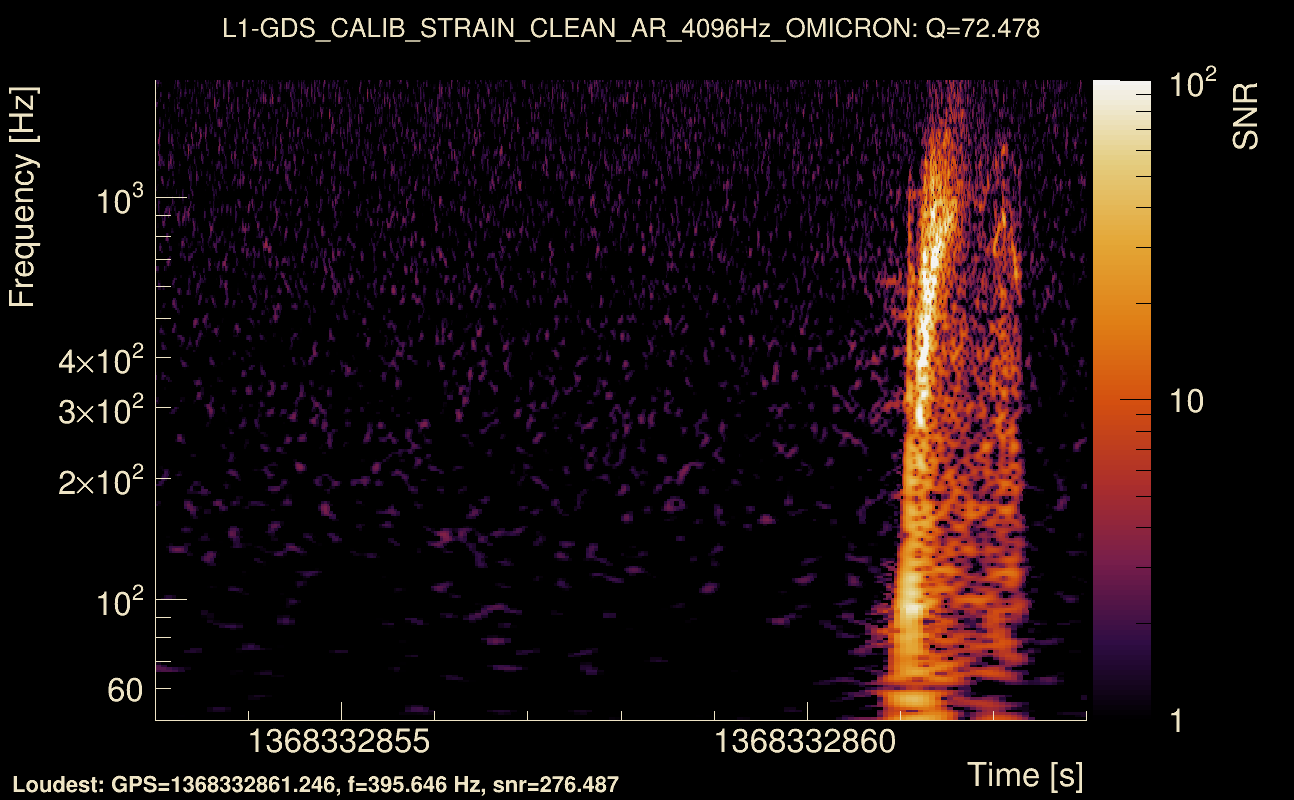

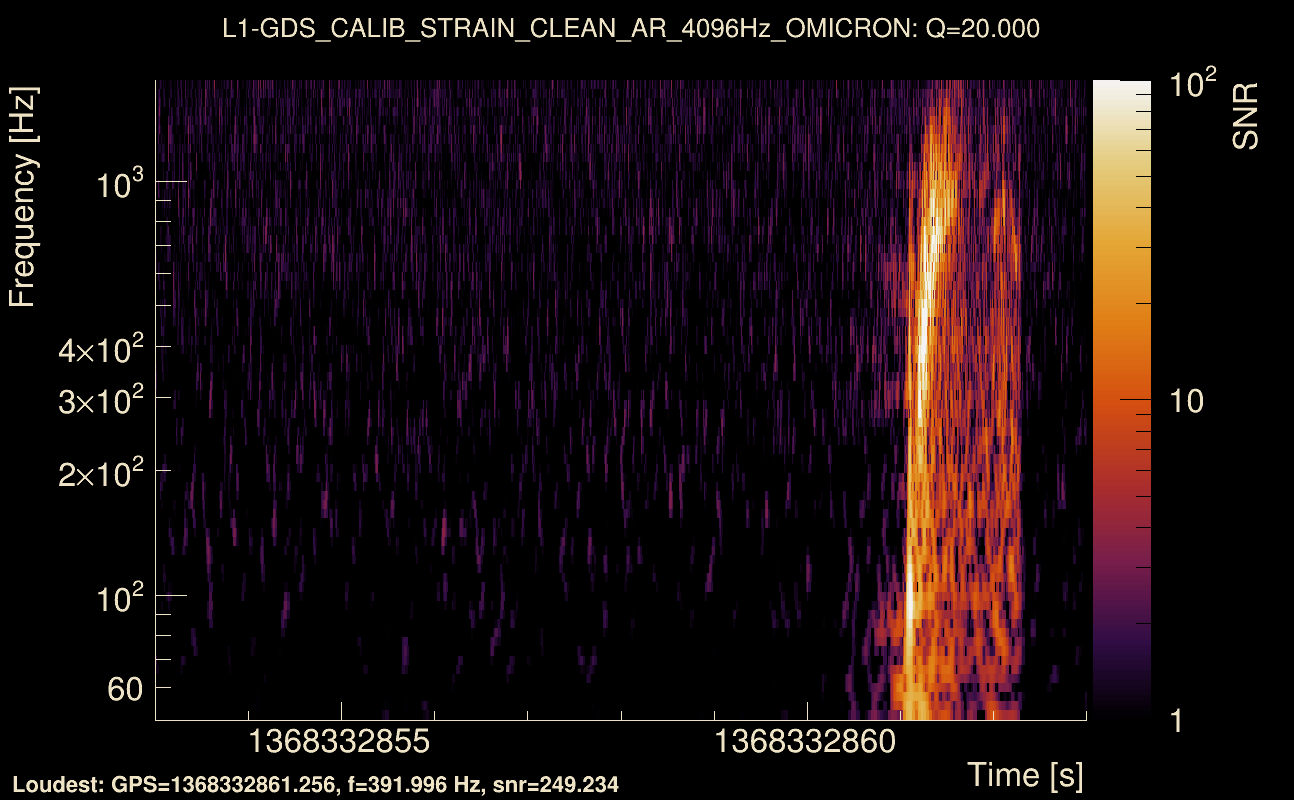

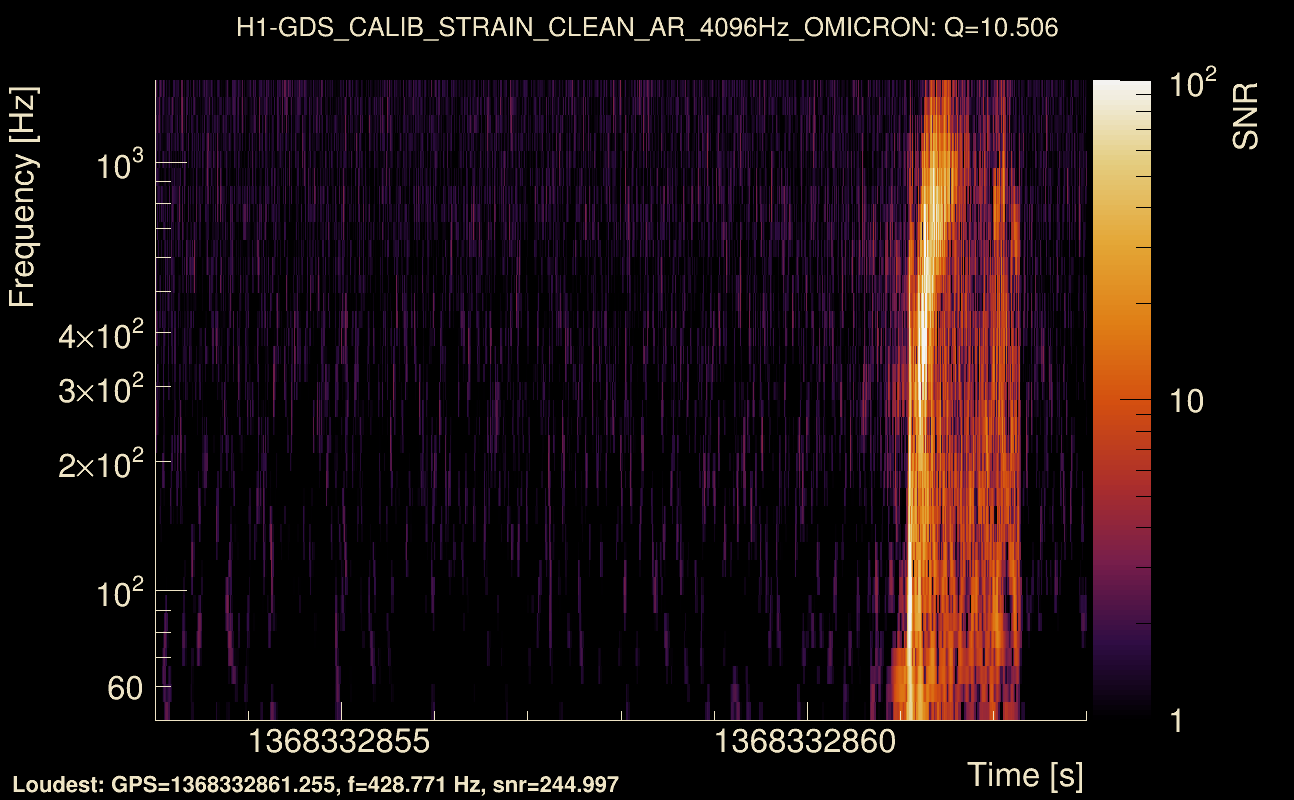

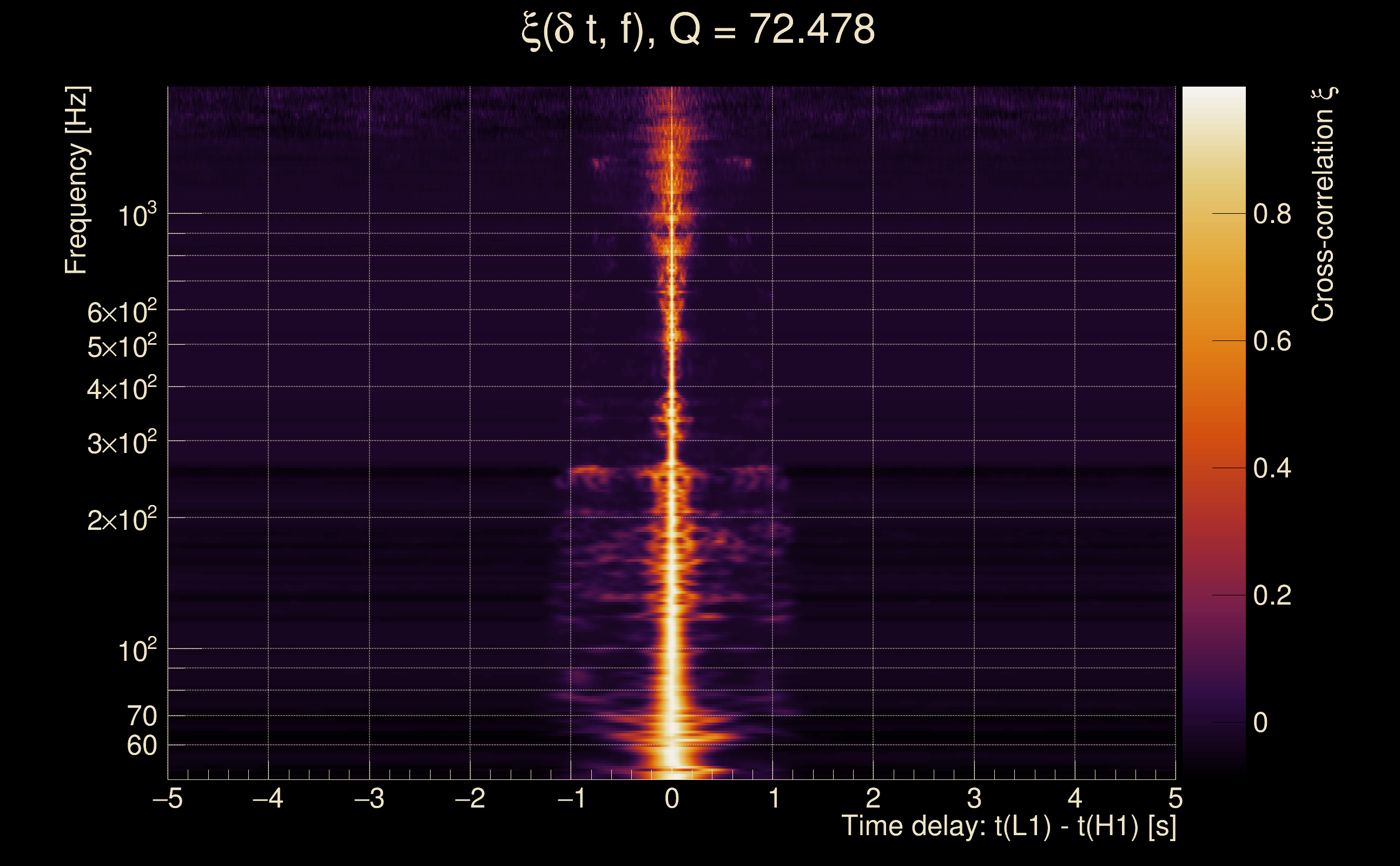

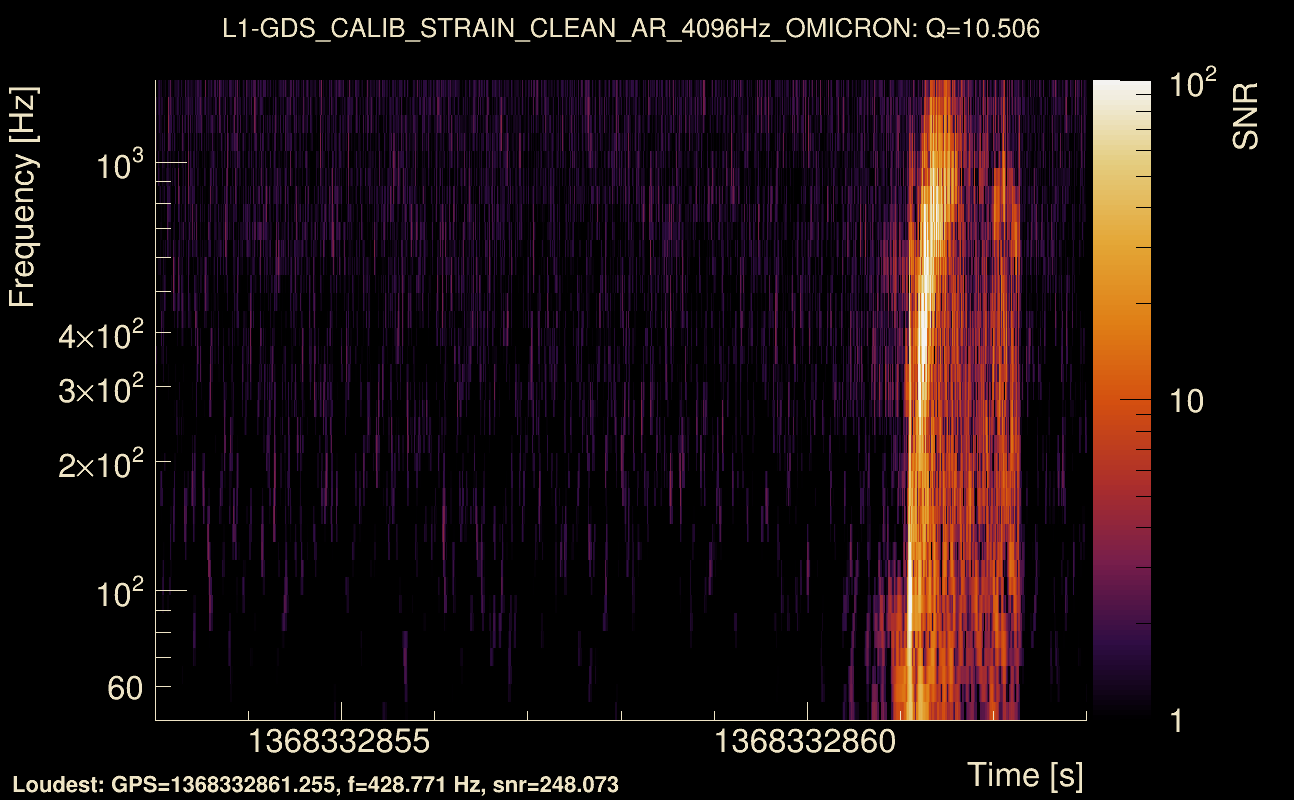

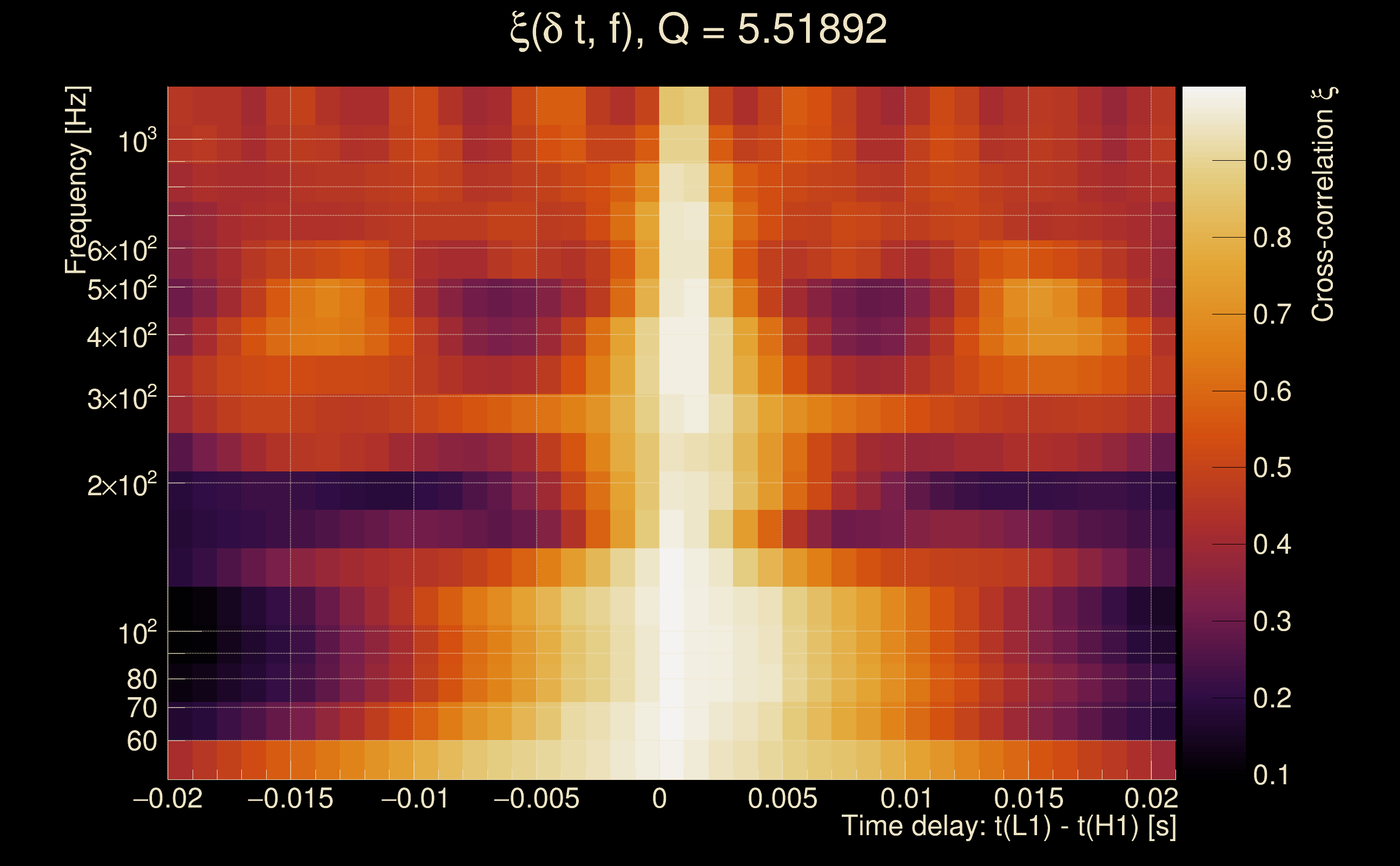

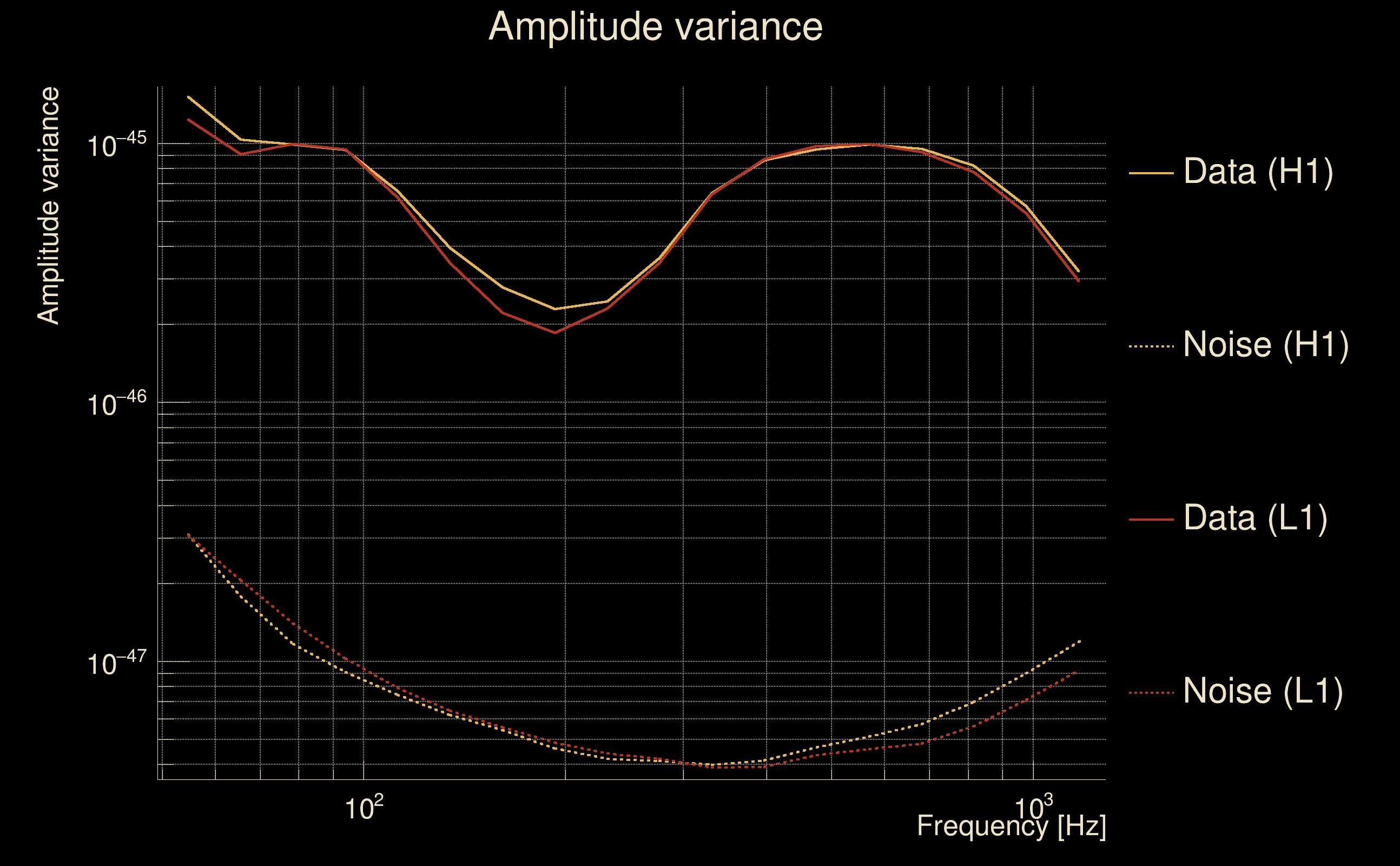

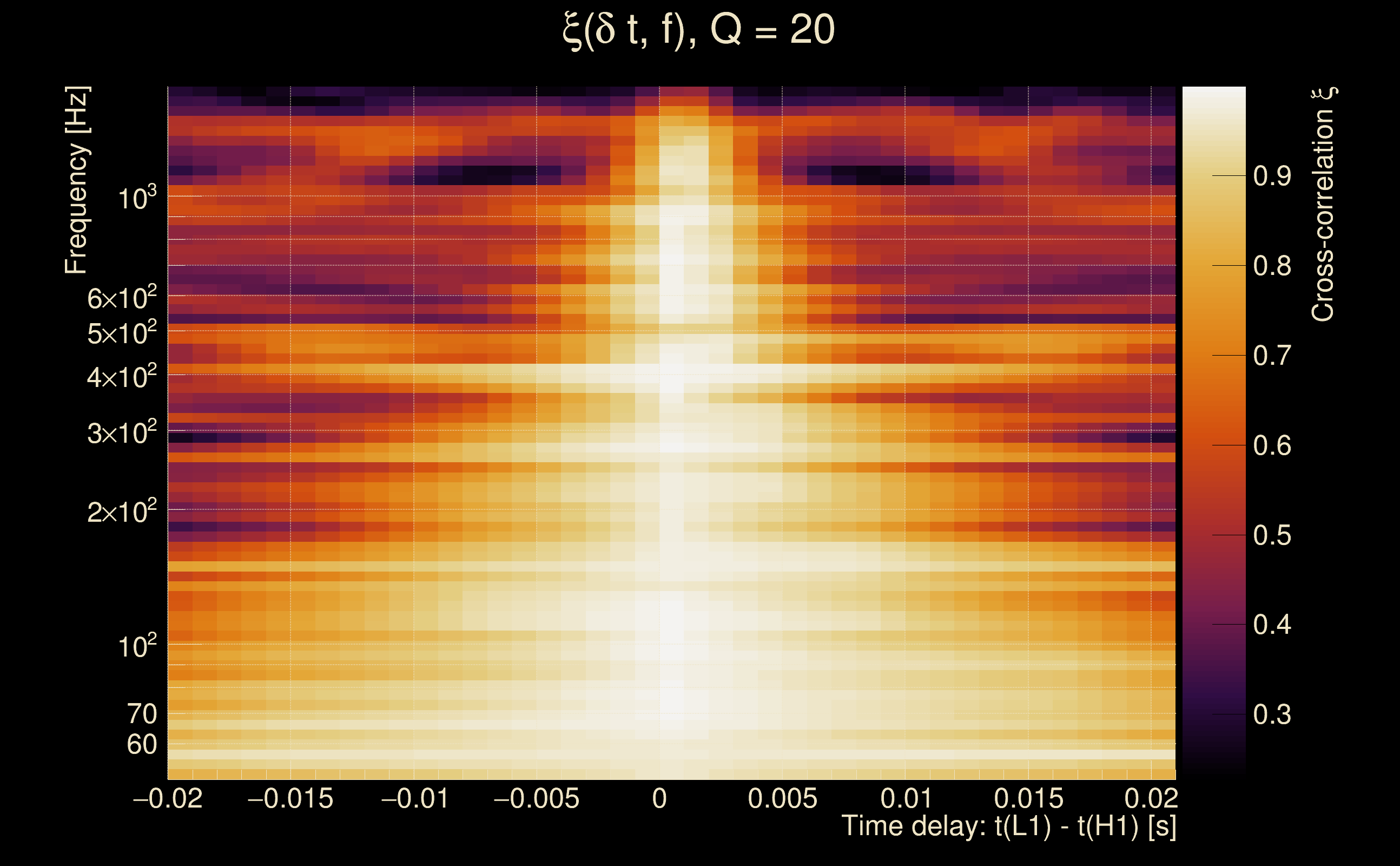

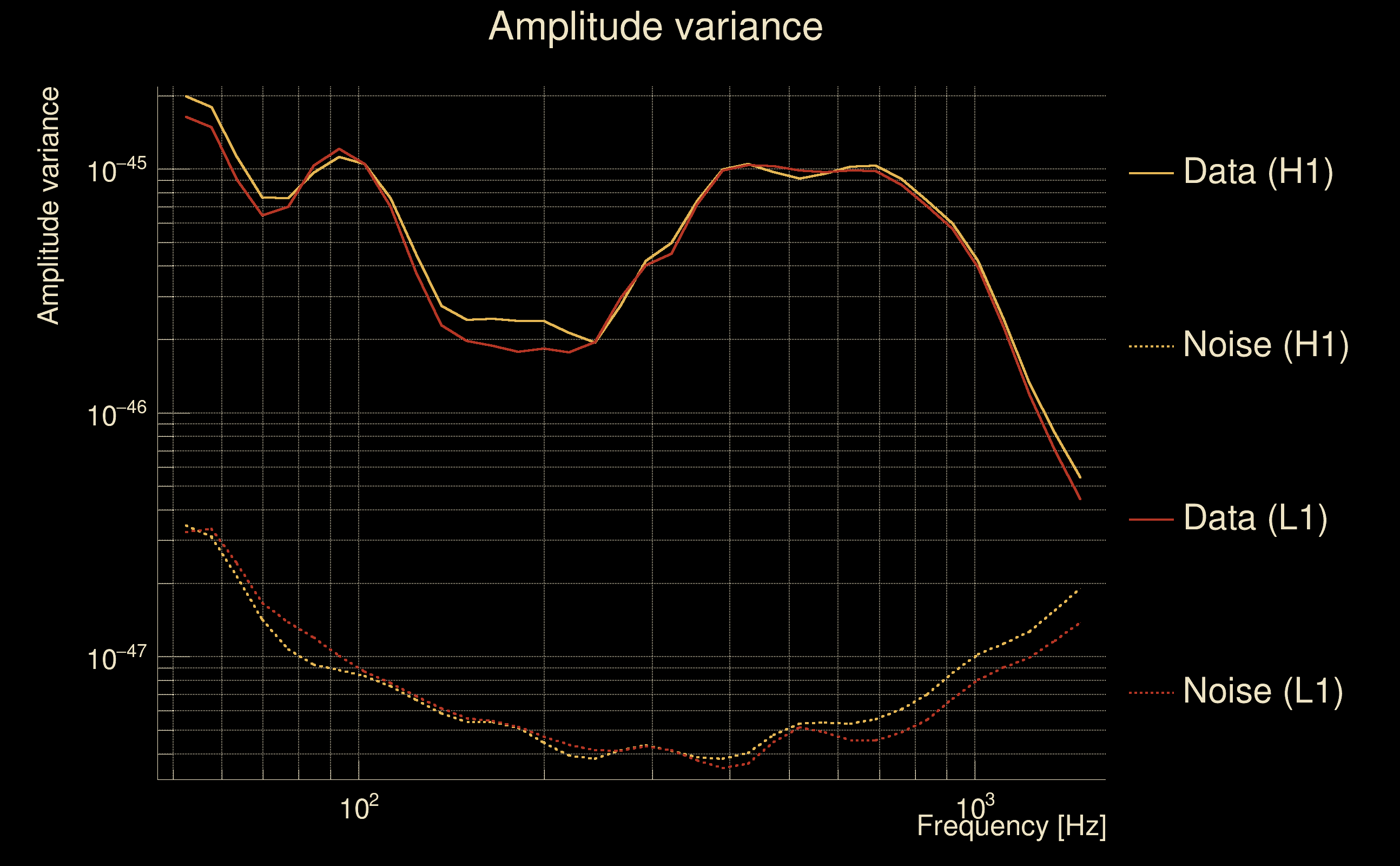

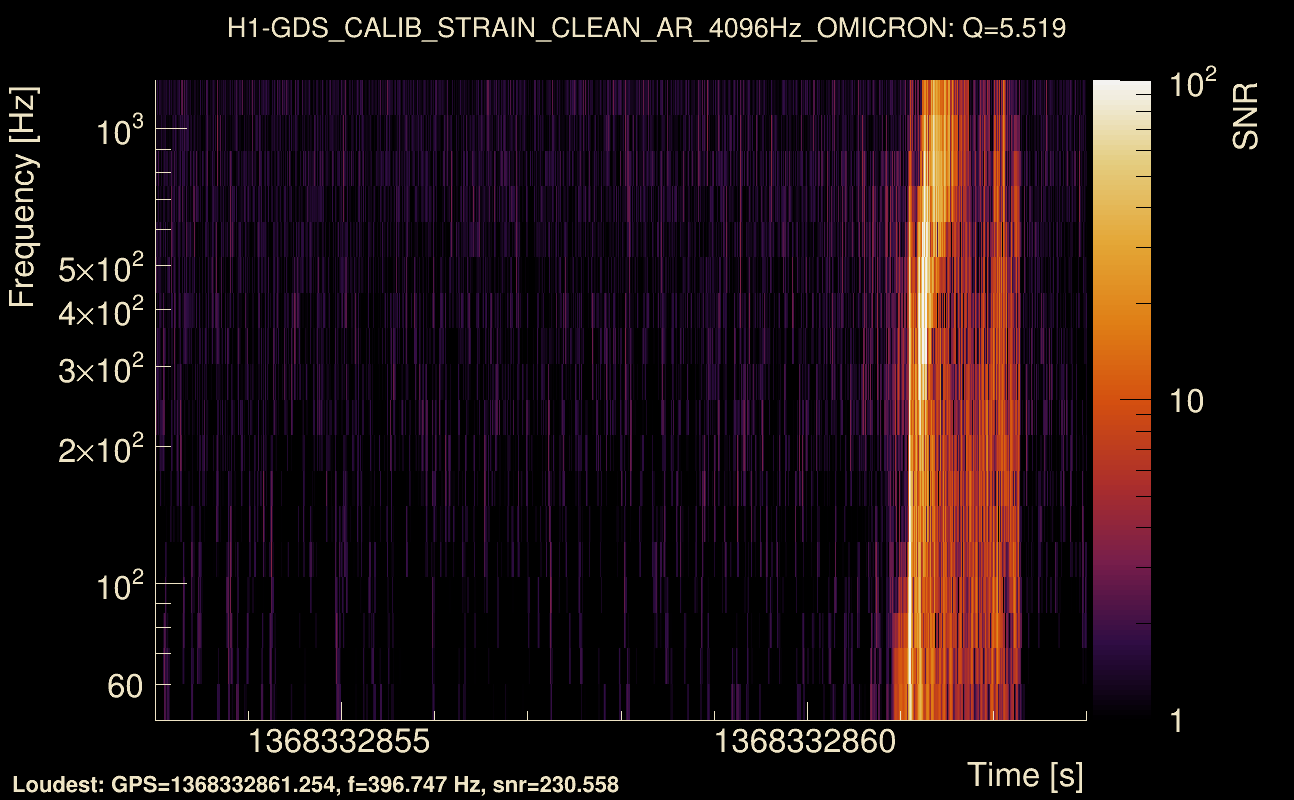

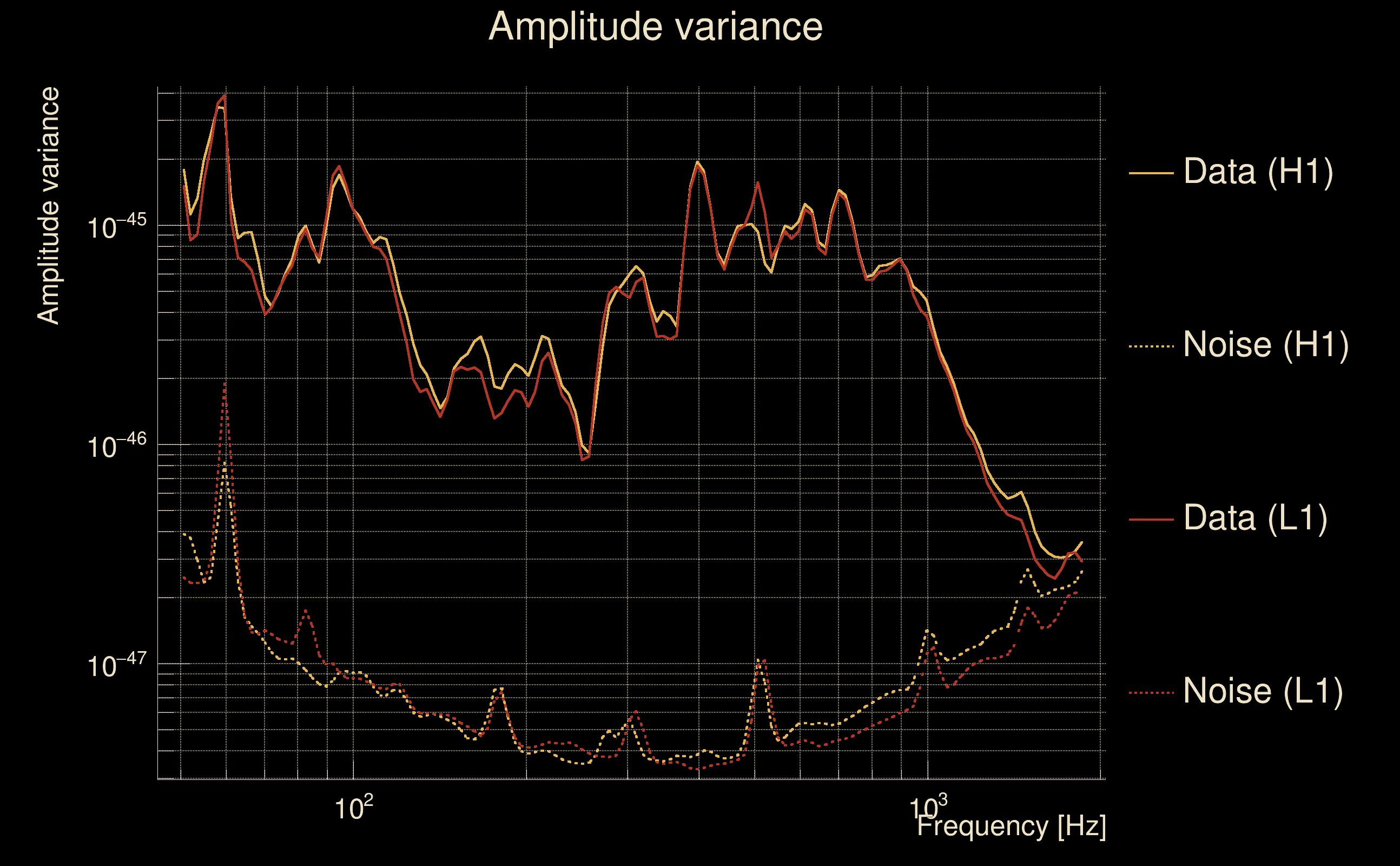

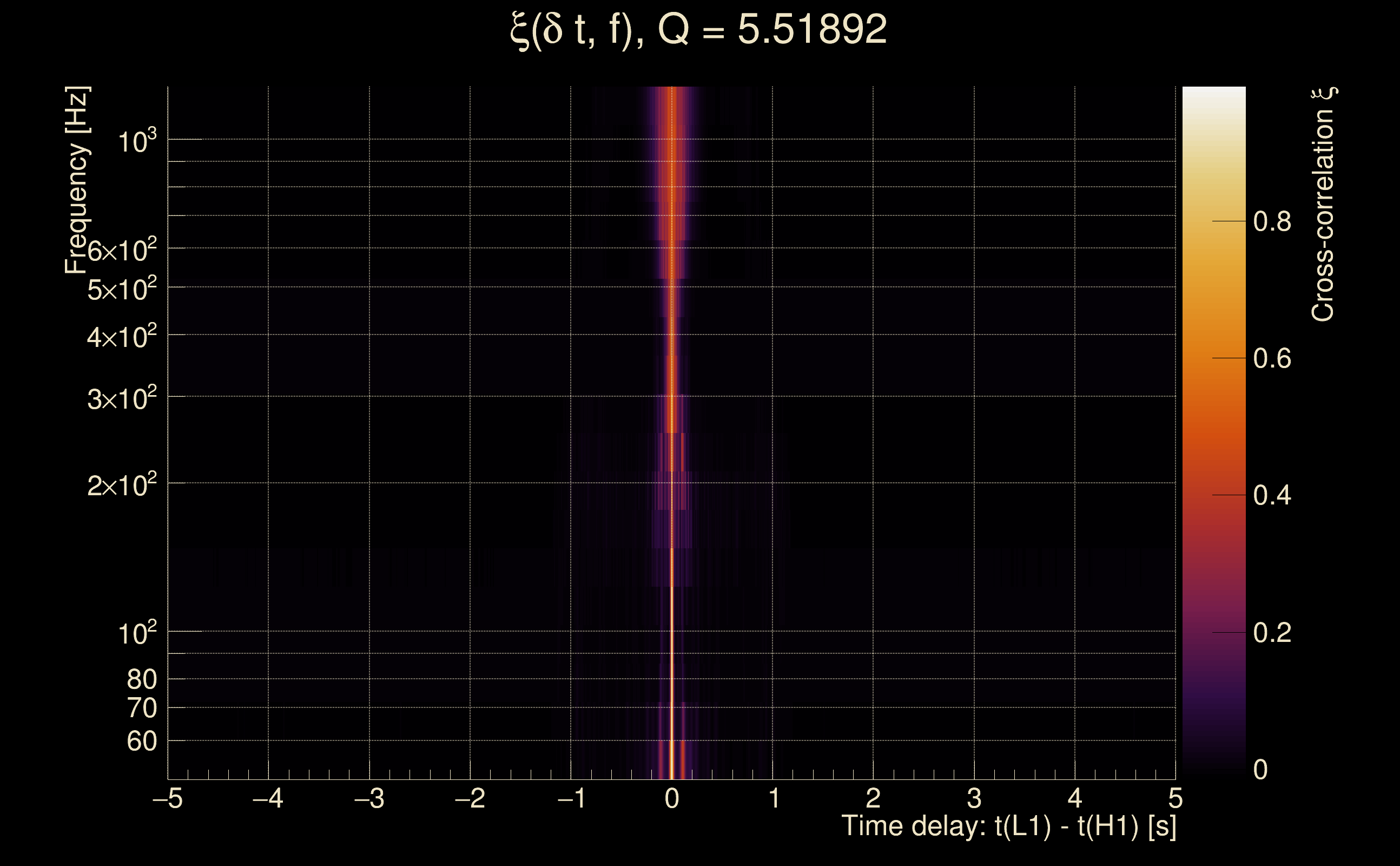

| Event time t(H1): | GPS = 1368332853 (Wed May 17 04:27:15 2023 ) → GPS = 1368332863 (Wed May 17 04:27:25 2023 ) |
| Event time t(L1): | GPS = 1368332853 (Wed May 17 04:27:25 2023 ) → GPS = 1368332863 (Wed May 17 04:27:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368332850 → GPS = 1368332866 |
| Omicron analysis time window (L1): | GPS = 1368332850 → GPS = 1368332866 |
| Time delay between detectors t(L1) - t(H1): | 0.000526954 s (slice index = 108 / 217), δt_gw = 0.000526954 s |
| Time delay standard deviation: | 0.0228649 s |
| [targeted mode] Time delay probability: | 0.993525 (0.0081159 sigmas), δt_target = 0.000141859 s |
| Frequency: | 276.769 Hz |

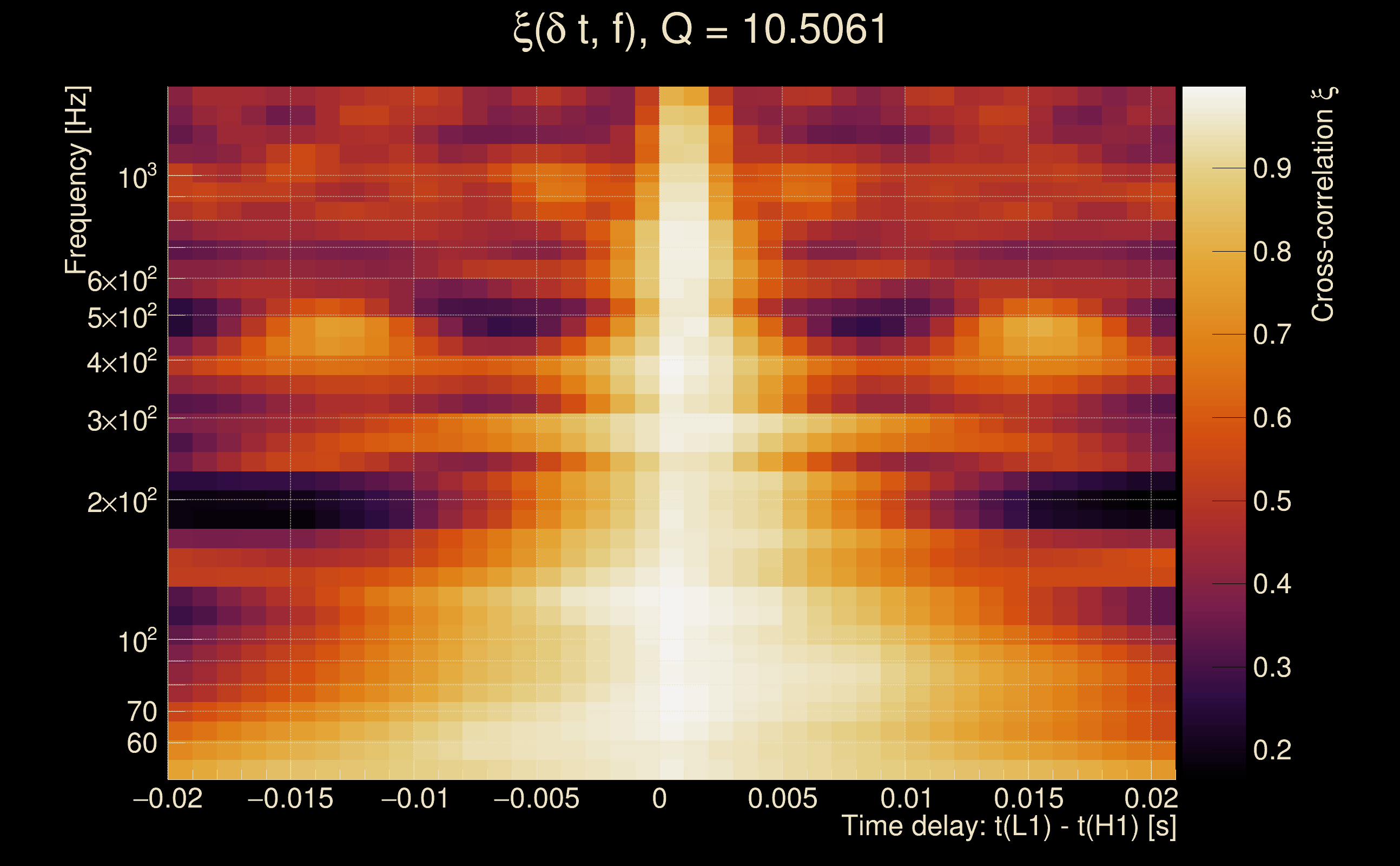

| Ξ: | 0.963728 ± 0.0031038 (variance = 9.63357e-06): Q0: 0.965181, Q1: 0.968322, Q2: 0.966638, Q3: 0.962158, Q4: 0.959695 |
| Rank: | R_A = 0.905585 |
| Log of amplitude ratio (L1/H1): | -0.0204687, variance = 0.15216 (L1/H1: -0.041914, variance = 0.303076, H1/L1: 0.00119827, variance = 0.30376) |
| Amplitude ratio (L1/H1): | 0.979739 ⋇ 1.47709 (L1/H1: 0.958952 ⋇ 1.73416, H1/L1: 1.0012 ⋇ 1.73524) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.958316 |

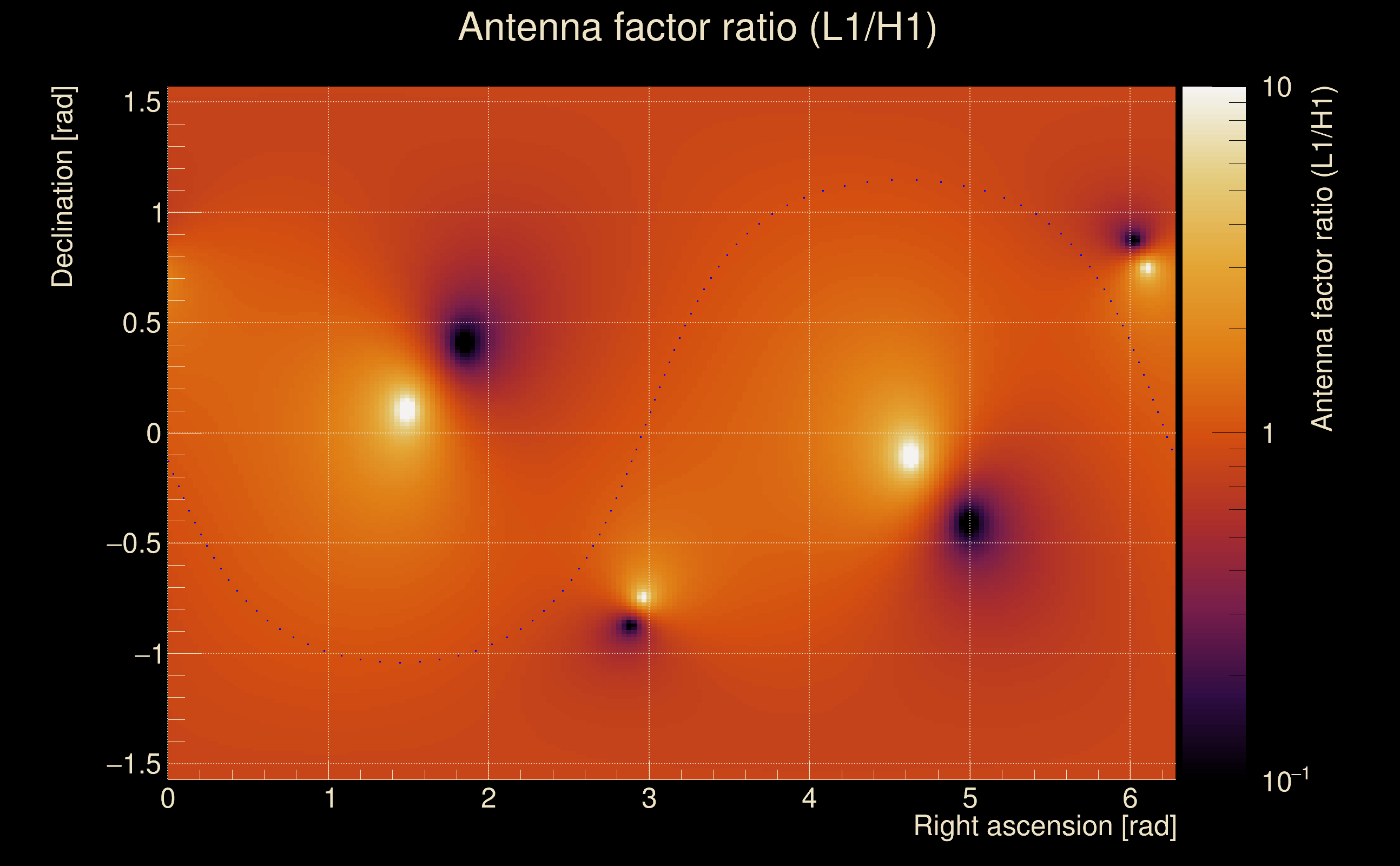

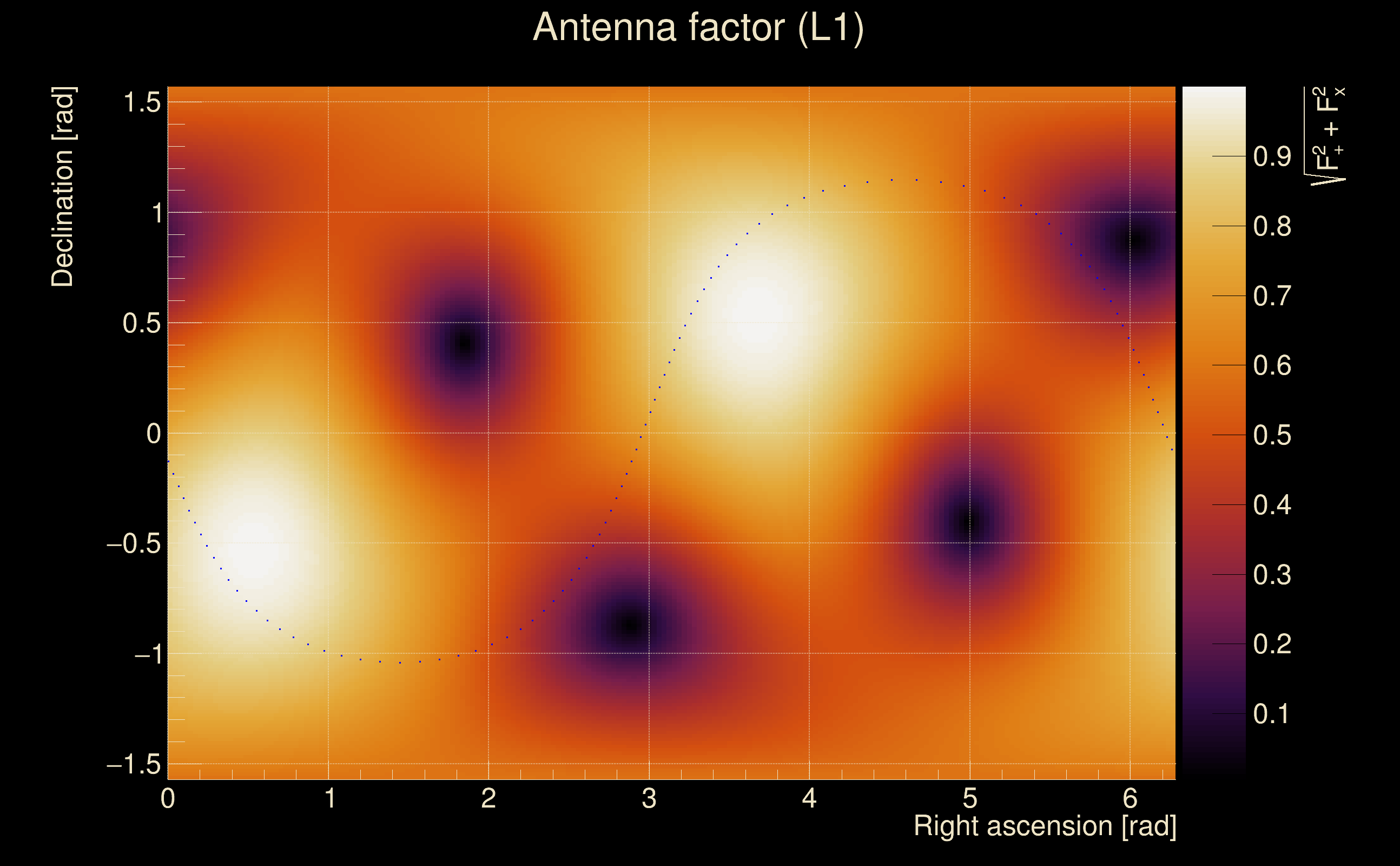

| Antenna factor probability: | 0.986932 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 8 / 258 |
| Maximum signal-to-noise ratio: | H1: 288.576, L1: 304.426 |
| SNR variance: | H1: 0.516465, L1: 0.506359 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368427019 (Thu May 18 06:36:41 2023 ) → GPS = 1368427029 (Thu May 18 06:36:51 2023 ) |
| Event time t(L1): | GPS = 1368427019 (Thu May 18 06:36:51 2023 ) → GPS = 1368427029 (Thu May 18 06:36:51 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368427016 → GPS = 1368427032 |
| Omicron analysis time window (L1): | GPS = 1368427016 → GPS = 1368427032 |
| Time delay between detectors t(L1) - t(H1): | -0.870166 s (slice index = 127 / 217), δt_gw = 0.00383419 s |
| Time delay standard deviation: | 0.0756323 s |
| [targeted mode] Time delay probability: | 0.927511 (0.0909769 sigmas), δt_target = 0.000531197 s |
| Frequency: | 101.277 Hz |
| Ξ: | 0.0156995 ± 0.0957412 (variance = 0.00916637): Q0: 0.150118, Q1: 0.177741, Q2: 0.0165439, Q3: 0.224223, Q4: 0.307946 |
| Rank: | R_A = 0.0105145 |
| Log of amplitude ratio (L1/H1): | 0.0200629, variance = 0.786175 (L1/H1: -0.138871, variance = 1.41542, H1/L1: -0.169994, variance = 1.70949) |
| Amplitude ratio (L1/H1): | 1.02027 ⋇ 2.42702 (L1/H1: 0.87034 ⋇ 3.28614, H1/L1: 0.843669 ⋇ 3.69682) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.861297 |
| Antenna factor probability: | 0.83836 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 31 / 36, Q2: 69 / 70, Q3: 129 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.0813, L1: 5.23163 |
| SNR variance: | H1: 0.505563, L1: 0.522643 |

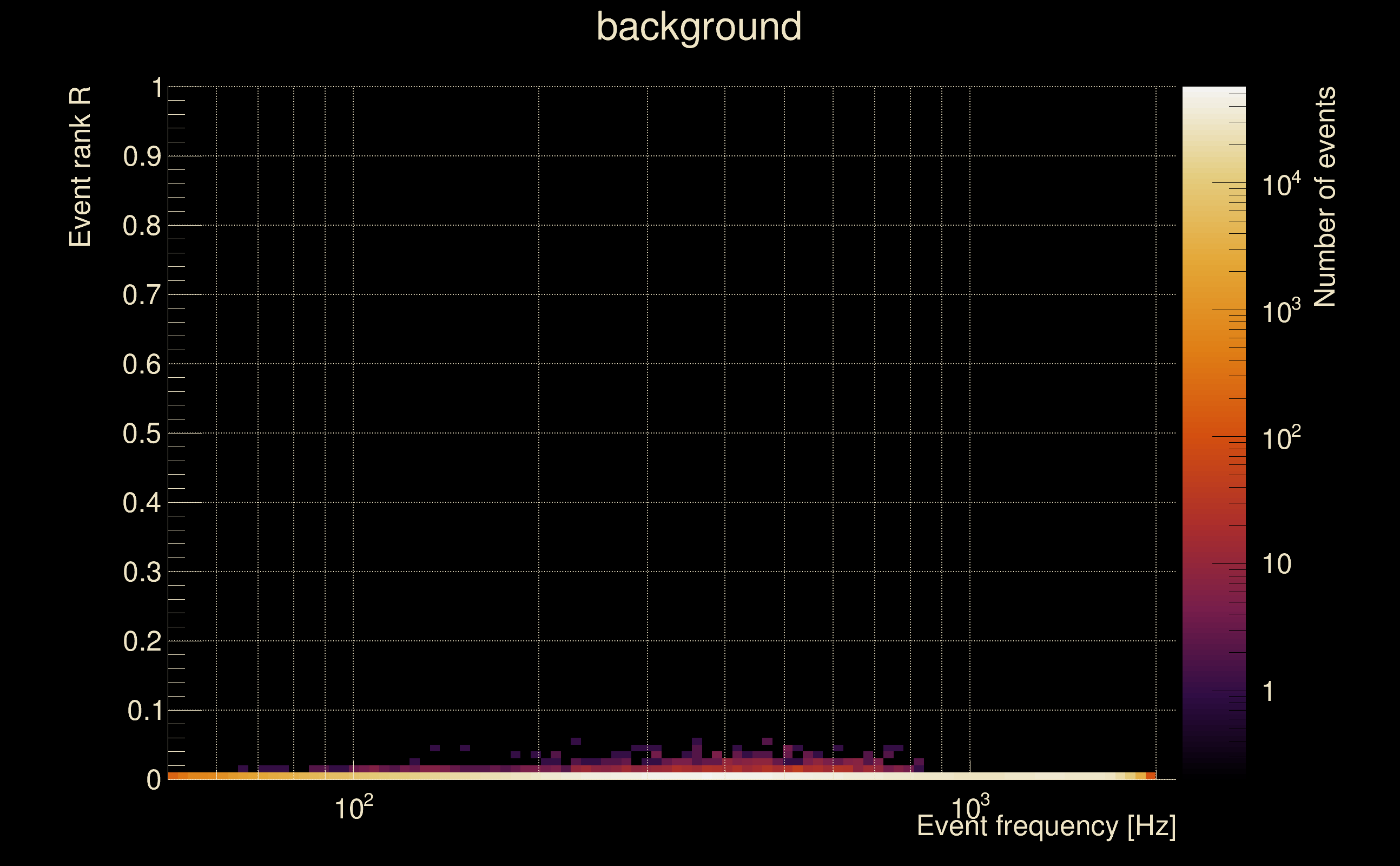

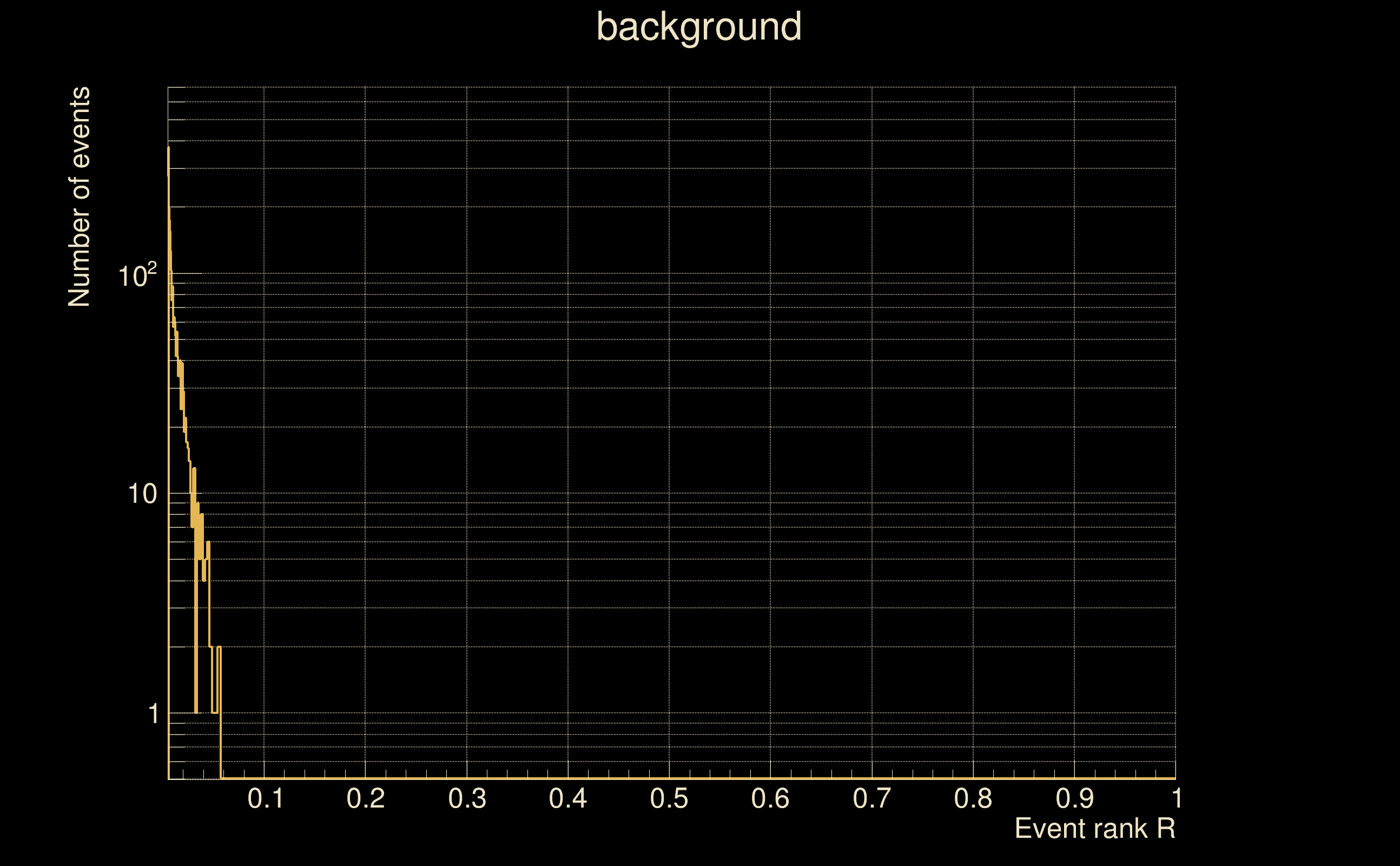

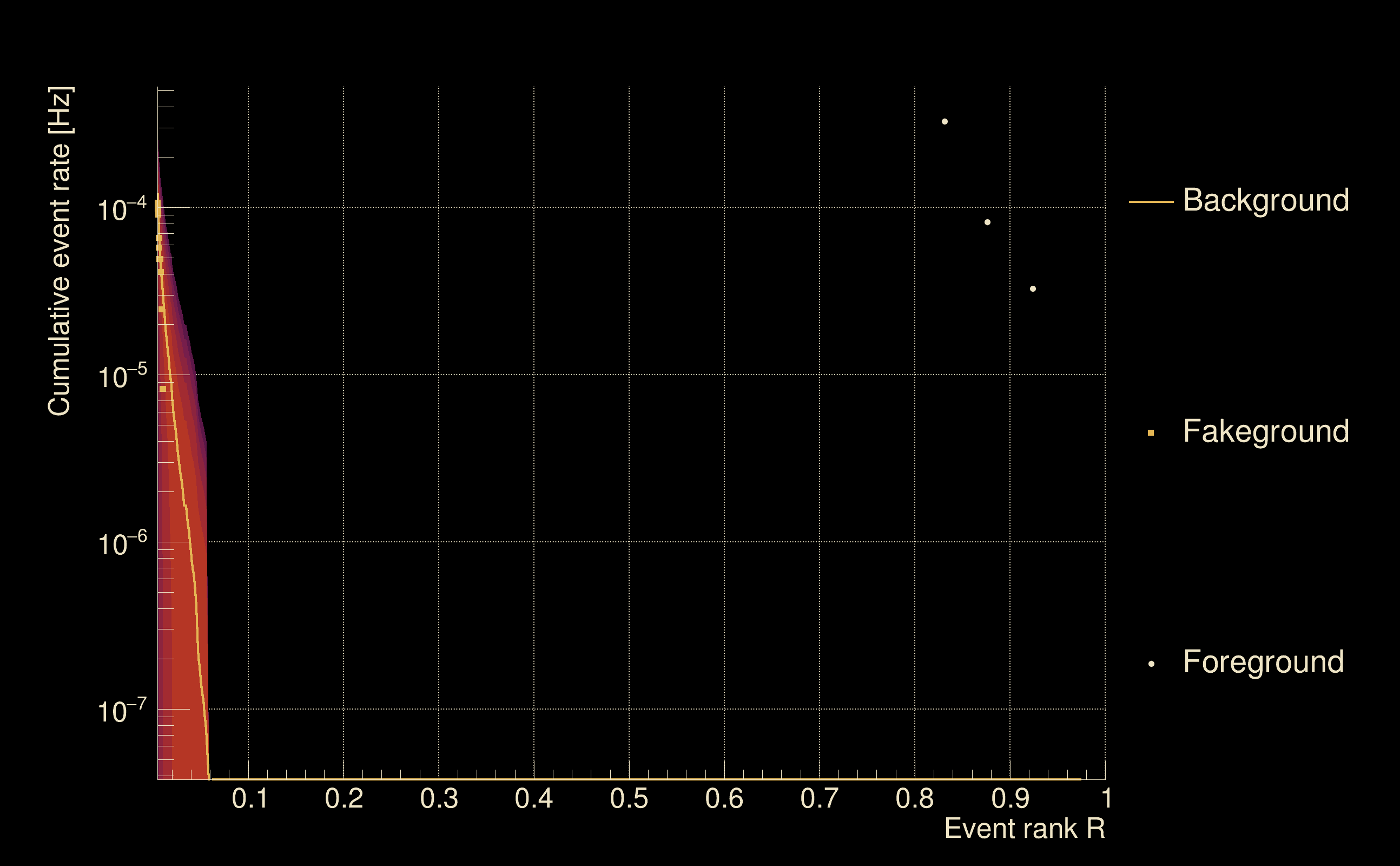

| Detection threshold: | R > 0.0316611 |

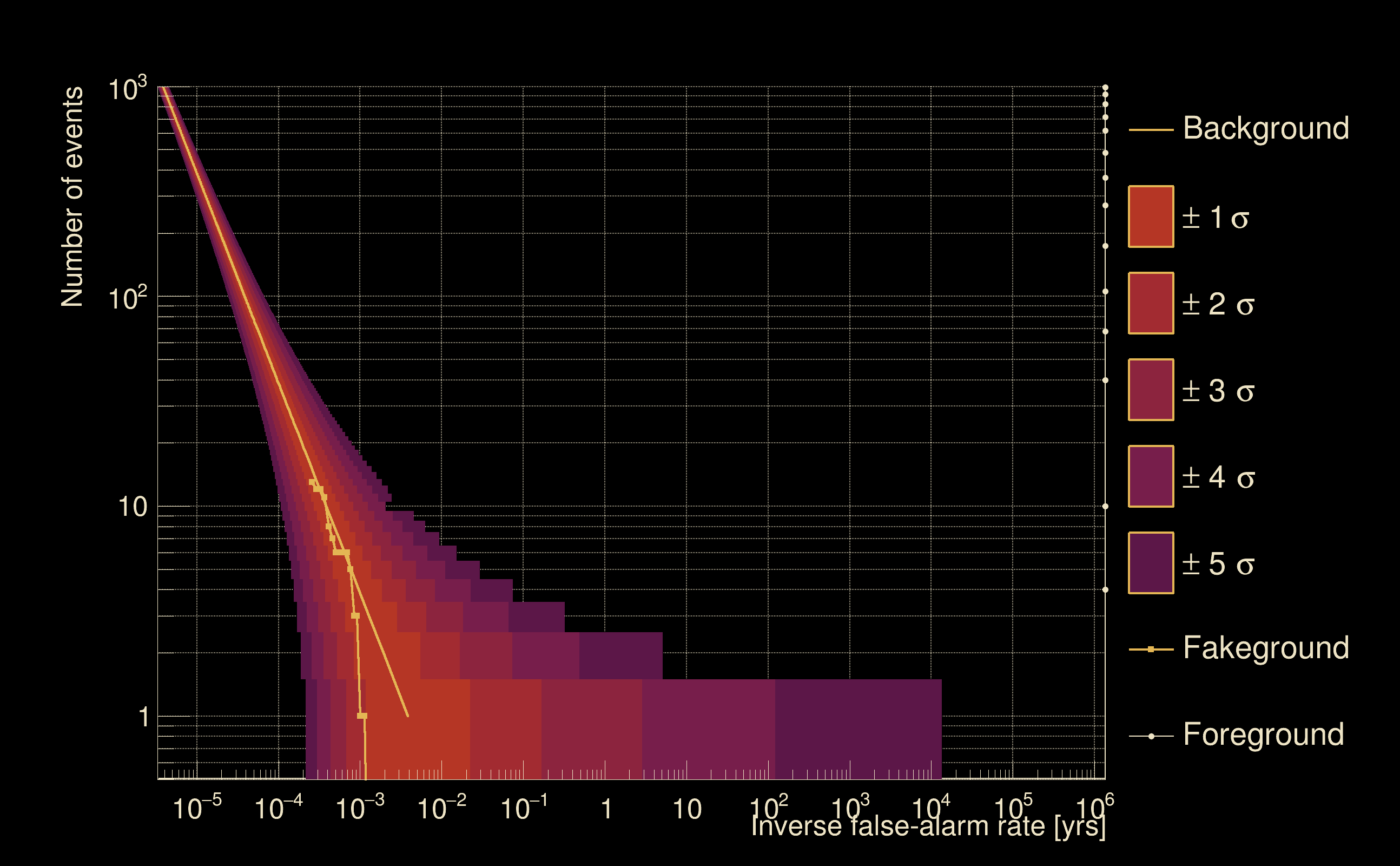

| False-alarm rate above that detection threshold: | 1.75677e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.0557303 |
| Alternative threshold at 1/100 yrs: | R > 0.0557303 |
| Alternative threshold at 1/10 yrs: | R > 0.0557303 |
| Alternative threshold at 1/1 yr: | R > 0.0557303 |
| Alternative threshold at 1/1 d: | R > 0.0164957 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

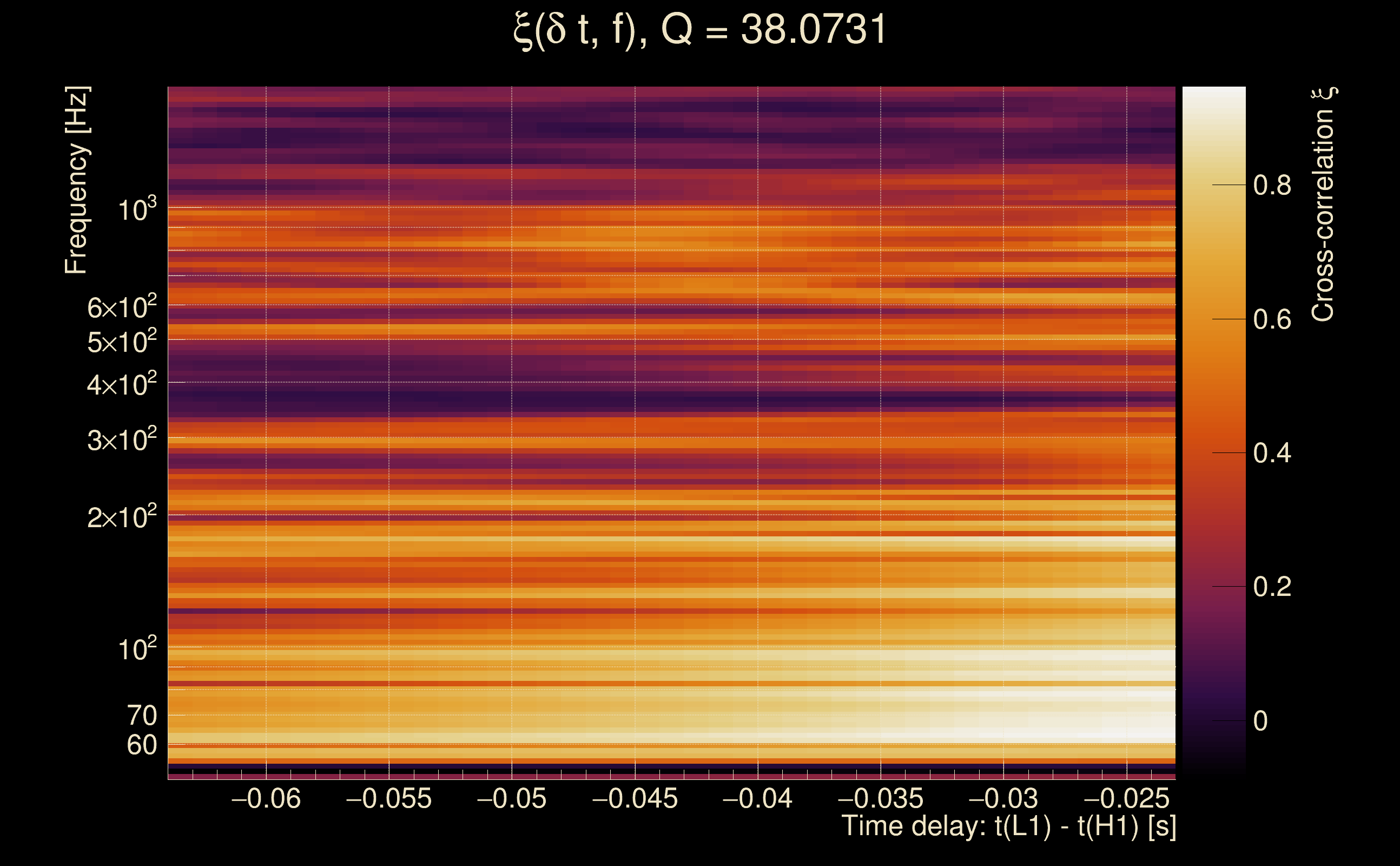

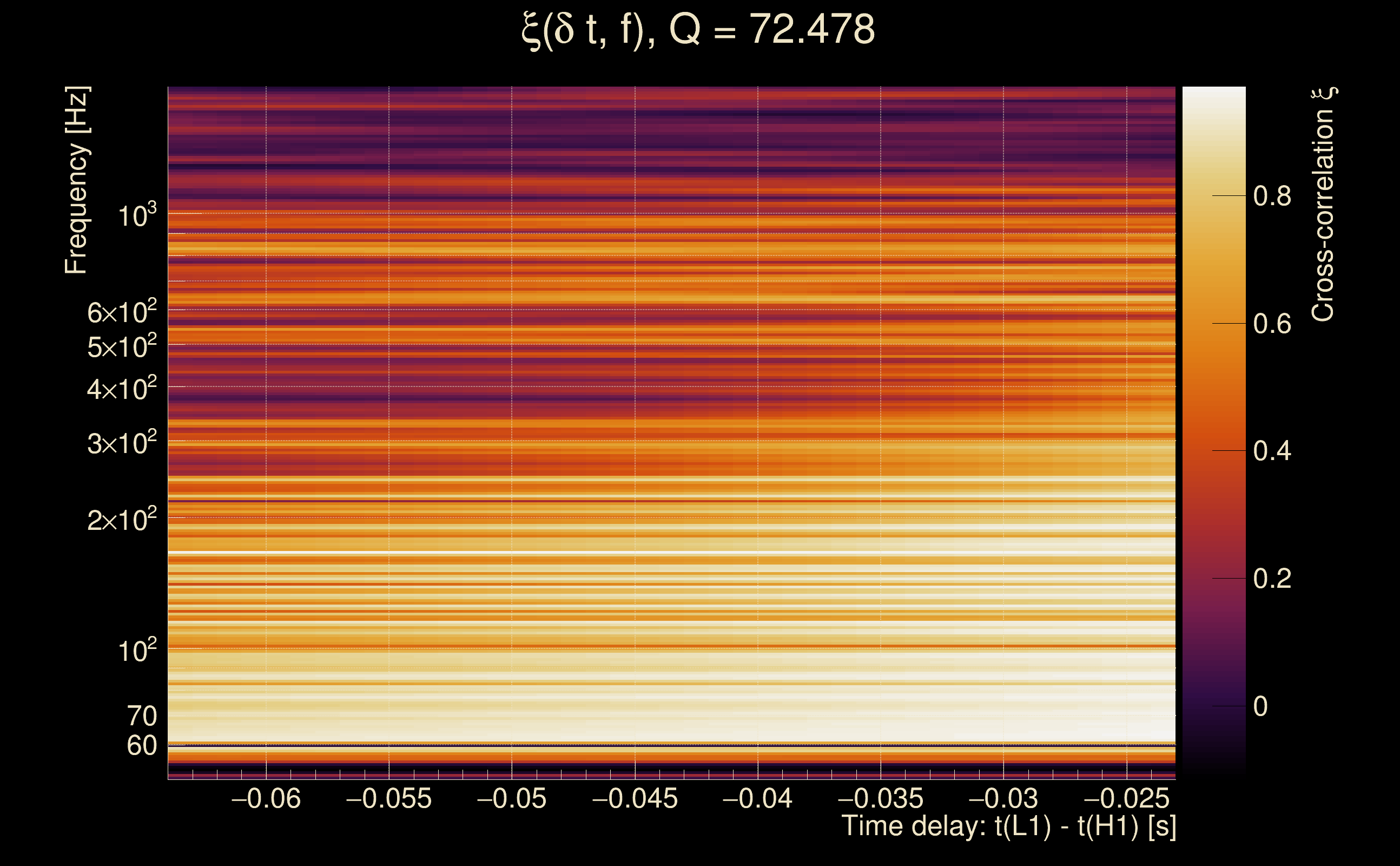

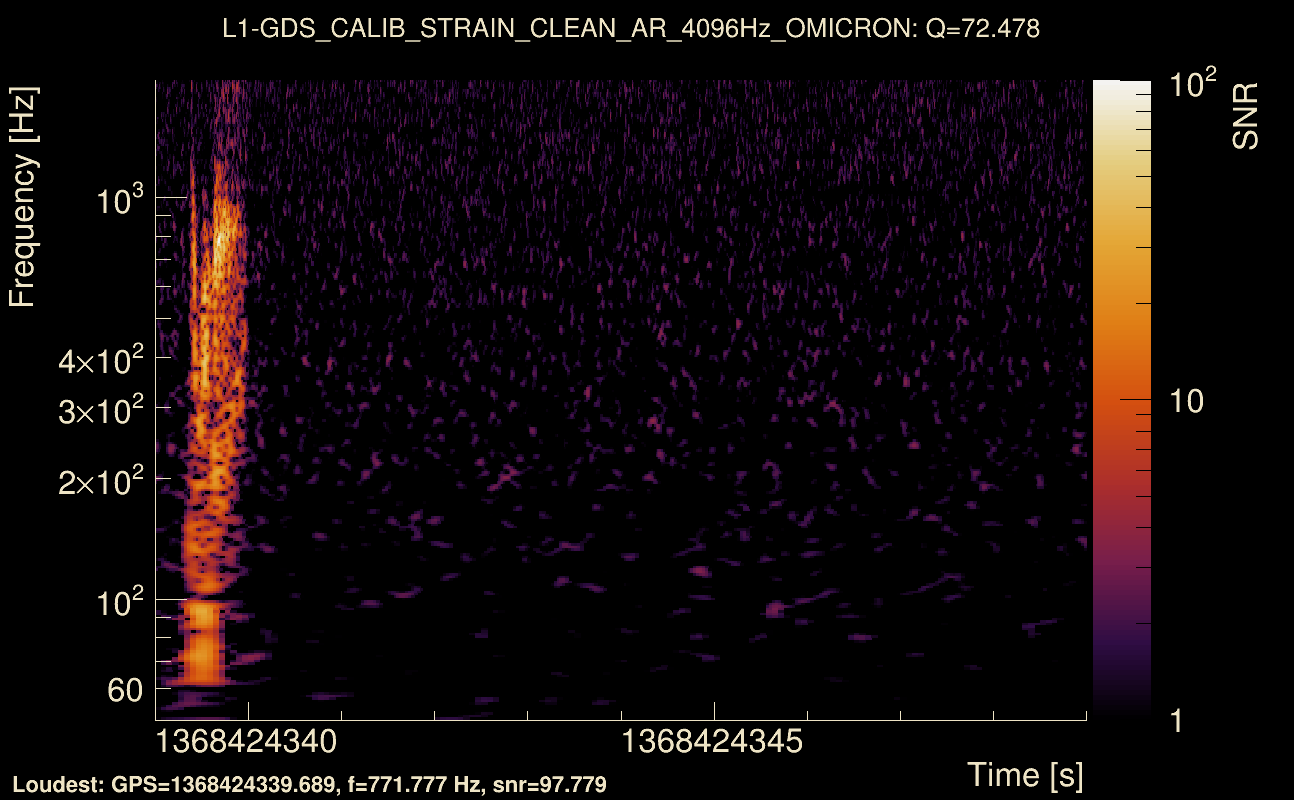

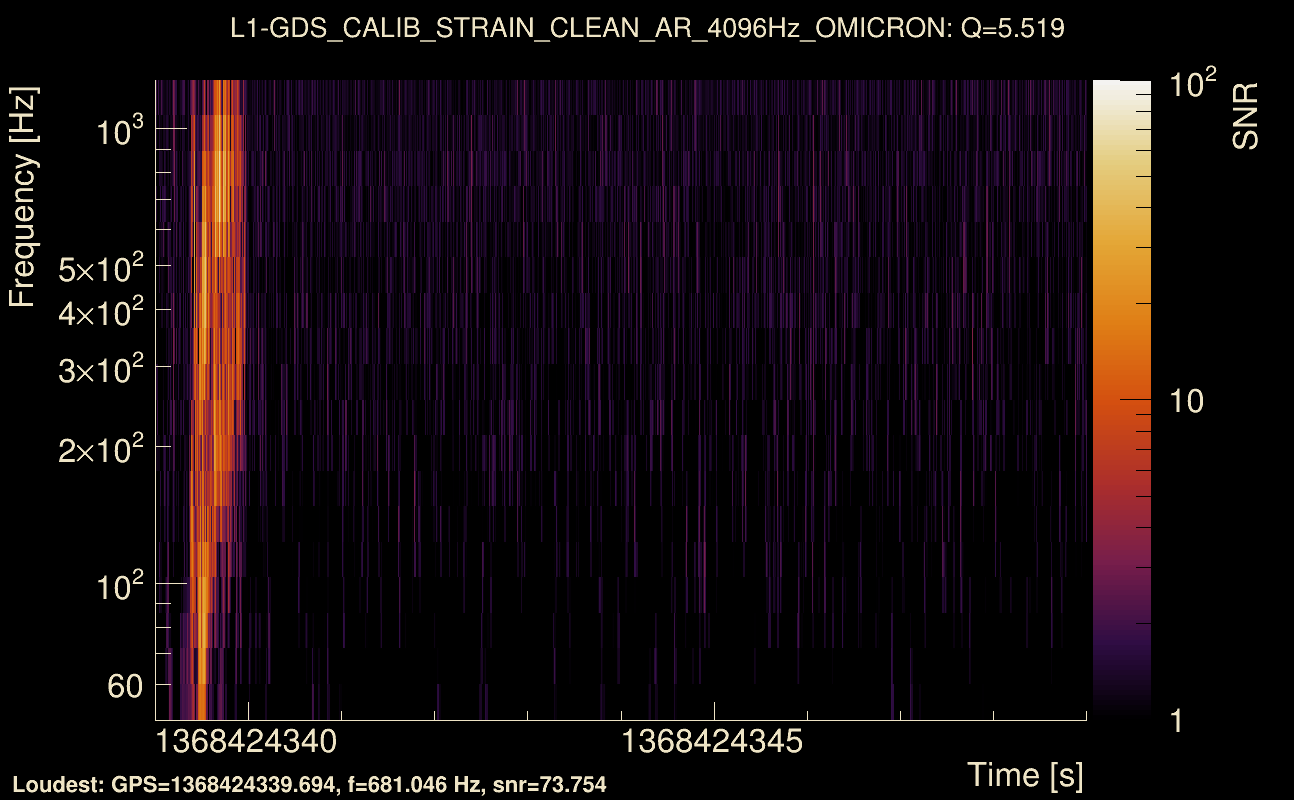

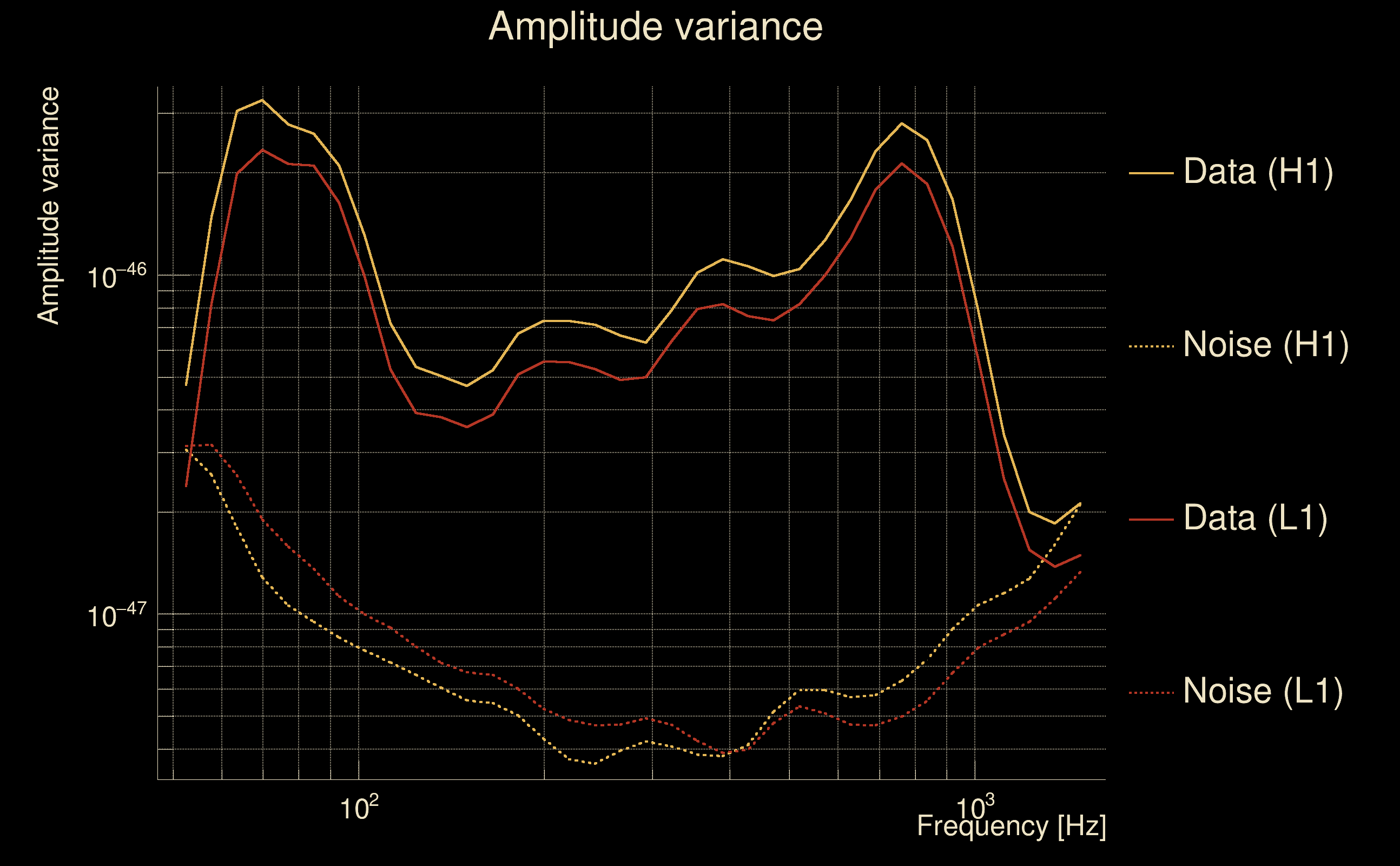

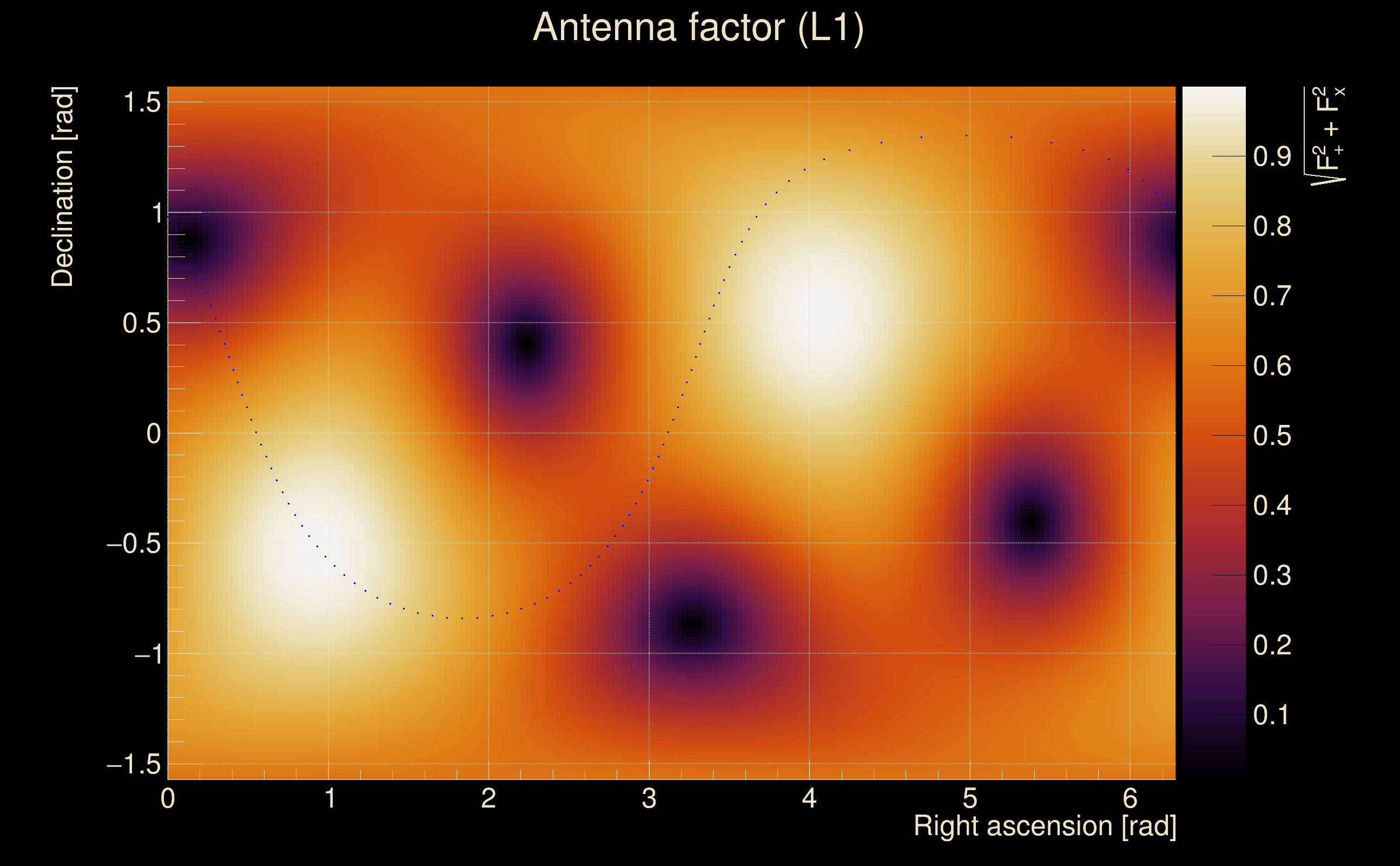

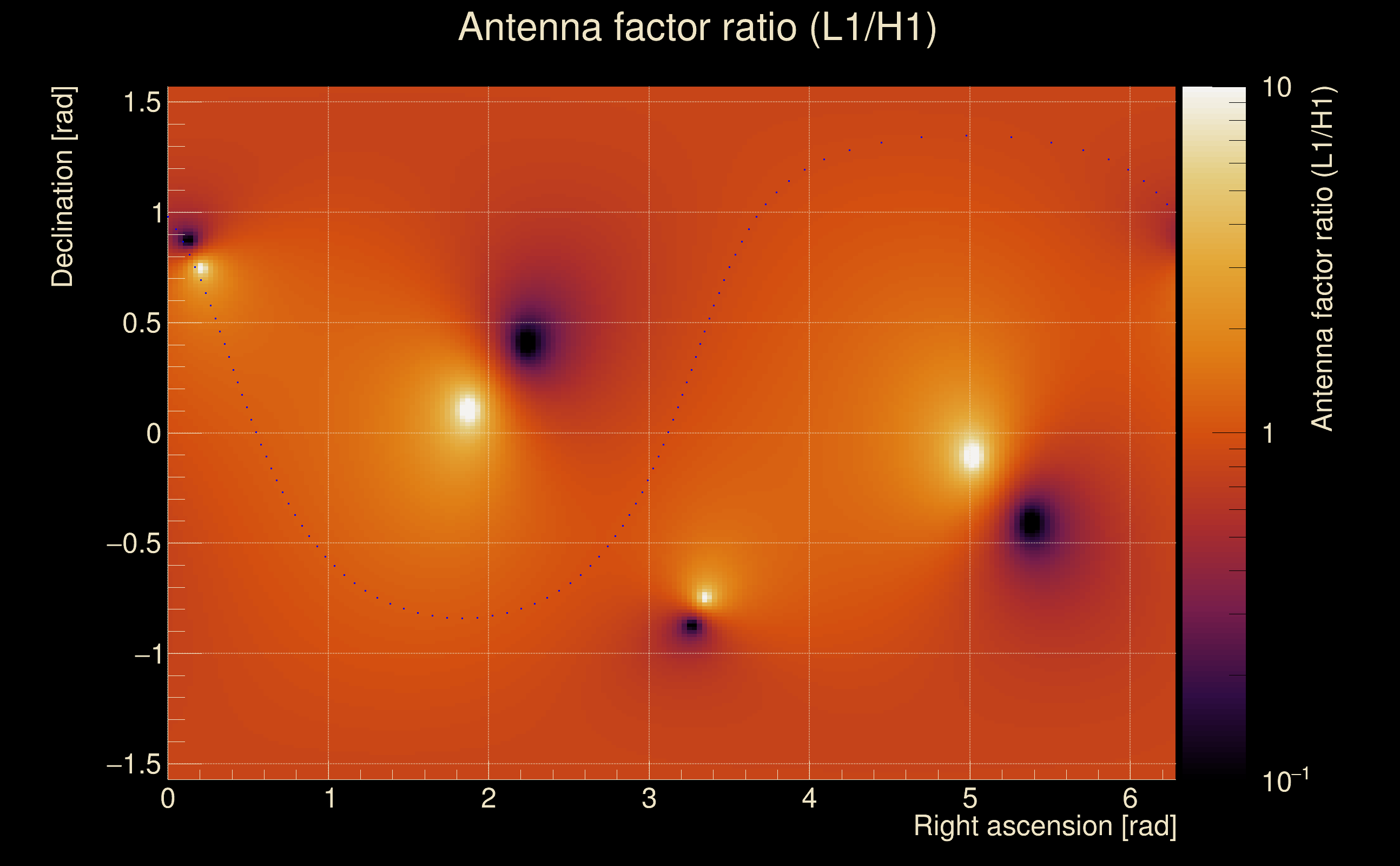

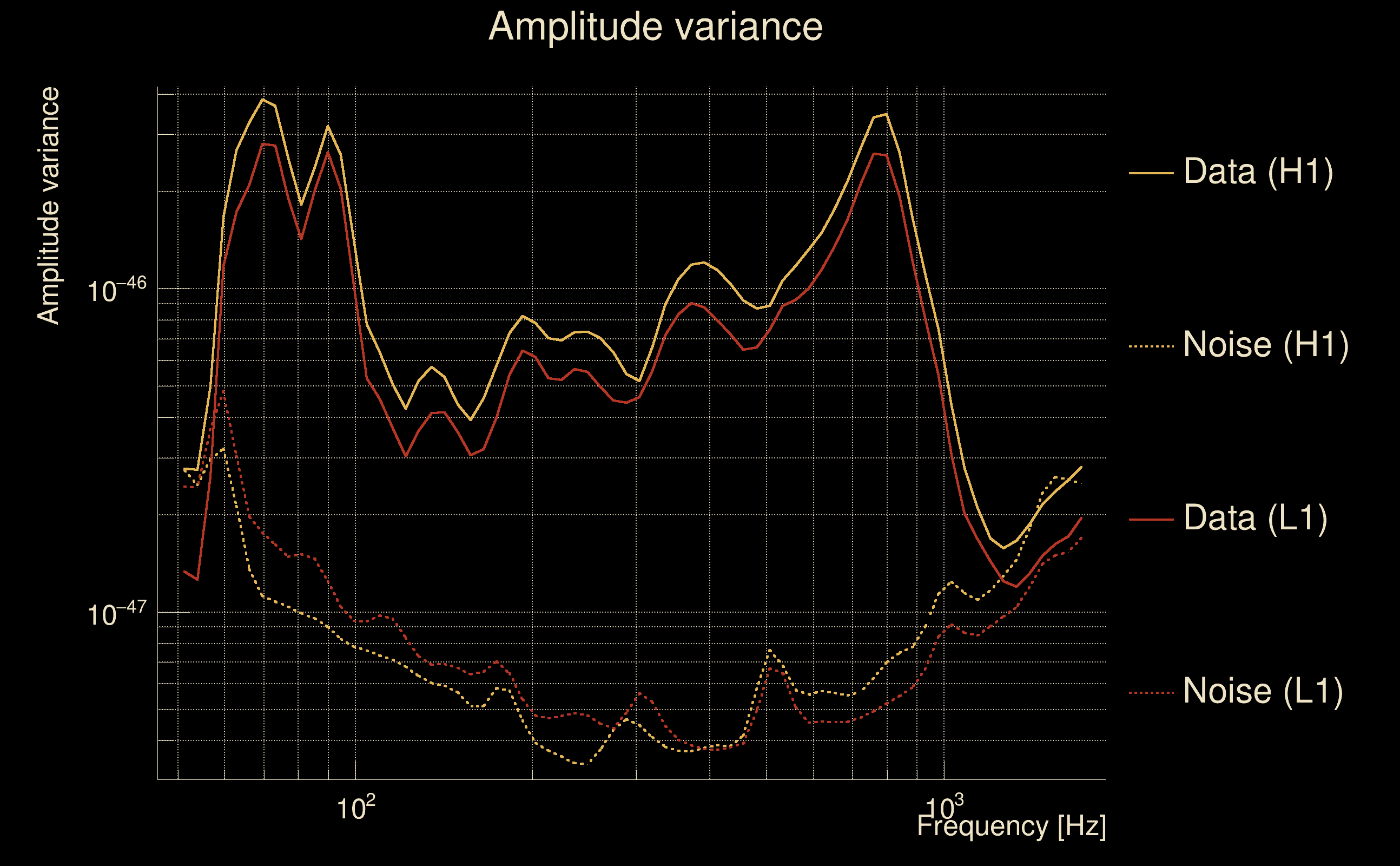

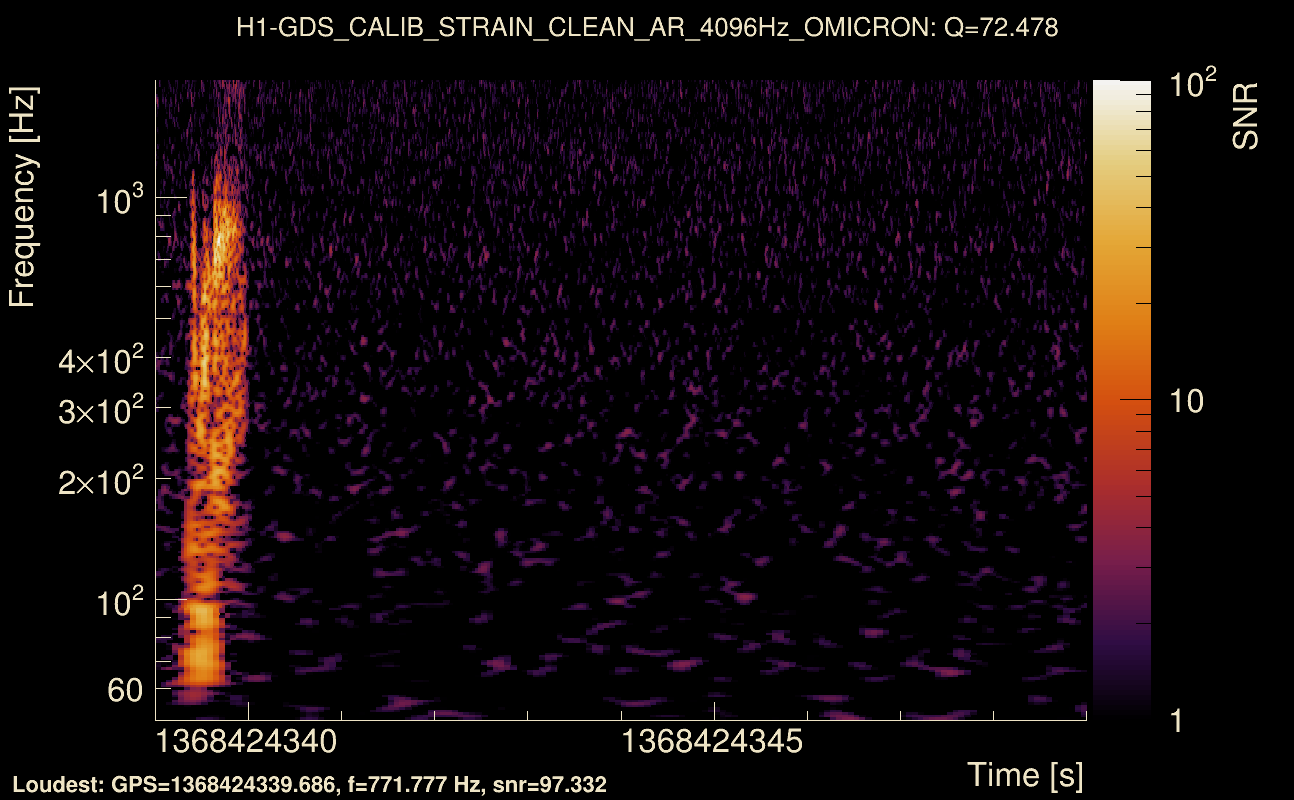

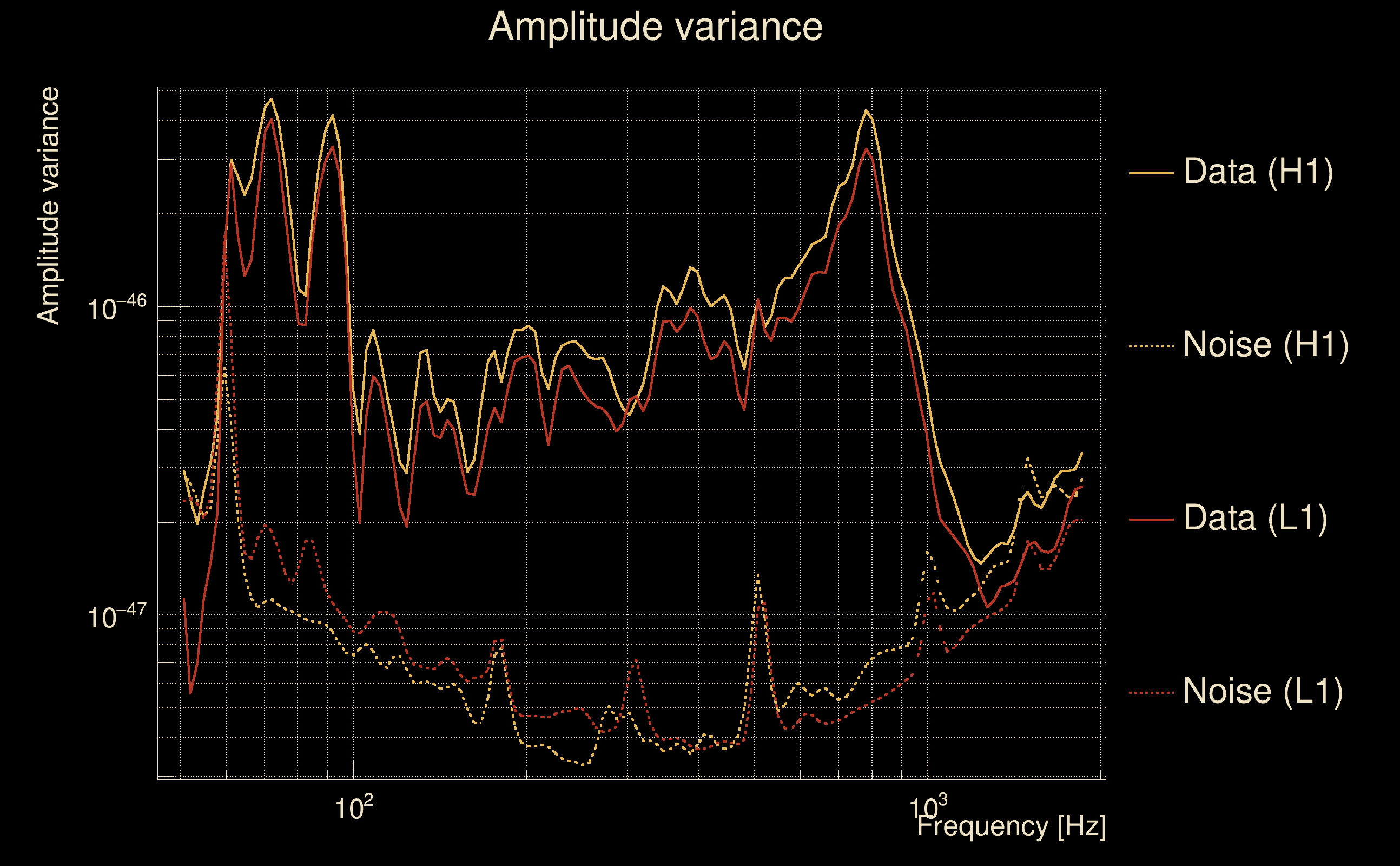

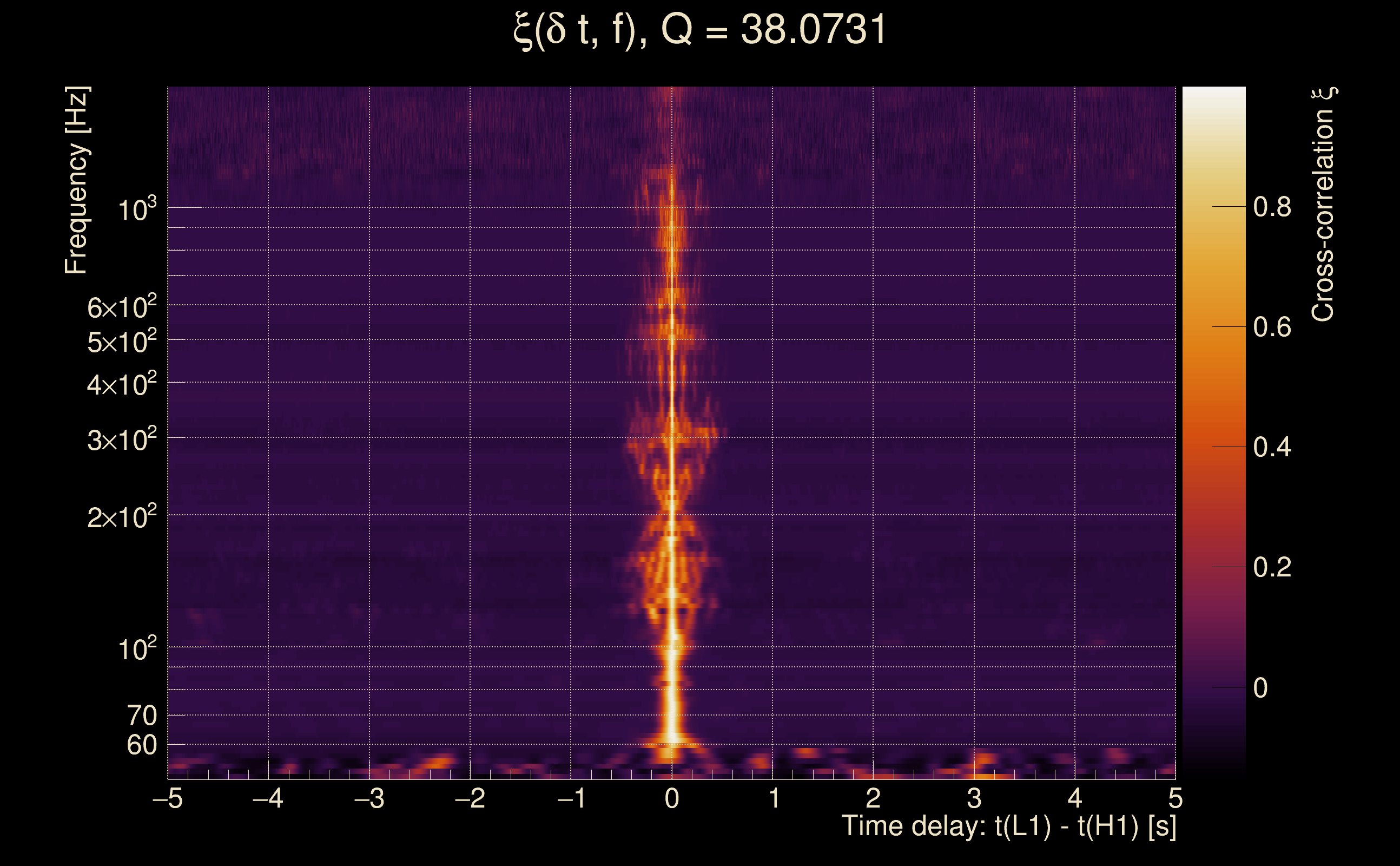

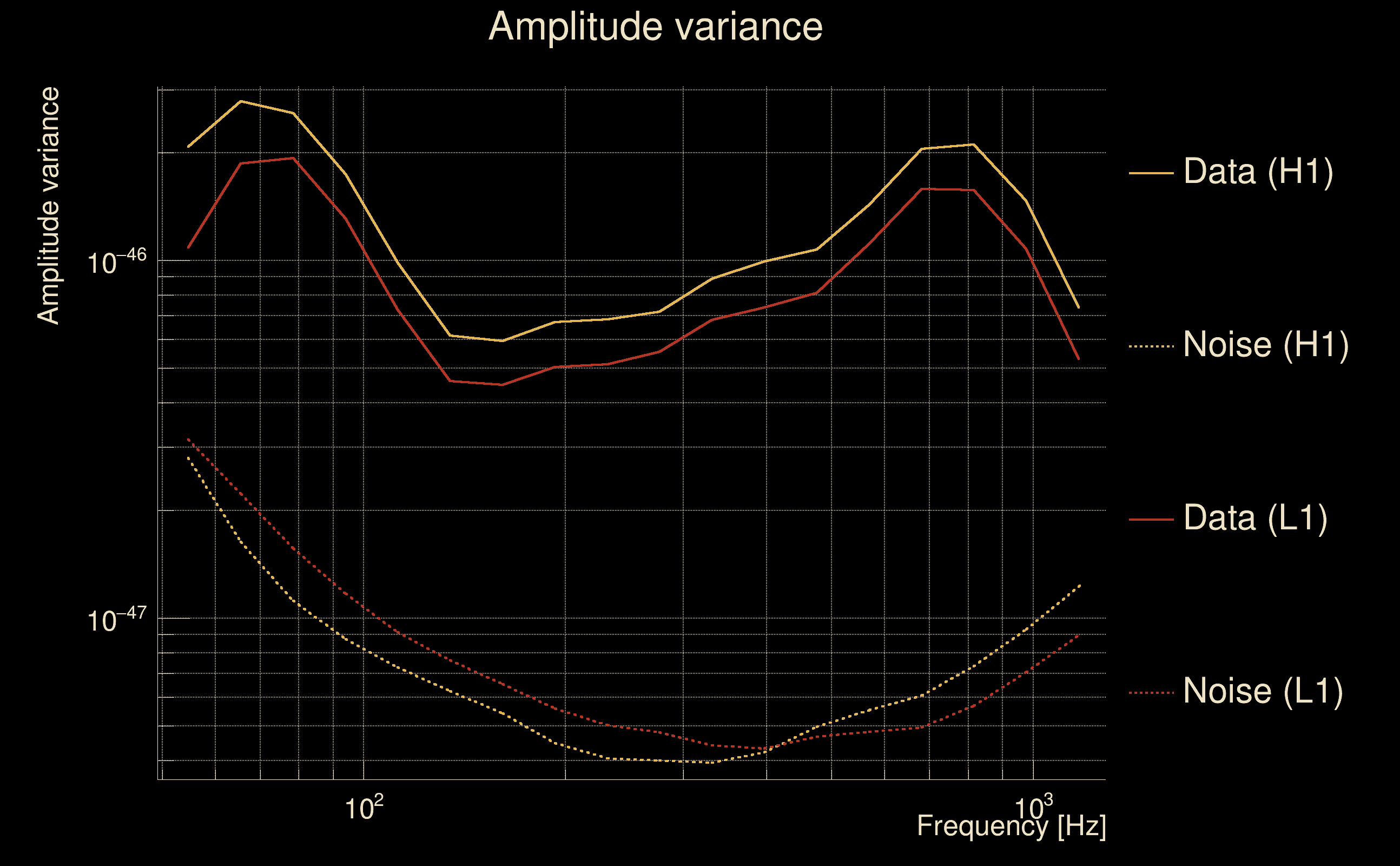

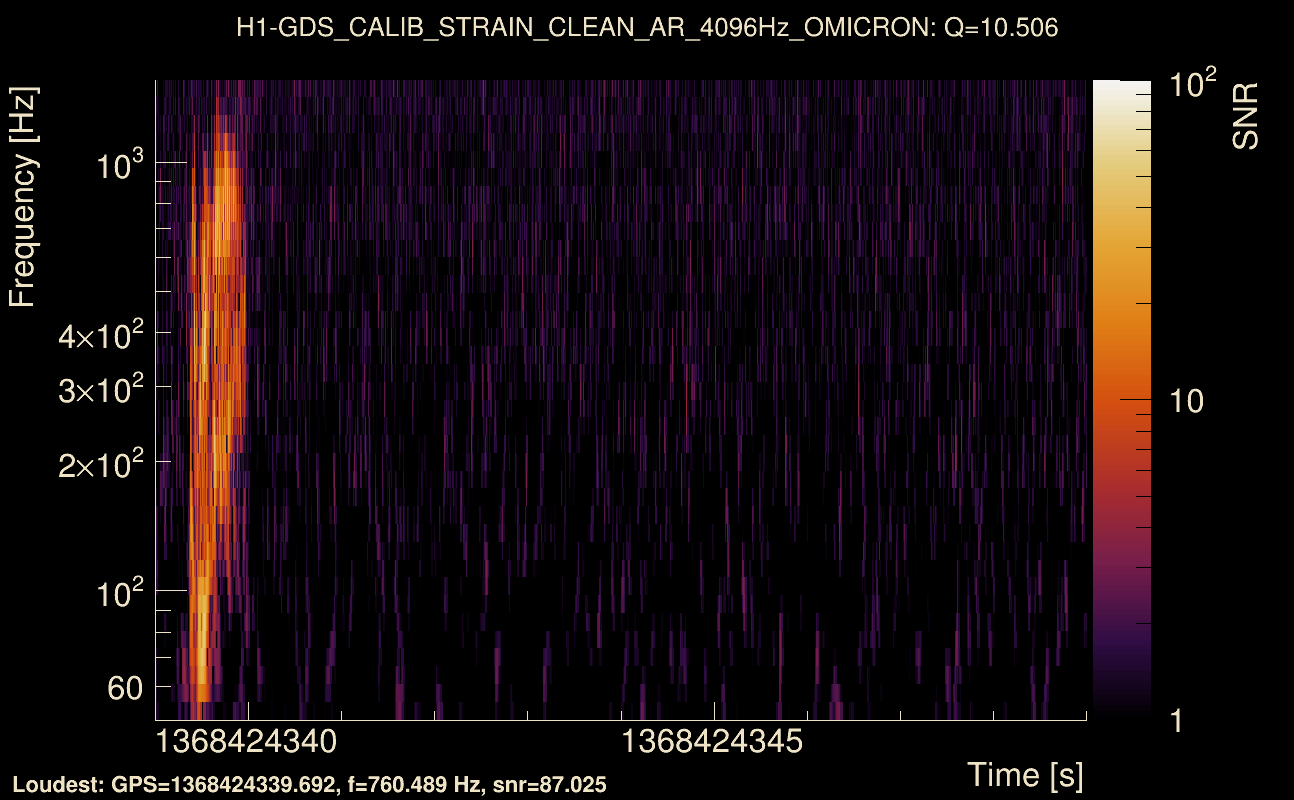

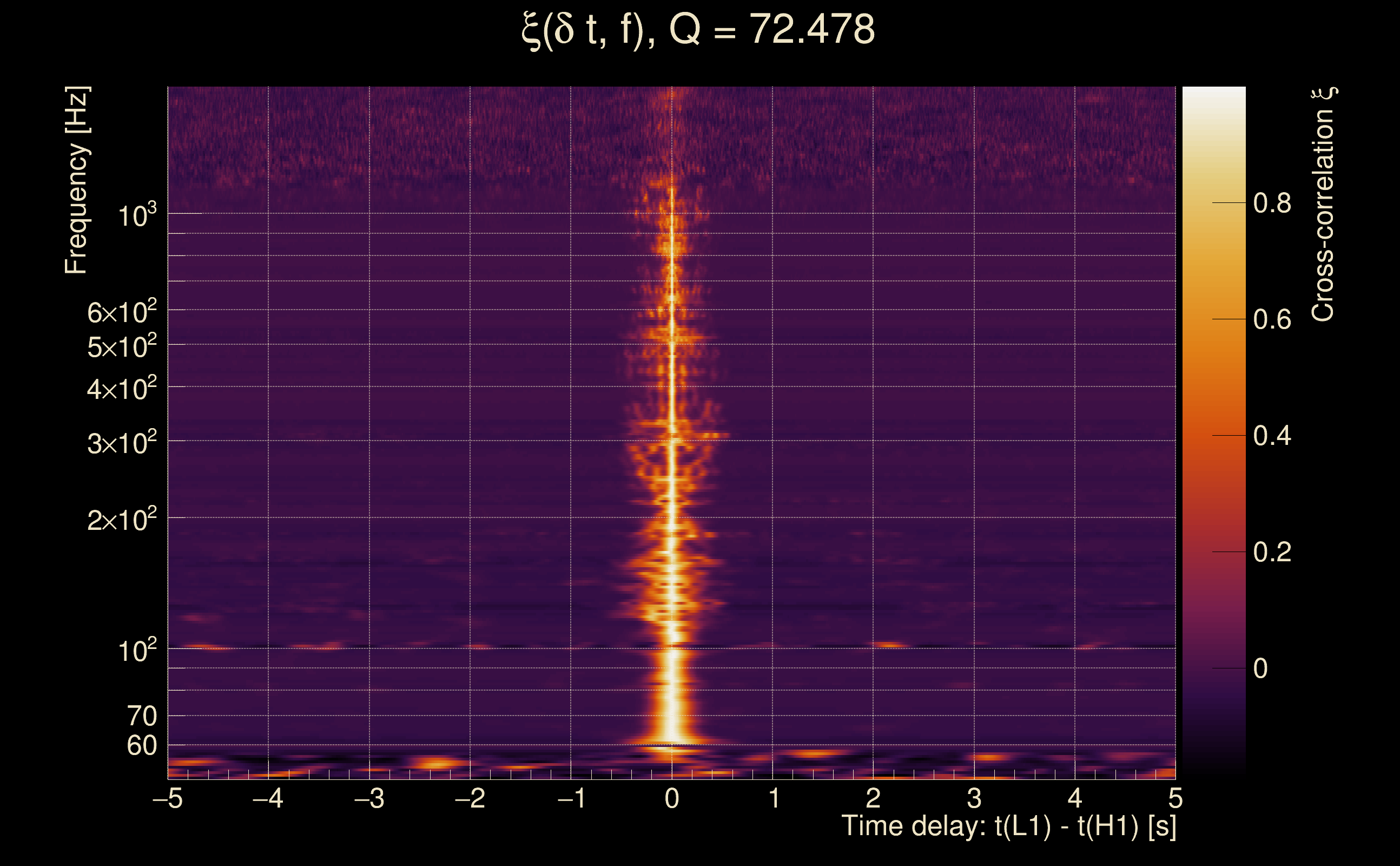

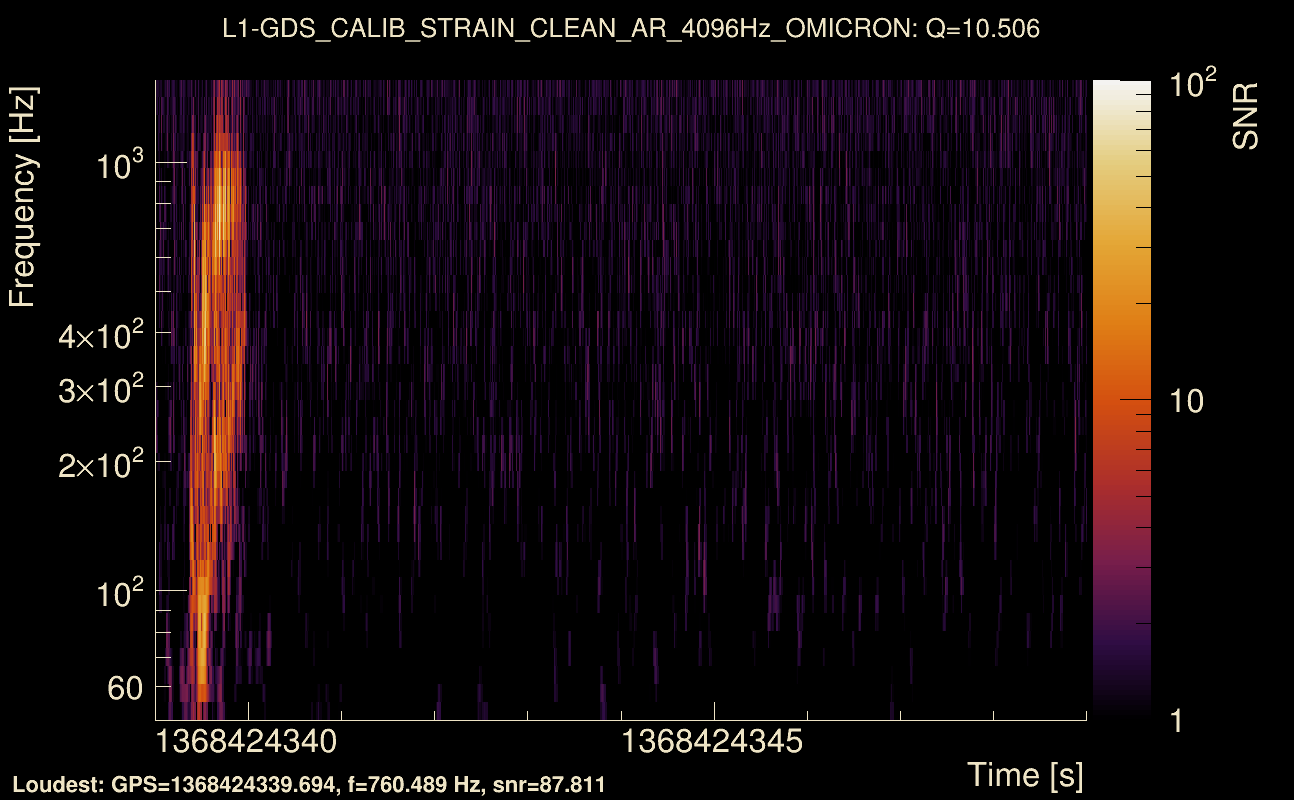

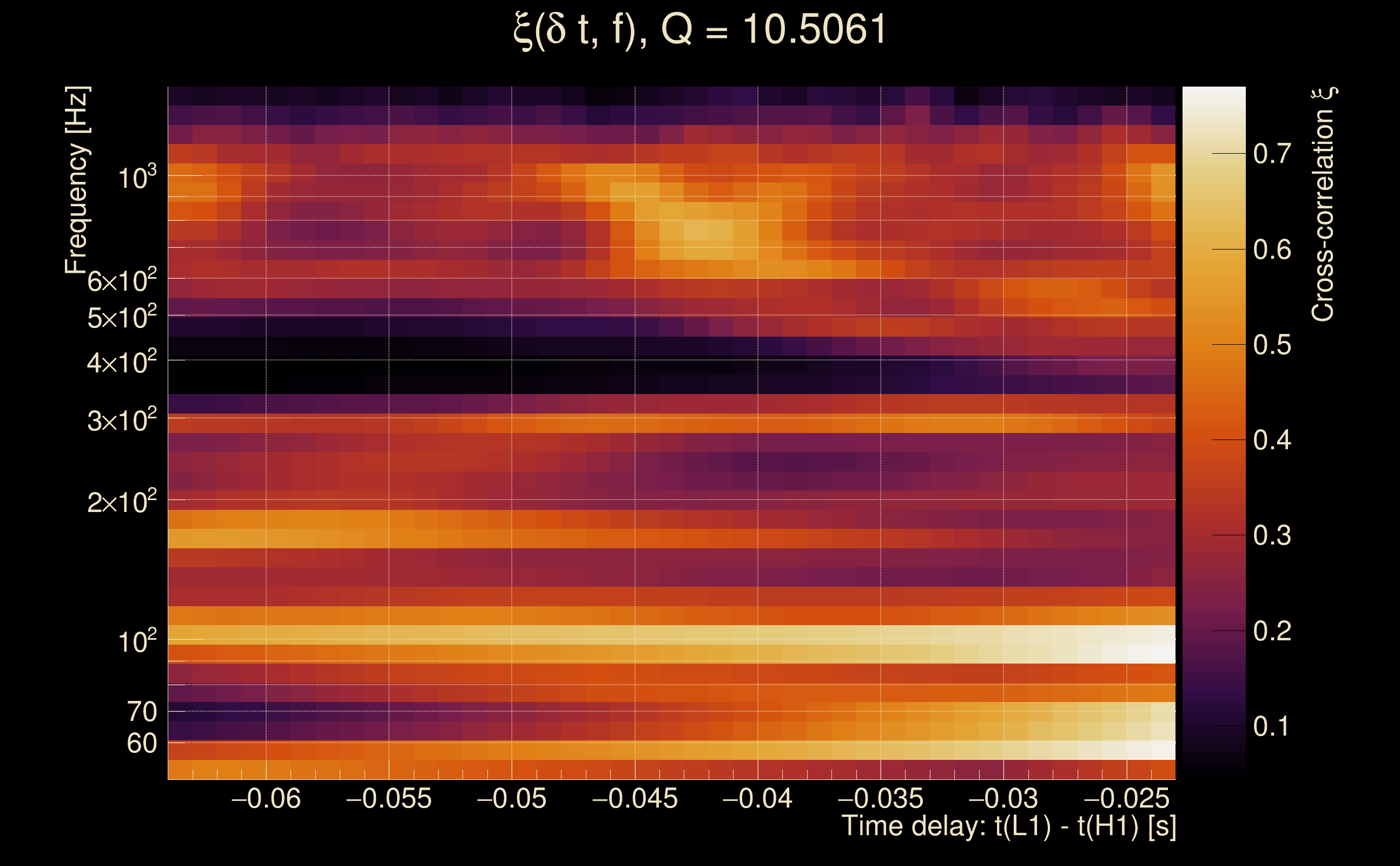

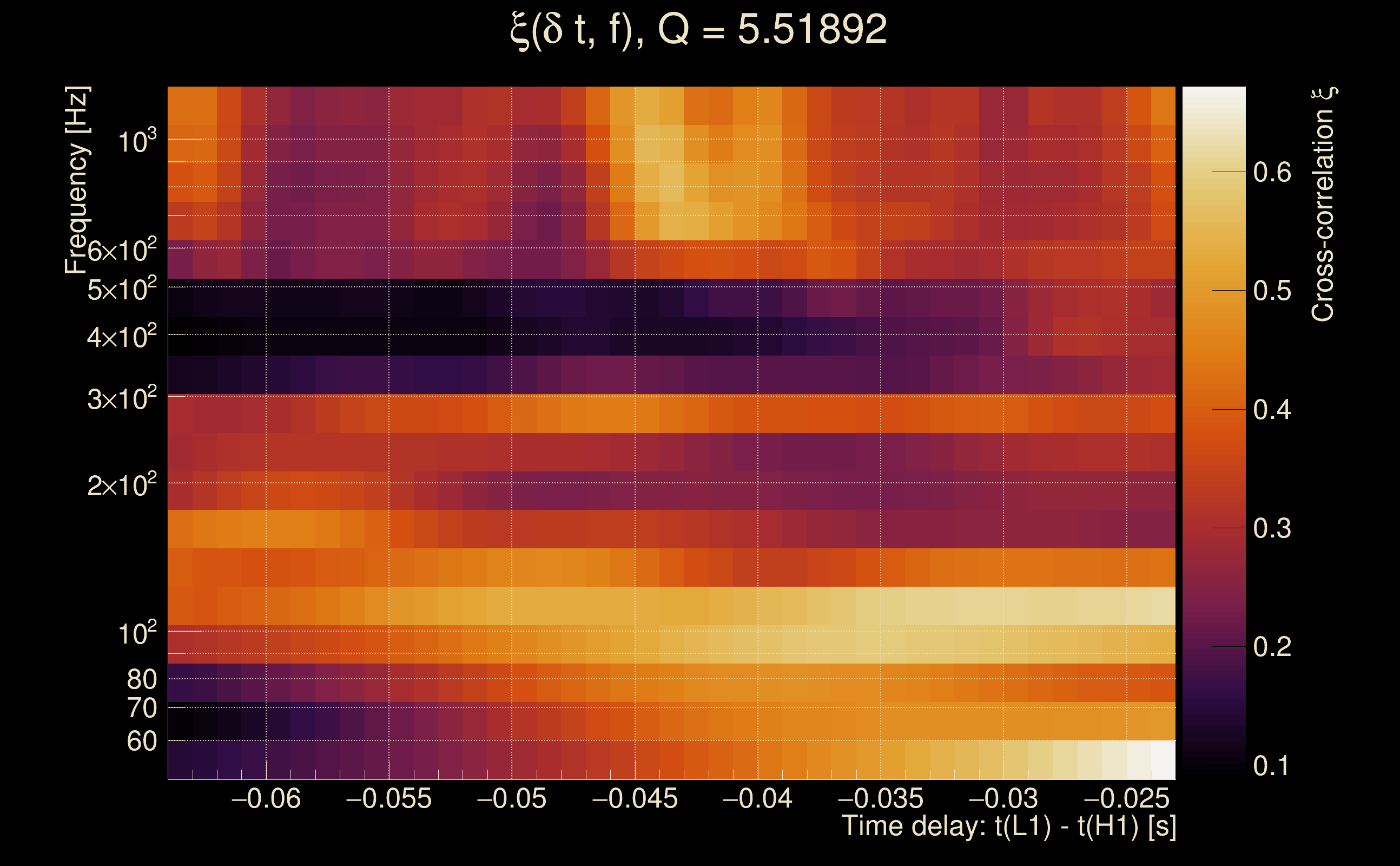

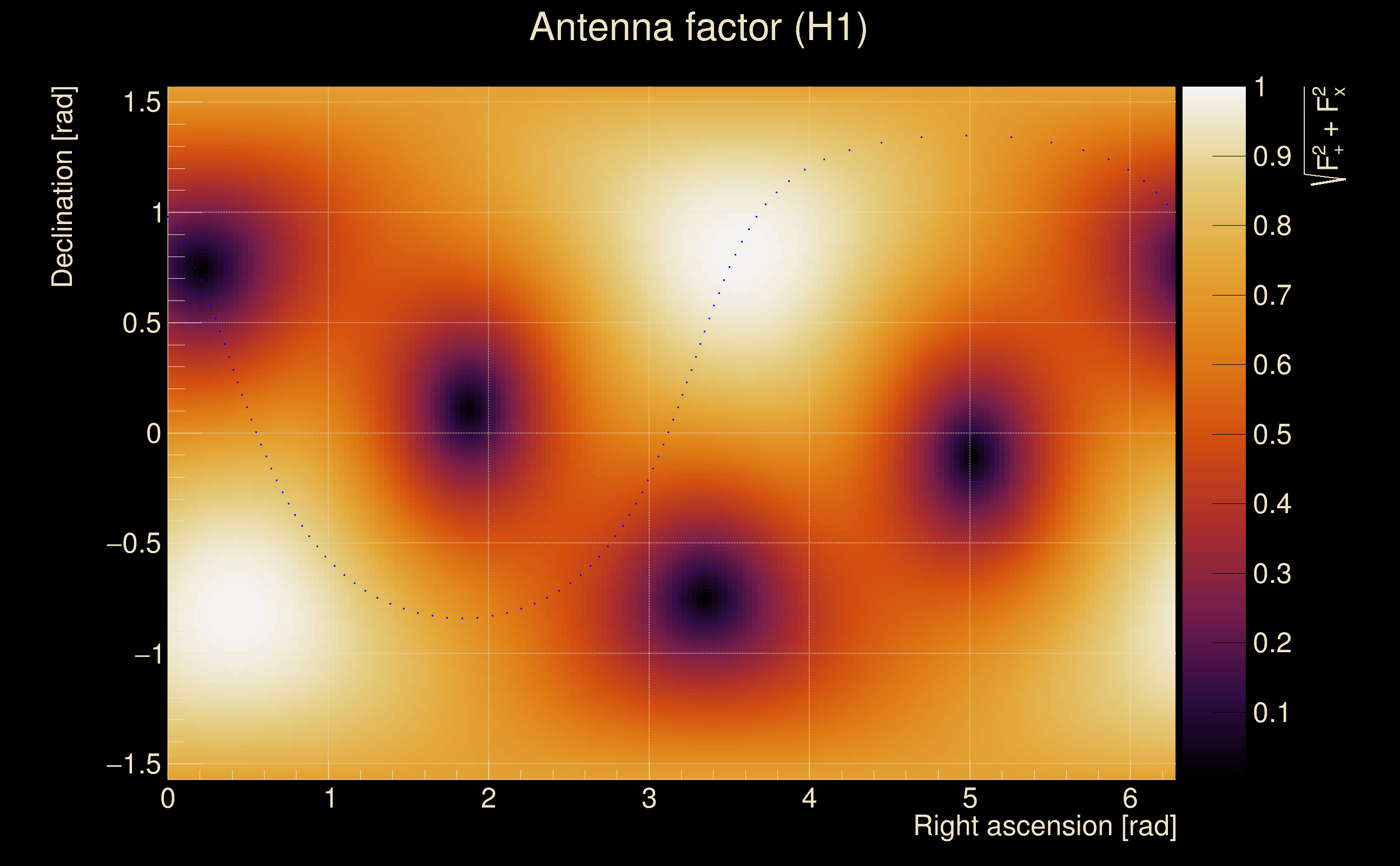

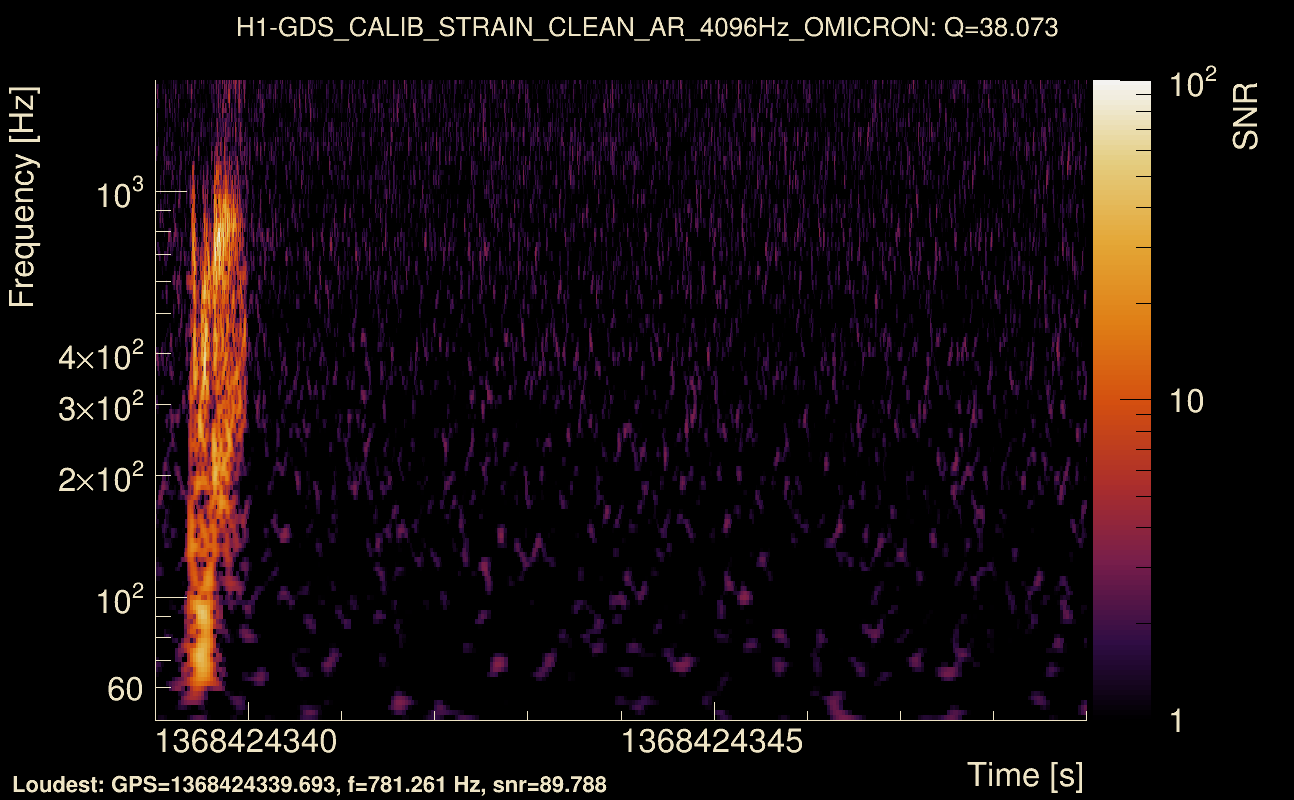

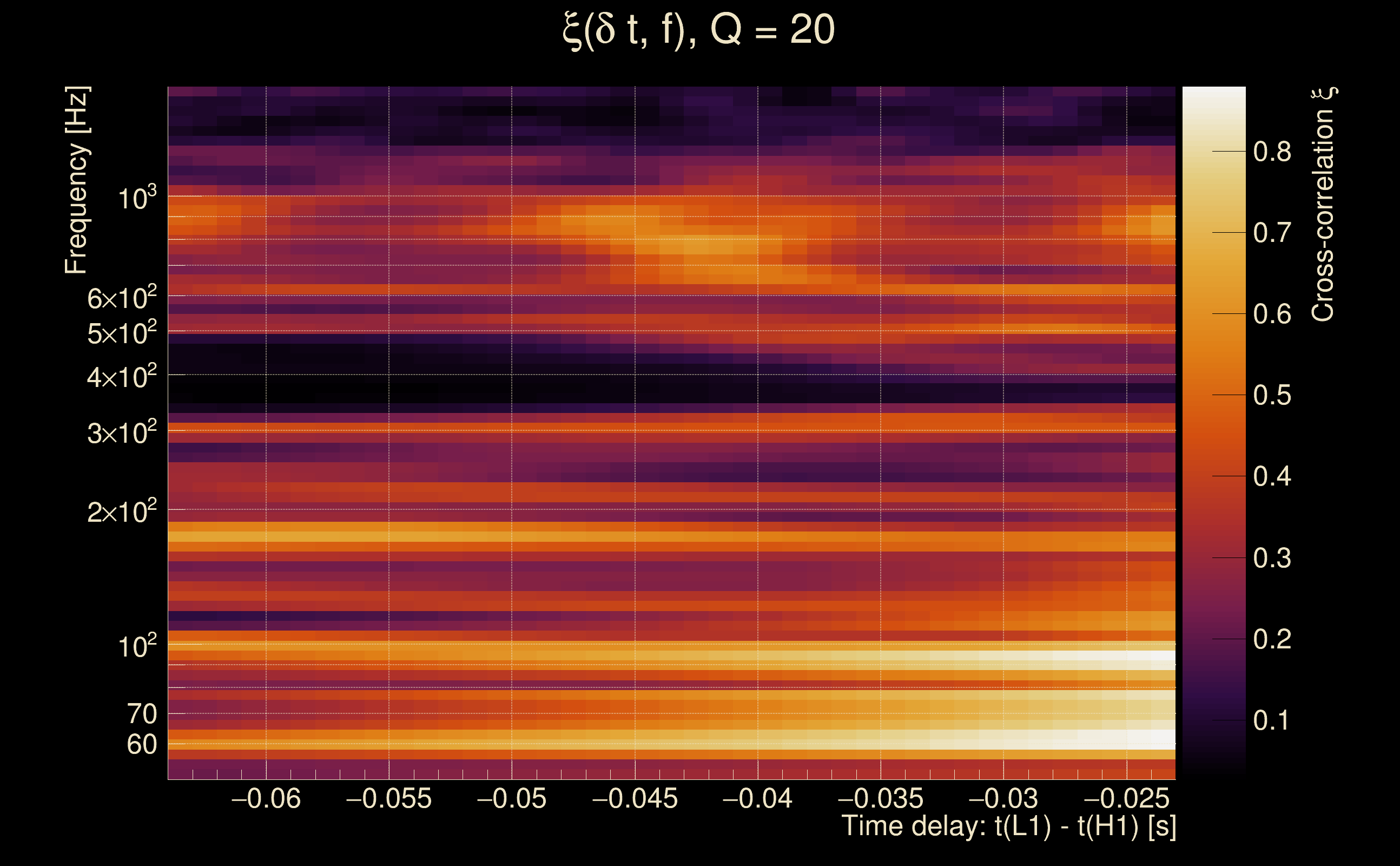

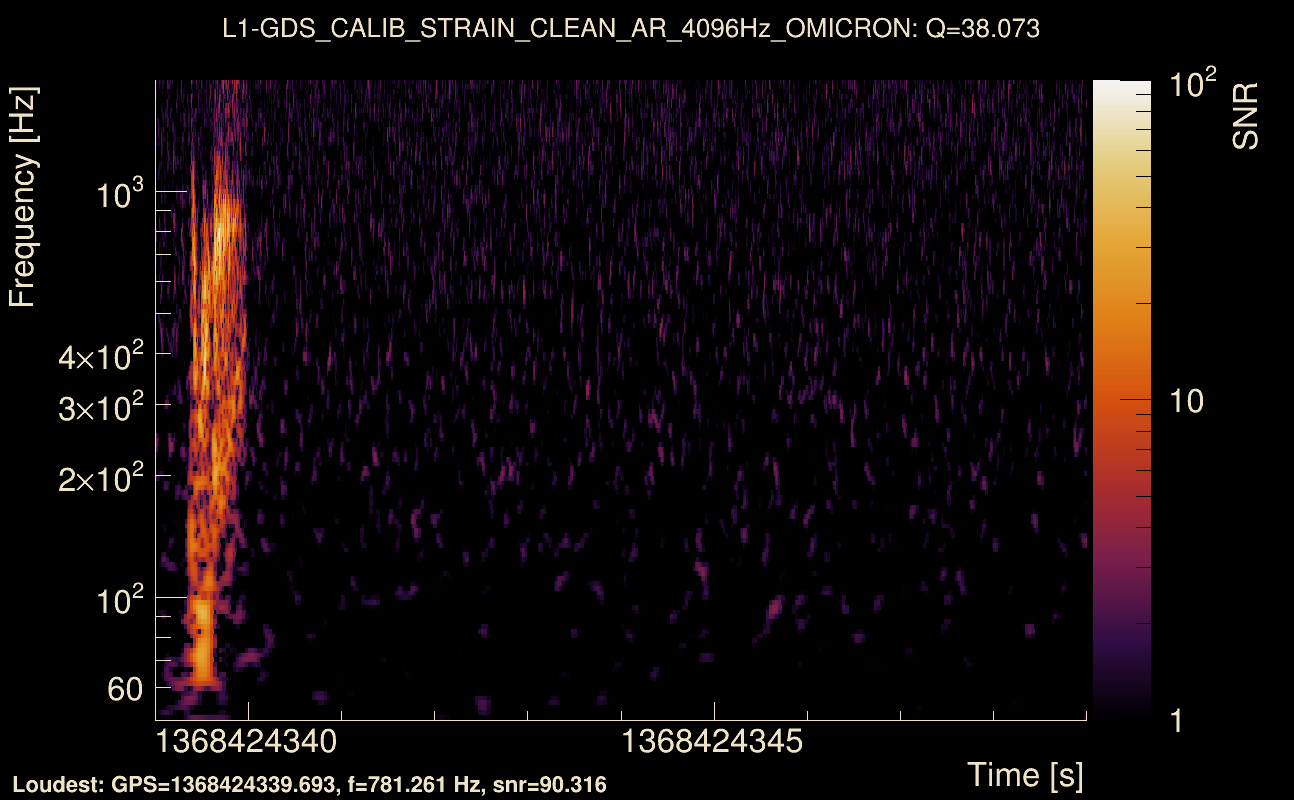

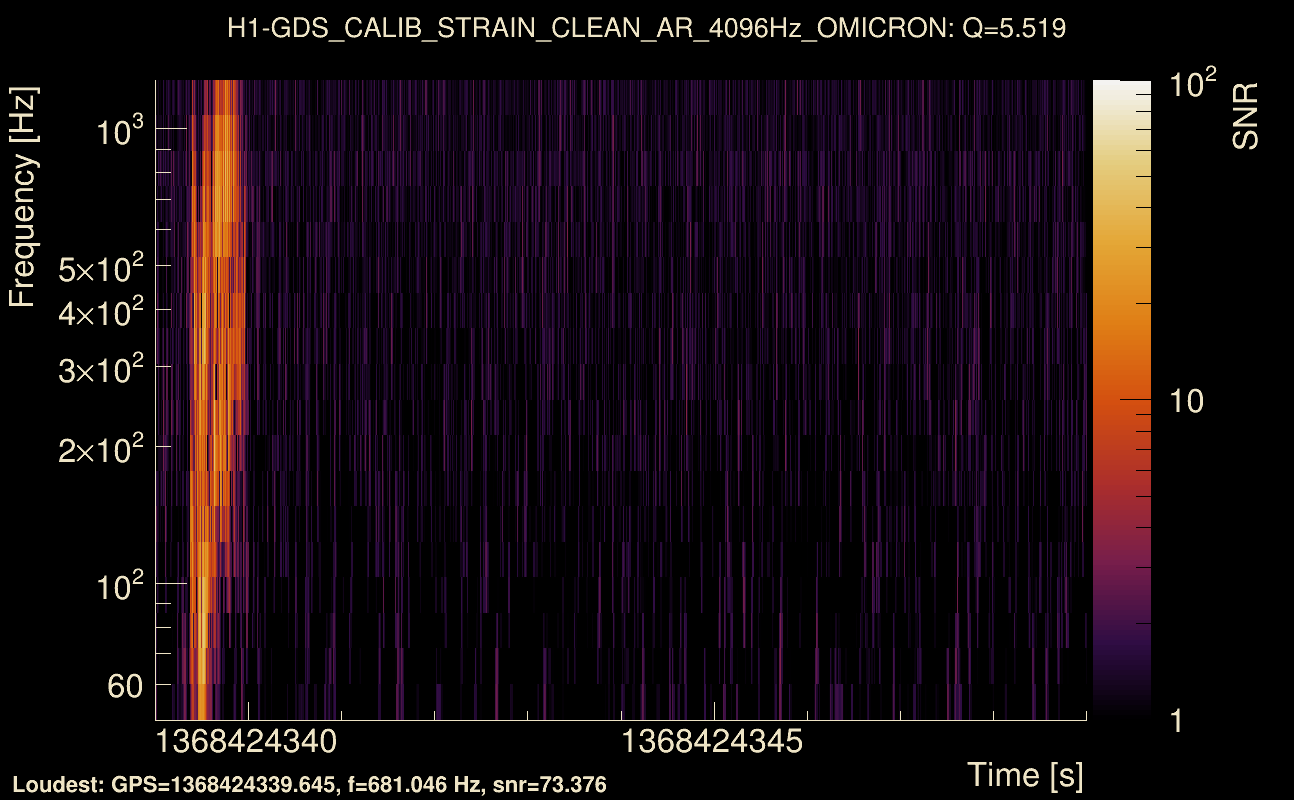

| Event time t(H1): | GPS = 1368424339 (Thu May 18 05:52:01 2023 ) → GPS = 1368424349 (Thu May 18 05:52:11 2023 ) |
| Event time t(L1): | GPS = 1368424339 (Thu May 18 05:52:11 2023 ) → GPS = 1368424349 (Thu May 18 05:52:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424336 → GPS = 1368424352 |
| Omicron analysis time window (L1): | GPS = 1368424336 → GPS = 1368424352 |
| Time delay between detectors t(L1) - t(H1): | -0.043477 s (slice index = 109 / 217), δt_gw = 0.00252301 s |
| Time delay standard deviation: | 0.057799 s |
| [targeted mode] Time delay probability: | 0.950761 (0.0617514 sigmas), δt_target = 0.000531197 s |
| Frequency: | 463.879 Hz |
| Ξ: | 0.189372 ± 0.0250478 (variance = 0.00062739): Q0: 0.521731, Q1: 0.457516, Q2: 0.470166, Q3: 0.50486, Q4: 0.464359 |
| Rank: | R_A = 0.0553348 |
| Log of amplitude ratio (L1/H1): | -0.13423, variance = 0.152471 (L1/H1: -0.535576, variance = 0.304652, H1/L1: -0.234991, variance = 0.304211) |
| Amplitude ratio (L1/H1): | 0.874389 ⋇ 1.47768 (L1/H1: 0.585332 ⋇ 1.73664, H1/L1: 0.790578 ⋇ 1.73595) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.323382 |
| Antenna factor probability: | 0.950374 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 25 / 36, Q2: 54 / 70, Q3: 115 / 134, Q4: 231 / 258 |
| Maximum signal-to-noise ratio: | H1: 98.0078, L1: 102.183 |

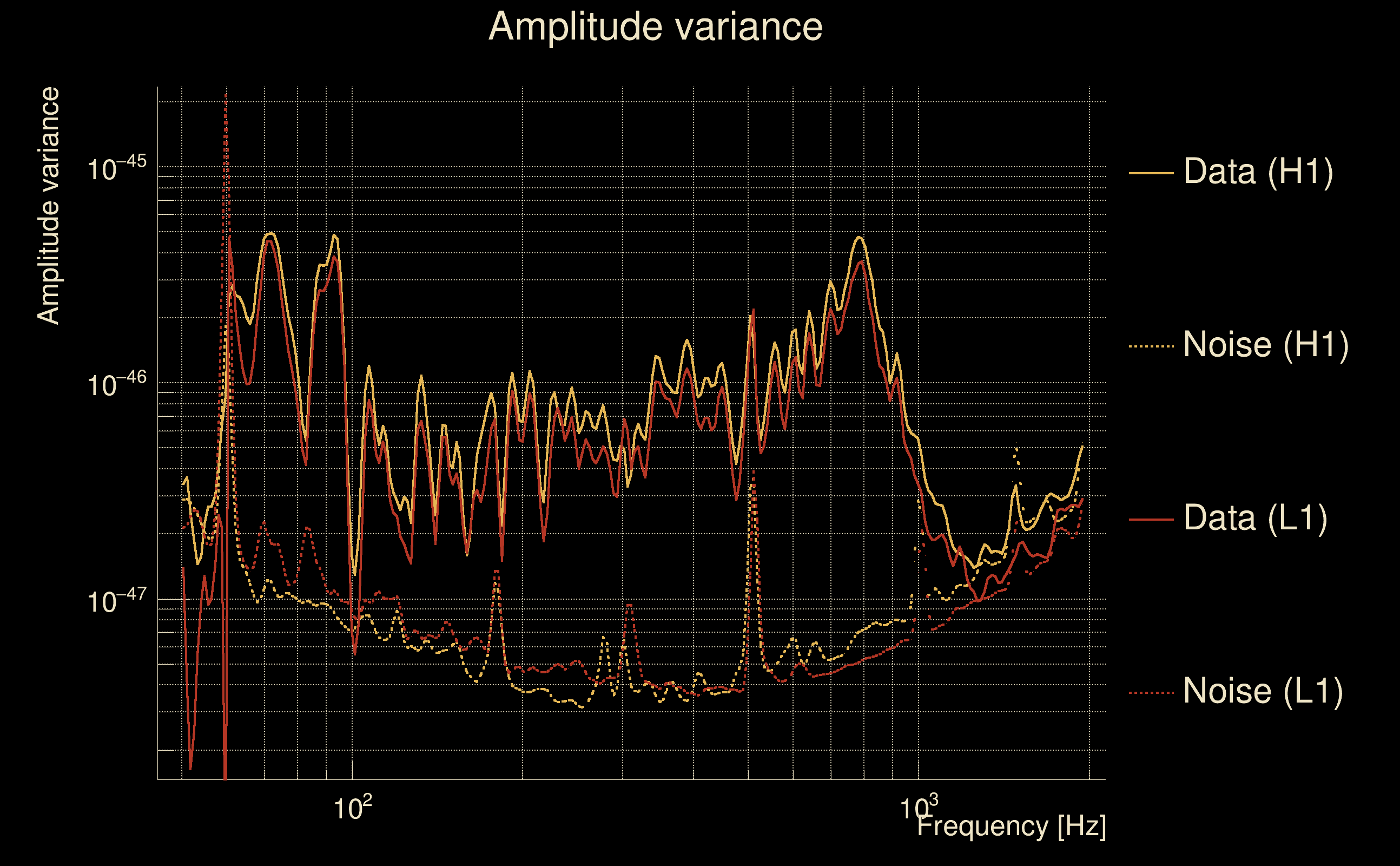

| SNR variance: | H1: 9.76447, L1: 8.13809 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

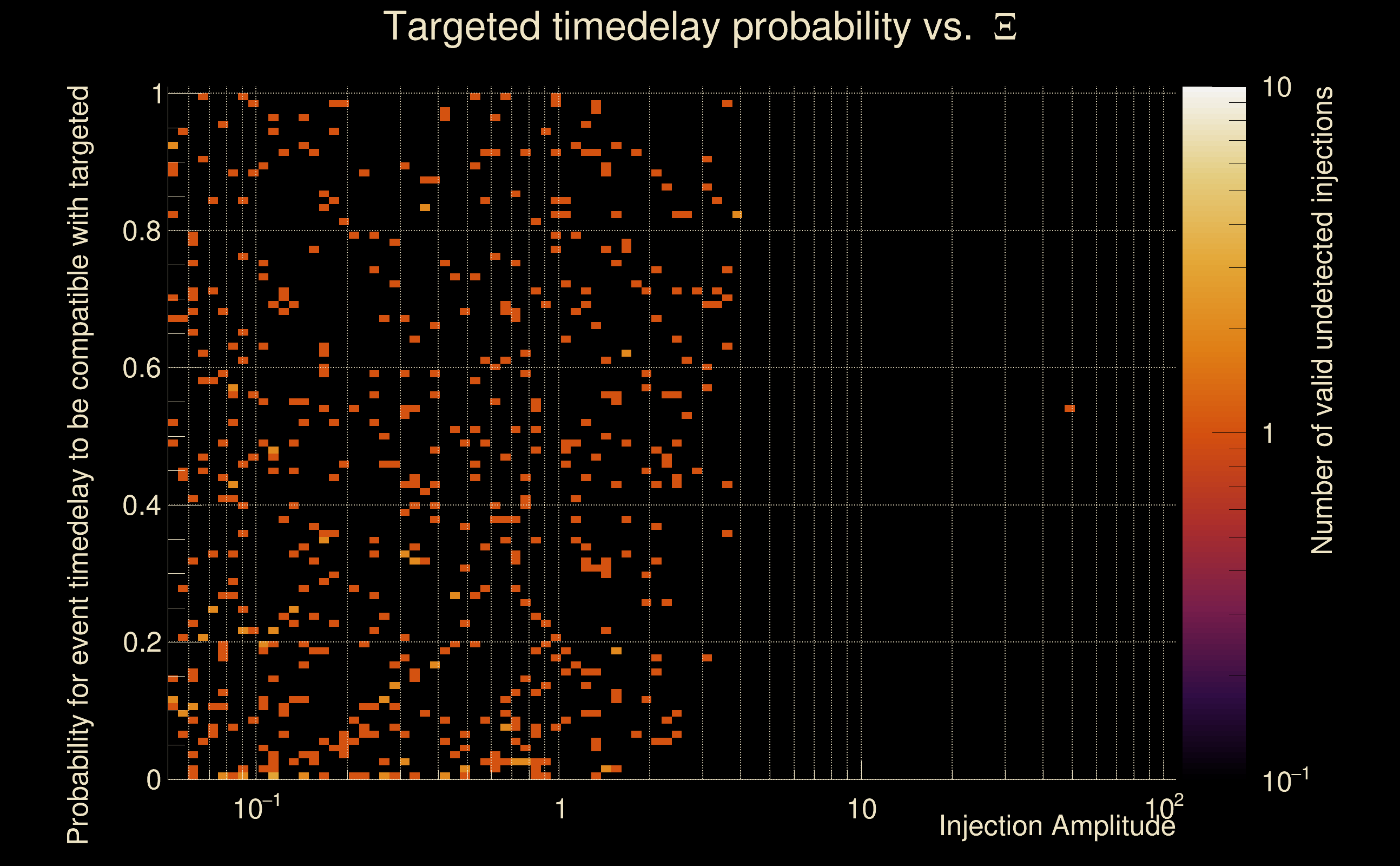

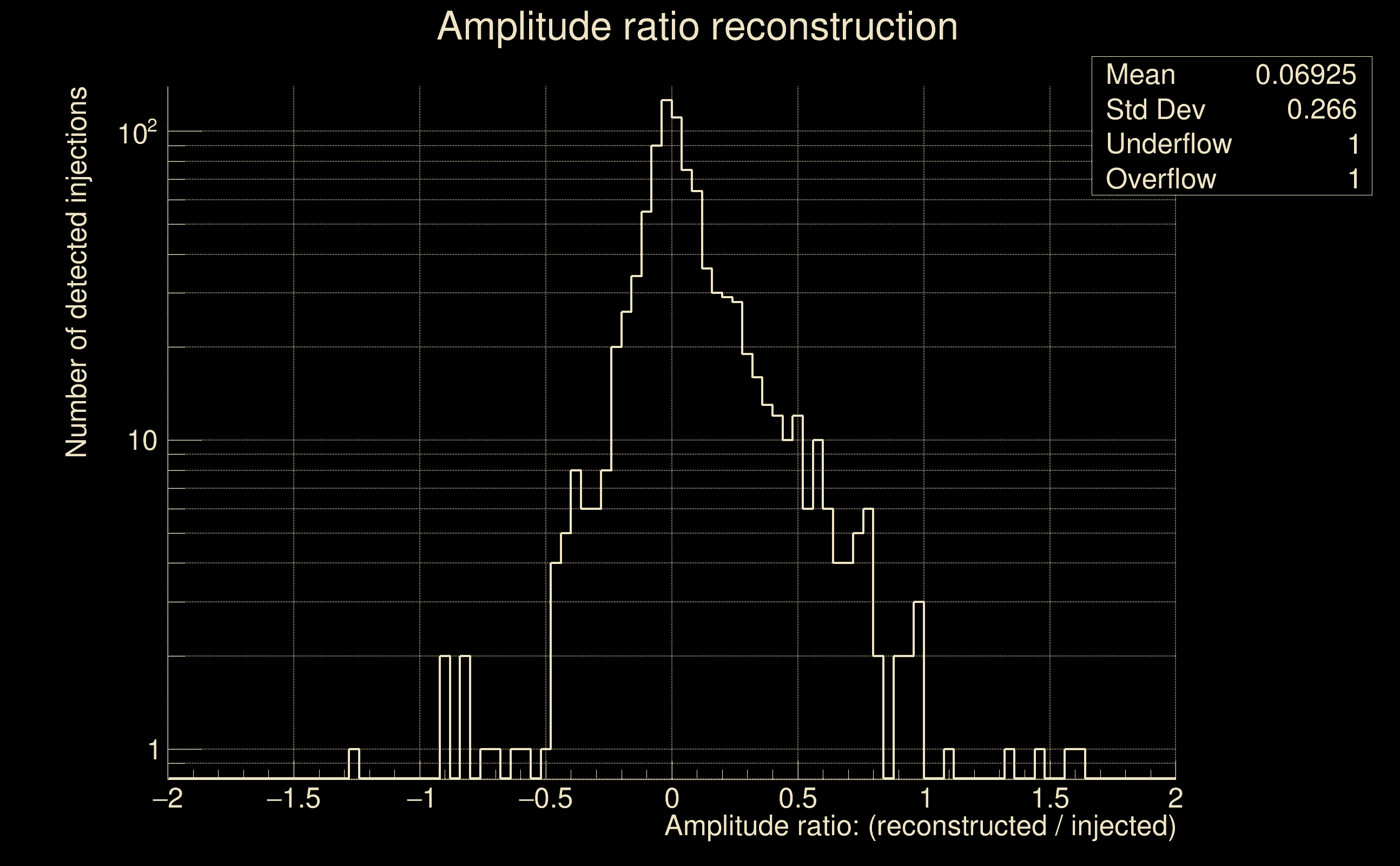

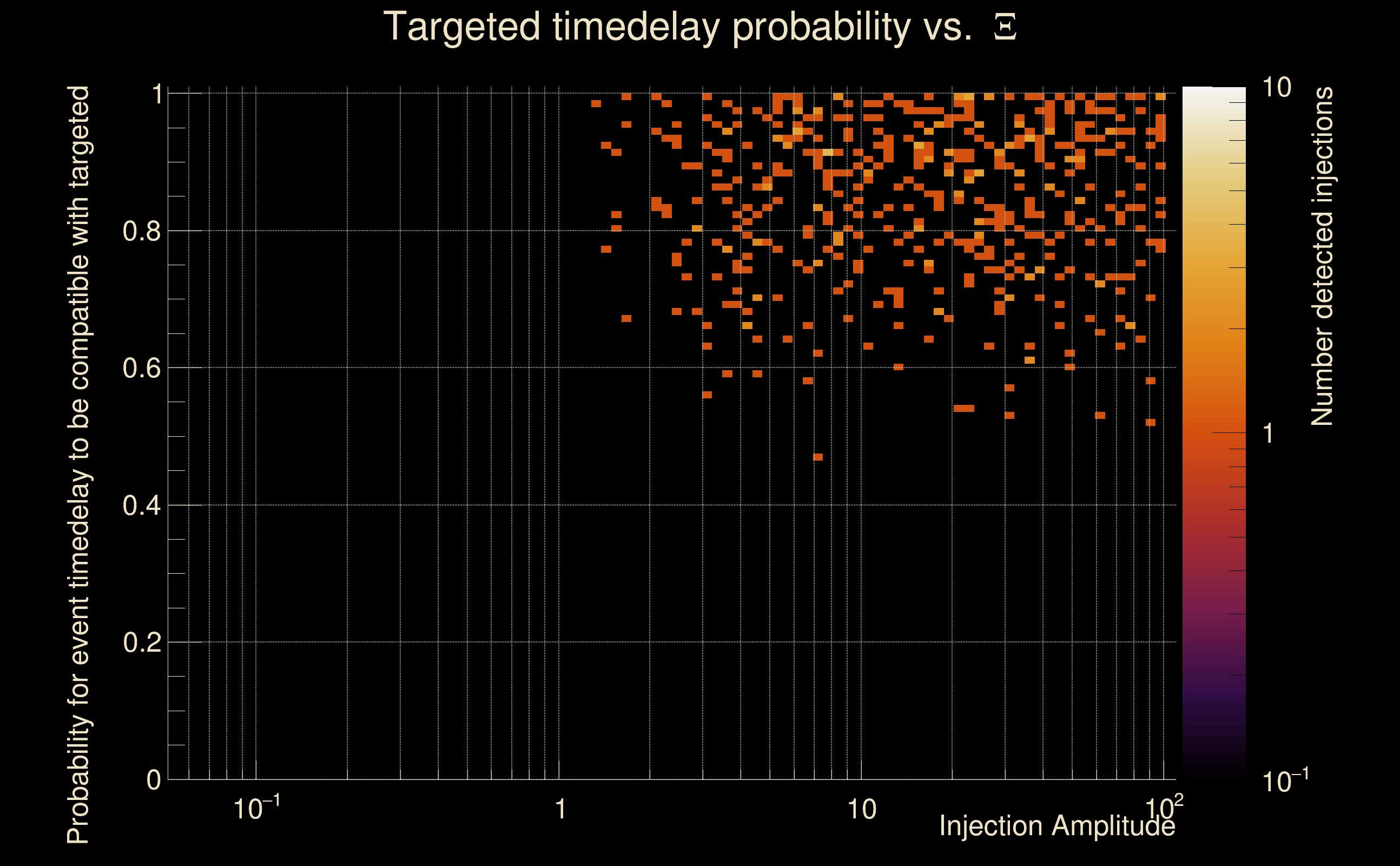

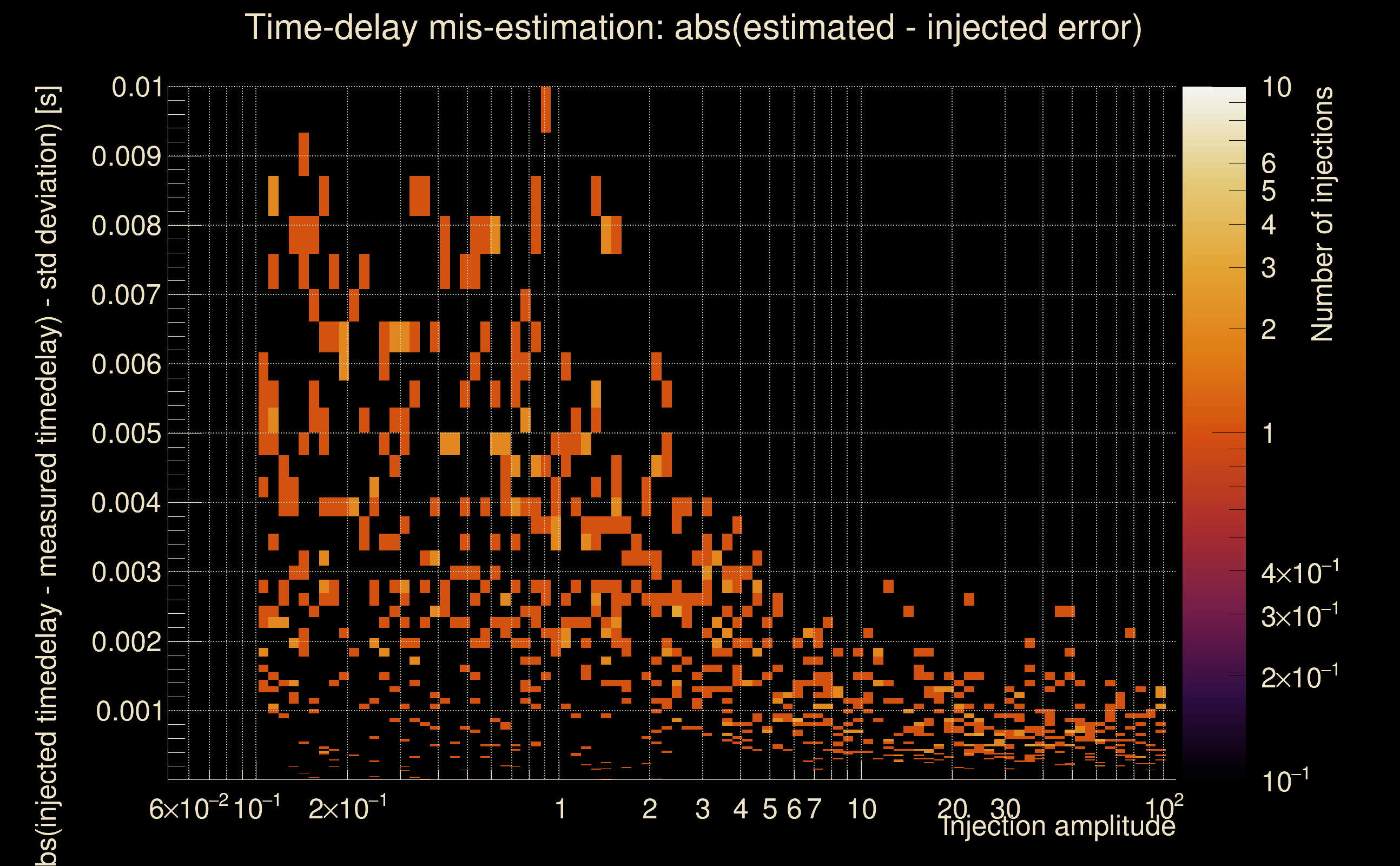

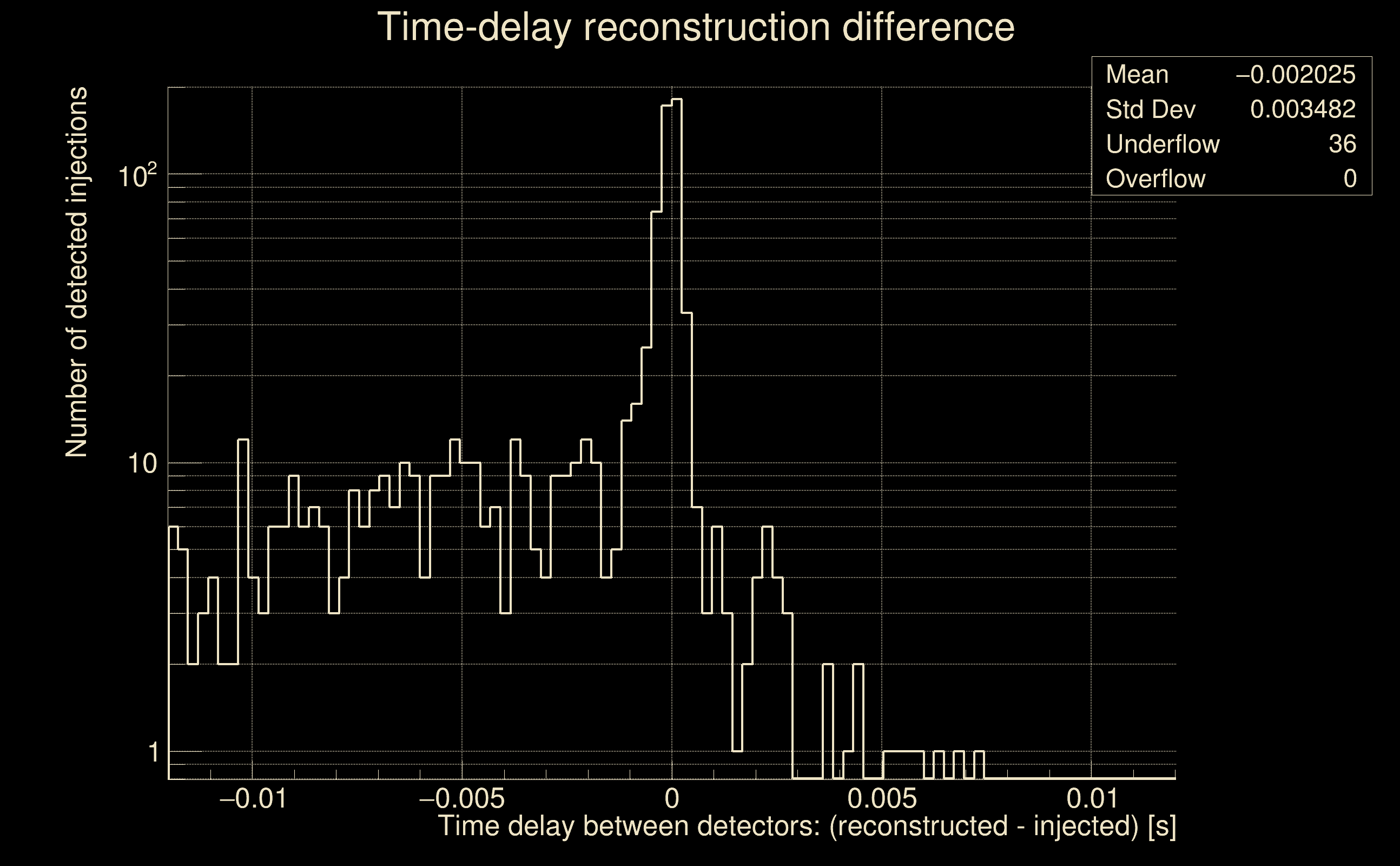

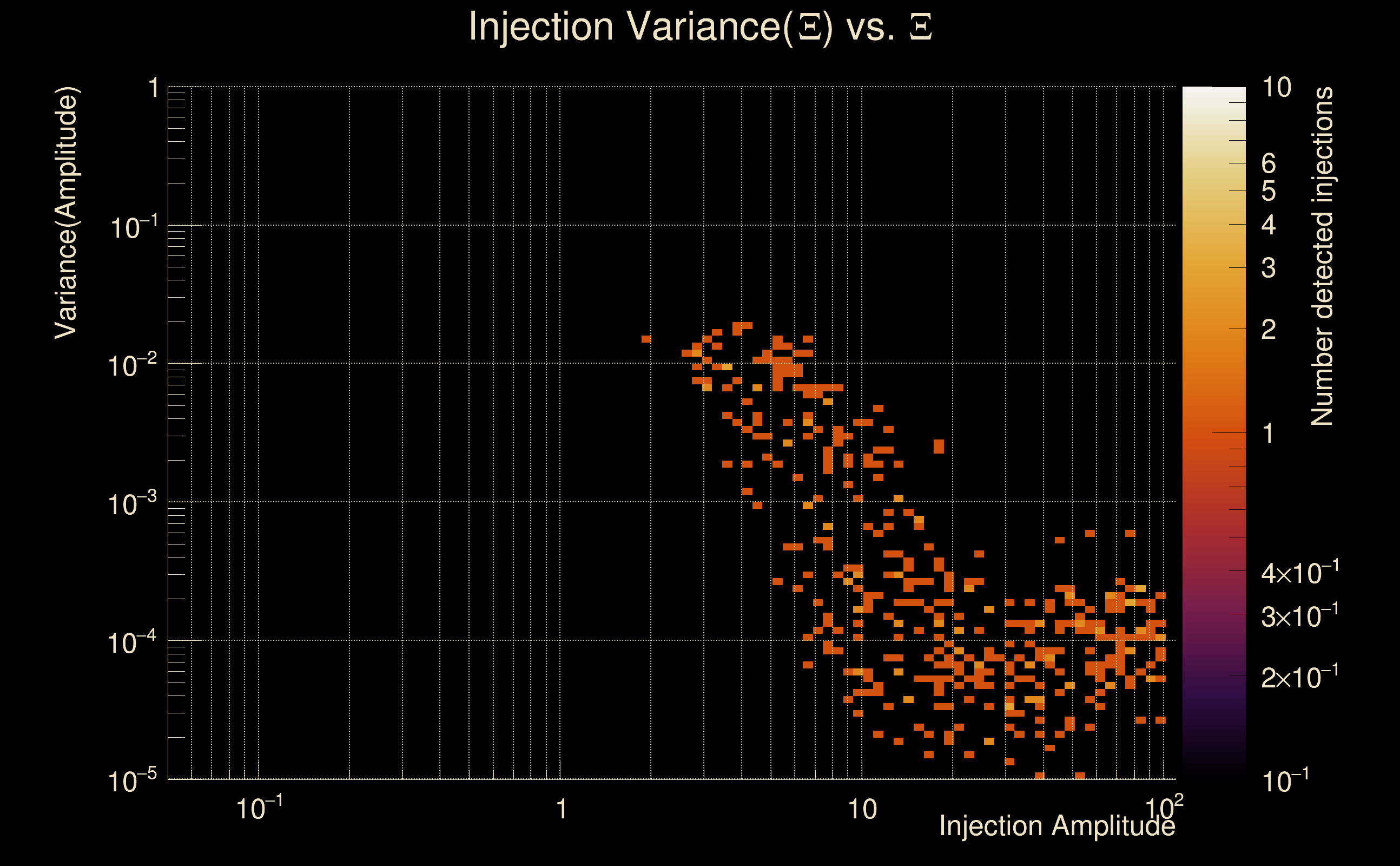

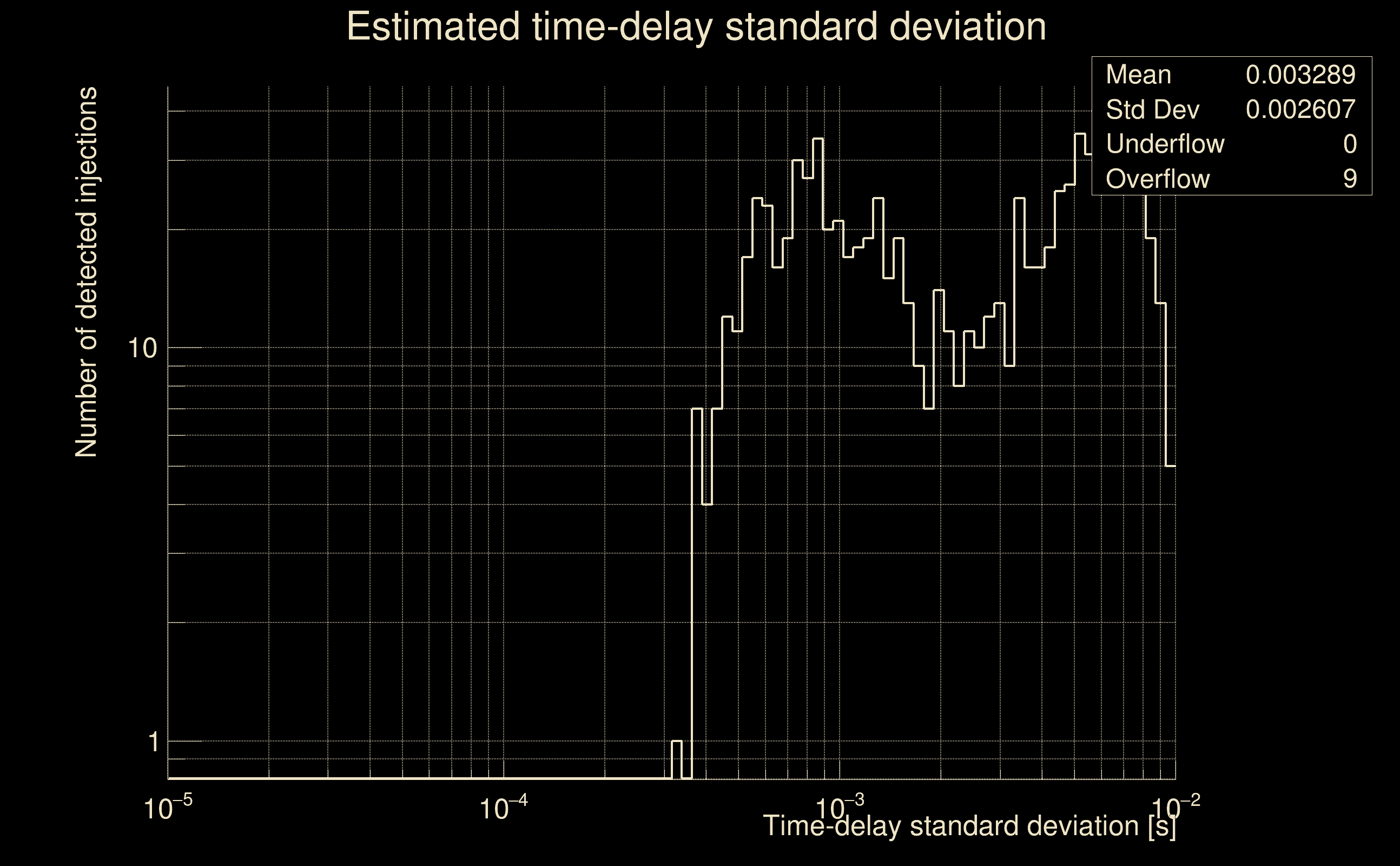

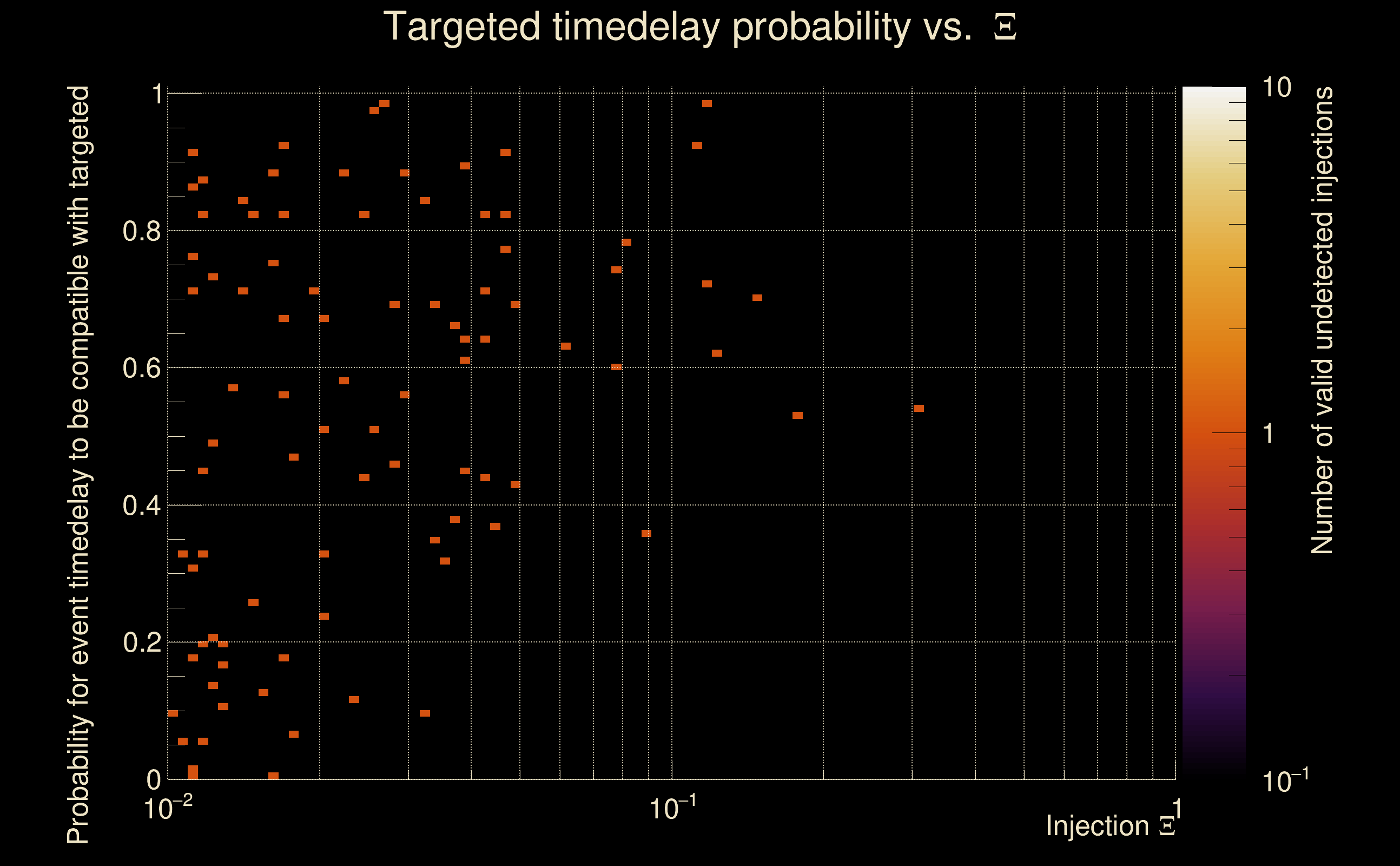

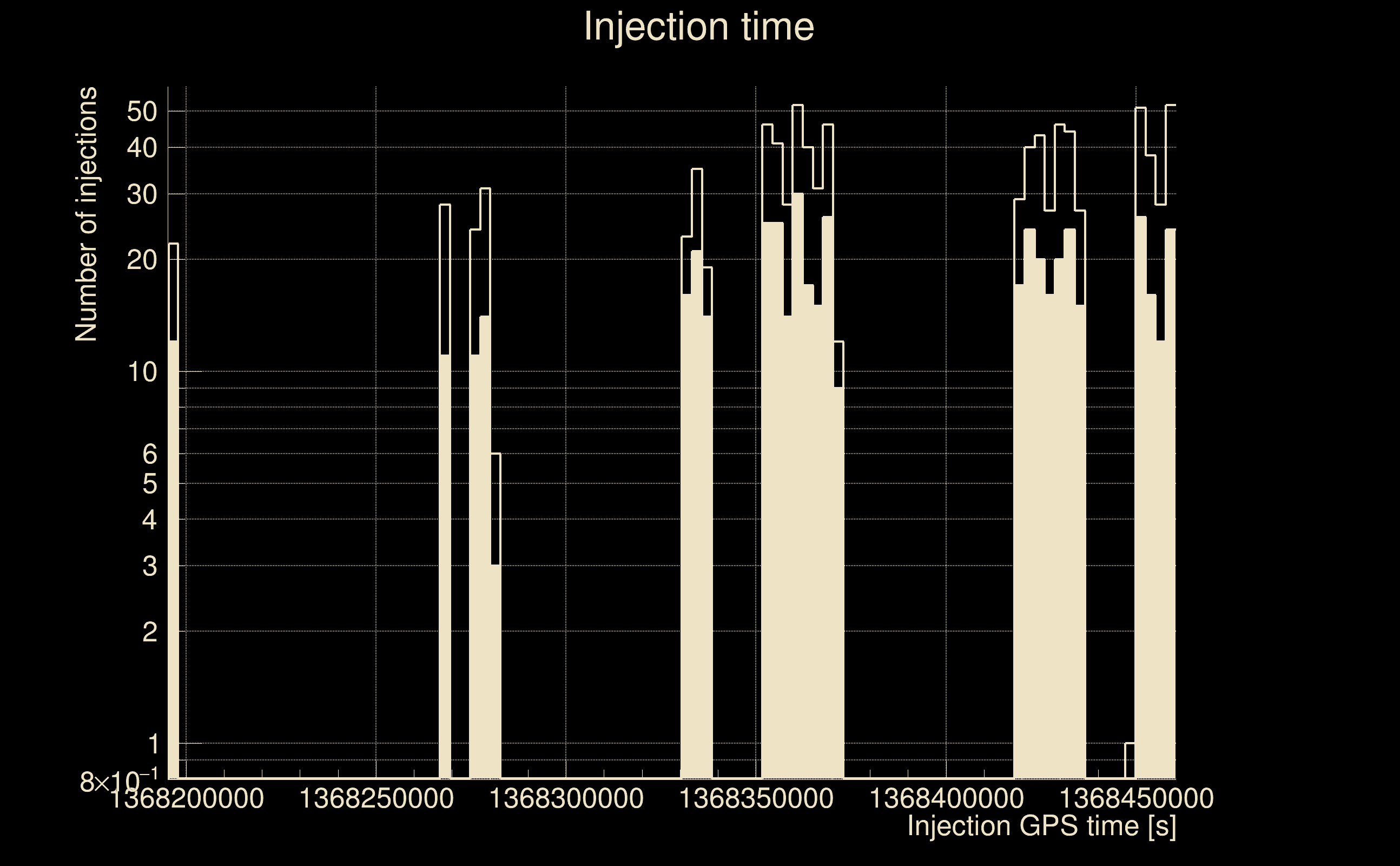

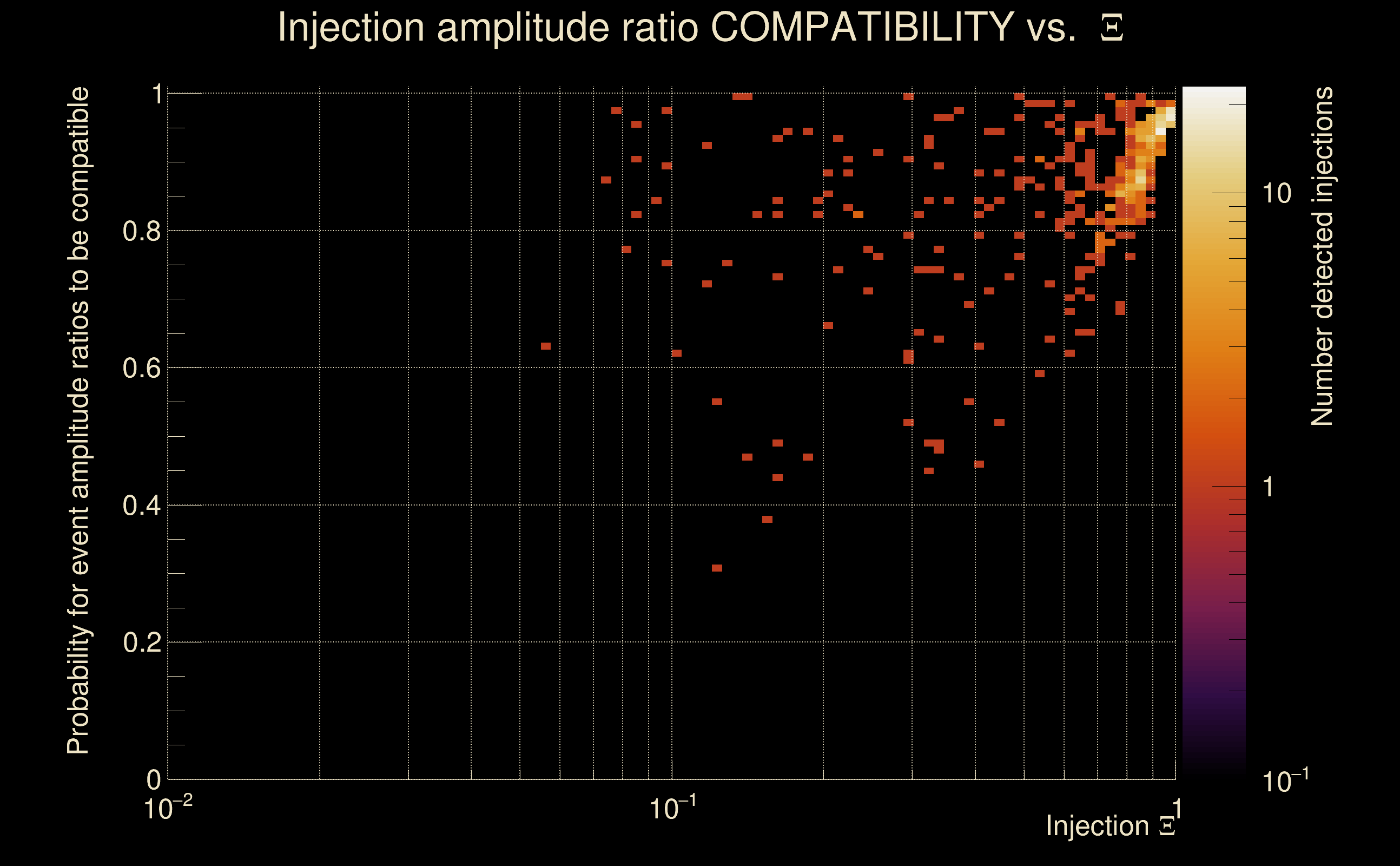

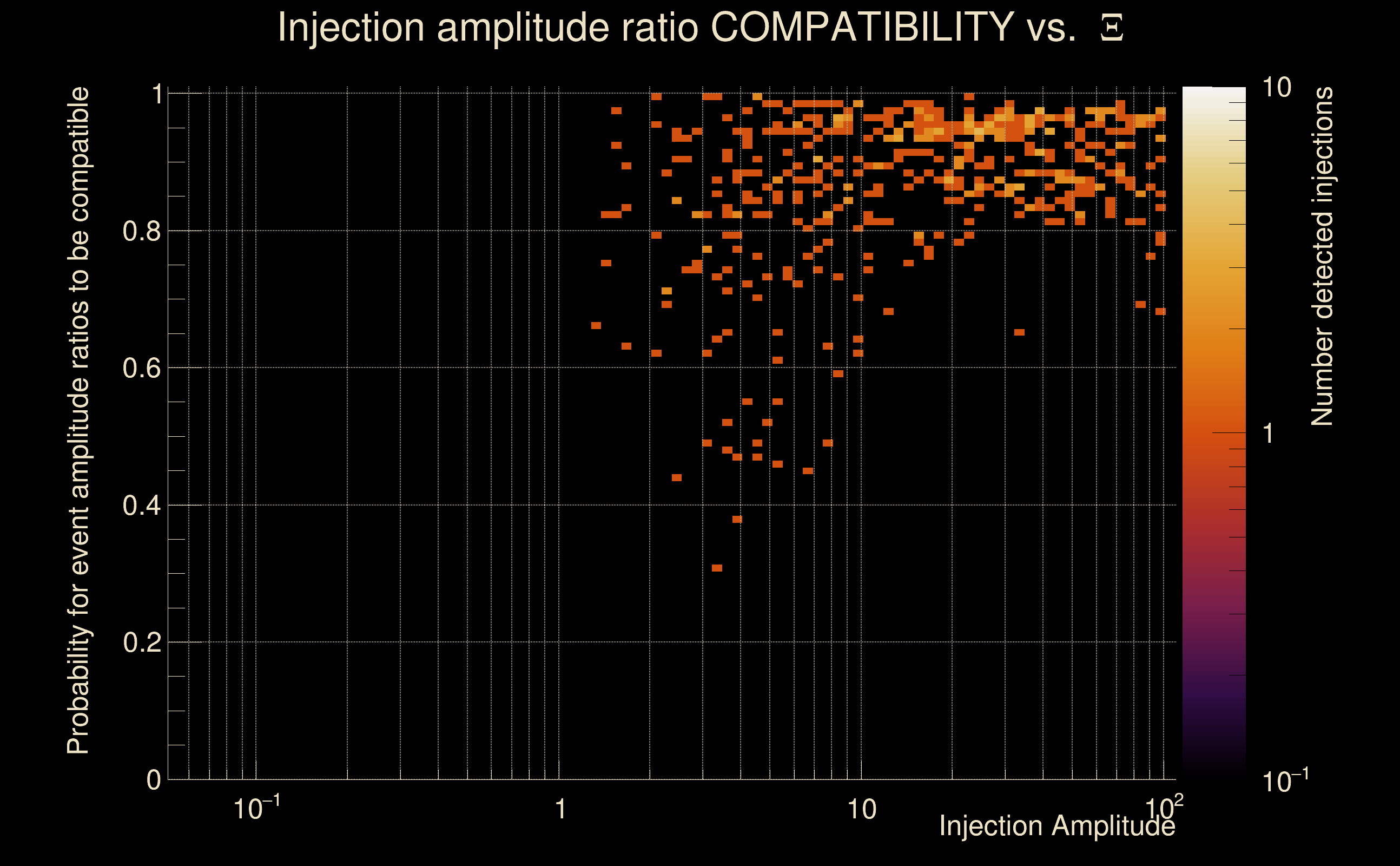

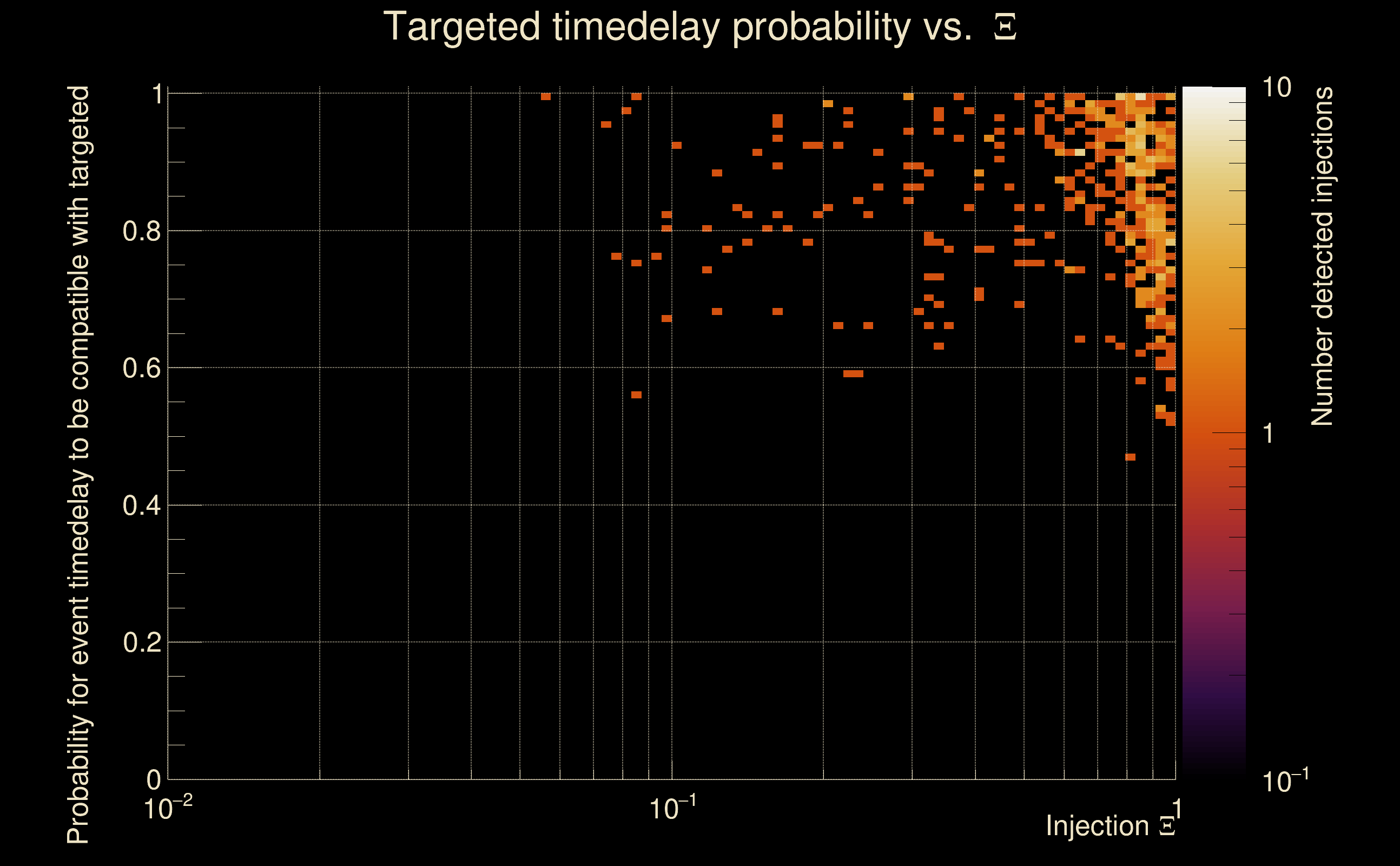

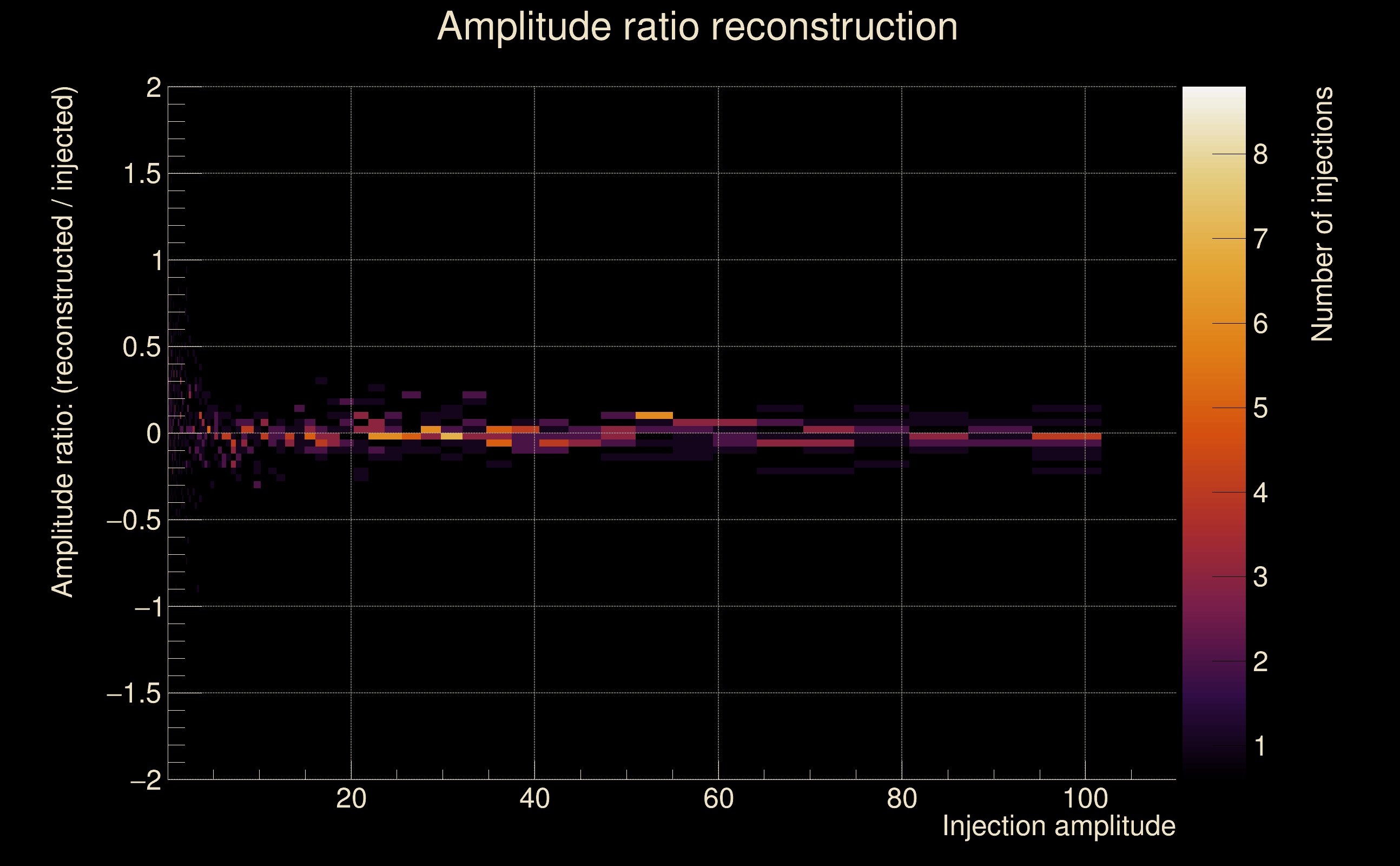

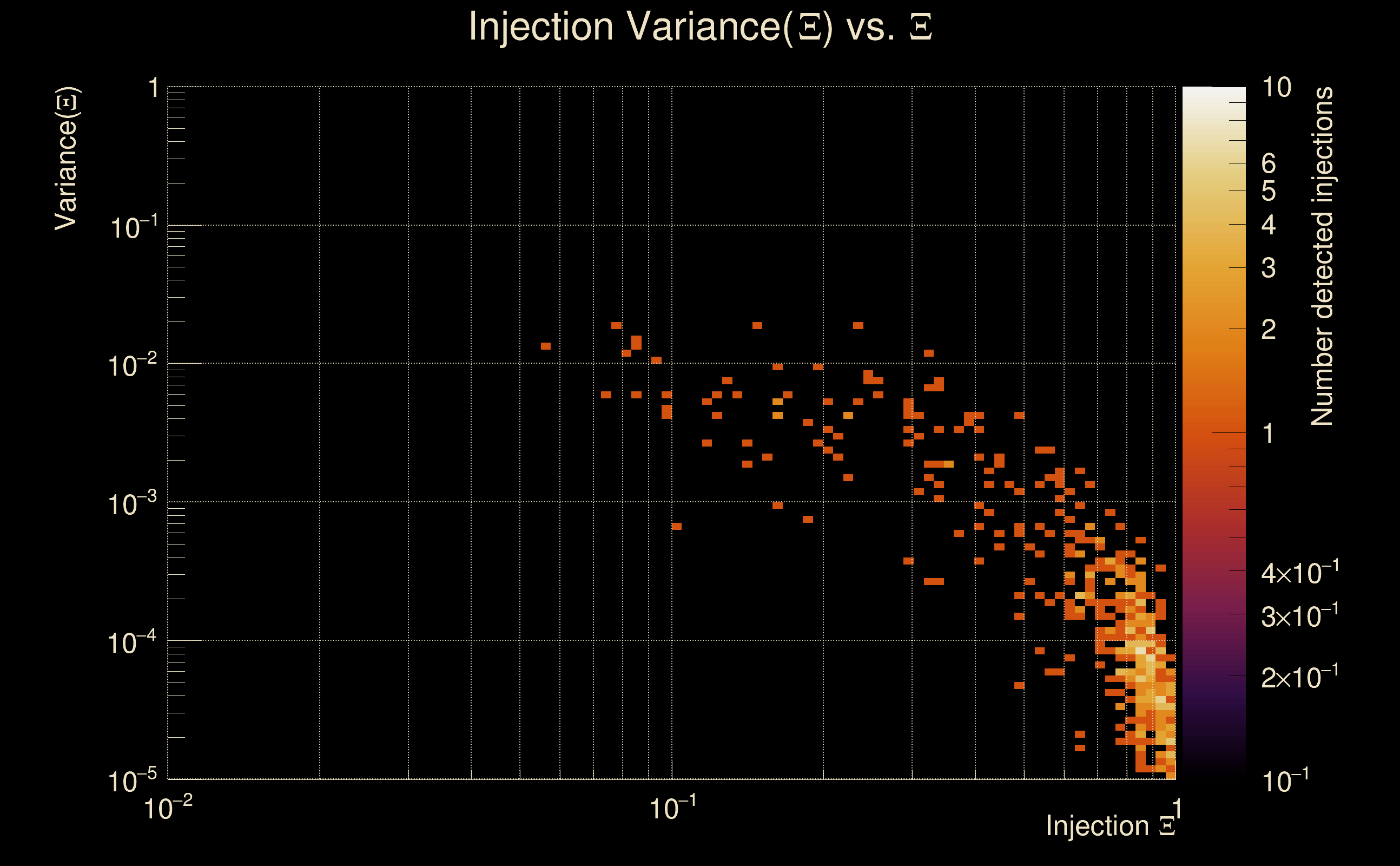

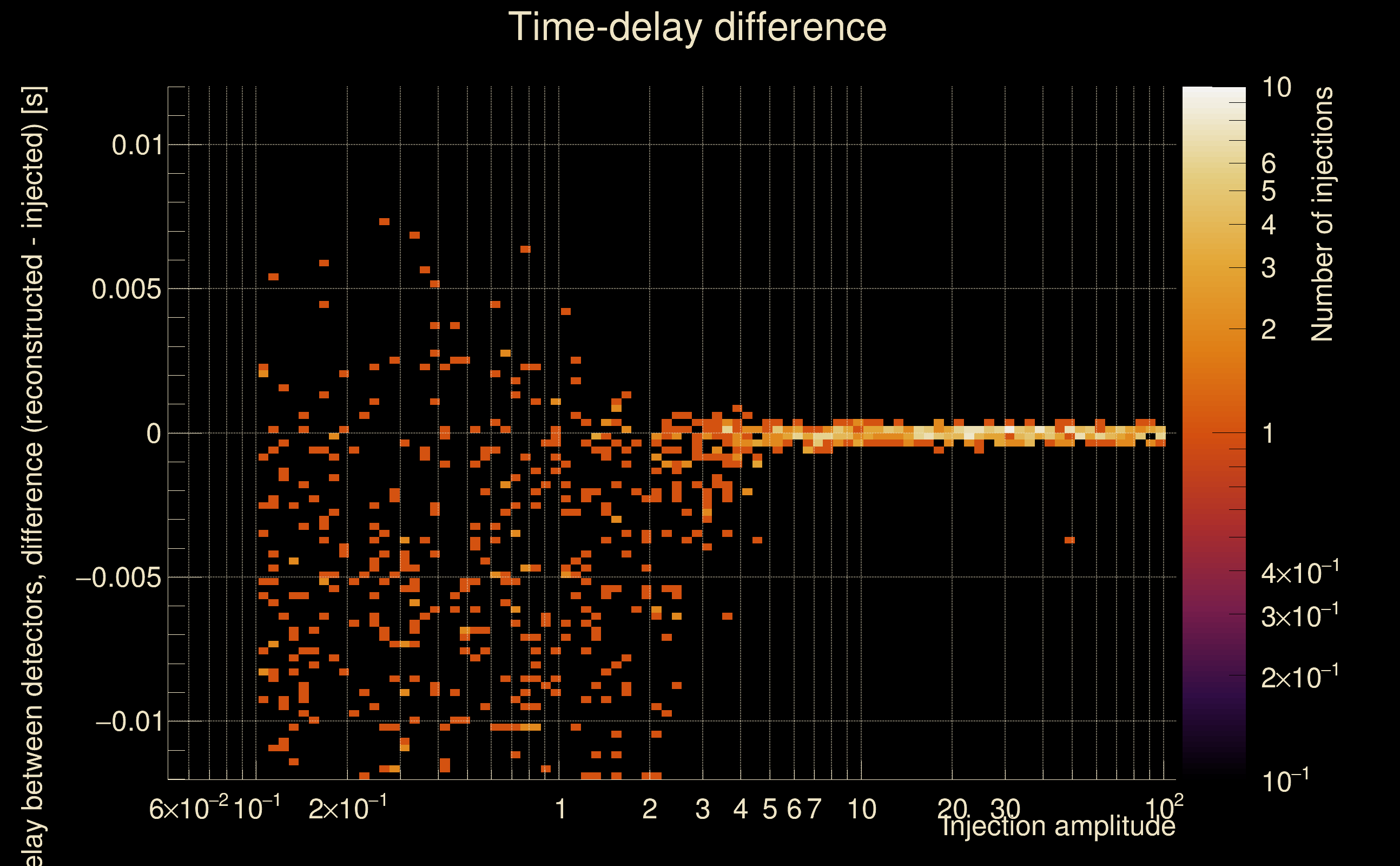

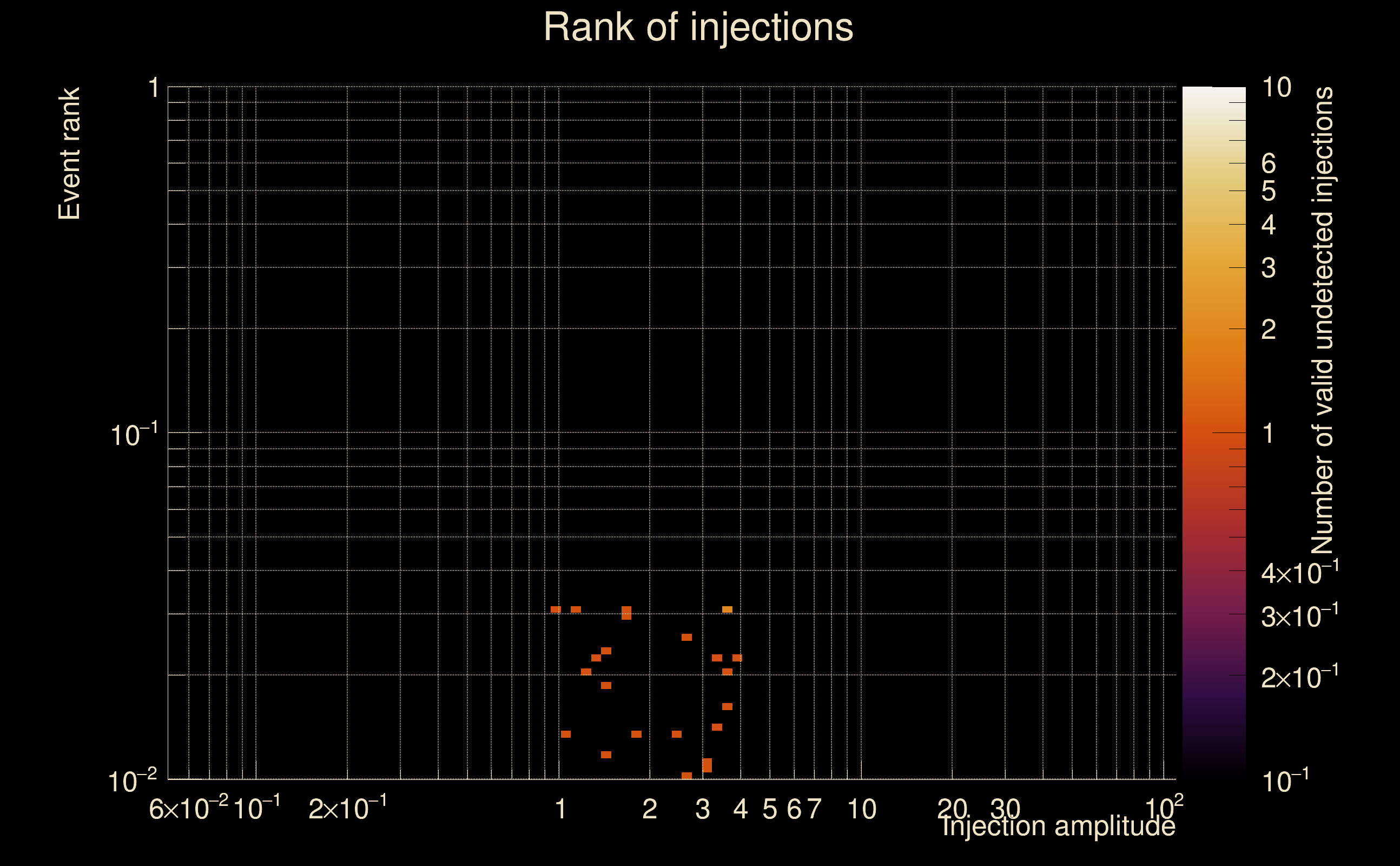

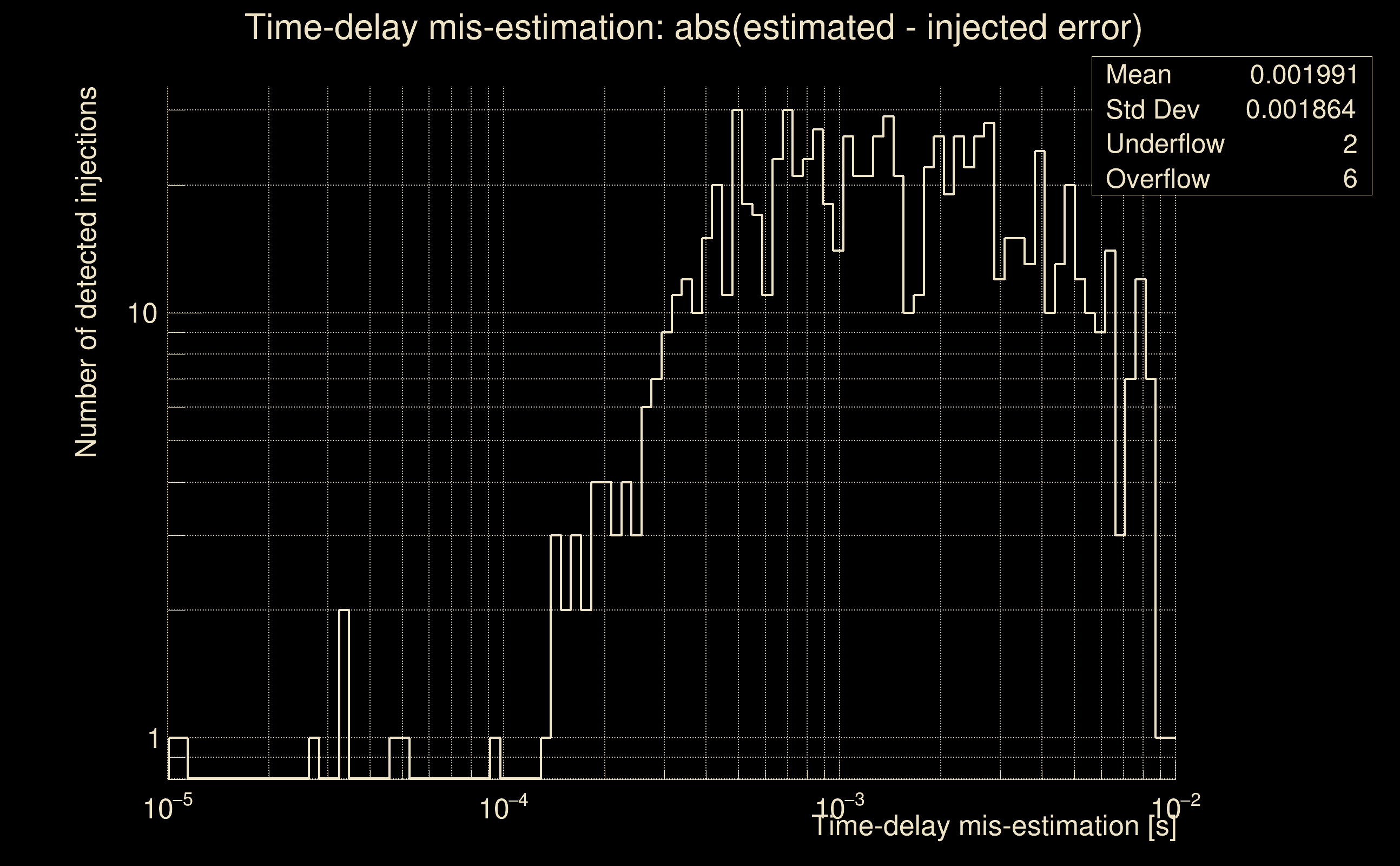

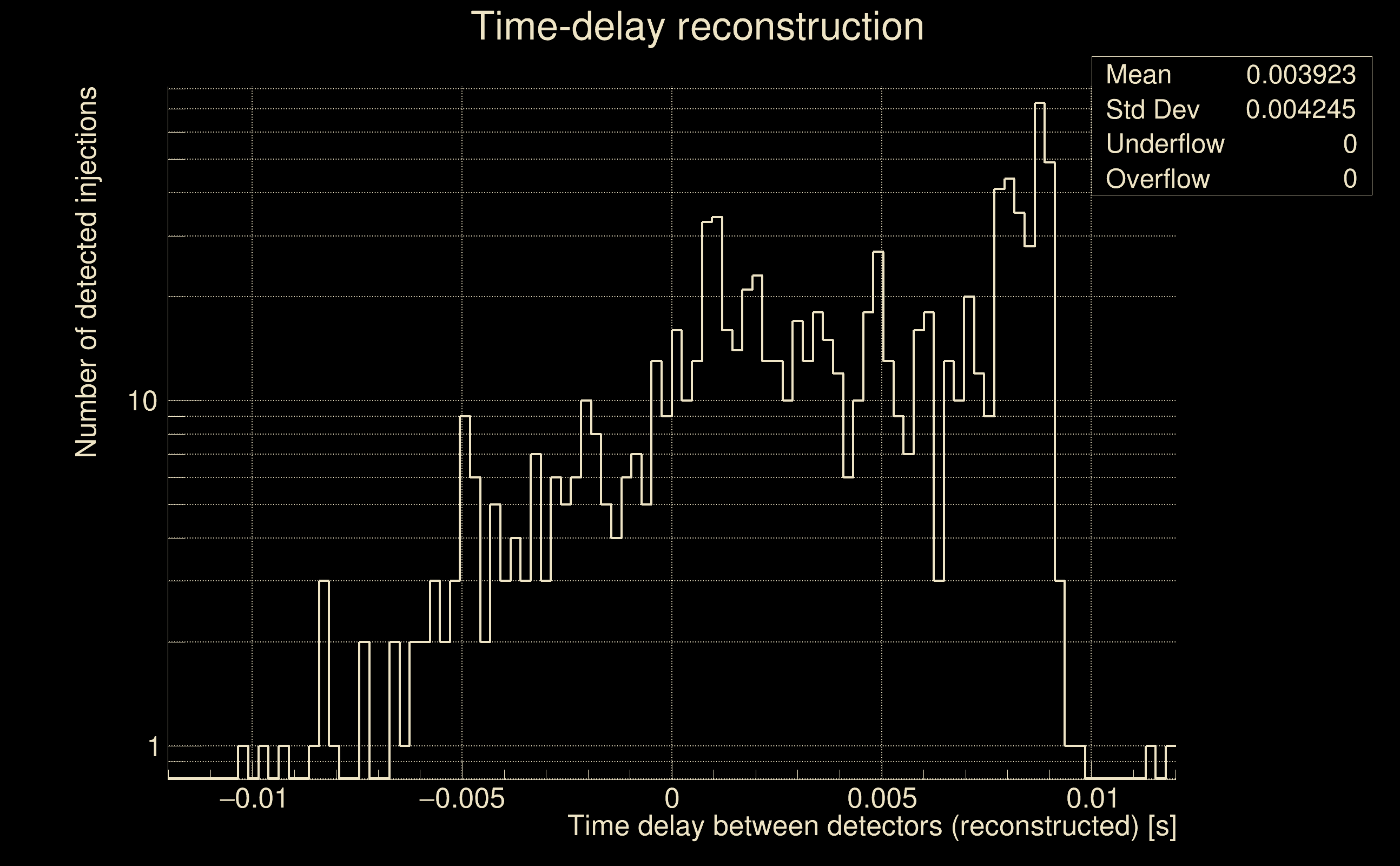

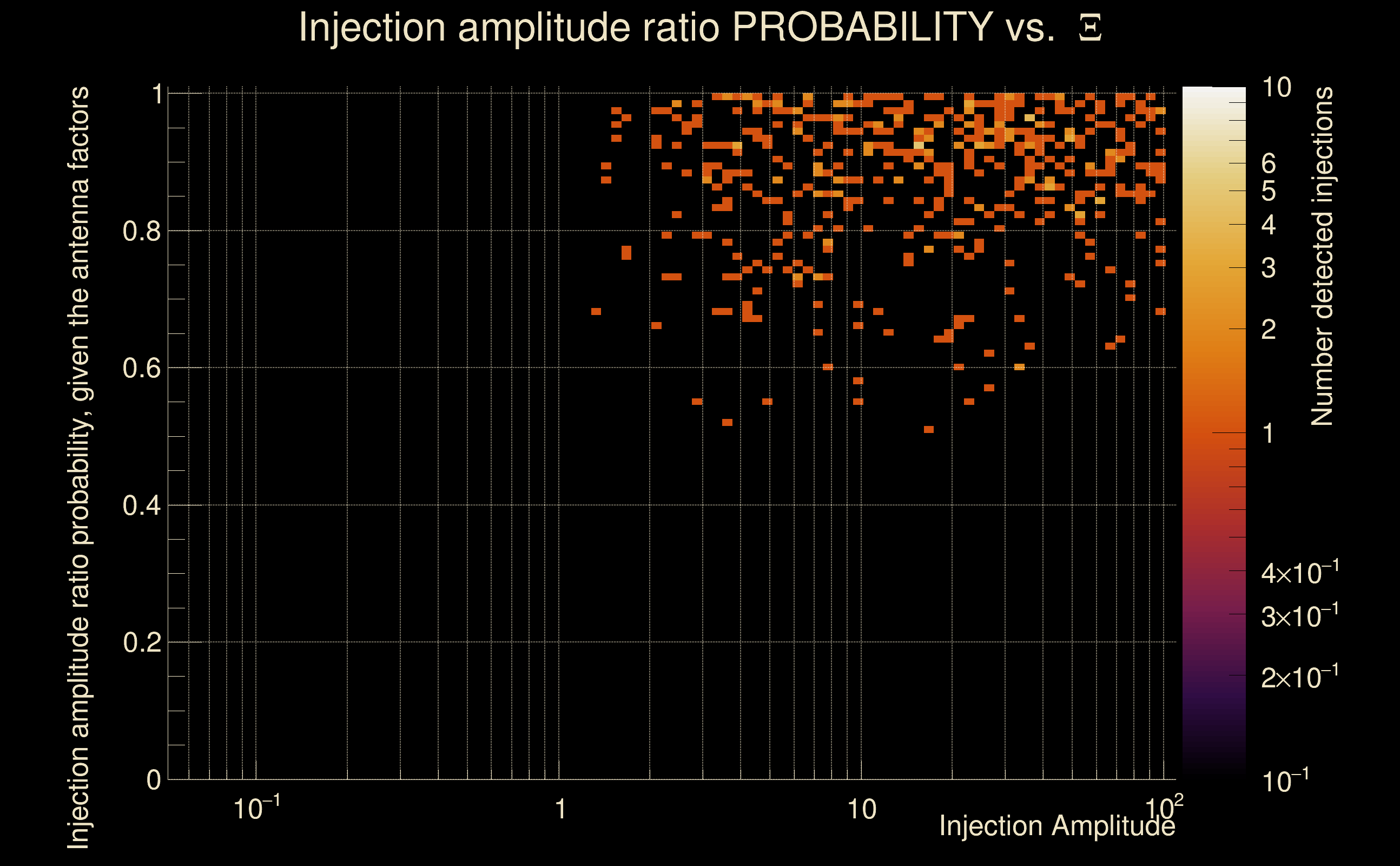

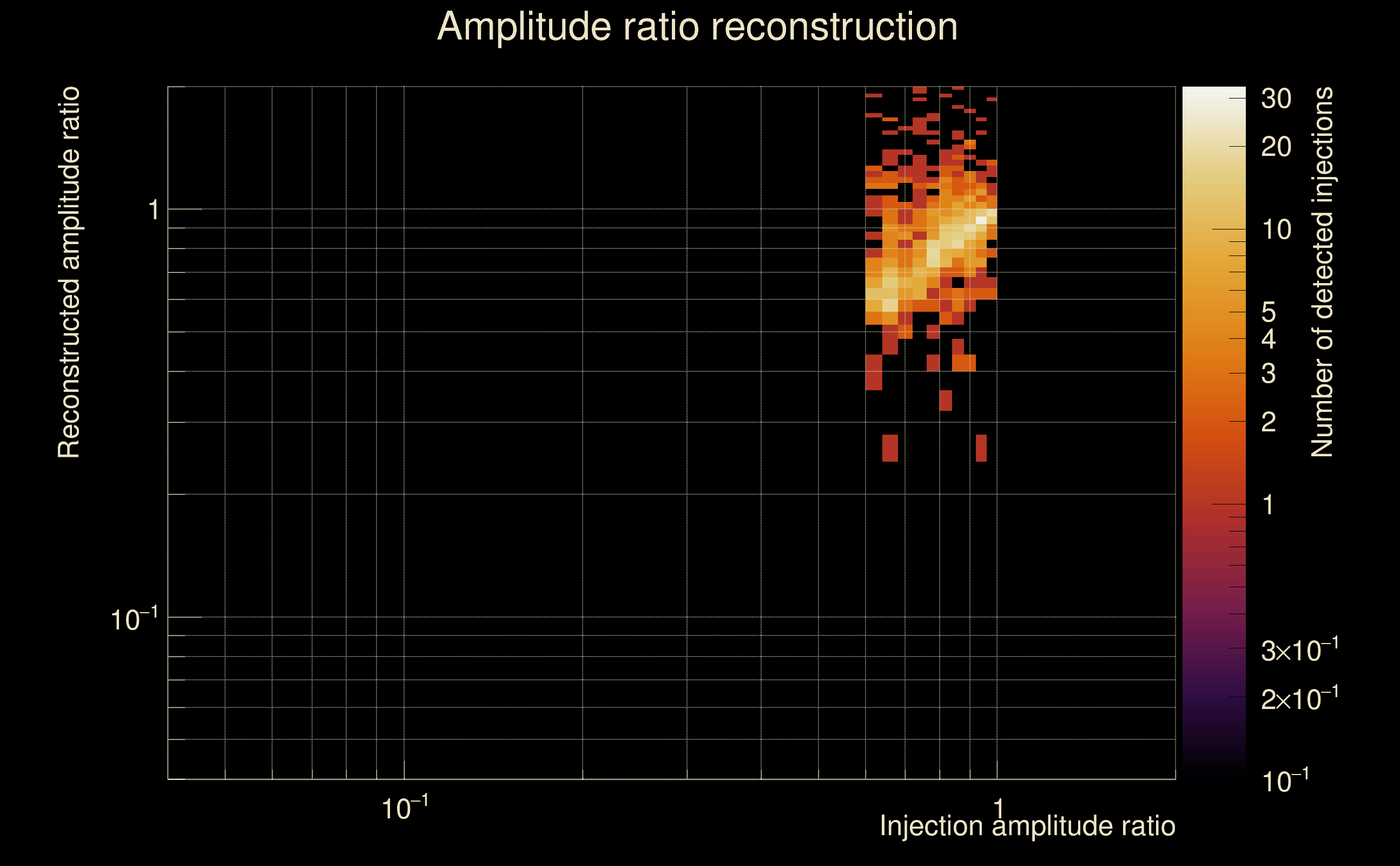

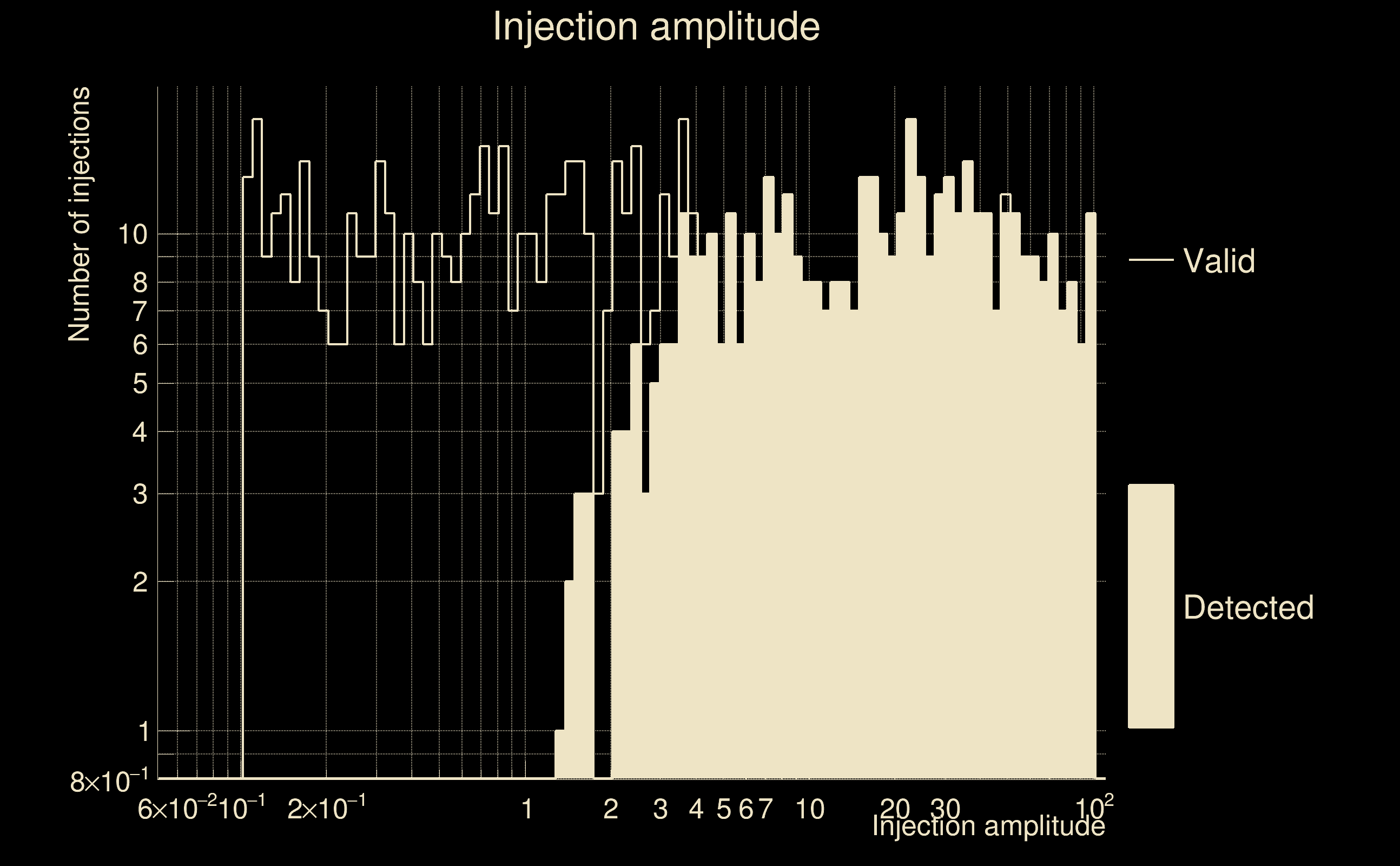

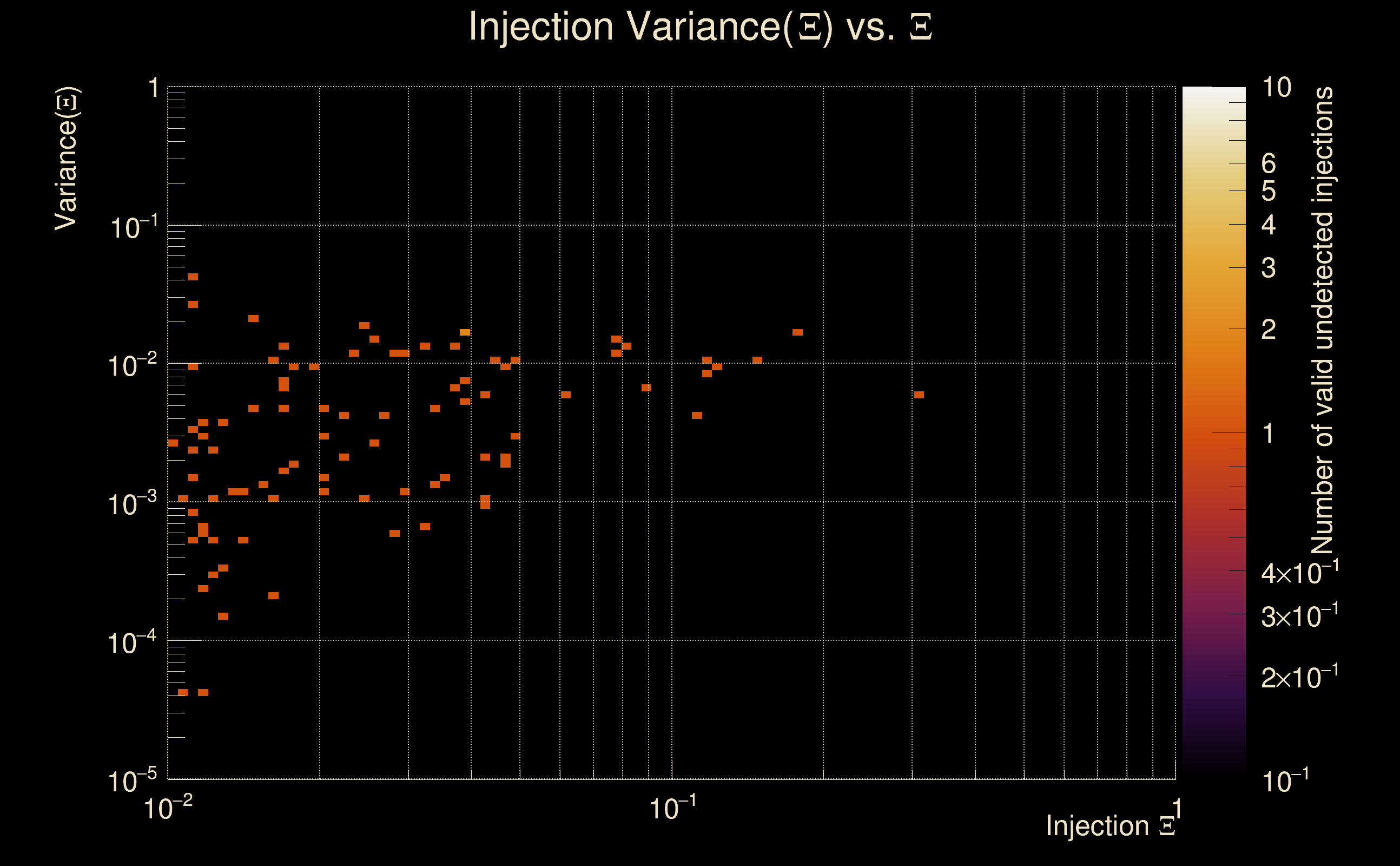

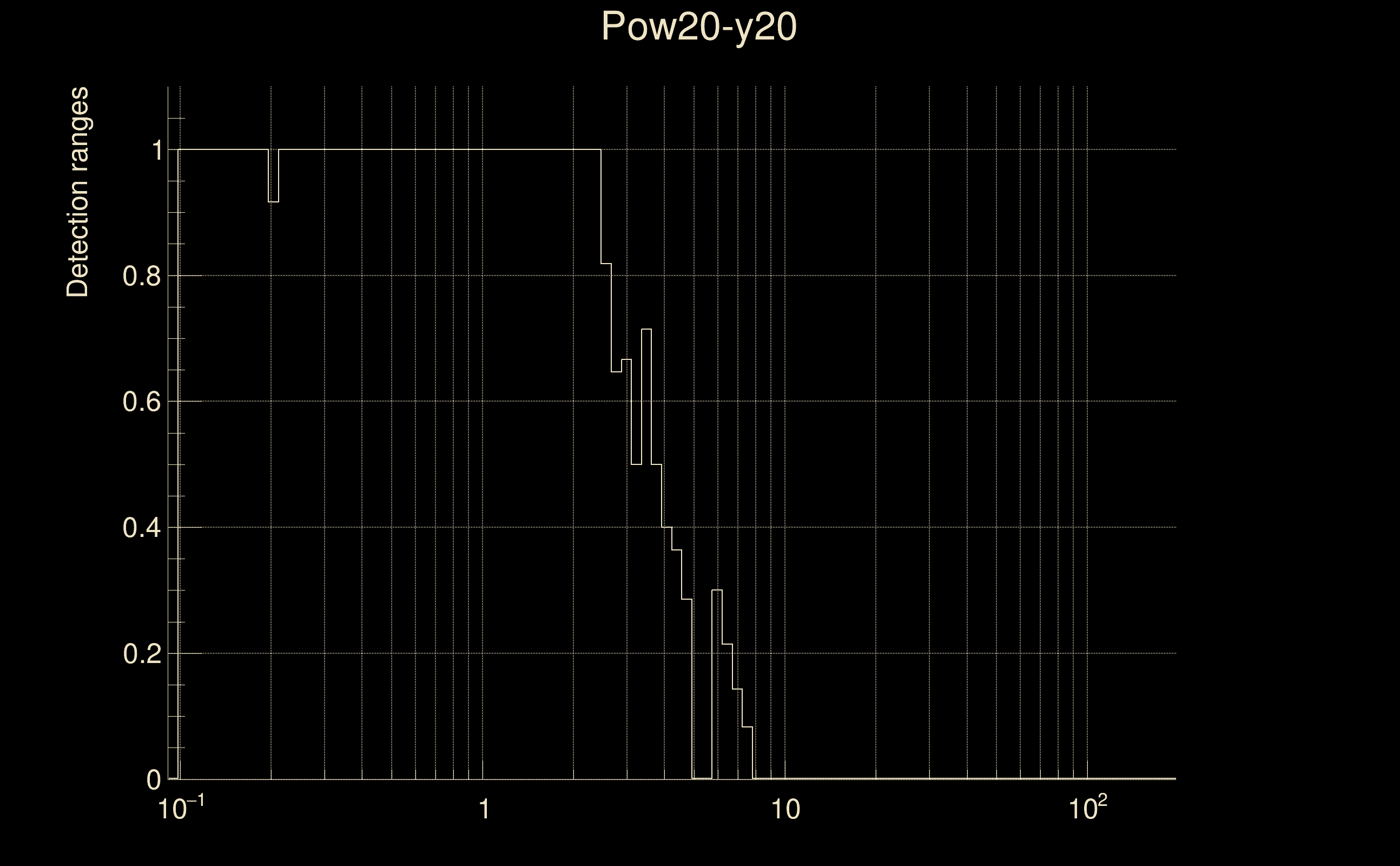

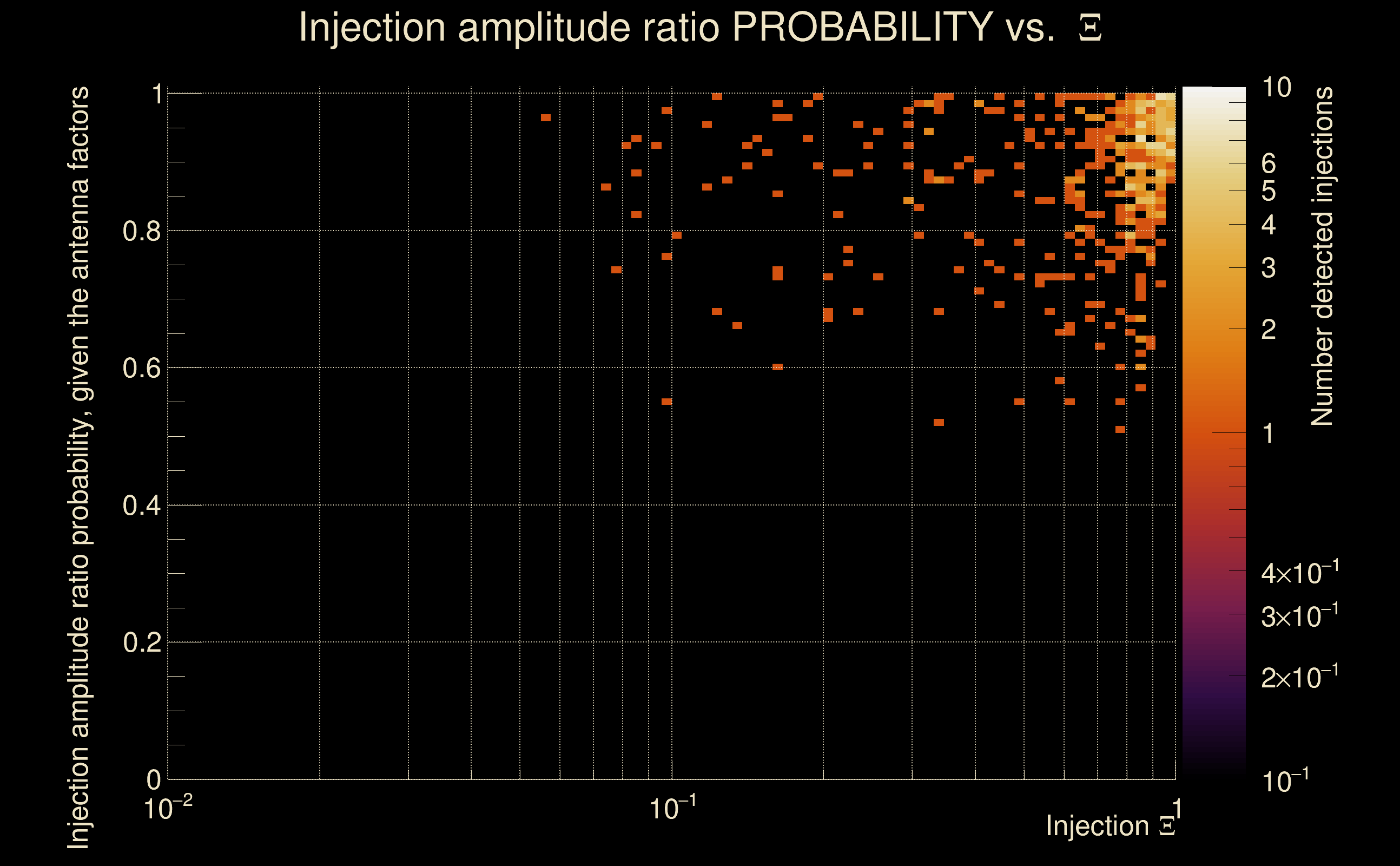

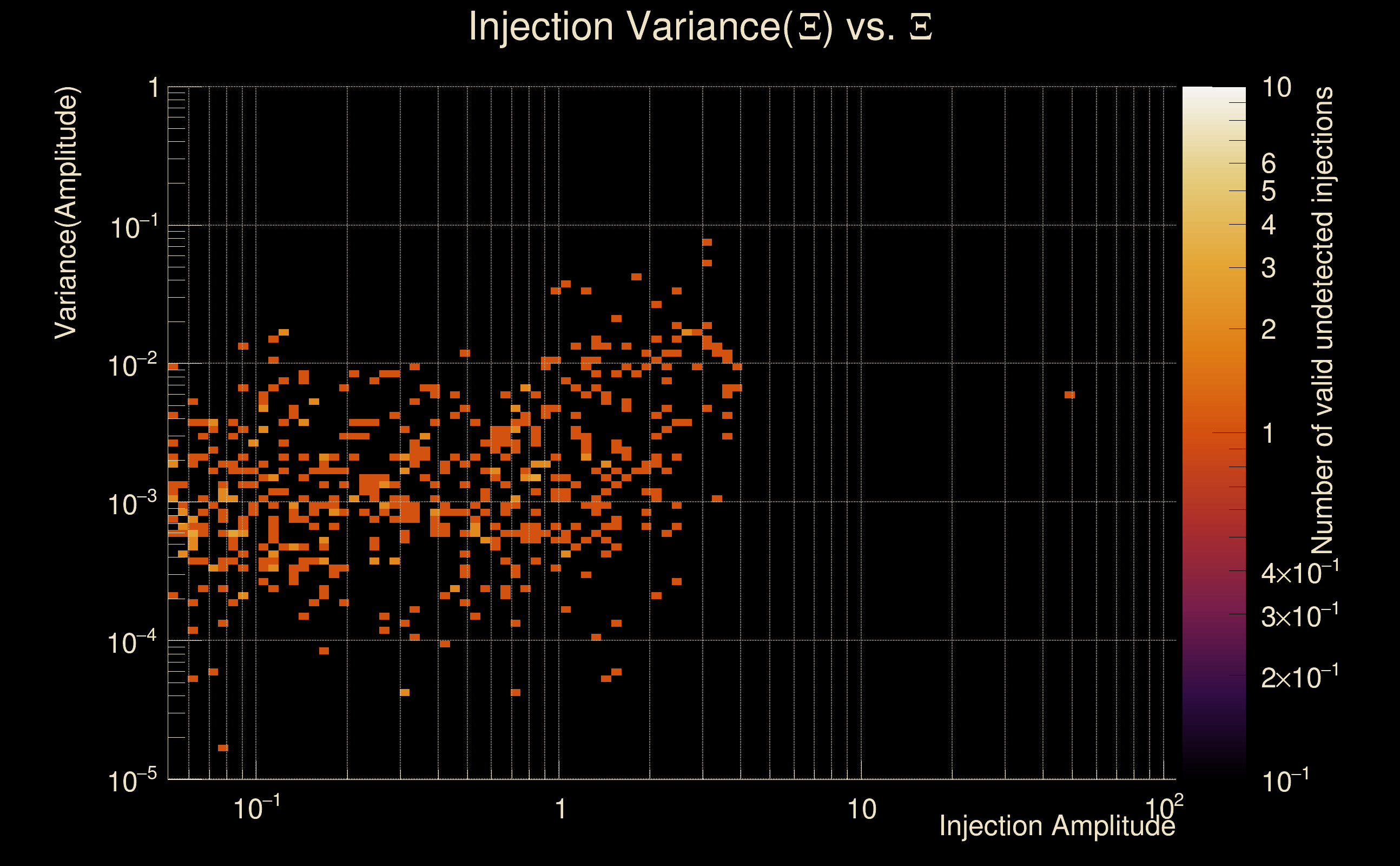

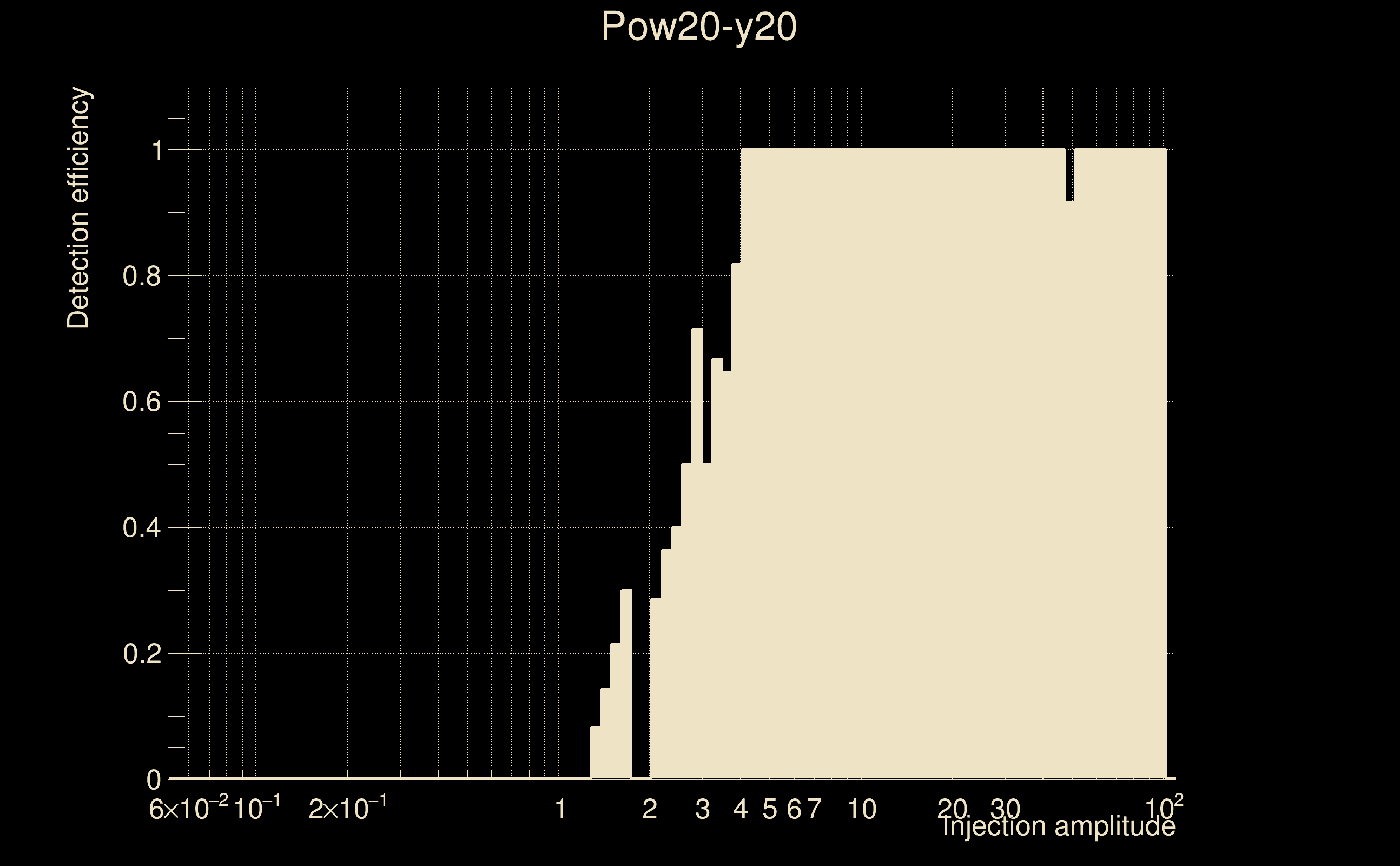

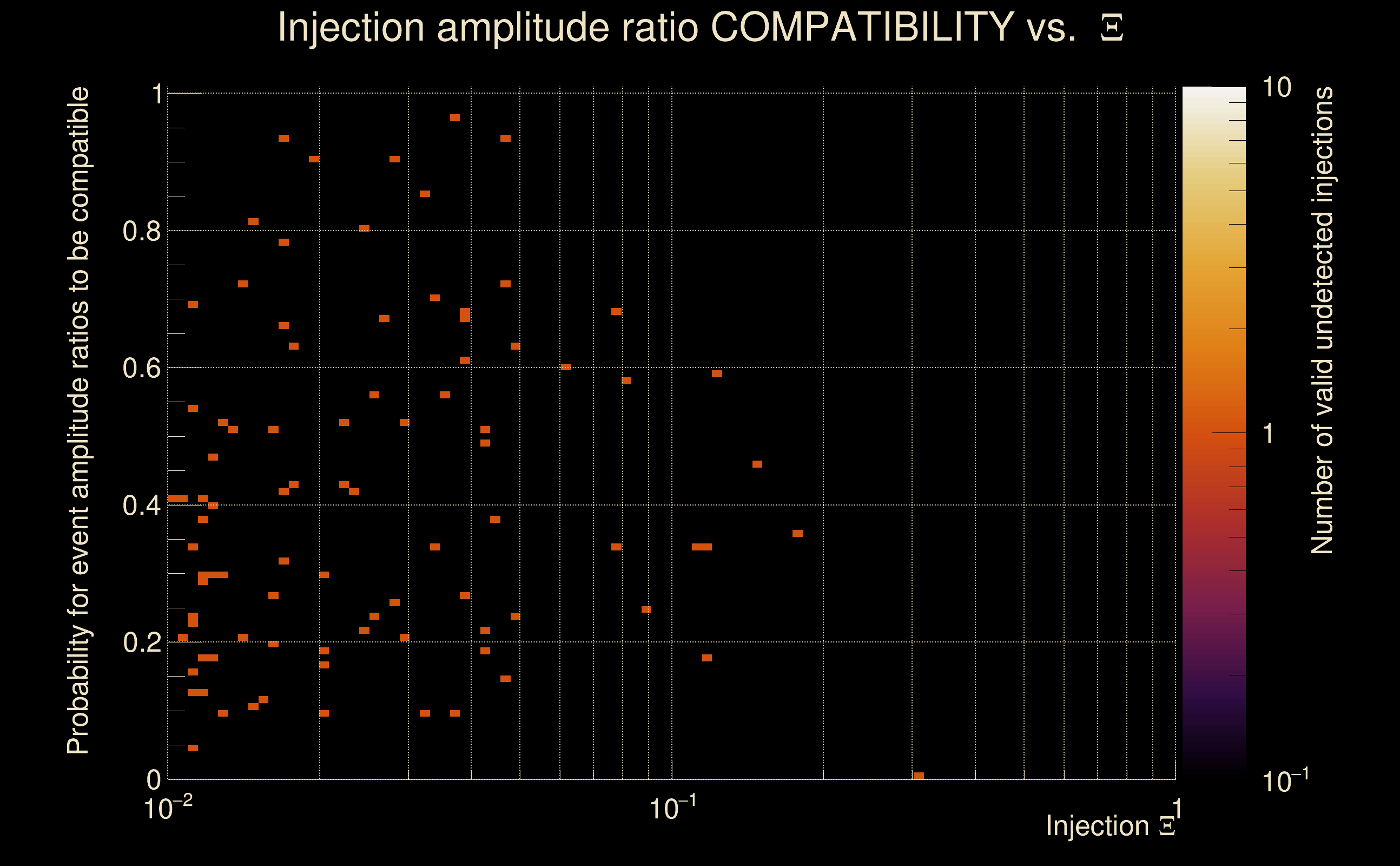

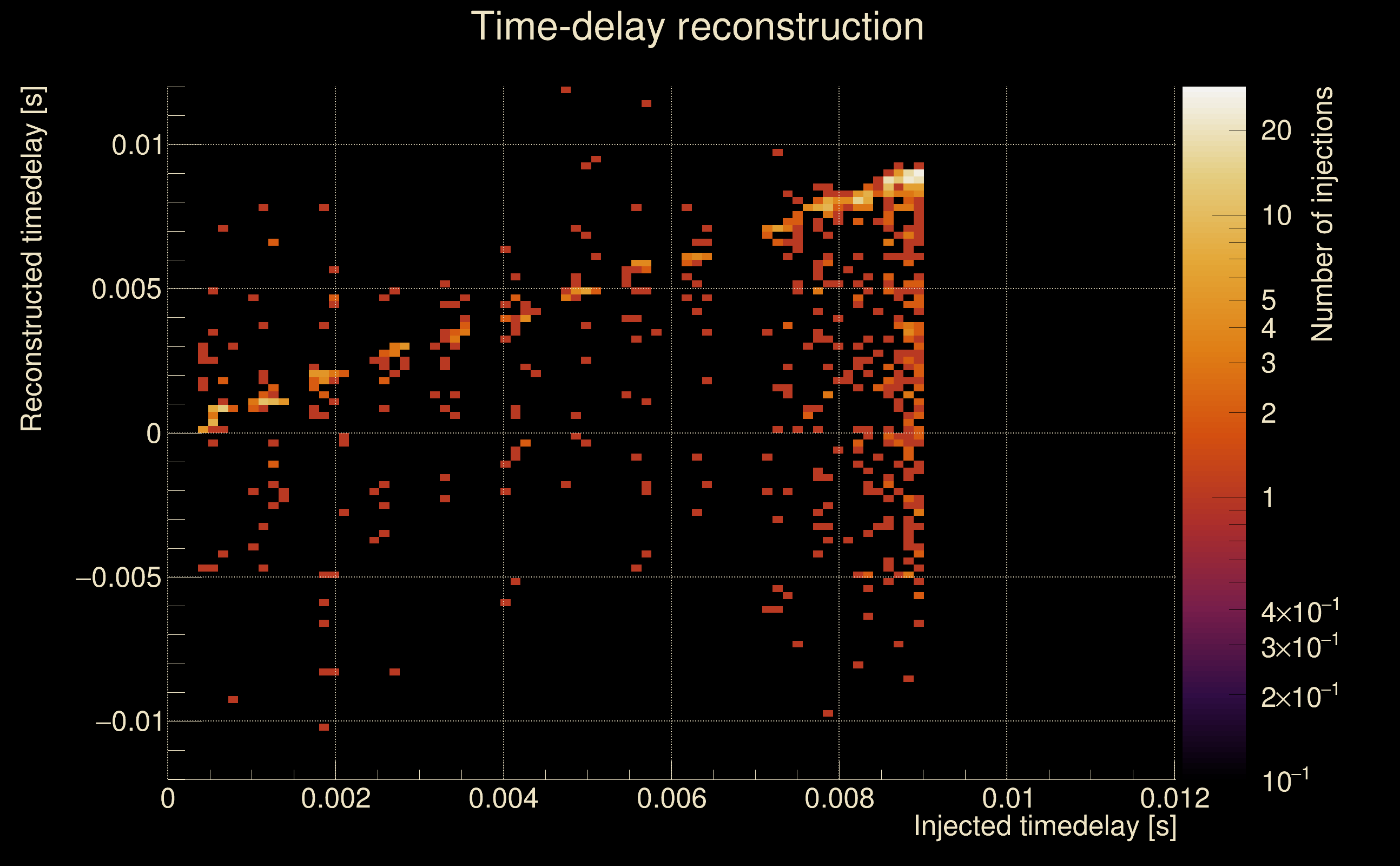

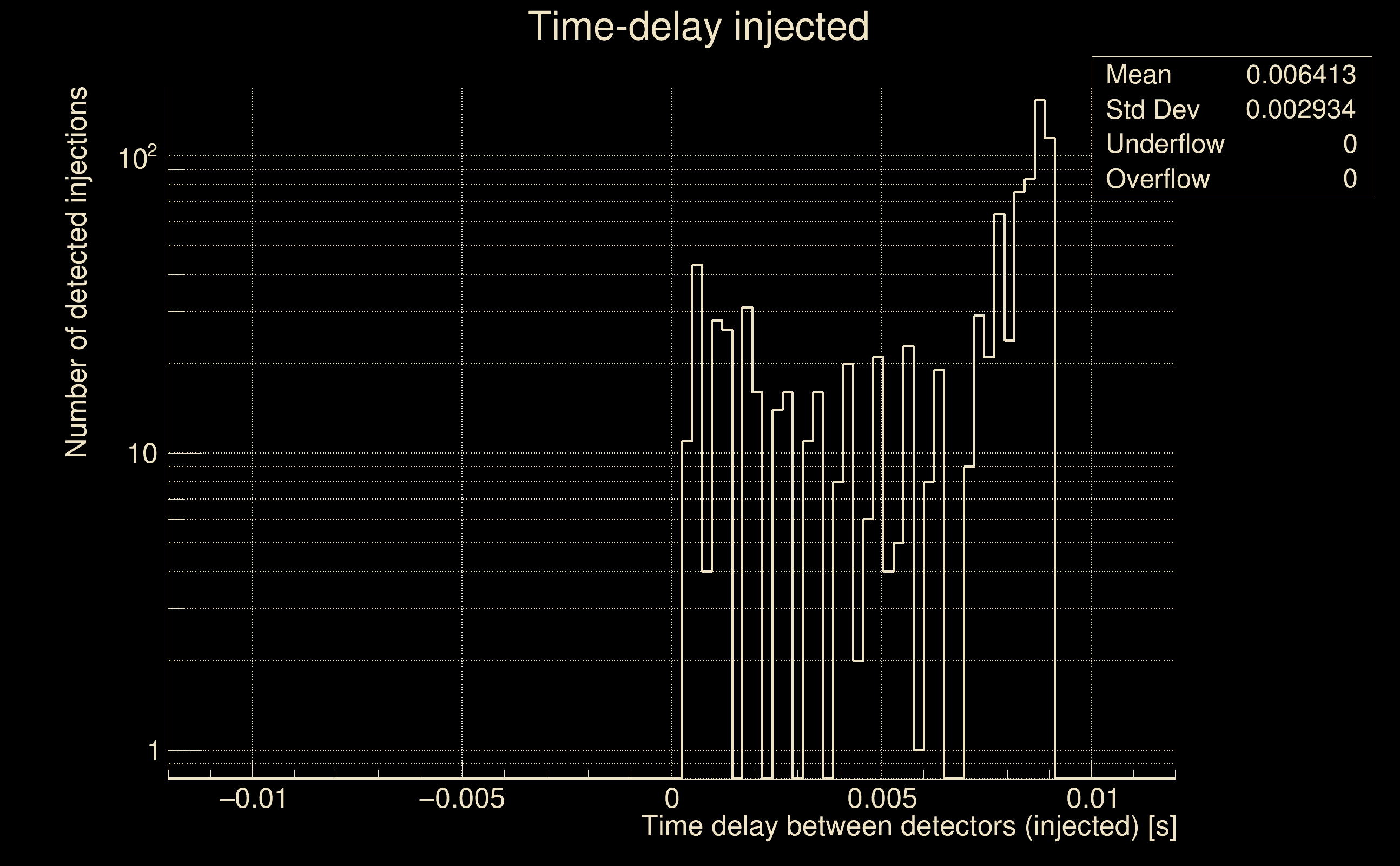

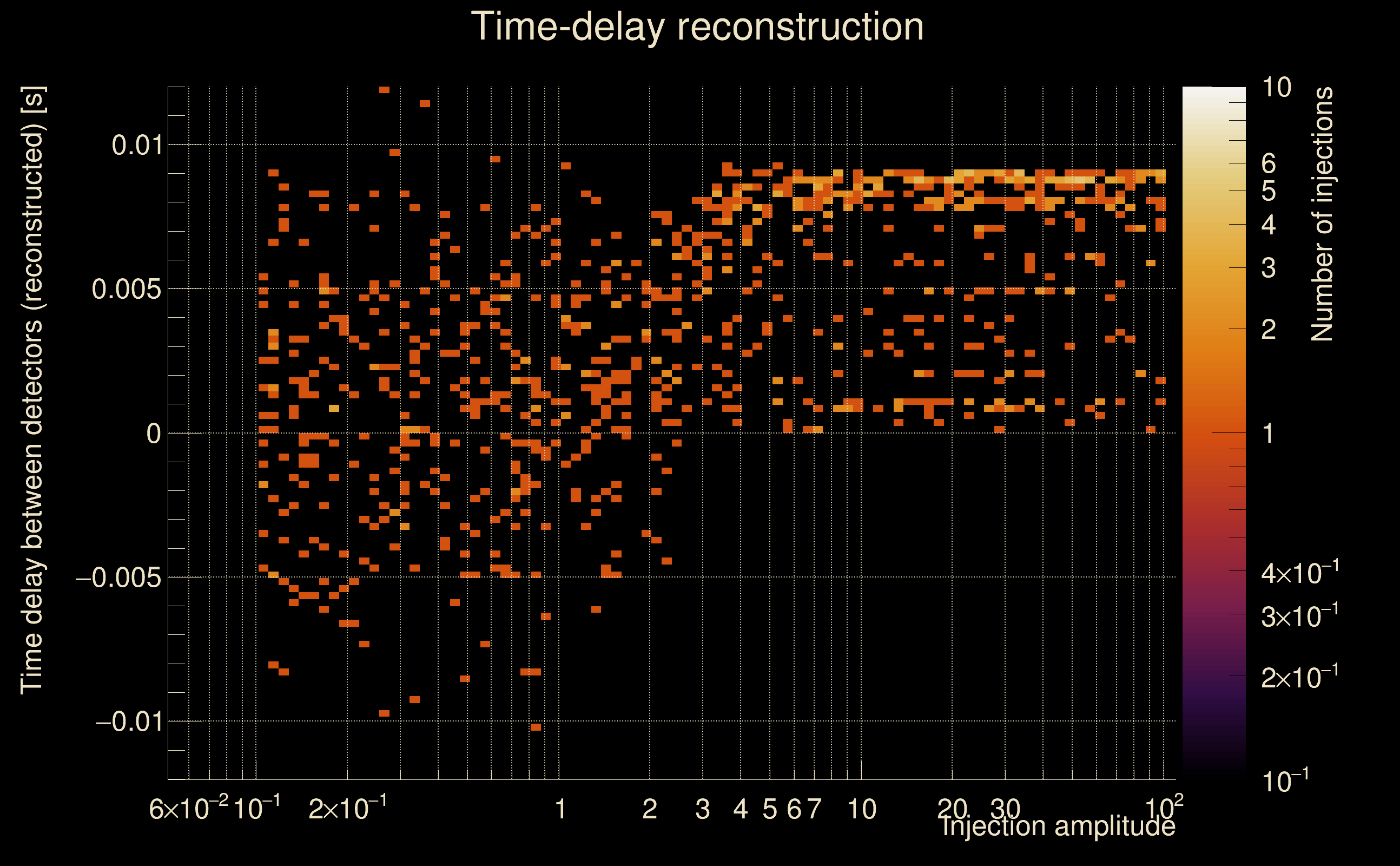

| Number of injections (total/valid/detected): | 1042 / 910 / 477 |
| List of missed injections: | ./Pow20-y20_missed.txt |
| Injection amplitude at 90% detection efficiency: | 4.03836 |
| Injection amplitude at 50% detection efficiency: | 2.65606 |
| Injection amplitude at 10% detection efficiency: | 2.00851 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

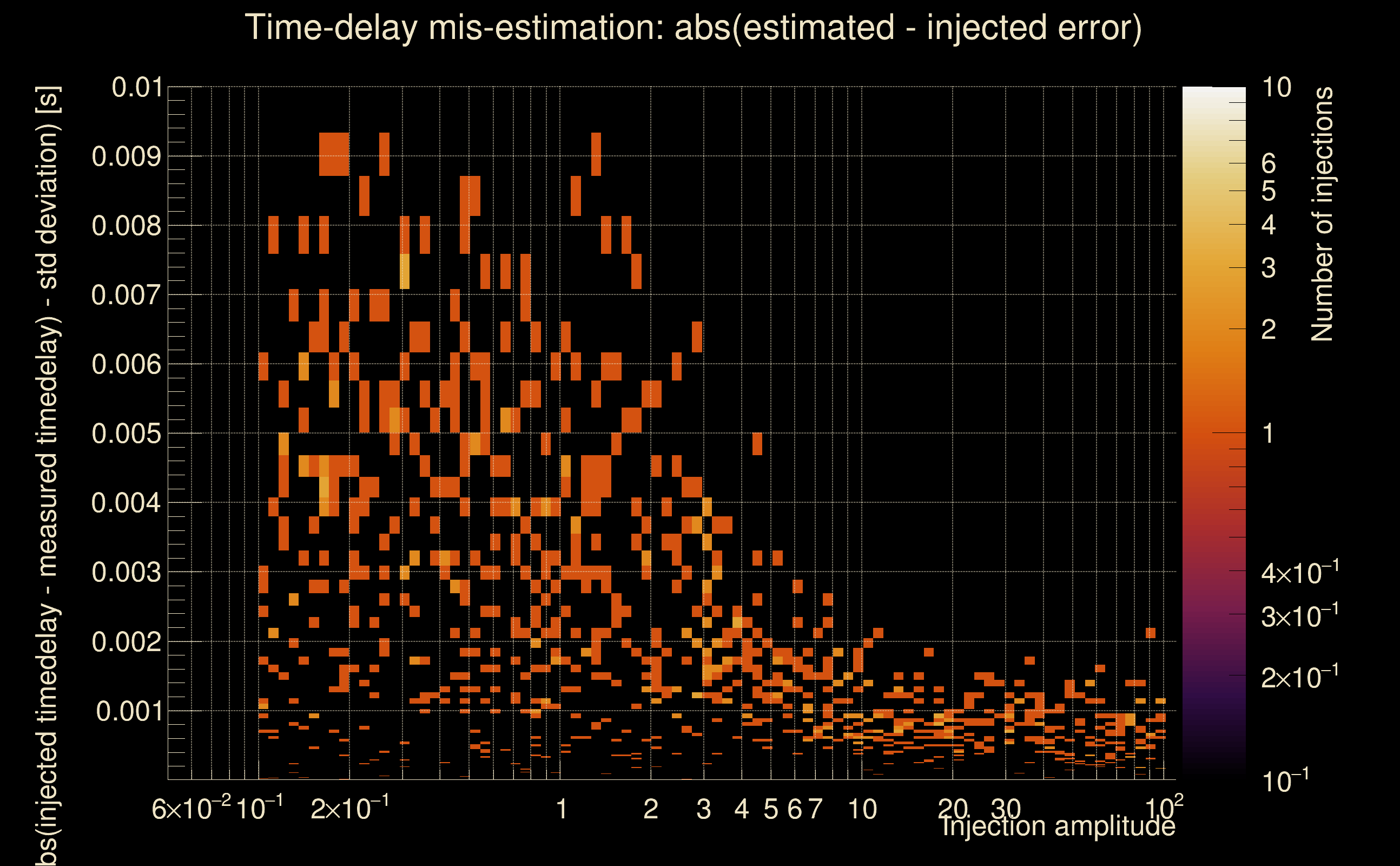

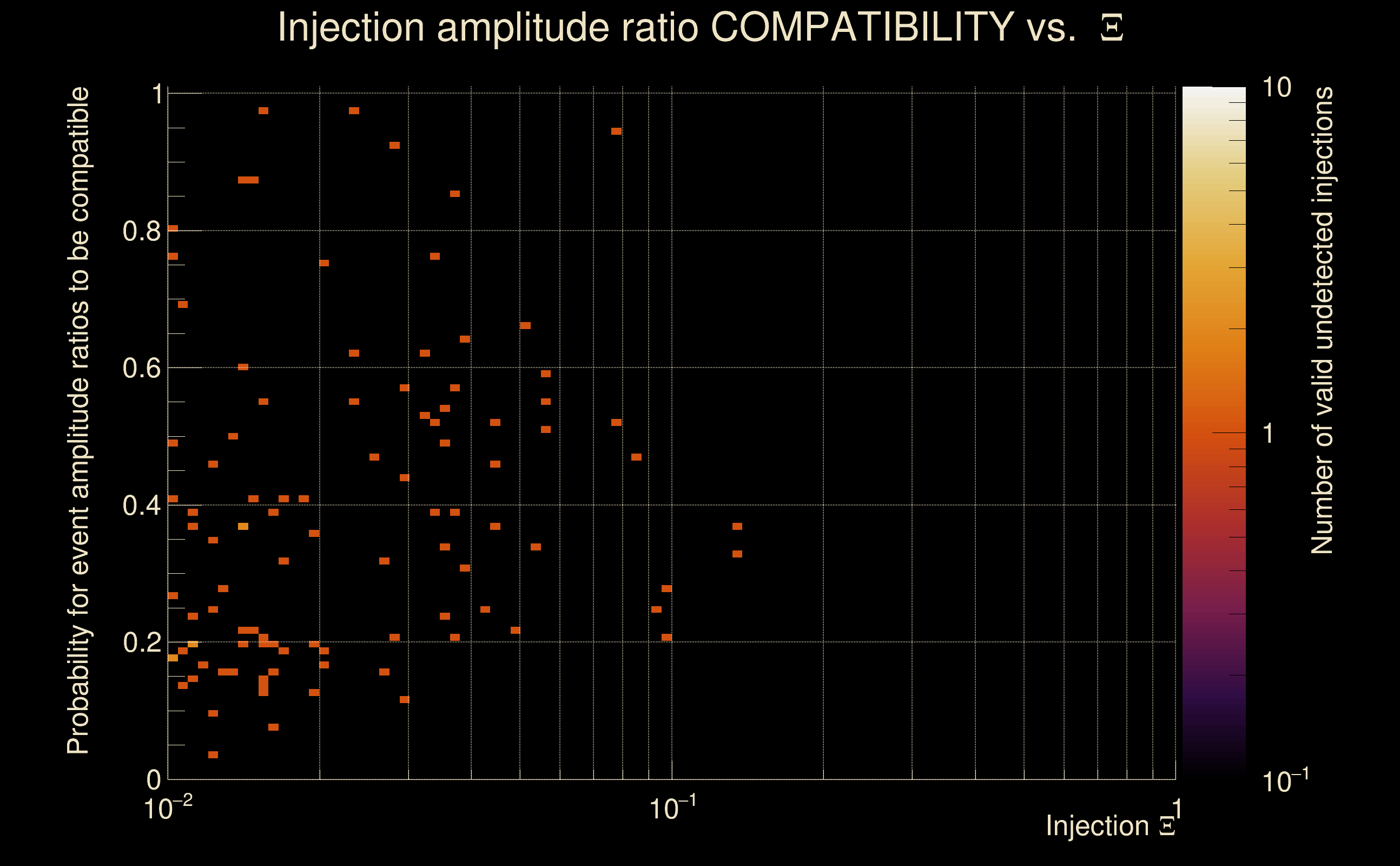

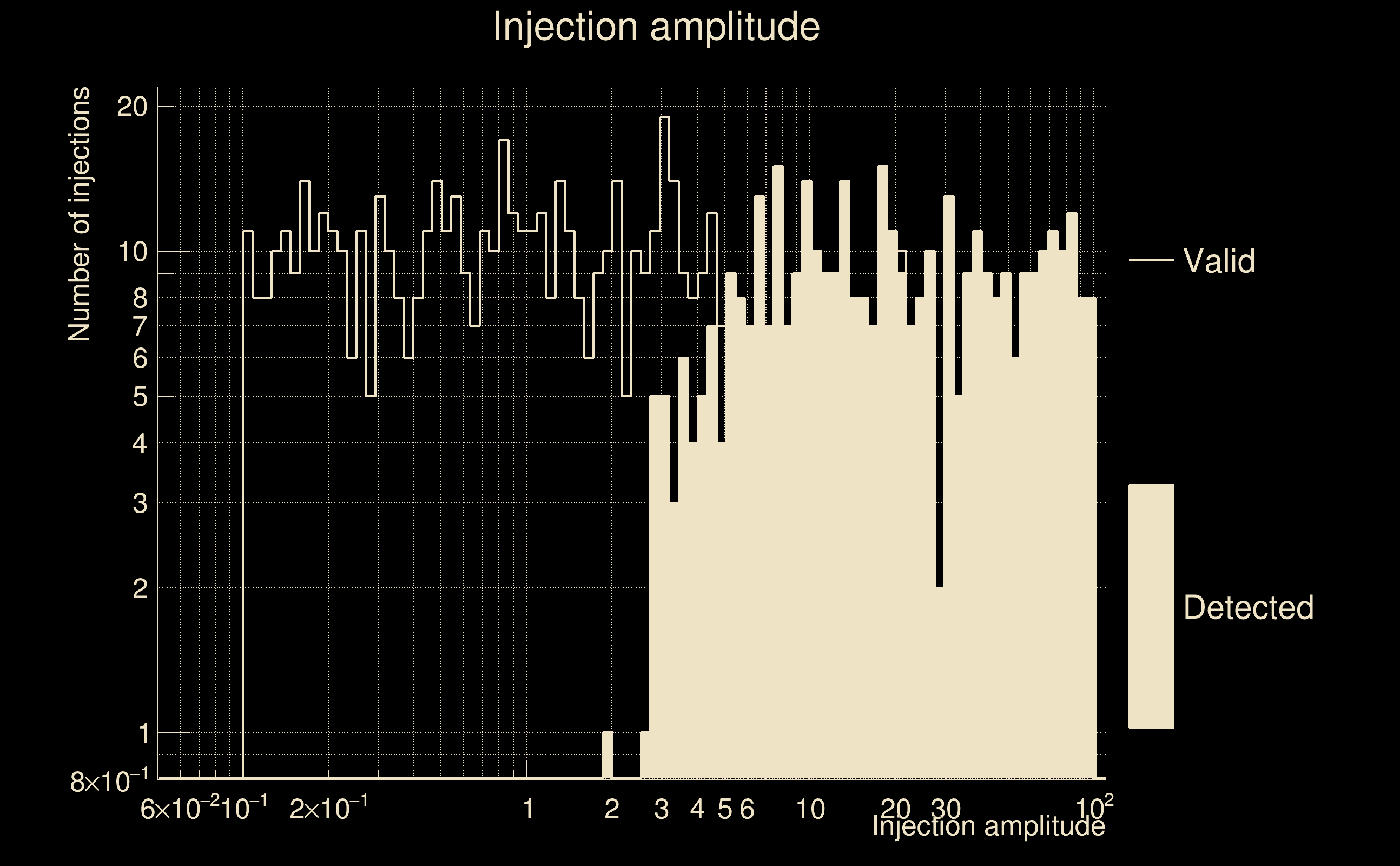

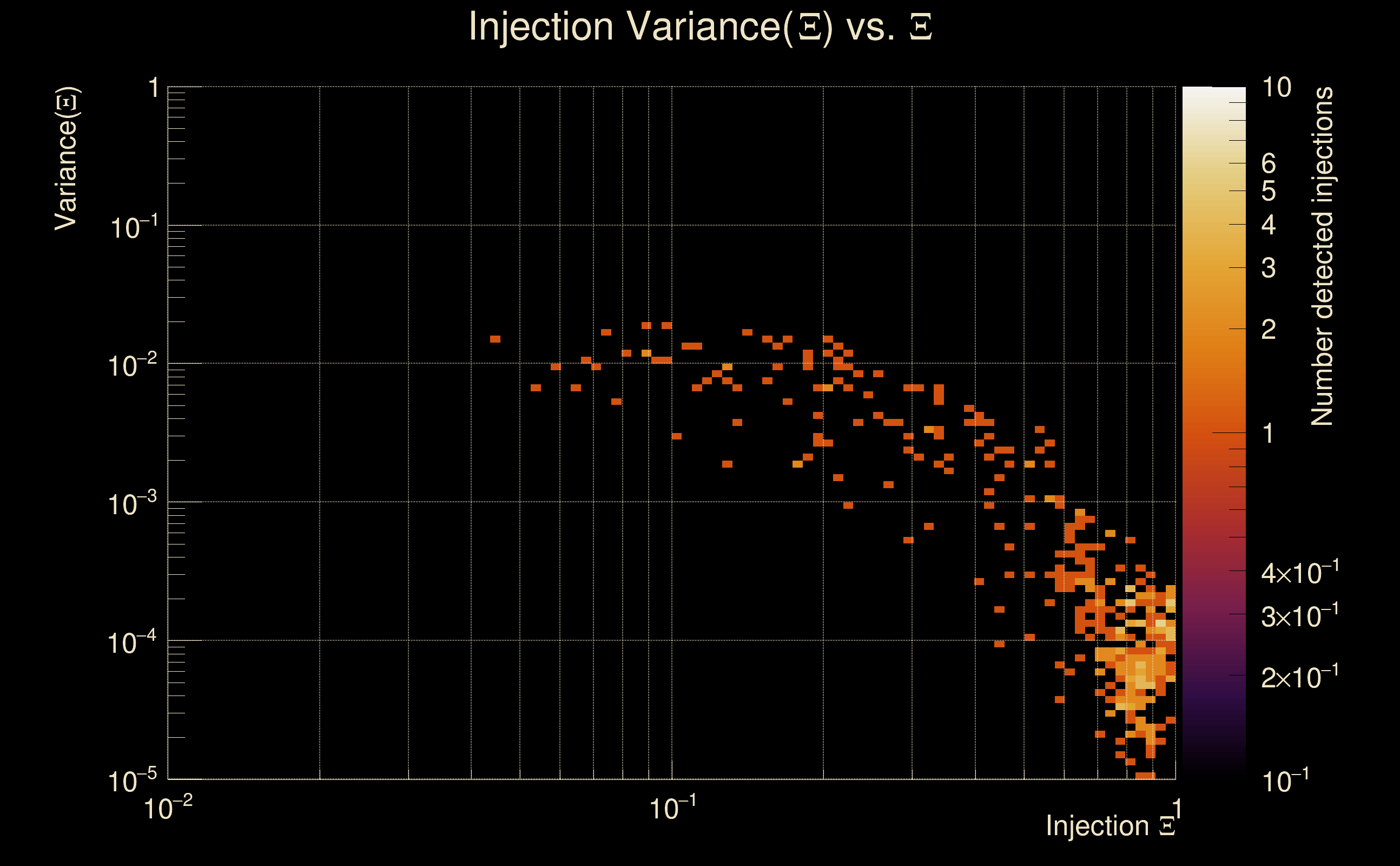

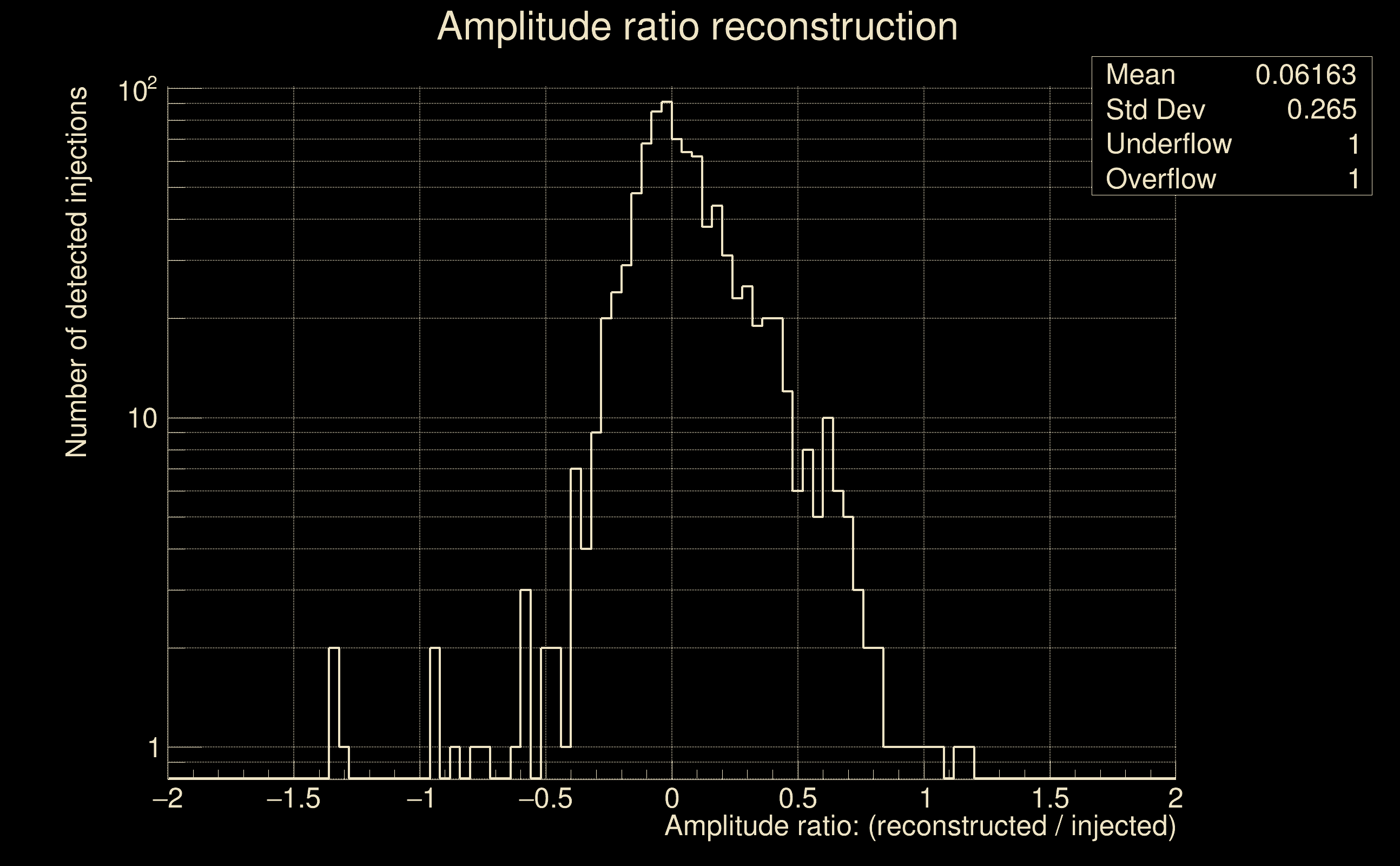

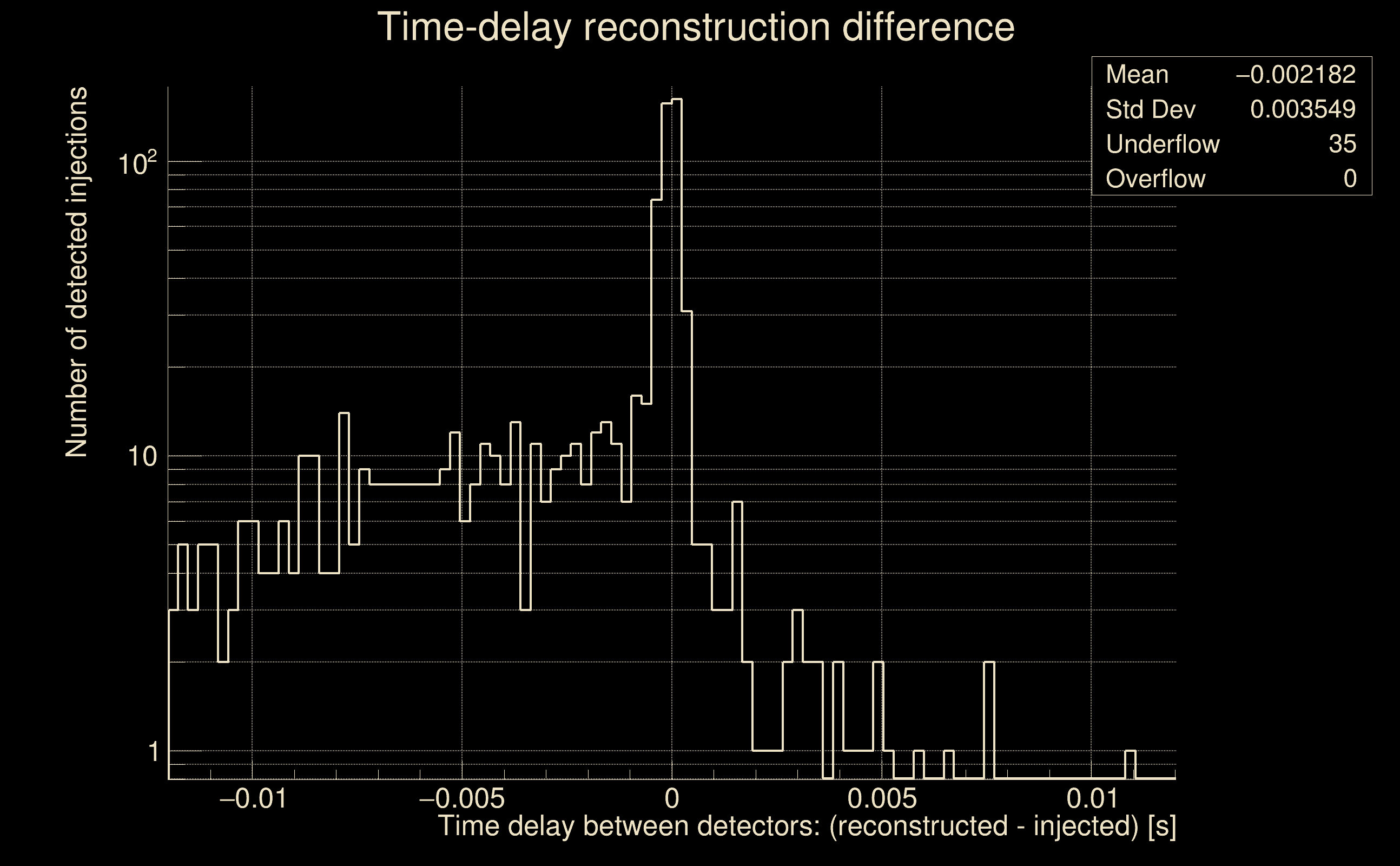

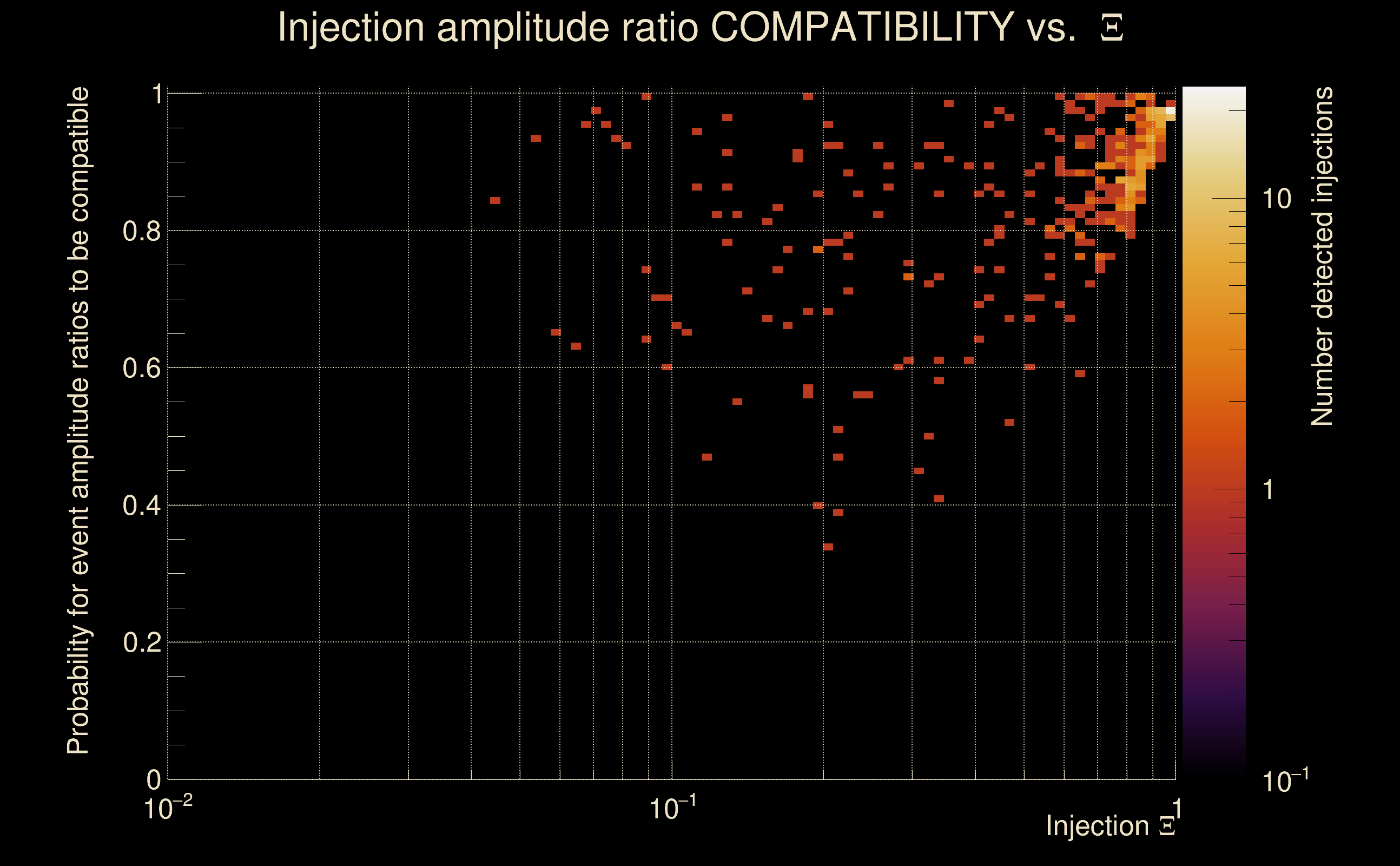

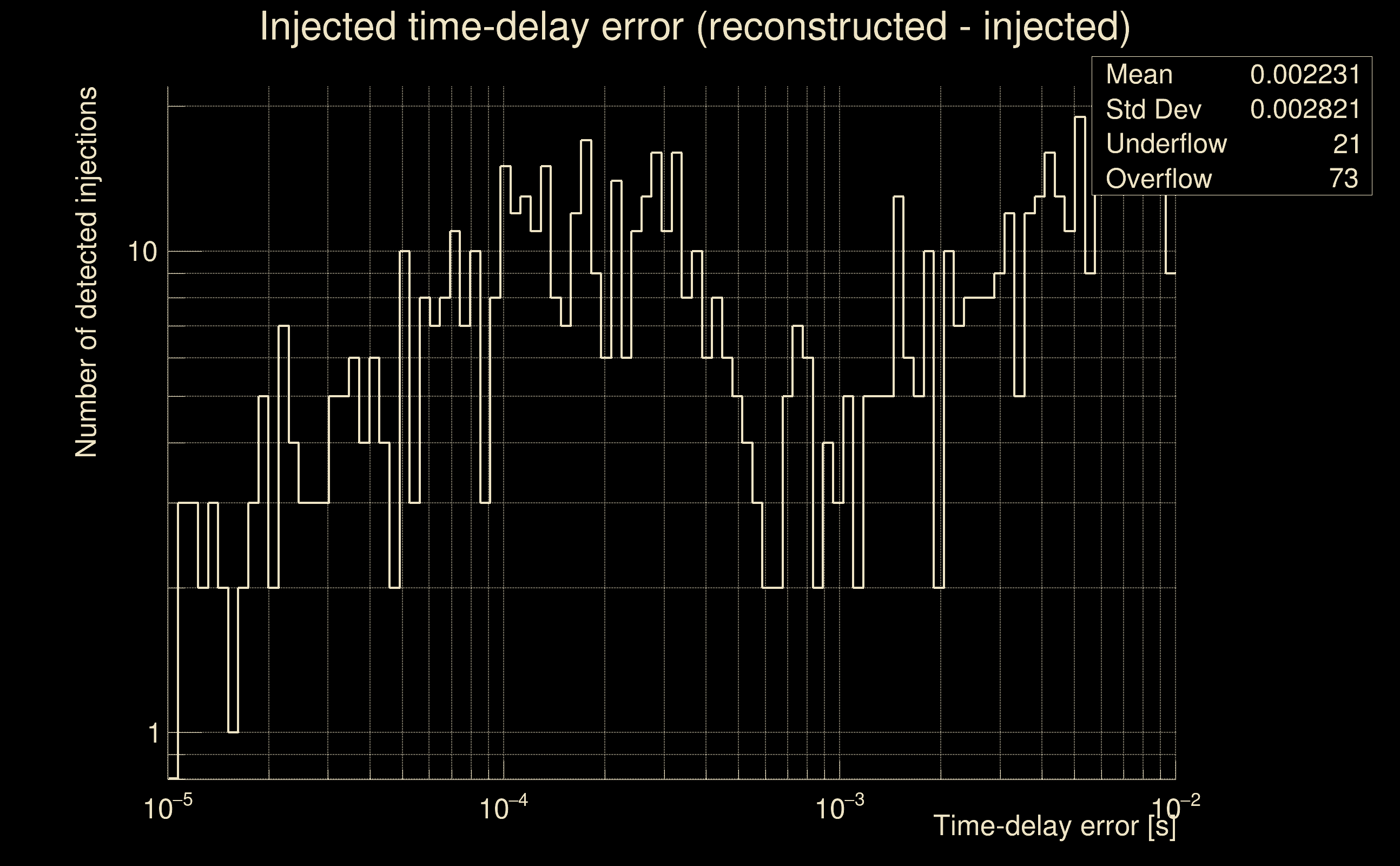

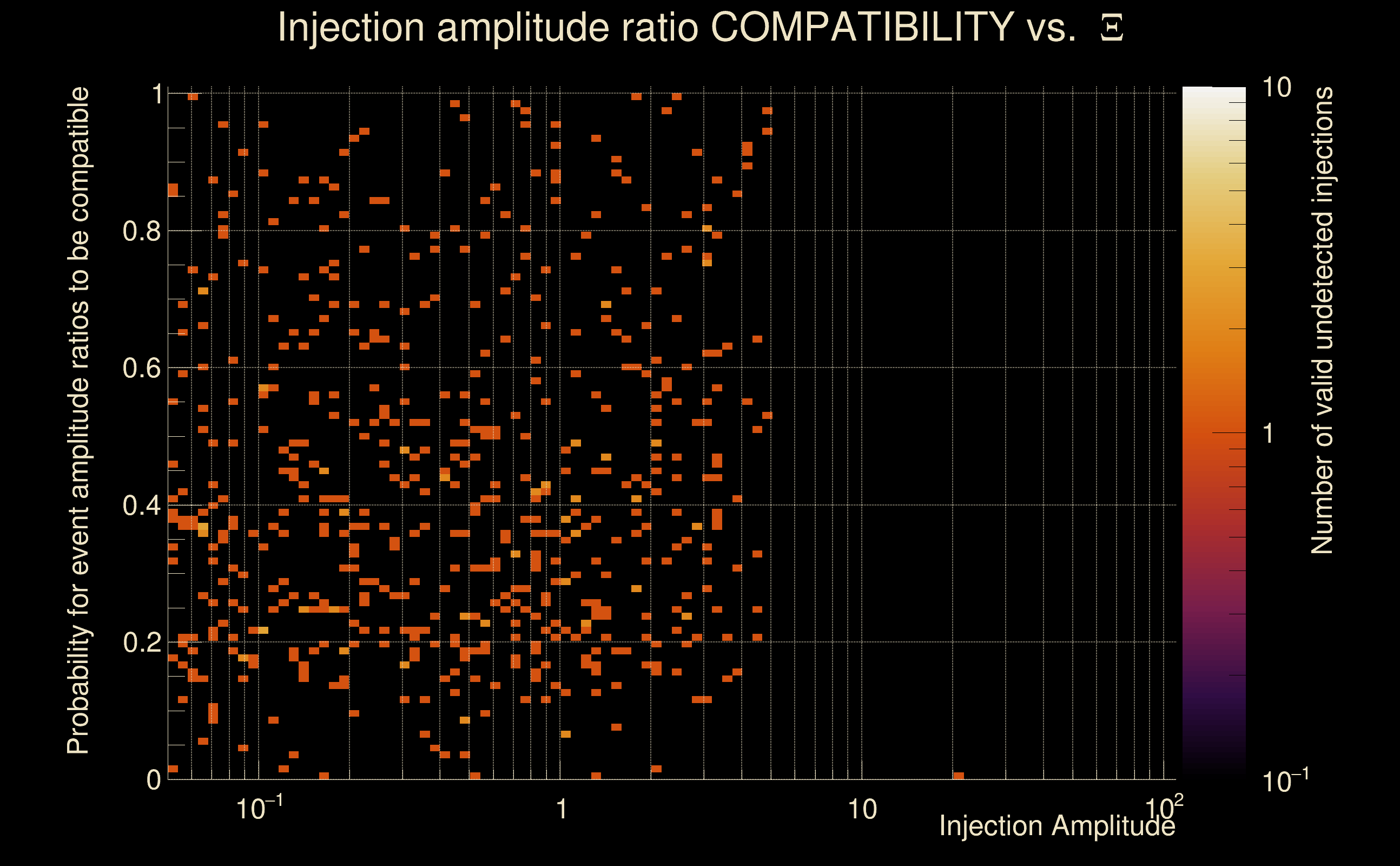

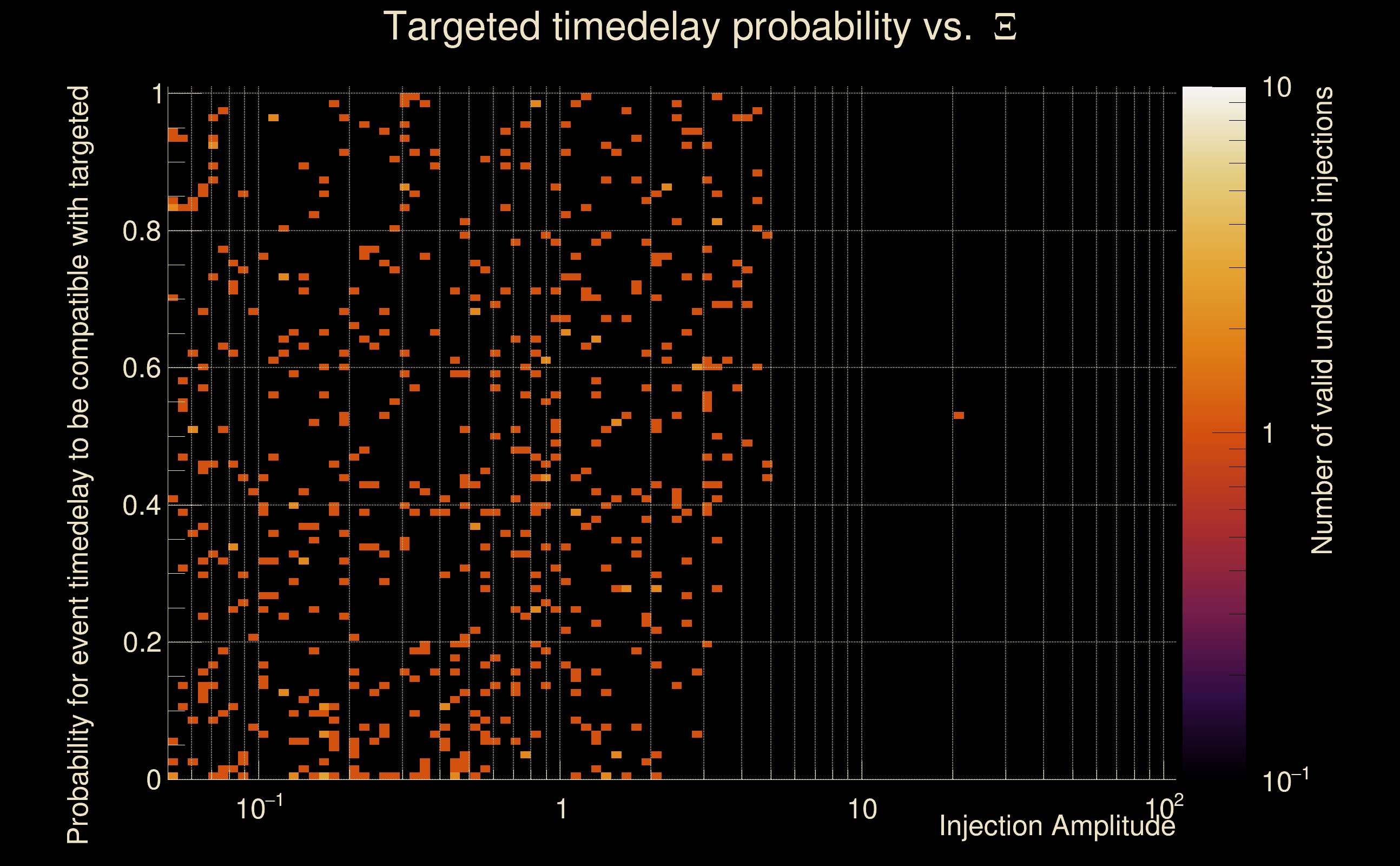

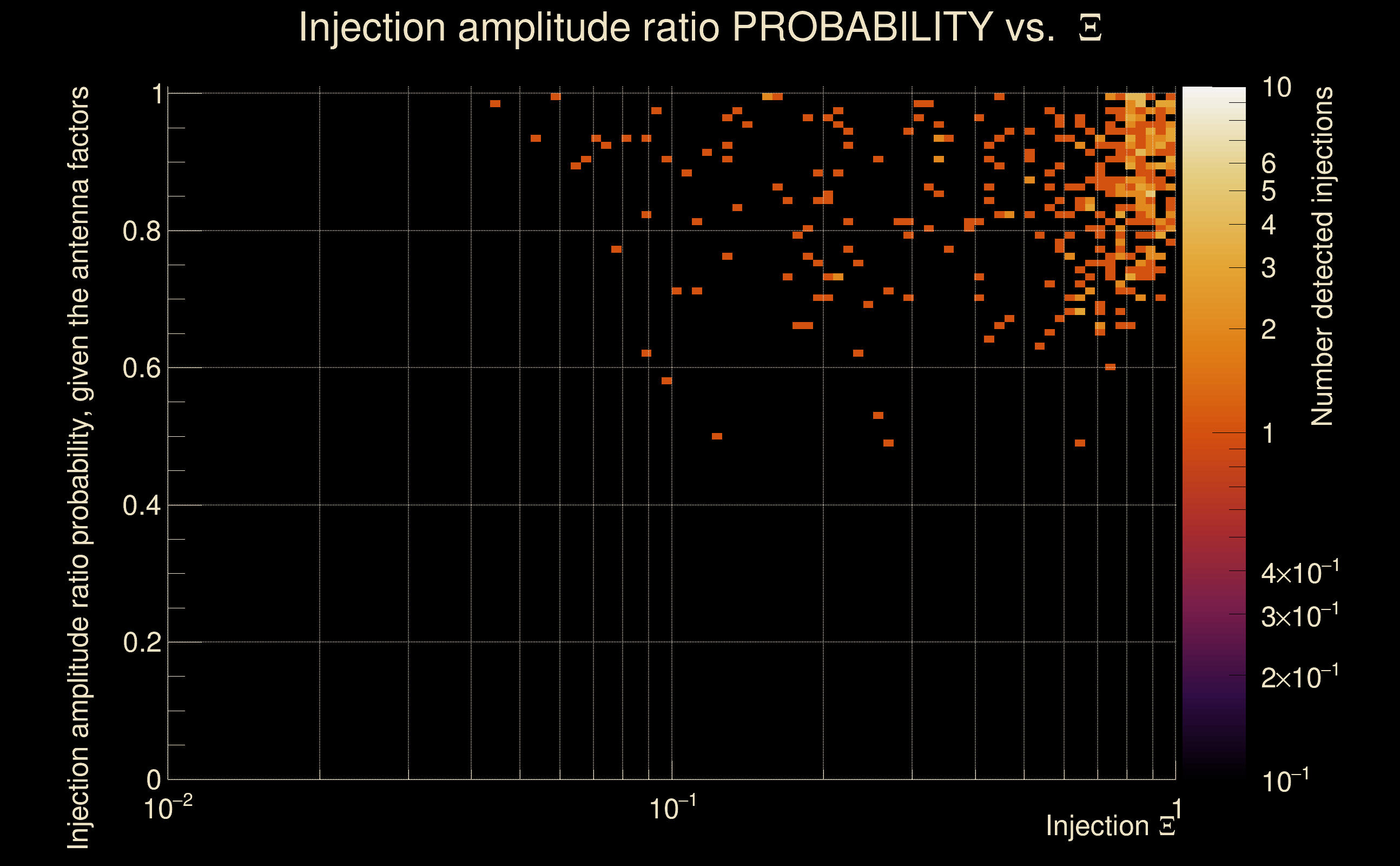

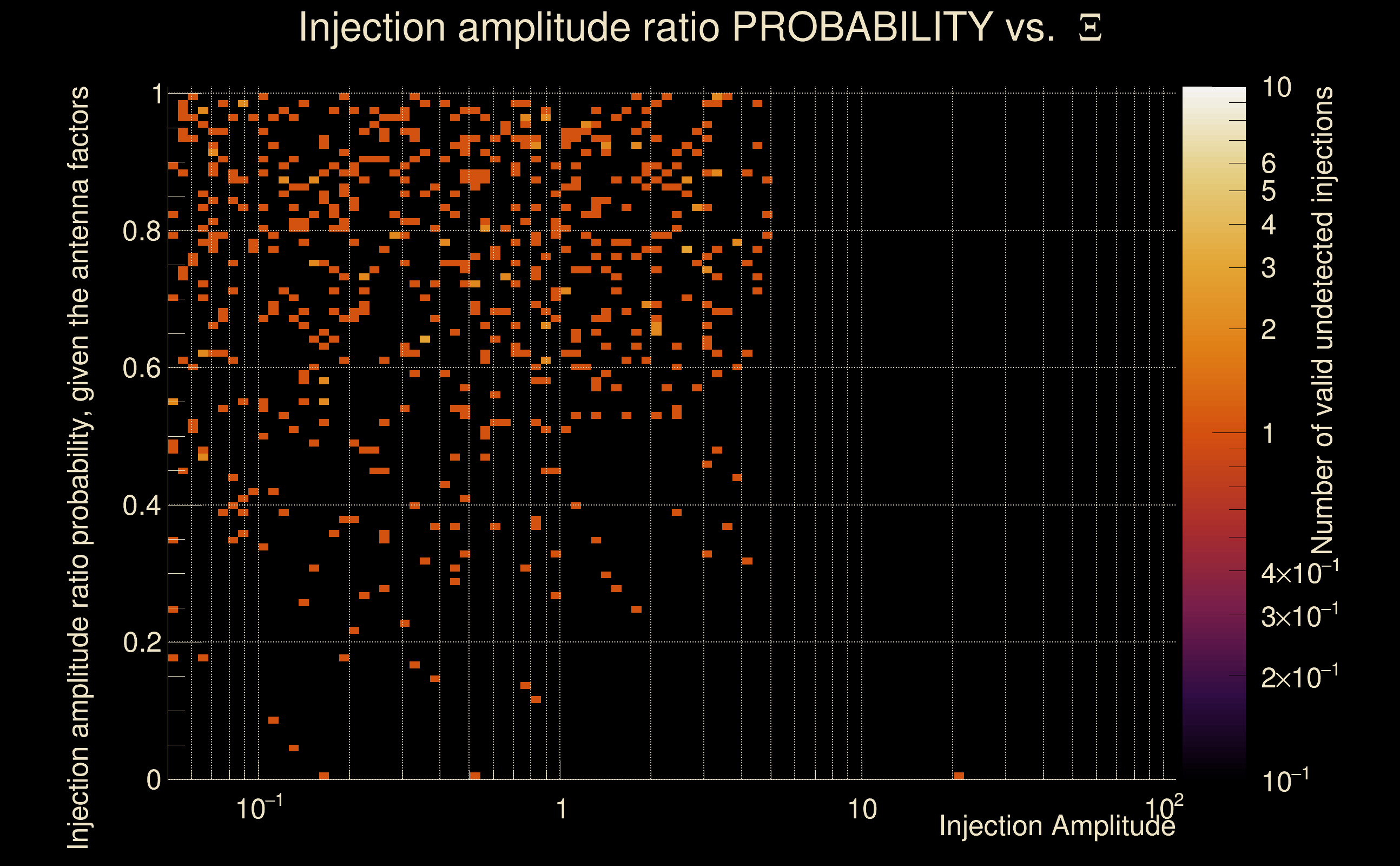

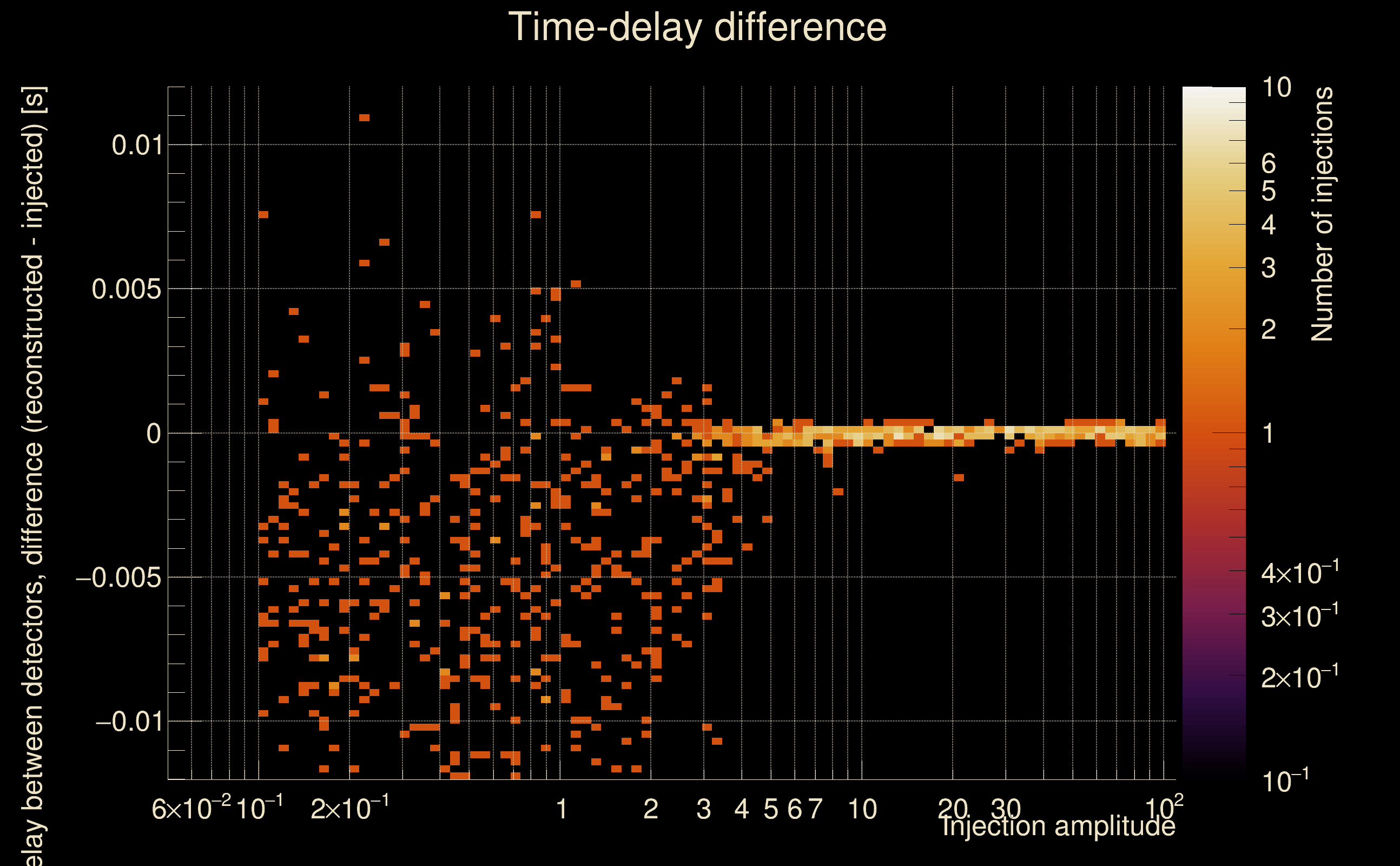

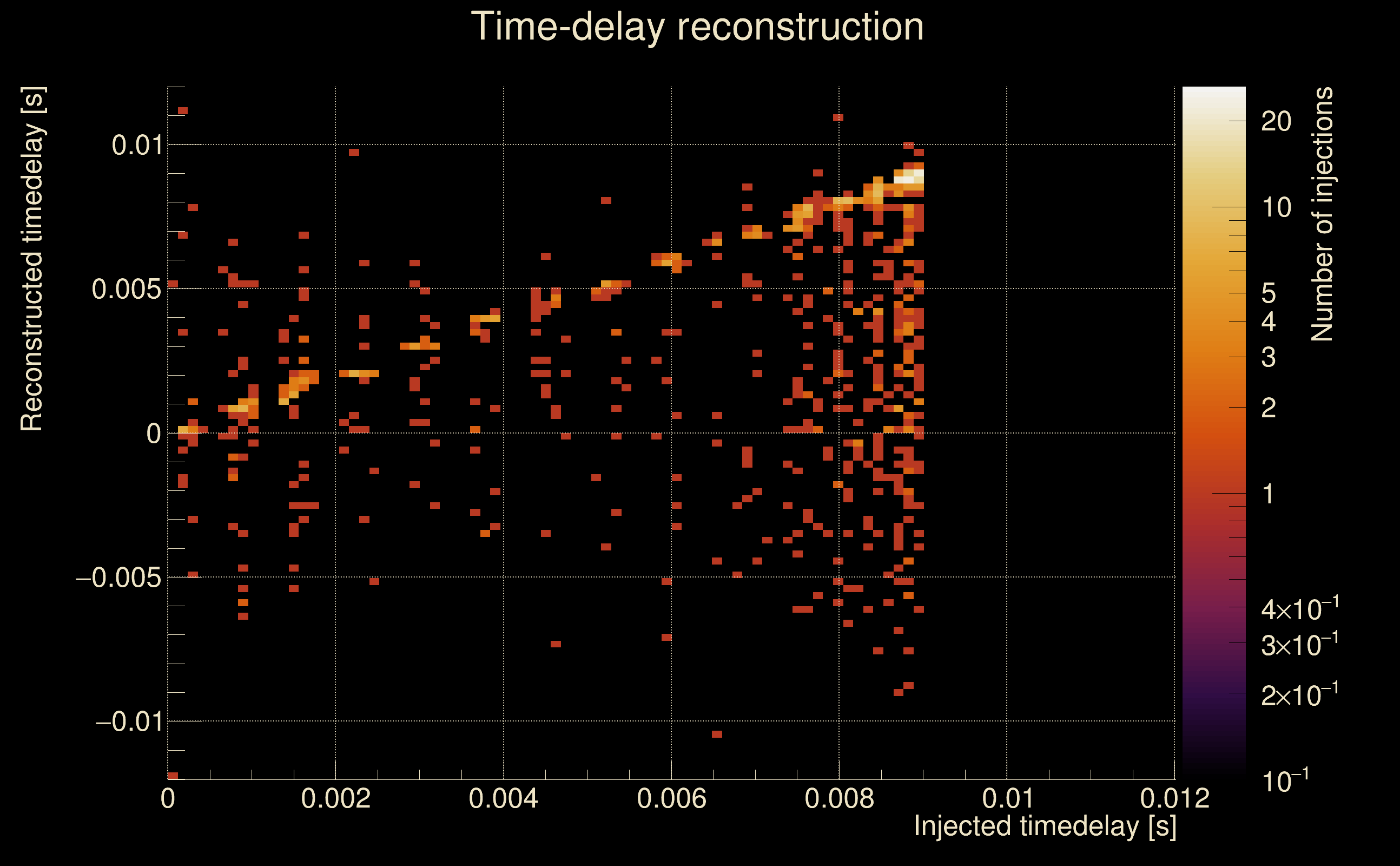

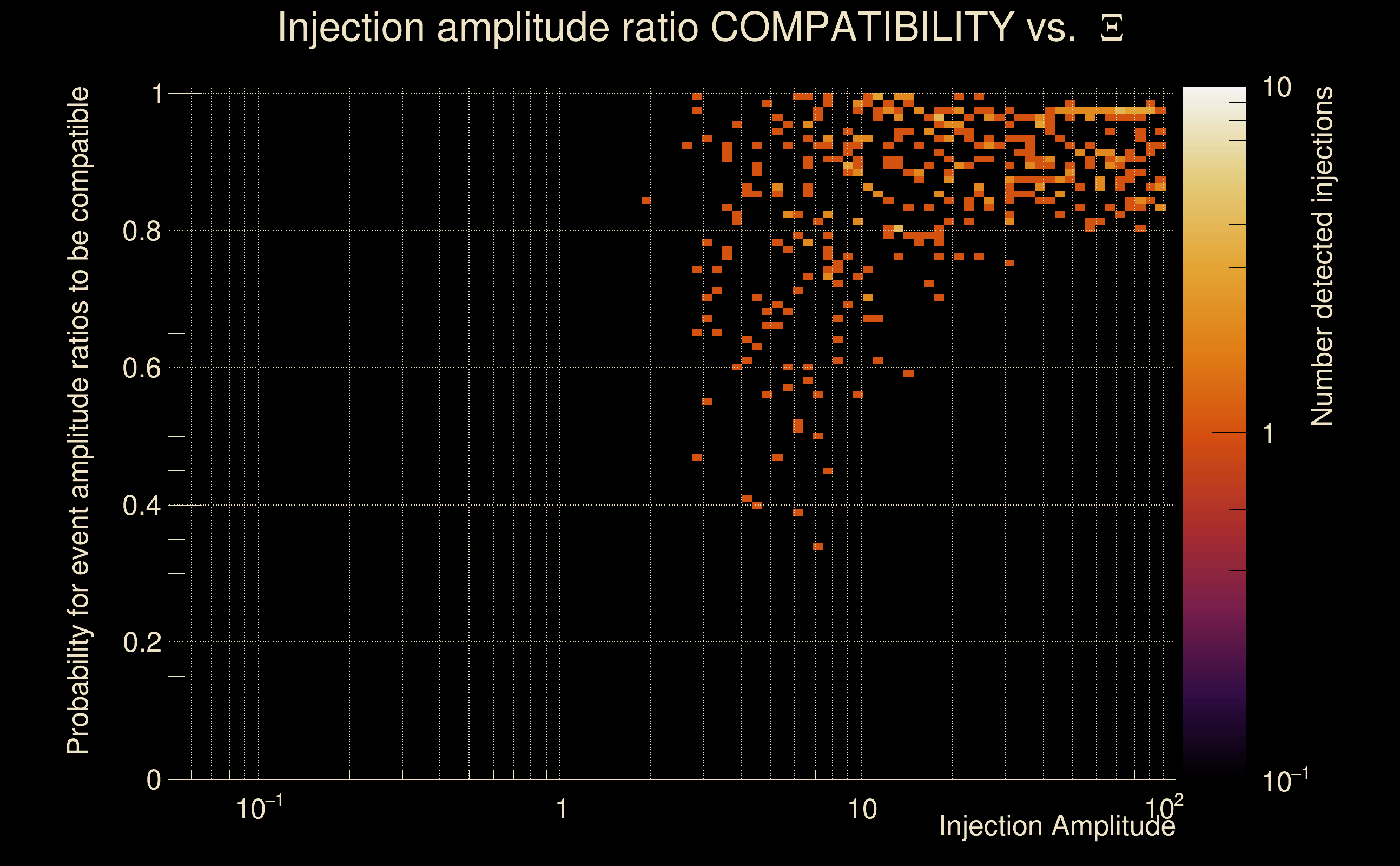

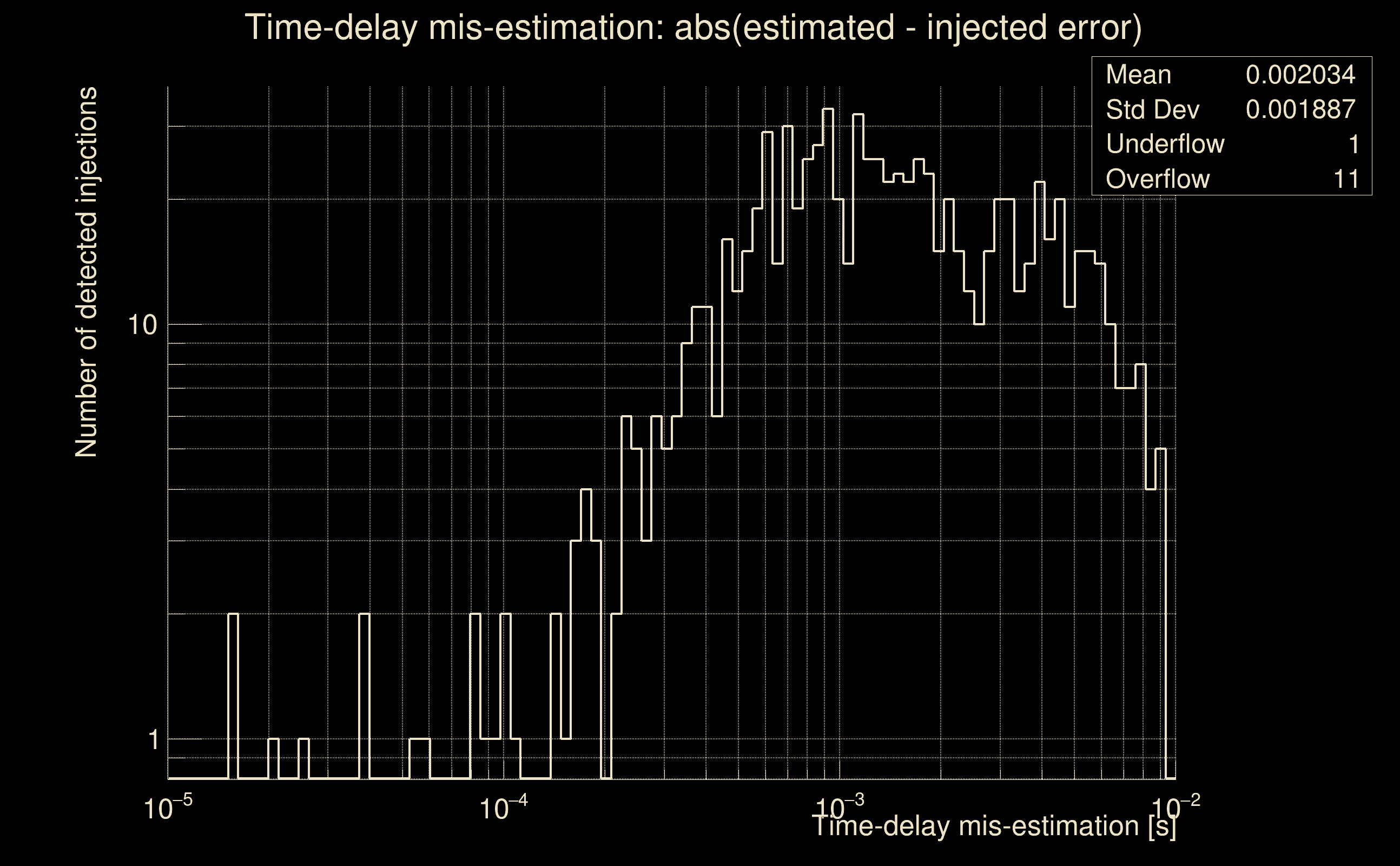

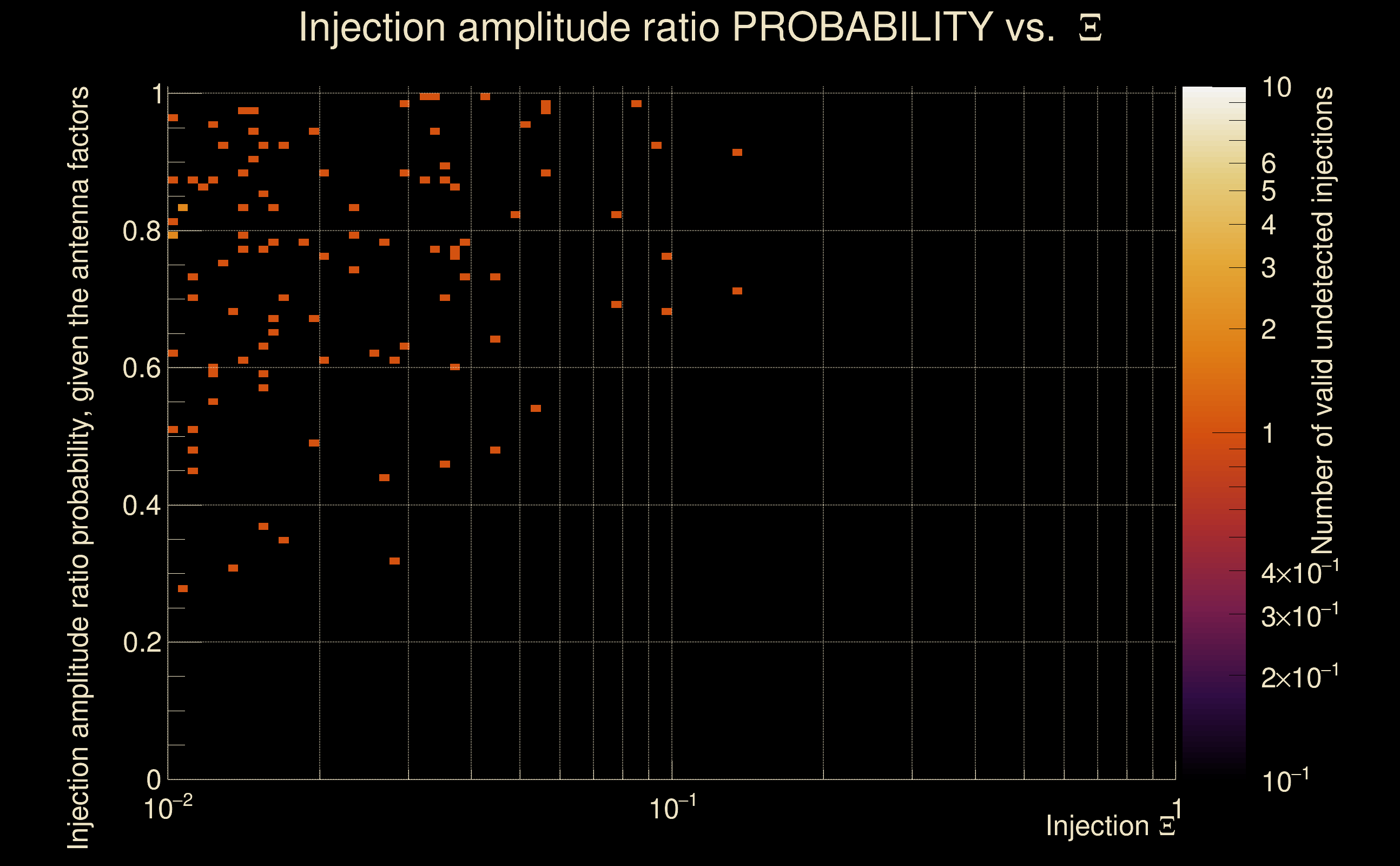

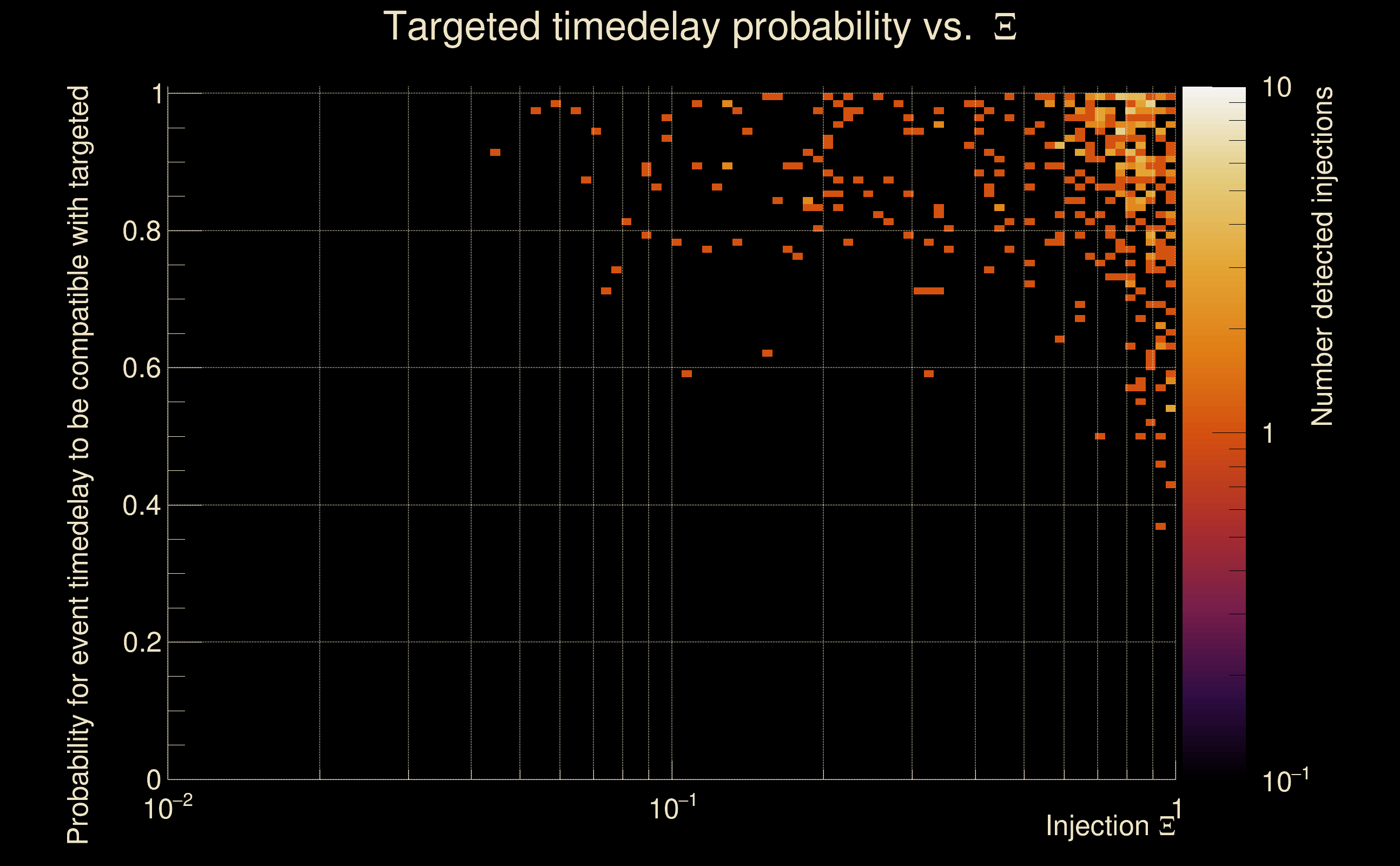

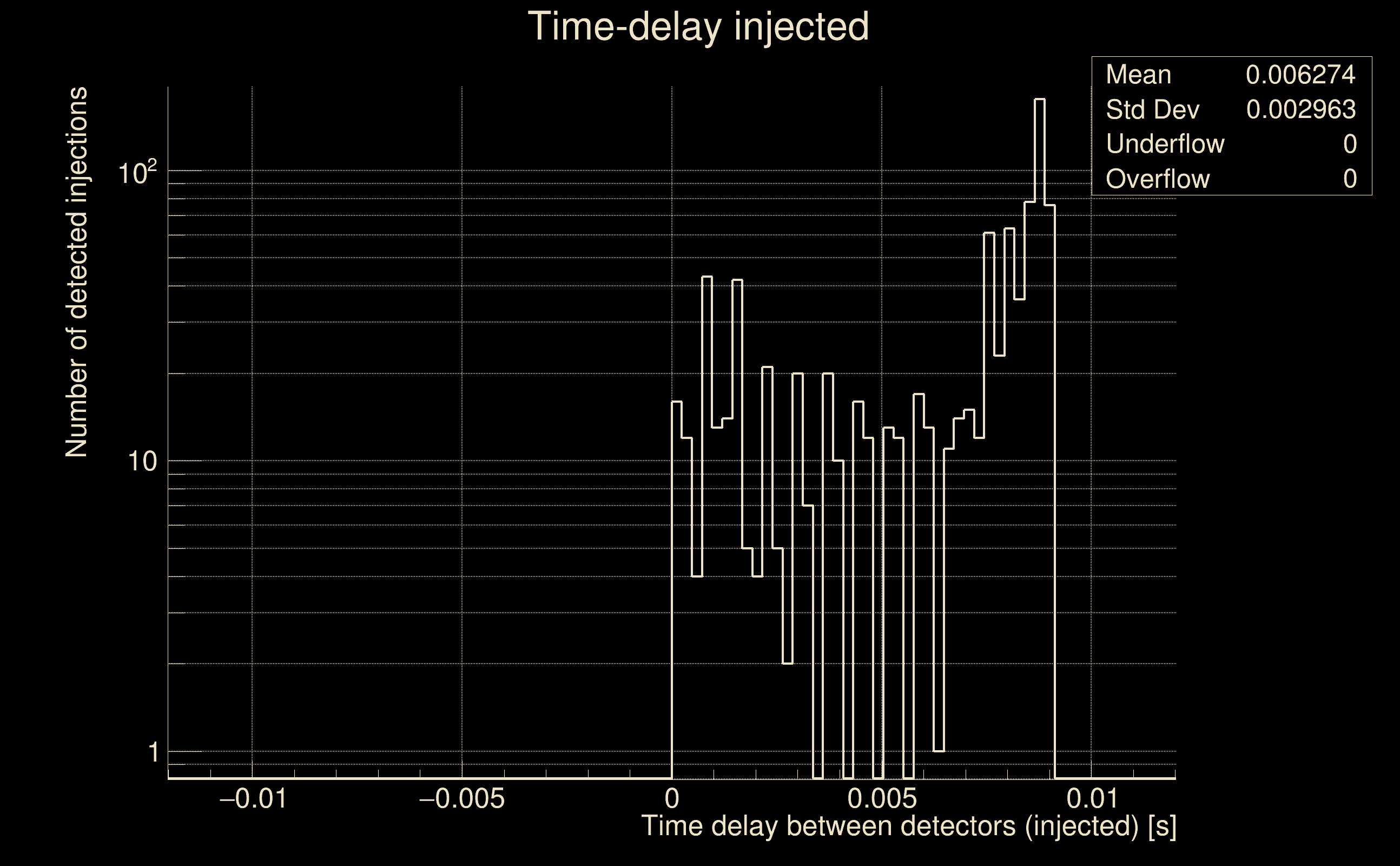

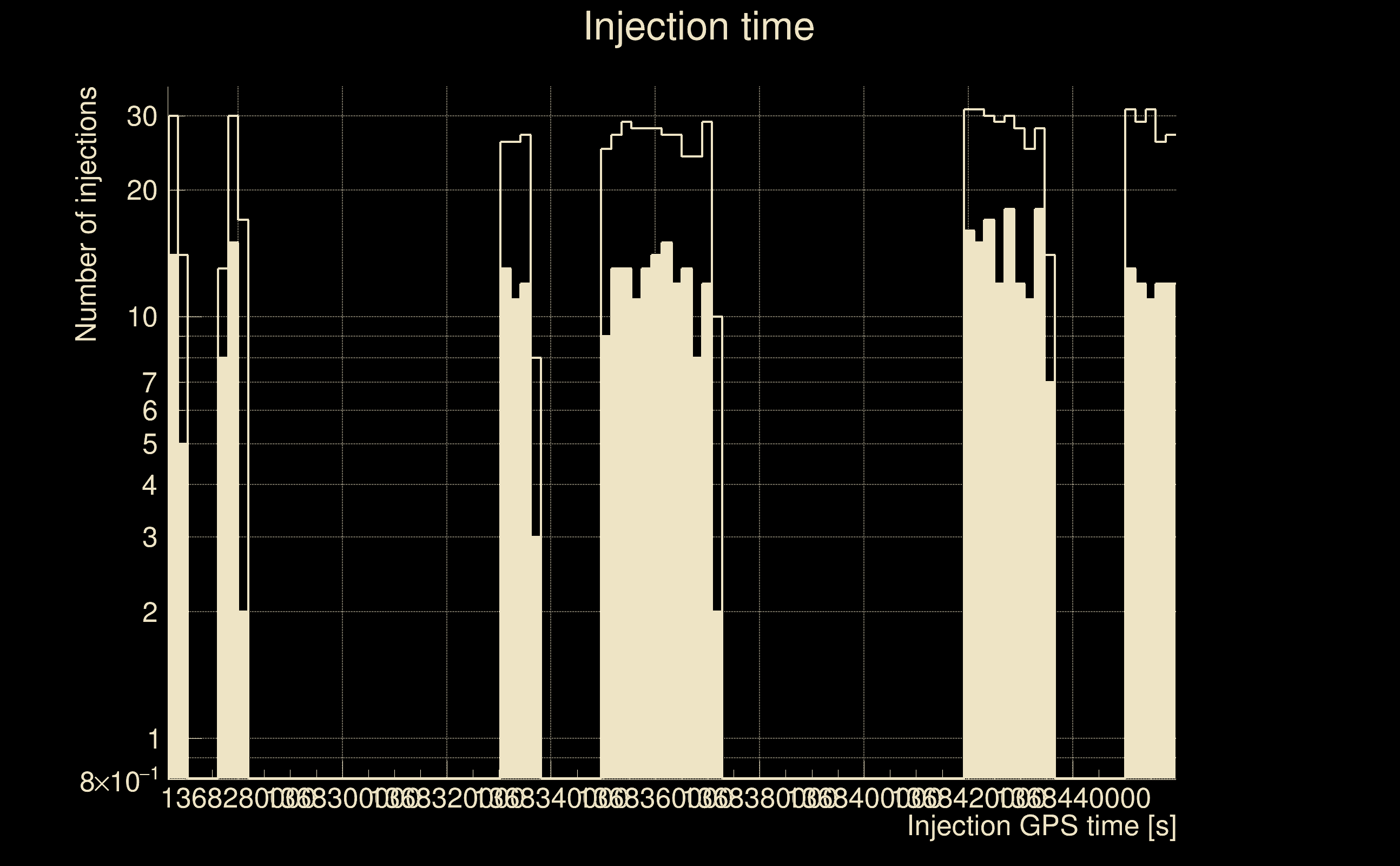

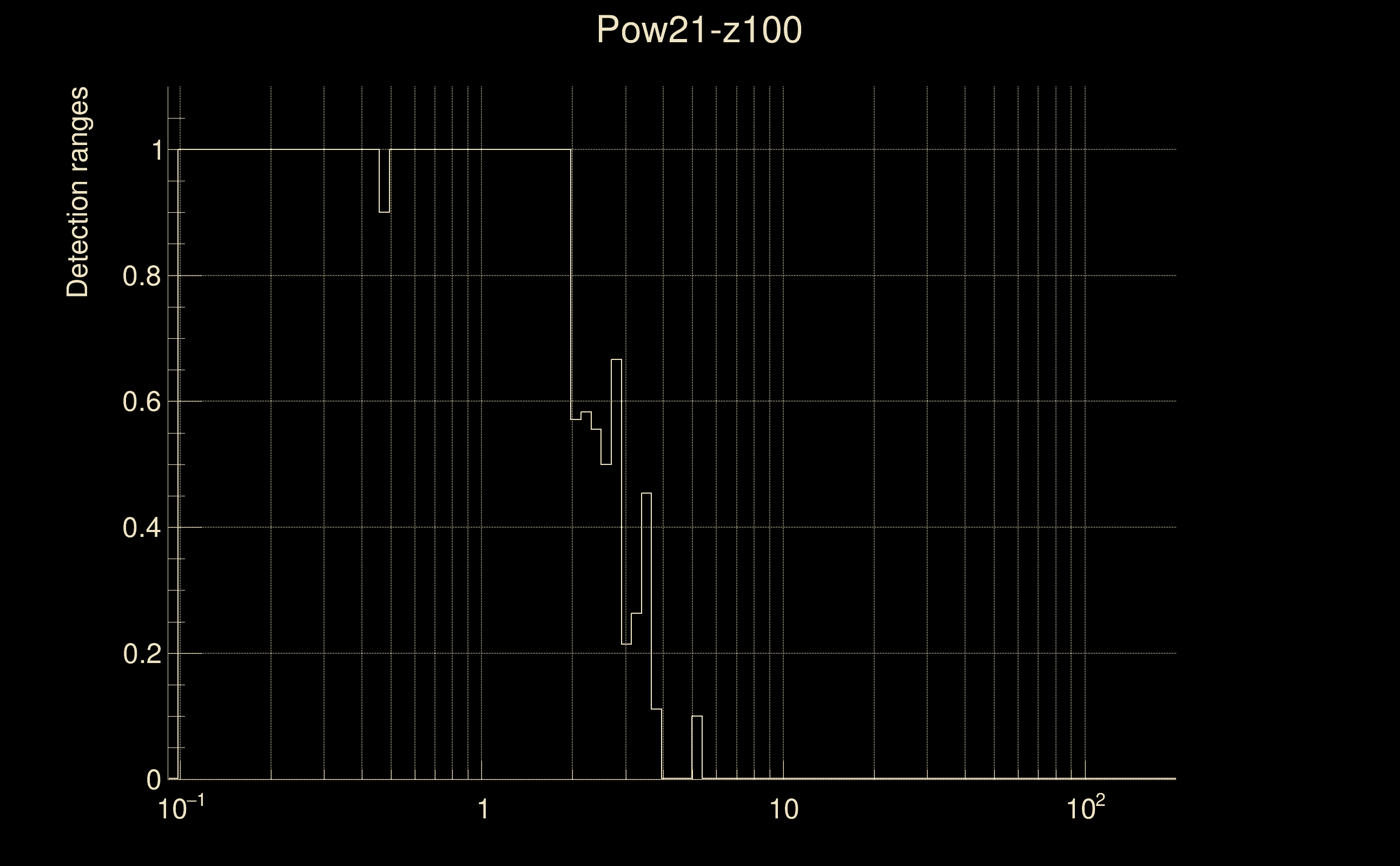

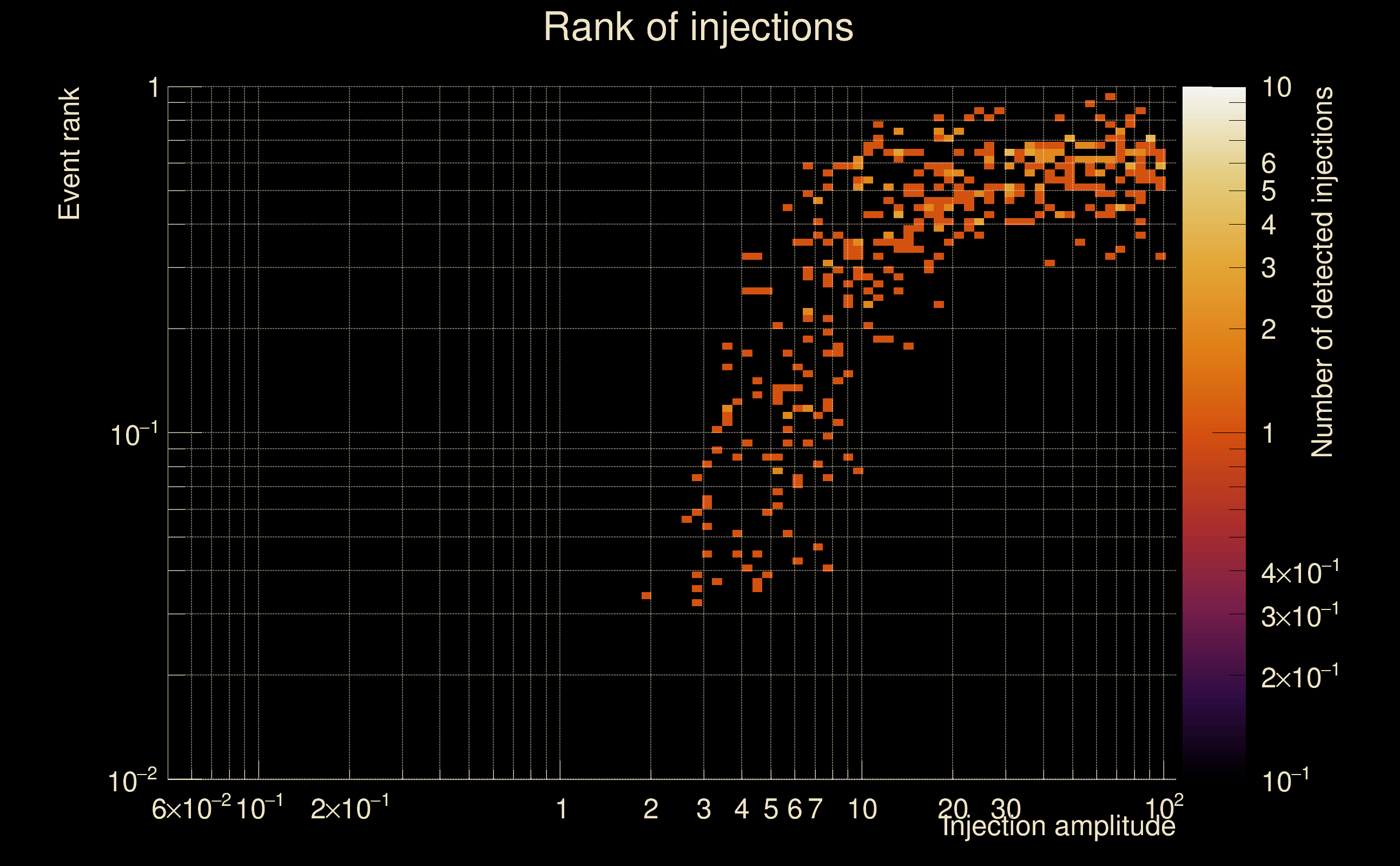

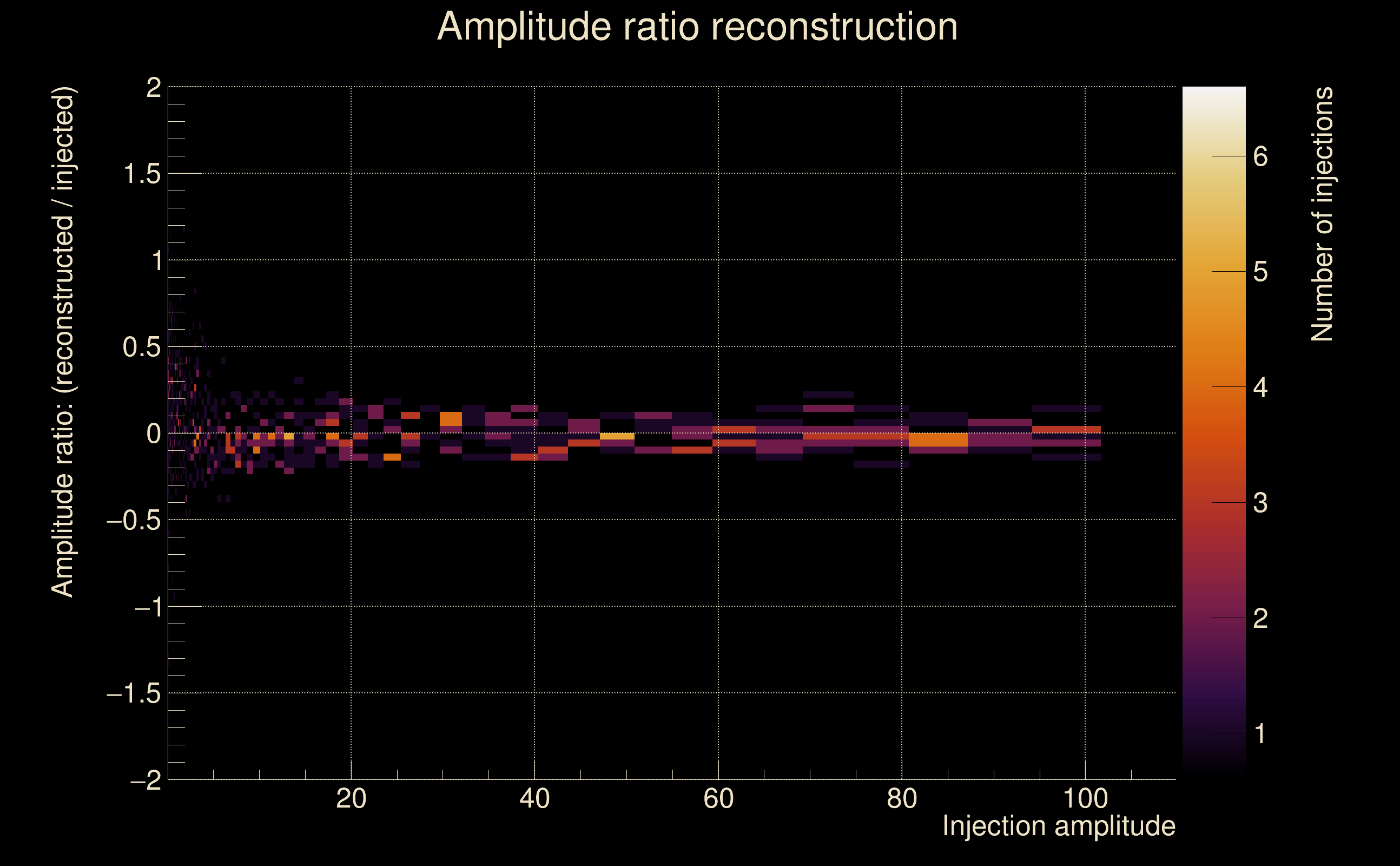

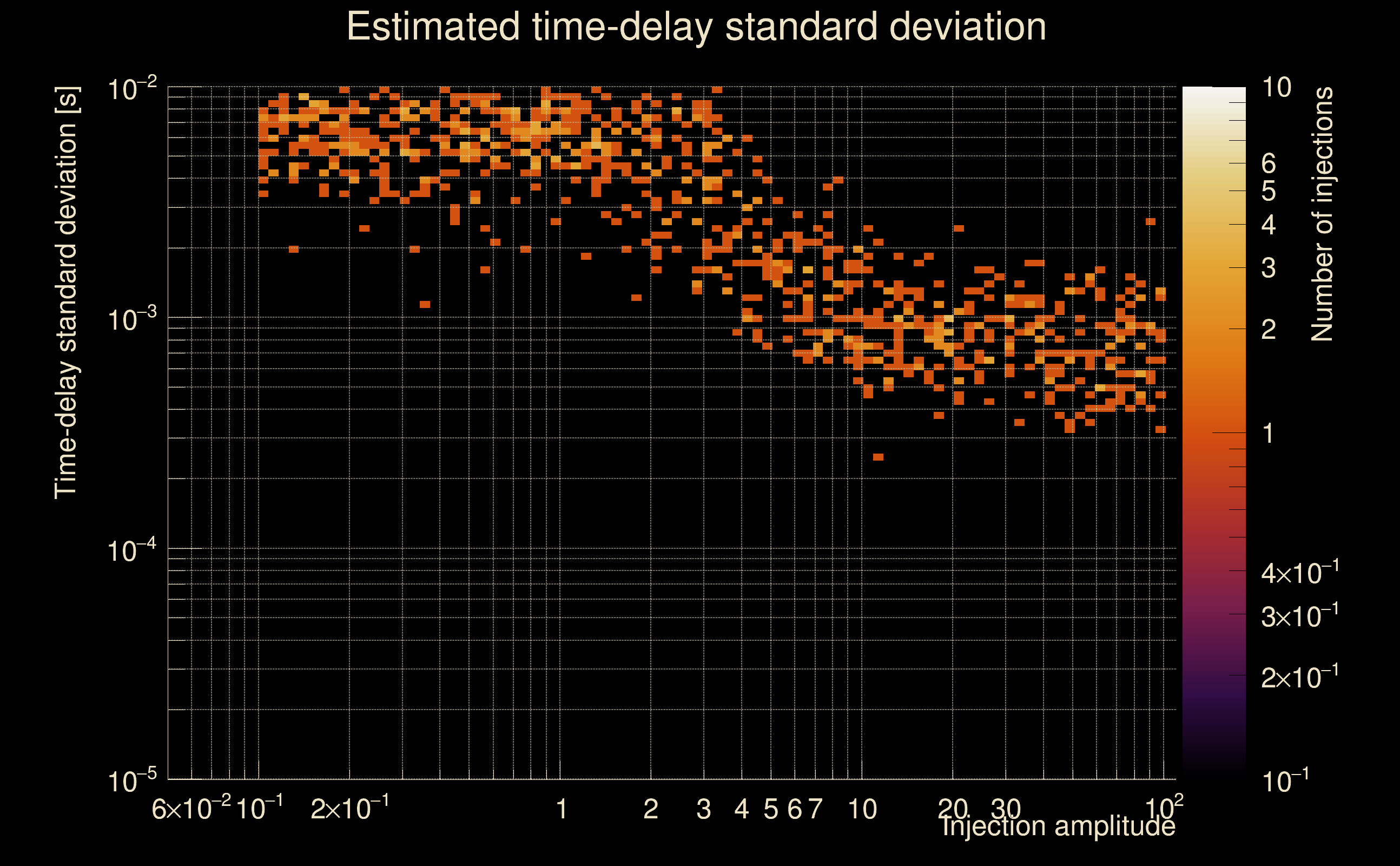

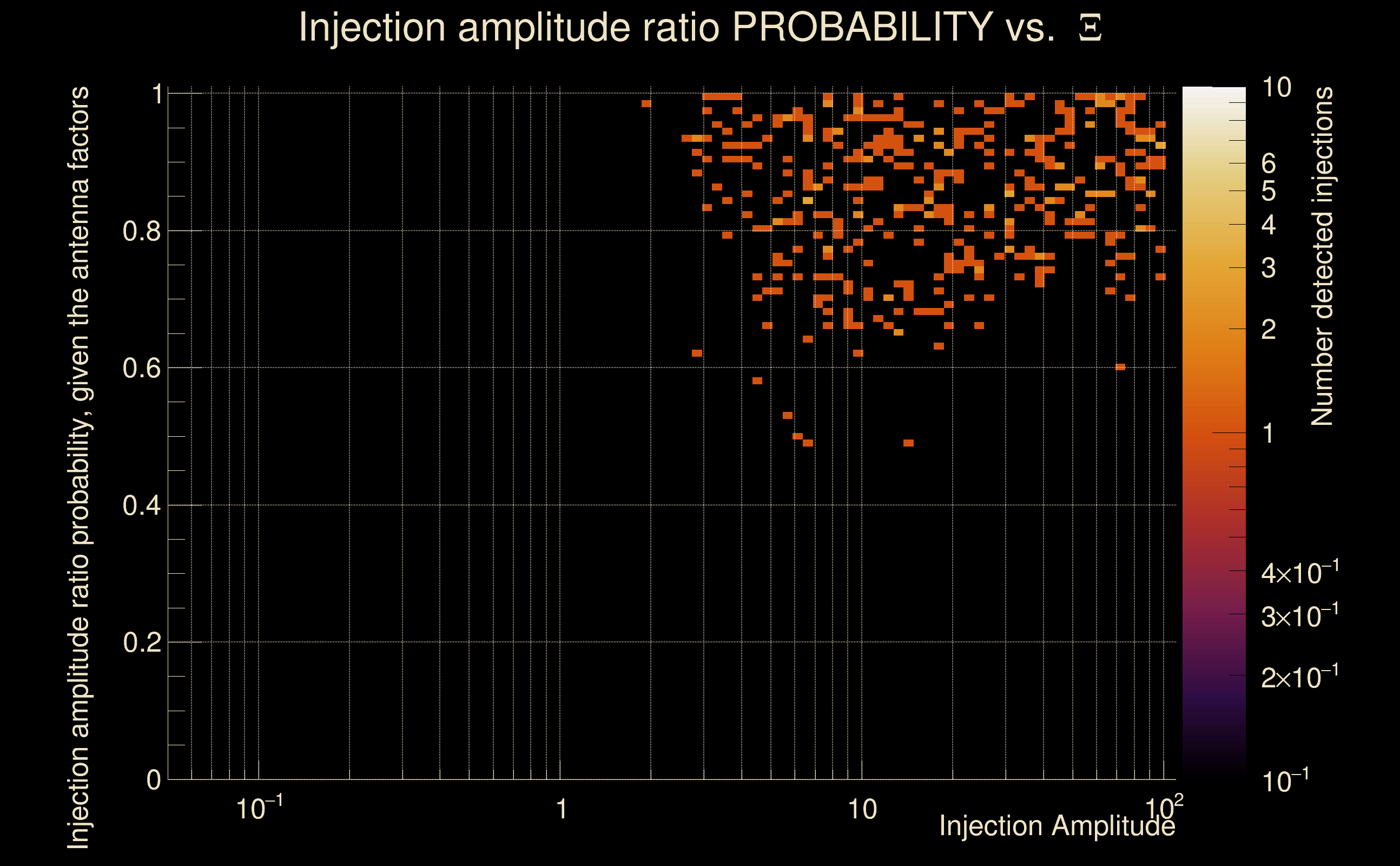

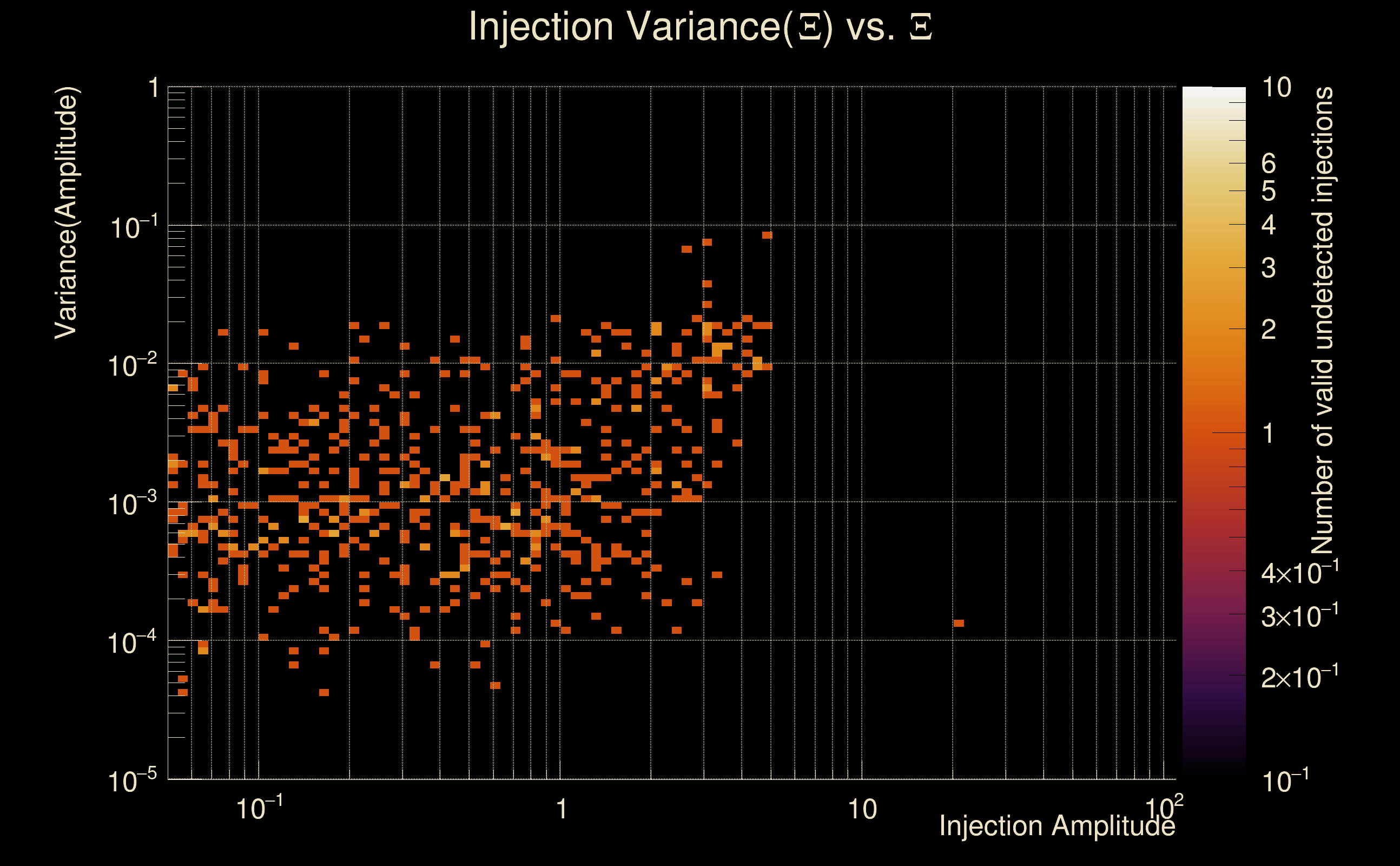

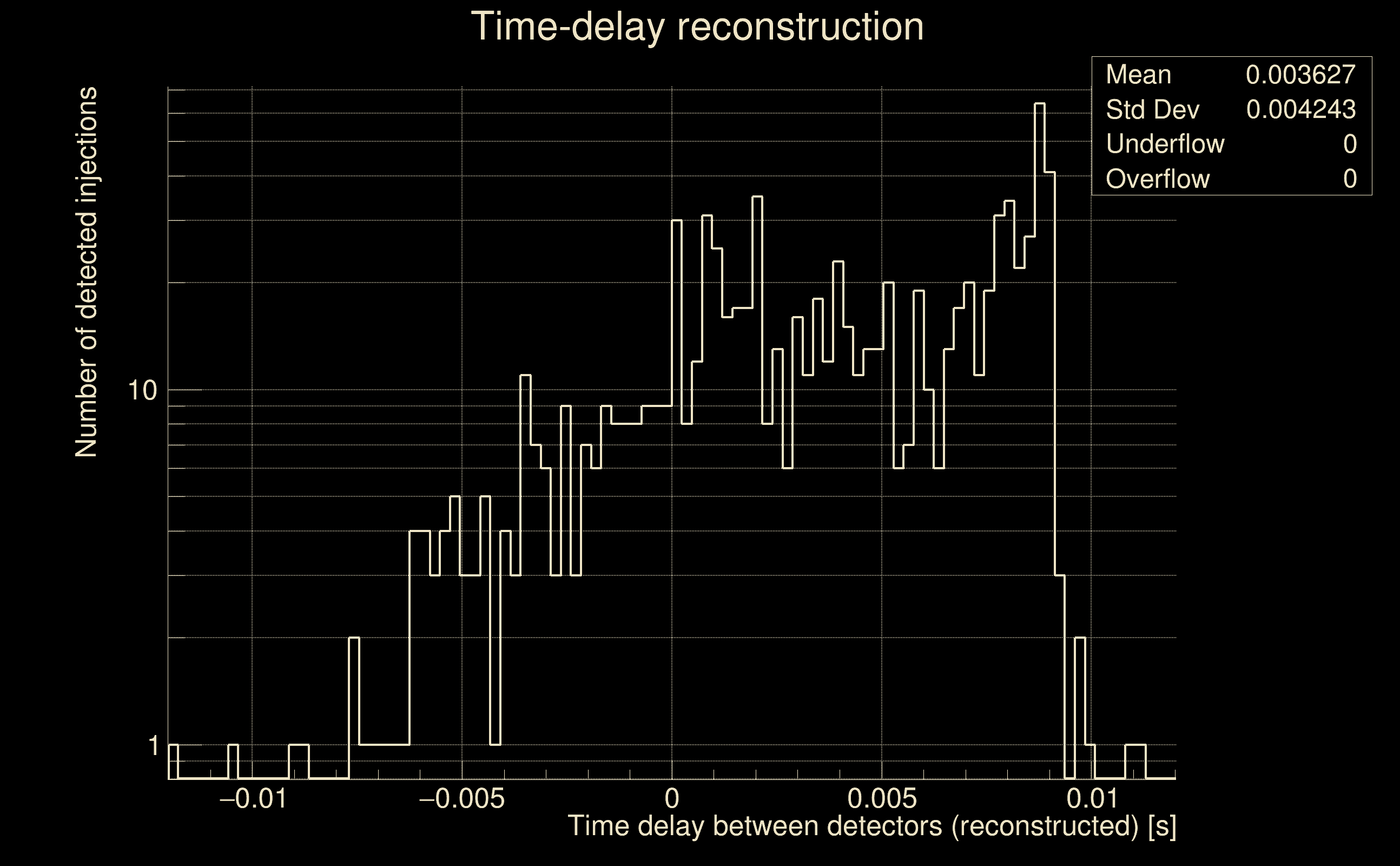

| Number of injections (total/valid/detected): | 1006 / 887 / 404 |
| List of missed injections: | ./Pow21-z100_missed.txt |
| Injection amplitude at 90% detection efficiency: | 5.16862 |
| Injection amplitude at 50% detection efficiency: | 3.4823 |
| Injection amplitude at 10% detection efficiency: | 2.61215 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
