| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Wed Sep 23 08:54:48 2026 UTC |
| Ox option file: | Bench4_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench4_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench4_allsky_results-3.root |
| Slice selected for the the fakeground: | slice index=202 (-4.324 s), time lag = 0 s |

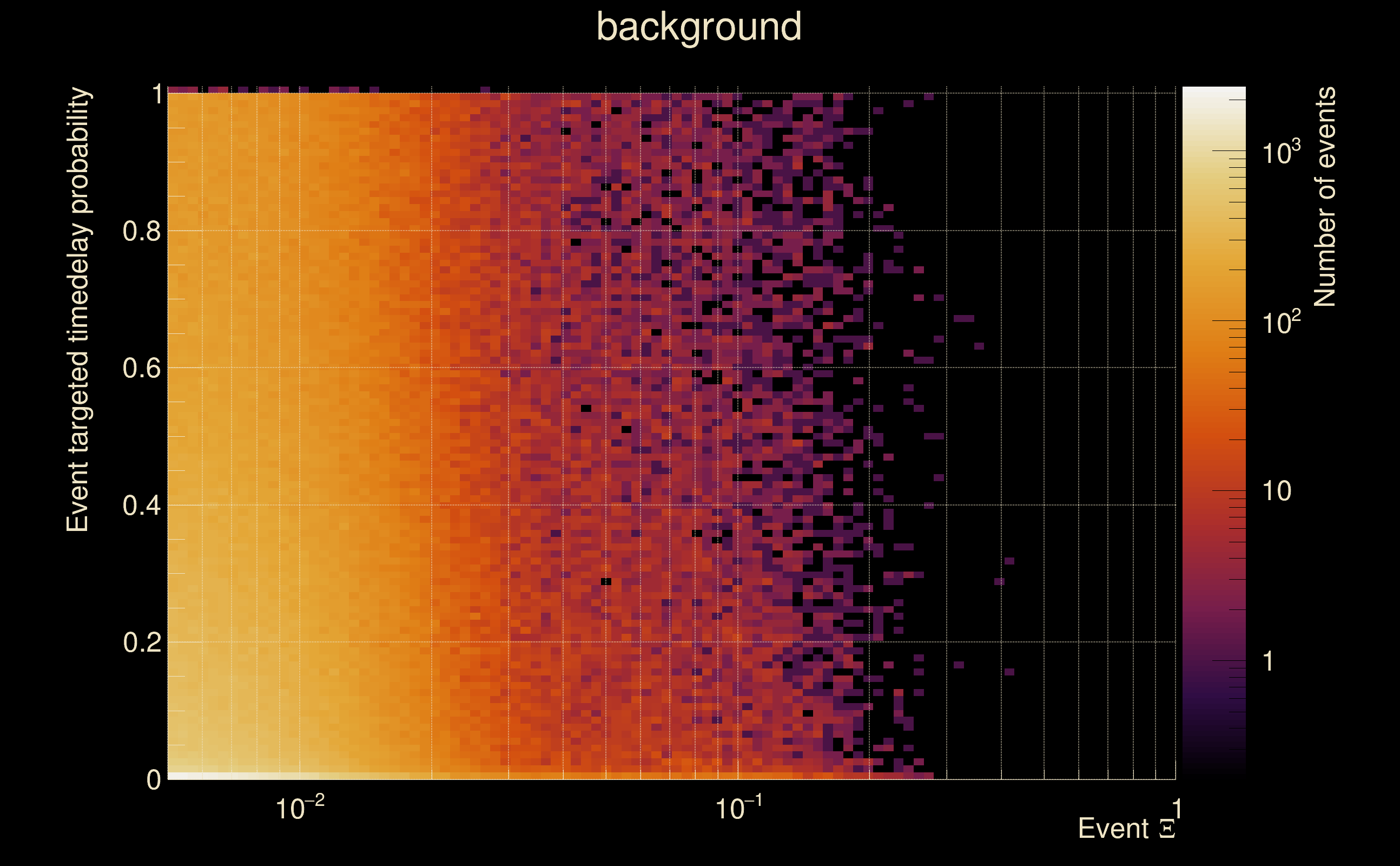

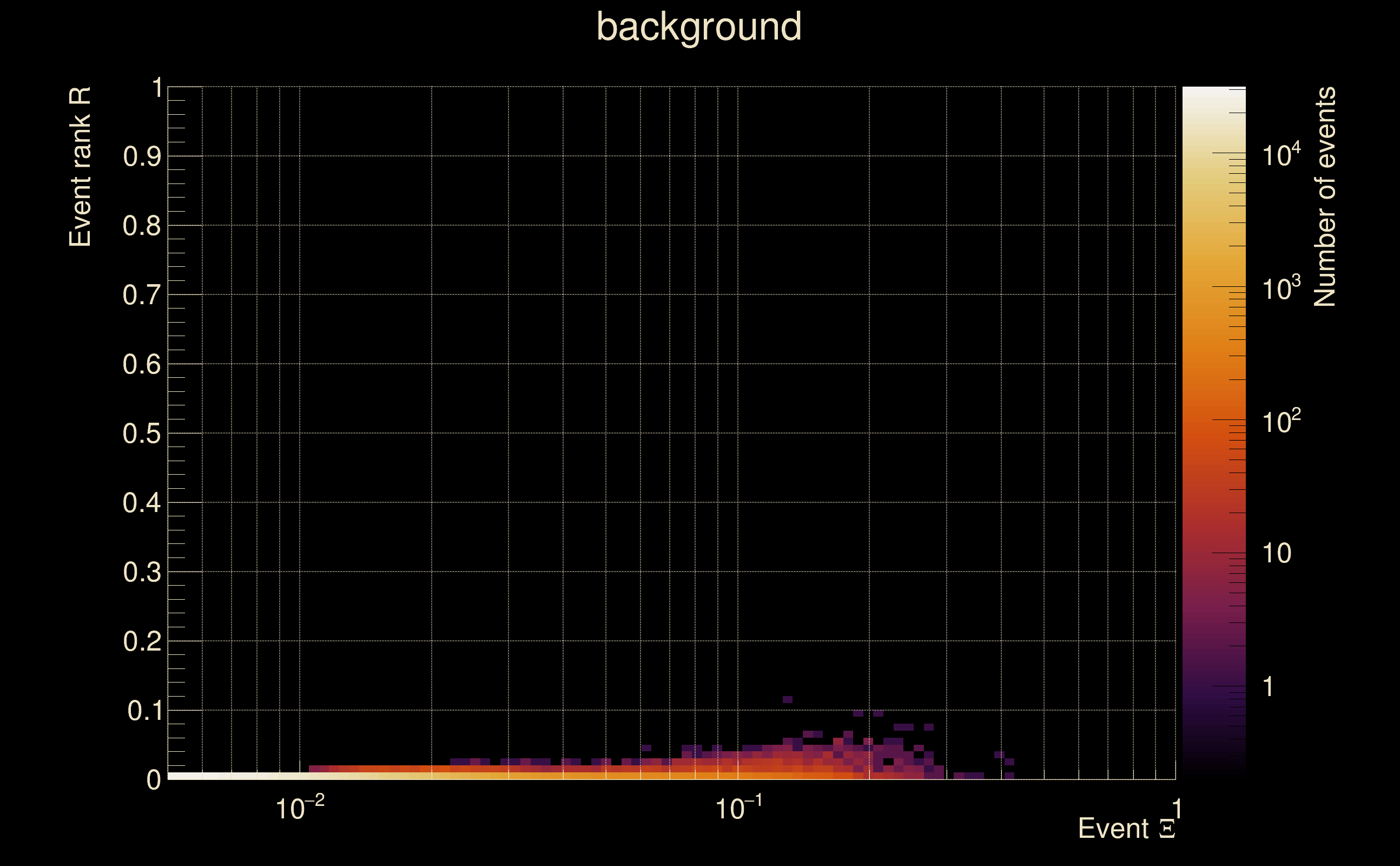

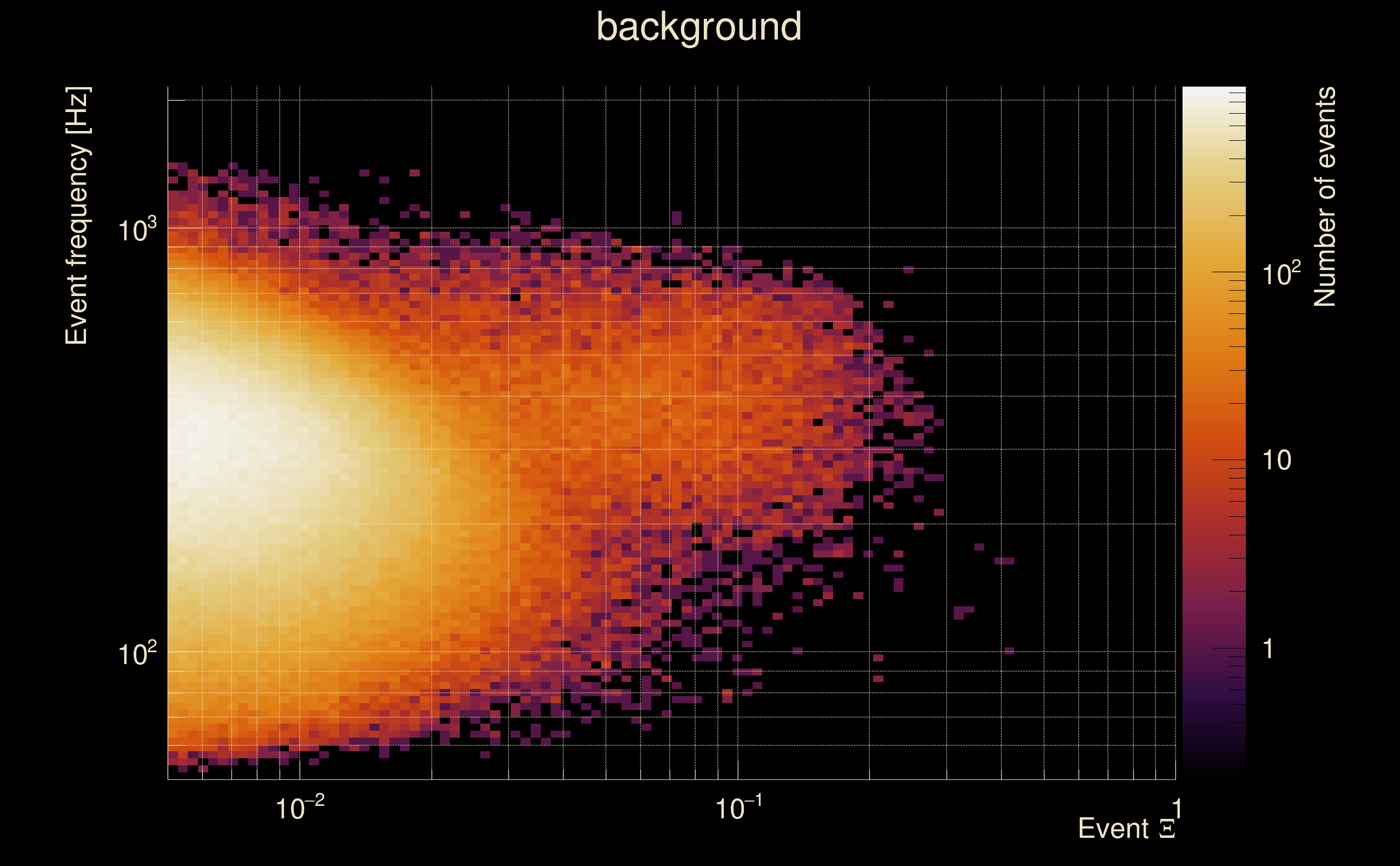

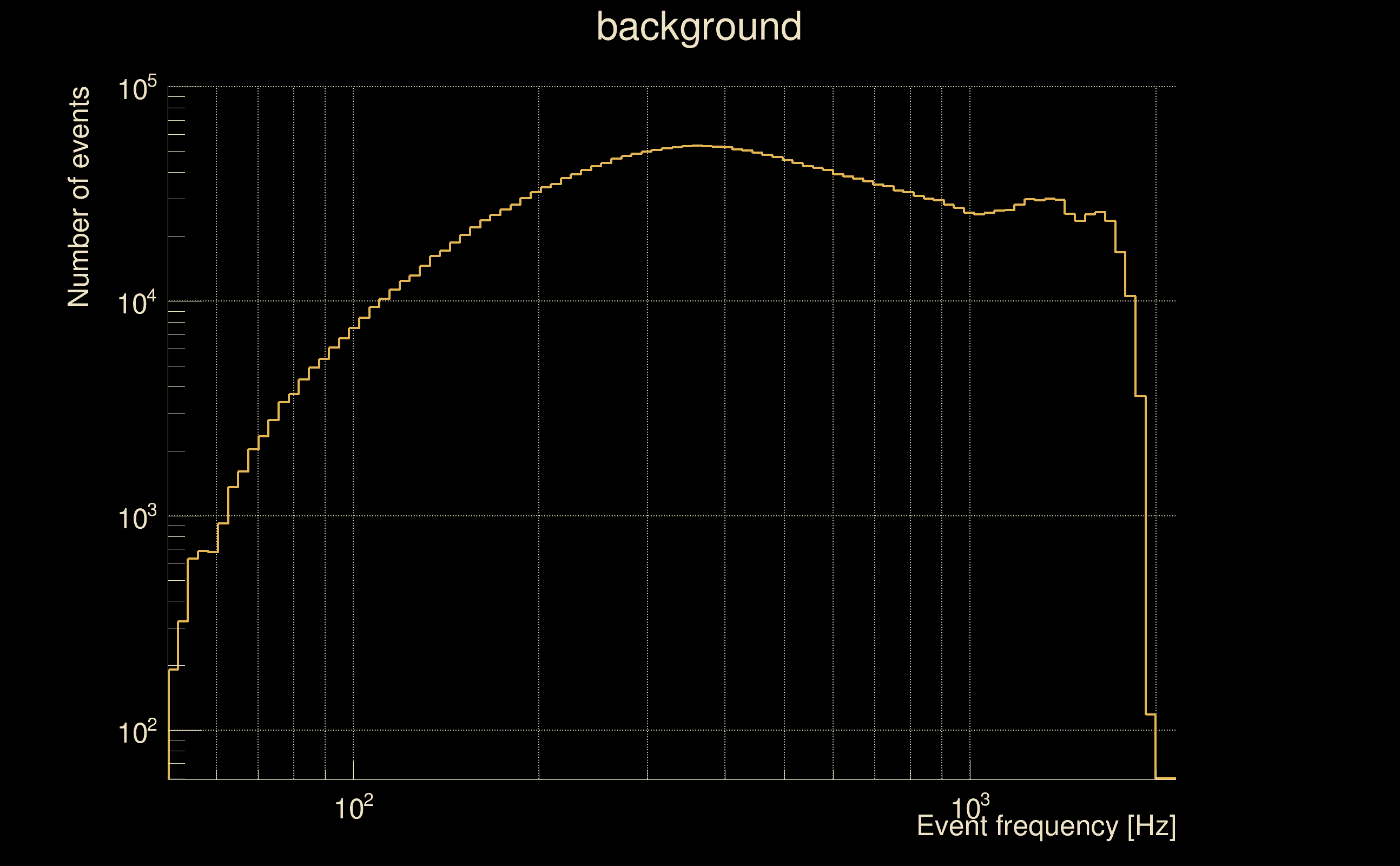

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

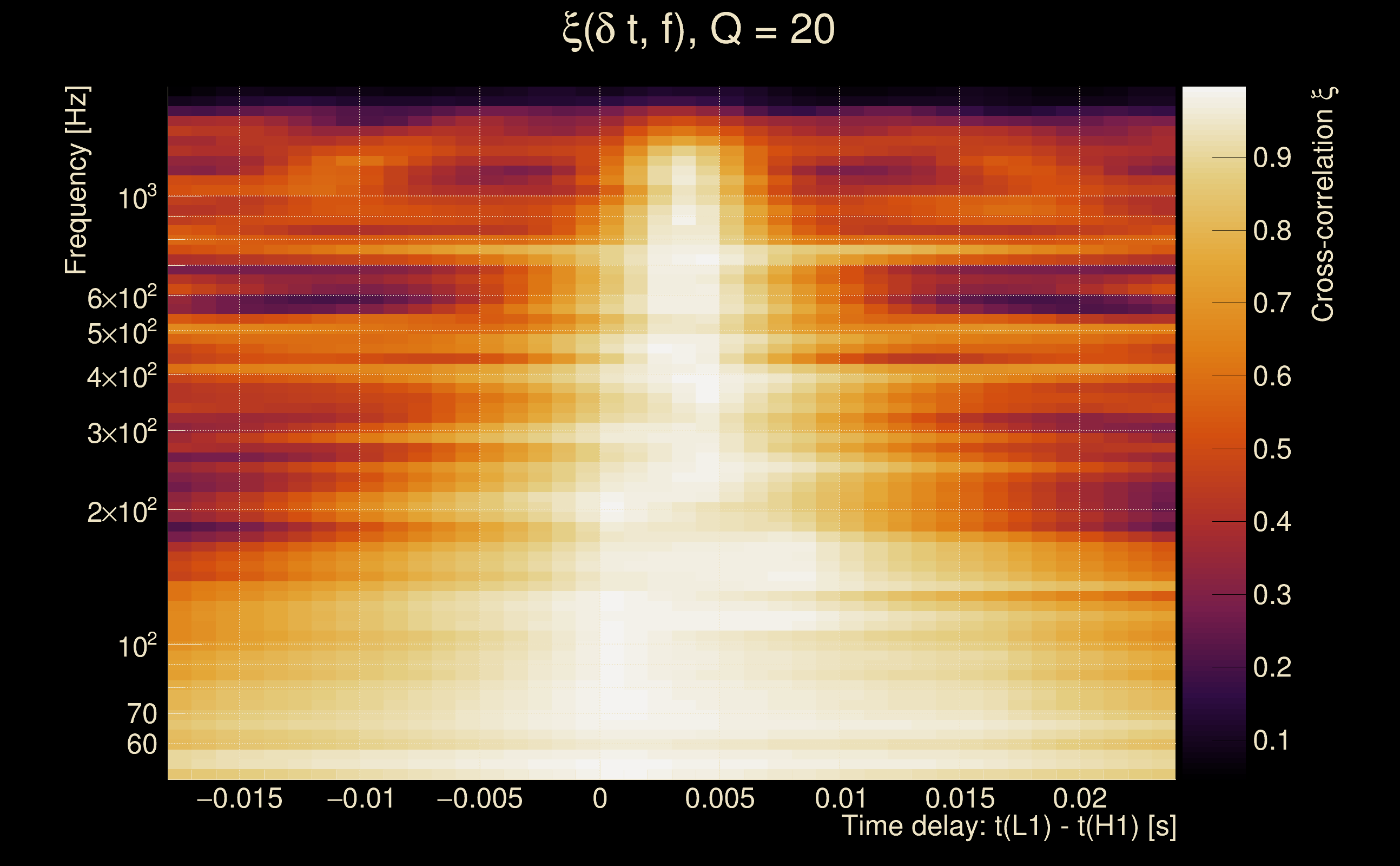

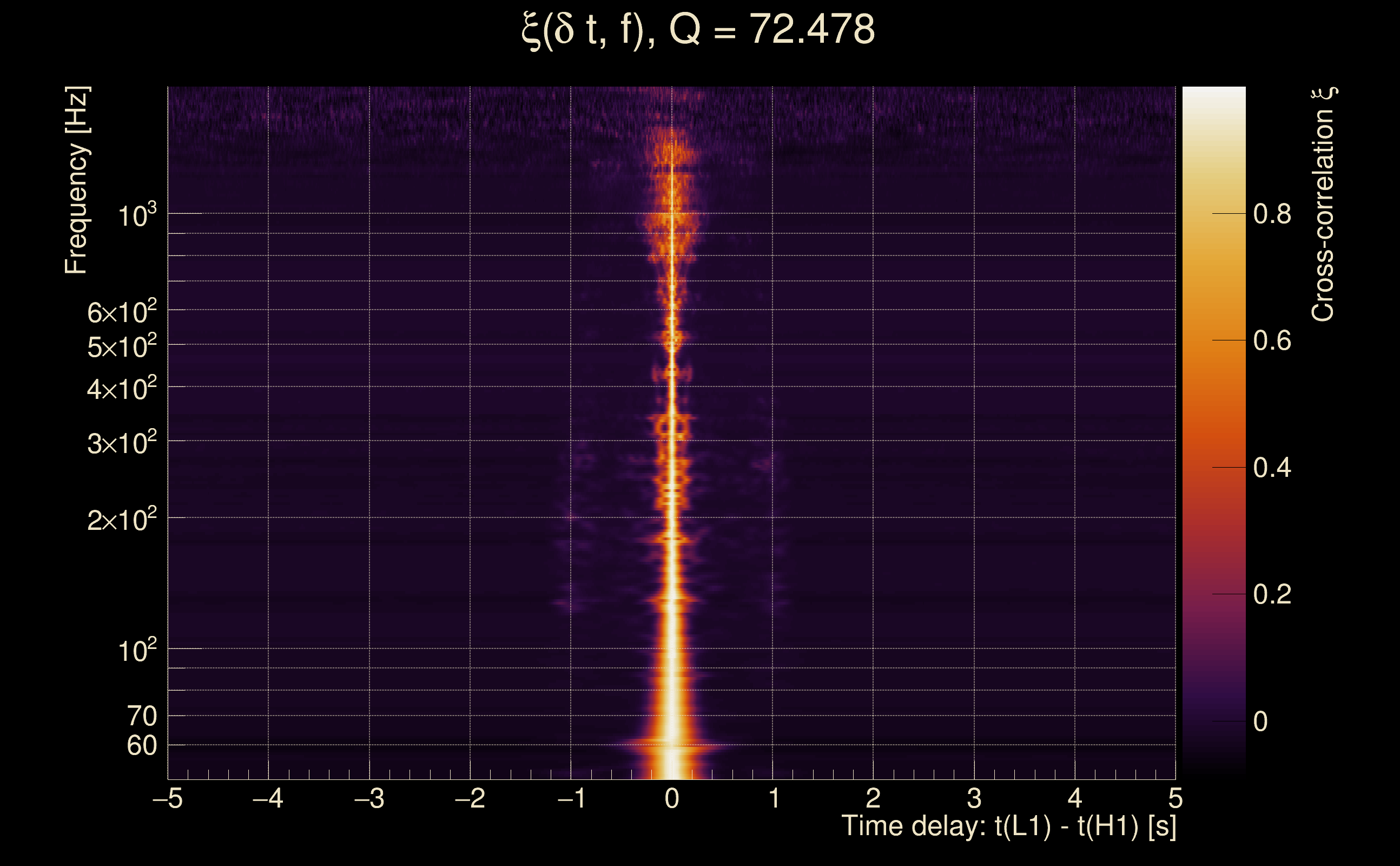

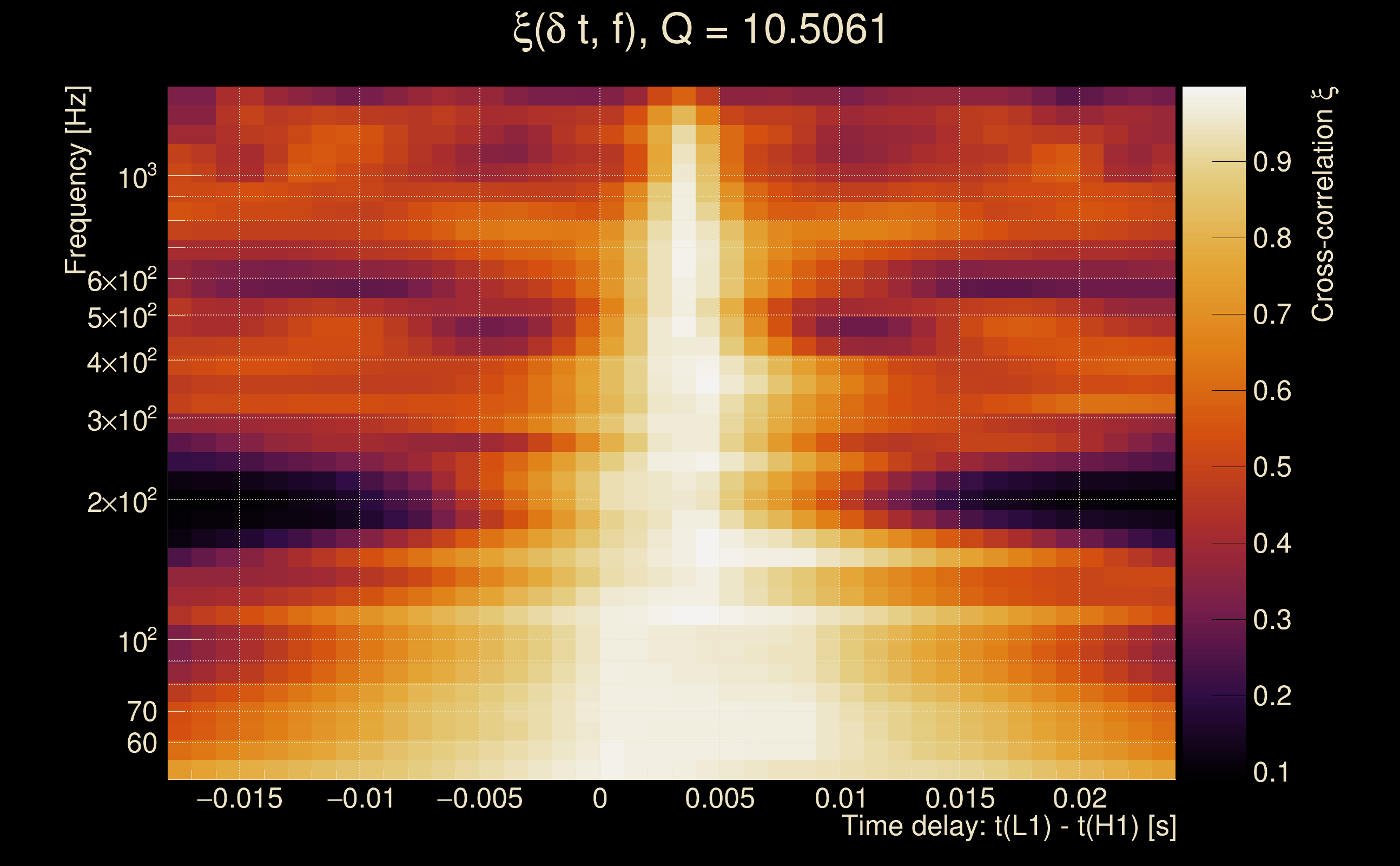

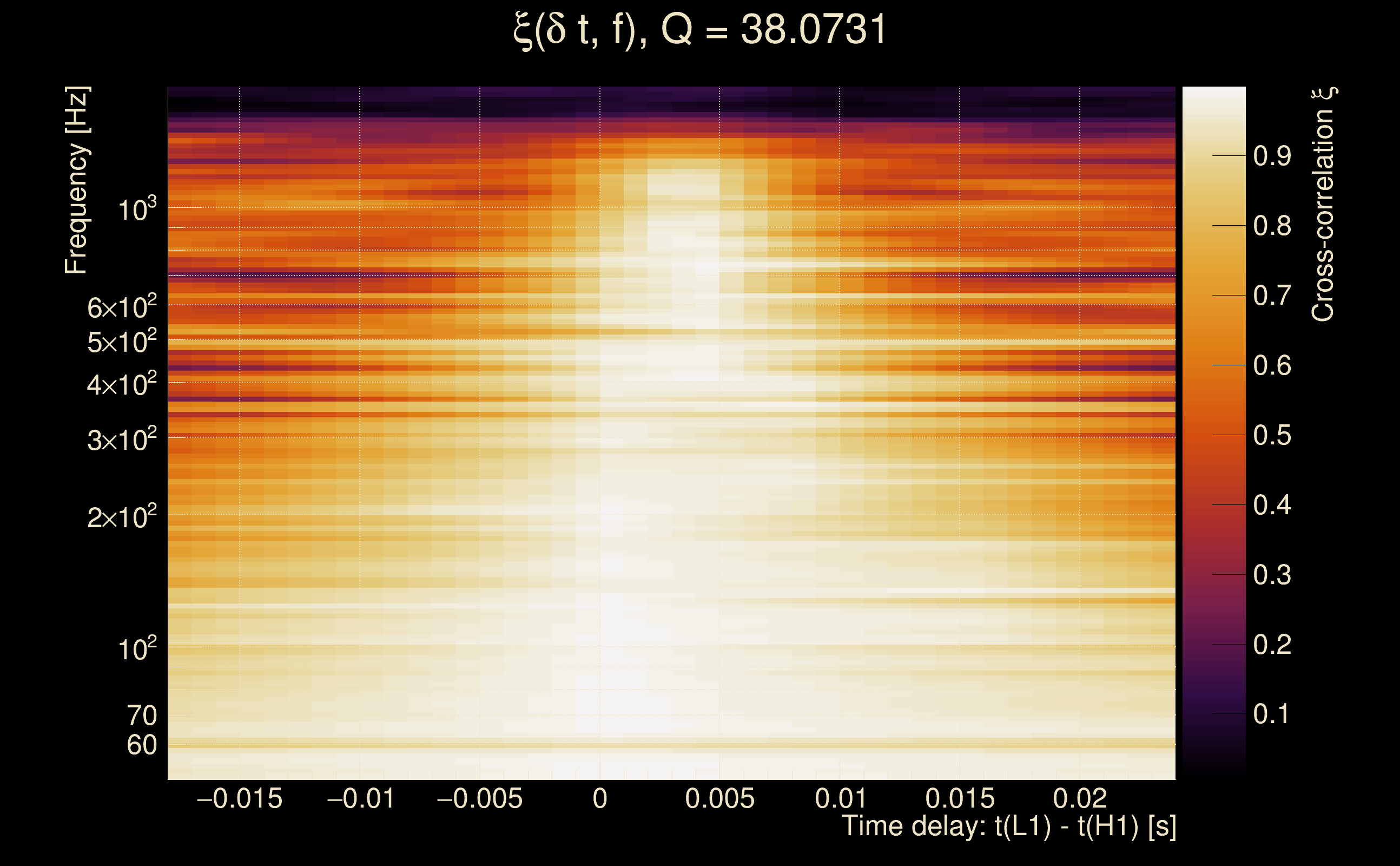

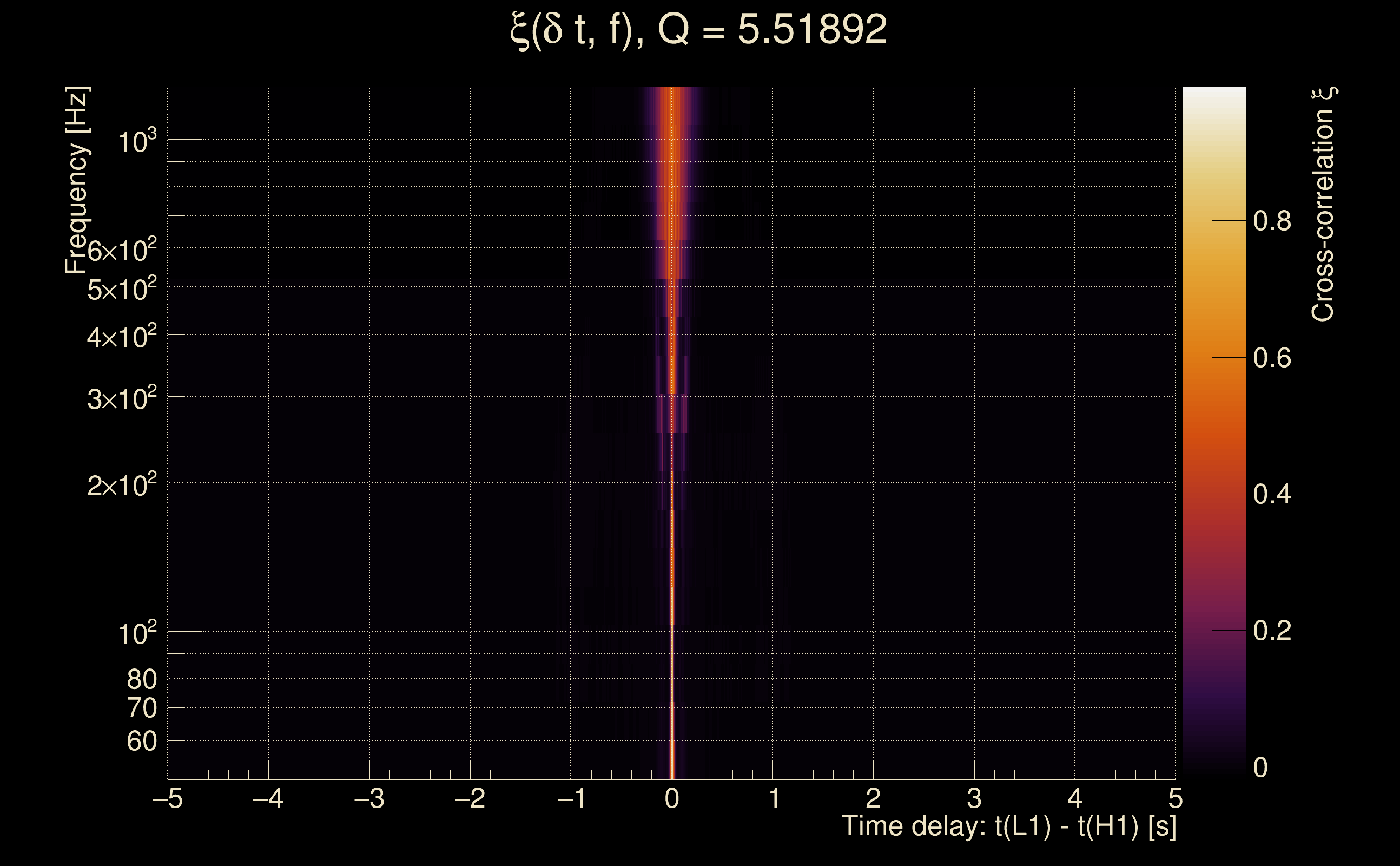

| Event time t(H1): | GPS = 1368427599 (Thu May 18 06:46:21 2023 ) → GPS = 1368427609 (Thu May 18 06:46:31 2023 ) |
| Event time t(L1): | GPS = 1368427599 (Thu May 18 06:46:31 2023 ) → GPS = 1368427609 (Thu May 18 06:46:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368427596 → GPS = 1368427612 |
| Omicron analysis time window (L1): | GPS = 1368427596 → GPS = 1368427612 |
| Time delay between detectors t(L1) - t(H1): | 0.00302513 s (slice index = 108 / 217), δt_gw = 0.00302513 s |
| Time delay standard deviation: | 0.0248884 s |
| [targeted mode] Time delay probability: | 0.412382 (0.819708 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 263.11 Hz |
| Ξ: | 0.968295 ± 0.00532232 (variance = 2.83271e-05): Q0: 0.979528, Q1: 0.966675, Q2: 0.964333, Q3: 0.970461, Q4: 0.973353 |
| Rank: | R_A = 0.937448 |
| Log of amplitude ratio (L1/H1): | -0.17733, variance = 0.153172 (L1/H1: -0.18678, variance = 0.300933, H1/L1: 0.164972, variance = 0.3011) |
| Amplitude ratio (L1/H1): | 0.837504 ⋇ 1.47901 (L1/H1: 0.829626 ⋇ 1.73078, H1/L1: 1.17936 ⋇ 1.73105) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.977578 |

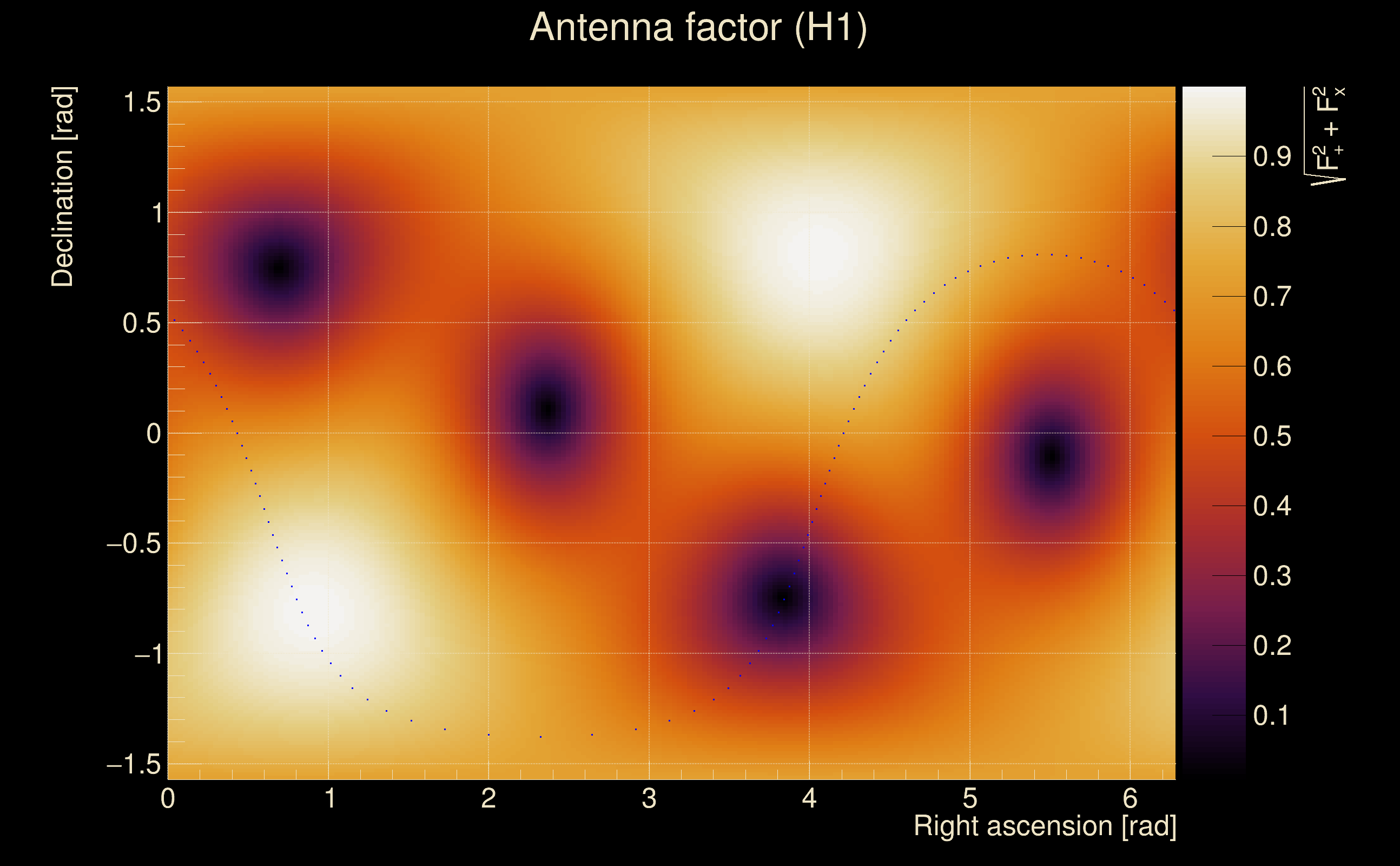

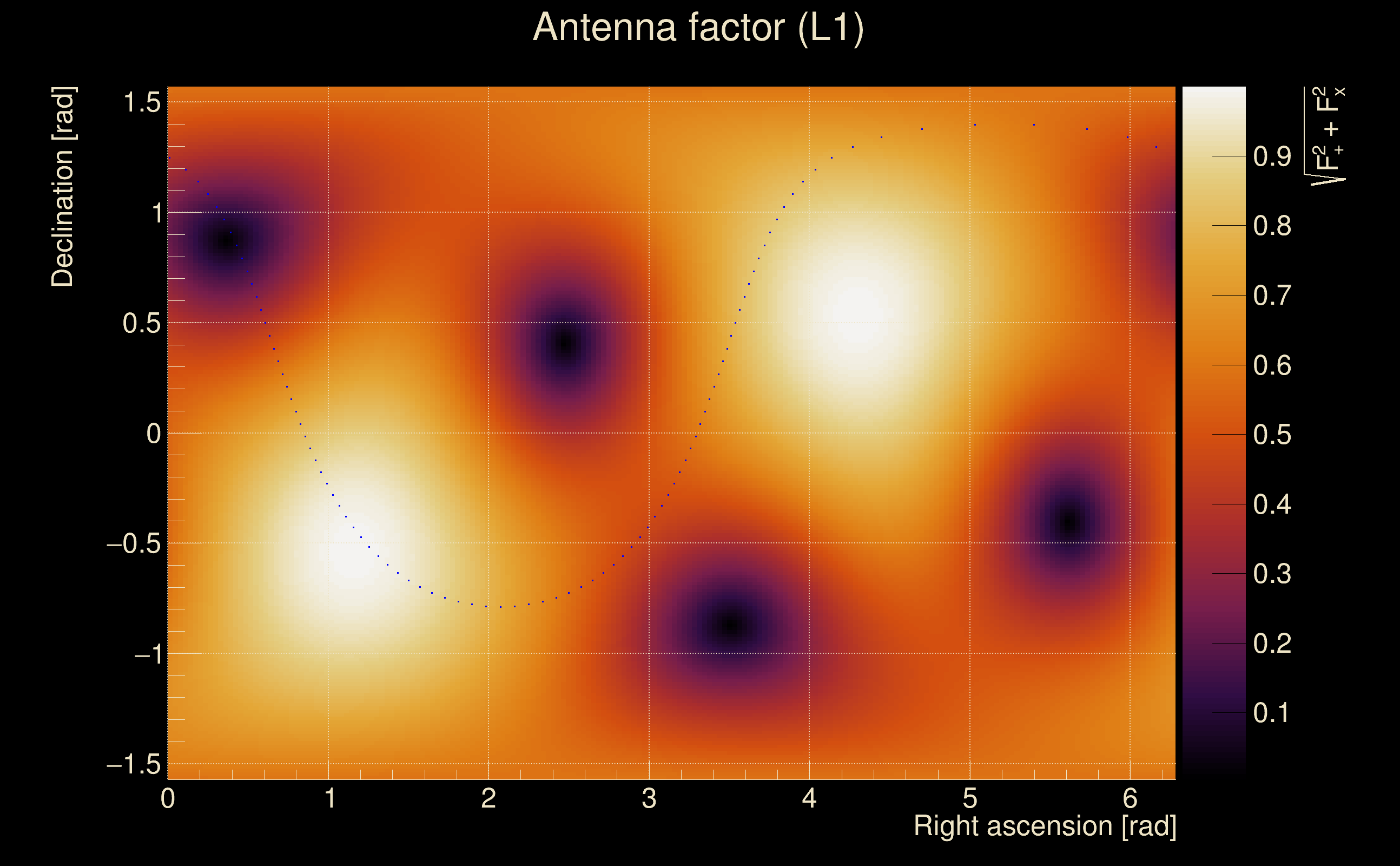

| Antenna factor probability: | 0.990348 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 6 / 134, Q4: 16 / 258 |
| Maximum signal-to-noise ratio: | H1: 370.226, L1: 323.759 |

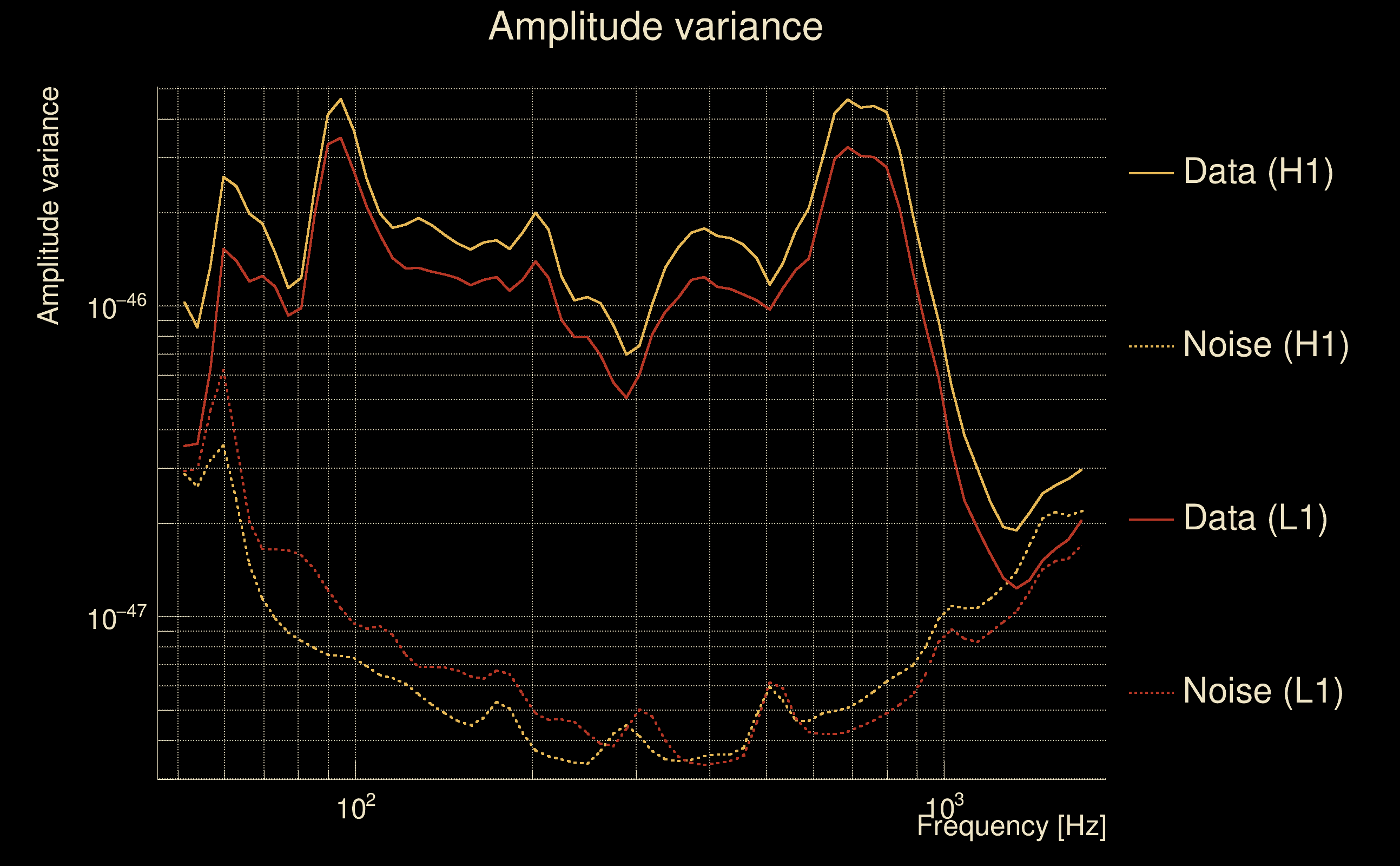

| SNR variance: | H1: 0.498636, L1: 0.468174 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

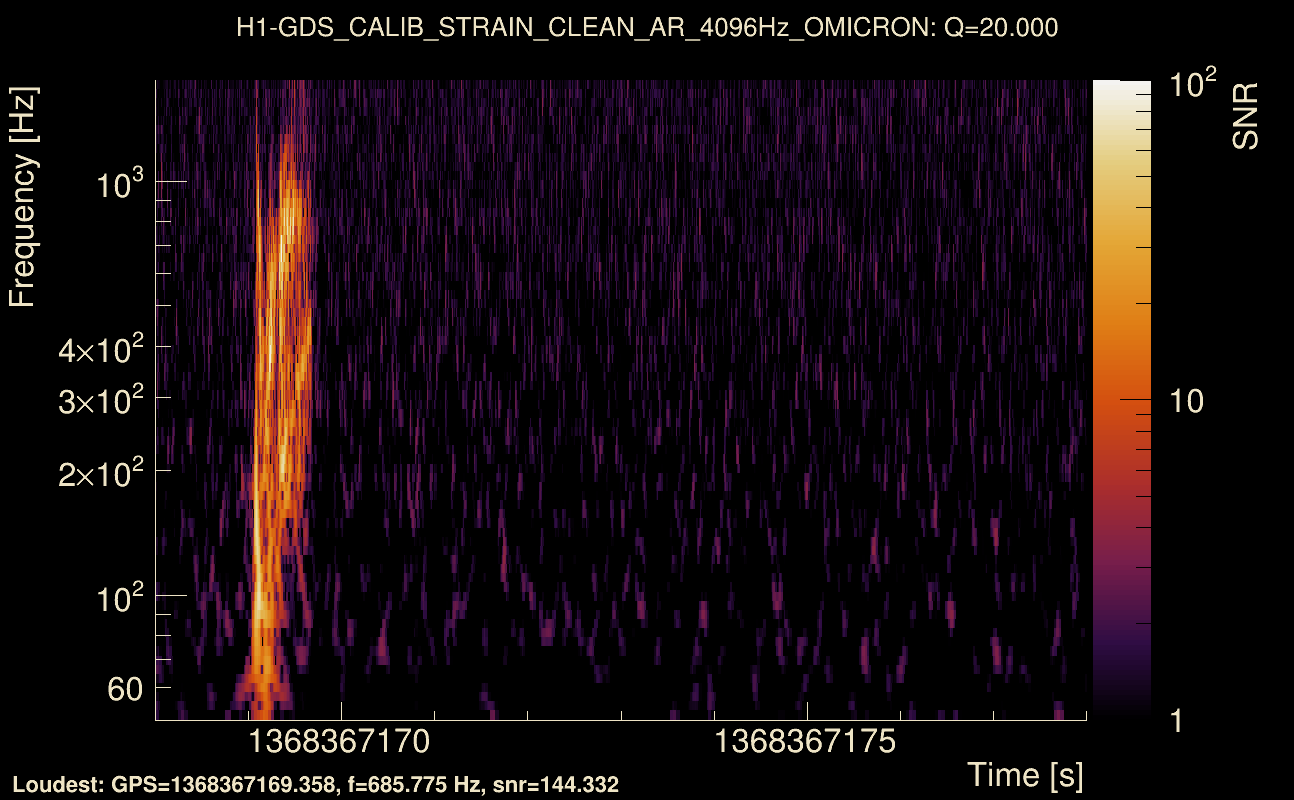

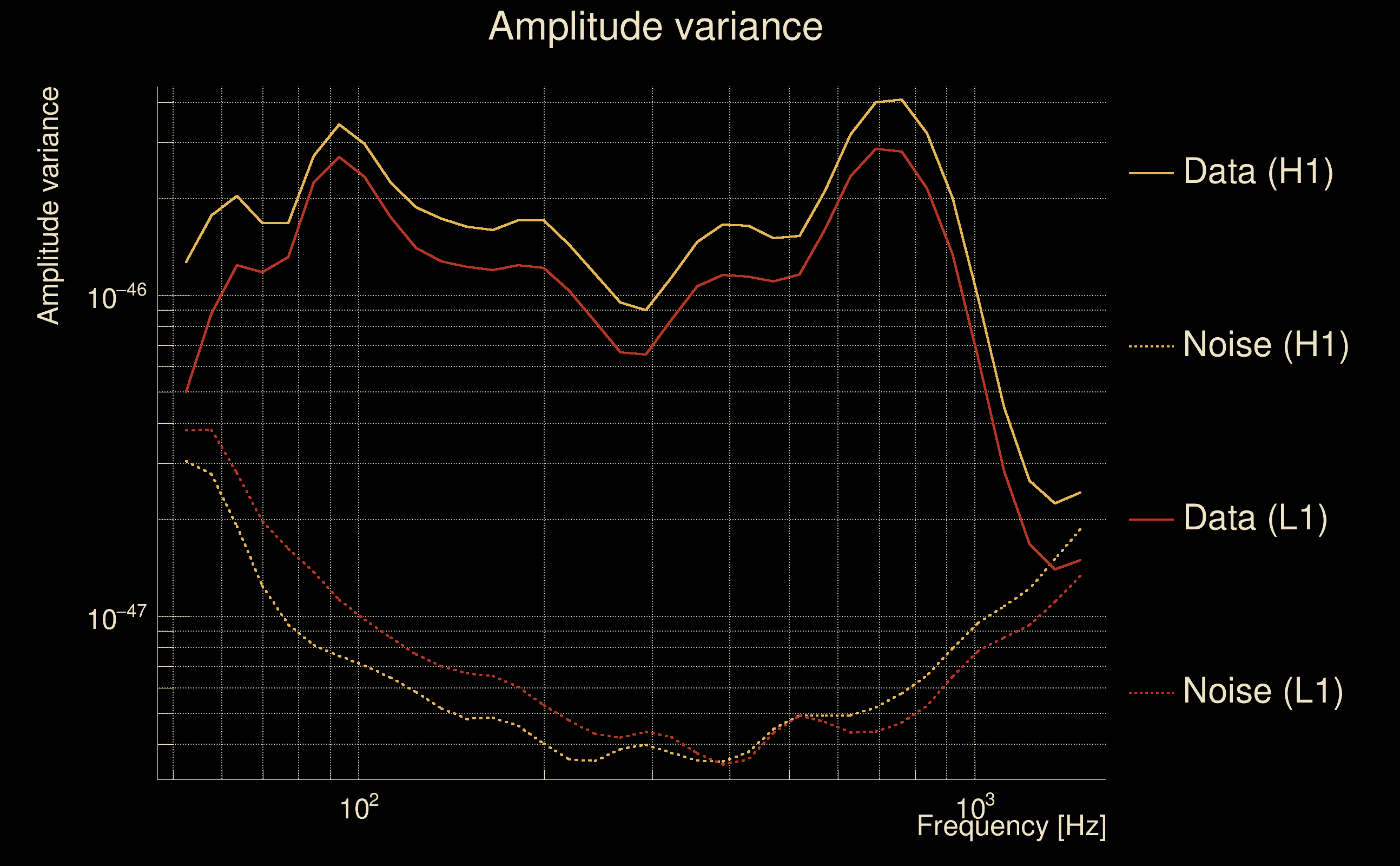

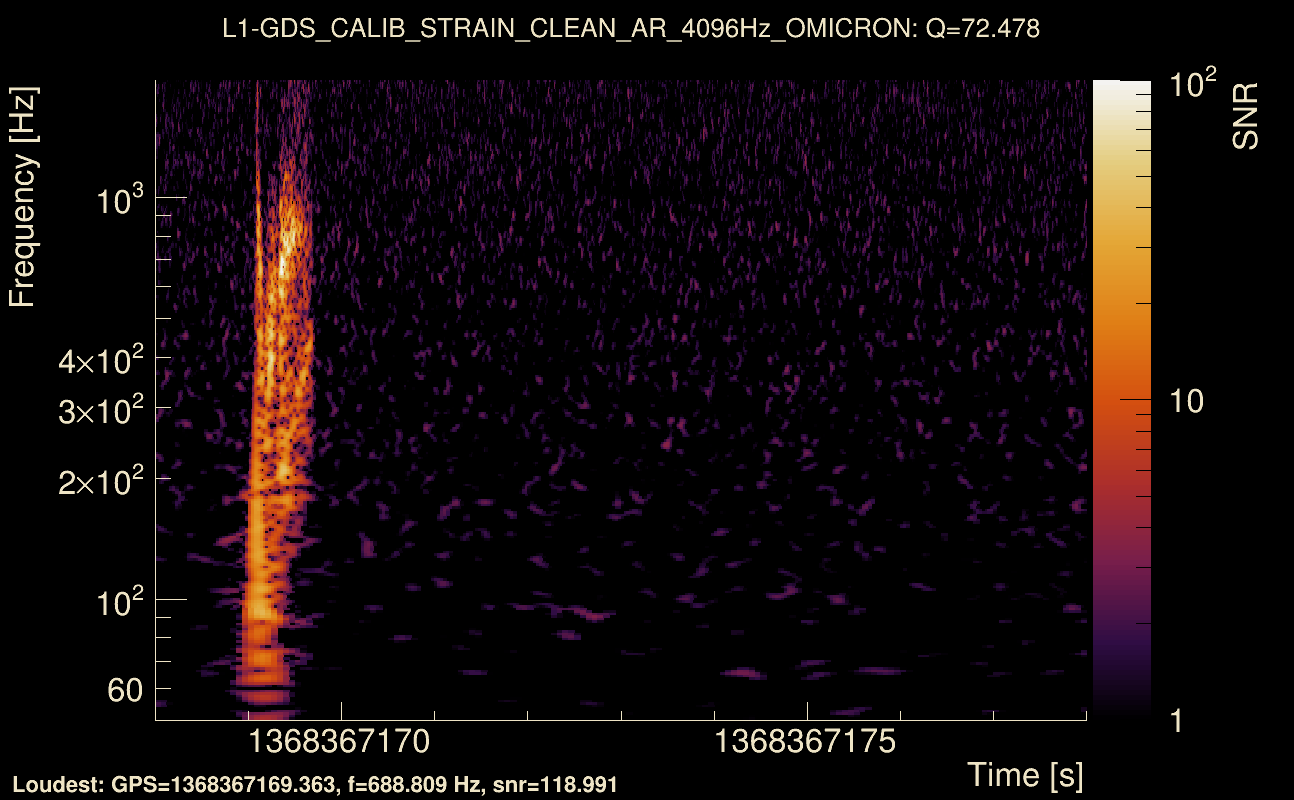

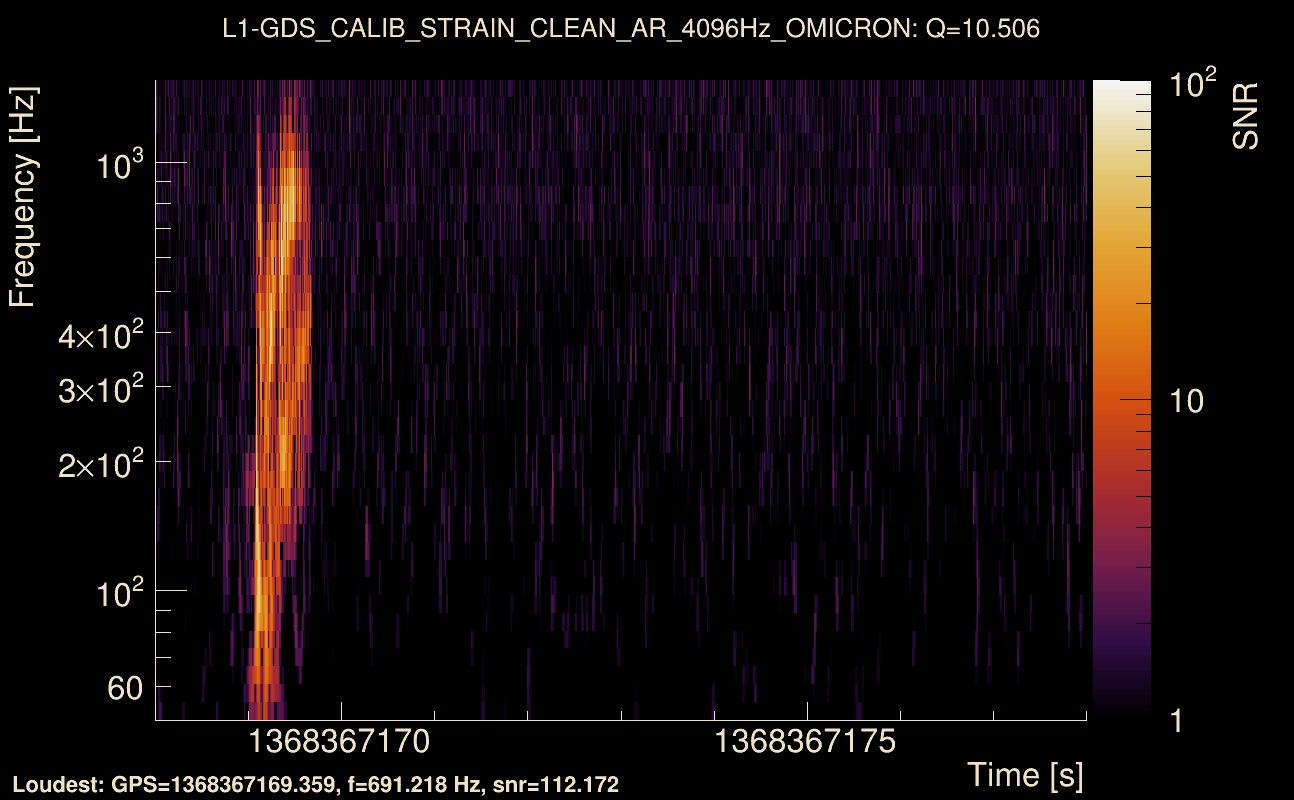

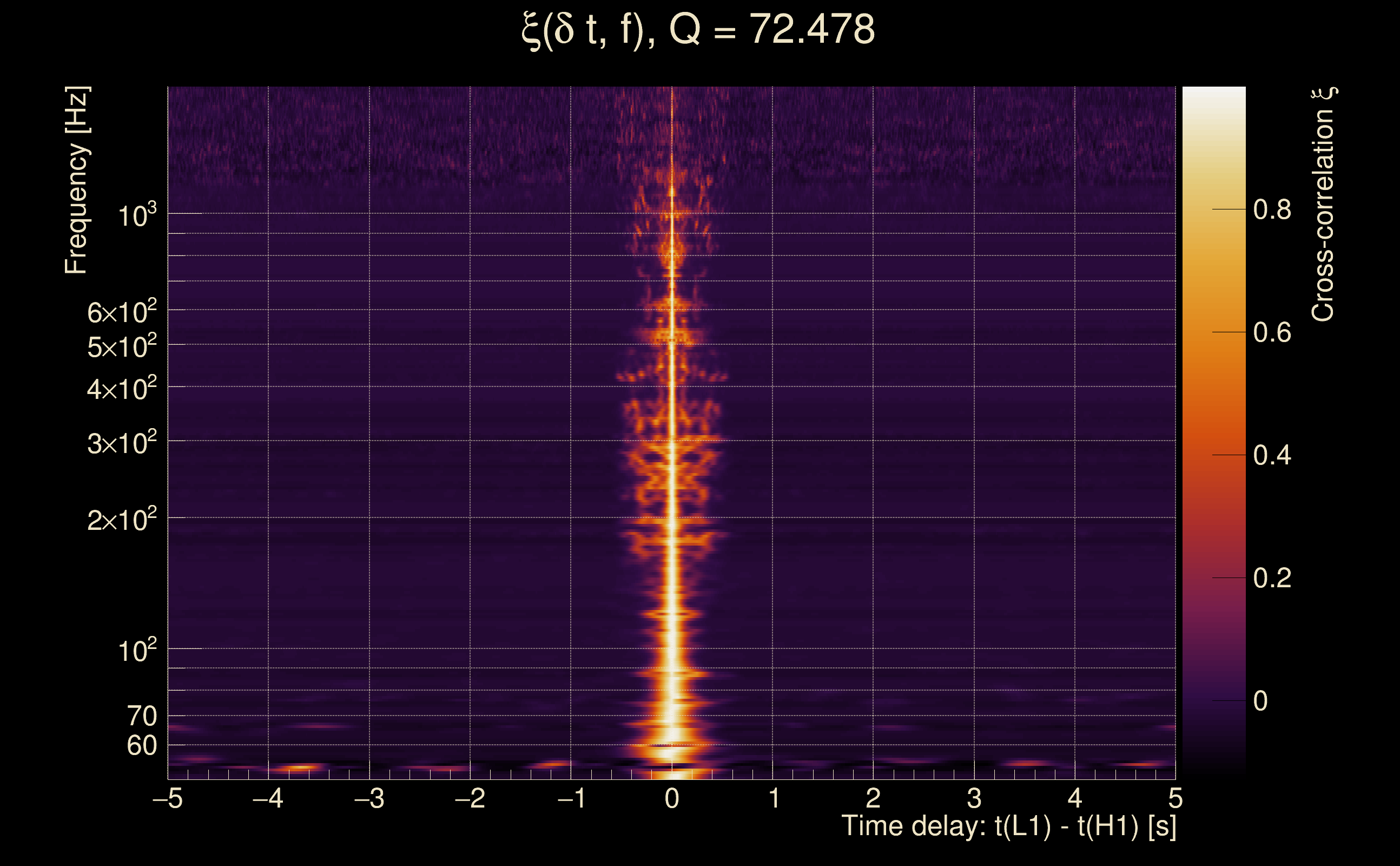

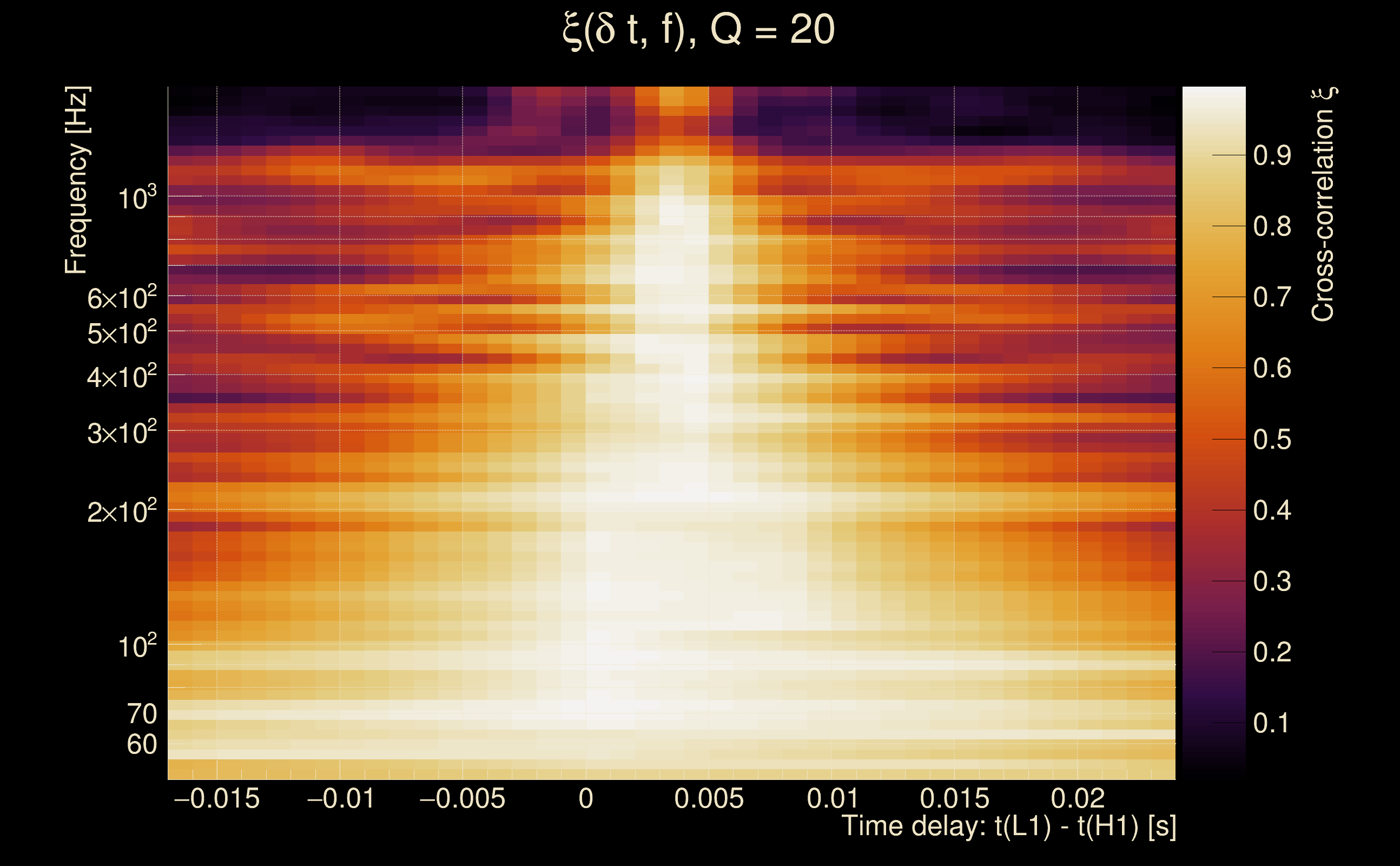

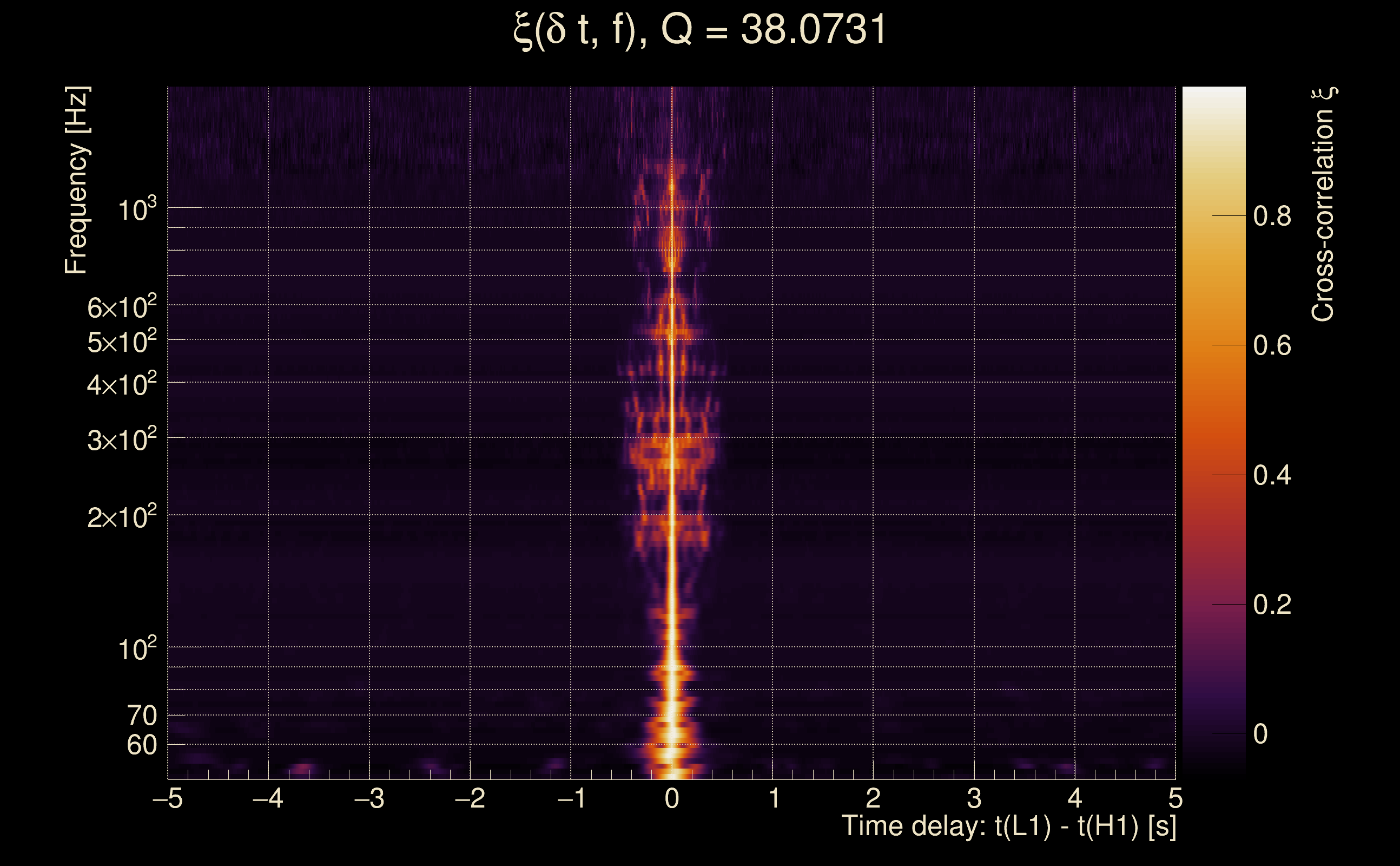

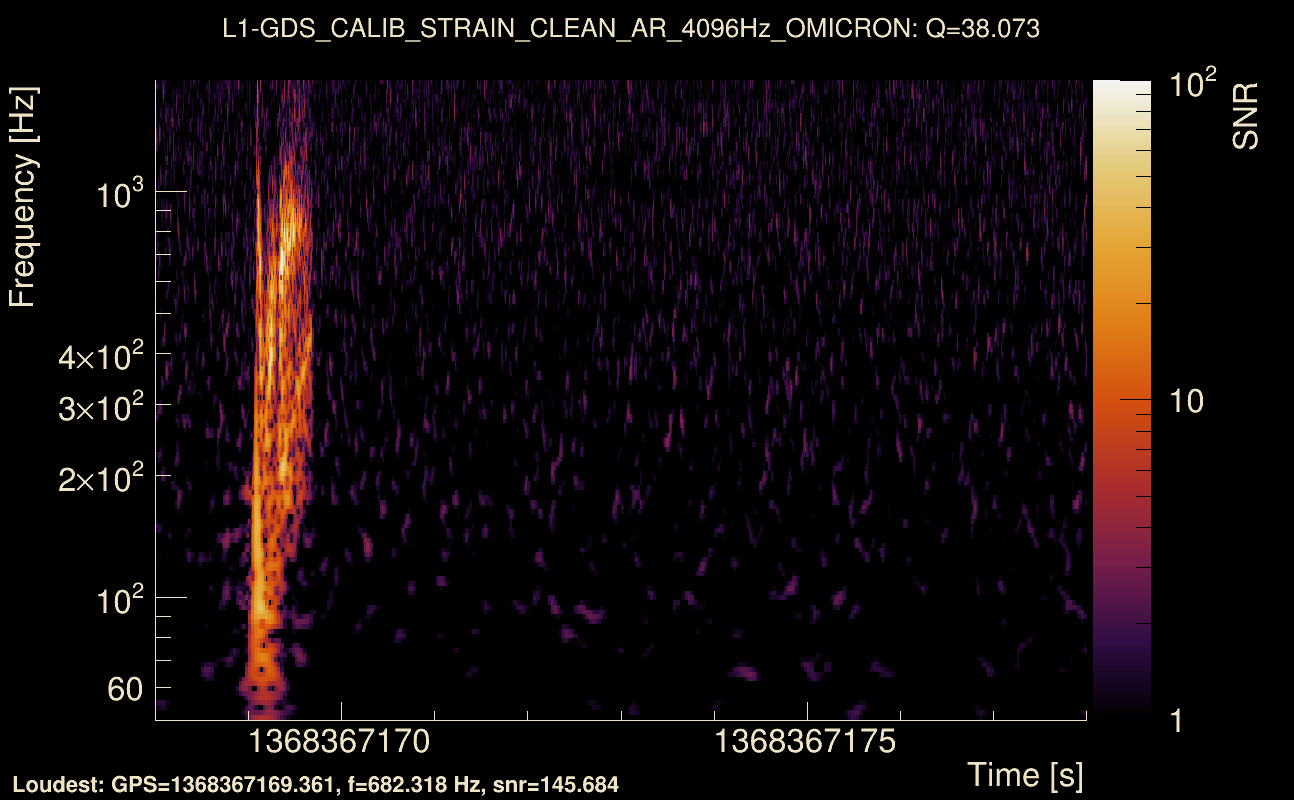

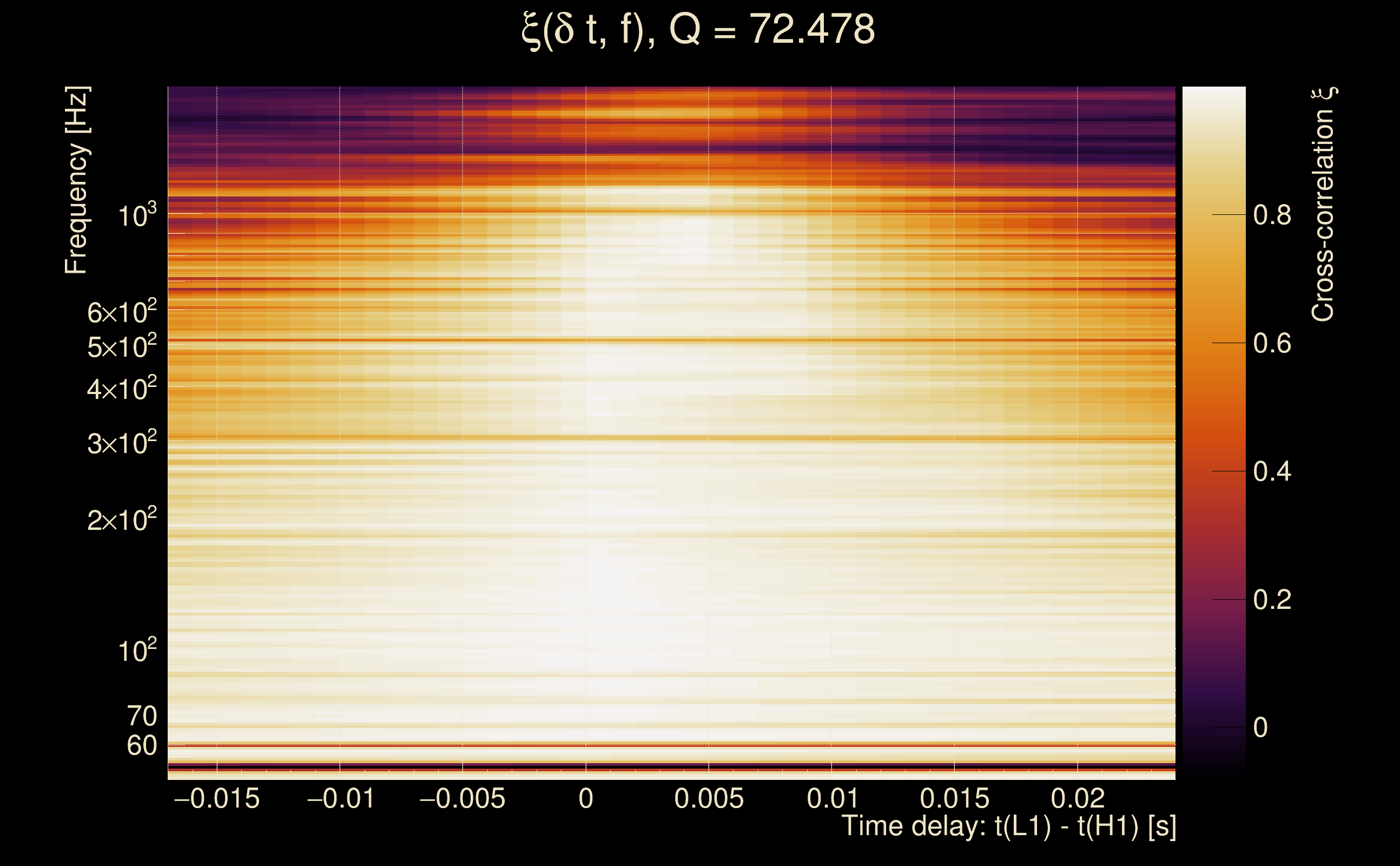

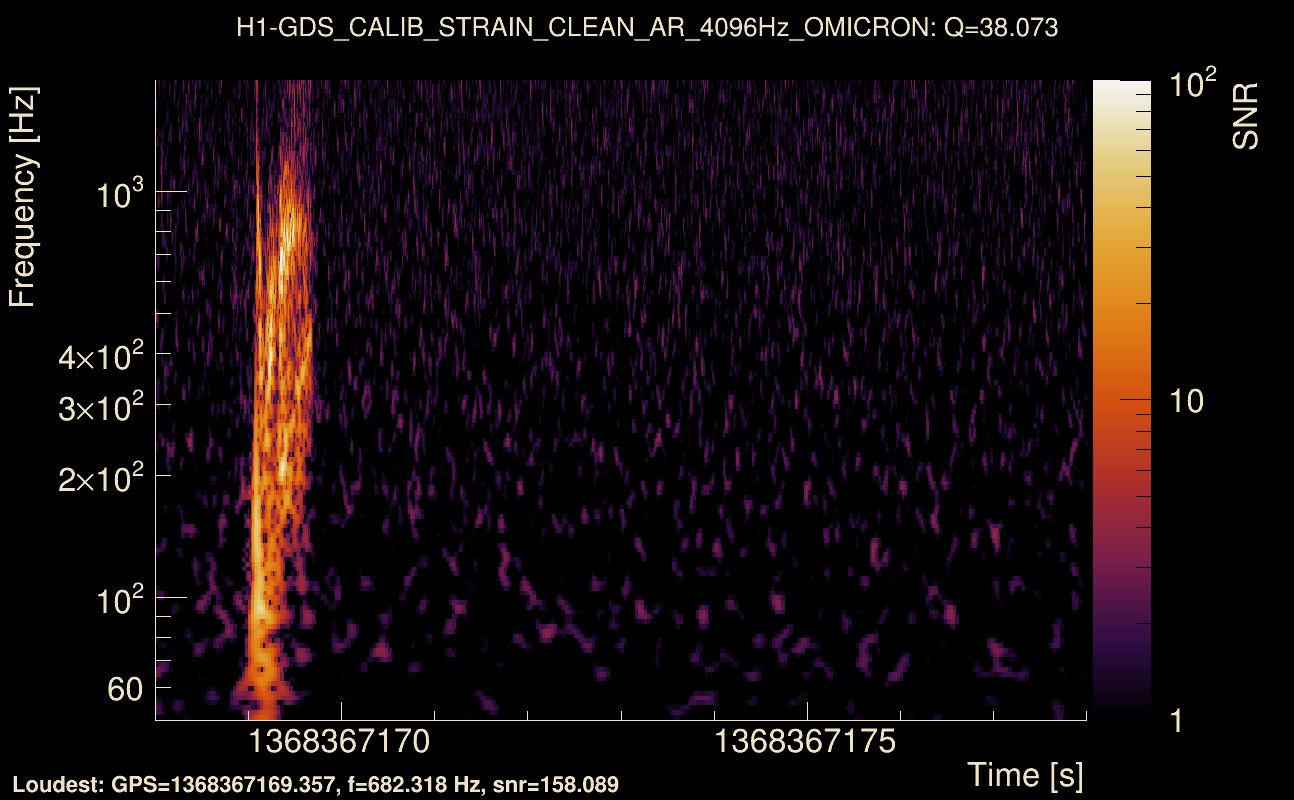

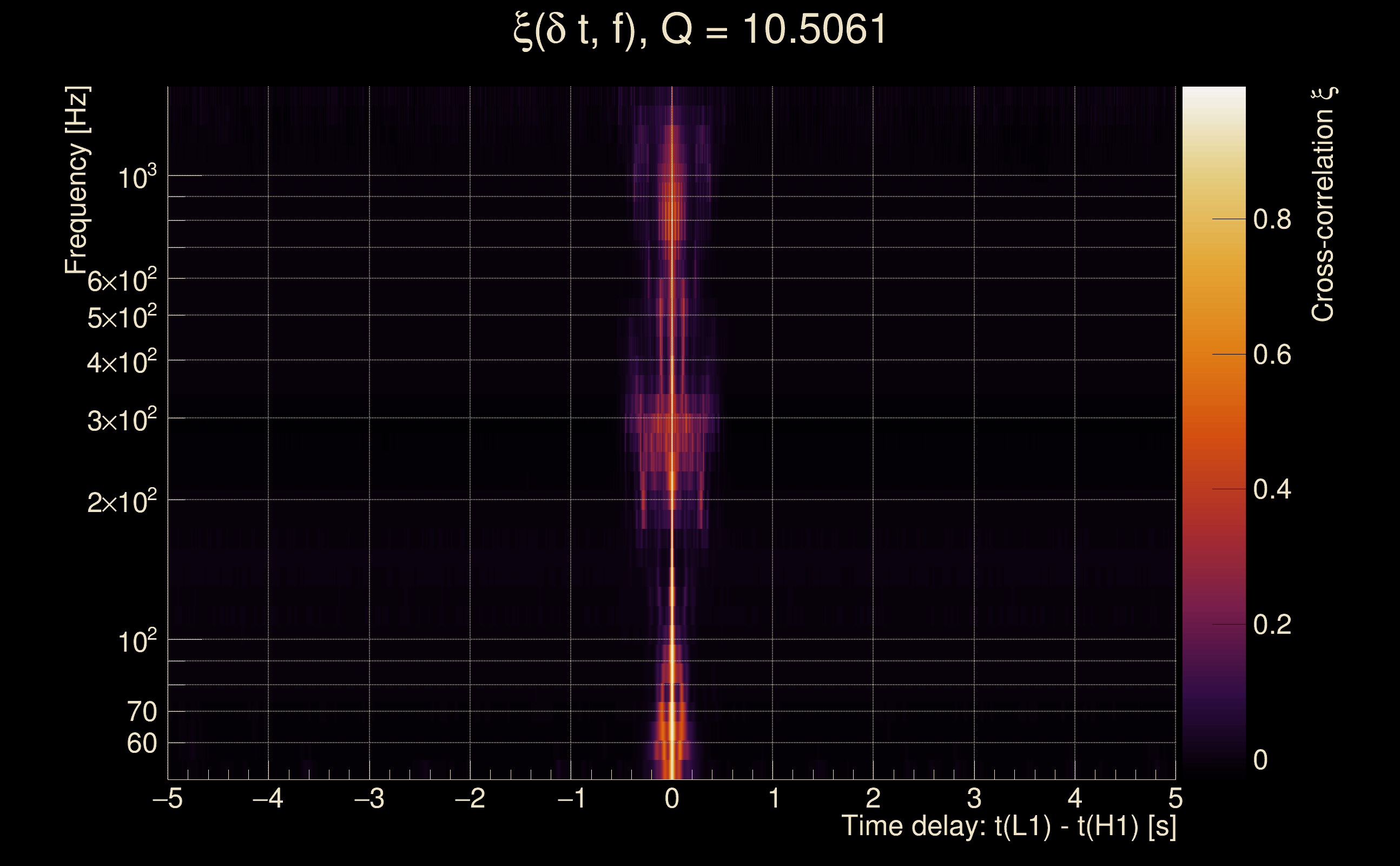

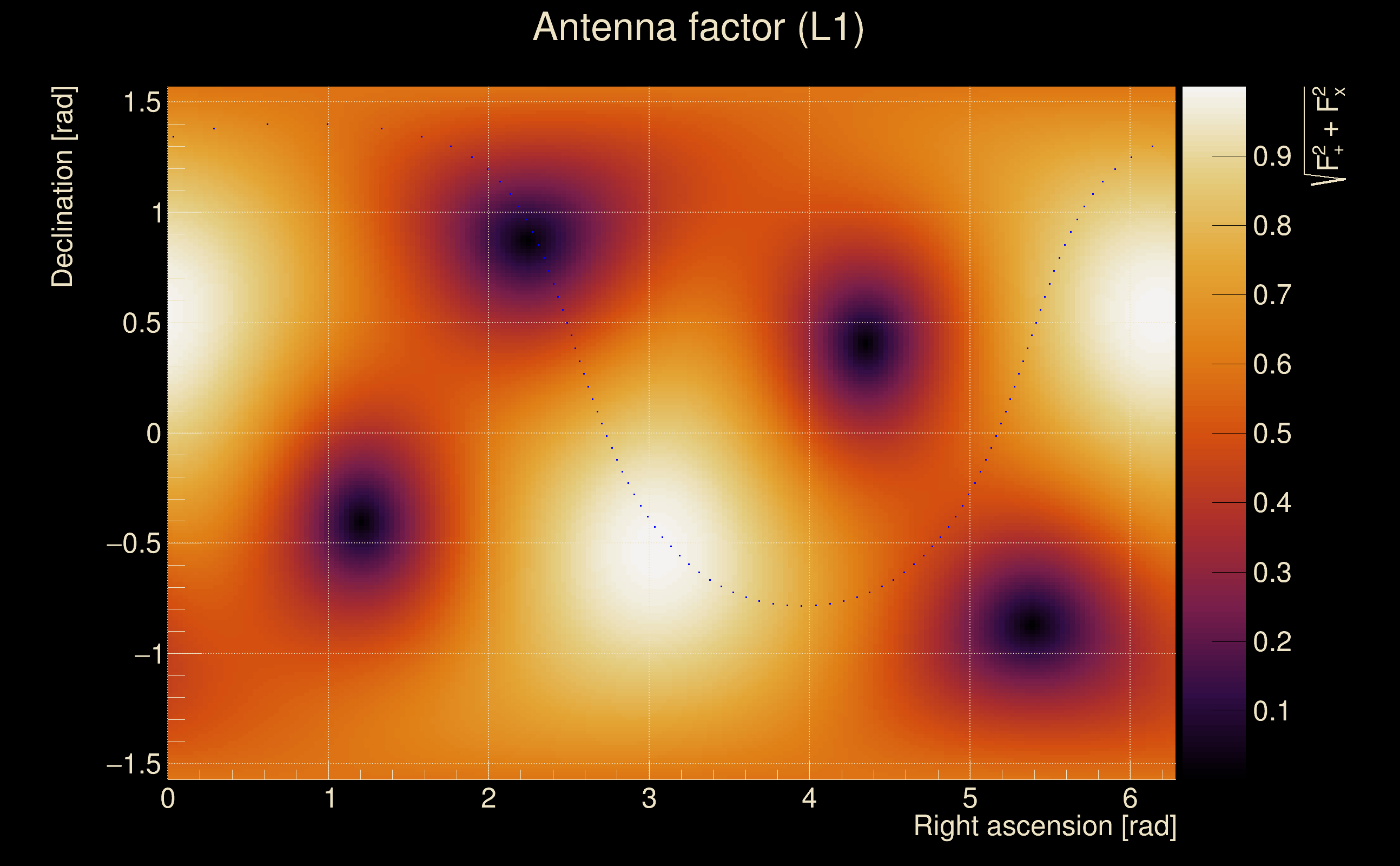

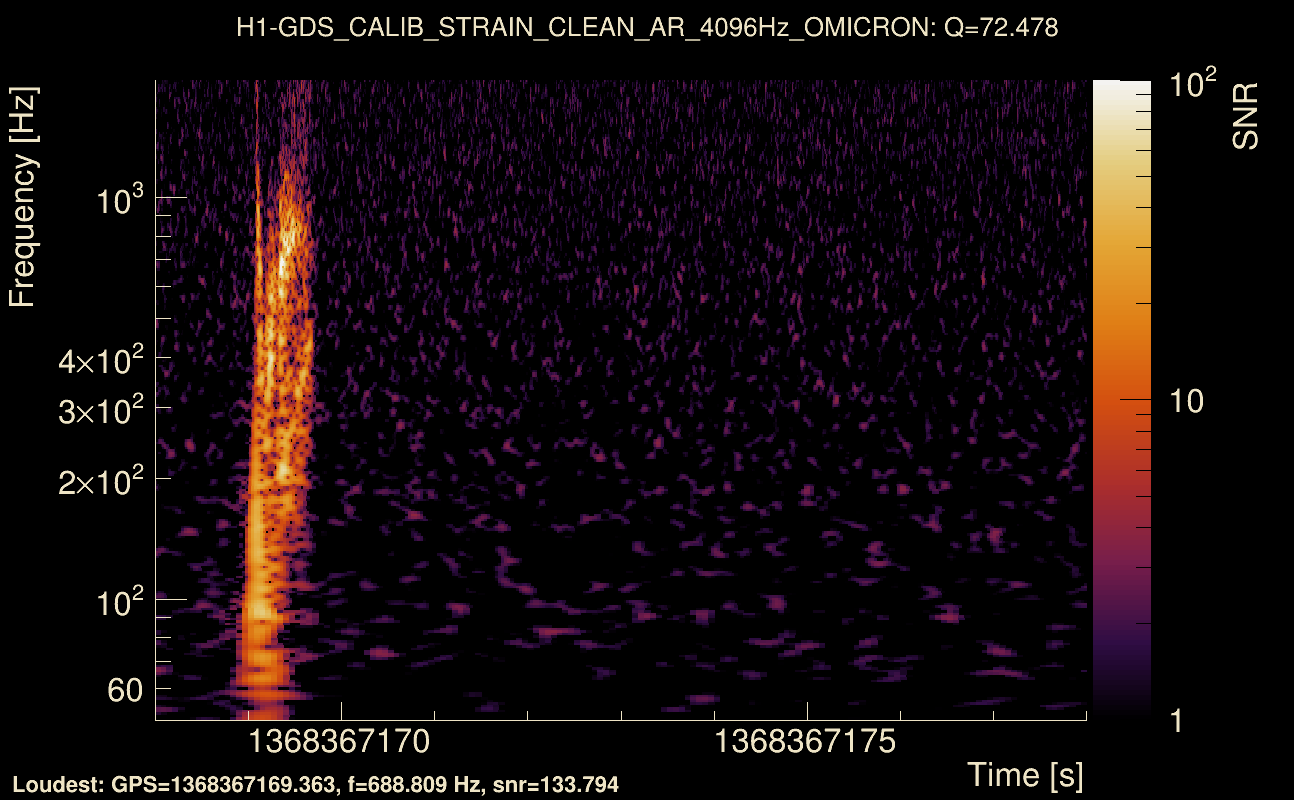

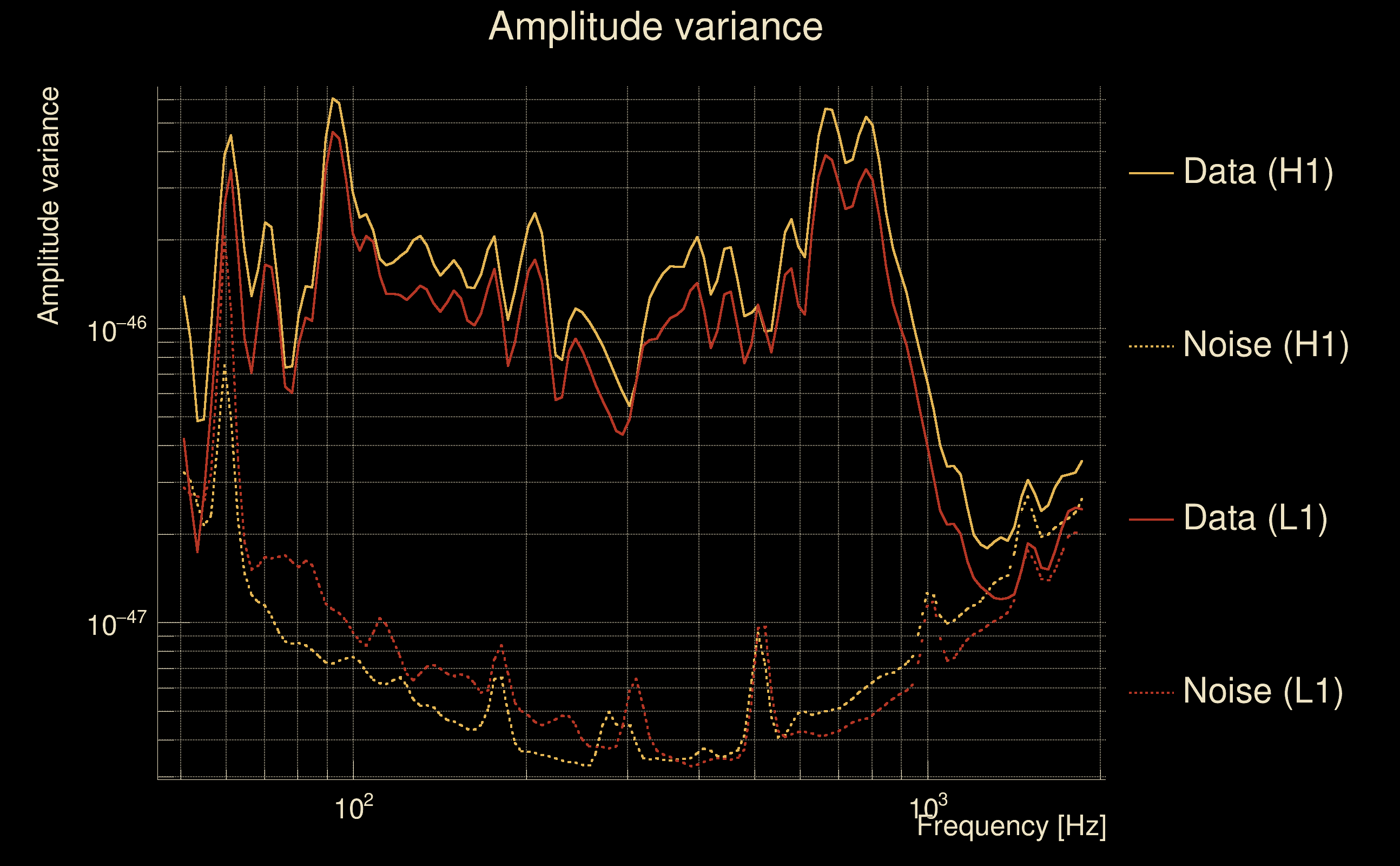

| Event time t(H1): | GPS = 1368367168 (Wed May 17 13:59:10 2023 ) → GPS = 1368367178 (Wed May 17 13:59:20 2023 ) |
| Event time t(L1): | GPS = 1368367168 (Wed May 17 13:59:20 2023 ) → GPS = 1368367178 (Wed May 17 13:59:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368367165 → GPS = 1368367181 |
| Omicron analysis time window (L1): | GPS = 1368367165 → GPS = 1368367181 |
| Time delay between detectors t(L1) - t(H1): | 0.0030432 s (slice index = 108 / 217), δt_gw = 0.0030432 s |
| Time delay standard deviation: | 0.0206232 s |
| [targeted mode] Time delay probability: | 7.89515e-41 (13.3802 sigmas), δt_target = -0.00194979 s |
| Frequency: | 275.553 Hz |
| Ξ: | 0.967554 ± 0.015087 (variance = 0.000227618): Q0: 0.98549, Q1: 0.966143, Q2: 0.952144, Q3: 0.946494, Q4: 0.945506 |
| Rank: | R_A = 0.931019 |
| Log of amplitude ratio (L1/H1): | -0.176529, variance = 0.15197 (L1/H1: -0.186651, variance = 0.301842, H1/L1: 0.164586, variance = 0.30195) |
| Amplitude ratio (L1/H1): | 0.838175 ⋇ 1.47674 (L1/H1: 0.829733 ⋇ 1.73222, H1/L1: 1.17891 ⋇ 1.73239) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.977346 |
| Antenna factor probability: | 0.984544 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 1 / 70, Q3: 3 / 134, Q4: 10 / 258 |
| Maximum signal-to-noise ratio: | H1: 156.324, L1: 143.92 |

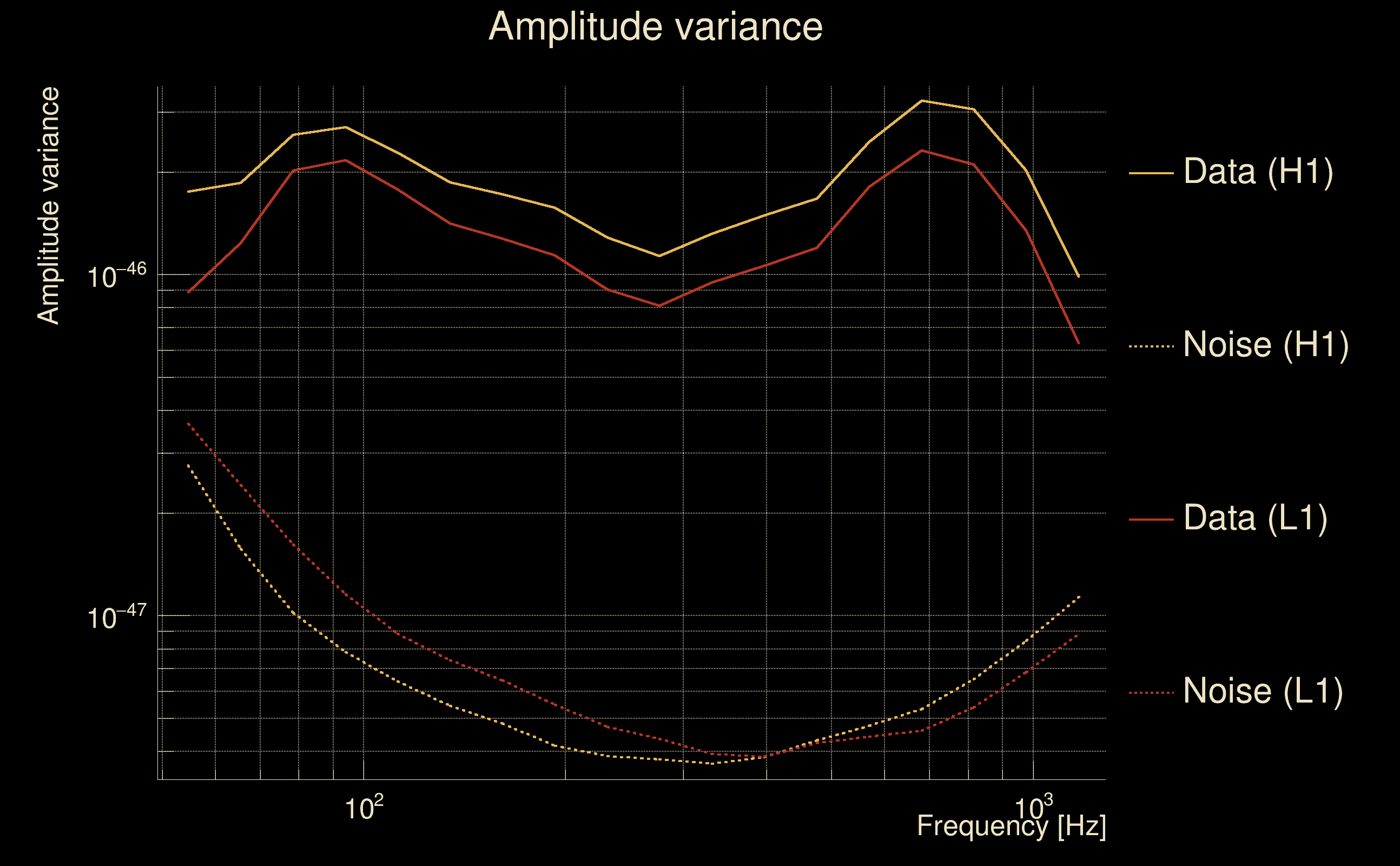

| SNR variance: | H1: 16.5488, L1: 12.7343 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

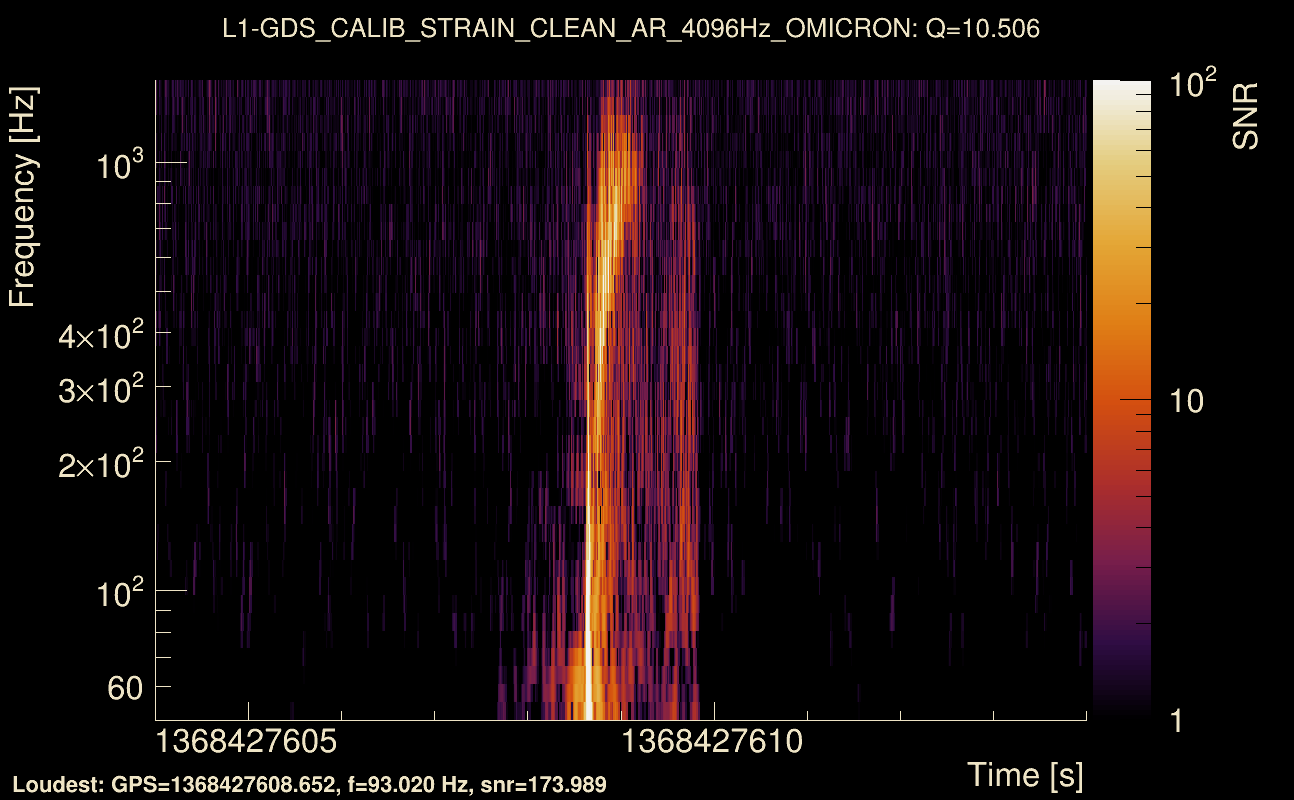

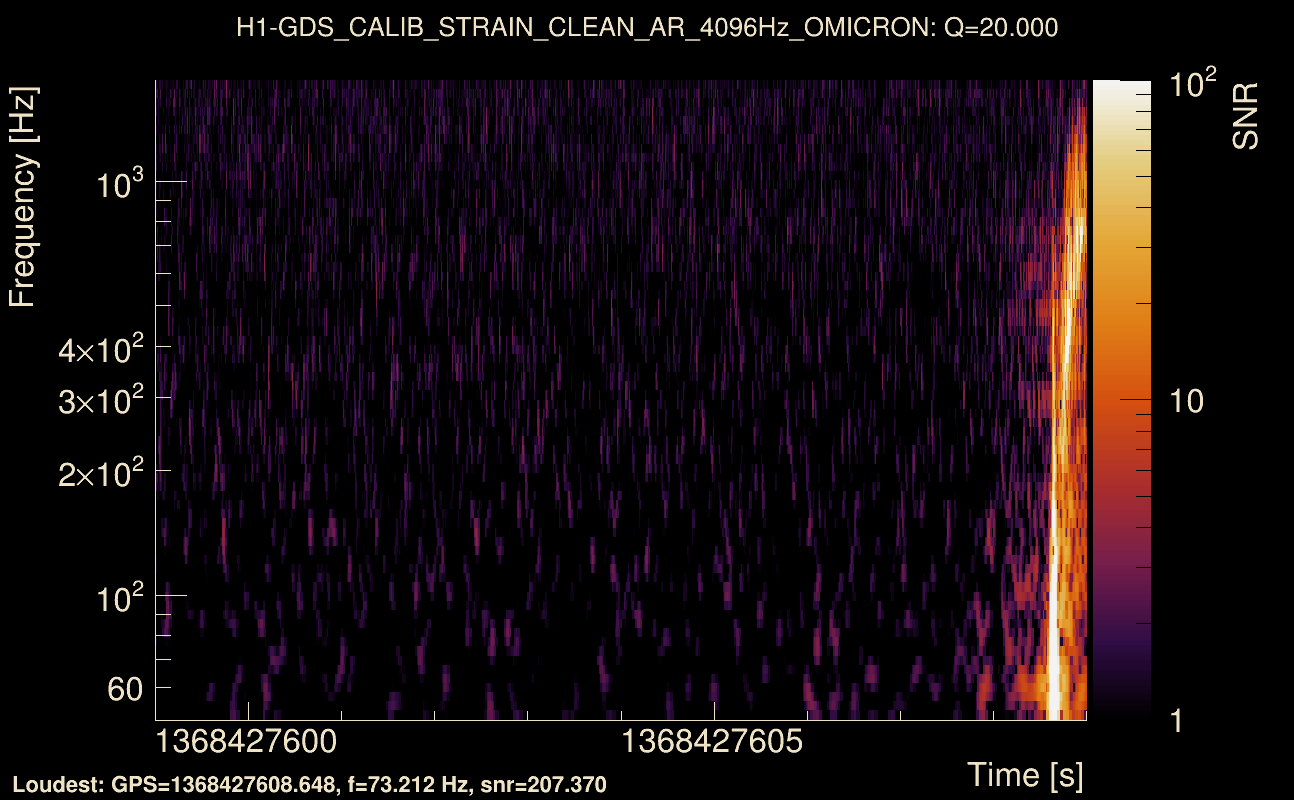

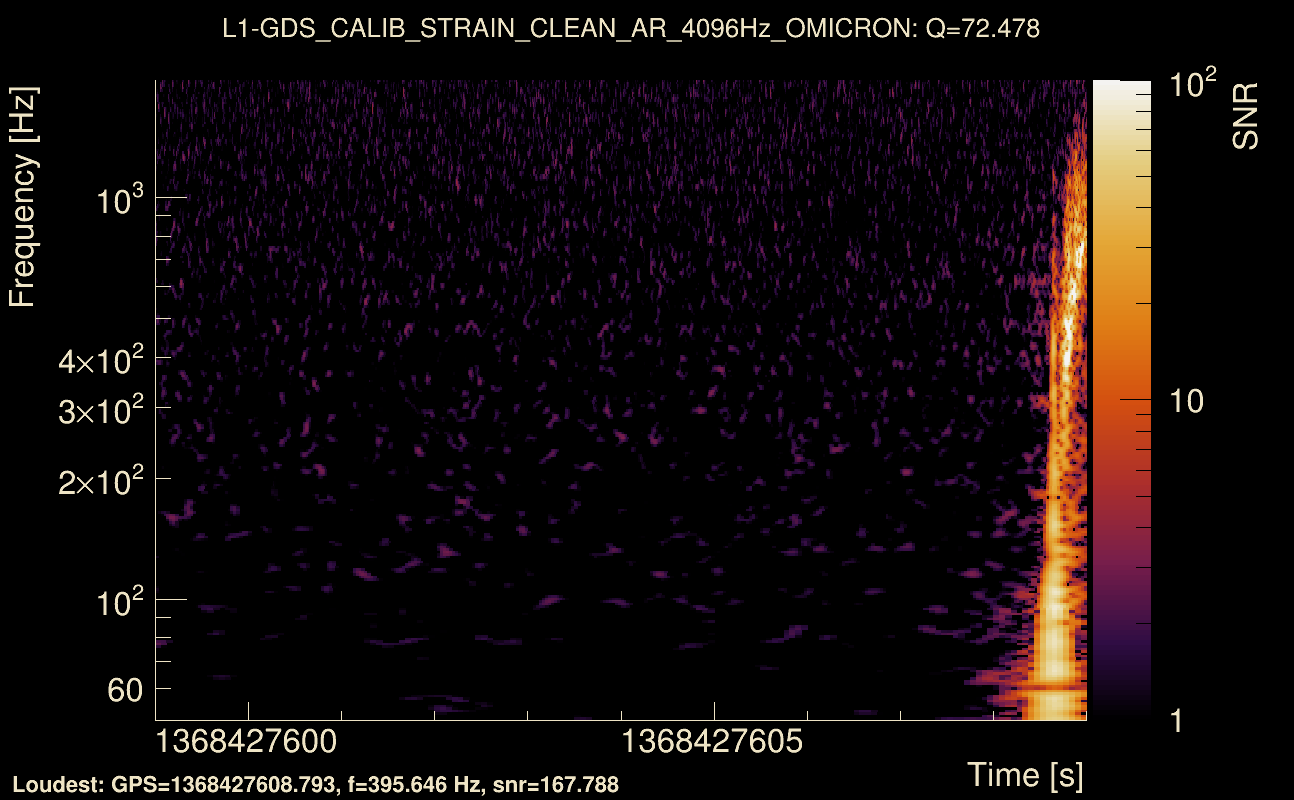

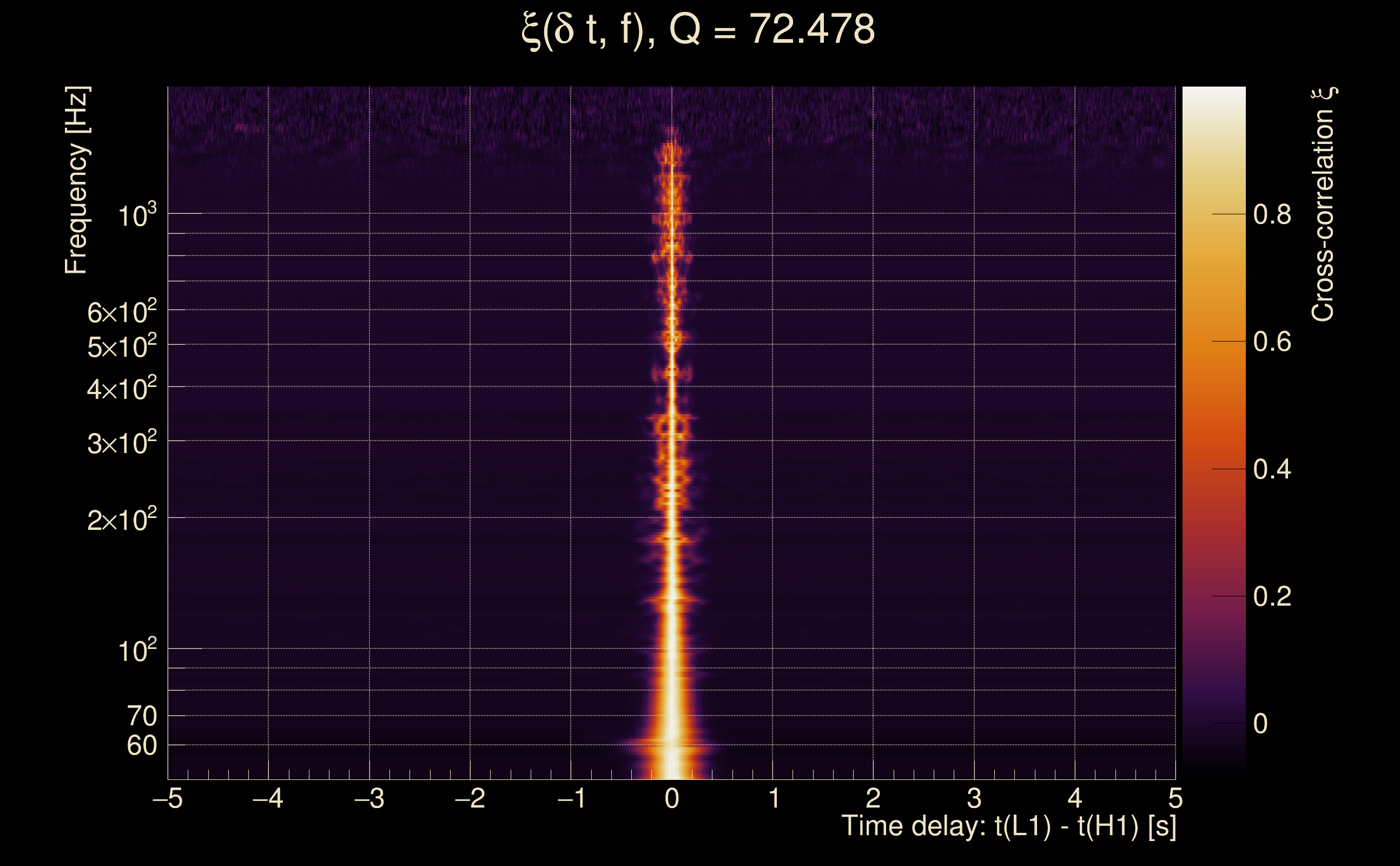

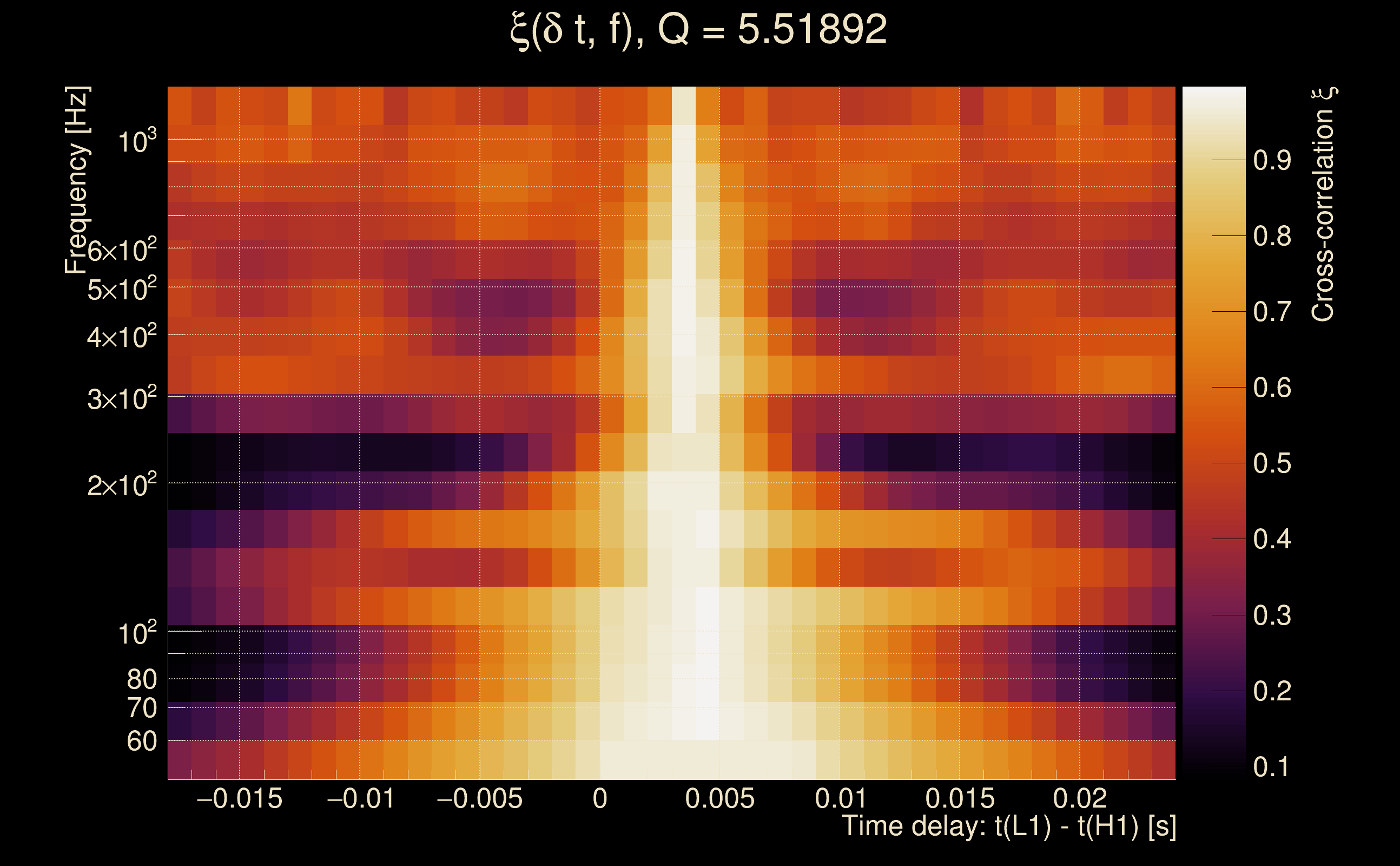

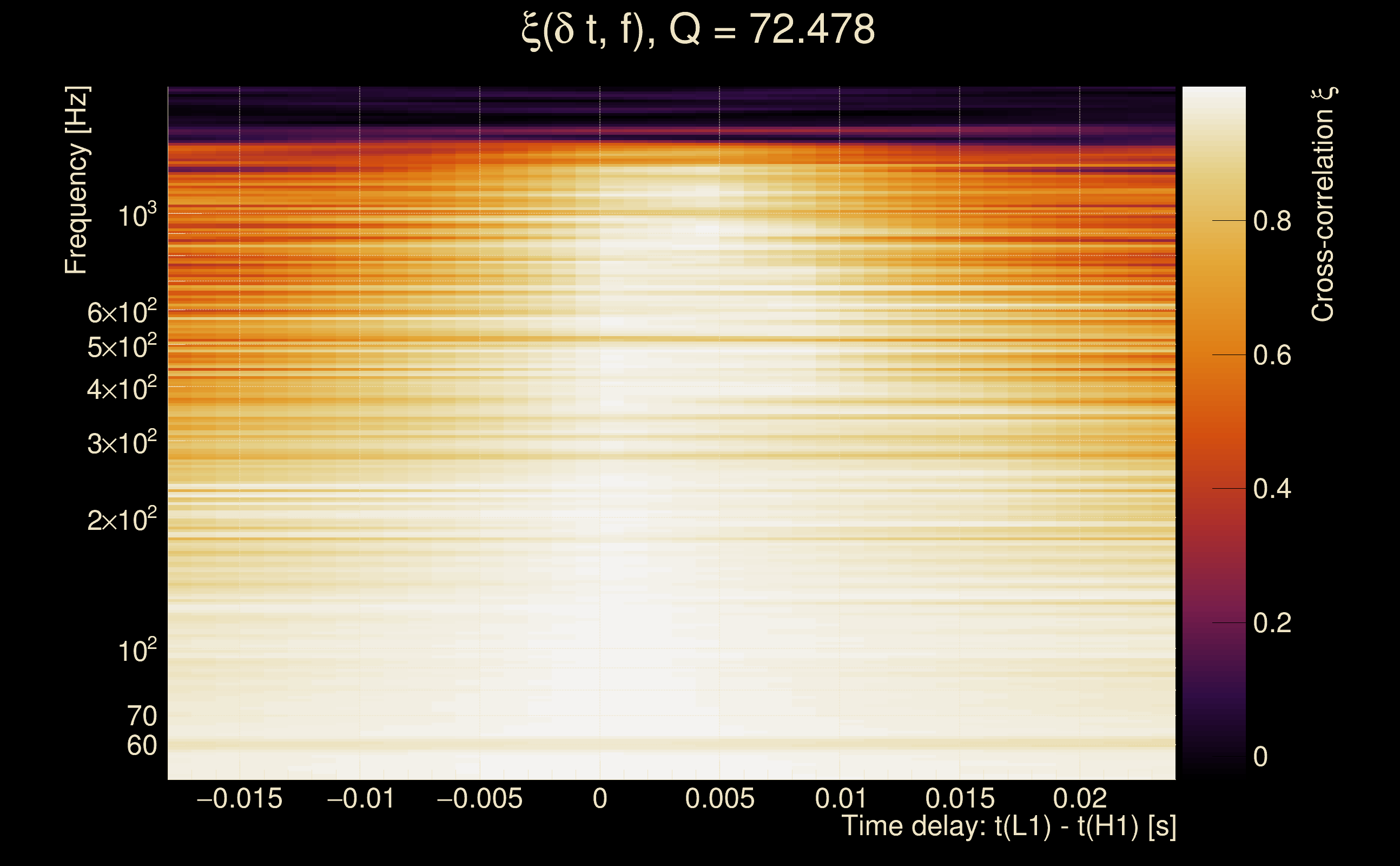

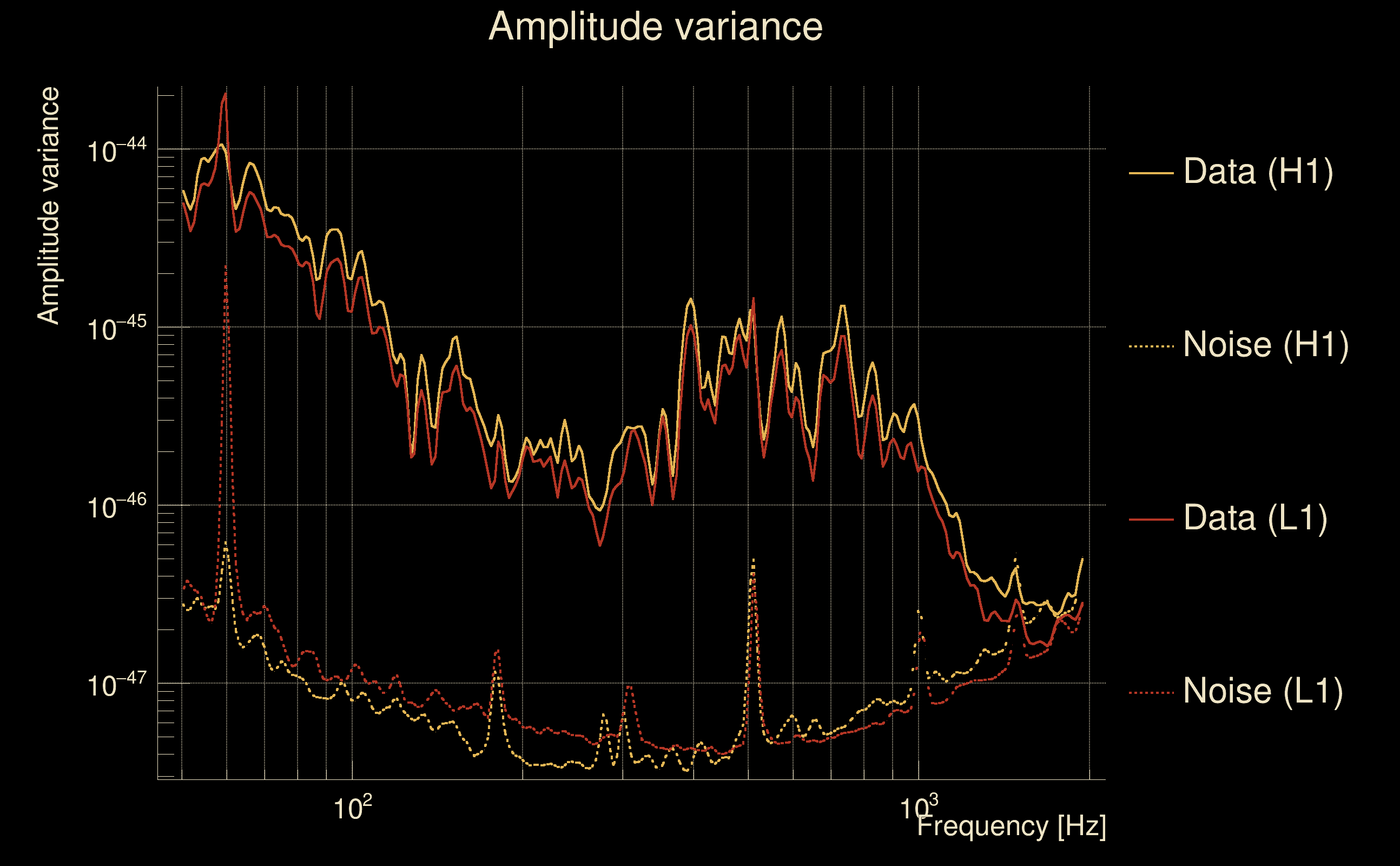

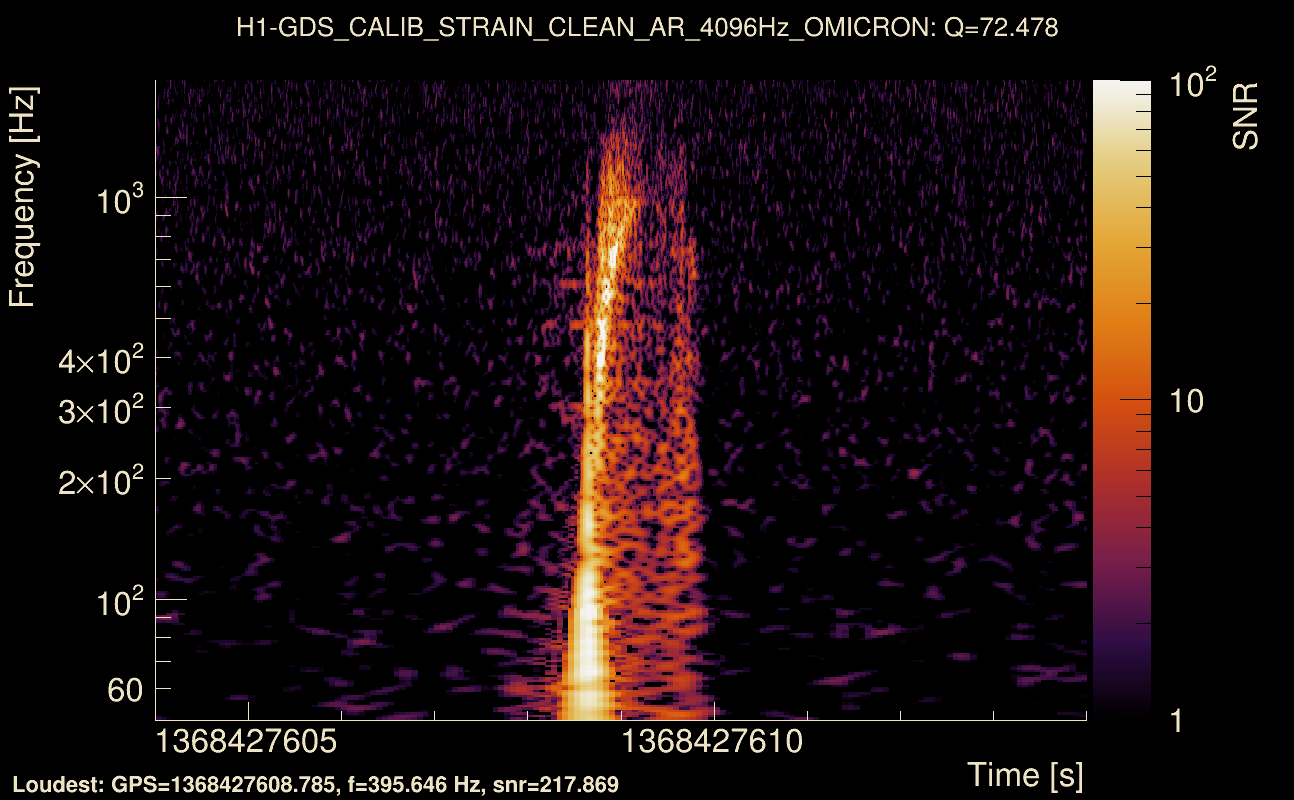

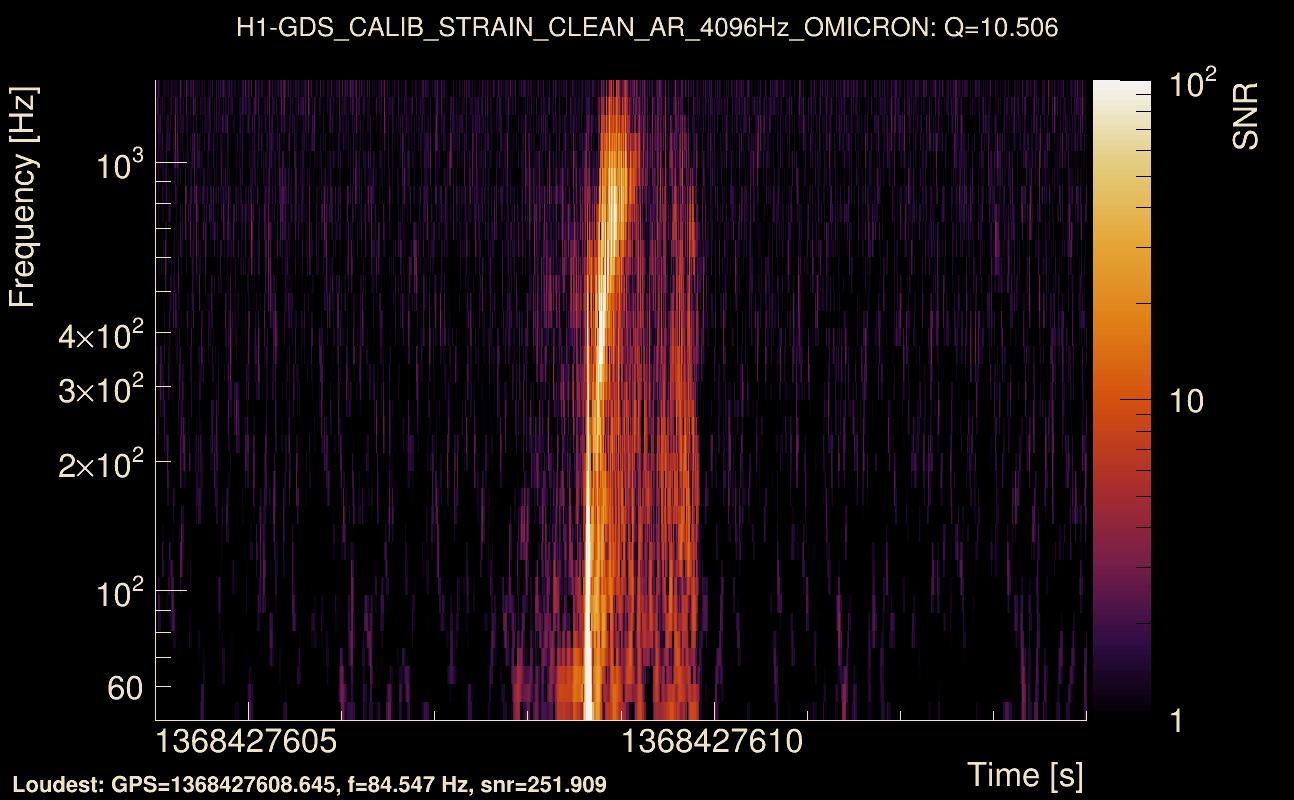

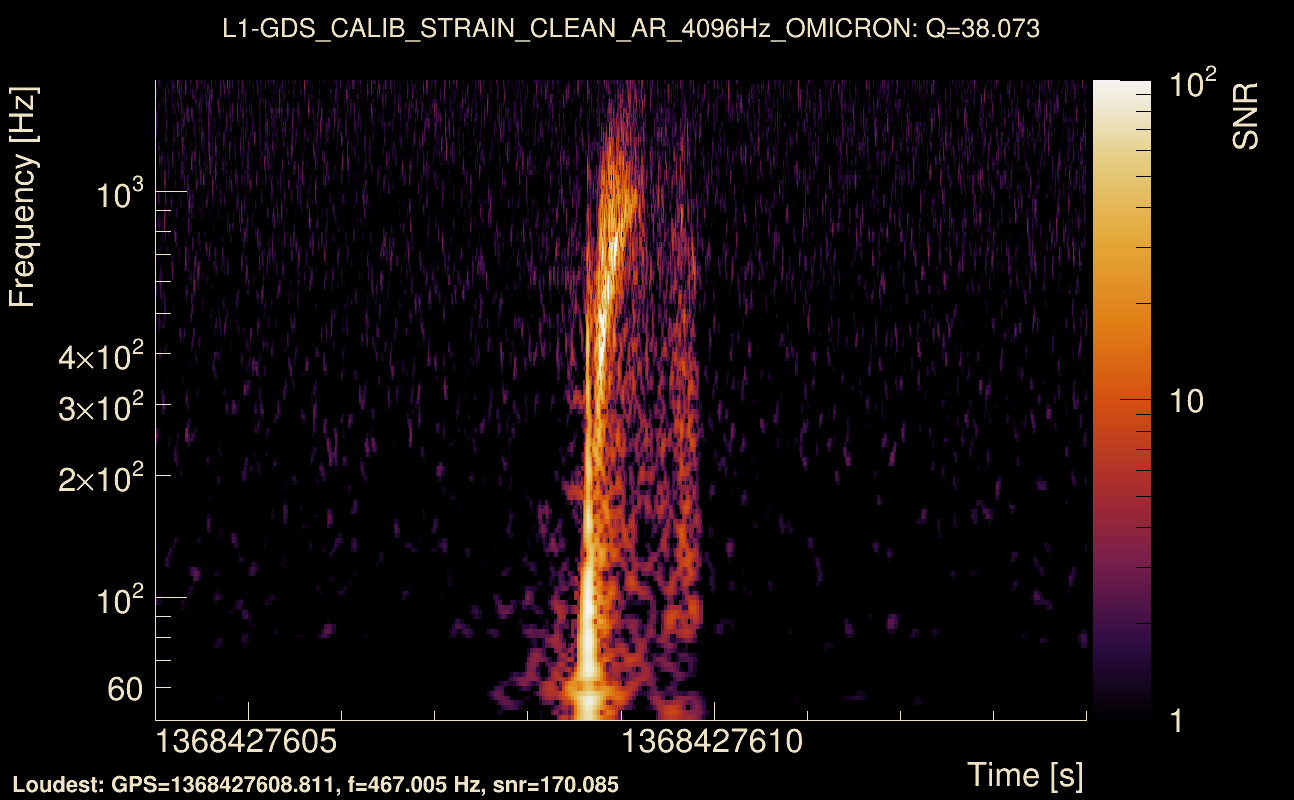

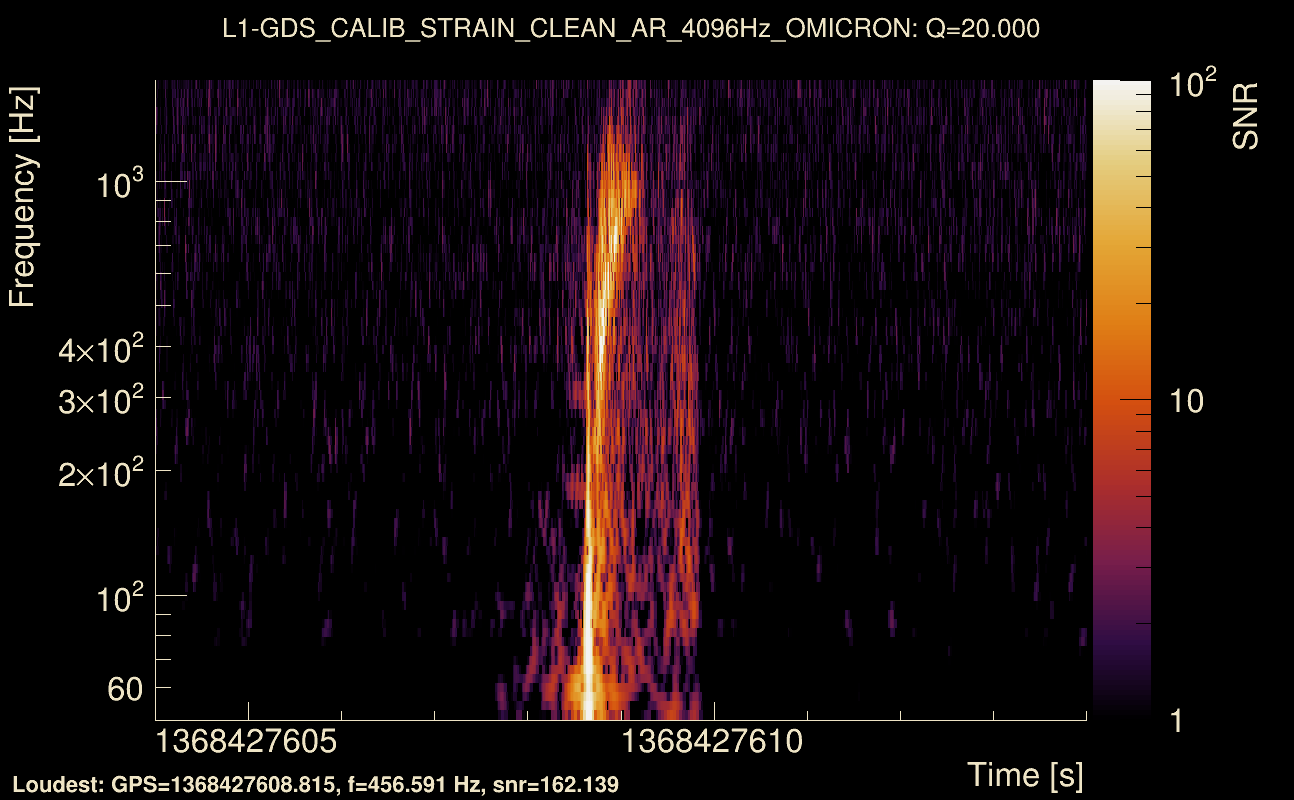

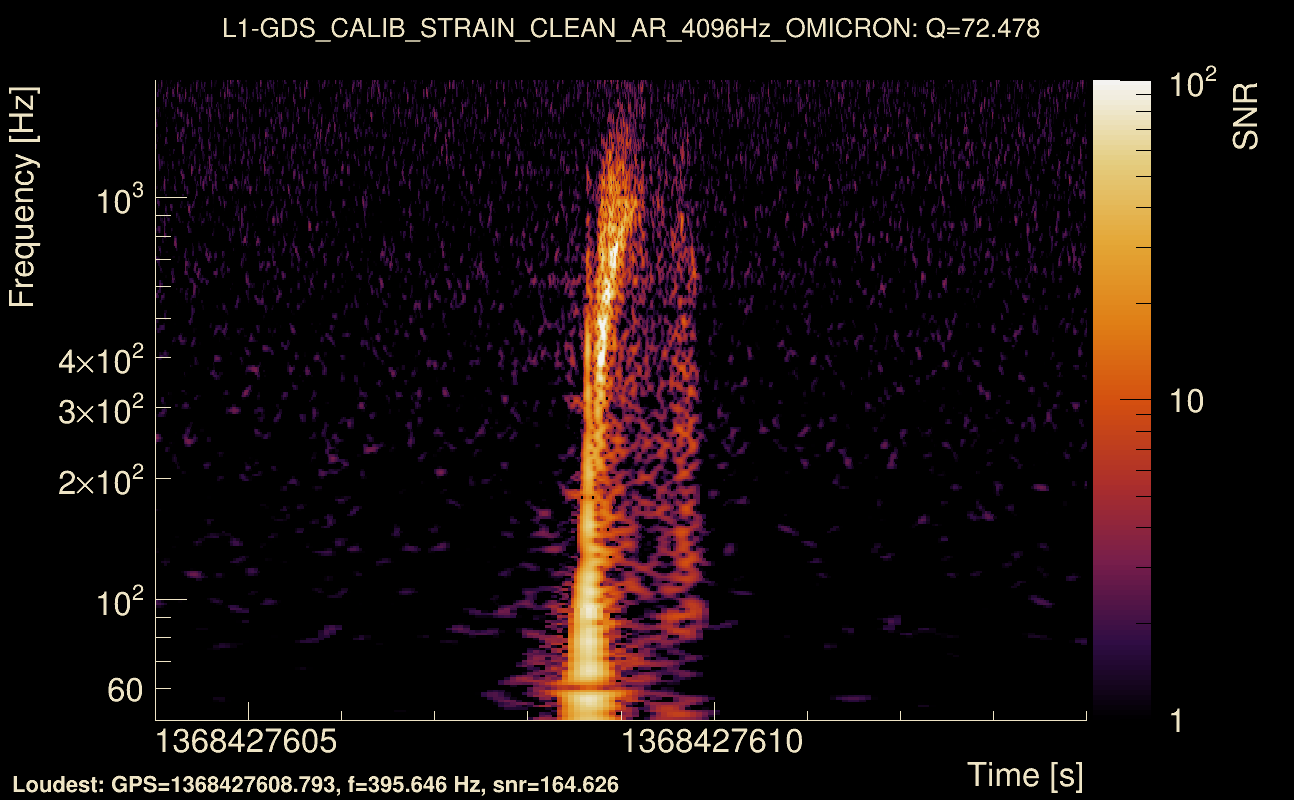

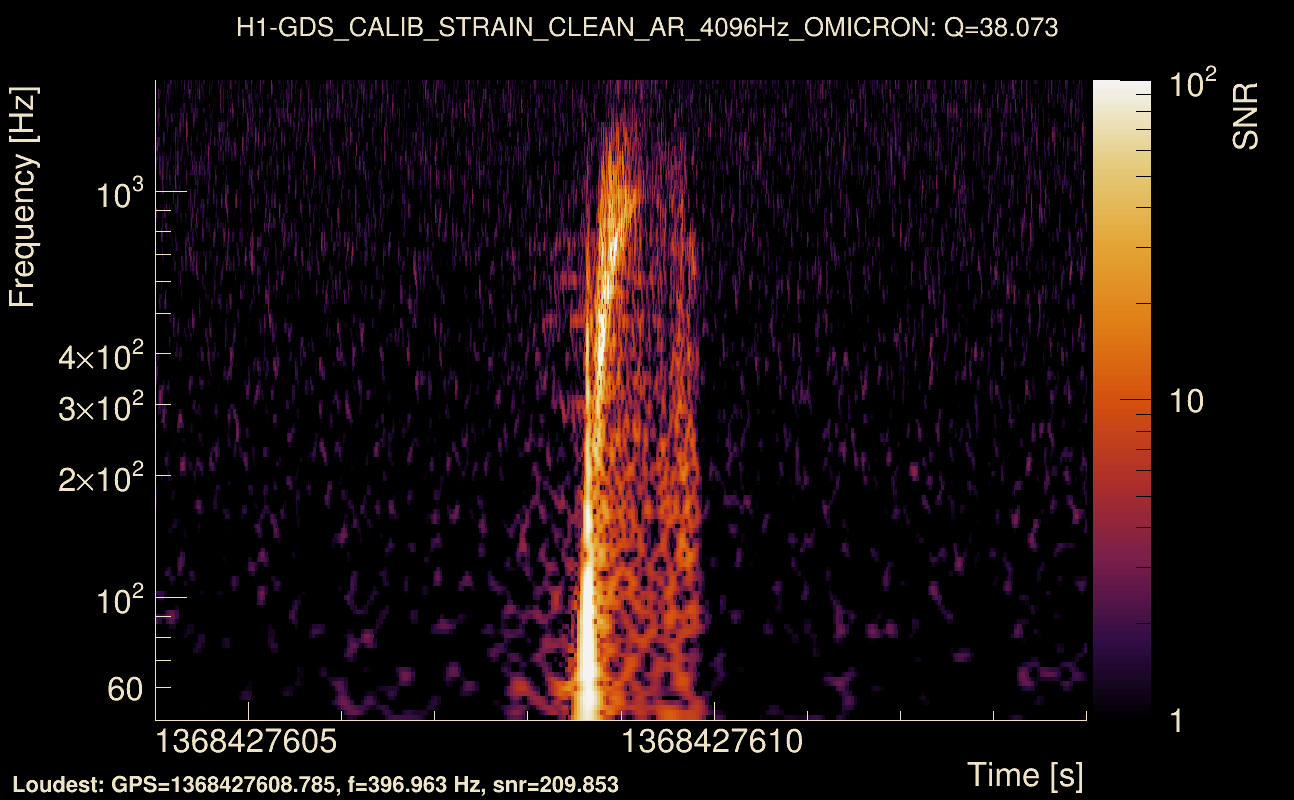

| Event time t(H1): | GPS = 1368427604 (Thu May 18 06:46:26 2023 ) → GPS = 1368427614 (Thu May 18 06:46:36 2023 ) |
| Event time t(L1): | GPS = 1368427604 (Thu May 18 06:46:36 2023 ) → GPS = 1368427614 (Thu May 18 06:46:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368427601 → GPS = 1368427617 |
| Omicron analysis time window (L1): | GPS = 1368427601 → GPS = 1368427617 |
| Time delay between detectors t(L1) - t(H1): | 0.00302478 s (slice index = 108 / 217), δt_gw = 0.00302478 s |
| Time delay standard deviation: | 0.0220928 s |
| [targeted mode] Time delay probability: | 0.29629 (1.04442 sigmas), δt_target = -0.00976324 s |
| Frequency: | 264.487 Hz |
| Ξ: | 0.970896 ± 0.00677628 (variance = 4.59179e-05): Q0: 0.979425, Q1: 0.96577, Q2: 0.96131, Q3: 0.960555, Q4: 0.966861 |
| Rank: | R_A = 0.928818 |
| Log of amplitude ratio (L1/H1): | -0.179085, variance = 0.15308 (L1/H1: -0.192064, variance = 0.300902, H1/L1: 0.162187, variance = 0.301121) |
| Amplitude ratio (L1/H1): | 0.836035 ⋇ 1.47884 (L1/H1: 0.825254 ⋇ 1.73073, H1/L1: 1.17608 ⋇ 1.73108) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.969284 |
| Antenna factor probability: | 0.986977 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 7 / 258 |
| Maximum signal-to-noise ratio: | H1: 367.431, L1: 322.021 |

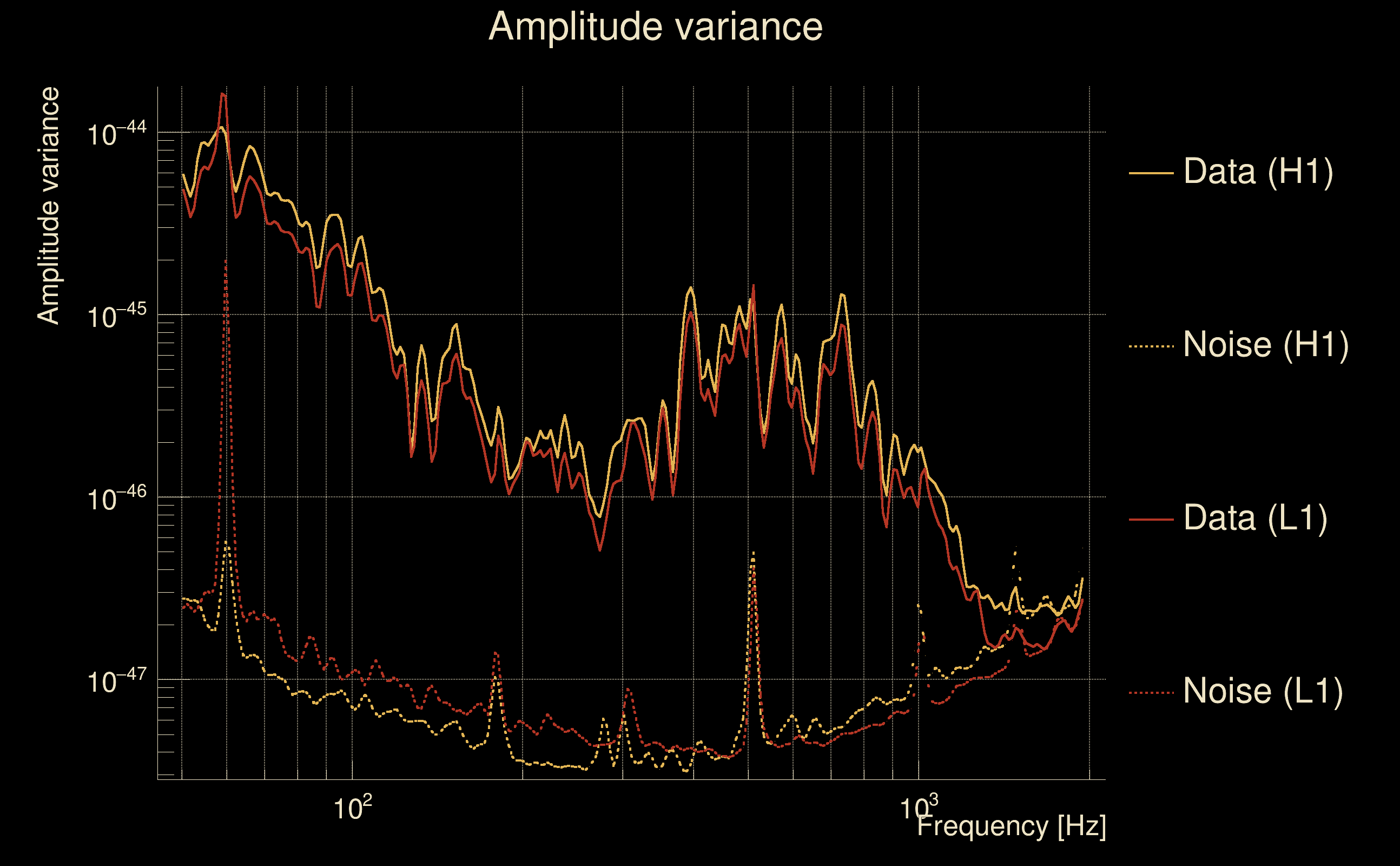

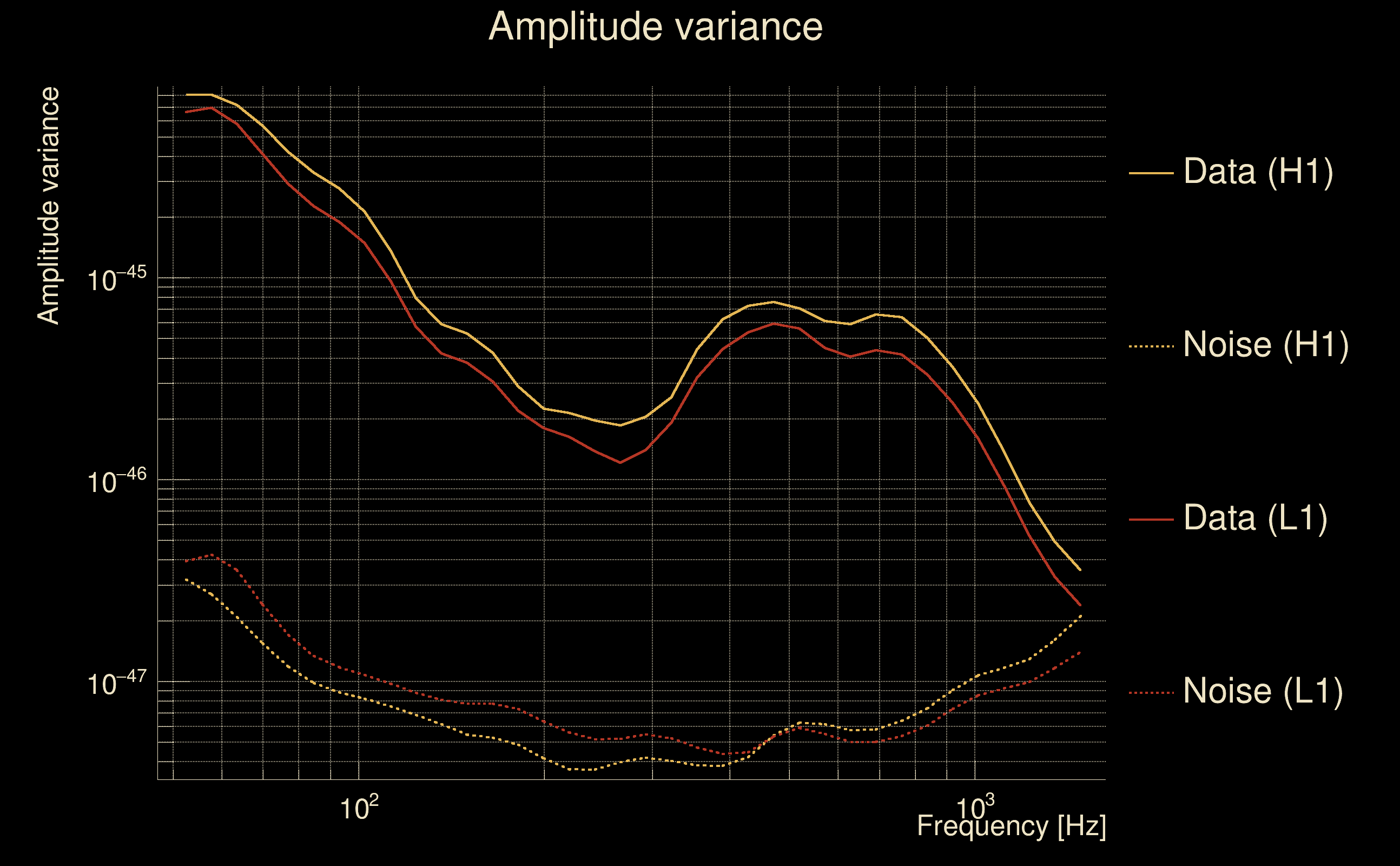

| SNR variance: | H1: 82.3754, L1: 64.9611 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368360608 (Wed May 17 12:09:50 2023 ) → GPS = 1368360618 (Wed May 17 12:10:00 2023 ) |
| Event time t(L1): | GPS = 1368360608 (Wed May 17 12:10:00 2023 ) → GPS = 1368360618 (Wed May 17 12:10:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368360605 → GPS = 1368360621 |
| Omicron analysis time window (L1): | GPS = 1368360605 → GPS = 1368360621 |
| Time delay between detectors t(L1) - t(H1): | -4.32023 s (slice index = 202 / 217), δt_gw = 0.00377422 s |
| Time delay standard deviation: | 0.0726274 s |
| [targeted mode] Time delay probability: | 0.340207 (0.953757 sigmas), δt_target = -0.00195241 s |
| Frequency: | 97.79 Hz |
| Ξ: | 0.0373183 ± 0.0314859 (variance = 0.000991365): Q0: 0.142134, Q1: 0.135603, Q2: 0.0892918, Q3: 0.057356, Q4: 0.0933725 |
| Rank: | R_A = 0.0140781 |
| Log of amplitude ratio (L1/H1): | -0.332772, variance = 0.618692 (L1/H1: -1.0288, variance = 0.650329, H1/L1: -0.258123, variance = 1.64638) |
| Amplitude ratio (L1/H1): | 0.716933 ⋇ 2.19585 (L1/H1: 0.357437 ⋇ 2.2399, H1/L1: 0.7725 ⋇ 3.60785) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.395782 |
| Antenna factor probability: | 0.953163 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 28 / 36, Q2: 65 / 70, Q3: 120 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.01334, L1: 5.44107 |
| SNR variance: | H1: 0.560857, L1: 0.546294 |

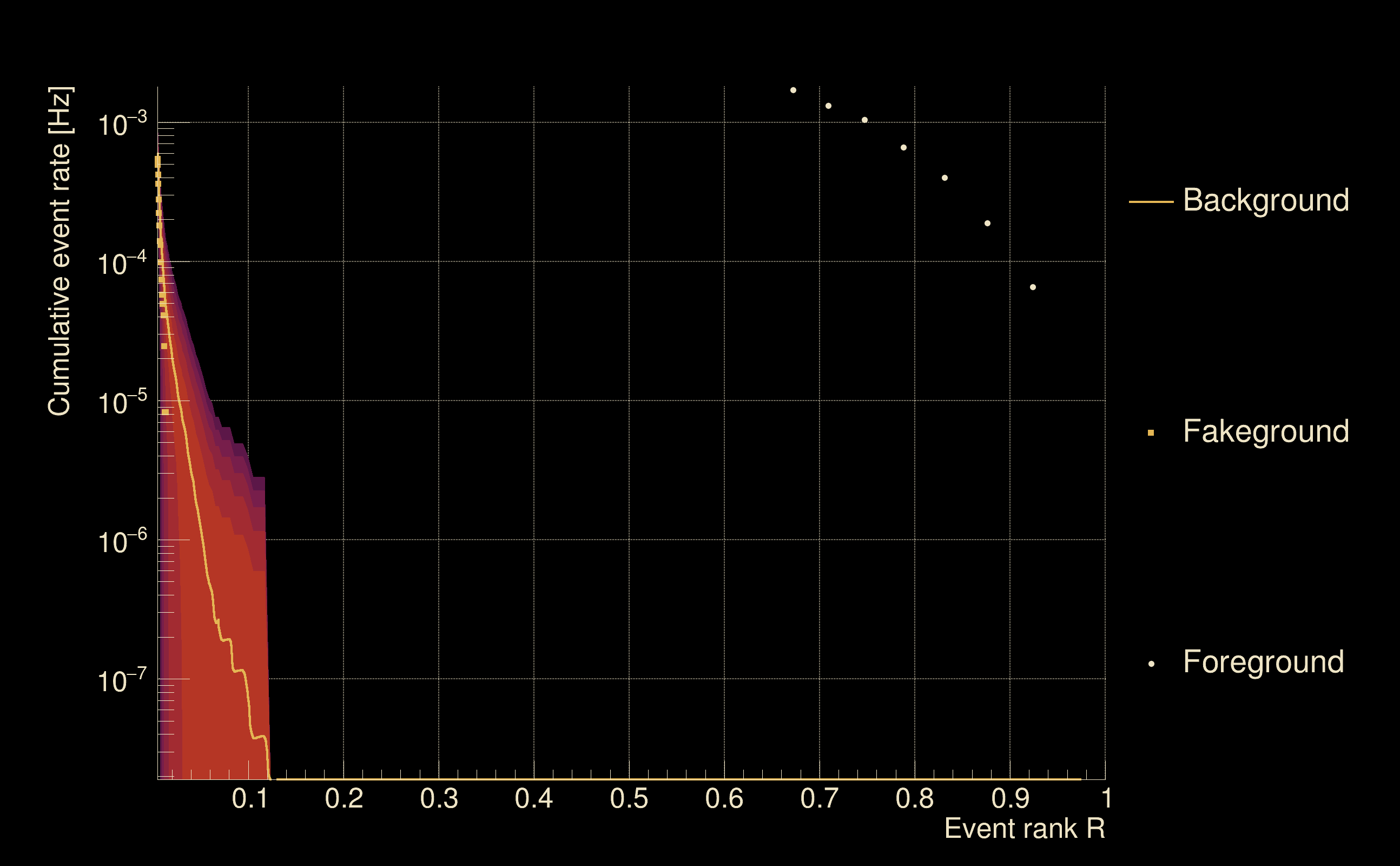

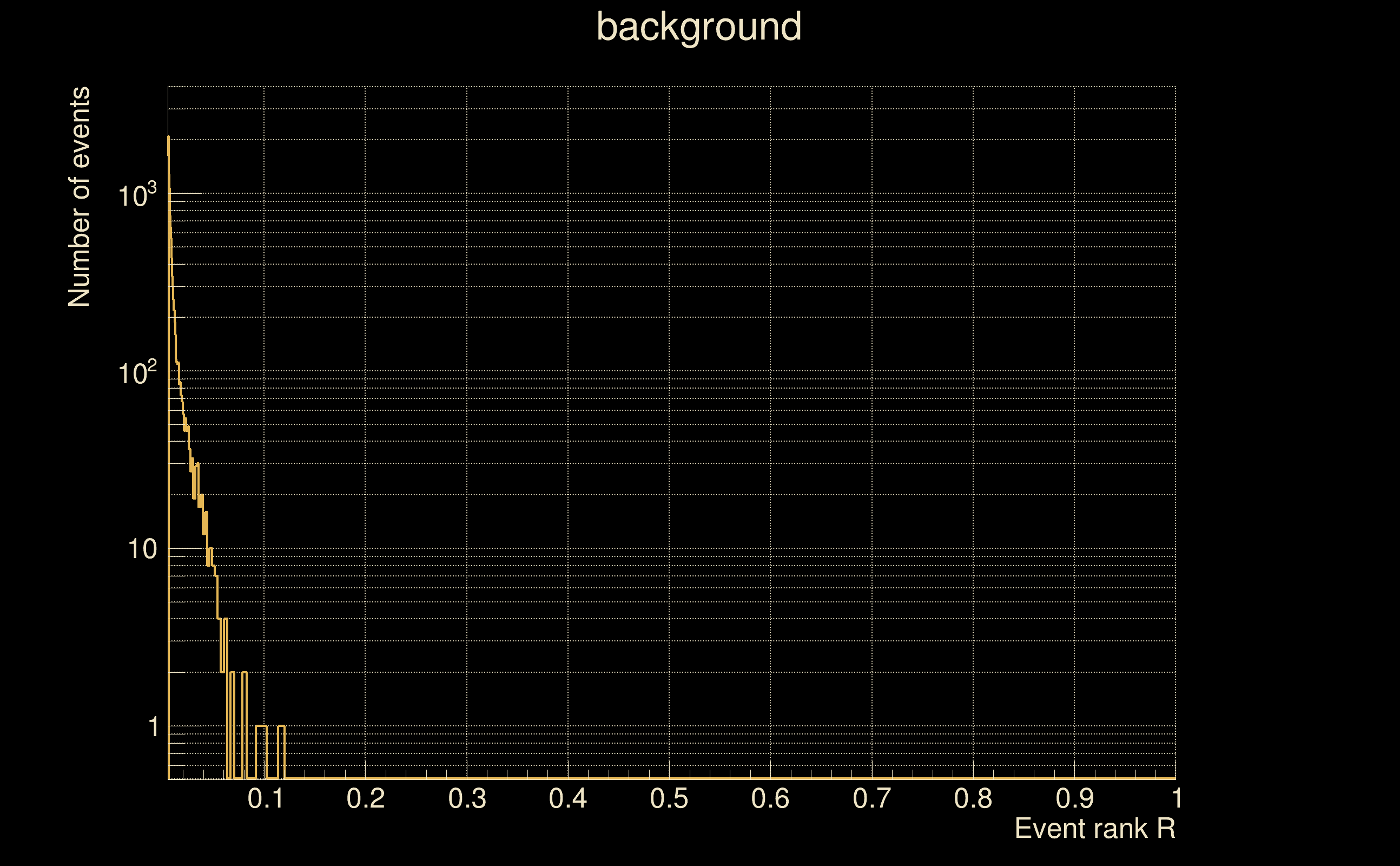

| Detection threshold: | R > 0.0503939 |

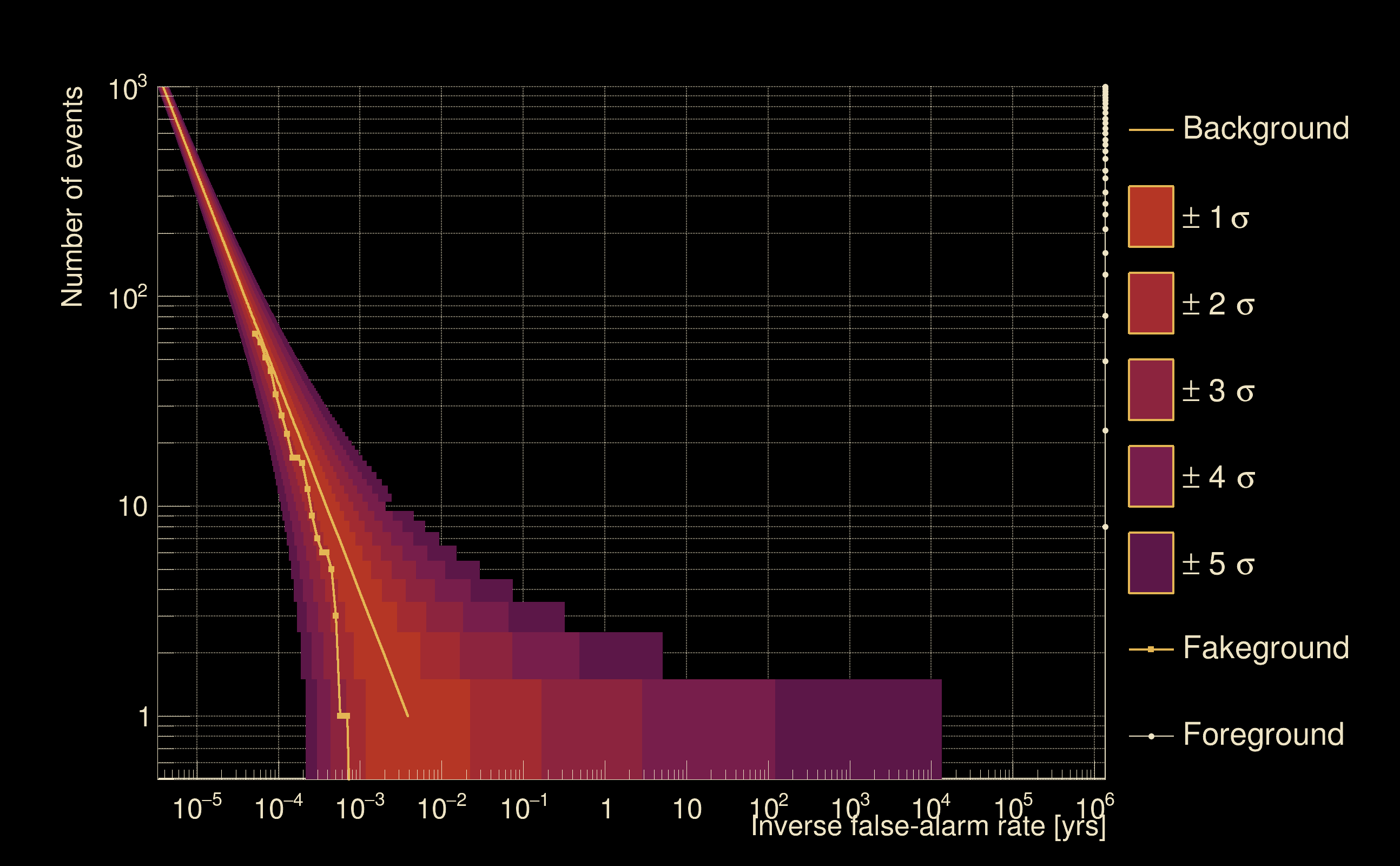

| False-alarm rate above that detection threshold: | 1.03418e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.117013 |
| Alternative threshold at 1/100 yrs: | R > 0.117013 |
| Alternative threshold at 1/10 yrs: | R > 0.117013 |
| Alternative threshold at 1/1 yr: | R > 0.117013 |
| Alternative threshold at 1/1 d: | R > 0.0252089 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

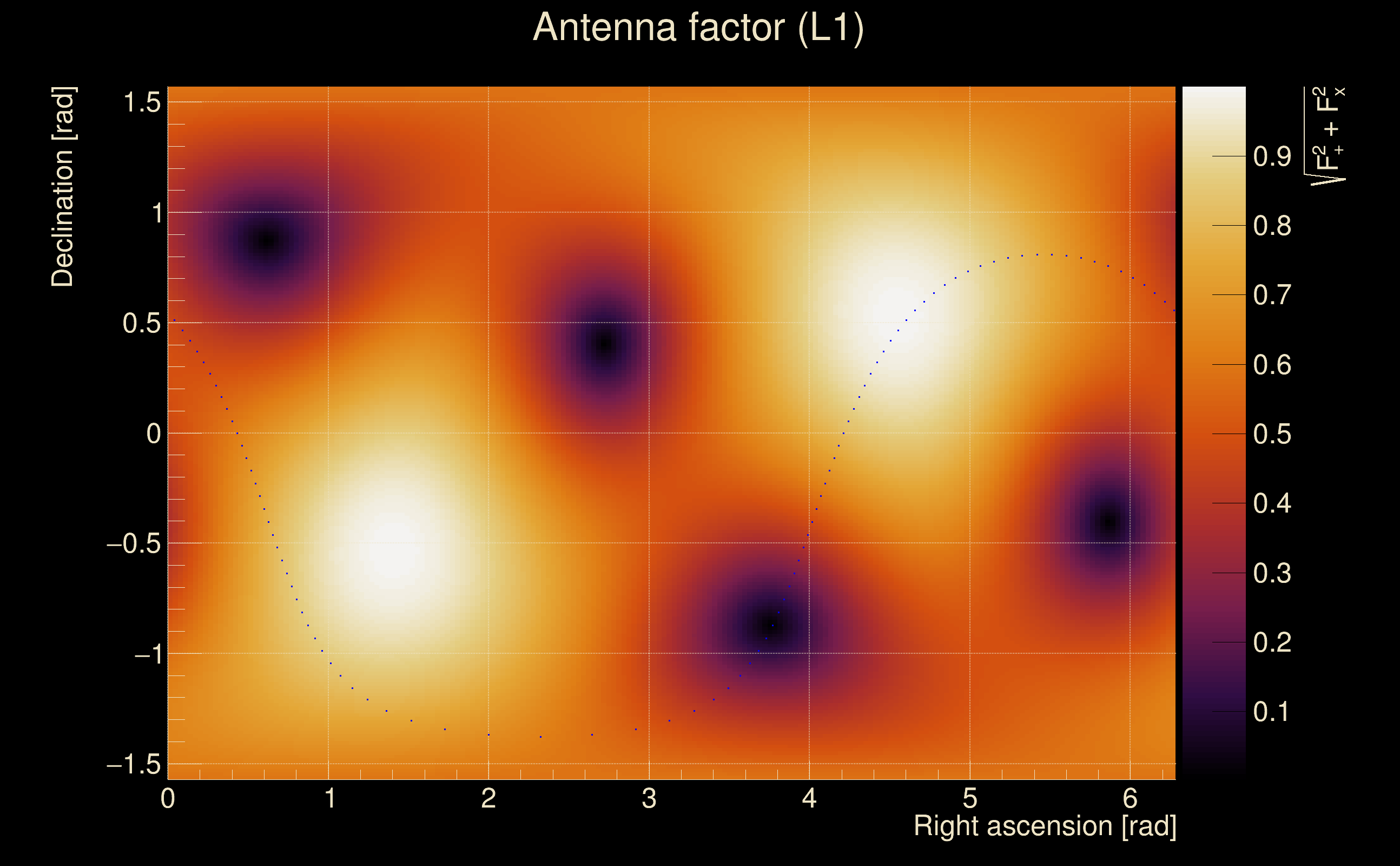

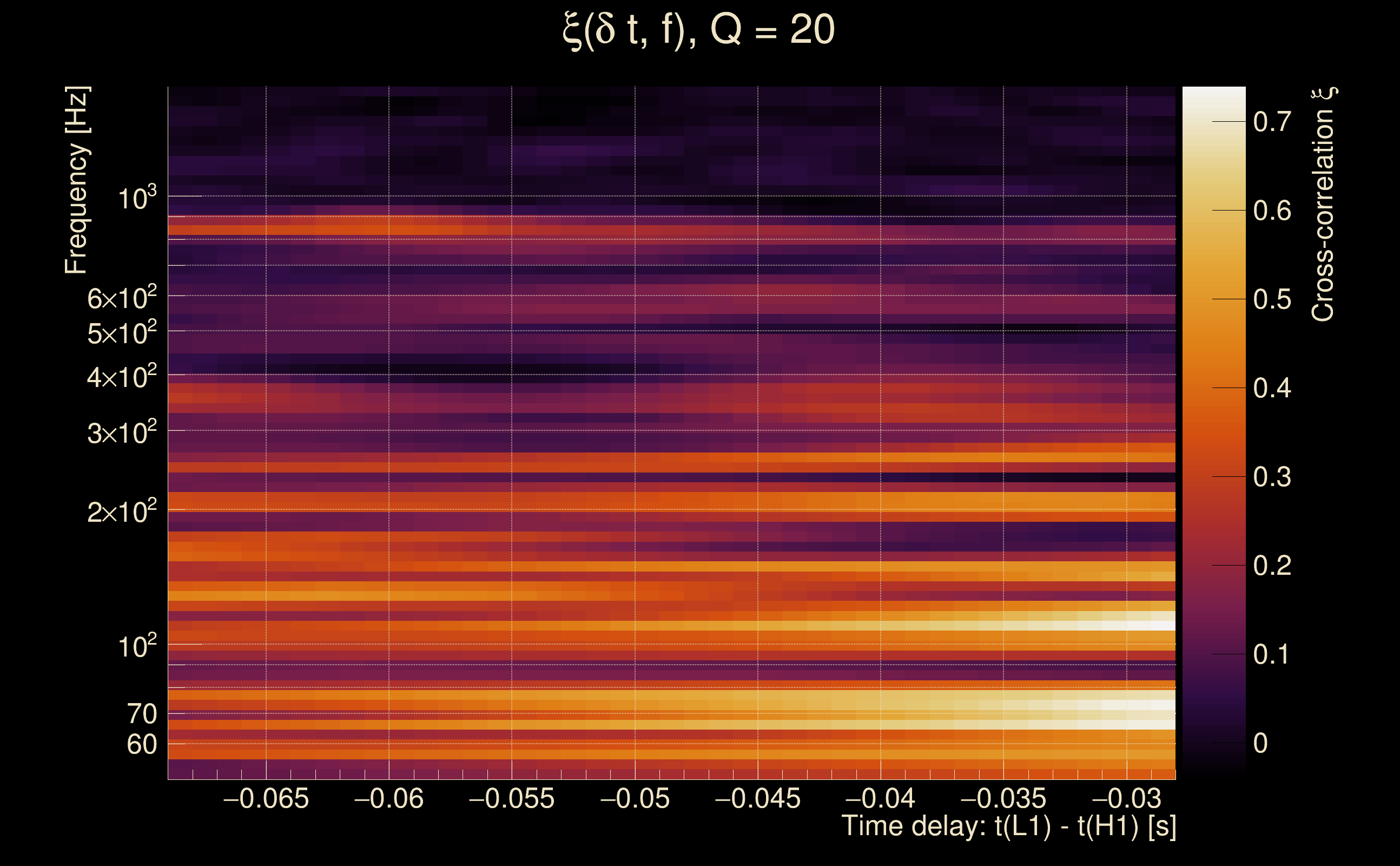

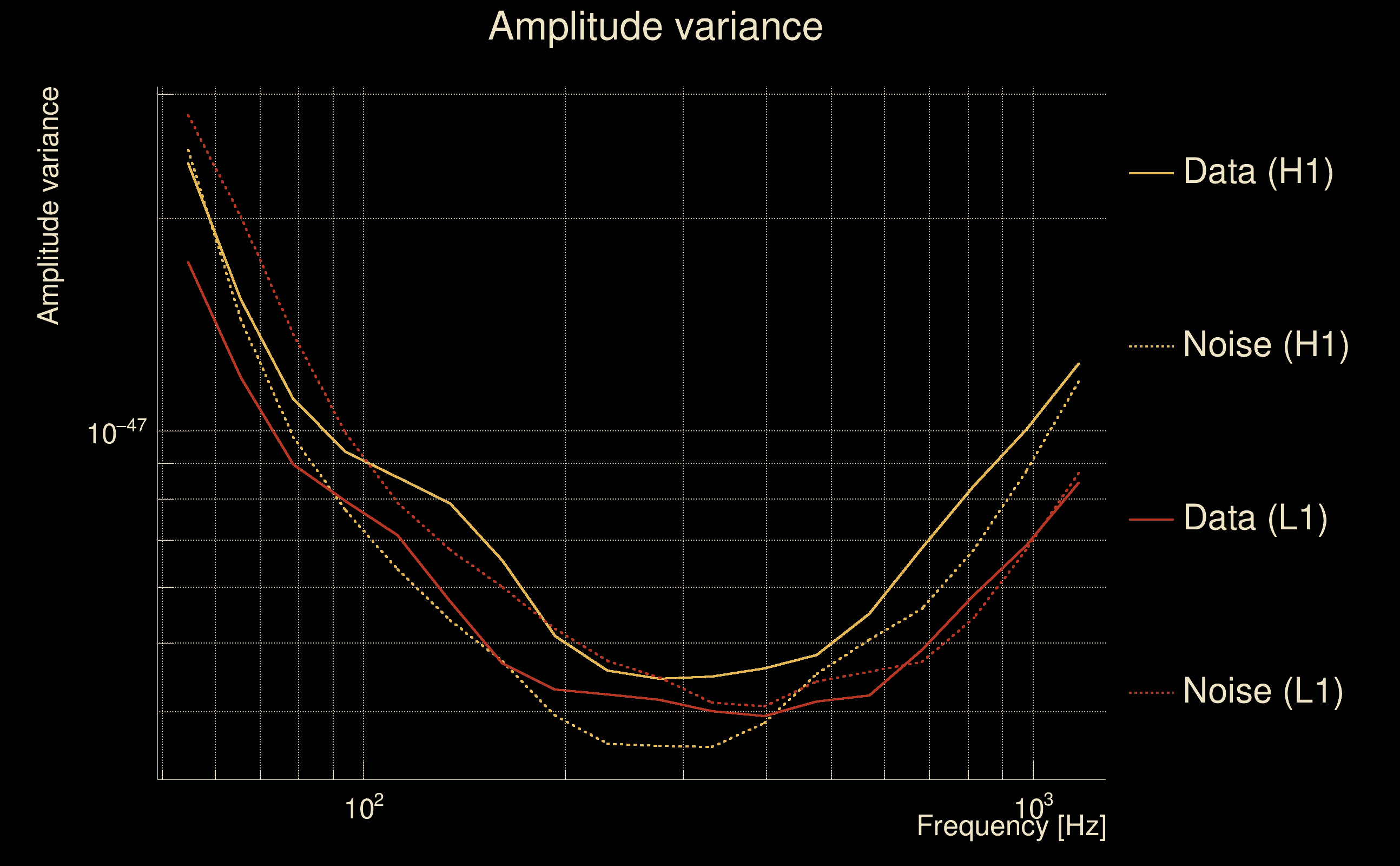

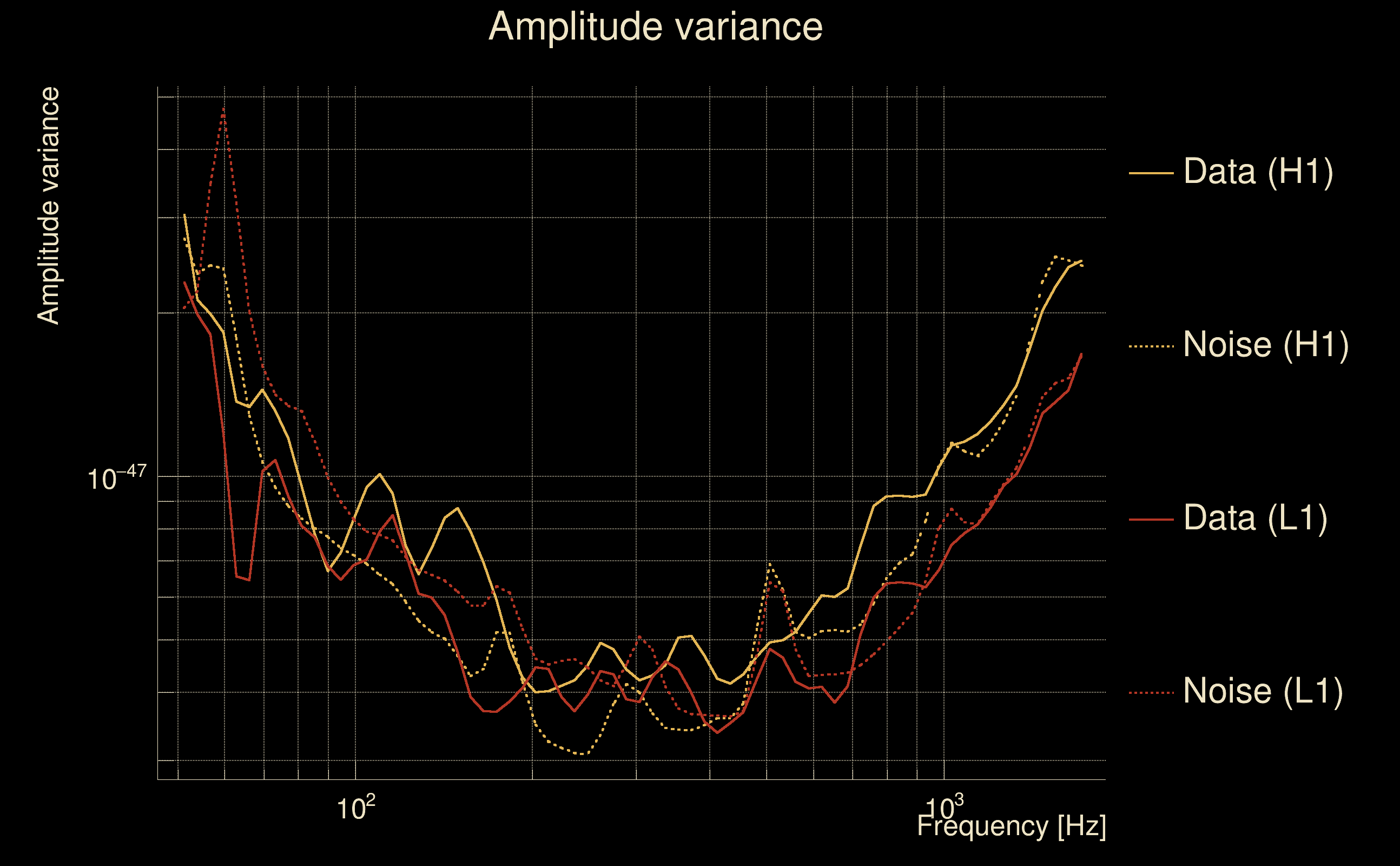

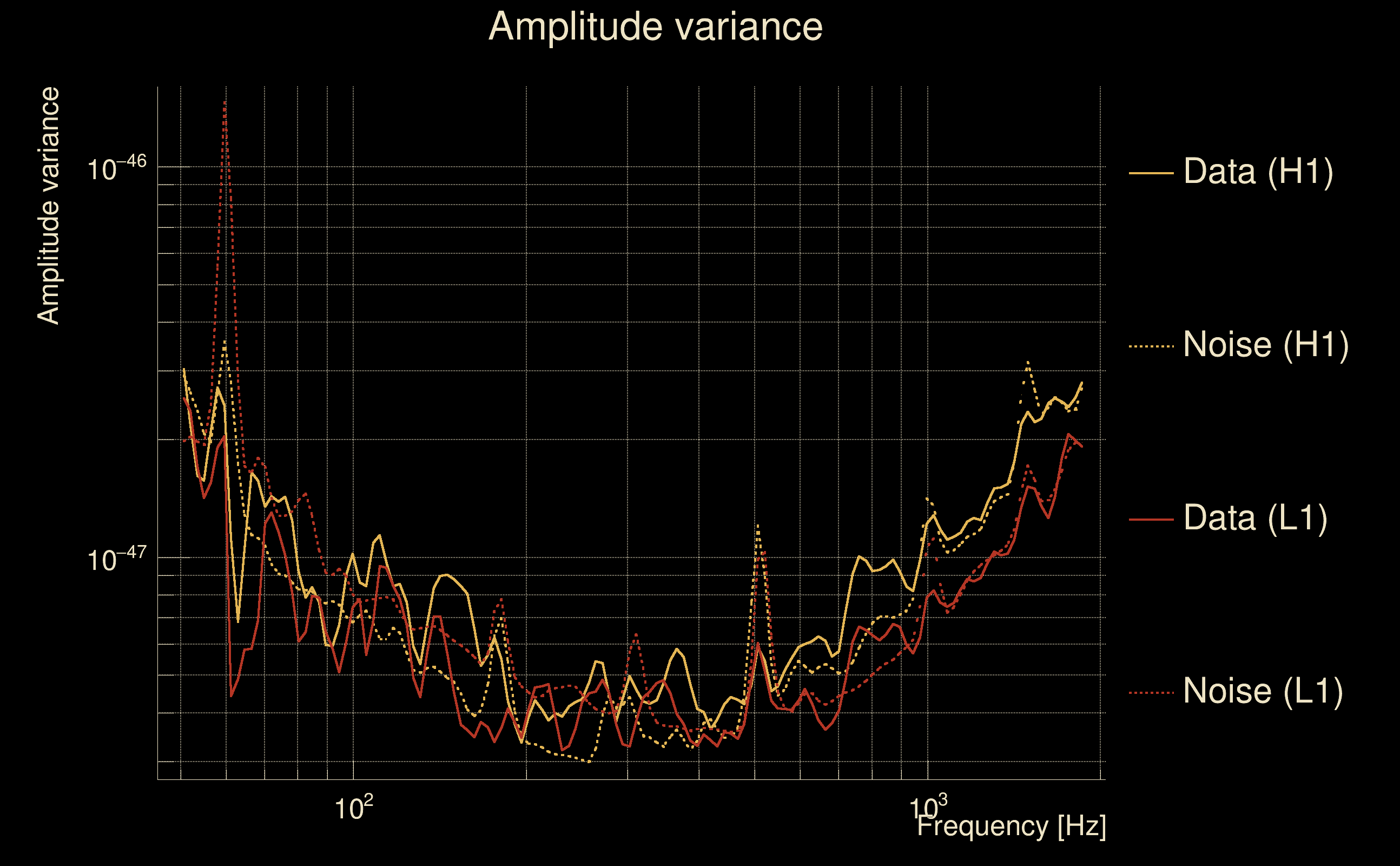

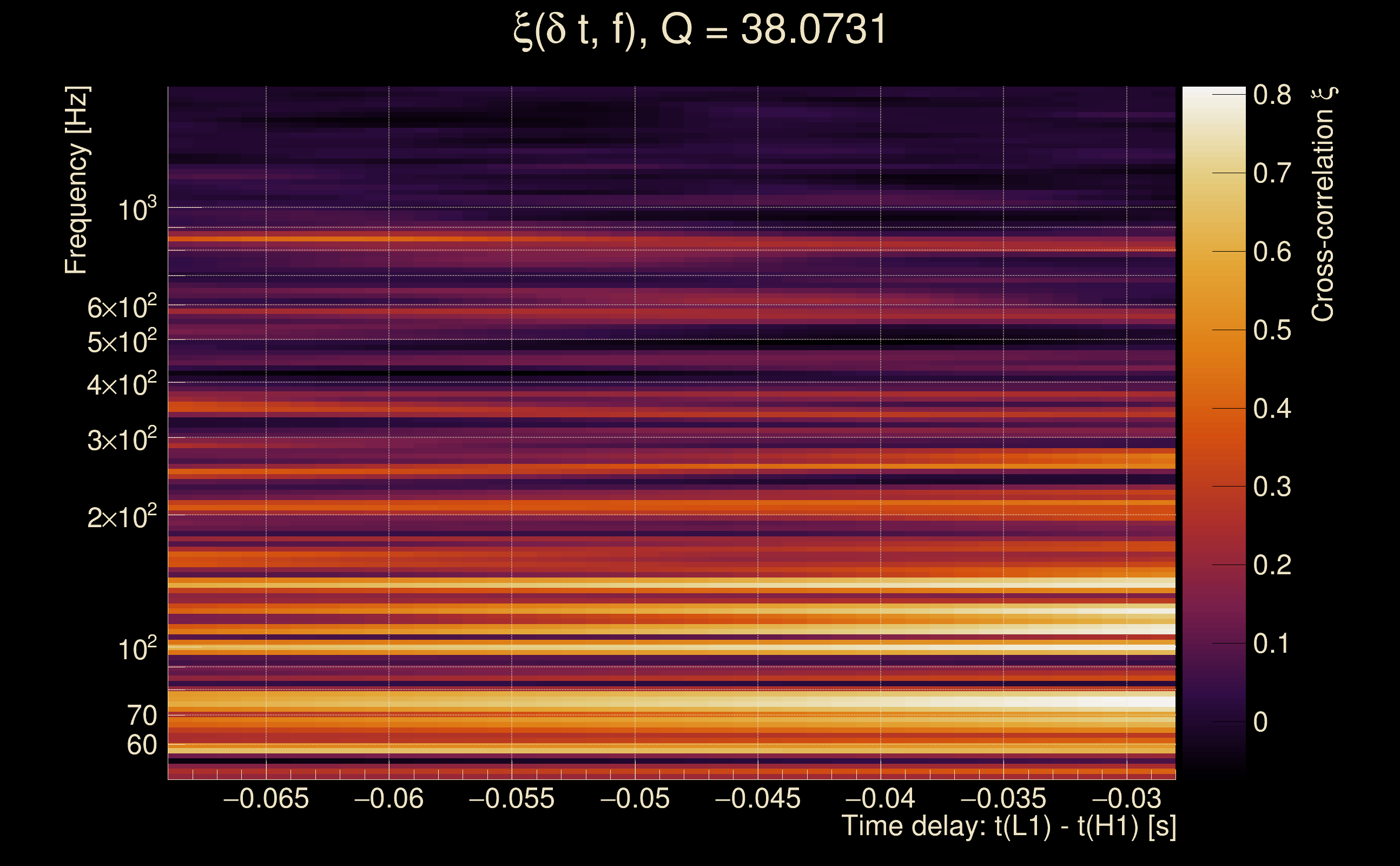

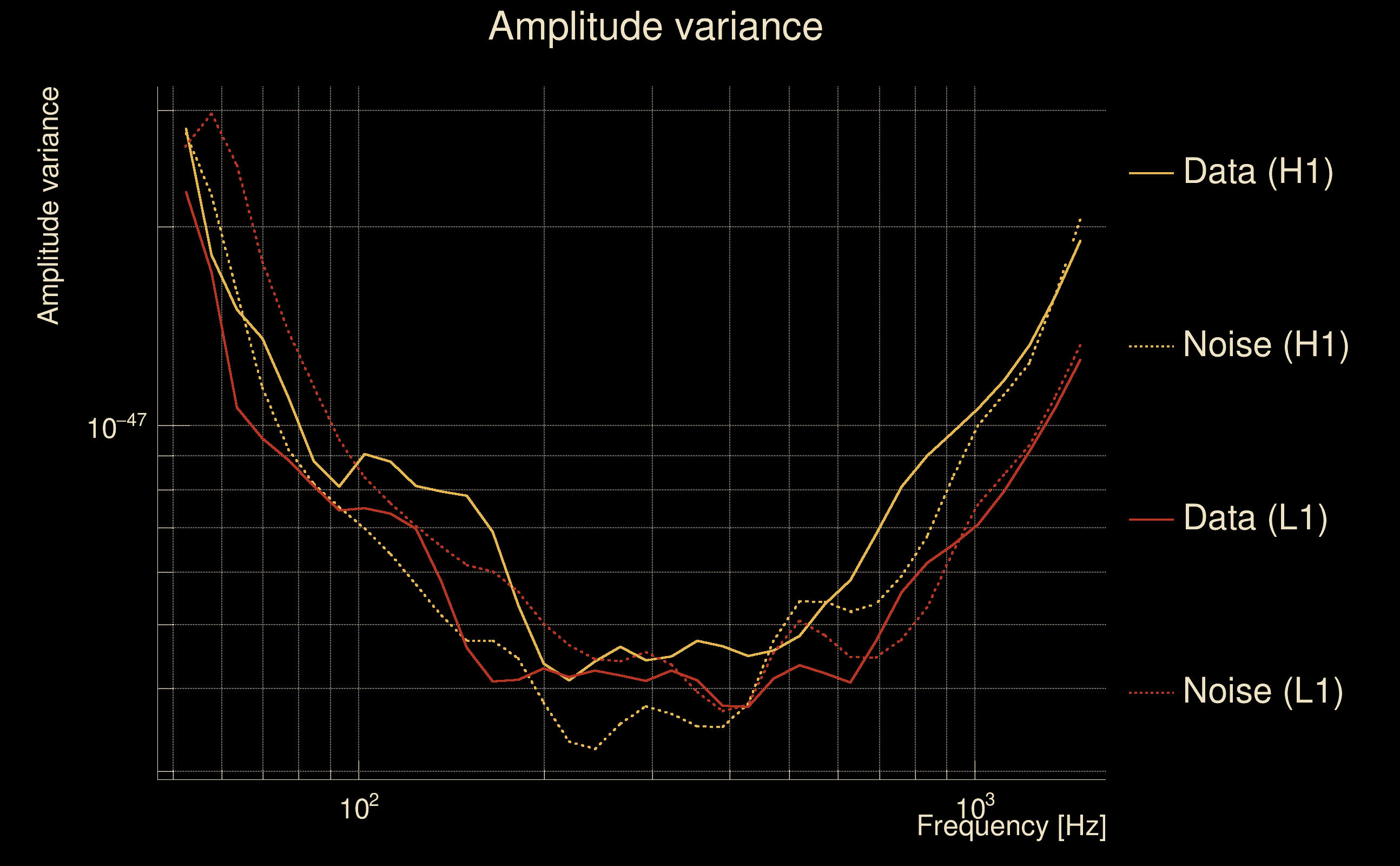

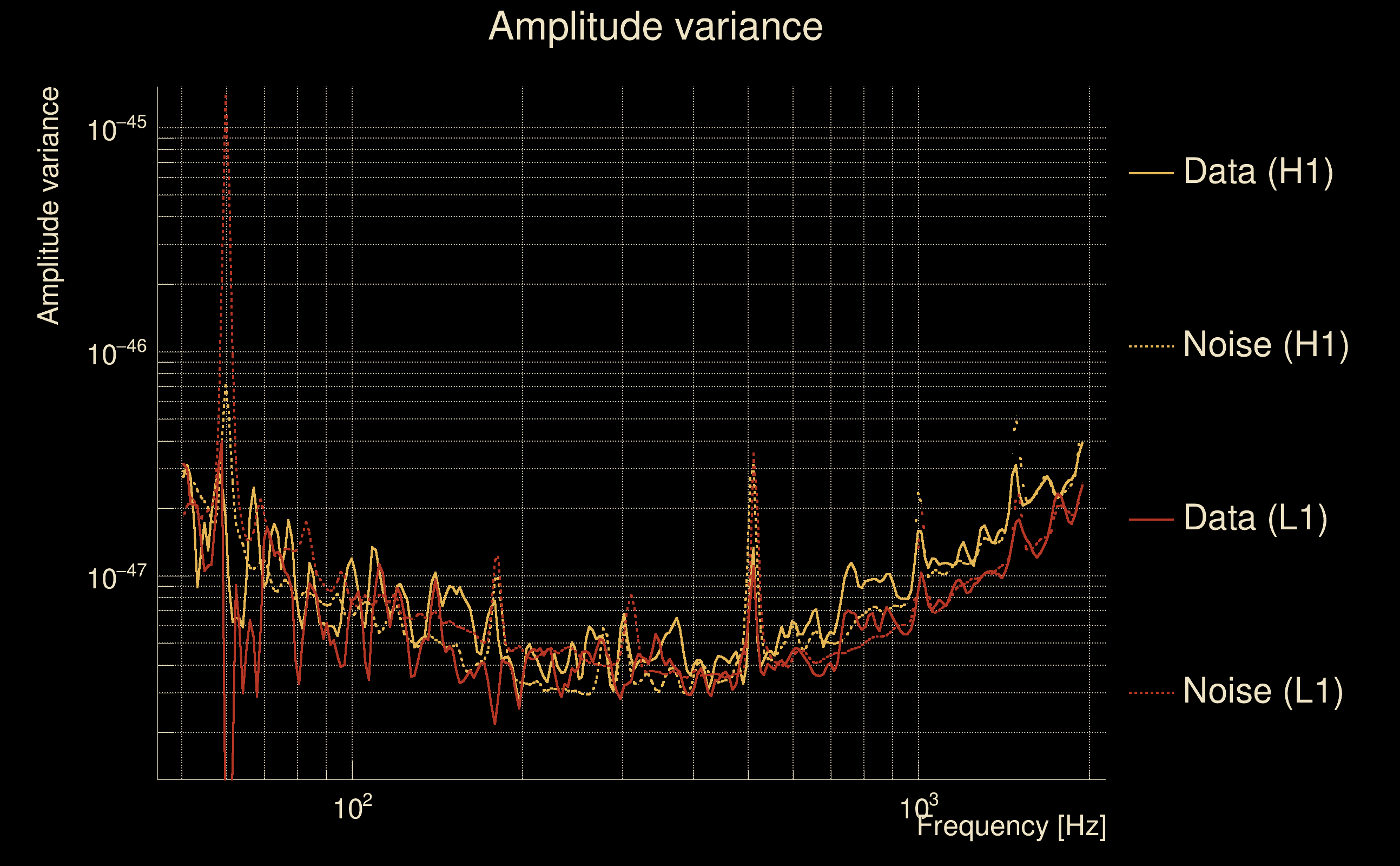

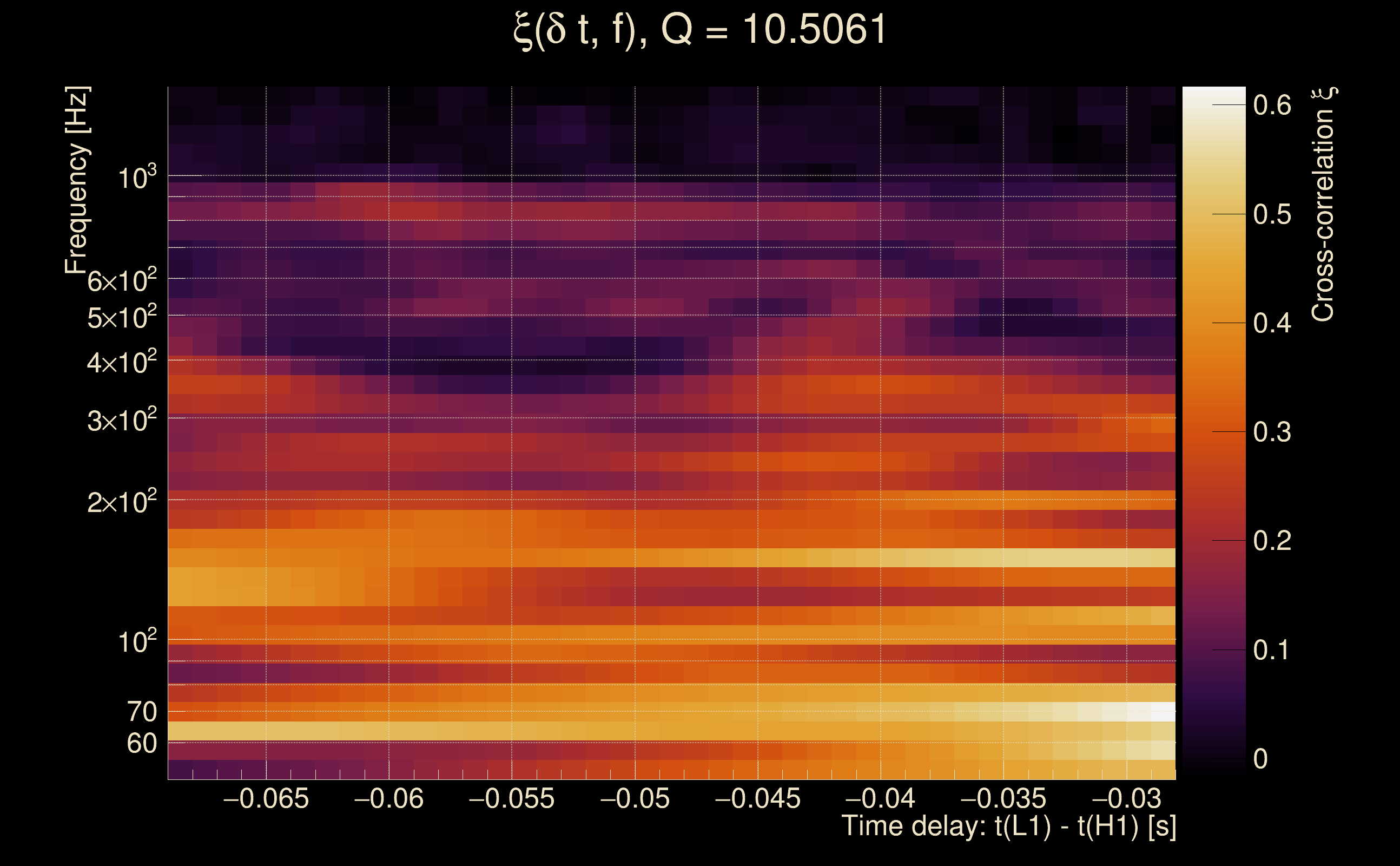

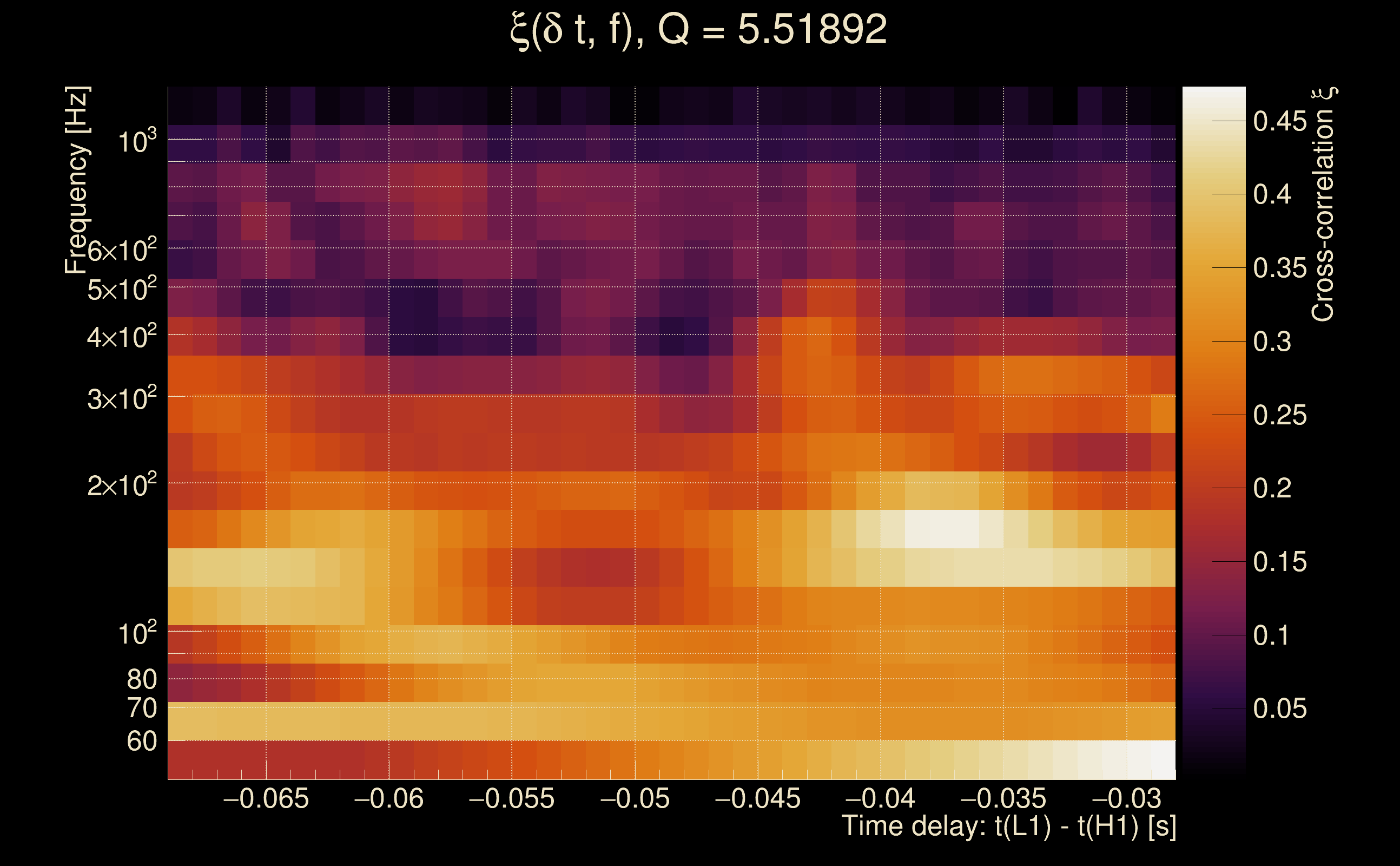

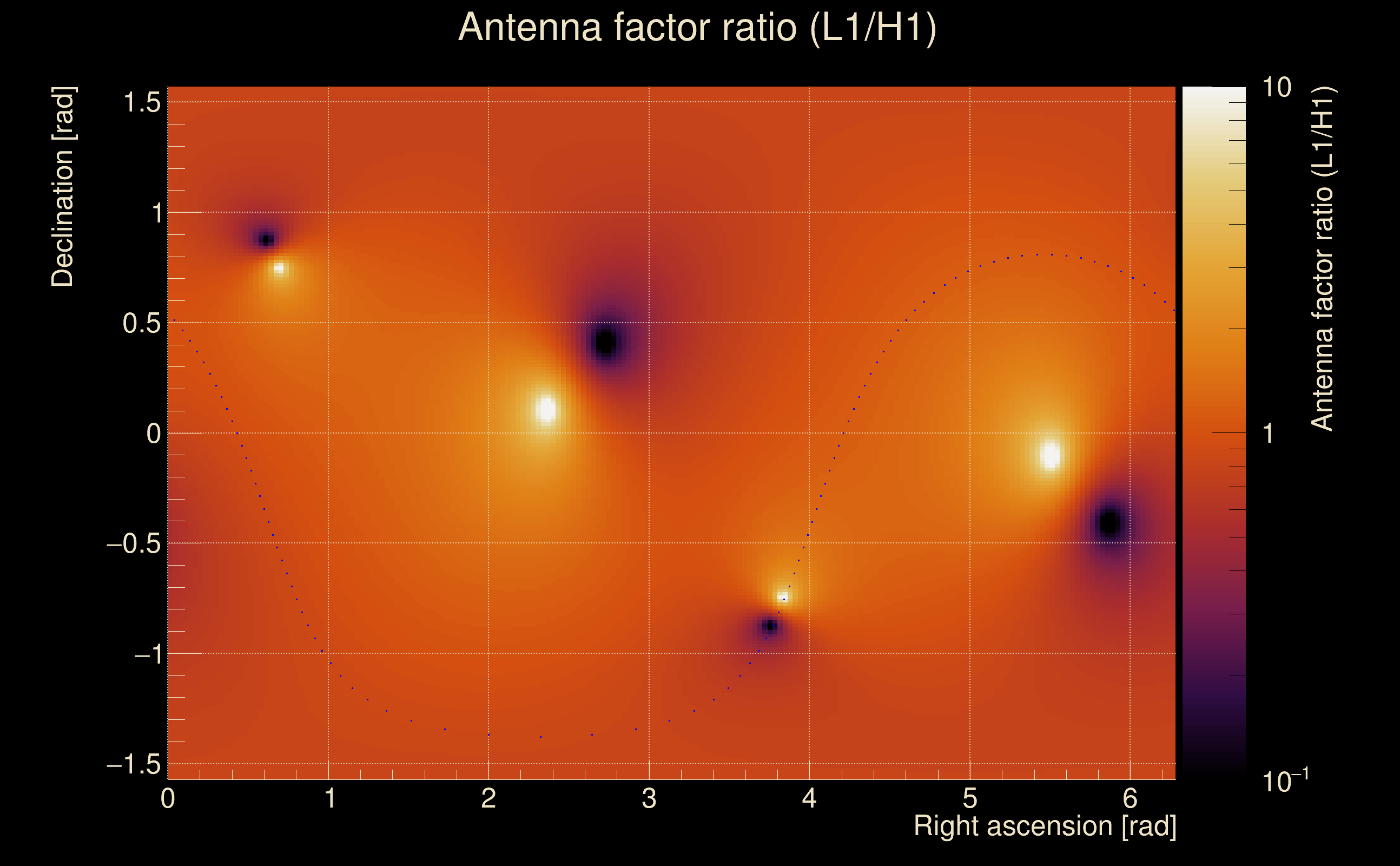

| Event time t(H1): | GPS = 1368431009 (Thu May 18 07:43:11 2023 ) → GPS = 1368431019 (Thu May 18 07:43:21 2023 ) |
| Event time t(L1): | GPS = 1368431009 (Thu May 18 07:43:21 2023 ) → GPS = 1368431019 (Thu May 18 07:43:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368431006 → GPS = 1368431022 |
| Omicron analysis time window (L1): | GPS = 1368431006 → GPS = 1368431022 |
| Time delay between detectors t(L1) - t(H1): | -0.0488045 s (slice index = 109 / 217), δt_gw = -0.00280447 s |
| Time delay standard deviation: | 0.0984684 s |
| [targeted mode] Time delay probability: | 0.431945 (0.785868 sigmas), δt_target = -0.00195241 s |
| Frequency: | 213.344 Hz |
| Ξ: | 0.128805 ± 0.0703691 (variance = 0.00495181): Q0: 0.347101, Q1: 0.329589, Q2: 0.304446, Q3: 0.159138, Q4: 0.227027 |
| Rank: | R_A = 0.1191 |
| Log of amplitude ratio (L1/H1): | -0.23599, variance = 0.31099 (L1/H1: -0.274238, variance = 0.528205, H1/L1: 0.188781, variance = 0.747771) |
| Amplitude ratio (L1/H1): | 0.789788 ⋇ 1.74659 (L1/H1: 0.760151 ⋇ 2.0684, H1/L1: 1.20778 ⋇ 2.37438) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.939695 |
| Antenna factor probability: | 0.983992 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 26 / 36, Q2: 59 / 70, Q3: 126 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 12.3167, L1: 11.0863 |
| SNR variance: | H1: 9.38836, L1: 6.61639 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

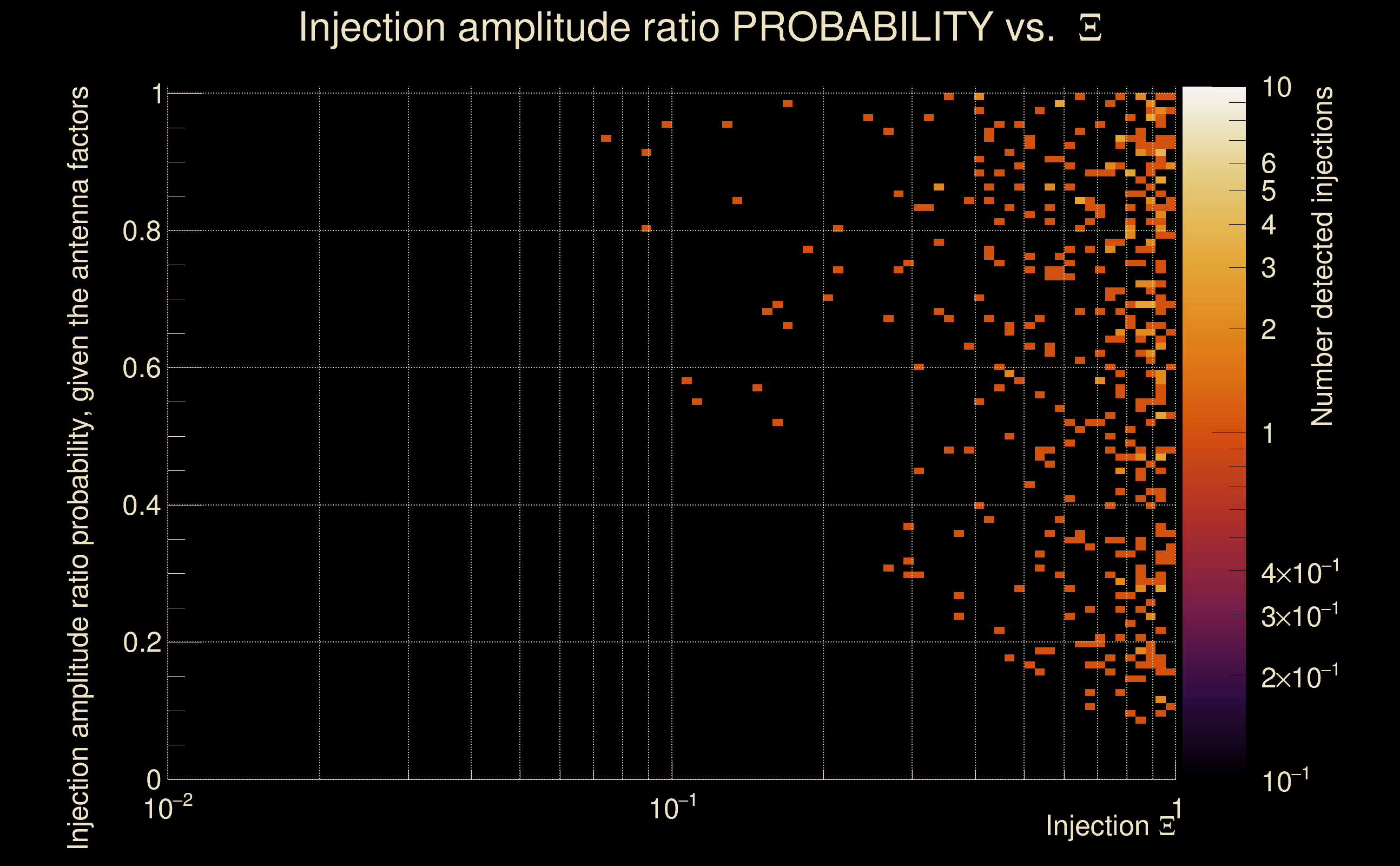

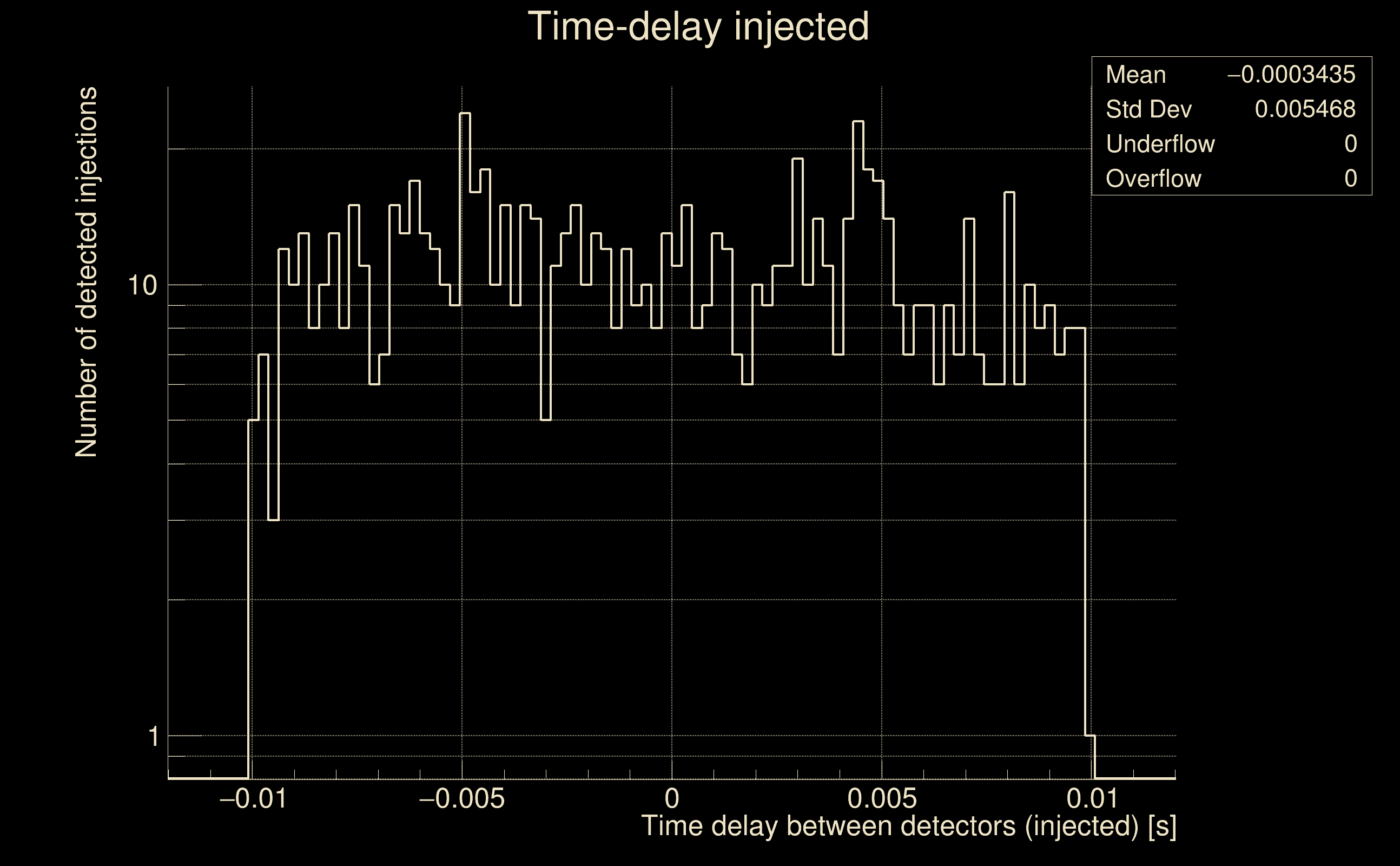

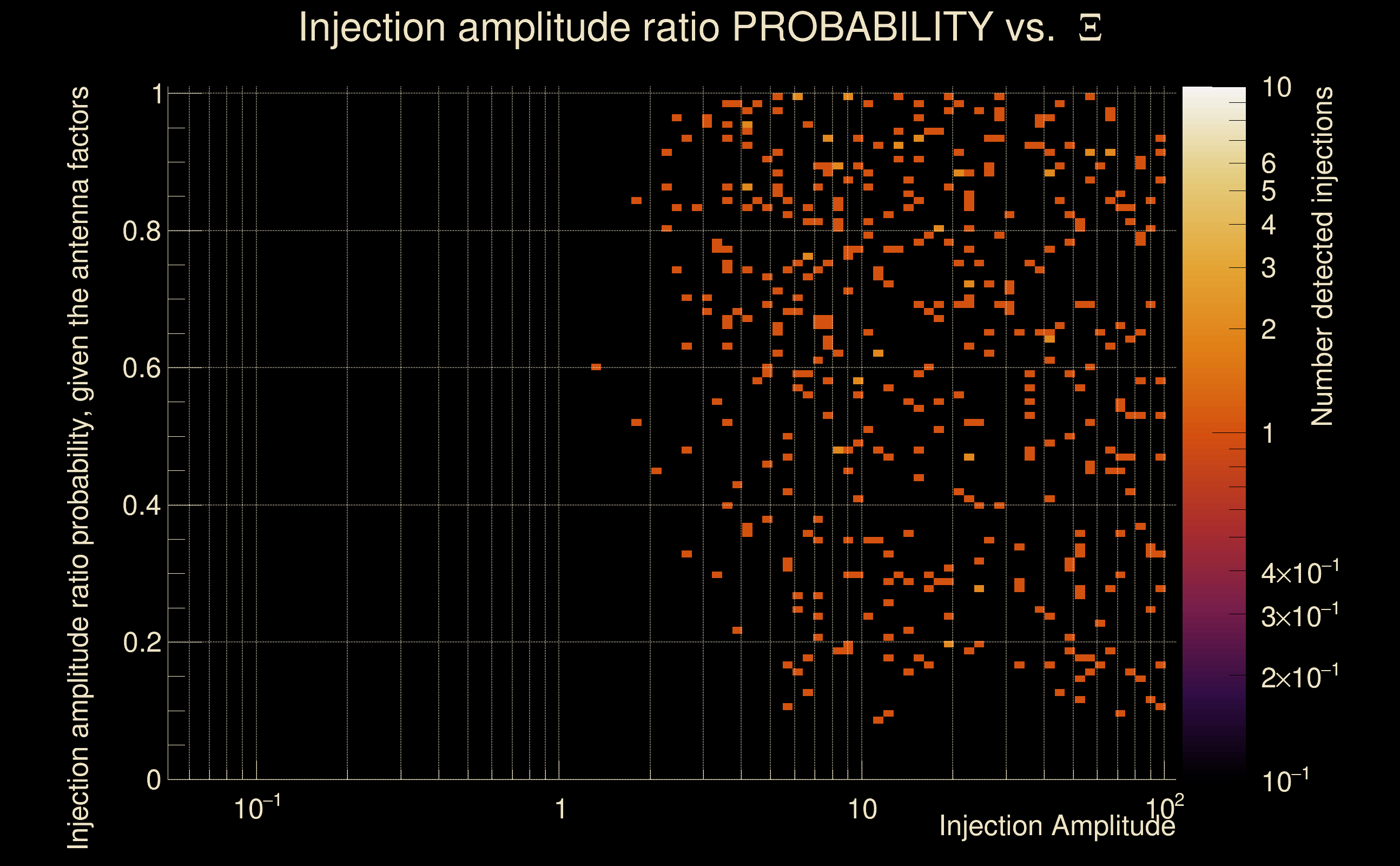

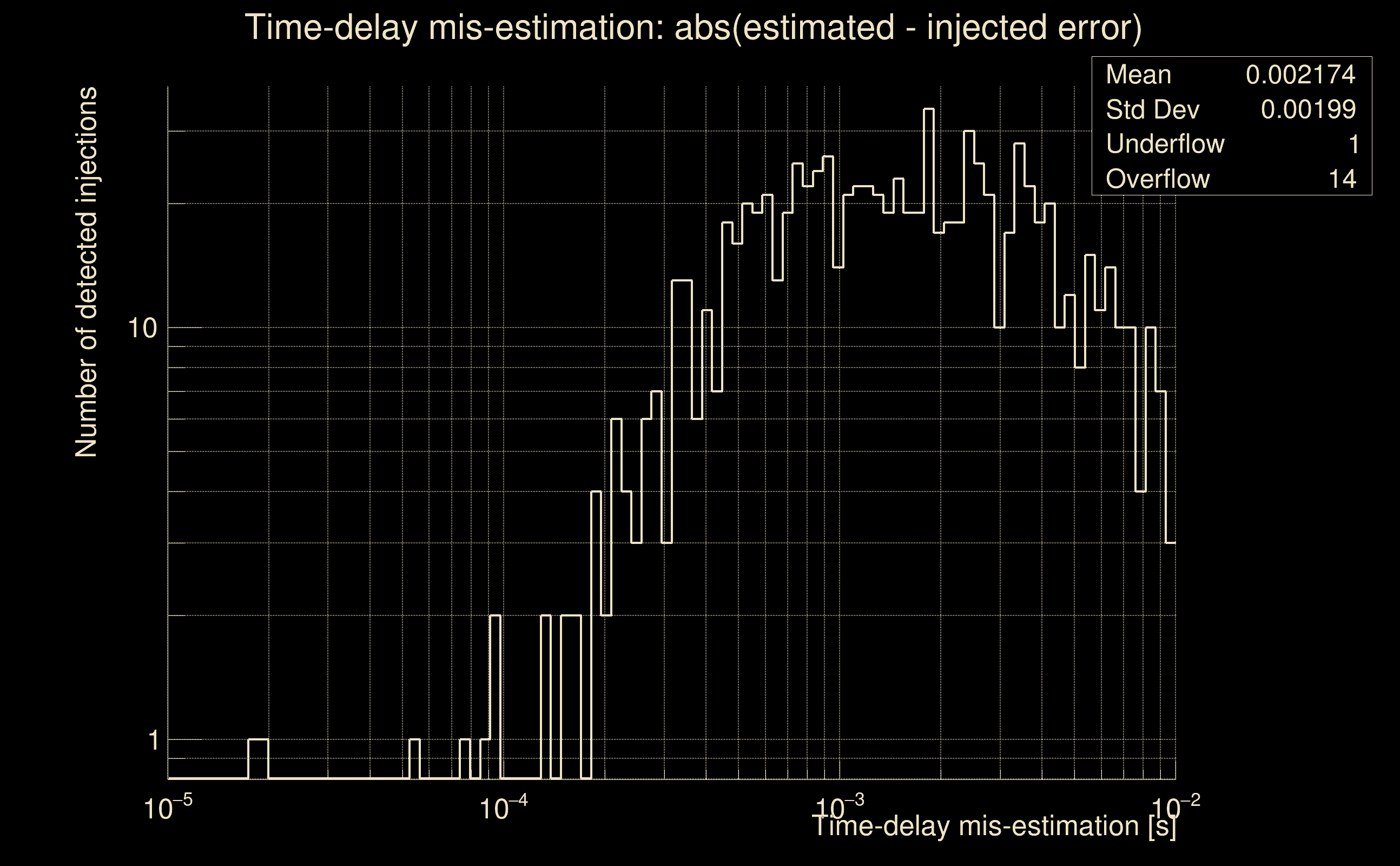

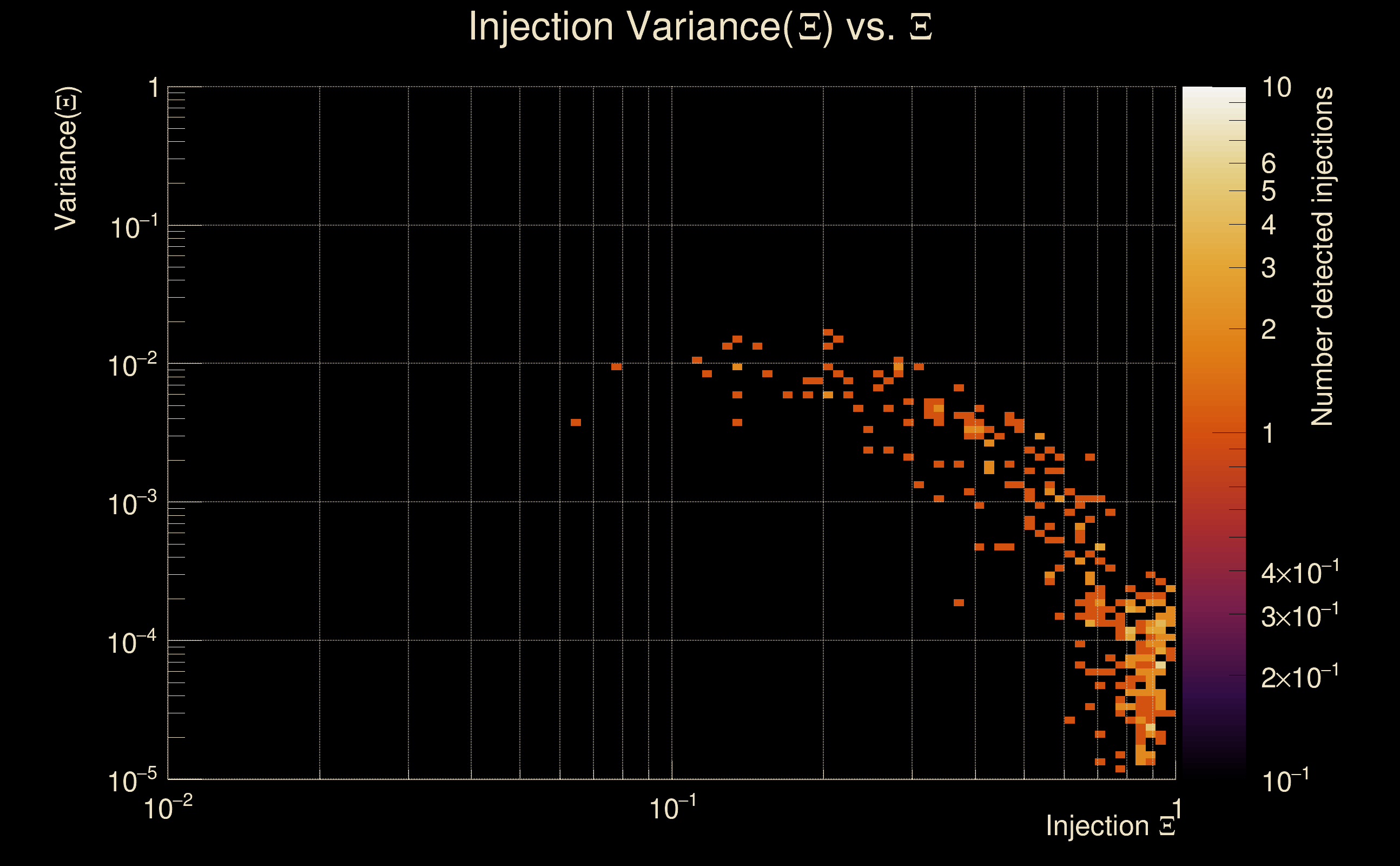

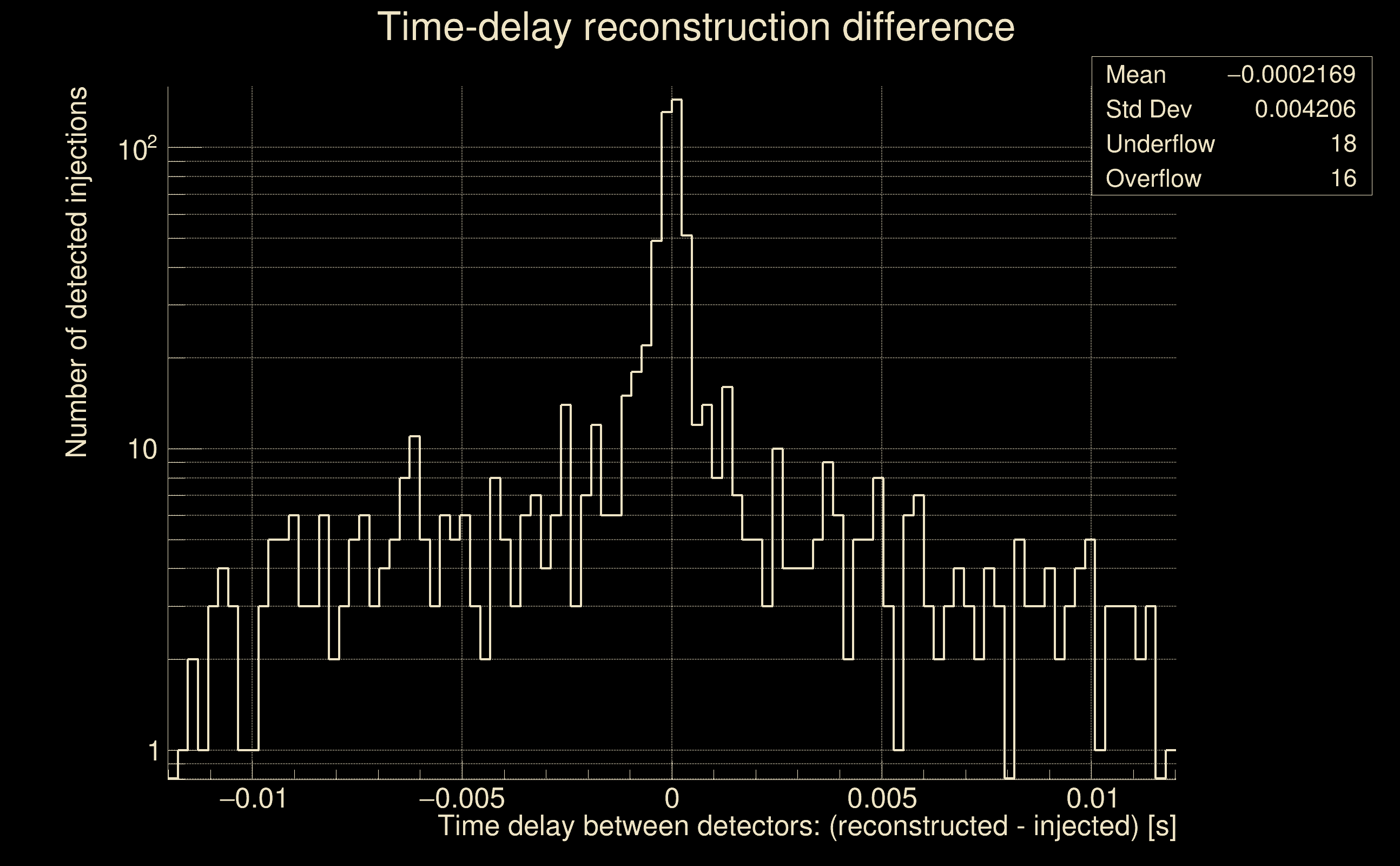

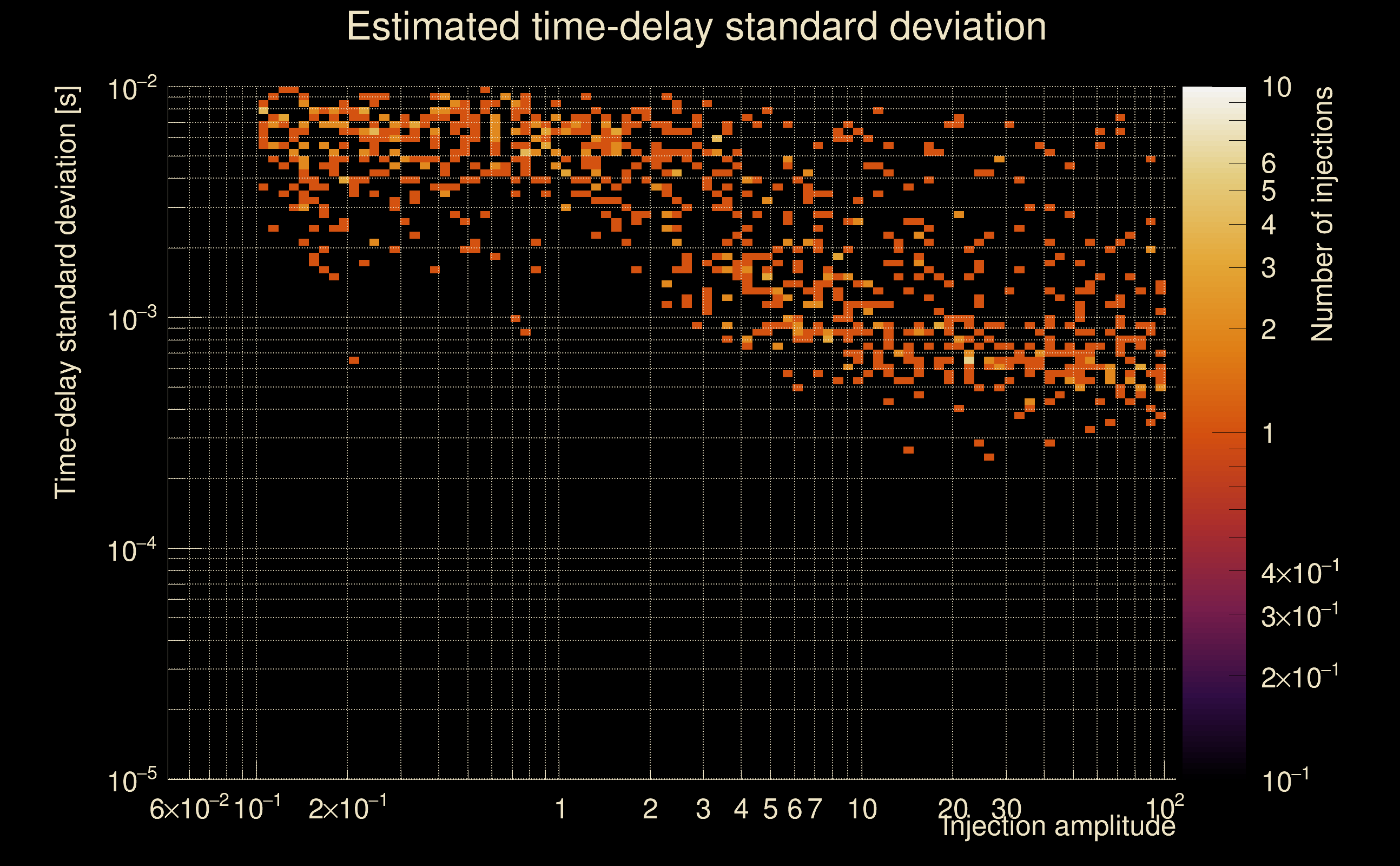

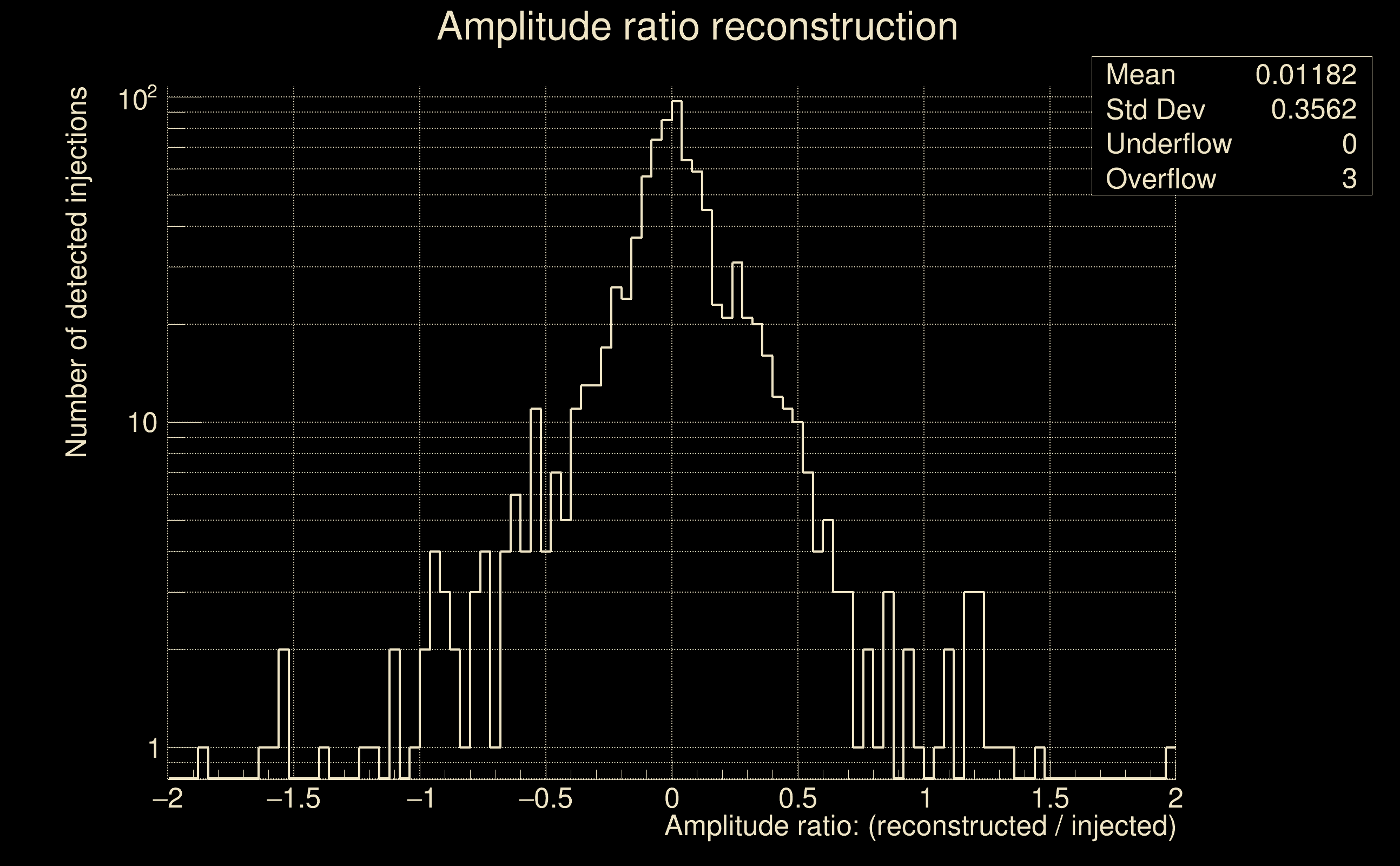

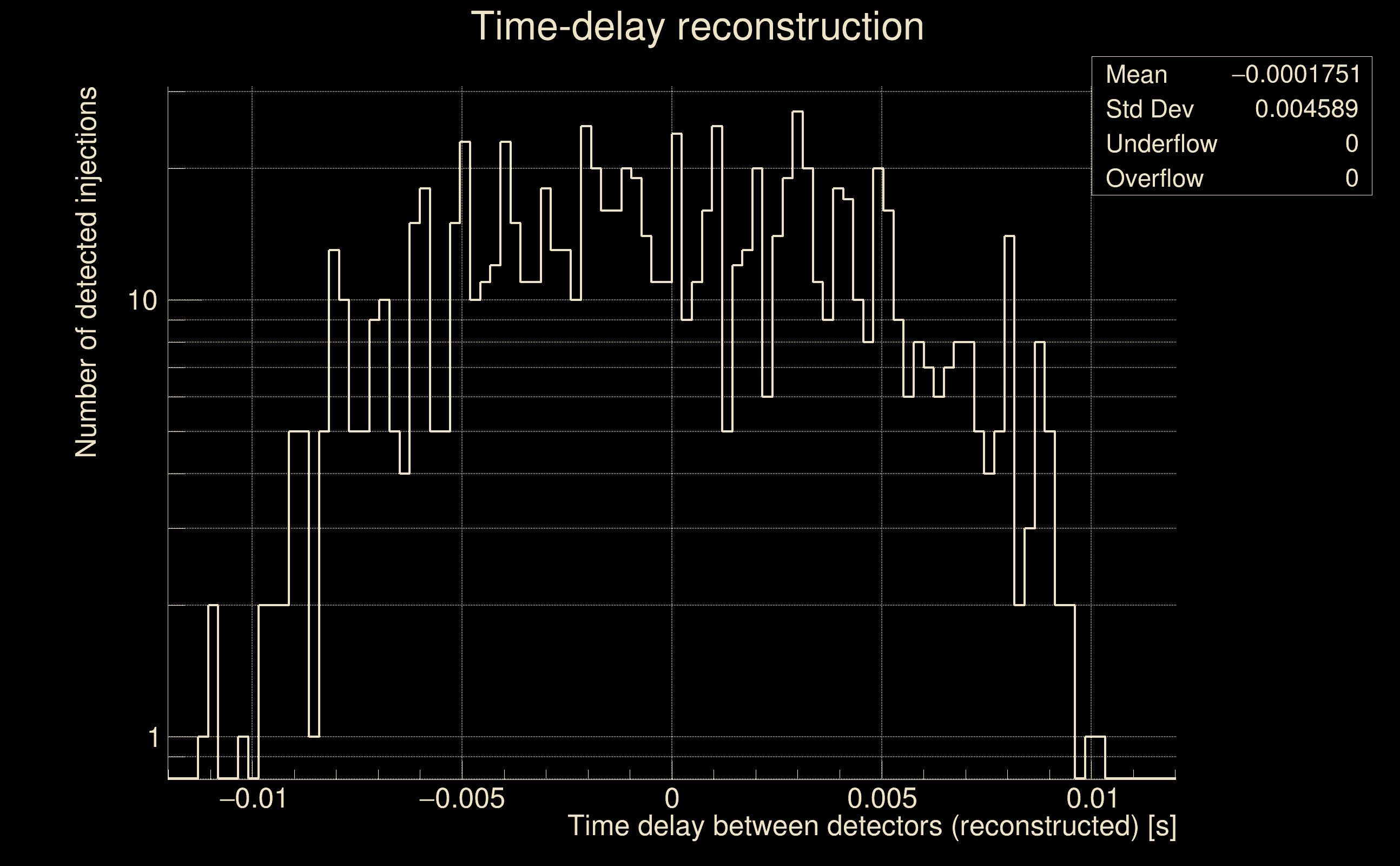

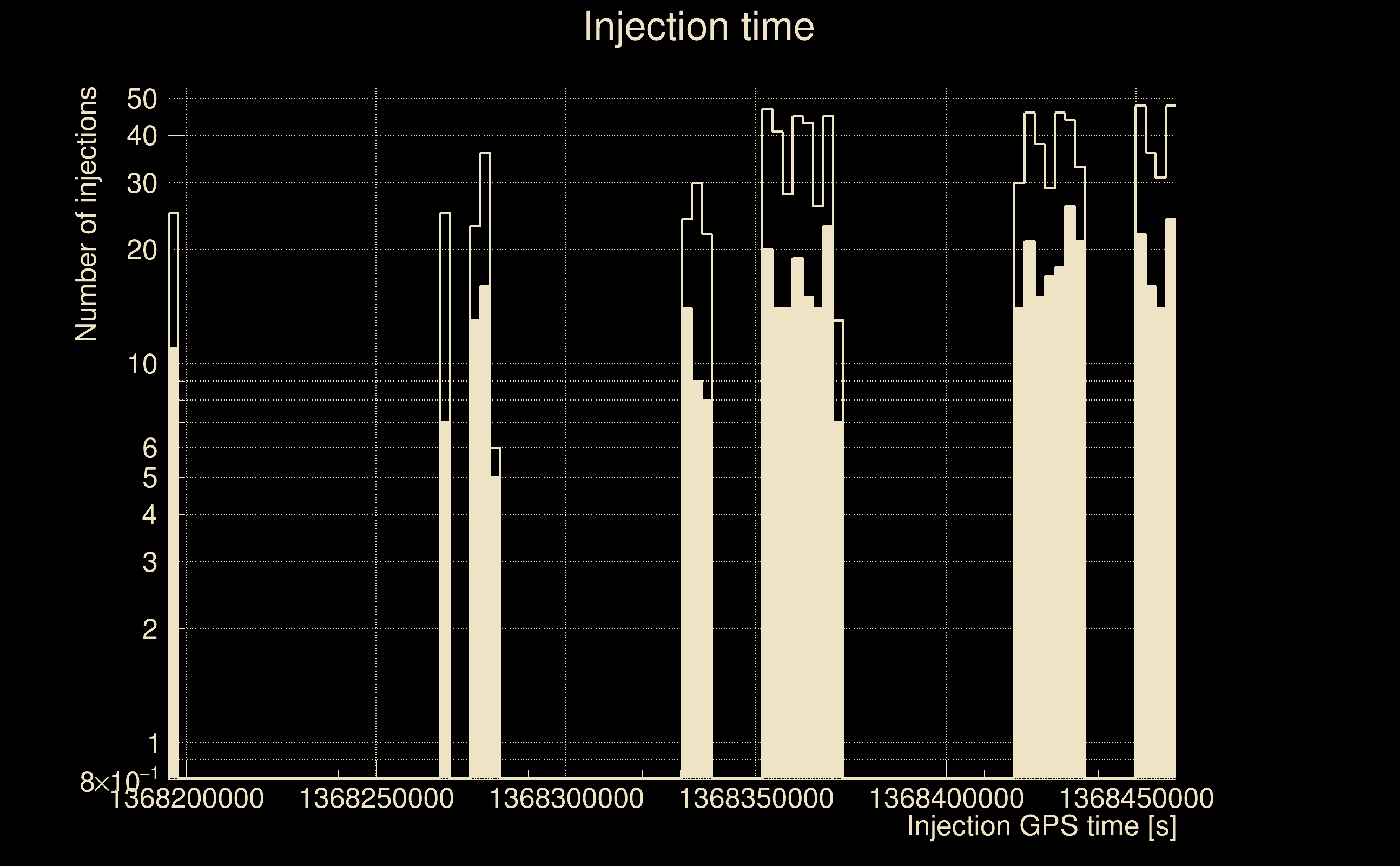

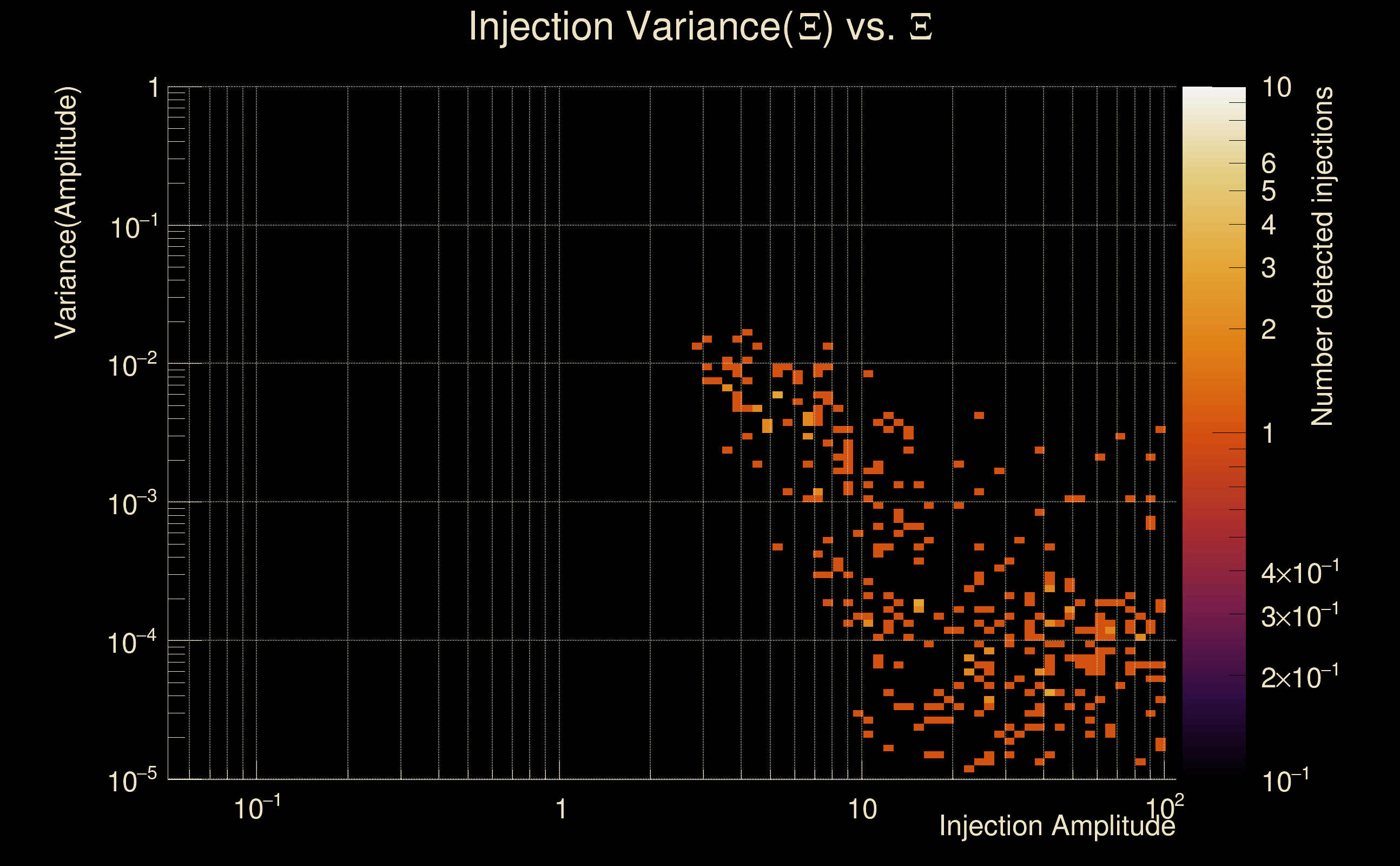

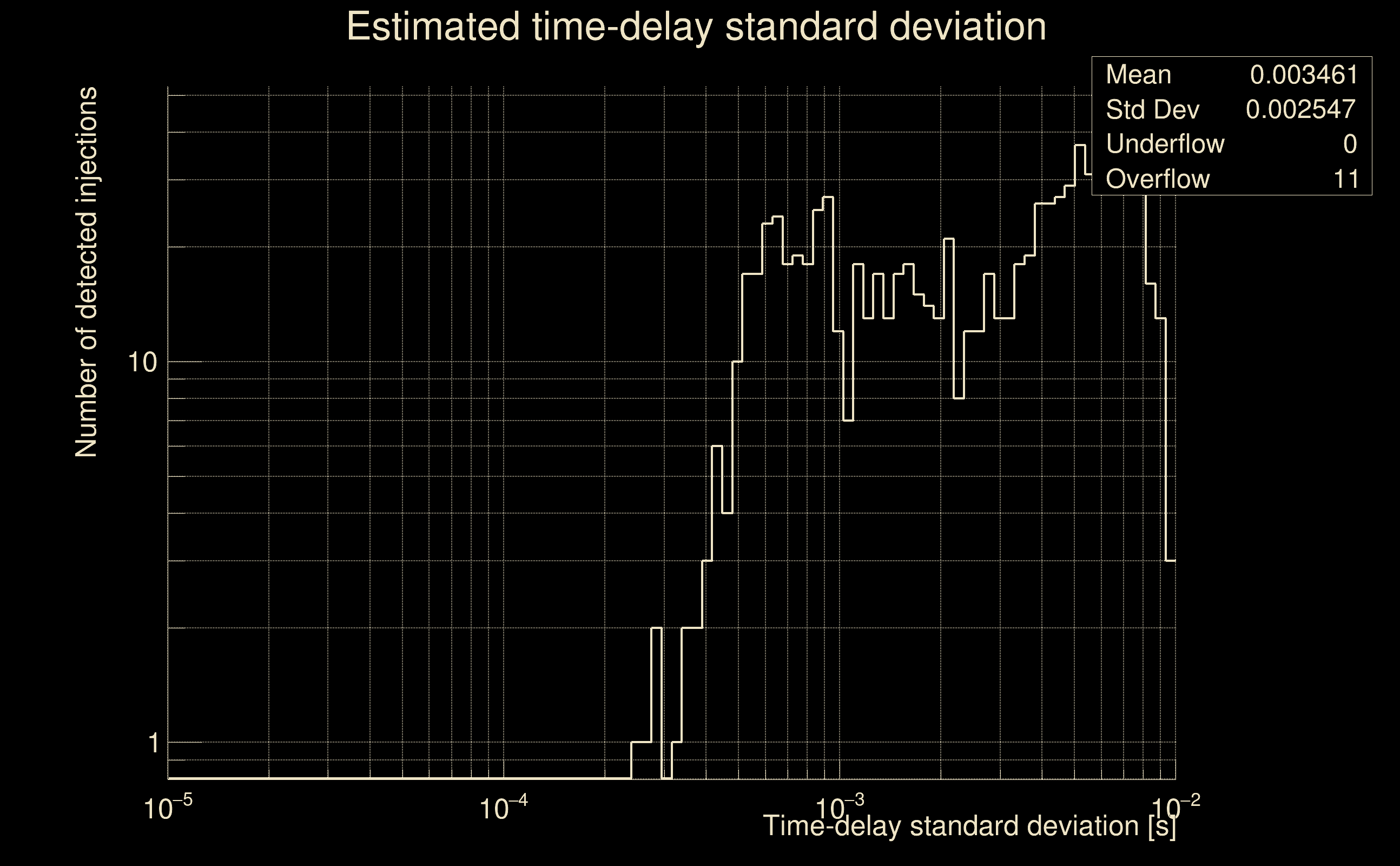

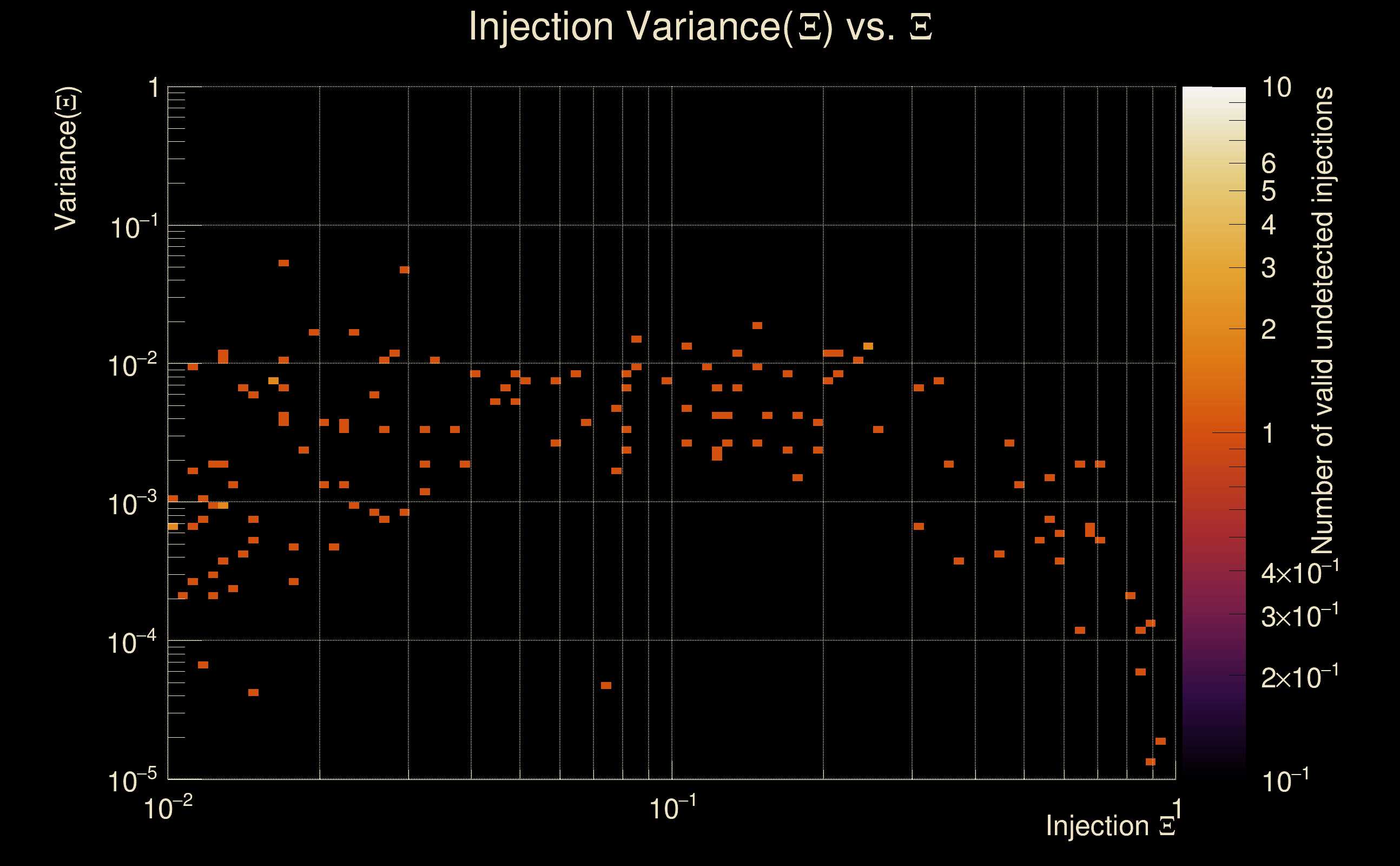

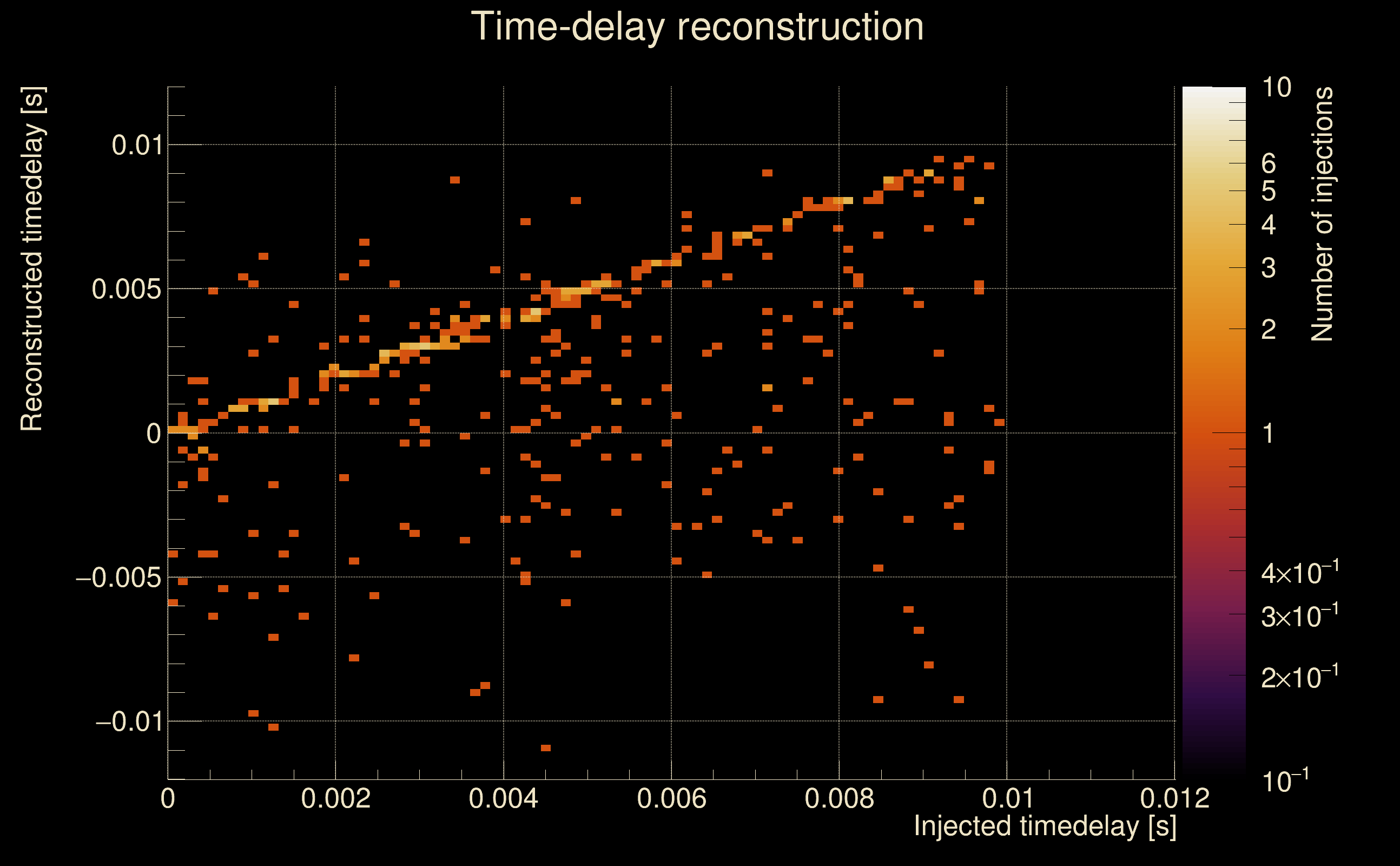

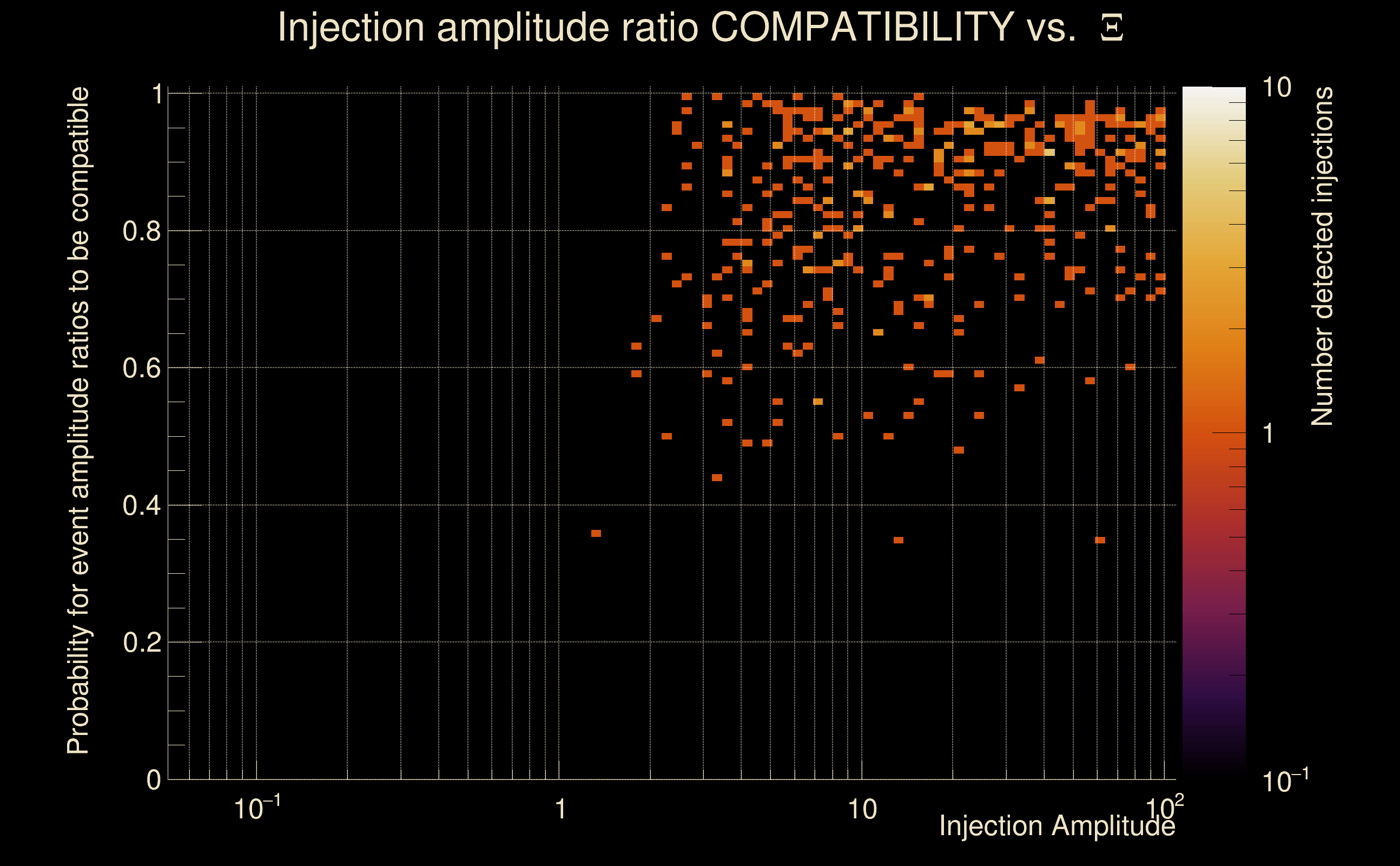

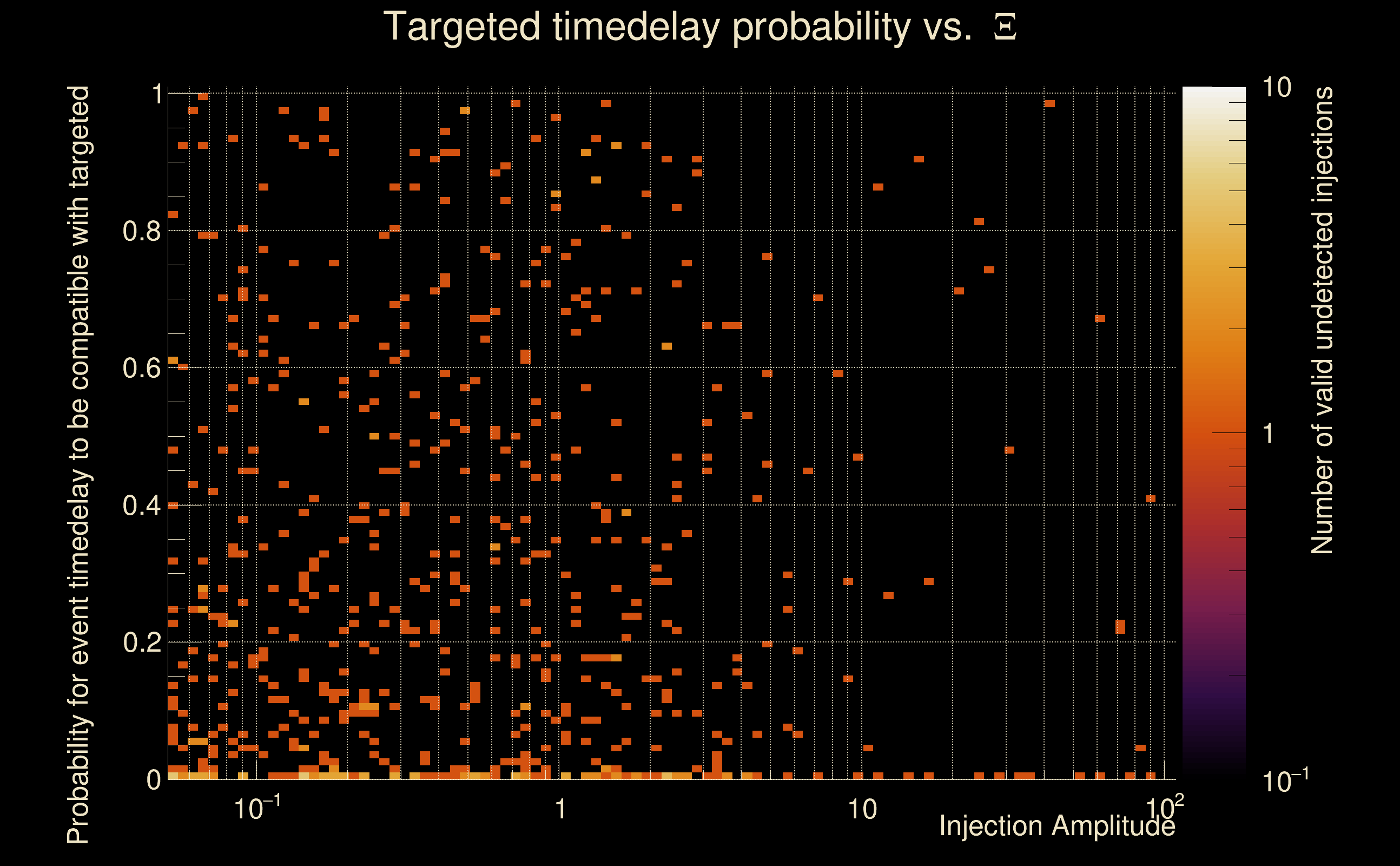

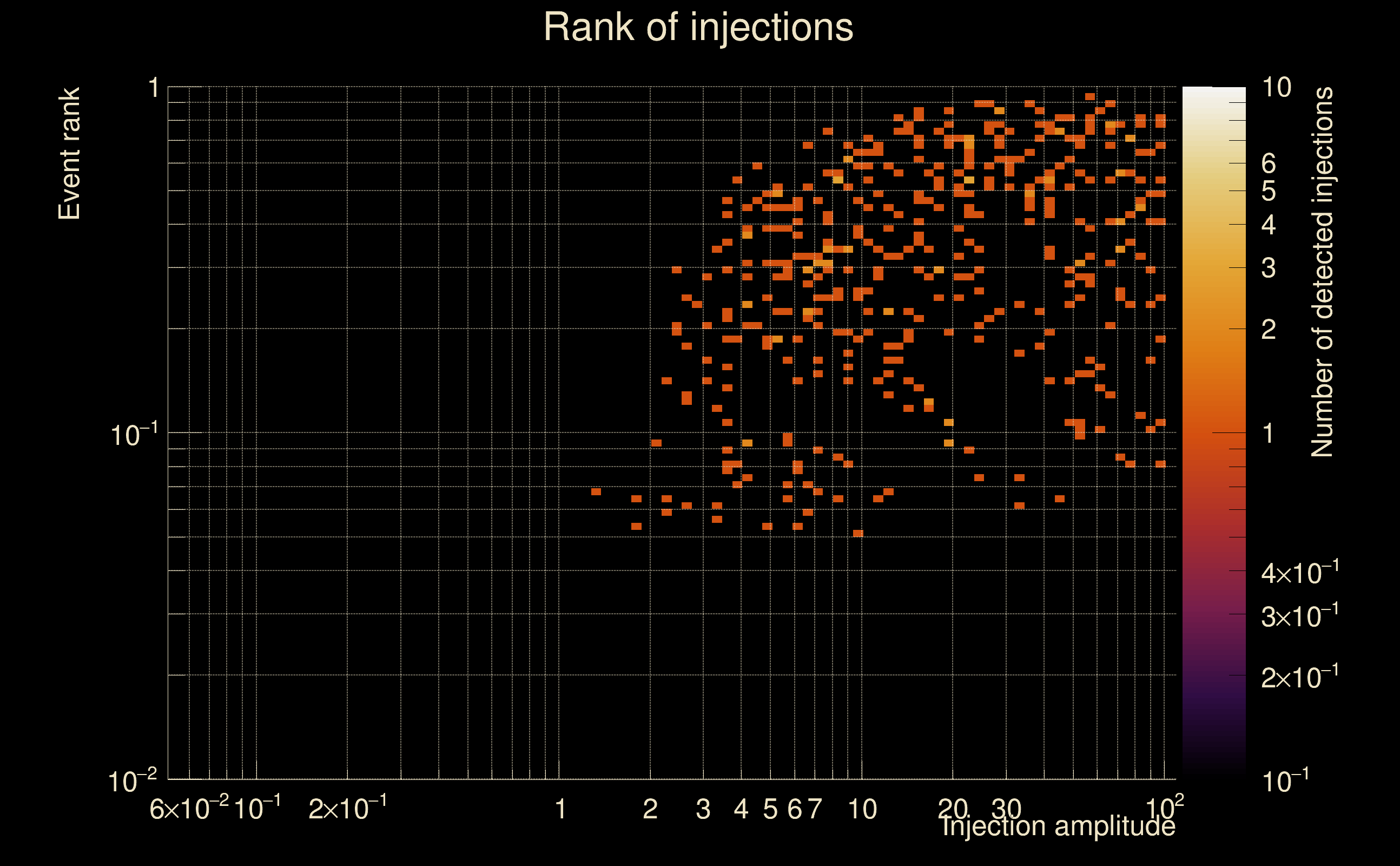

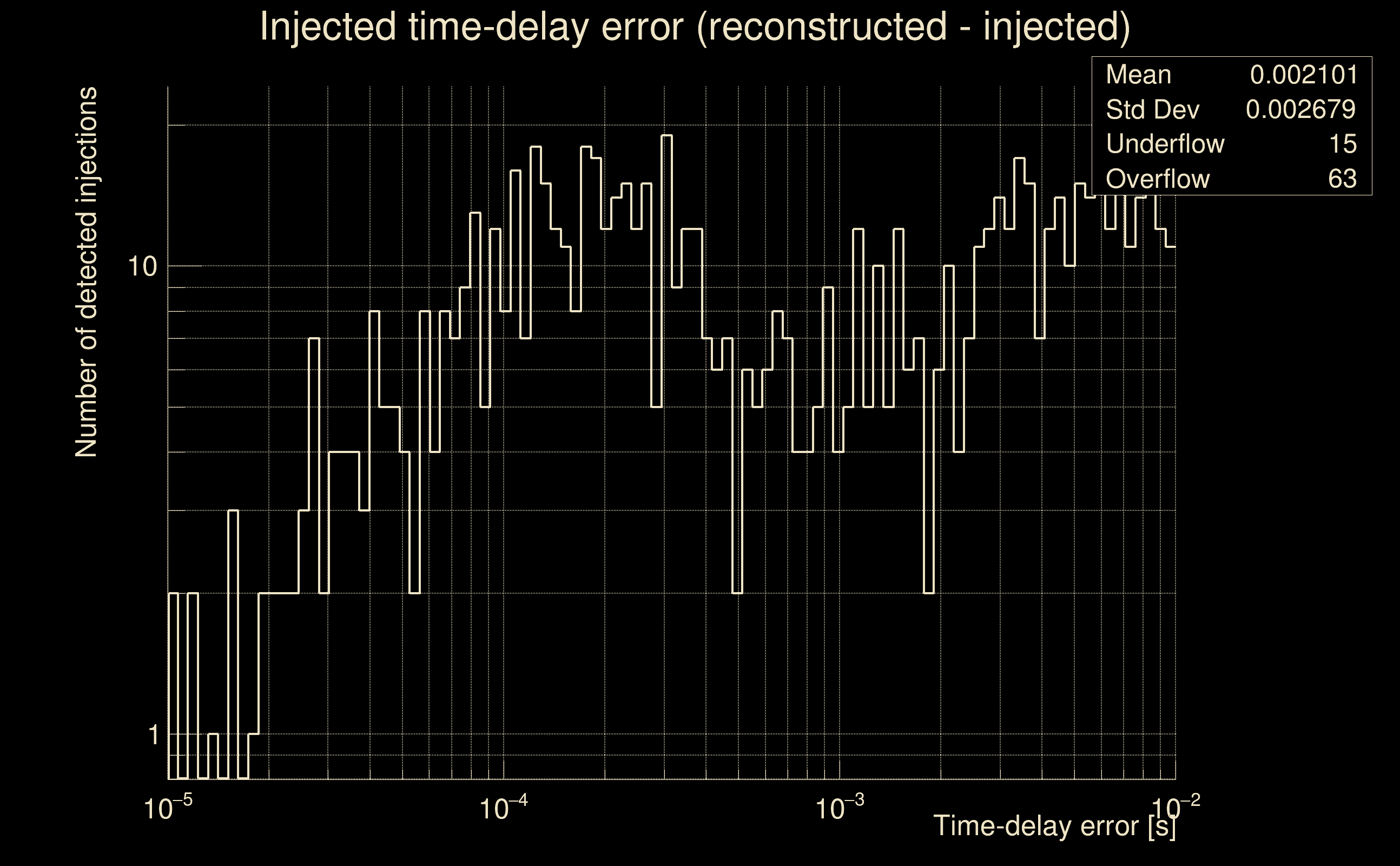

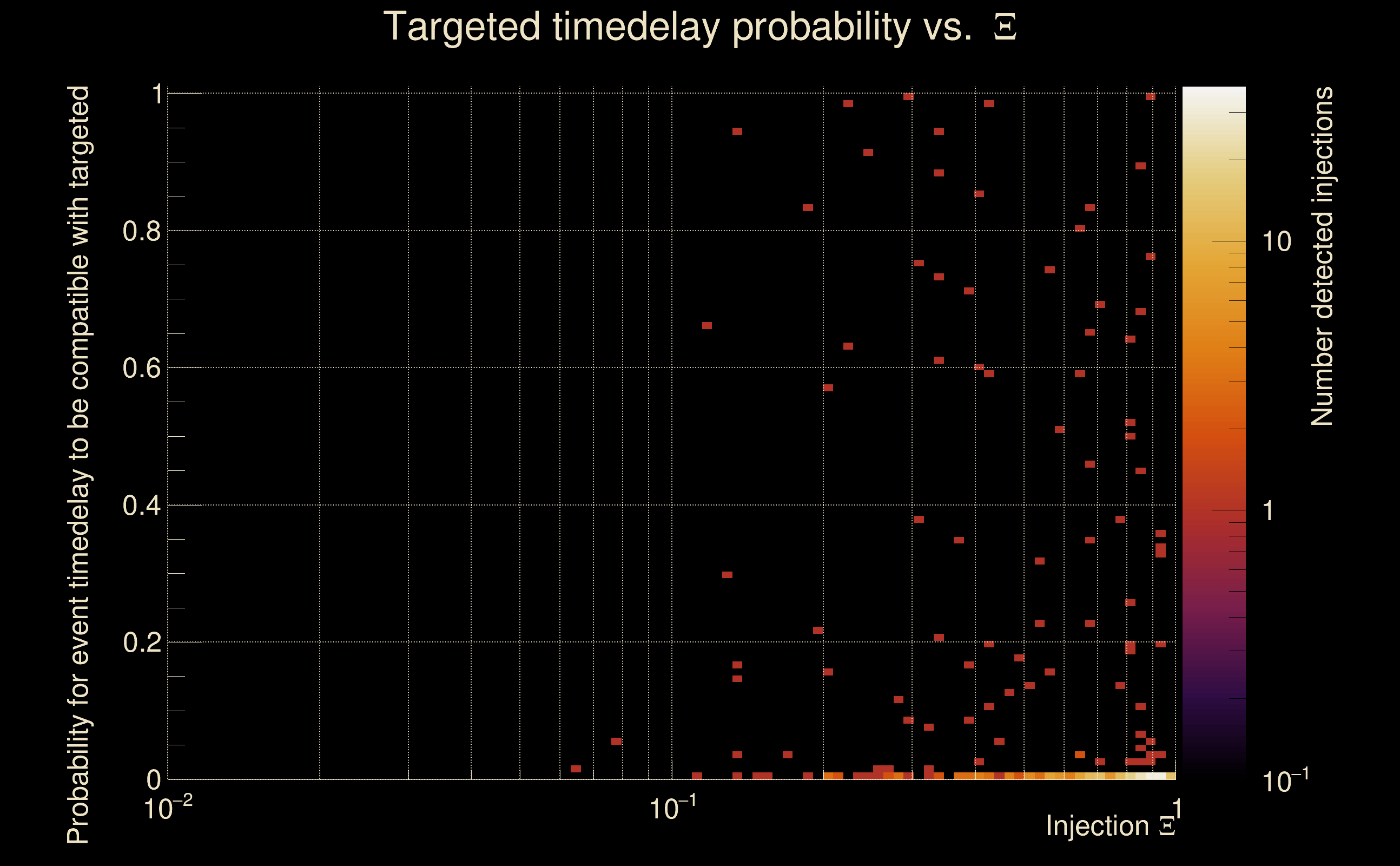

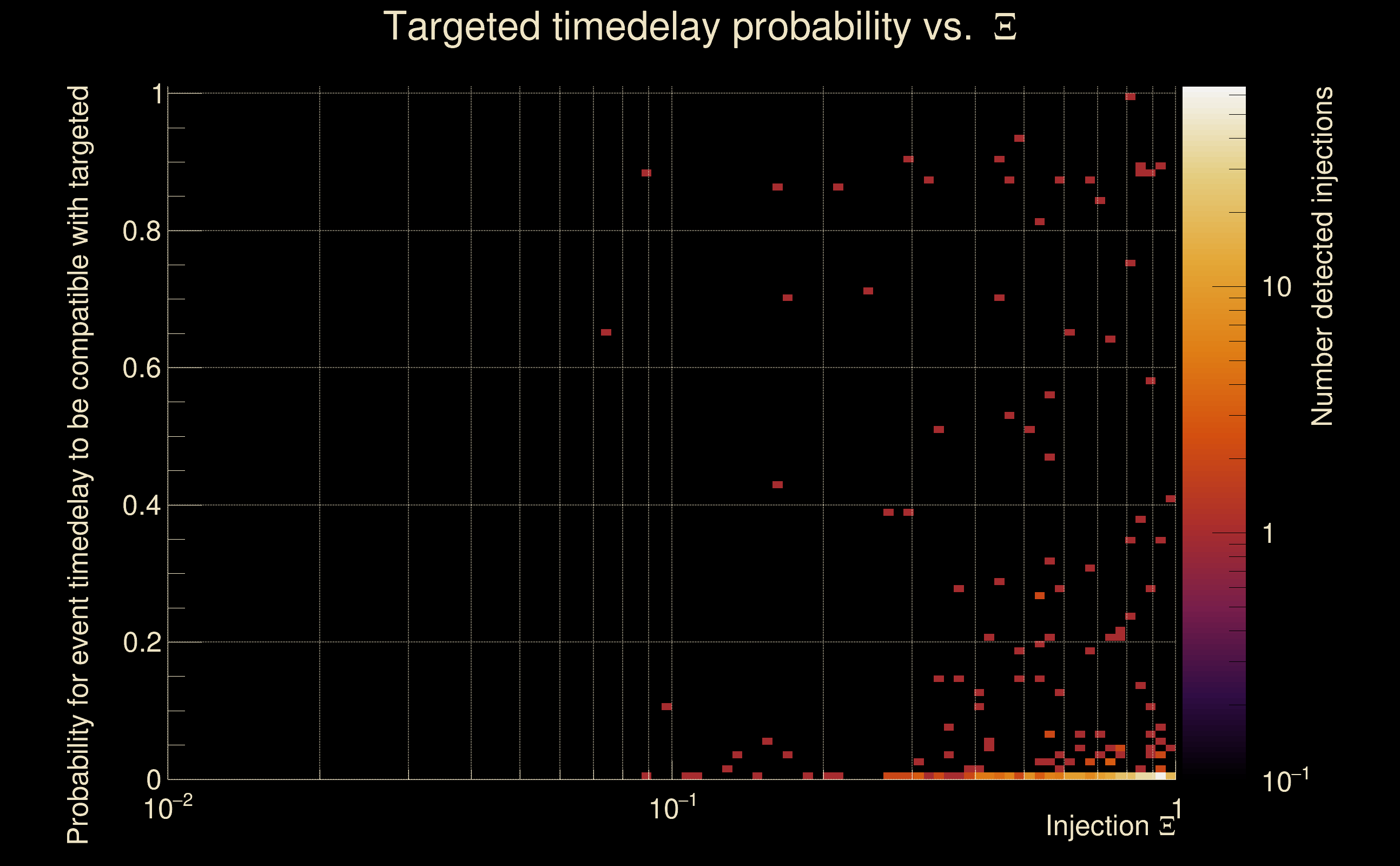

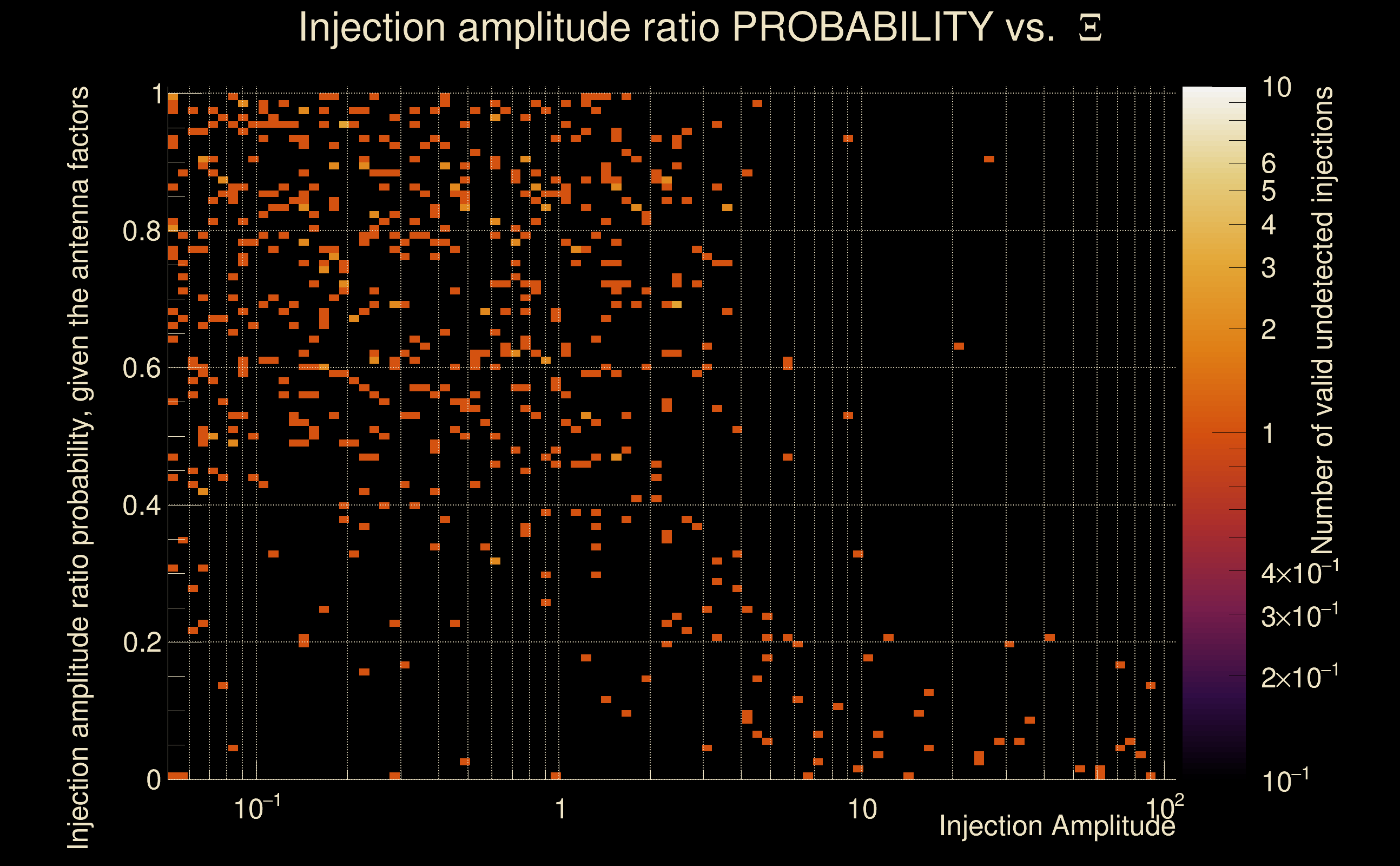

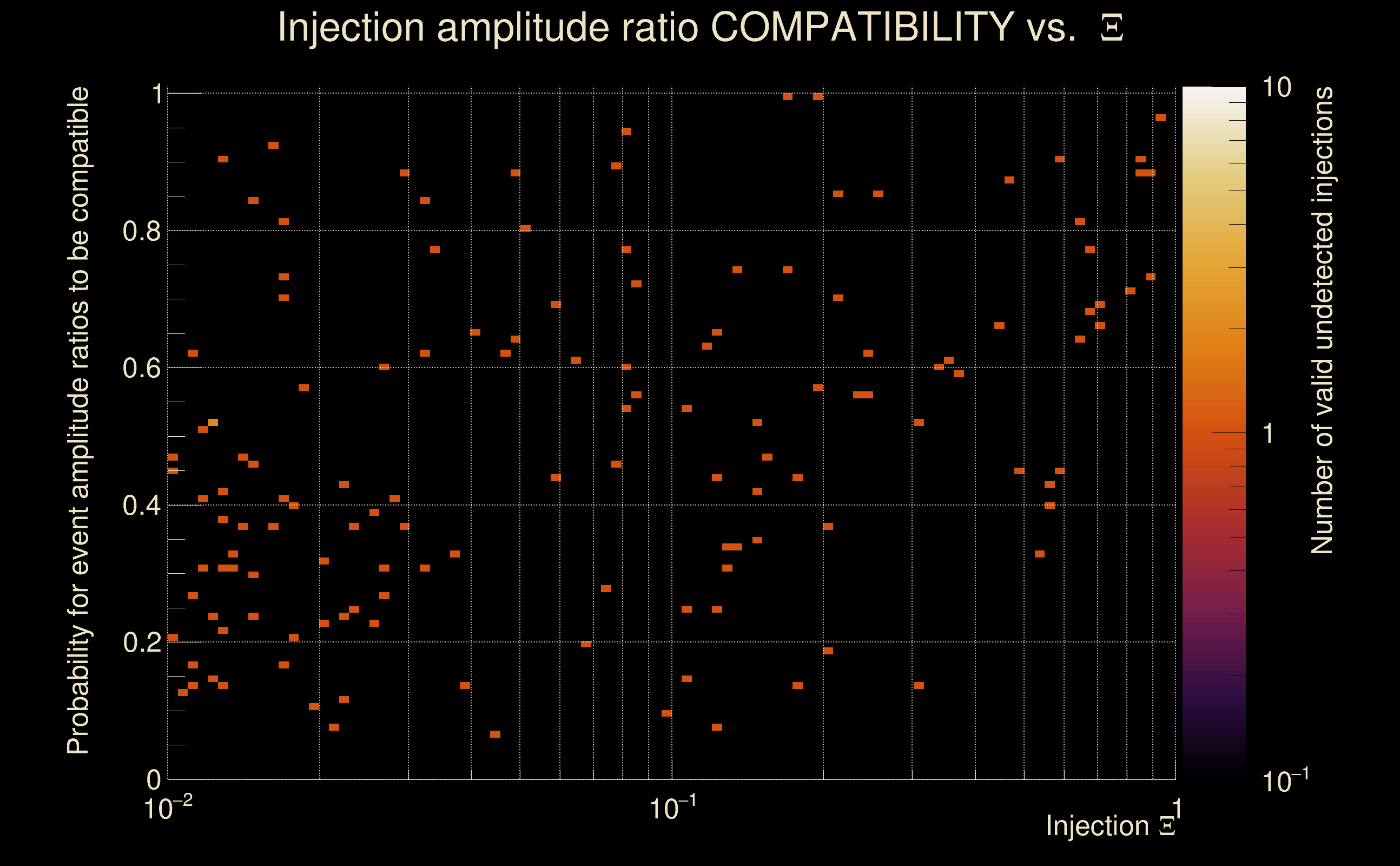

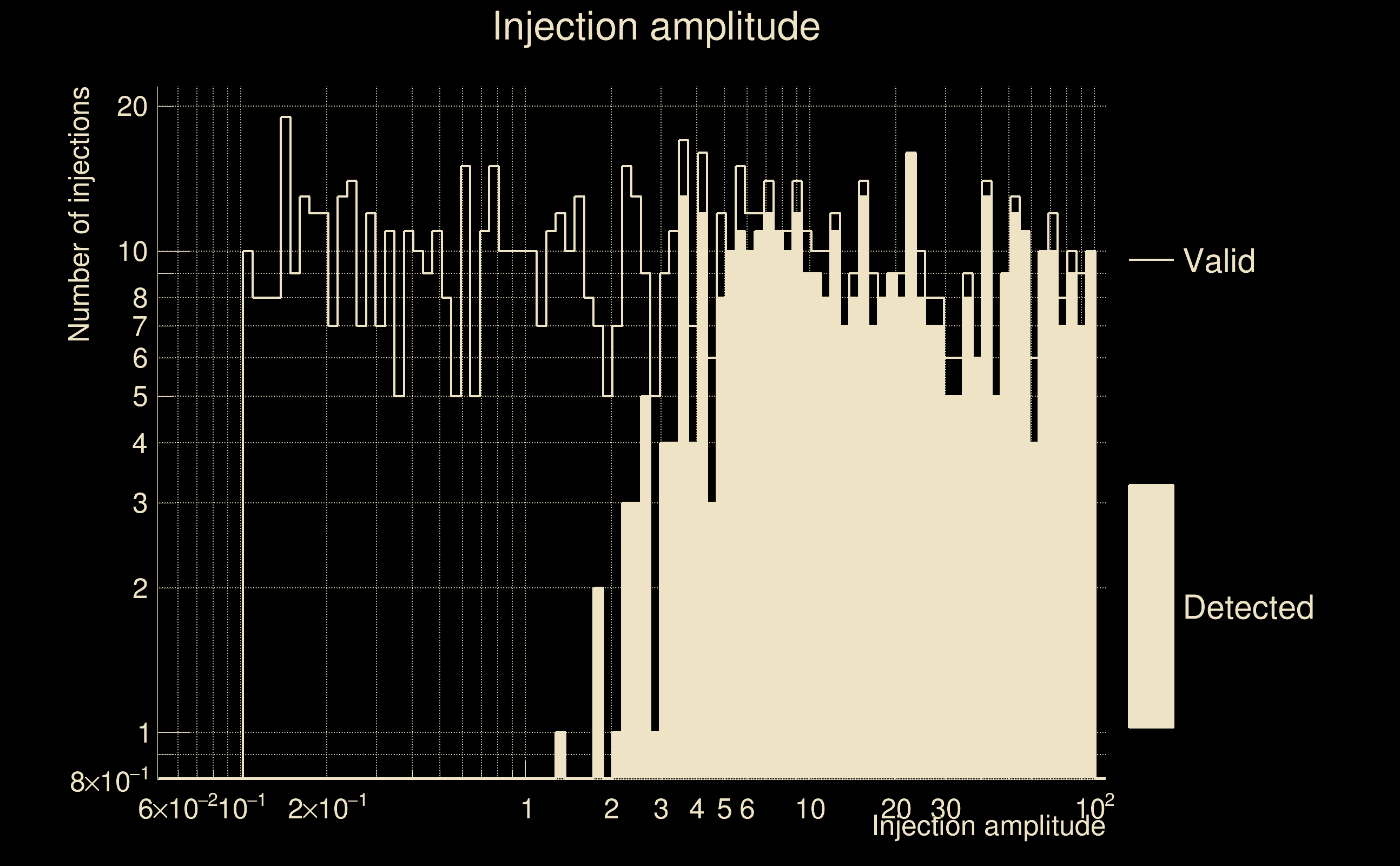

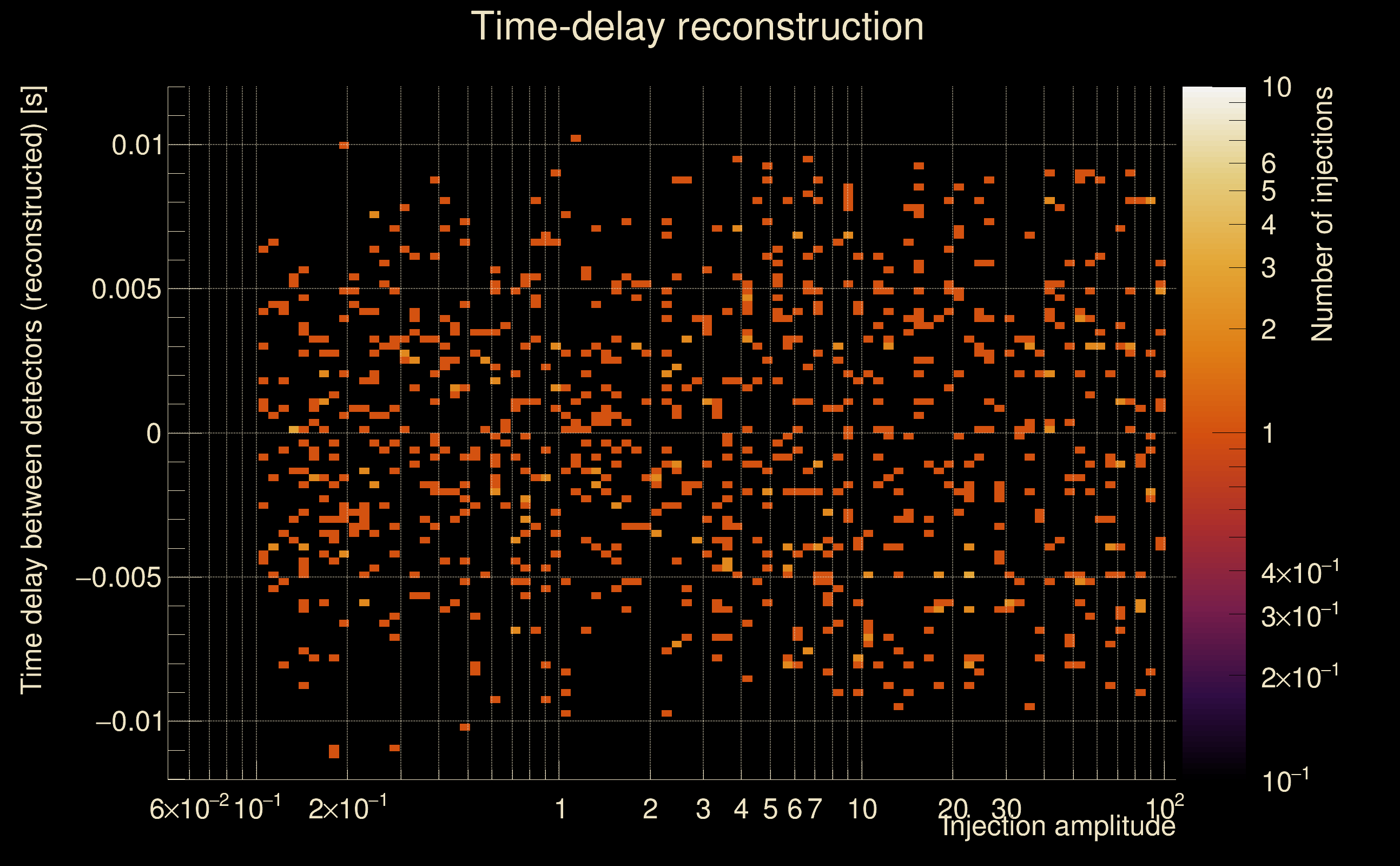

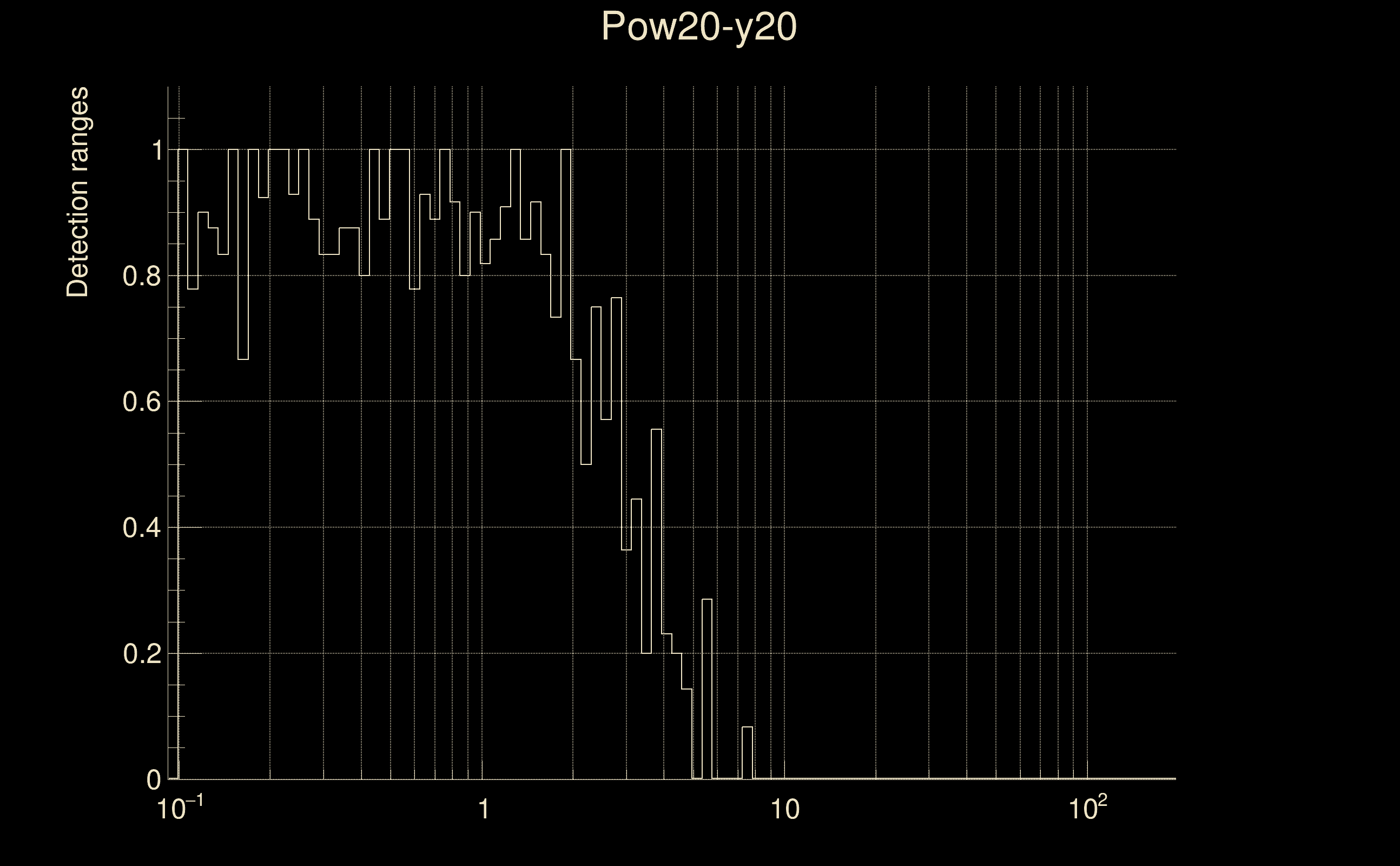

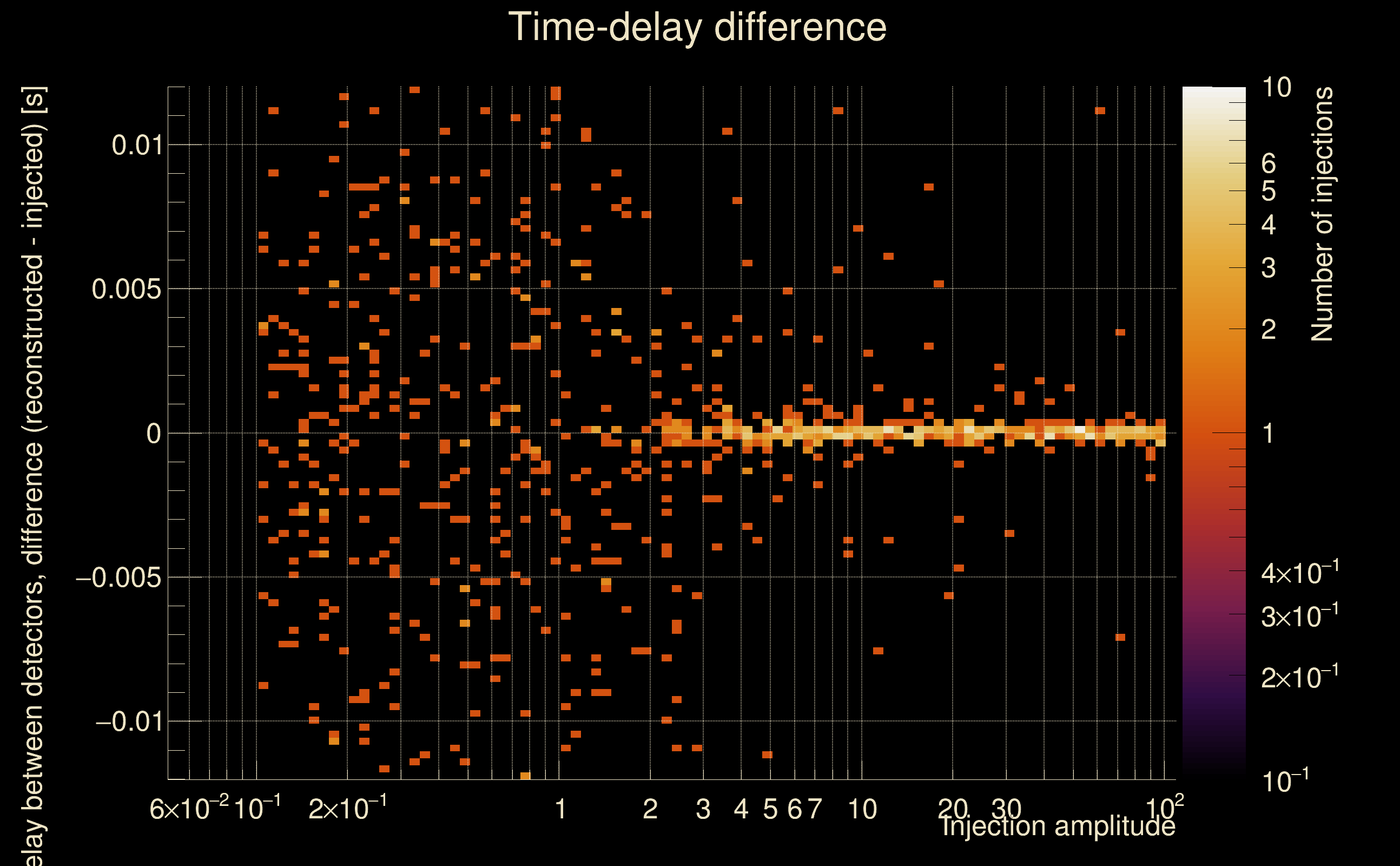

| Number of injections (total/valid/detected): | 1042 / 908 / 417 |
| List of missed injections: | ./Pow20-y20_missed.txt |
| Injection amplitude at 90% detection efficiency: | 5.15694 |
| Injection amplitude at 50% detection efficiency: | 3.41931 |
| Injection amplitude at 10% detection efficiency: | 2.05502 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

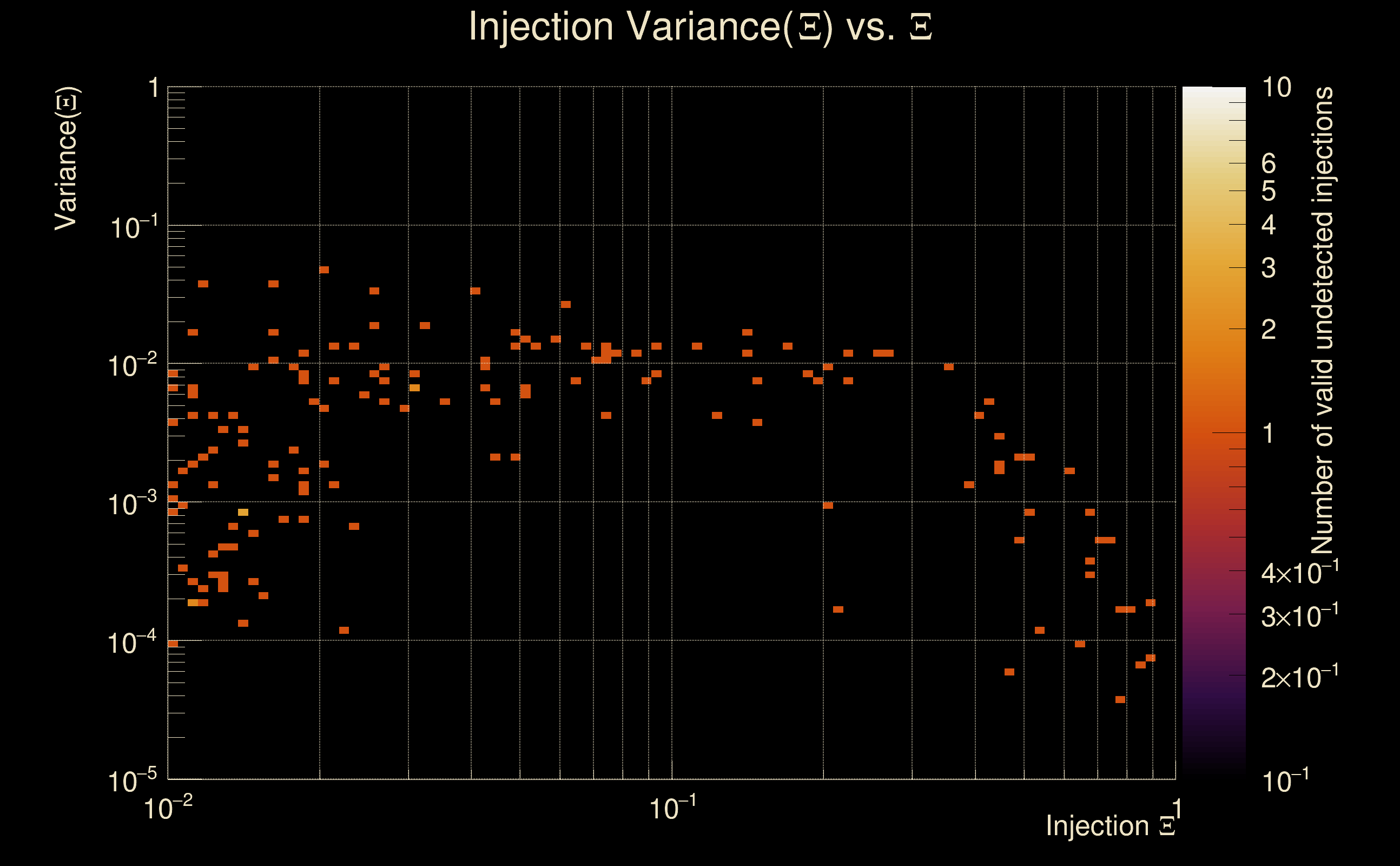

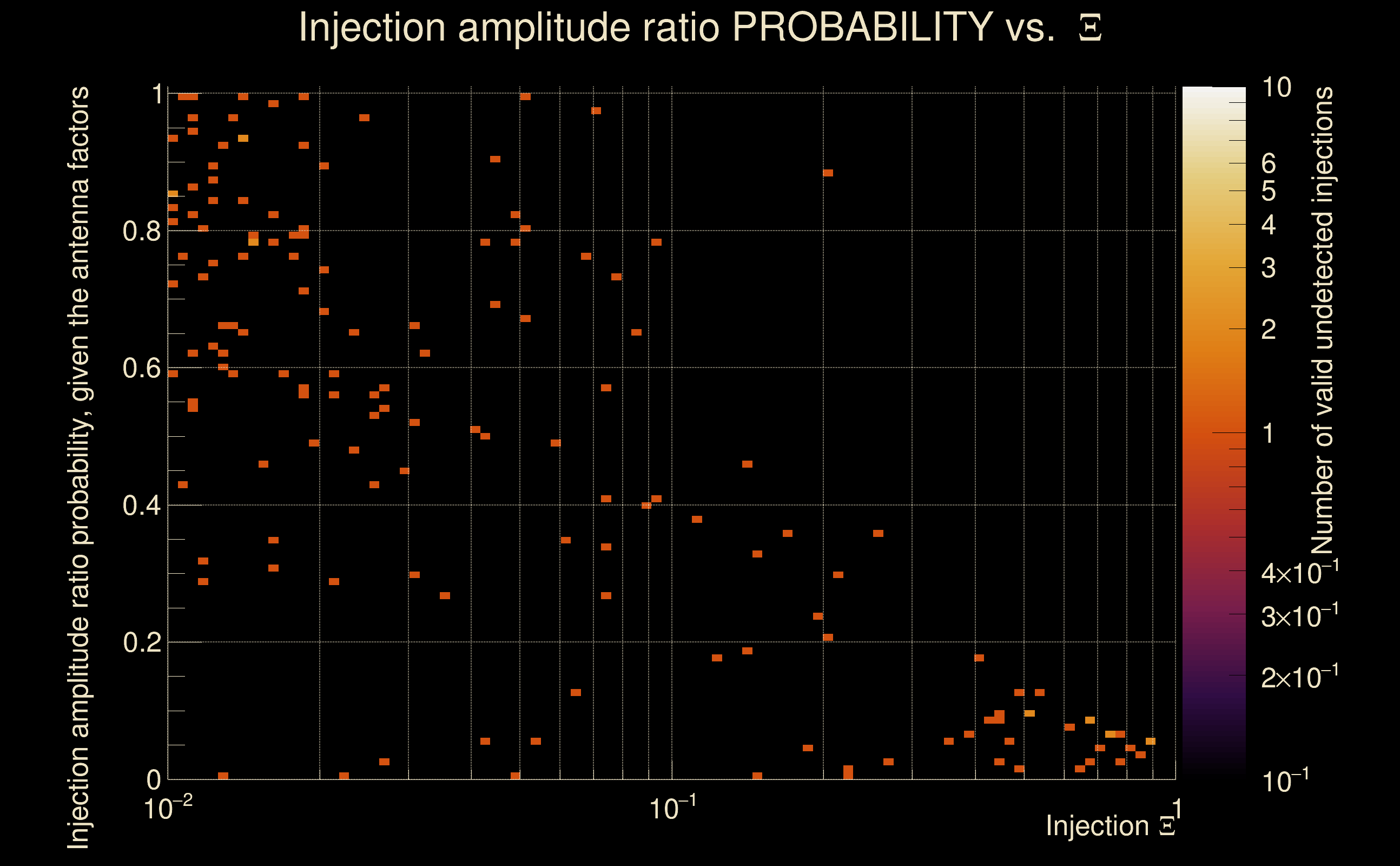

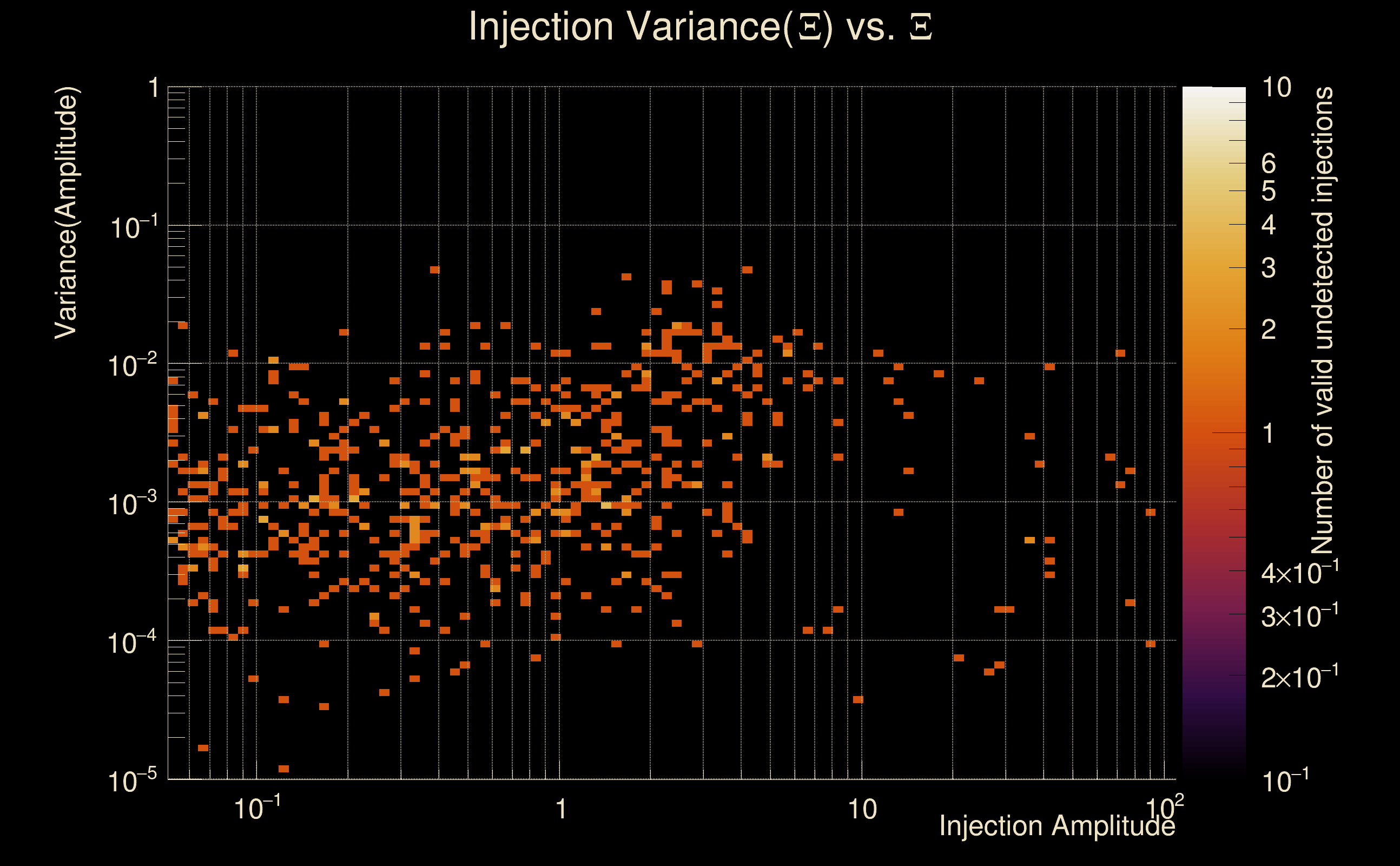

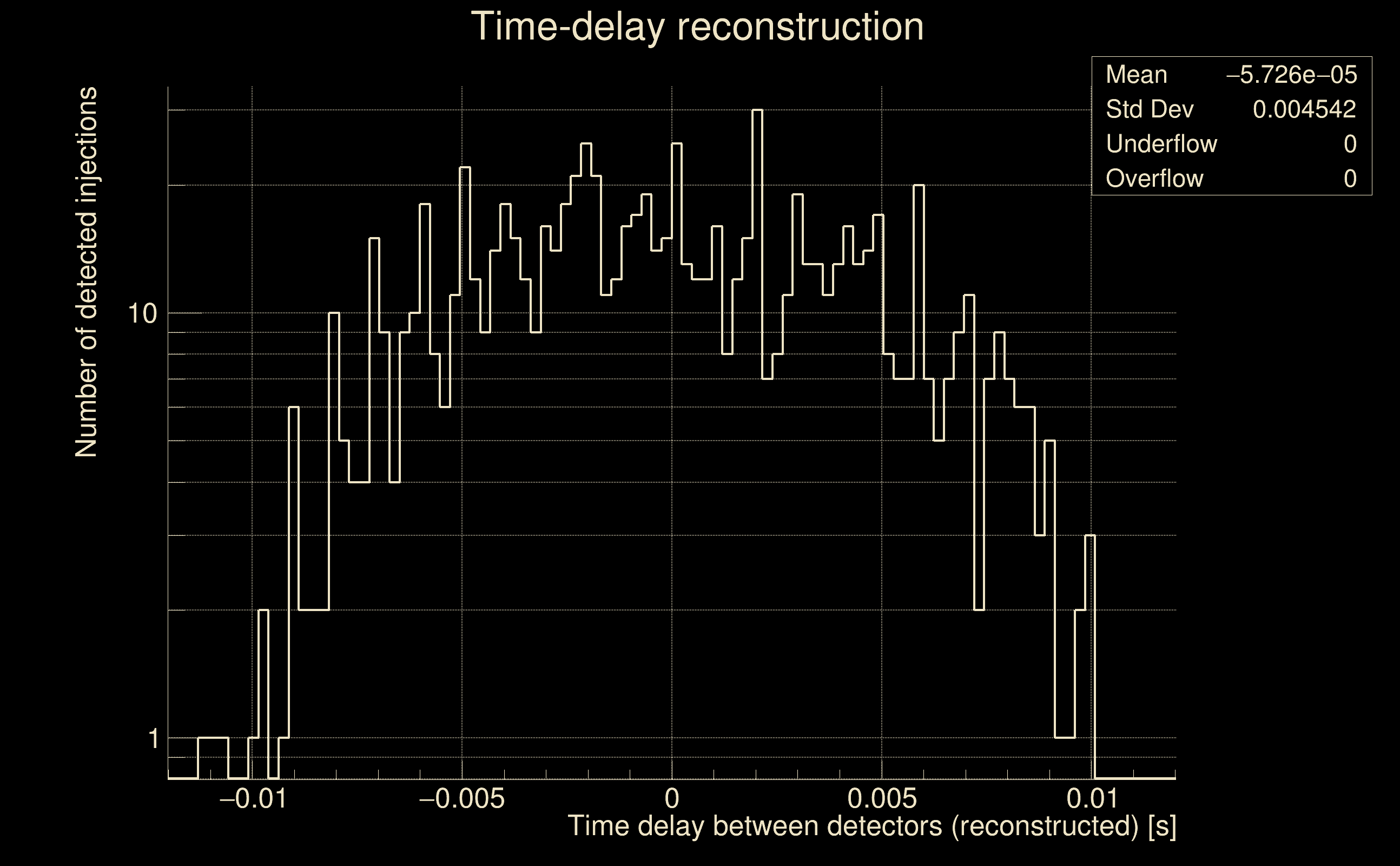

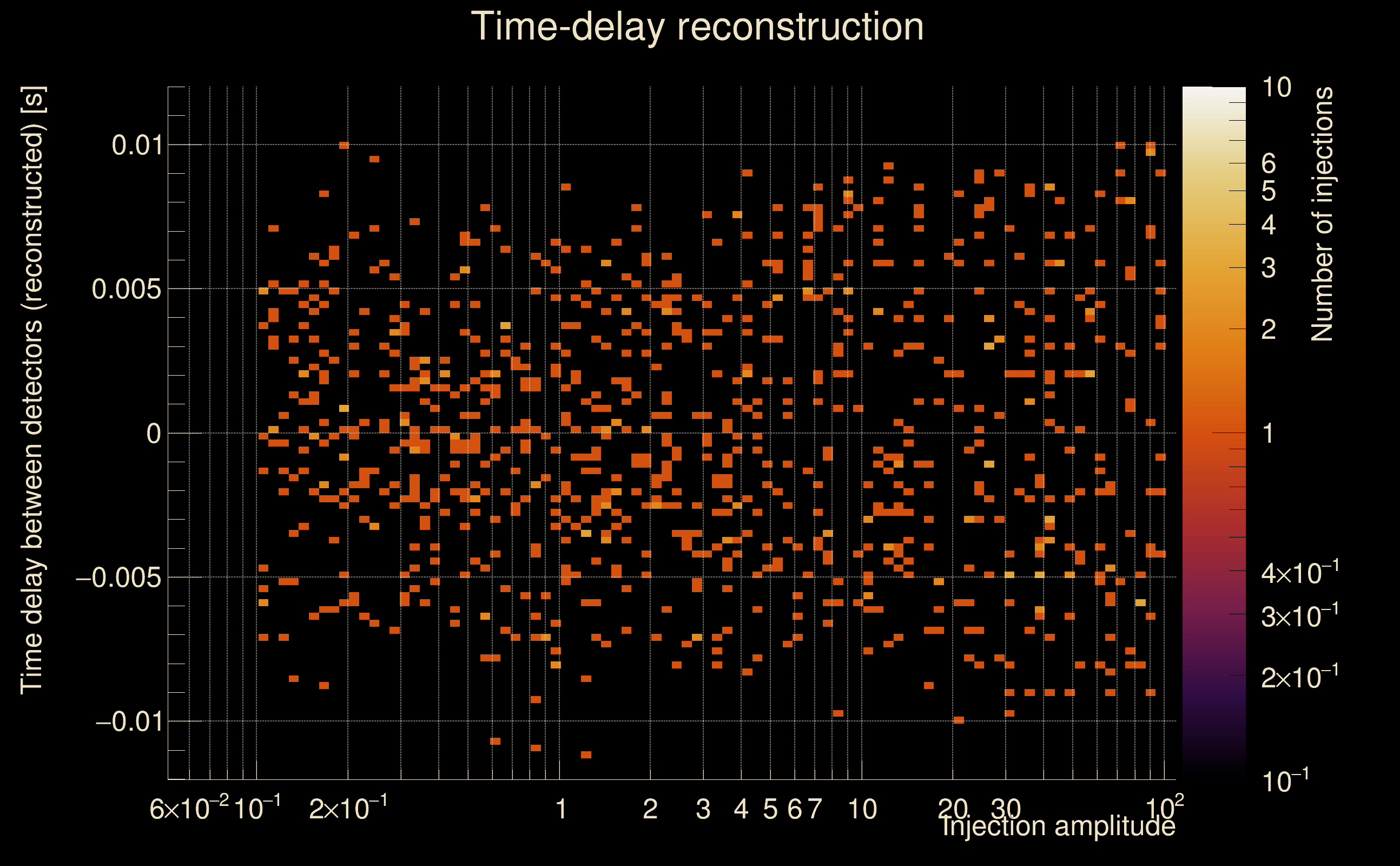

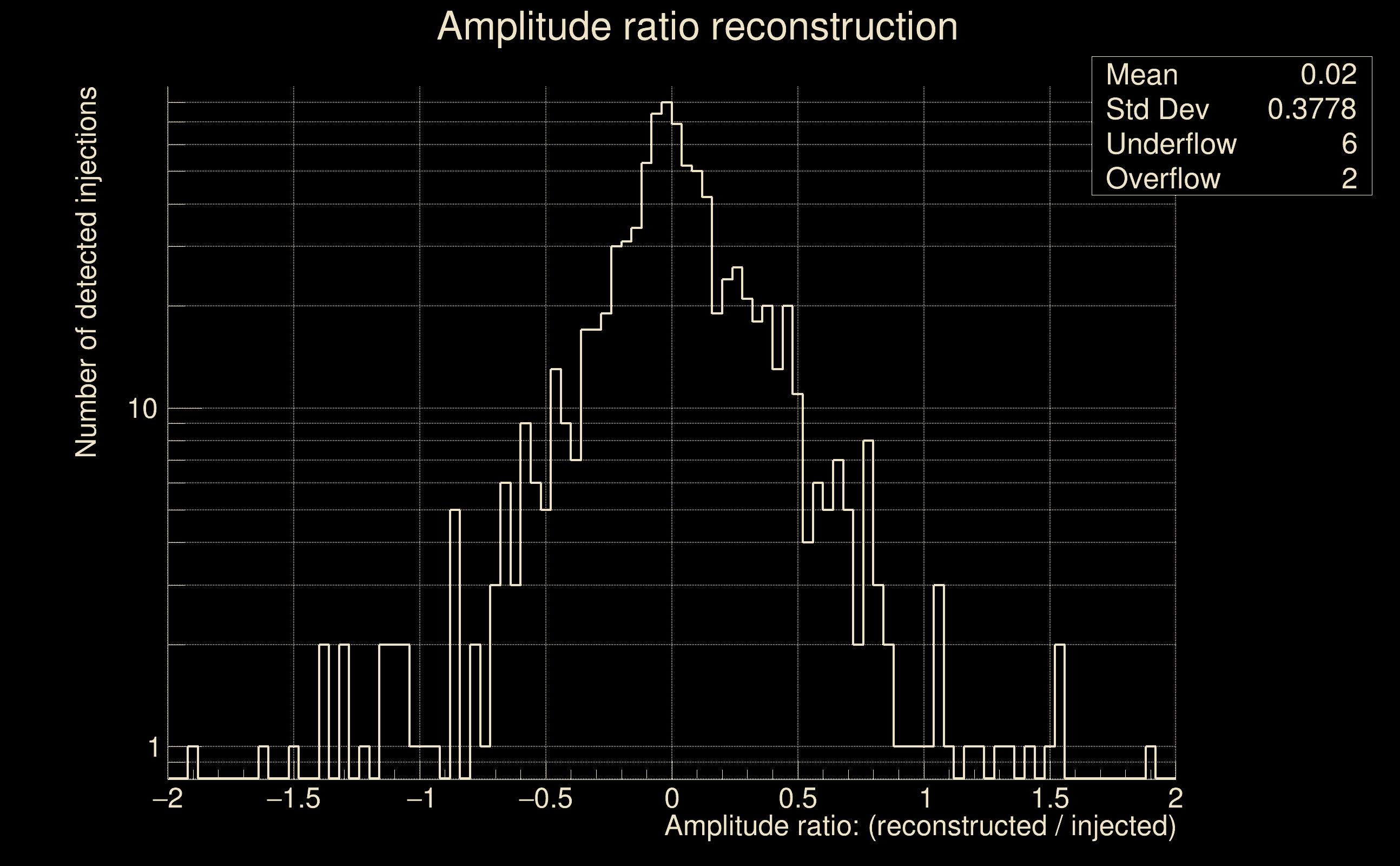

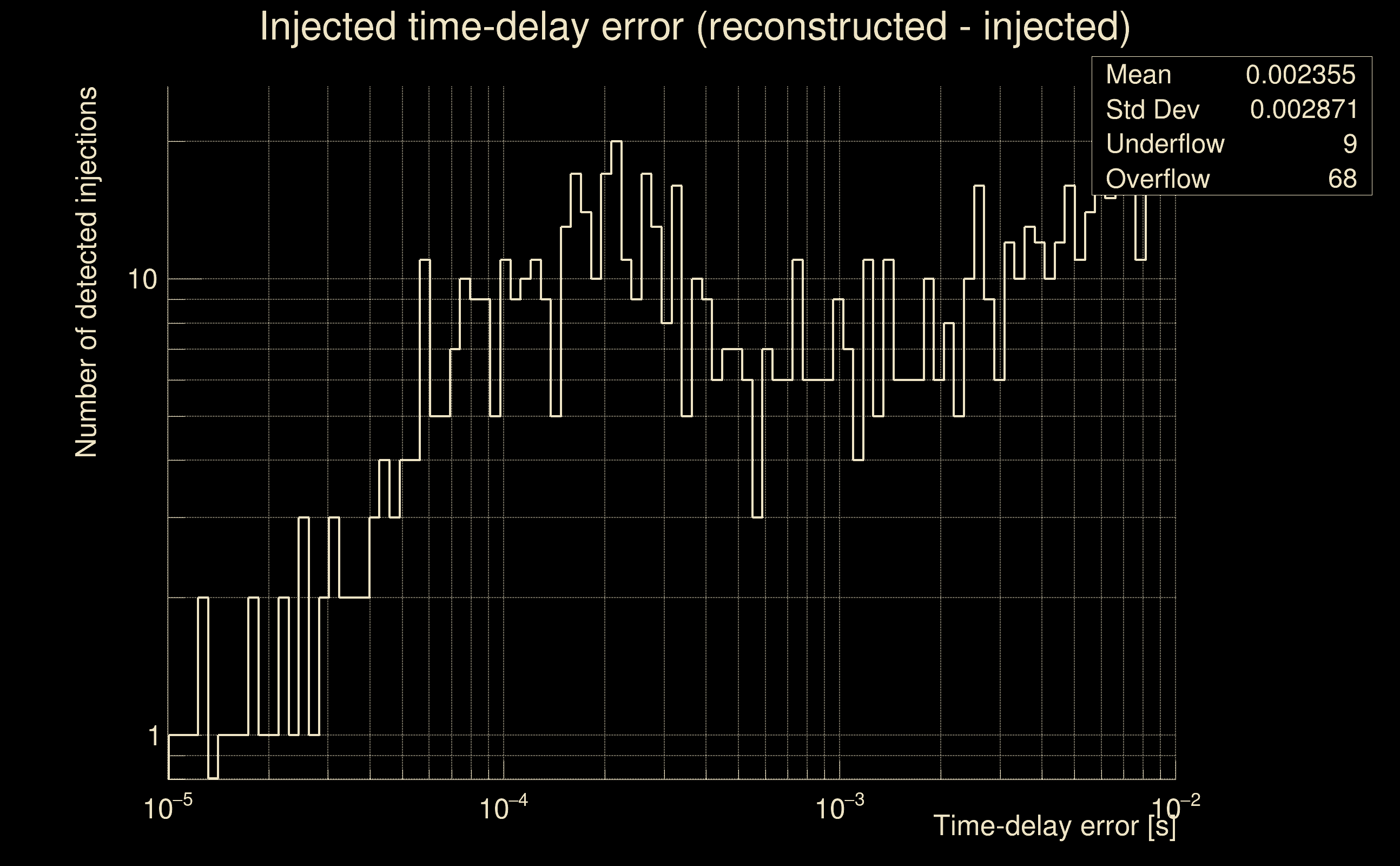

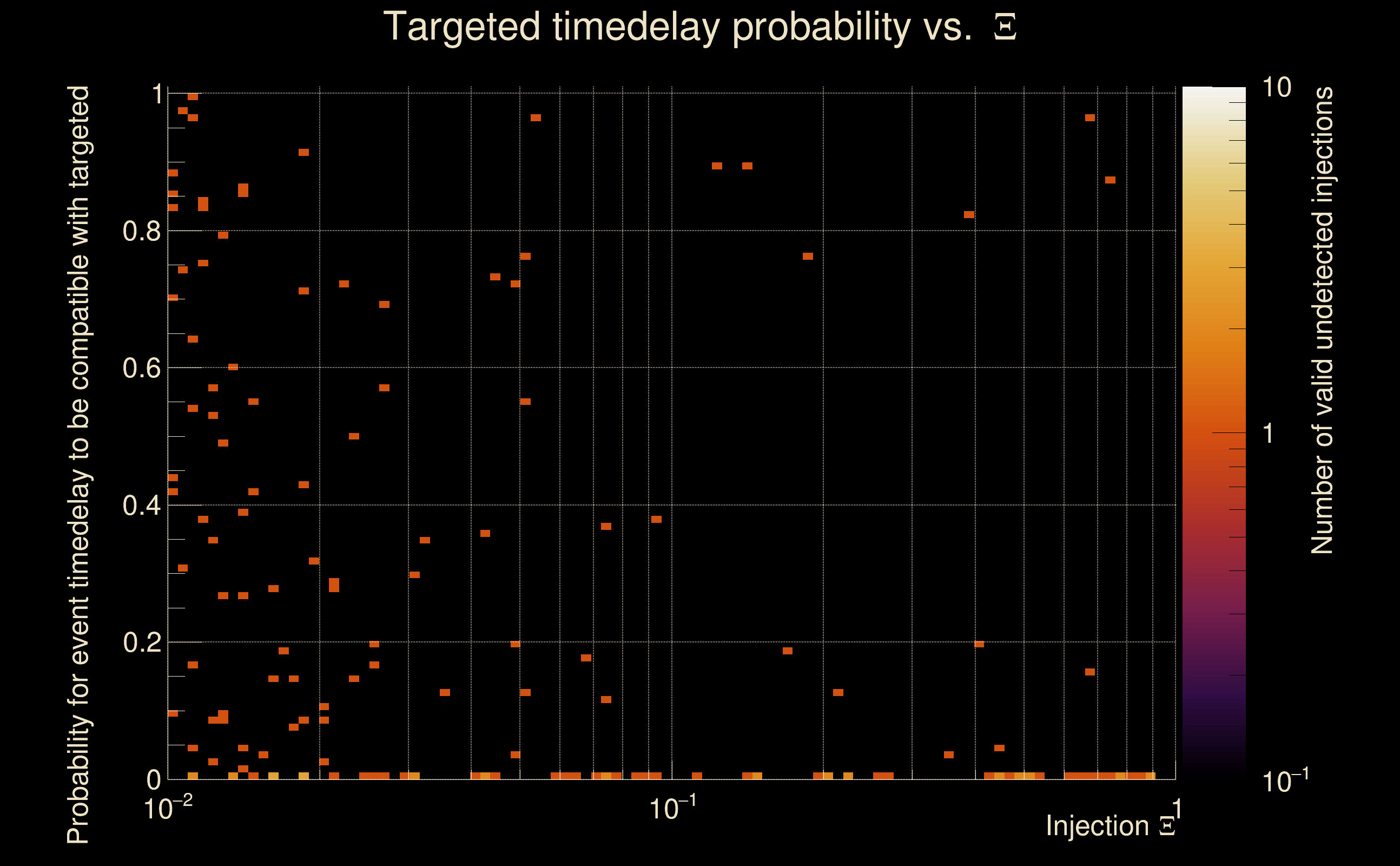

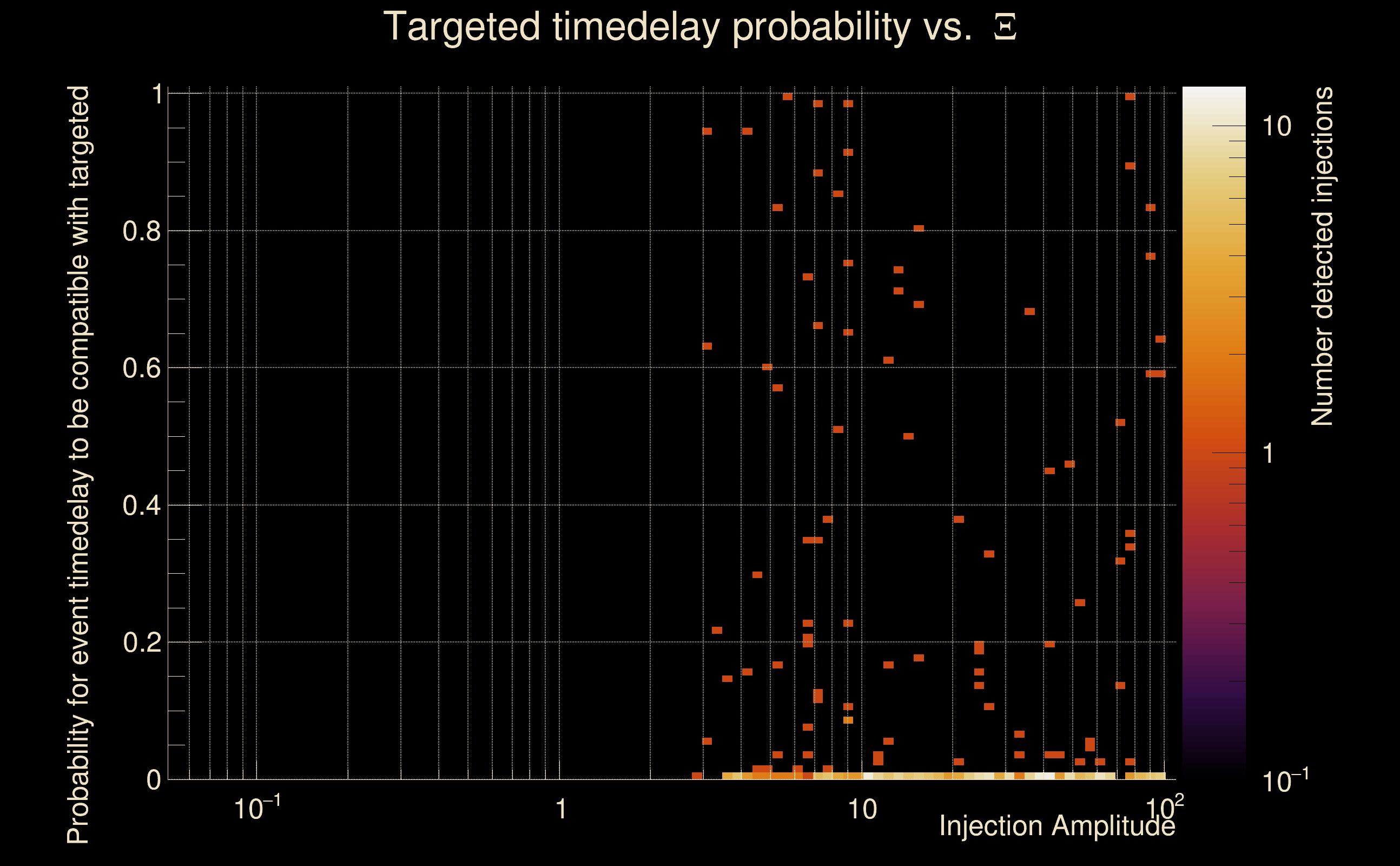

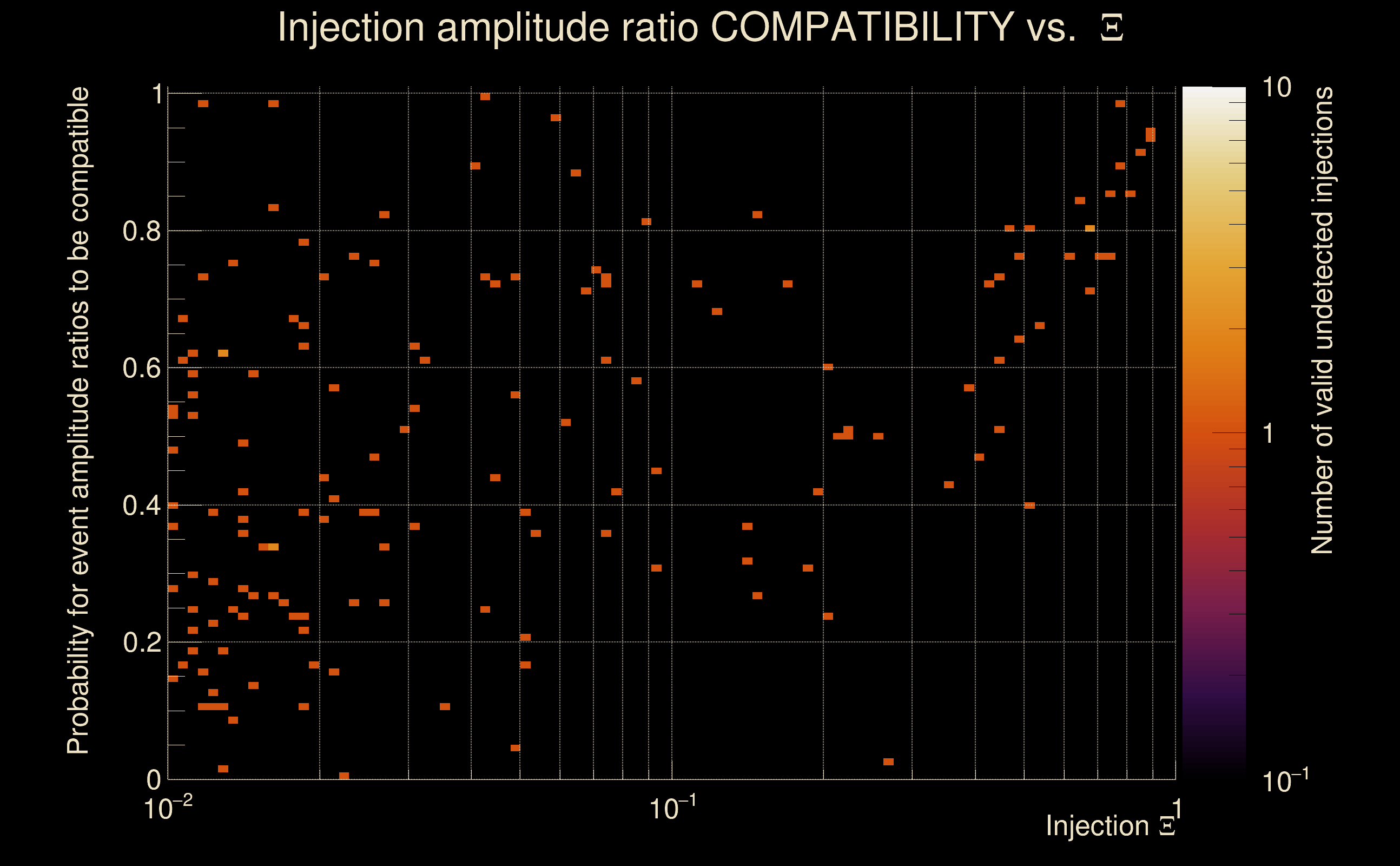

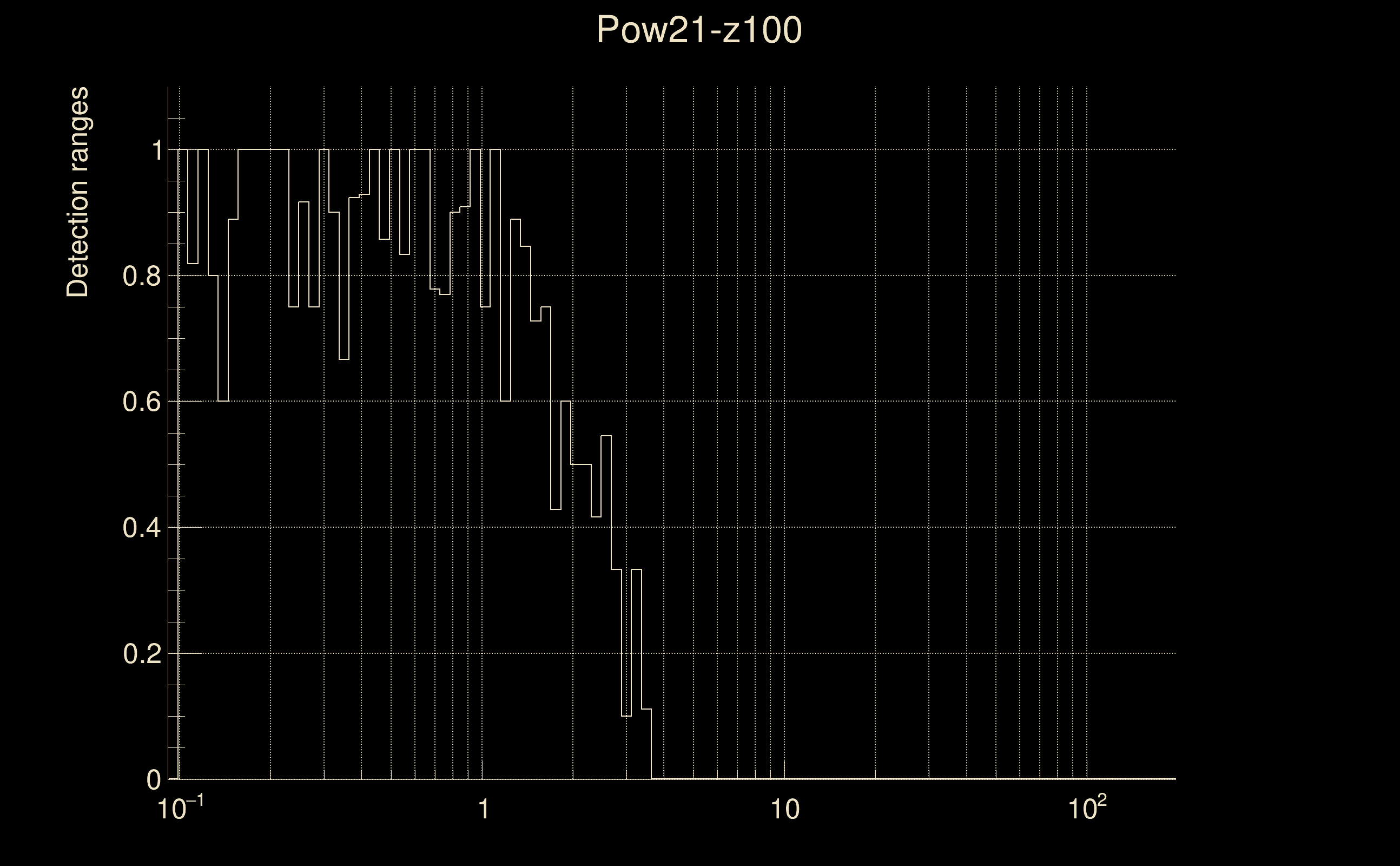

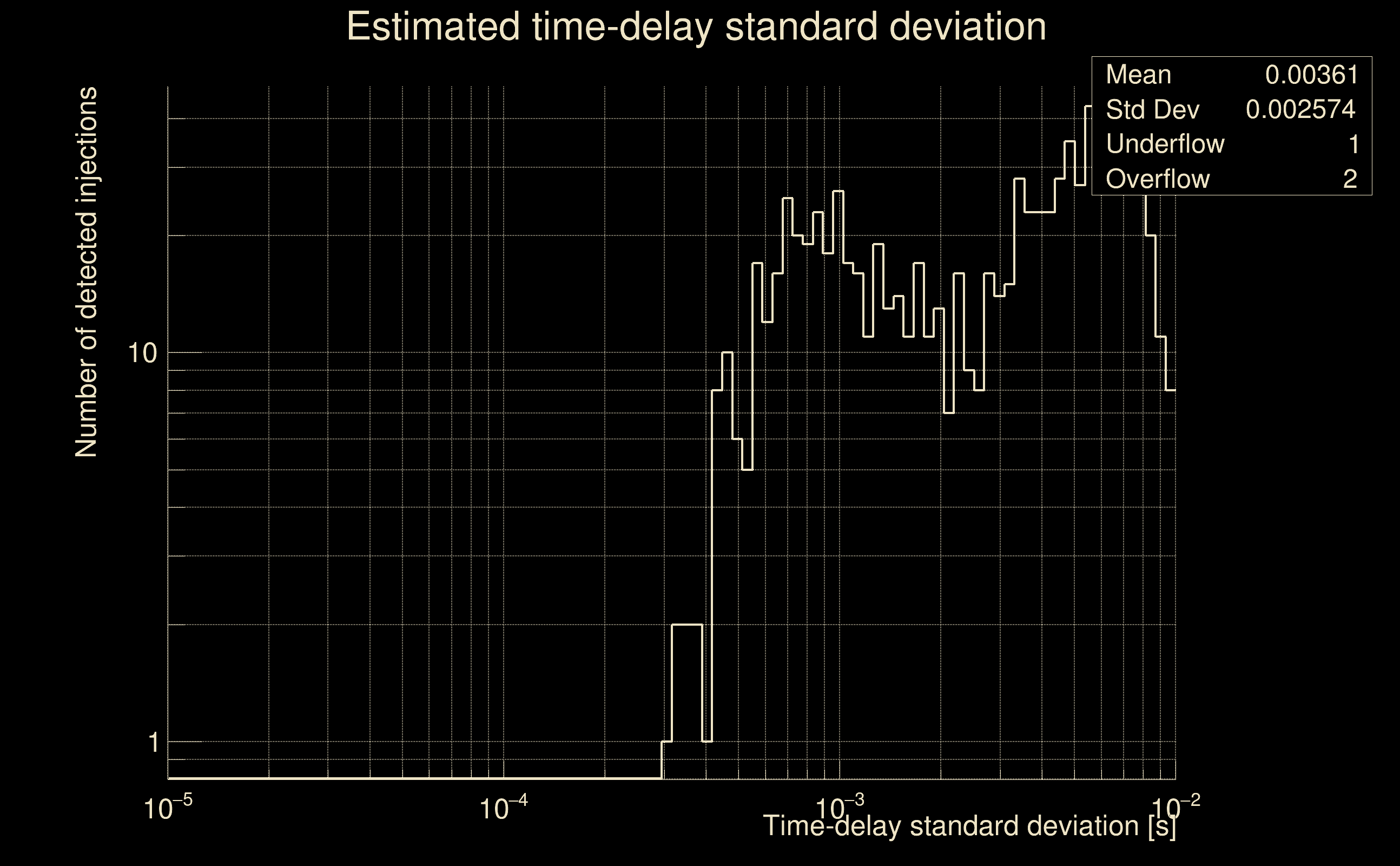

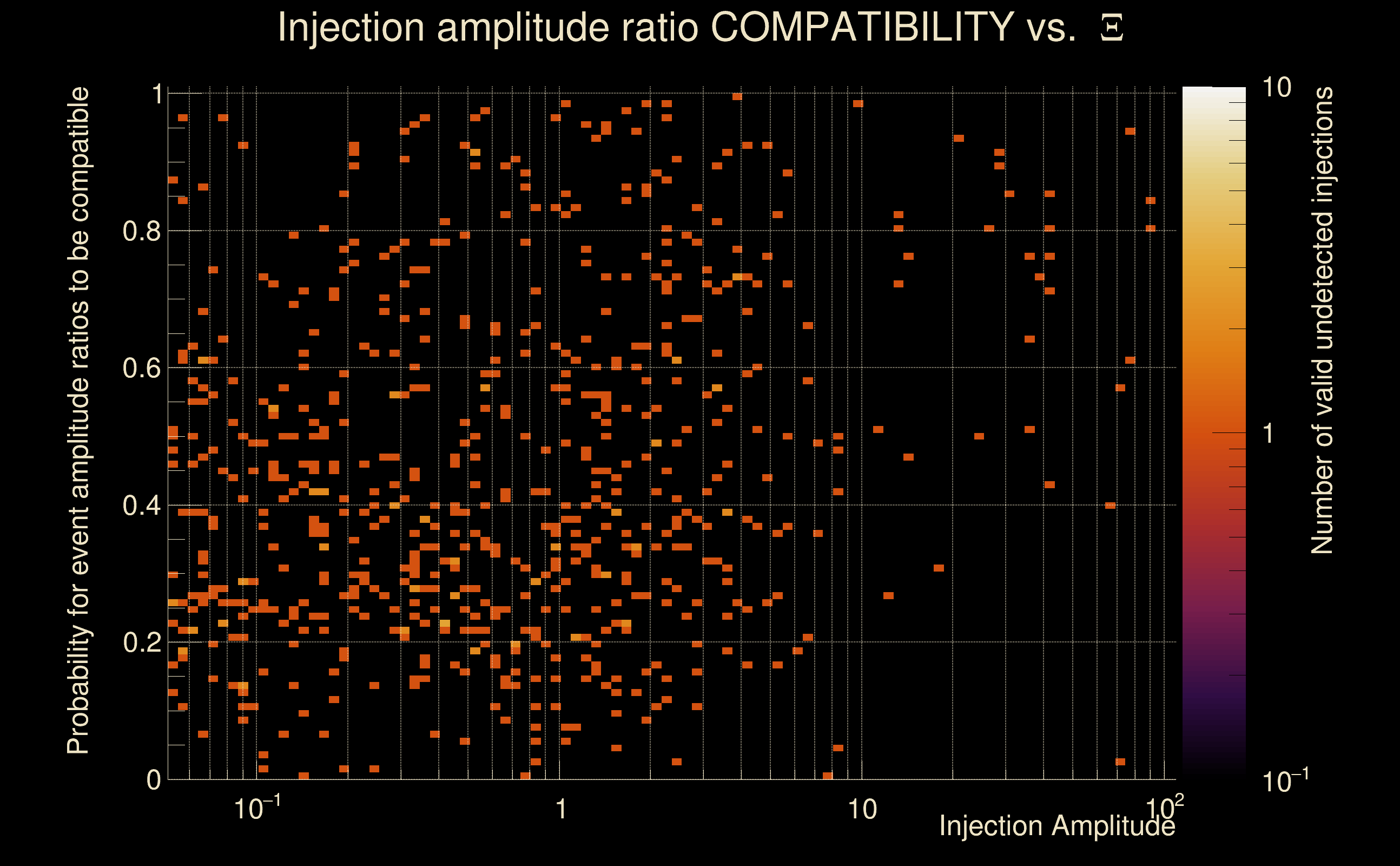

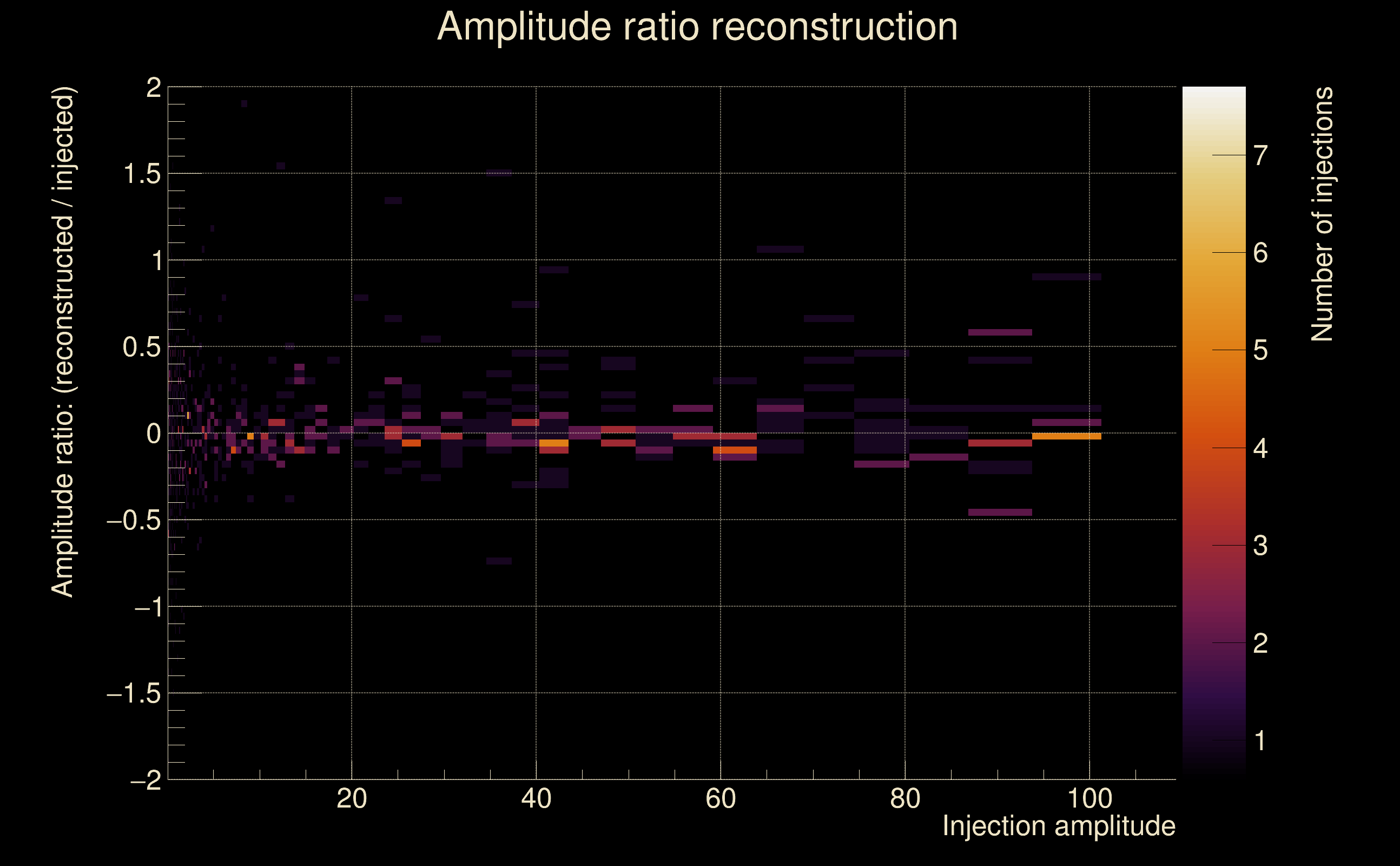

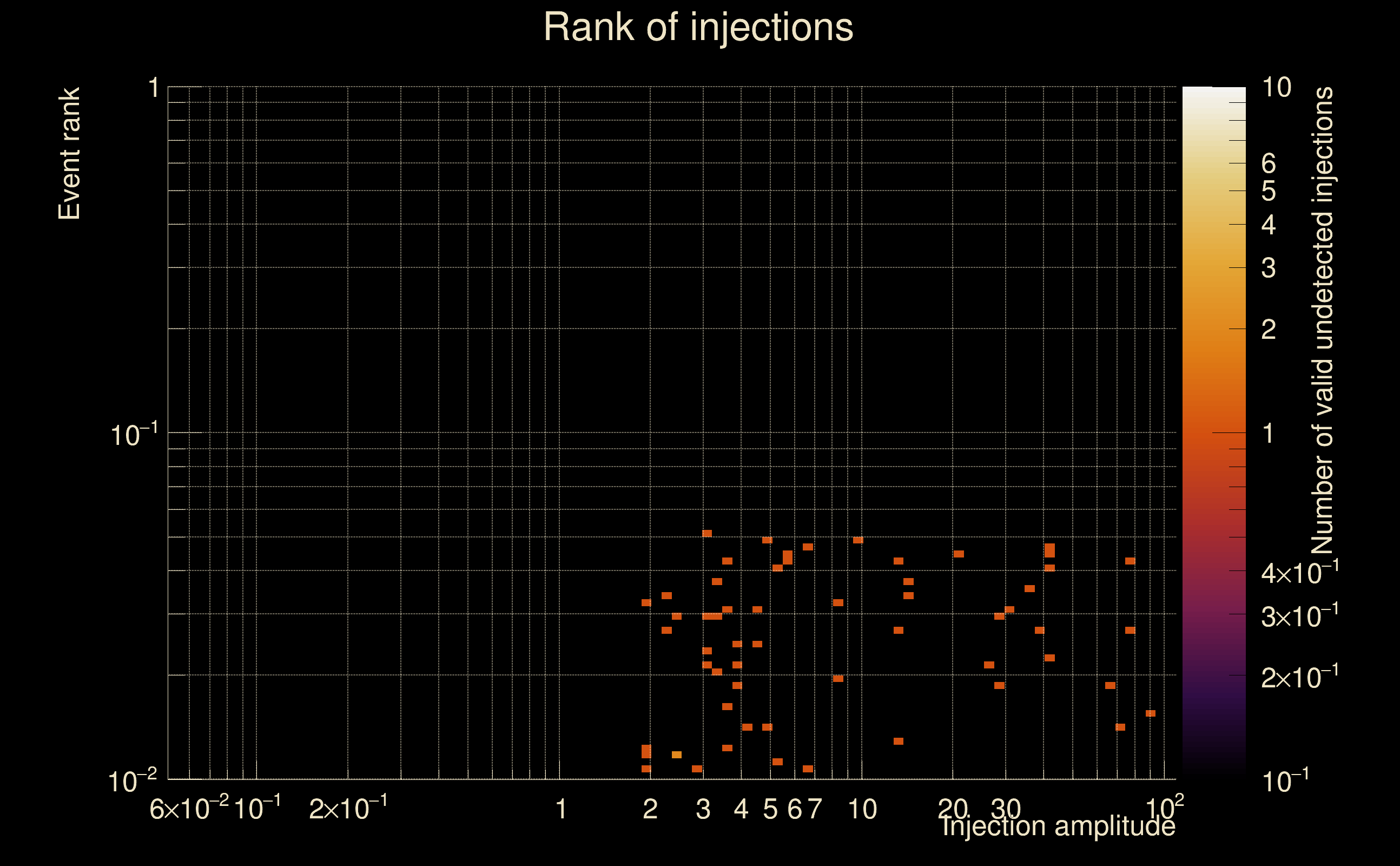

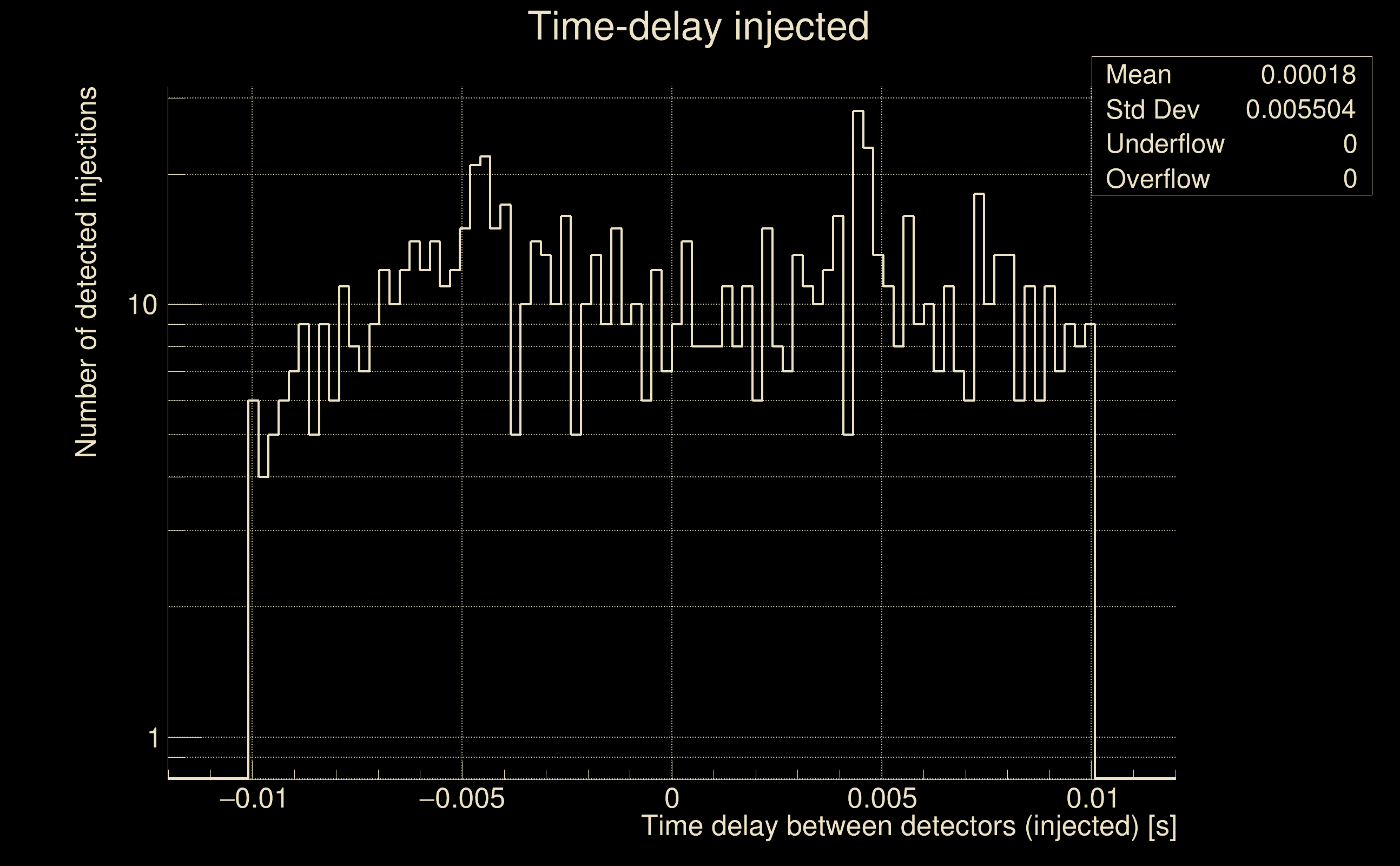

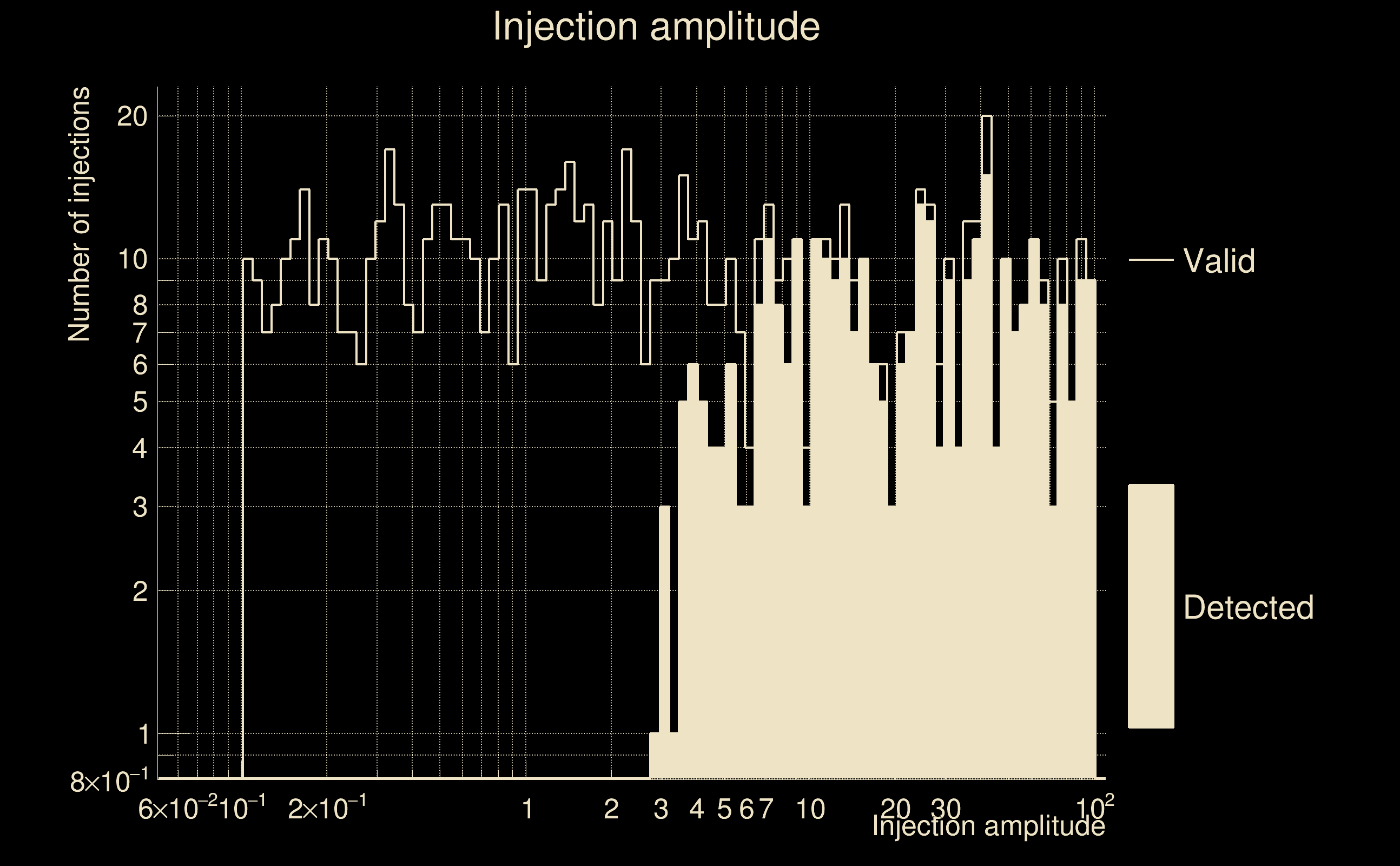

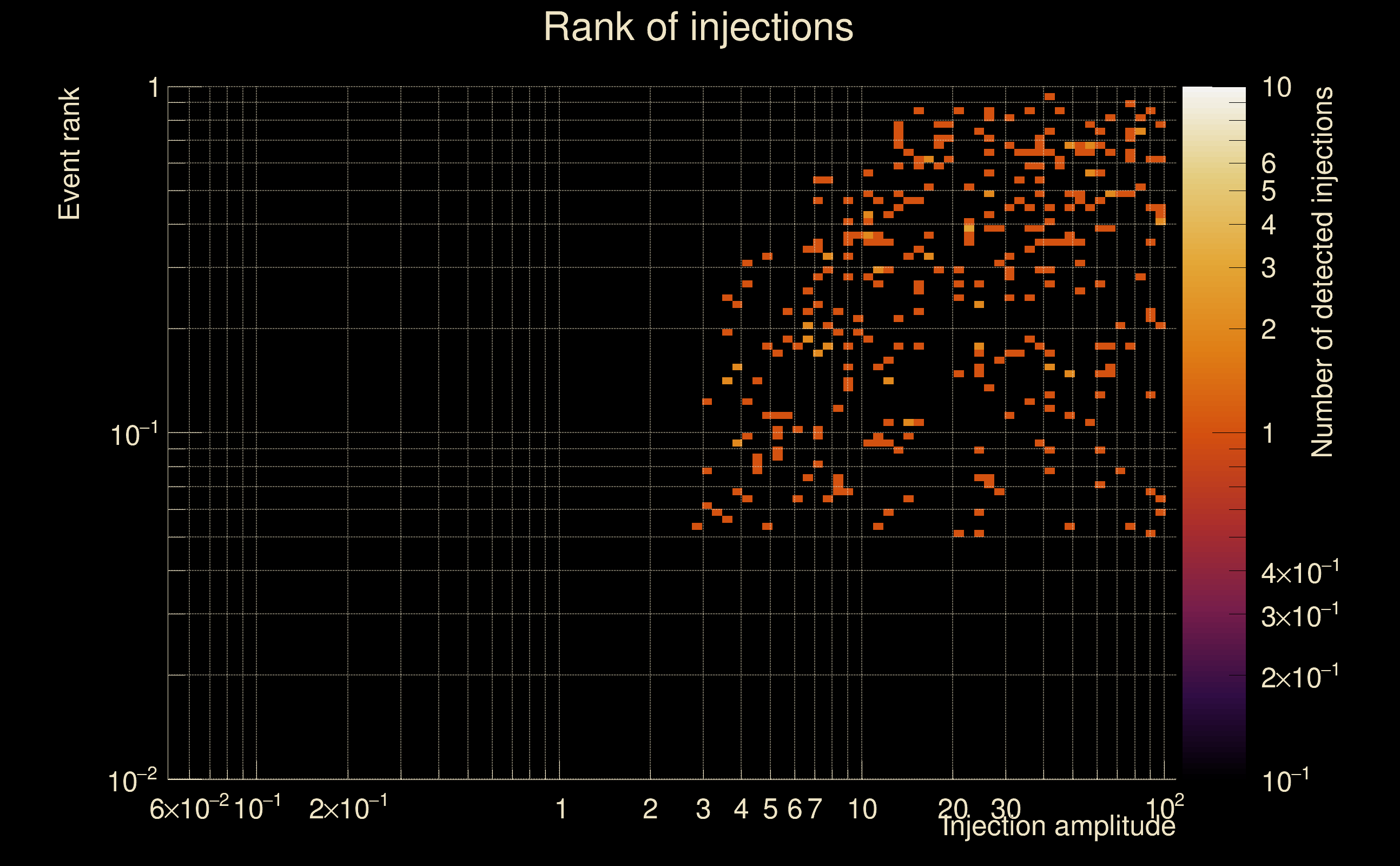

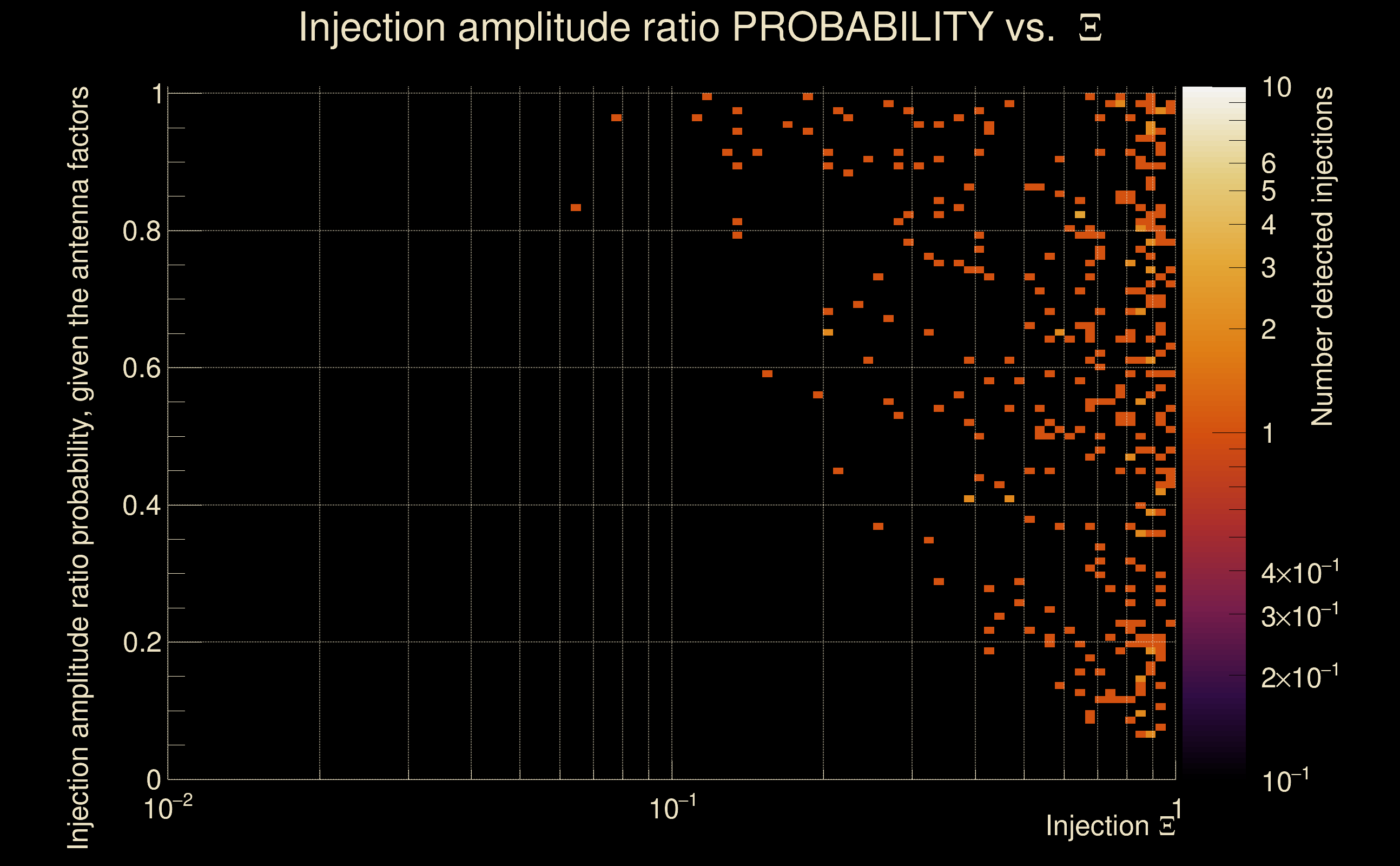

| Number of injections (total/valid/detected): | 1006 / 893 / 331 |
| List of missed injections: | ./Pow21-z100_missed.txt |
| Injection amplitude at 90% detection efficiency: | 8.86169 |
| Injection amplitude at 50% detection efficiency: | 5.7979 |
| Injection amplitude at 10% detection efficiency: | 2.83441 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
