| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:45:26 2026 UTC |
| Ox option file: | Bench4_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench4_targ_file_list.txt (65 files) |
| Analysis result file: | Bench4_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=148 (-1.84 s), time lag = 0 s |

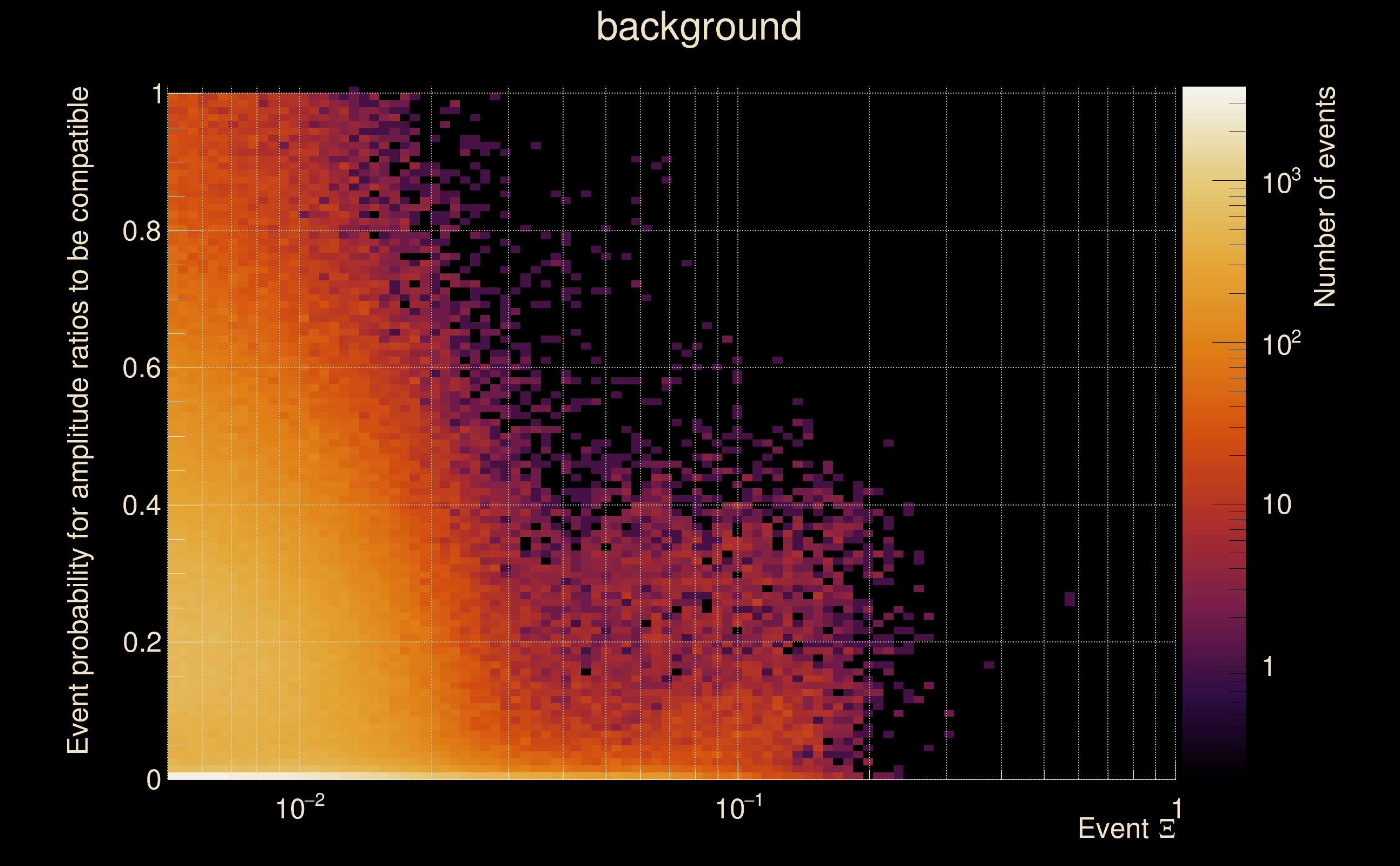

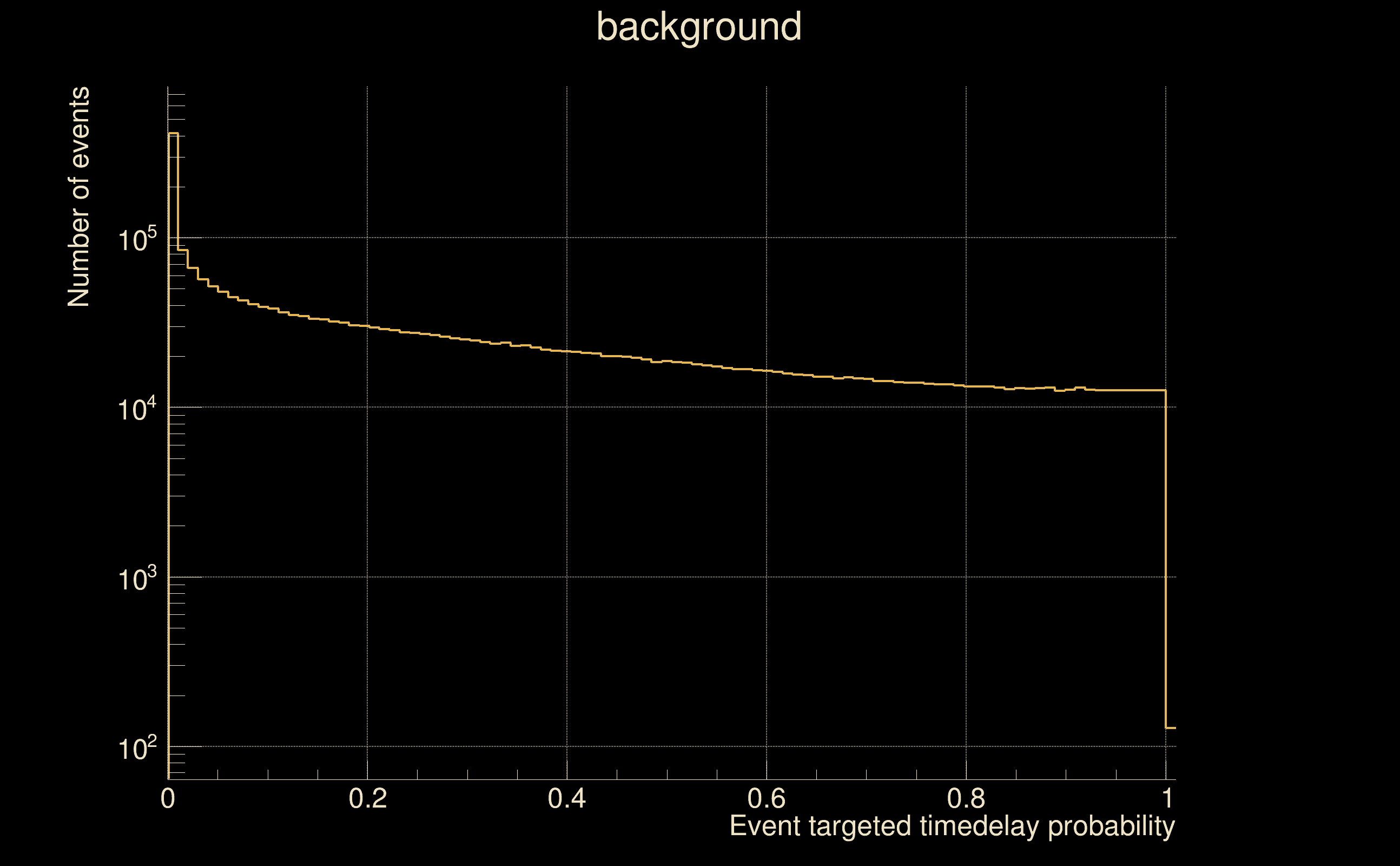

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

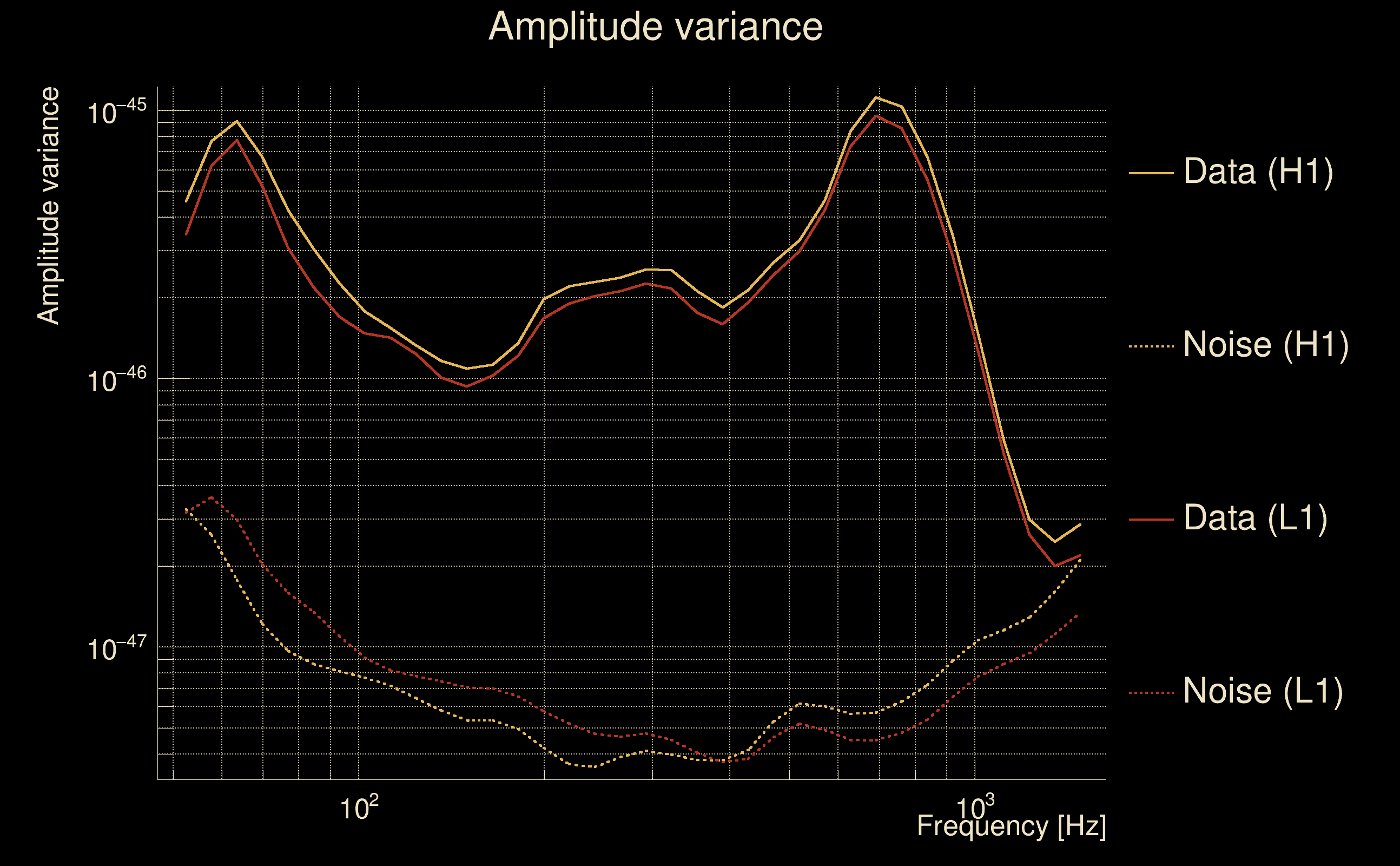

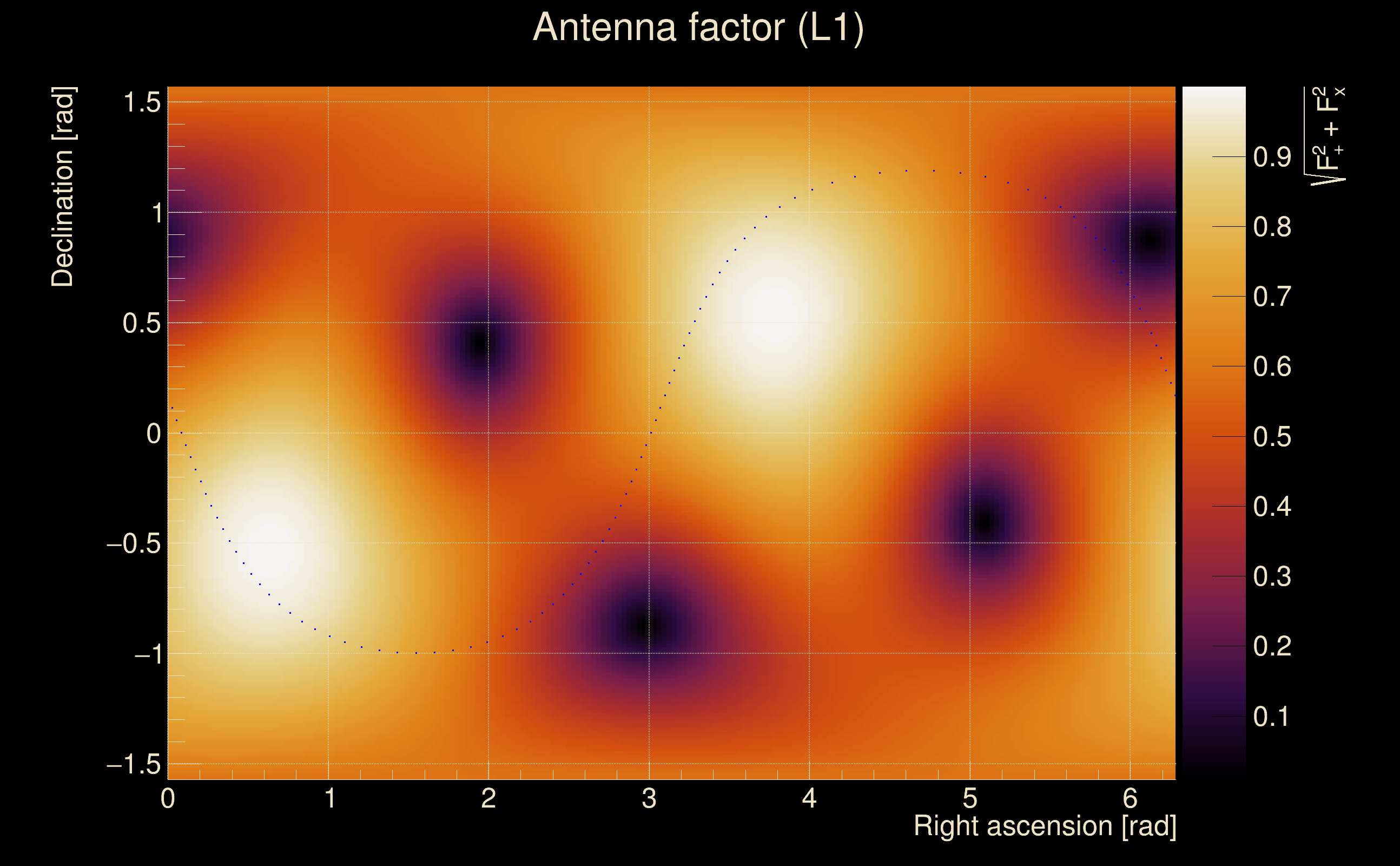

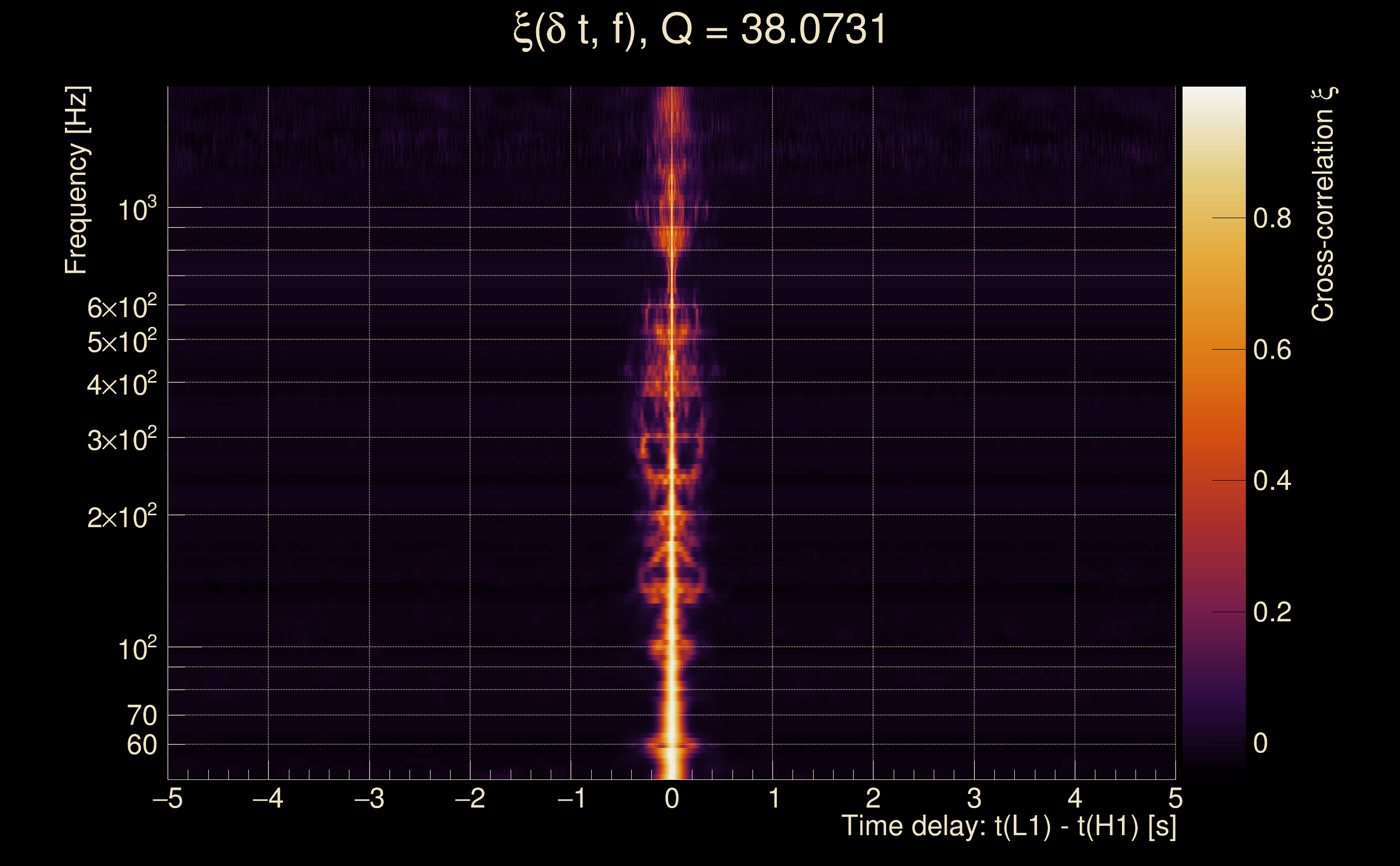

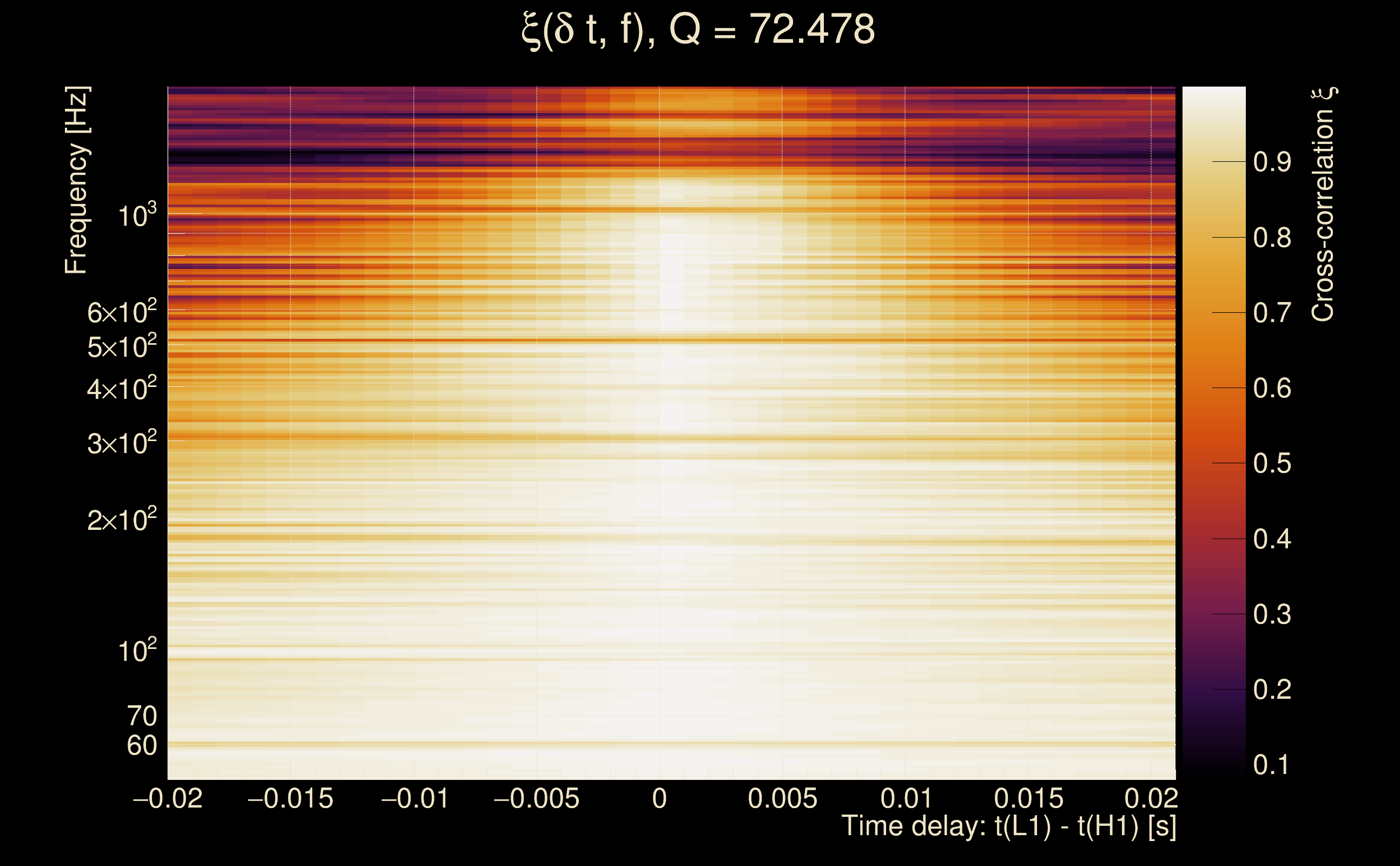

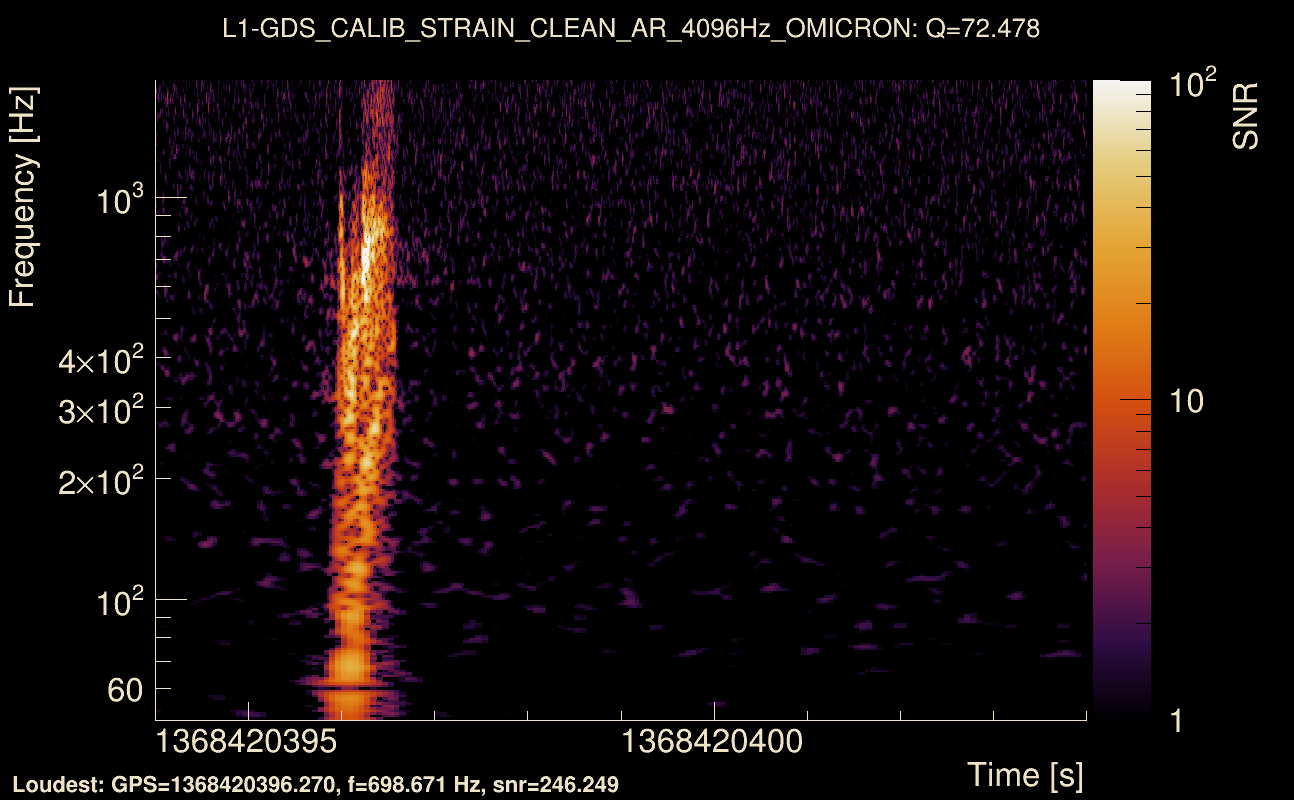

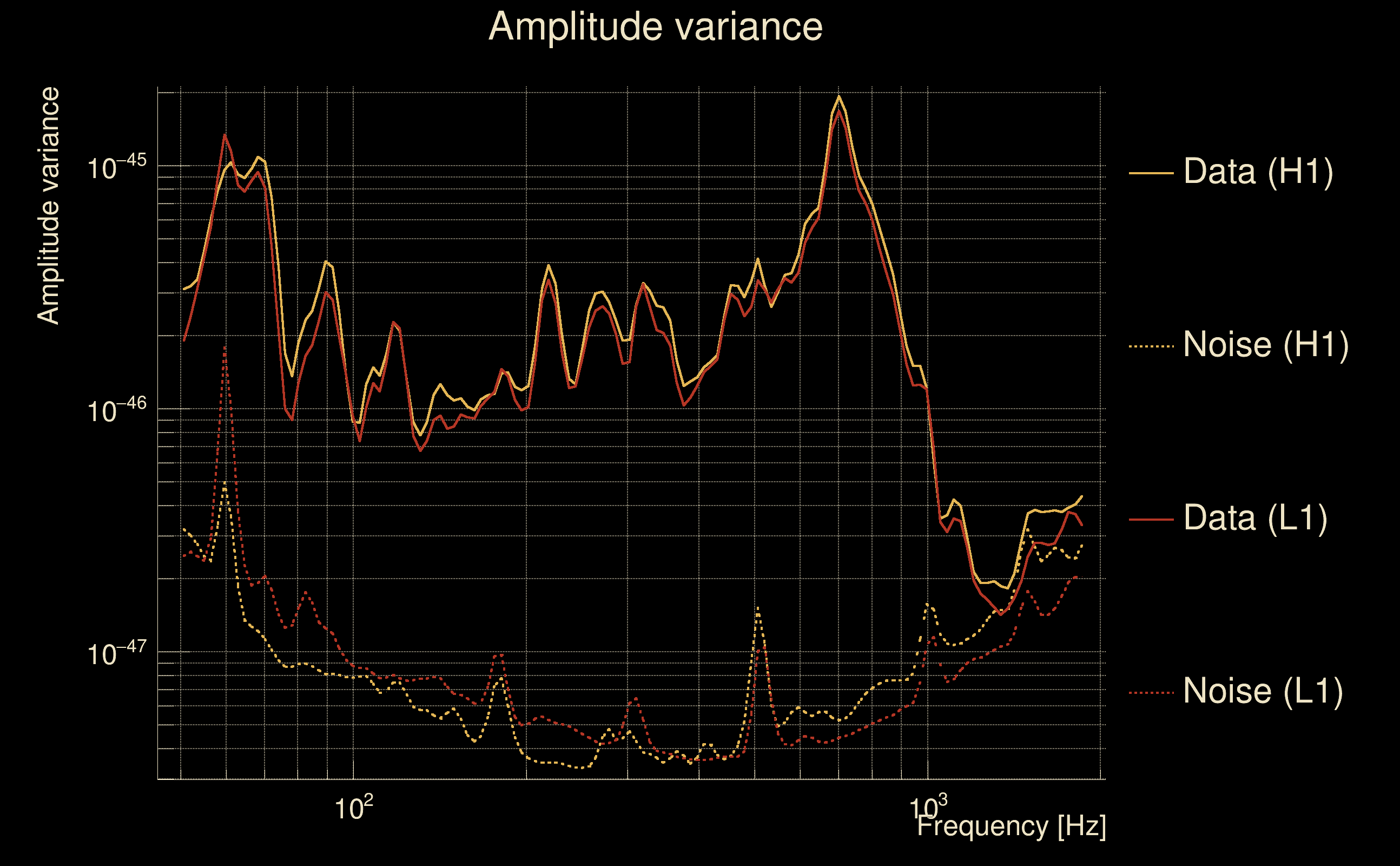

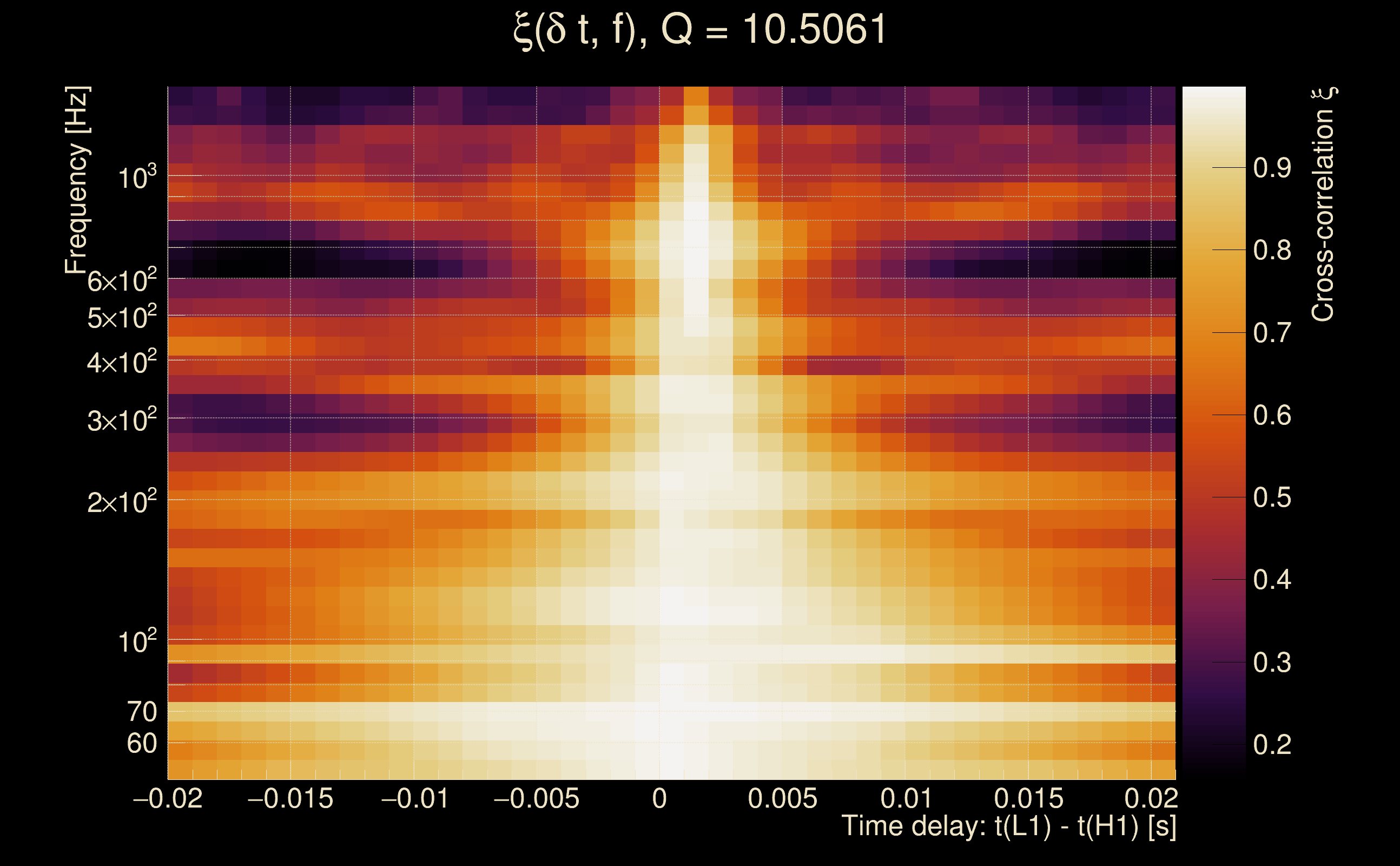

| Event time t(H1): | GPS = 1368420389 (Thu May 18 04:46:11 2023 ) → GPS = 1368420399 (Thu May 18 04:46:21 2023 ) |
| Event time t(L1): | GPS = 1368420389 (Thu May 18 04:46:21 2023 ) → GPS = 1368420399 (Thu May 18 04:46:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420386 → GPS = 1368420402 |
| Omicron analysis time window (L1): | GPS = 1368420386 → GPS = 1368420402 |
| Time delay between detectors t(L1) - t(H1): | 0.000955976 s (slice index = 108 / 217), δt_gw = 0.000955976 s |
| Time delay standard deviation: | 0.018567 s |
| [targeted mode] Time delay probability: | 0.999086 (0.00114522 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 275.358 Hz |
| Ξ: | 0.972676 ± 0.00813921 (variance = 6.62467e-05): Q0: 0.980306, Q1: 0.970593, Q2: 0.963921, Q3: 0.95943, Q4: 0.958301 |
| Rank: | R_A = 0.971787 |
| Log of amplitude ratio (L1/H1): | -0.0704346, variance = 0.150867 (L1/H1: -0.0835667, variance = 0.301492, H1/L1: 0.0581529, variance = 0.301313) |
| Amplitude ratio (L1/H1): | 0.931989 ⋇ 1.47464 (L1/H1: 0.91983 ⋇ 1.73166, H1/L1: 1.05988 ⋇ 1.73138) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.973888 |

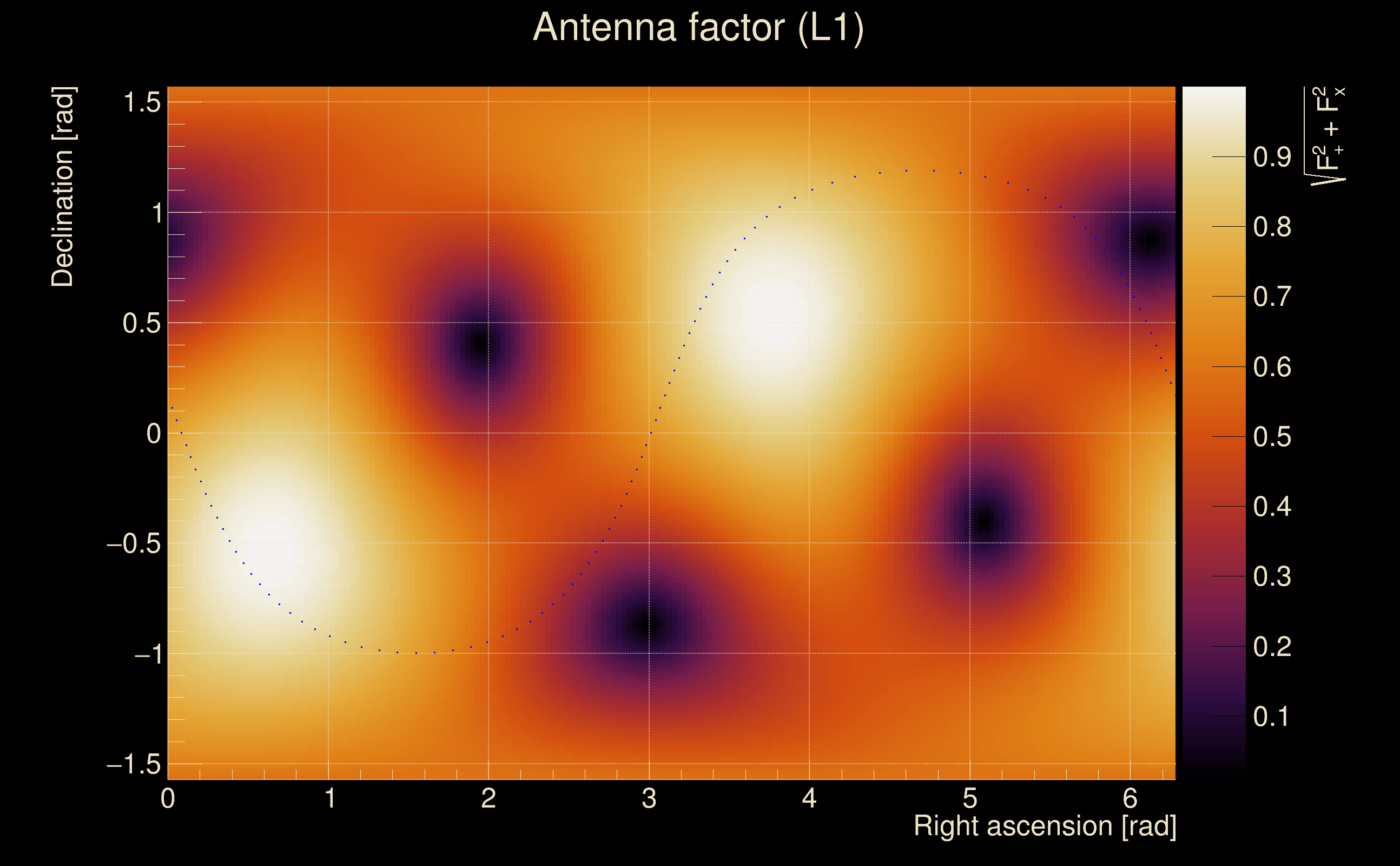

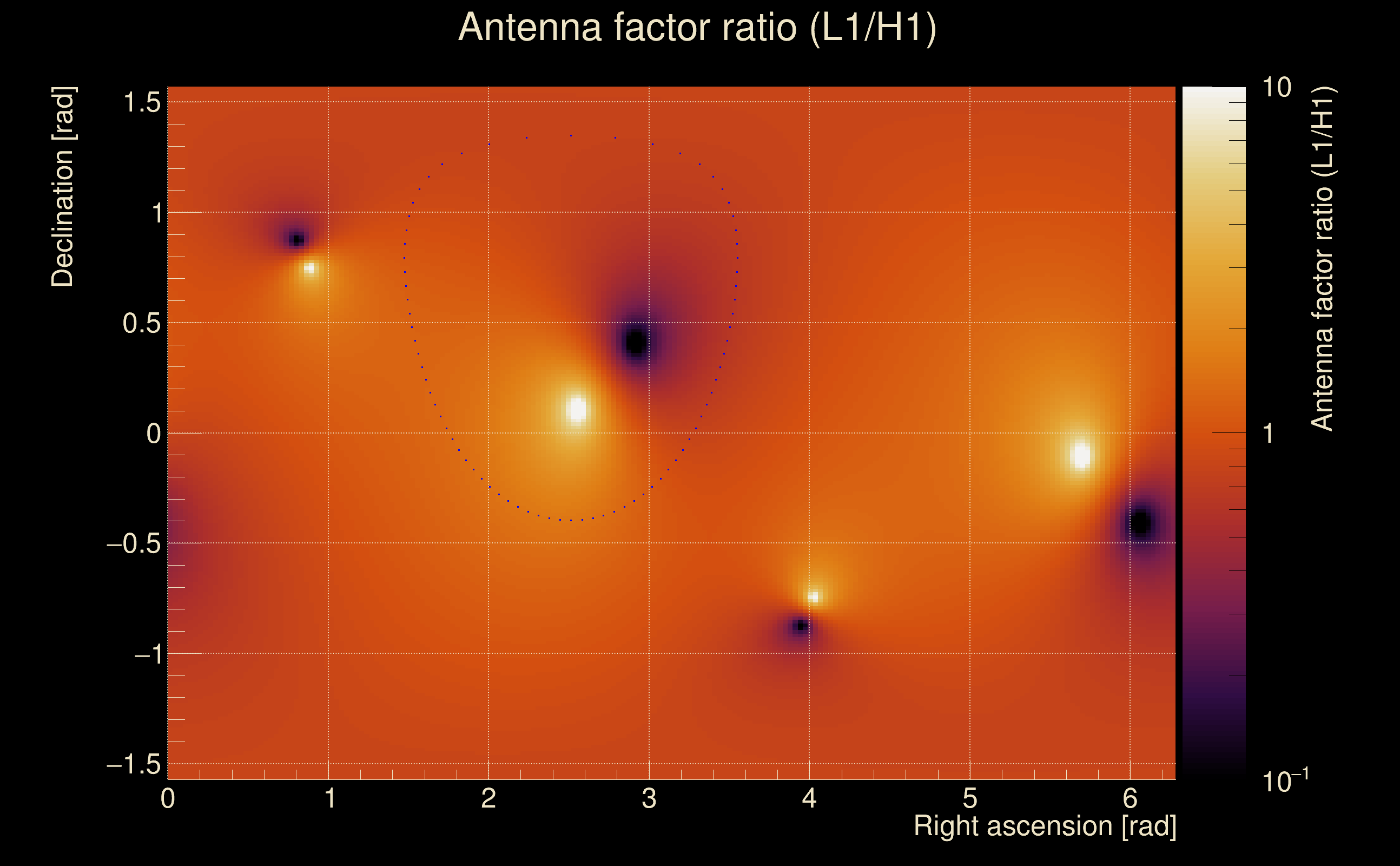

| Antenna factor probability: | 0.949566 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 6 / 258 |
| Maximum signal-to-noise ratio: | H1: 291.006, L1: 300.911 |

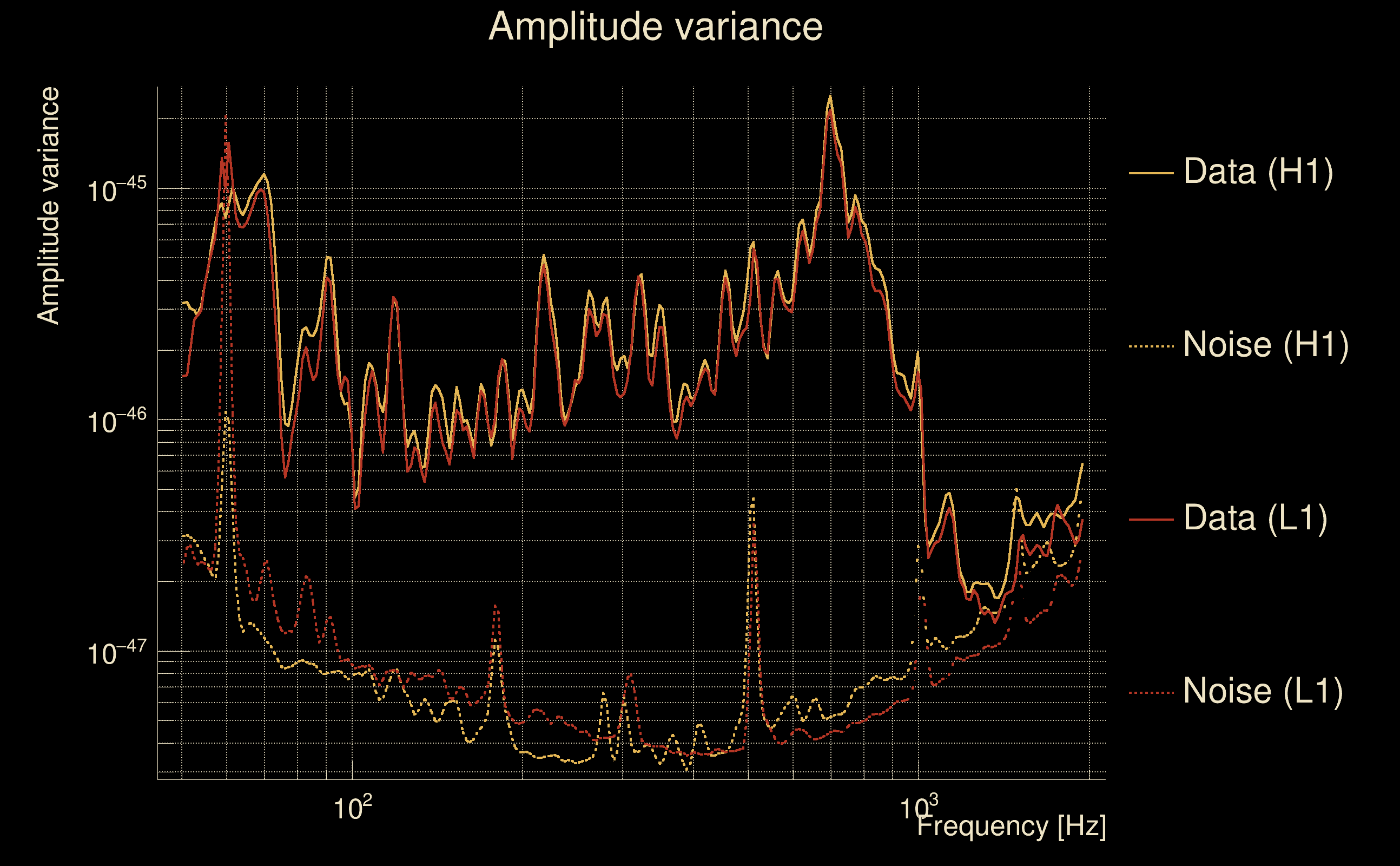

| SNR variance: | H1: 0.498748, L1: 0.478351 |

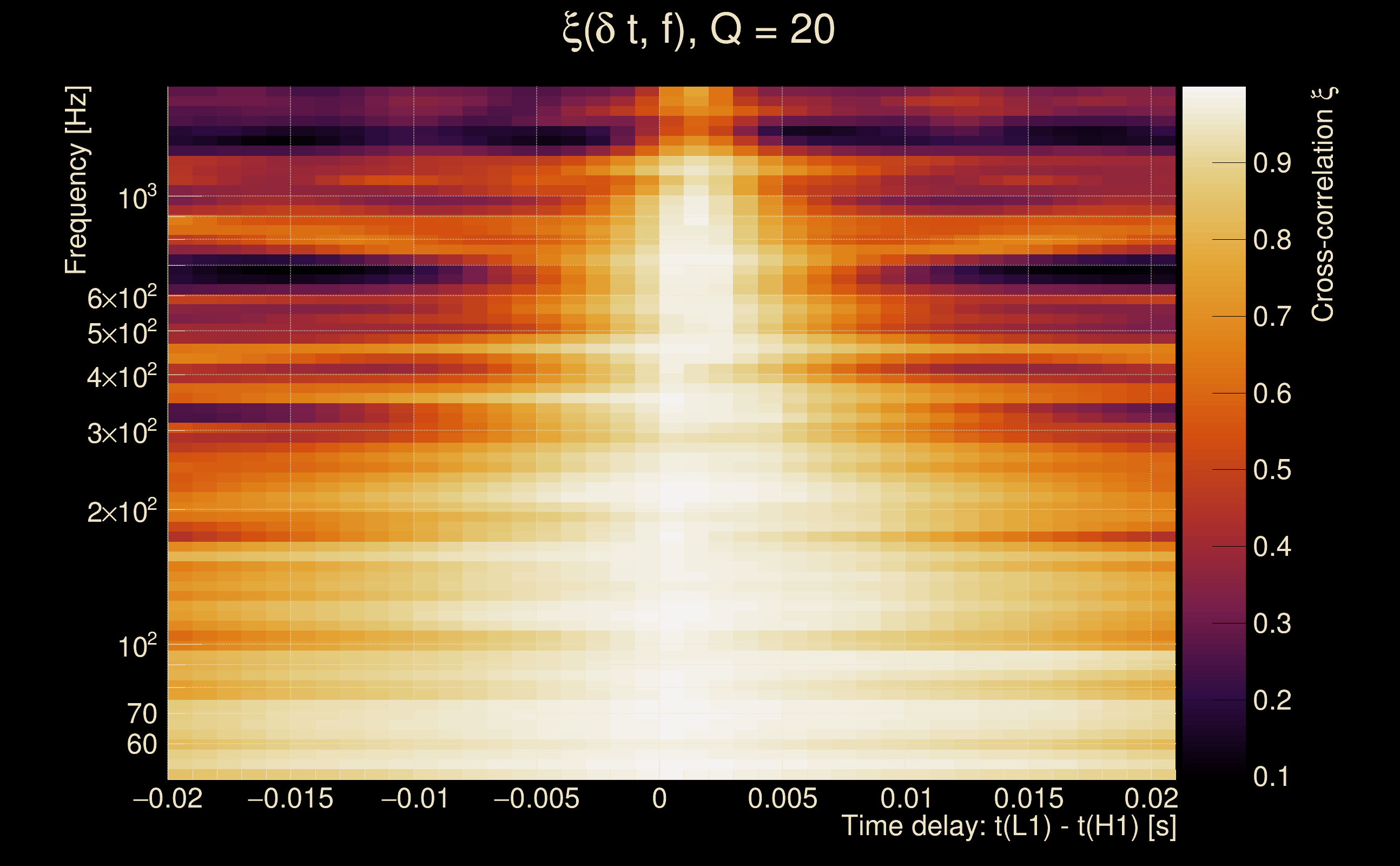

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

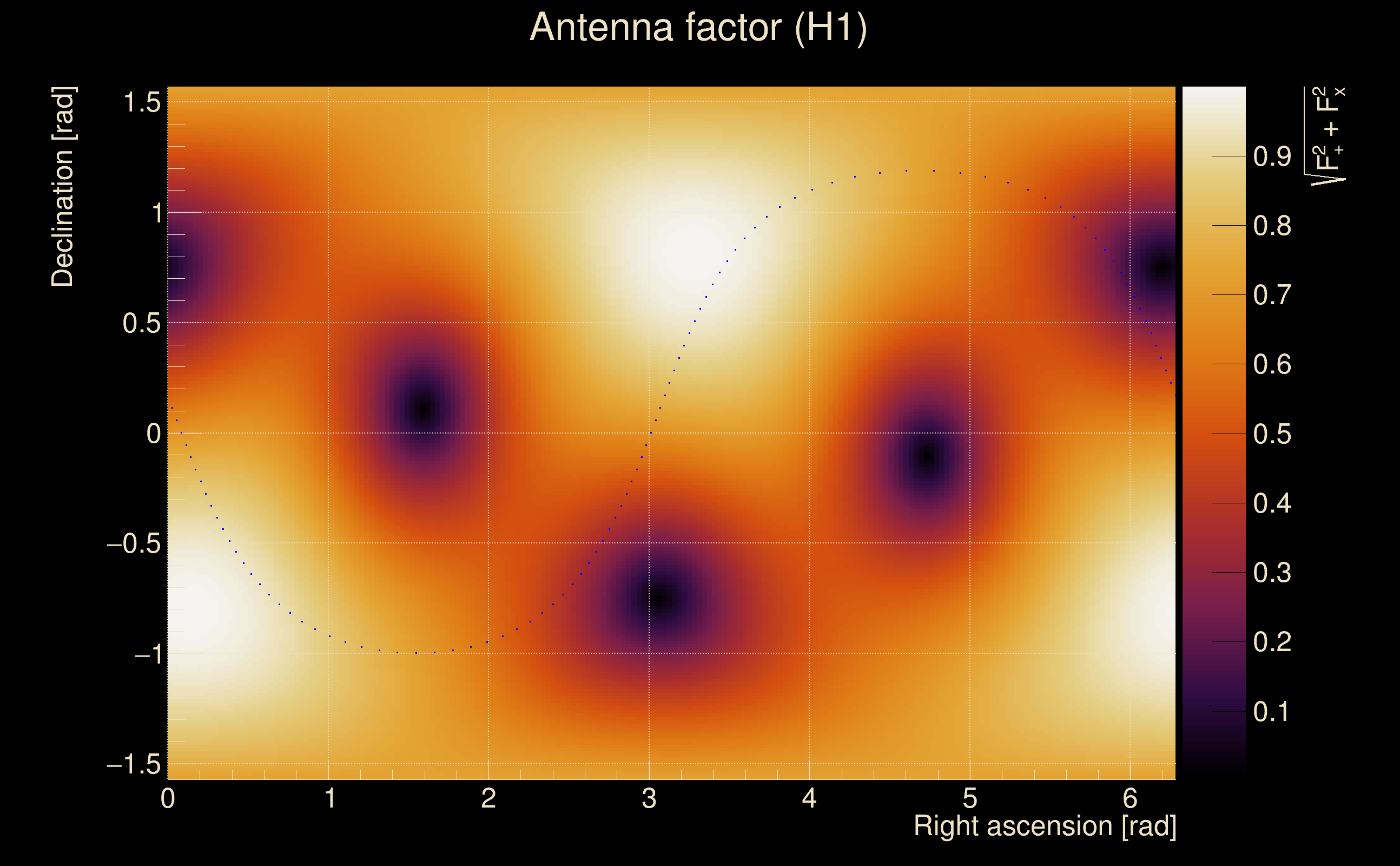

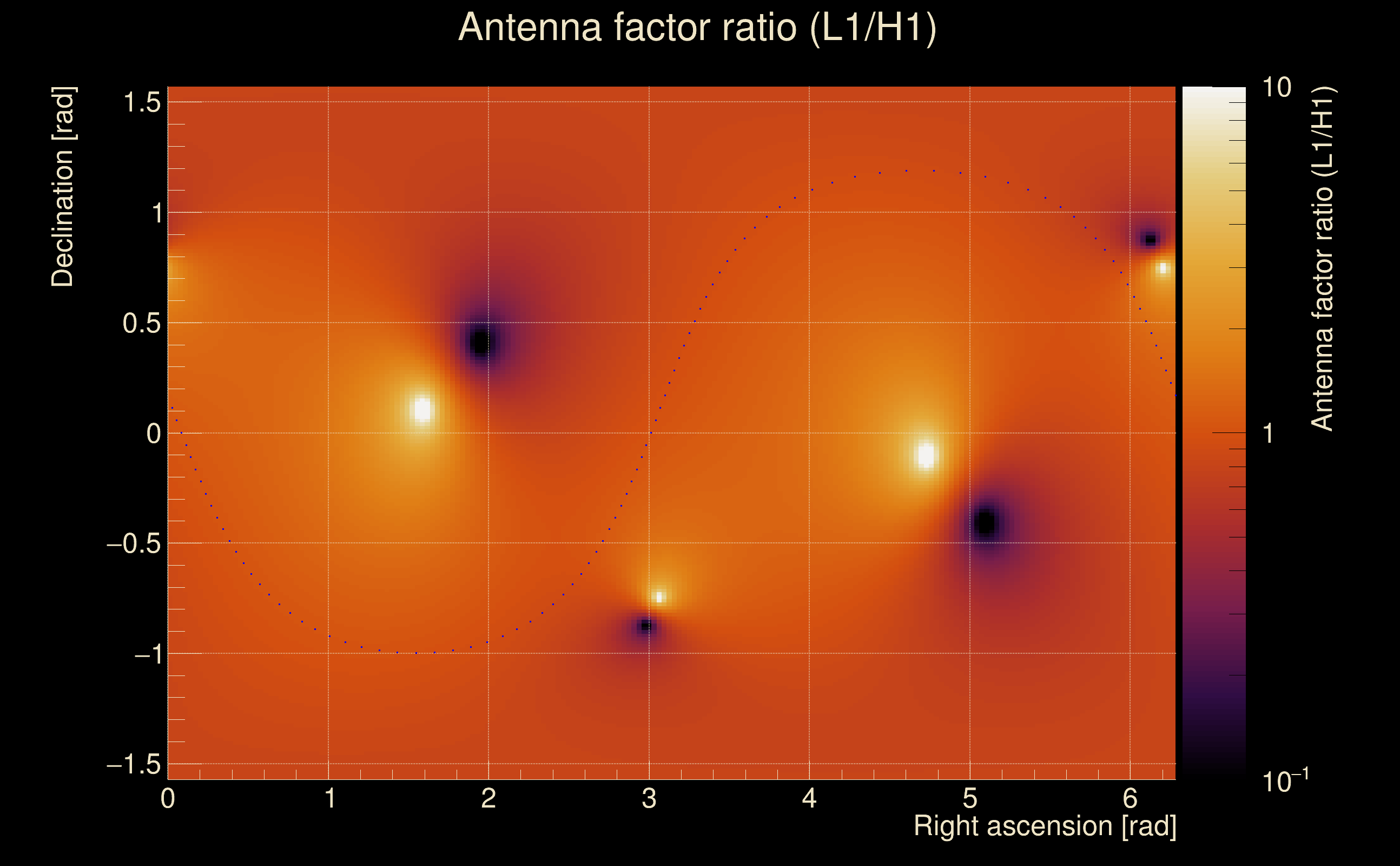

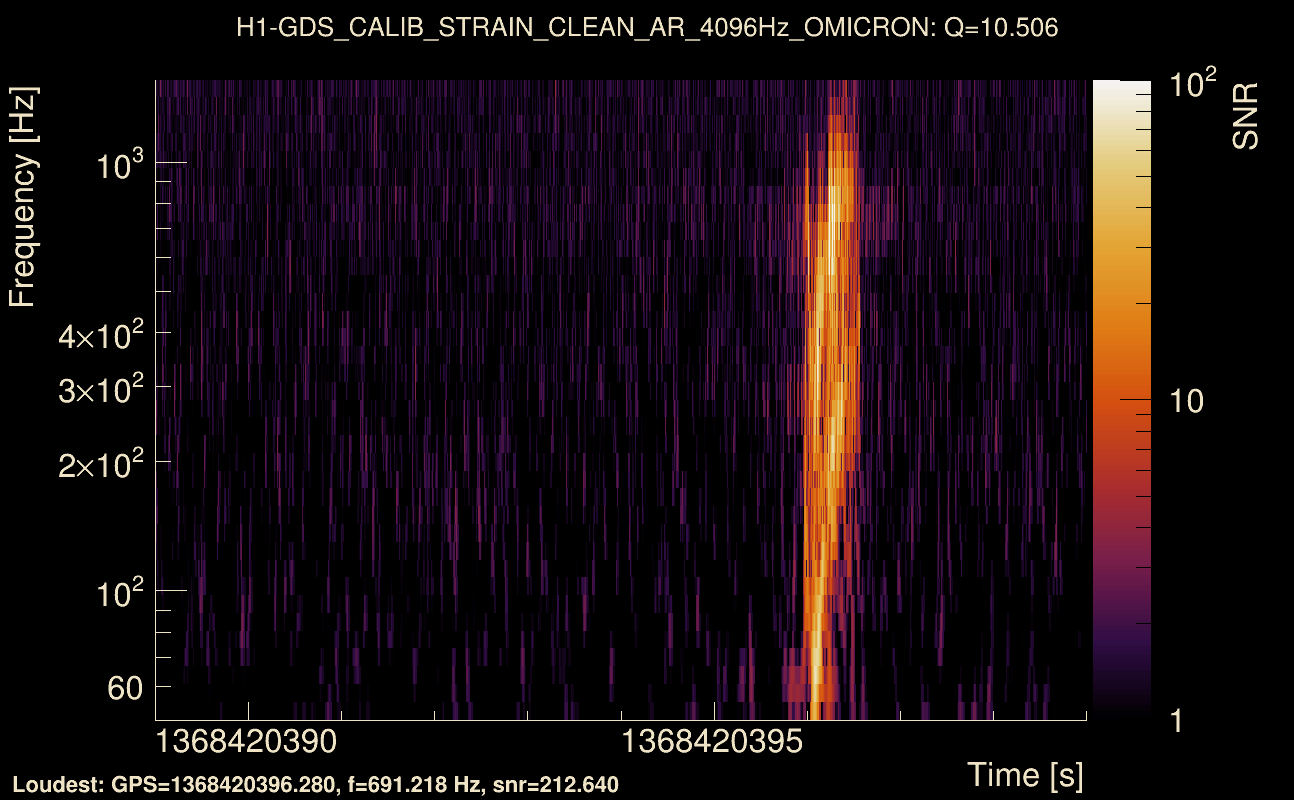

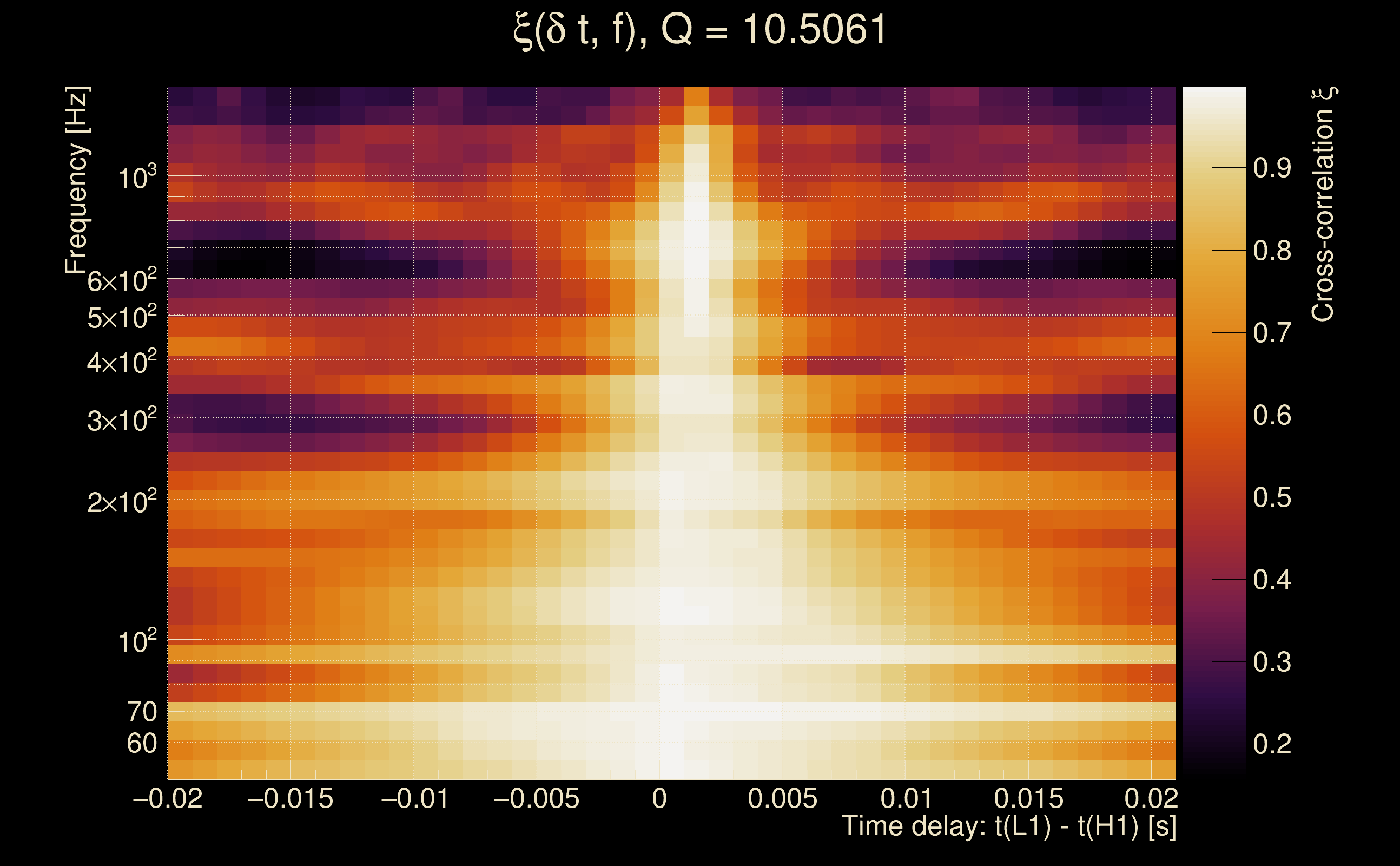

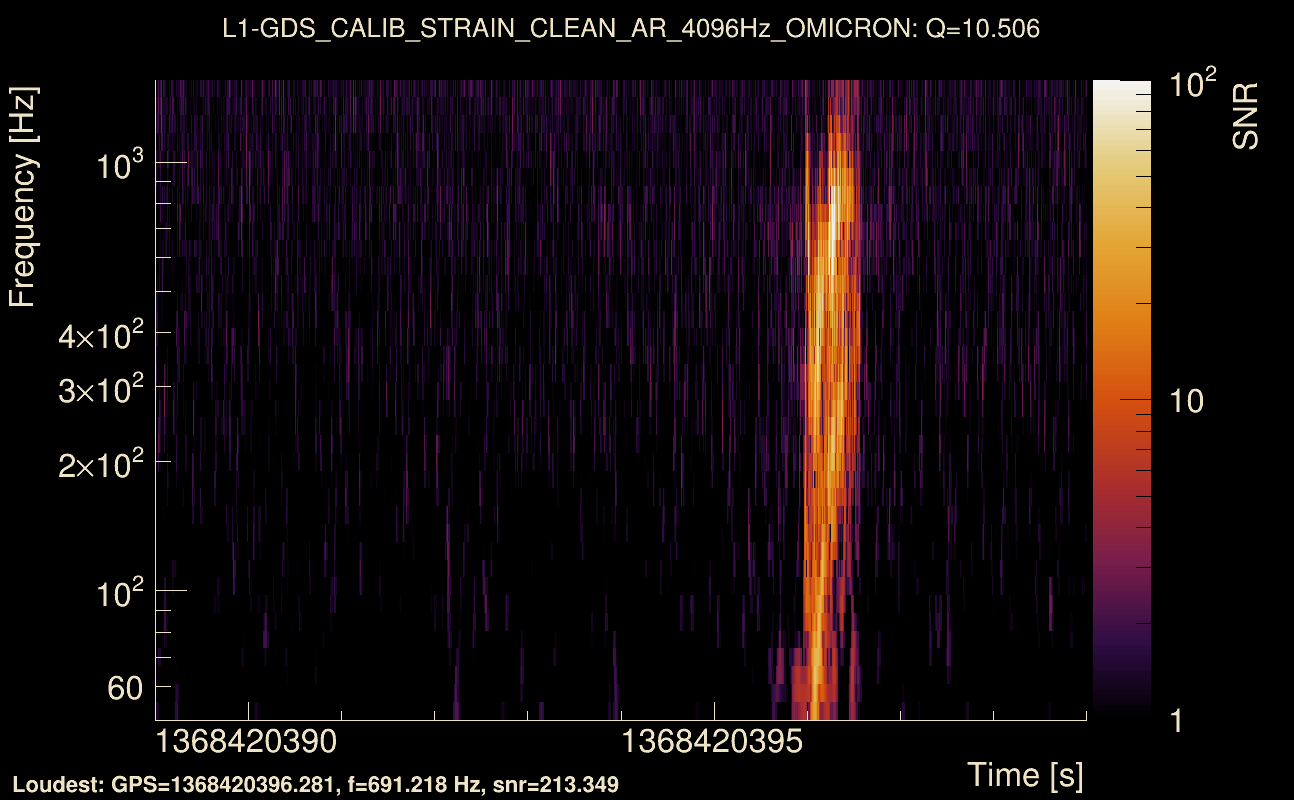

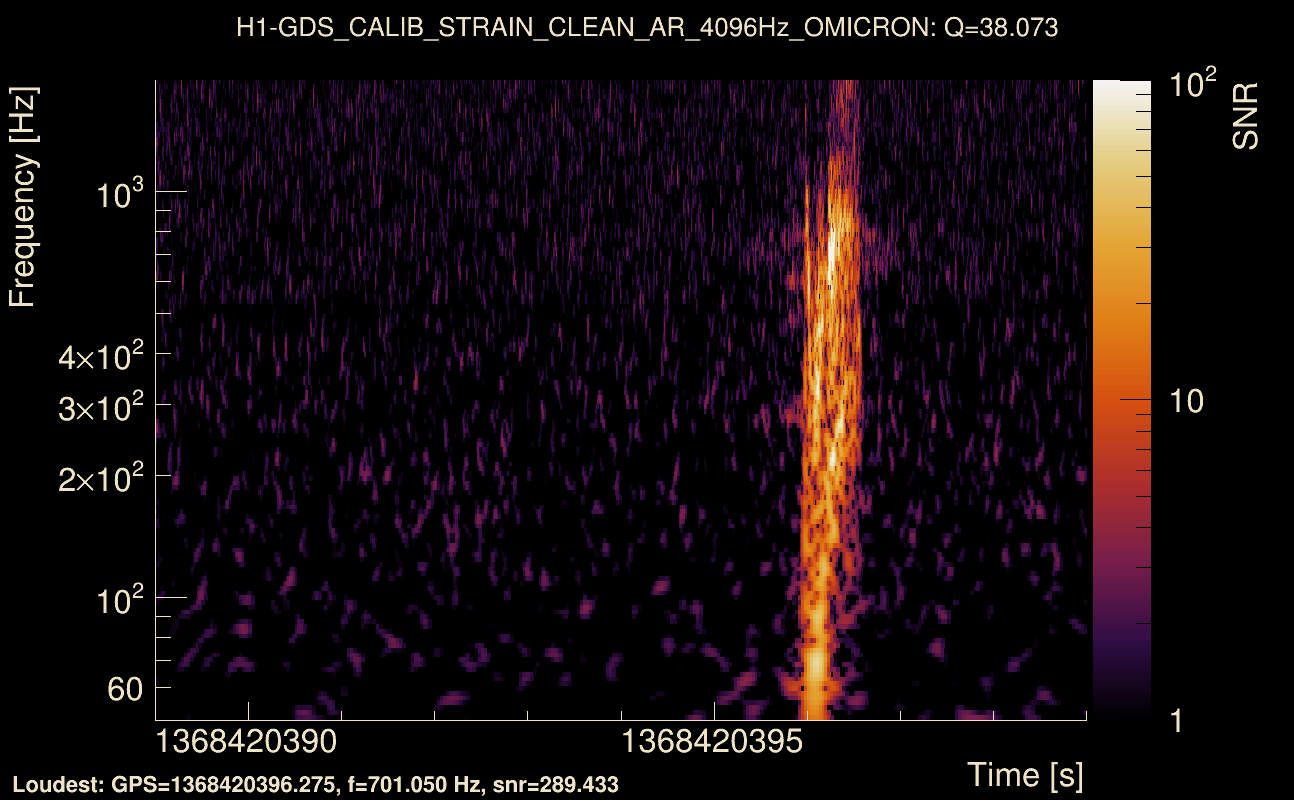

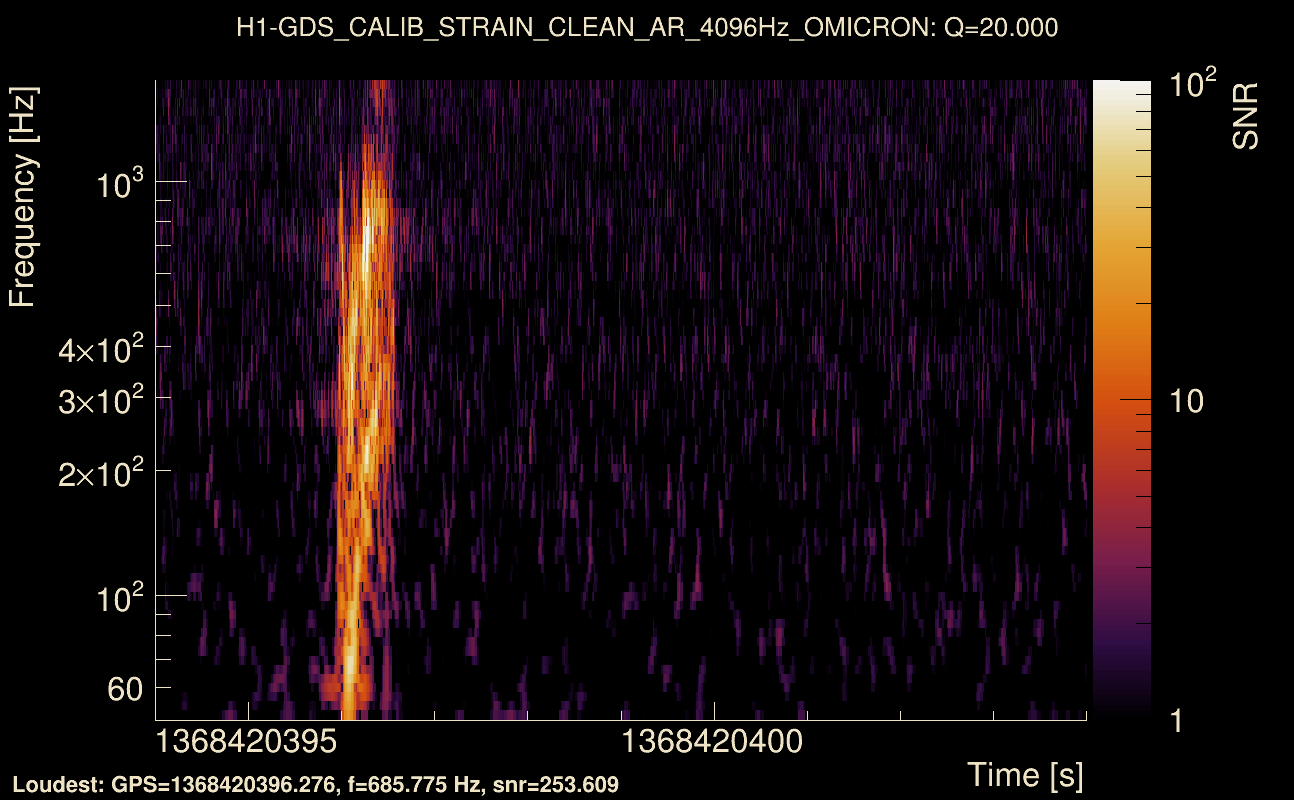

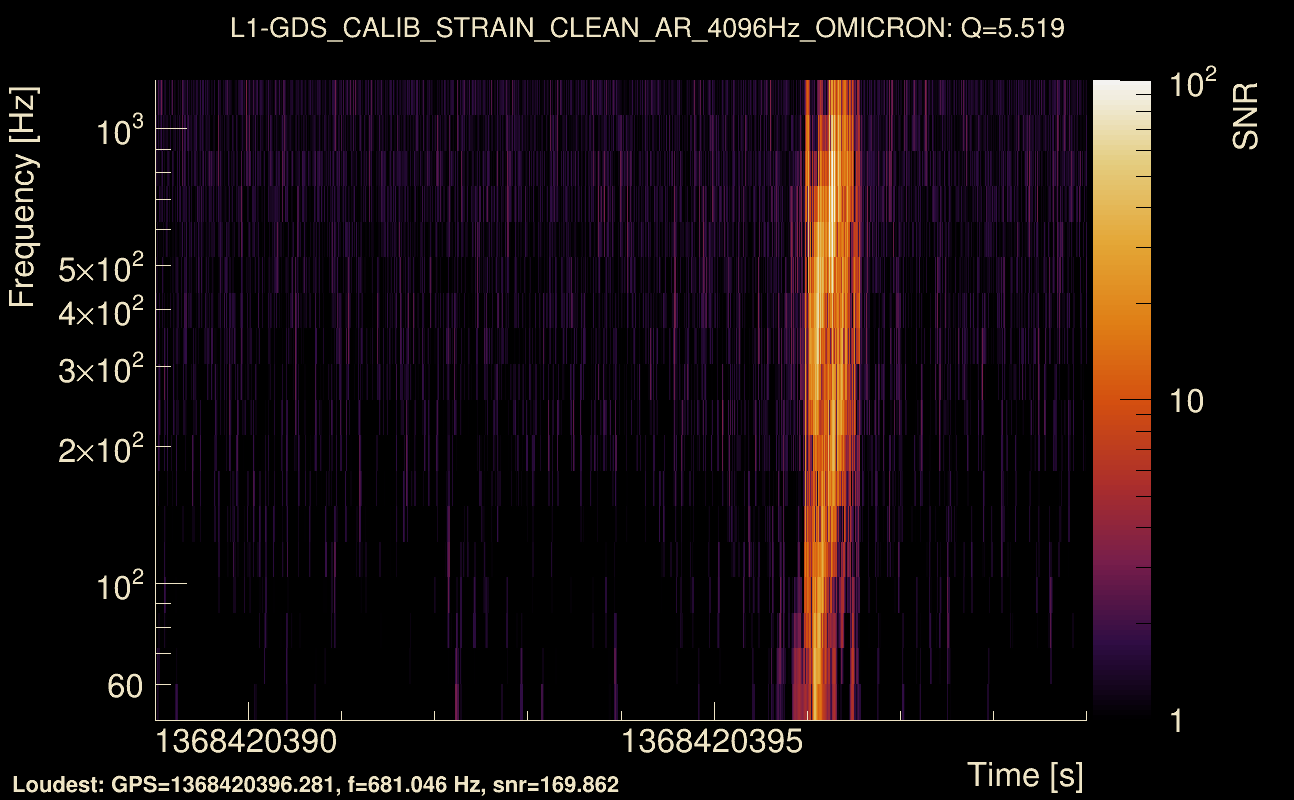

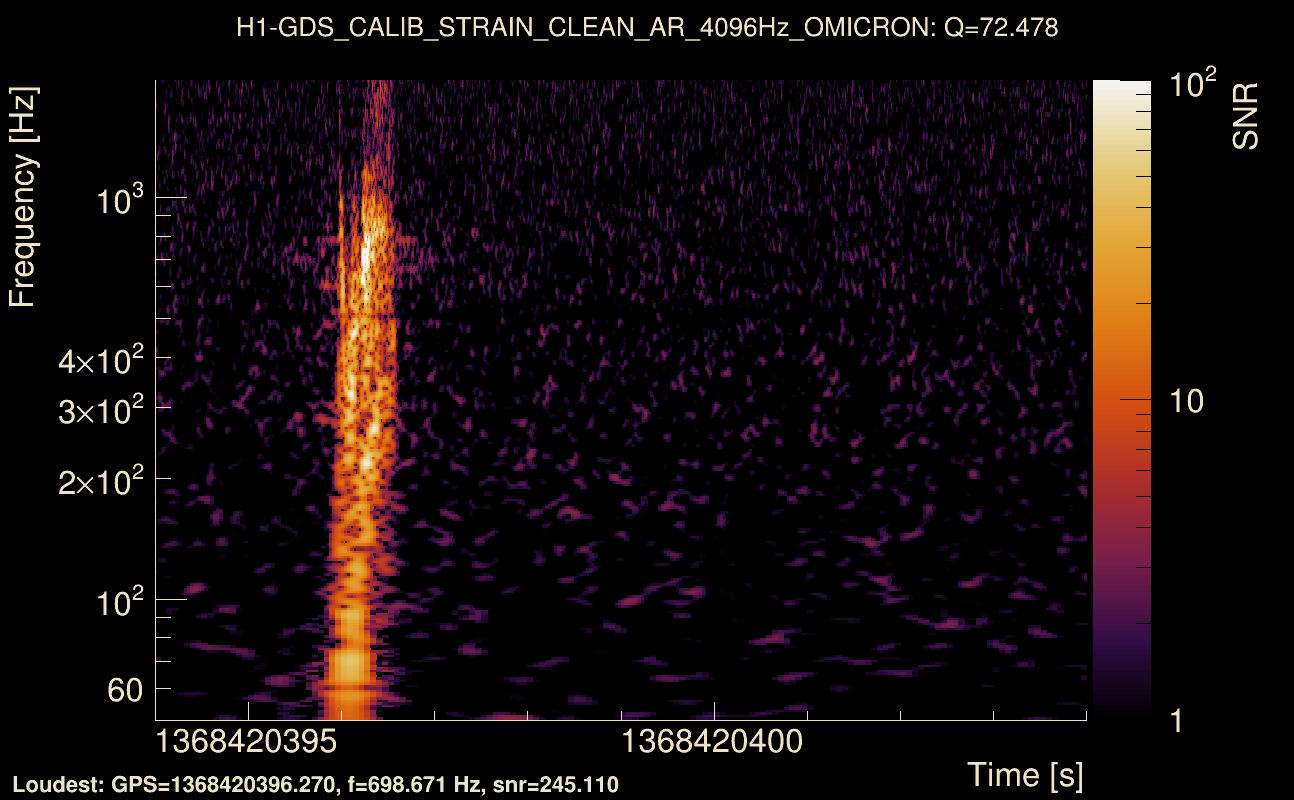

| Event time t(H1): | GPS = 1368420394 (Thu May 18 04:46:16 2023 ) → GPS = 1368420404 (Thu May 18 04:46:26 2023 ) |
| Event time t(L1): | GPS = 1368420394 (Thu May 18 04:46:26 2023 ) → GPS = 1368420404 (Thu May 18 04:46:26 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420391 → GPS = 1368420407 |
| Omicron analysis time window (L1): | GPS = 1368420391 → GPS = 1368420407 |
| Time delay between detectors t(L1) - t(H1): | 0.000955791 s (slice index = 108 / 217), δt_gw = 0.000955791 s |
| Time delay standard deviation: | 0.0187343 s |
| [targeted mode] Time delay probability: | 0.996681 (0.00415964 sigmas), δt_target = 0.000955582 s |
| Frequency: | 275.431 Hz |
| Ξ: | 0.972461 ± 0.00800738 (variance = 6.41182e-05): Q0: 0.980073, Q1: 0.970242, Q2: 0.963824, Q3: 0.959485, Q4: 0.958373 |
| Rank: | R_A = 0.969234 |
| Log of amplitude ratio (L1/H1): | -0.0713259, variance = 0.150868 (L1/H1: -0.0838193, variance = 0.301477, H1/L1: 0.0596433, variance = 0.301328) |
| Amplitude ratio (L1/H1): | 0.931158 ⋇ 1.47465 (L1/H1: 0.919597 ⋇ 1.73164, H1/L1: 1.06146 ⋇ 1.73141) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.975159 |
| Antenna factor probability: | 0.947887 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 6 / 258 |
| Maximum signal-to-noise ratio: | H1: 288.593, L1: 298.439 |
| SNR variance: | H1: 26.1918, L1: 26.2152 |

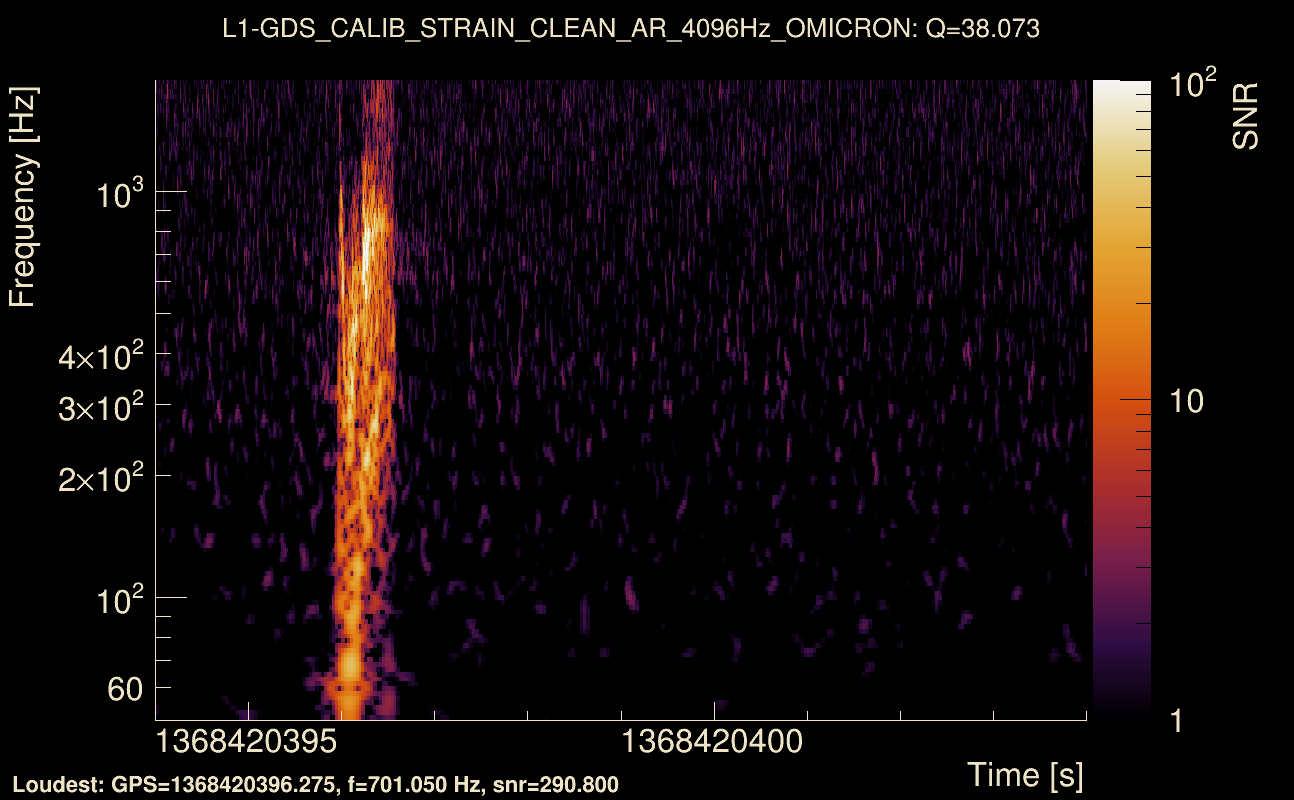

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

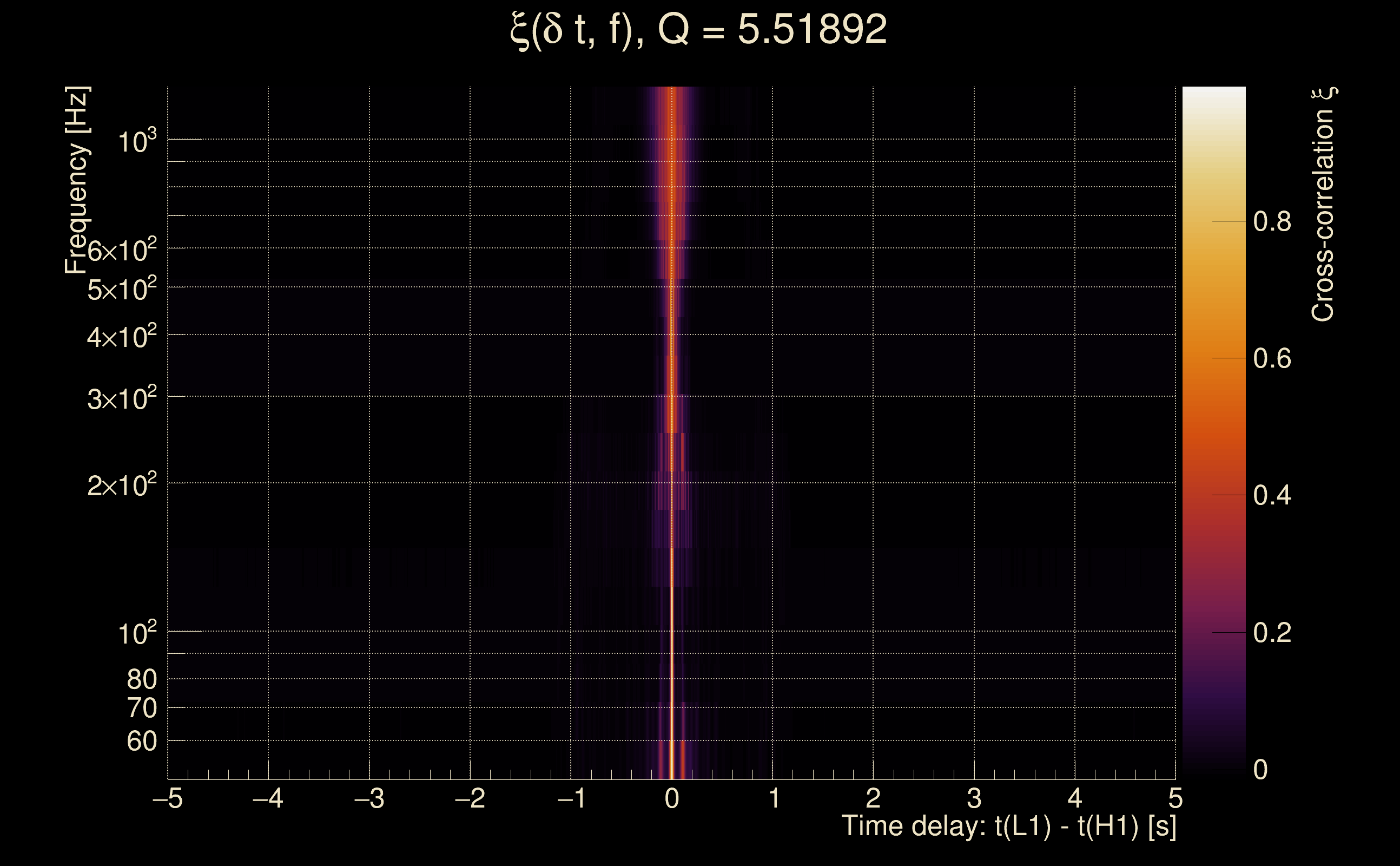

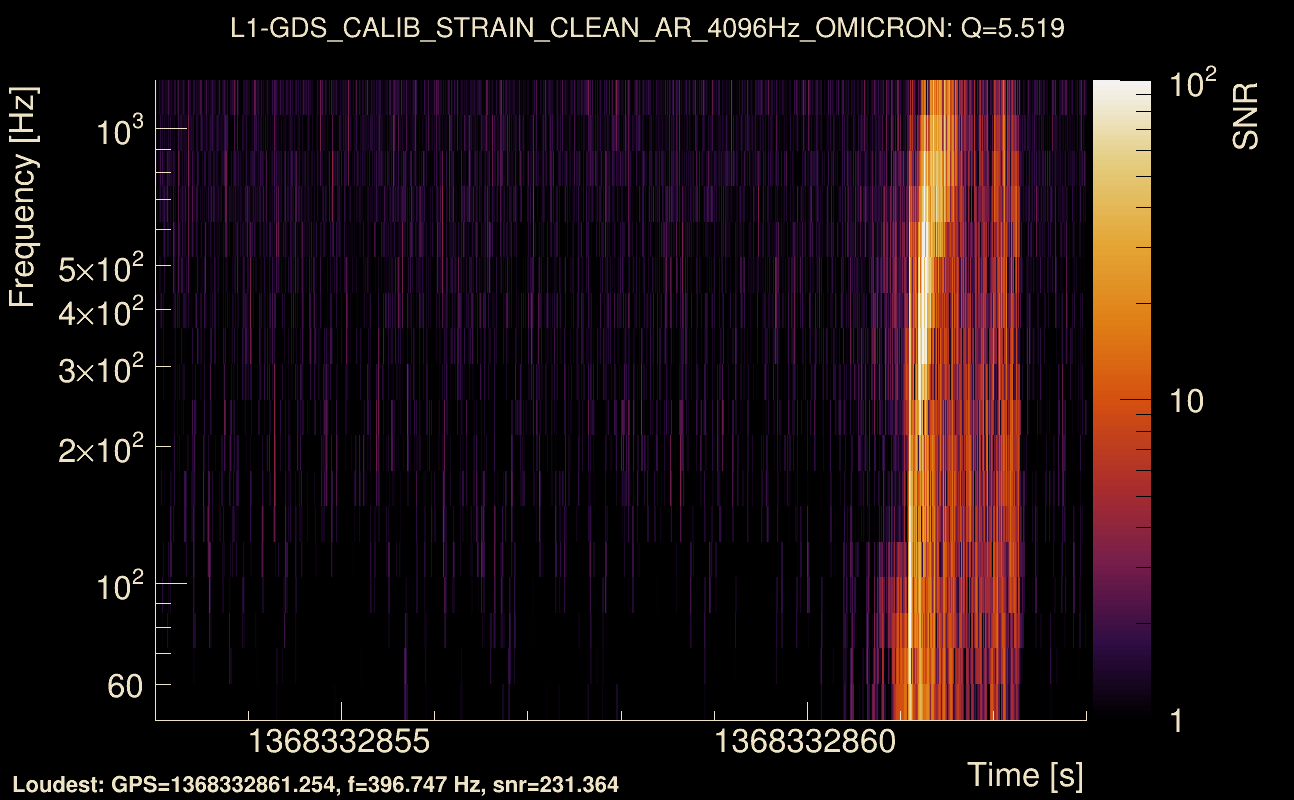

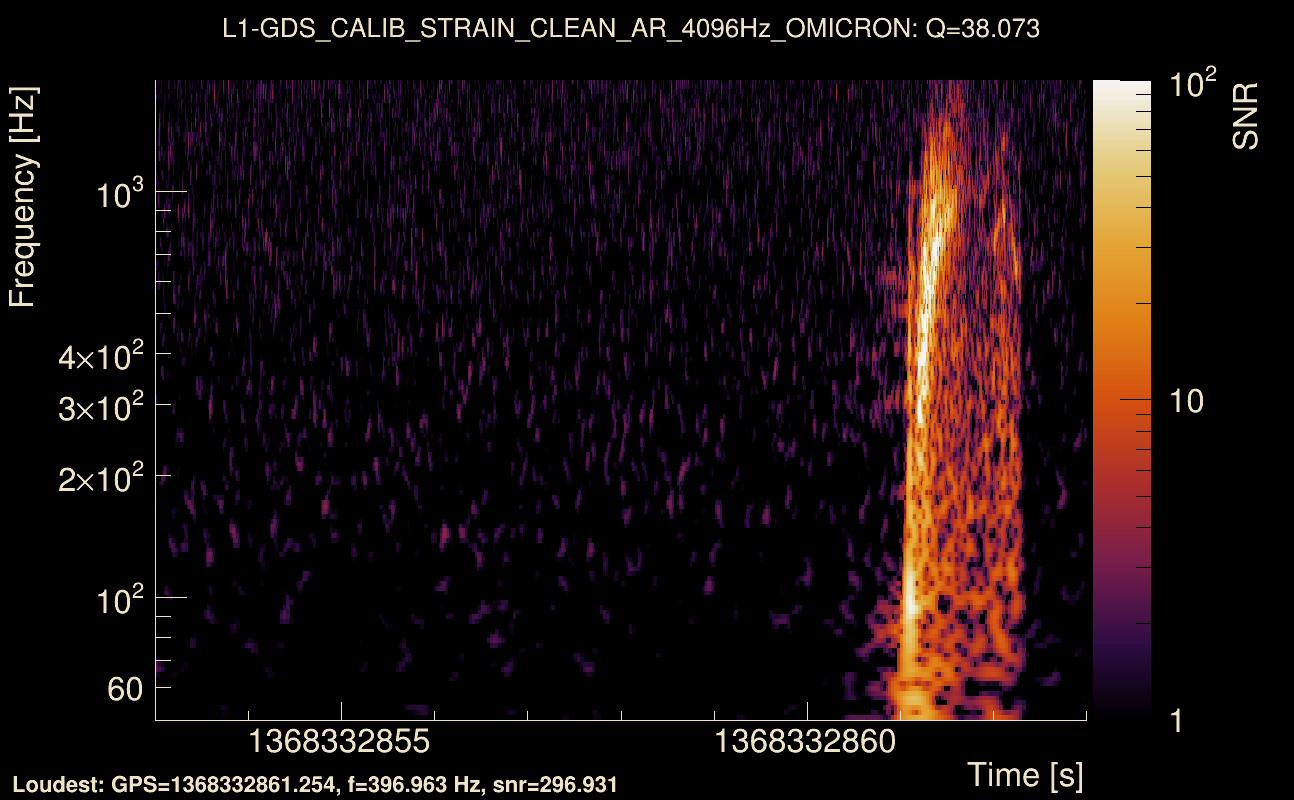

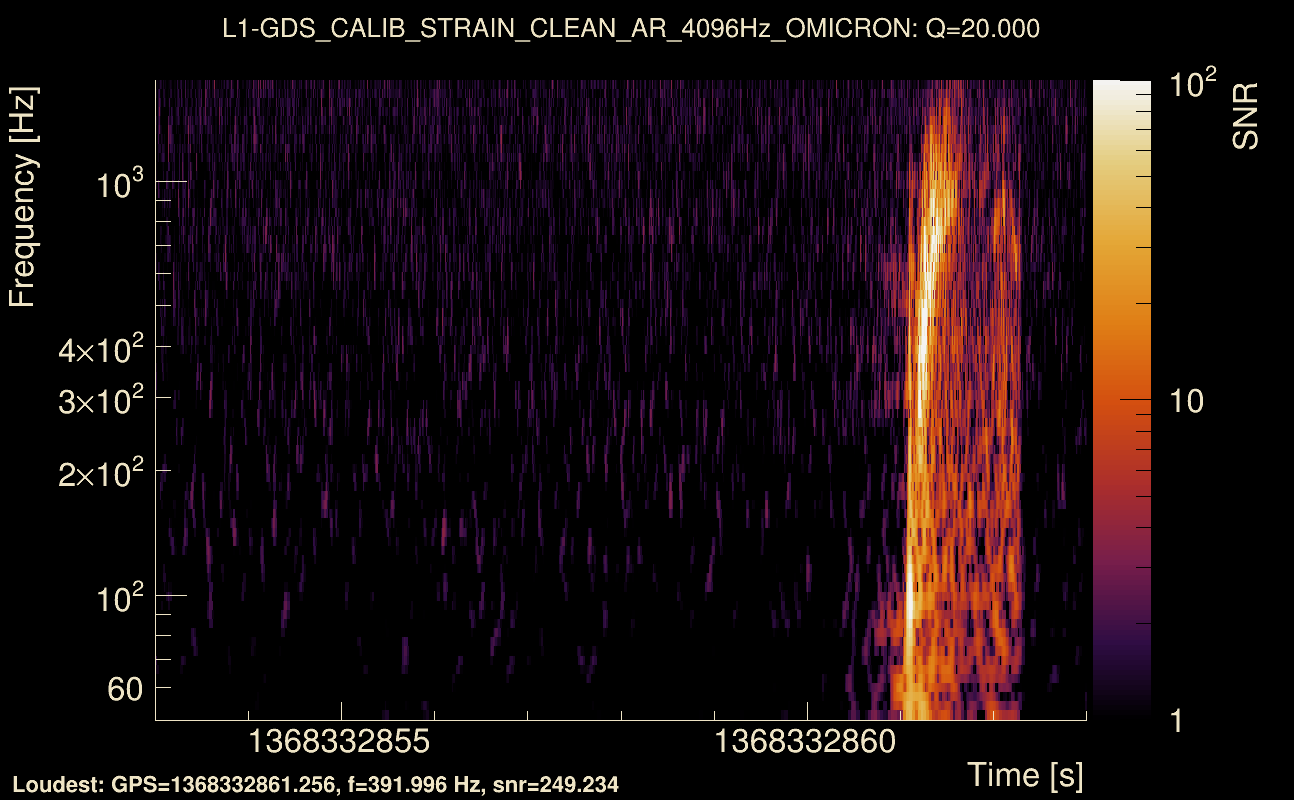

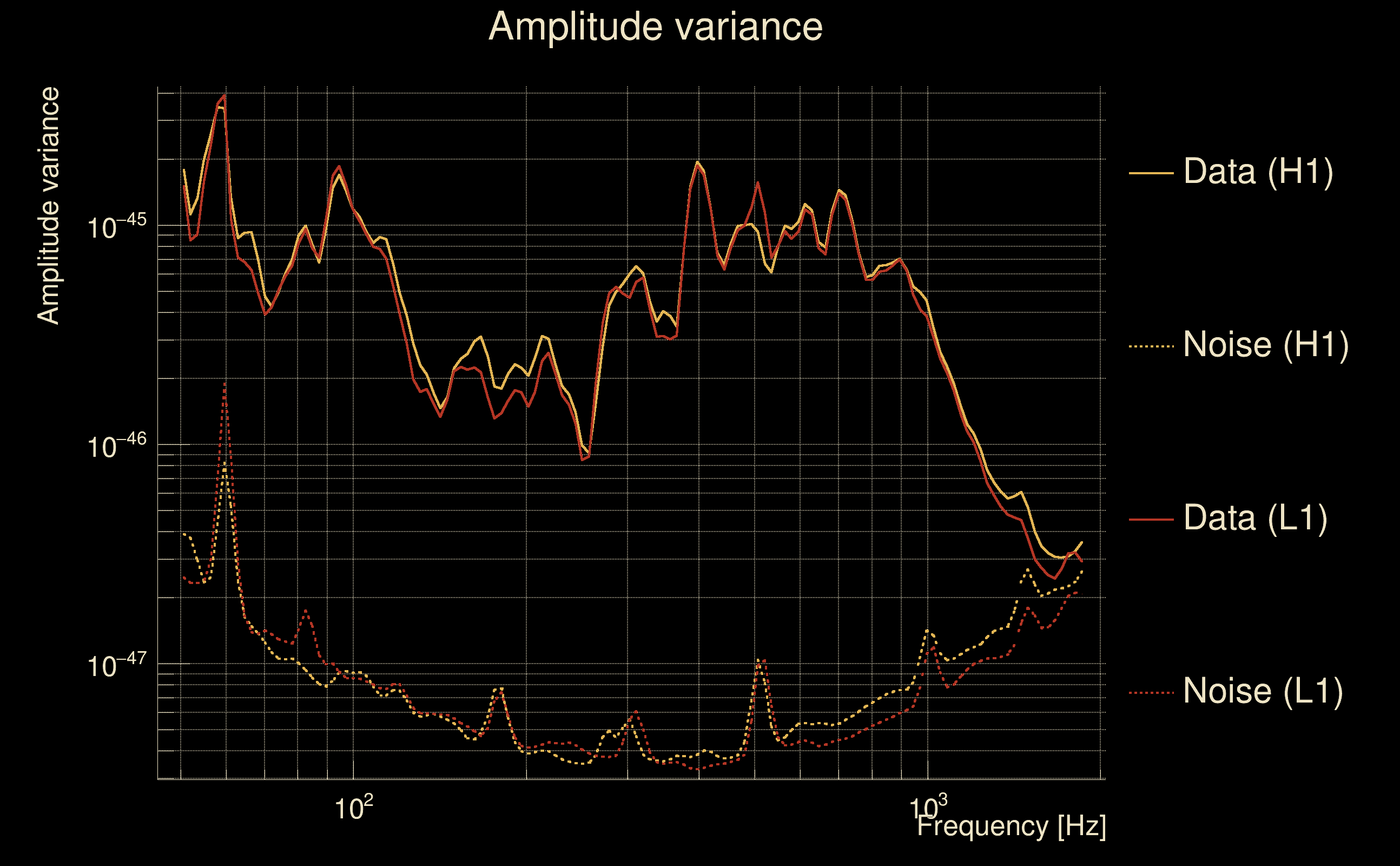

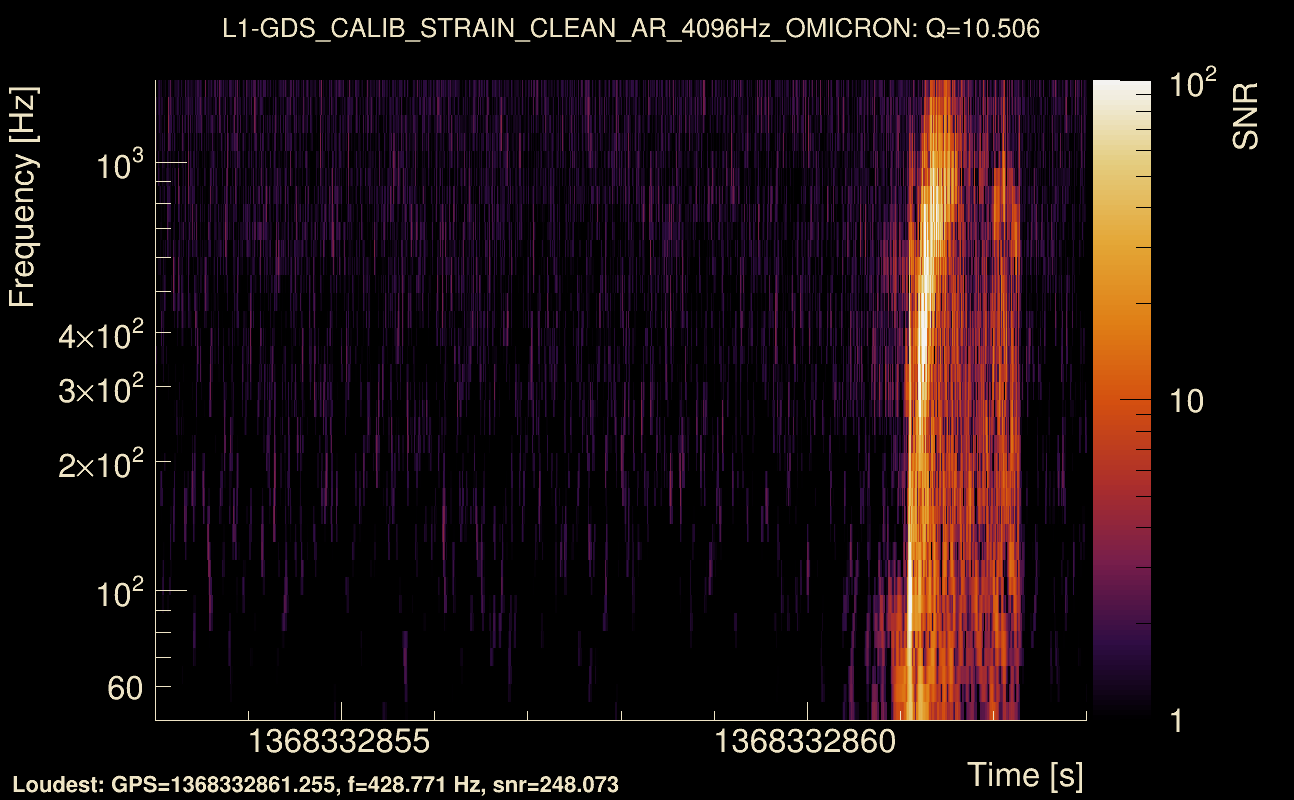

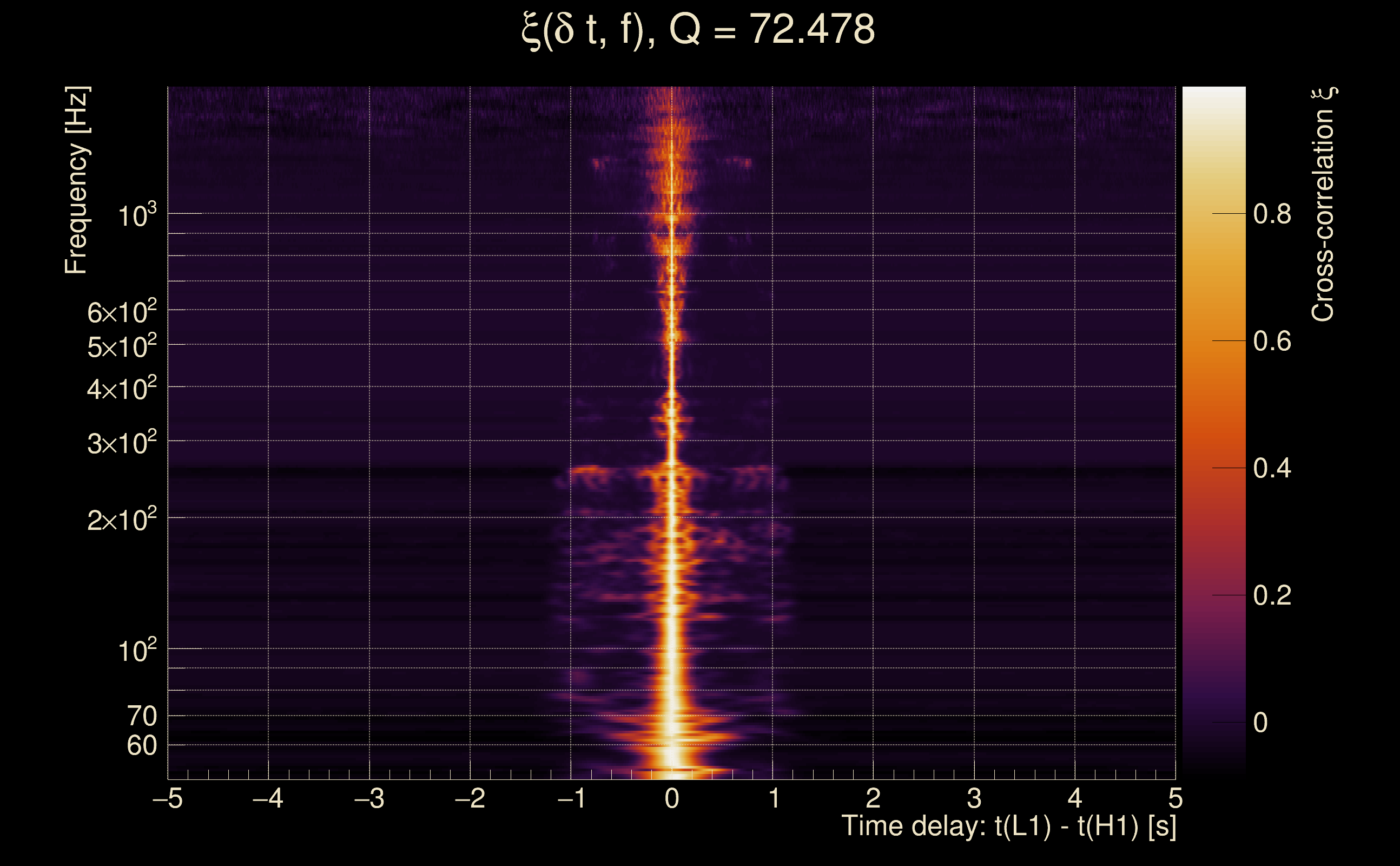

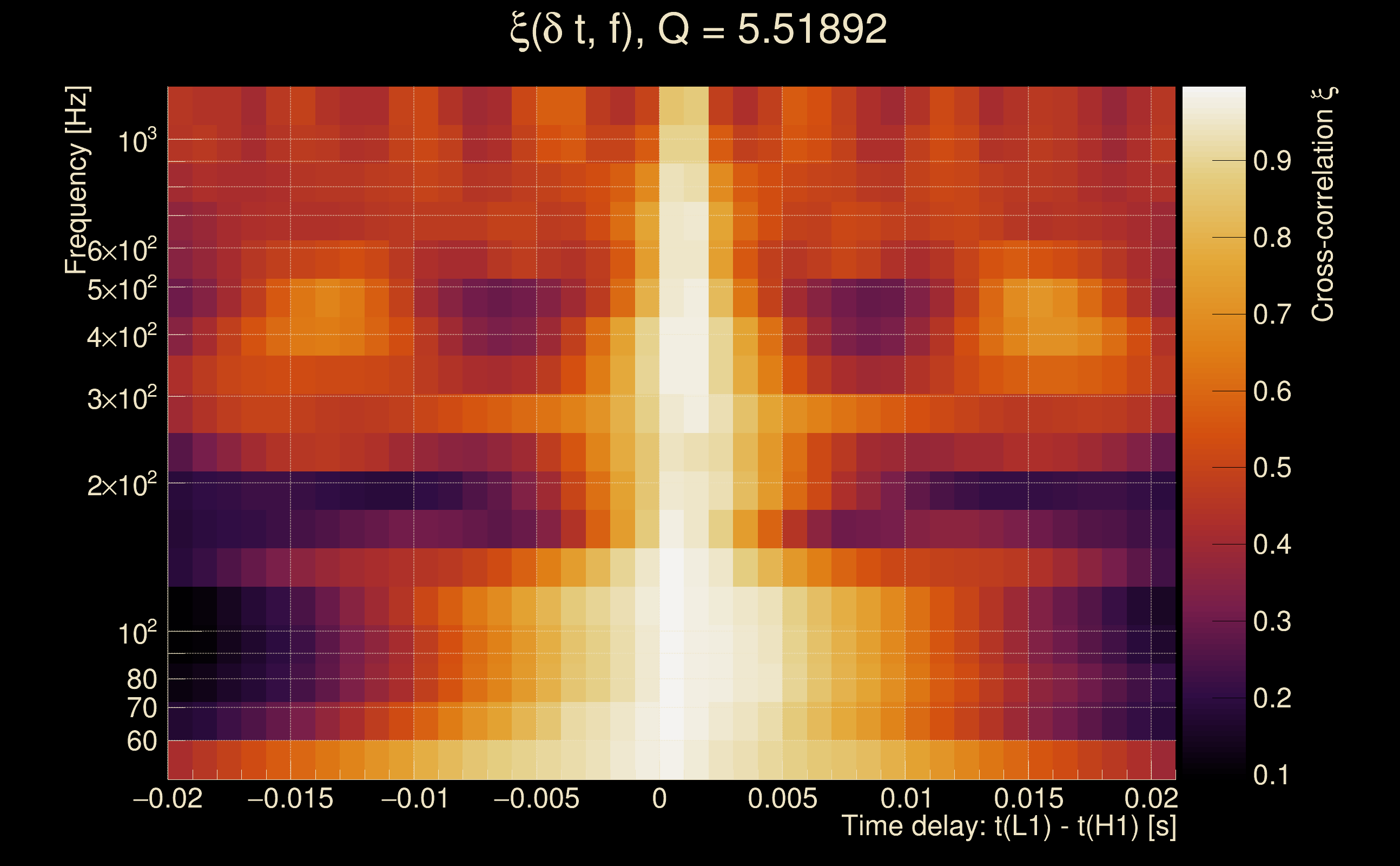

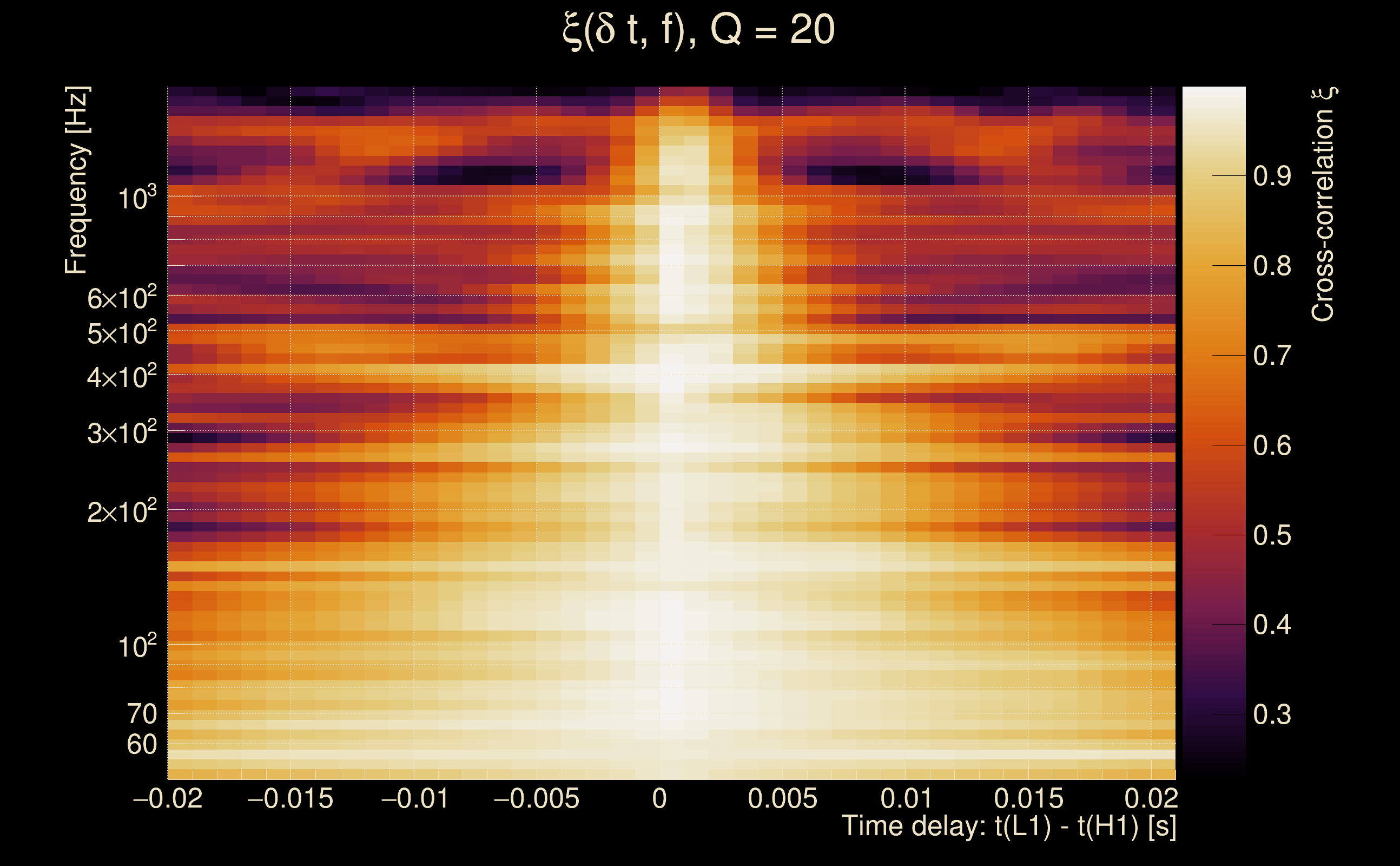

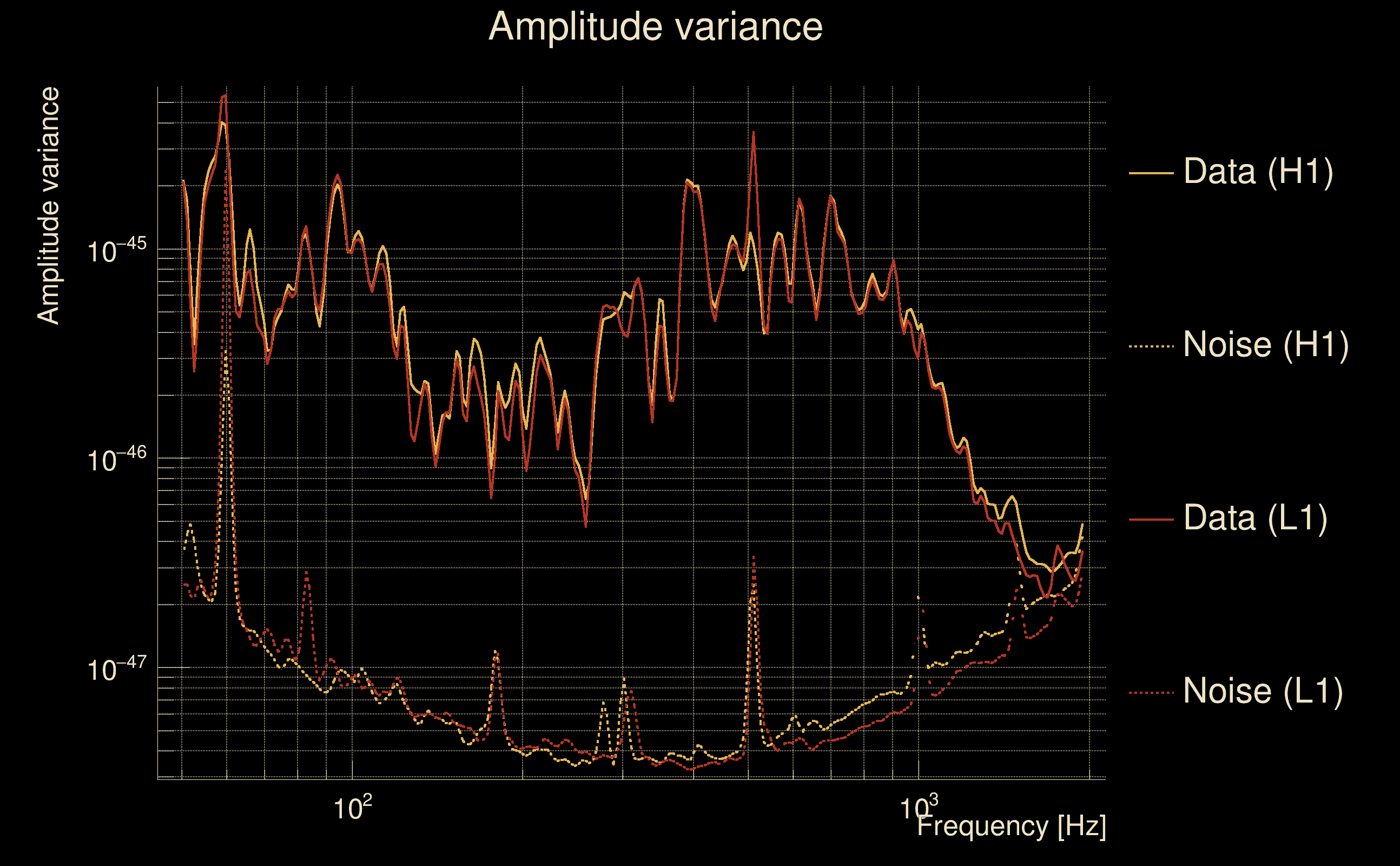

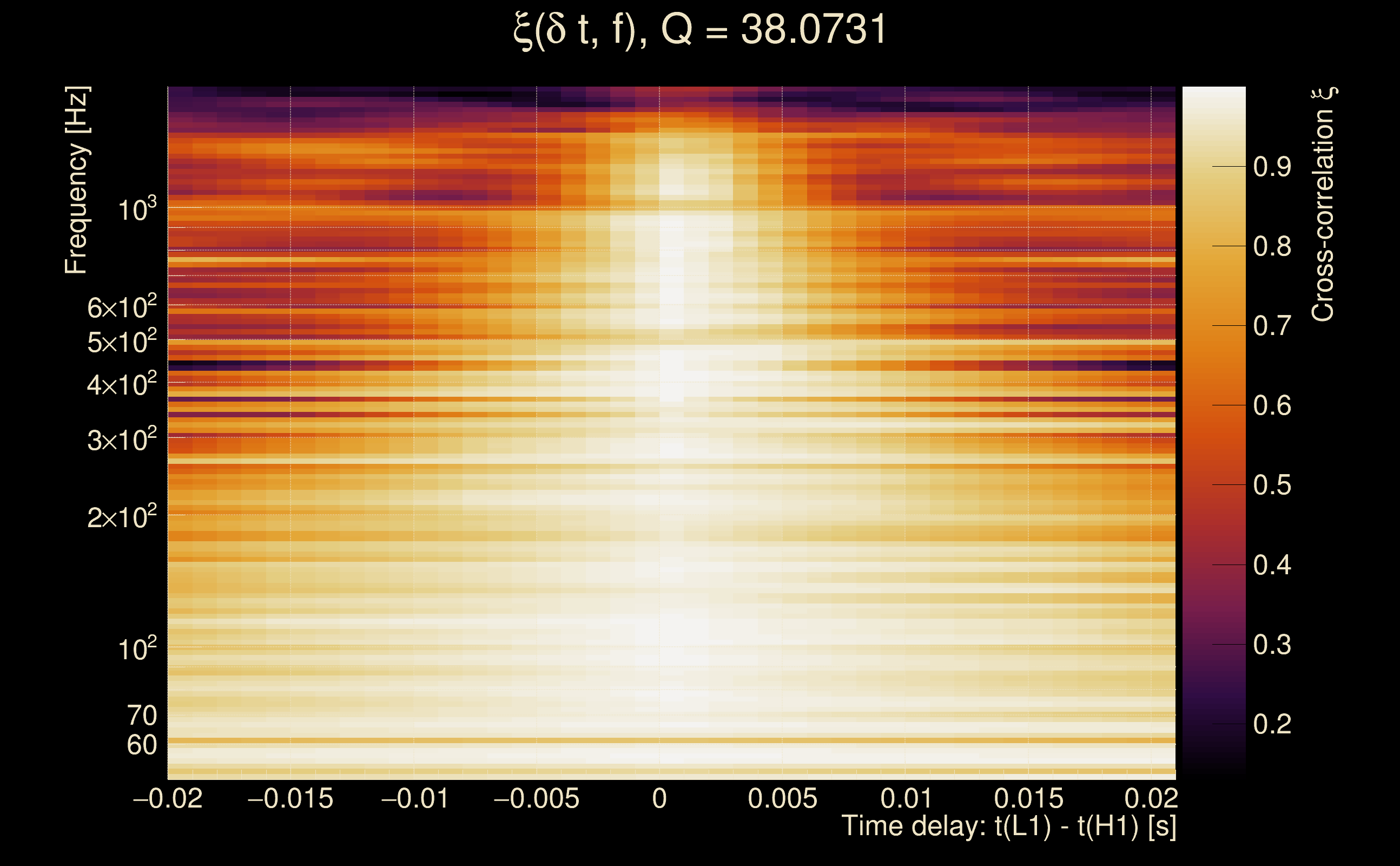

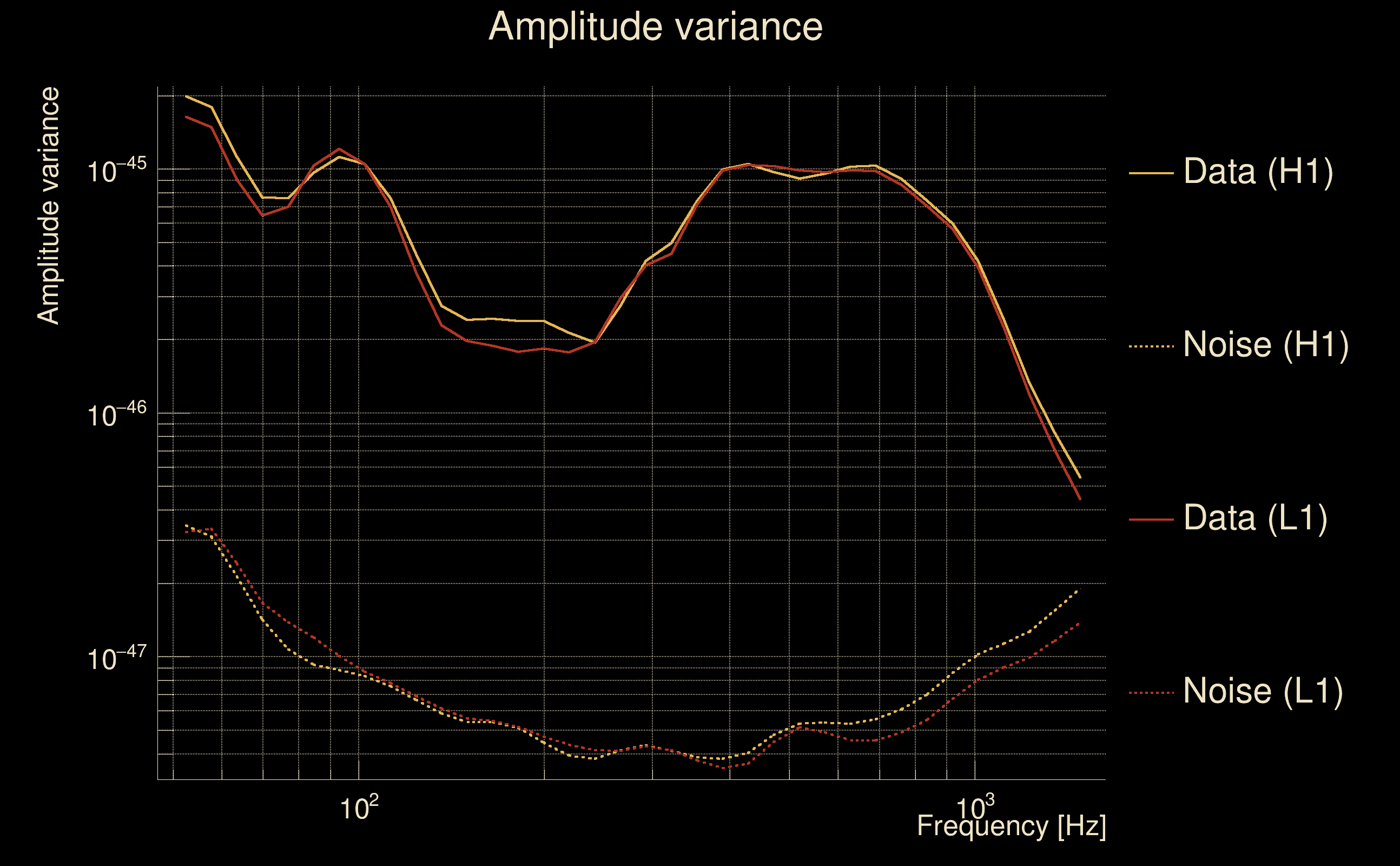

| Event time t(H1): | GPS = 1368332853 (Wed May 17 04:27:15 2023 ) → GPS = 1368332863 (Wed May 17 04:27:25 2023 ) |
| Event time t(L1): | GPS = 1368332853 (Wed May 17 04:27:25 2023 ) → GPS = 1368332863 (Wed May 17 04:27:25 2023 ) |

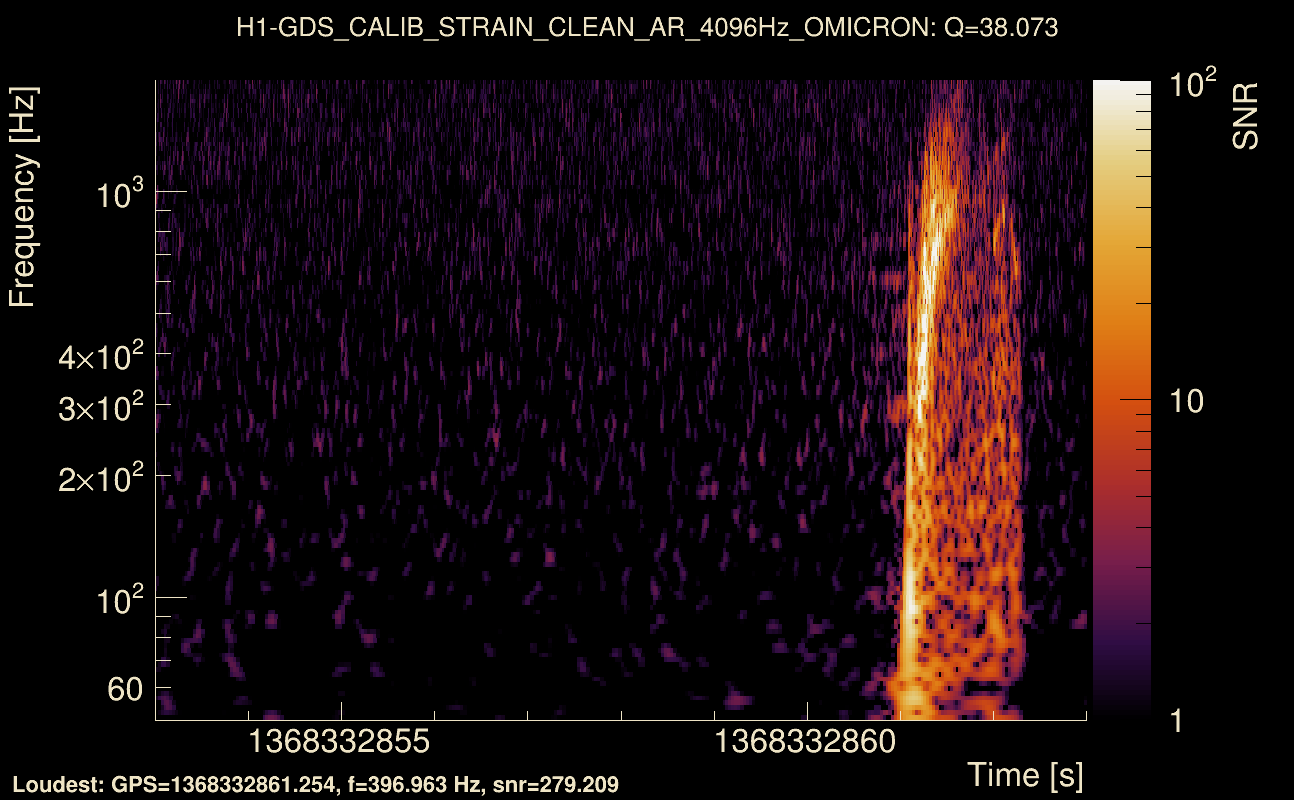

| Omicron analysis time window (H1): | GPS = 1368332850 → GPS = 1368332866 |
| Omicron analysis time window (L1): | GPS = 1368332850 → GPS = 1368332866 |
| Time delay between detectors t(L1) - t(H1): | 0.000526954 s (slice index = 108 / 217), δt_gw = 0.000526954 s |
| Time delay standard deviation: | 0.0228649 s |
| [targeted mode] Time delay probability: | 0.993525 (0.0081159 sigmas), δt_target = 0.000957251 s |
| Frequency: | 276.769 Hz |
| Ξ: | 0.963728 ± 0.0031038 (variance = 9.63357e-06): Q0: 0.965181, Q1: 0.968322, Q2: 0.966638, Q3: 0.962158, Q4: 0.959695 |
| Rank: | R_A = 0.957488 |
| Log of amplitude ratio (L1/H1): | -0.0204687, variance = 0.15216 (L1/H1: -0.041914, variance = 0.303076, H1/L1: 0.00119827, variance = 0.30376) |
| Amplitude ratio (L1/H1): | 0.979739 ⋇ 1.47709 (L1/H1: 0.958952 ⋇ 1.73416, H1/L1: 1.0012 ⋇ 1.73524) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.958316 |

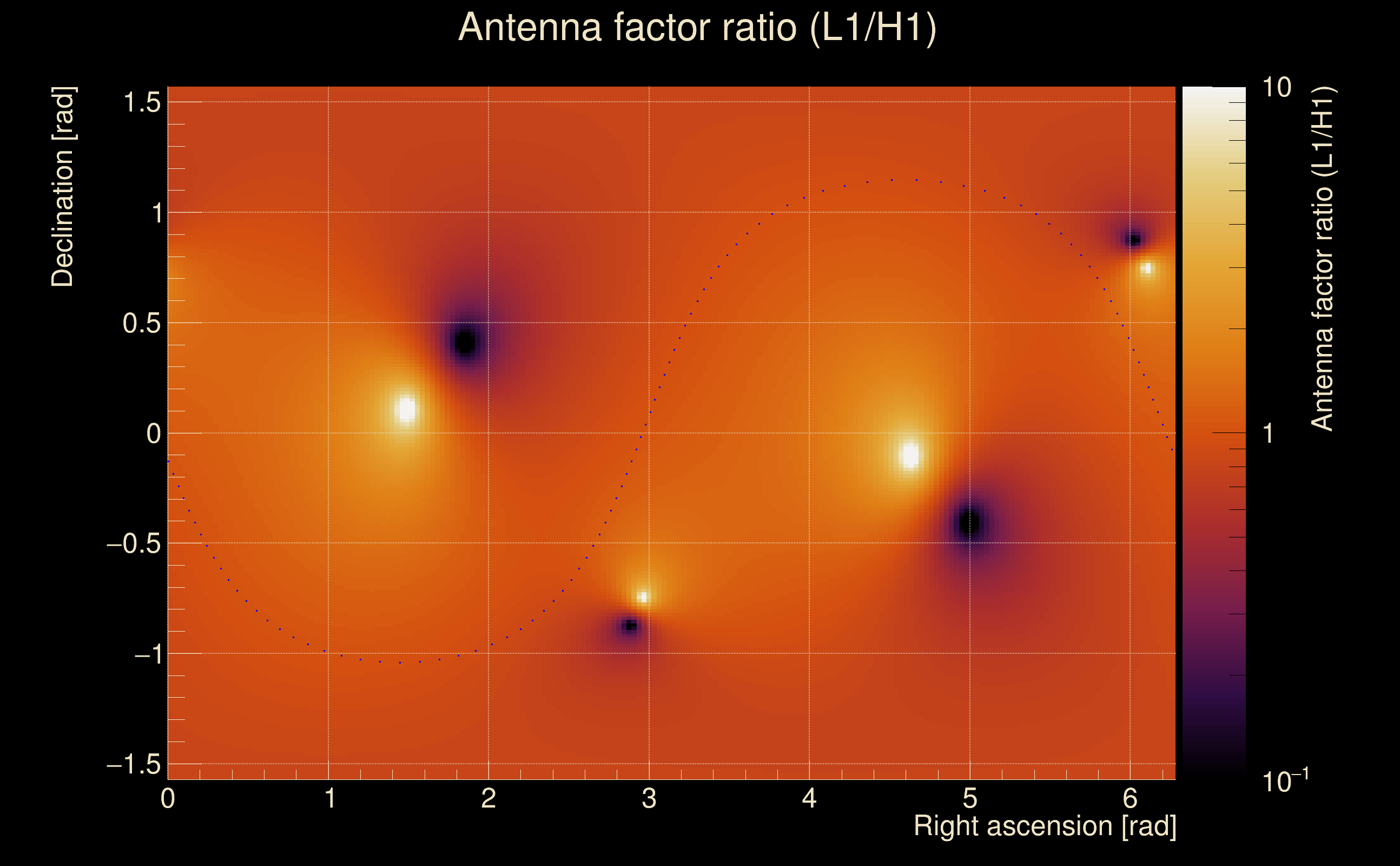

| Antenna factor probability: | 0.986932 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 2 / 134, Q4: 8 / 258 |
| Maximum signal-to-noise ratio: | H1: 288.576, L1: 304.426 |

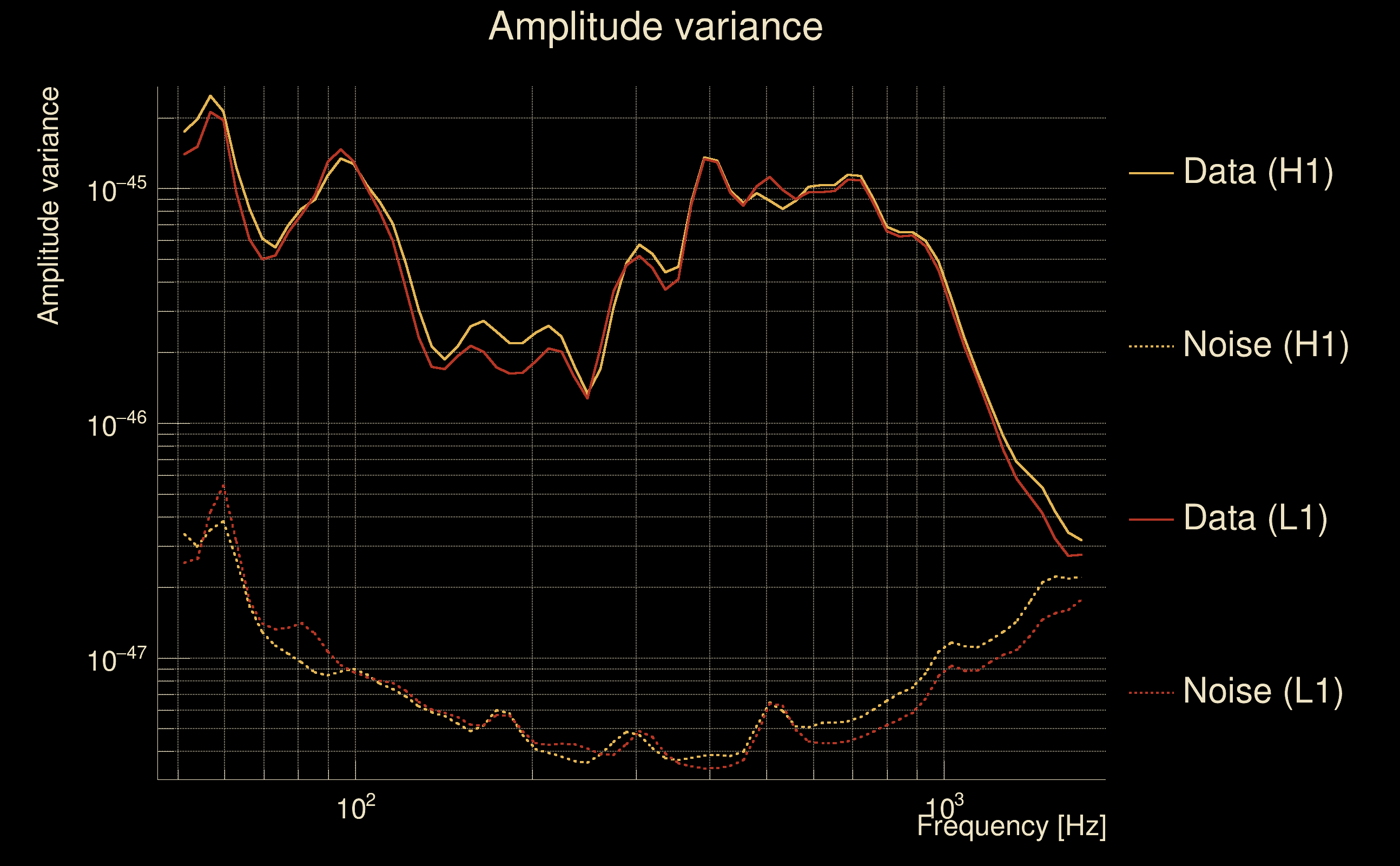

| SNR variance: | H1: 0.516465, L1: 0.506359 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368420959 (Thu May 18 04:55:41 2023 ) → GPS = 1368420969 (Thu May 18 04:55:51 2023 ) |
| Event time t(L1): | GPS = 1368420959 (Thu May 18 04:55:51 2023 ) → GPS = 1368420969 (Thu May 18 04:55:51 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420956 → GPS = 1368420972 |
| Omicron analysis time window (L1): | GPS = 1368420956 → GPS = 1368420972 |
| Time delay between detectors t(L1) - t(H1): | -1.83971 s (slice index = 148 / 217), δt_gw = 0.000289663 s |
| Time delay standard deviation: | 0.0911635 s |
| [targeted mode] Time delay probability: | 0.918448 (0.102389 sigmas), δt_target = 0.000531197 s |
| Frequency: | 219.078 Hz |
| Ξ: | 0.0366649 ± 0.0196732 (variance = 0.000387033): Q0: 0.115521, Q1: 0.145782, Q2: 0.117117, Q3: 0.0836467, Q4: 0.116582 |
| Rank: | R_A = 0.0336748 |
| Log of amplitude ratio (L1/H1): | -0.772239, variance = 0.539314 (L1/H1: -0.993601, variance = 0.664056, H1/L1: -1.06282, variance = 0.908533) |
| Amplitude ratio (L1/H1): | 0.461978 ⋇ 2.08419 (L1/H1: 0.370241 ⋇ 2.25894, H1/L1: 0.345481 ⋇ 2.59392) |

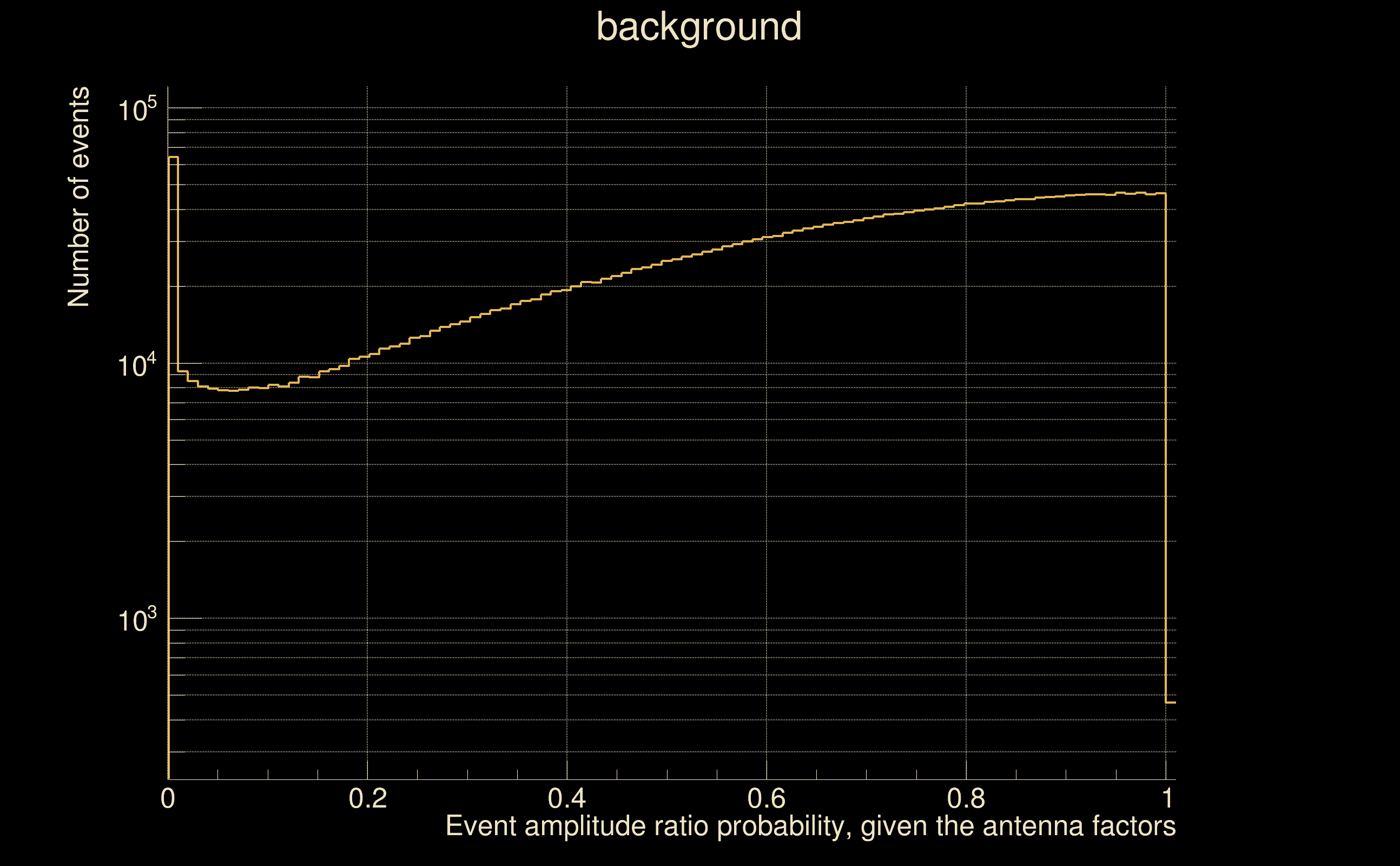

| Amplitude ratio H1|L1 compatibility (probability): | 0.101037 |
| Antenna factor probability: | 0.328252 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 26 / 36, Q2: 59 / 70, Q3: 118 / 134, Q4: 237 / 258 |
| Maximum signal-to-noise ratio: | H1: 14.8432, L1: 5.1553 |
| SNR variance: | H1: 0.51602, L1: 0.538656 |

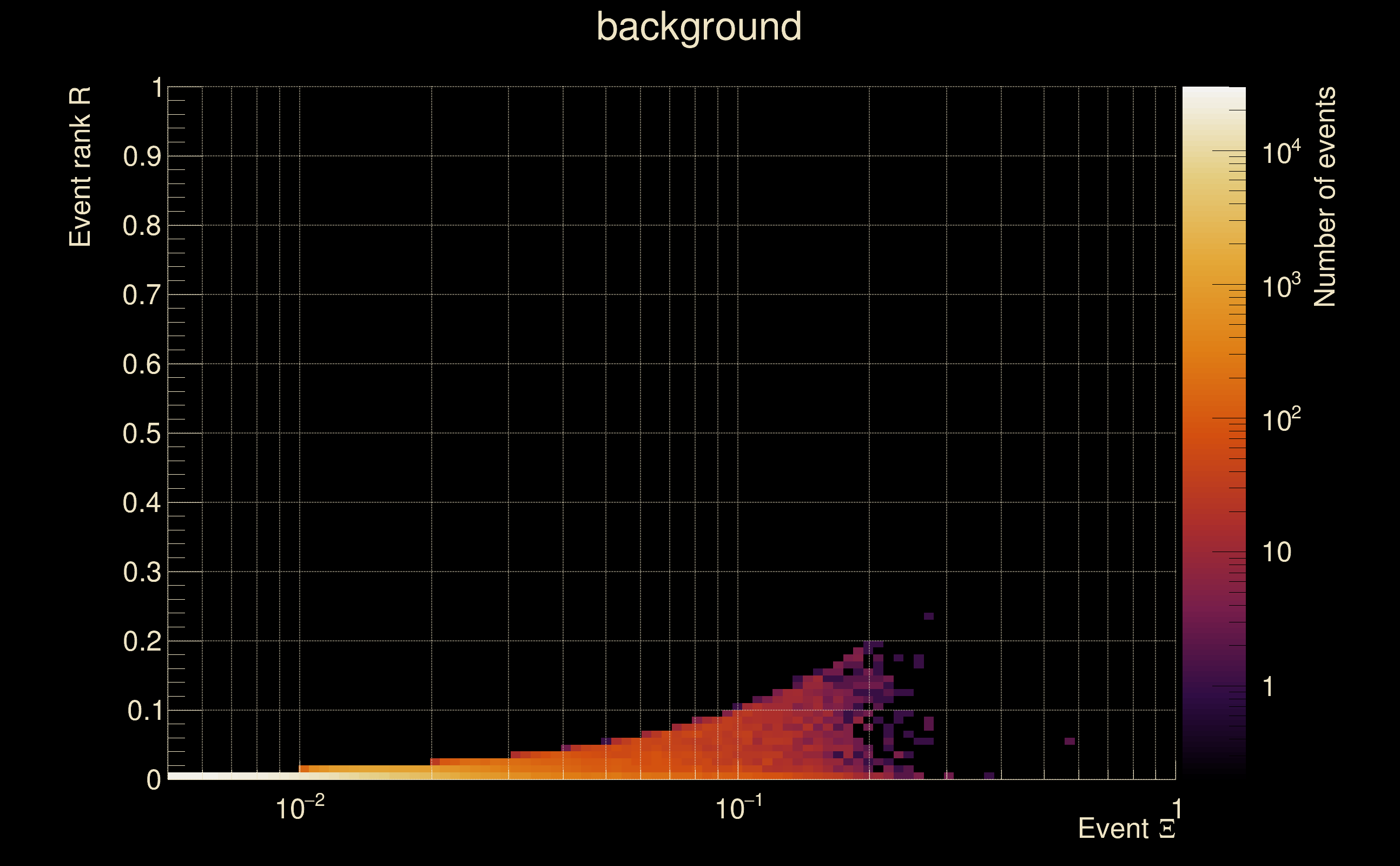

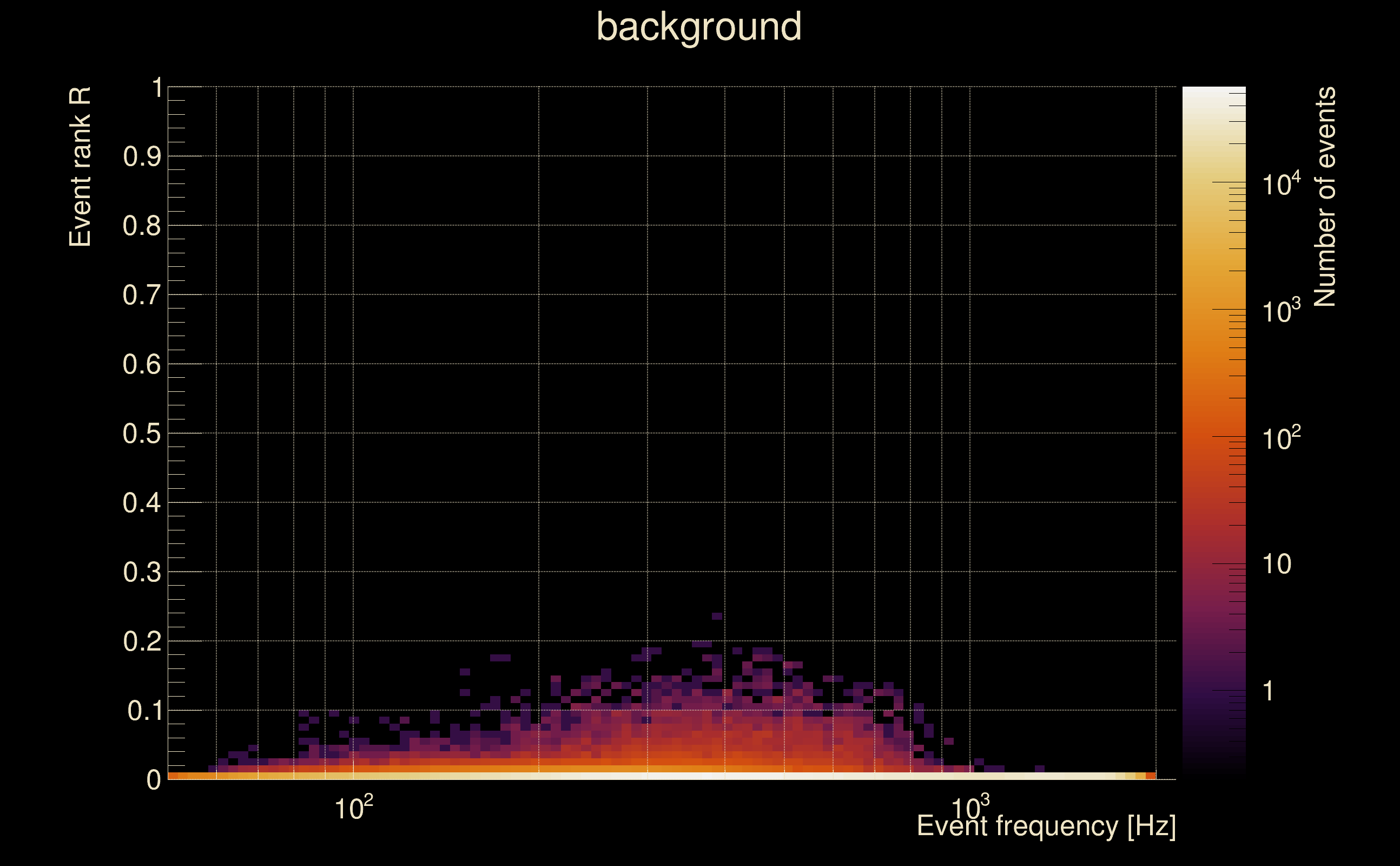

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 3.80277e-08 |
| Alternative threshold at 1/1000 yrs: | R > 0.233007 |
| Alternative threshold at 1/100 yrs: | R > 0.233007 |
| Alternative threshold at 1/10 yrs: | R > 0.233007 |
| Alternative threshold at 1/1 yr: | R > 0.233007 |
| Alternative threshold at 1/1 d: | R > 0.10534 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

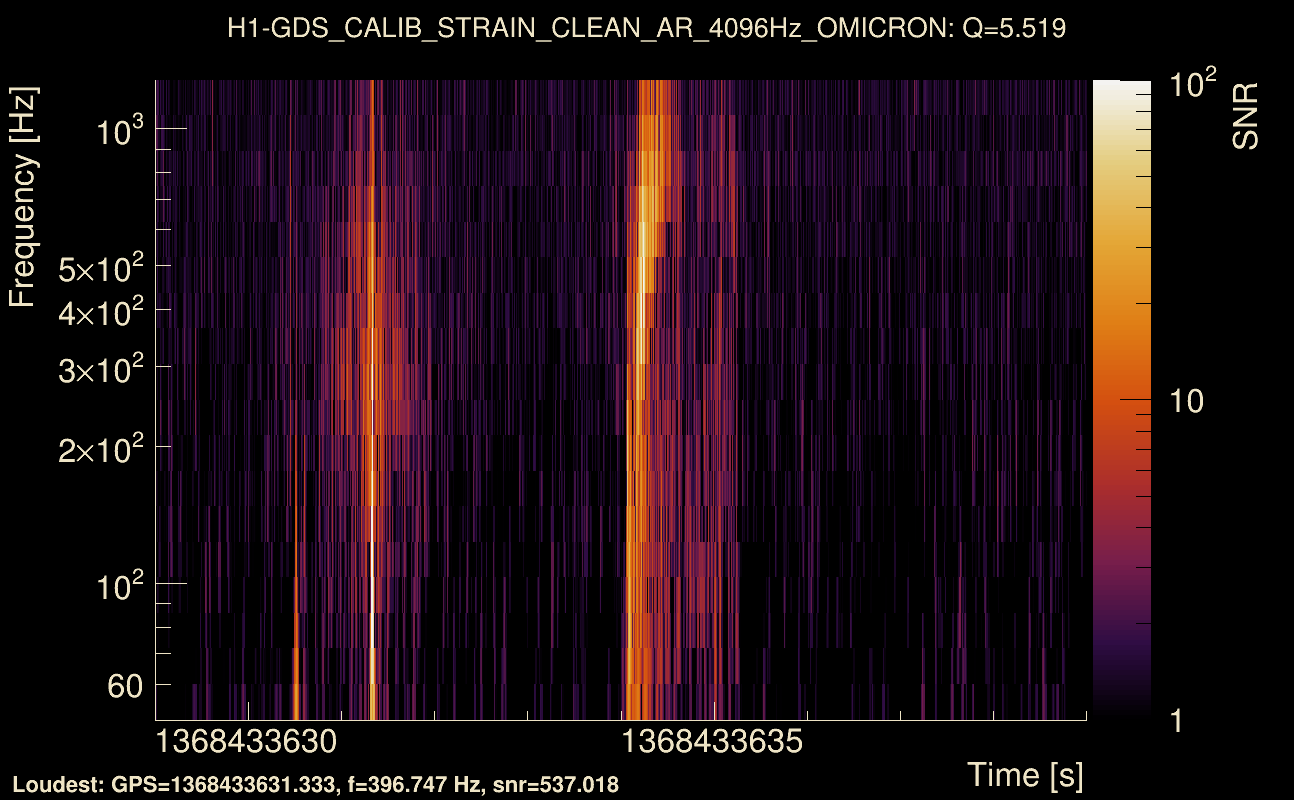

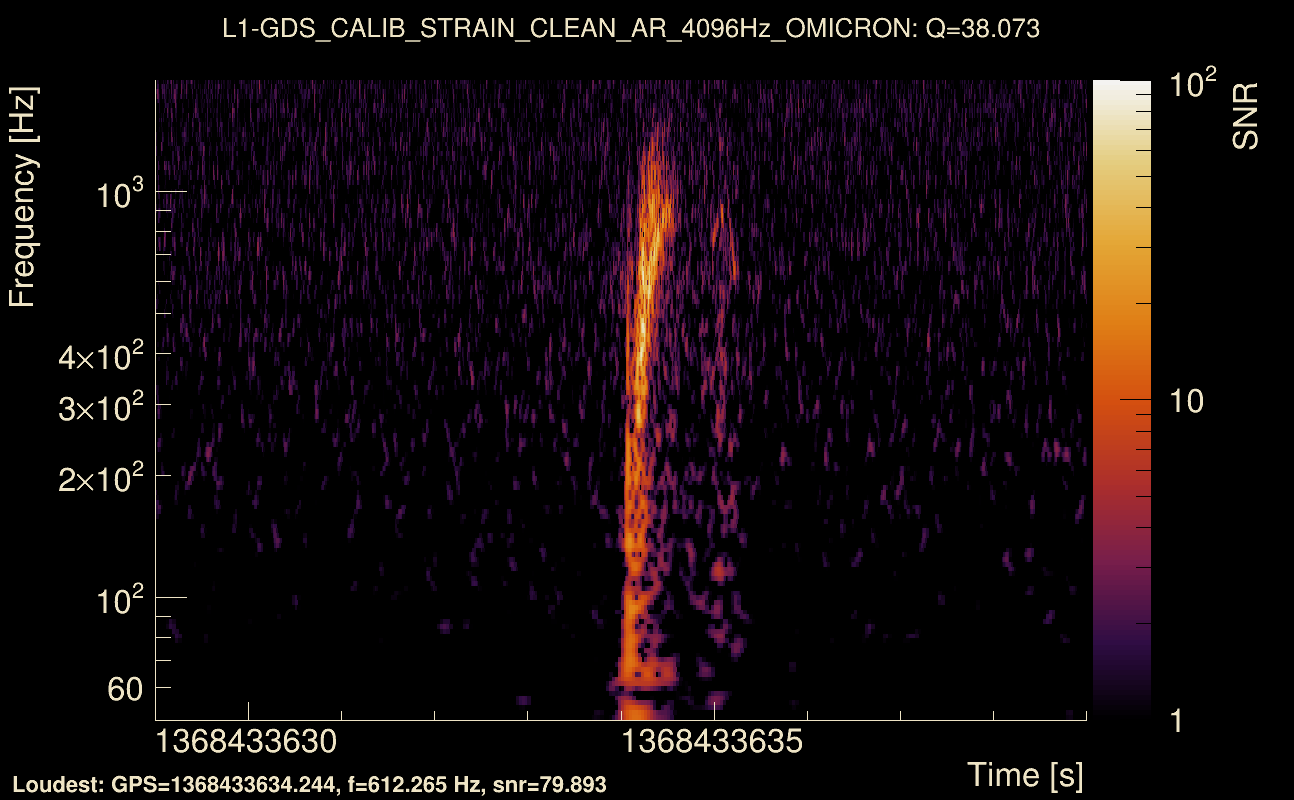

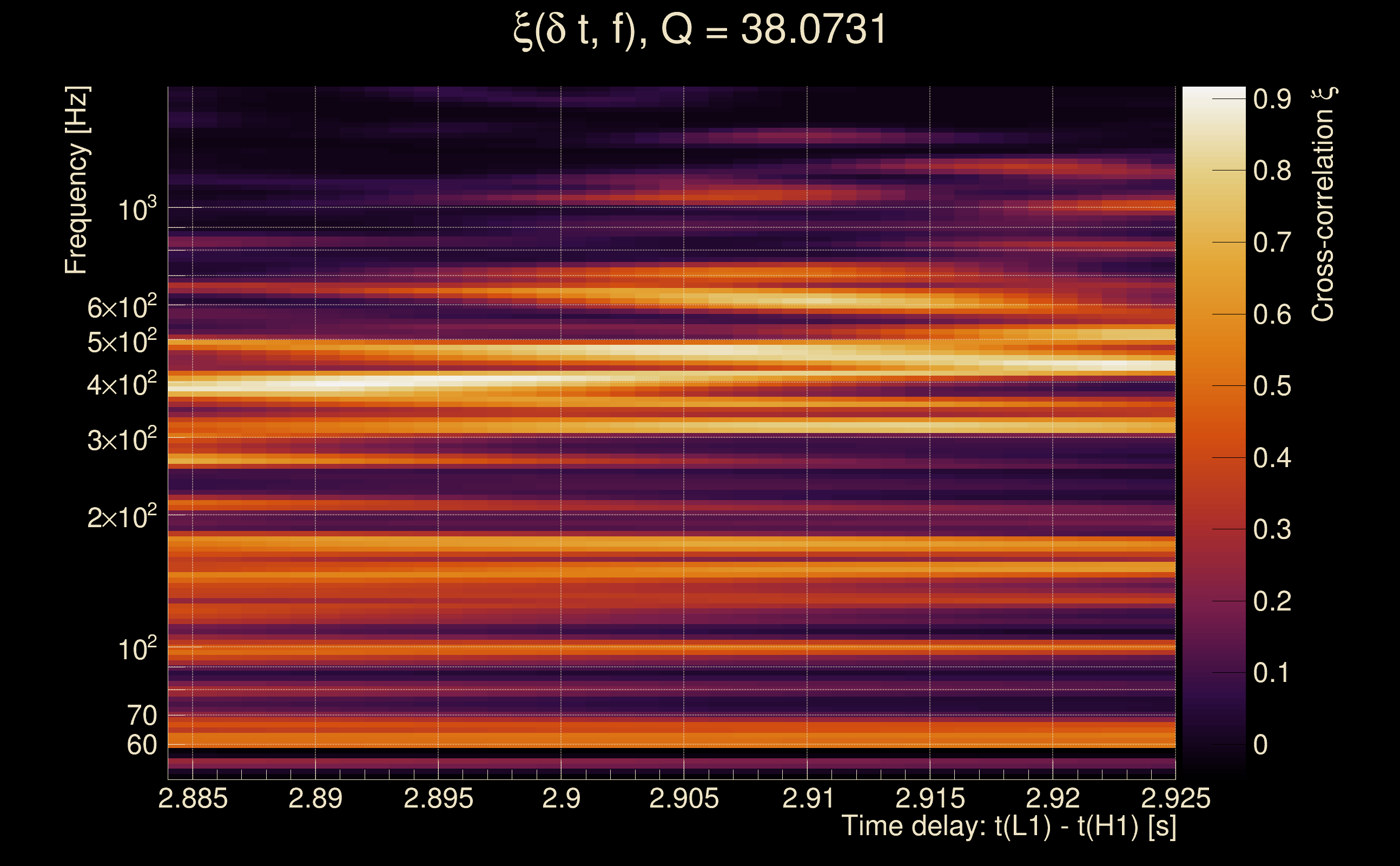

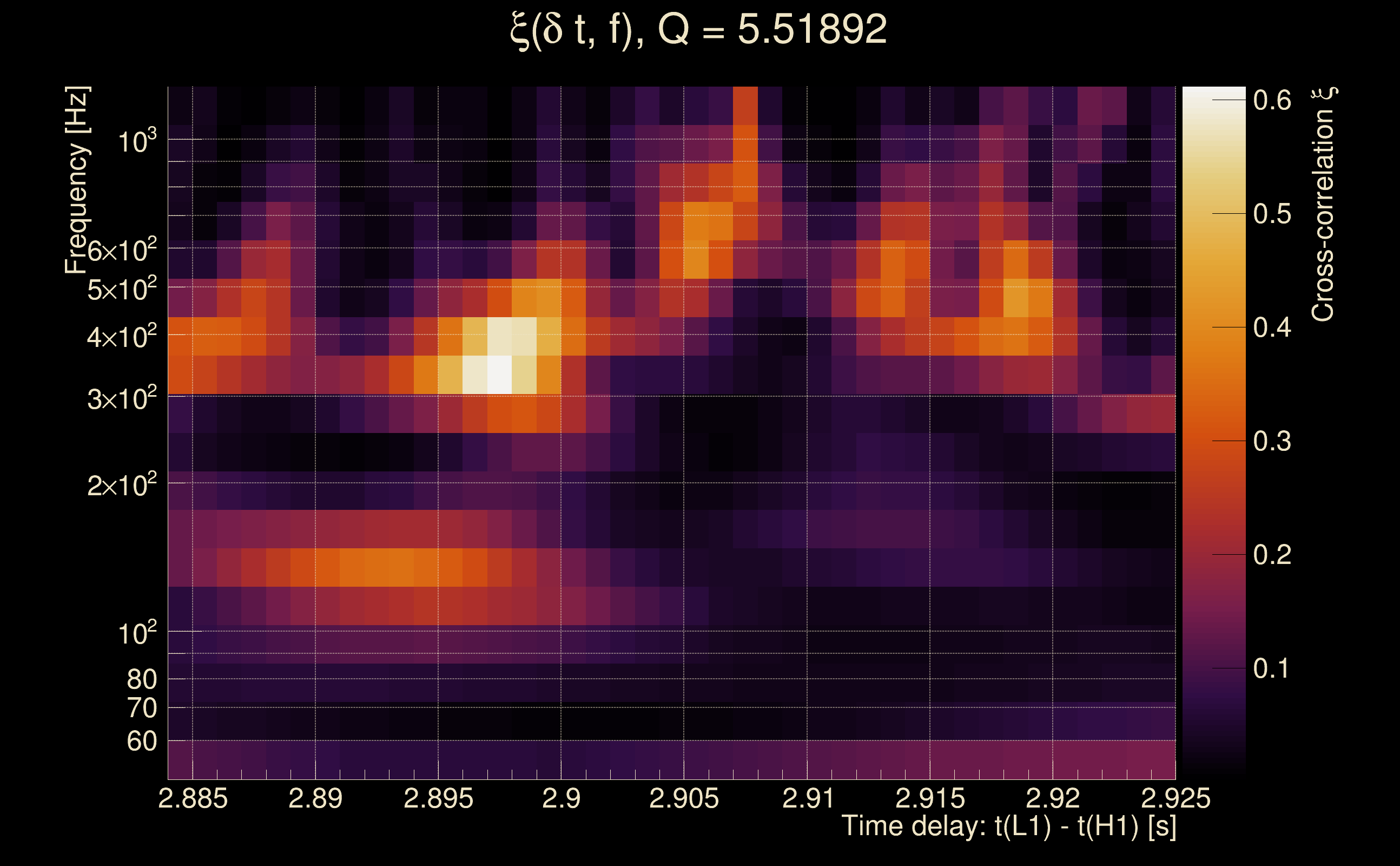

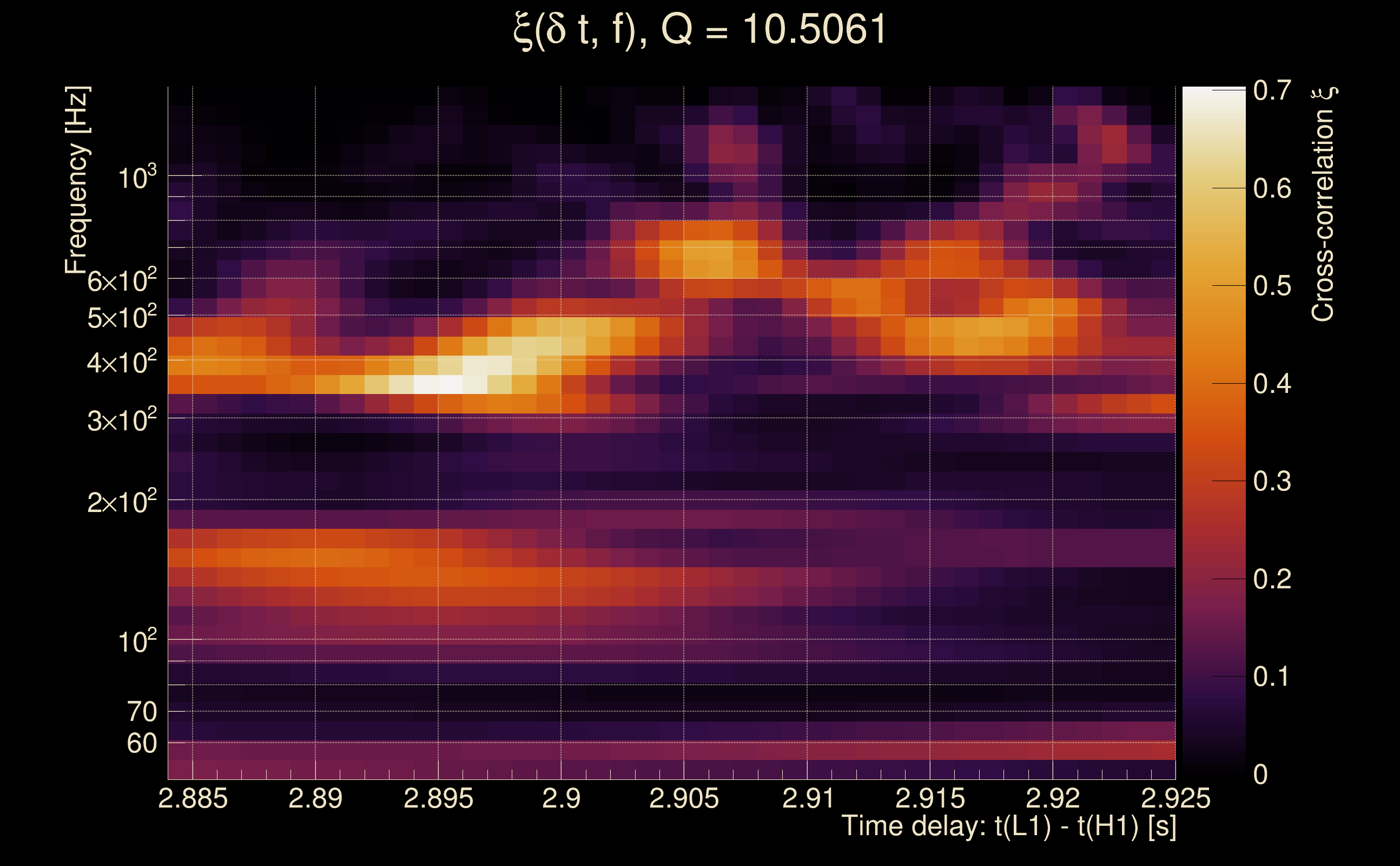

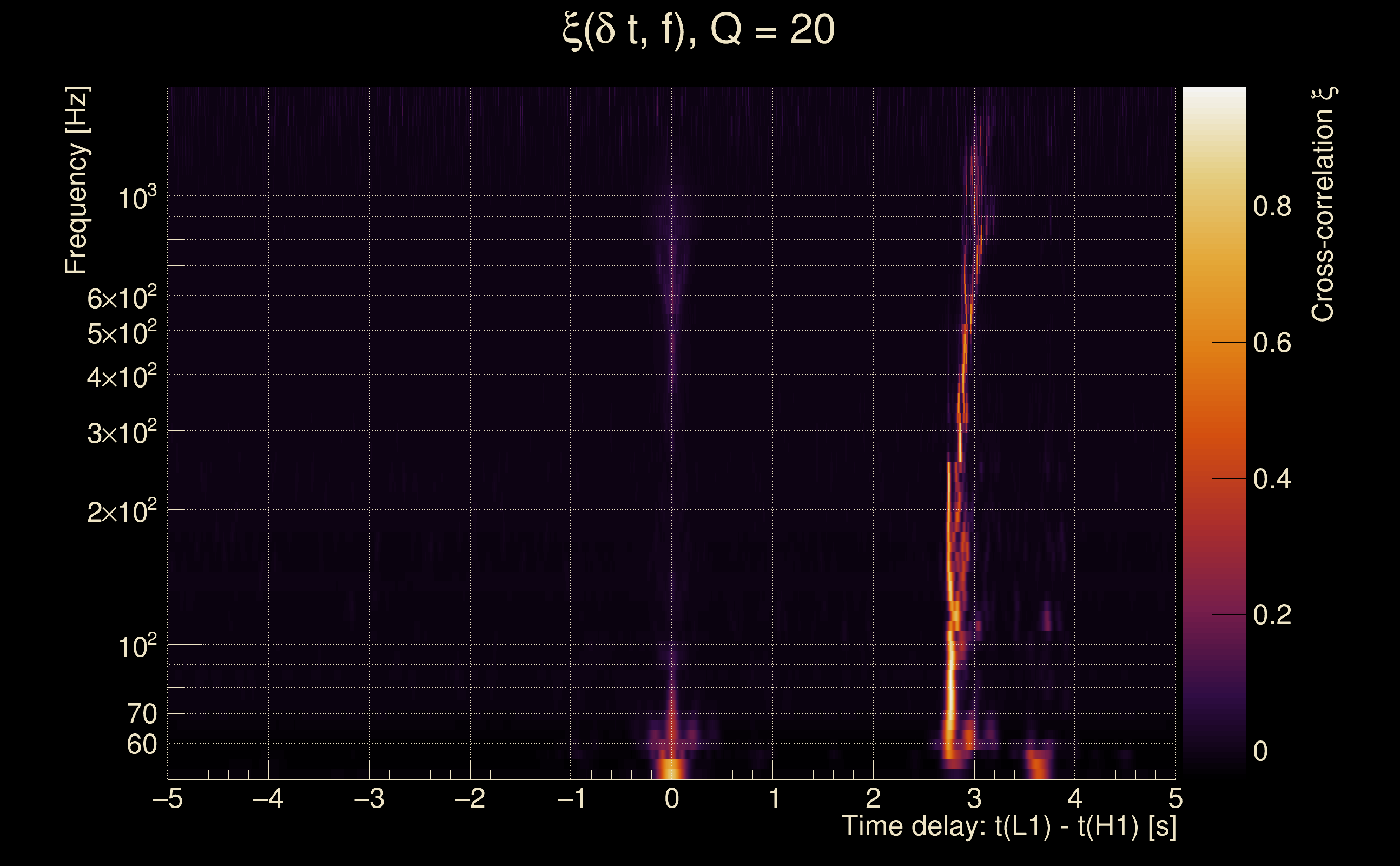

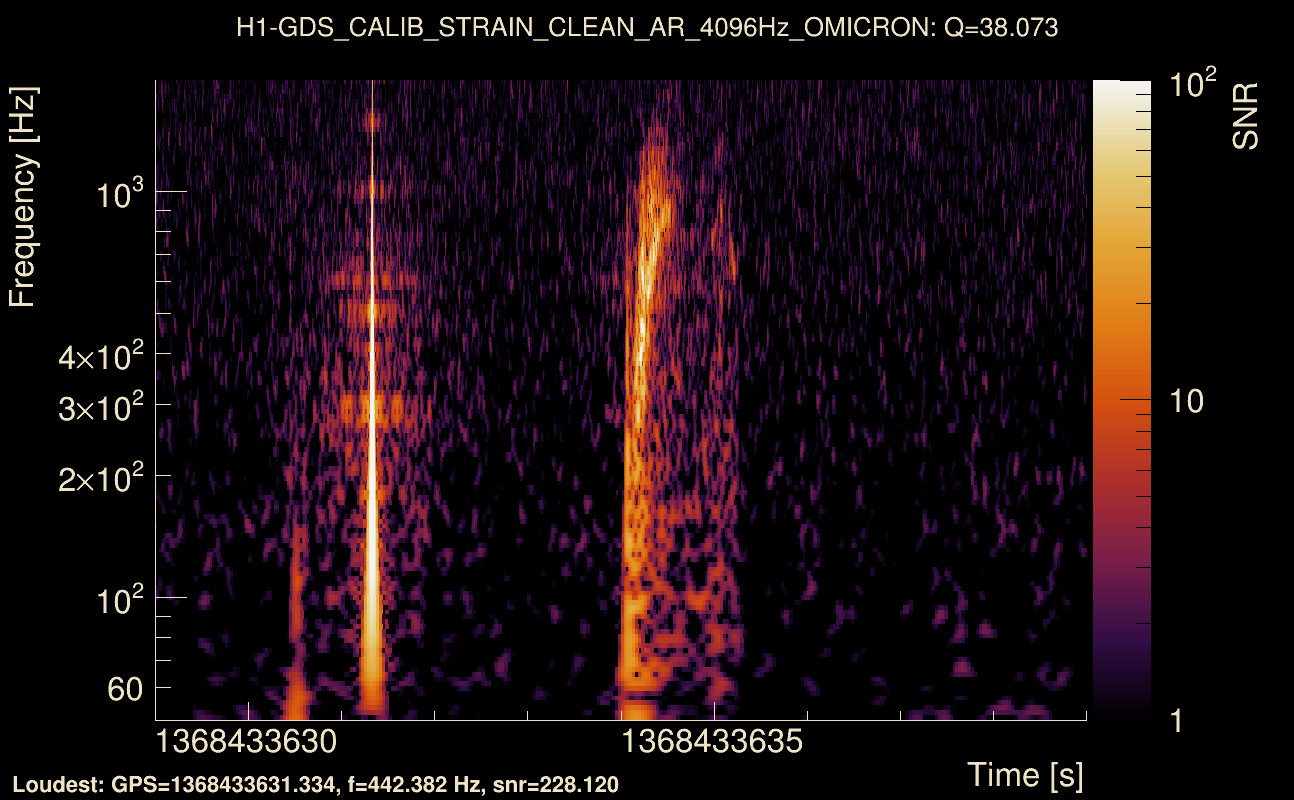

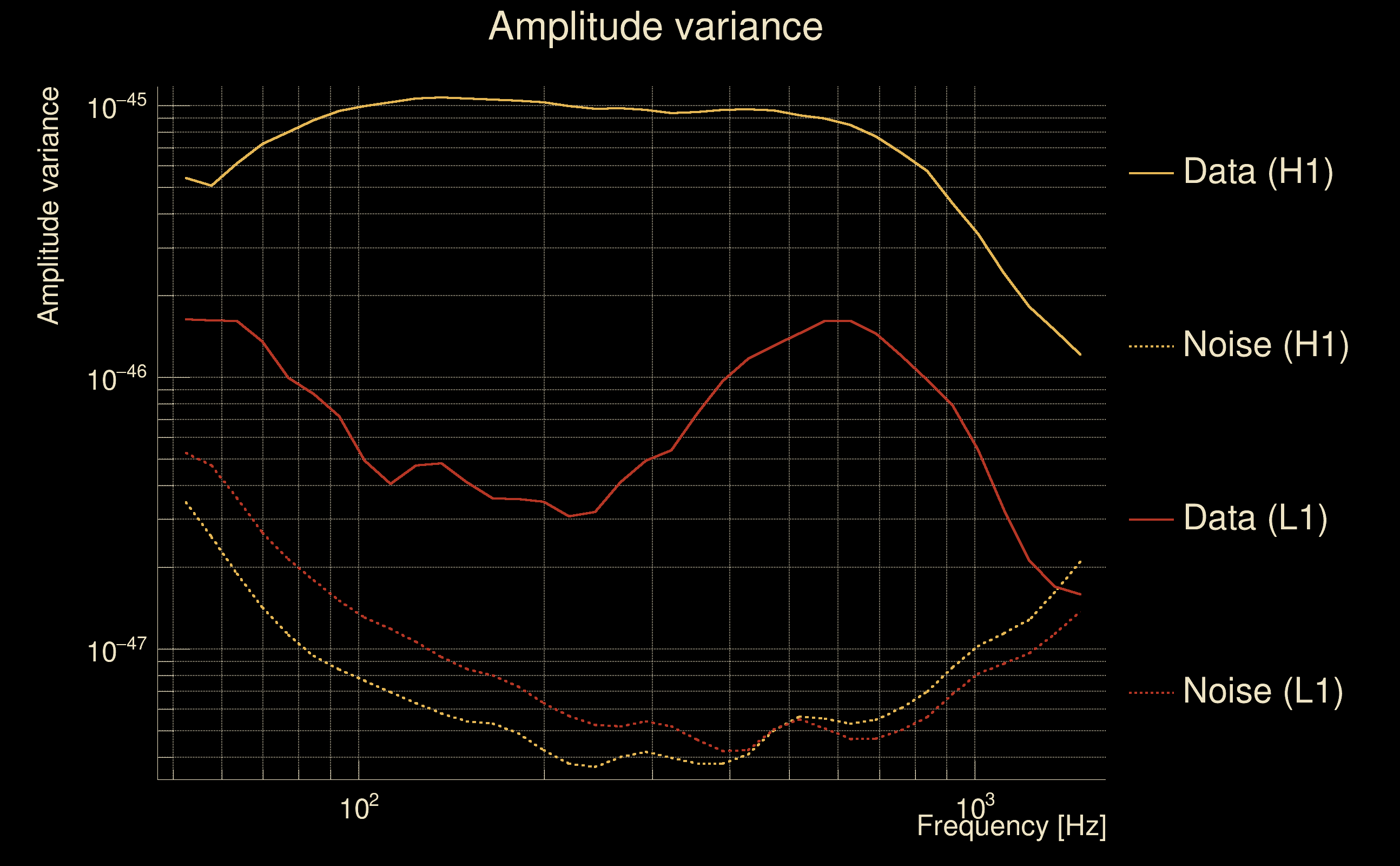

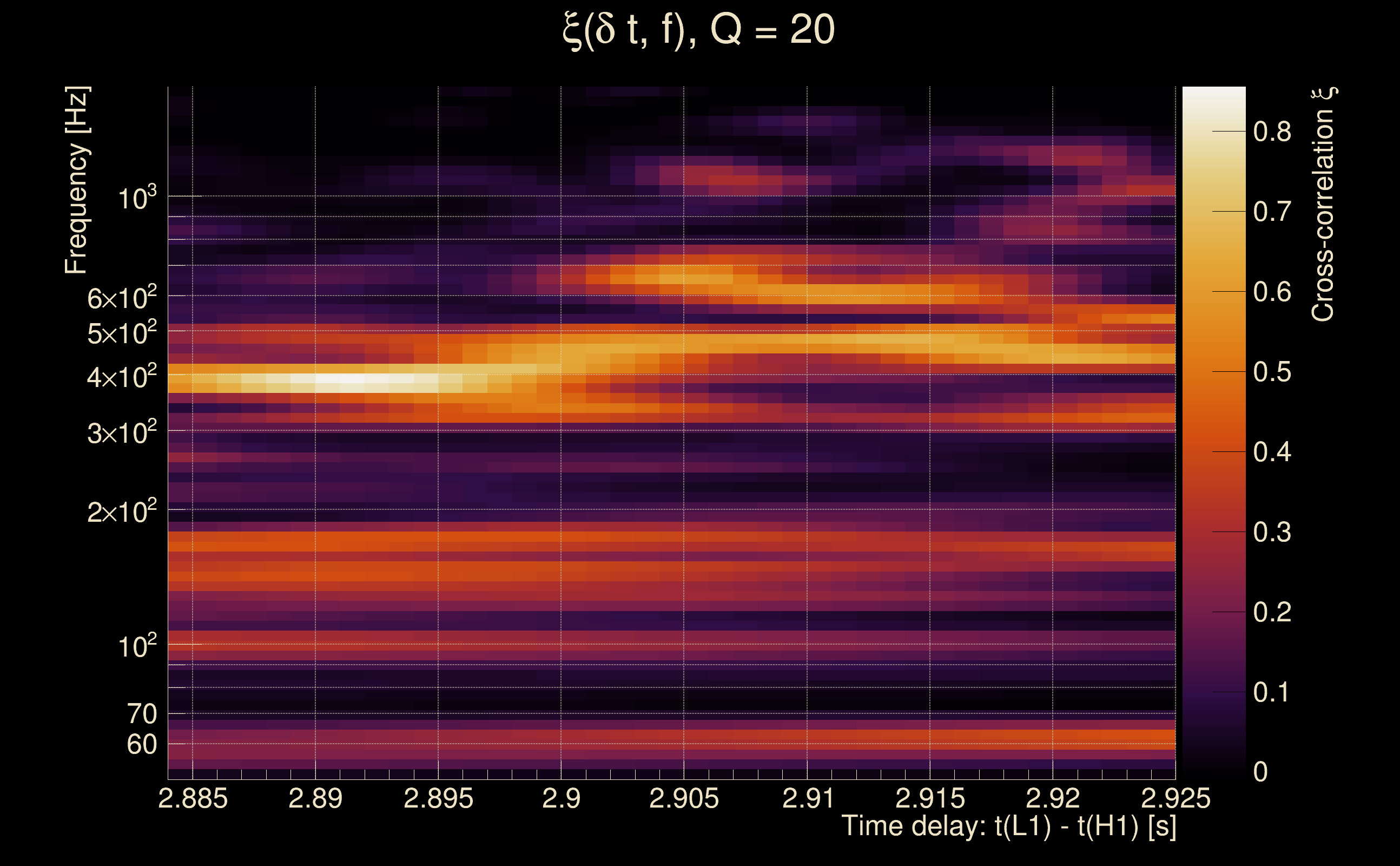

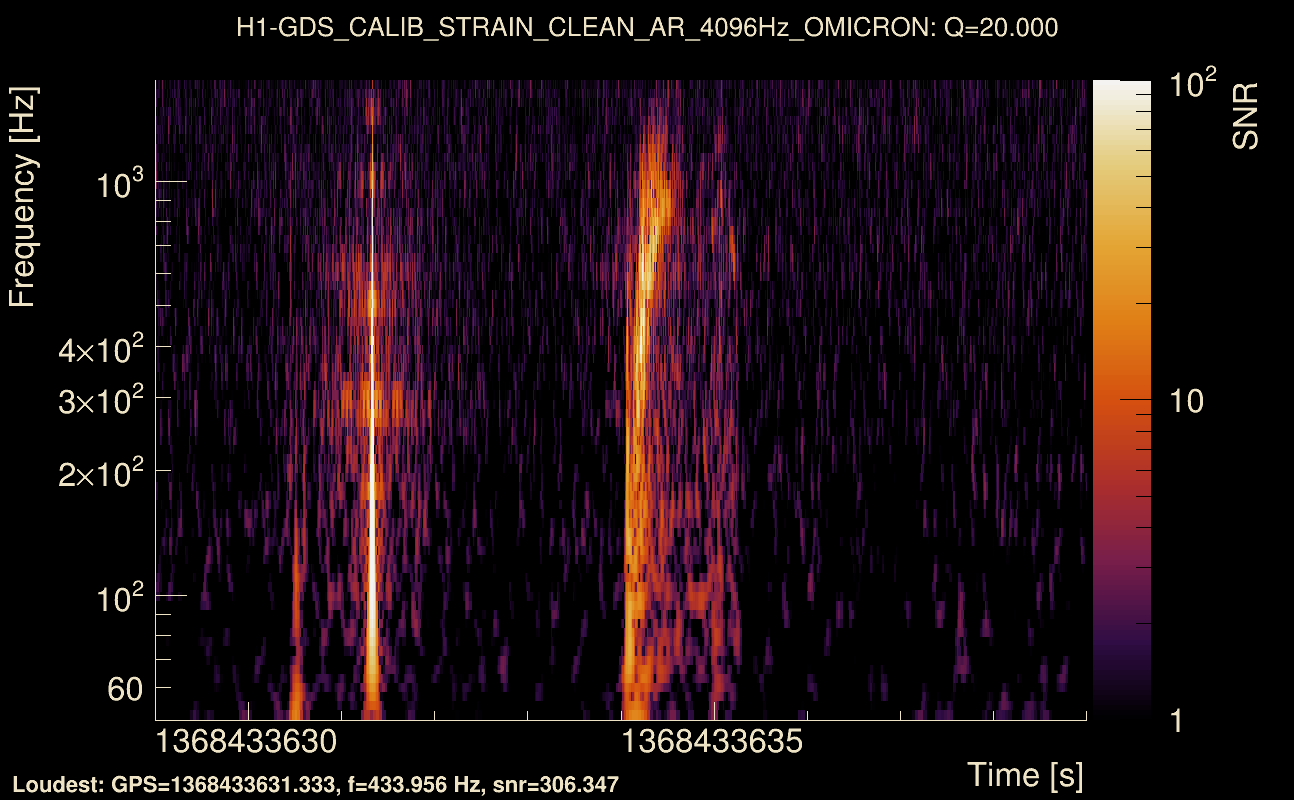

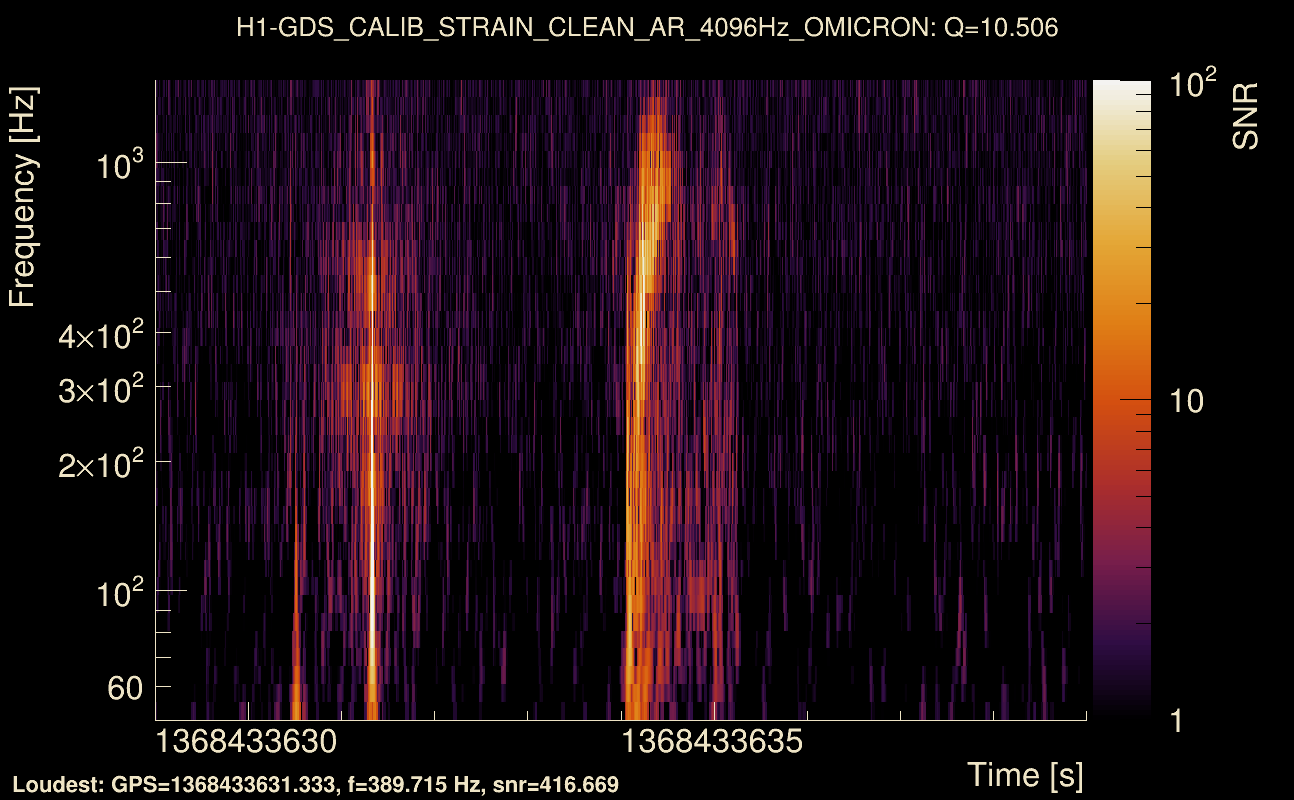

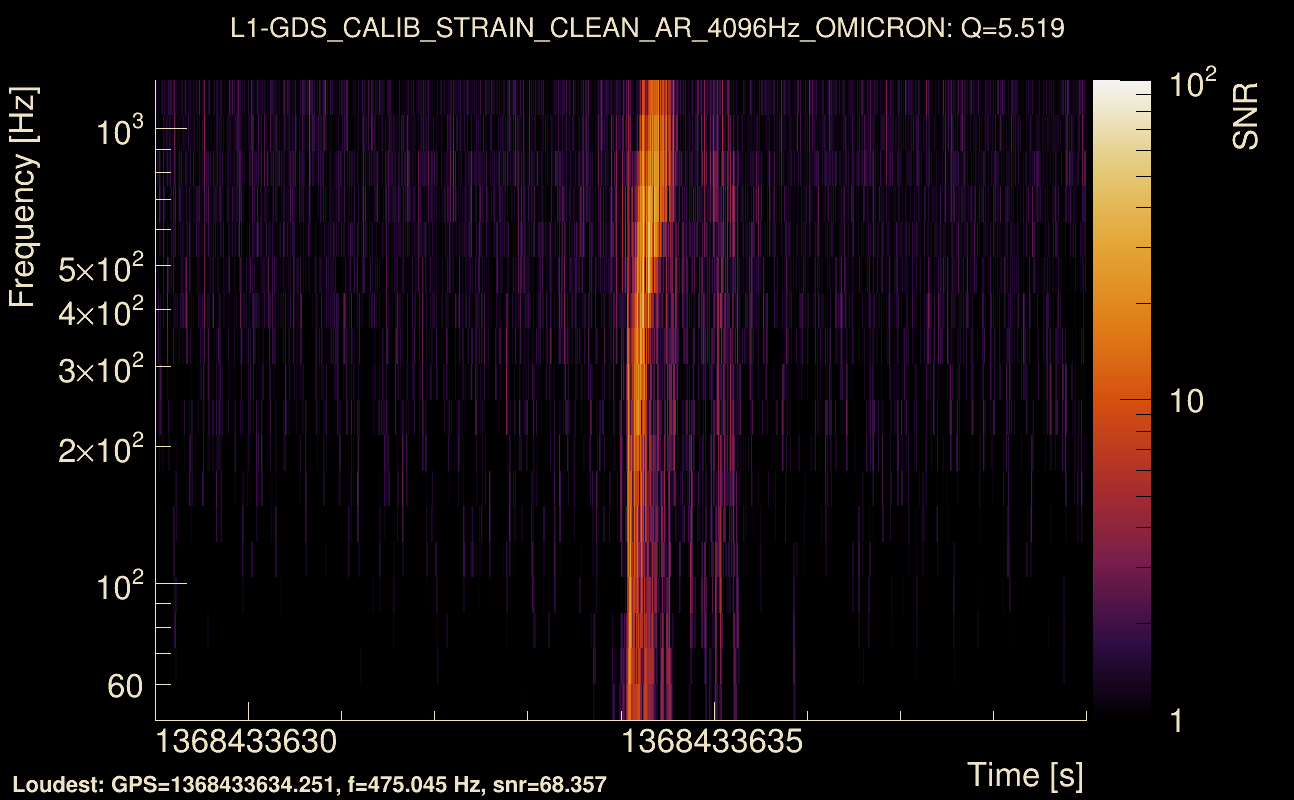

| Event time t(H1): | GPS = 1368433629 (Thu May 18 08:26:51 2023 ) → GPS = 1368433639 (Thu May 18 08:27:01 2023 ) |
| Event time t(L1): | GPS = 1368433629 (Thu May 18 08:27:01 2023 ) → GPS = 1368433639 (Thu May 18 08:27:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368433626 → GPS = 1368433642 |
| Omicron analysis time window (L1): | GPS = 1368433626 → GPS = 1368433642 |
| Time delay between detectors t(L1) - t(H1): | 2.90444 s (slice index = 45 / 217), δt_gw = 0.00643912 s |
| Time delay standard deviation: | 0.0637856 s |
| [targeted mode] Time delay probability: | 0.86738 (0.166987 sigmas), δt_target = 0.000531197 s |
| Frequency: | 385.509 Hz |
| Ξ: | 0.266707 ± 0.109595 (variance = 0.0120112): Q0: 0.395007, Q1: 0.456608, Q2: 0.521817, Q3: 0.621875, Q4: 0.69828 |
| Rank: | R_A = 0.231336 |
| Log of amplitude ratio (L1/H1): | -2.22248, variance = 0.50854 (L1/H1: -2.27744, variance = 0.535364, H1/L1: 0.141554, variance = 0.566533) |
| Amplitude ratio (L1/H1): | 0.10834 ⋇ 2.04035 (L1/H1: 0.102546 ⋇ 2.07858, H1/L1: 1.15206 ⋇ 2.12269) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0418775 |

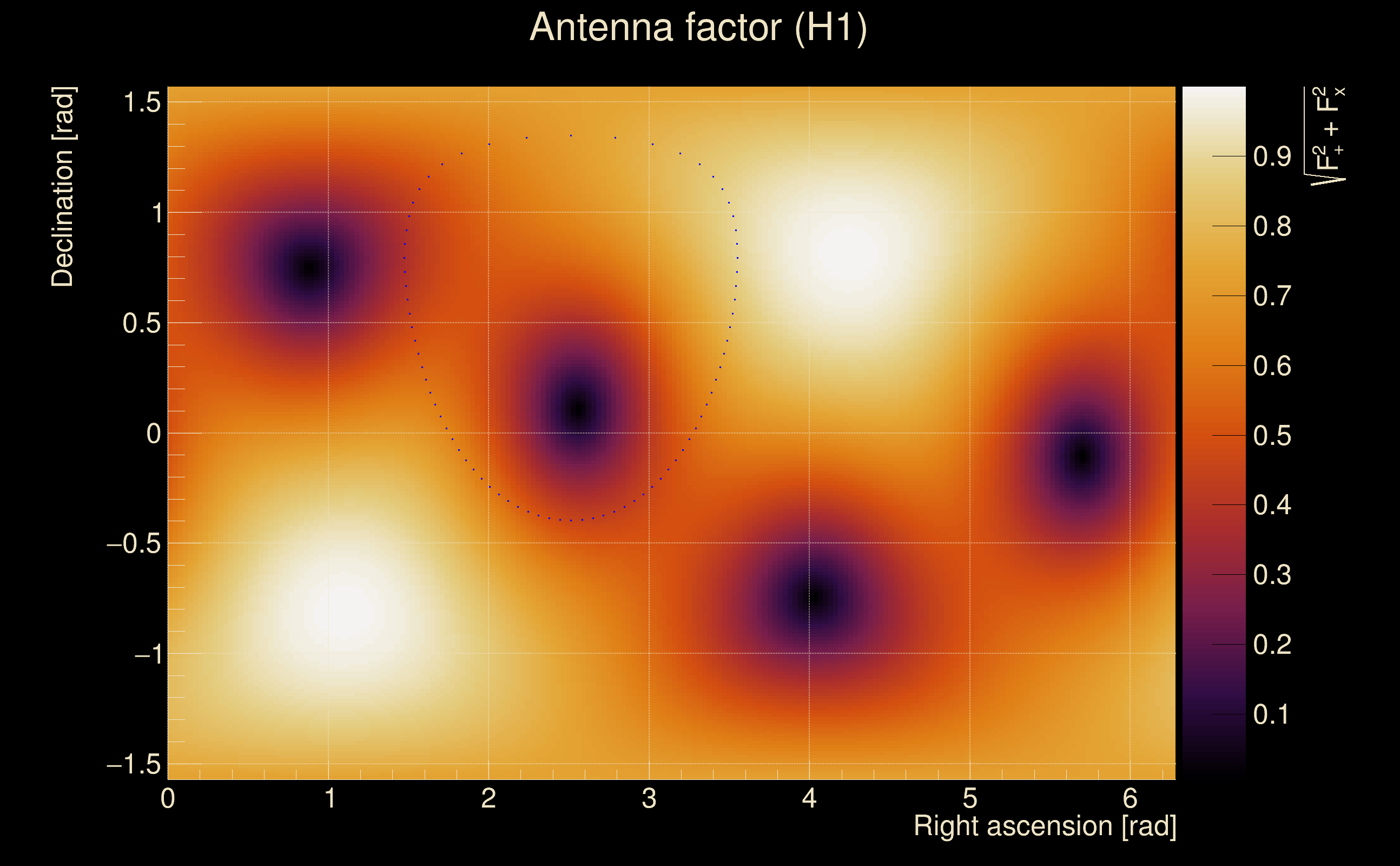

| Antenna factor probability: | 0.0073017 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 16 / 36, Q2: 42 / 70, Q3: 97 / 134, Q4: 193 / 258 |
| Maximum signal-to-noise ratio: | H1: 548.08, L1: 89.0746 |

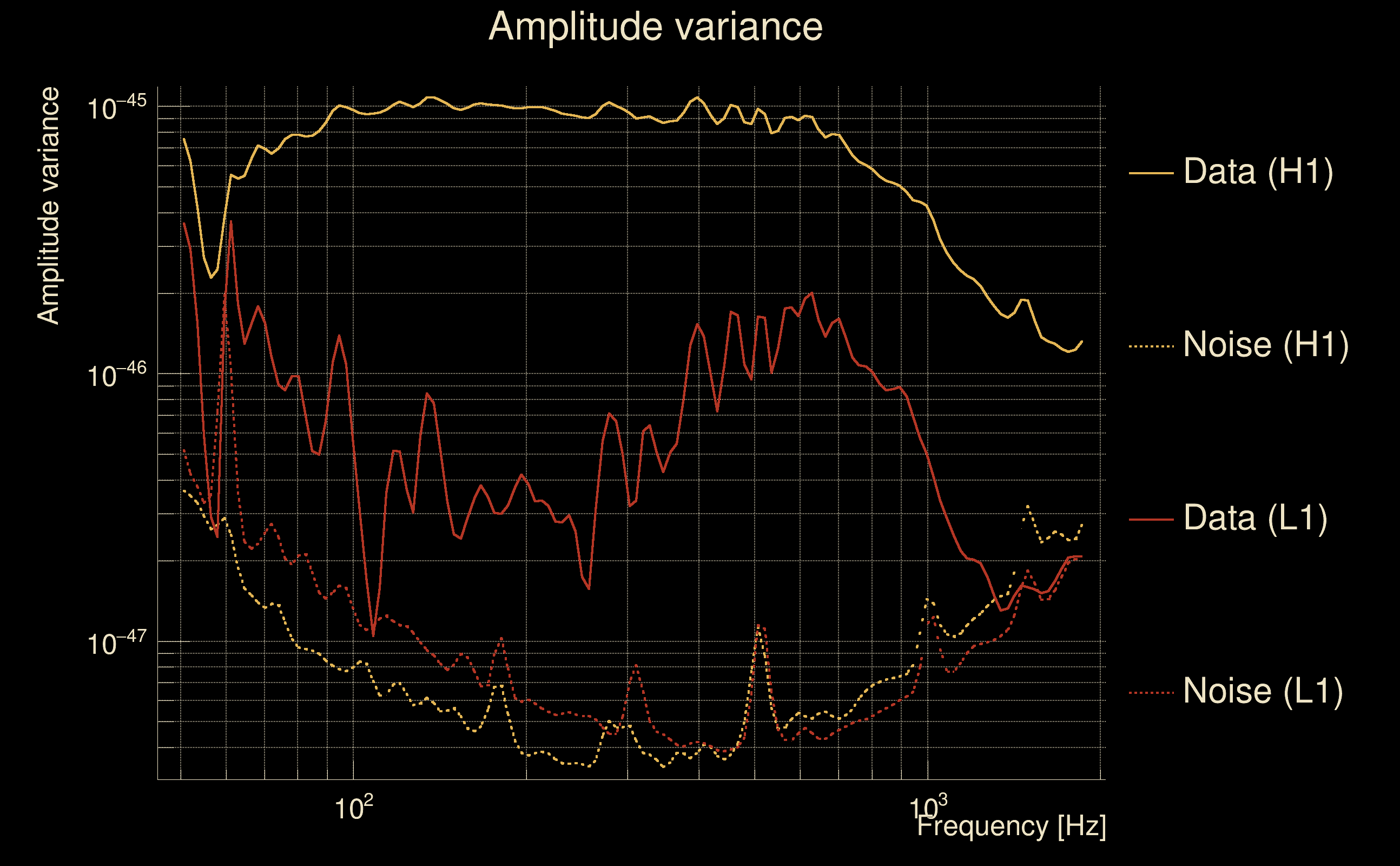

| SNR variance: | H1: 63.4168, L1: 0.618981 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

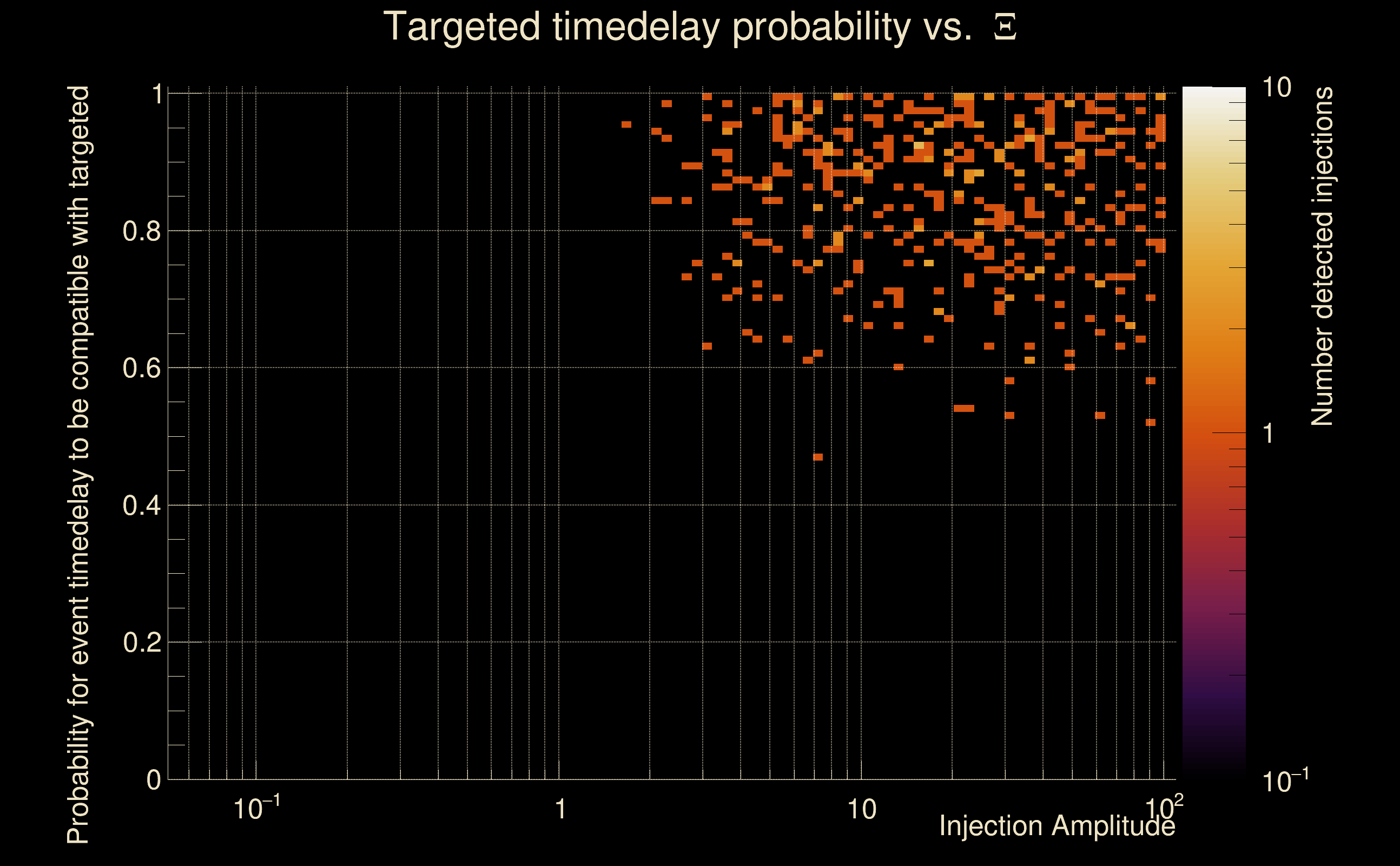

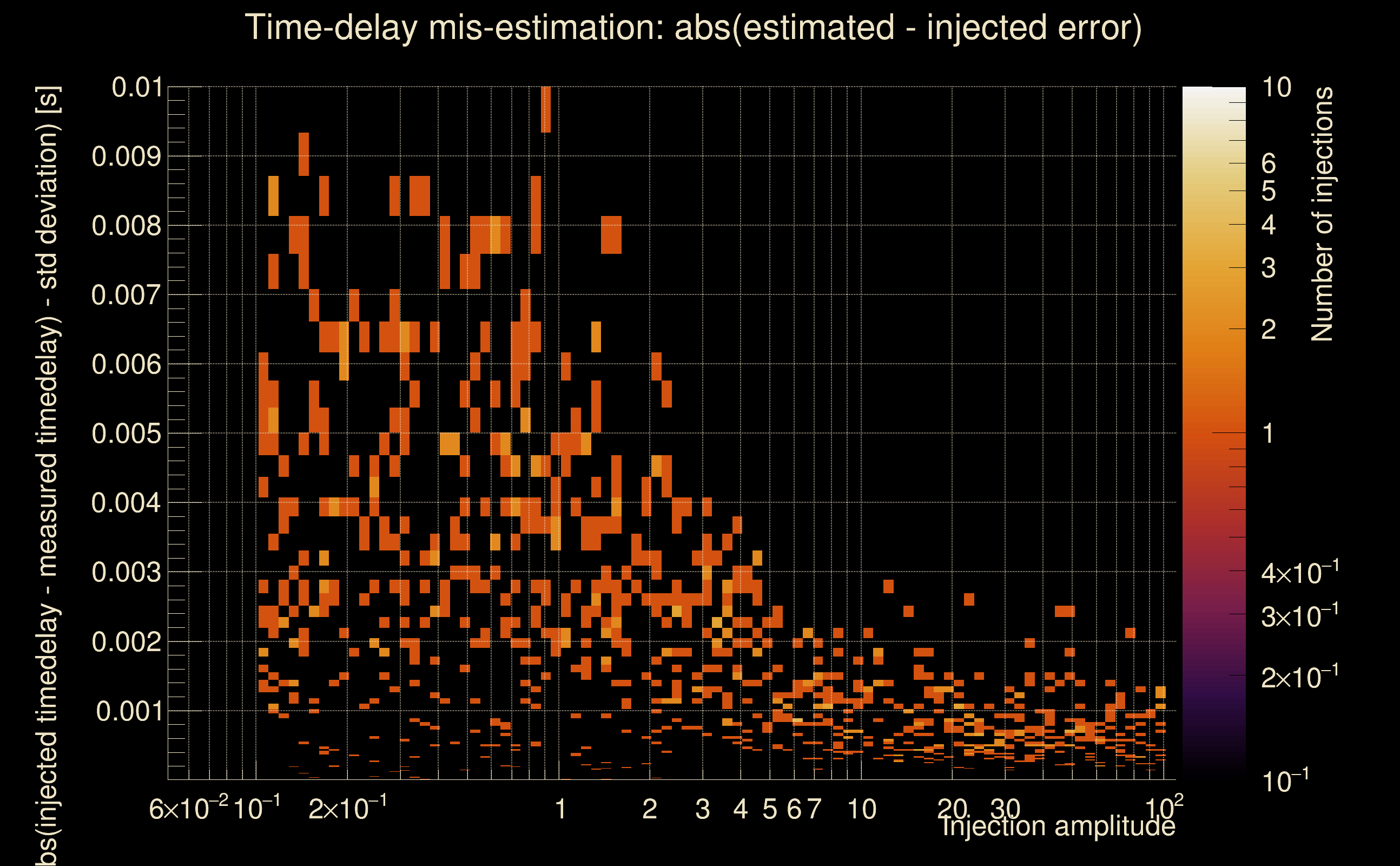

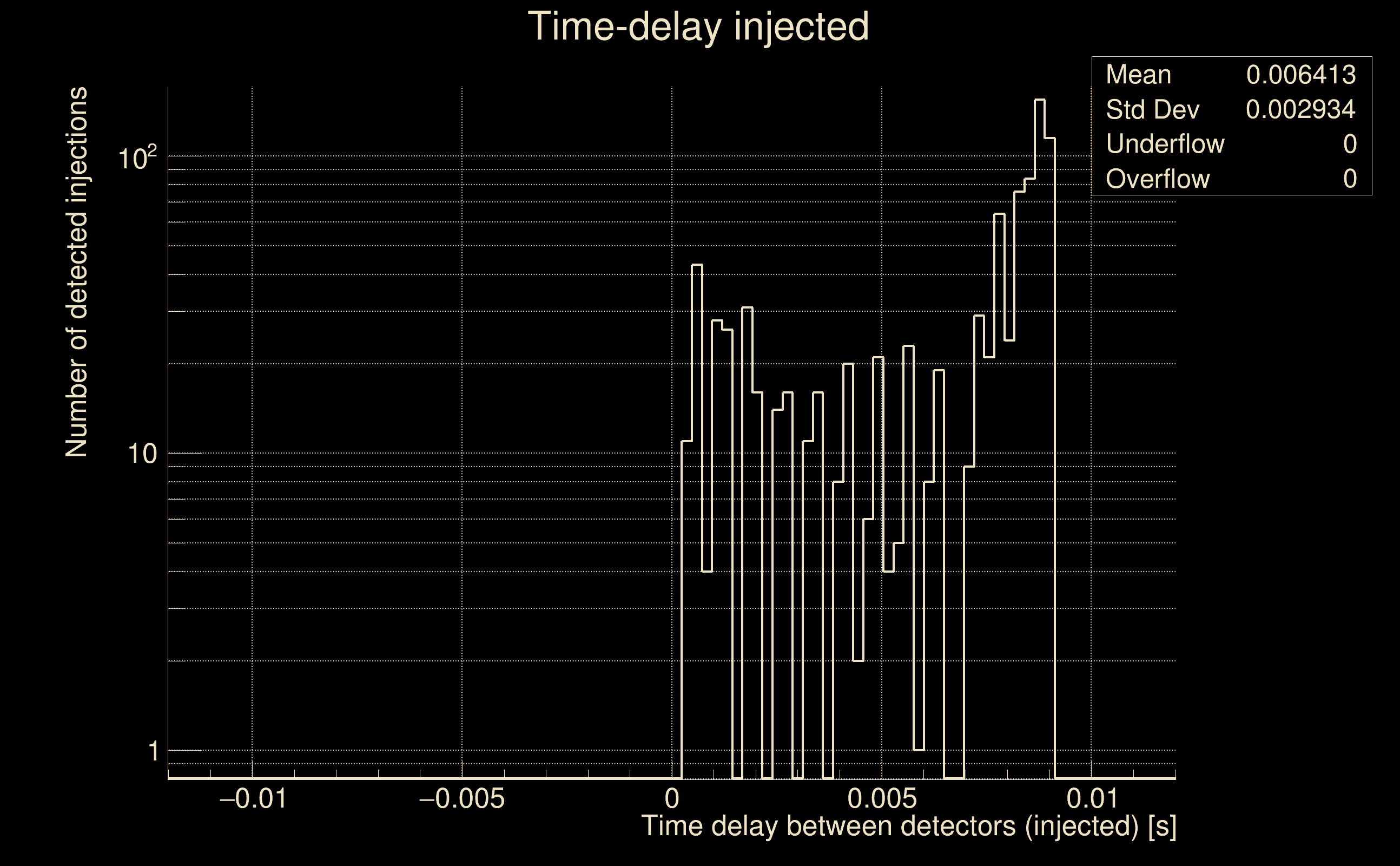

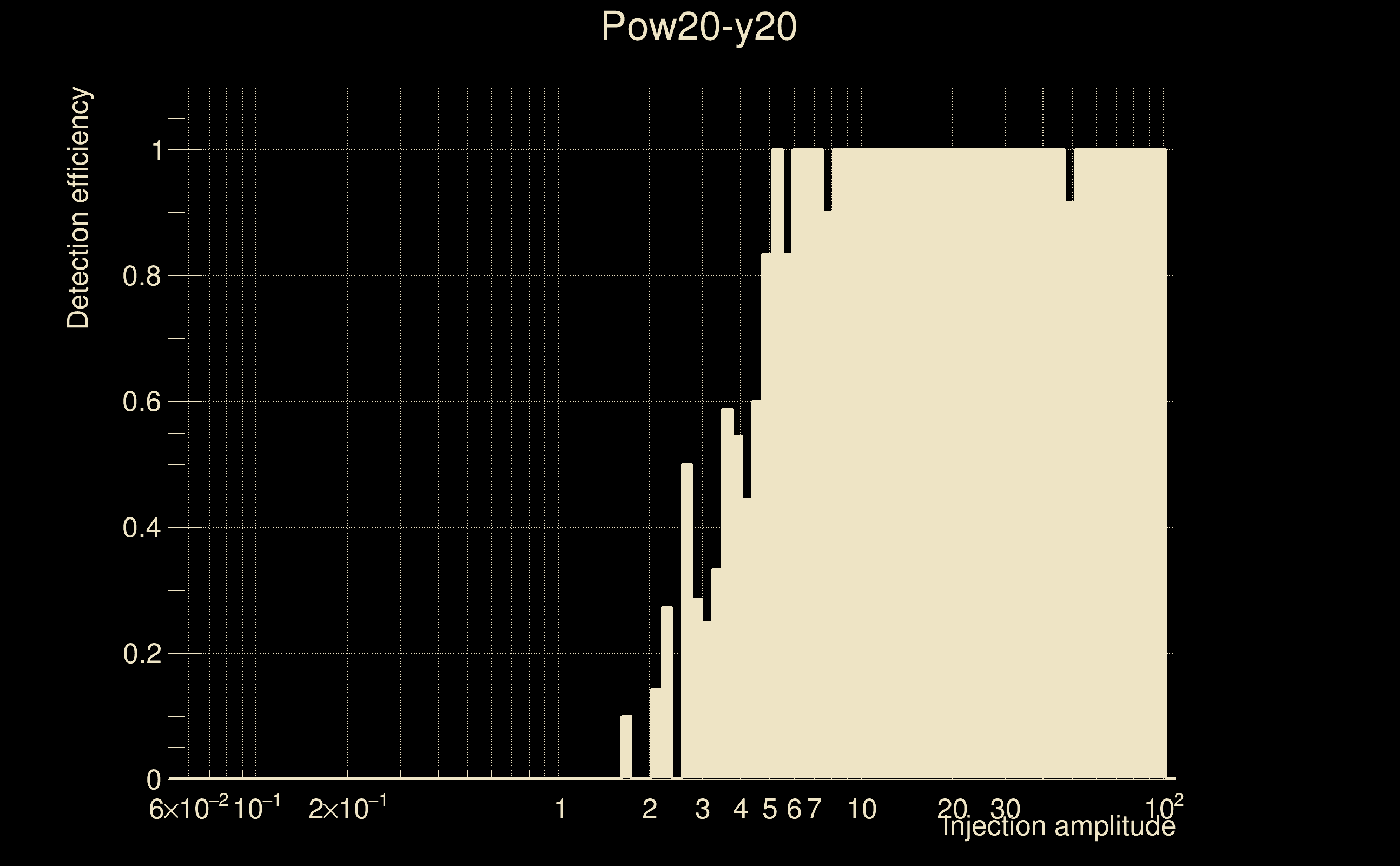

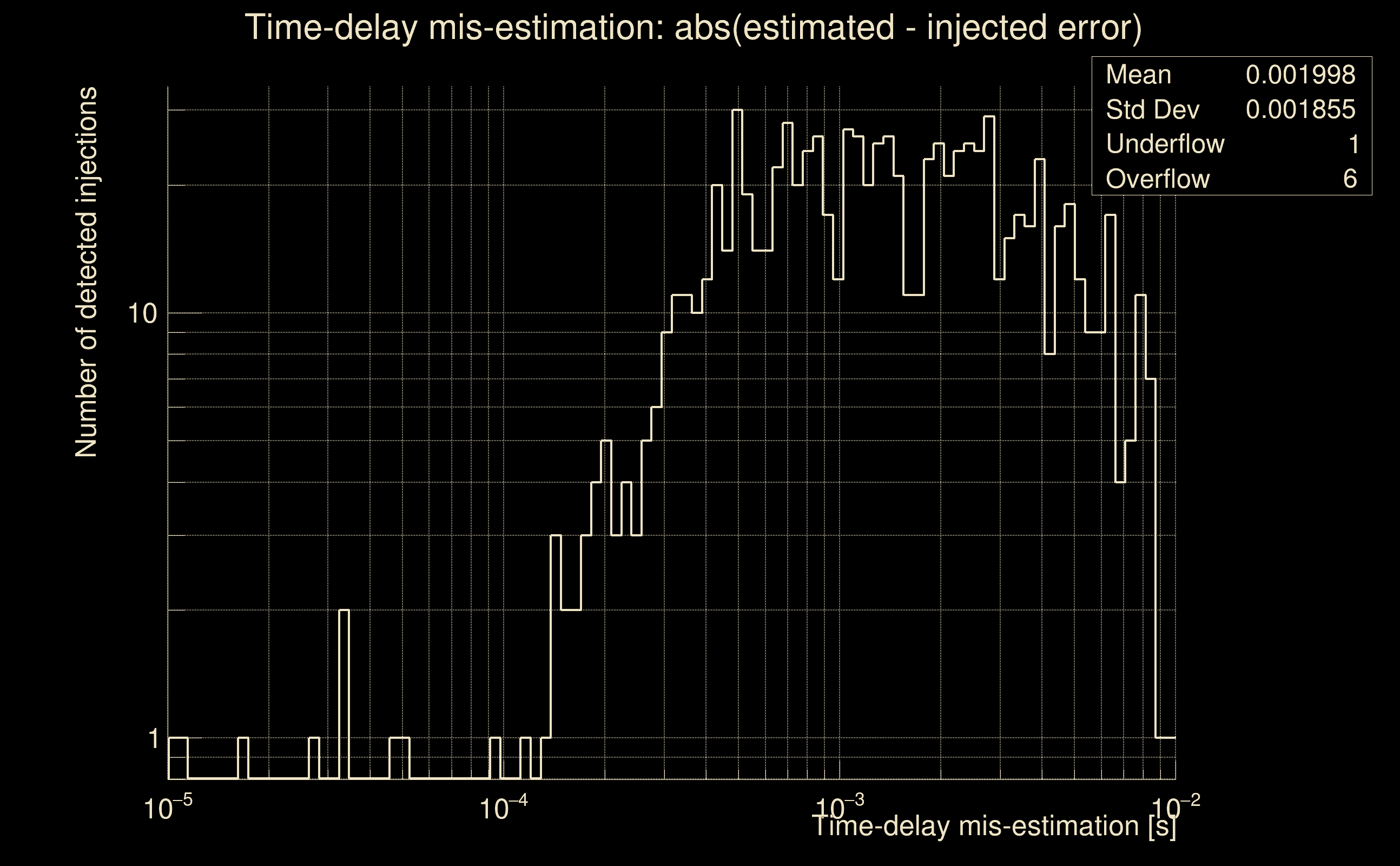

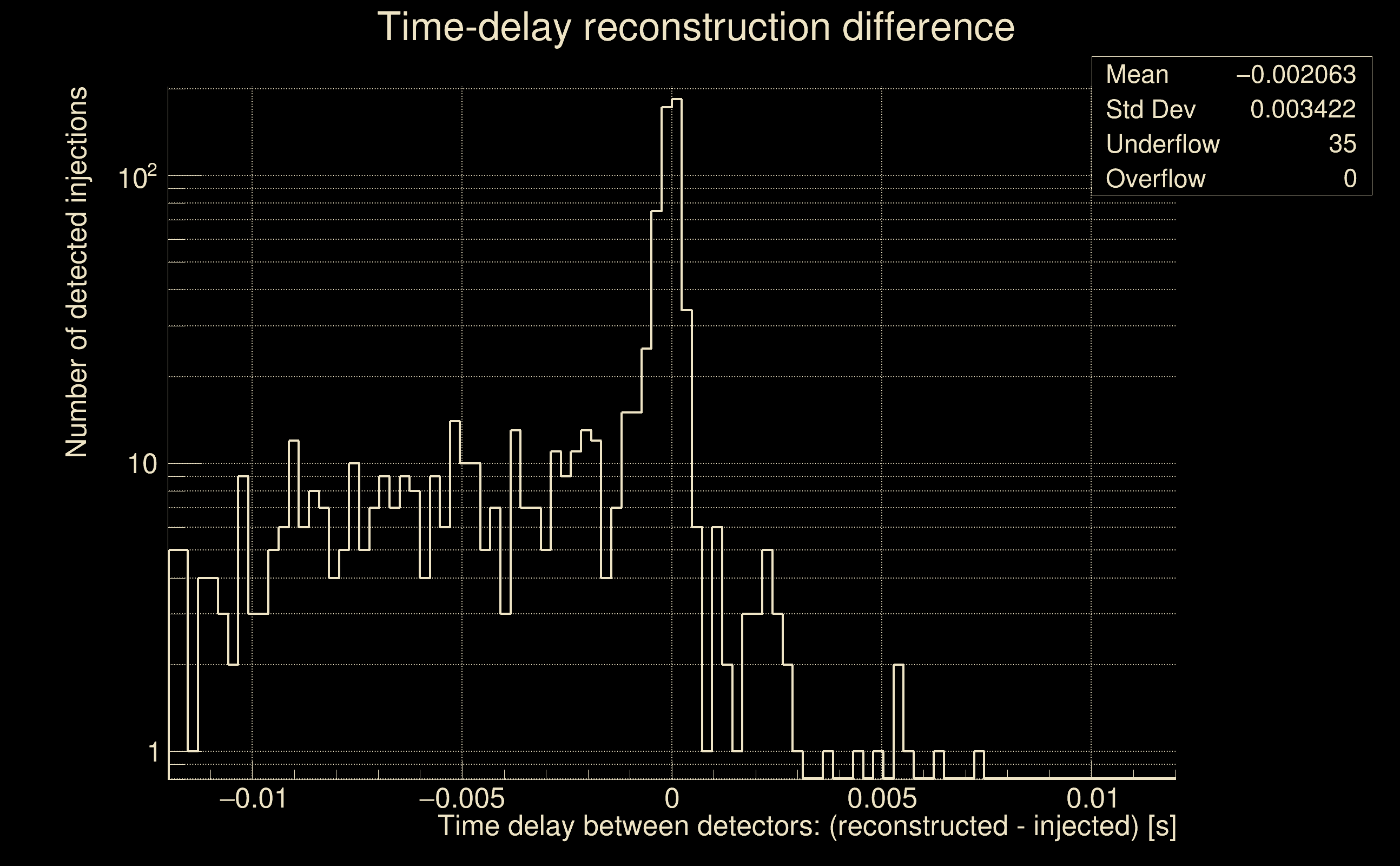

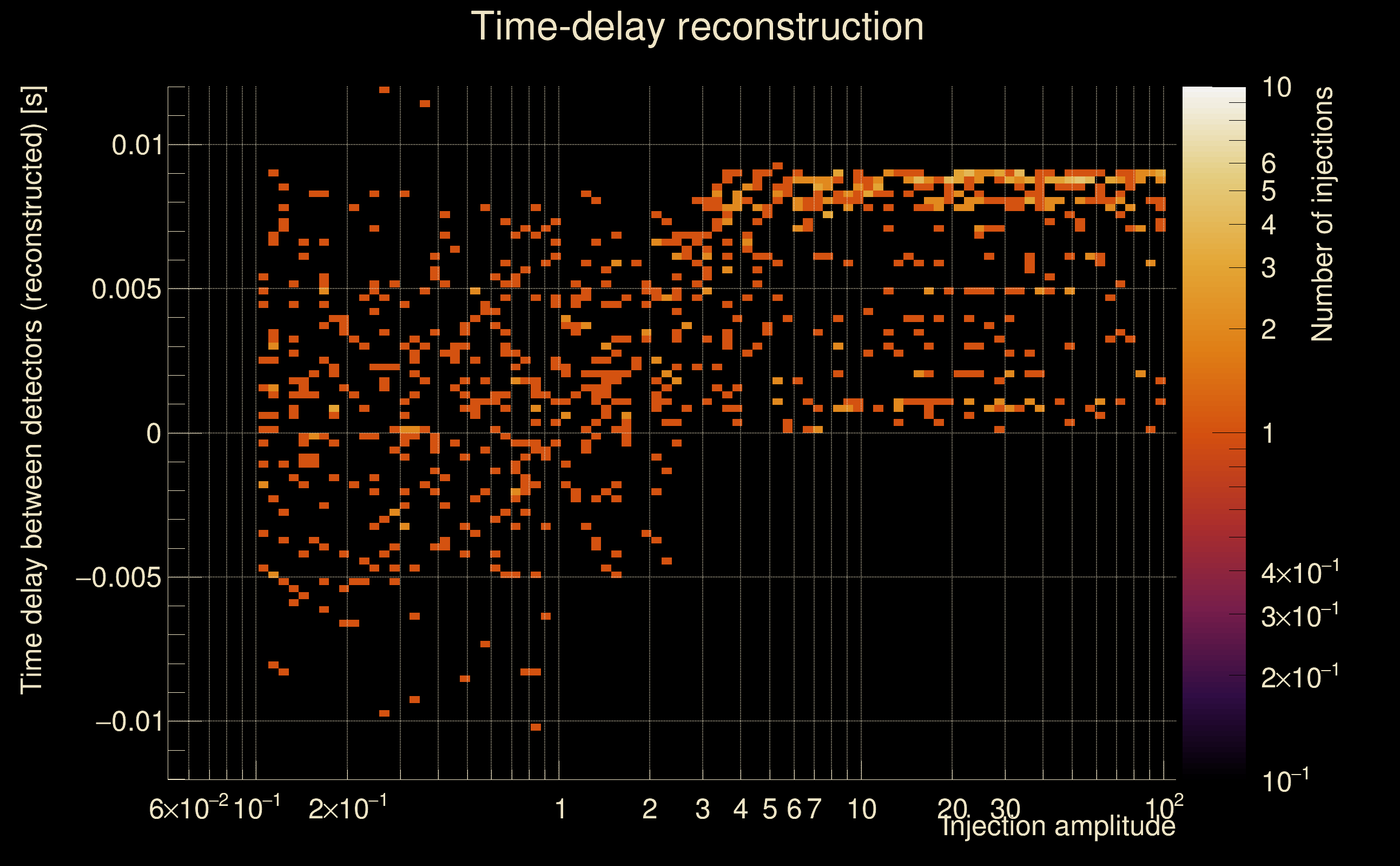

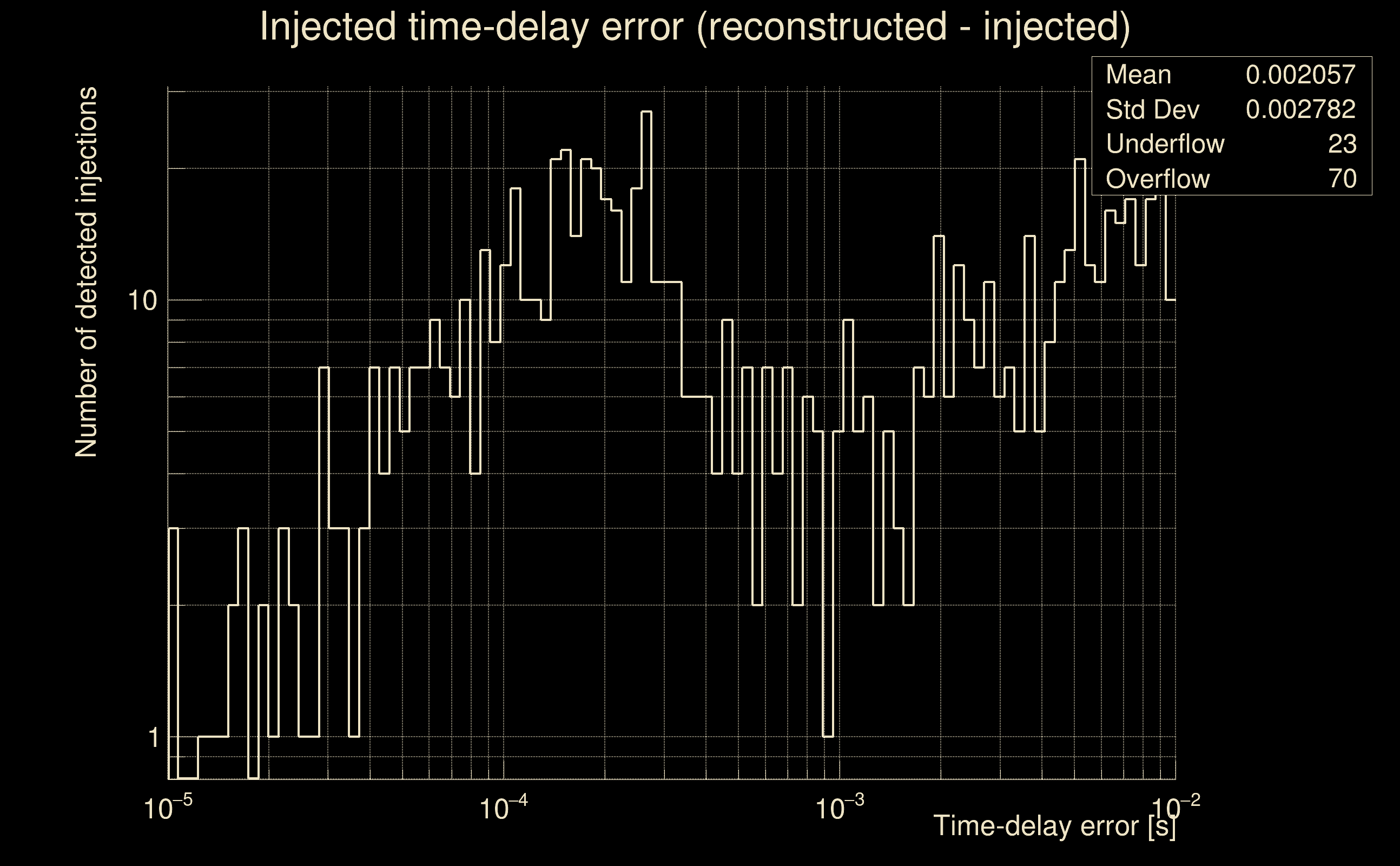

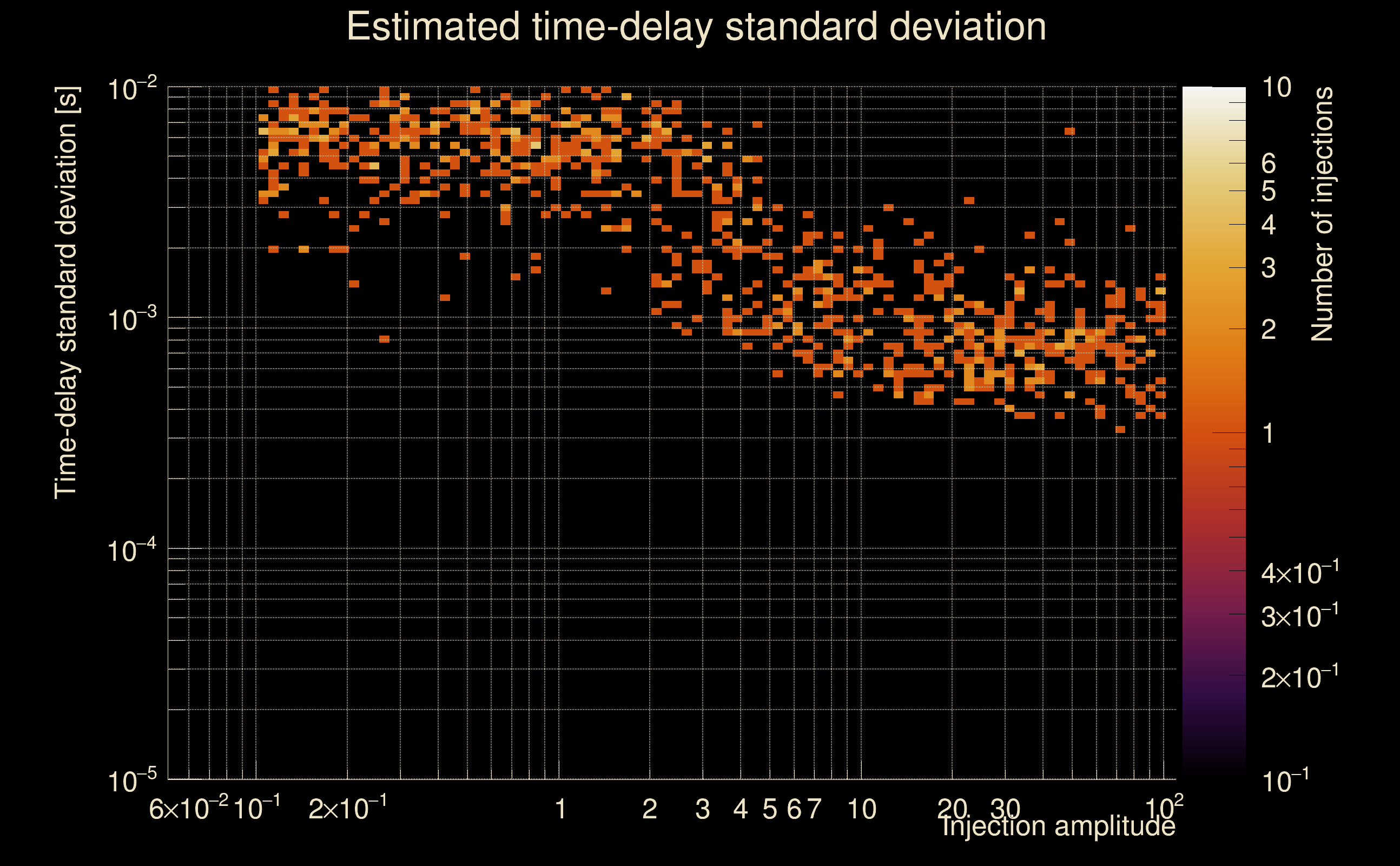

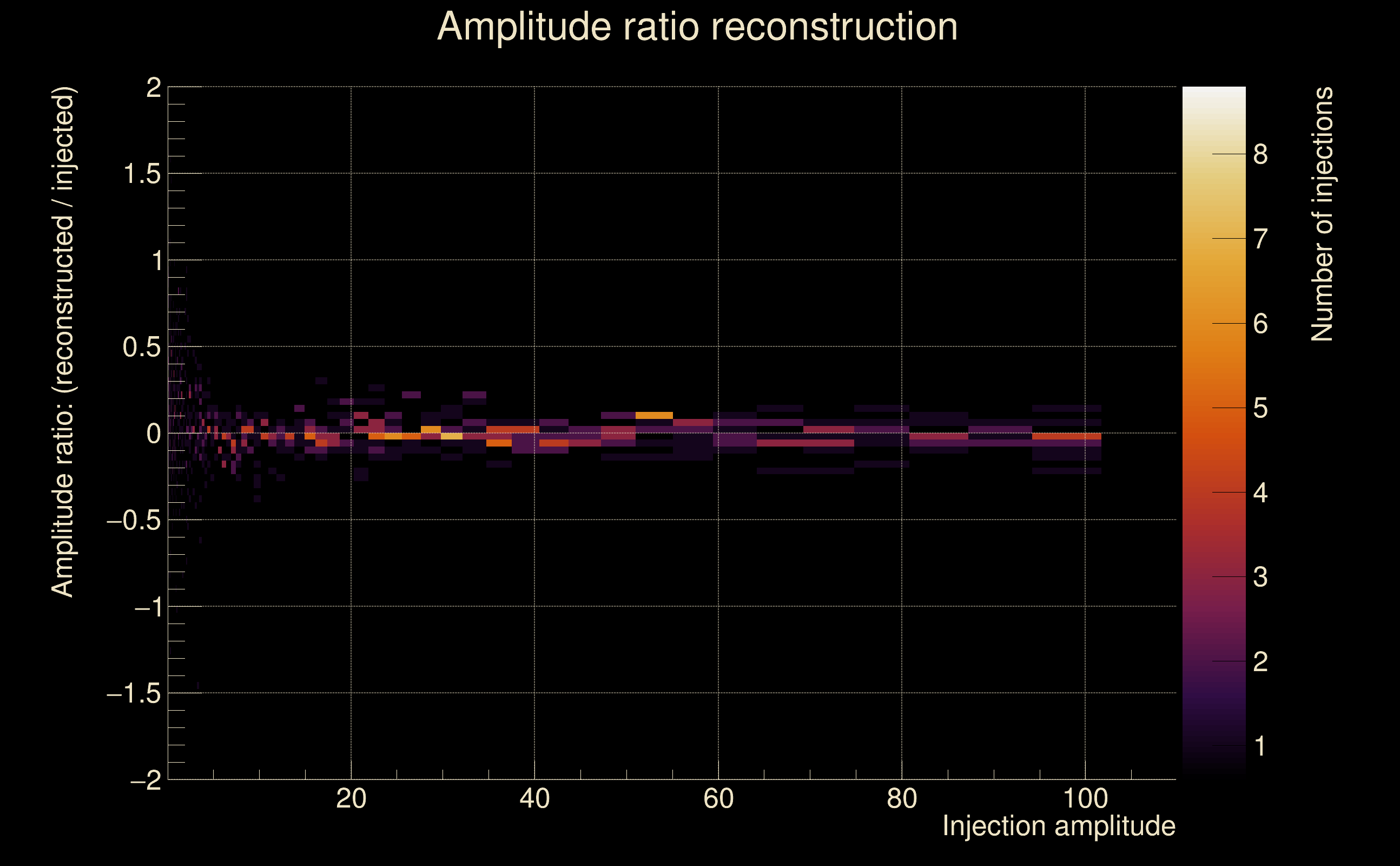

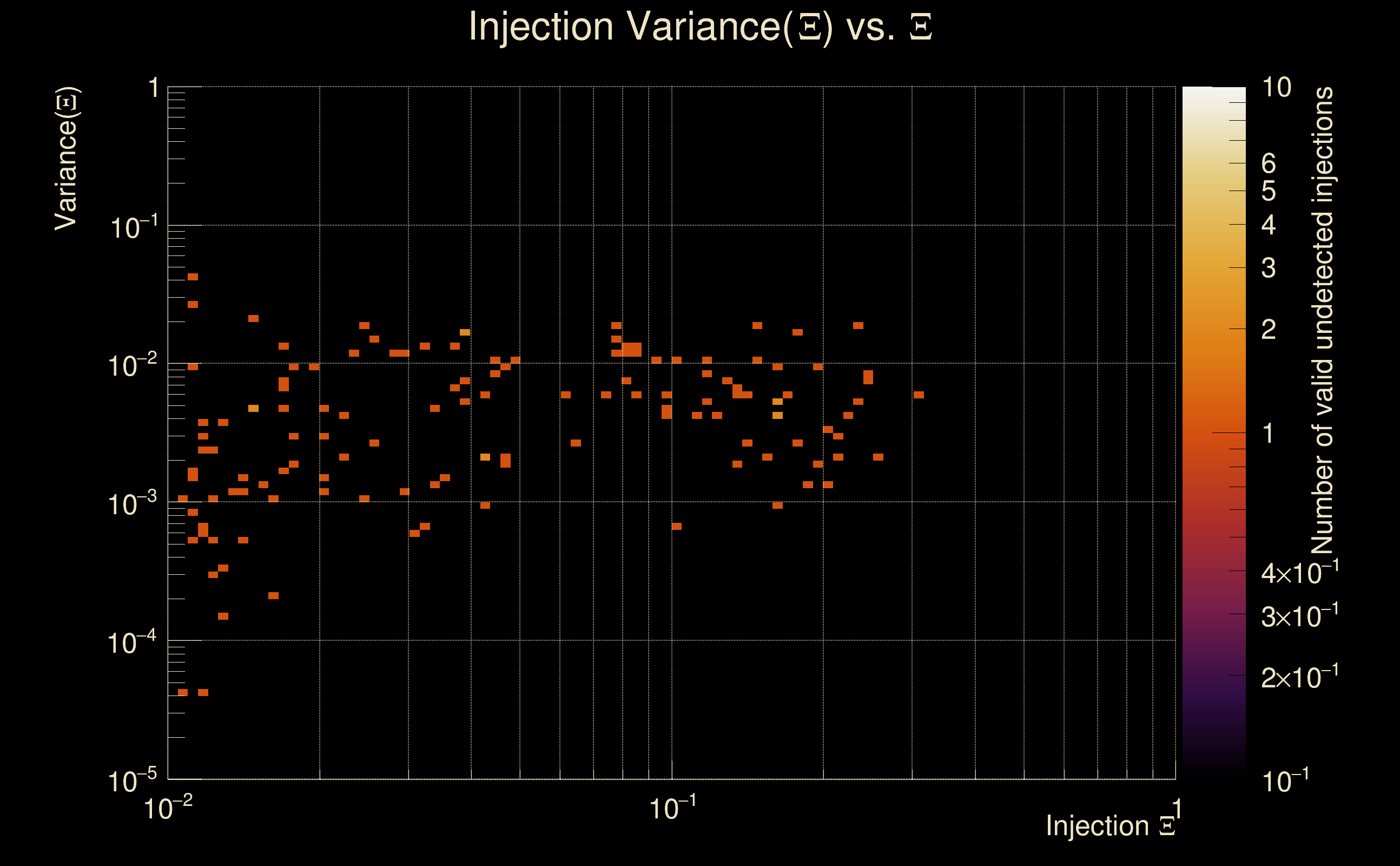

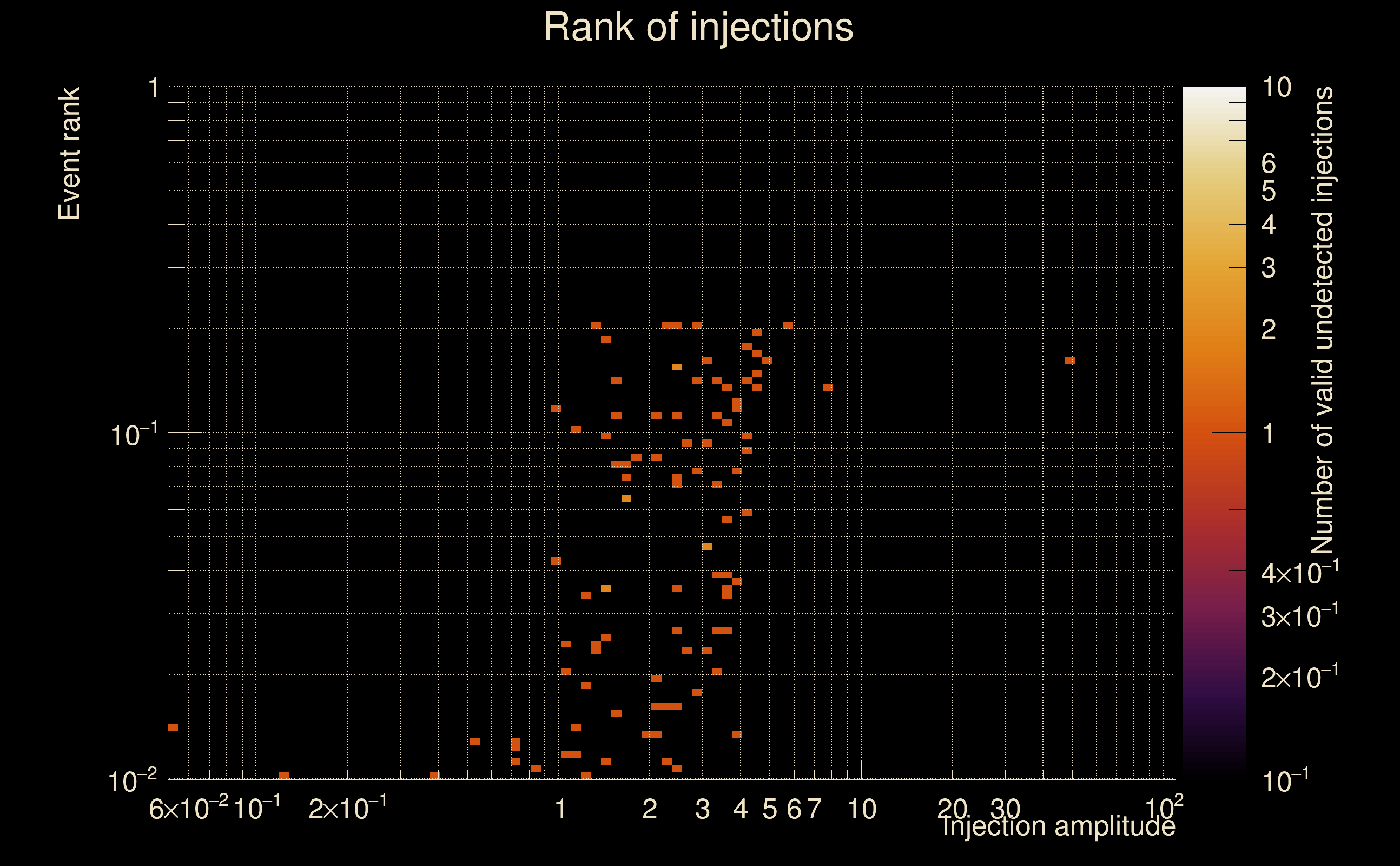

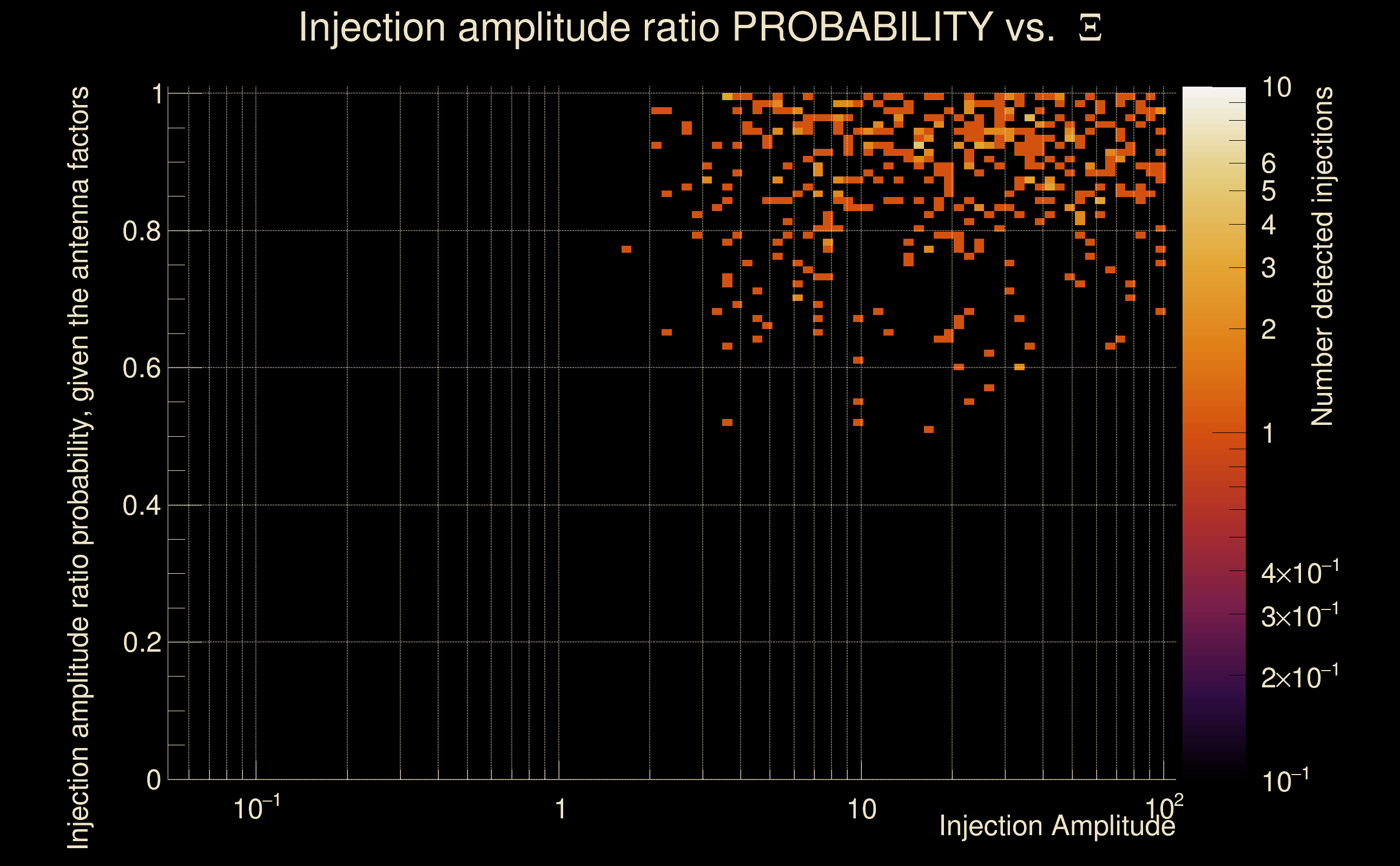

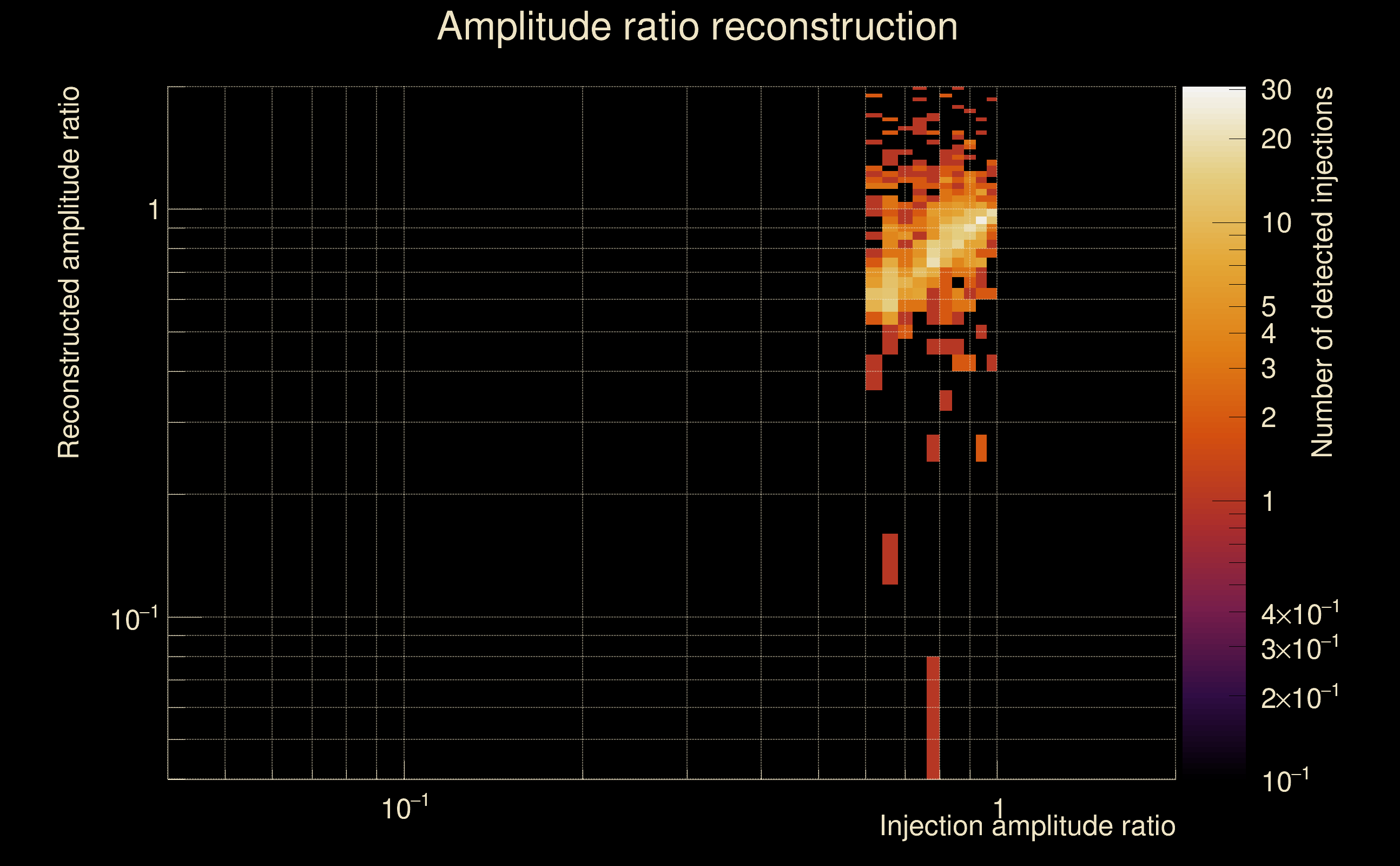

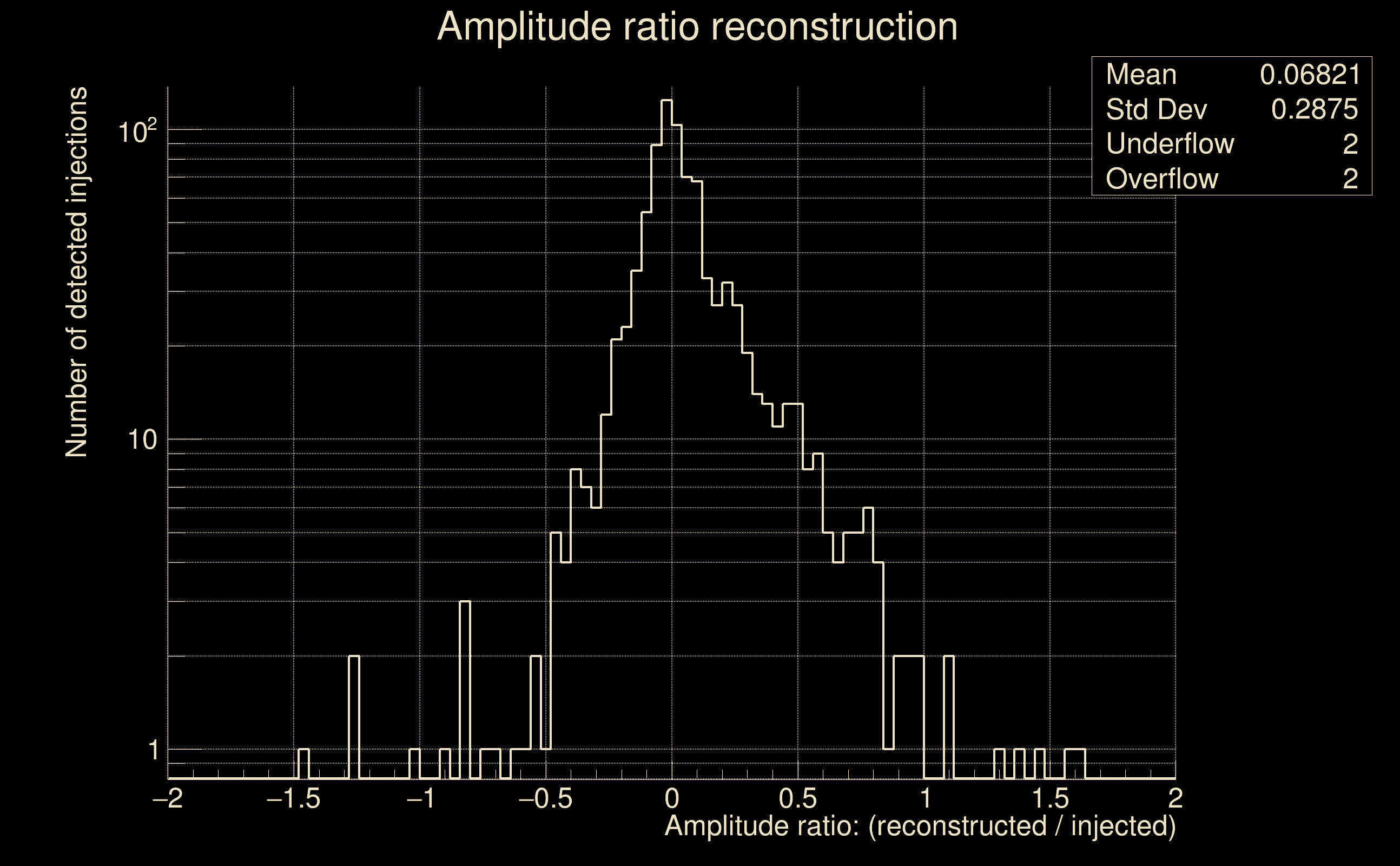

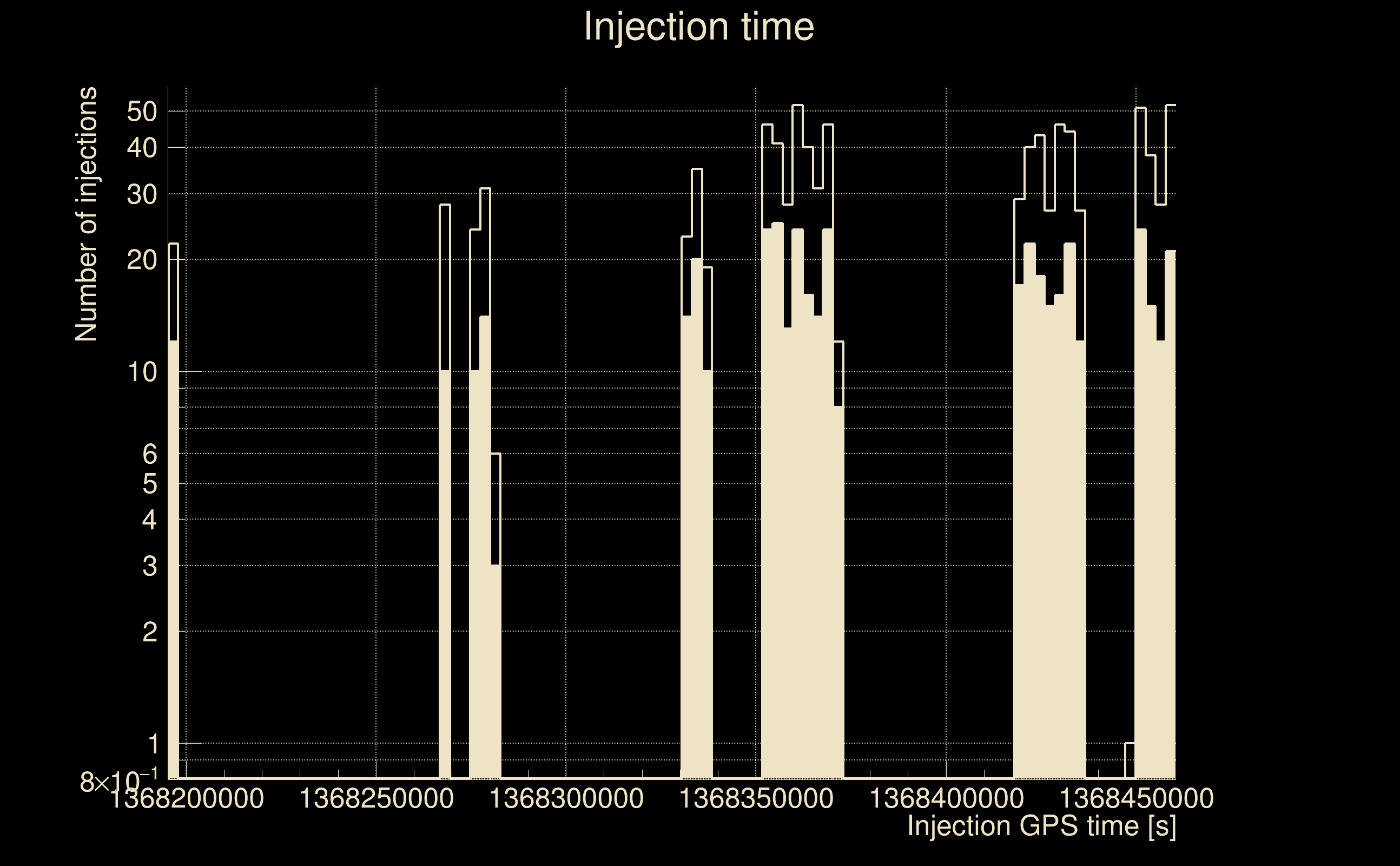

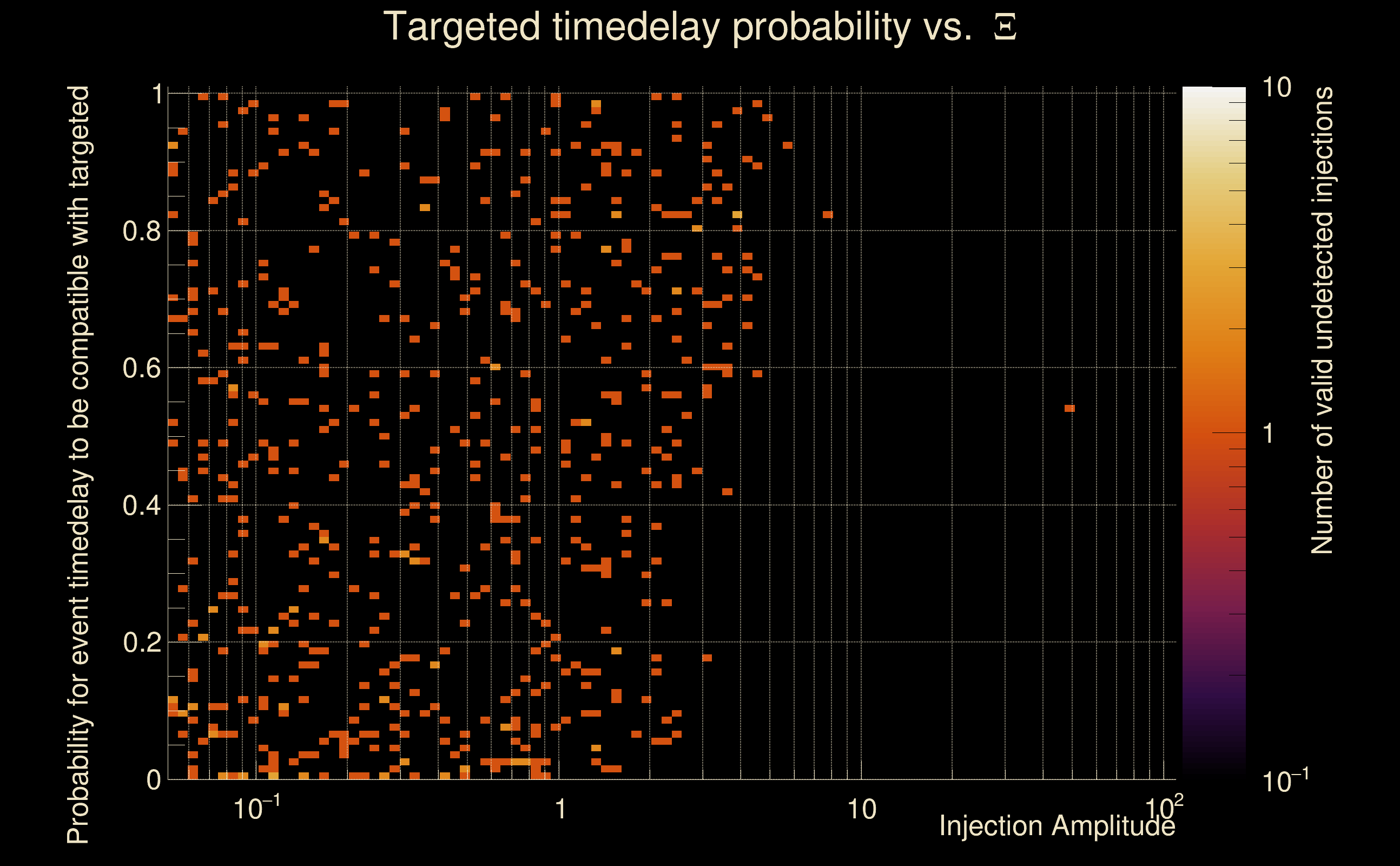

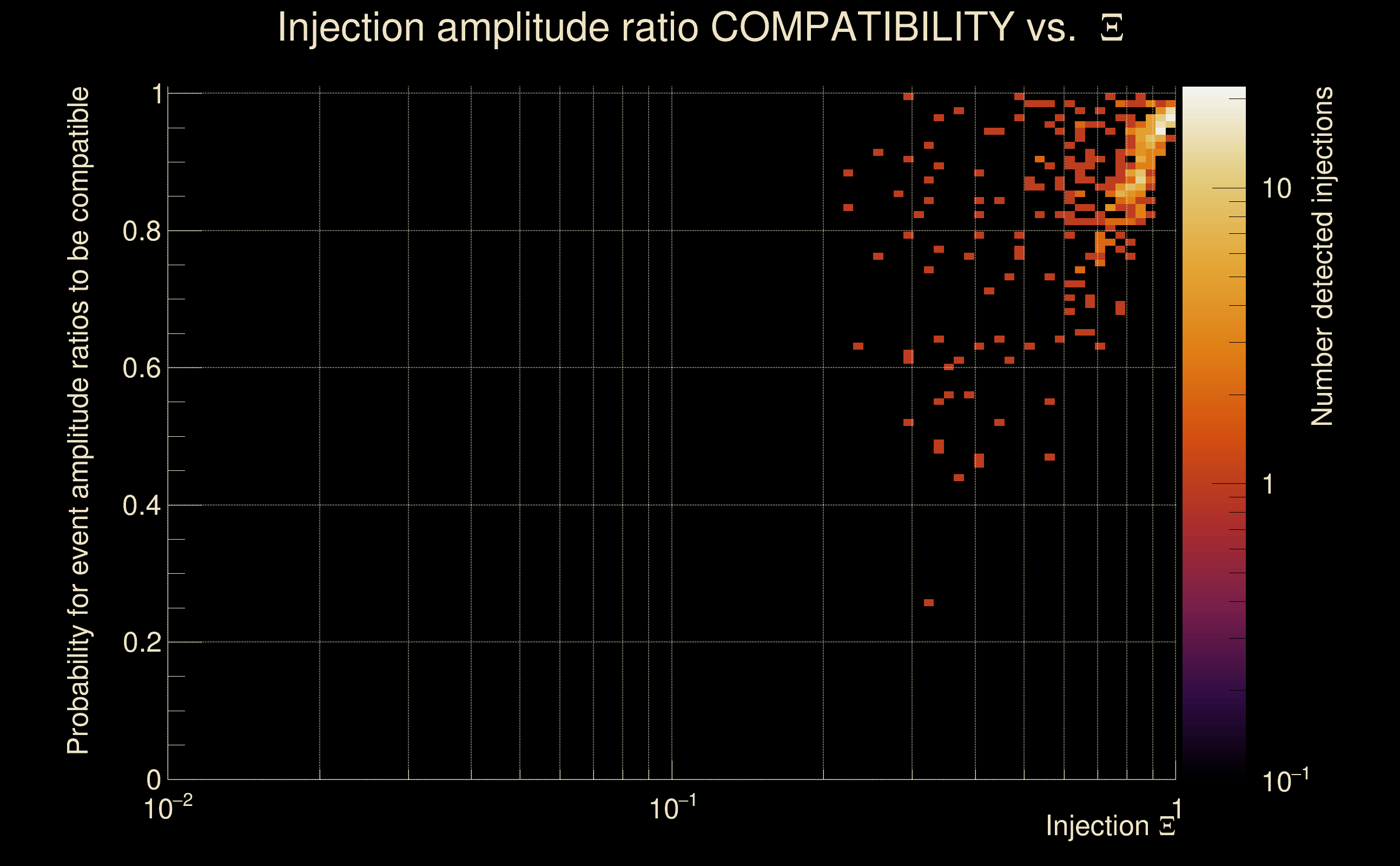

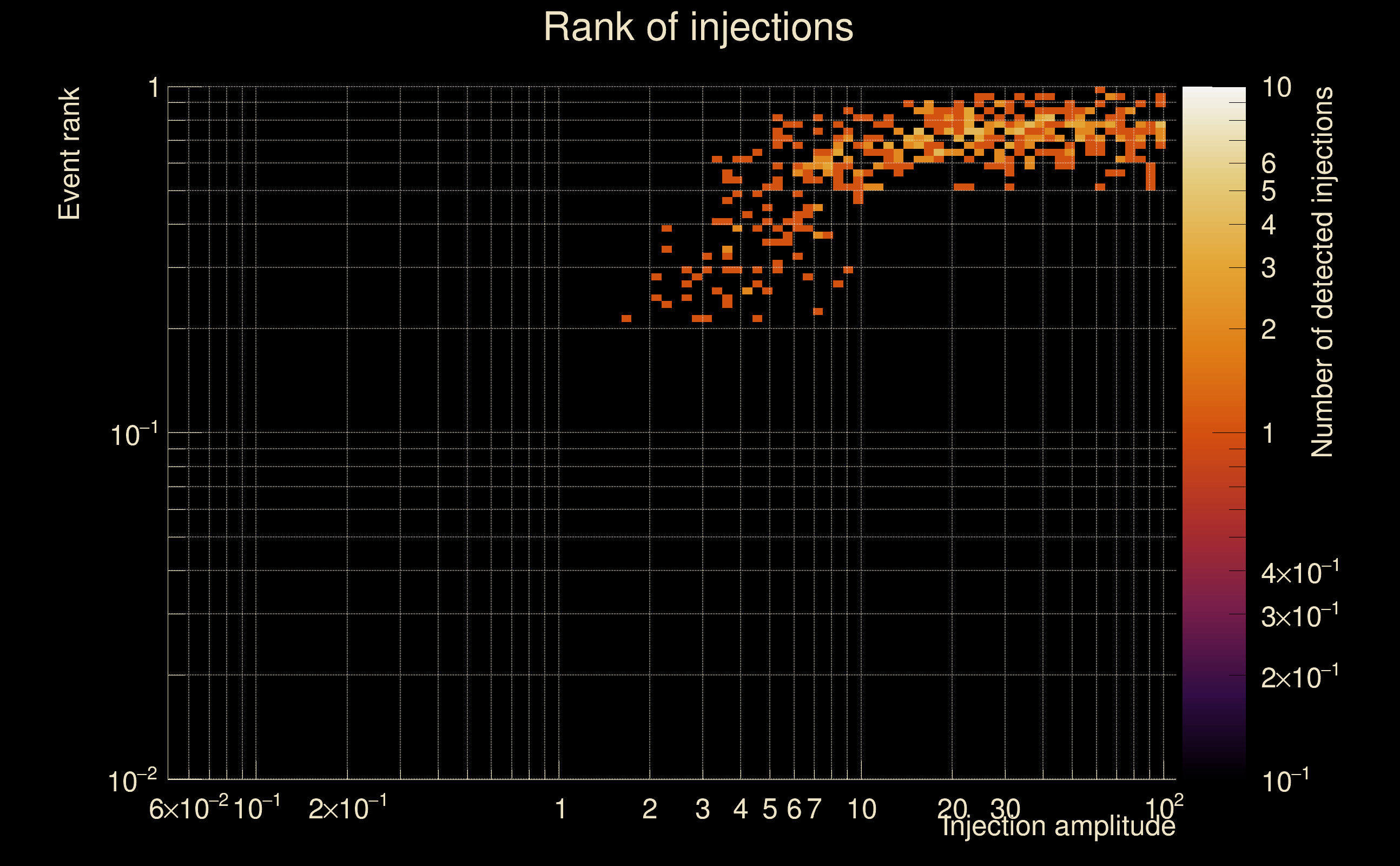

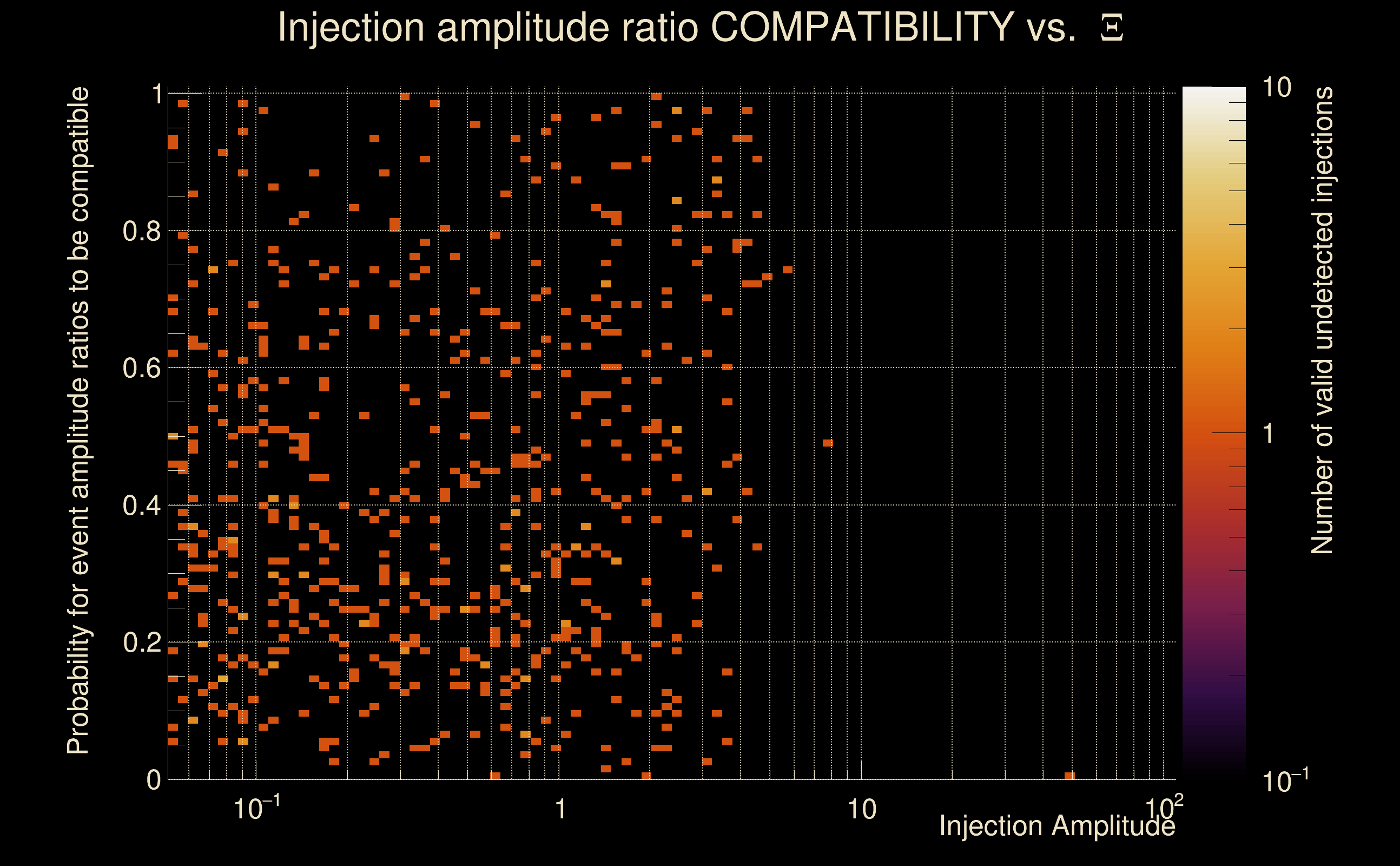

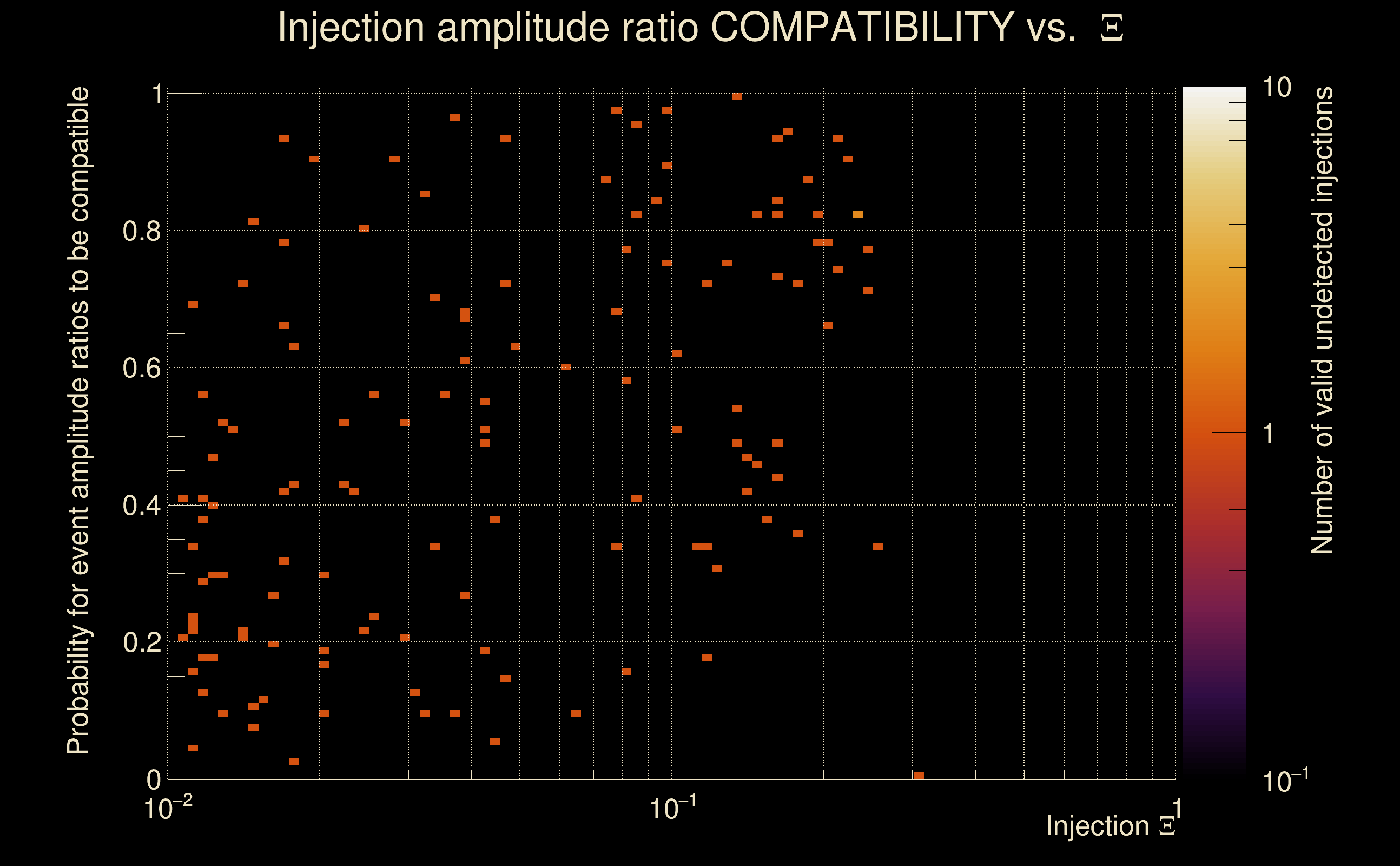

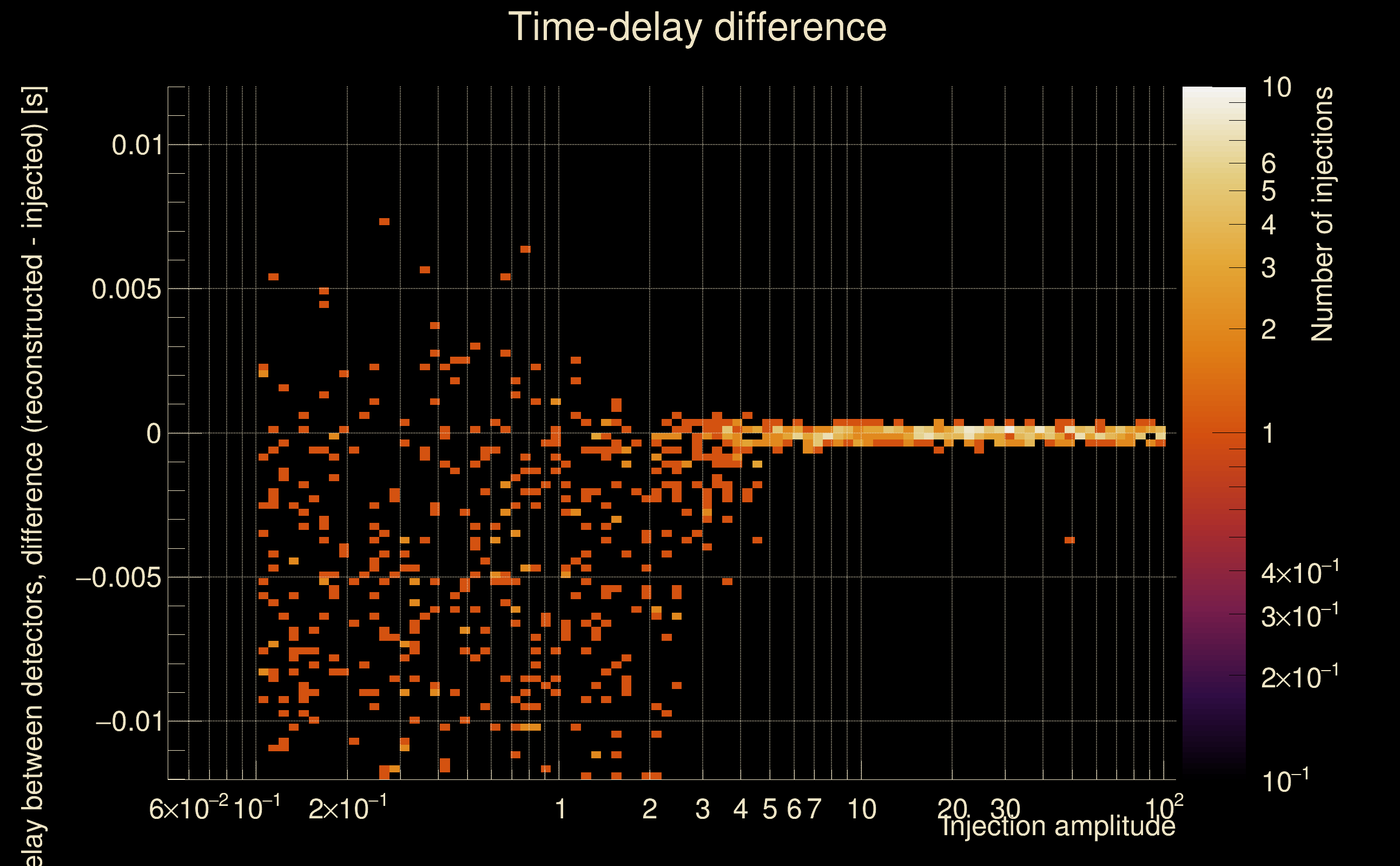

| Number of injections (total/valid/detected): | 1042 / 910 / 435 |
| List of missed injections: | ./Pow20-y20_missed.txt |
| Injection amplitude at 90% detection efficiency: | 5.06432 |
| Injection amplitude at 50% detection efficiency: | 4.32931 |
| Injection amplitude at 10% detection efficiency: | 2.49908 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

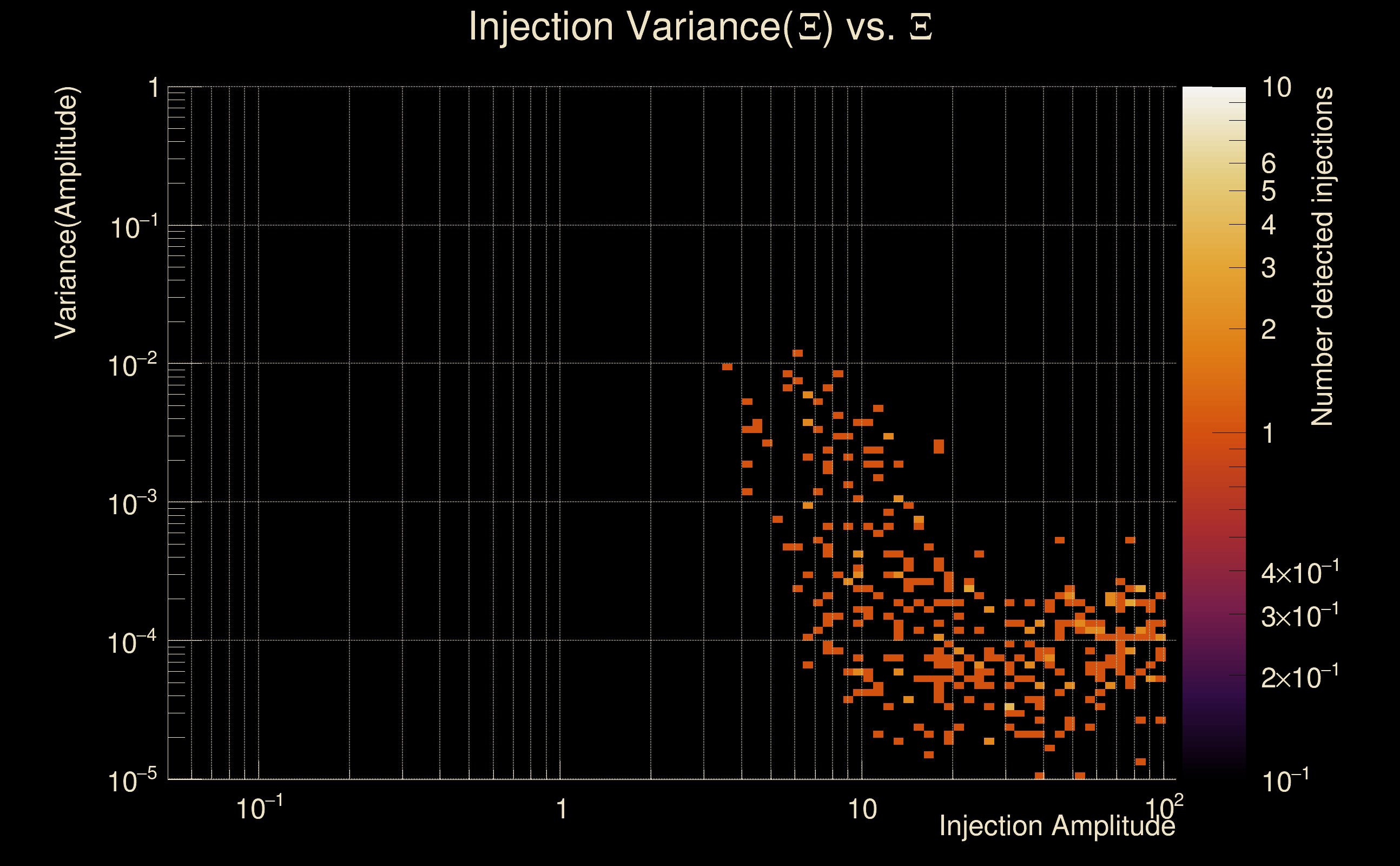

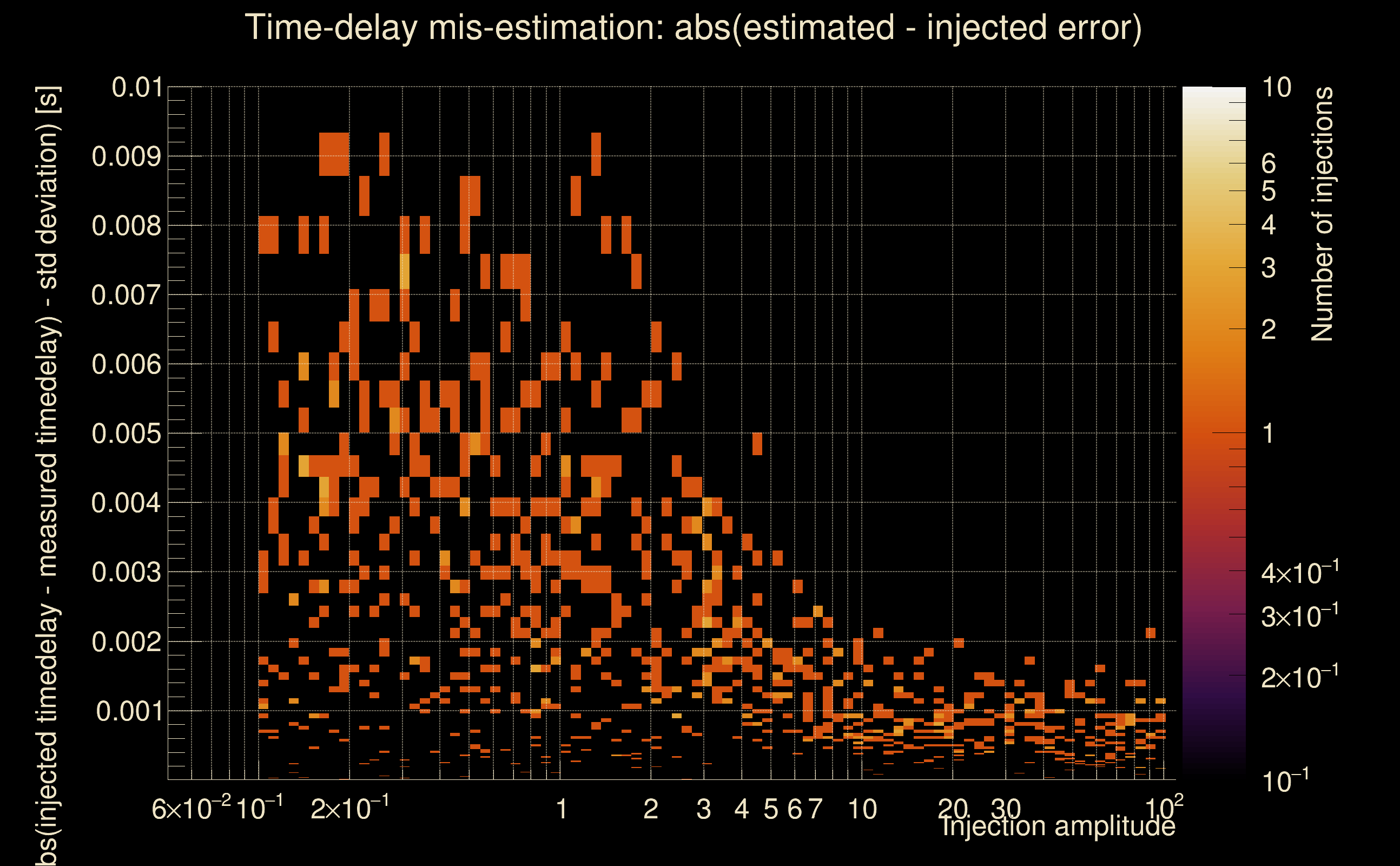

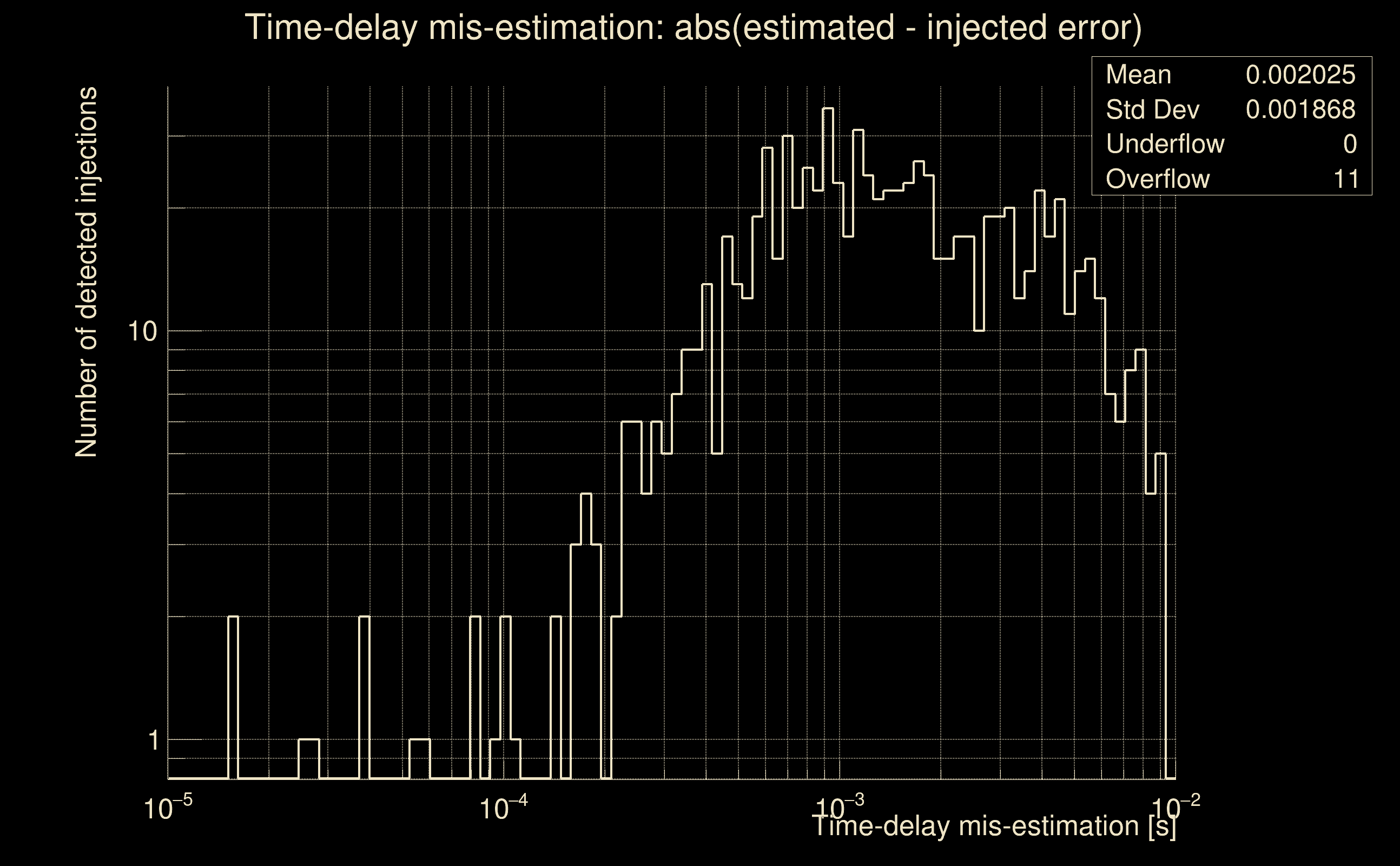

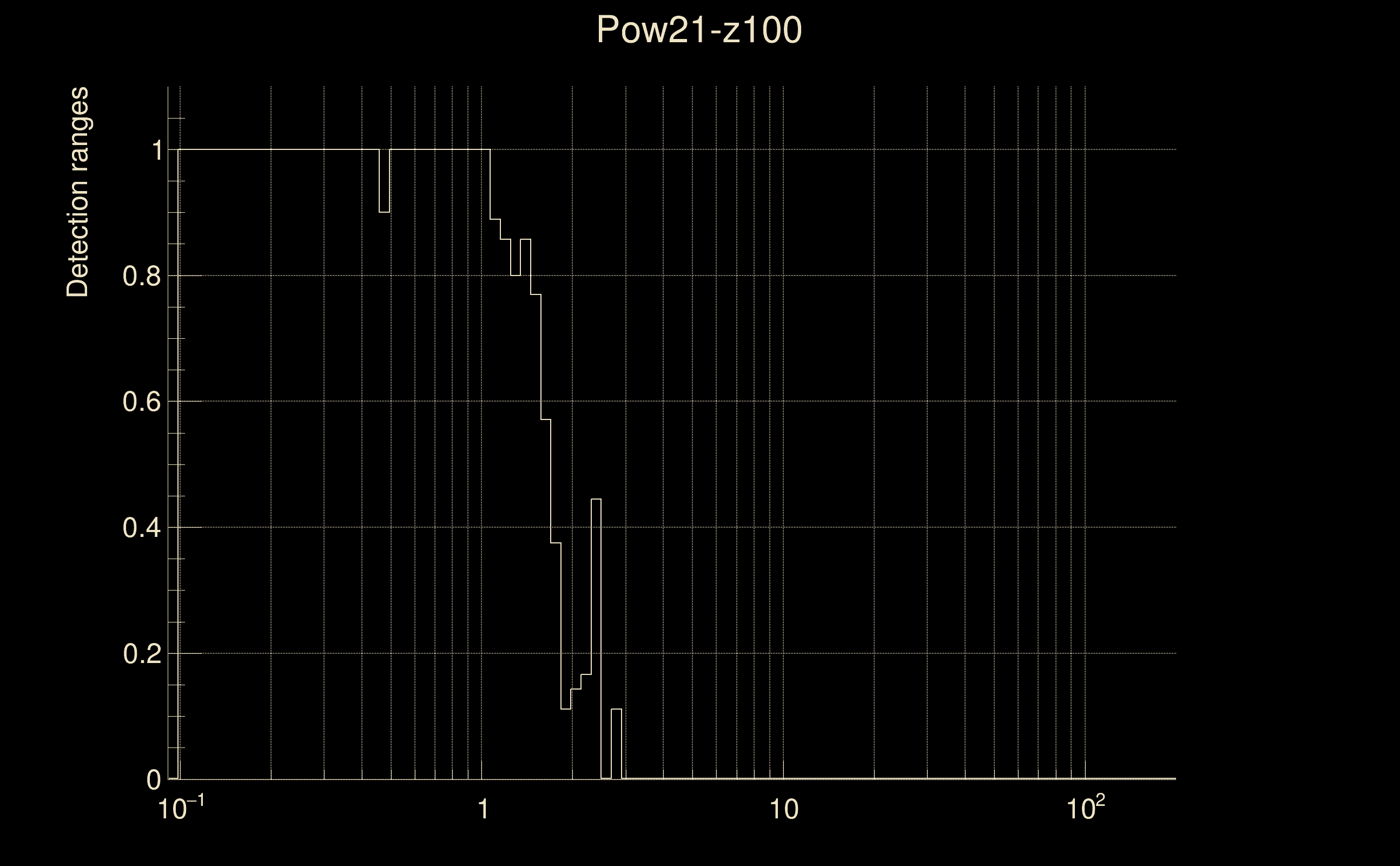

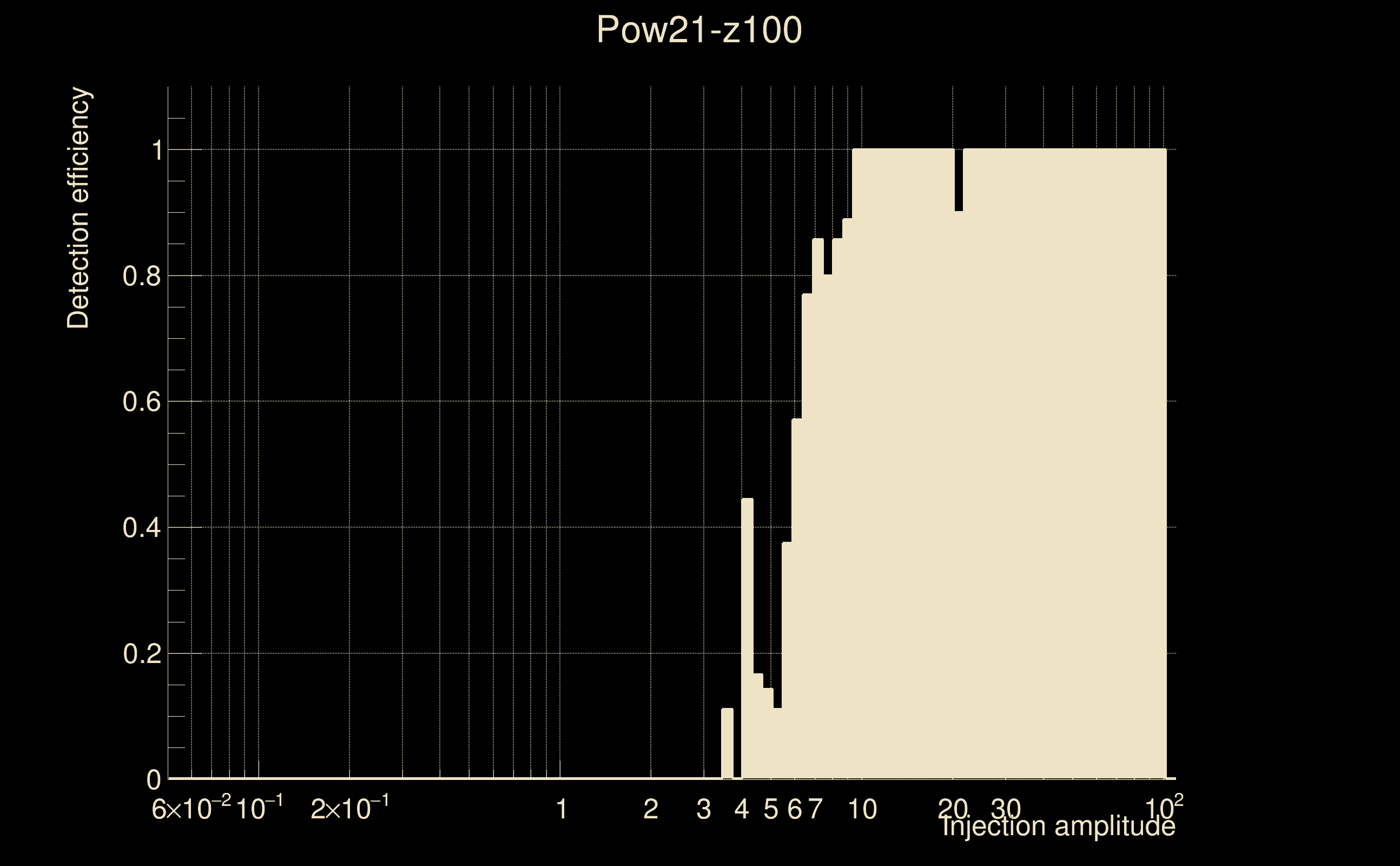

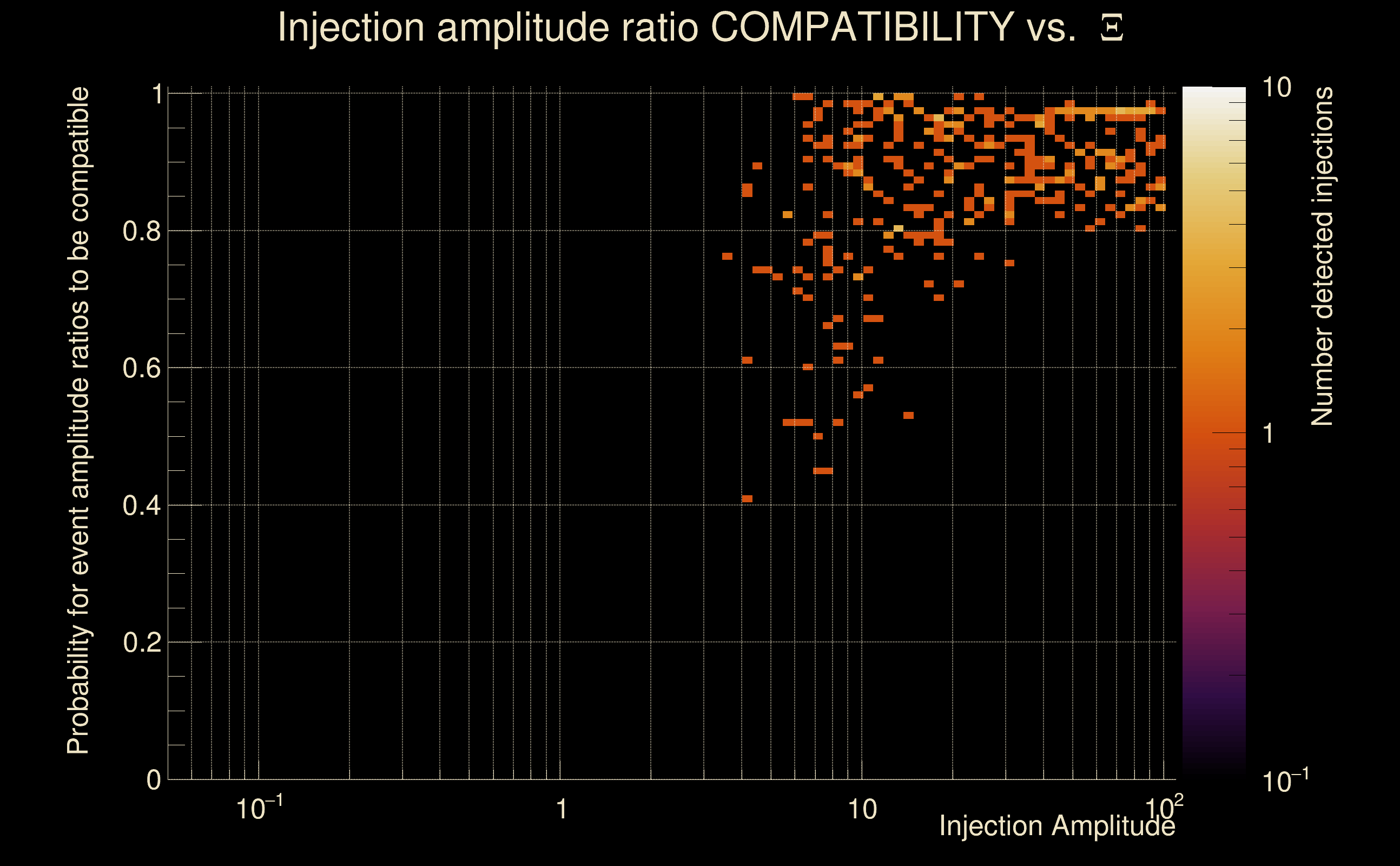

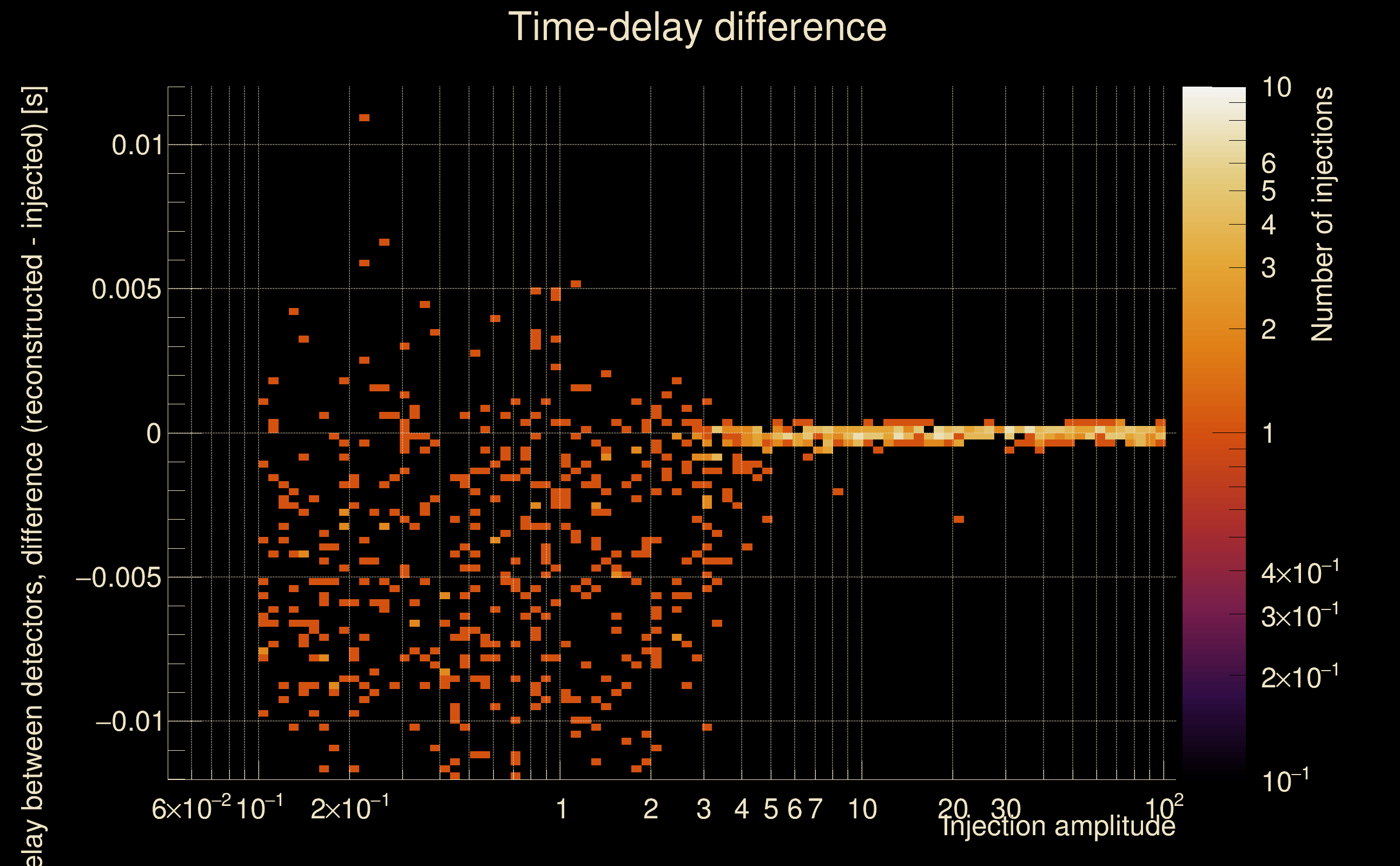

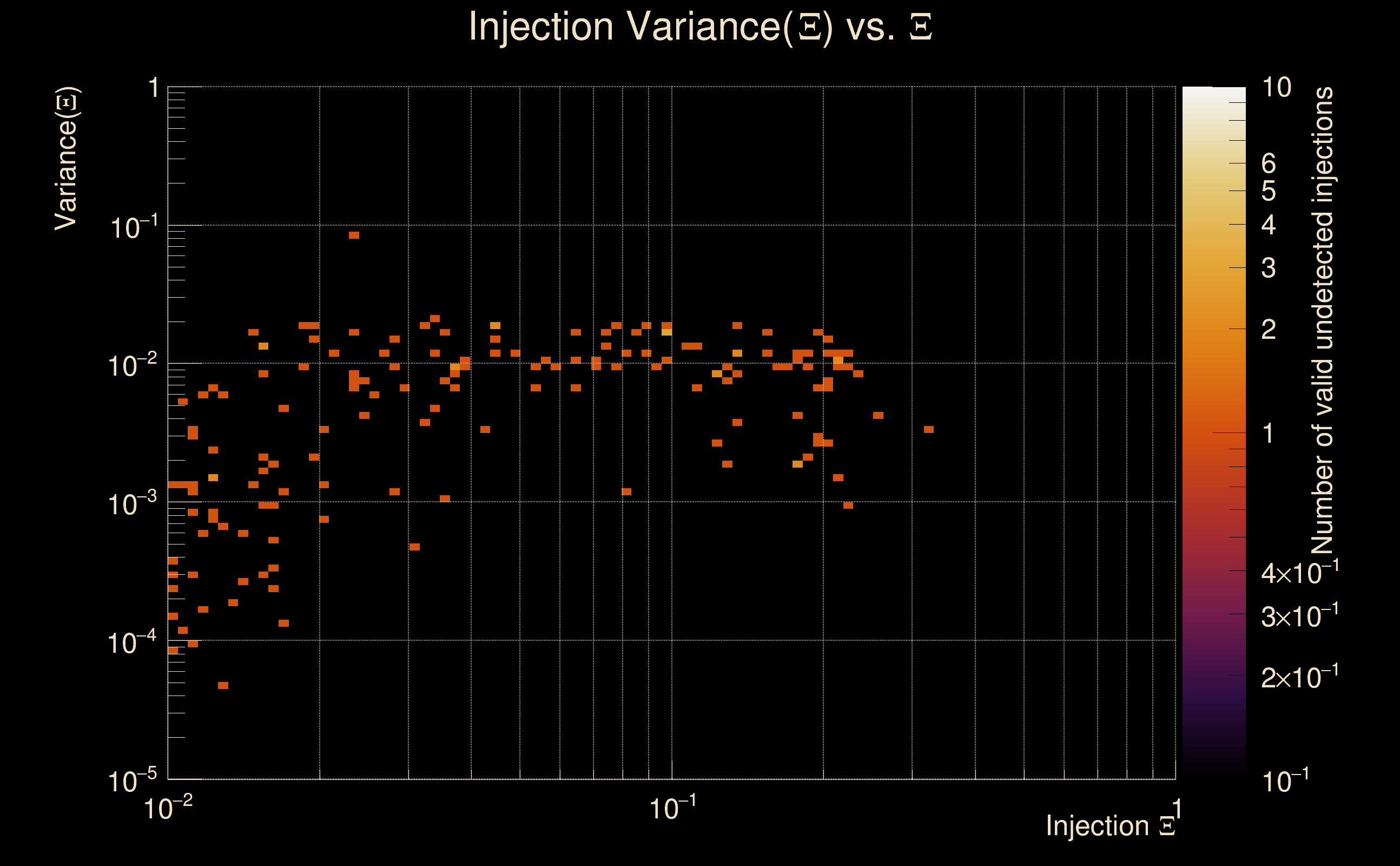

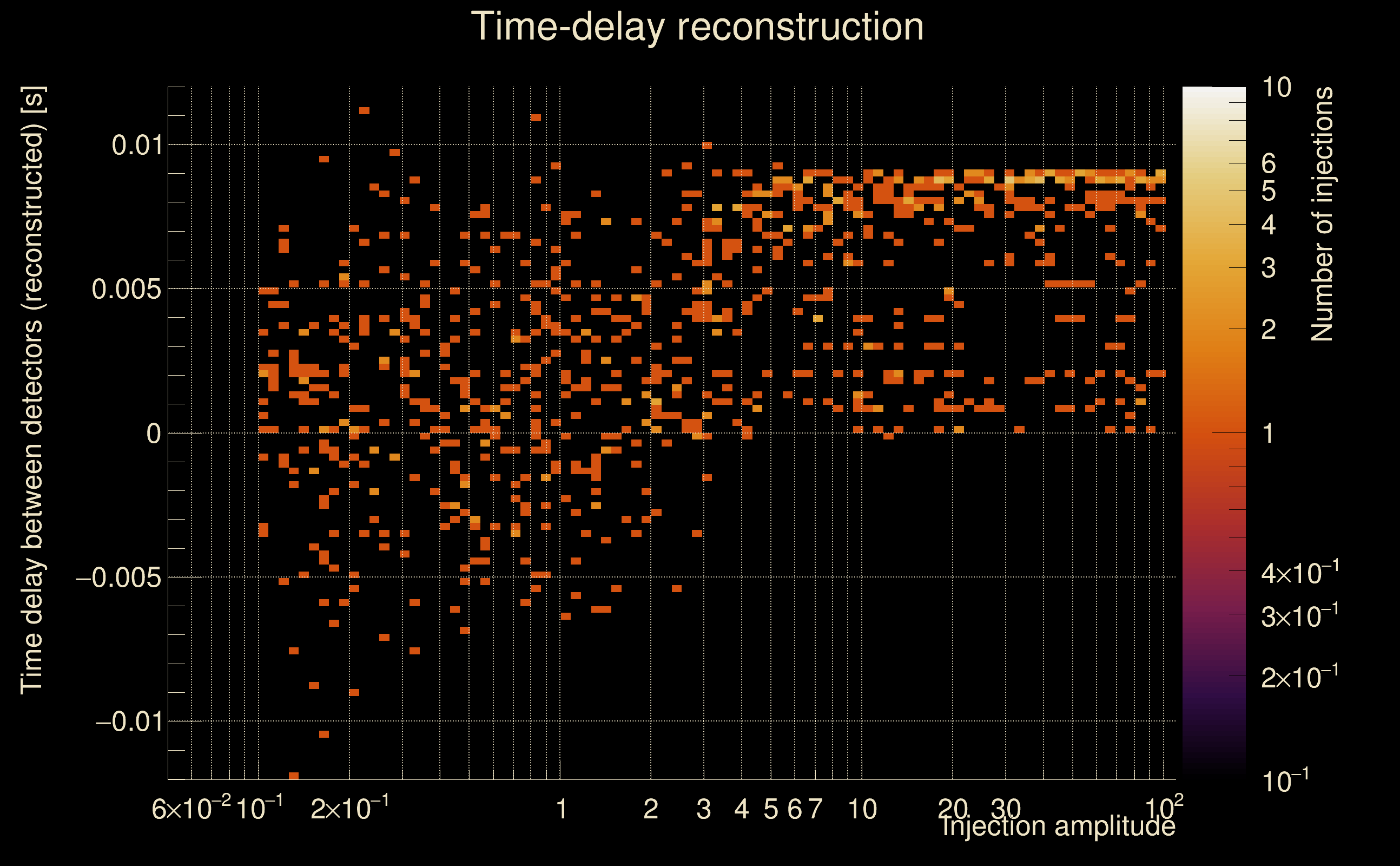

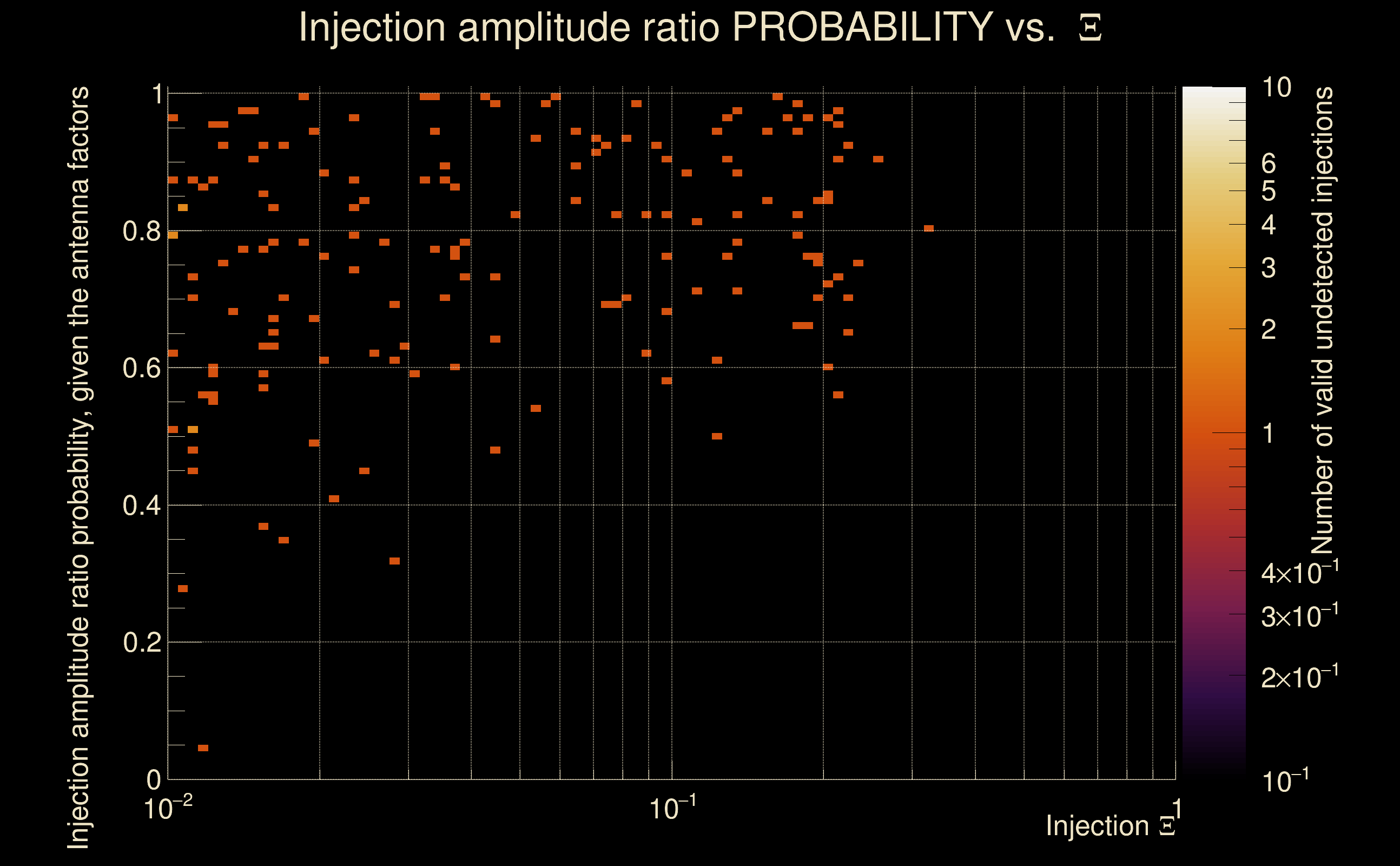

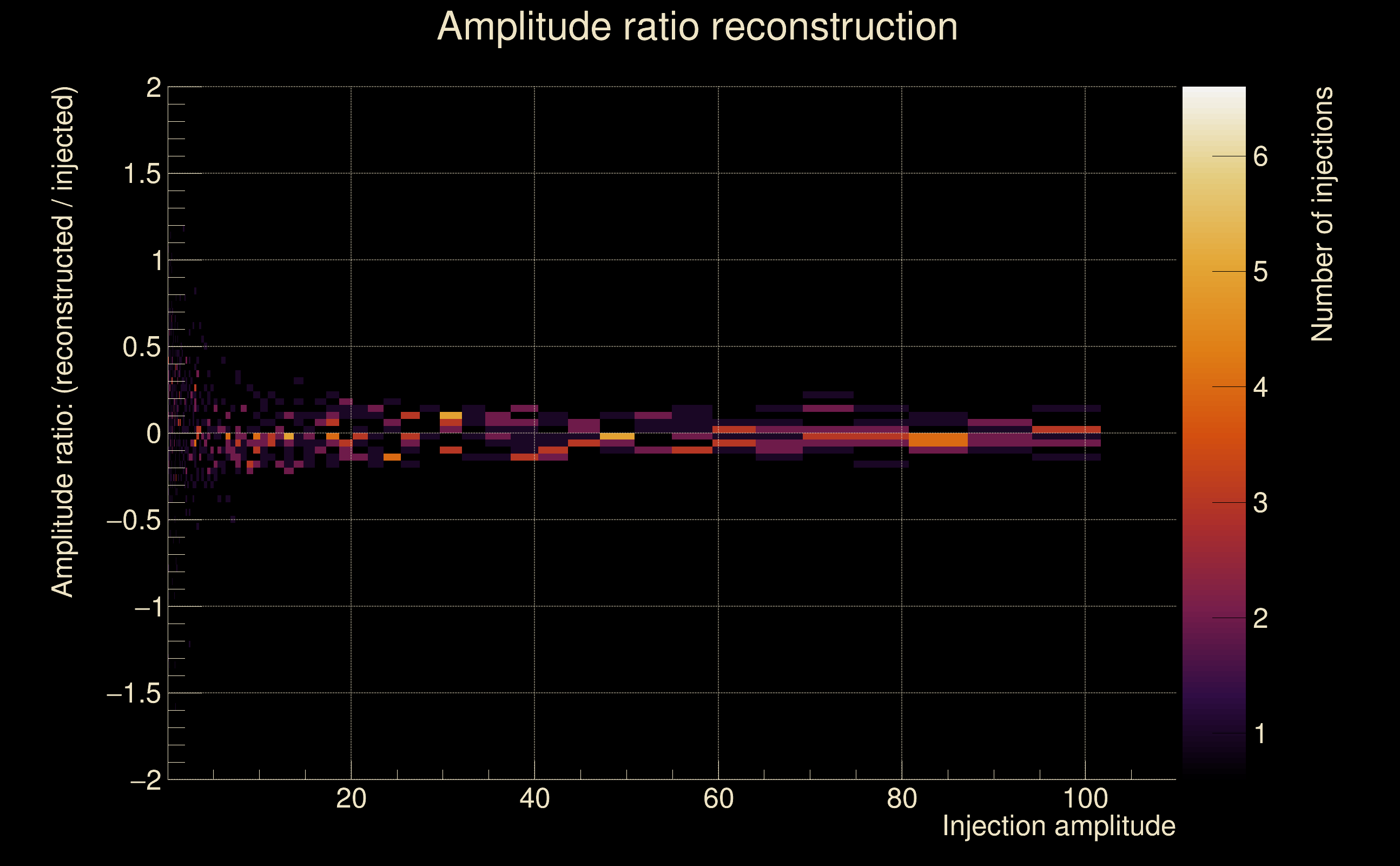

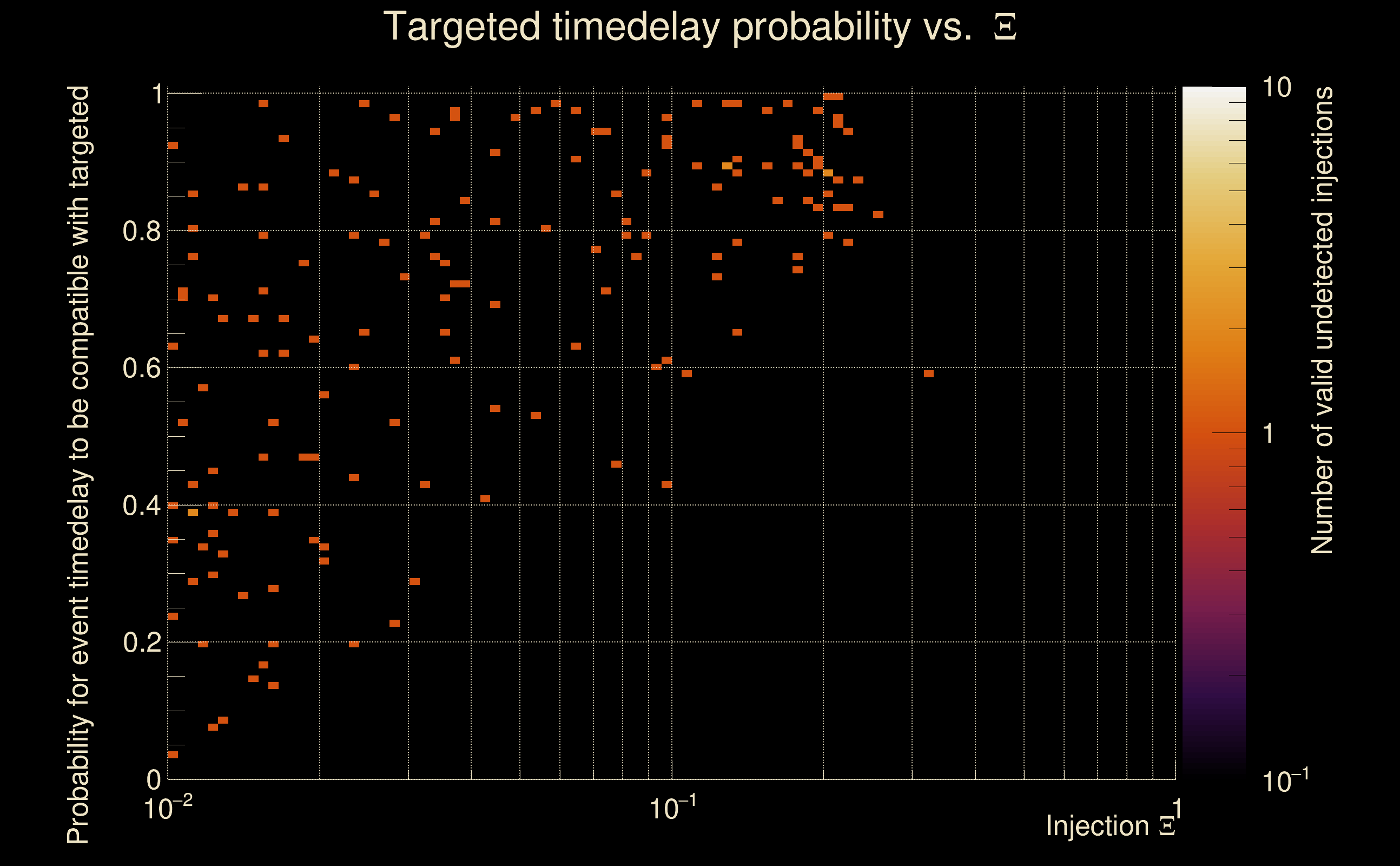

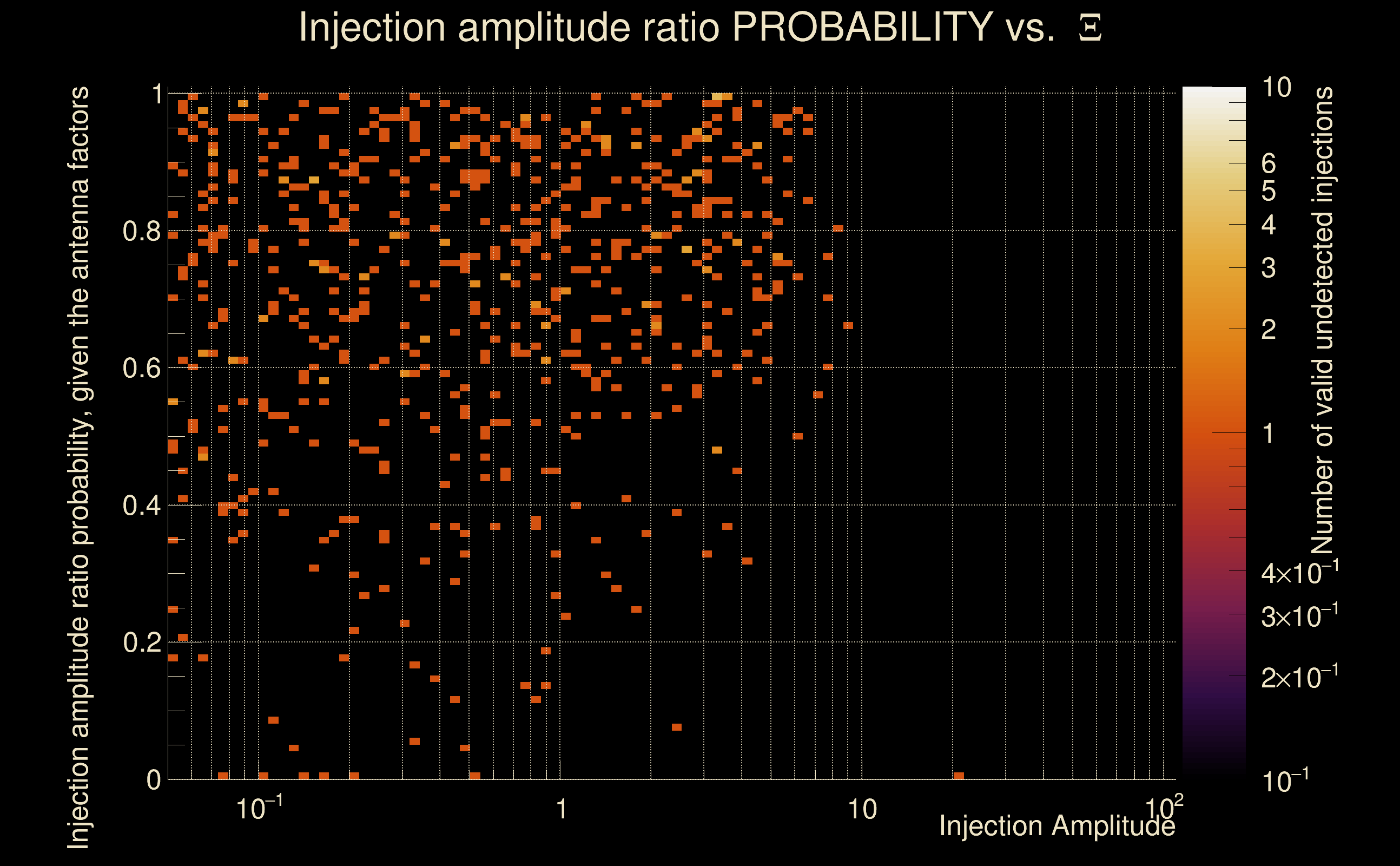

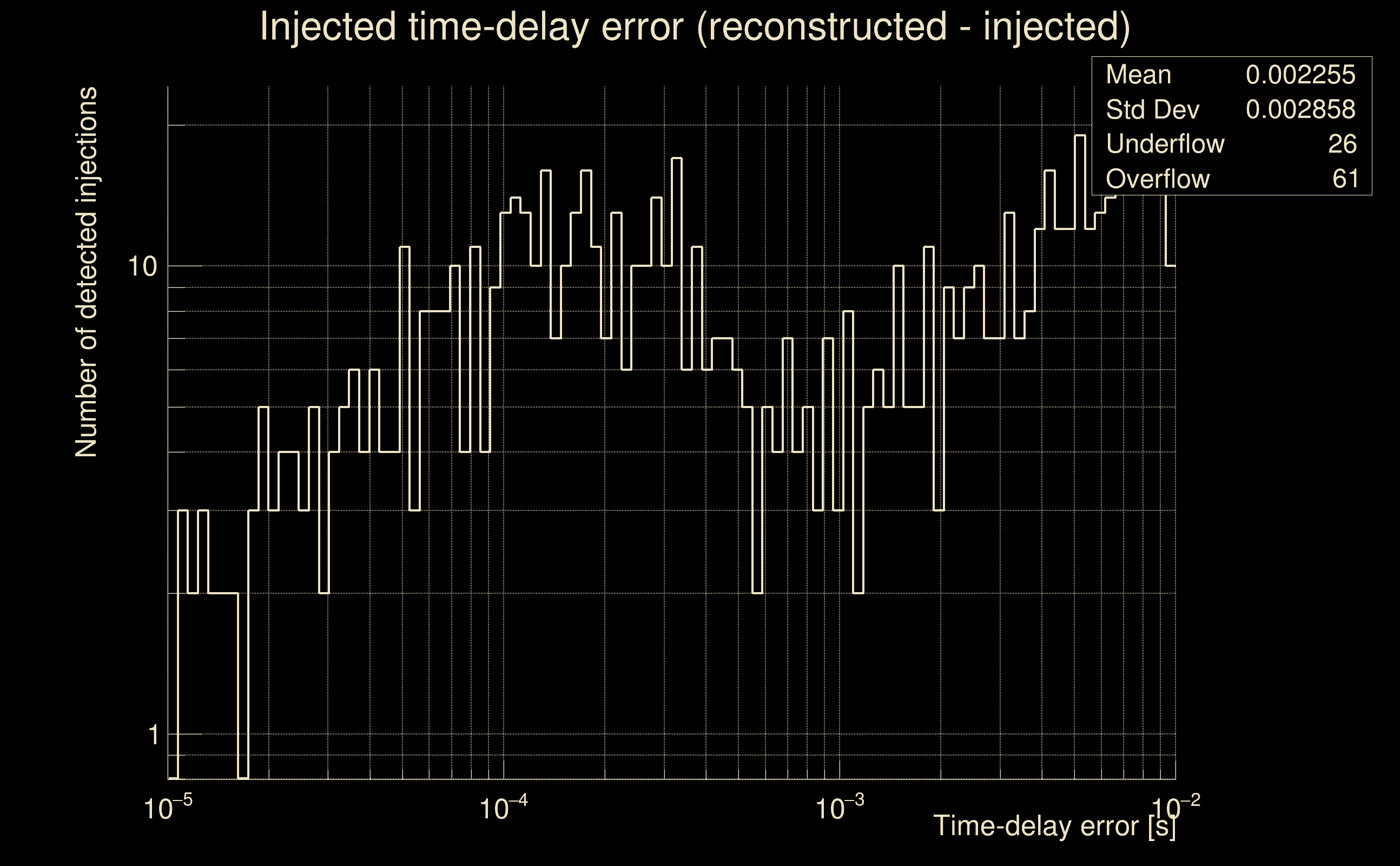

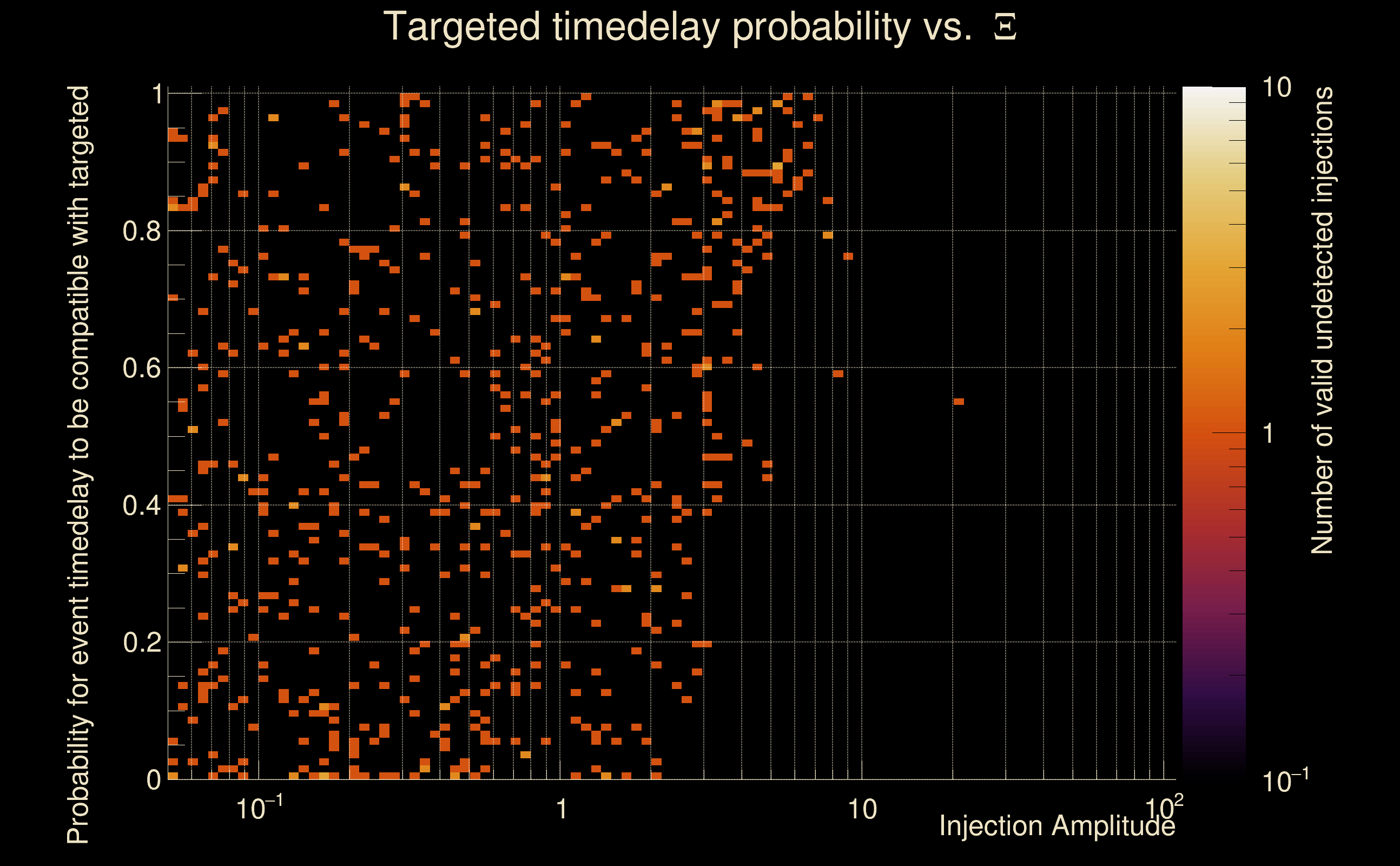

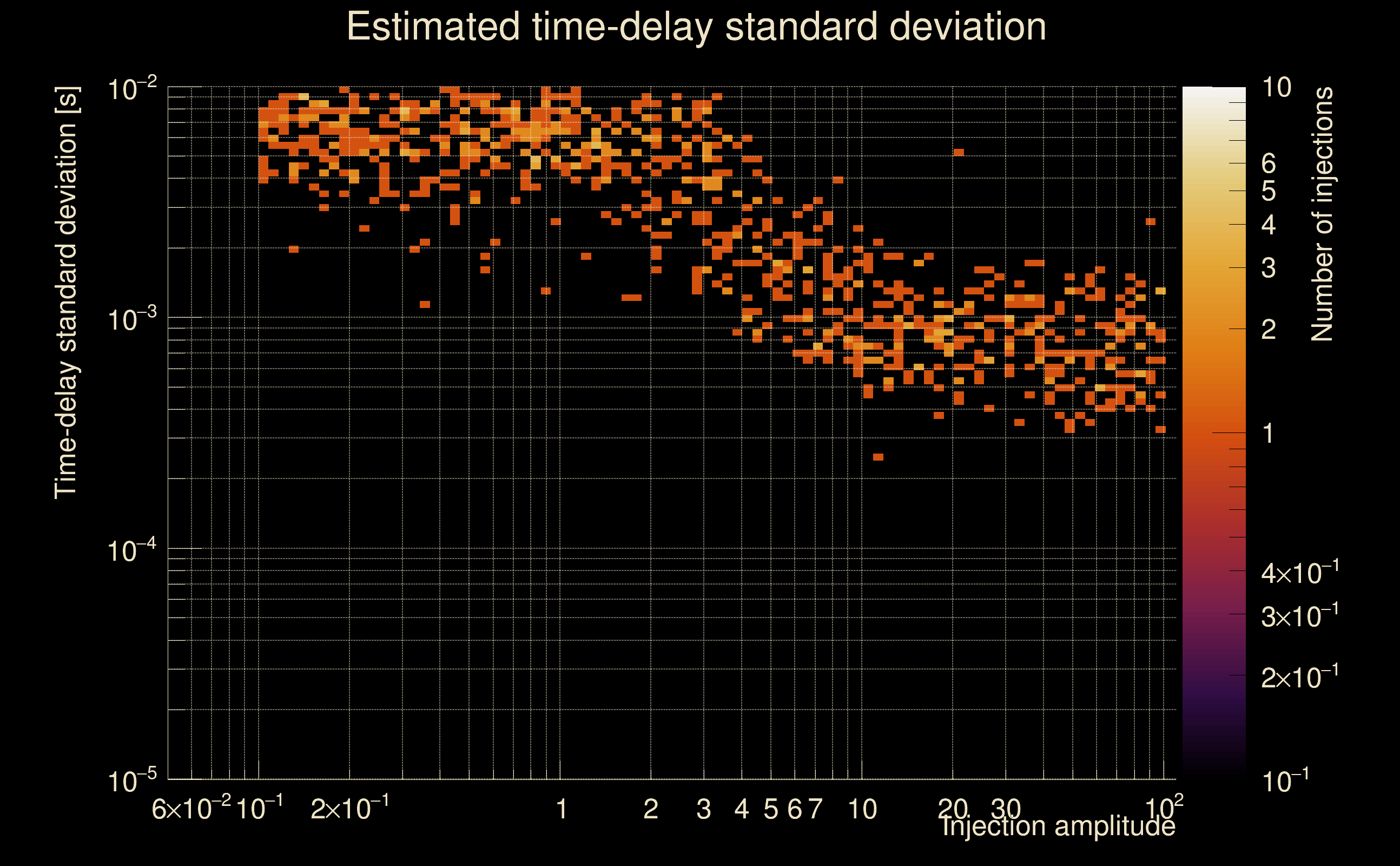

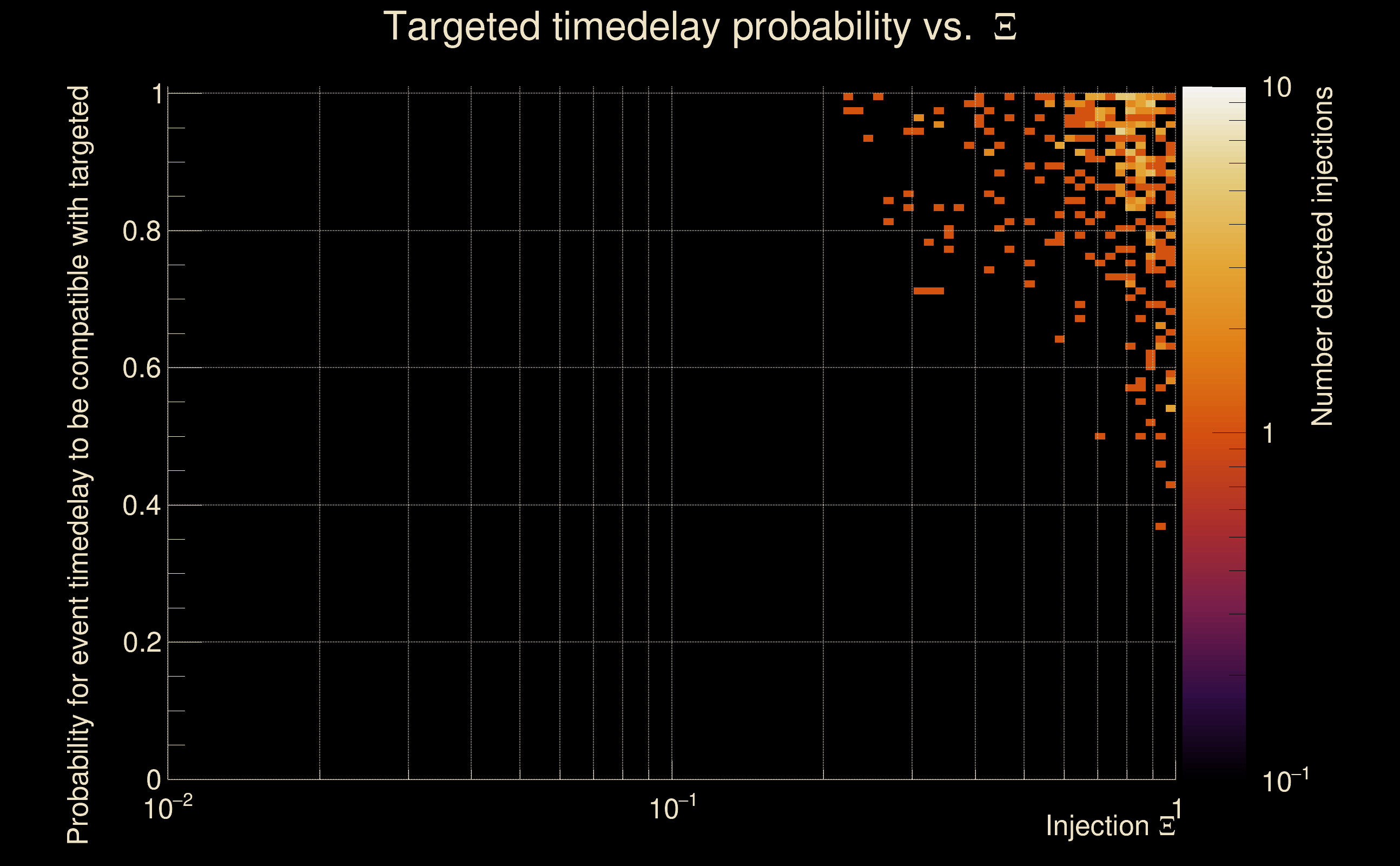

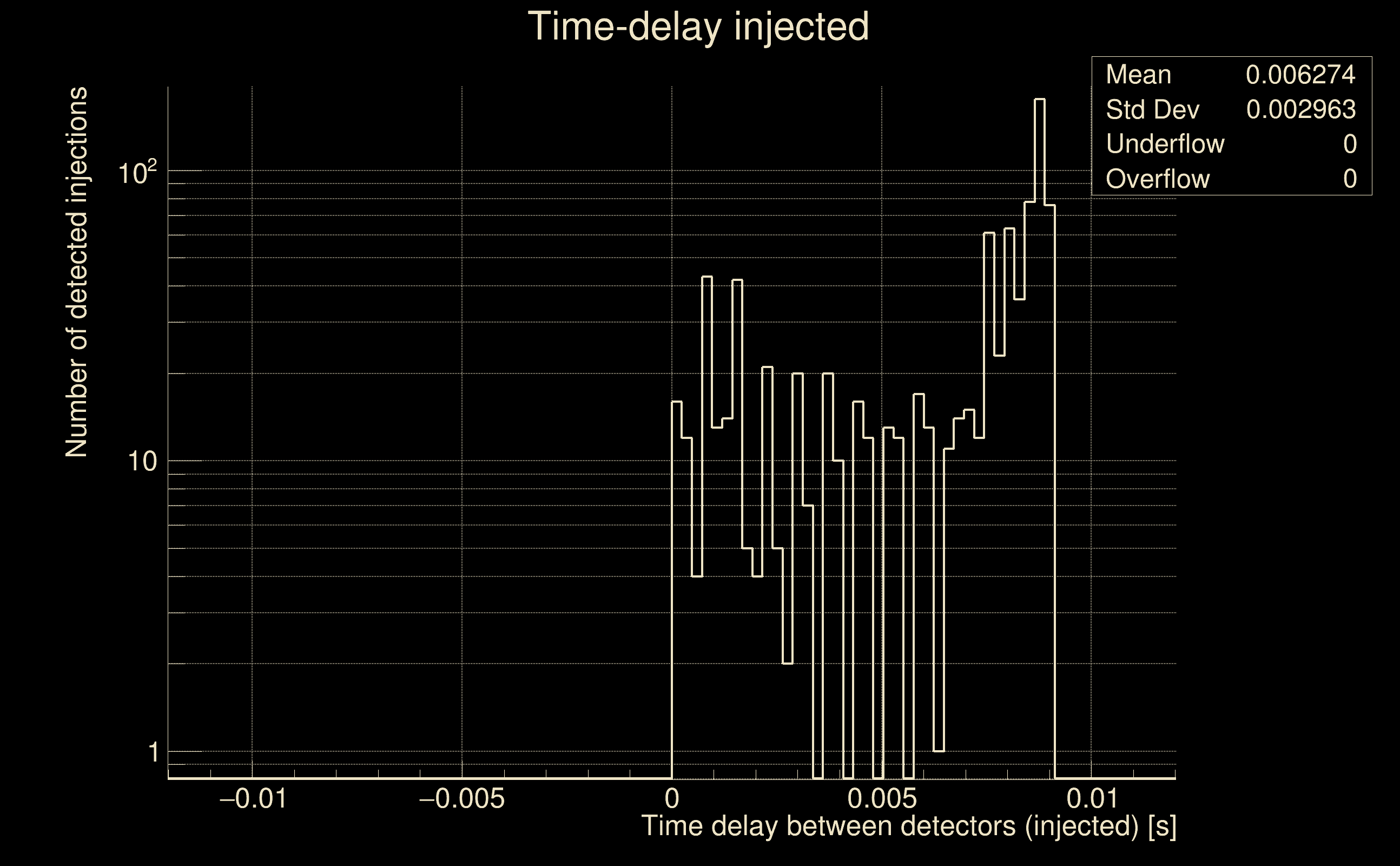

| Number of injections (total/valid/detected): | 1006 / 887 / 346 |
| List of missed injections: | ./Pow21-z100_missed.txt |
| Injection amplitude at 90% detection efficiency: | 9.08439 |
| Injection amplitude at 50% detection efficiency: | 5.9692 |
| Injection amplitude at 10% detection efficiency: | 3.93584 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
