| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Wed Sep 23 08:55:03 2026 UTC |
| Ox option file: | Bench4_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench4_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench4_allsky_results-3.root |
| Slice selected for the the fakeground: | slice index=95 (0.598 s), time lag = 0 s |

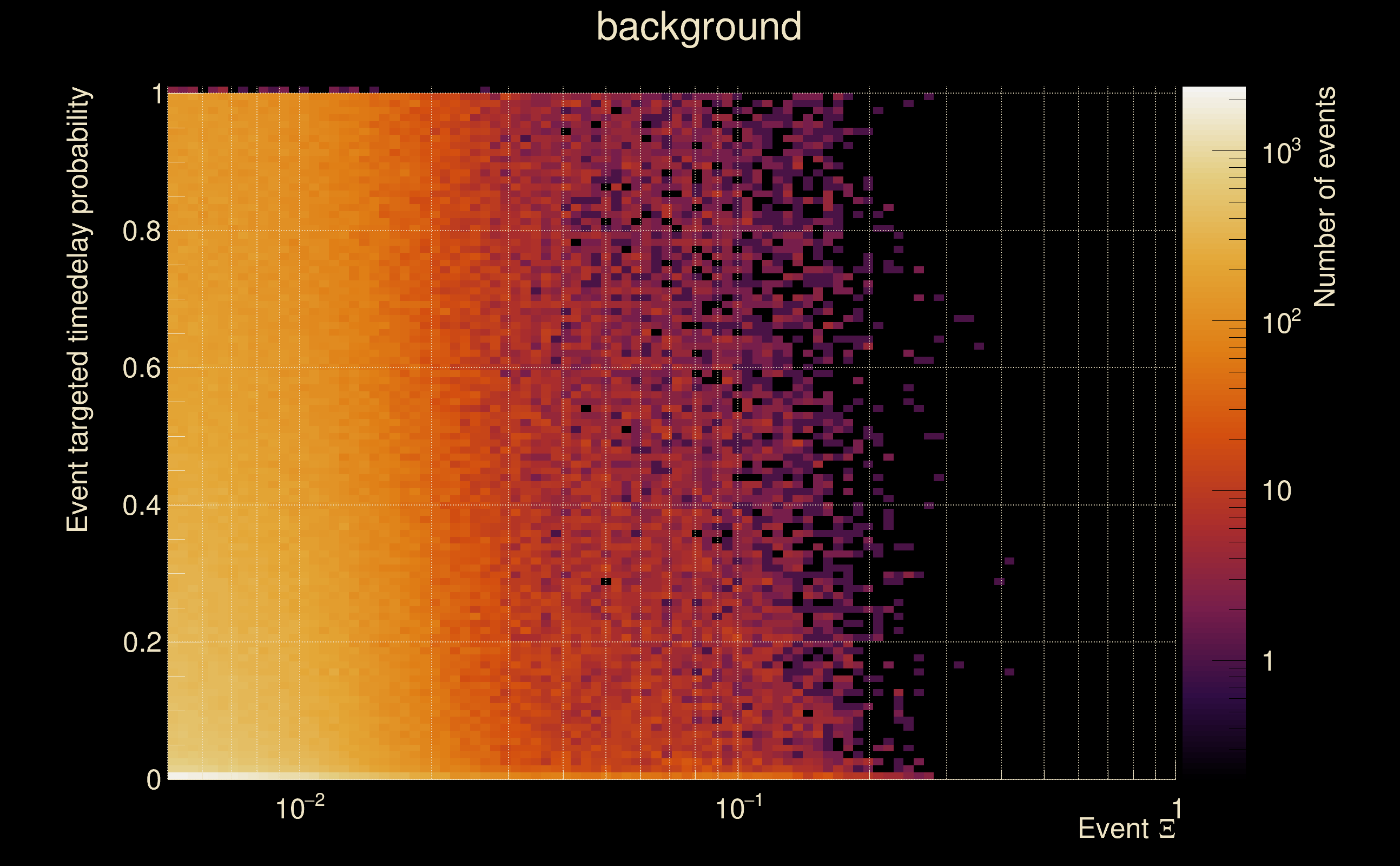

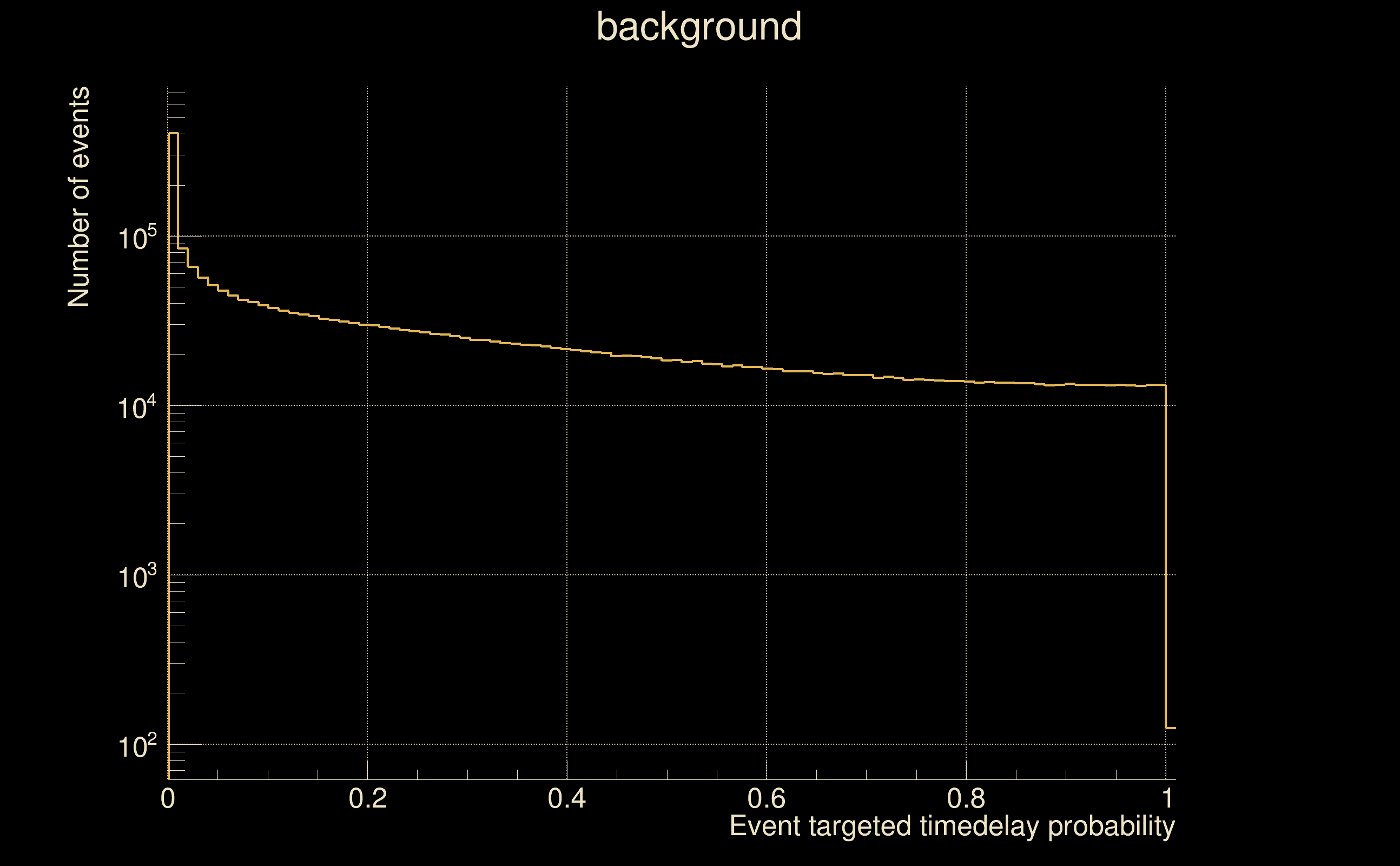

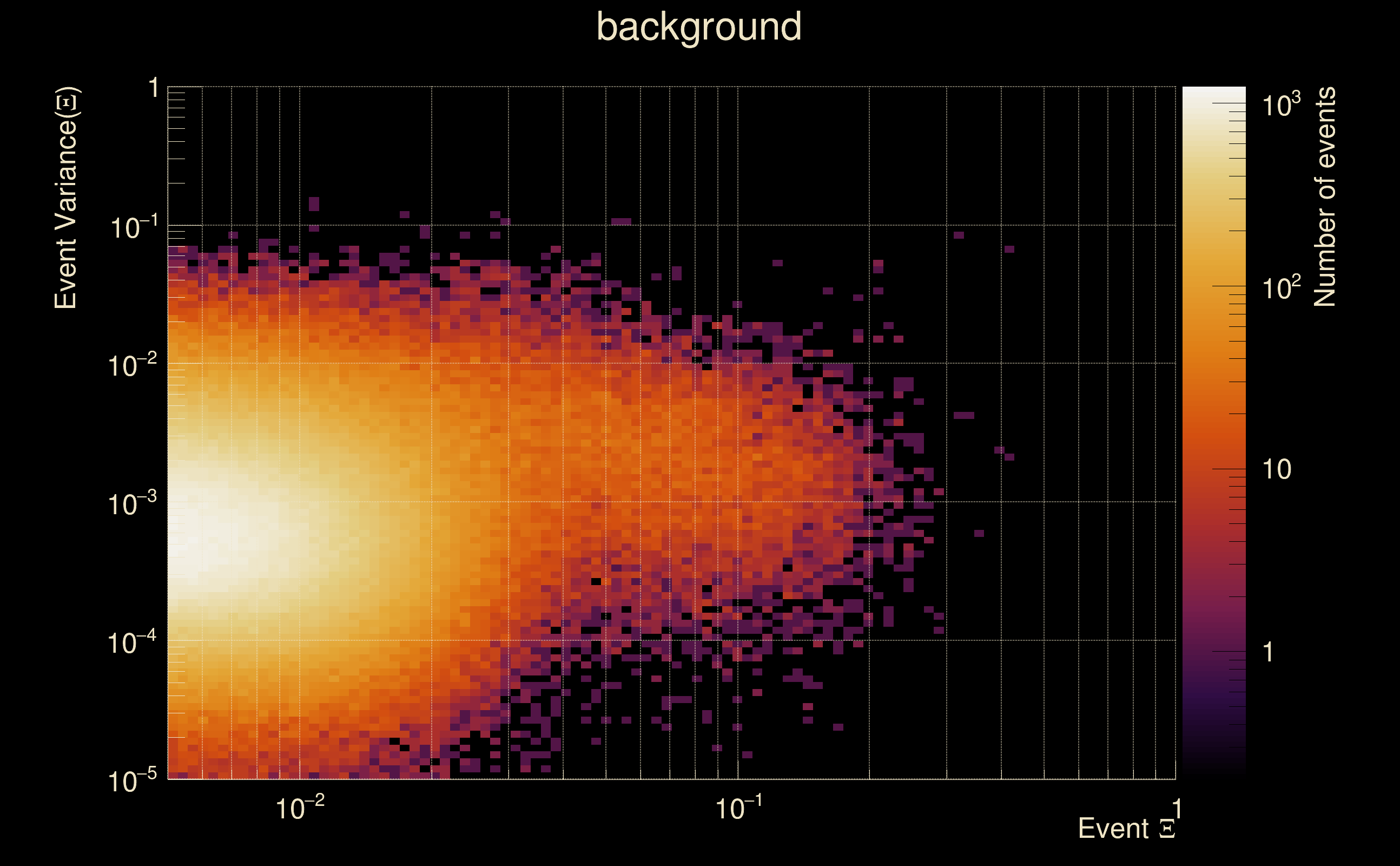

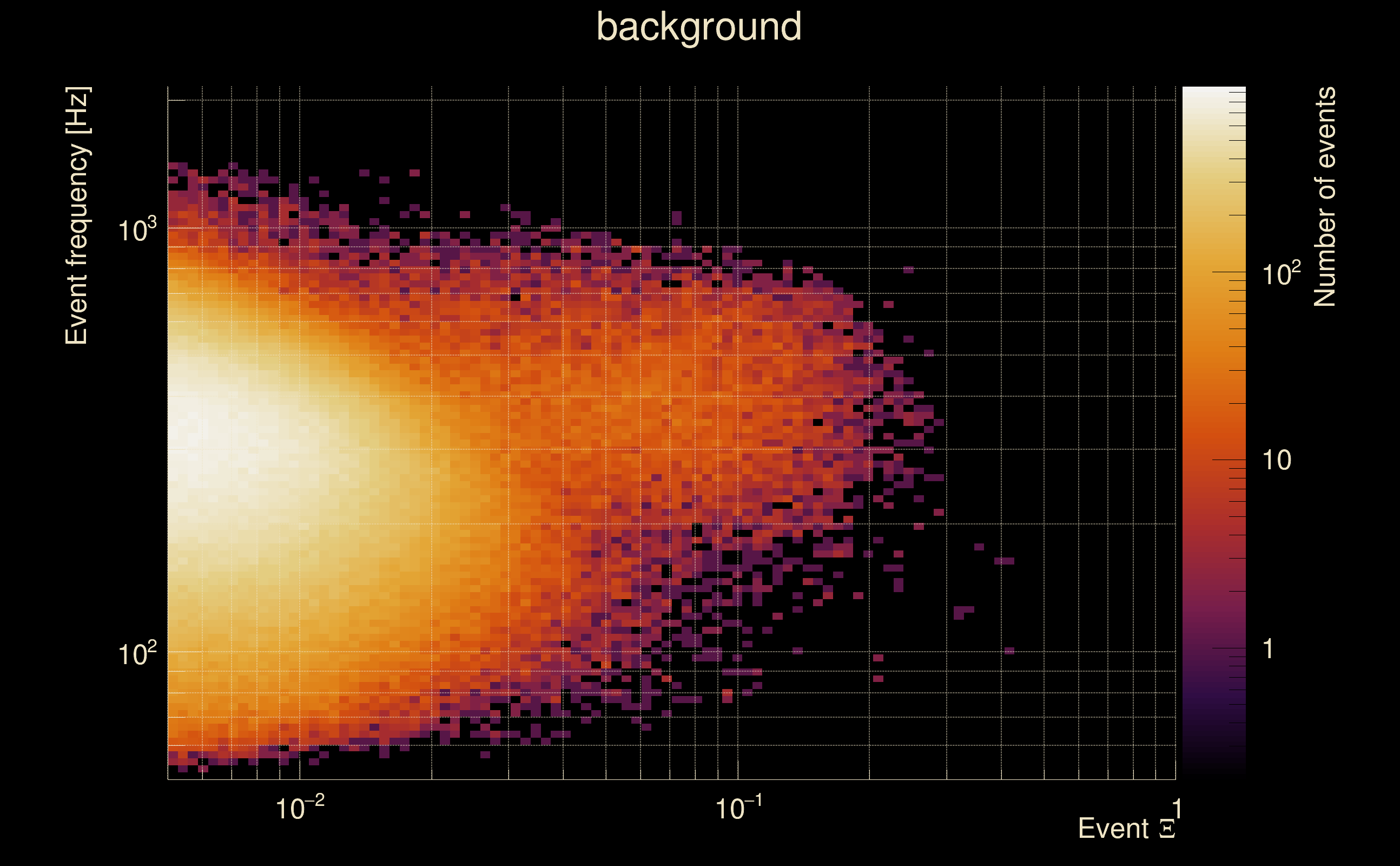

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

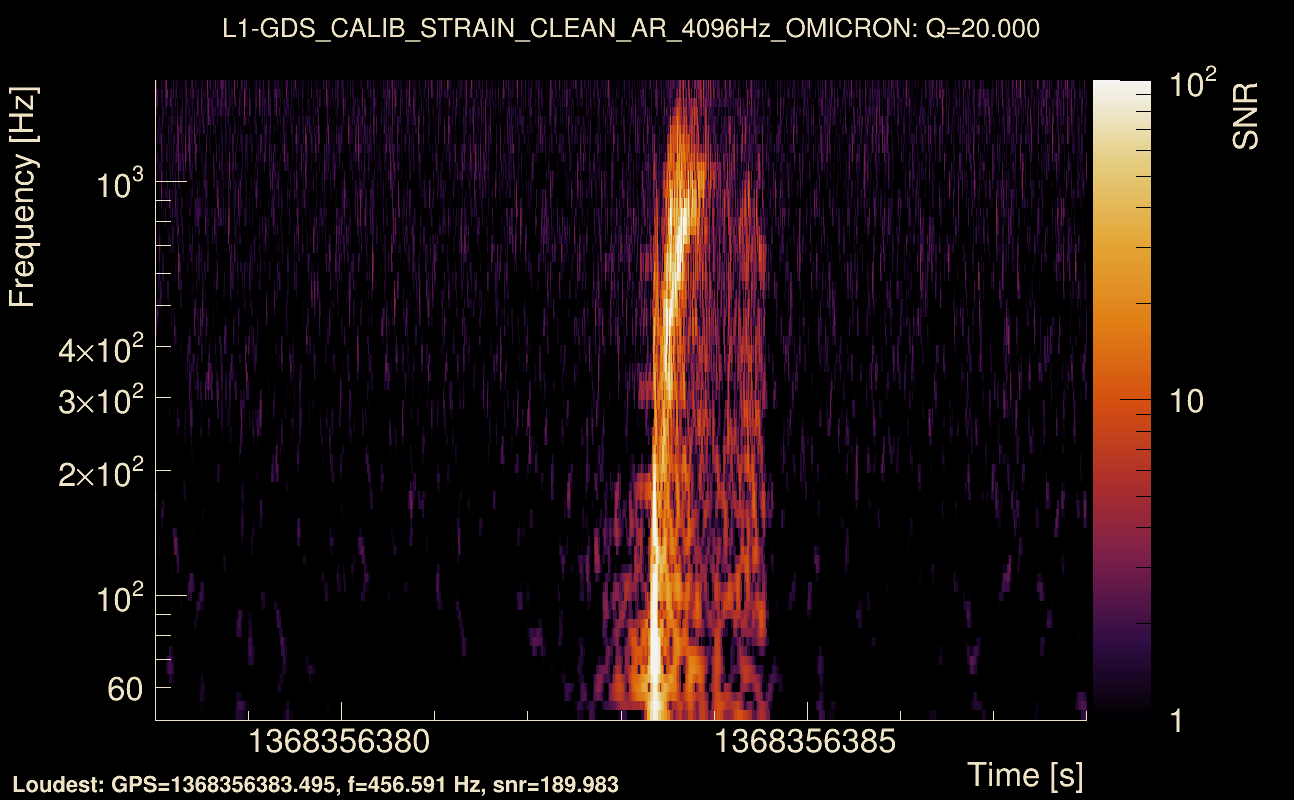

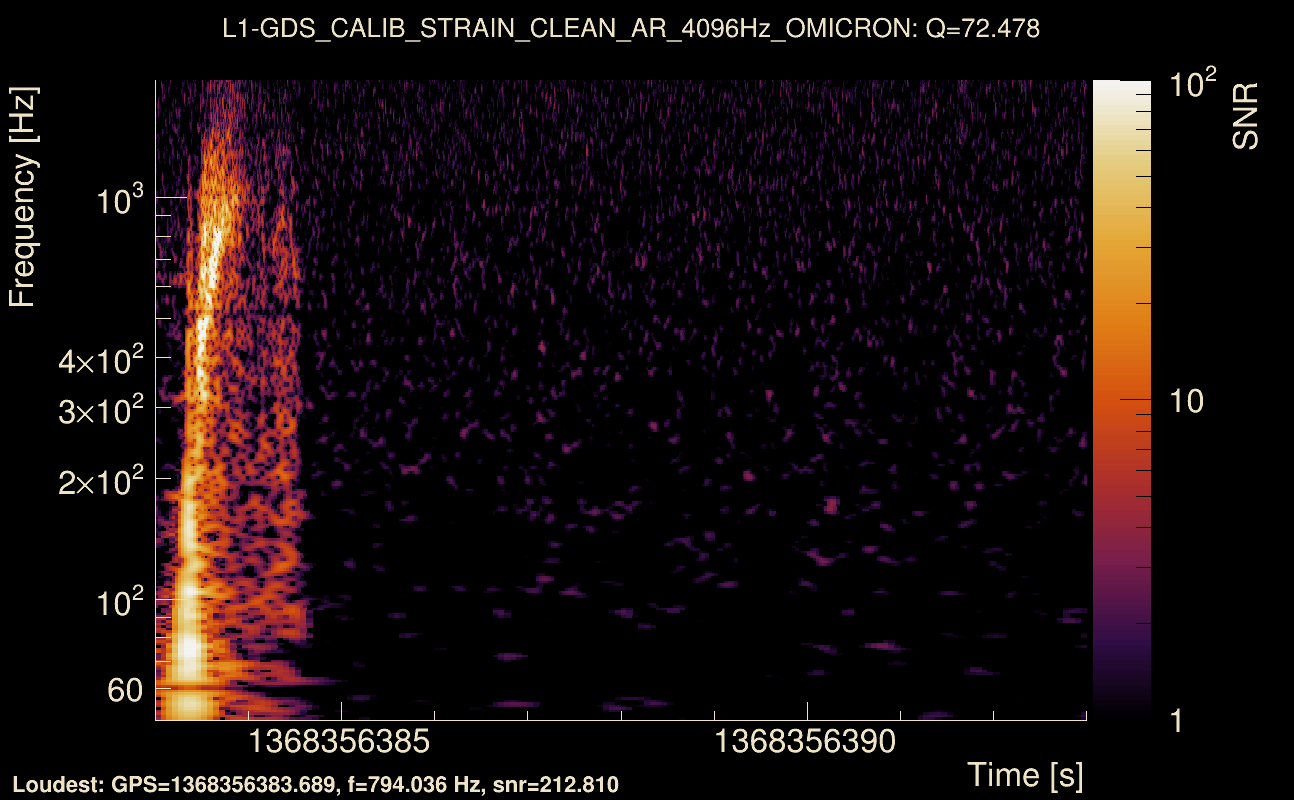

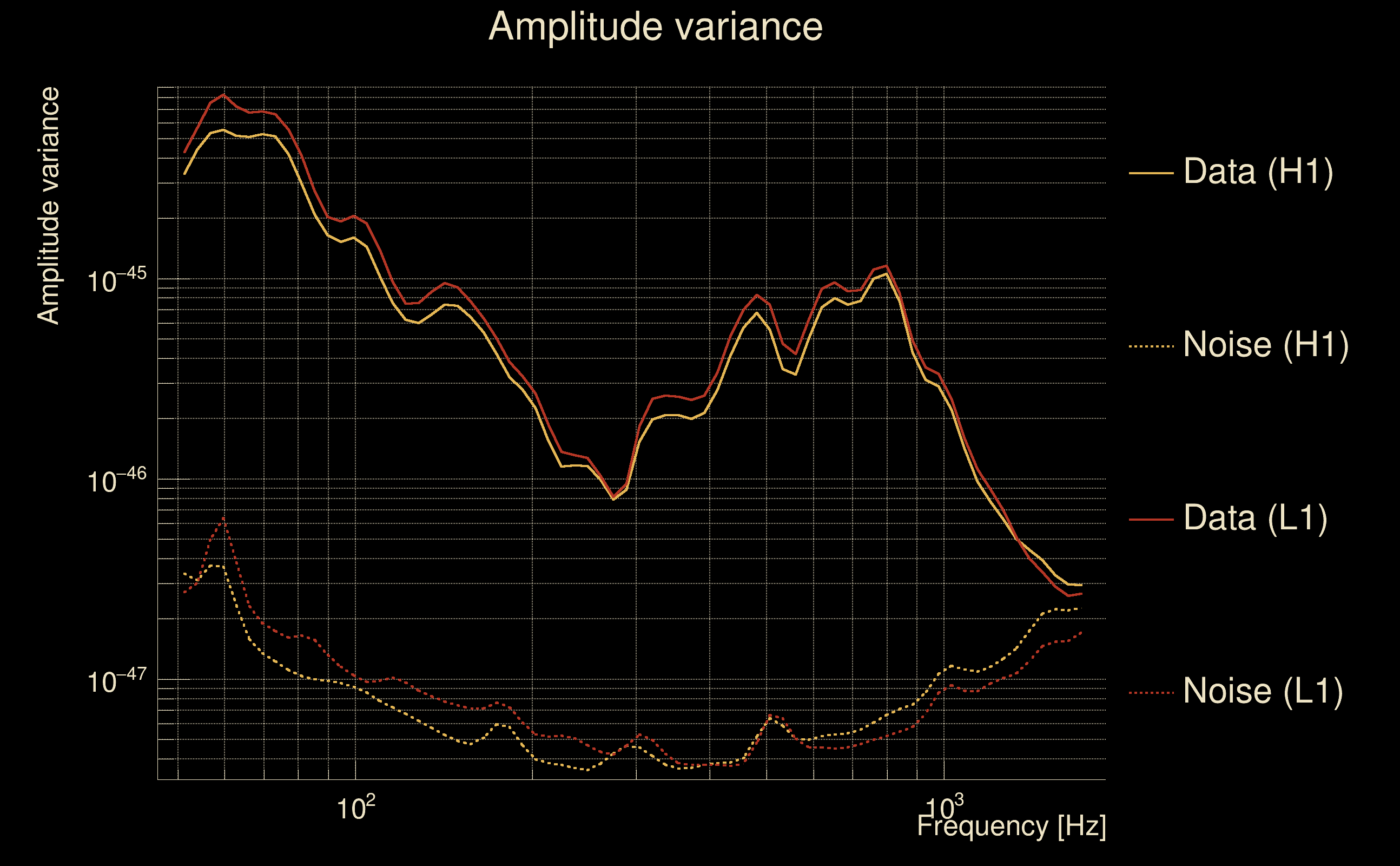

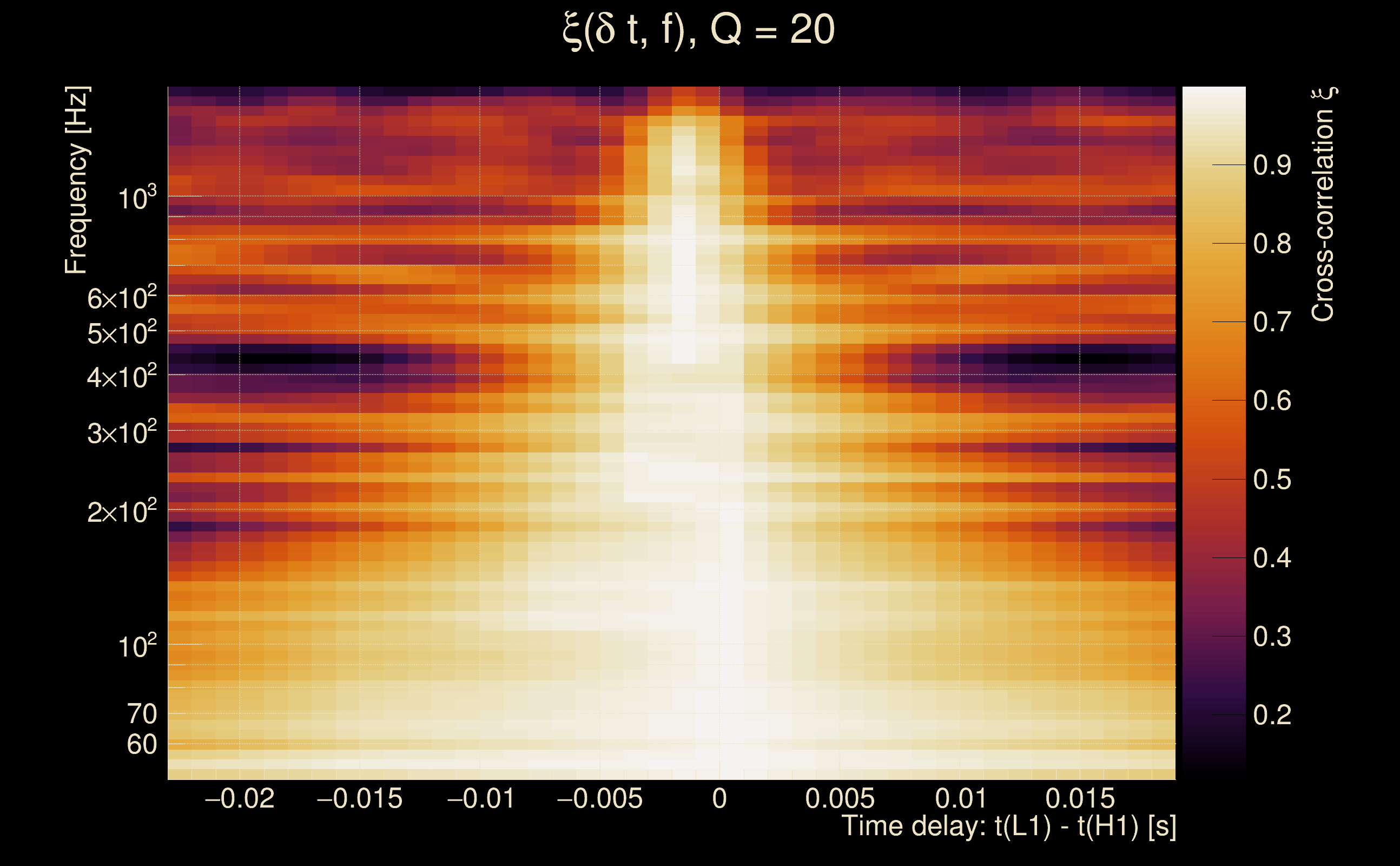

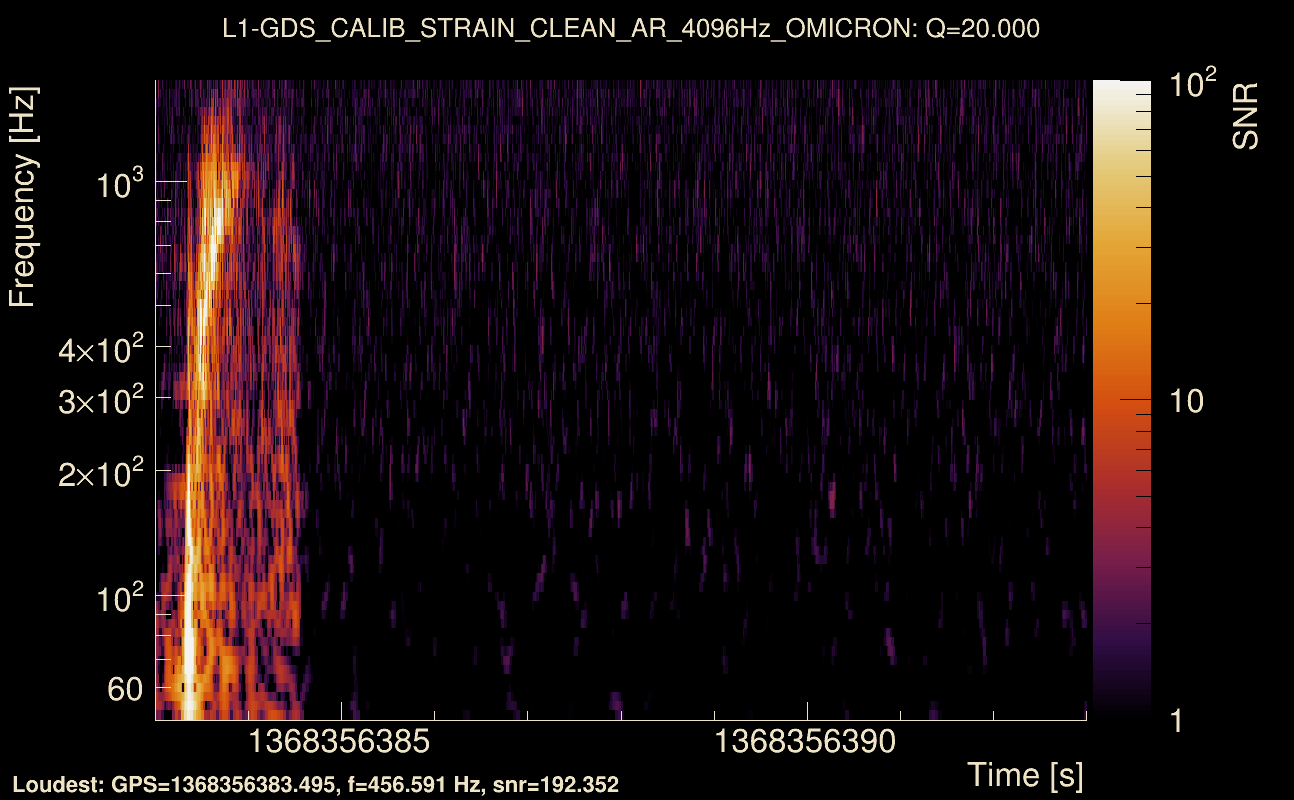

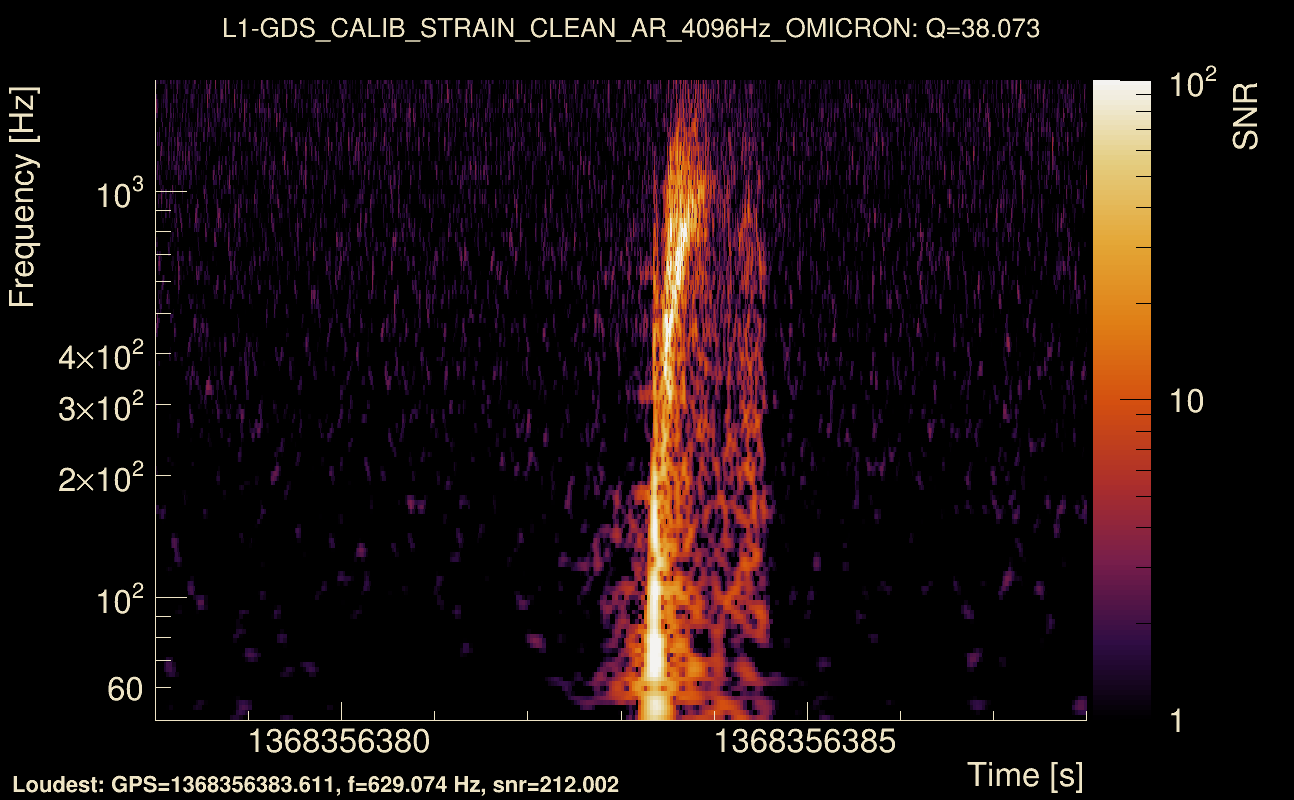

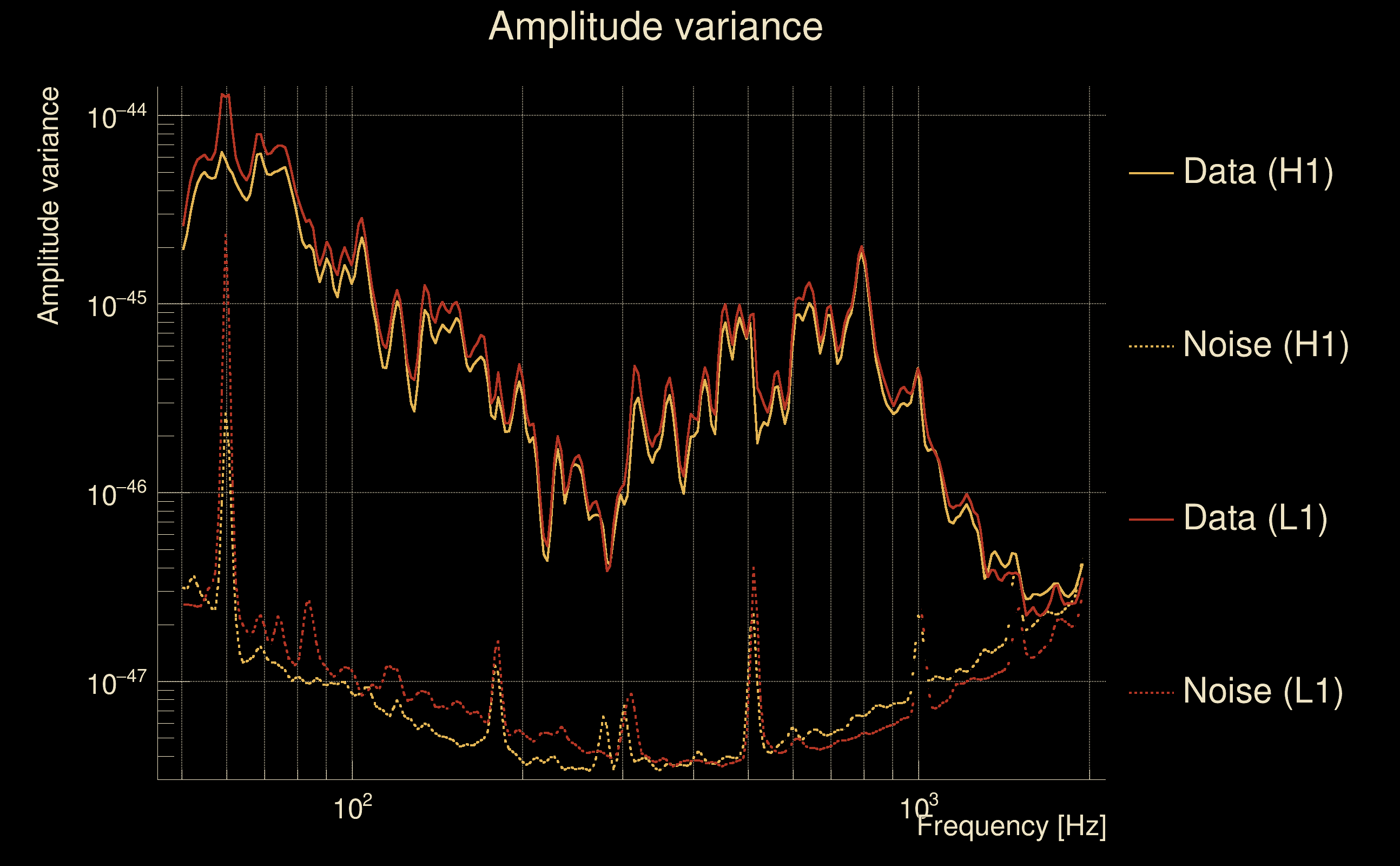

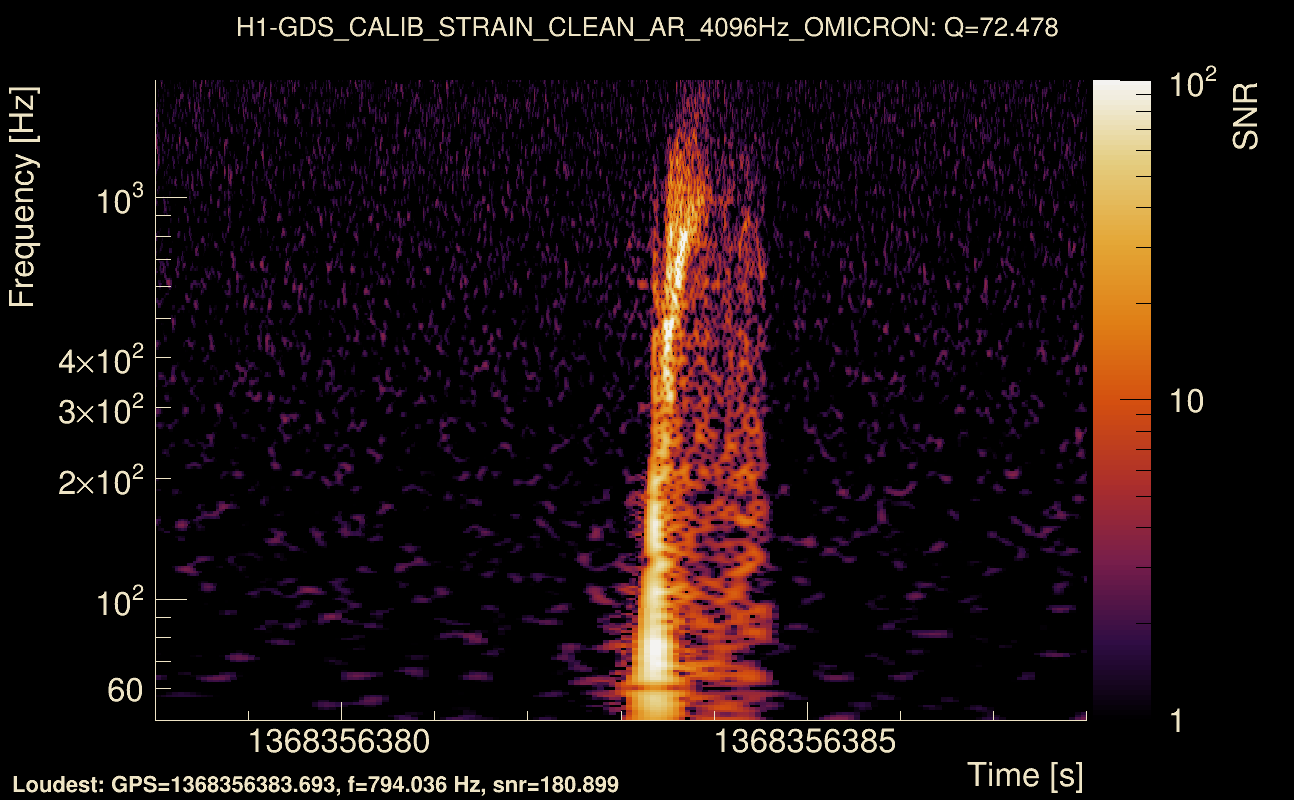

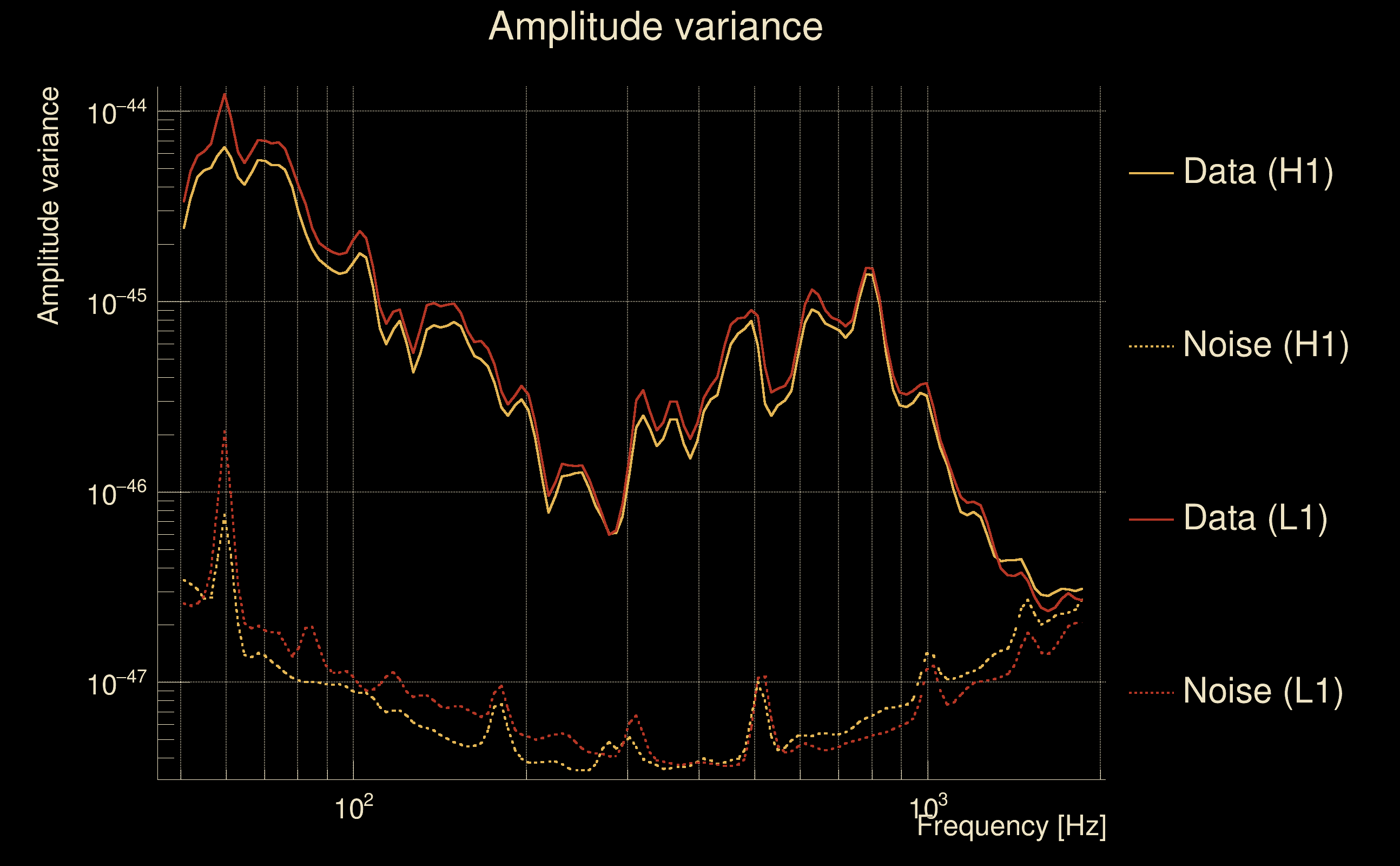

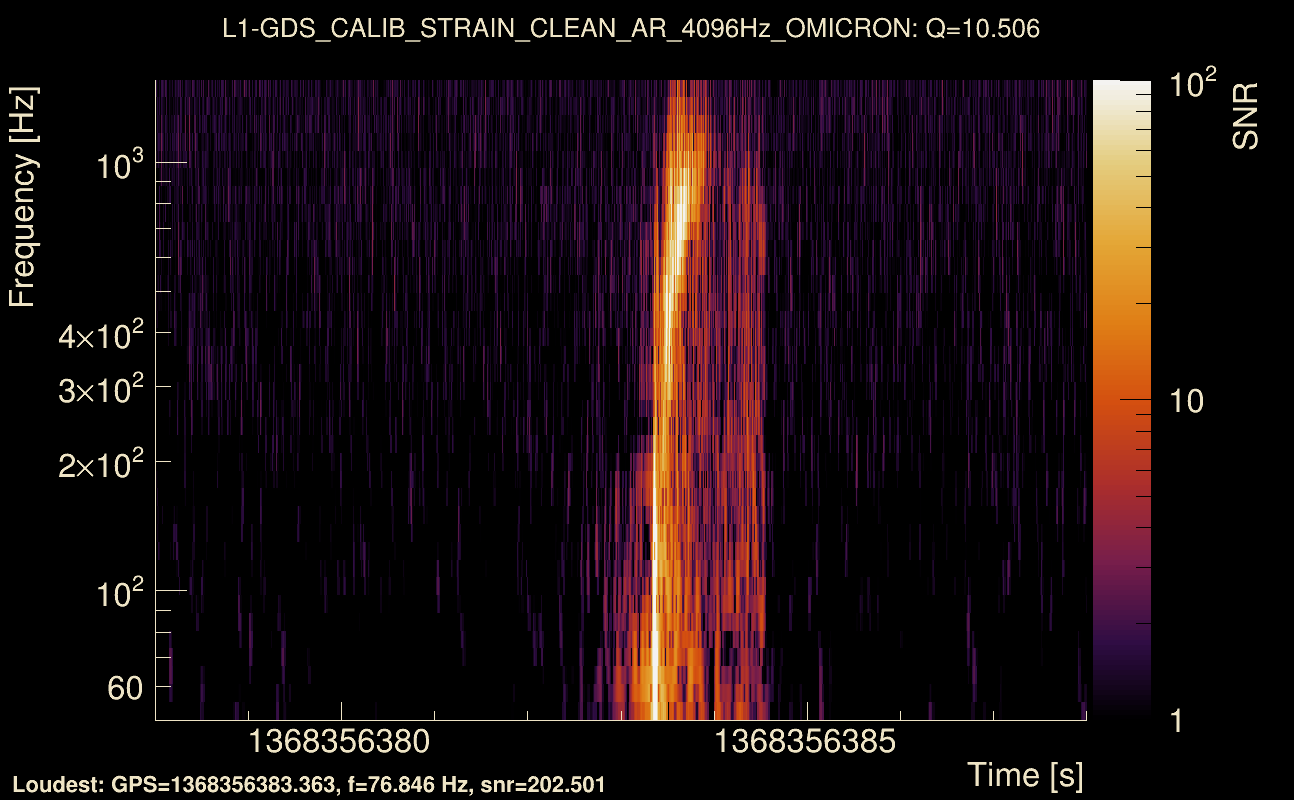

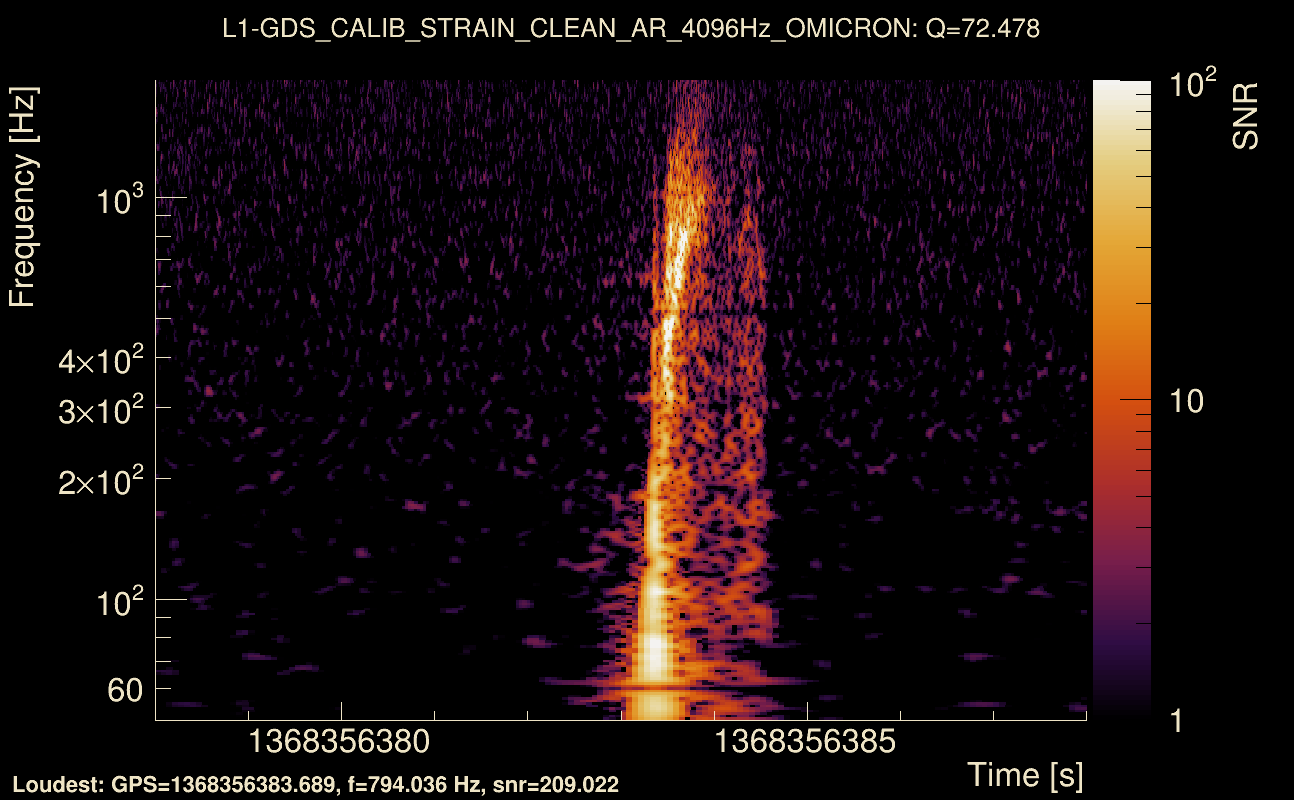

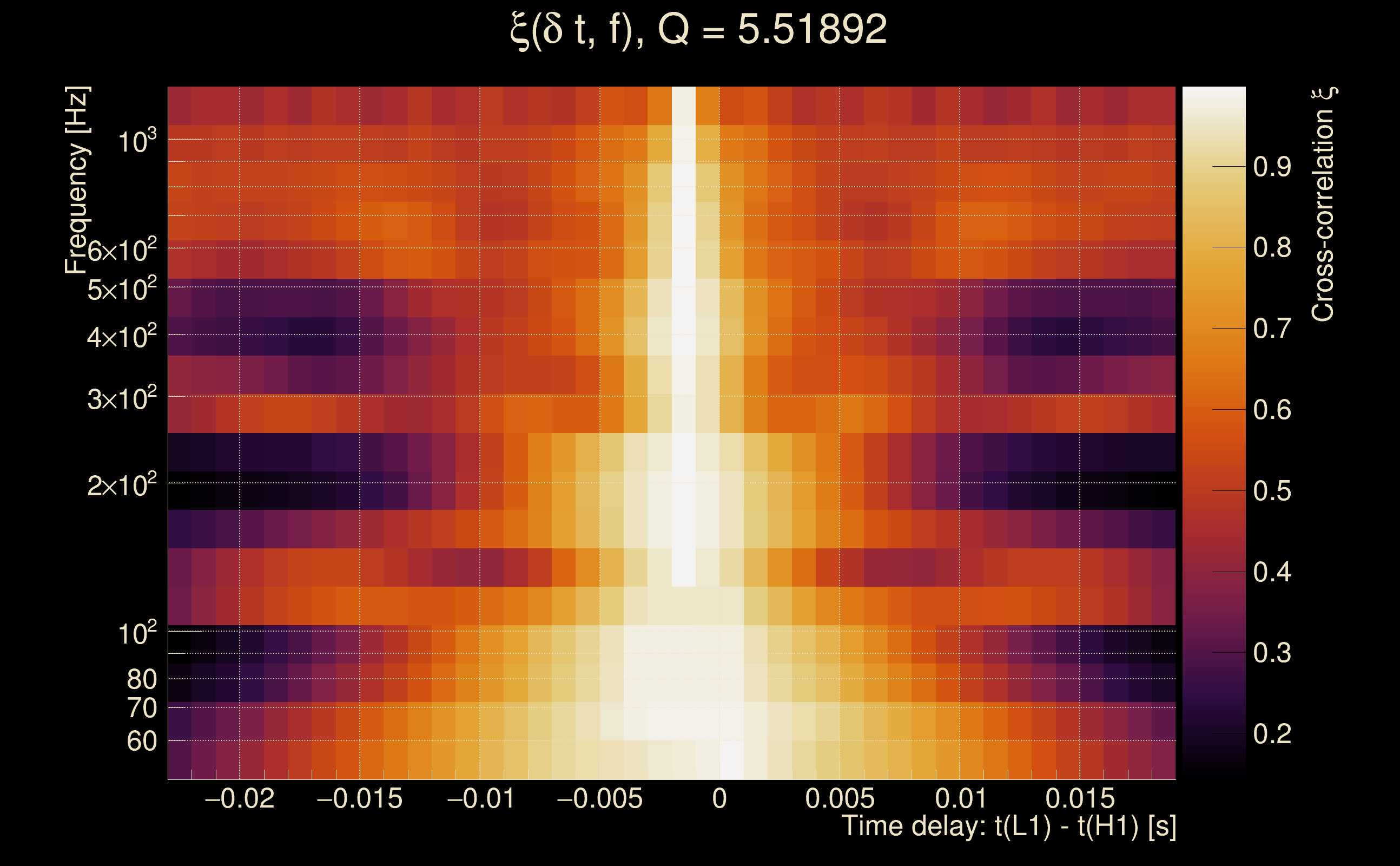

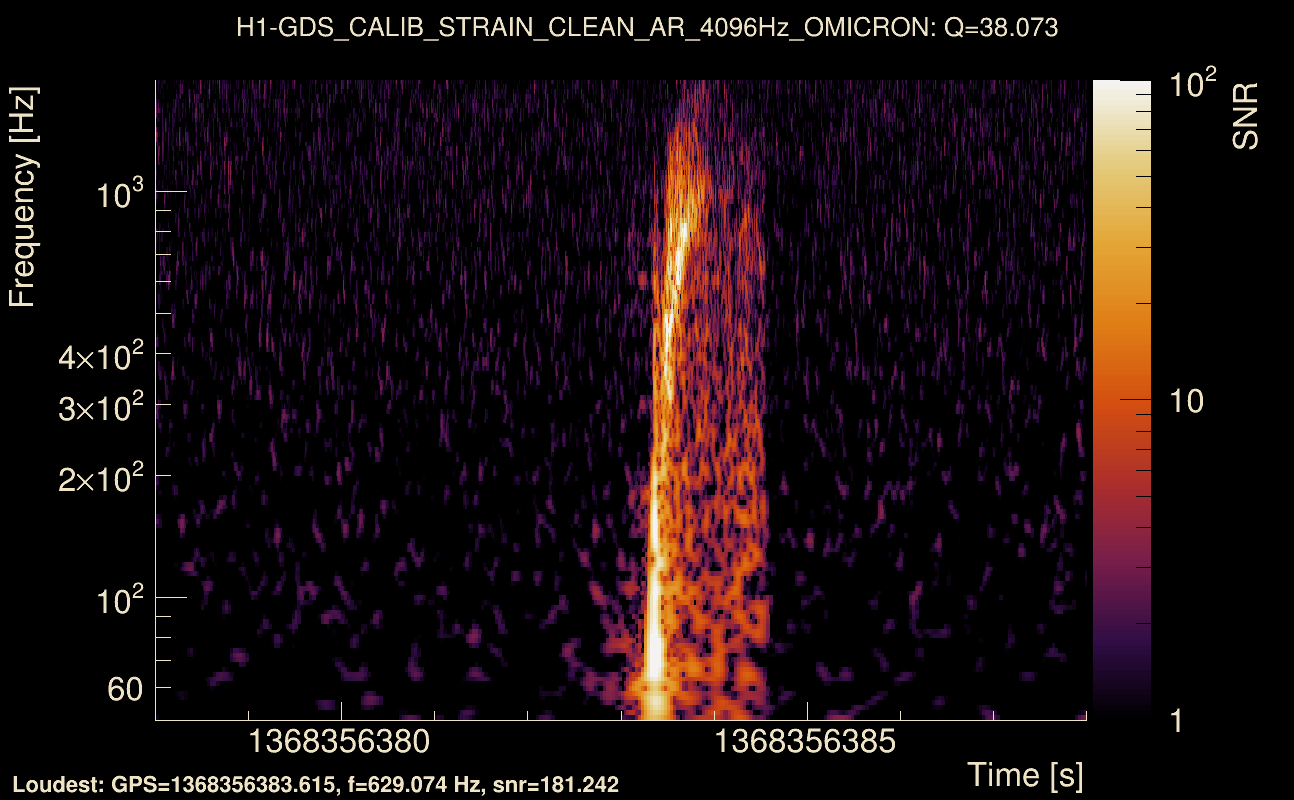

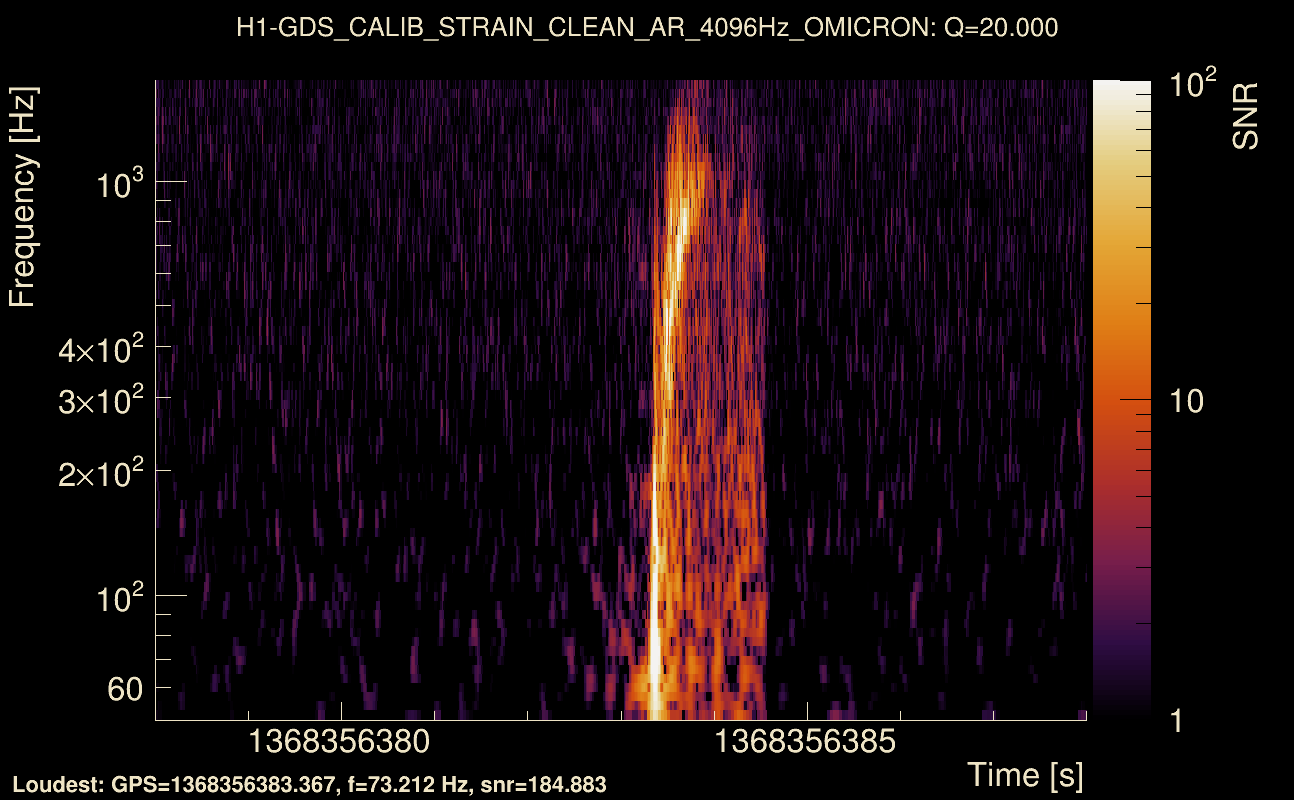

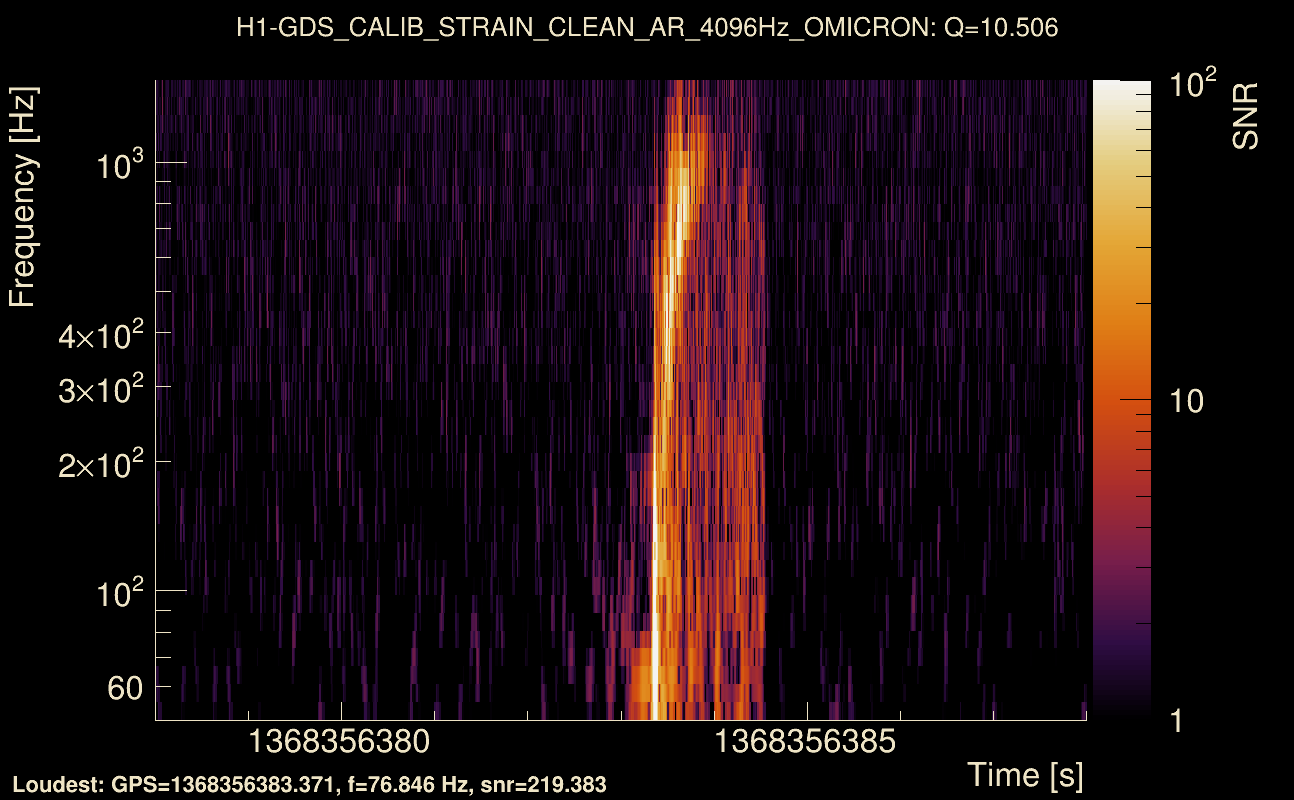

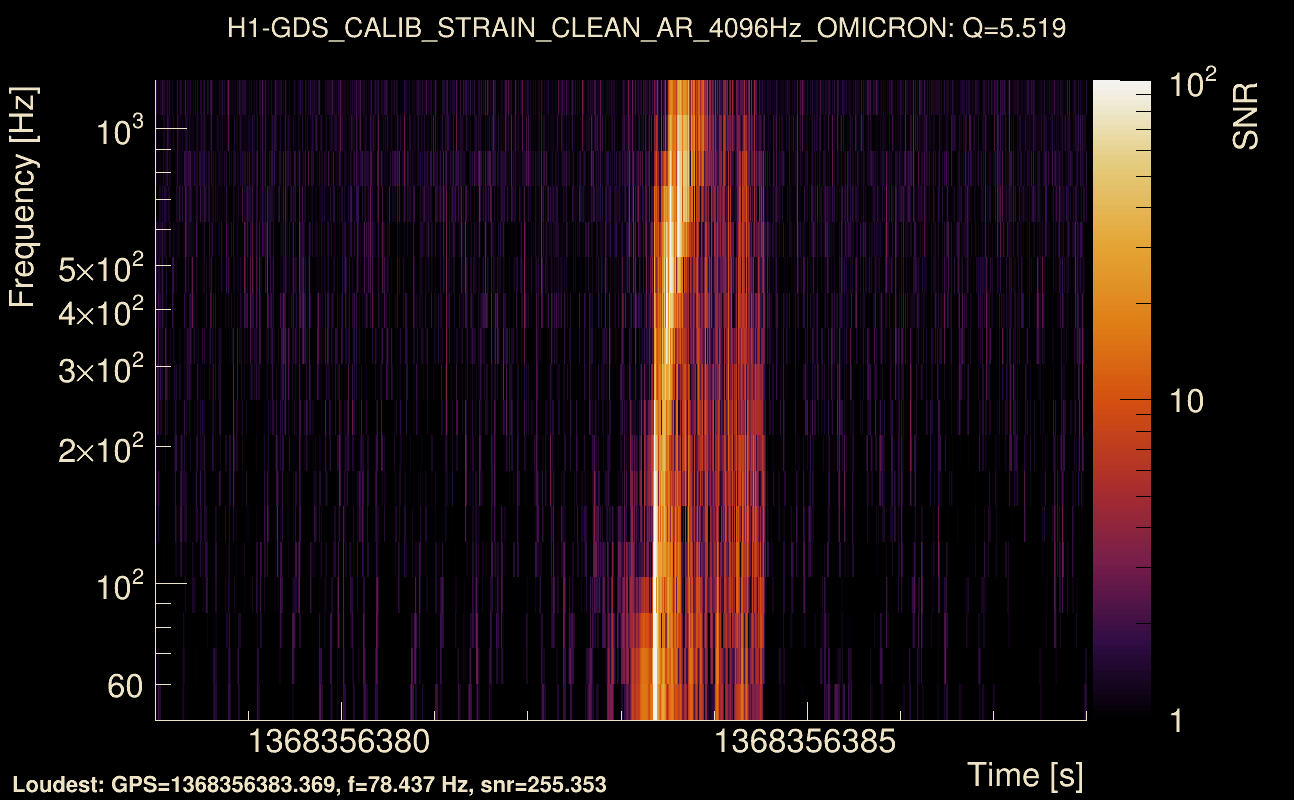

| Event time t(H1): | GPS = 1368356383 (Wed May 17 10:59:25 2023 ) → GPS = 1368356393 (Wed May 17 10:59:35 2023 ) |
| Event time t(L1): | GPS = 1368356383 (Wed May 17 10:59:35 2023 ) → GPS = 1368356393 (Wed May 17 10:59:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368356380 → GPS = 1368356396 |
| Omicron analysis time window (L1): | GPS = 1368356380 → GPS = 1368356396 |

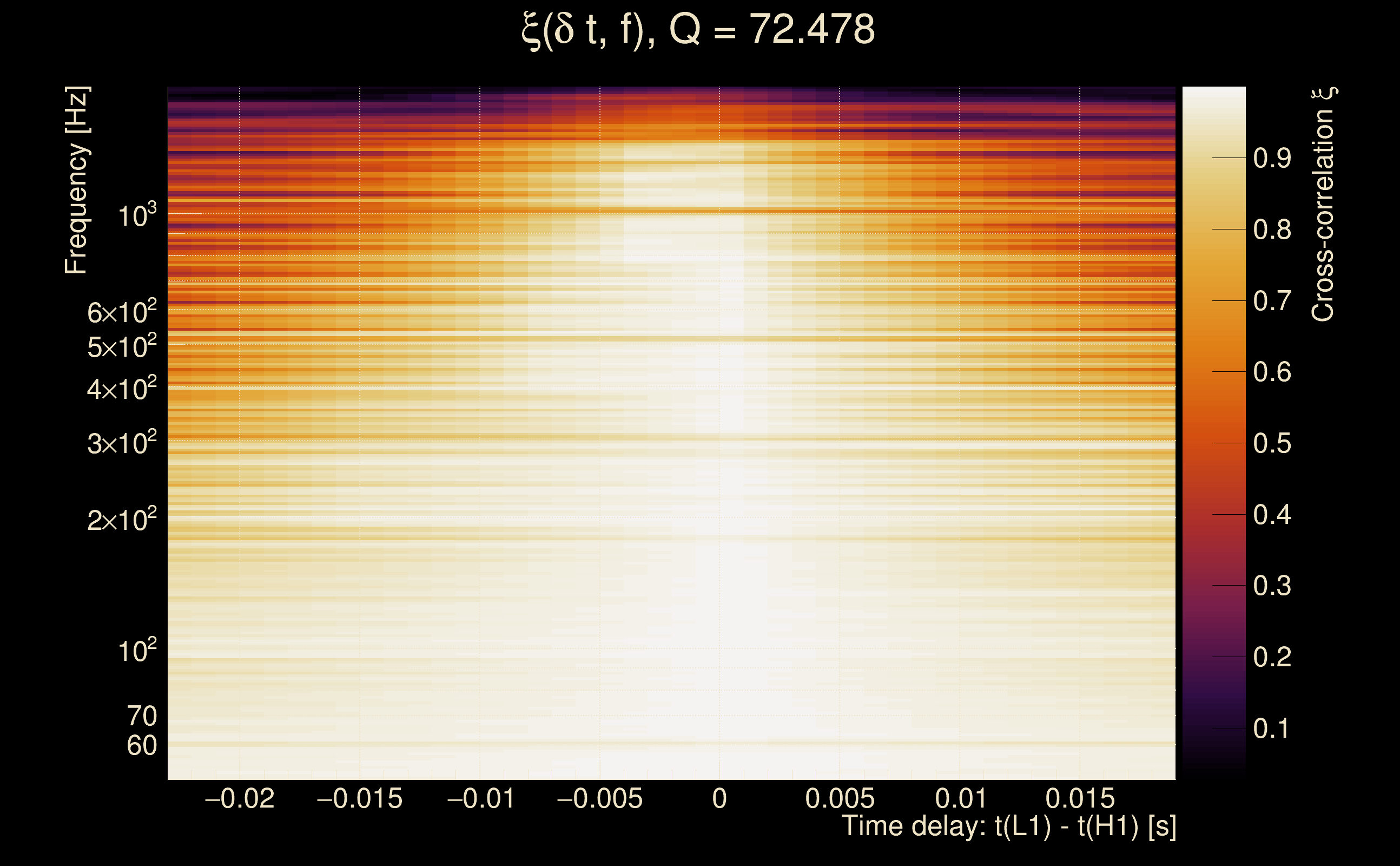

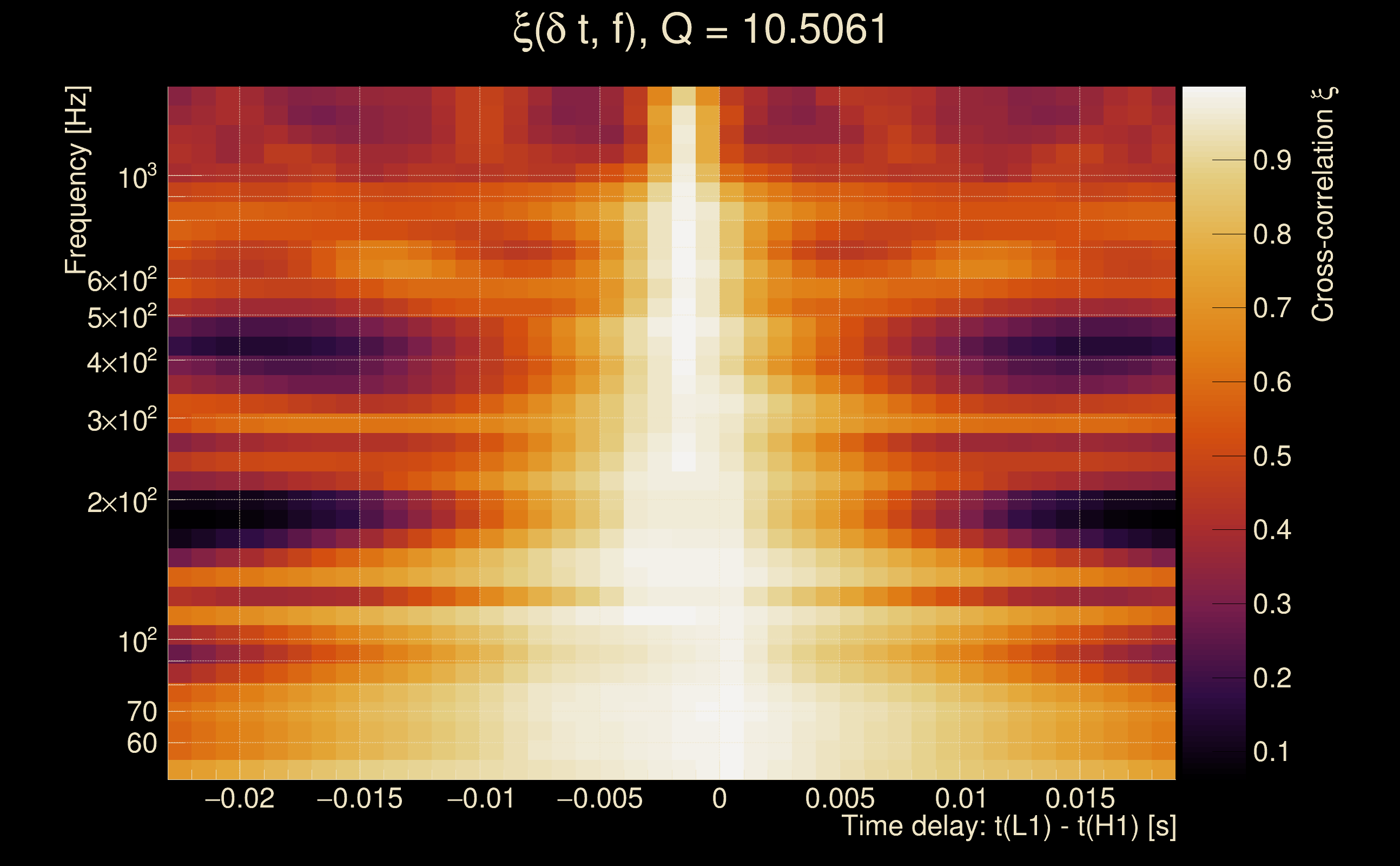

| Time delay between detectors t(L1) - t(H1): | -0.0019826 s (slice index = 108 / 217), δt_gw = -0.0019826 s |

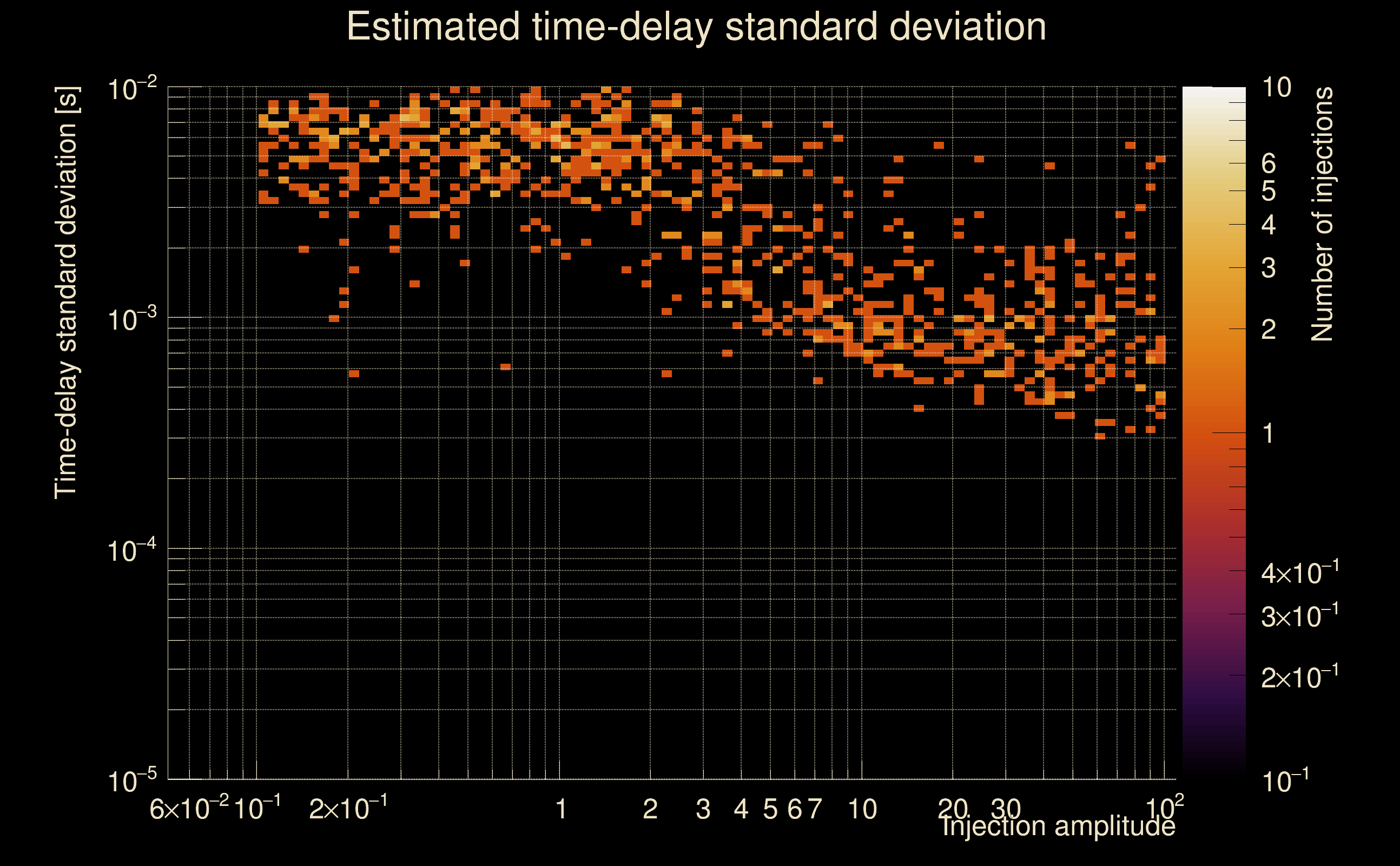

| Time delay standard deviation: | 0.0183021 s |
| [targeted mode] Time delay probability: | 1.90124e-204 (30.5103 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 276.756 Hz |

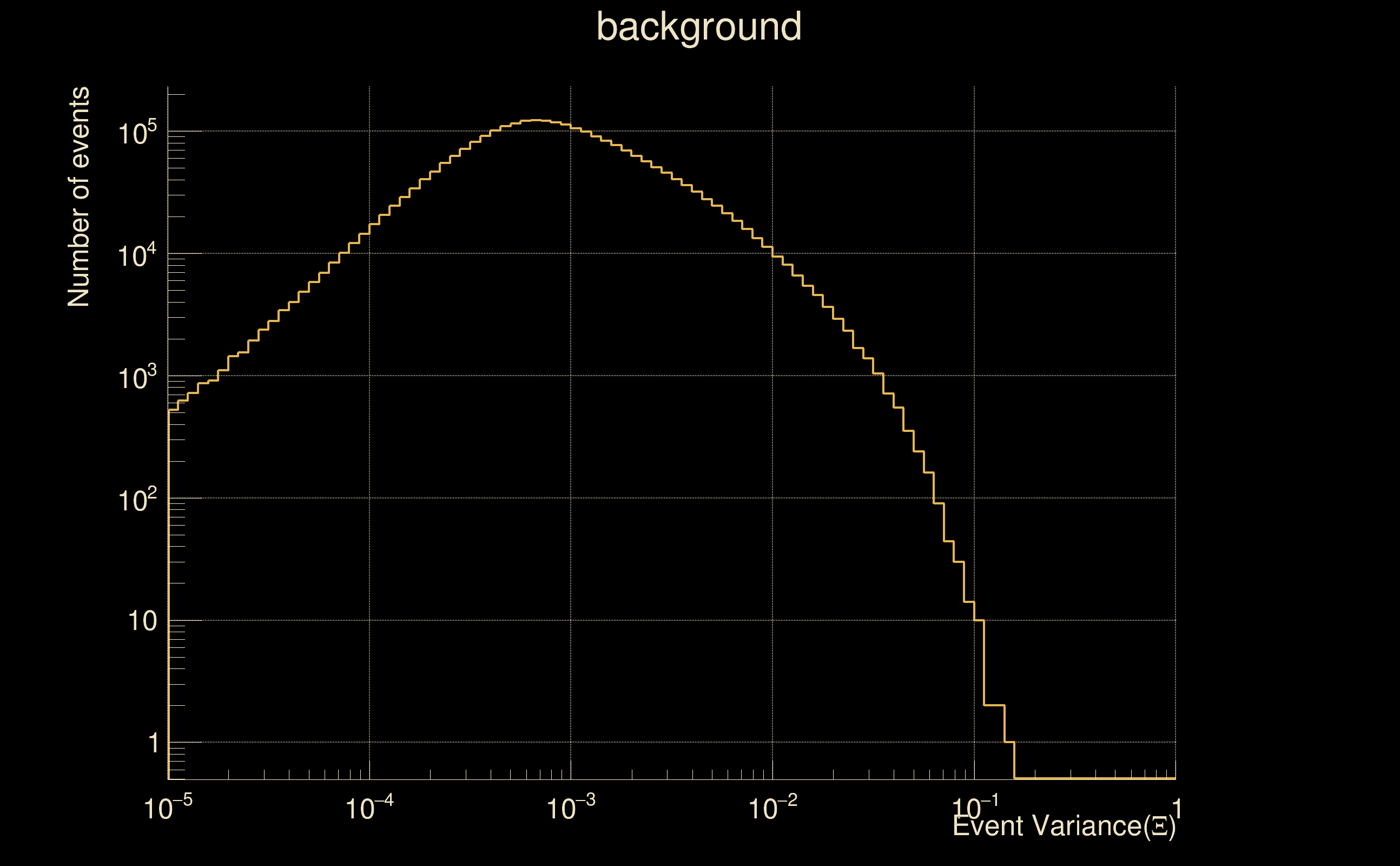

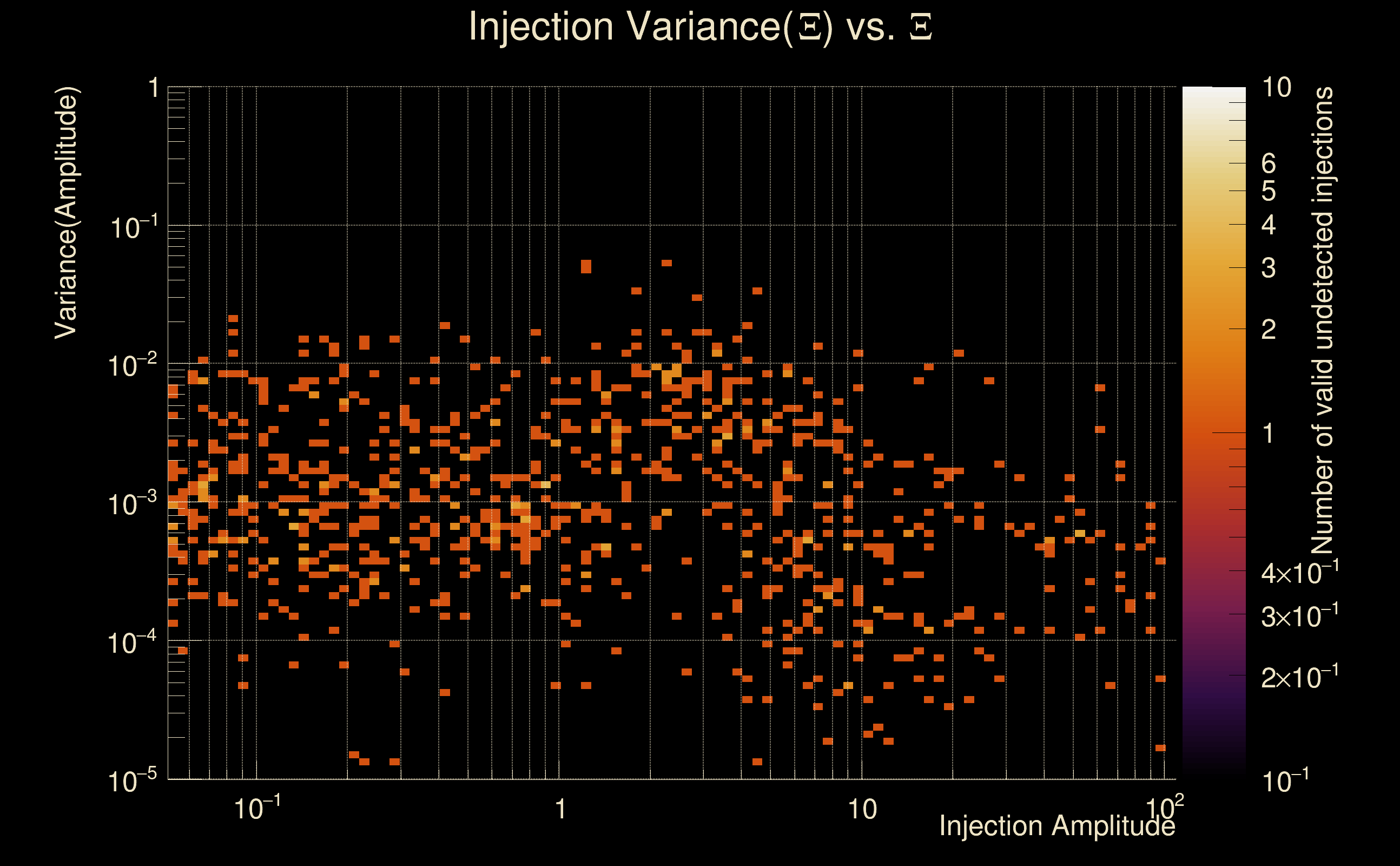

| Ξ: | 0.983783 ± 0.00830947 (variance = 6.90473e-05): Q0: 0.989472, Q1: 0.984032, Q2: 0.97399, Q3: 0.968979, Q4: 0.968823 |

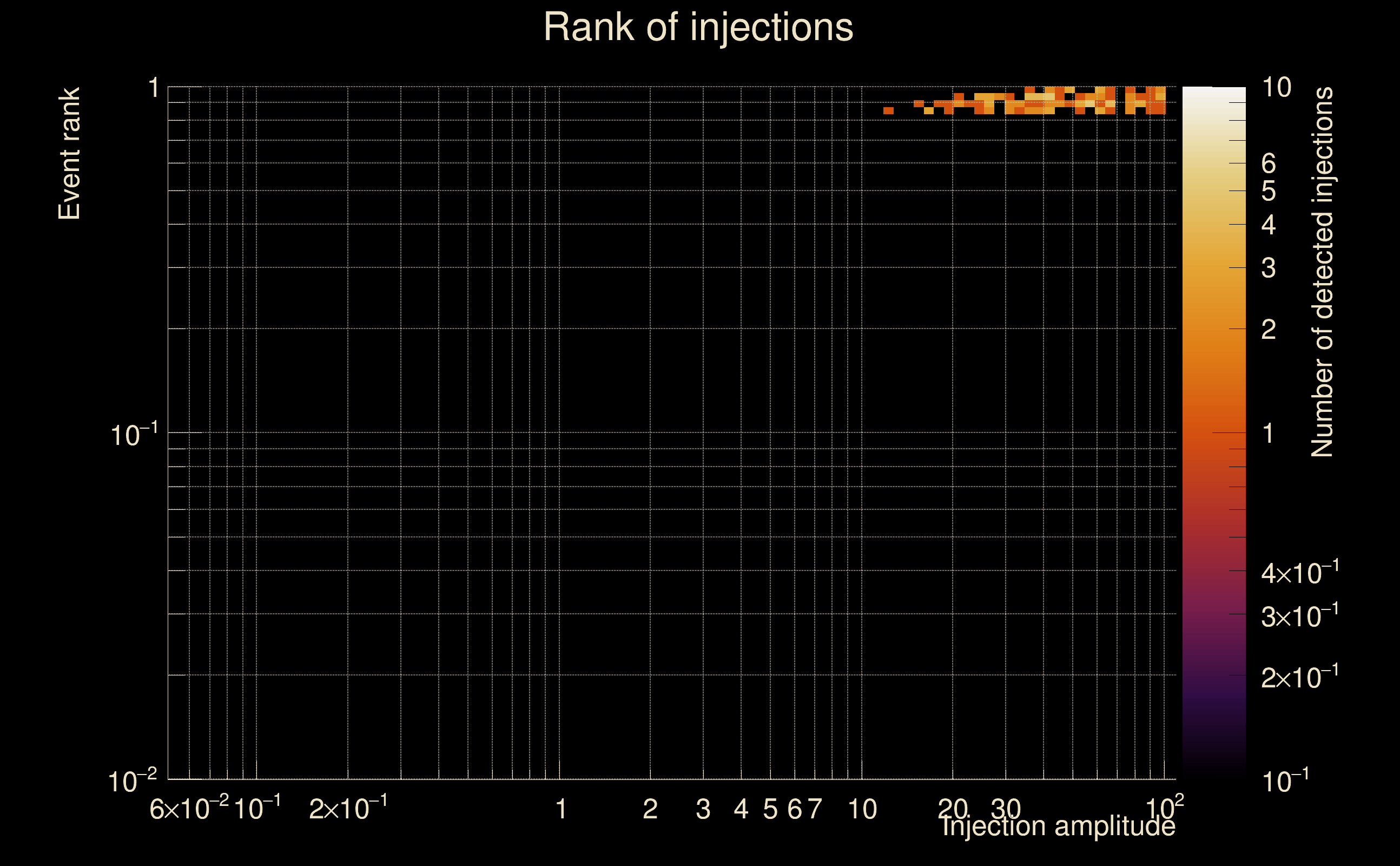

| Rank: | R_A = 0.983783 |
| Log of amplitude ratio (L1/H1): | 0.10507, variance = 0.15421 (L1/H1: 0.0954307, variance = 0.300791, H1/L1: -0.112043, variance = 0.300612) |
| Amplitude ratio (L1/H1): | 1.11079 ⋇ 1.48097 (L1/H1: 1.10013 ⋇ 1.73056, H1/L1: 0.894006 ⋇ 1.73028) |

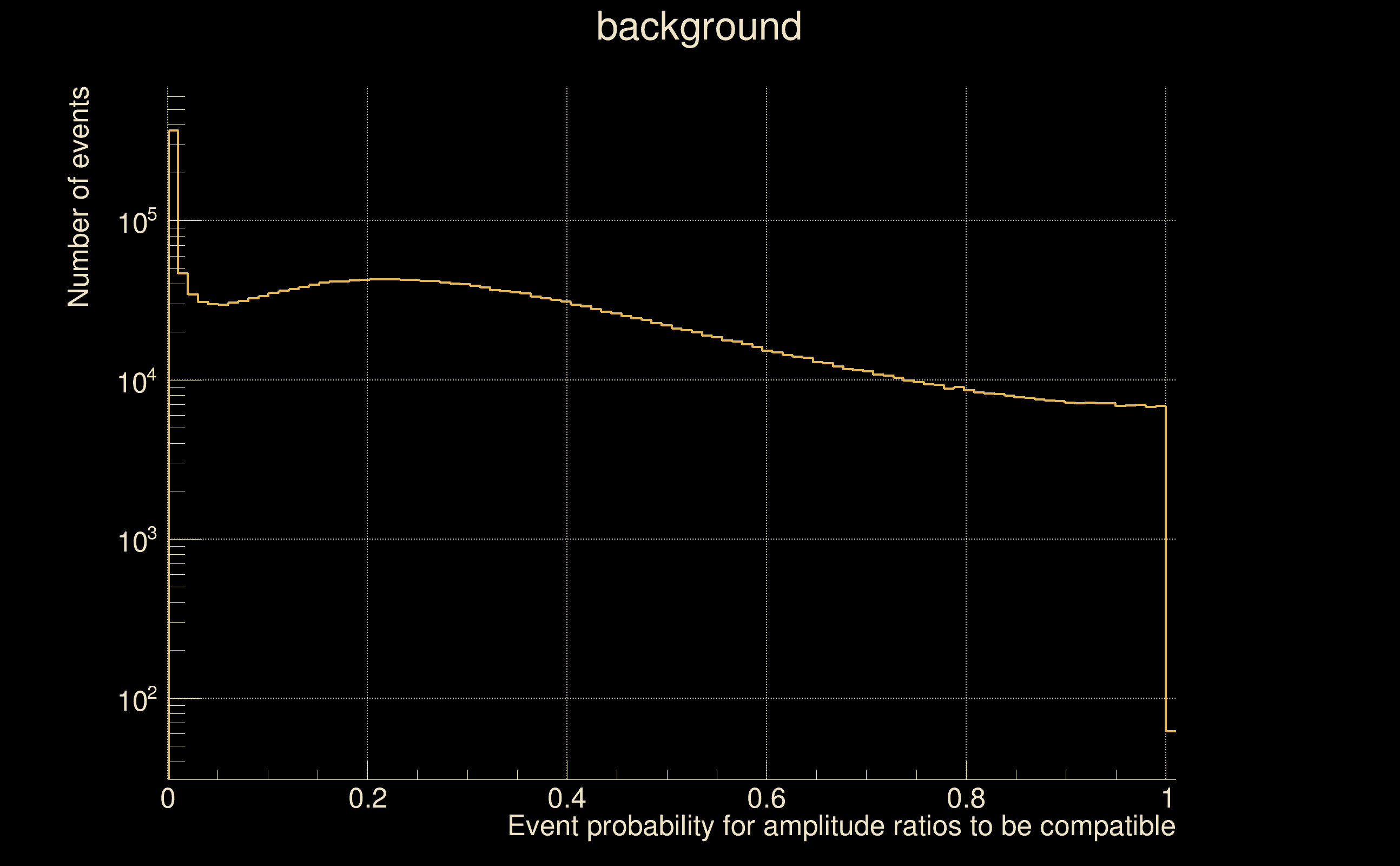

| Amplitude ratio H1|L1 compatibility (probability): | 0.98291 |

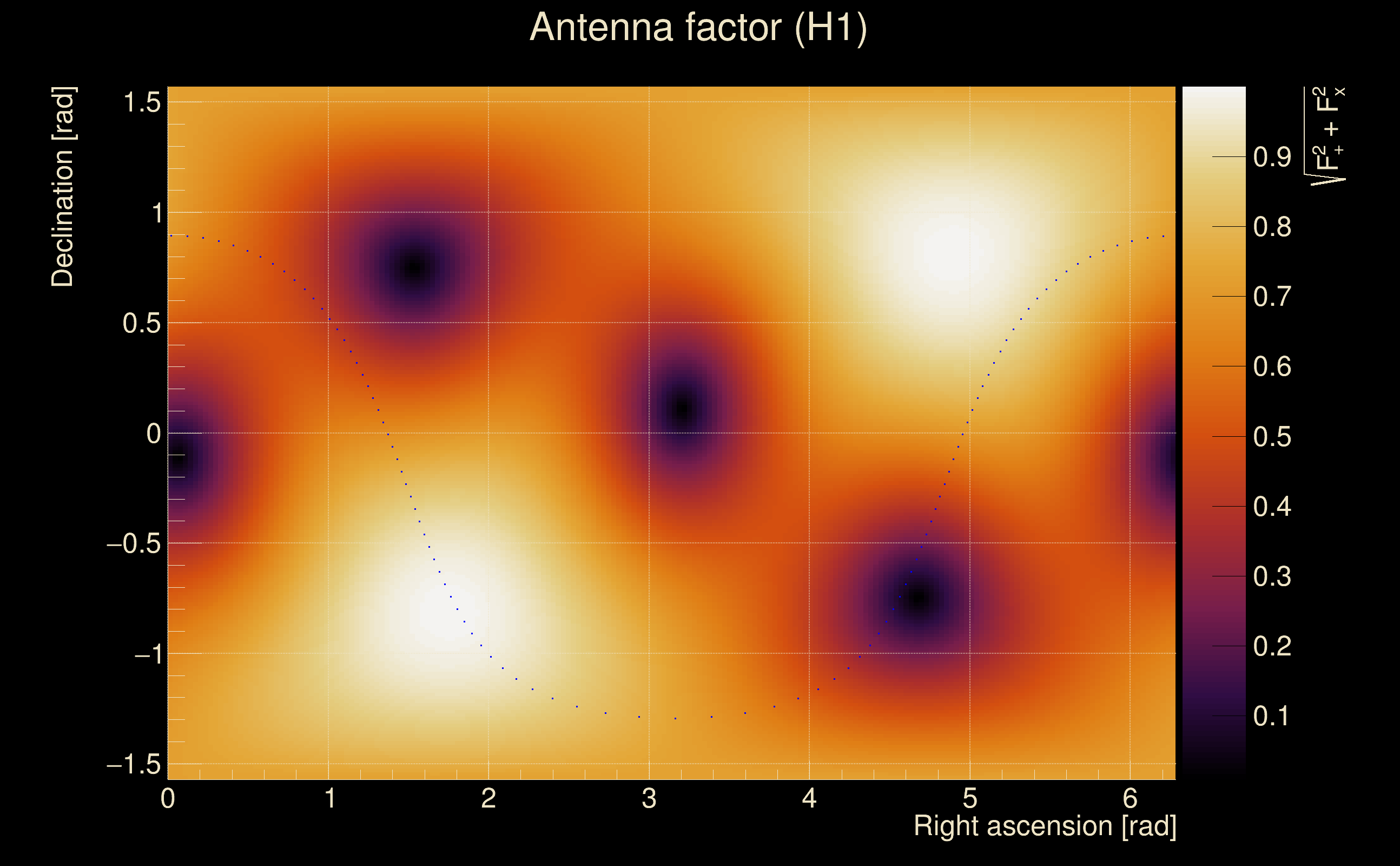

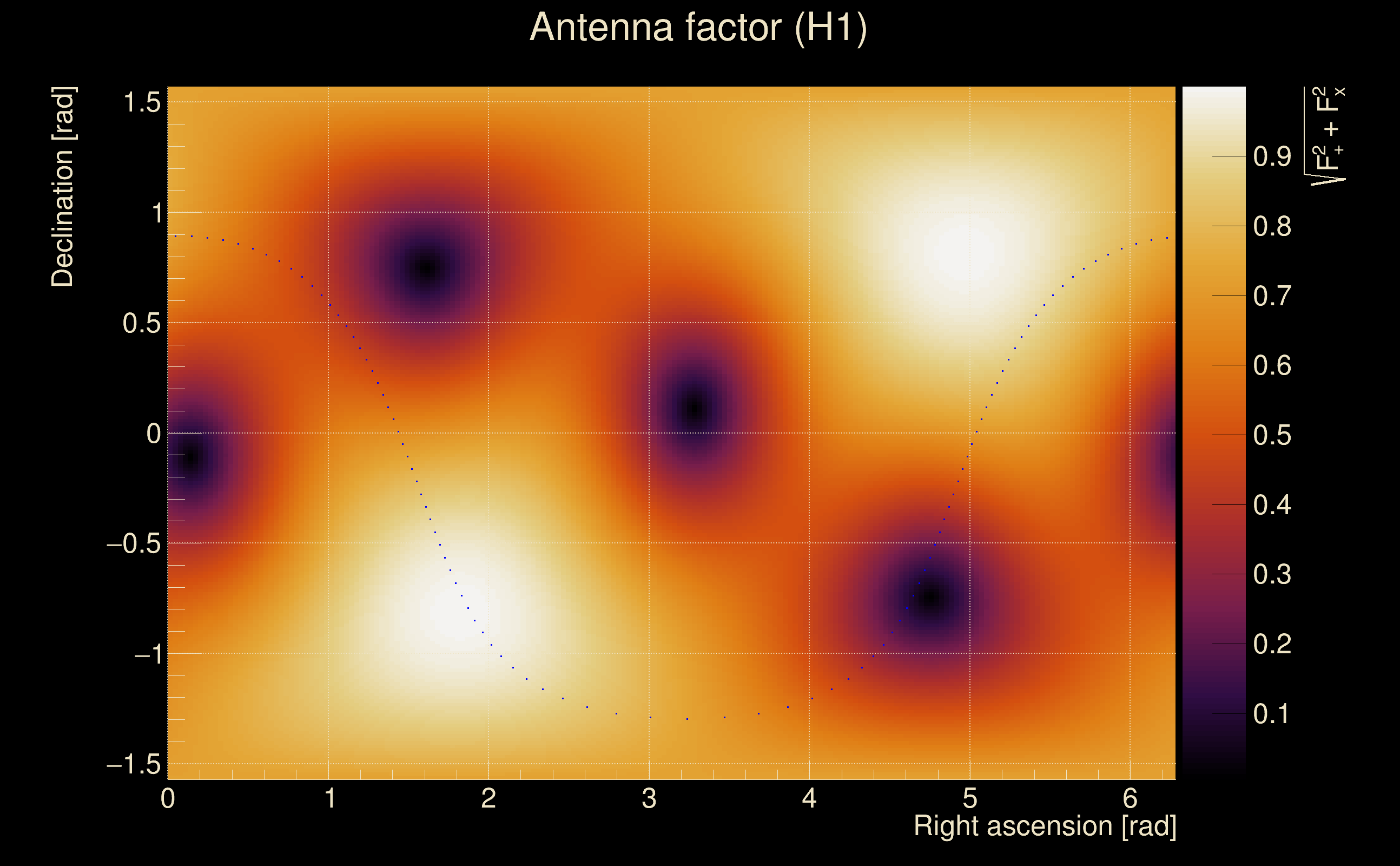

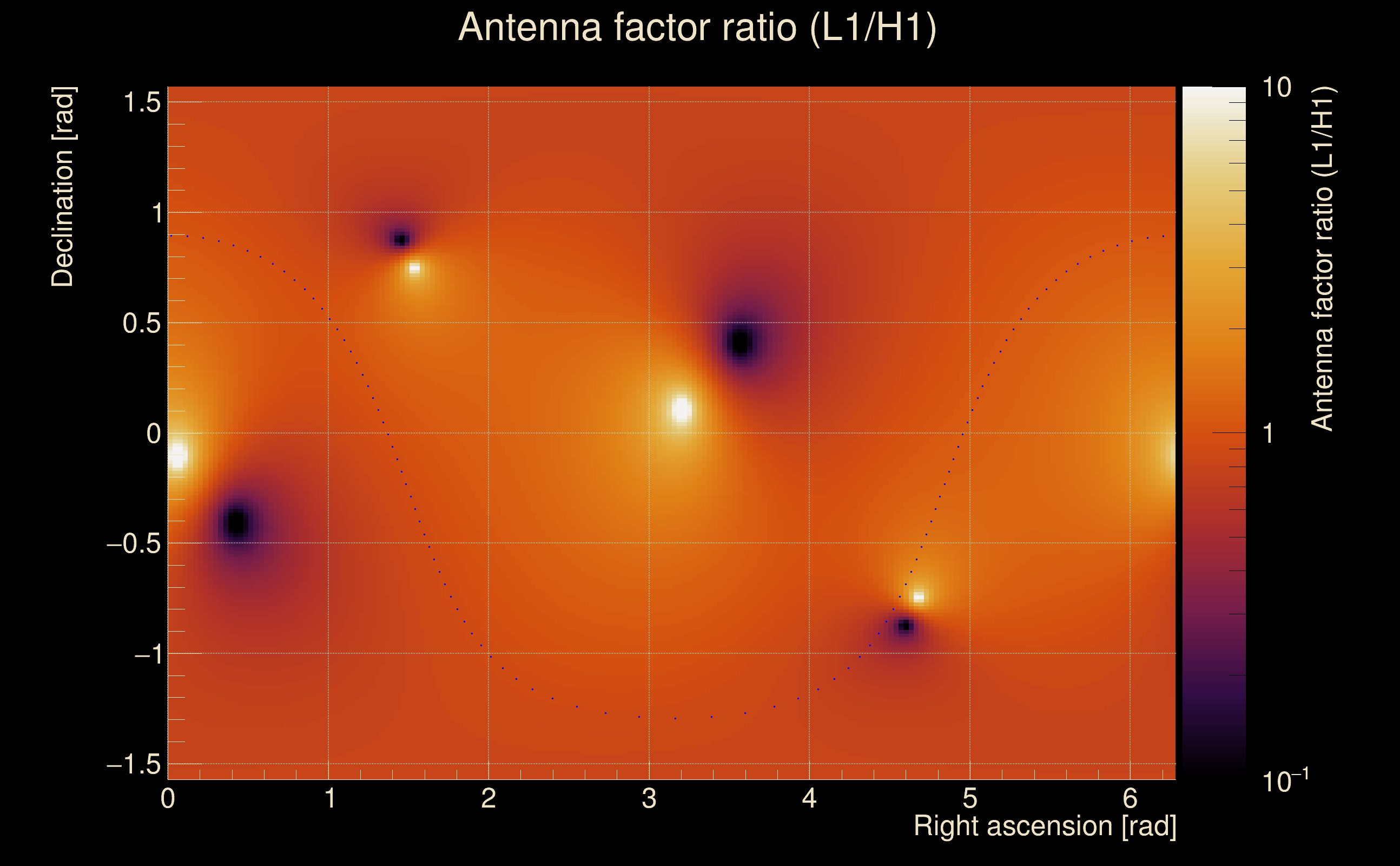

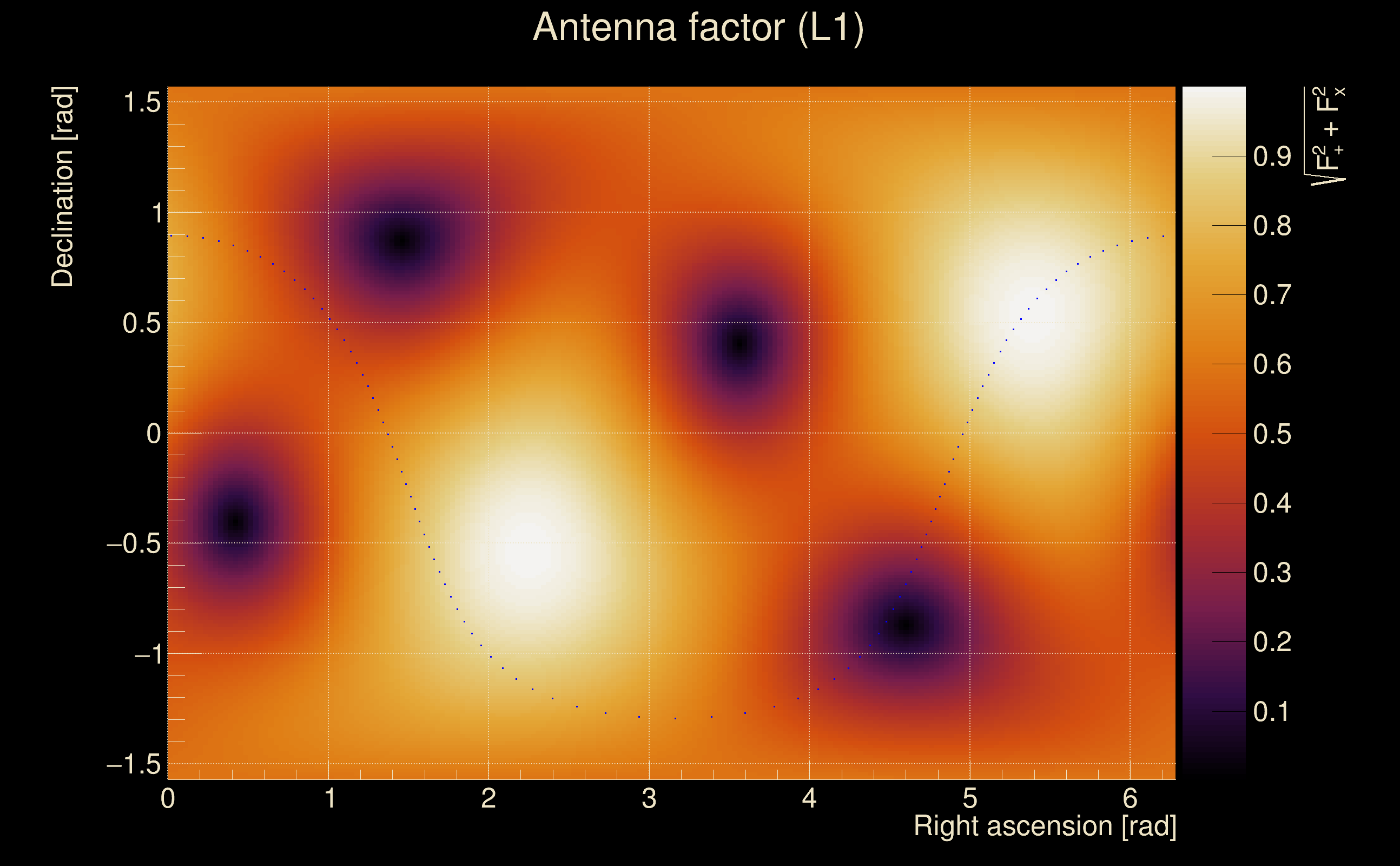

| Antenna factor probability: | 0.154248 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |

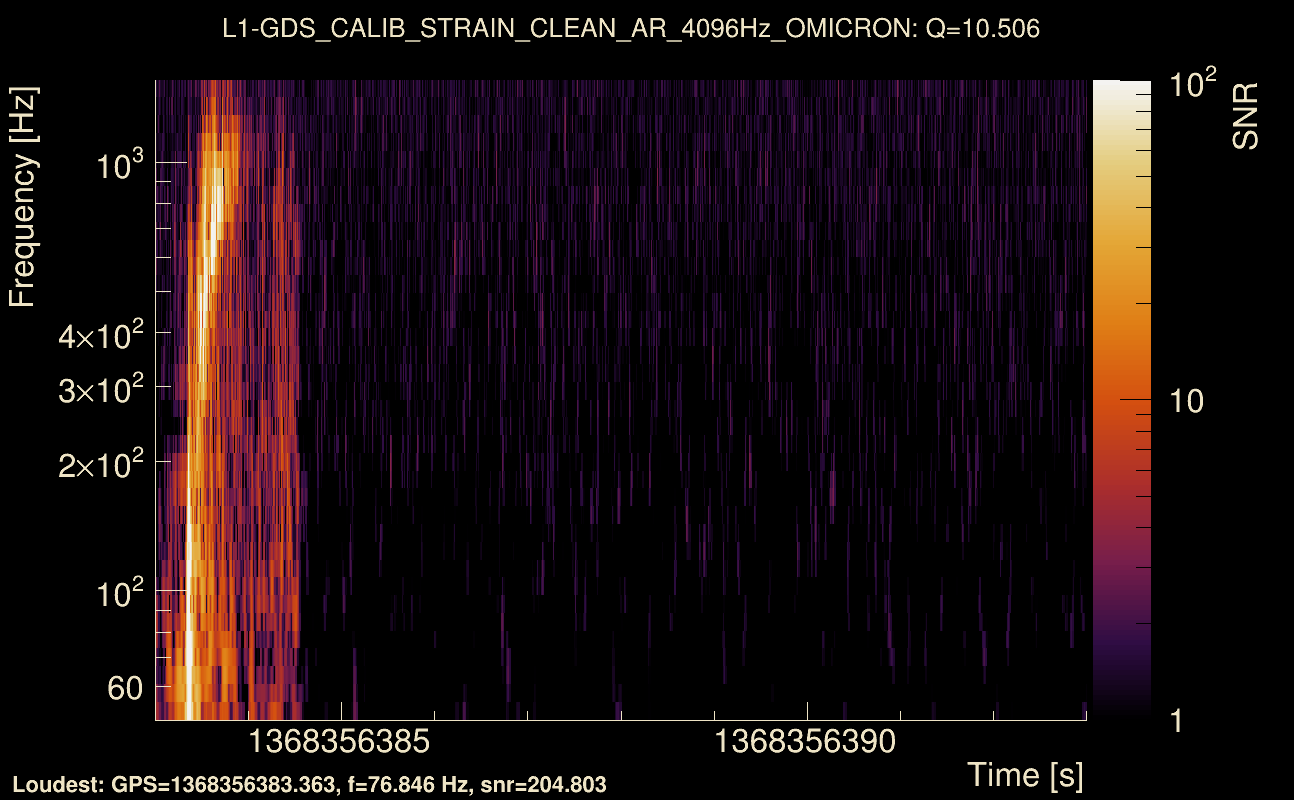

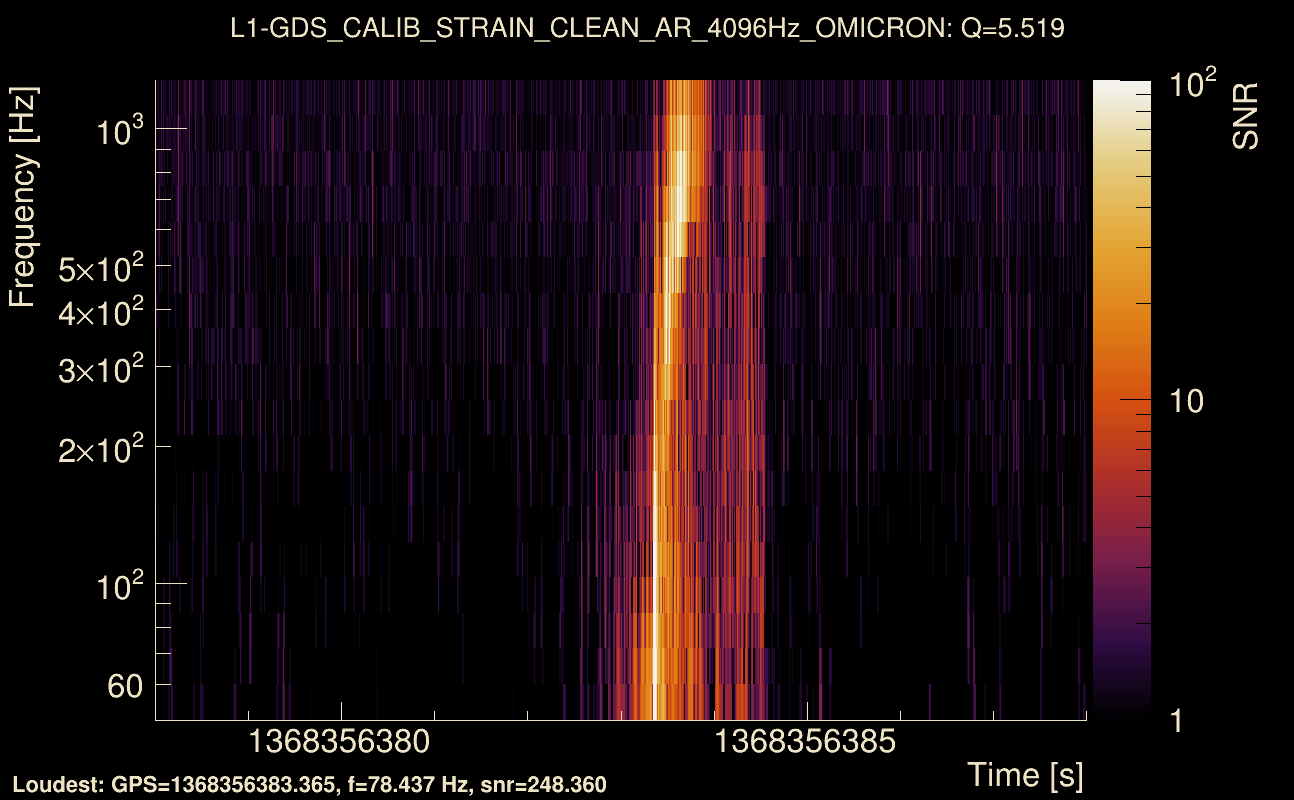

| Maximum signal-to-noise ratio: | H1: 300.23, L1: 352.996 |

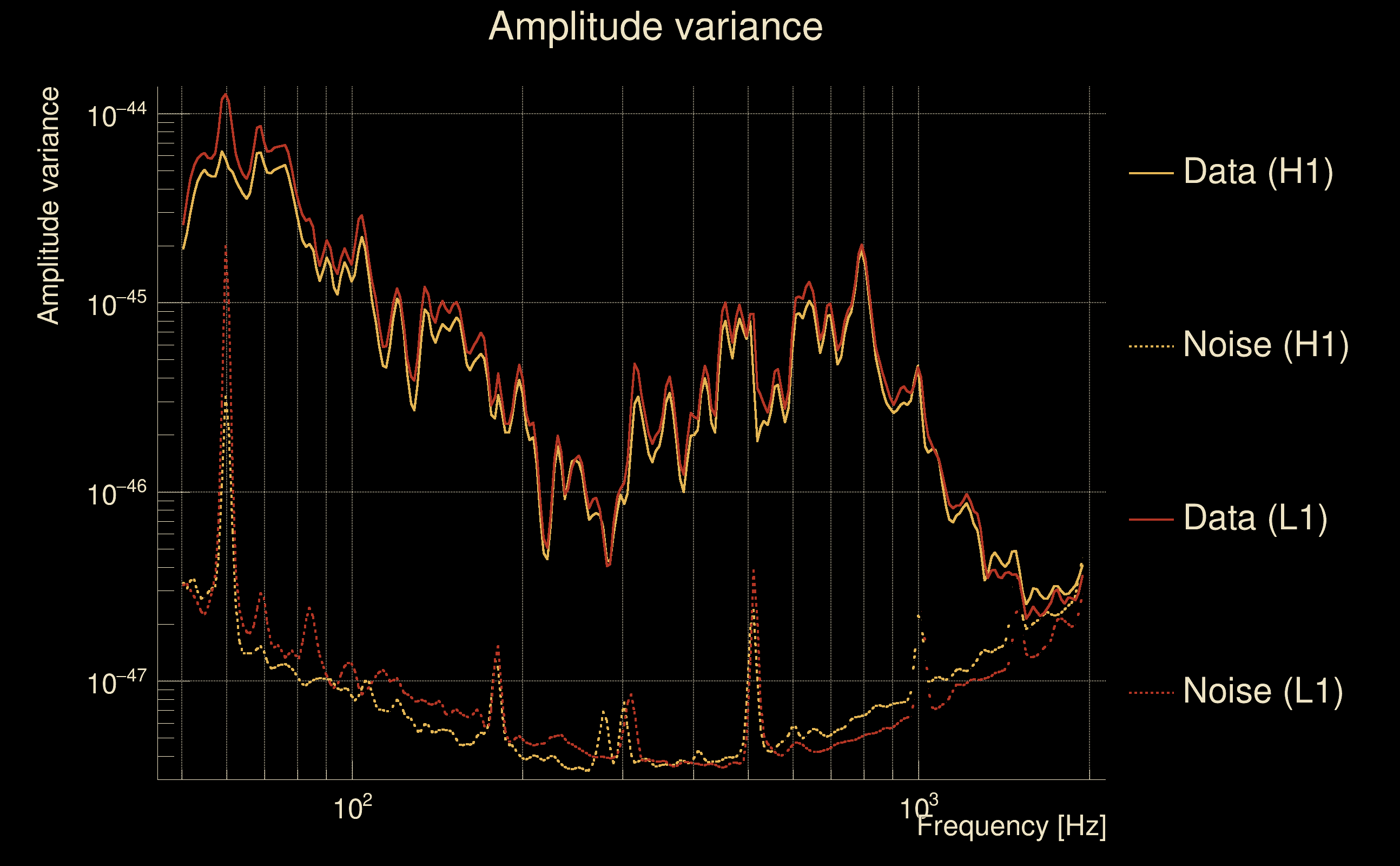

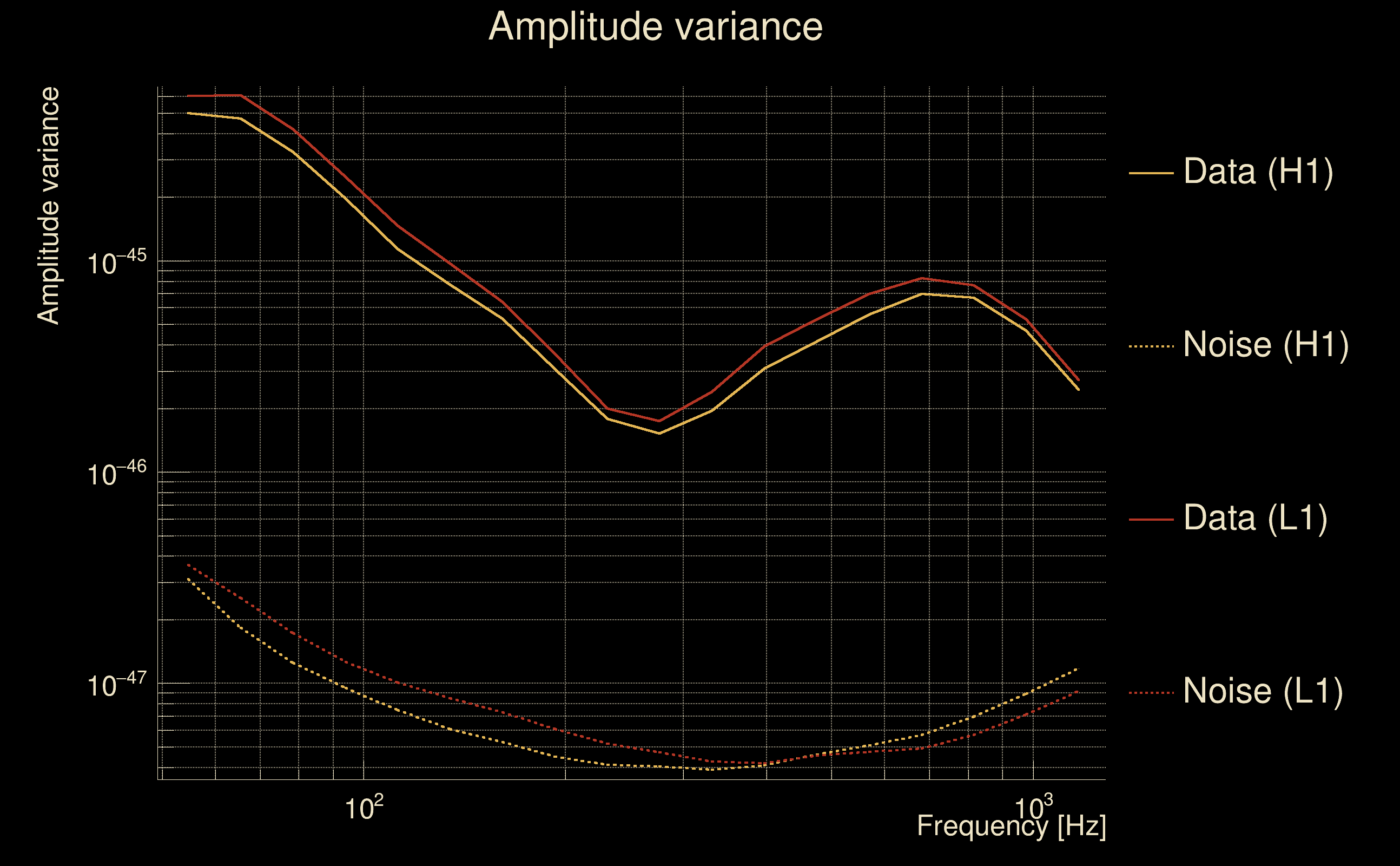

| SNR variance: | H1: 66.843, L1: 91.1036 |

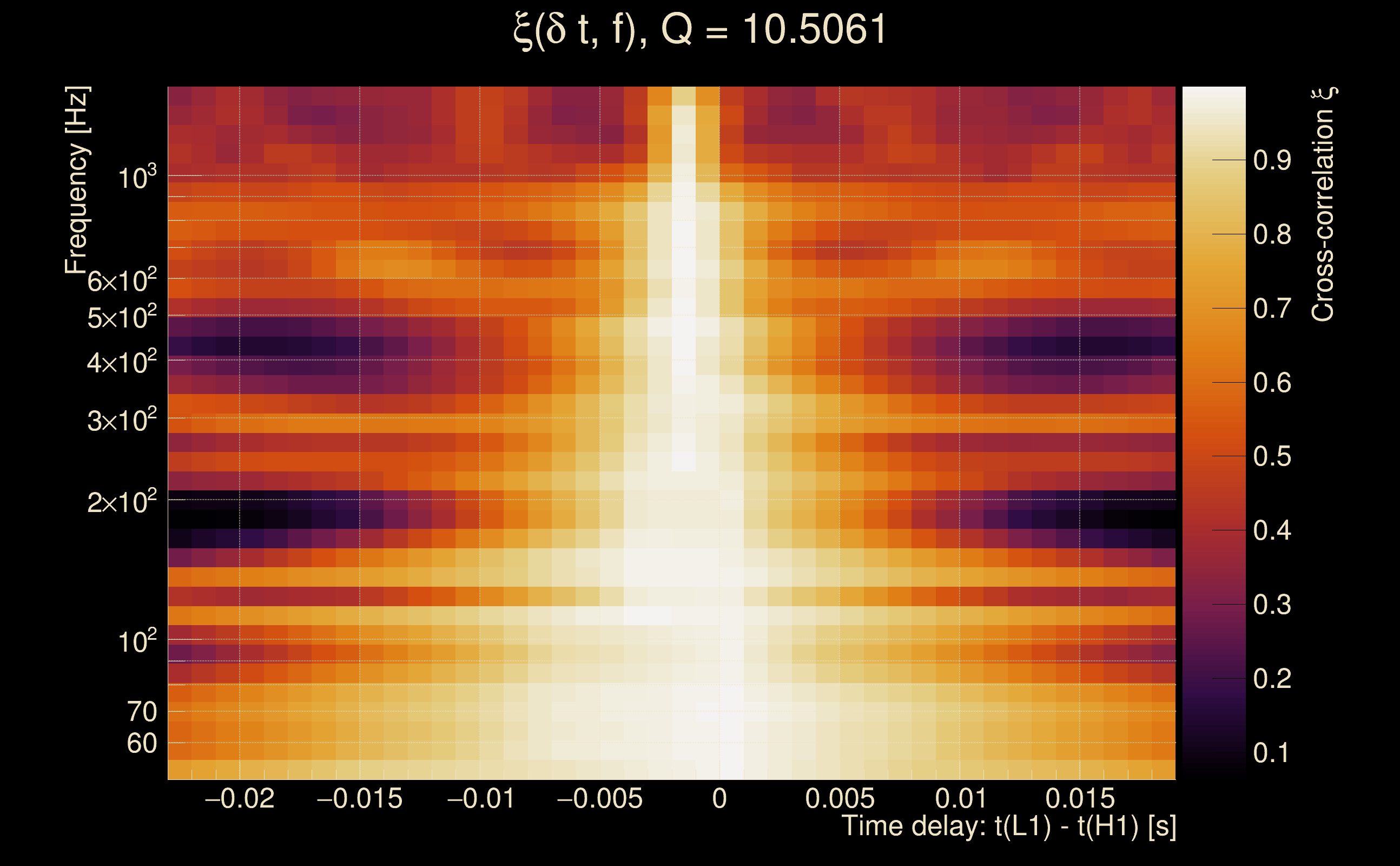

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

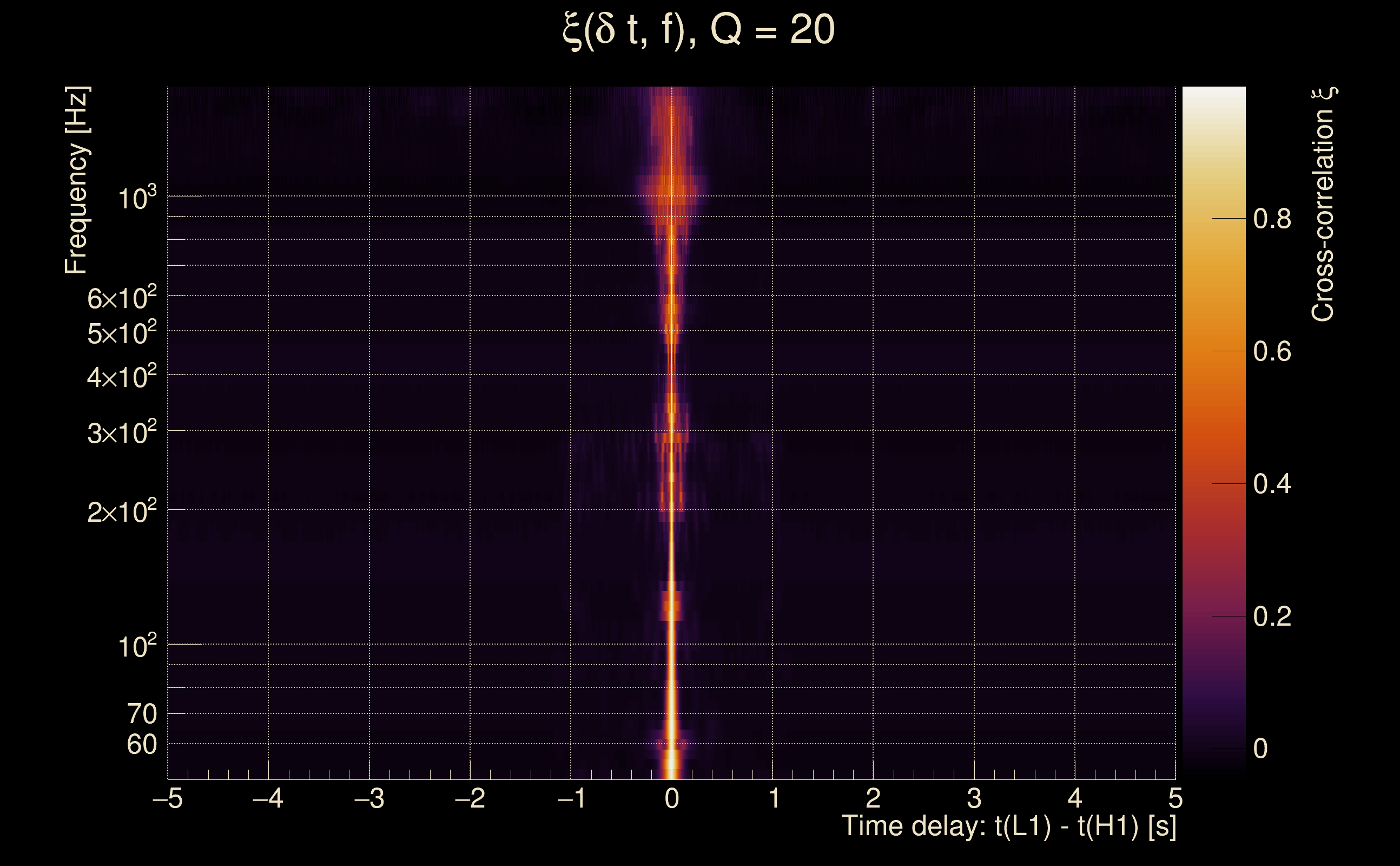

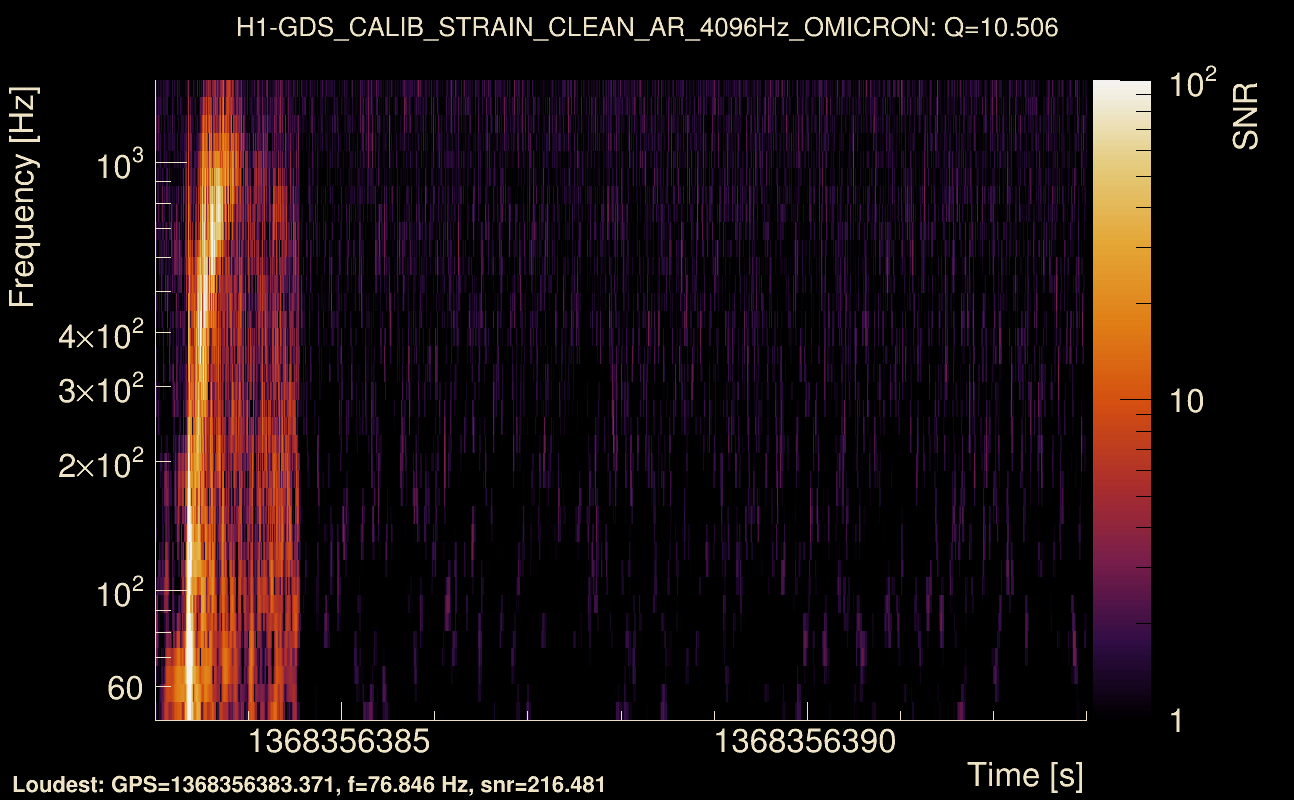

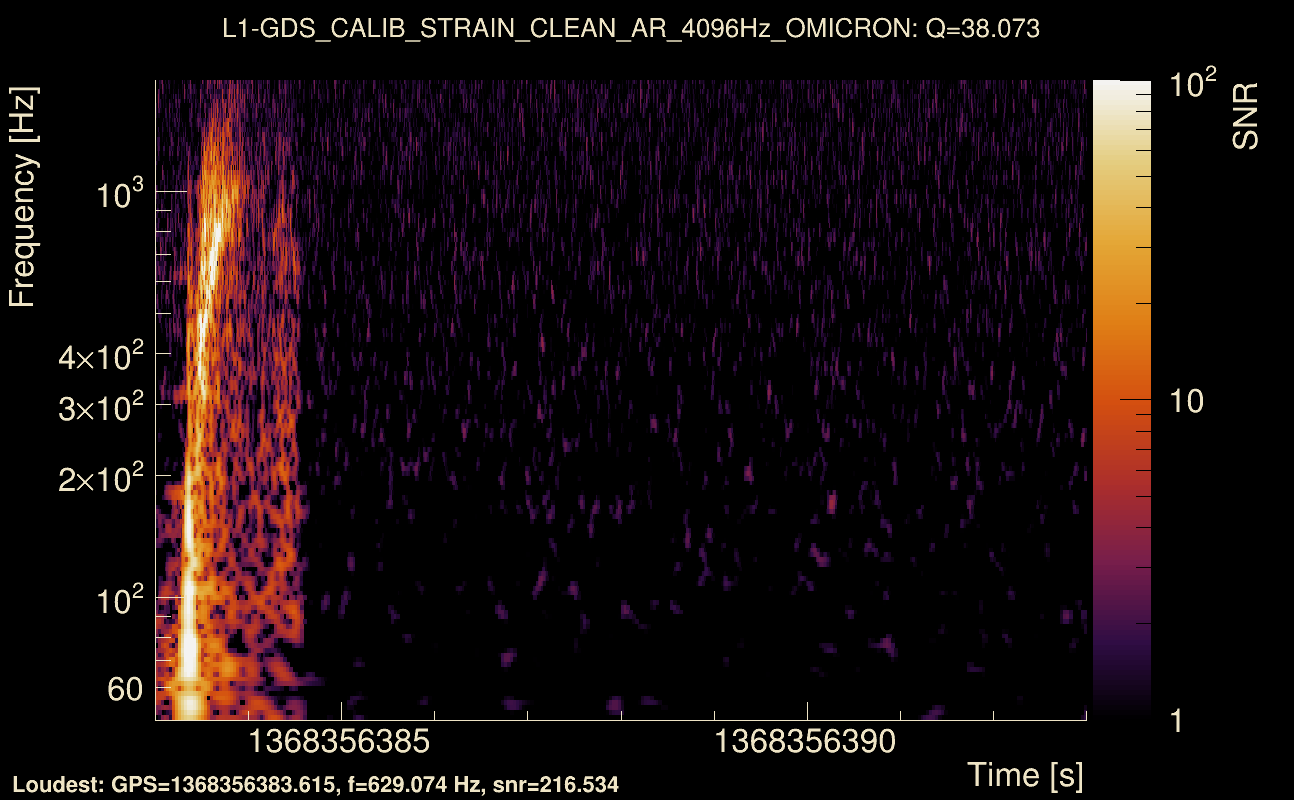

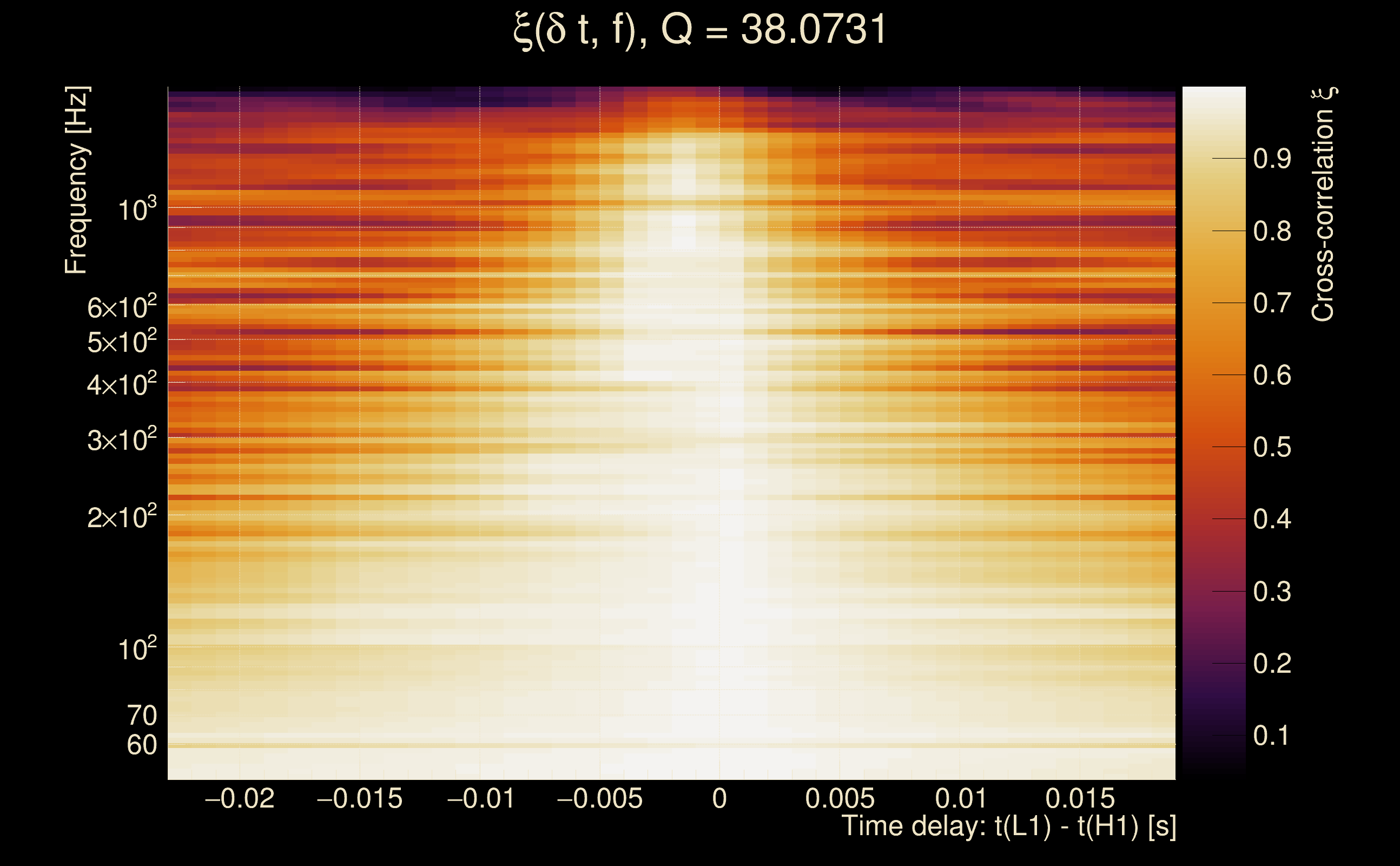

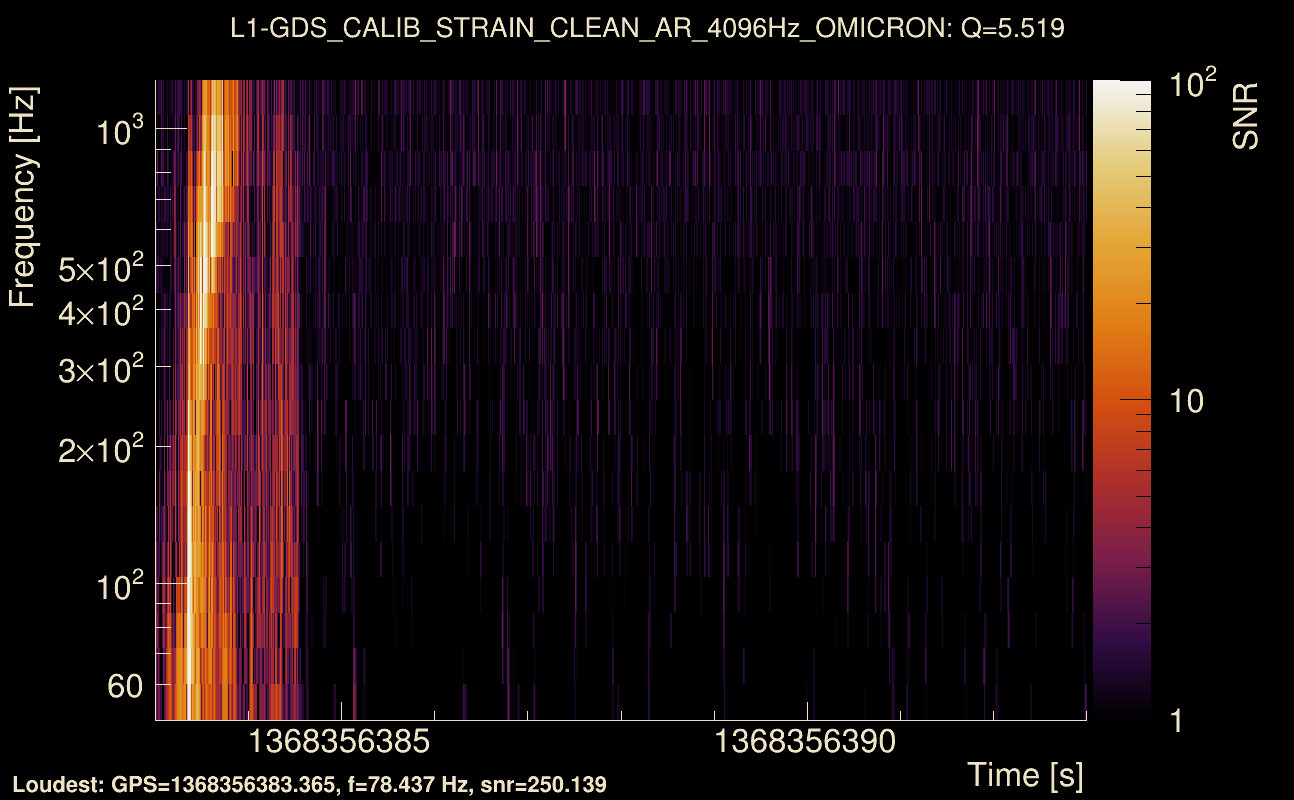

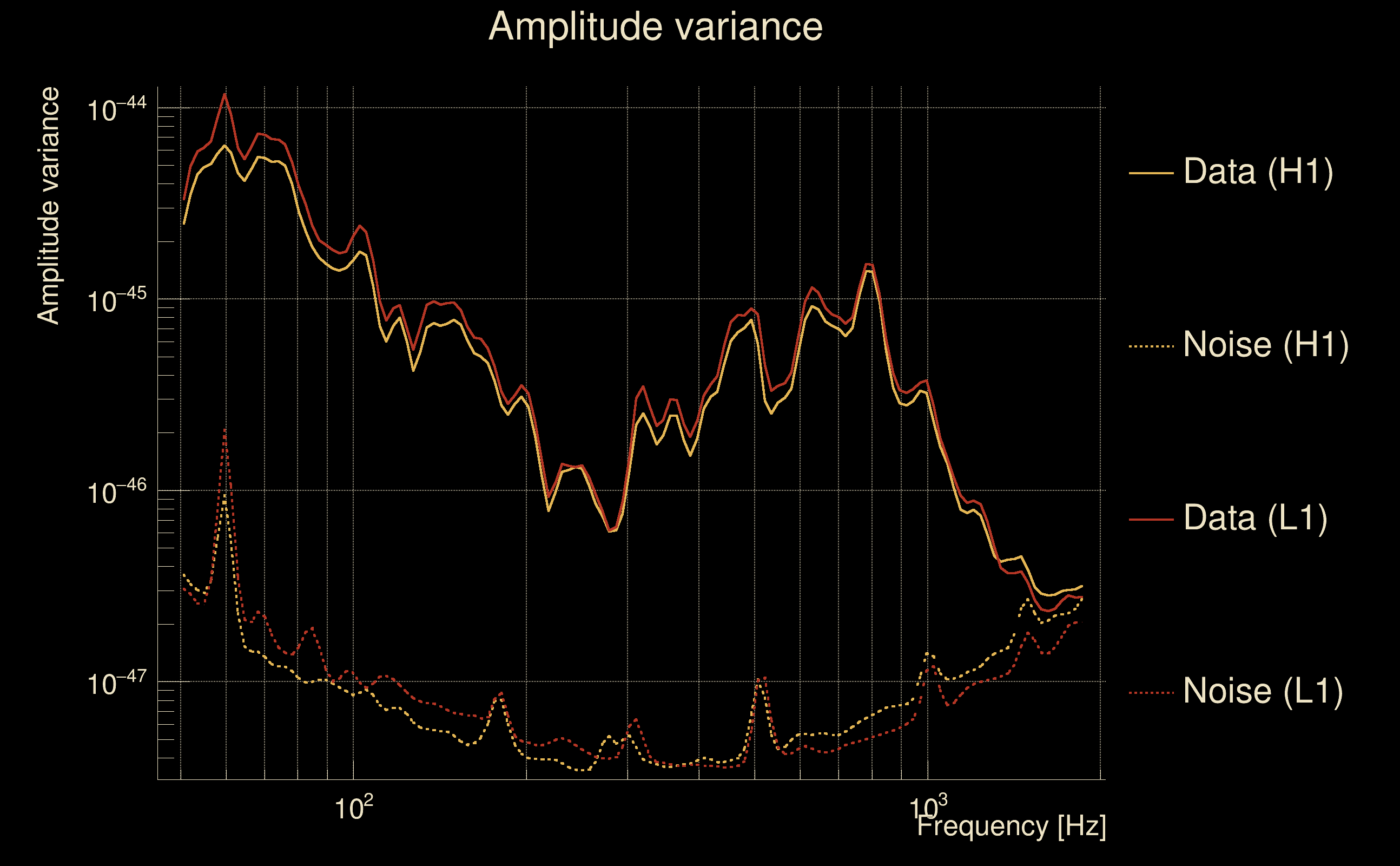

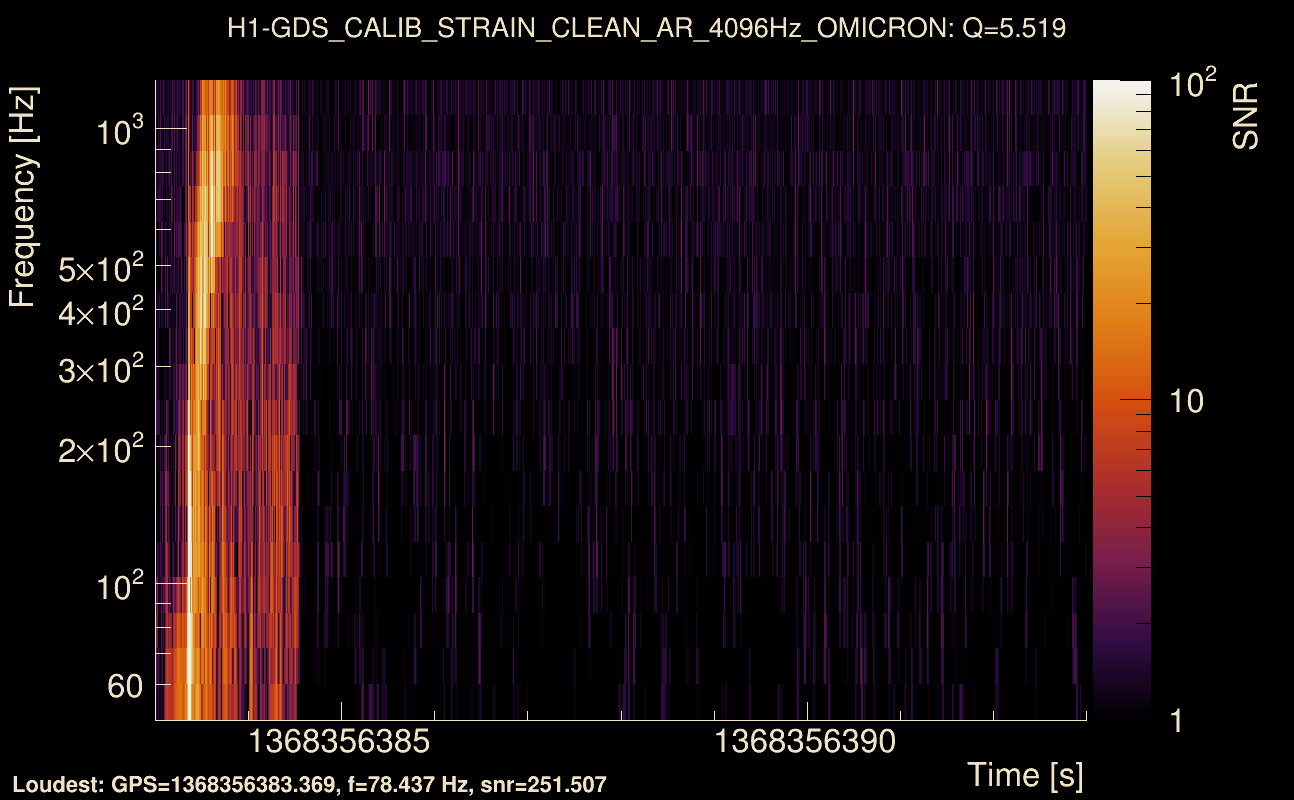

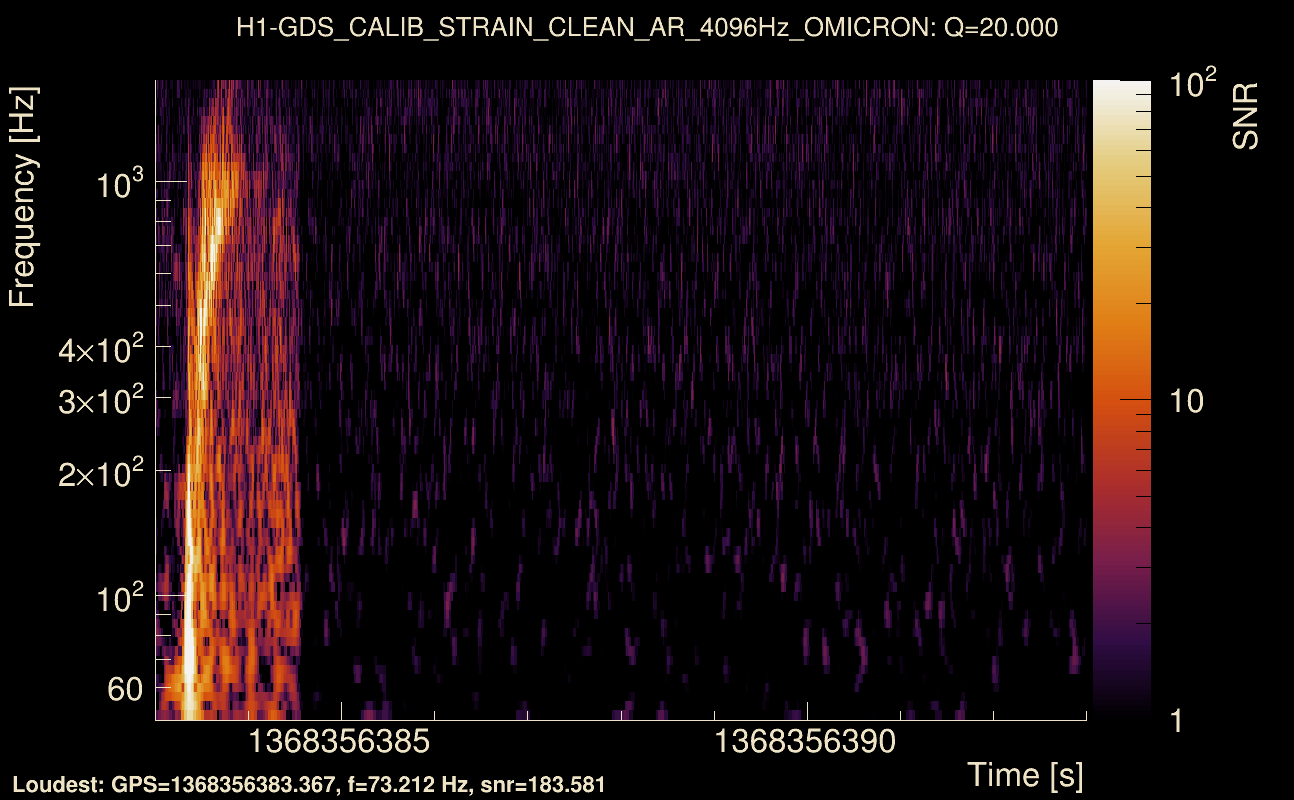

| Event time t(H1): | GPS = 1368356378 (Wed May 17 10:59:20 2023 ) → GPS = 1368356388 (Wed May 17 10:59:30 2023 ) |
| Event time t(L1): | GPS = 1368356378 (Wed May 17 10:59:30 2023 ) → GPS = 1368356388 (Wed May 17 10:59:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368356375 → GPS = 1368356391 |
| Omicron analysis time window (L1): | GPS = 1368356375 → GPS = 1368356391 |

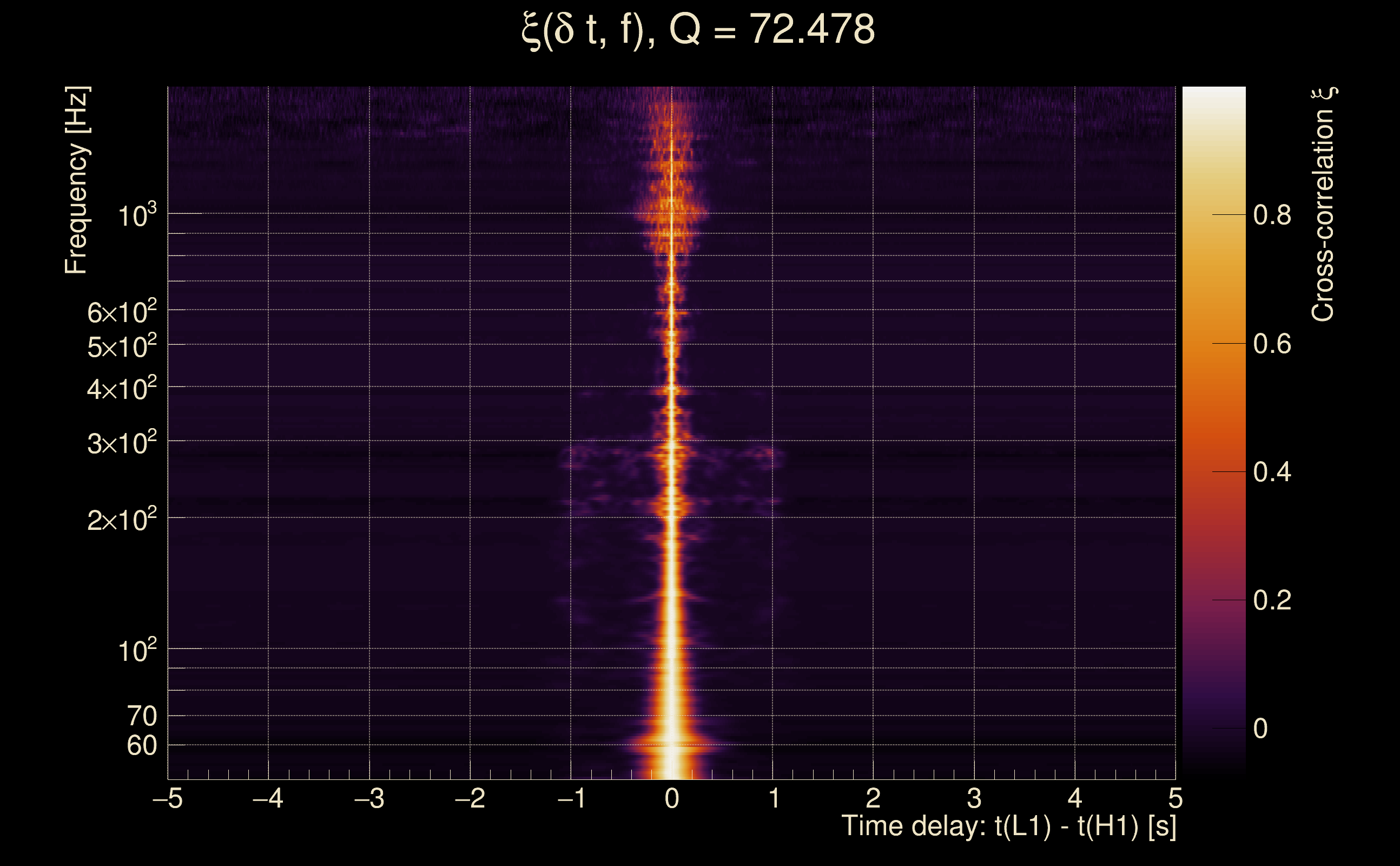

| Time delay between detectors t(L1) - t(H1): | -0.0019819 s (slice index = 108 / 217), δt_gw = -0.0019819 s |
| Time delay standard deviation: | 0.0185382 s |
| [targeted mode] Time delay probability: | 2.84537e-194 (29.7334 sigmas), δt_target = -0.00884652 s |
| Frequency: | 276.659 Hz |
| Ξ: | 0.983752 ± 0.00835079 (variance = 6.97357e-05): Q0: 0.989496, Q1: 0.983936, Q2: 0.973926, Q3: 0.968892, Q4: 0.968679 |
| Rank: | R_A = 0.983752 |
| Log of amplitude ratio (L1/H1): | 0.105247, variance = 0.154156 (L1/H1: 0.0946357, variance = 0.300807, H1/L1: -0.112942, variance = 0.300613) |
| Amplitude ratio (L1/H1): | 1.11099 ⋇ 1.48087 (L1/H1: 1.09926 ⋇ 1.73058, H1/L1: 0.893203 ⋇ 1.73028) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.981168 |

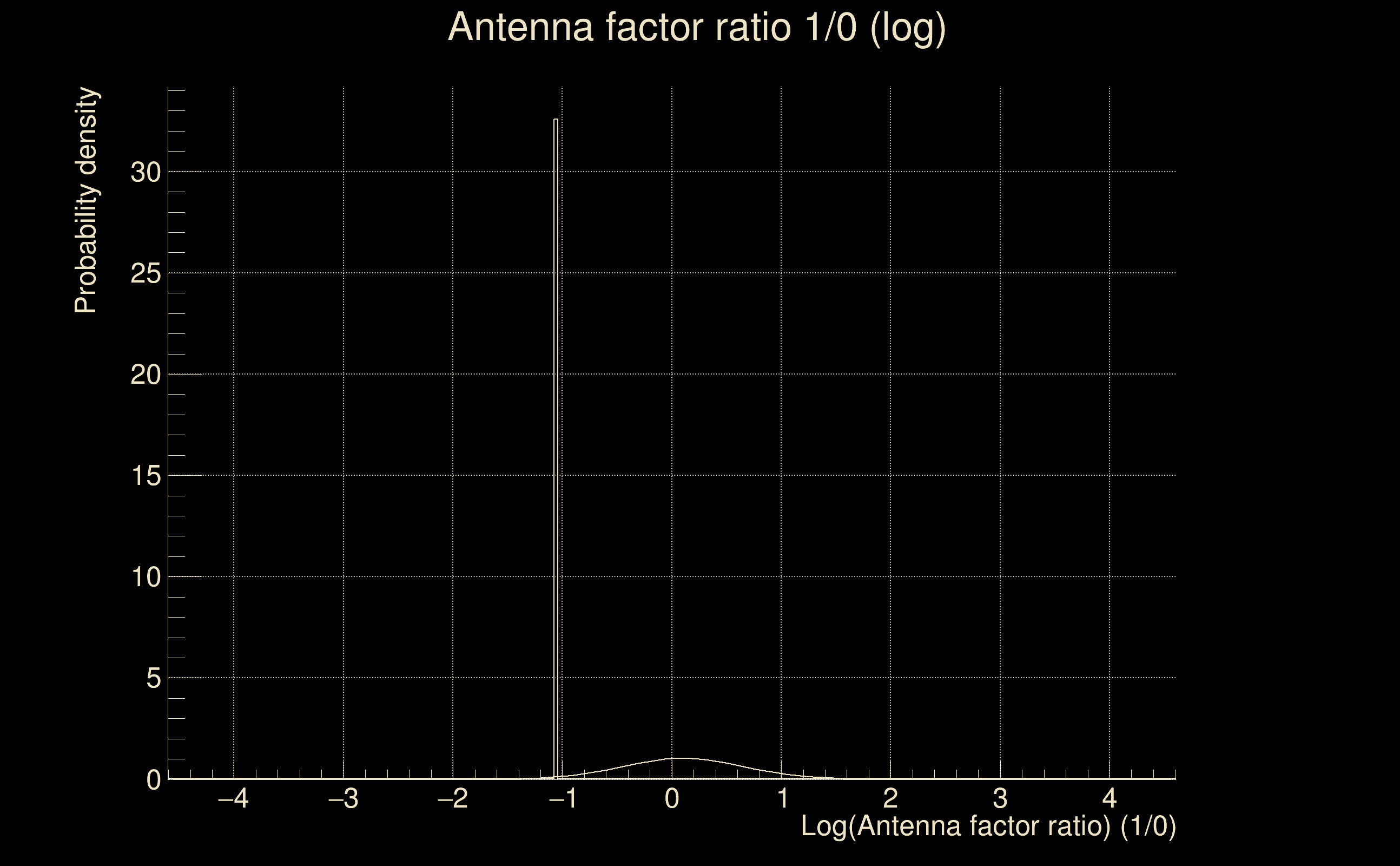

| Antenna factor probability: | 0.154033 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 303.288, L1: 356.159 |
| SNR variance: | H1: 0.652072, L1: 0.672466 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

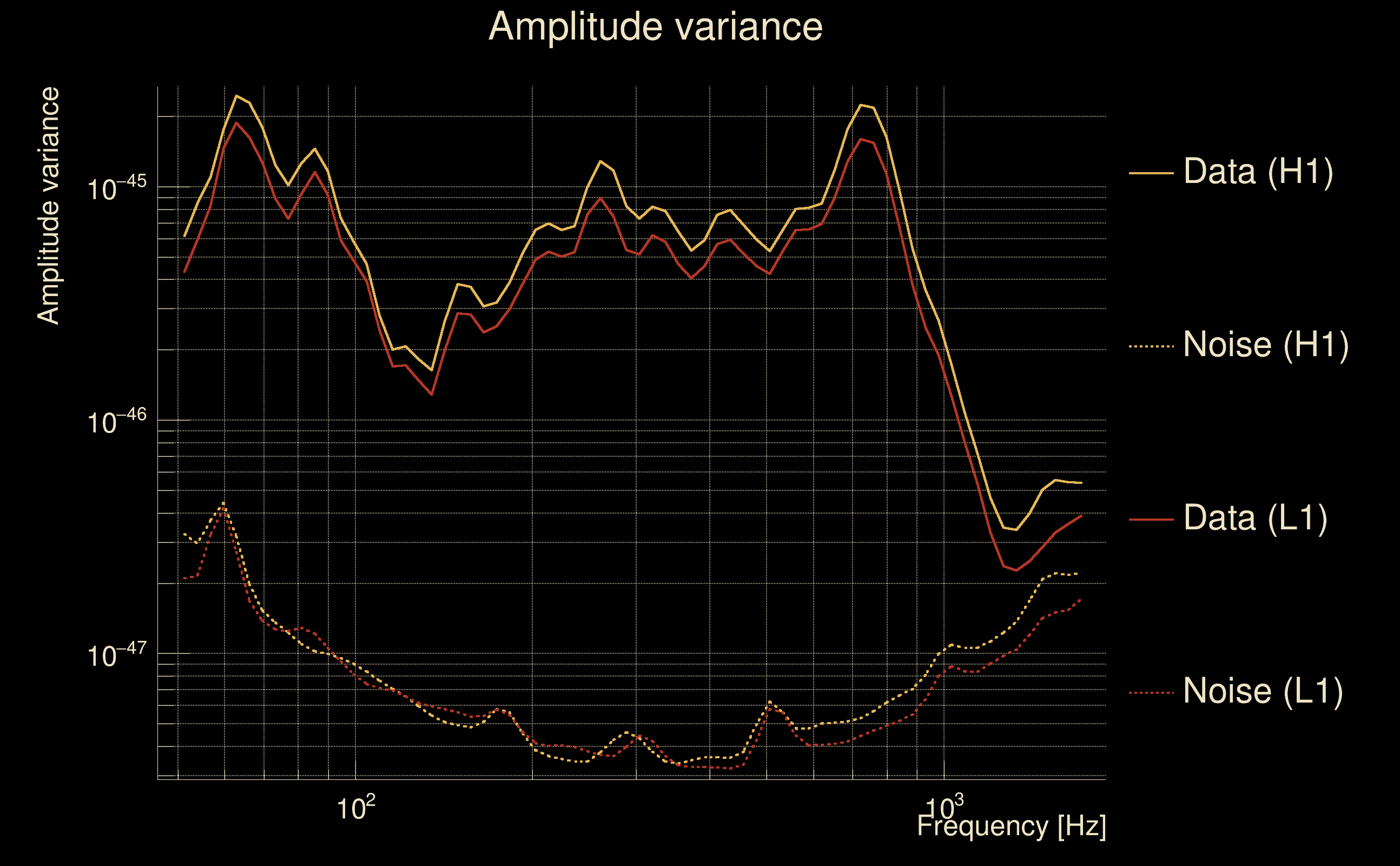

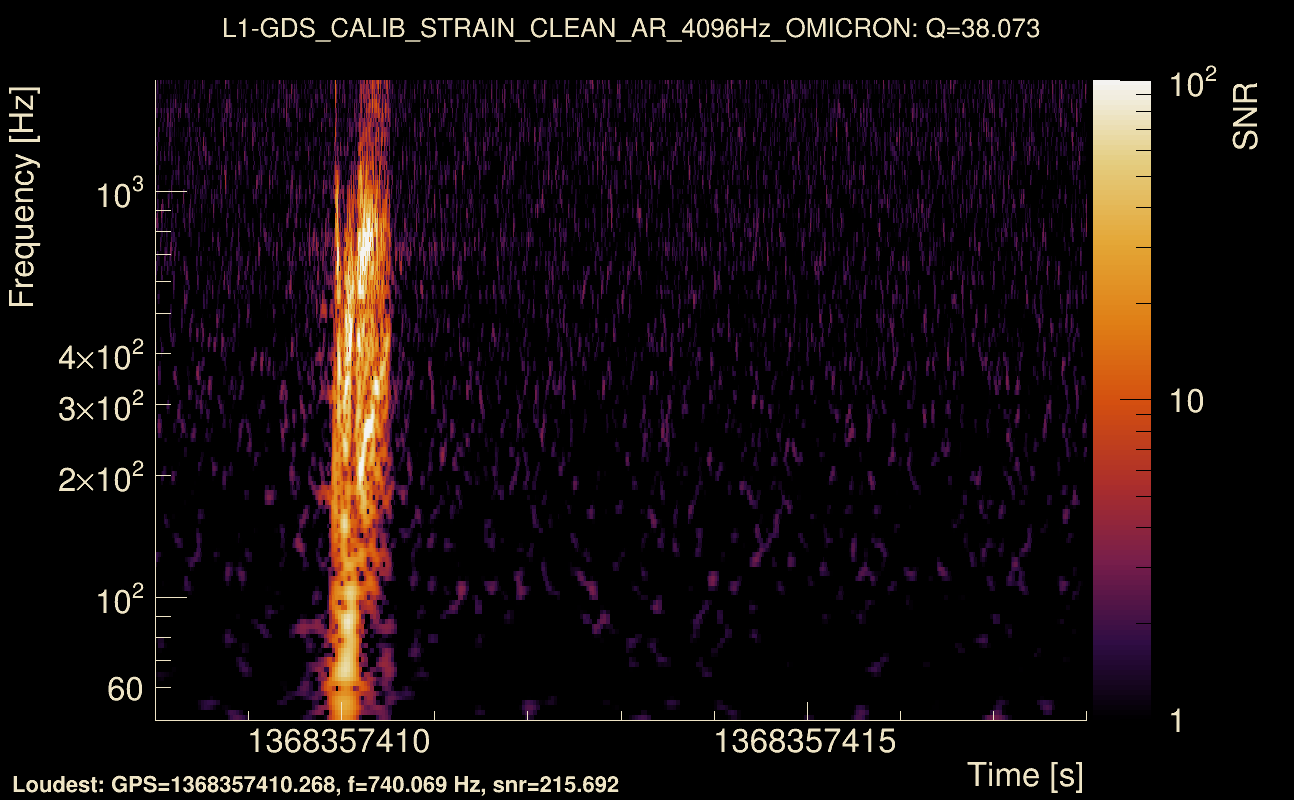

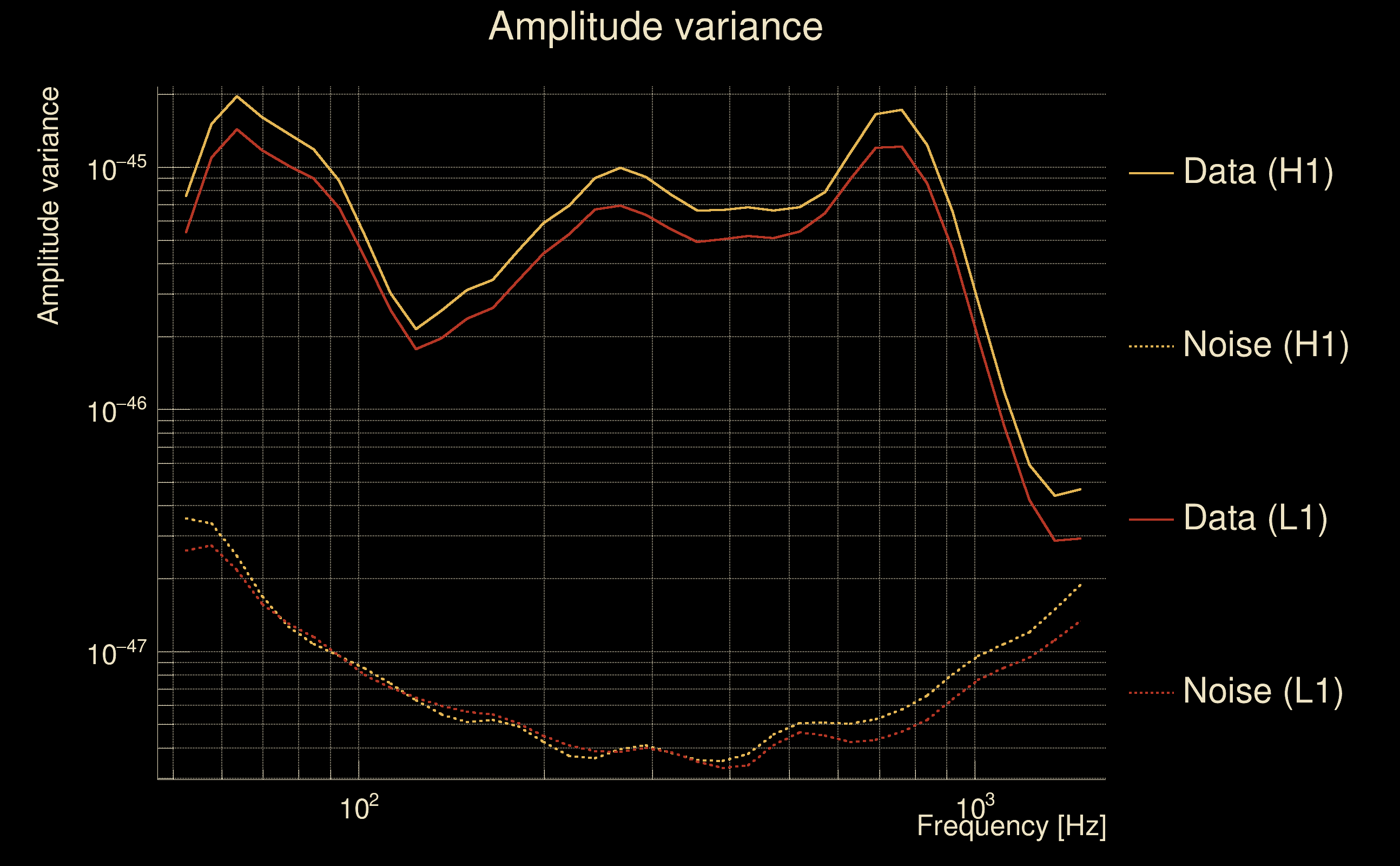

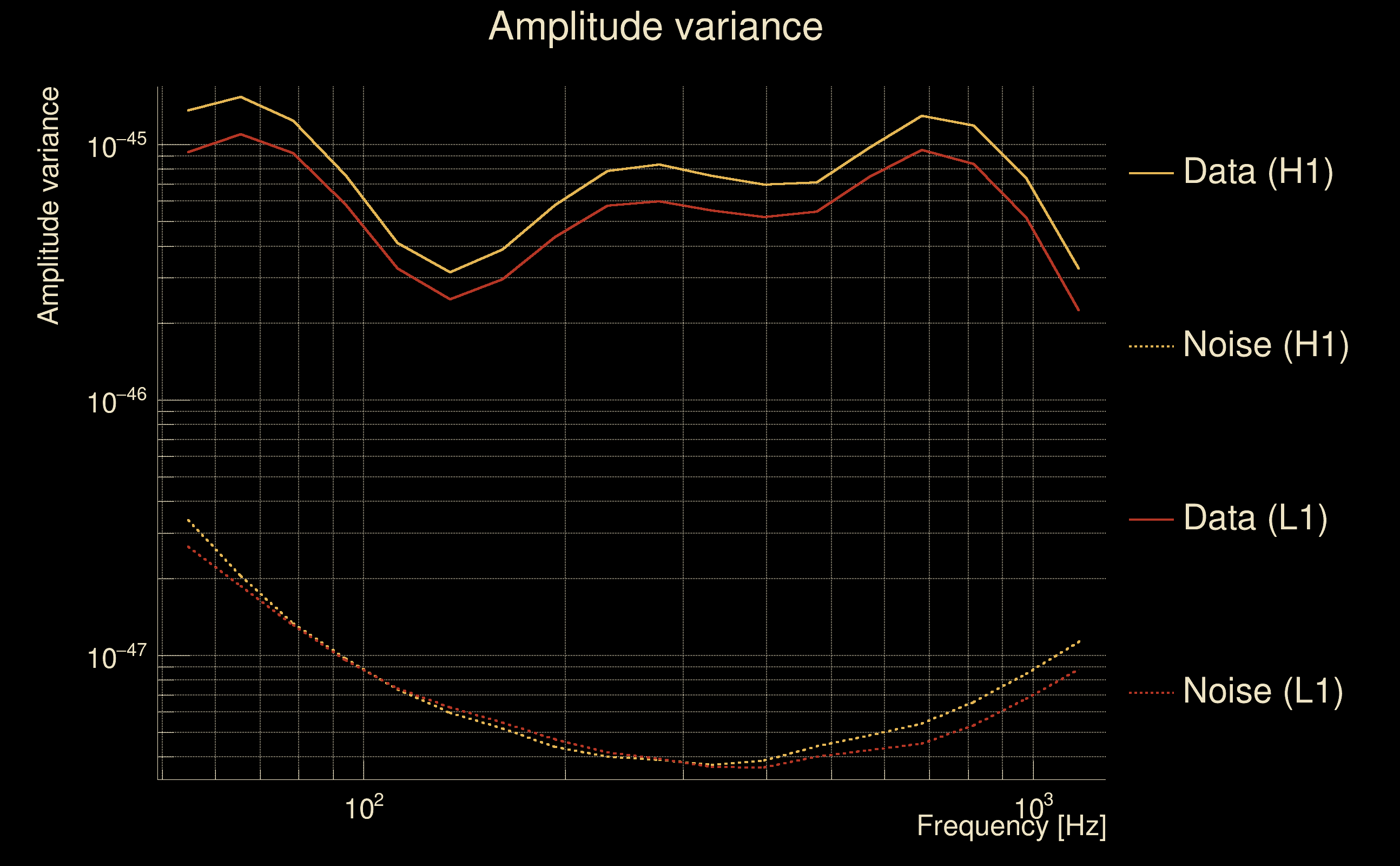

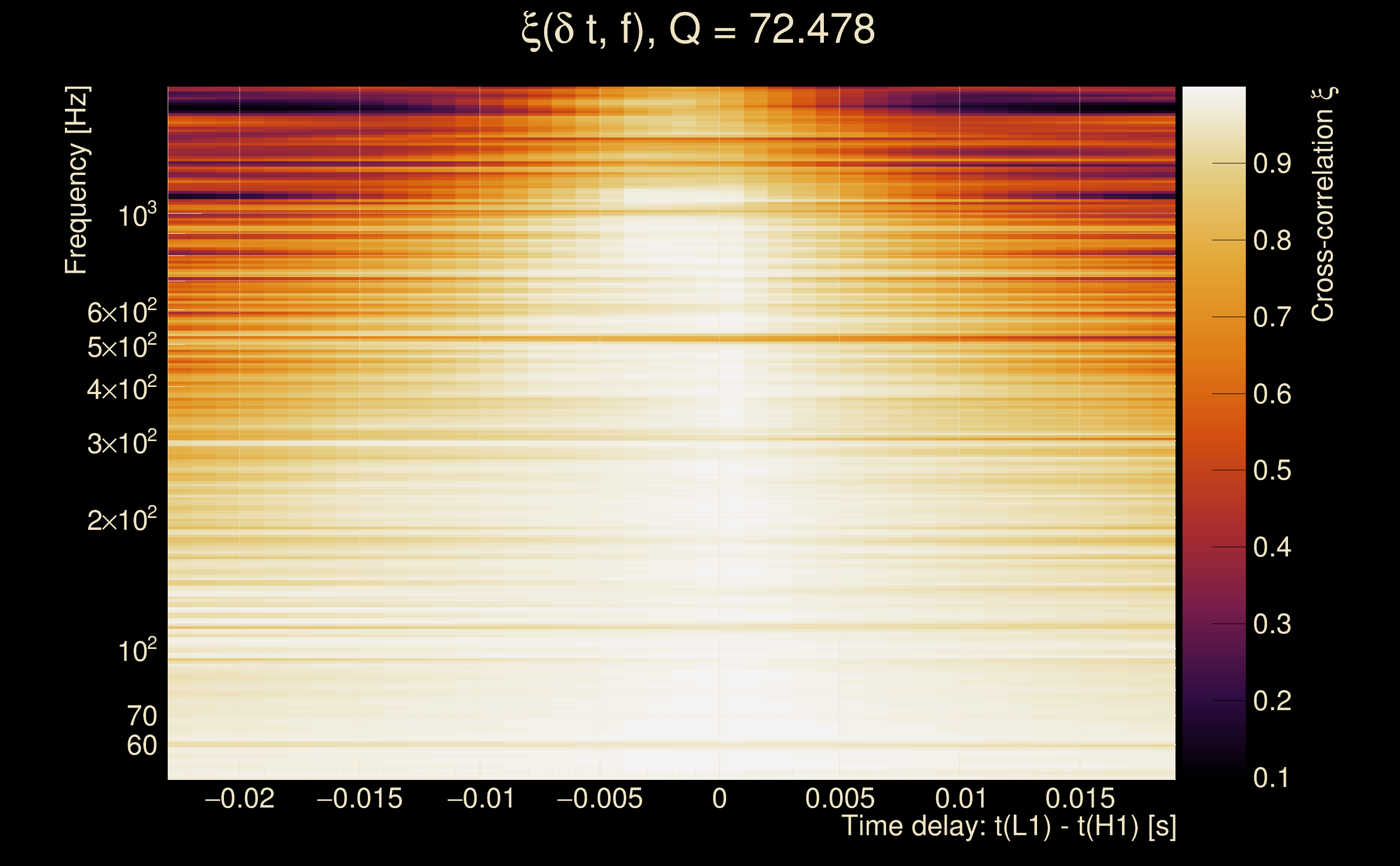

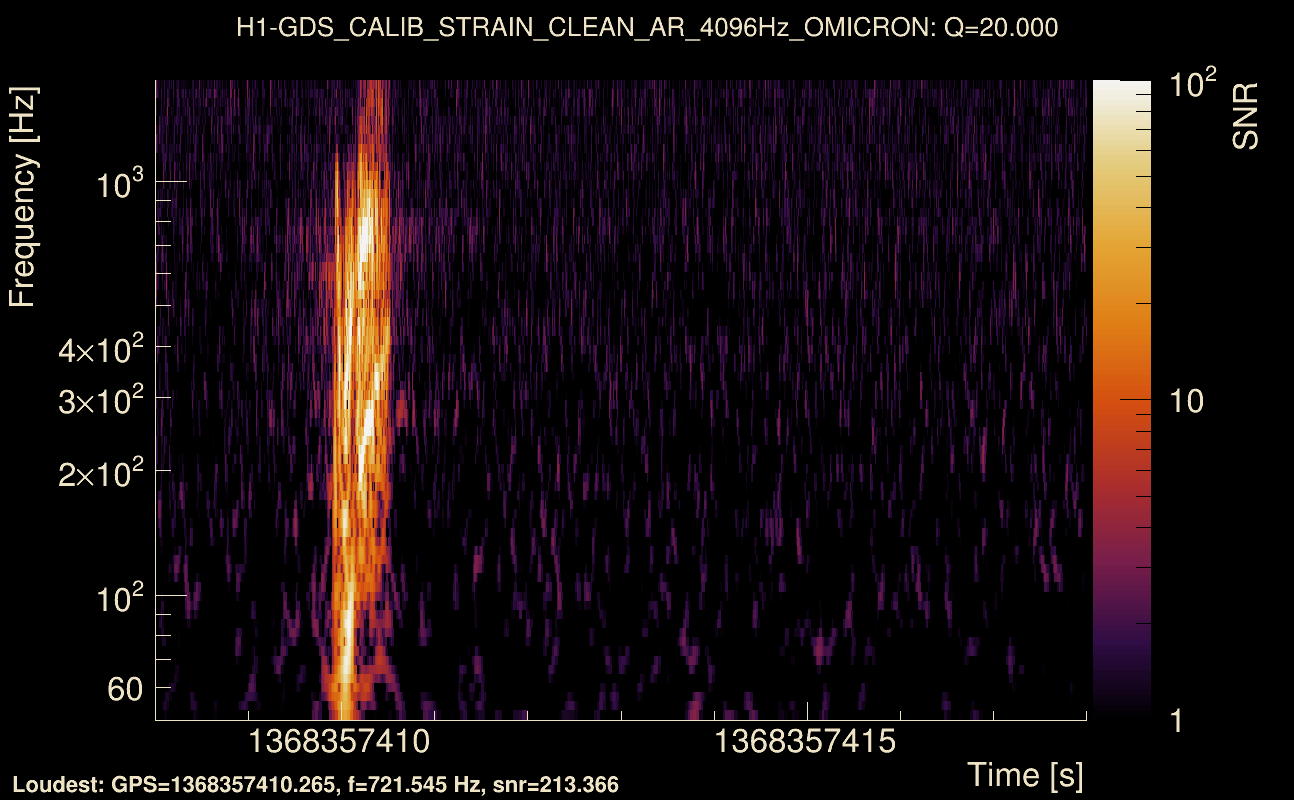

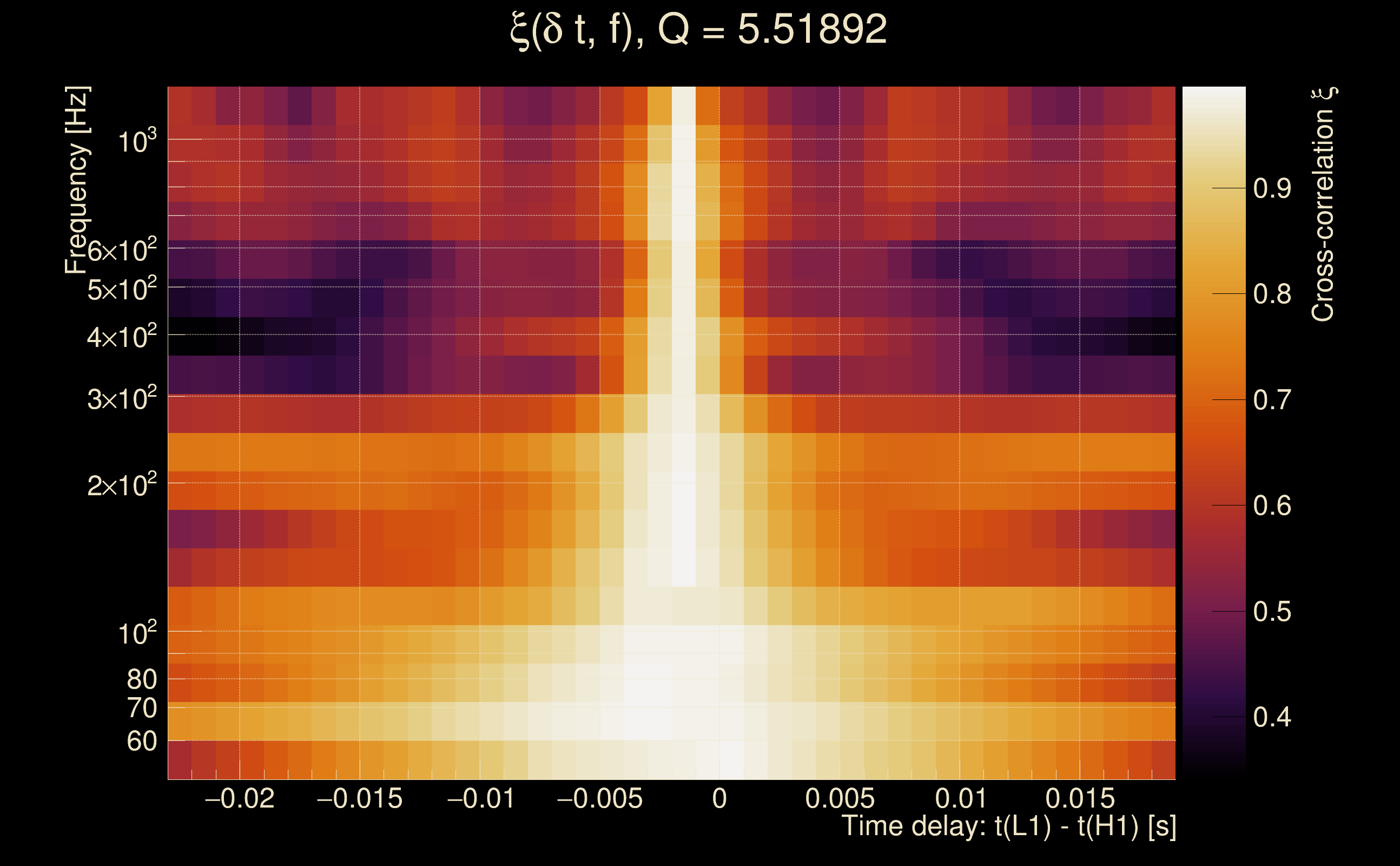

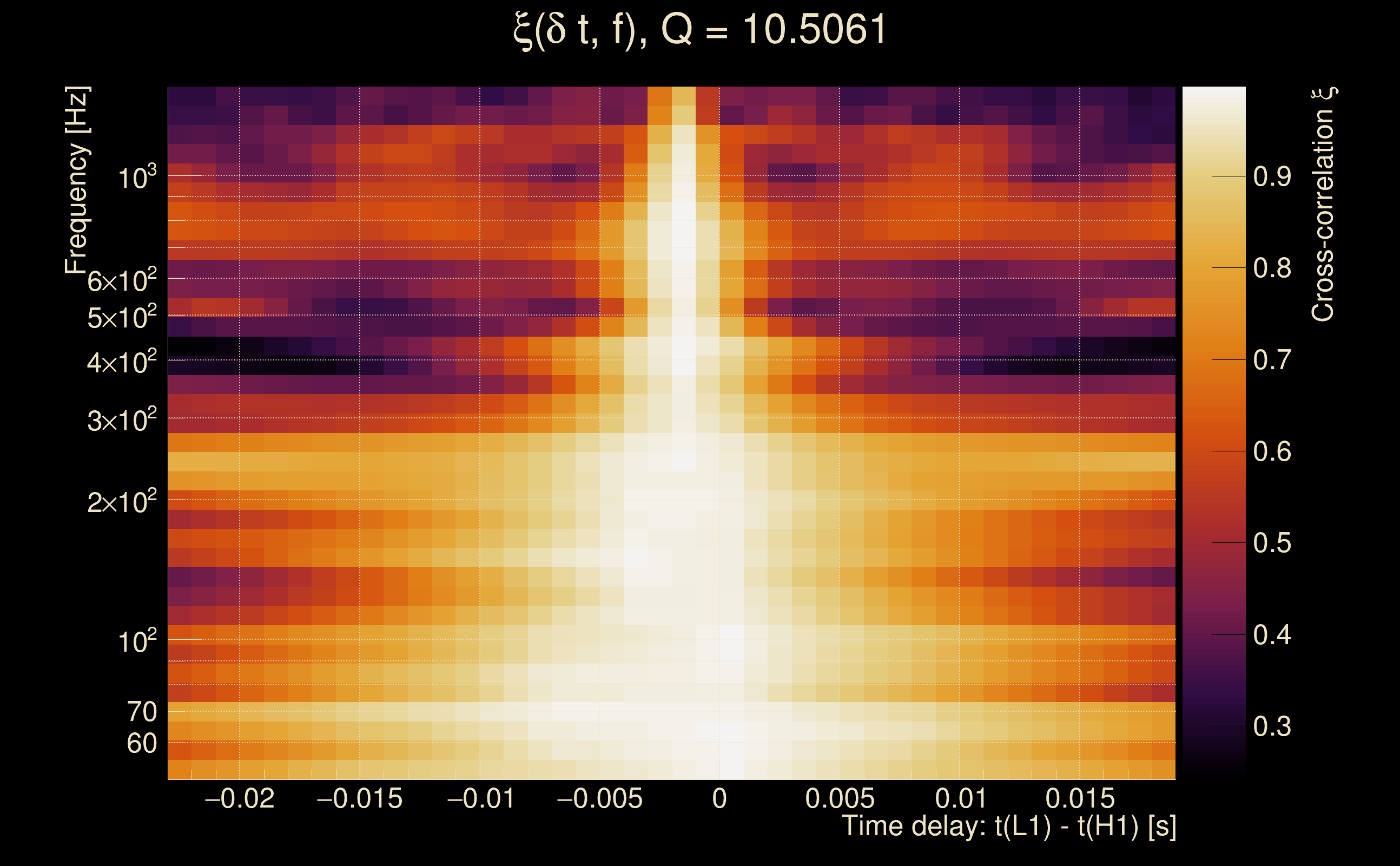

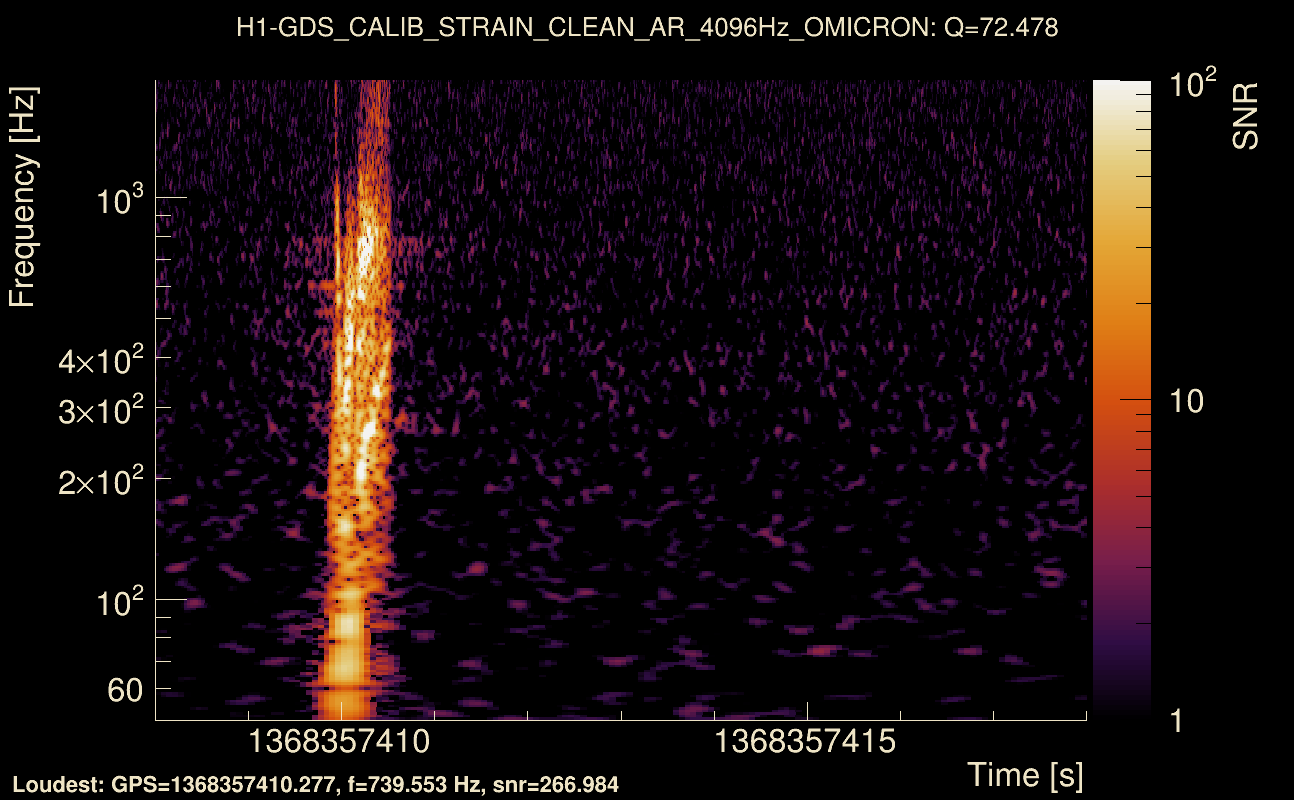

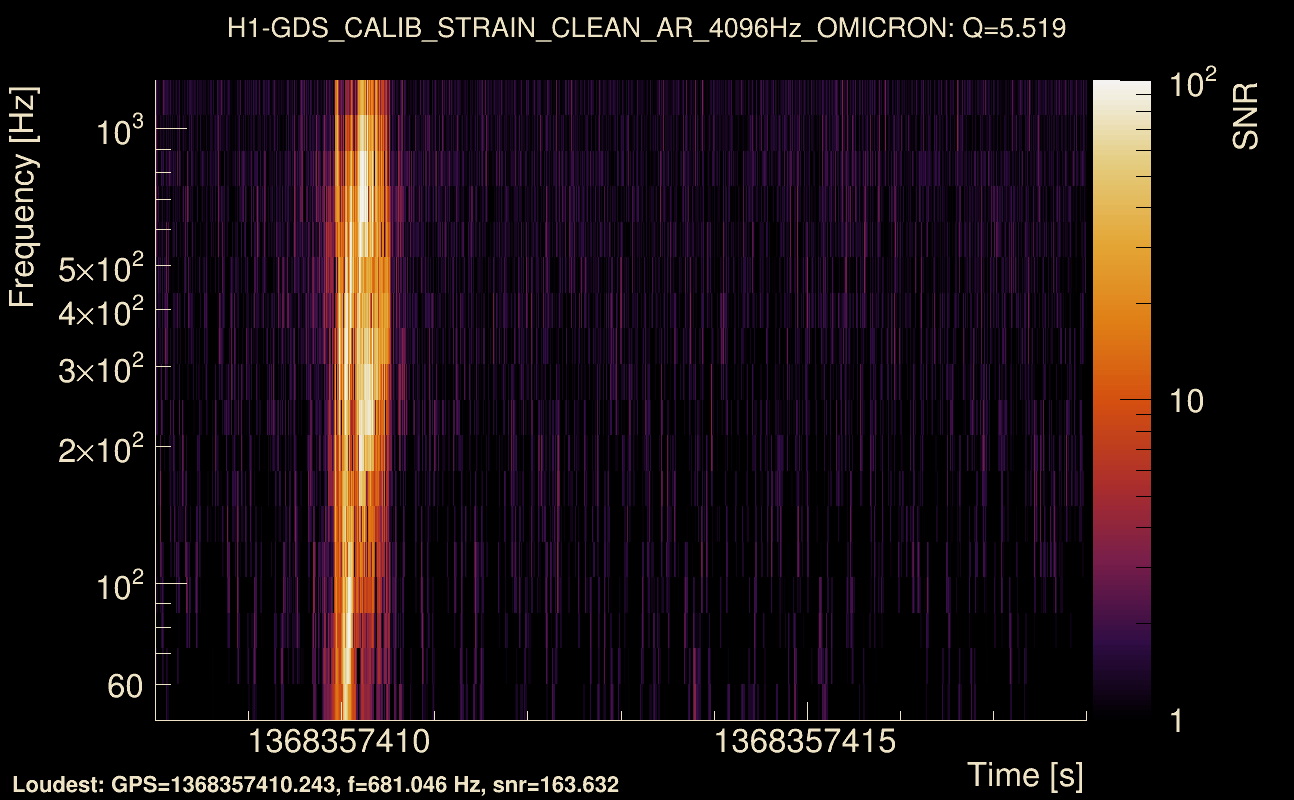

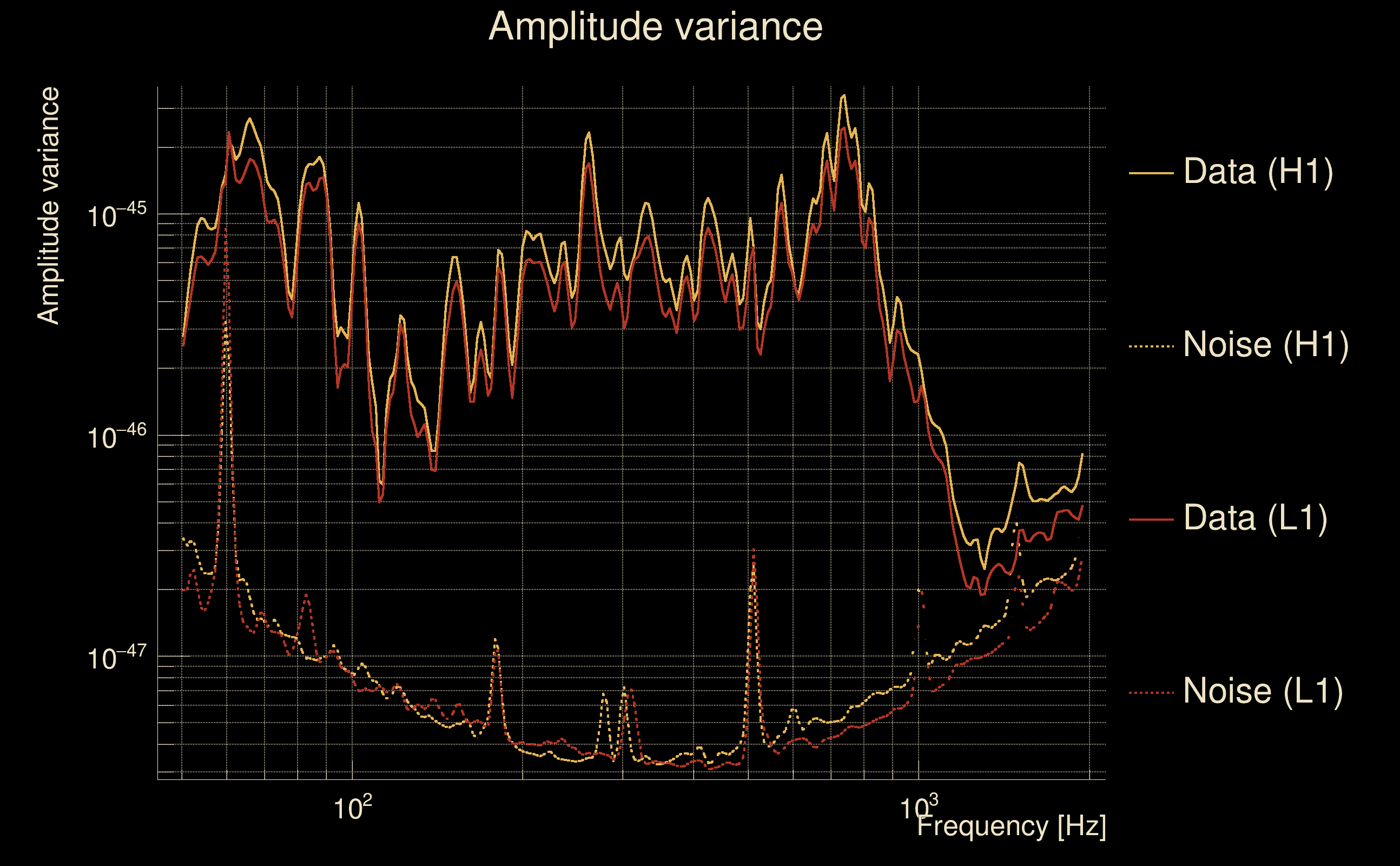

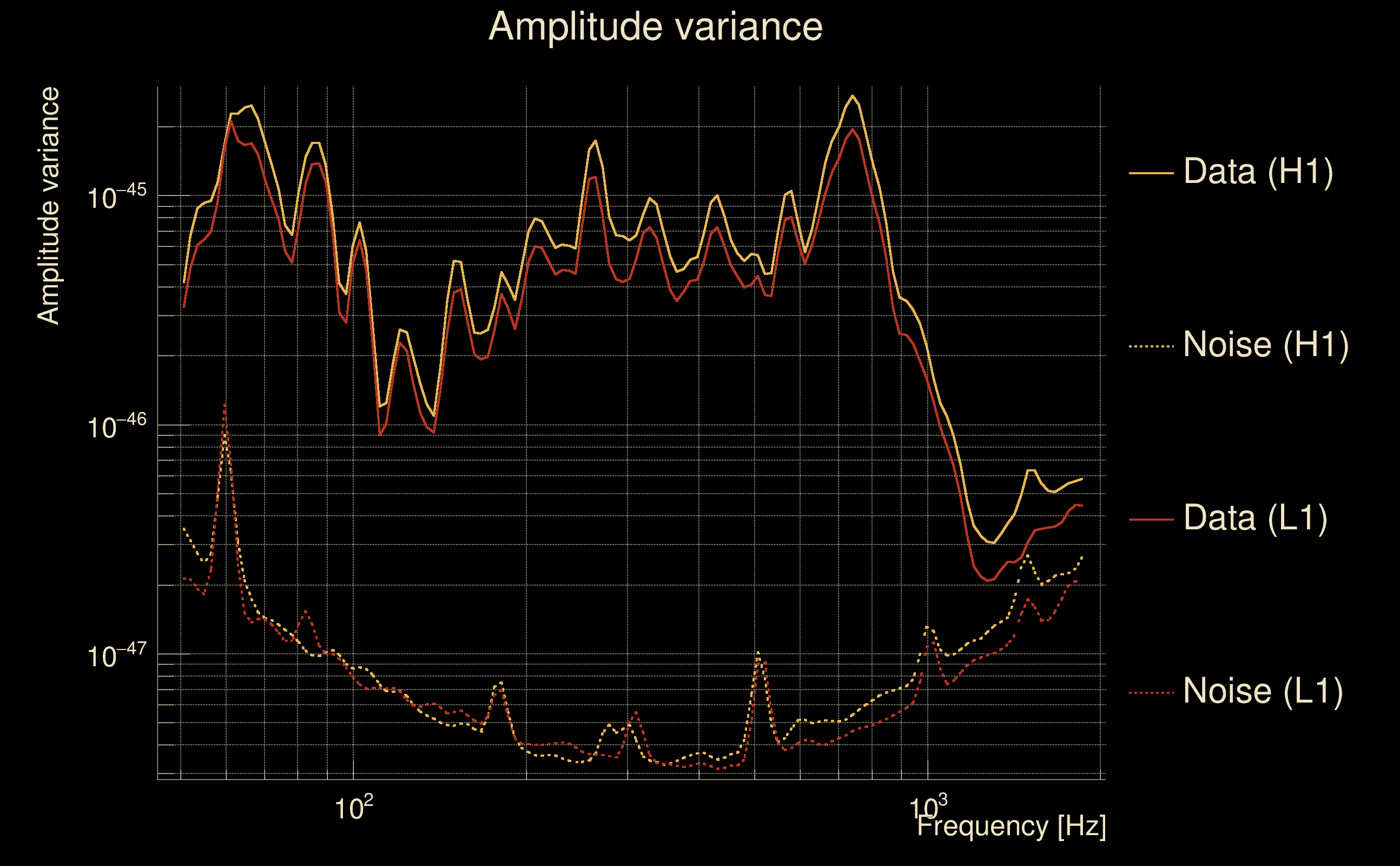

| Event time t(H1): | GPS = 1368357408 (Wed May 17 11:16:30 2023 ) → GPS = 1368357418 (Wed May 17 11:16:40 2023 ) |
| Event time t(L1): | GPS = 1368357408 (Wed May 17 11:16:40 2023 ) → GPS = 1368357418 (Wed May 17 11:16:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368357405 → GPS = 1368357421 |
| Omicron analysis time window (L1): | GPS = 1368357405 → GPS = 1368357421 |
| Time delay between detectors t(L1) - t(H1): | -0.00201138 s (slice index = 108 / 217), δt_gw = -0.00201138 s |
| Time delay standard deviation: | 0.0182049 s |
| [targeted mode] Time delay probability: | 2.57823e-217 (31.4655 sigmas), δt_target = -0.00884509 s |
| Frequency: | 283.826 Hz |
| Ξ: | 0.98191 ± 0.00545805 (variance = 2.97903e-05): Q0: 0.987158, Q1: 0.981658, Q2: 0.977528, Q3: 0.974577, Q4: 0.971594 |
| Rank: | R_A = 0.98191 |
| Log of amplitude ratio (L1/H1): | -0.156125, variance = 0.151315 (L1/H1: -0.164598, variance = 0.300886, H1/L1: 0.1463, variance = 0.301122) |
| Amplitude ratio (L1/H1): | 0.855452 ⋇ 1.47549 (L1/H1: 0.848235 ⋇ 1.73071, H1/L1: 1.15754 ⋇ 1.73108) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.981185 |

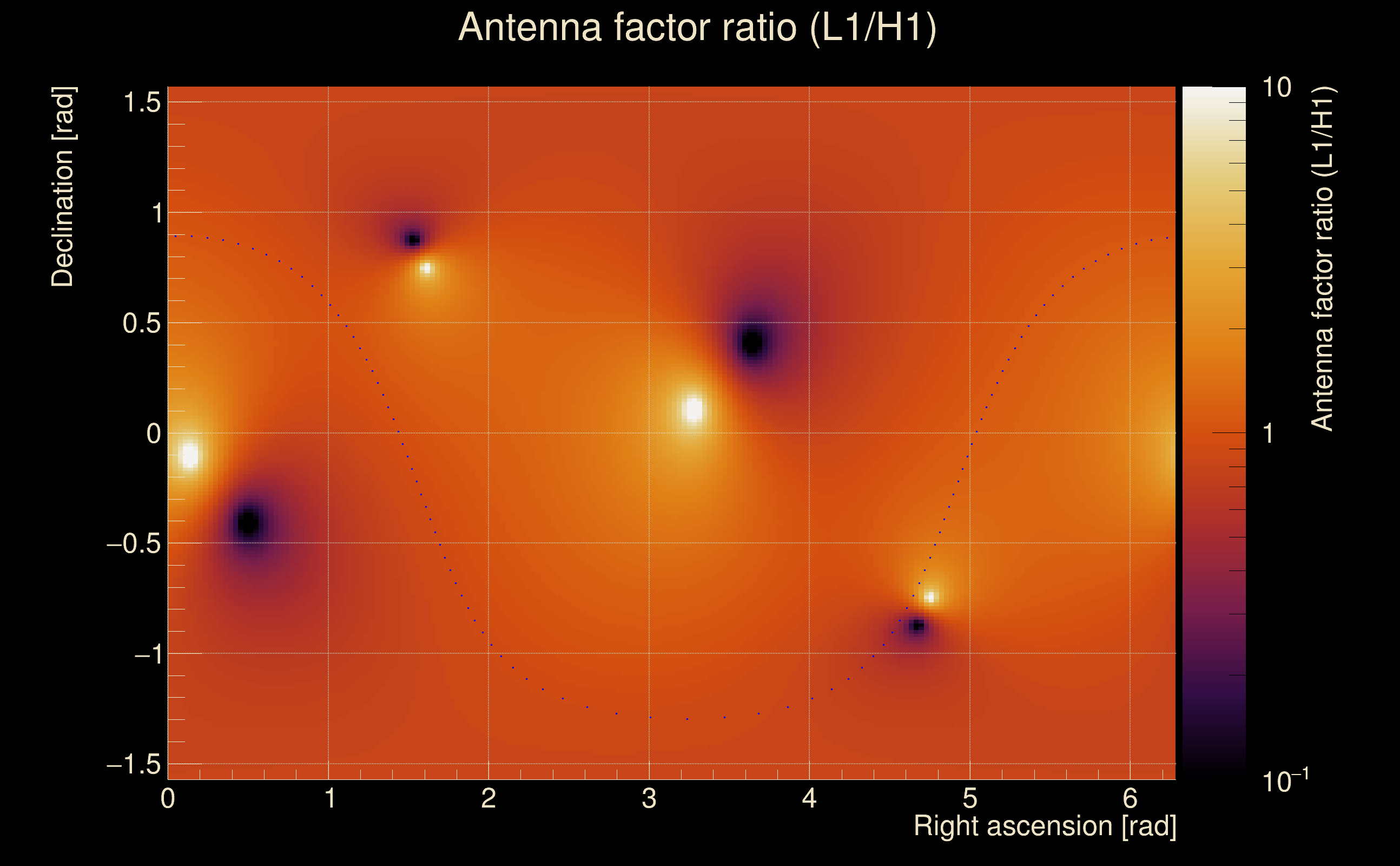

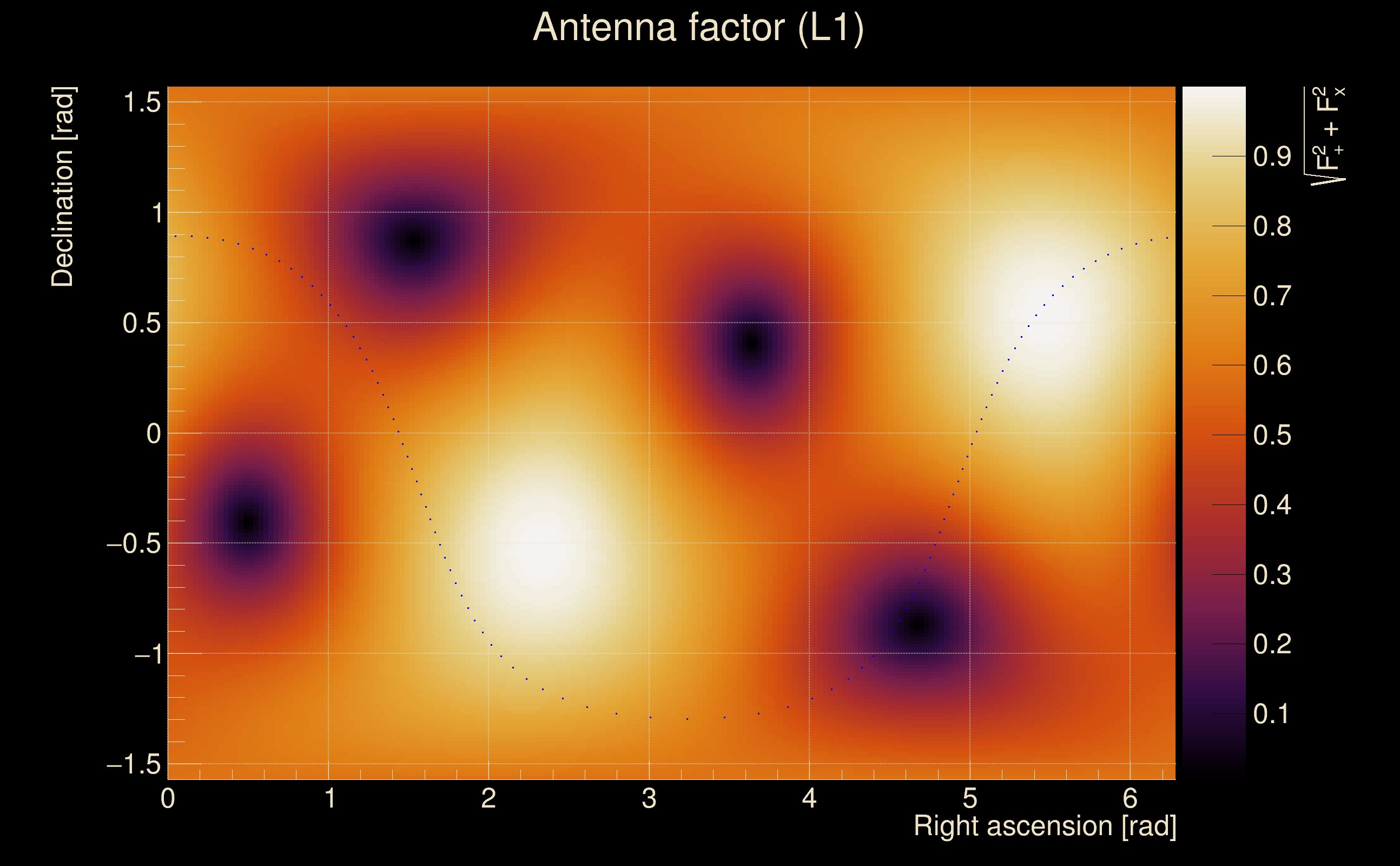

| Antenna factor probability: | 0.454363 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 1 / 134, Q4: 5 / 258 |
| Maximum signal-to-noise ratio: | H1: 260.787, L1: 242.181 |
| SNR variance: | H1: 66.0902, L1: 54.2857 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368368443 (Wed May 17 14:20:25 2023 ) → GPS = 1368368453 (Wed May 17 14:20:35 2023 ) |
| Event time t(L1): | GPS = 1368368443 (Wed May 17 14:20:35 2023 ) → GPS = 1368368453 (Wed May 17 14:20:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368368440 → GPS = 1368368456 |
| Omicron analysis time window (L1): | GPS = 1368368440 → GPS = 1368368456 |
| Time delay between detectors t(L1) - t(H1): | 0.601836 s (slice index = 95 / 217), δt_gw = 0.00383644 s |
| Time delay standard deviation: | 0.0729087 s |
| [targeted mode] Time delay probability: | 0.371716 (0.893263 sigmas), δt_target = -0.00912213 s |
| Frequency: | 223.851 Hz |
| Ξ: | 0.132534 ± 0.047804 (variance = 0.00228522): Q0: 0.214291, Q1: 0.215579, Q2: 0.281675, Q3: 0.330539, Q4: 0.309498 |
| Rank: | R_A = 0.132534 |
| Log of amplitude ratio (L1/H1): | 0.16697, variance = 0.35868 (L1/H1: -1.80444, variance = 0.79161, H1/L1: -1.81085, variance = 0.655833) |
| Amplitude ratio (L1/H1): | 1.18172 ⋇ 1.82011 (L1/H1: 0.164566 ⋇ 2.43446, H1/L1: 0.163515 ⋇ 2.24754) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00265592 |
| Antenna factor probability: | 0.609874 |
| Number of rejected frequency rows: | Q0: 7 / 18, Q1: 13 / 36, Q2: 29 / 70, Q3: 93 / 134, Q4: 209 / 258 |
| Maximum signal-to-noise ratio: | H1: 40.0625, L1: 43.8724 |
| SNR variance: | H1: 20.4453, L1: 25.3439 |

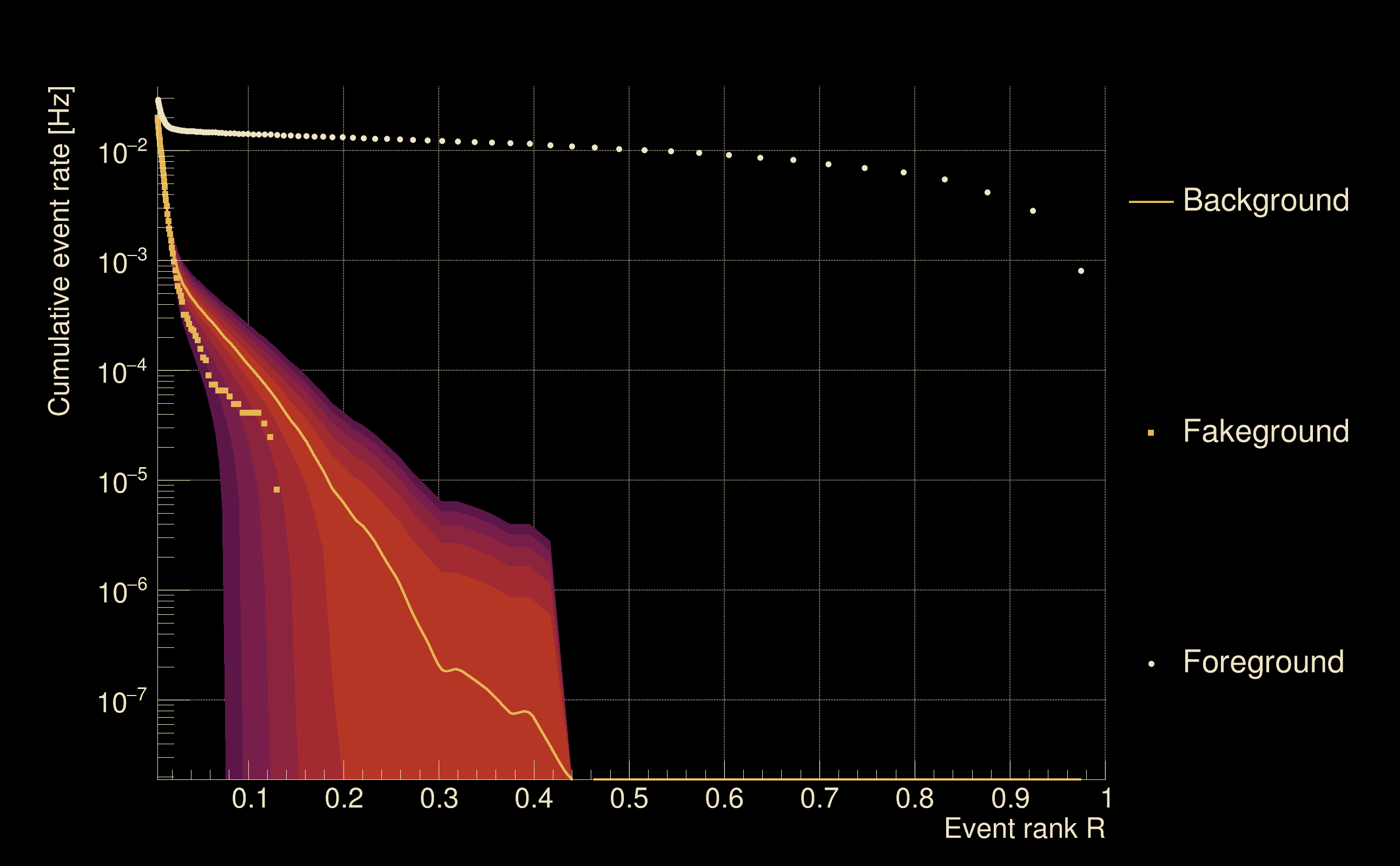

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.417333 |
| Alternative threshold at 1/100 yrs: | R > 0.417333 |
| Alternative threshold at 1/10 yrs: | R > 0.417333 |
| Alternative threshold at 1/1 yr: | R > 0.417333 |
| Alternative threshold at 1/1 d: | R > 0.178917 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

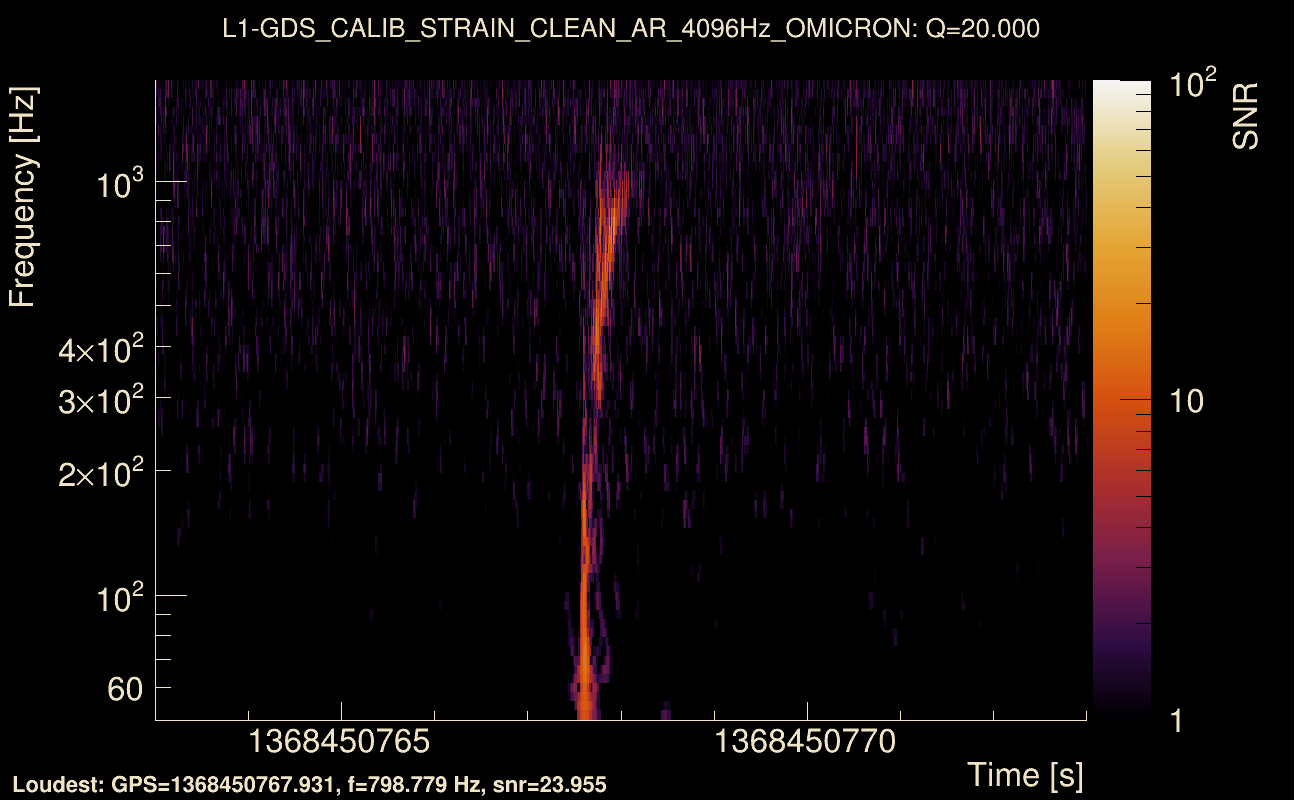

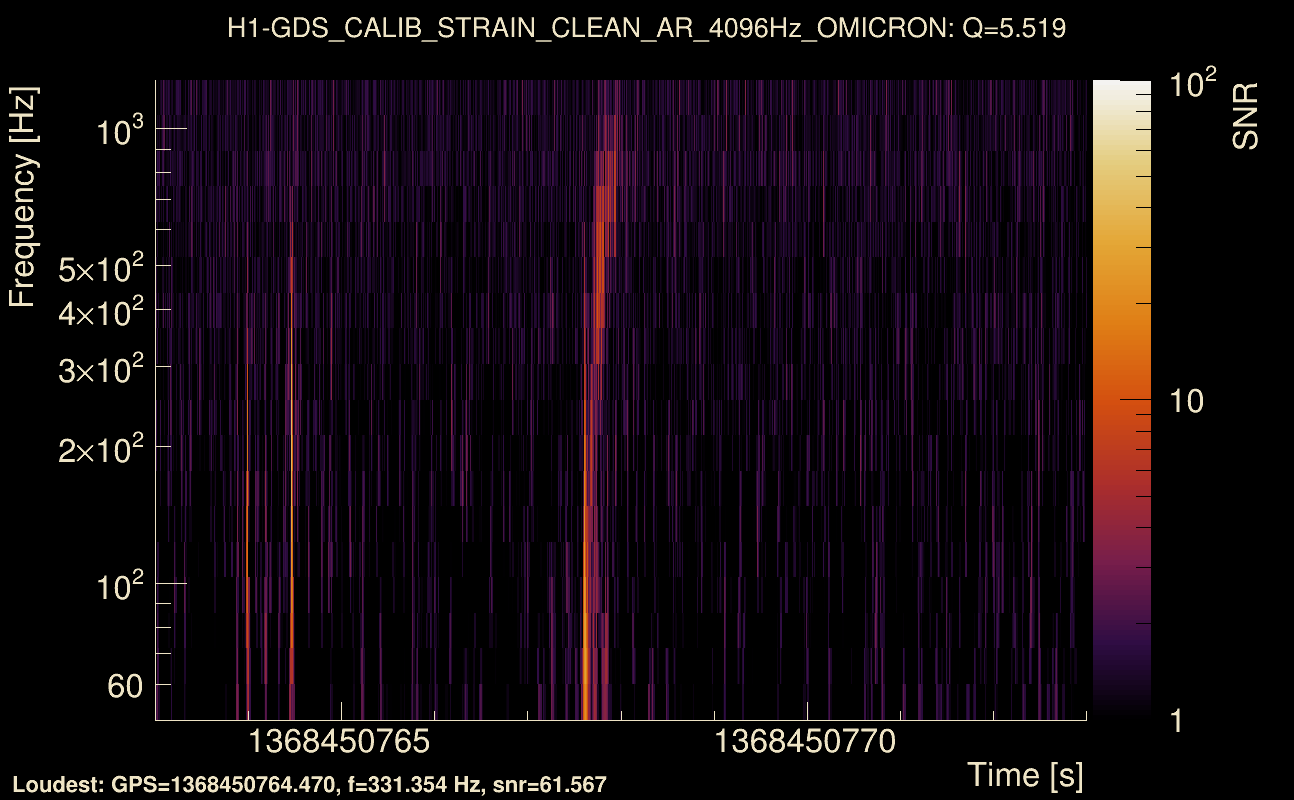

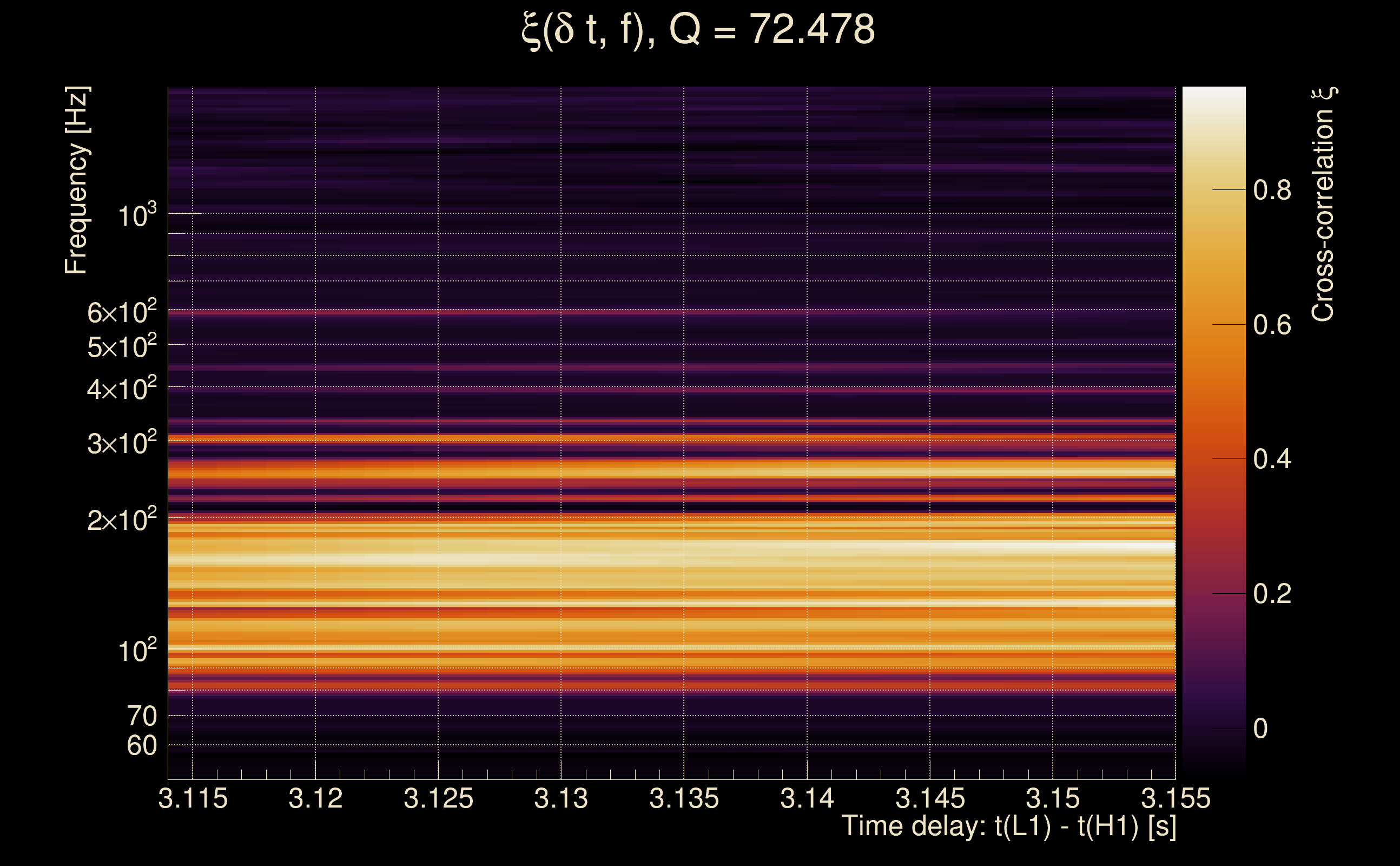

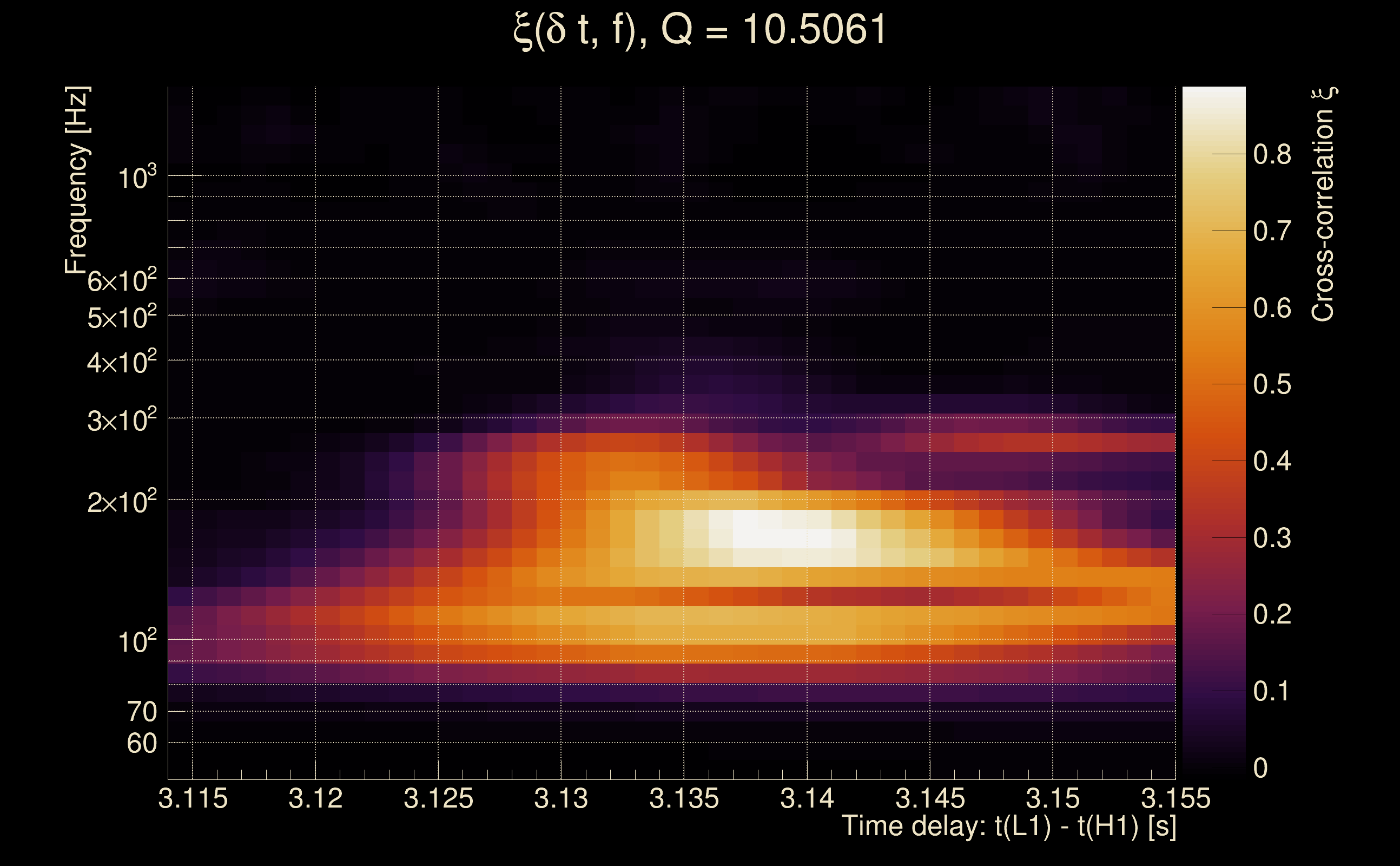

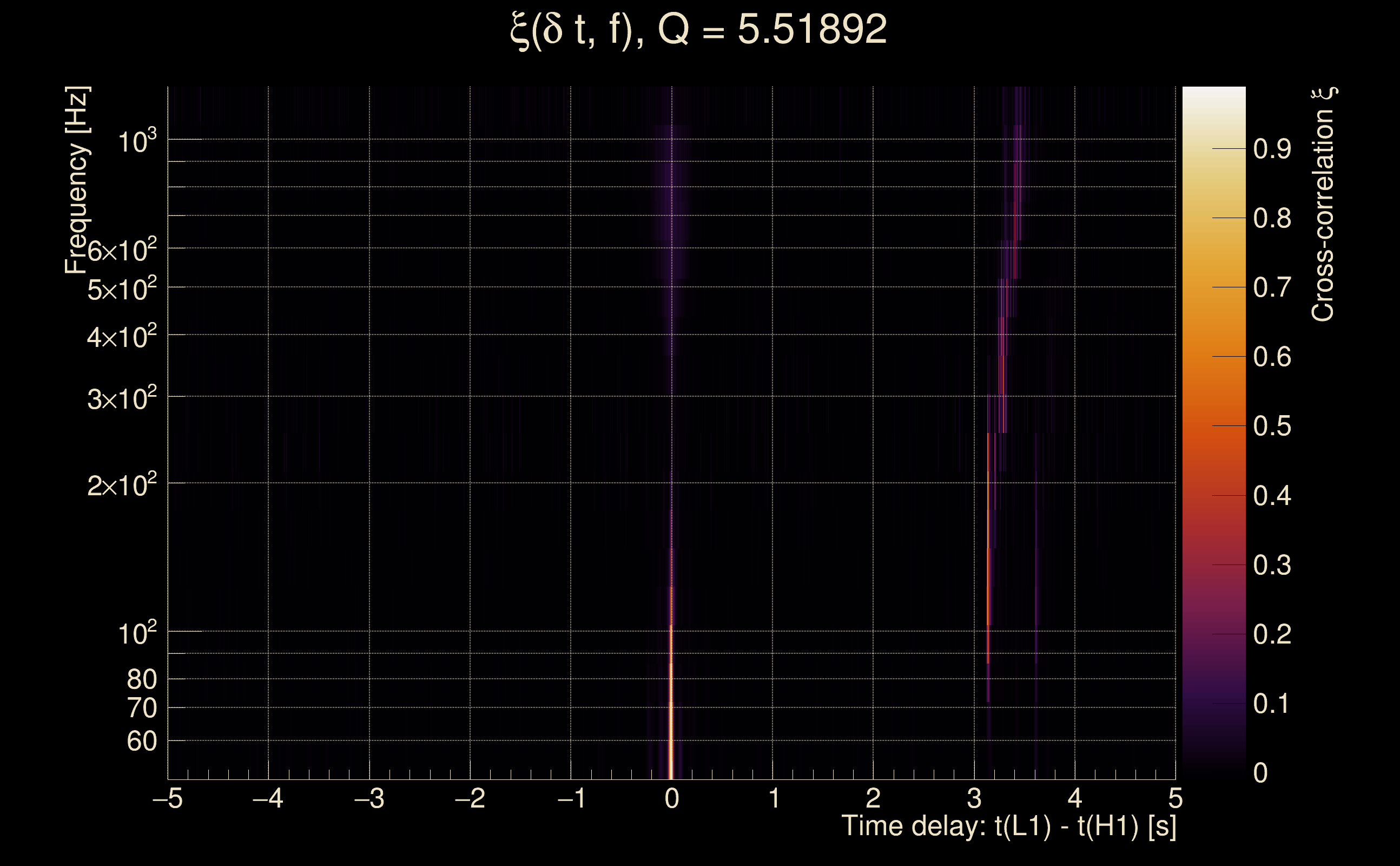

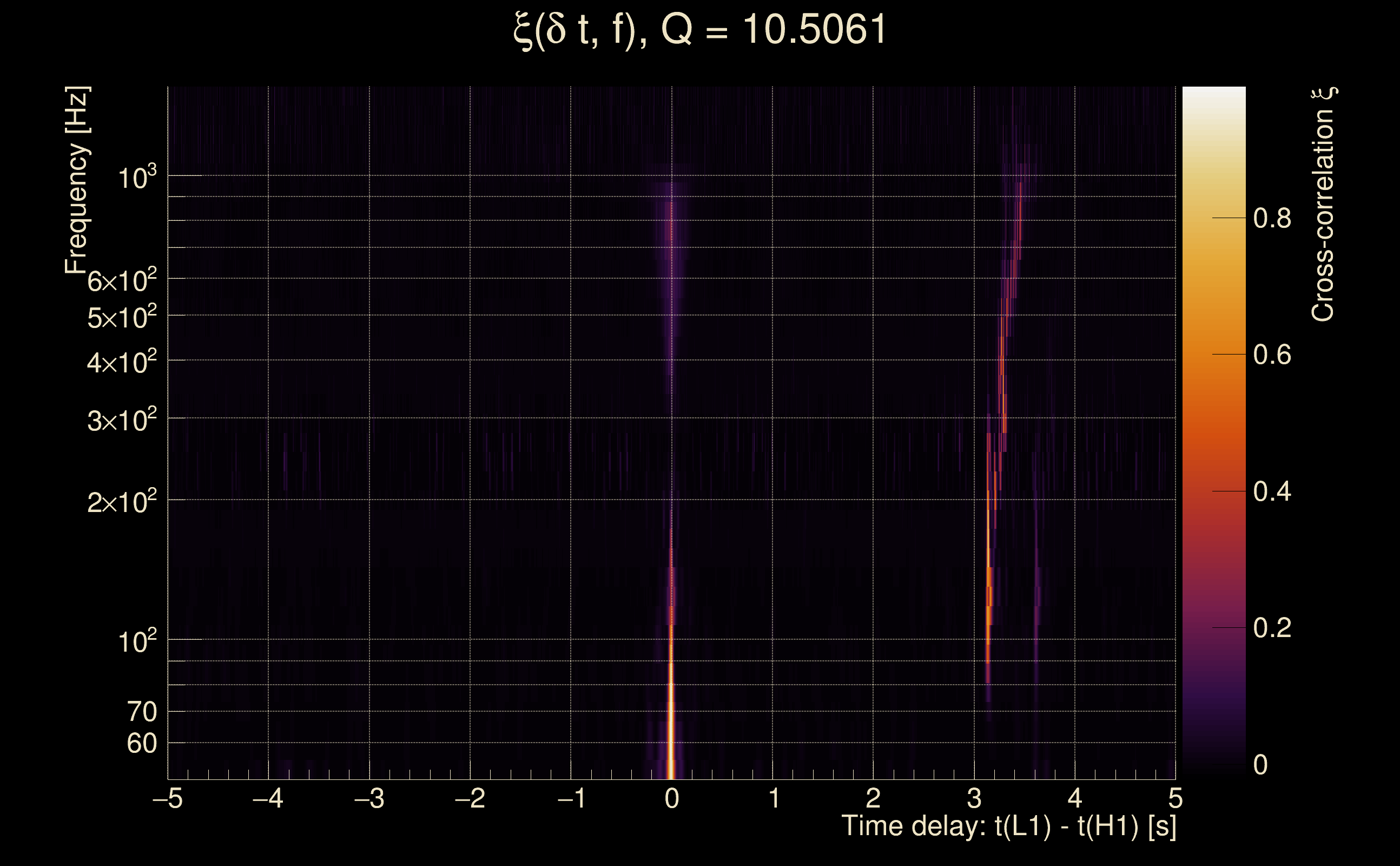

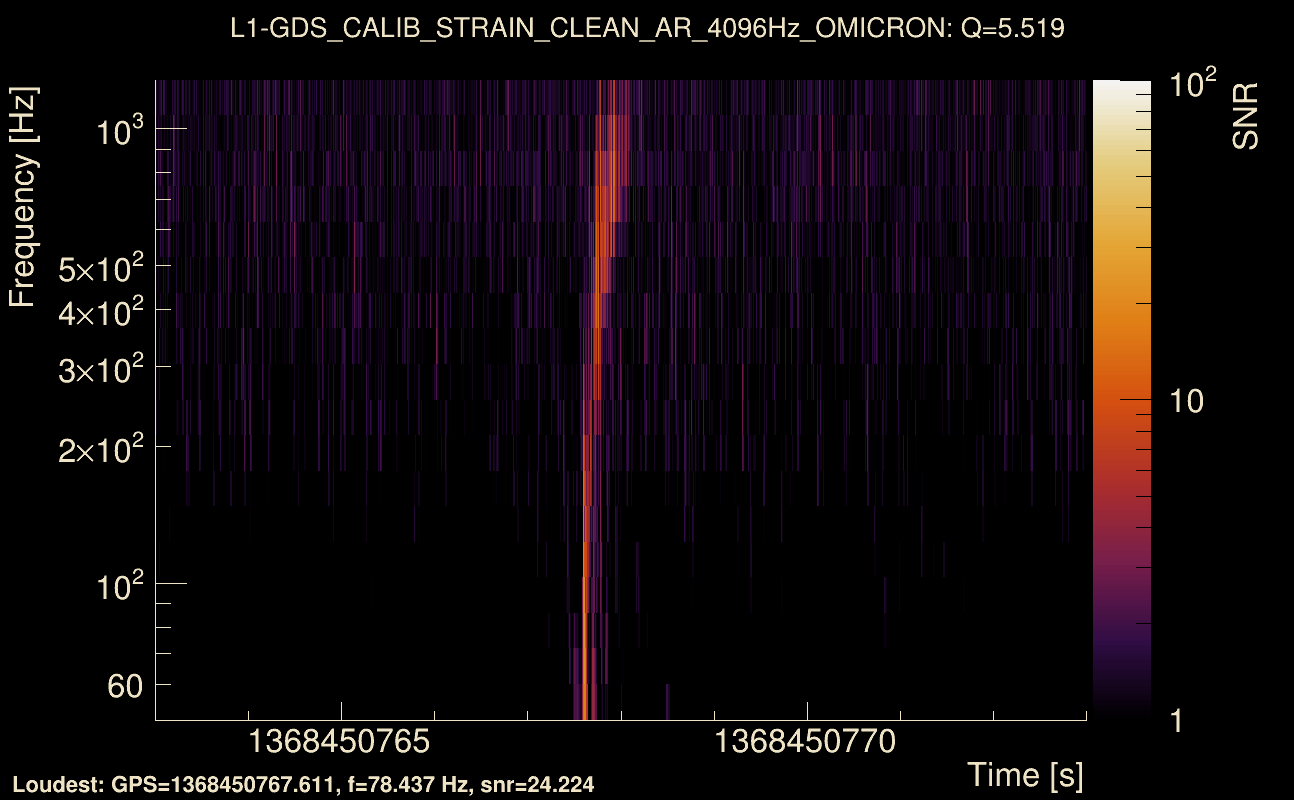

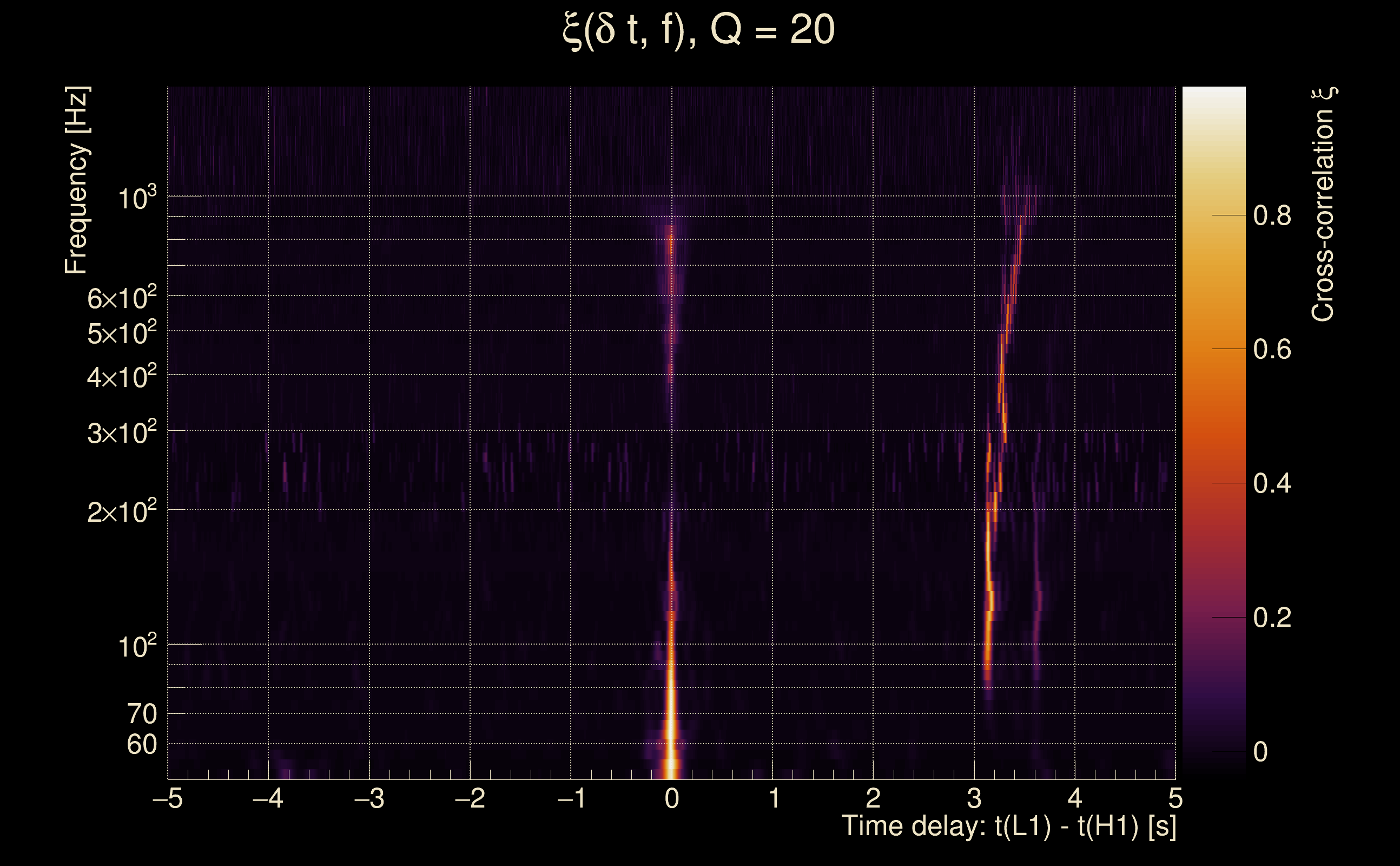

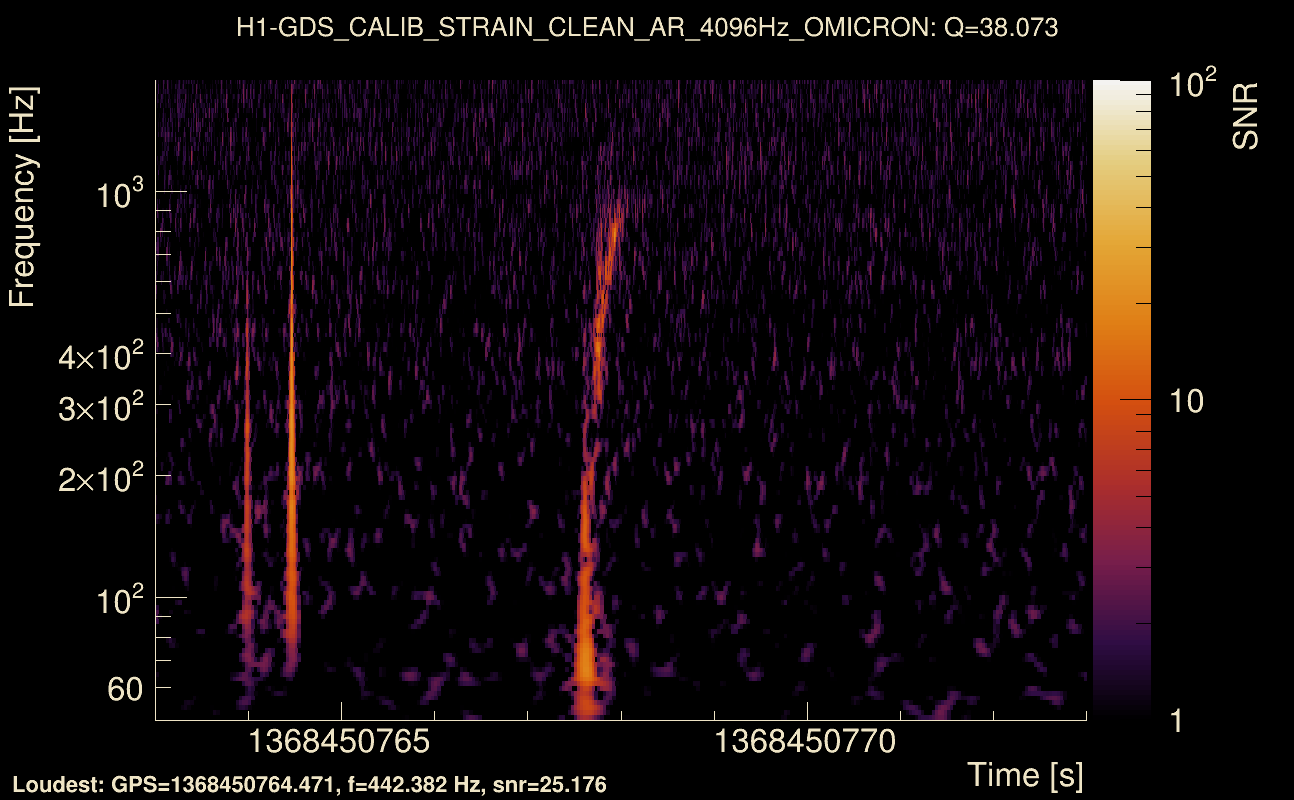

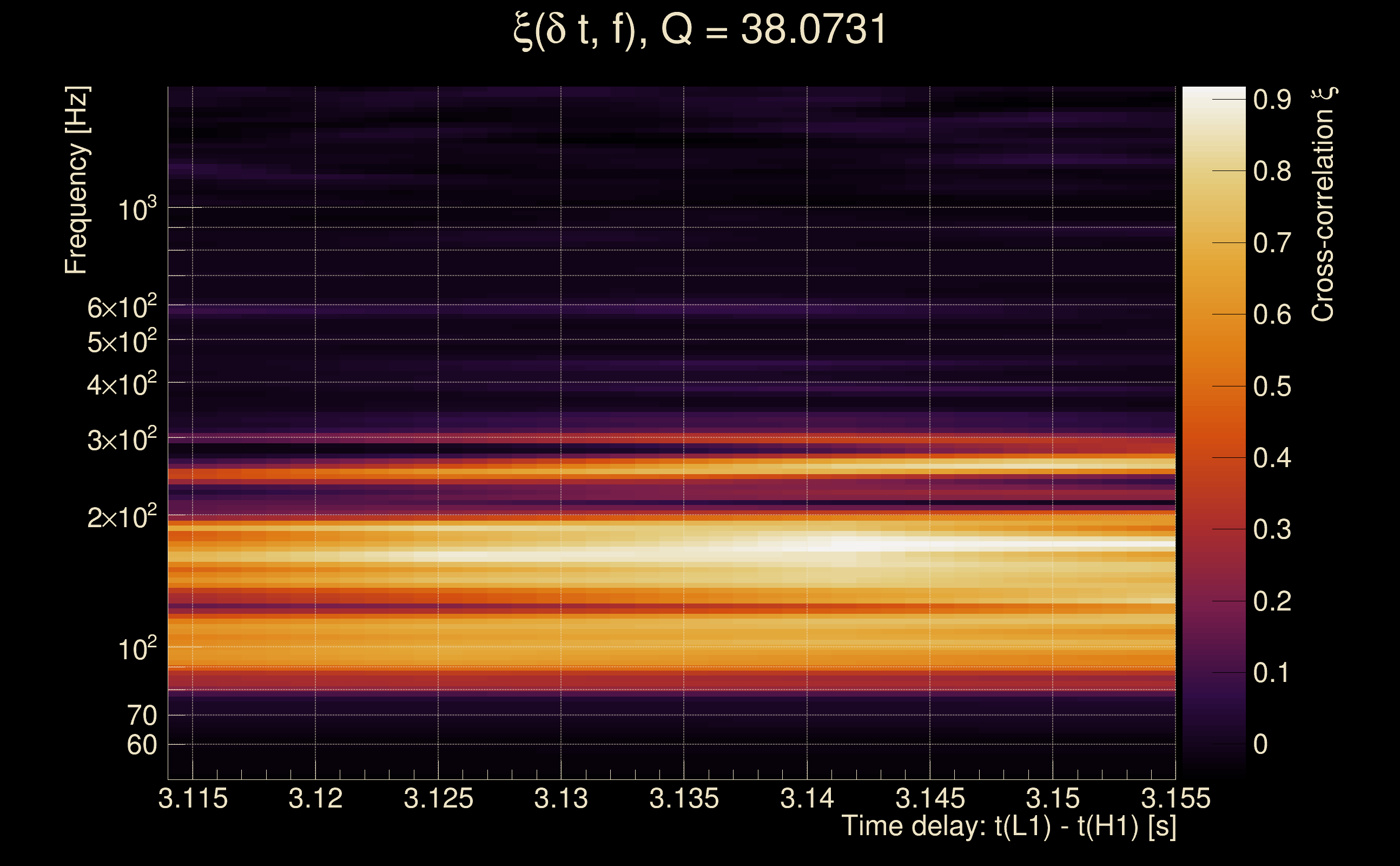

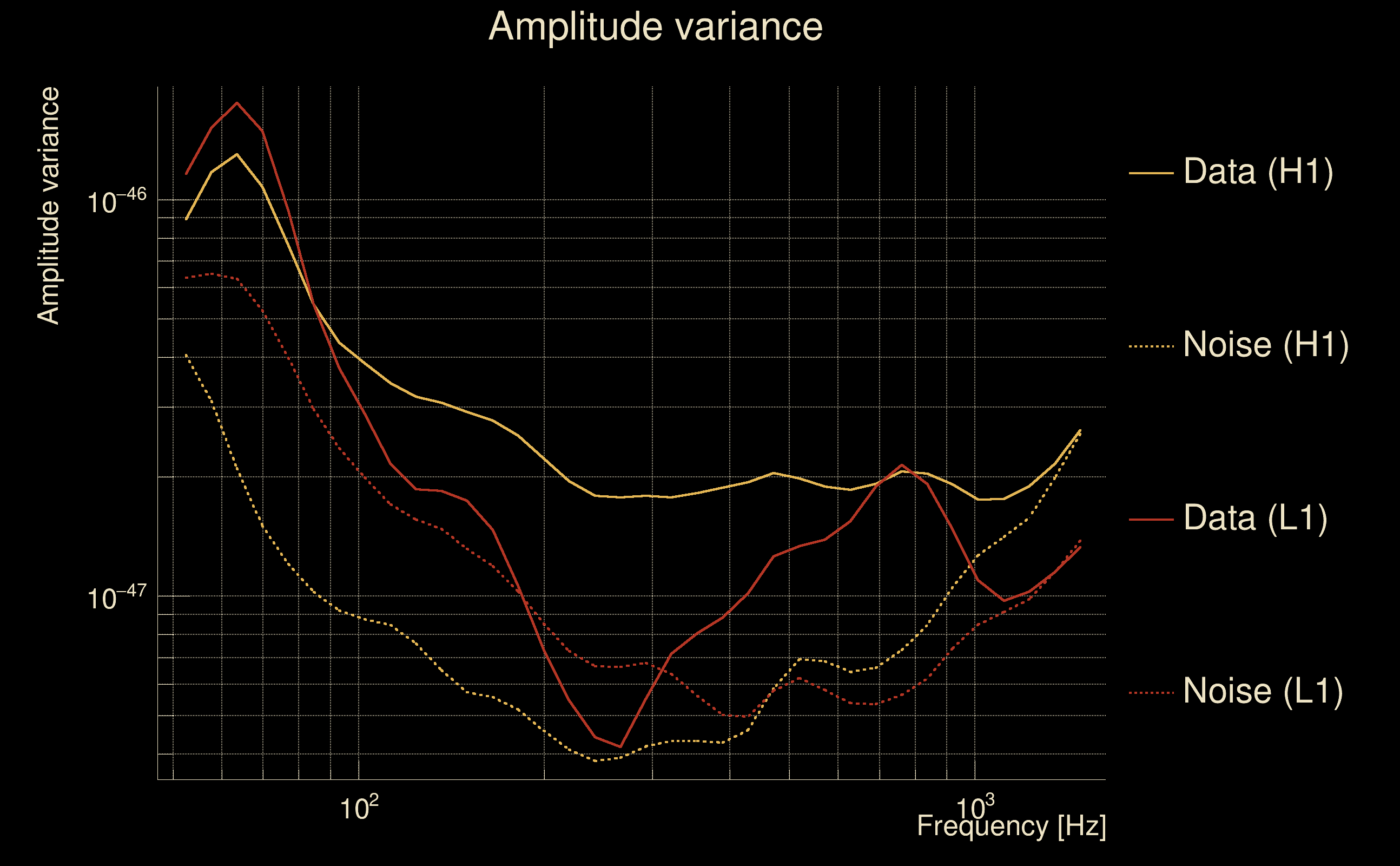

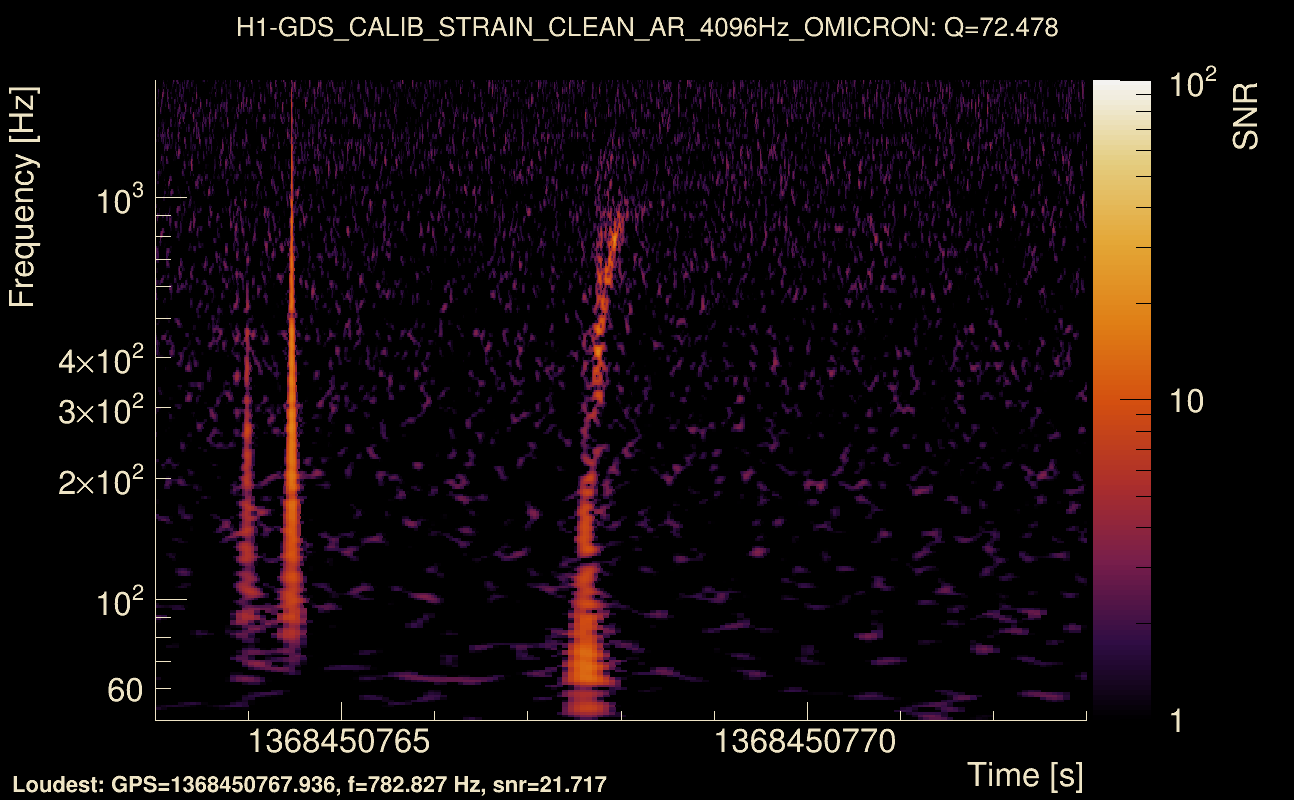

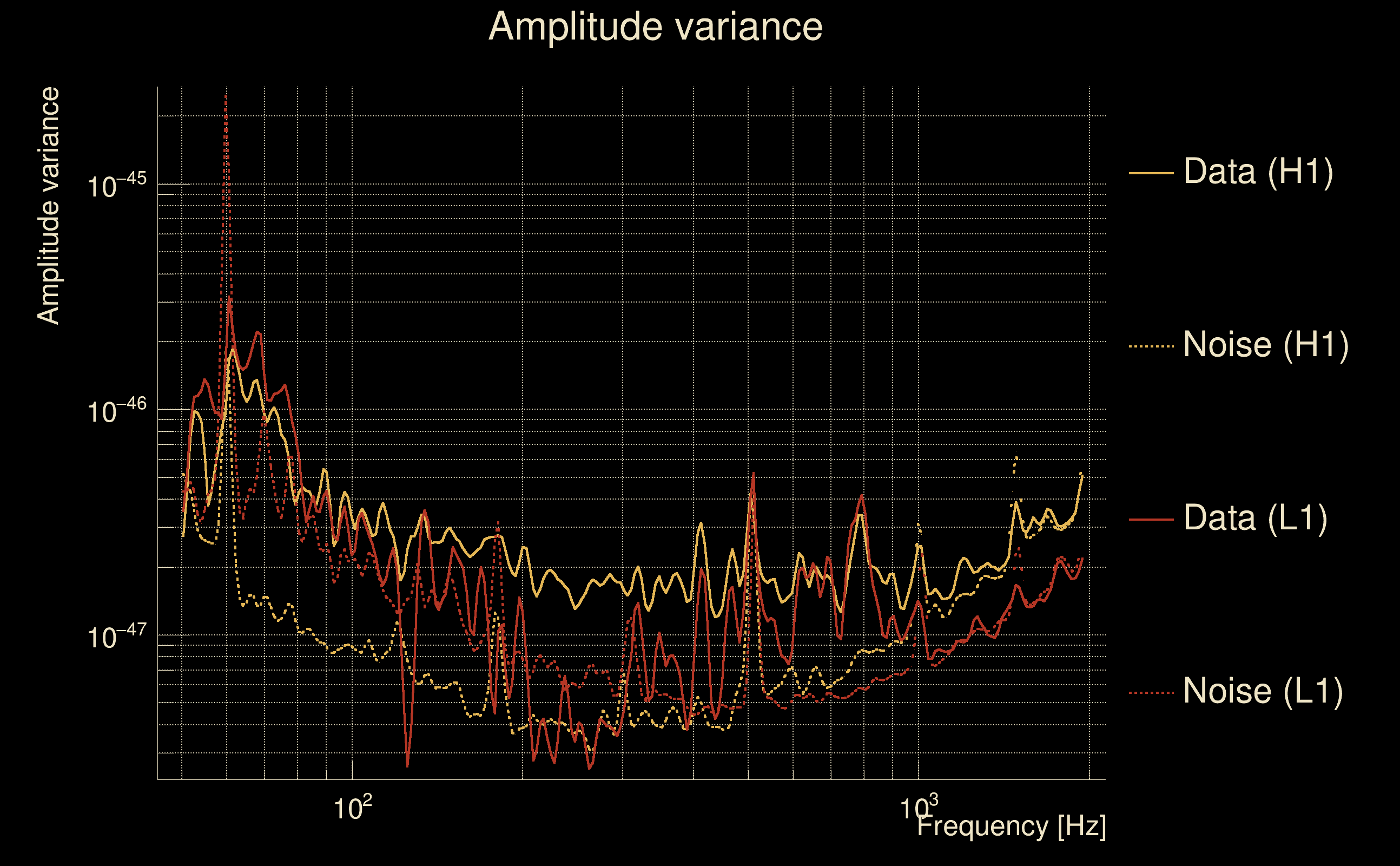

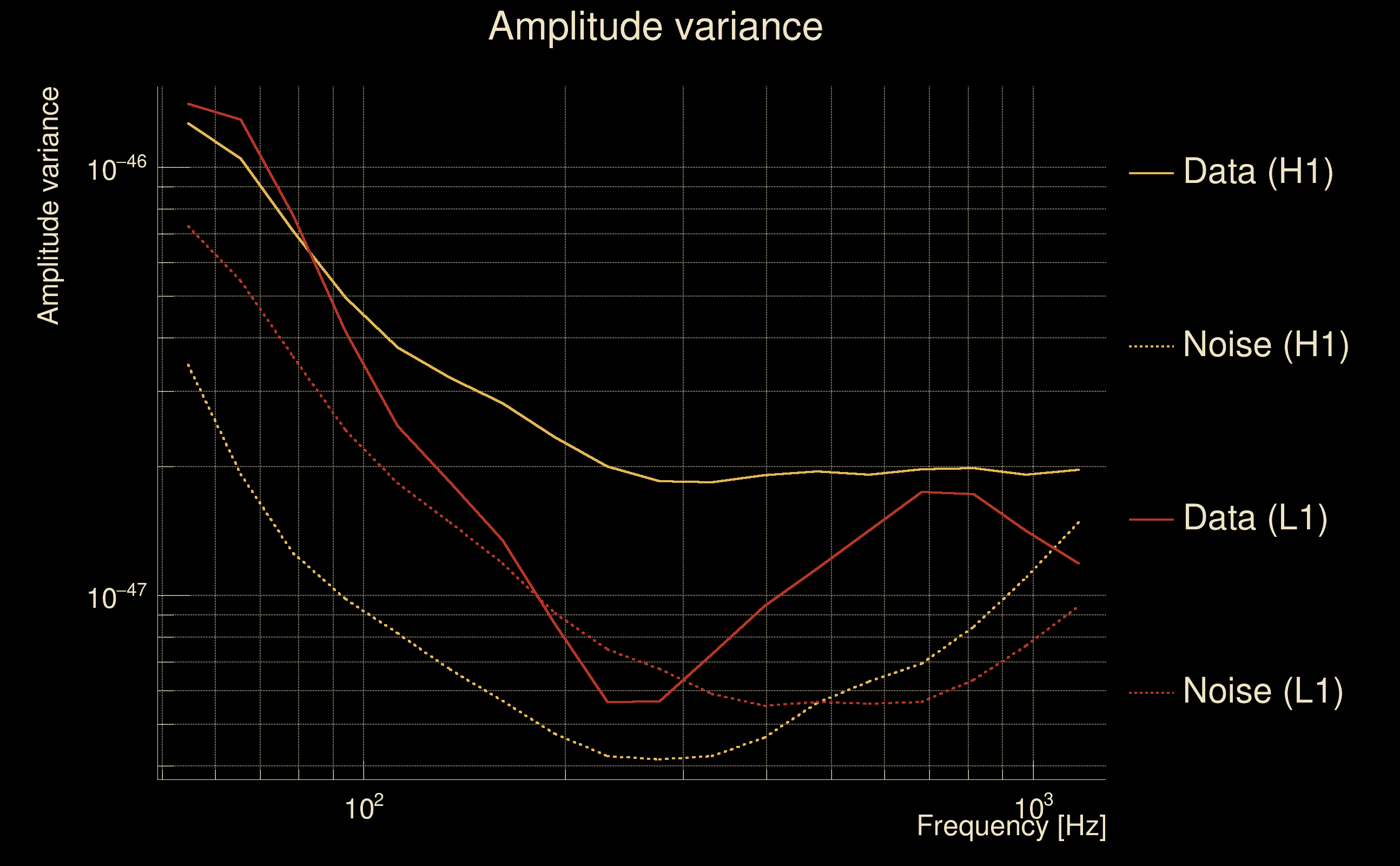

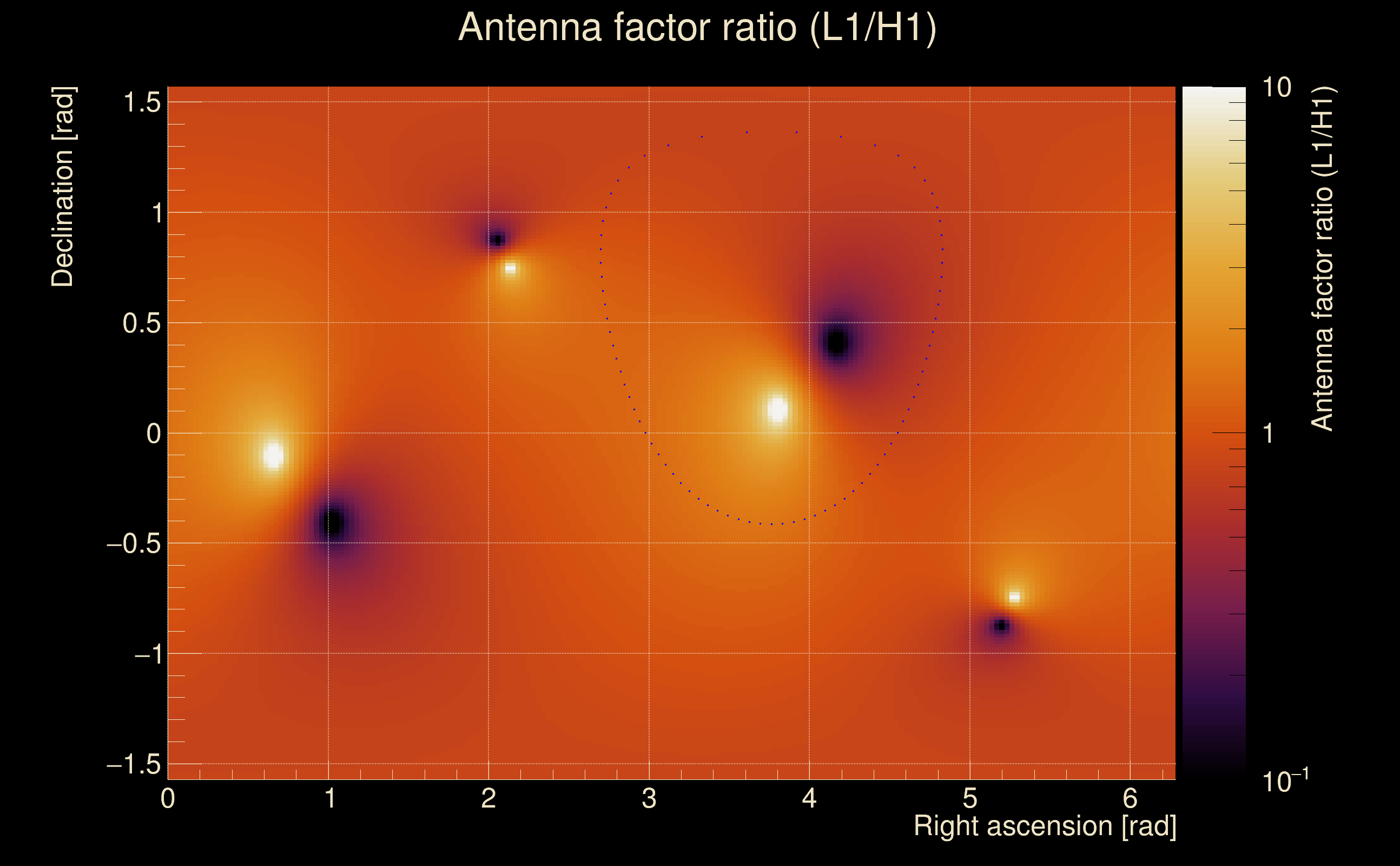

| Event time t(H1): | GPS = 1368450763 (Thu May 18 13:12:25 2023 ) → GPS = 1368450773 (Thu May 18 13:12:35 2023 ) |
| Event time t(L1): | GPS = 1368450763 (Thu May 18 13:12:35 2023 ) → GPS = 1368450773 (Thu May 18 13:12:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368450760 → GPS = 1368450776 |
| Omicron analysis time window (L1): | GPS = 1368450760 → GPS = 1368450776 |

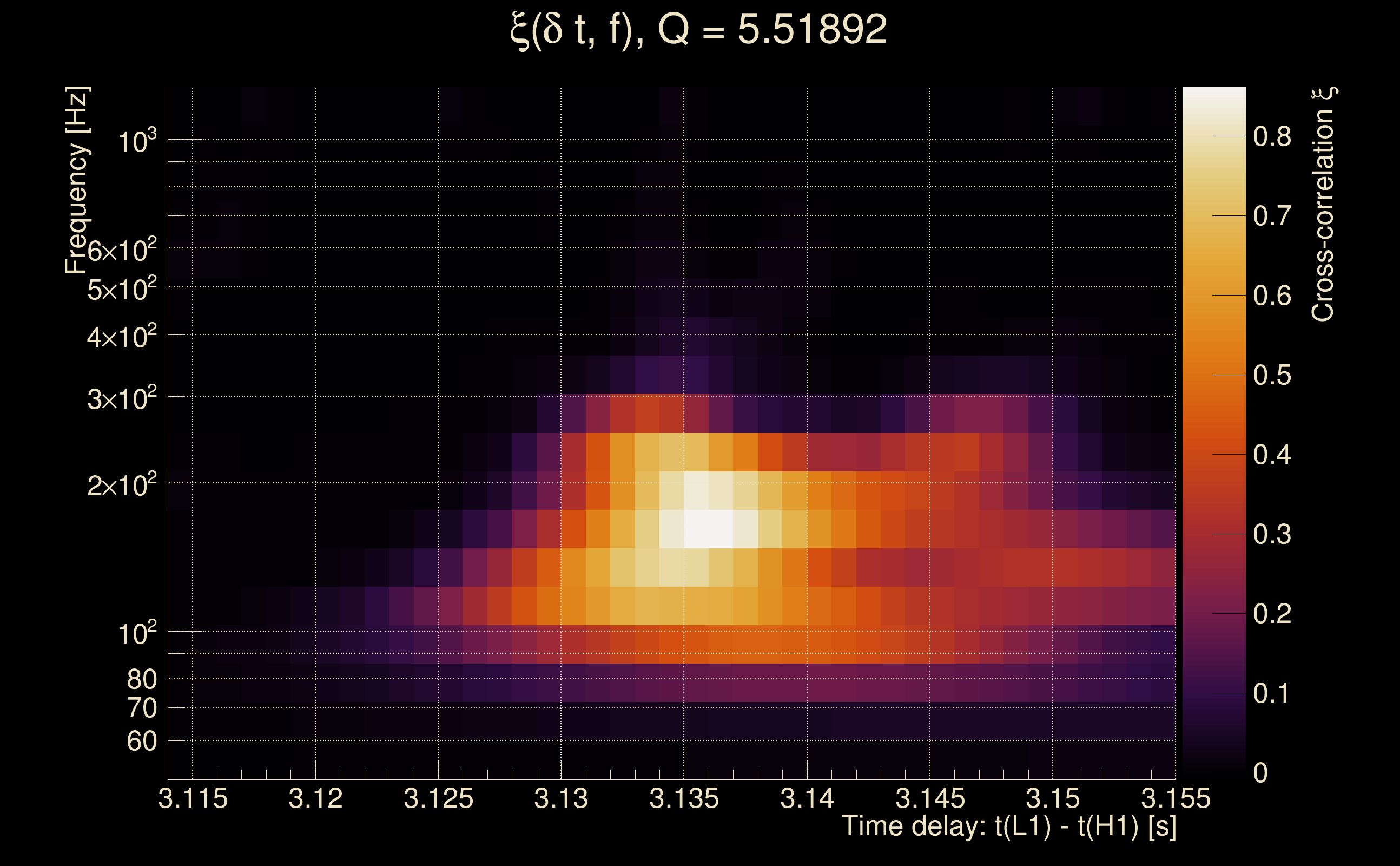

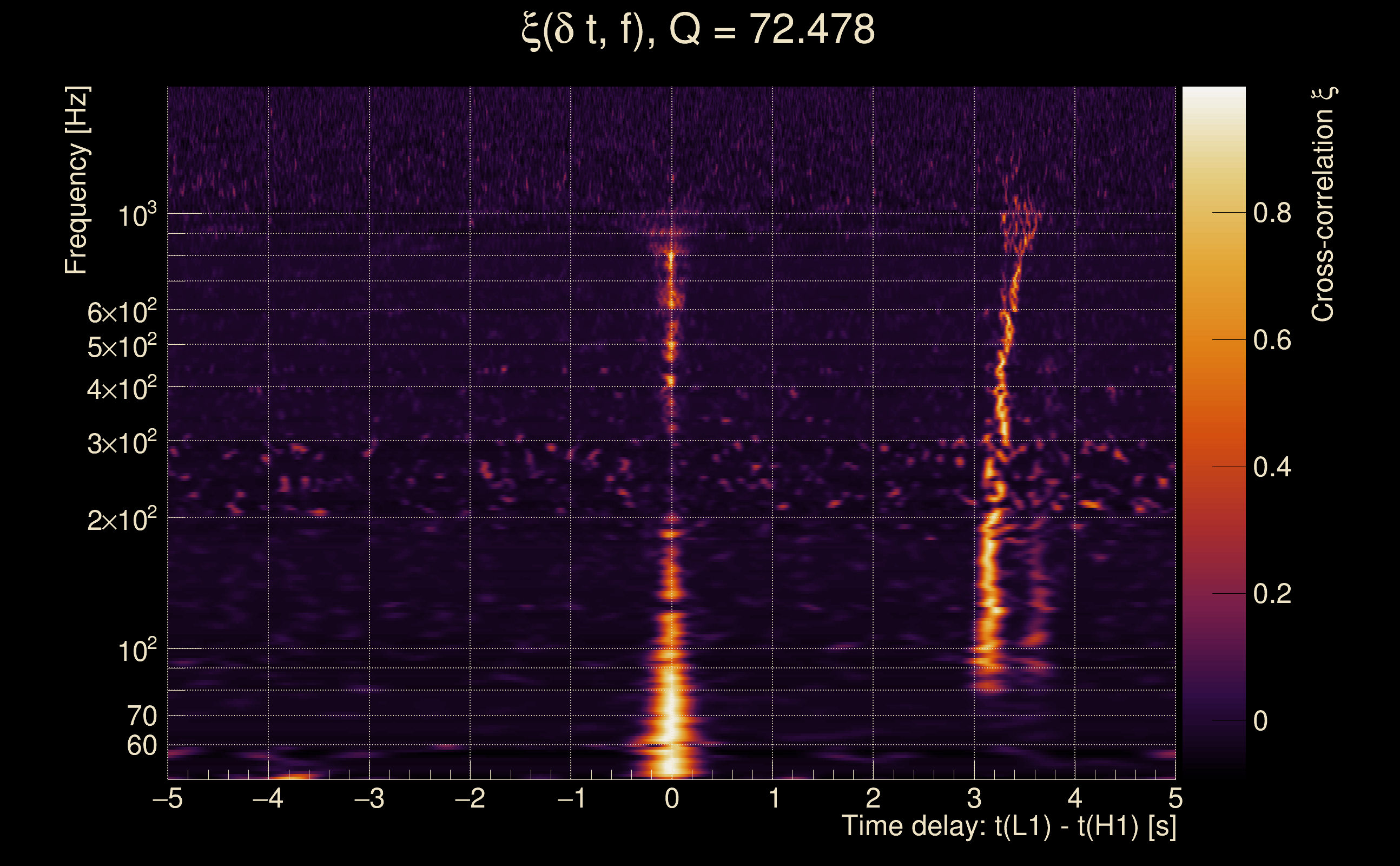

| Time delay between detectors t(L1) - t(H1): | 3.13429 s (slice index = 40 / 217), δt_gw = 0.00629431 s |
| Time delay standard deviation: | 0.0513607 s |
| [targeted mode] Time delay probability: | 0.322785 (0.98875 sigmas), δt_target = -0.00912213 s |
| Frequency: | 165.577 Hz |
| Ξ: | 0.422957 ± 0.0449545 (variance = 0.0020209): Q0: 0.67658, Q1: 0.653567, Q2: 0.618327, Q3: 0.545257, Q4: 0.640546 |
| Rank: | R_A = 0.422957 |
| Log of amplitude ratio (L1/H1): | -0.593438, variance = 0.905238 (L1/H1: -1.74557, variance = 1.5674, H1/L1: -1.39424, variance = 2.05784) |
| Amplitude ratio (L1/H1): | 0.552425 ⋇ 2.58944 (L1/H1: 0.174545 ⋇ 3.49719, H1/L1: 0.24802 ⋇ 4.19762) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0991363 |

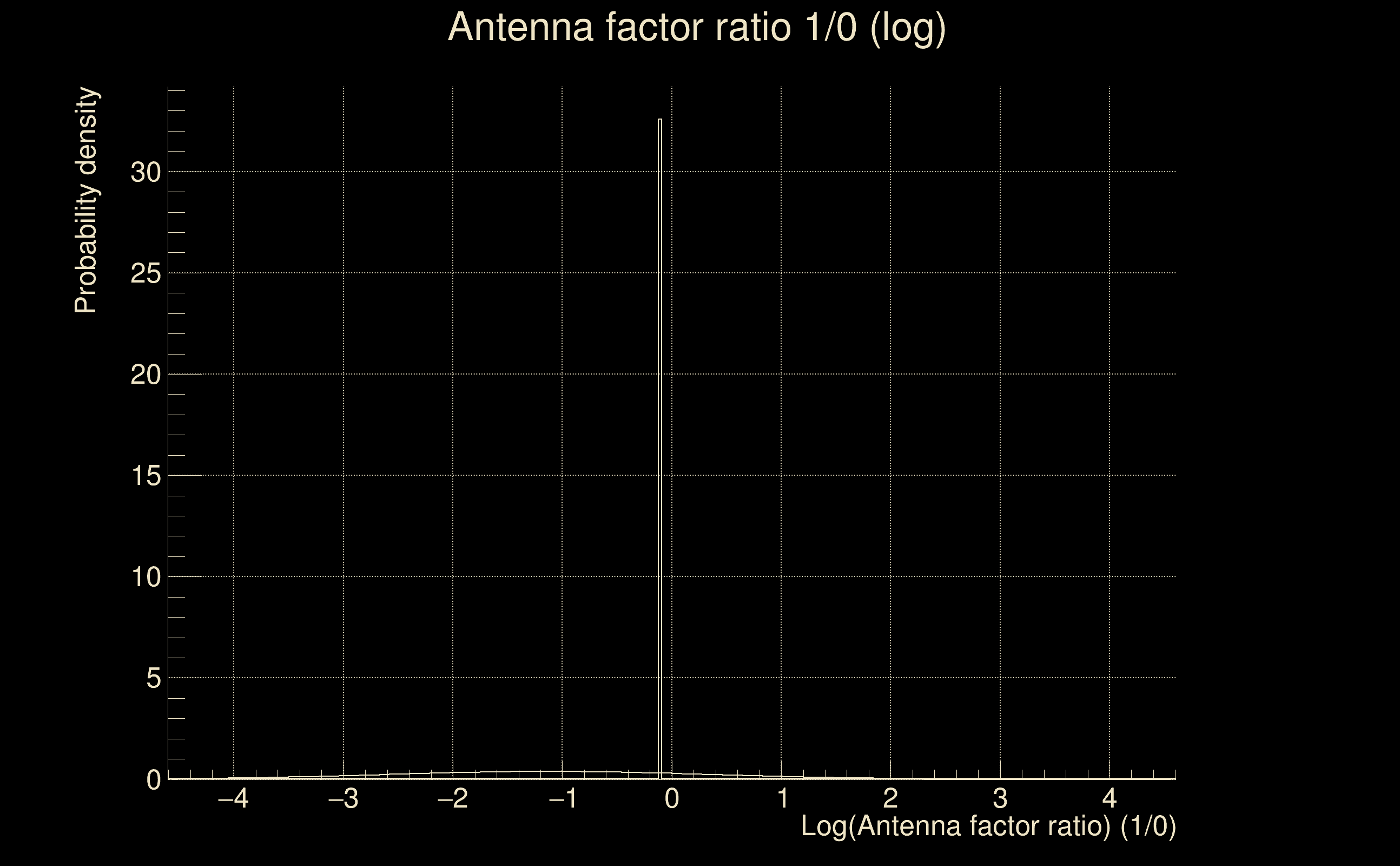

| Antenna factor probability: | 0.714454 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 14 / 36, Q2: 39 / 70, Q3: 92 / 134, Q4: 199 / 258 |
| Maximum signal-to-noise ratio: | H1: 64.6737, L1: 49.2386 |

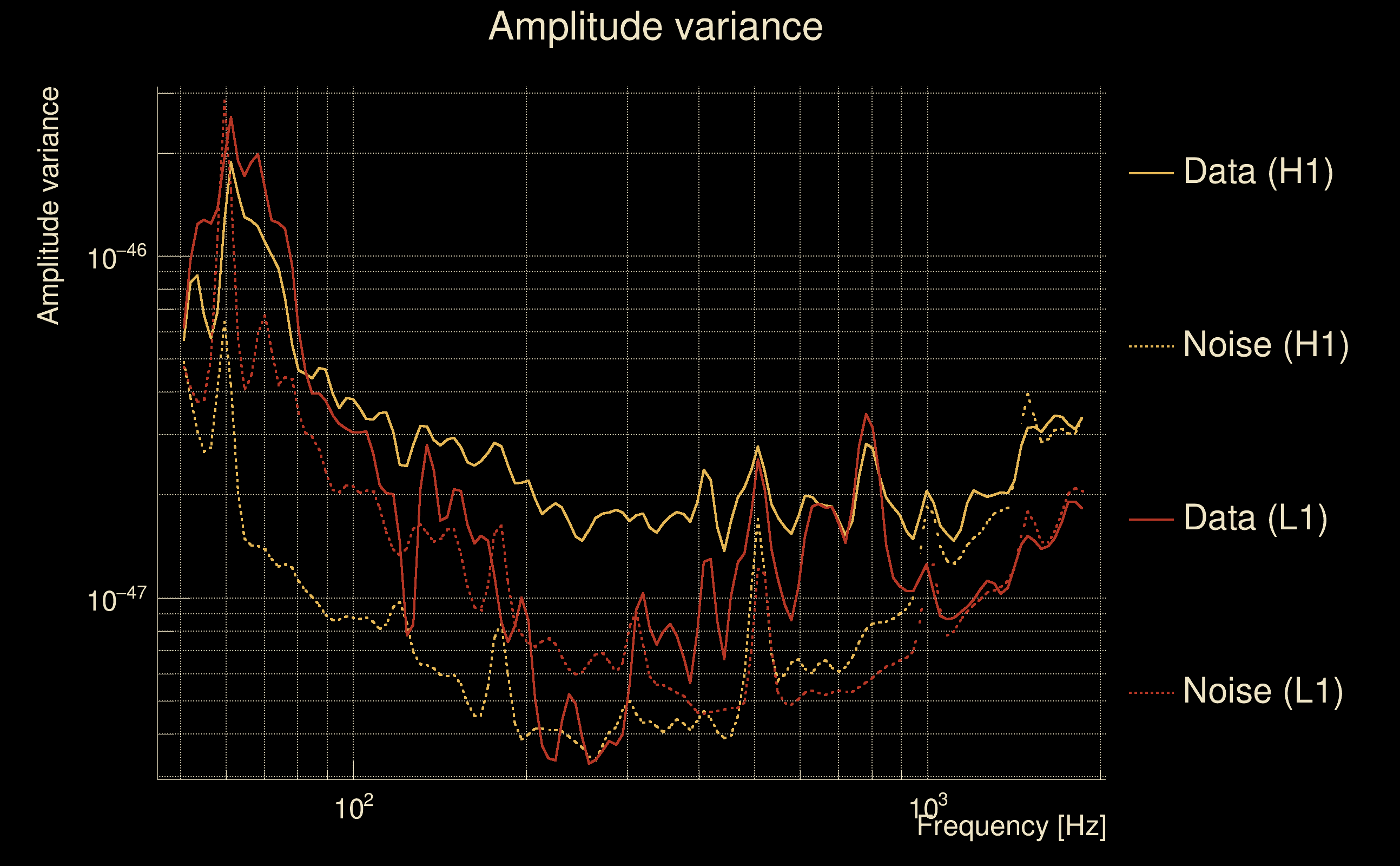

| SNR variance: | H1: 2.23092, L1: 2.05381 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

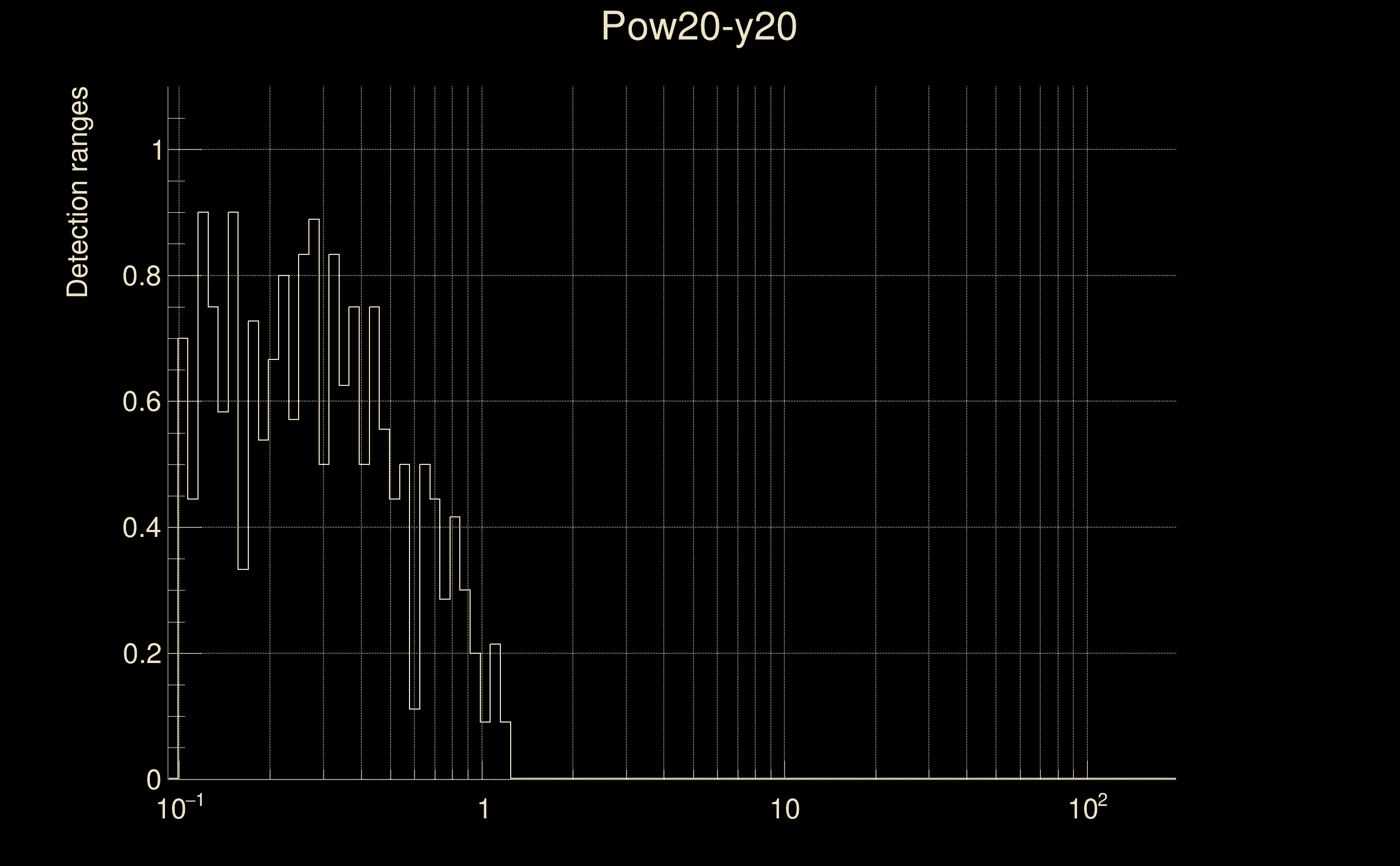

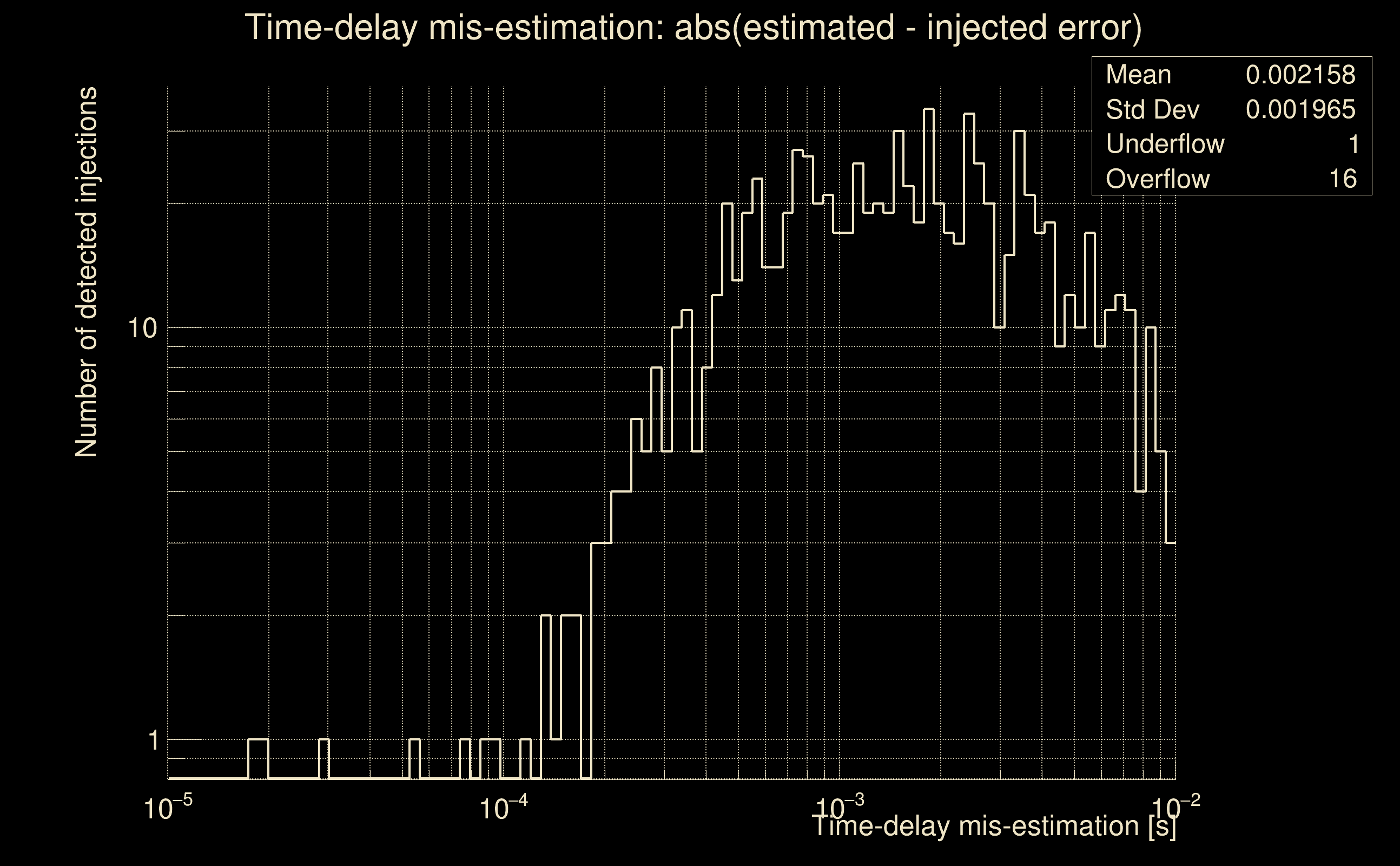

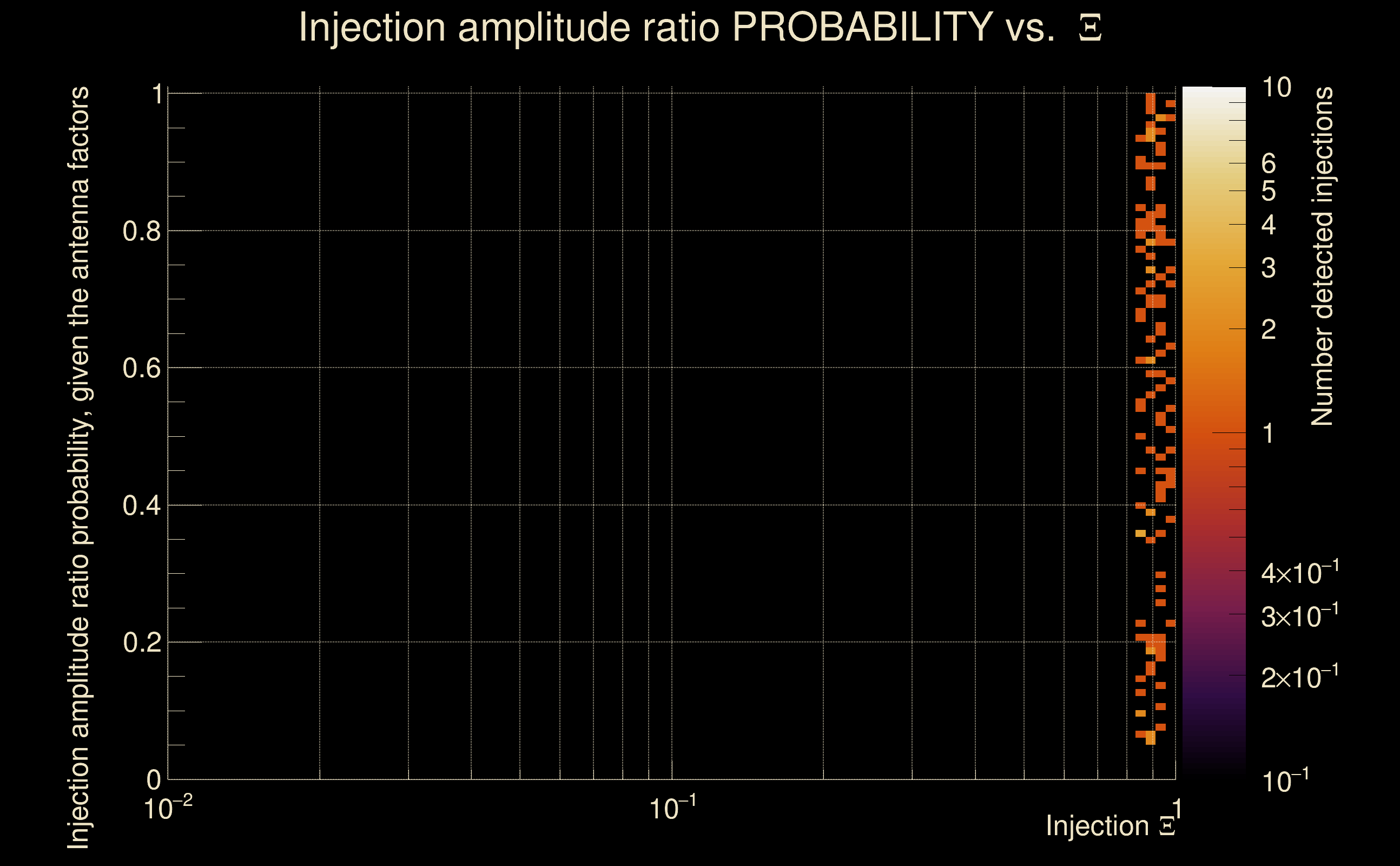

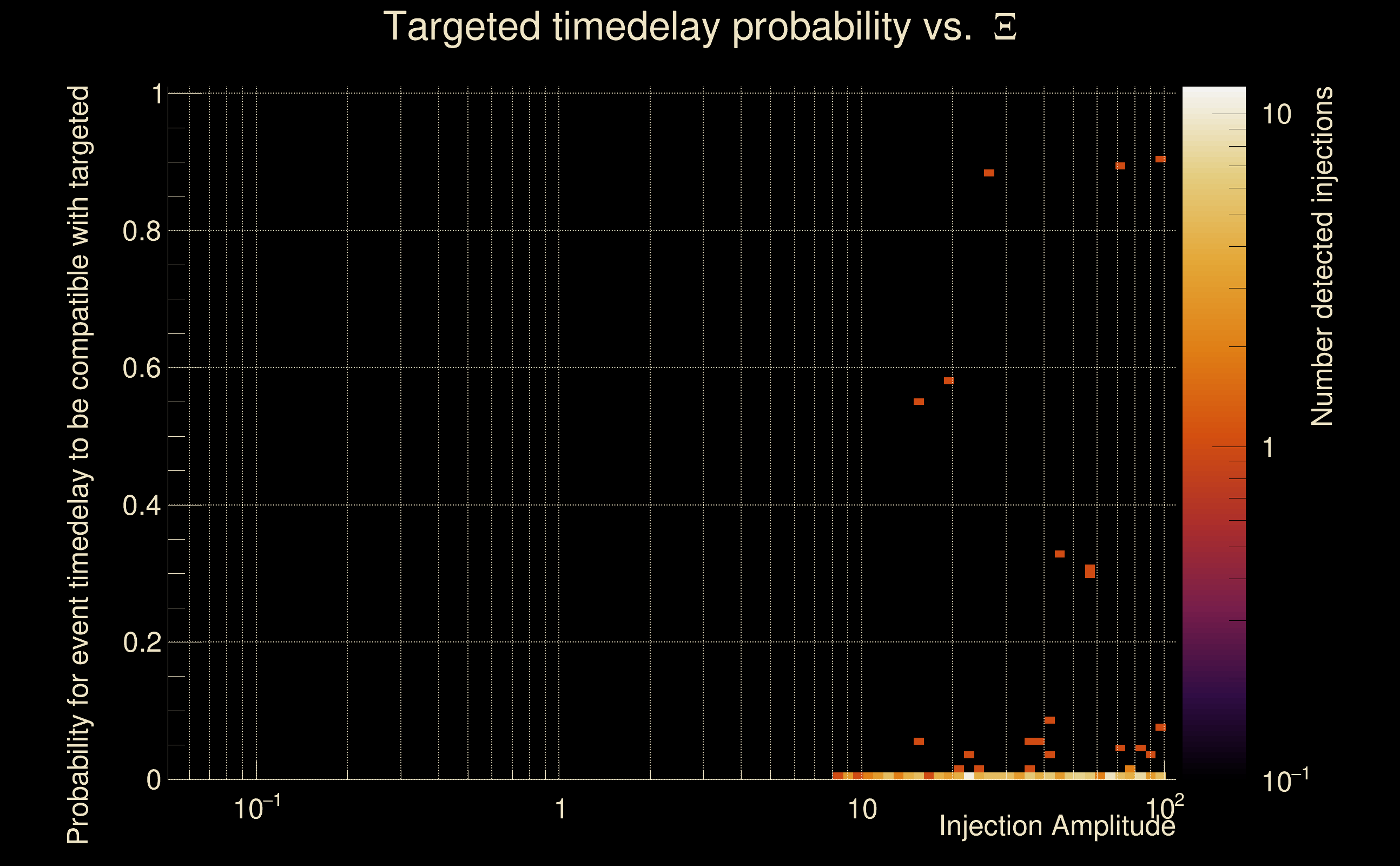

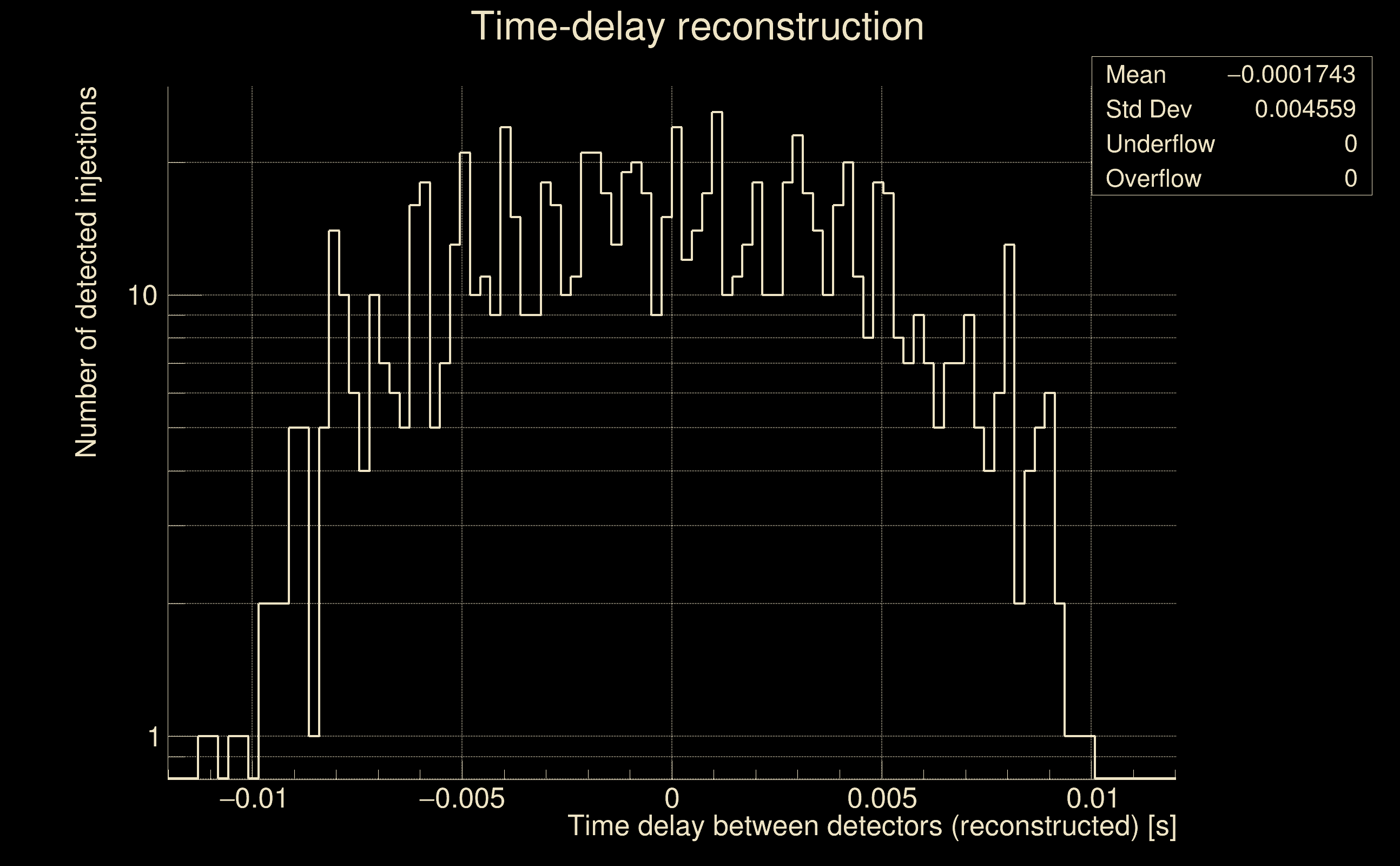

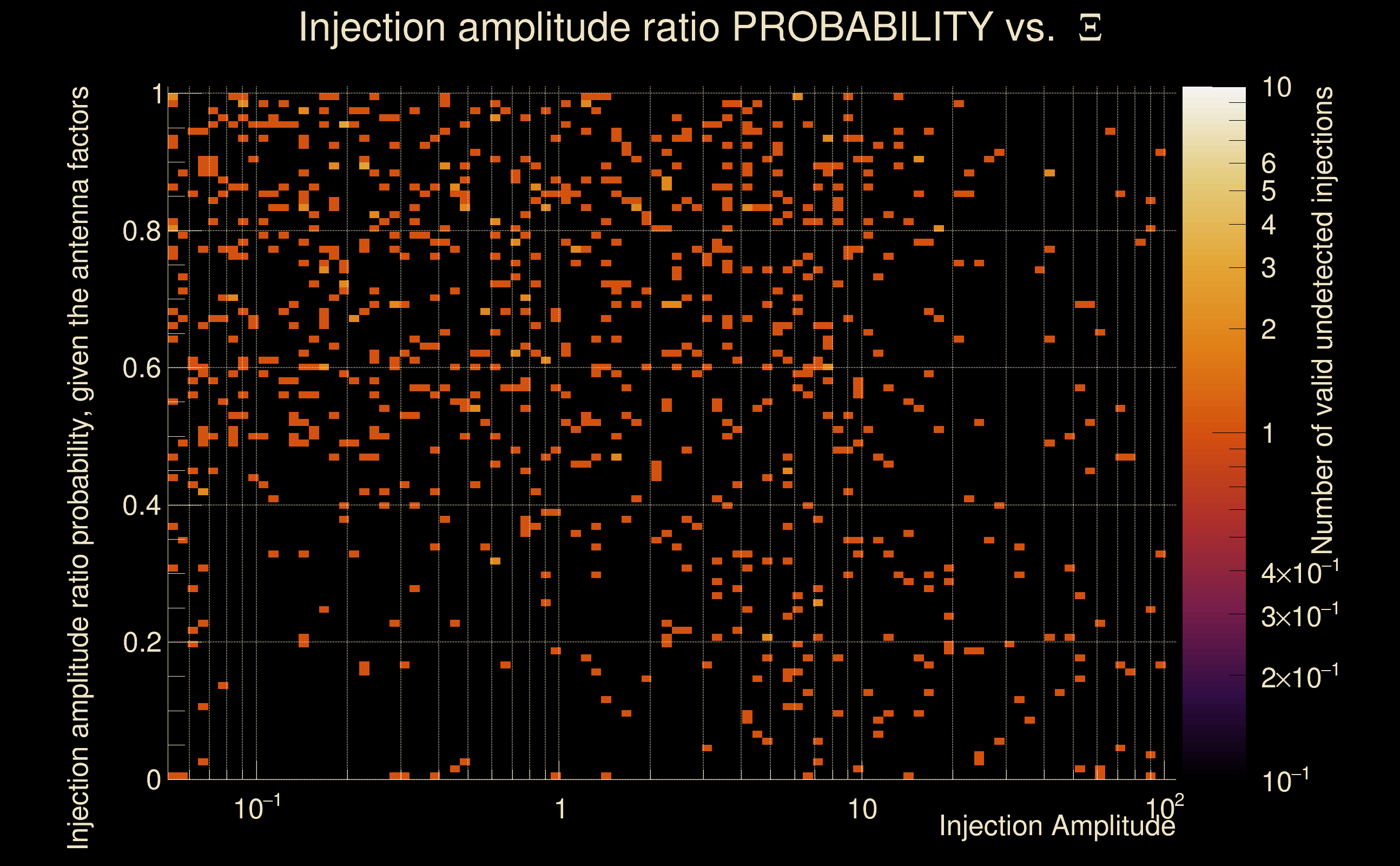

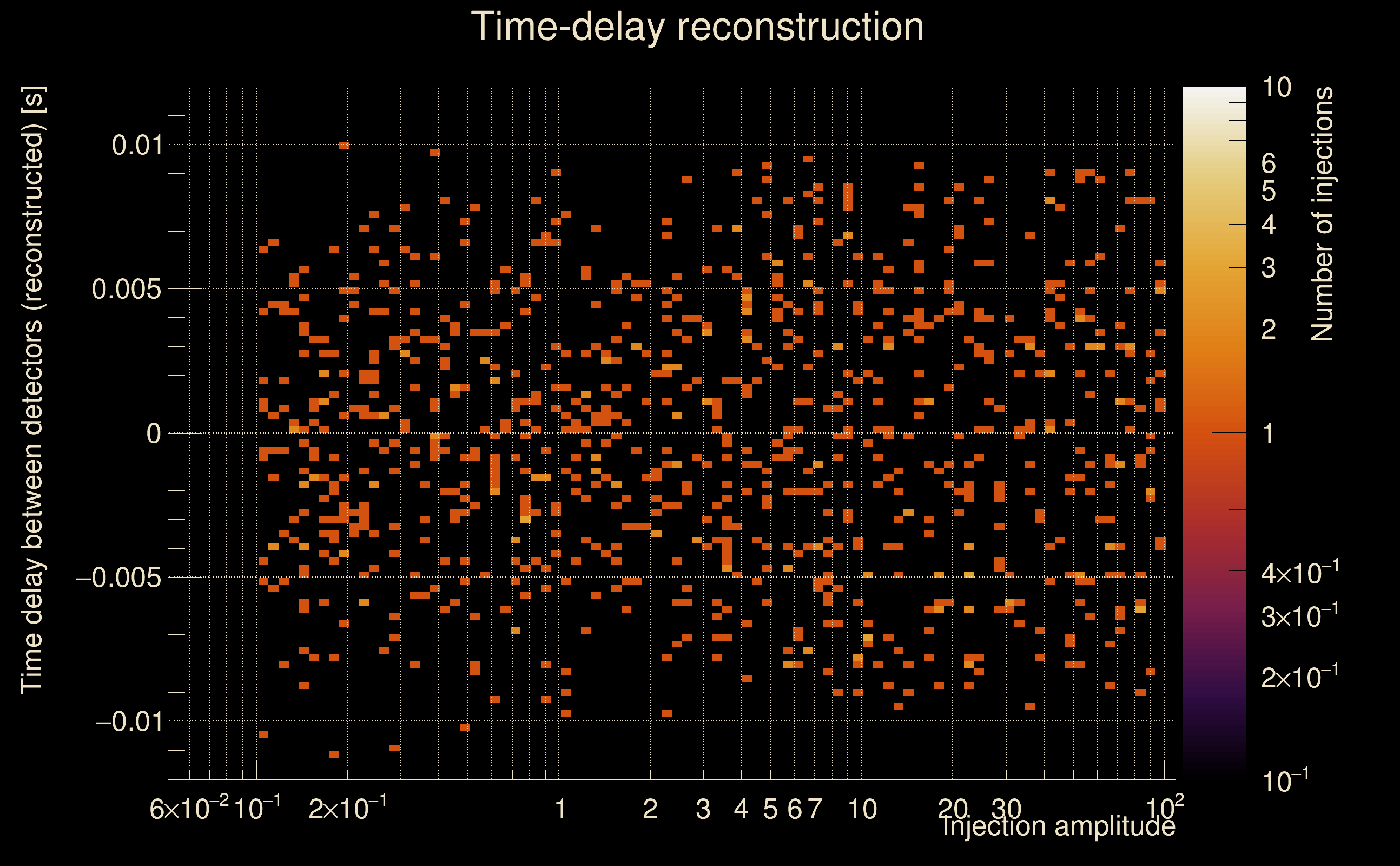

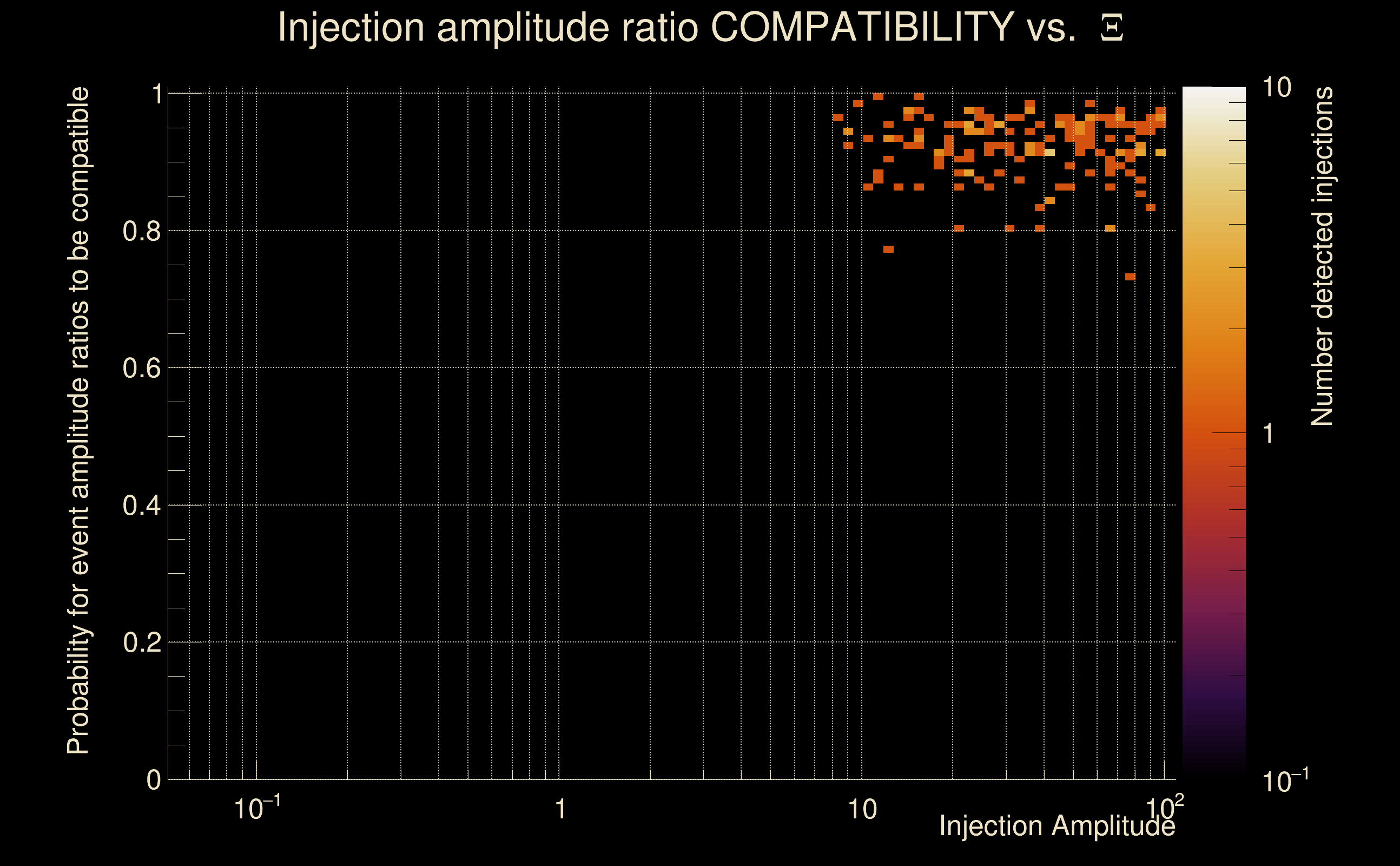

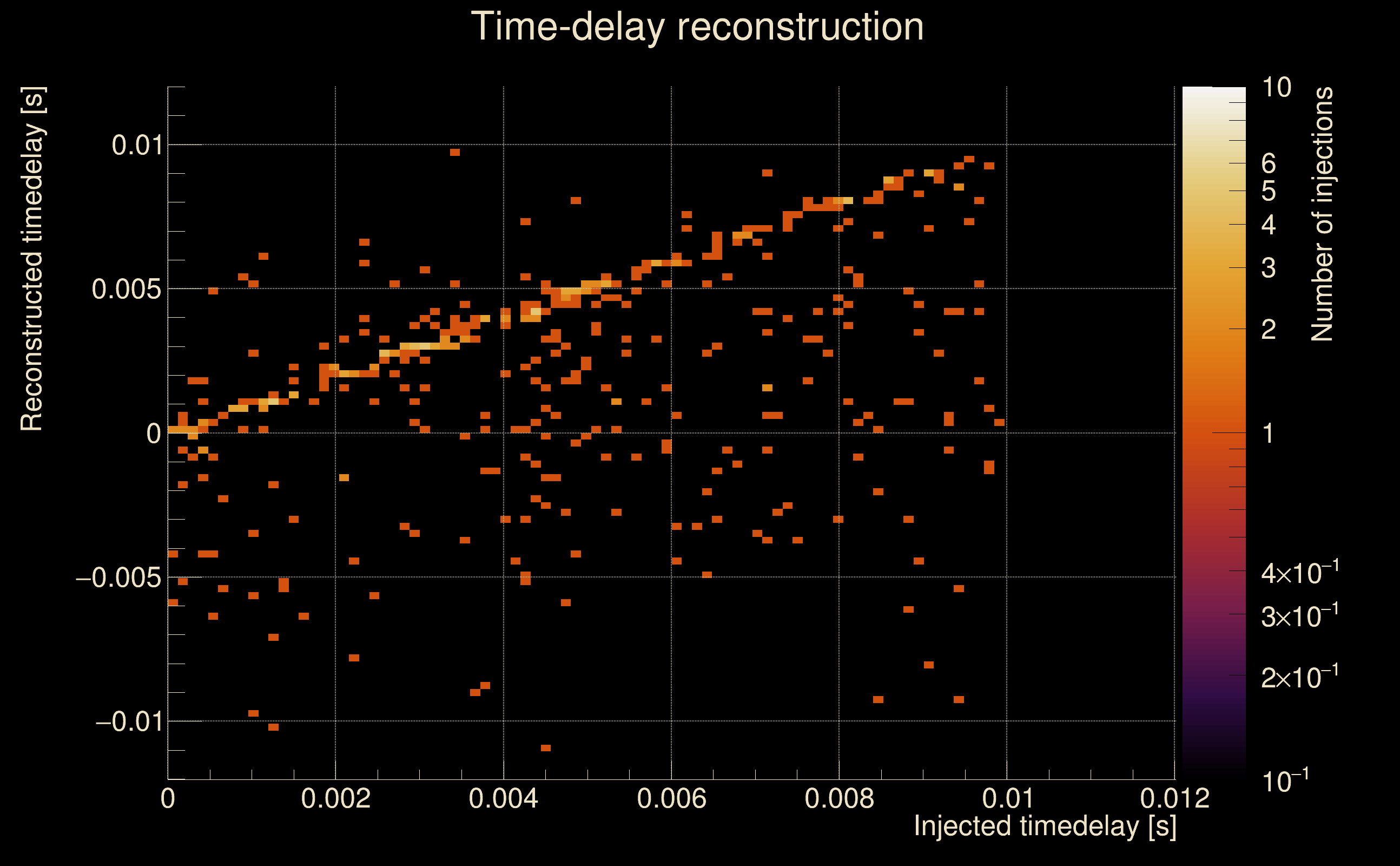

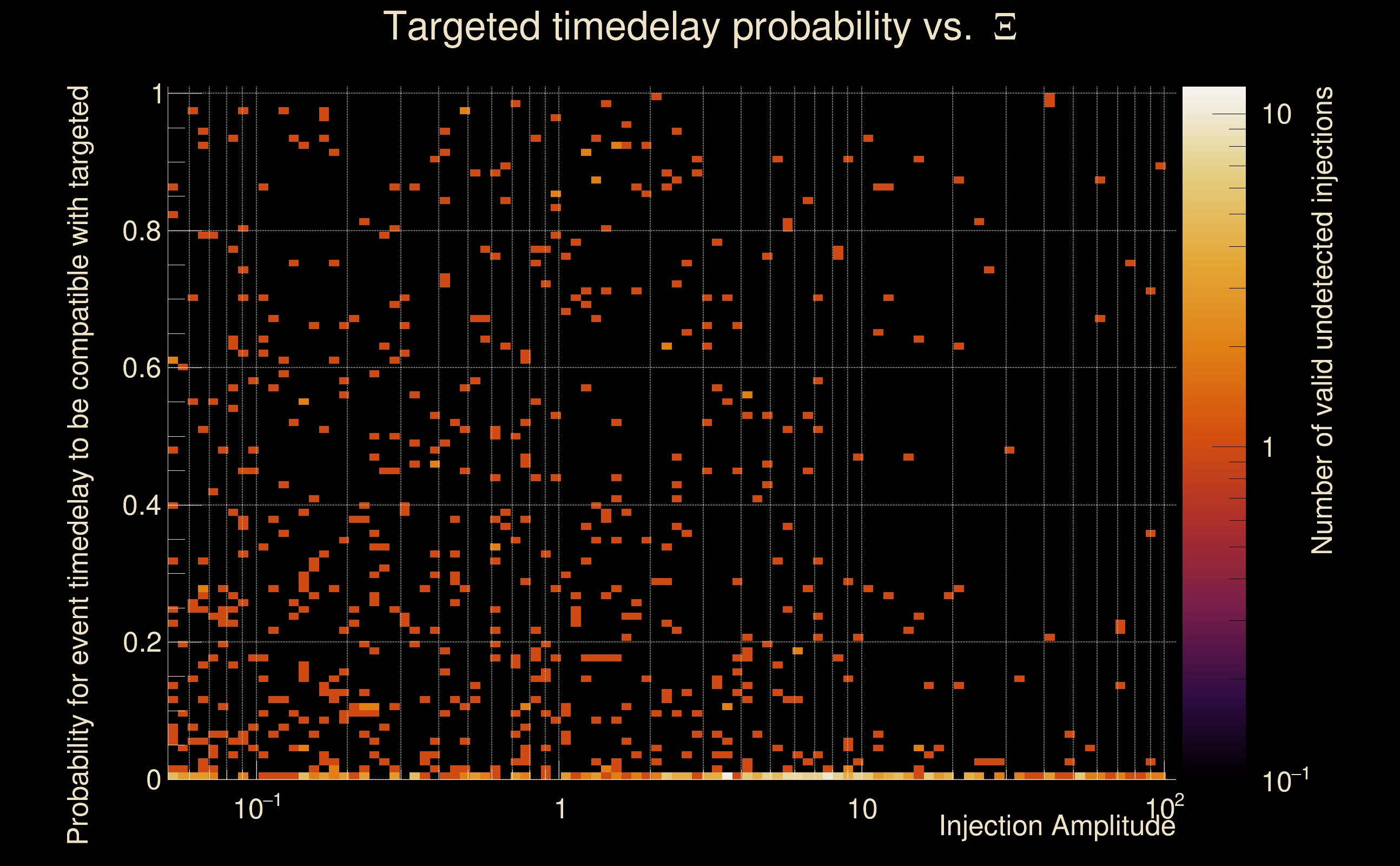

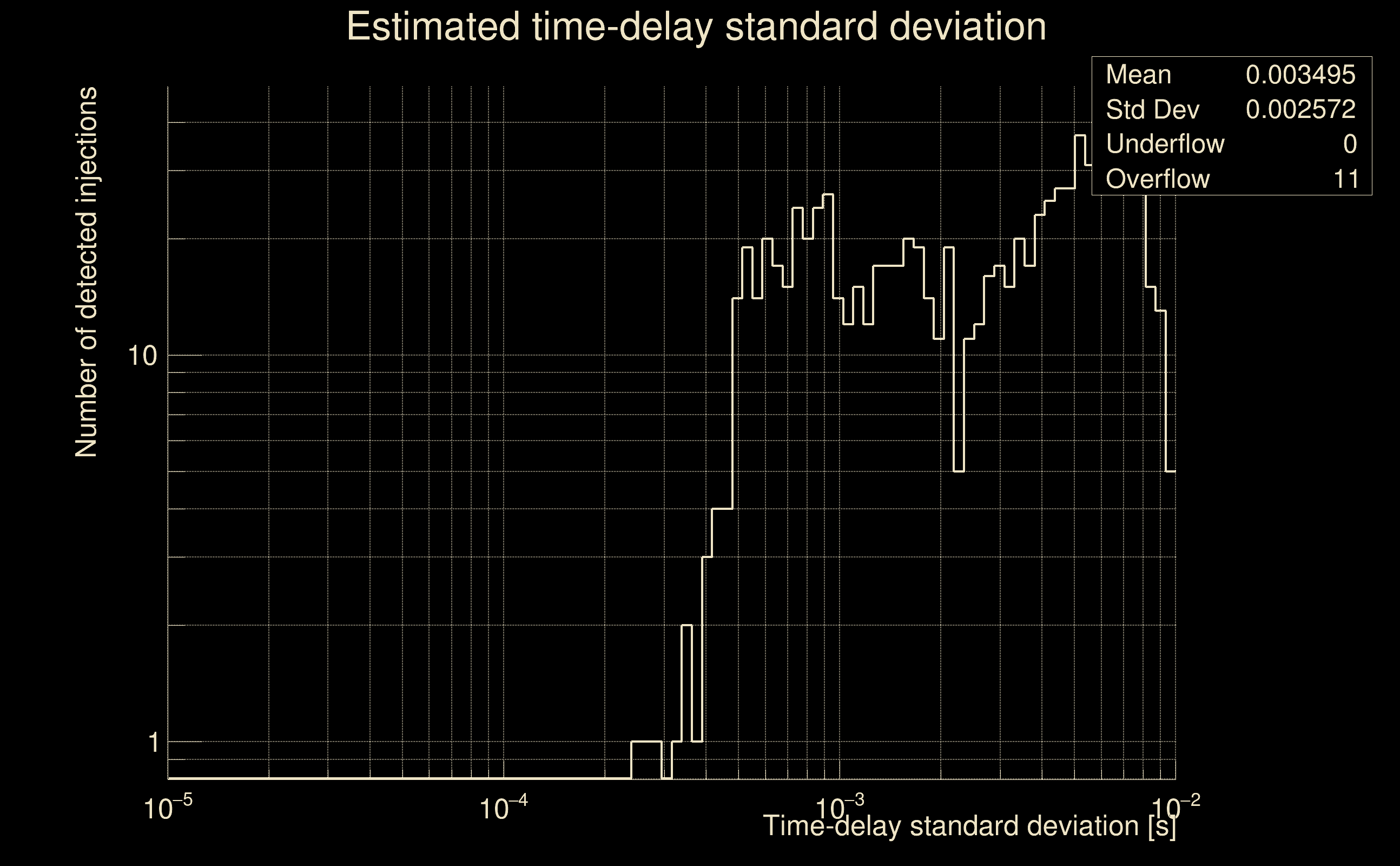

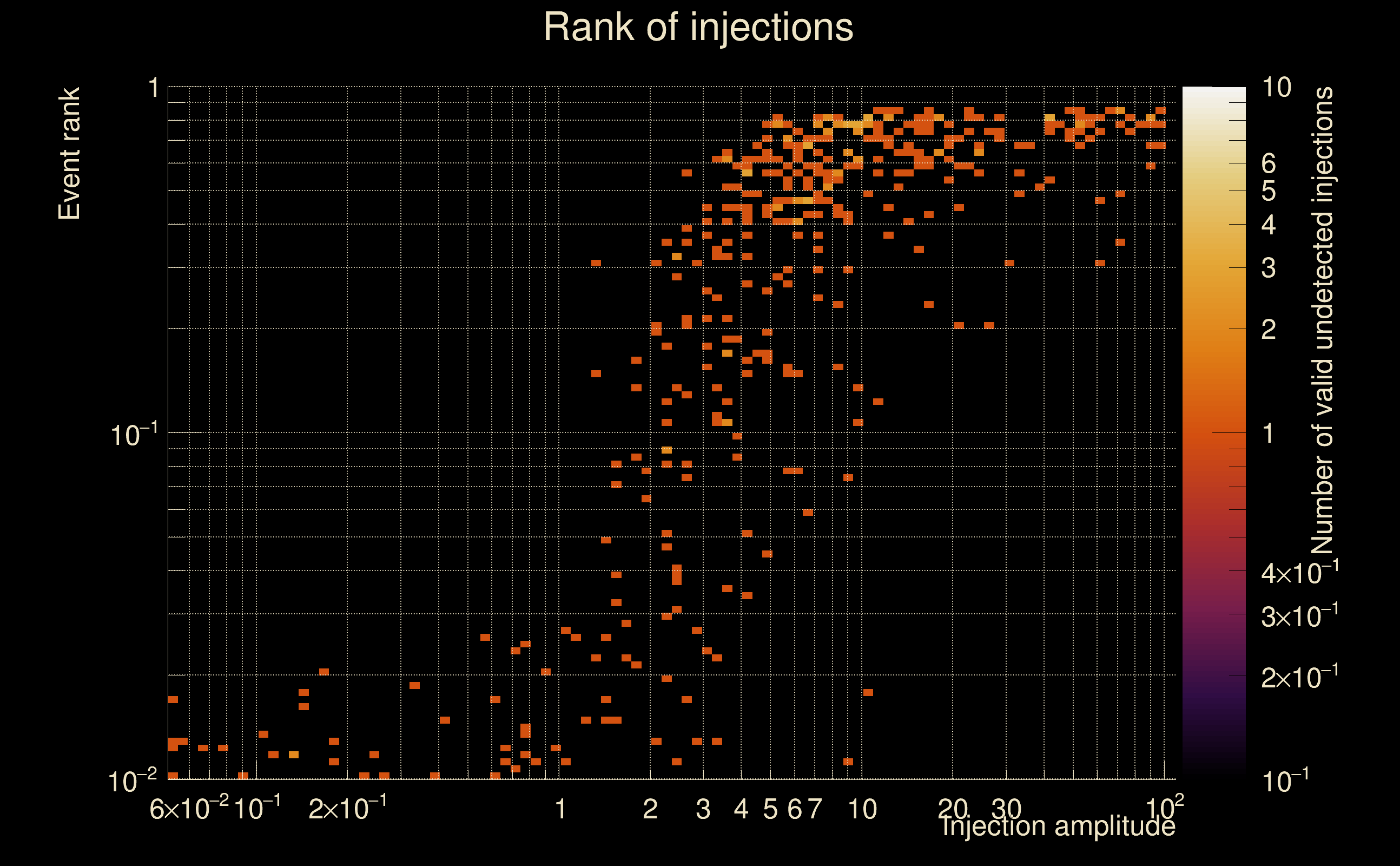

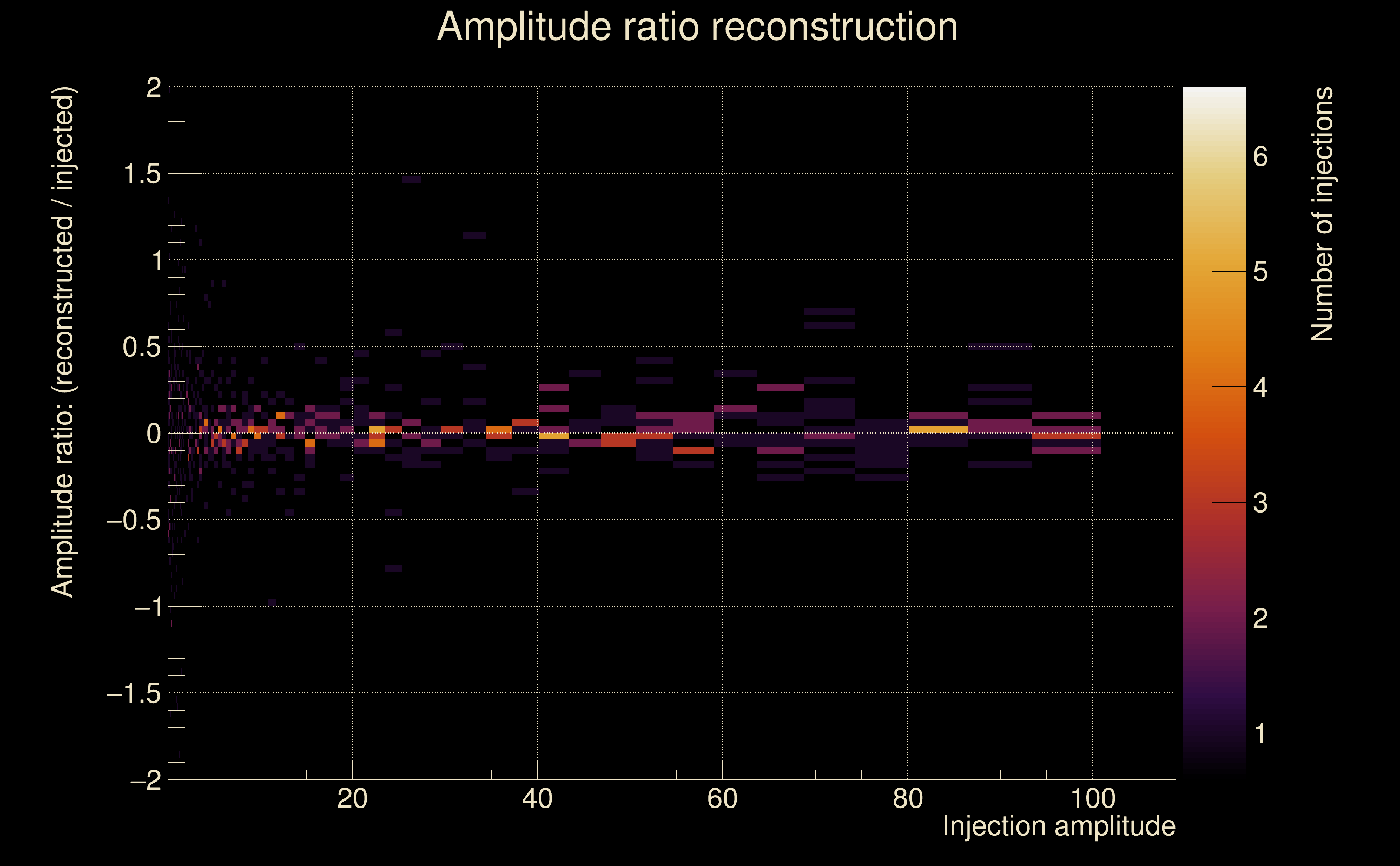

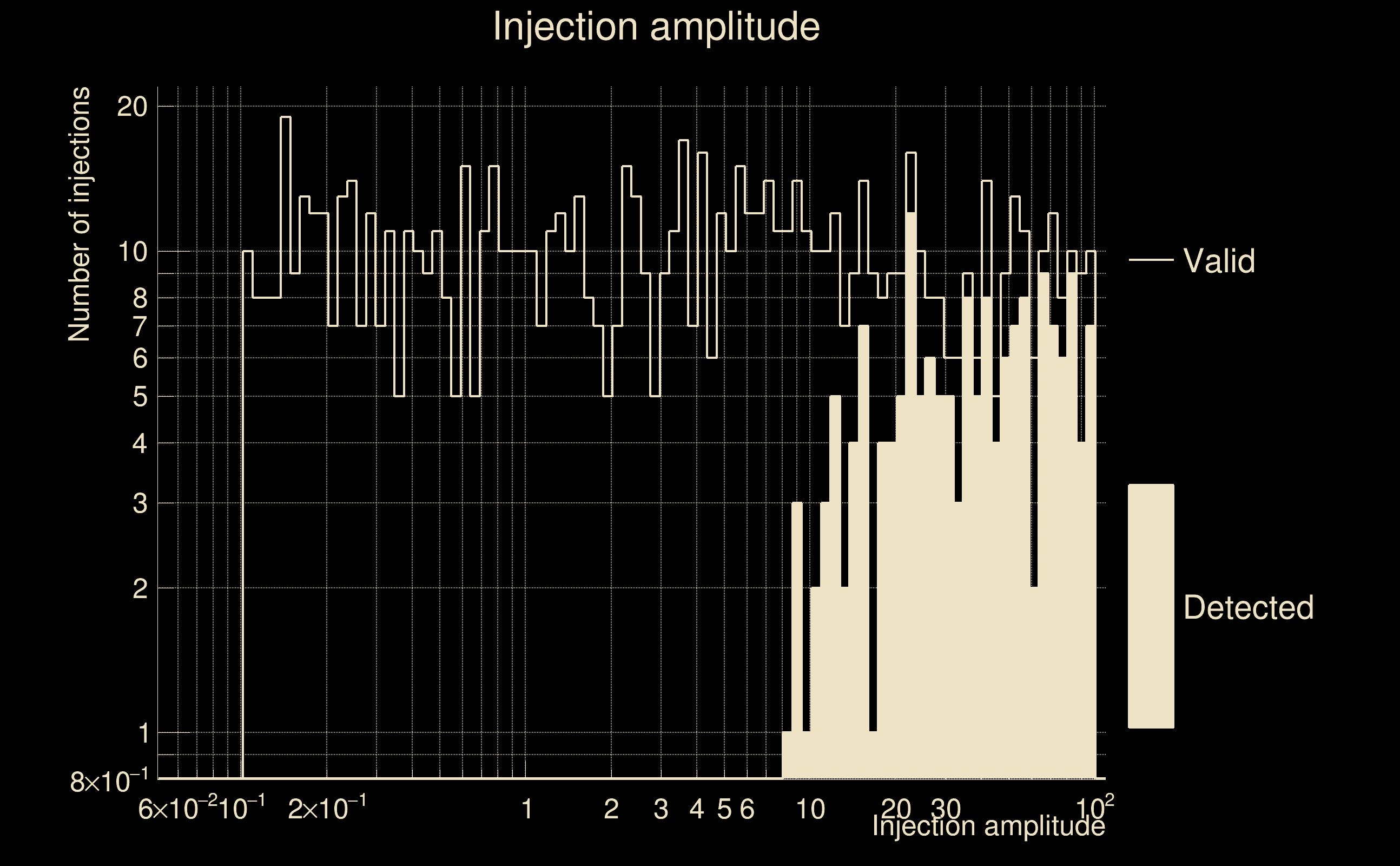

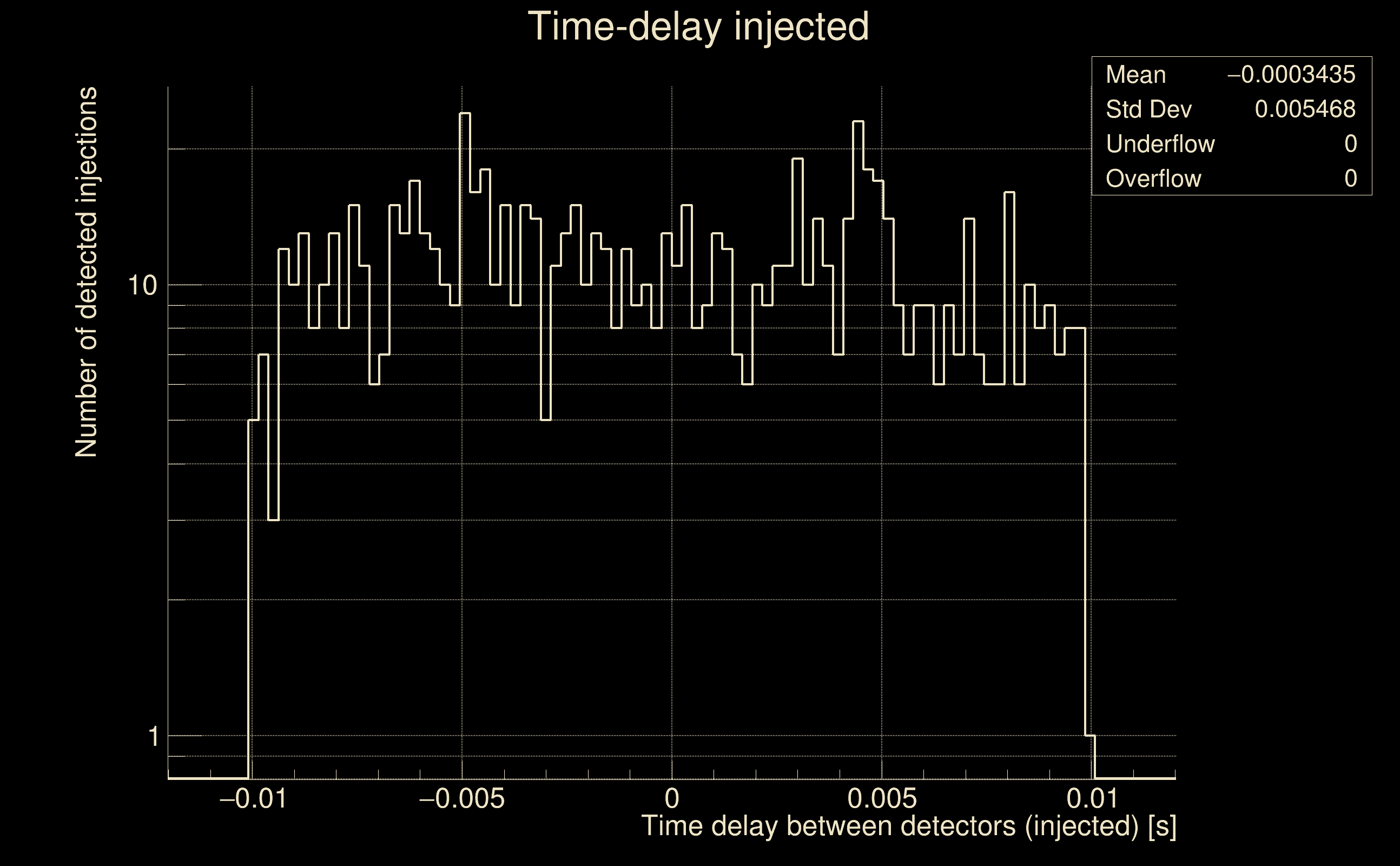

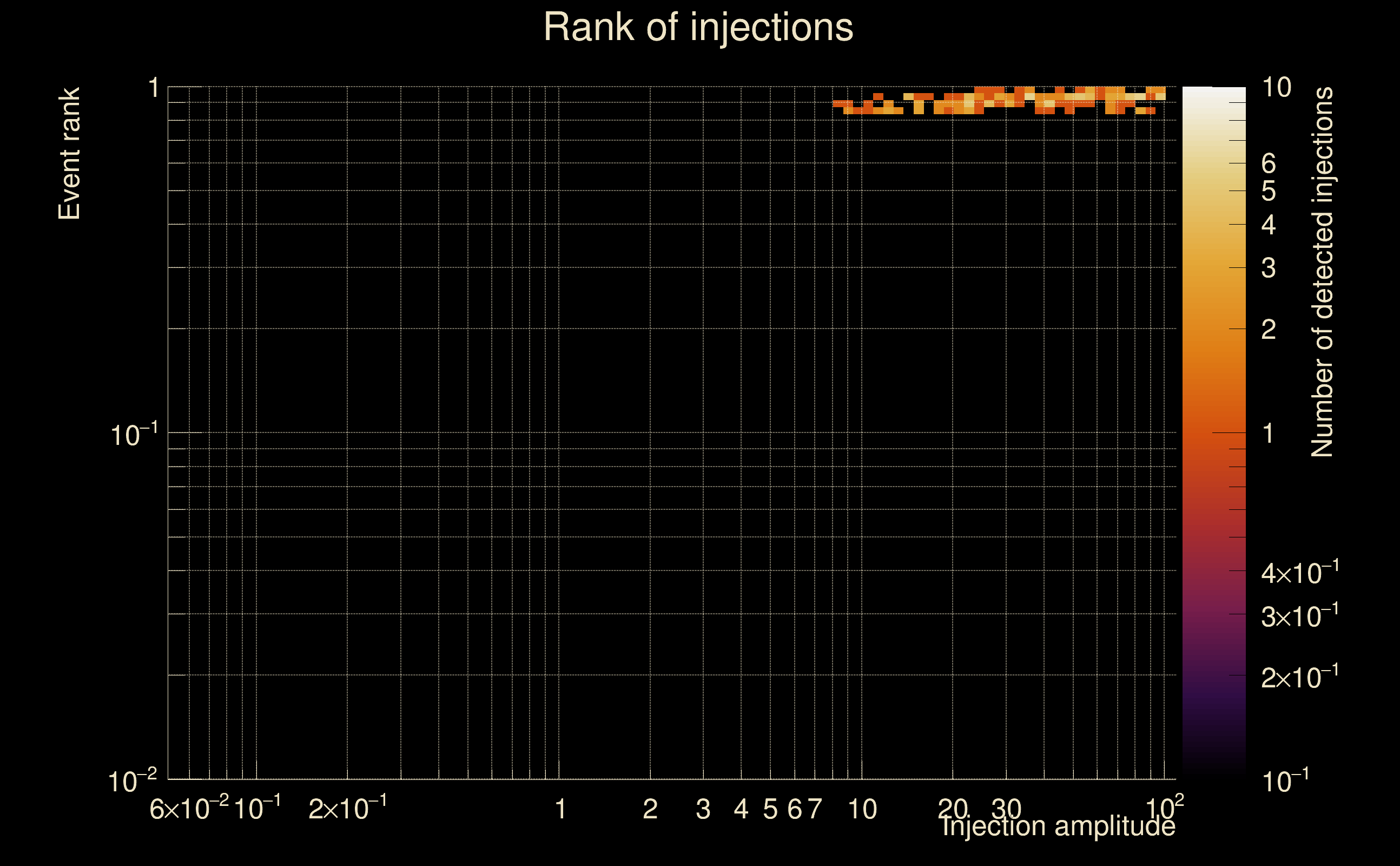

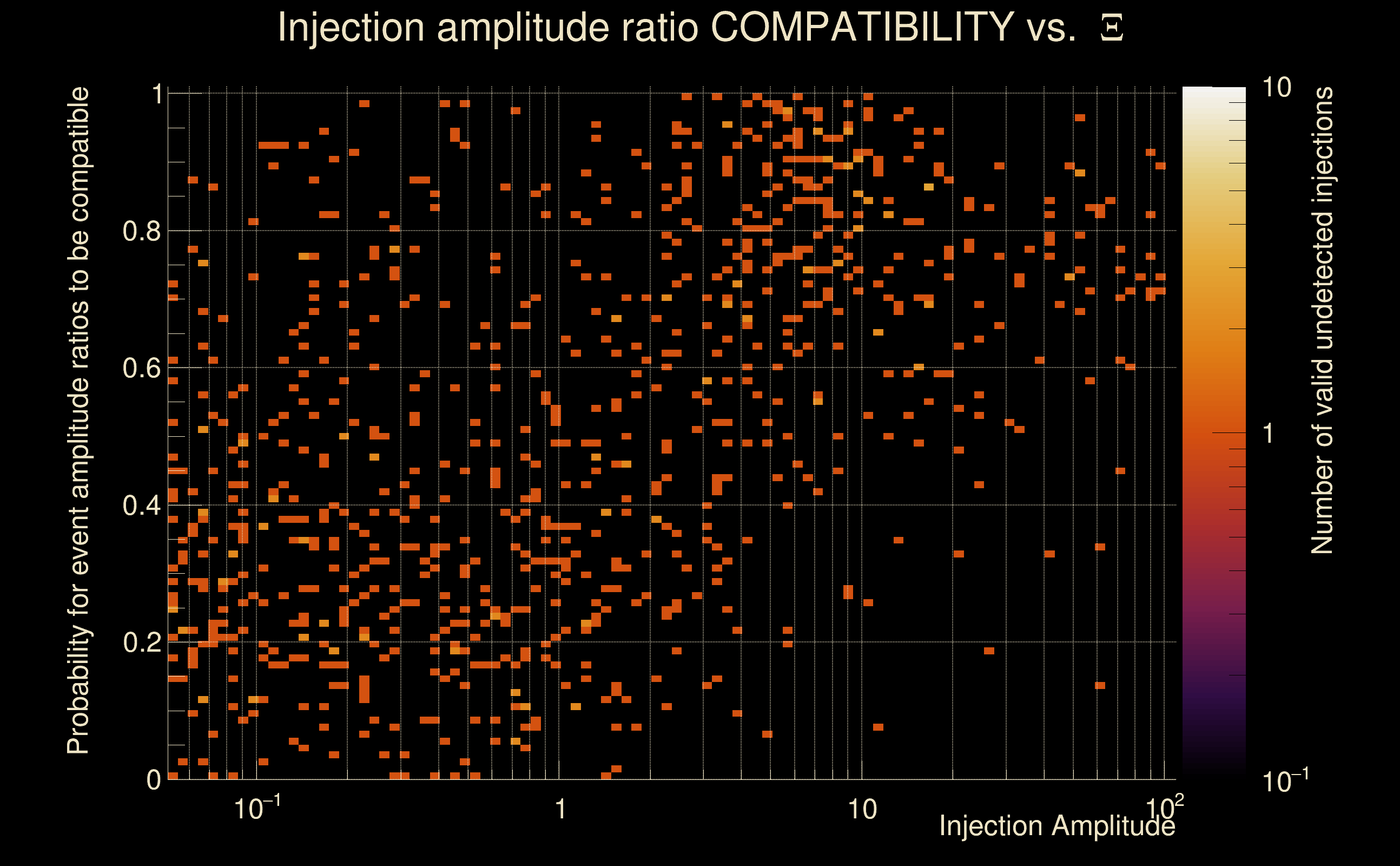

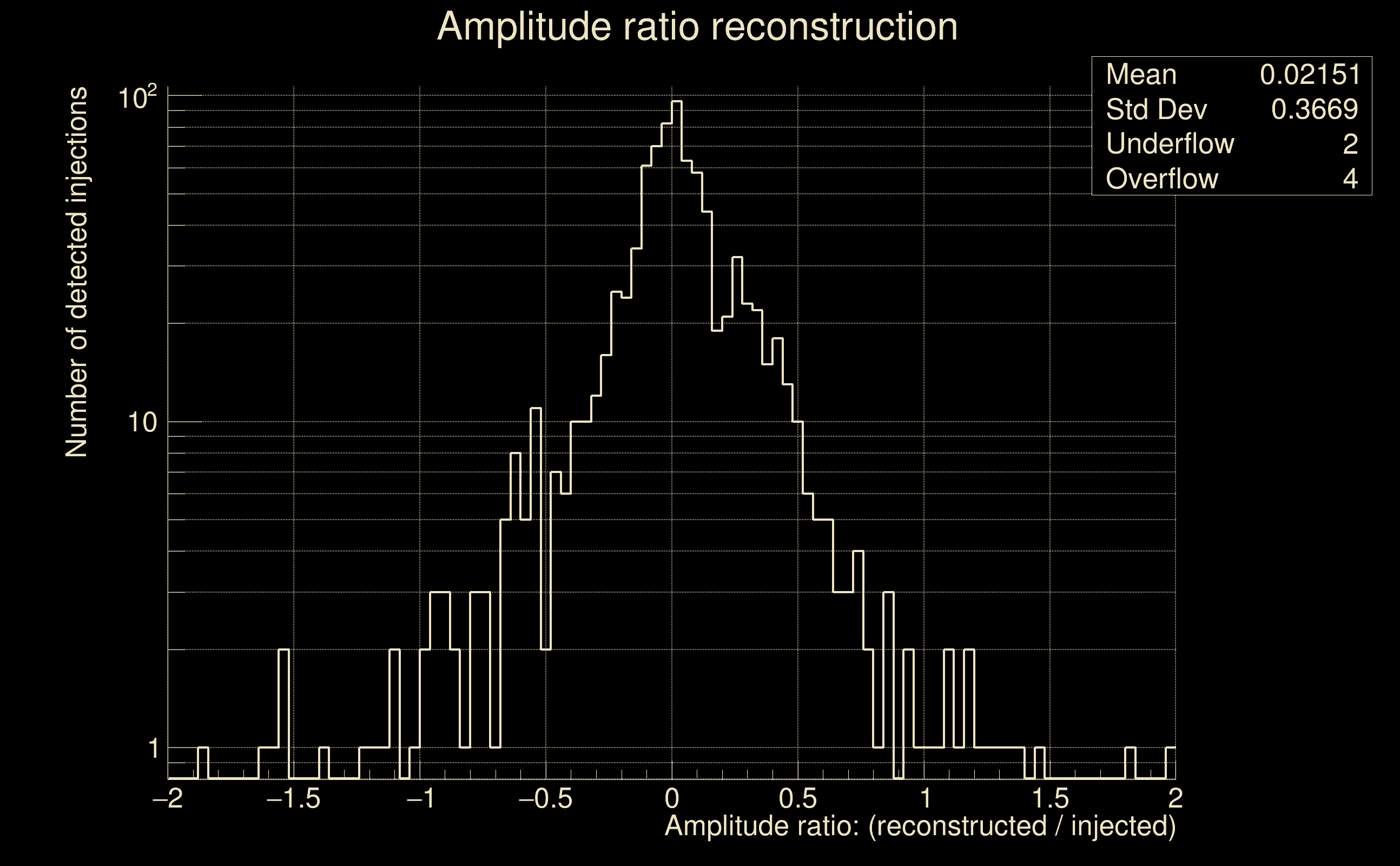

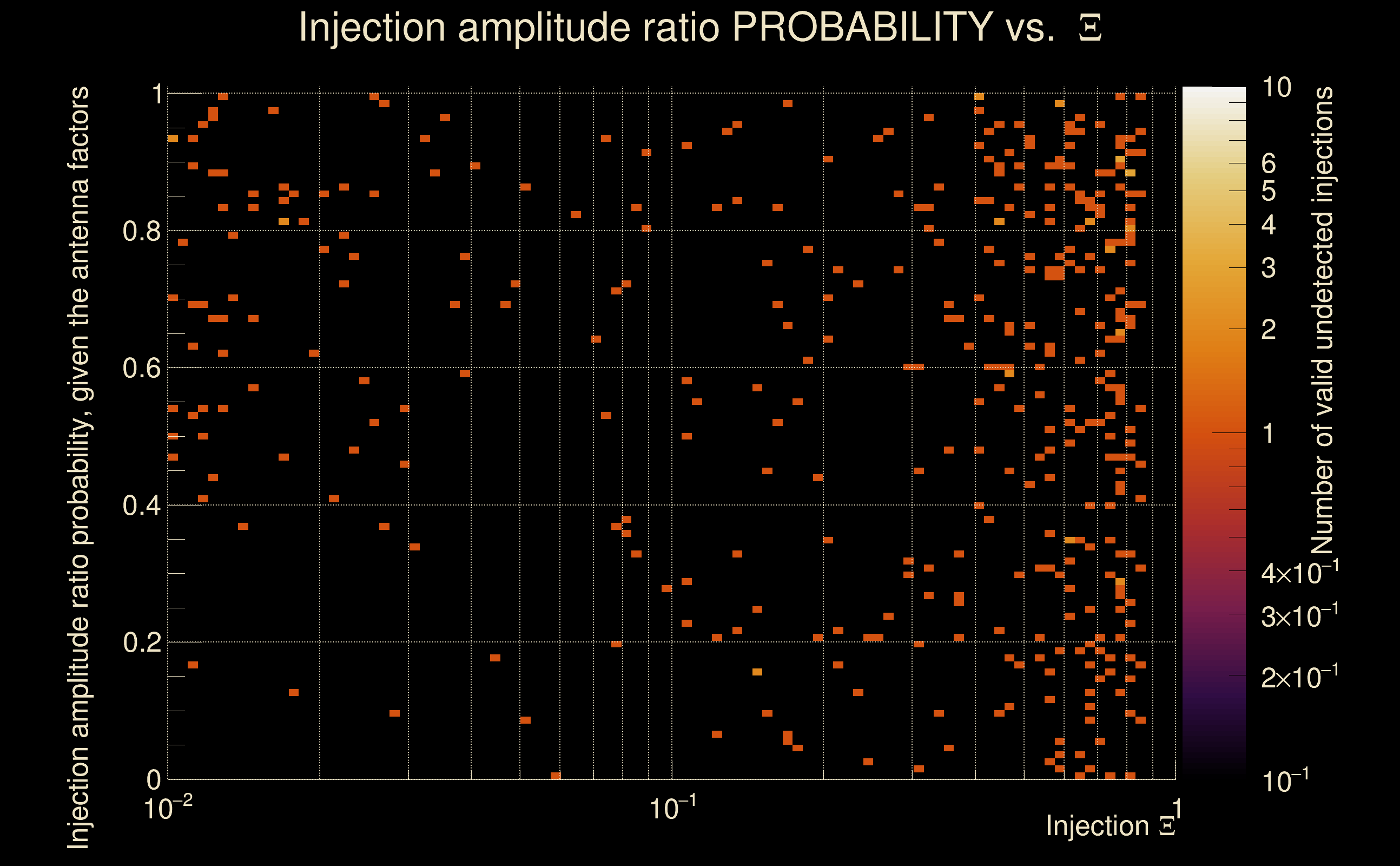

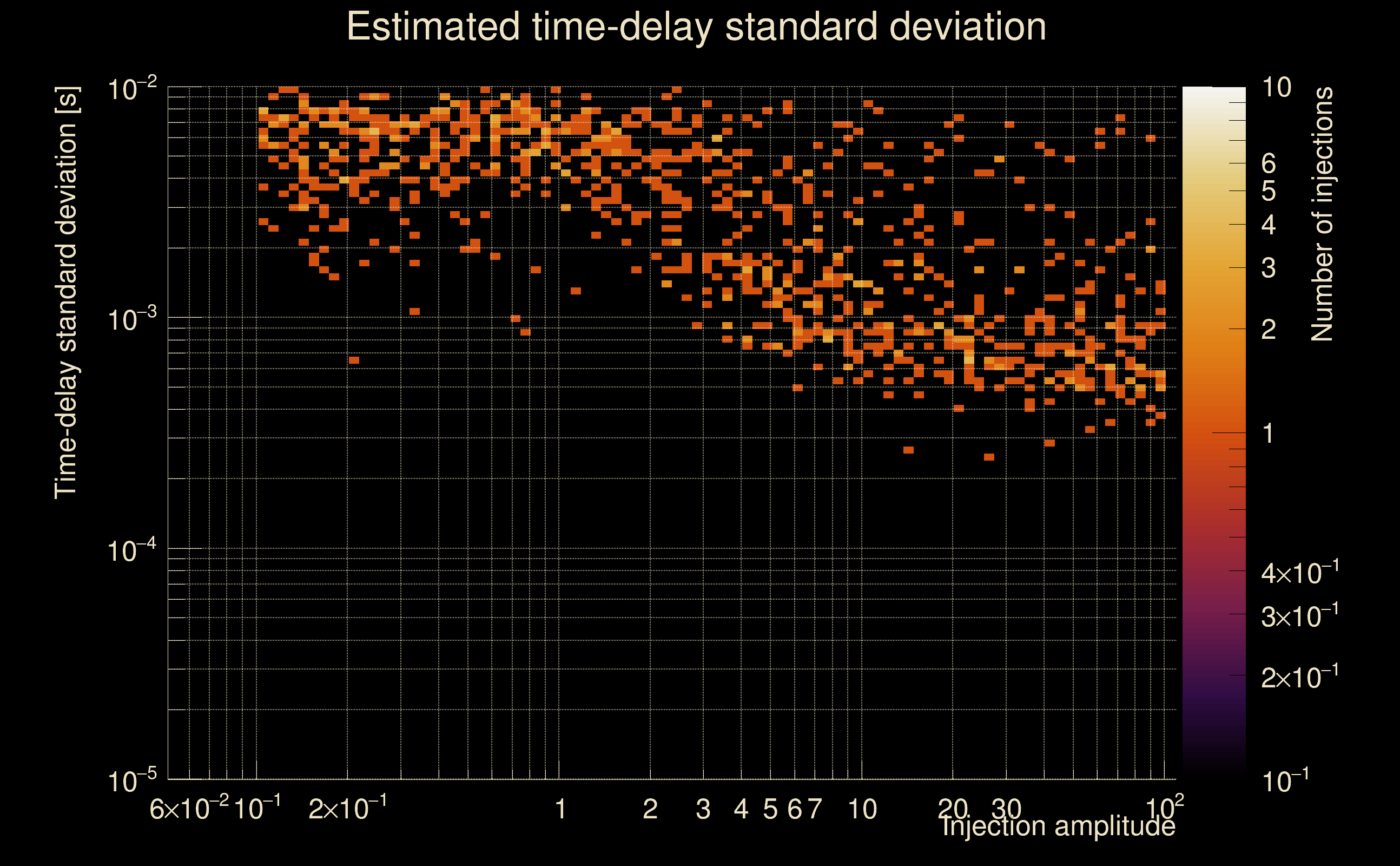

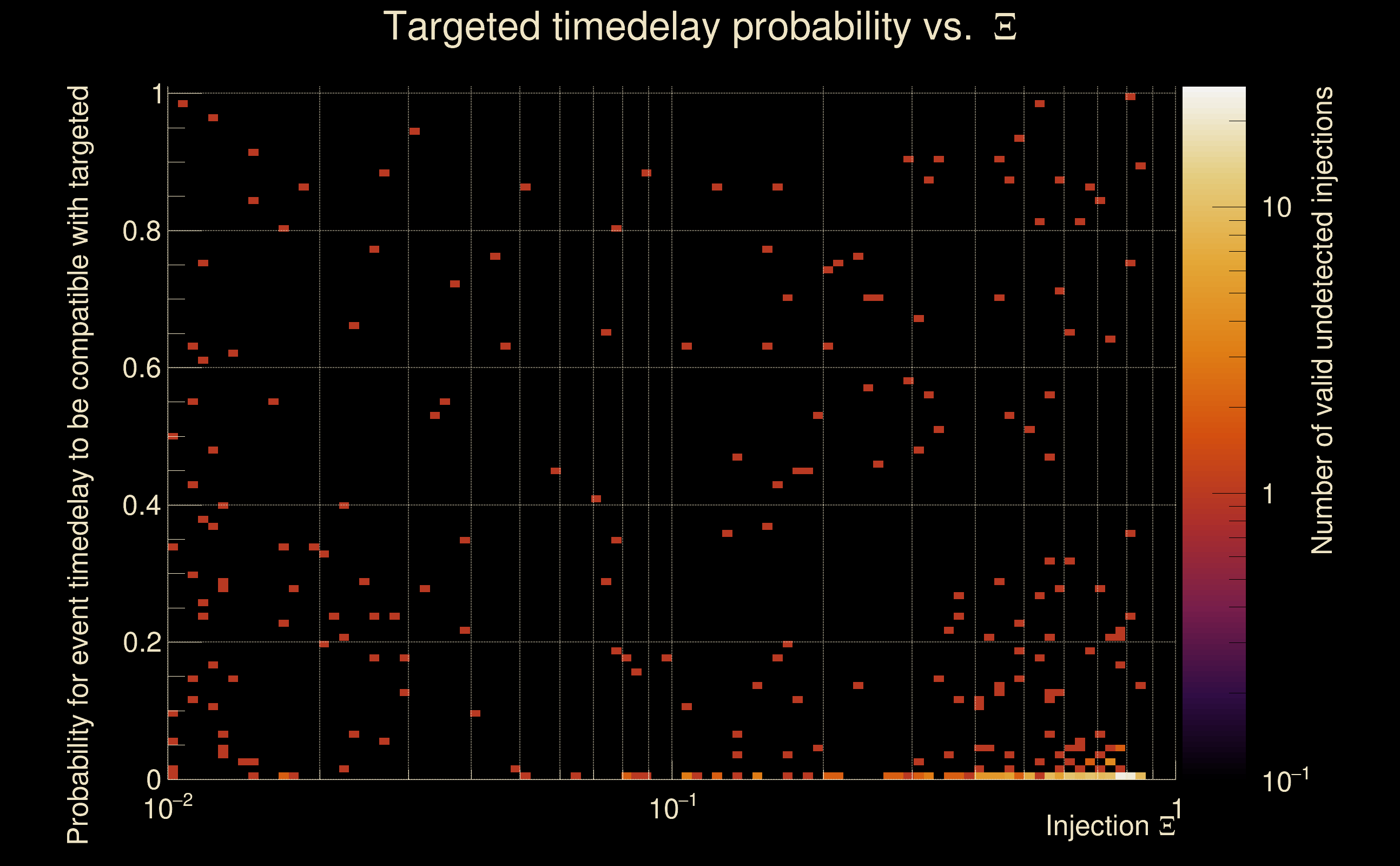

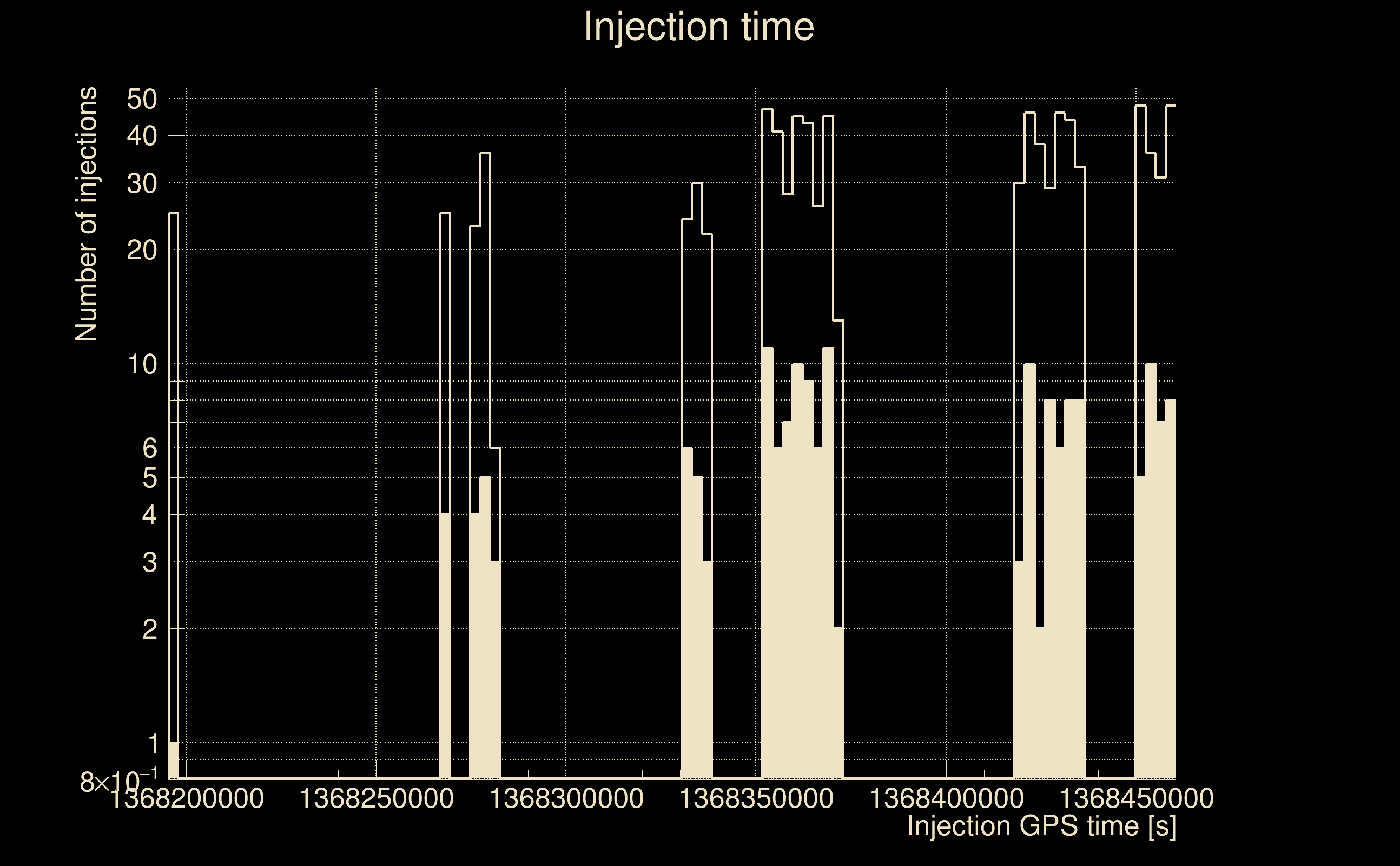

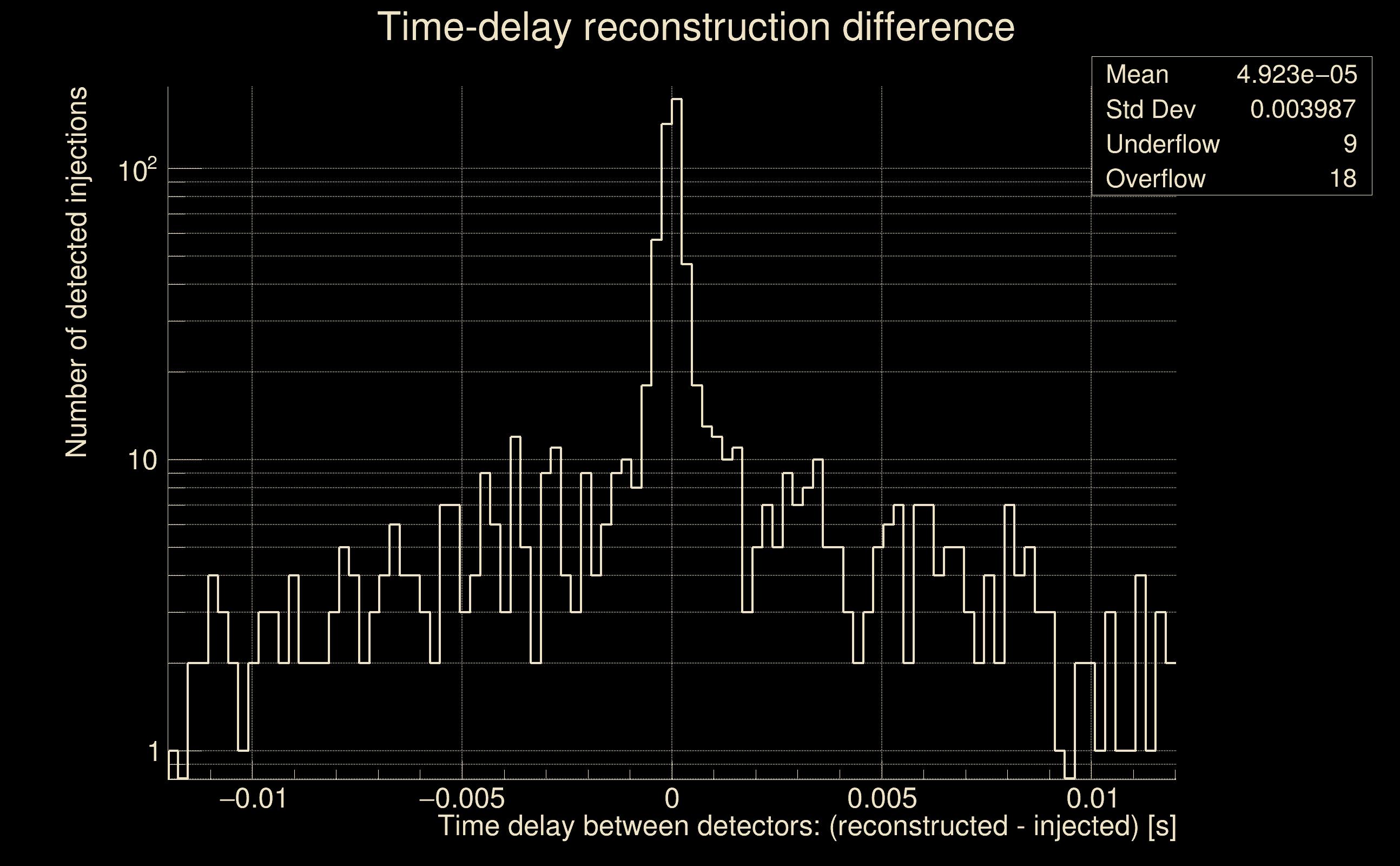

| Number of injections (total/valid/detected): | 1042 / 908 / 168 |
| List of missed injections: | ./Pow20-y20_missed.txt |
| Injection amplitude at 90% detection efficiency: | 66.2144 |
| Injection amplitude at 50% detection efficiency: | 62.7647 |
| Injection amplitude at 10% detection efficiency: | 9.80337 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

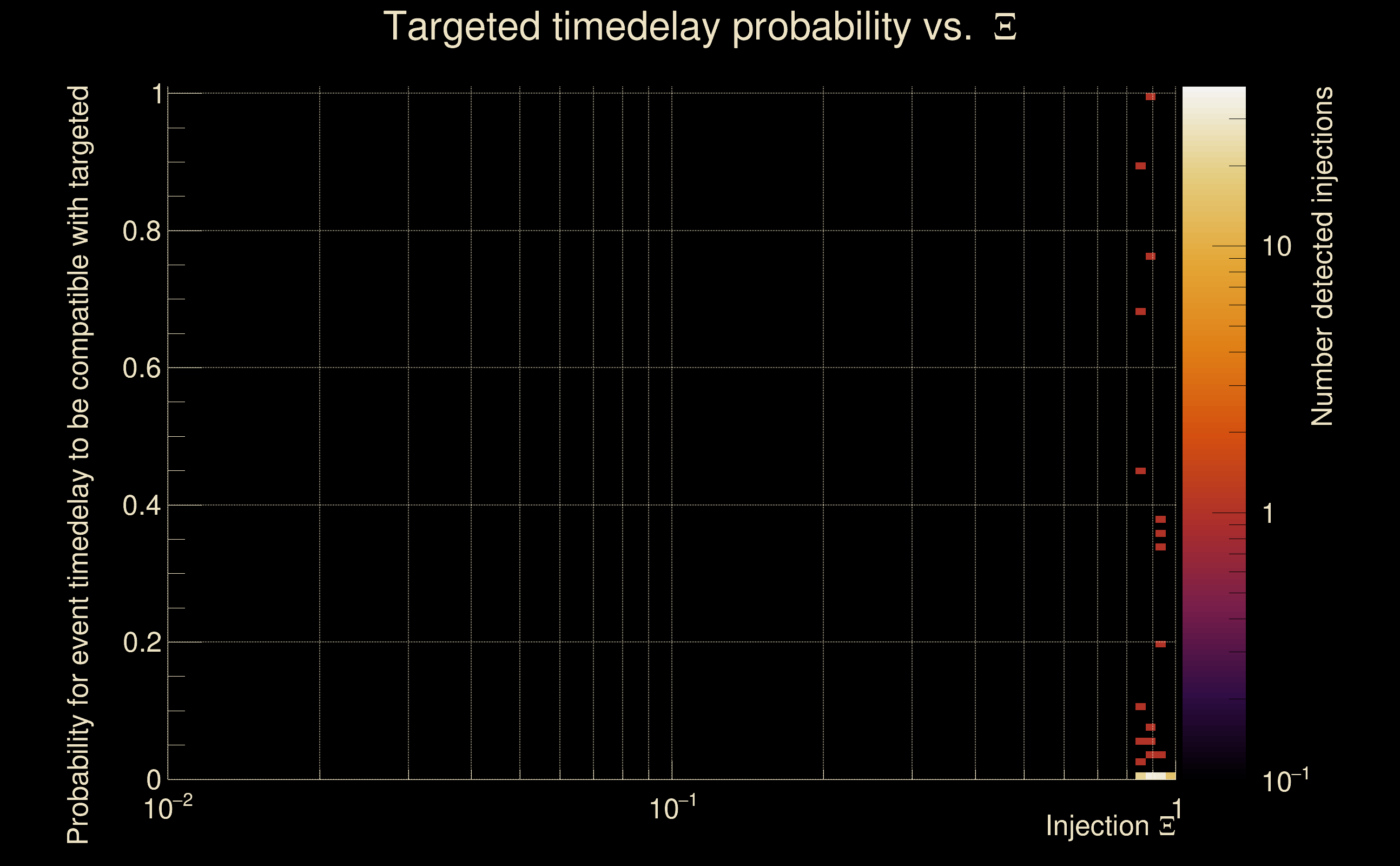

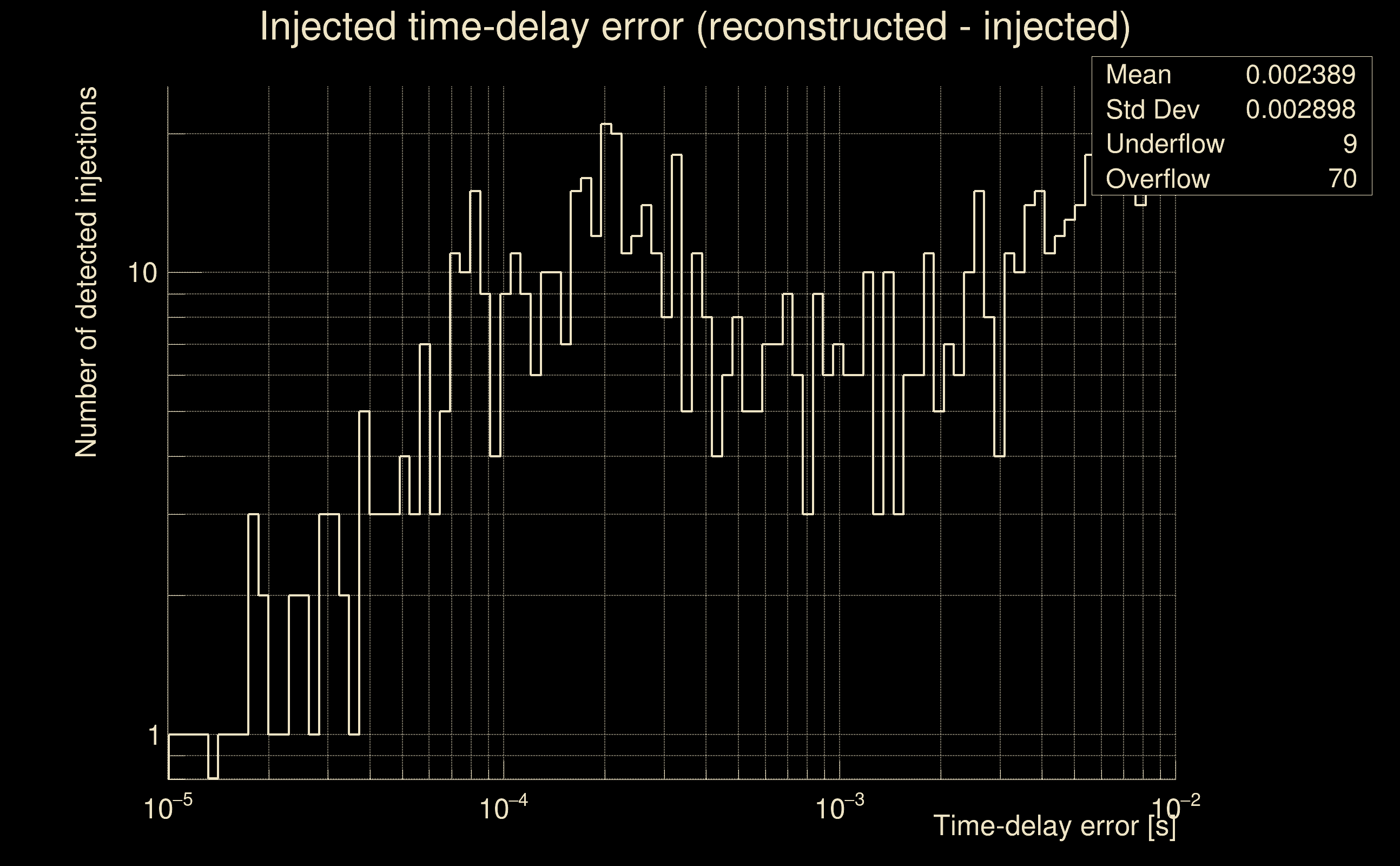

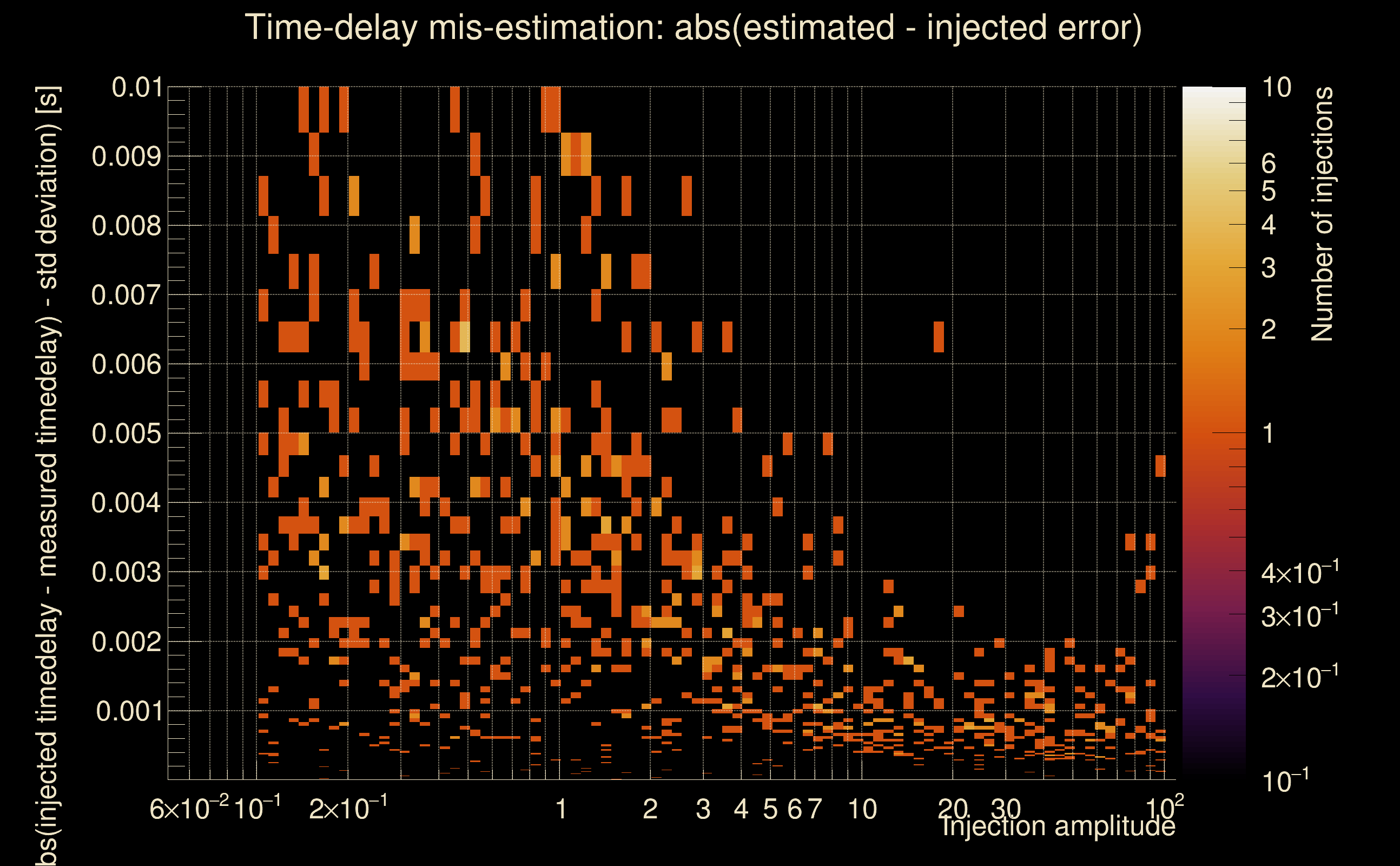

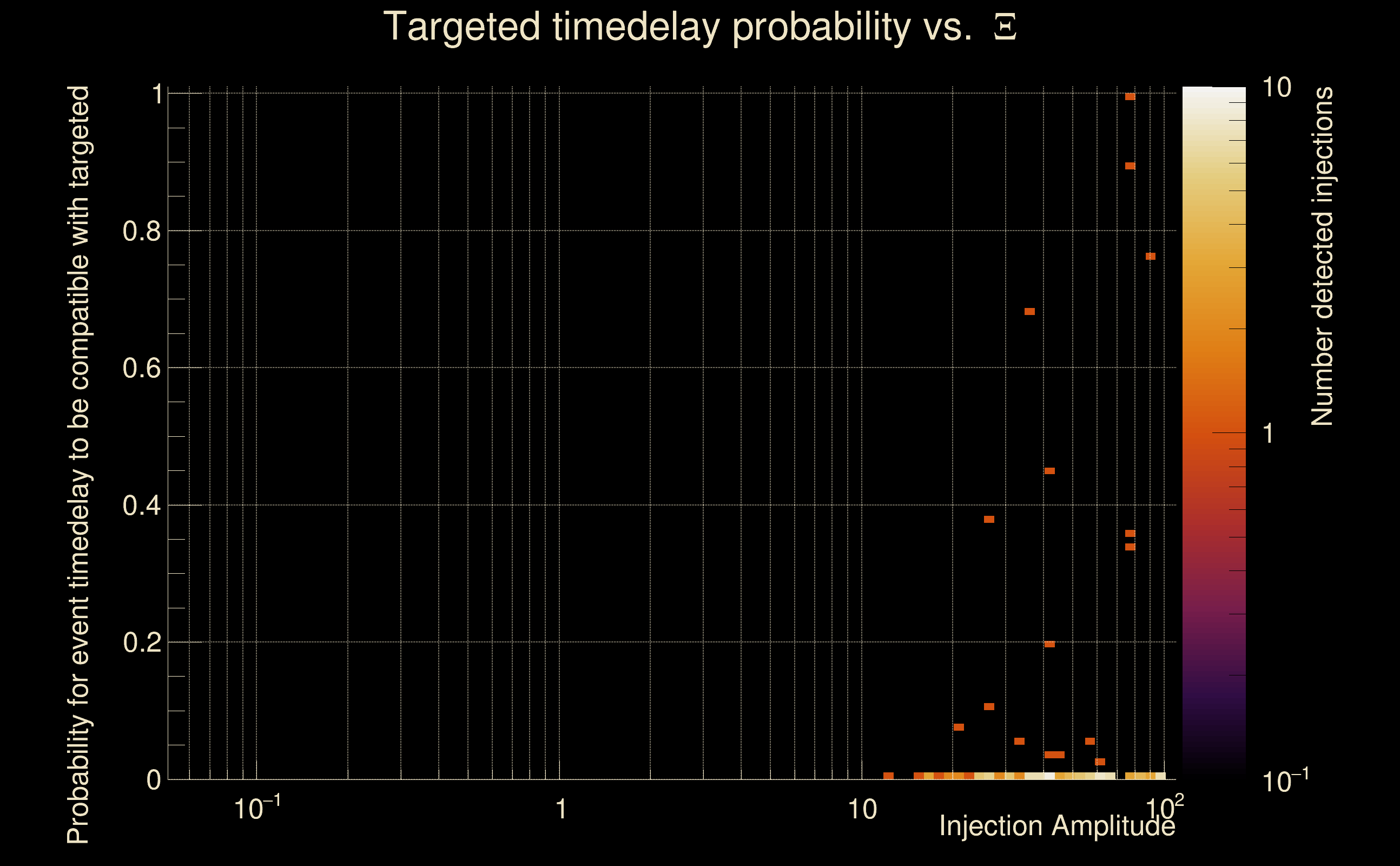

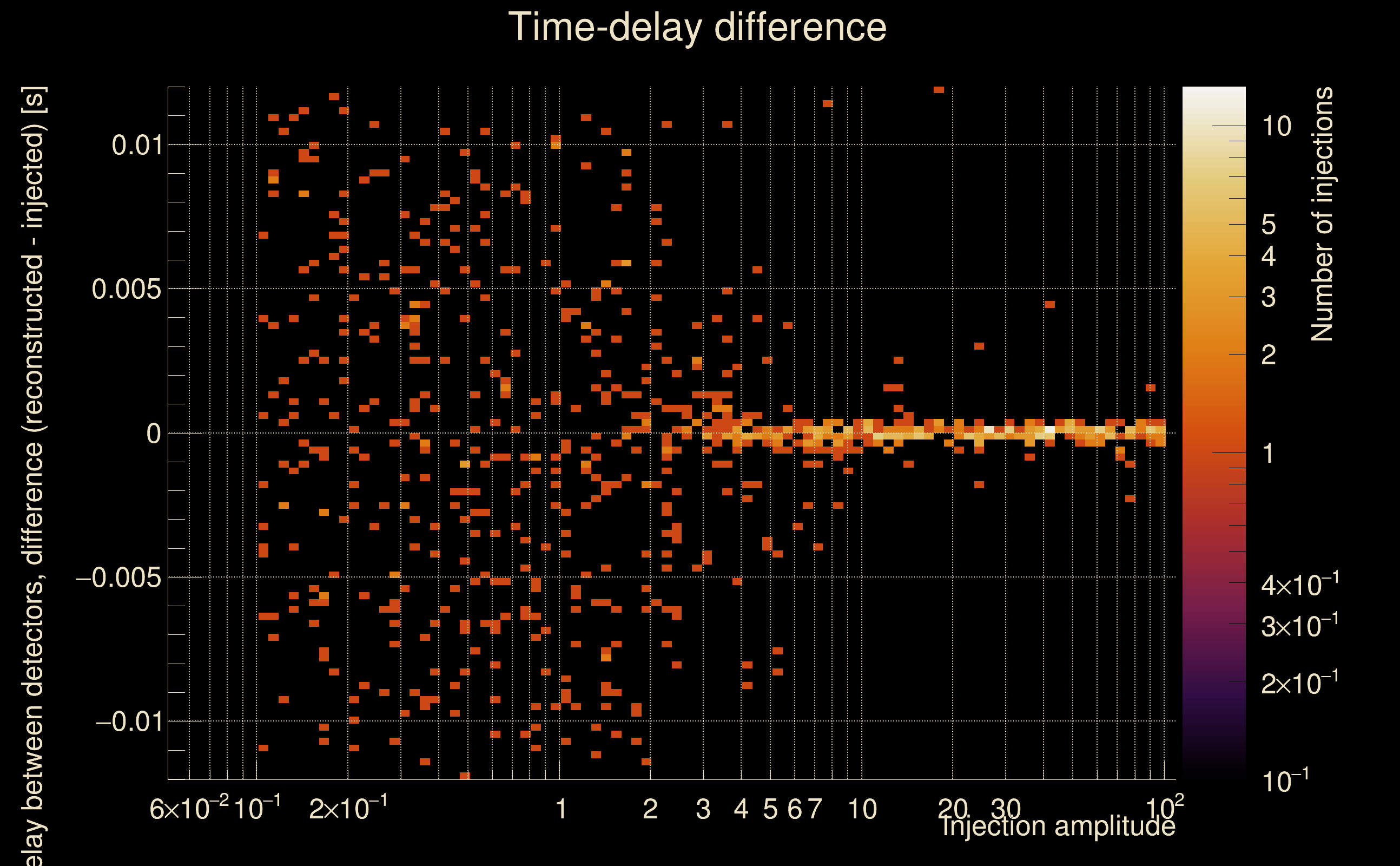

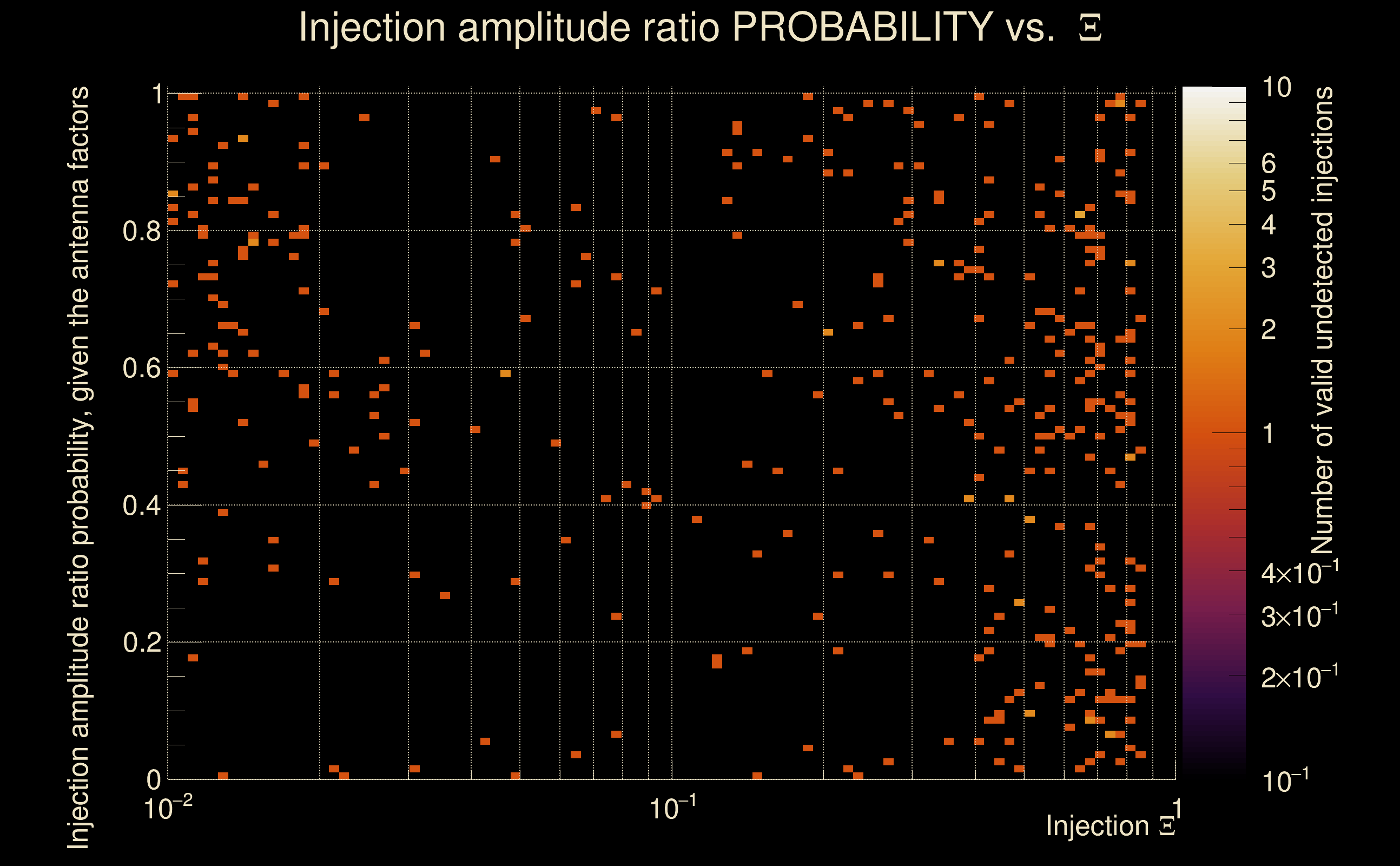

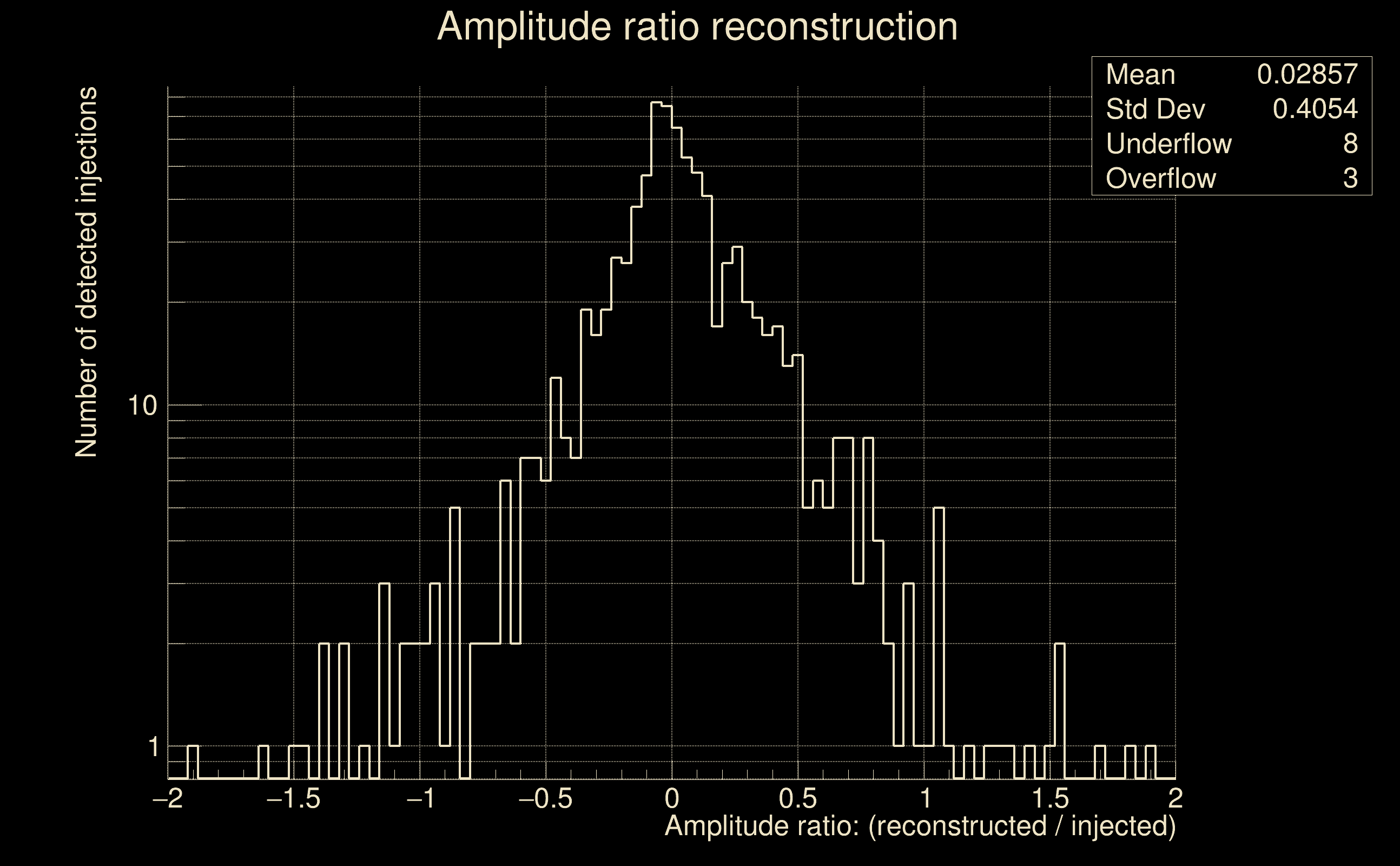

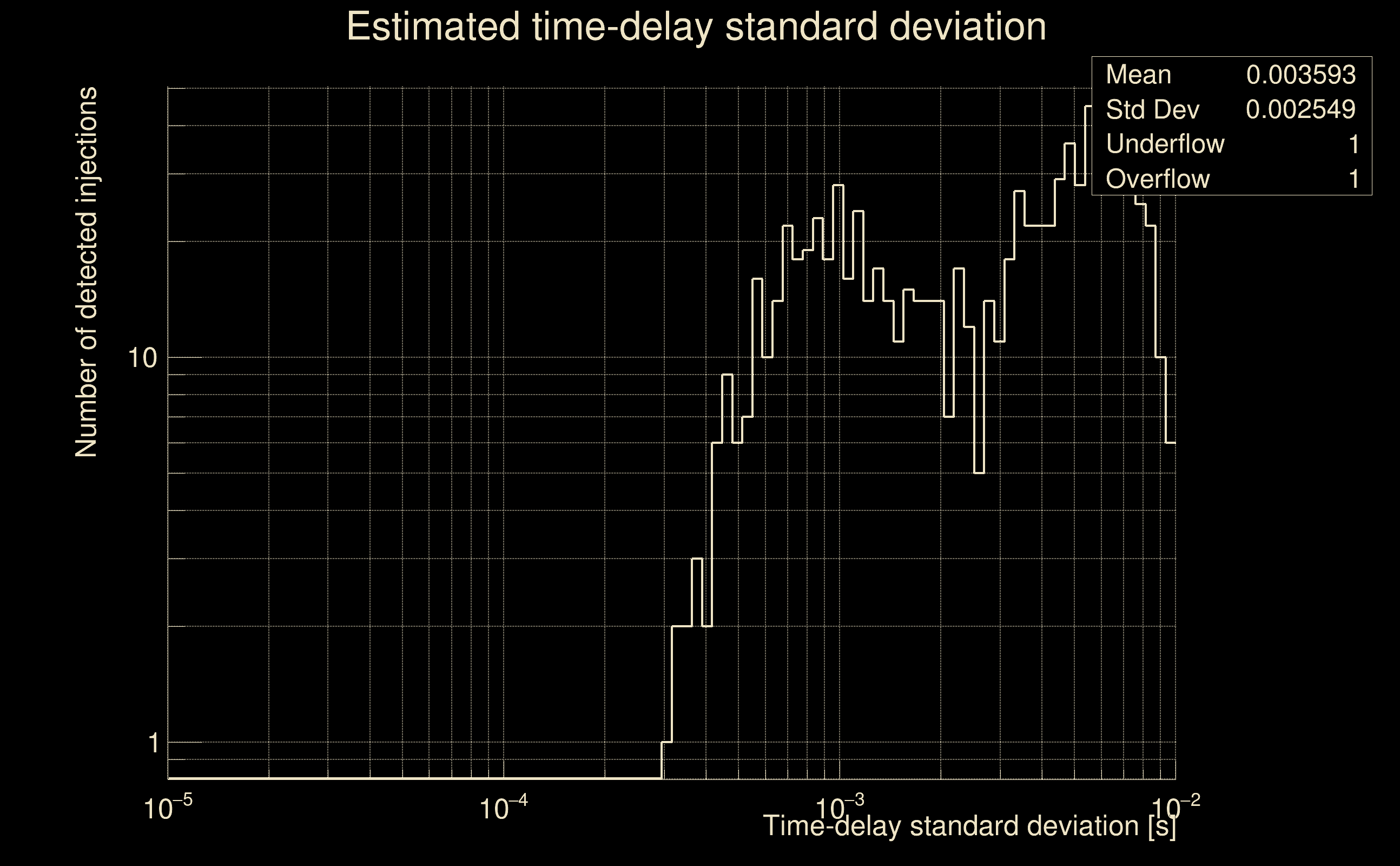

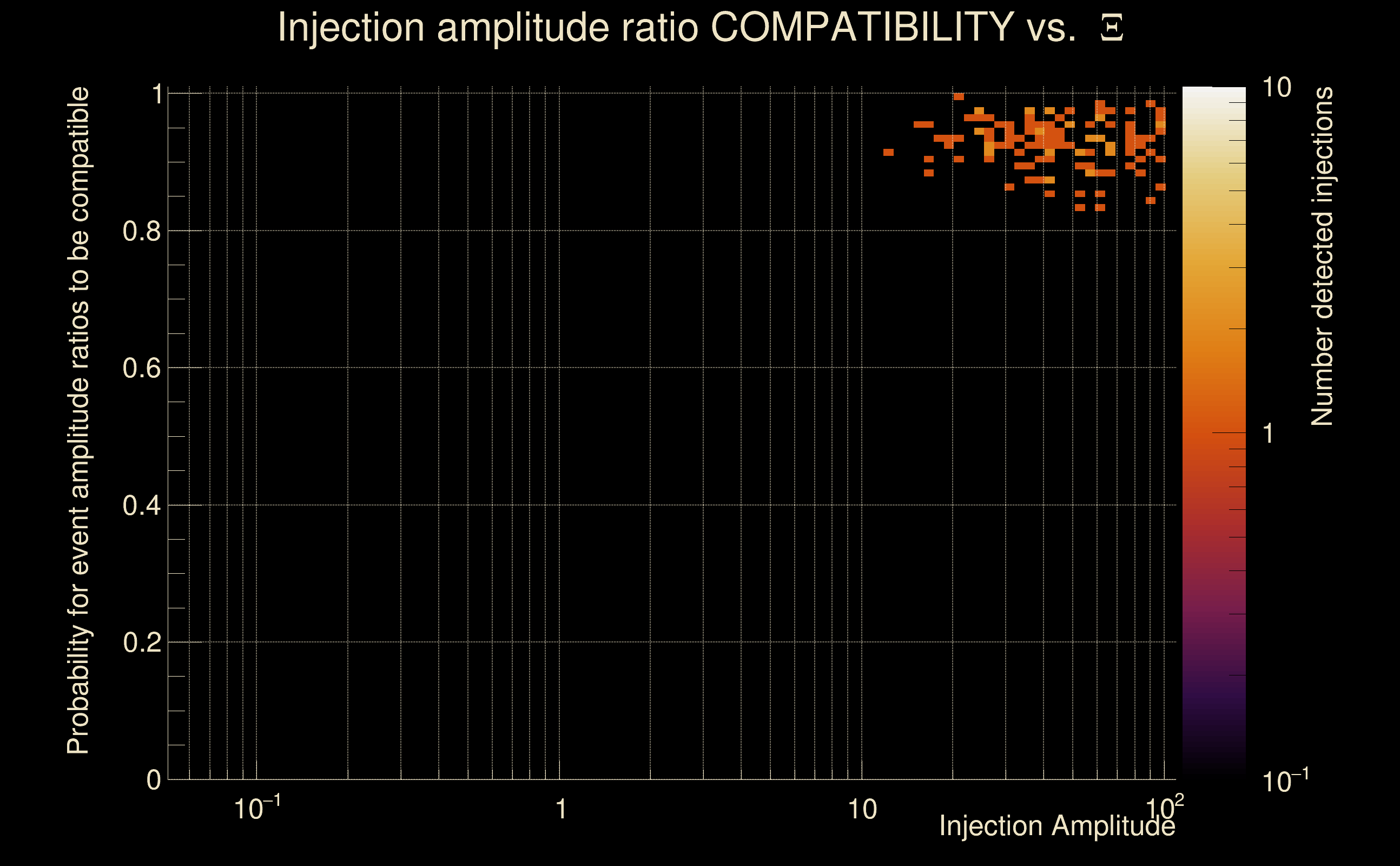

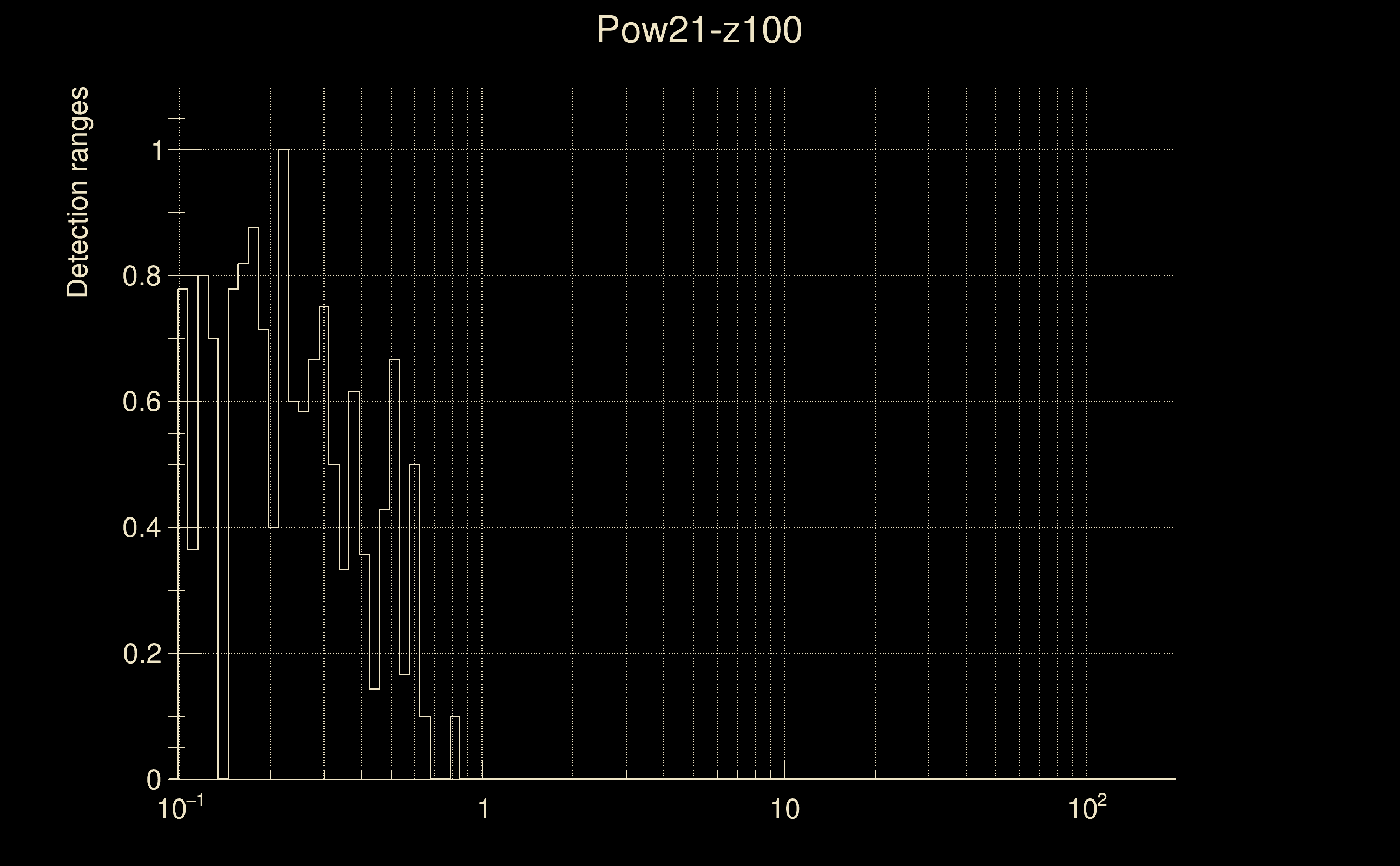

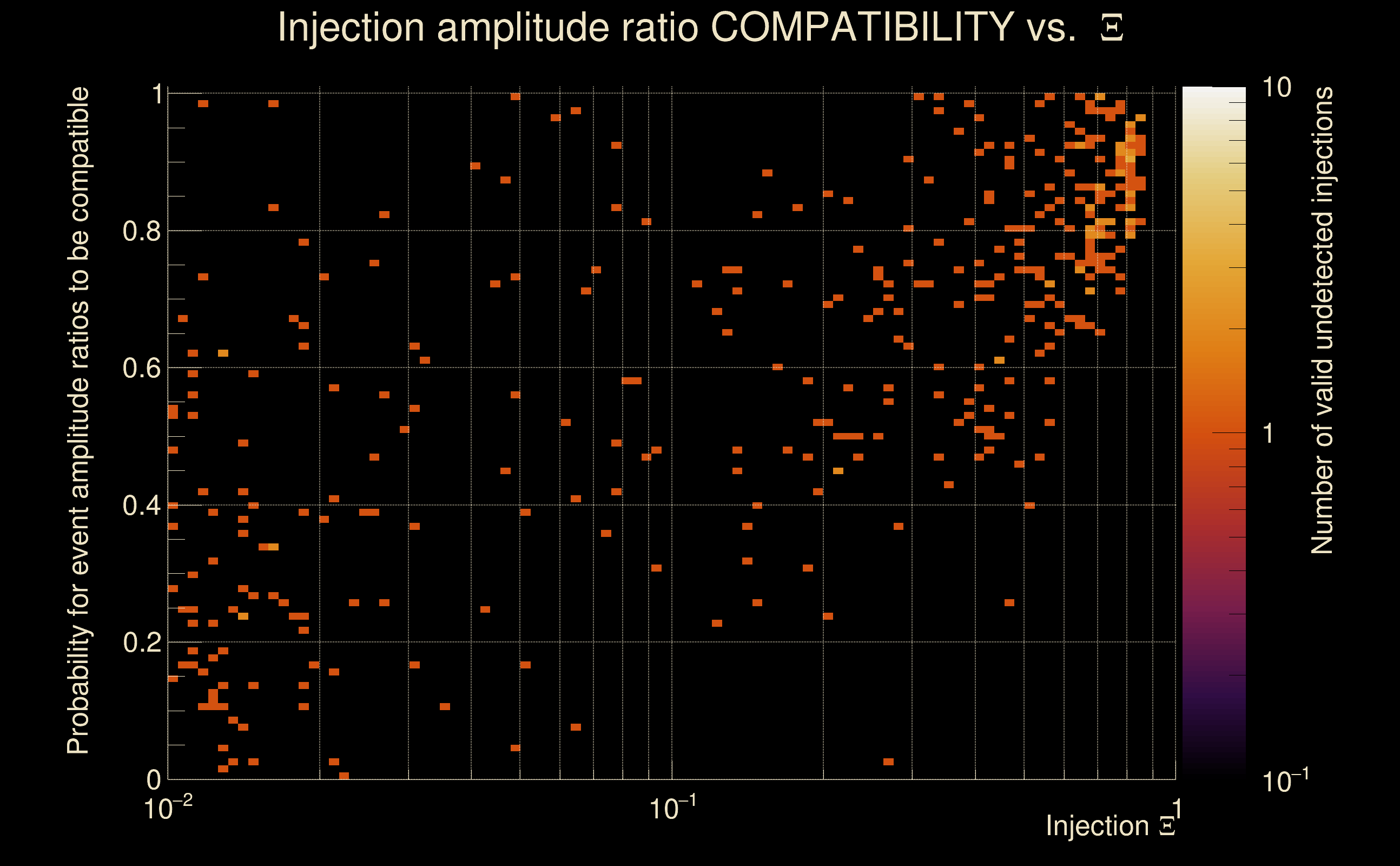

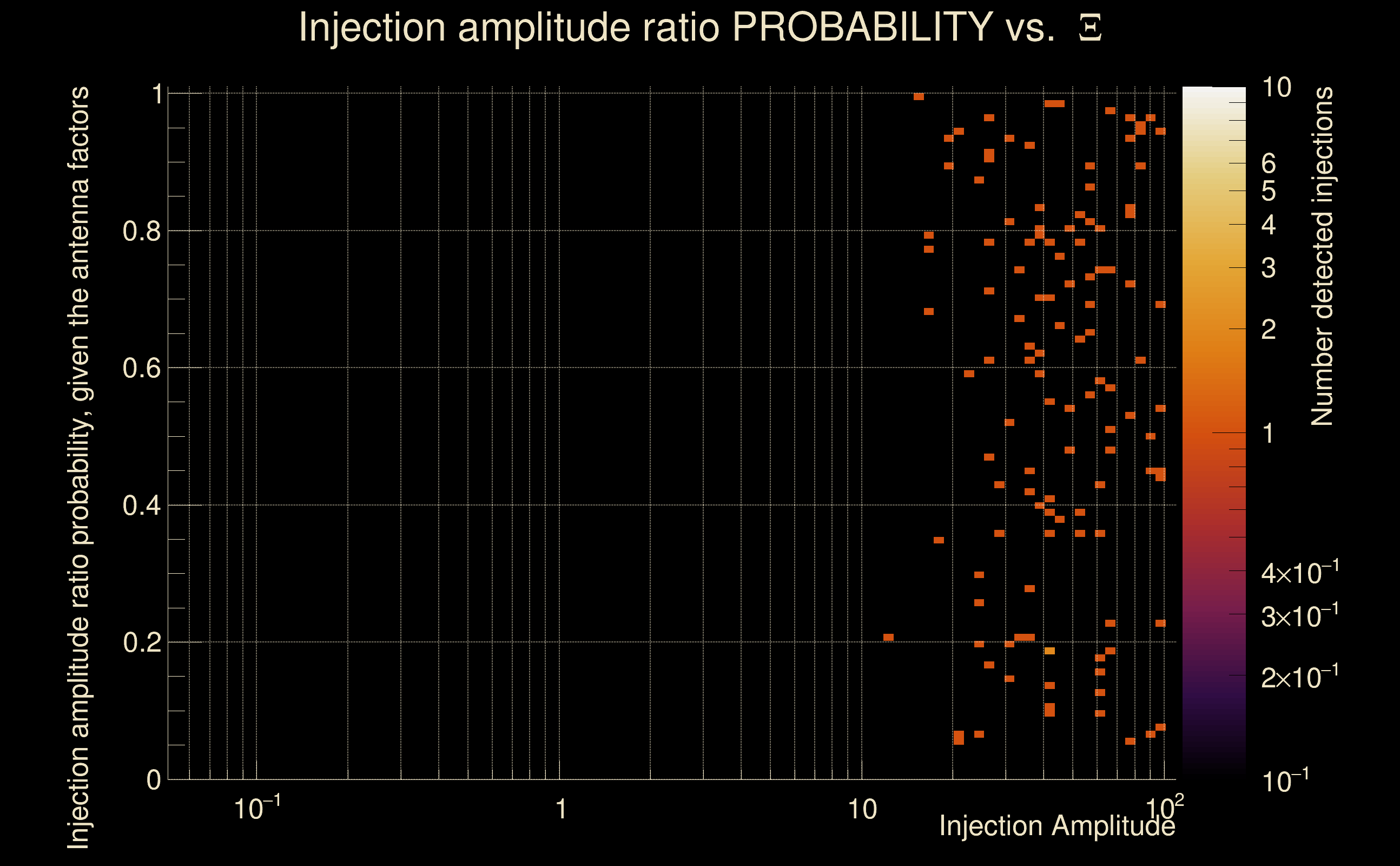

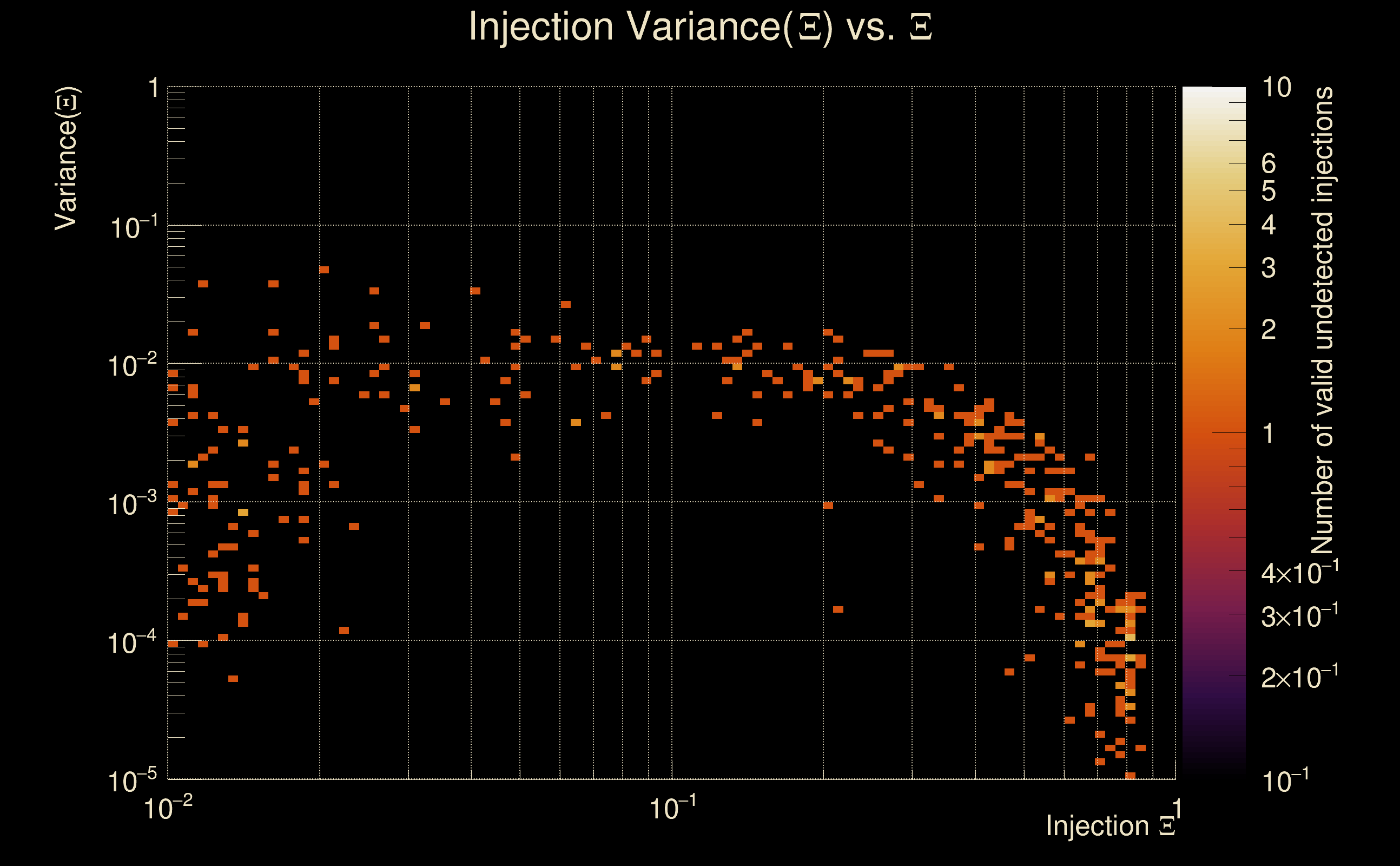

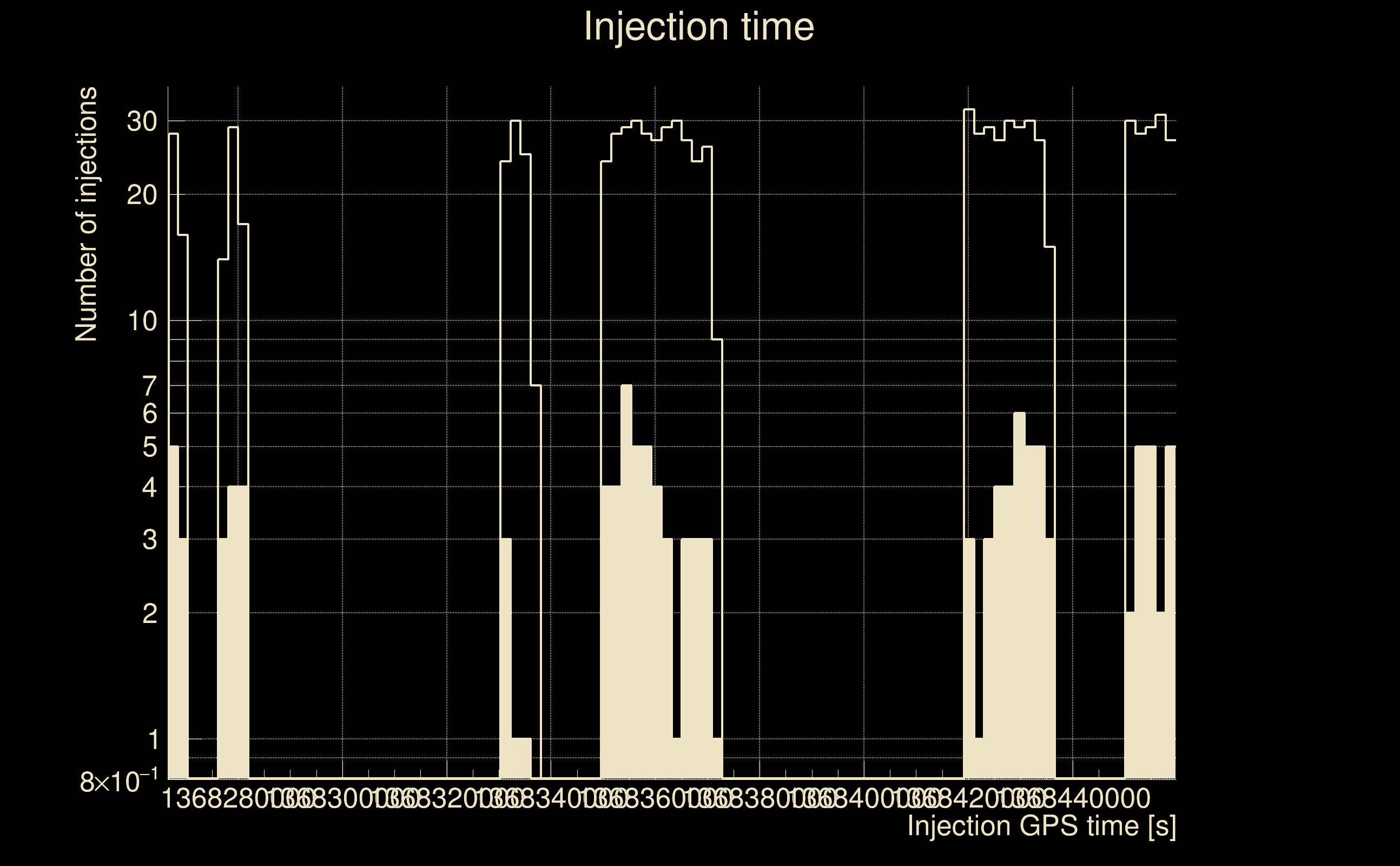

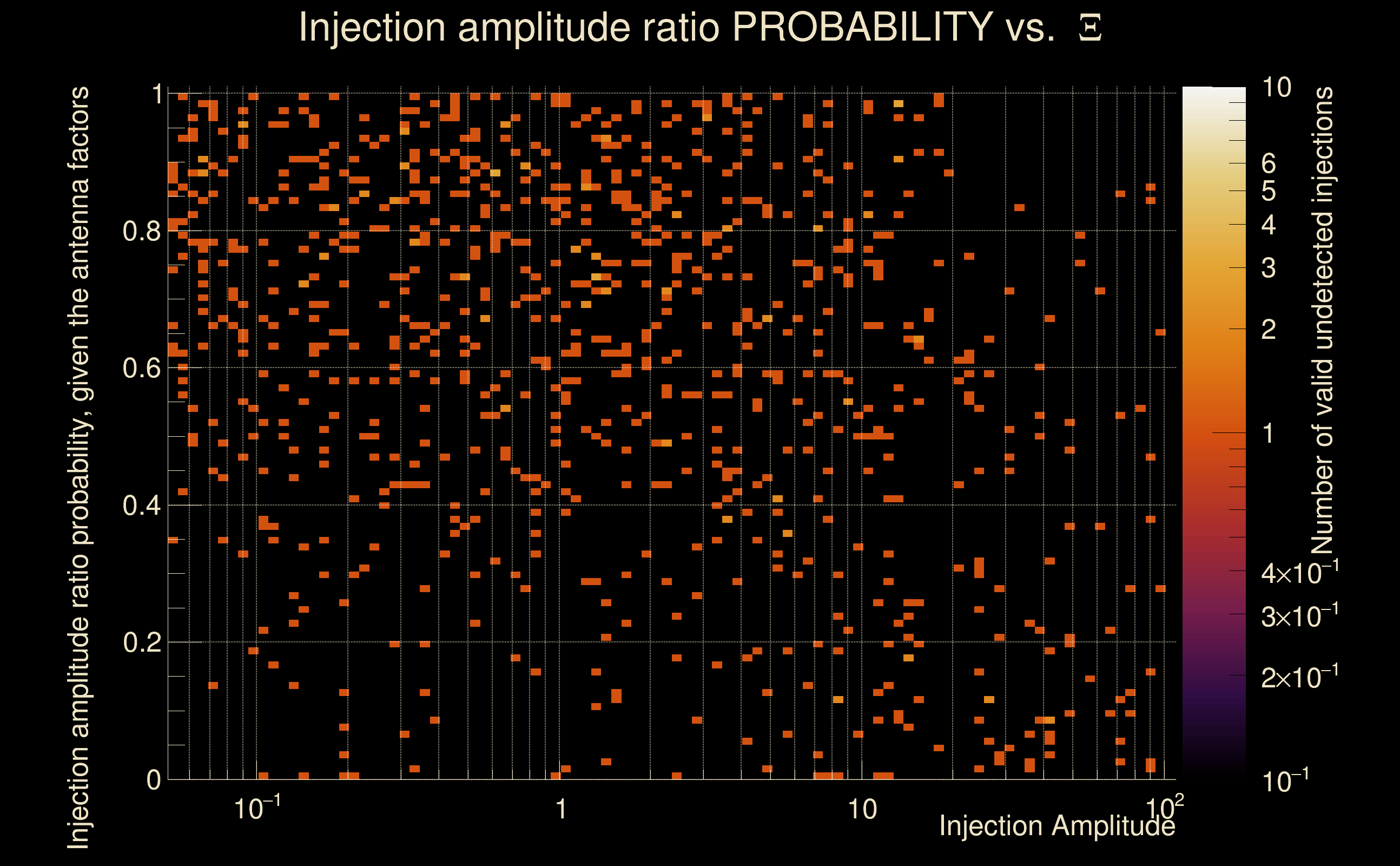

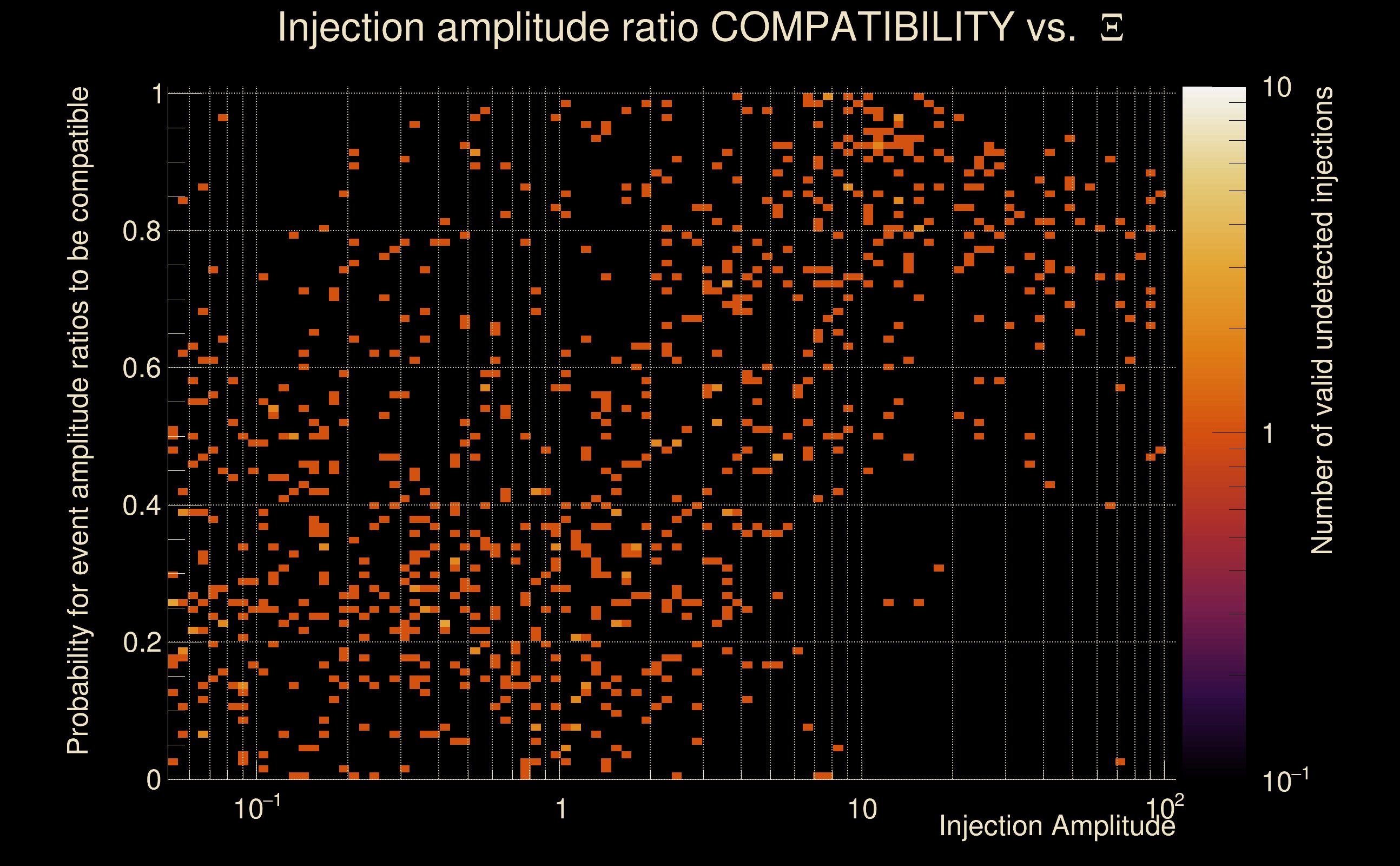

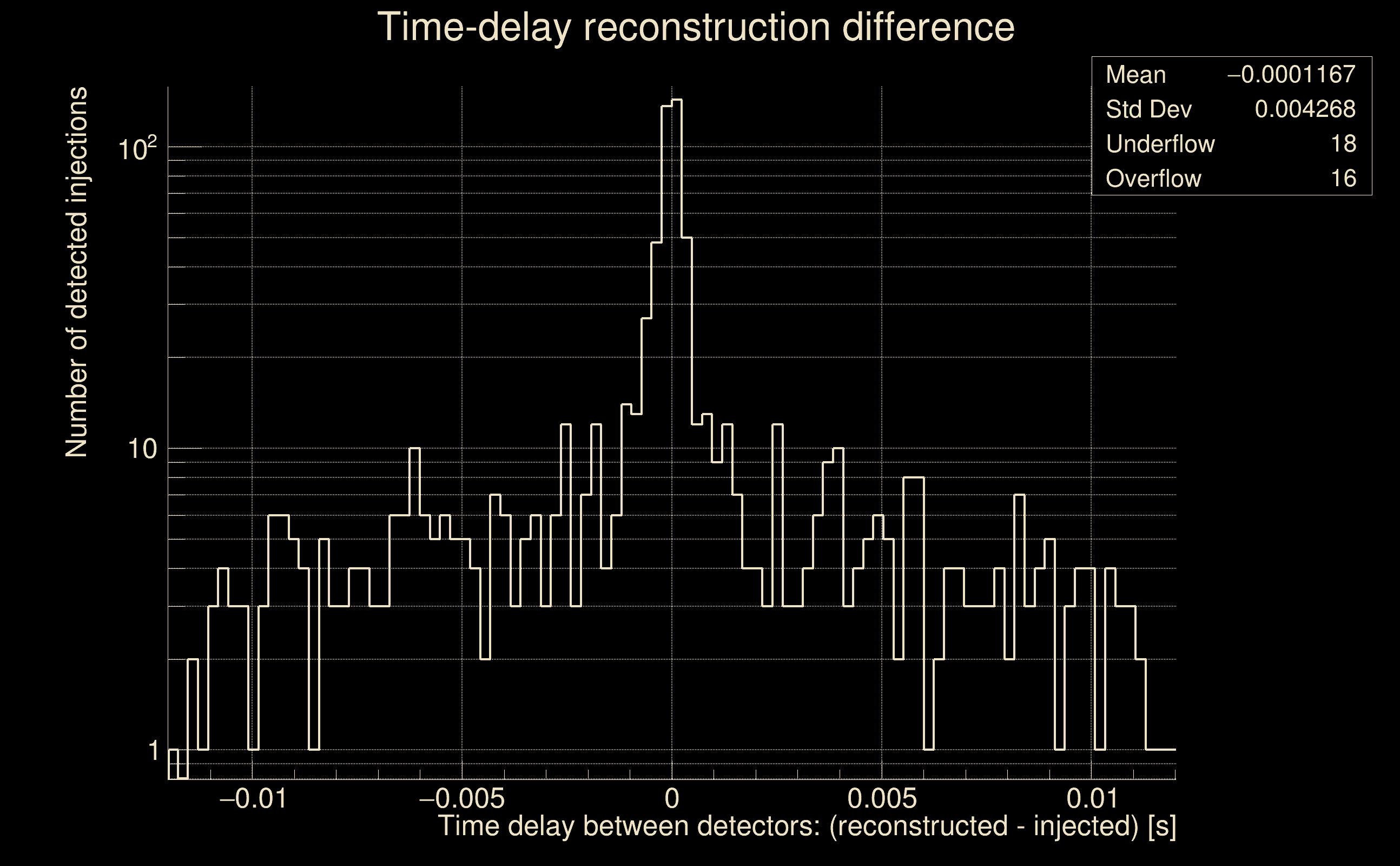

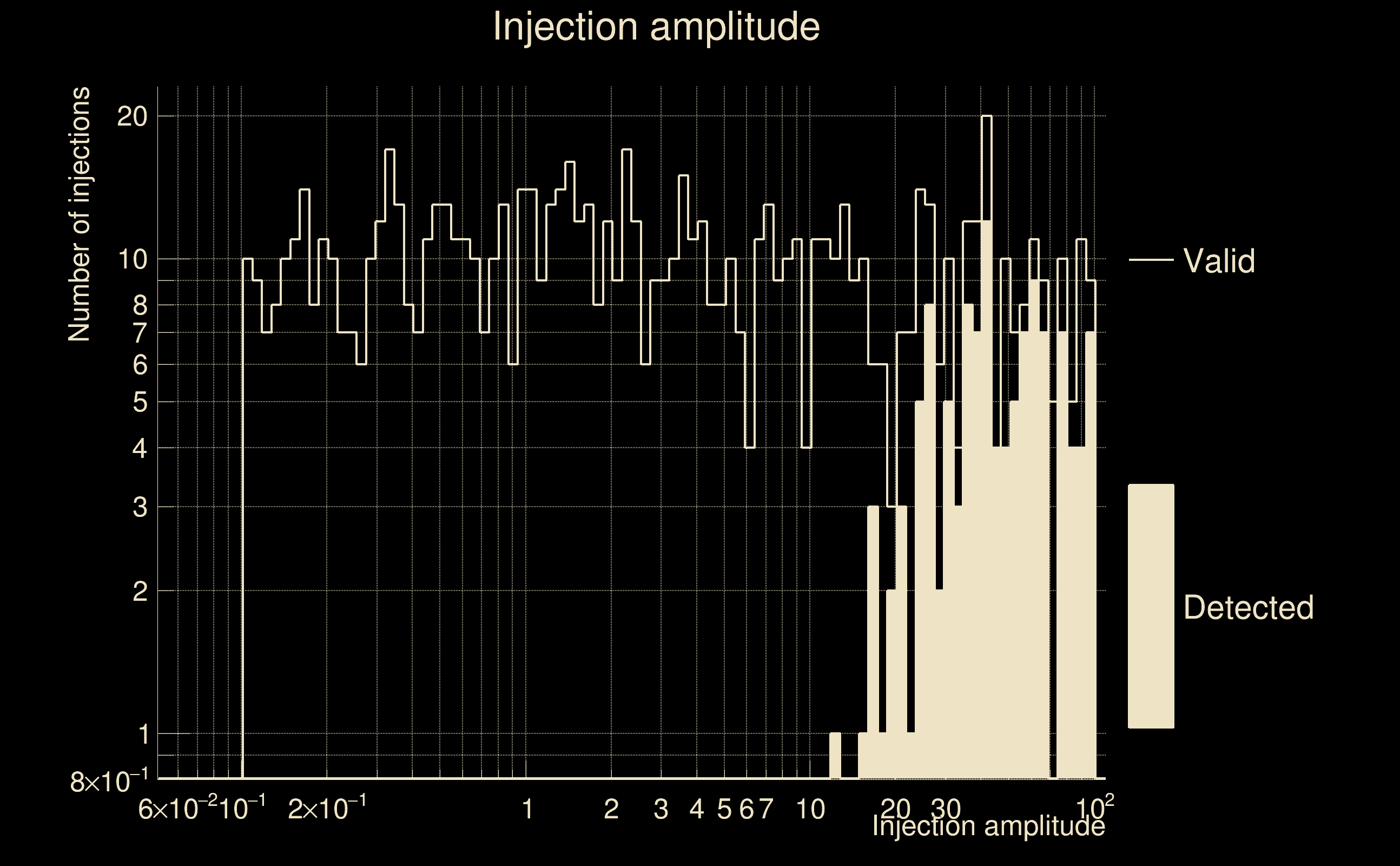

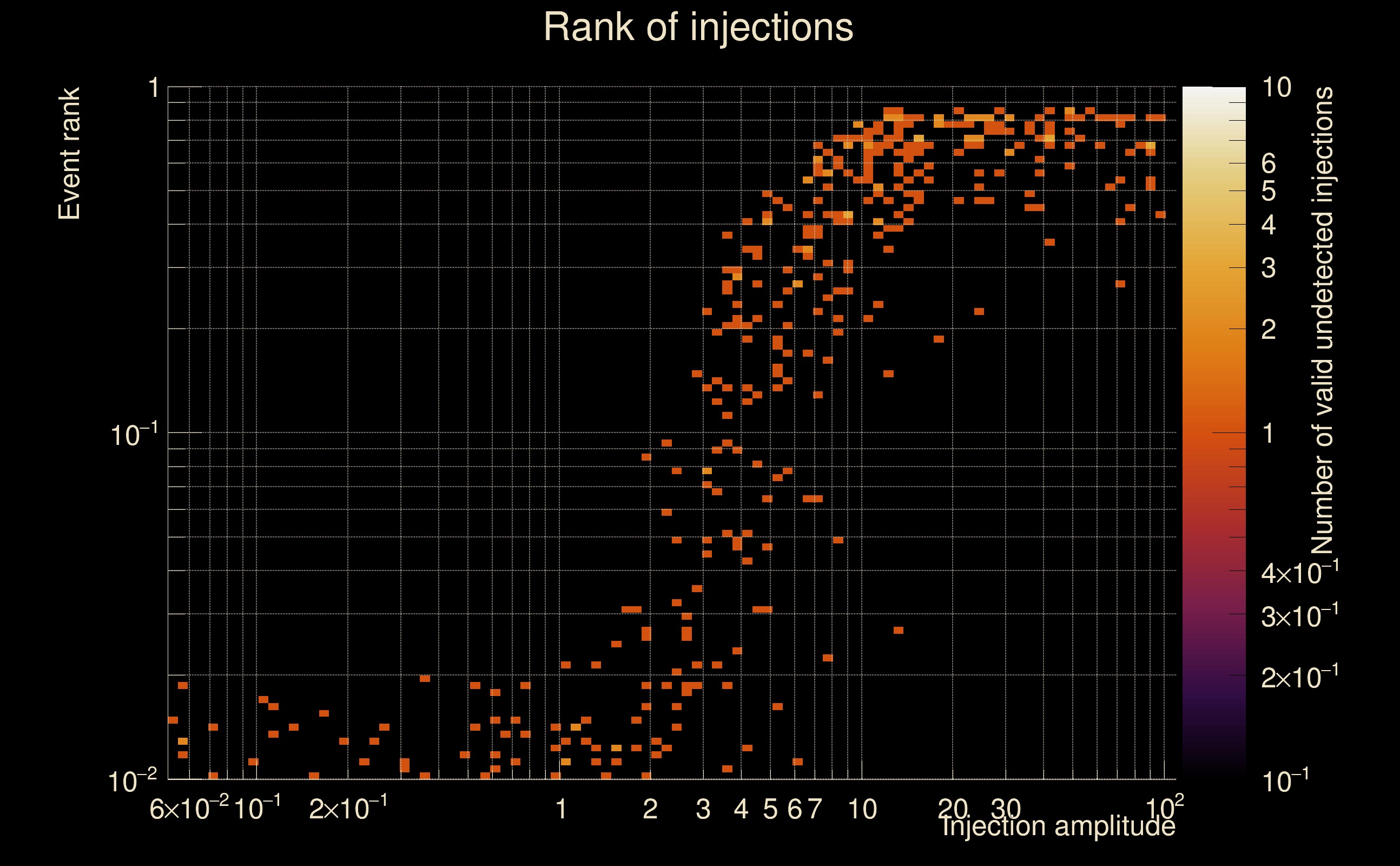

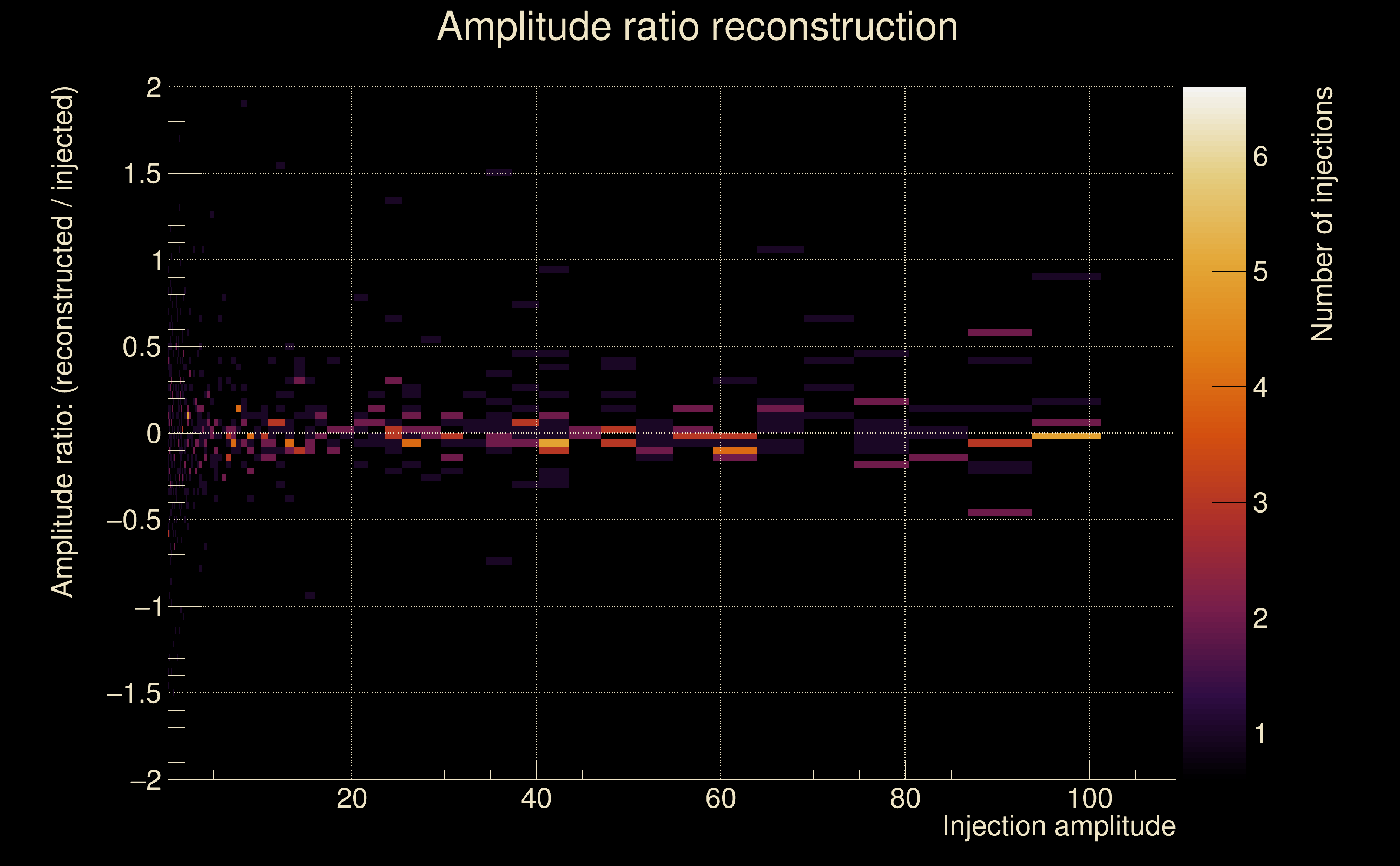

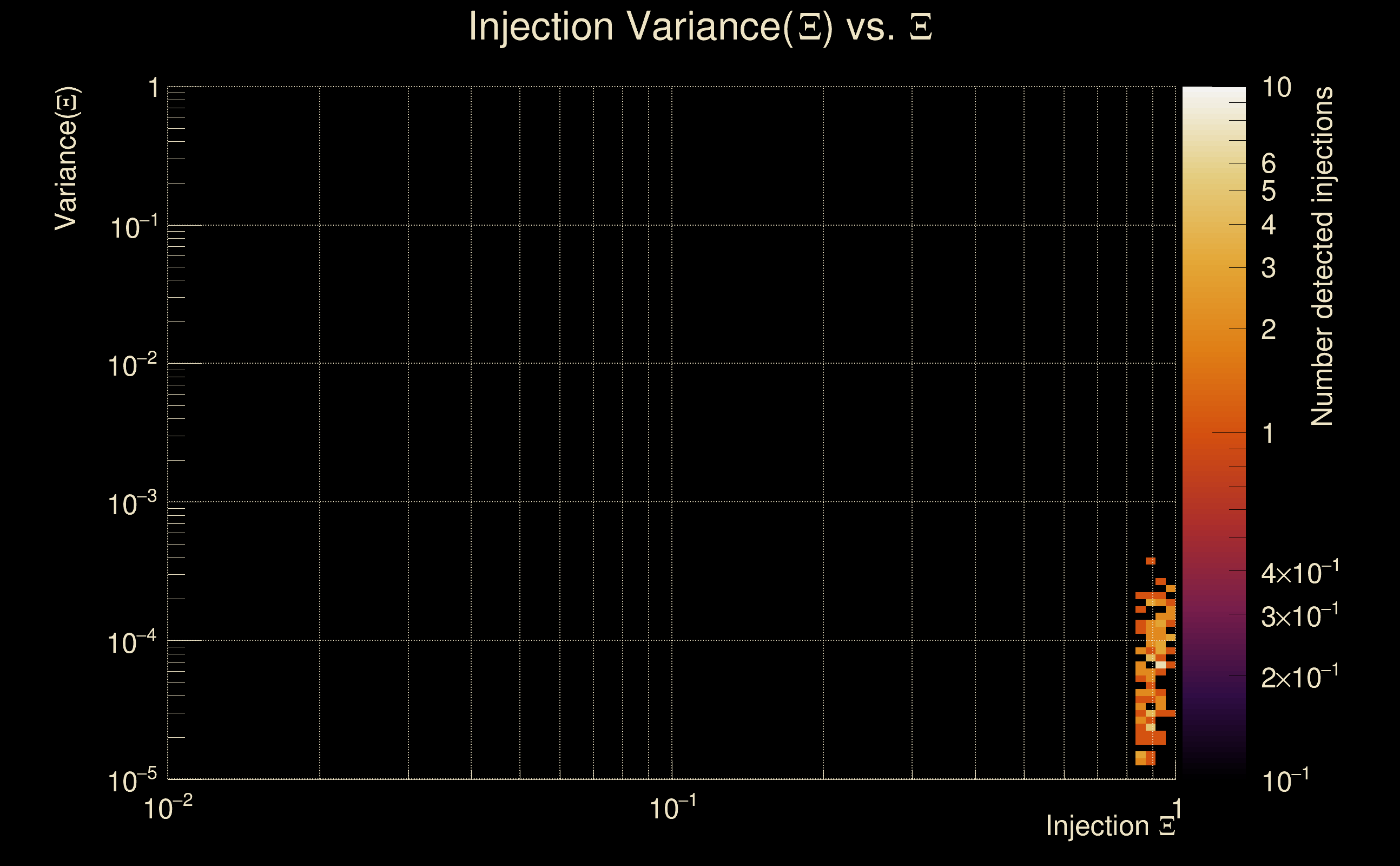

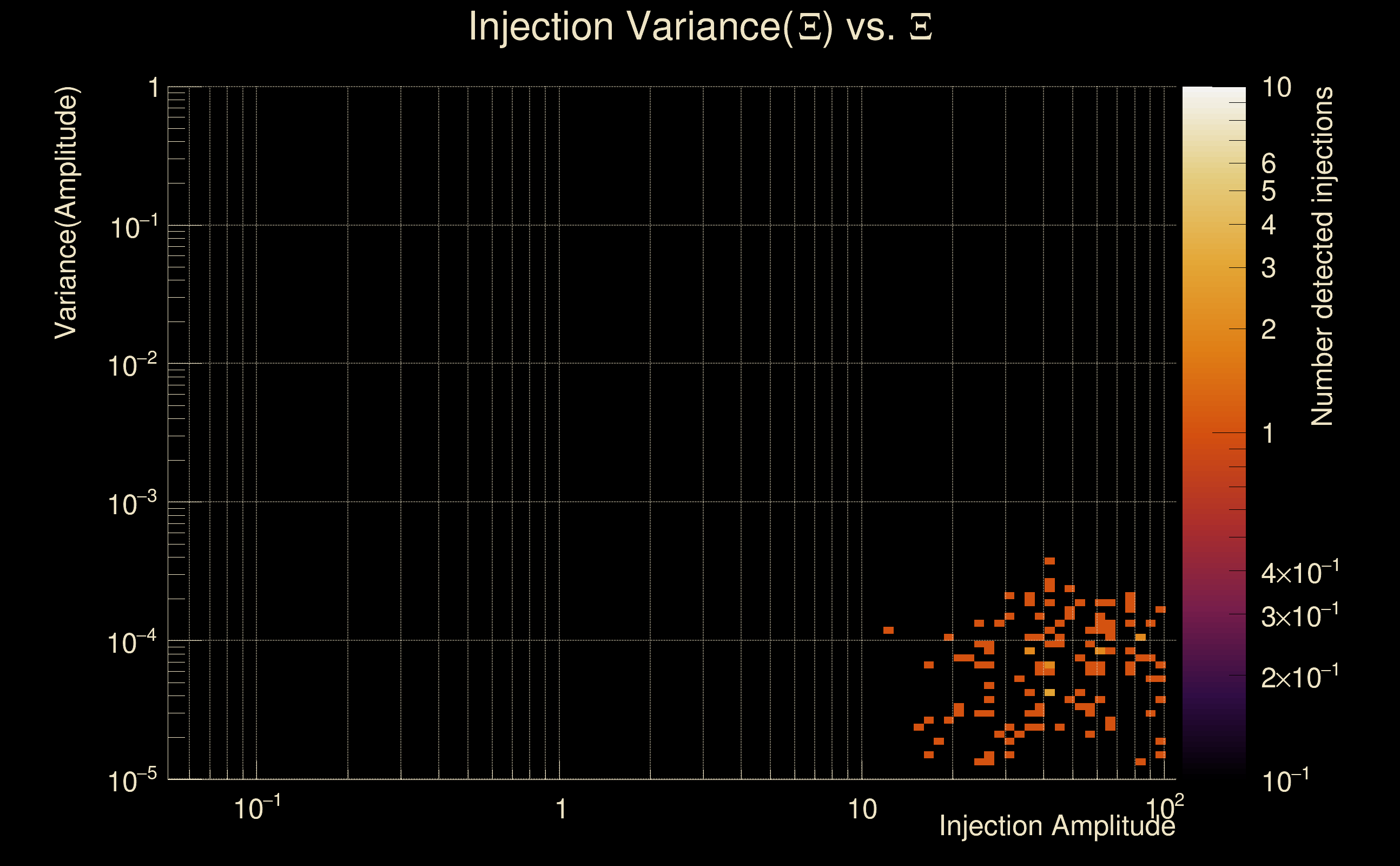

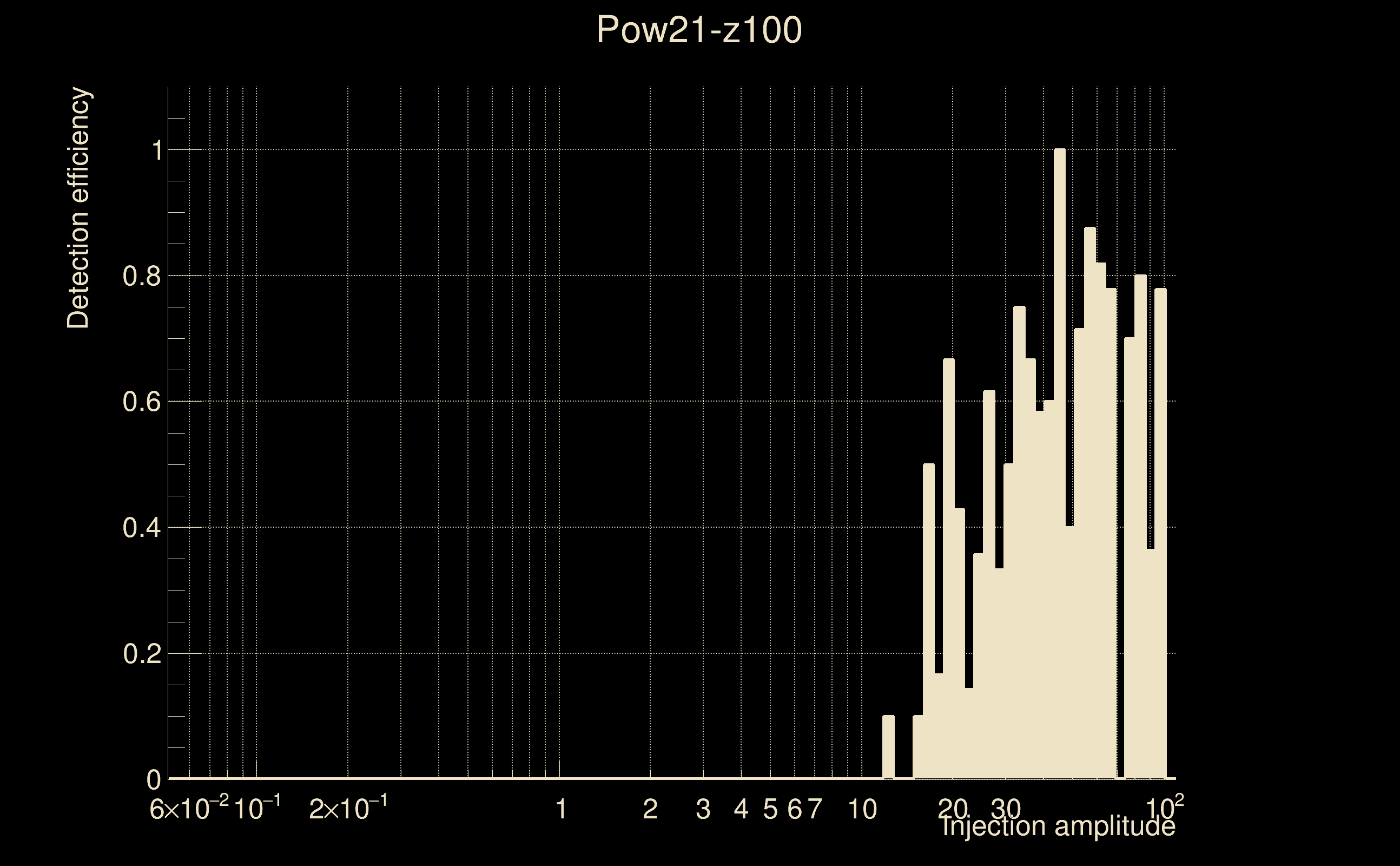

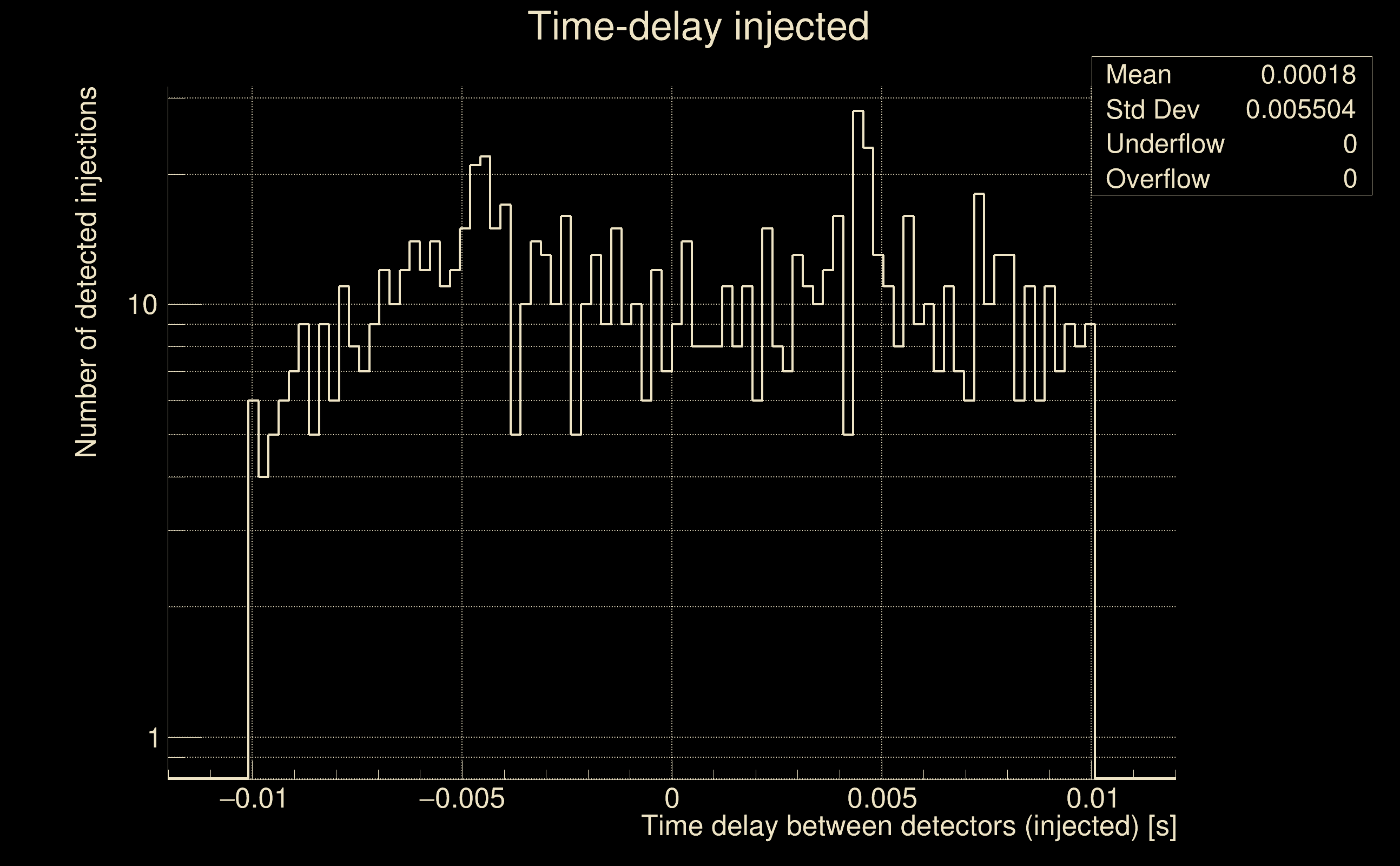

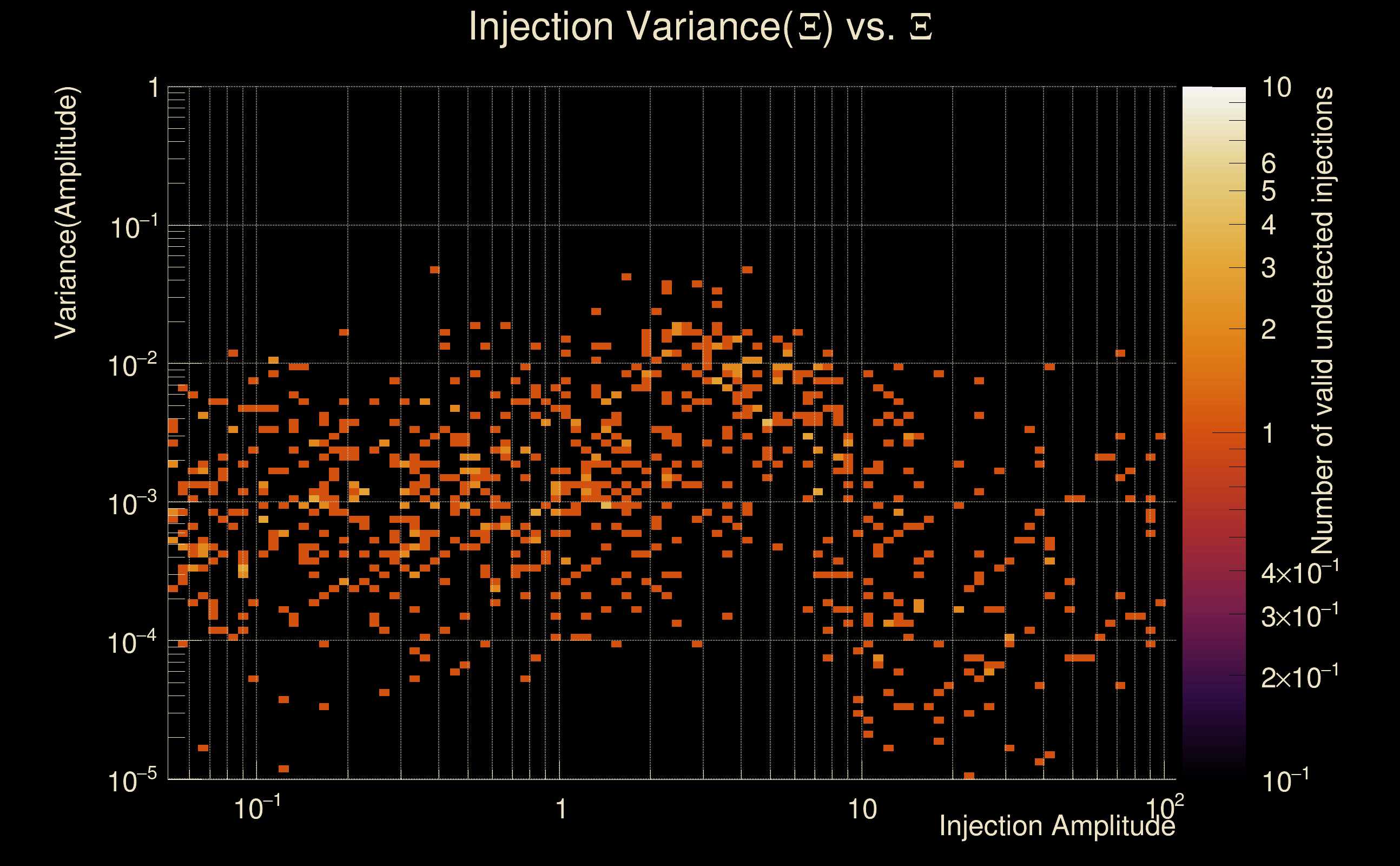

| Number of injections (total/valid/detected): | 1006 / 893 / 120 |
| List of missed injections: | ./Pow21-z100_missed.txt |
| Injection amplitude at 90% detection efficiency: | 44.4035 |
| Injection amplitude at 50% detection efficiency: | 30.8226 |
| Injection amplitude at 10% detection efficiency: | 15.4494 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
