| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:44:36 2026 UTC |
| Ox option file: | Bench3_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench3_targ_file_list.txt (65 files) |
| Analysis result file: | Bench3_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=160 (-2.392 s), time lag = 0 s |

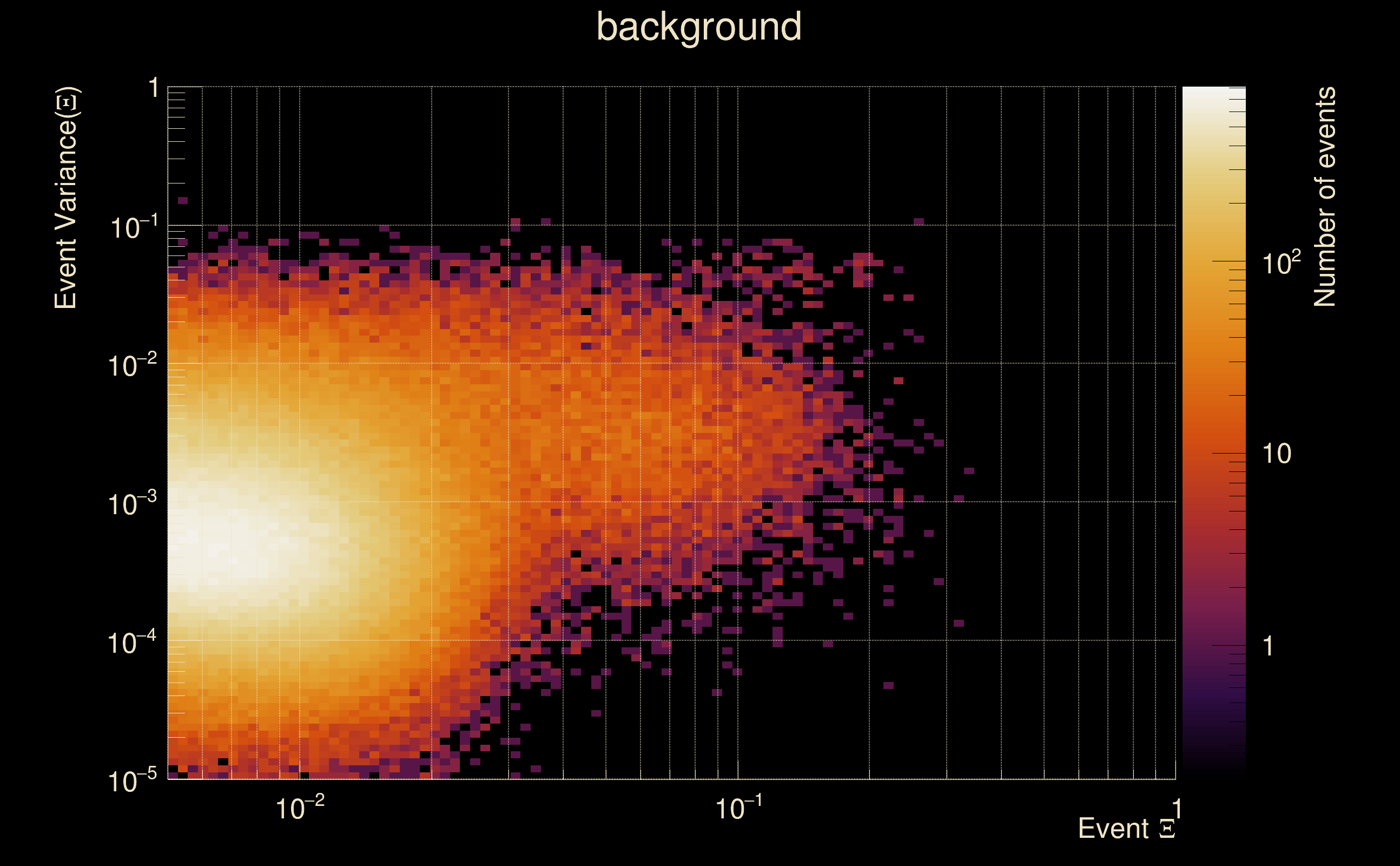

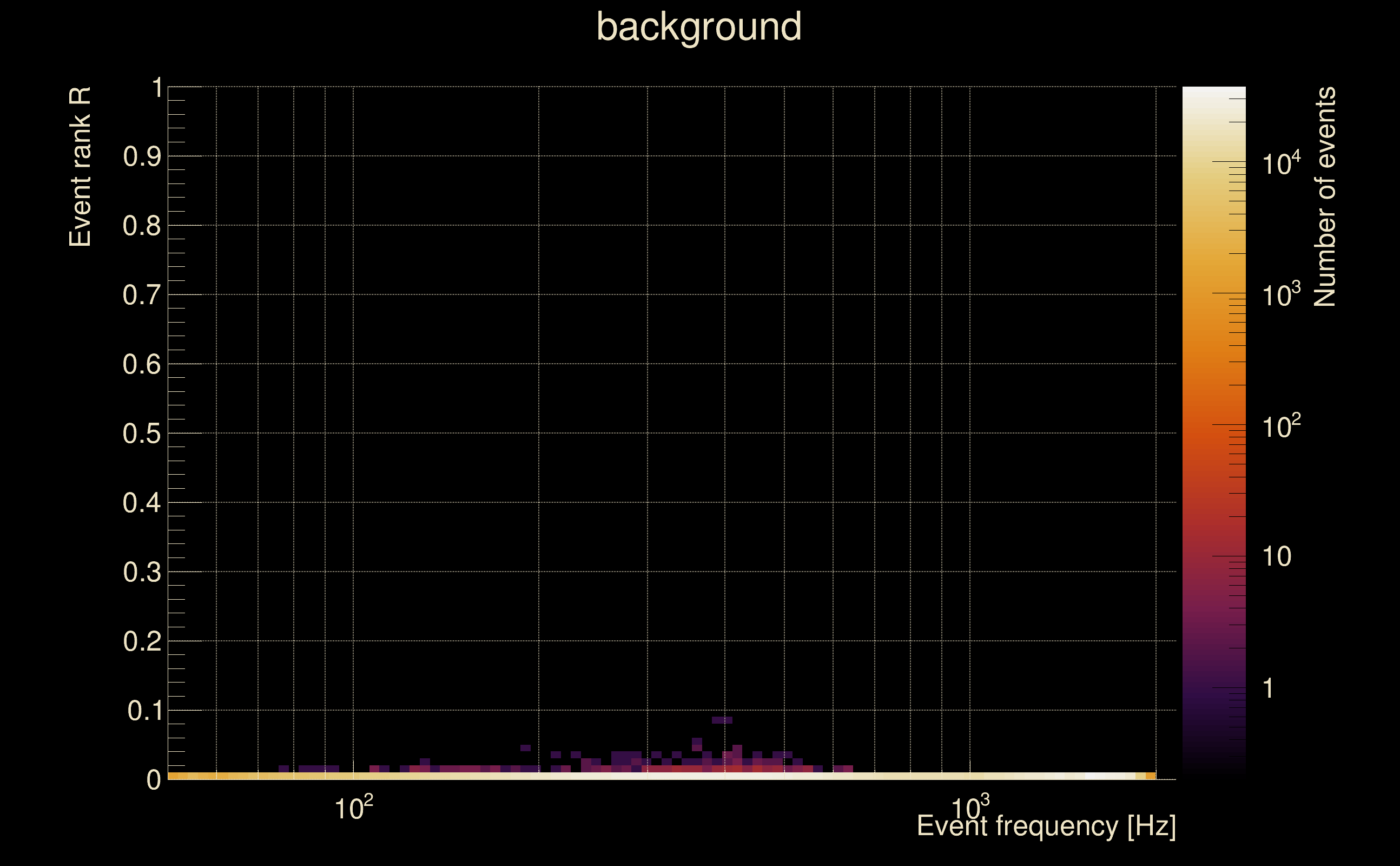

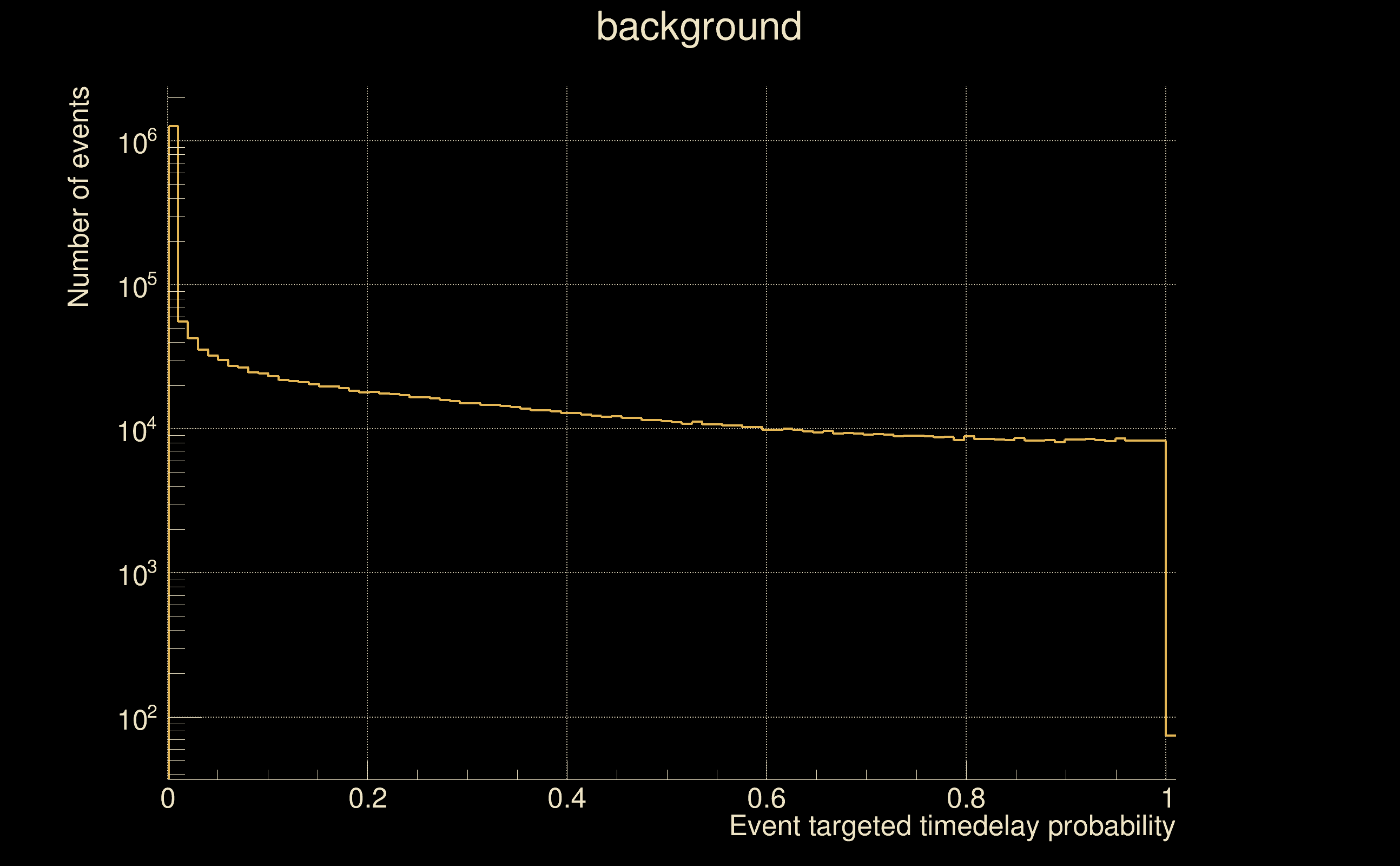

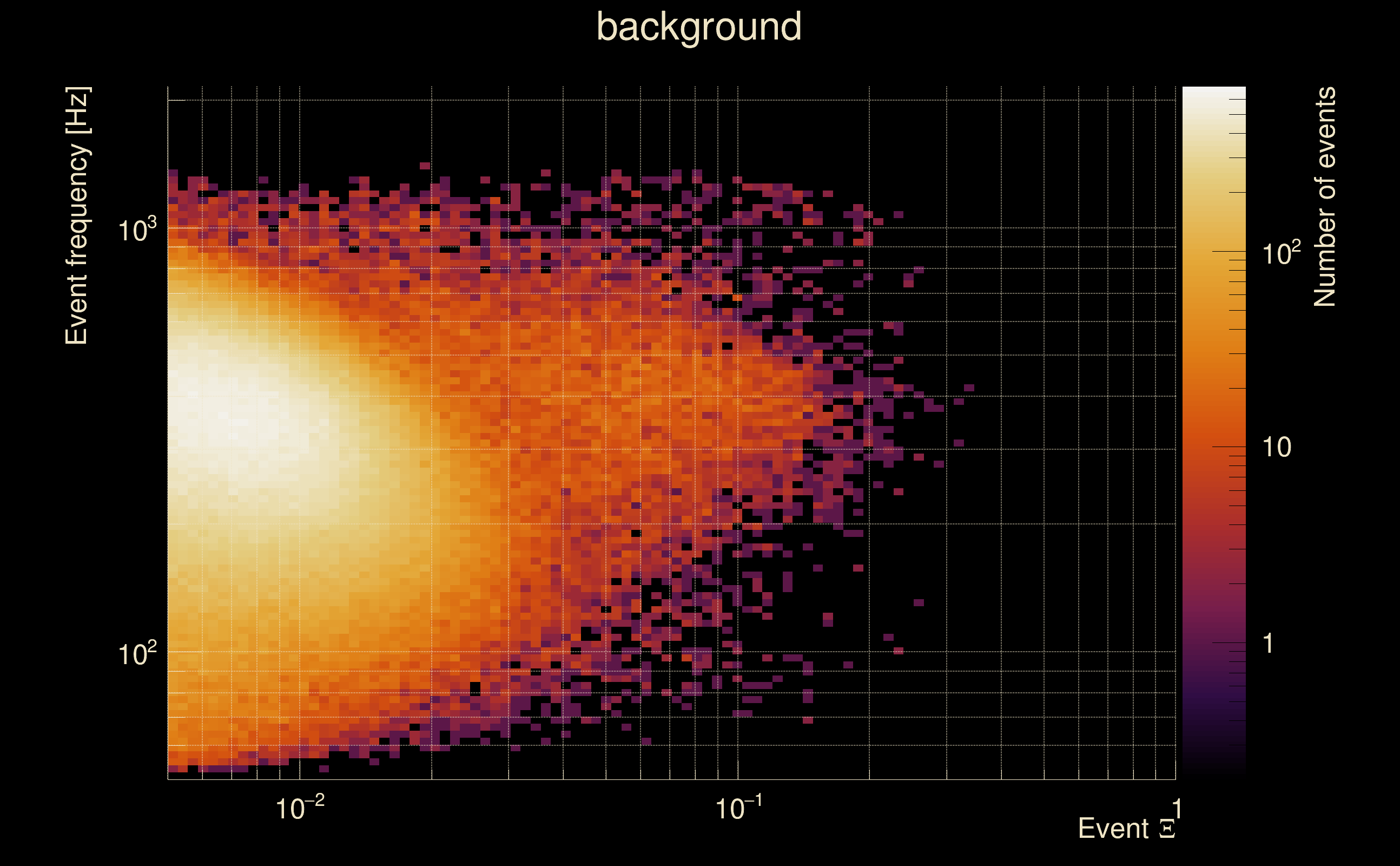

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

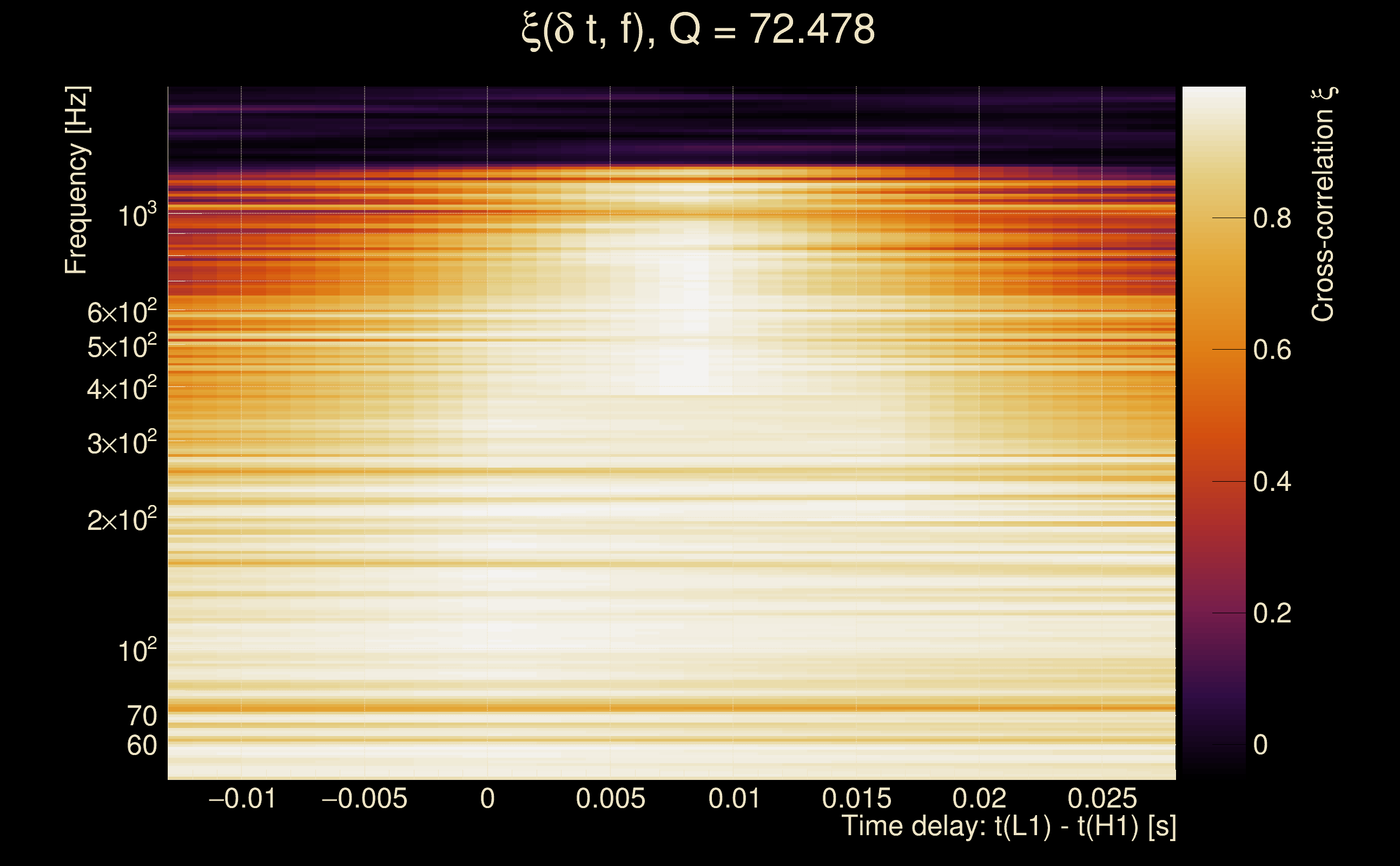

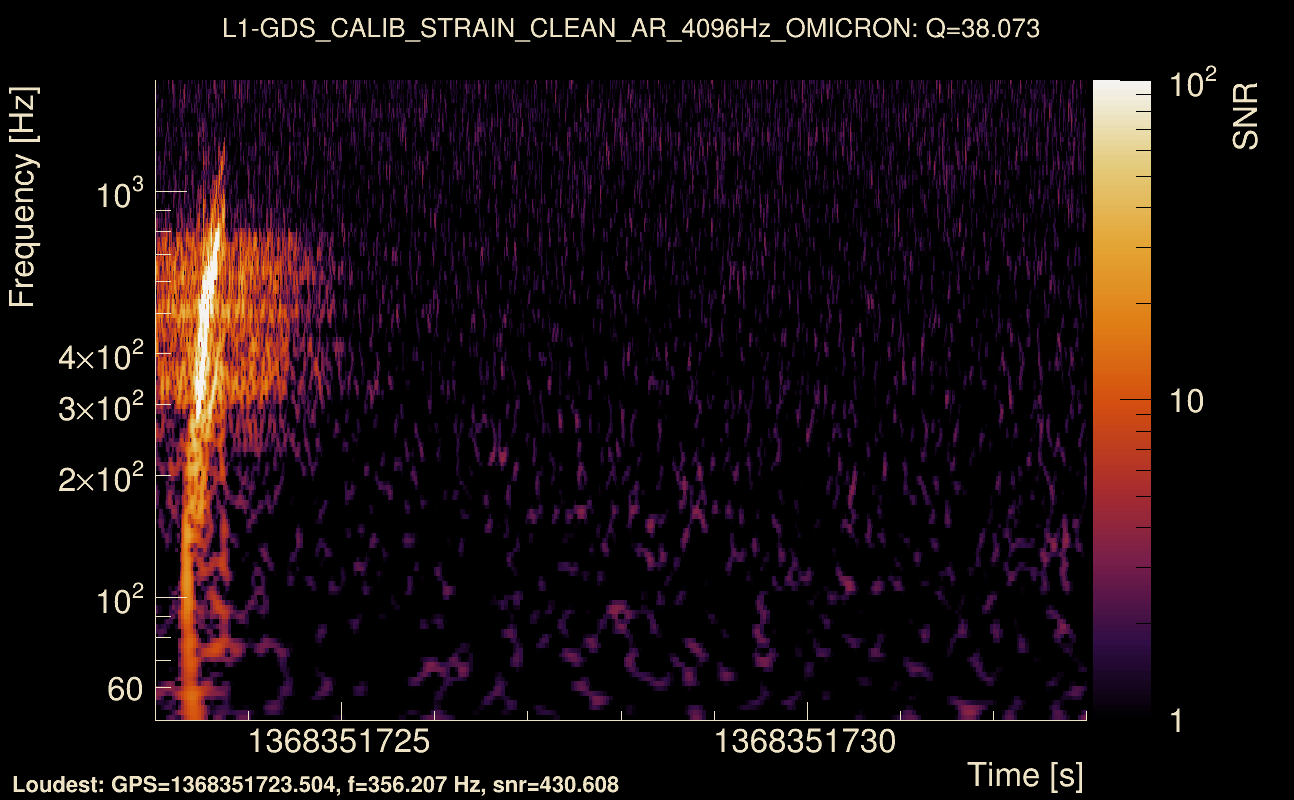

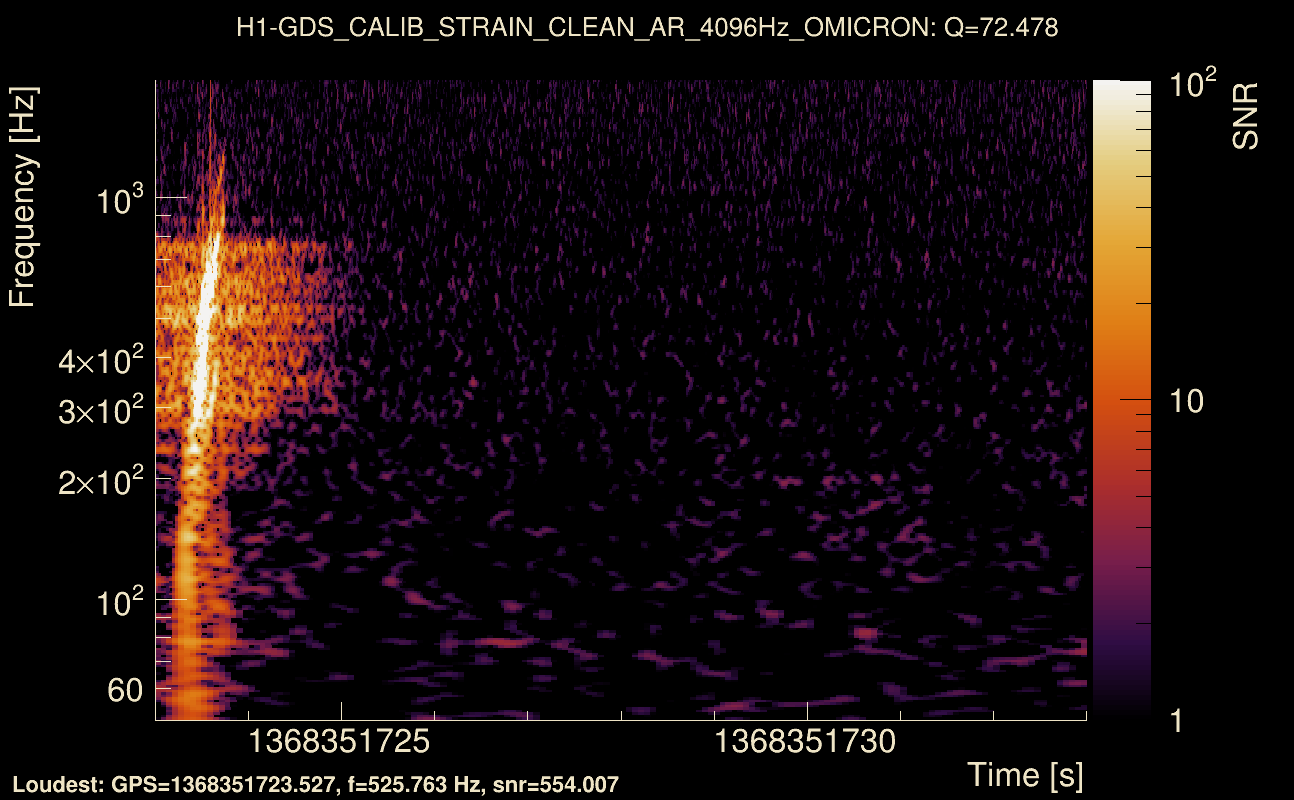

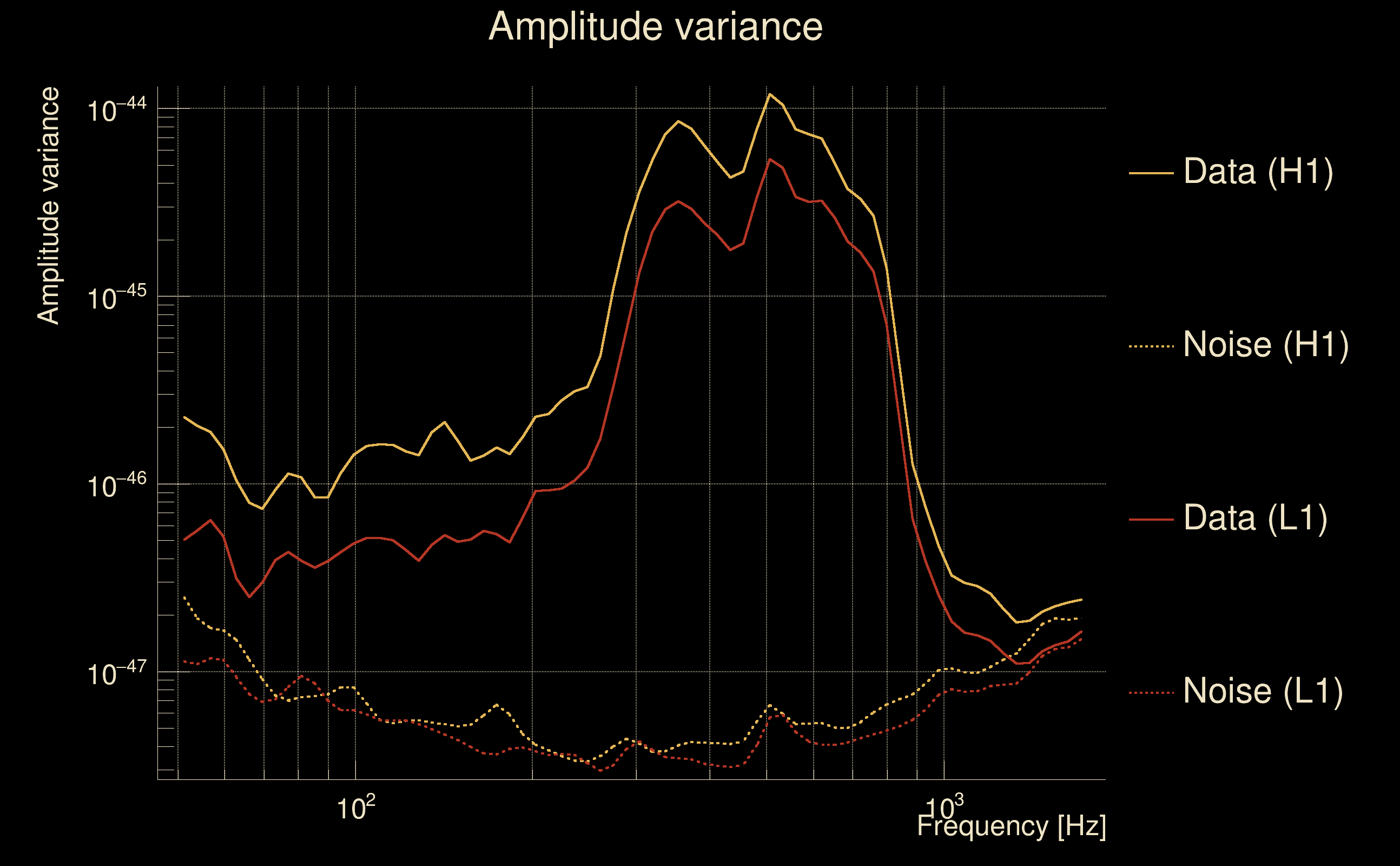

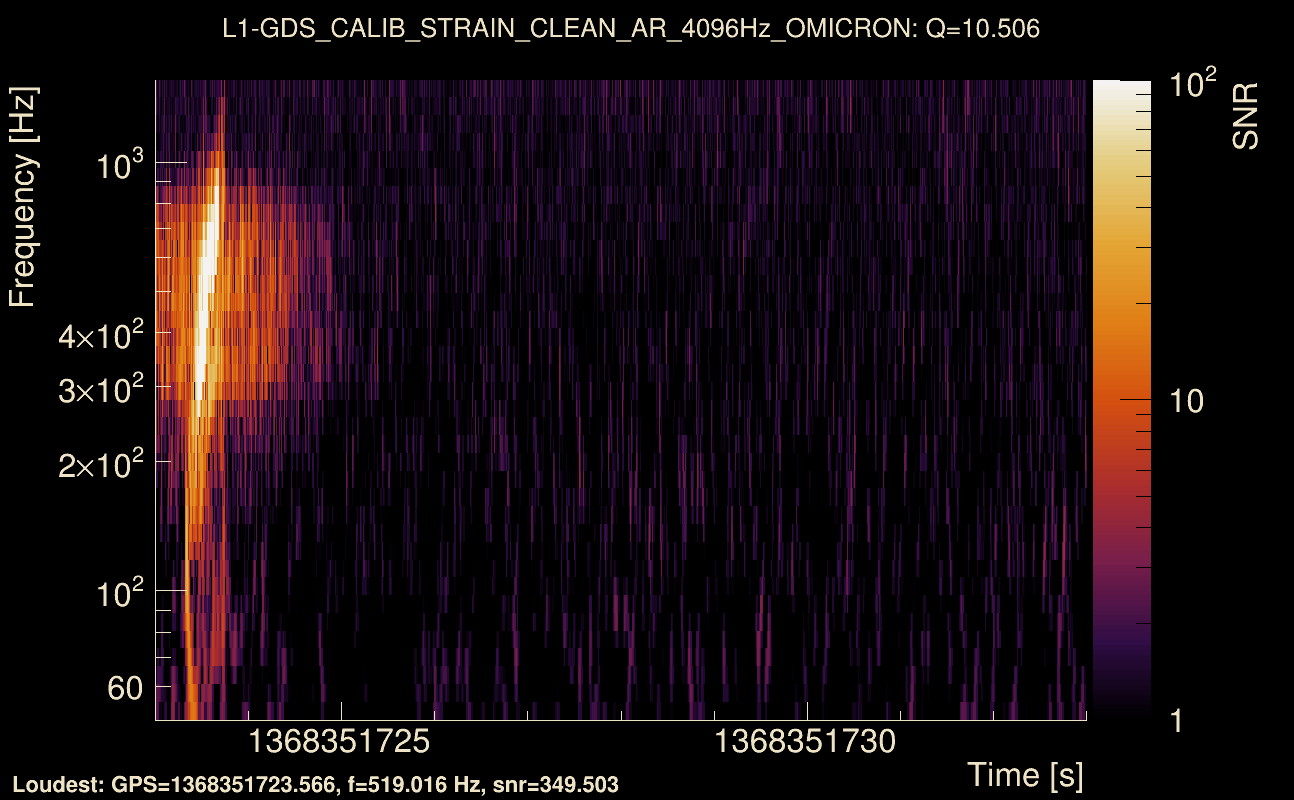

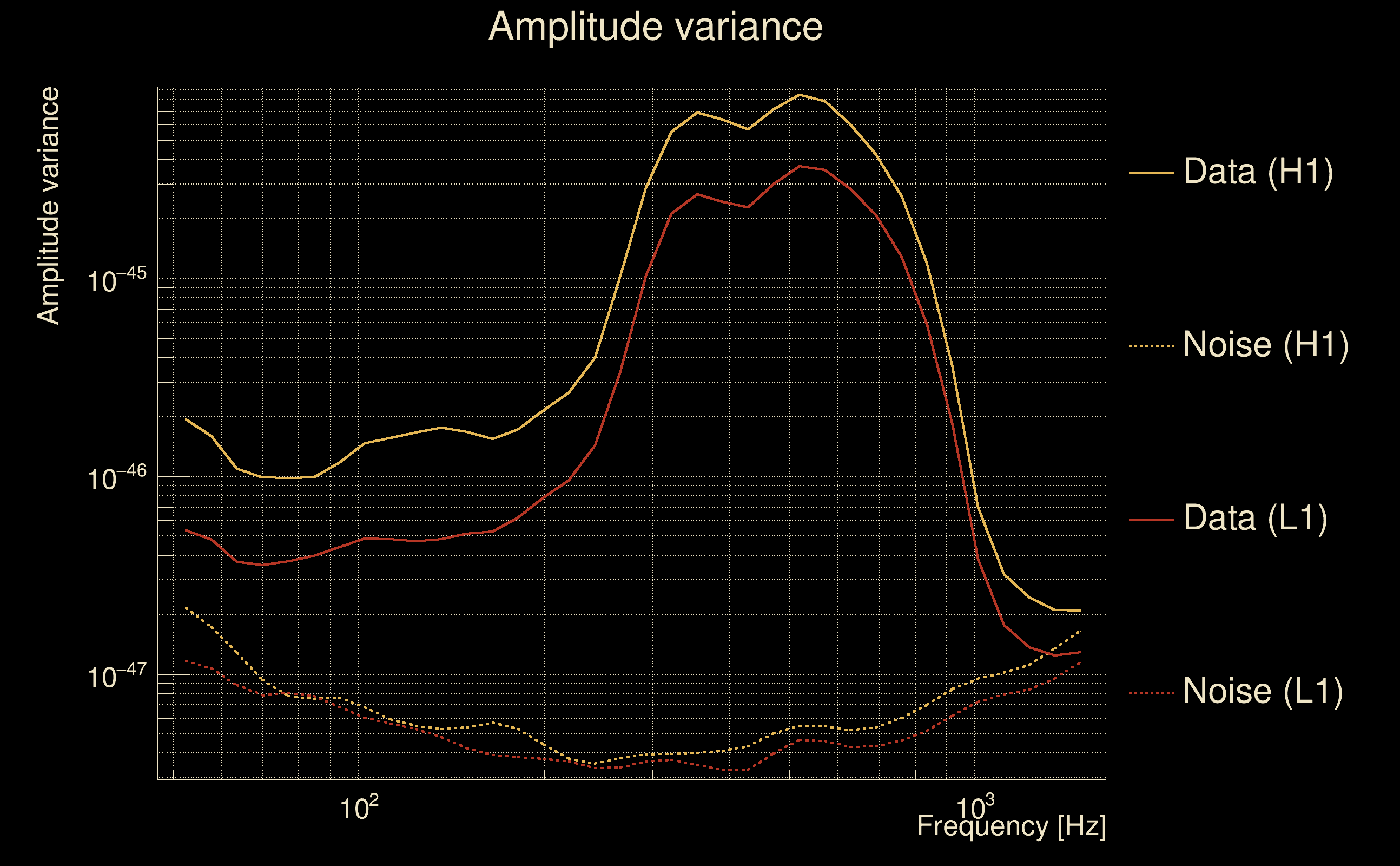

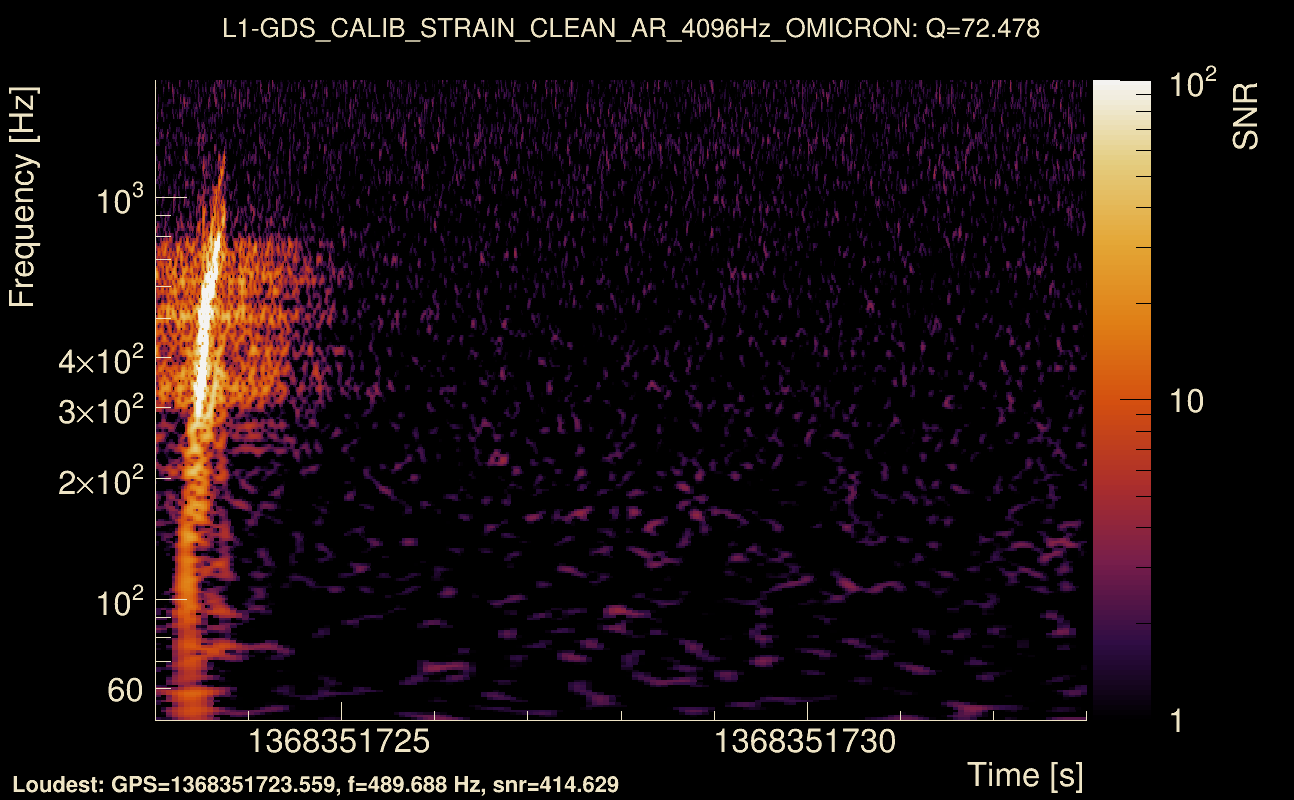

| Event time t(H1): | GPS = 1368351723 (Wed May 17 09:41:45 2023 ) → GPS = 1368351733 (Wed May 17 09:41:55 2023 ) |
| Event time t(L1): | GPS = 1368351723 (Wed May 17 09:41:55 2023 ) → GPS = 1368351733 (Wed May 17 09:41:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351720 → GPS = 1368351736 |
| Omicron analysis time window (L1): | GPS = 1368351720 → GPS = 1368351736 |

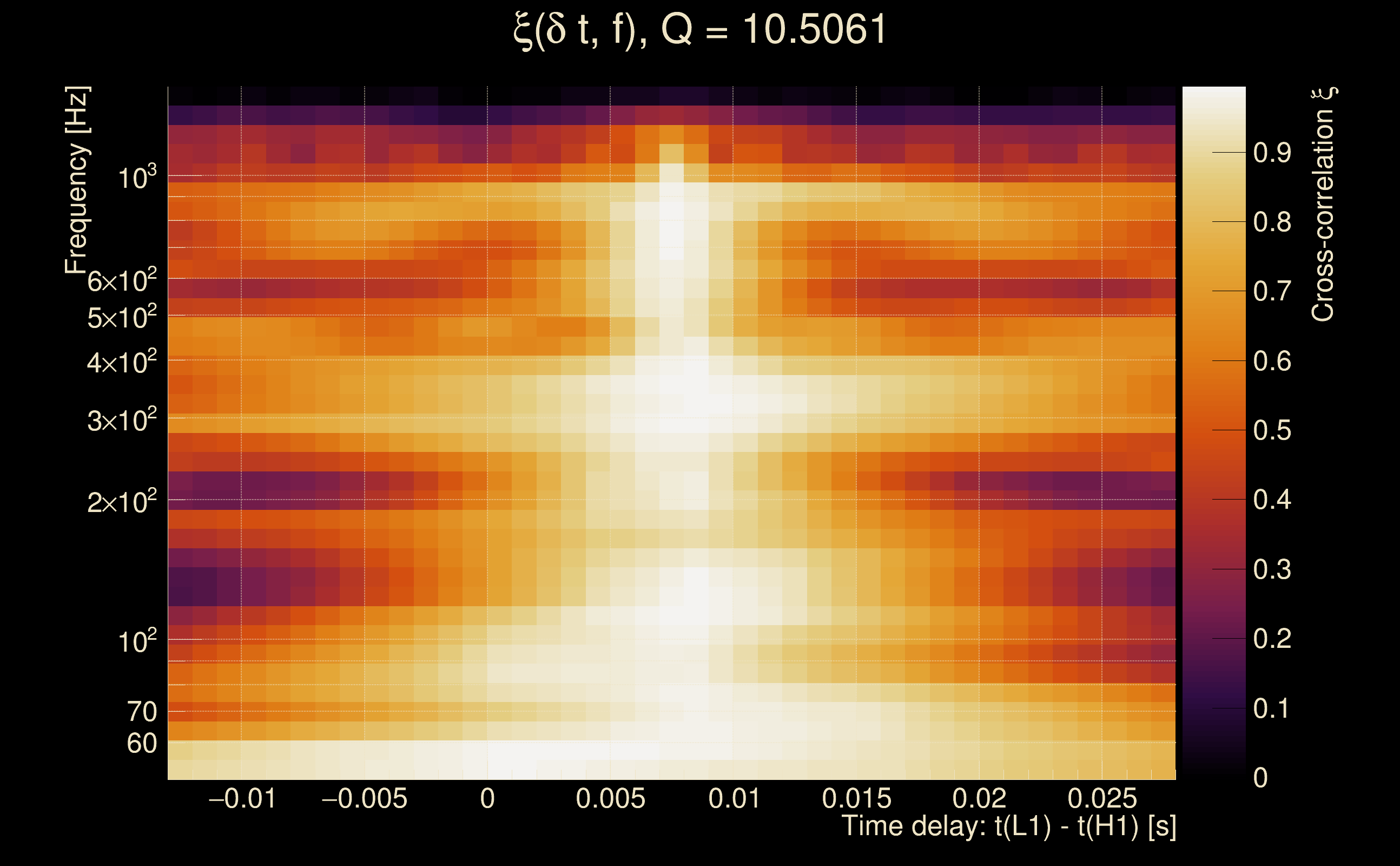

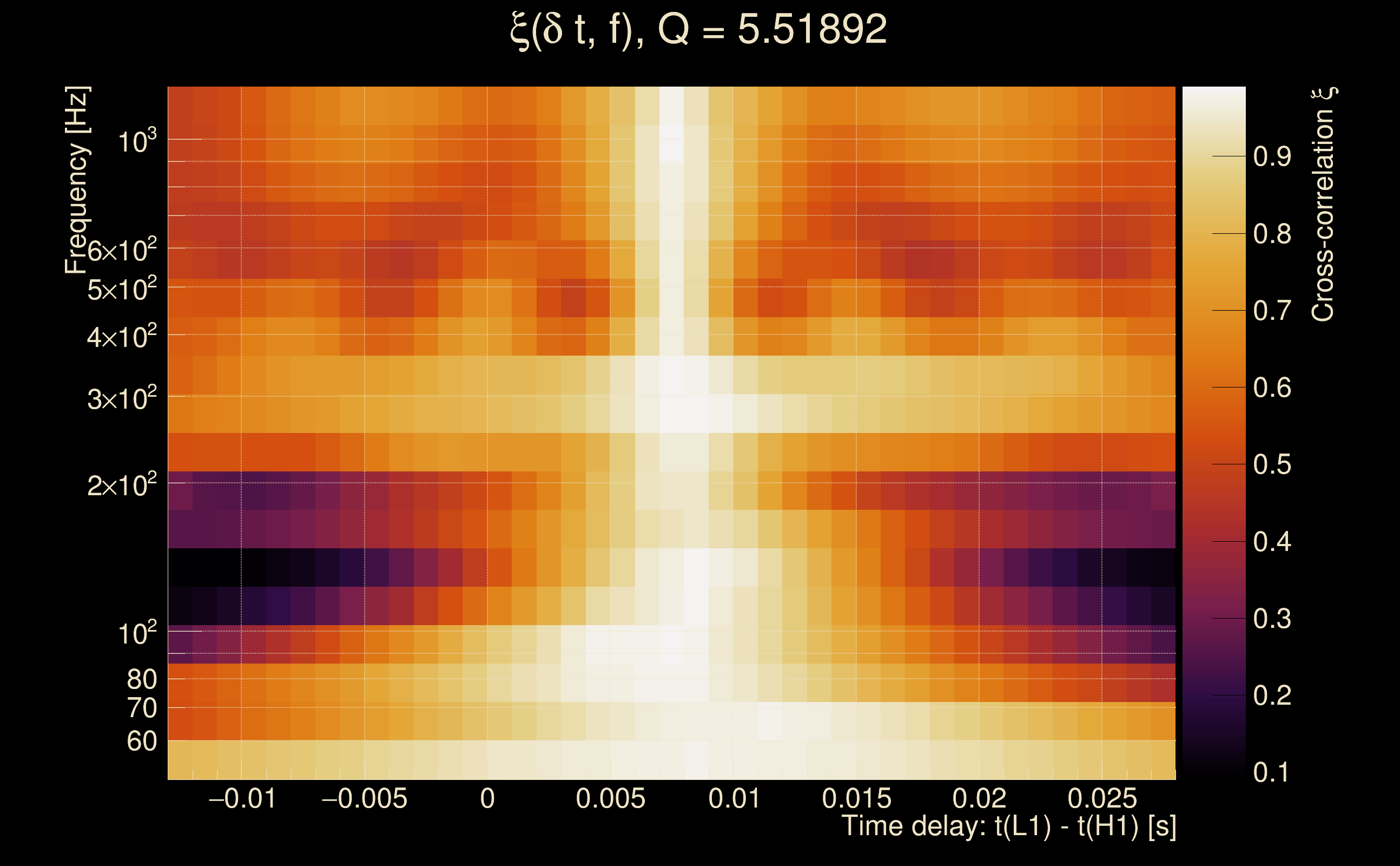

| Time delay between detectors t(L1) - t(H1): | 0.00708297 s (slice index = 108 / 217), δt_gw = 0.00708297 s |
| Time delay standard deviation: | 0.0207335 s |
| [targeted mode] Time delay probability: | 0.927134 (0.0914518 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 271.137 Hz |
| Ξ: | 0.922031 ± 0.00616533 (variance = 3.80113e-05): Q0: 0.978511, Q1: 0.960727, Q2: 0.962765, Q3: 0.967155, Q4: 0.966443 |

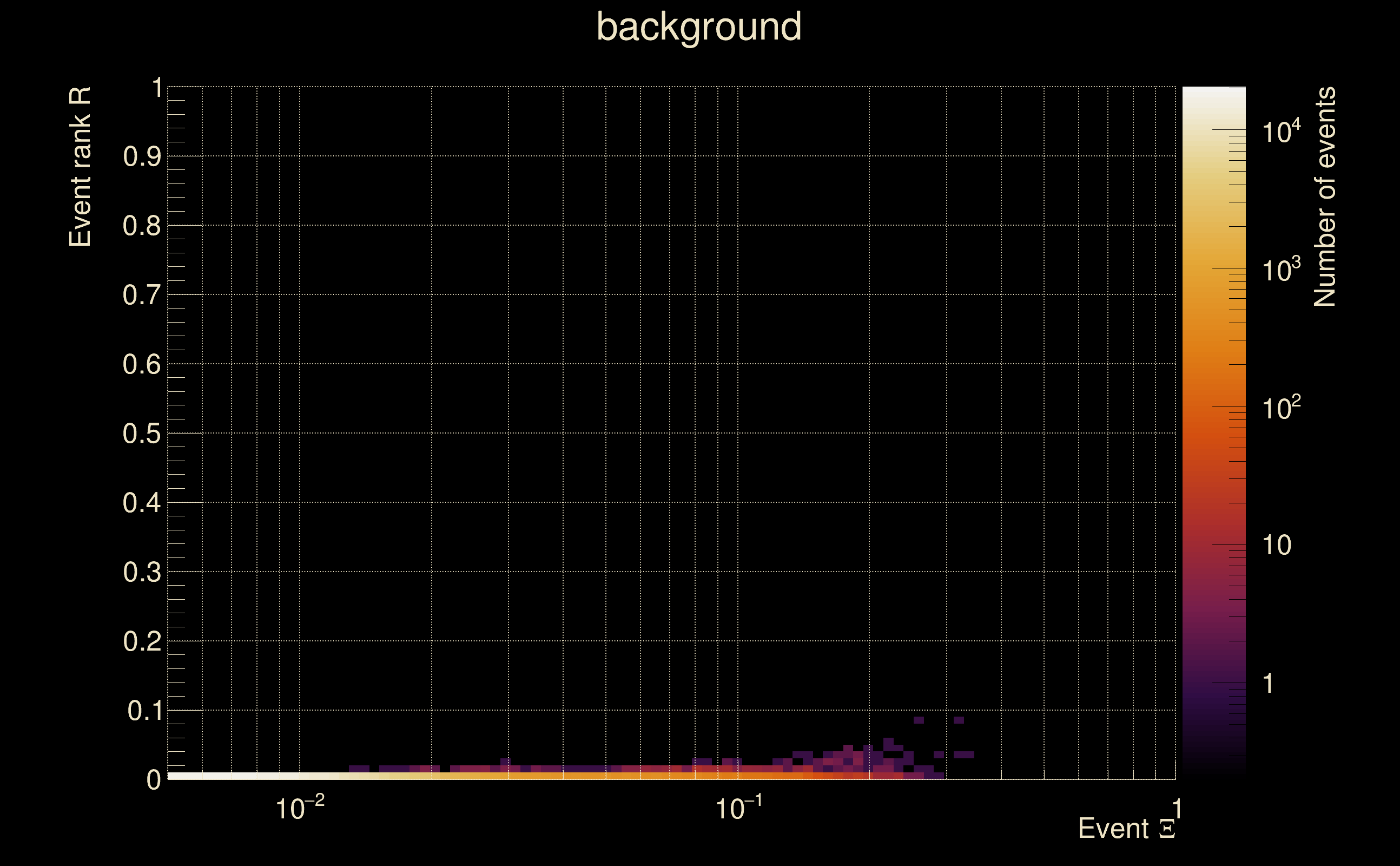

| Rank: | R_A = 0.781075 |
| Log of amplitude ratio (L1/H1): | -0.432321, variance = 0.182053 (L1/H1: -0.443554, variance = 0.304493, H1/L1: 0.403279, variance = 0.305007) |
| Amplitude ratio (L1/H1): | 0.649001 ⋇ 1.53216 (L1/H1: 0.641752 ⋇ 1.73639, H1/L1: 1.49672 ⋇ 1.7372) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.958857 |

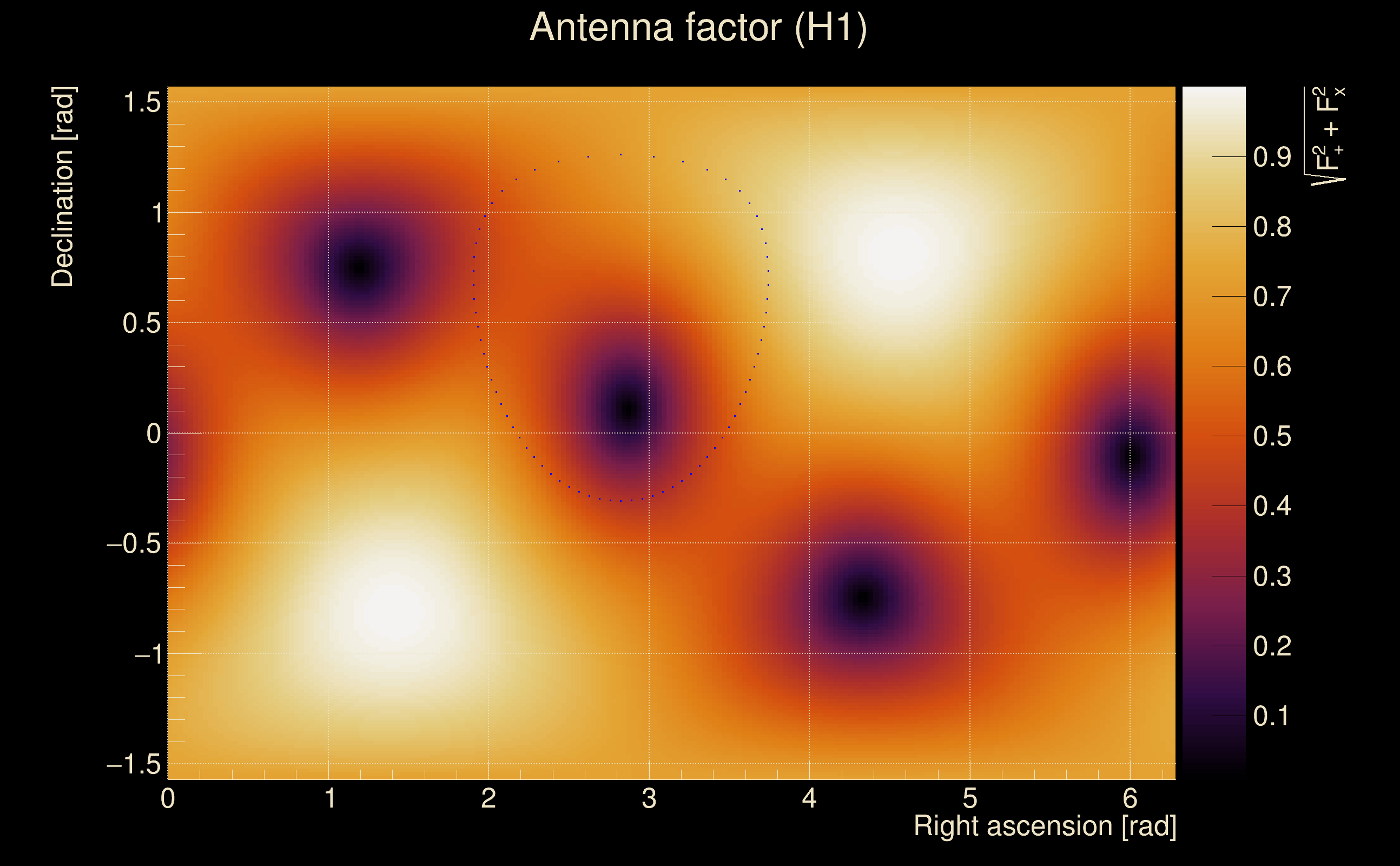

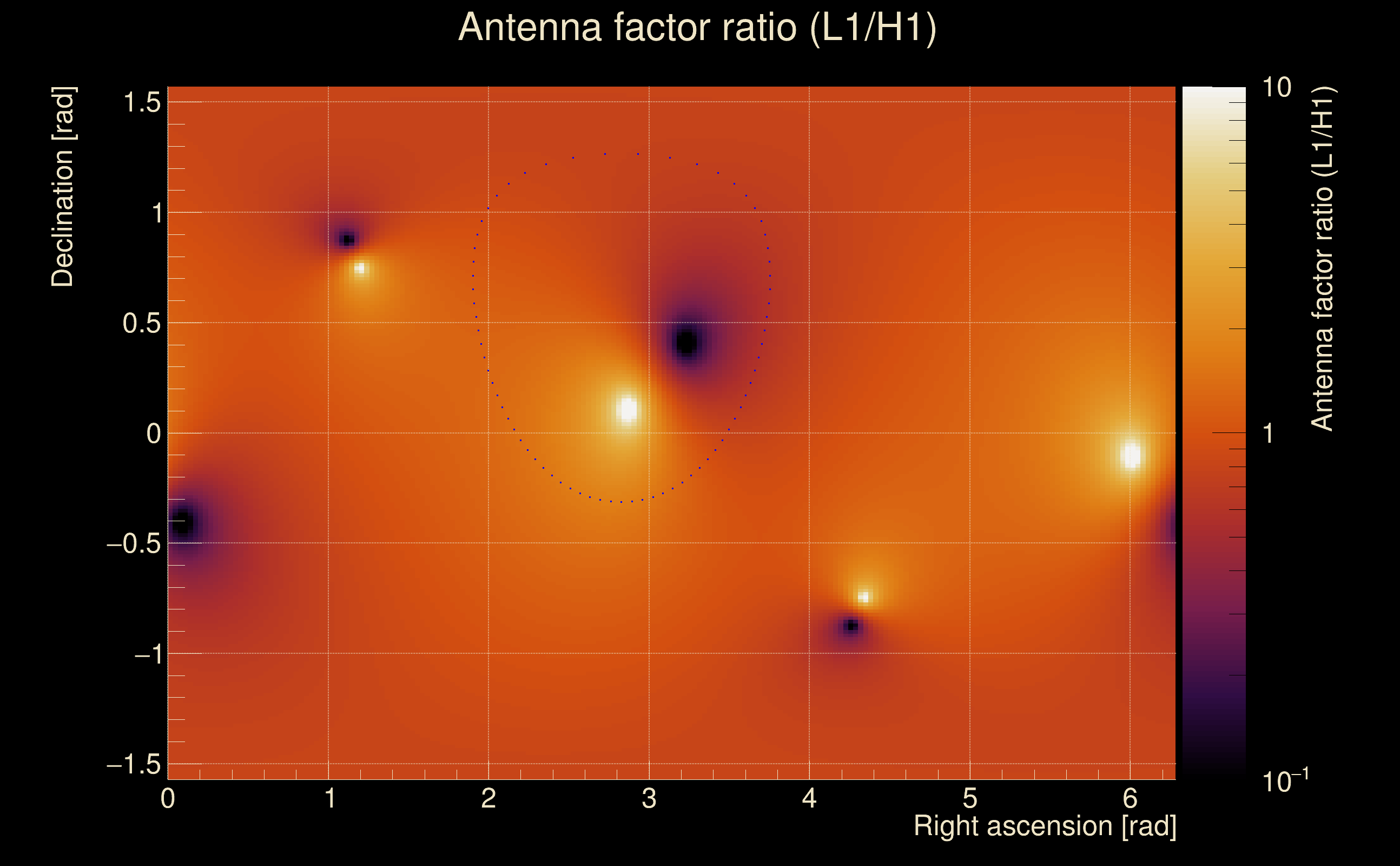

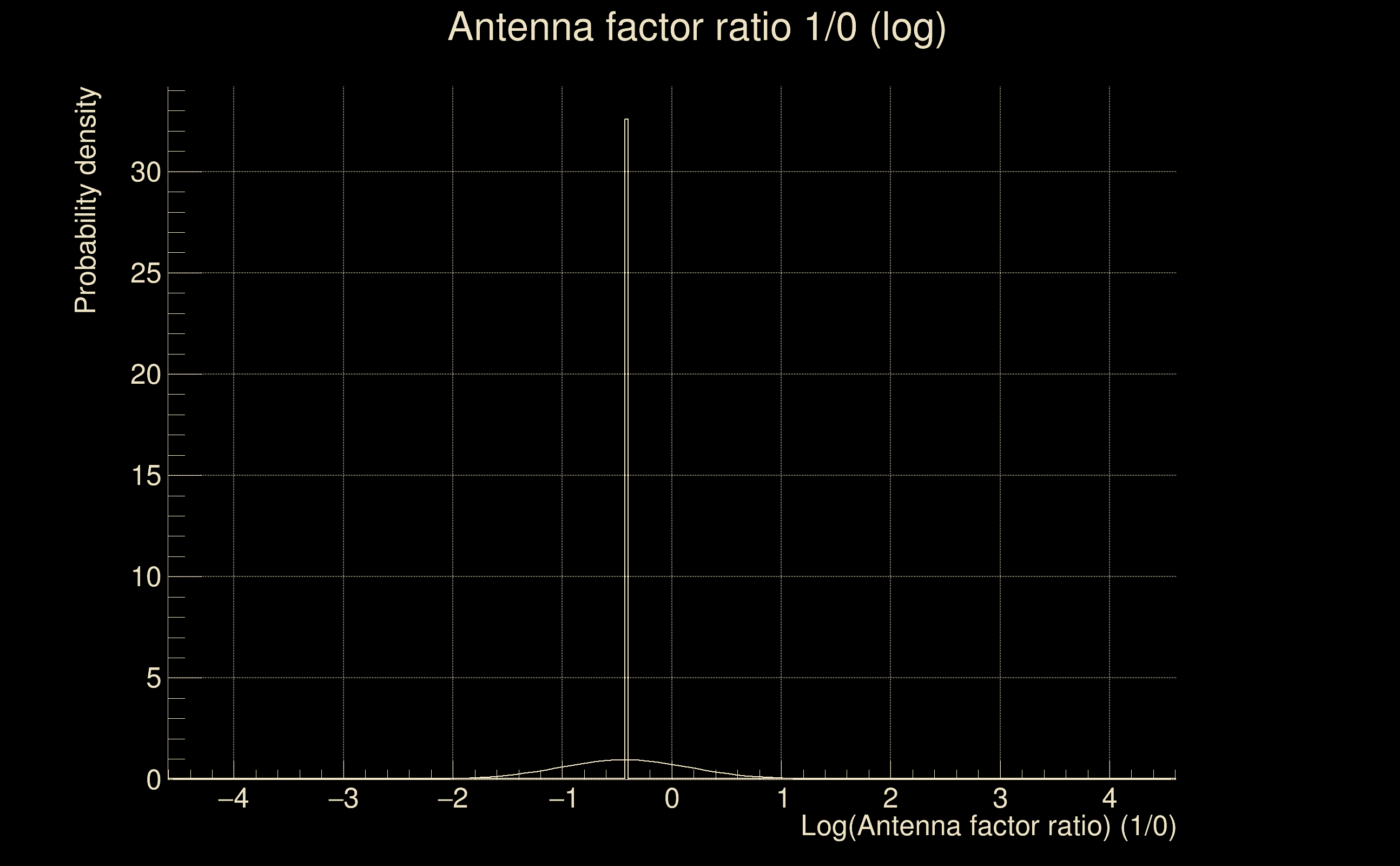

| Antenna factor probability: | 0.952908 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 9 / 70, Q3: 33 / 134, Q4: 70 / 258 |
| Maximum signal-to-noise ratio: | H1: 706.108, L1: 439.15 |
| SNR variance: | H1: 0, L1: 0 |

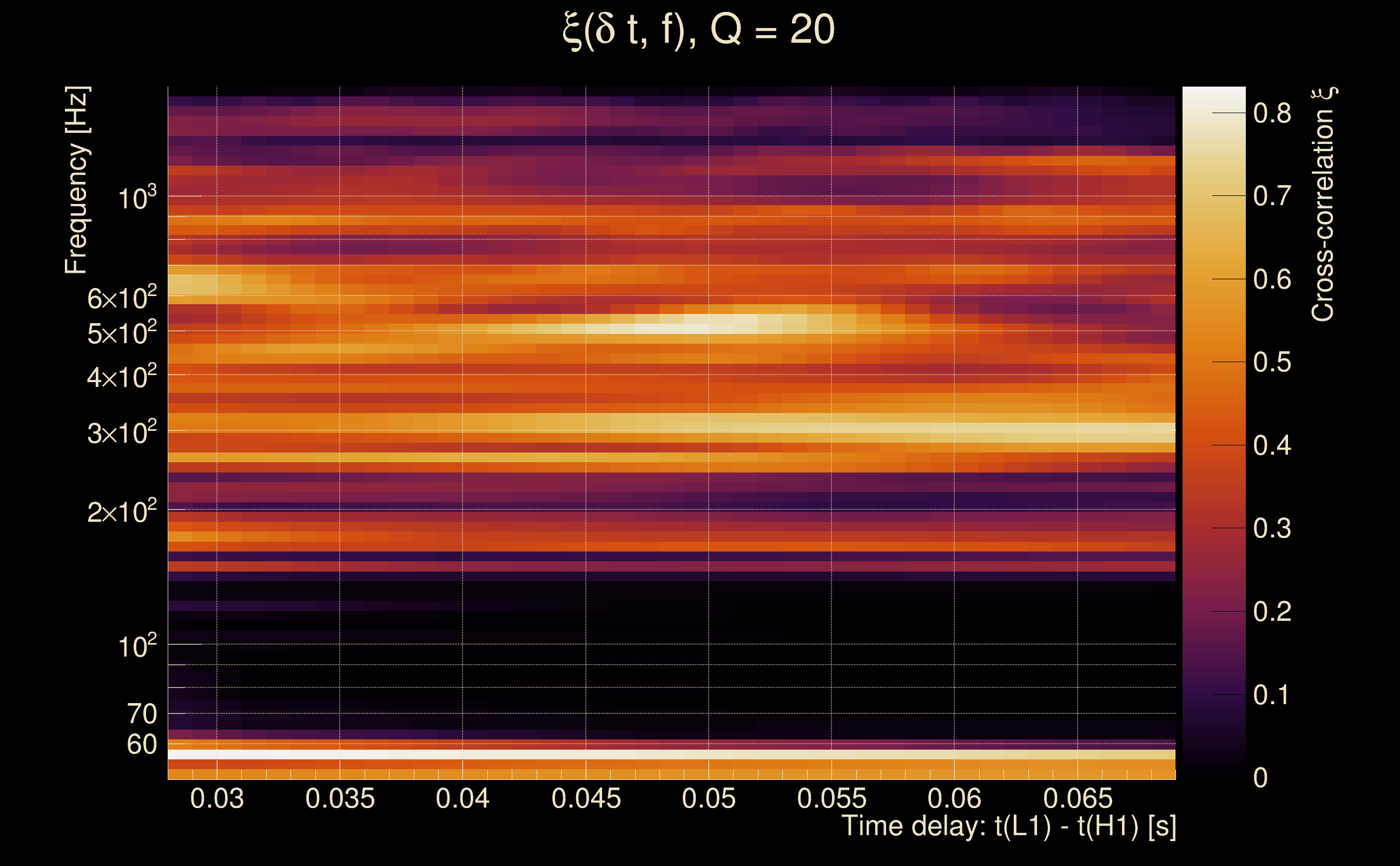

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

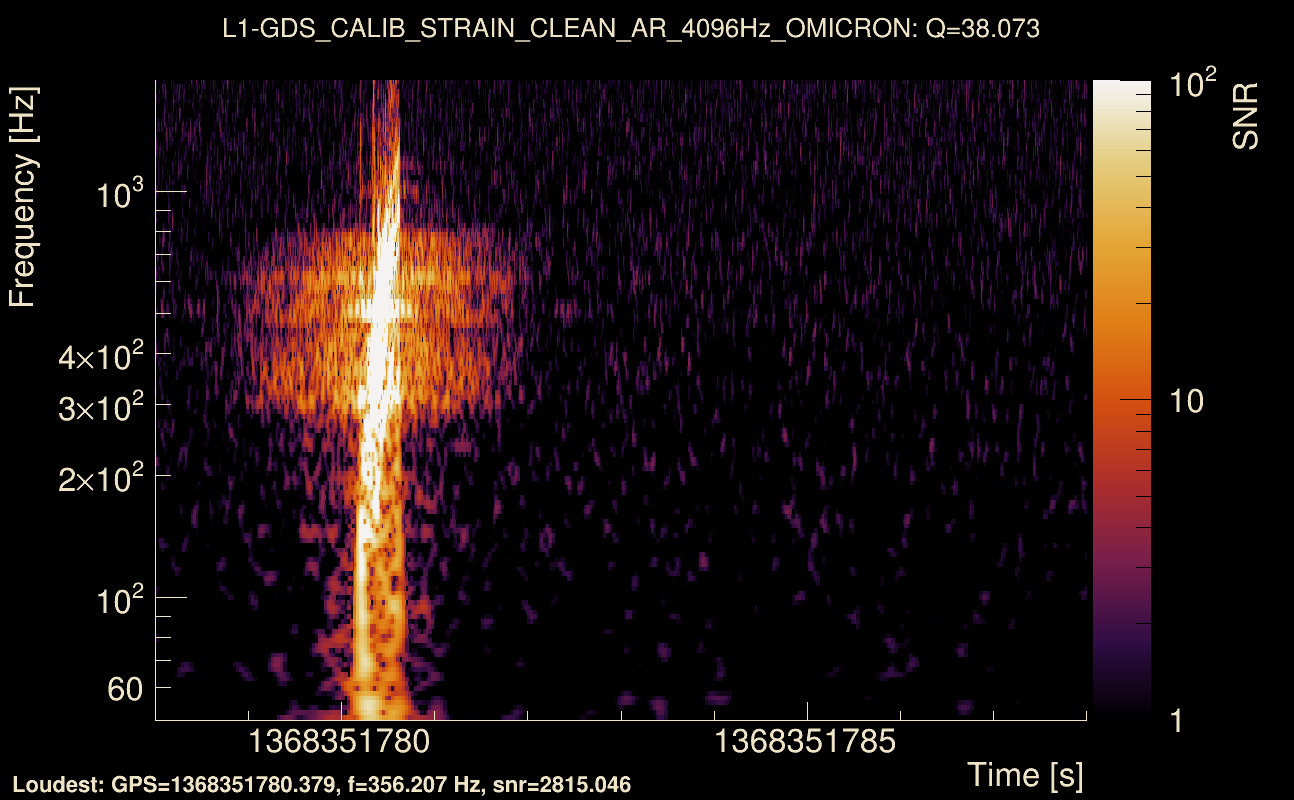

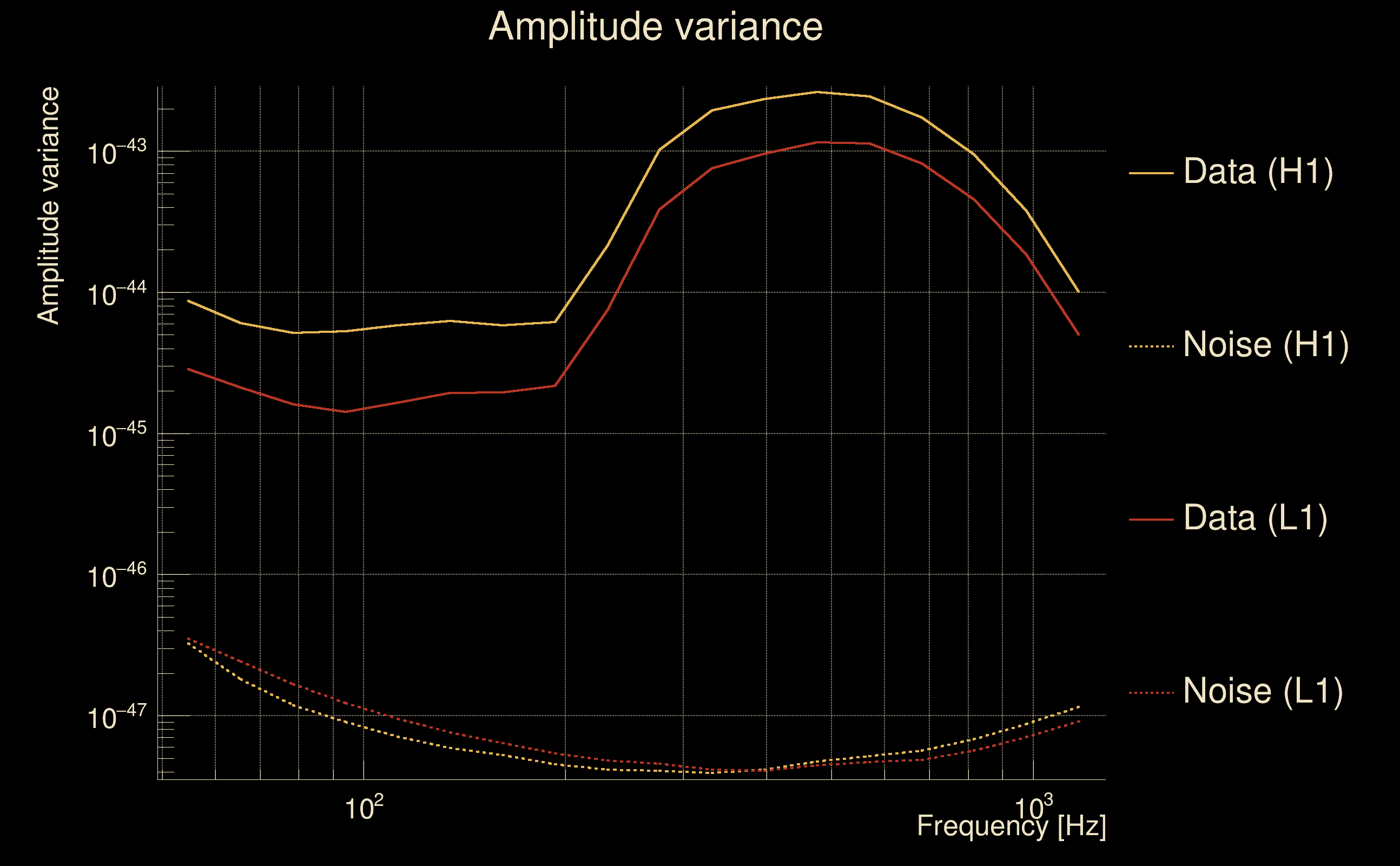

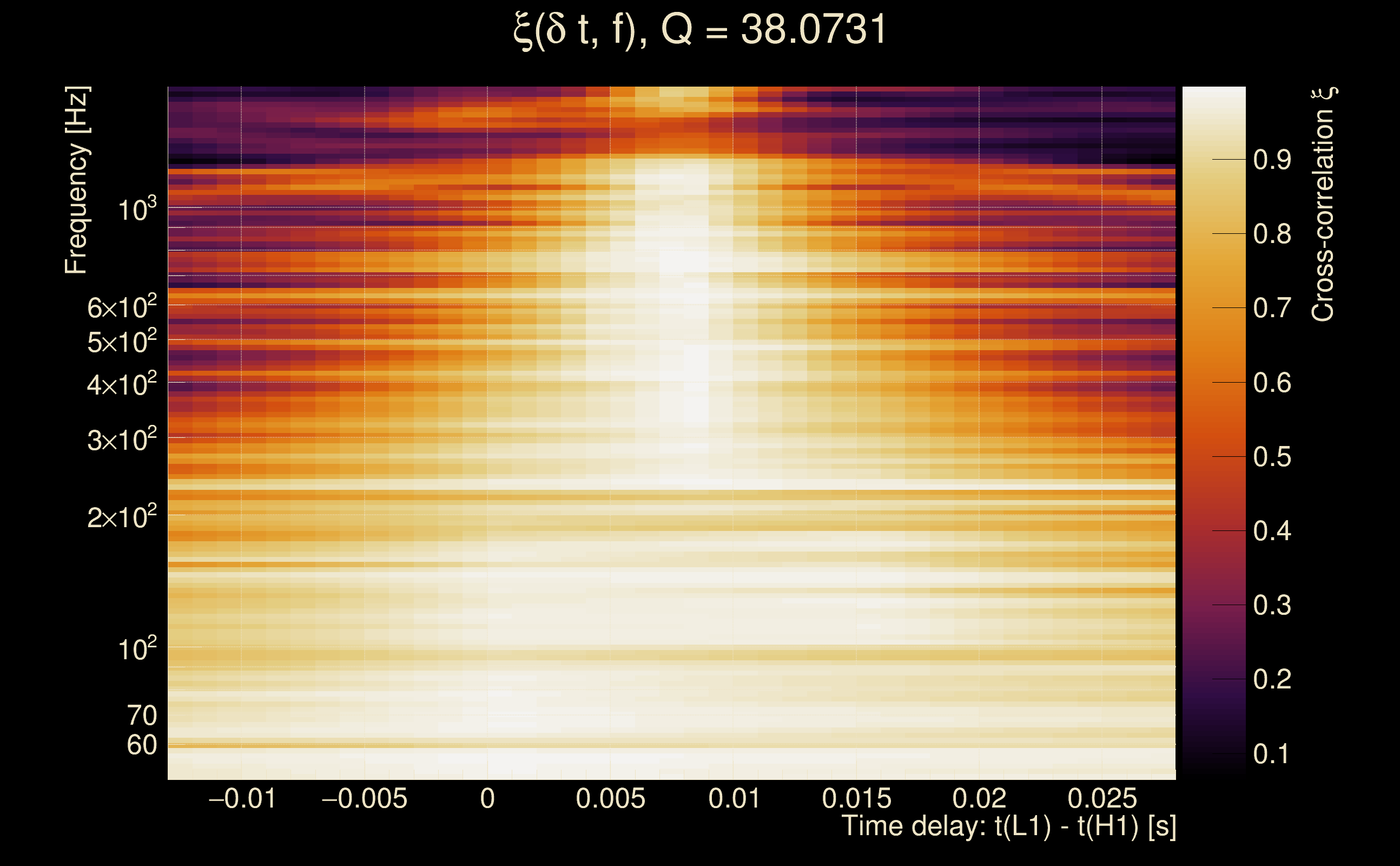

| Event time t(H1): | GPS = 1368351773 (Wed May 17 09:42:35 2023 ) → GPS = 1368351783 (Wed May 17 09:42:45 2023 ) |
| Event time t(L1): | GPS = 1368351773 (Wed May 17 09:42:45 2023 ) → GPS = 1368351783 (Wed May 17 09:42:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351770 → GPS = 1368351786 |
| Omicron analysis time window (L1): | GPS = 1368351770 → GPS = 1368351786 |
| Time delay between detectors t(L1) - t(H1): | 0.00704295 s (slice index = 108 / 217), δt_gw = 0.00704295 s |
| Time delay standard deviation: | 0.0266434 s |
| [targeted mode] Time delay probability: | 0.89533 (0.131563 sigmas), δt_target = 0.00712228 s |
| Frequency: | 294.642 Hz |
| Ξ: | 0.945877 ± 0.00851969 (variance = 7.25851e-05): Q0: 0.97685, Q1: 0.967836, Q2: 0.957427, Q3: 0.954406, Q4: 0.956391 |
| Rank: | R_A = 0.771274 |
| Log of amplitude ratio (L1/H1): | -0.435425, variance = 0.179519 (L1/H1: -0.446782, variance = 0.305296, H1/L1: 0.407657, variance = 0.305474) |
| Amplitude ratio (L1/H1): | 0.64699 ⋇ 1.5276 (L1/H1: 0.639683 ⋇ 1.73765, H1/L1: 1.50329 ⋇ 1.73793) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.960072 |
| Antenna factor probability: | 0.948609 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 3 / 70, Q3: 16 / 134, Q4: 29 / 258 |
| Maximum signal-to-noise ratio: | H1: 4520.68, L1: 2891.13 |
| SNR variance: | H1: 0.430799, L1: 0.414625 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

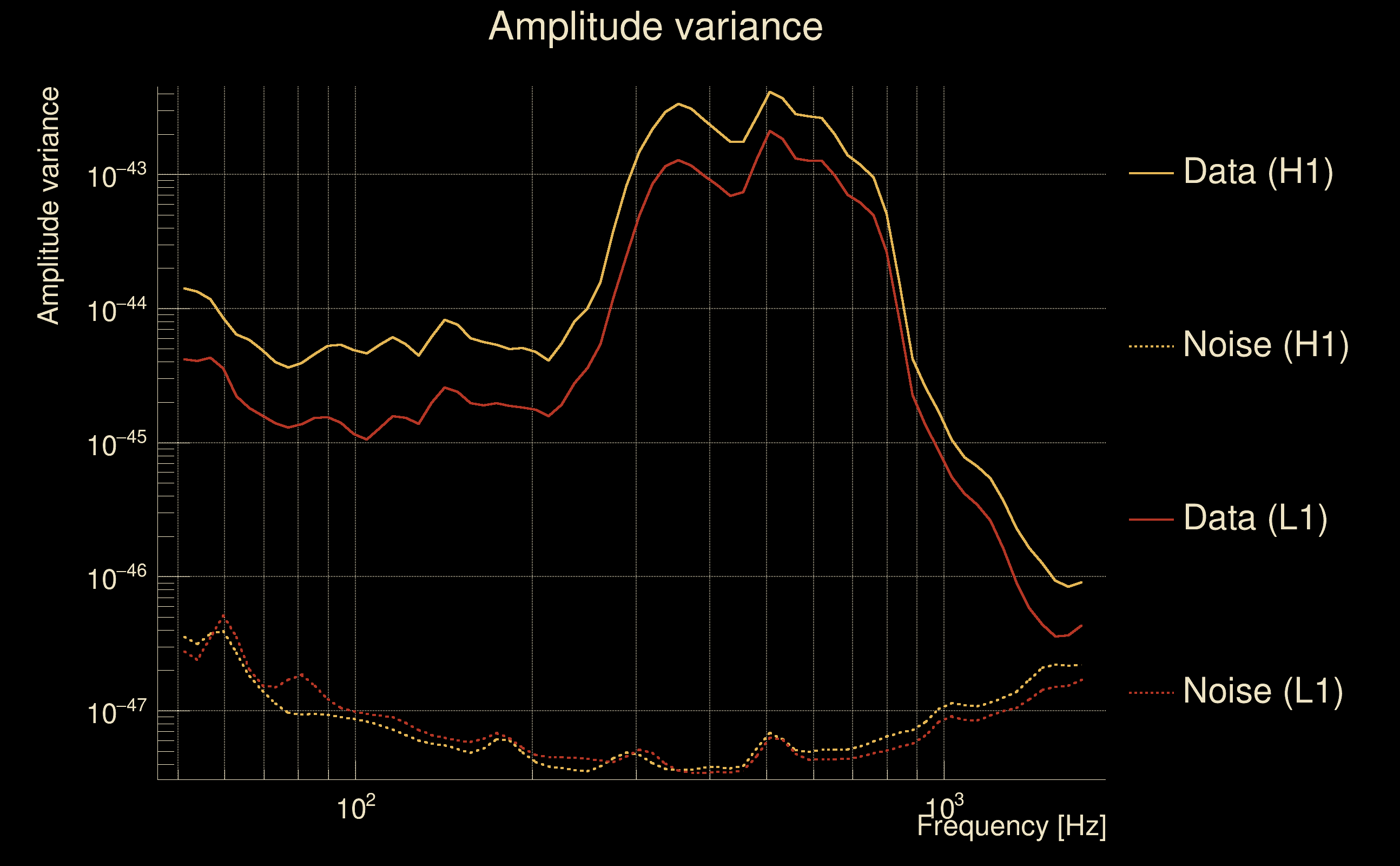

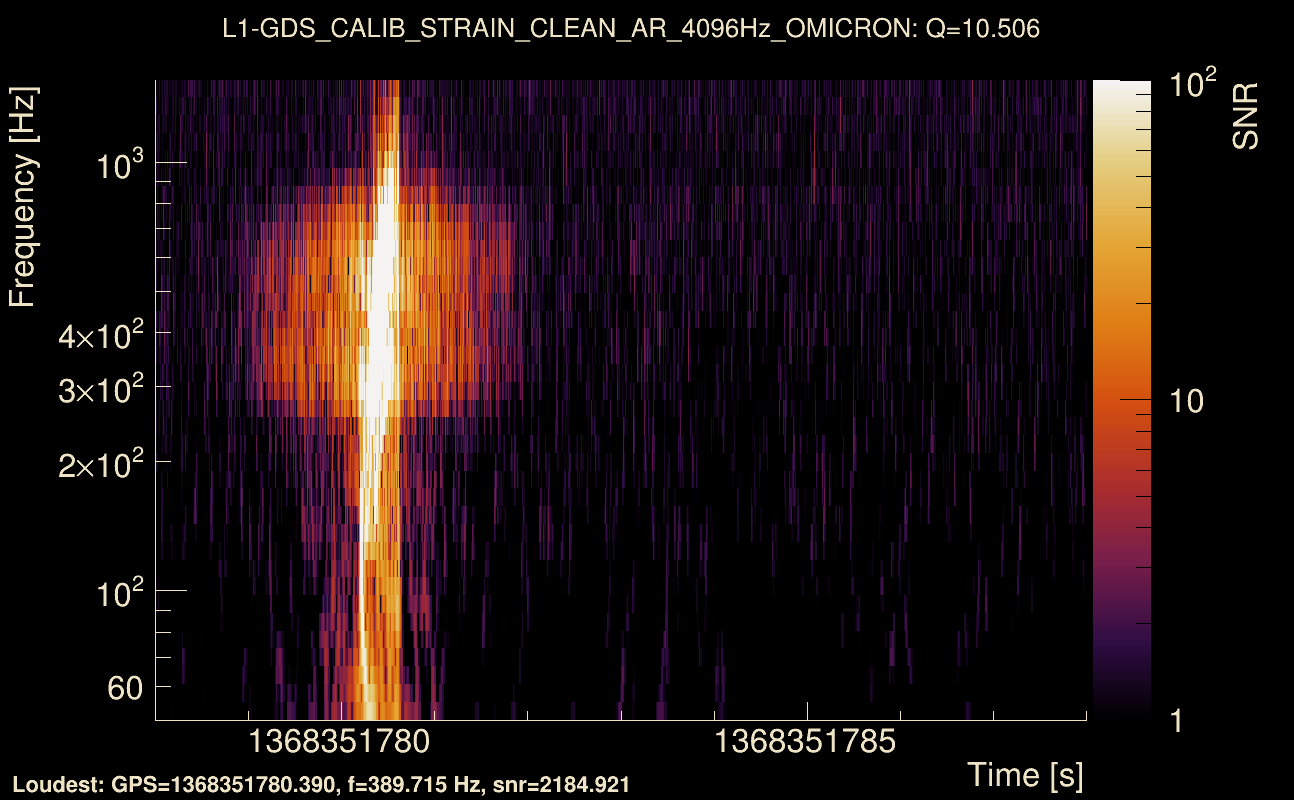

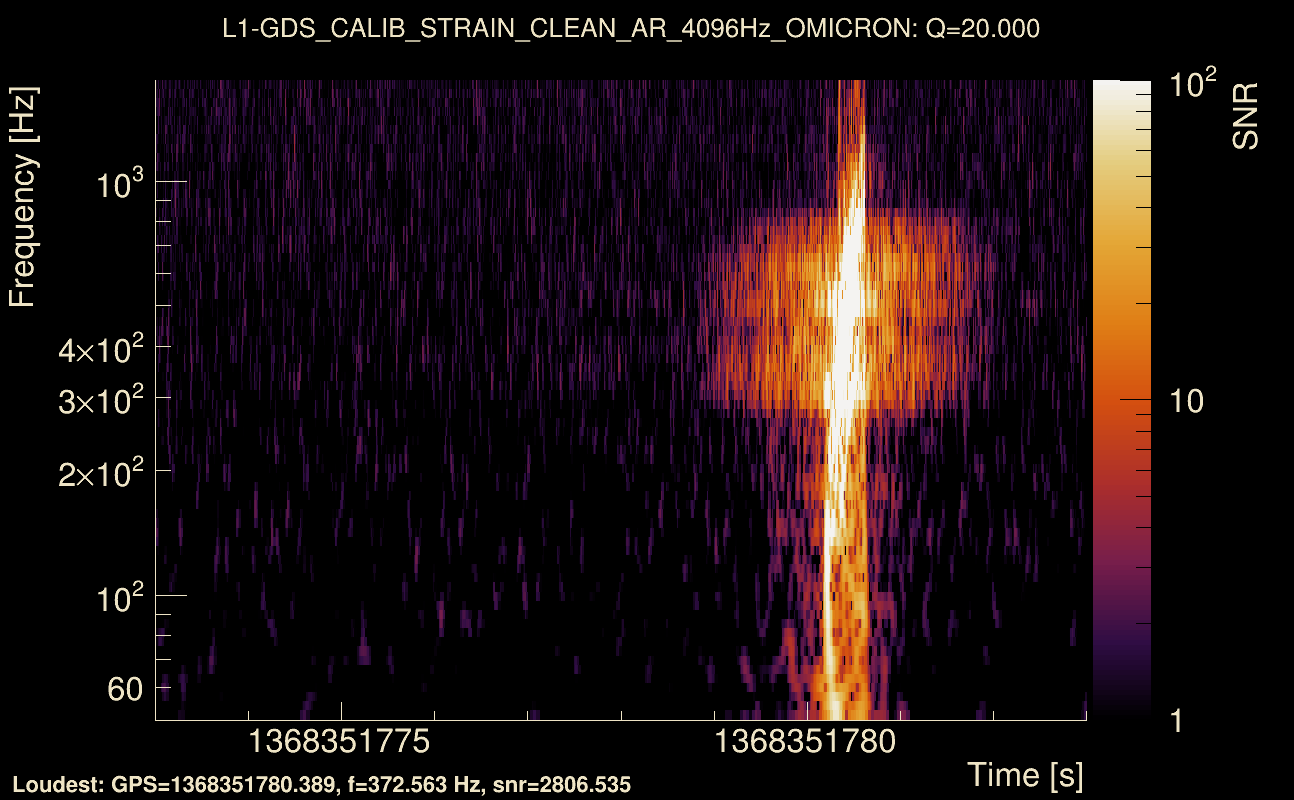

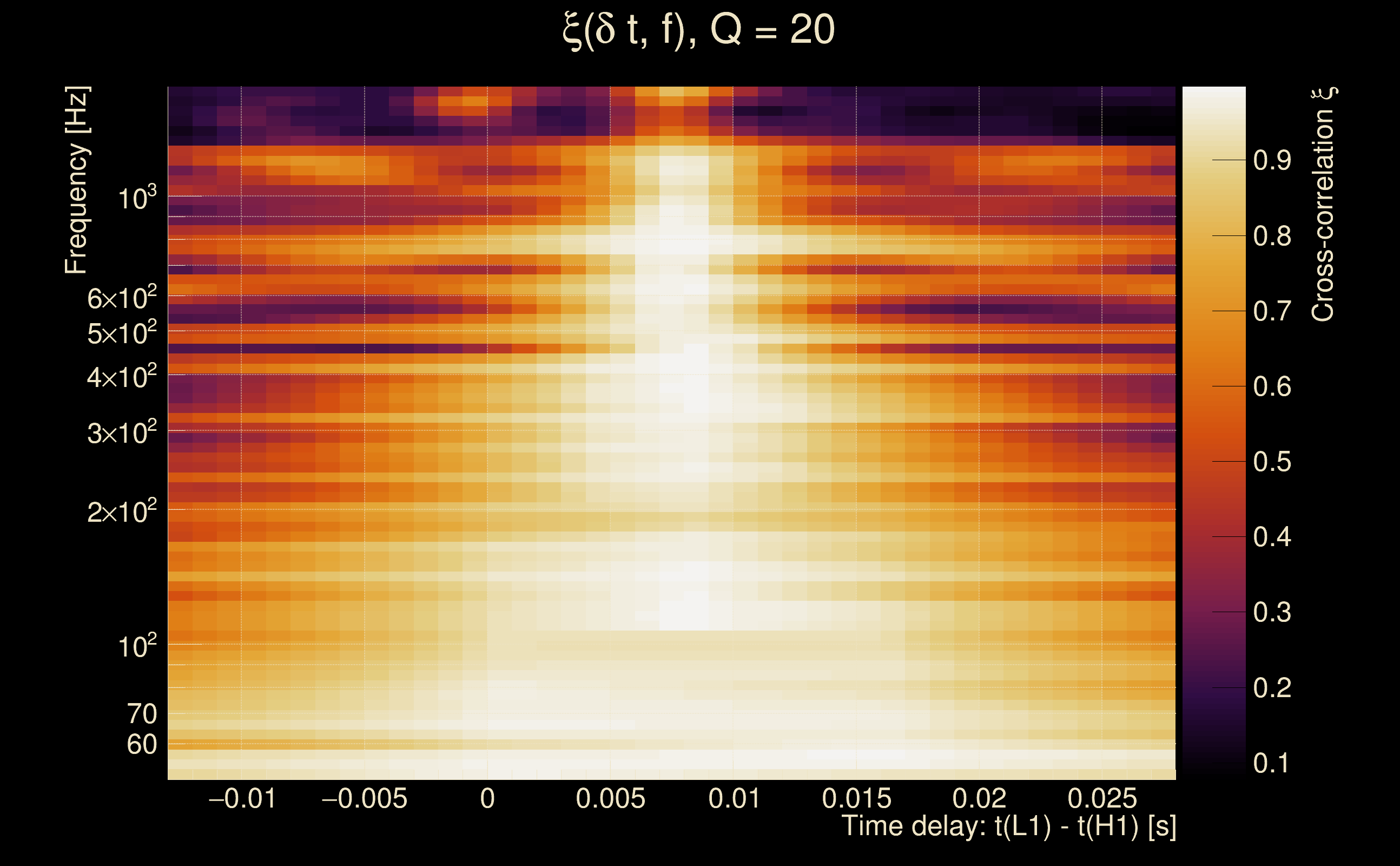

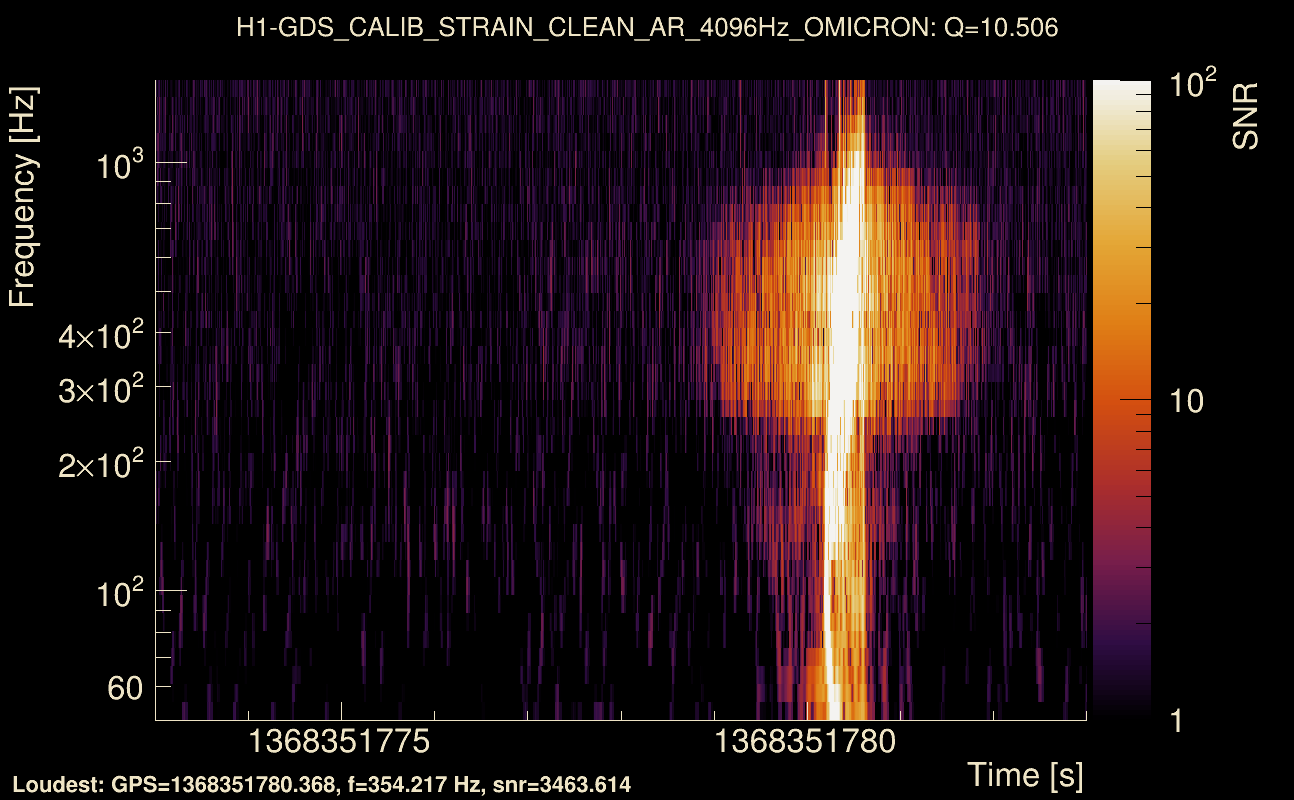

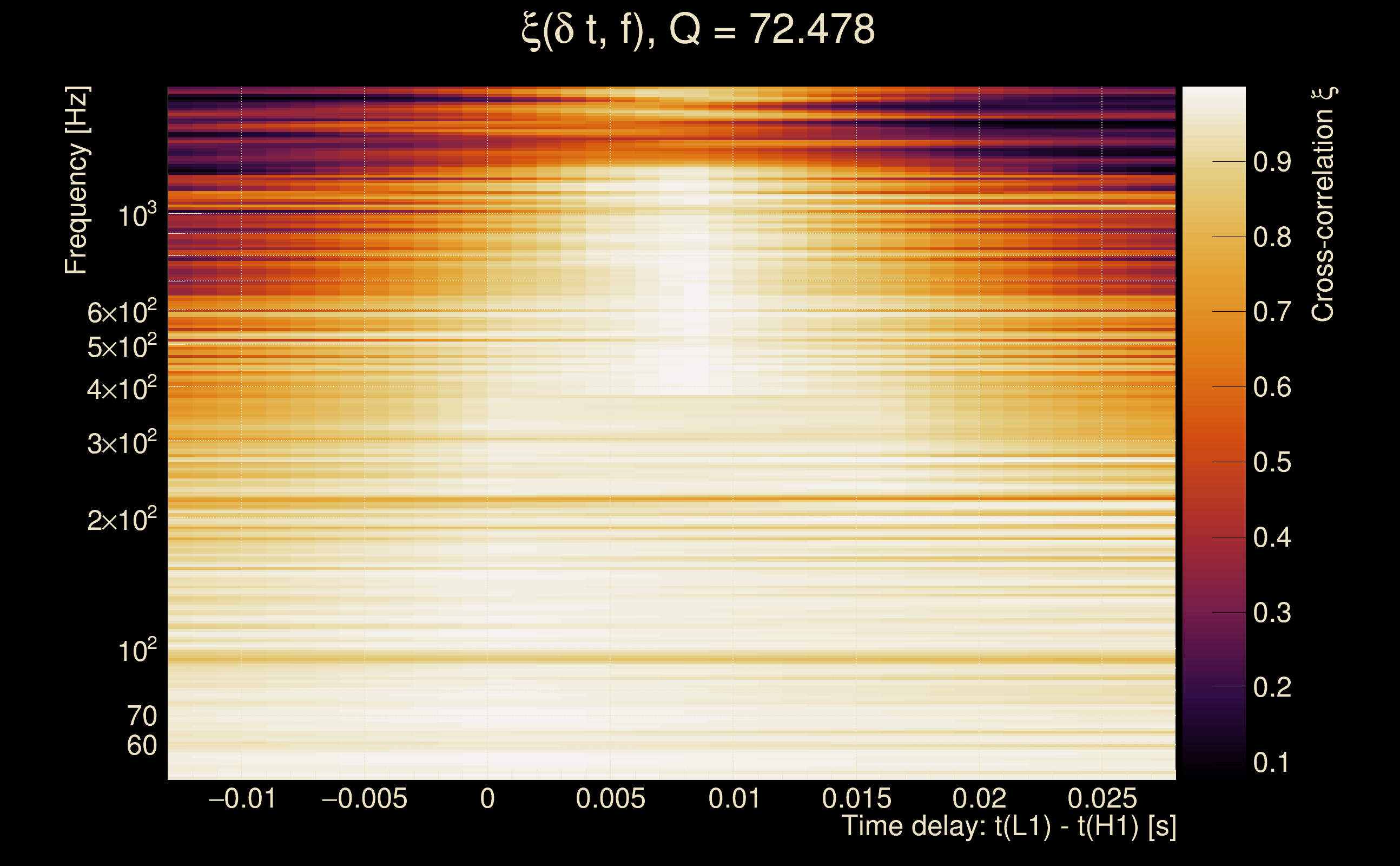

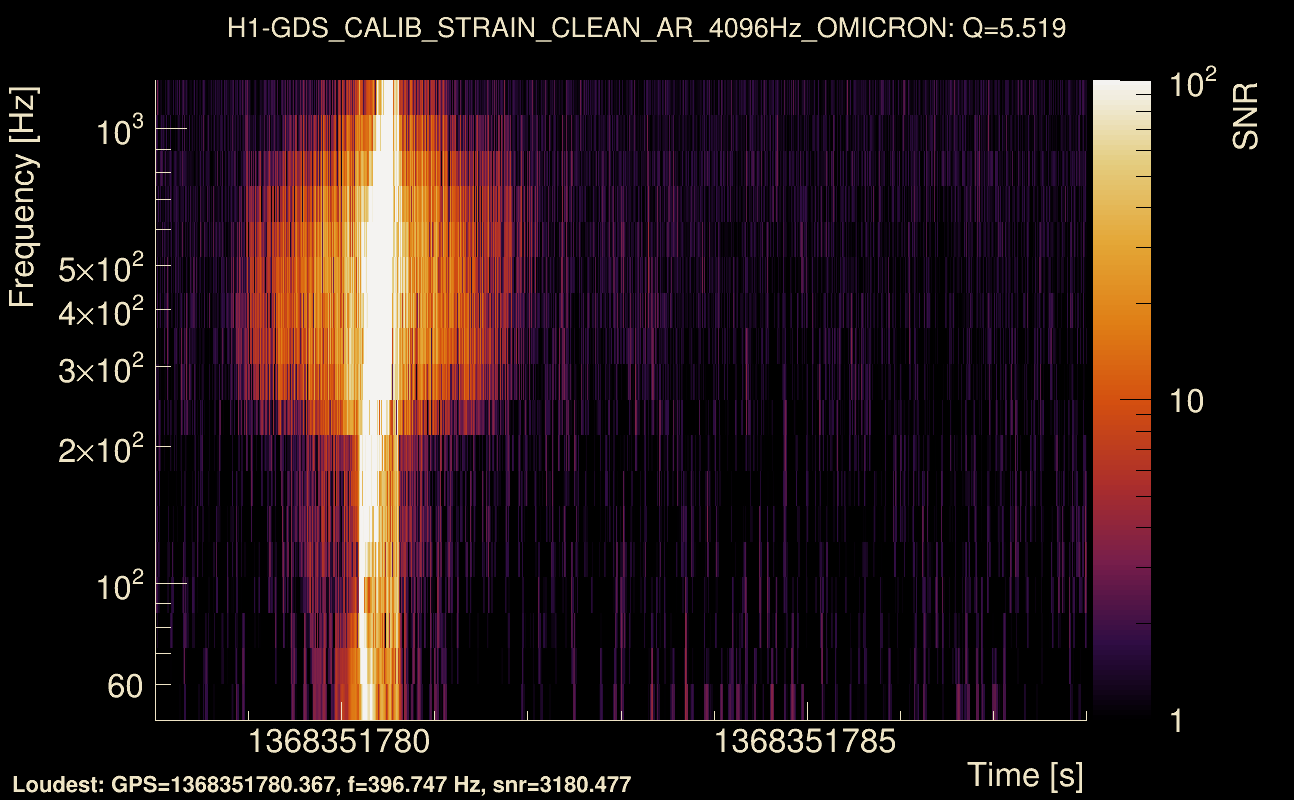

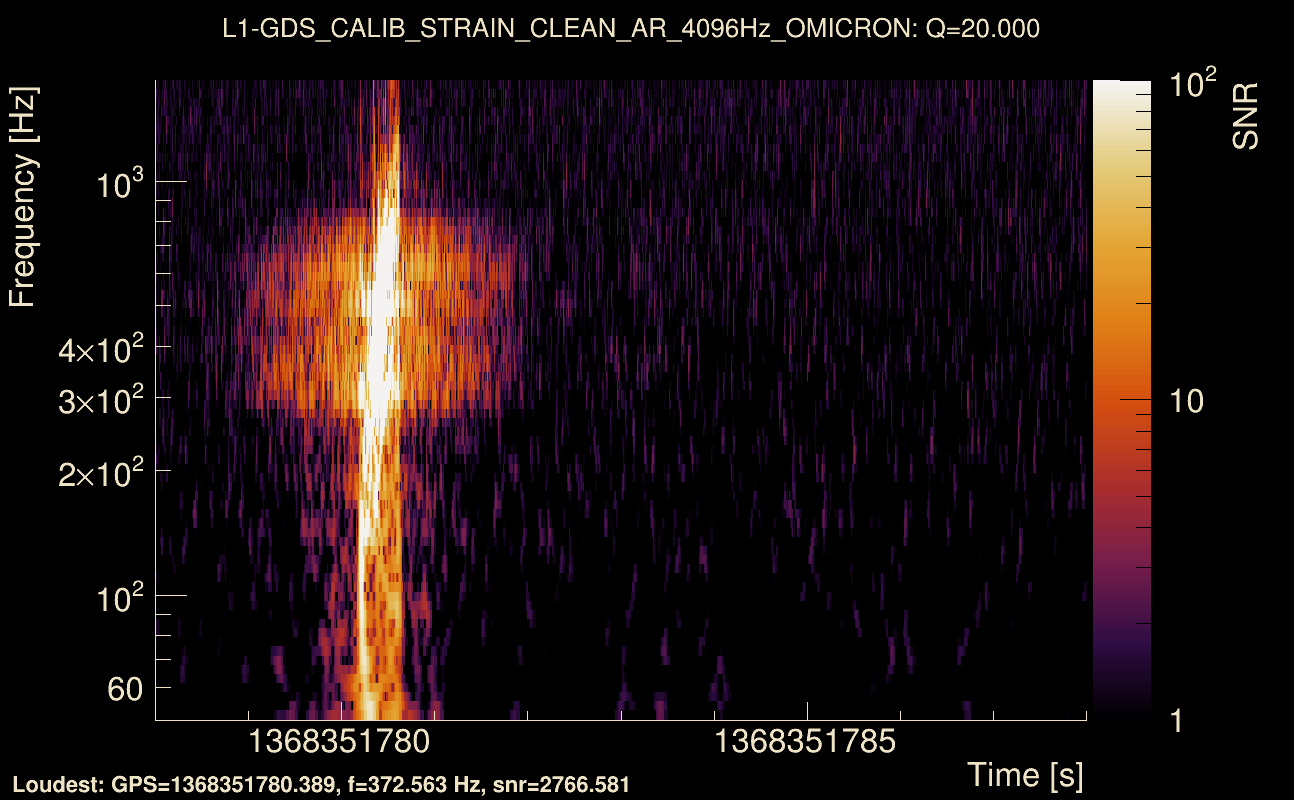

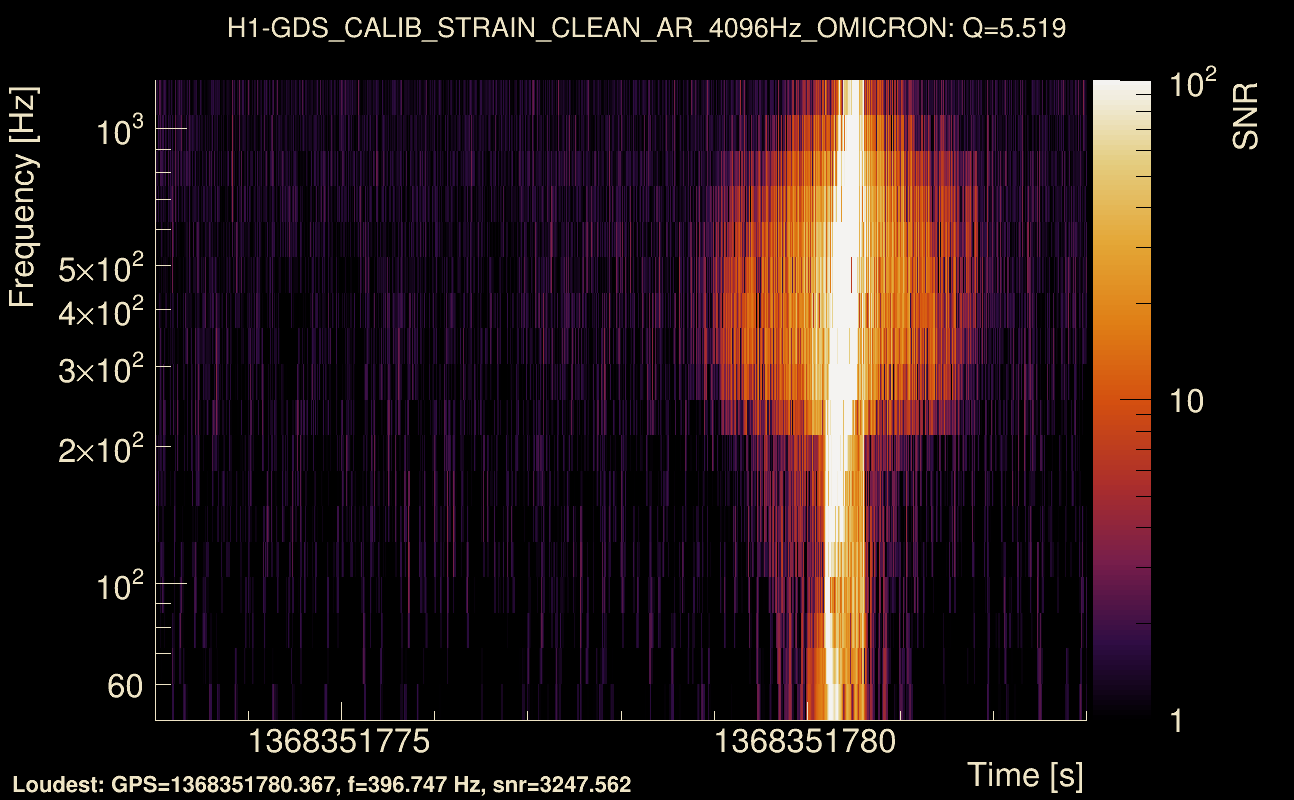

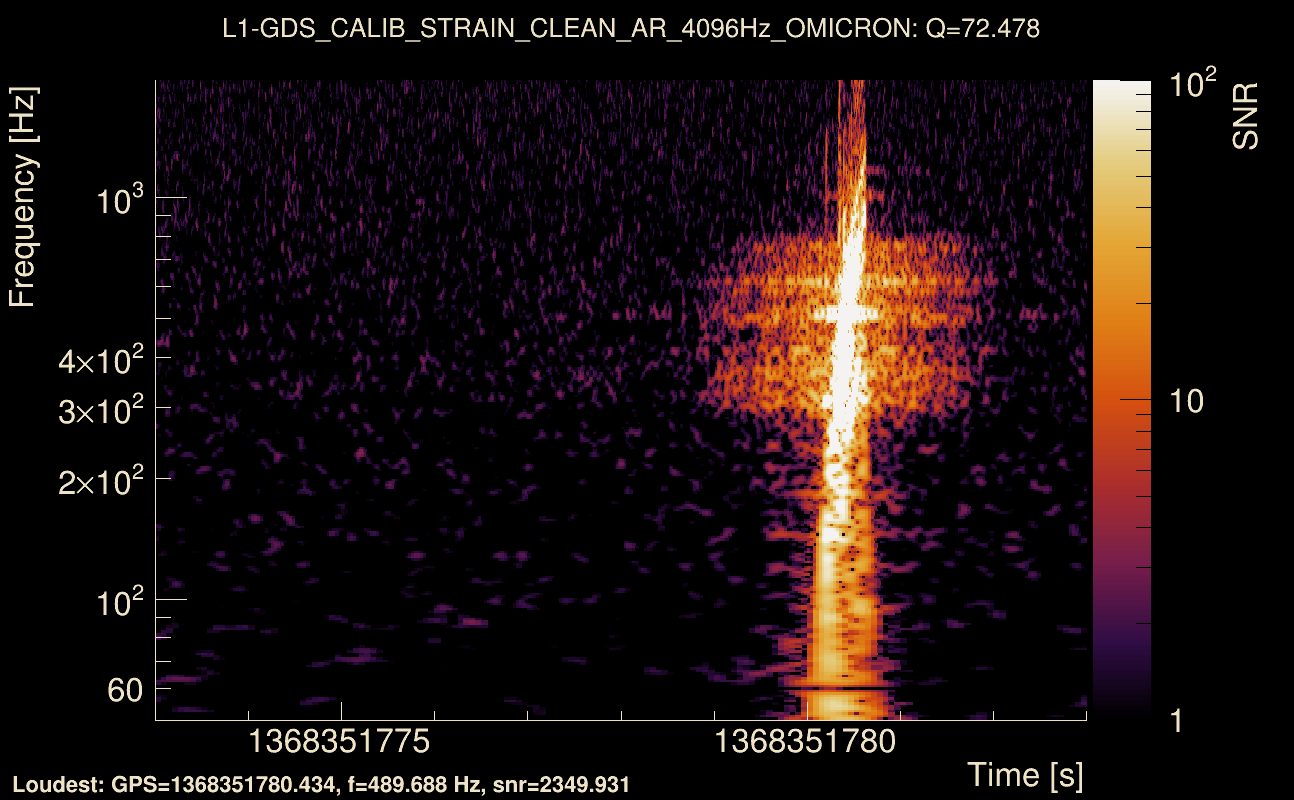

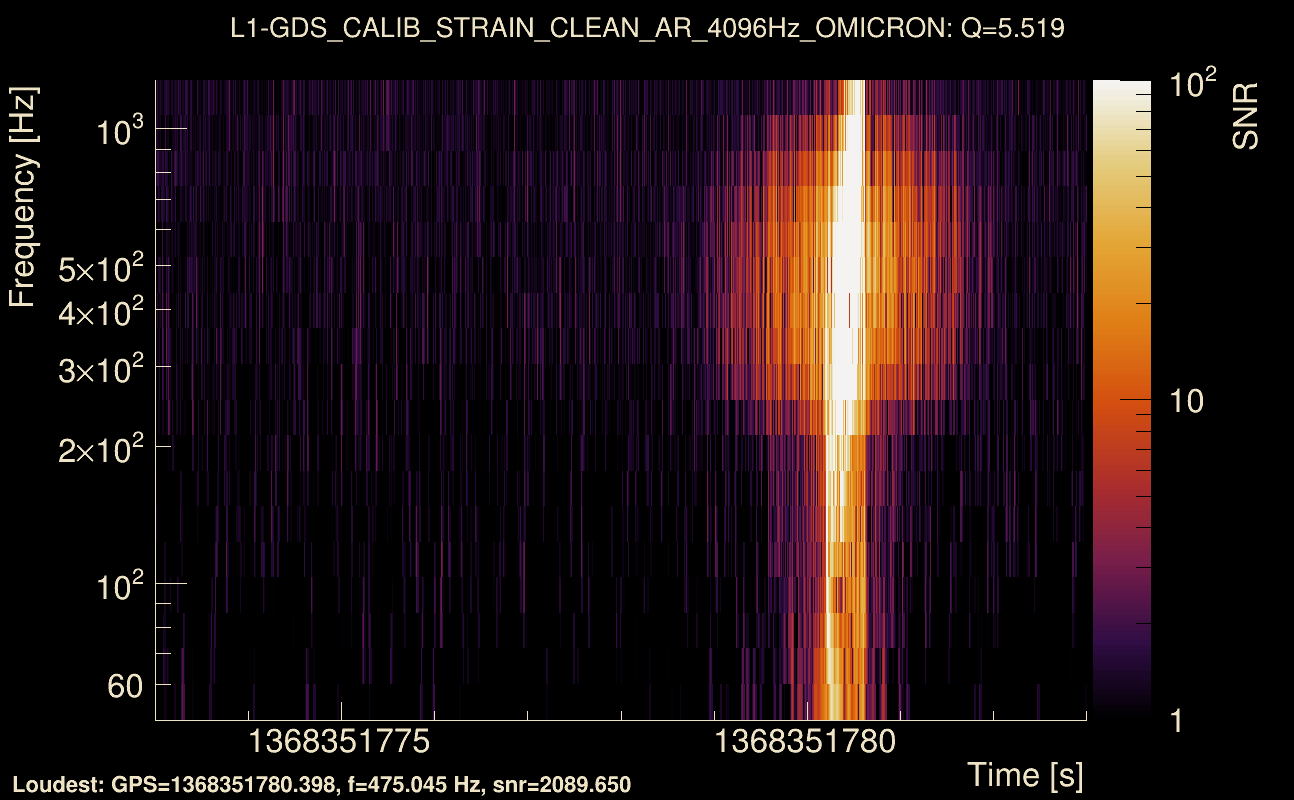

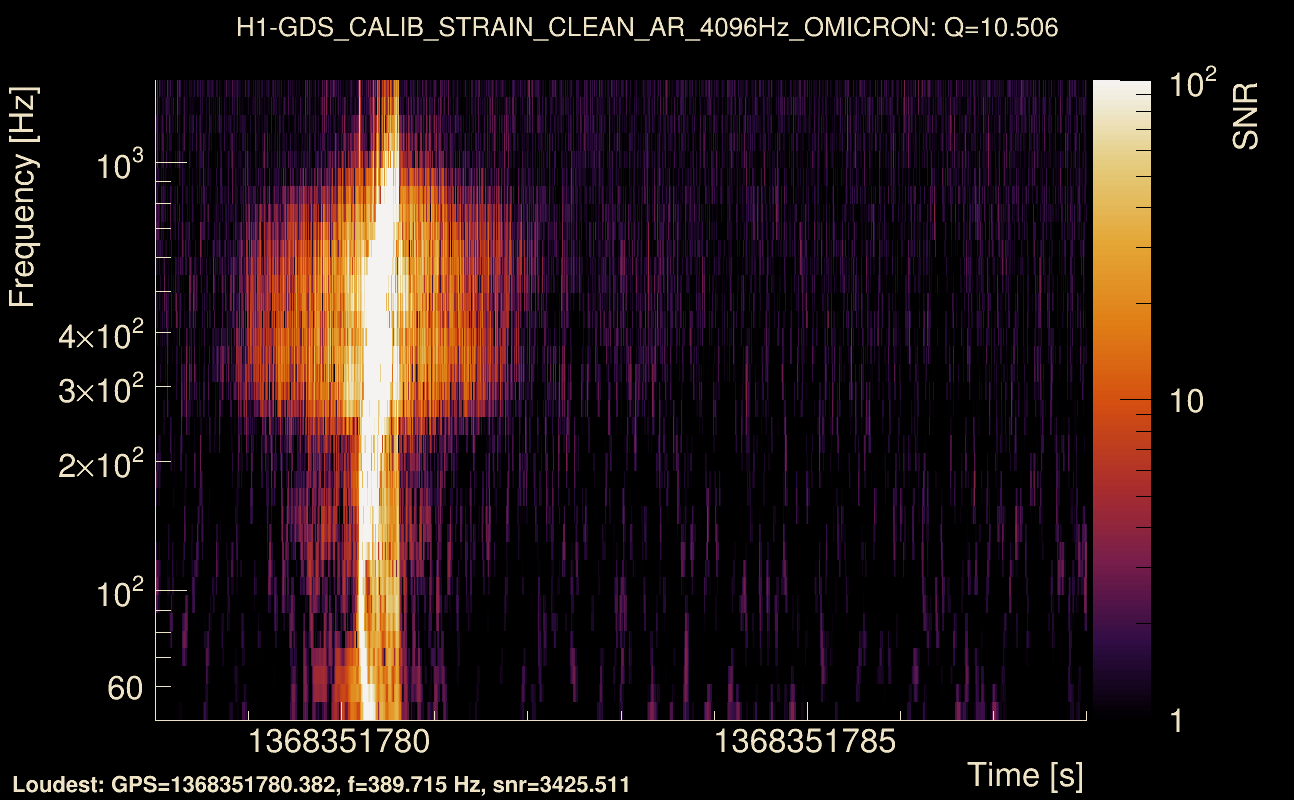

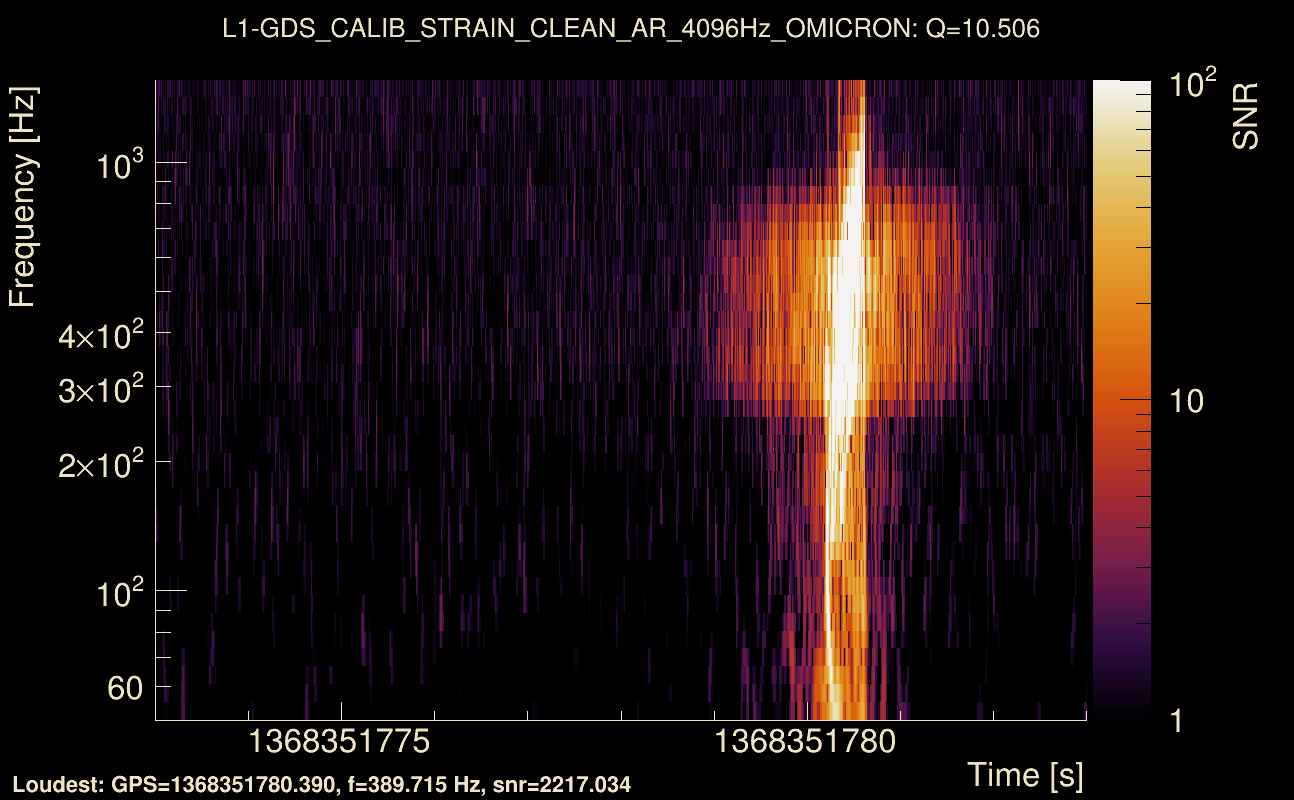

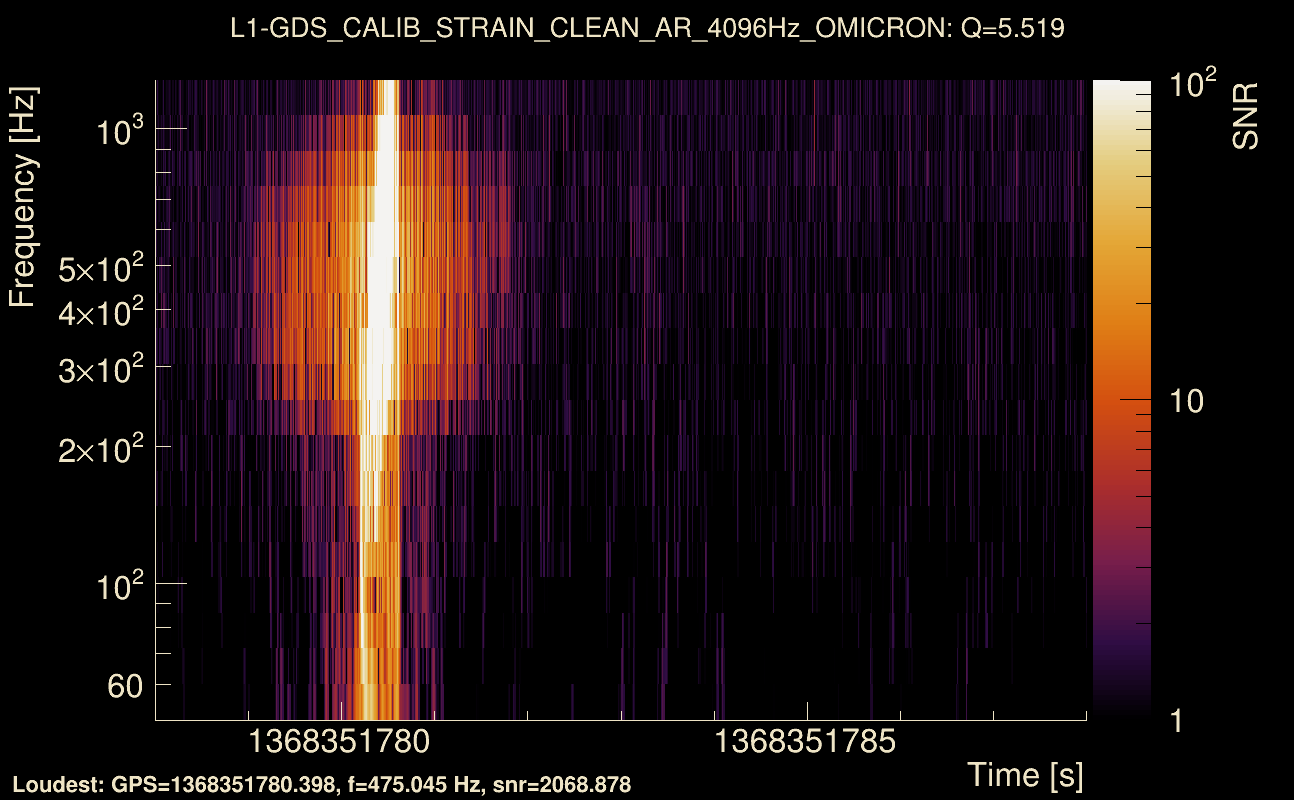

| Event time t(H1): | GPS = 1368351778 (Wed May 17 09:42:40 2023 ) → GPS = 1368351788 (Wed May 17 09:42:50 2023 ) |
| Event time t(L1): | GPS = 1368351778 (Wed May 17 09:42:50 2023 ) → GPS = 1368351788 (Wed May 17 09:42:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368351775 → GPS = 1368351791 |
| Omicron analysis time window (L1): | GPS = 1368351775 → GPS = 1368351791 |

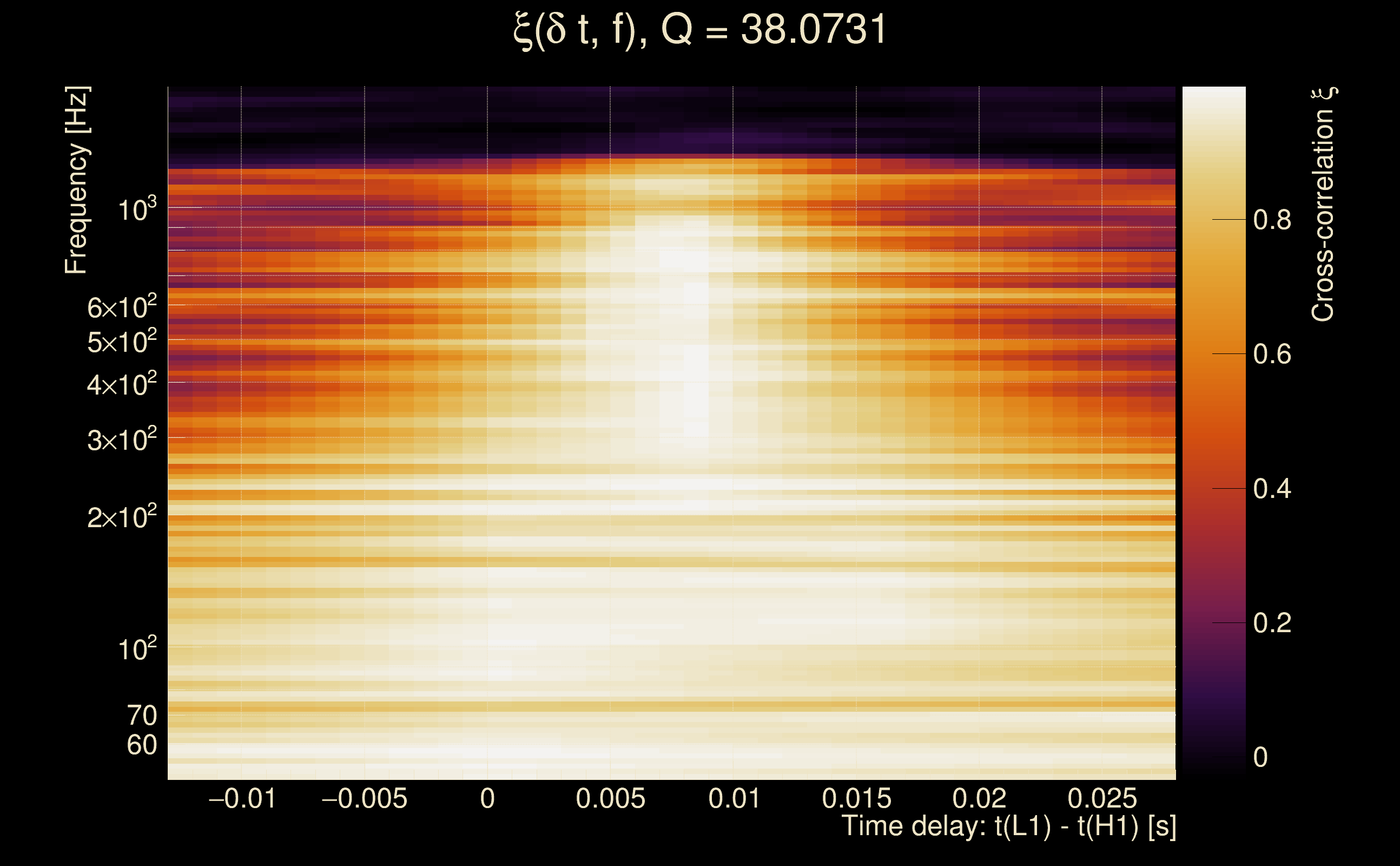

| Time delay between detectors t(L1) - t(H1): | 0.00704273 s (slice index = 108 / 217), δt_gw = 0.00704273 s |
| Time delay standard deviation: | 0.0266671 s |
| [targeted mode] Time delay probability: | 0.893671 (0.13366 sigmas), δt_target = 0.00713634 s |
| Frequency: | 294.634 Hz |
| Ξ: | 0.946158 ± 0.00853957 (variance = 7.29242e-05): Q0: 0.977053, Q1: 0.96791, Q2: 0.957544, Q3: 0.954553, Q4: 0.956495 |
| Rank: | R_A = 0.76855 |
| Log of amplitude ratio (L1/H1): | -0.436841, variance = 0.17932 (L1/H1: -0.448039, variance = 0.305231, H1/L1: 0.409544, variance = 0.305377) |
| Amplitude ratio (L1/H1): | 0.646074 ⋇ 1.52724 (L1/H1: 0.63888 ⋇ 1.73755, H1/L1: 1.50613 ⋇ 1.73778) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.960709 |
| Antenna factor probability: | 0.946104 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 3 / 70, Q3: 16 / 134, Q4: 28 / 258 |
| Maximum signal-to-noise ratio: | H1: 4470.32, L1: 2863.2 |
| SNR variance: | H1: 7957.09, L1: 3742.77 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368430194 (Thu May 18 07:29:36 2023 ) → GPS = 1368430204 (Thu May 18 07:29:46 2023 ) |
| Event time t(L1): | GPS = 1368430194 (Thu May 18 07:29:46 2023 ) → GPS = 1368430204 (Thu May 18 07:29:46 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368430191 → GPS = 1368430207 |
| Omicron analysis time window (L1): | GPS = 1368430191 → GPS = 1368430207 |
| Time delay between detectors t(L1) - t(H1): | -2.38835 s (slice index = 160 / 217), δt_gw = 0.00364884 s |
| Time delay standard deviation: | 0.0826104 s |
| [targeted mode] Time delay probability: | 0.899344 (0.12649 sigmas), δt_target = 0.00713778 s |
| Frequency: | 111.511 Hz |
| Ξ: | 0.0102739 ± 0.0342086 (variance = 0.00117023): Q0: 0.100353, Q1: 0.139591, Q2: 0.129766, Q3: 0.0431678, Q4: 0.087049 |
| Rank: | R_A = 0.00634295 |
| Log of amplitude ratio (L1/H1): | -0.29425, variance = 0.534538 (L1/H1: -0.518852, variance = 1.14216, H1/L1: 0.0364342, variance = 0.961086) |
| Amplitude ratio (L1/H1): | 0.74509 ⋇ 2.07741 (L1/H1: 0.595203 ⋇ 2.91165, H1/L1: 1.03711 ⋇ 2.66539) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.739404 |
| Antenna factor probability: | 0.928428 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 32 / 36, Q2: 68 / 70, Q3: 130 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.17123, L1: 4.82664 |
| SNR variance: | H1: 0.527784, L1: 0.587608 |

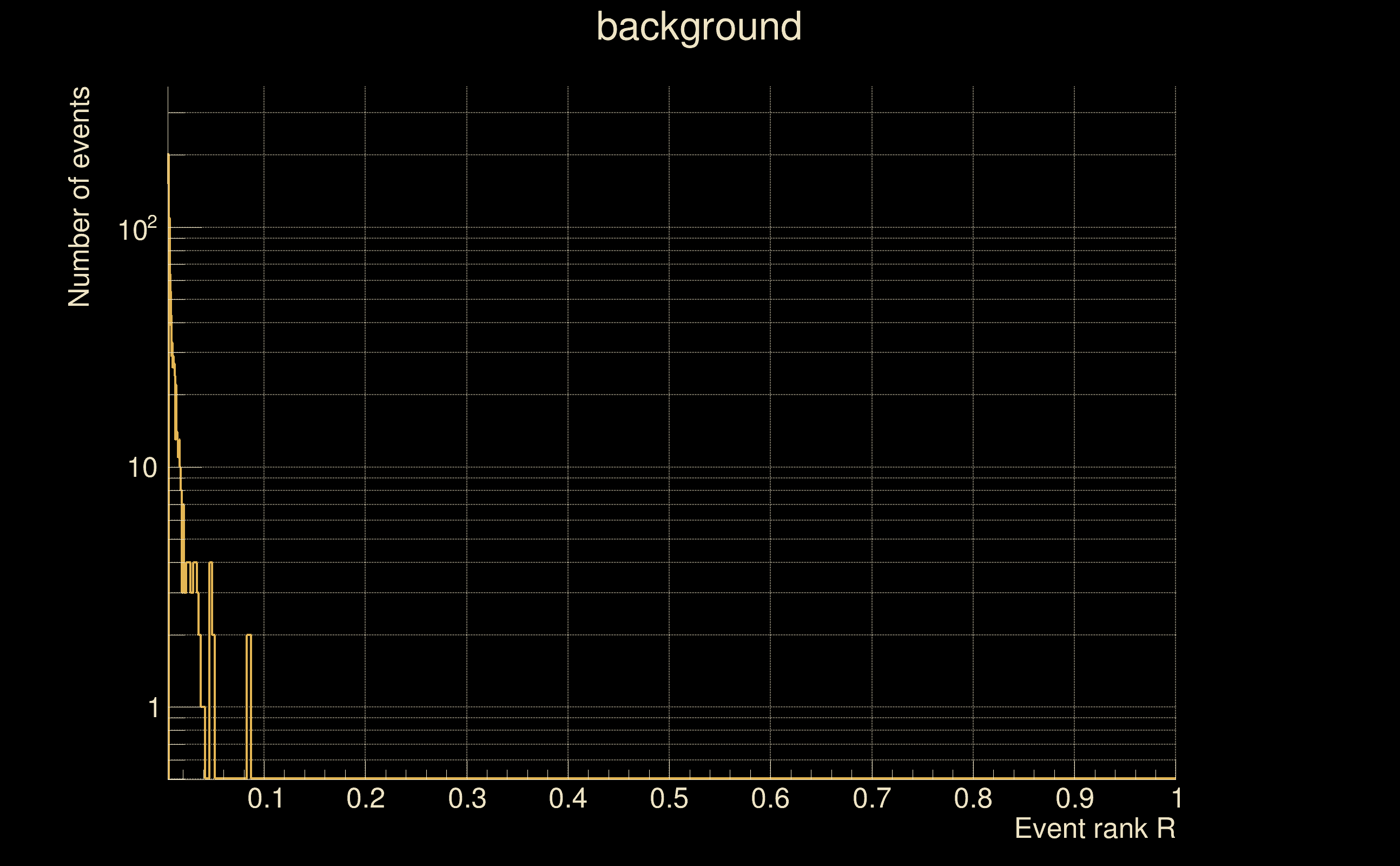

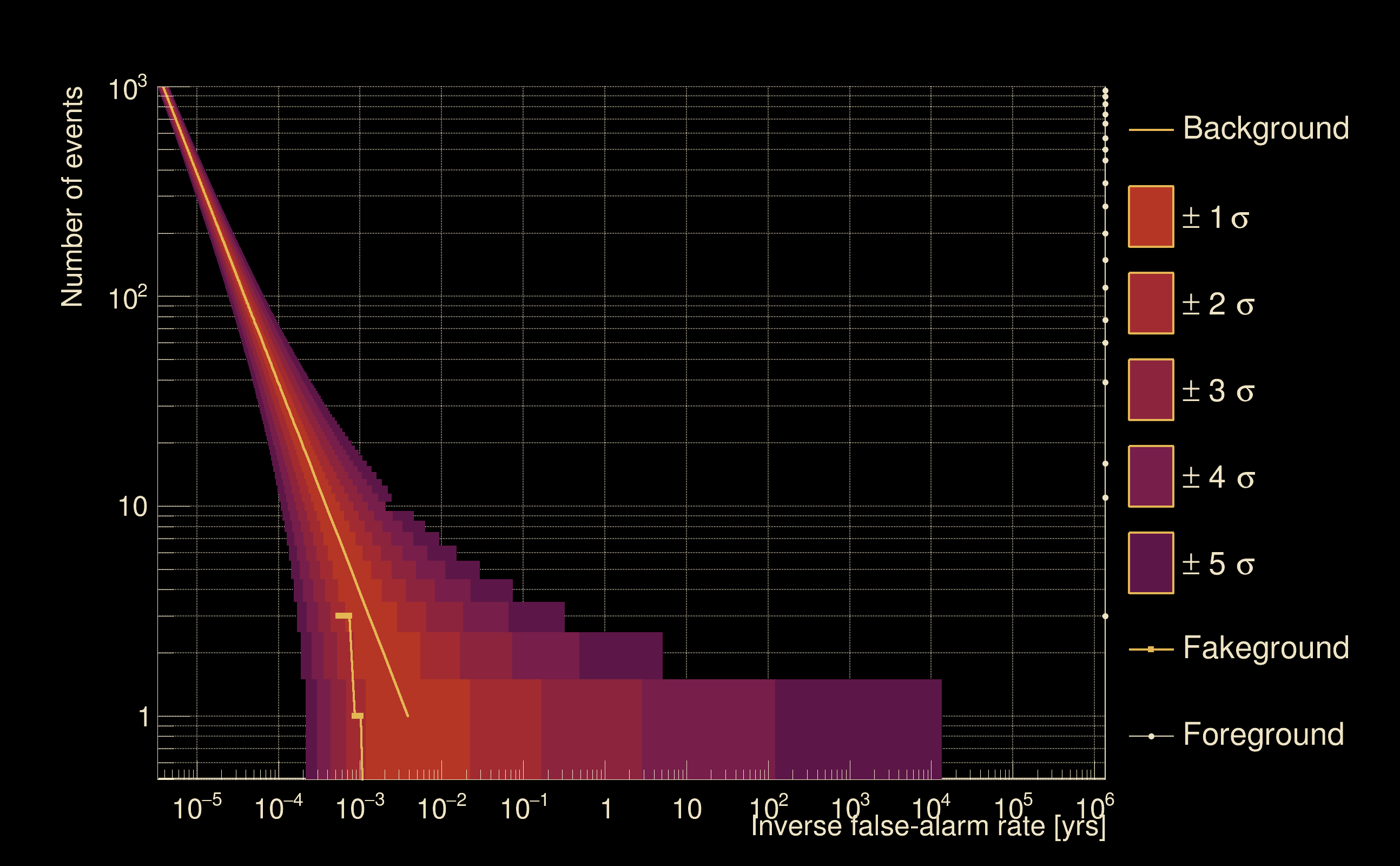

| Detection threshold: | R > 0.0316611 |
| False-alarm rate above that detection threshold: | 7.48235e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.0851478 |
| Alternative threshold at 1/100 yrs: | R > 0.0851478 |
| Alternative threshold at 1/10 yrs: | R > 0.0851478 |
| Alternative threshold at 1/1 yr: | R > 0.0851478 |
| Alternative threshold at 1/1 d: | R > 0.00921058 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

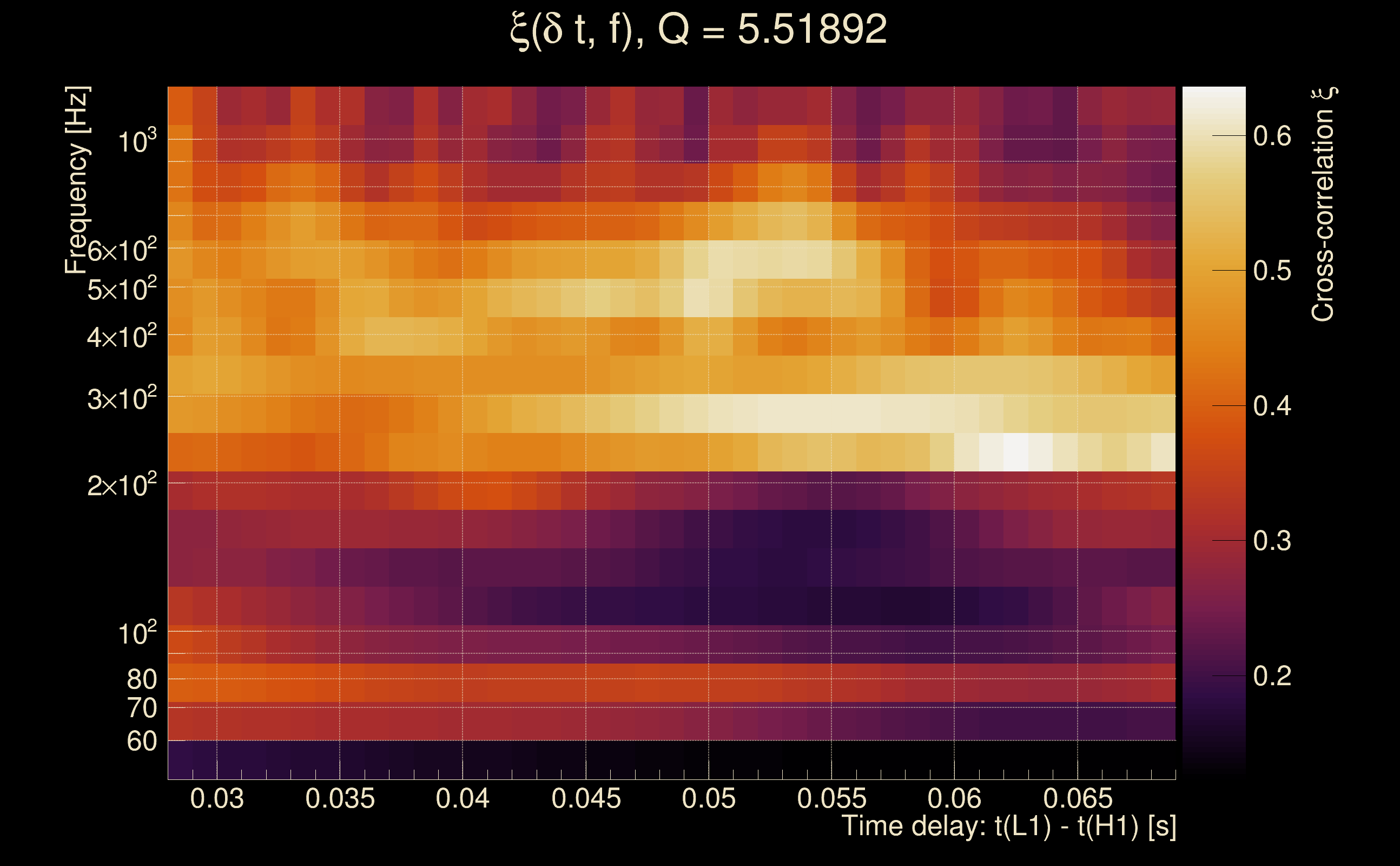

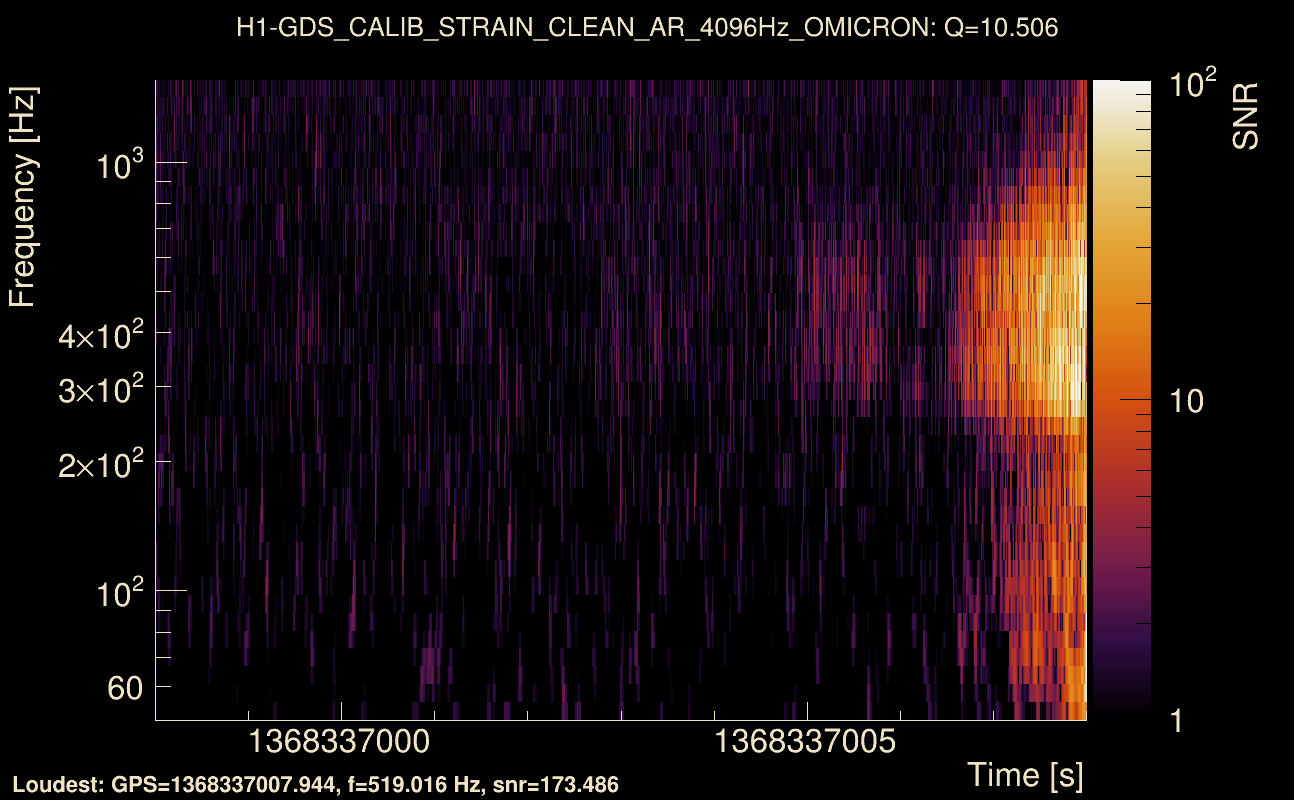

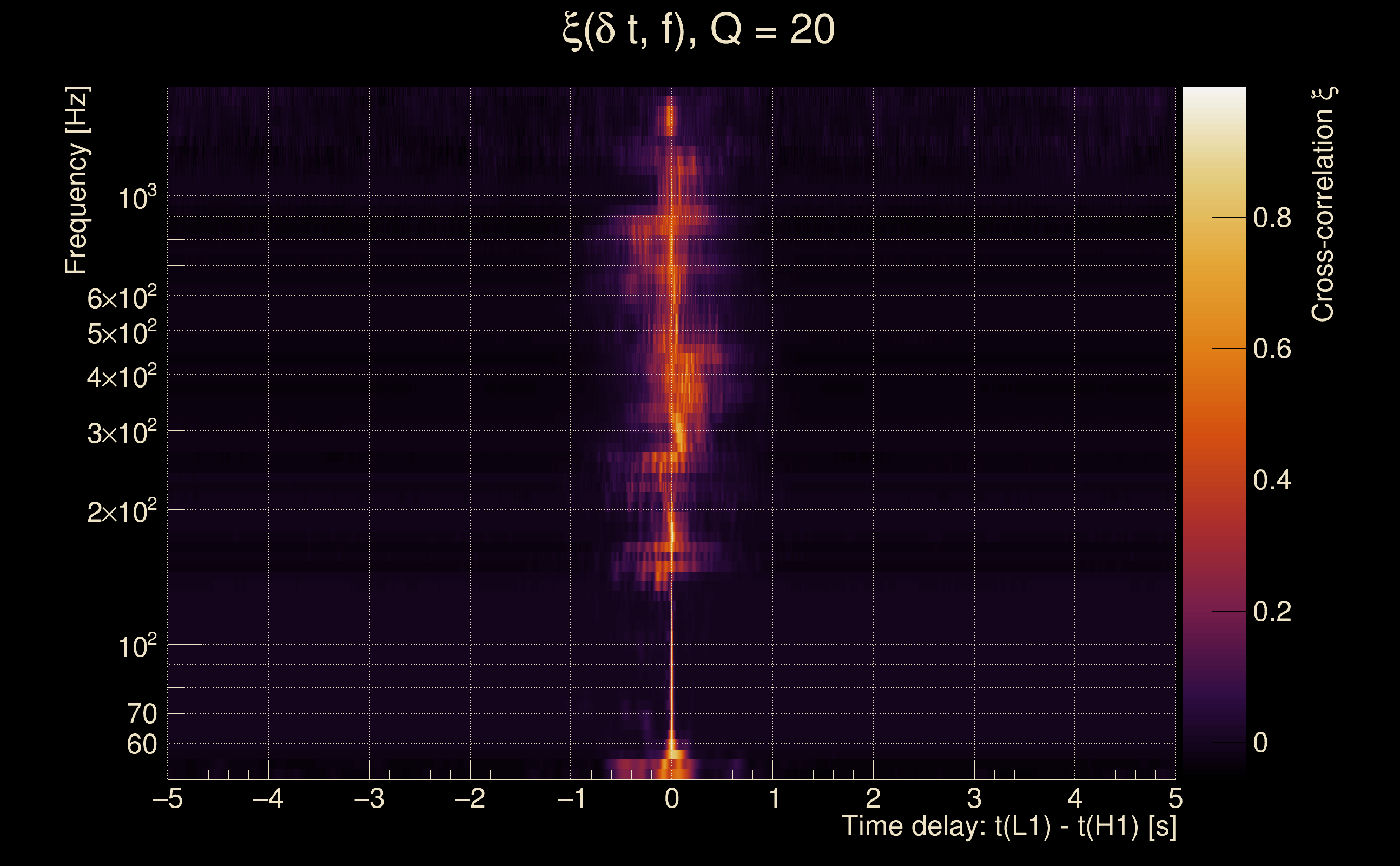

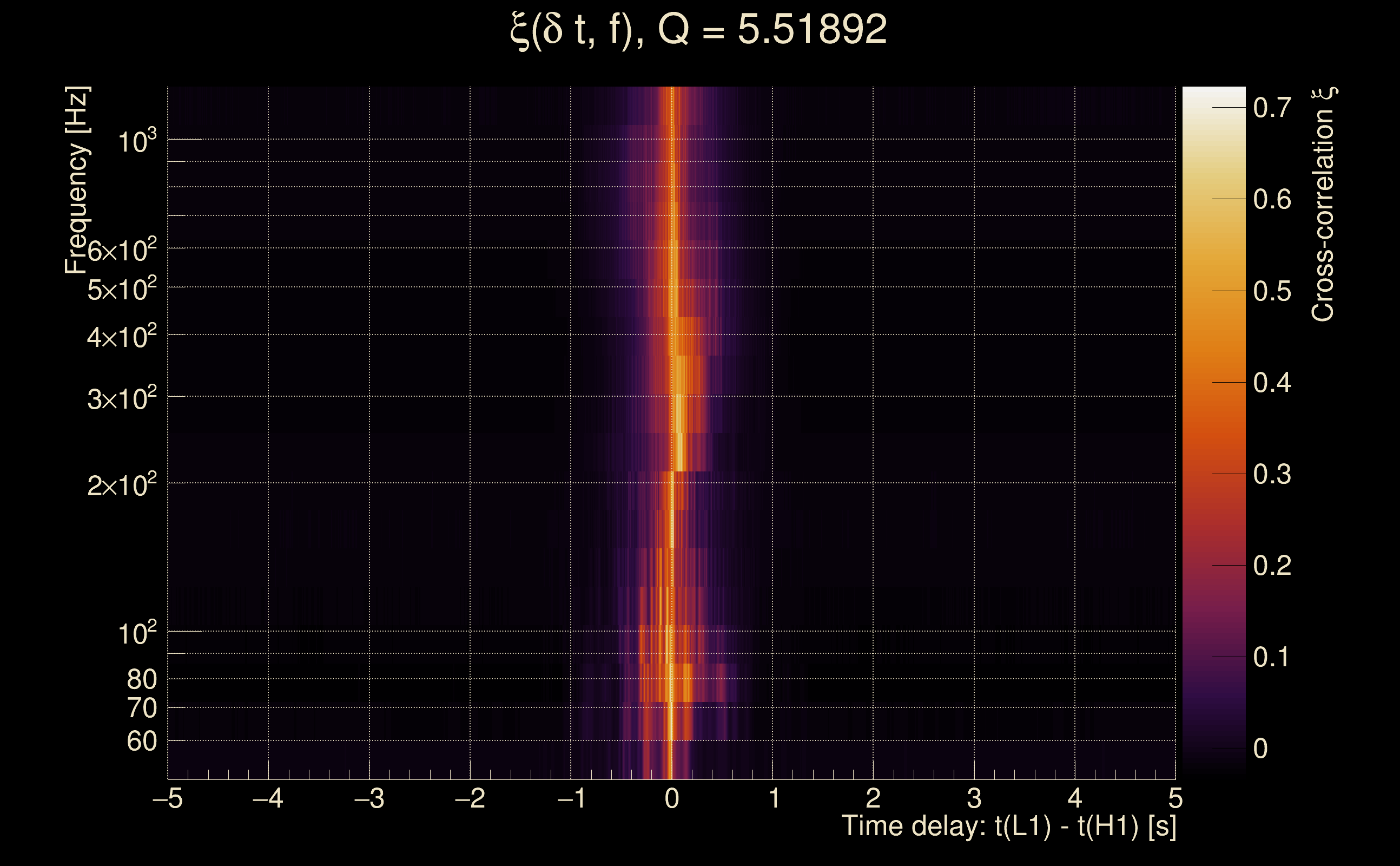

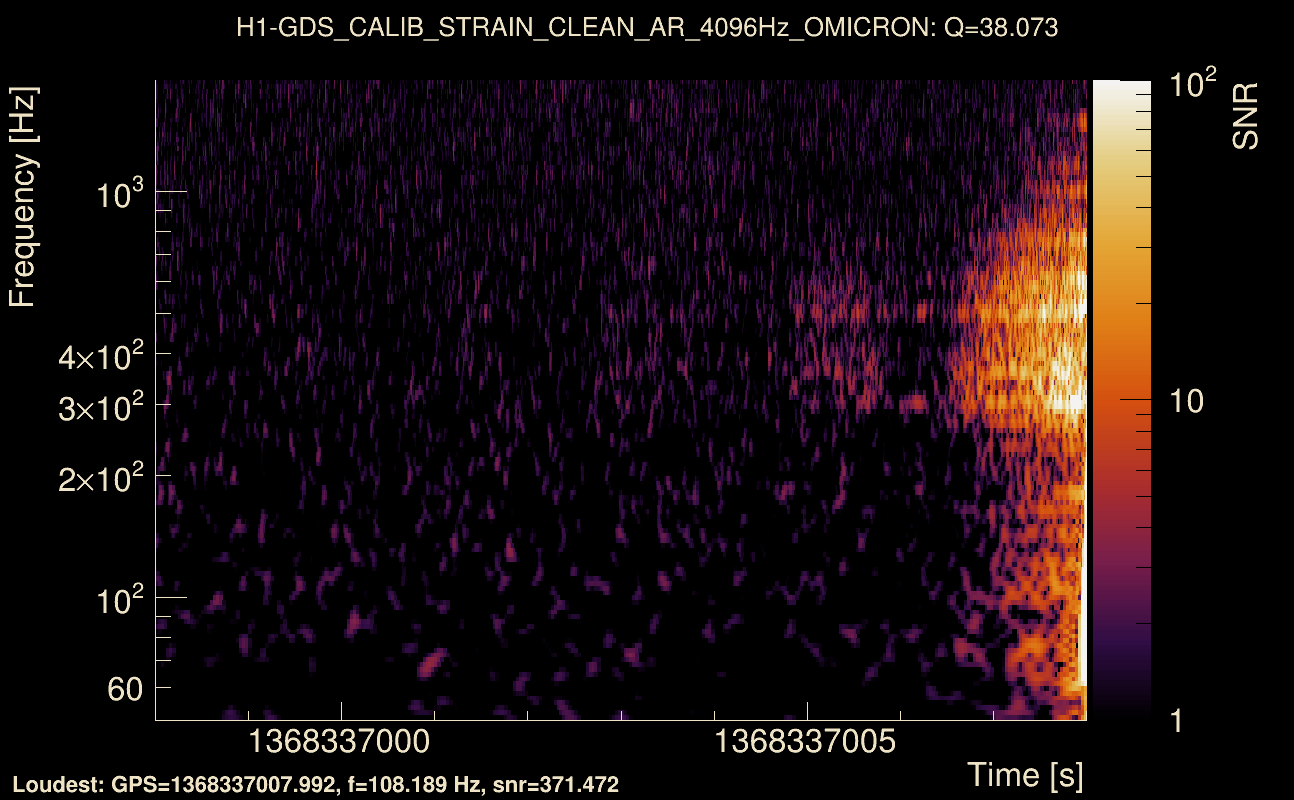

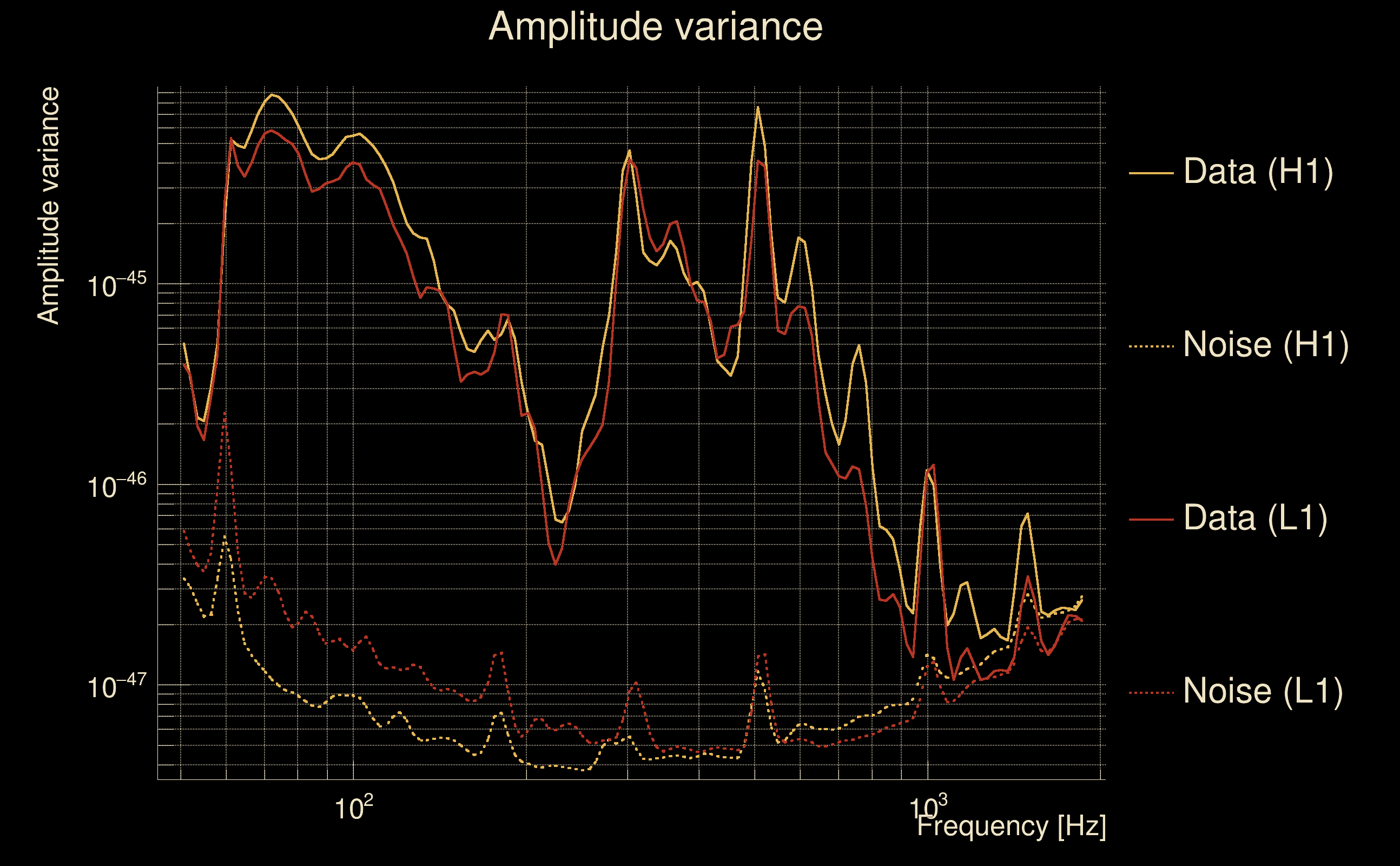

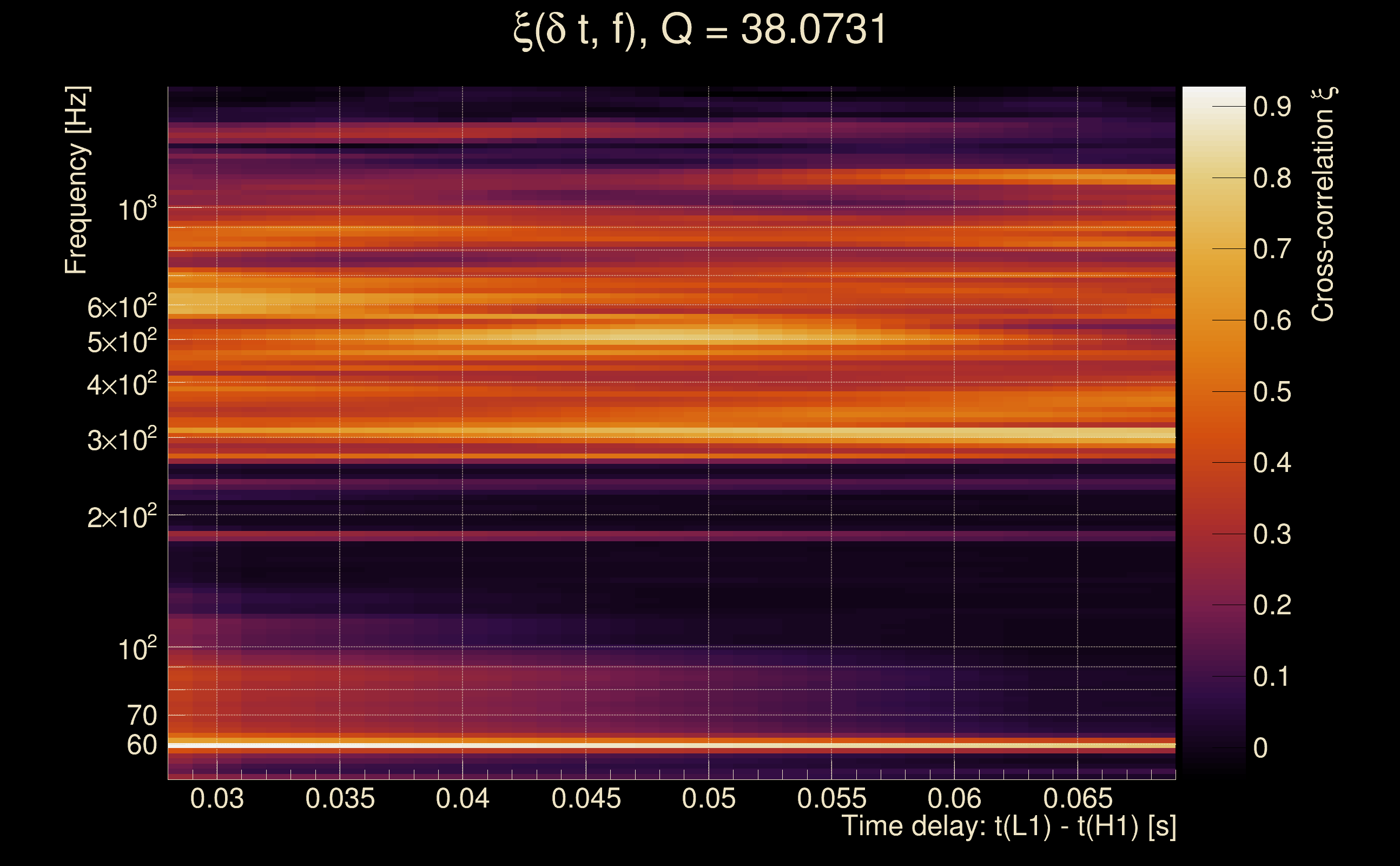

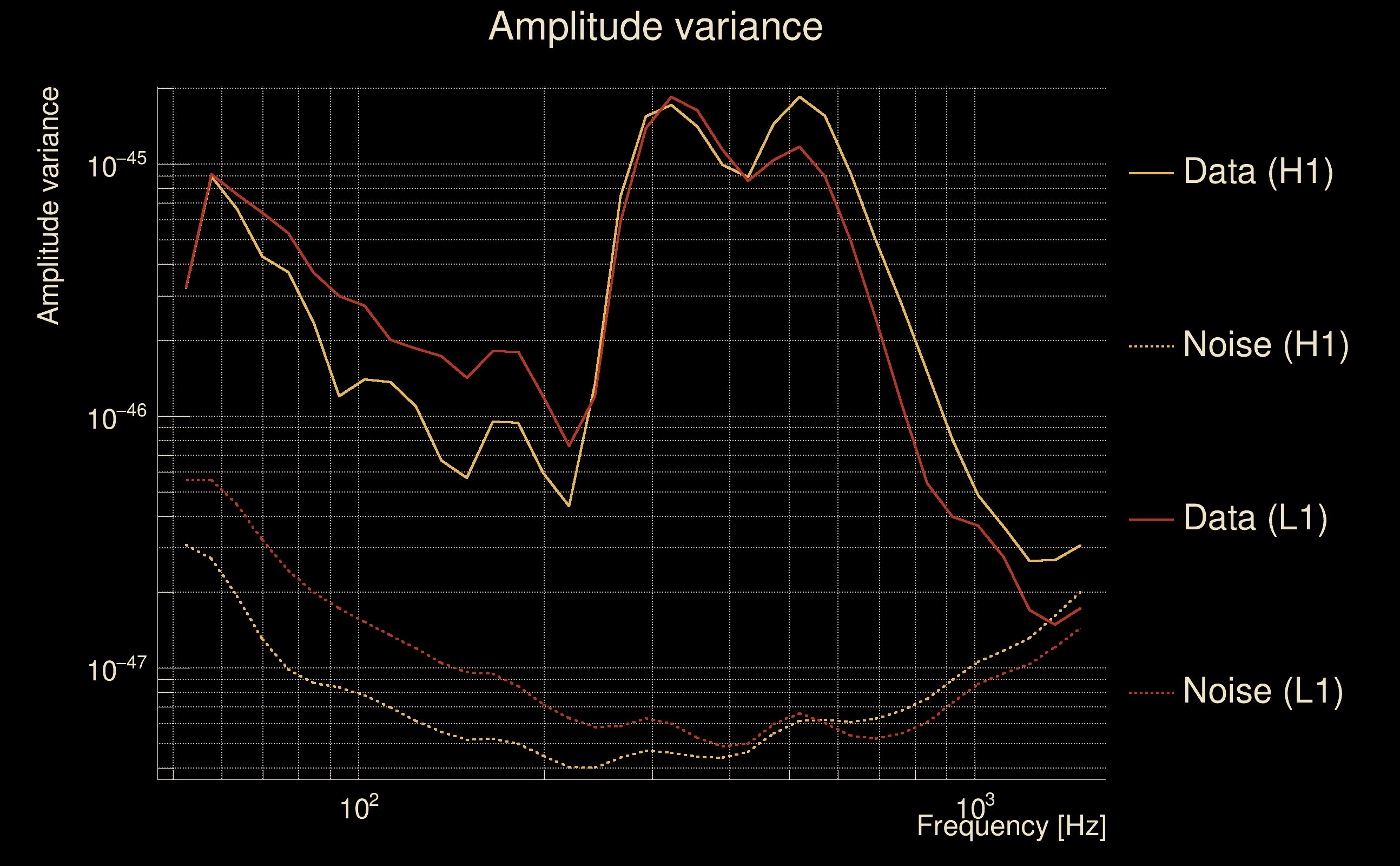

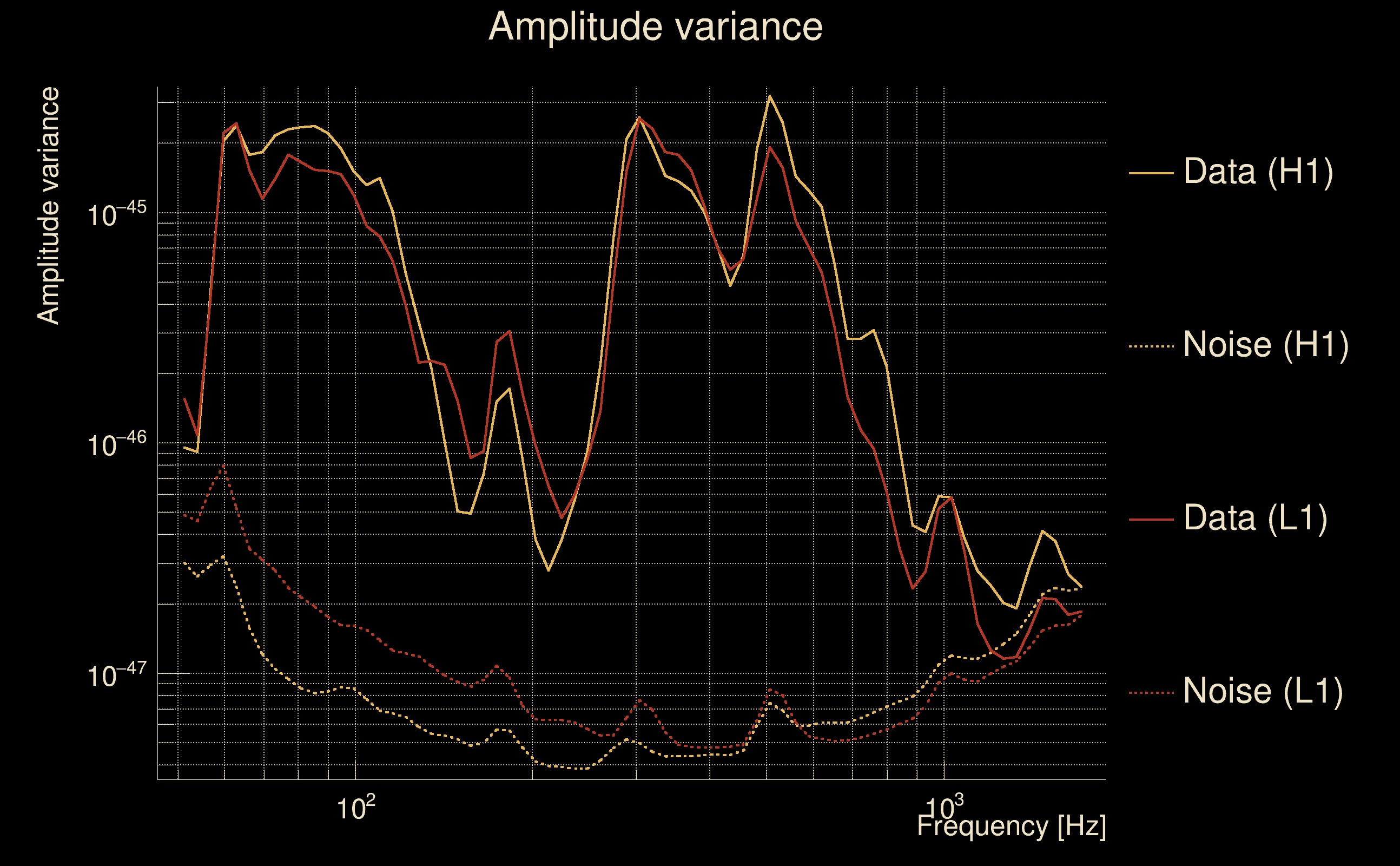

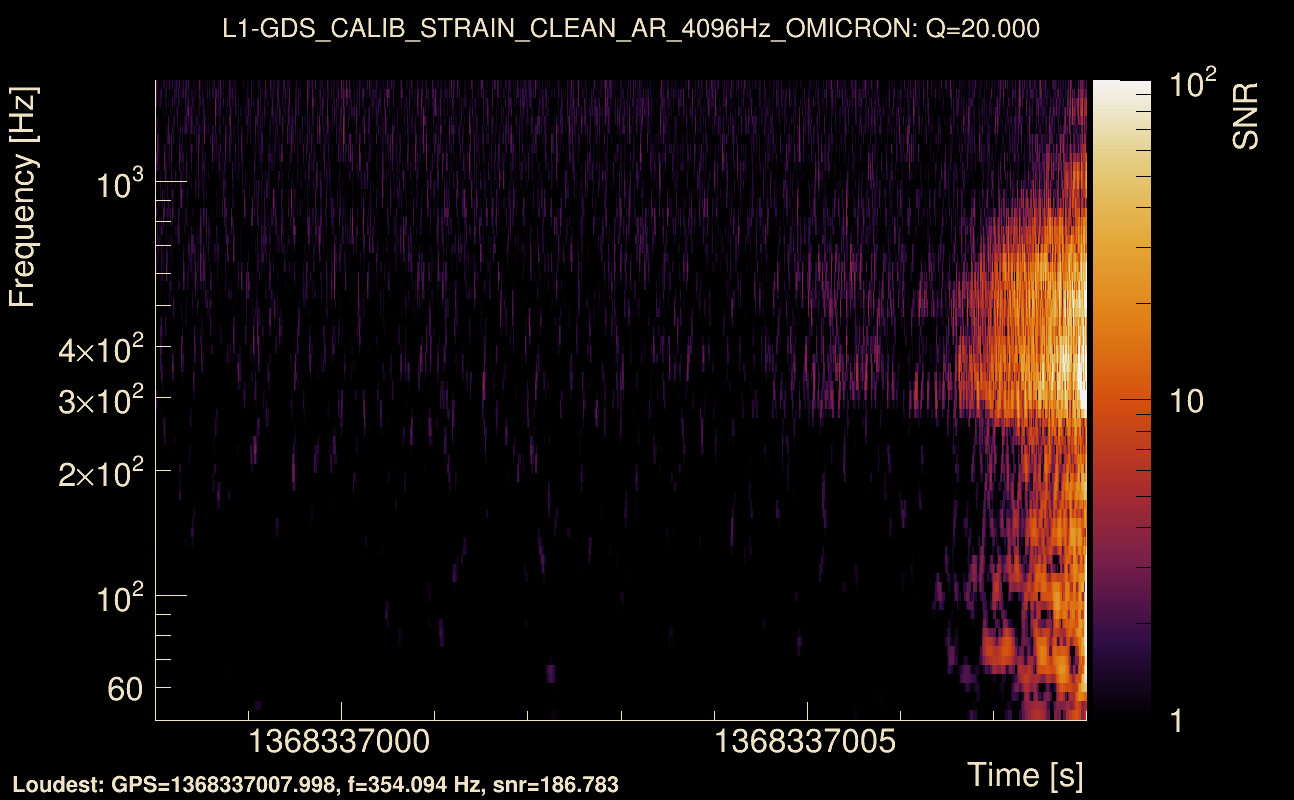

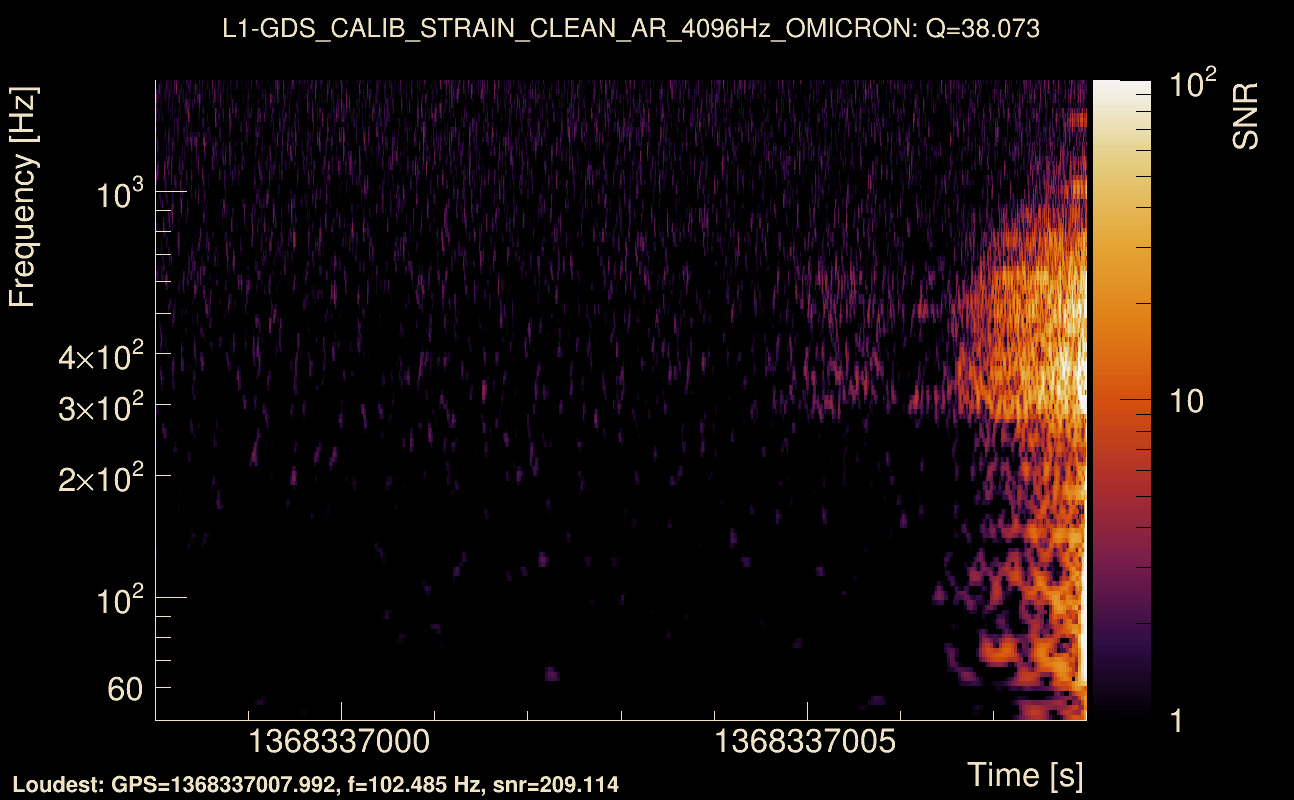

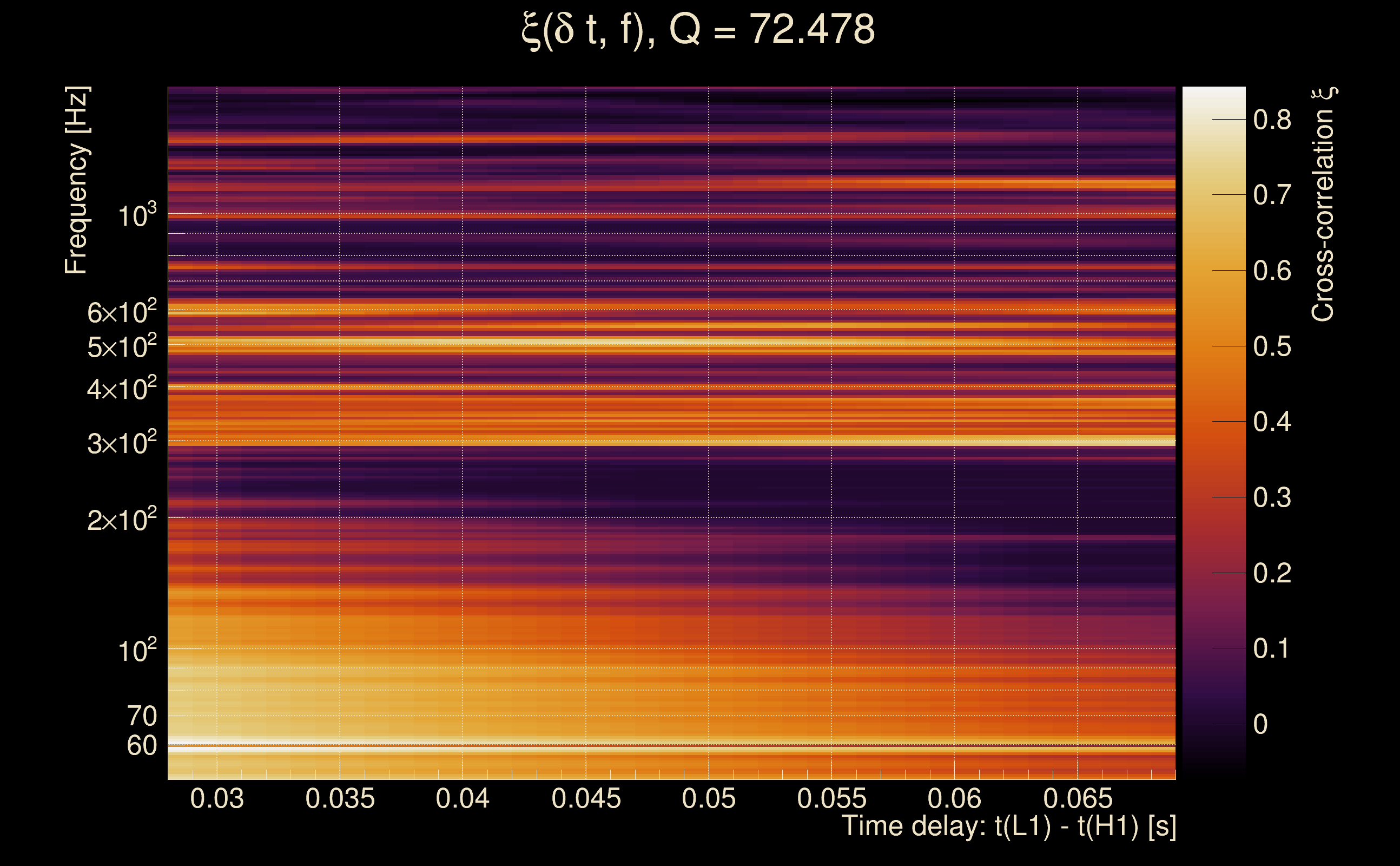

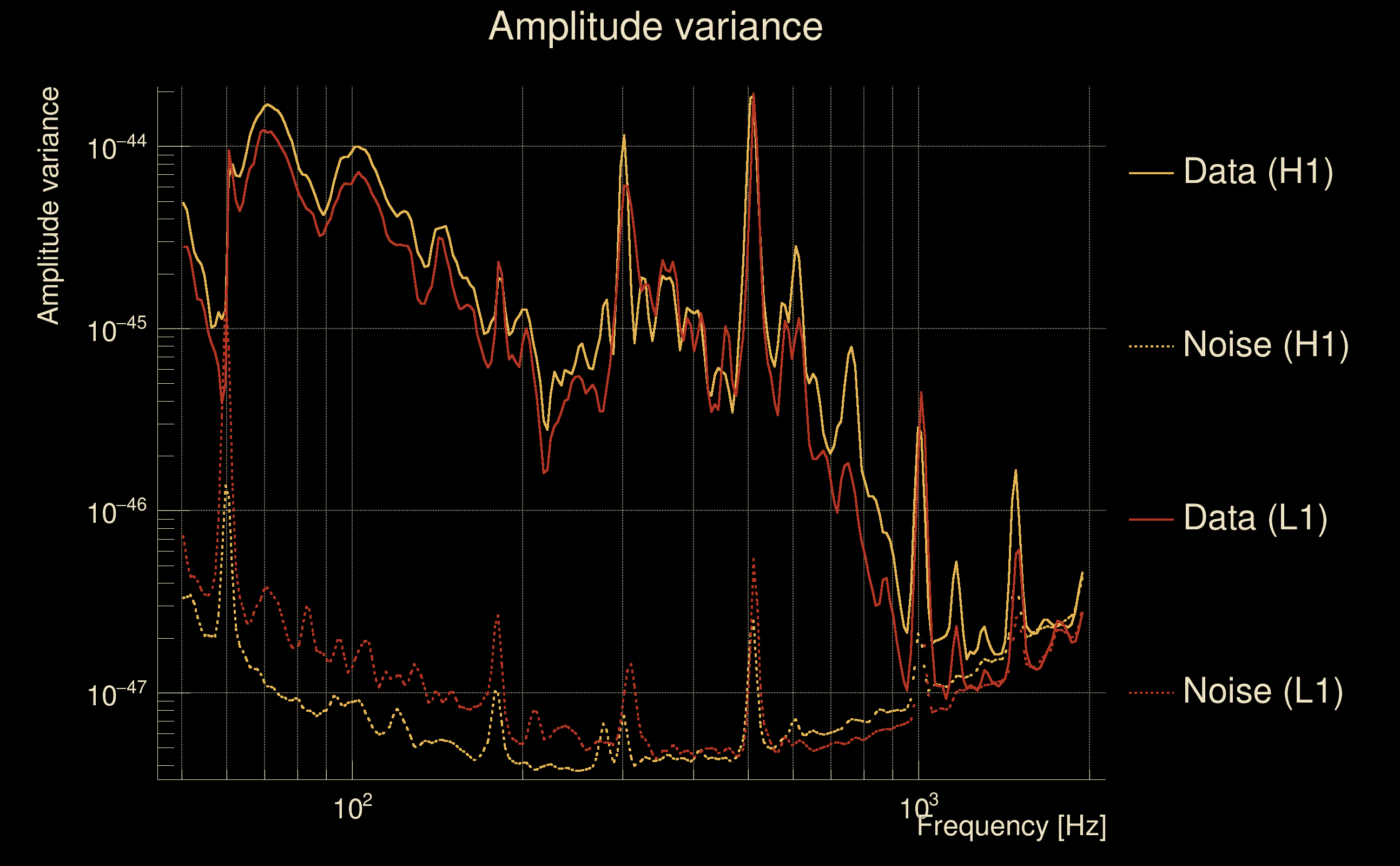

| Event time t(H1): | GPS = 1368336998 (Wed May 17 05:36:20 2023 ) → GPS = 1368337008 (Wed May 17 05:36:30 2023 ) |
| Event time t(L1): | GPS = 1368336998 (Wed May 17 05:36:30 2023 ) → GPS = 1368337008 (Wed May 17 05:36:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368336995 → GPS = 1368337011 |
| Omicron analysis time window (L1): | GPS = 1368336995 → GPS = 1368337011 |

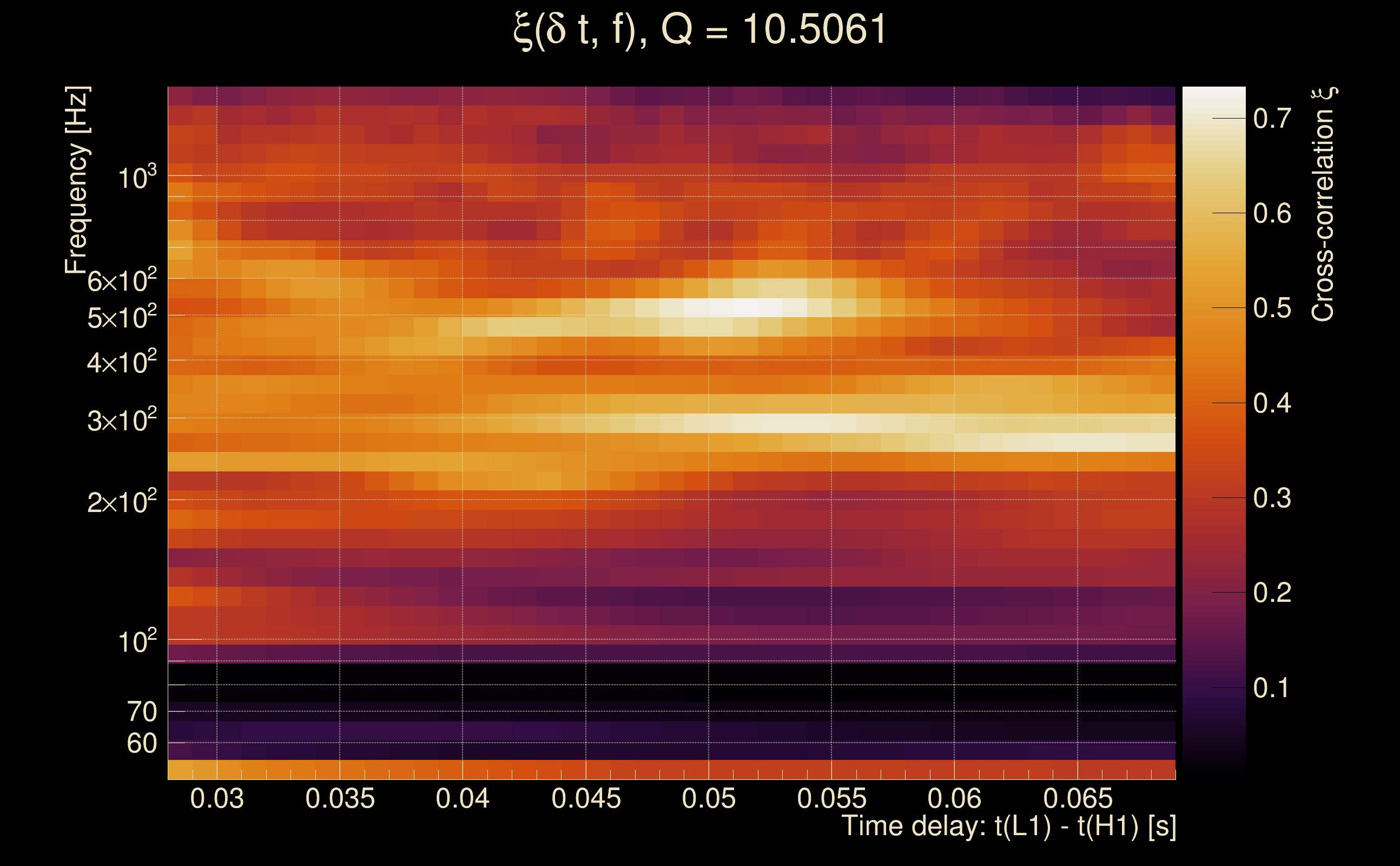

| Time delay between detectors t(L1) - t(H1): | 0.0488774 s (slice index = 107 / 217), δt_gw = 0.00287742 s |
| Time delay standard deviation: | 0.08055 s |
| [targeted mode] Time delay probability: | 0.879469 (0.151642 sigmas), δt_target = 0.00713778 s |
| Frequency: | 388.884 Hz |
| Ξ: | 0.320581 ± 0.0330066 (variance = 0.00108943): Q0: 0.570097, Q1: 0.551904, Q2: 0.59997, Q3: 0.564718, Q4: 0.499174 |
| Rank: | R_A = 0.0853043 |
| Log of amplitude ratio (L1/H1): | -0.287345, variance = 0.20299 (L1/H1: -0.556385, variance = 0.397763, H1/L1: -0.0996658, variance = 0.383952) |
| Amplitude ratio (L1/H1): | 0.750253 ⋇ 1.56917 (L1/H1: 0.573278 ⋇ 1.8789, H1/L1: 0.90514 ⋇ 1.85826) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.458078 |
| Antenna factor probability: | 0.660501 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 19 / 36, Q2: 43 / 70, Q3: 96 / 134, Q4: 216 / 258 |
| Maximum signal-to-noise ratio: | H1: 431.65, L1: 359.897 |

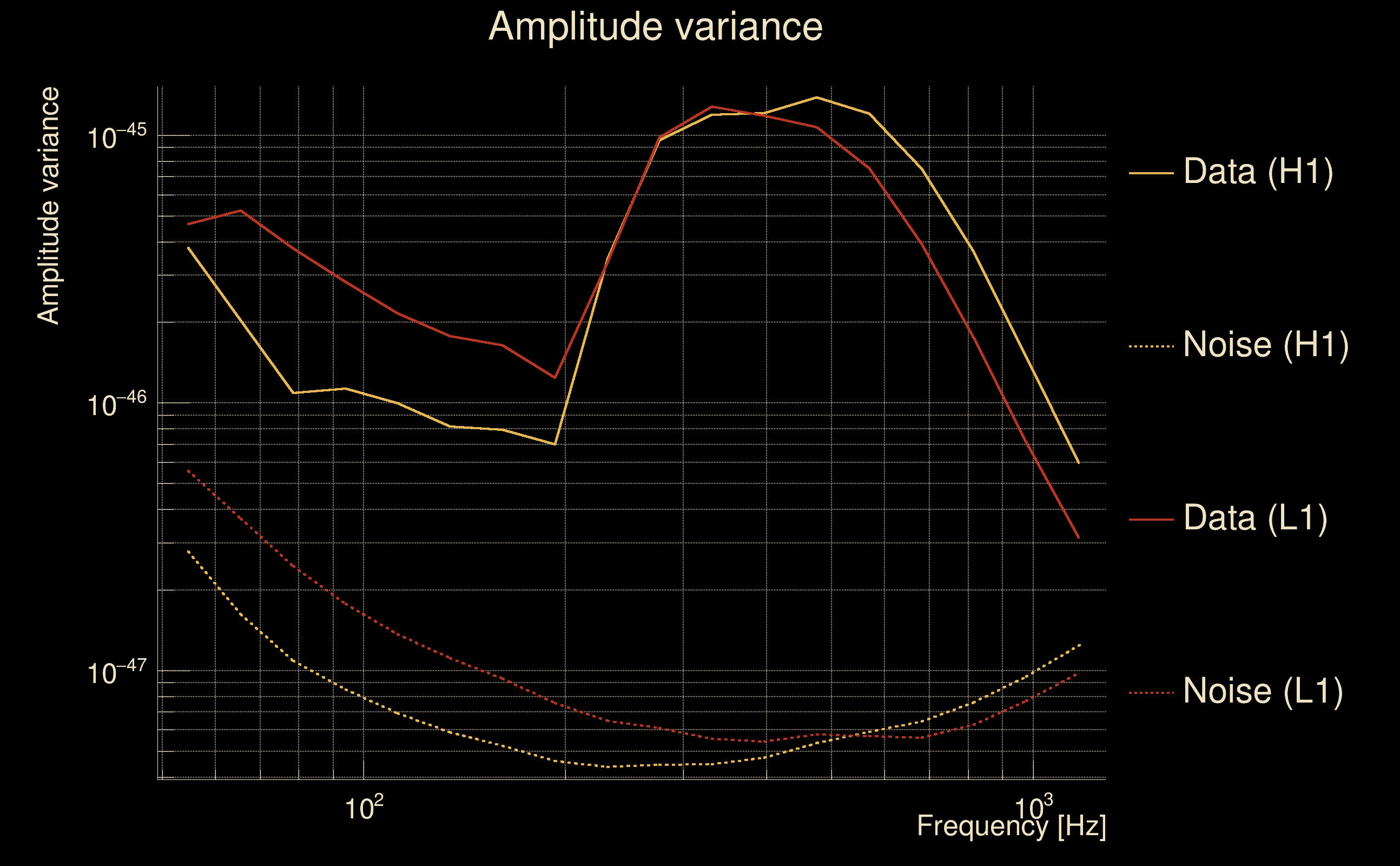

| SNR variance: | H1: 0.505712, L1: 0.481266 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

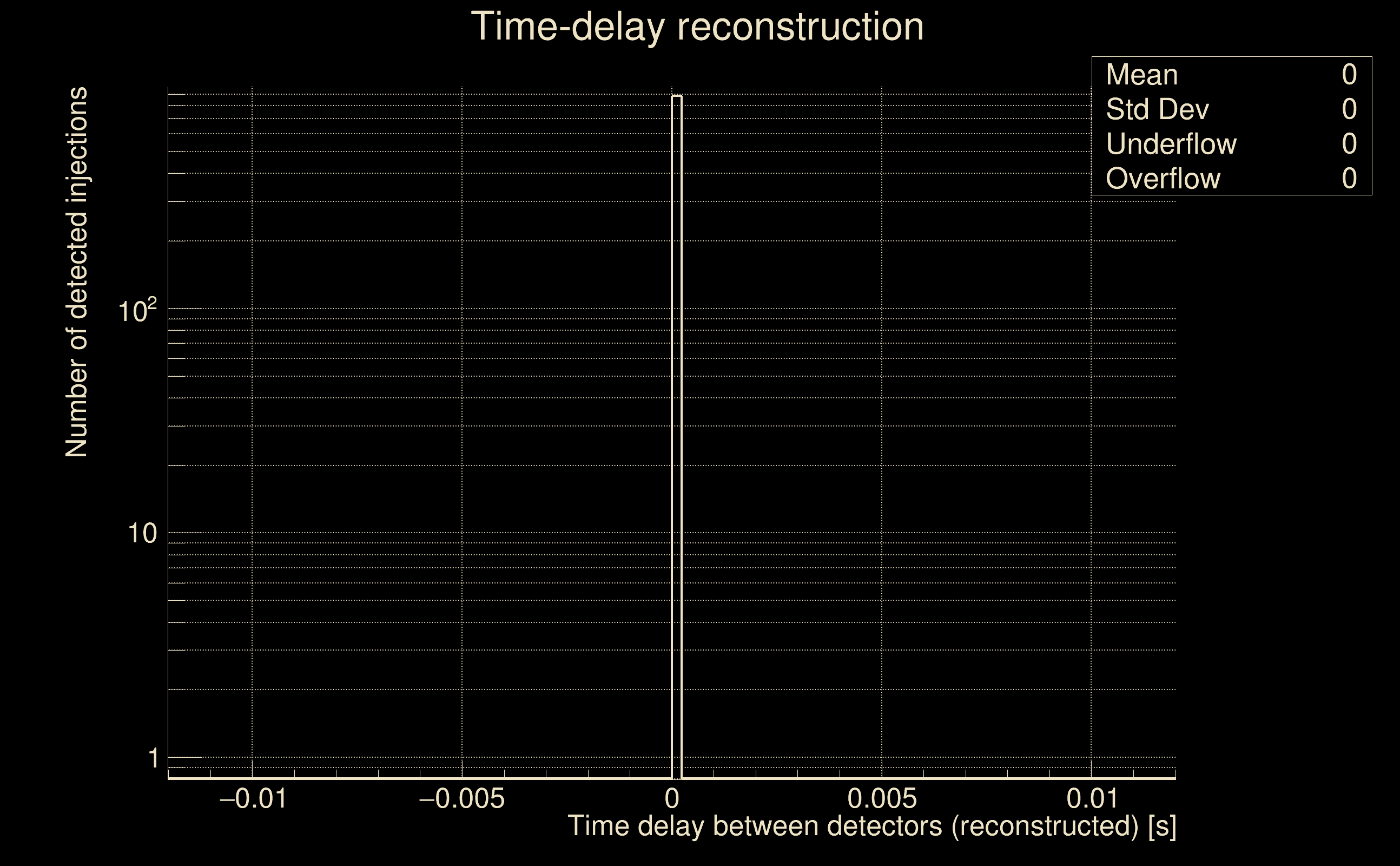

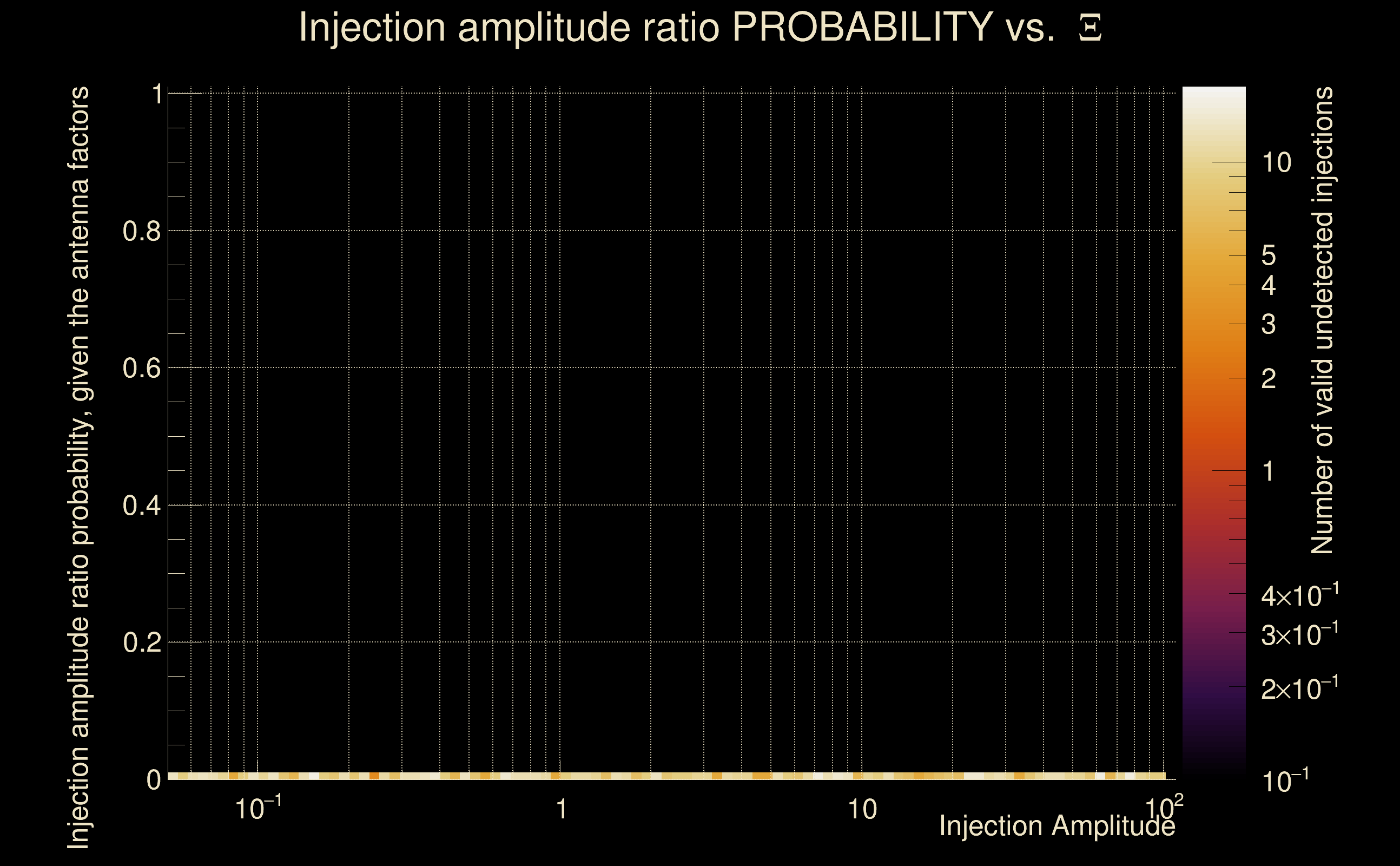

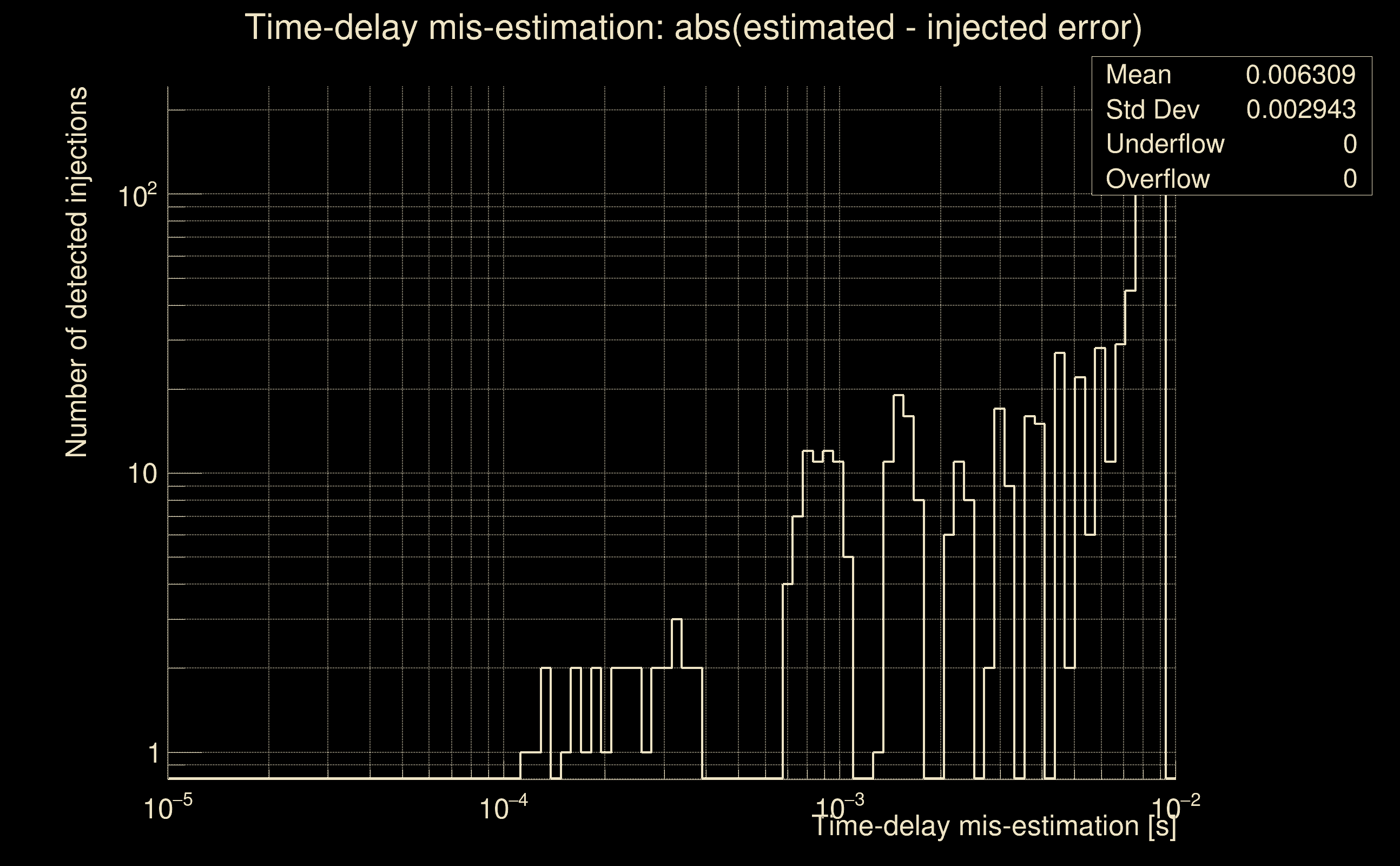

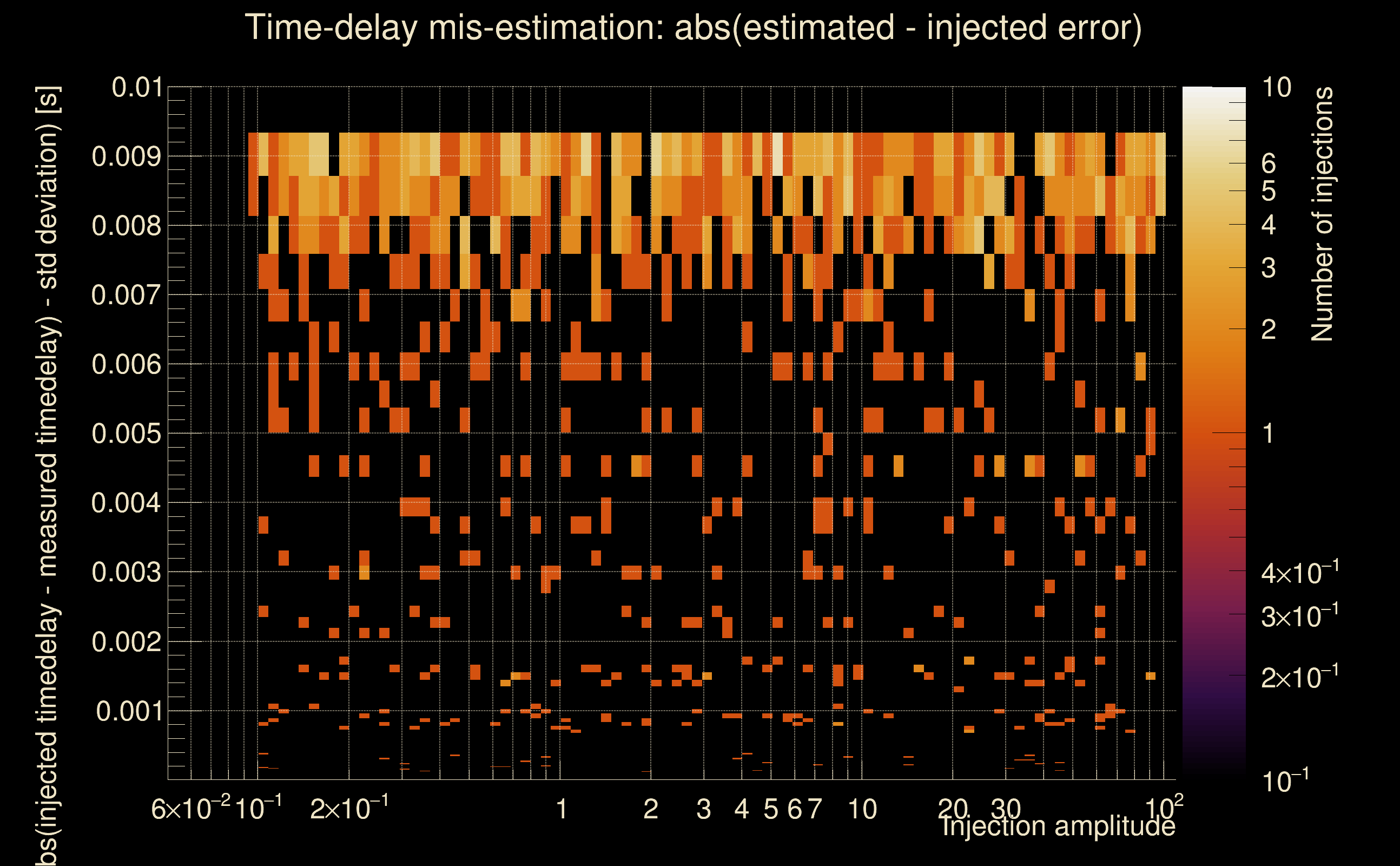

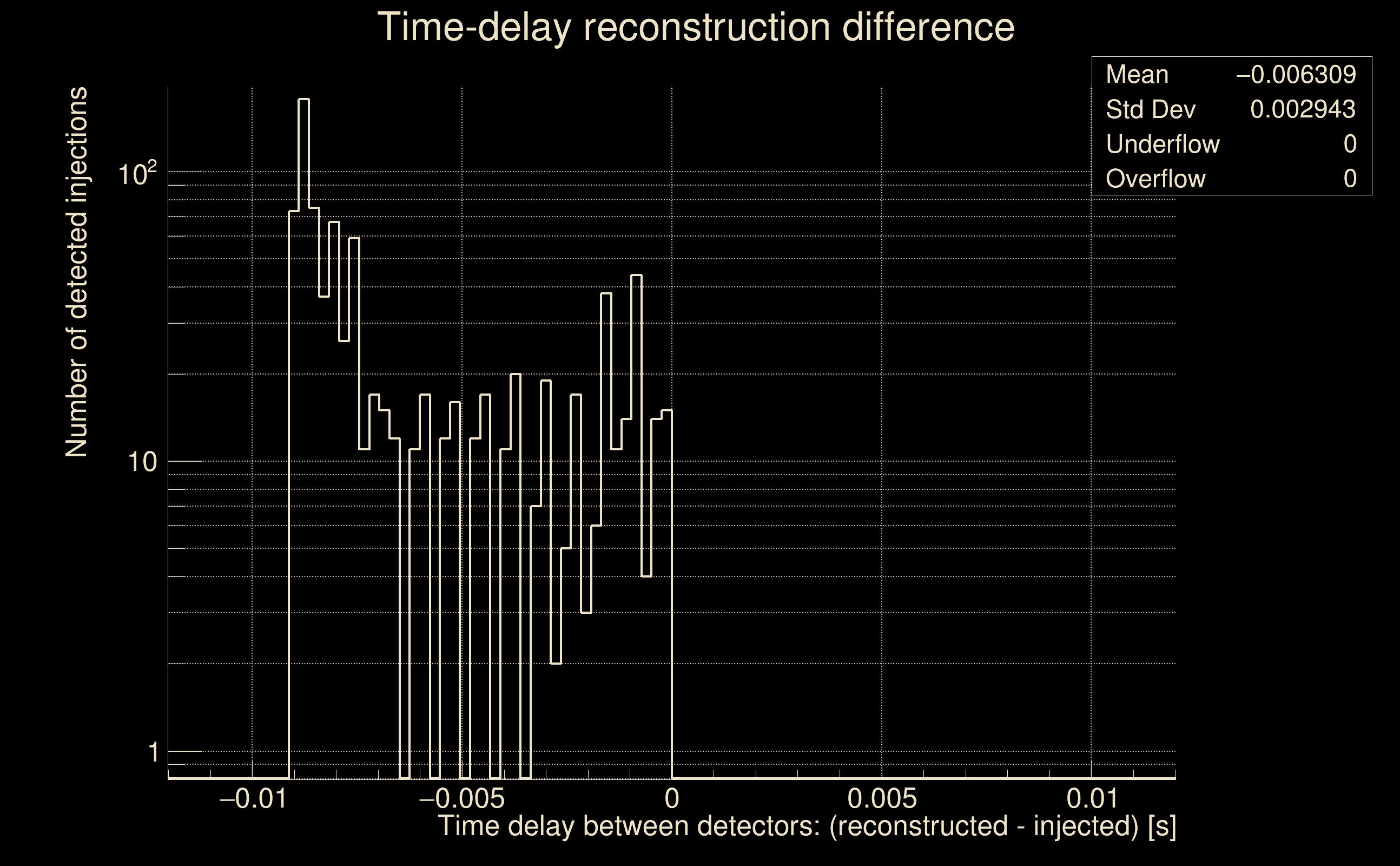

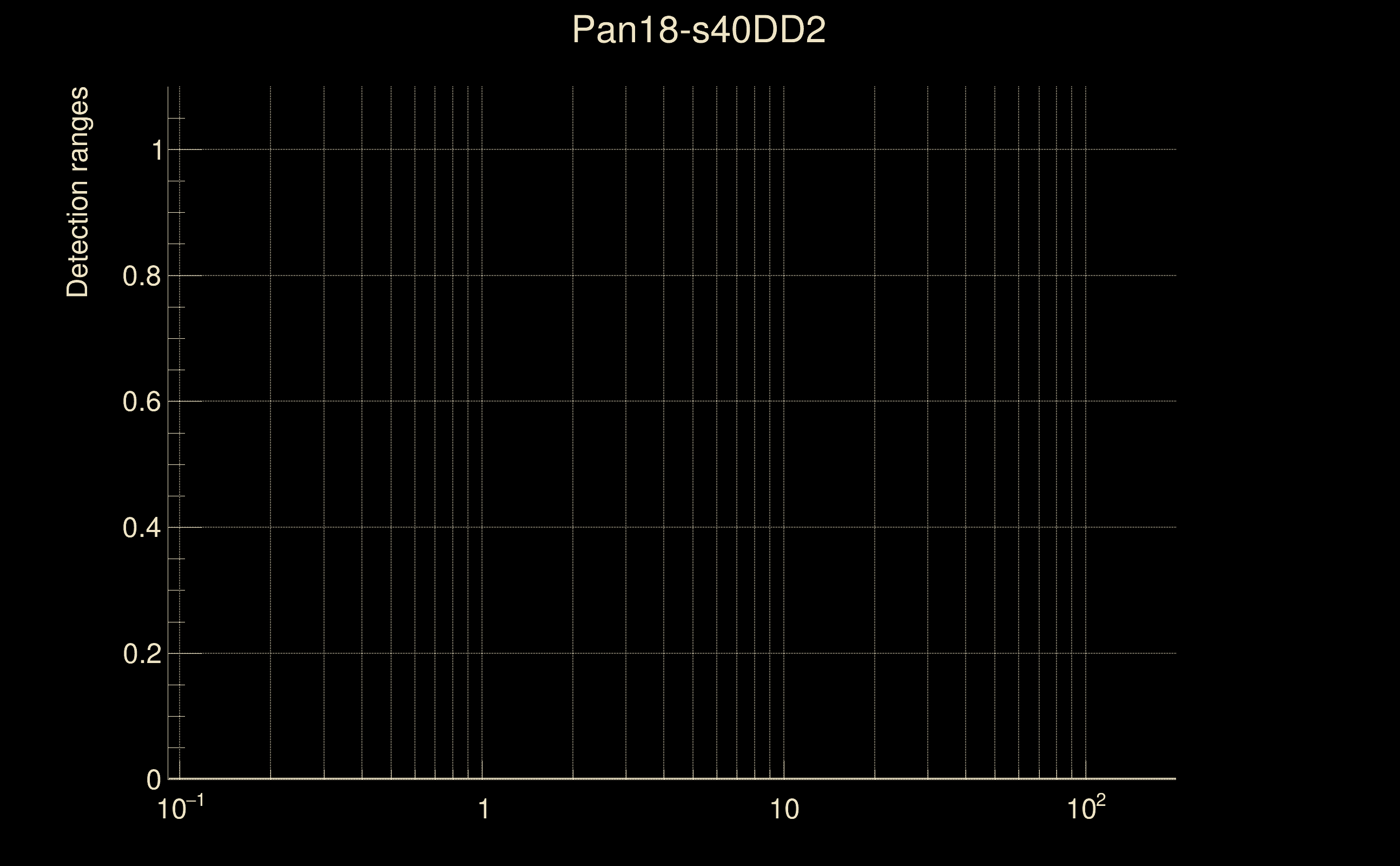

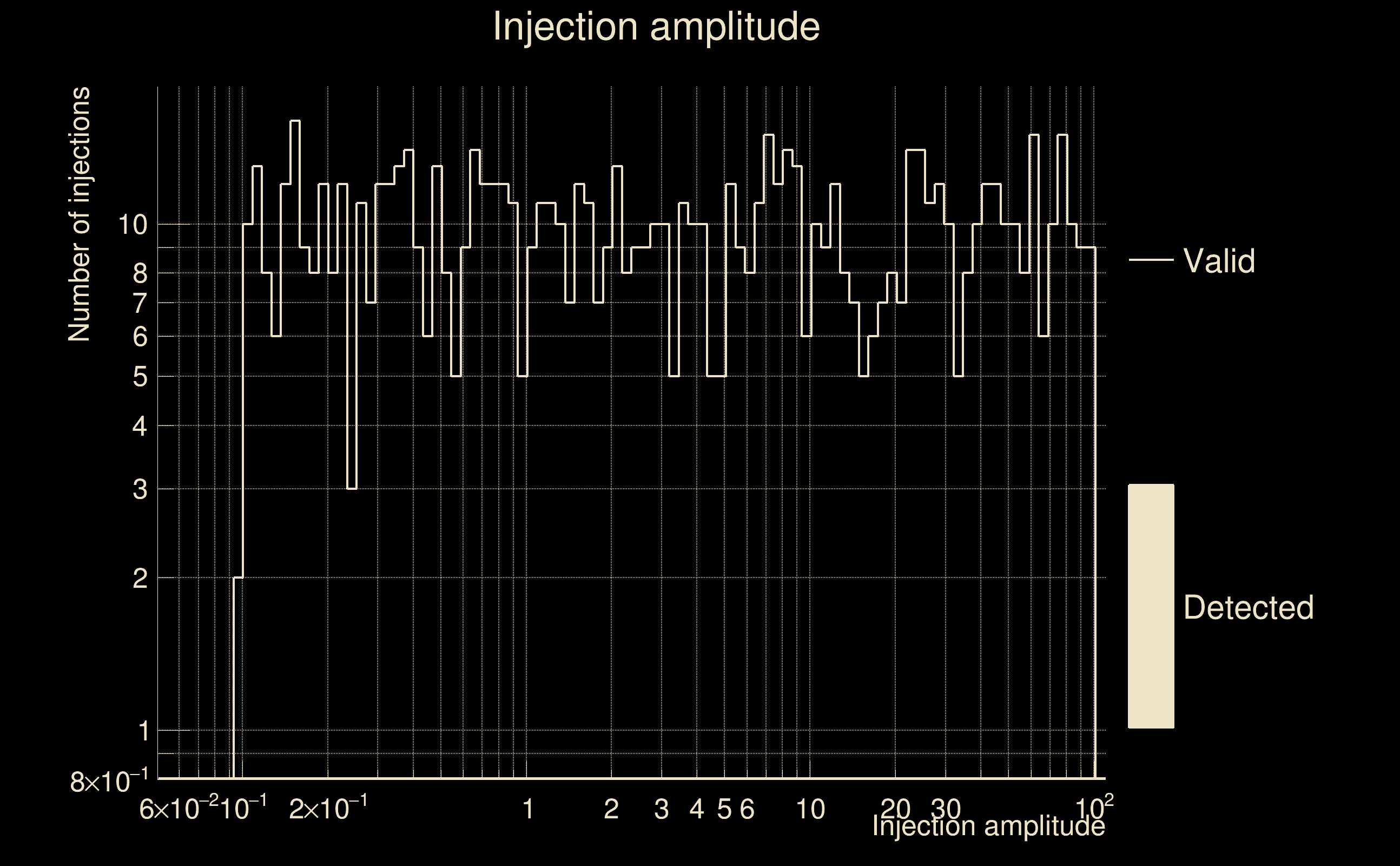

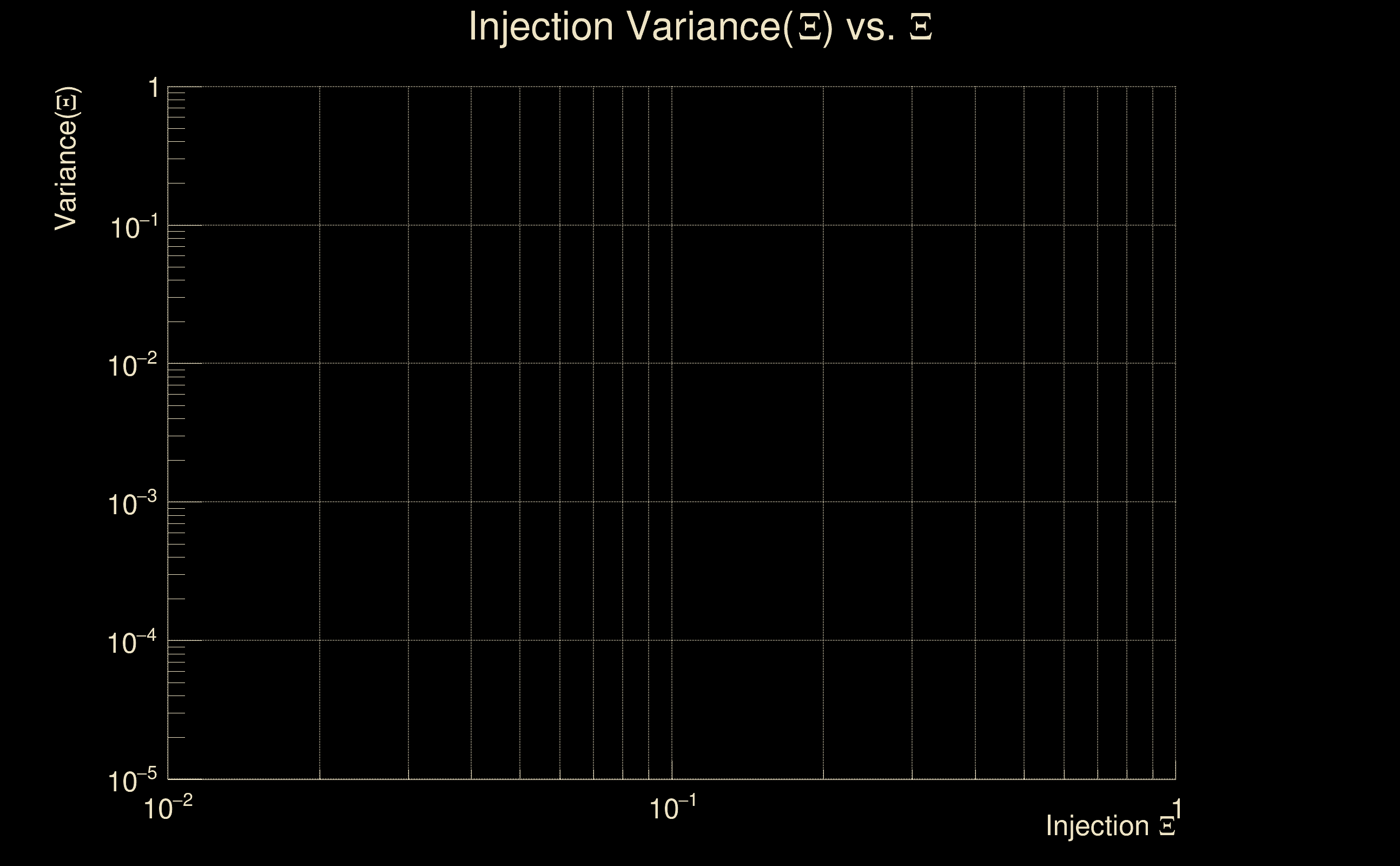

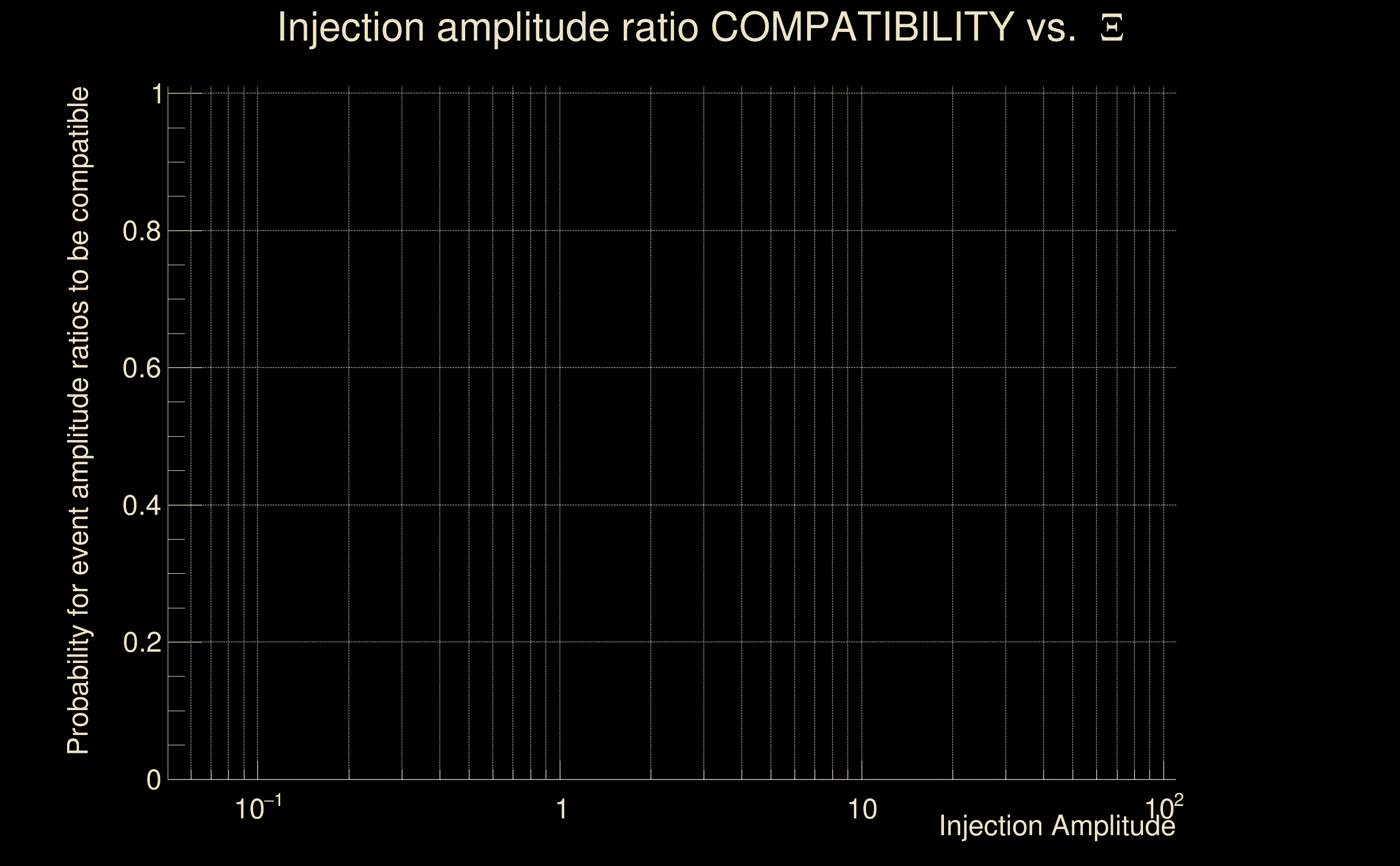

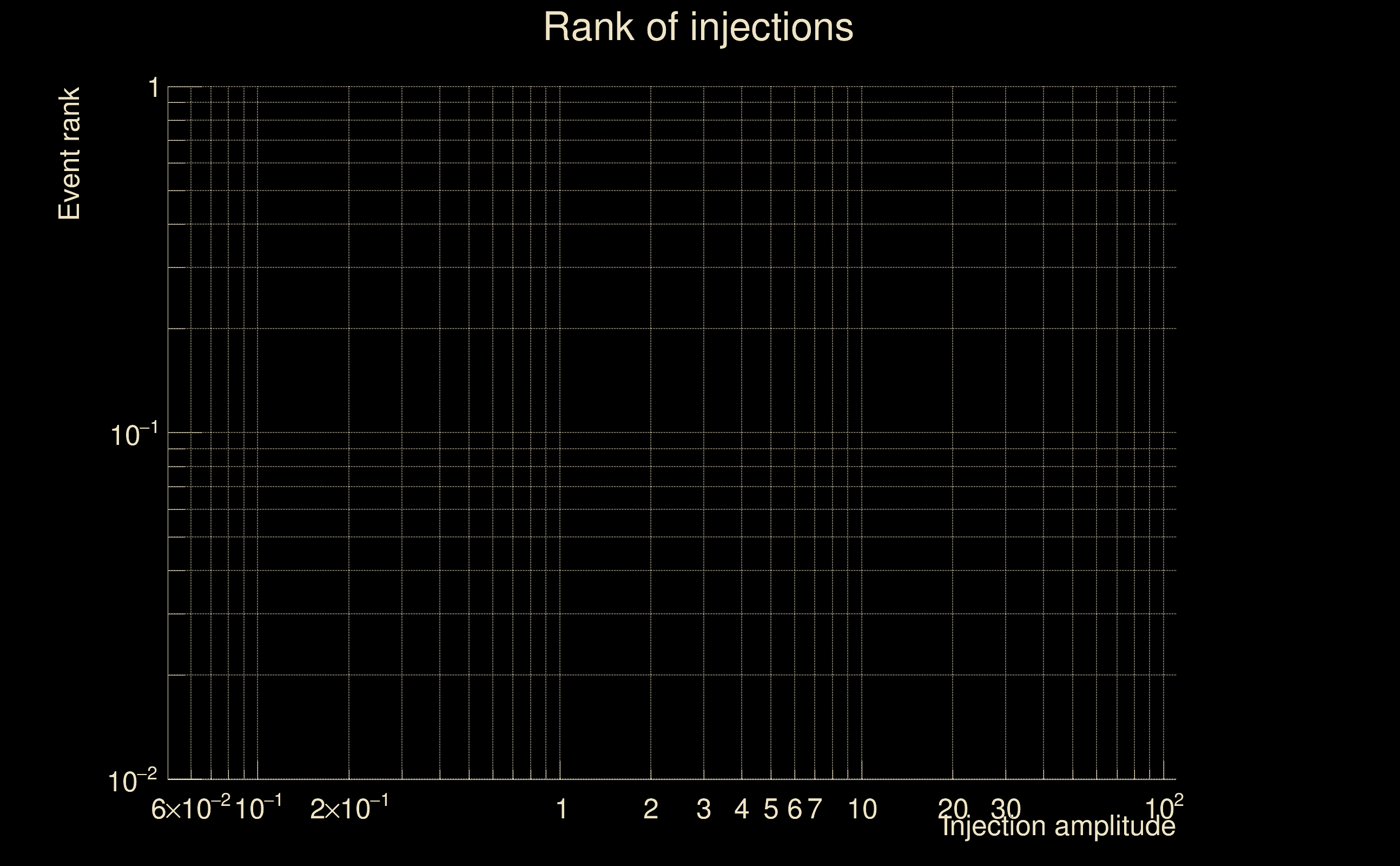

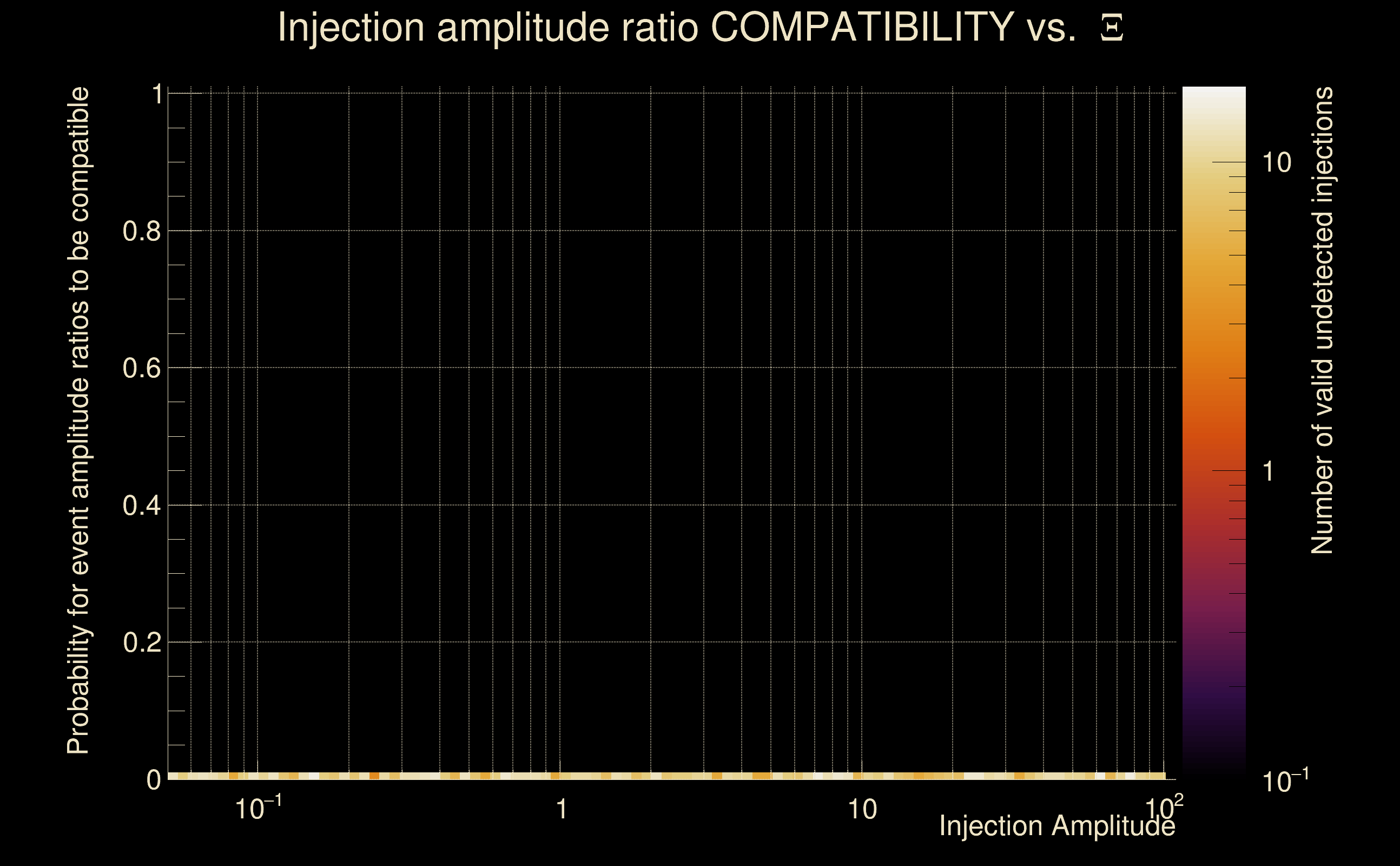

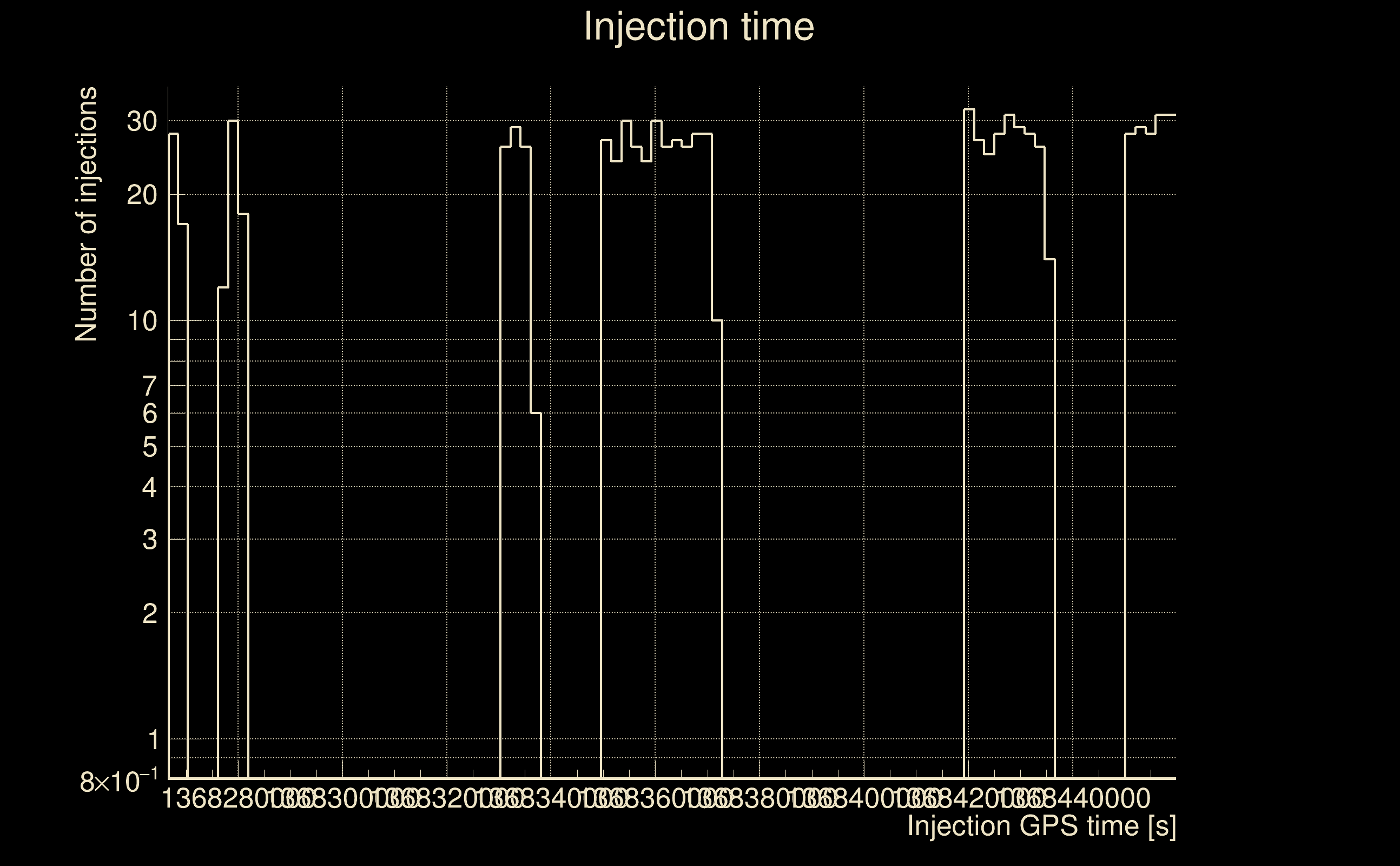

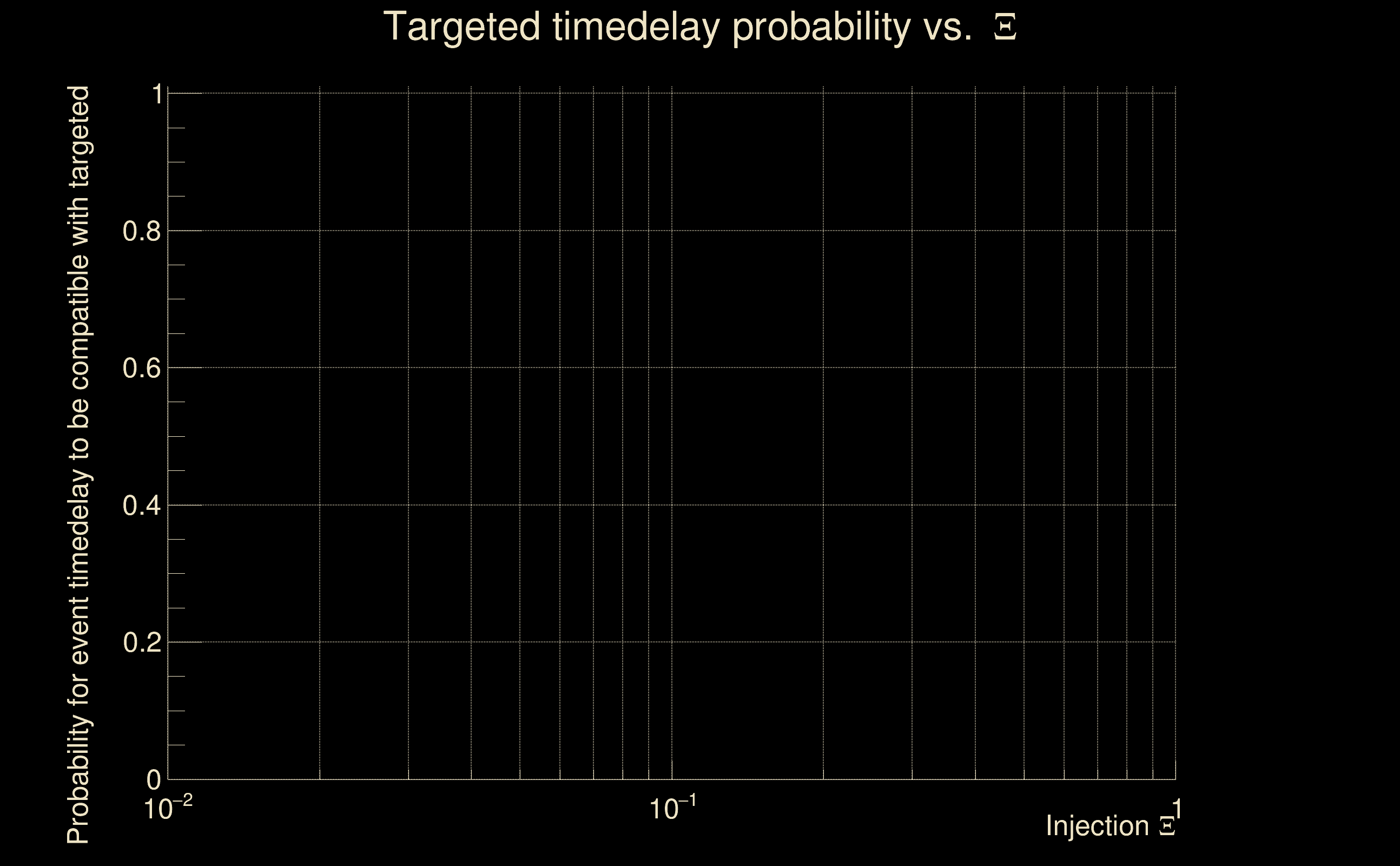

| Number of injections (total/valid/detected): | 1006 / 885 / 0 |
| List of missed injections: | ./Pan18-s40DD2_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | -1 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

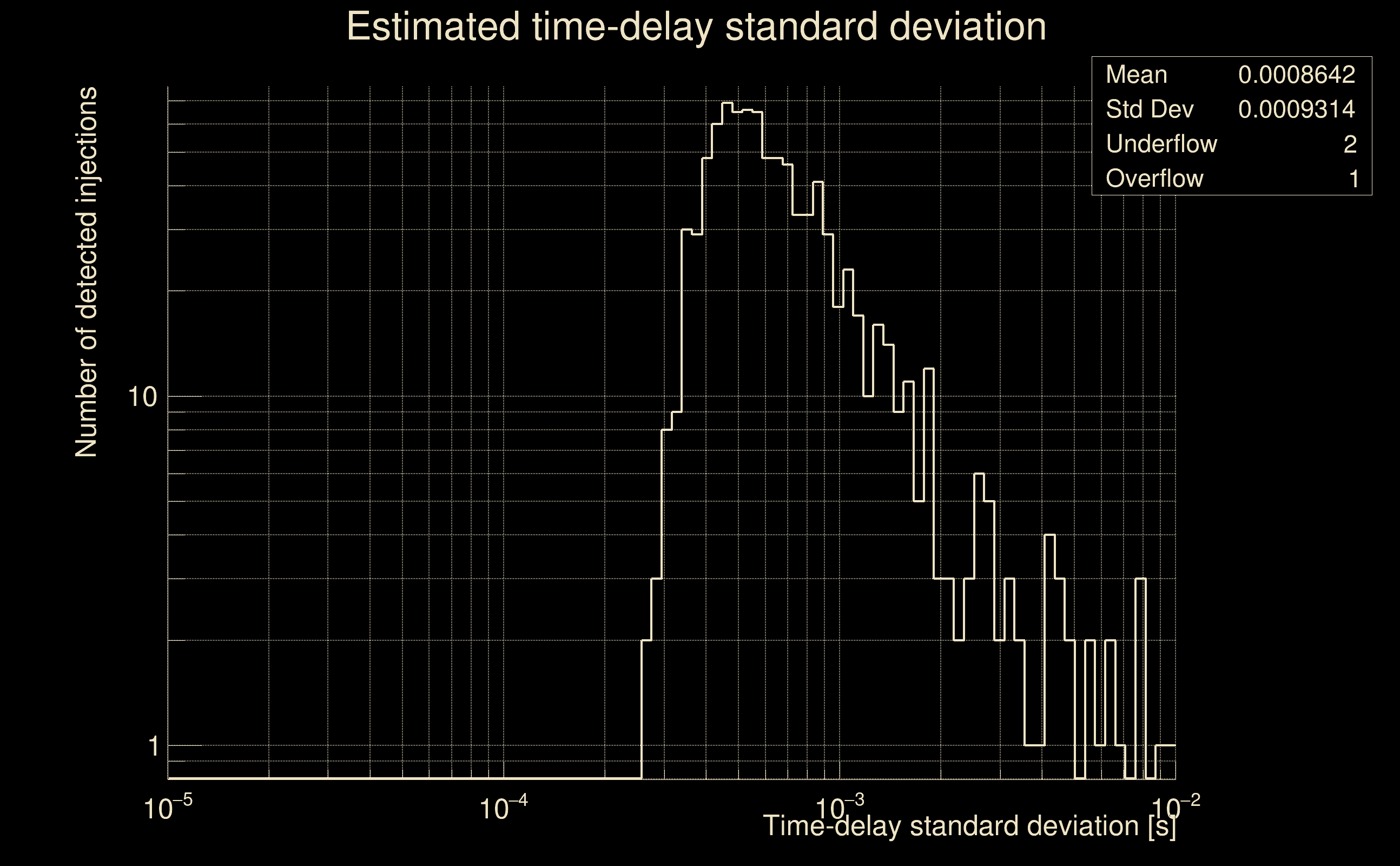

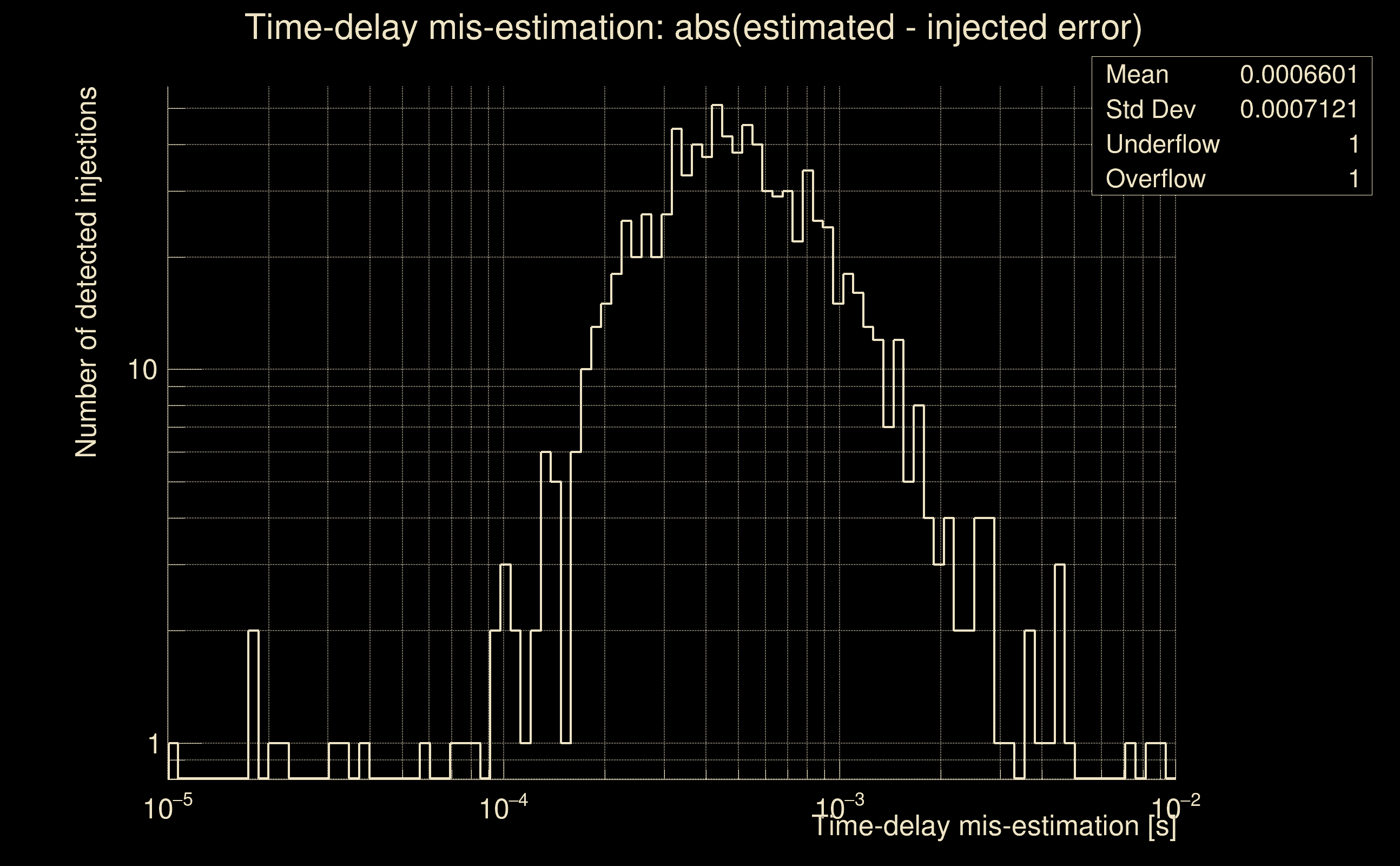

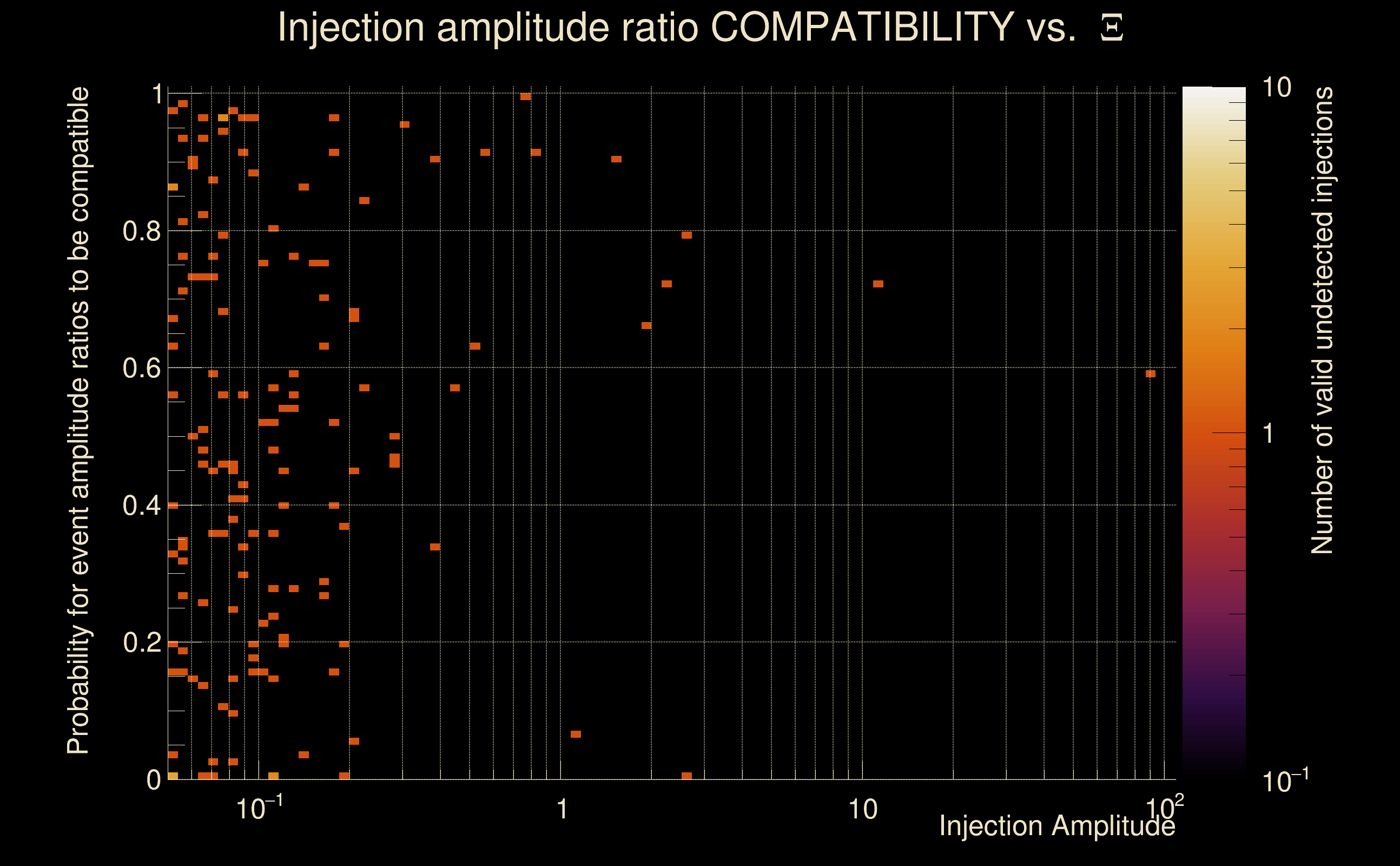

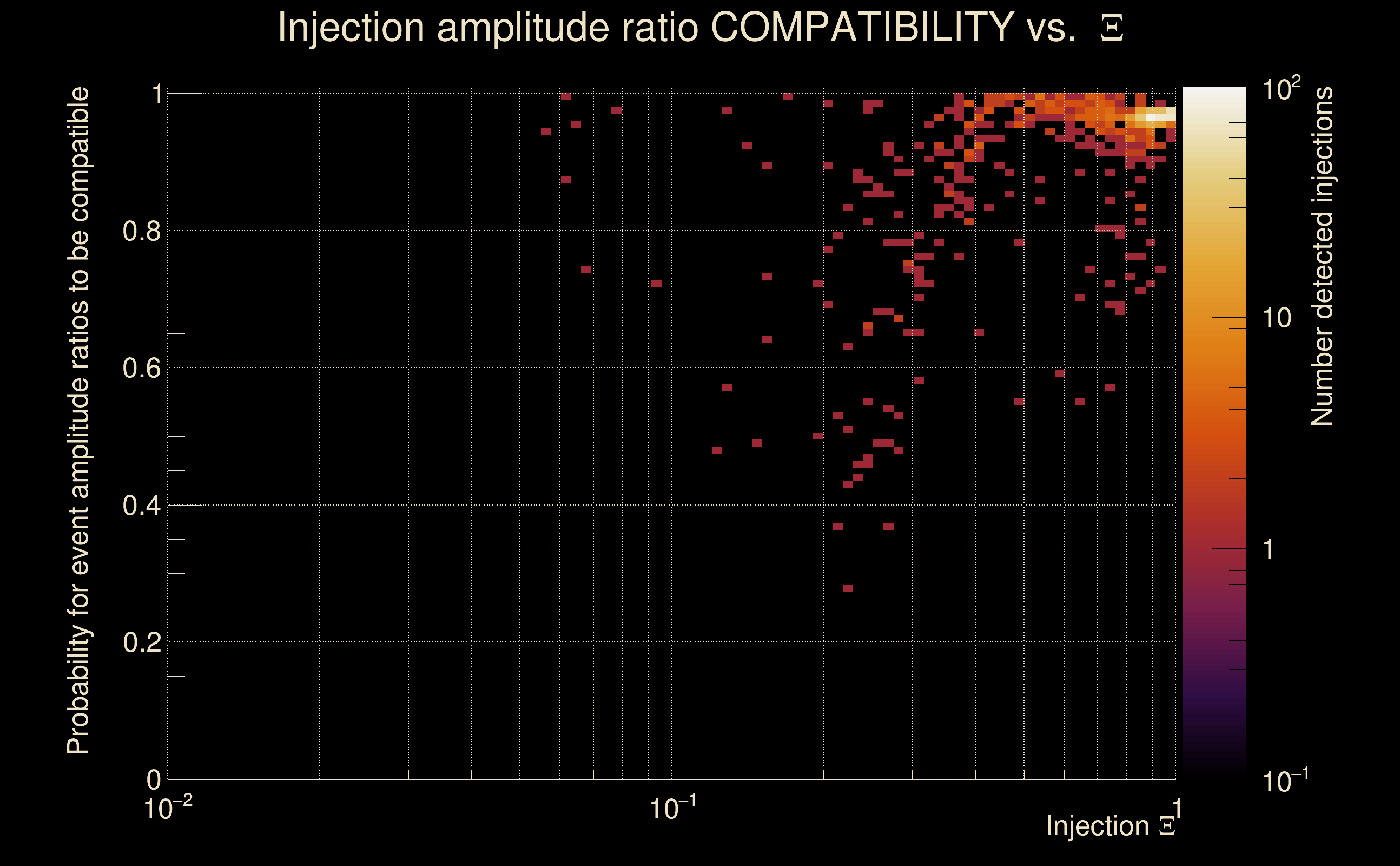

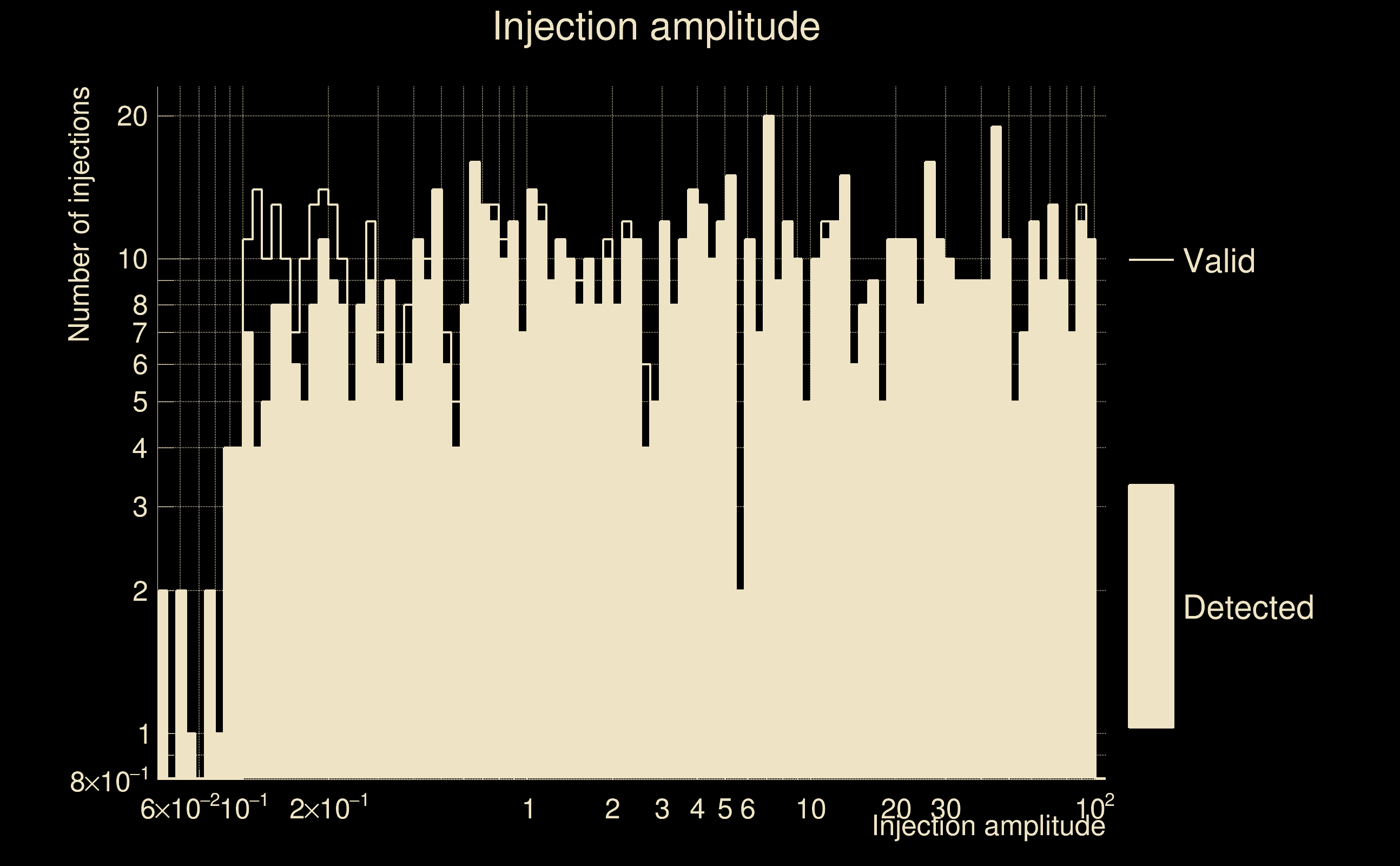

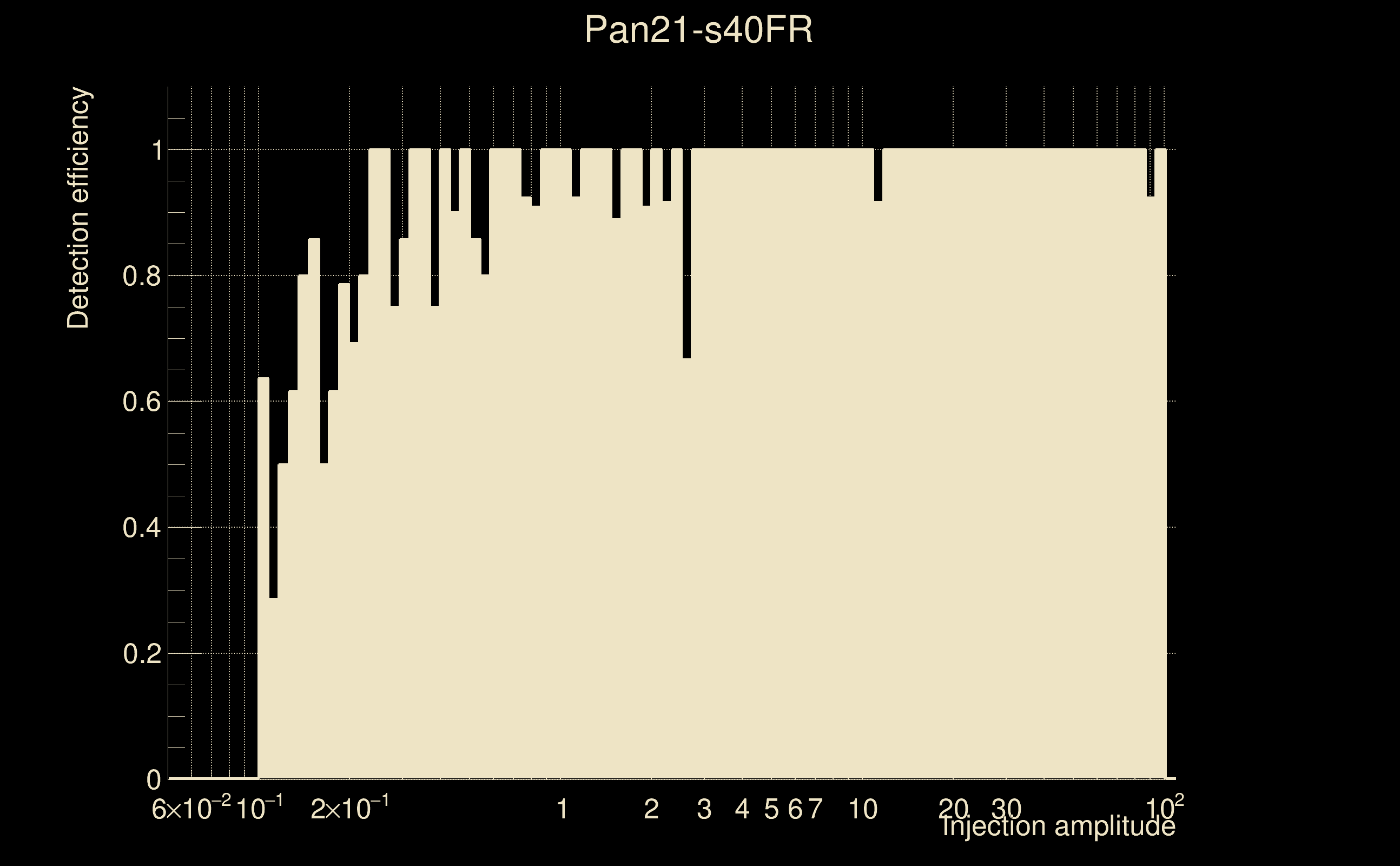

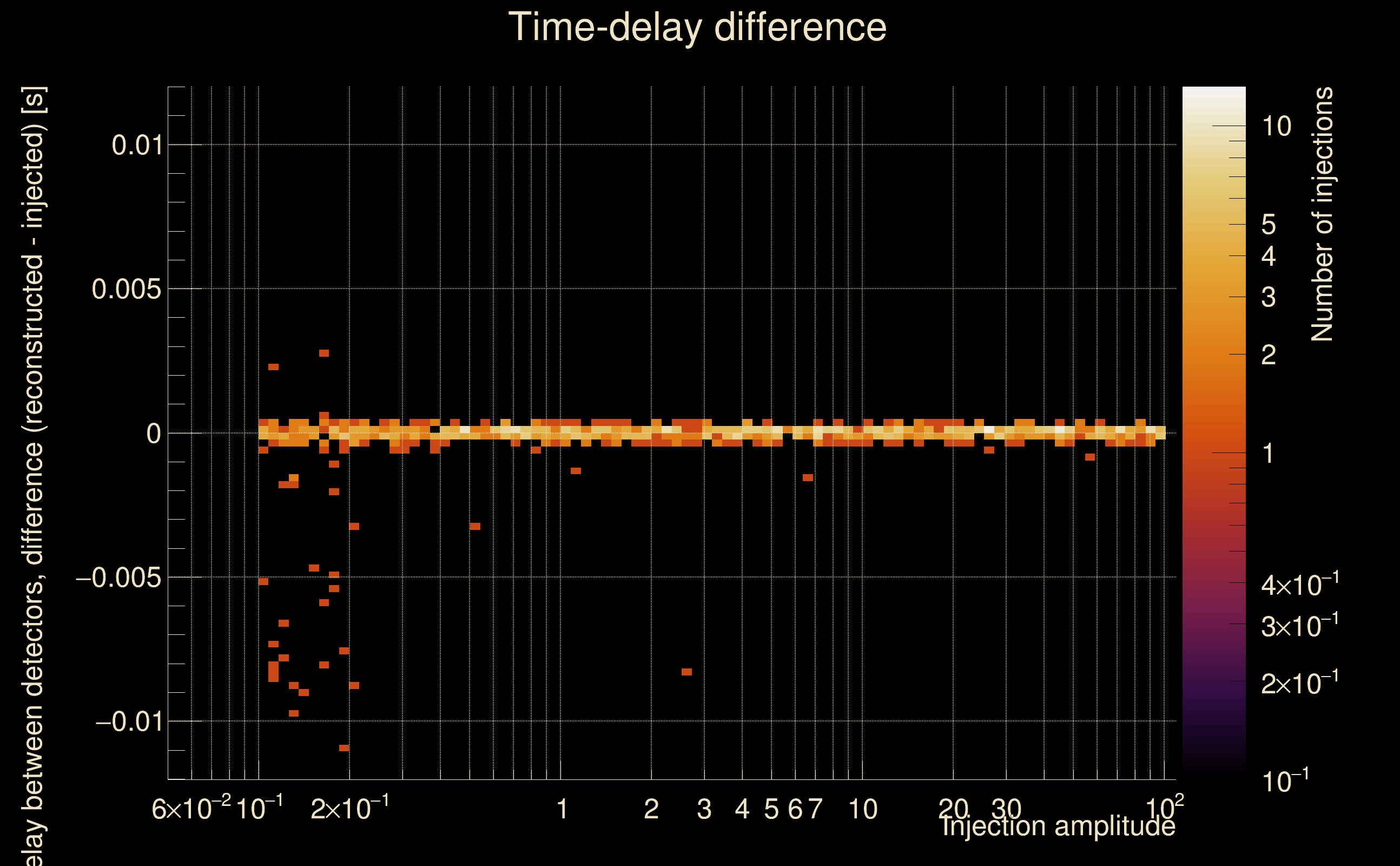

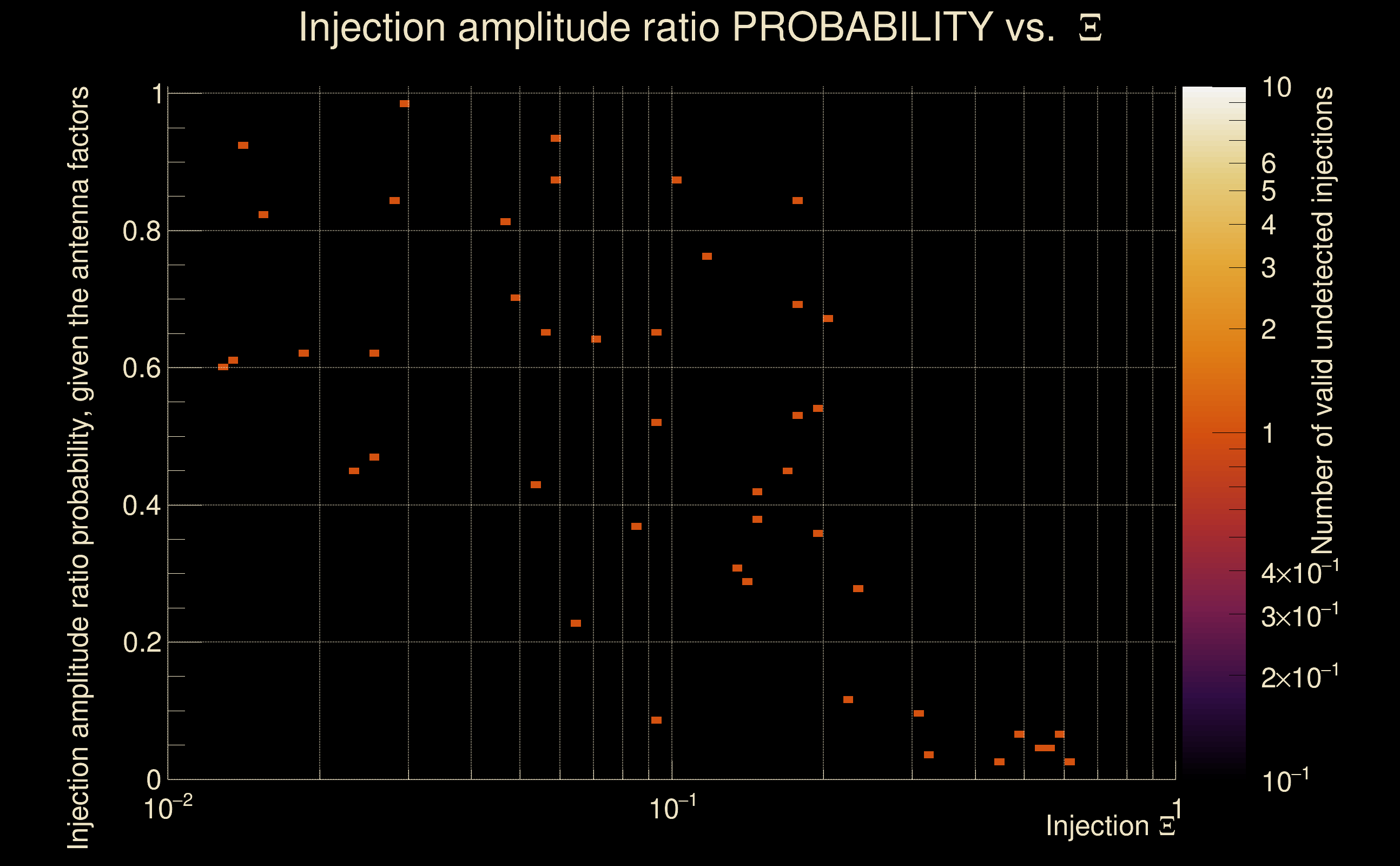

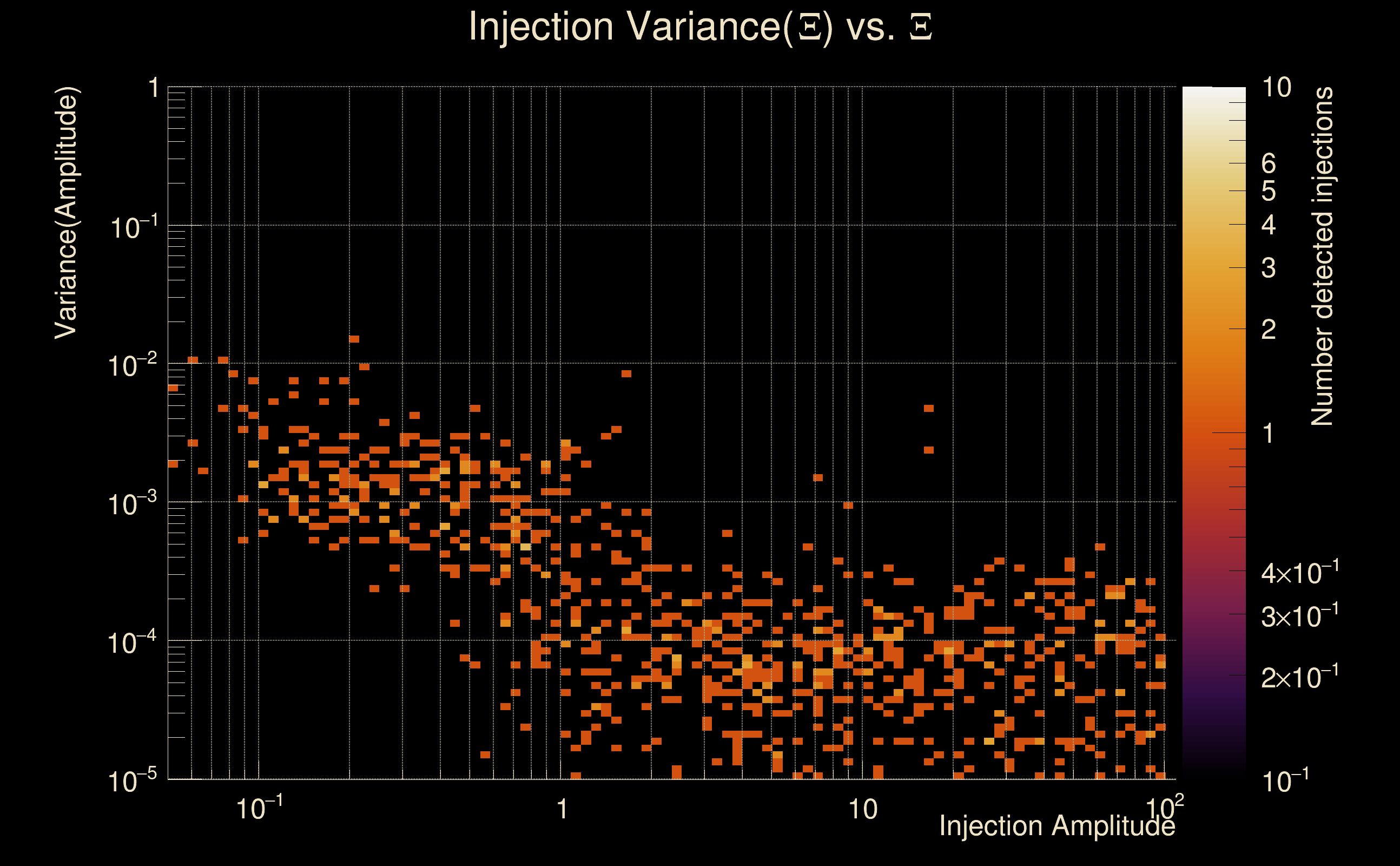

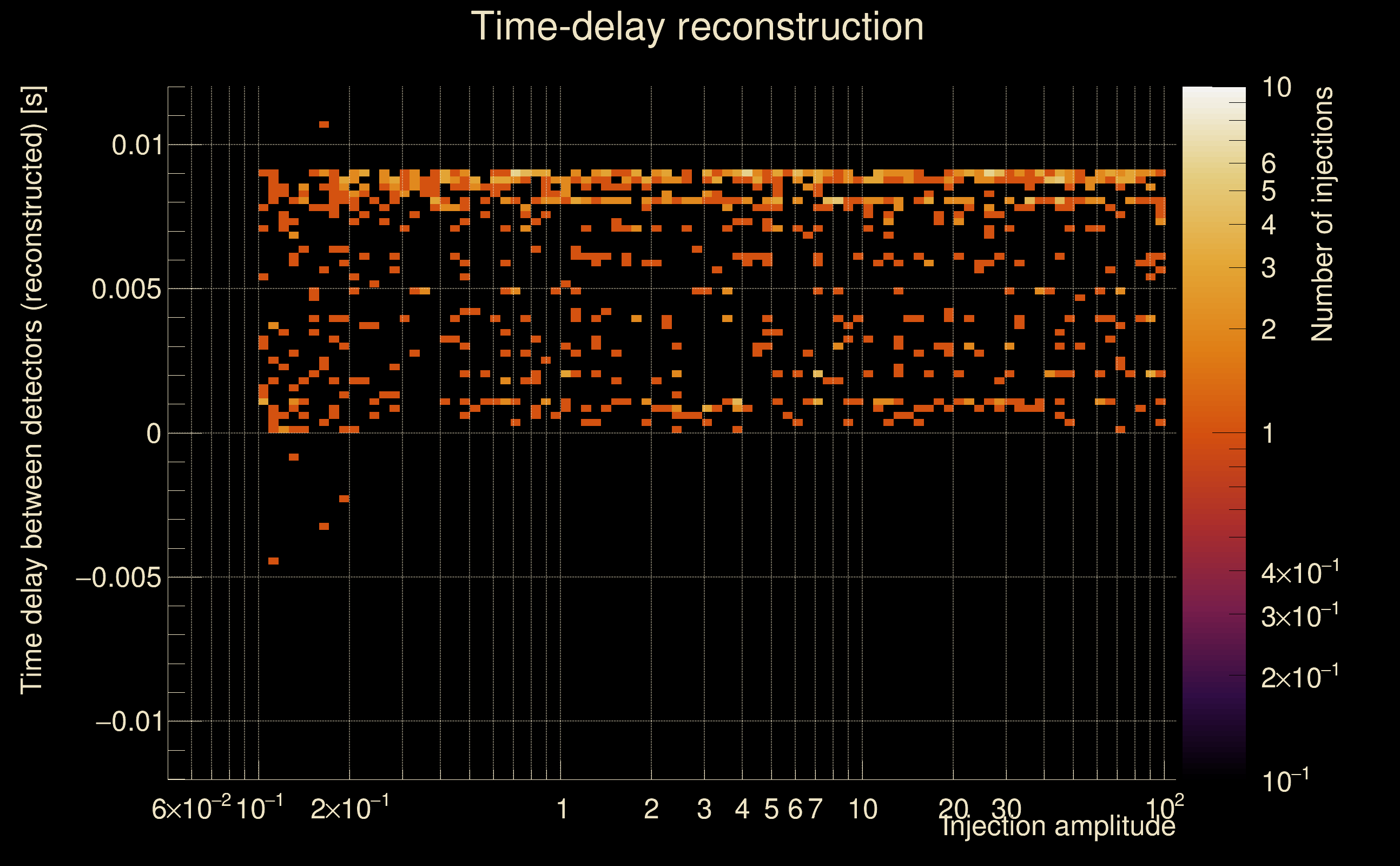

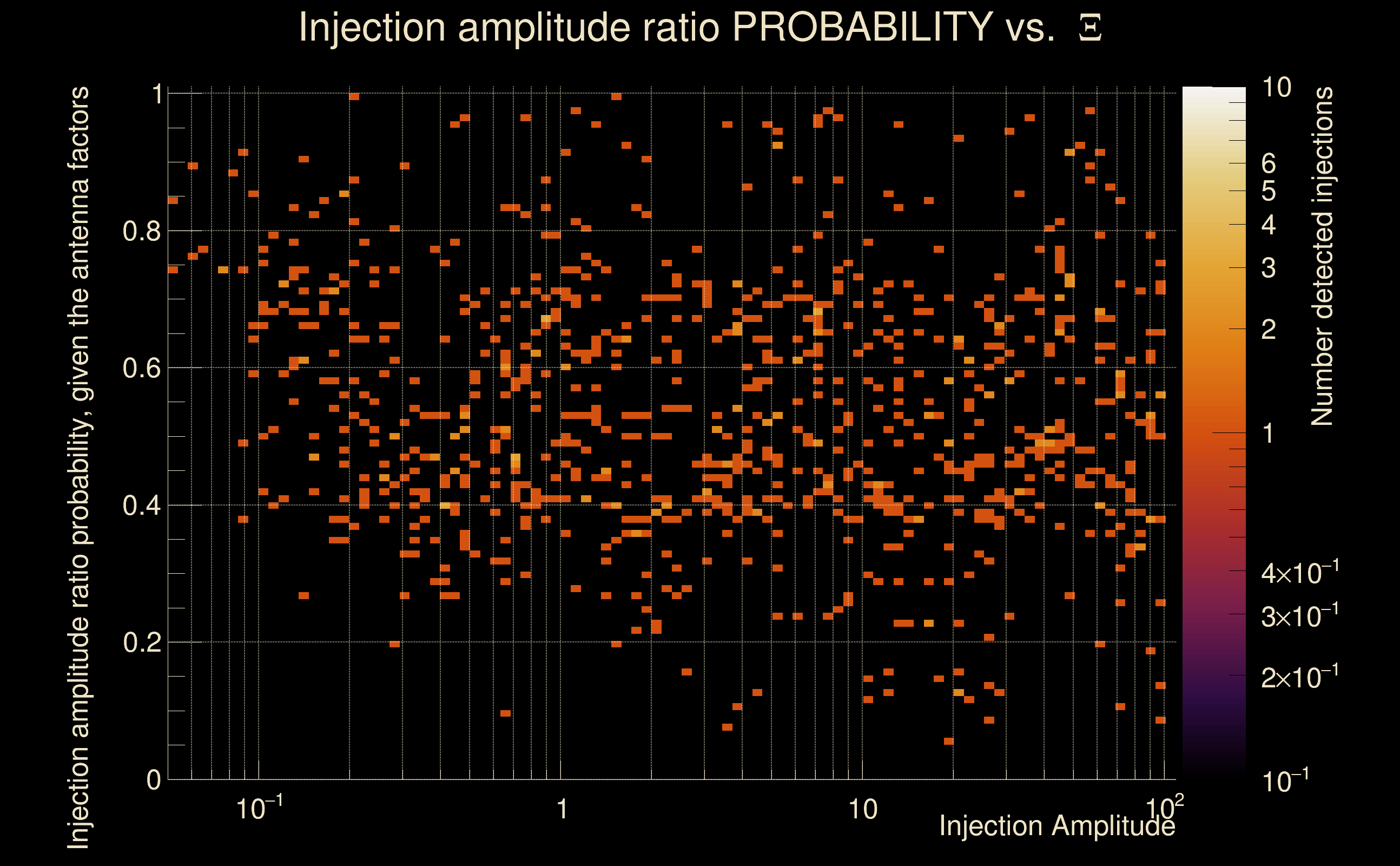

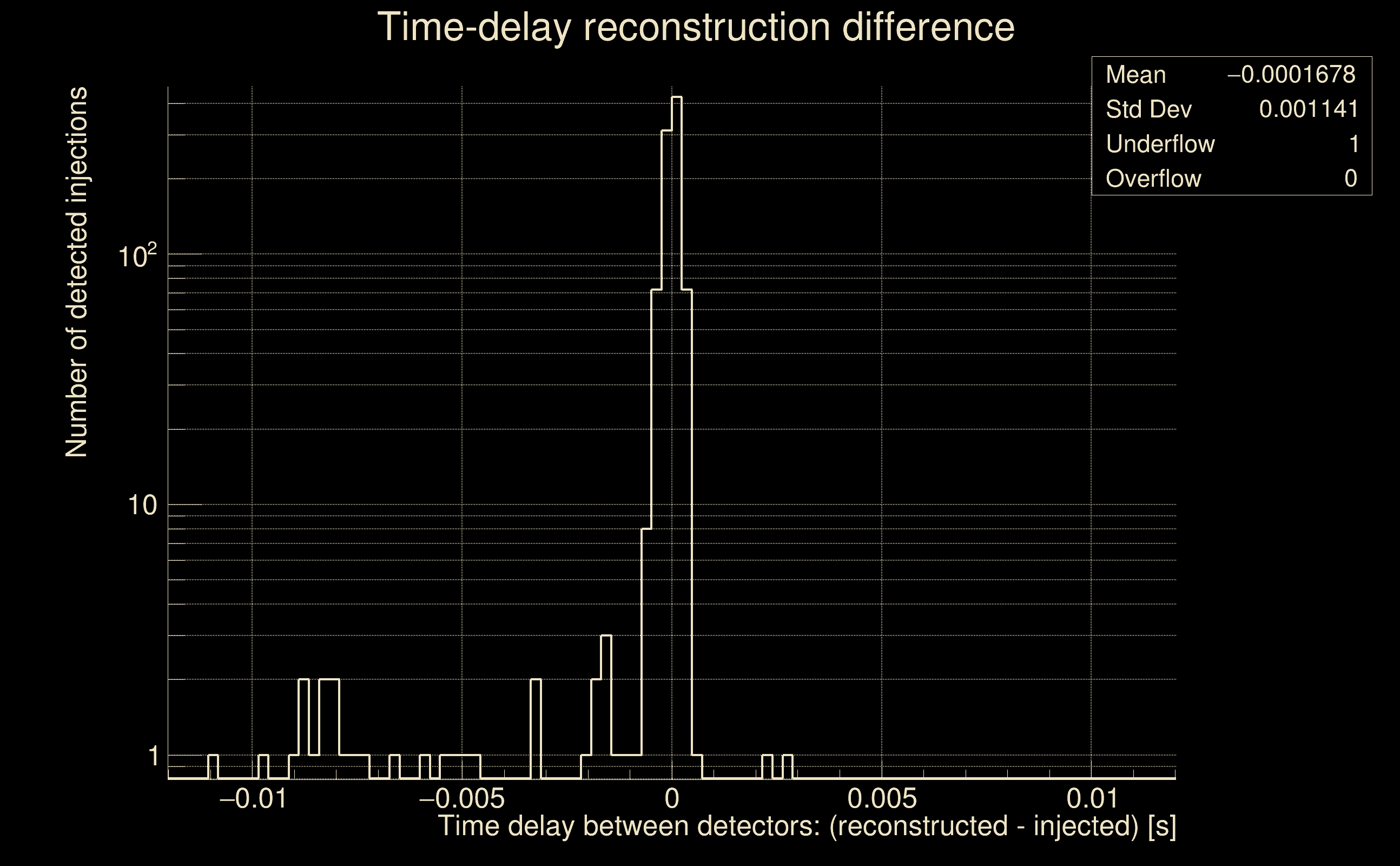

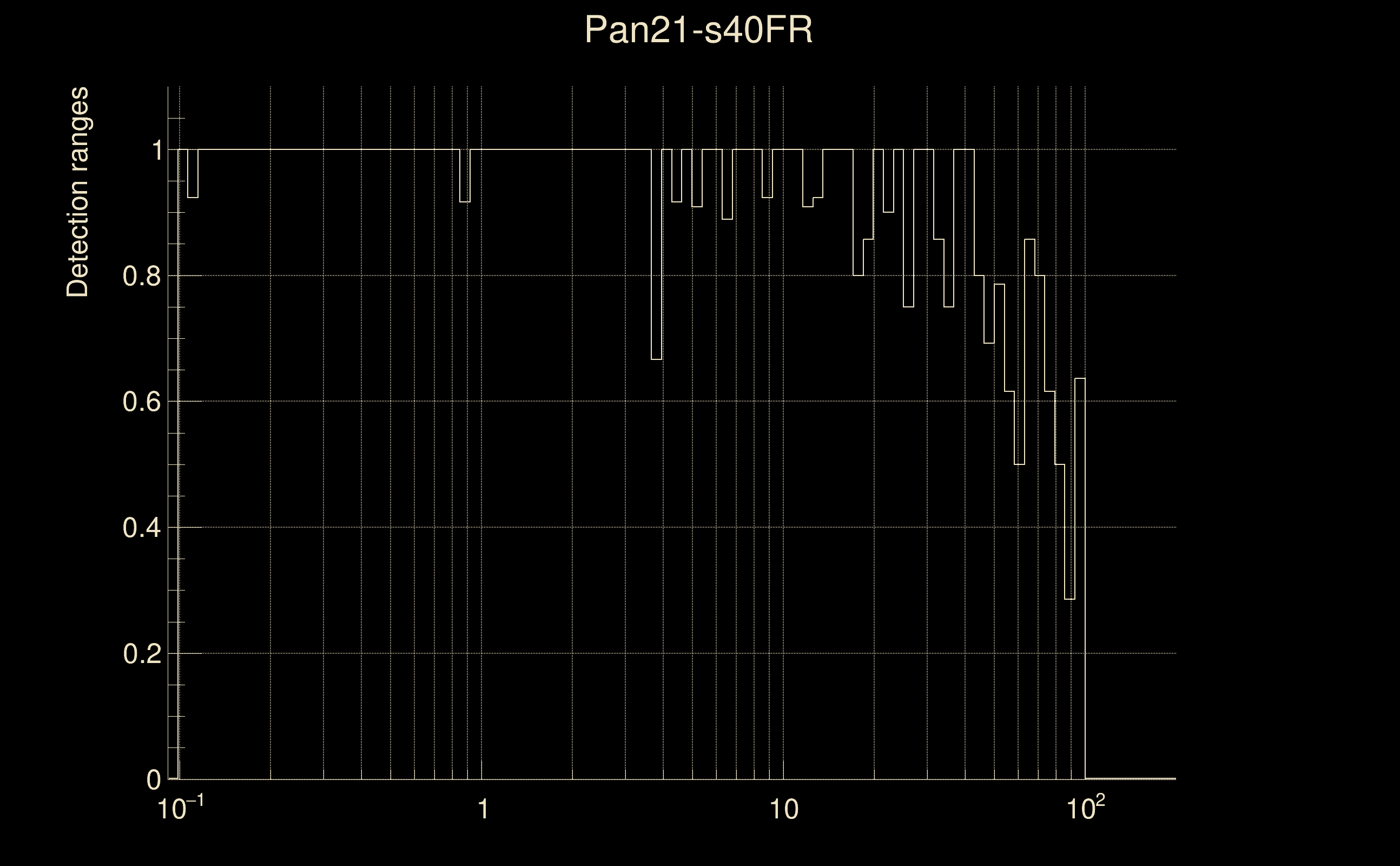

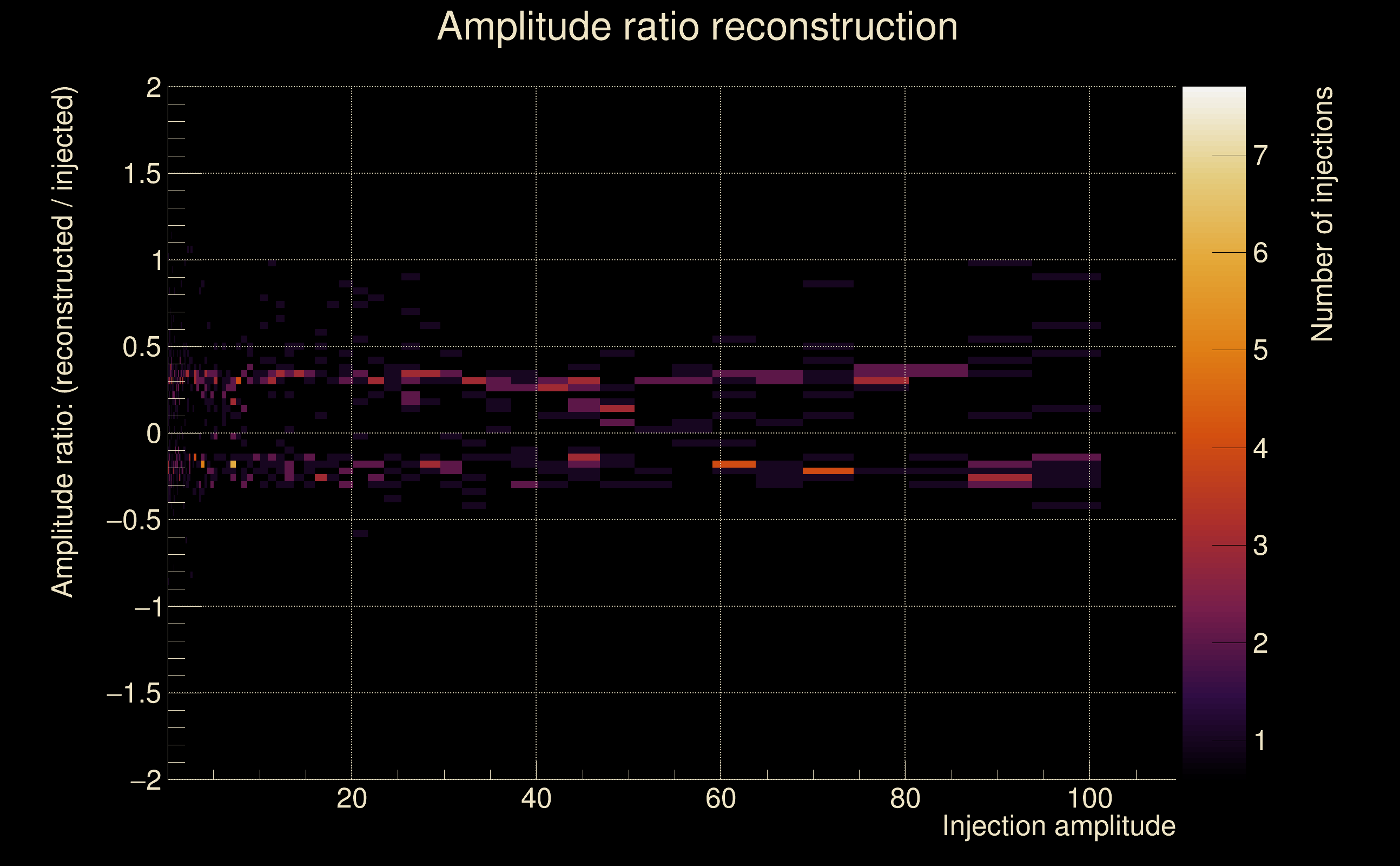

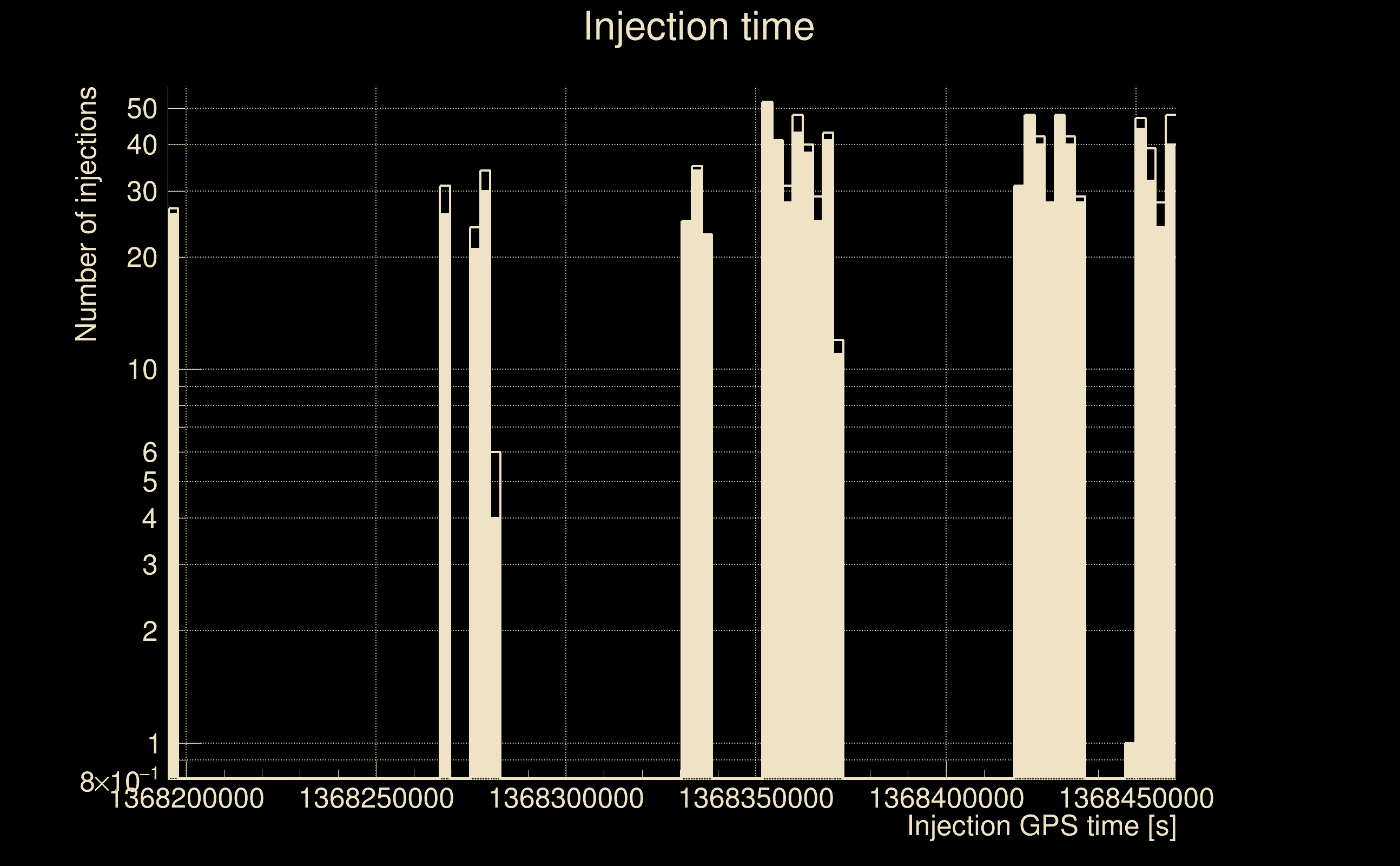

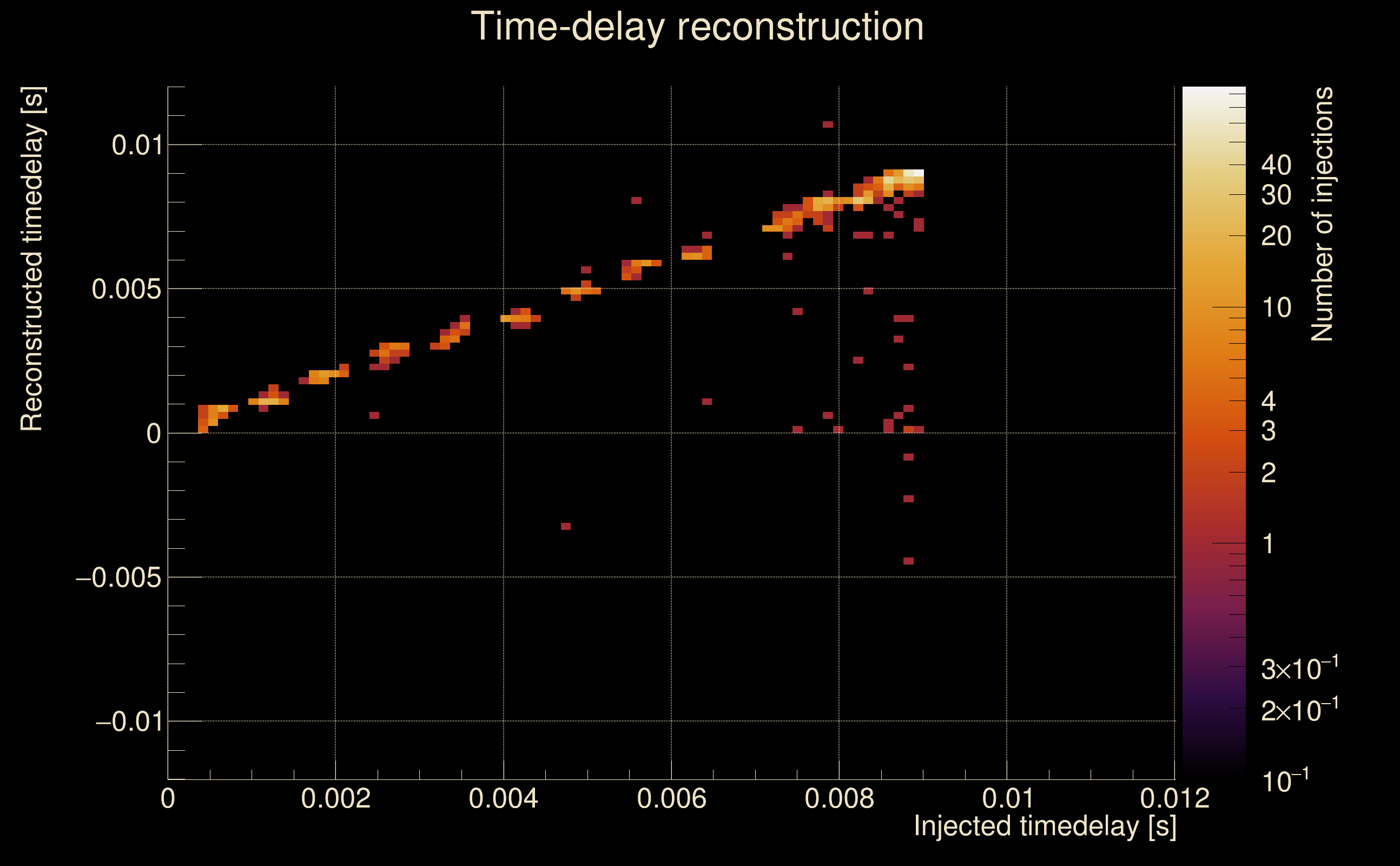

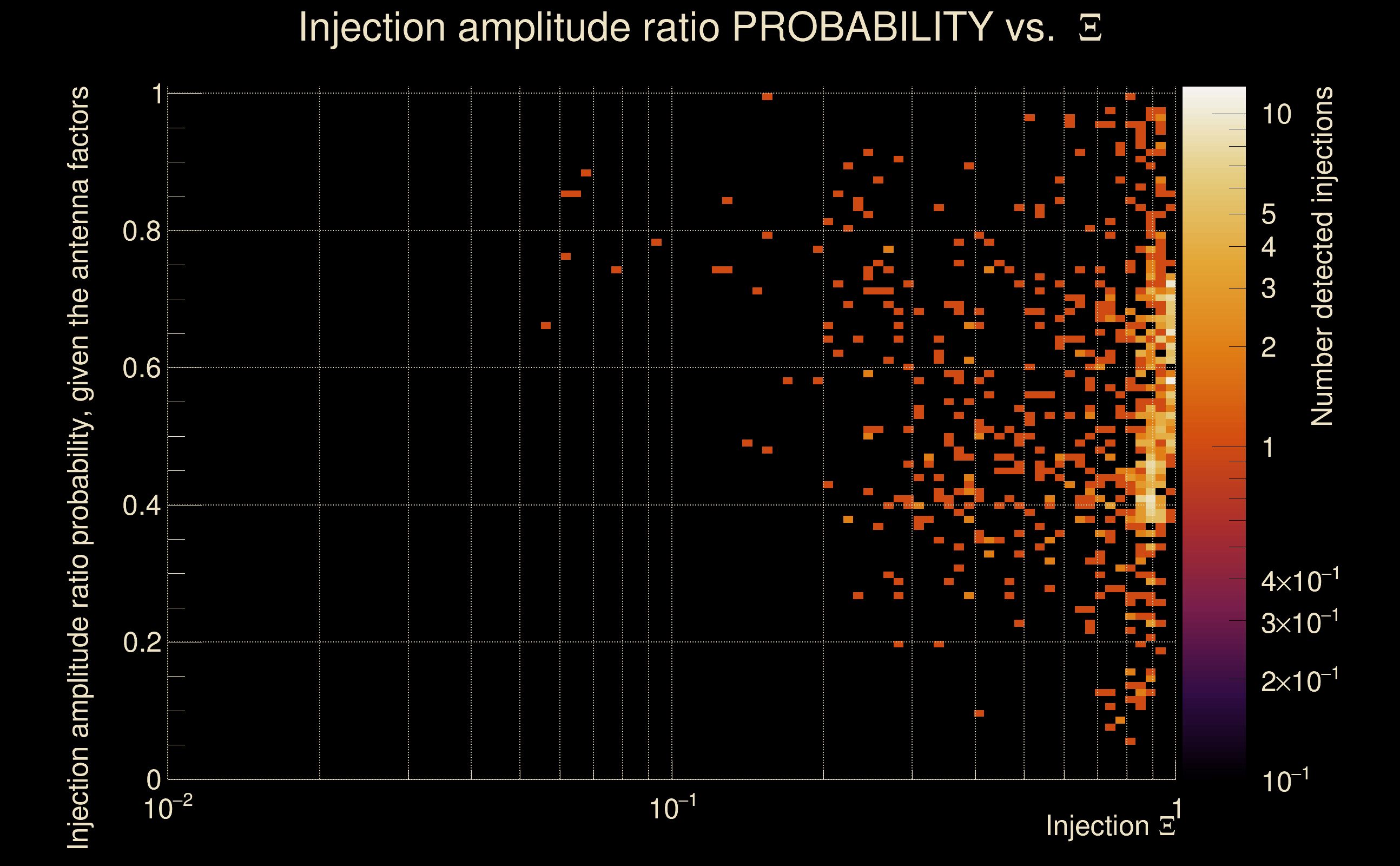

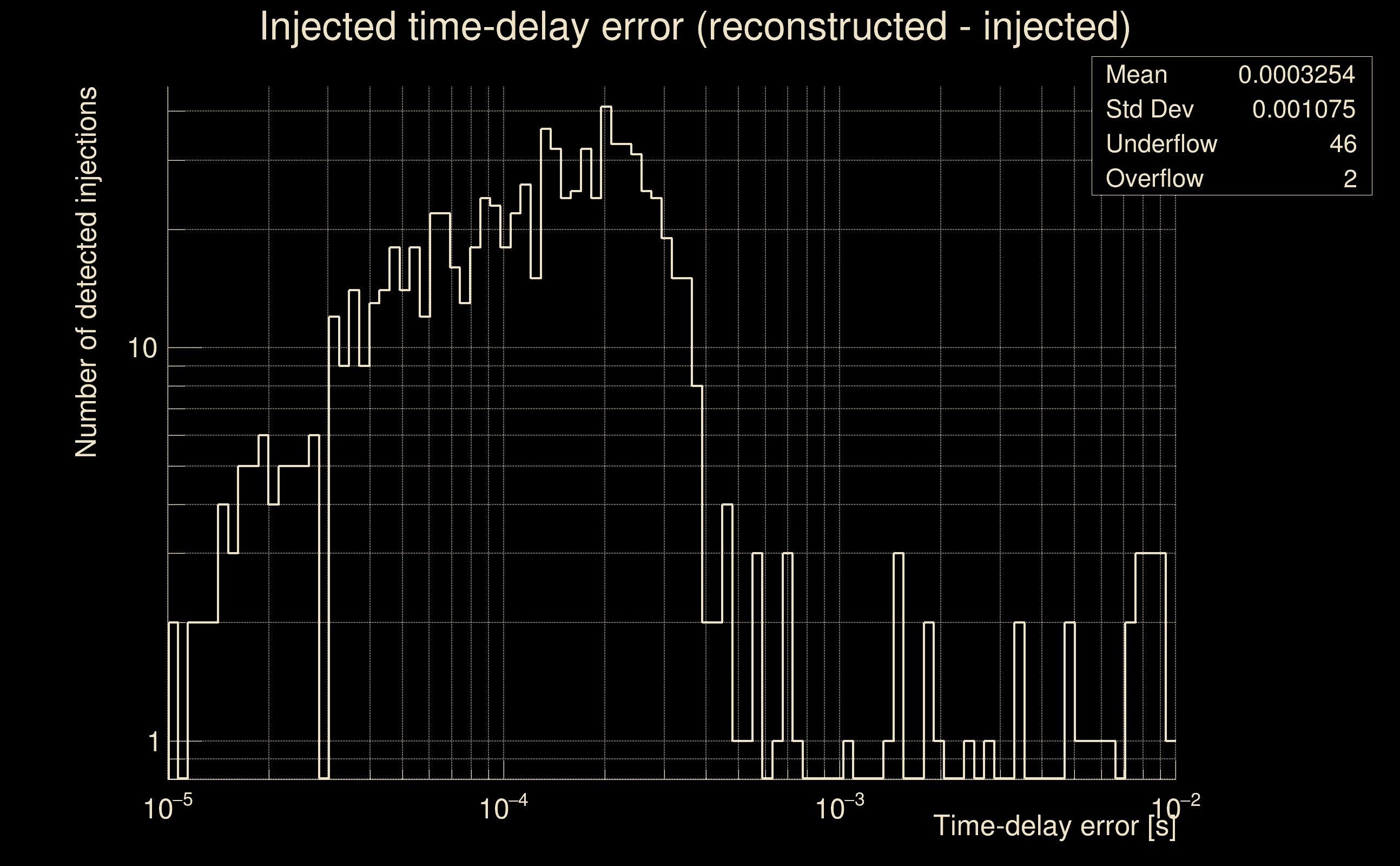

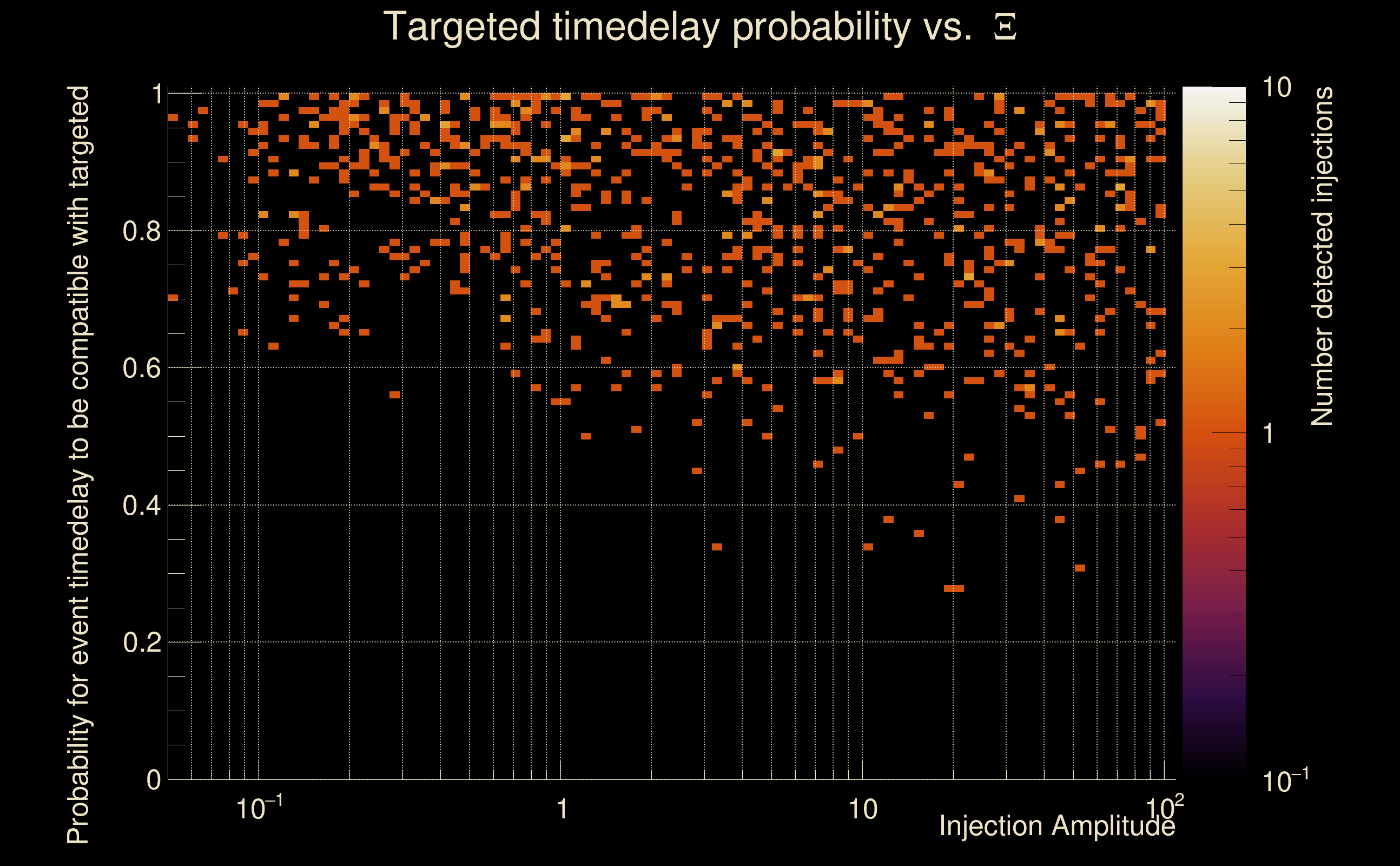

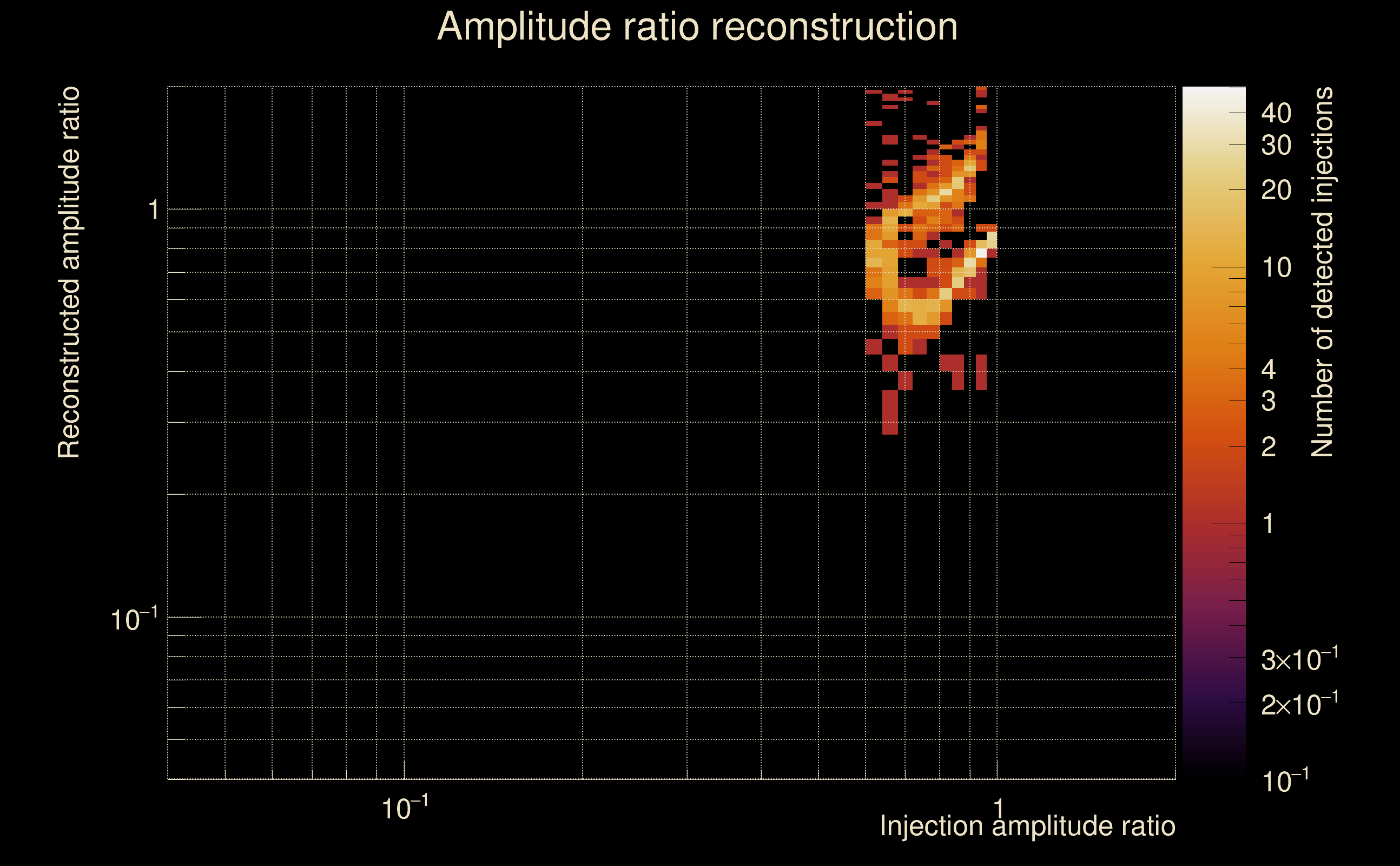

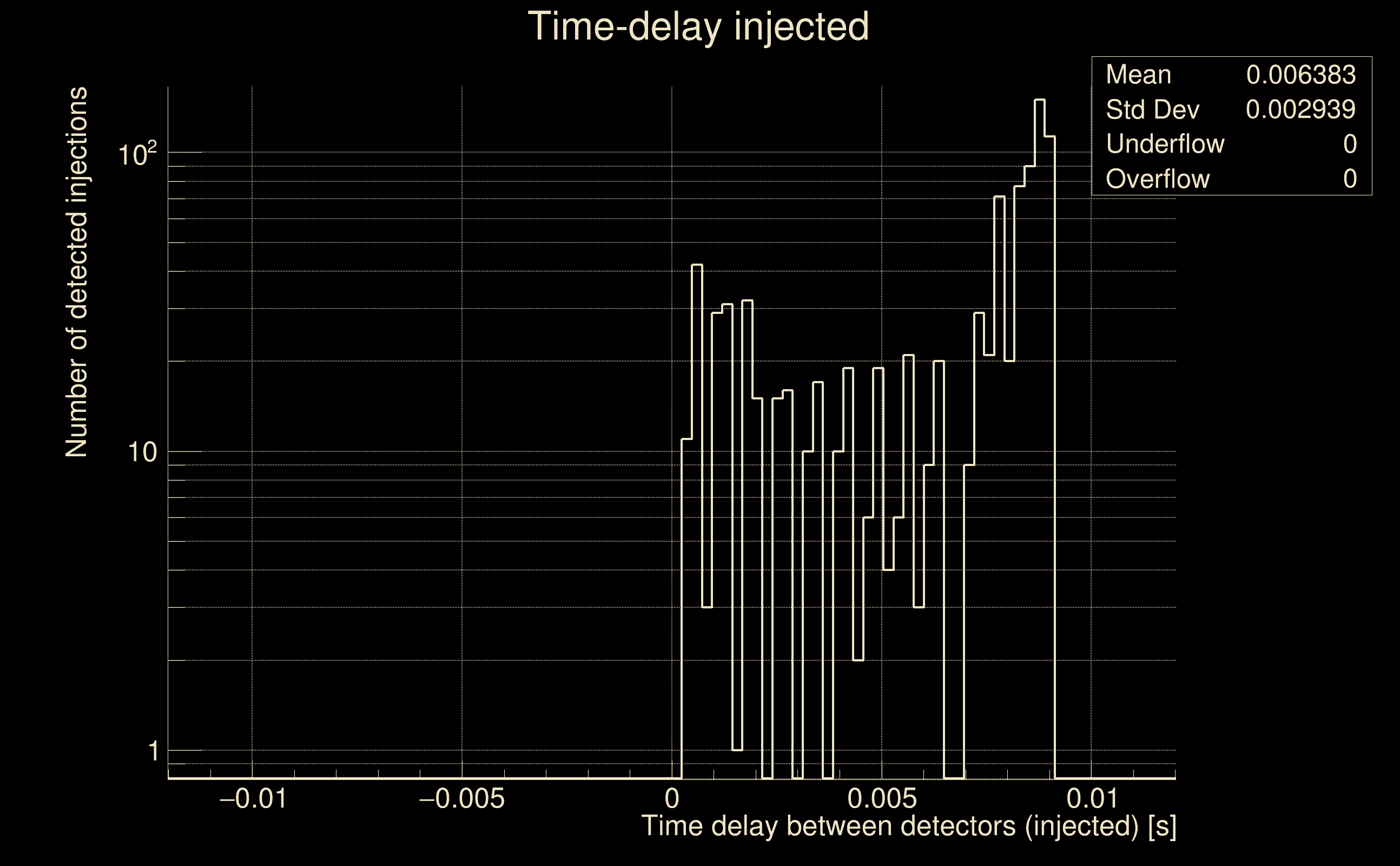

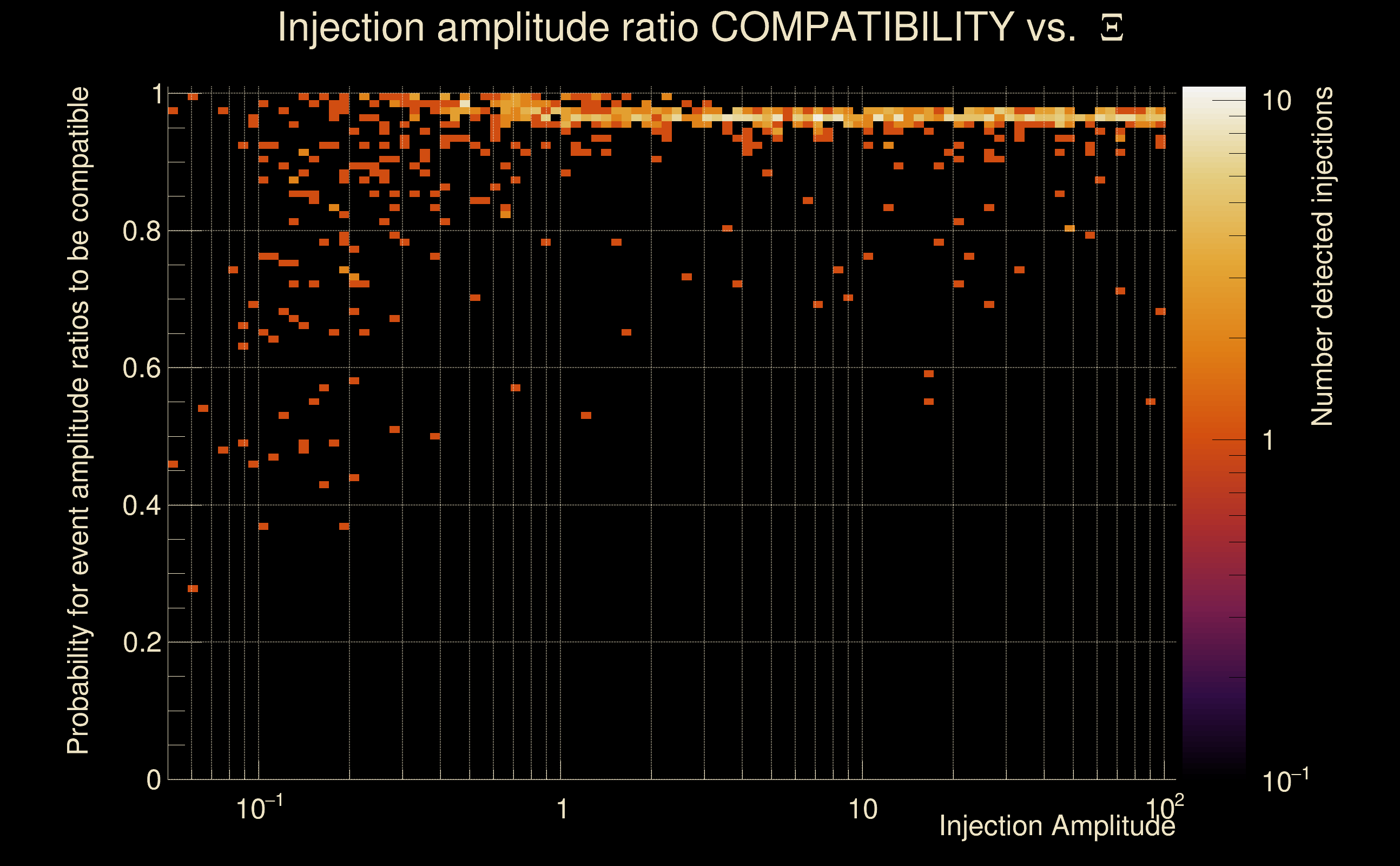

| Number of injections (total/valid/detected): | 1042 / 921 / 872 |
| List of missed injections: | ./Pan21-s40FR_missed.txt |
| Injection amplitude at 90% detection efficiency: | 0.233125 |
| Injection amplitude at 50% detection efficiency: | 0.121178 |
| Injection amplitude at 10% detection efficiency: | 0.0974239 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
