| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Wed Sep 23 08:57:58 2026 UTC |
| Ox option file: | Bench3_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench3_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench3_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=140 (-1.472 s), time lag = 0 s |

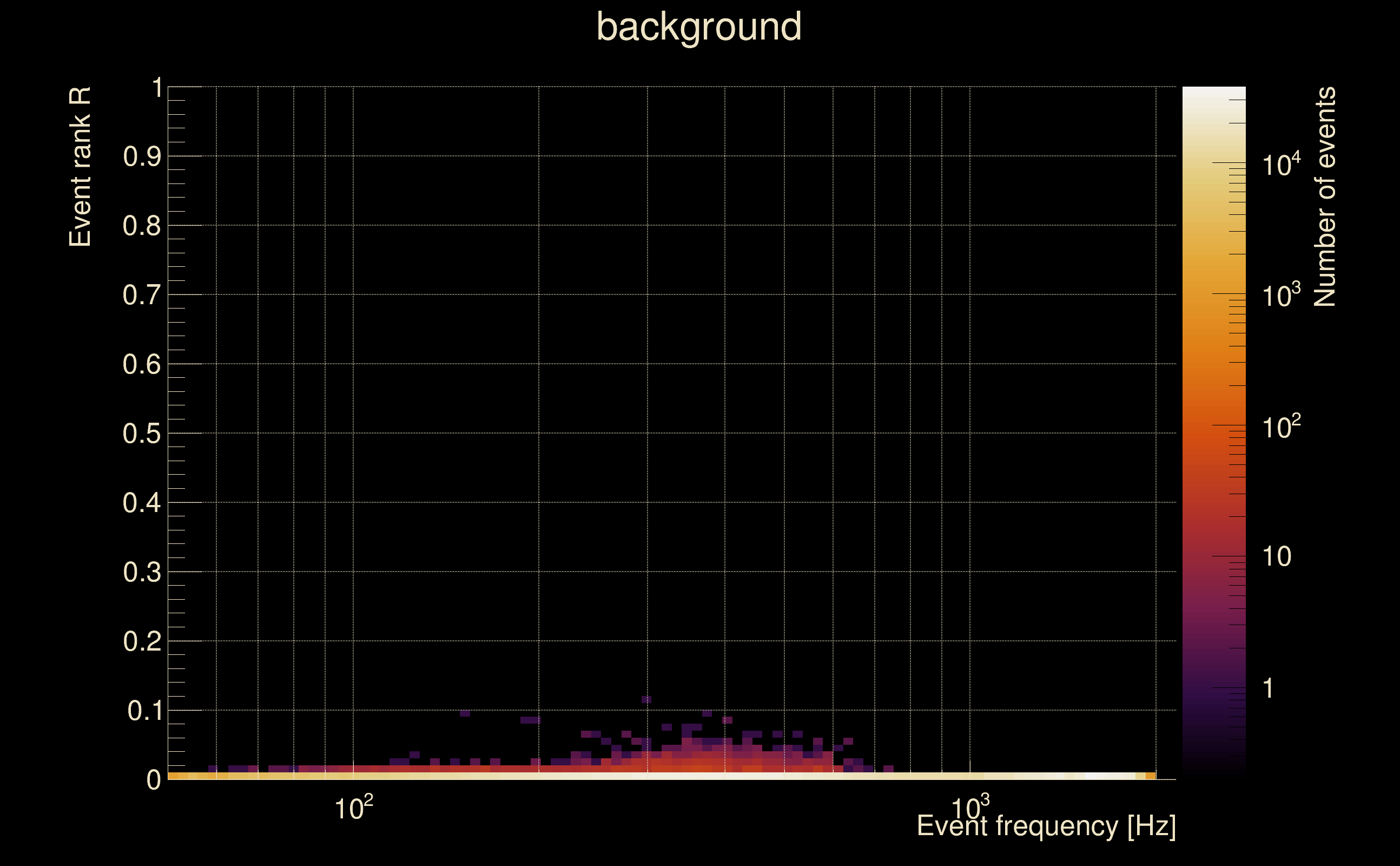

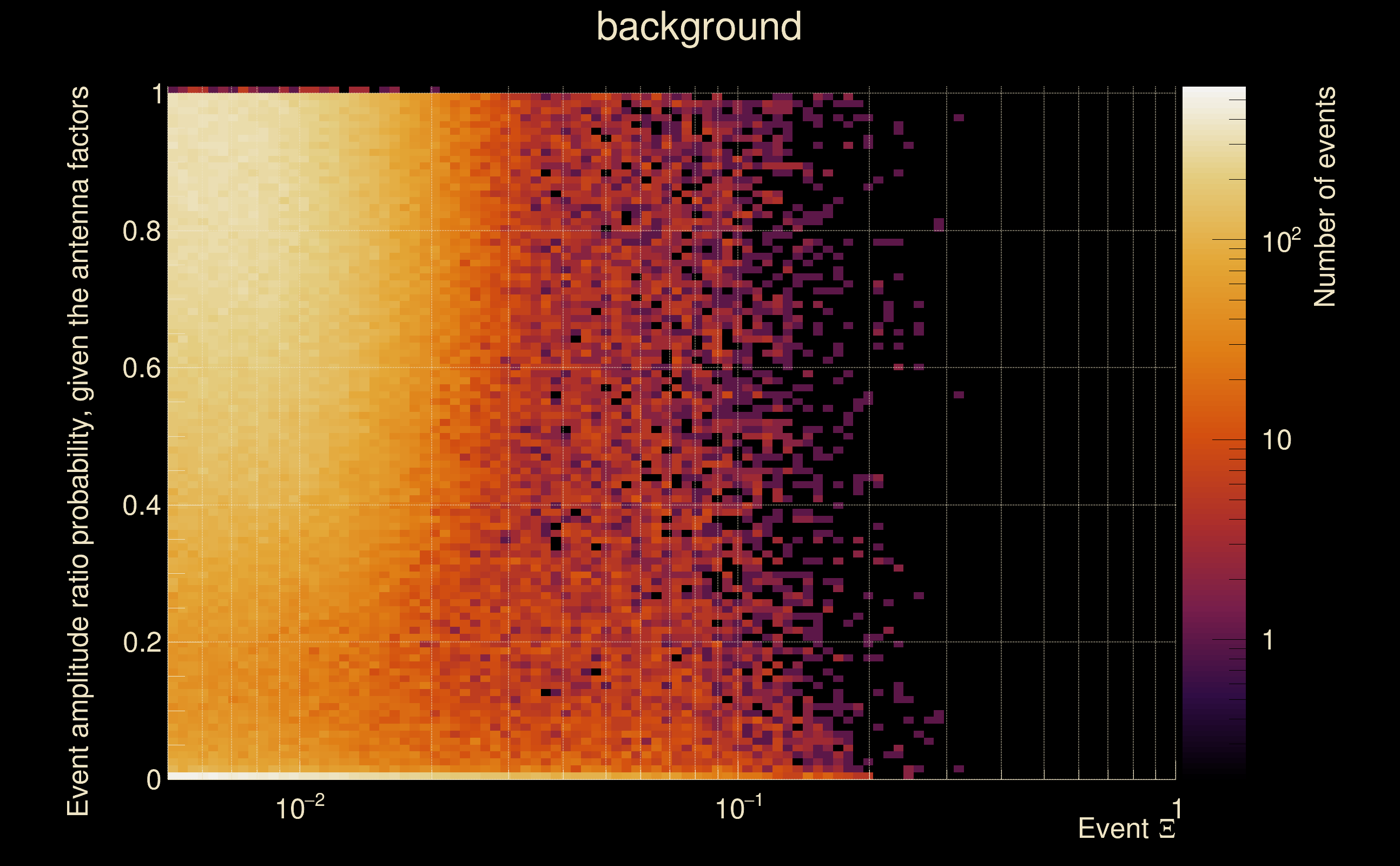

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

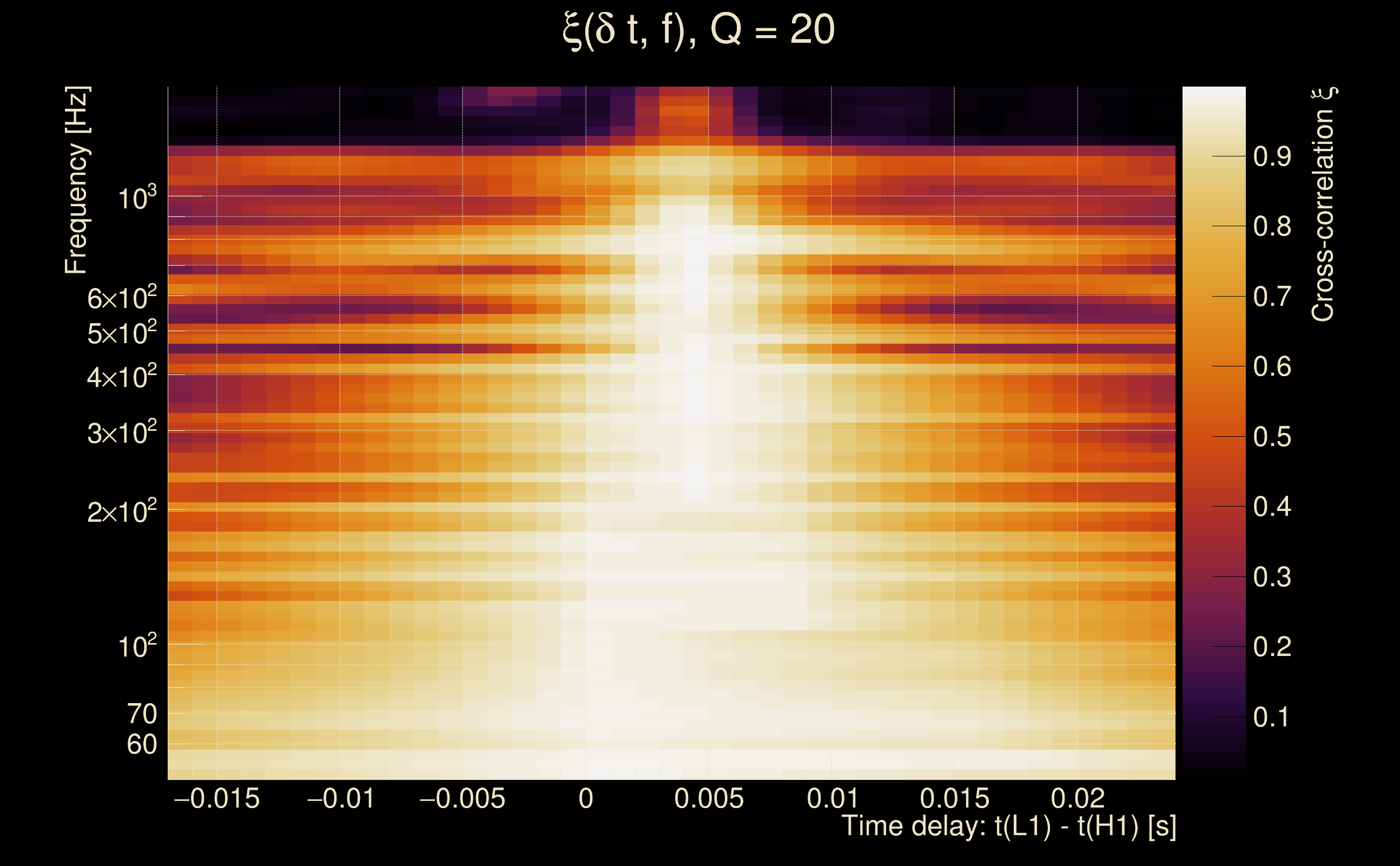

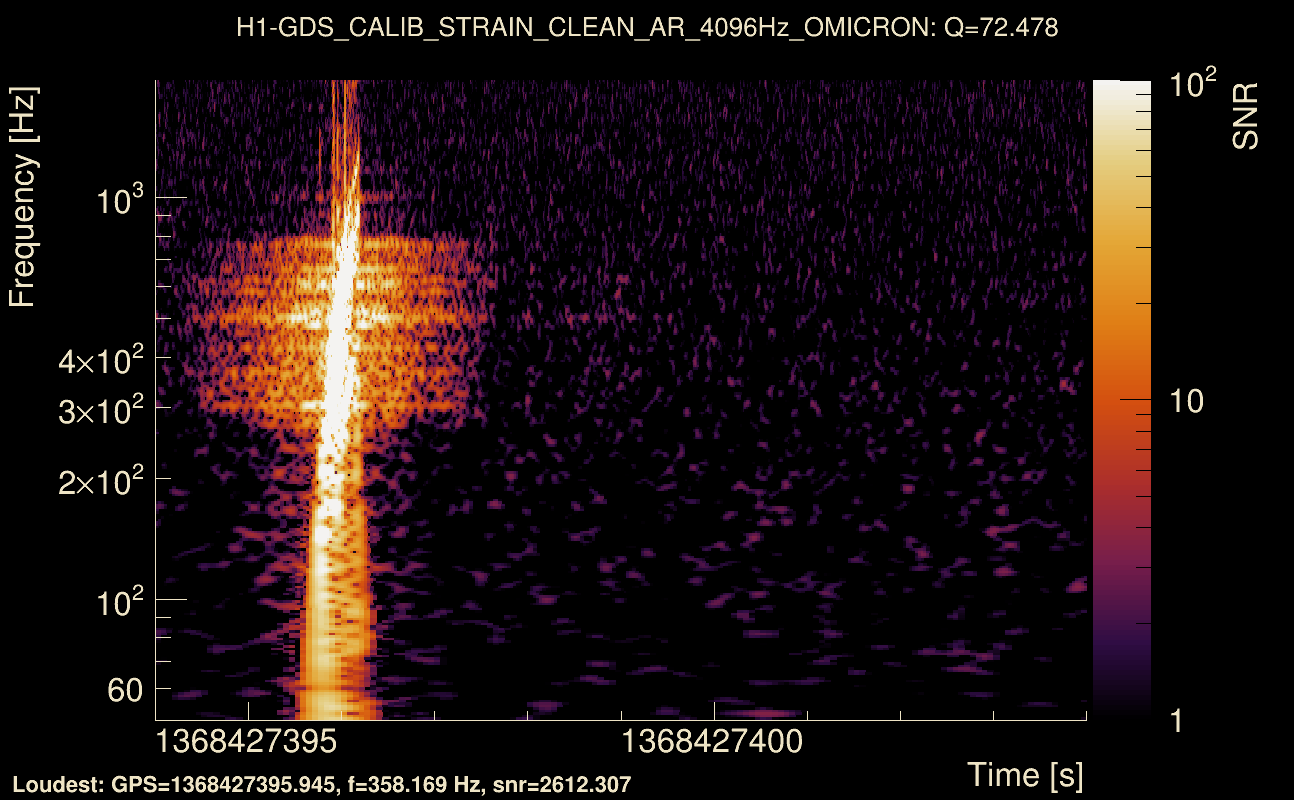

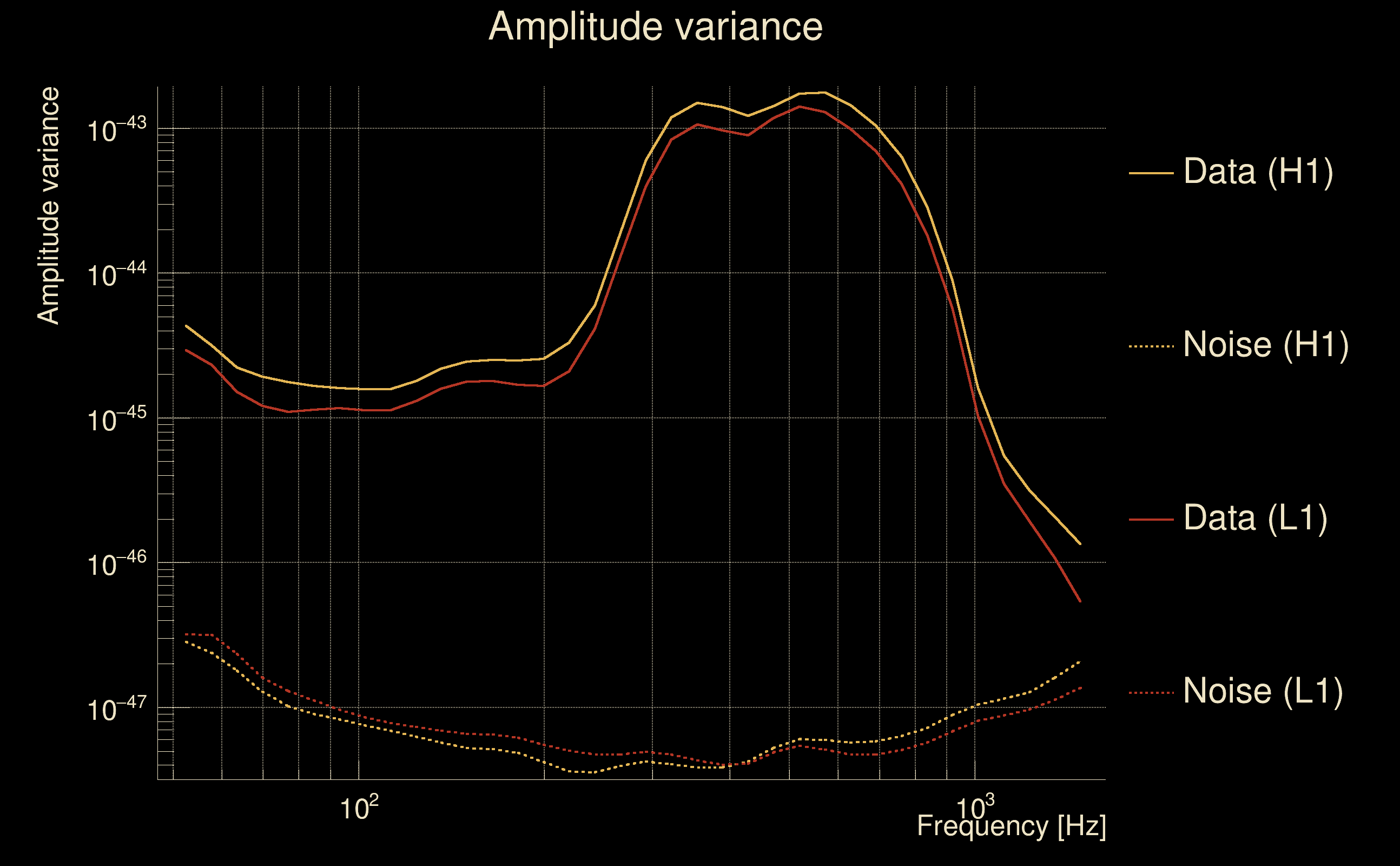

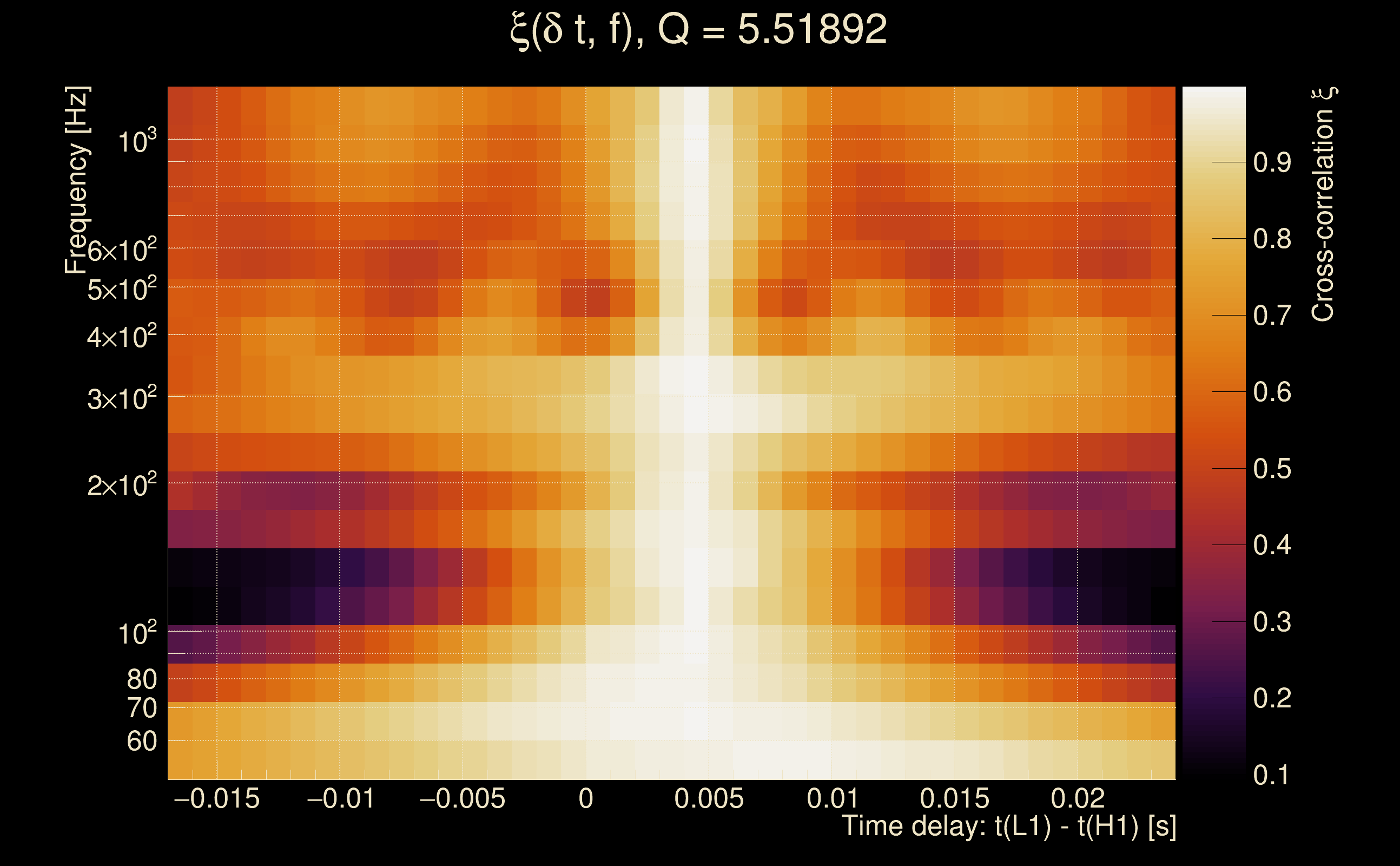

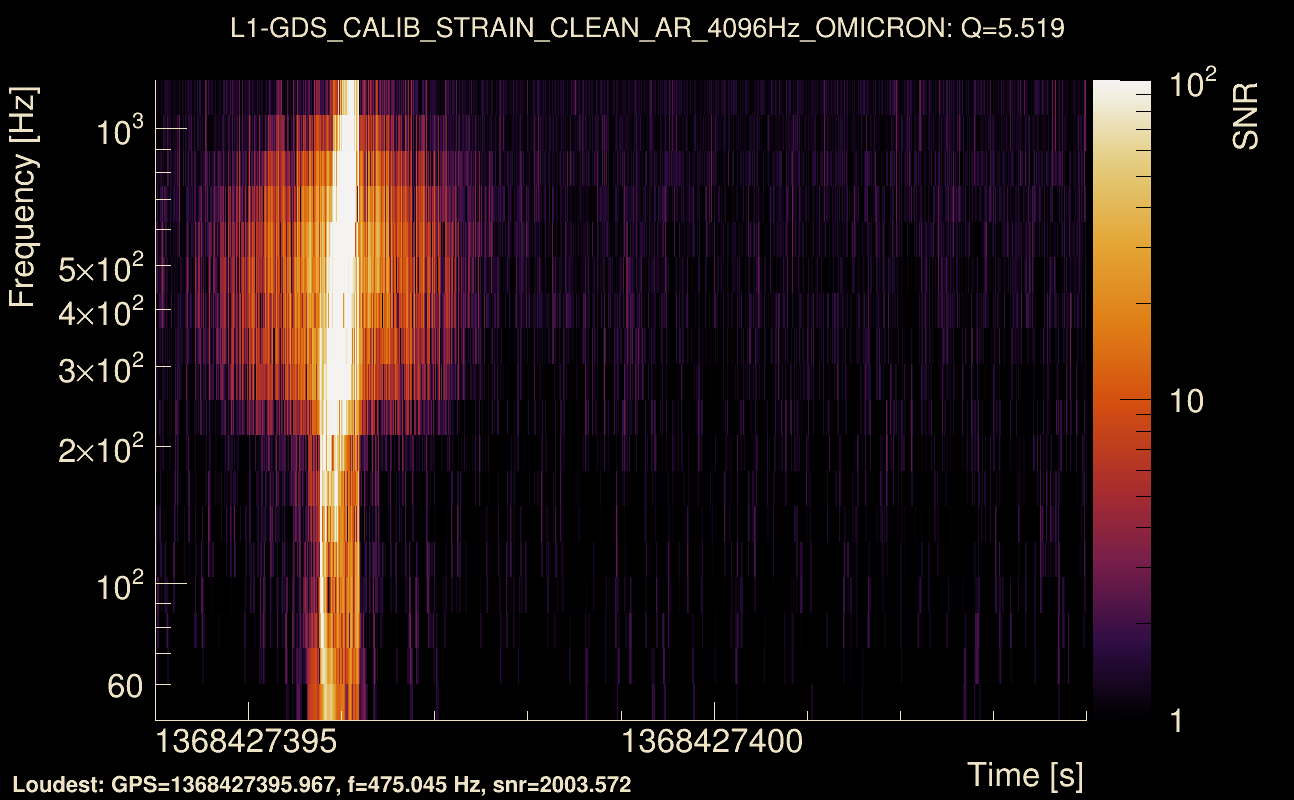

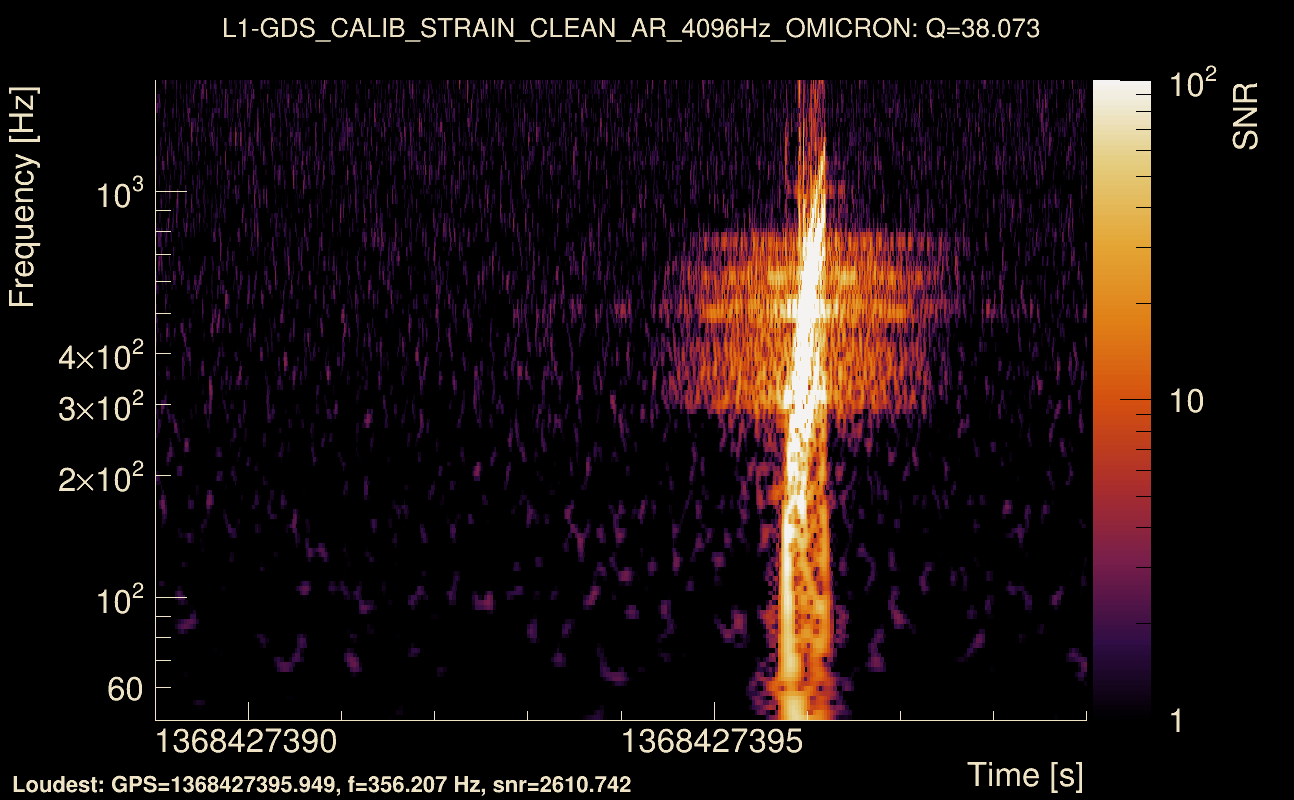

| Event time t(H1): | GPS = 1368427389 (Thu May 18 06:42:51 2023 ) → GPS = 1368427399 (Thu May 18 06:43:01 2023 ) |
| Event time t(L1): | GPS = 1368427389 (Thu May 18 06:43:01 2023 ) → GPS = 1368427399 (Thu May 18 06:43:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368427386 → GPS = 1368427402 |
| Omicron analysis time window (L1): | GPS = 1368427386 → GPS = 1368427402 |
| Time delay between detectors t(L1) - t(H1): | 0.00394856 s (slice index = 108 / 217), δt_gw = 0.00394856 s |
| Time delay standard deviation: | 0.0200869 s |
| [targeted mode] Time delay probability: | 0.219609 (1.22757 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 269.321 Hz |
| Ξ: | 0.974888 ± 0.0127946 (variance = 0.000163701): Q0: 0.989092, Q1: 0.964671, Q2: 0.957578, Q3: 0.956846, Q4: 0.954146 |
| Rank: | R_A = 0.93765 |
| Log of amplitude ratio (L1/H1): | -0.16453, variance = 0.154296 (L1/H1: -0.17754, variance = 0.302725, H1/L1: 0.147486, variance = 0.303824) |
| Amplitude ratio (L1/H1): | 0.848292 ⋇ 1.48113 (L1/H1: 0.837328 ⋇ 1.73361, H1/L1: 1.15892 ⋇ 1.73534) |

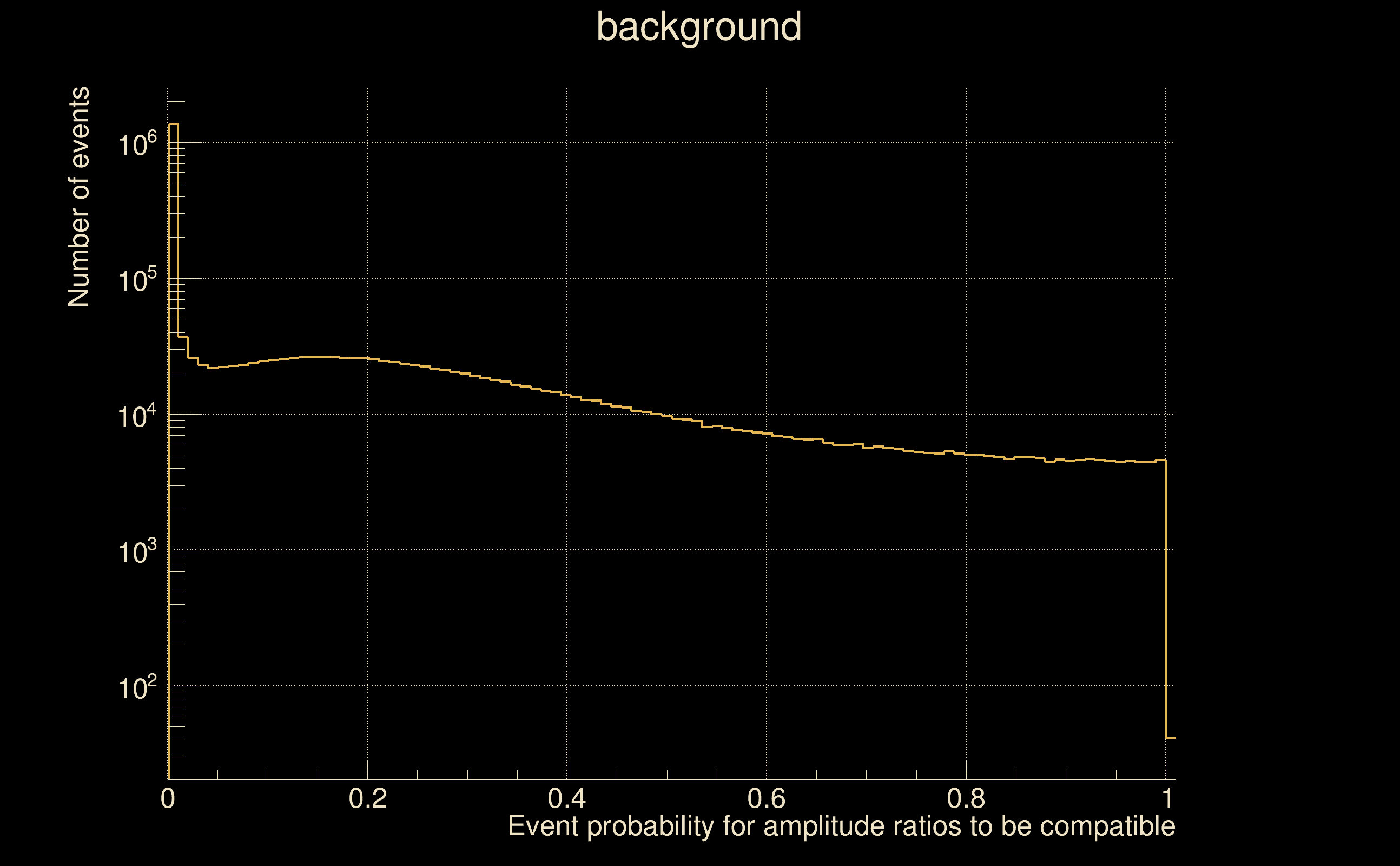

| Amplitude ratio H1|L1 compatibility (probability): | 0.969218 |

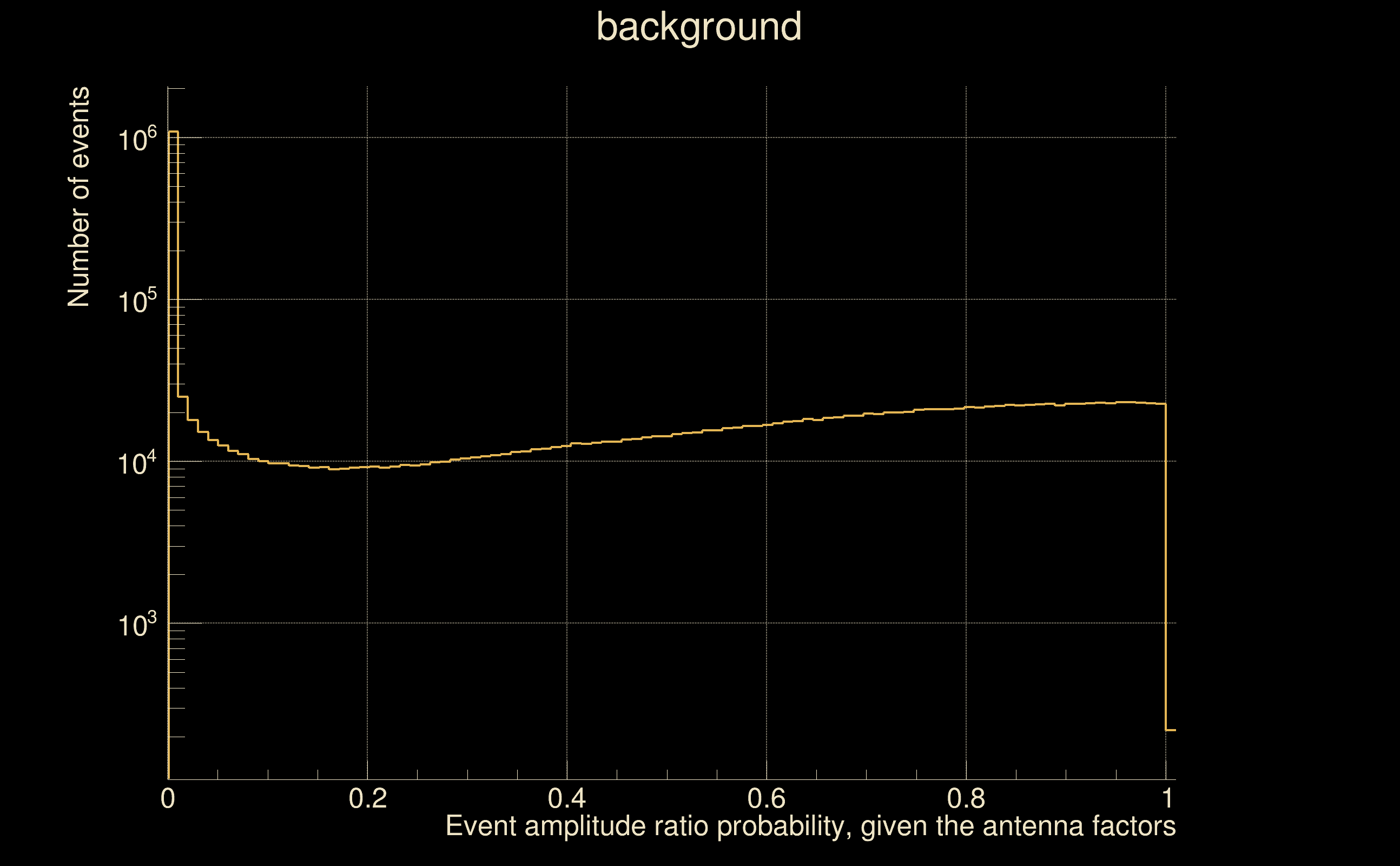

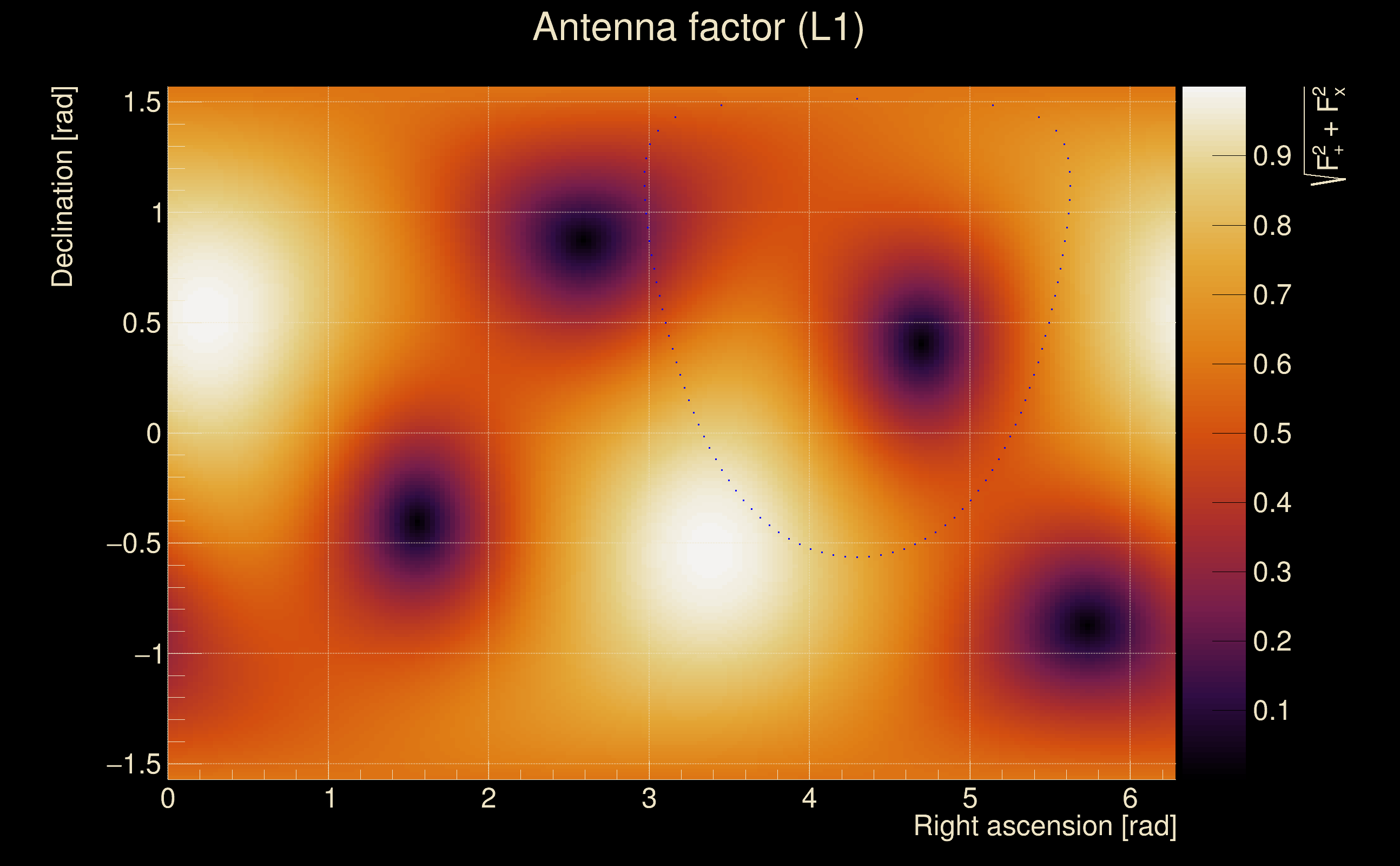

| Antenna factor probability: | 0.99235 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 3120.67, L1: 2726.41 |

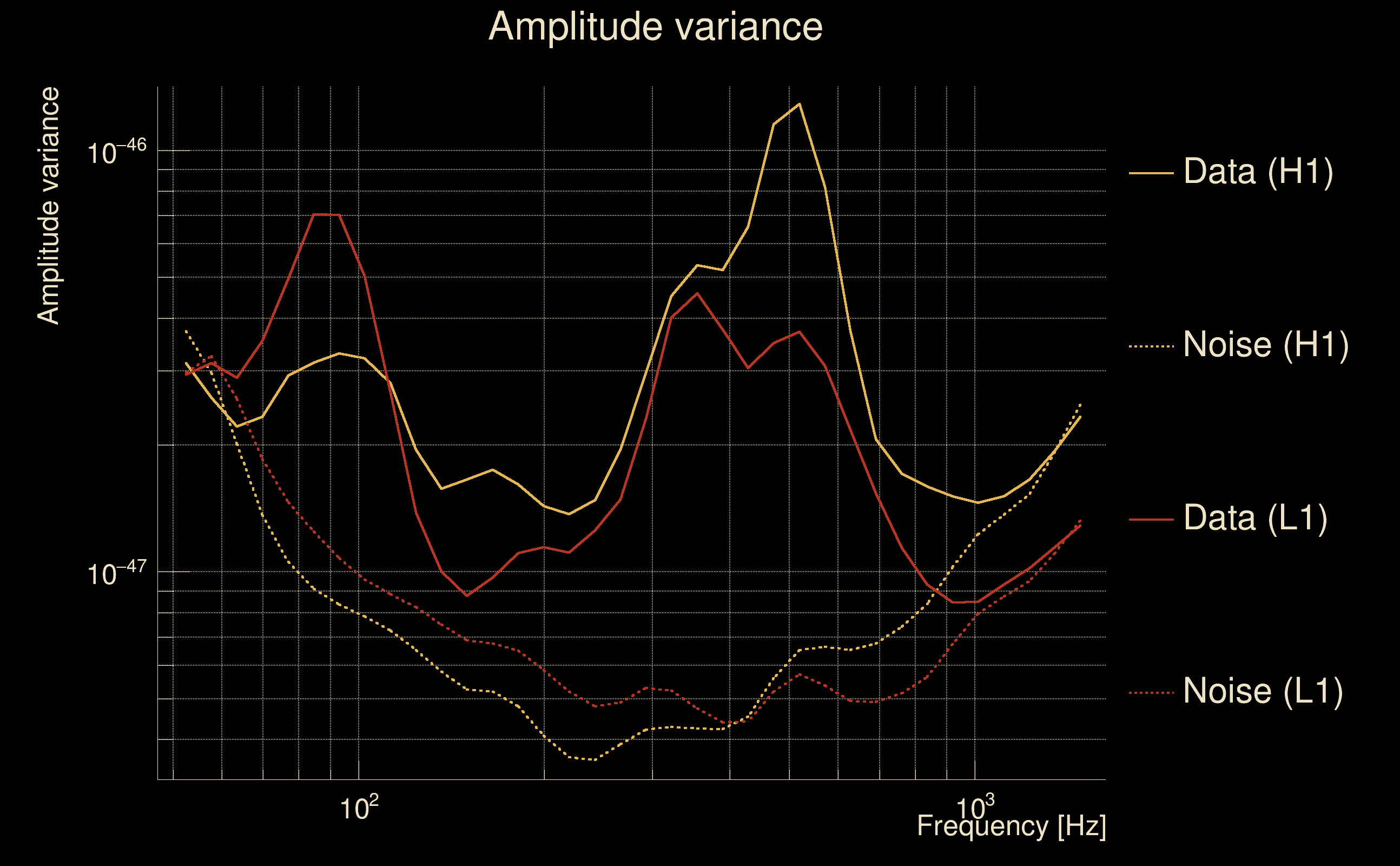

| SNR variance: | H1: 0.483318, L1: 0.497363 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

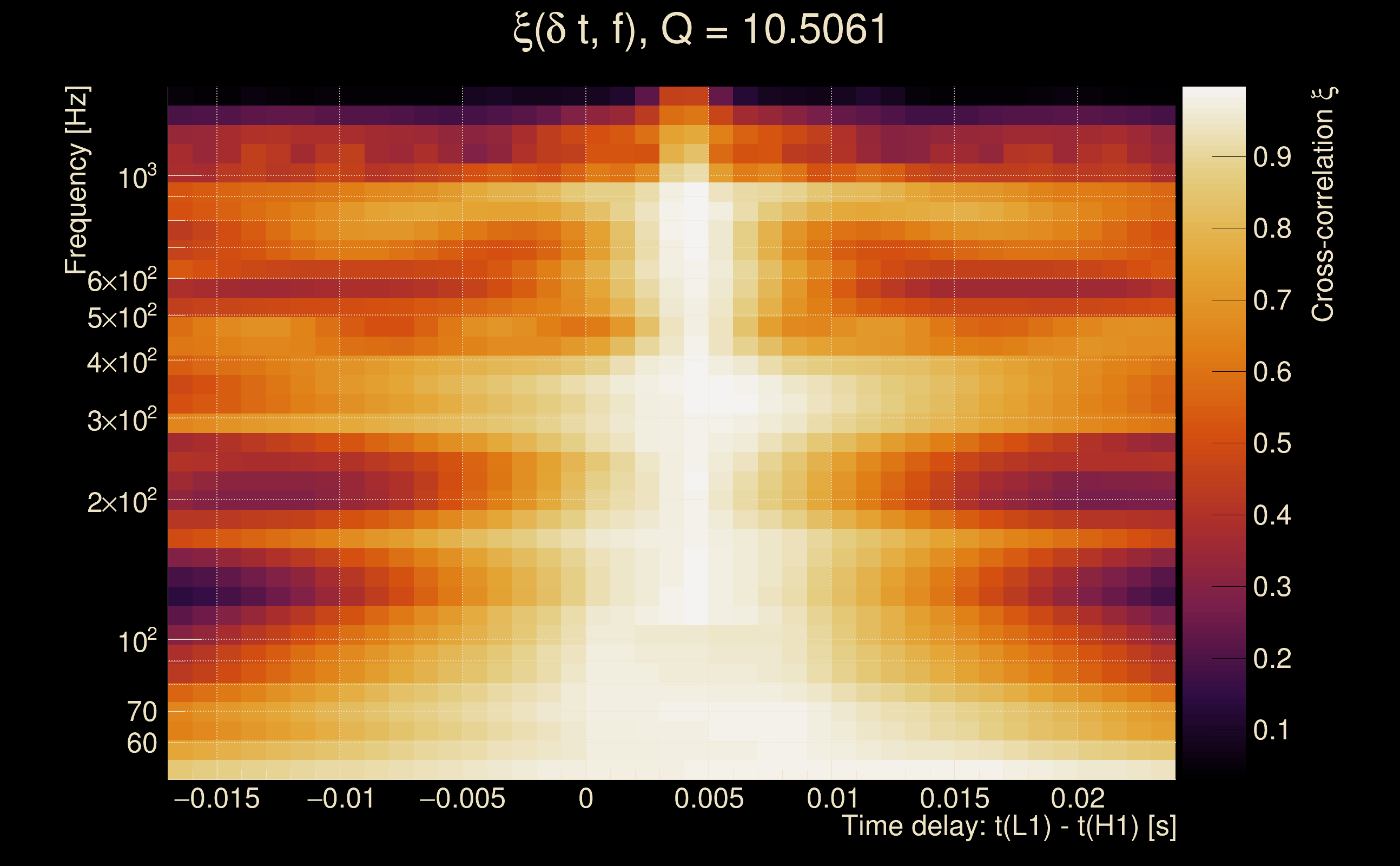

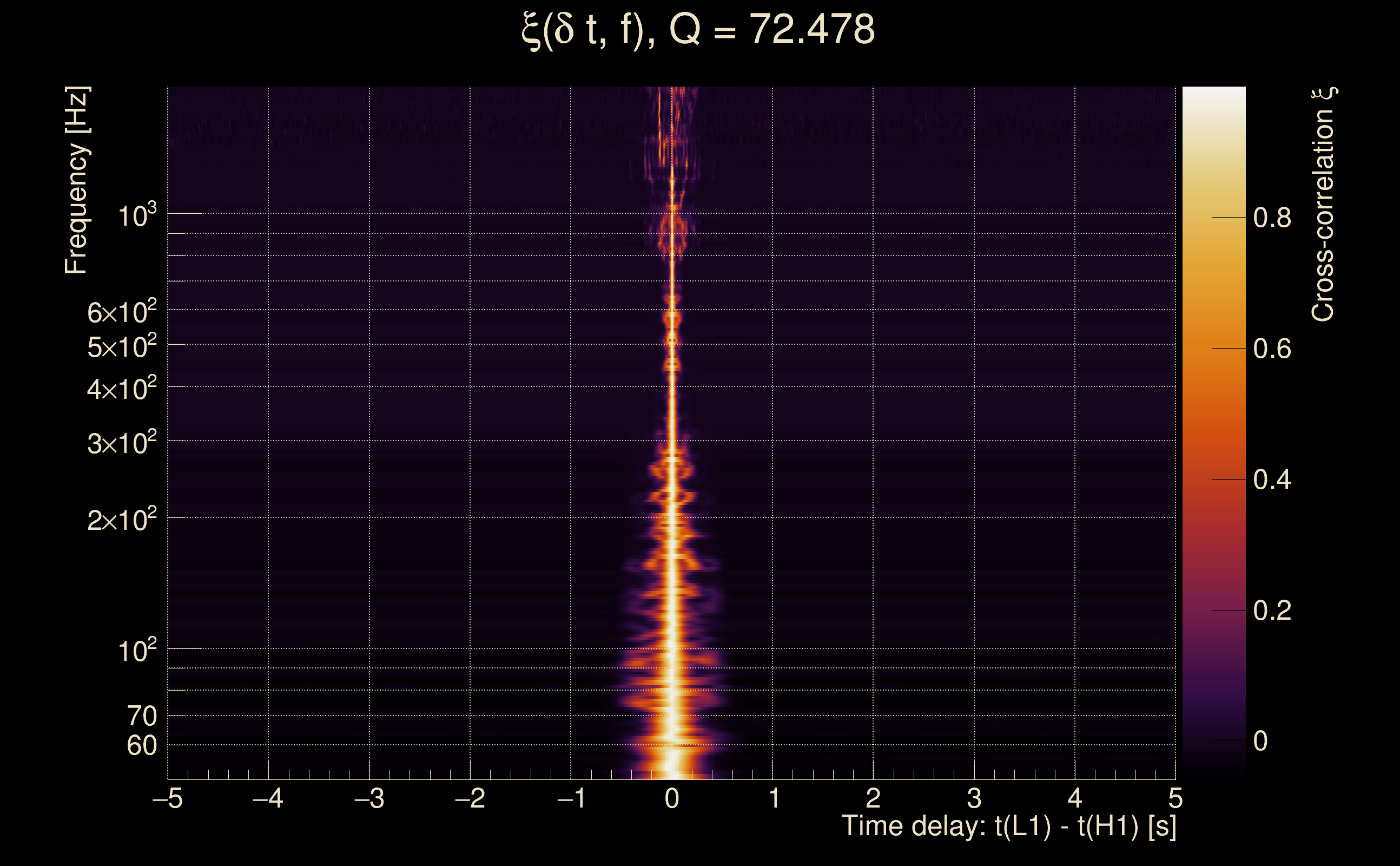

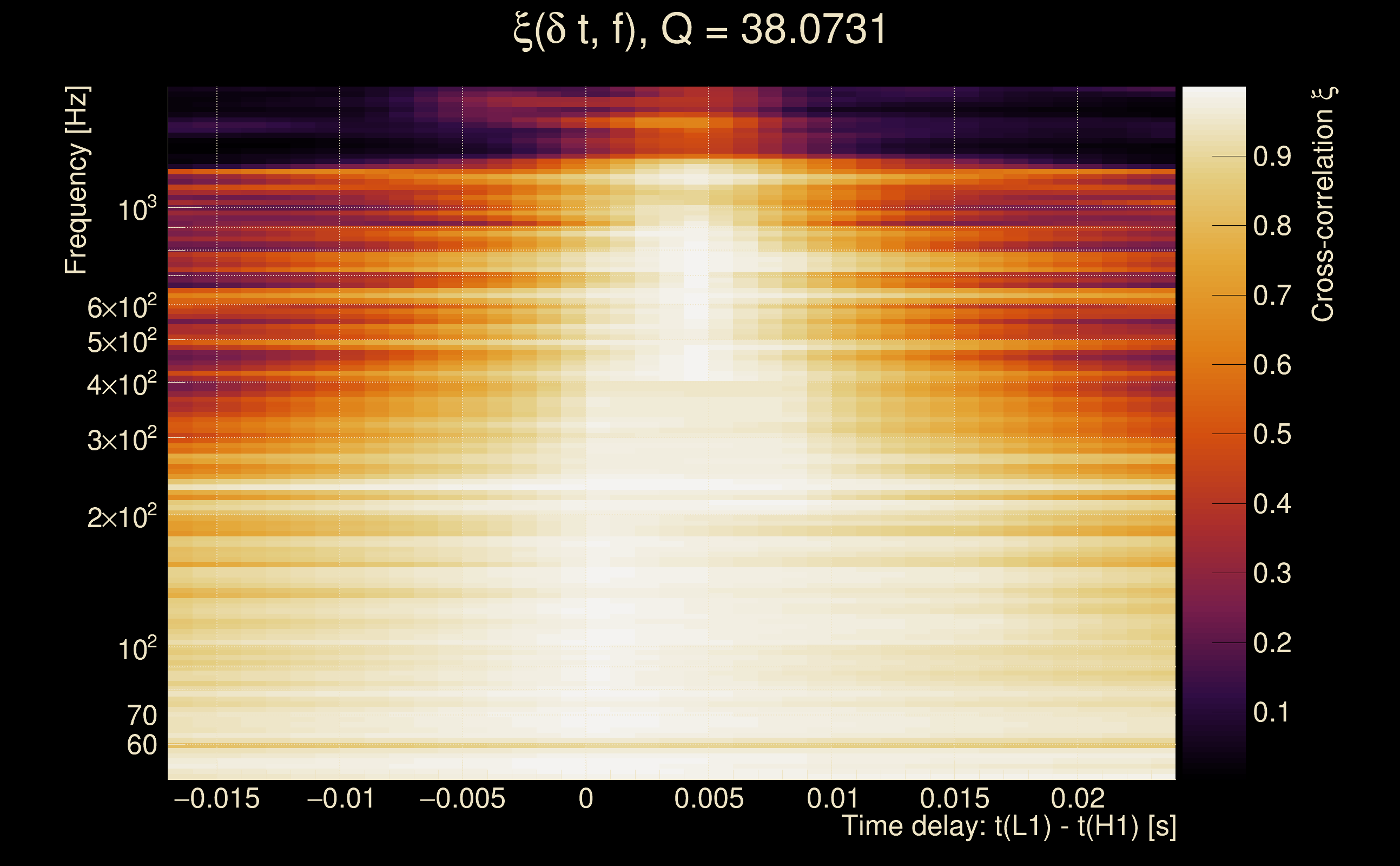

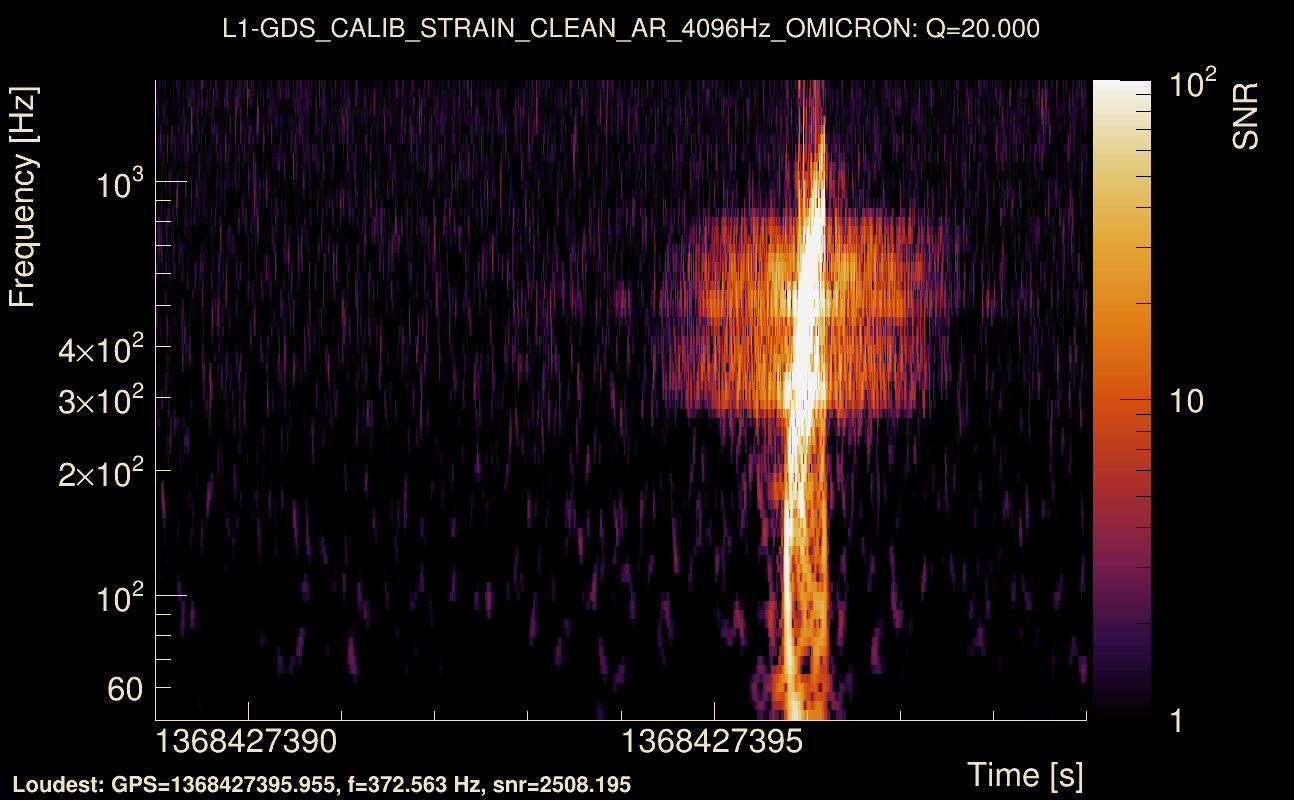

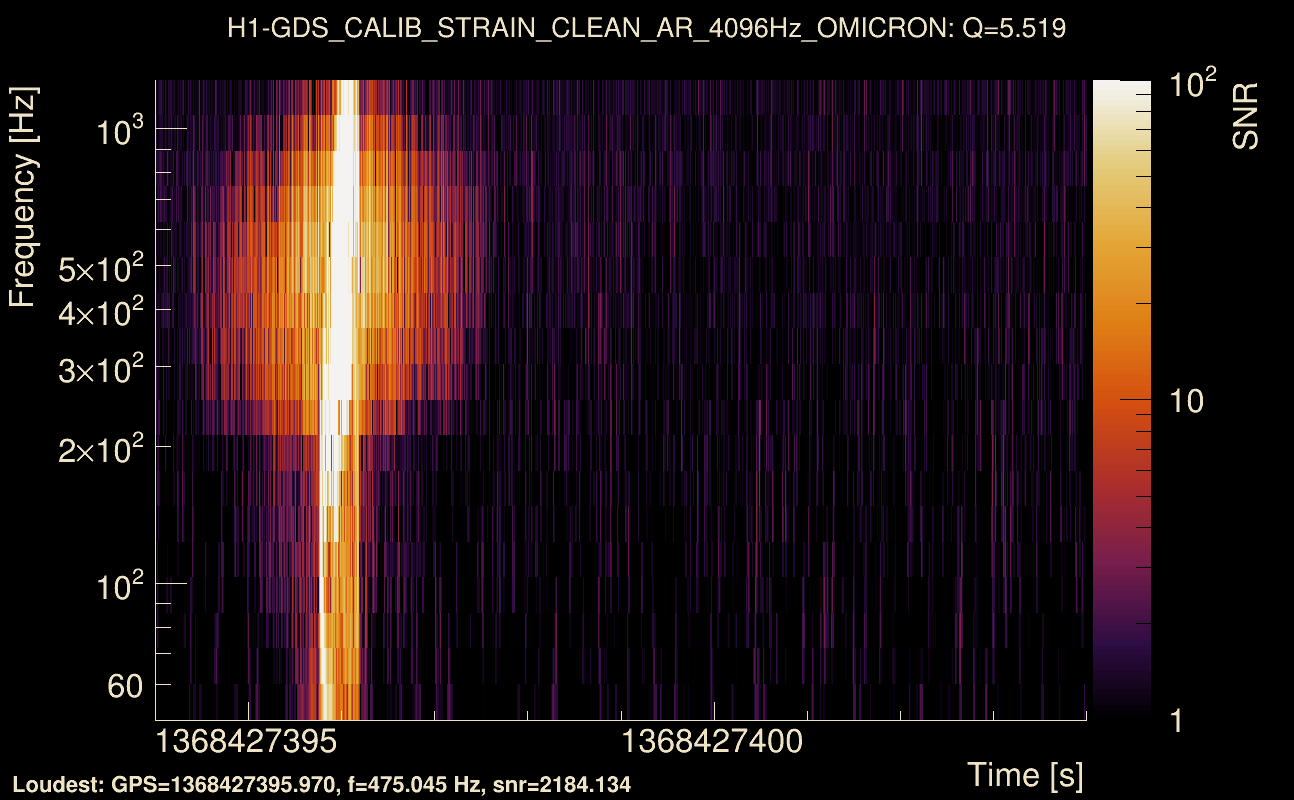

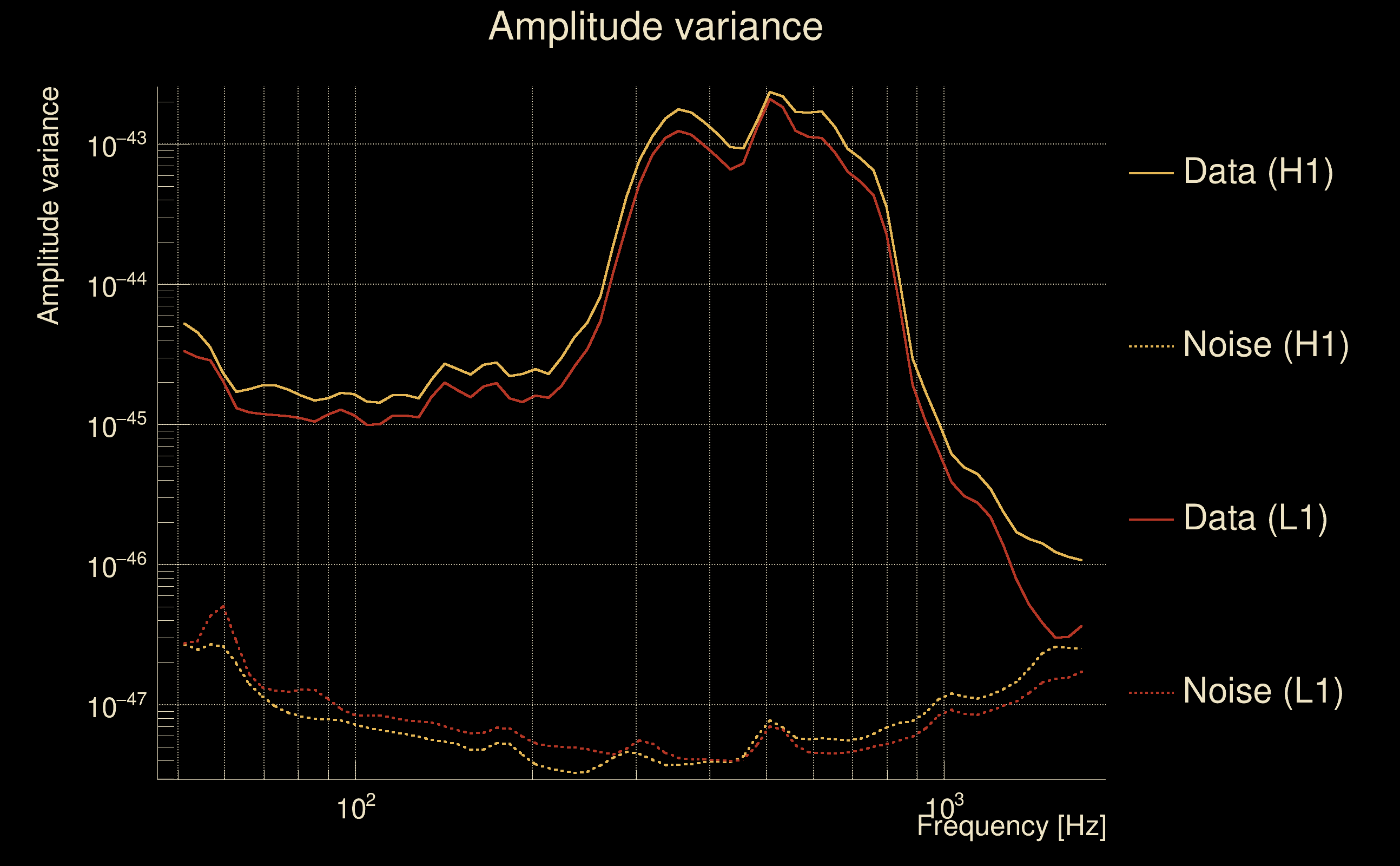

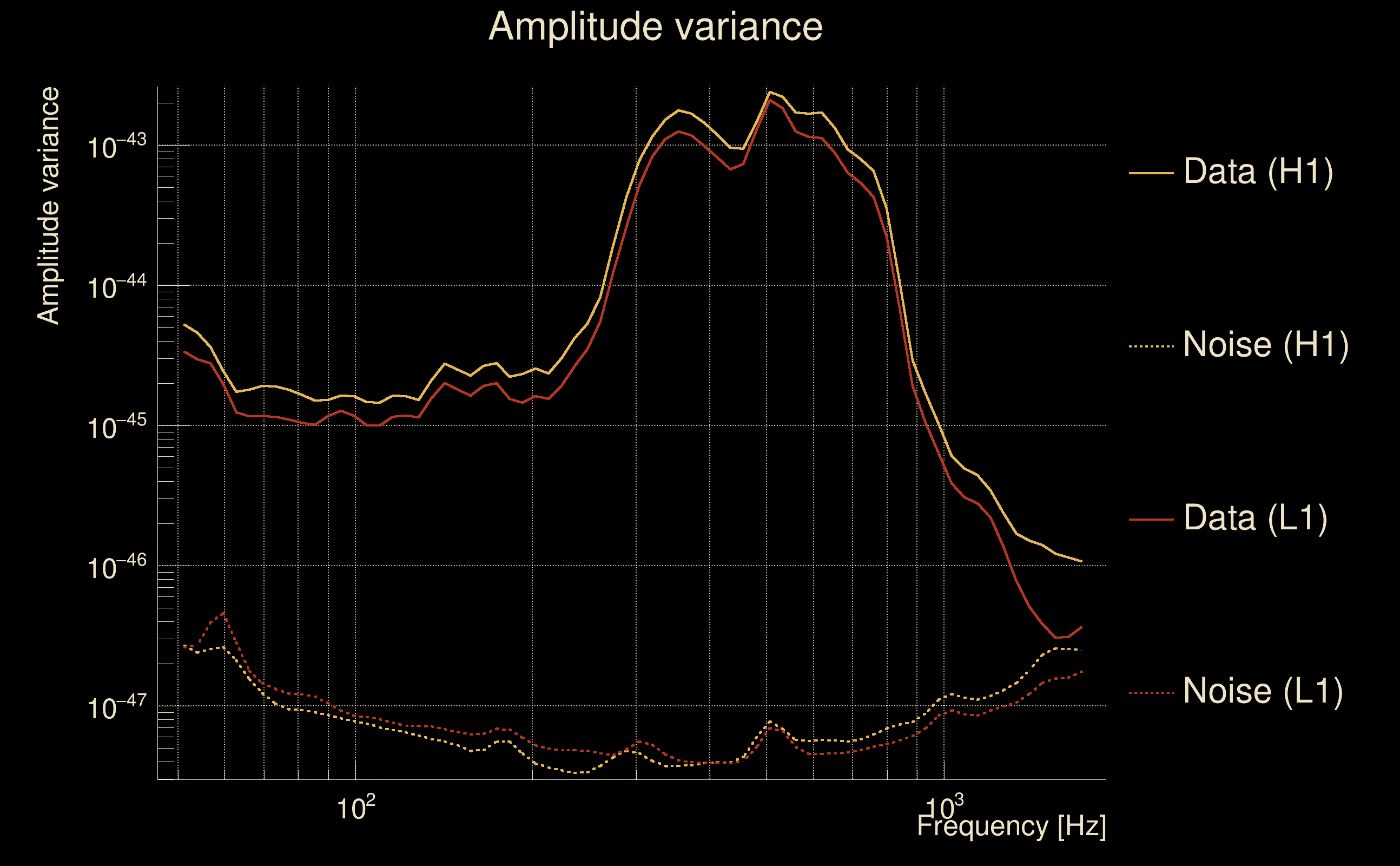

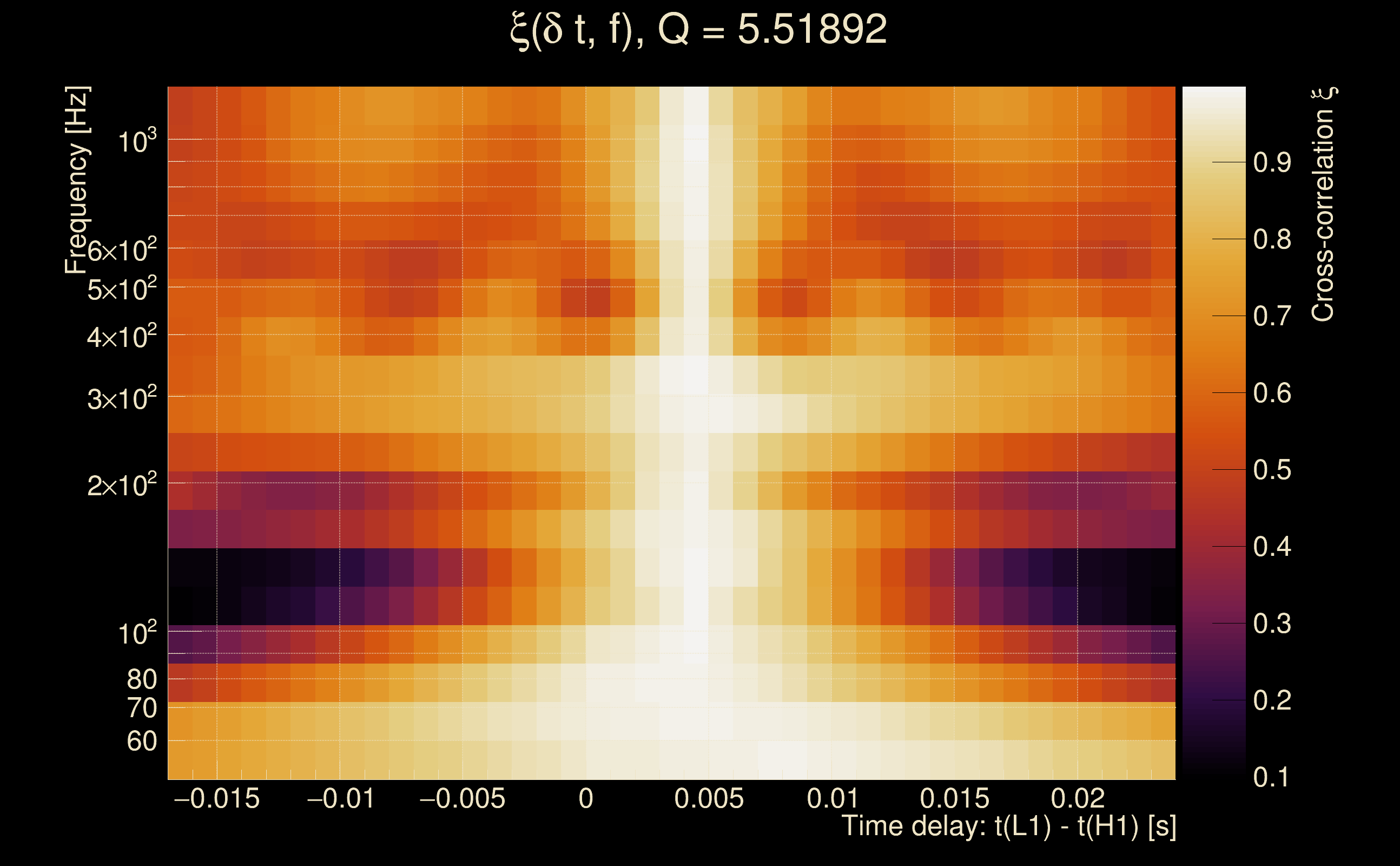

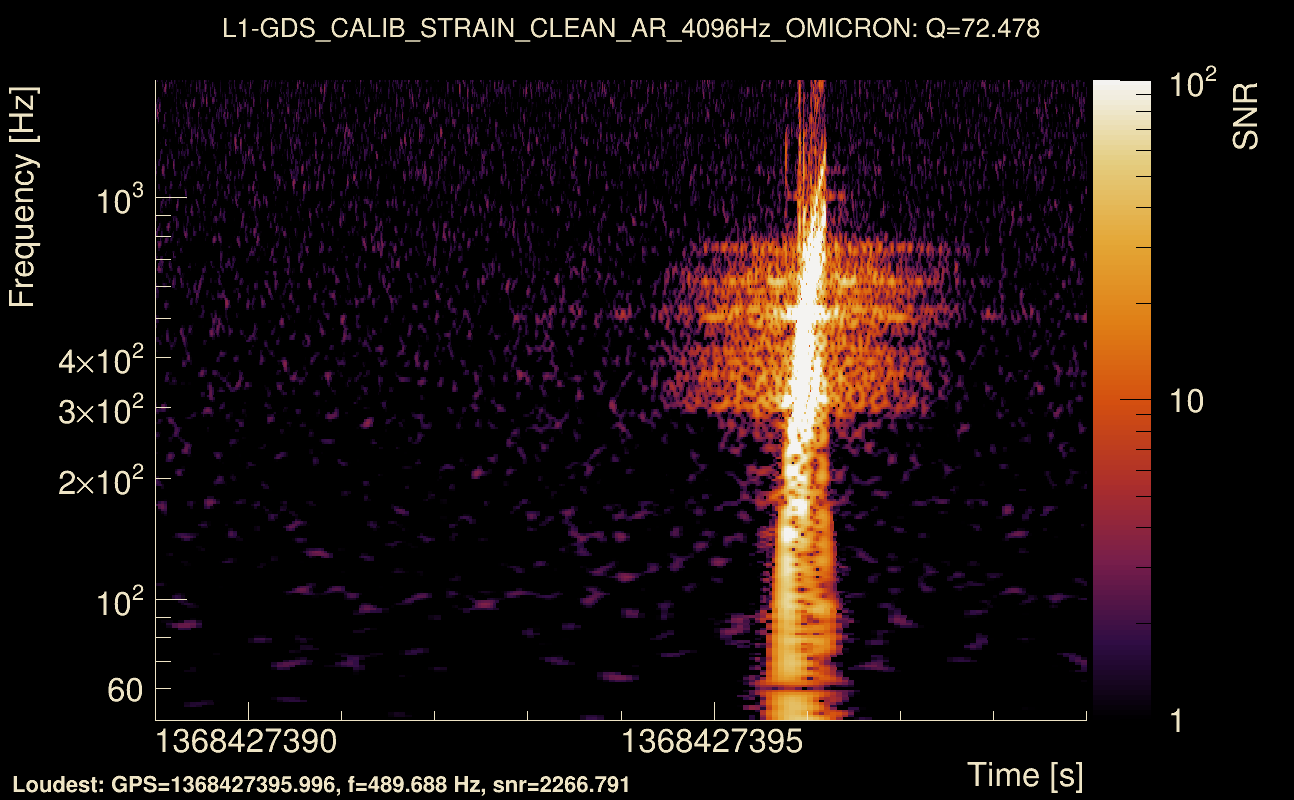

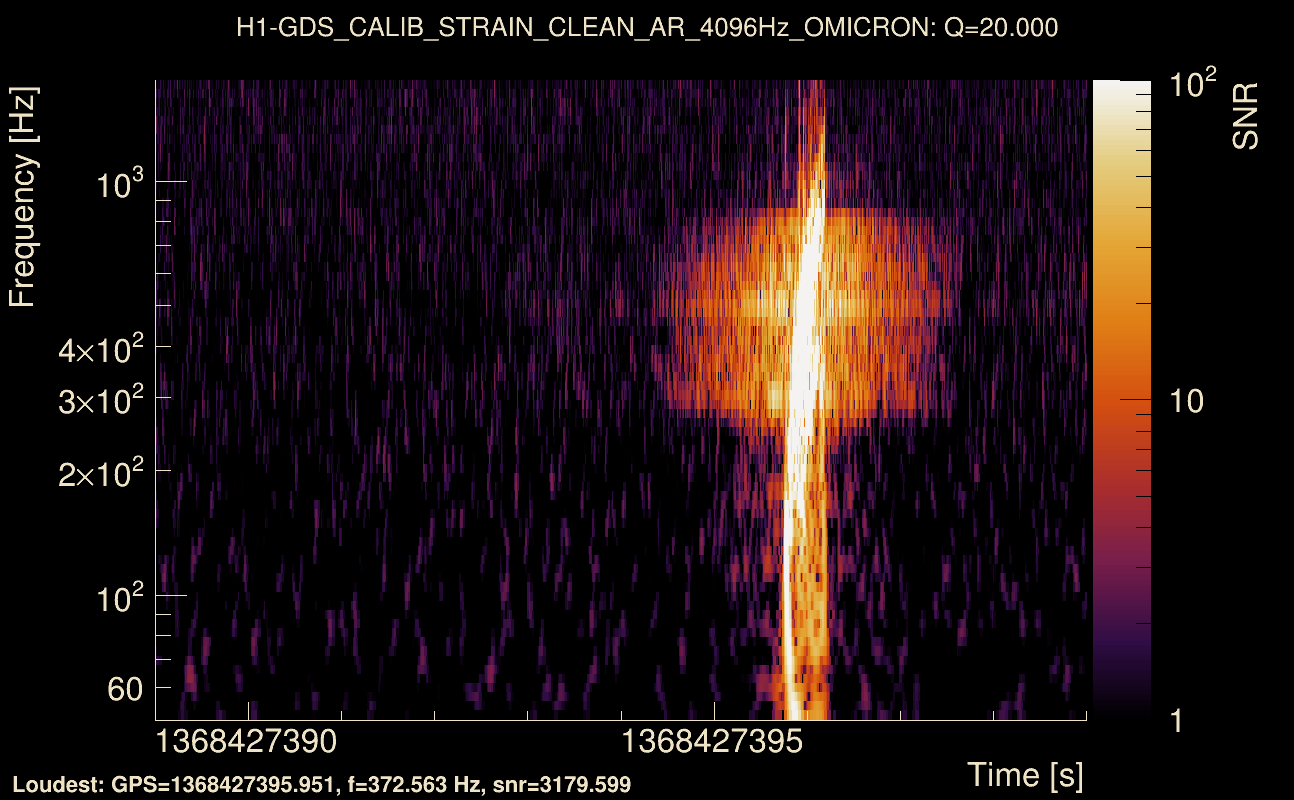

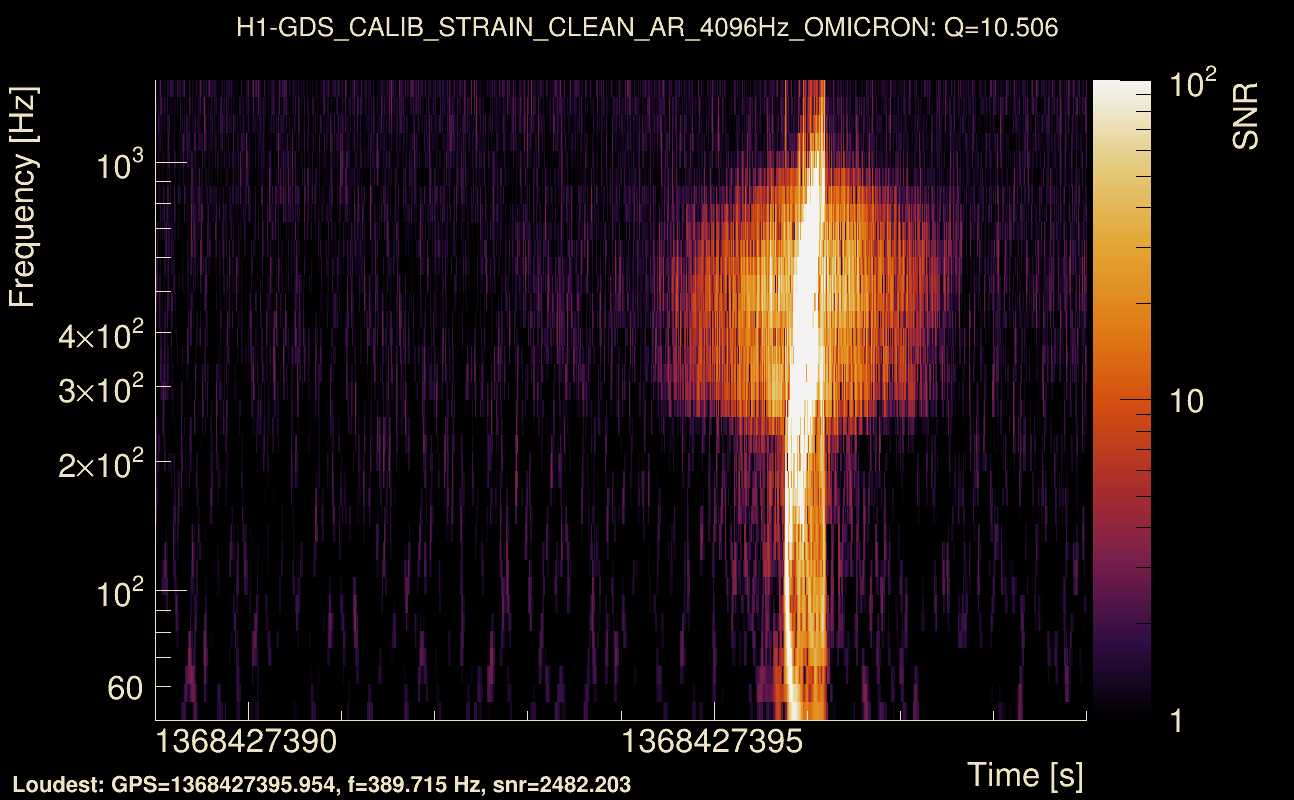

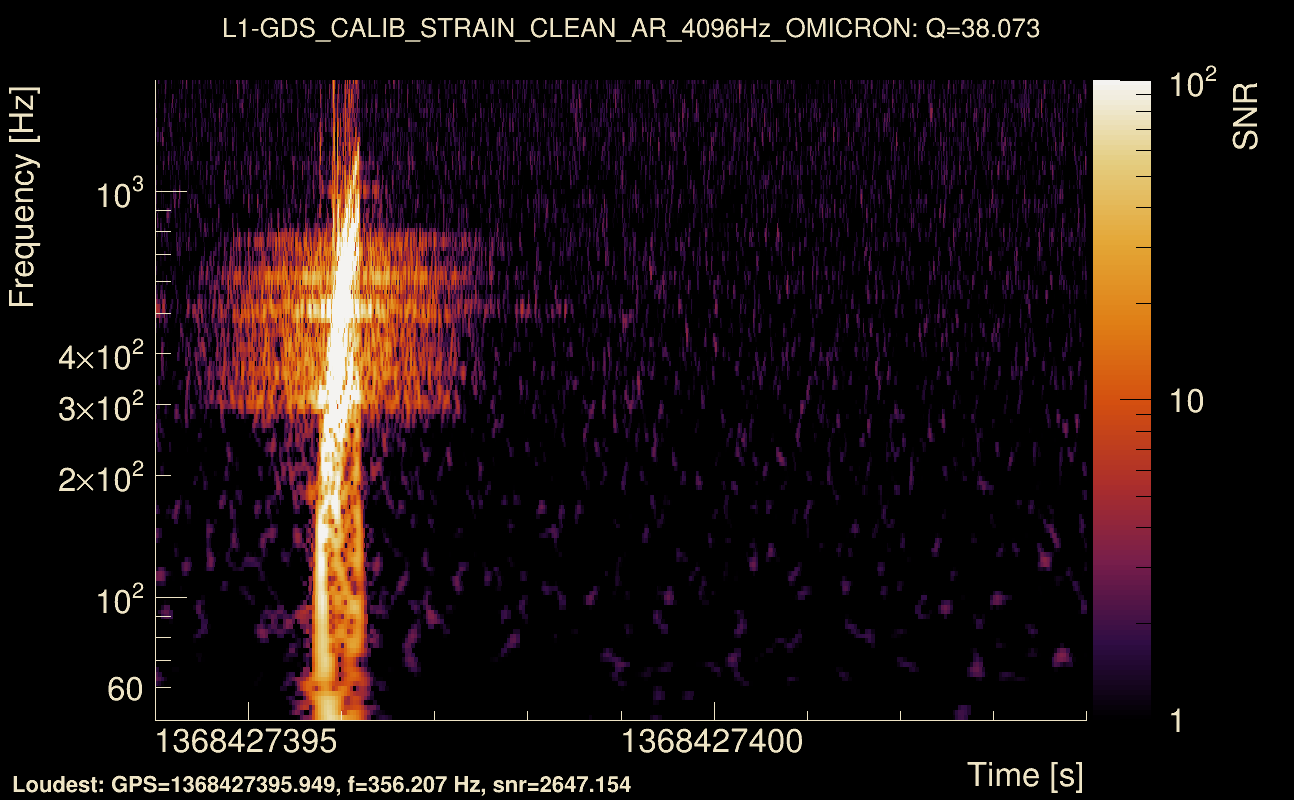

| Event time t(H1): | GPS = 1368427394 (Thu May 18 06:42:56 2023 ) → GPS = 1368427404 (Thu May 18 06:43:06 2023 ) |
| Event time t(L1): | GPS = 1368427394 (Thu May 18 06:43:06 2023 ) → GPS = 1368427404 (Thu May 18 06:43:06 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368427391 → GPS = 1368427407 |
| Omicron analysis time window (L1): | GPS = 1368427391 → GPS = 1368427407 |
| Time delay between detectors t(L1) - t(H1): | 0.00393916 s (slice index = 108 / 217), δt_gw = 0.00393916 s |
| Time delay standard deviation: | 0.0204283 s |
| [targeted mode] Time delay probability: | 0.246364 (1.15923 sigmas), δt_target = -0.00183606 s |
| Frequency: | 269.339 Hz |
| Ξ: | 0.974798 ± 0.0127709 (variance = 0.000163096): Q0: 0.988941, Q1: 0.964673, Q2: 0.957561, Q3: 0.956761, Q4: 0.954007 |
| Rank: | R_A = 0.936058 |
| Log of amplitude ratio (L1/H1): | -0.163773, variance = 0.154409 (L1/H1: -0.176701, variance = 0.302823, H1/L1: 0.146782, variance = 0.303915) |
| Amplitude ratio (L1/H1): | 0.848934 ⋇ 1.48134 (L1/H1: 0.838031 ⋇ 1.73376, H1/L1: 1.1581 ⋇ 1.73548) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.969361 |
| Antenna factor probability: | 0.990609 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 3099.23, L1: 2703.3 |
| SNR variance: | H1: 4361.64, L1: 3409.24 |

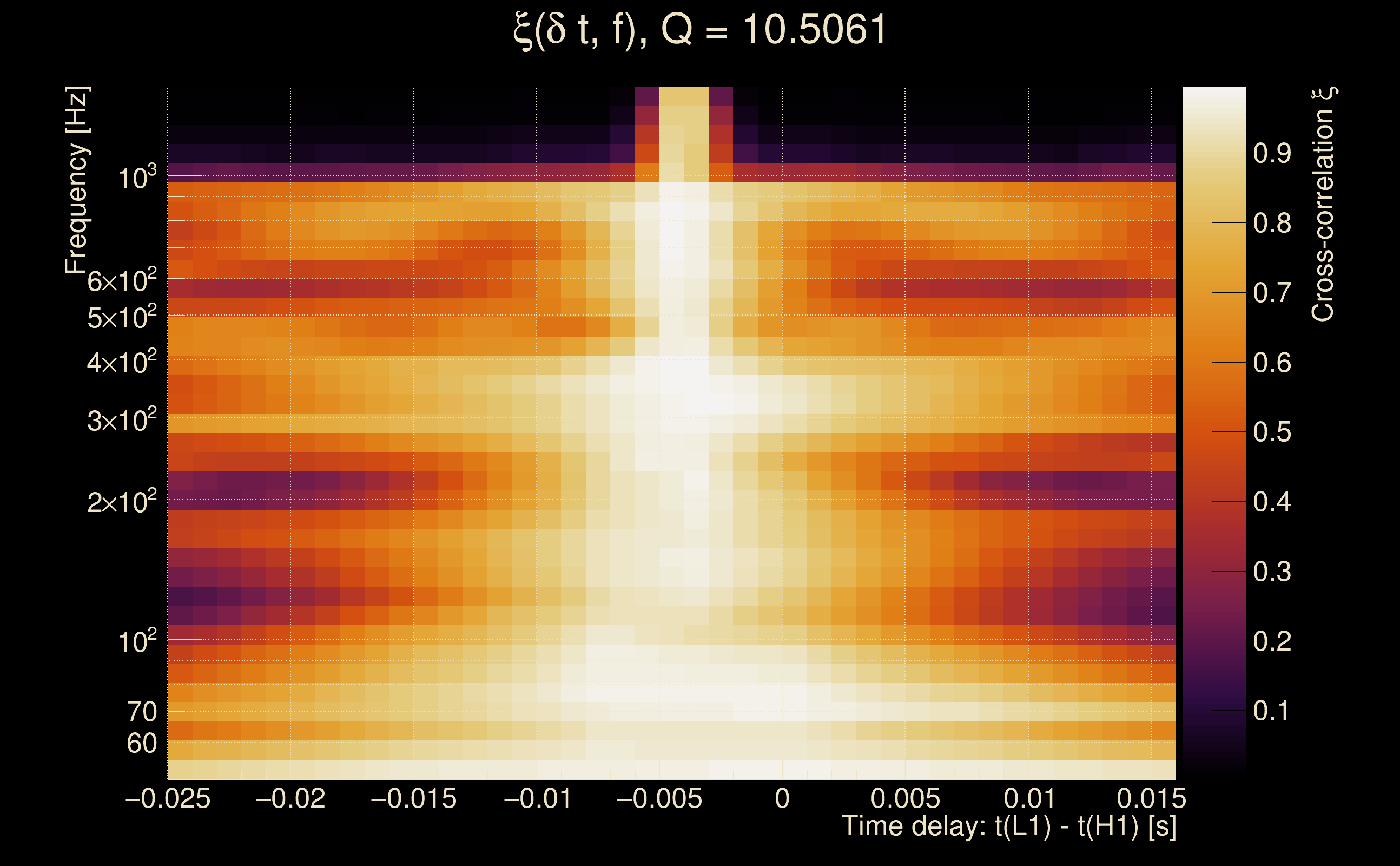

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

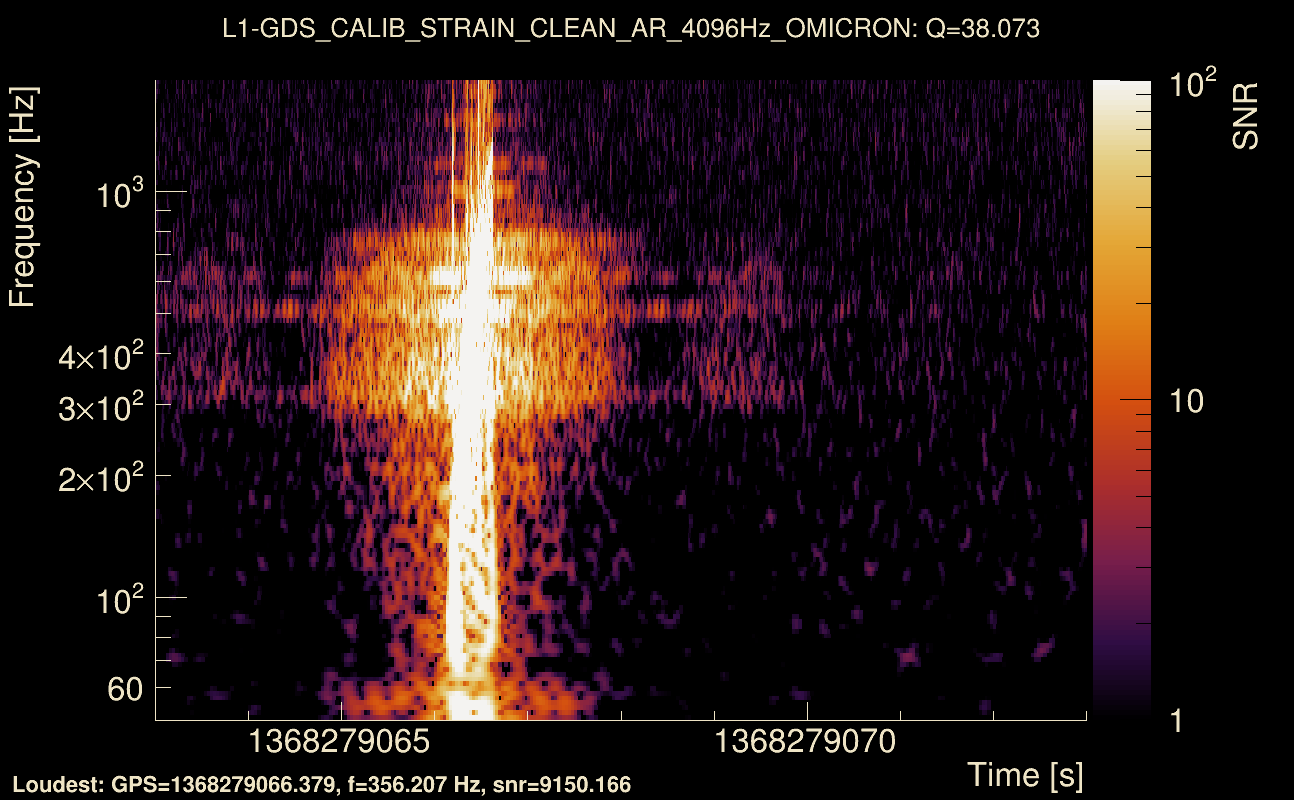

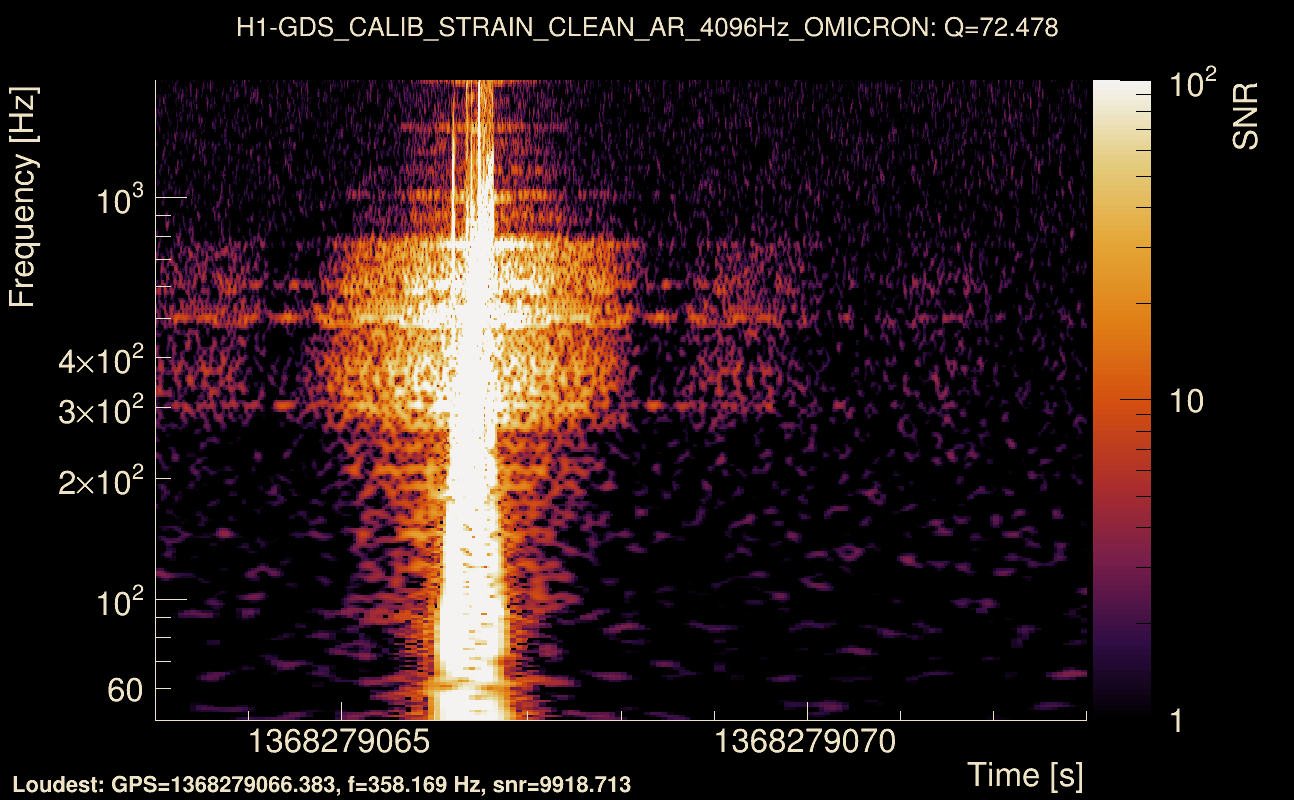

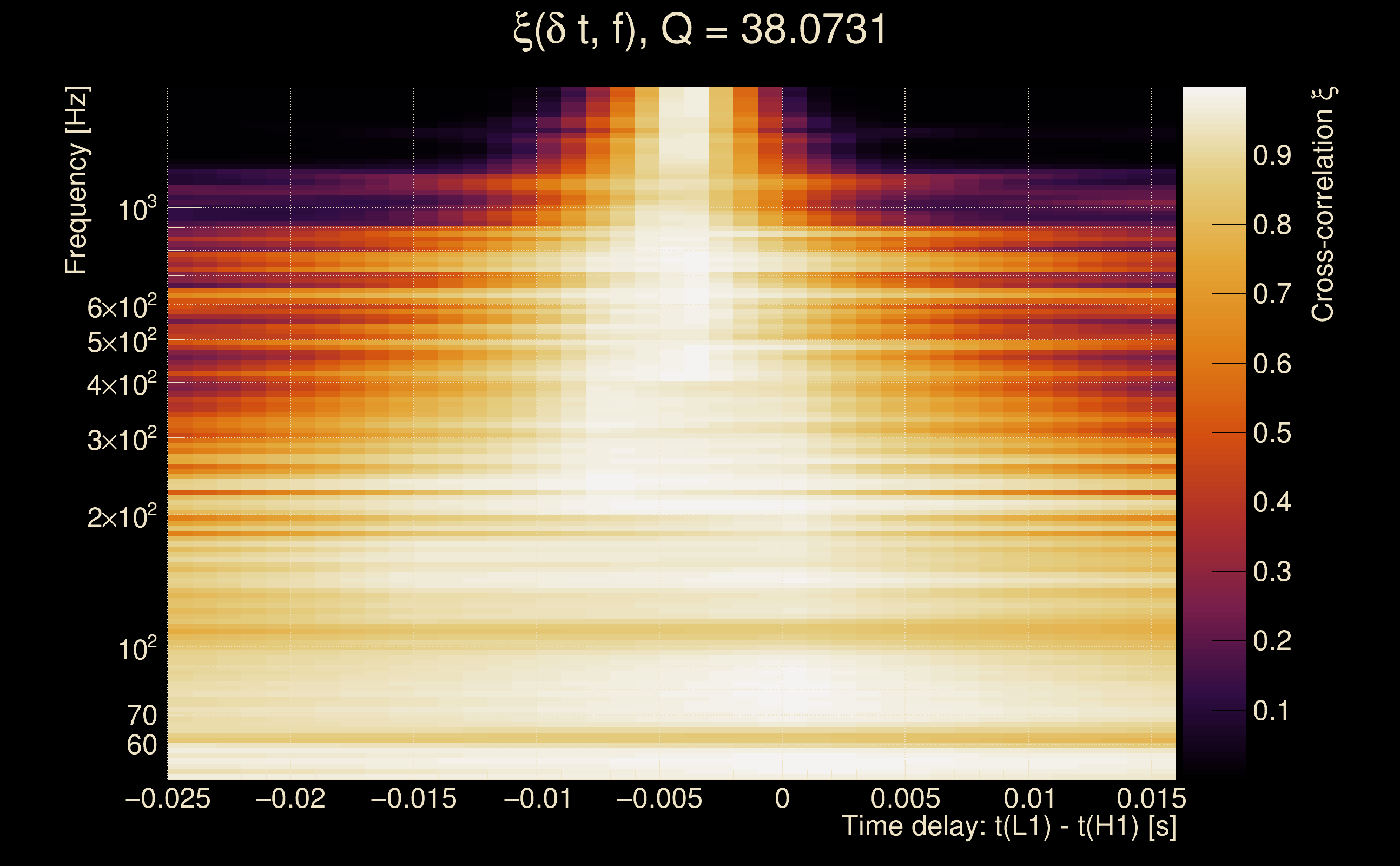

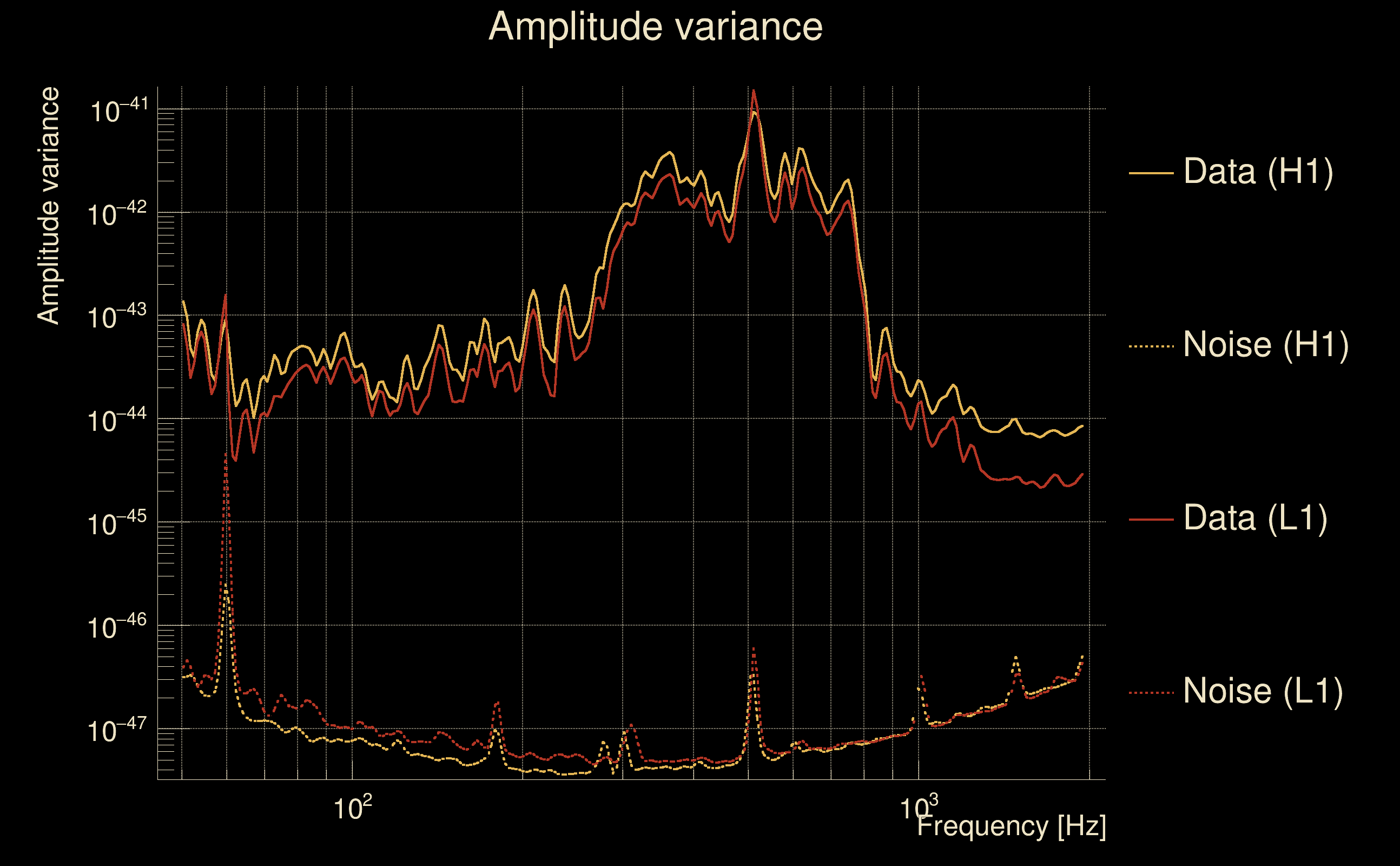

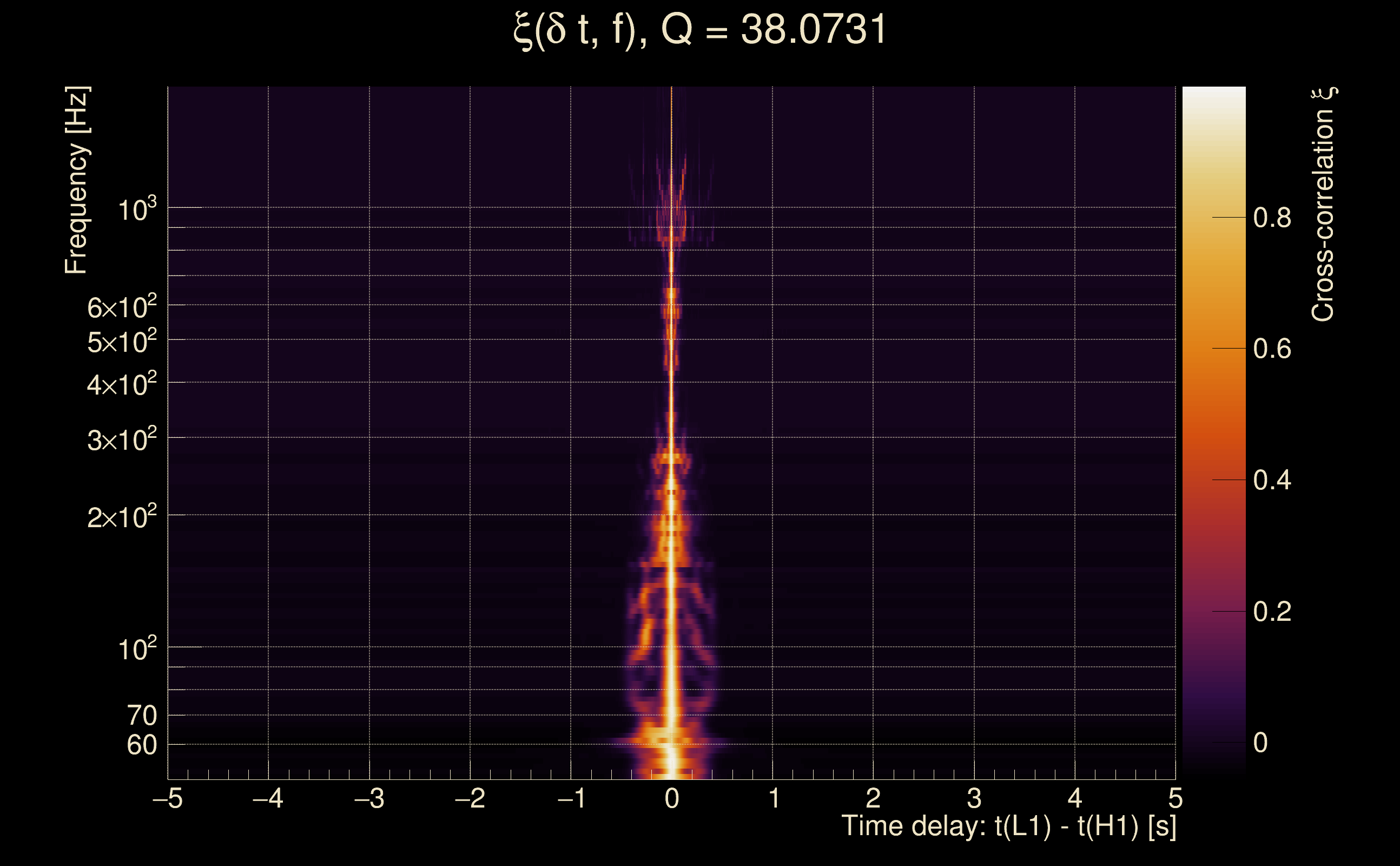

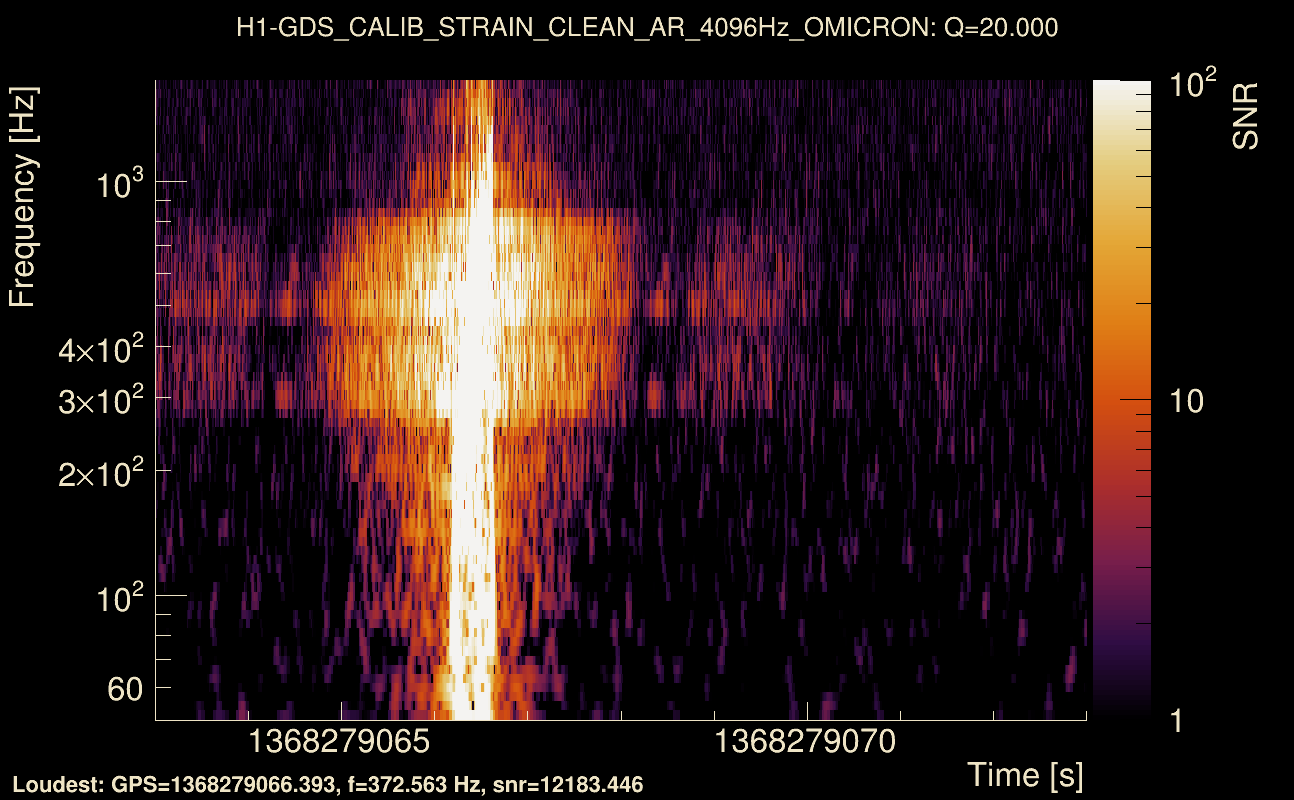

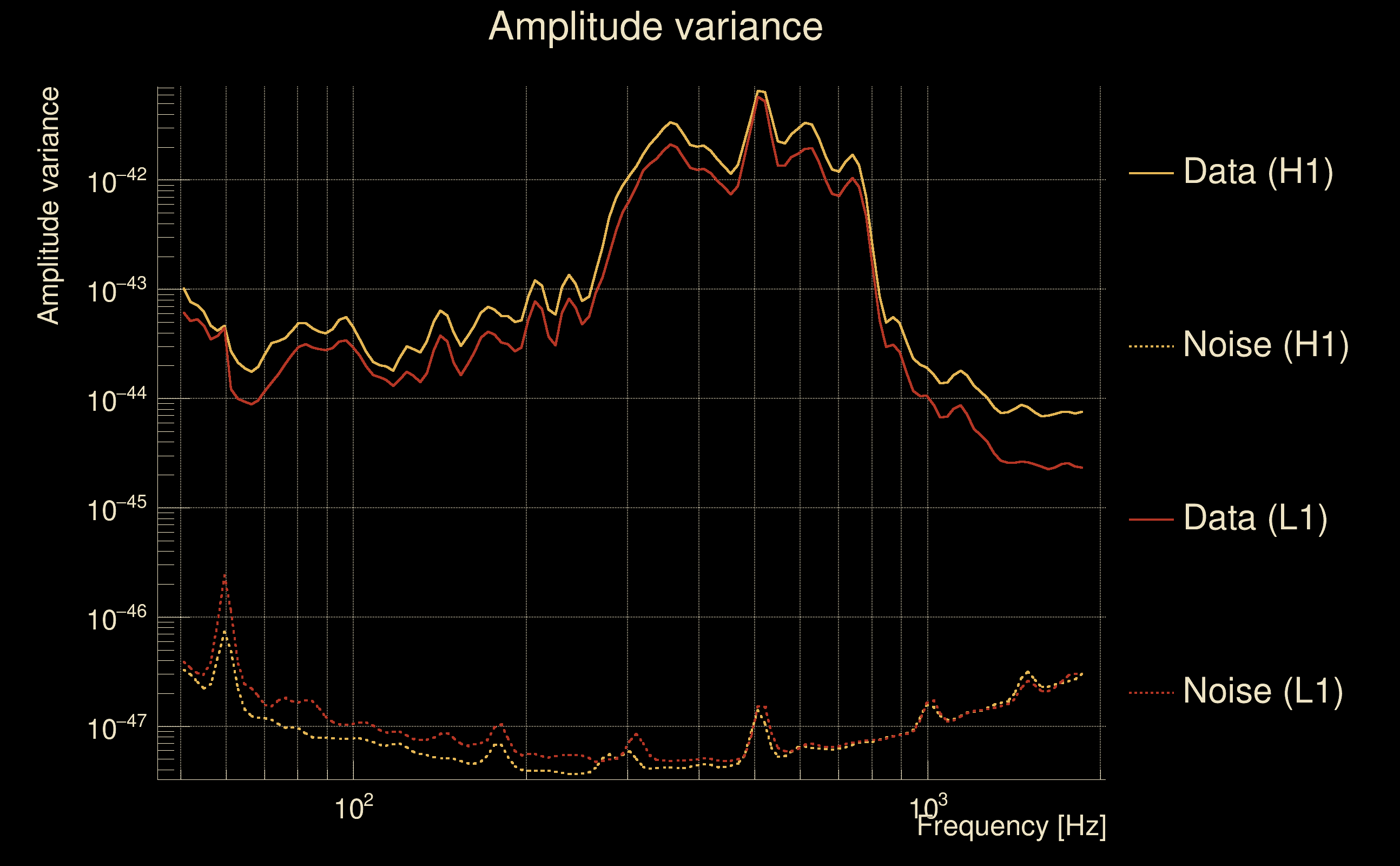

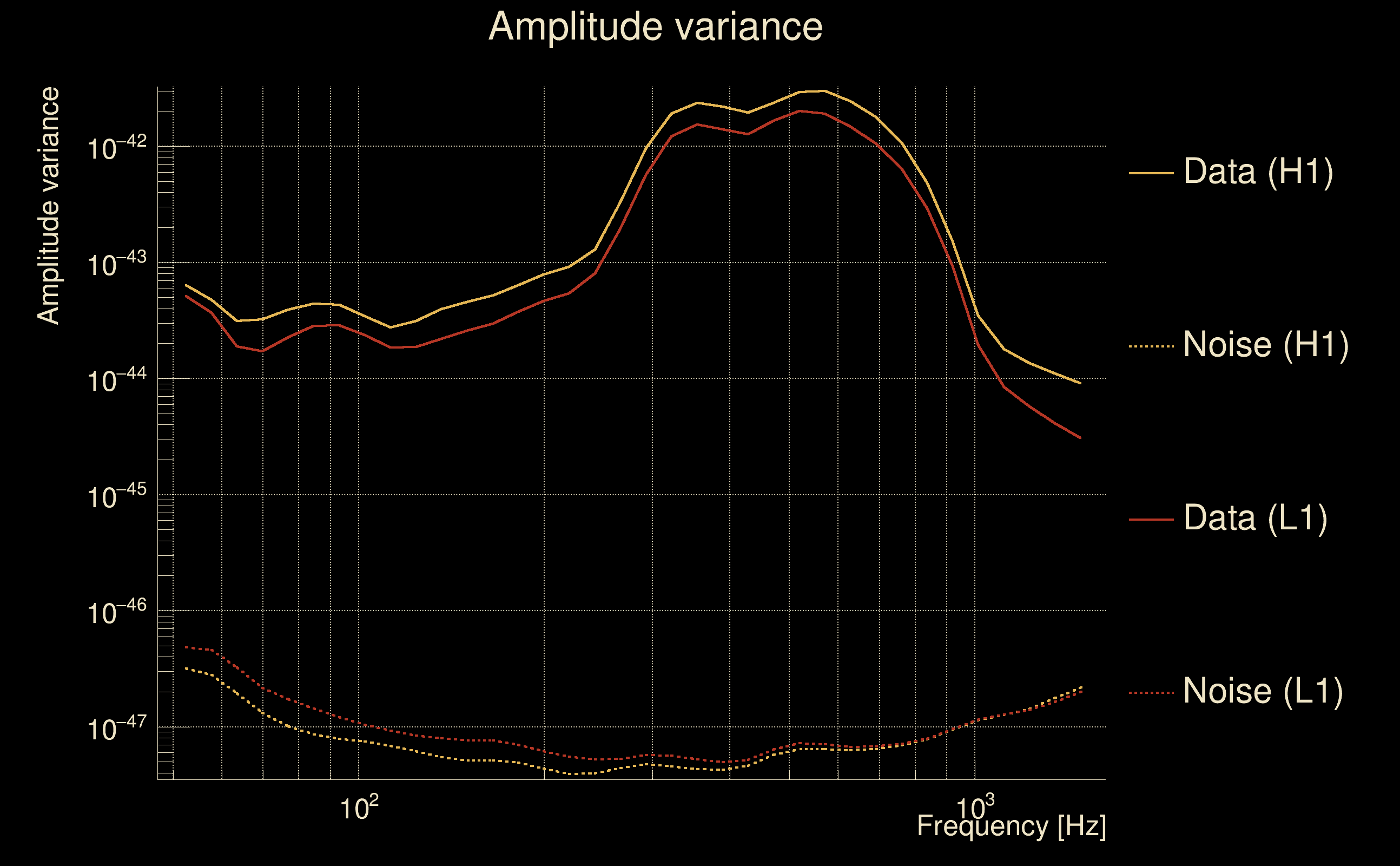

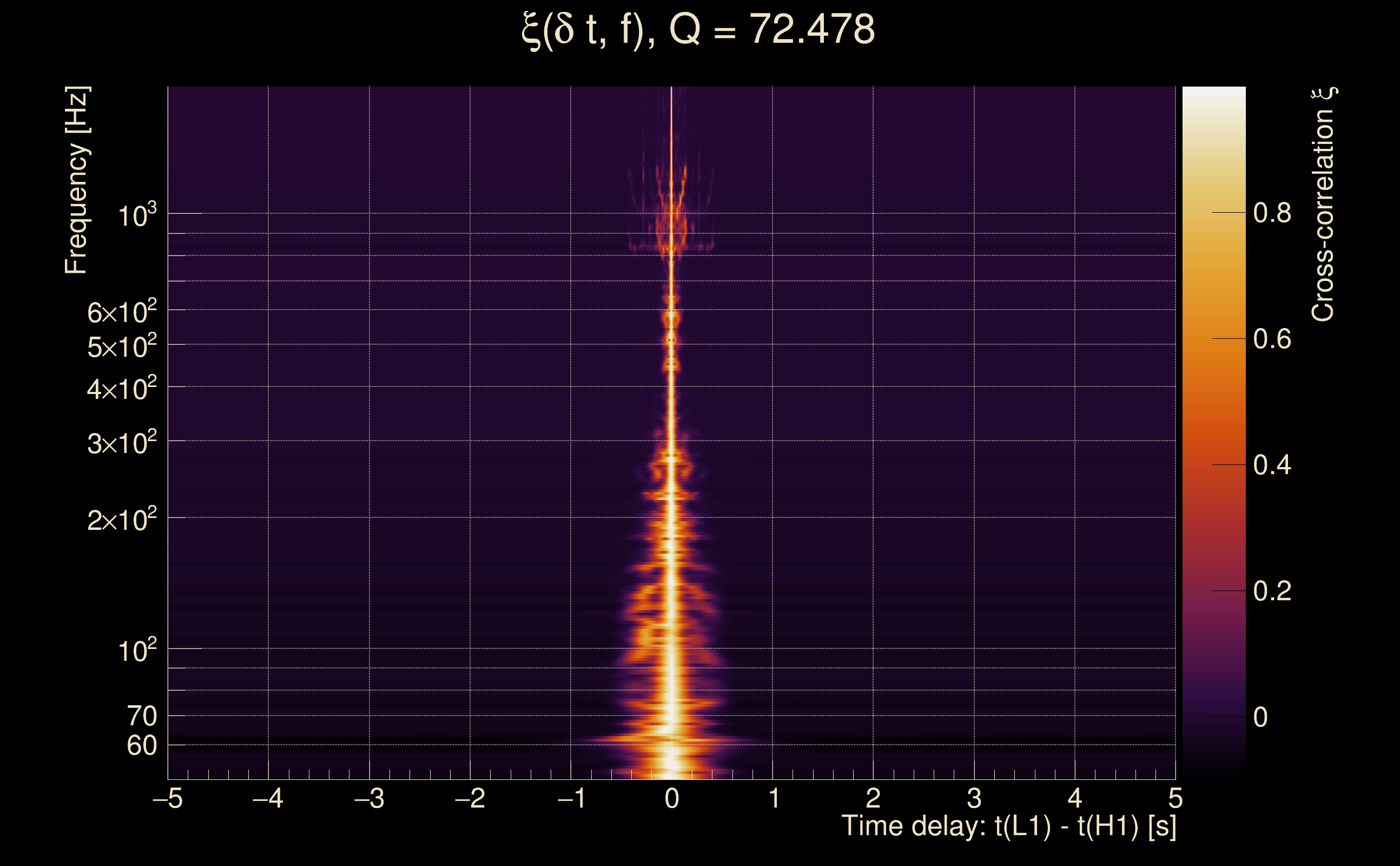

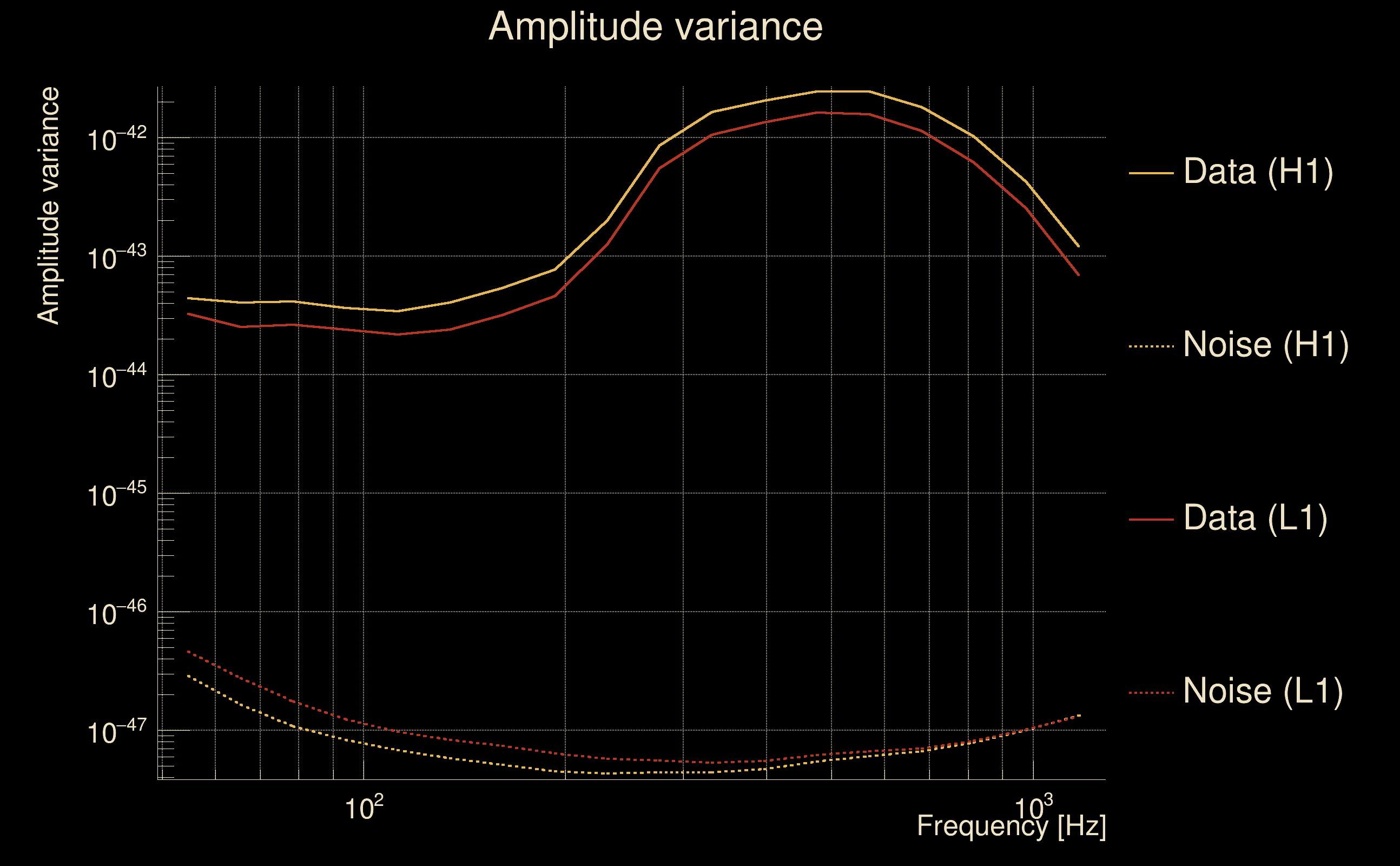

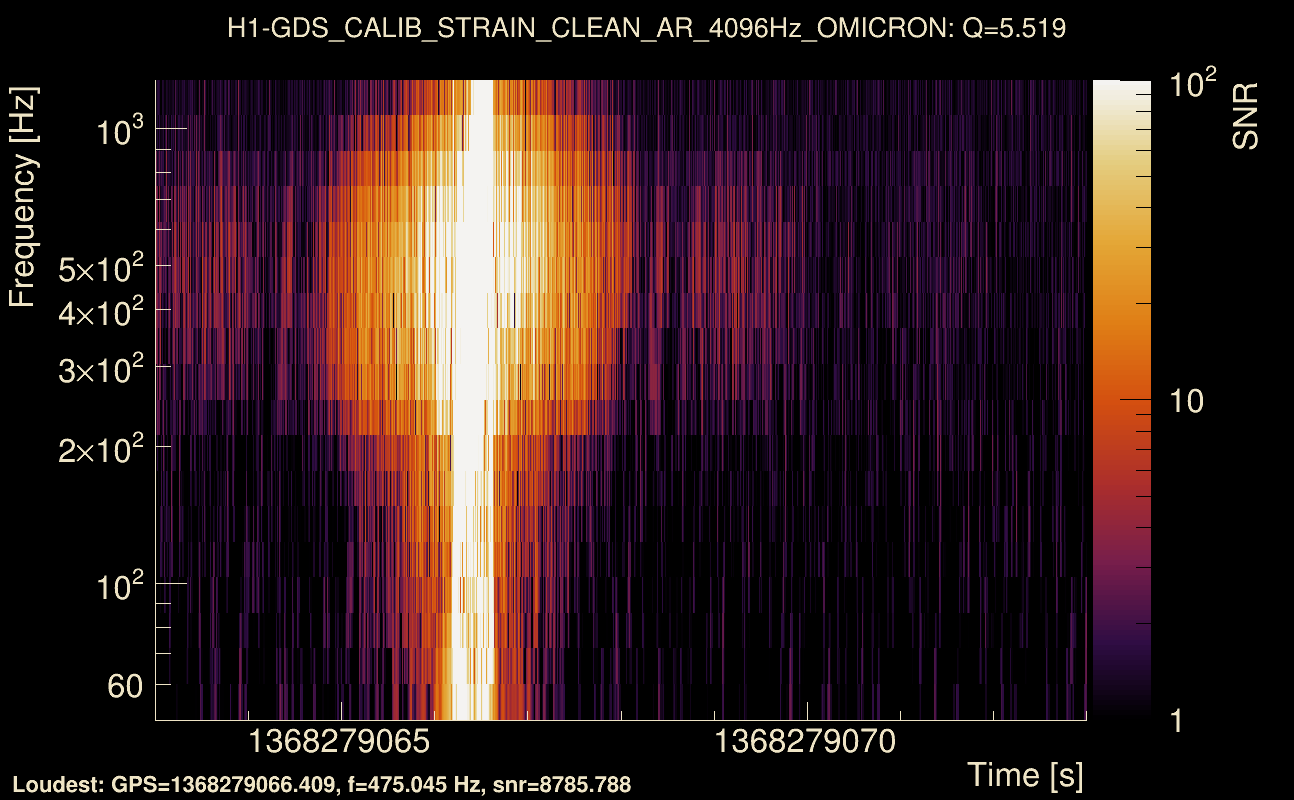

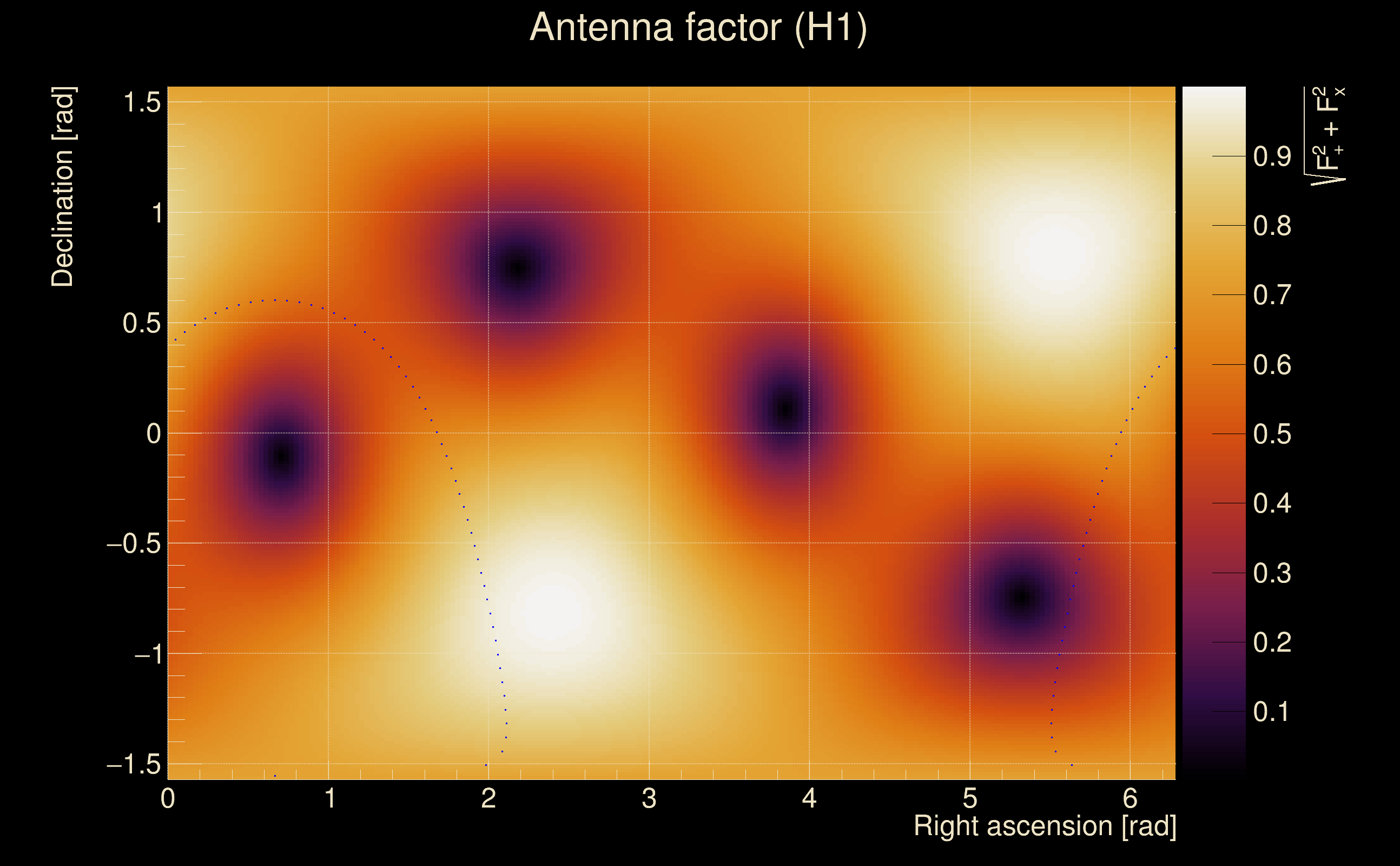

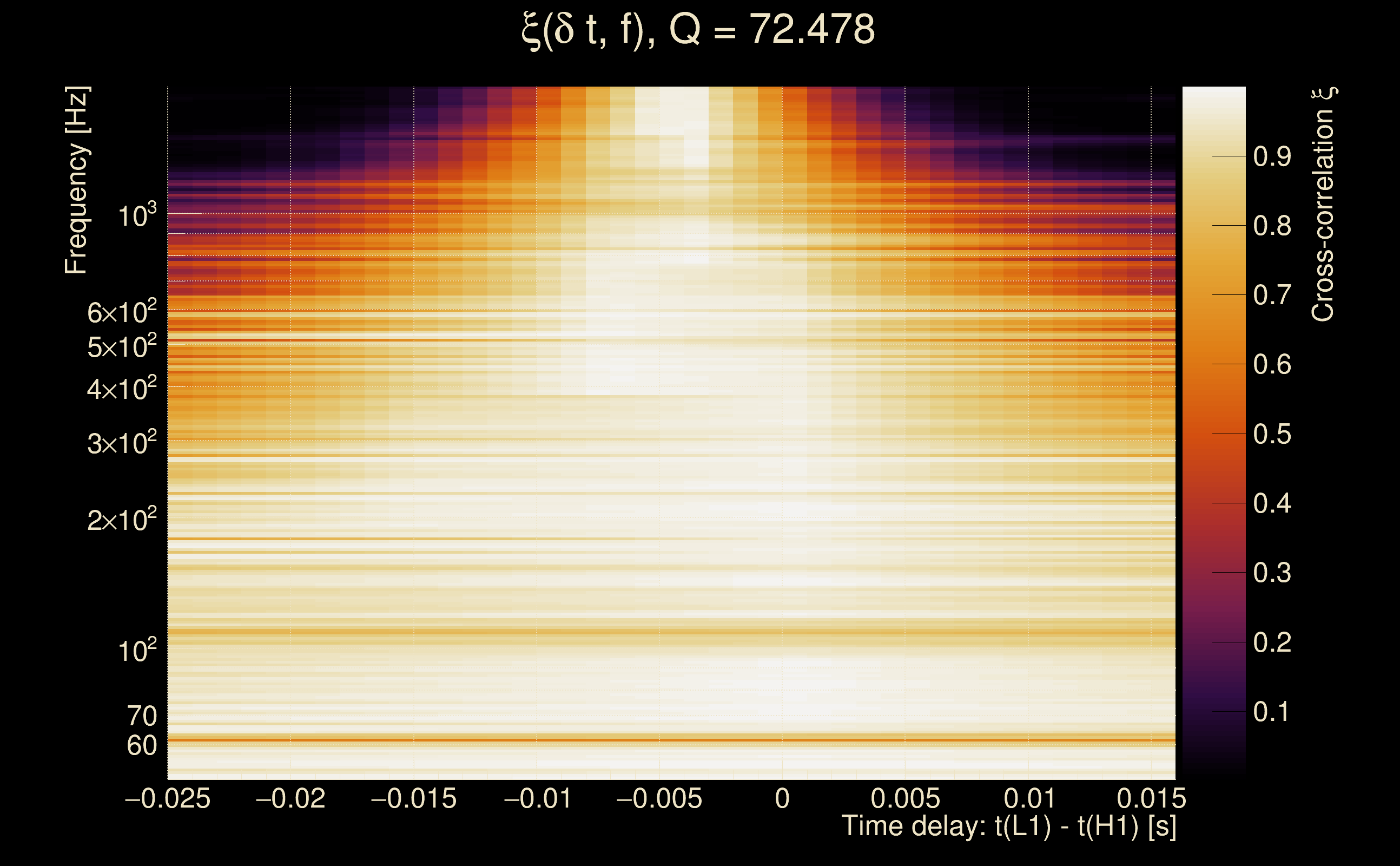

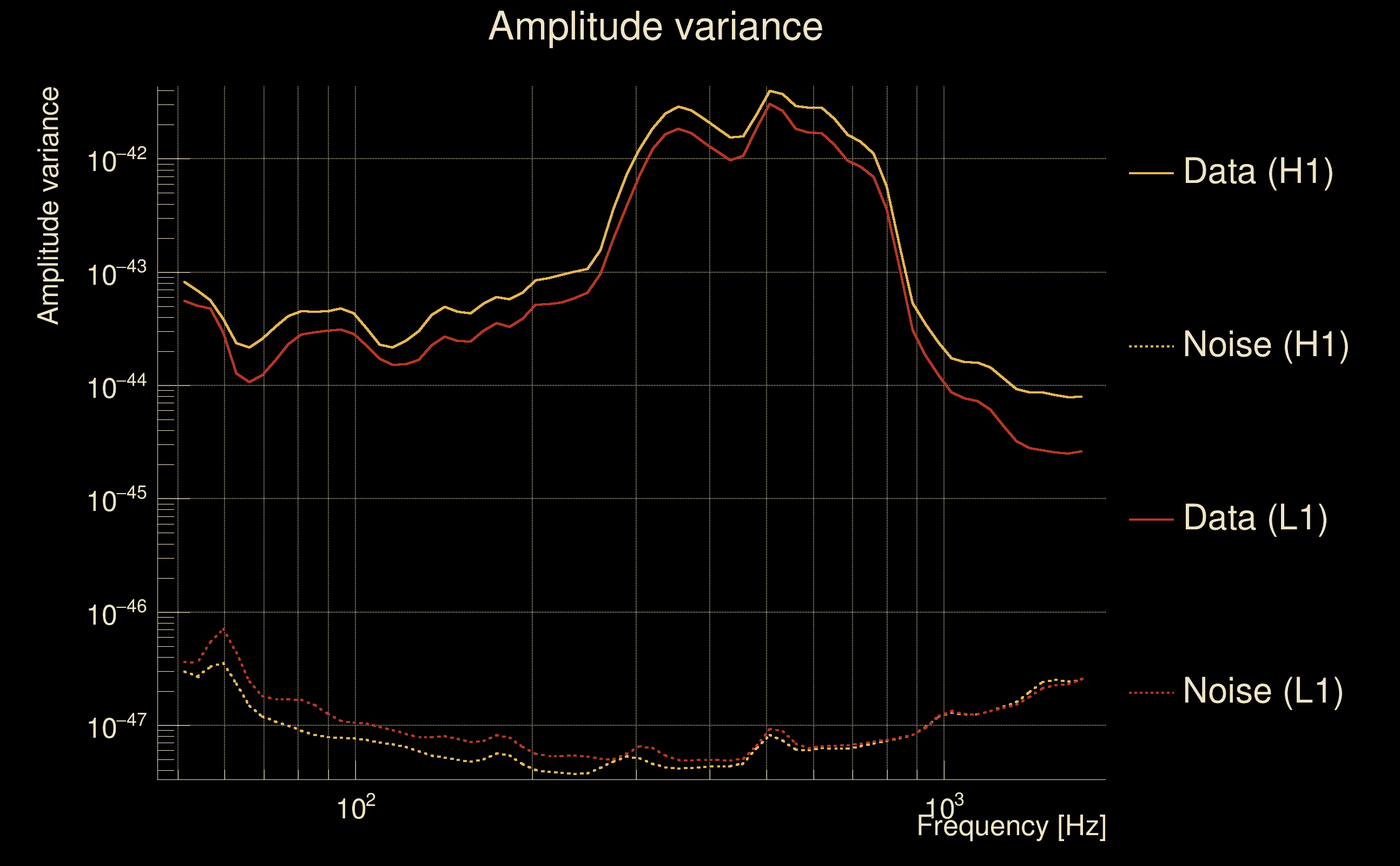

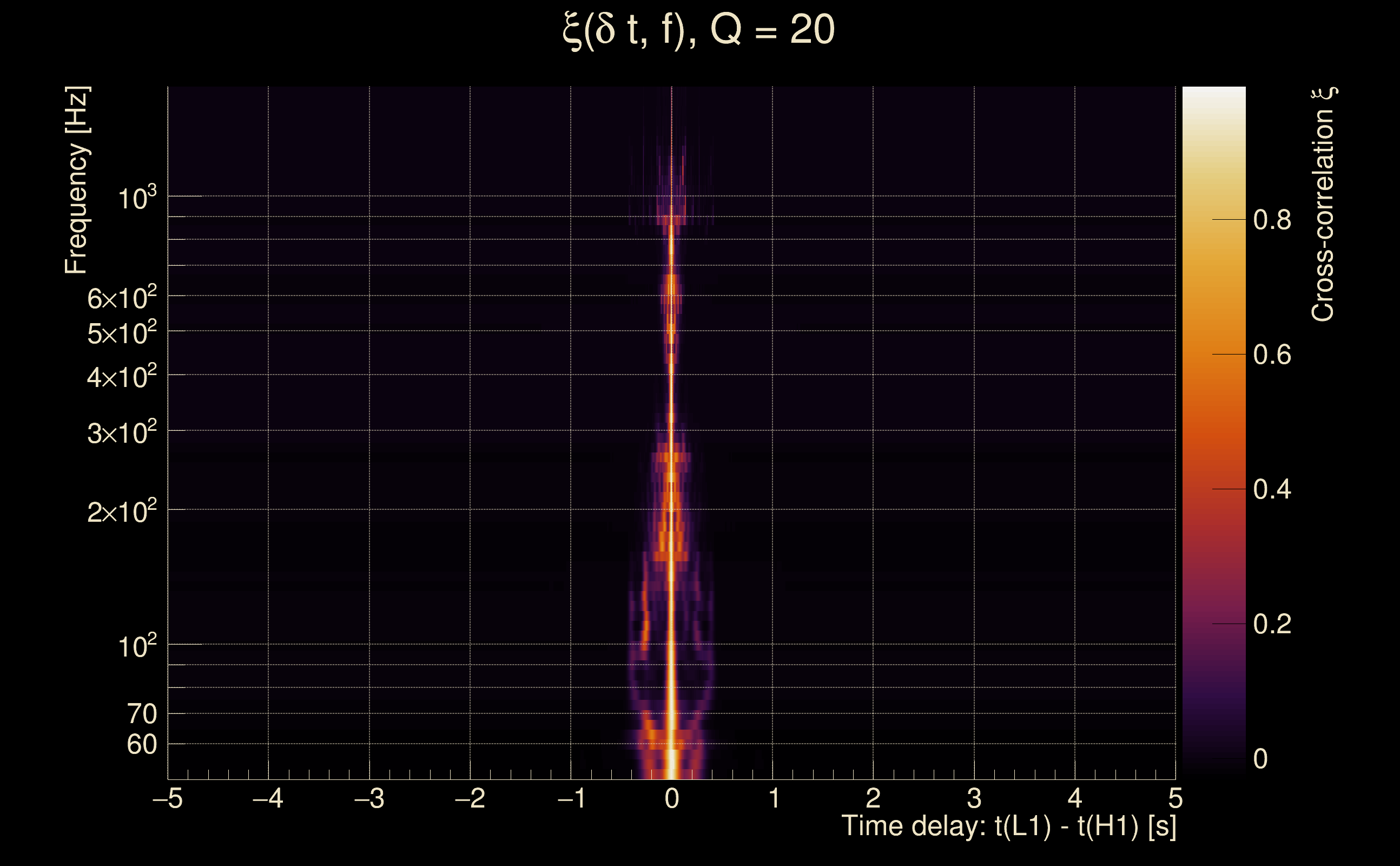

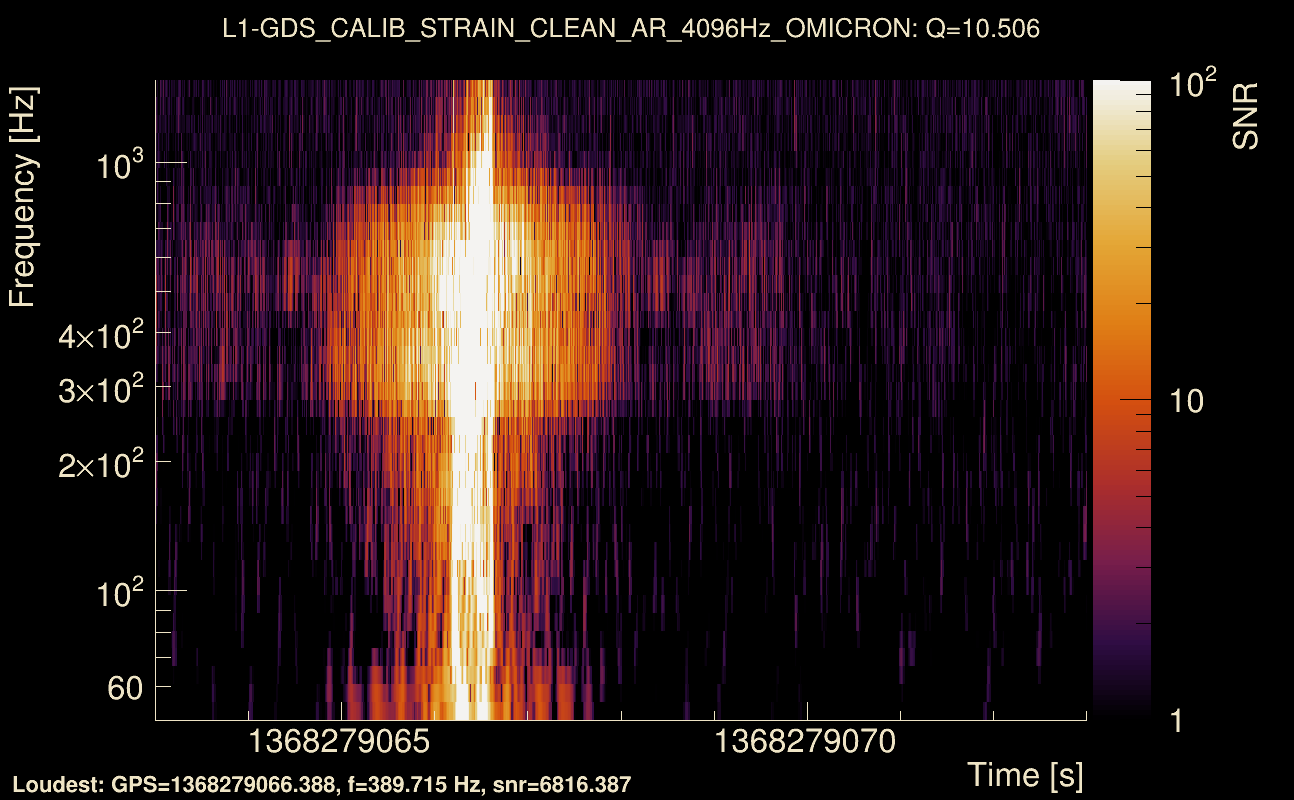

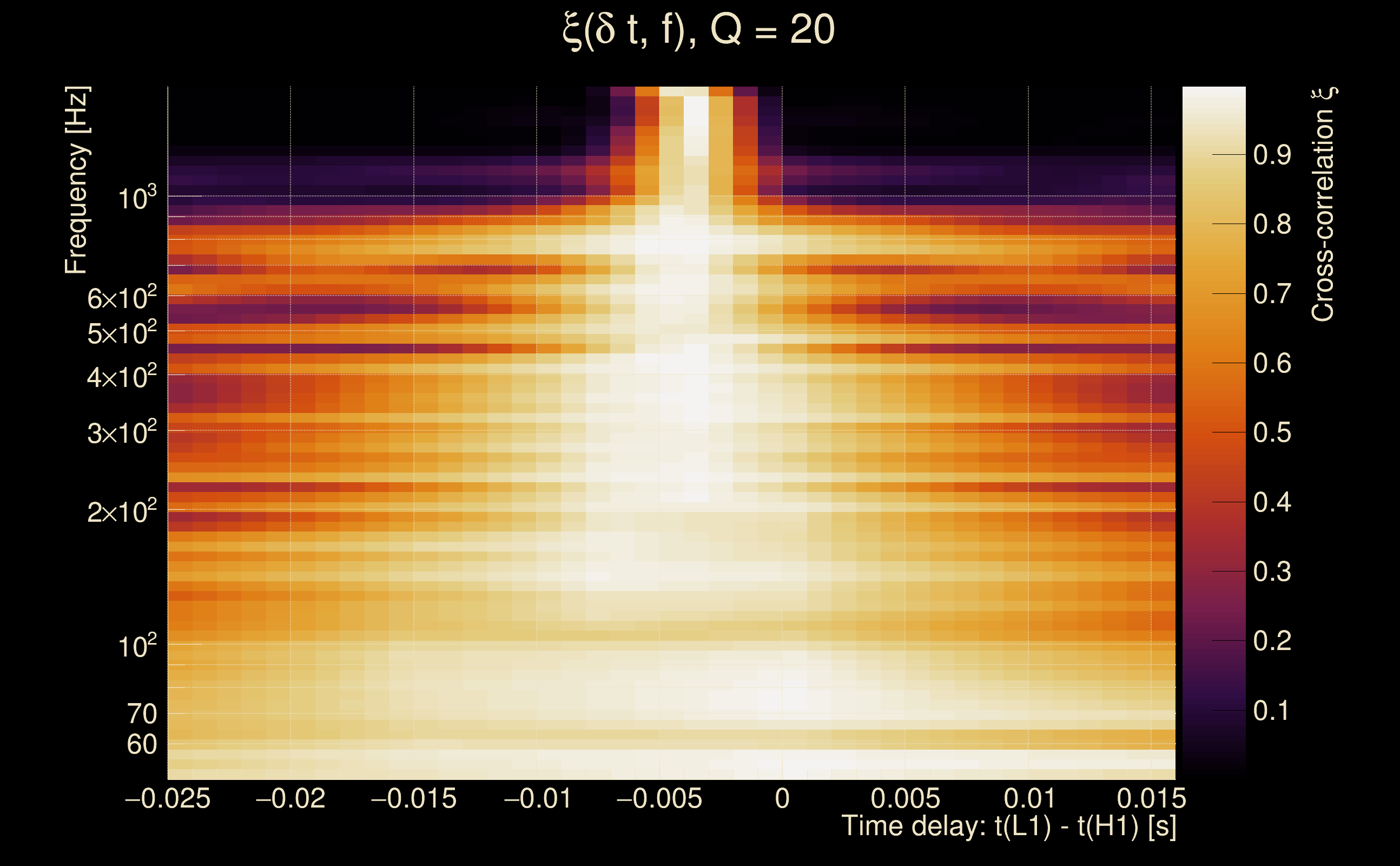

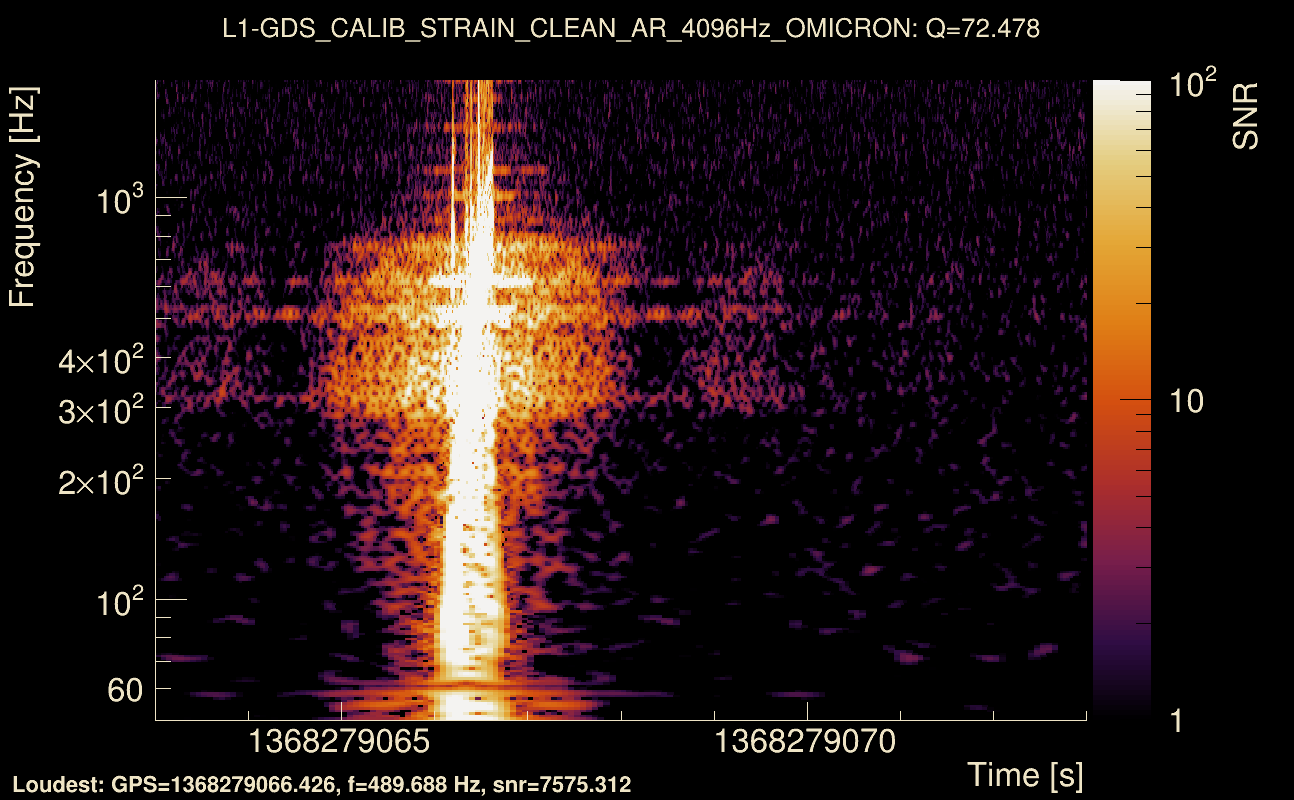

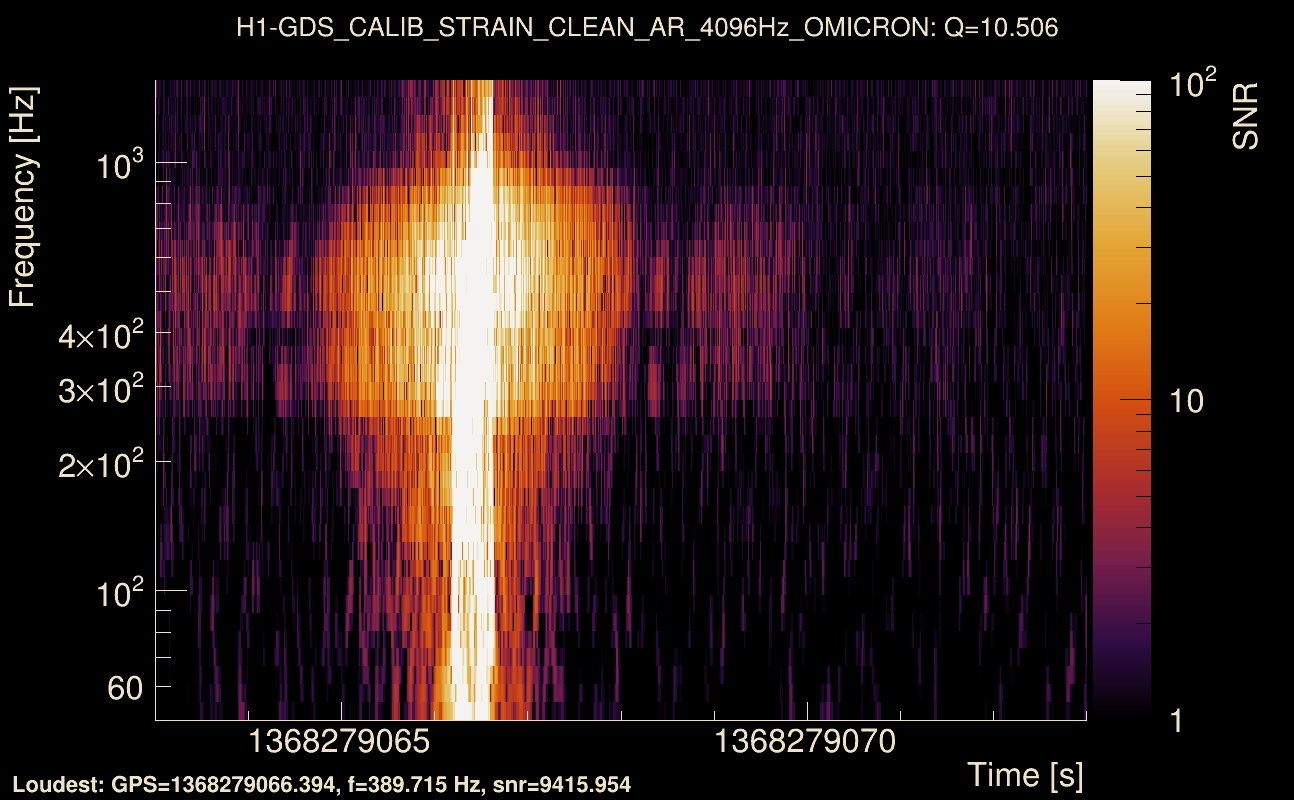

| Event time t(H1): | GPS = 1368279063 (Tue May 16 13:30:45 2023 ) → GPS = 1368279073 (Tue May 16 13:30:55 2023 ) |
| Event time t(L1): | GPS = 1368279063 (Tue May 16 13:30:55 2023 ) → GPS = 1368279073 (Tue May 16 13:30:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368279060 → GPS = 1368279076 |
| Omicron analysis time window (L1): | GPS = 1368279060 → GPS = 1368279076 |
| Time delay between detectors t(L1) - t(H1): | -0.00472121 s (slice index = 108 / 217), δt_gw = -0.00472121 s |
| Time delay standard deviation: | 0.0237197 s |
| [targeted mode] Time delay probability: | 4.53444e-129 (24.1706 sigmas), δt_target = -0.00183845 s |
| Frequency: | 295.876 Hz |
| Ξ: | 0.963745 ± 0.00341835 (variance = 1.16851e-05): Q0: 0.973338, Q1: 0.965331, Q2: 0.974548, Q3: 0.971949, Q4: 0.974389 |
| Rank: | R_A = 0.933838 |
| Log of amplitude ratio (L1/H1): | -0.224785, variance = 0.161286 (L1/H1: -0.235757, variance = 0.301478, H1/L1: 0.205985, variance = 0.302416) |
| Amplitude ratio (L1/H1): | 0.798688 ⋇ 1.49422 (L1/H1: 0.789973 ⋇ 1.73164, H1/L1: 1.22873 ⋇ 1.73312) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.969439 |
| Antenna factor probability: | 0.999514 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 2 / 70, Q3: 4 / 134, Q4: 15 / 258 |
| Maximum signal-to-noise ratio: | H1: 12384.2, L1: 9461.1 |
| SNR variance: | H1: 66788.2, L1: 41441.7 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368419299 (Thu May 18 04:28:01 2023 ) → GPS = 1368419309 (Thu May 18 04:28:11 2023 ) |
| Event time t(L1): | GPS = 1368419299 (Thu May 18 04:28:11 2023 ) → GPS = 1368419309 (Thu May 18 04:28:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368419296 → GPS = 1368419312 |
| Omicron analysis time window (L1): | GPS = 1368419296 → GPS = 1368419312 |
| Time delay between detectors t(L1) - t(H1): | -1.46892 s (slice index = 140 / 217), δt_gw = 0.0030835 s |
| Time delay standard deviation: | 0.0771566 s |
| [targeted mode] Time delay probability: | 0.678526 (0.414475 sigmas), δt_target = -0.00993299 s |
| Frequency: | 159.396 Hz |
| Ξ: | 0.0272522 ± 0.0147462 (variance = 0.000217449): Q0: 0.0854093, Q1: 0.0900465, Q2: 0.0577667, Q3: 0.0983955, Q4: 0.0688475 |
| Rank: | R_A = 0.0110344 |
| Log of amplitude ratio (L1/H1): | -0.0540302, variance = 0.629925 (L1/H1: -0.742992, variance = 0.724492, H1/L1: -0.492645, variance = 1.57005) |
| Amplitude ratio (L1/H1): | 0.947404 ⋇ 2.21152 (L1/H1: 0.475688 ⋇ 2.34239, H1/L1: 0.611008 ⋇ 3.50088) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.414658 |
| Antenna factor probability: | 0.976466 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 26 / 36, Q2: 62 / 70, Q3: 124 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.1416, L1: 5.77206 |
| SNR variance: | H1: 0.558103, L1: 0.537265 |
| Detection threshold: | R > 0.0503939 |
| False-alarm rate above that detection threshold: | 1.48286e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.110975 |
| Alternative threshold at 1/100 yrs: | R > 0.110975 |
| Alternative threshold at 1/10 yrs: | R > 0.110975 |
| Alternative threshold at 1/1 yr: | R > 0.110975 |
| Alternative threshold at 1/1 d: | R > 0.0265651 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

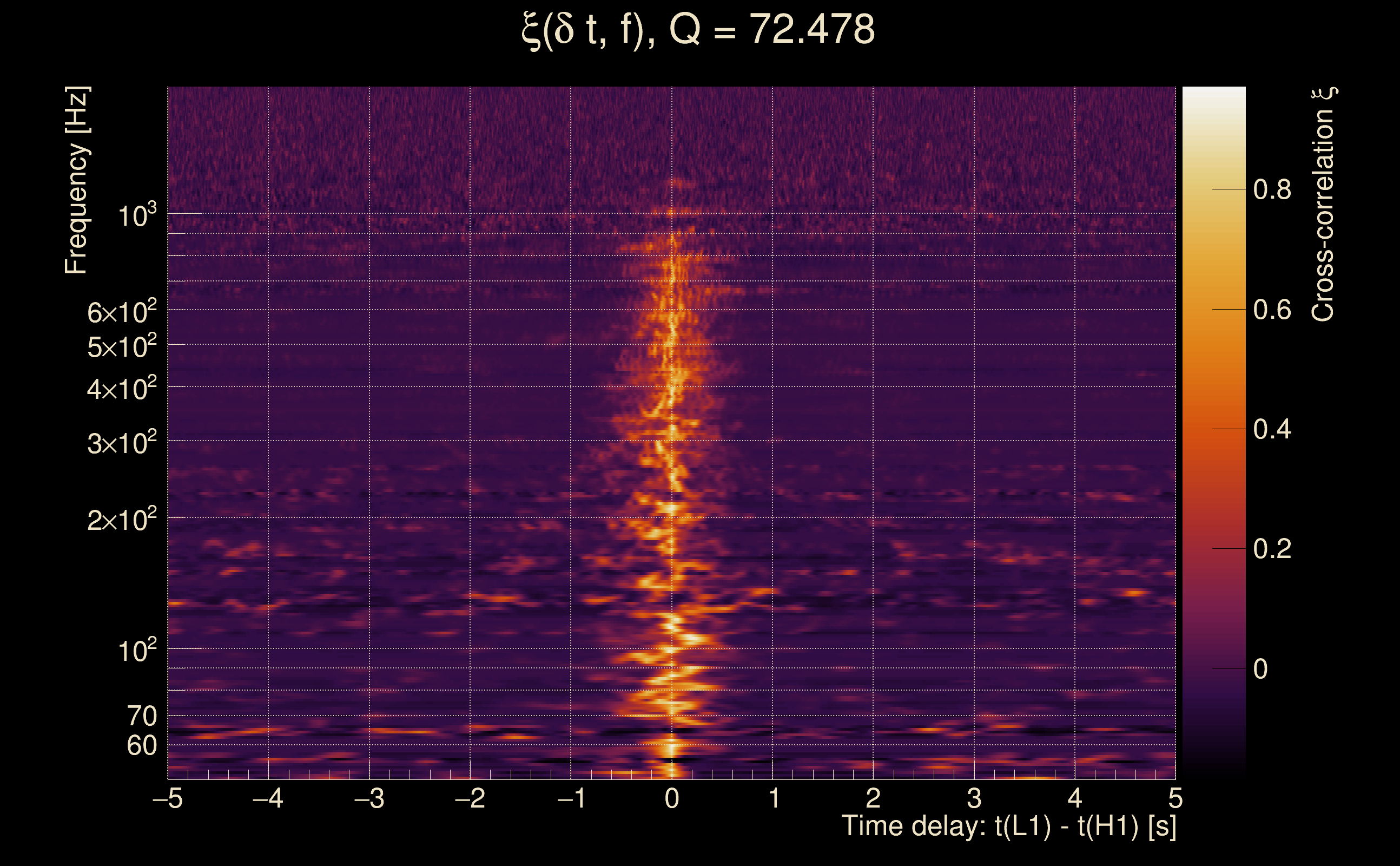

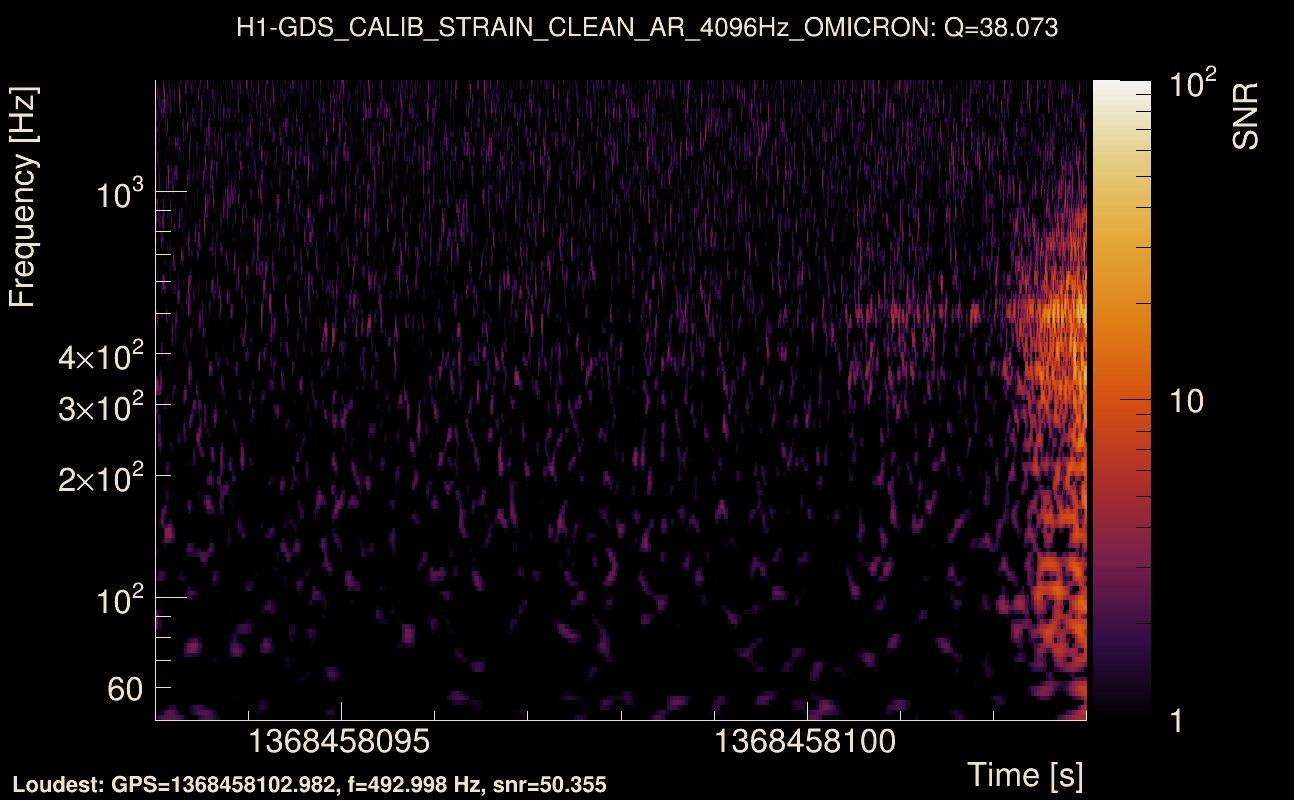

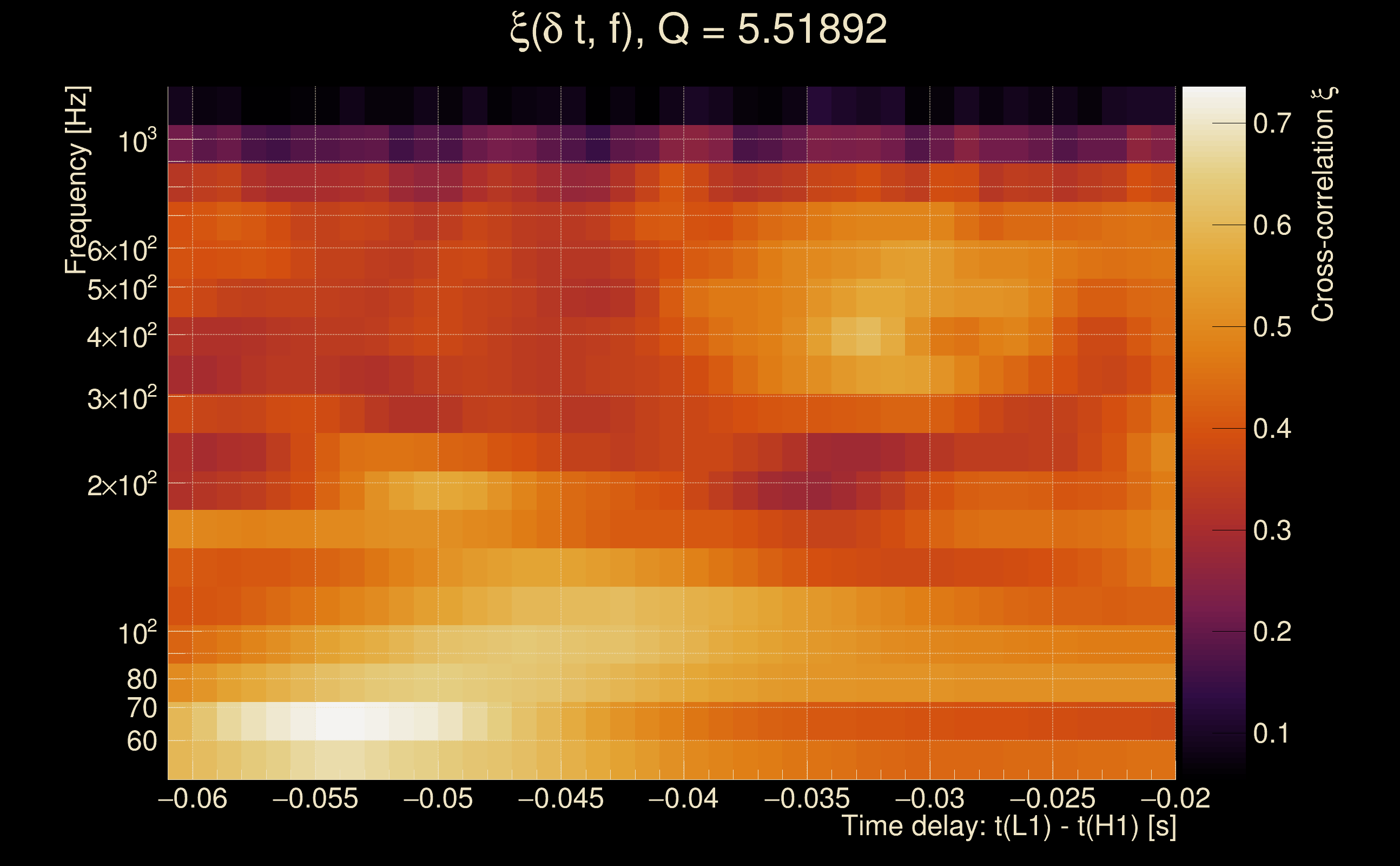

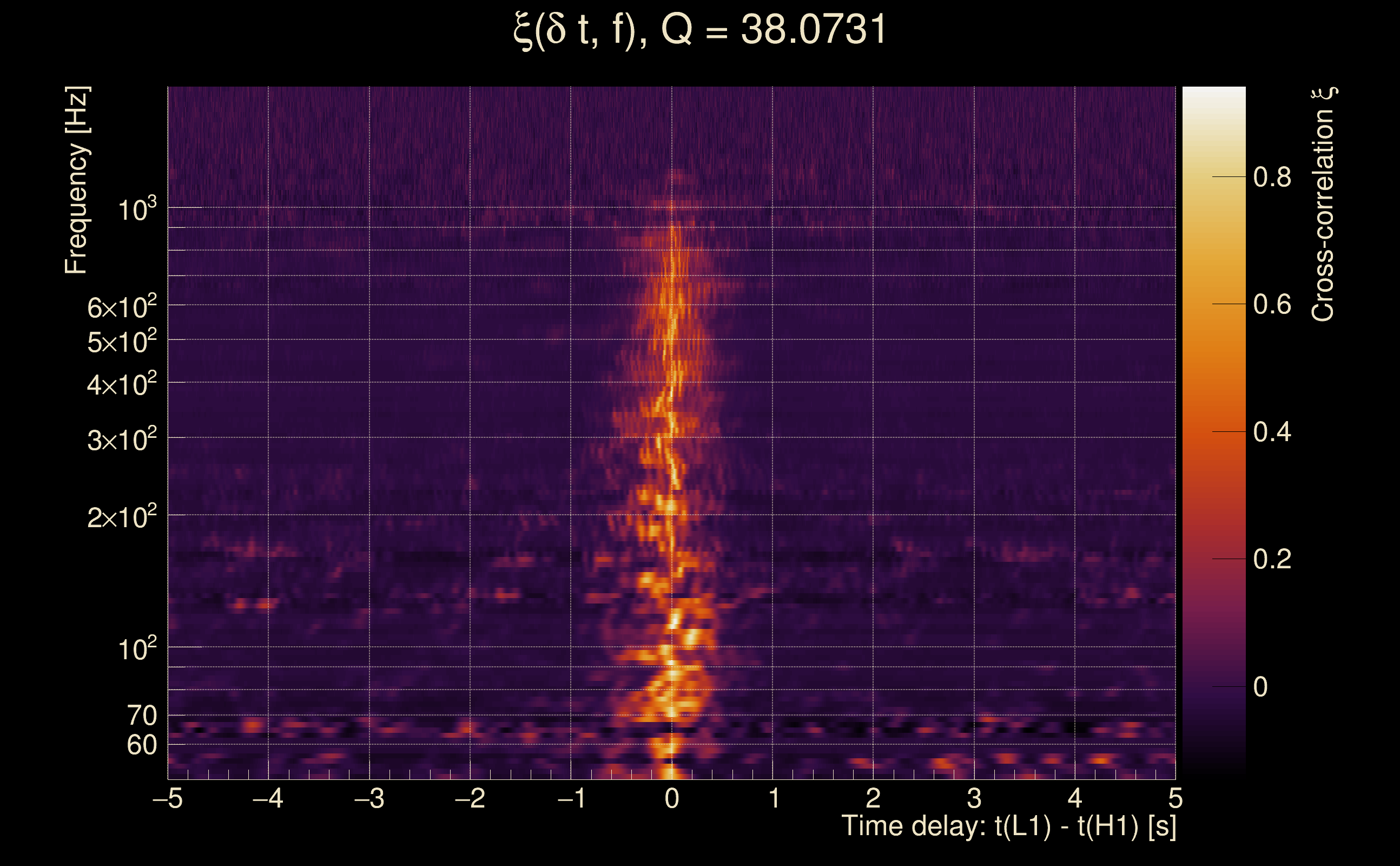

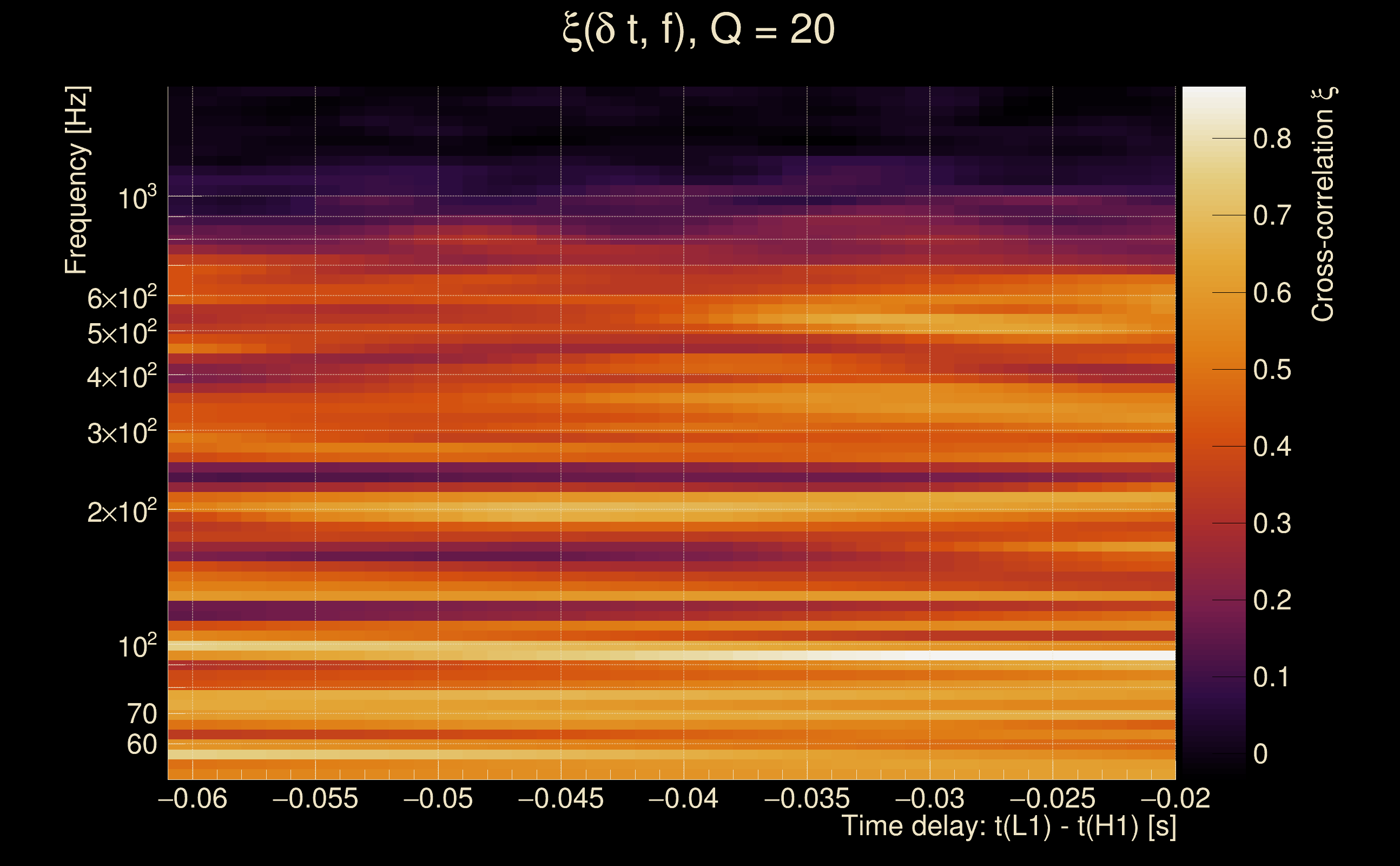

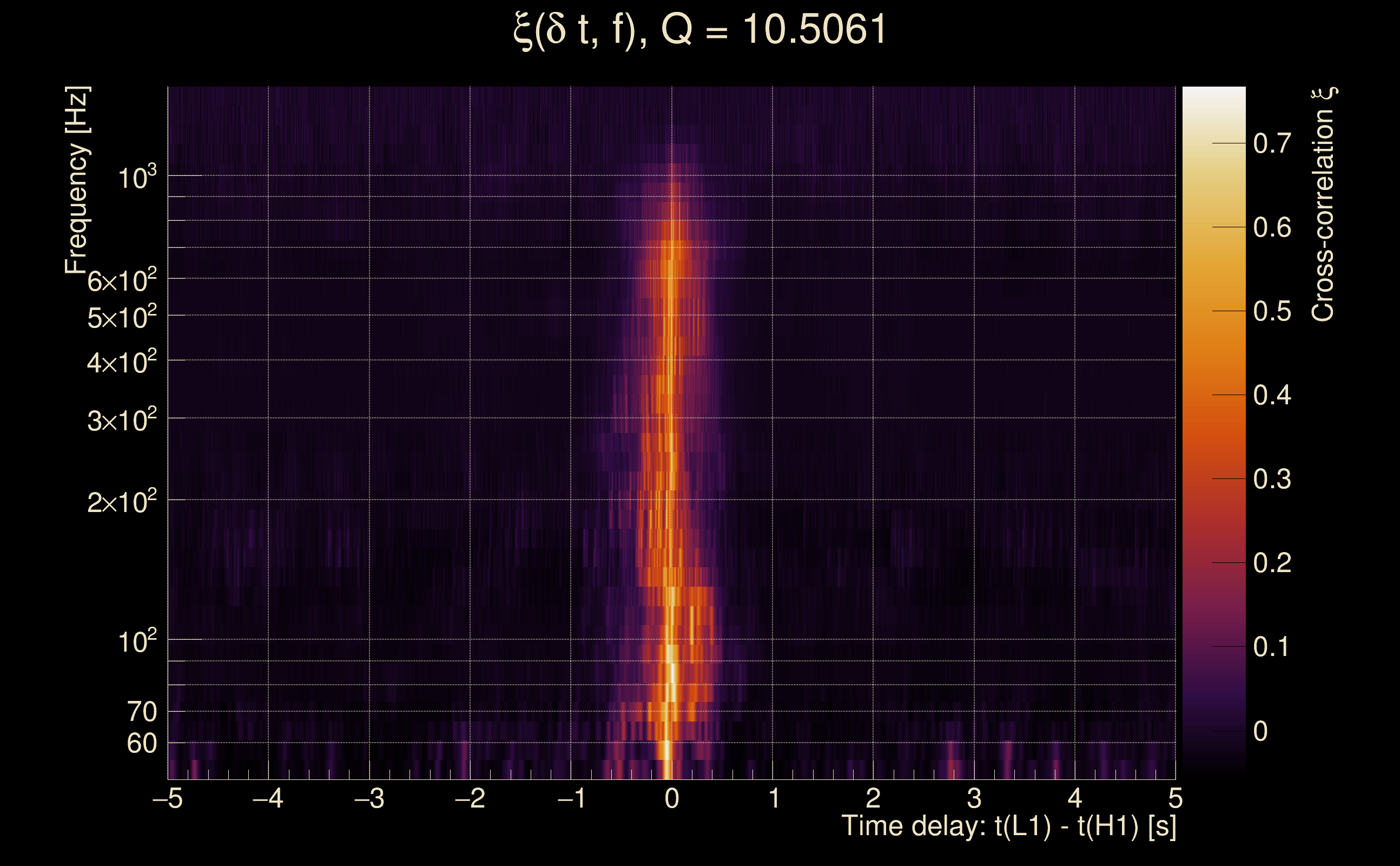

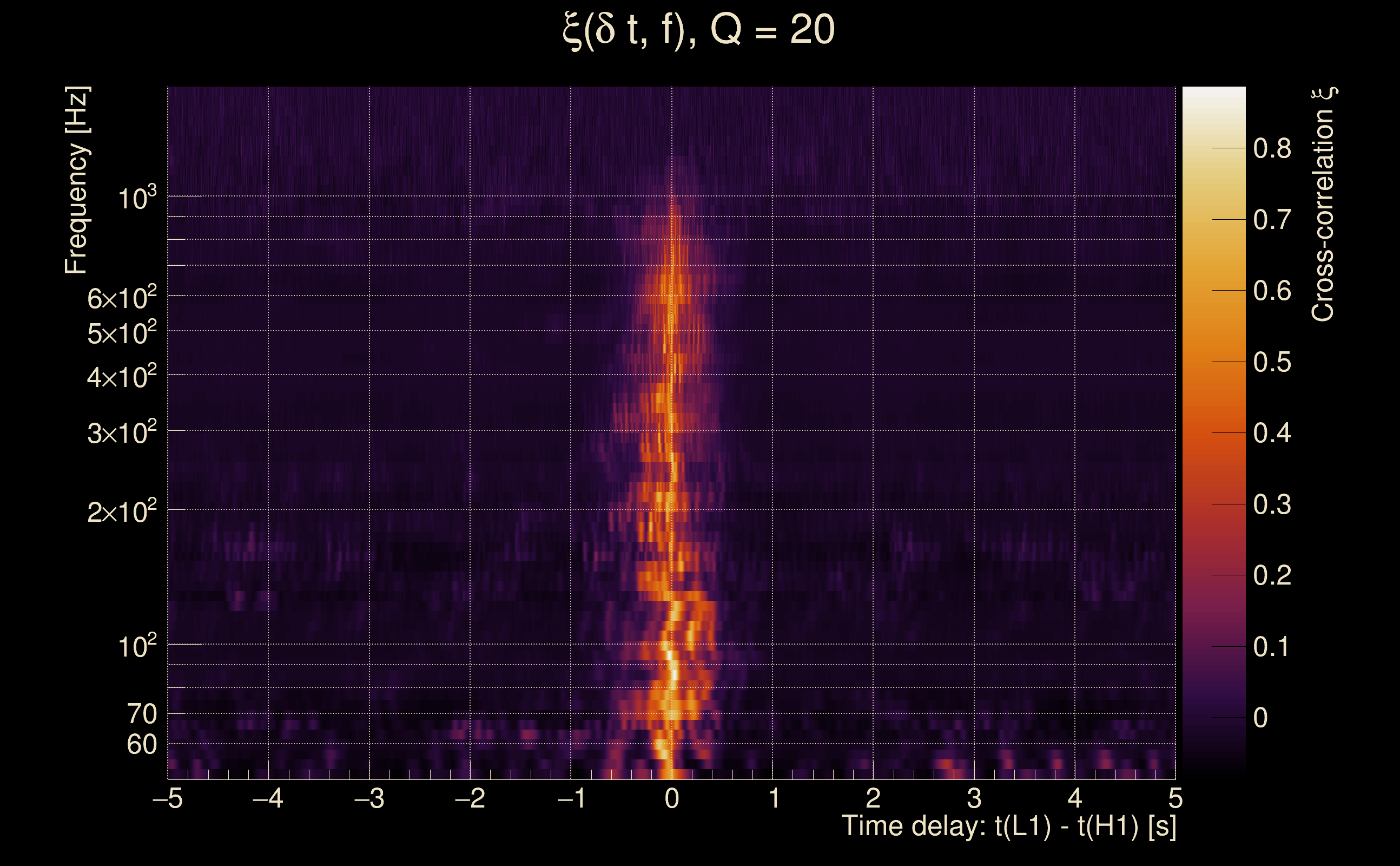

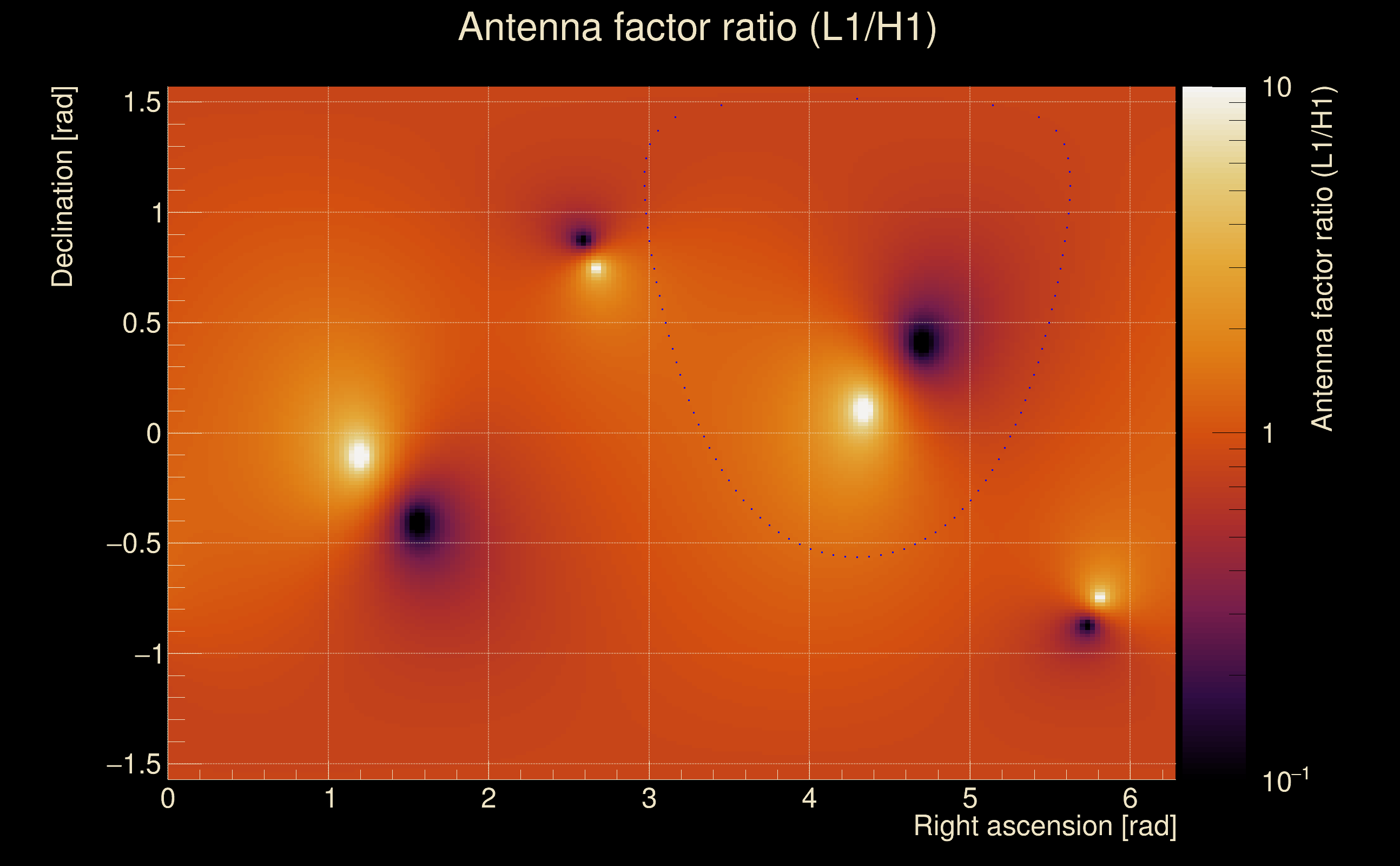

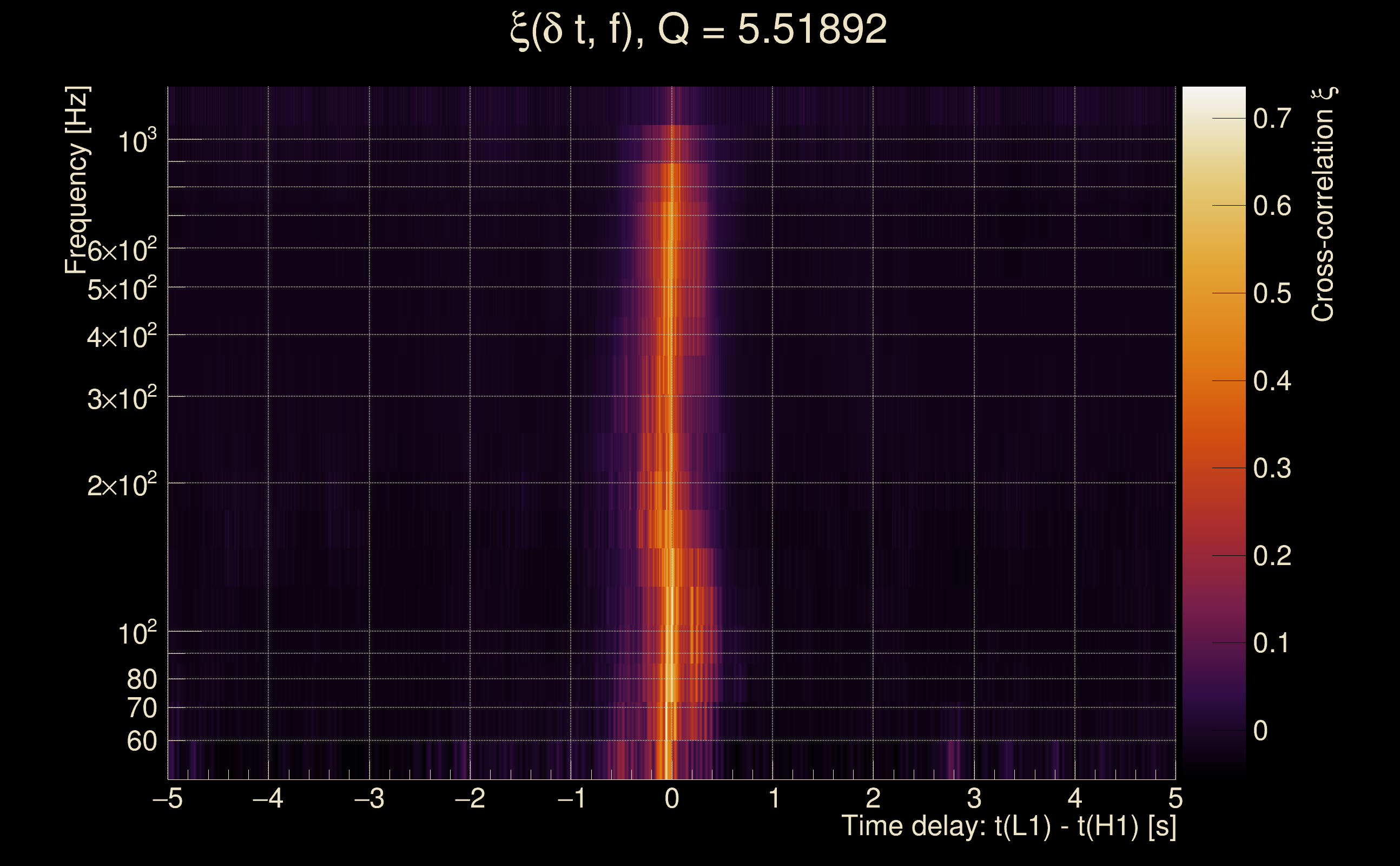

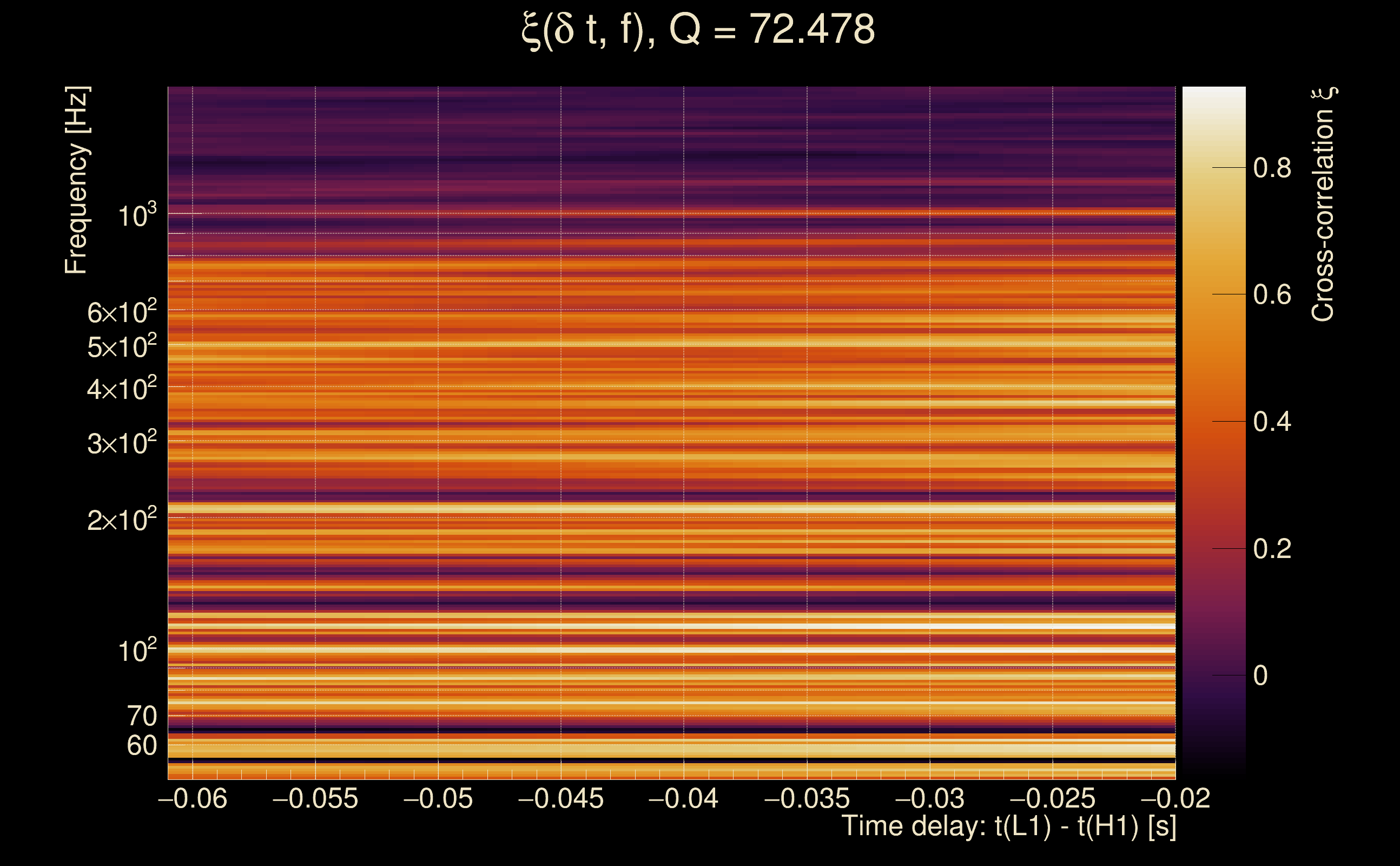

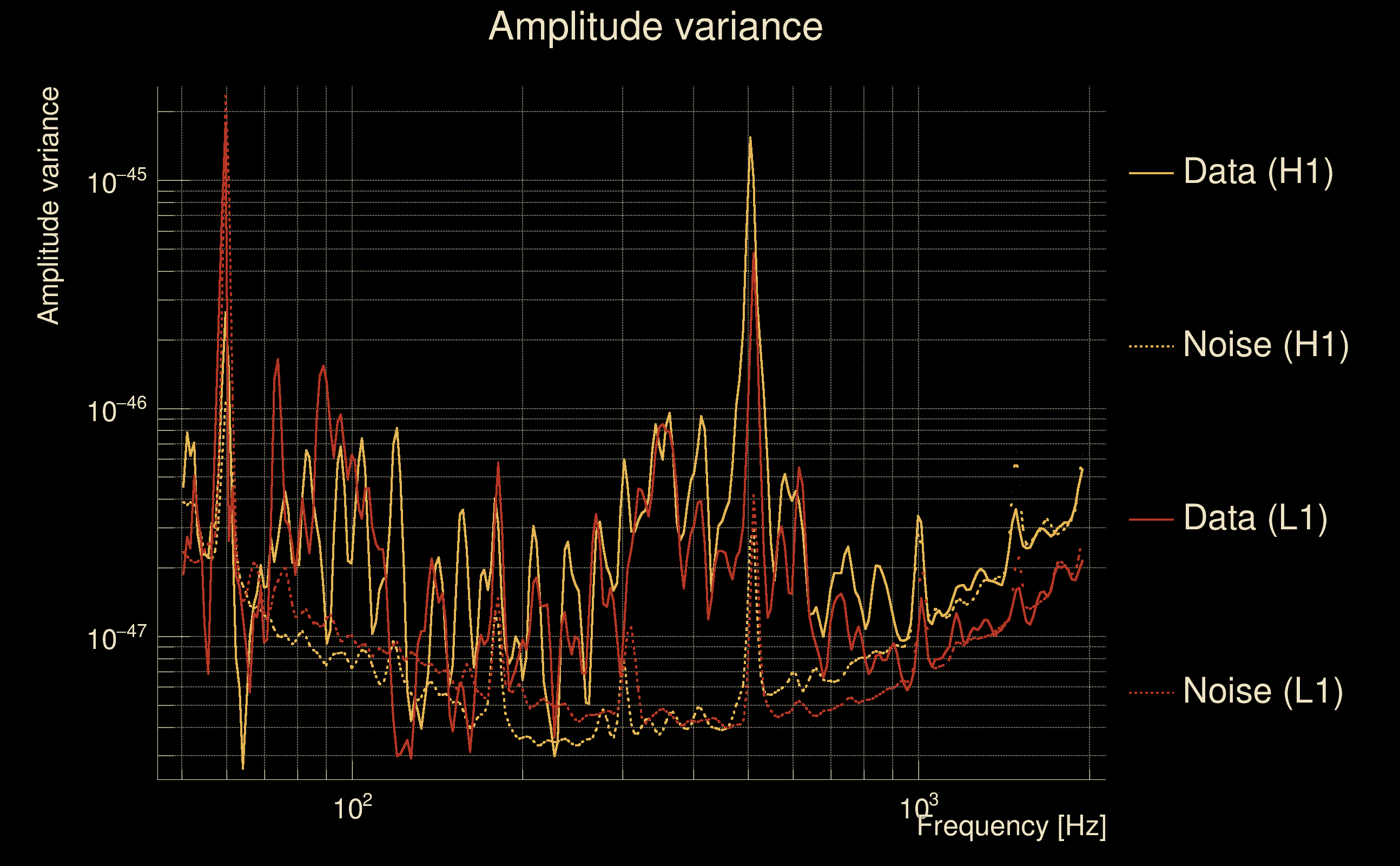

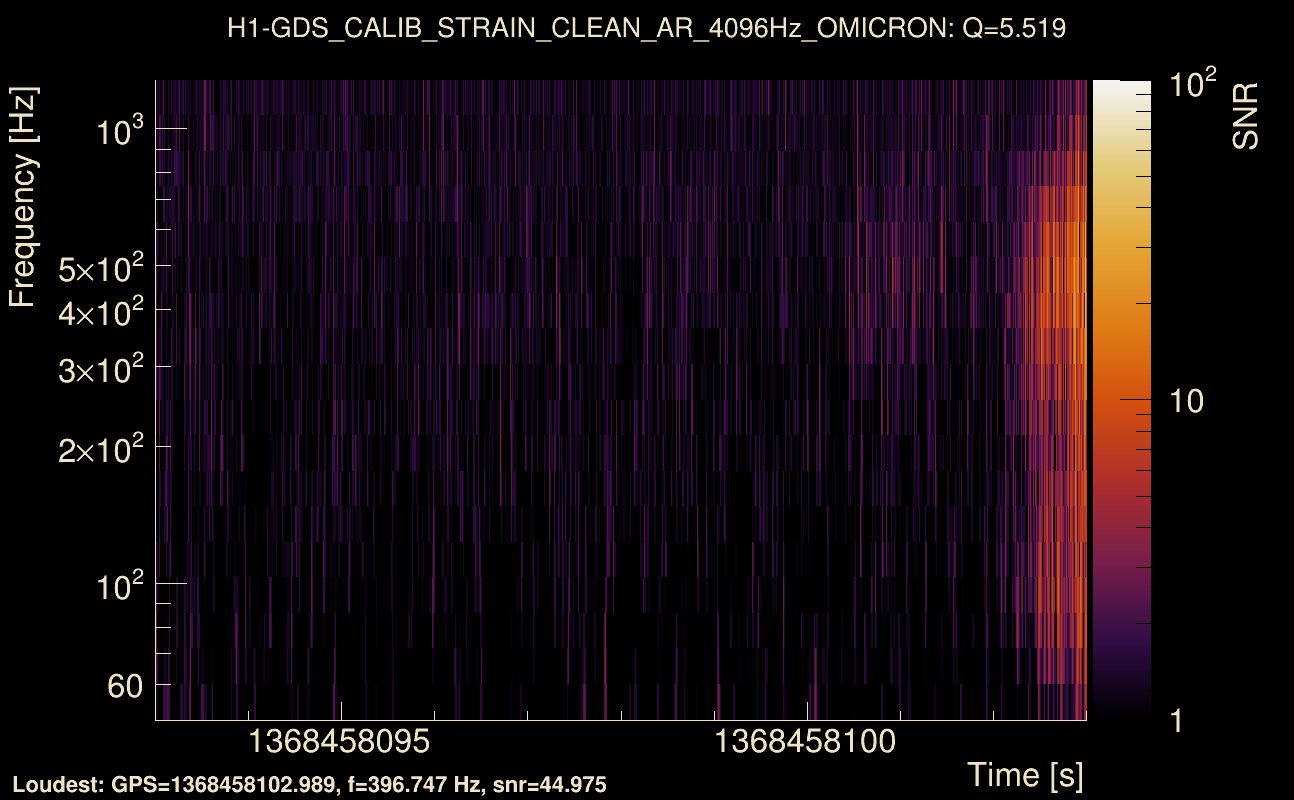

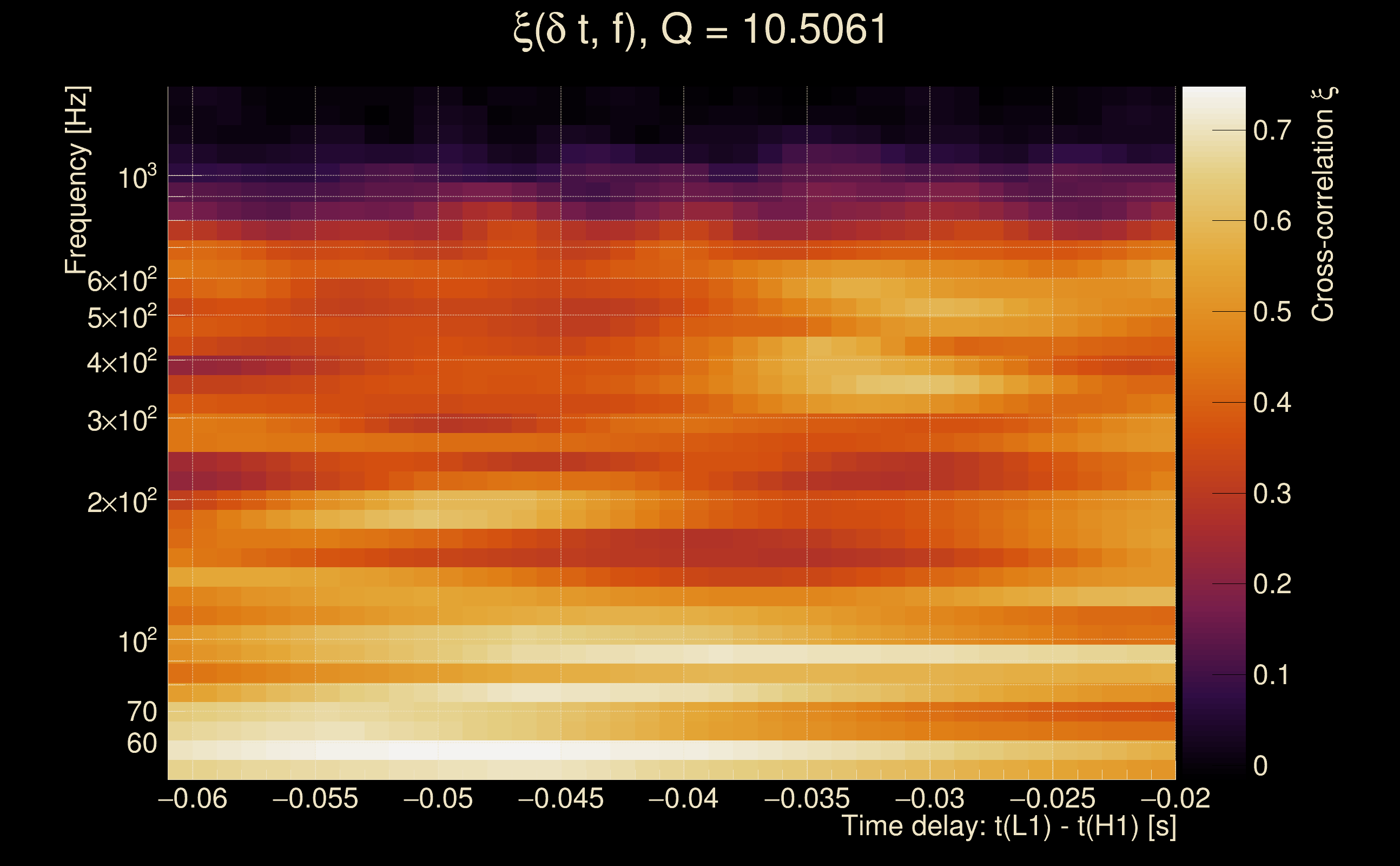

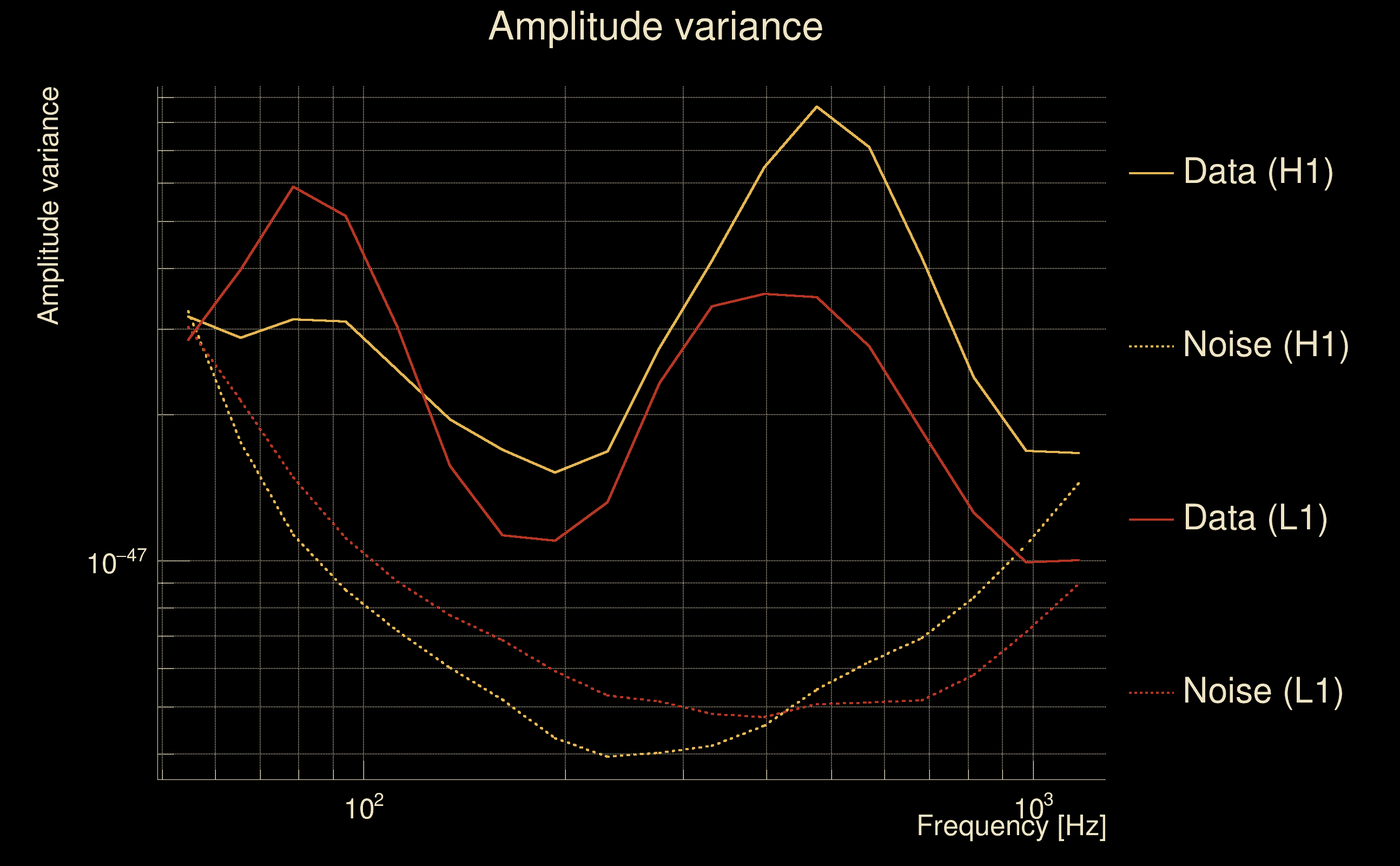

| Event time t(H1): | GPS = 1368458093 (Thu May 18 15:14:35 2023 ) → GPS = 1368458103 (Thu May 18 15:14:45 2023 ) |
| Event time t(L1): | GPS = 1368458093 (Thu May 18 15:14:45 2023 ) → GPS = 1368458103 (Thu May 18 15:14:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368458090 → GPS = 1368458106 |
| Omicron analysis time window (L1): | GPS = 1368458090 → GPS = 1368458106 |
| Time delay between detectors t(L1) - t(H1): | -0.0409255 s (slice index = 109 / 217), δt_gw = 0.00507448 s |
| Time delay standard deviation: | 0.0861117 s |
| [targeted mode] Time delay probability: | 0.696431 (0.390143 sigmas), δt_target = -0.00993299 s |
| Frequency: | 302.915 Hz |
| Ξ: | 0.31354 ± 0.0334892 (variance = 0.00112152): Q0: 0.531193, Q1: 0.574701, Q2: 0.607052, Q3: 0.590181, Q4: 0.630931 |
| Rank: | R_A = 0.113313 |
| Log of amplitude ratio (L1/H1): | -0.0647526, variance = 0.17863 (L1/H1: -0.471819, variance = 0.338408, H1/L1: -0.27475, variance = 0.365453) |
| Amplitude ratio (L1/H1): | 0.937299 ⋇ 1.526 (L1/H1: 0.623866 ⋇ 1.78913, H1/L1: 0.759762 ⋇ 1.83039) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.373536 |
| Antenna factor probability: | 0.967505 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 17 / 36, Q2: 45 / 70, Q3: 102 / 134, Q4: 229 / 258 |
| Maximum signal-to-noise ratio: | H1: 57.3726, L1: 62.8226 |
| SNR variance: | H1: 0.415614, L1: 0.4017 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

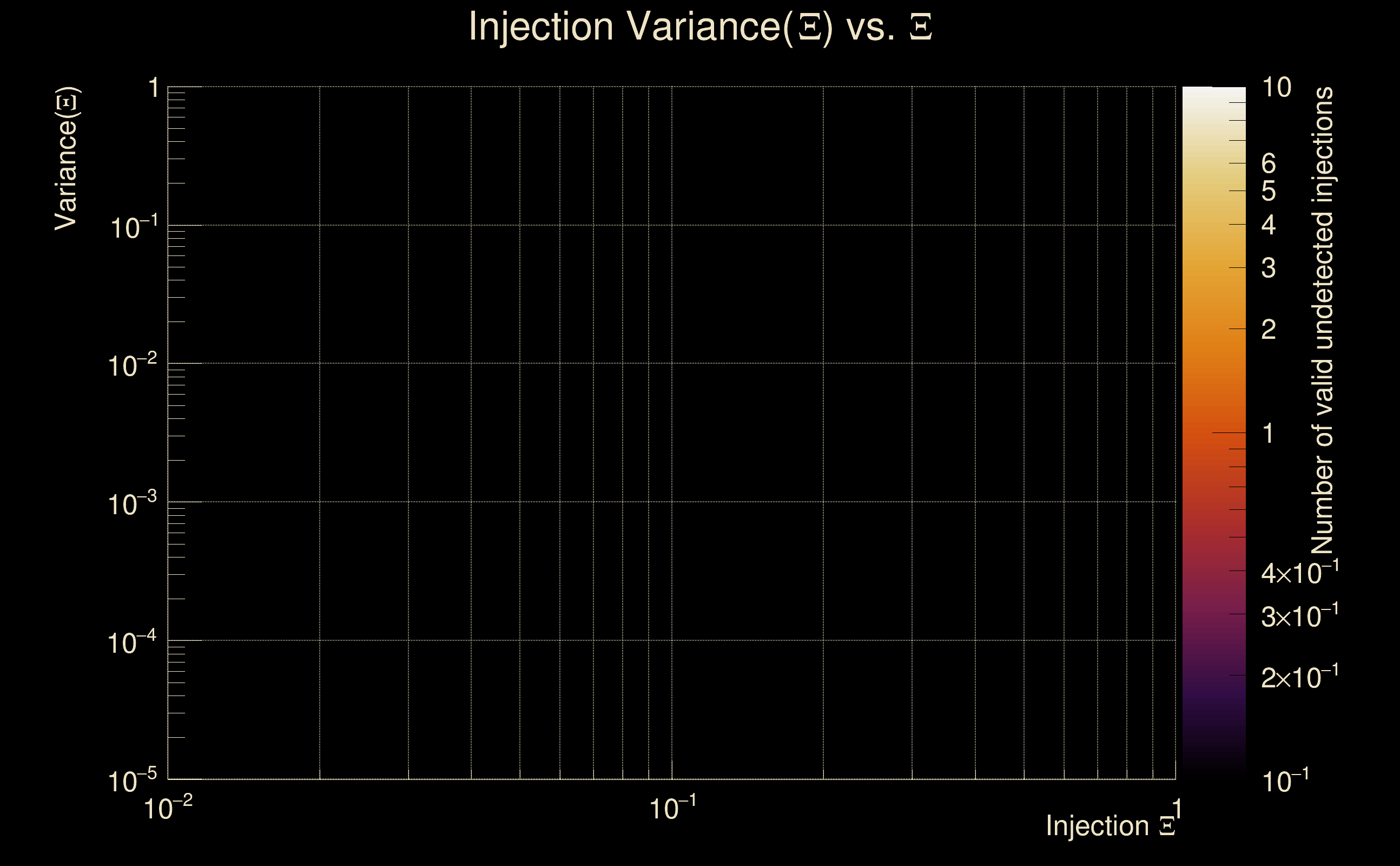

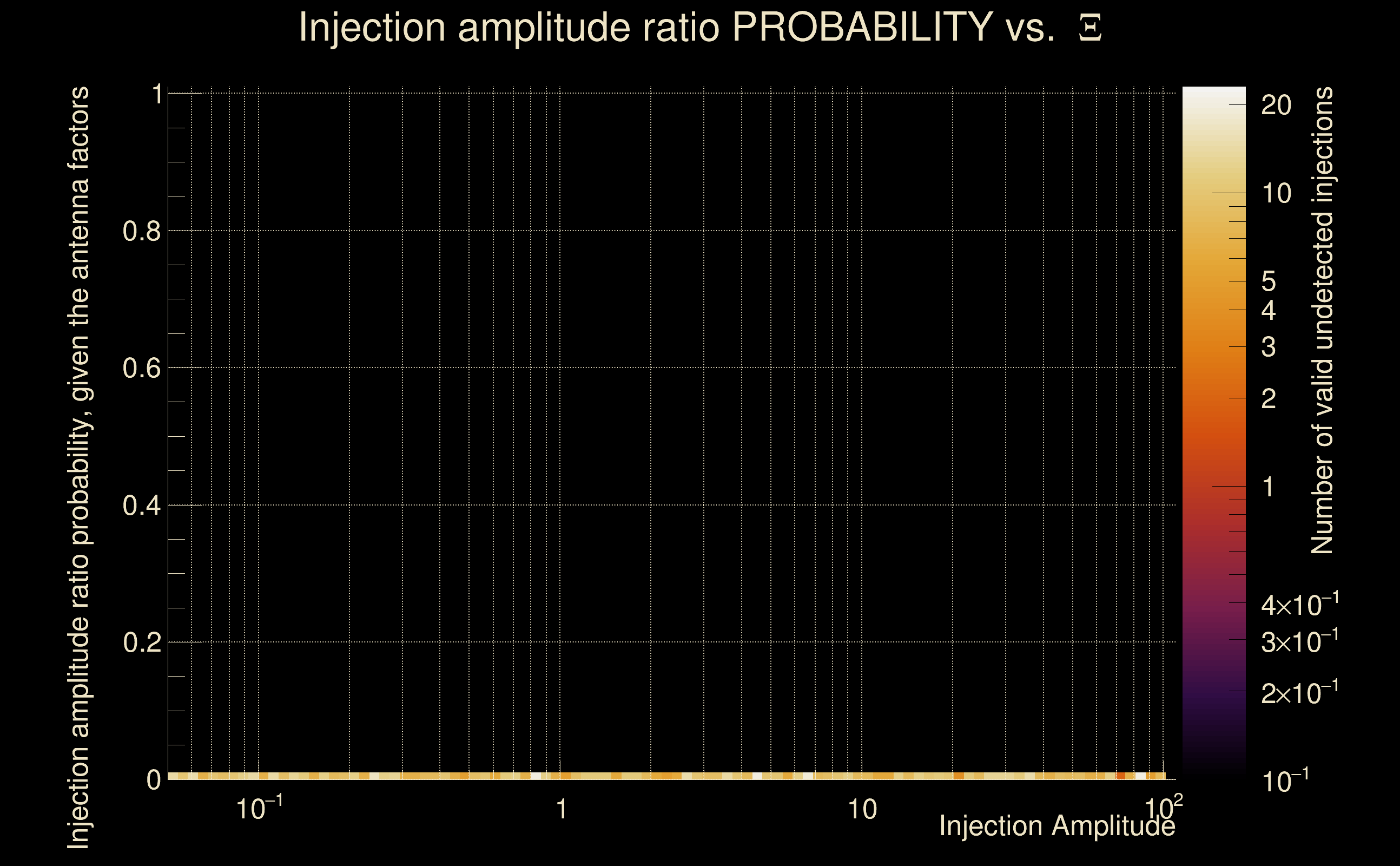

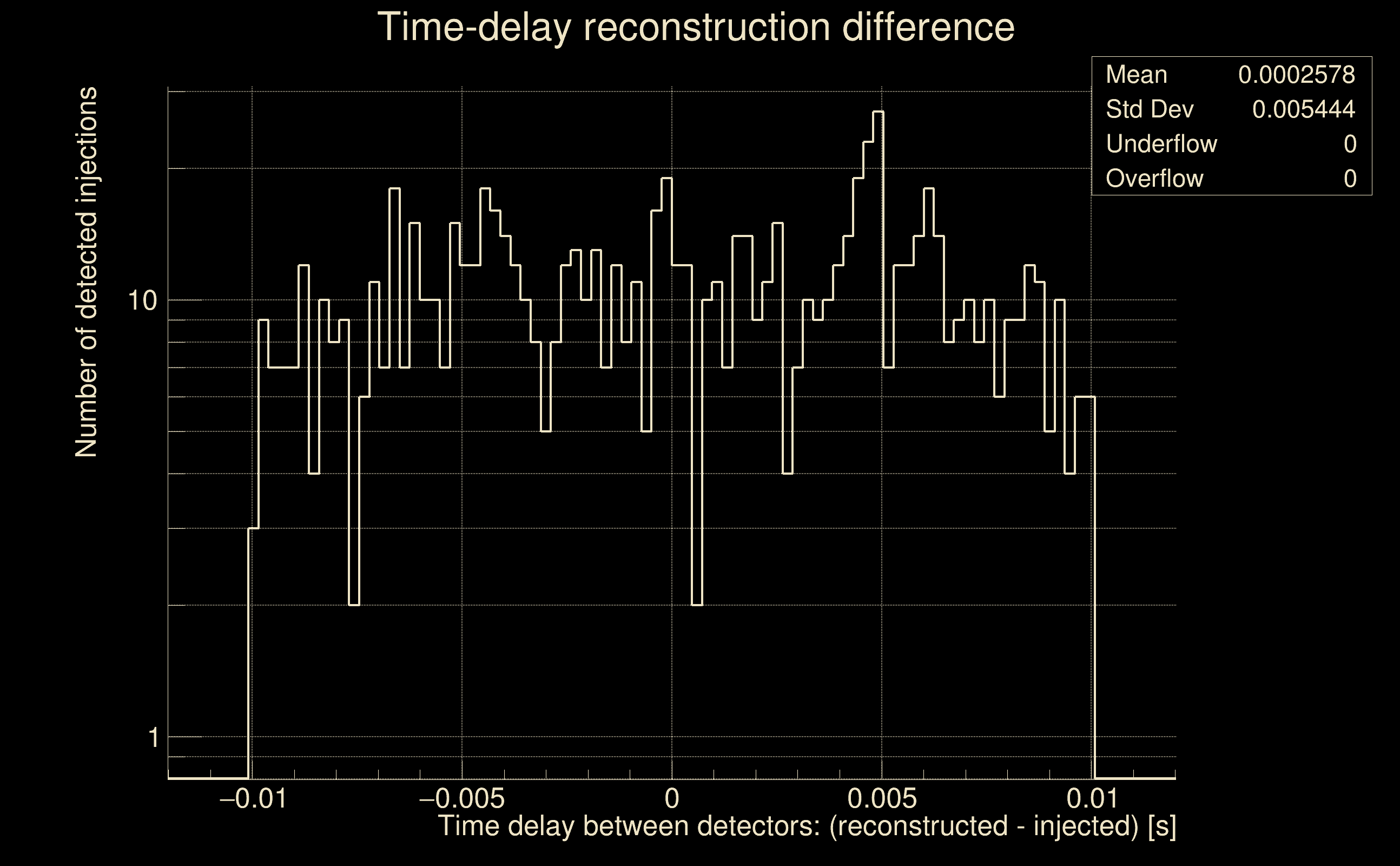

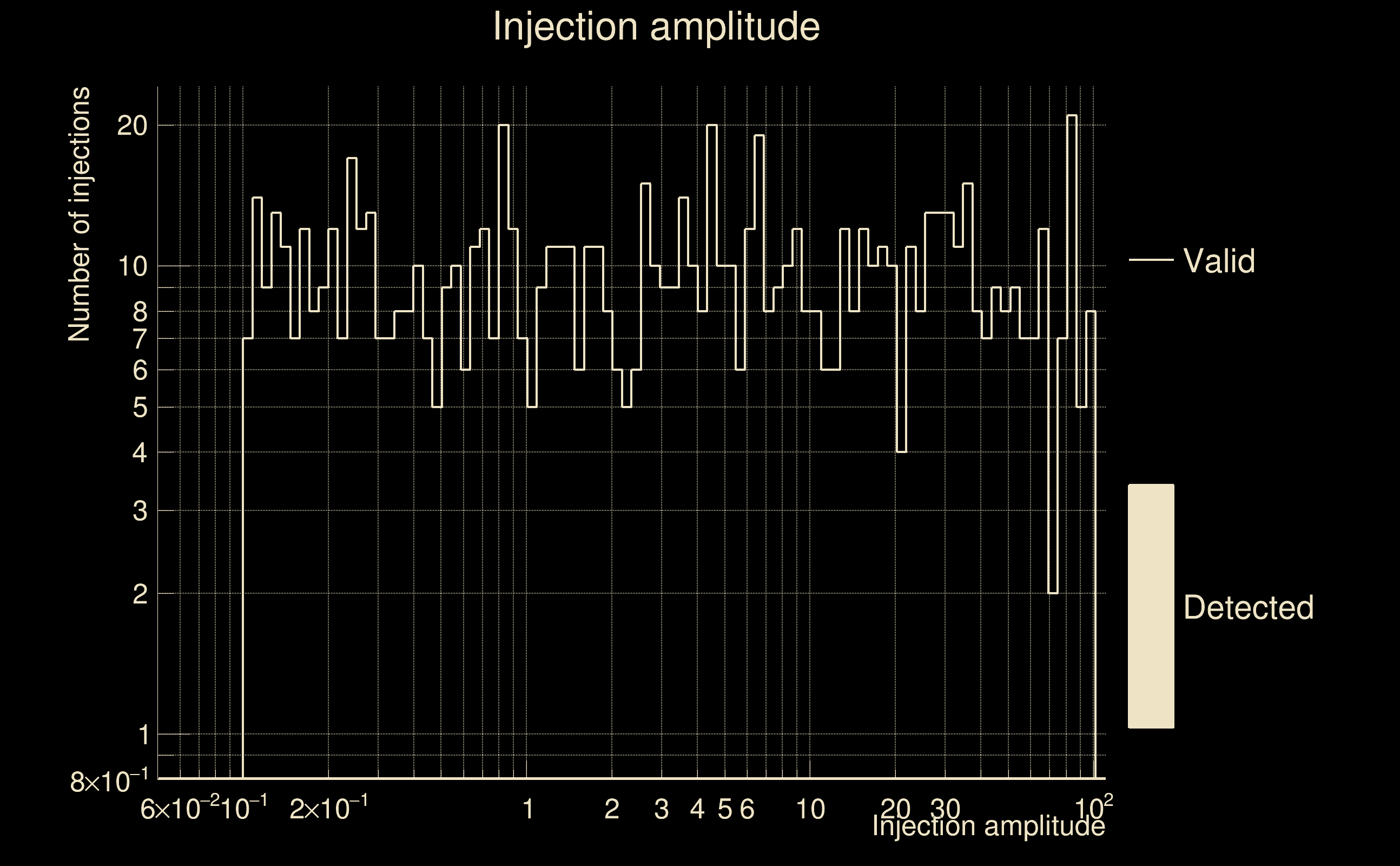

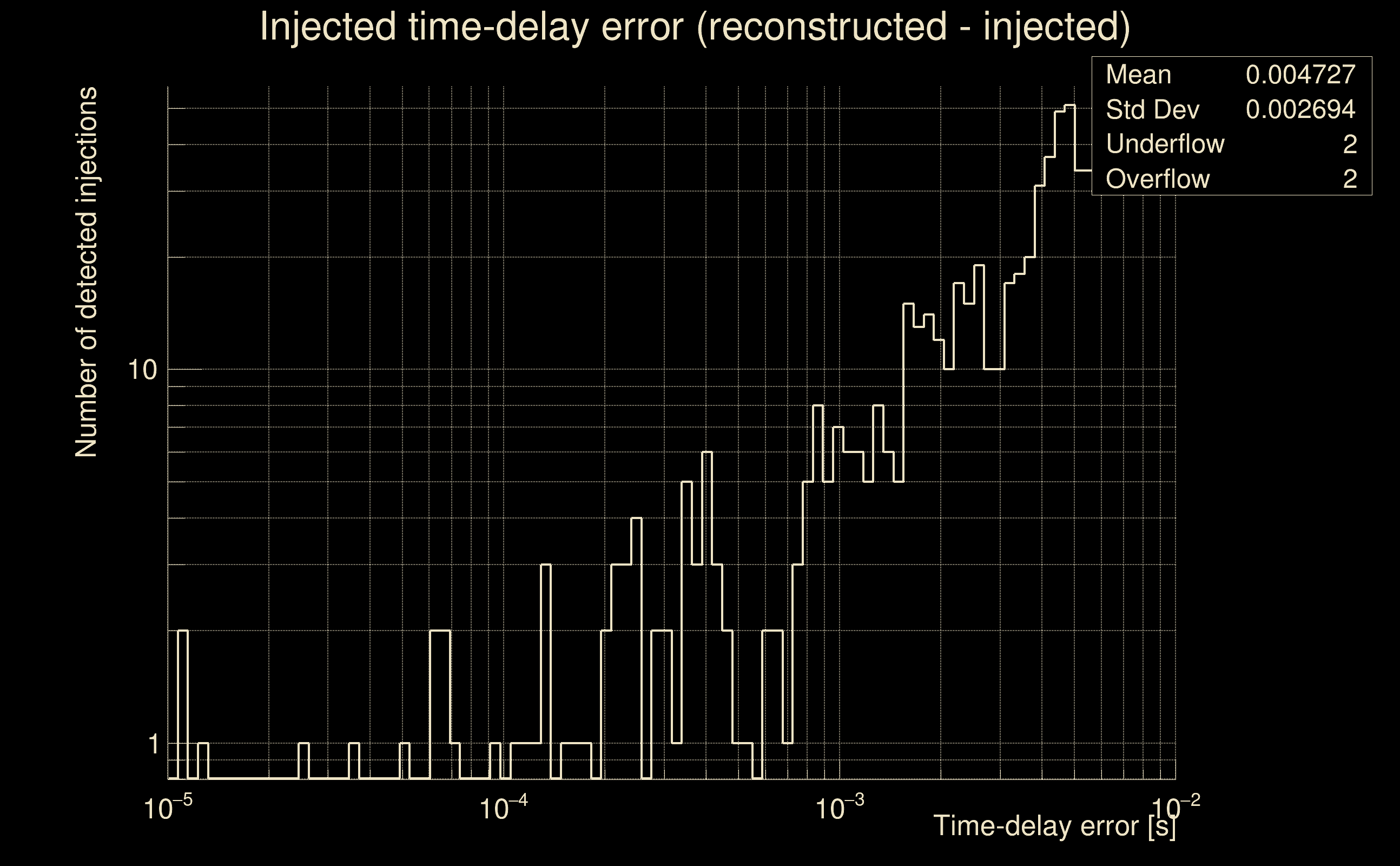

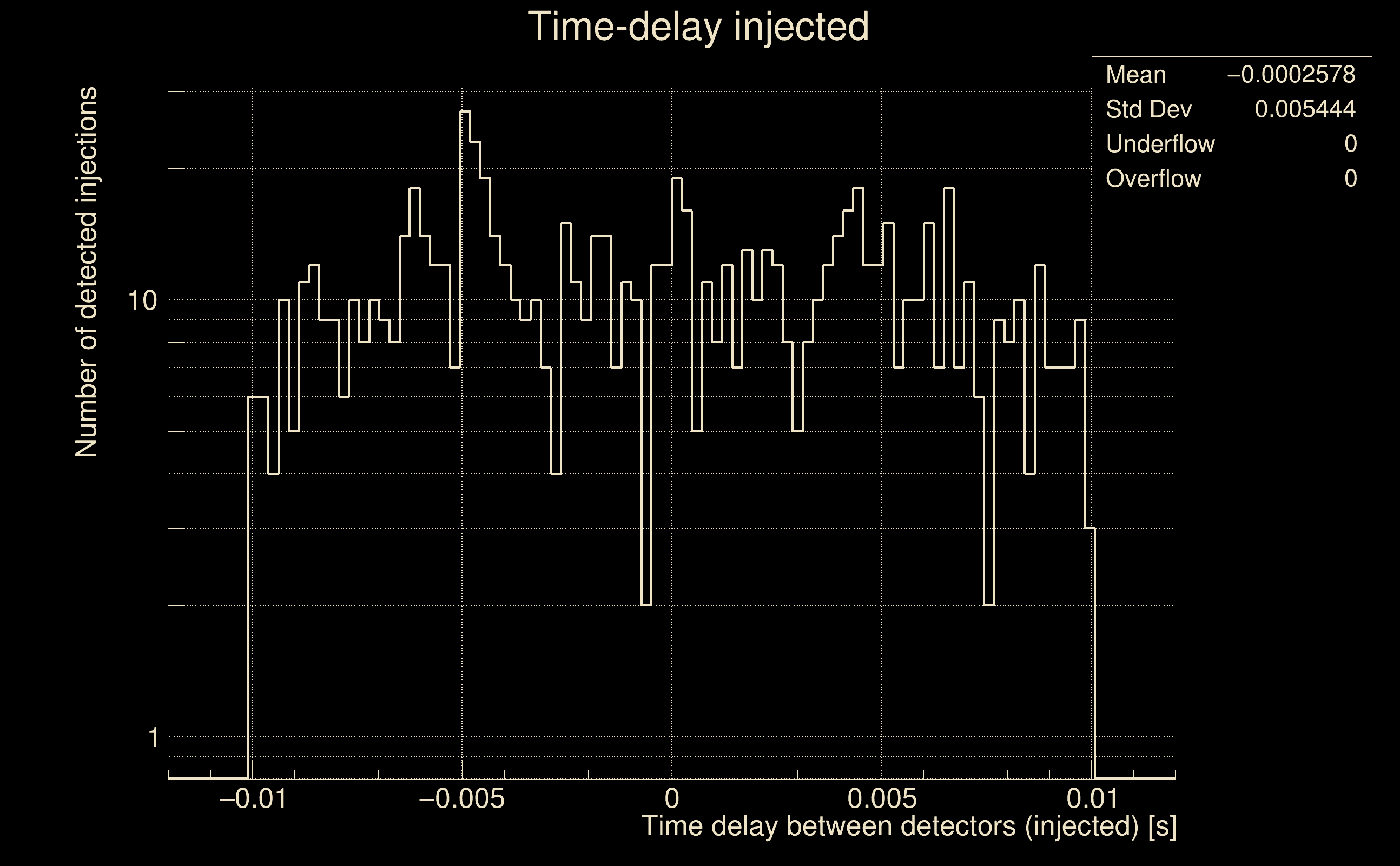

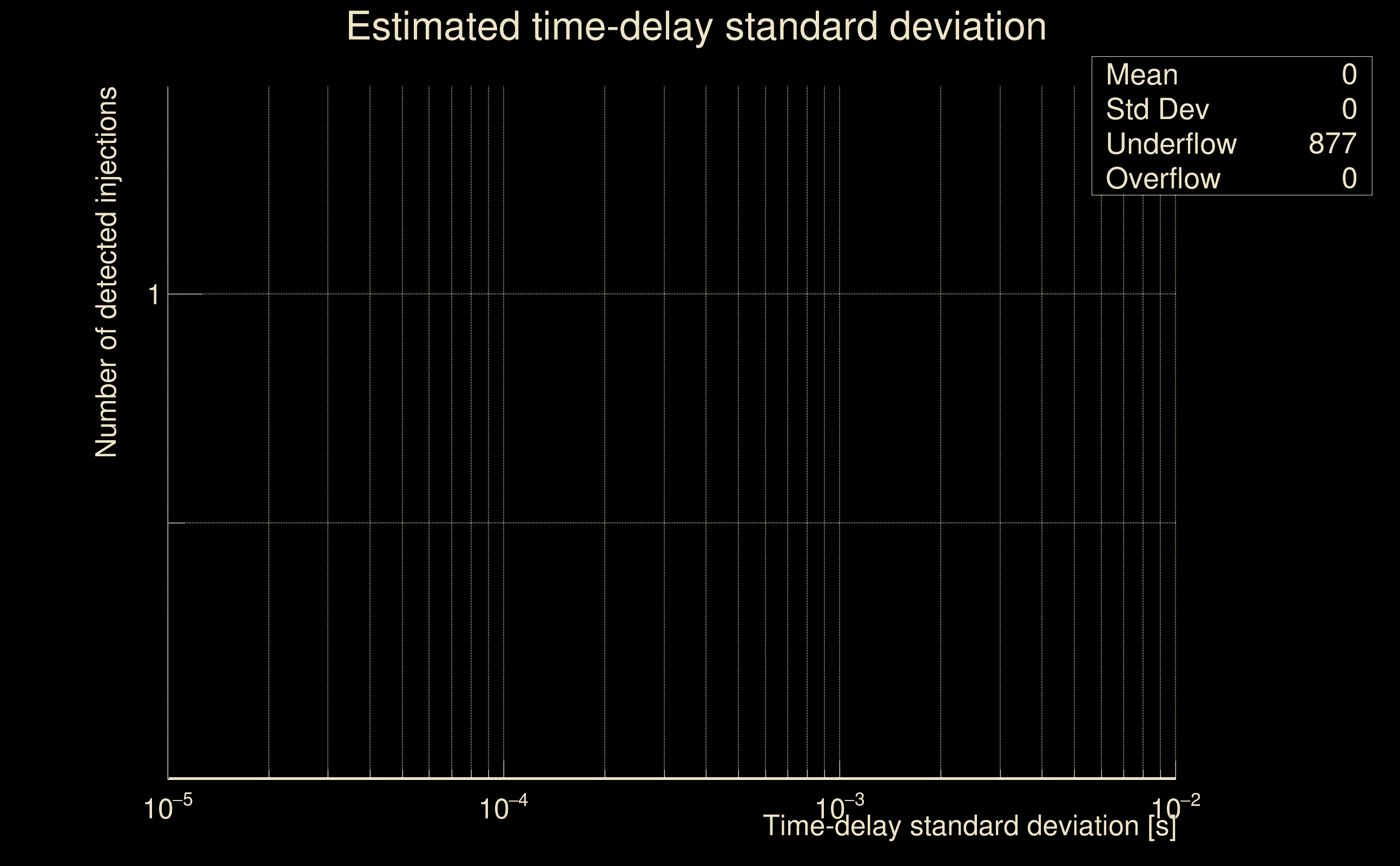

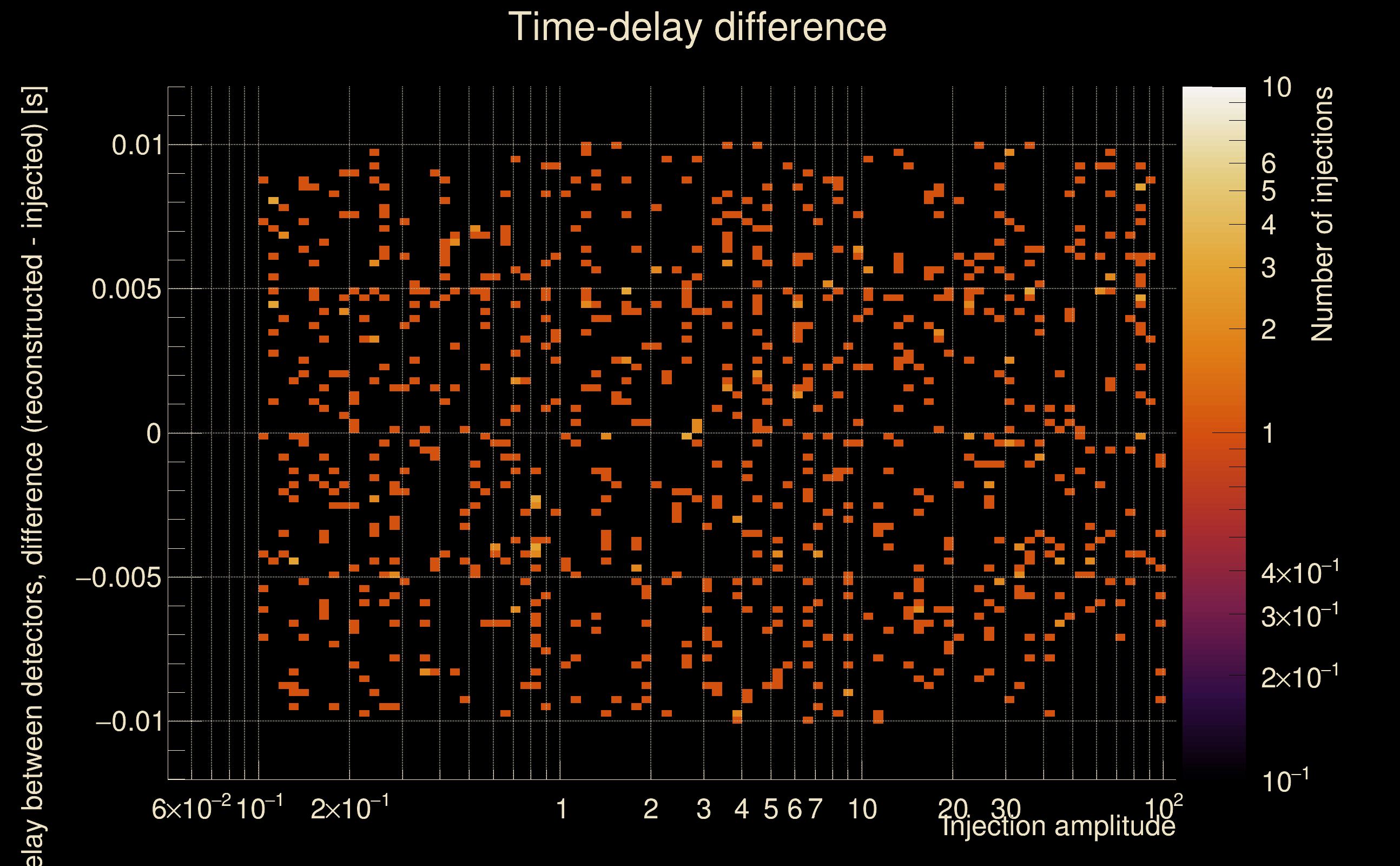

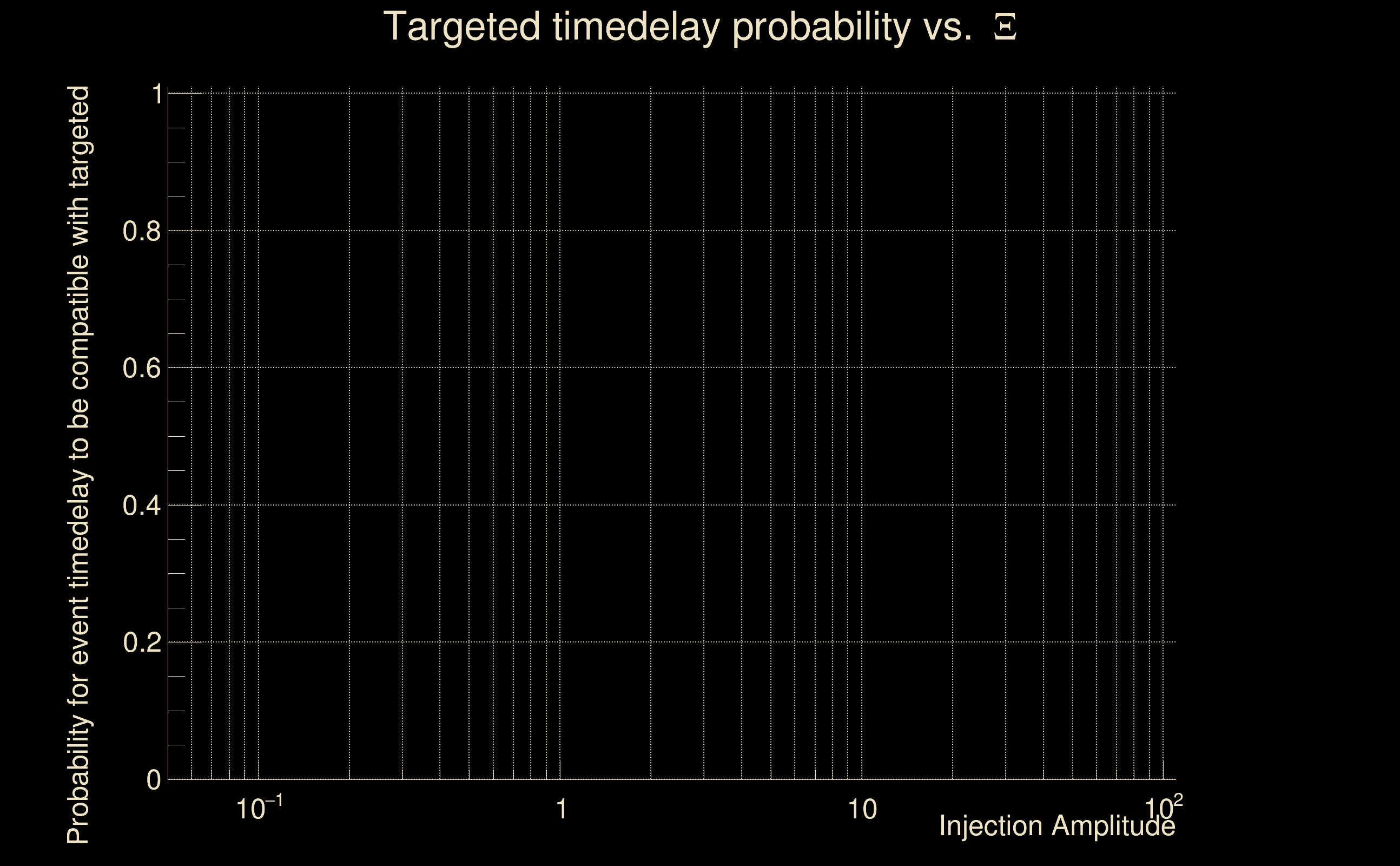

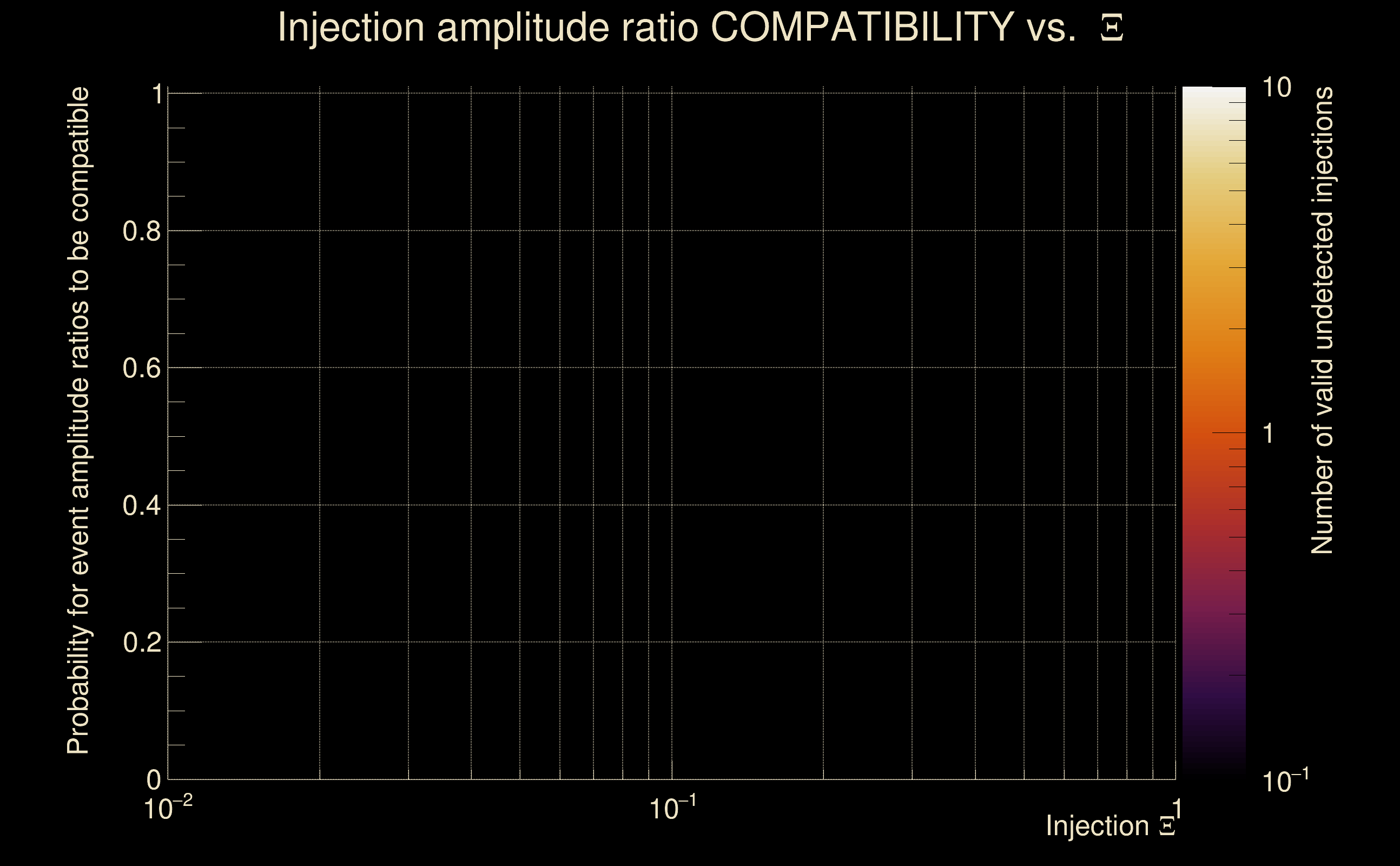

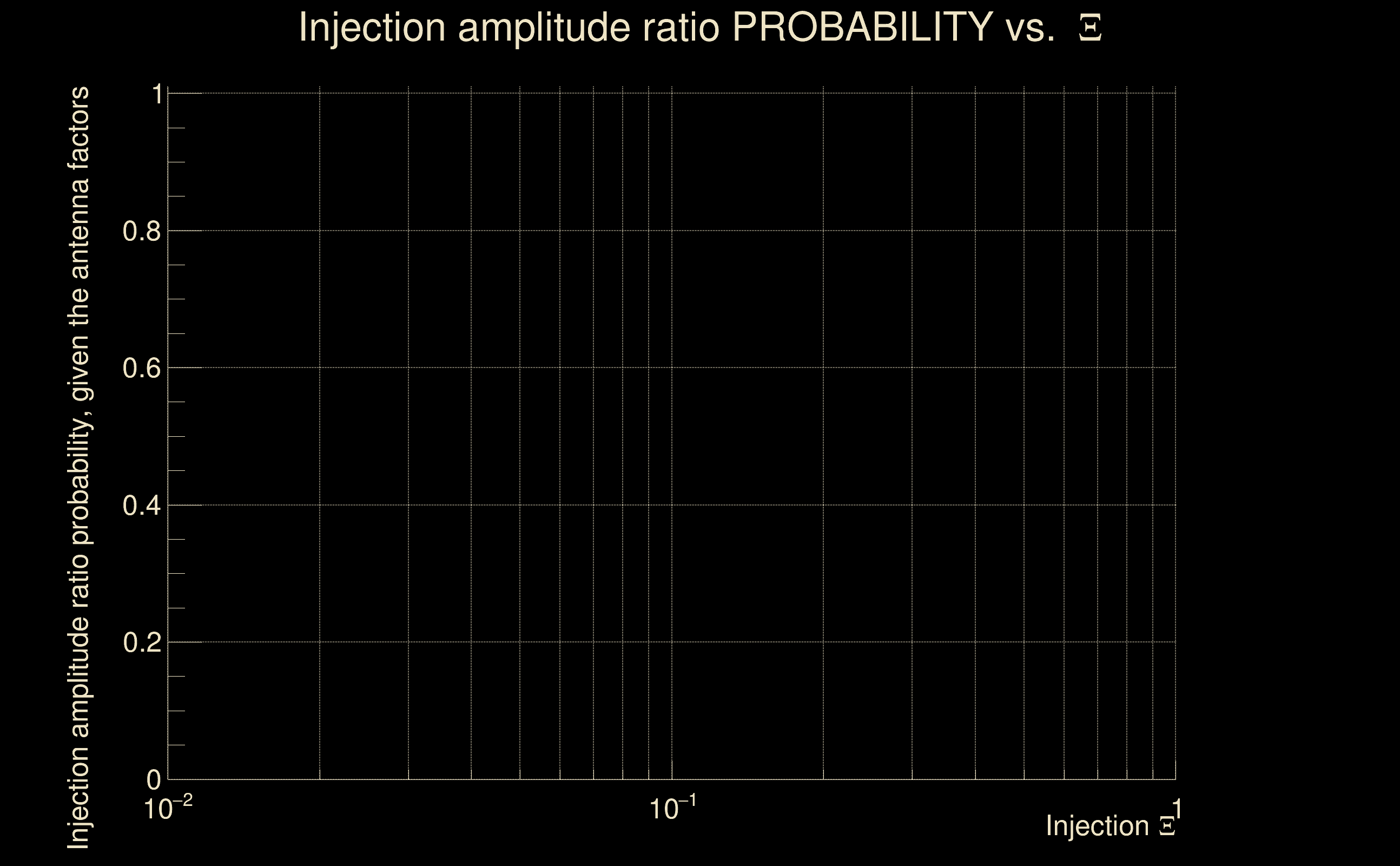

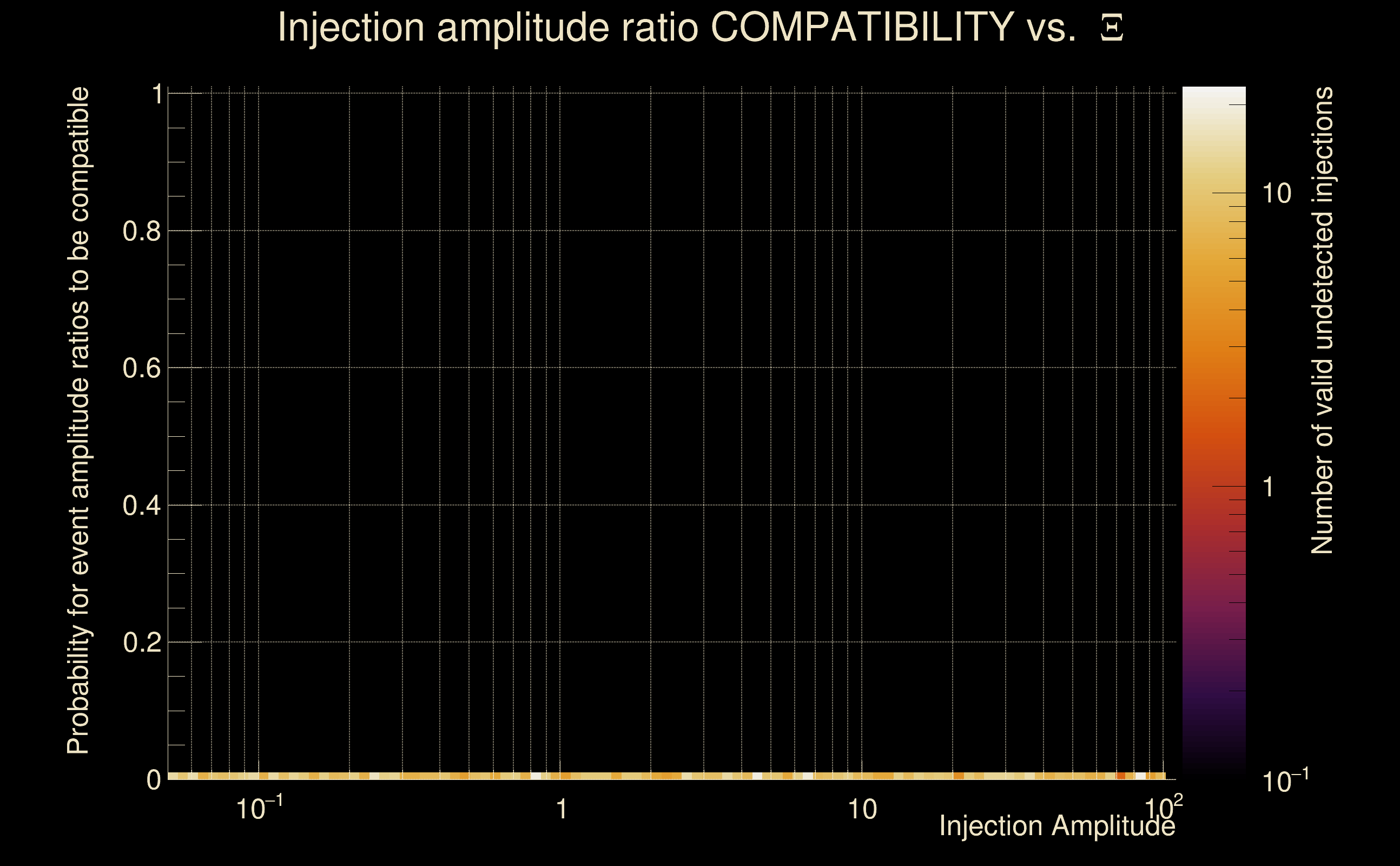

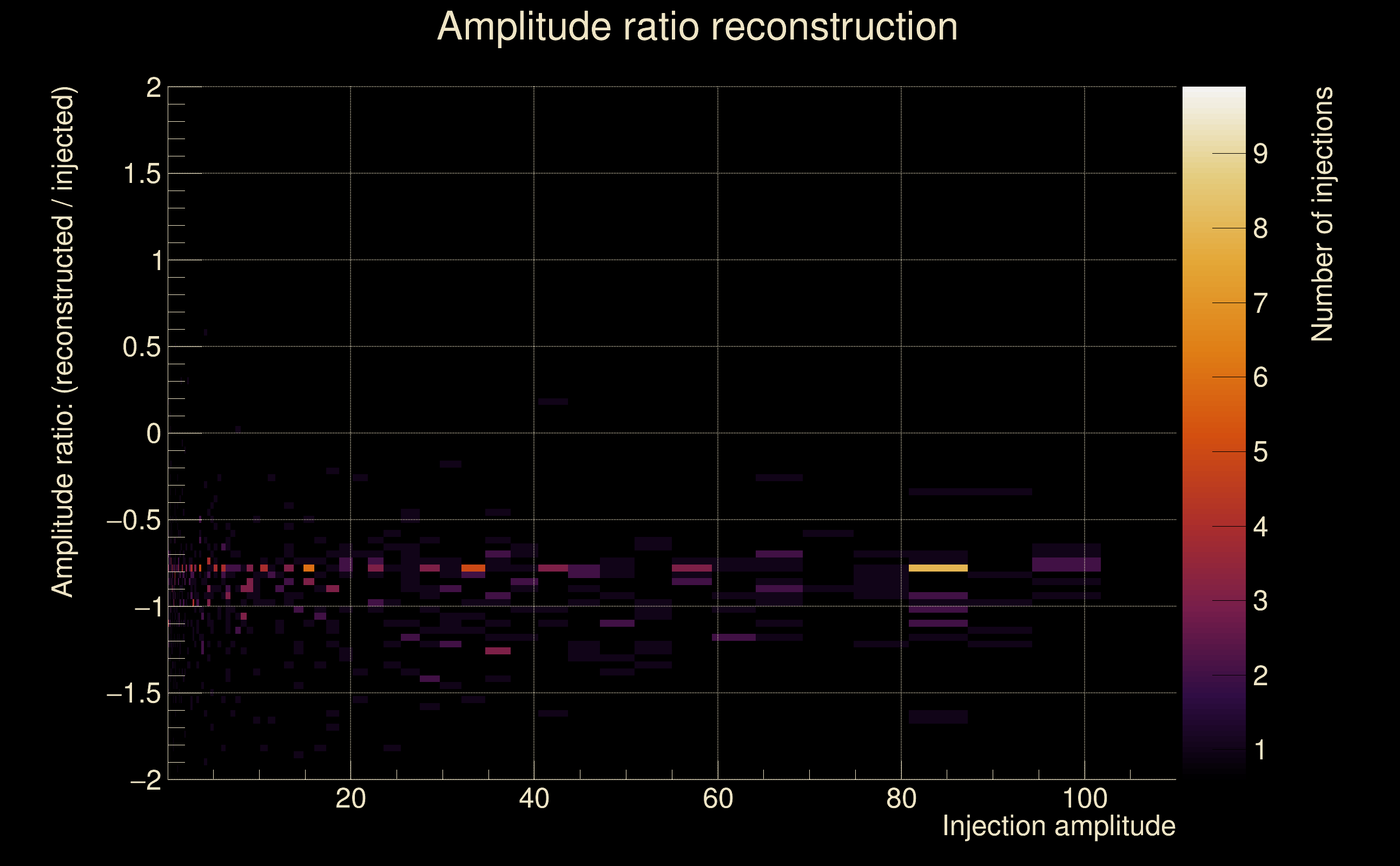

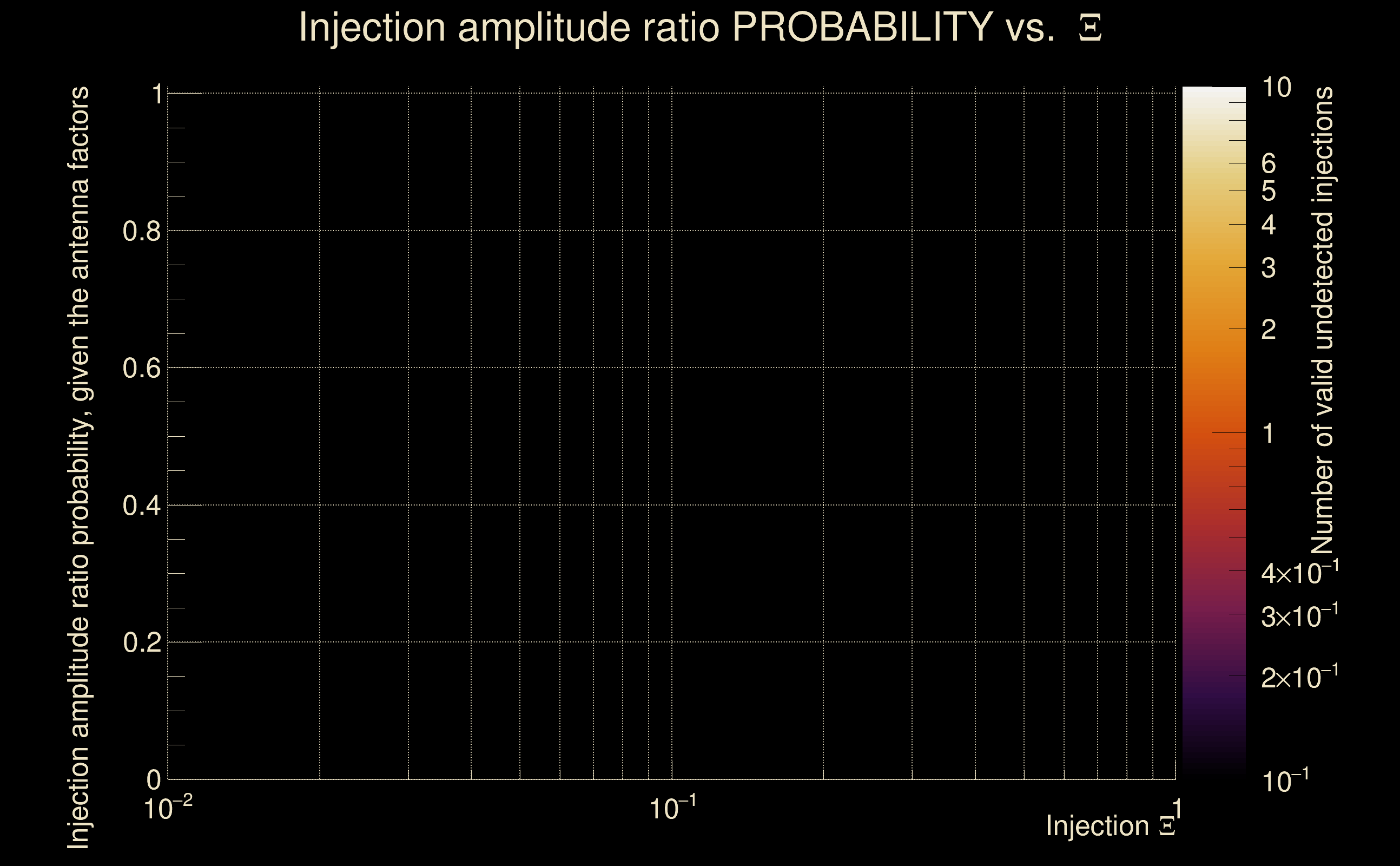

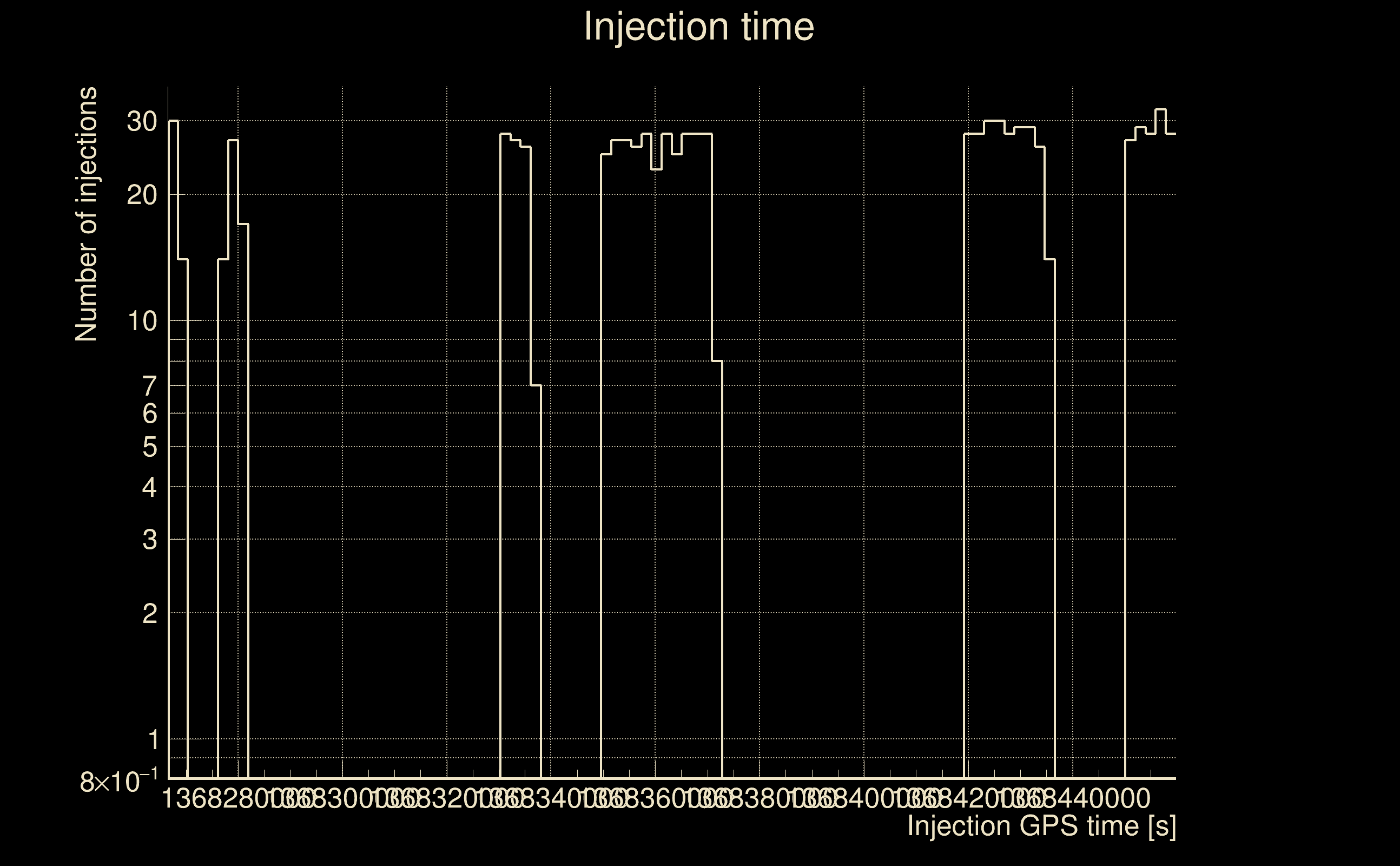

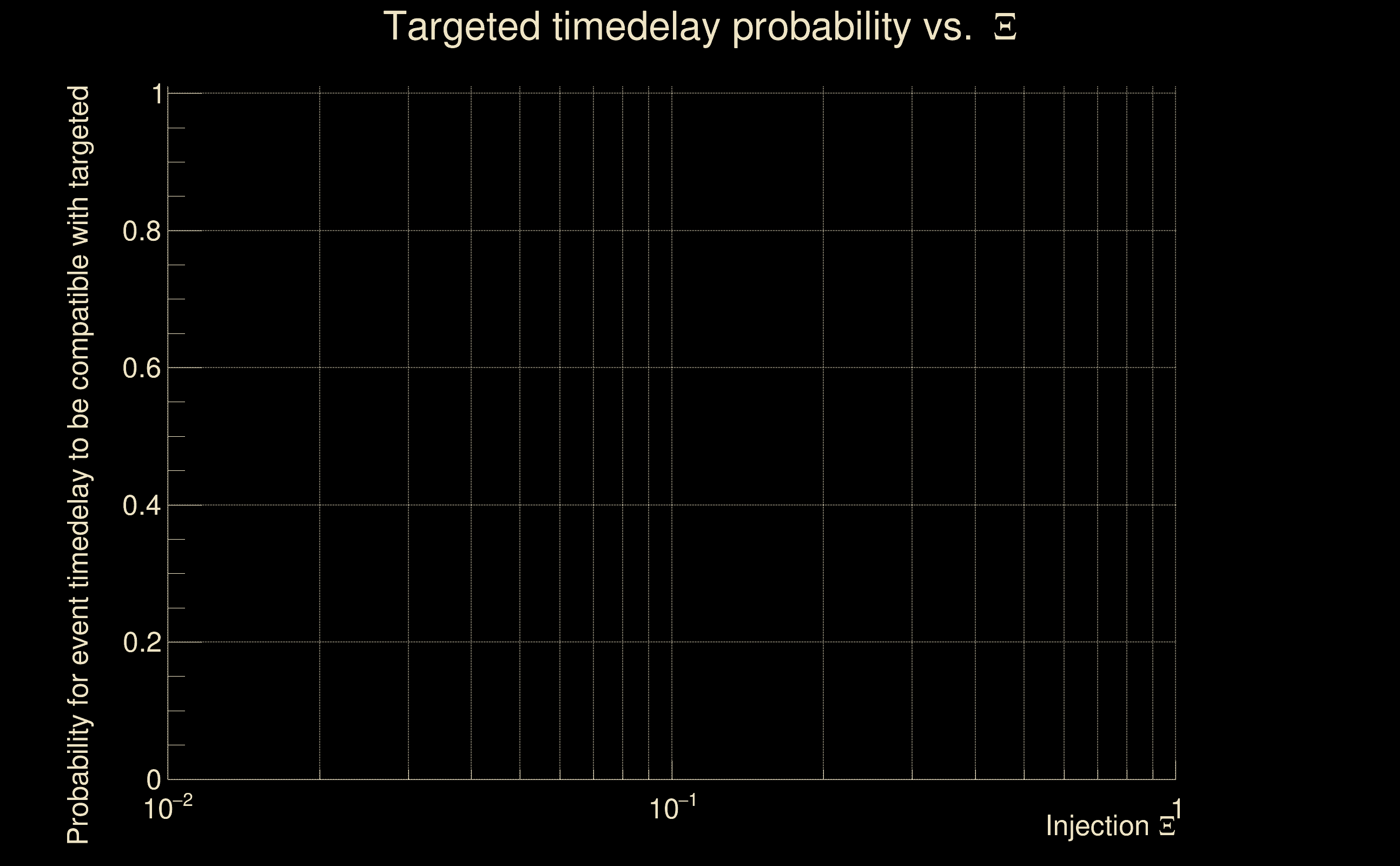

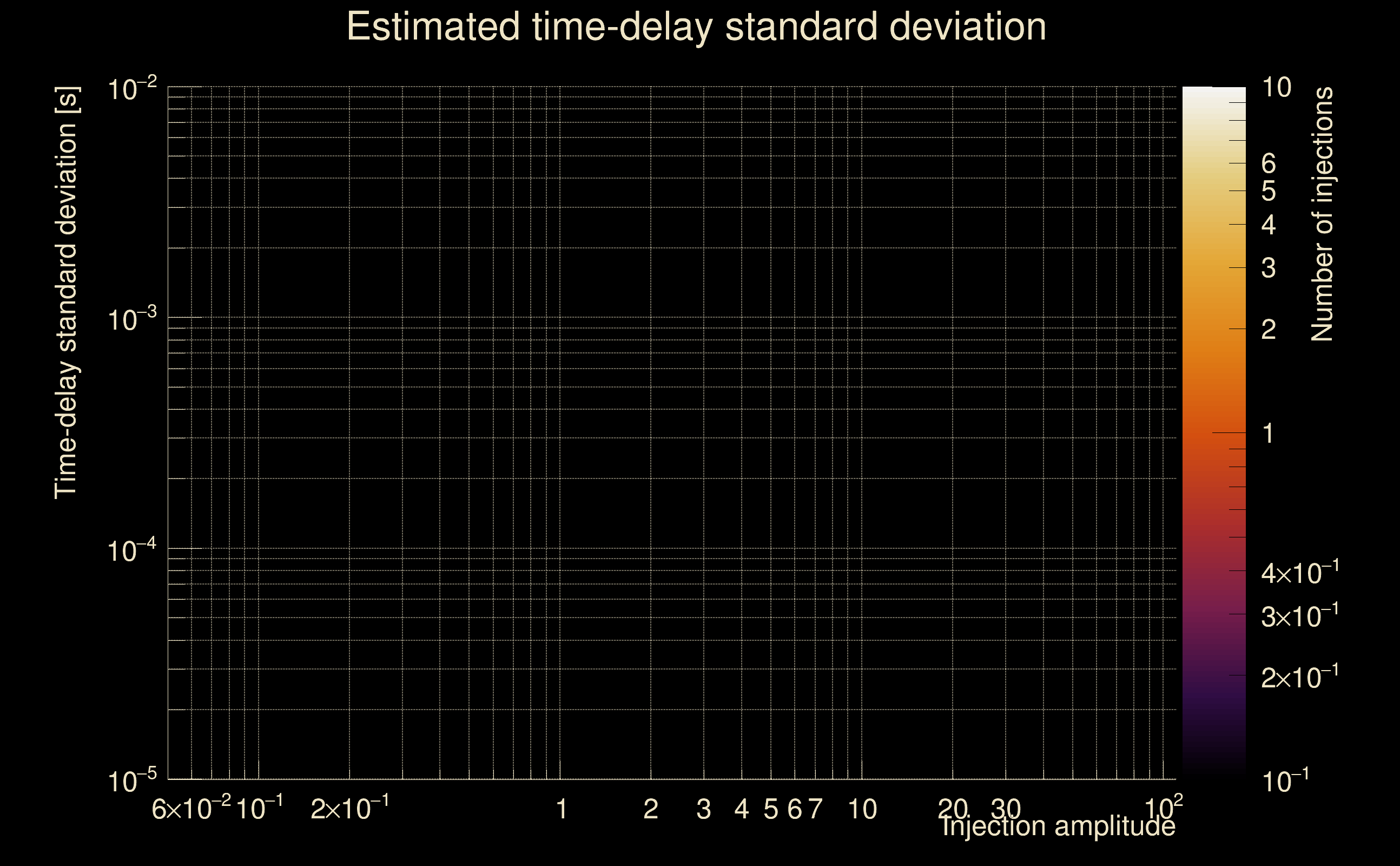

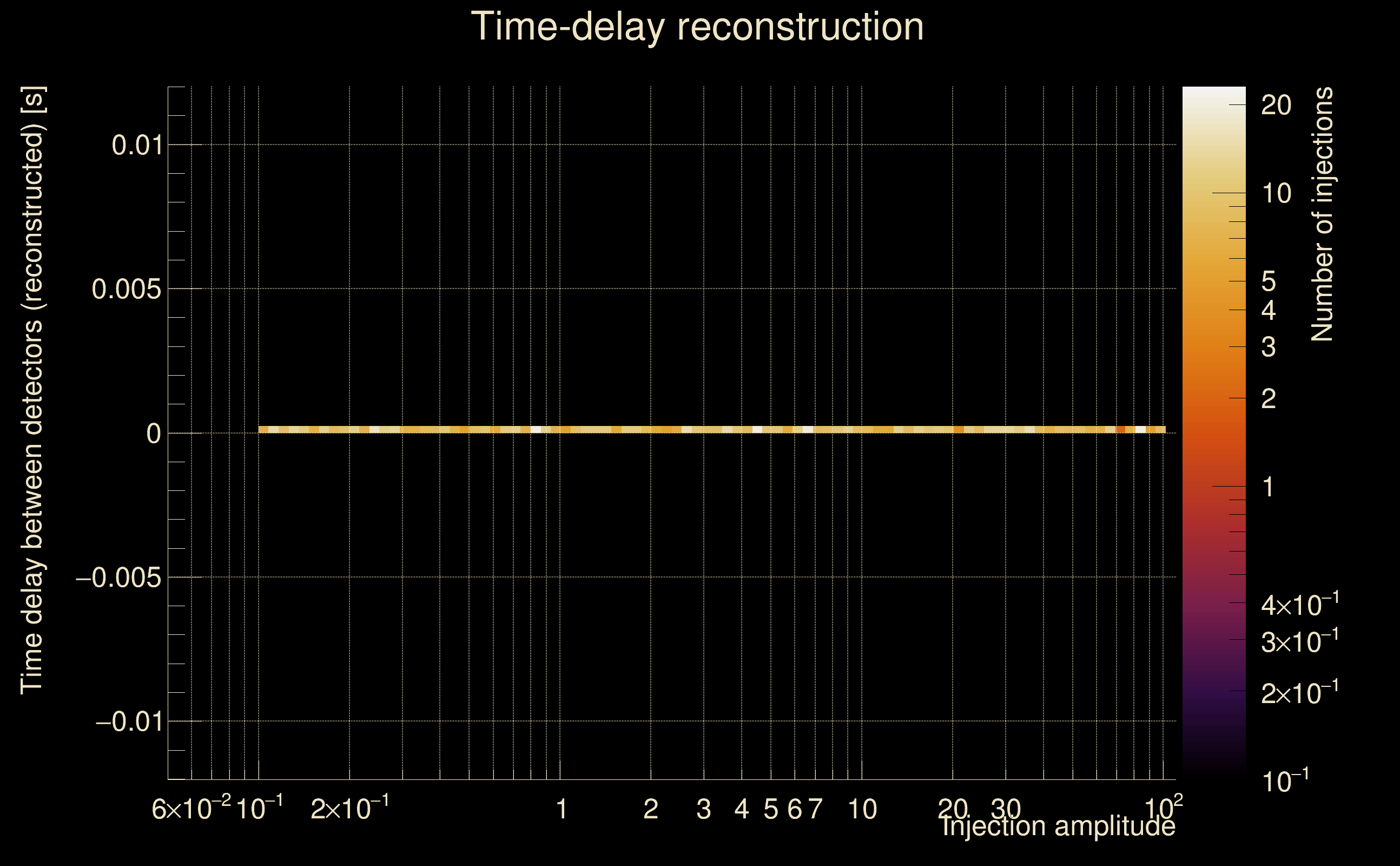

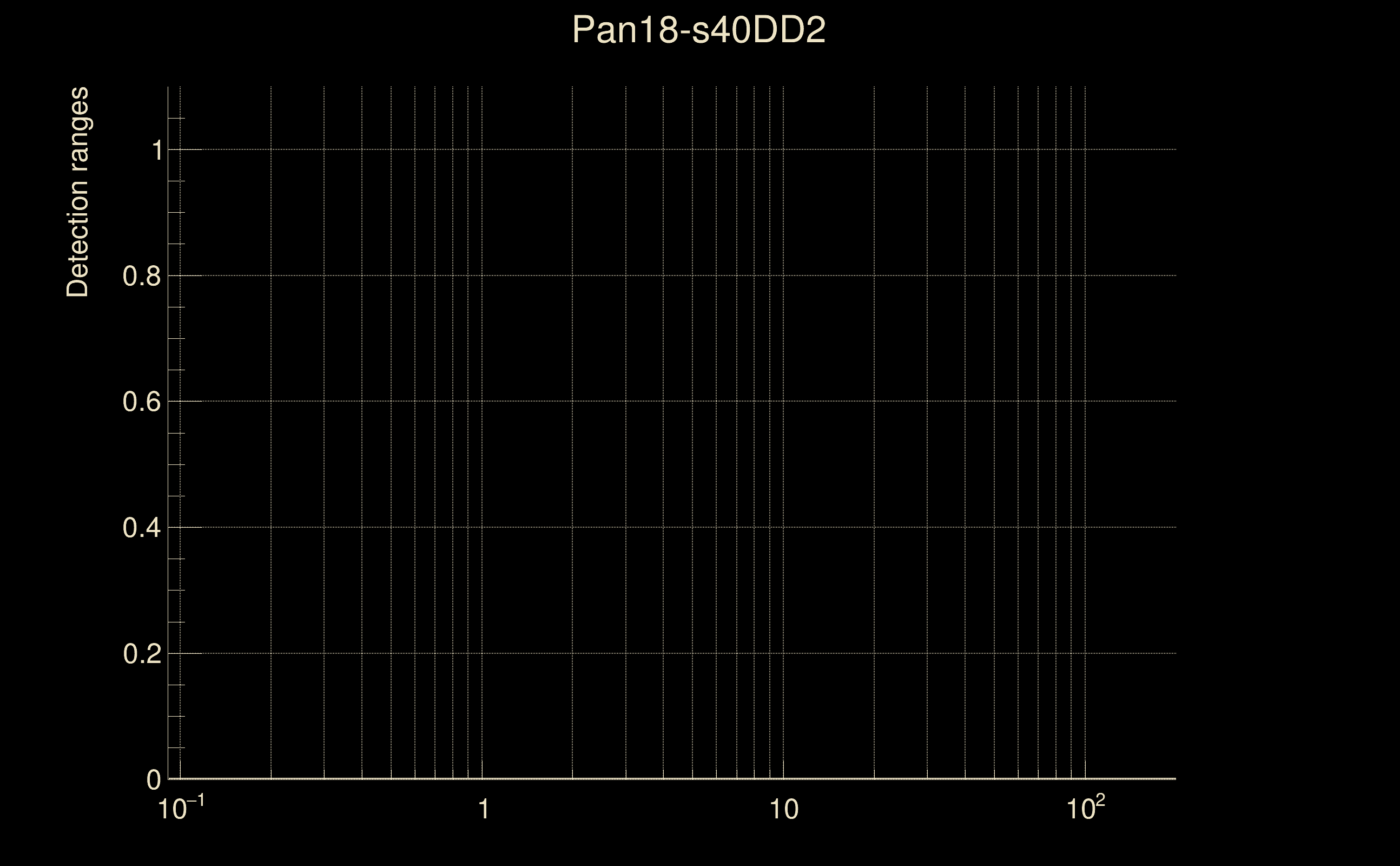

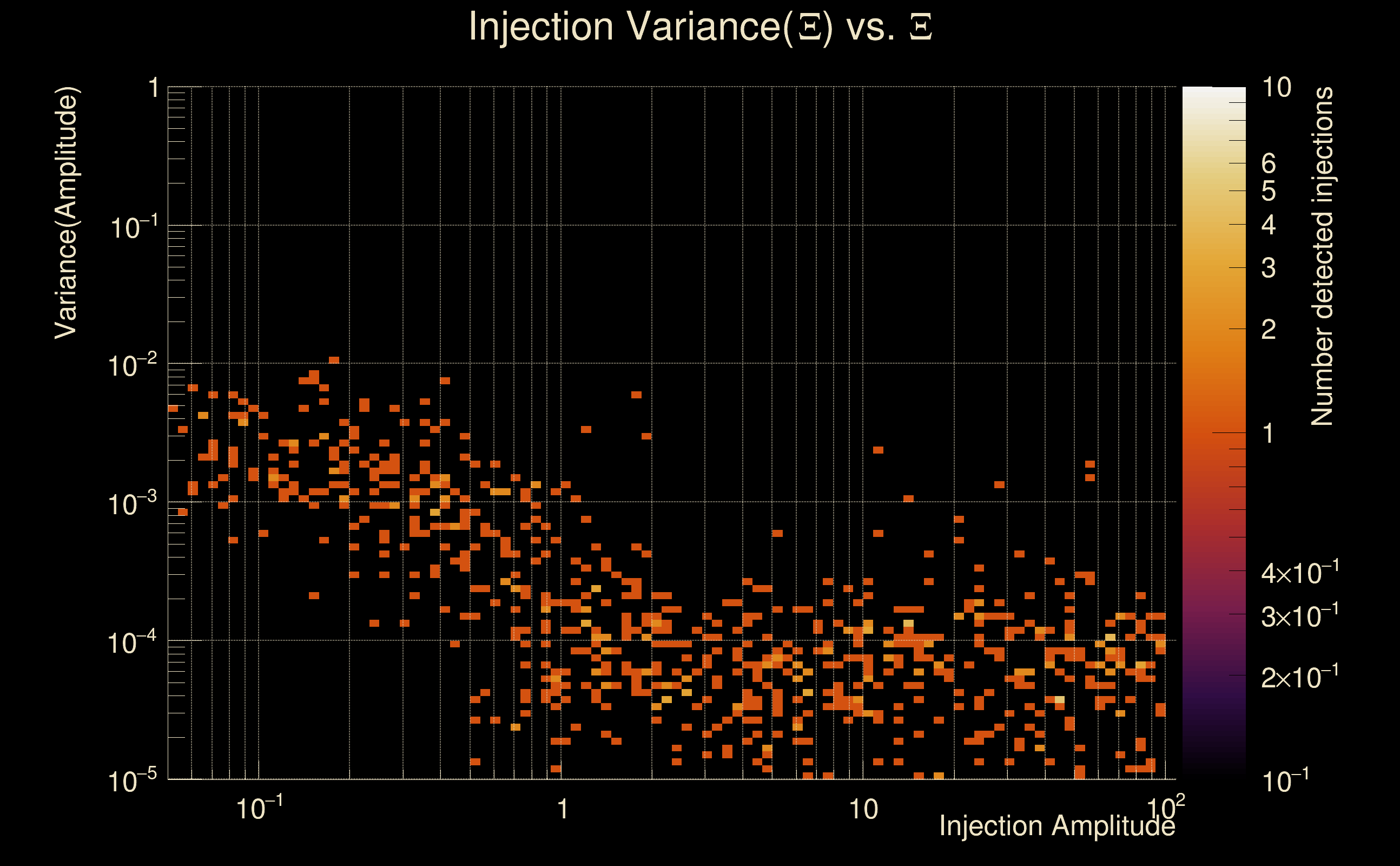

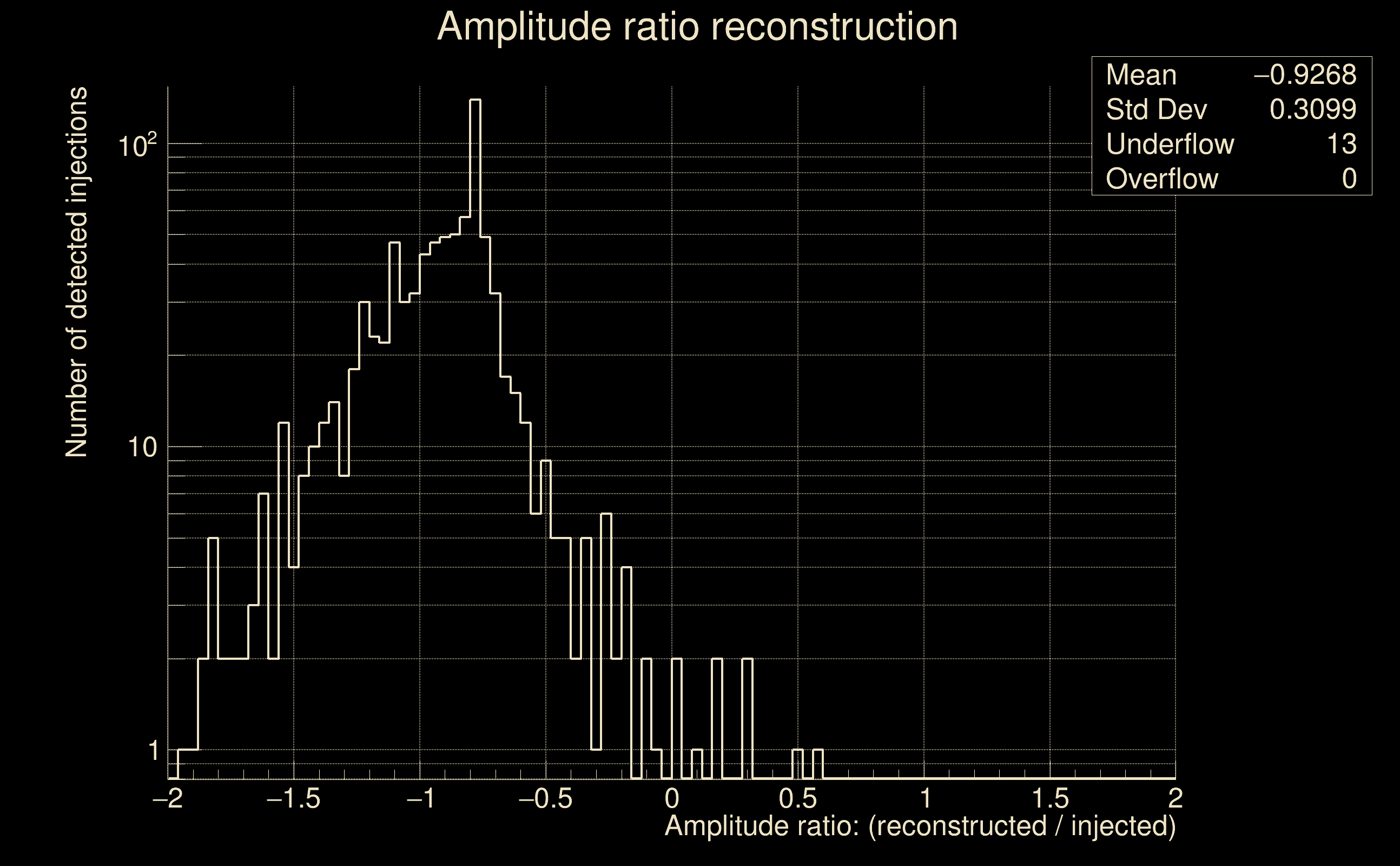

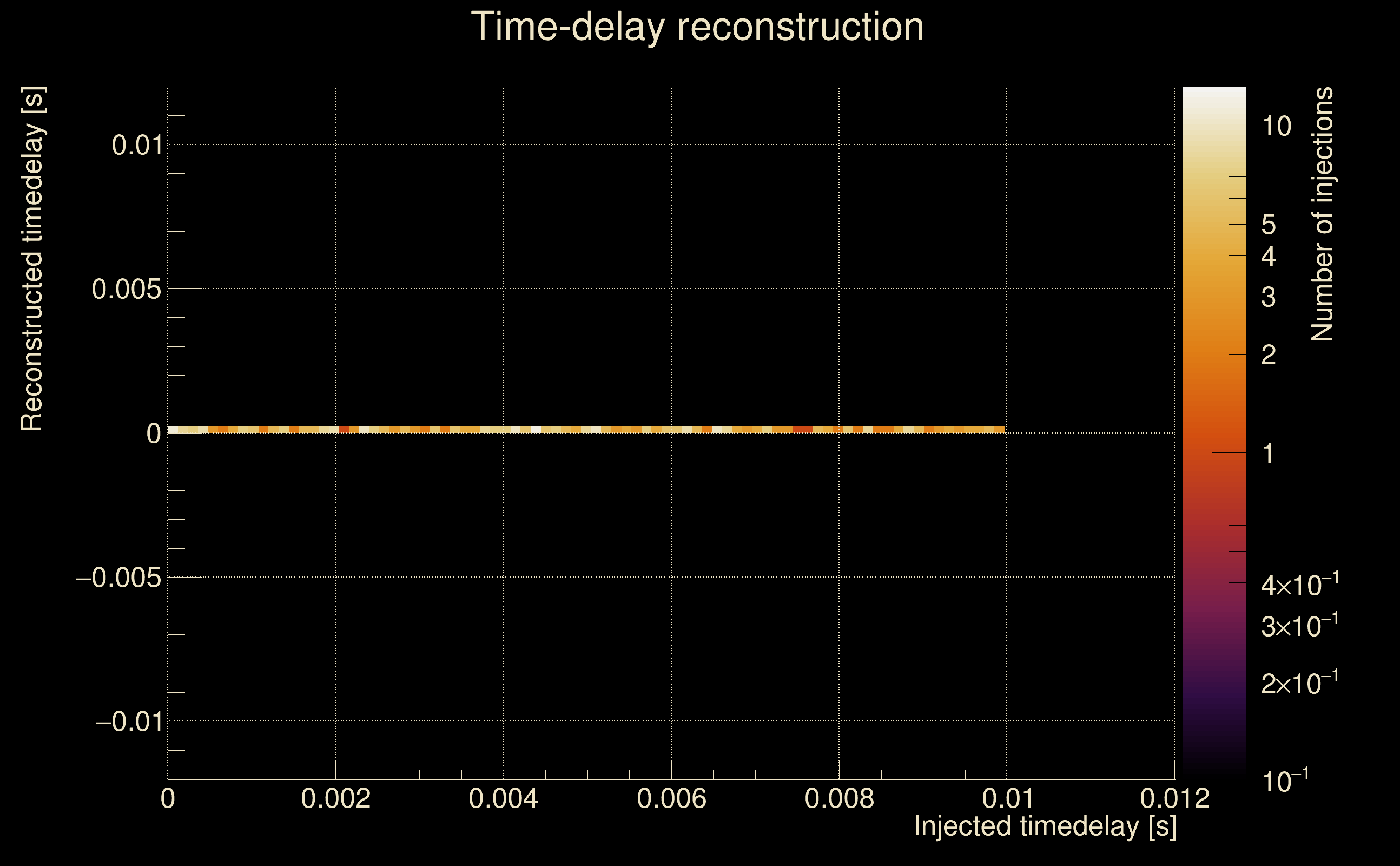

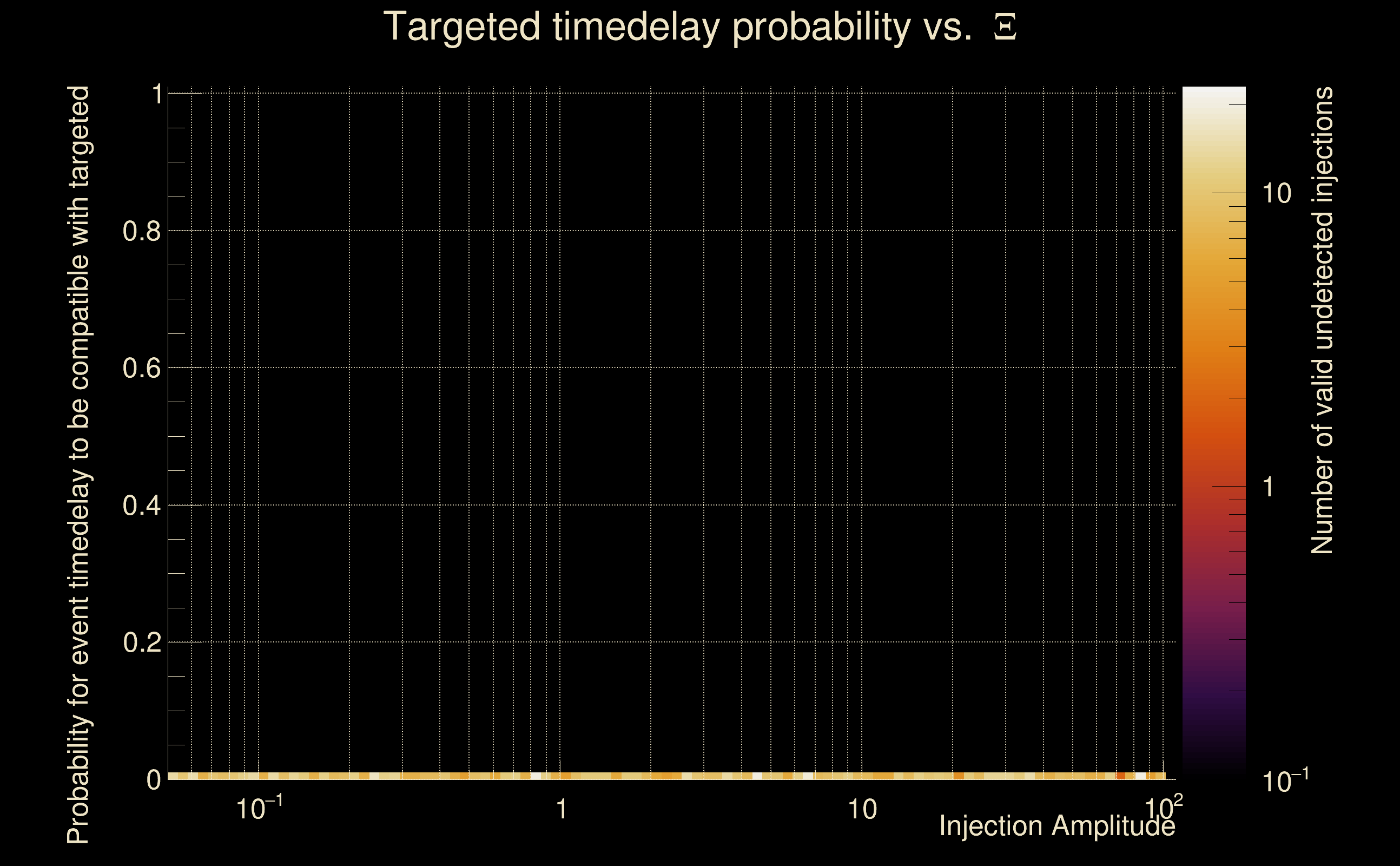

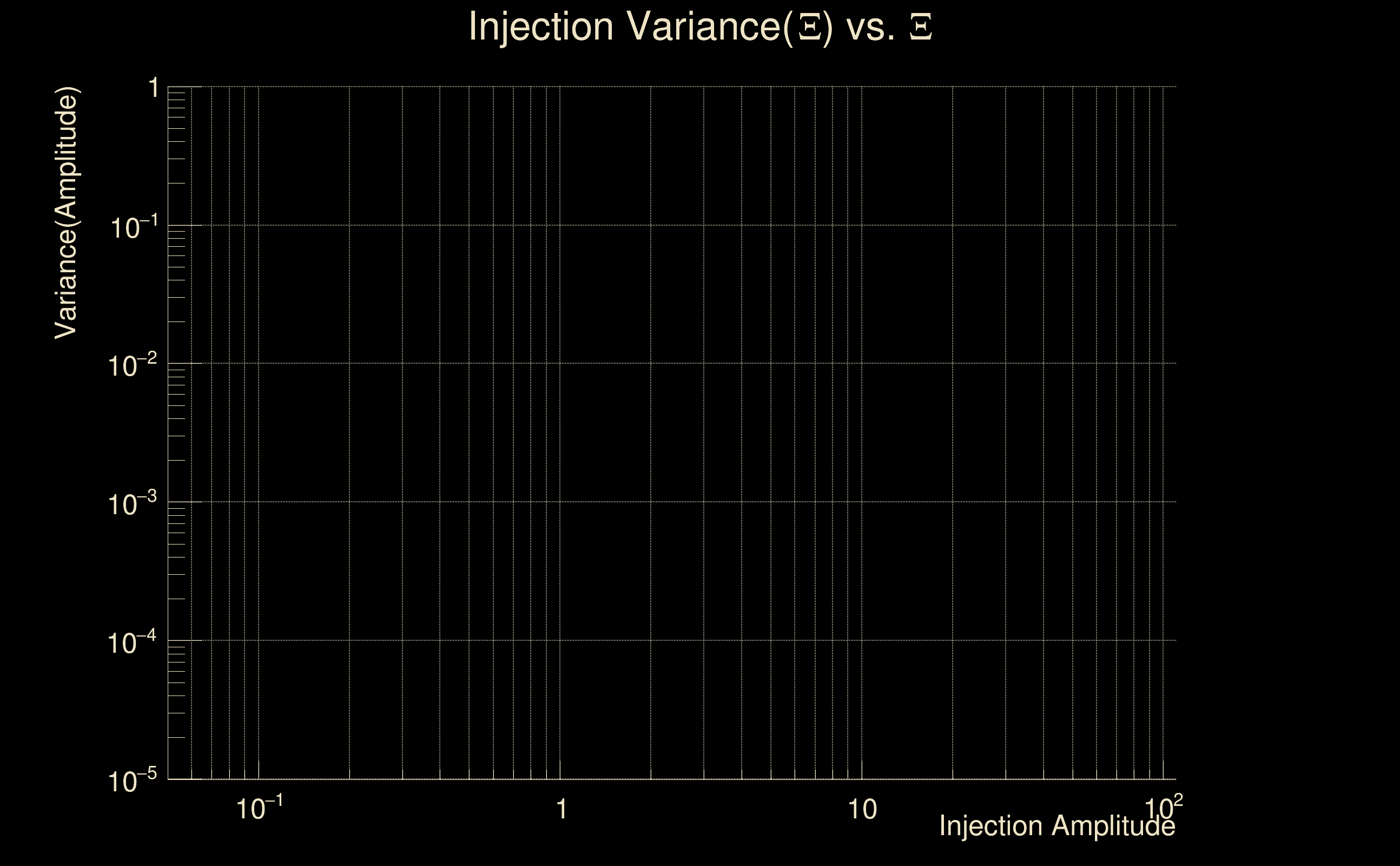

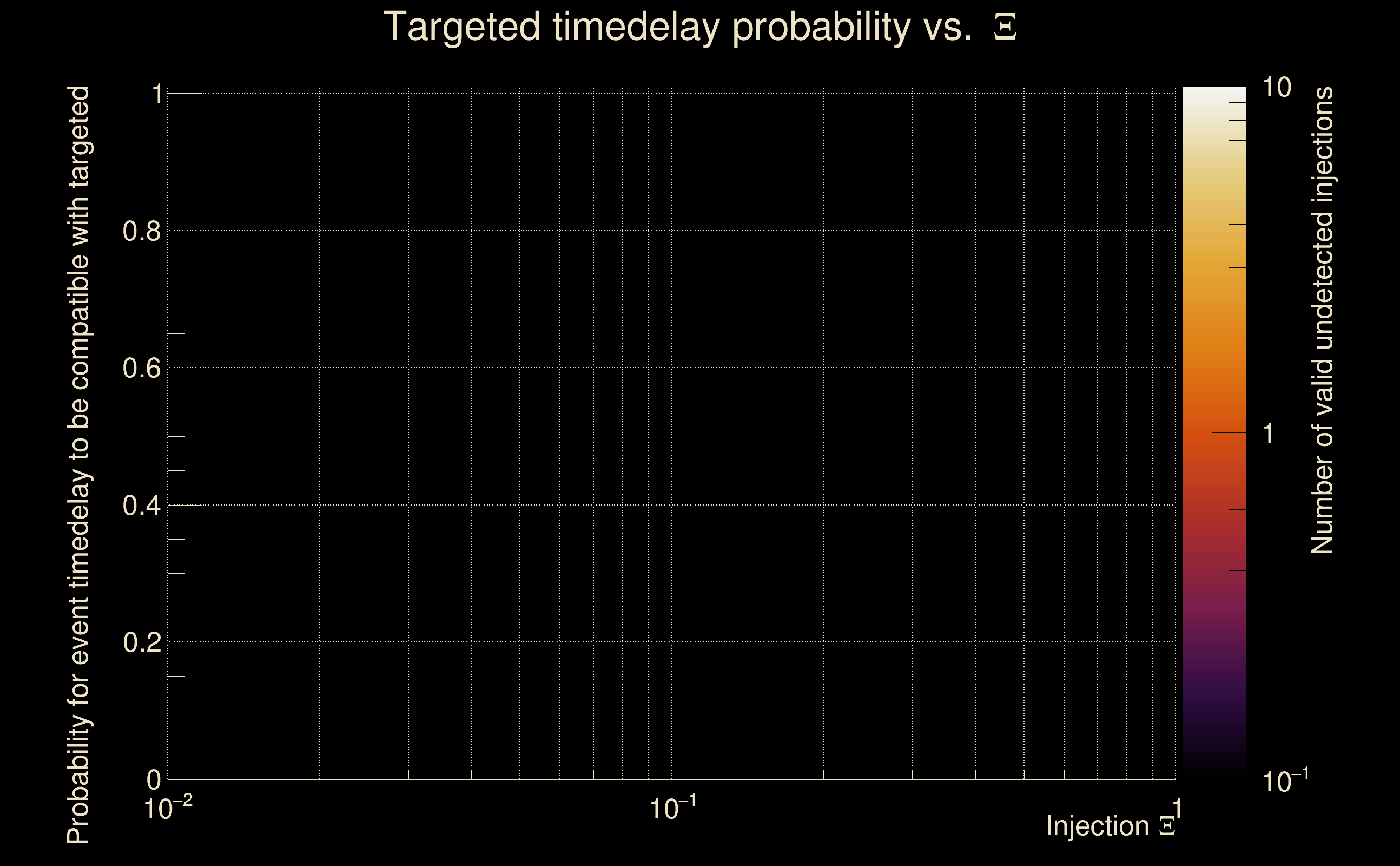

| Number of injections (total/valid/detected): | 1006 / 877 / 0 |
| List of missed injections: | ./Pan18-s40DD2_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | -1 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

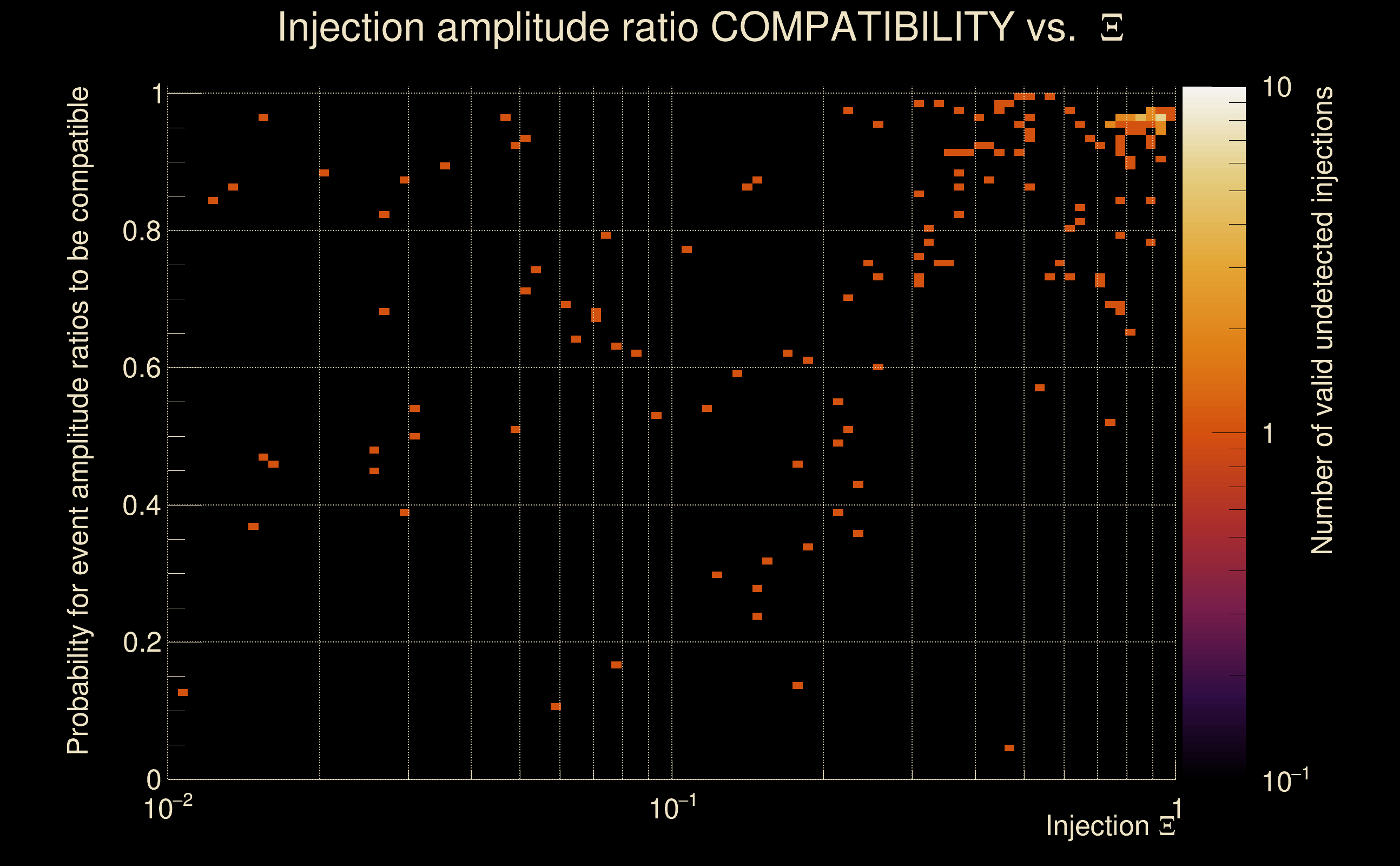

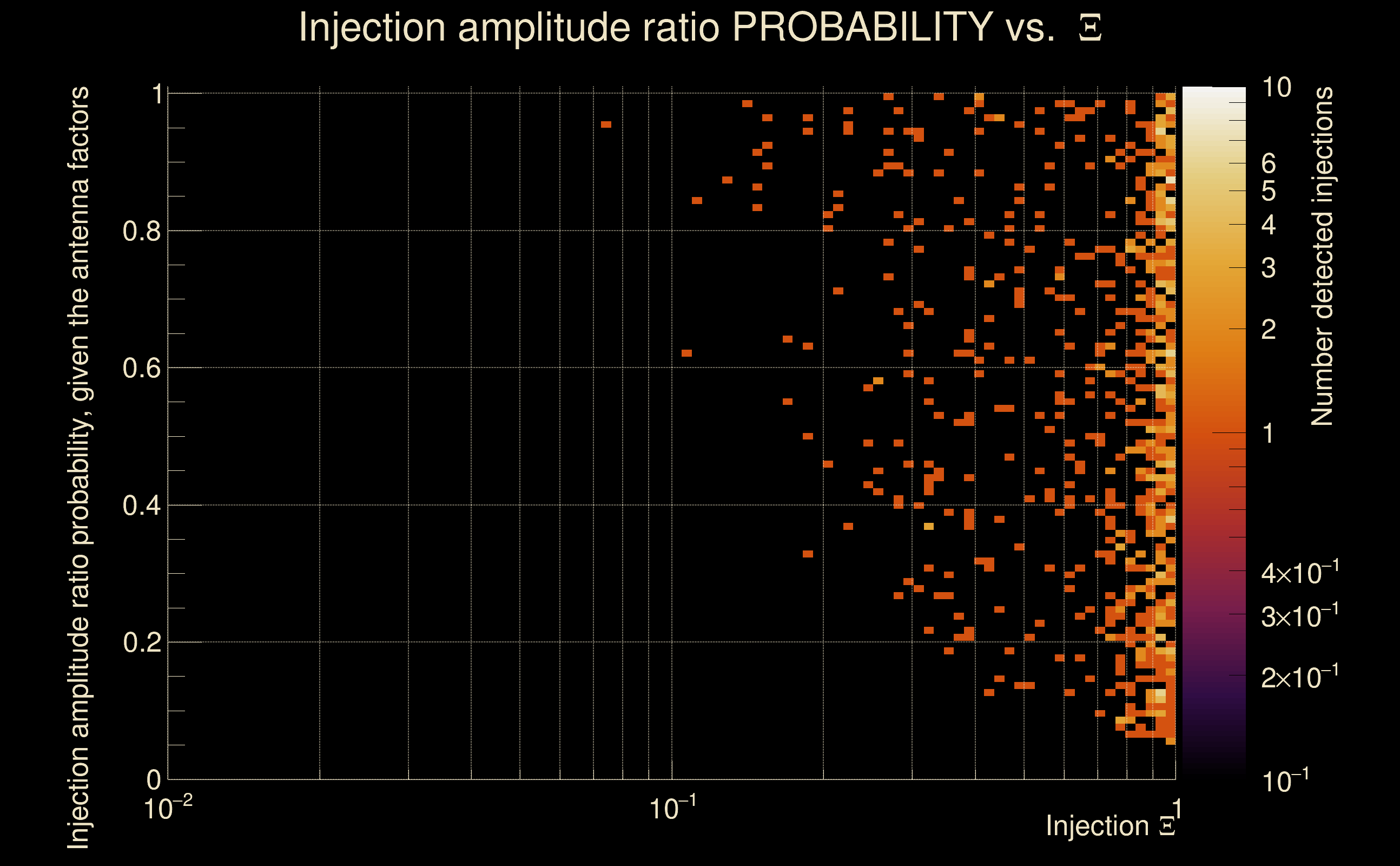

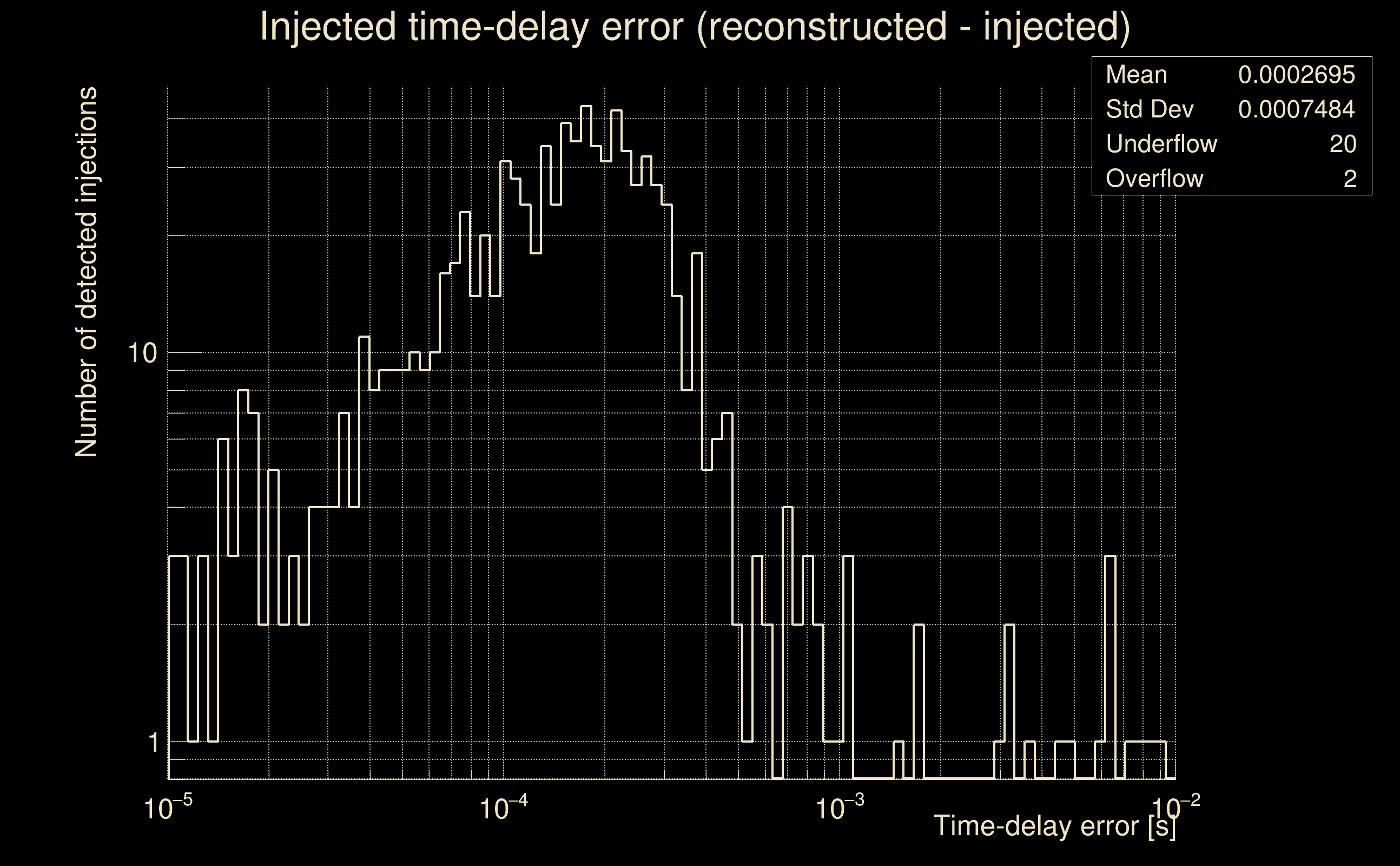

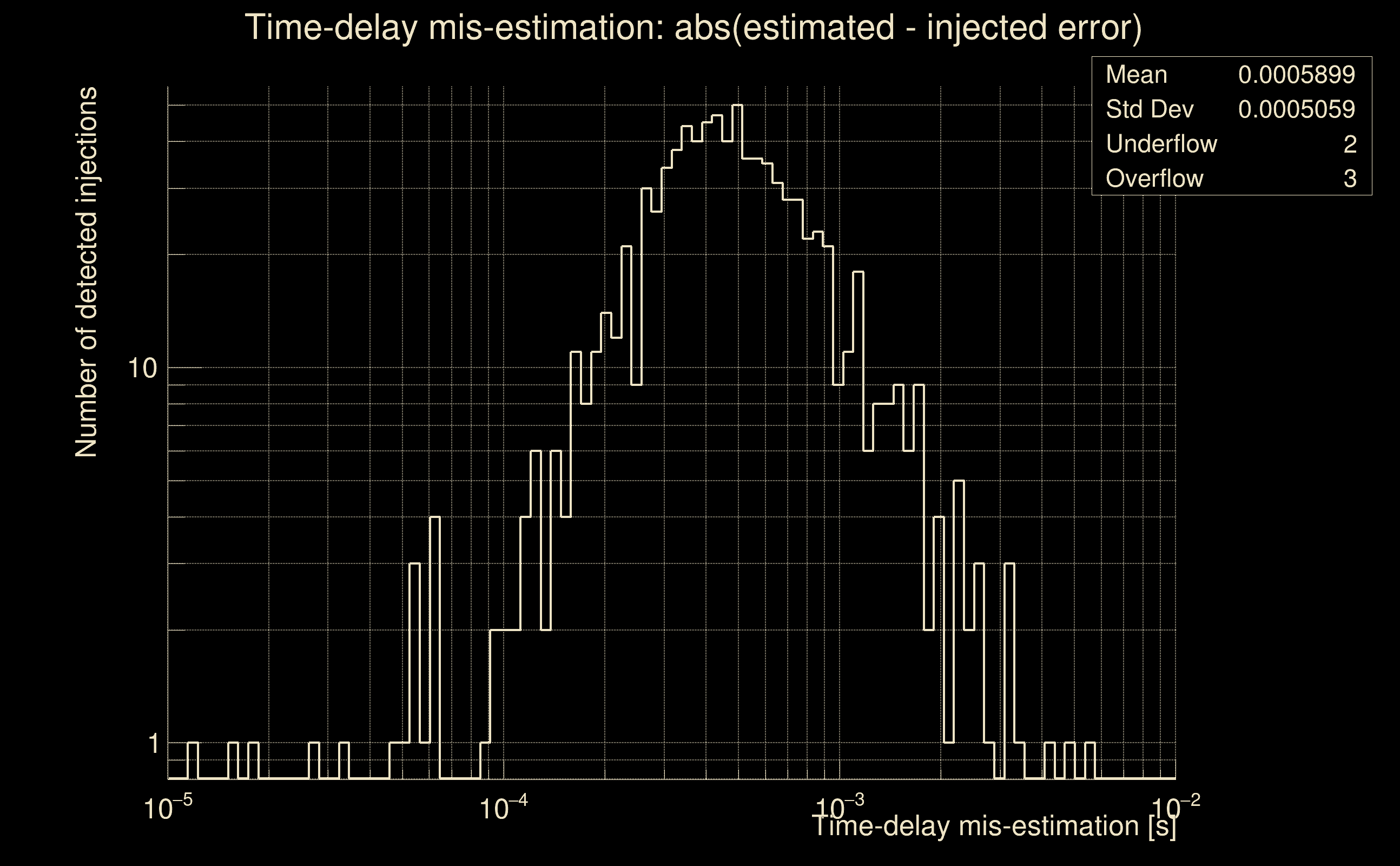

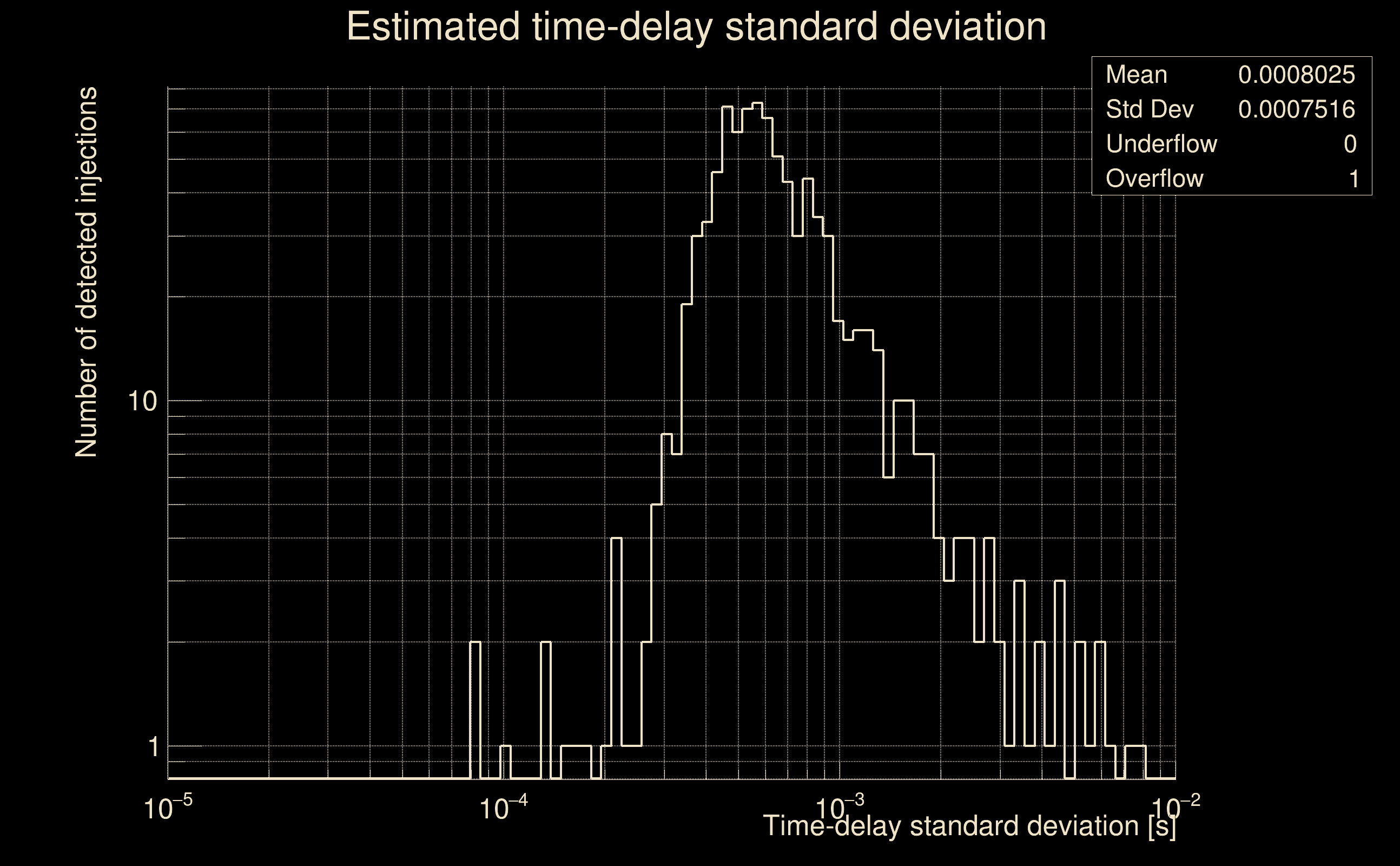

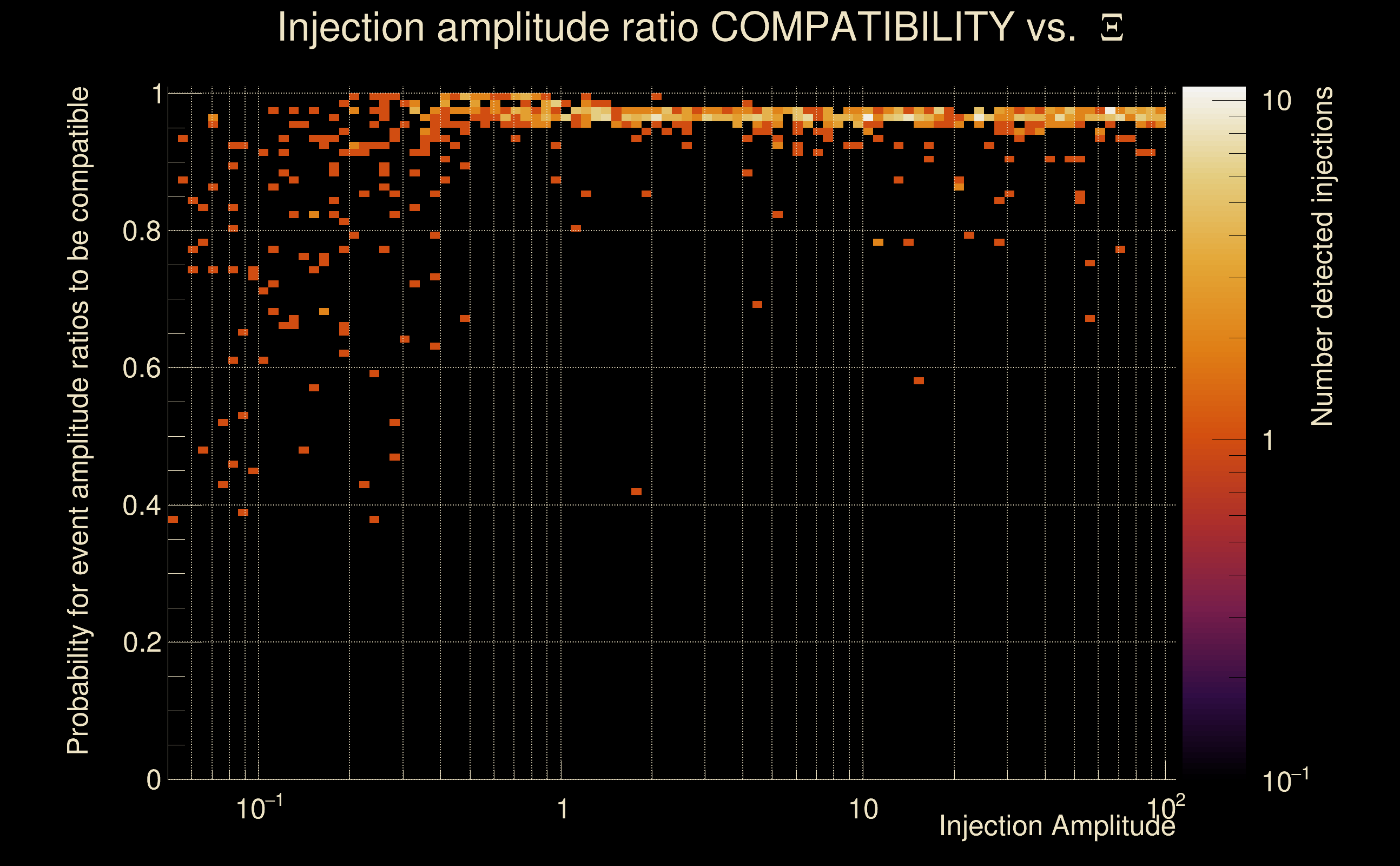

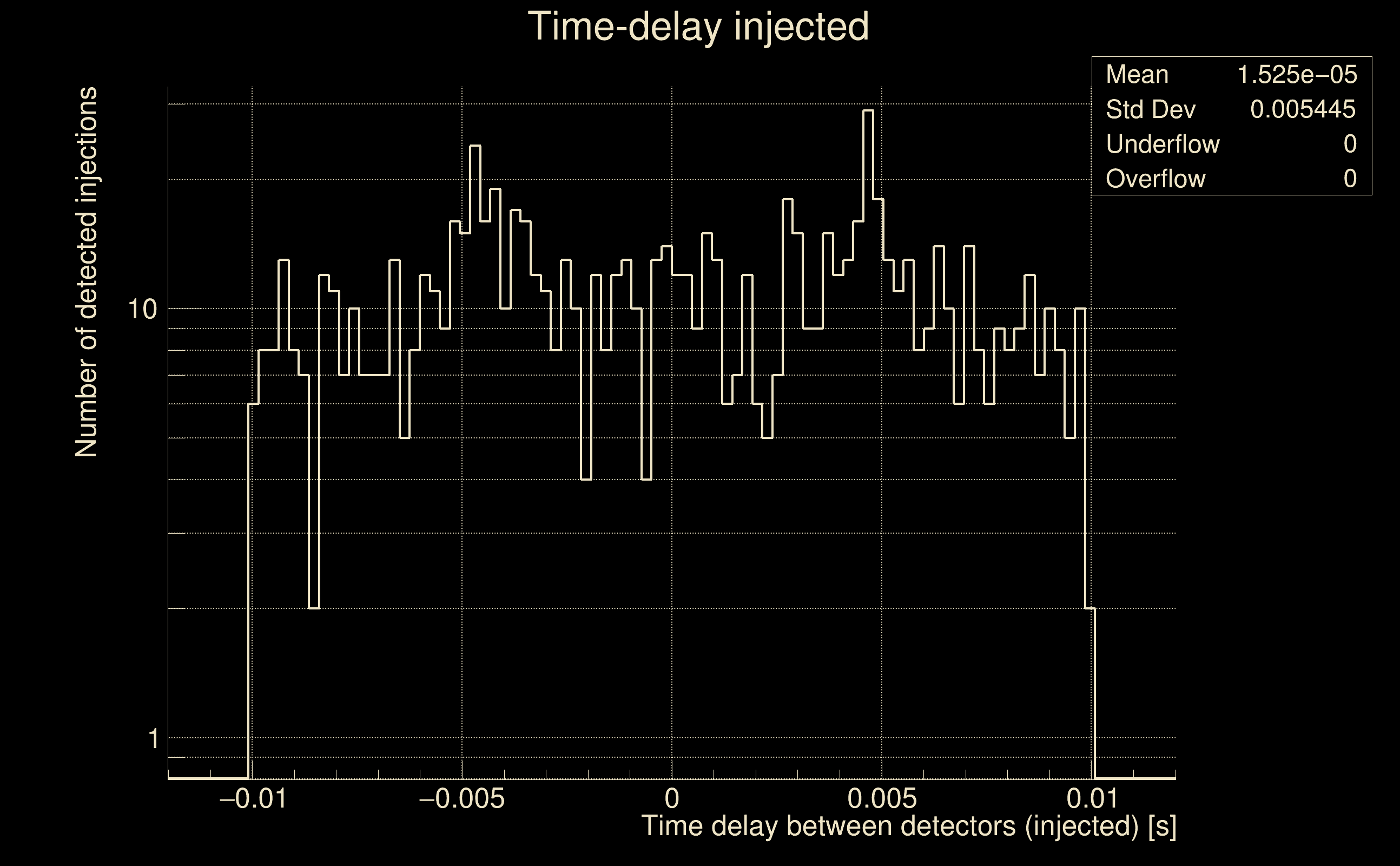

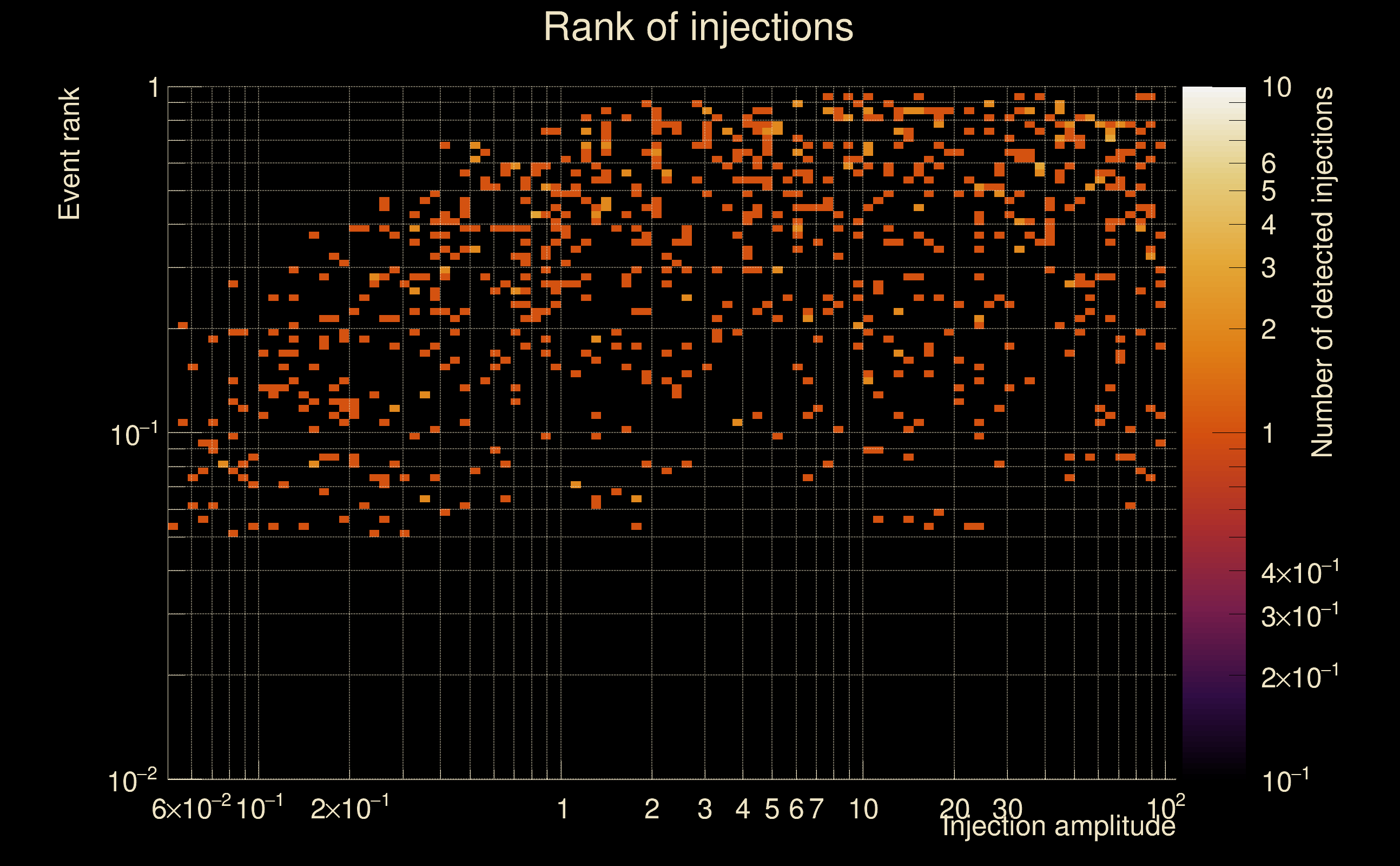

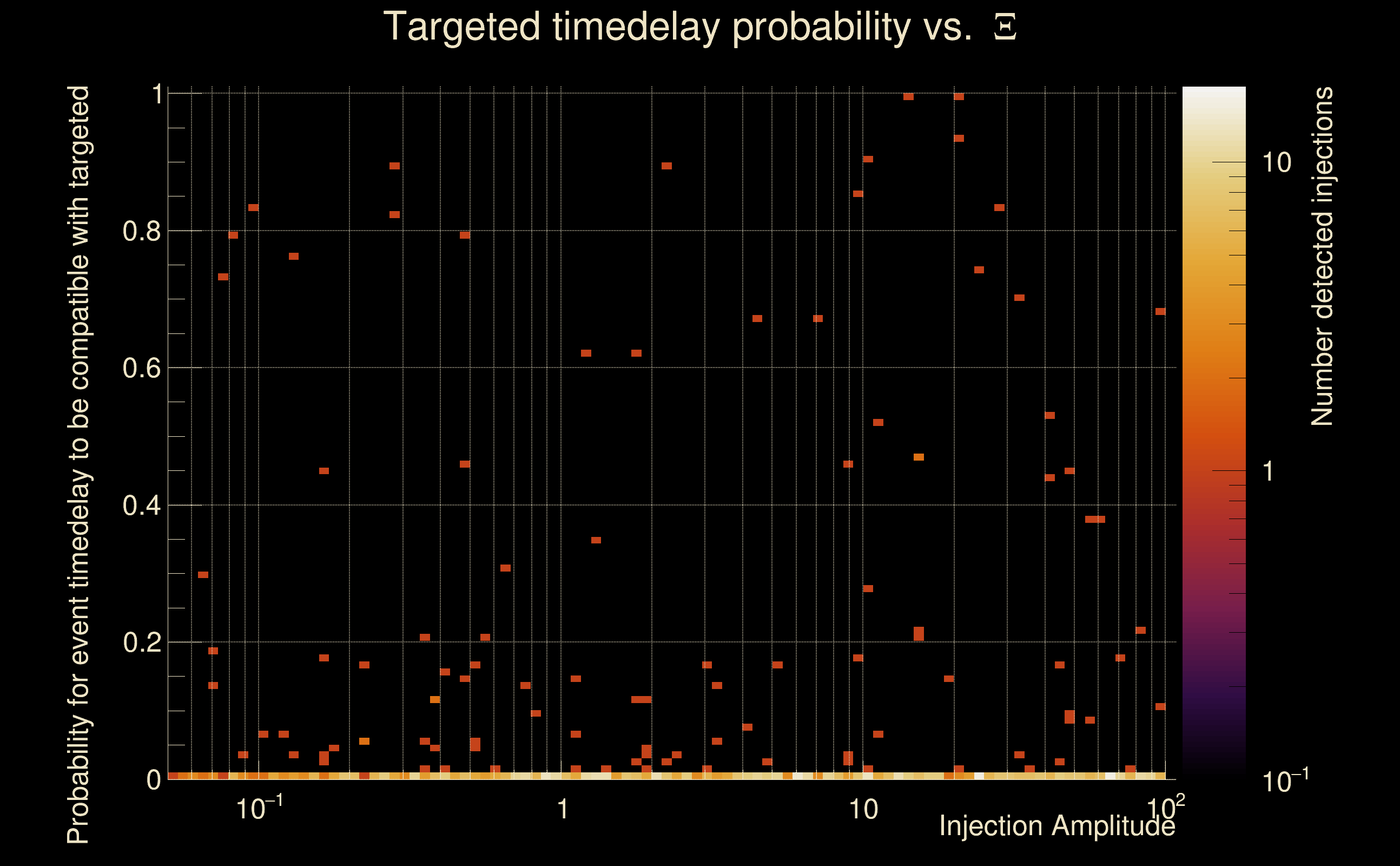

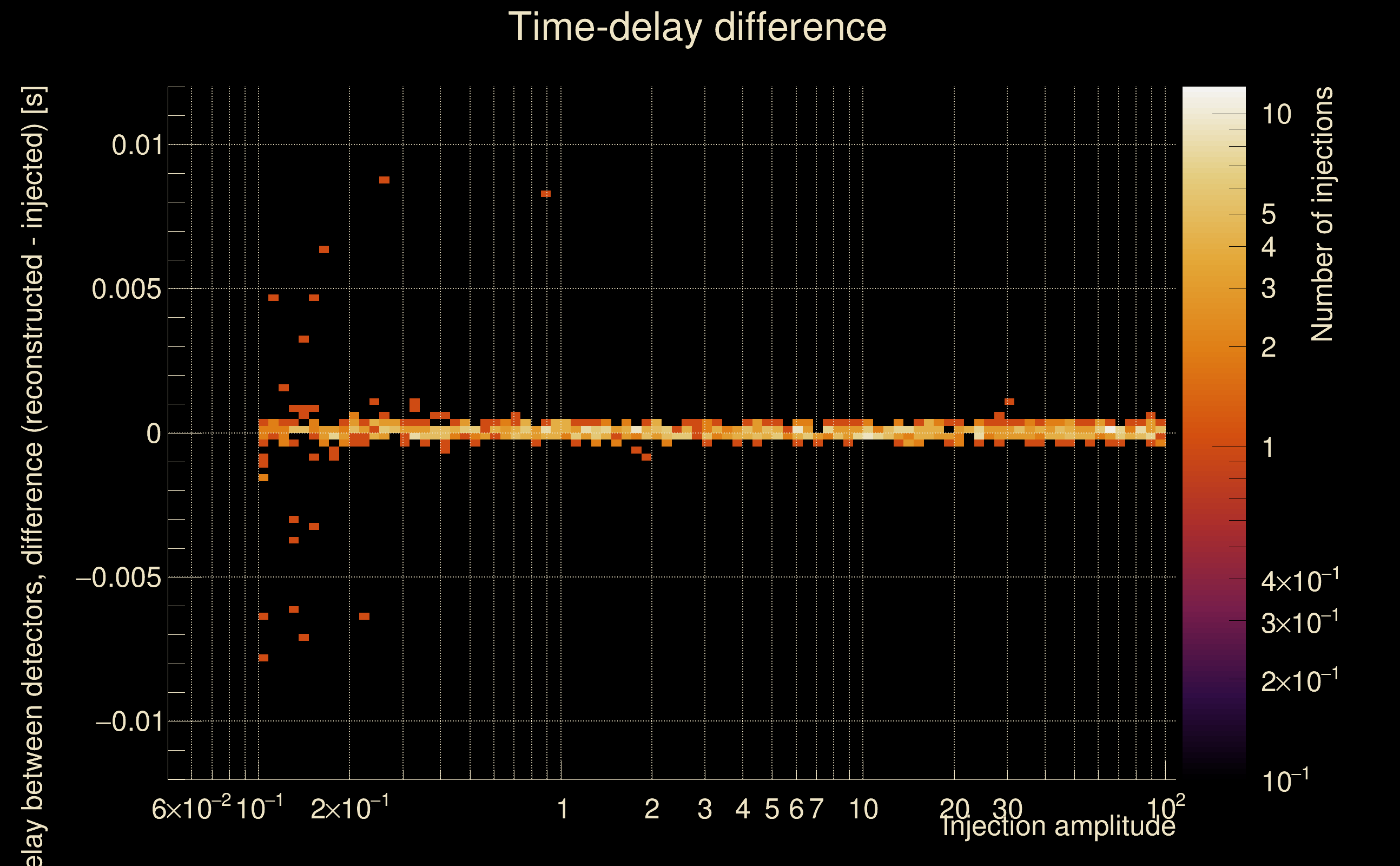

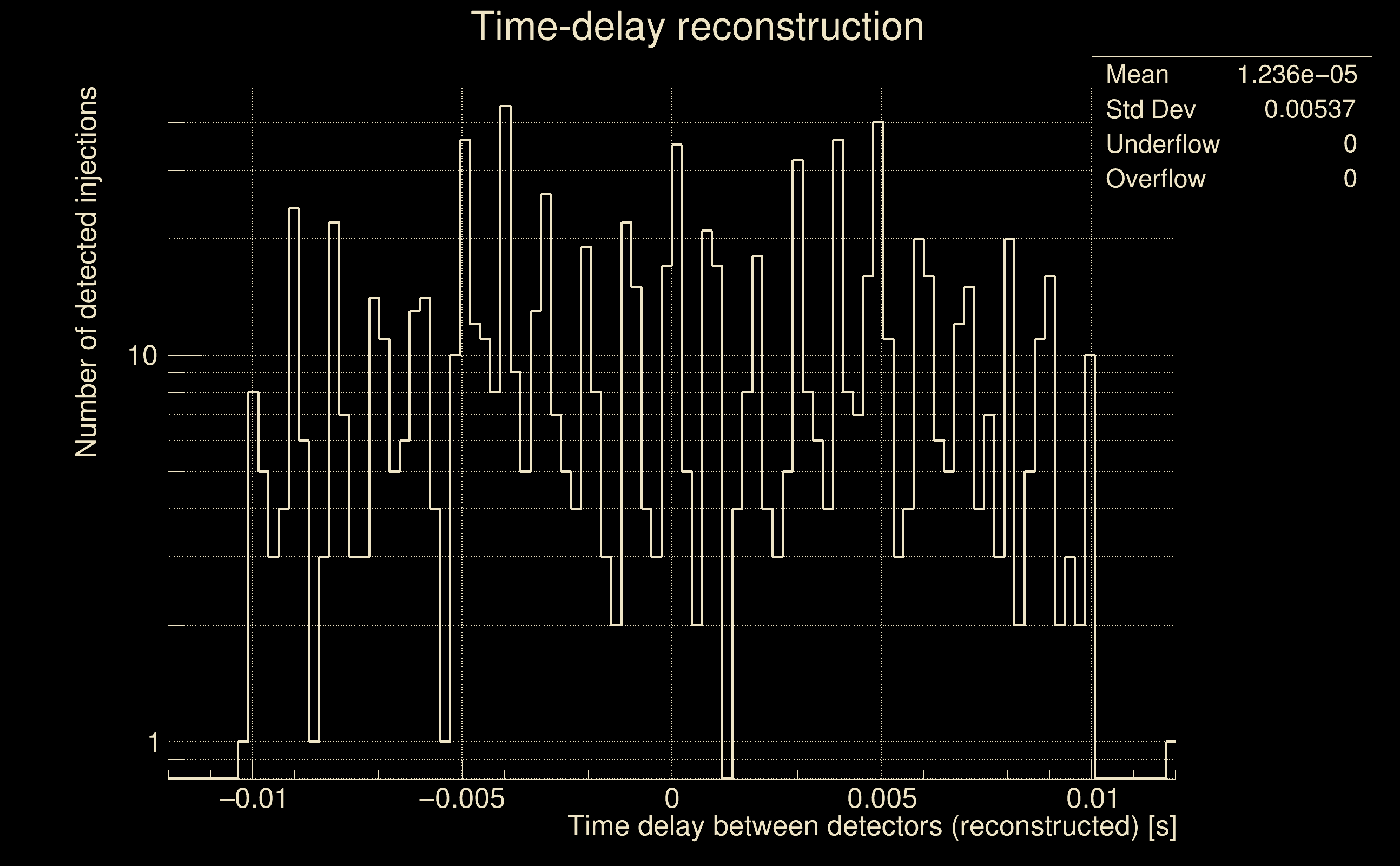

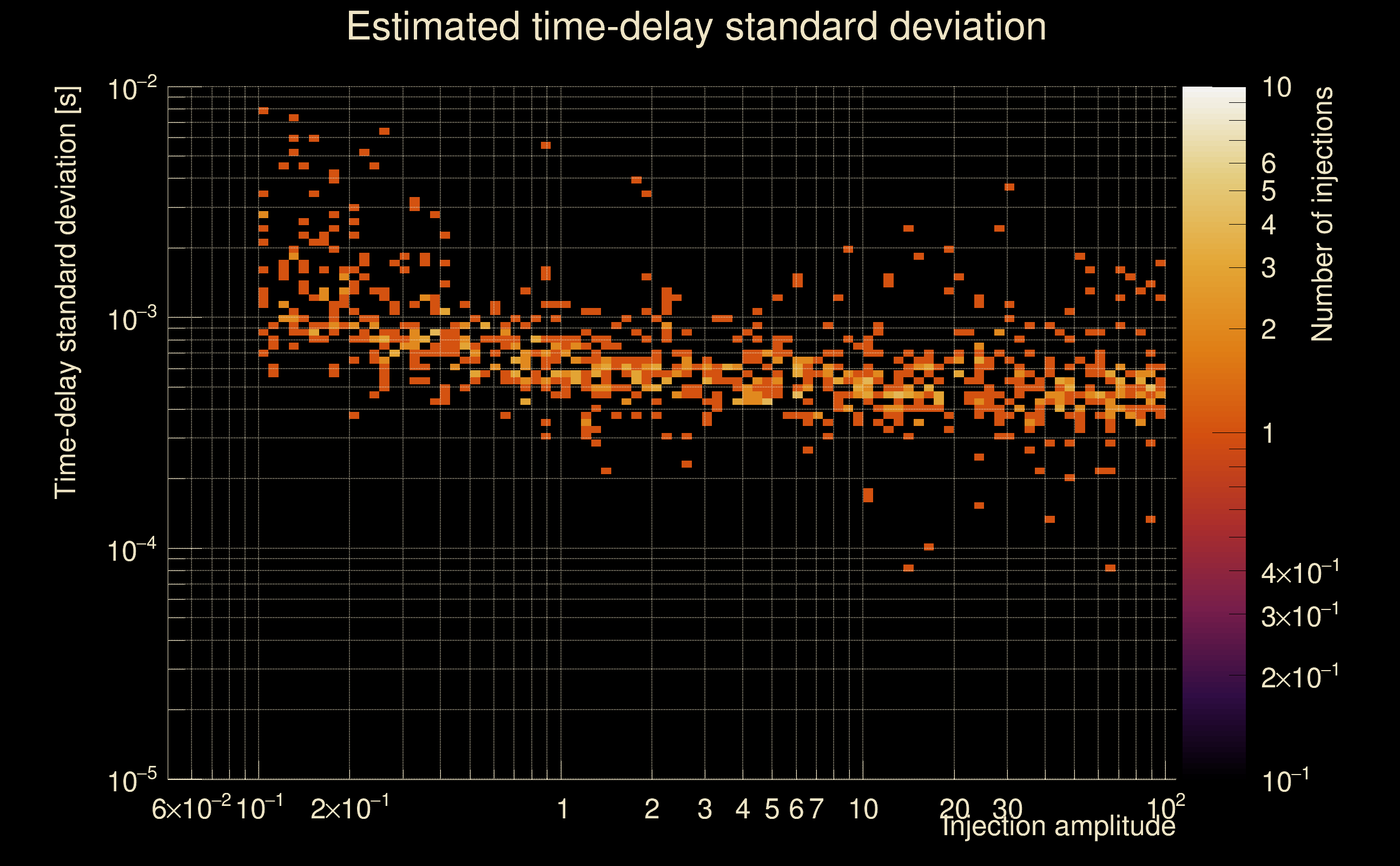

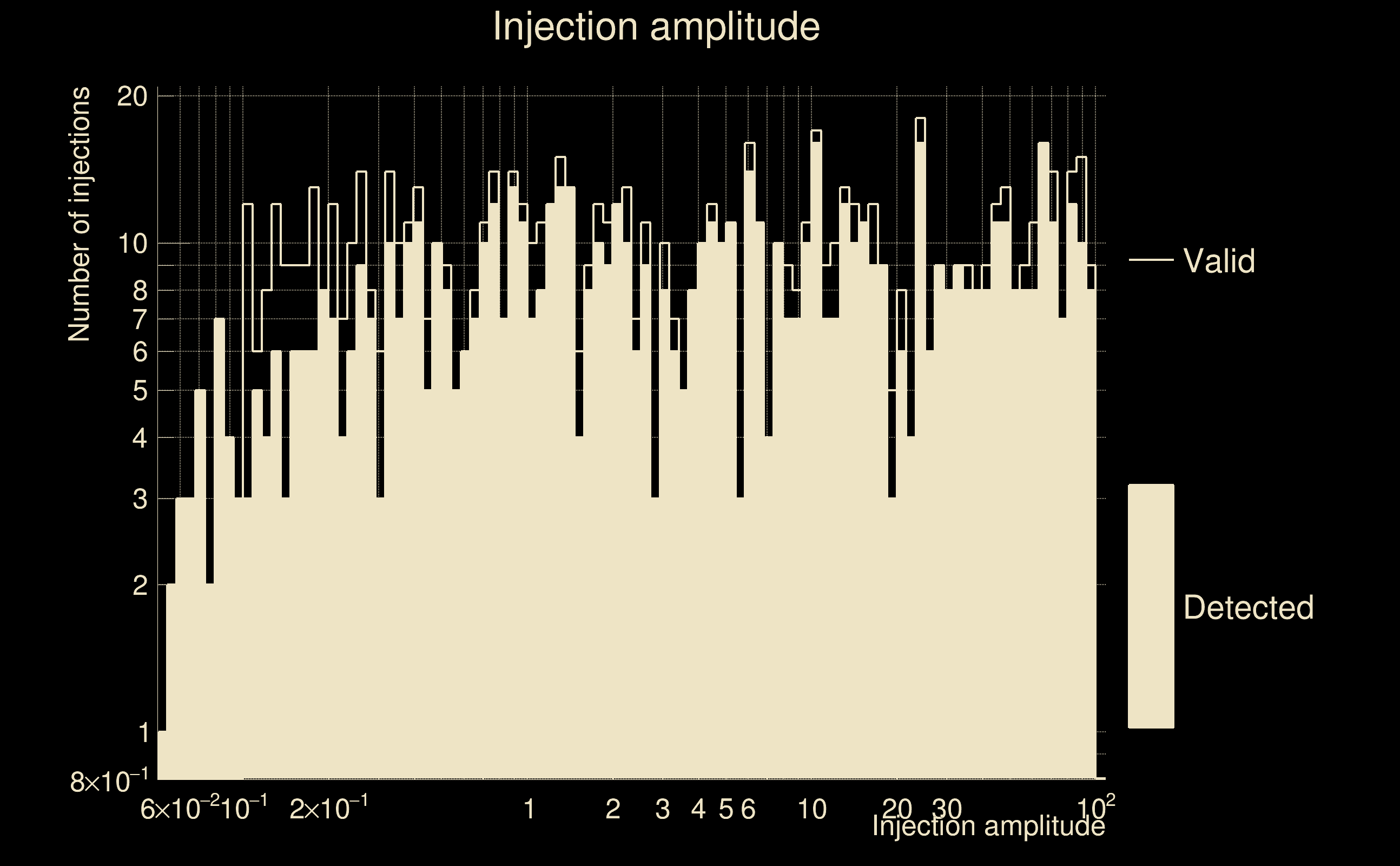

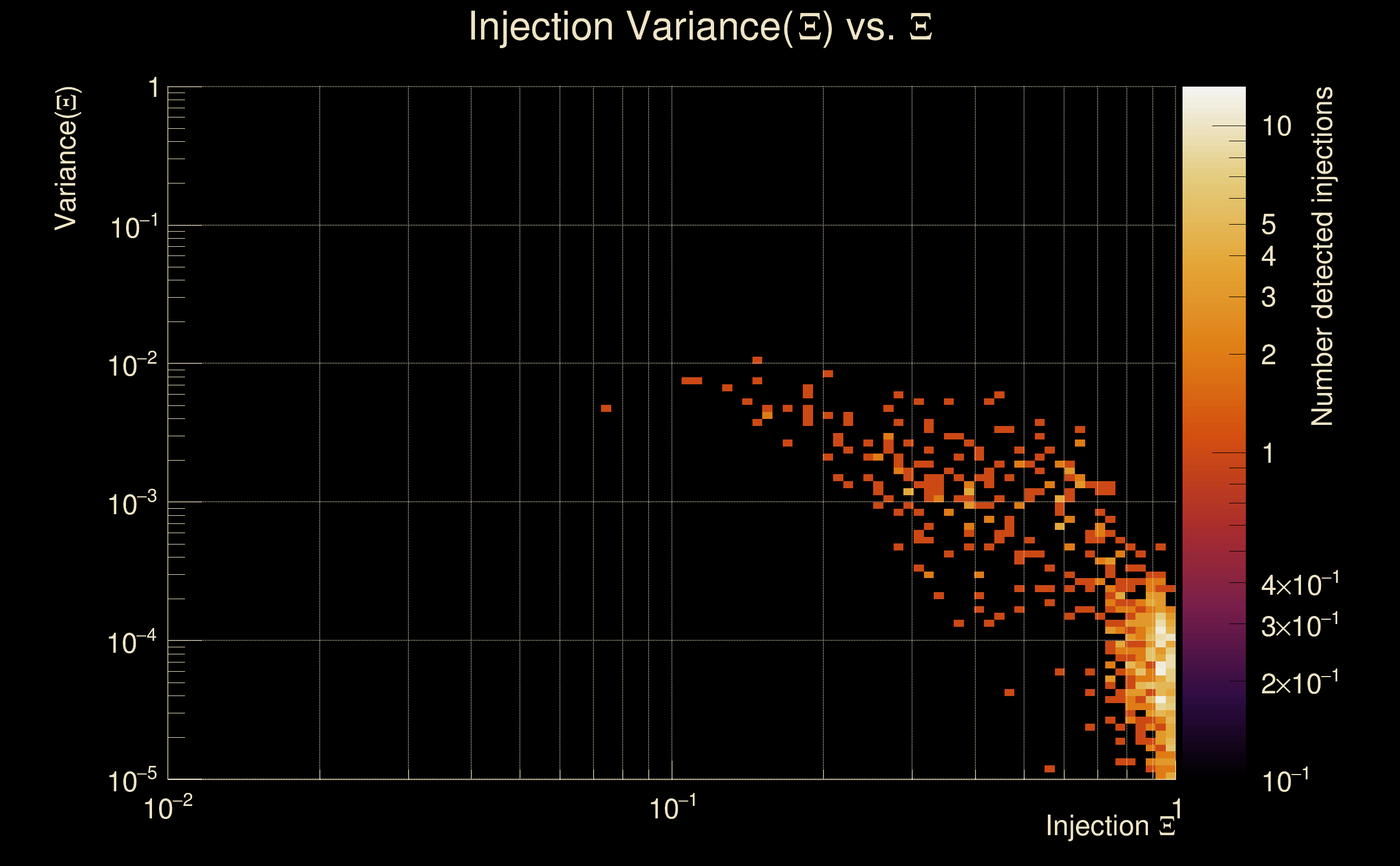

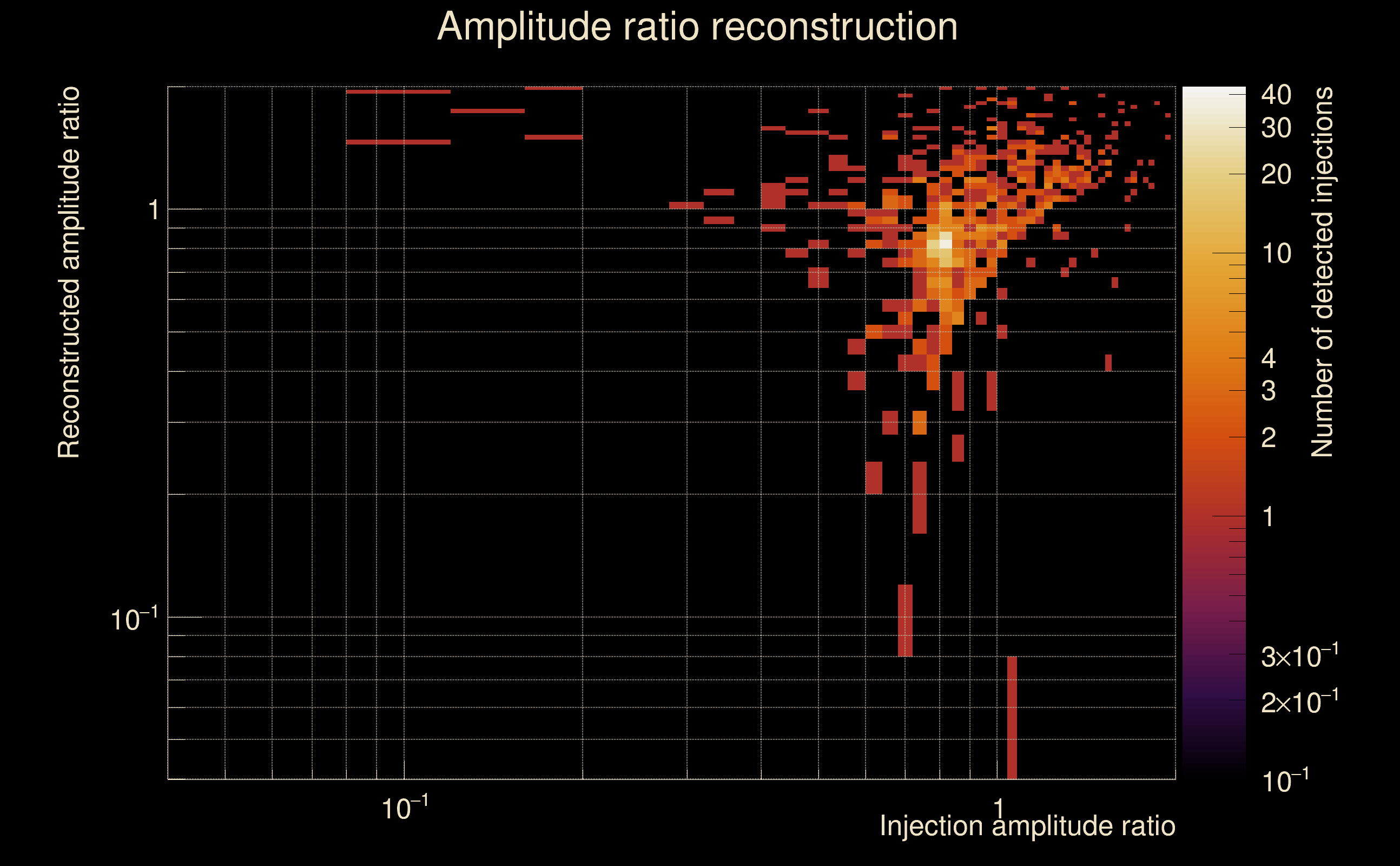

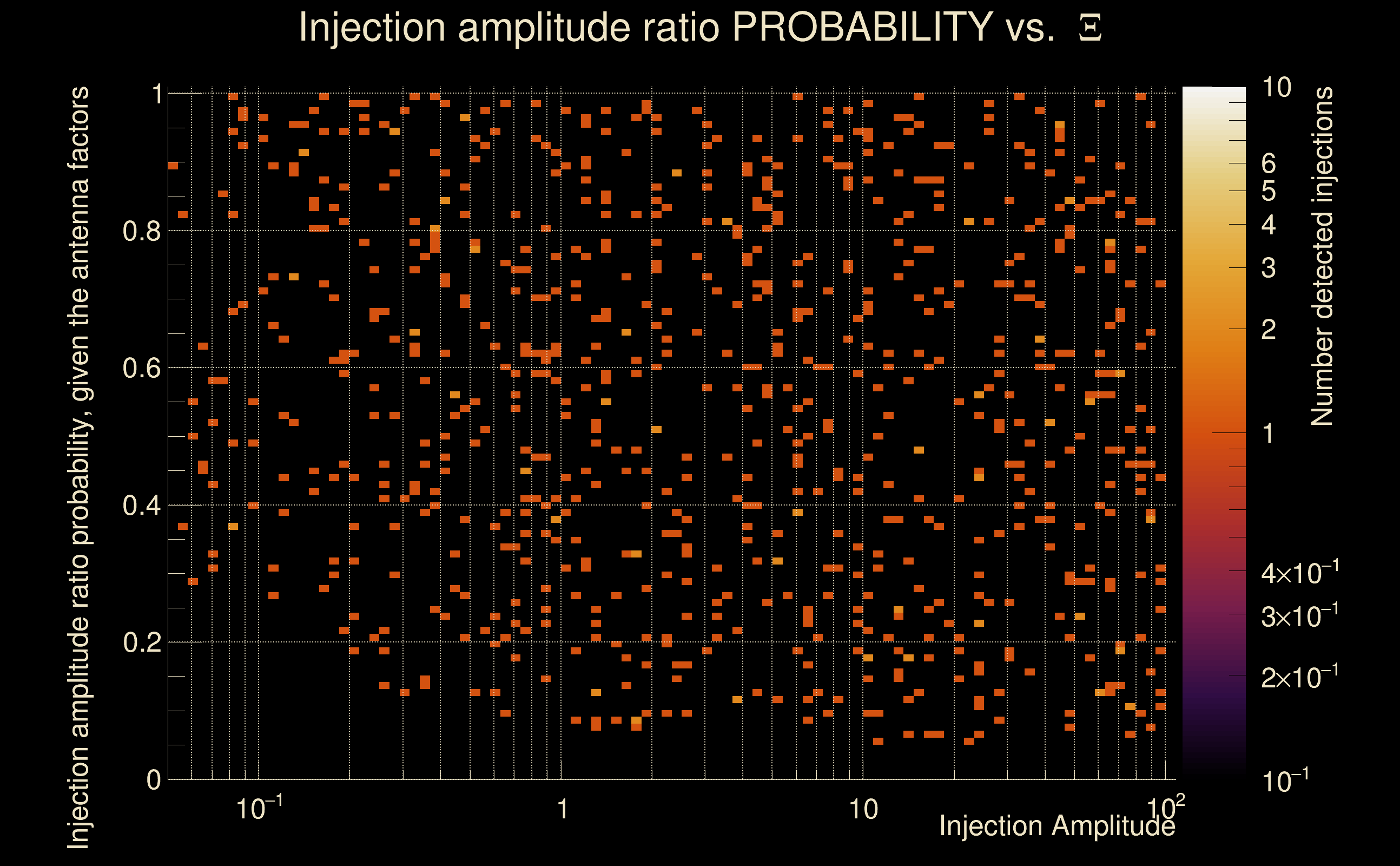

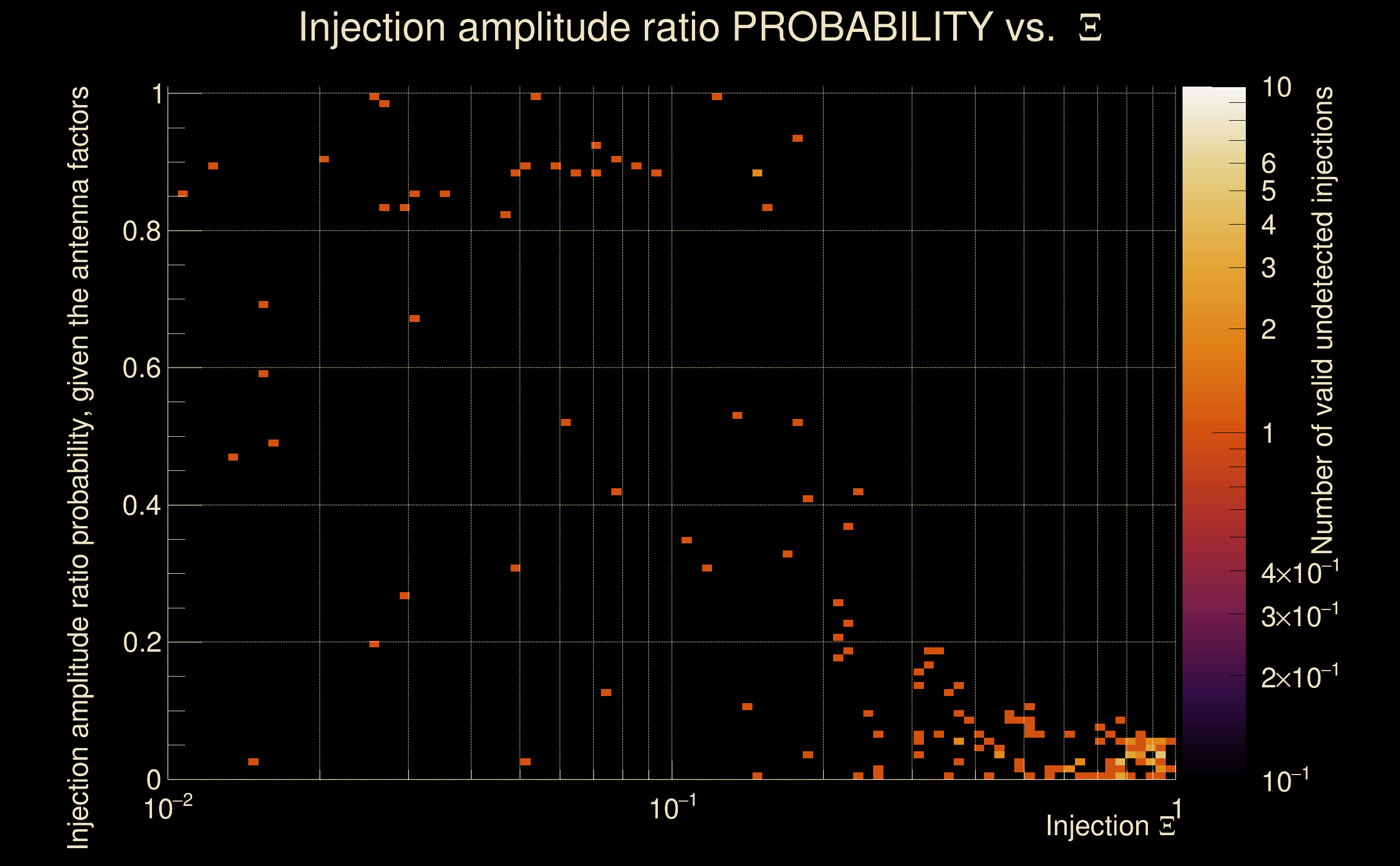

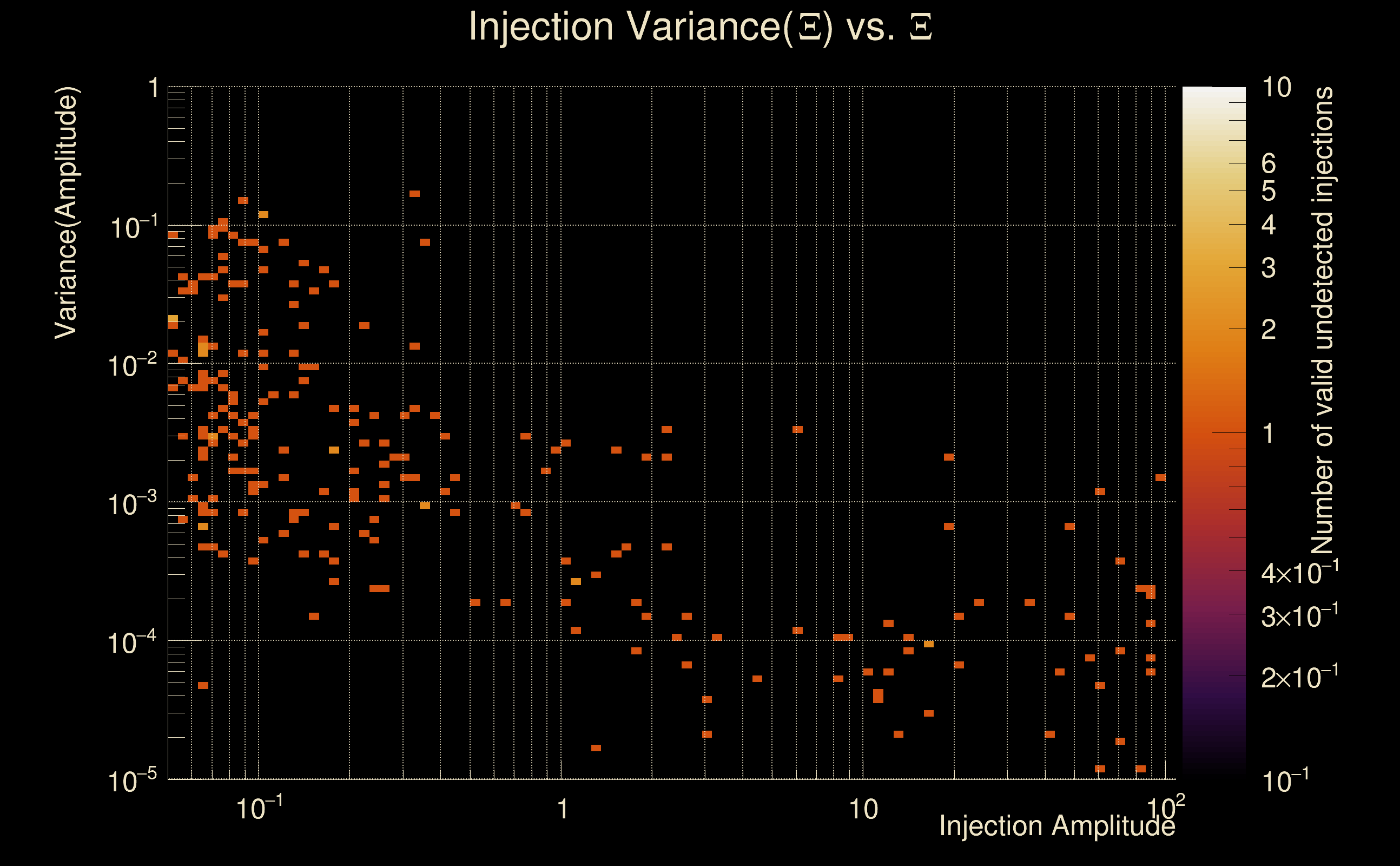

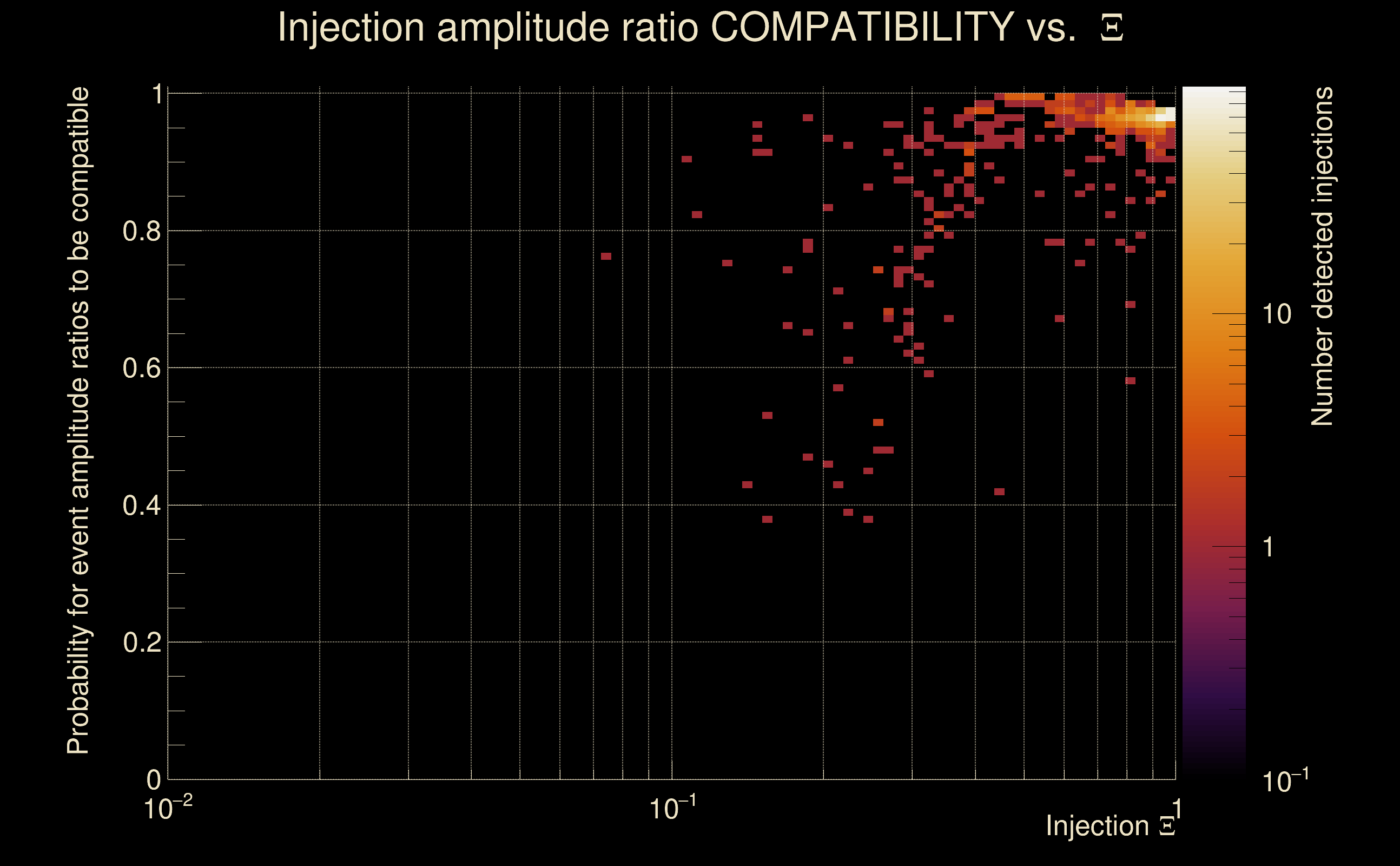

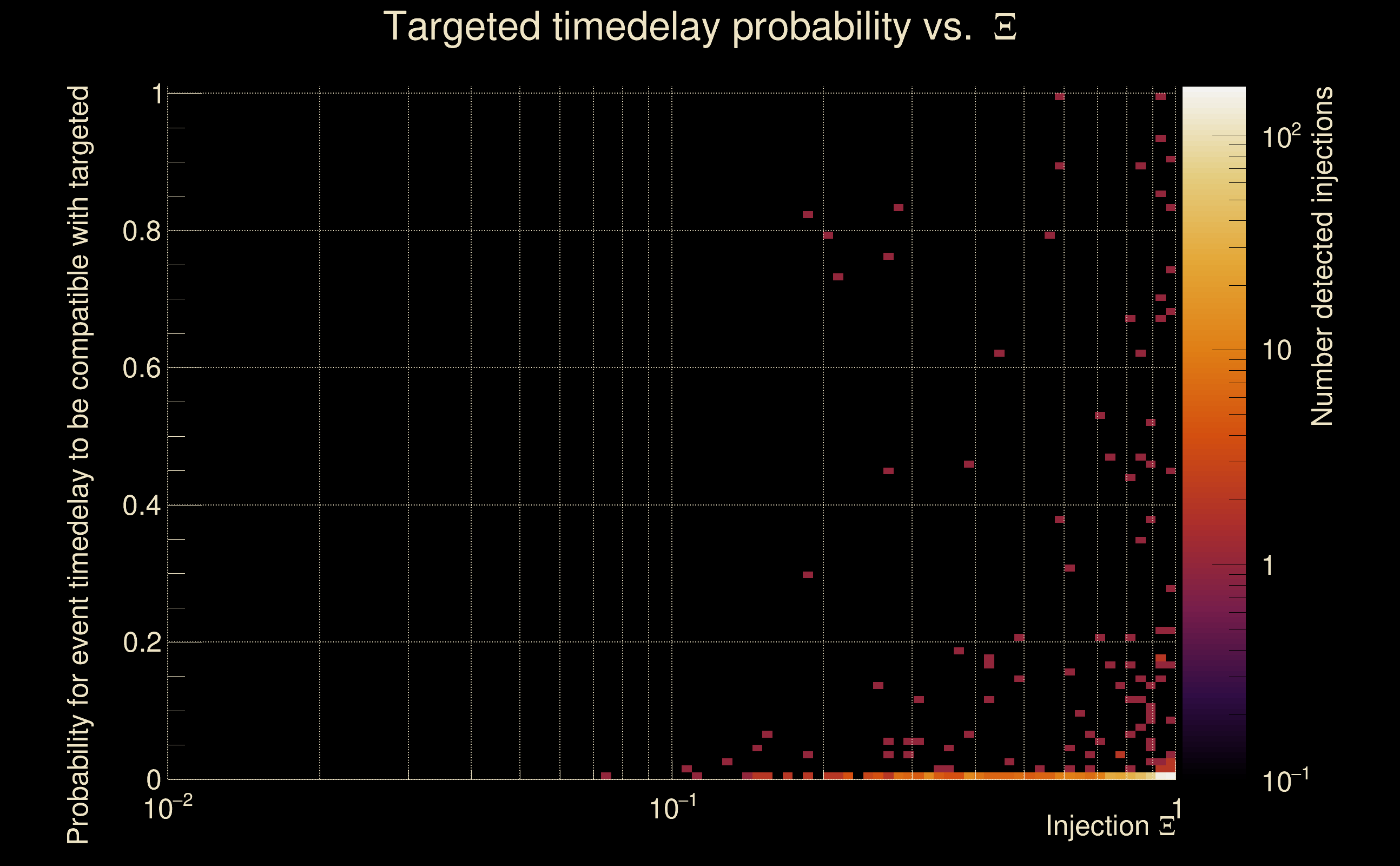

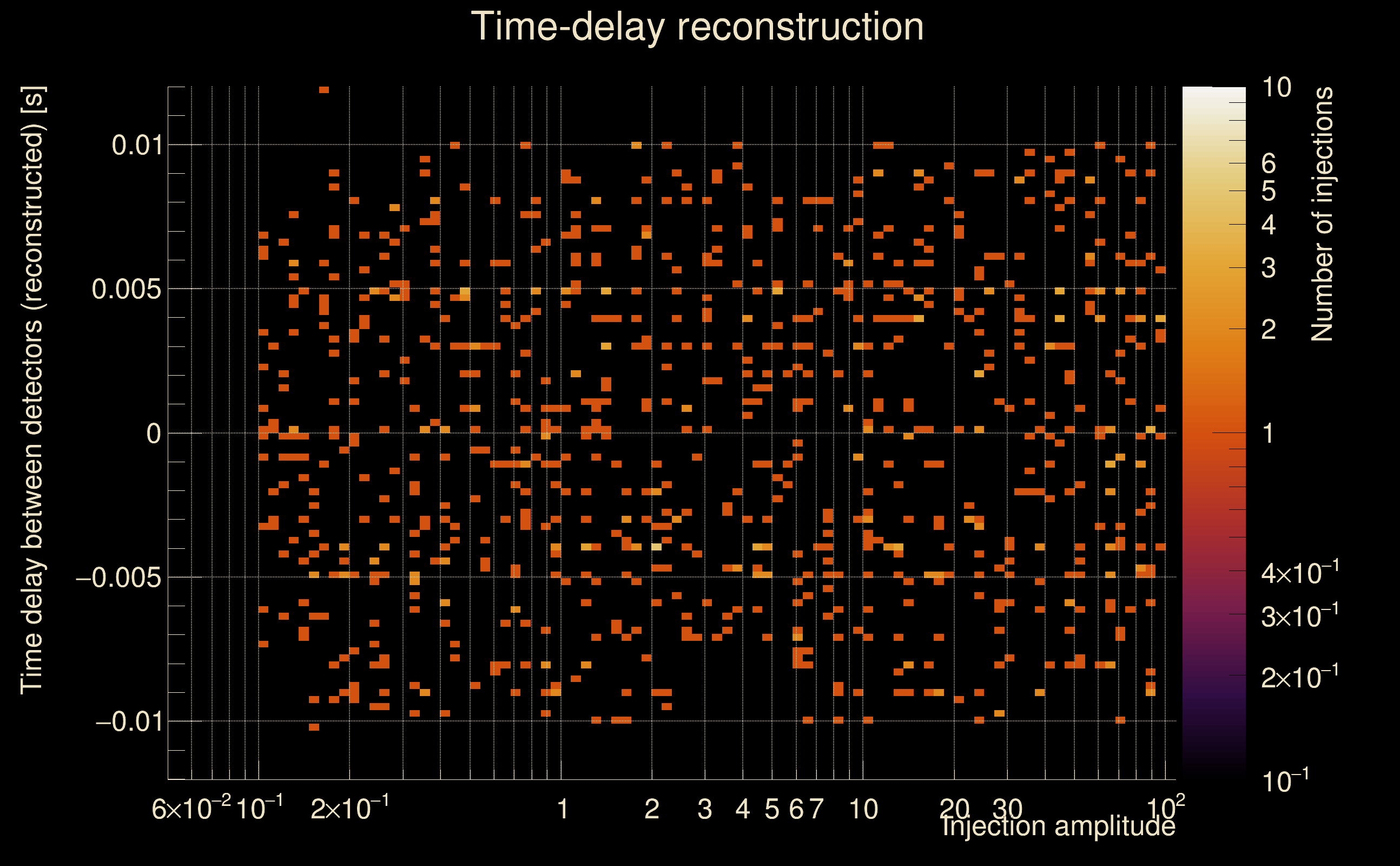

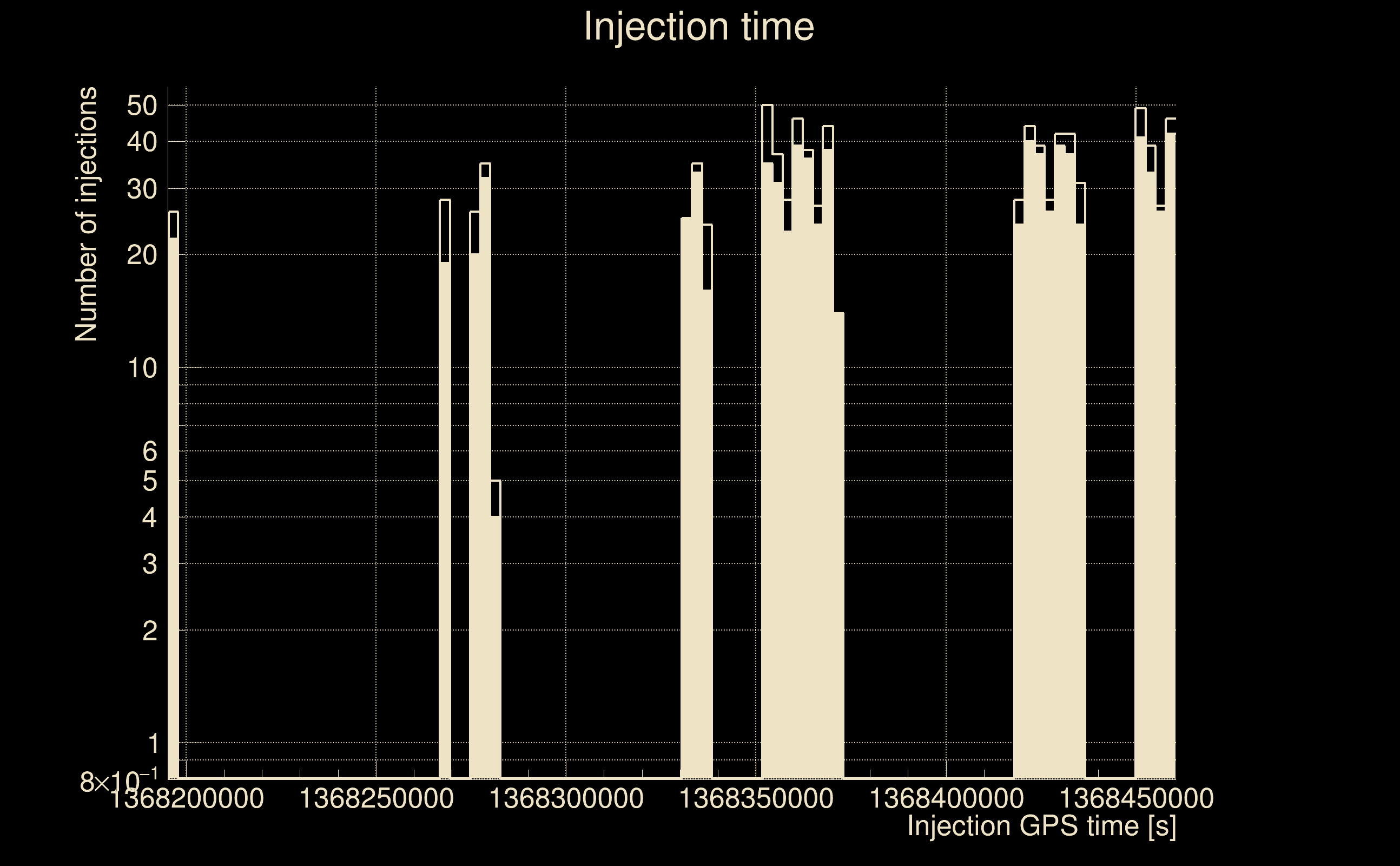

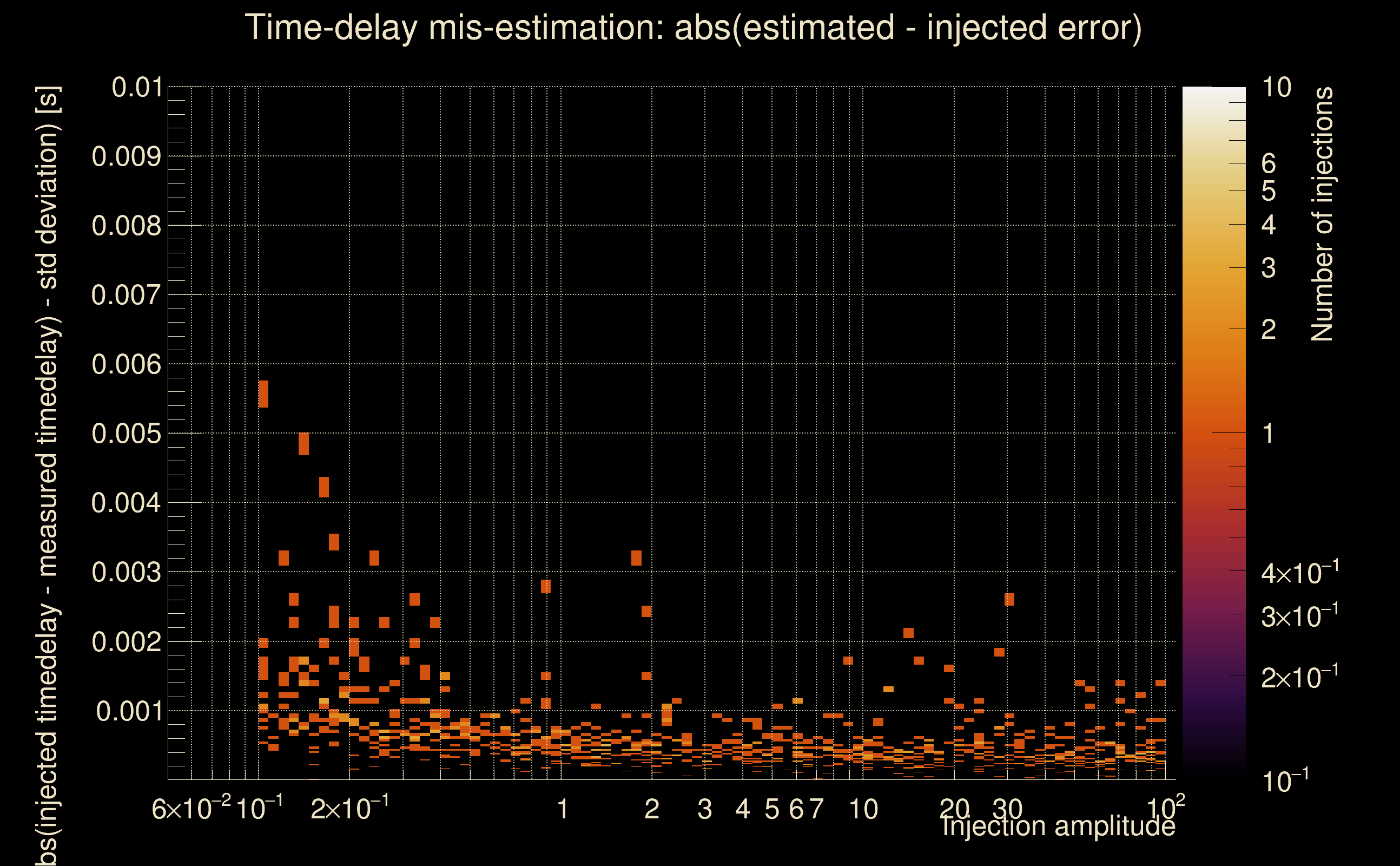

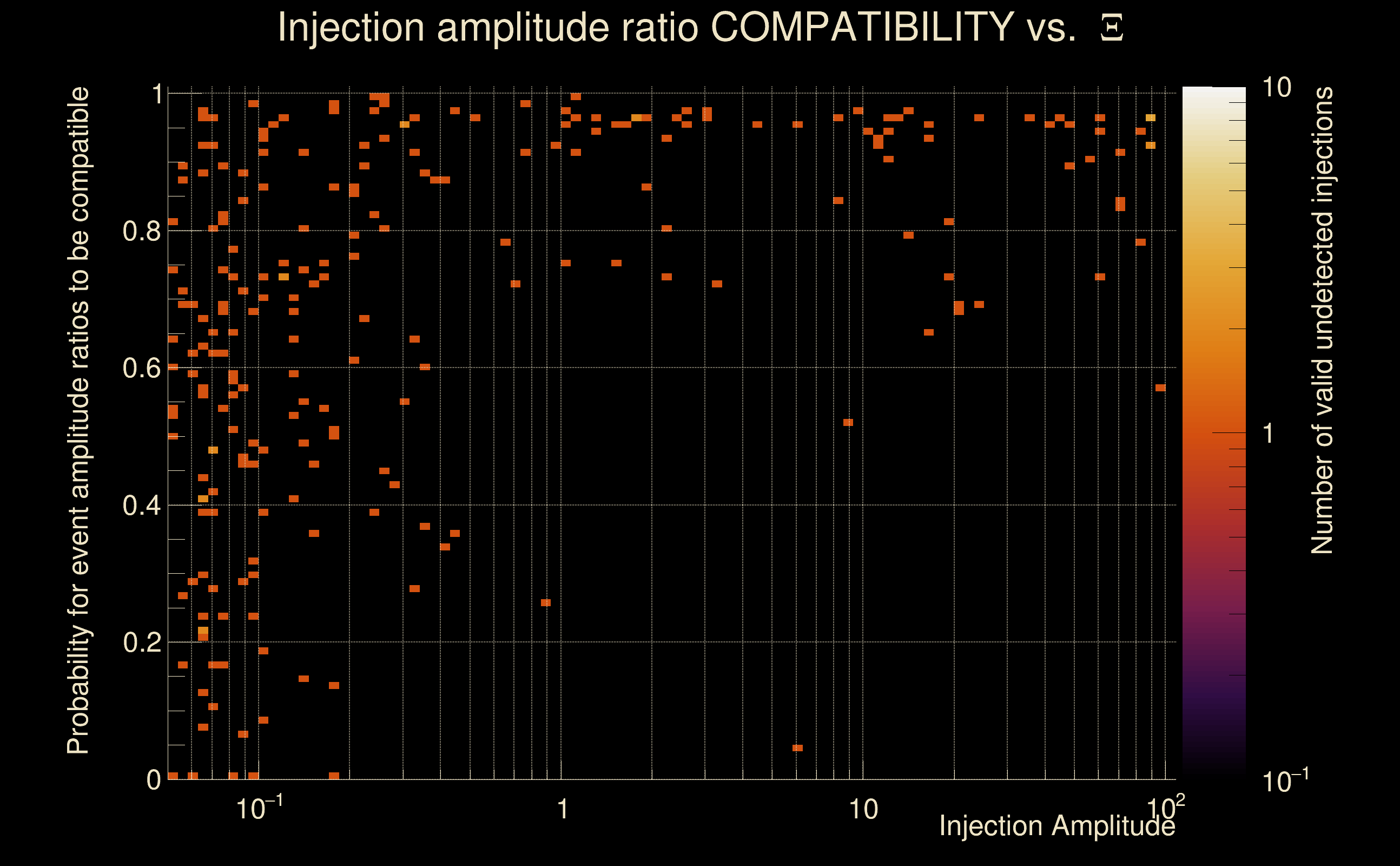

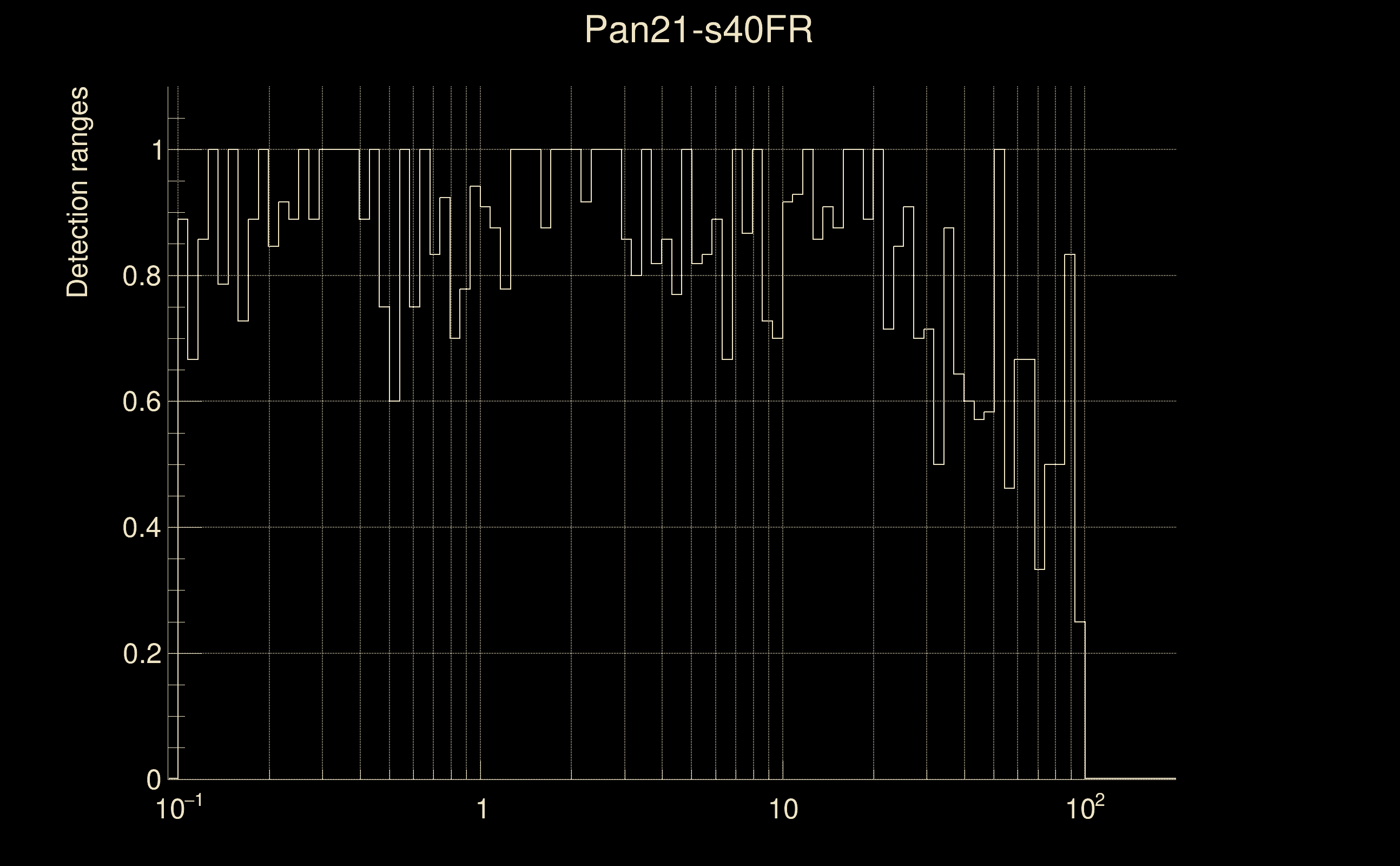

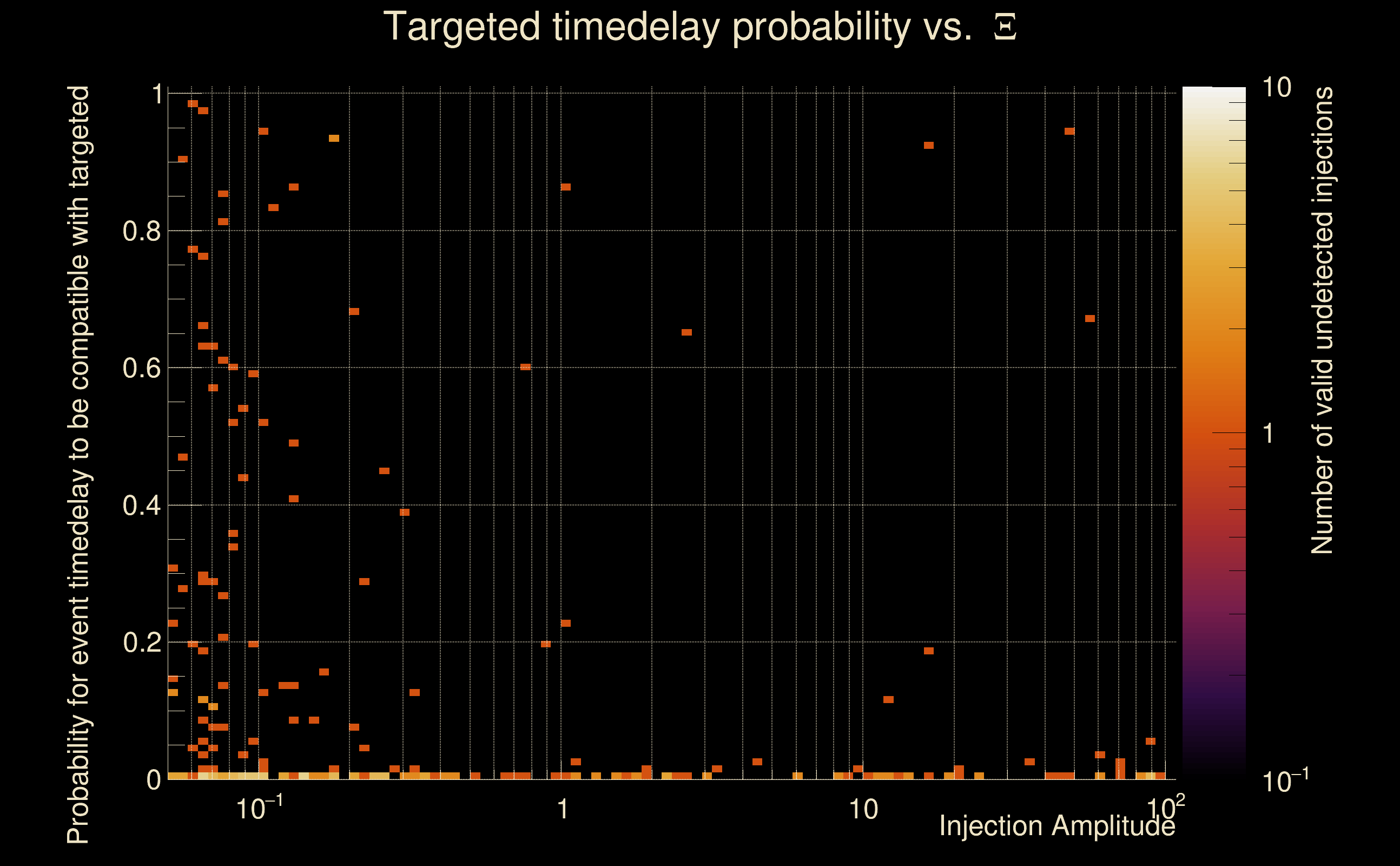

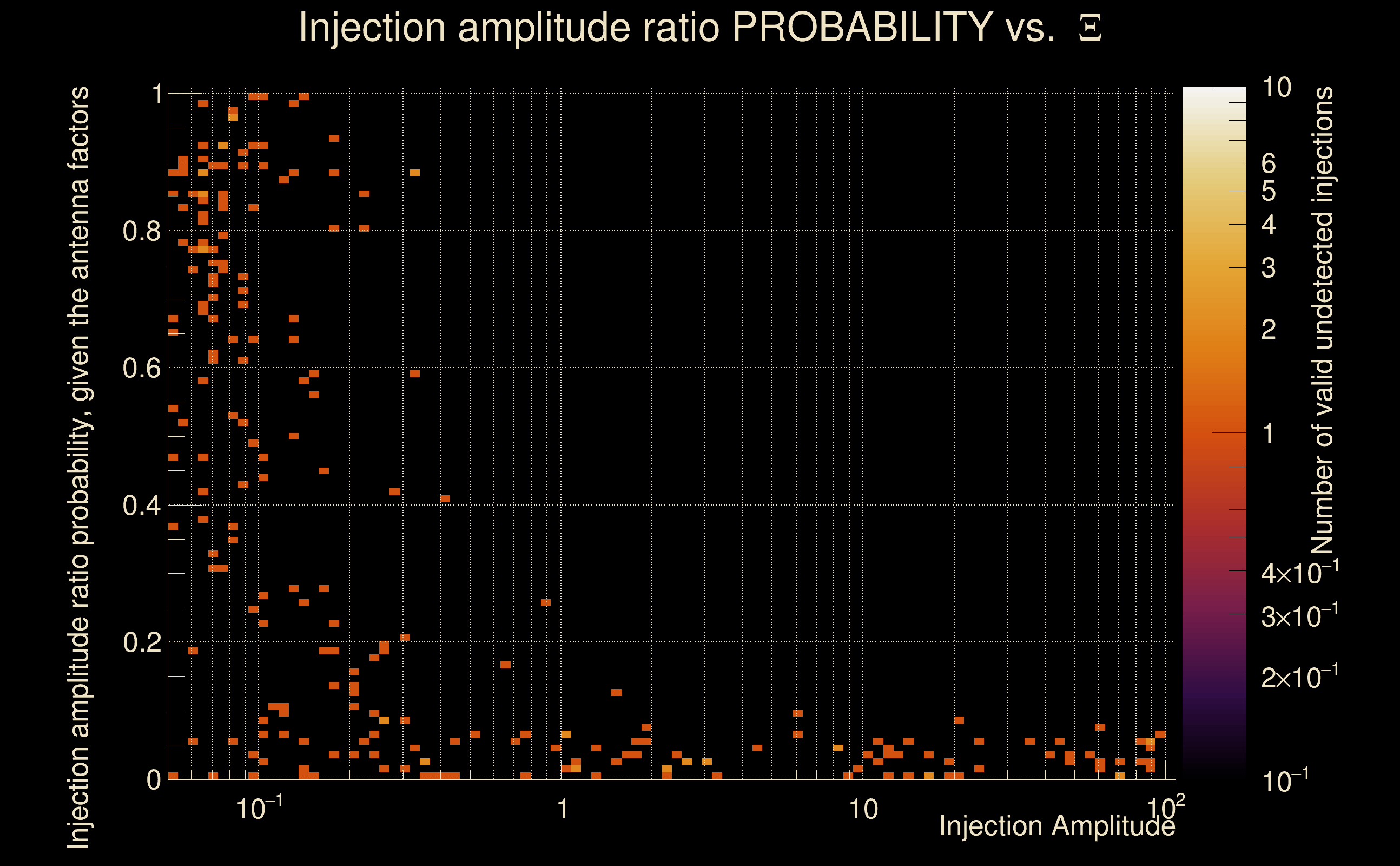

| Number of injections (total/valid/detected): | 1042 / 898 / 780 |
| List of missed injections: | ./Pan21-s40FR_missed.txt |
| Injection amplitude at 90% detection efficiency: | 0.189166 |
| Injection amplitude at 50% detection efficiency: | 0.178633 |
| Injection amplitude at 10% detection efficiency: | 0.0991554 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
