| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:44:18 2026 UTC |
| Ox option file: | Bench3_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench3_targ_file_list.txt (65 files) |
| Analysis result file: | Bench3_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=106 (0.092 s), time lag = 0 s |

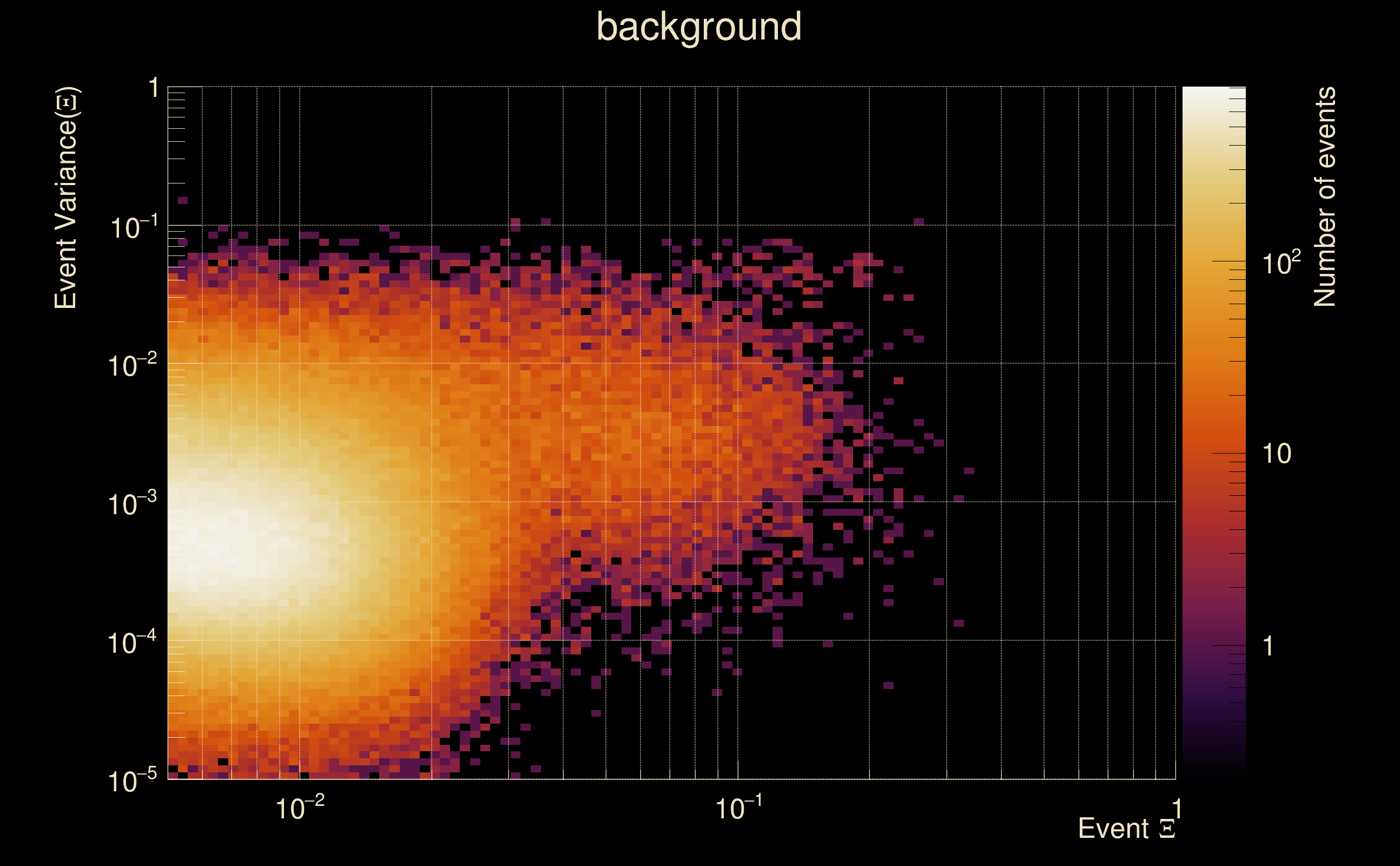

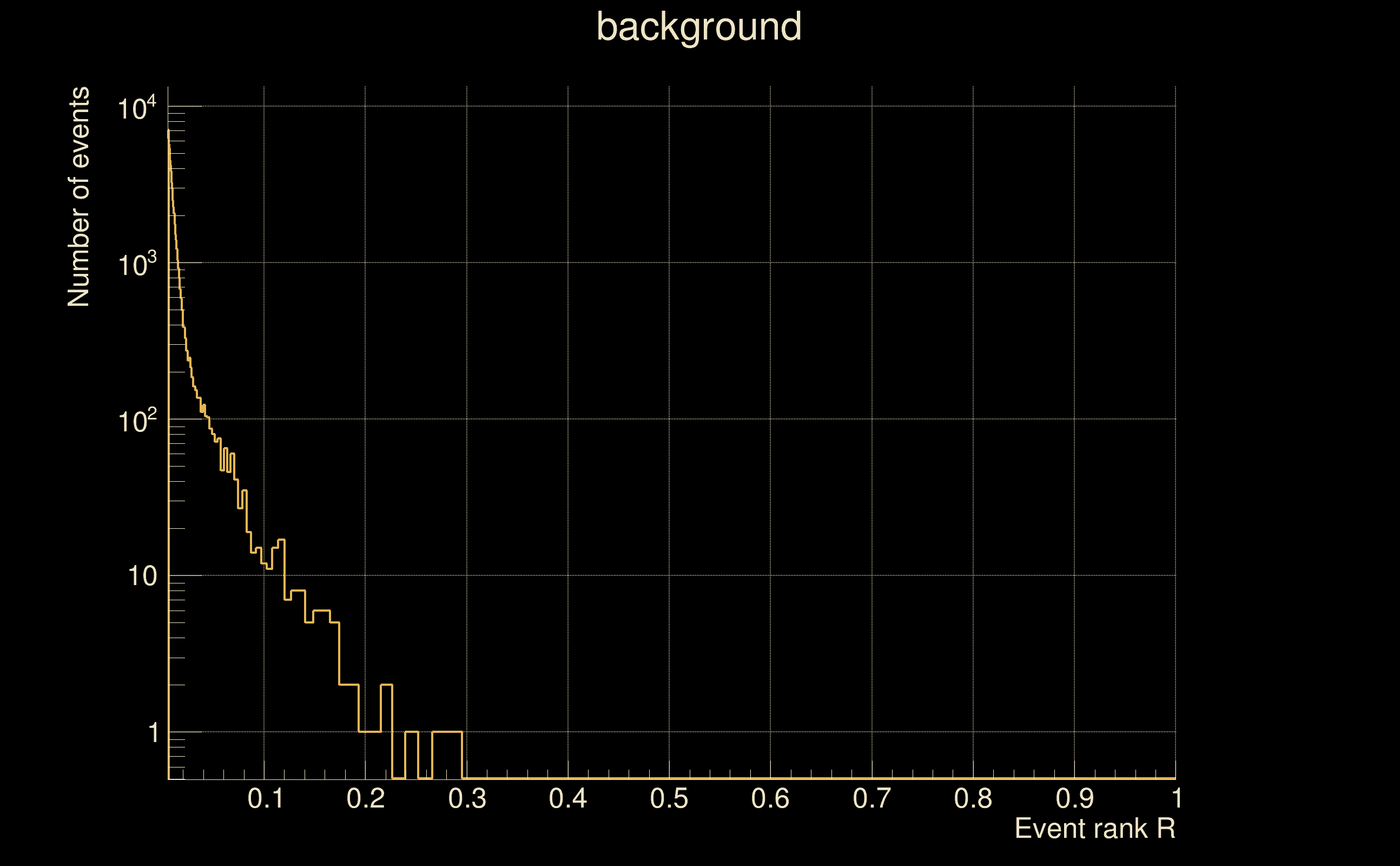

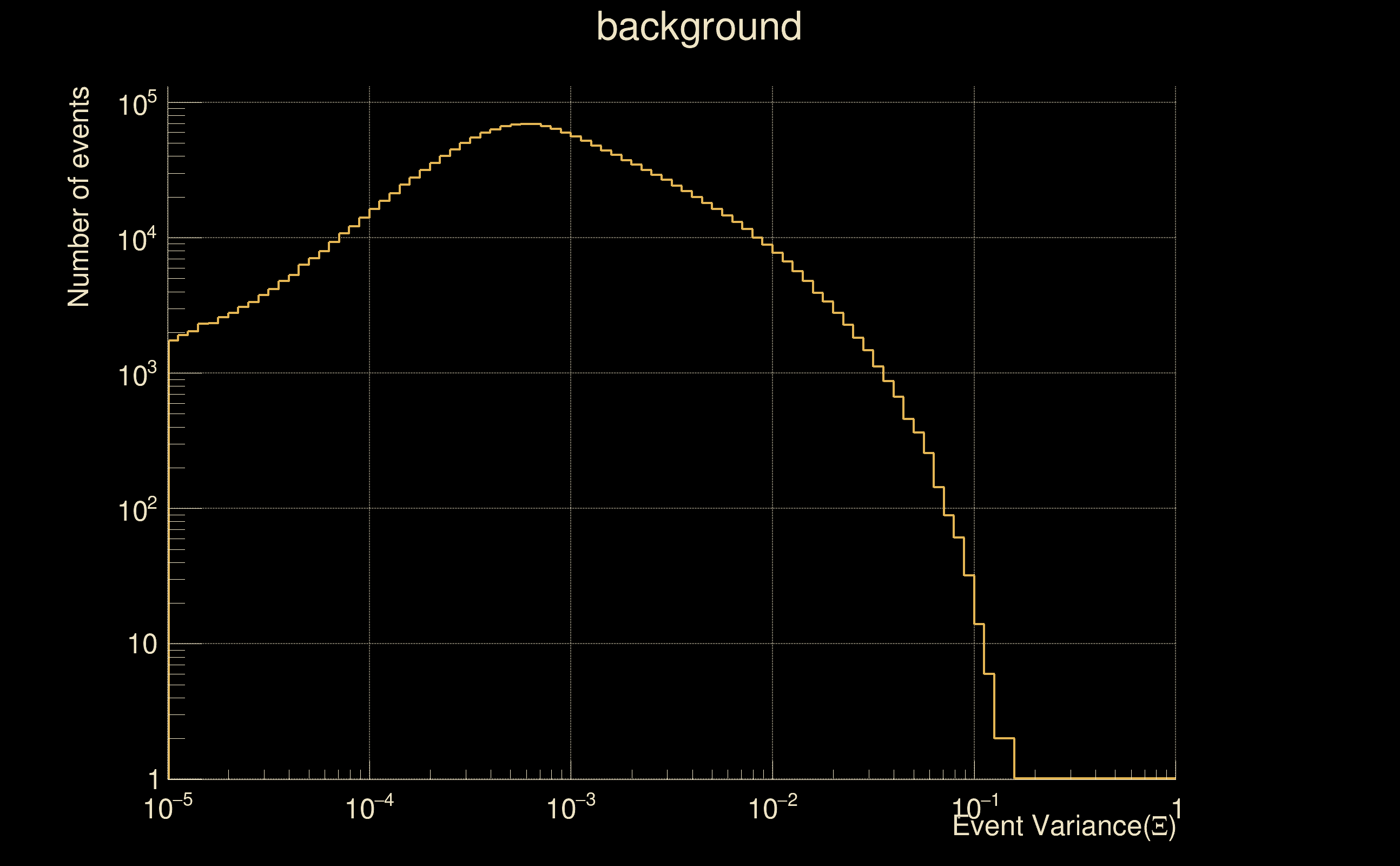

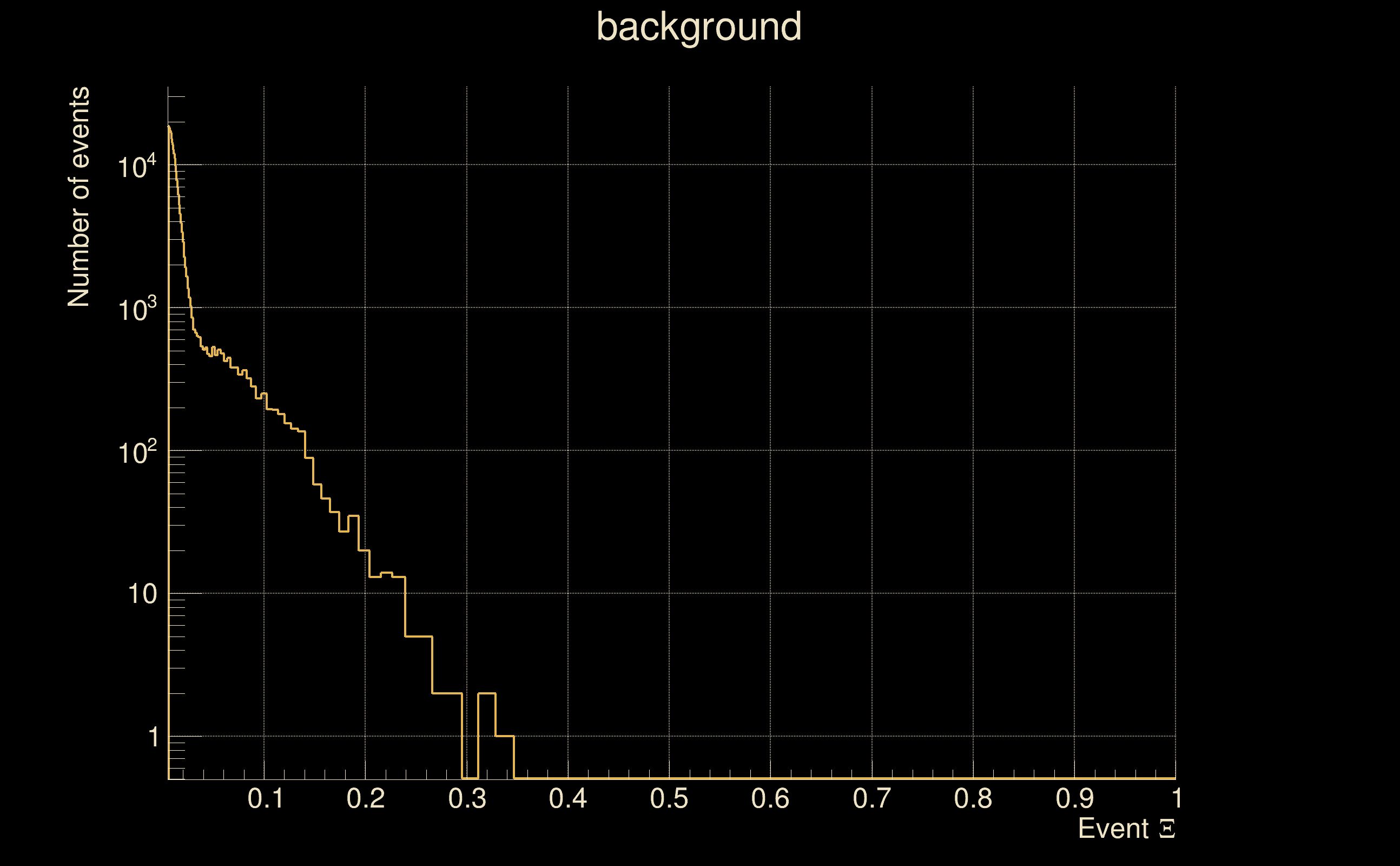

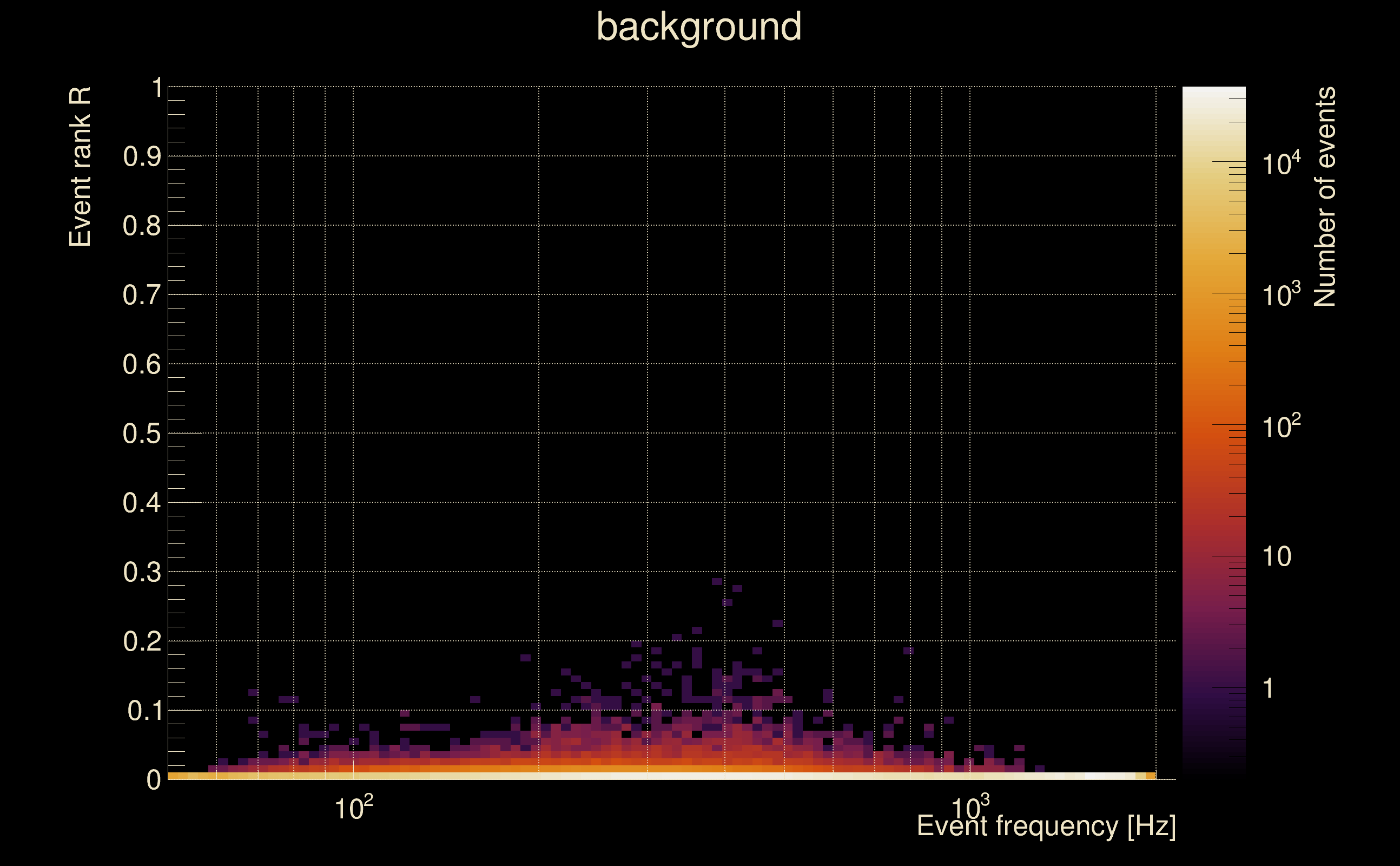

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

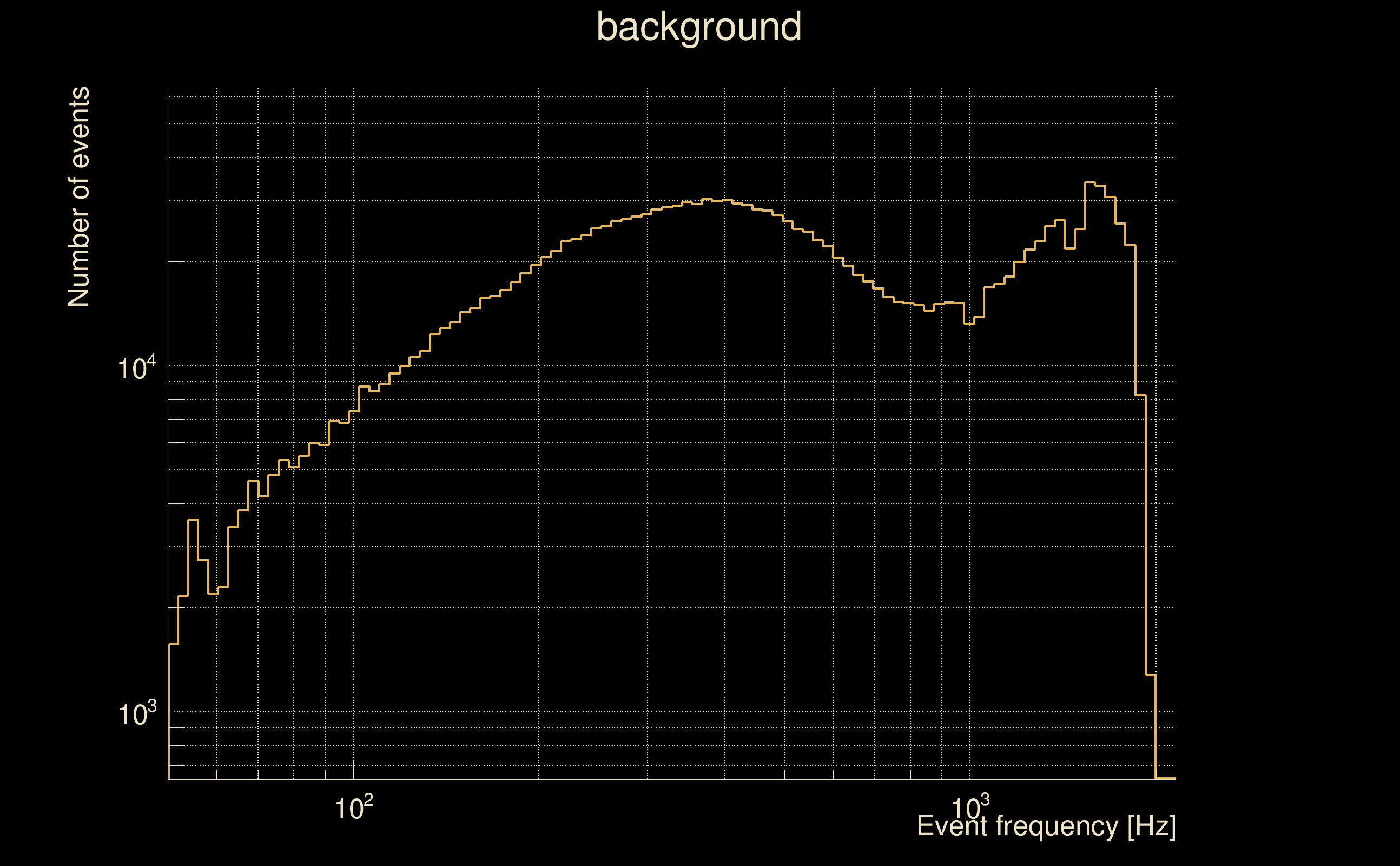

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

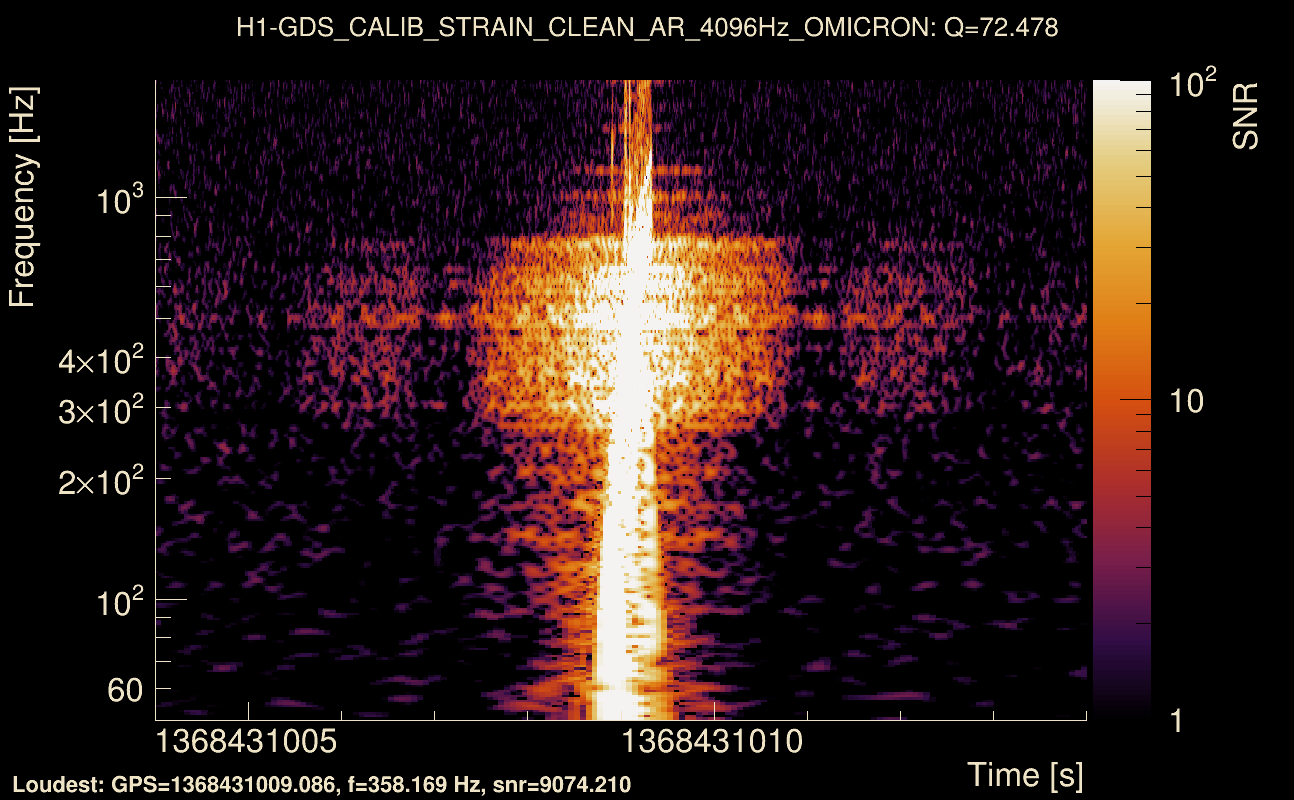

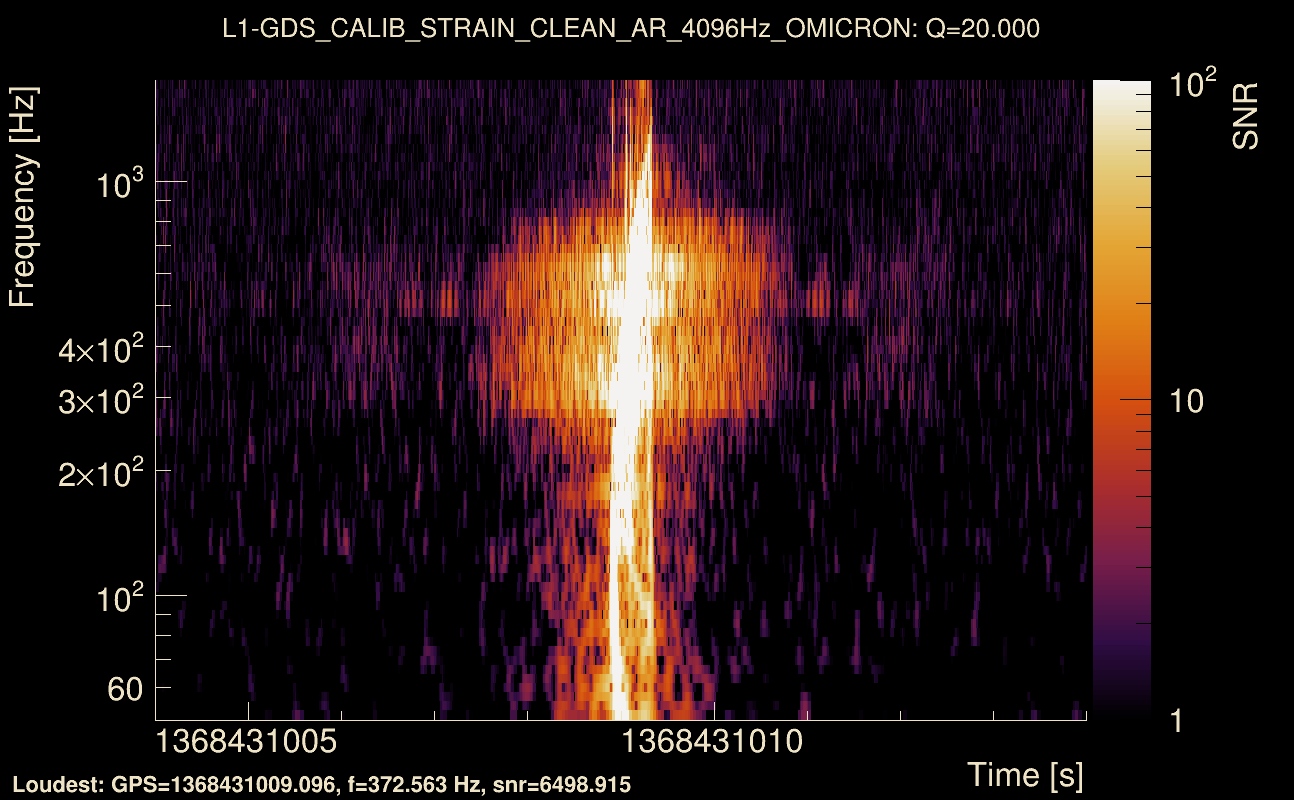

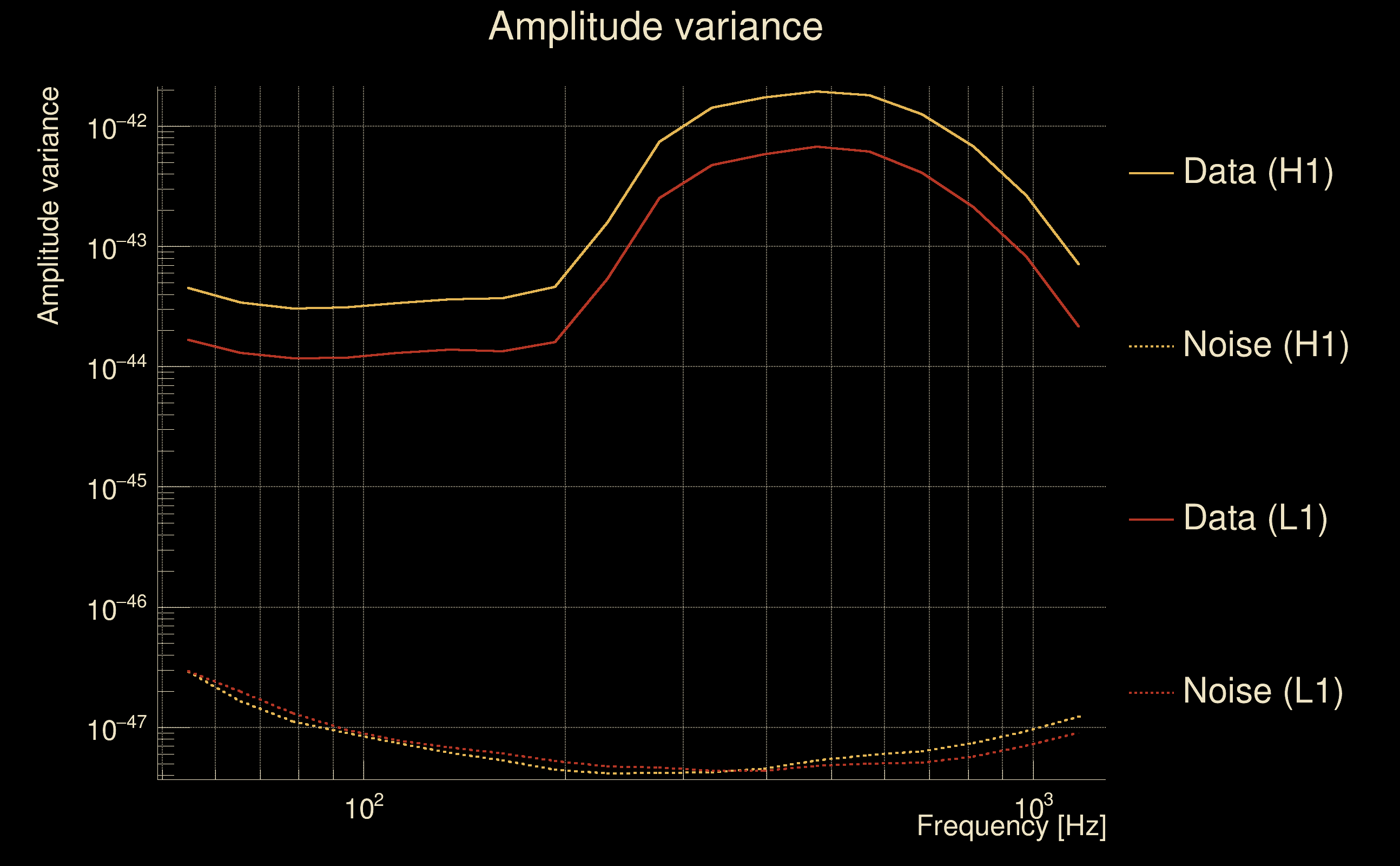

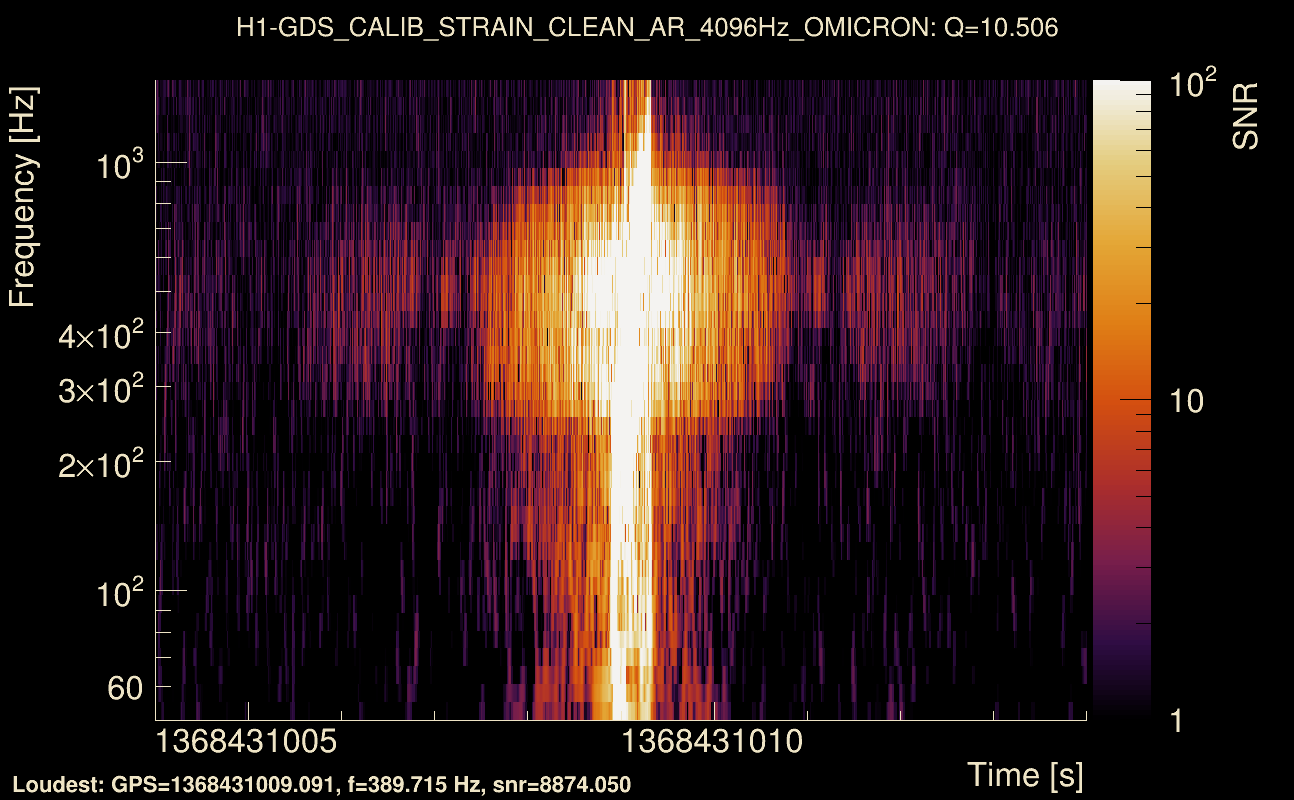

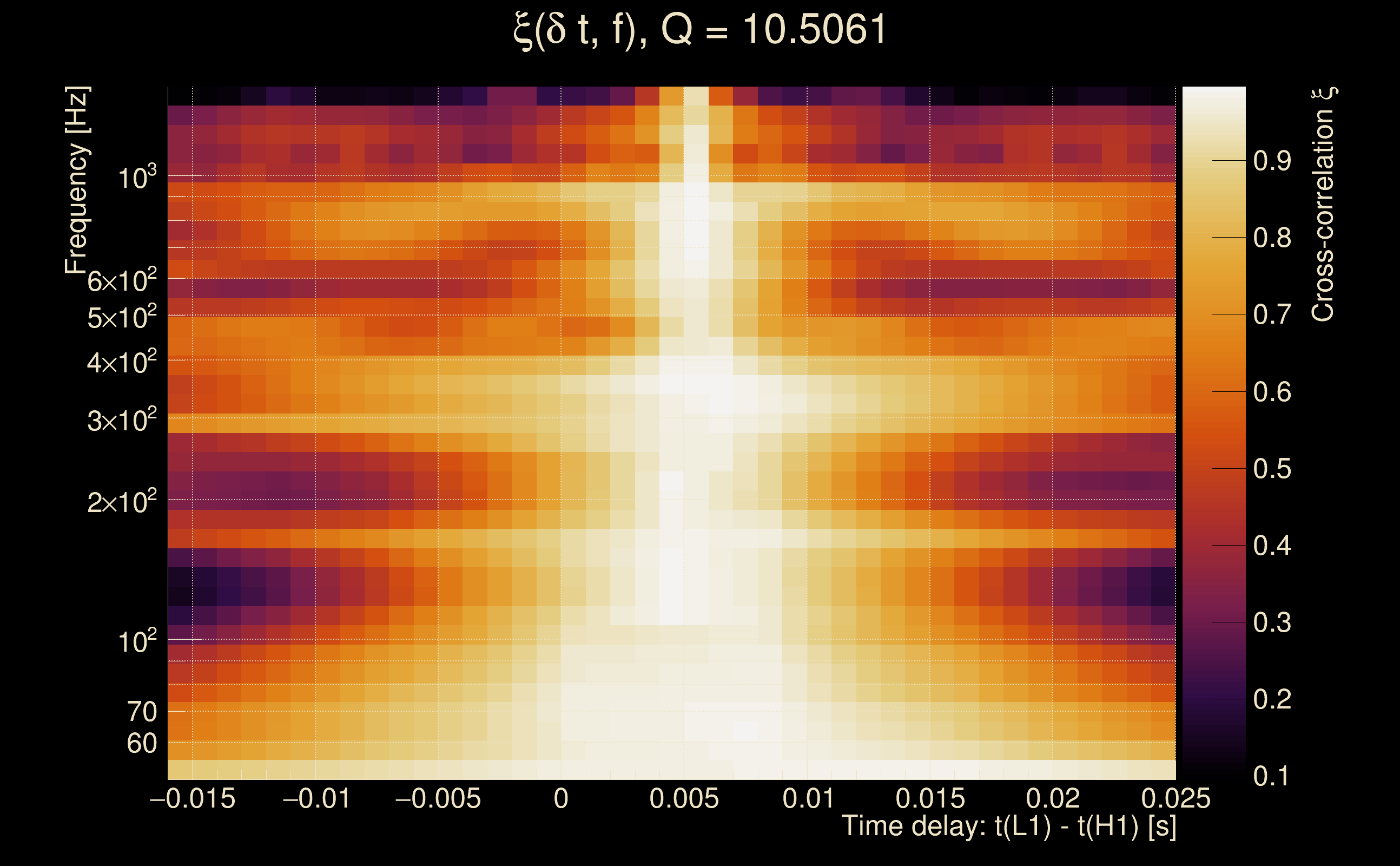

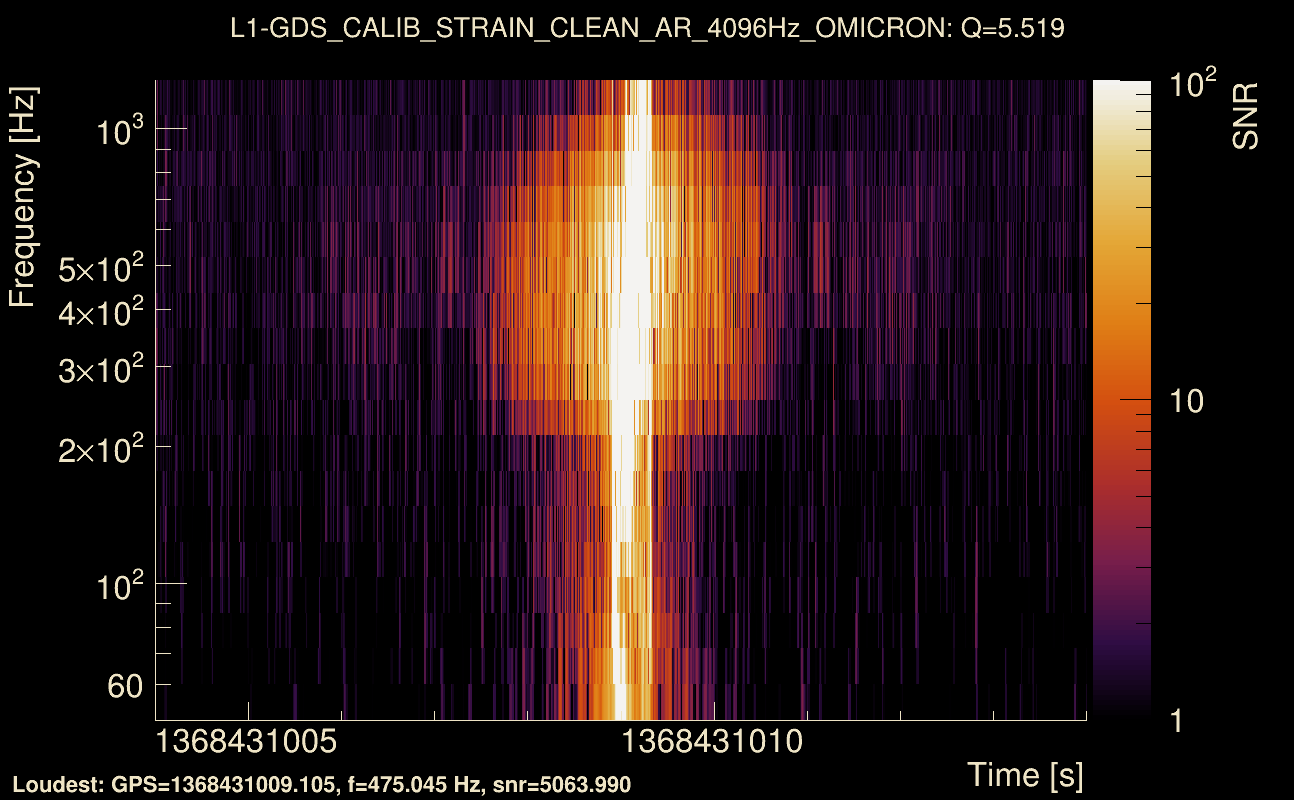

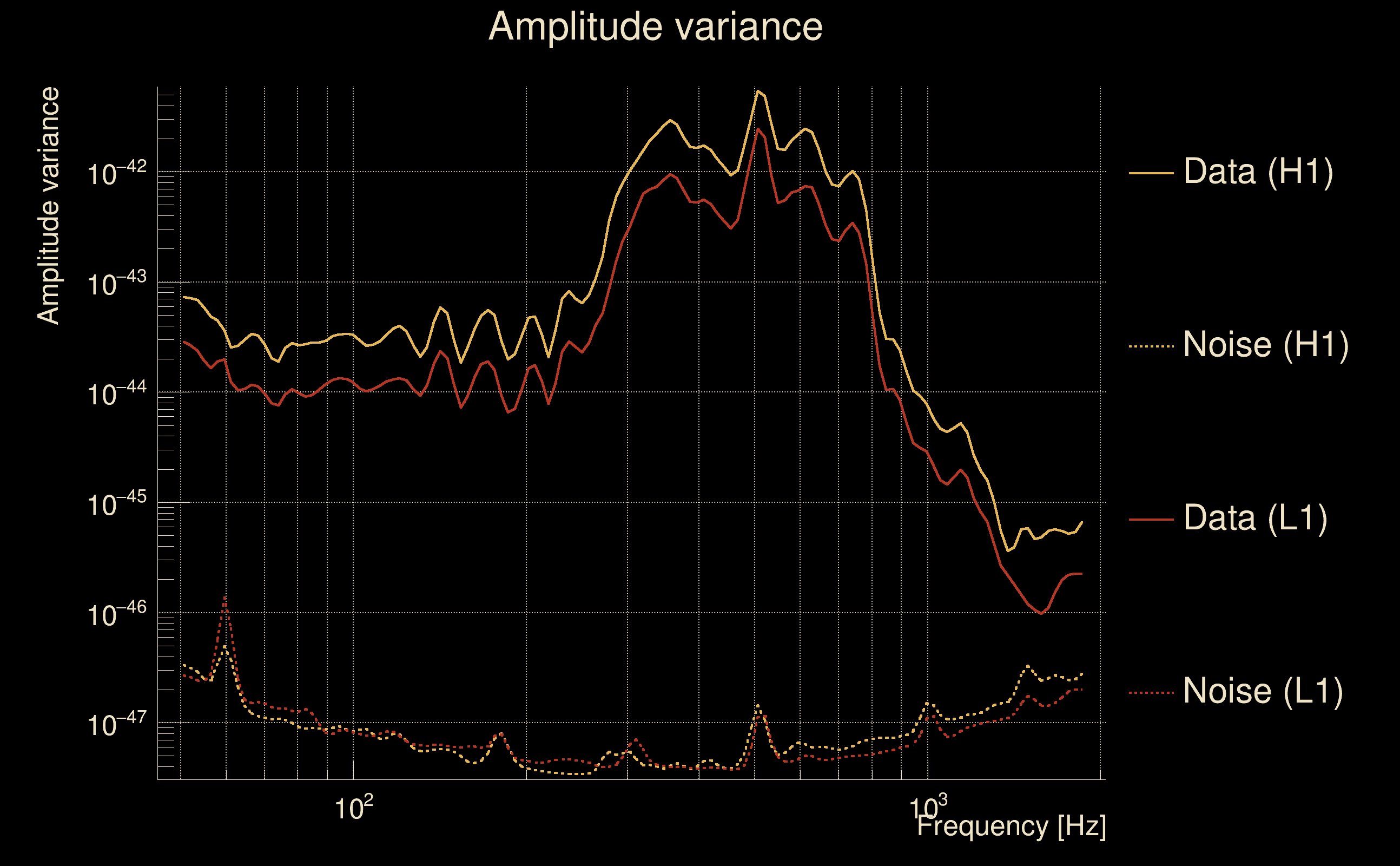

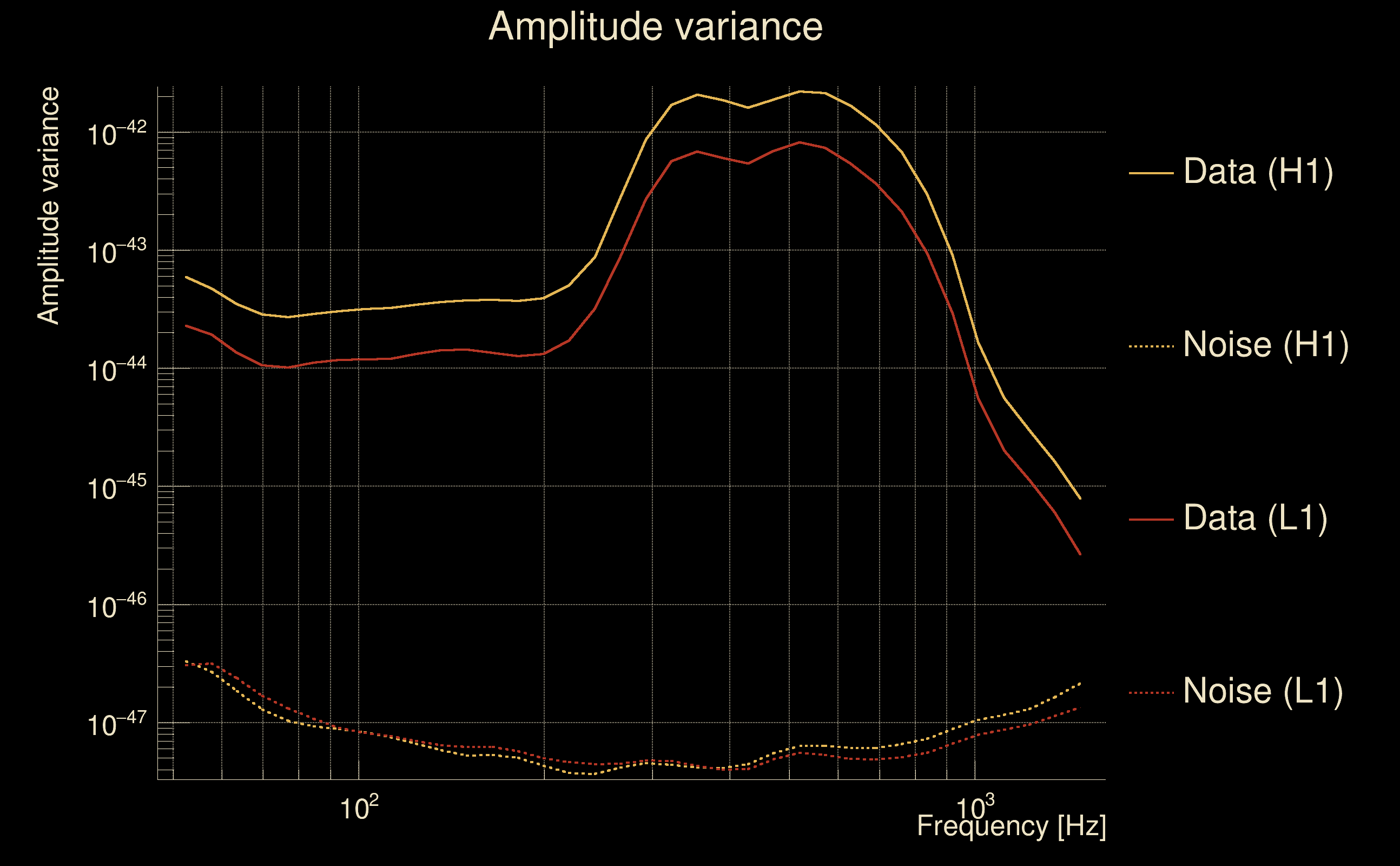

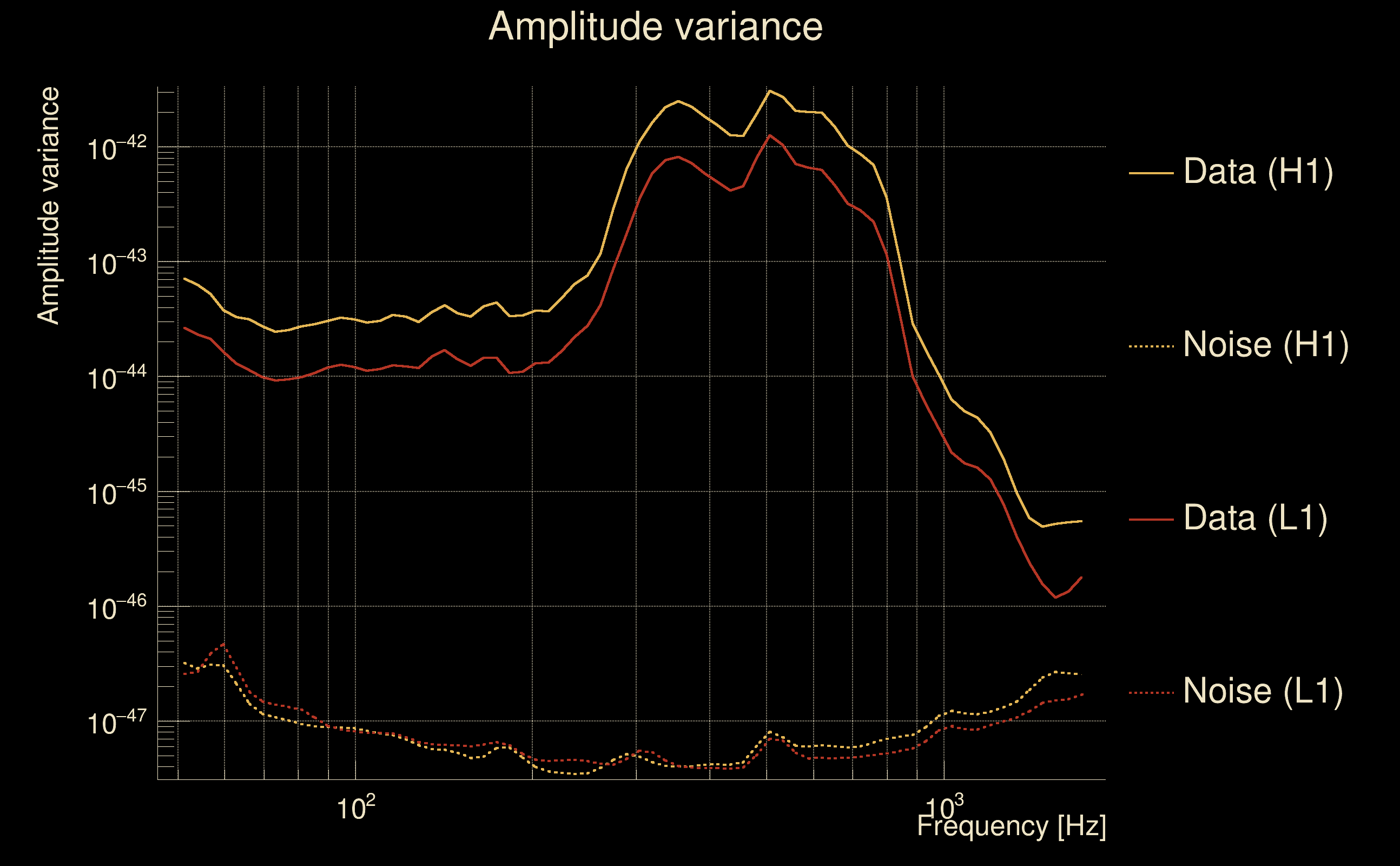

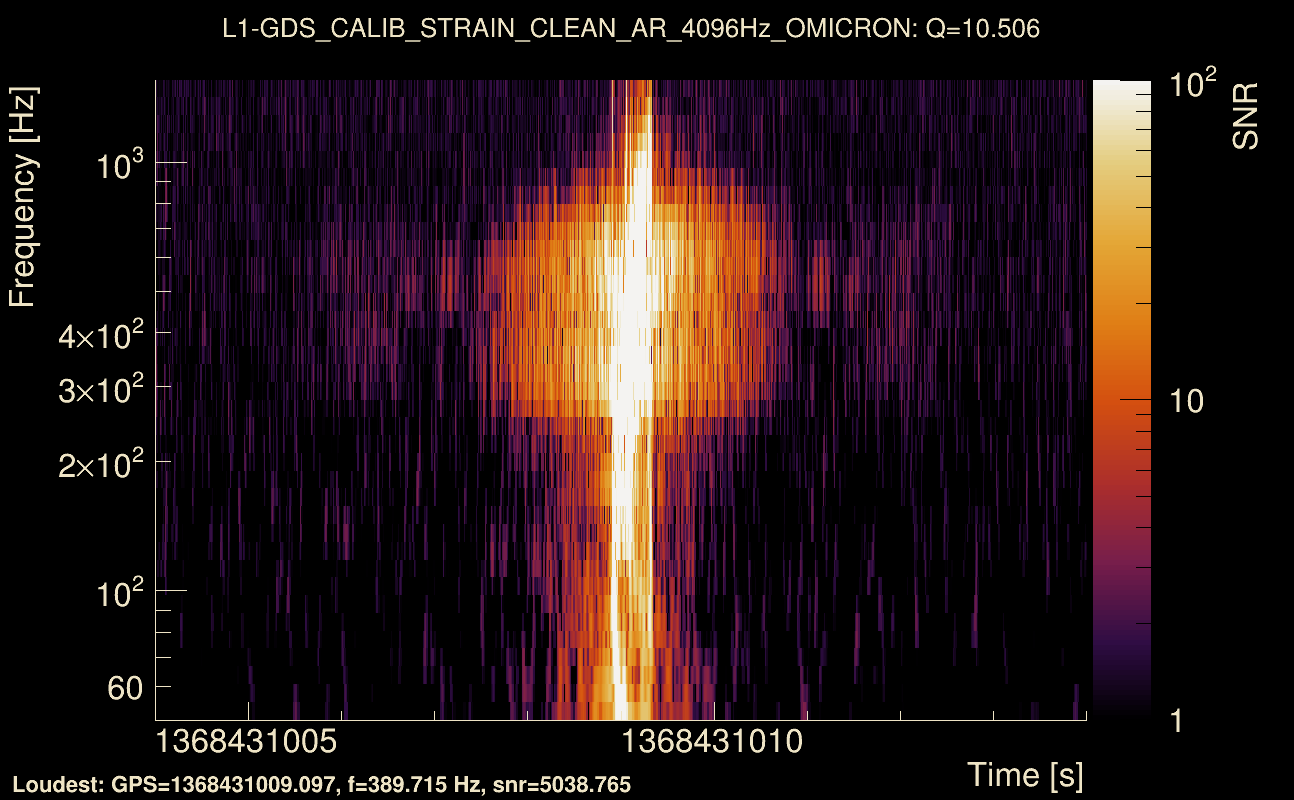

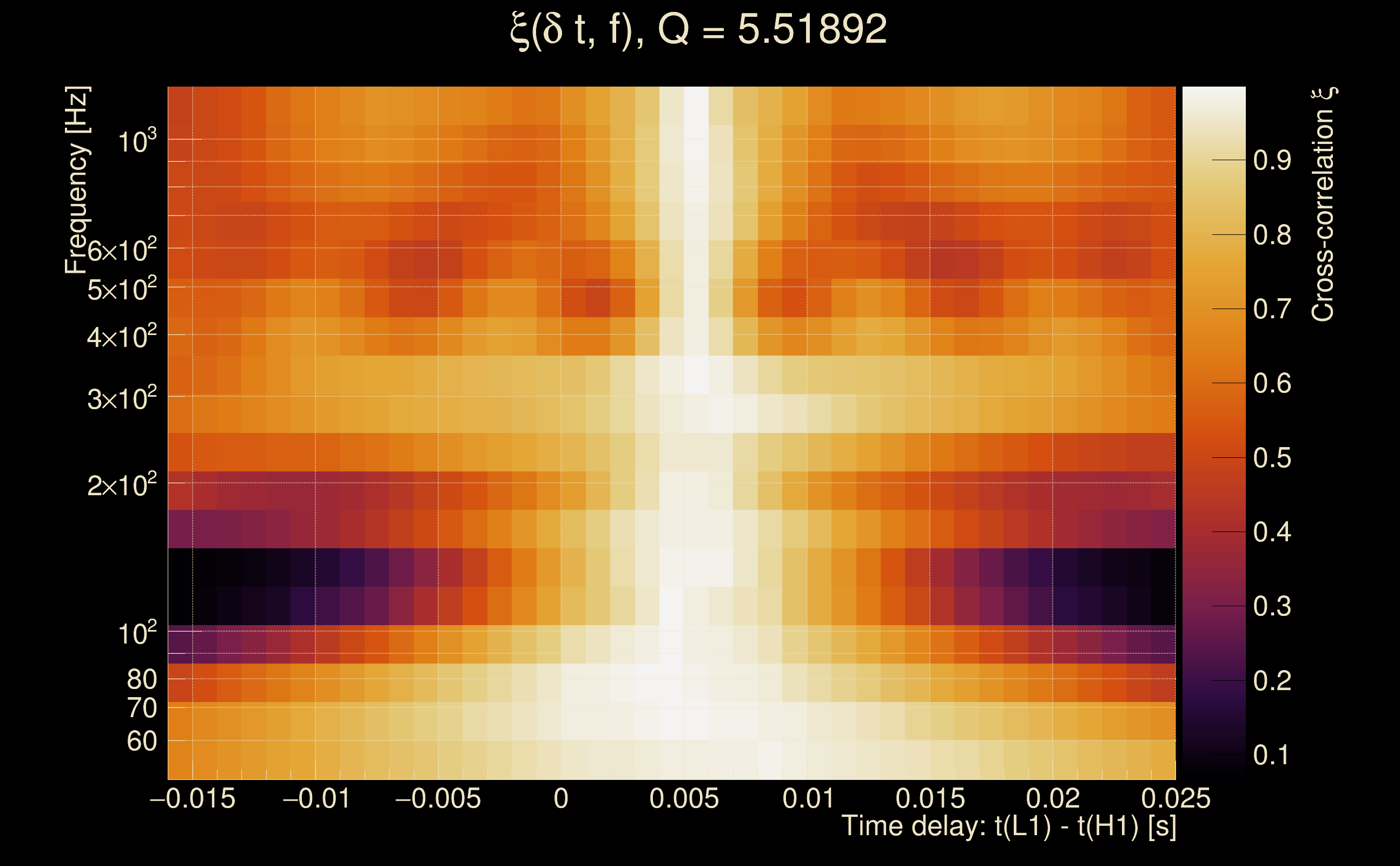

| Event time t(H1): | GPS = 1368431004 (Thu May 18 07:43:06 2023 ) → GPS = 1368431014 (Thu May 18 07:43:16 2023 ) |
| Event time t(L1): | GPS = 1368431004 (Thu May 18 07:43:16 2023 ) → GPS = 1368431014 (Thu May 18 07:43:16 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368431001 → GPS = 1368431017 |
| Omicron analysis time window (L1): | GPS = 1368431001 → GPS = 1368431017 |

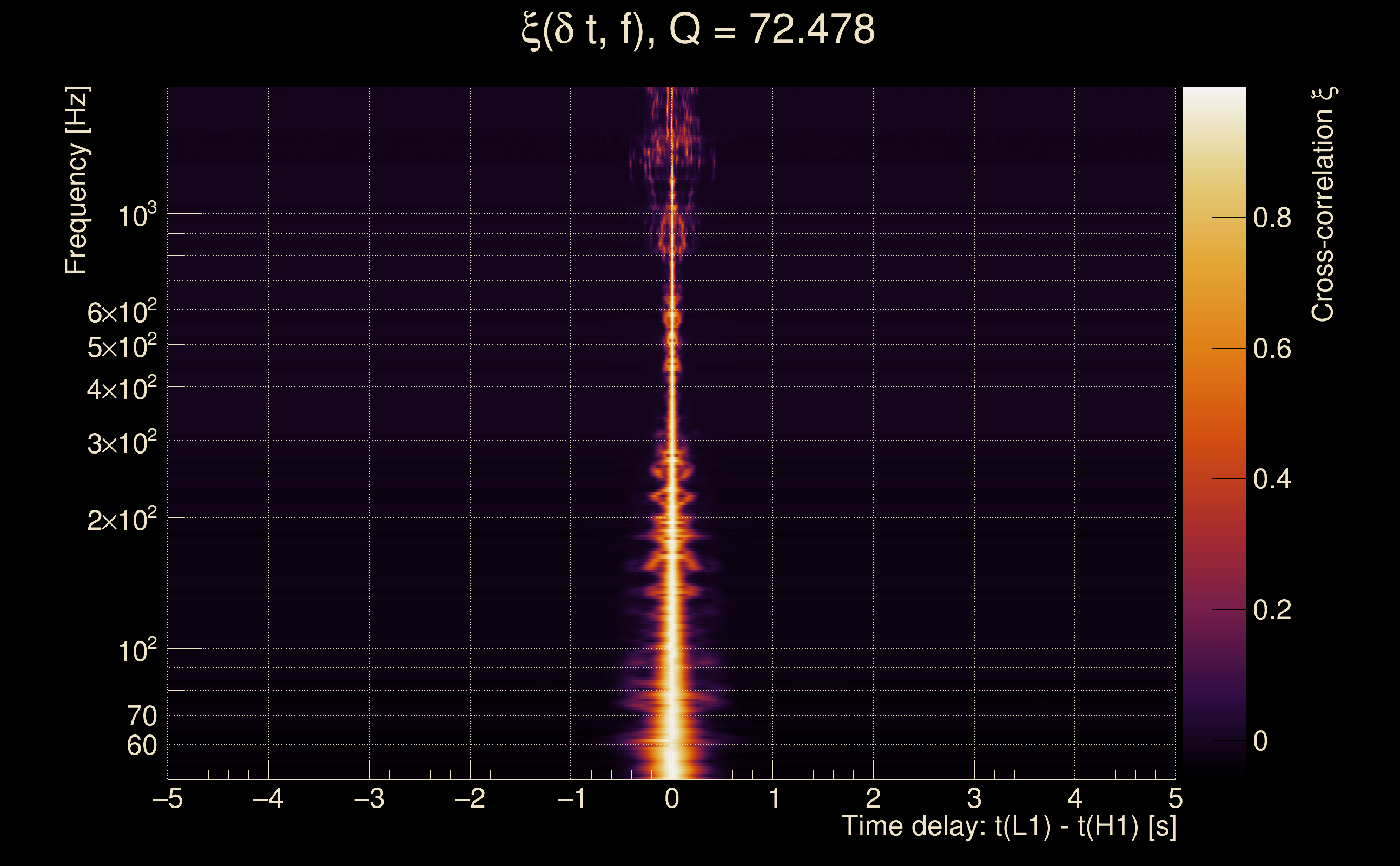

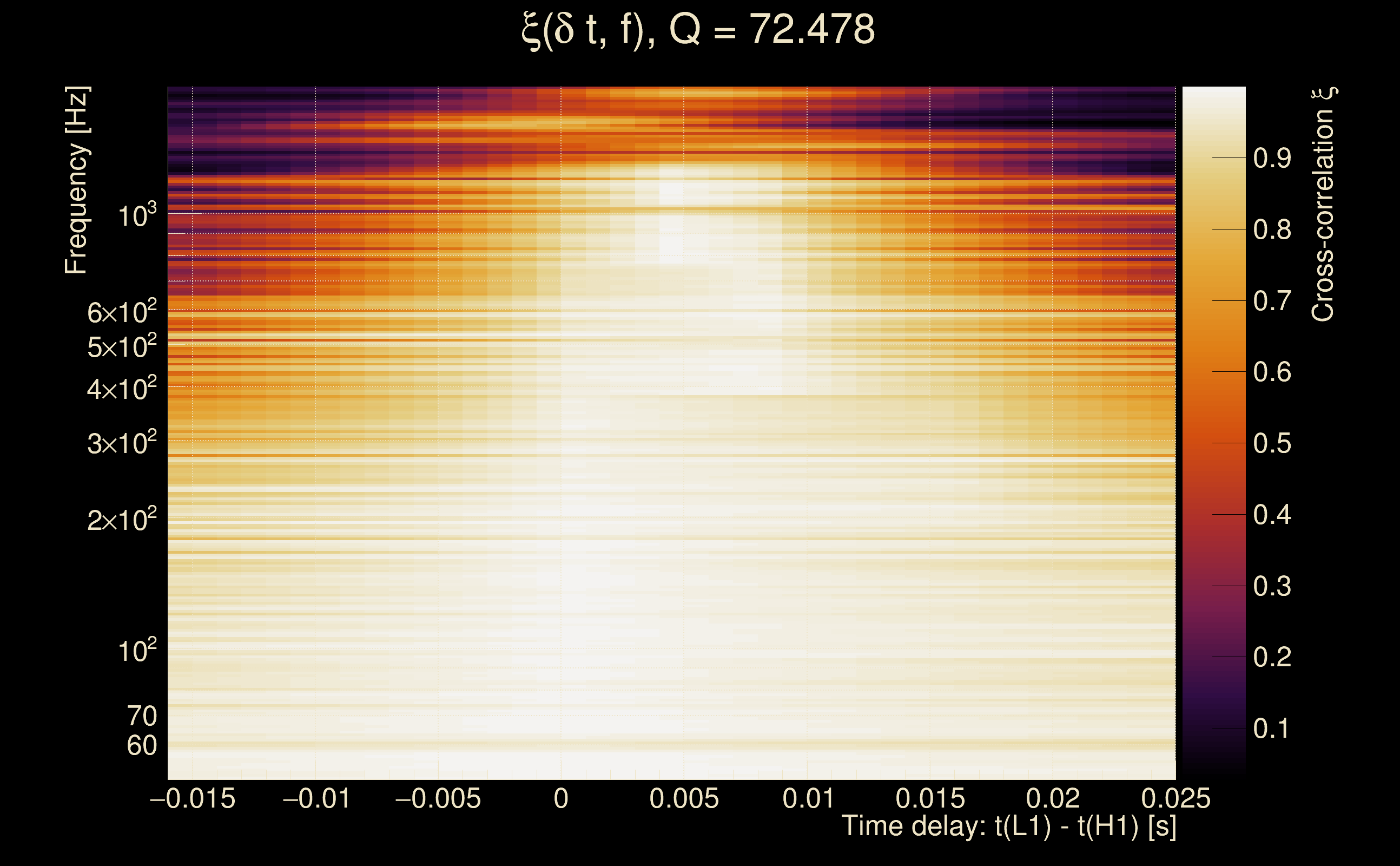

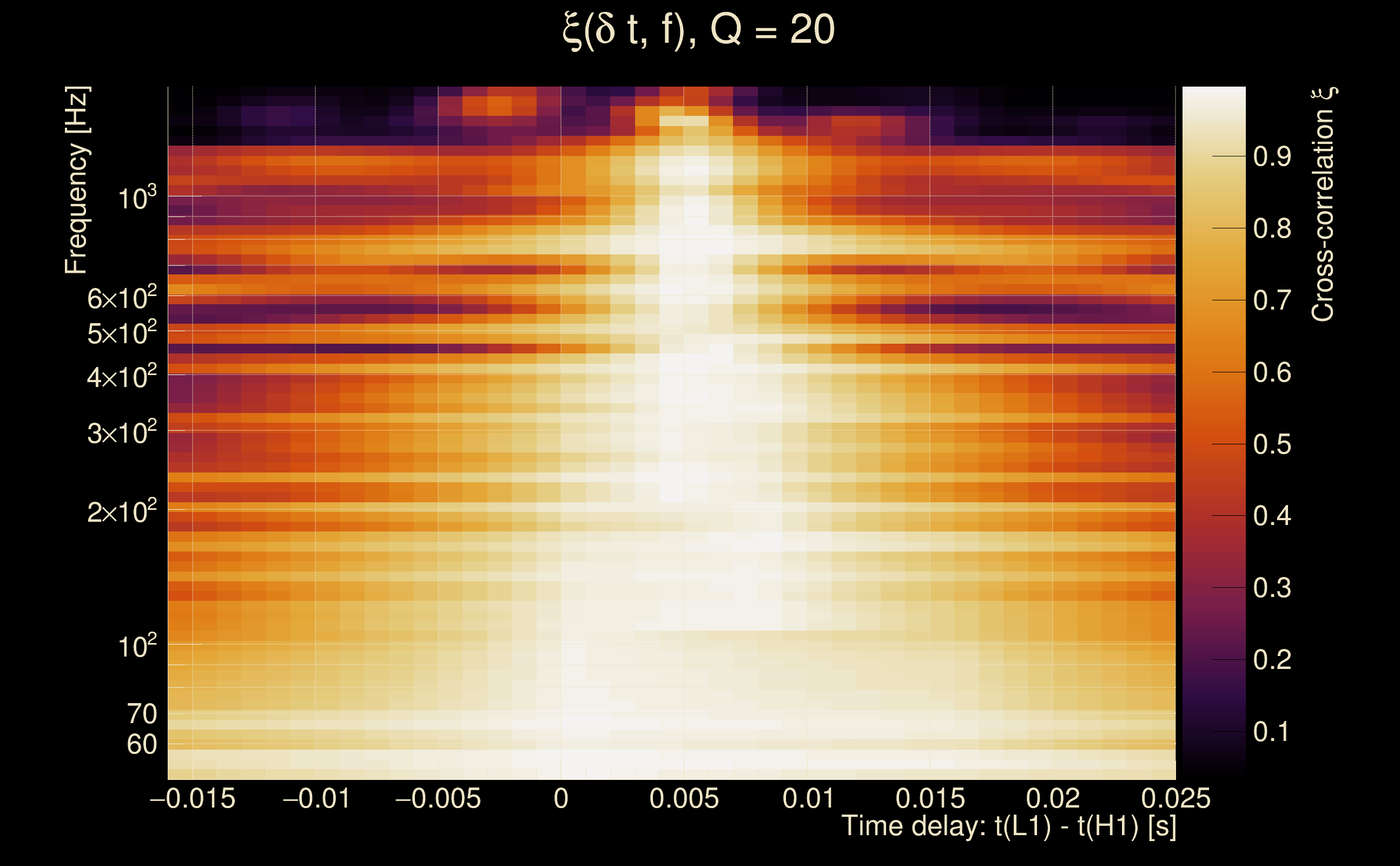

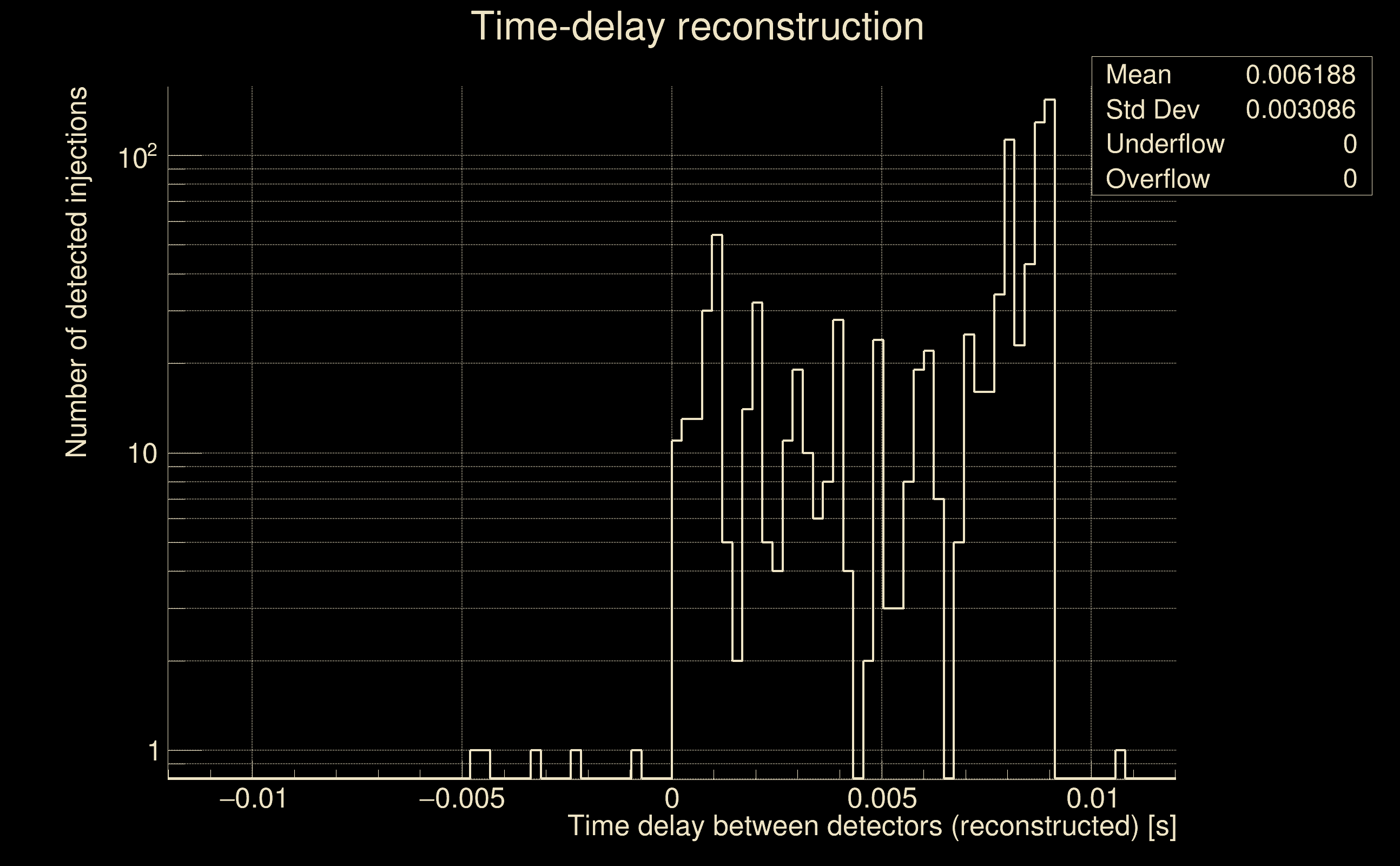

| Time delay between detectors t(L1) - t(H1): | 0.00480021 s (slice index = 108 / 217), δt_gw = 0.00480021 s |

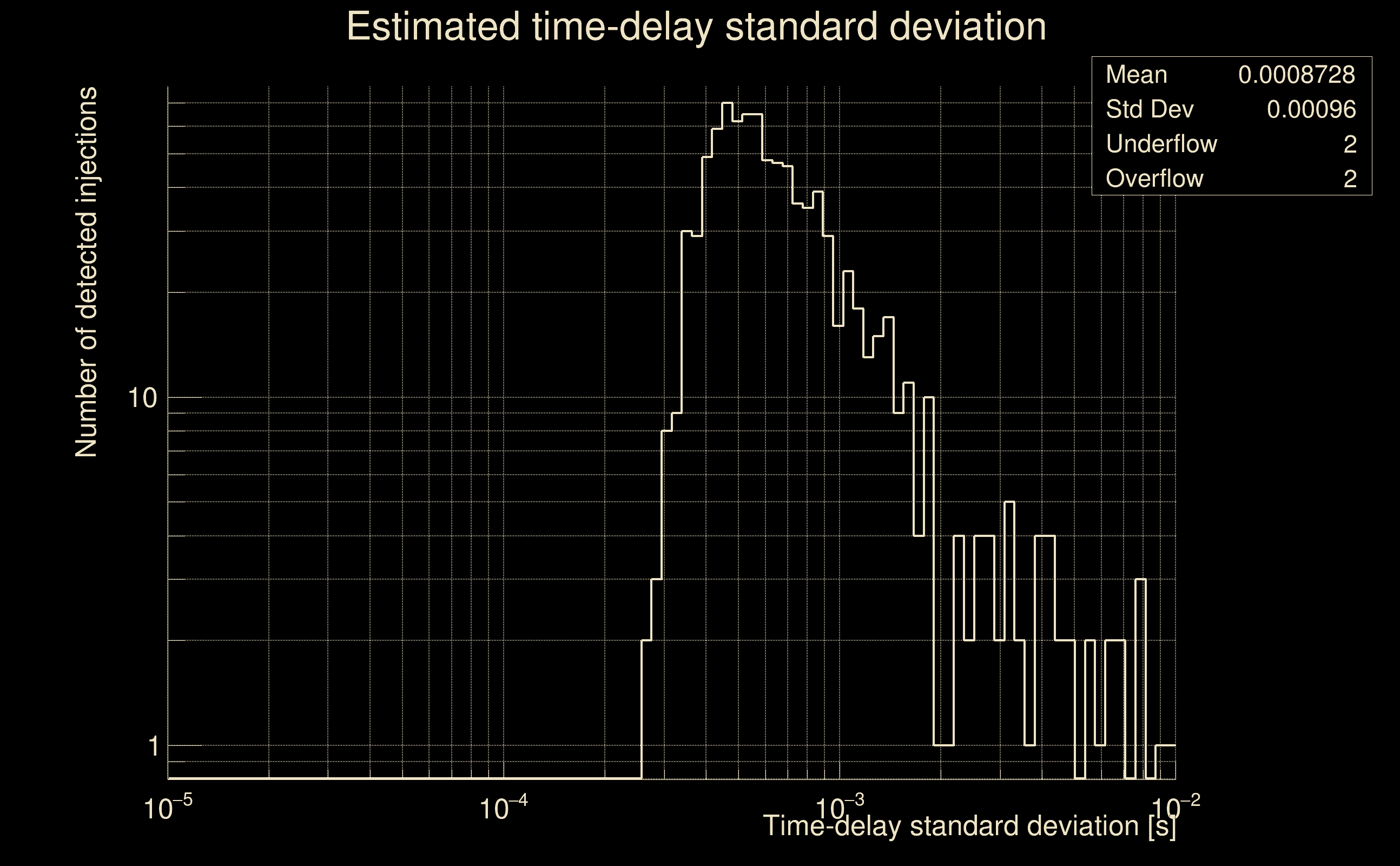

| Time delay standard deviation: | 0.0333824 s |

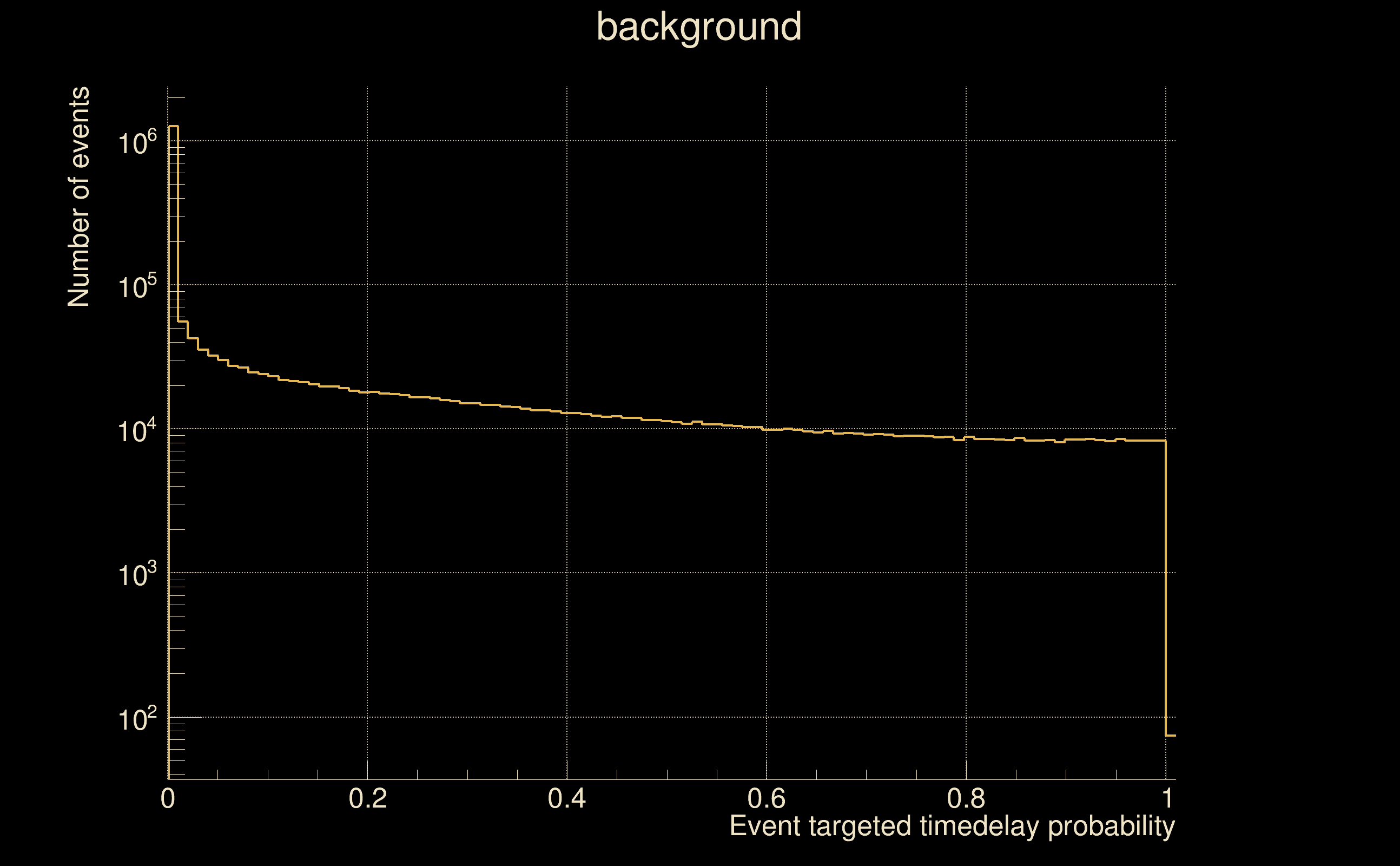

| [targeted mode] Time delay probability: | 0.990365 (0.0120759 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 280.717 Hz |
| Ξ: | 0.972793 ± 0.00849532 (variance = 7.21705e-05): Q0: 0.985744, Q1: 0.979327, Q2: 0.971157, Q3: 0.965299, Q4: 0.963216 |
| Rank: | R_A = 0.96342 |

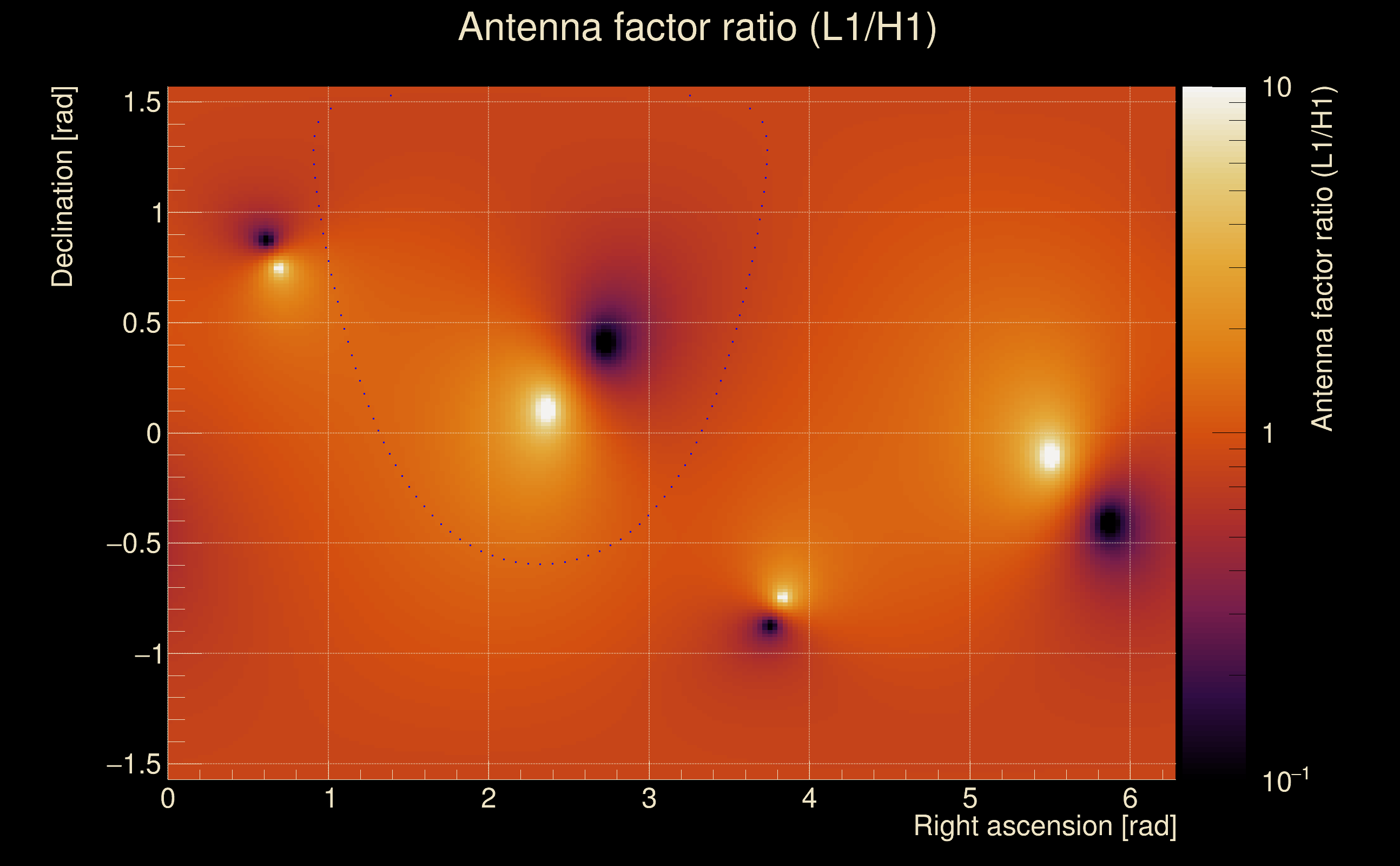

| Log of amplitude ratio (L1/H1): | -0.55457, variance = 0.188053 (L1/H1: -0.563514, variance = 0.30091, H1/L1: 0.527782, variance = 0.302191) |
| Amplitude ratio (L1/H1): | 0.574319 ⋇ 1.54288 (L1/H1: 0.569205 ⋇ 1.73075, H1/L1: 1.69517 ⋇ 1.73277) |

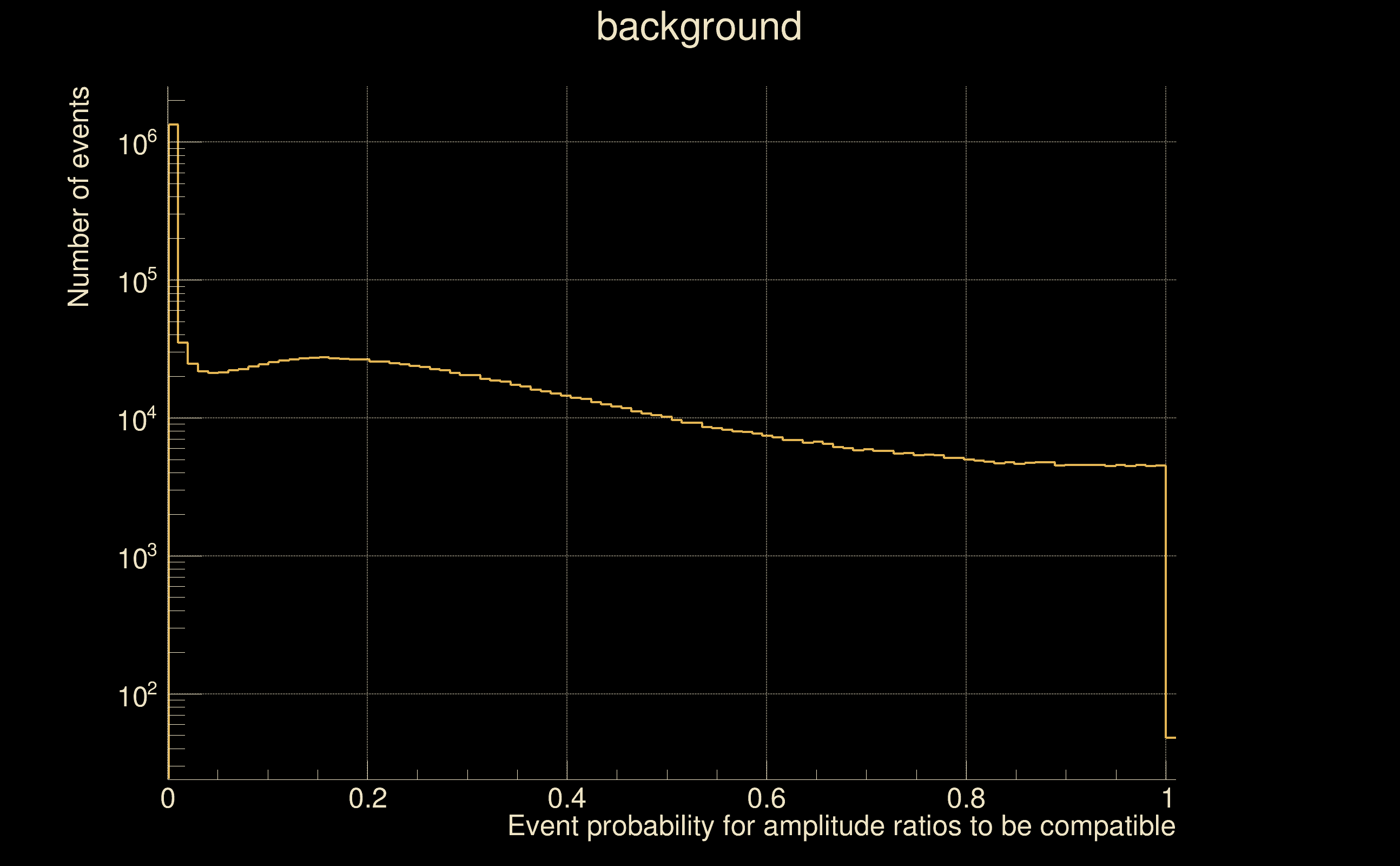

| Amplitude ratio H1|L1 compatibility (probability): | 0.963301 |

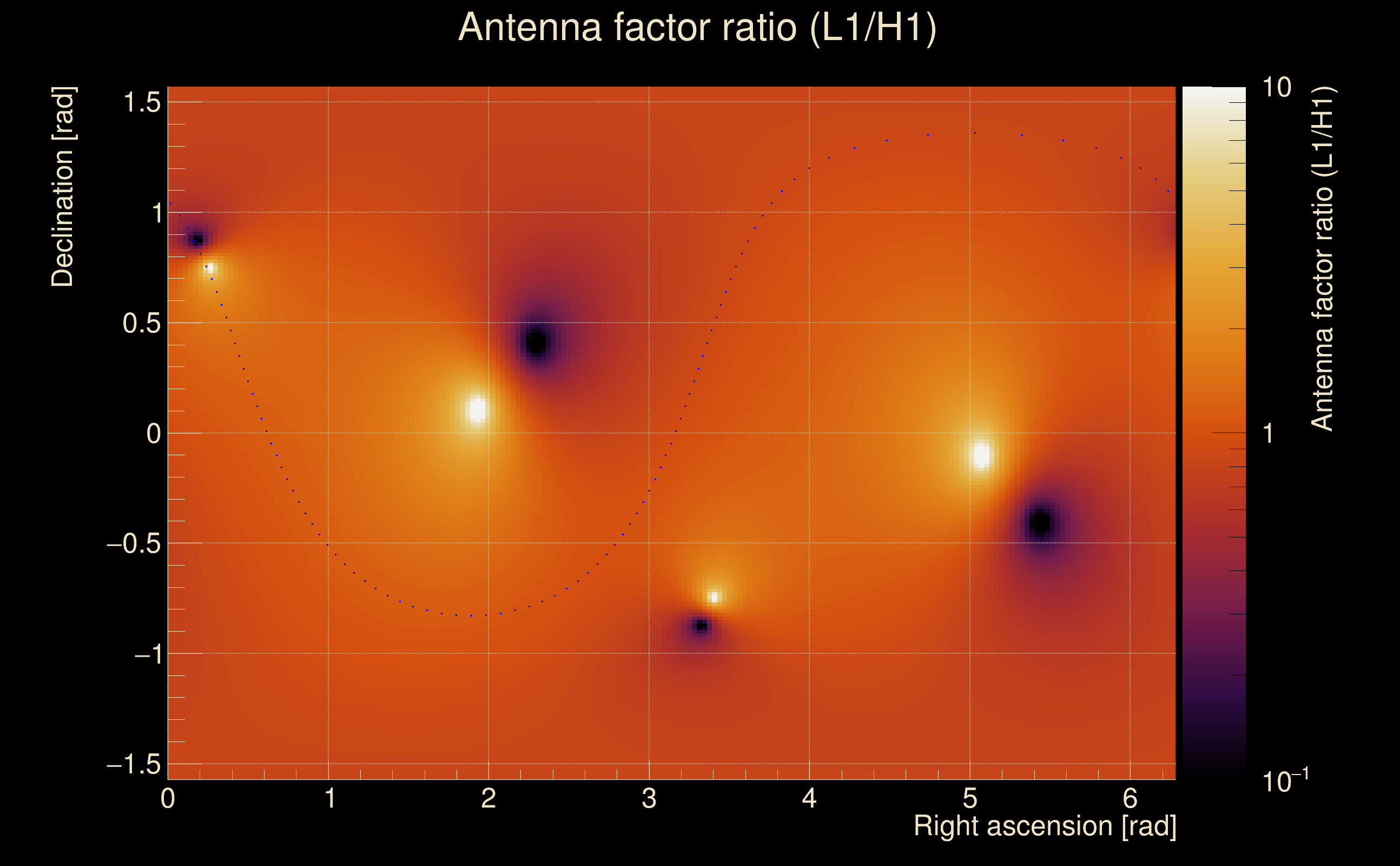

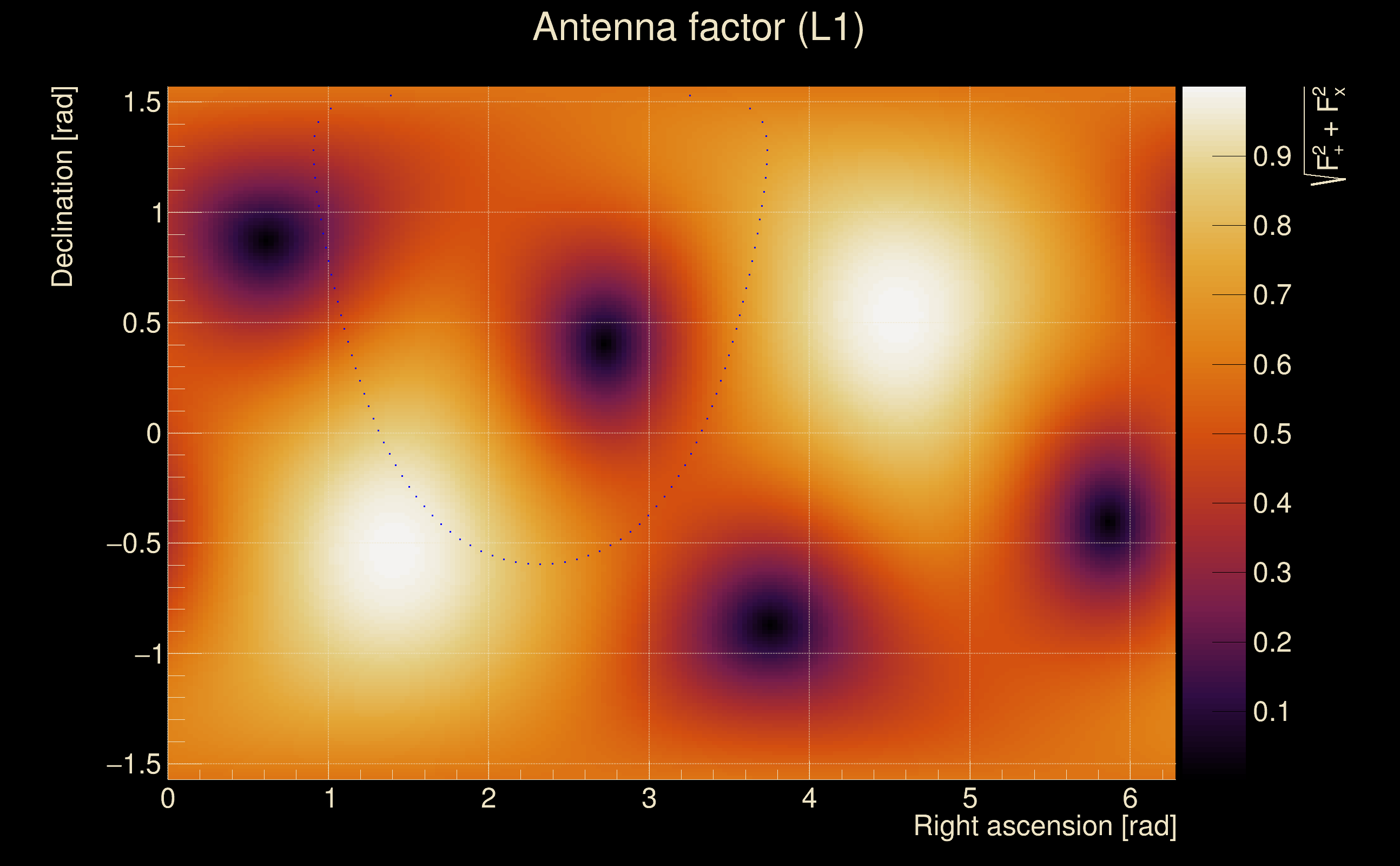

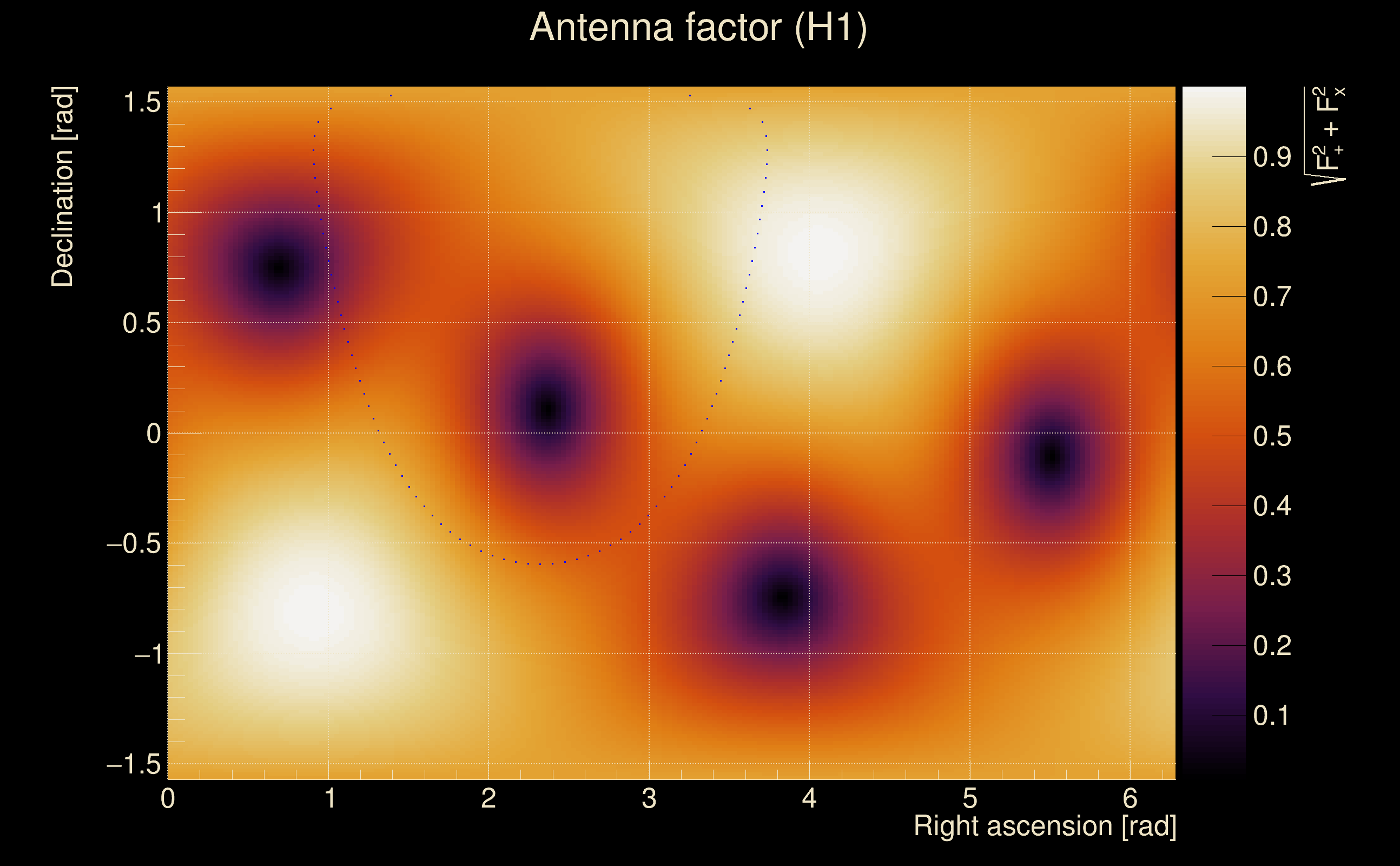

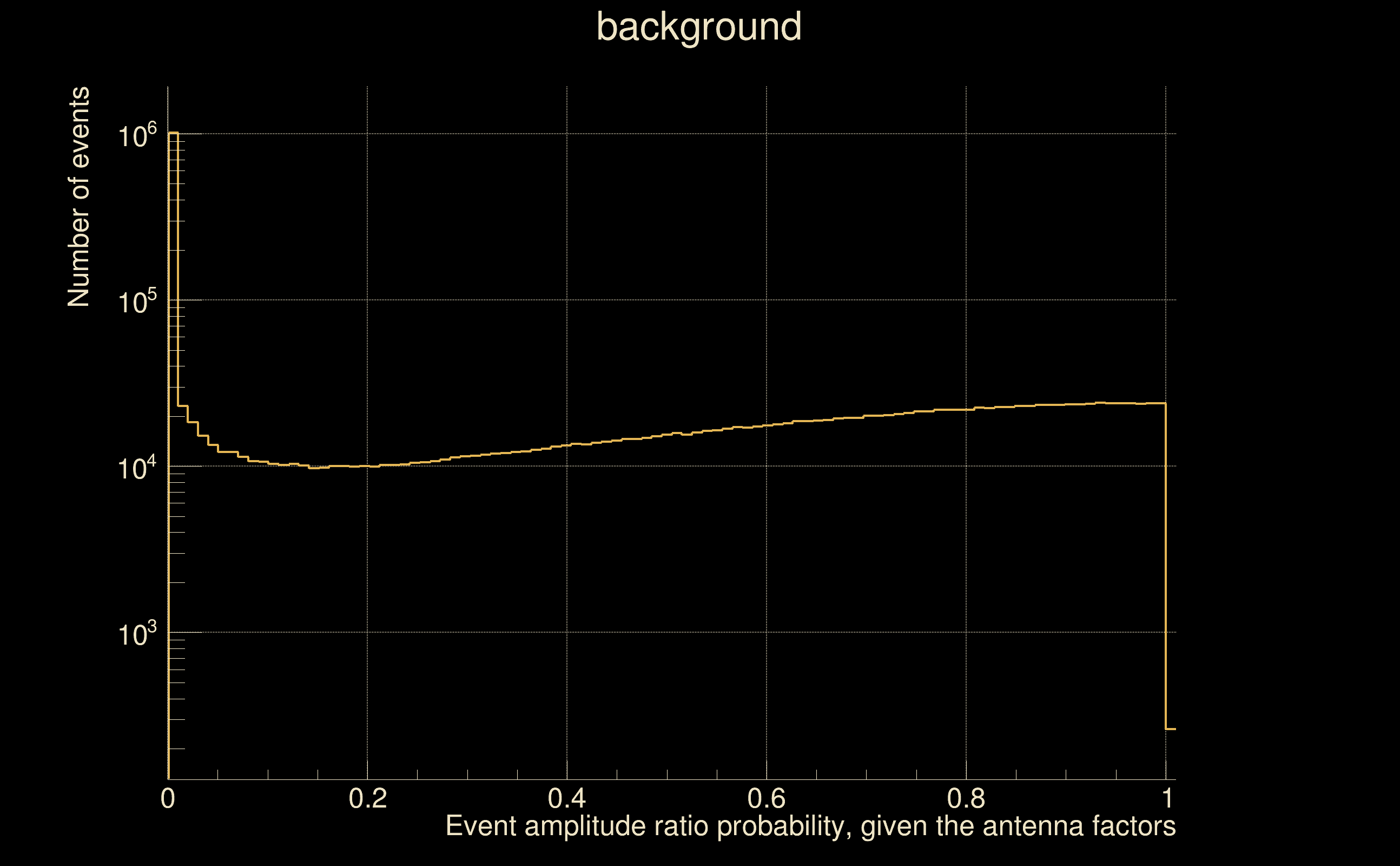

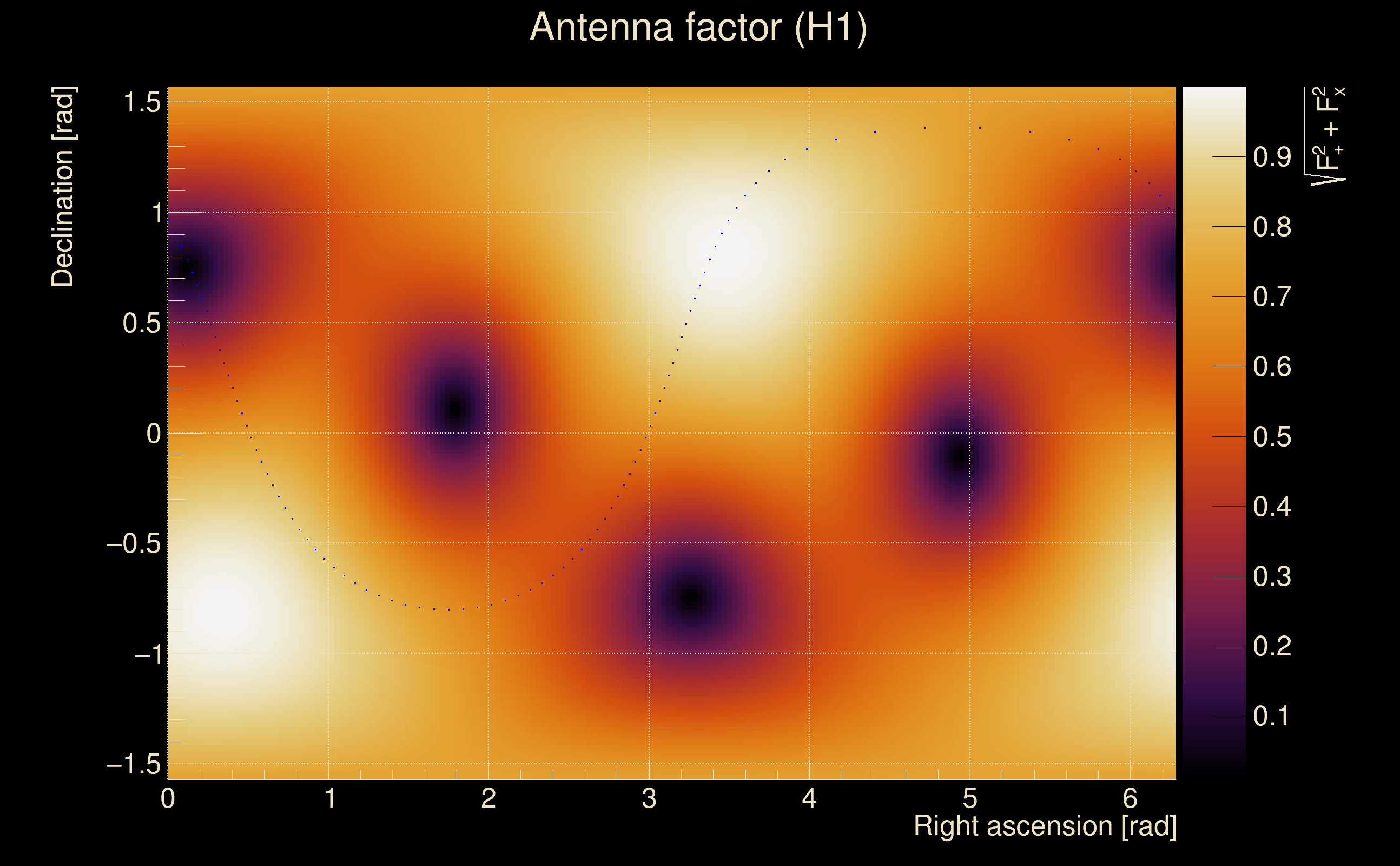

| Antenna factor probability: | 0.478258 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 2 / 258 |
| Maximum signal-to-noise ratio: | H1: 12084.2, L1: 6982.74 |

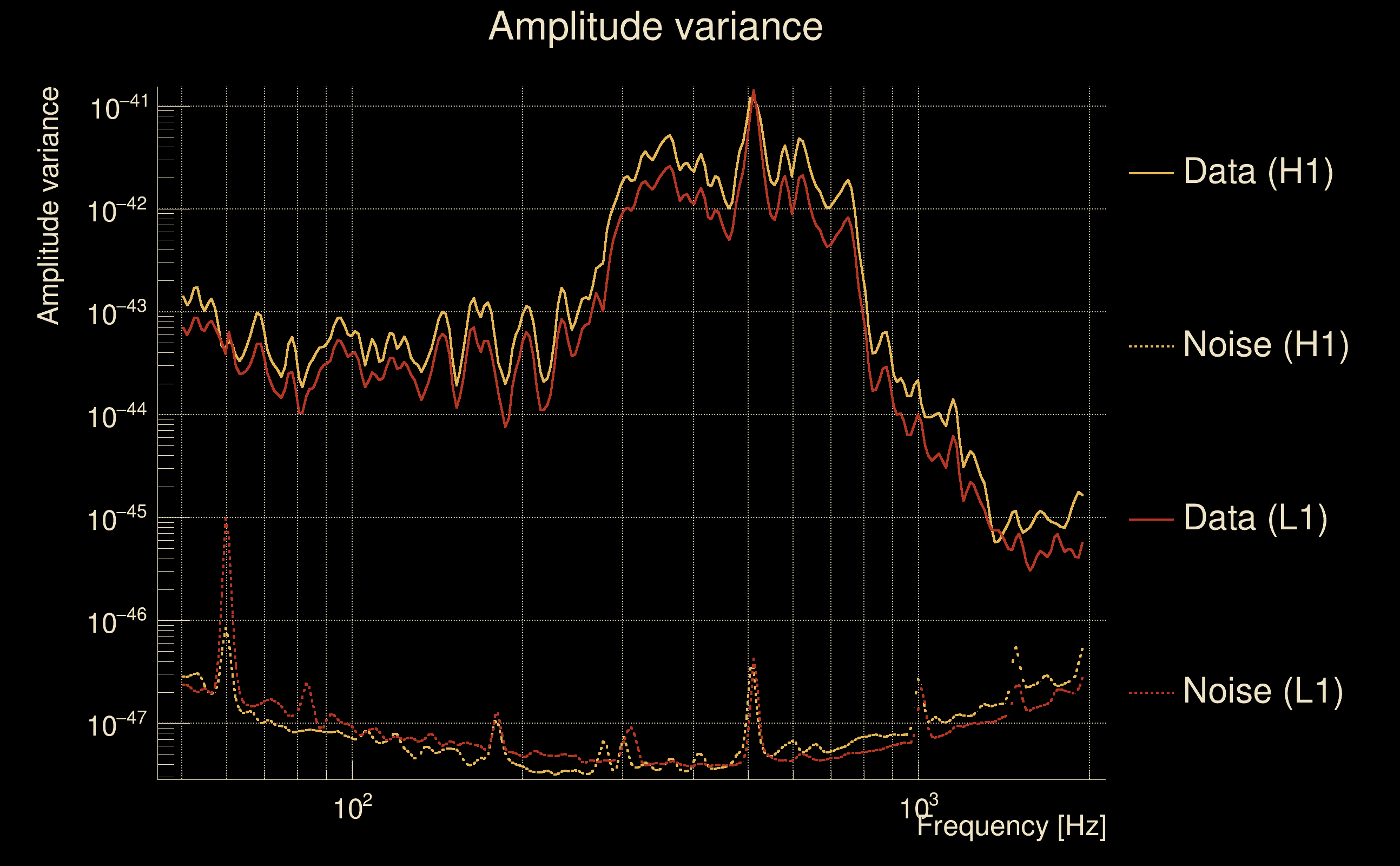

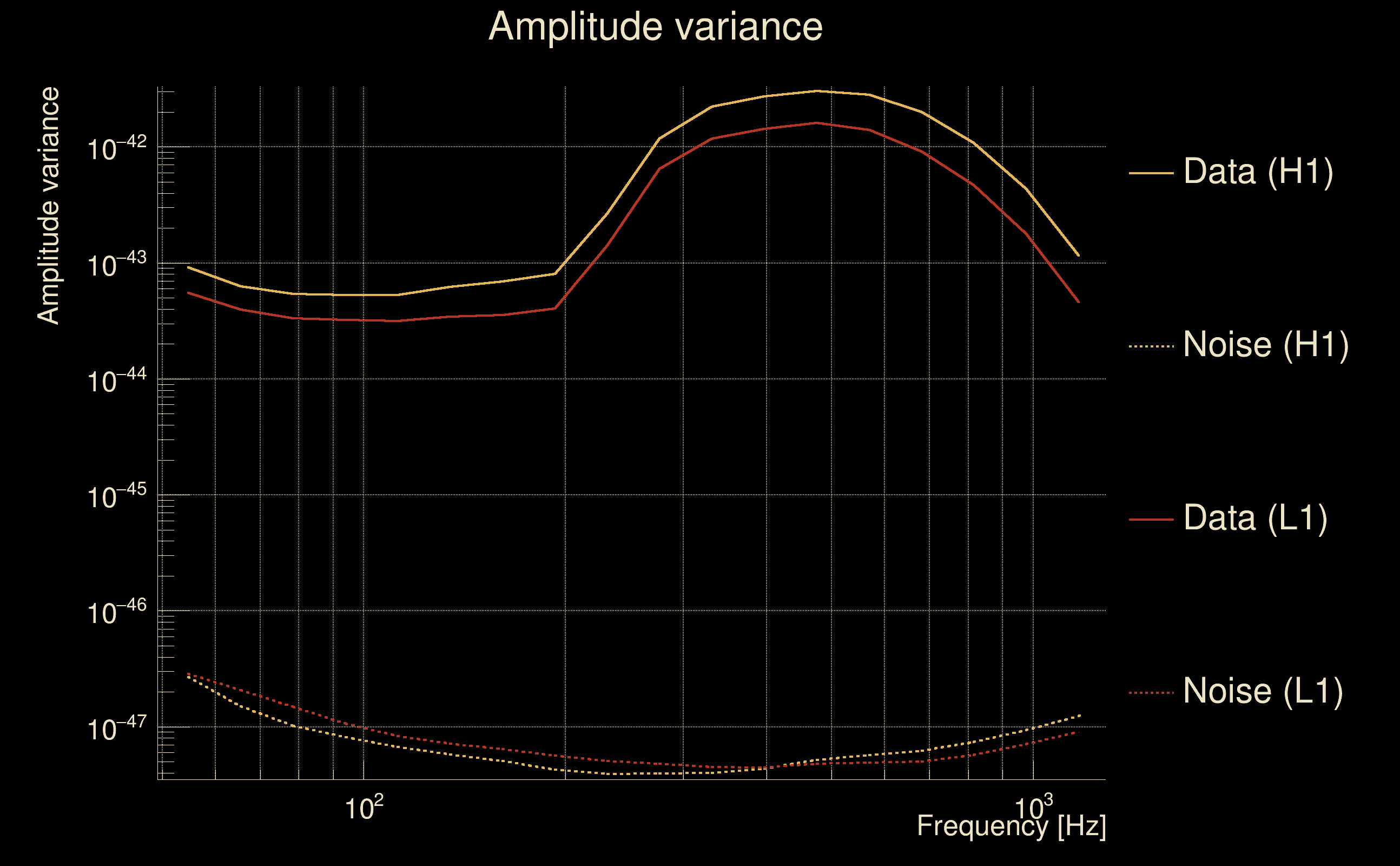

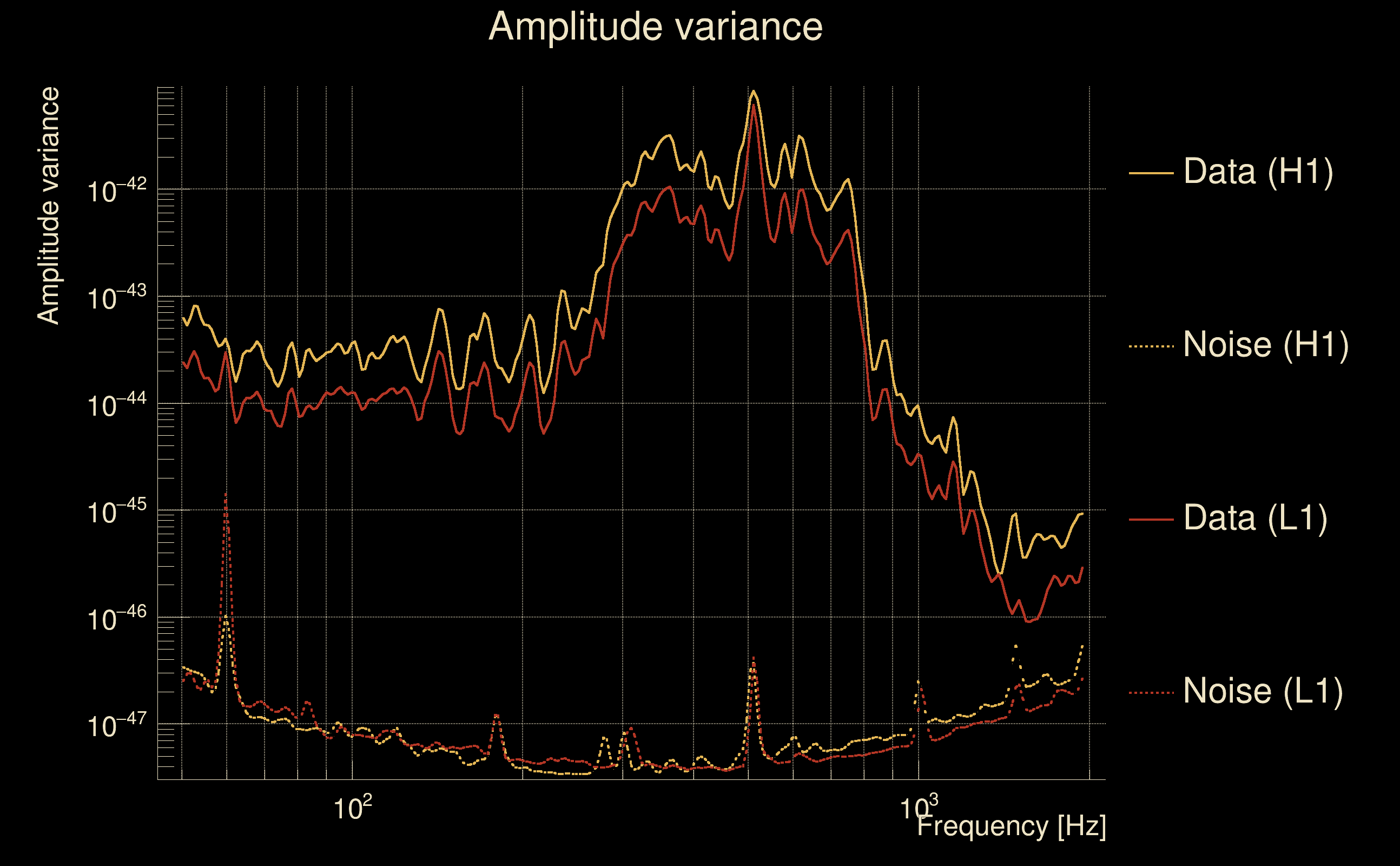

| SNR variance: | H1: 1653.61, L1: 569.223 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

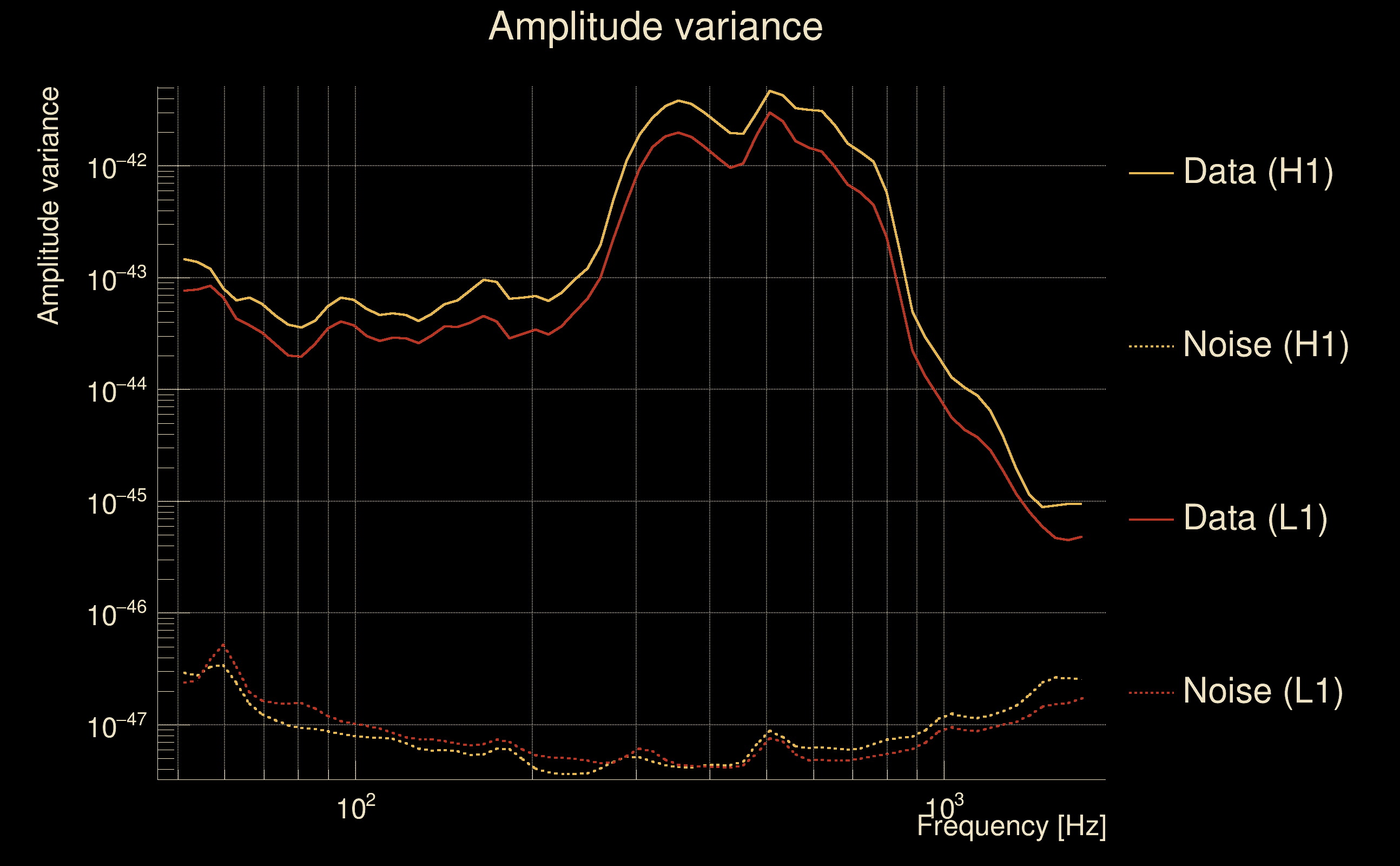

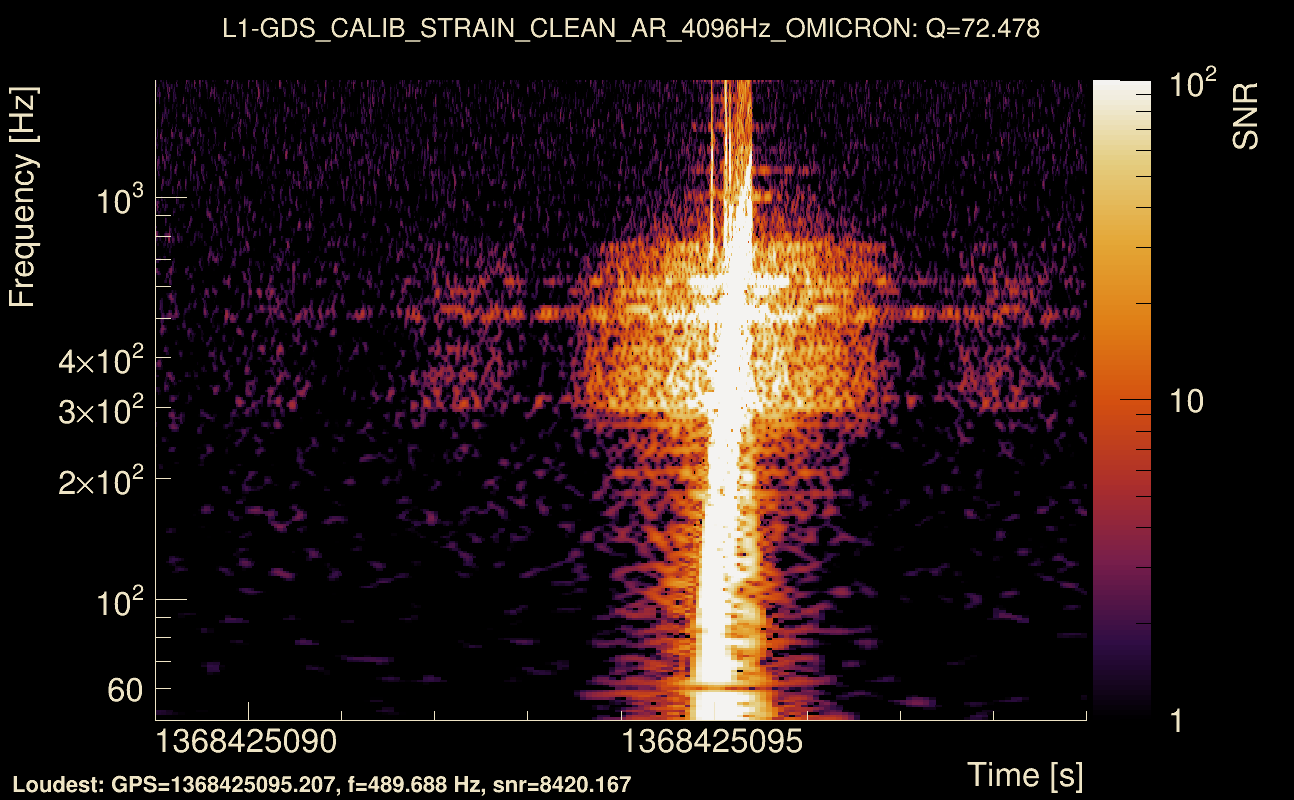

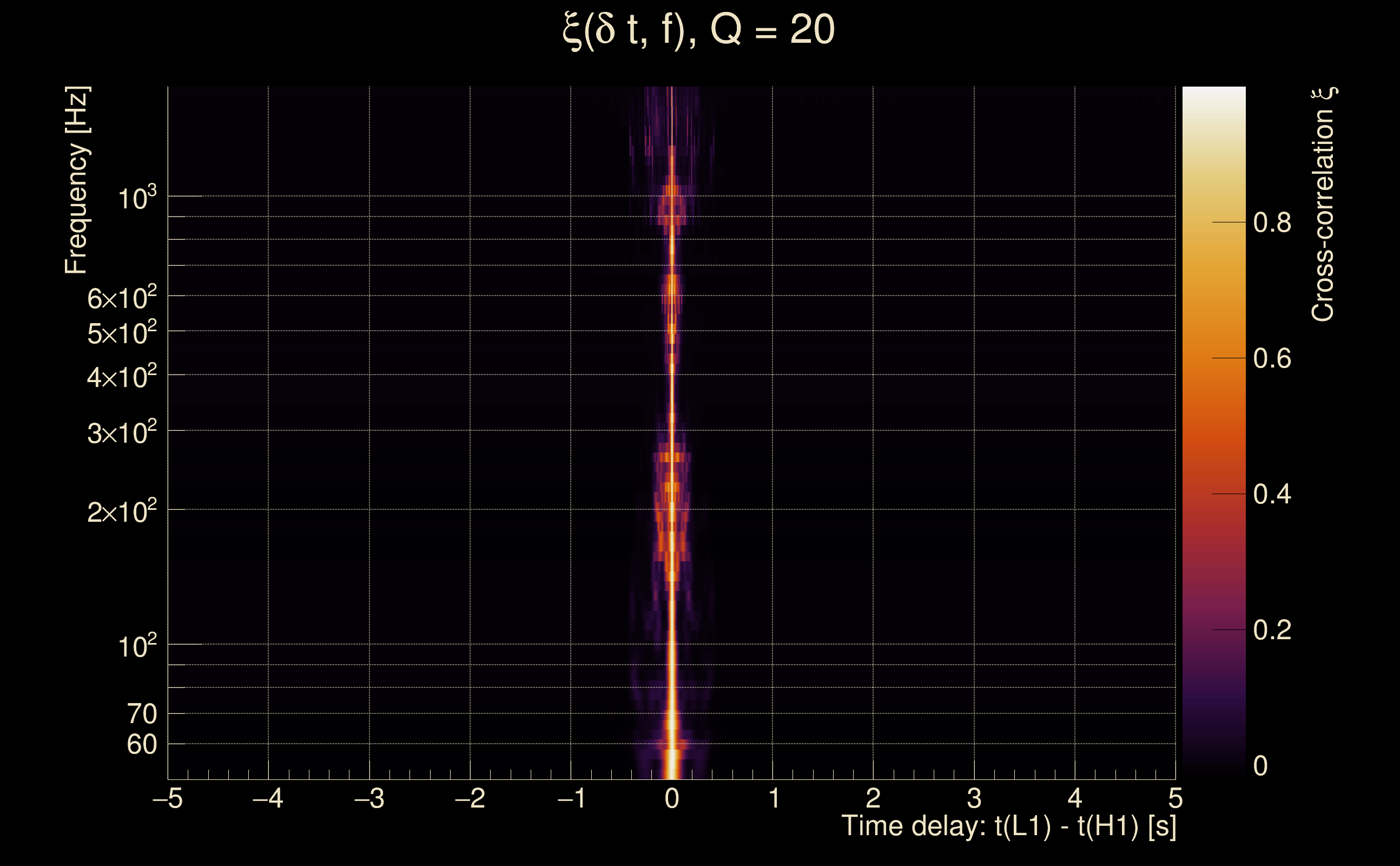

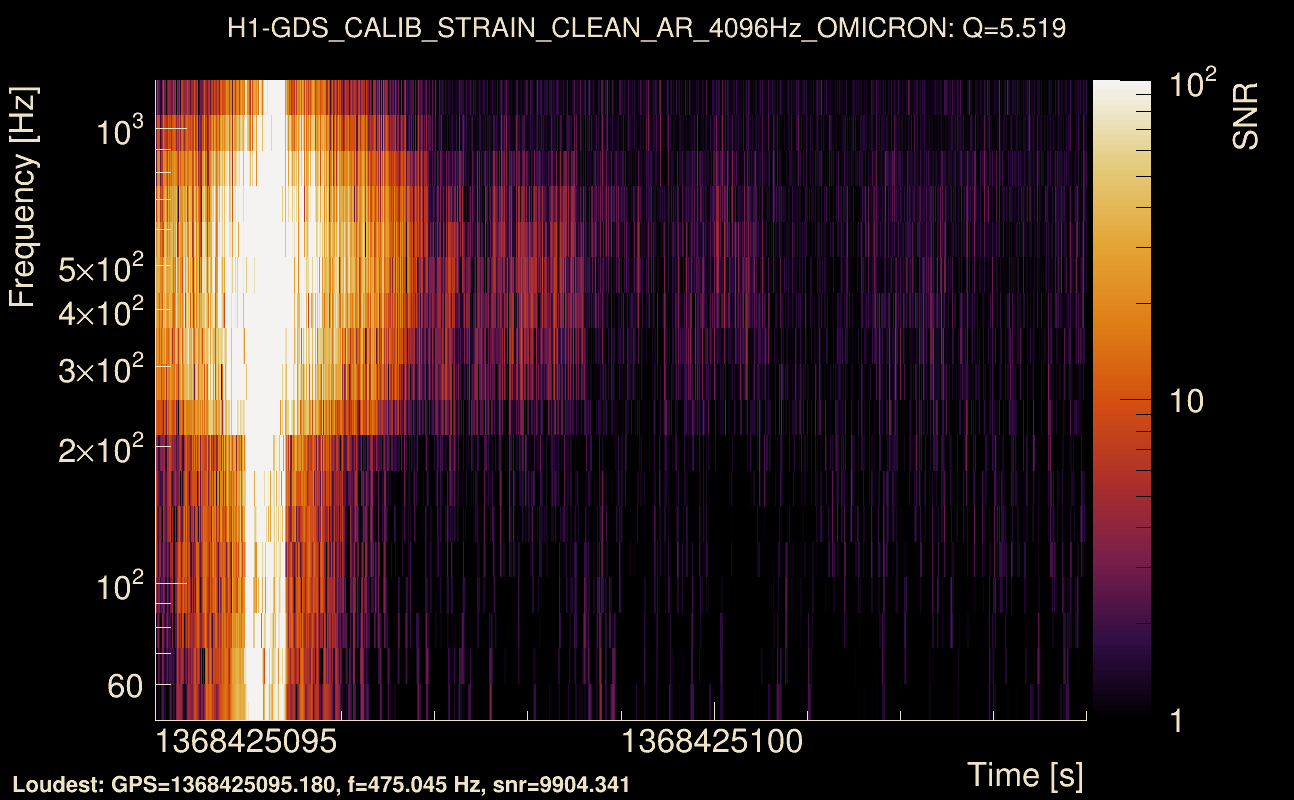

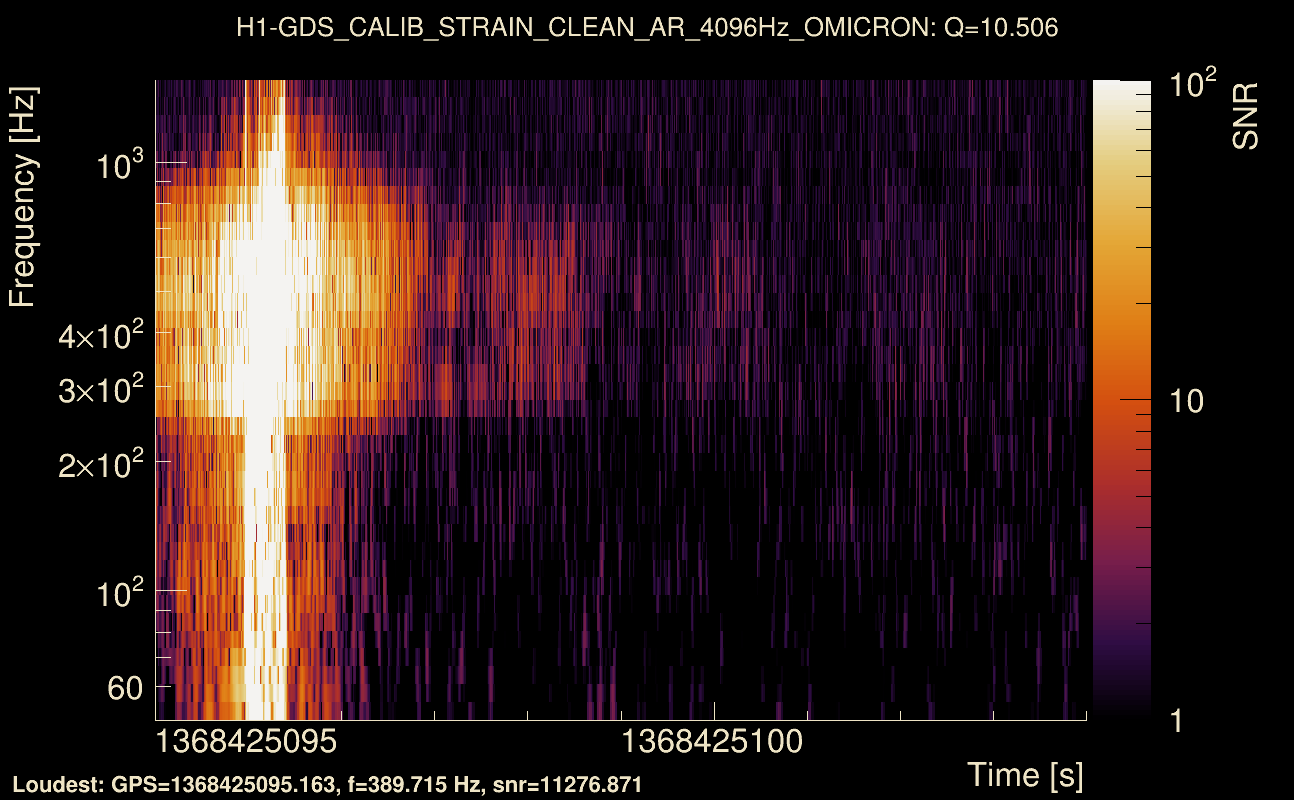

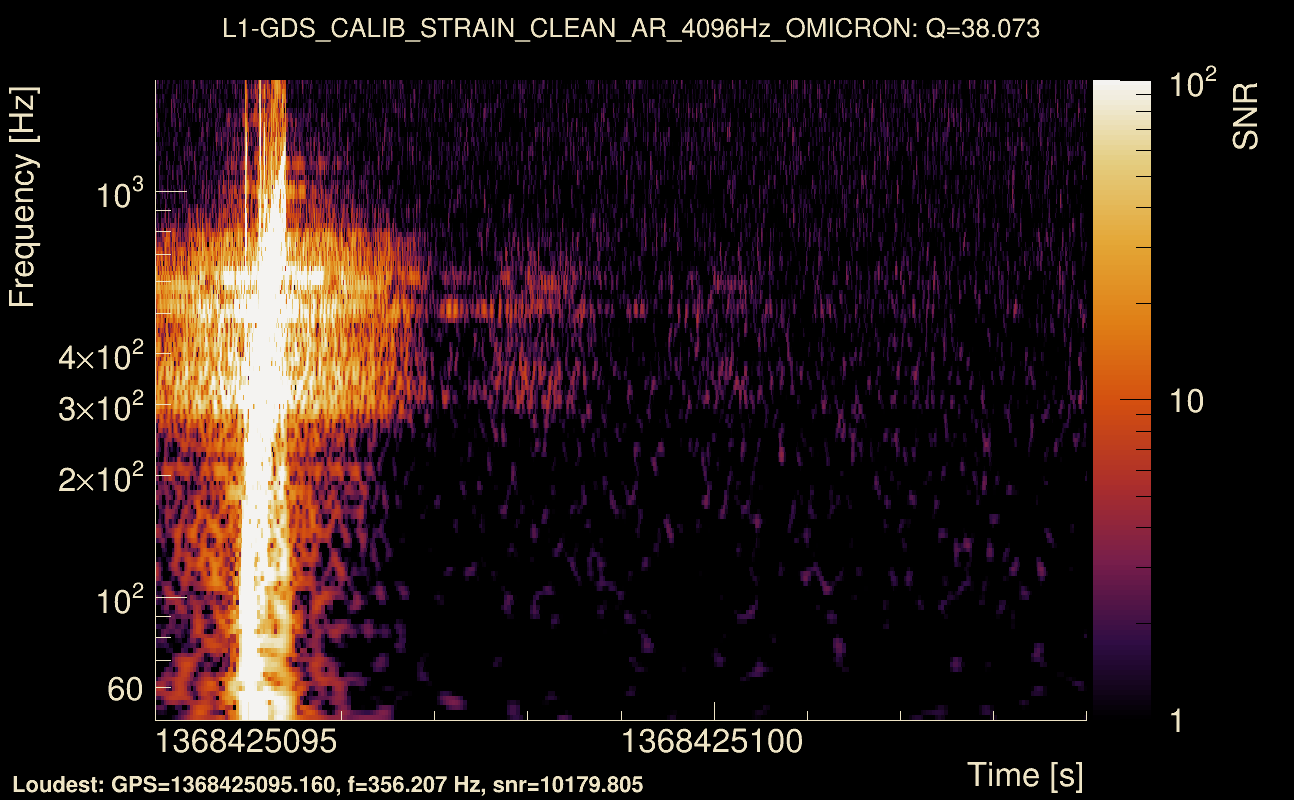

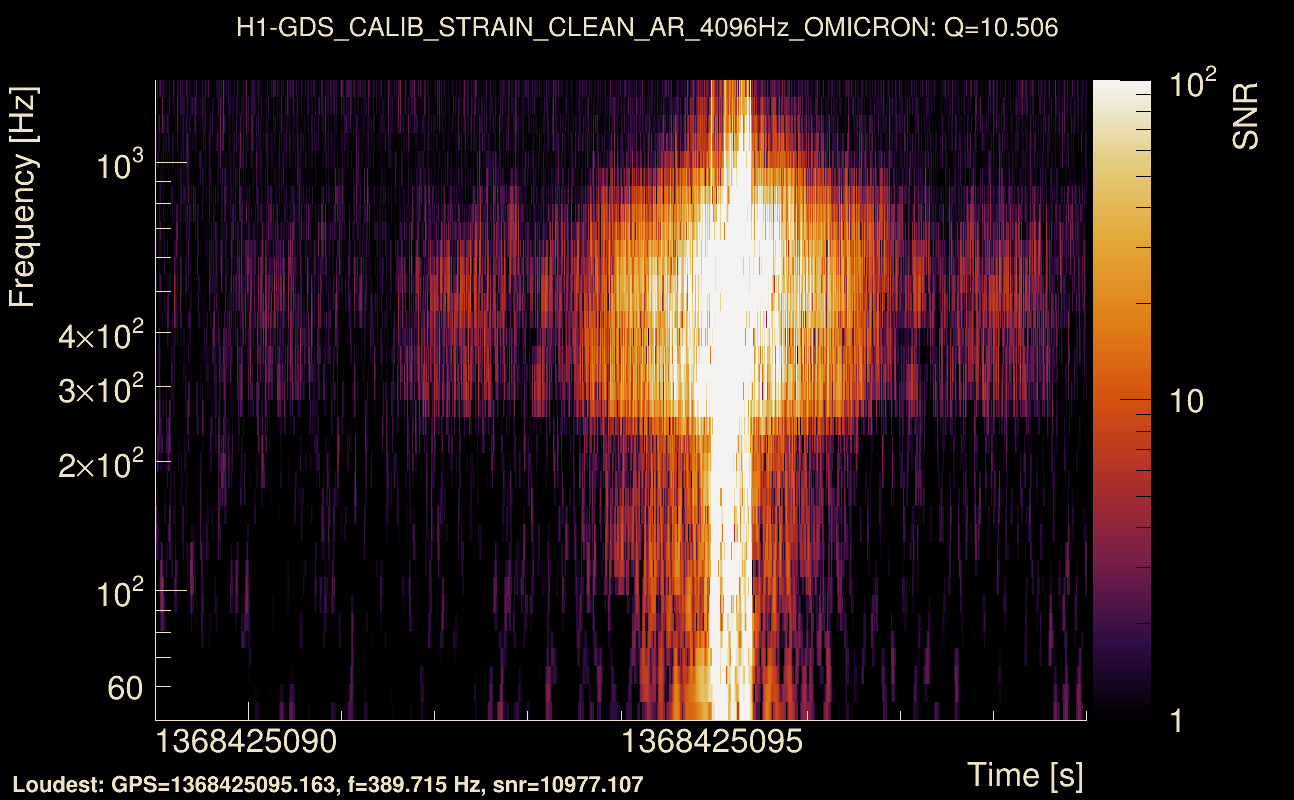

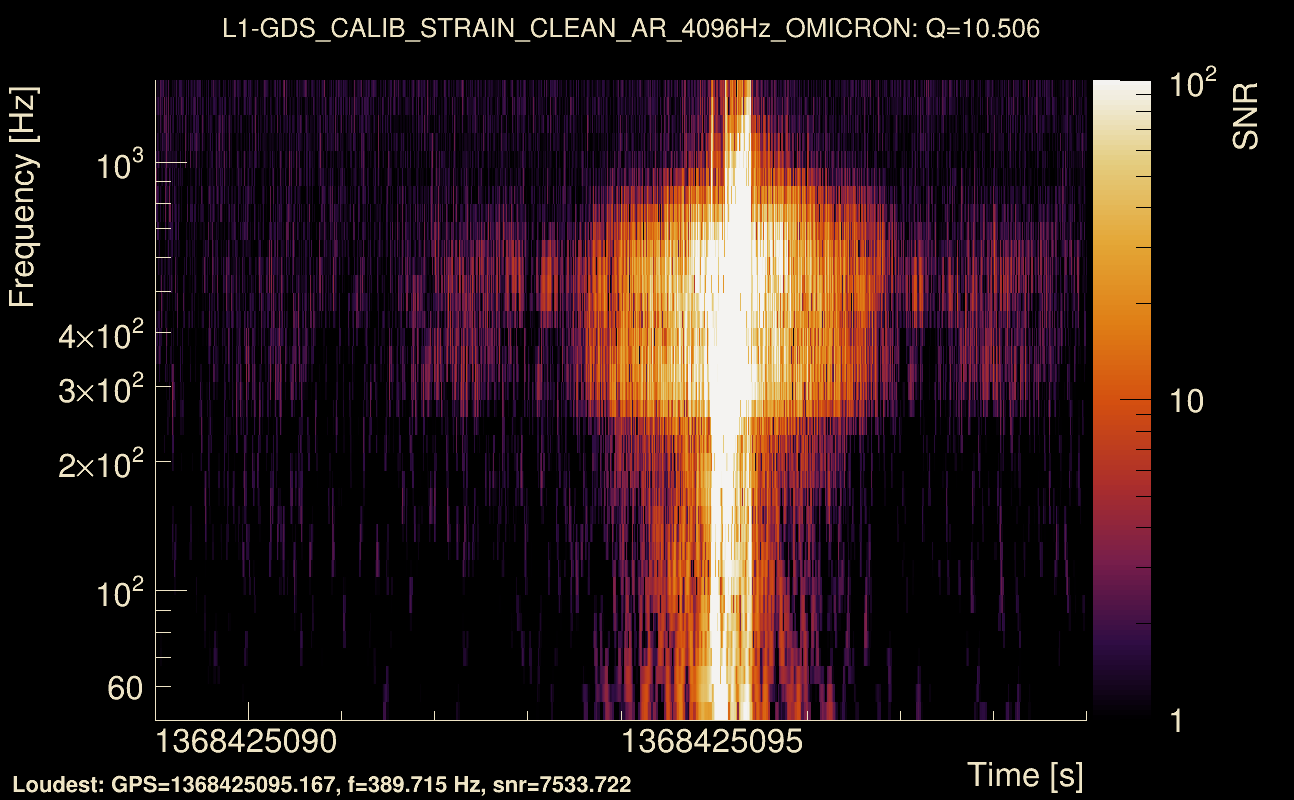

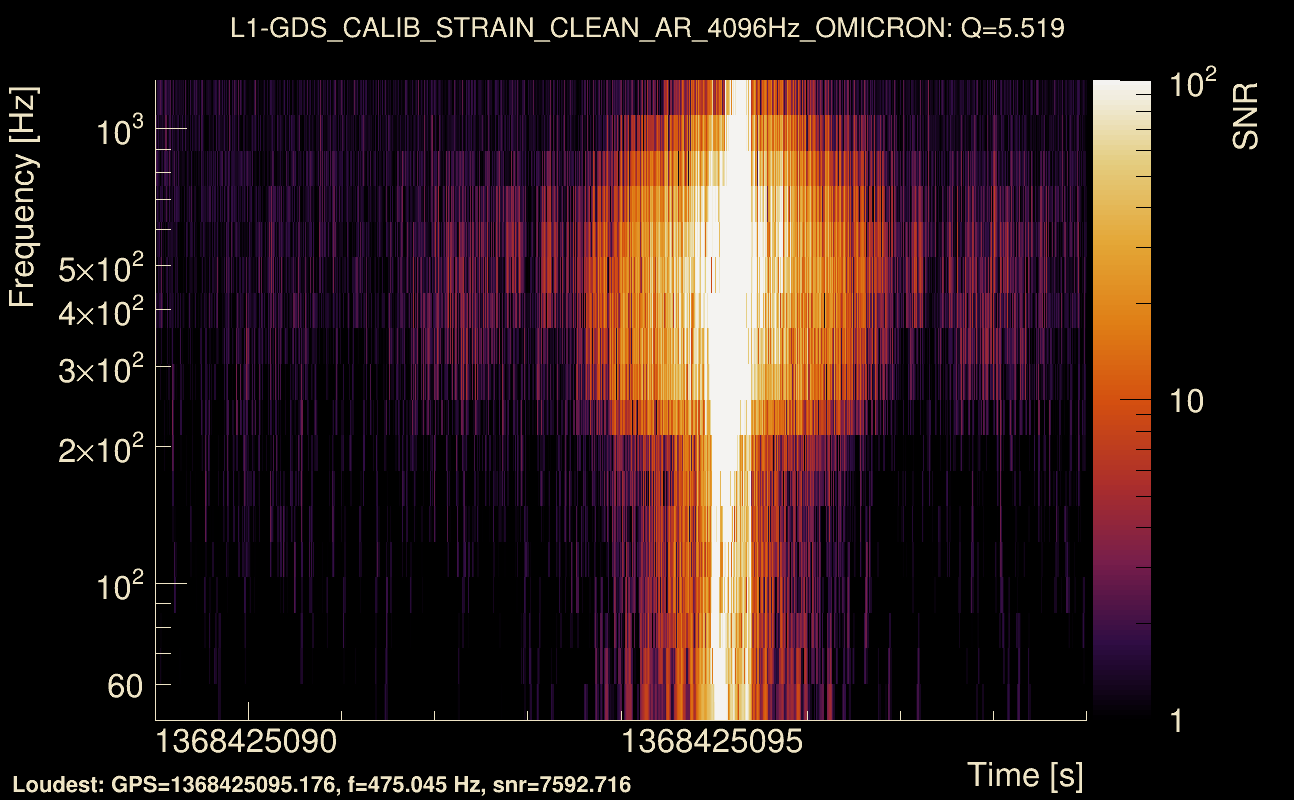

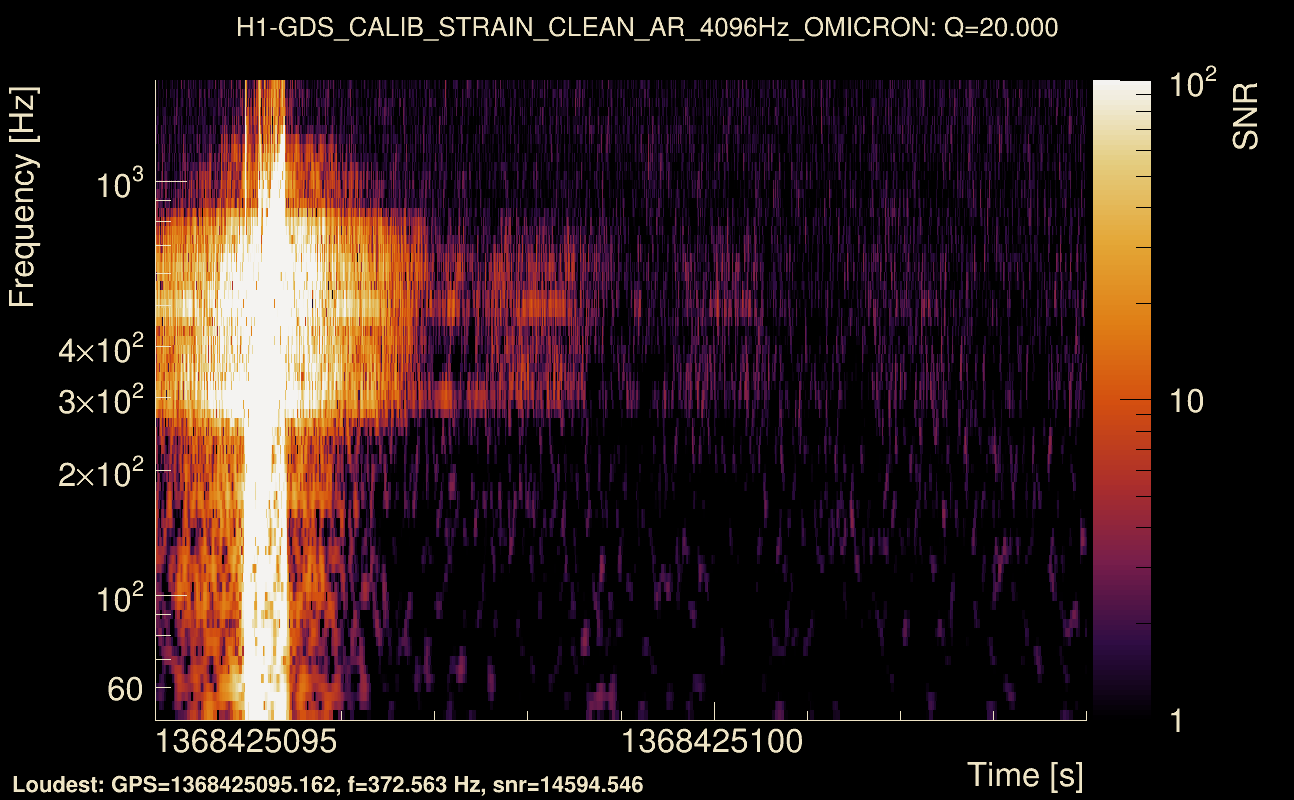

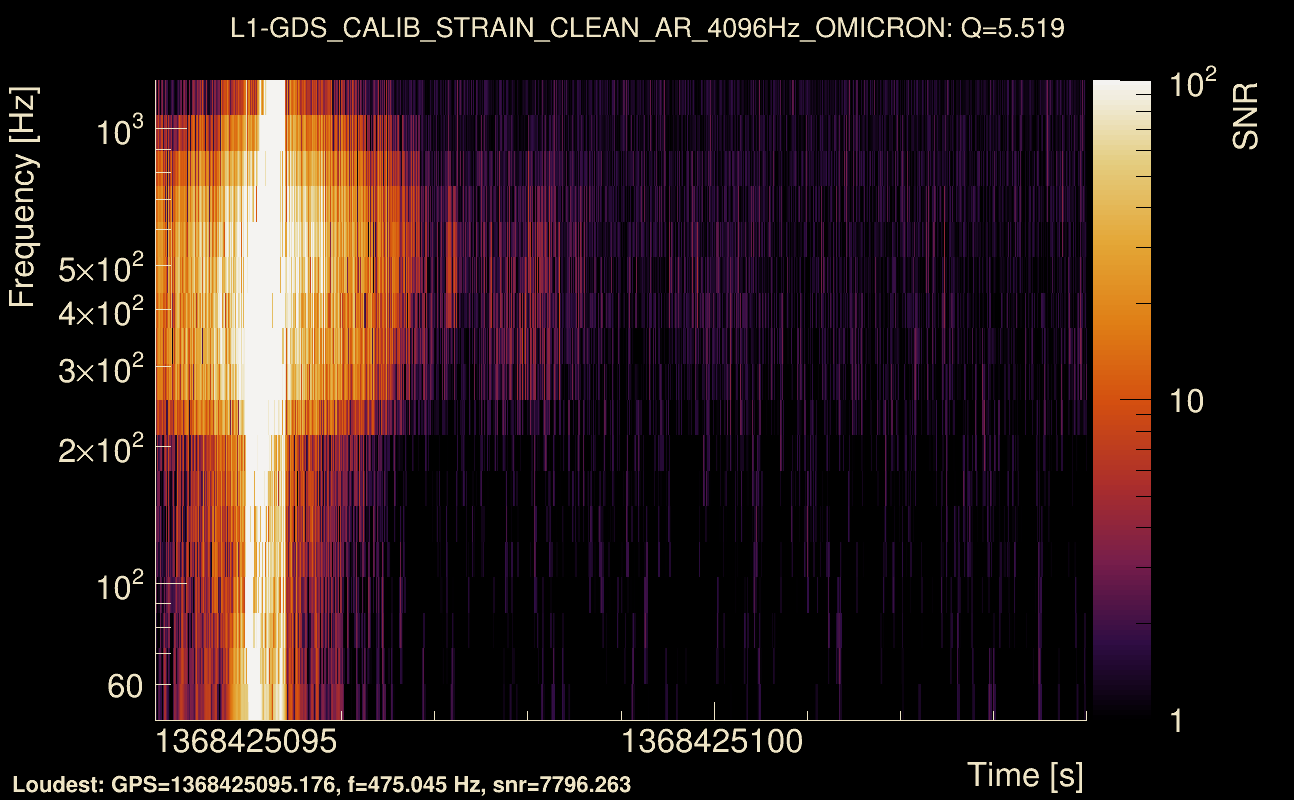

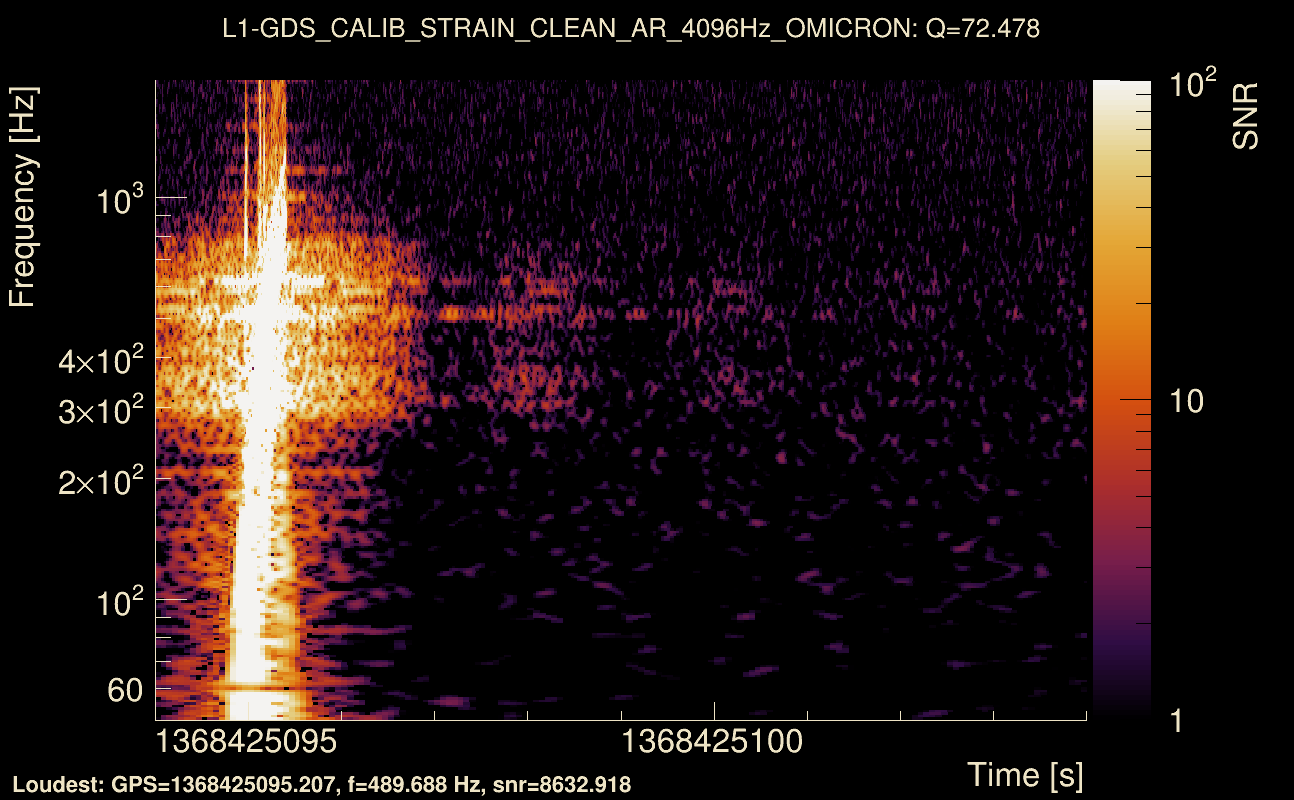

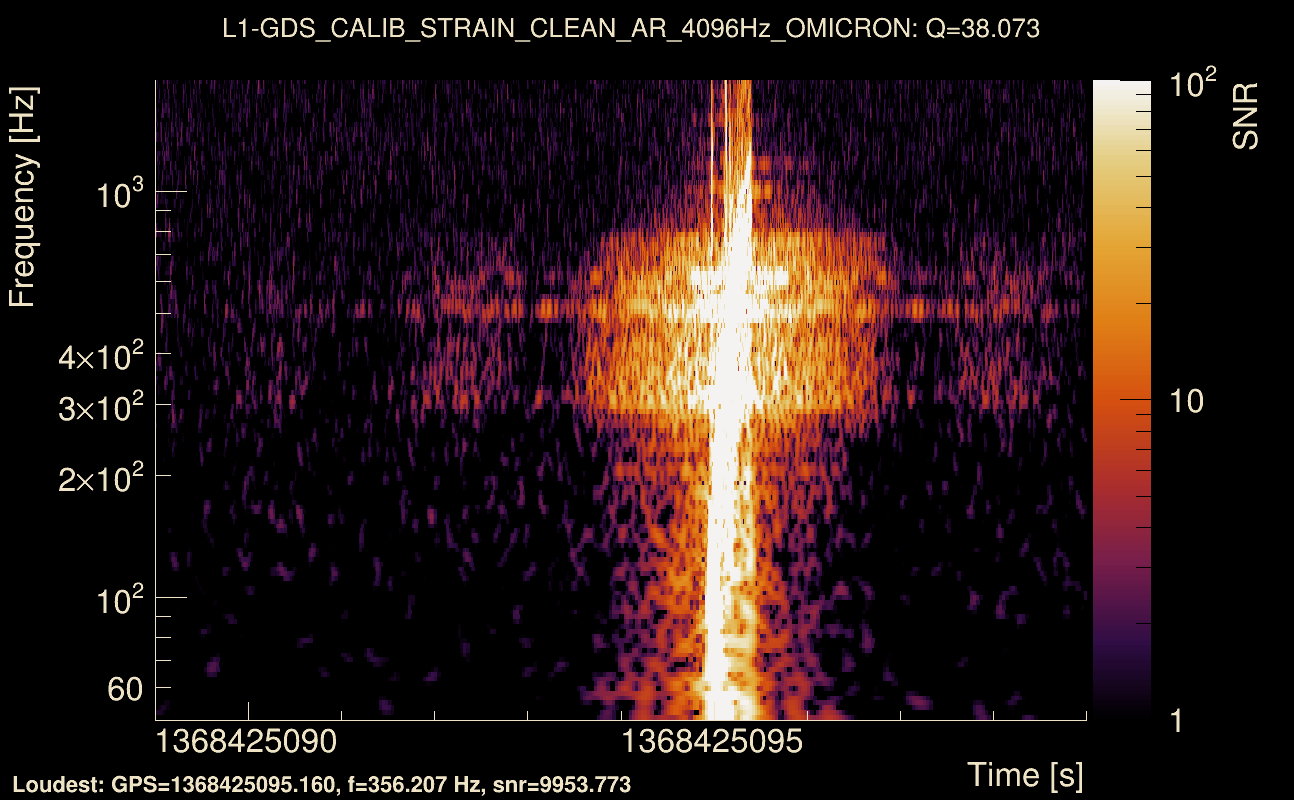

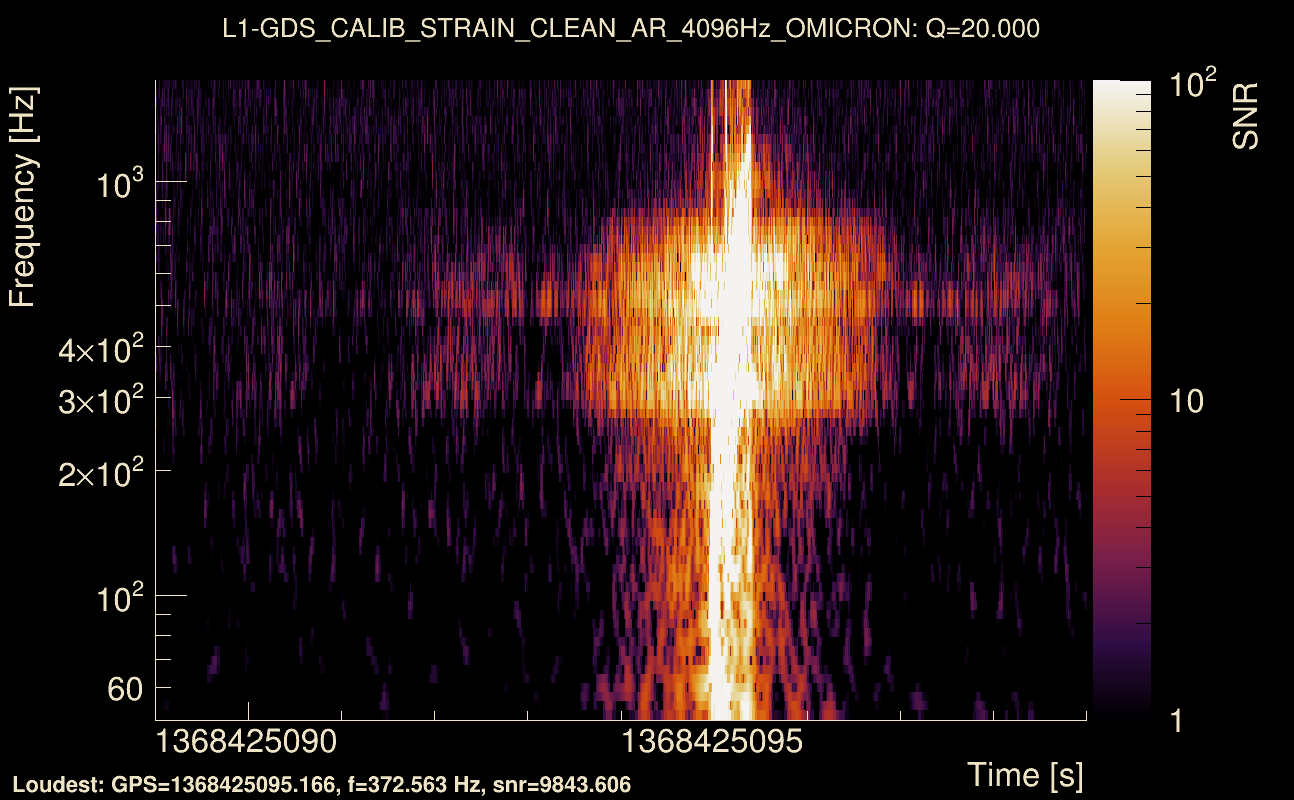

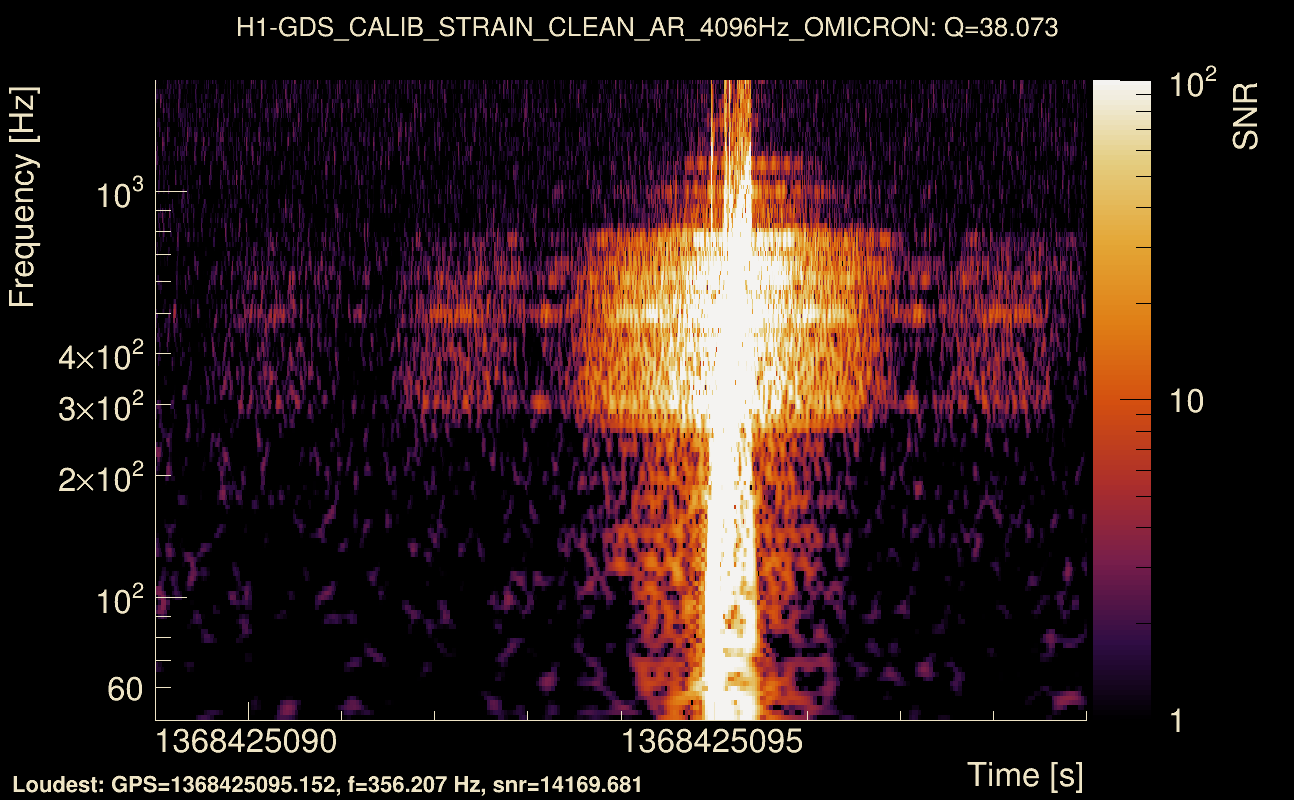

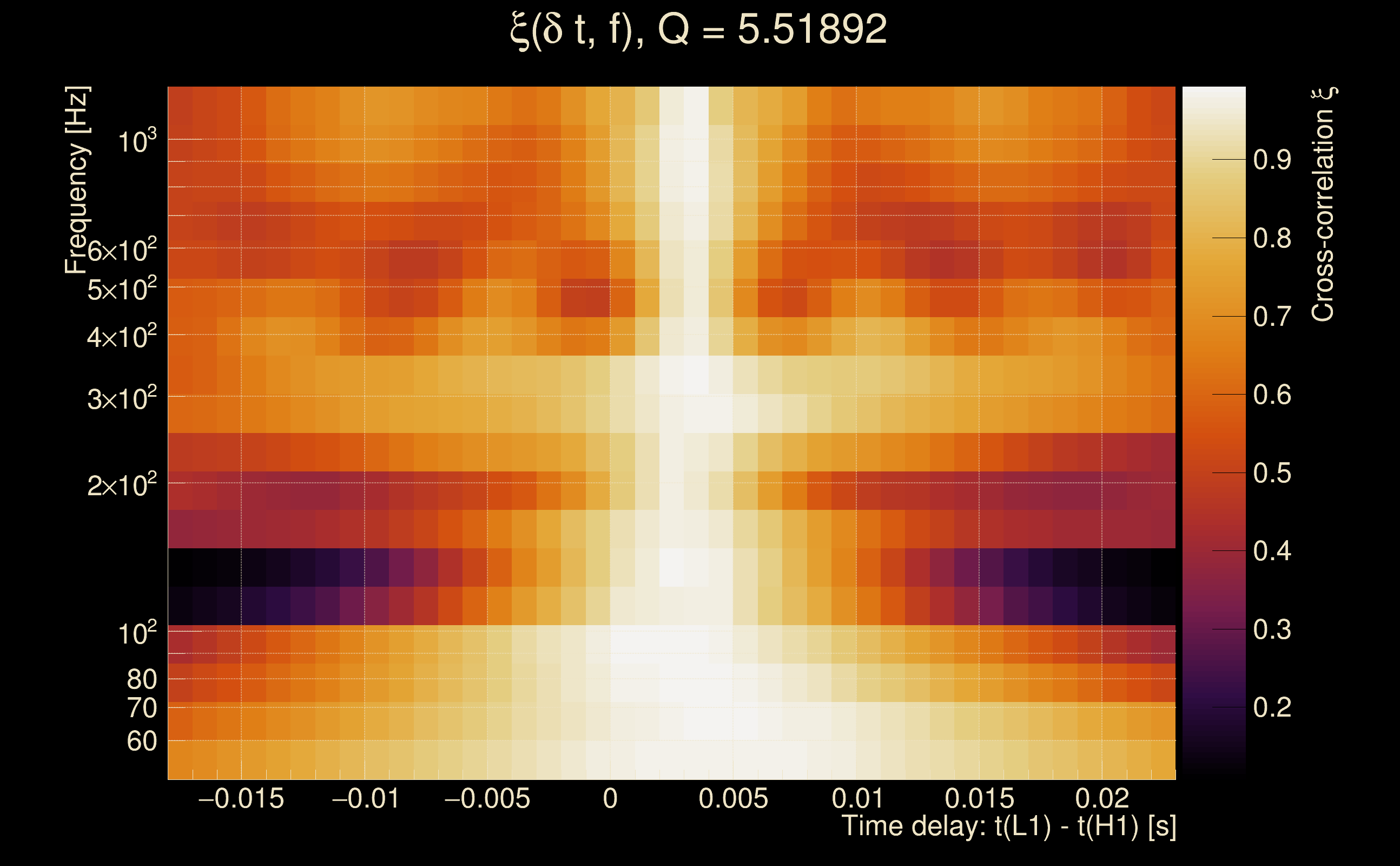

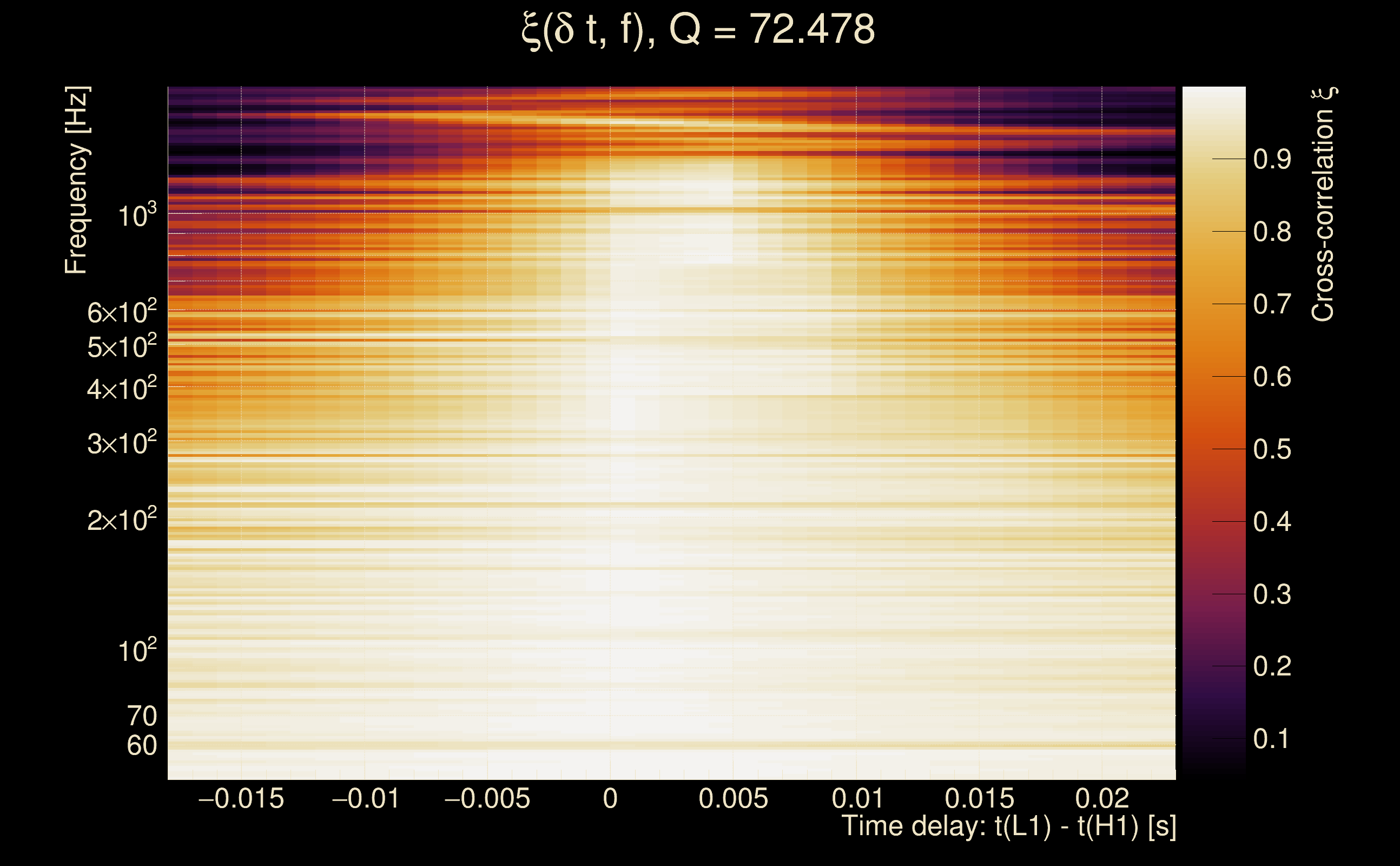

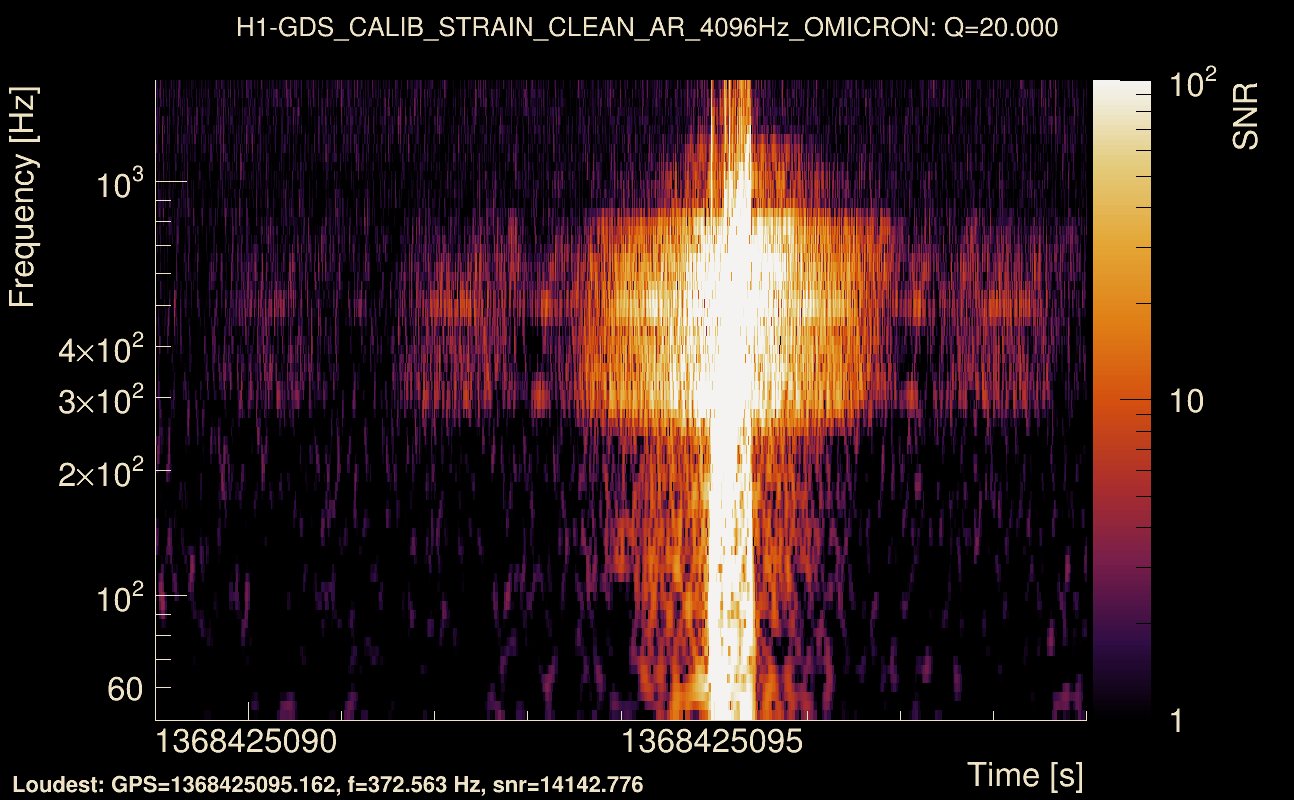

| Event time t(H1): | GPS = 1368425094 (Thu May 18 06:04:36 2023 ) → GPS = 1368425104 (Thu May 18 06:04:46 2023 ) |
| Event time t(L1): | GPS = 1368425094 (Thu May 18 06:04:46 2023 ) → GPS = 1368425104 (Thu May 18 06:04:46 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368425091 → GPS = 1368425107 |
| Omicron analysis time window (L1): | GPS = 1368425091 → GPS = 1368425107 |
| Time delay between detectors t(L1) - t(H1): | 0.00262309 s (slice index = 108 / 217), δt_gw = 0.00262309 s |
| Time delay standard deviation: | 0.0388965 s |
| [targeted mode] Time delay probability: | 0.984532 (0.0193876 sigmas), δt_target = 0.00481367 s |
| Frequency: | 278.455 Hz |
| Ξ: | 0.977264 ± 0.0054471 (variance = 2.96709e-05): Q0: 0.982533, Q1: 0.972609, Q2: 0.973162, Q3: 0.968661, Q4: 0.966772 |
| Rank: | R_A = 0.962147 |
| Log of amplitude ratio (L1/H1): | -0.342505, variance = 0.162287 (L1/H1: -0.354782, variance = 0.302098, H1/L1: 0.32113, variance = 0.303589) |
| Amplitude ratio (L1/H1): | 0.709989 ⋇ 1.49608 (L1/H1: 0.701326 ⋇ 1.73262, H1/L1: 1.37869 ⋇ 1.73497) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.96551 |
| Antenna factor probability: | 0.586969 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 13923.9, L1: 10552.5 |

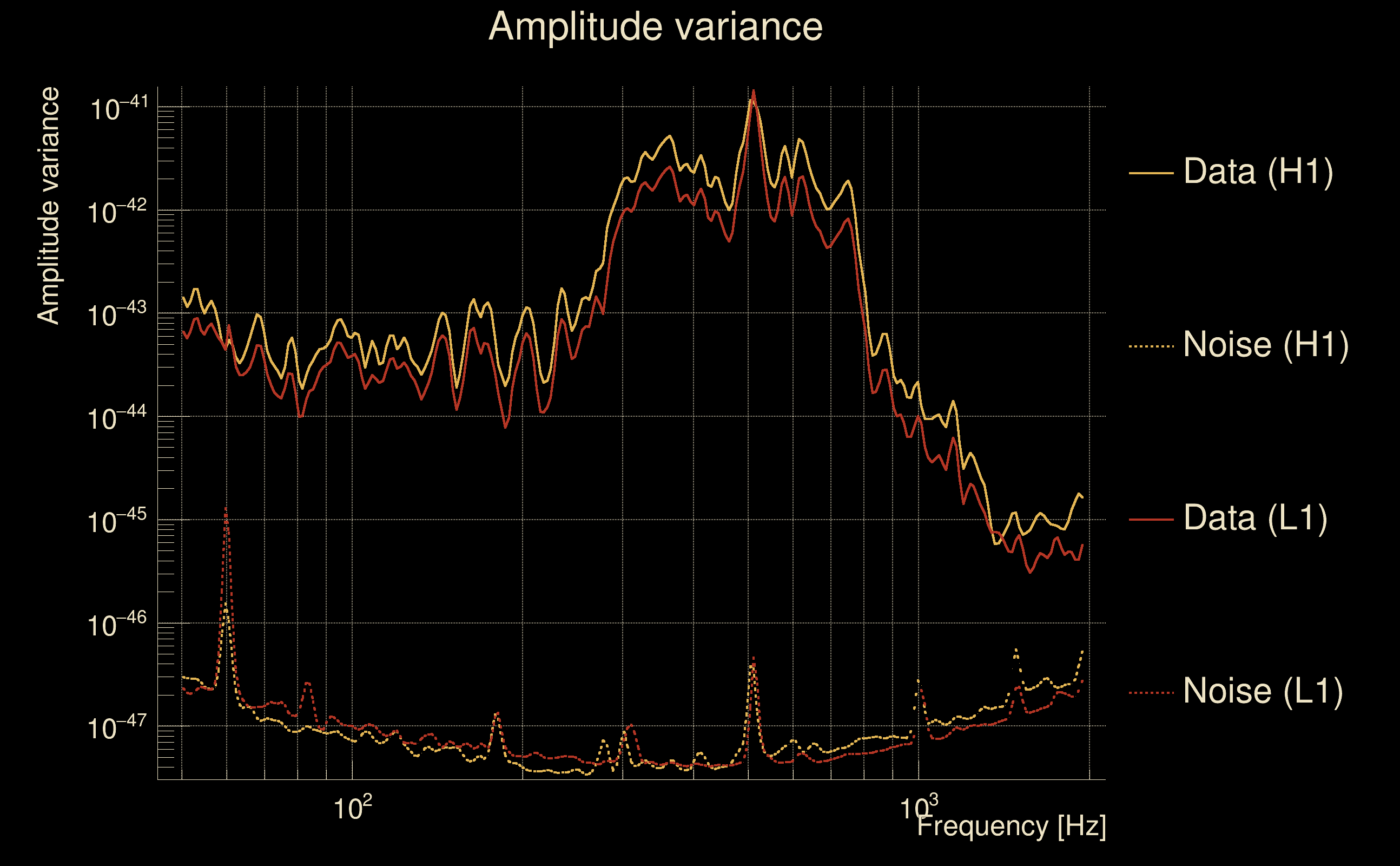

| SNR variance: | H1: 83733.7, L1: 48579.1 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

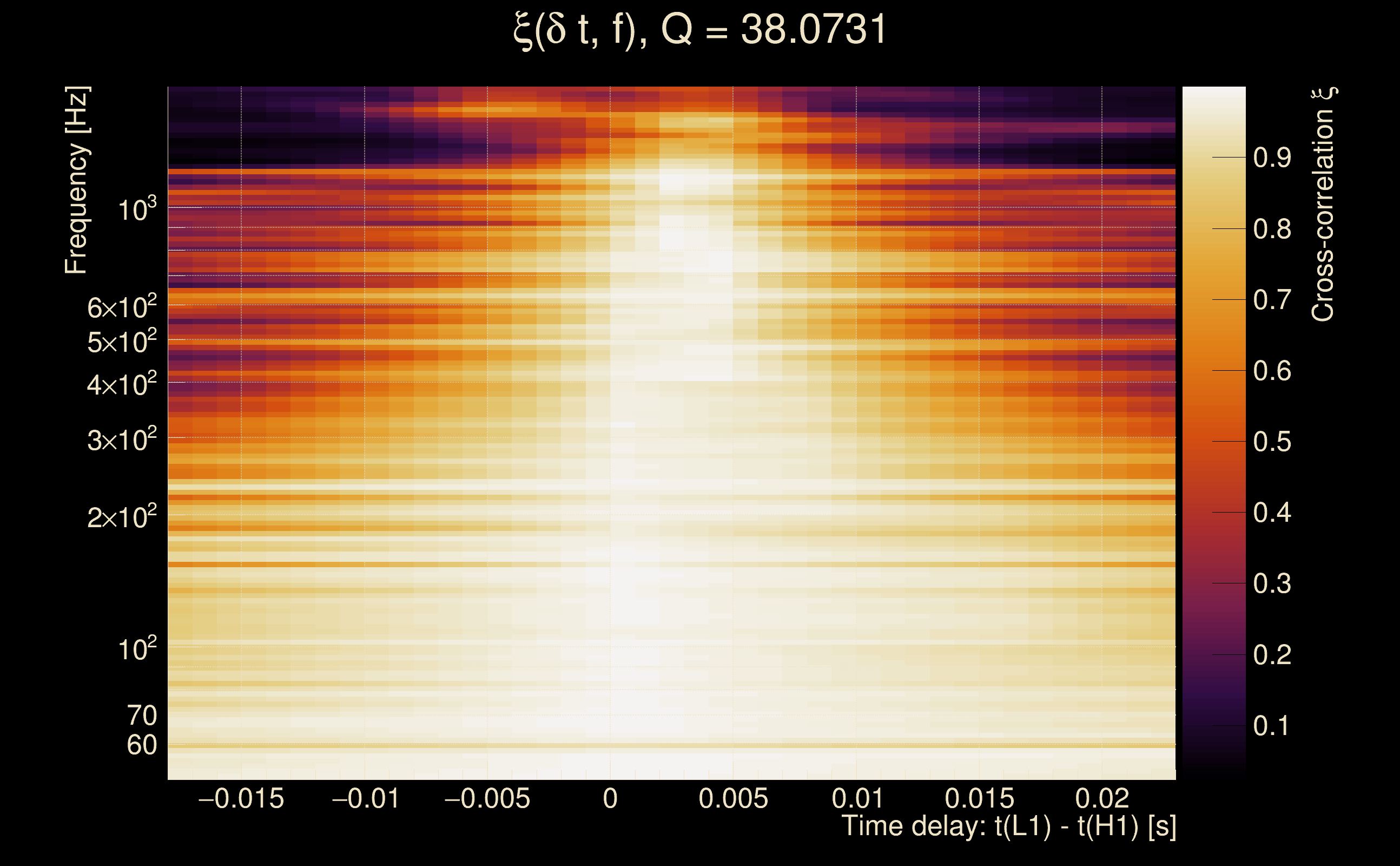

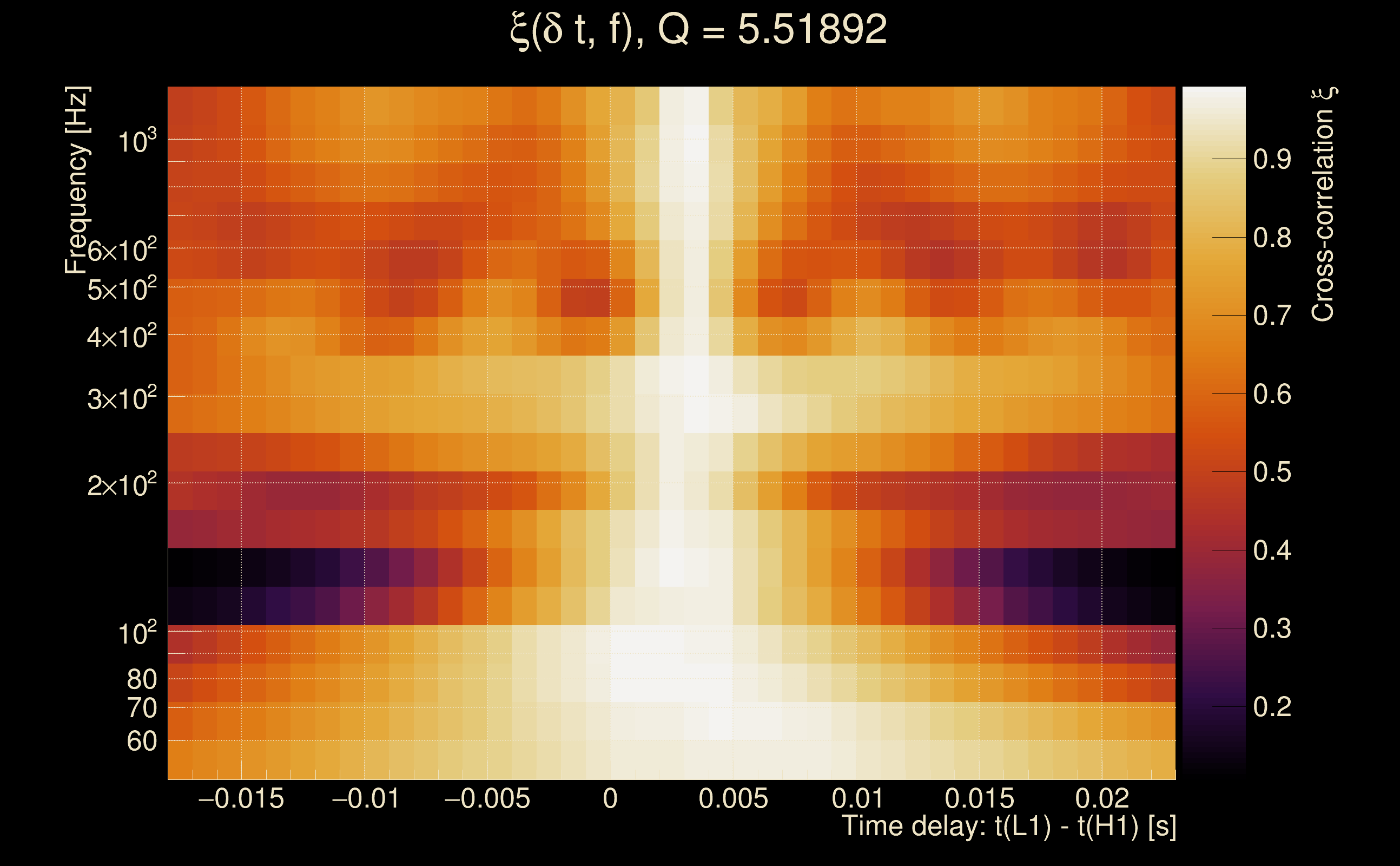

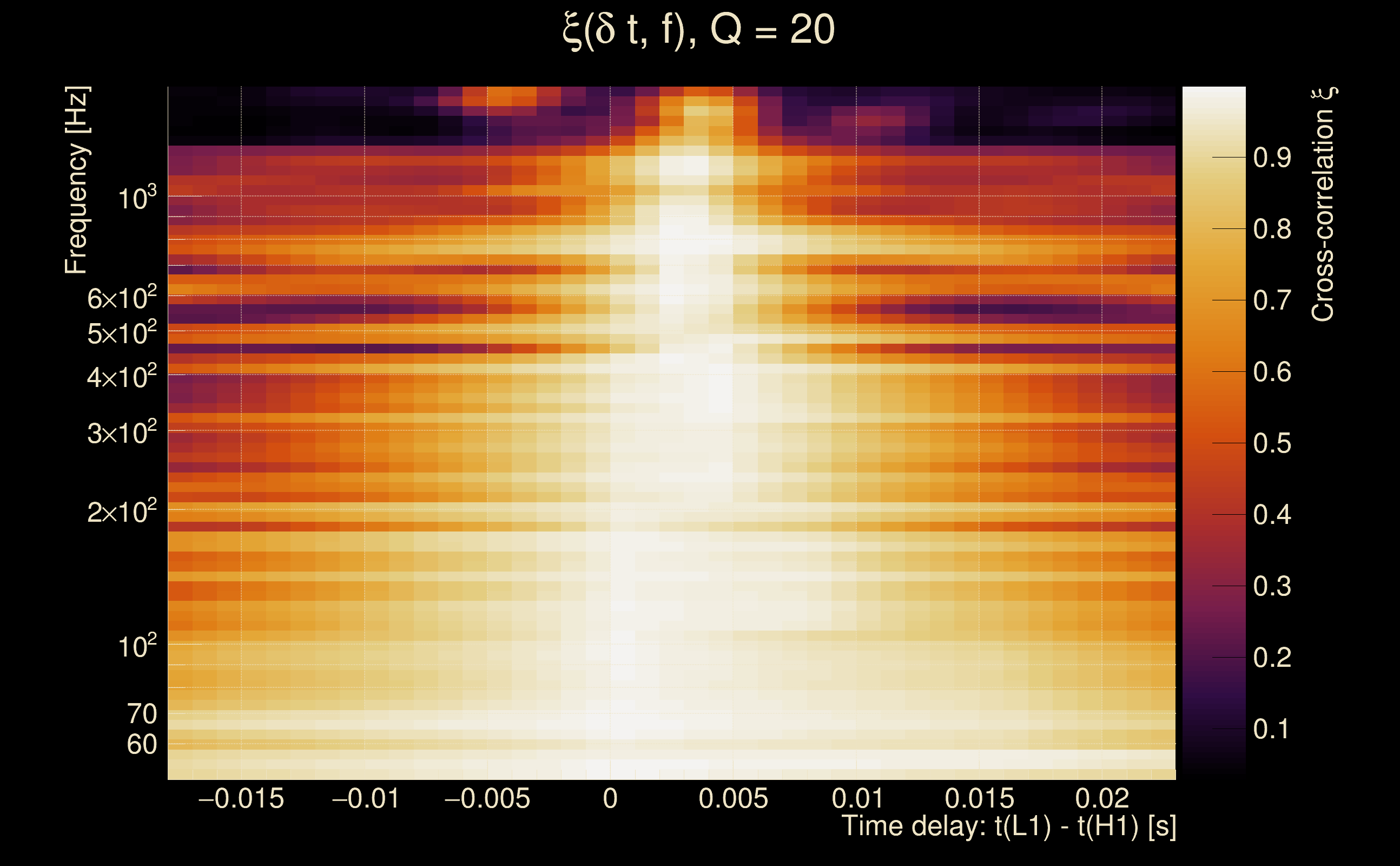

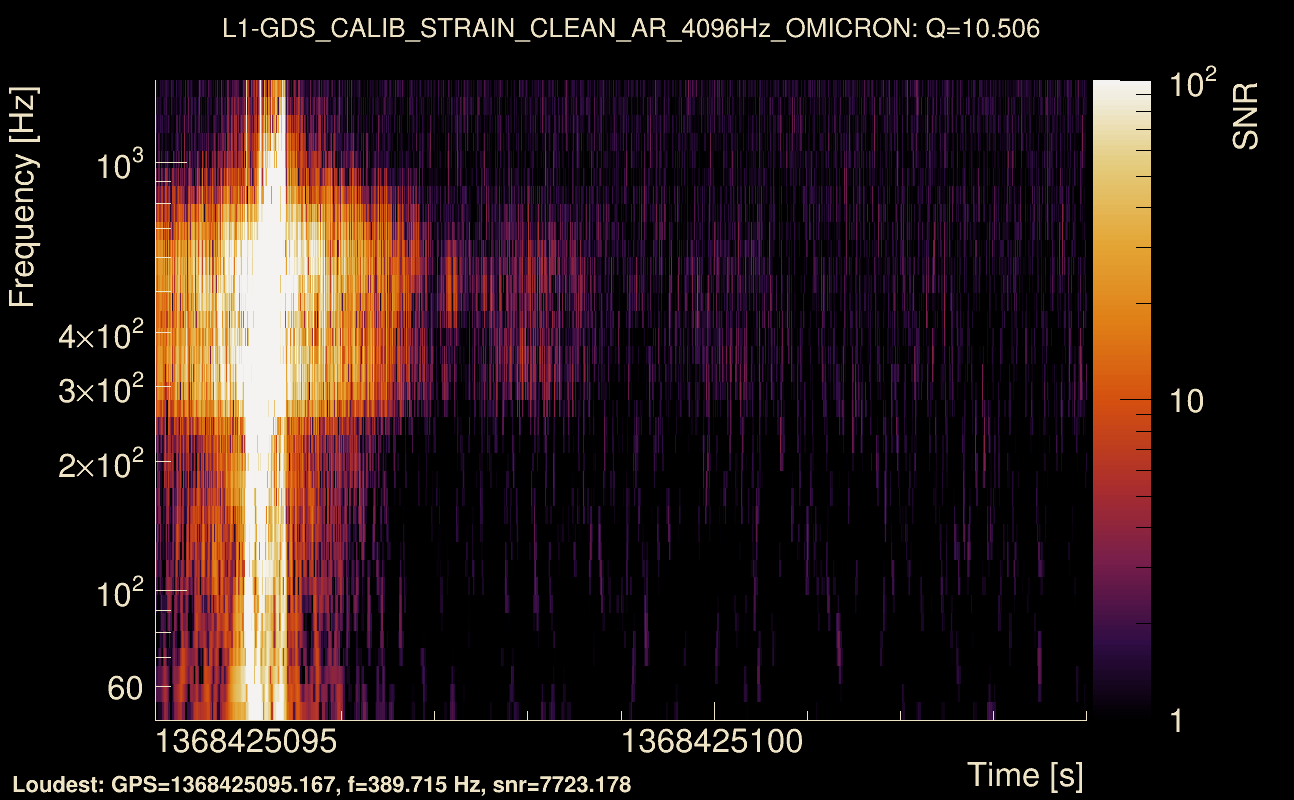

| Event time t(H1): | GPS = 1368425089 (Thu May 18 06:04:31 2023 ) → GPS = 1368425099 (Thu May 18 06:04:41 2023 ) |
| Event time t(L1): | GPS = 1368425089 (Thu May 18 06:04:41 2023 ) → GPS = 1368425099 (Thu May 18 06:04:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368425086 → GPS = 1368425102 |
| Omicron analysis time window (L1): | GPS = 1368425086 → GPS = 1368425102 |
| Time delay between detectors t(L1) - t(H1): | 0.00262279 s (slice index = 108 / 217), δt_gw = 0.00262279 s |
| Time delay standard deviation: | 0.0389195 s |
| [targeted mode] Time delay probability: | 0.983704 (0.020425 sigmas), δt_target = 0.00259376 s |
| Frequency: | 278.474 Hz |
| Ξ: | 0.977337 ± 0.00548043 (variance = 3.00351e-05): Q0: 0.982635, Q1: 0.972706, Q2: 0.973132, Q3: 0.968655, Q4: 0.966788 |
| Rank: | R_A = 0.96141 |
| Log of amplitude ratio (L1/H1): | -0.342903, variance = 0.16238 (L1/H1: -0.355056, variance = 0.302159, H1/L1: 0.32171, variance = 0.303636) |
| Amplitude ratio (L1/H1): | 0.709707 ⋇ 1.49625 (L1/H1: 0.701134 ⋇ 1.73272, H1/L1: 1.37948 ⋇ 1.73504) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.965827 |

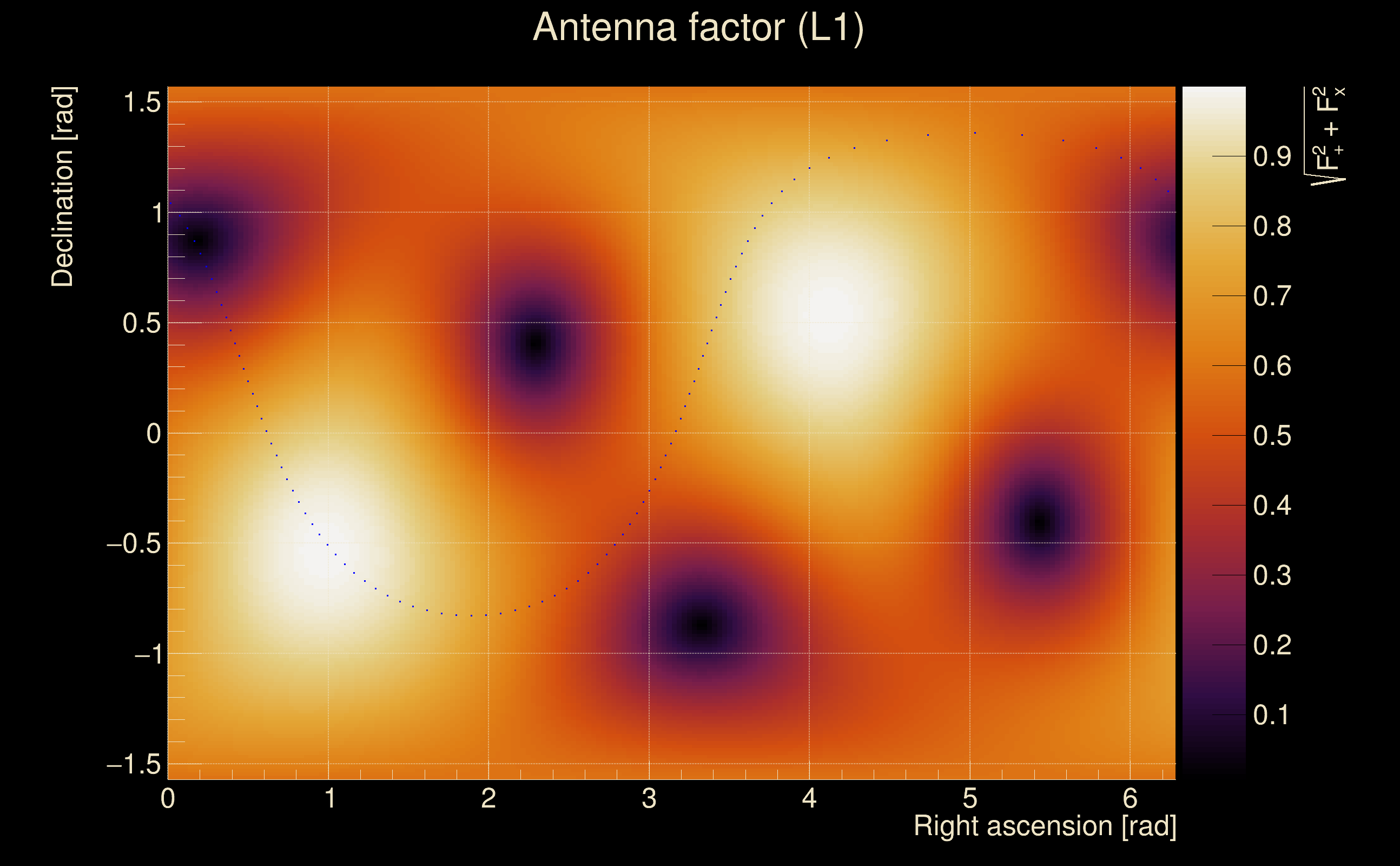

| Antenna factor probability: | 0.586238 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 14202.9, L1: 10755.2 |
| SNR variance: | H1: 3.47174, L1: 2.17122 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368335003 (Wed May 17 05:03:05 2023 ) → GPS = 1368335013 (Wed May 17 05:03:15 2023 ) |
| Event time t(L1): | GPS = 1368335003 (Wed May 17 05:03:15 2023 ) → GPS = 1368335013 (Wed May 17 05:03:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368335000 → GPS = 1368335016 |
| Omicron analysis time window (L1): | GPS = 1368335000 → GPS = 1368335016 |
| Time delay between detectors t(L1) - t(H1): | 0.0950214 s (slice index = 106 / 217), δt_gw = 0.0030214 s |
| Time delay standard deviation: | 0.0826522 s |
| [targeted mode] Time delay probability: | 0.790776 (0.265303 sigmas), δt_target = 0.00259185 s |
| Frequency: | 283.092 Hz |
| Ξ: | 0.210821 ± 0.0207033 (variance = 0.000428626): Q0: 0.480953, Q1: 0.474029, Q2: 0.470882, Q3: 0.50349, Q4: 0.43913 |
| Rank: | R_A = 0.166713 |
| Log of amplitude ratio (L1/H1): | -0.0569688, variance = 0.245177 (L1/H1: -0.775322, variance = 0.388578, H1/L1: -0.33856, variance = 0.471695) |
| Amplitude ratio (L1/H1): | 0.944624 ⋇ 1.64075 (L1/H1: 0.460556 ⋇ 1.86519, H1/L1: 0.712796 ⋇ 1.98735) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.229775 |
| Antenna factor probability: | 0.999271 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 18 / 36, Q2: 50 / 70, Q3: 104 / 134, Q4: 218 / 258 |
| Maximum signal-to-noise ratio: | H1: 405.84, L1: 546.934 |
| SNR variance: | H1: 0.467869, L1: 0.4975 |

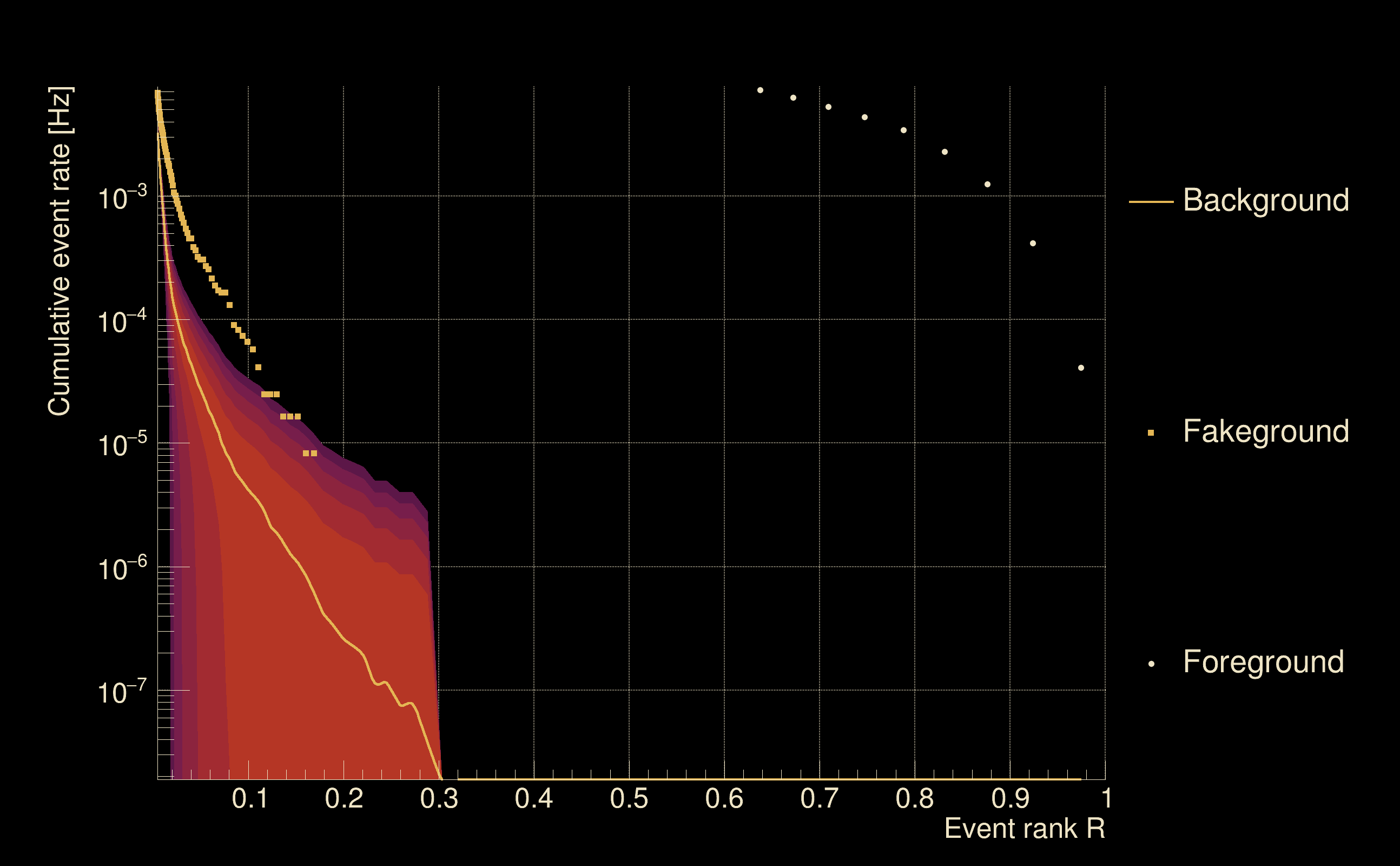

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 1.97154e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.288012 |
| Alternative threshold at 1/100 yrs: | R > 0.288012 |
| Alternative threshold at 1/10 yrs: | R > 0.288012 |
| Alternative threshold at 1/1 yr: | R > 0.288012 |
| Alternative threshold at 1/1 d: | R > 0.0689378 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

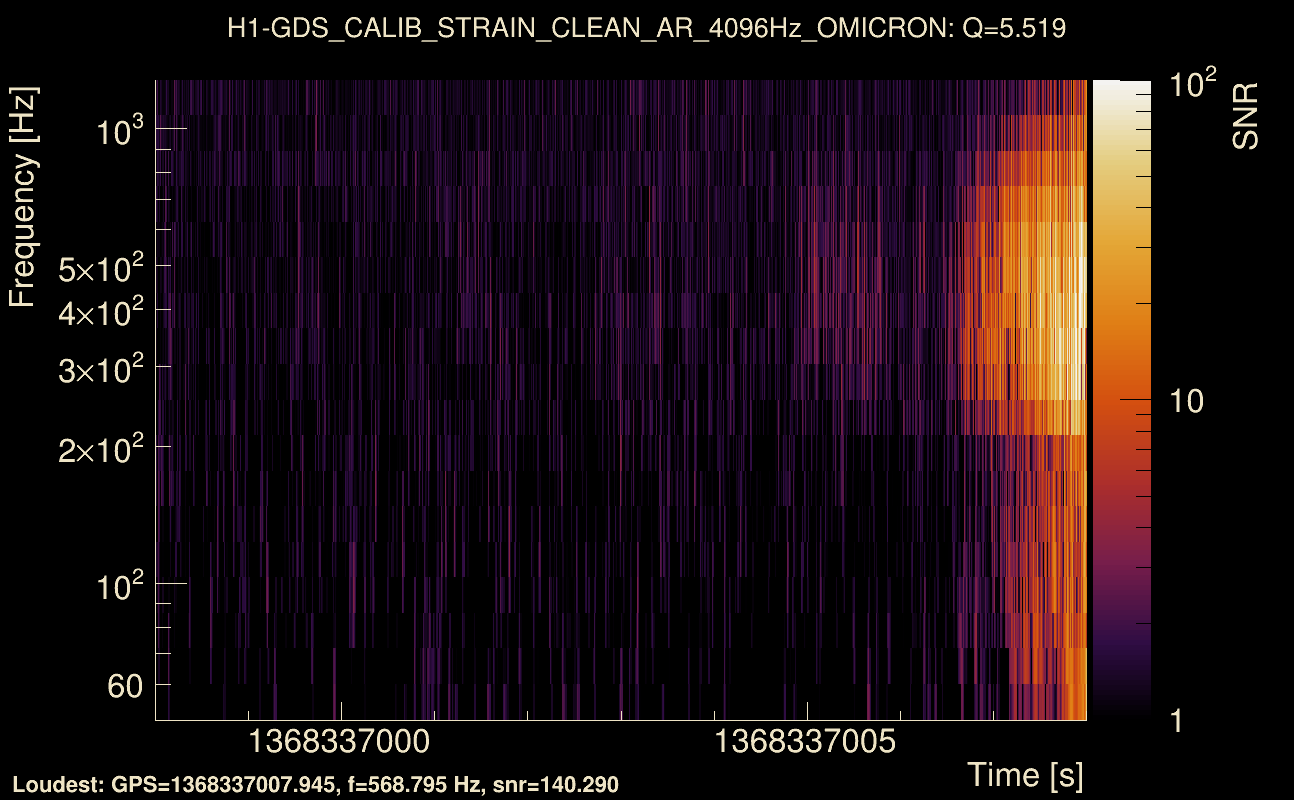

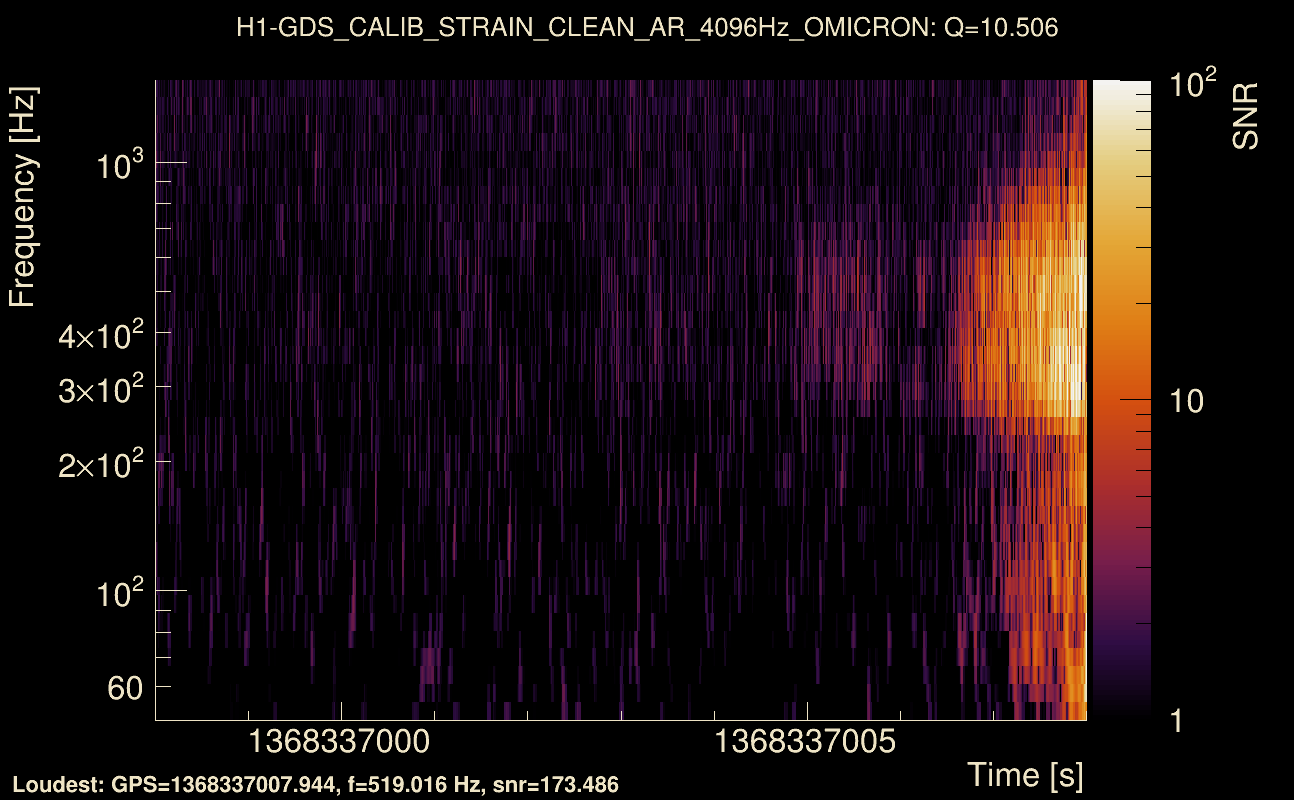

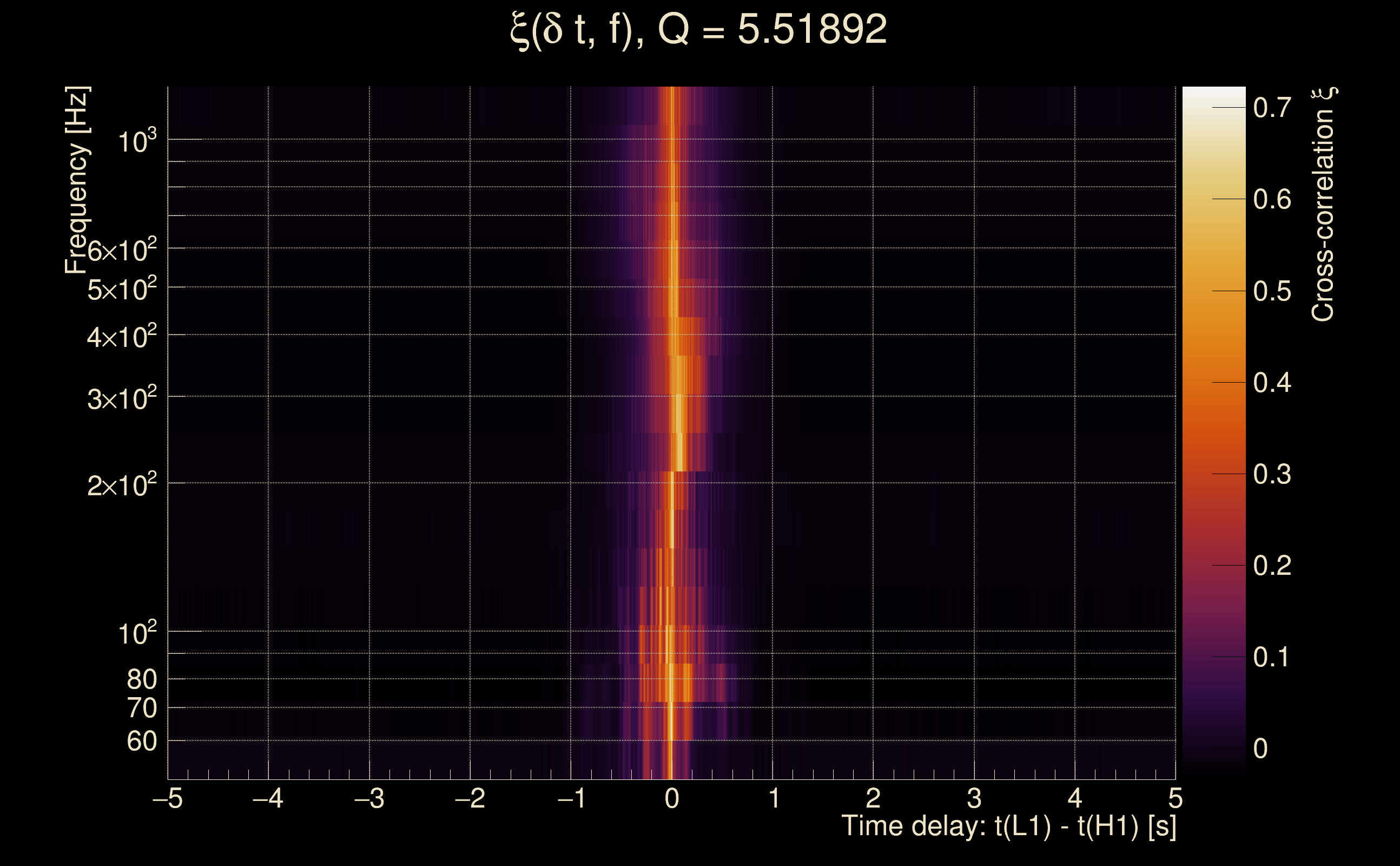

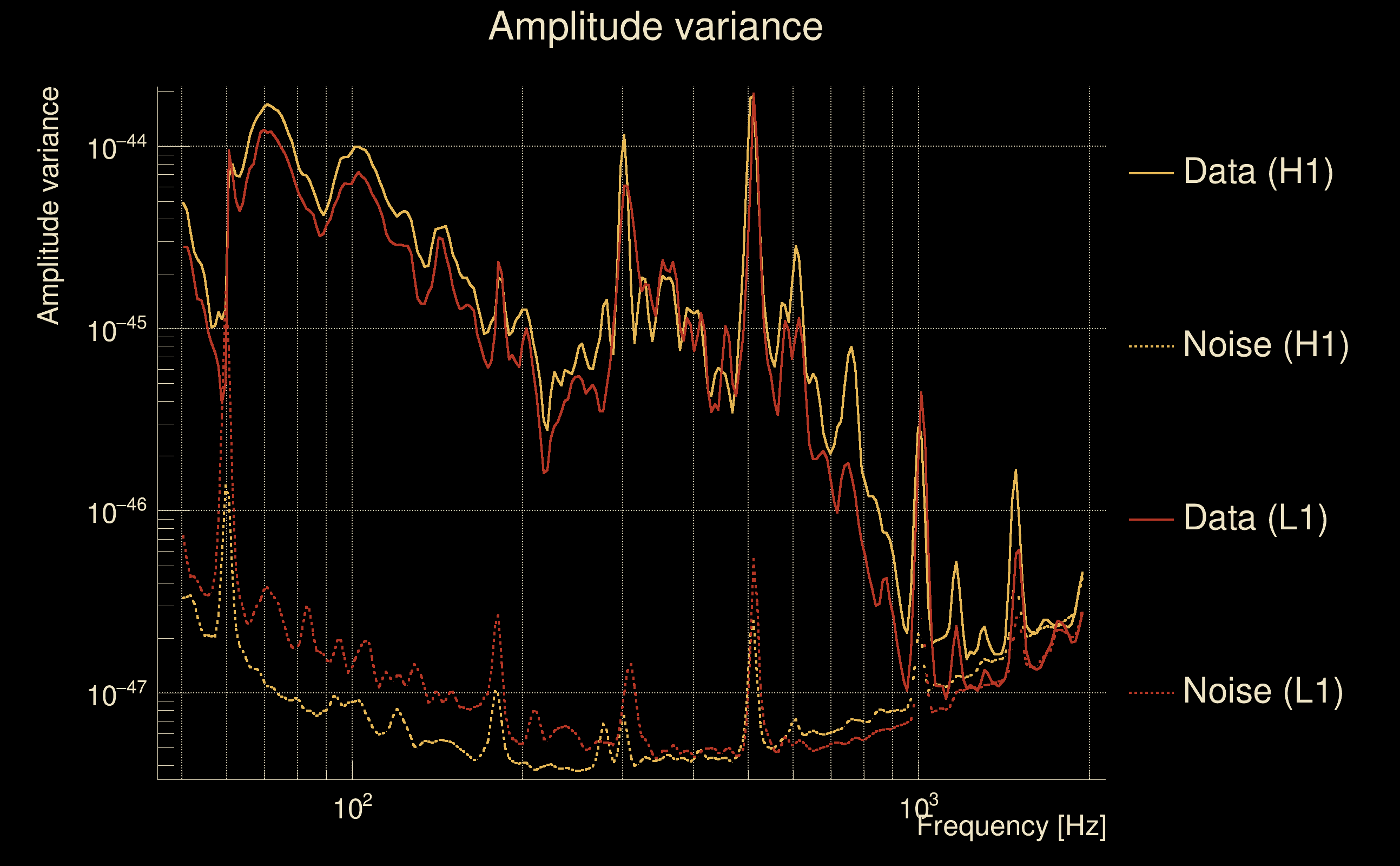

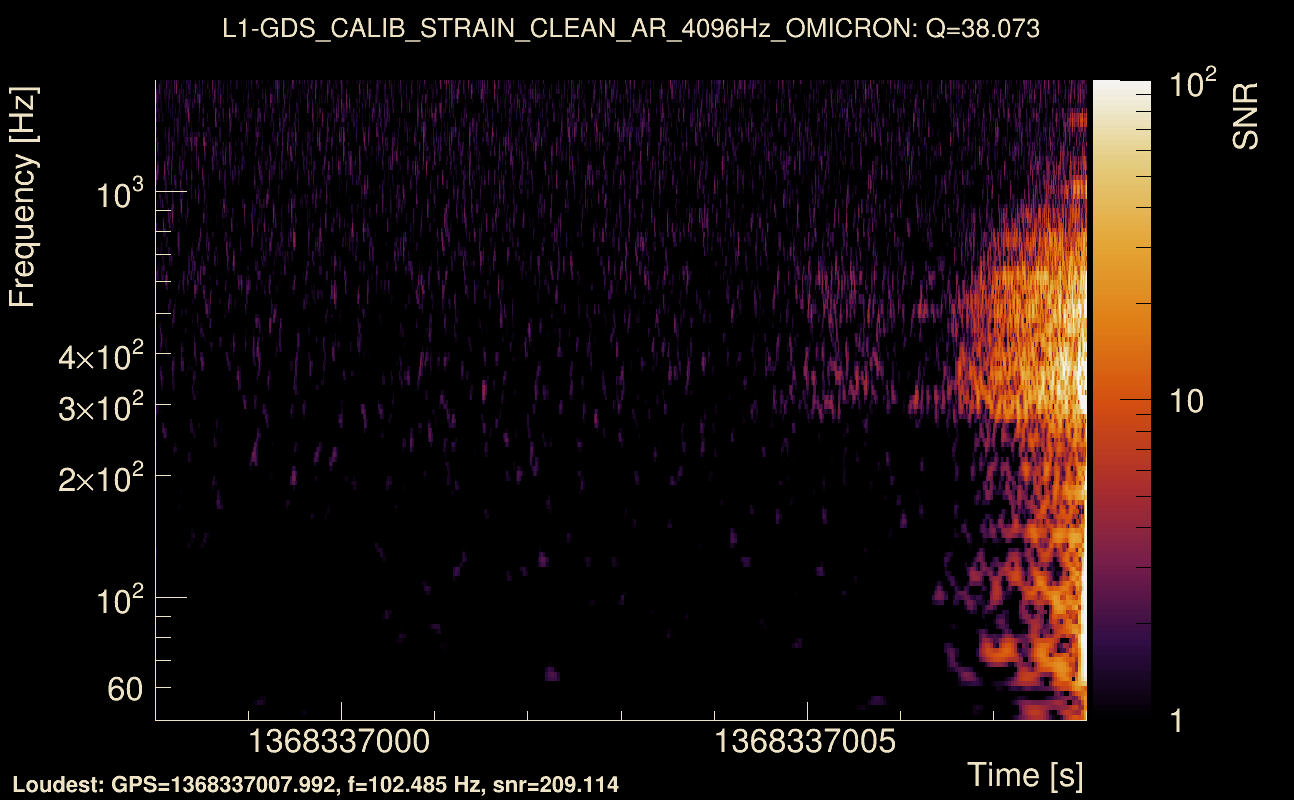

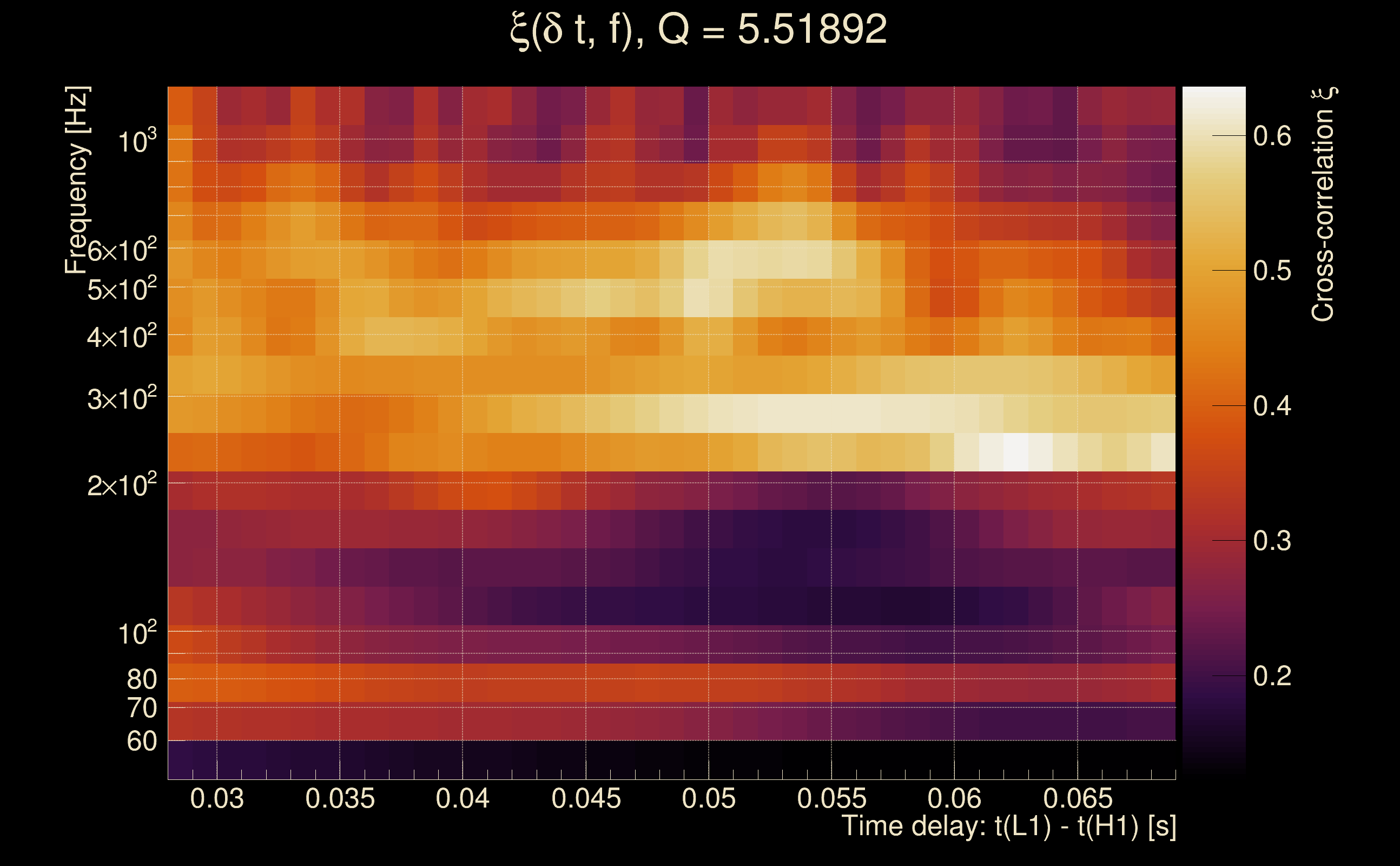

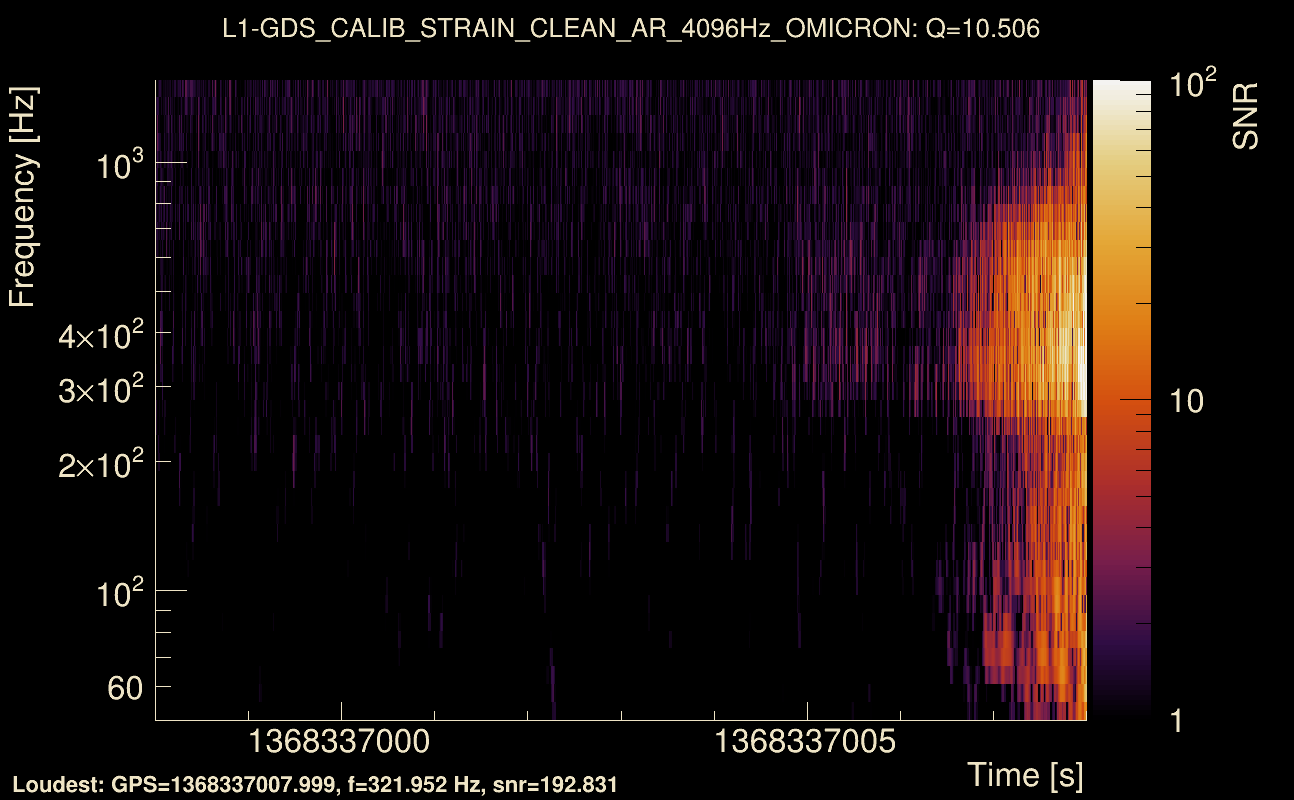

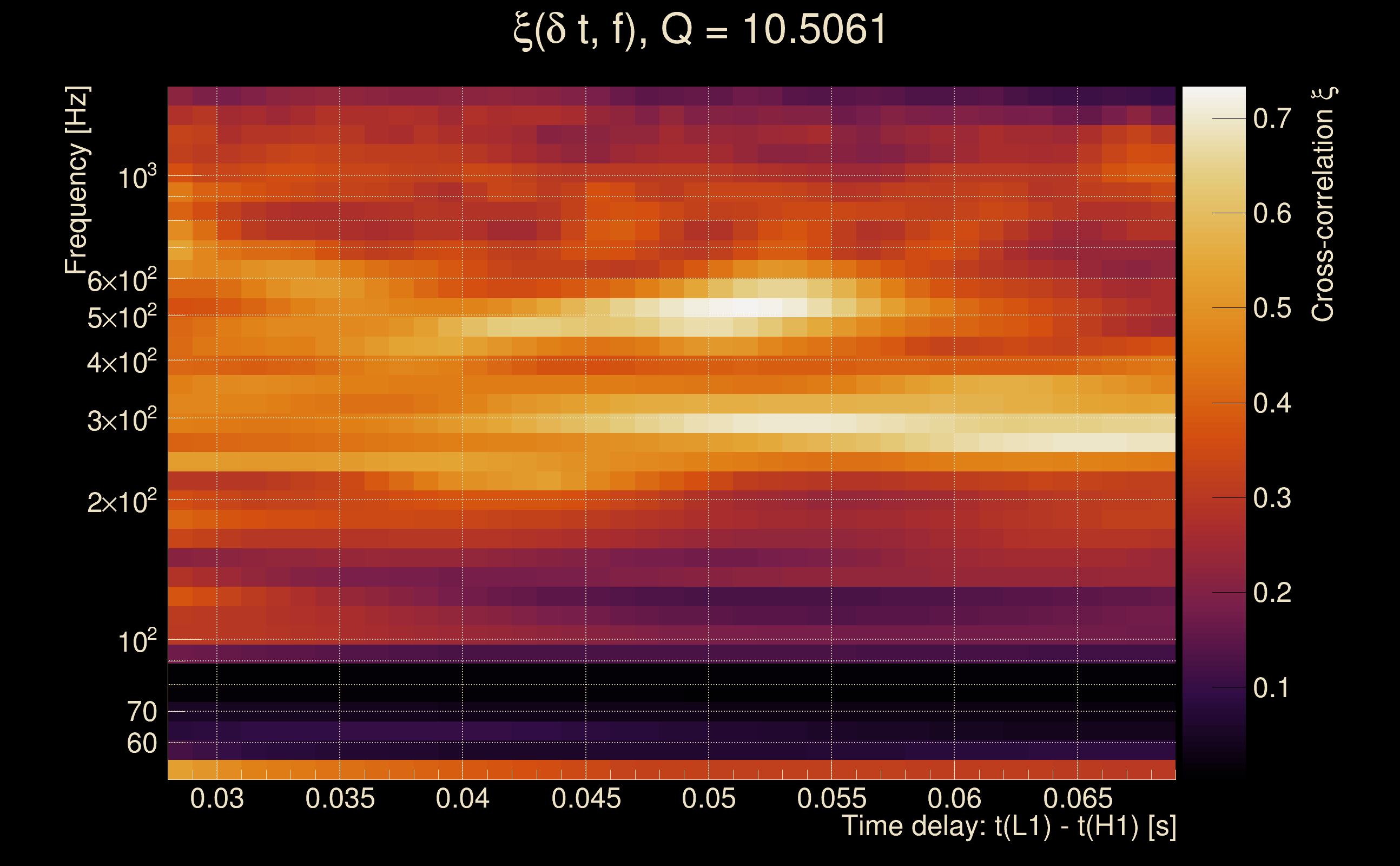

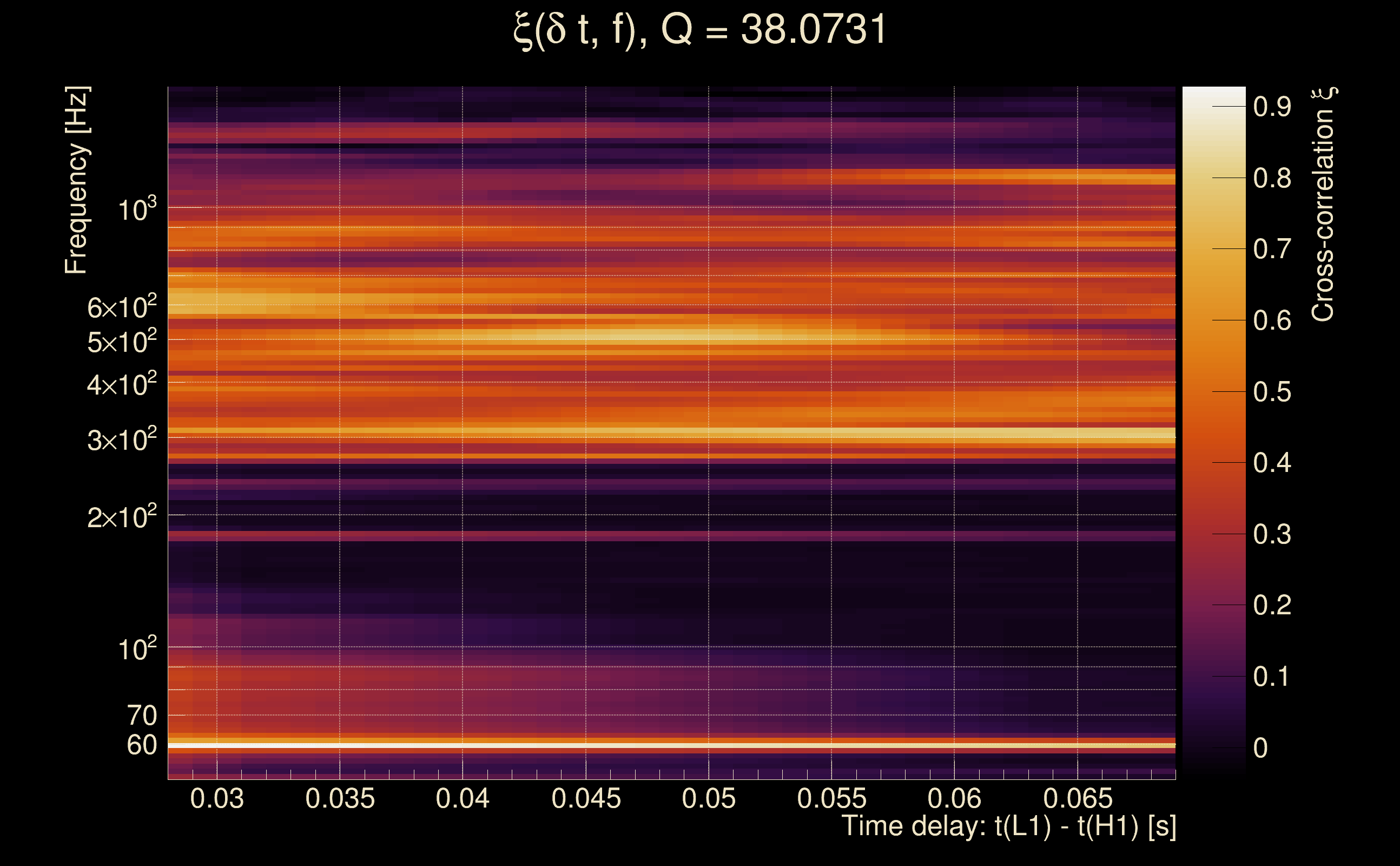

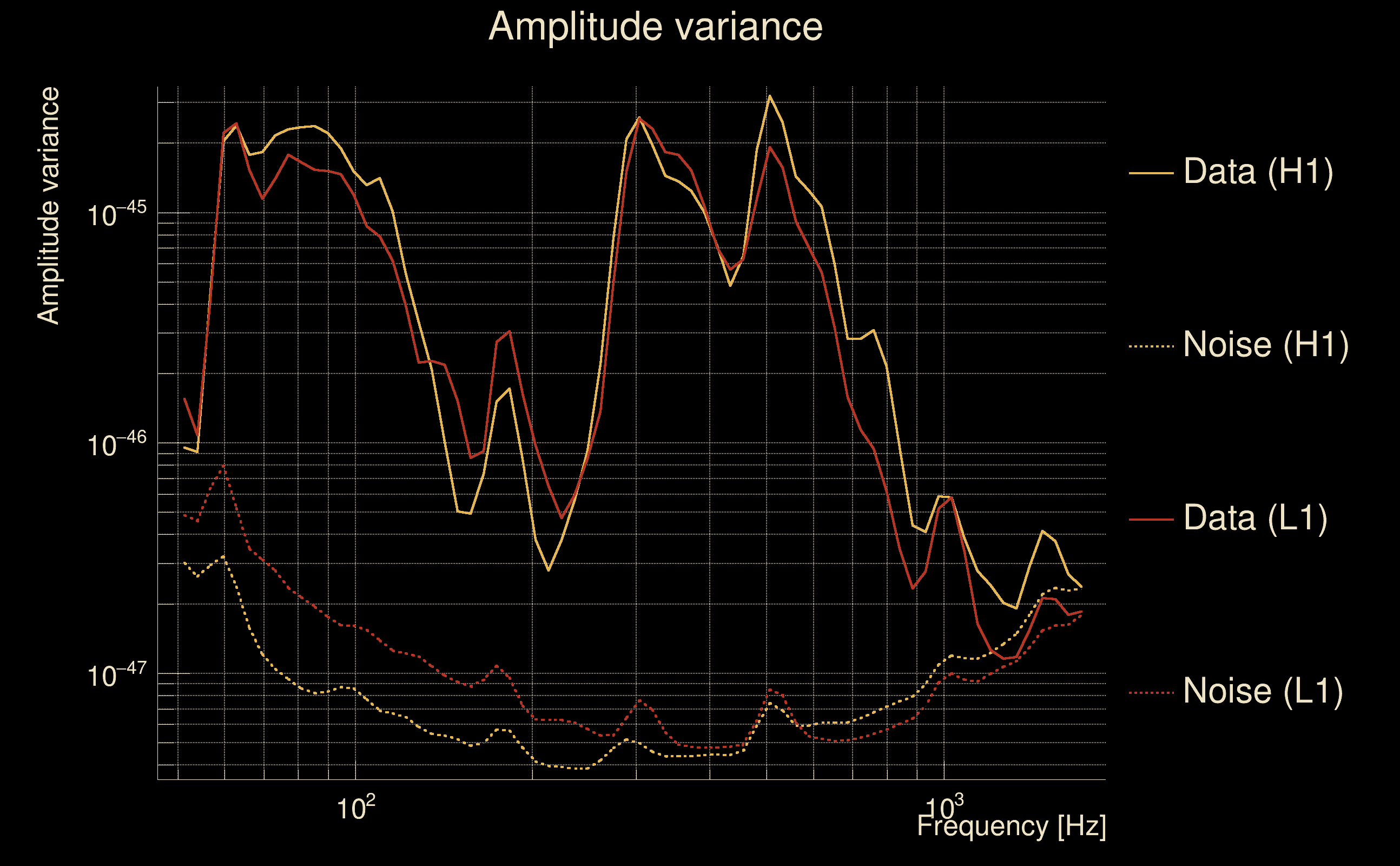

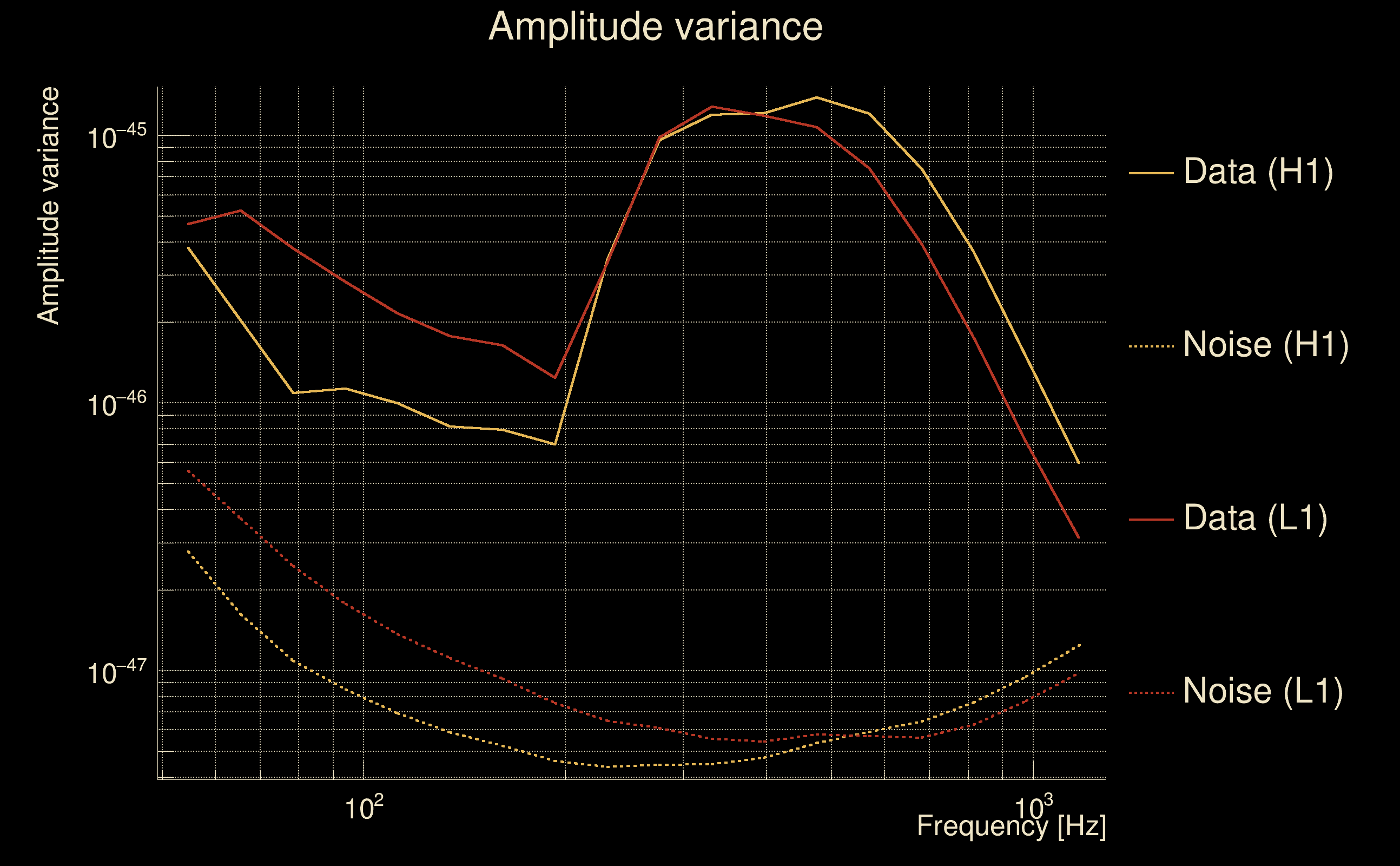

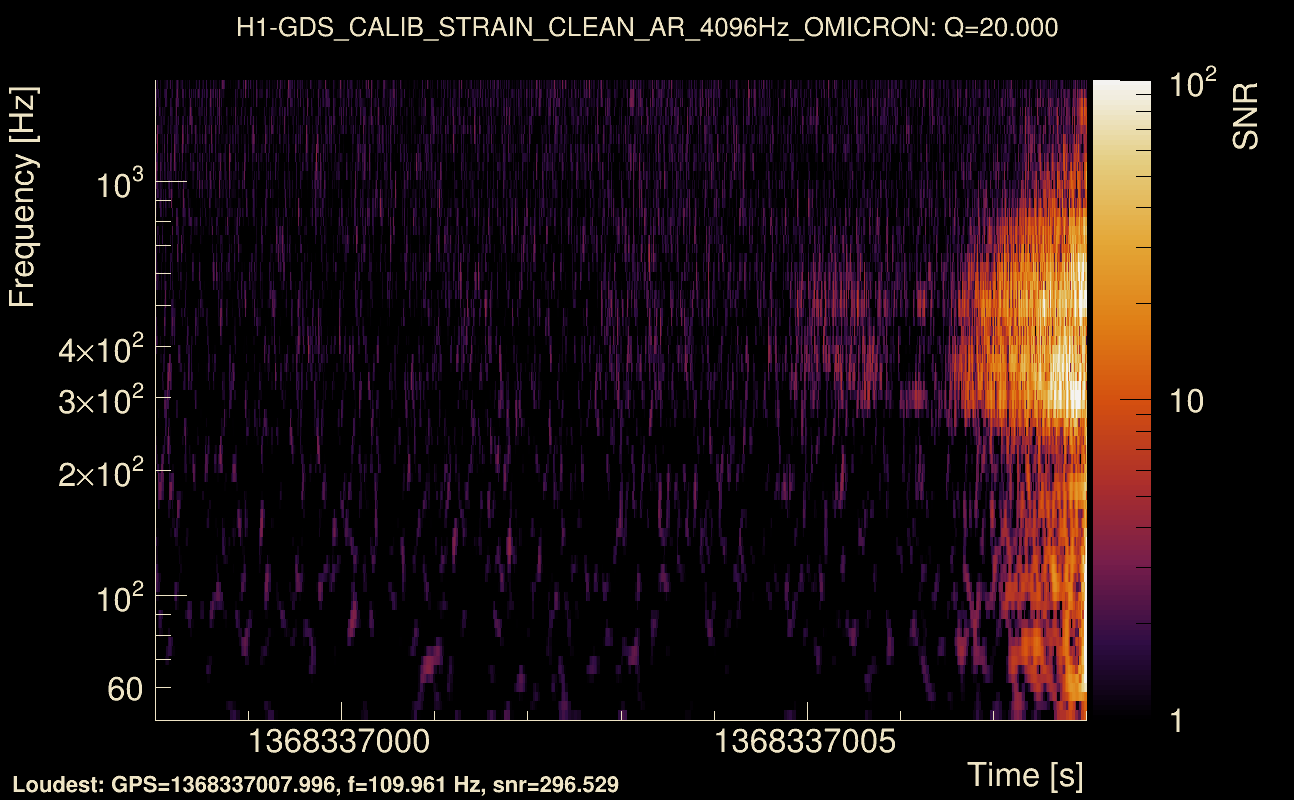

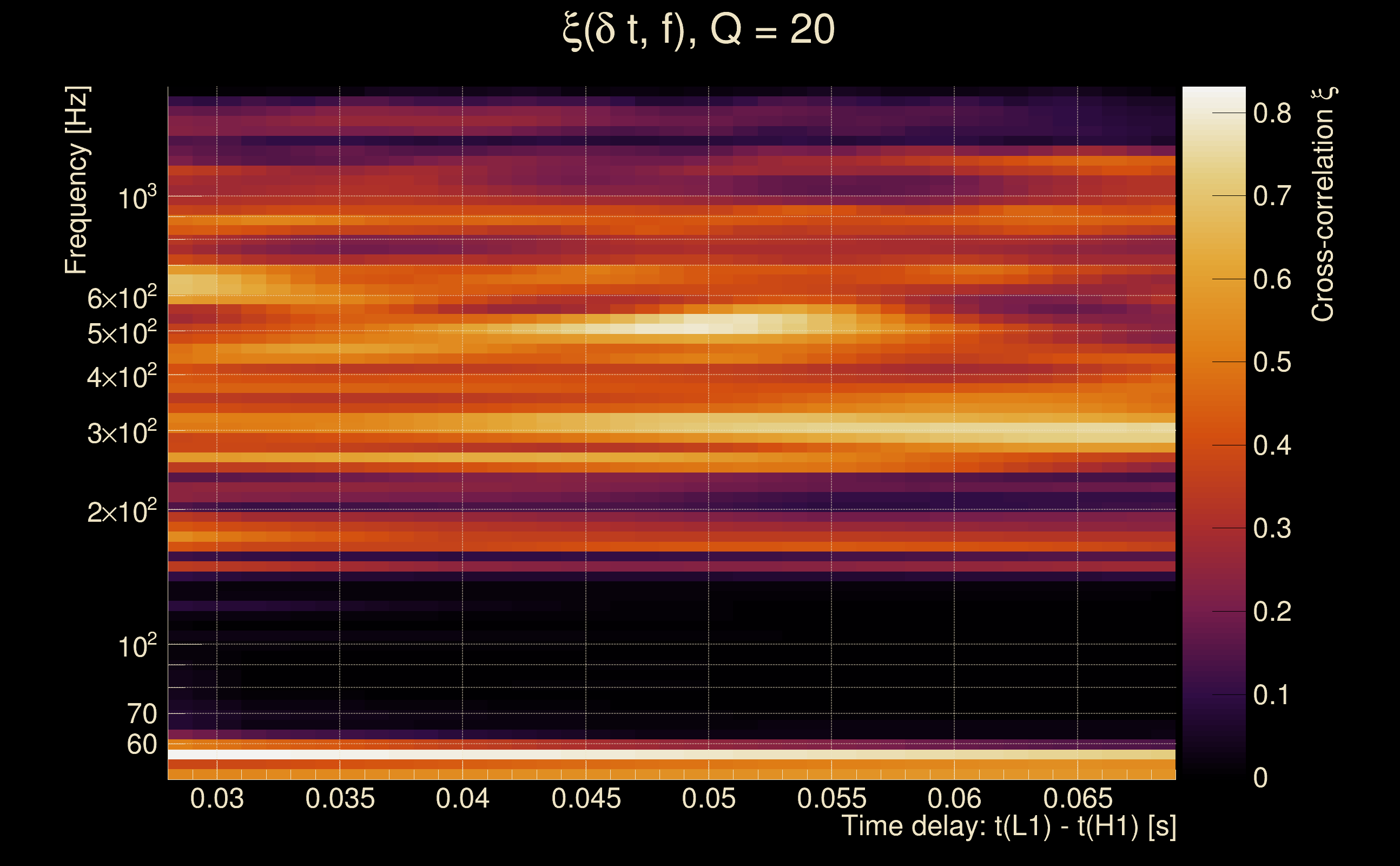

| Event time t(H1): | GPS = 1368336998 (Wed May 17 05:36:20 2023 ) → GPS = 1368337008 (Wed May 17 05:36:30 2023 ) |
| Event time t(L1): | GPS = 1368336998 (Wed May 17 05:36:30 2023 ) → GPS = 1368337008 (Wed May 17 05:36:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368336995 → GPS = 1368337011 |
| Omicron analysis time window (L1): | GPS = 1368336995 → GPS = 1368337011 |
| Time delay between detectors t(L1) - t(H1): | 0.0488774 s (slice index = 107 / 217), δt_gw = 0.00287742 s |
| Time delay standard deviation: | 0.08055 s |
| [targeted mode] Time delay probability: | 0.879469 (0.151642 sigmas), δt_target = 0.00259185 s |
| Frequency: | 388.884 Hz |
| Ξ: | 0.320581 ± 0.0330066 (variance = 0.00108943): Q0: 0.570097, Q1: 0.551904, Q2: 0.59997, Q3: 0.564718, Q4: 0.499174 |
| Rank: | R_A = 0.281941 |
| Log of amplitude ratio (L1/H1): | -0.287345, variance = 0.20299 (L1/H1: -0.556385, variance = 0.397763, H1/L1: -0.0996658, variance = 0.383952) |
| Amplitude ratio (L1/H1): | 0.750253 ⋇ 1.56917 (L1/H1: 0.573278 ⋇ 1.8789, H1/L1: 0.90514 ⋇ 1.85826) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.458078 |

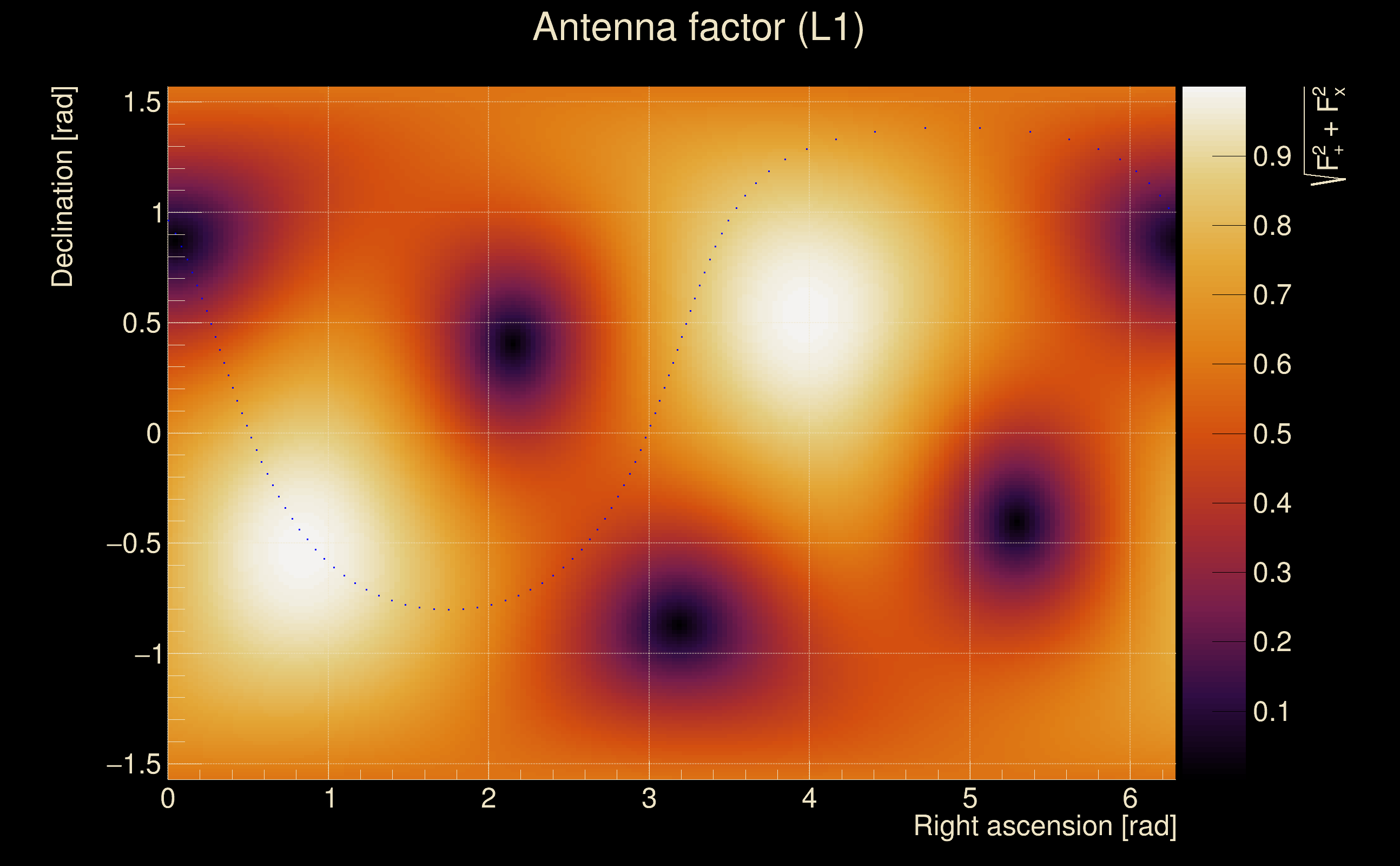

| Antenna factor probability: | 0.660501 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 19 / 36, Q2: 43 / 70, Q3: 96 / 134, Q4: 216 / 258 |
| Maximum signal-to-noise ratio: | H1: 431.65, L1: 359.897 |

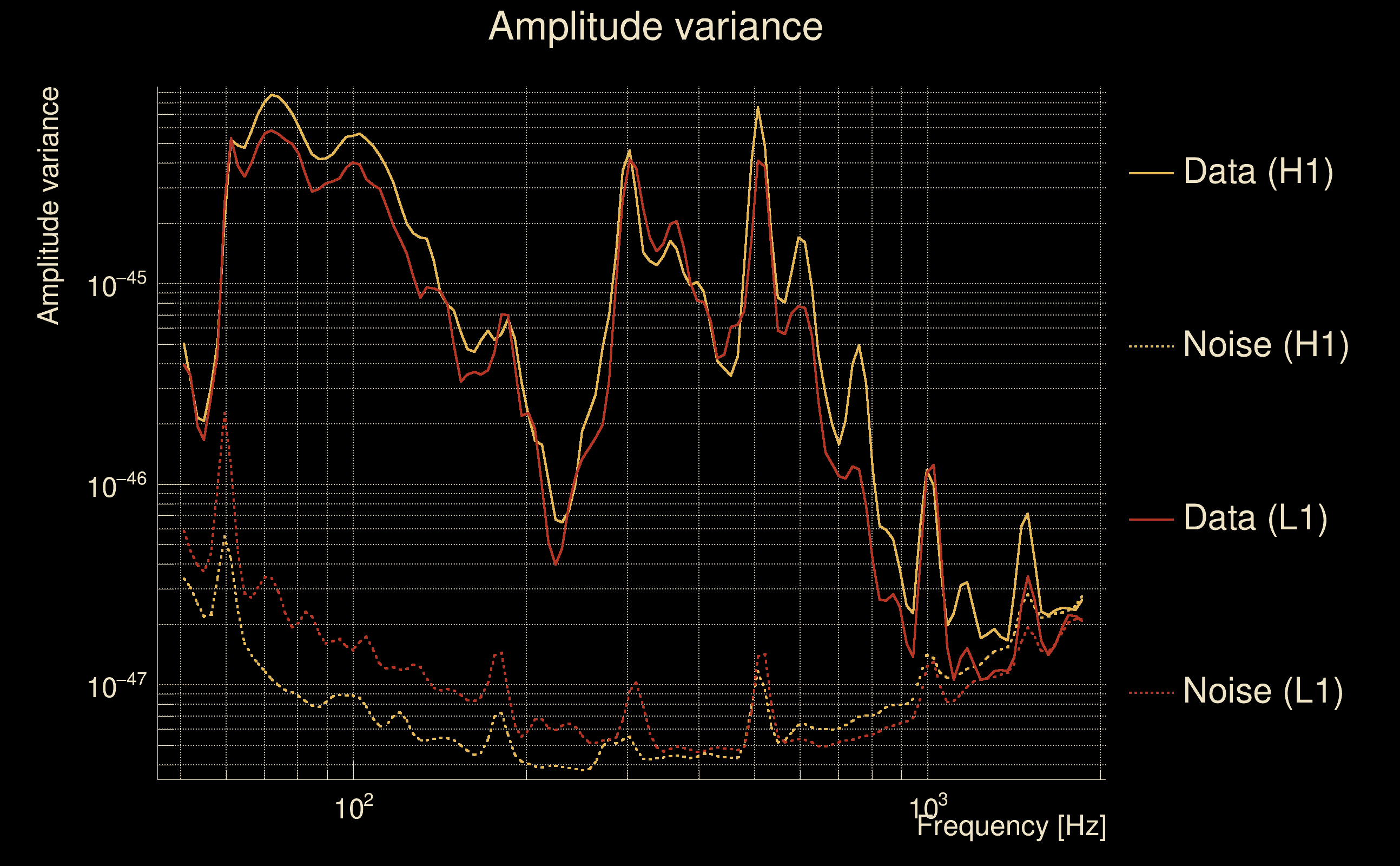

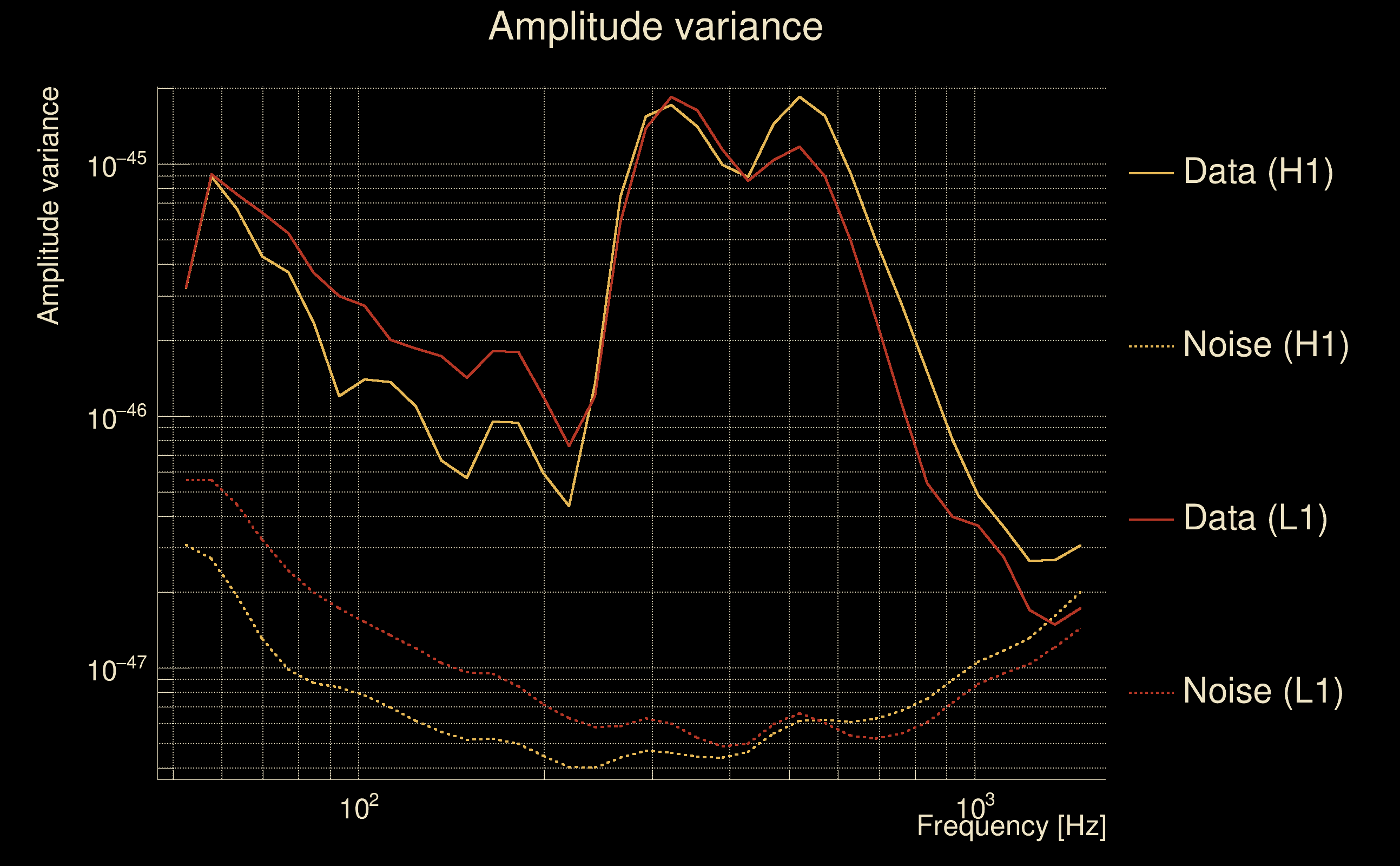

| SNR variance: | H1: 0.505712, L1: 0.481266 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

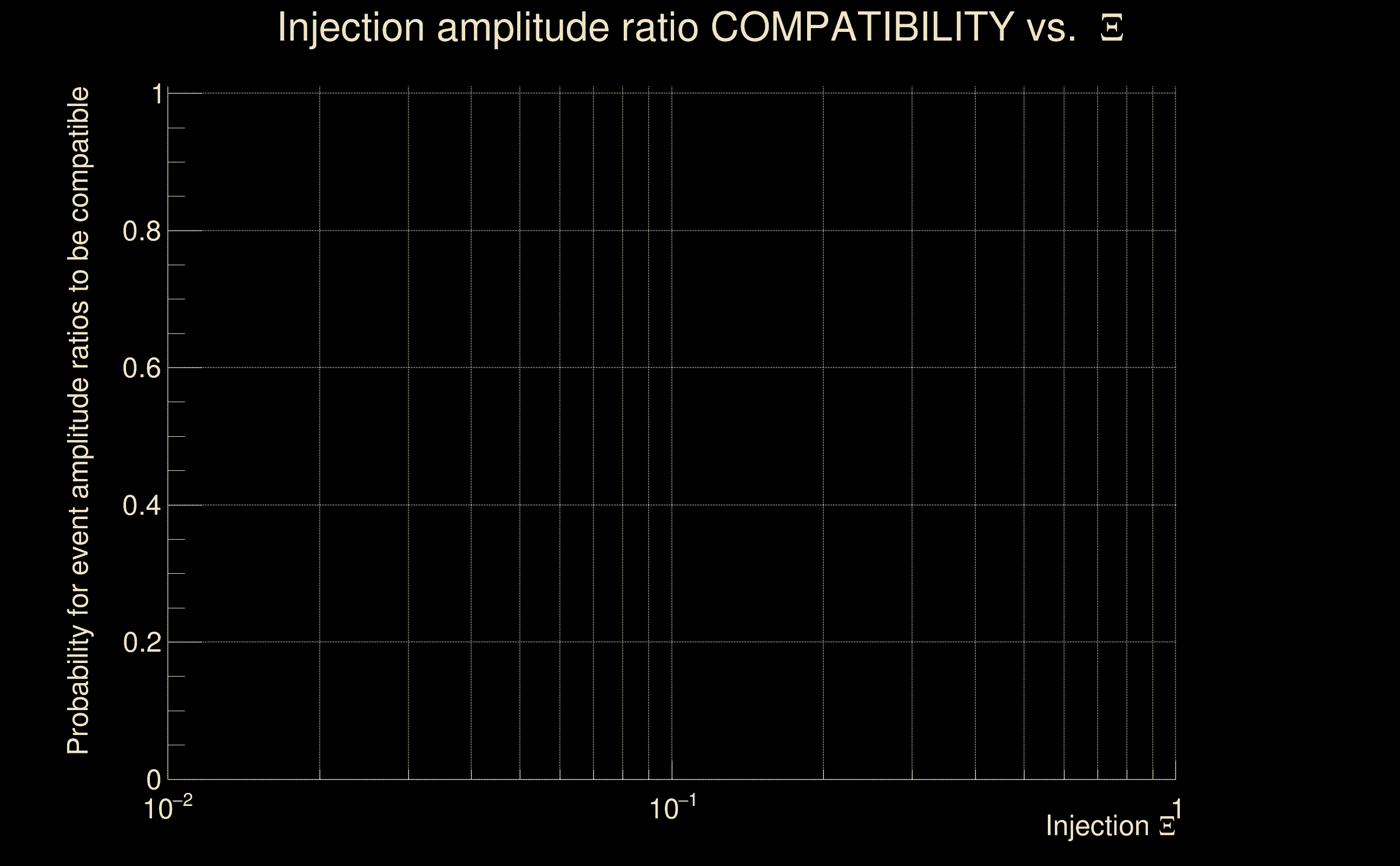

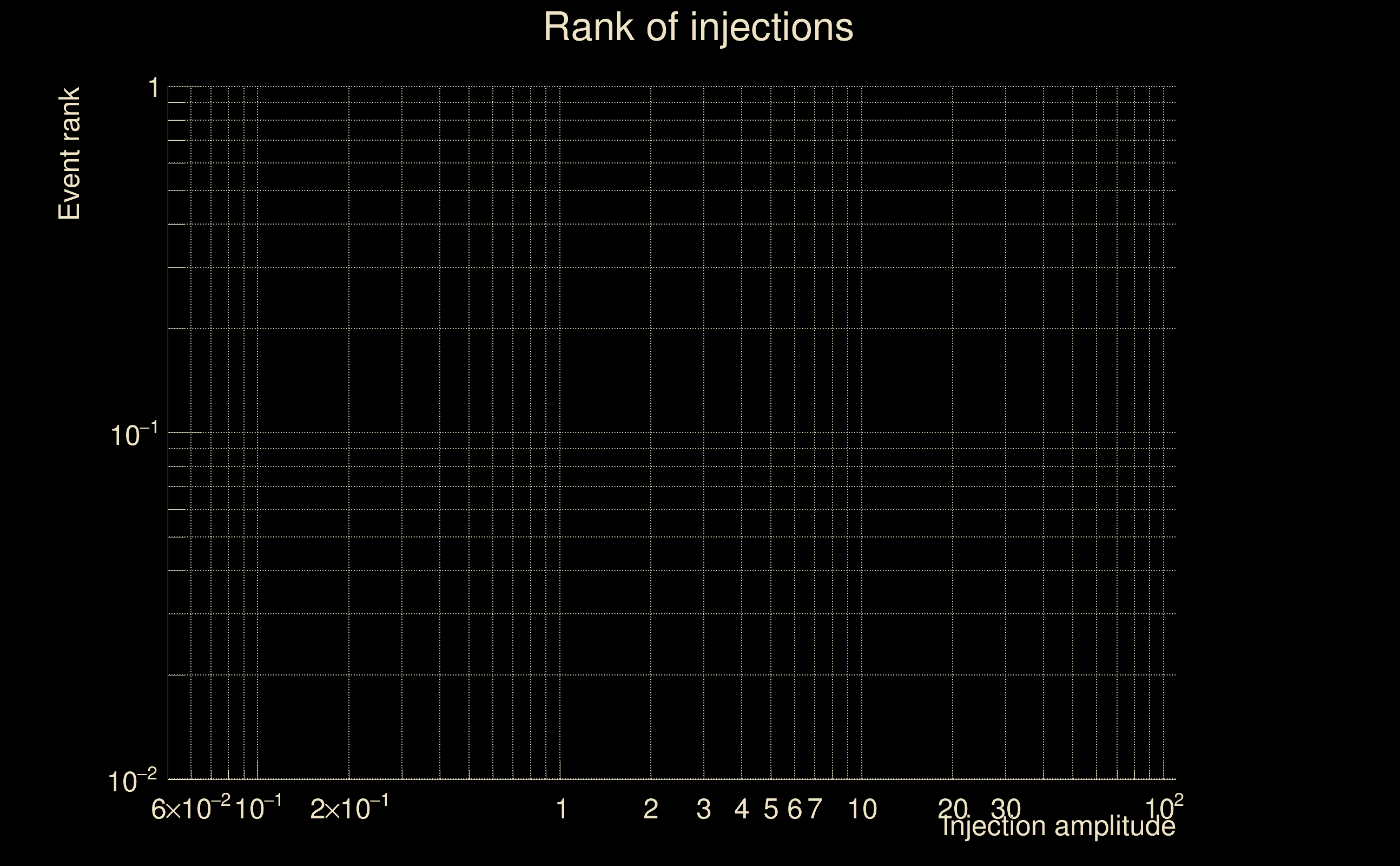

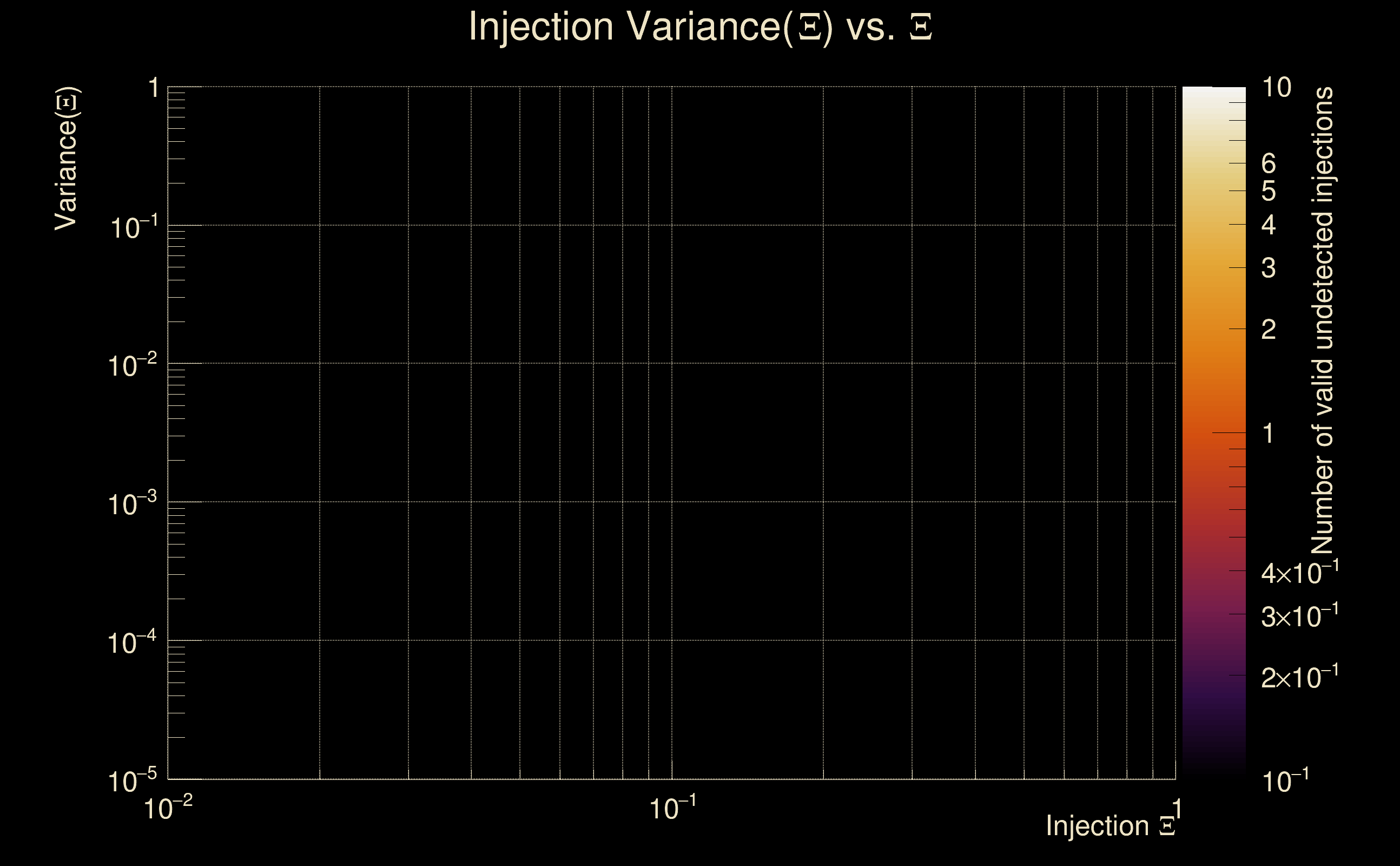

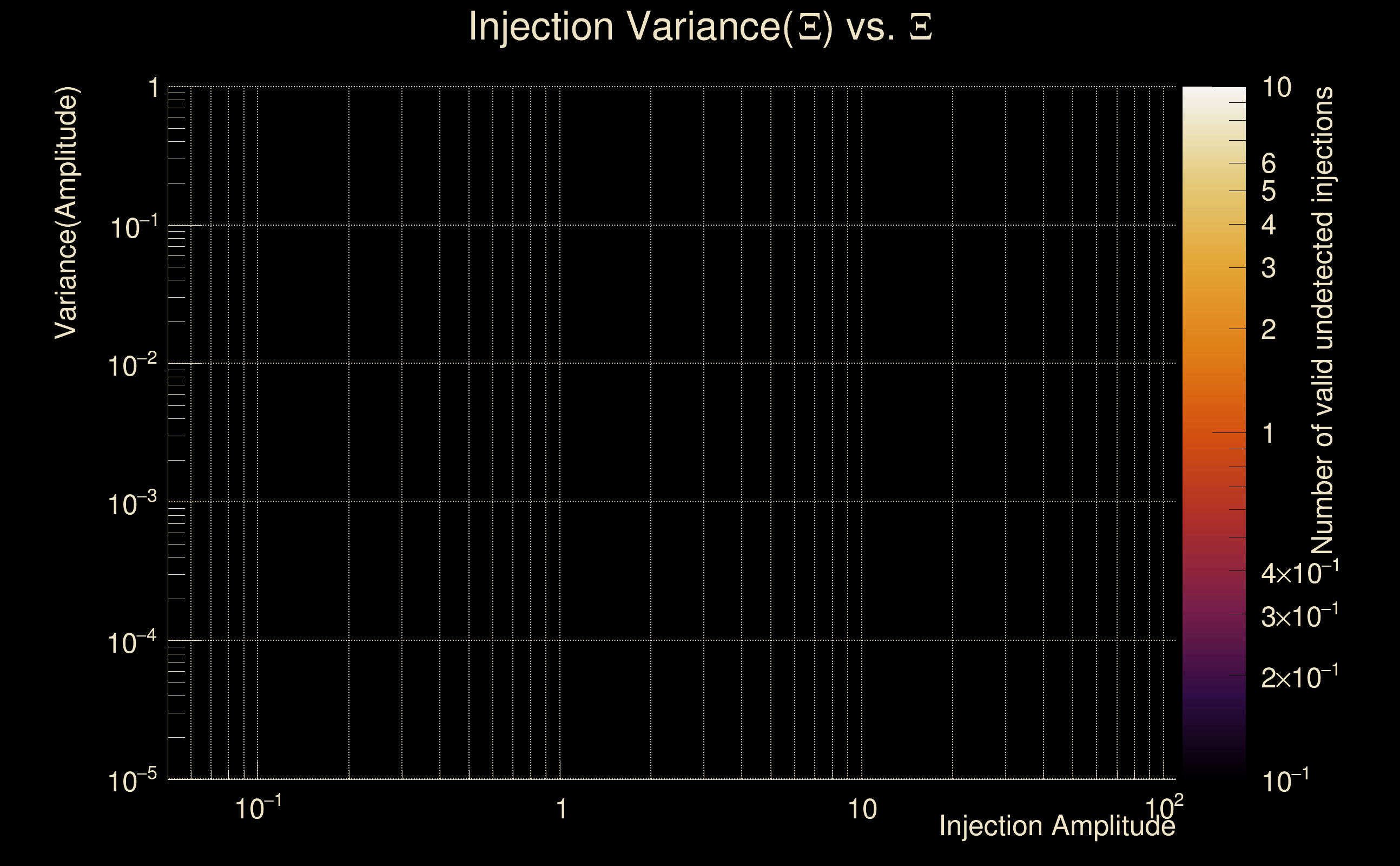

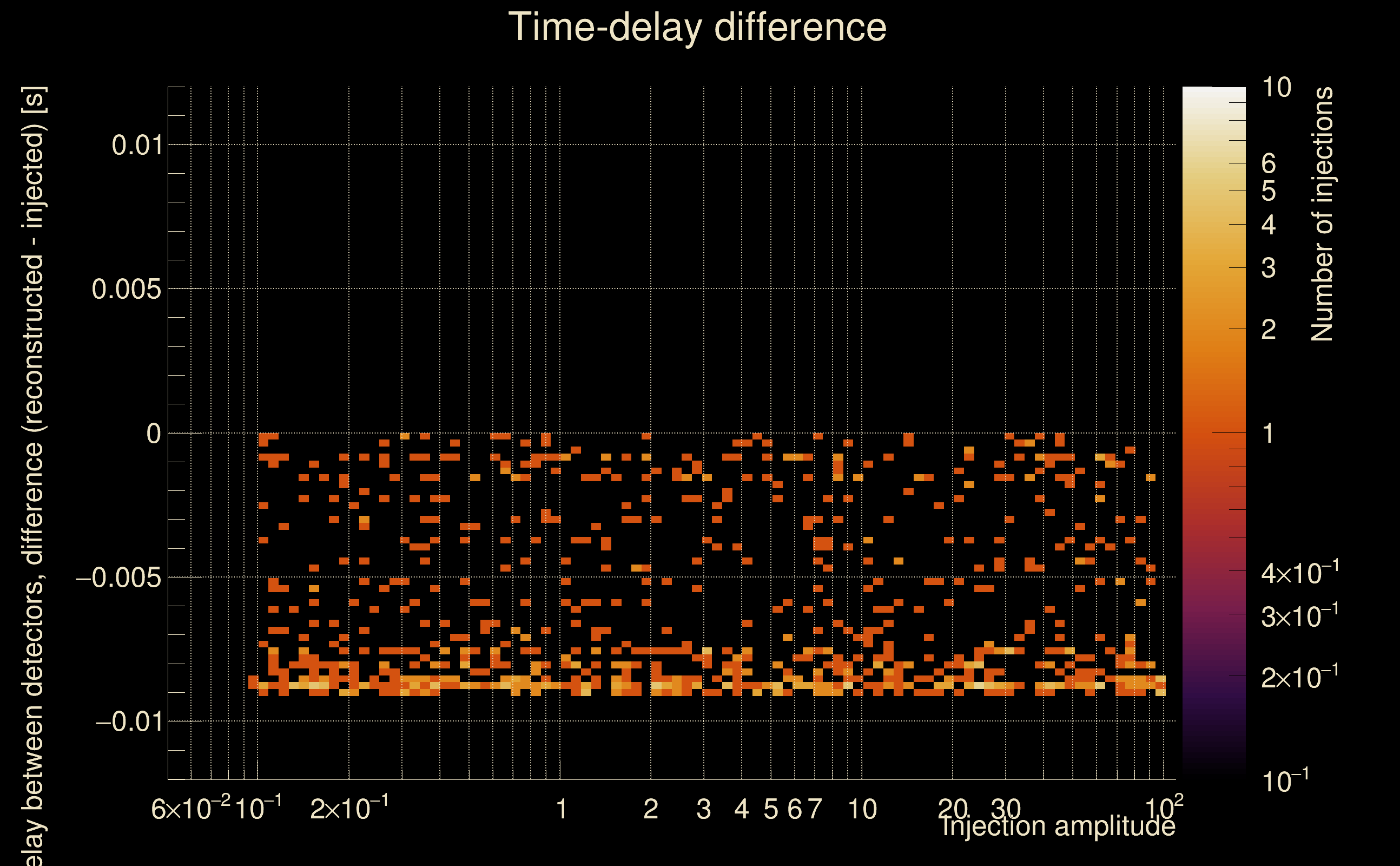

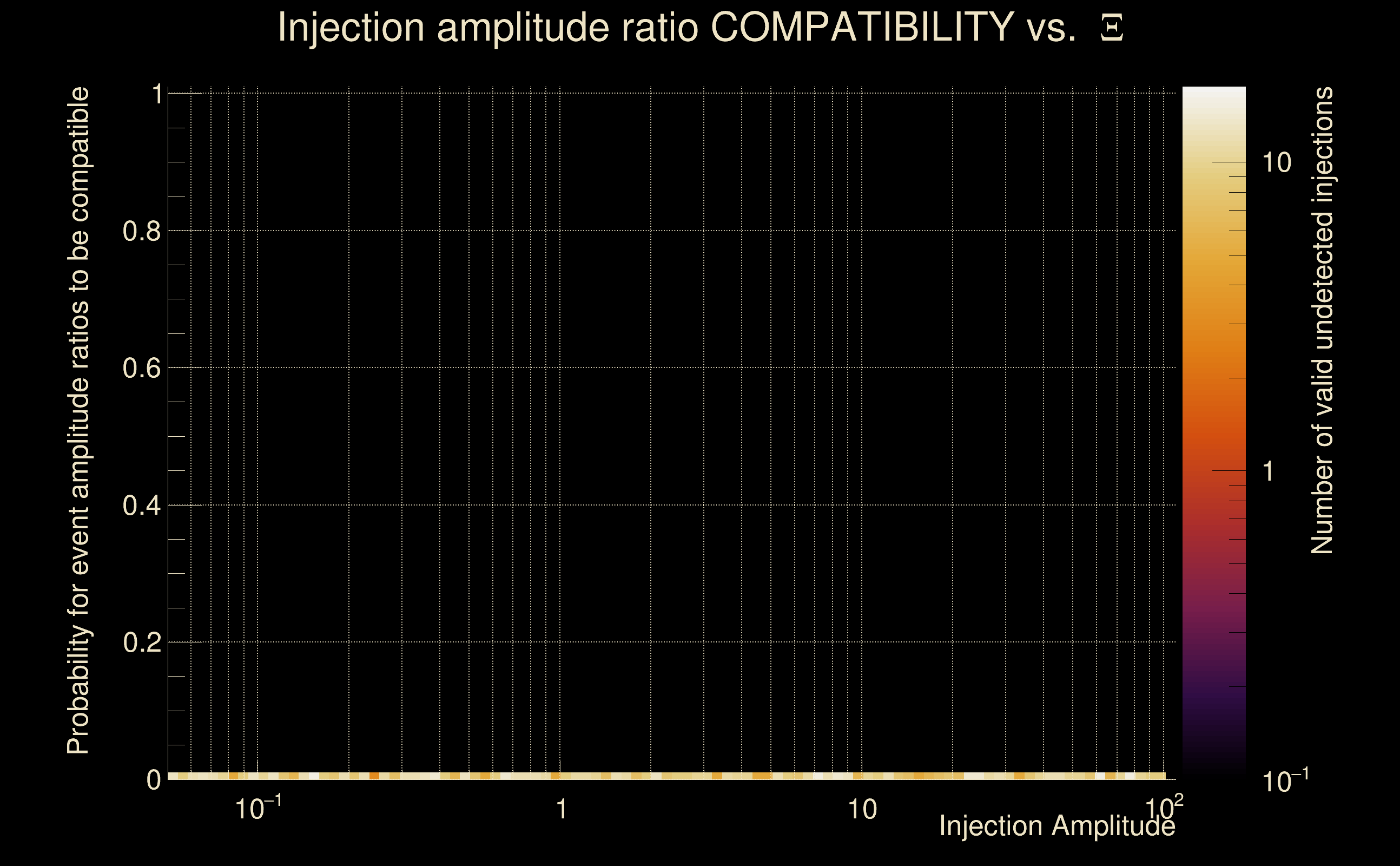

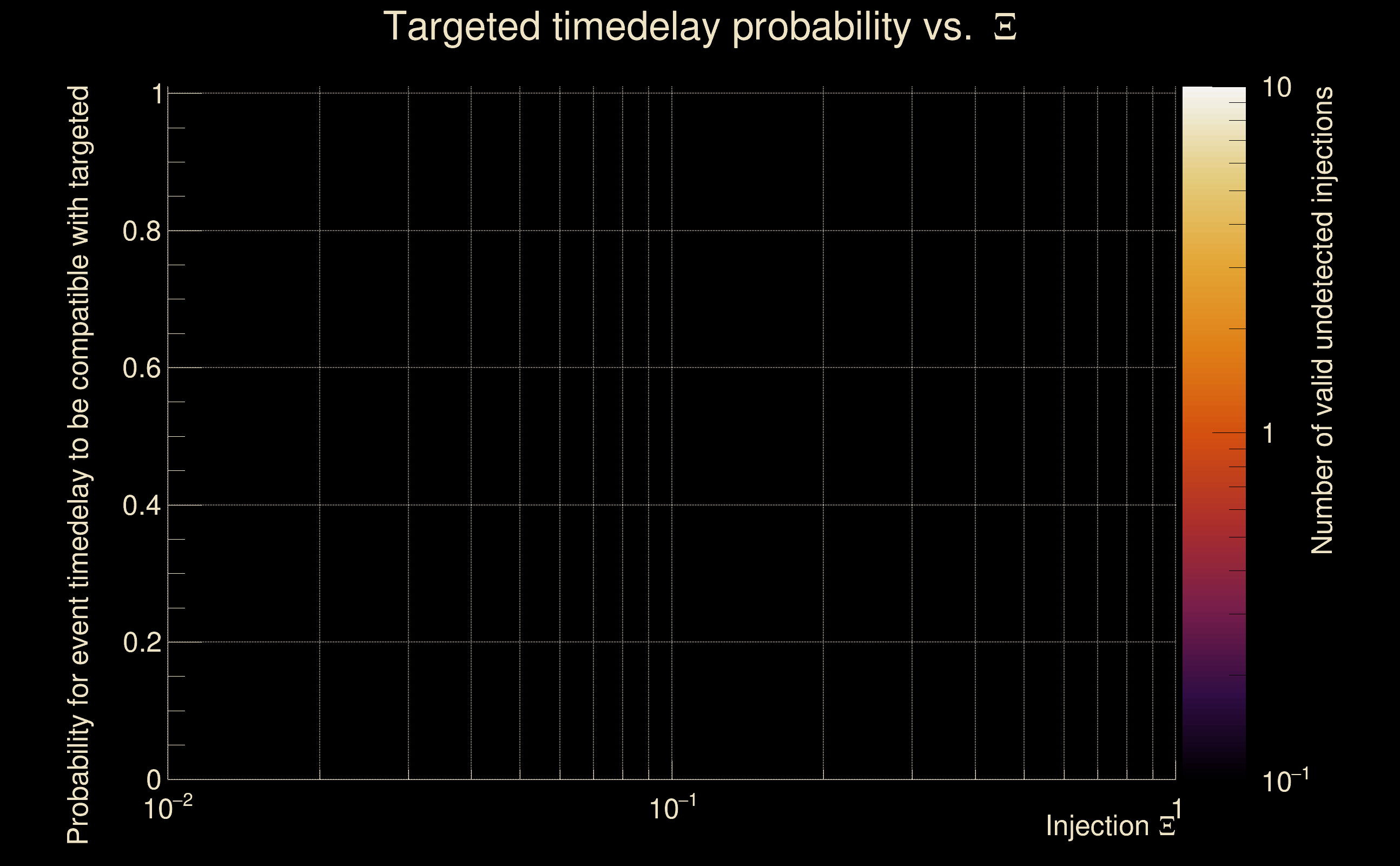

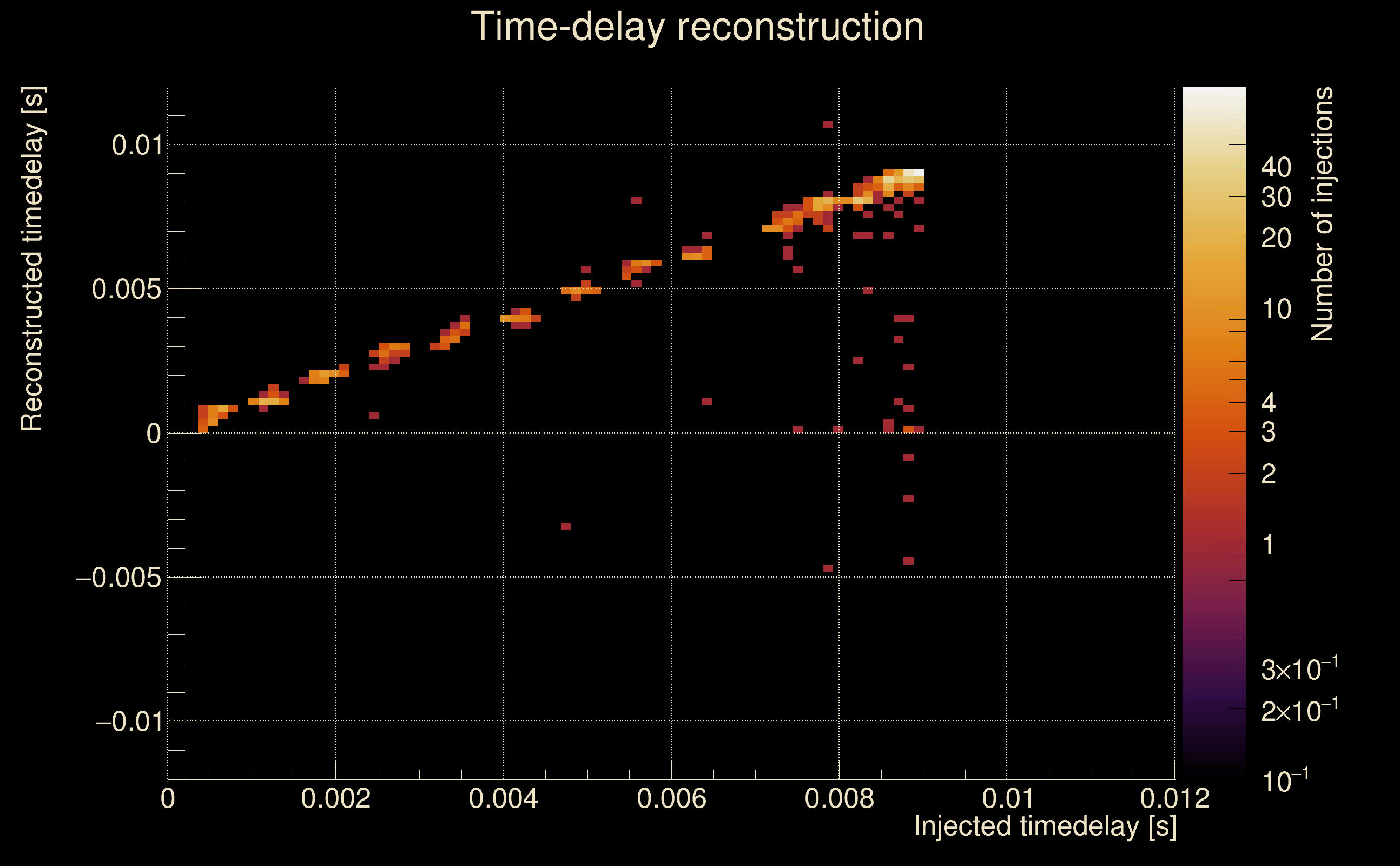

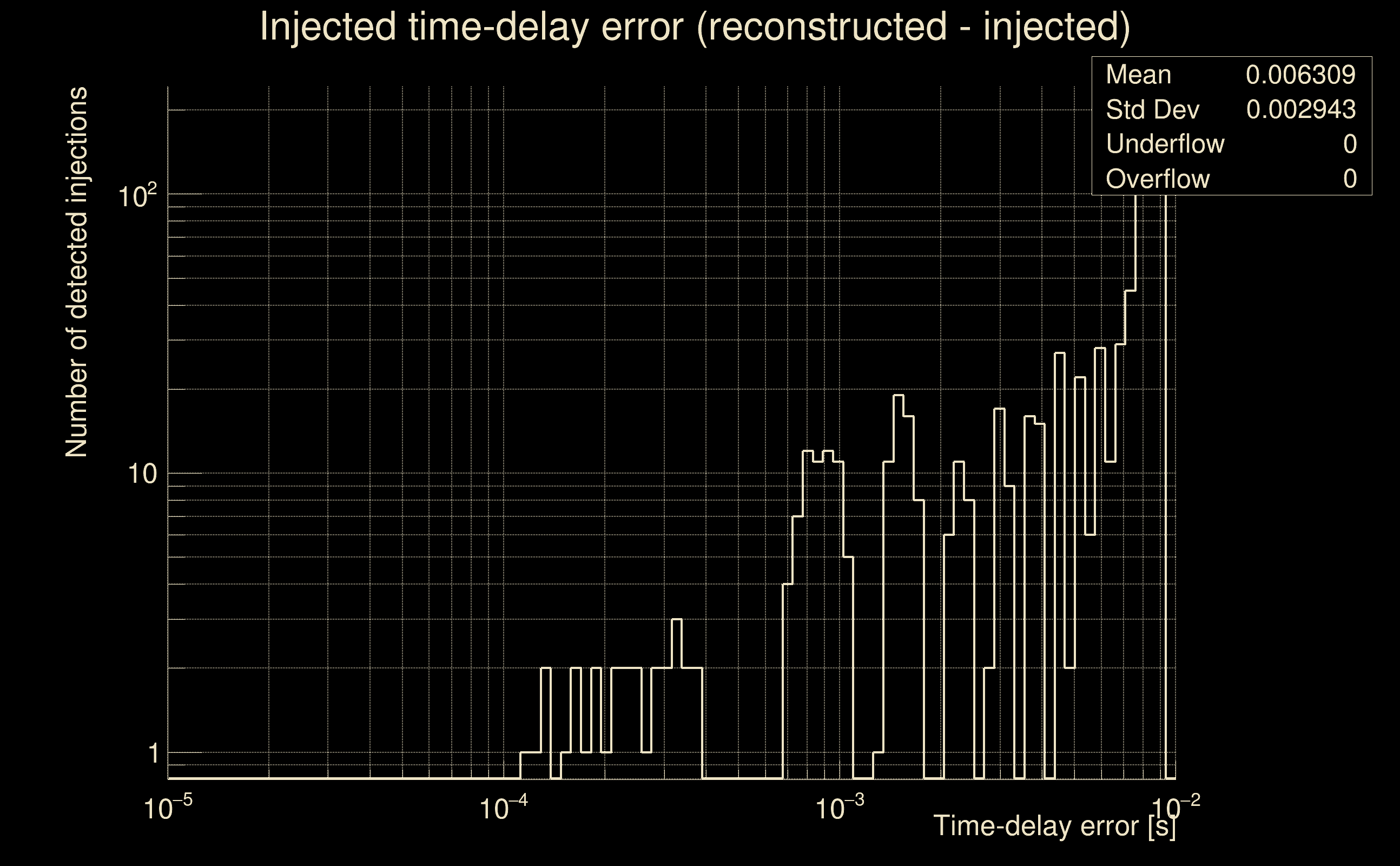

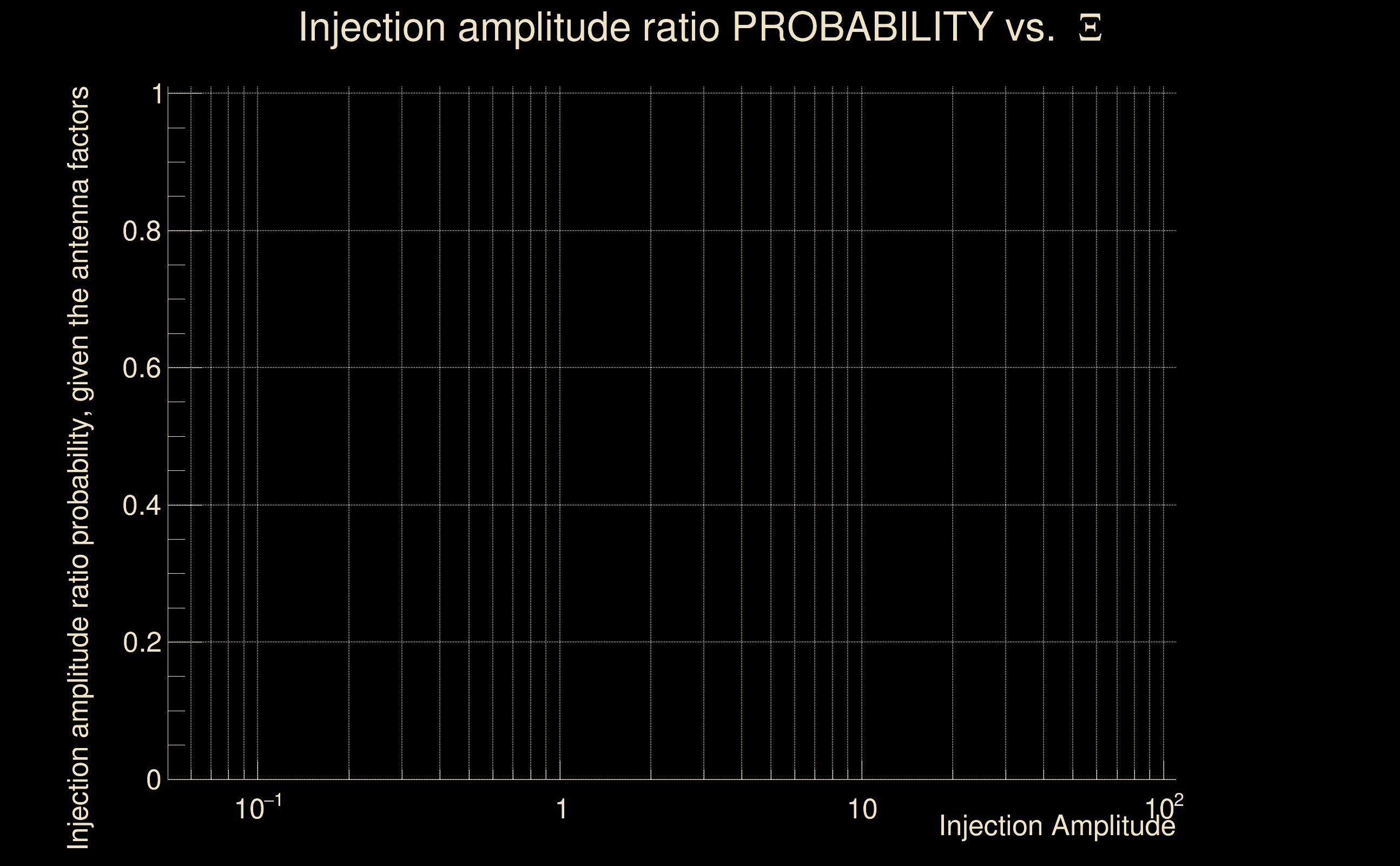

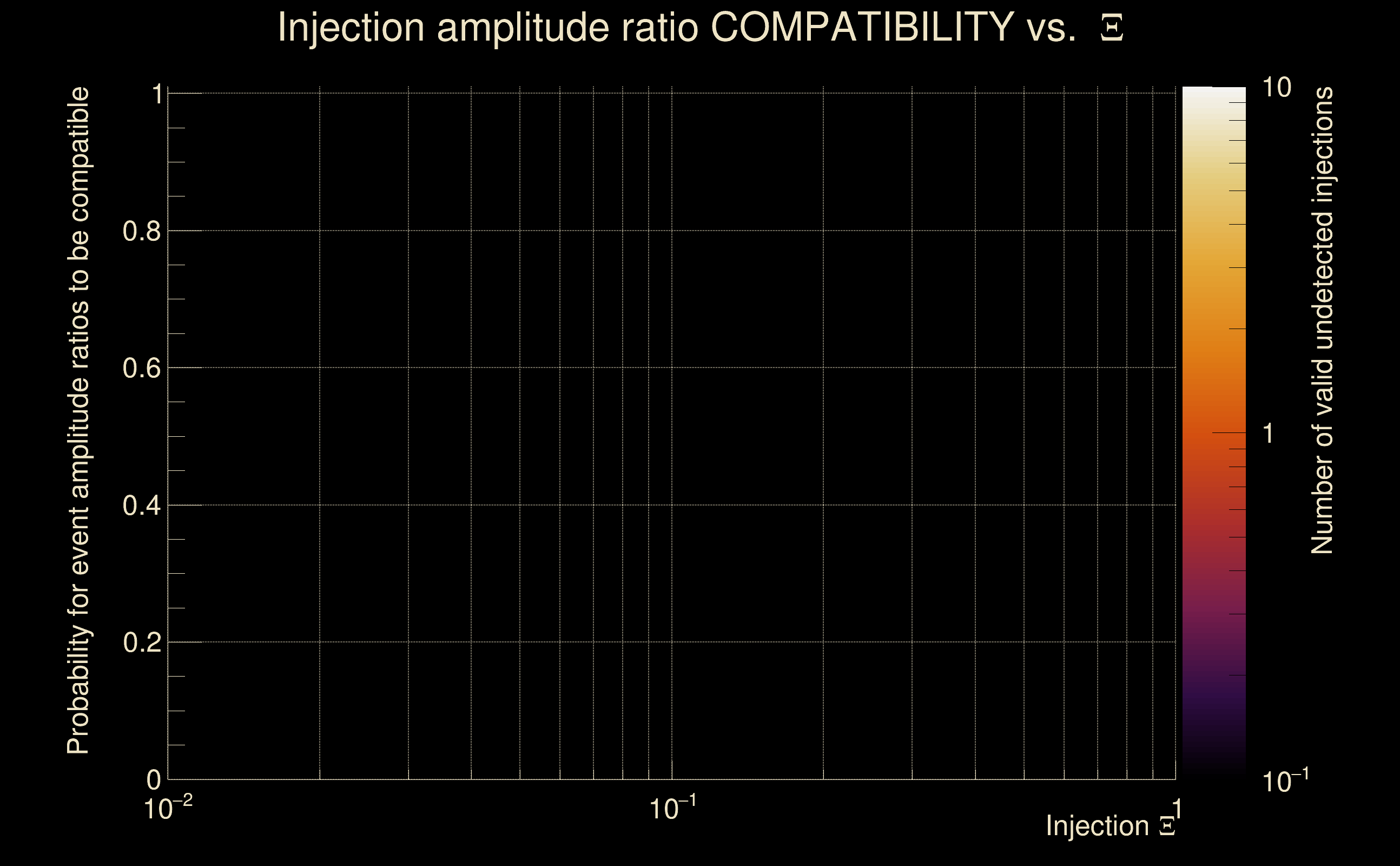

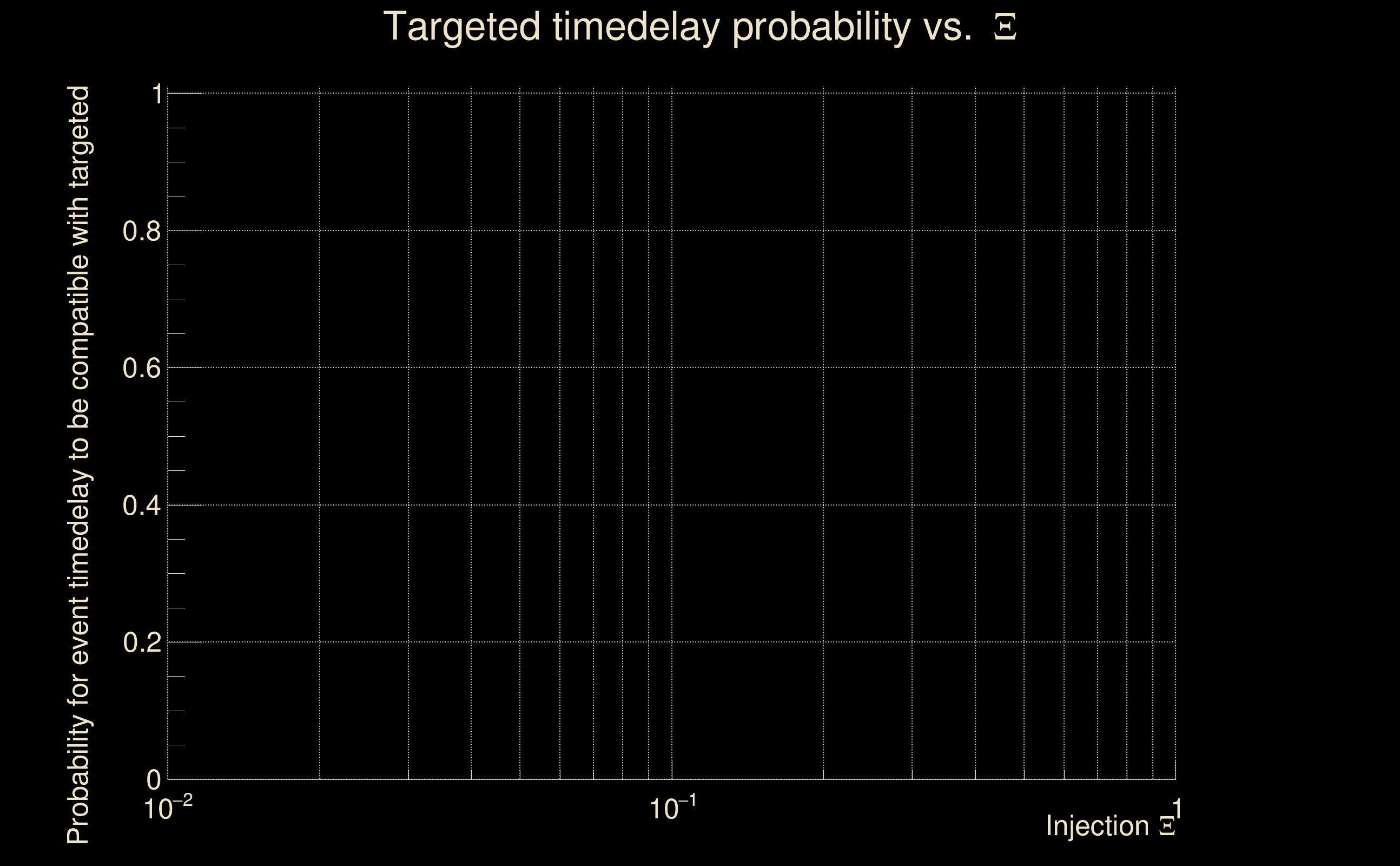

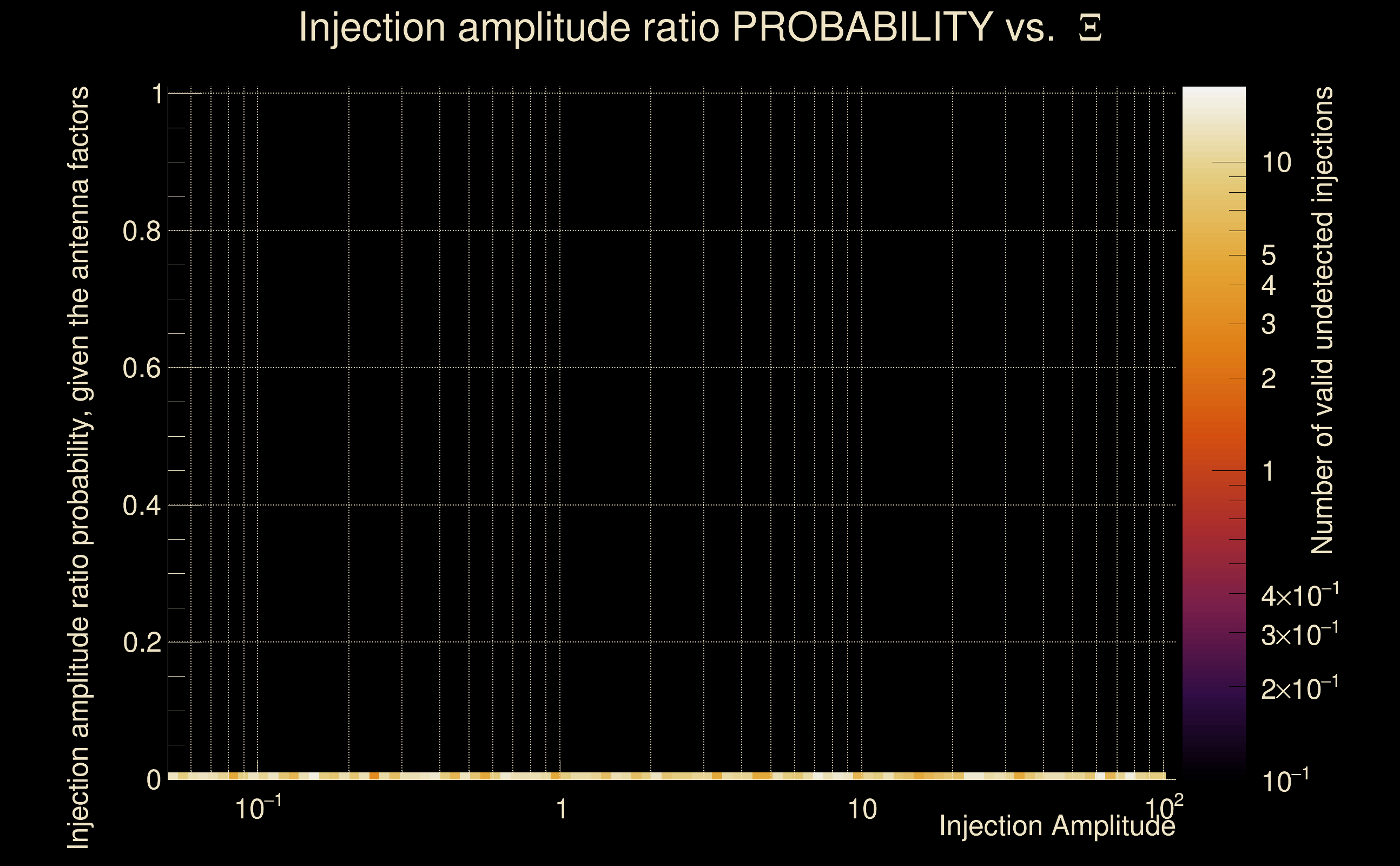

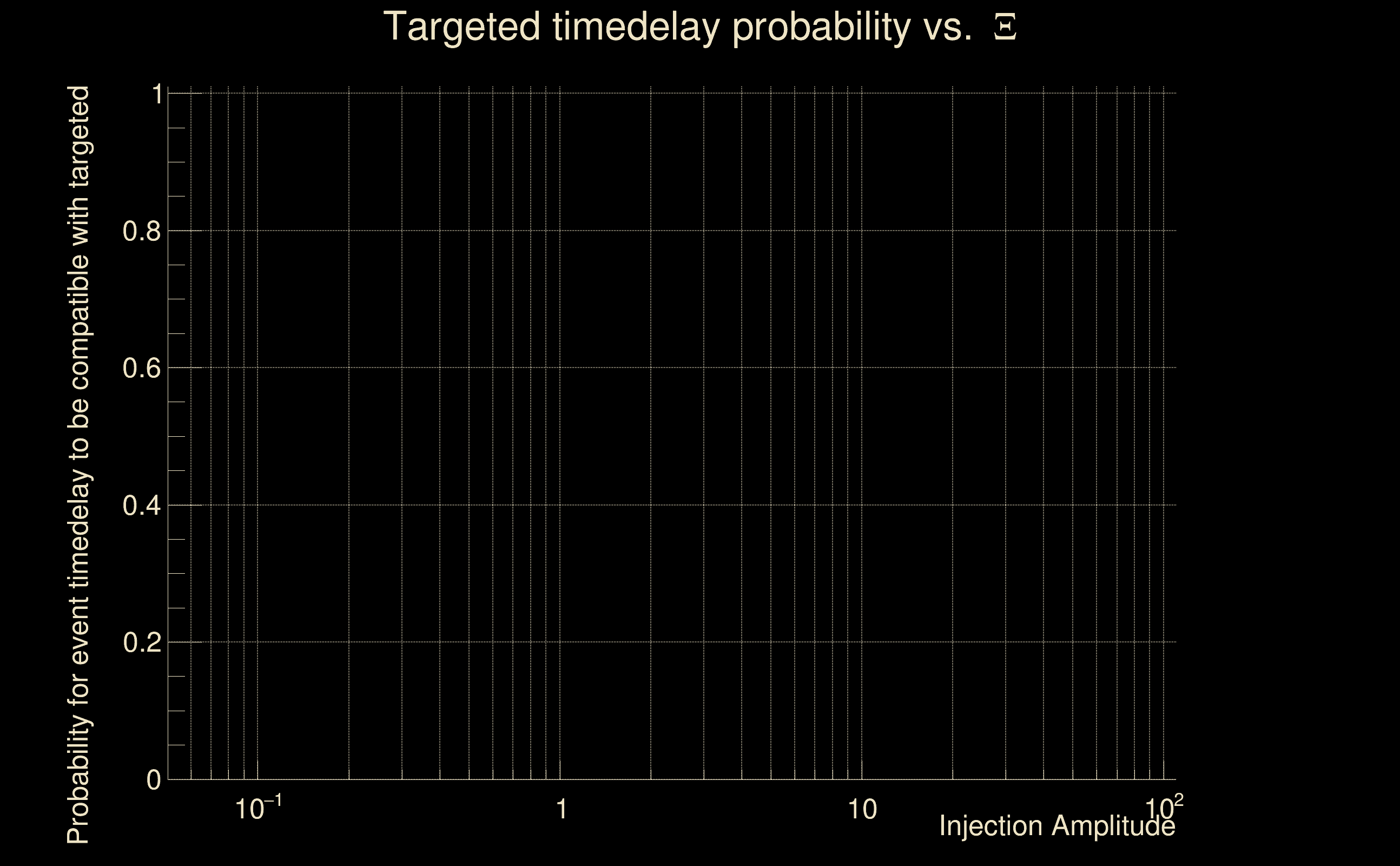

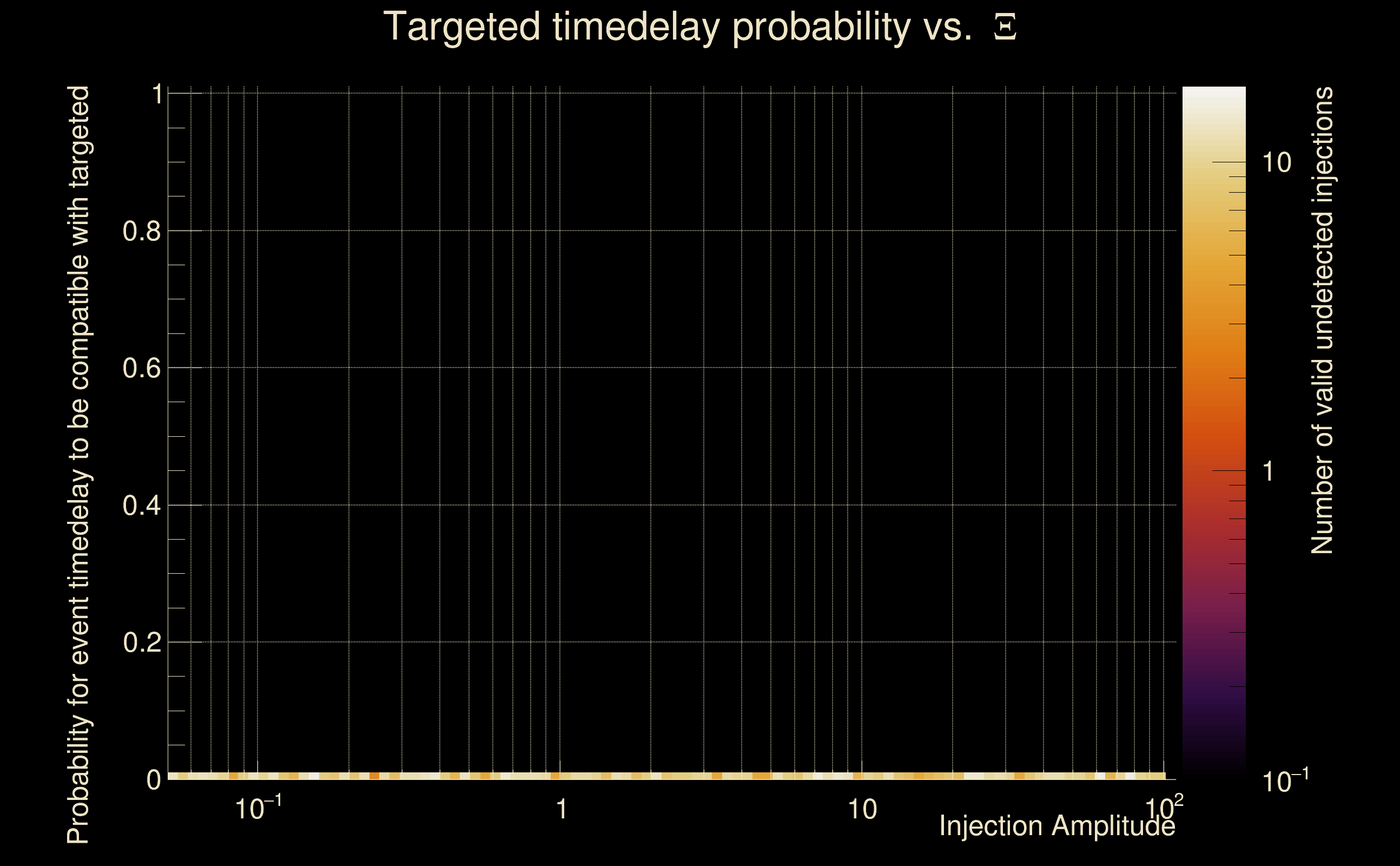

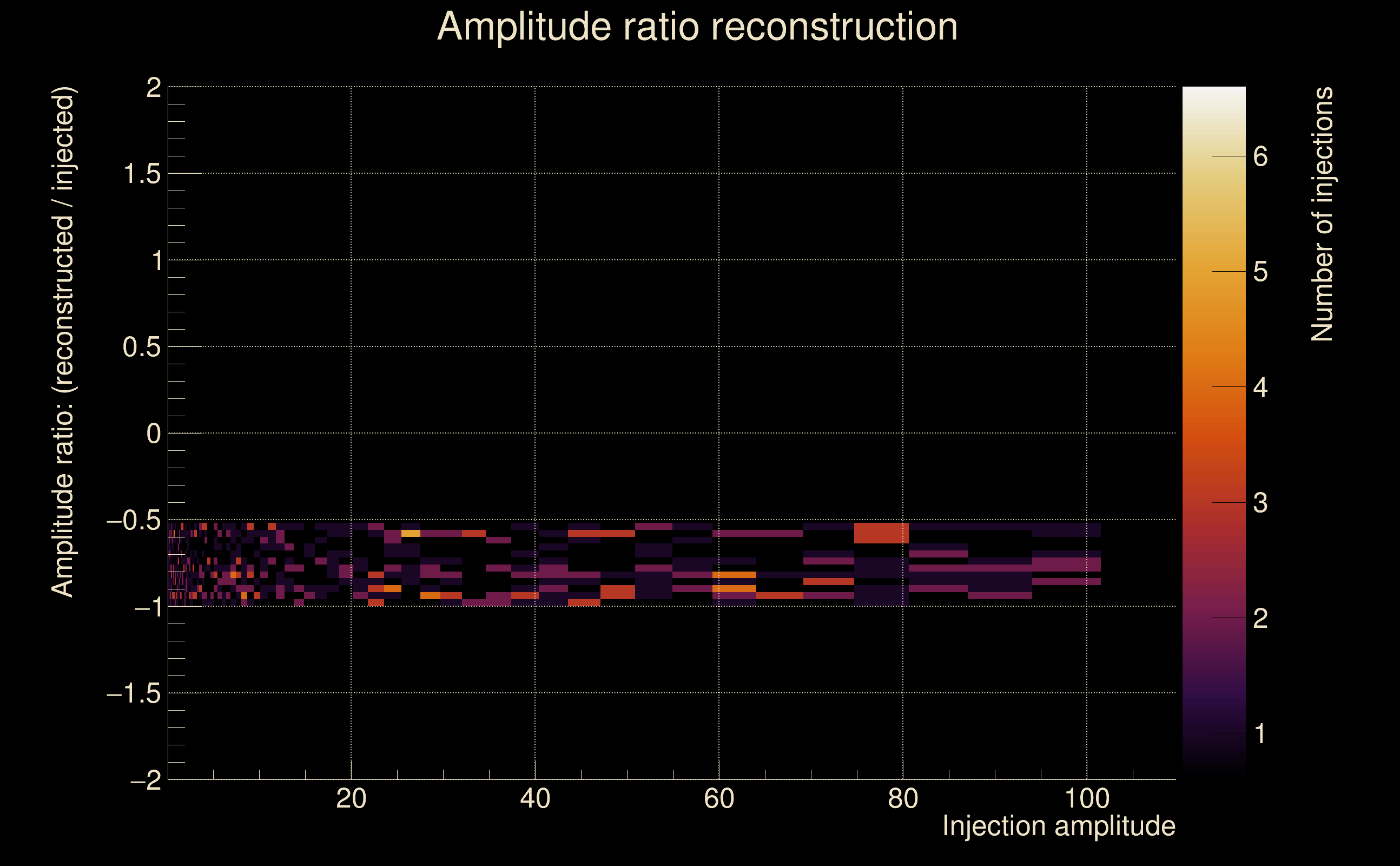

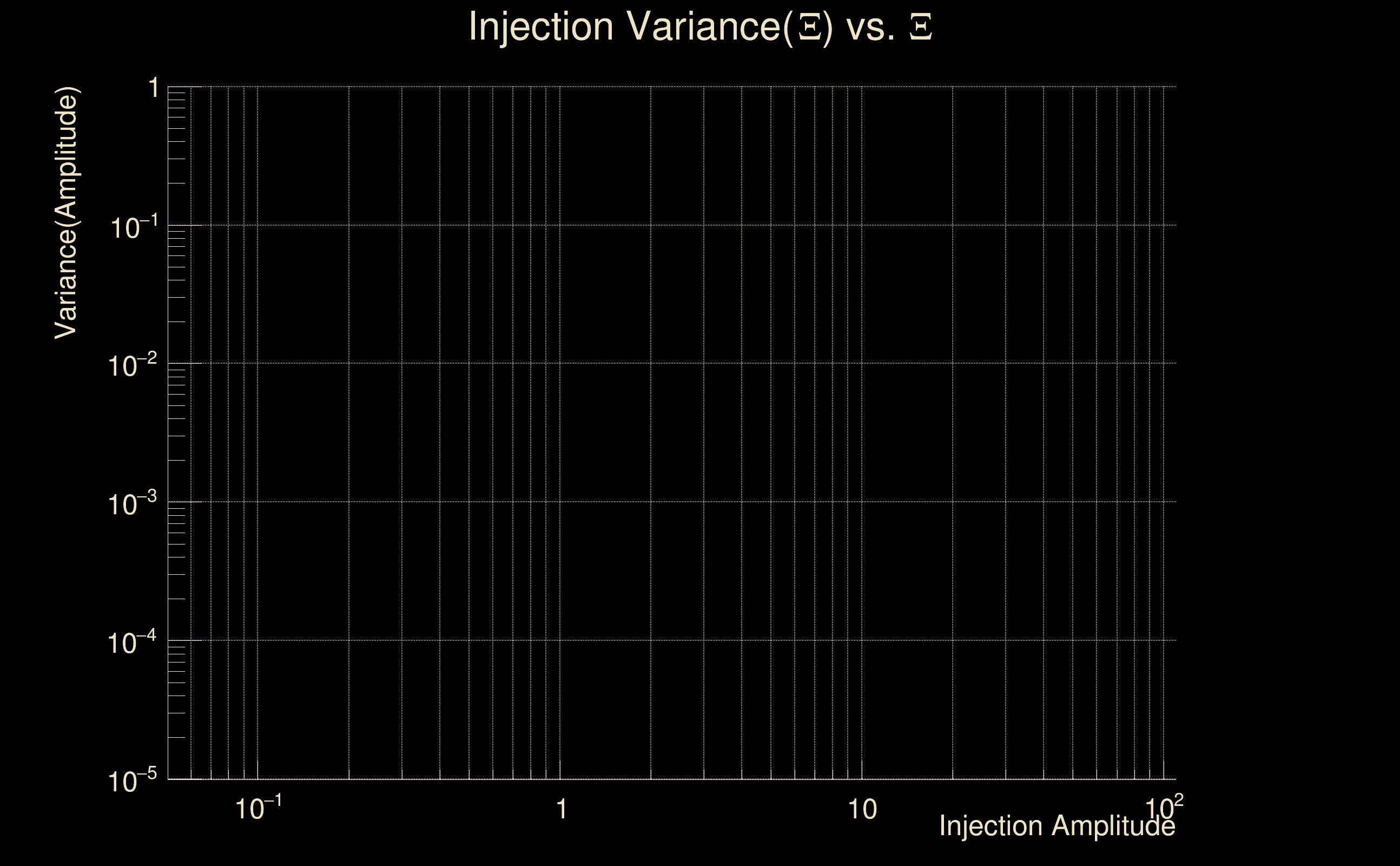

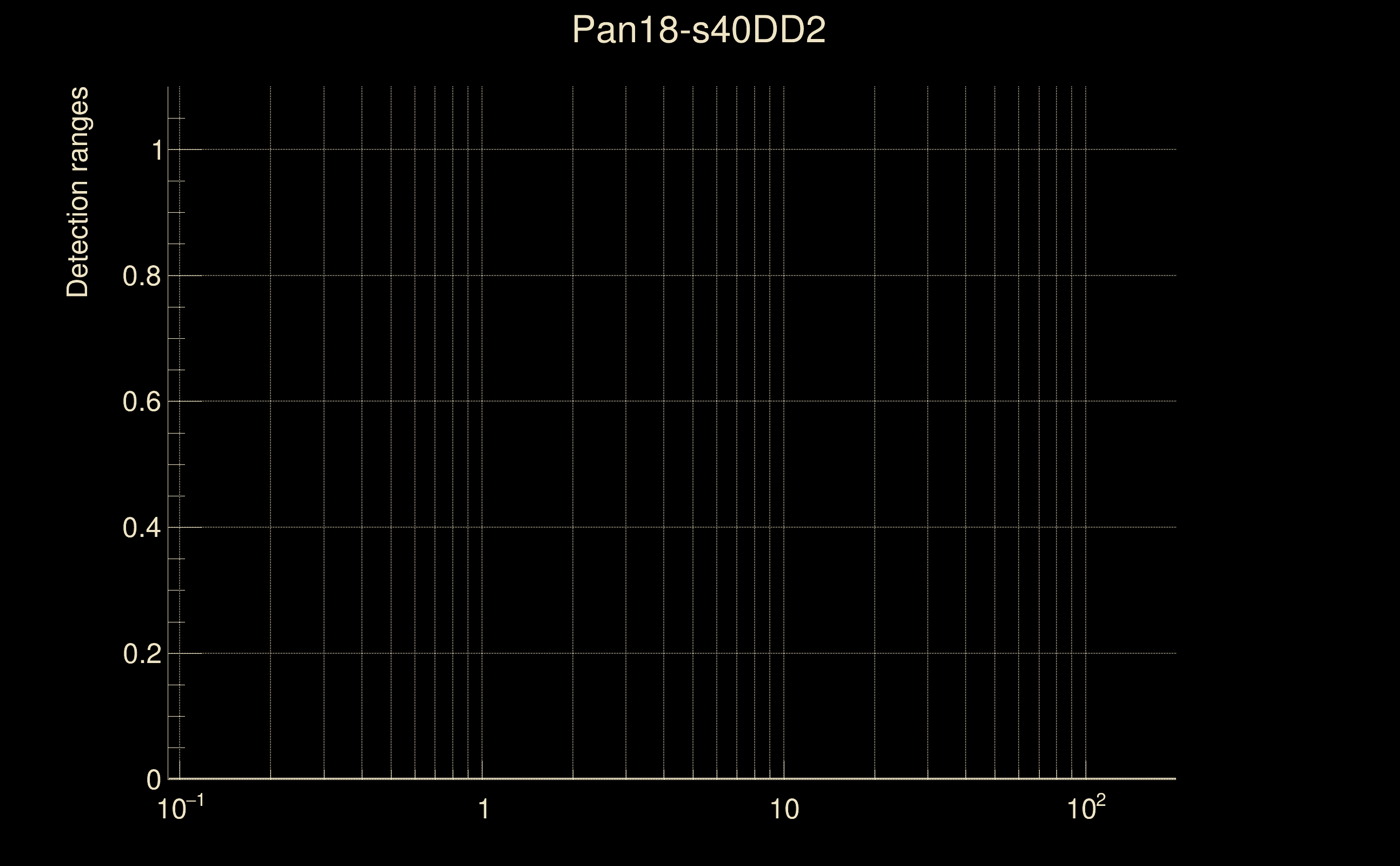

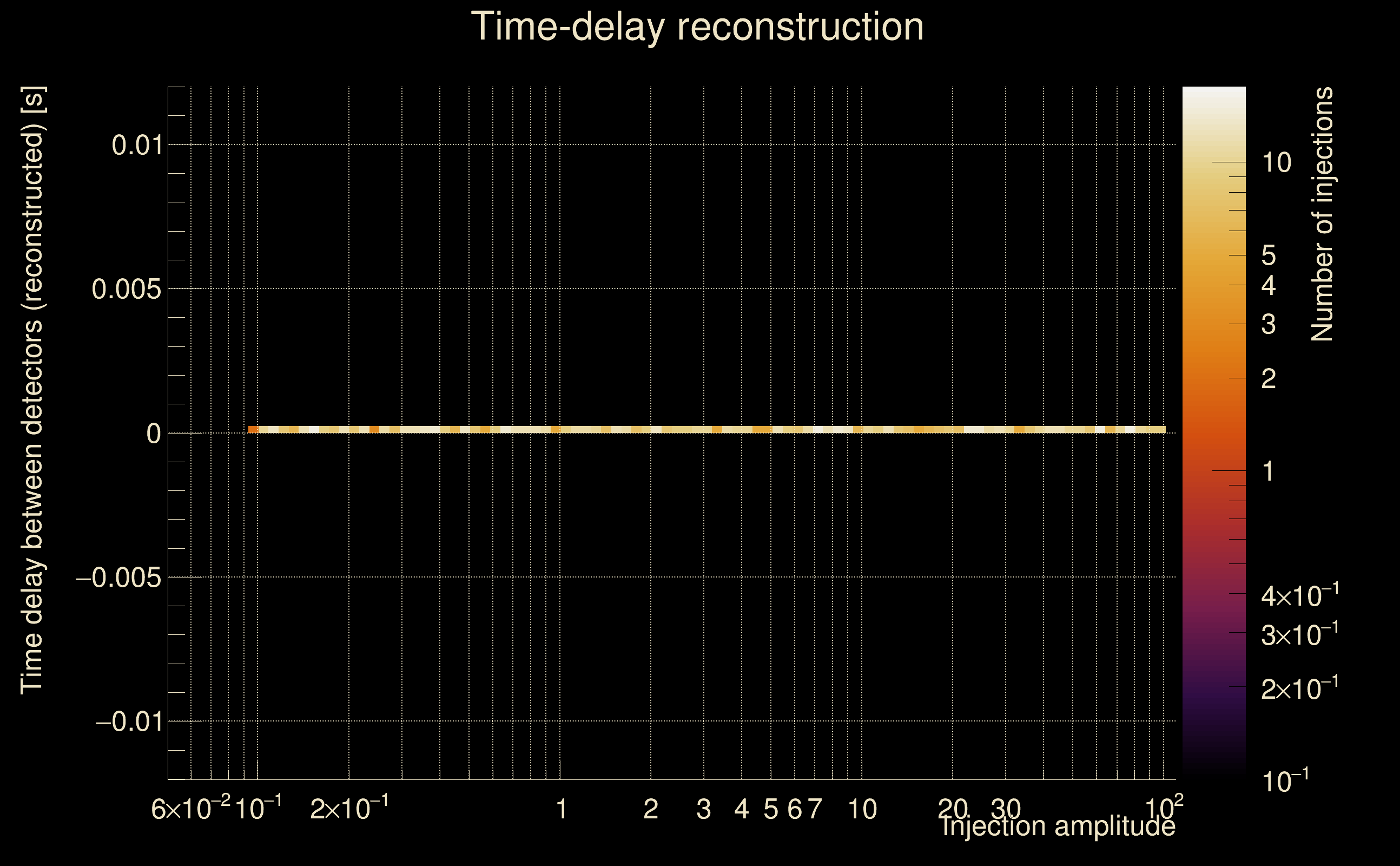

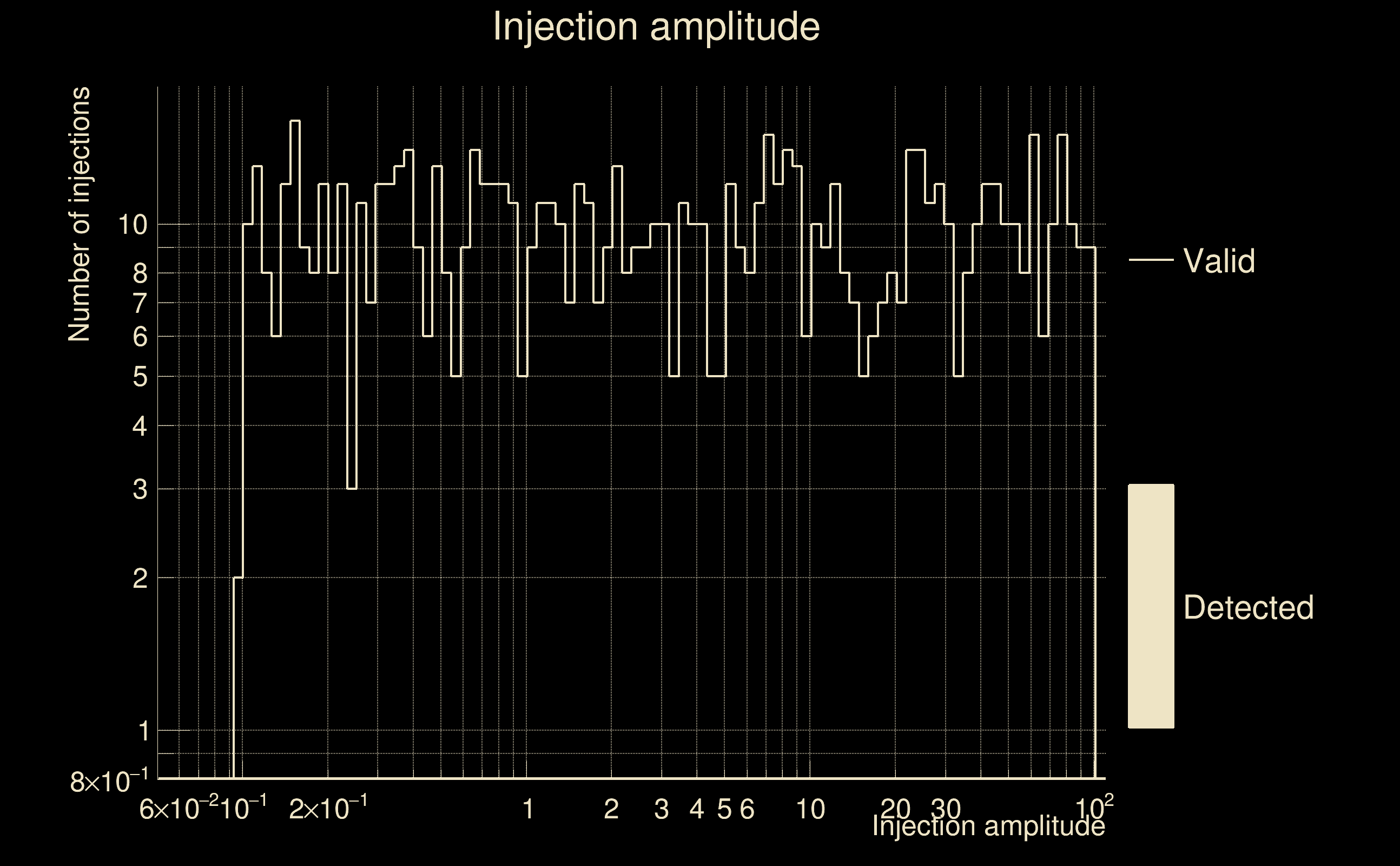

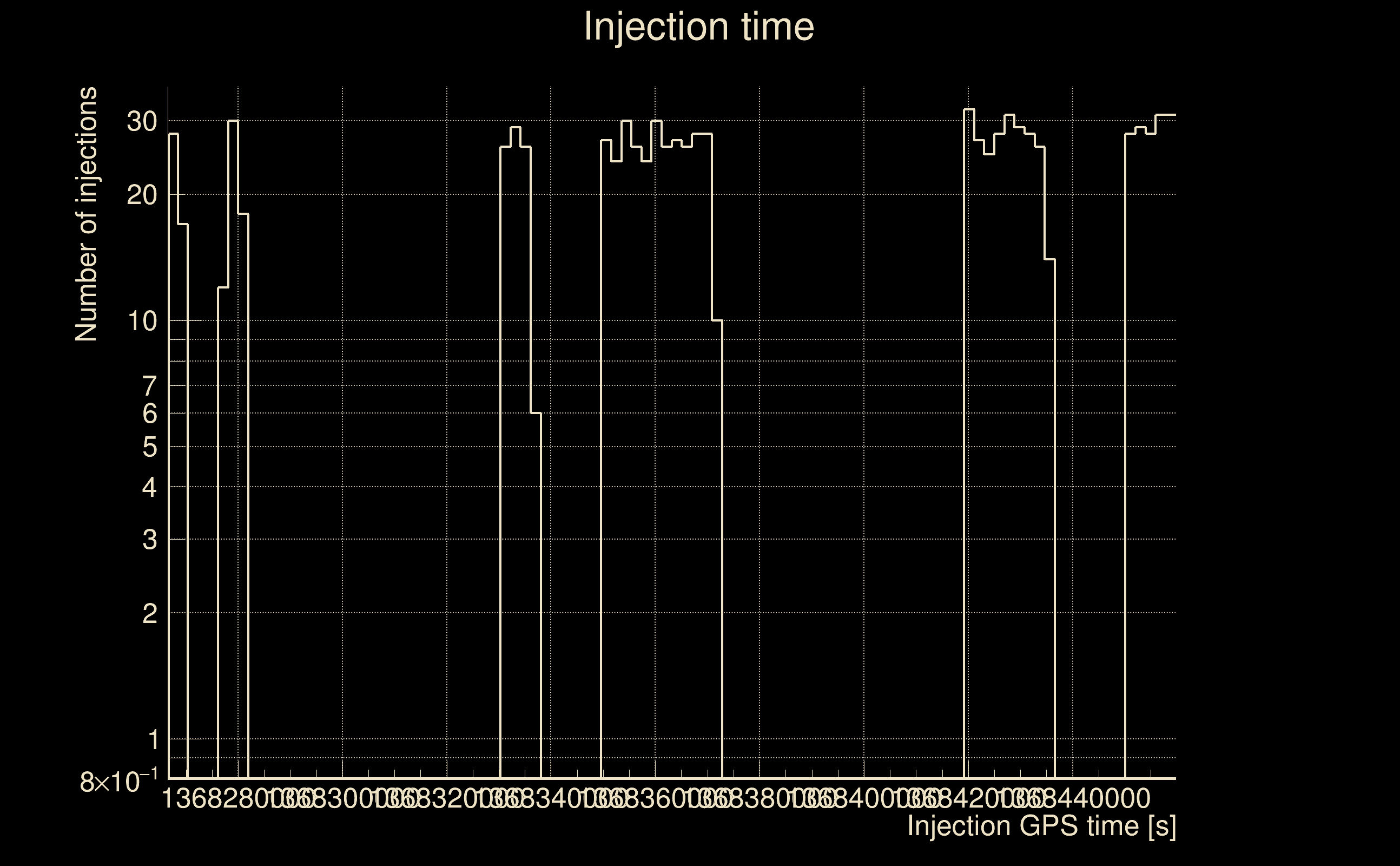

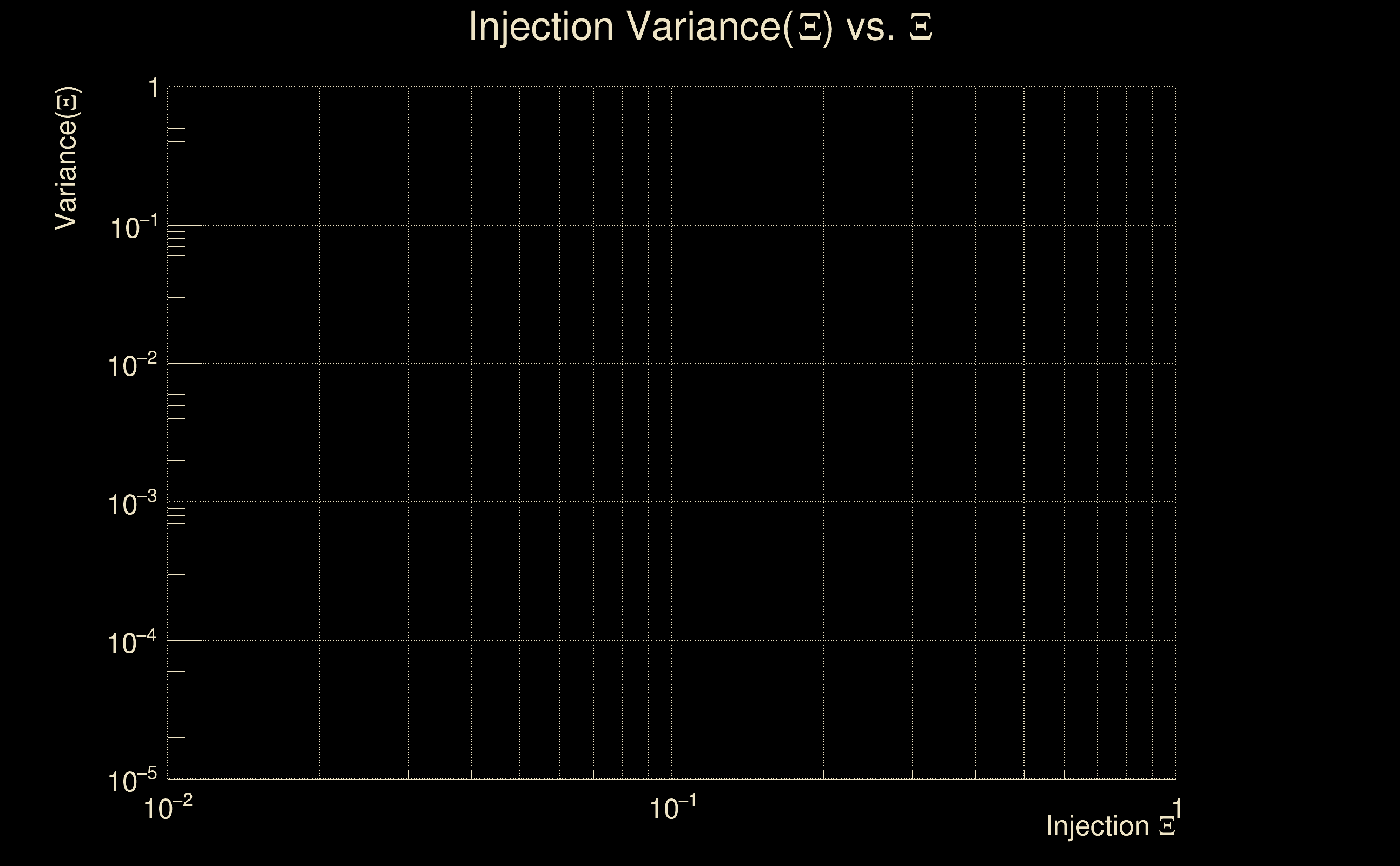

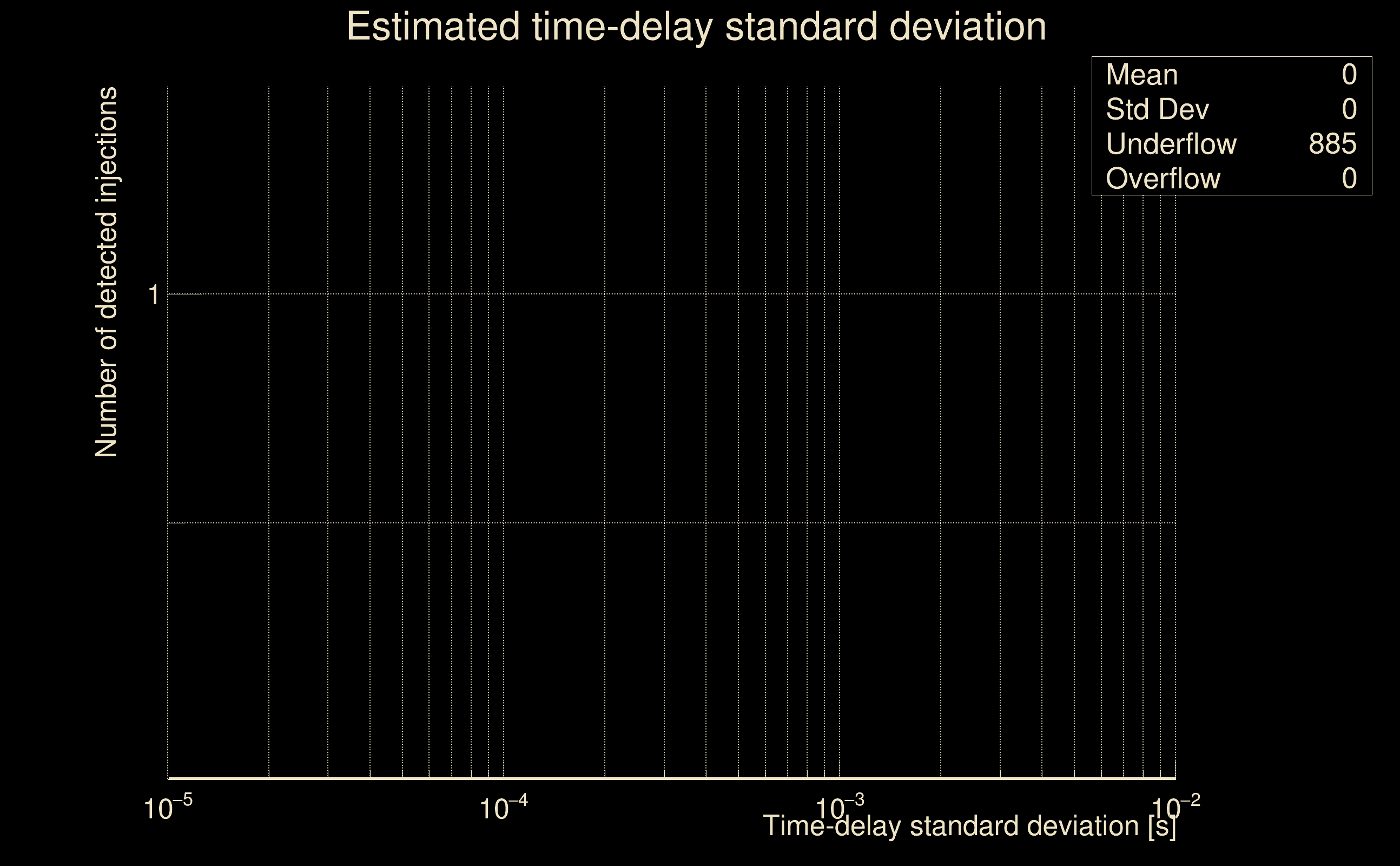

| Number of injections (total/valid/detected): | 1006 / 885 / 0 |
| List of missed injections: | ./Pan18-s40DD2_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | -1 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

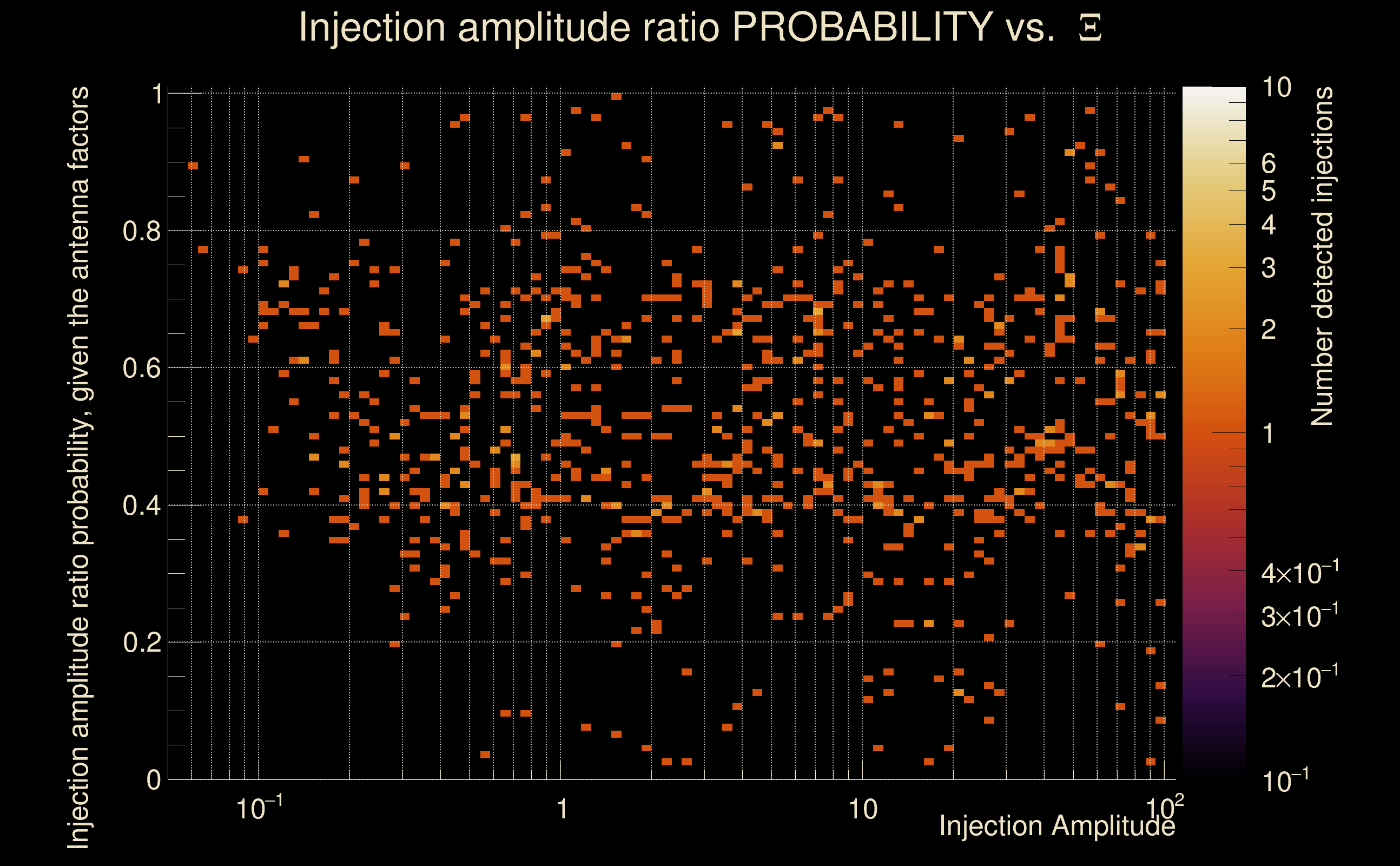

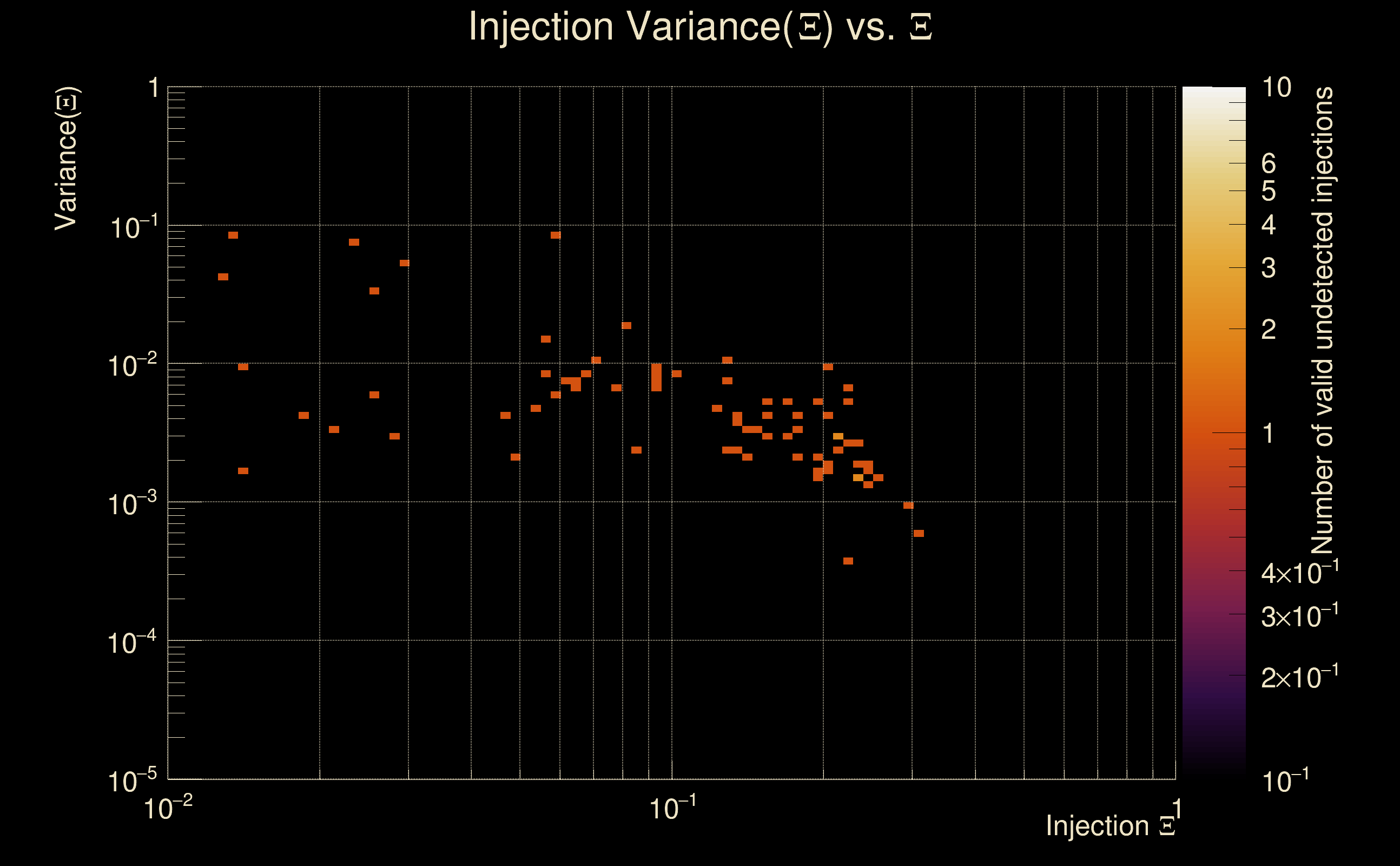

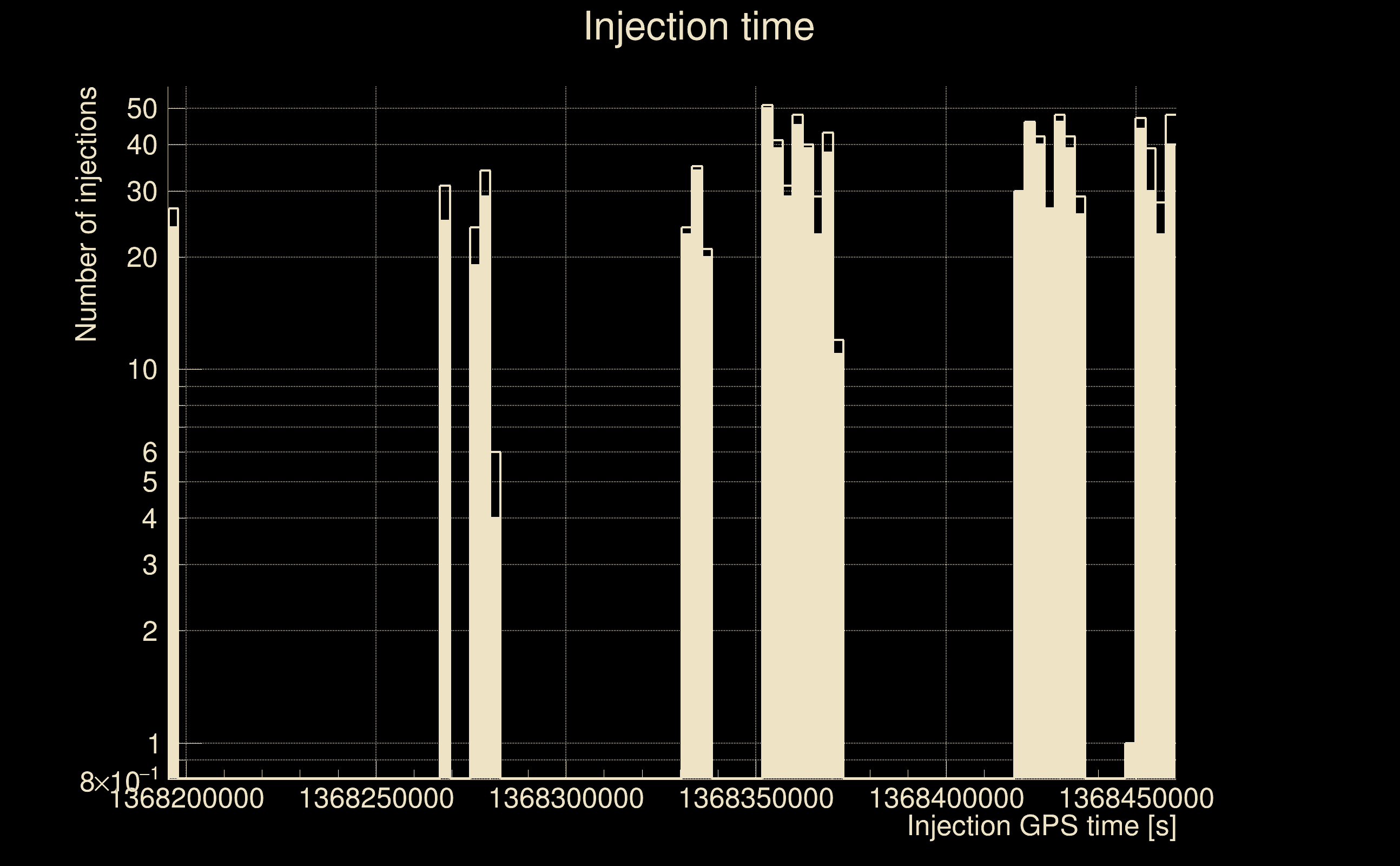

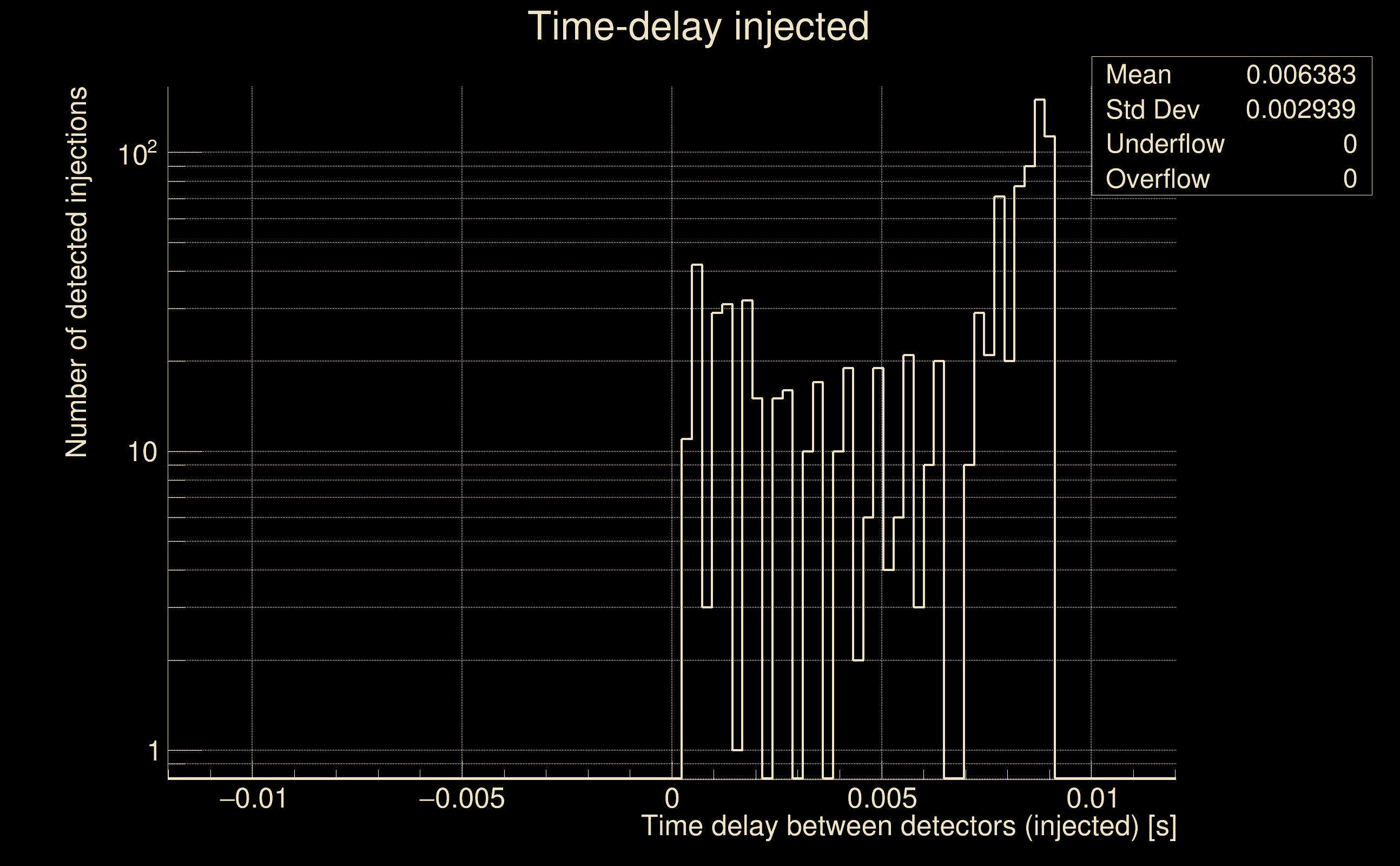

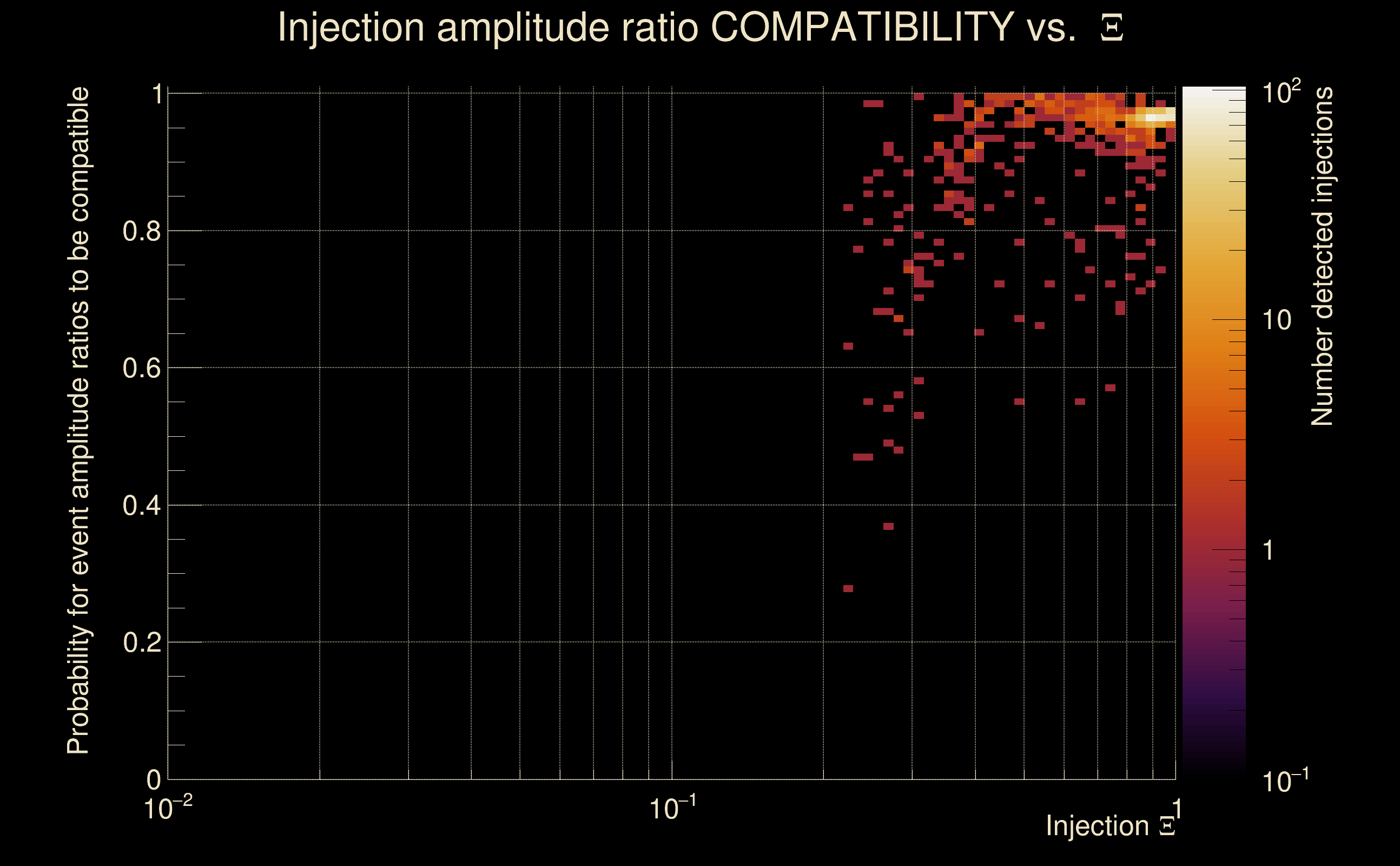

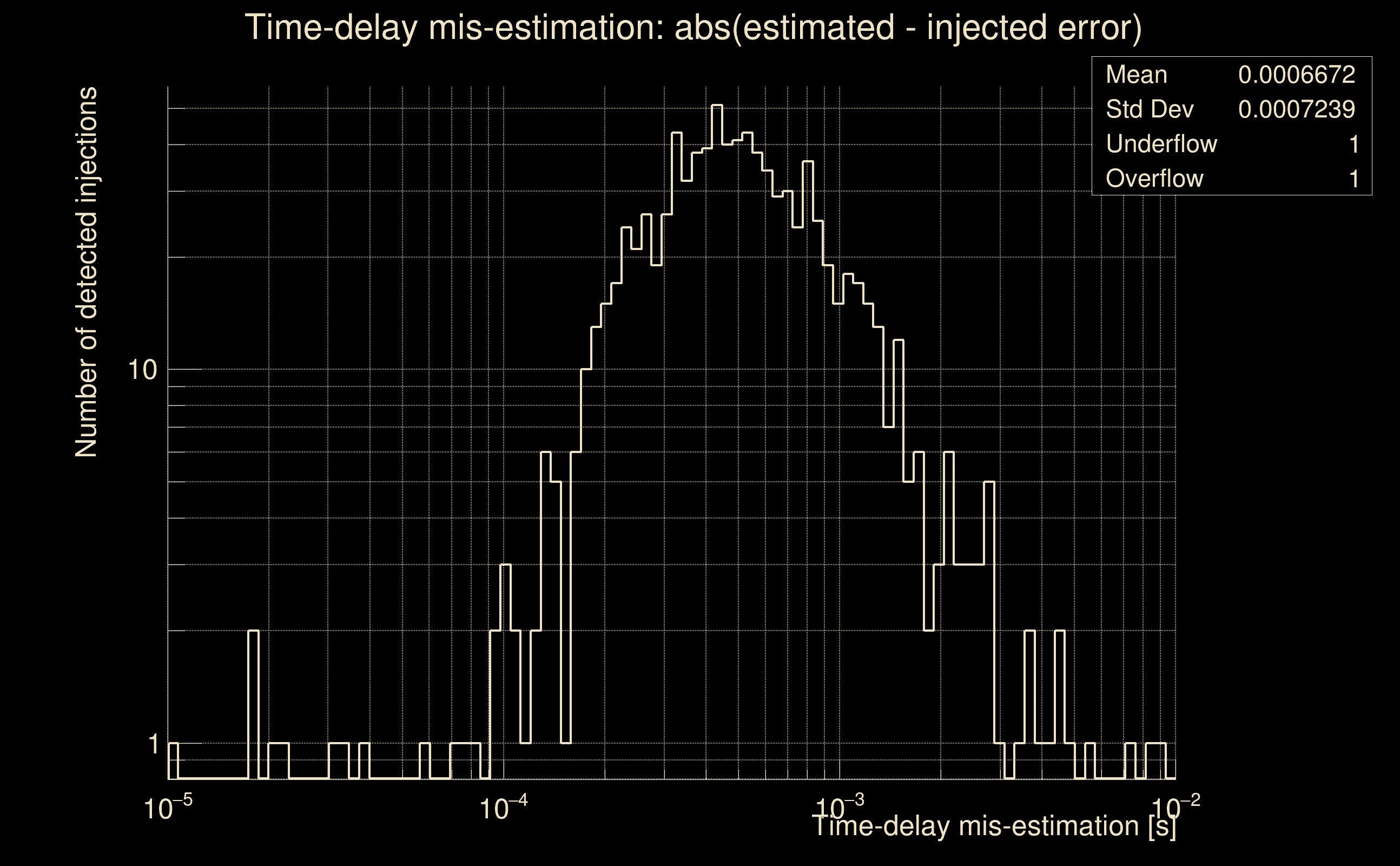

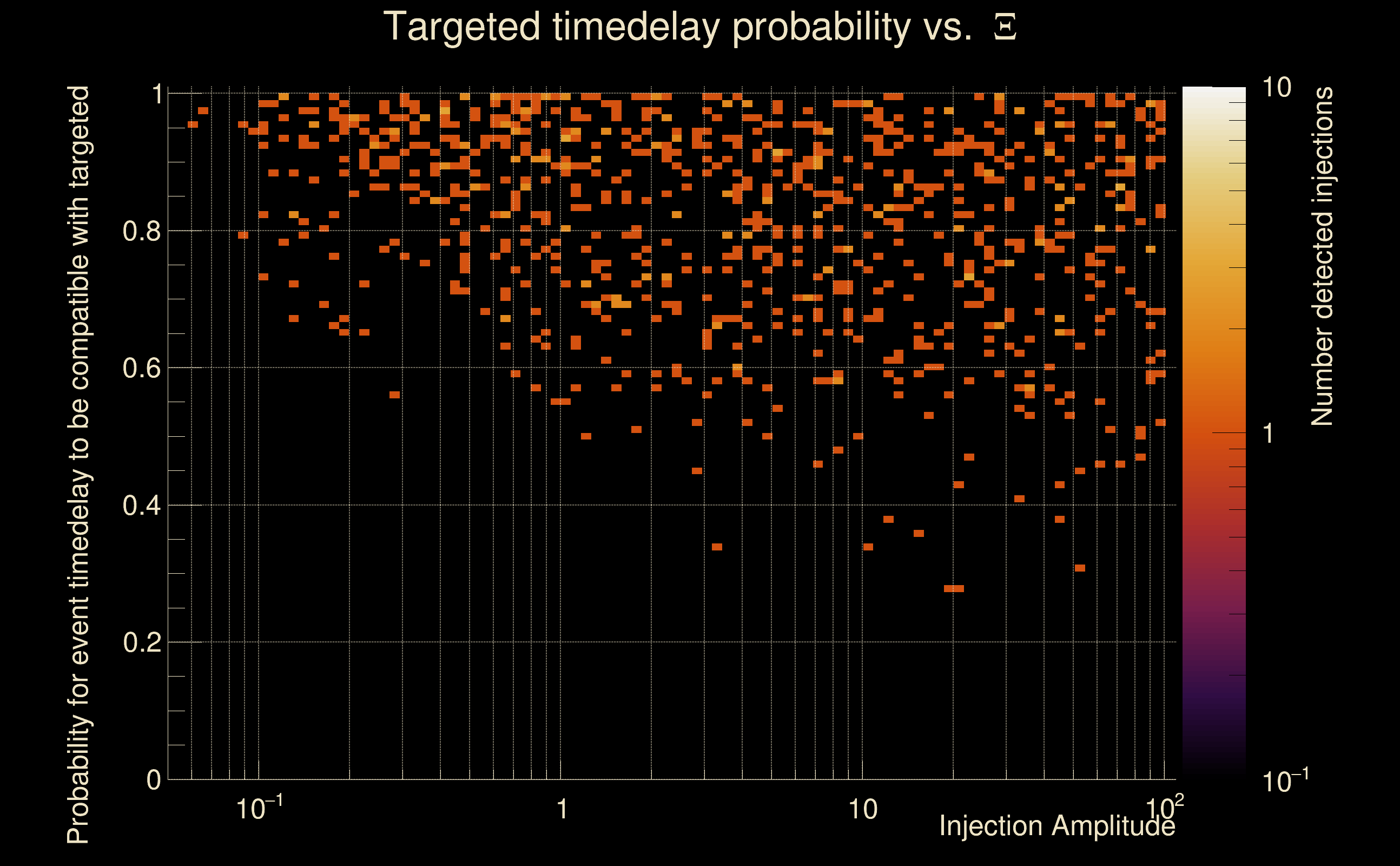

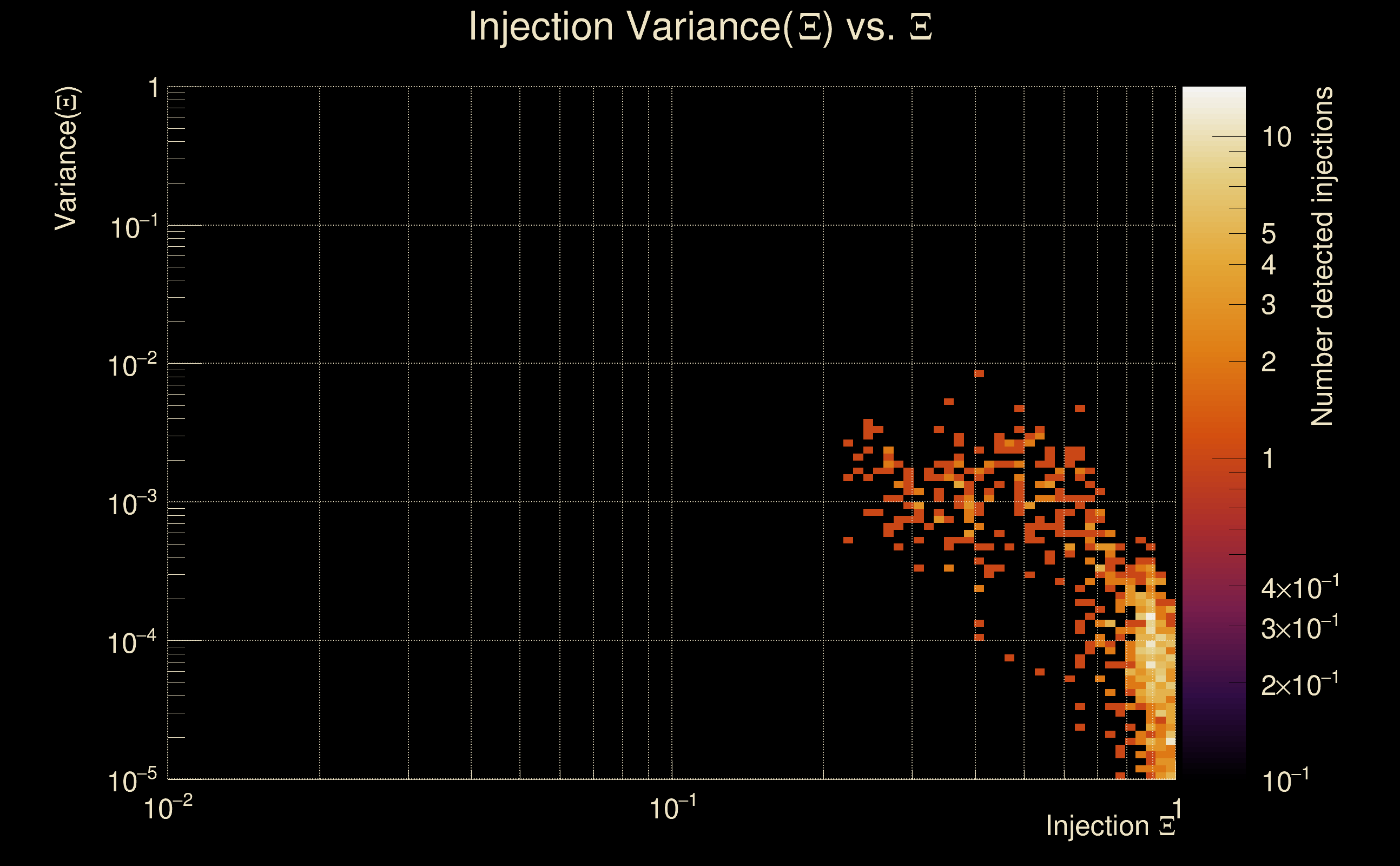

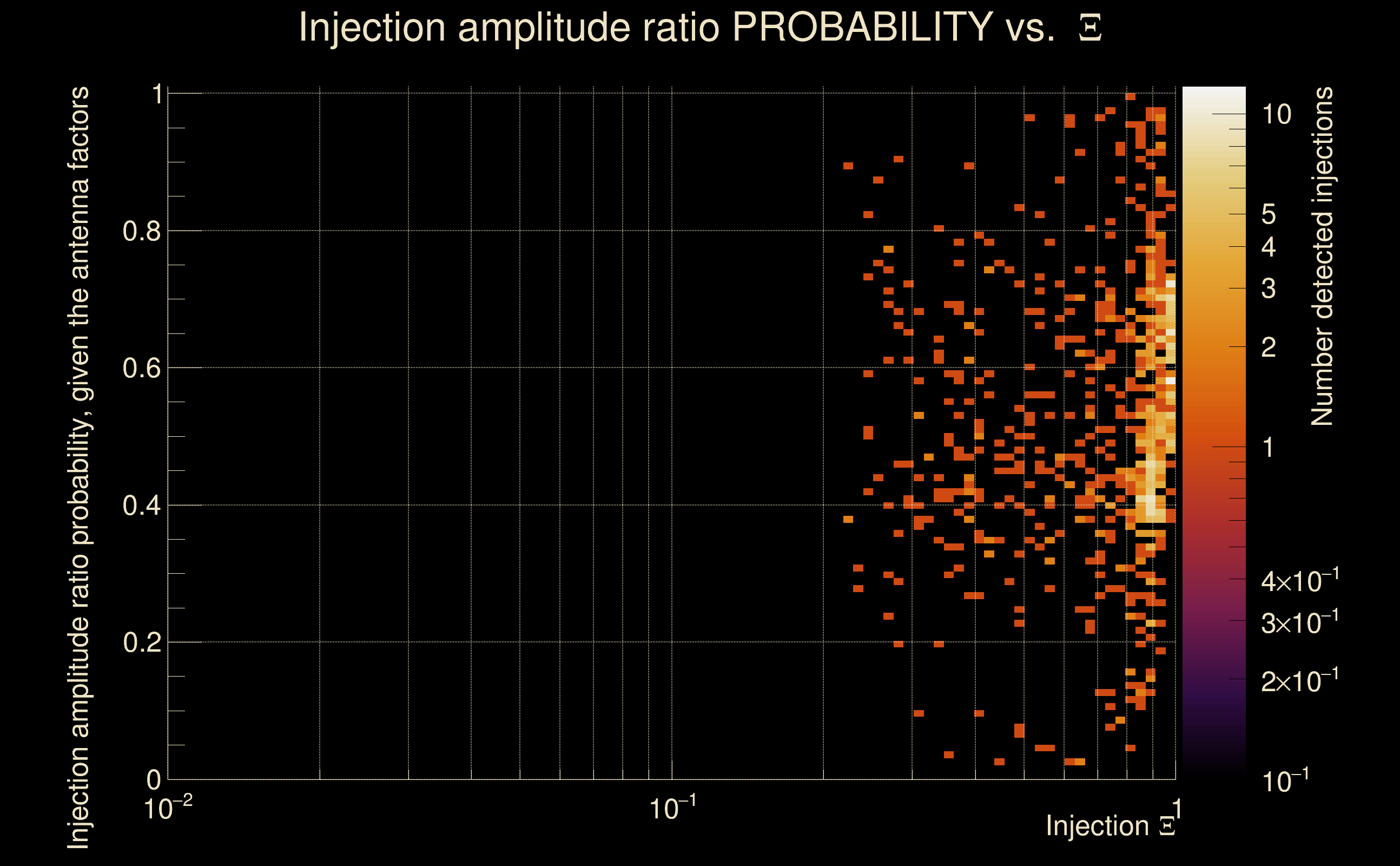

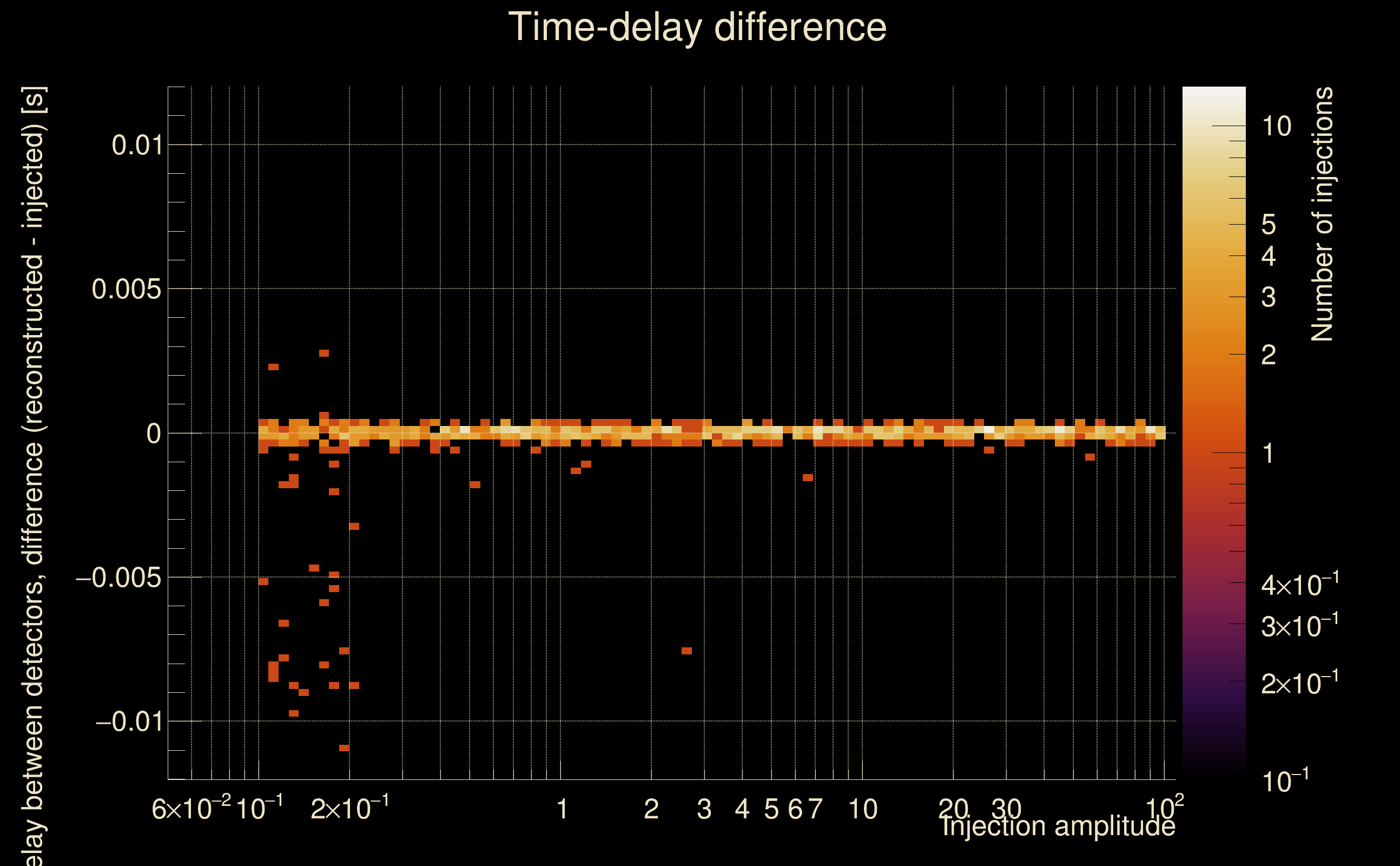

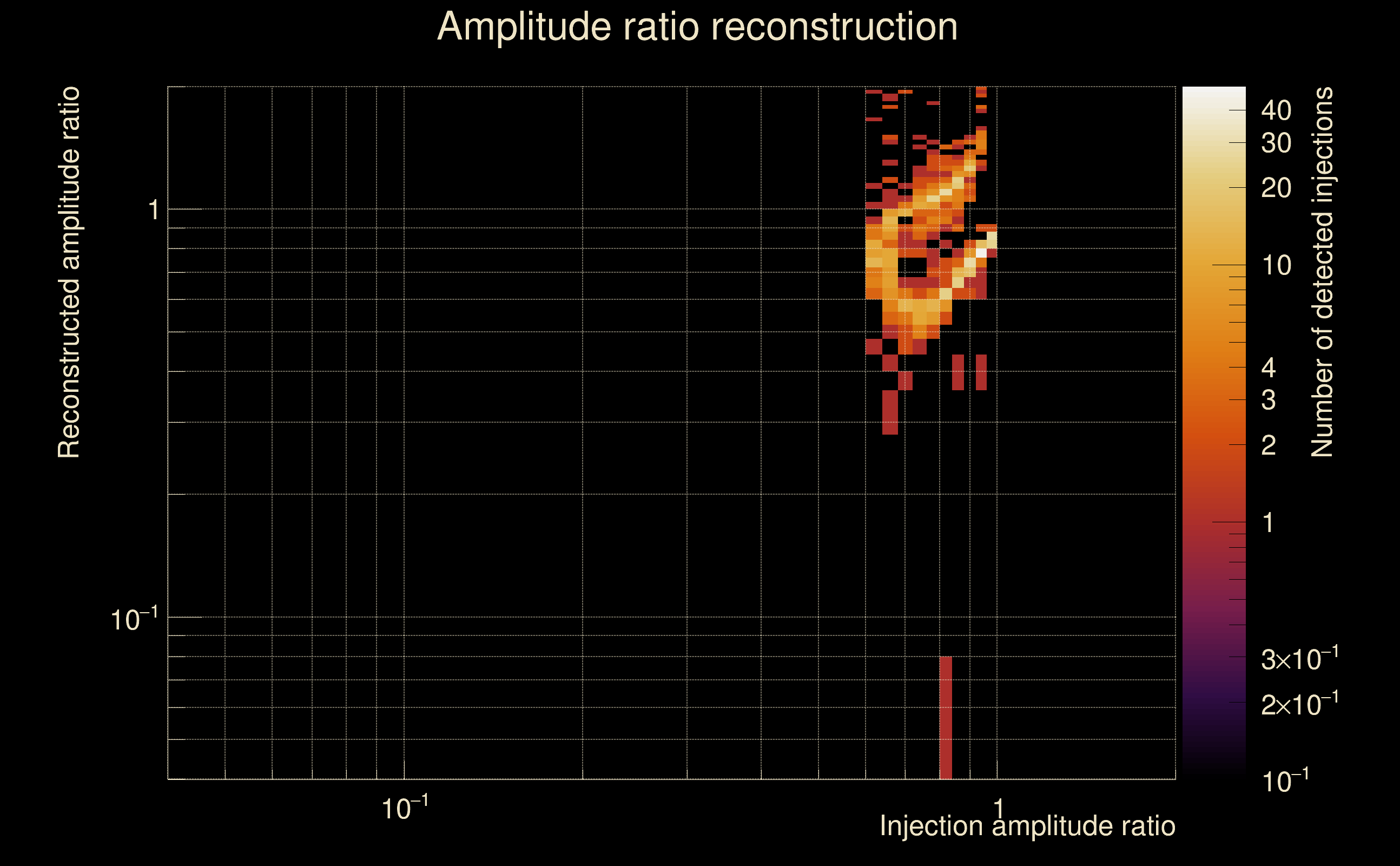

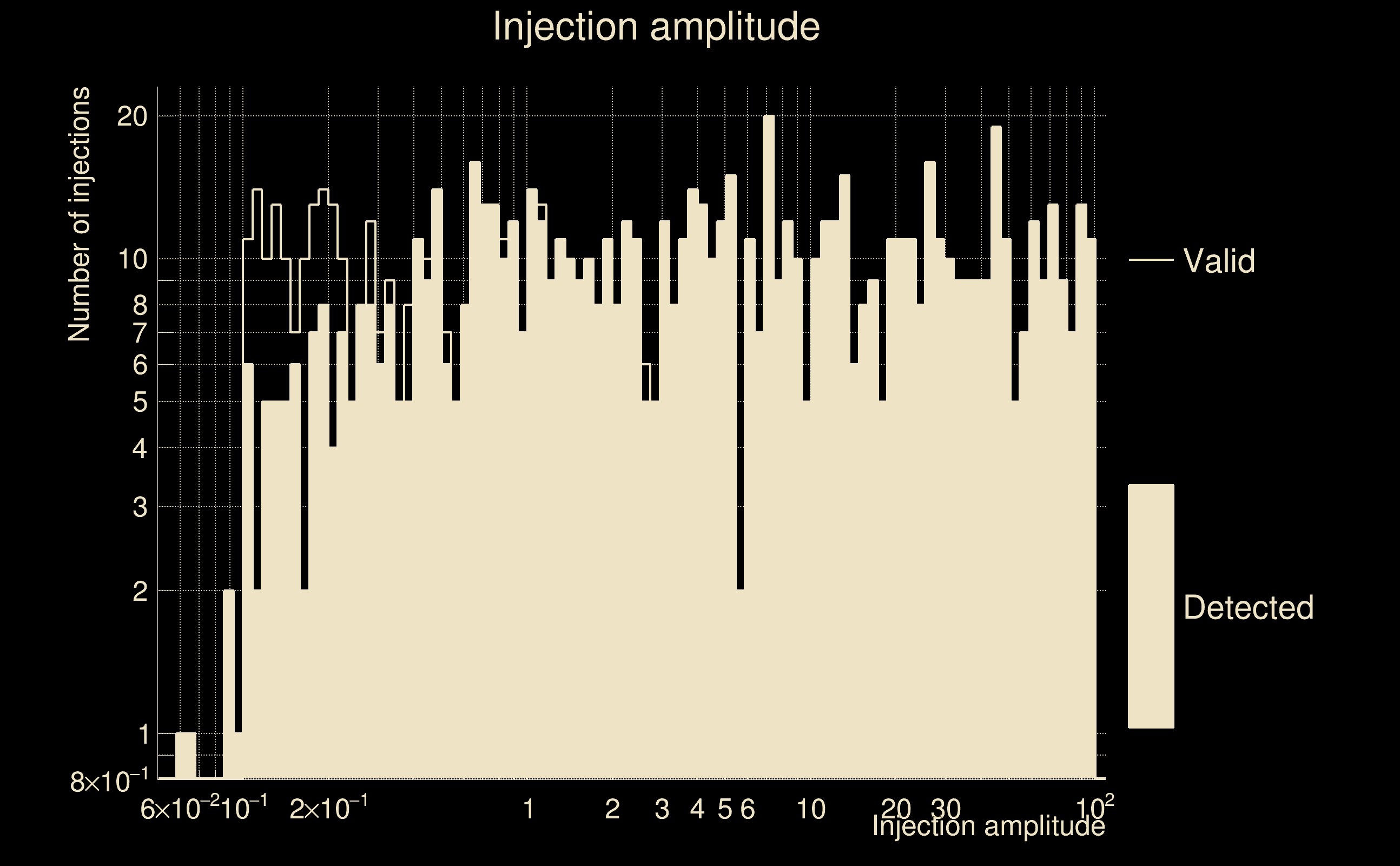

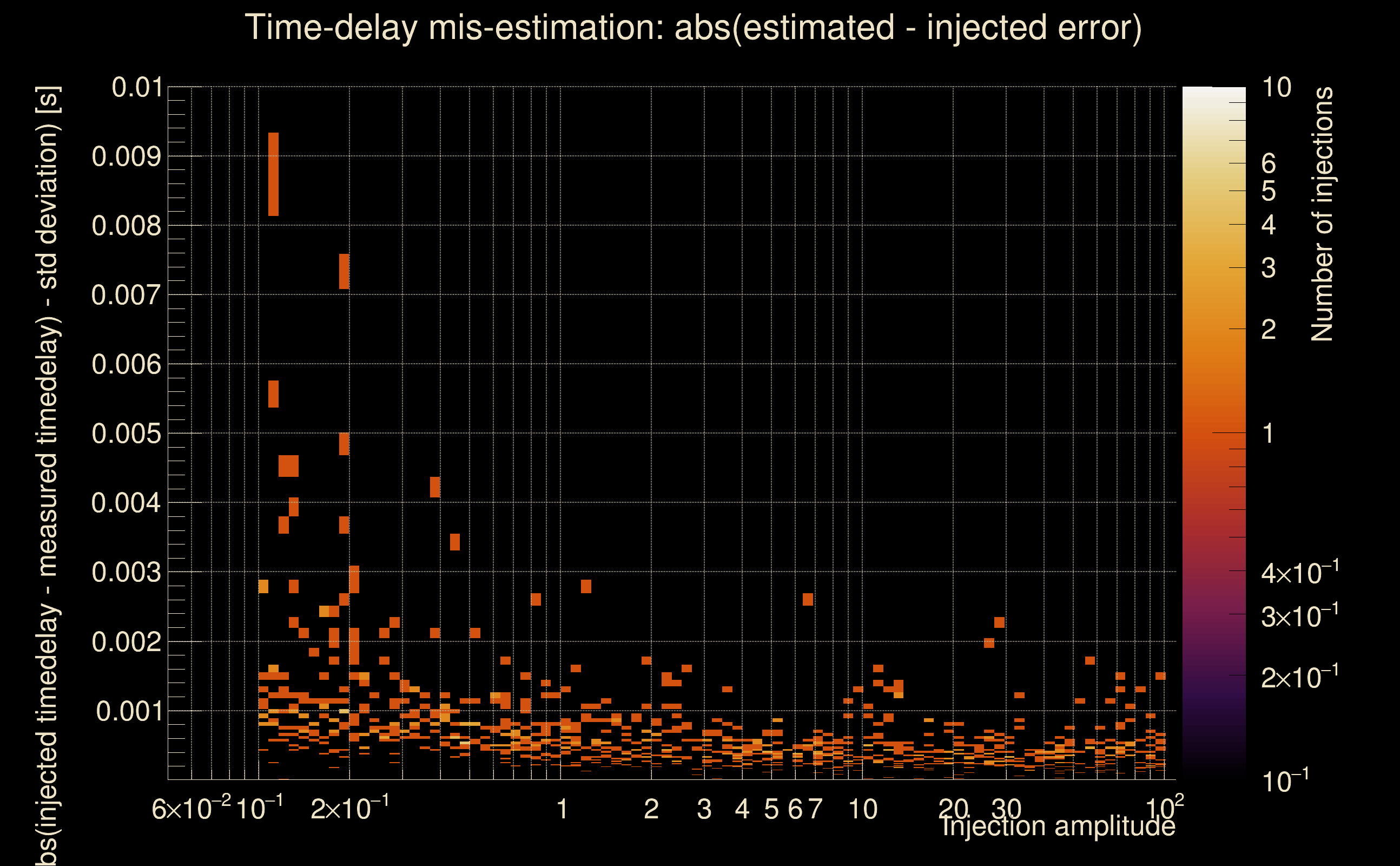

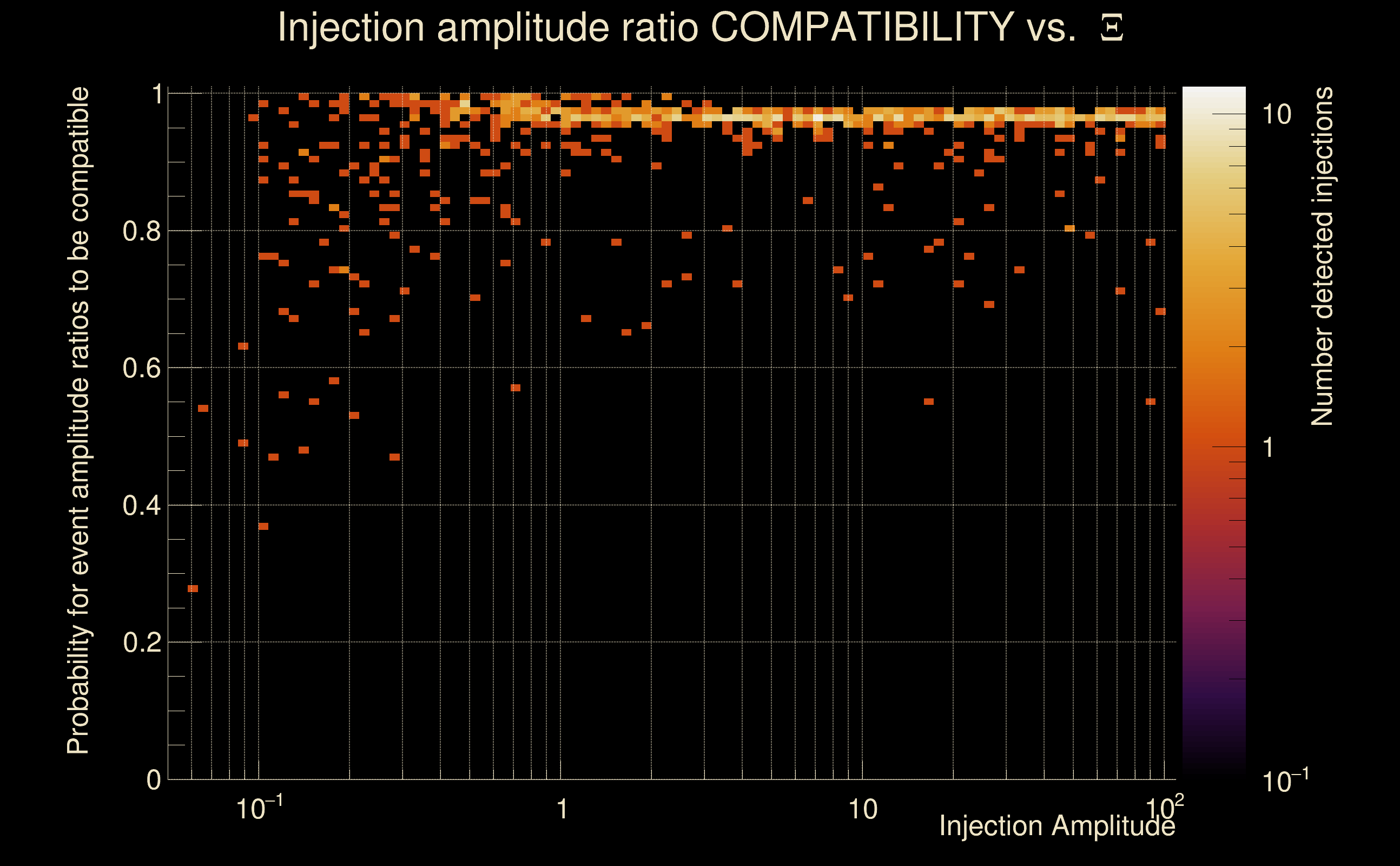

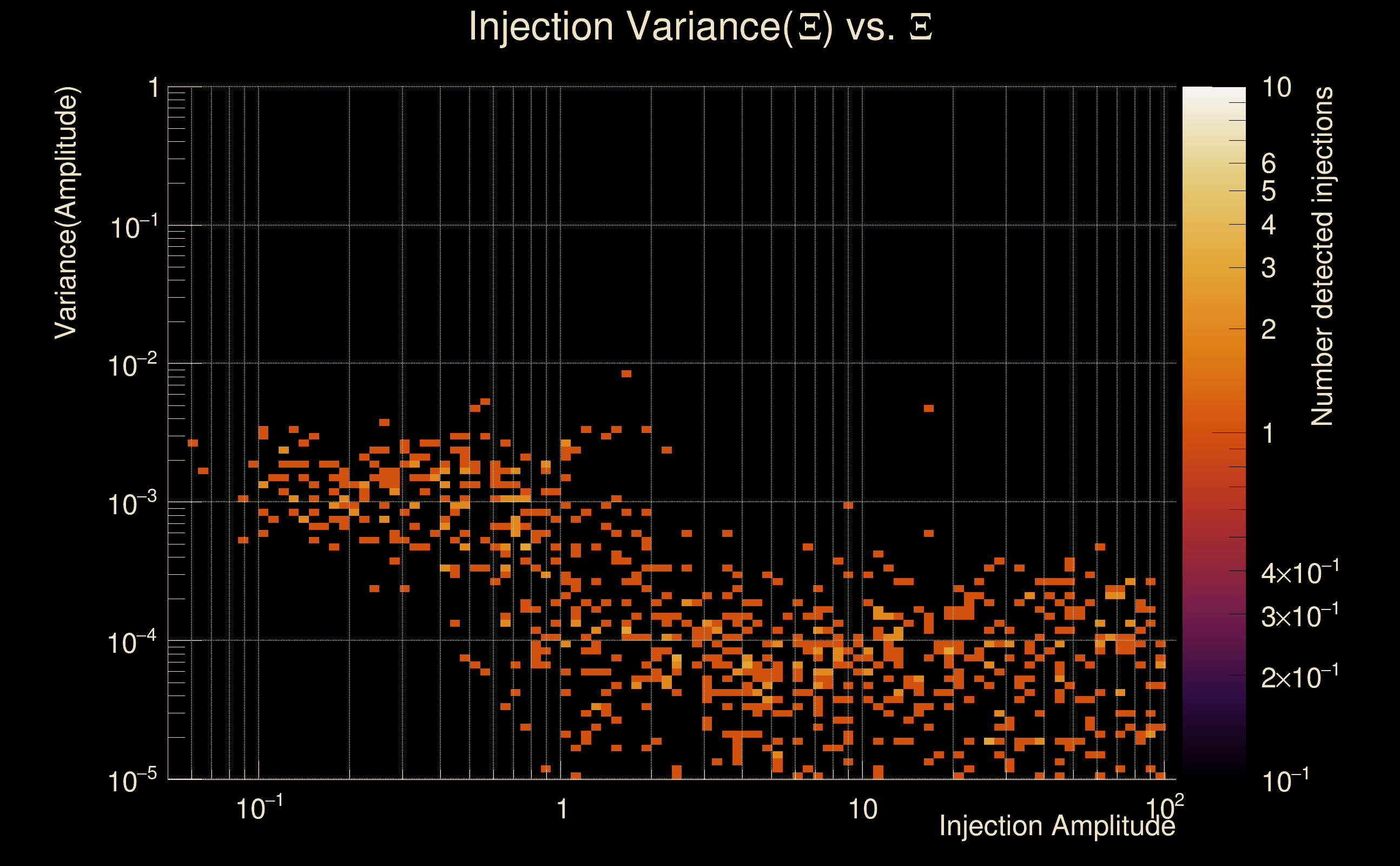

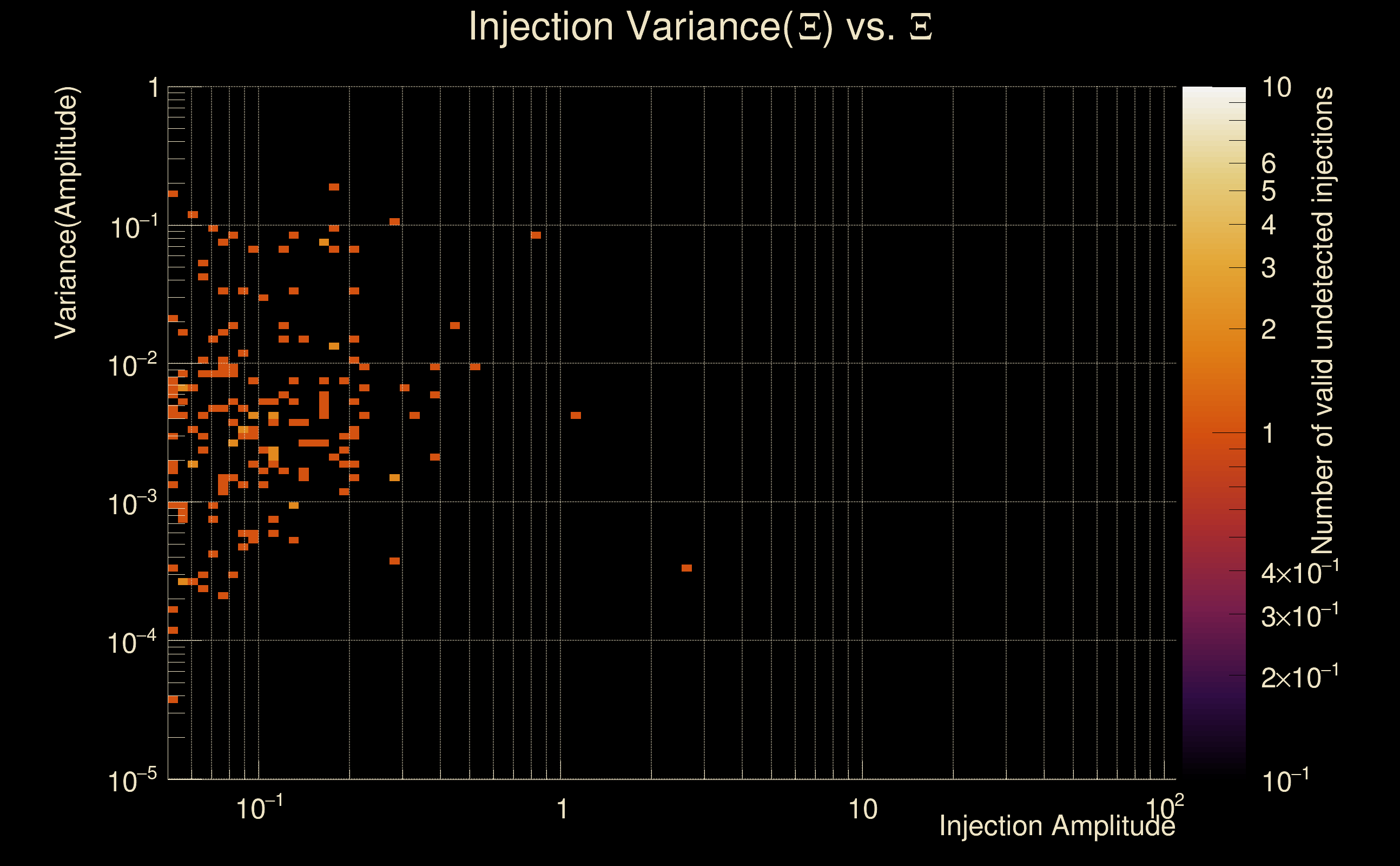

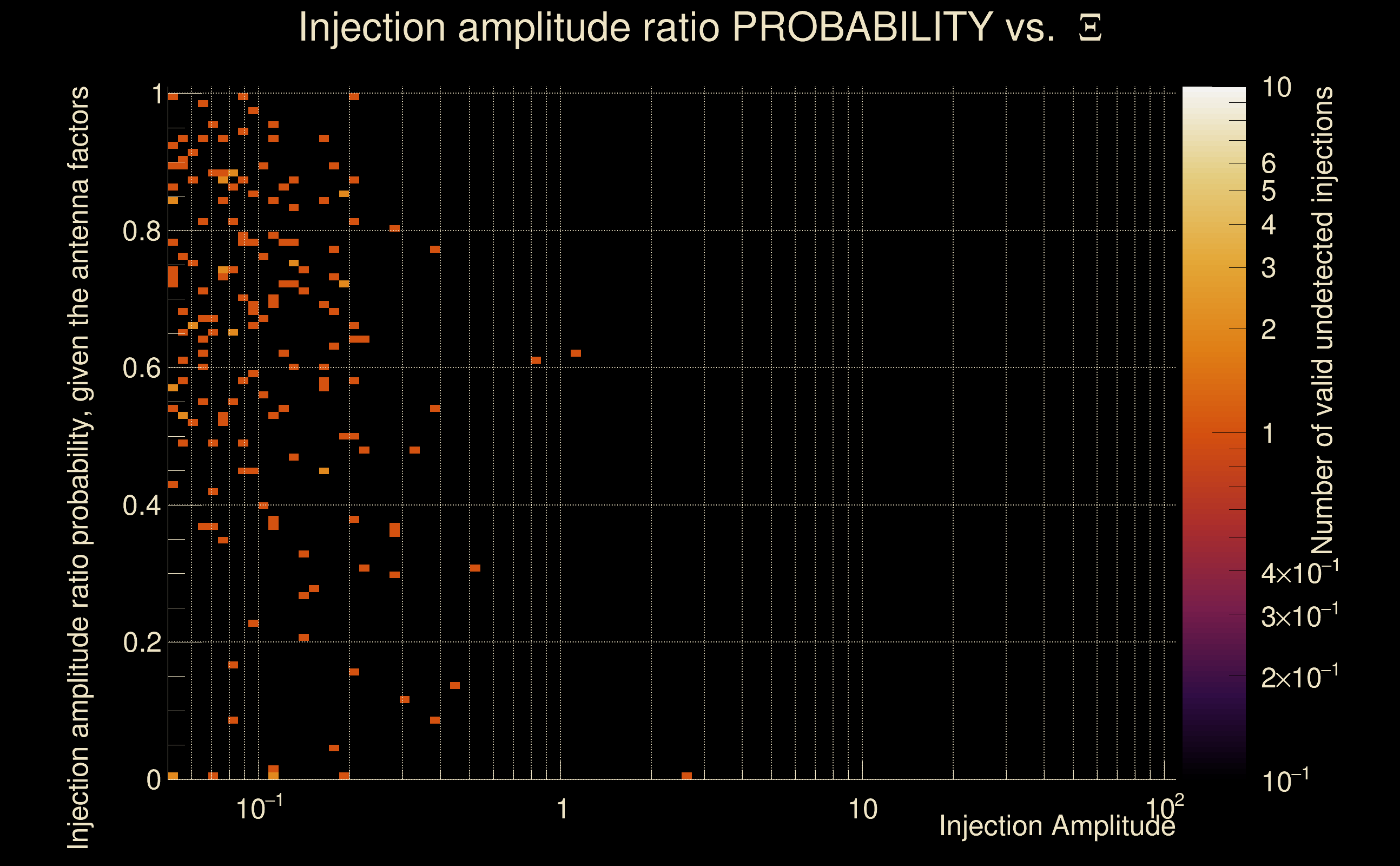

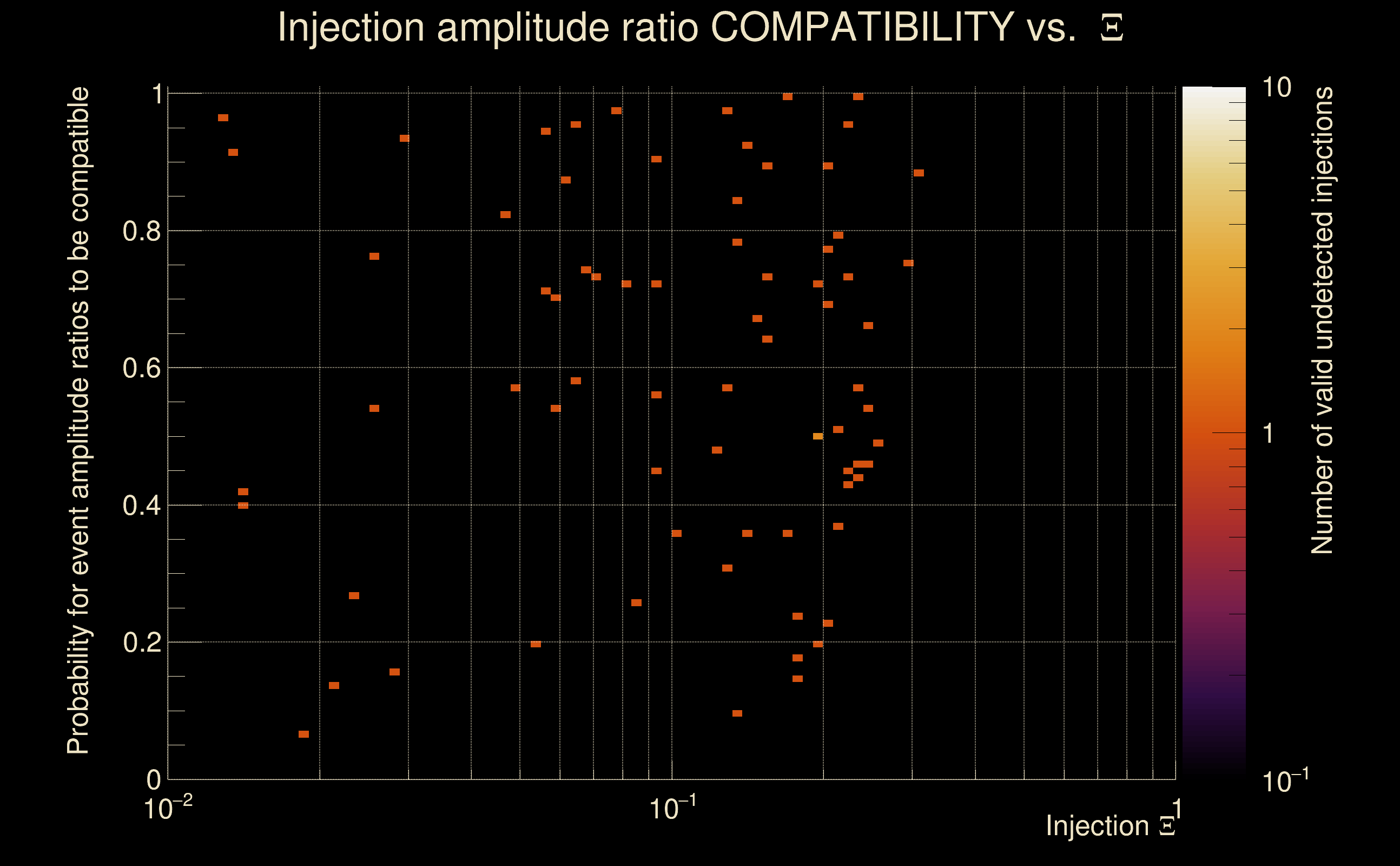

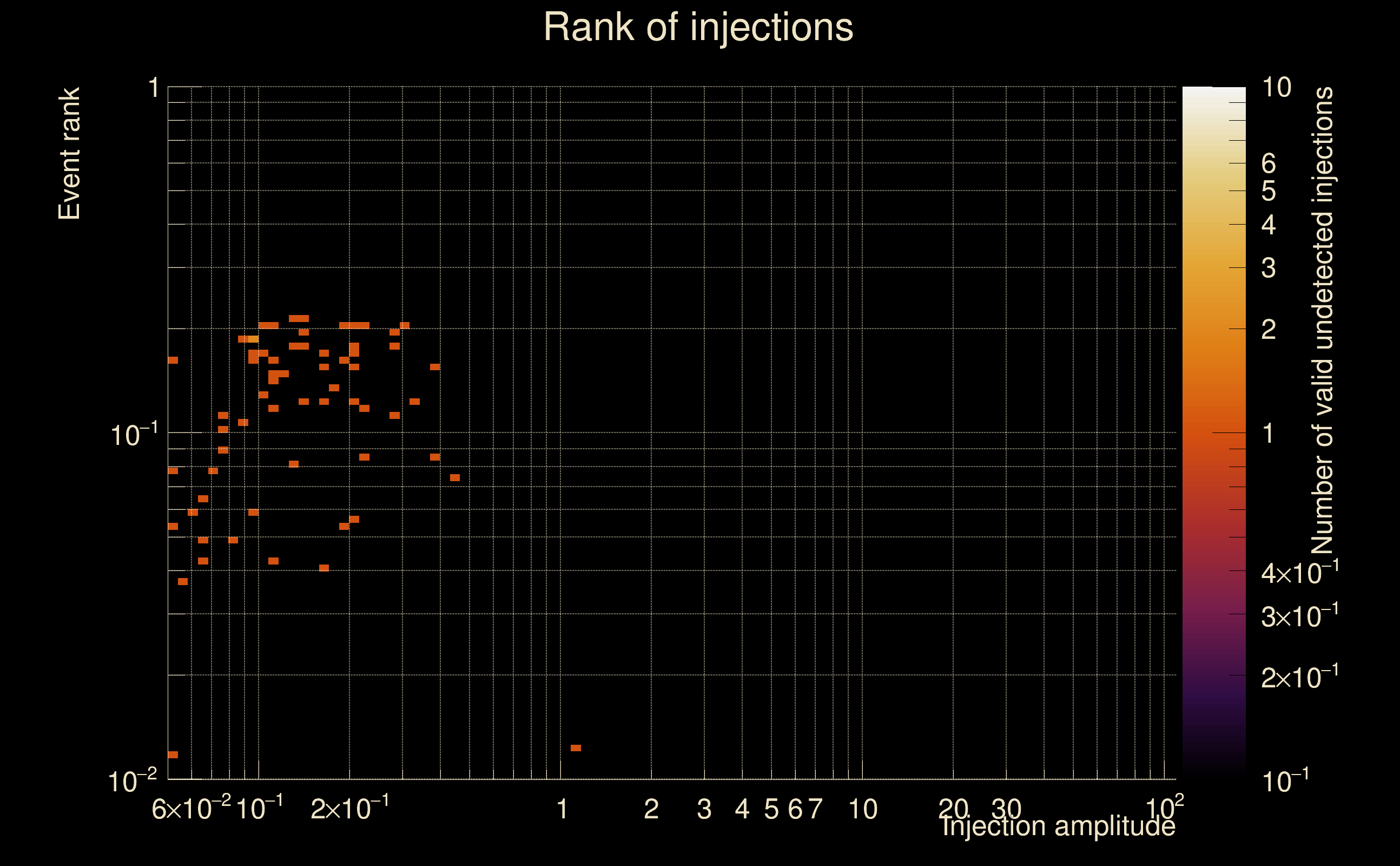

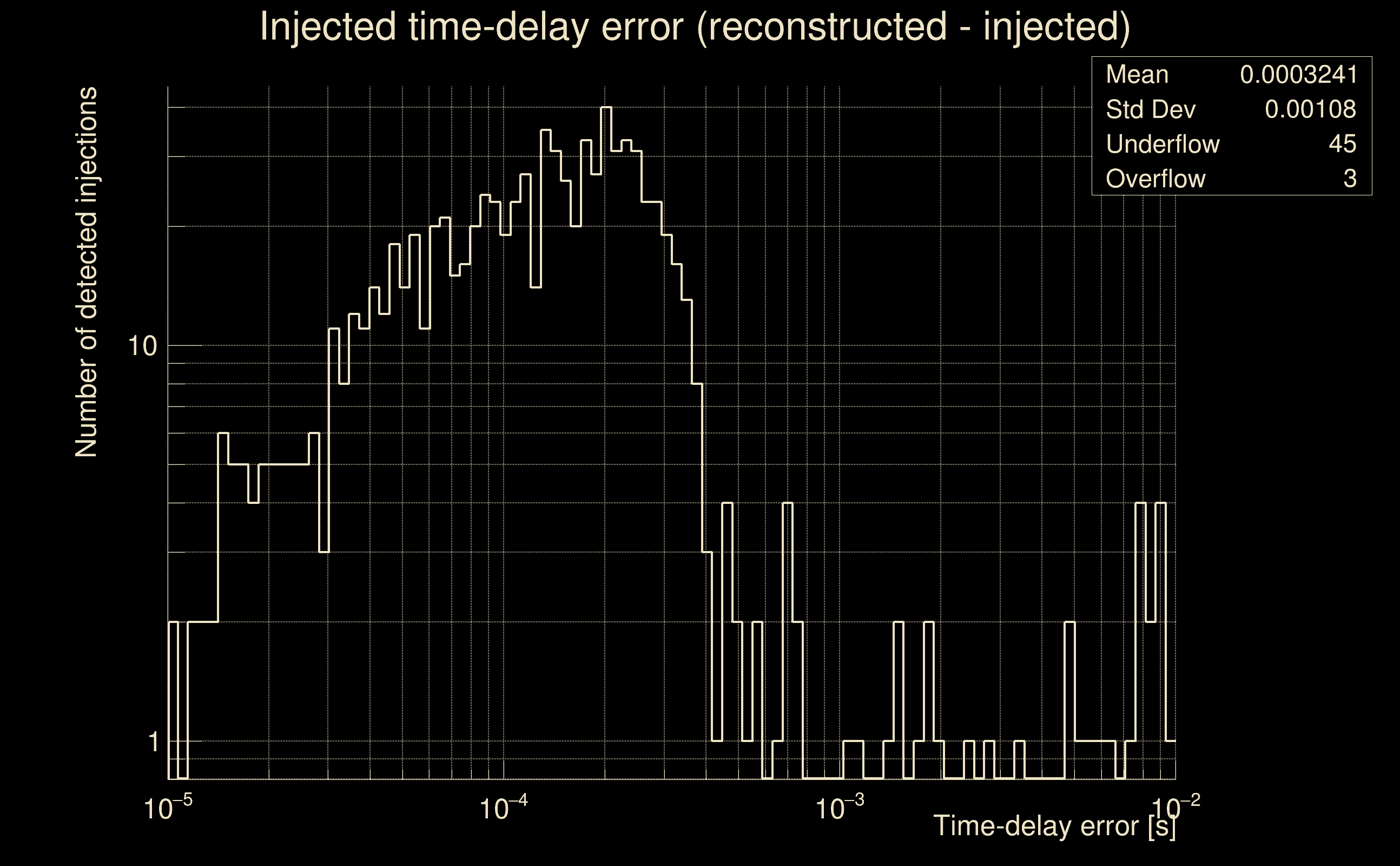

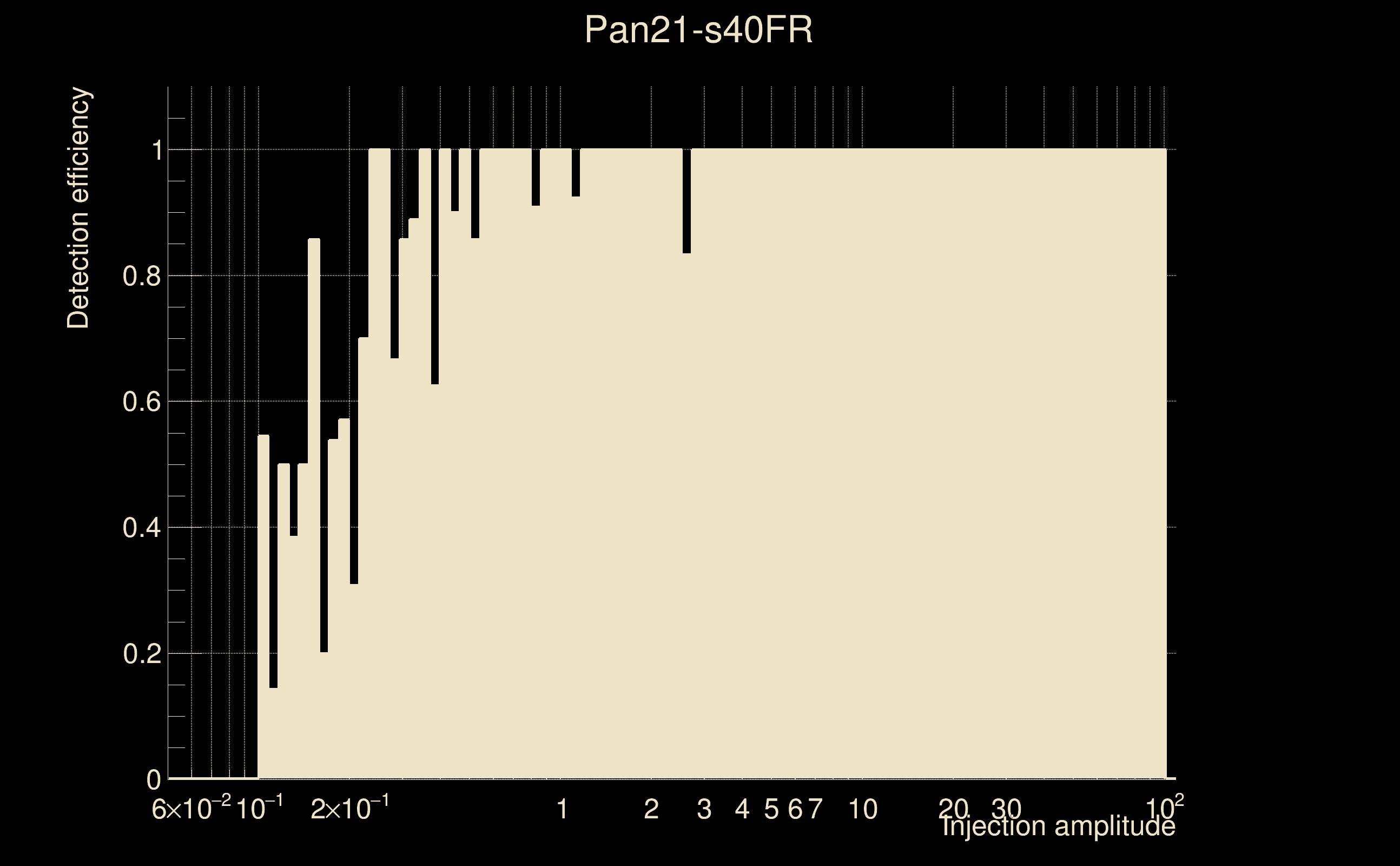

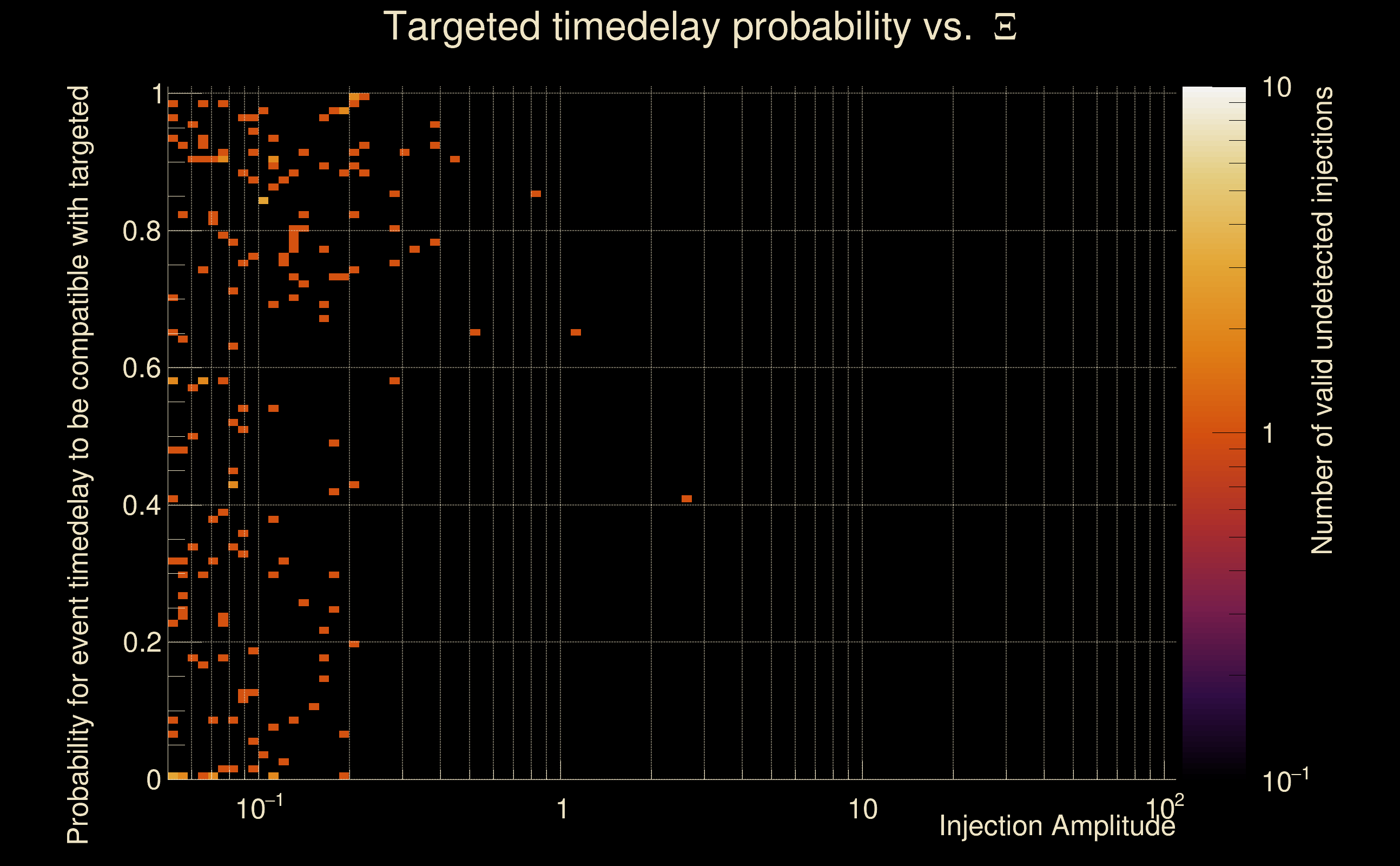

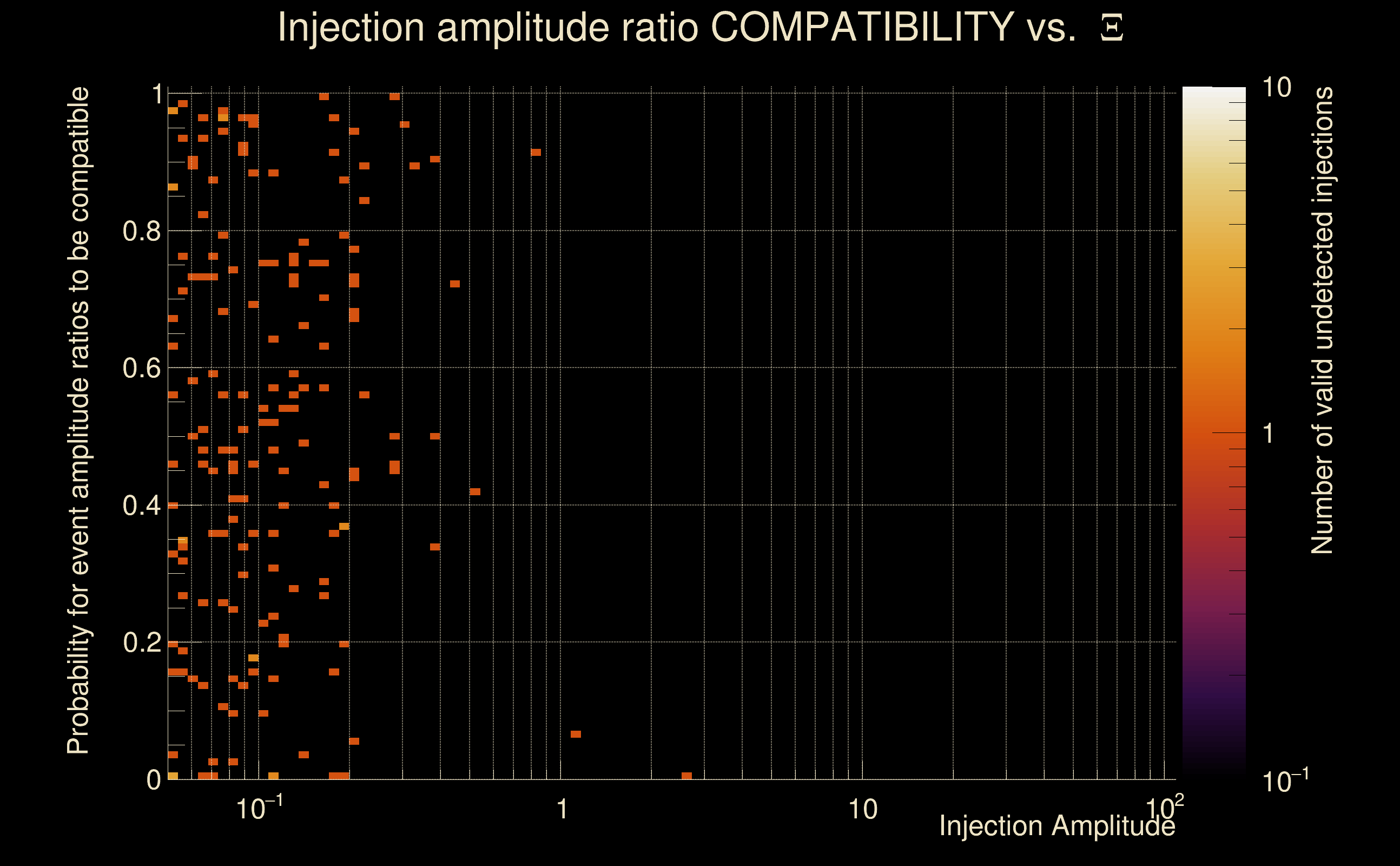

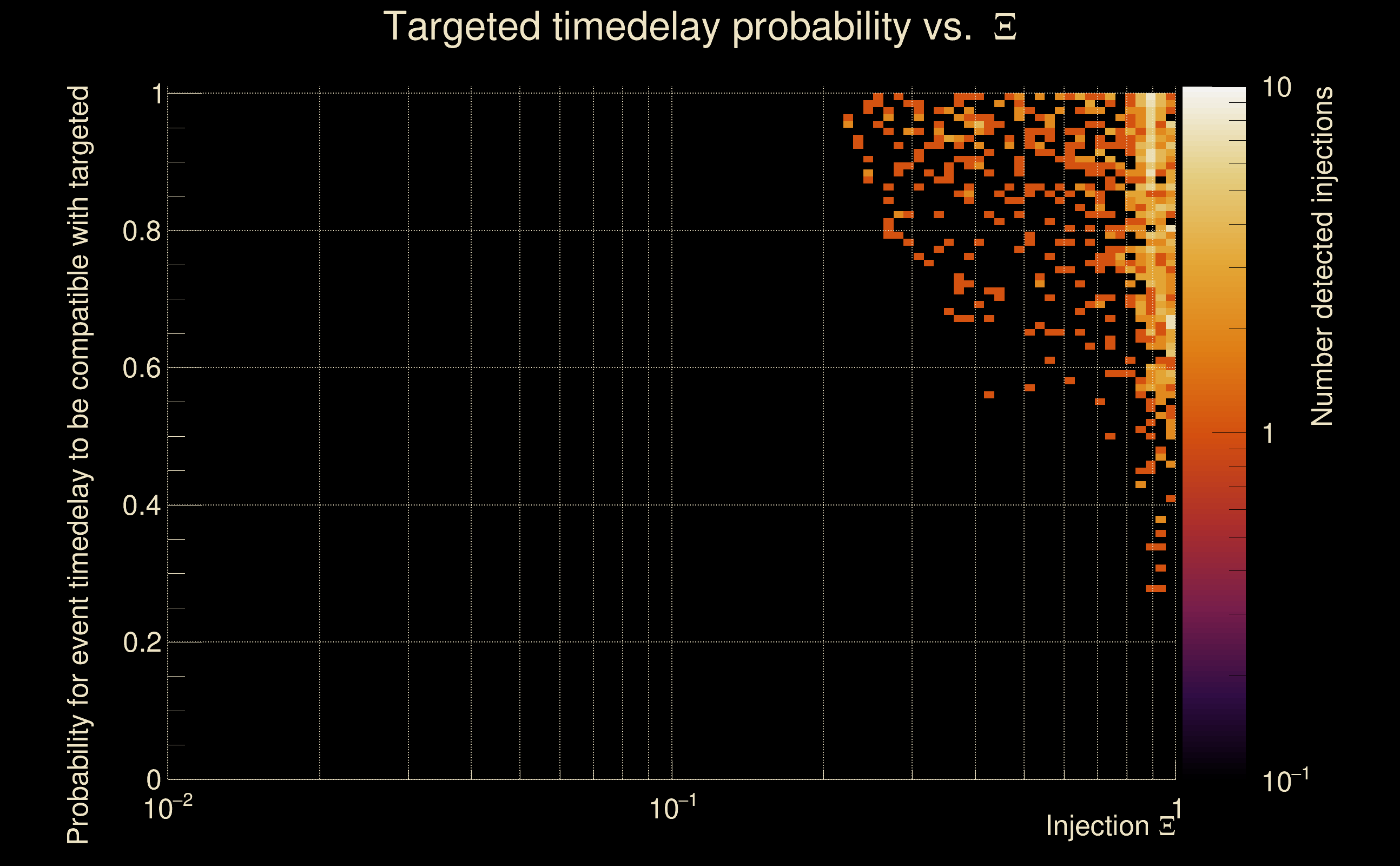

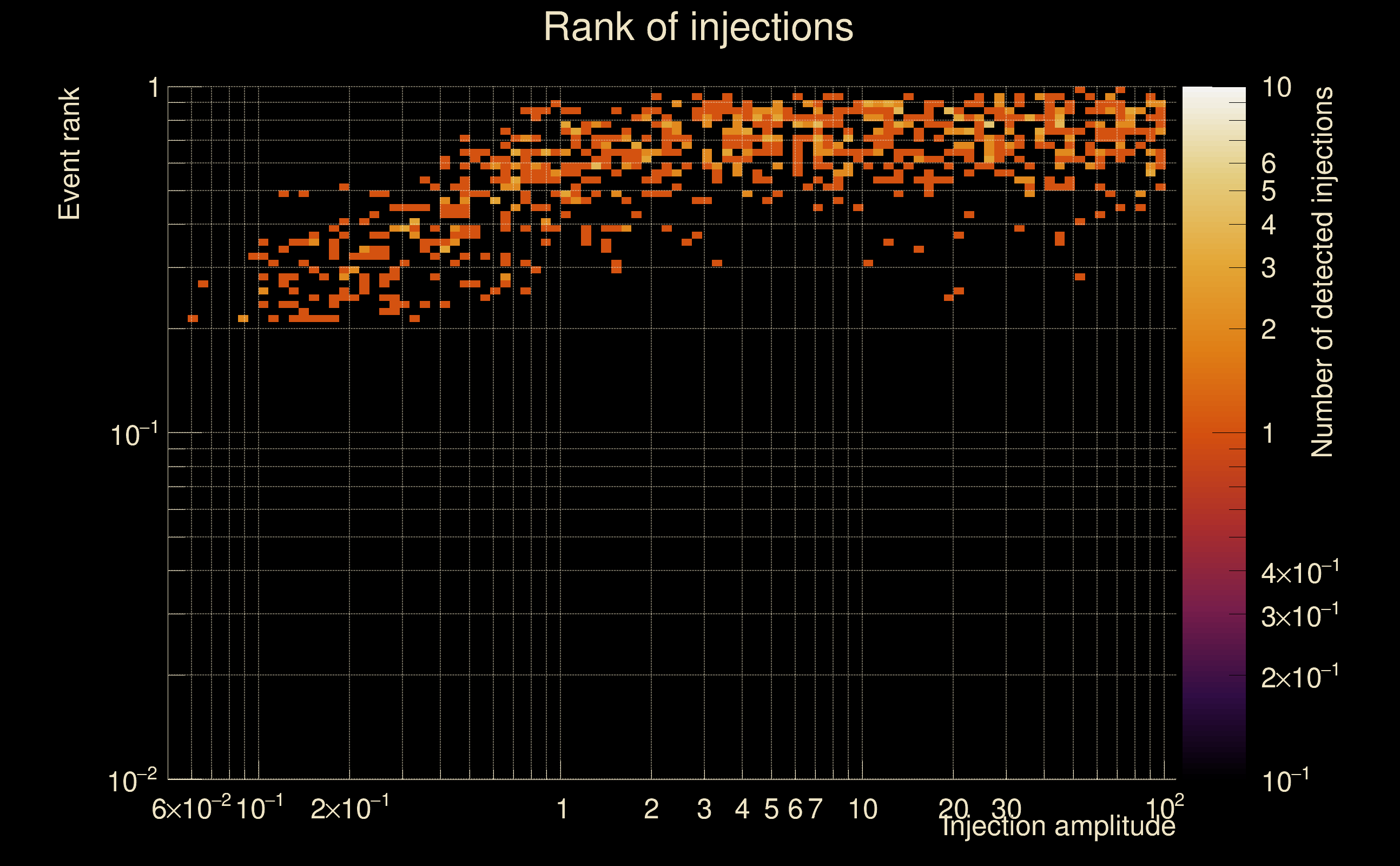

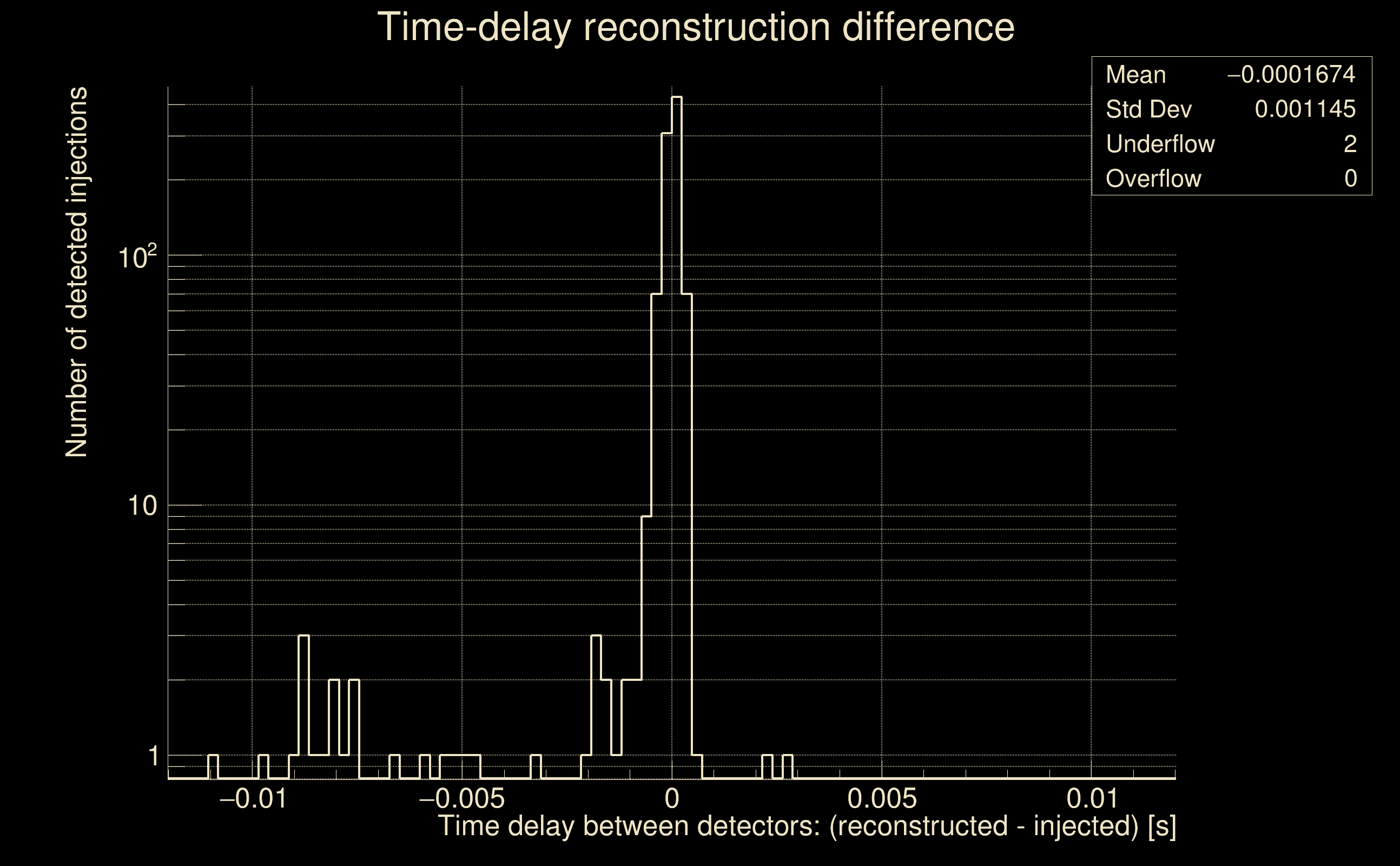

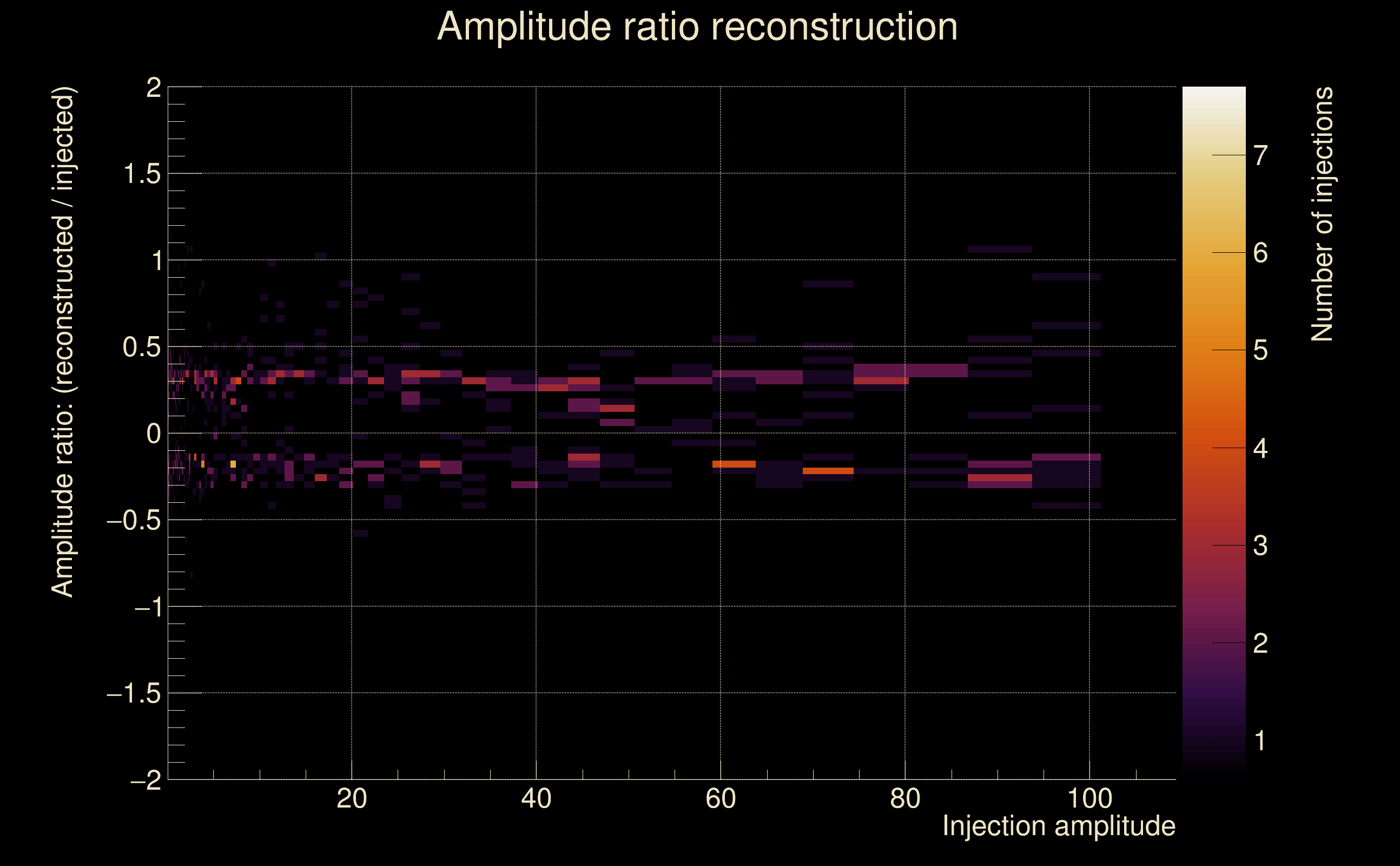

| Number of injections (total/valid/detected): | 1042 / 921 / 844 |
| List of missed injections: | ./Pan21-s40FR_missed.txt |

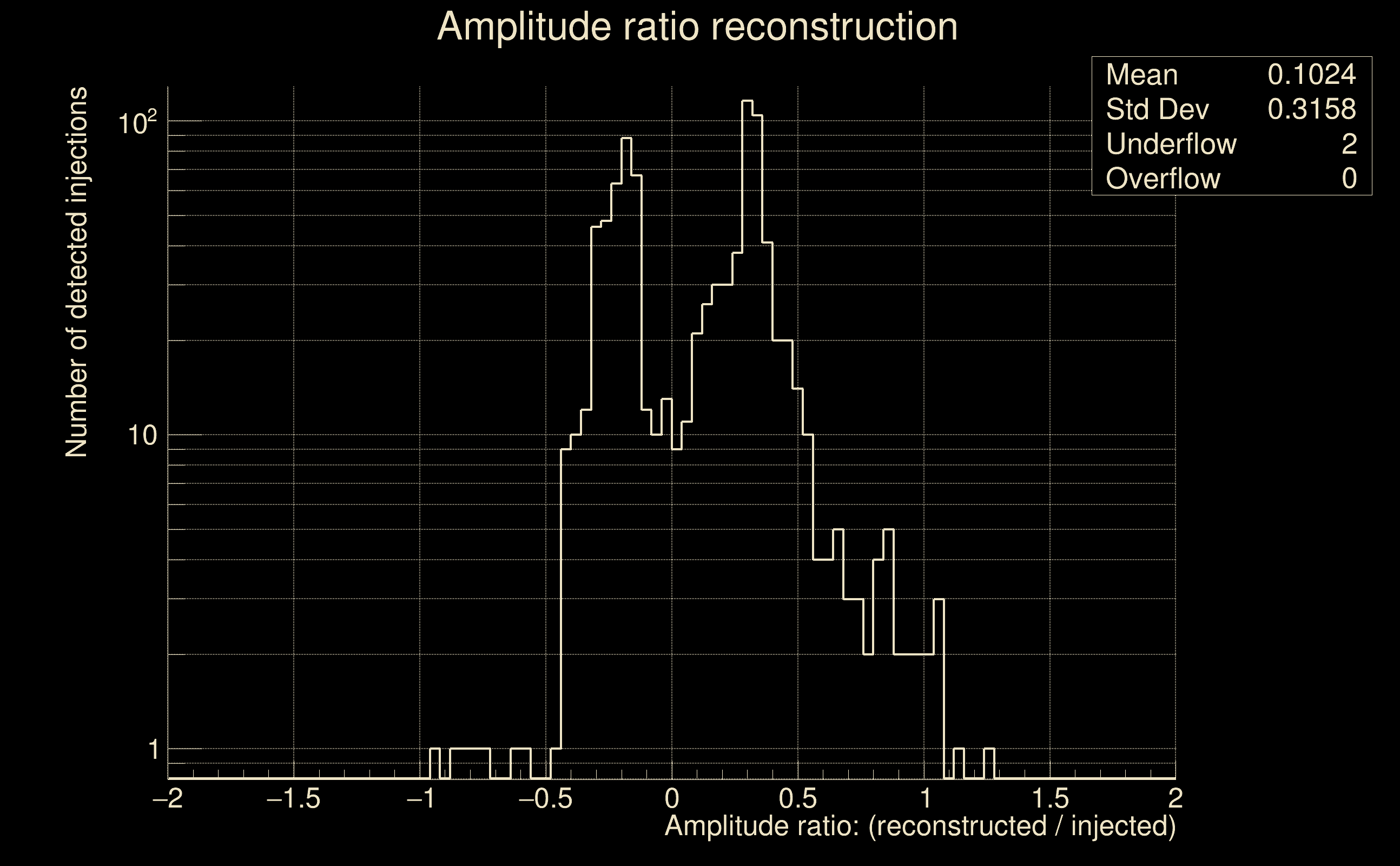

| Injection amplitude at 90% detection efficiency: | 0.236111 |
| Injection amplitude at 50% detection efficiency: | 0.215709 |
| Injection amplitude at 10% detection efficiency: | 0.0976253 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
