| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Wed Sep 23 08:57:27 2026 UTC |
| Ox option file: | Bench3_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench3_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench3_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=162 (-2.484 s), time lag = 0 s |

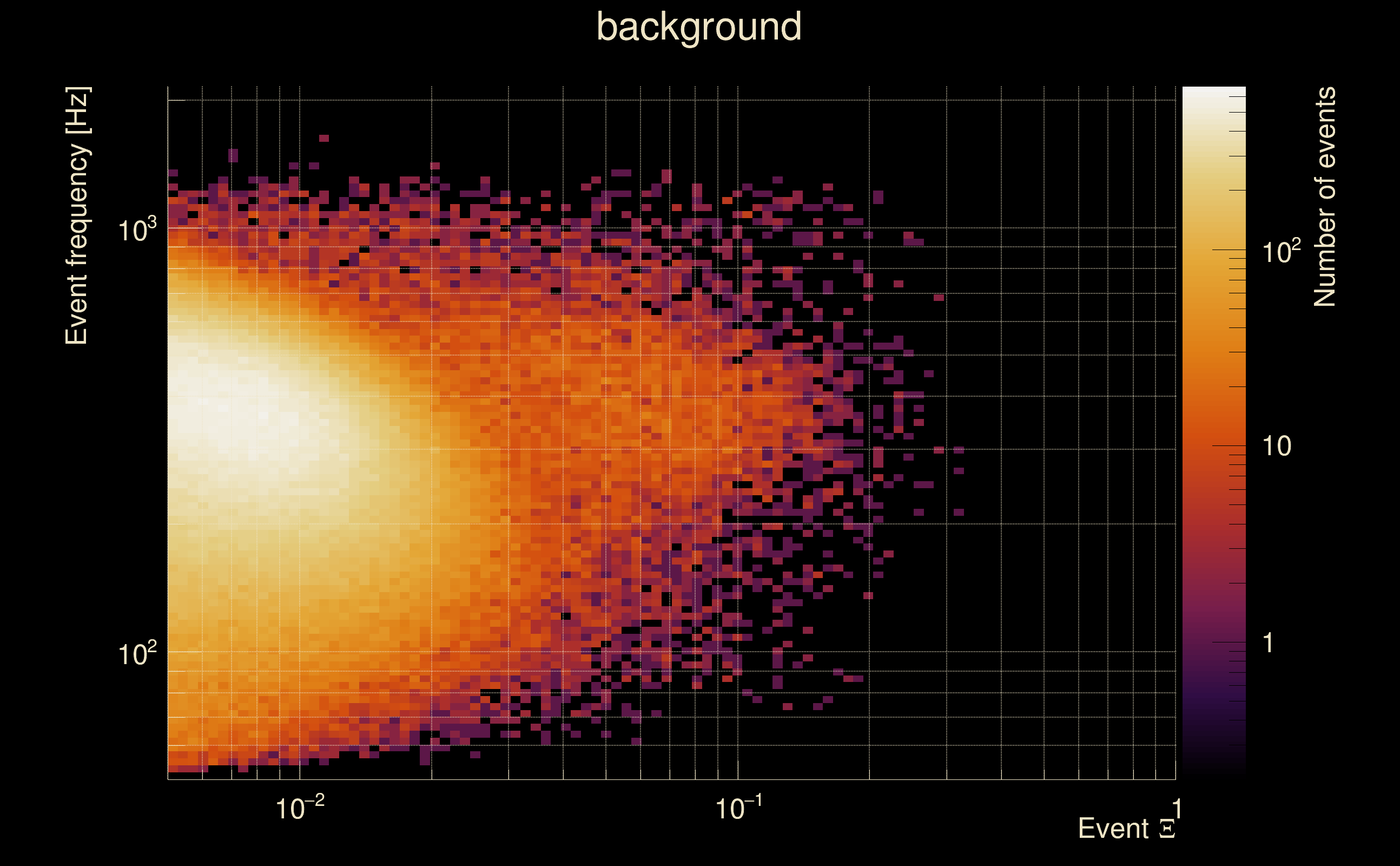

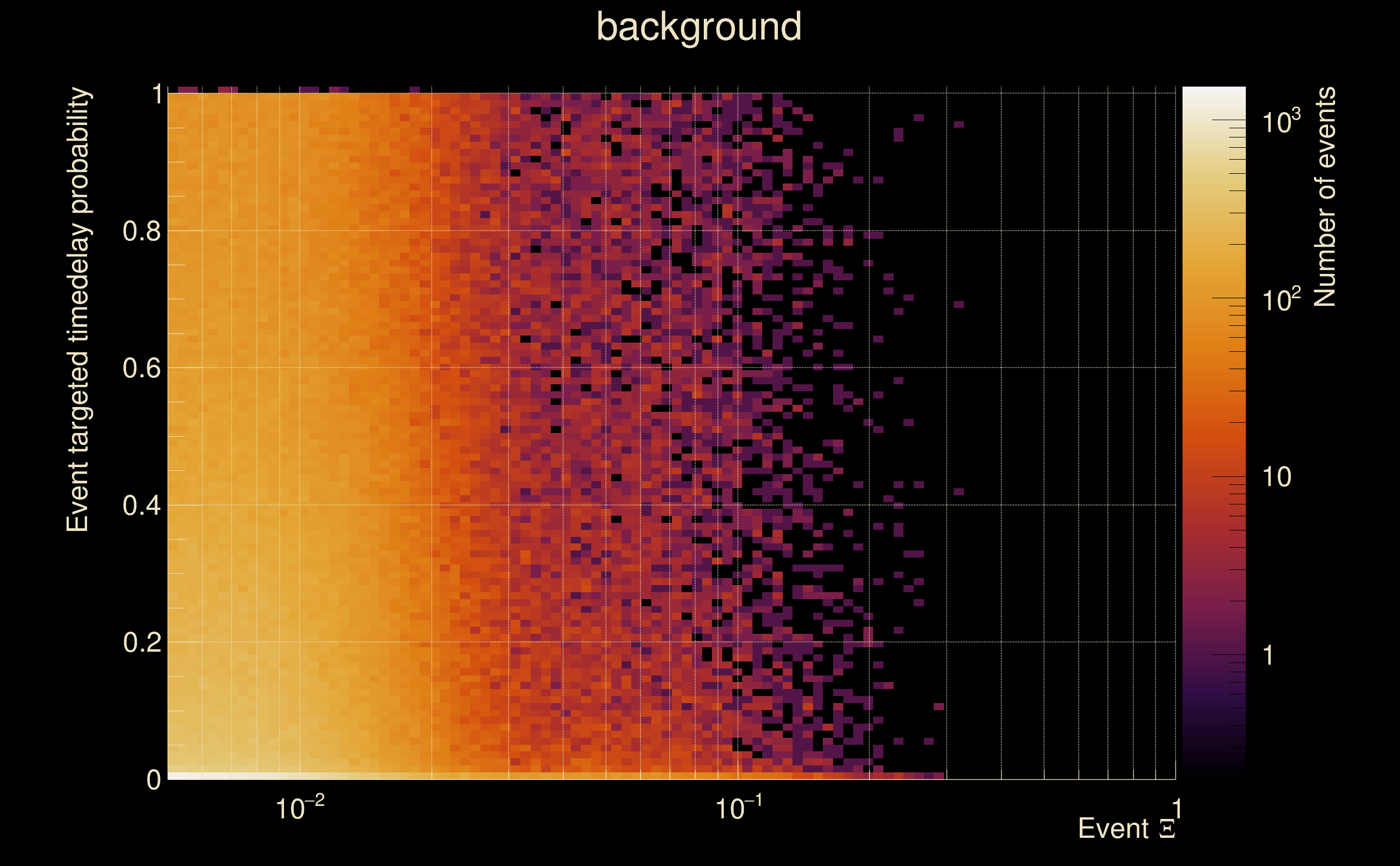

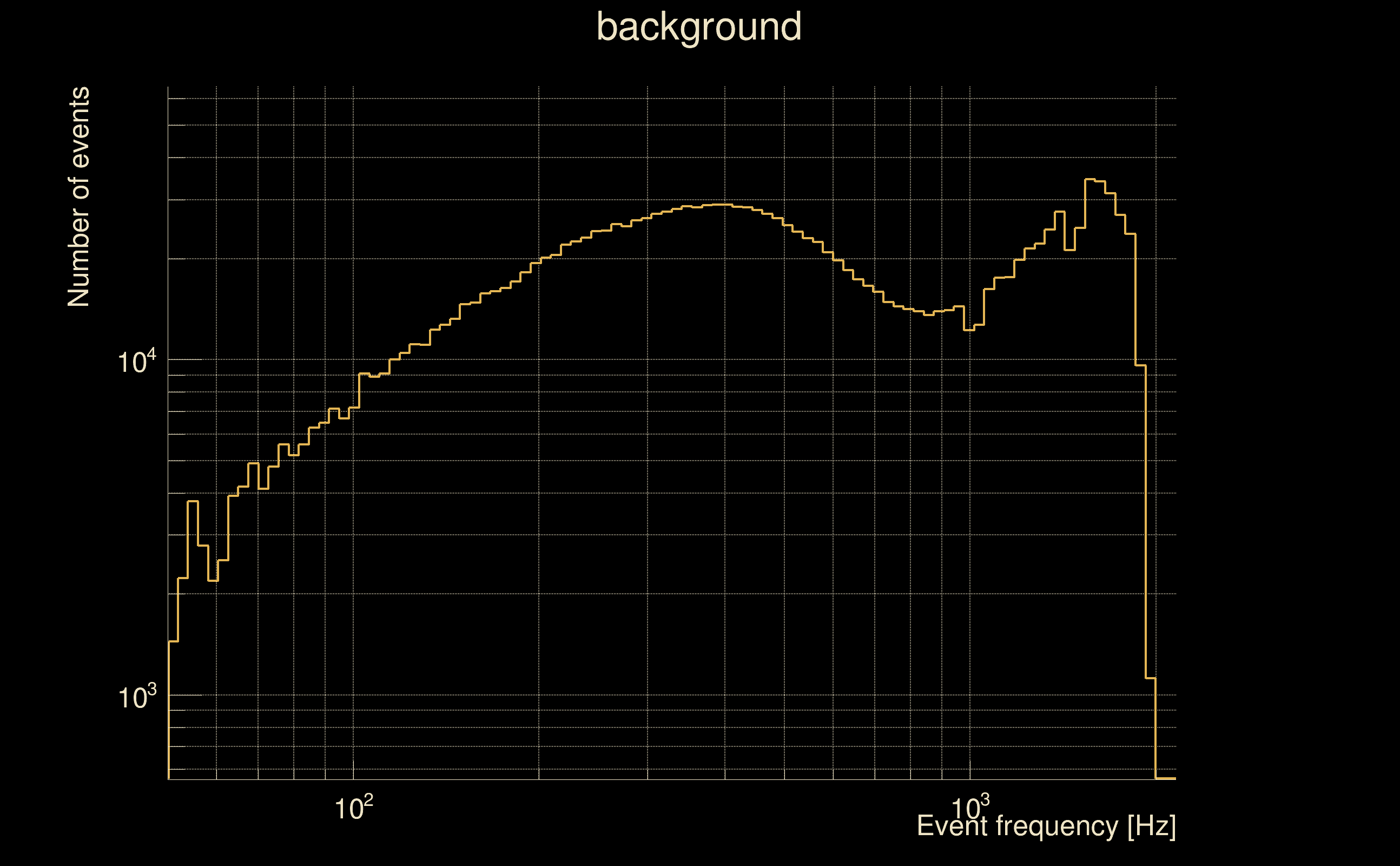

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

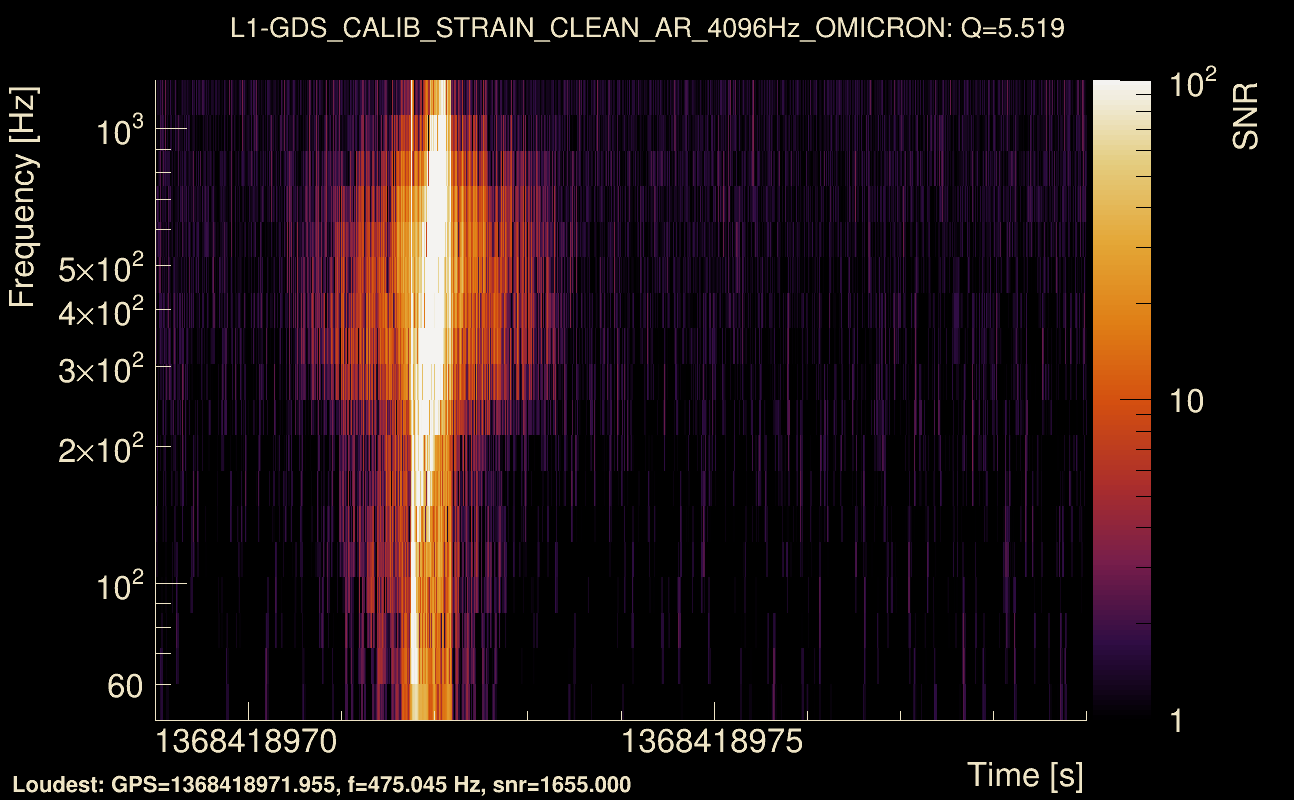

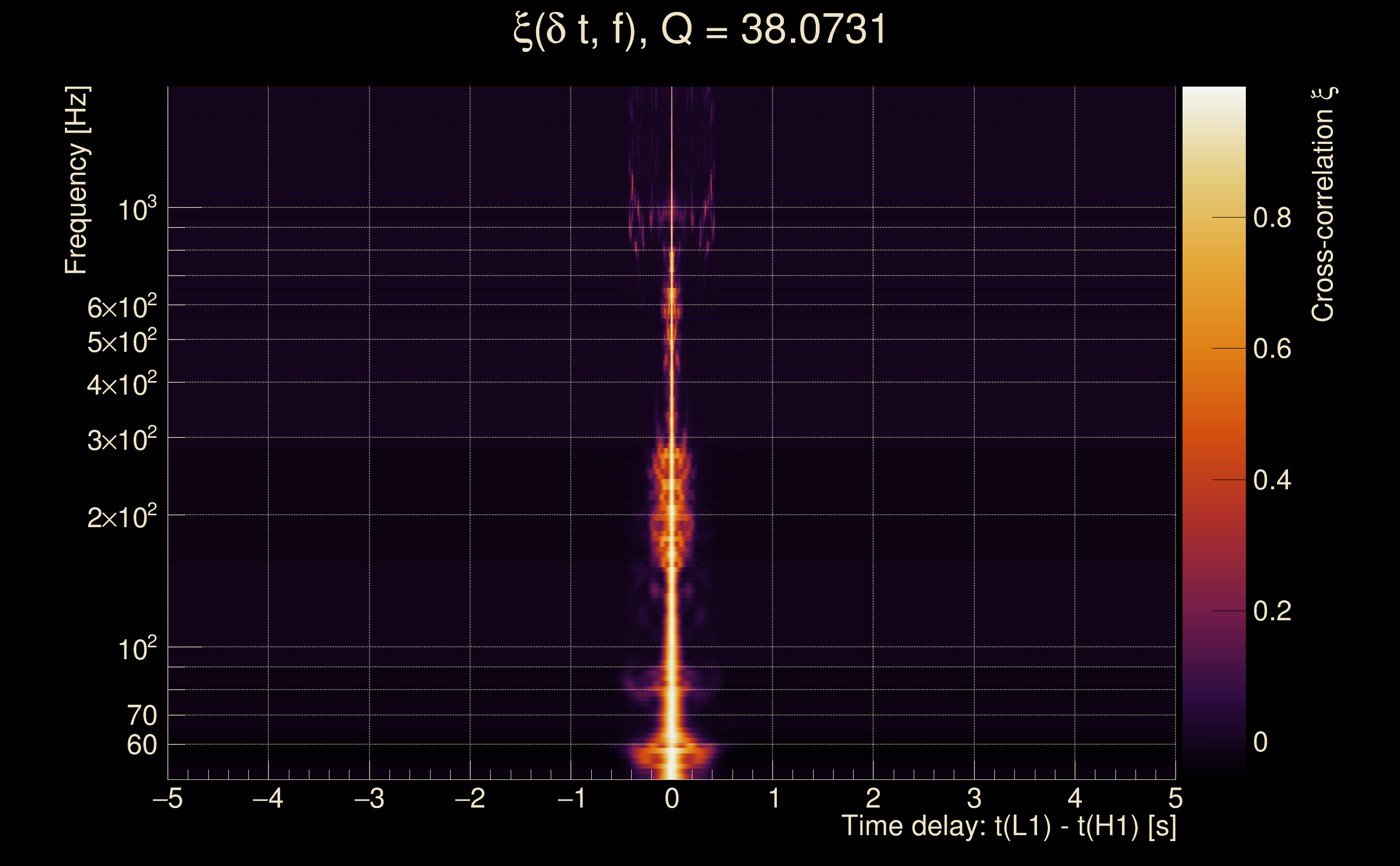

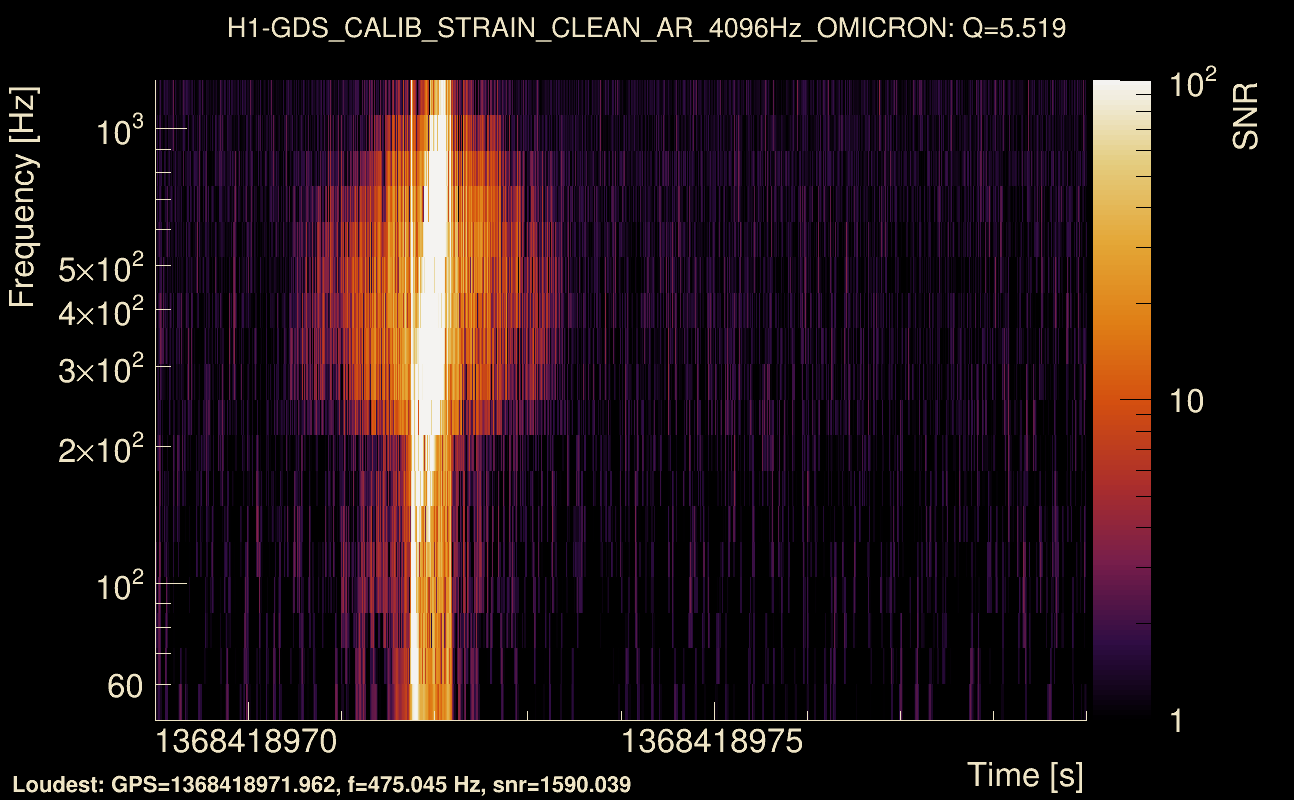

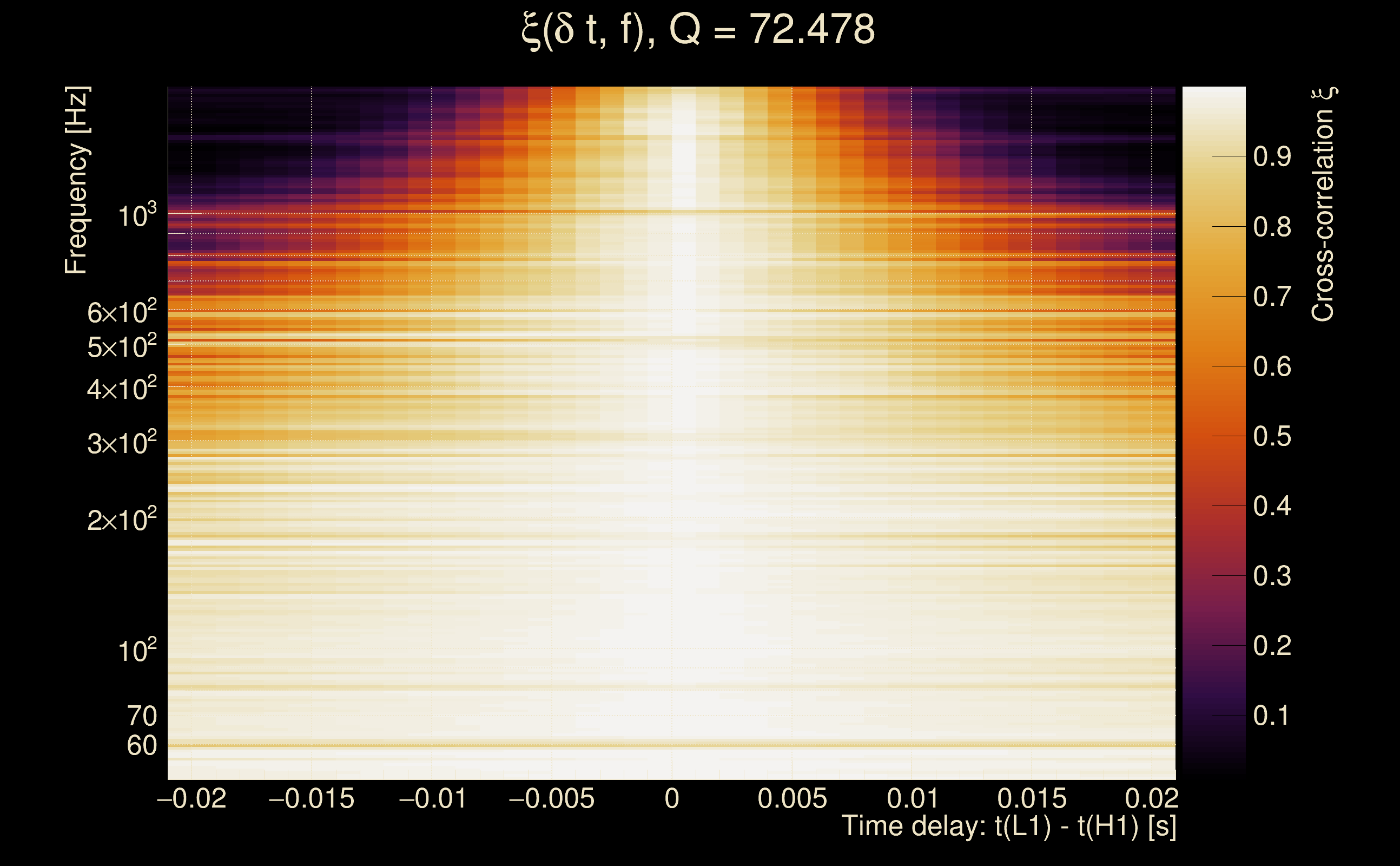

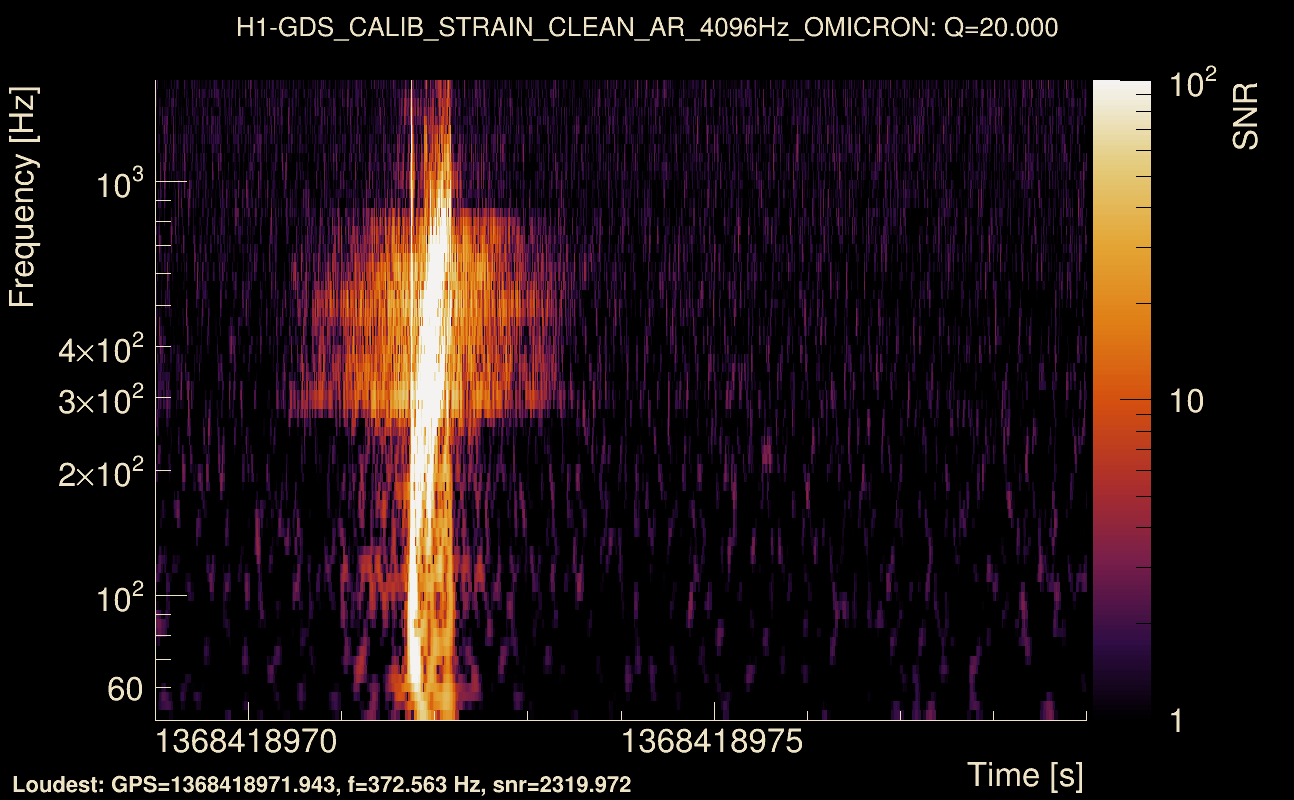

| Event time t(H1): | GPS = 1368418964 (Thu May 18 04:22:26 2023 ) → GPS = 1368418974 (Thu May 18 04:22:36 2023 ) |
| Event time t(L1): | GPS = 1368418964 (Thu May 18 04:22:36 2023 ) → GPS = 1368418974 (Thu May 18 04:22:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368418961 → GPS = 1368418977 |
| Omicron analysis time window (L1): | GPS = 1368418961 → GPS = 1368418977 |
| Time delay between detectors t(L1) - t(H1): | 4.07104e-06 s (slice index = 108 / 217), δt_gw = 4.07104e-06 s |
| Time delay standard deviation: | 0.0100205 s |
| [targeted mode] Time delay probability: | 3.52446e-07 (5.093 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 288.273 Hz |
| Ξ: | 0.991089 ± 0.00221587 (variance = 4.91008e-06): Q0: 0.989081, Q1: 0.992218, Q2: 0.994955, Q3: 0.995043, Q4: 0.993769 |

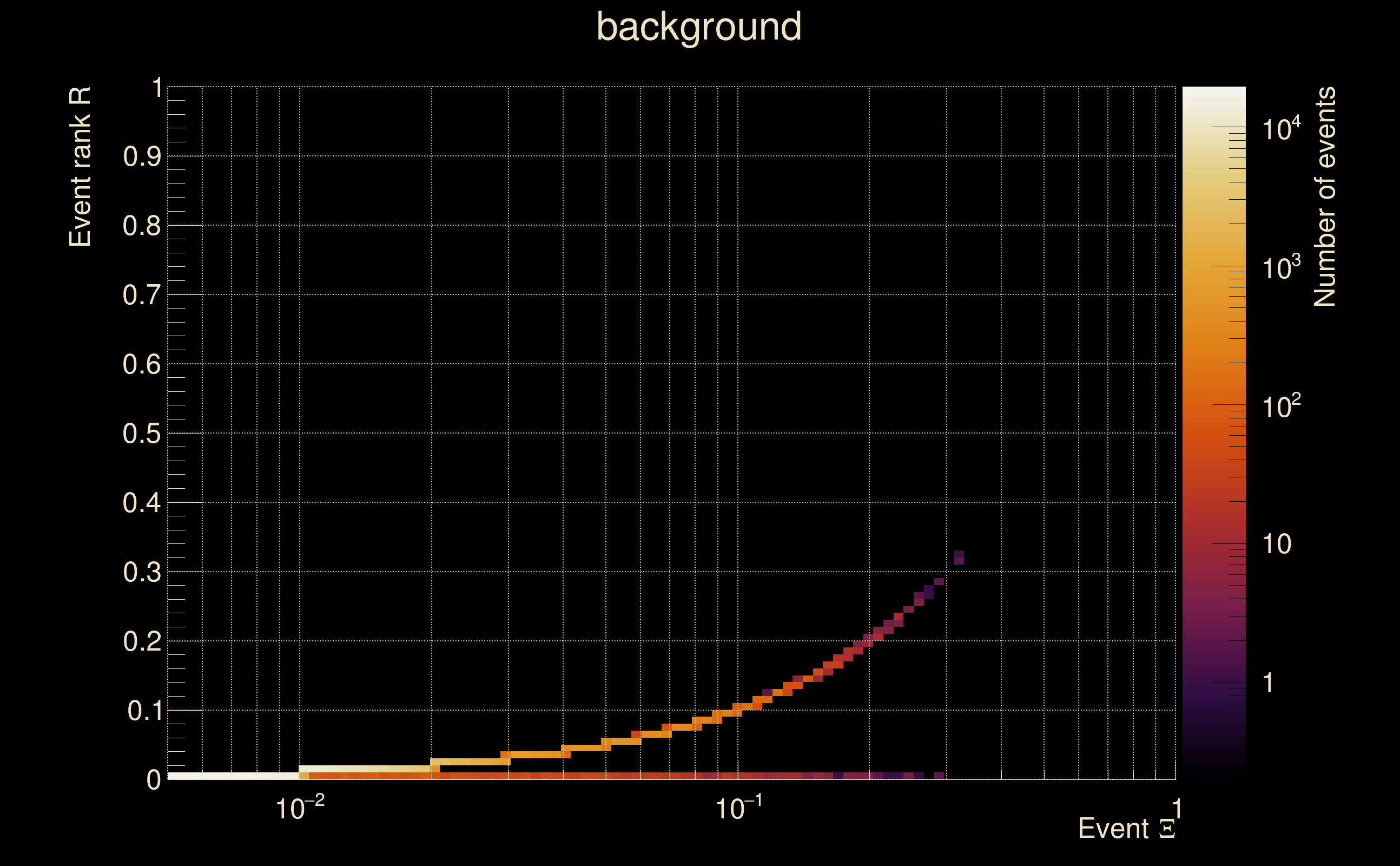

| Rank: | R_A = 0.991089 |
| Log of amplitude ratio (L1/H1): | -0.090502, variance = 0.151286 (L1/H1: -0.104593, variance = 0.301107, H1/L1: 0.0748562, variance = 0.302535) |
| Amplitude ratio (L1/H1): | 0.913473 ⋇ 1.47544 (L1/H1: 0.900691 ⋇ 1.73106, H1/L1: 1.07773 ⋇ 1.73331) |

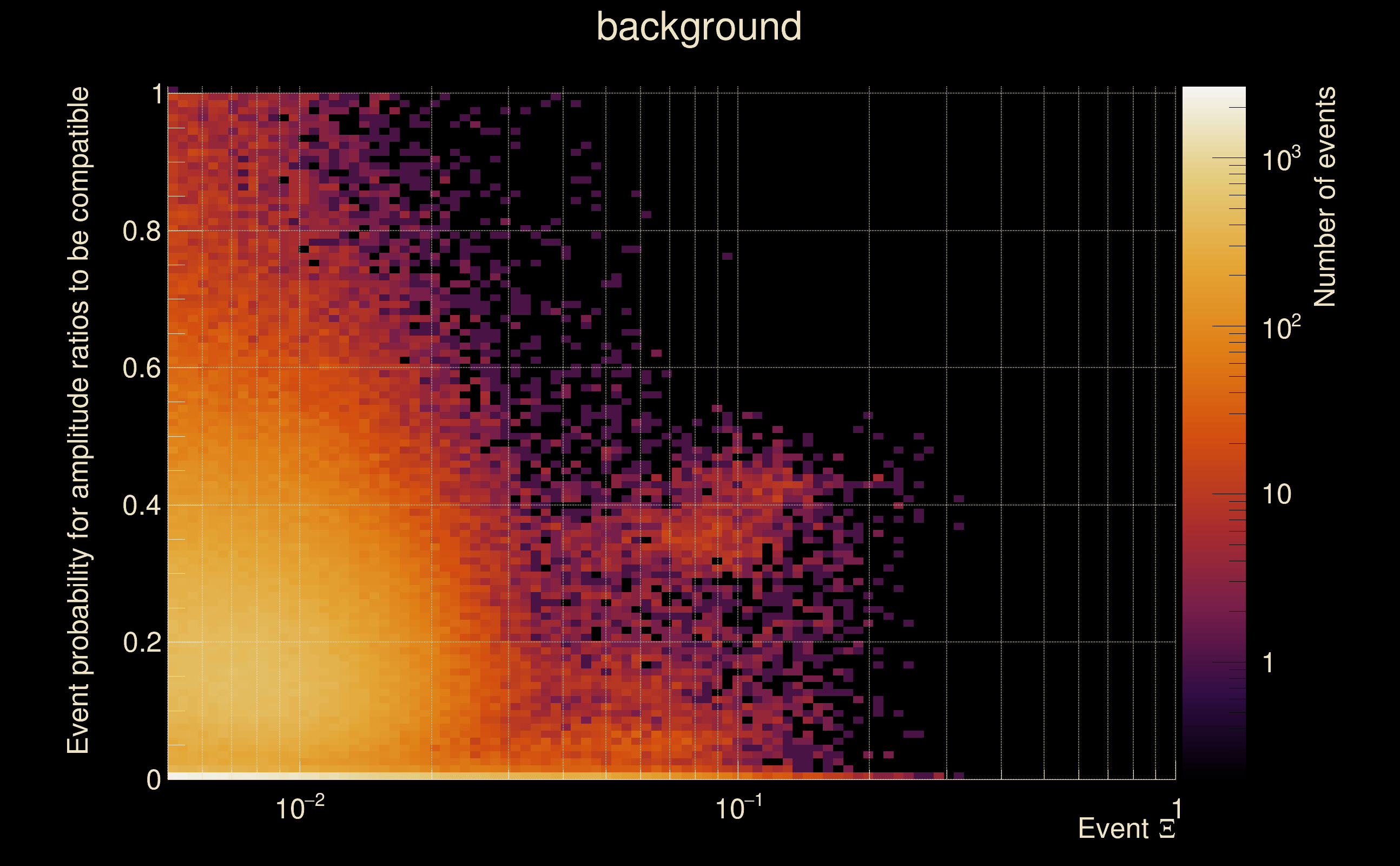

| Amplitude ratio H1|L1 compatibility (probability): | 0.969469 |

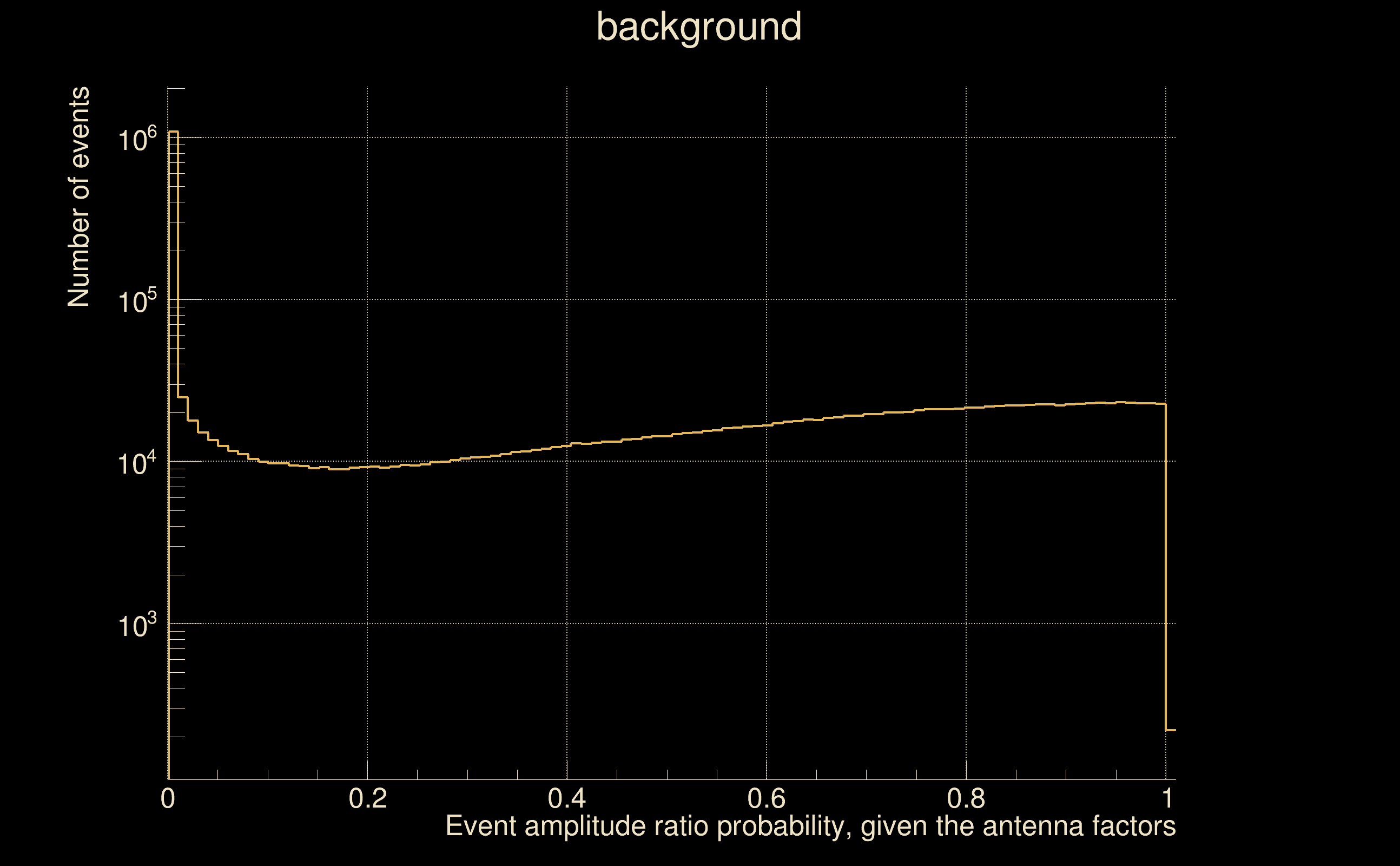

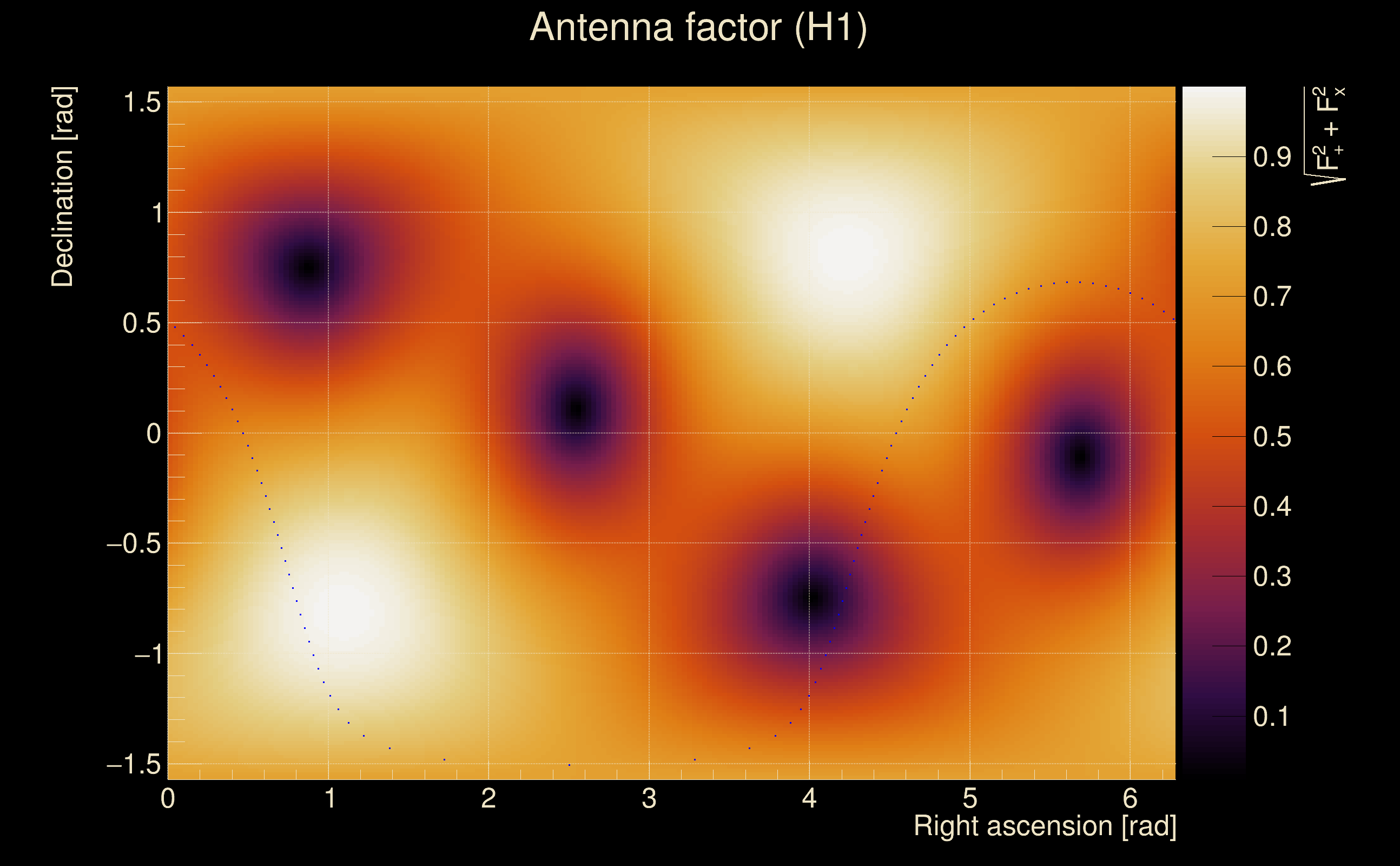

| Antenna factor probability: | 0.868608 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 2232.76, L1: 2118.95 |

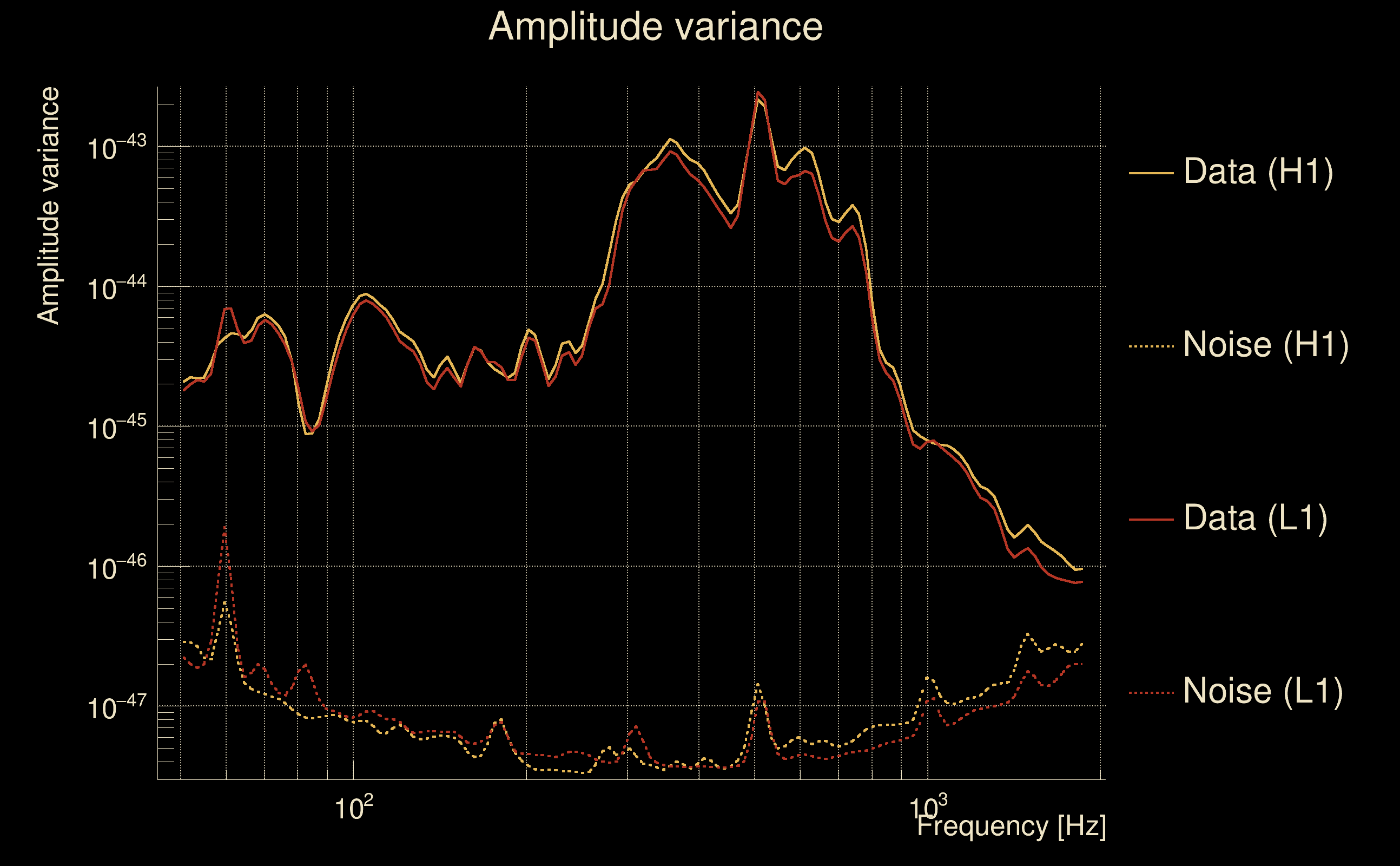

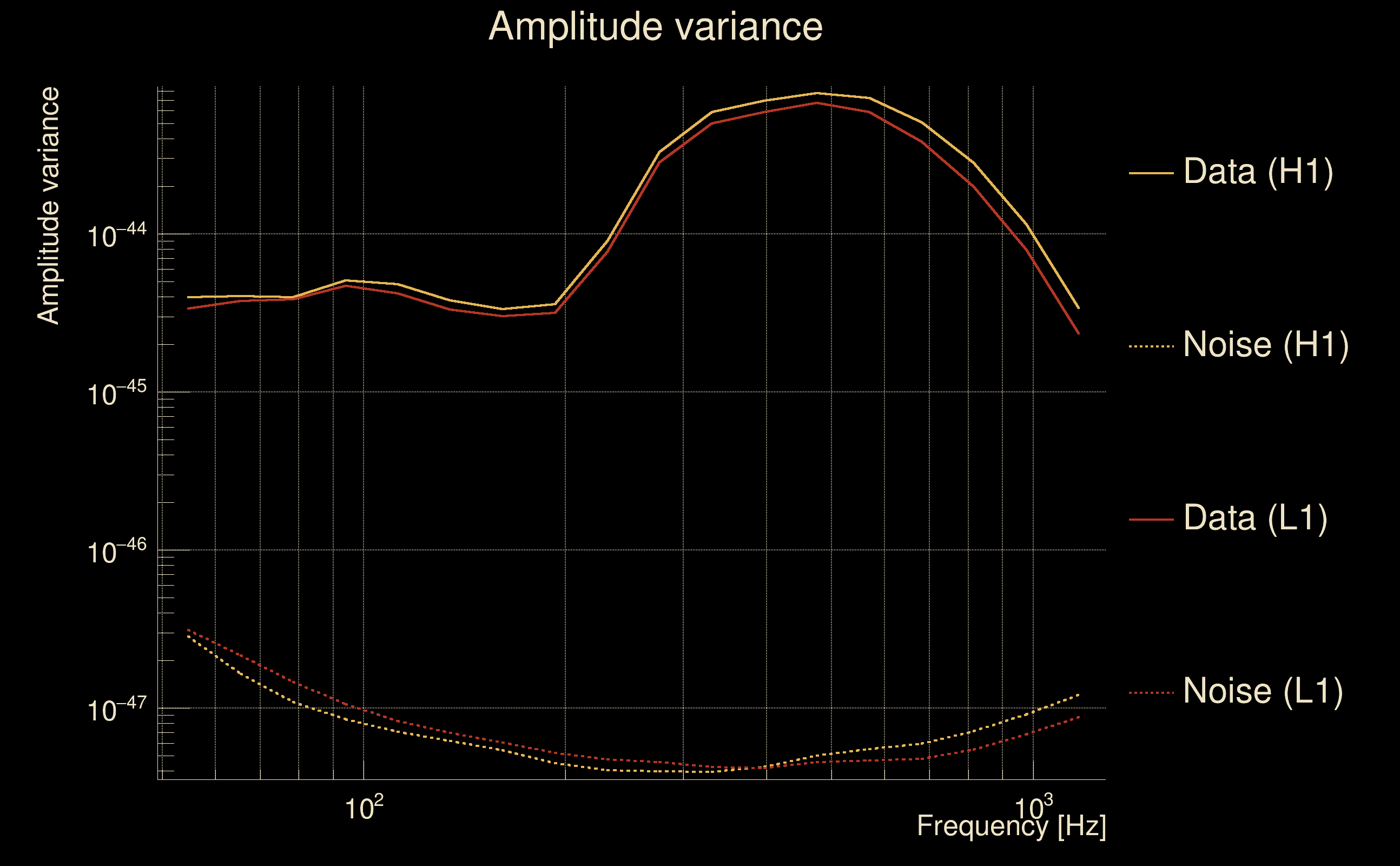

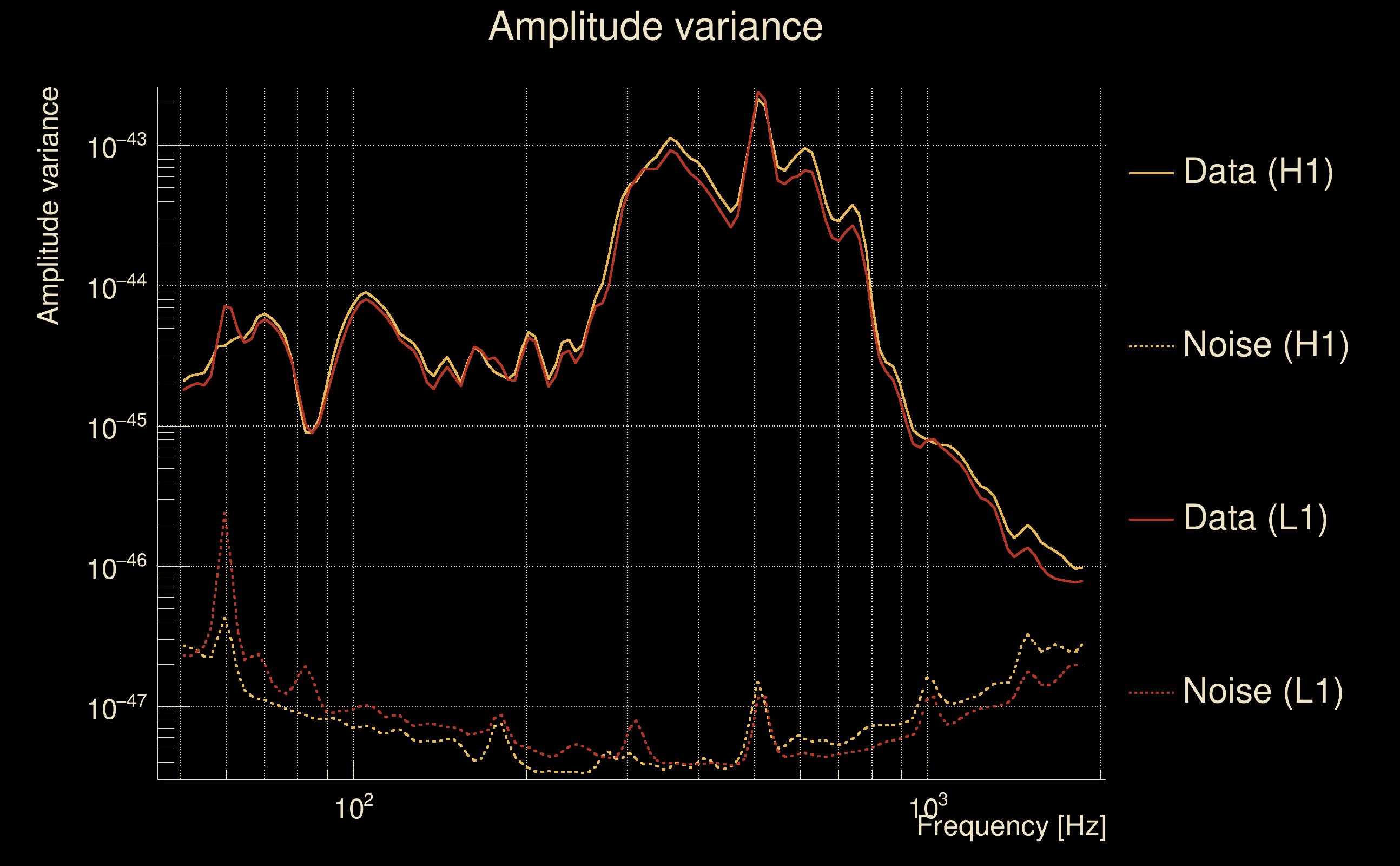

| SNR variance: | H1: 0.457056, L1: 0.455216 |

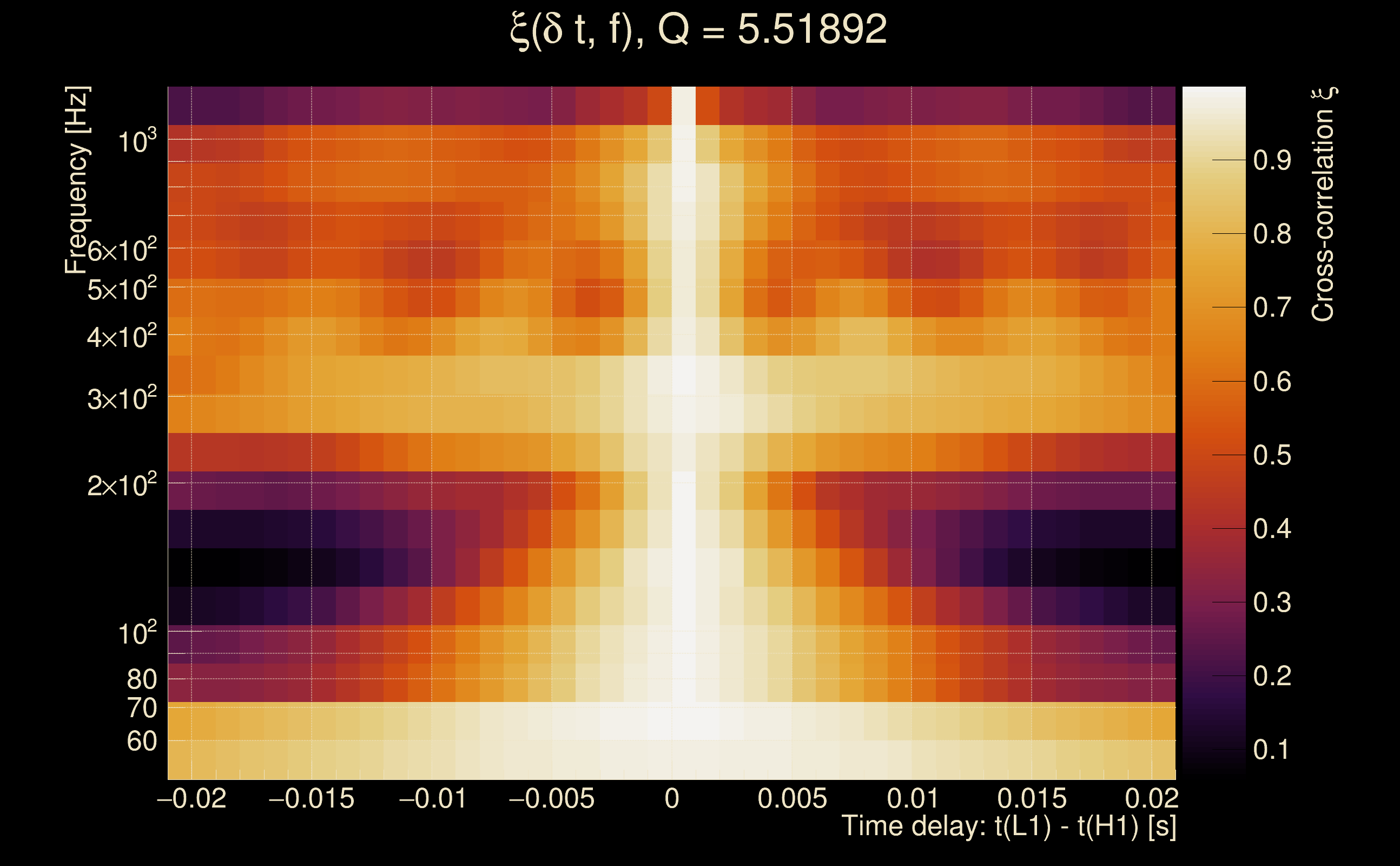

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

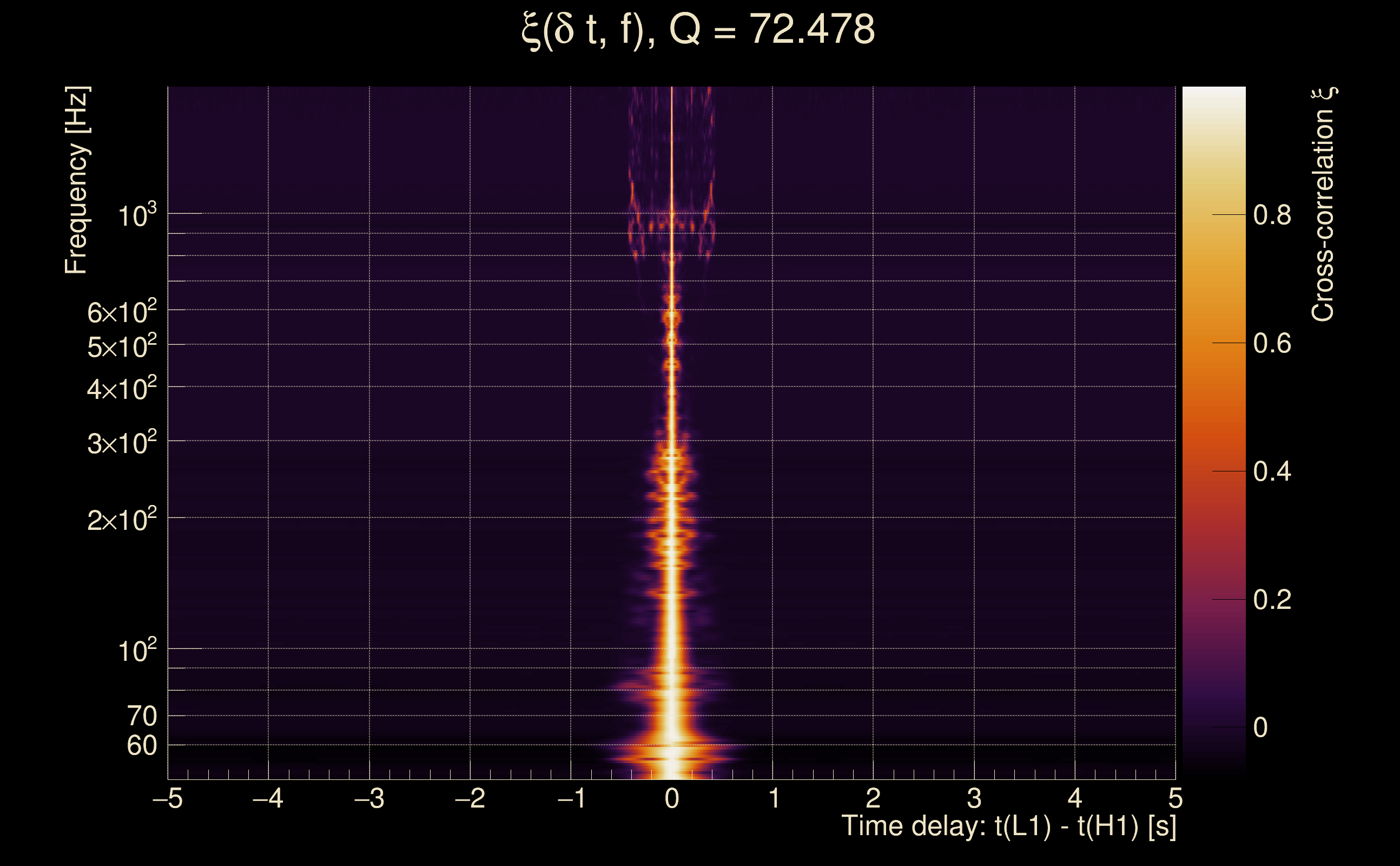

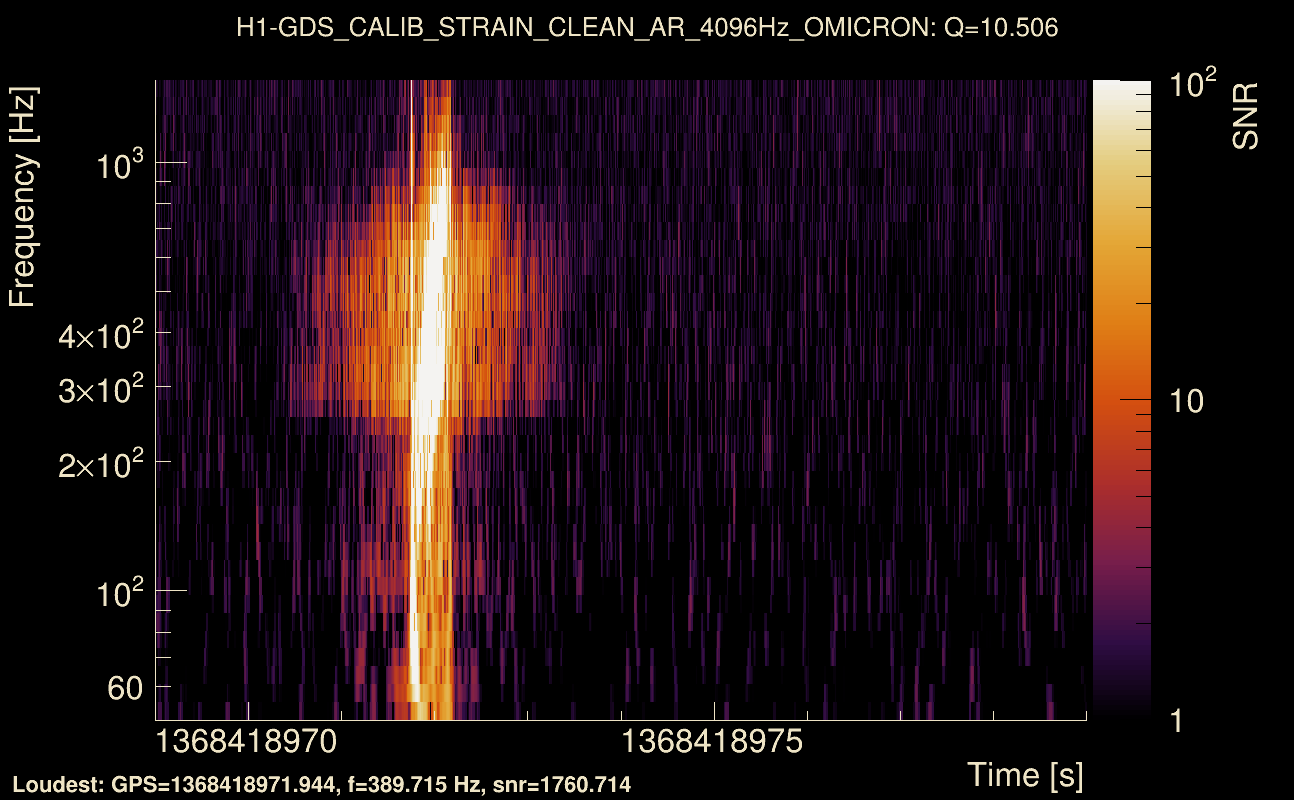

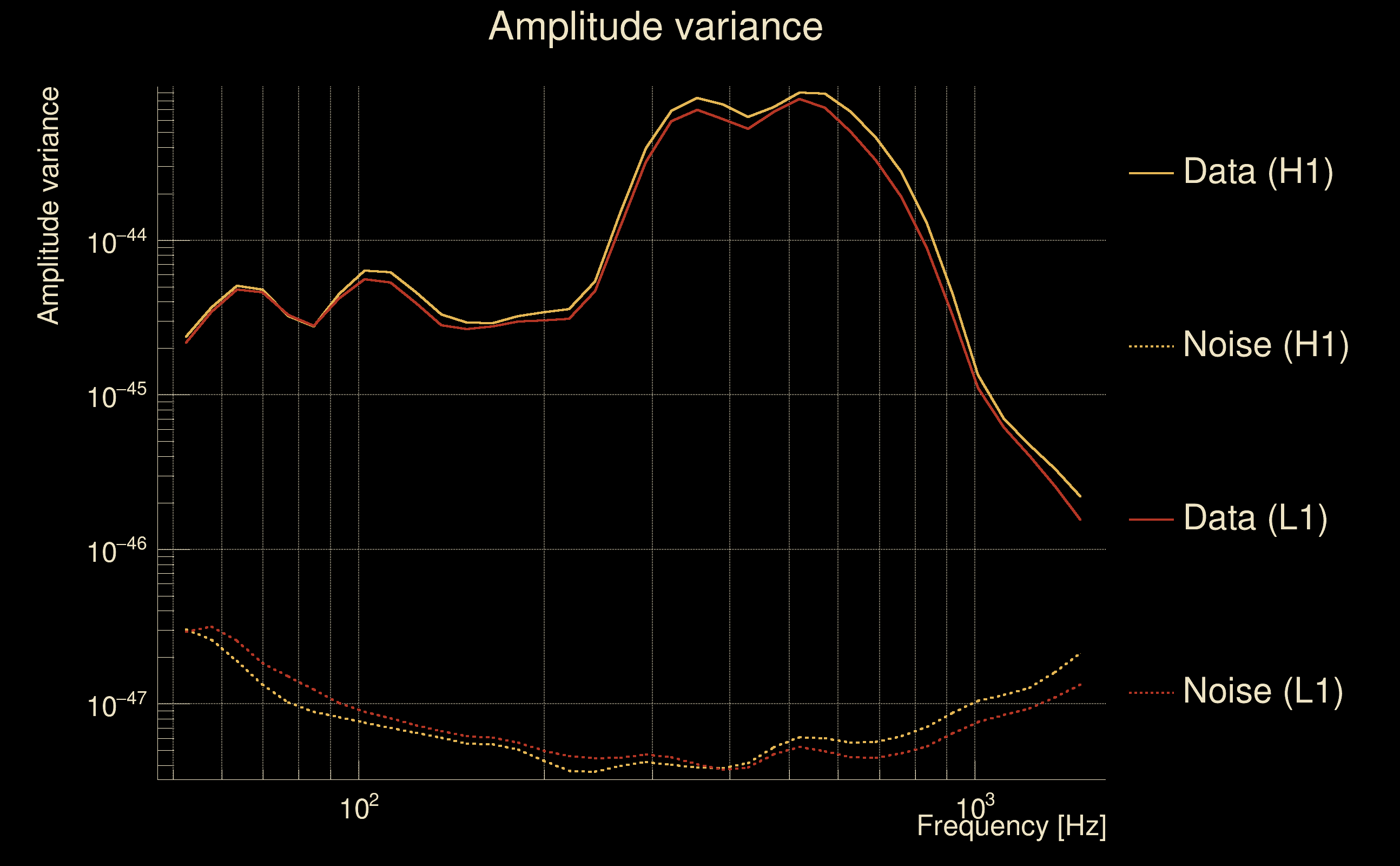

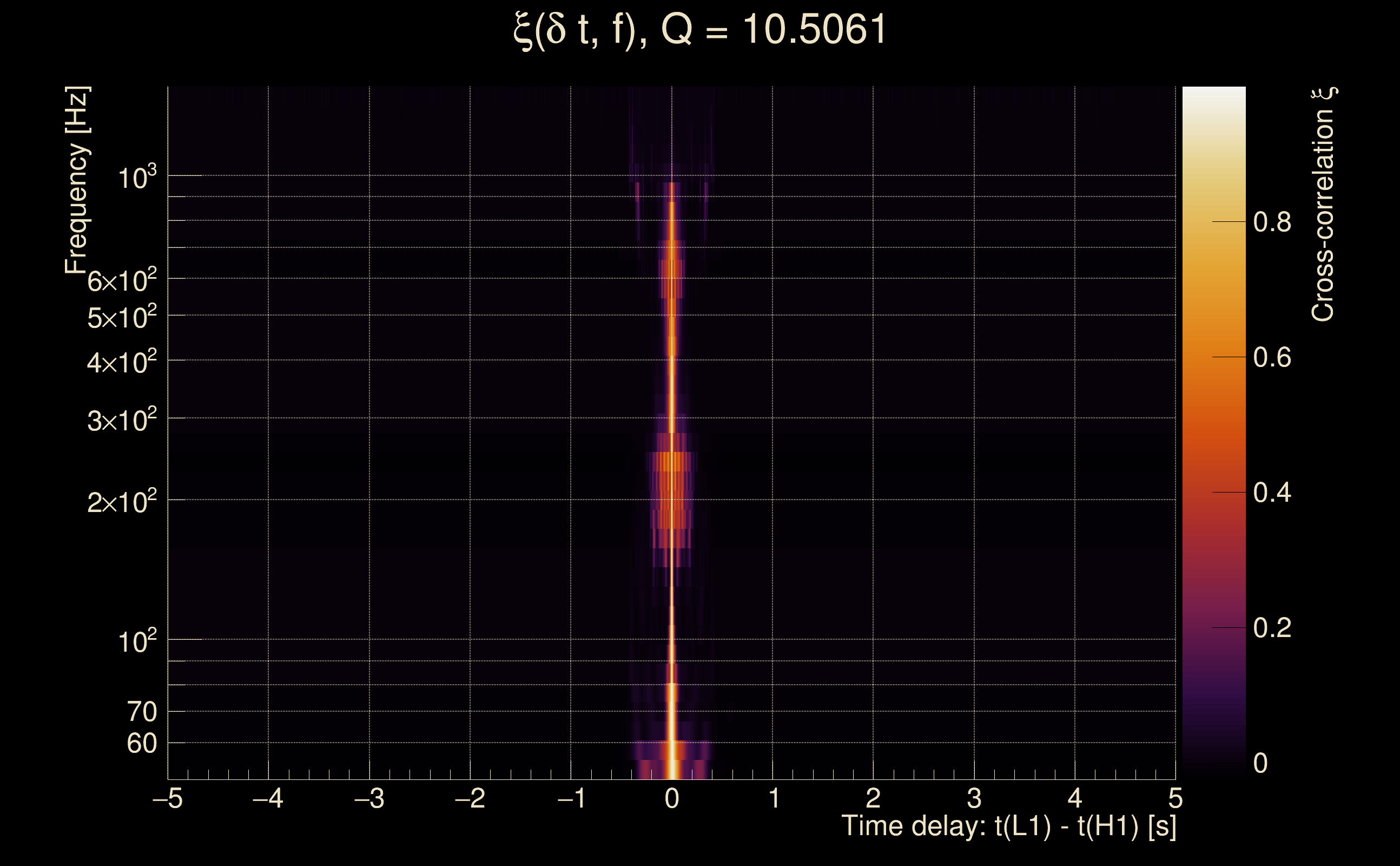

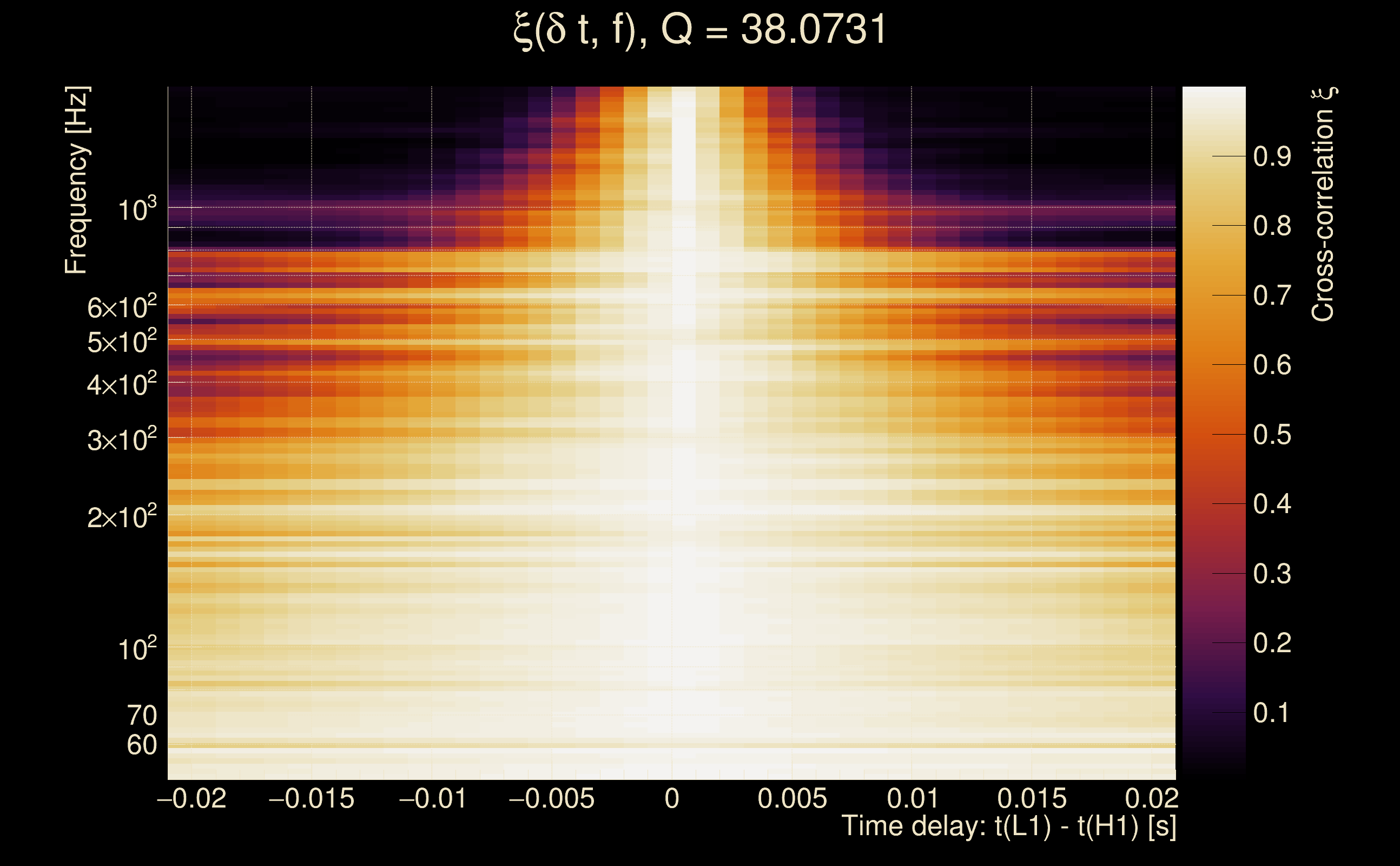

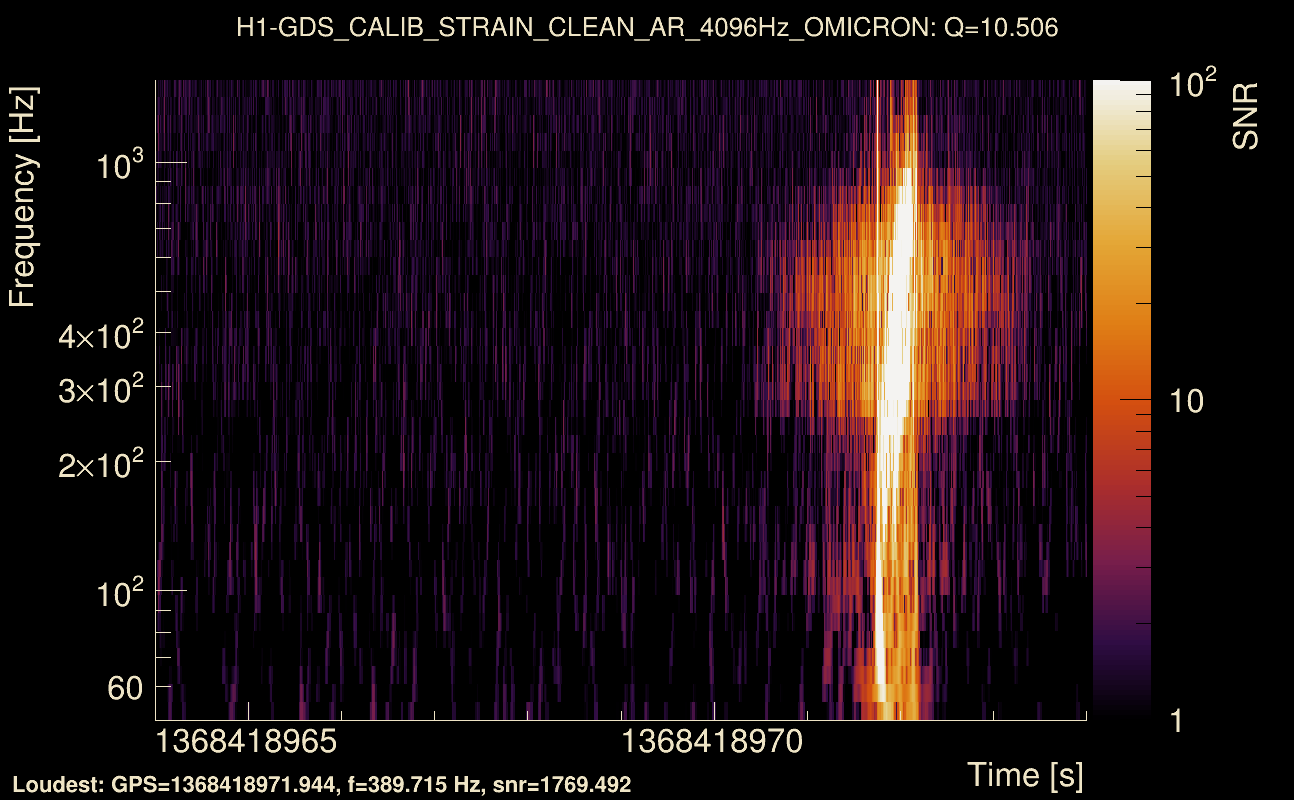

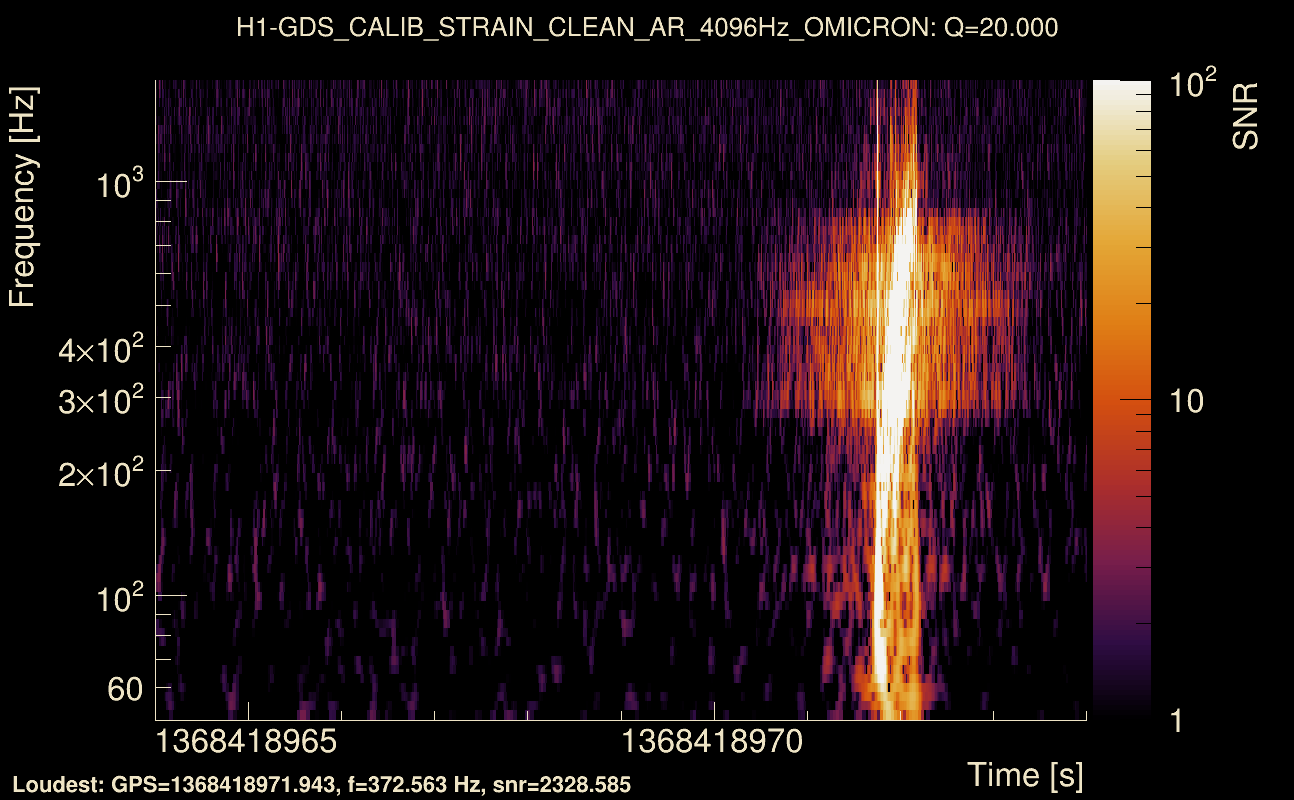

| Event time t(H1): | GPS = 1368418969 (Thu May 18 04:22:31 2023 ) → GPS = 1368418979 (Thu May 18 04:22:41 2023 ) |

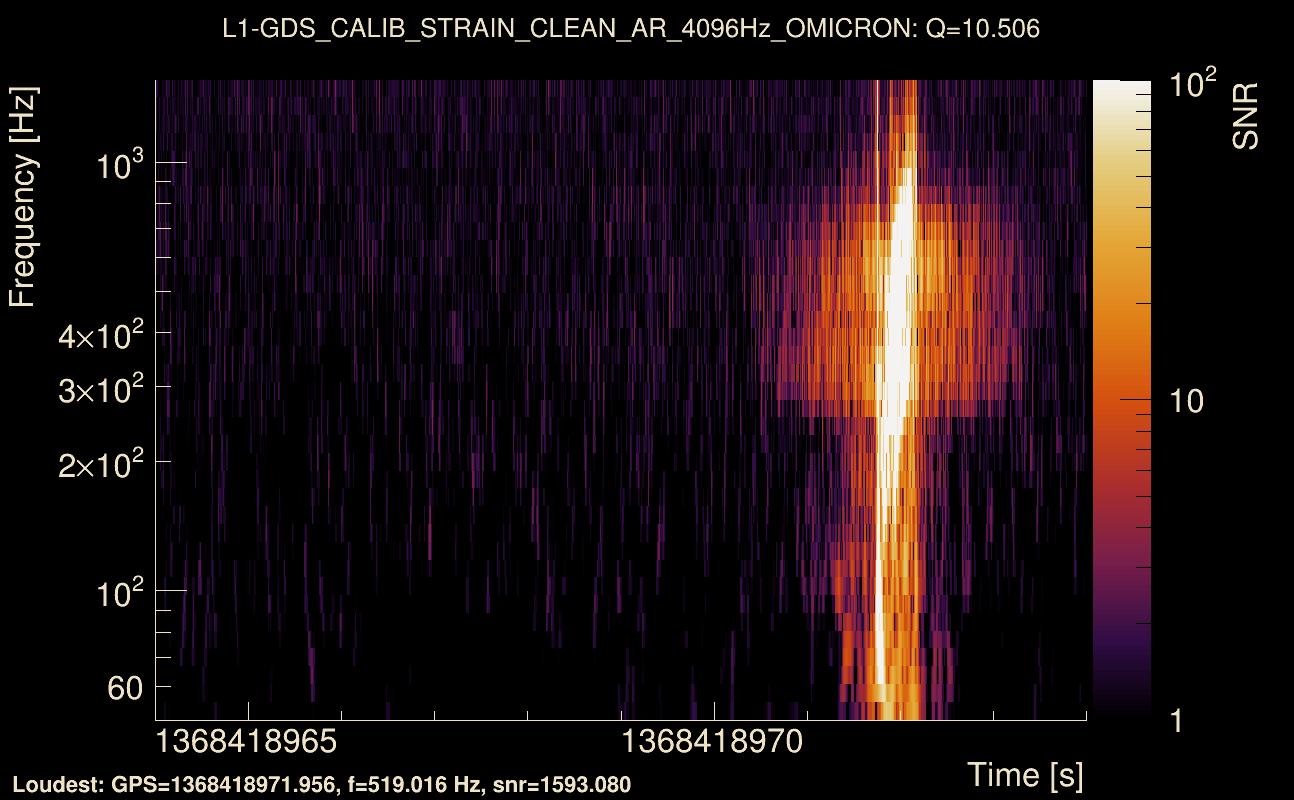

| Event time t(L1): | GPS = 1368418969 (Thu May 18 04:22:41 2023 ) → GPS = 1368418979 (Thu May 18 04:22:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368418966 → GPS = 1368418982 |
| Omicron analysis time window (L1): | GPS = 1368418966 → GPS = 1368418982 |
| Time delay between detectors t(L1) - t(H1): | 4.06816e-06 s (slice index = 108 / 217), δt_gw = 4.06816e-06 s |
| Time delay standard deviation: | 0.0100191 s |
| [targeted mode] Time delay probability: | 3.24334e-07 (5.10873 sigmas), δt_target = 0.0023303 s |
| Frequency: | 288.275 Hz |

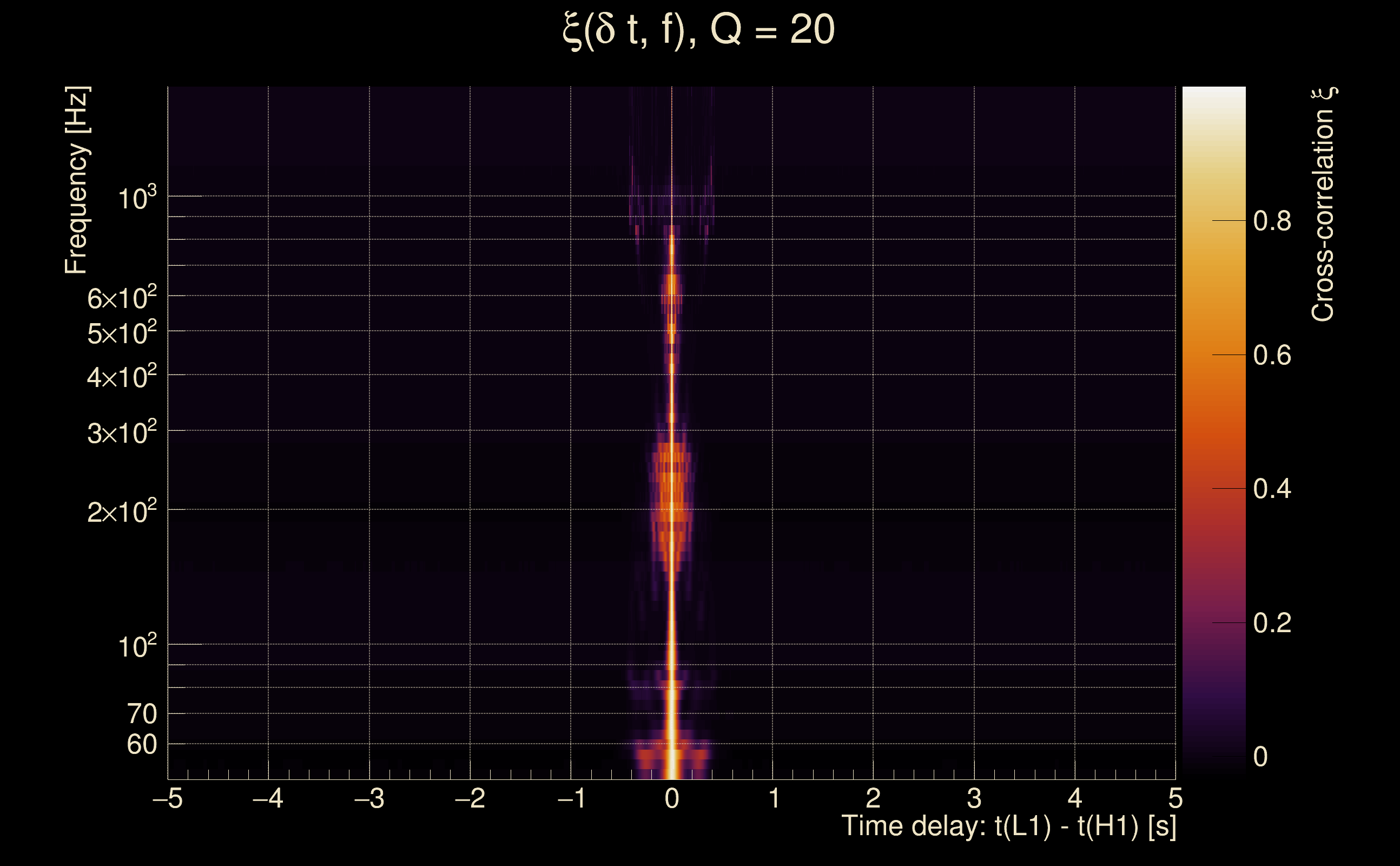

| Ξ: | 0.991033 ± 0.00220513 (variance = 4.86261e-06): Q0: 0.989066, Q1: 0.992093, Q2: 0.994854, Q3: 0.995007, Q4: 0.993748 |
| Rank: | R_A = 0.991033 |
| Log of amplitude ratio (L1/H1): | -0.0913074, variance = 0.151271 (L1/H1: -0.1053, variance = 0.301055, H1/L1: 0.0757561, variance = 0.302503) |
| Amplitude ratio (L1/H1): | 0.912737 ⋇ 1.47541 (L1/H1: 0.900055 ⋇ 1.73097, H1/L1: 1.0787 ⋇ 1.73326) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.969665 |
| Antenna factor probability: | 0.867105 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 1 / 258 |
| Maximum signal-to-noise ratio: | H1: 2212.6, L1: 2098.76 |
| SNR variance: | H1: 2241.13, L1: 2157.64 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

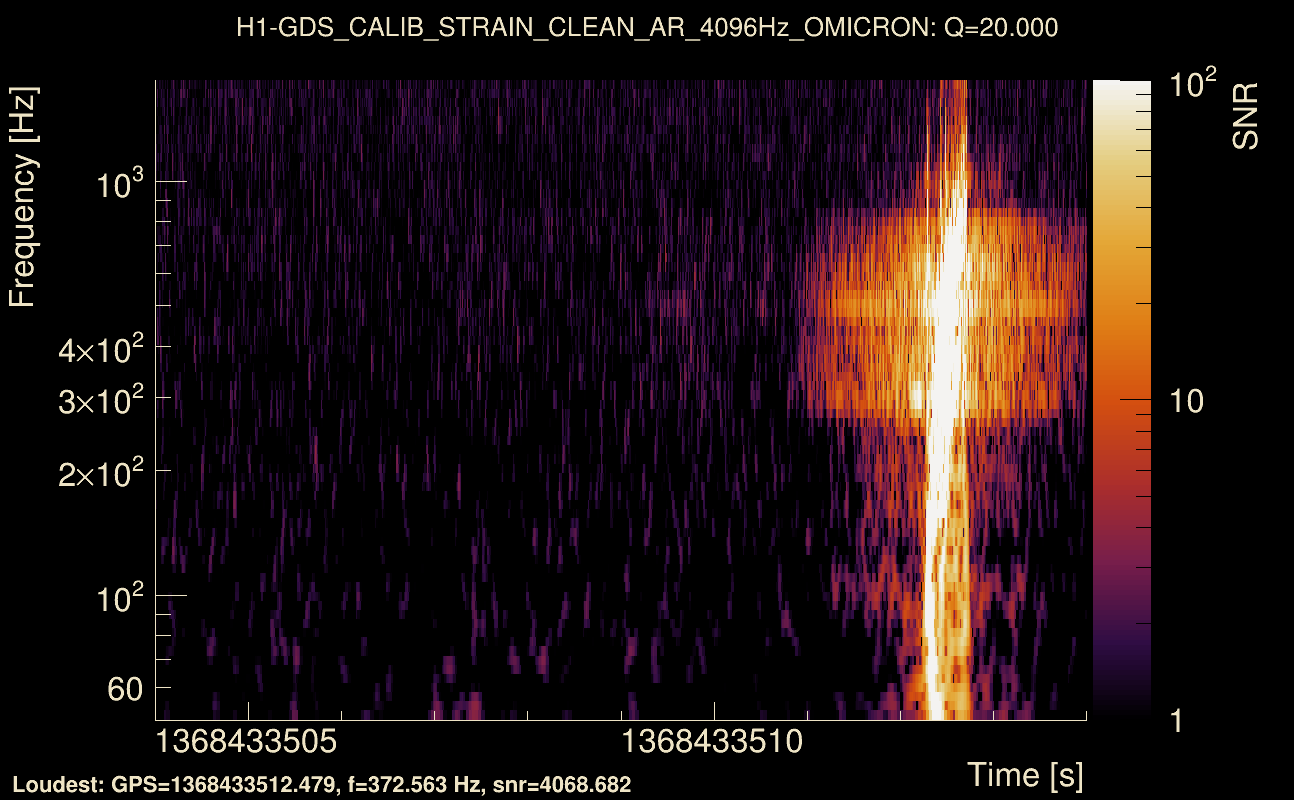

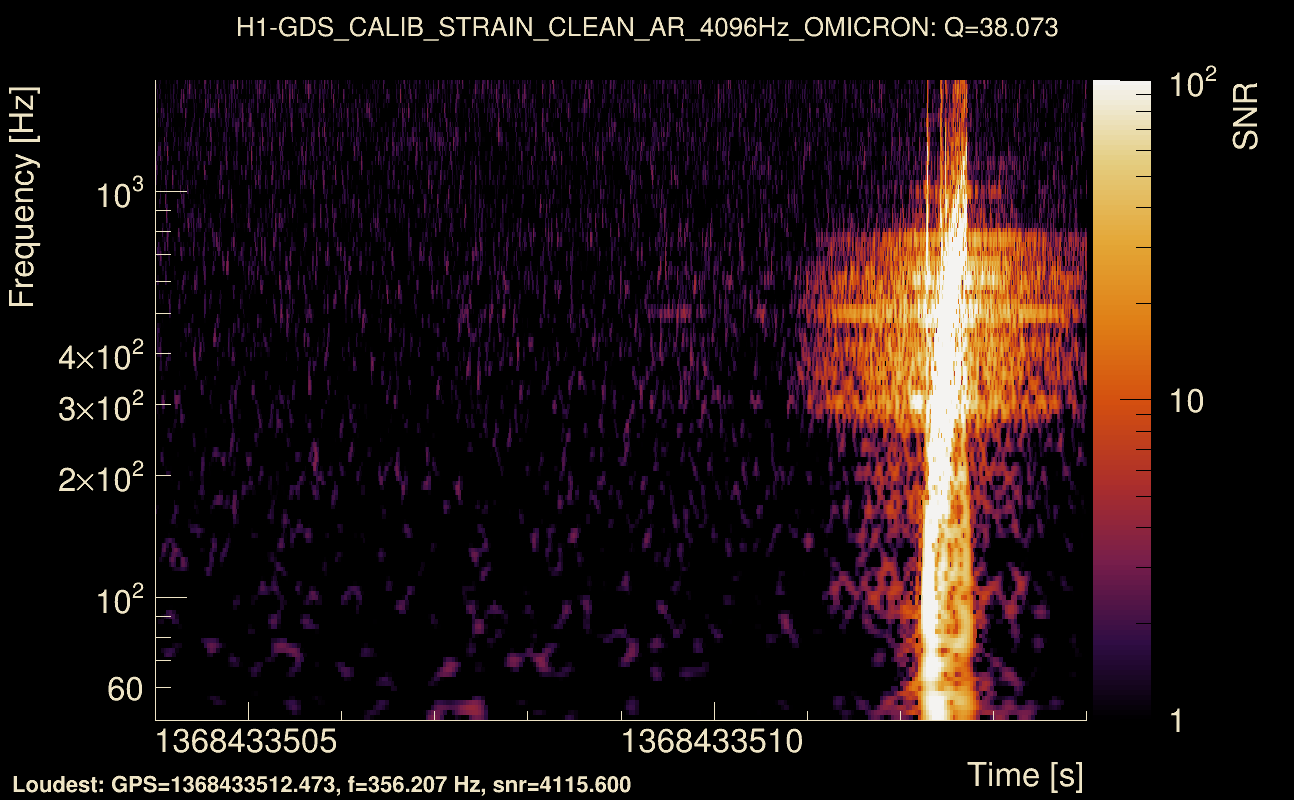

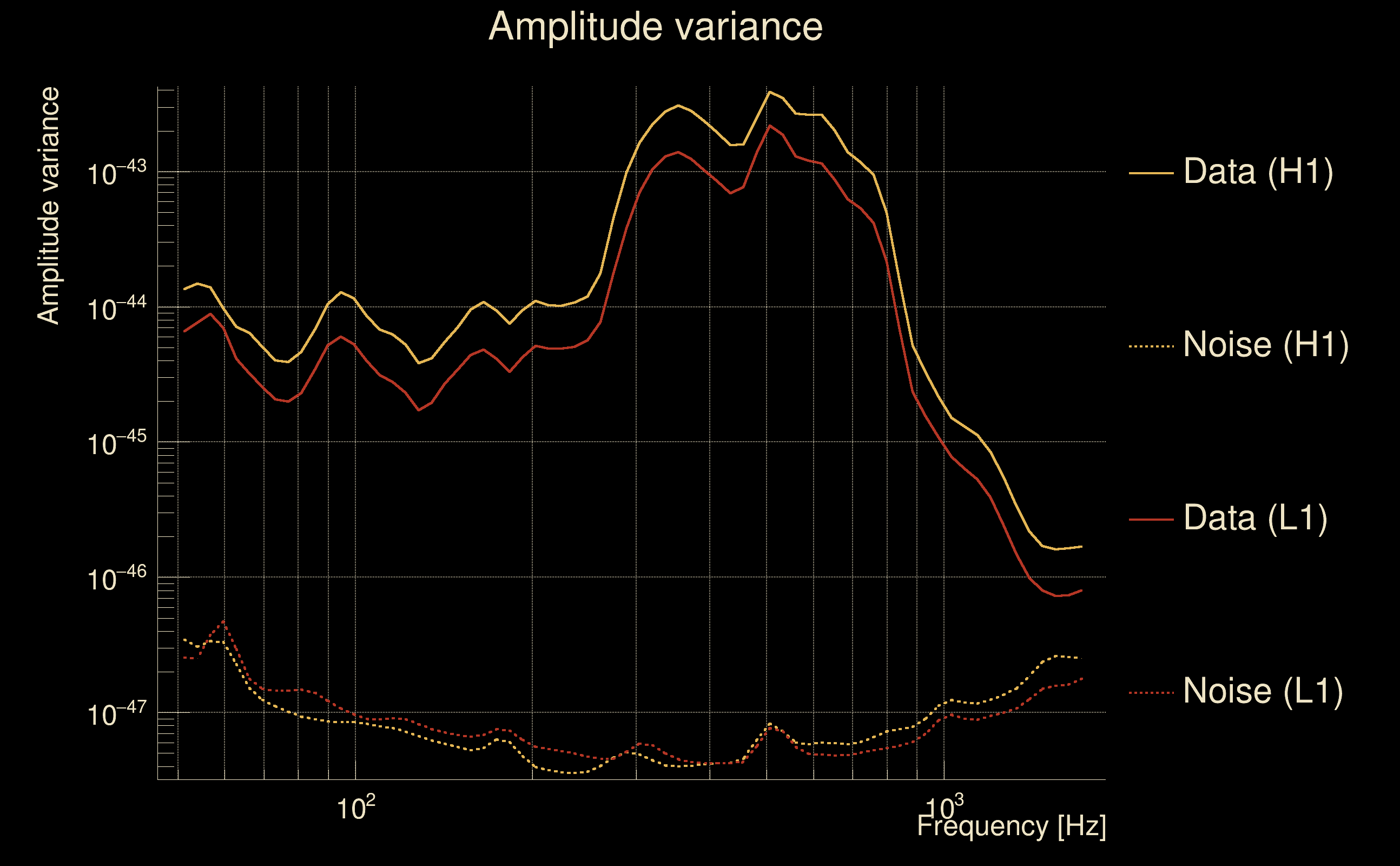

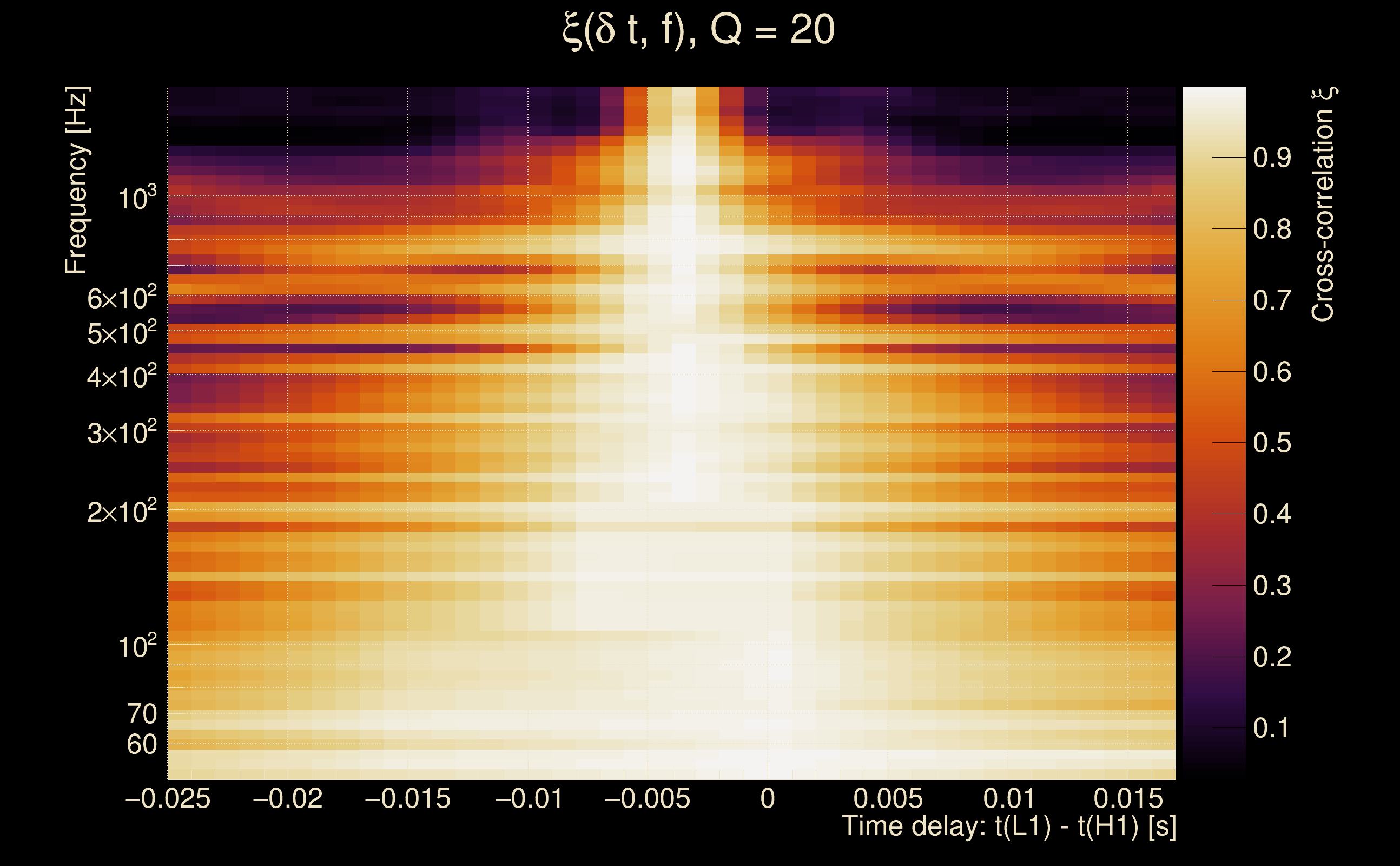

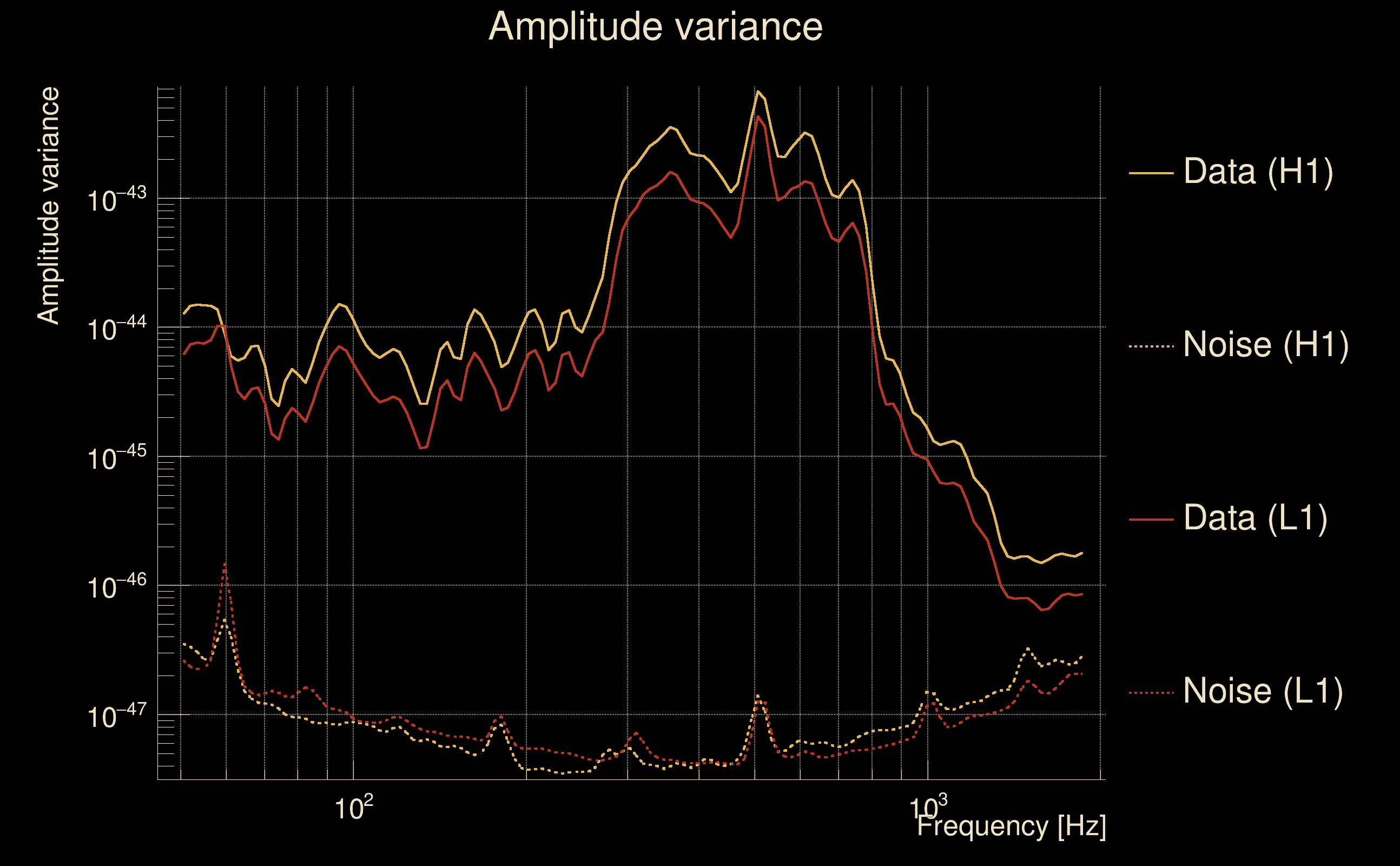

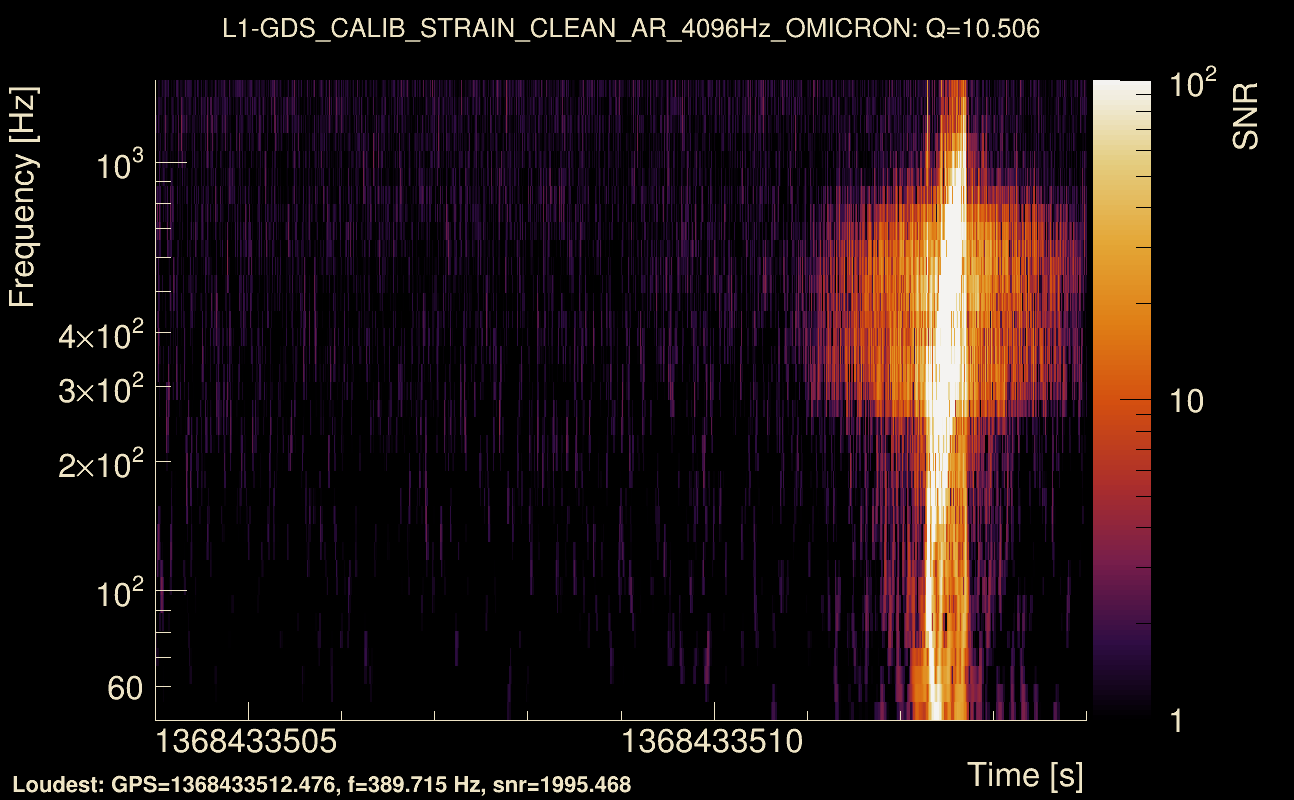

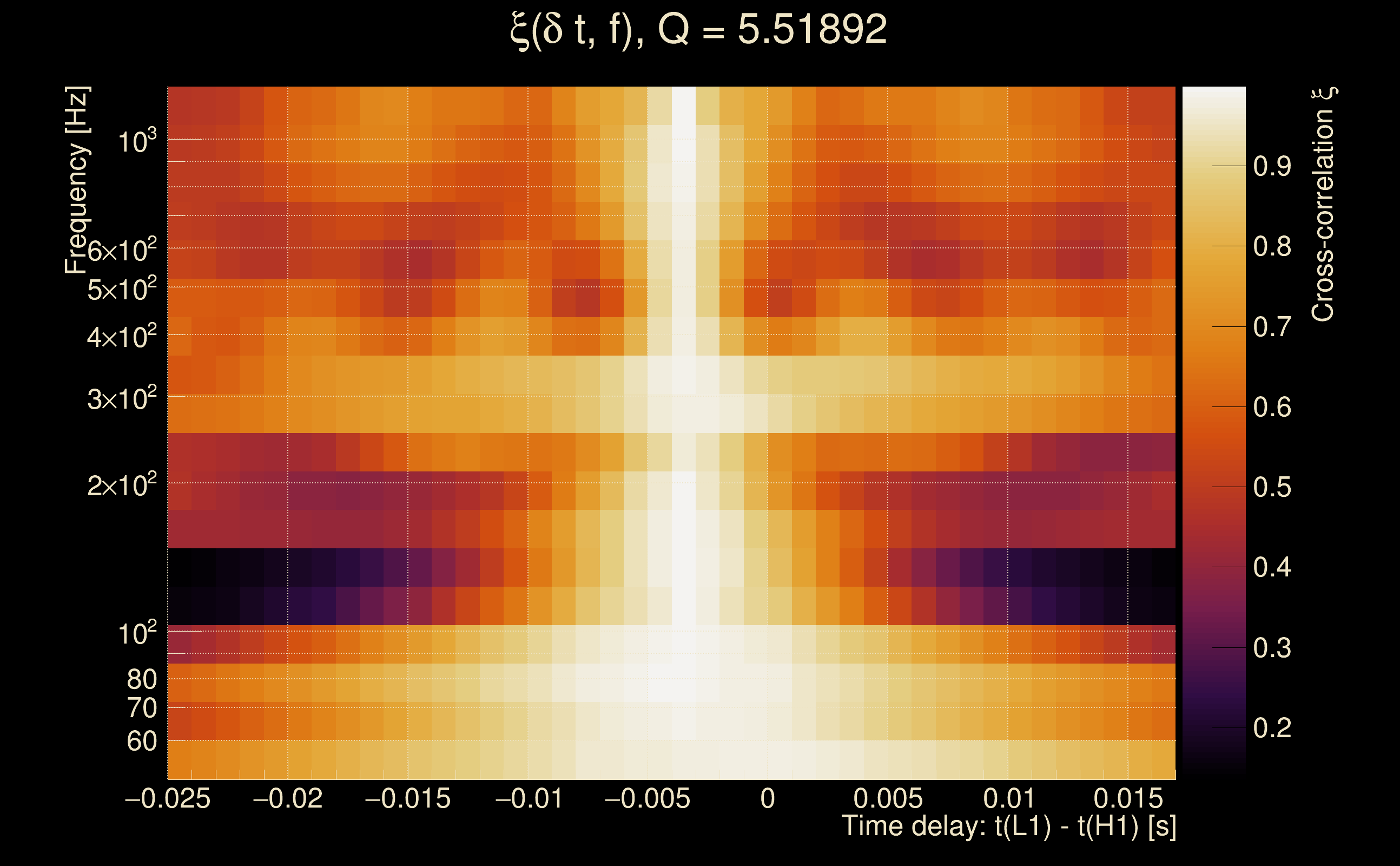

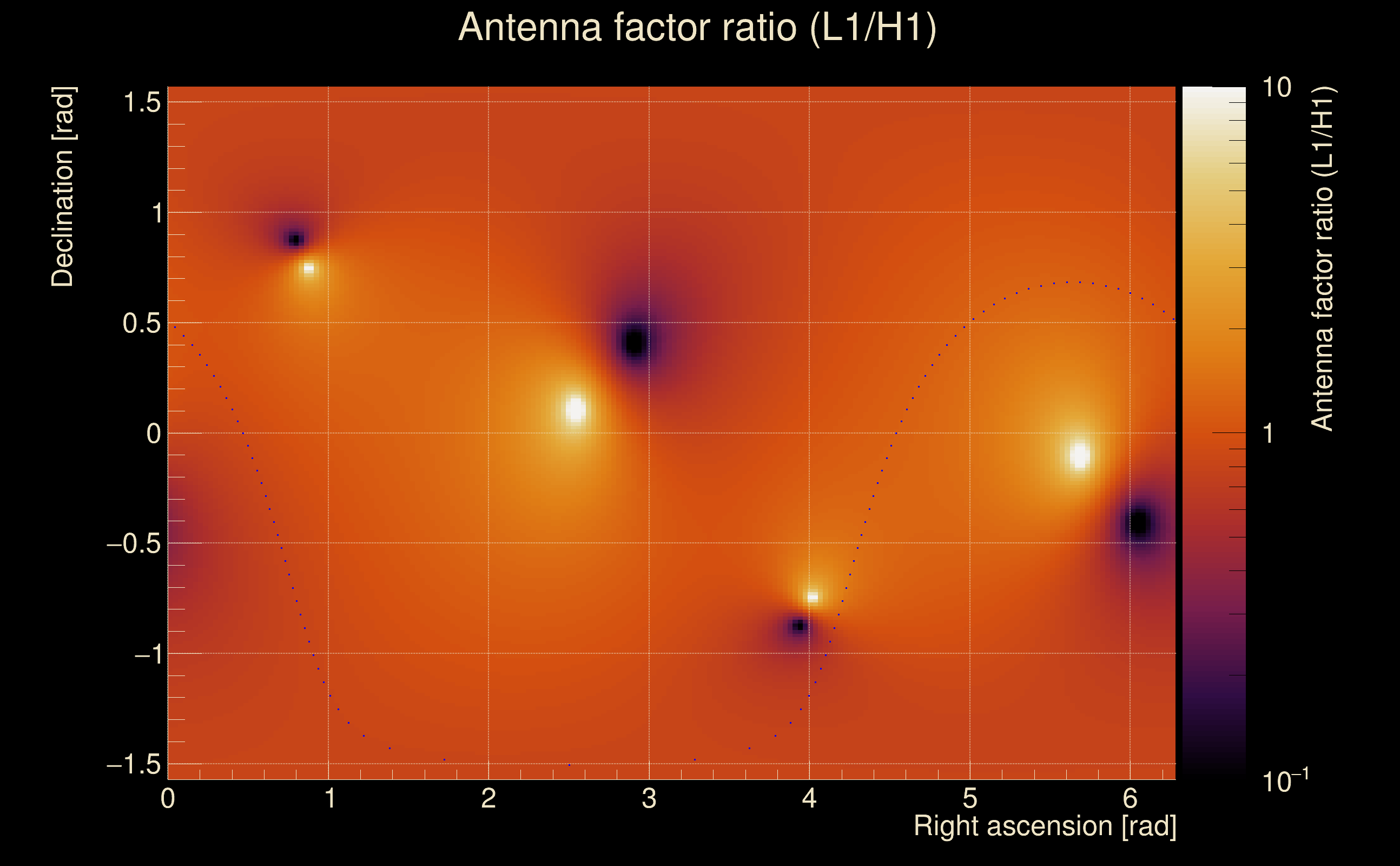

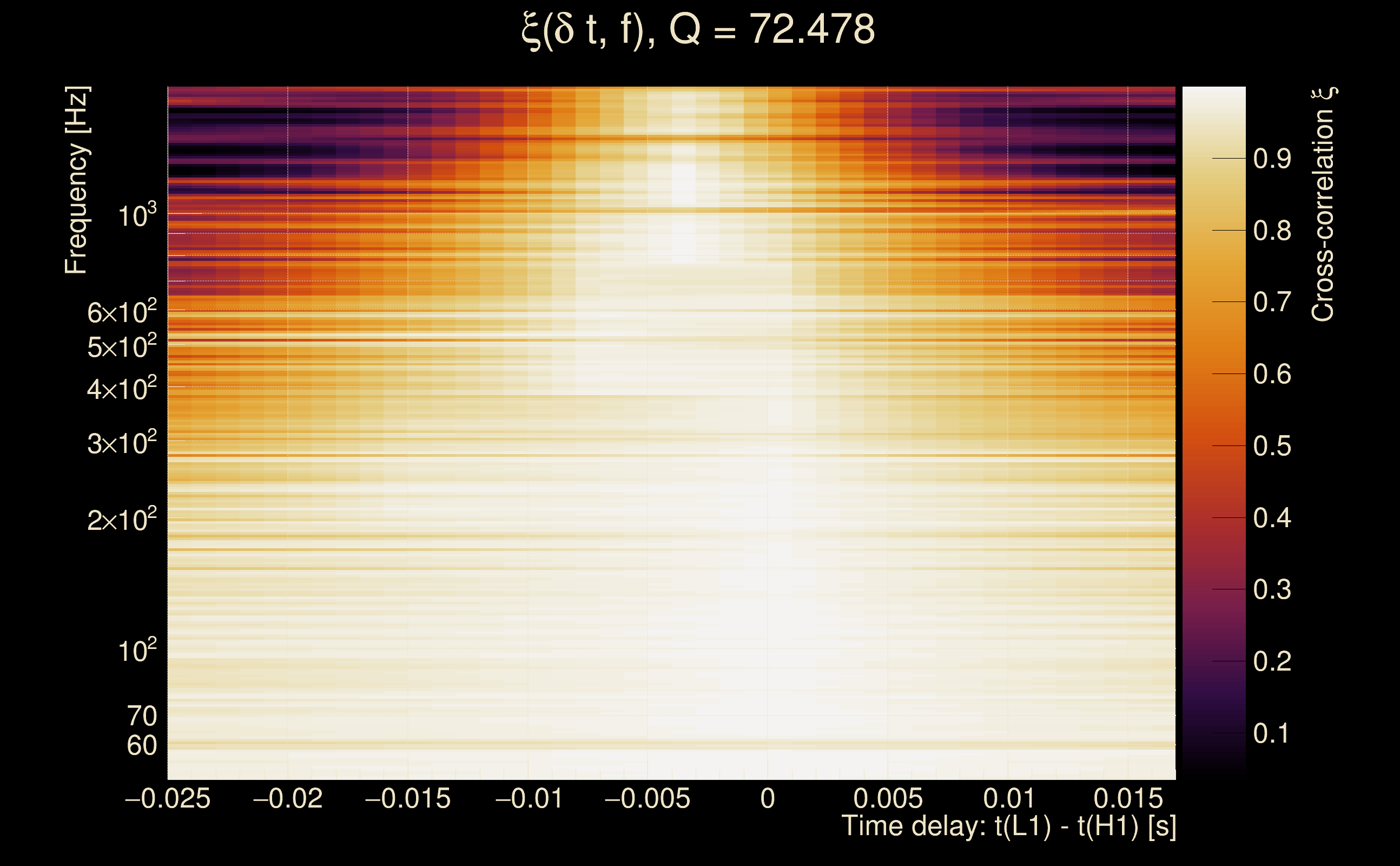

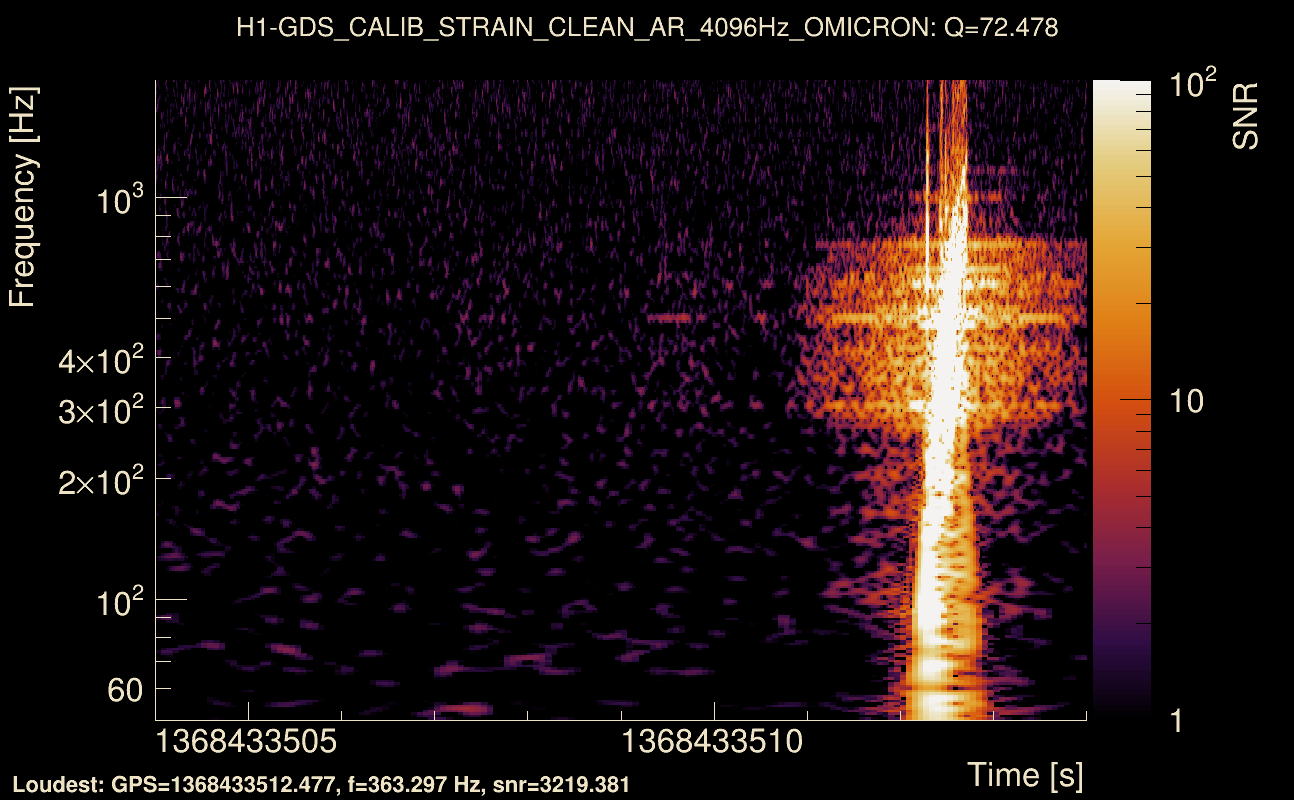

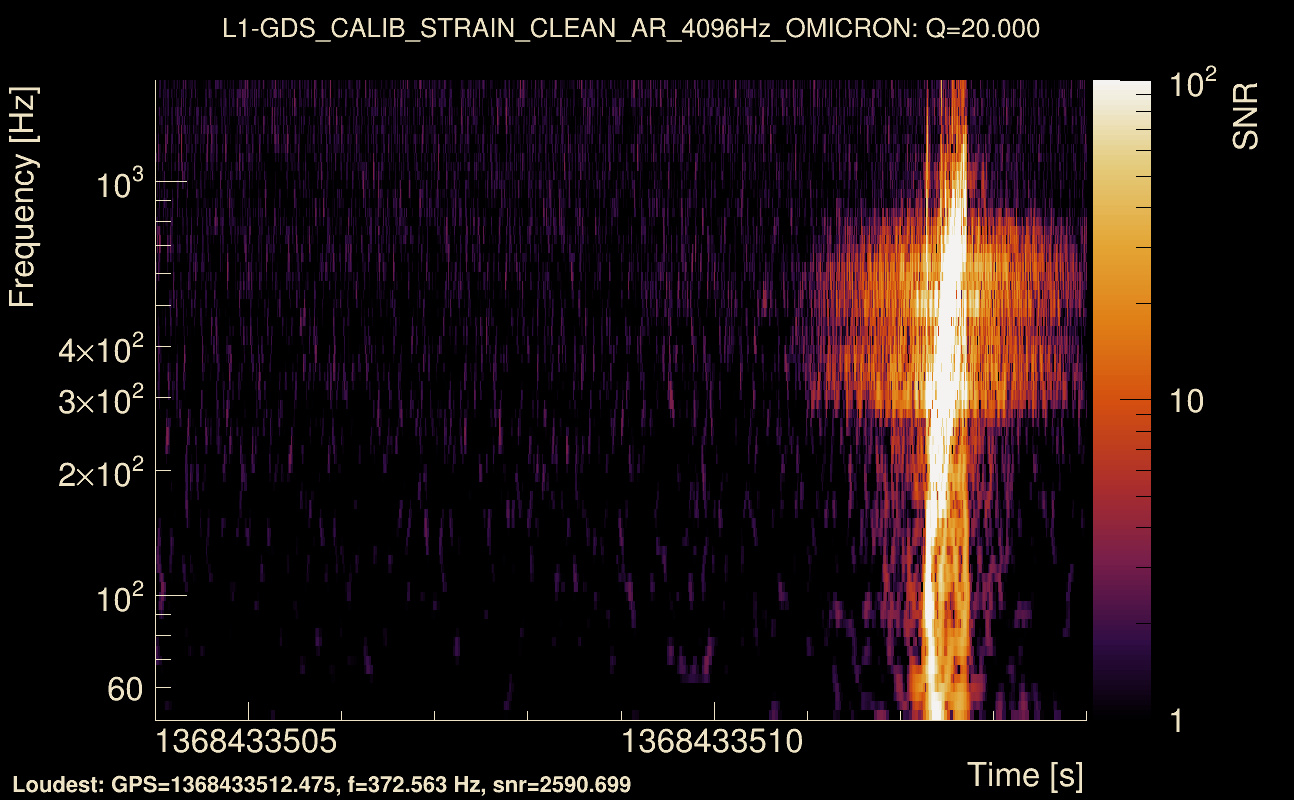

| Event time t(H1): | GPS = 1368433504 (Thu May 18 08:24:46 2023 ) → GPS = 1368433514 (Thu May 18 08:24:56 2023 ) |
| Event time t(L1): | GPS = 1368433504 (Thu May 18 08:24:56 2023 ) → GPS = 1368433514 (Thu May 18 08:24:56 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368433501 → GPS = 1368433517 |
| Omicron analysis time window (L1): | GPS = 1368433501 → GPS = 1368433517 |

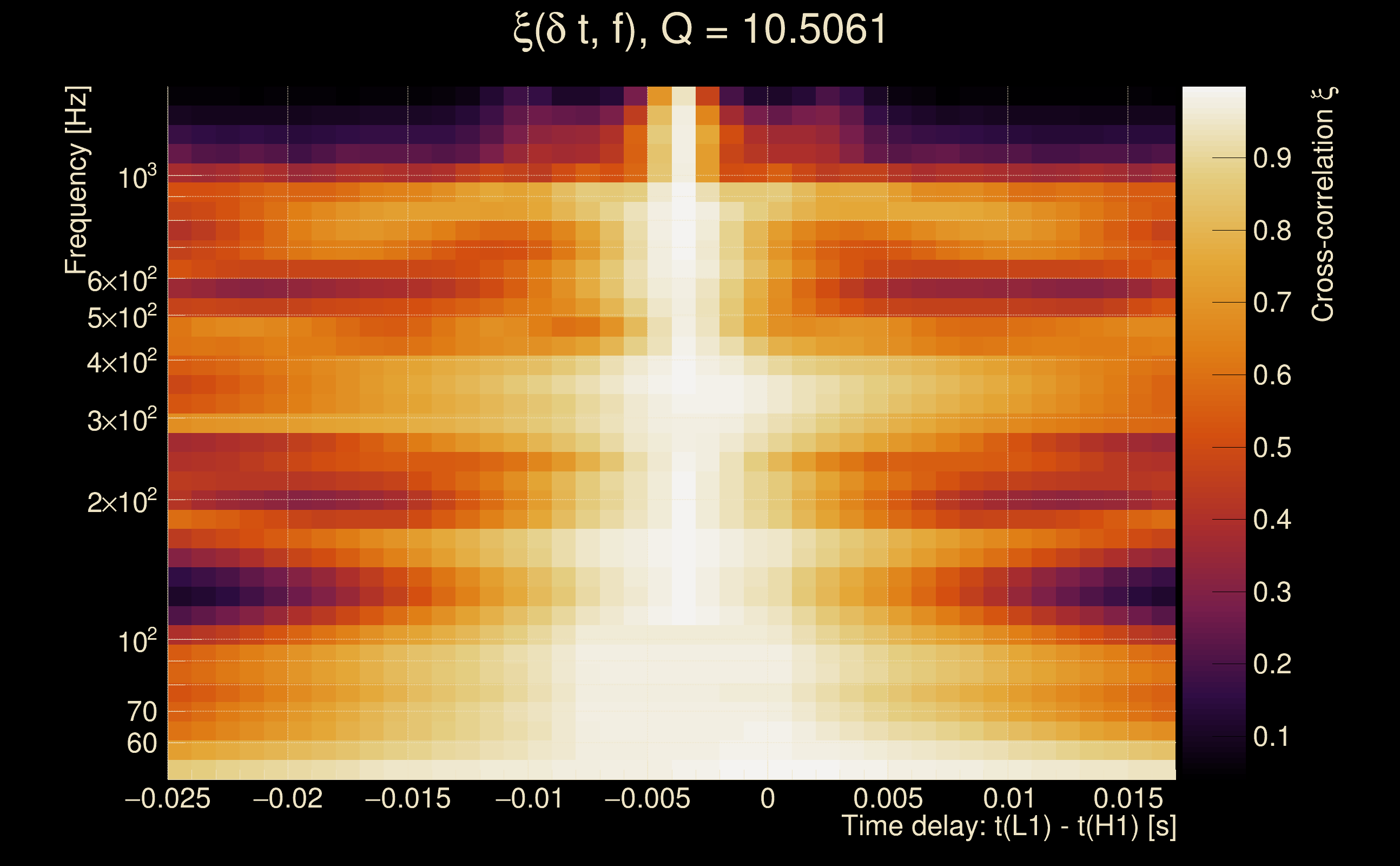

| Time delay between detectors t(L1) - t(H1): | -0.00400293 s (slice index = 108 / 217), δt_gw = -0.00400293 s |
| Time delay standard deviation: | 0.0177195 s |
| [targeted mode] Time delay probability: | 2.22439e-210 (30.9543 sigmas), δt_target = 0.00232816 s |
| Frequency: | 286.499 Hz |
| Ξ: | 0.987442 ± 0.00159002 (variance = 2.52817e-06): Q0: 0.988621, Q1: 0.987067, Q2: 0.985739, Q3: 0.985072, Q4: 0.98406 |
| Rank: | R_A = 0.987442 |
| Log of amplitude ratio (L1/H1): | -0.390277, variance = 0.178581 (L1/H1: -0.399212, variance = 0.301634, H1/L1: 0.367951, variance = 0.302803) |
| Amplitude ratio (L1/H1): | 0.67687 ⋇ 1.52591 (L1/H1: 0.670848 ⋇ 1.73189, H1/L1: 1.44477 ⋇ 1.73373) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.967926 |
| Antenna factor probability: | 0.842539 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 0 / 258 |
| Maximum signal-to-noise ratio: | H1: 4420.72, L1: 2796.78 |
| SNR variance: | H1: 0.504242, L1: 0.475168 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368430159 (Thu May 18 07:29:01 2023 ) → GPS = 1368430169 (Thu May 18 07:29:11 2023 ) |
| Event time t(L1): | GPS = 1368430159 (Thu May 18 07:29:11 2023 ) → GPS = 1368430169 (Thu May 18 07:29:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368430156 → GPS = 1368430172 |
| Omicron analysis time window (L1): | GPS = 1368430156 → GPS = 1368430172 |
| Time delay between detectors t(L1) - t(H1): | -2.48261 s (slice index = 162 / 217), δt_gw = 0.00139116 s |
| Time delay standard deviation: | 0.0919397 s |
| [targeted mode] Time delay probability: | 0.713127 (0.36766 sigmas), δt_target = -0.00510812 s |
| Frequency: | 158.87 Hz |
| Ξ: | 0.0404845 ± 0.0376486 (variance = 0.00141742): Q0: 0.0849891, Q1: 0.0883486, Q2: 0.0534597, Q3: 0.0818105, Q4: 0.166015 |
| Rank: | R_A = 0.0404845 |
| Log of amplitude ratio (L1/H1): | -0.038731, variance = 0.589401 (L1/H1: -1.1328, variance = 1.37563, H1/L1: -0.906536, variance = 1.02097) |
| Amplitude ratio (L1/H1): | 0.962009 ⋇ 2.15486 (L1/H1: 0.322129 ⋇ 3.23126, H1/L1: 0.403921 ⋇ 2.74678) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.187731 |
| Antenna factor probability: | 0.805481 |
| Number of rejected frequency rows: | Q0: 6 / 18, Q1: 21 / 36, Q2: 58 / 70, Q3: 117 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.95446, L1: 5.33018 |
| SNR variance: | H1: 0, L1: 0 |

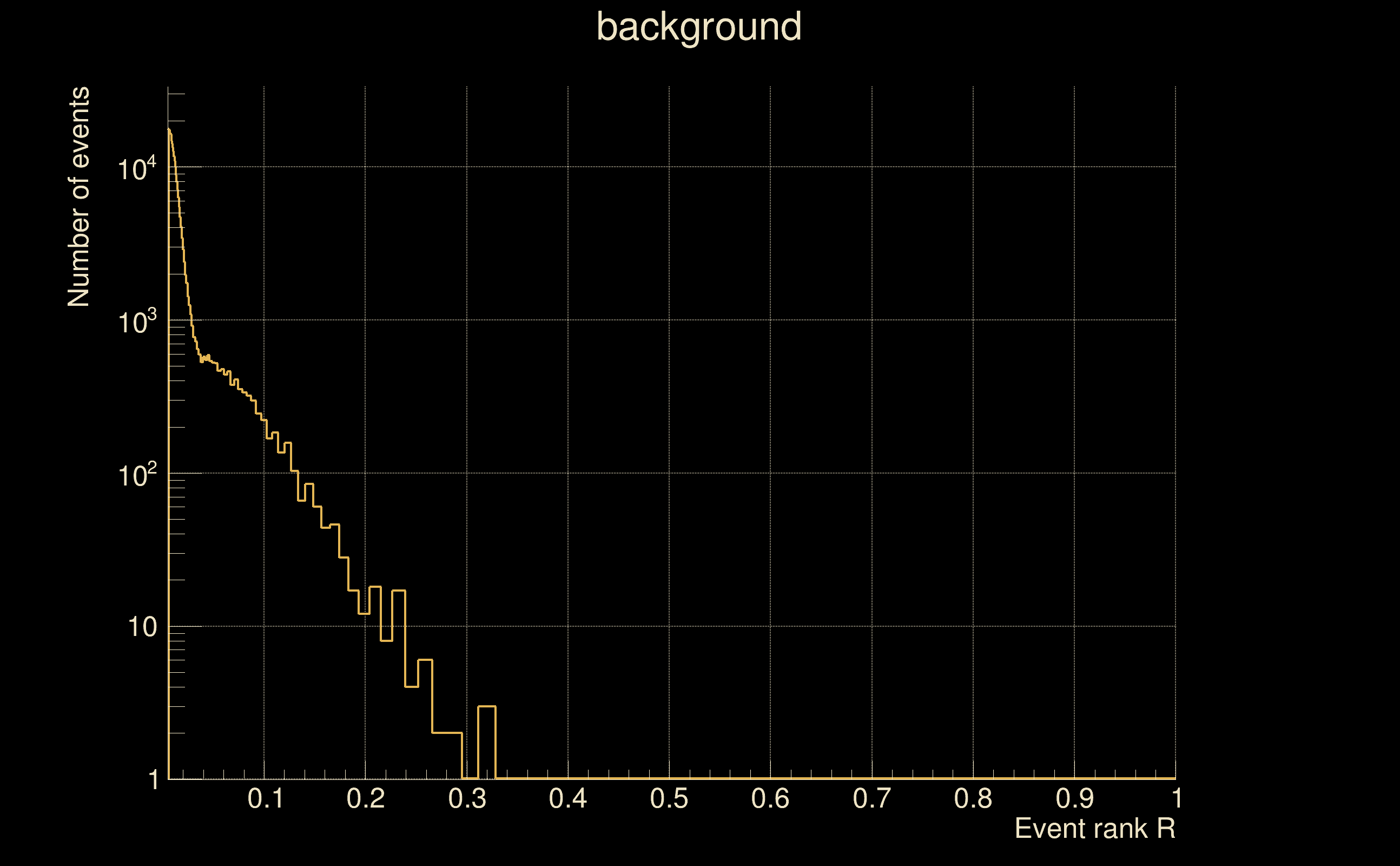

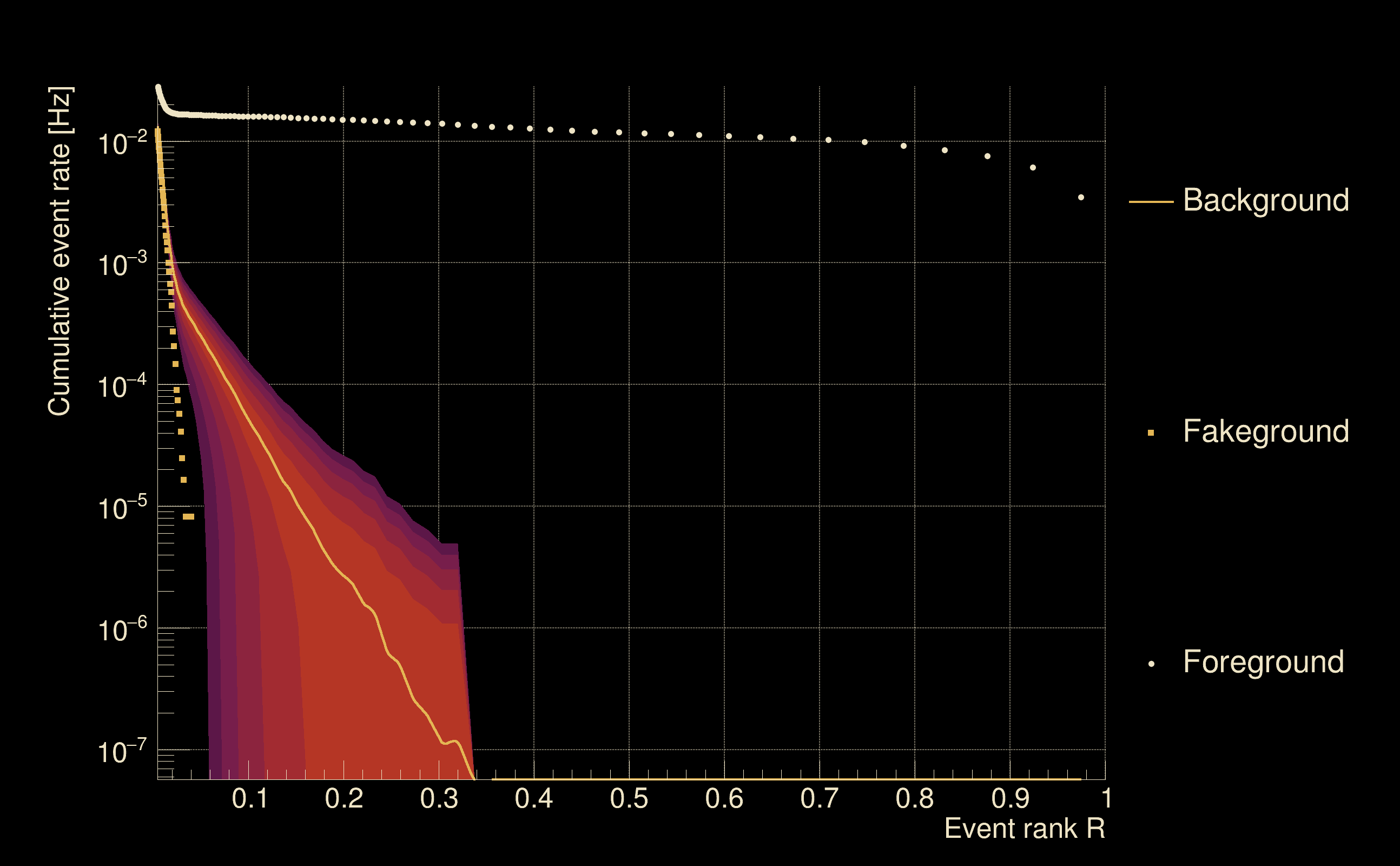

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.320207 |
| Alternative threshold at 1/100 yrs: | R > 0.320207 |
| Alternative threshold at 1/10 yrs: | R > 0.320207 |
| Alternative threshold at 1/1 yr: | R > 0.320207 |
| Alternative threshold at 1/1 d: | R > 0.144894 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

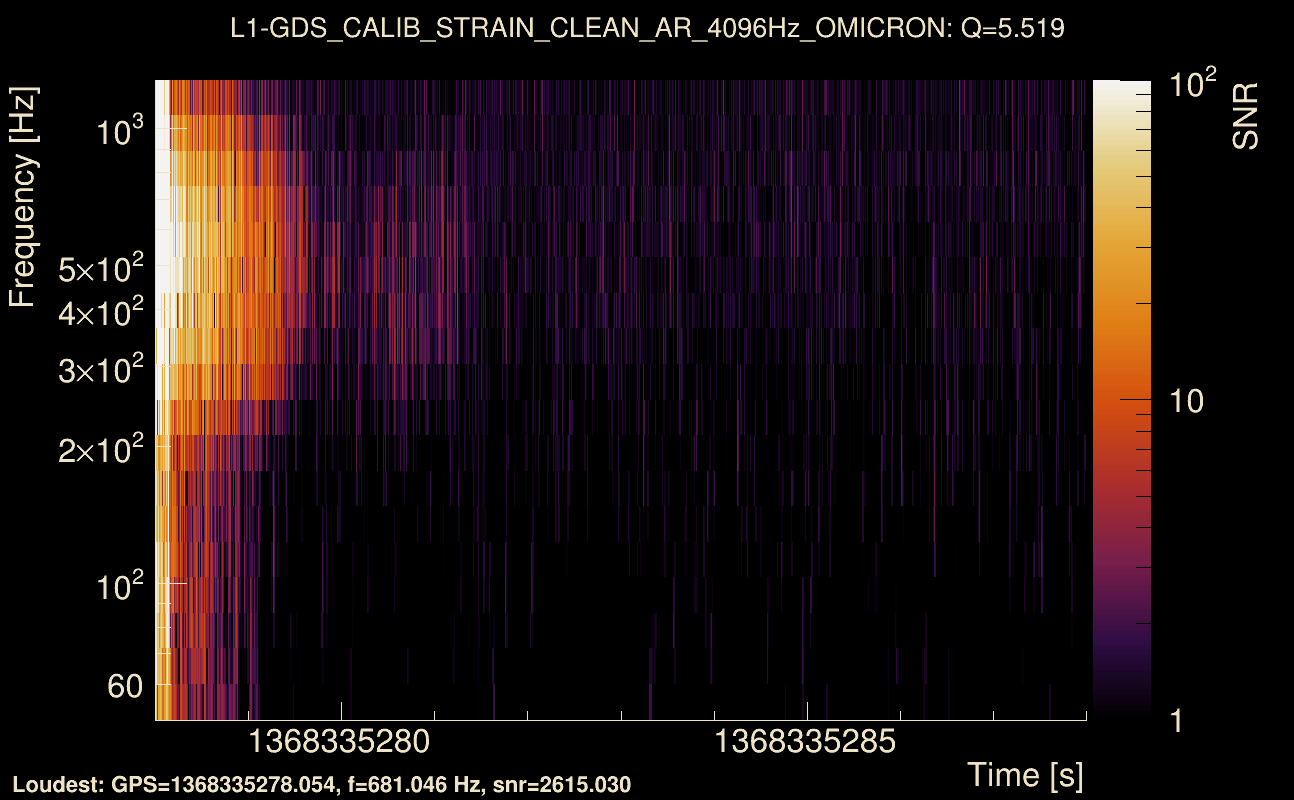

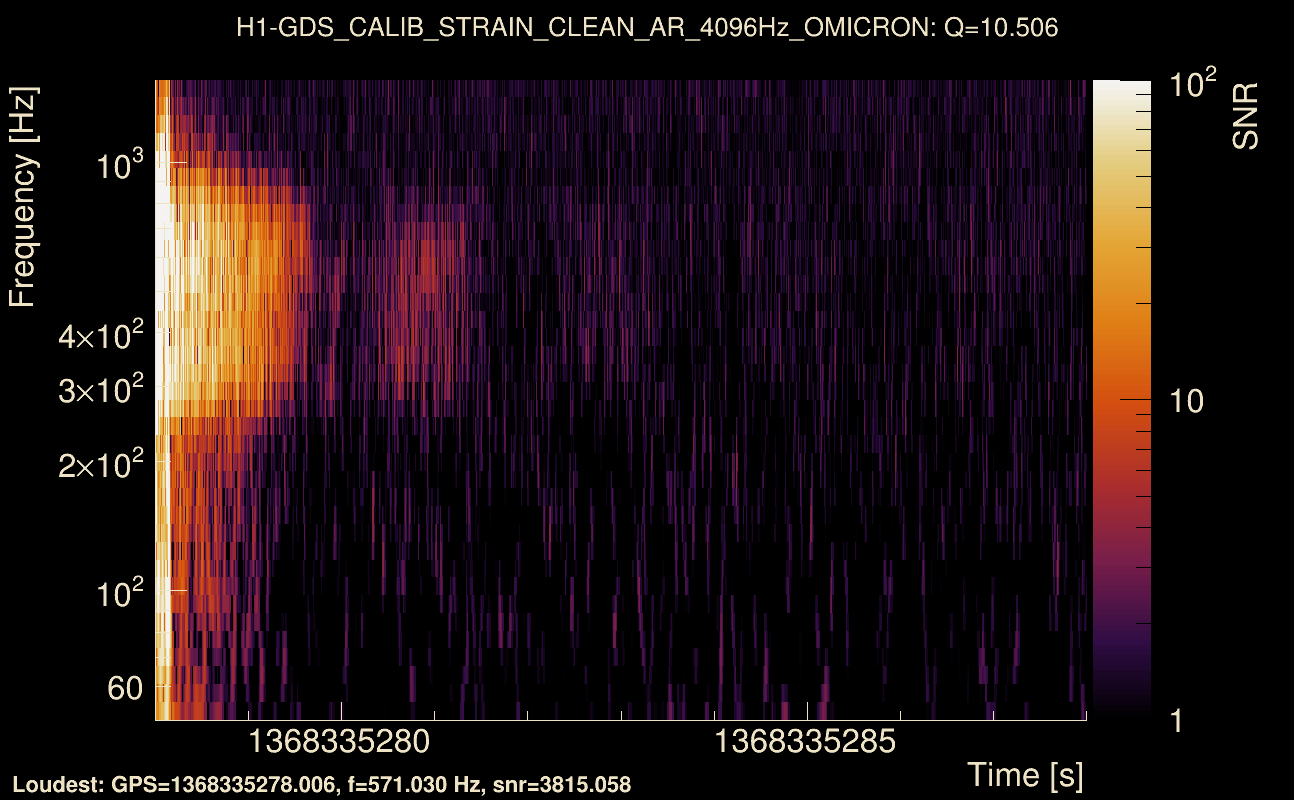

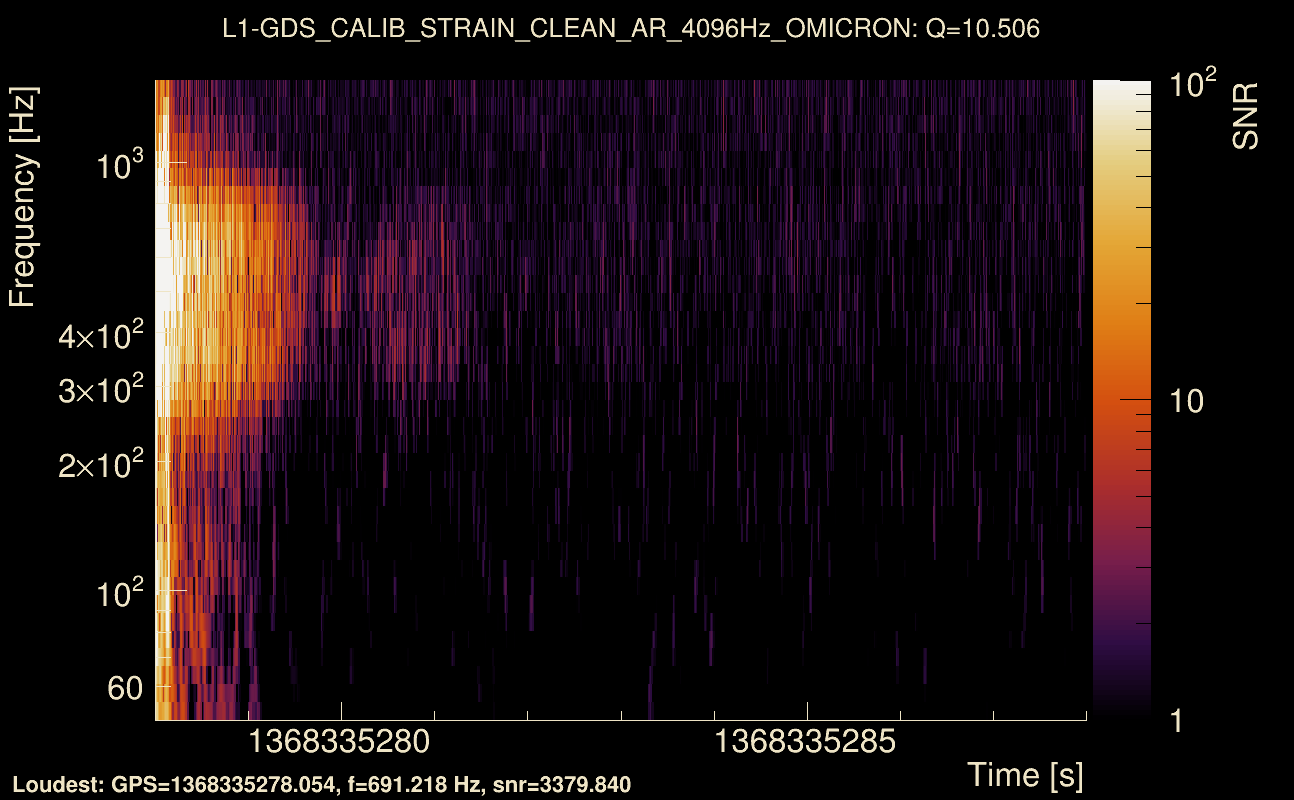

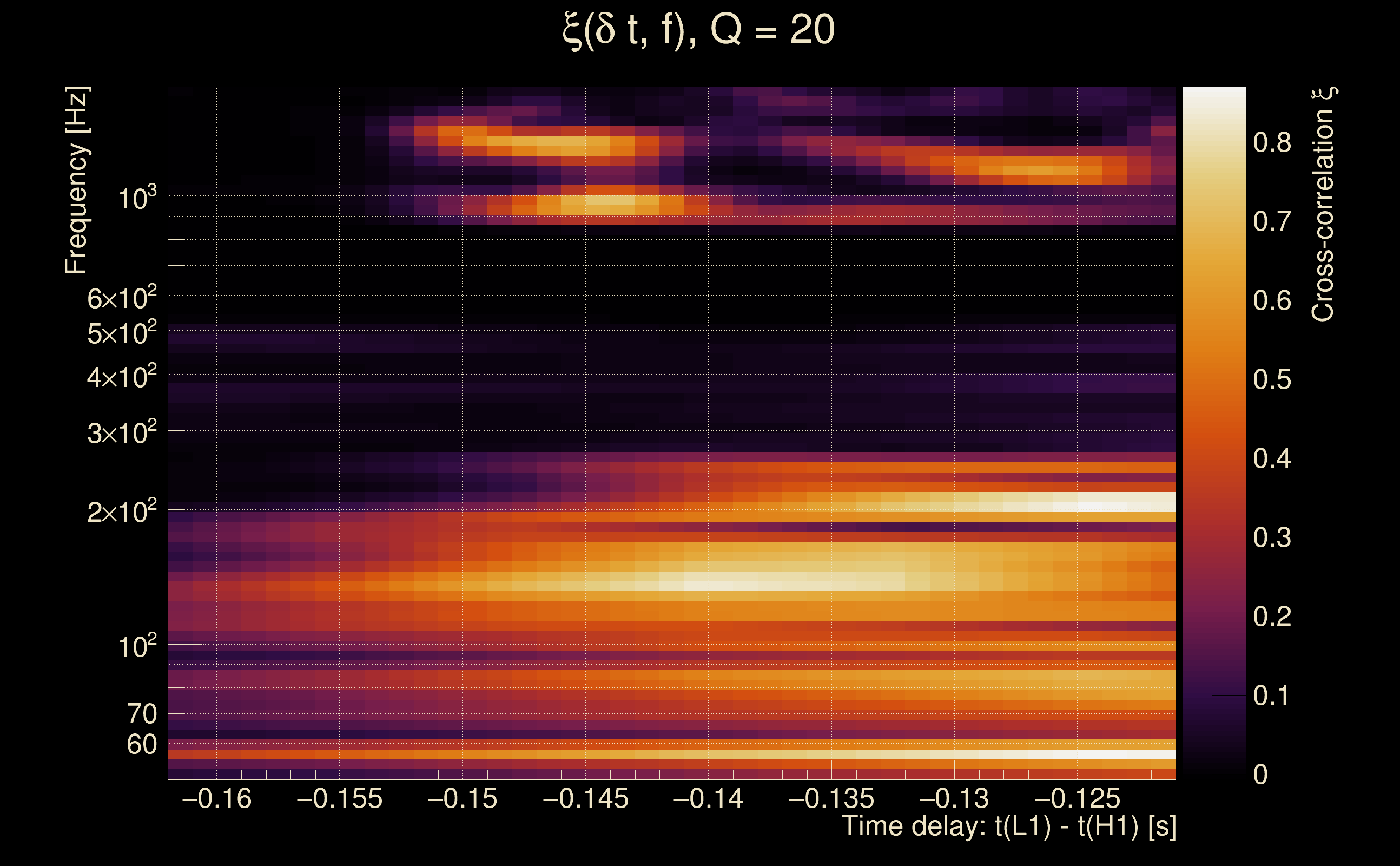

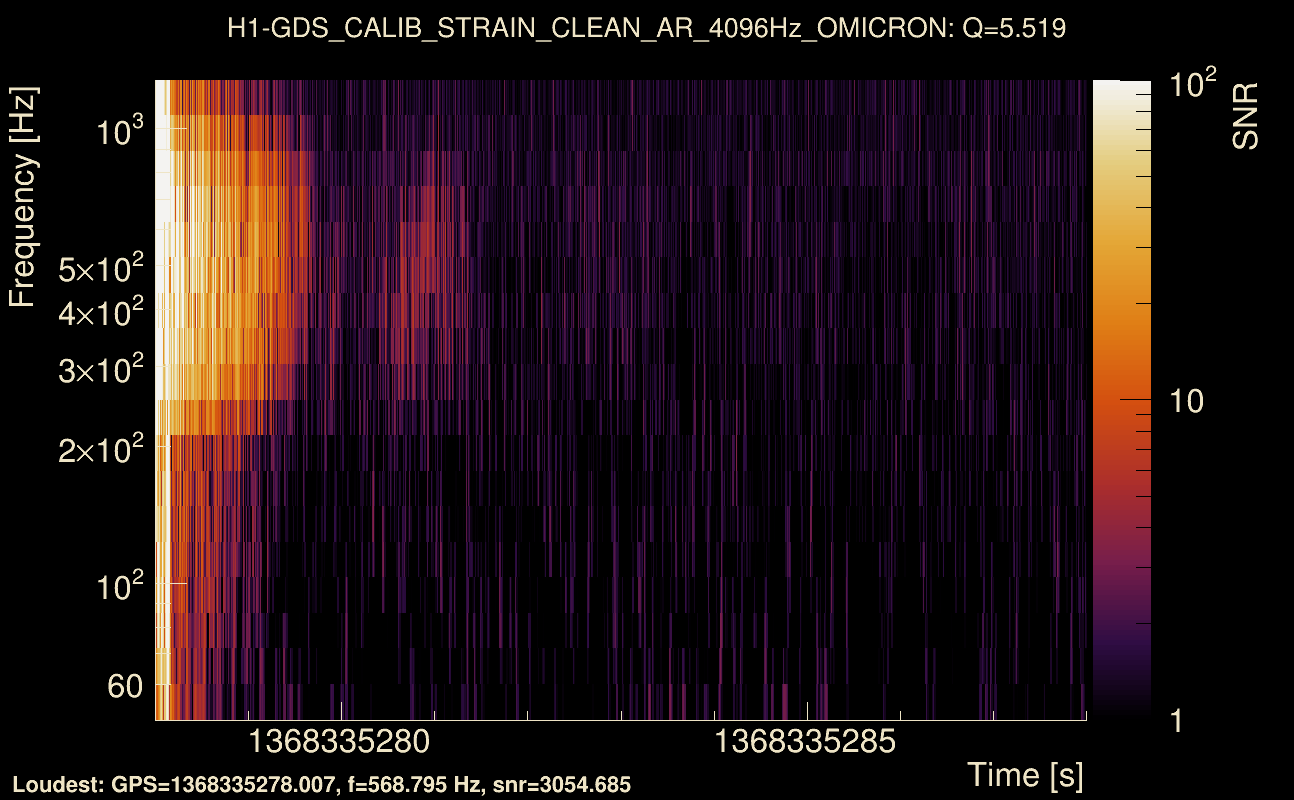

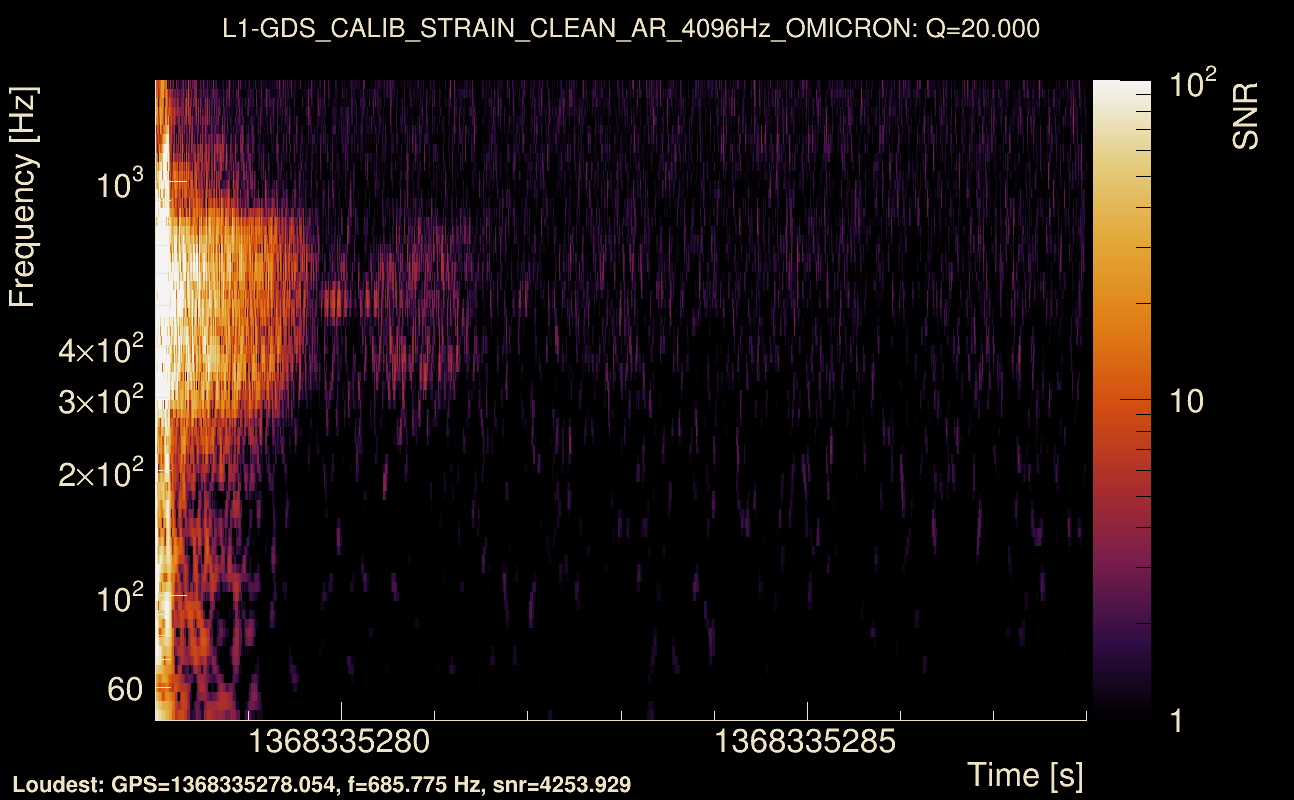

| Event time t(H1): | GPS = 1368335278 (Wed May 17 05:07:40 2023 ) → GPS = 1368335288 (Wed May 17 05:07:50 2023 ) |
| Event time t(L1): | GPS = 1368335278 (Wed May 17 05:07:50 2023 ) → GPS = 1368335288 (Wed May 17 05:07:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368335275 → GPS = 1368335291 |
| Omicron analysis time window (L1): | GPS = 1368335275 → GPS = 1368335291 |

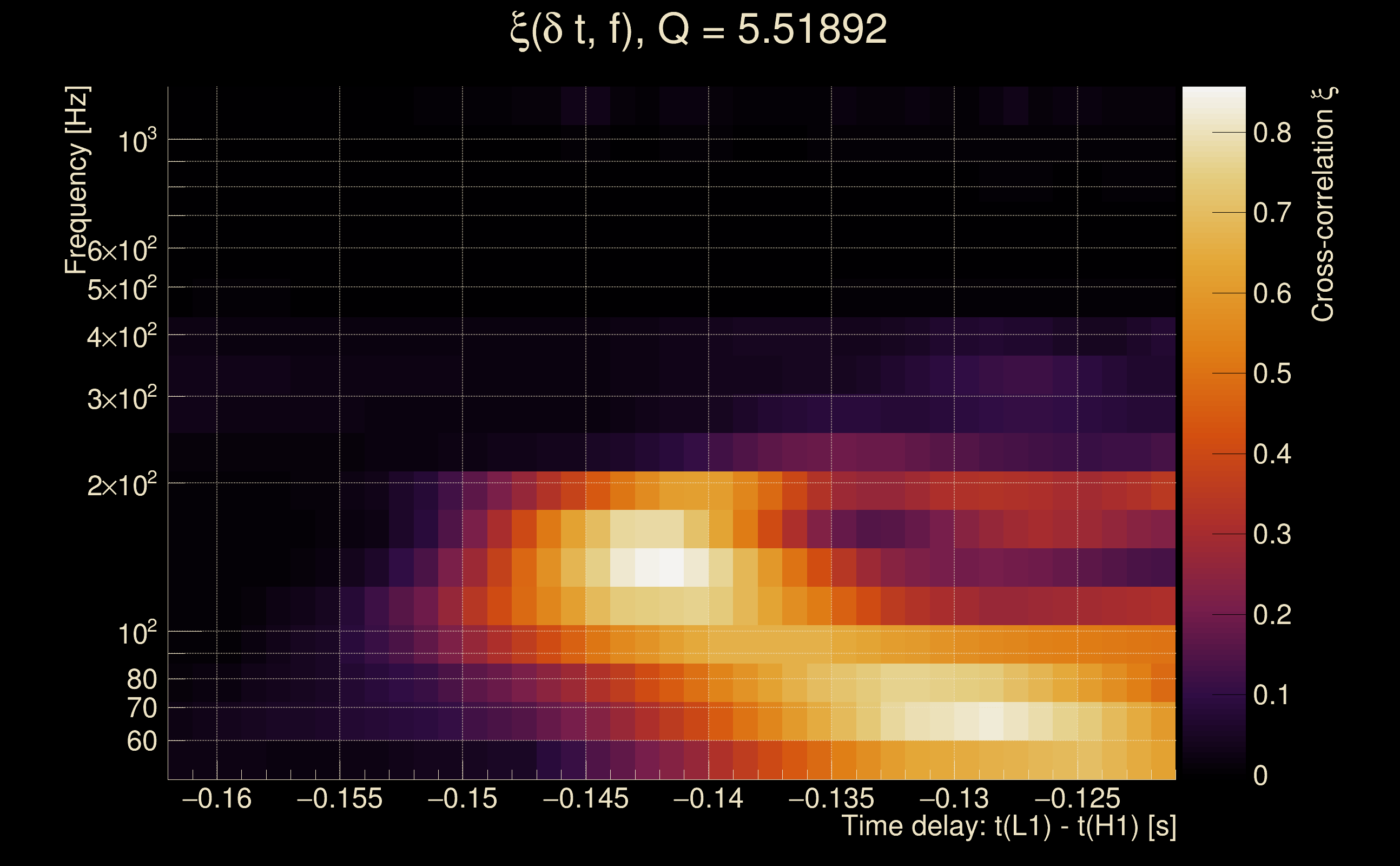

| Time delay between detectors t(L1) - t(H1): | -0.141914 s (slice index = 111 / 217), δt_gw = -0.00391422 s |
| Time delay standard deviation: | 0.0805134 s |
| [targeted mode] Time delay probability: | 0.421135 (0.804454 sigmas), δt_target = -0.00510812 s |
| Frequency: | 269.096 Hz |
| Ξ: | 0.324133 ± 0.0553228 (variance = 0.00306061): Q0: 0.754187, Q1: 0.631403, Q2: 0.608231, Q3: 0.60221, Q4: 0.639159 |
| Rank: | R_A = 0.324133 |
| Log of amplitude ratio (L1/H1): | -0.476009, variance = 0.510828 (L1/H1: -2.35141, variance = 1.0744, H1/L1: -1.92095, variance = 0.895989) |
| Amplitude ratio (L1/H1): | 0.621258 ⋇ 2.04362 (L1/H1: 0.0952347 ⋇ 2.81942, H1/L1: 0.146467 ⋇ 2.57685) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00233738 |

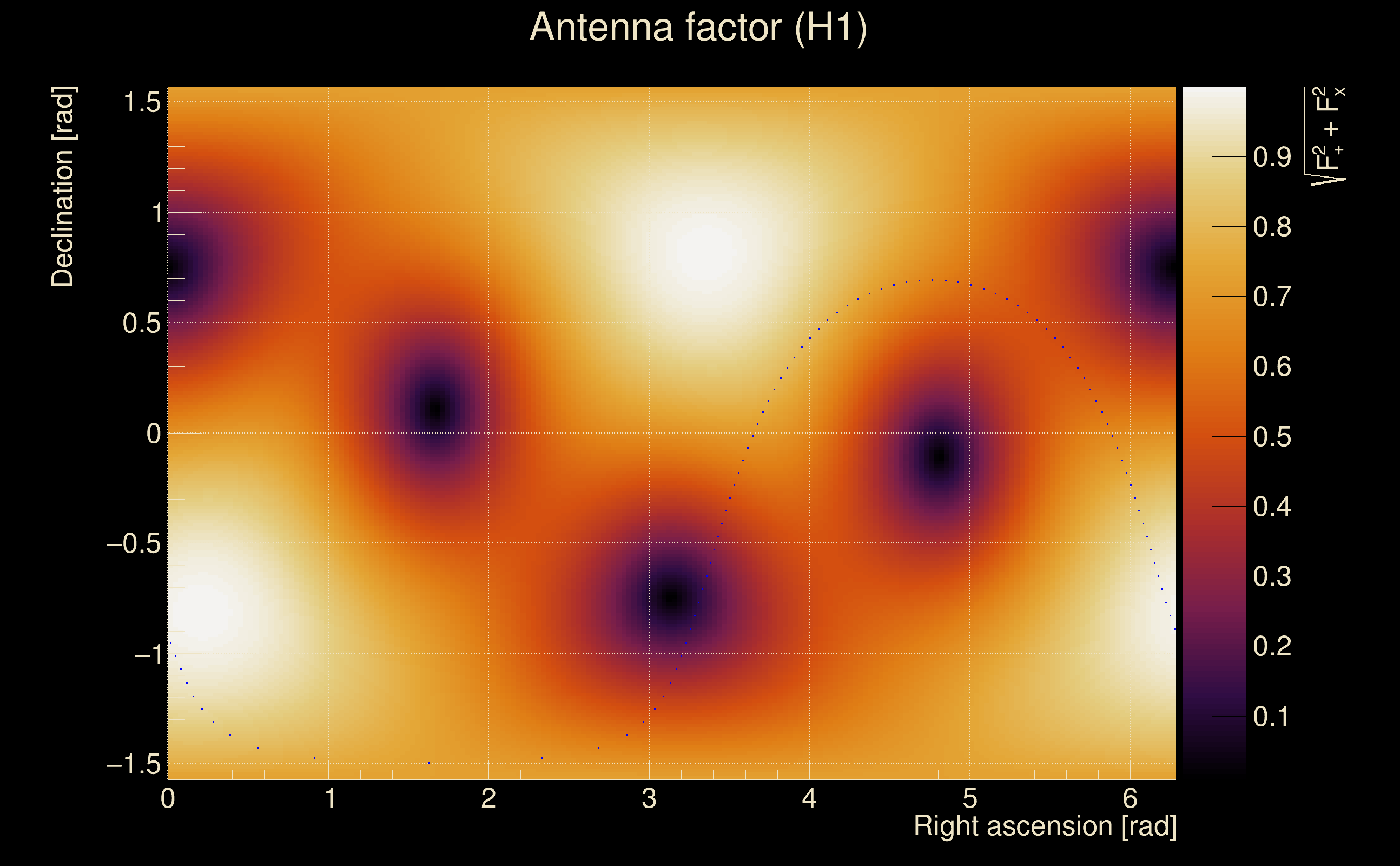

| Antenna factor probability: | 0.562068 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 18 / 36, Q2: 39 / 70, Q3: 95 / 134, Q4: 212 / 258 |
| Maximum signal-to-noise ratio: | H1: 5385.56, L1: 4763.73 |

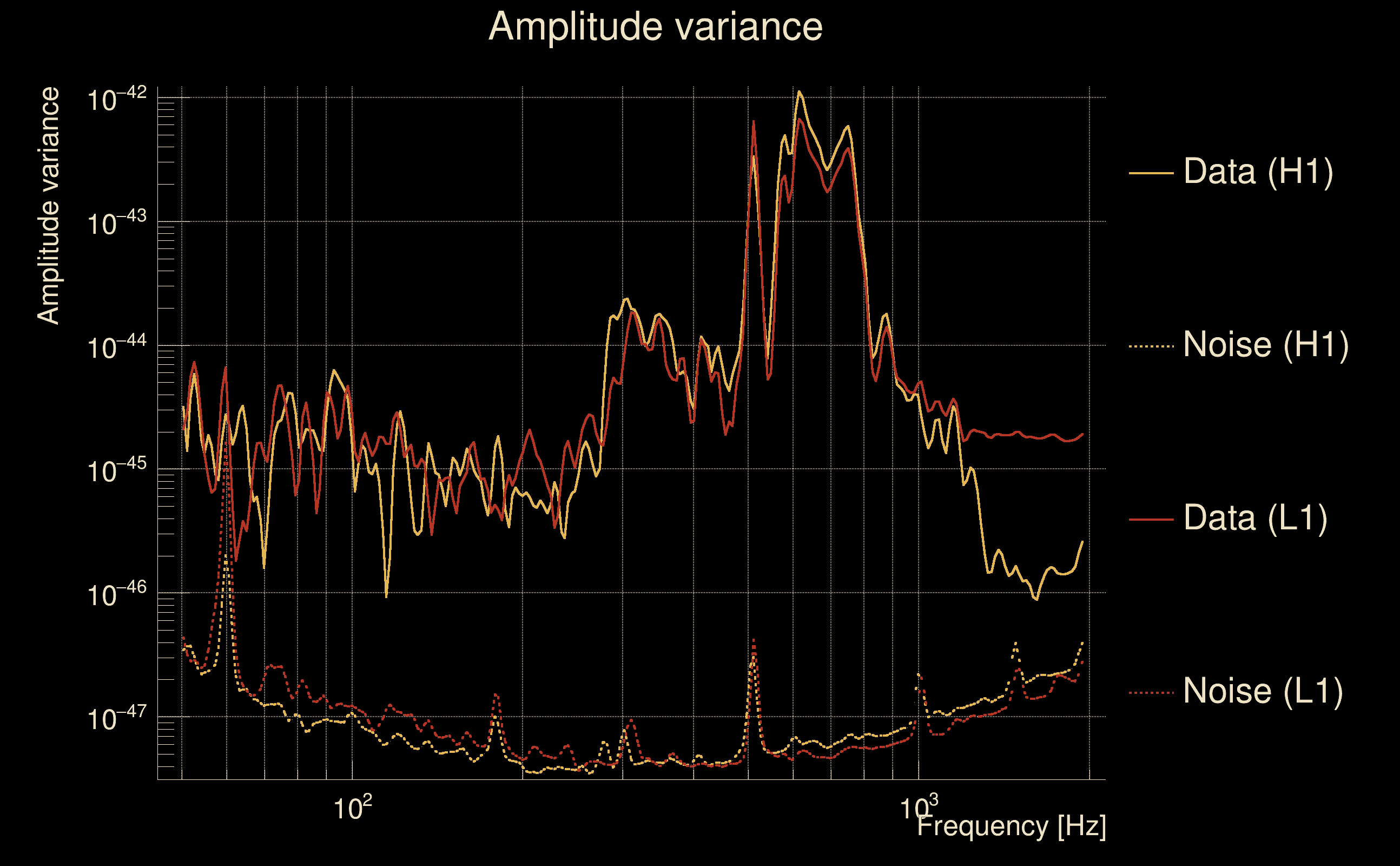

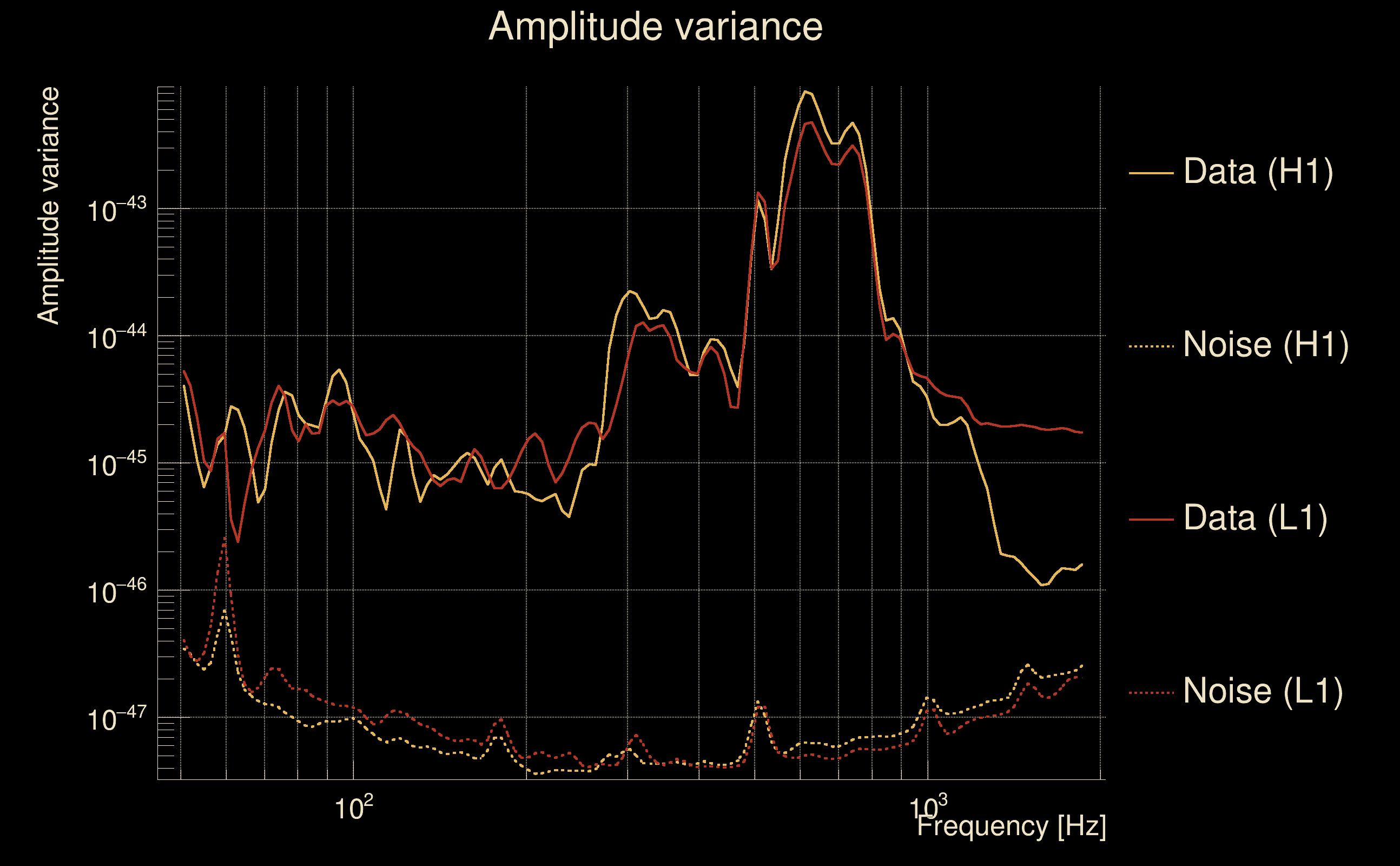

| SNR variance: | H1: 21448.5, L1: 16904.4 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

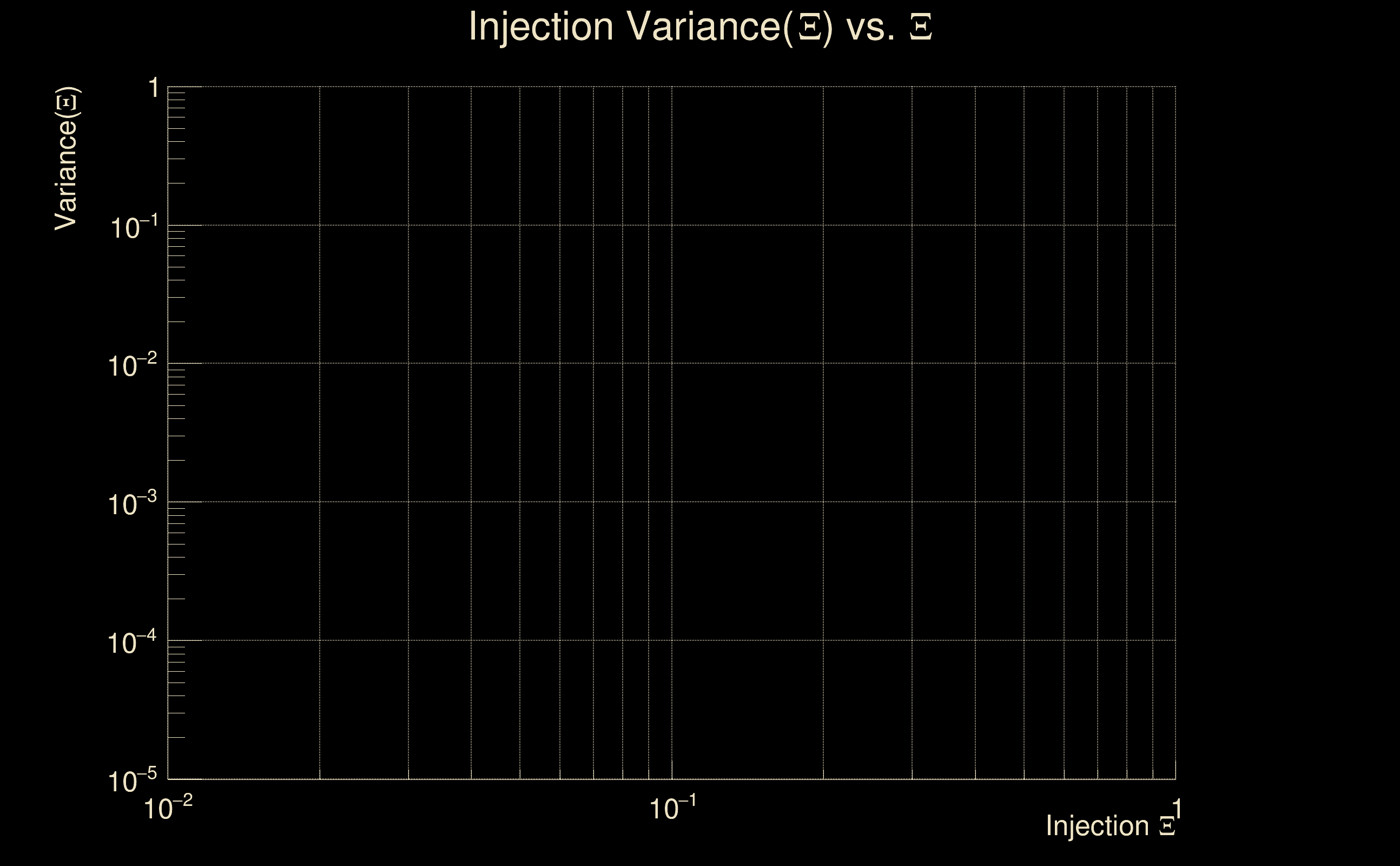

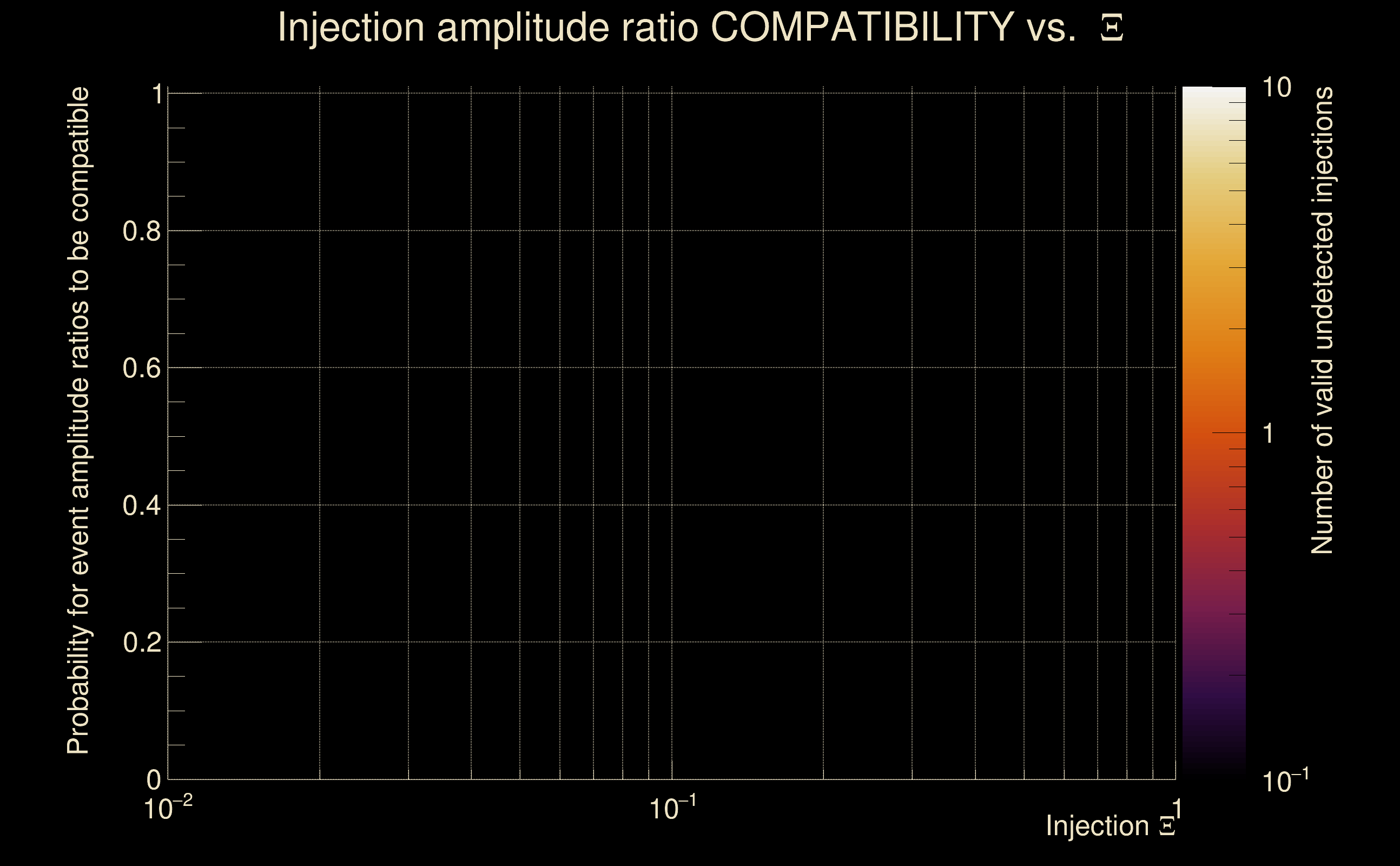

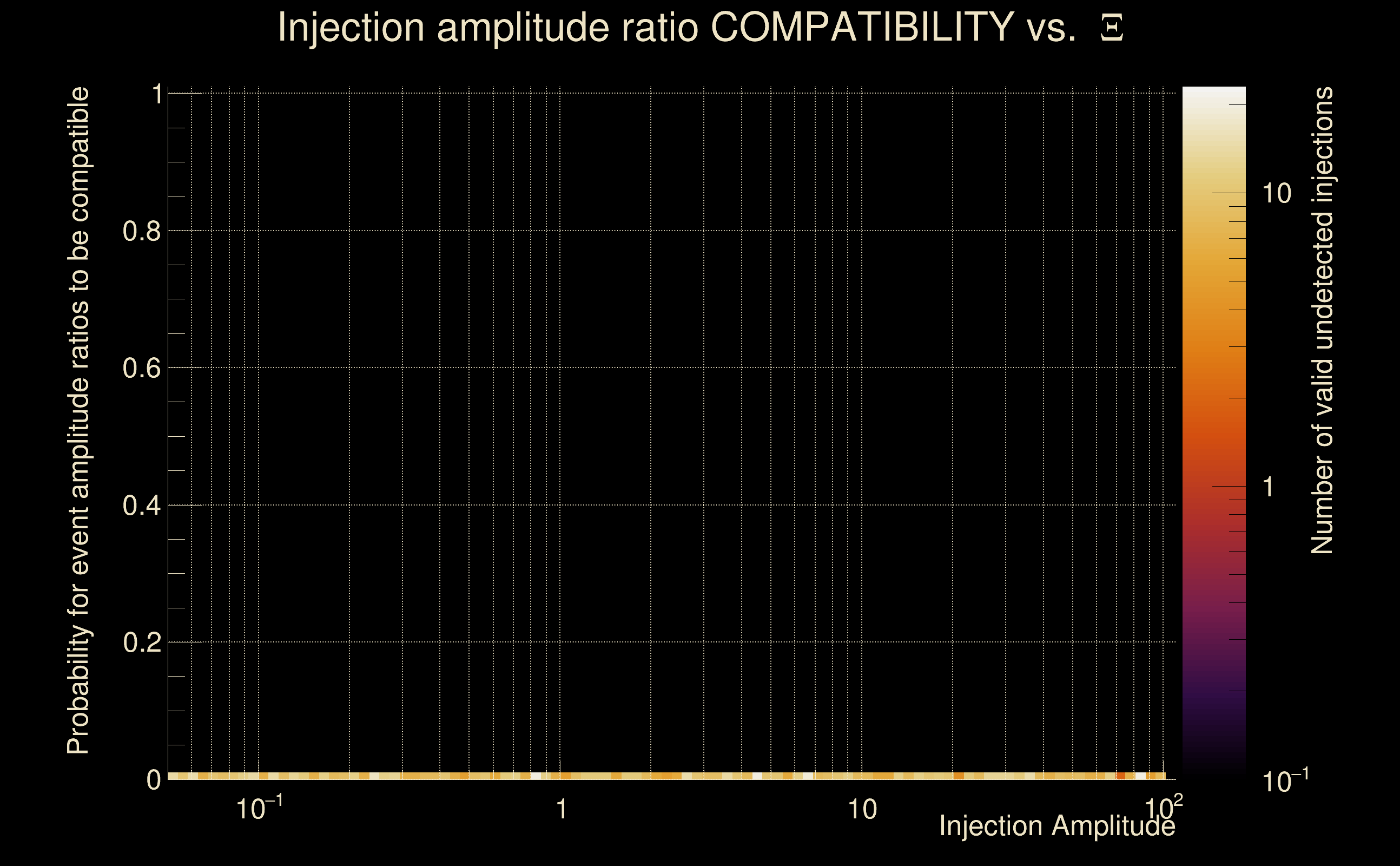

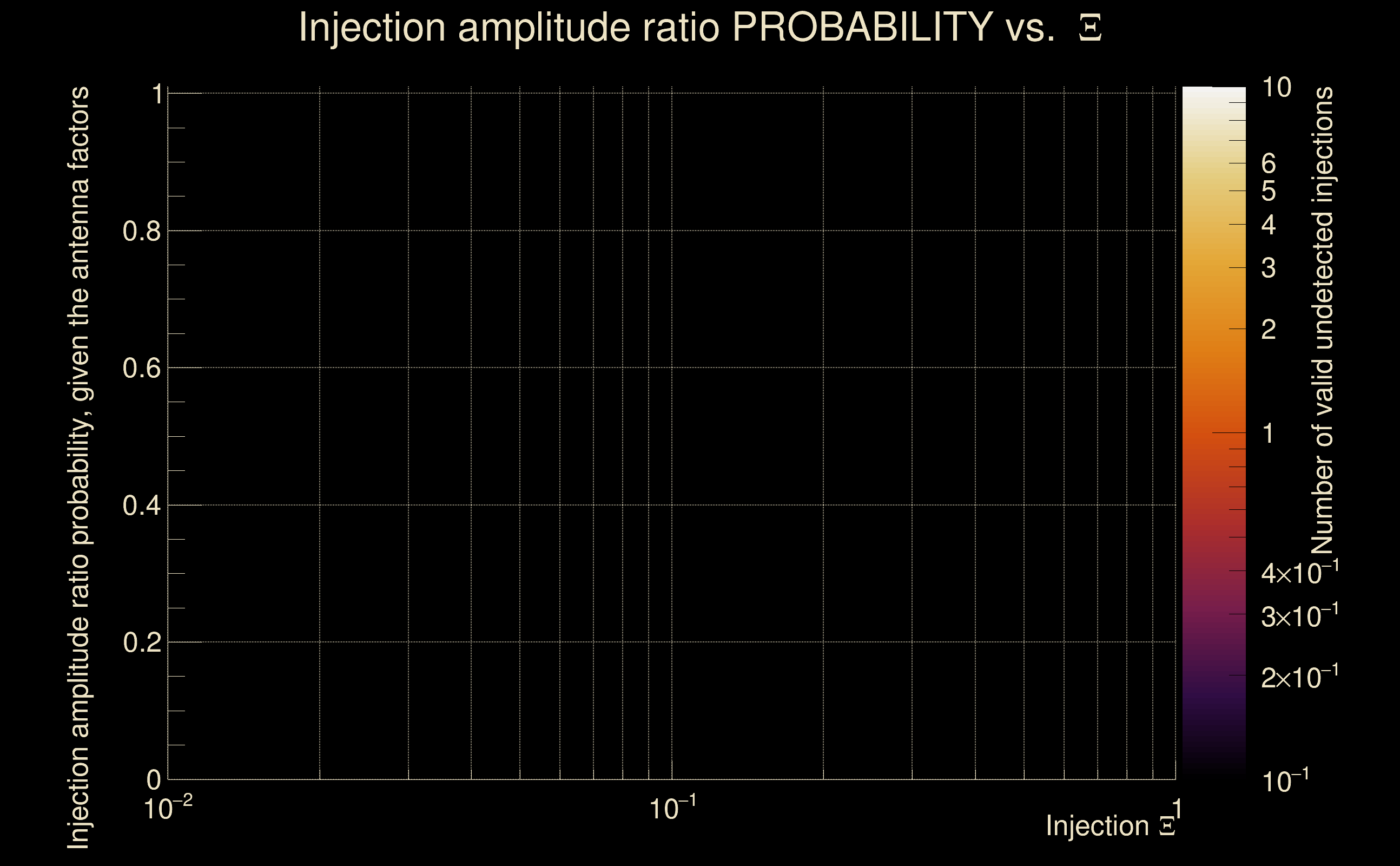

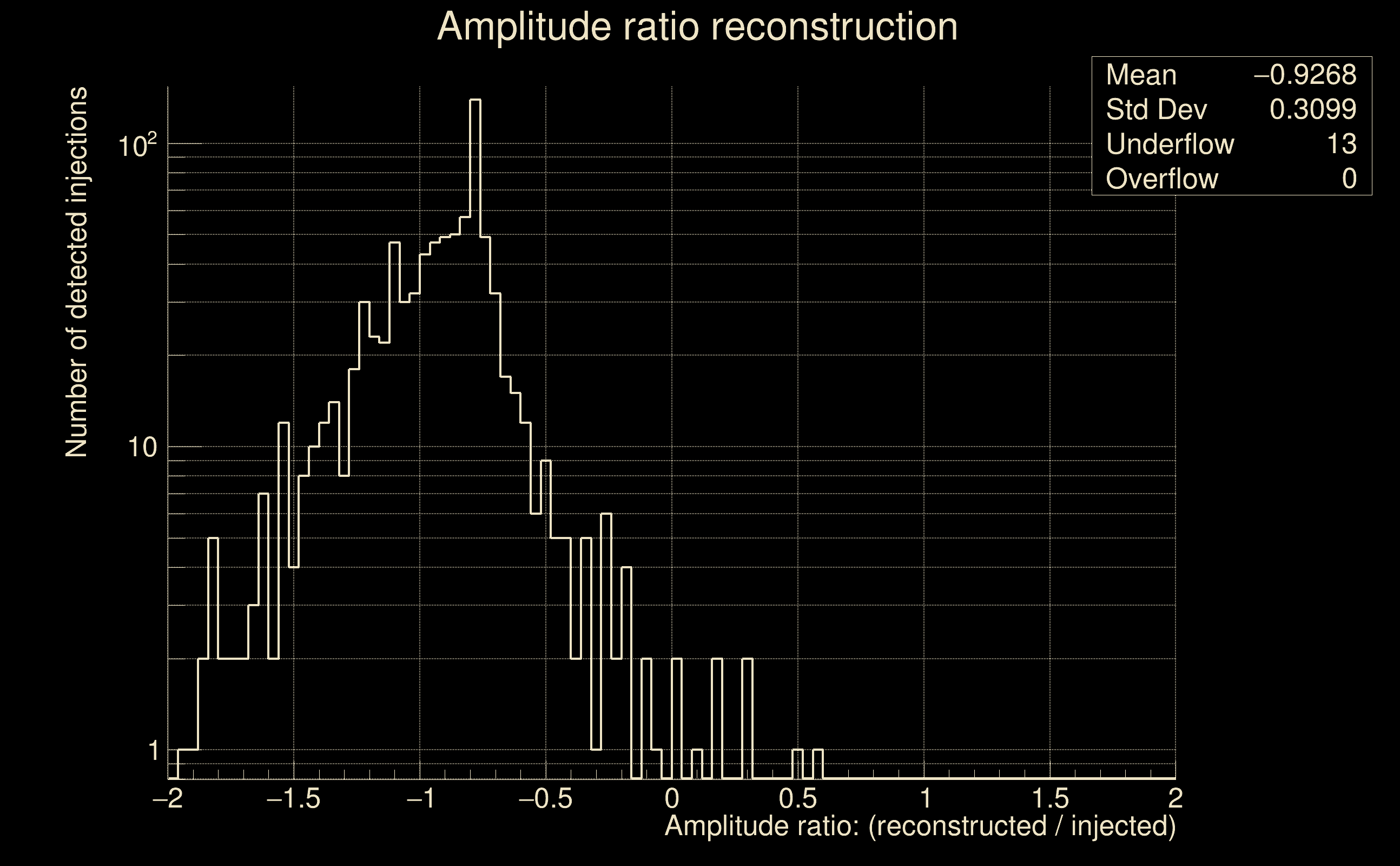

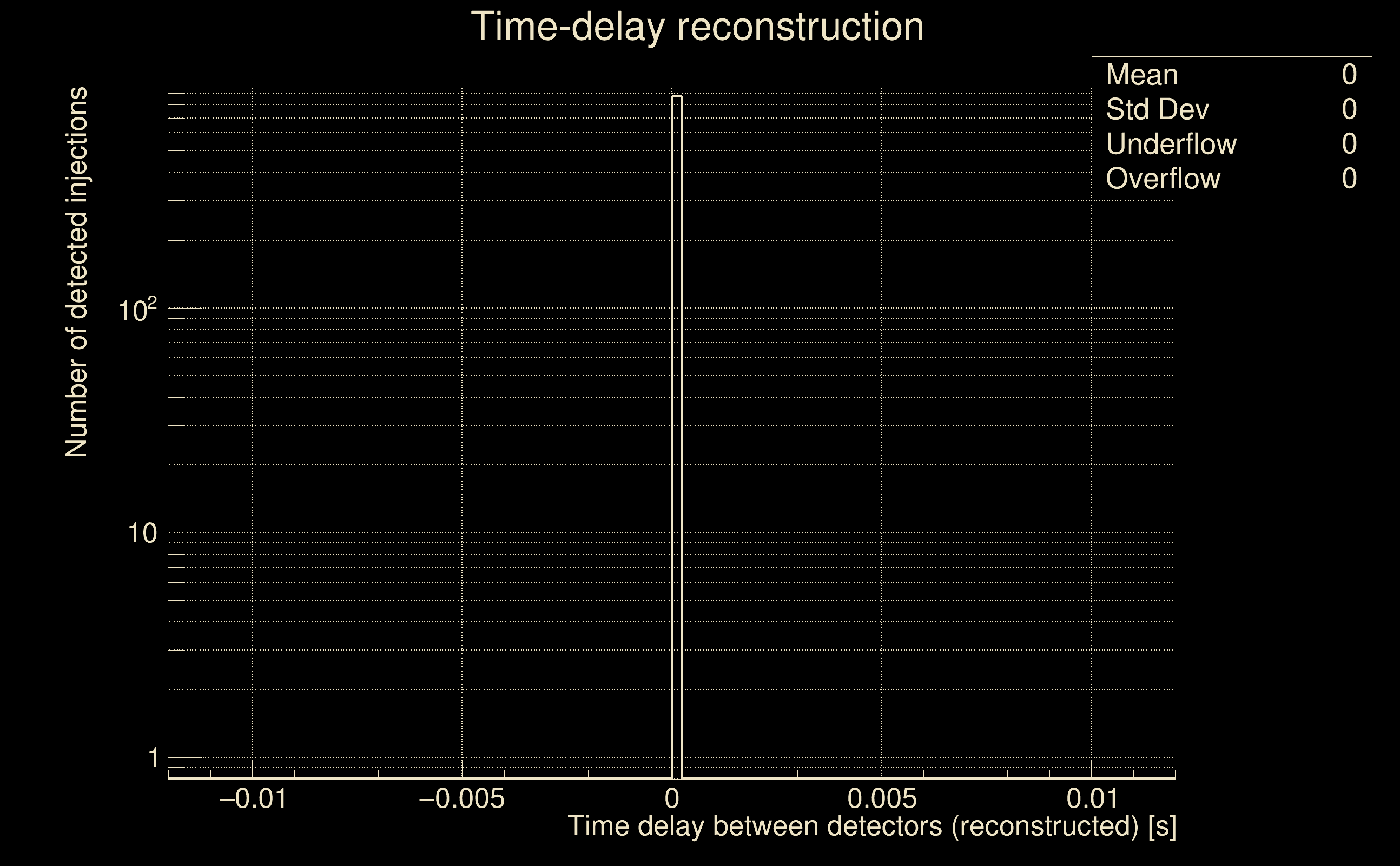

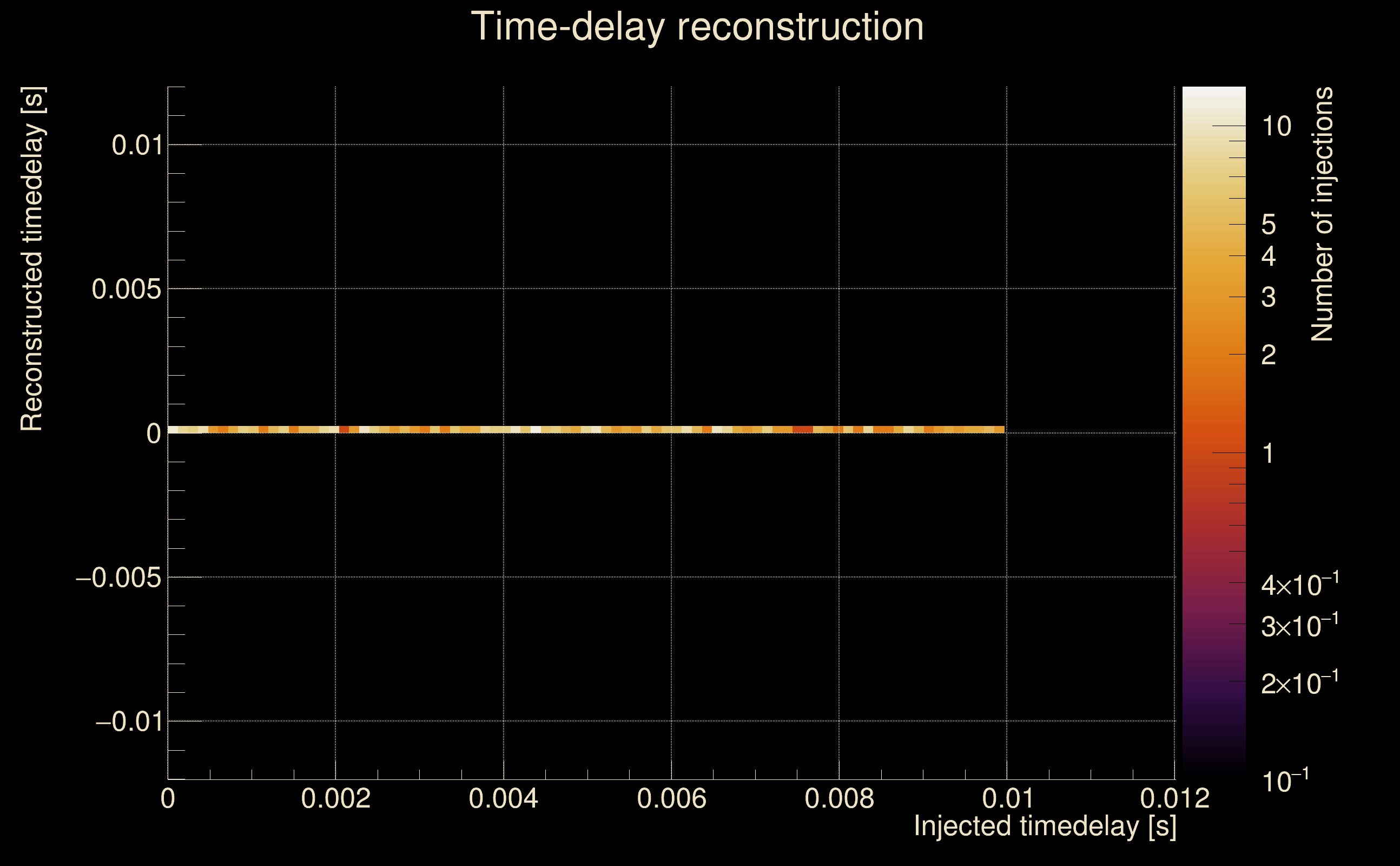

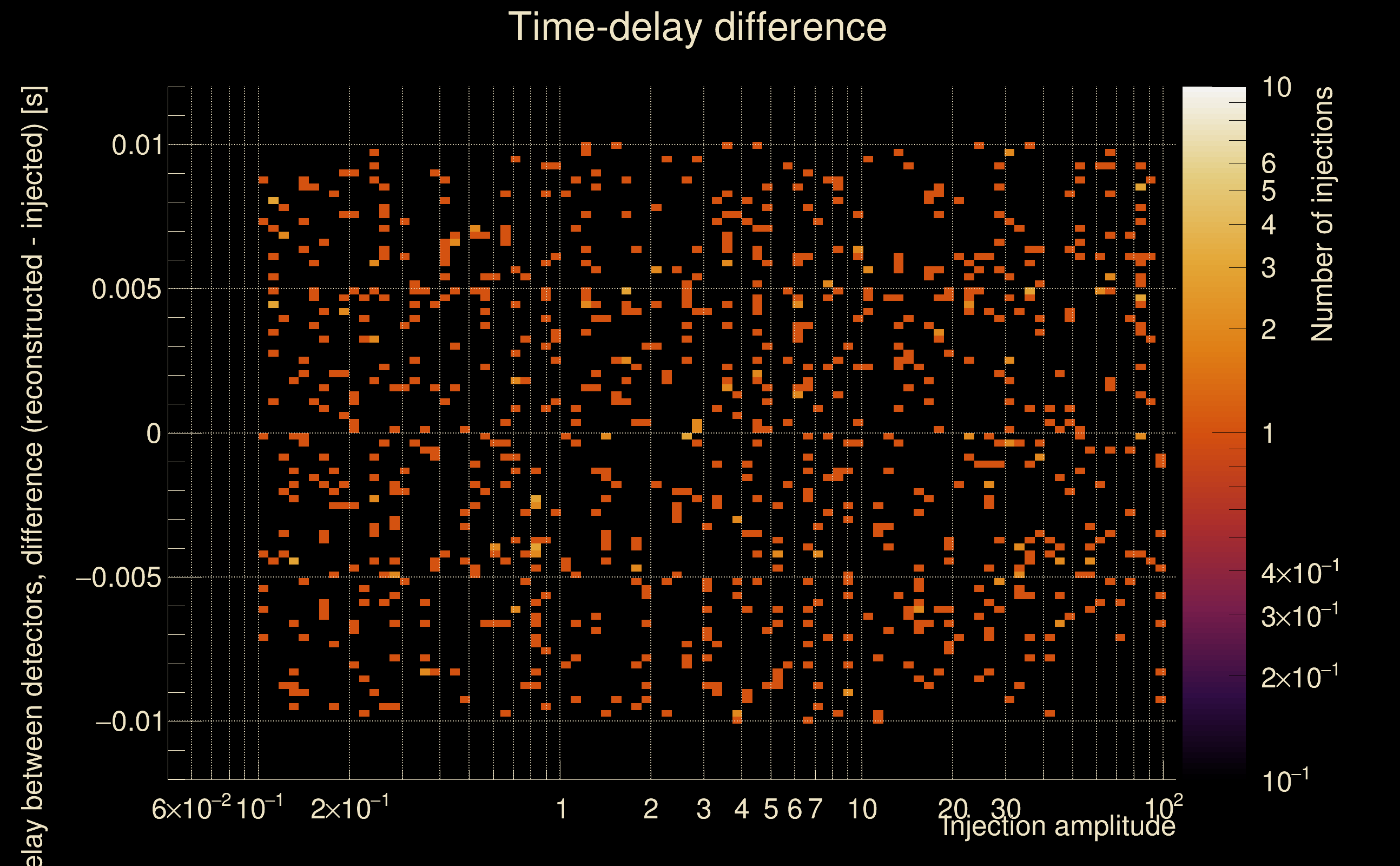

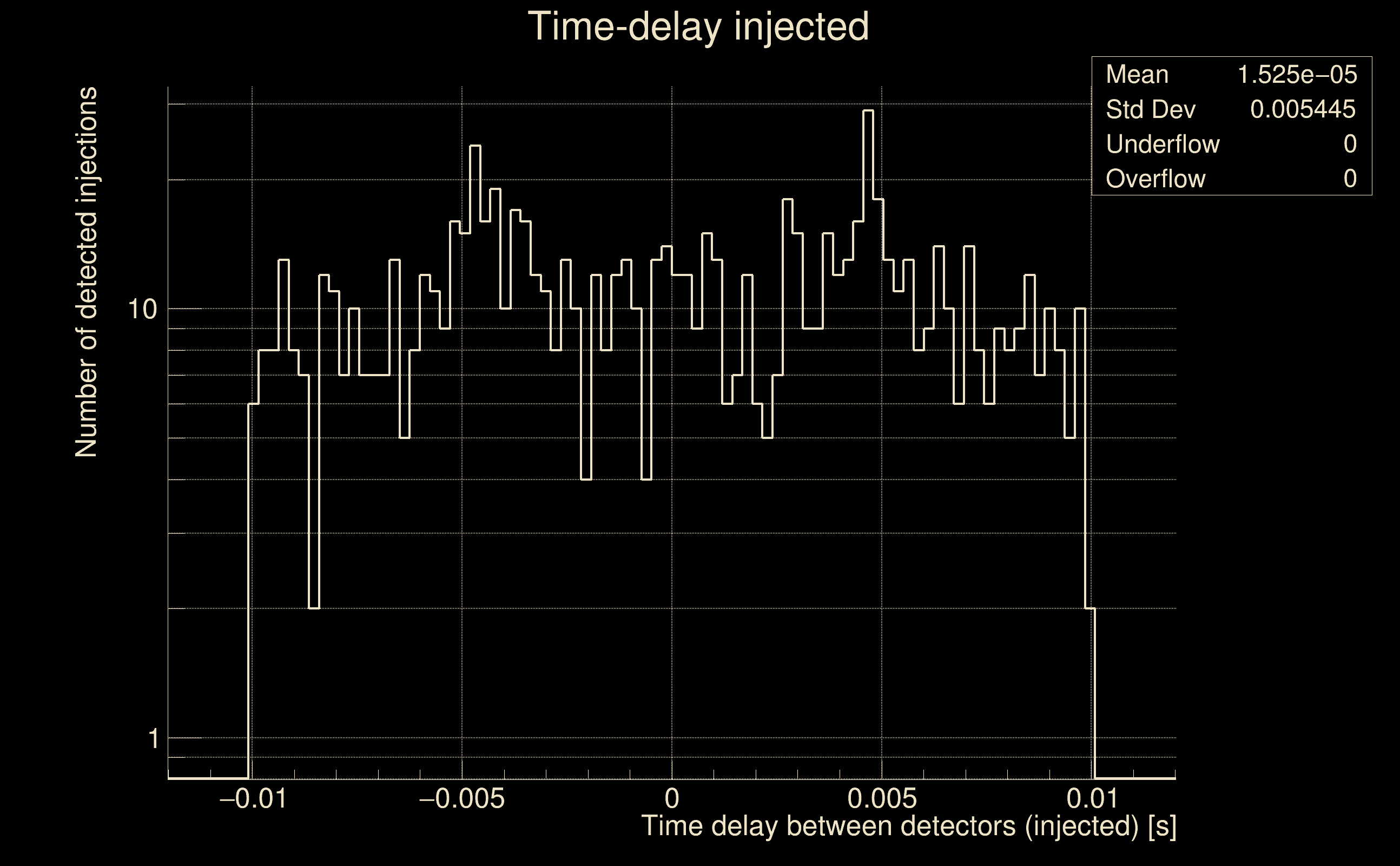

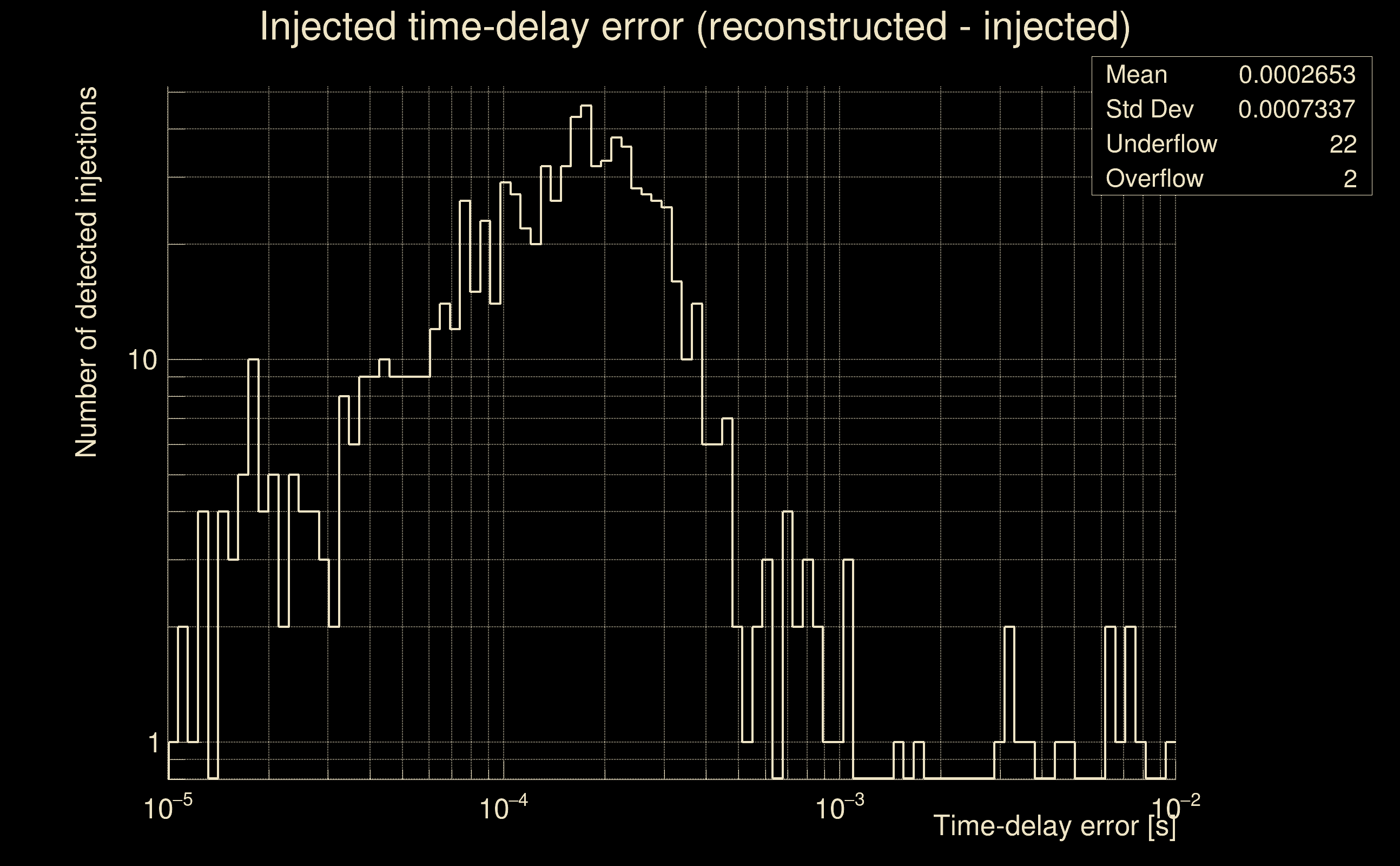

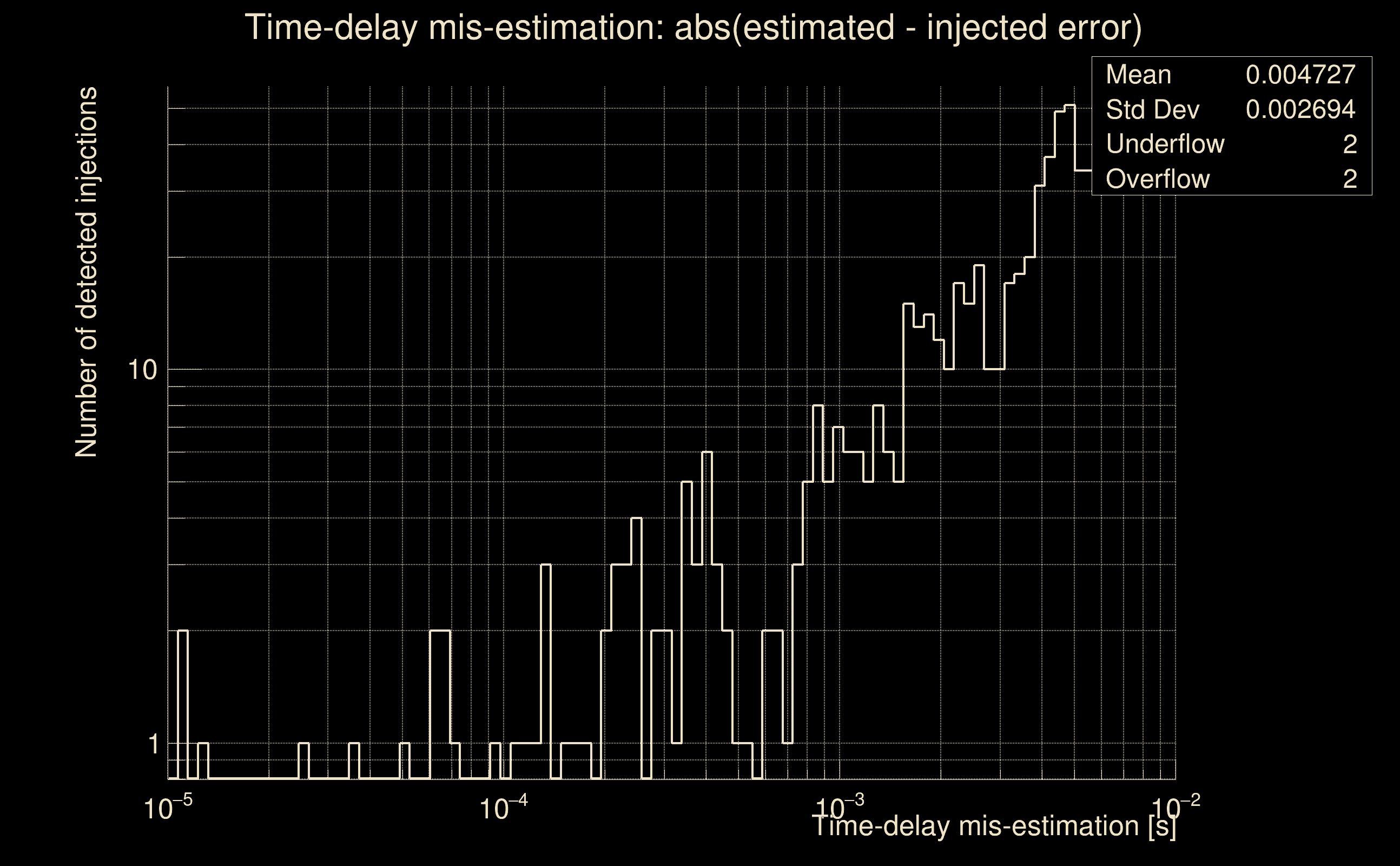

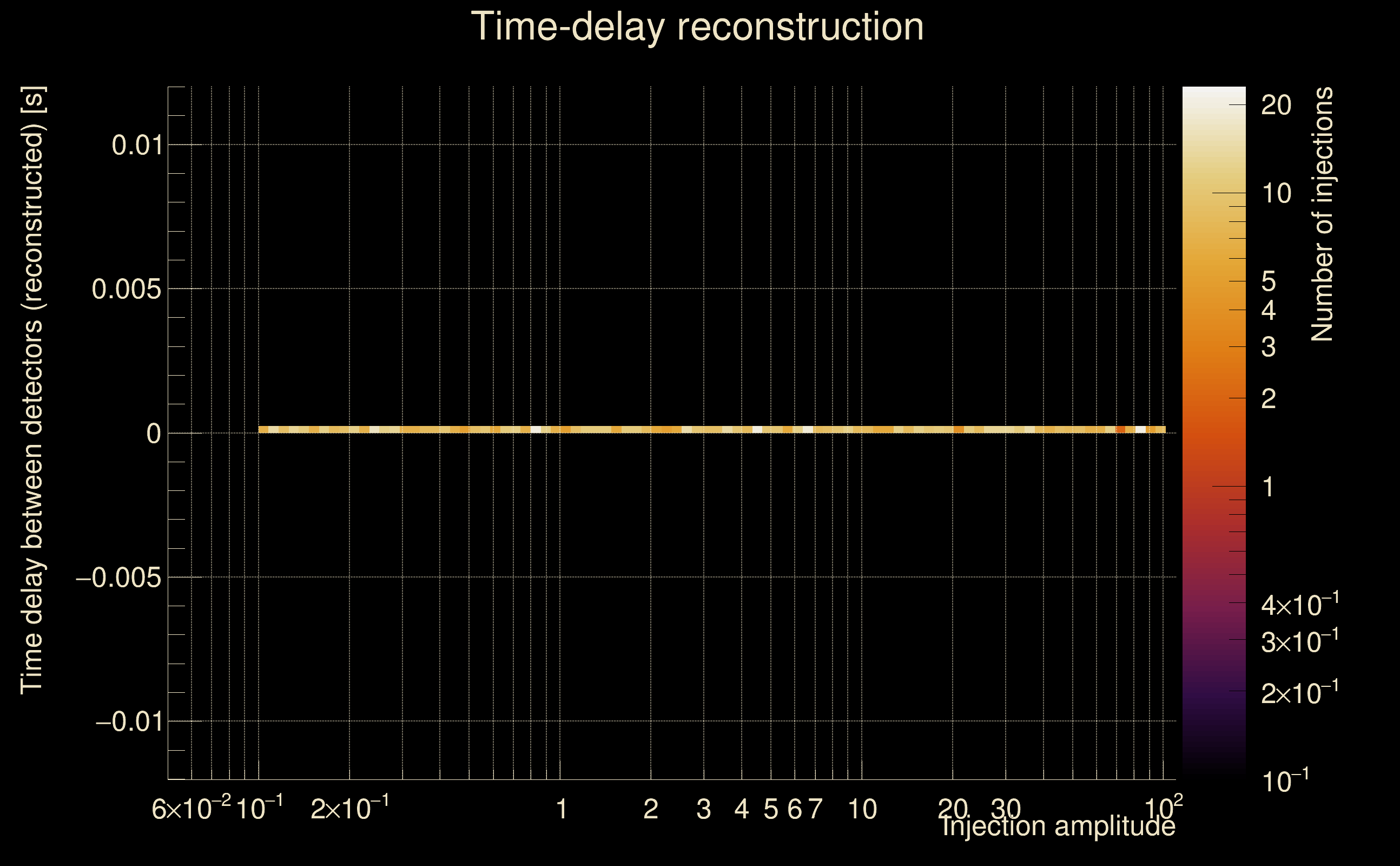

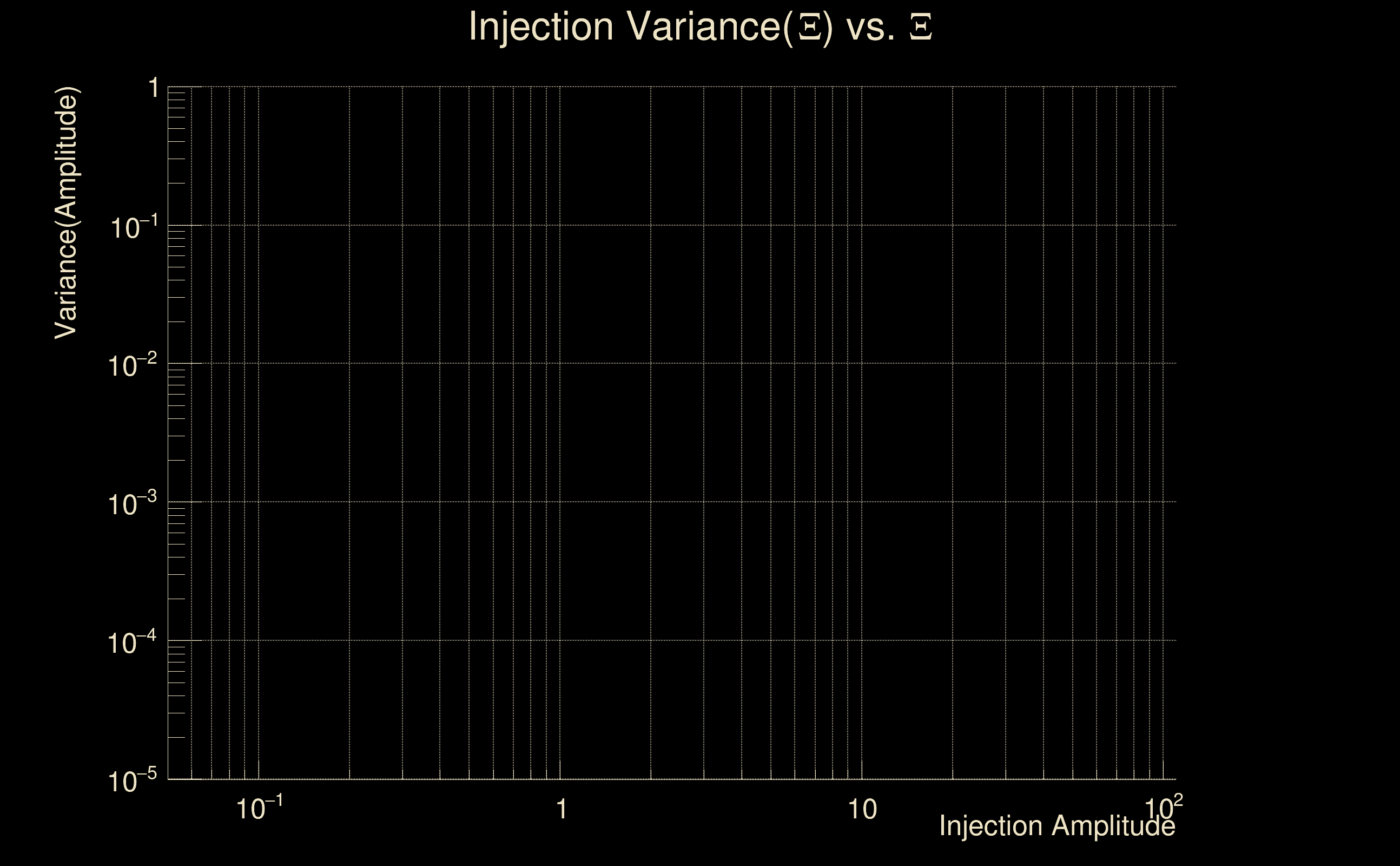

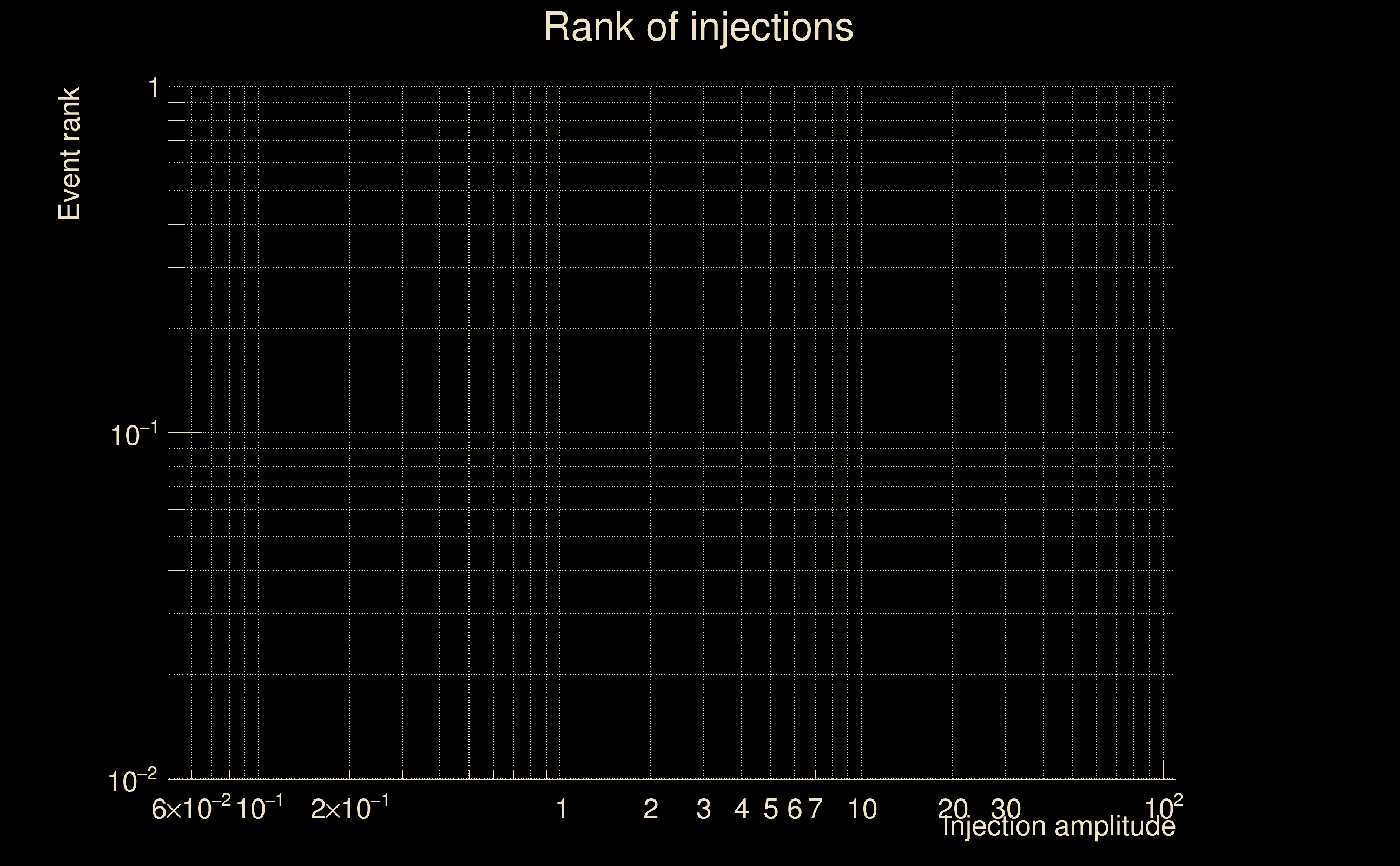

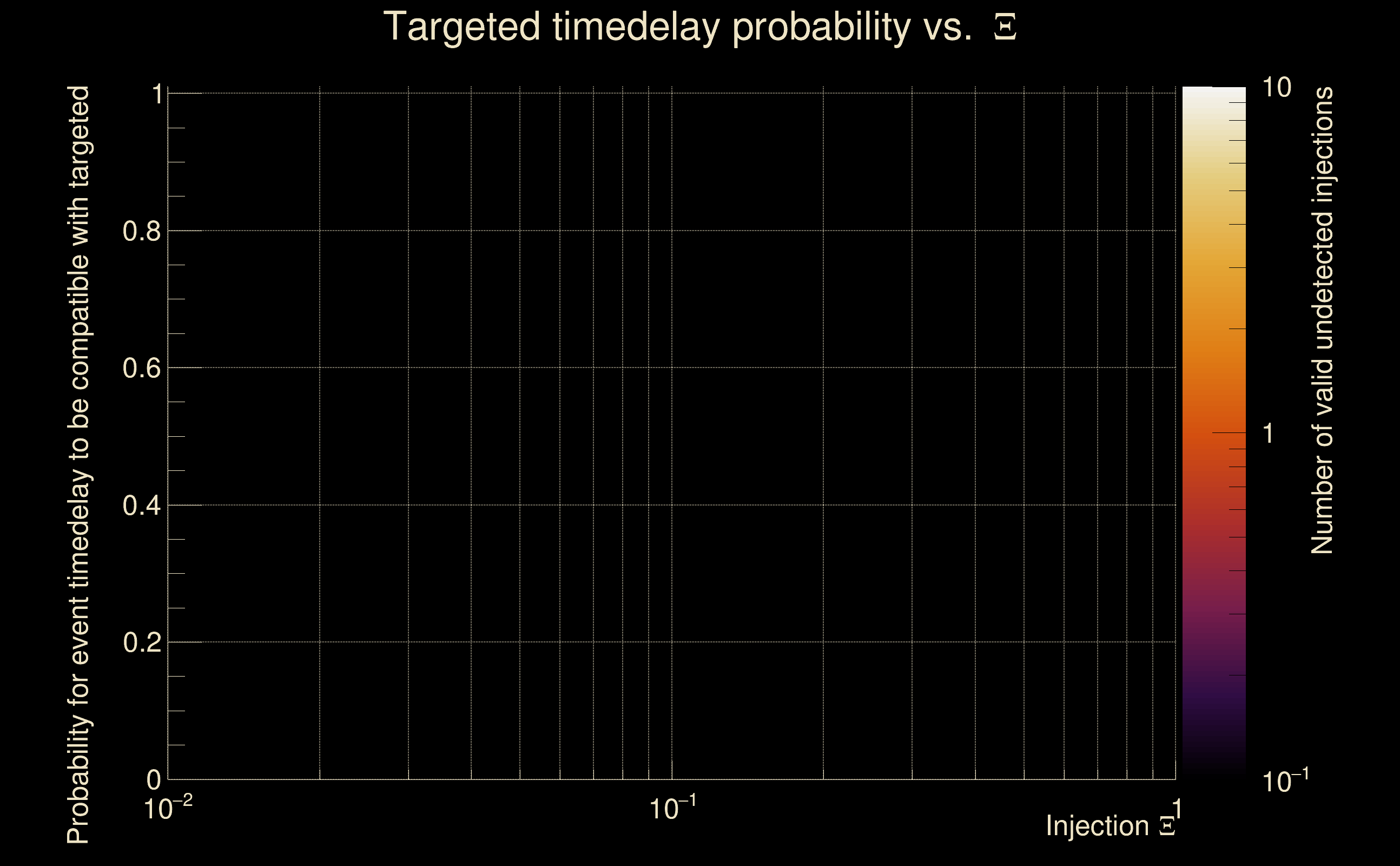

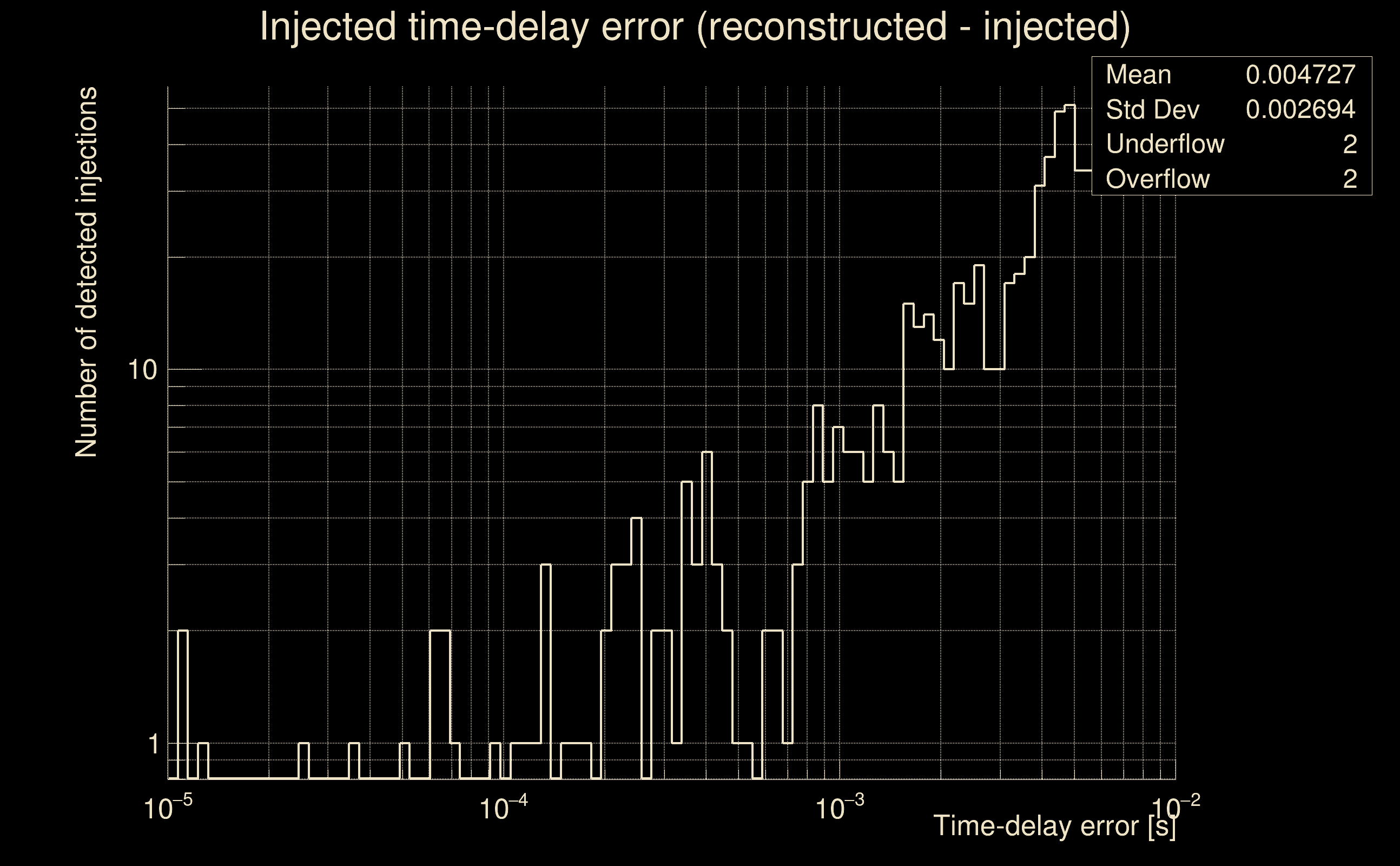

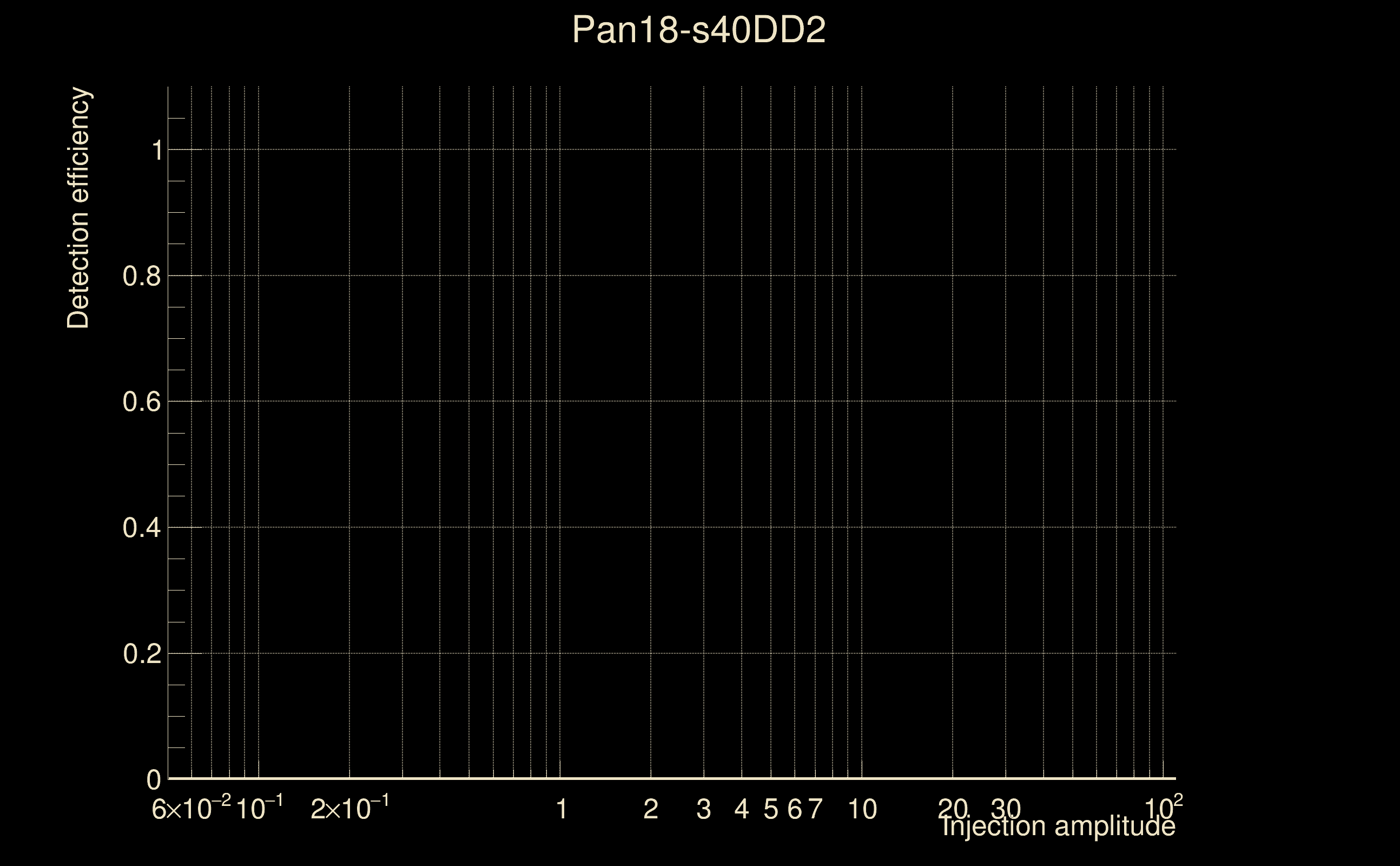

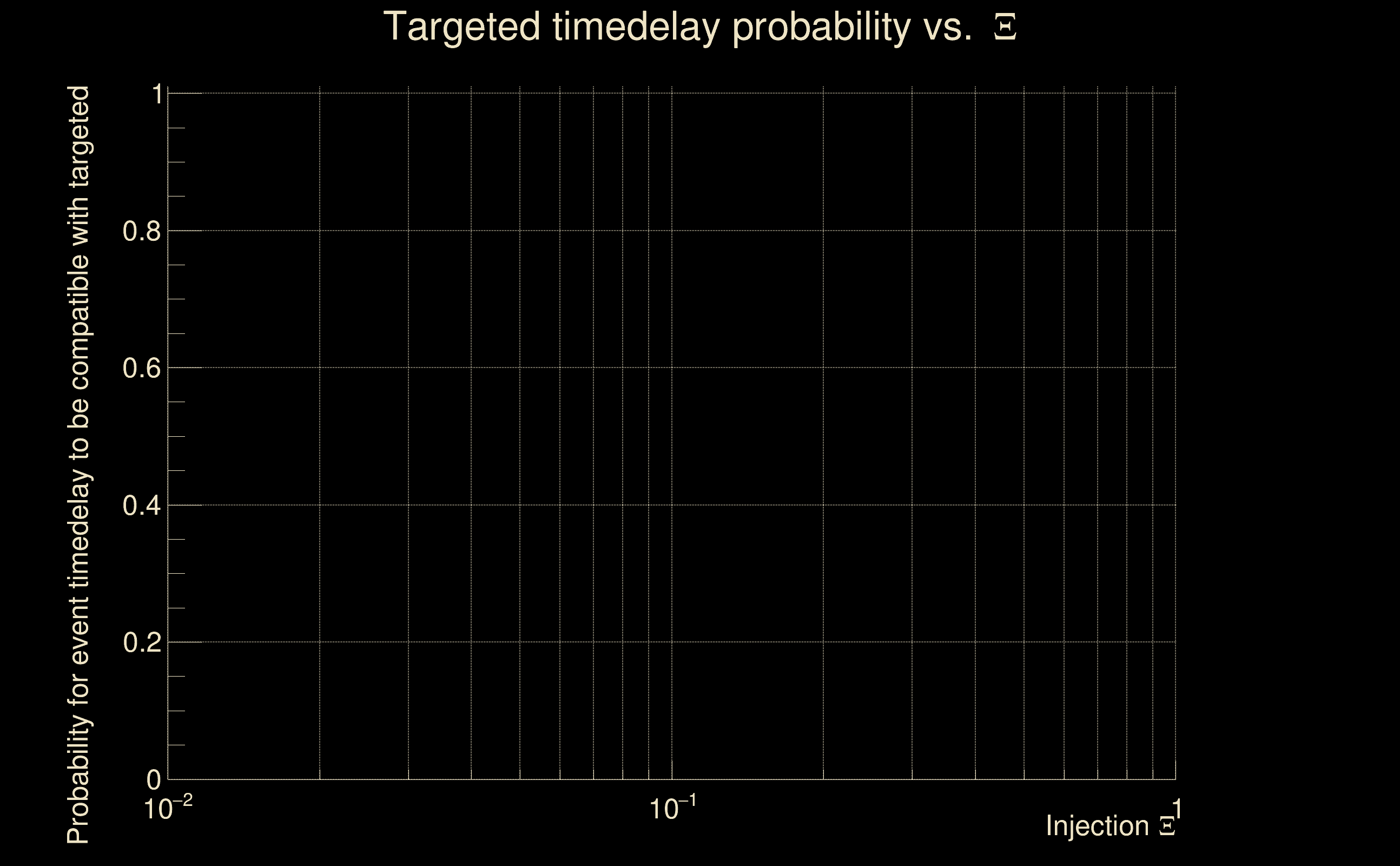

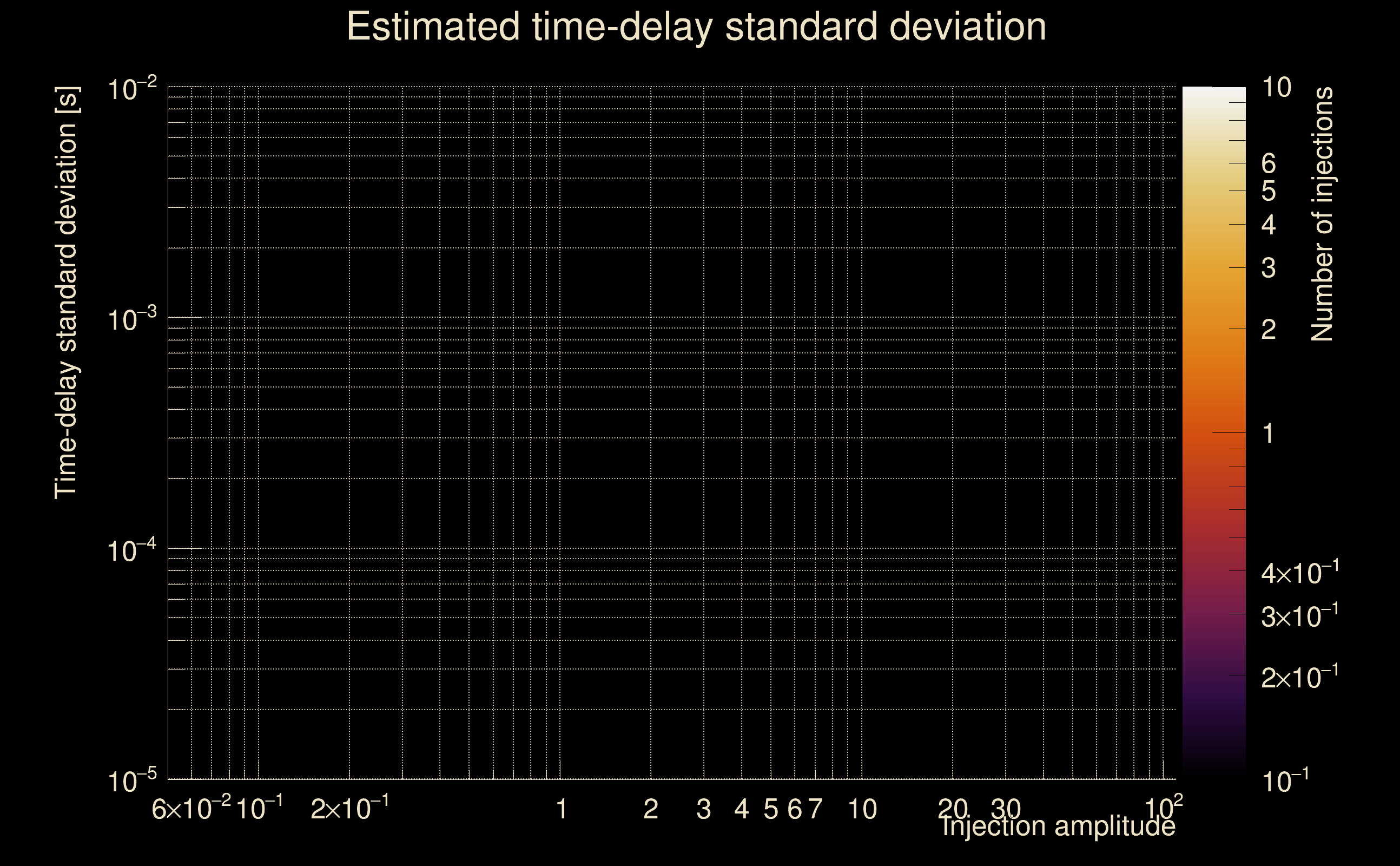

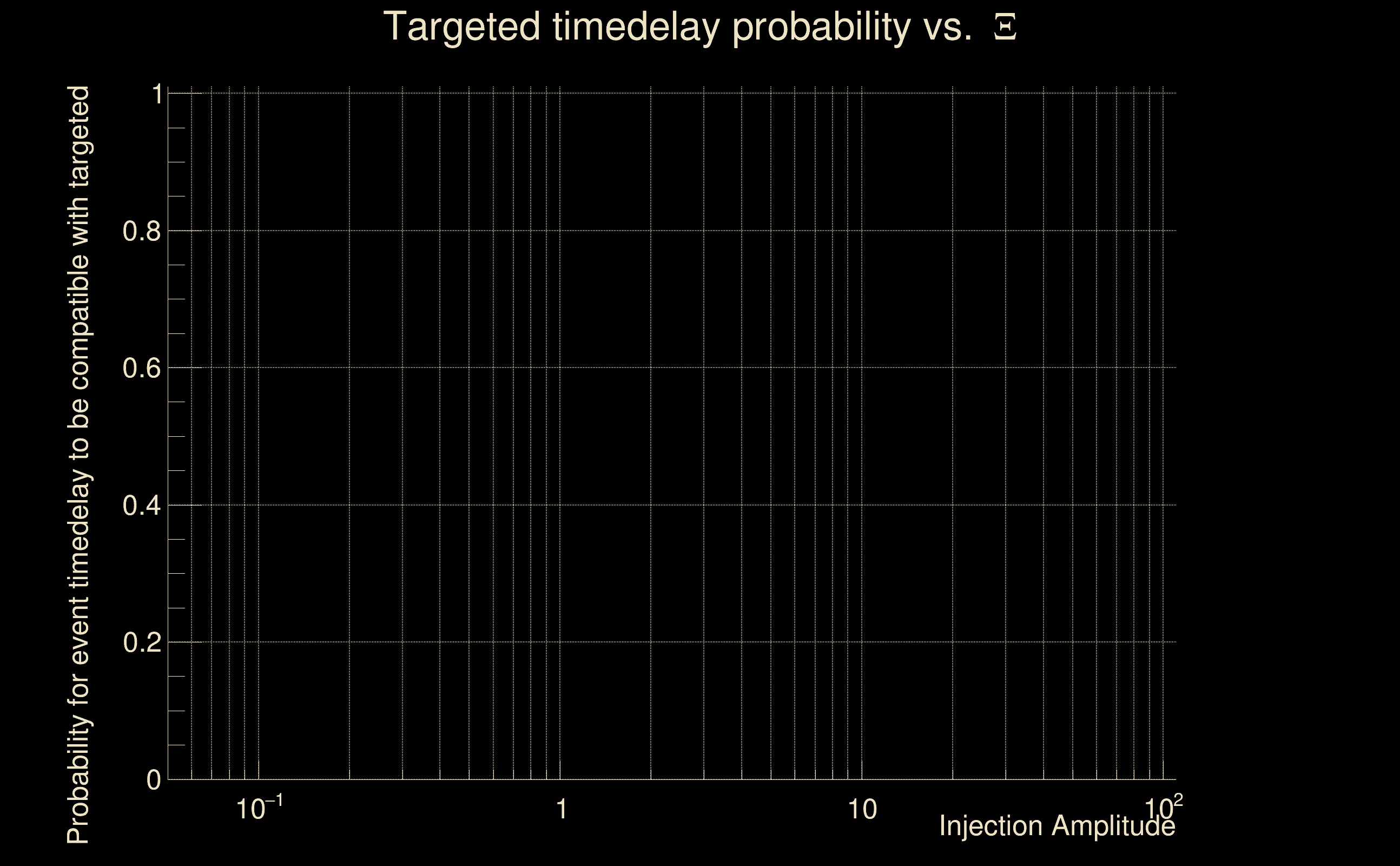

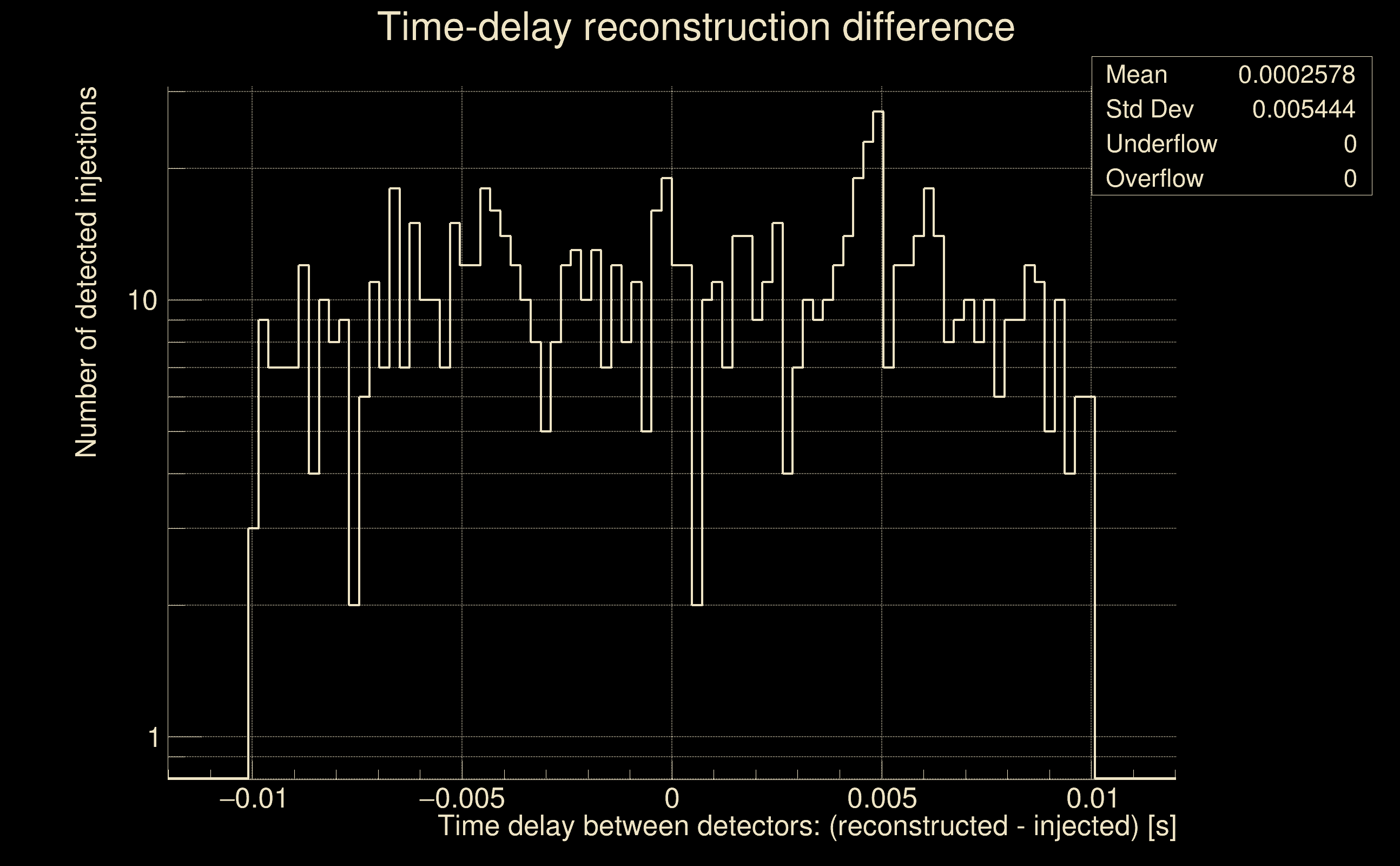

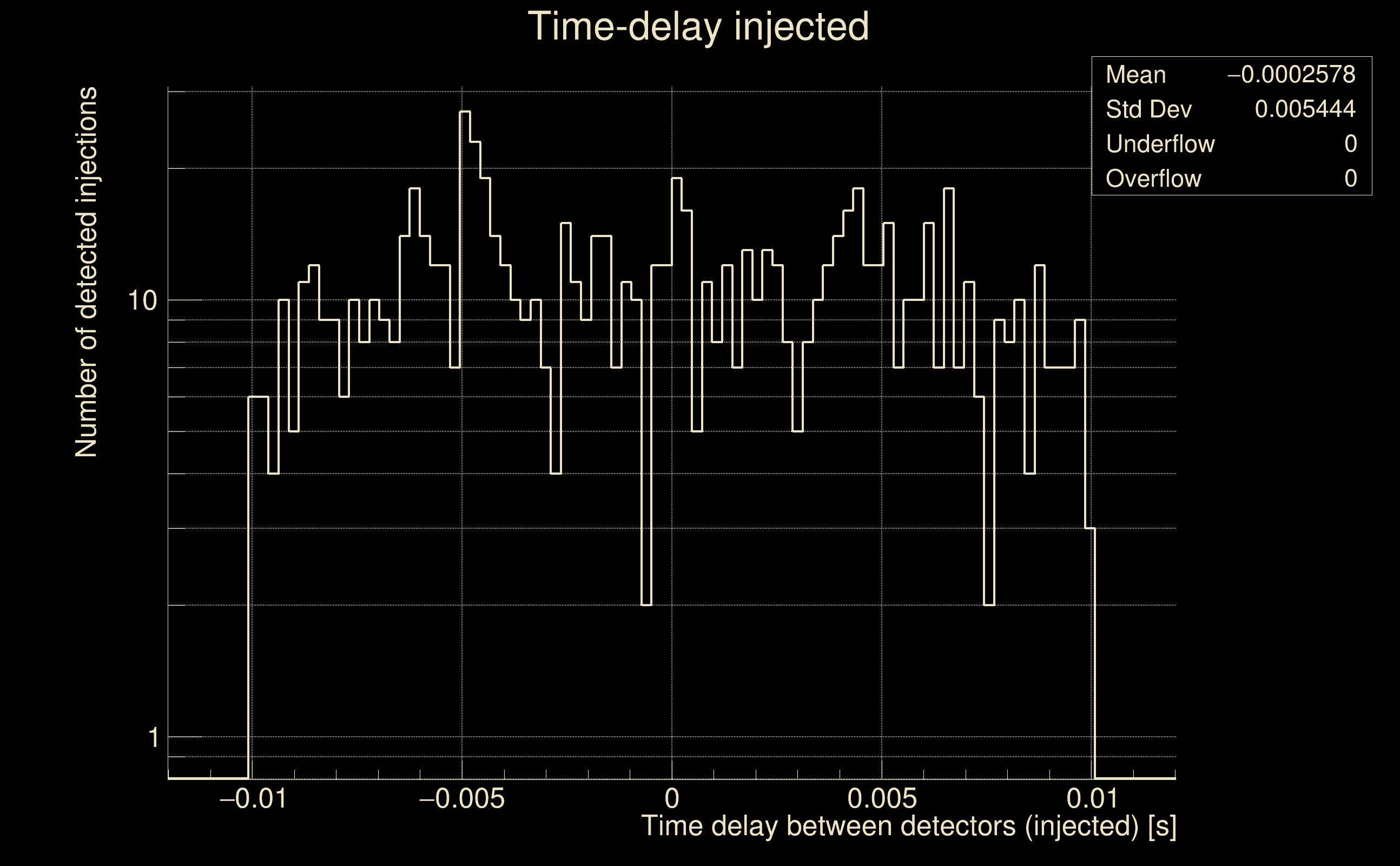

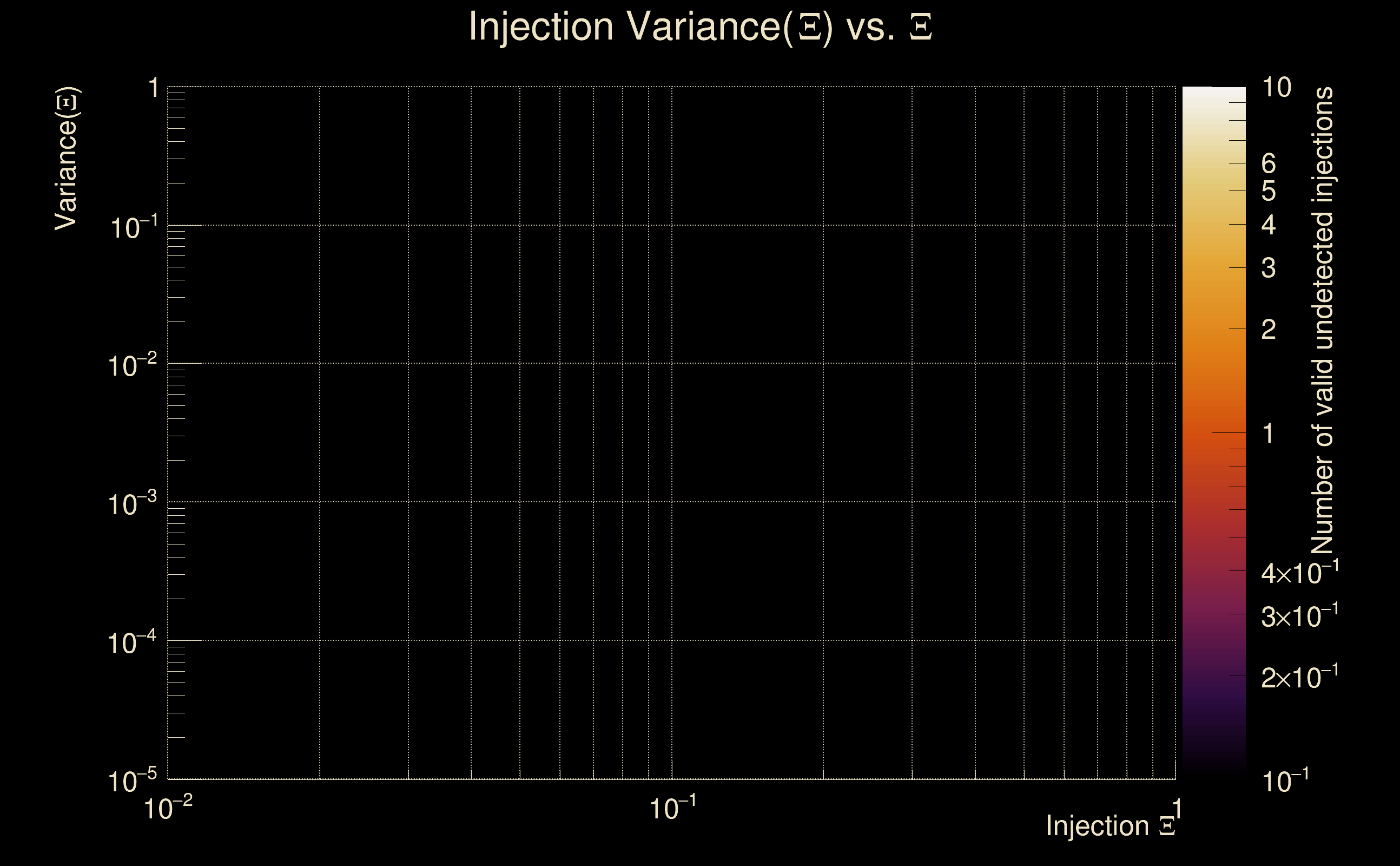

| Number of injections (total/valid/detected): | 1006 / 877 / 0 |
| List of missed injections: | ./Pan18-s40DD2_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | -1 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

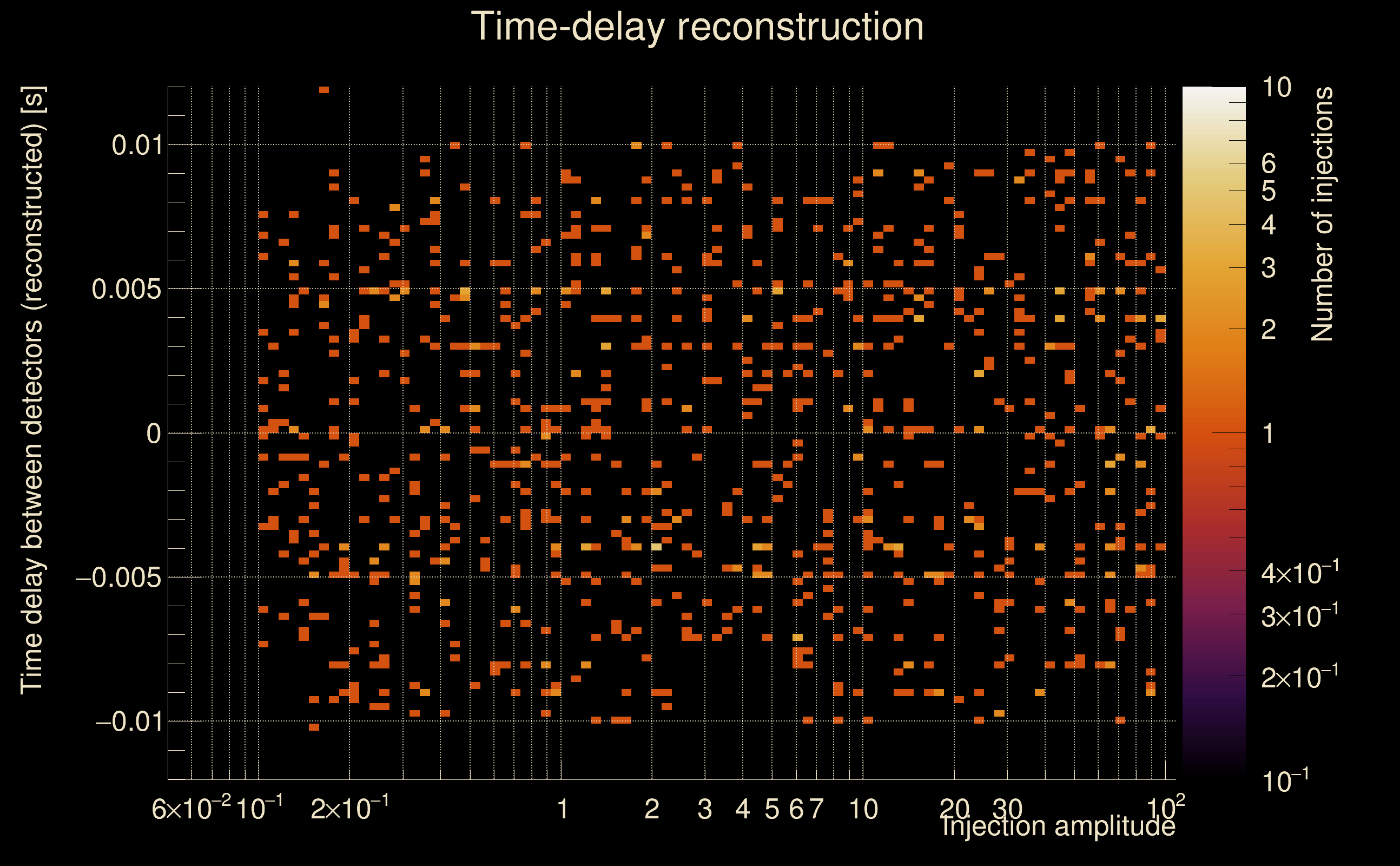

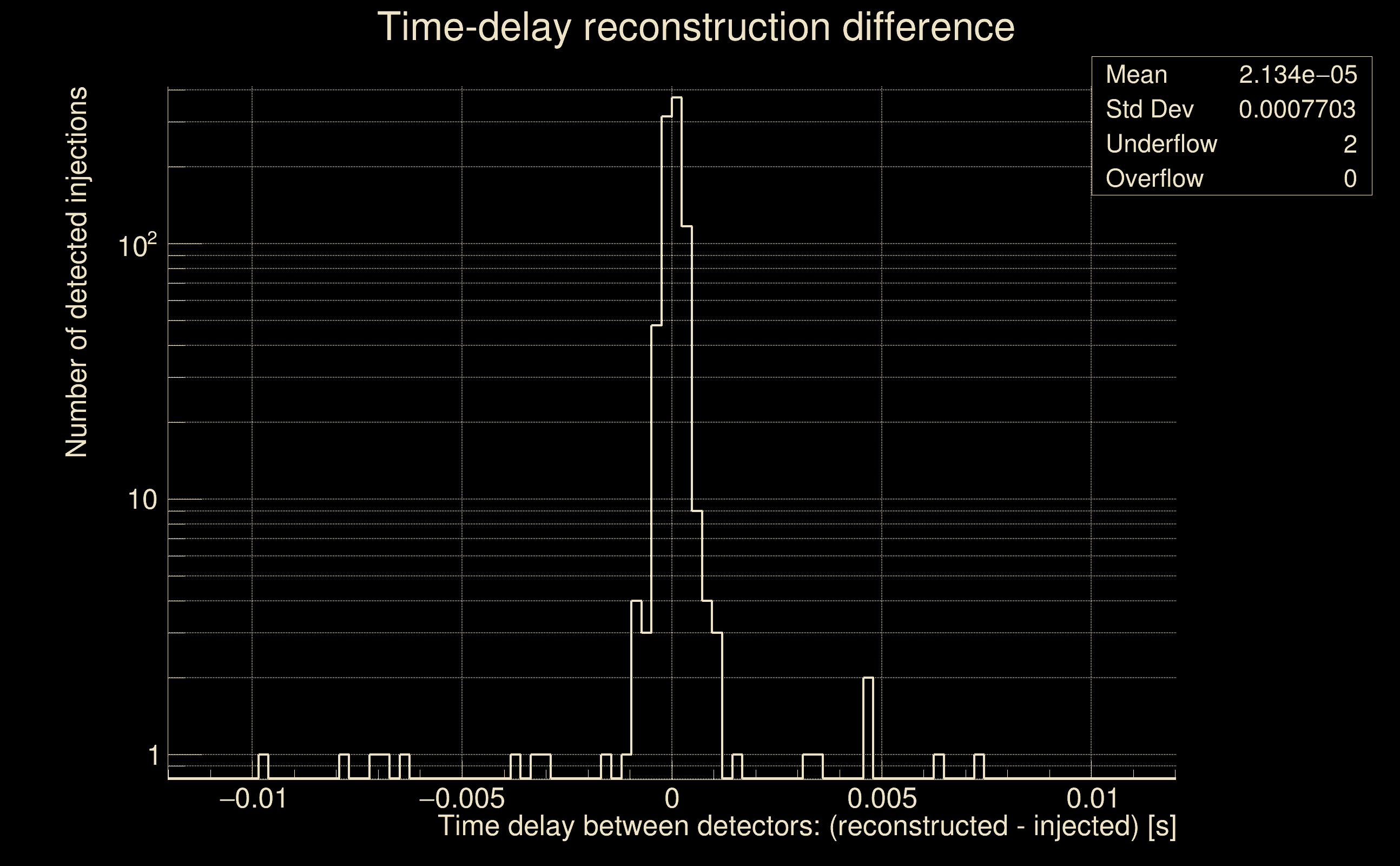

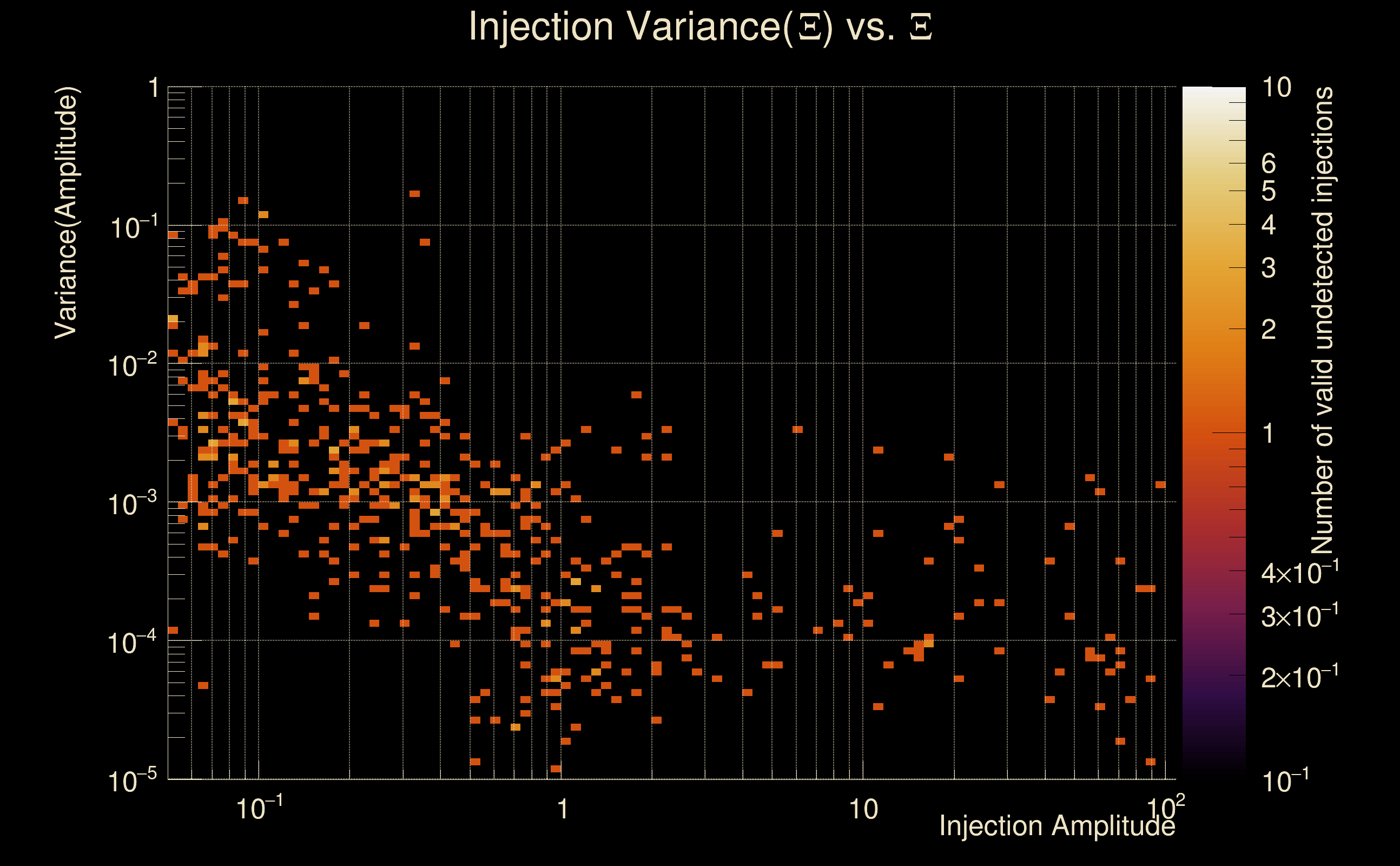

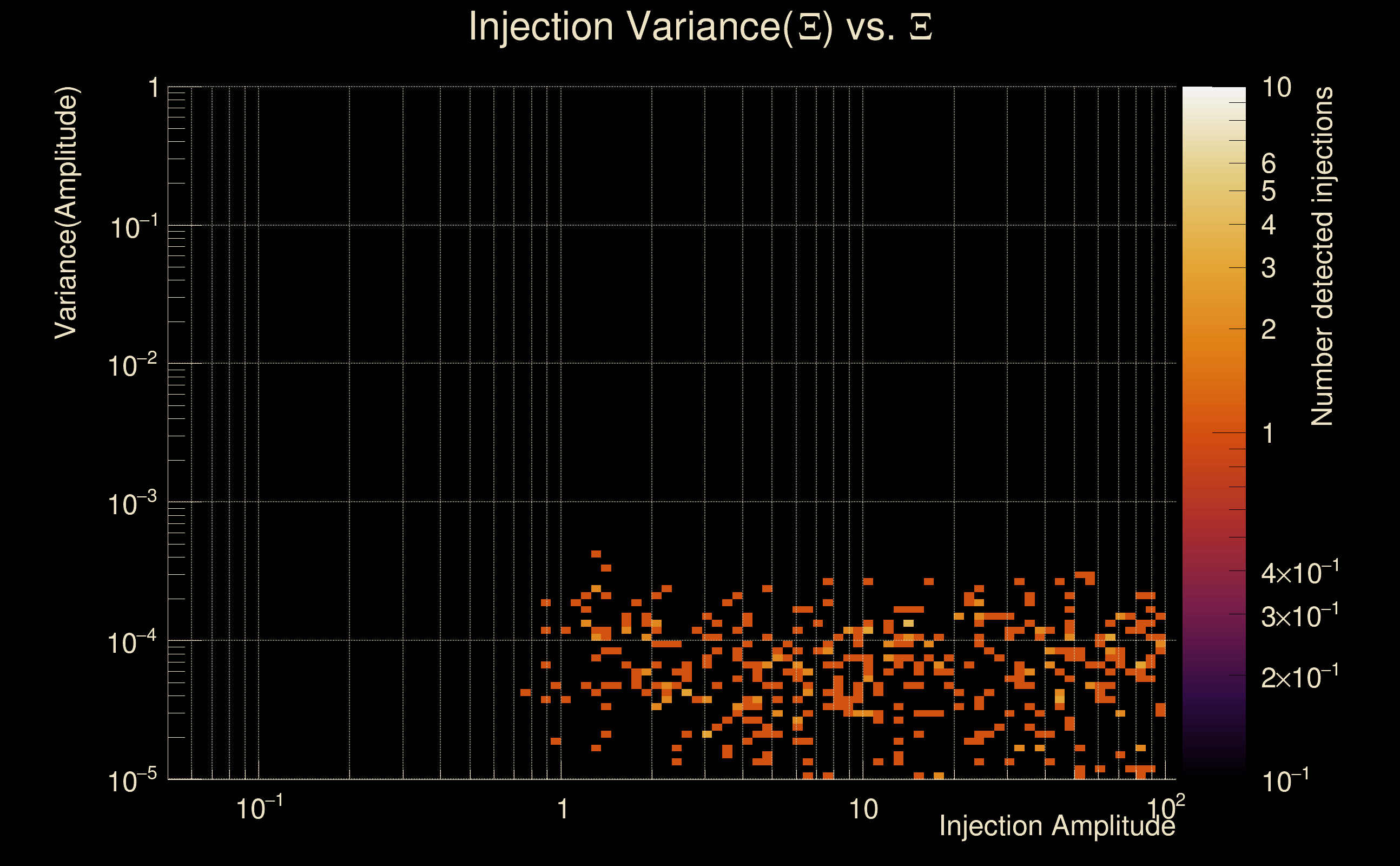

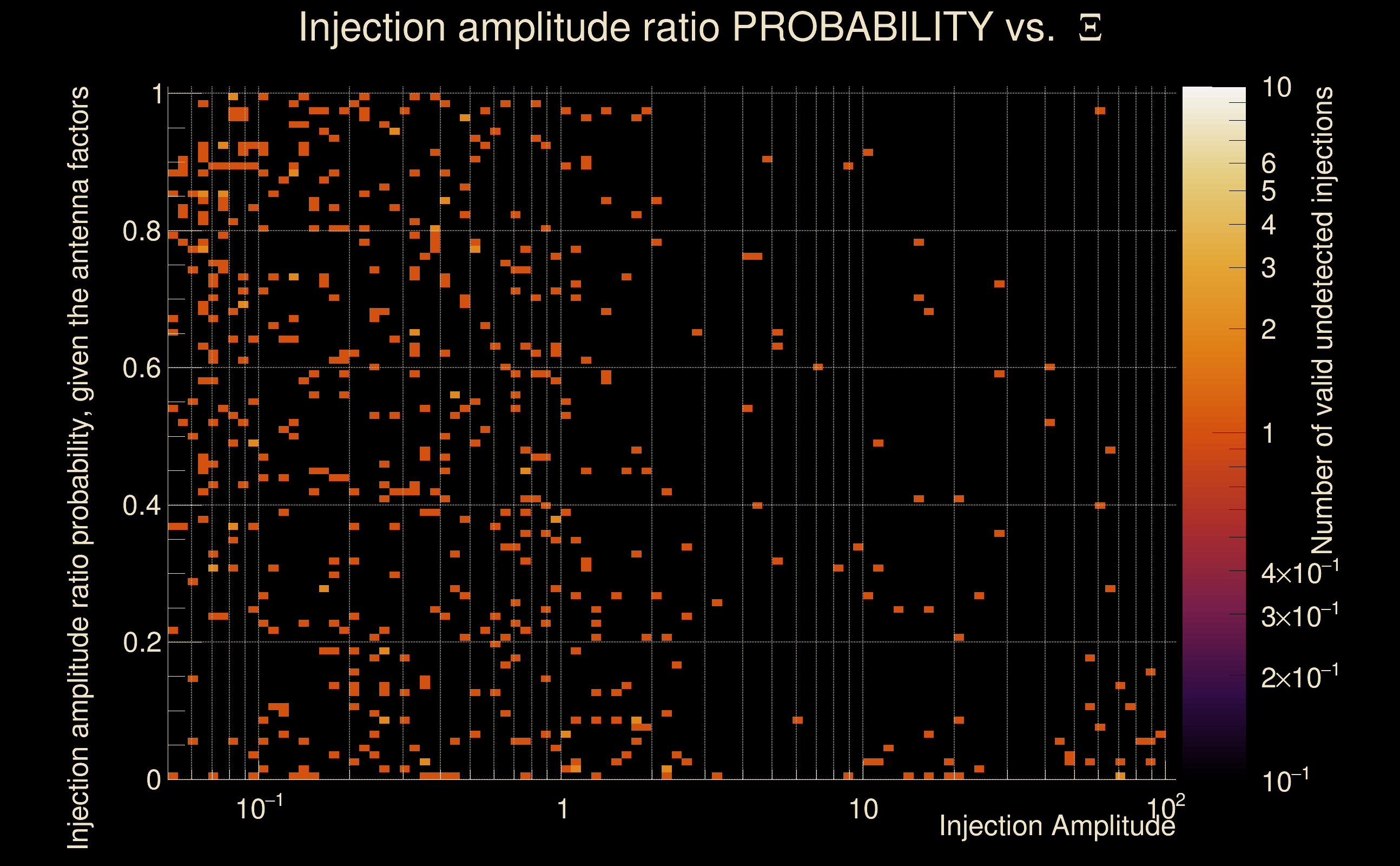

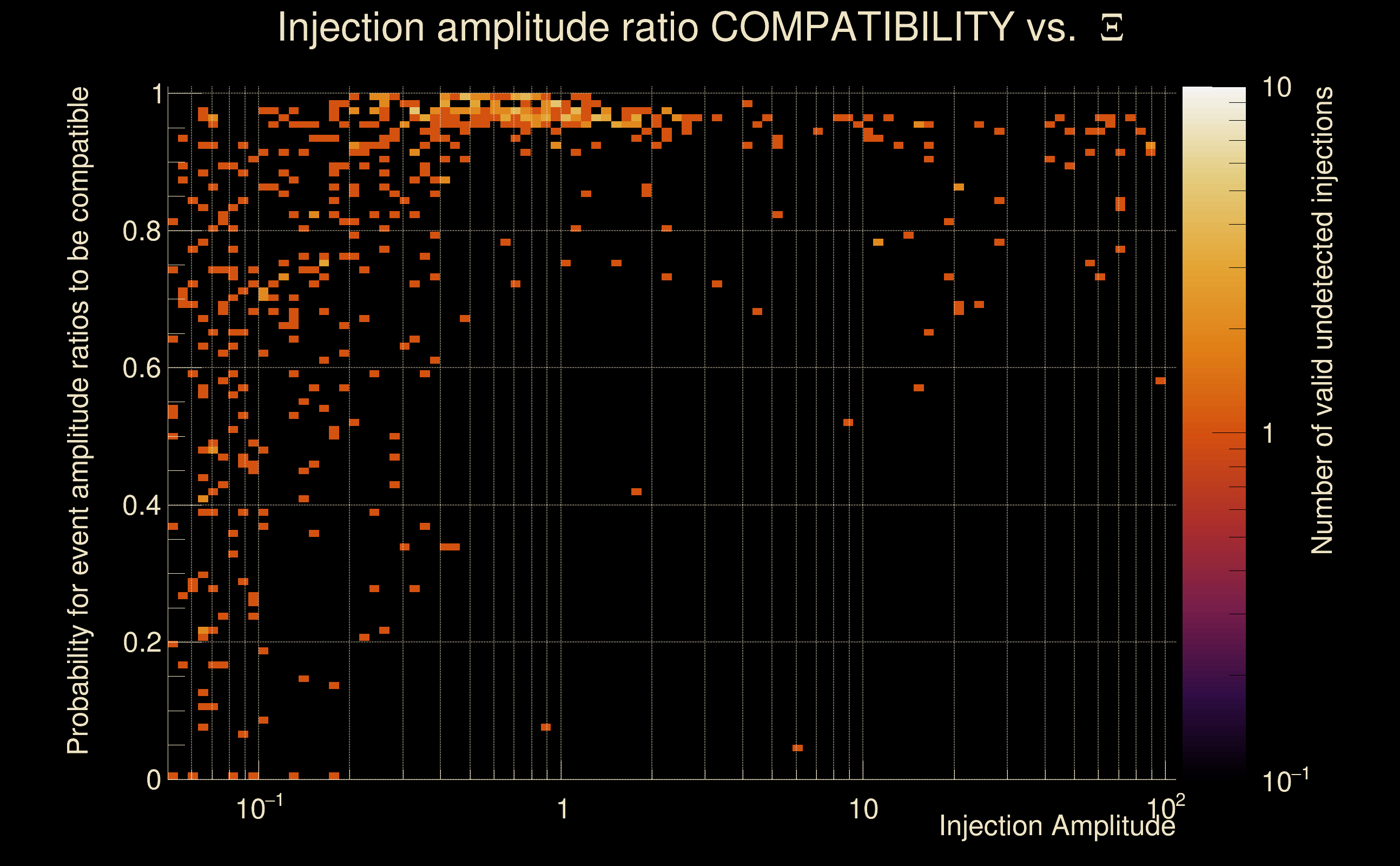

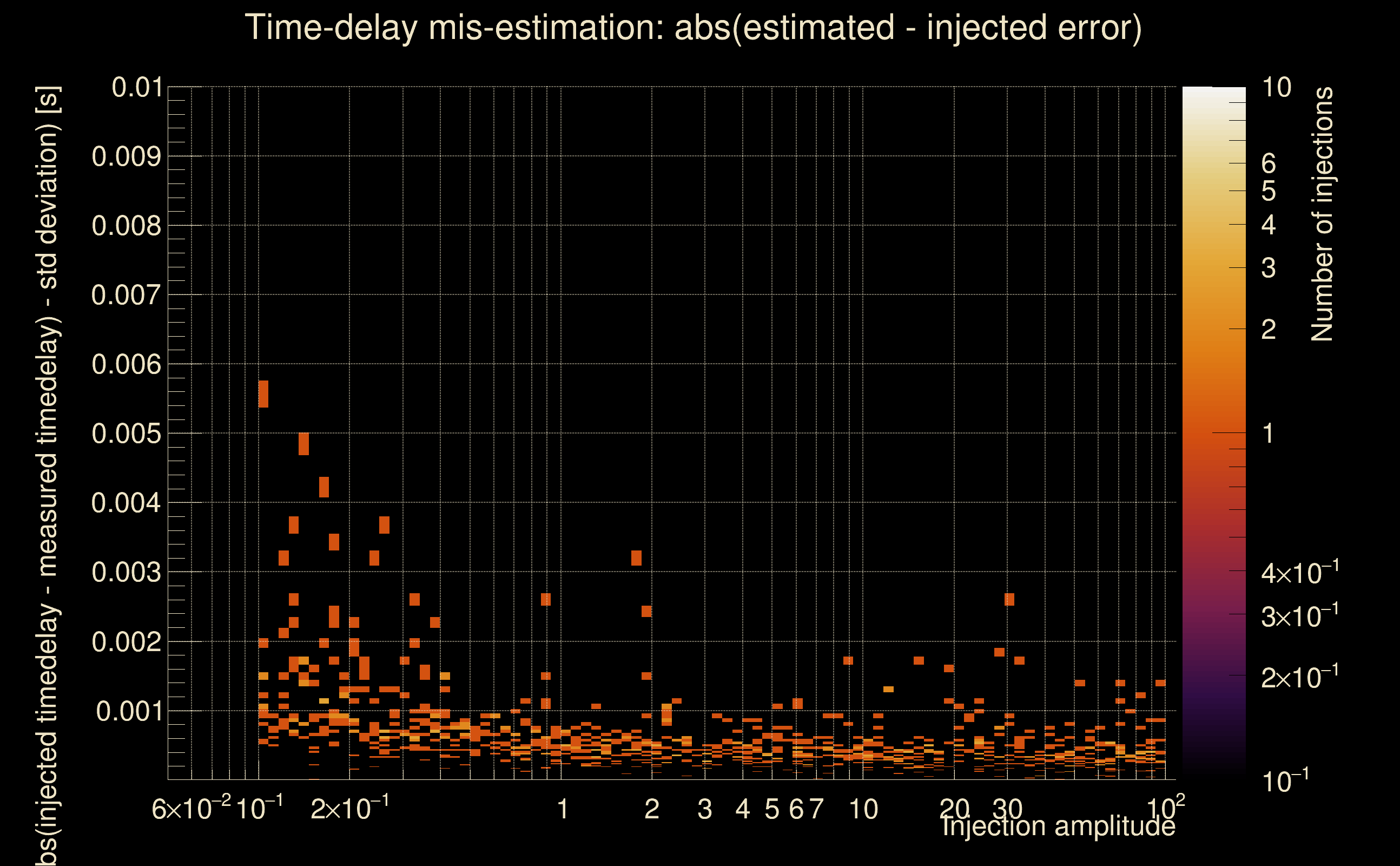

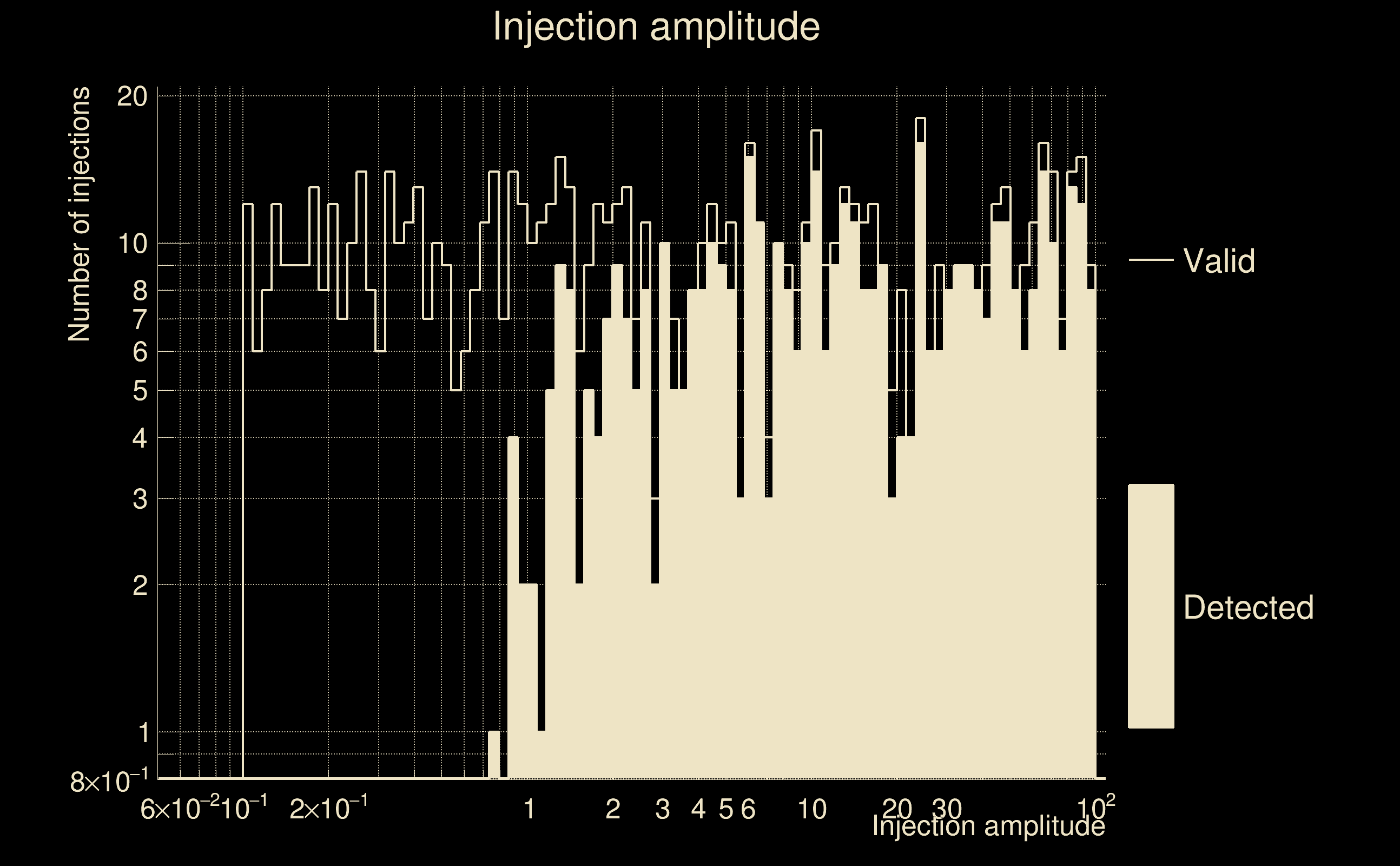

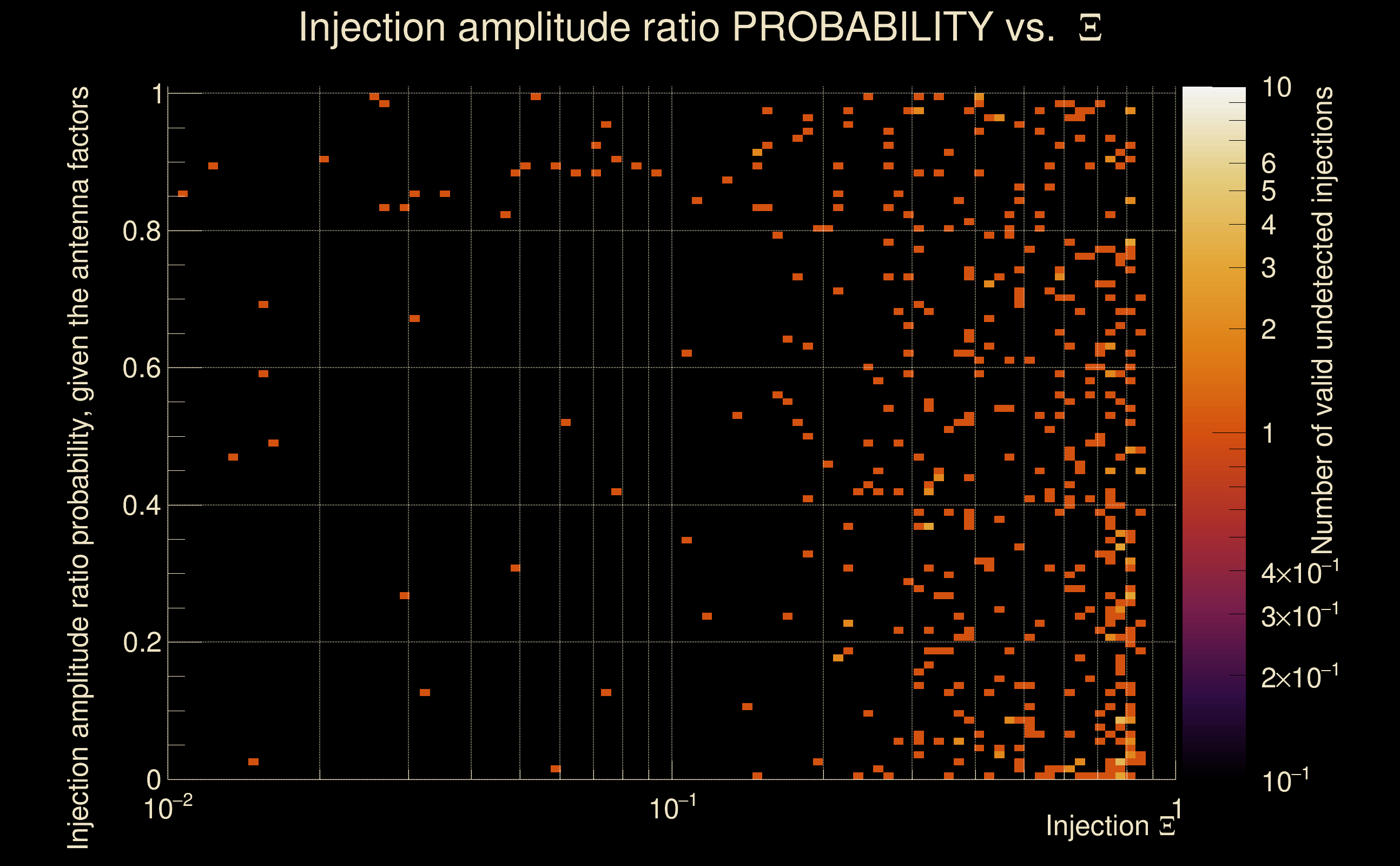

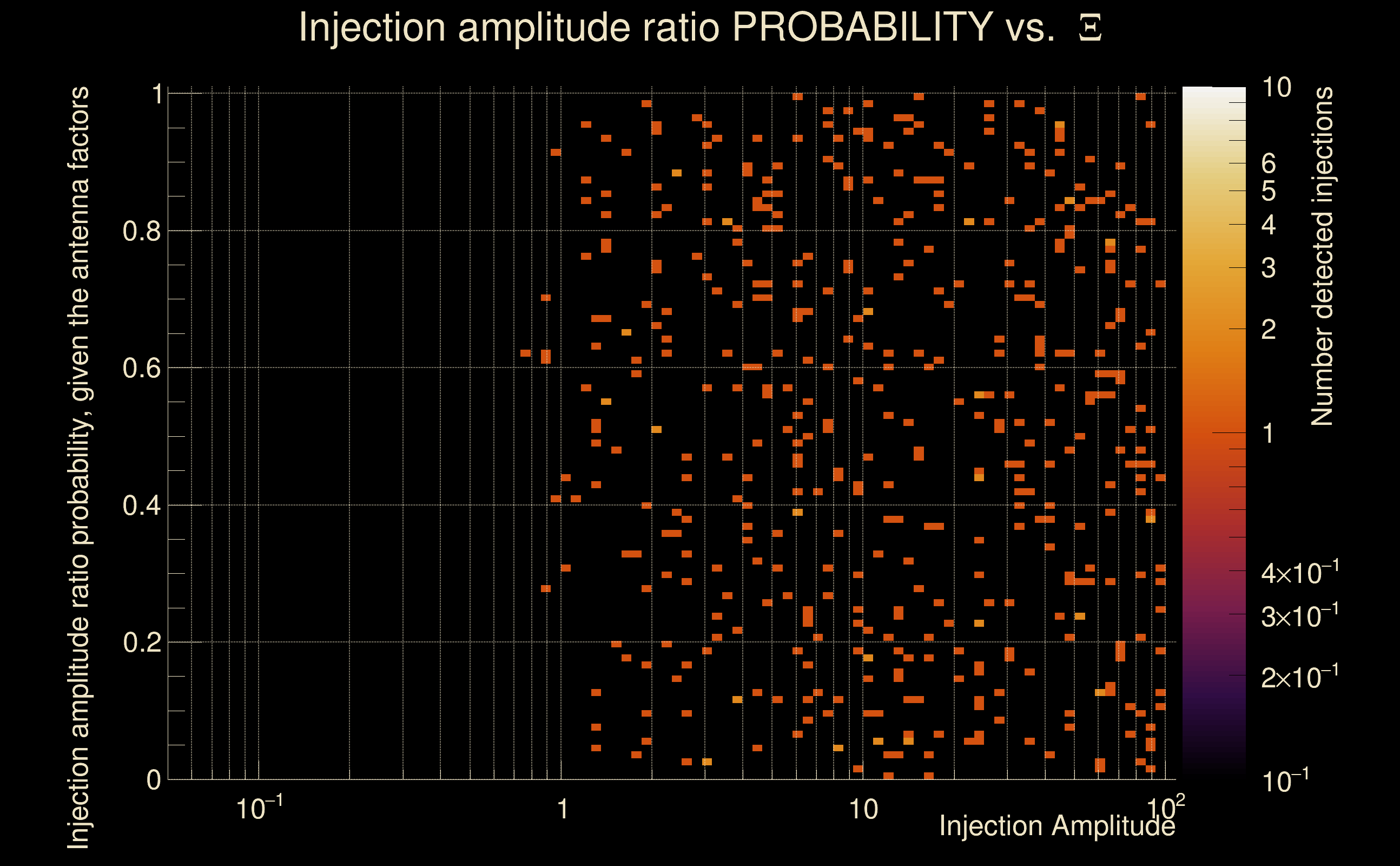

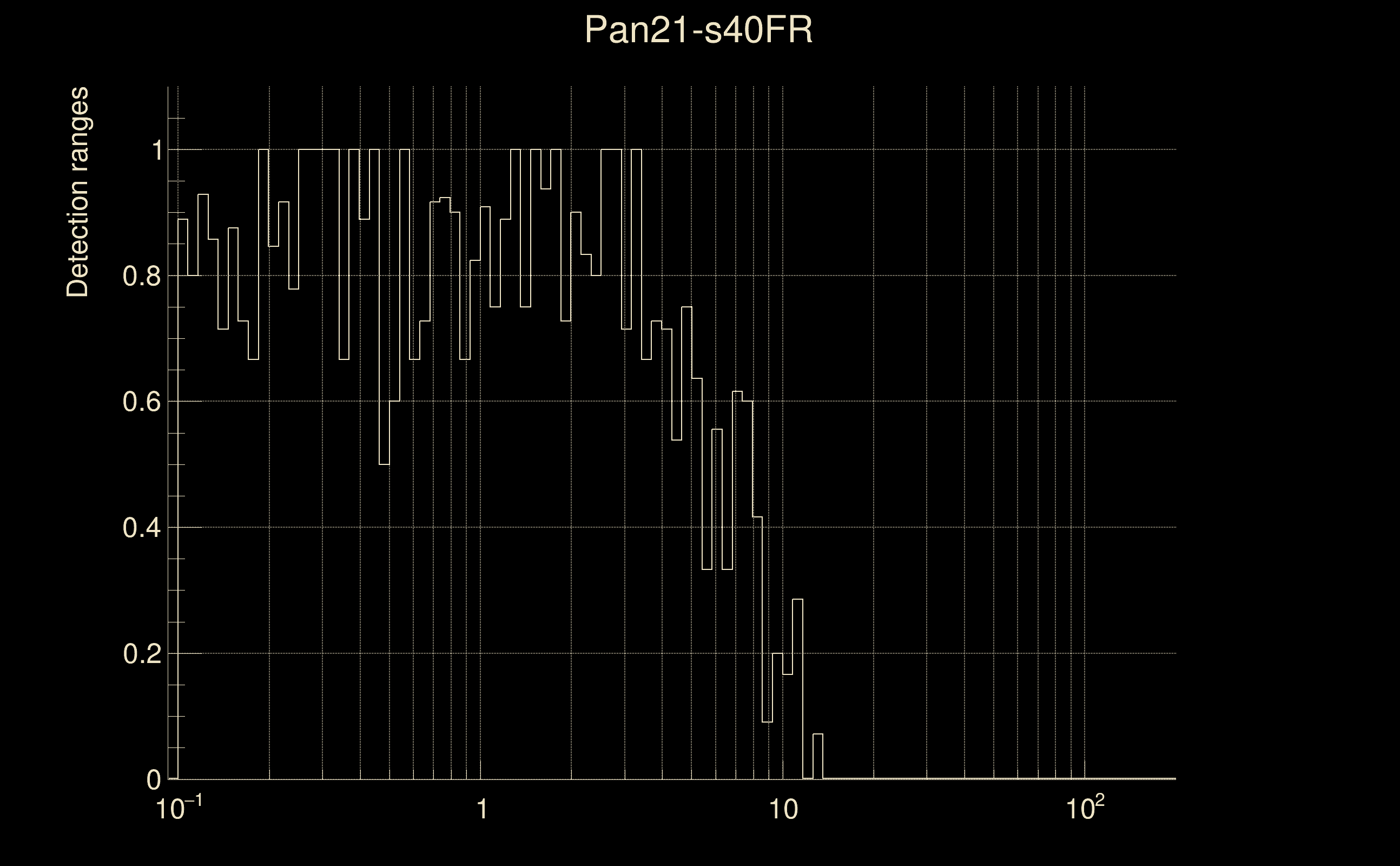

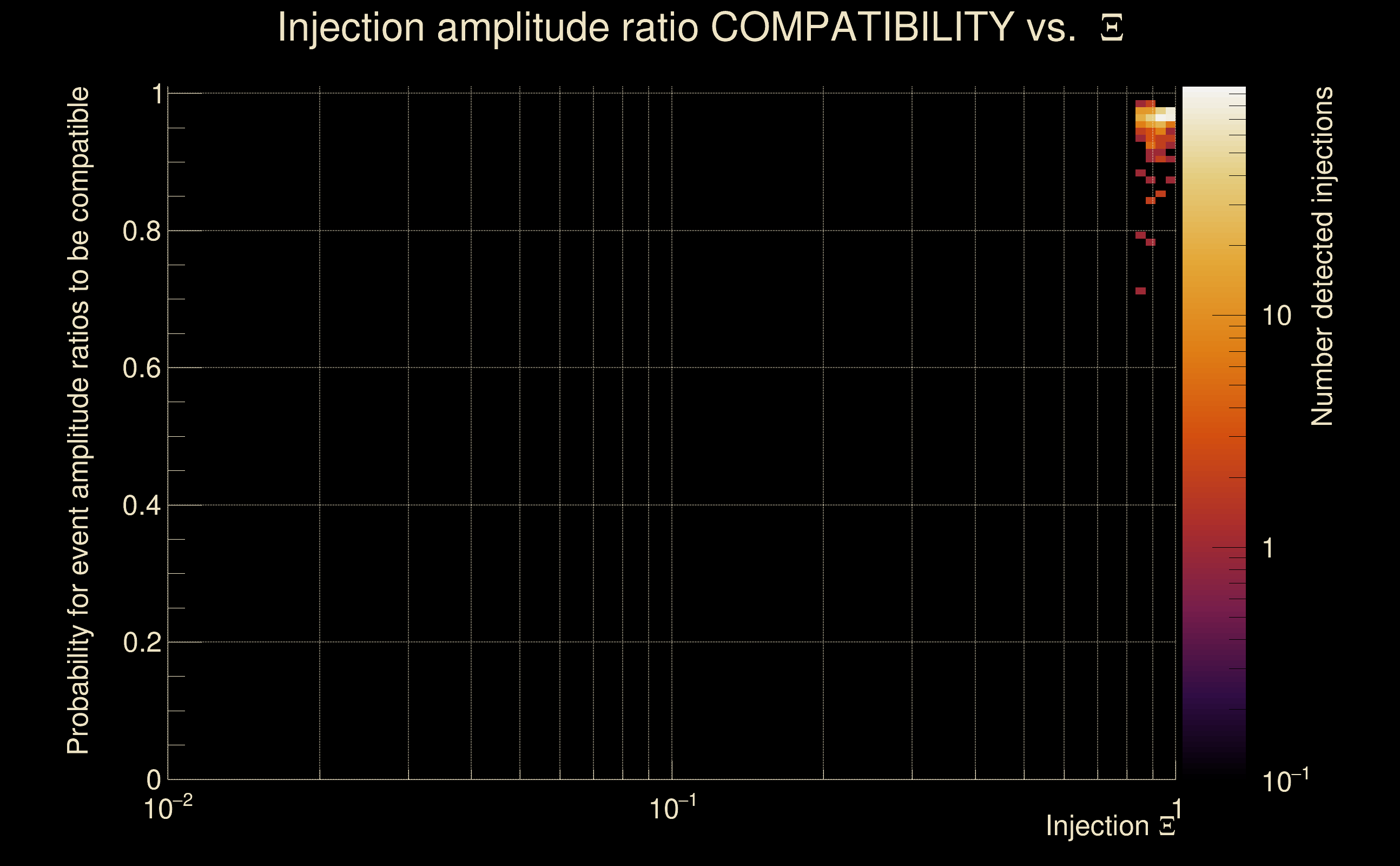

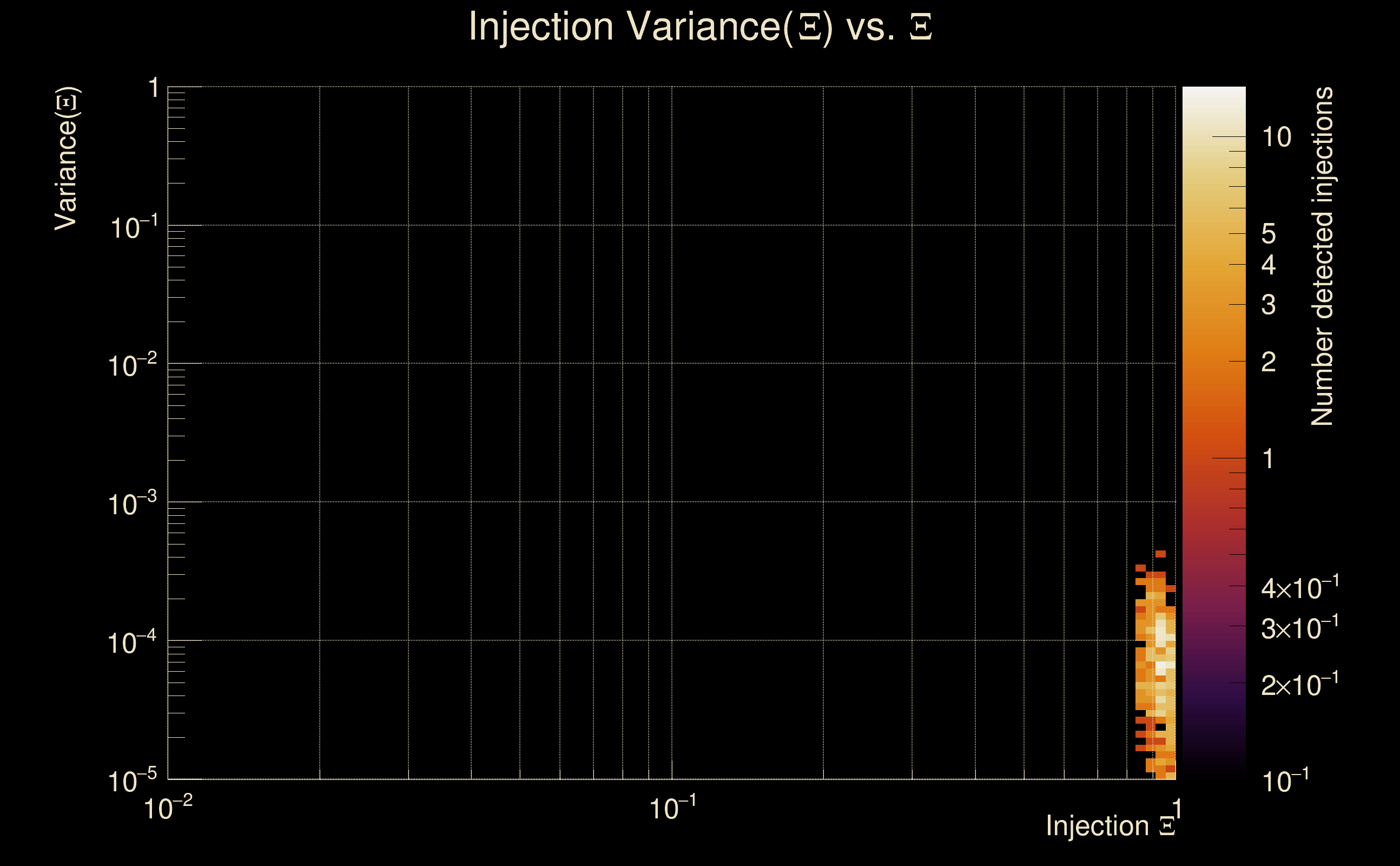

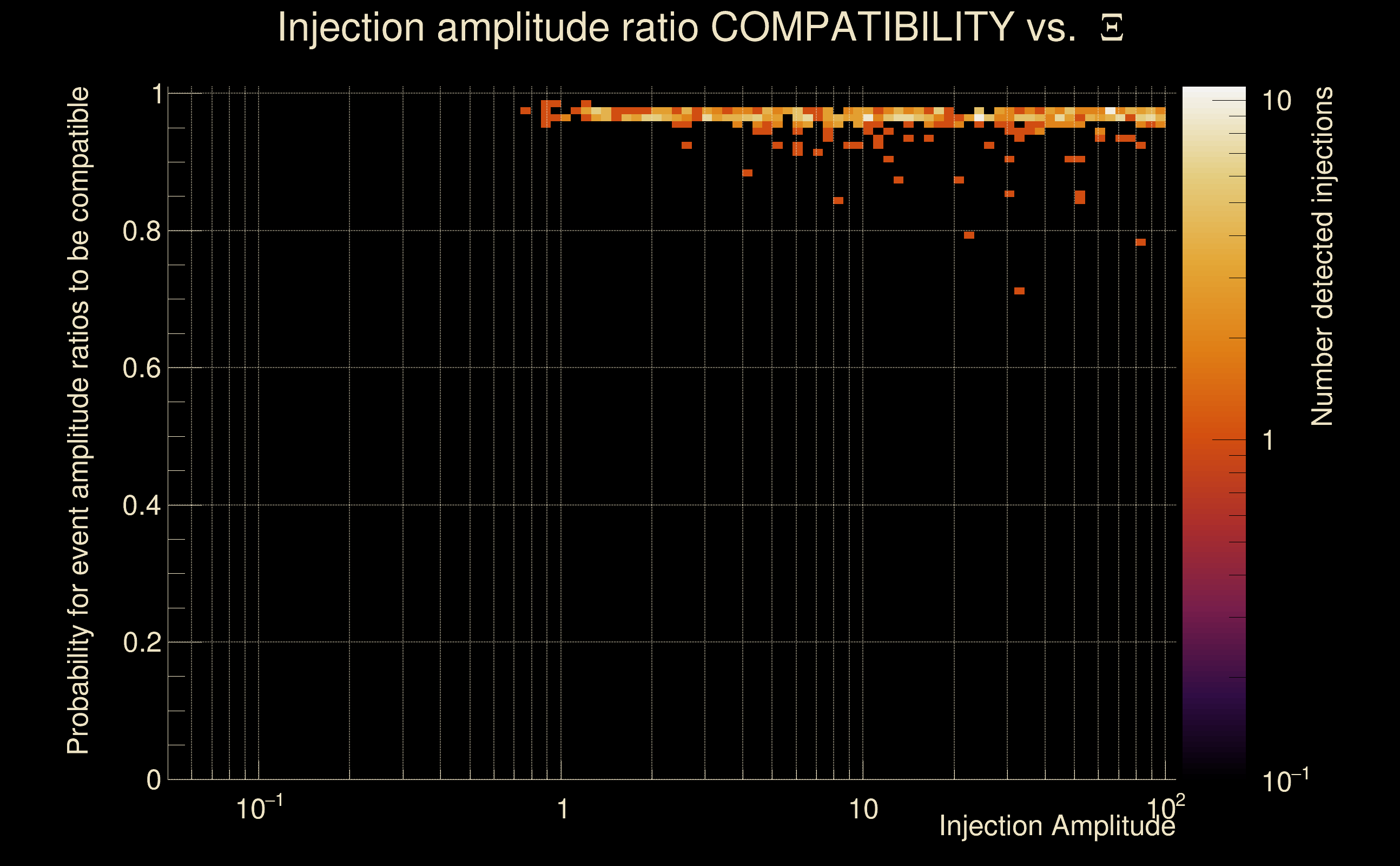

| Number of injections (total/valid/detected): | 1042 / 898 / 474 |
| List of missed injections: | ./Pan21-s40FR_missed.txt |
| Injection amplitude at 90% detection efficiency: | 2.97731 |
| Injection amplitude at 50% detection efficiency: | 1.85674 |
| Injection amplitude at 10% detection efficiency: | 1.12444 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
