| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:45:17 2026 UTC |
| Ox option file: | Bench2_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |

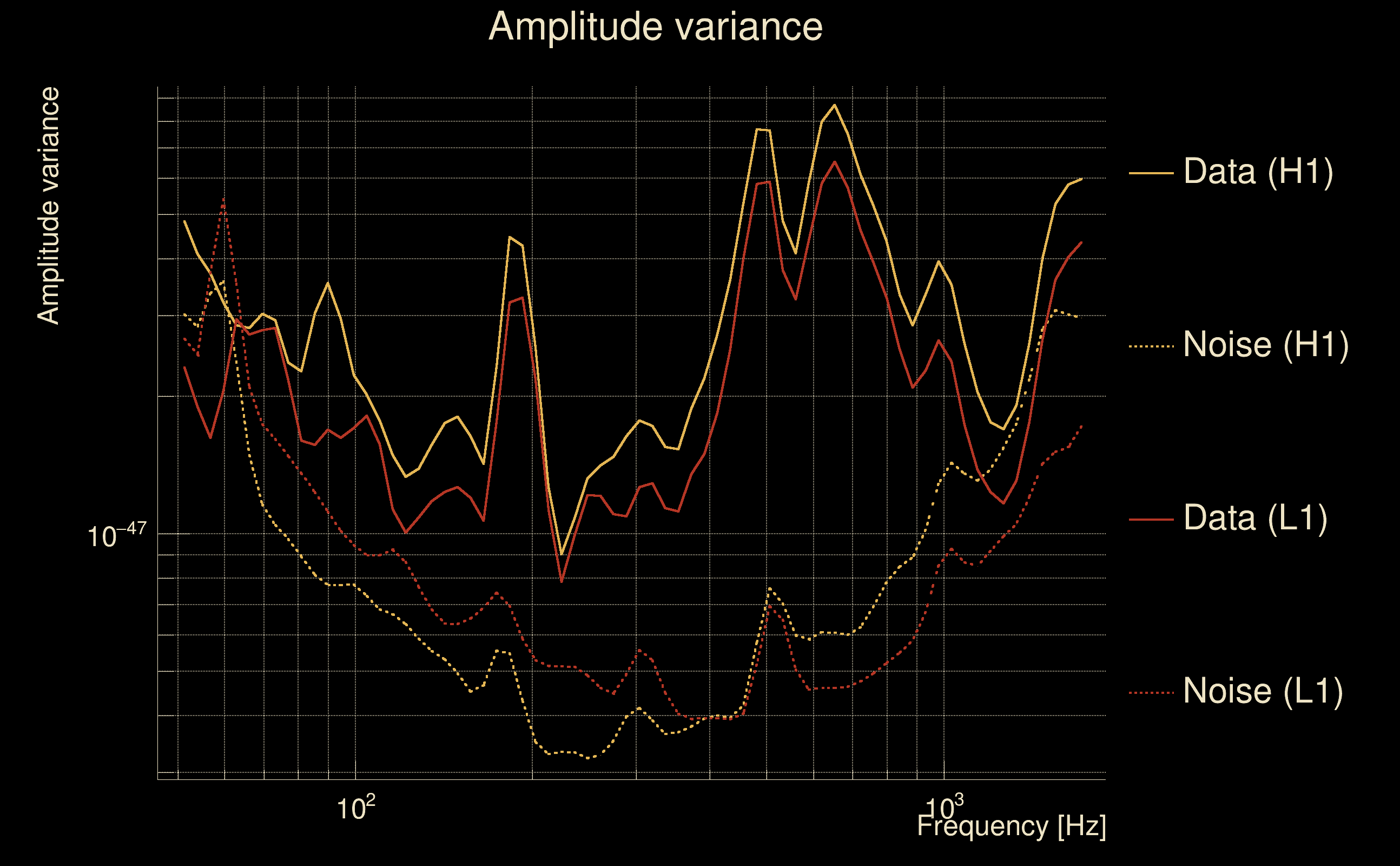

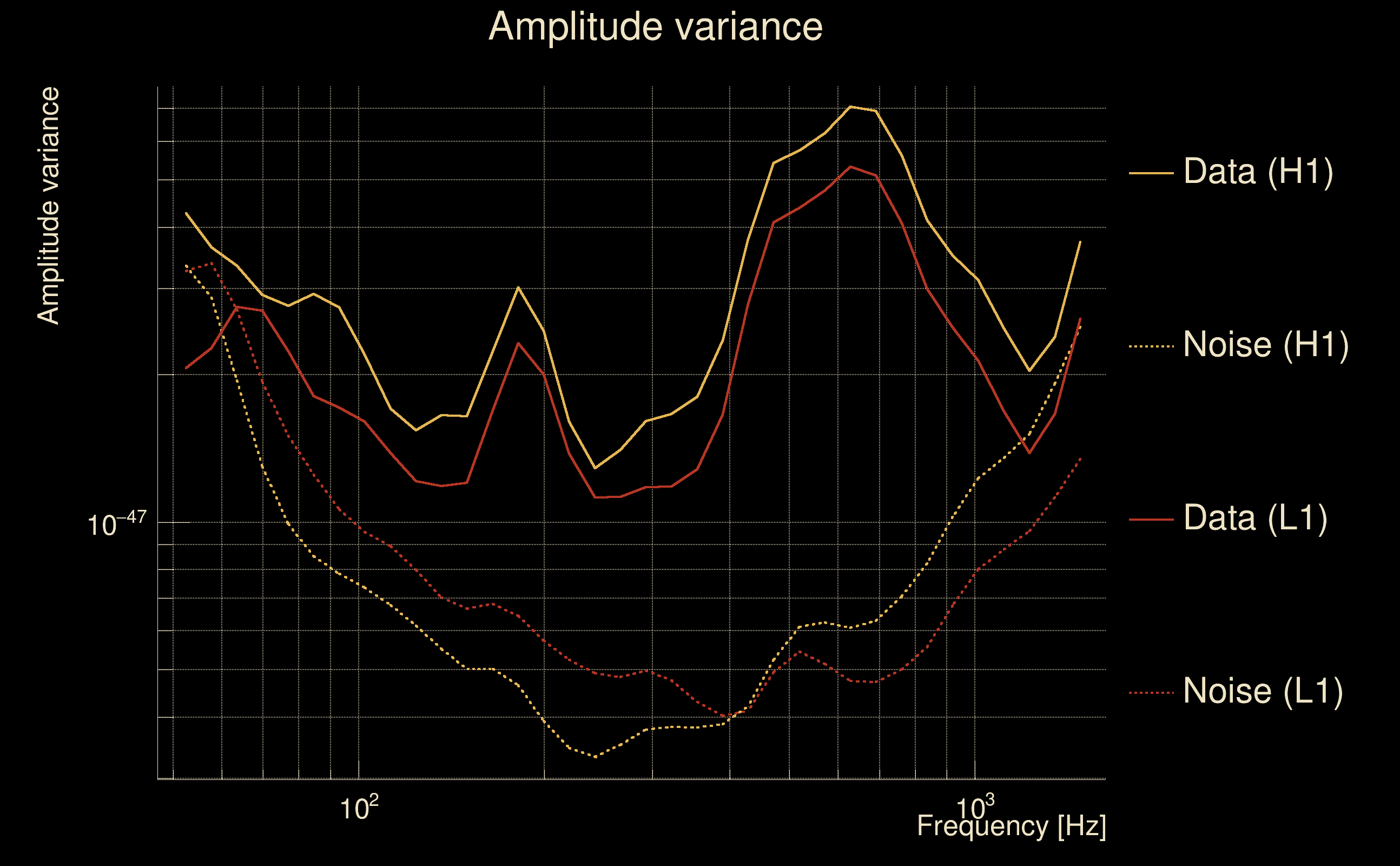

| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench2_targ_file_list.txt (65 files) |
| Analysis result file: | Bench2_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=178 (-3.22 s), time lag = 0 s |

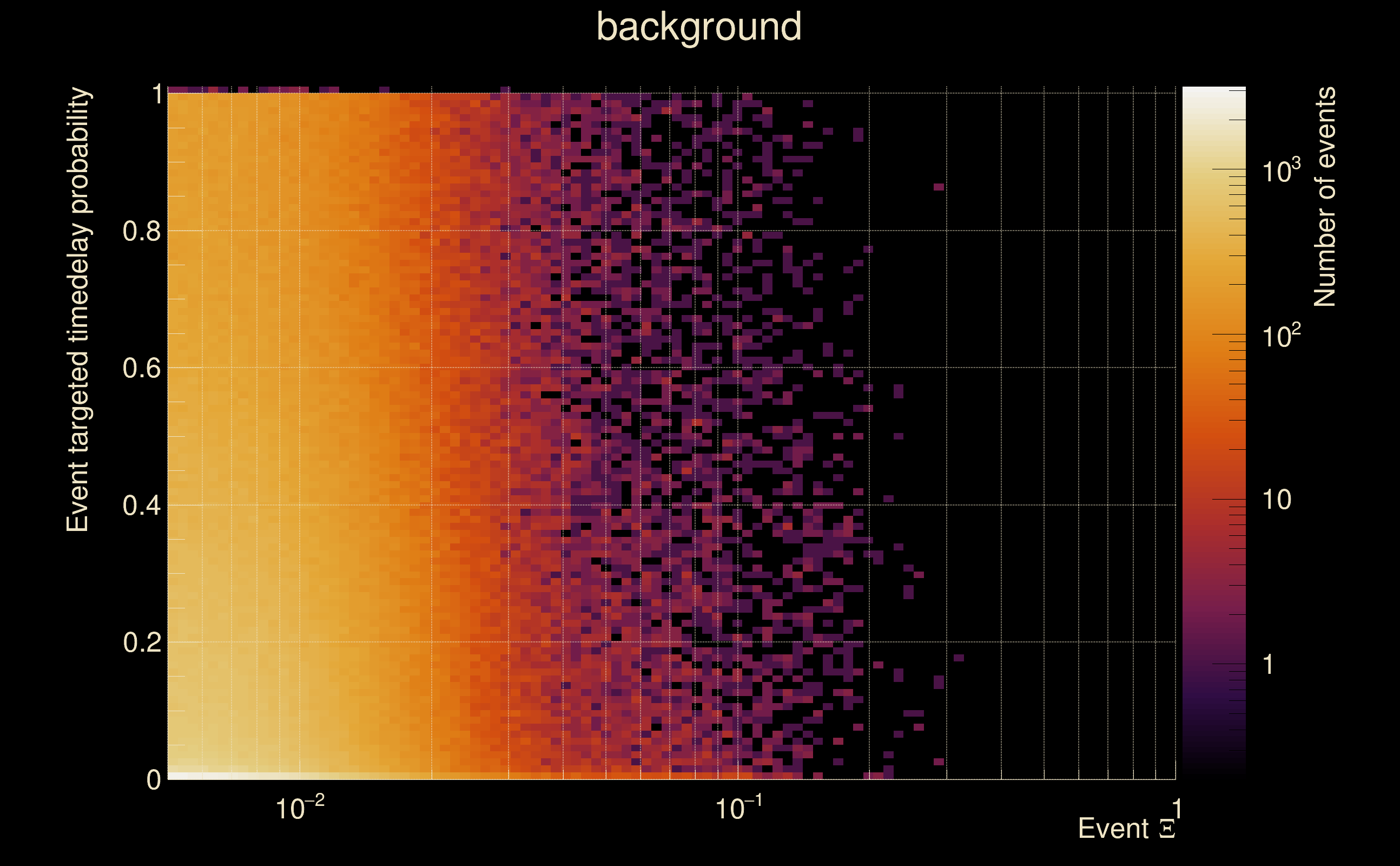

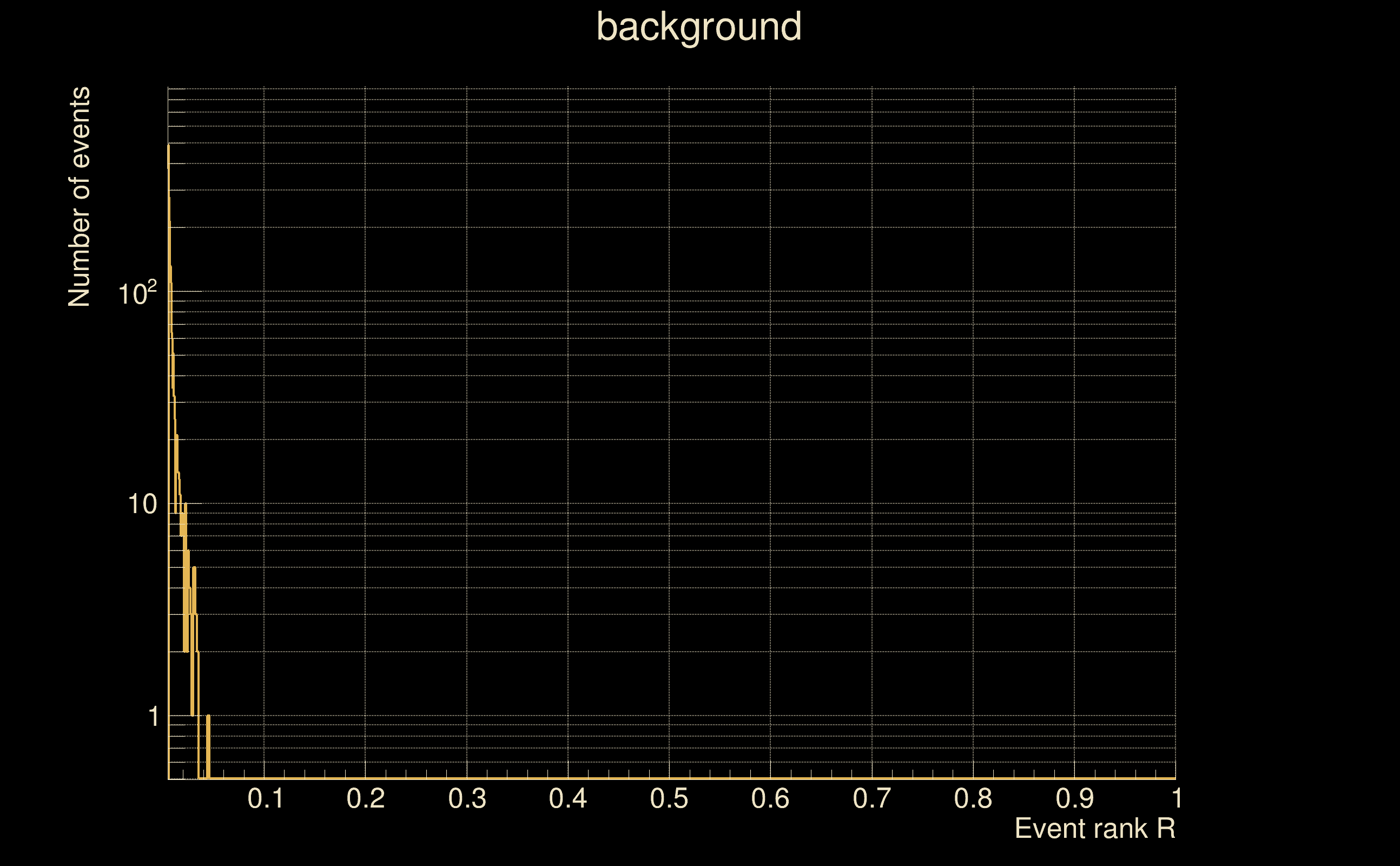

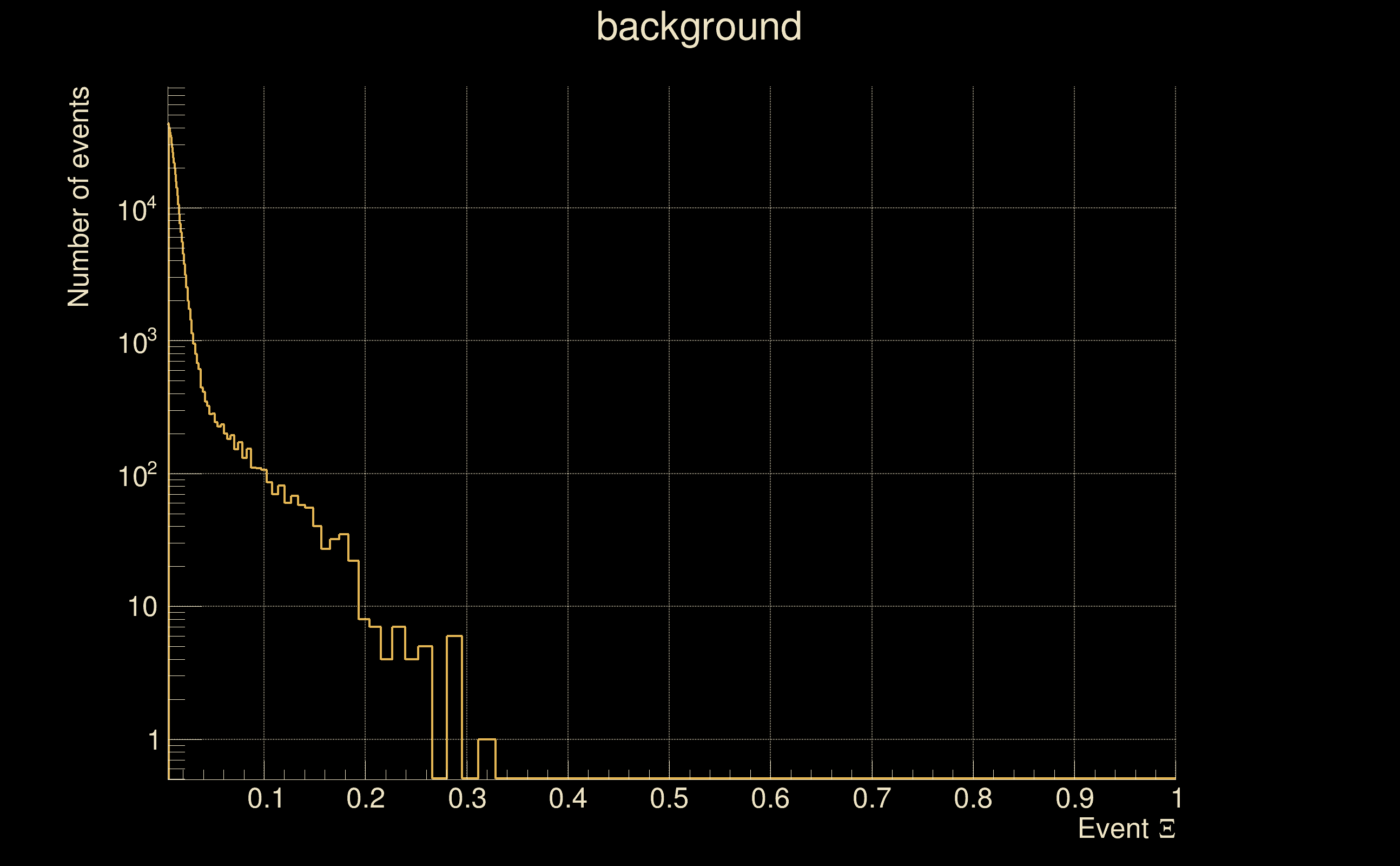

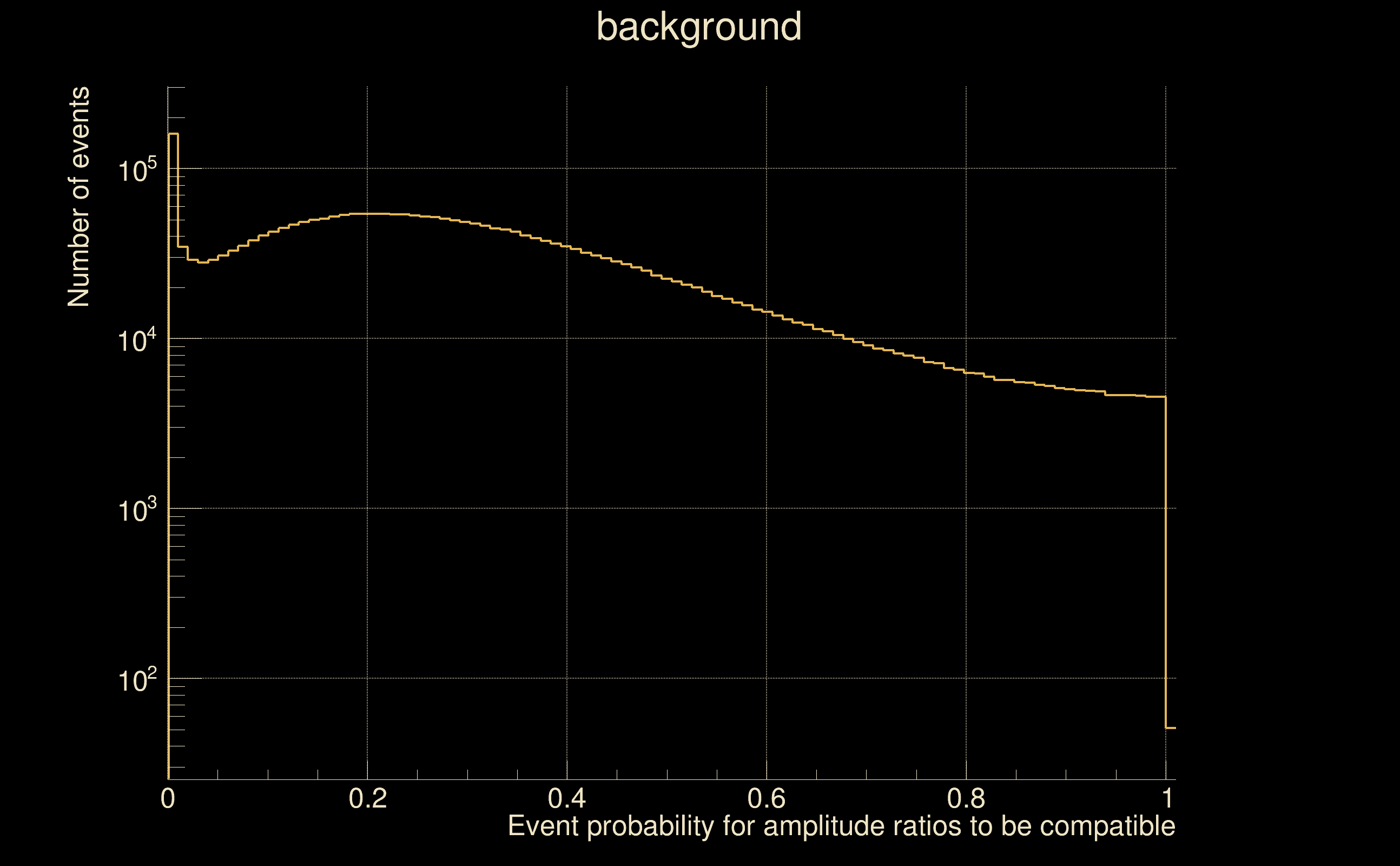

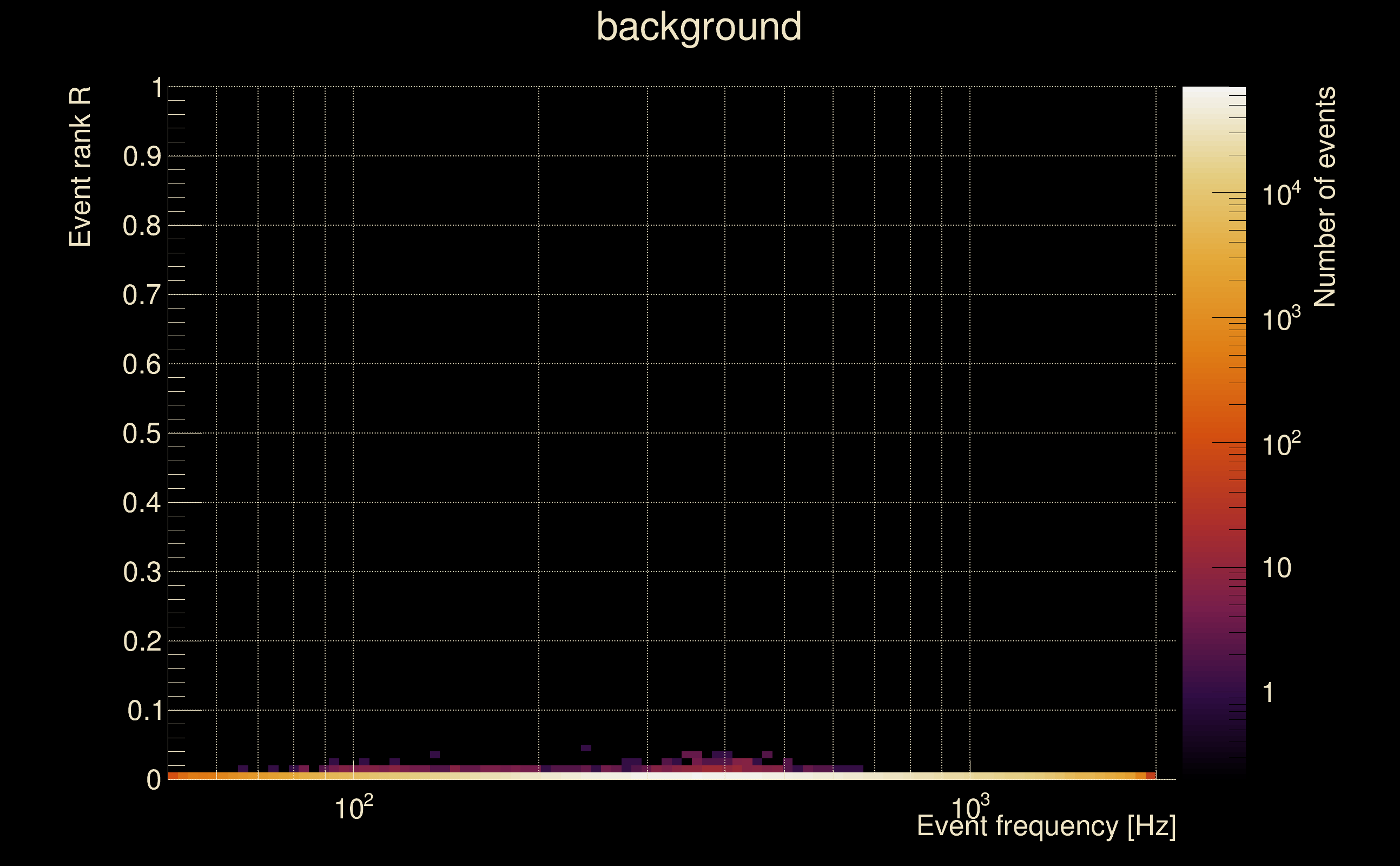

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

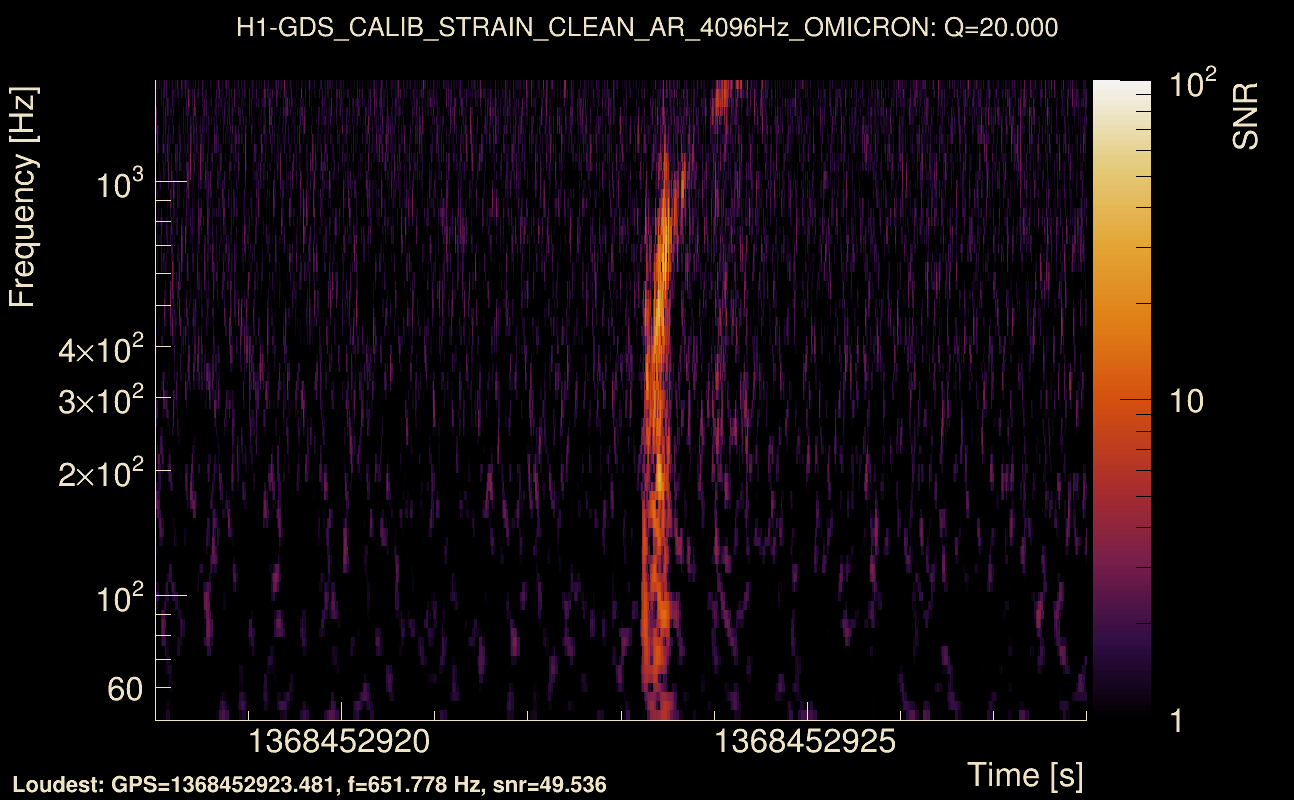

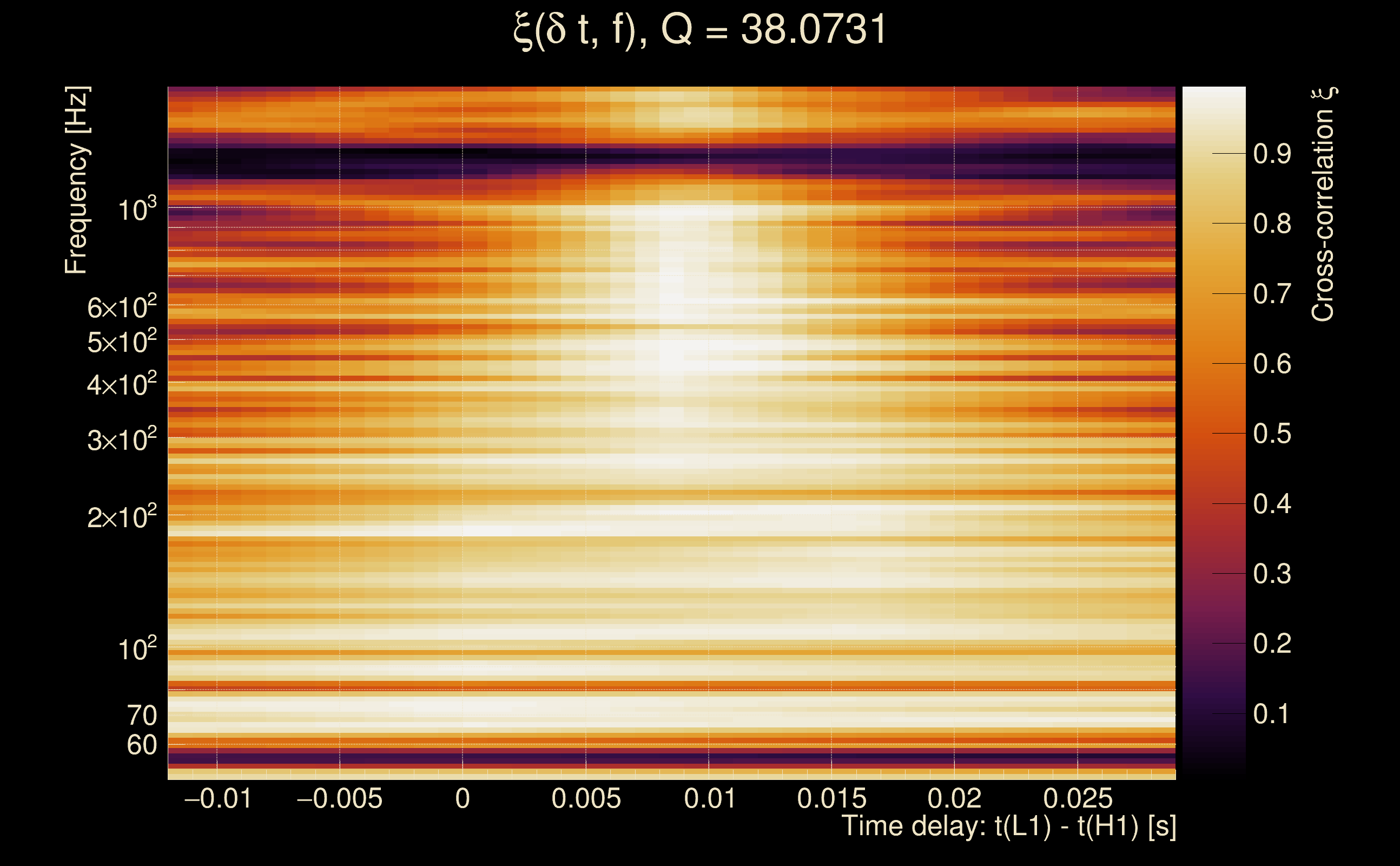

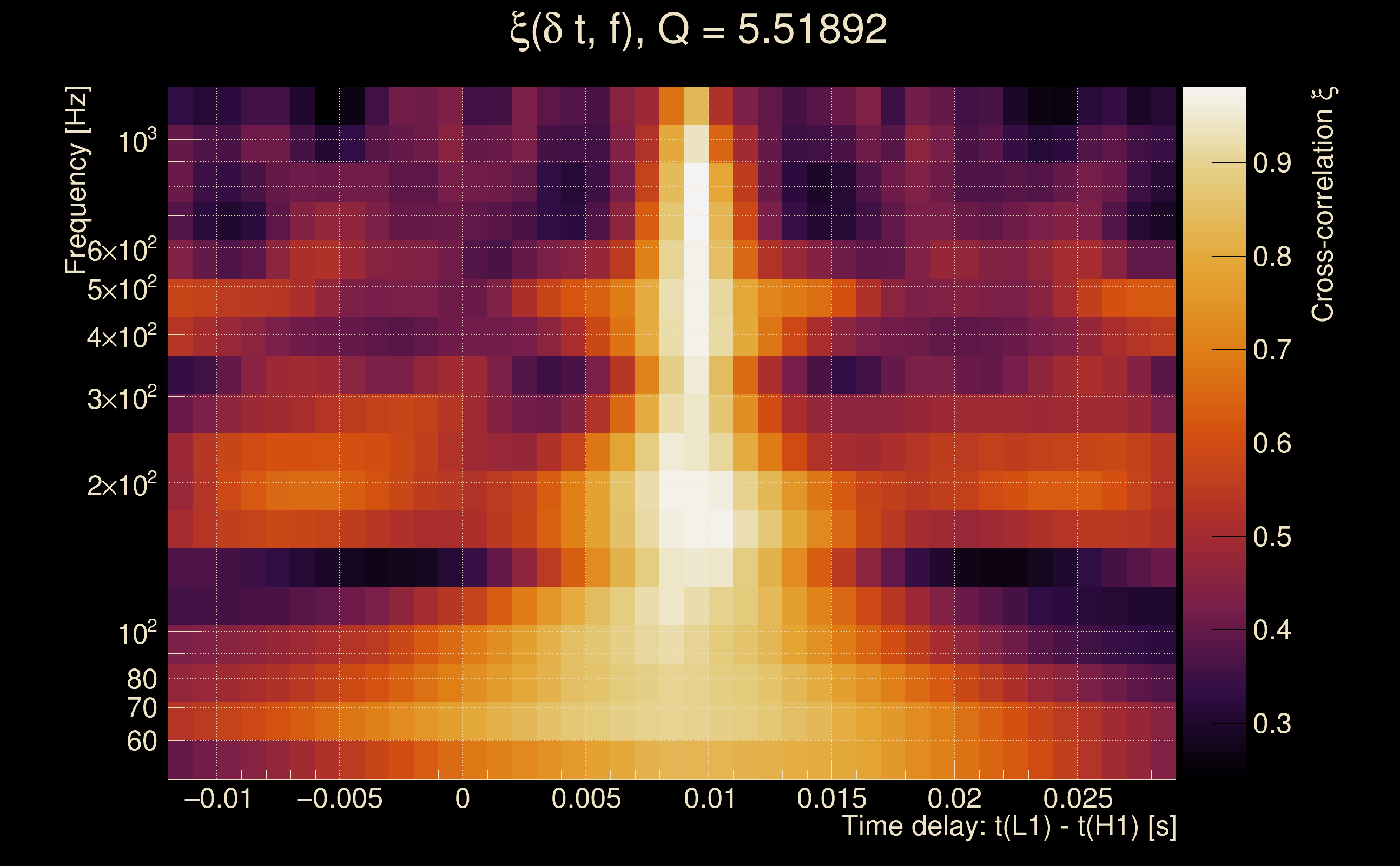

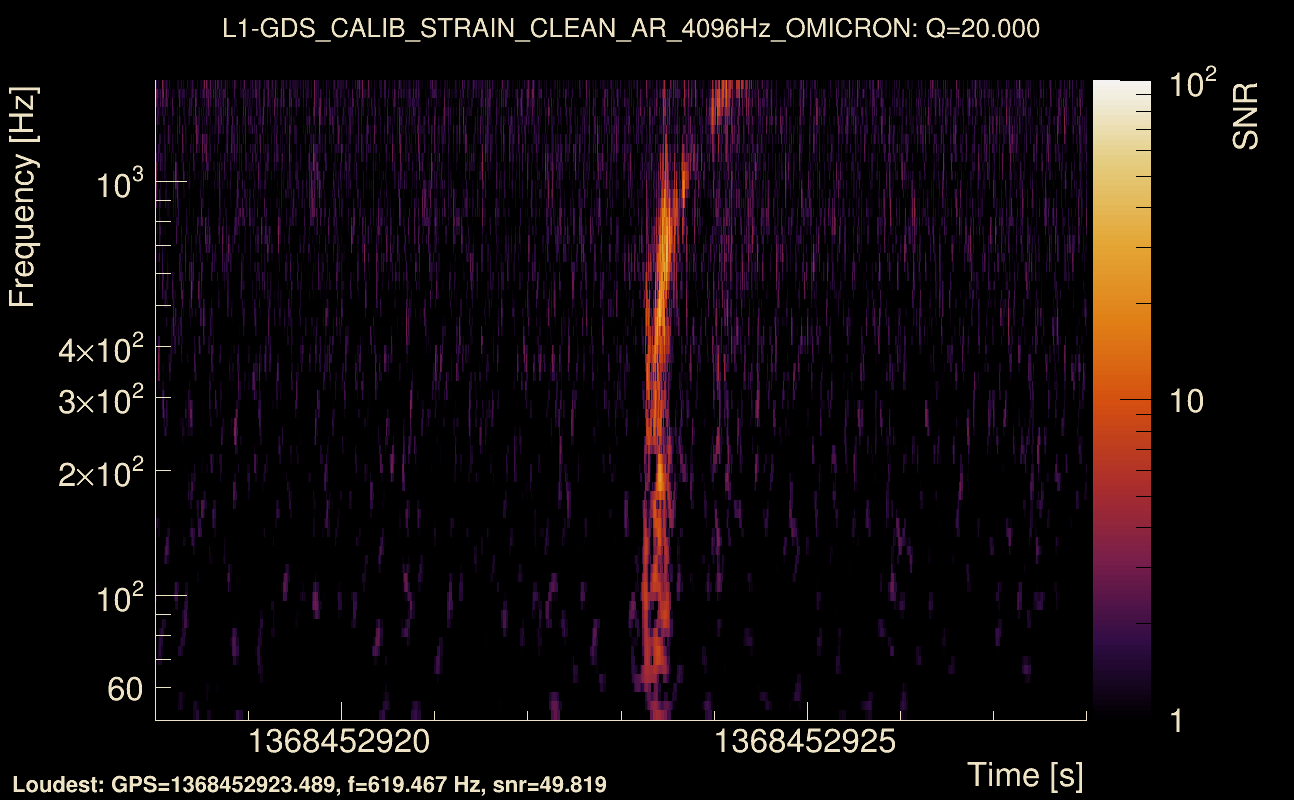

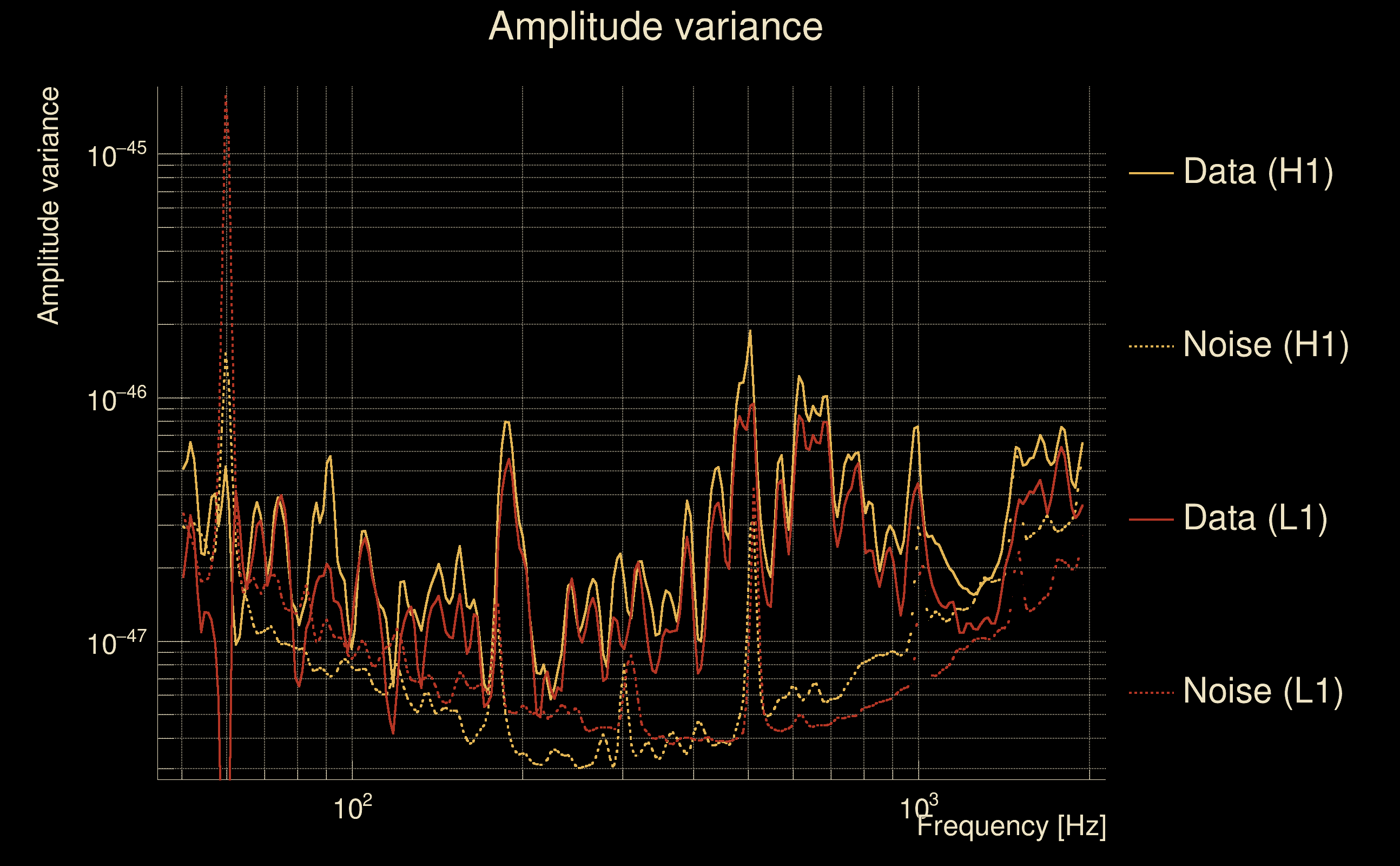

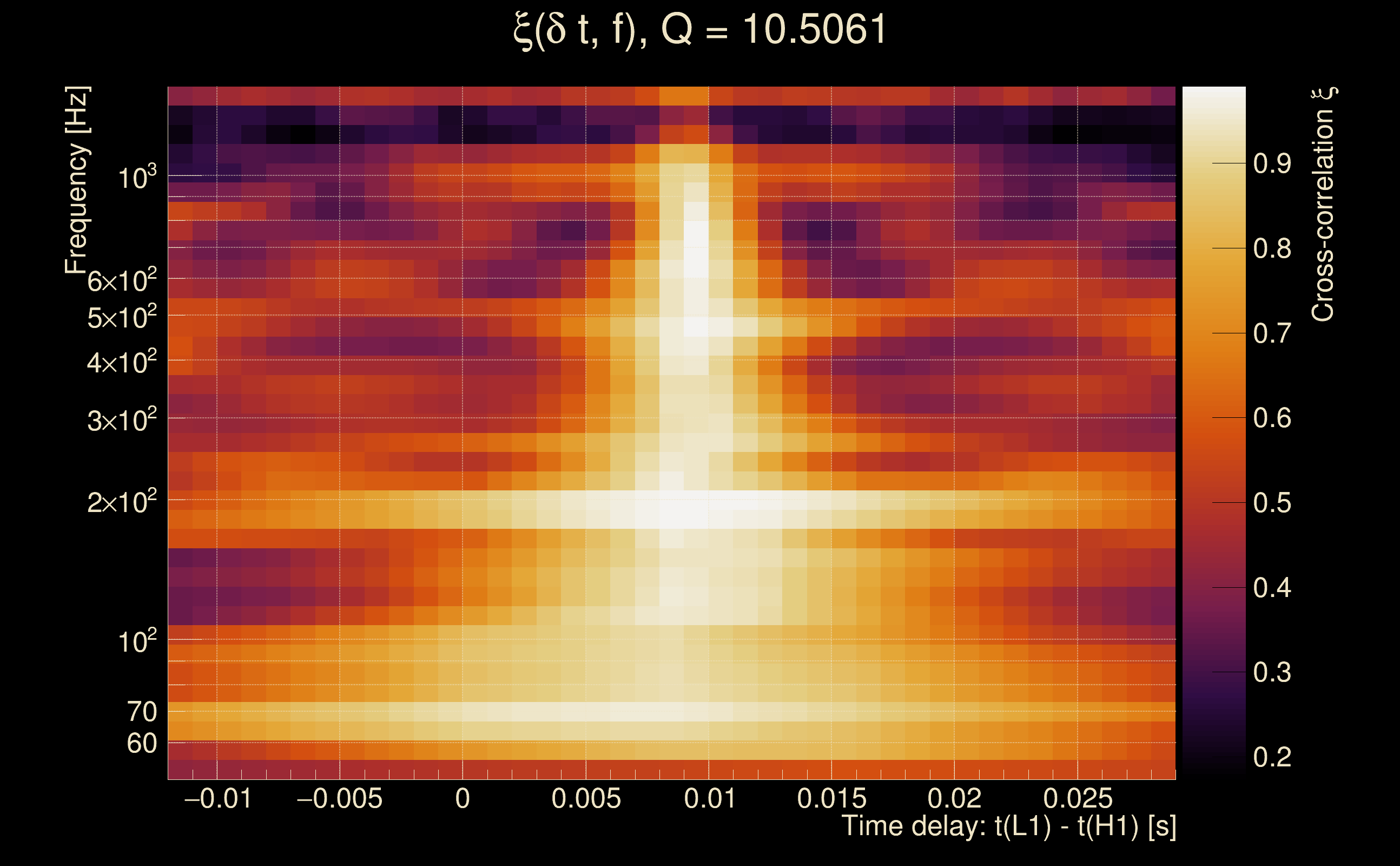

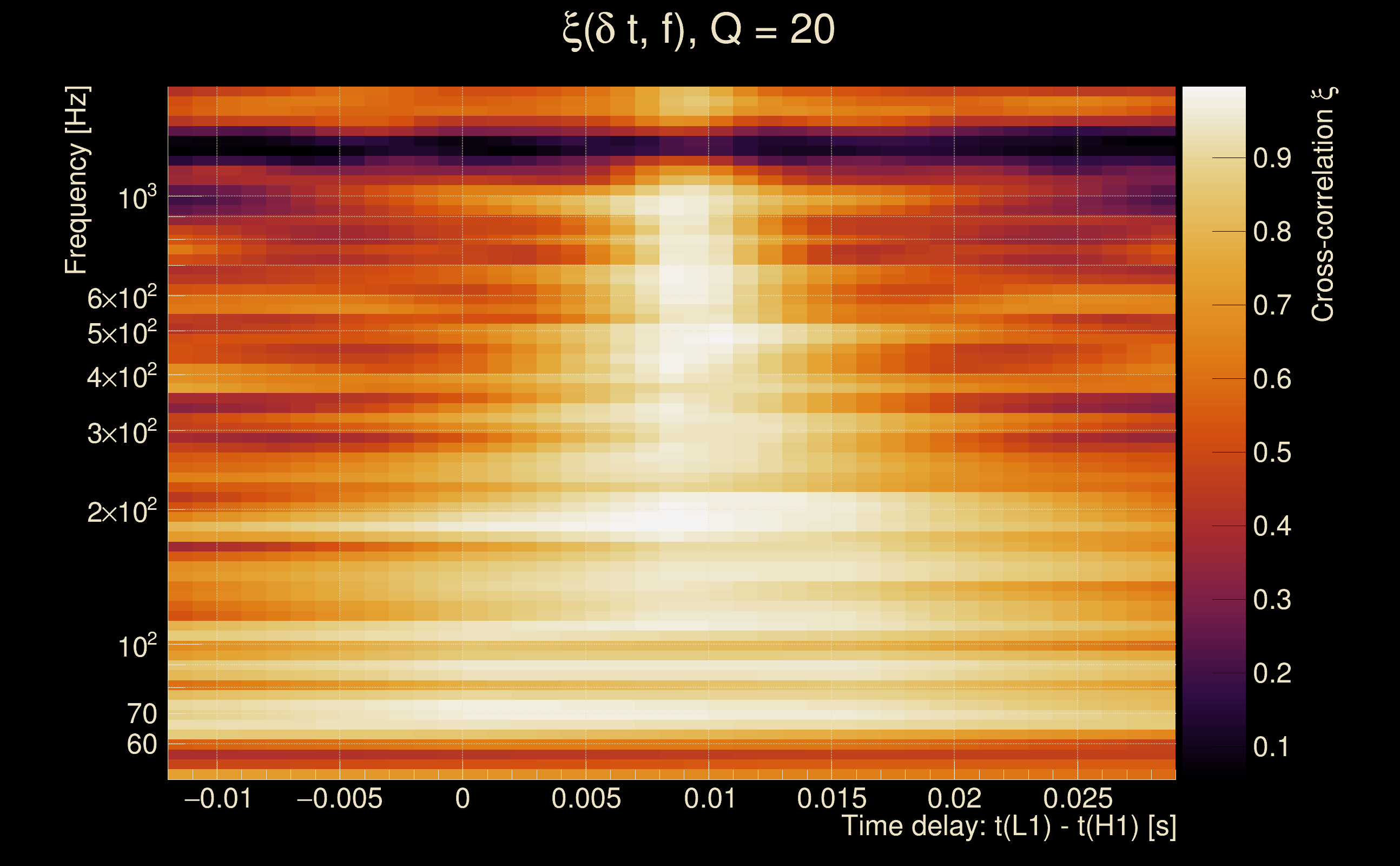

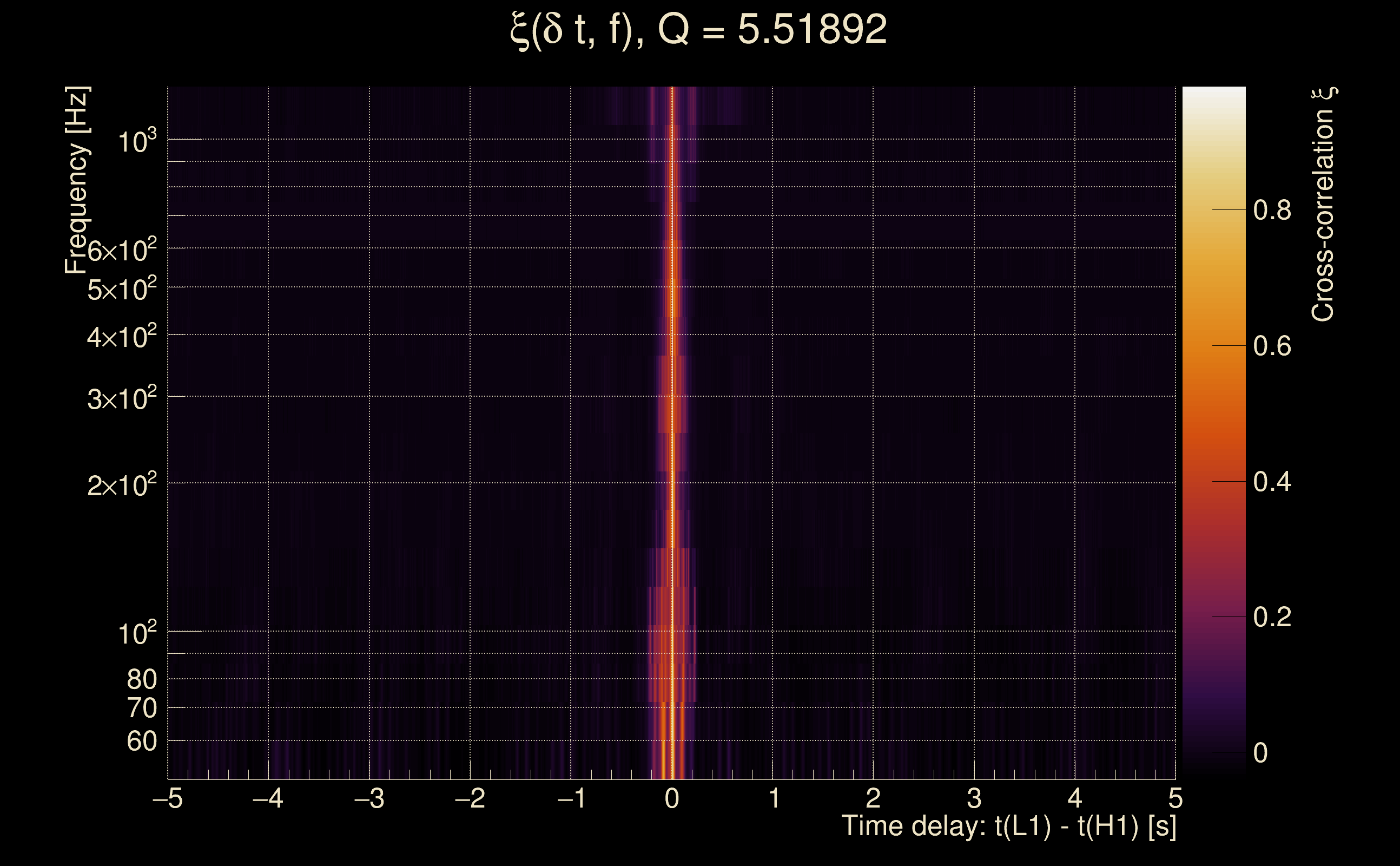

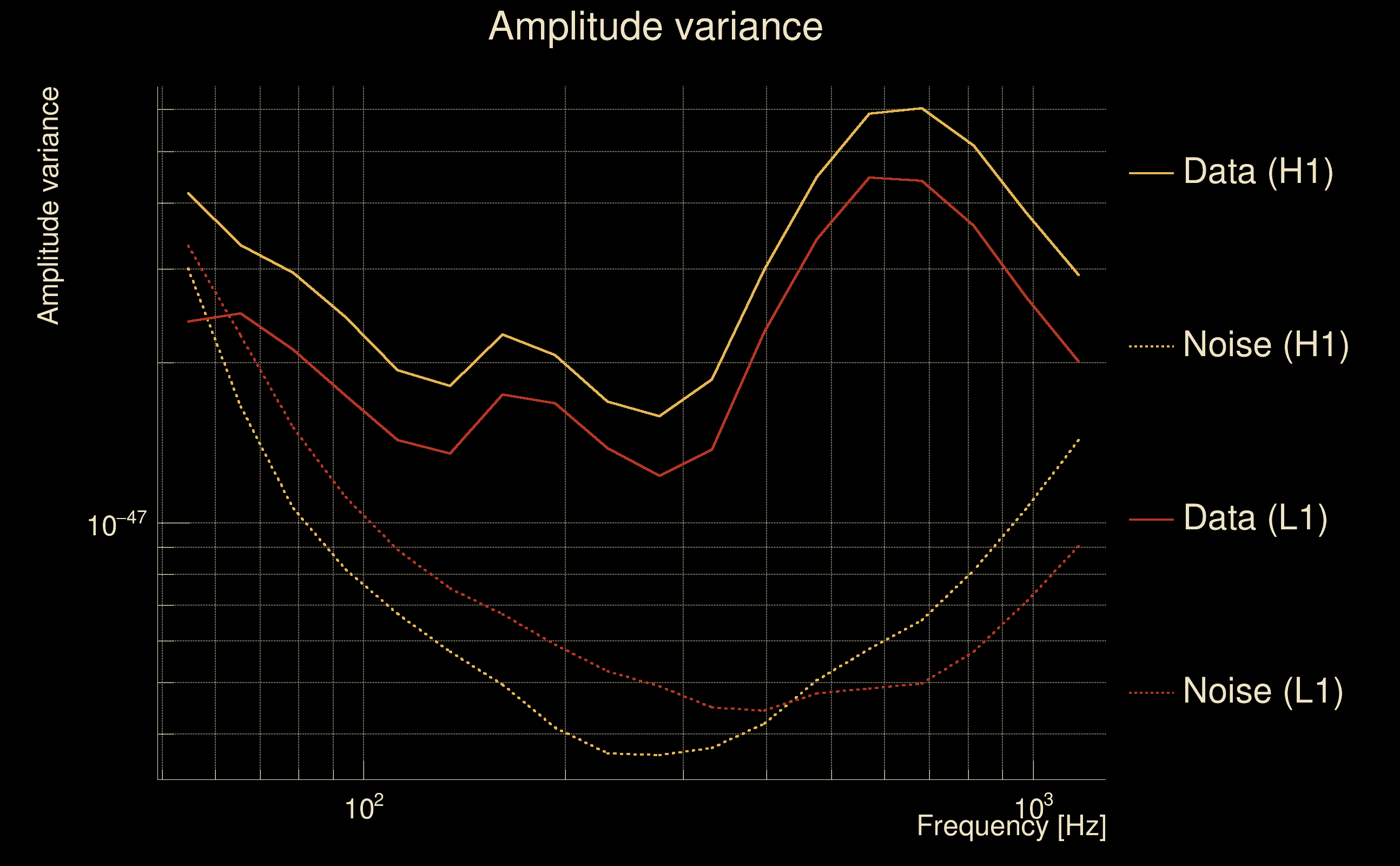

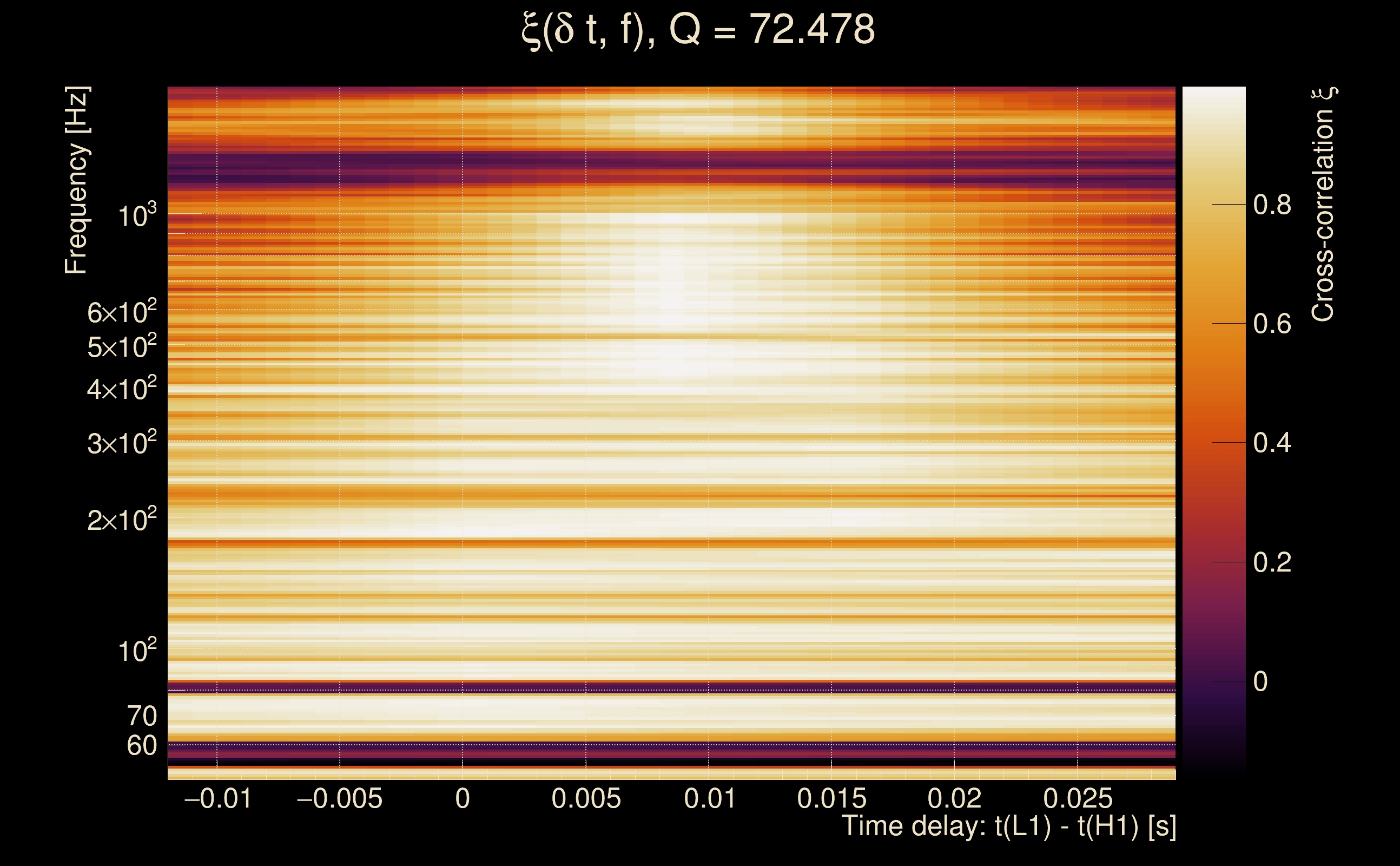

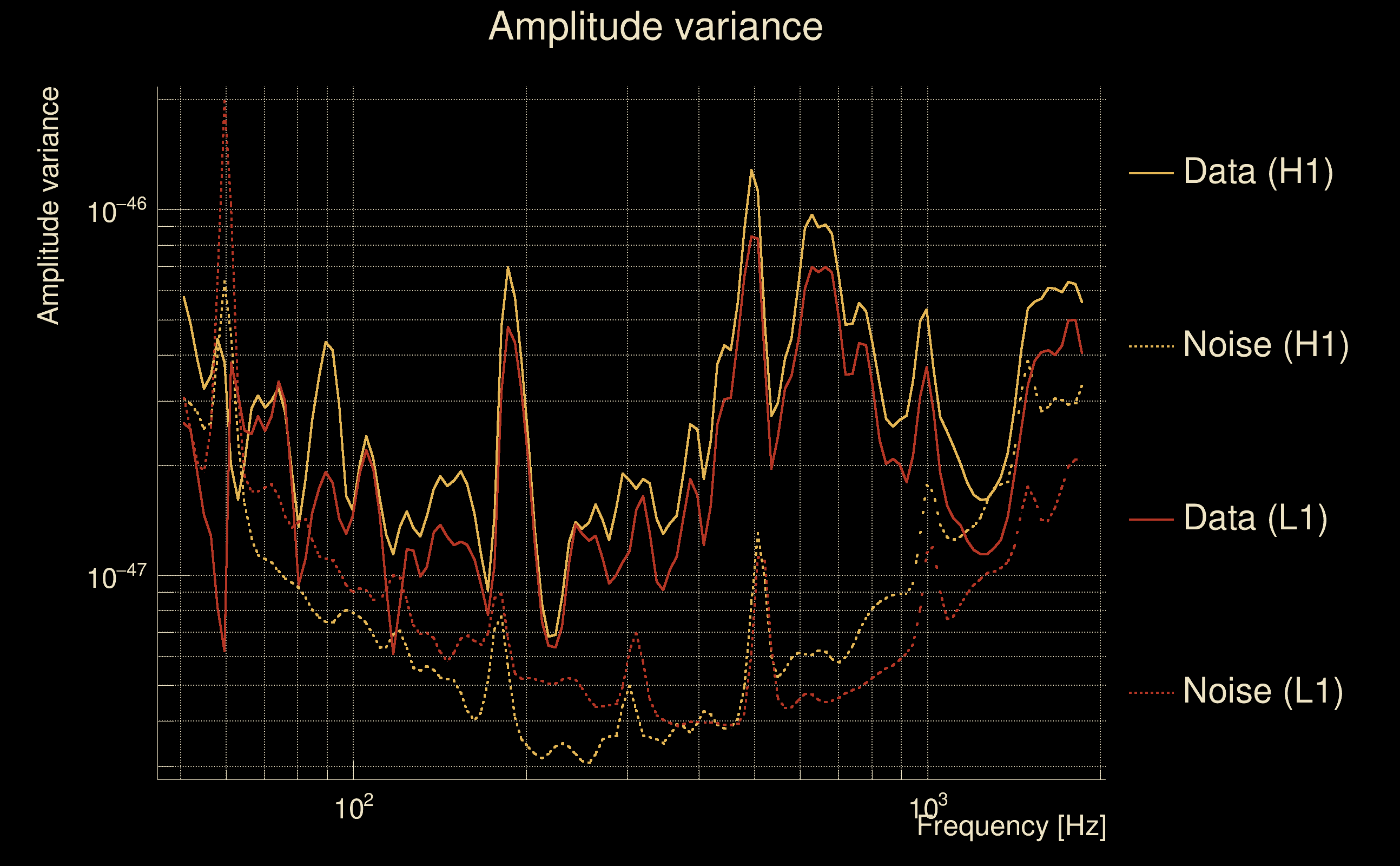

| Event time t(H1): | GPS = 1368452923 (Thu May 18 13:48:25 2023 ) → GPS = 1368452933 (Thu May 18 13:48:35 2023 ) |
| Event time t(L1): | GPS = 1368452923 (Thu May 18 13:48:35 2023 ) → GPS = 1368452933 (Thu May 18 13:48:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368452920 → GPS = 1368452936 |
| Omicron analysis time window (L1): | GPS = 1368452920 → GPS = 1368452936 |
| Time delay between detectors t(L1) - t(H1): | 0.00878415 s (slice index = 108 / 217), δt_gw = 0.00878415 s |
| Time delay standard deviation: | 0.0226982 s |
| [targeted mode] Time delay probability: | 0.982495 (0.0219405 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 319.494 Hz |

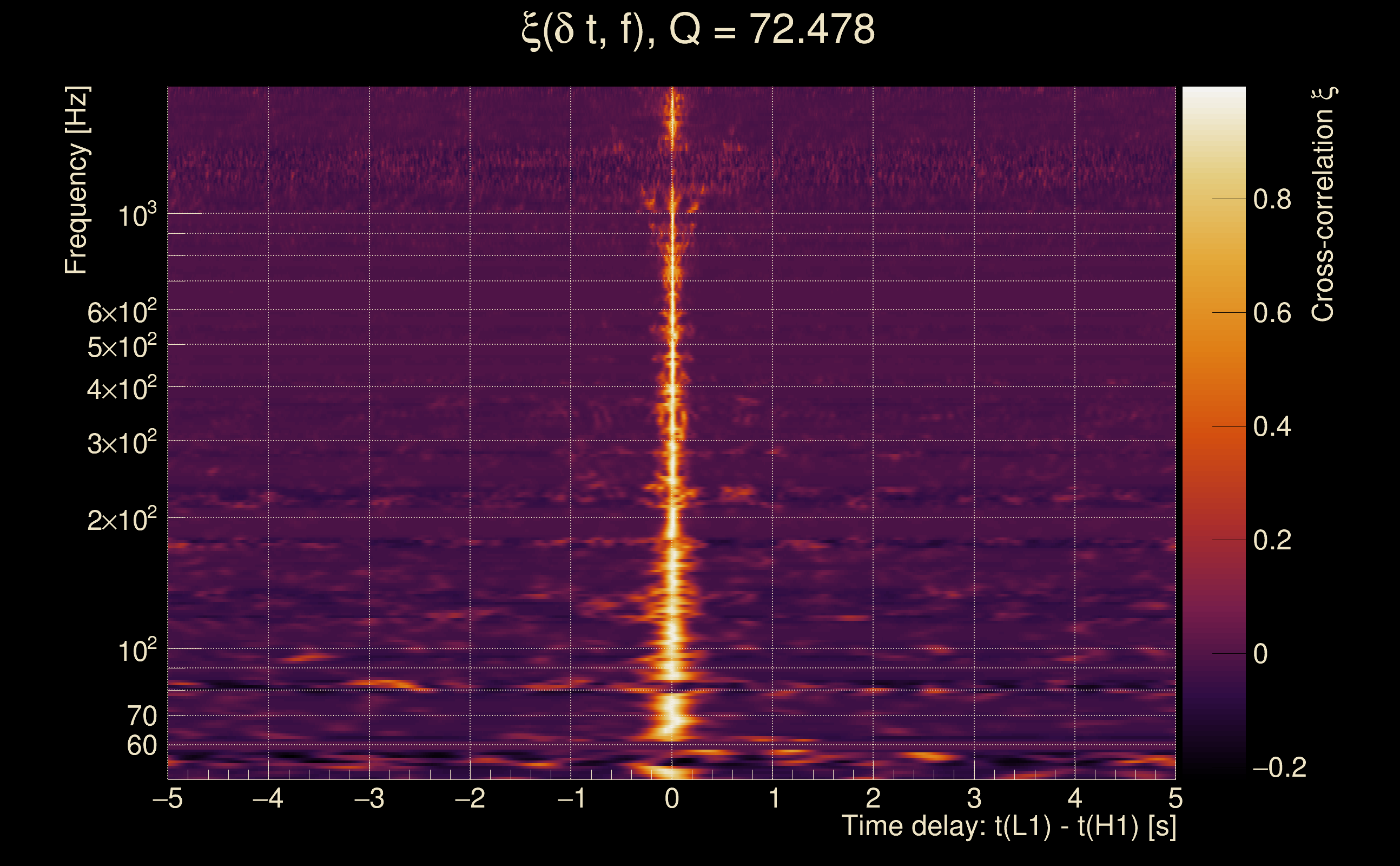

| Ξ: | 0.887112 ± 0.00599556 (variance = 3.59468e-05): Q0: 0.940052, Q1: 0.929565, Q2: 0.929001, Q3: 0.926651, Q4: 0.92175 |
| Rank: | R_A = 0.839287 |
| Log of amplitude ratio (L1/H1): | -0.166452, variance = 0.154858 (L1/H1: -0.161459, variance = 0.307639, H1/L1: 0.171505, variance = 0.311822) |
| Amplitude ratio (L1/H1): | 0.846663 ⋇ 1.48219 (L1/H1: 0.850902 ⋇ 1.74134, H1/L1: 1.18709 ⋇ 1.74789) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.989815 |

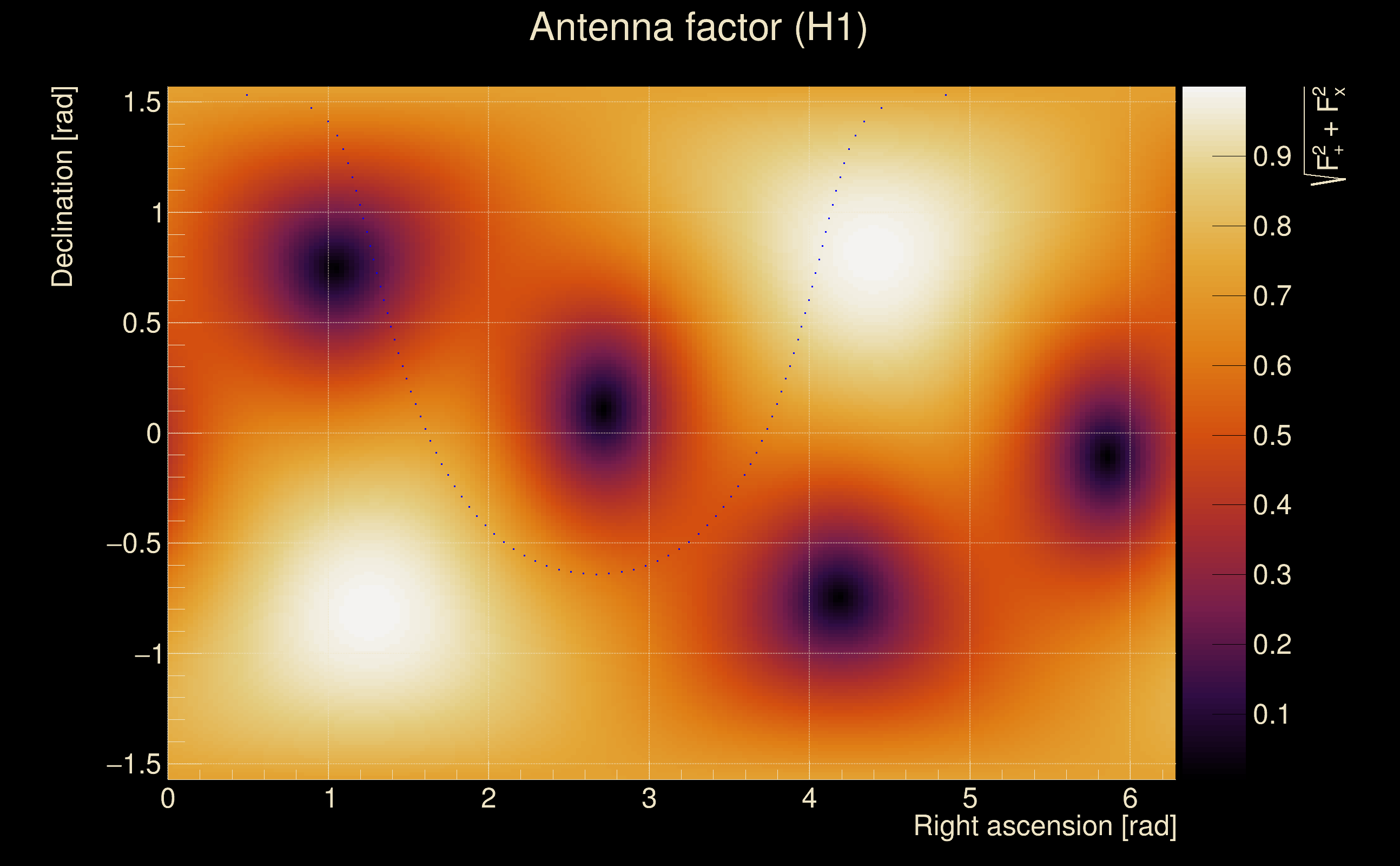

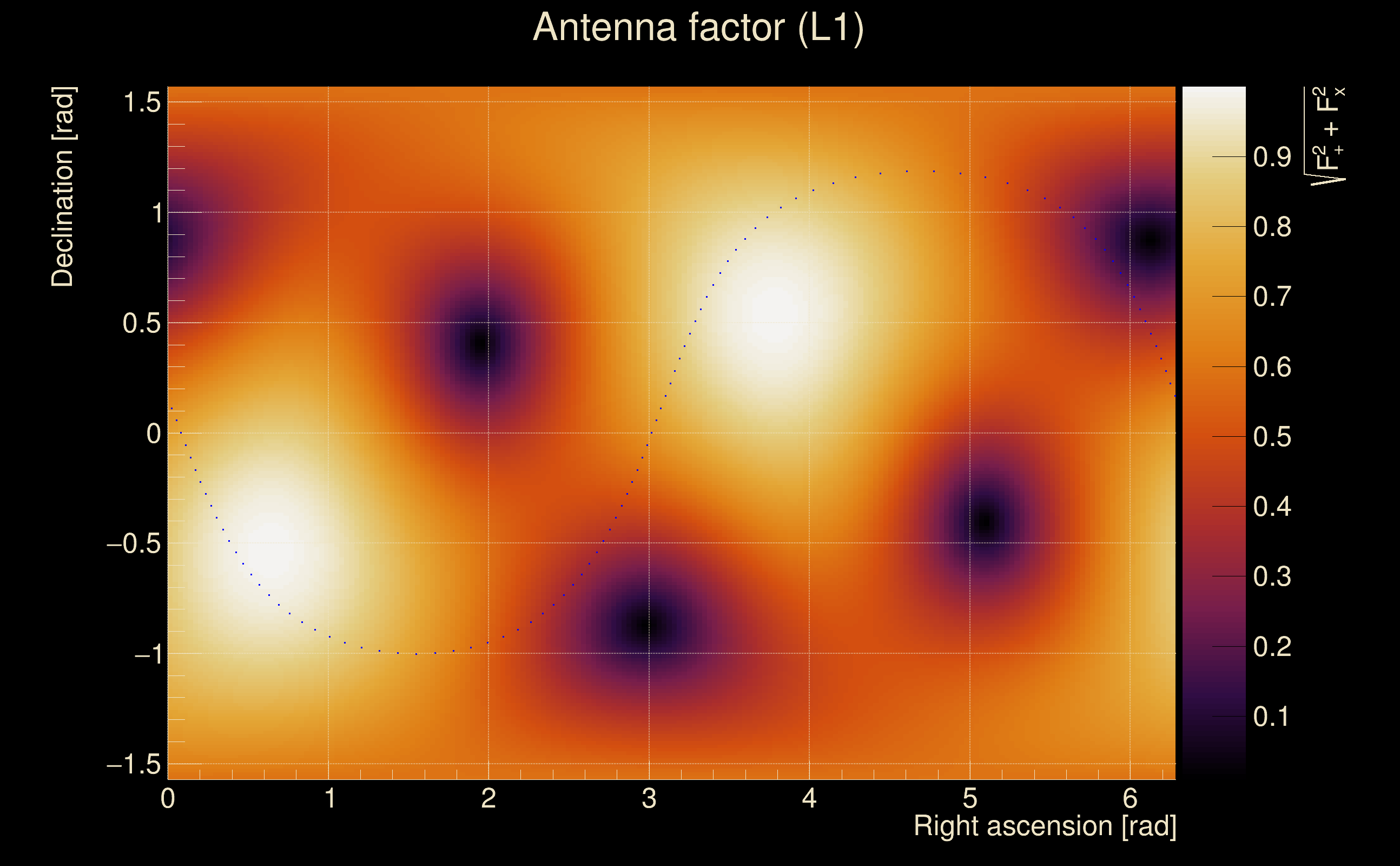

| Antenna factor probability: | 0.972853 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 8 / 70, Q3: 35 / 134, Q4: 80 / 258 |
| Maximum signal-to-noise ratio: | H1: 53.3272, L1: 53.0087 |
| SNR variance: | H1: 2.42533, L1: 2.02174 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

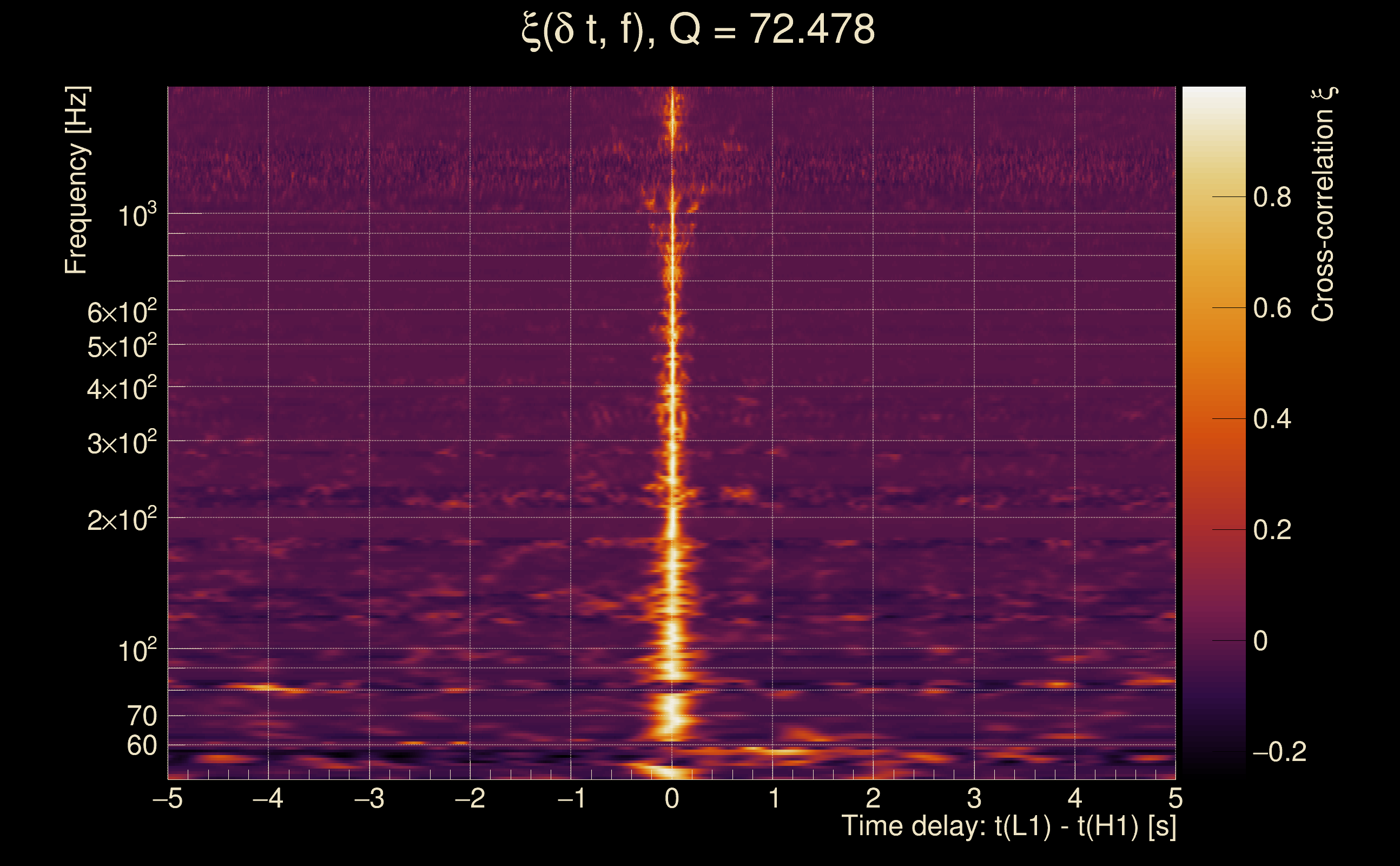

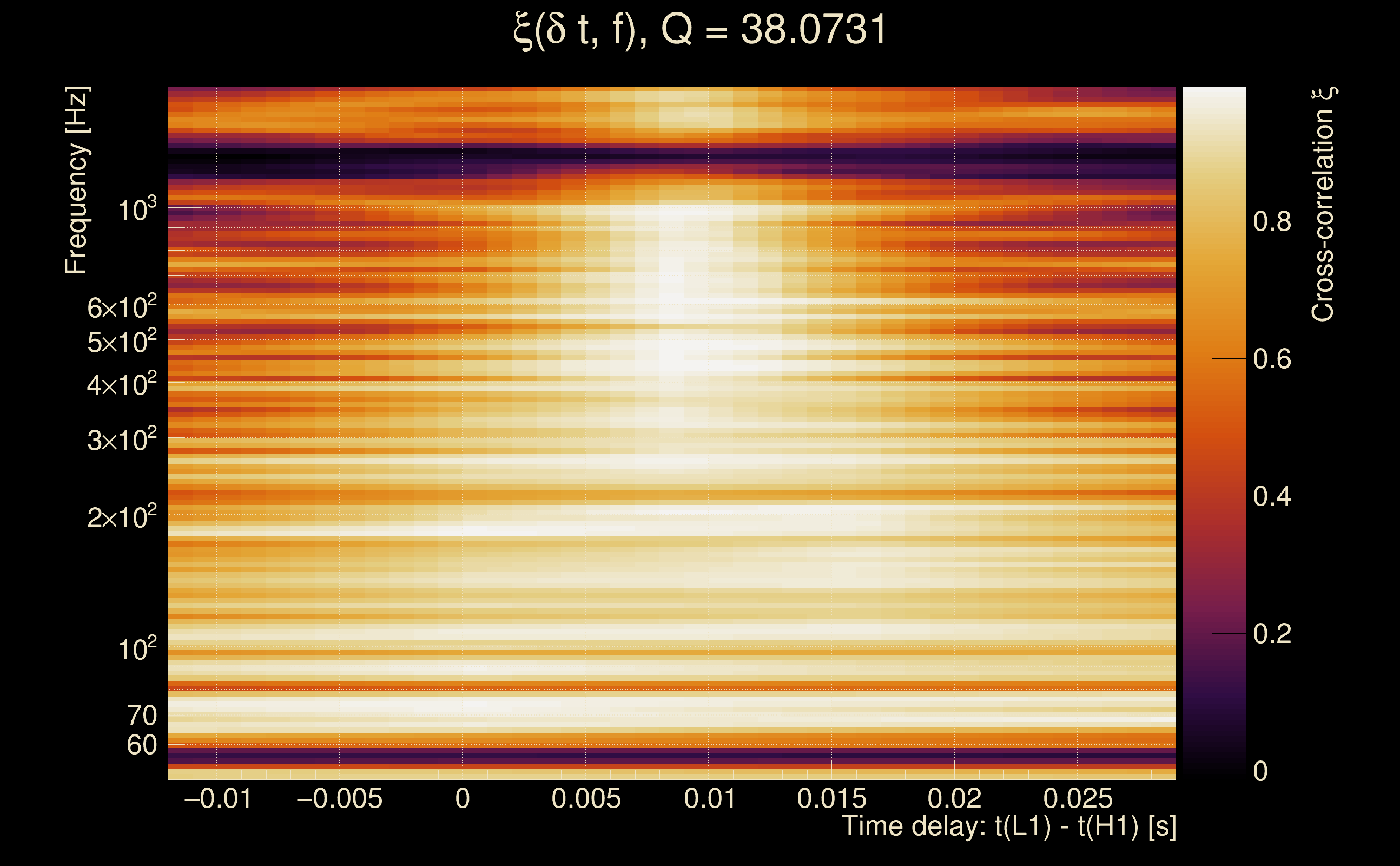

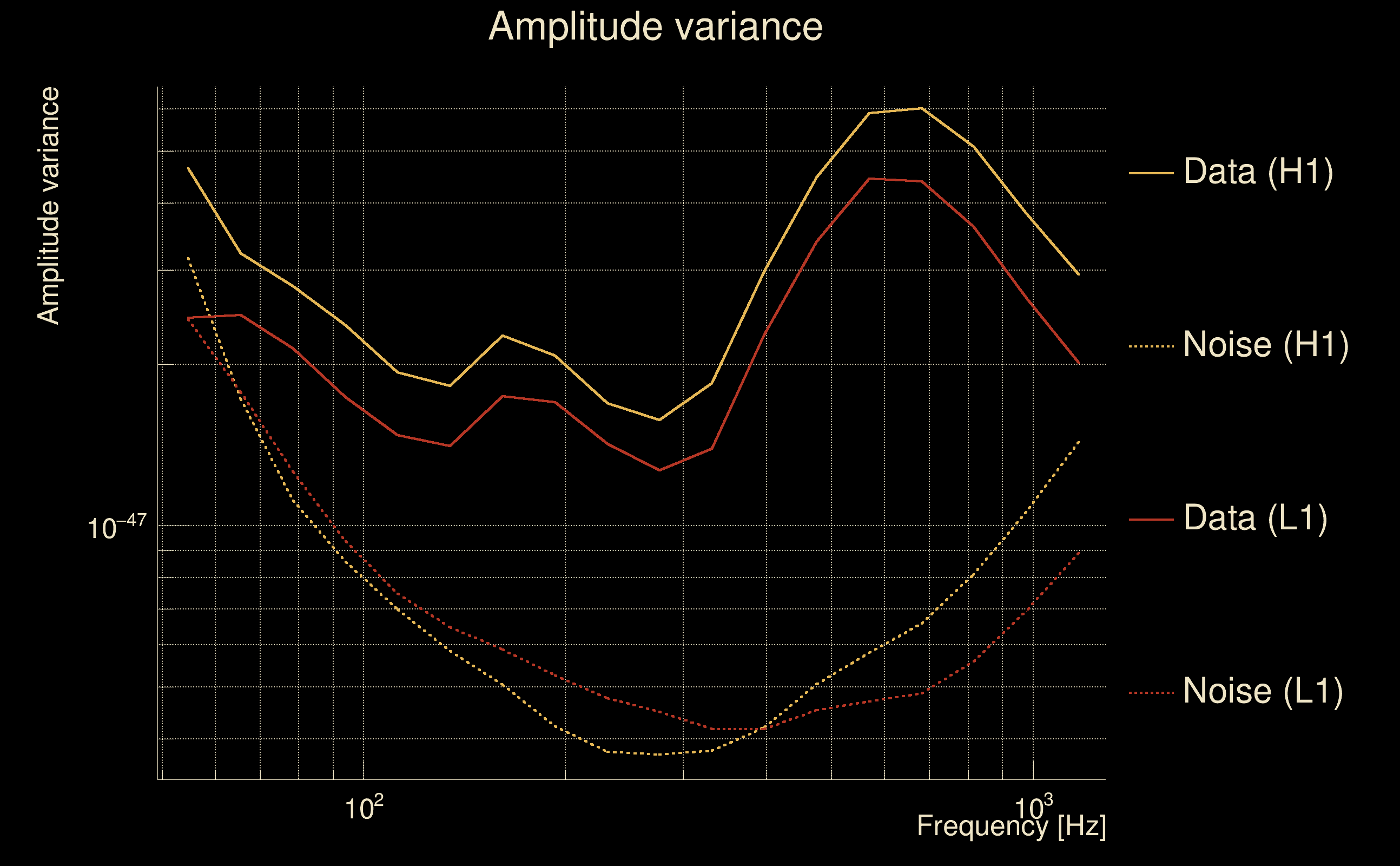

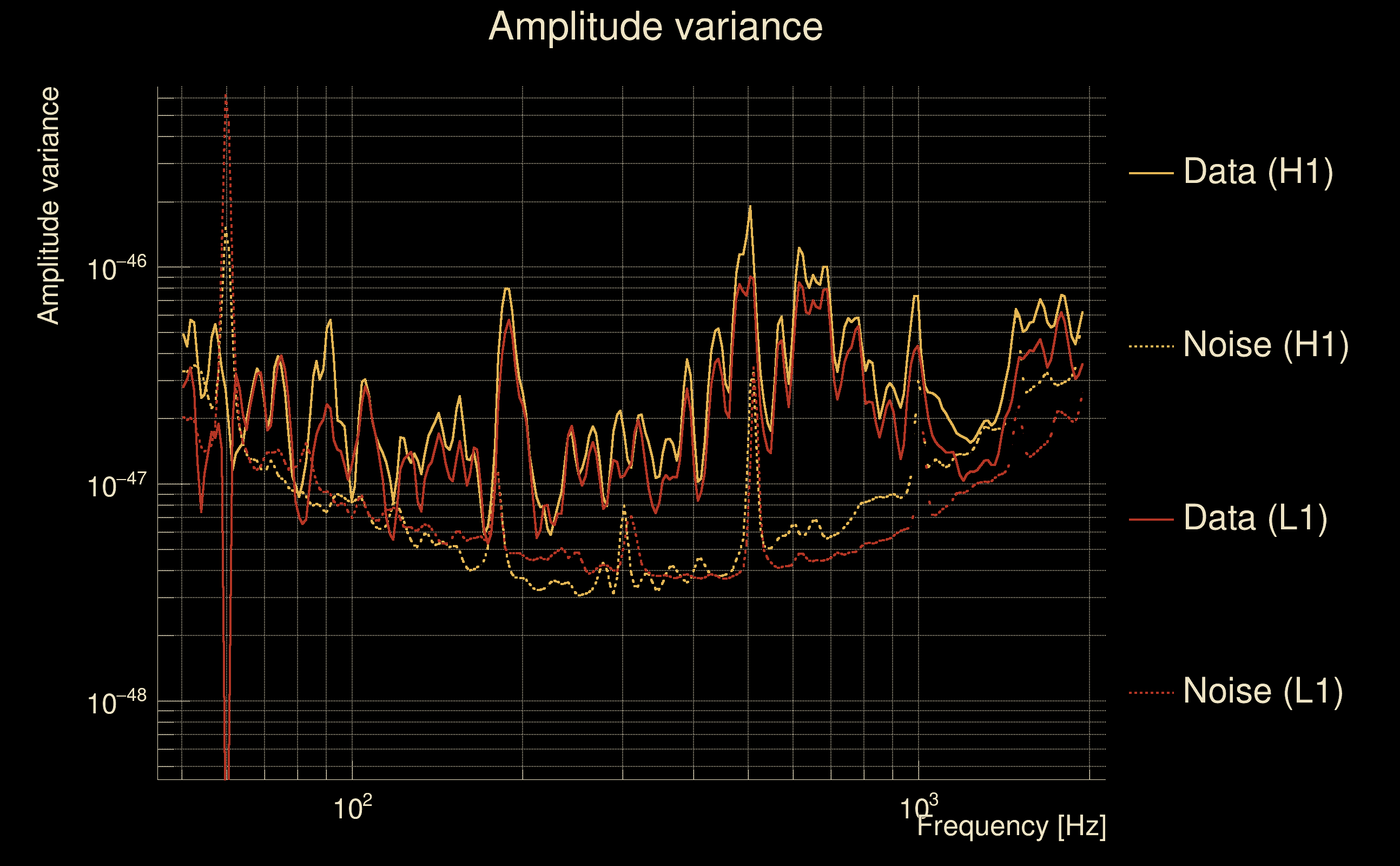

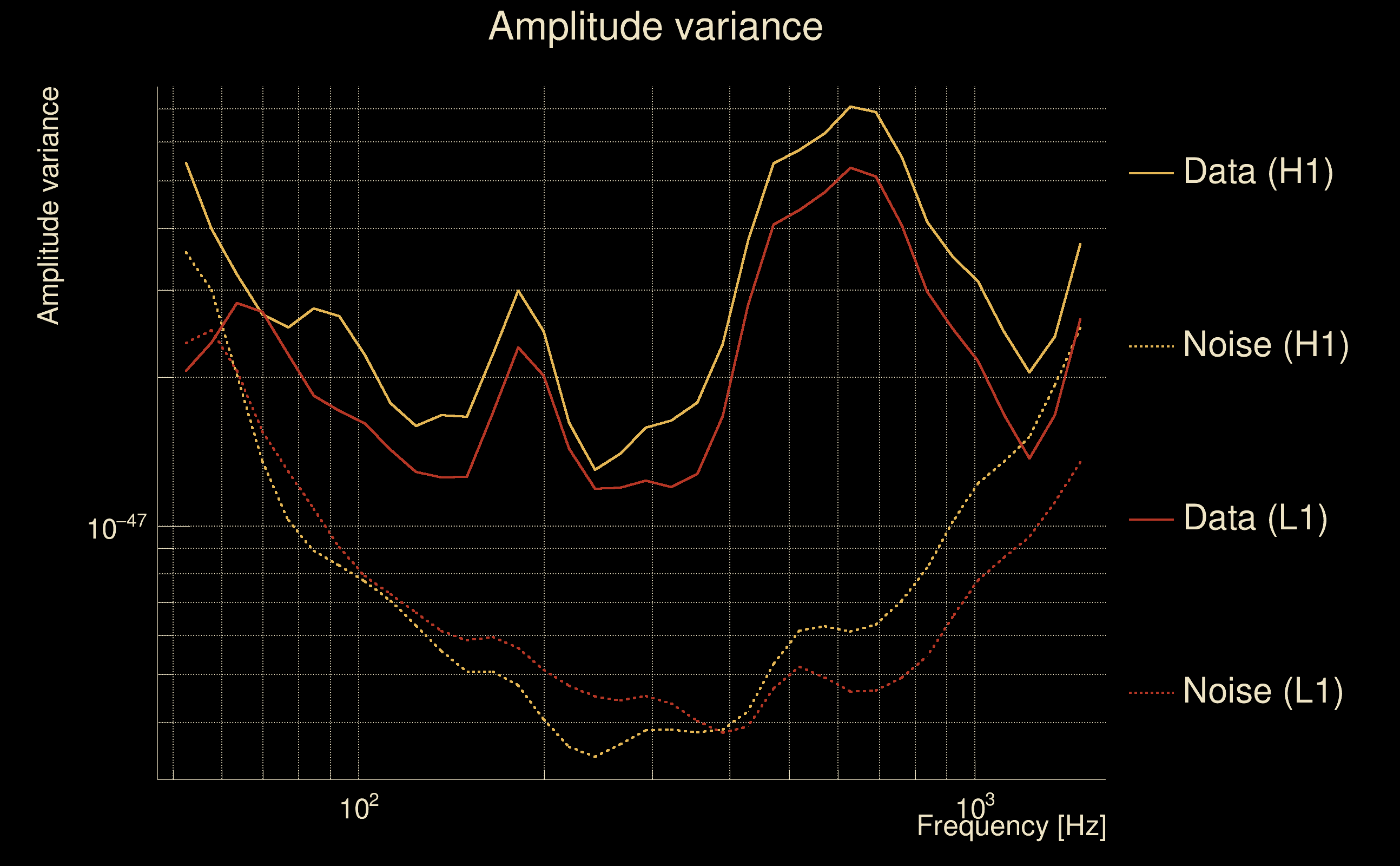

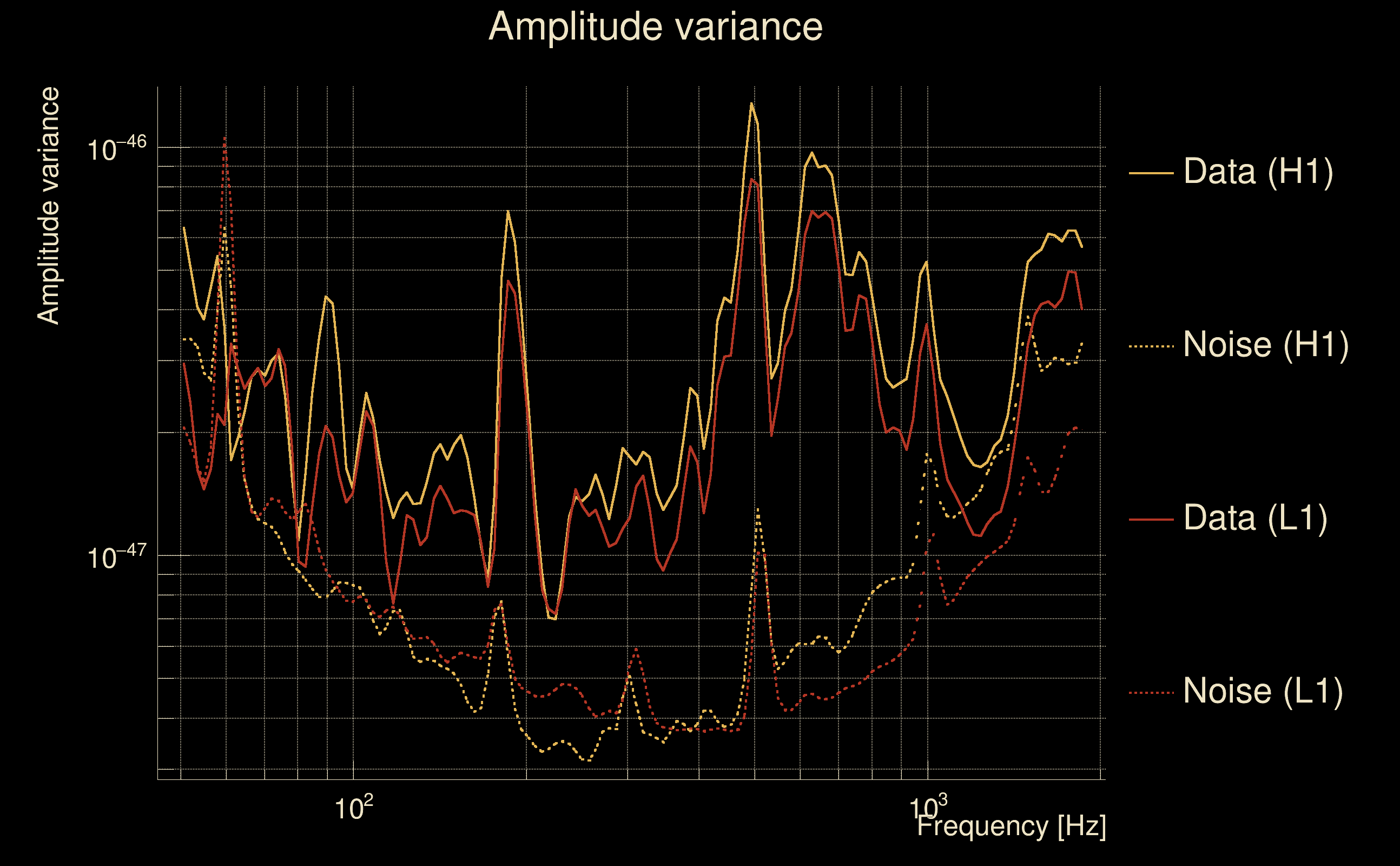

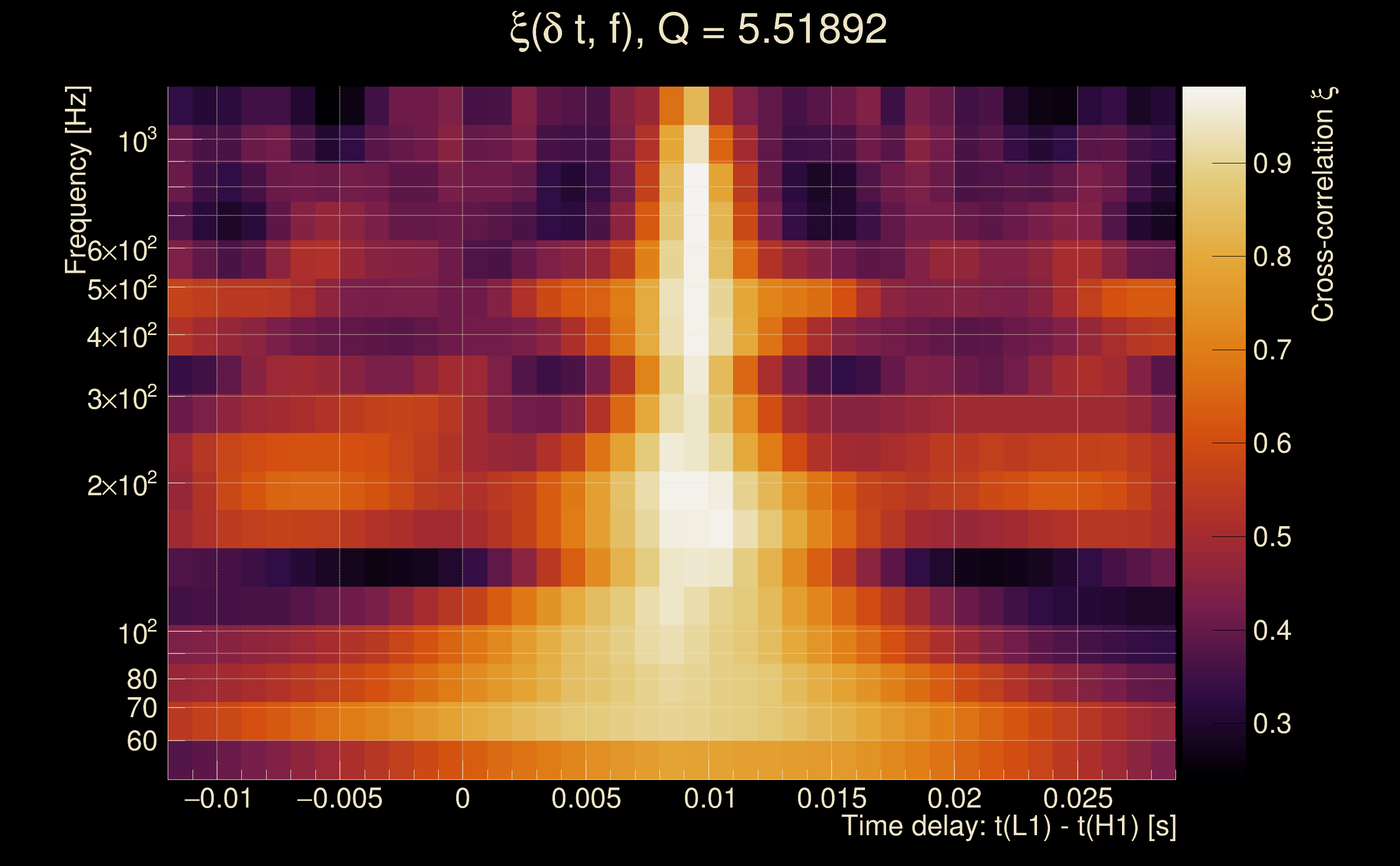

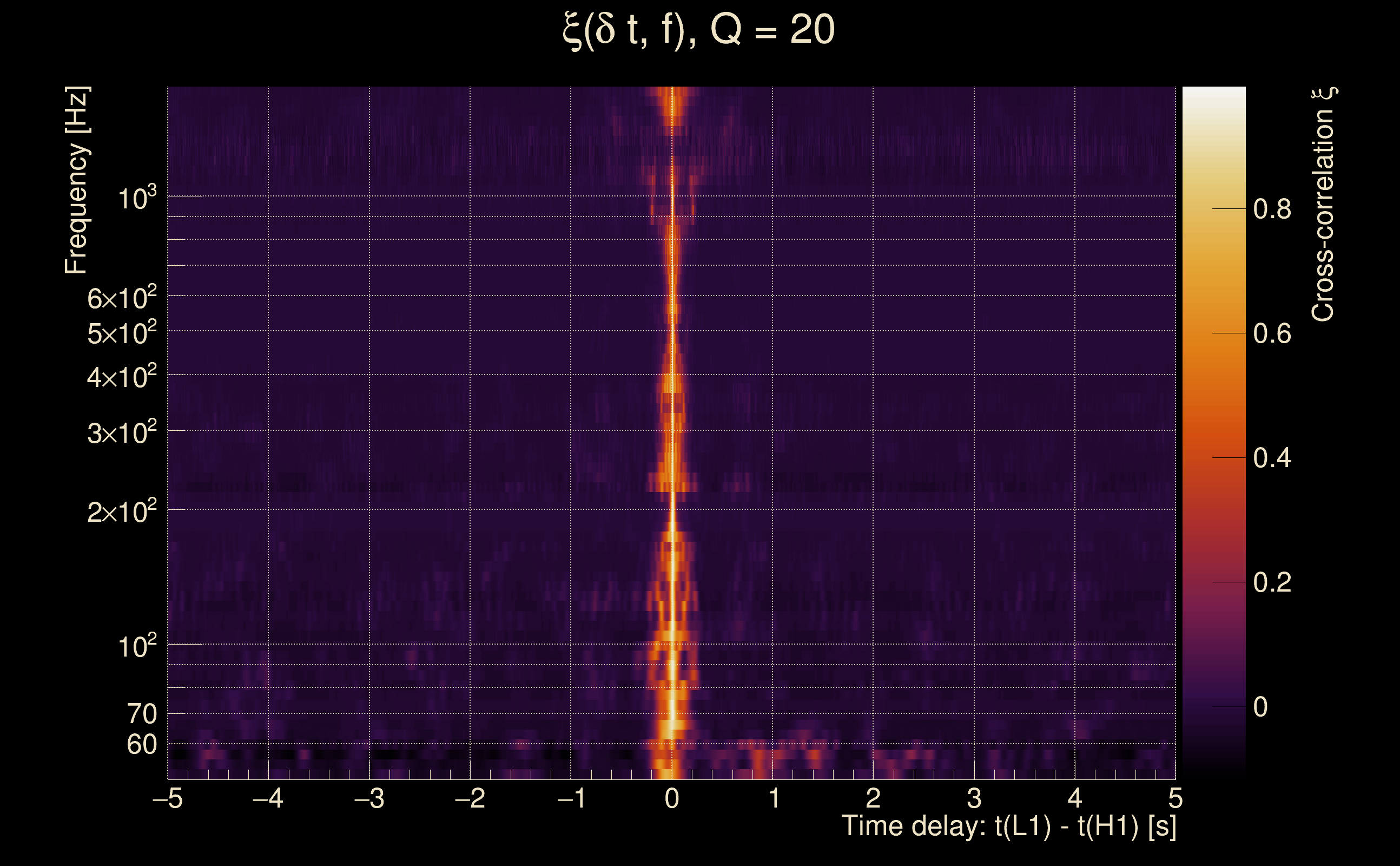

| Event time t(H1): | GPS = 1368452918 (Thu May 18 13:48:20 2023 ) → GPS = 1368452928 (Thu May 18 13:48:30 2023 ) |
| Event time t(L1): | GPS = 1368452918 (Thu May 18 13:48:30 2023 ) → GPS = 1368452928 (Thu May 18 13:48:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368452915 → GPS = 1368452931 |
| Omicron analysis time window (L1): | GPS = 1368452915 → GPS = 1368452931 |
| Time delay between detectors t(L1) - t(H1): | 0.00878692 s (slice index = 108 / 217), δt_gw = 0.00878692 s |
| Time delay standard deviation: | 0.0226991 s |
| [targeted mode] Time delay probability: | 0.978946 (0.0263899 sigmas), δt_target = 0.00877285 s |
| Frequency: | 318.55 Hz |
| Ξ: | 0.887777 ± 0.0060963 (variance = 3.71649e-05): Q0: 0.940805, Q1: 0.930146, Q2: 0.929732, Q3: 0.925139, Q4: 0.923253 |
| Rank: | R_A = 0.837084 |
| Log of amplitude ratio (L1/H1): | -0.168376, variance = 0.154735 (L1/H1: -0.16169, variance = 0.307419, H1/L1: 0.17511, variance = 0.311543) |
| Amplitude ratio (L1/H1): | 0.845036 ⋇ 1.48196 (L1/H1: 0.850705 ⋇ 1.74099, H1/L1: 1.19138 ⋇ 1.74745) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.986391 |
| Antenna factor probability: | 0.976466 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 8 / 70, Q3: 34 / 134, Q4: 83 / 258 |
| Maximum signal-to-noise ratio: | H1: 53.3231, L1: 53.1296 |
| SNR variance: | H1: 0.488405, L1: 0.41387 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

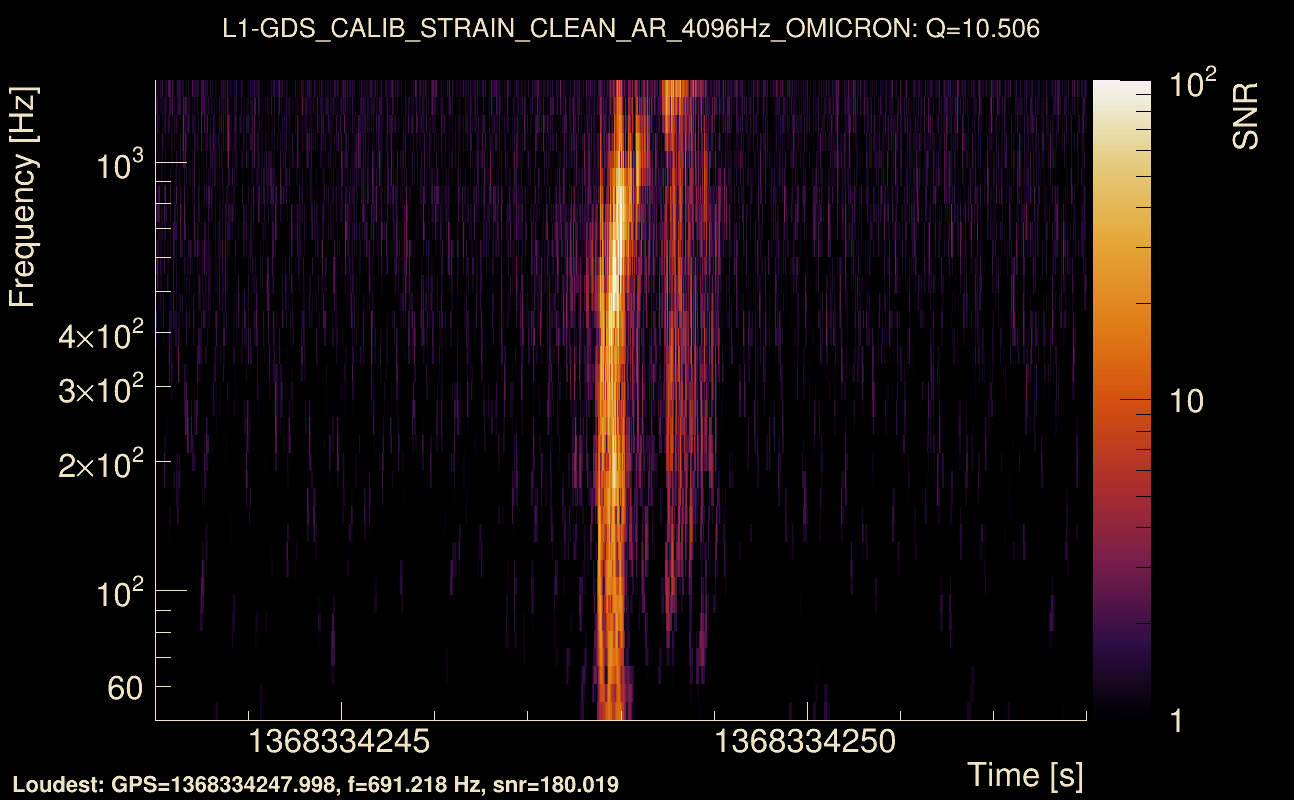

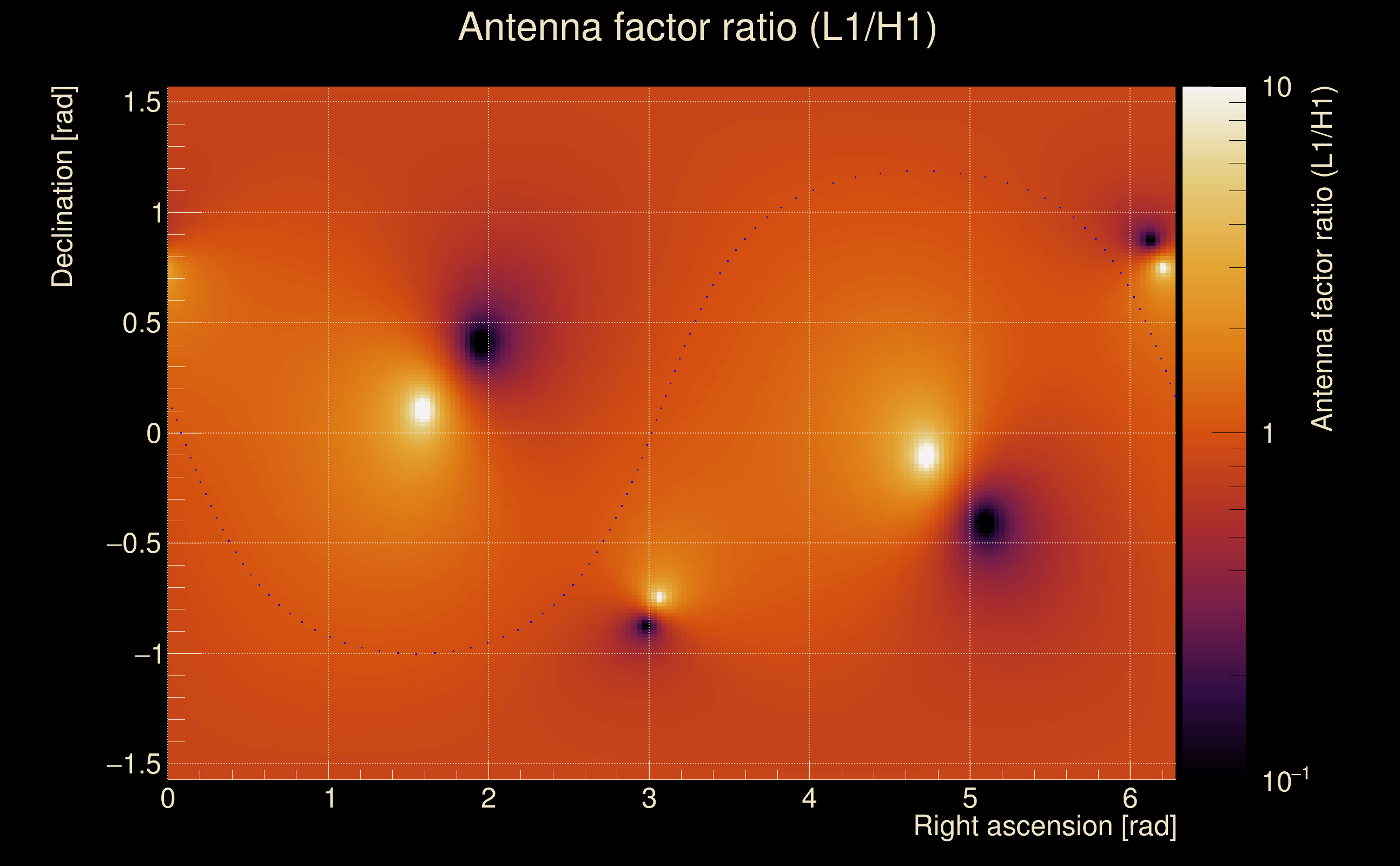

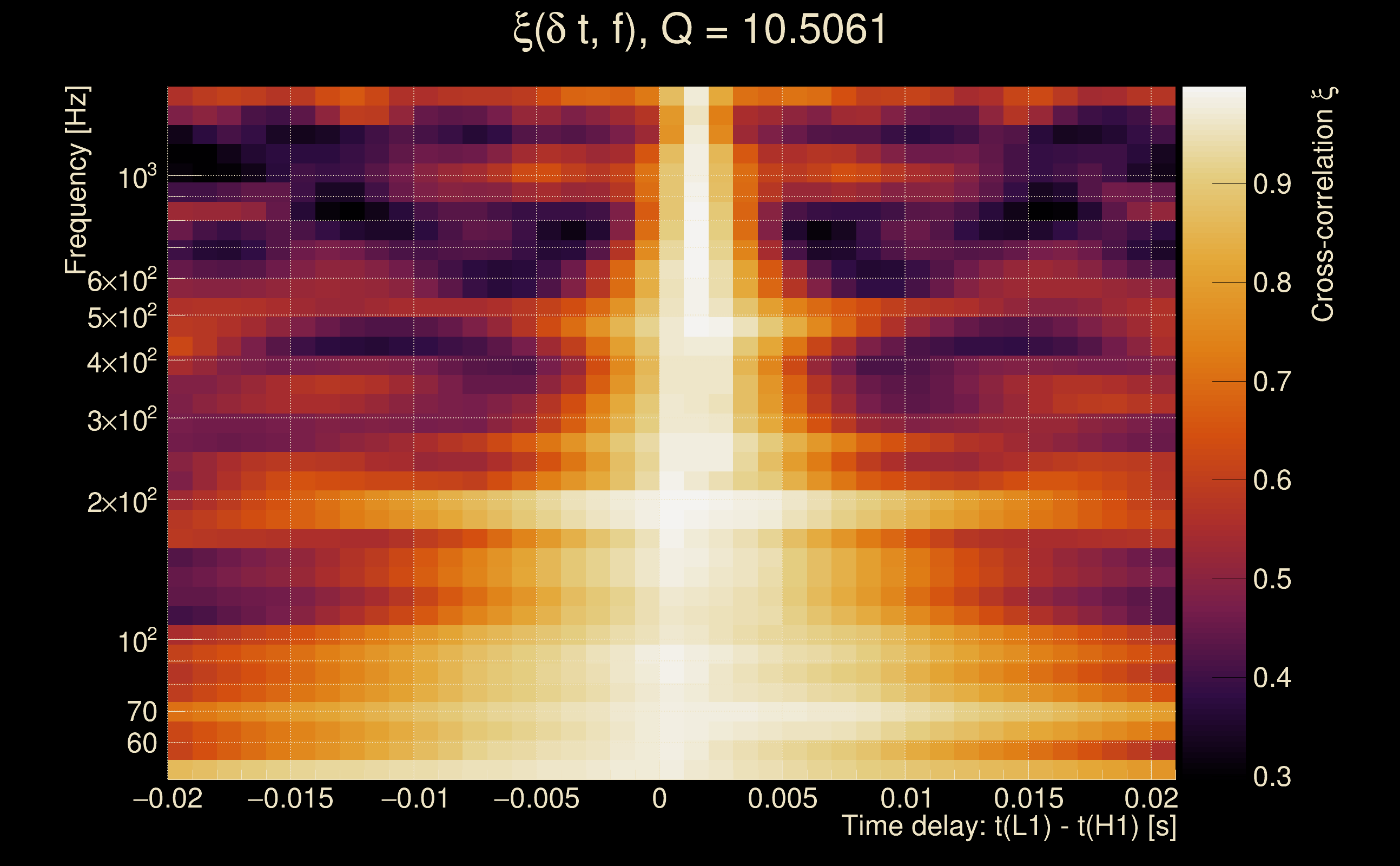

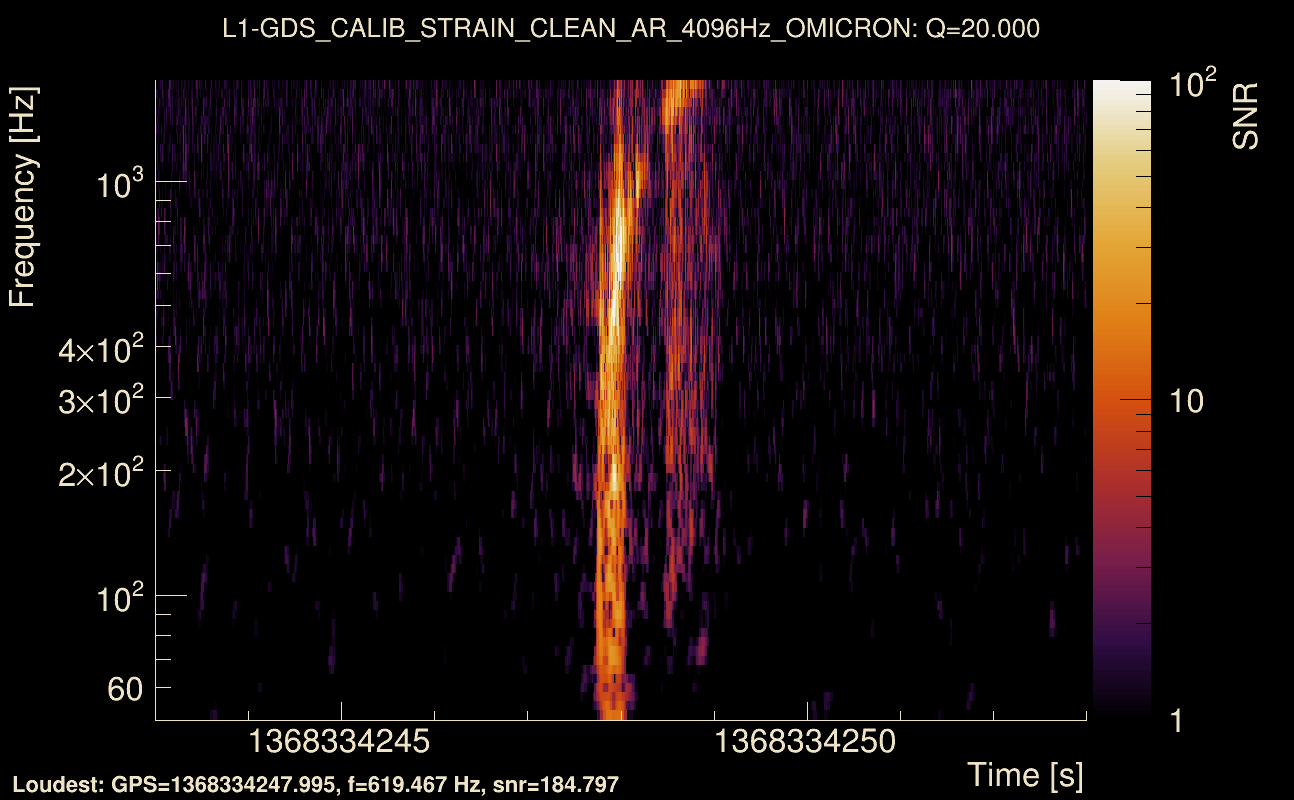

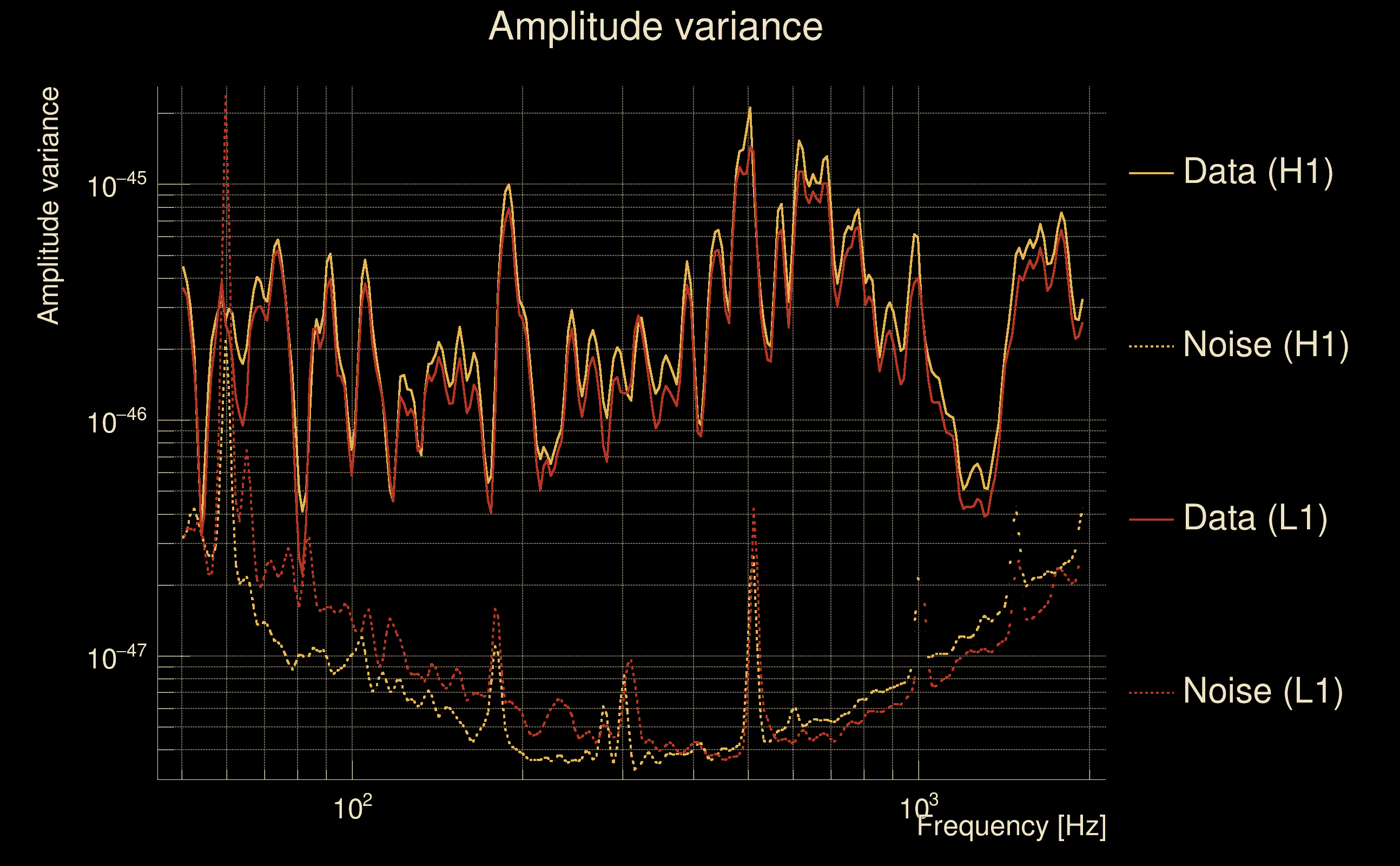

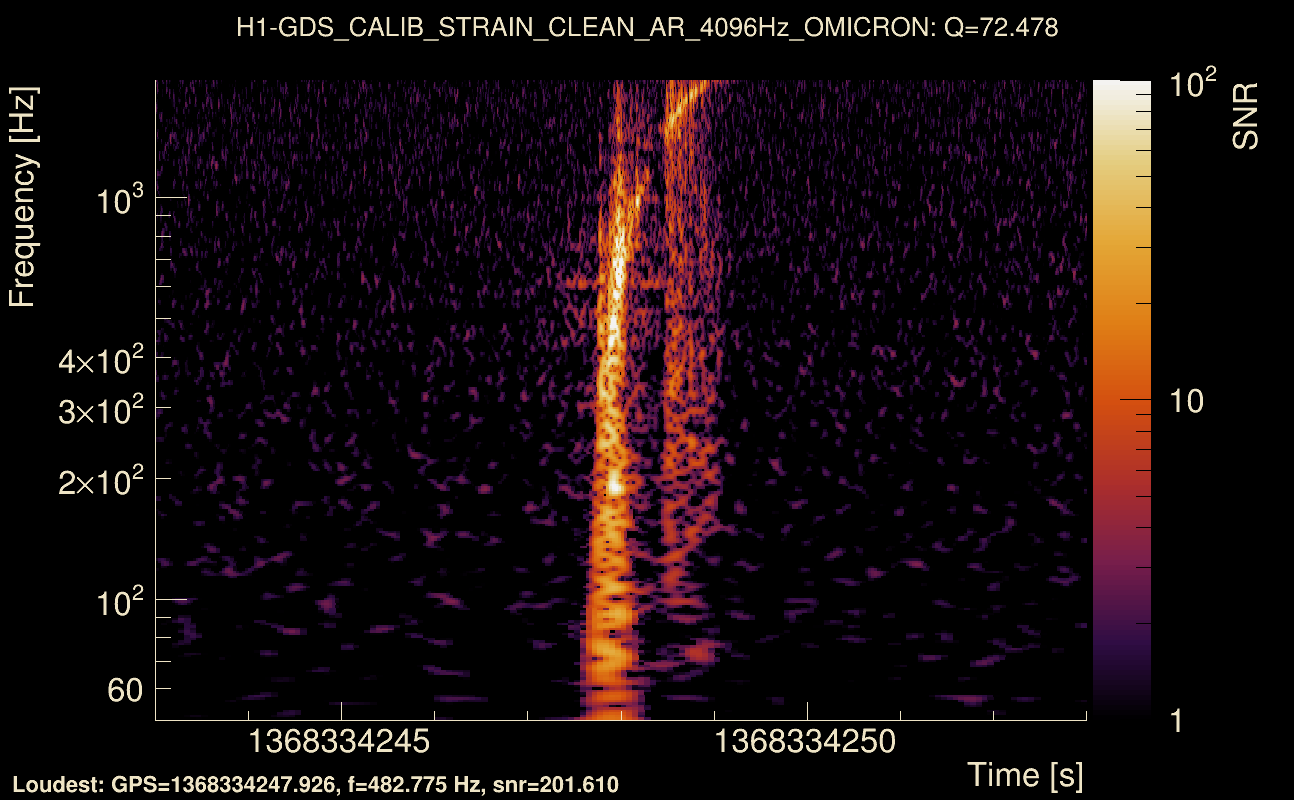

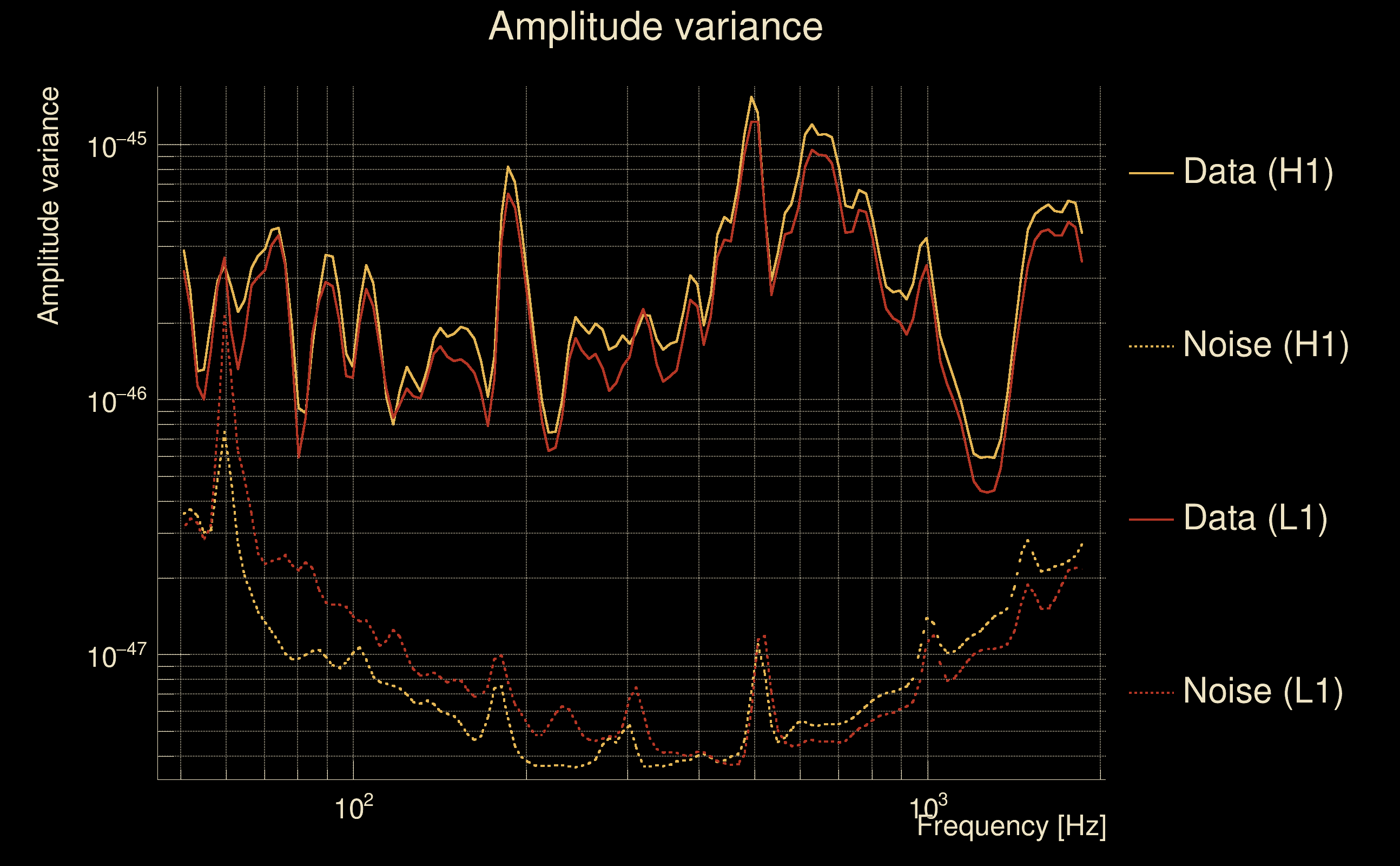

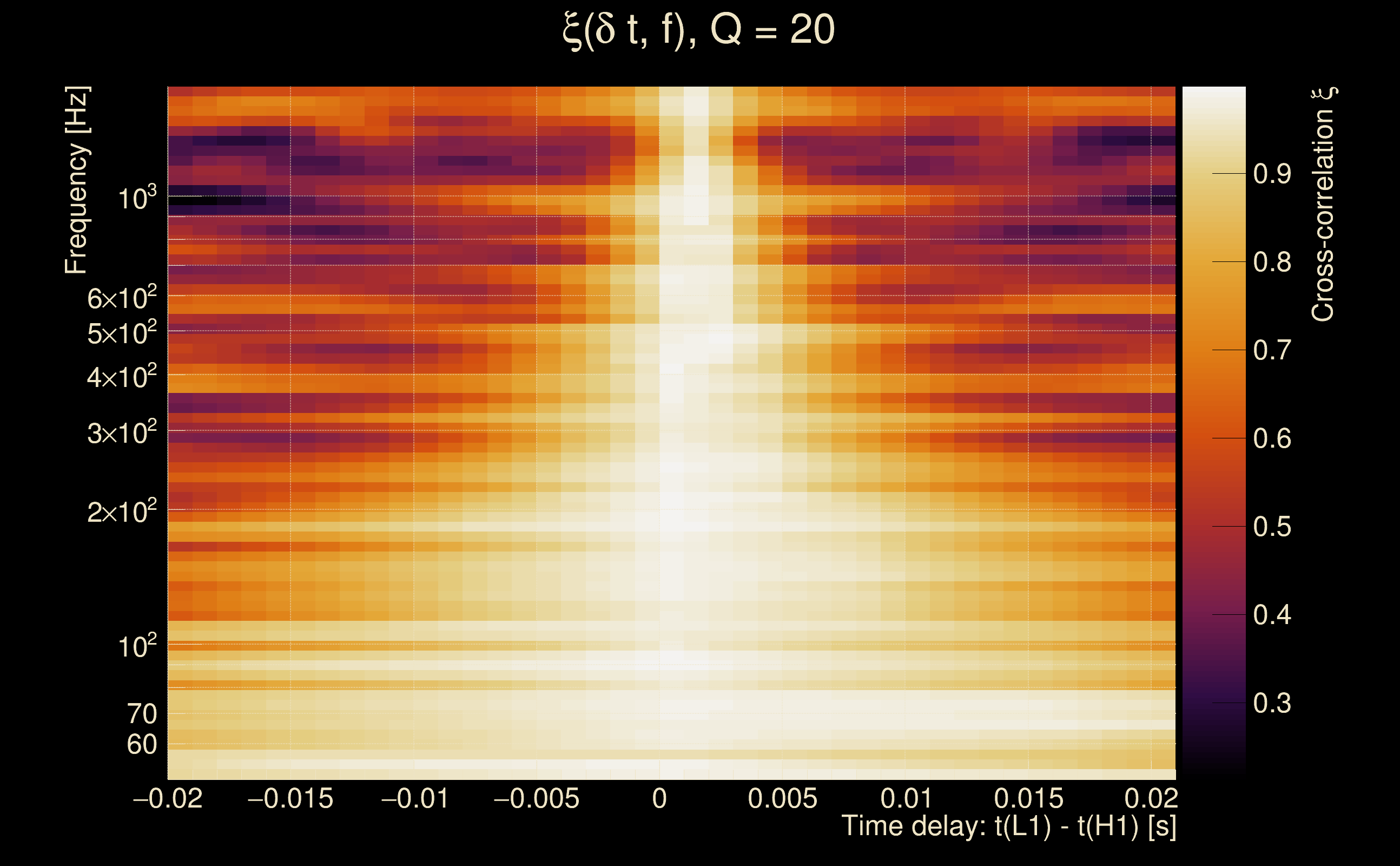

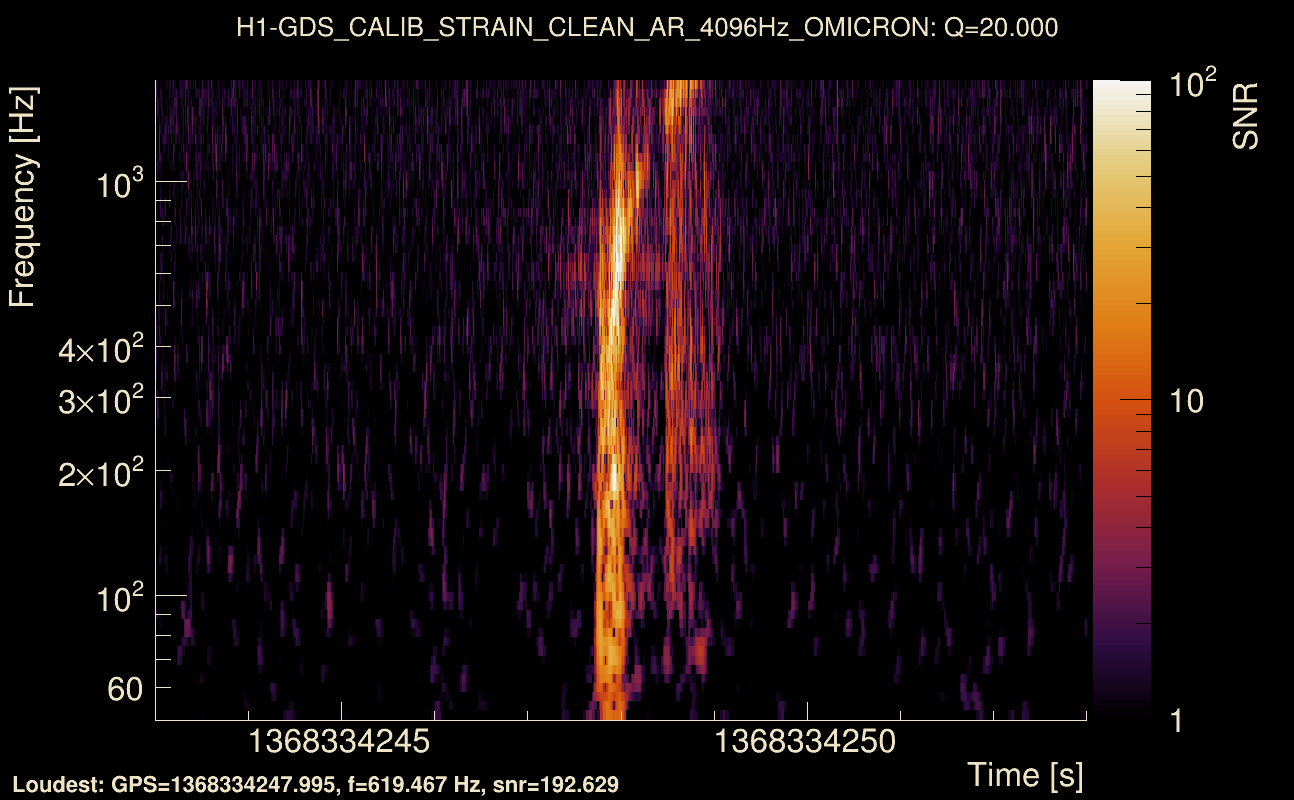

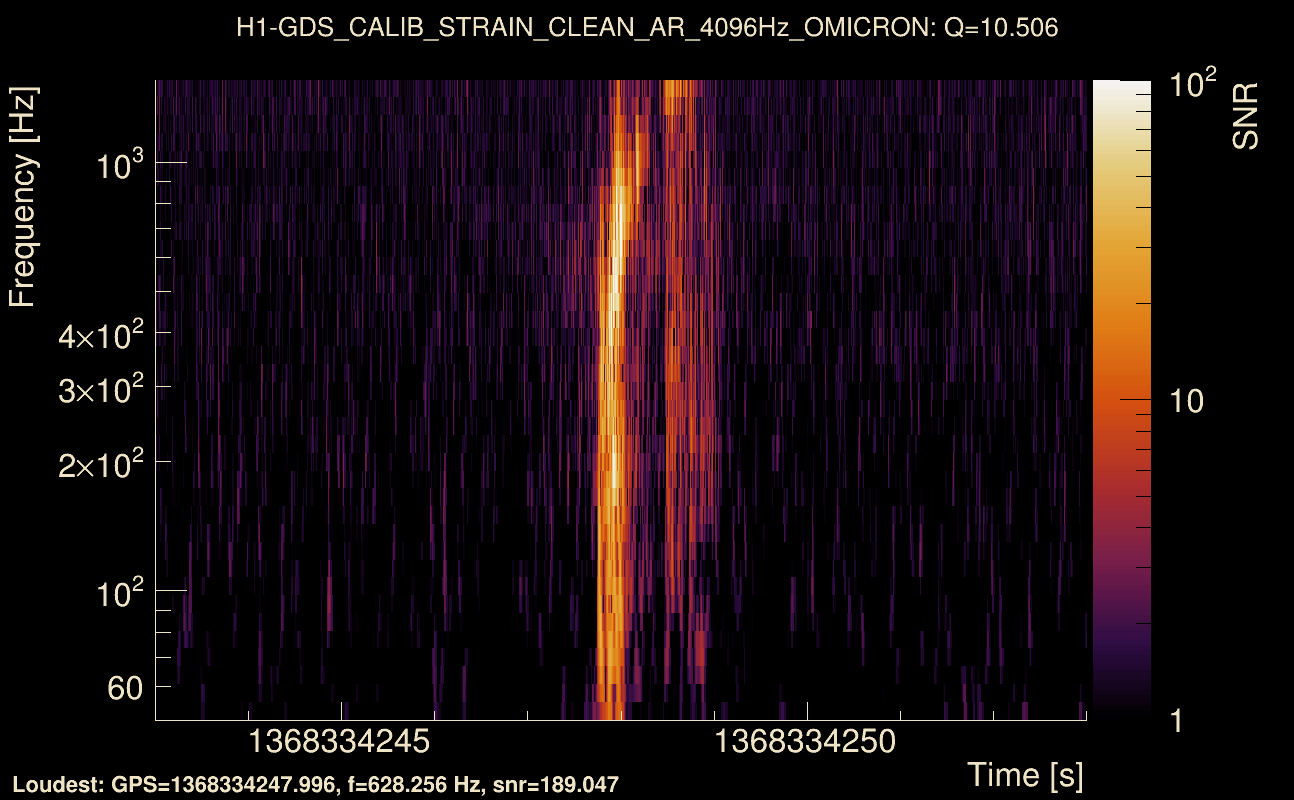

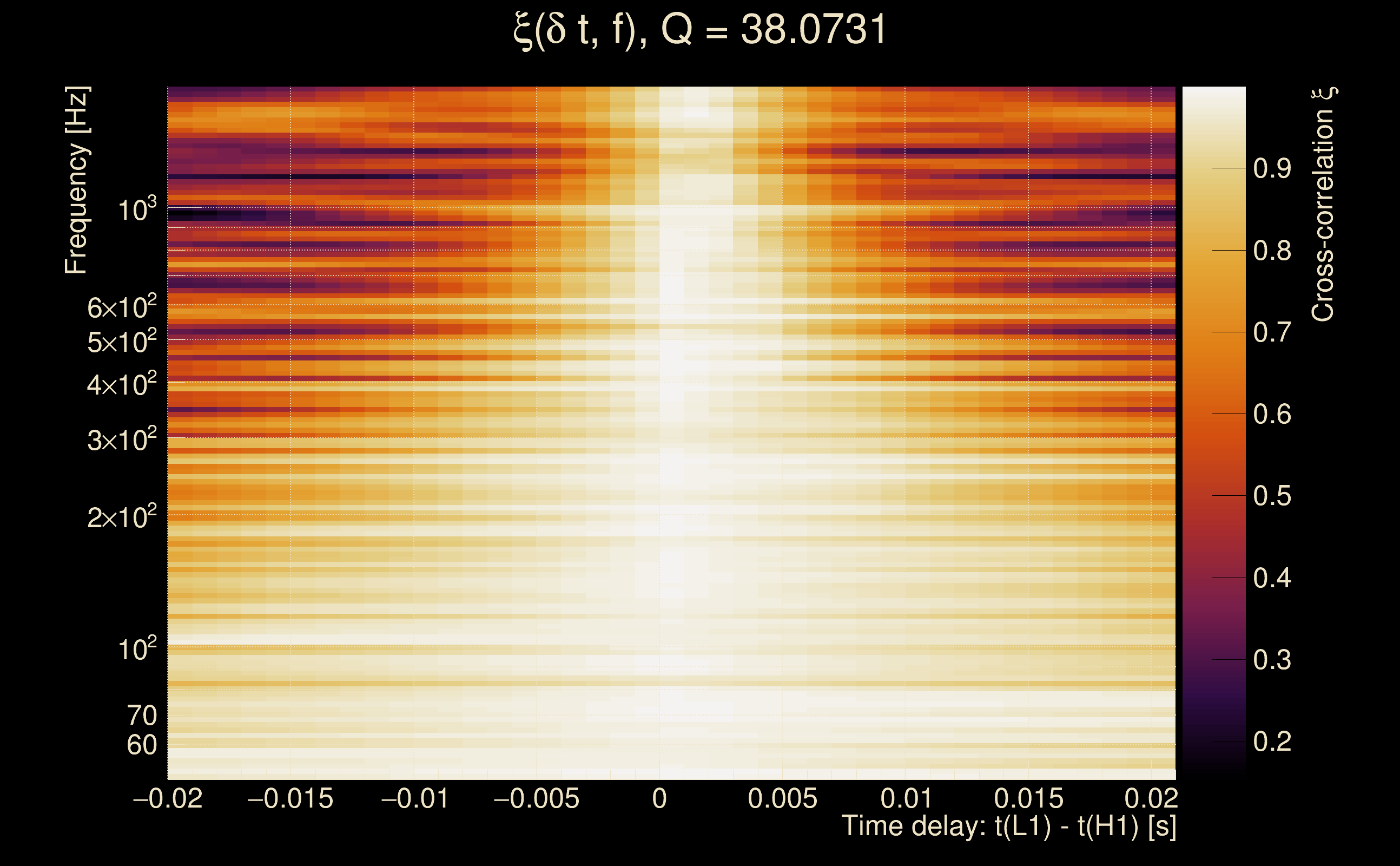

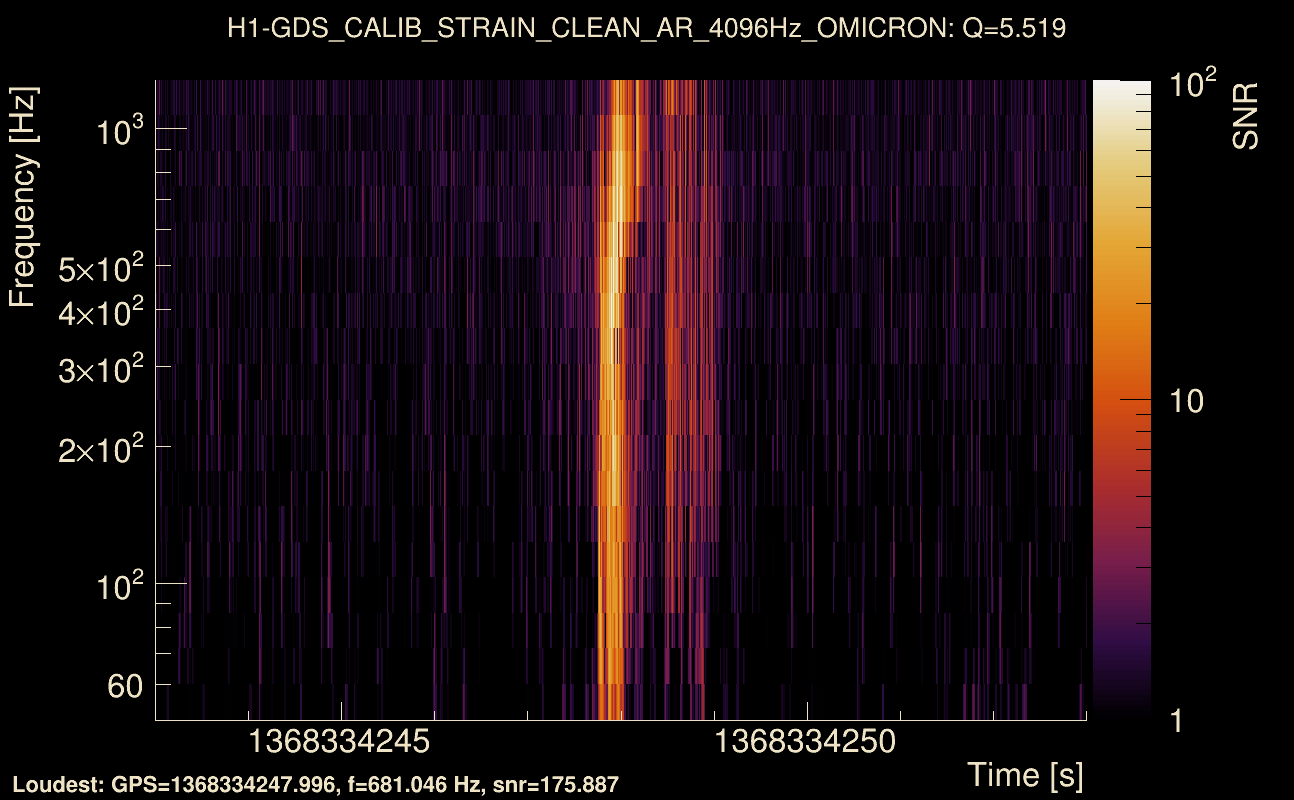

| Event time t(H1): | GPS = 1368334243 (Wed May 17 04:50:25 2023 ) → GPS = 1368334253 (Wed May 17 04:50:35 2023 ) |
| Event time t(L1): | GPS = 1368334243 (Wed May 17 04:50:35 2023 ) → GPS = 1368334253 (Wed May 17 04:50:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368334240 → GPS = 1368334256 |
| Omicron analysis time window (L1): | GPS = 1368334240 → GPS = 1368334256 |
| Time delay between detectors t(L1) - t(H1): | 0.000933108 s (slice index = 108 / 217), δt_gw = 0.000933108 s |
| Time delay standard deviation: | 0.0185524 s |
| [targeted mode] Time delay probability: | 0.93416 (0.0826122 sigmas), δt_target = 0.00877333 s |
| Frequency: | 288.403 Hz |
| Ξ: | 0.986748 ± 0.000630792 (variance = 3.97898e-07): Q0: 0.987697, Q1: 0.987041, Q2: 0.985941, Q3: 0.986155, Q4: 0.986628 |
| Rank: | R_A = 0.811977 |
| Log of amplitude ratio (L1/H1): | -0.0938685, variance = 0.150742 (L1/H1: -0.105857, variance = 0.300864, H1/L1: 0.0829426, variance = 0.300815) |
| Amplitude ratio (L1/H1): | 0.910402 ⋇ 1.47441 (L1/H1: 0.899553 ⋇ 1.73067, H1/L1: 1.08648 ⋇ 1.7306) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.976433 |
| Antenna factor probability: | 0.902139 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 207.553, L1: 217.41 |
| SNR variance: | H1: 24.3019, L1: 23.7711 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368336698 (Wed May 17 05:31:20 2023 ) → GPS = 1368336708 (Wed May 17 05:31:30 2023 ) |
| Event time t(L1): | GPS = 1368336698 (Wed May 17 05:31:30 2023 ) → GPS = 1368336708 (Wed May 17 05:31:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368336695 → GPS = 1368336711 |
| Omicron analysis time window (L1): | GPS = 1368336695 → GPS = 1368336711 |
| Time delay between detectors t(L1) - t(H1): | -3.21836 s (slice index = 178 / 217), δt_gw = 0.00164277 s |
| Time delay standard deviation: | 0.070863 s |
| [targeted mode] Time delay probability: | 0.976944 (0.0289008 sigmas), δt_target = 0.000961542 s |
| Frequency: | 267.159 Hz |
| Ξ: | 0.0212283 ± 0.0277675 (variance = 0.000771036): Q0: 0.0934649, Q1: 0.0572408, Q2: 0.0659384, Q3: 0.0757809, Q4: 0.135661 |
| Rank: | R_A = 0.0106115 |
| Log of amplitude ratio (L1/H1): | -0.122249, variance = 0.506285 (L1/H1: -0.560456, variance = 1.28266, H1/L1: -0.322159, variance = 0.734681) |
| Amplitude ratio (L1/H1): | 0.884928 ⋇ 2.03712 (L1/H1: 0.570949 ⋇ 3.10355, H1/L1: 0.724583 ⋇ 2.3564) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.534327 |
| Antenna factor probability: | 0.957604 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 27 / 36, Q2: 62 / 70, Q3: 123 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.93884, L1: 4.90426 |
| SNR variance: | H1: 0.513148, L1: 0.510972 |

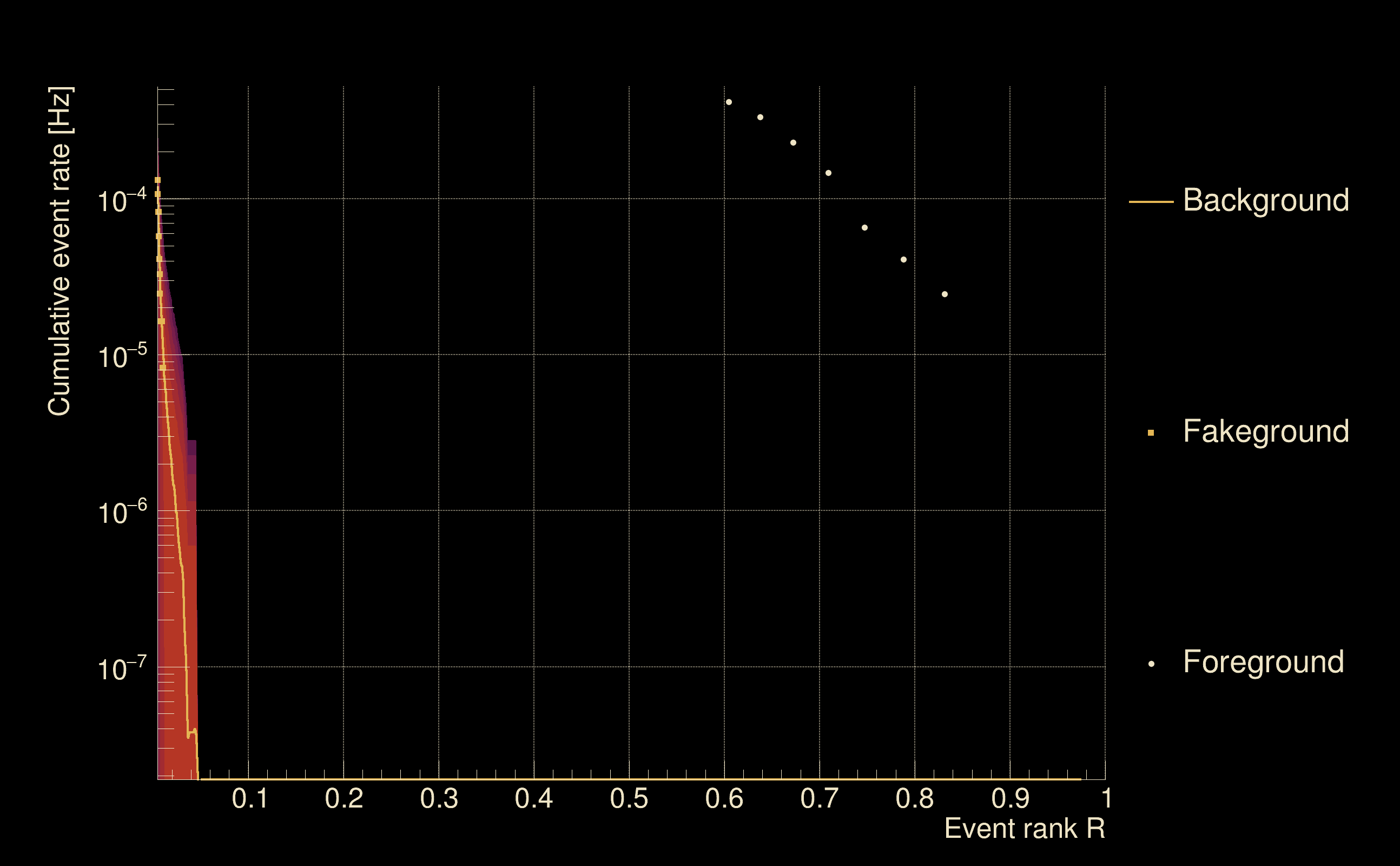

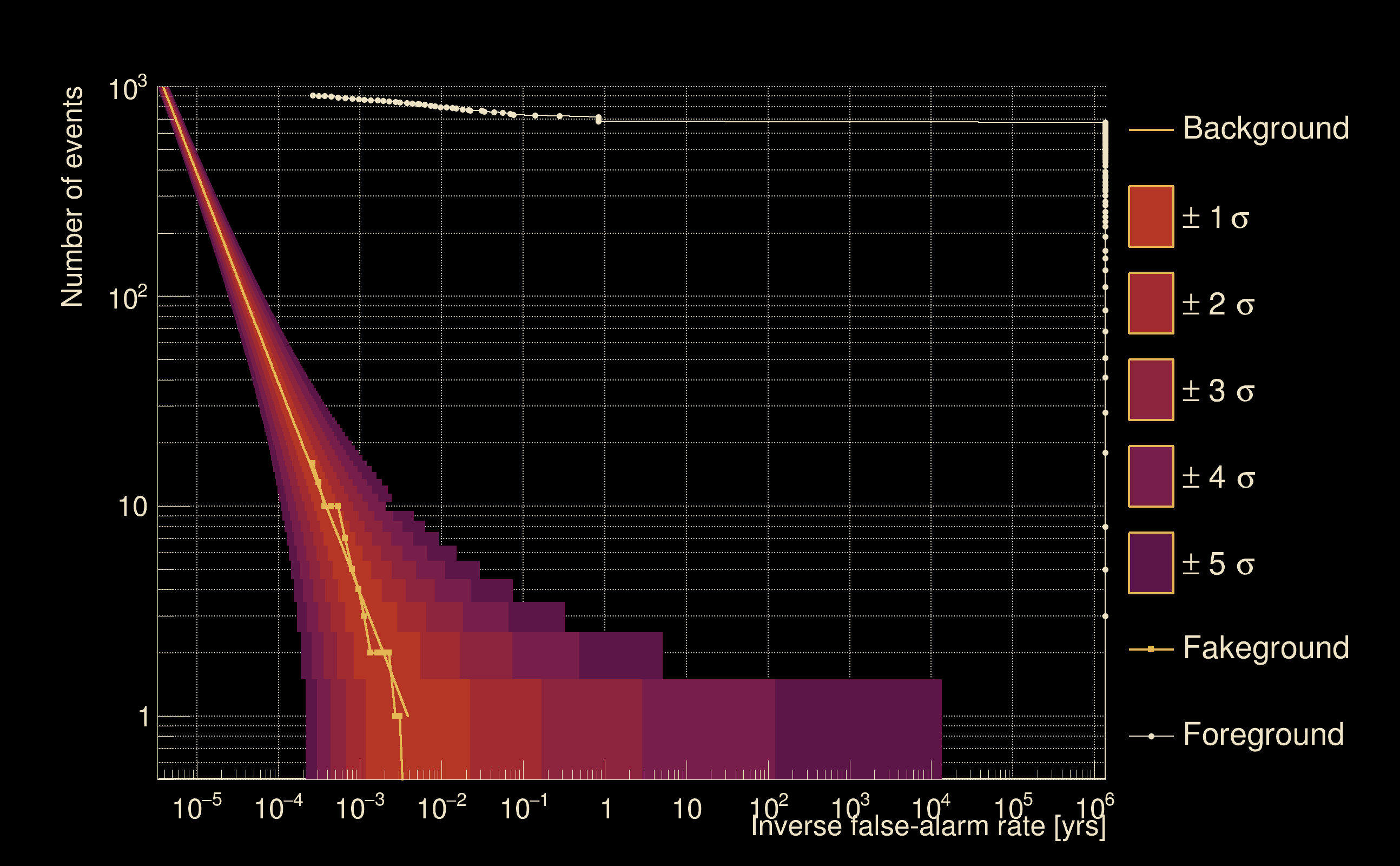

| Detection threshold: | R > 0.0316611 |
| False-alarm rate above that detection threshold: | 2.60302e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.0450868 |
| Alternative threshold at 1/100 yrs: | R > 0.0450868 |
| Alternative threshold at 1/10 yrs: | R > 0.0450868 |
| Alternative threshold at 1/1 yr: | R > 0.0450868 |
| Alternative threshold at 1/1 d: | R > 0.0102292 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

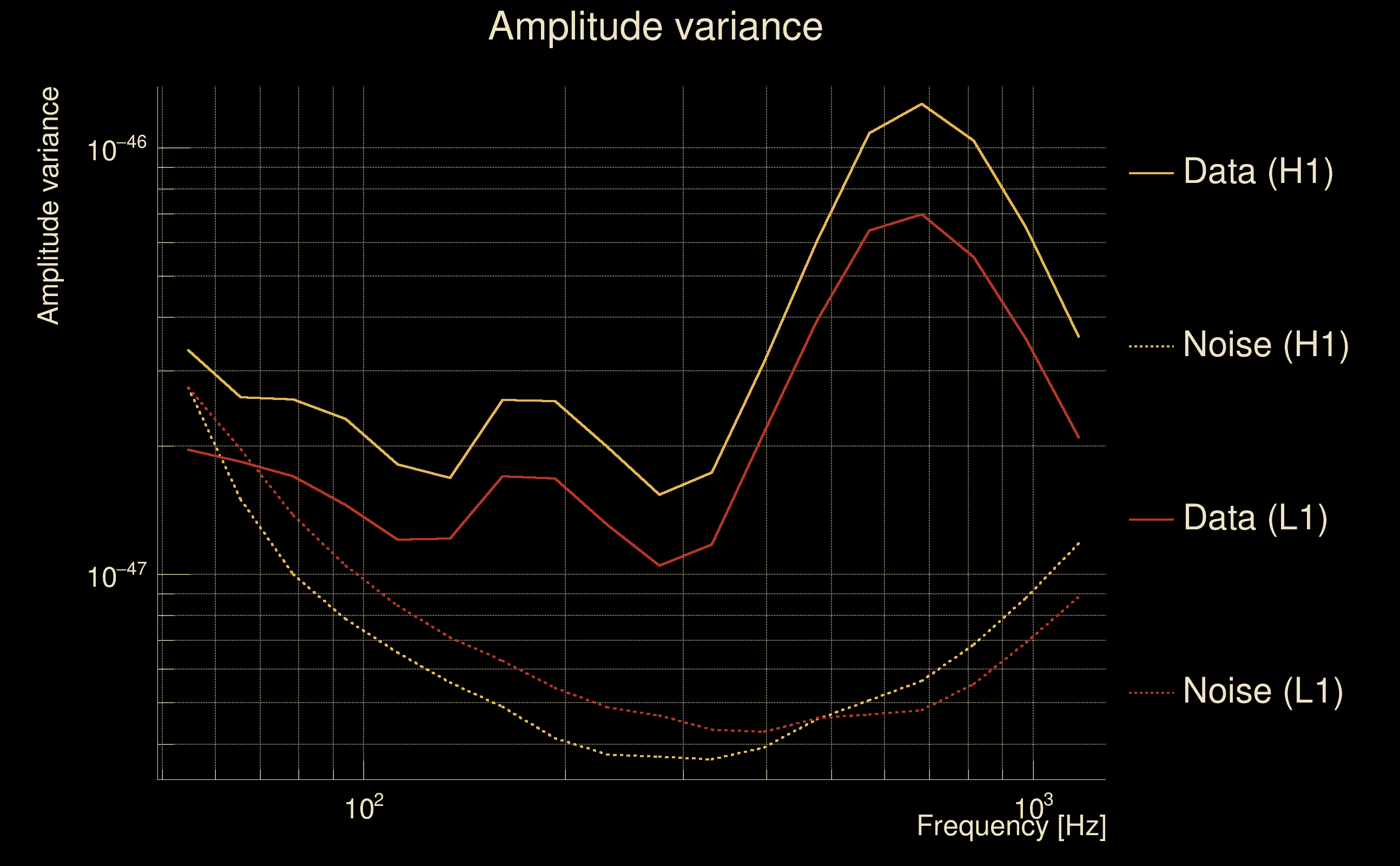

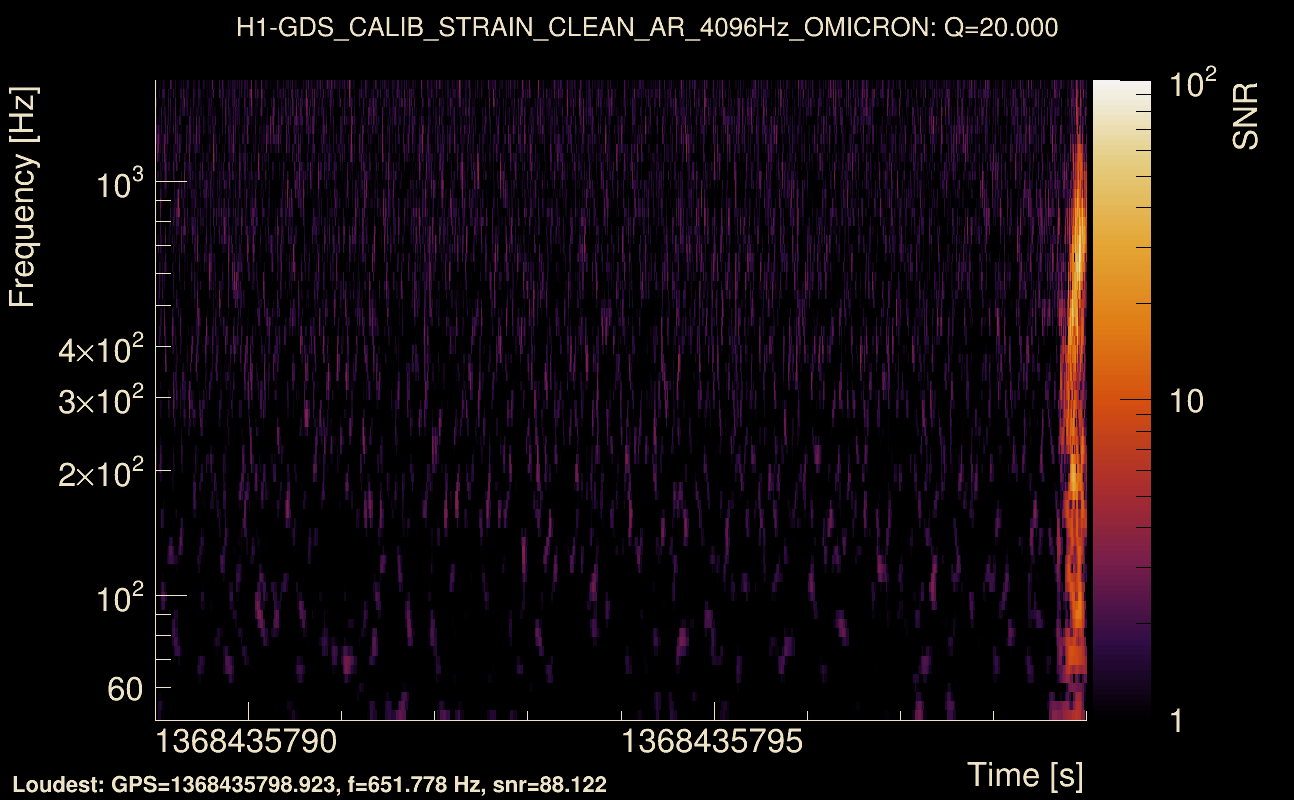

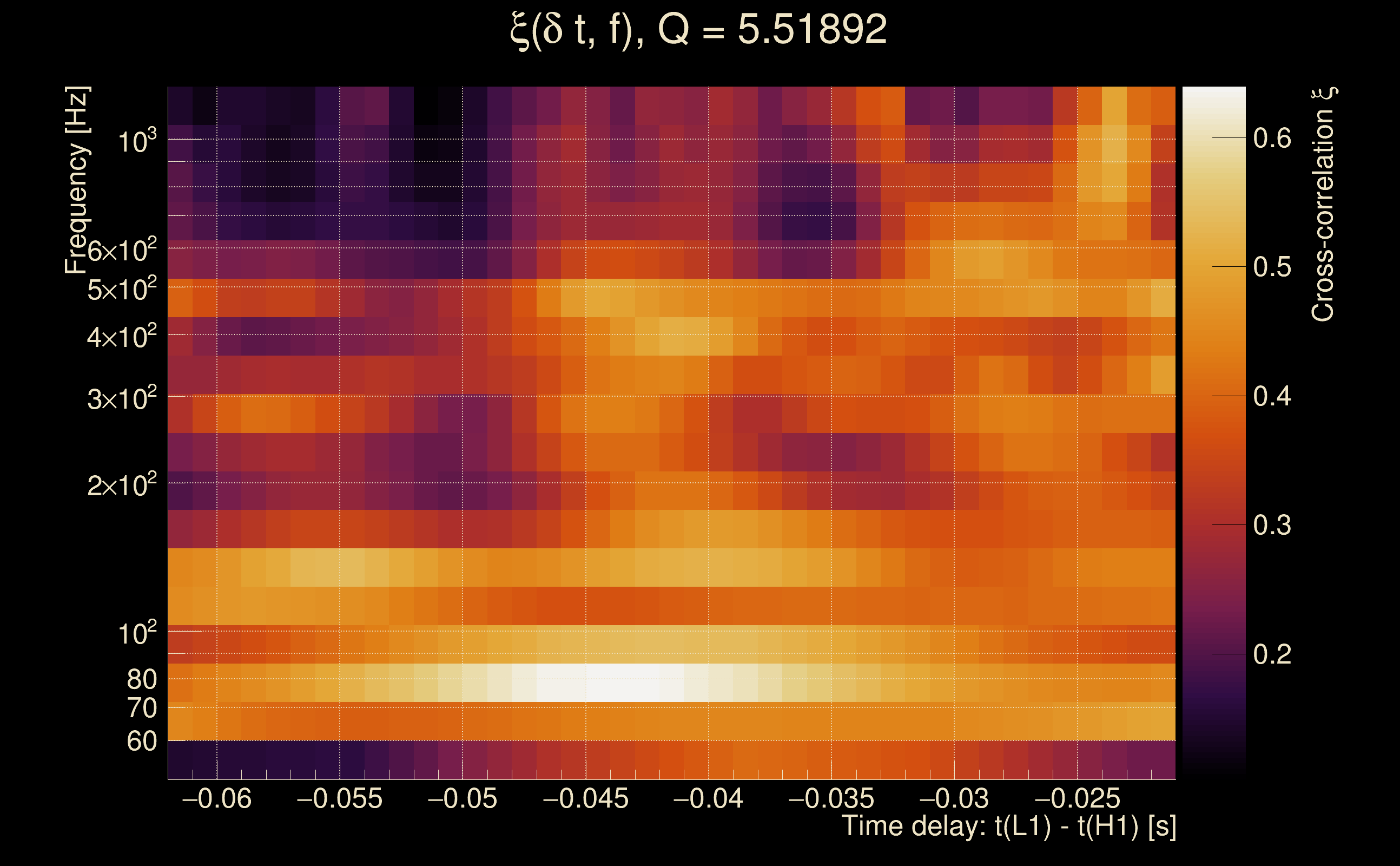

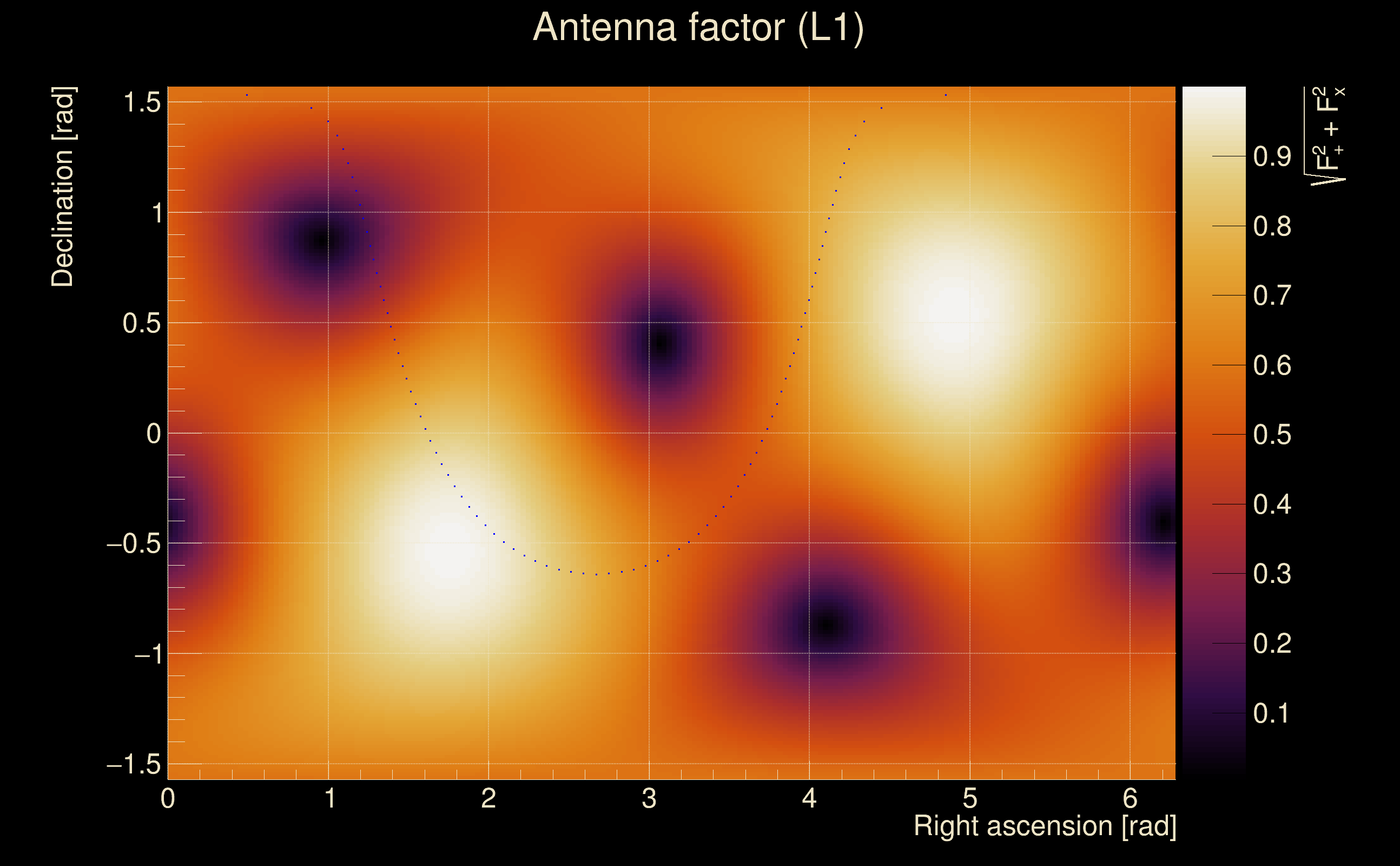

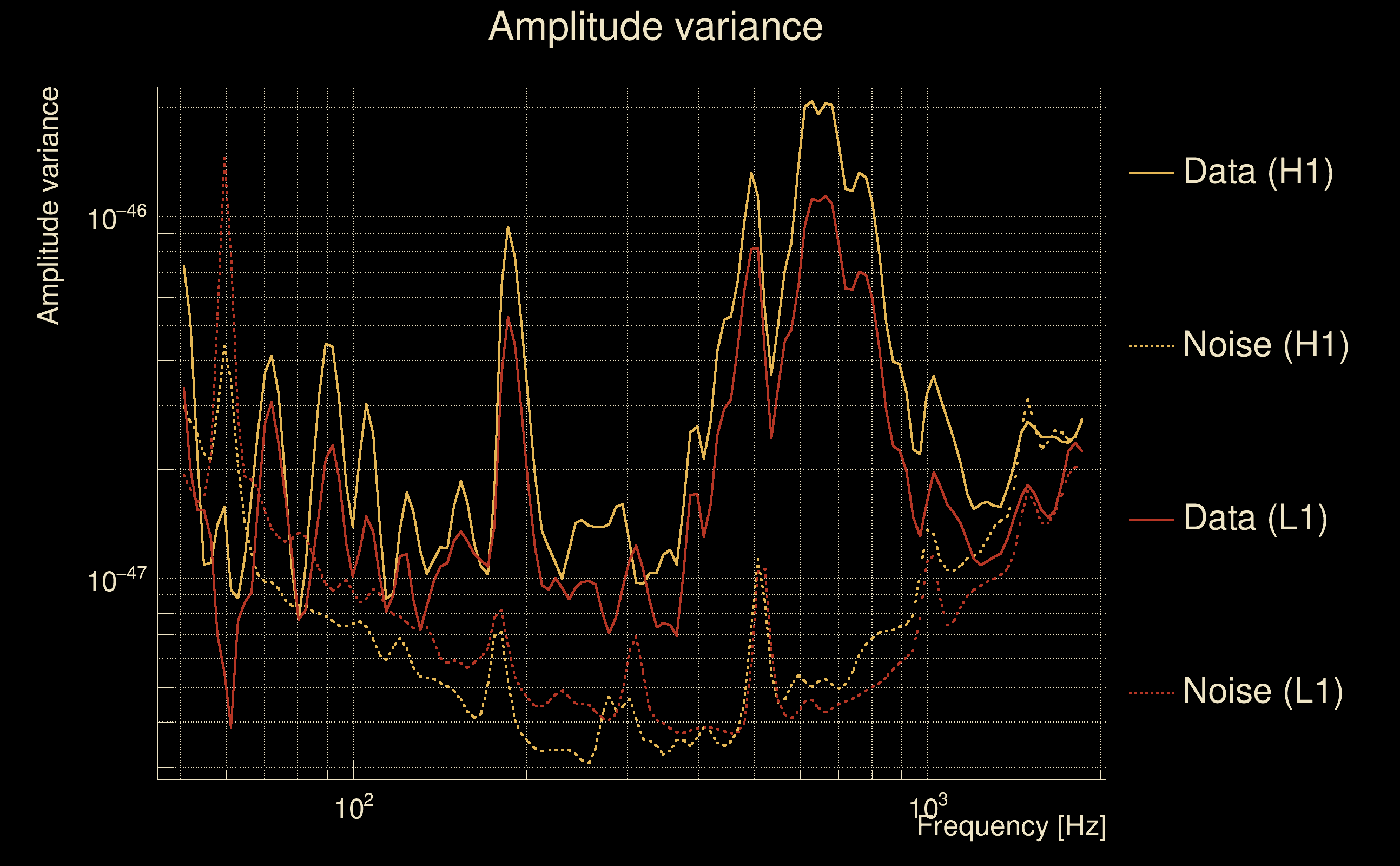

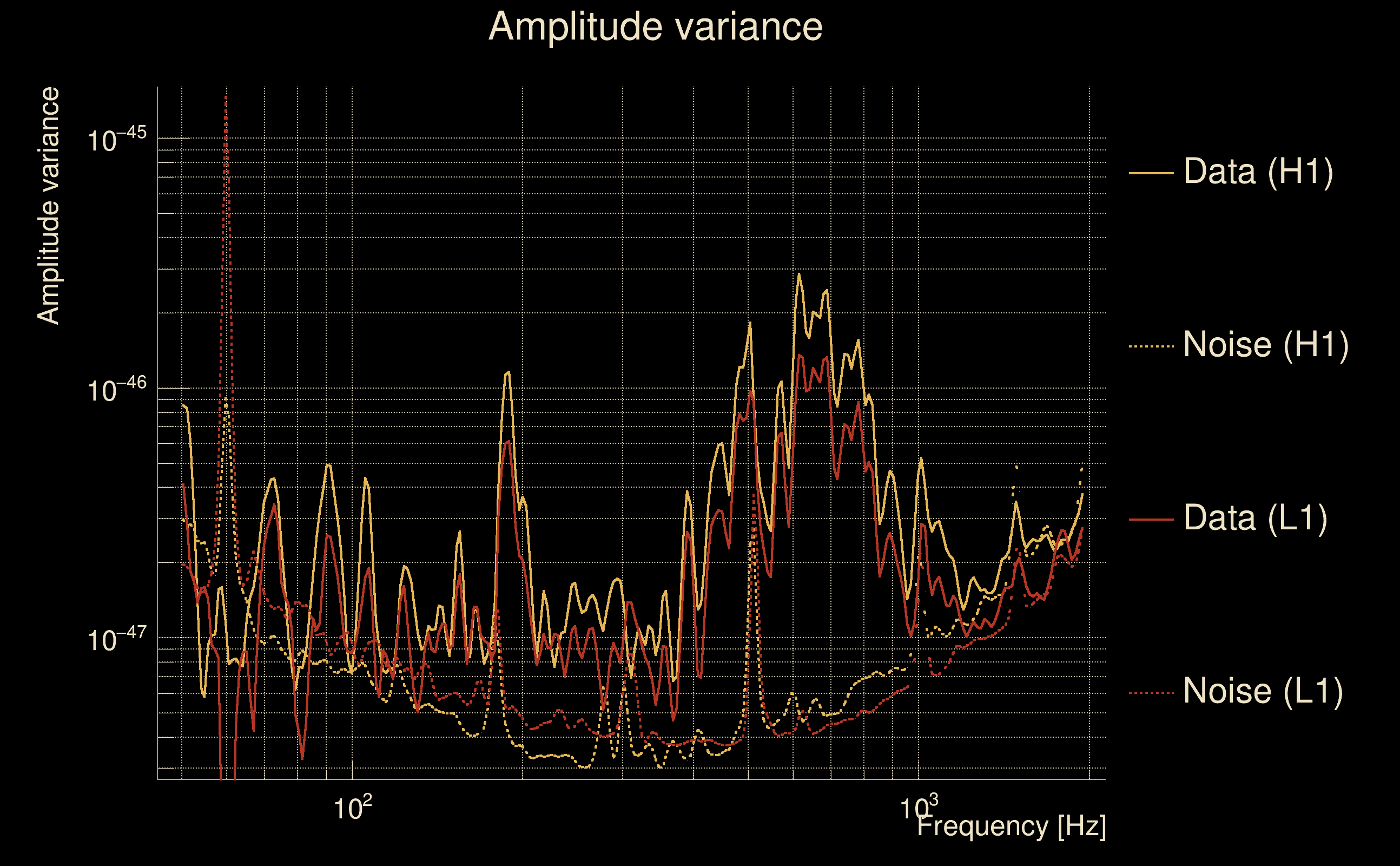

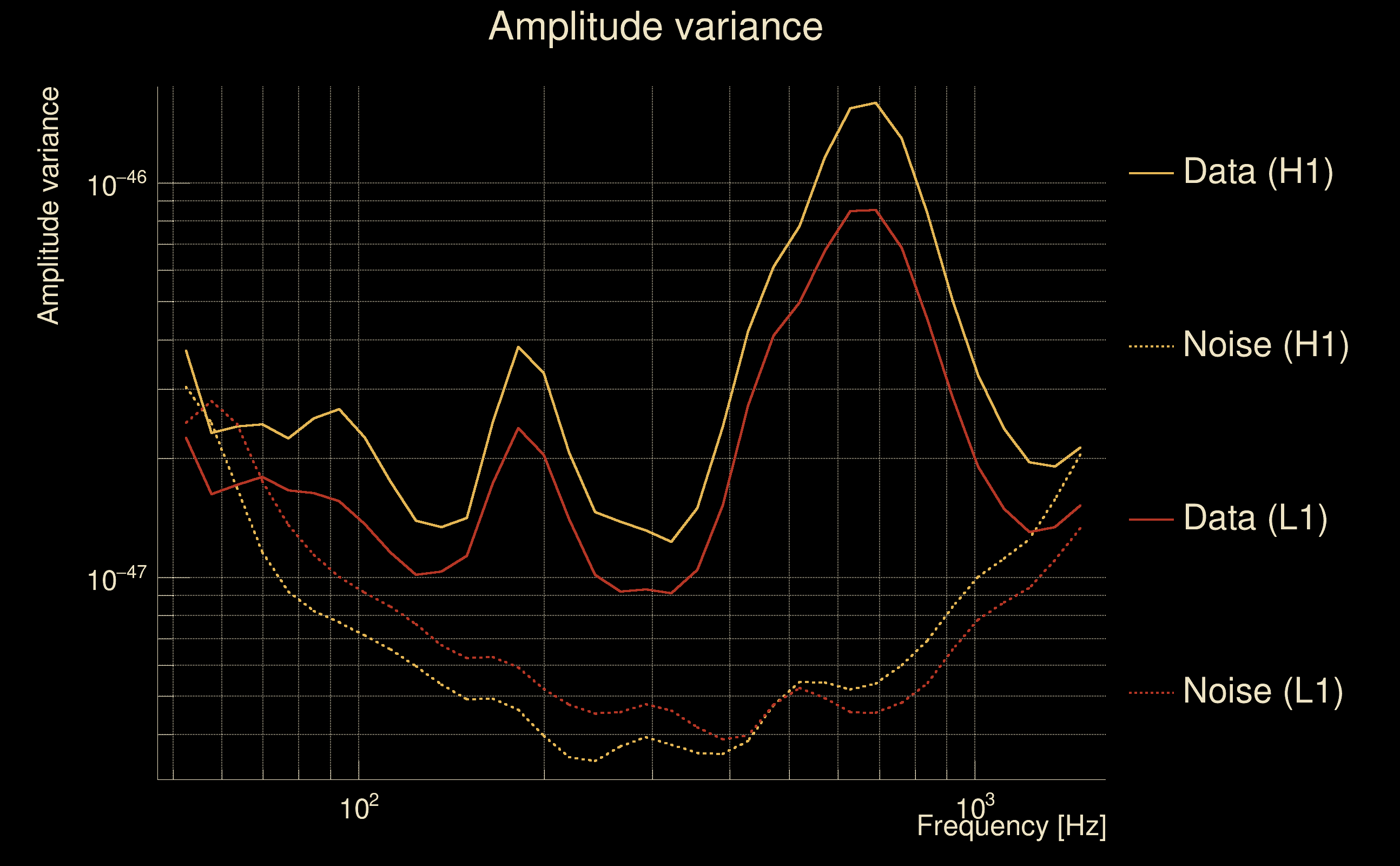

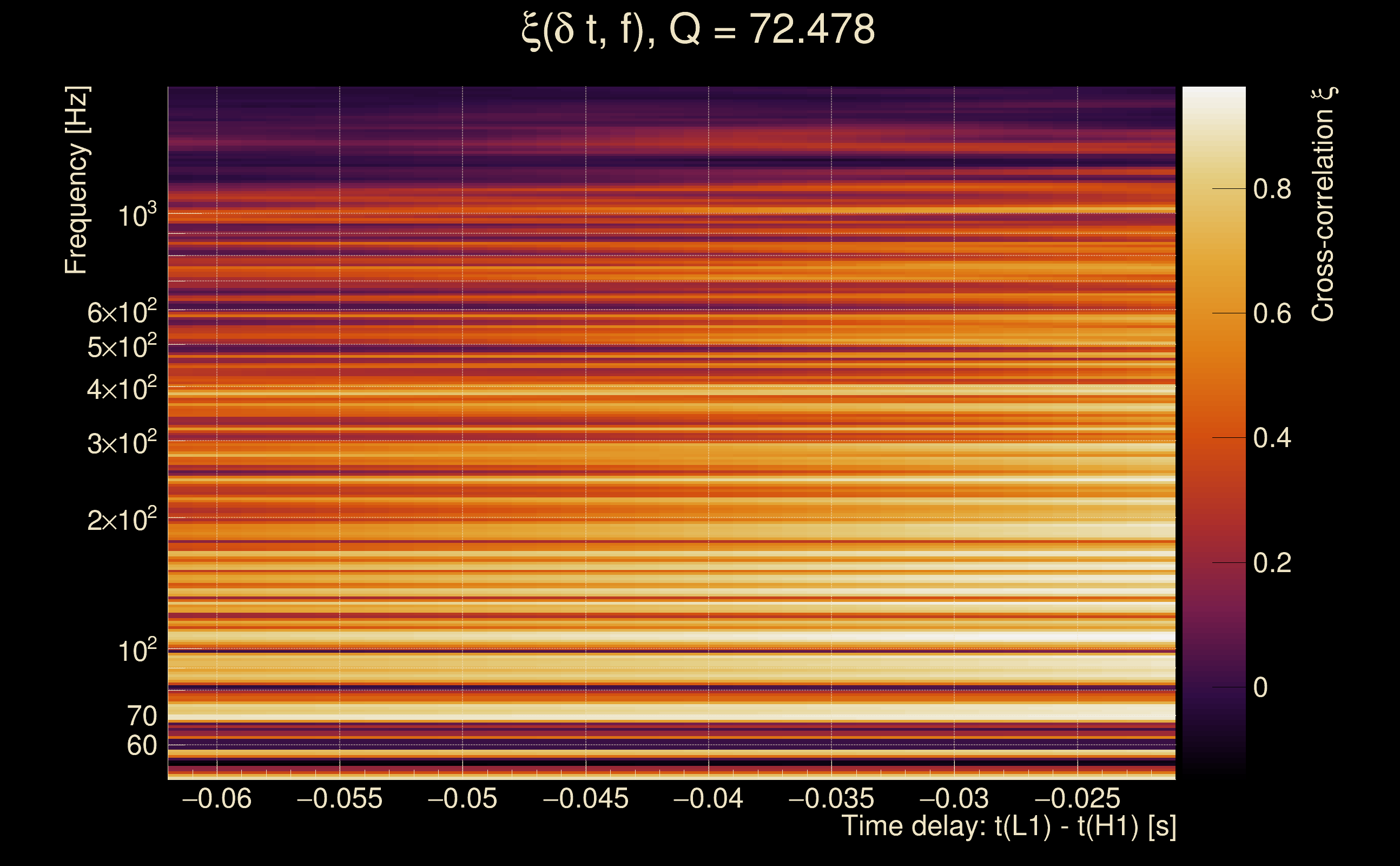

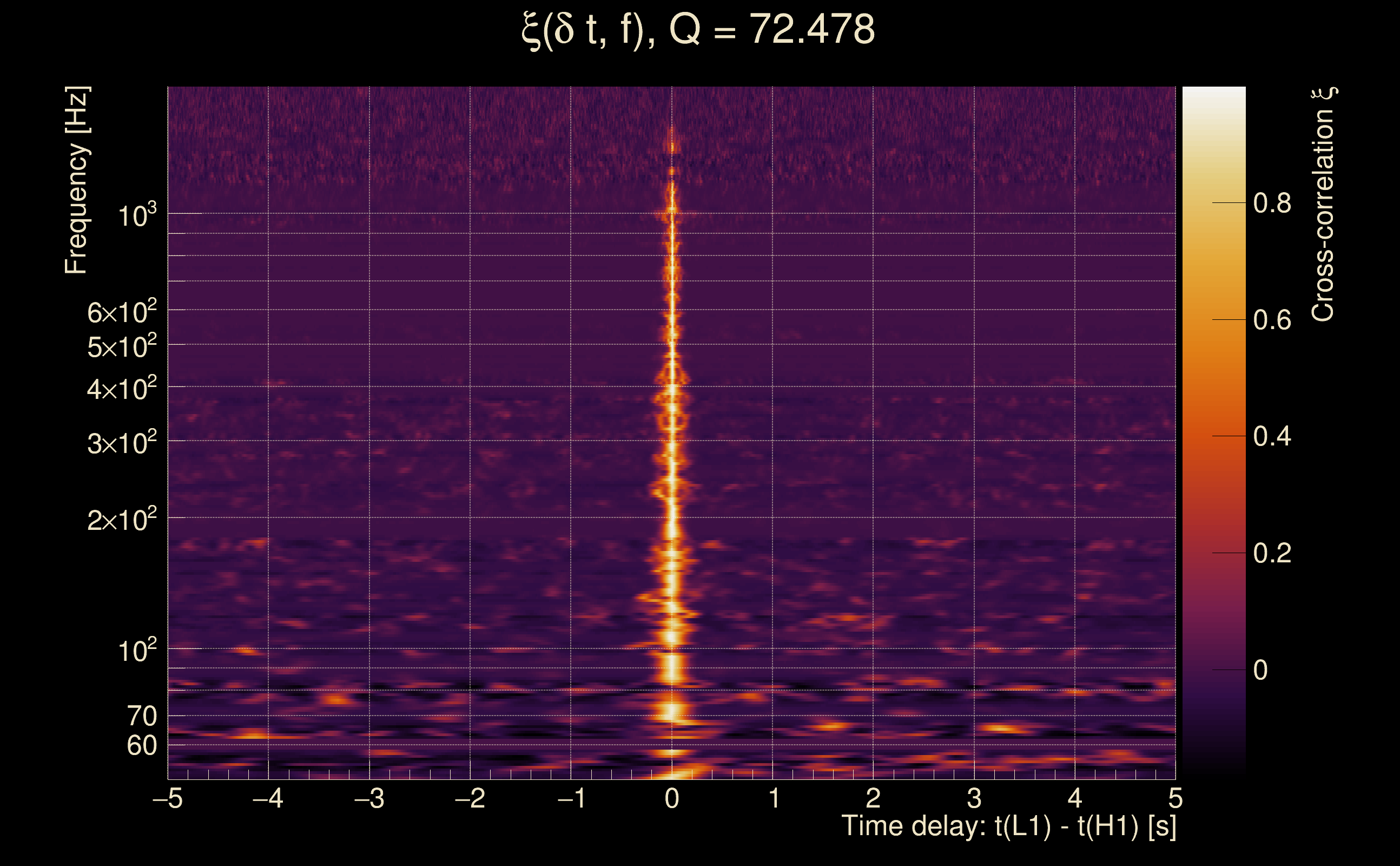

| Event time t(H1): | GPS = 1368435789 (Thu May 18 09:02:51 2023 ) → GPS = 1368435799 (Thu May 18 09:03:01 2023 ) |
| Event time t(L1): | GPS = 1368435789 (Thu May 18 09:03:01 2023 ) → GPS = 1368435799 (Thu May 18 09:03:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368435786 → GPS = 1368435802 |
| Omicron analysis time window (L1): | GPS = 1368435786 → GPS = 1368435802 |

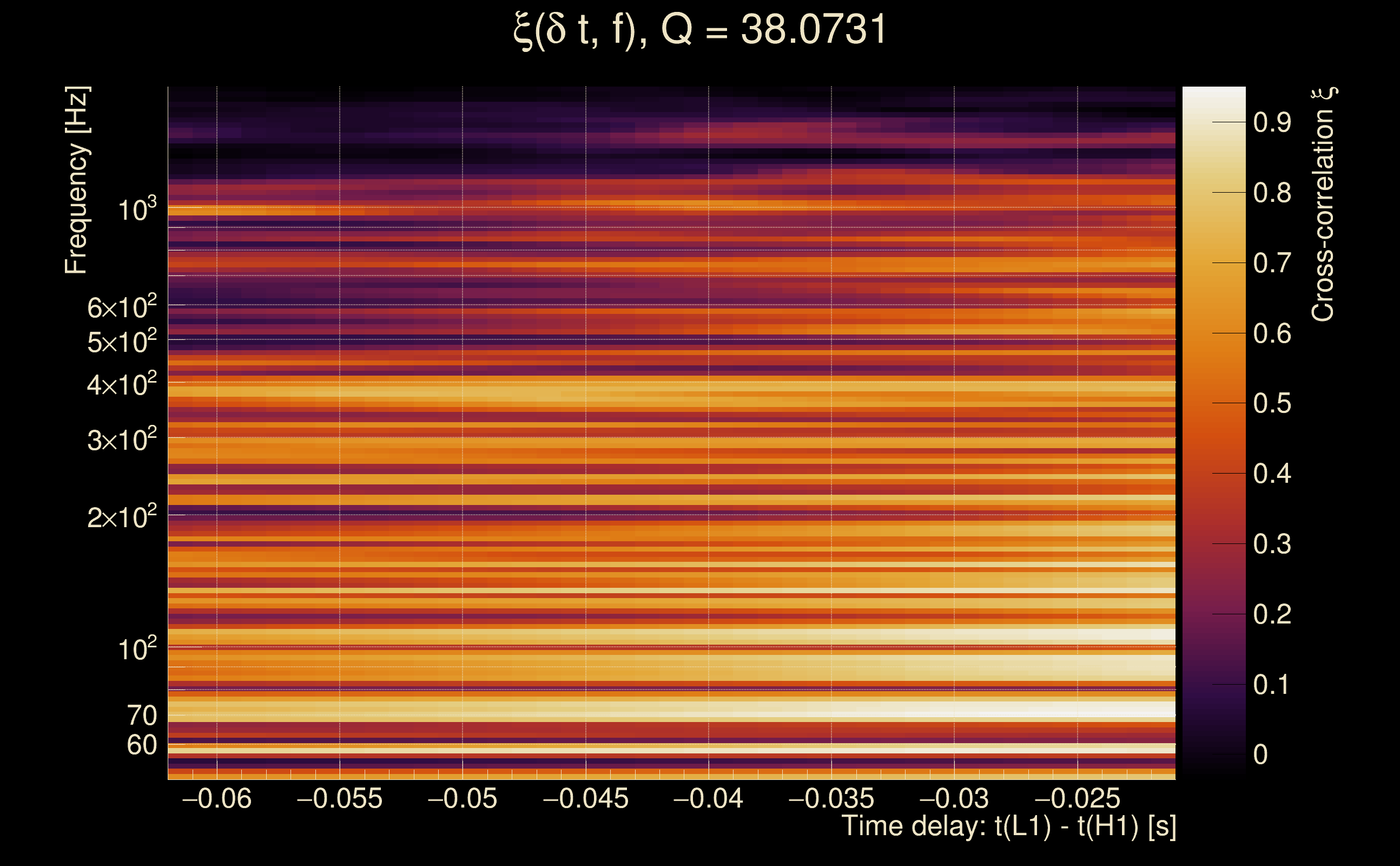

| Time delay between detectors t(L1) - t(H1): | -0.0416073 s (slice index = 109 / 217), δt_gw = 0.00439266 s |
| Time delay standard deviation: | 0.0606015 s |
| [targeted mode] Time delay probability: | 0.569086 (0.569398 sigmas), δt_target = 0.000961542 s |
| Frequency: | 241.174 Hz |
| Ξ: | 0.202404 ± 0.0390306 (variance = 0.00152339): Q0: 0.516199, Q1: 0.556936, Q2: 0.570573, Q3: 0.599289, Q4: 0.489723 |
| Rank: | R_A = 0.0443644 |
| Log of amplitude ratio (L1/H1): | -0.344813, variance = 0.164363 (L1/H1: -0.621372, variance = 0.311131, H1/L1: -0.0567395, variance = 0.332244) |
| Amplitude ratio (L1/H1): | 0.708353 ⋇ 1.49993 (L1/H1: 0.537207 ⋇ 1.74681, H1/L1: 0.94484 ⋇ 1.77963) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.39788 |

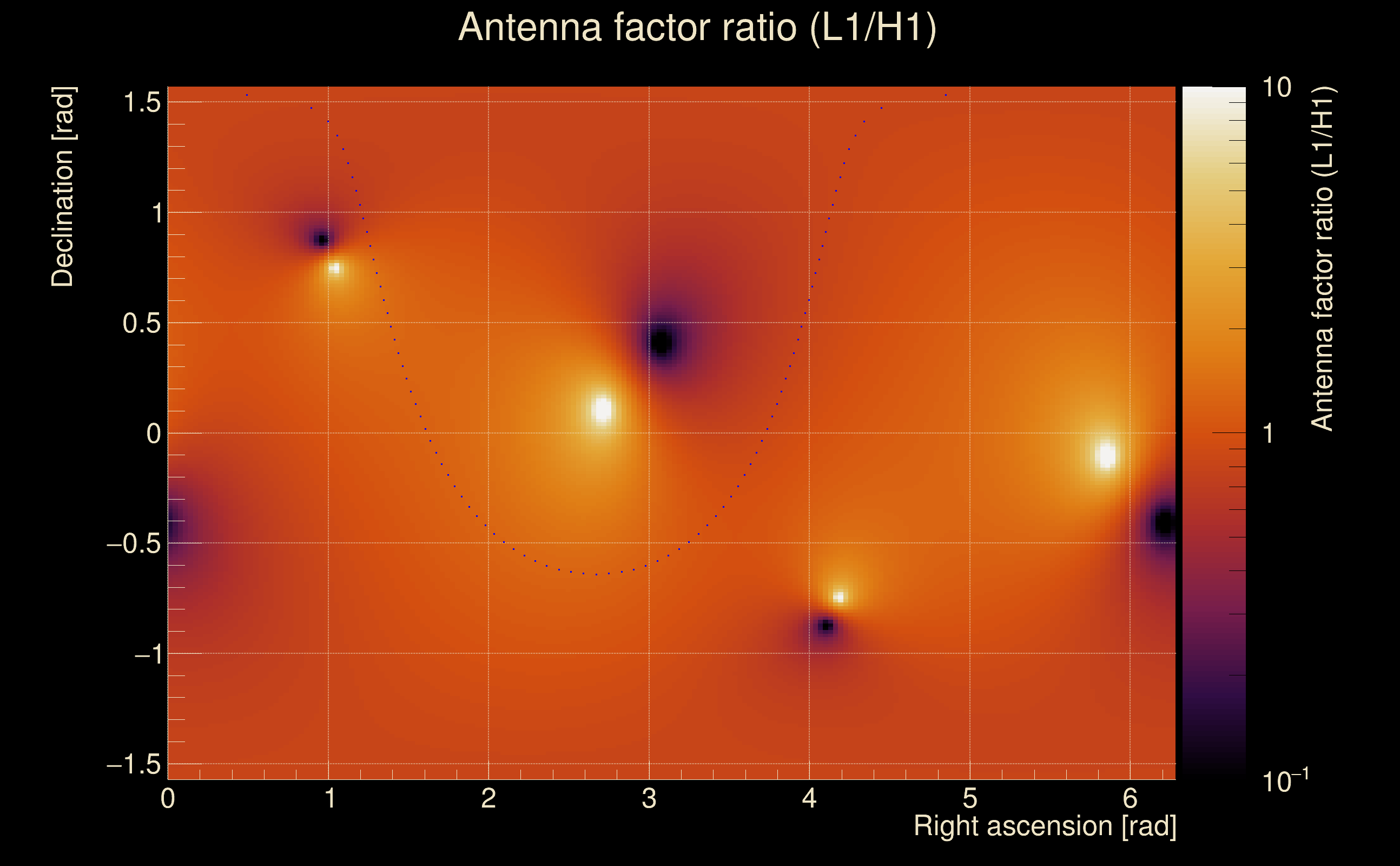

| Antenna factor probability: | 0.968022 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 21 / 36, Q2: 50 / 70, Q3: 122 / 134, Q4: 240 / 258 |
| Maximum signal-to-noise ratio: | H1: 88.3036, L1: 73.2827 |
| SNR variance: | H1: 0.468945, L1: 0.428533 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

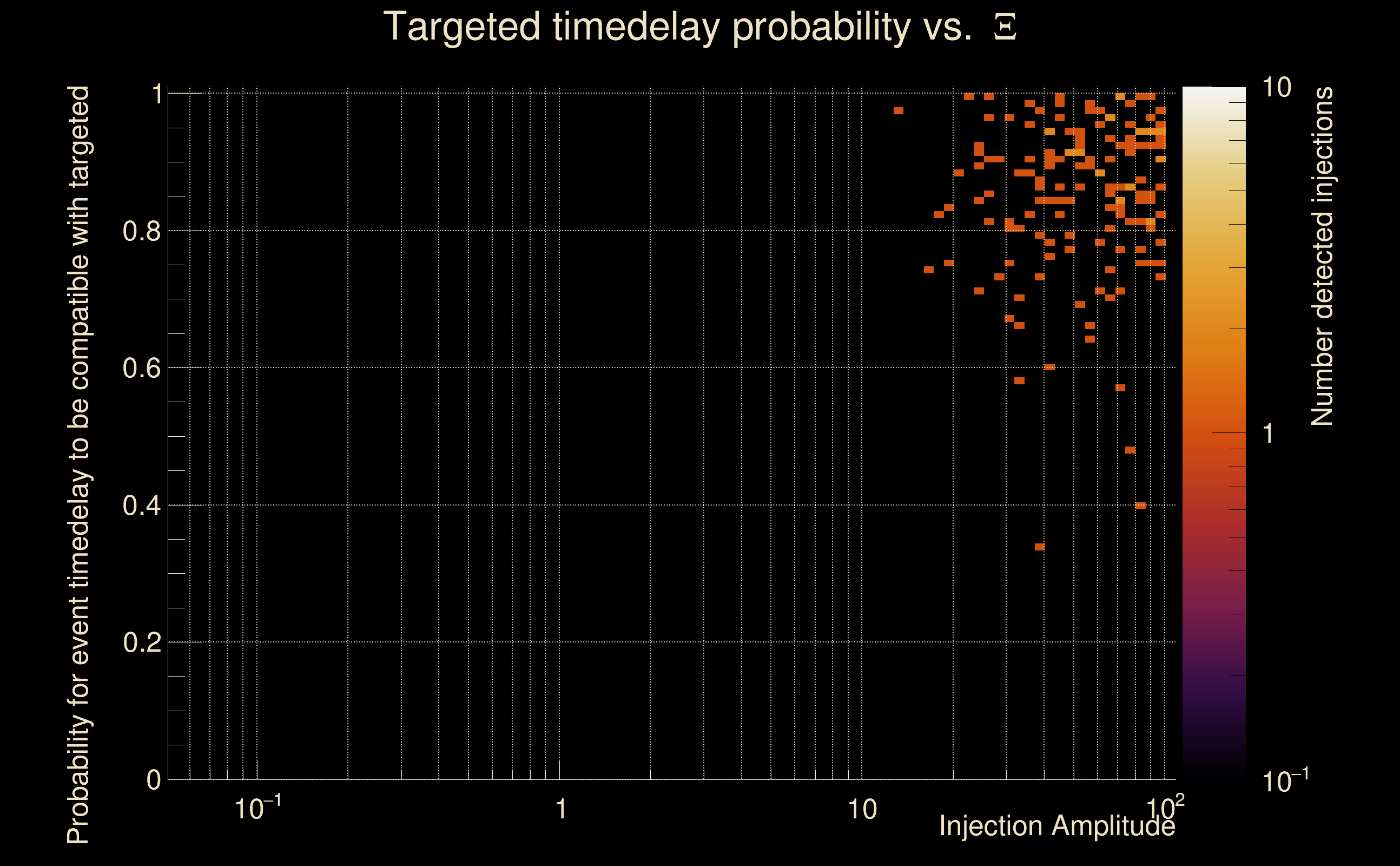

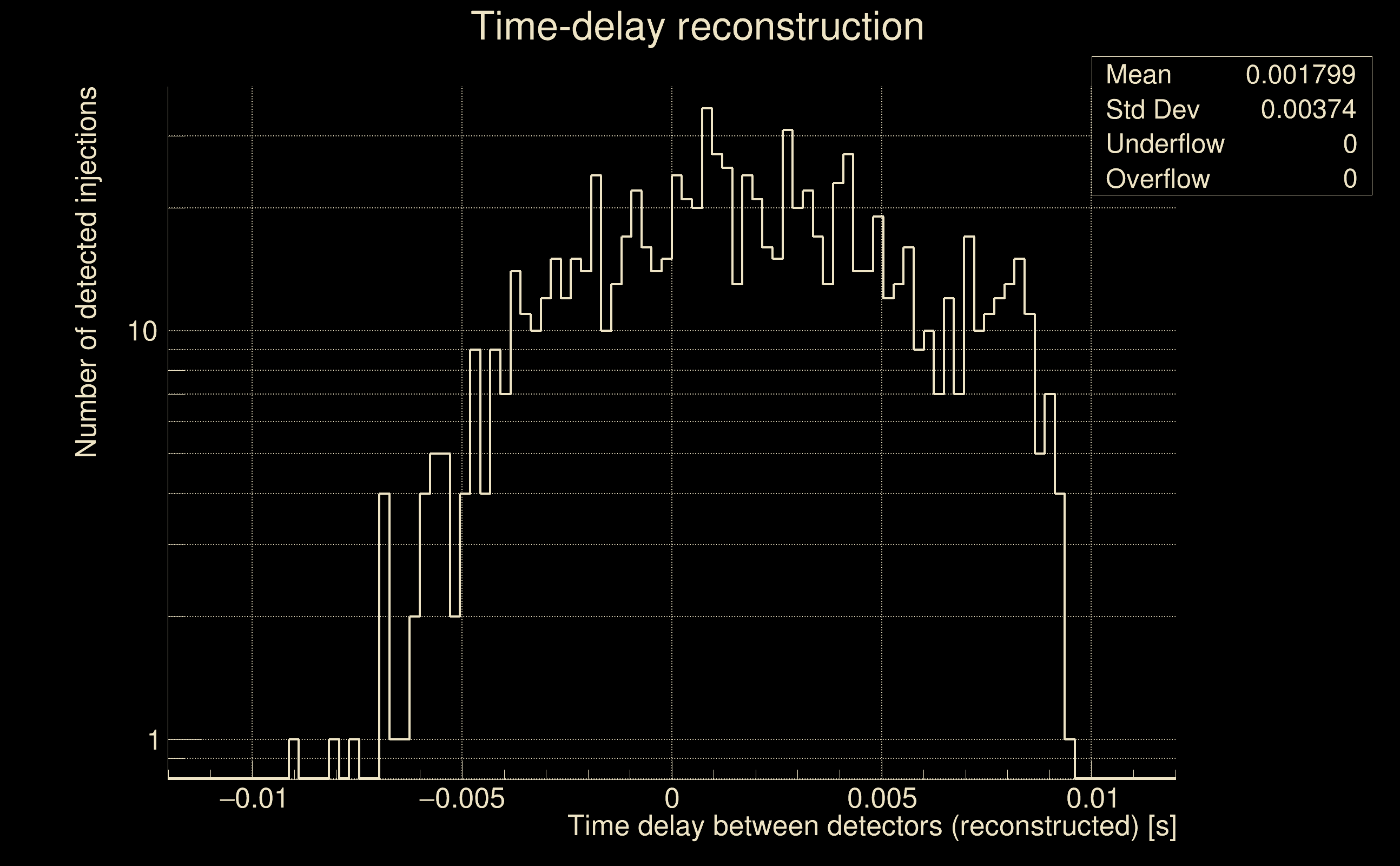

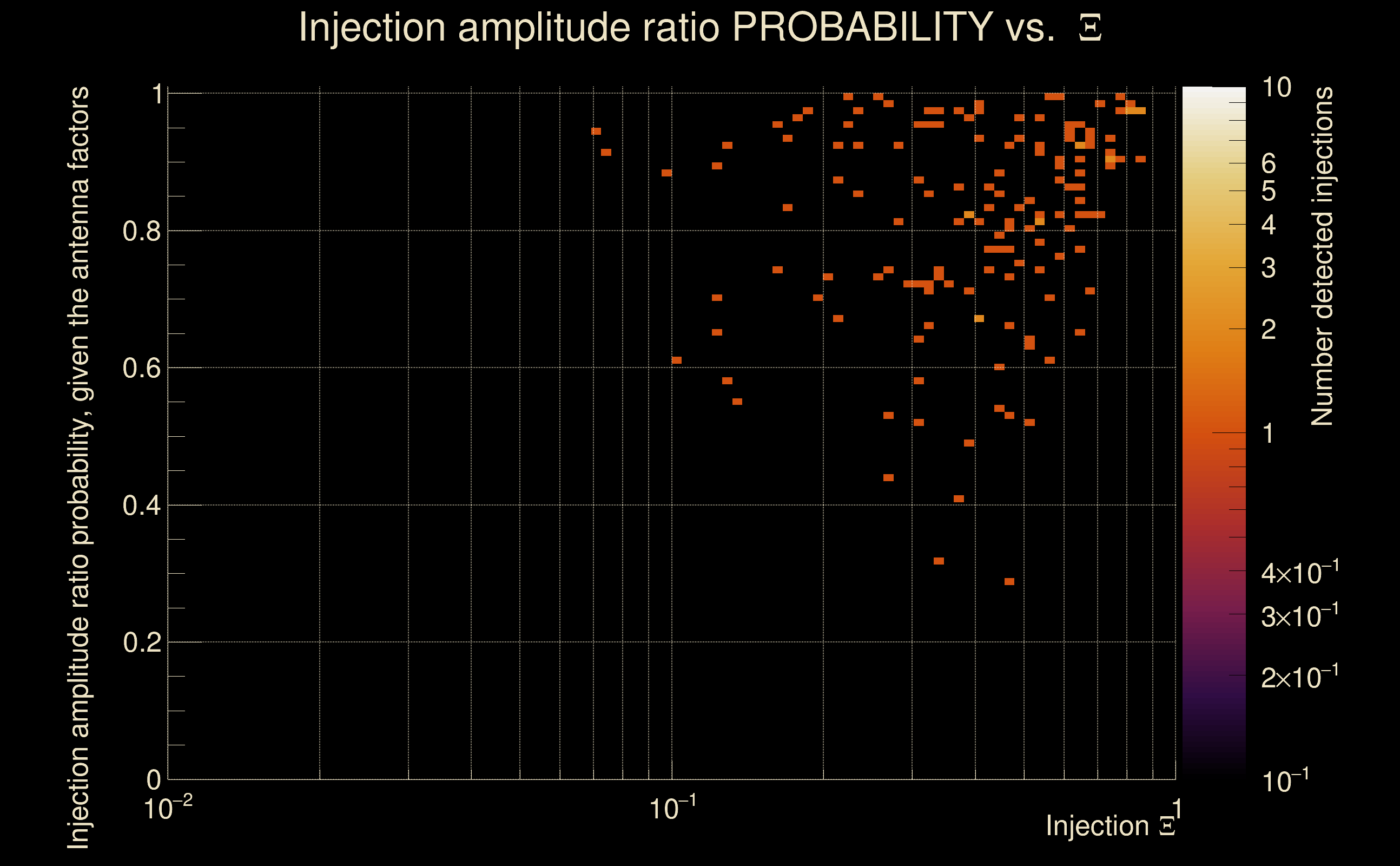

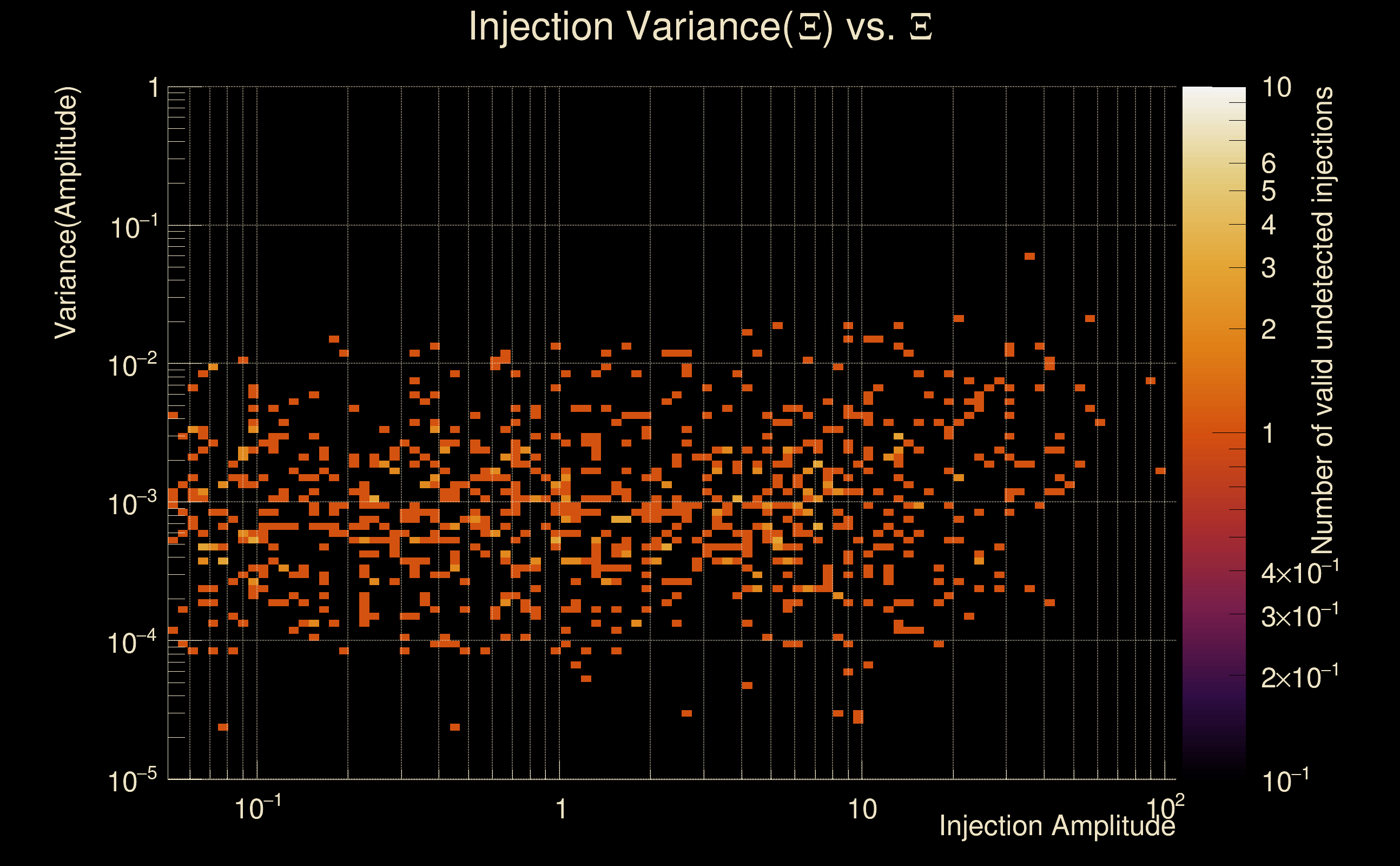

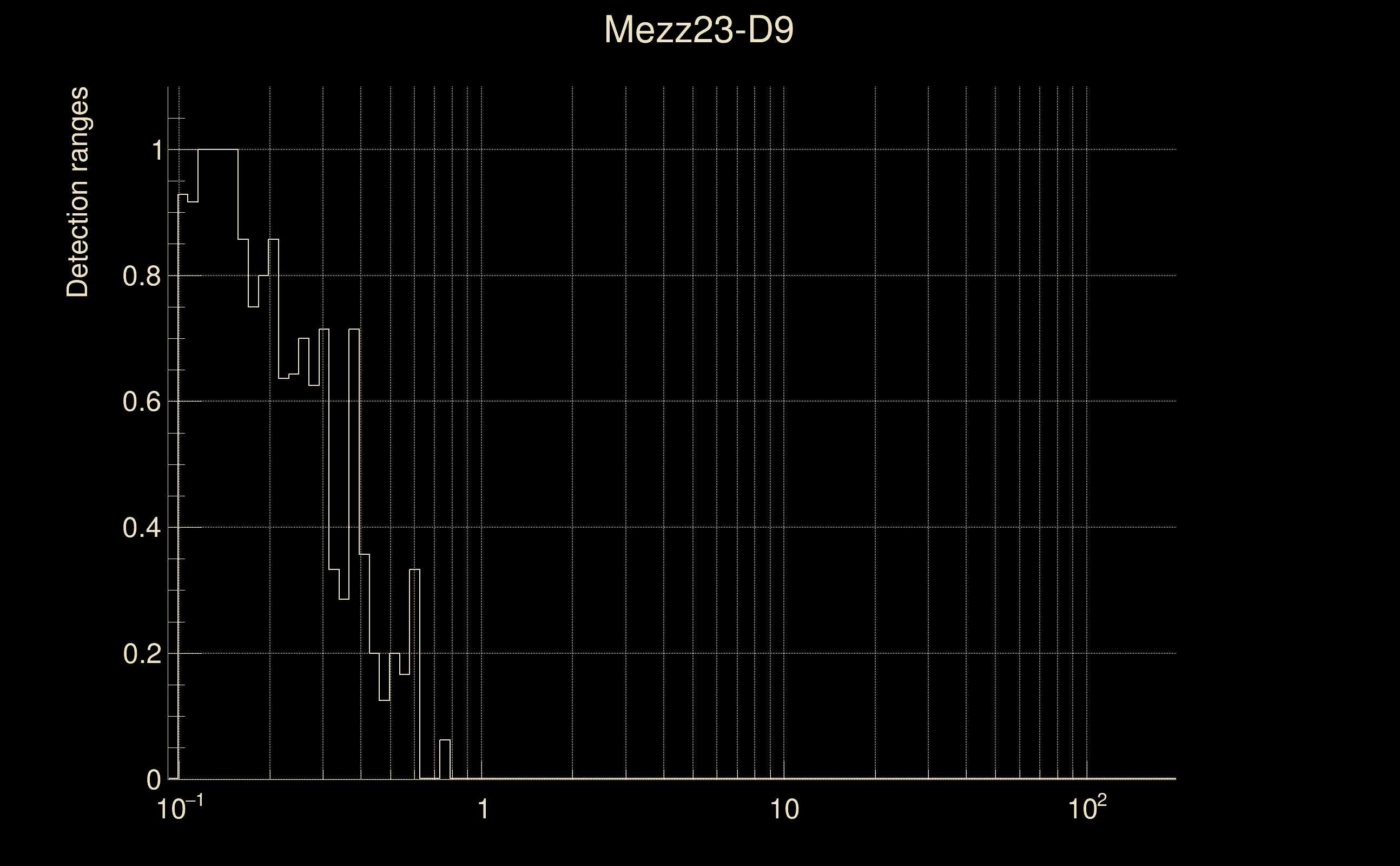

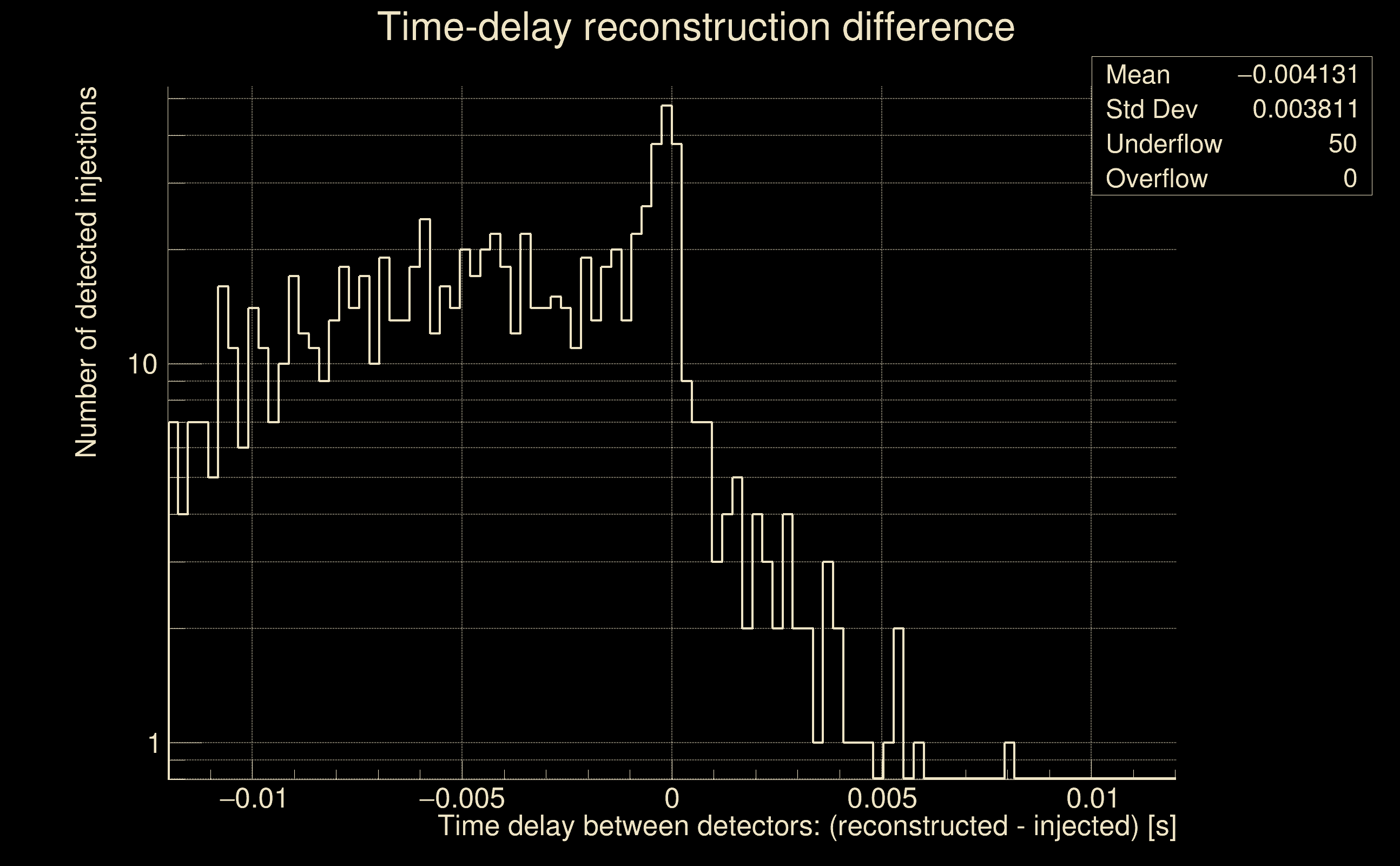

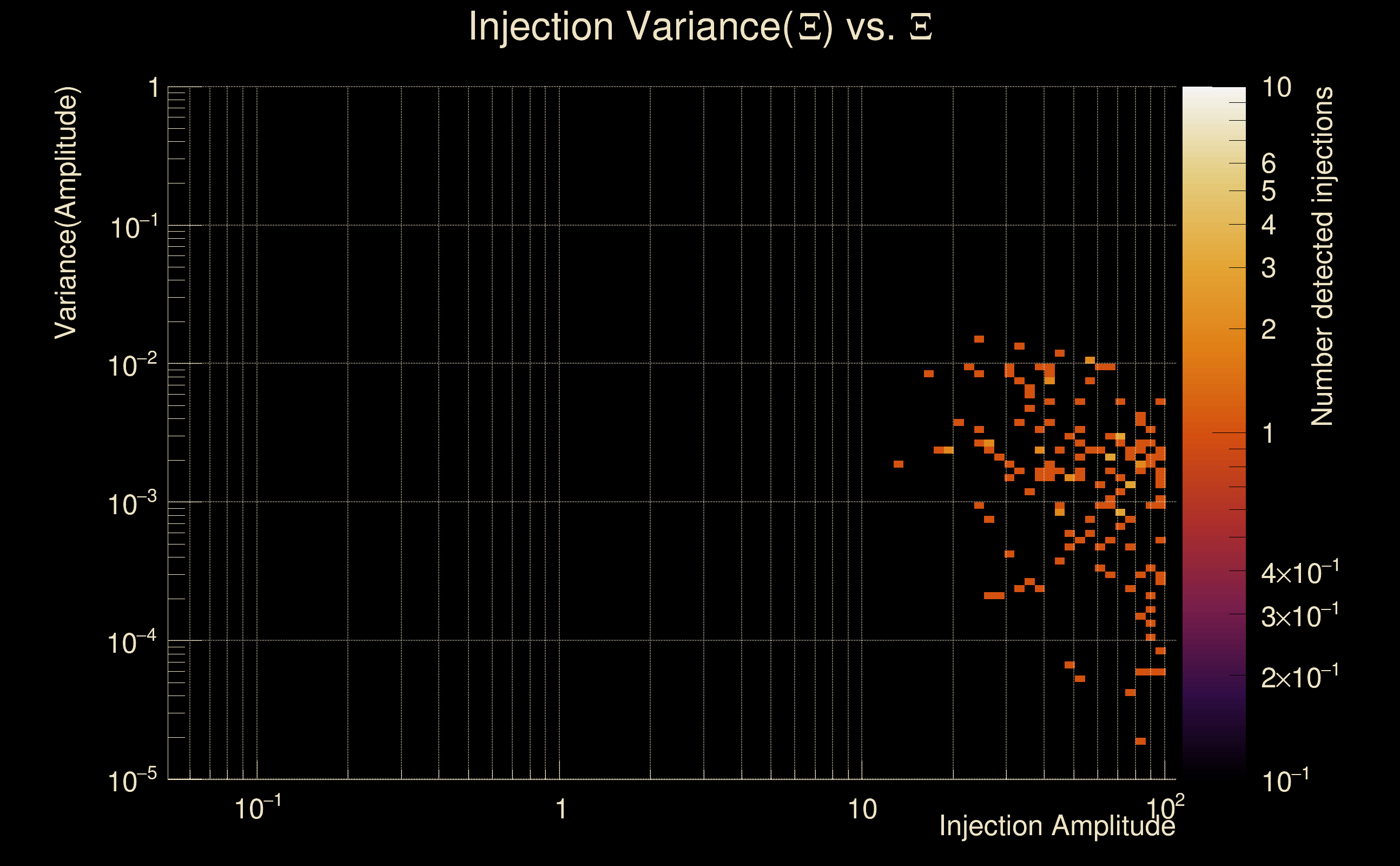

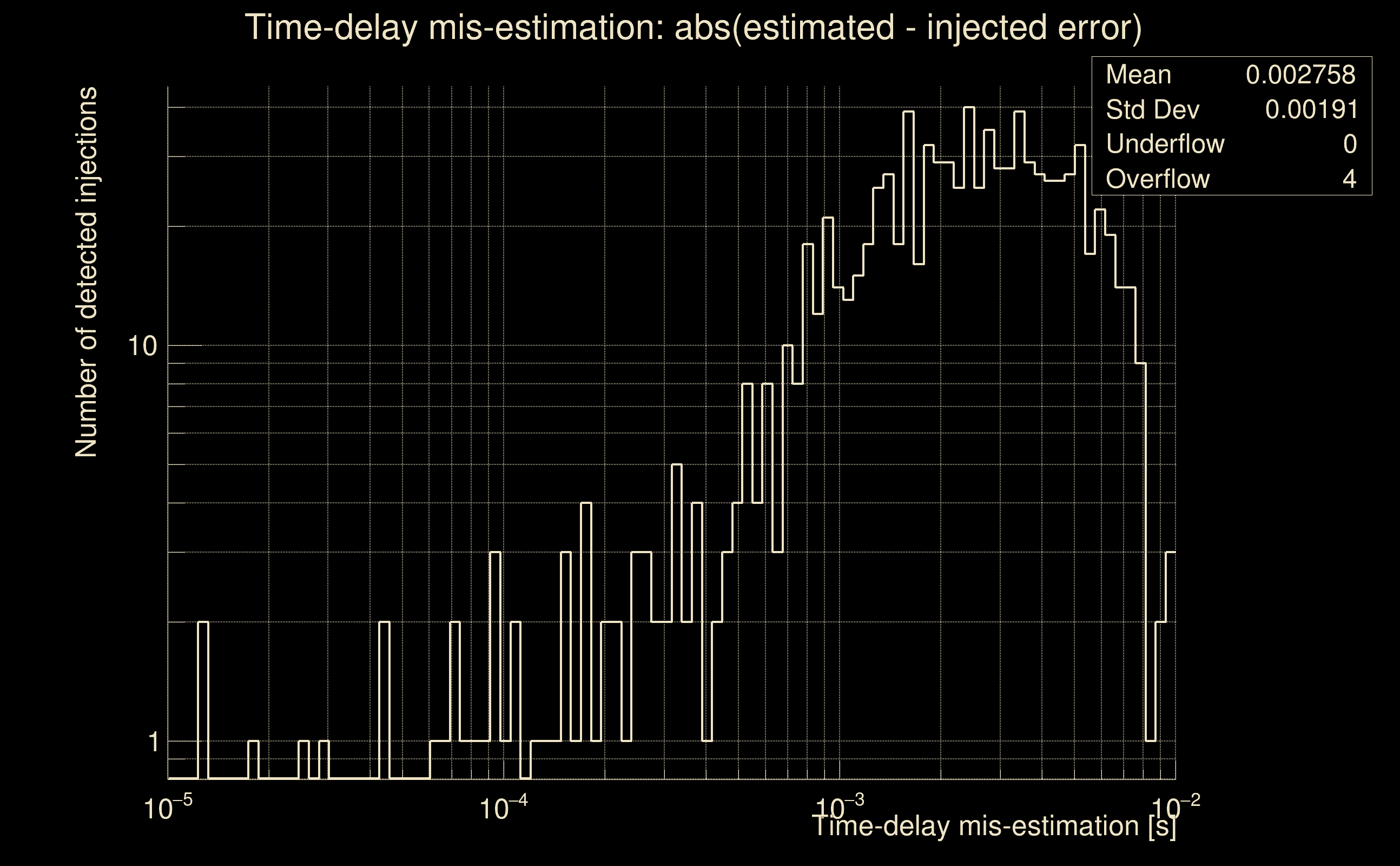

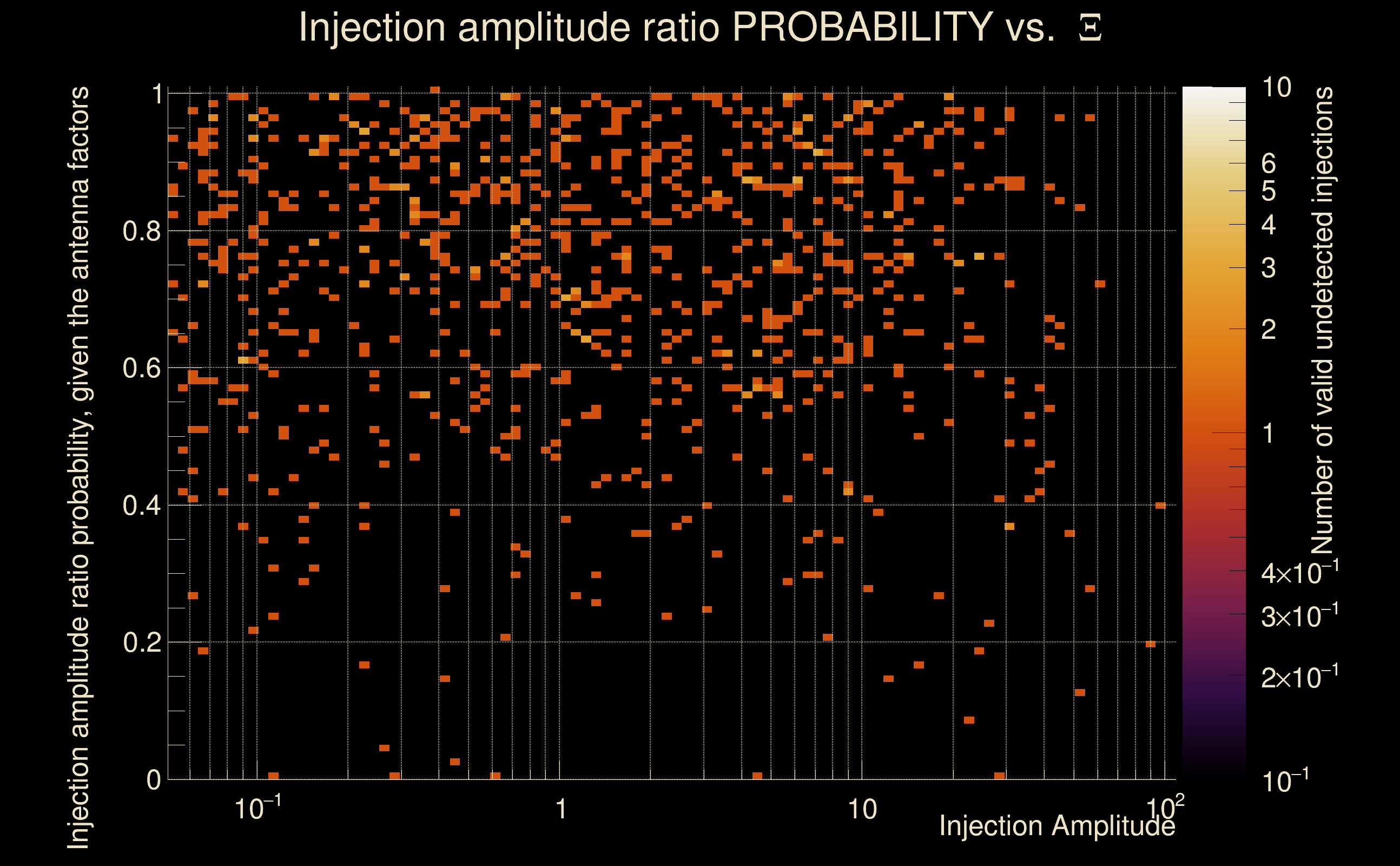

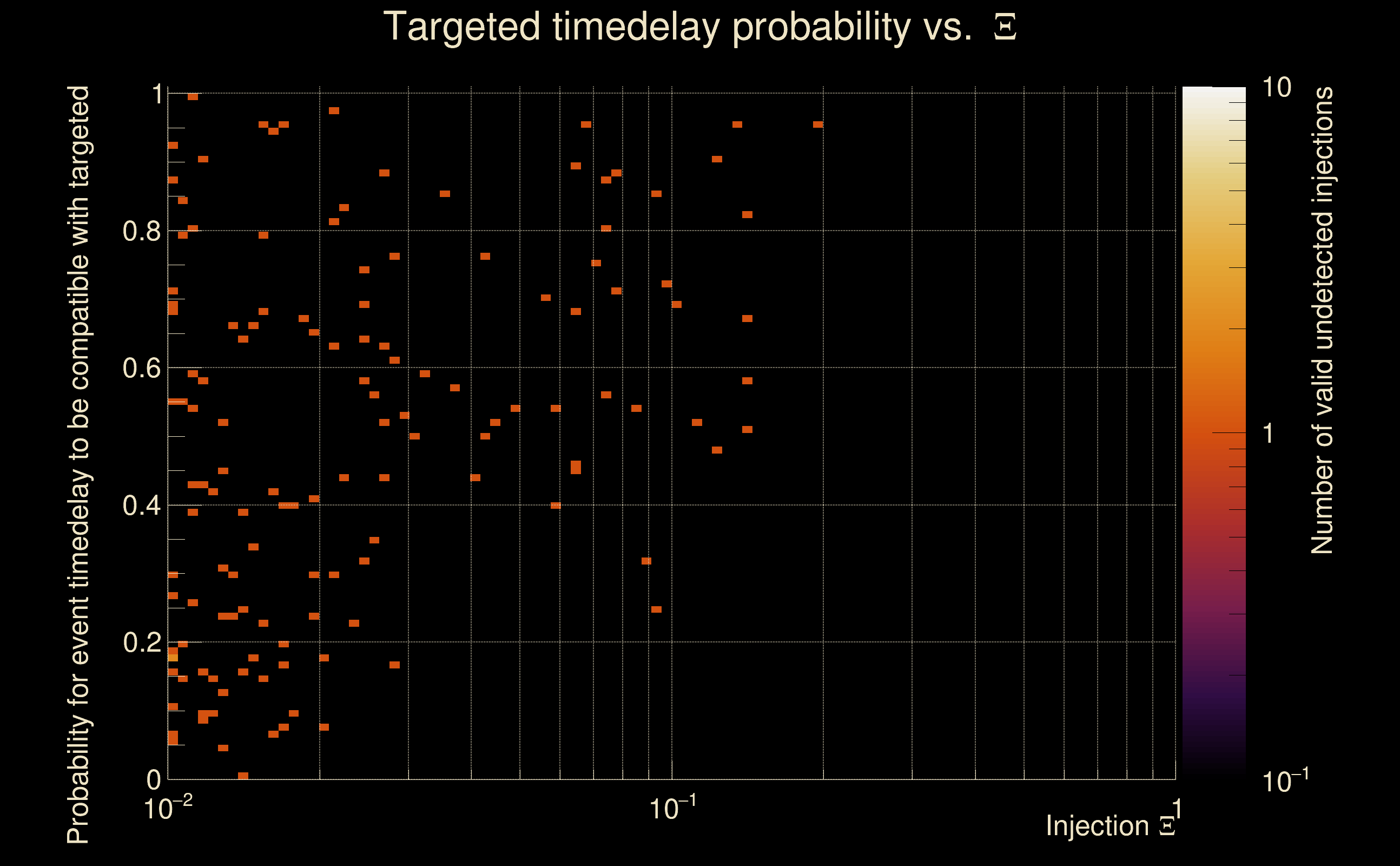

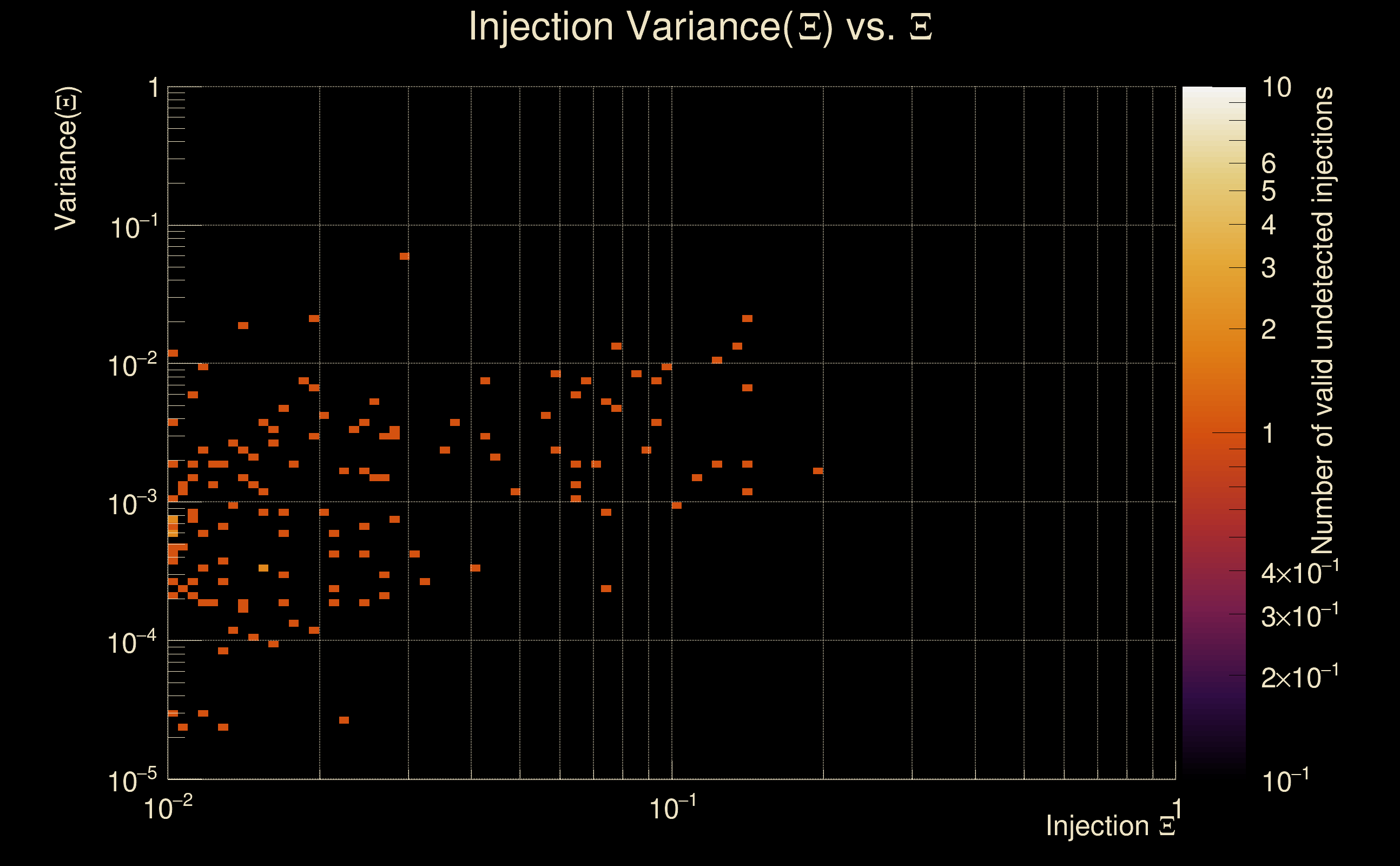

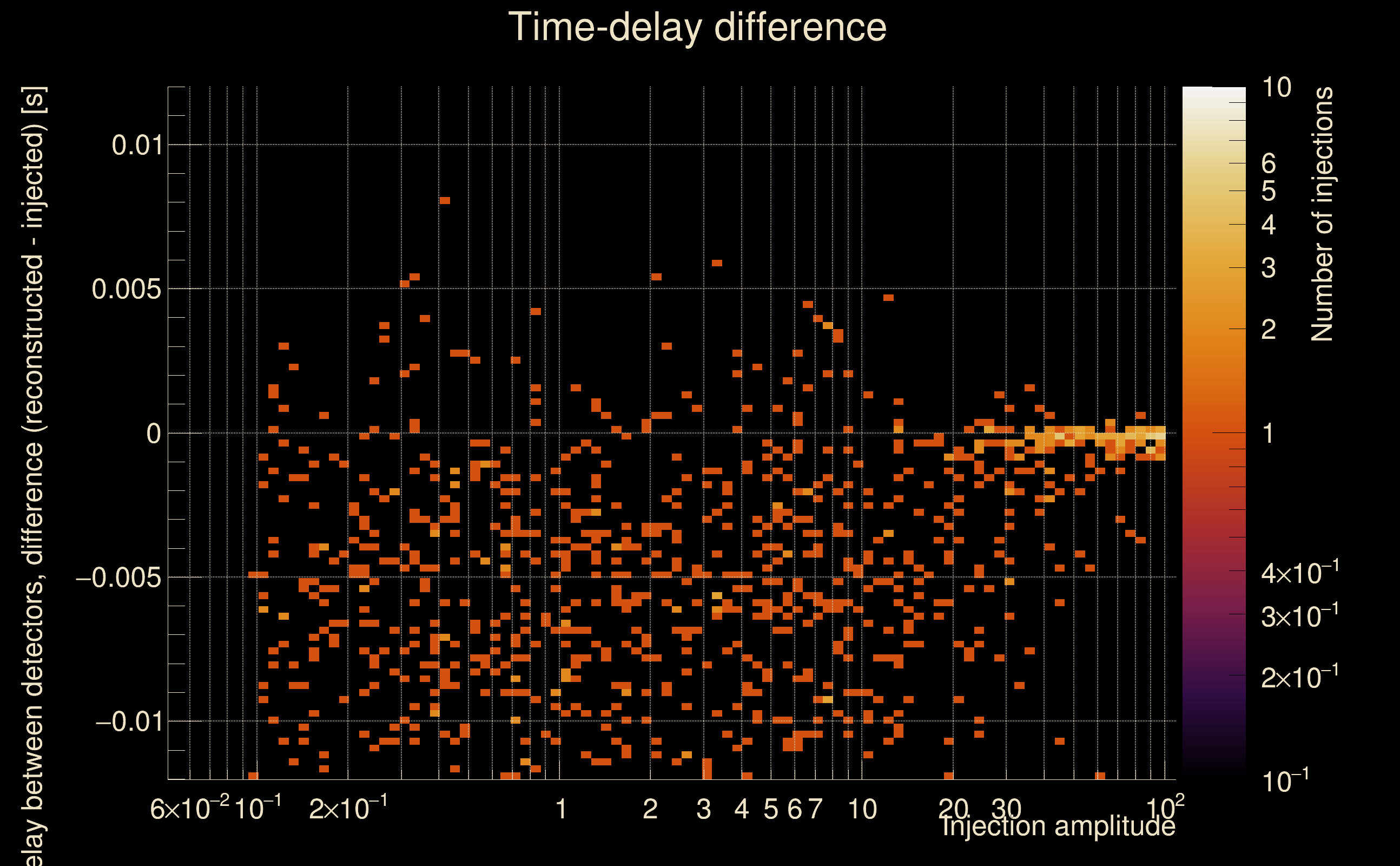

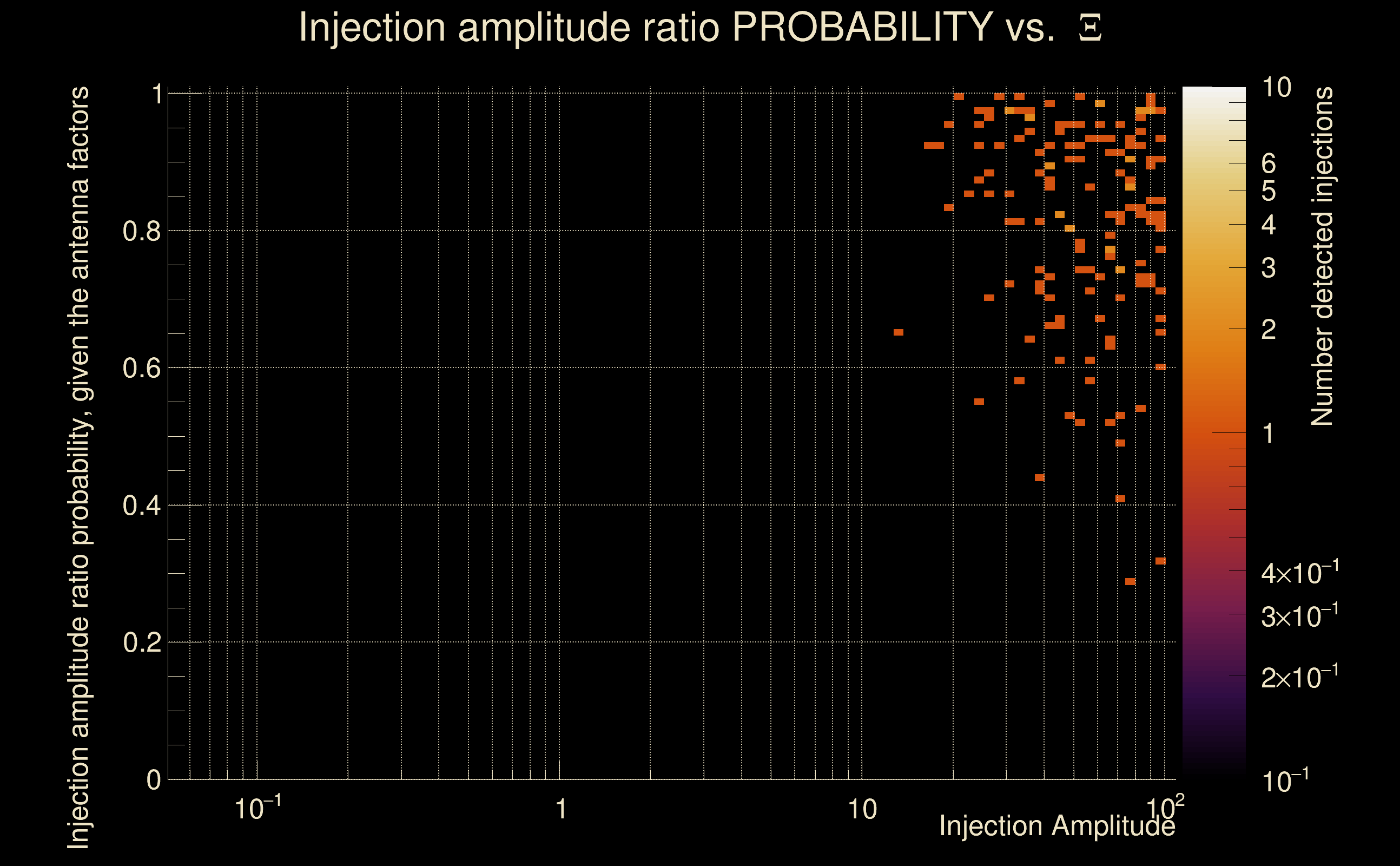

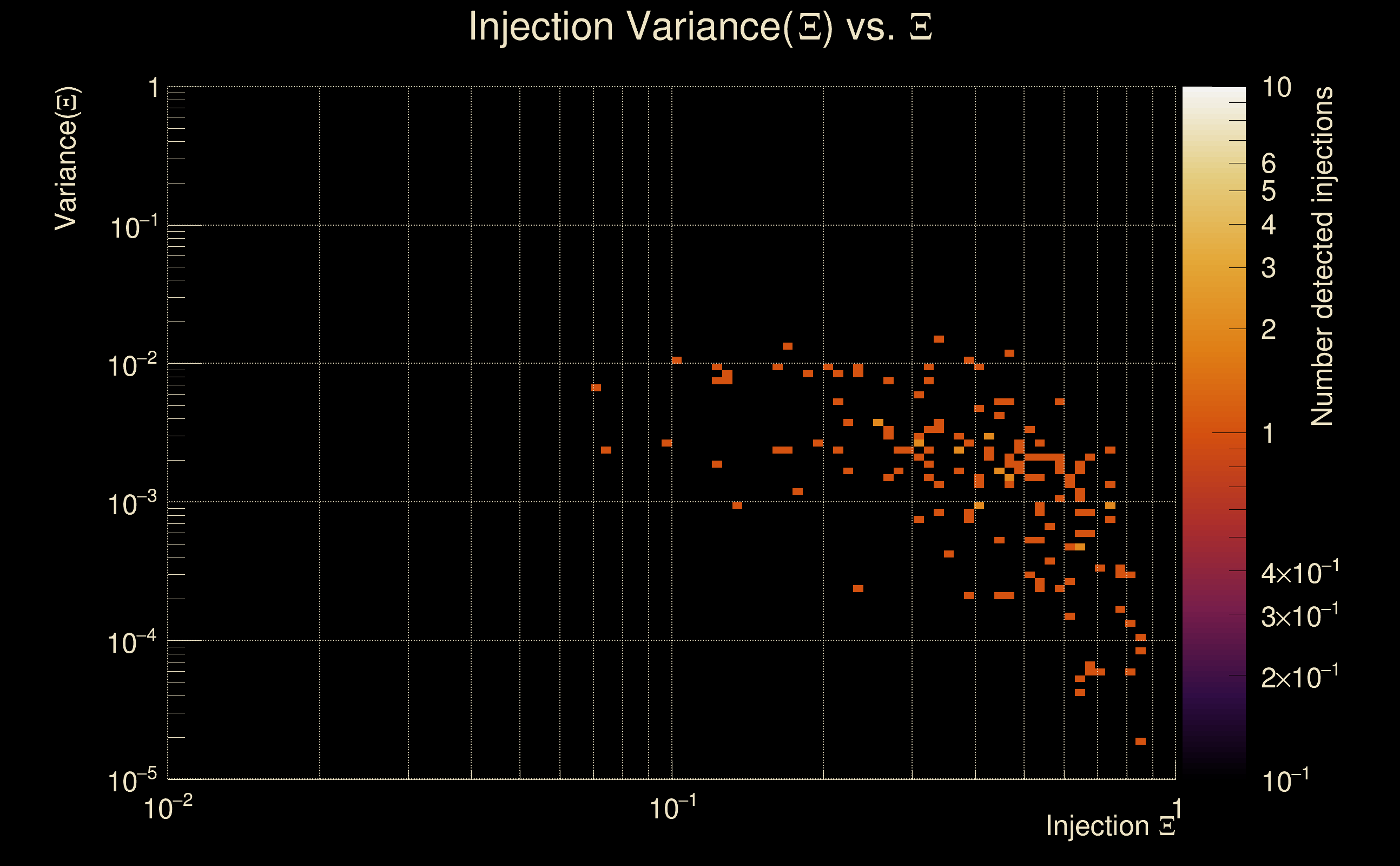

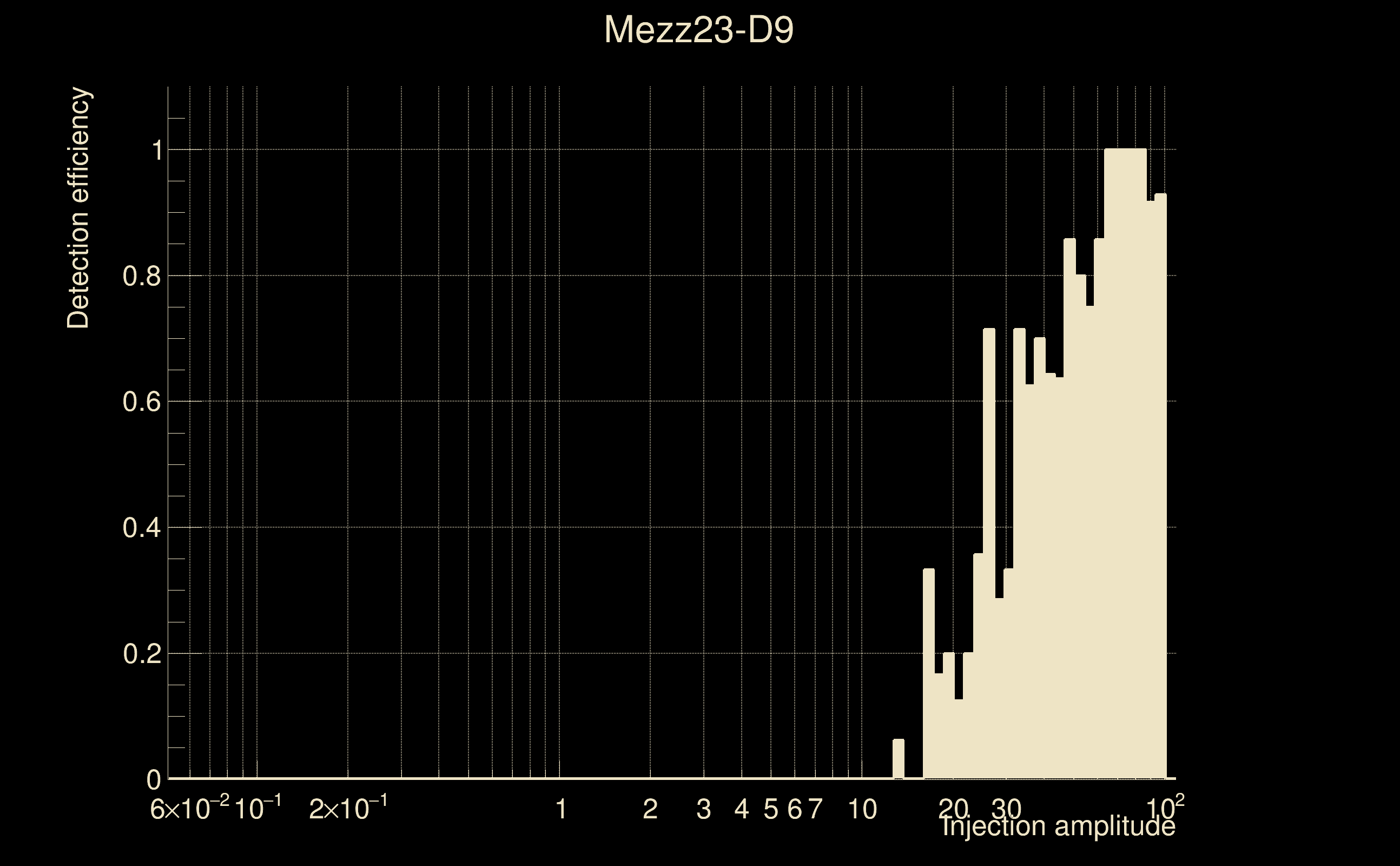

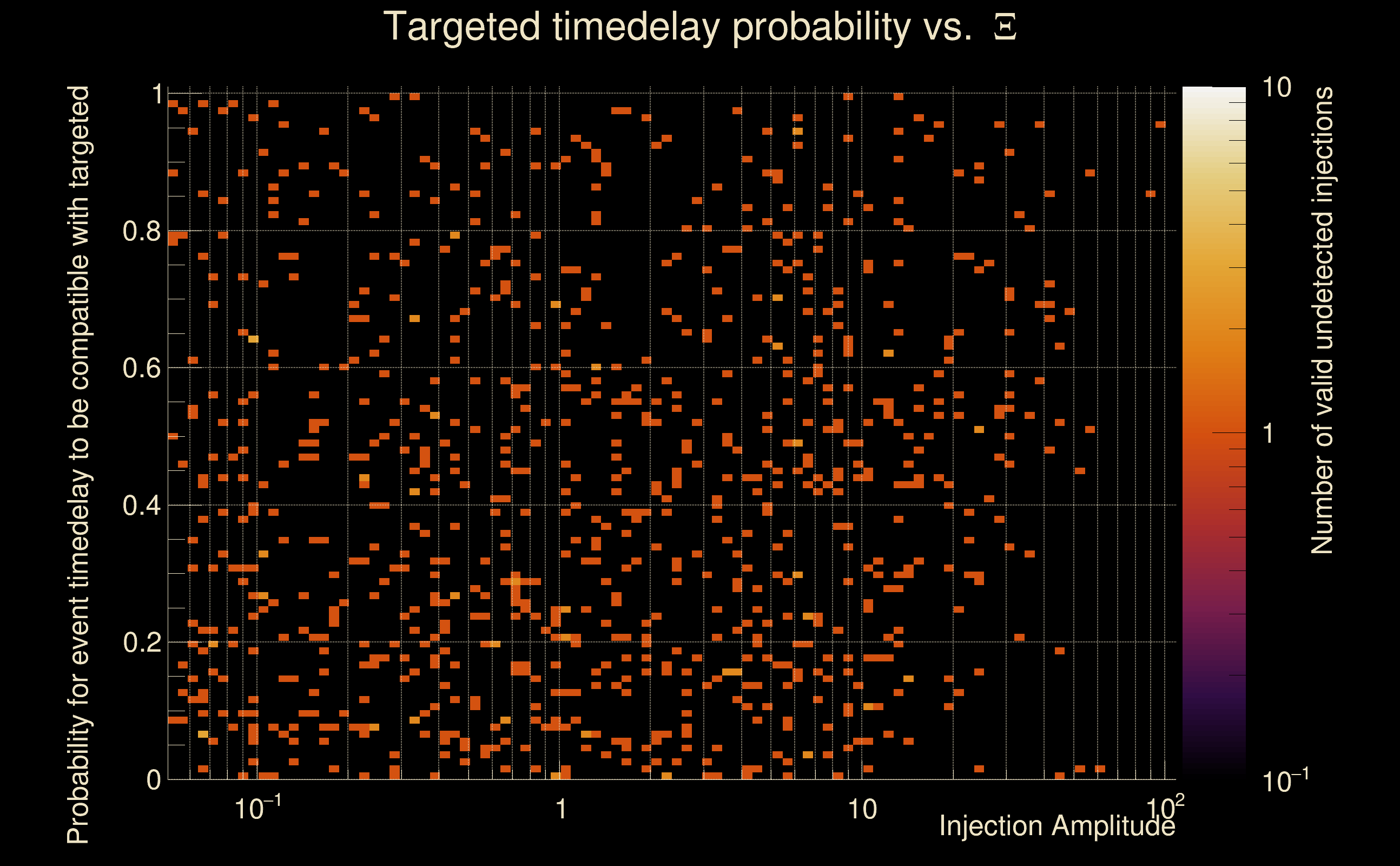

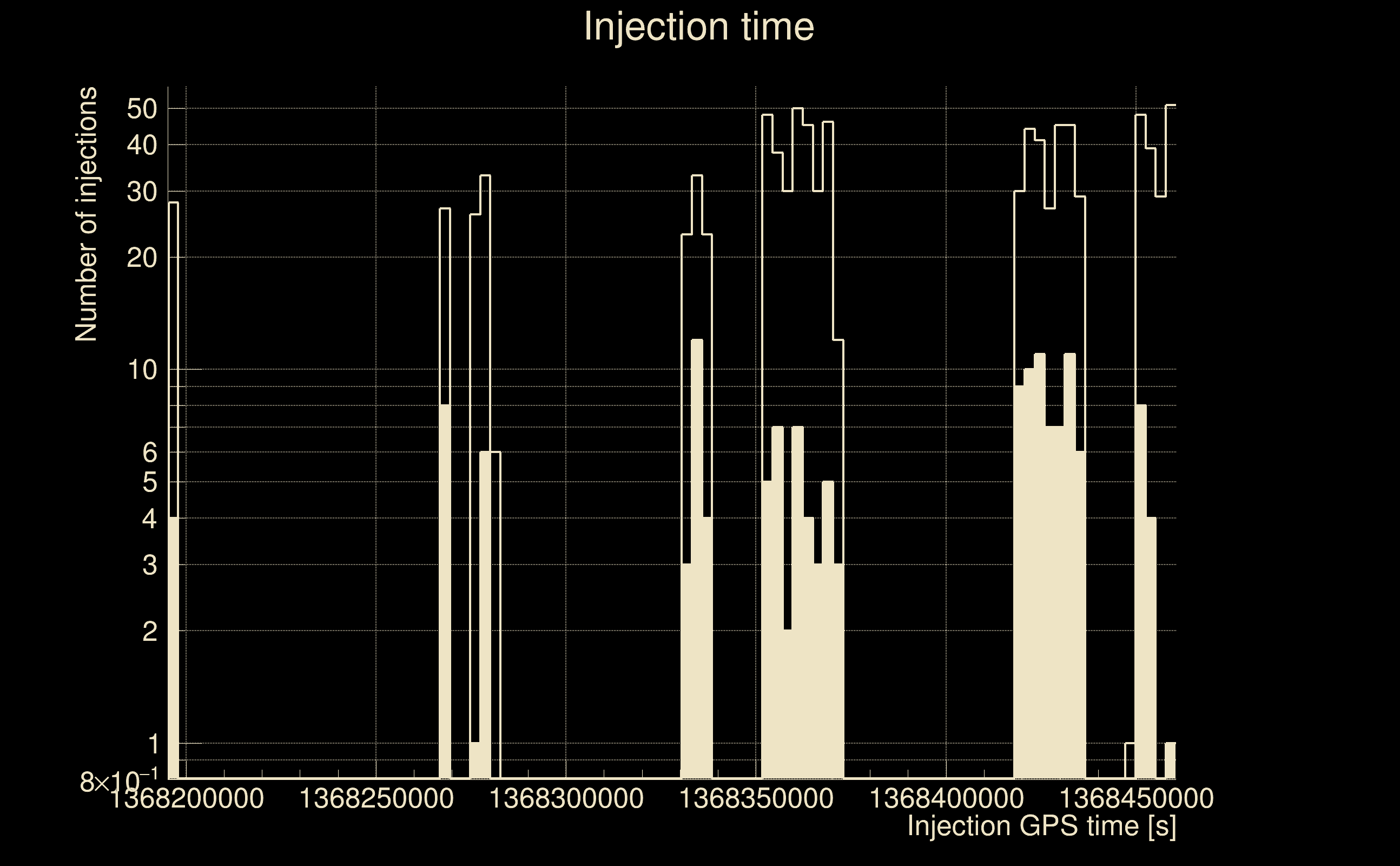

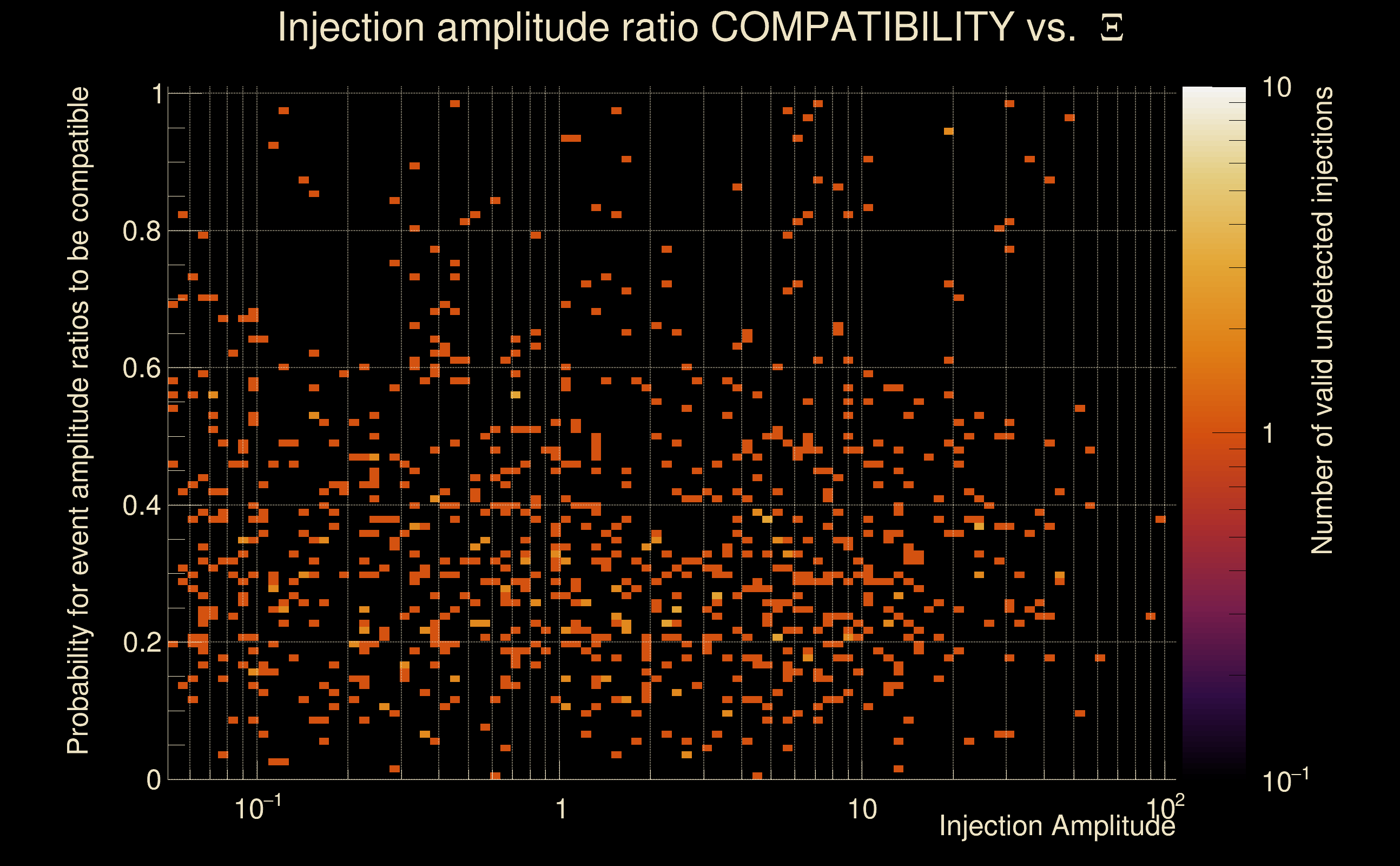

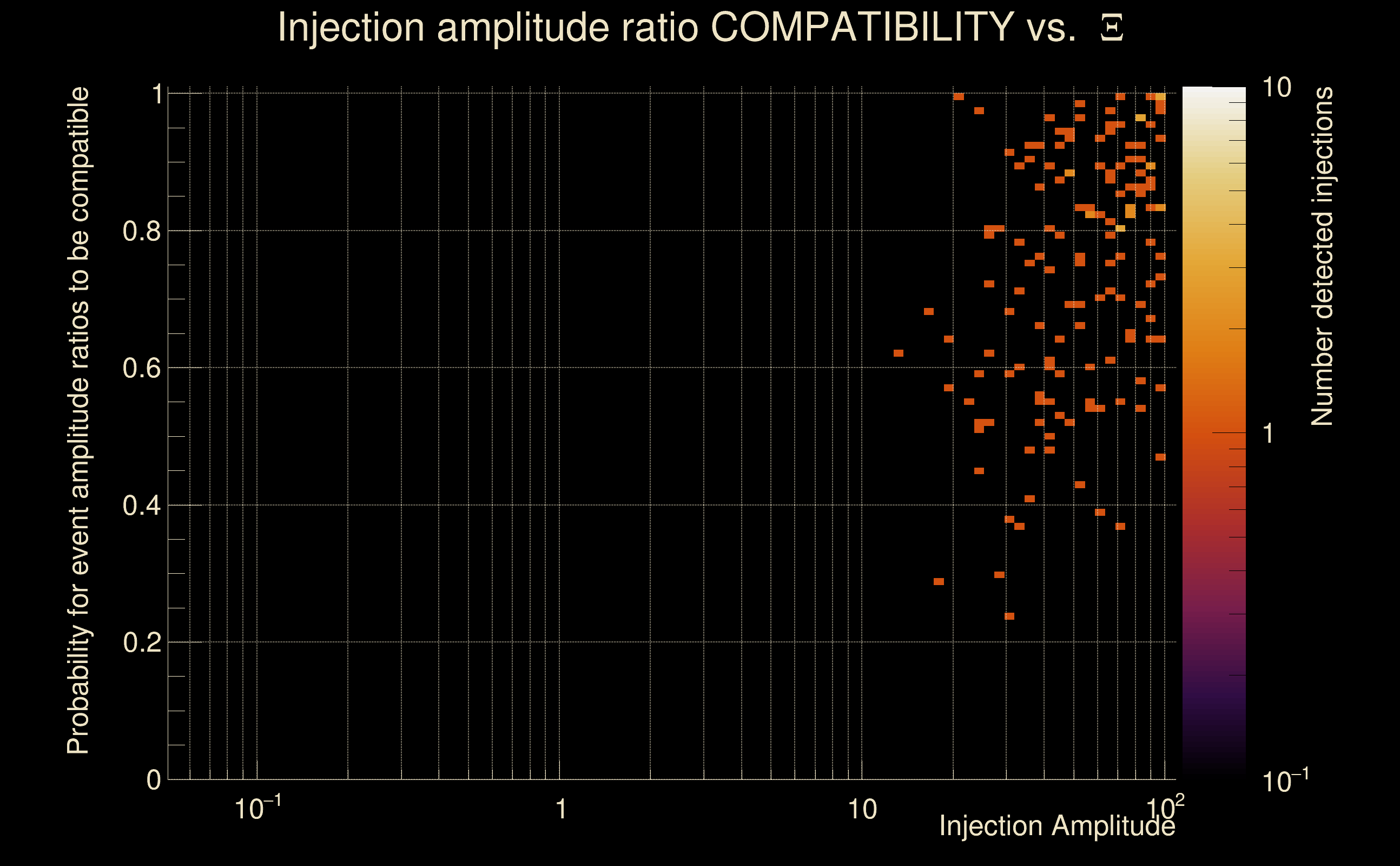

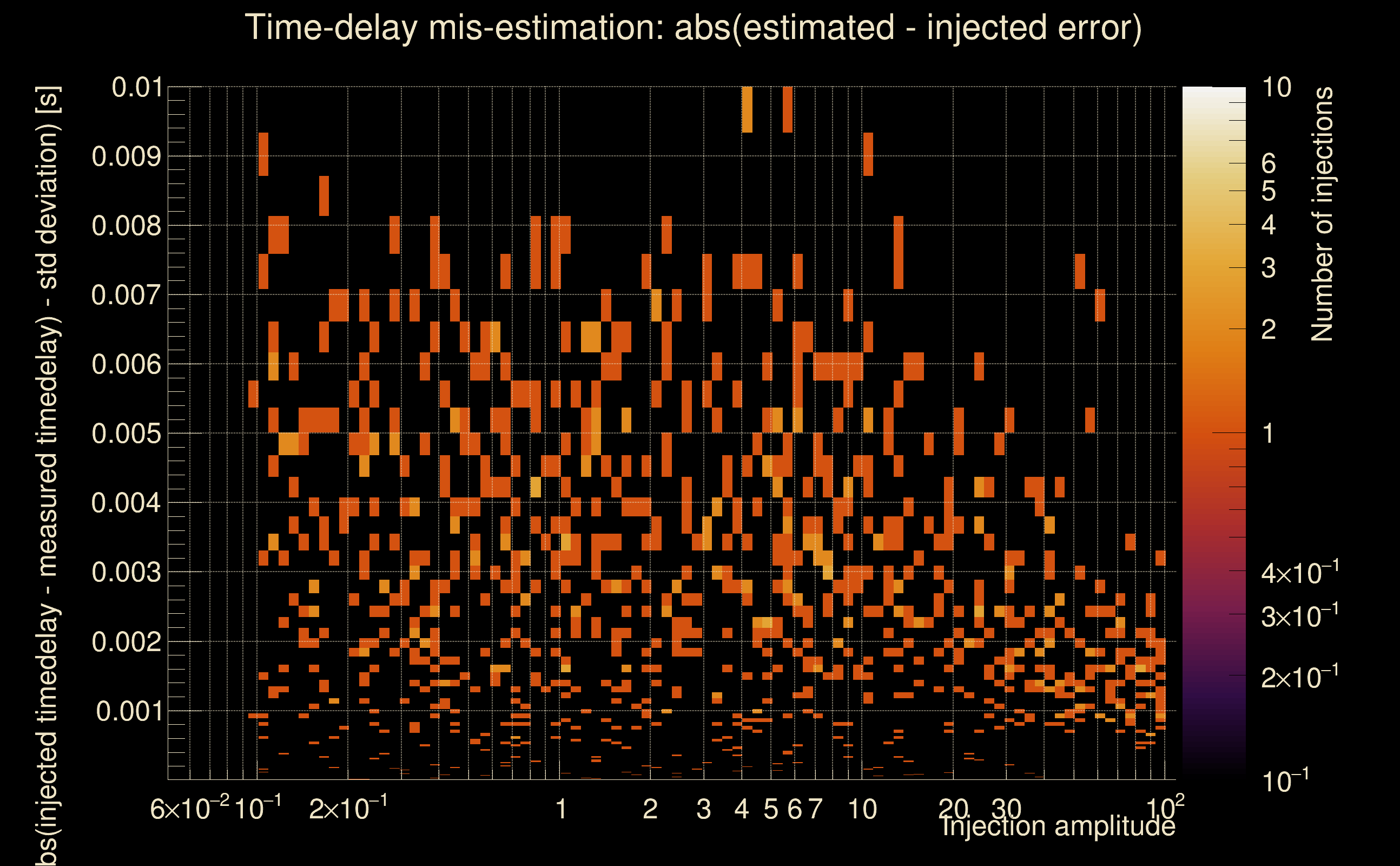

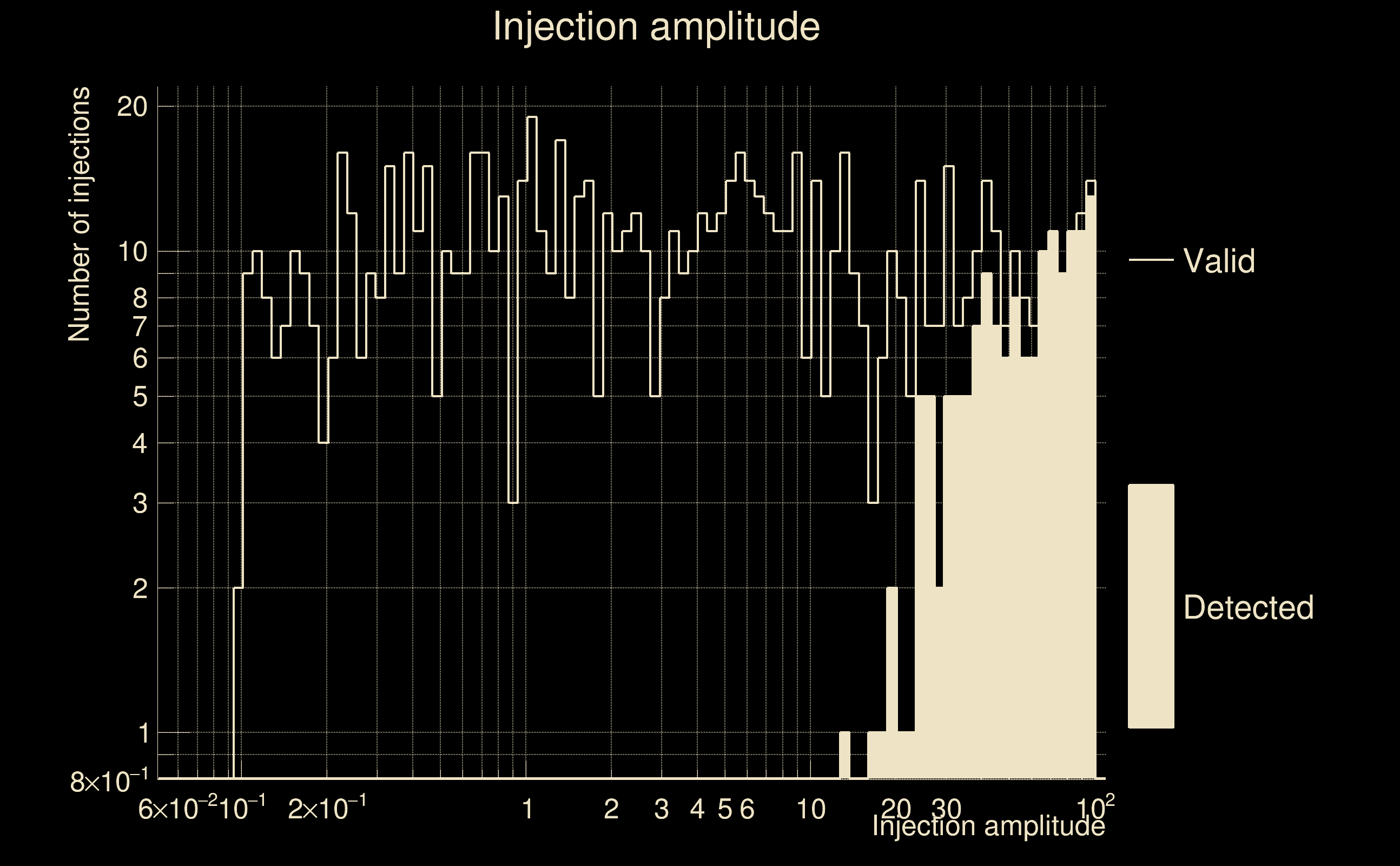

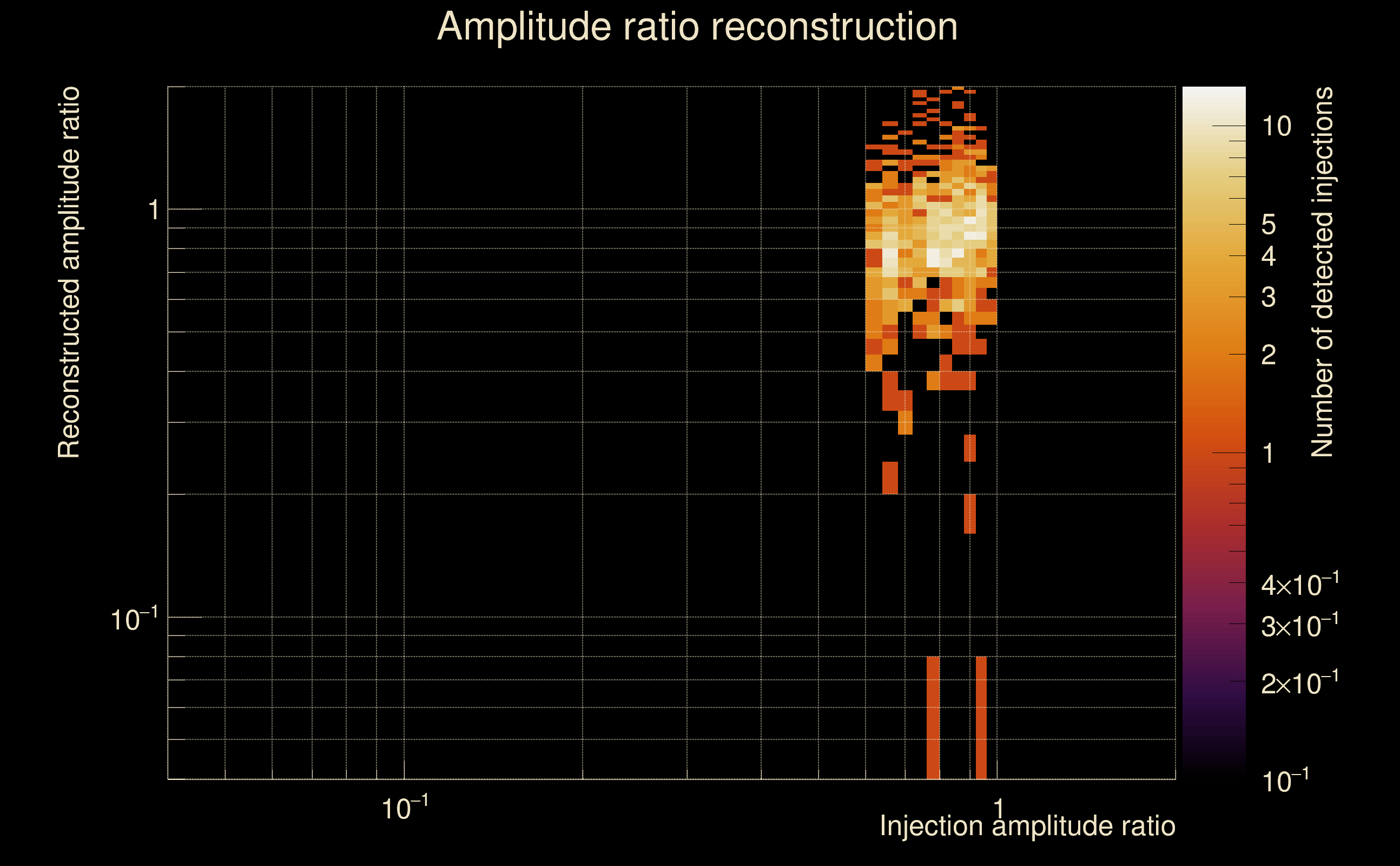

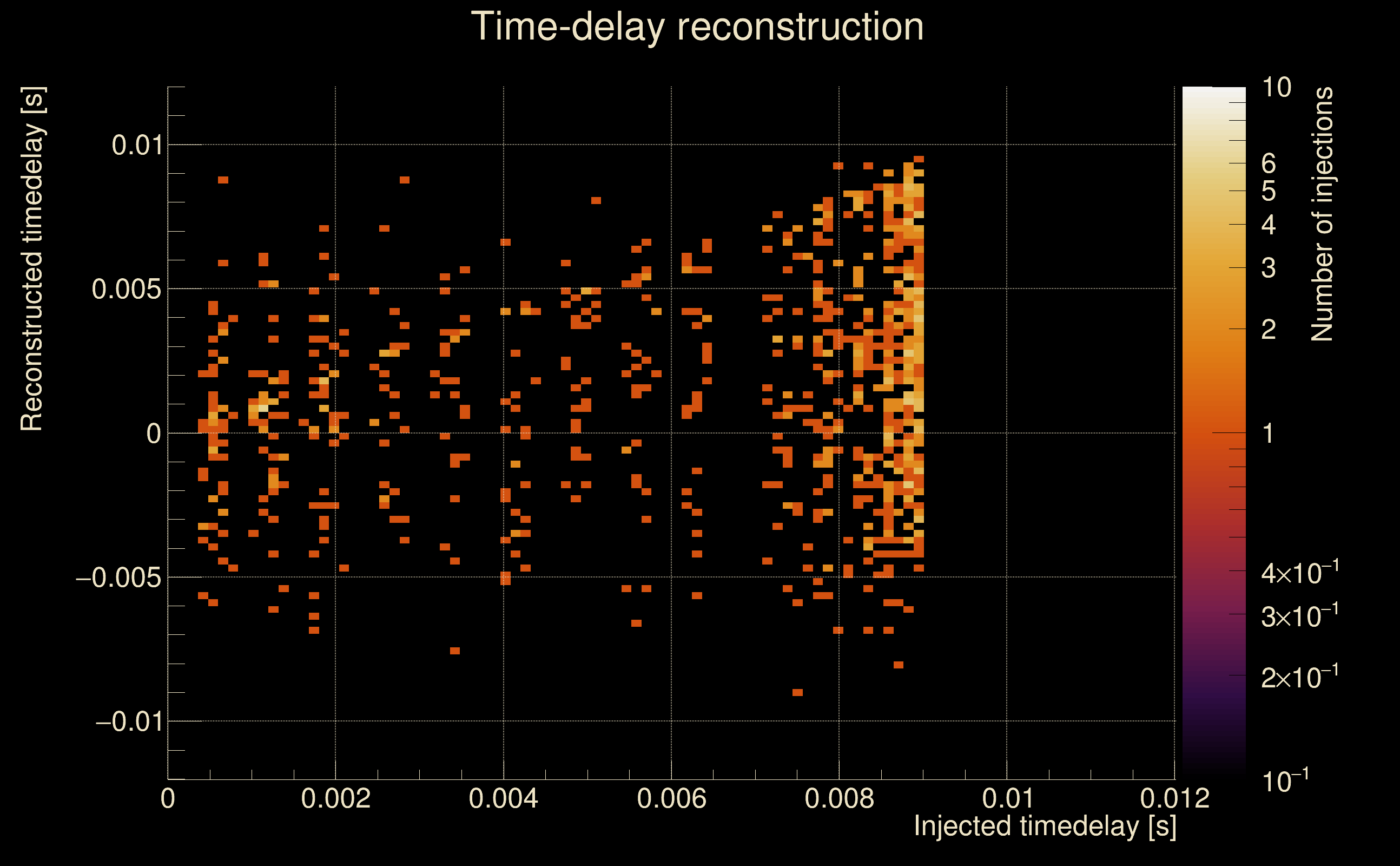

| Number of injections (total/valid/detected): | 1042 / 927 / 148 |
| List of missed injections: | ./Mezz23-D9_missed.txt |
| Injection amplitude at 90% detection efficiency: | 62.6734 |
| Injection amplitude at 50% detection efficiency: | 31.7639 |
| Injection amplitude at 10% detection efficiency: | 15.7593 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

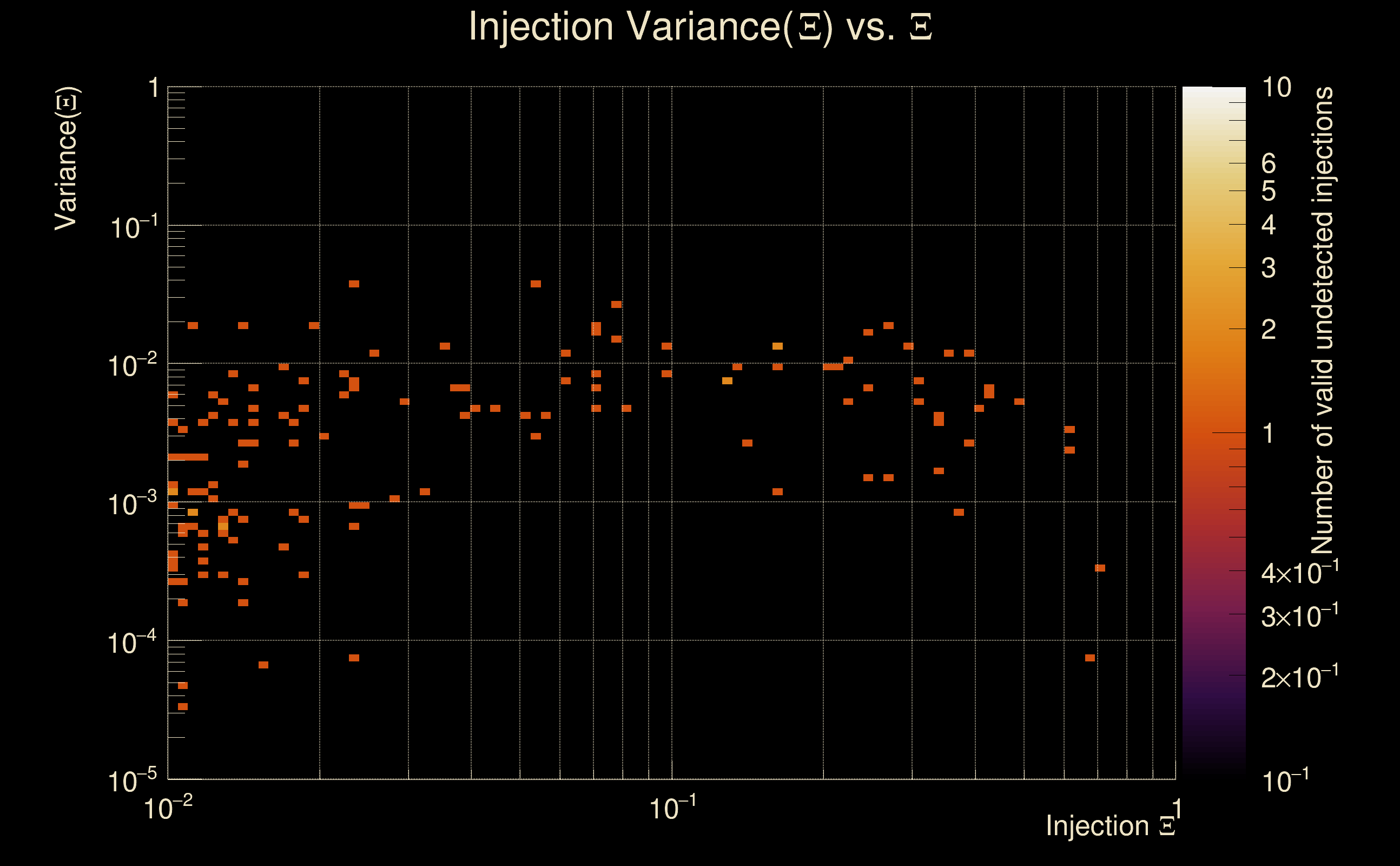

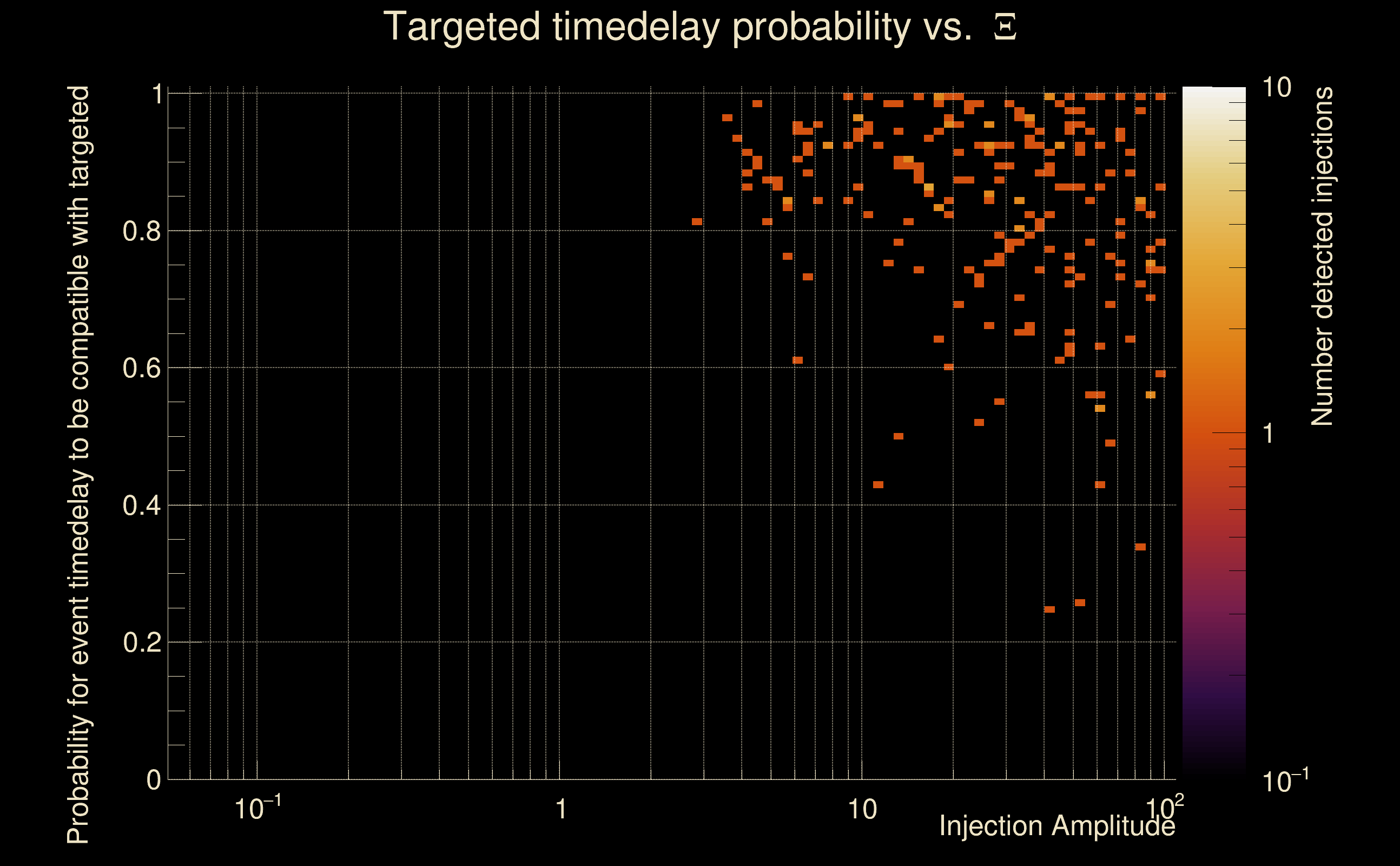

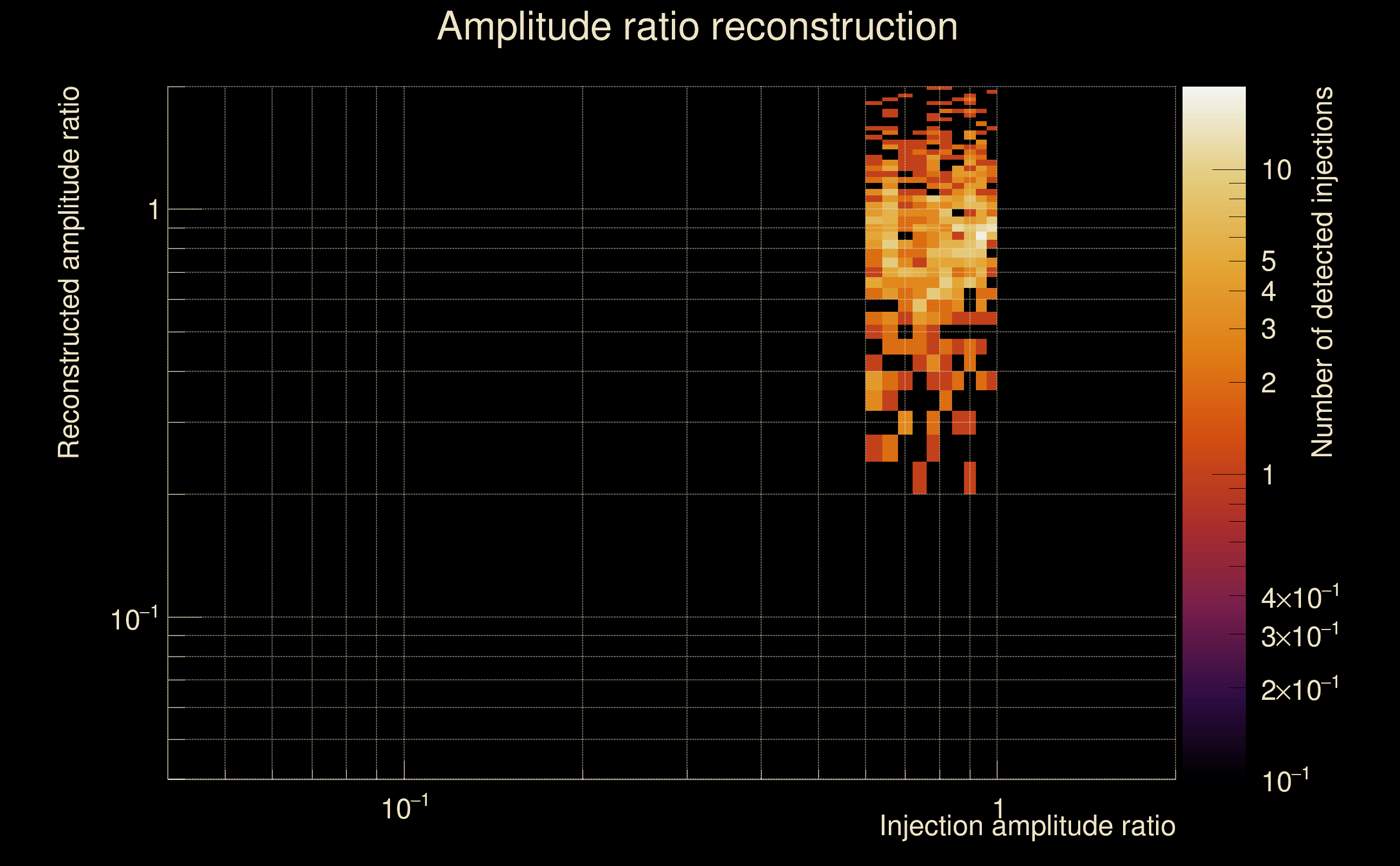

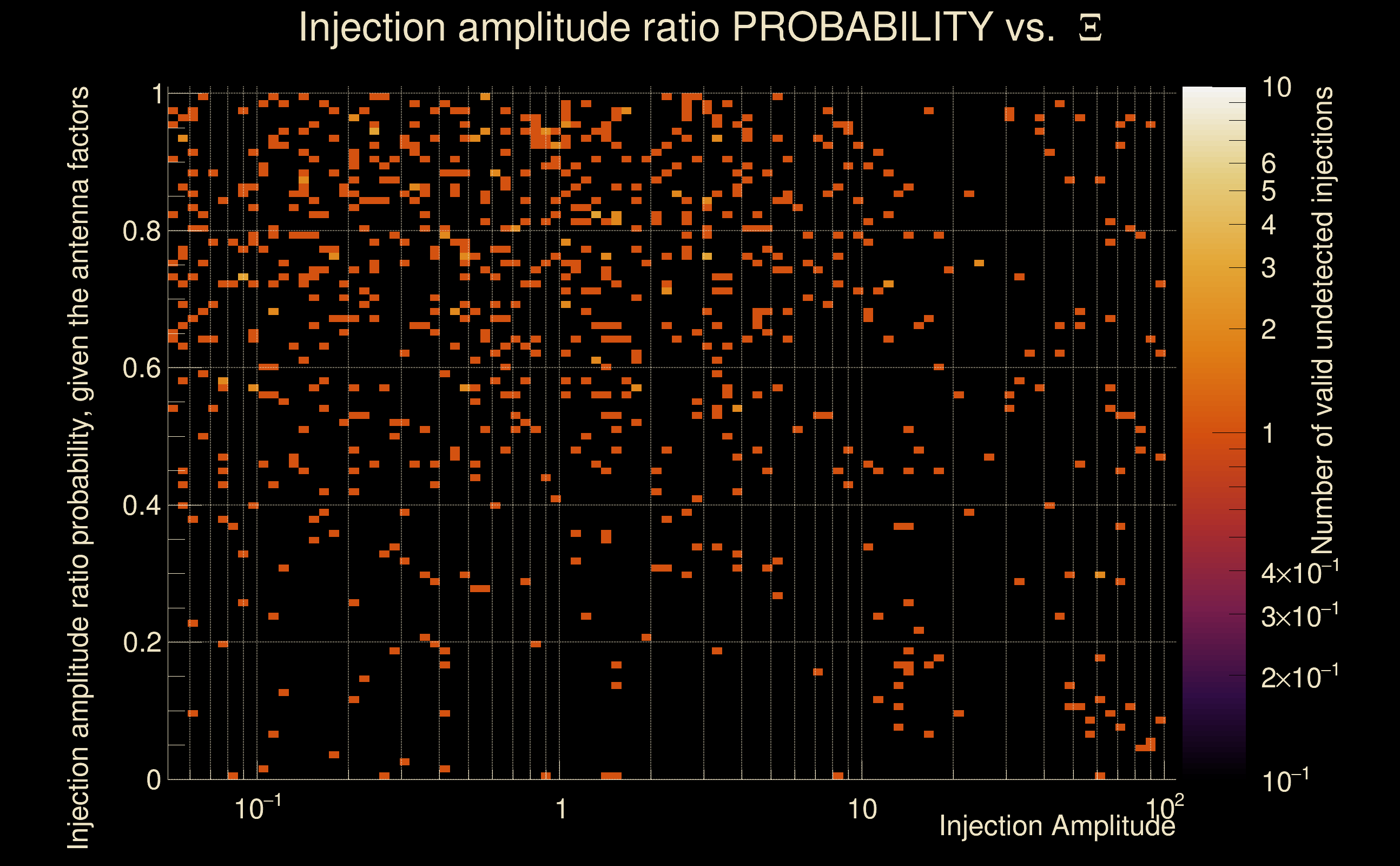

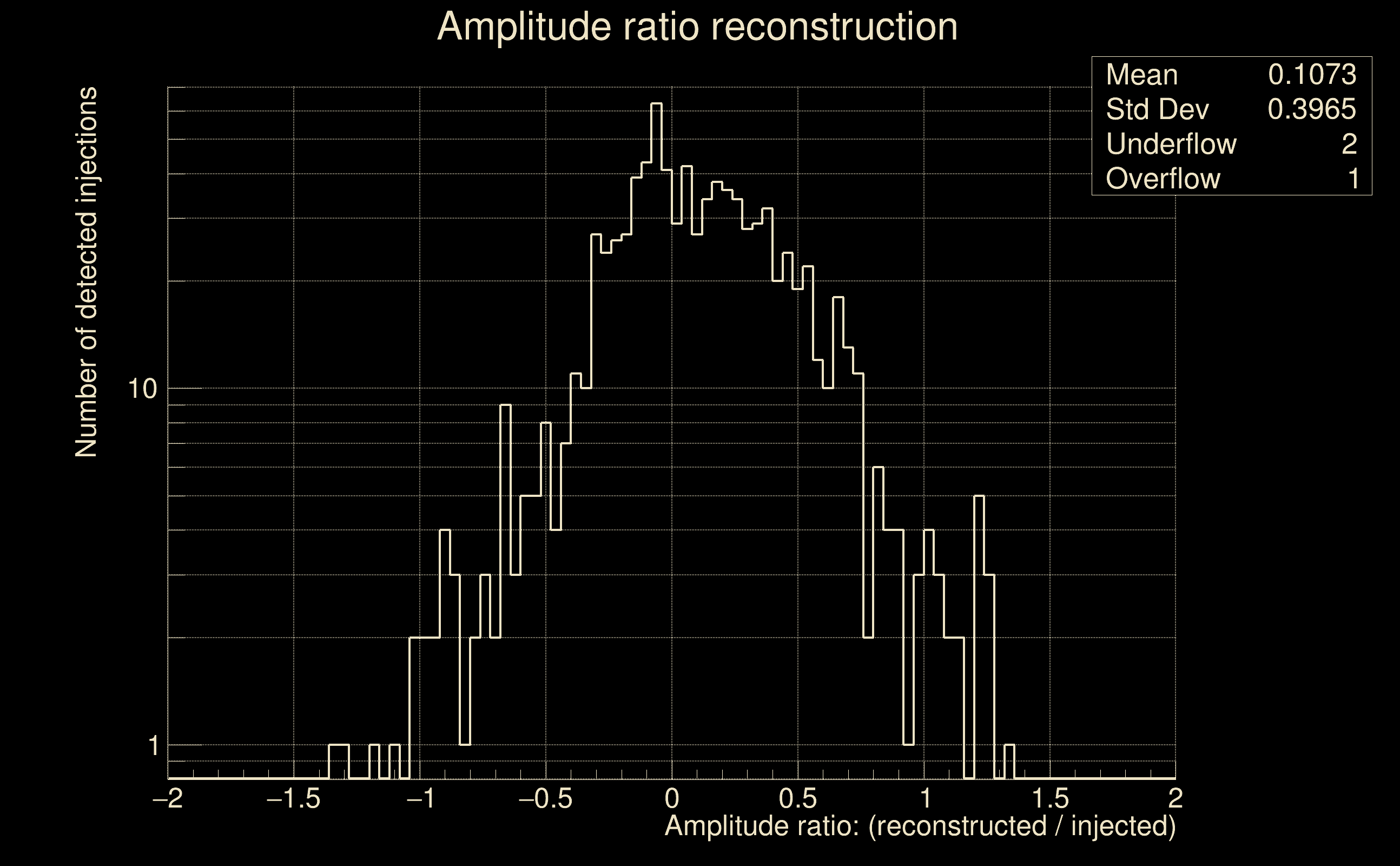

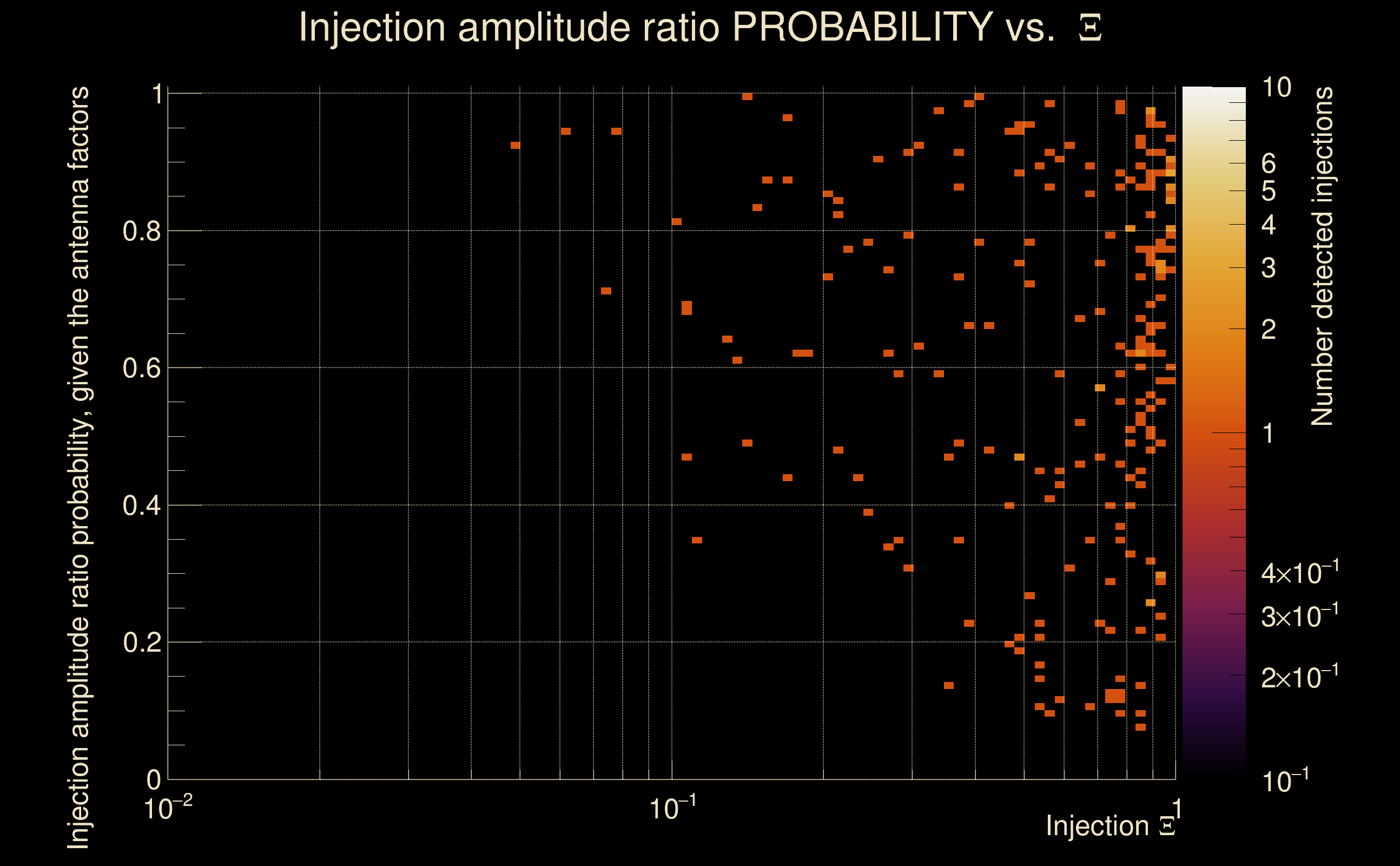

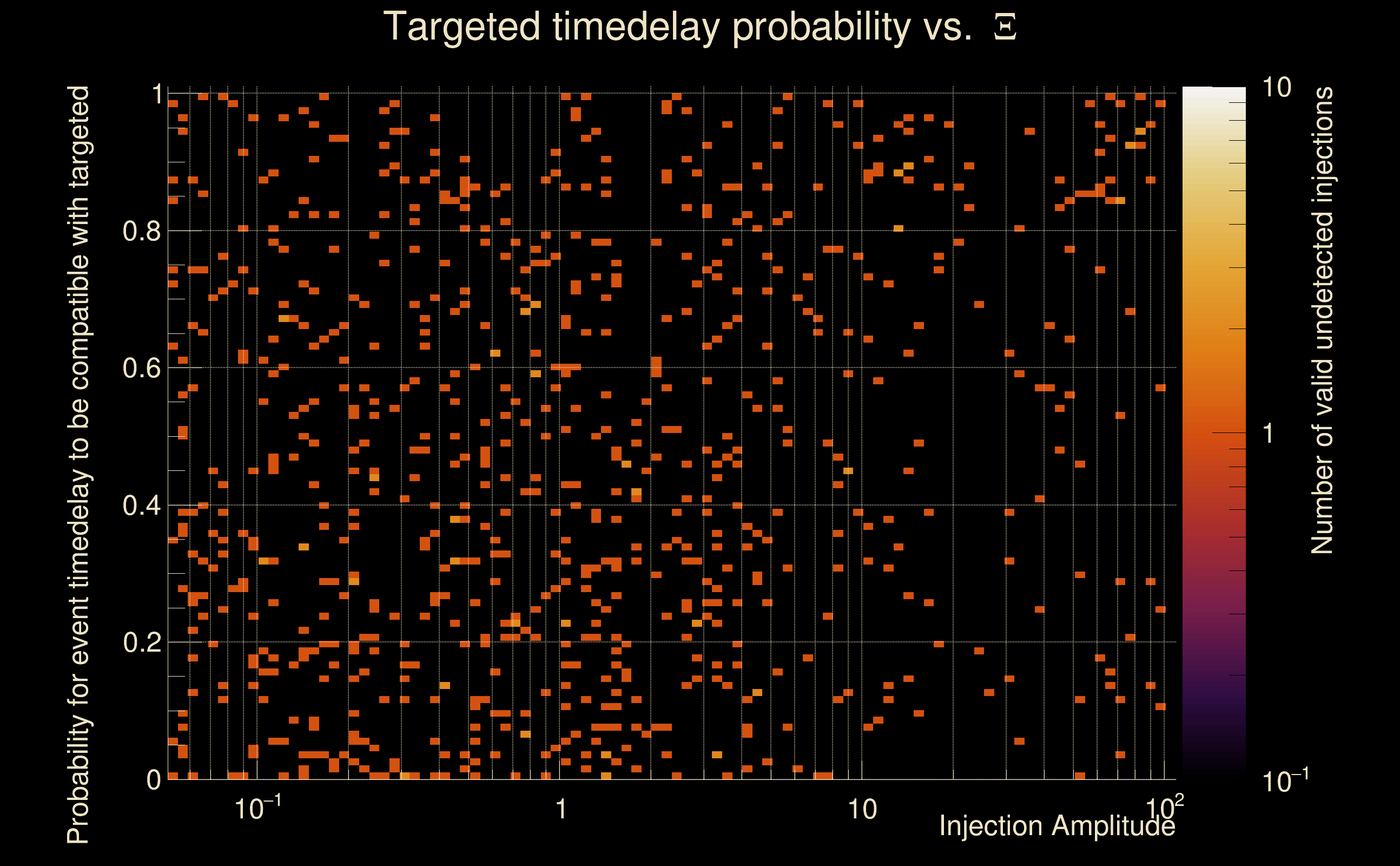

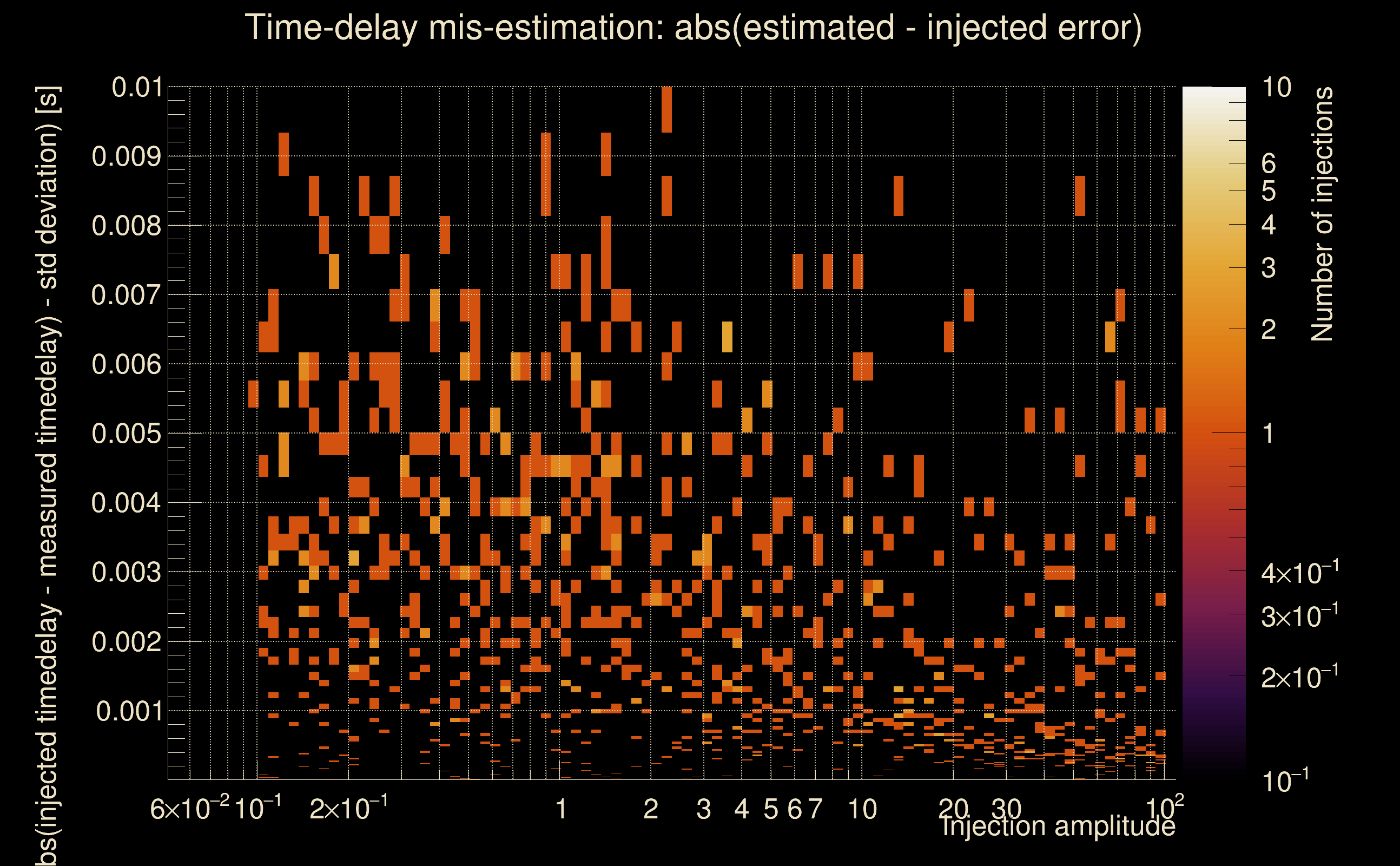

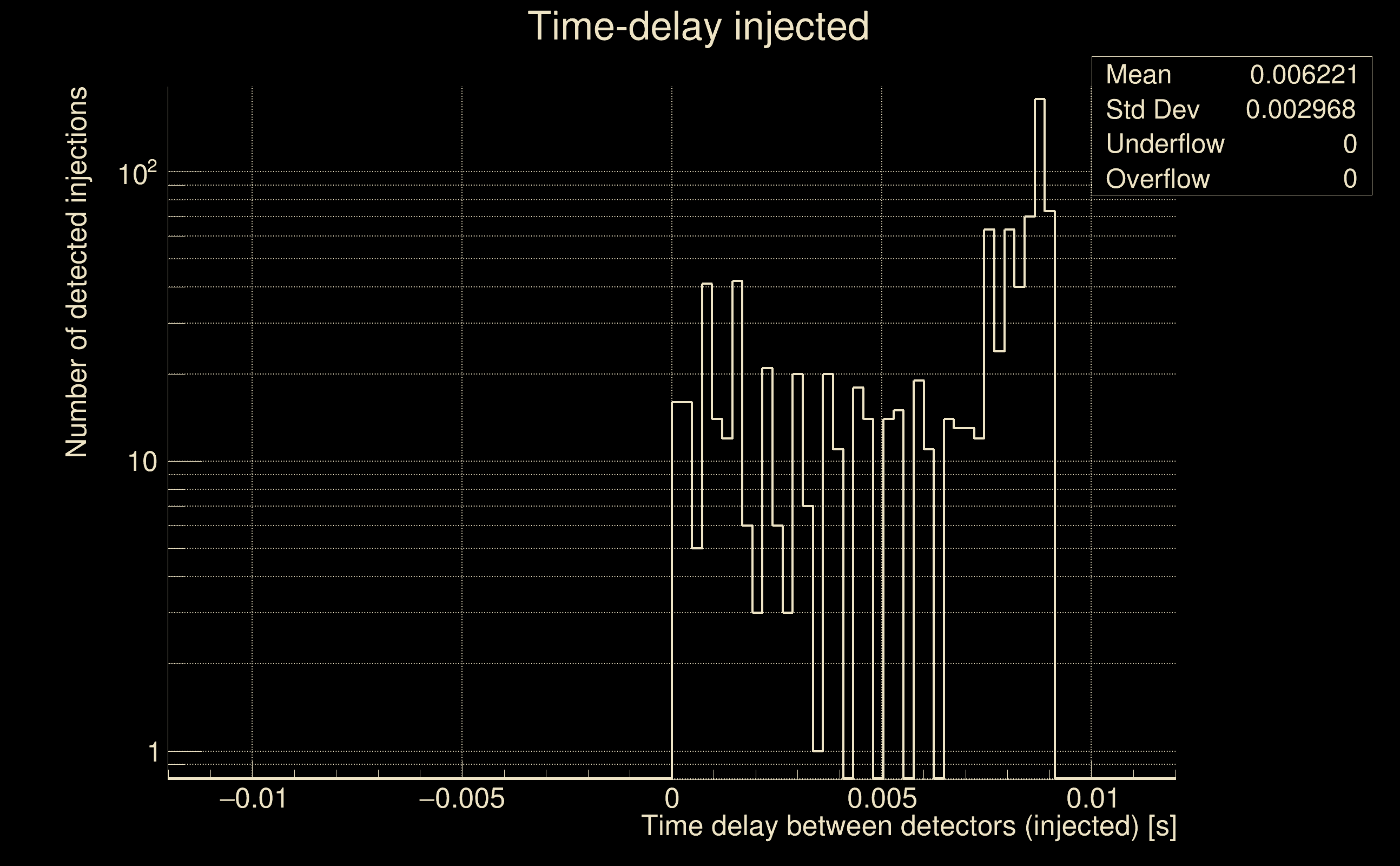

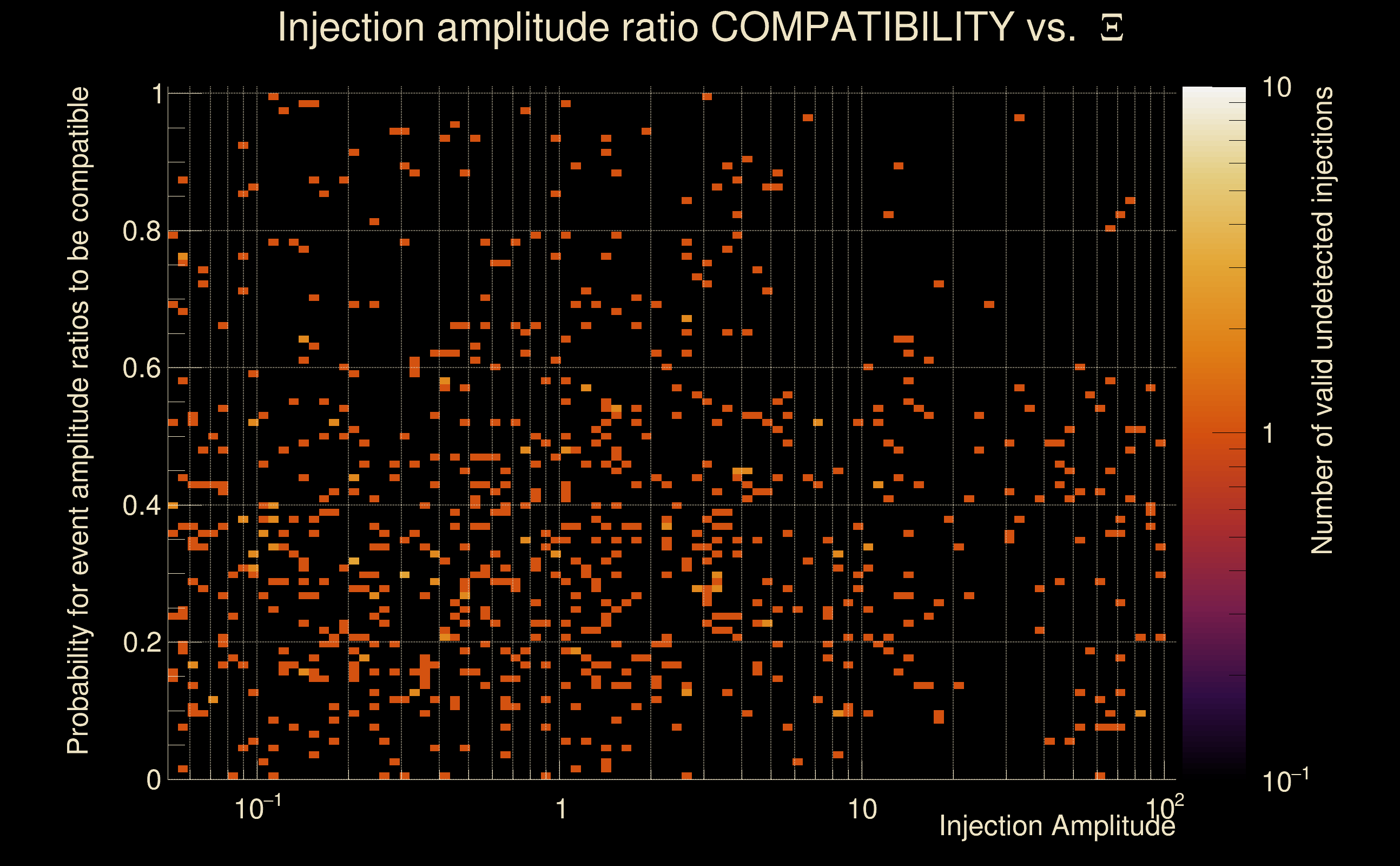

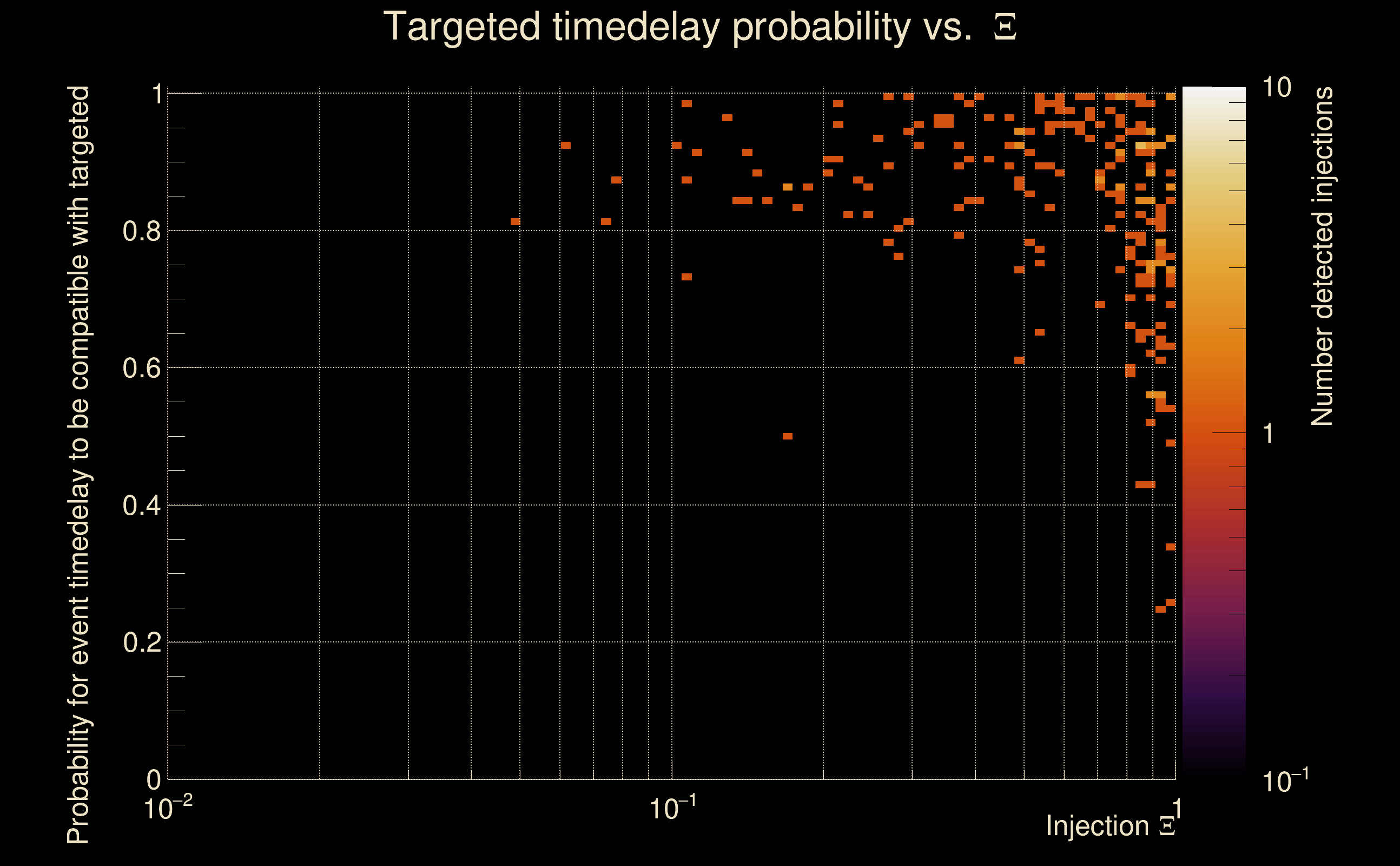

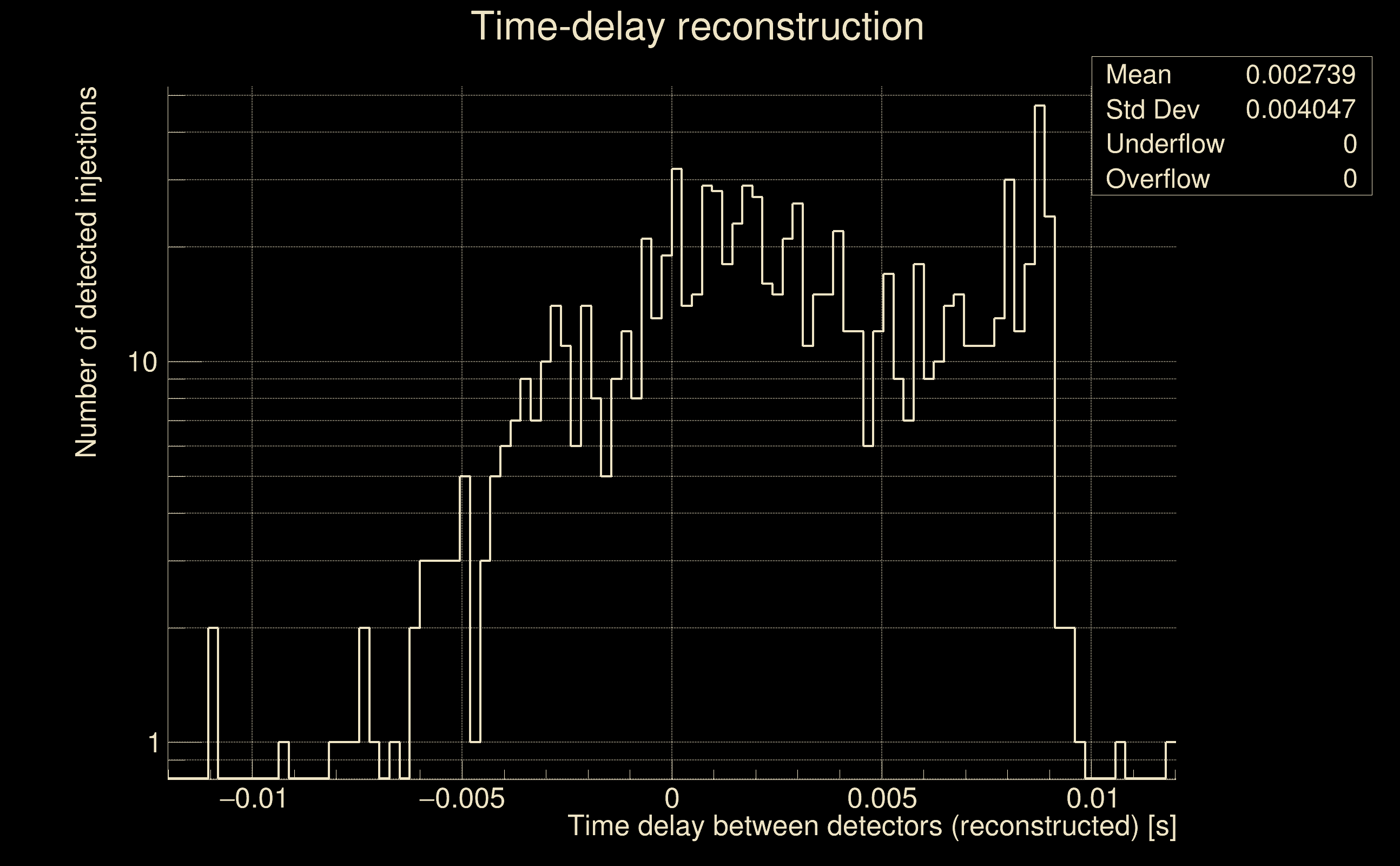

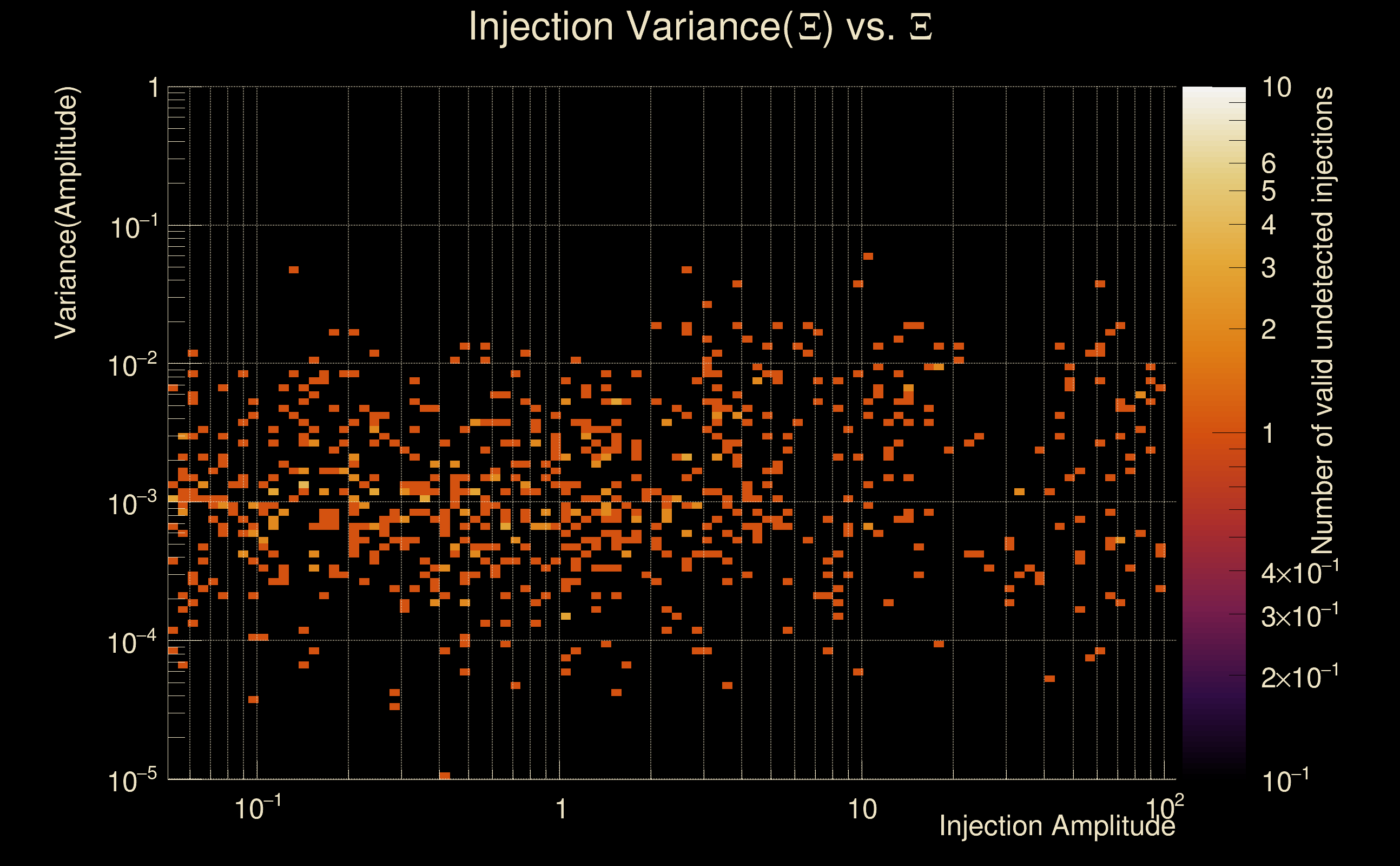

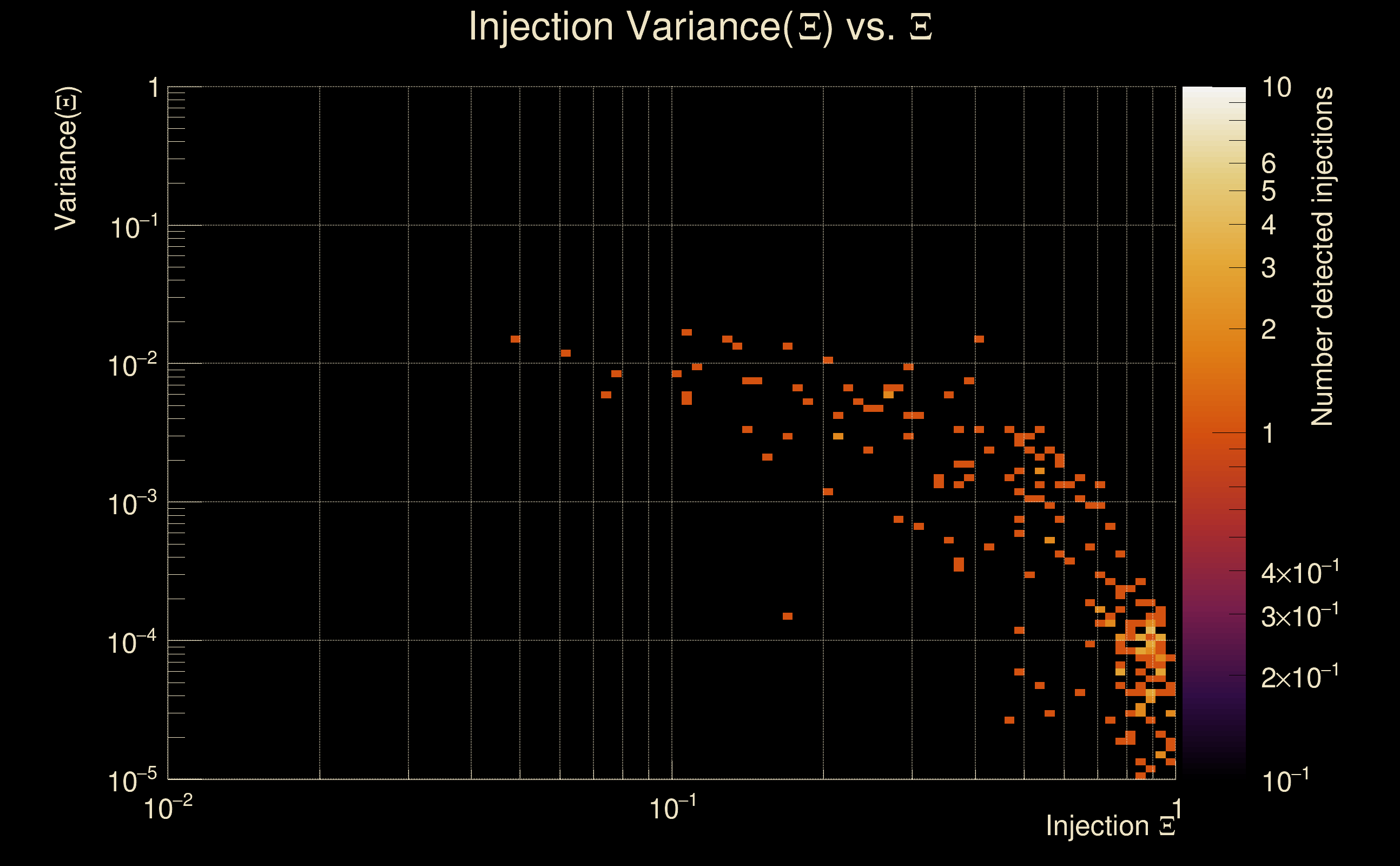

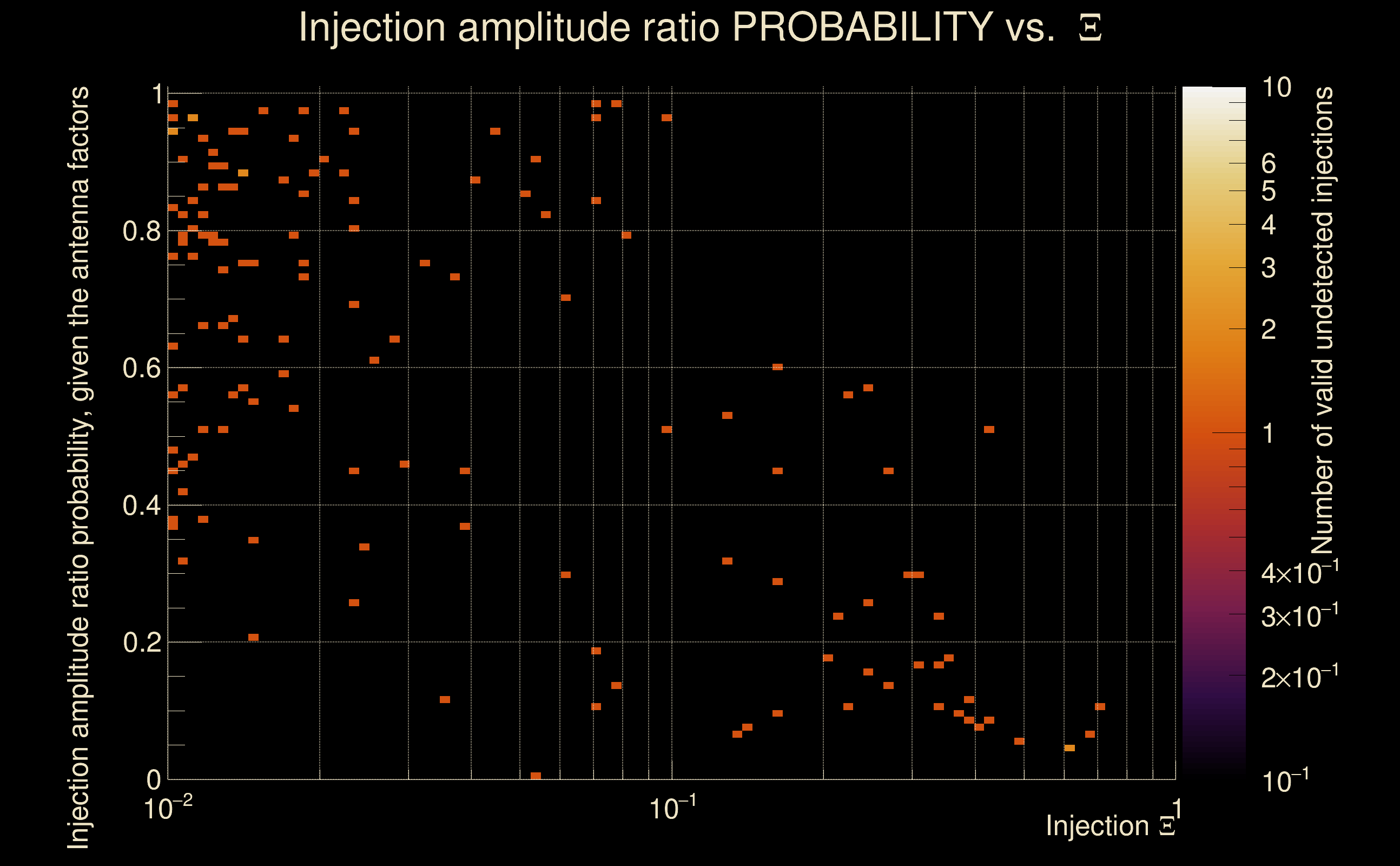

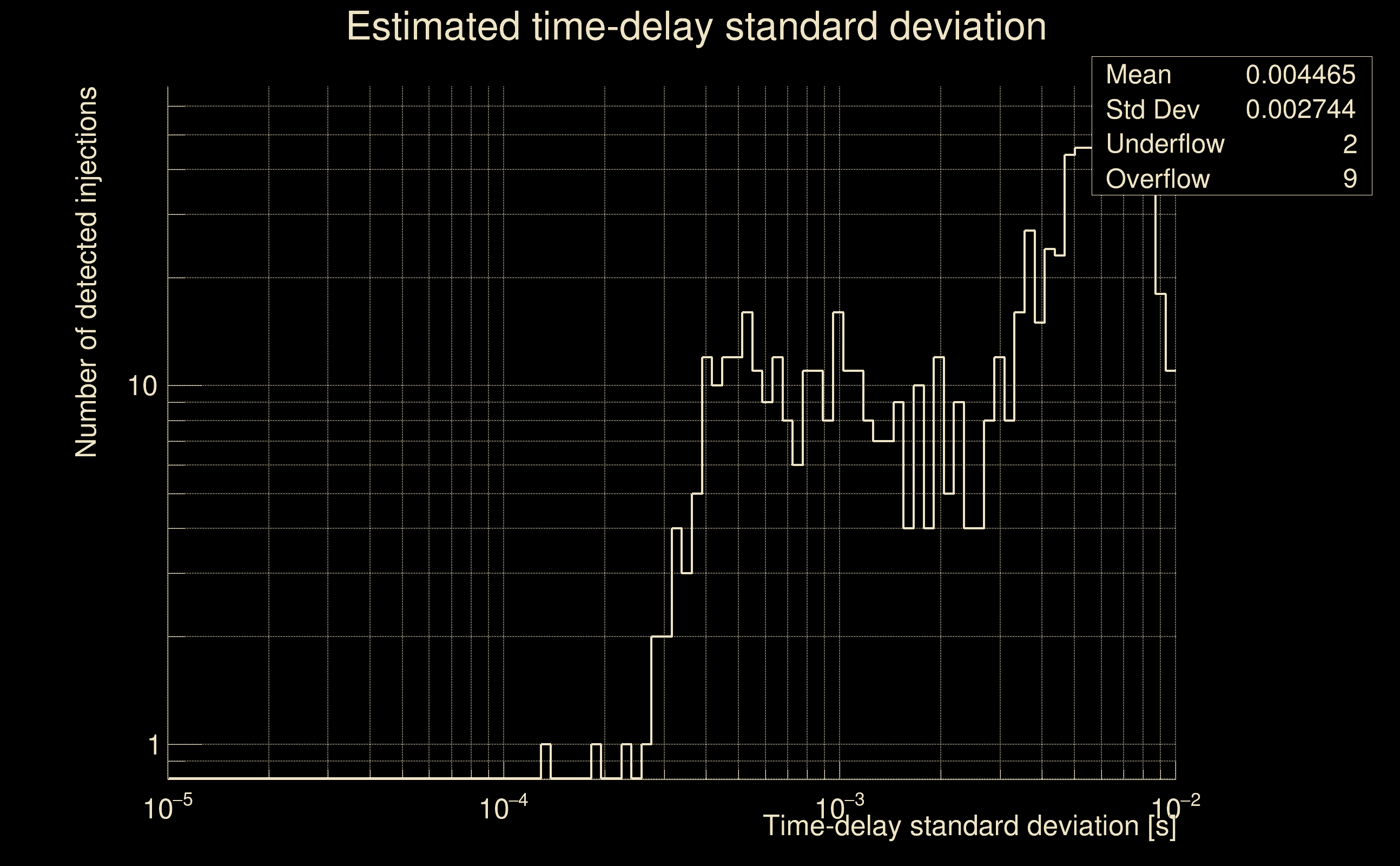

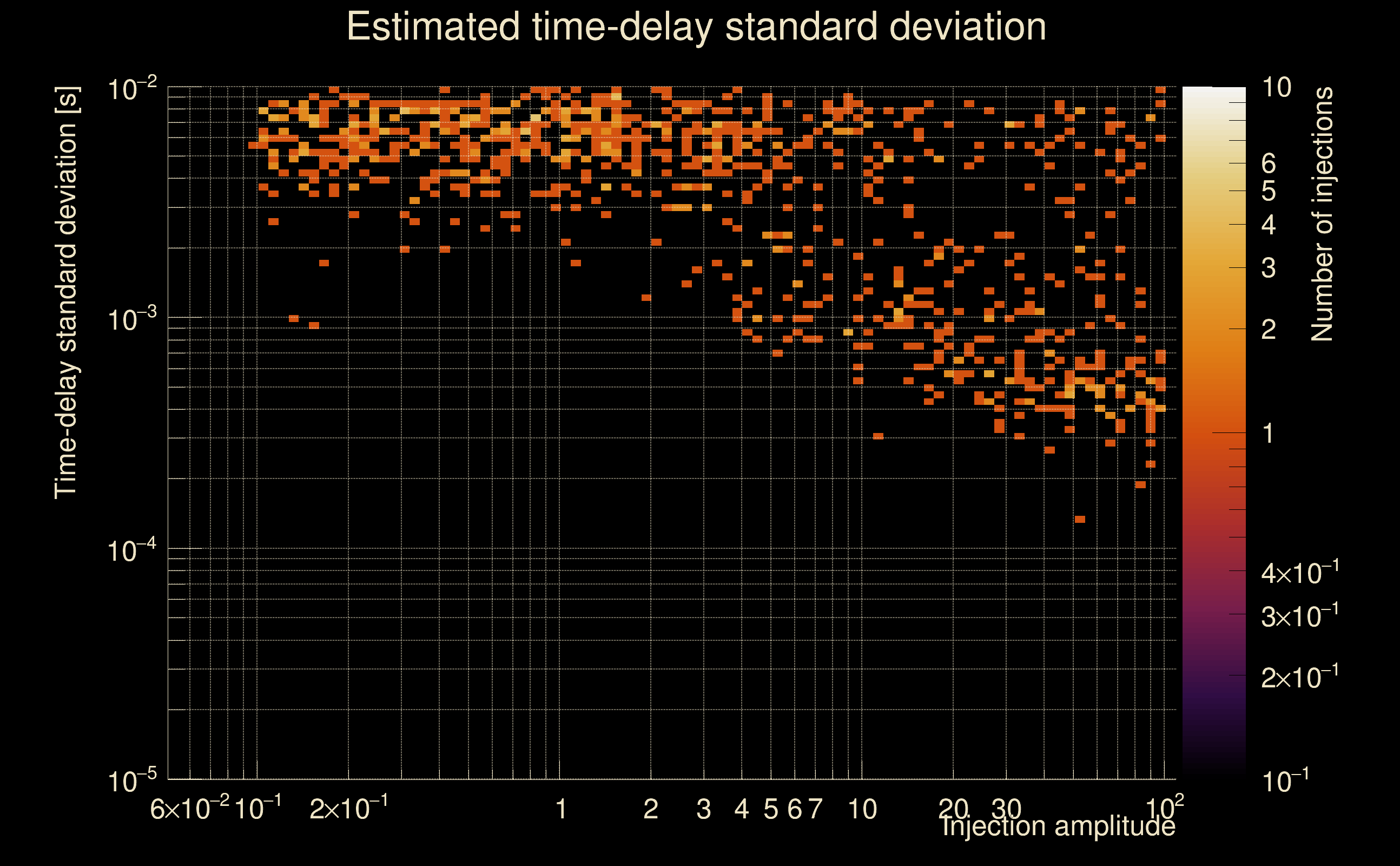

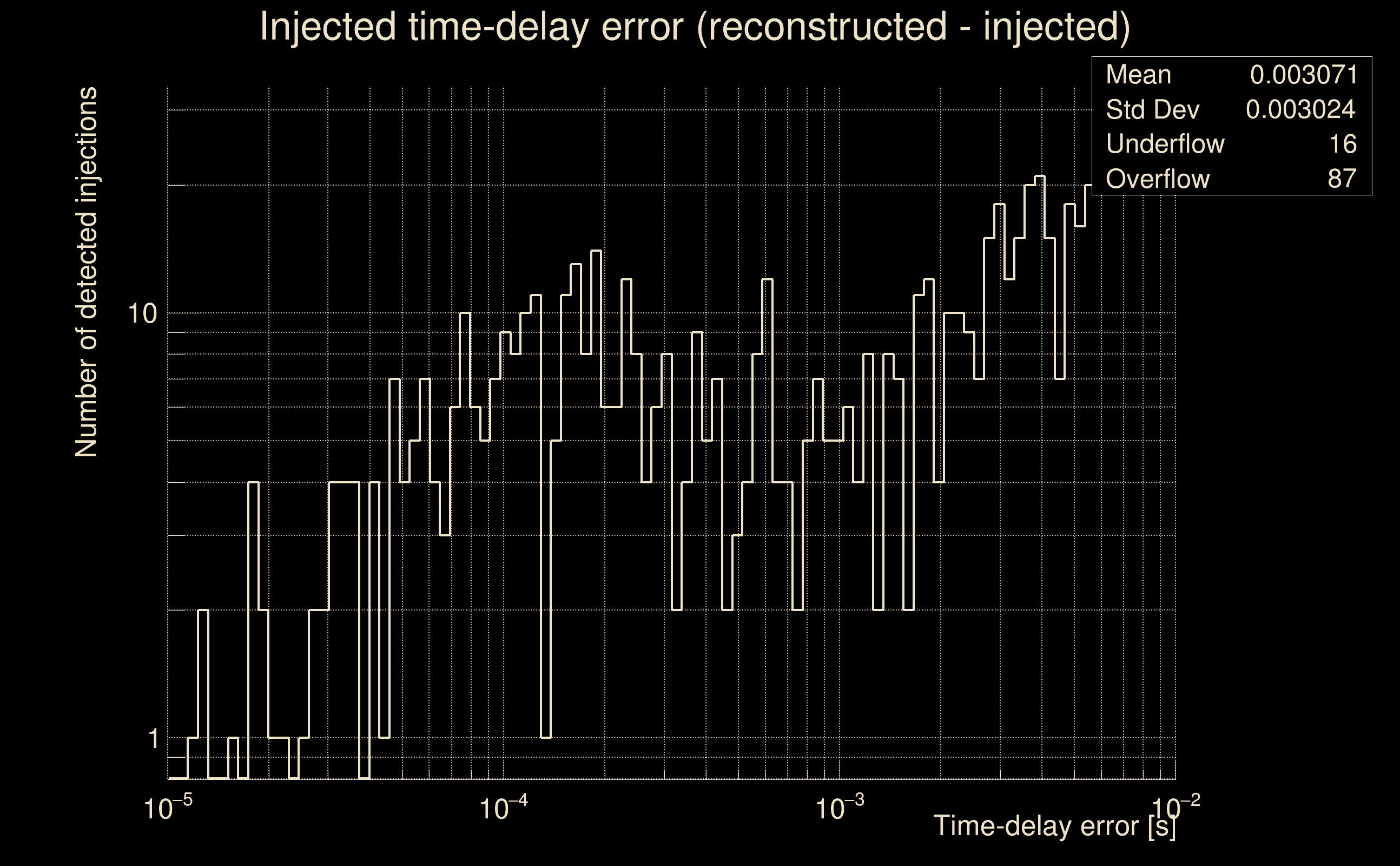

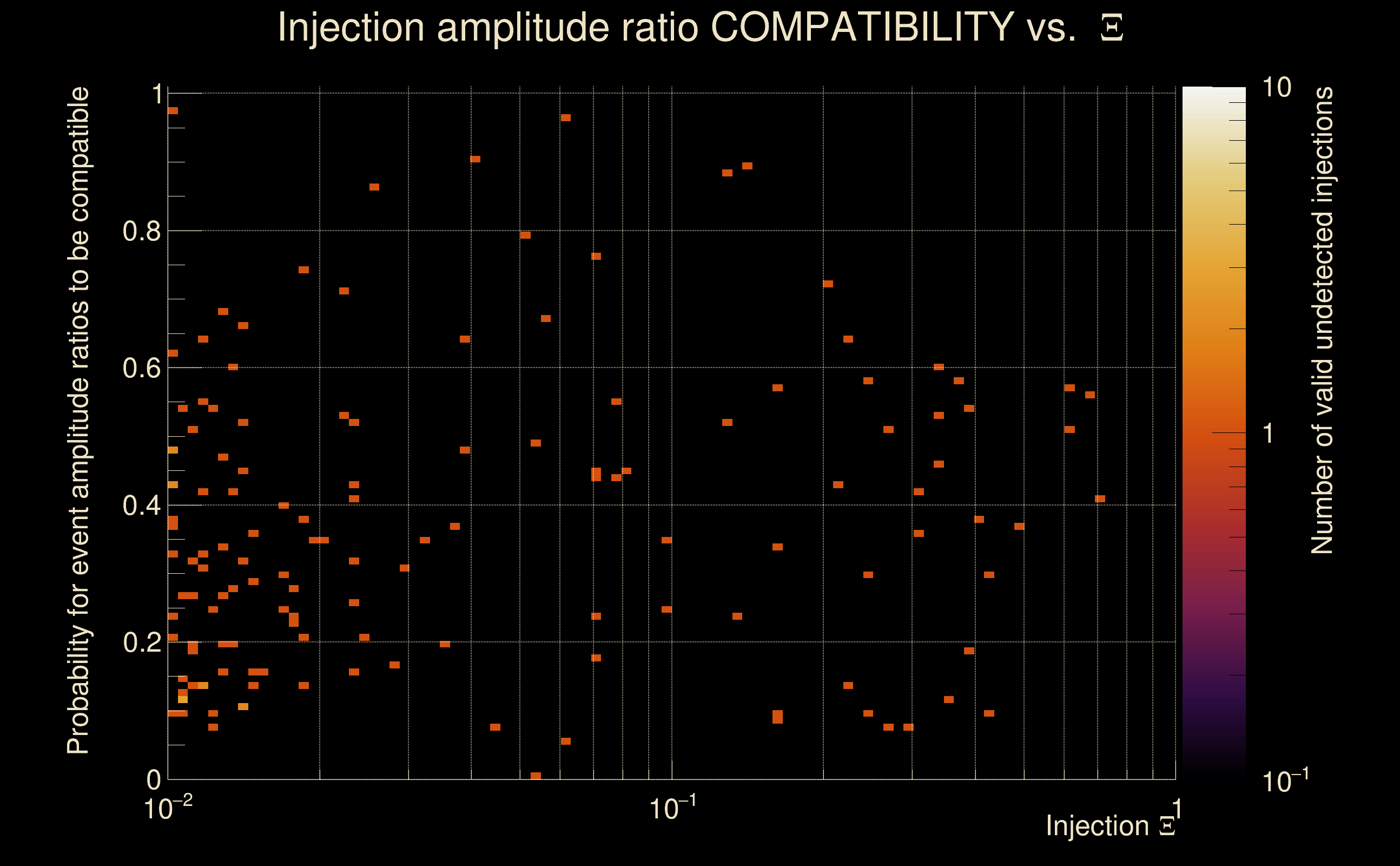

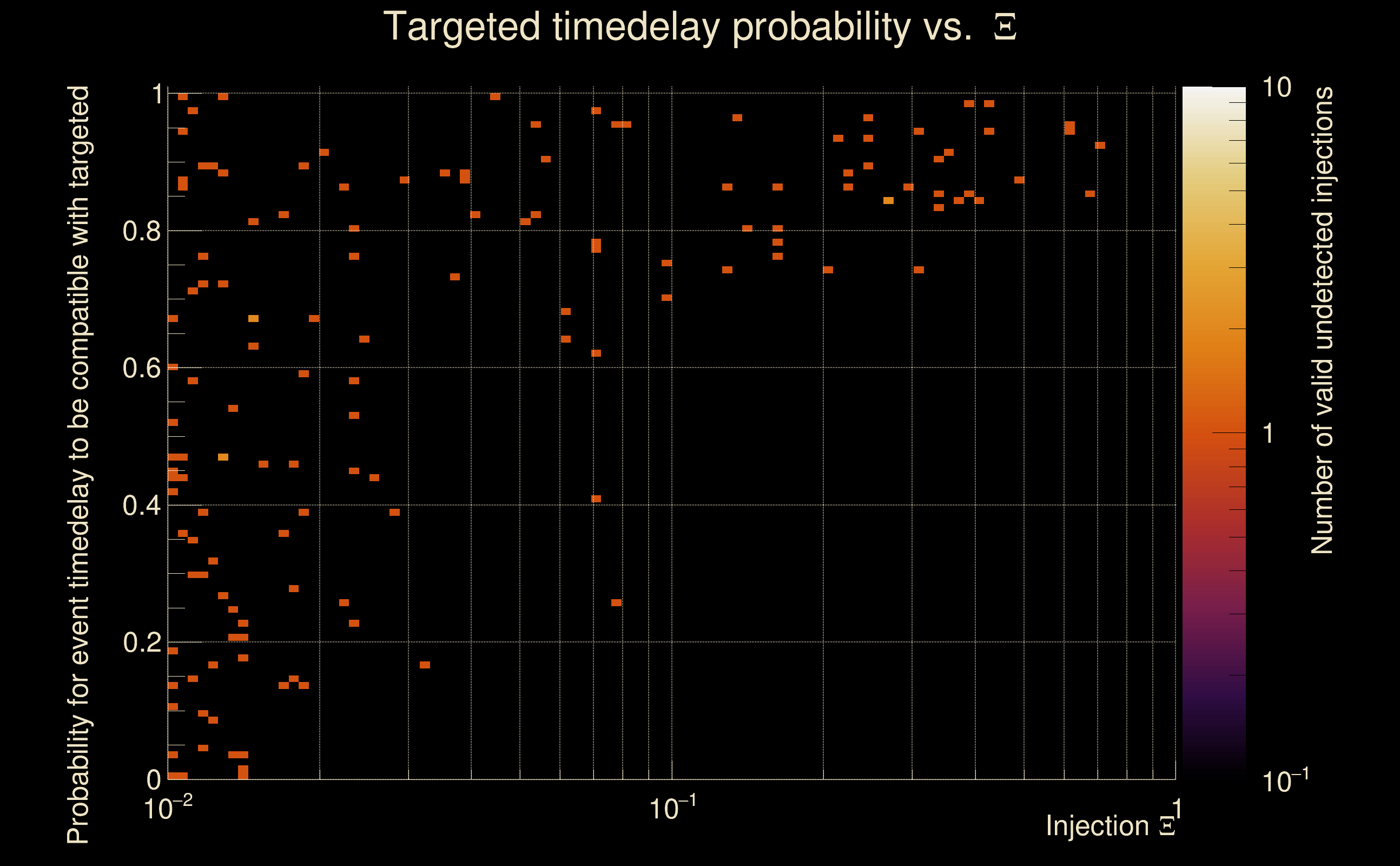

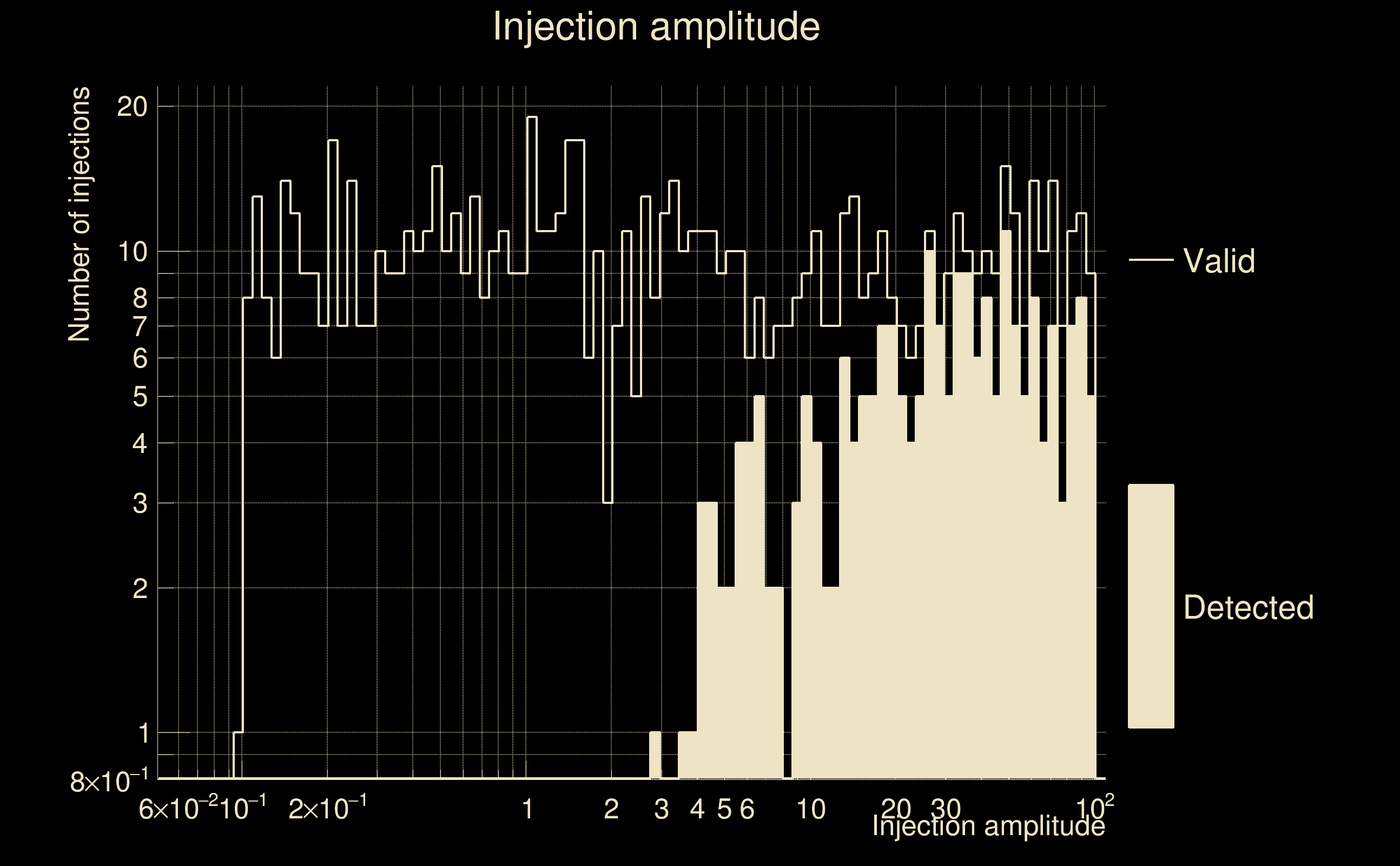

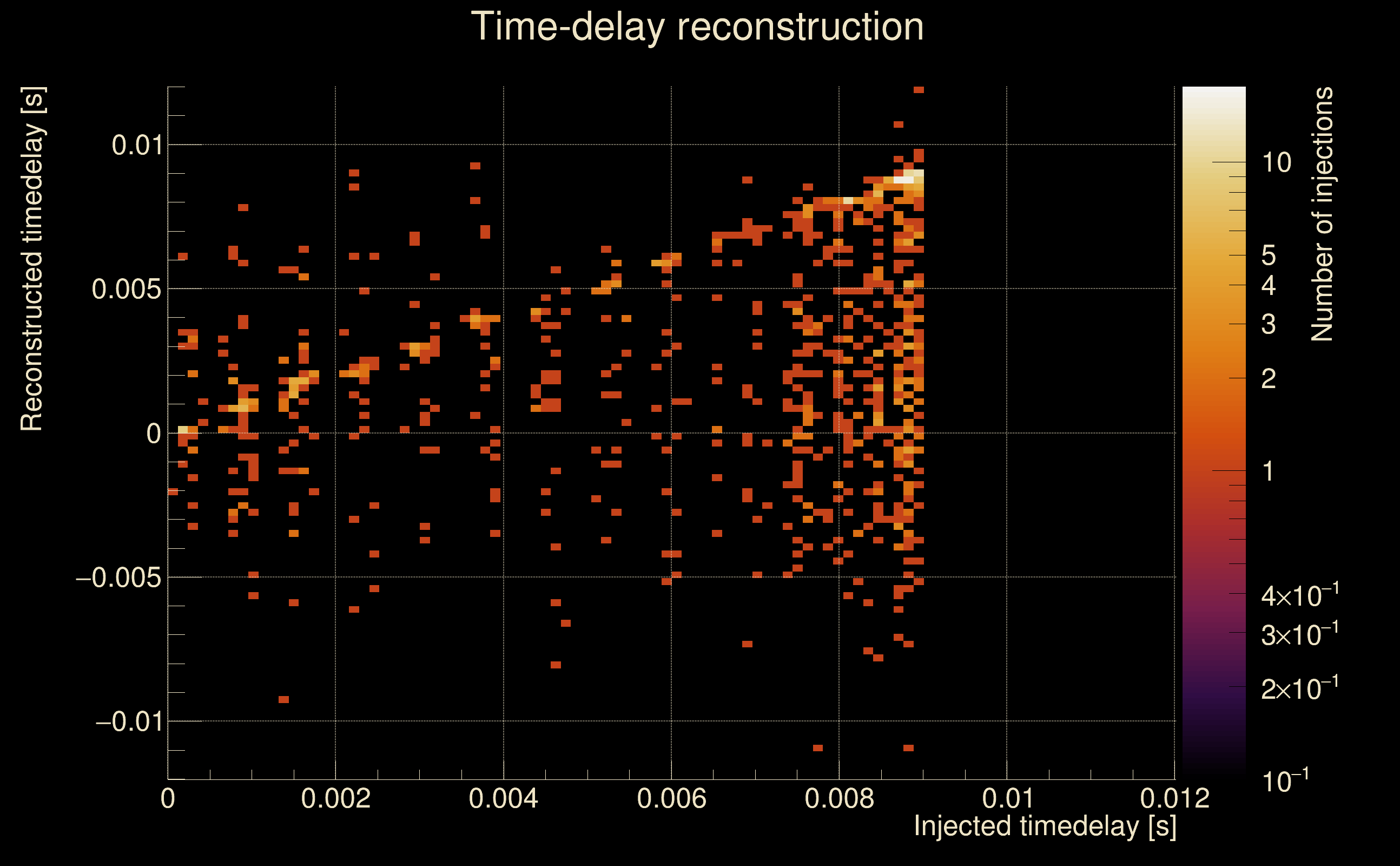

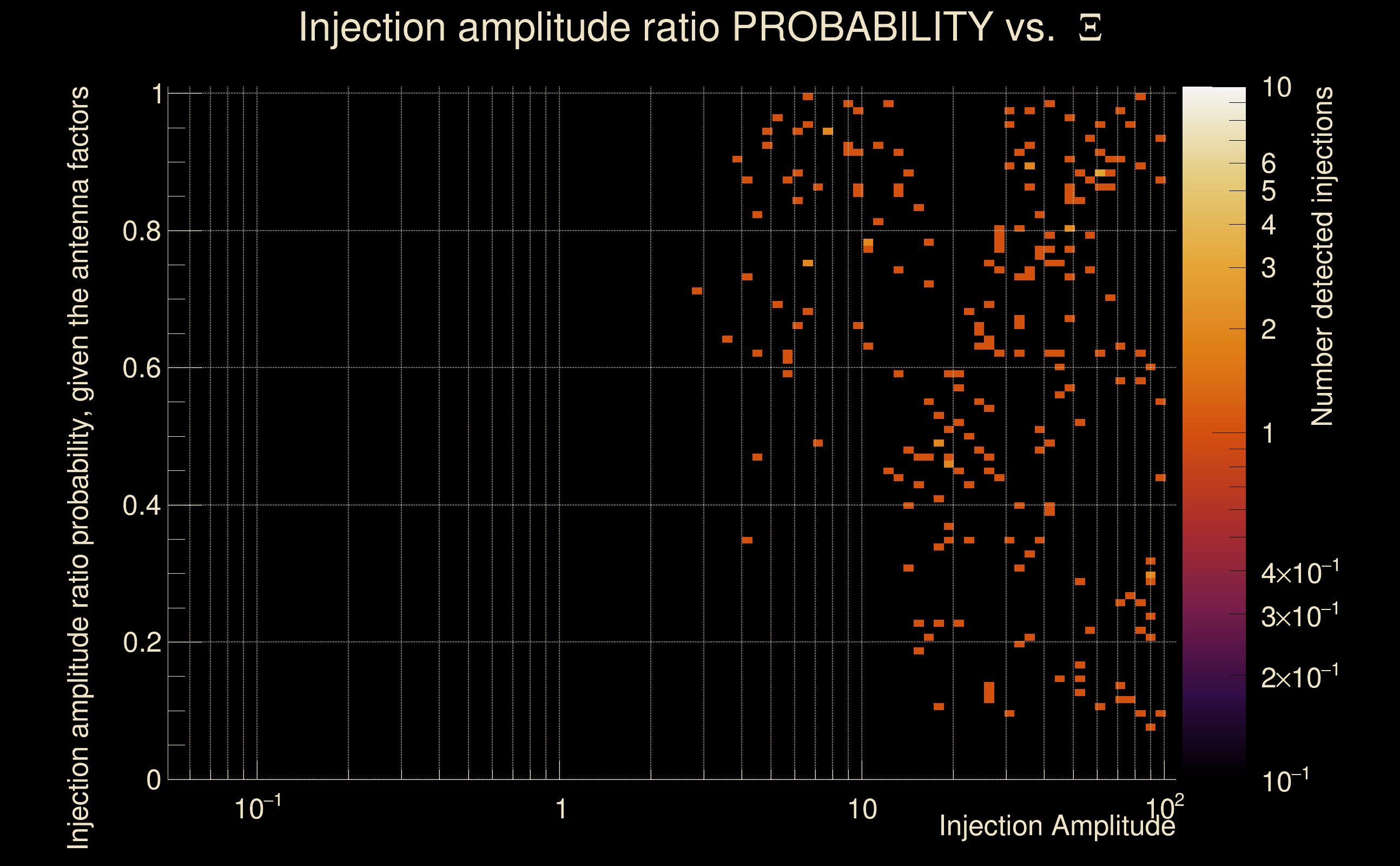

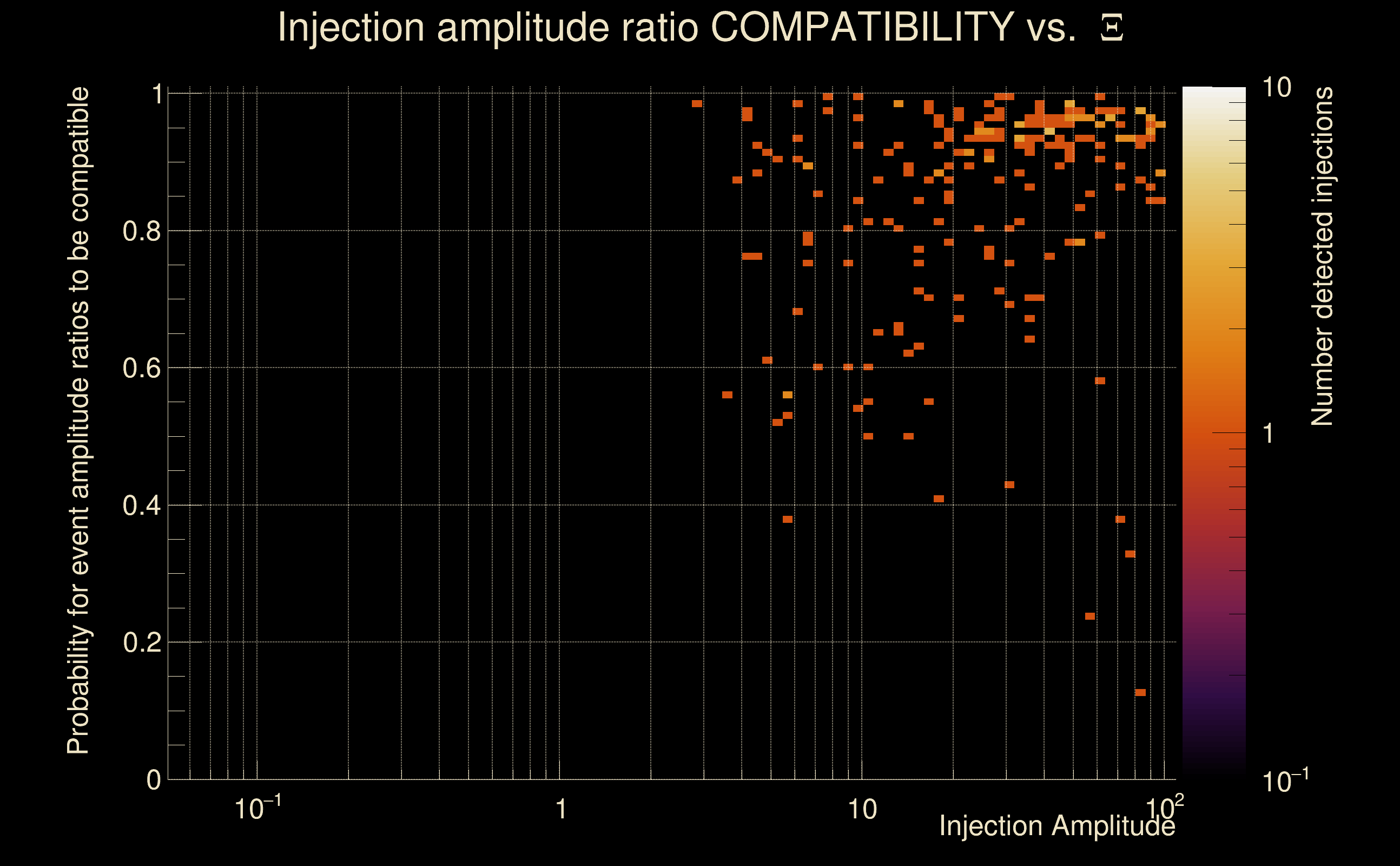

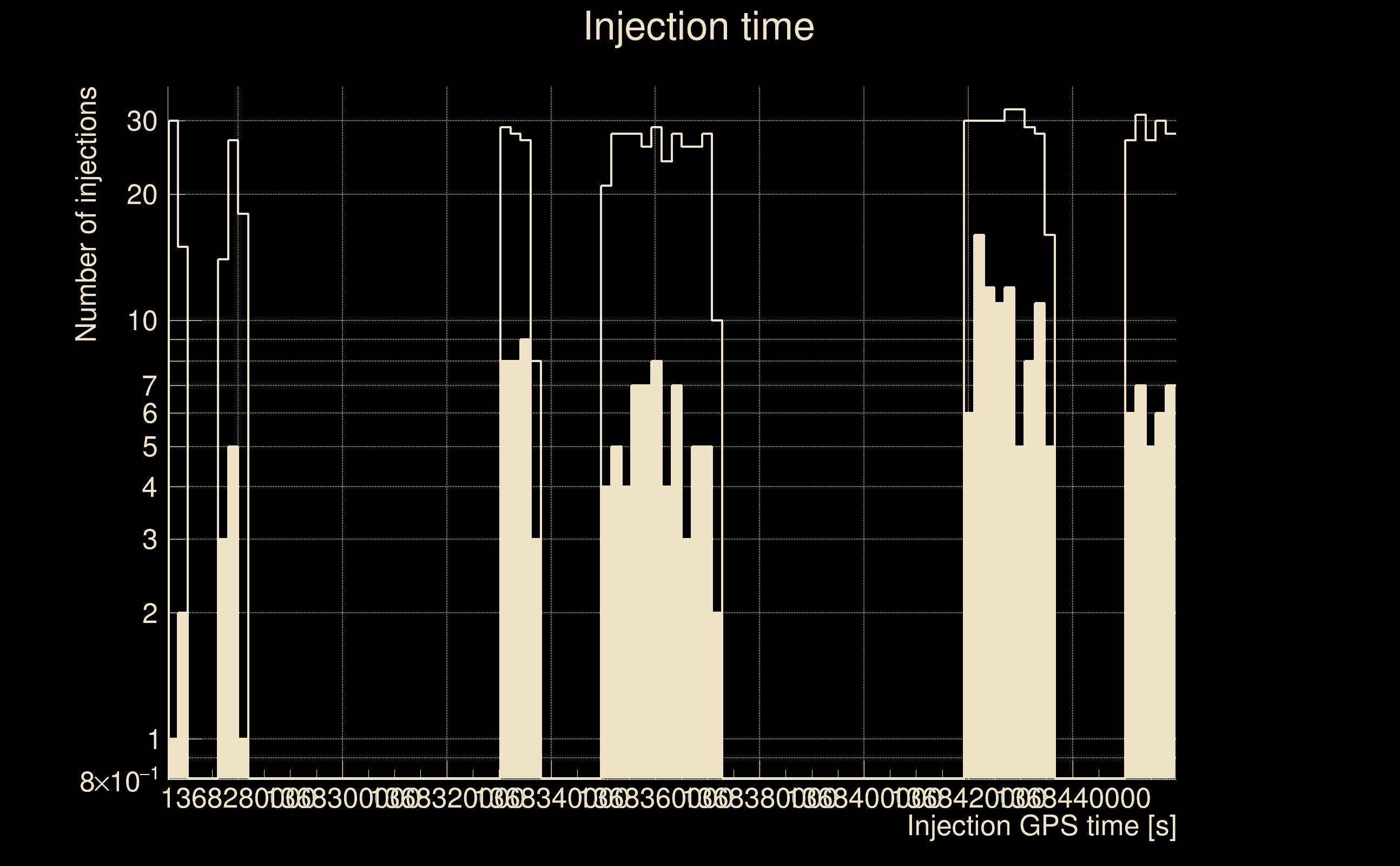

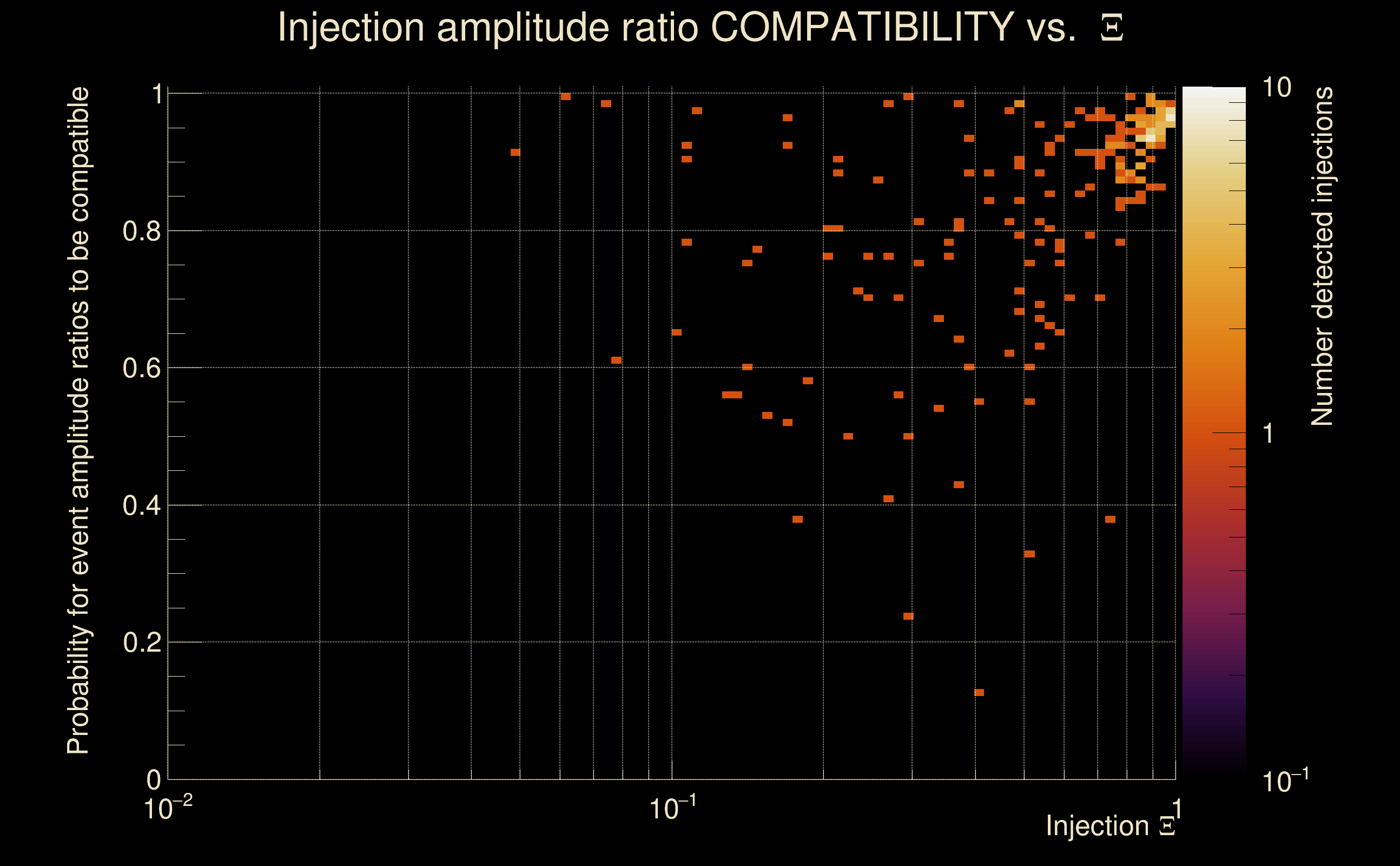

| Number of injections (total/valid/detected): | 1006 / 898 / 218 |
| List of missed injections: | ./Mor18-M13_missed.txt |
| Injection amplitude at 90% detection efficiency: | 26.2843 |
| Injection amplitude at 50% detection efficiency: | 14.9628 |
| Injection amplitude at 10% detection efficiency: | 8.51711 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
