| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 16:52:07 2026 UTC |
| Ox option file: | Bench2_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench2_targ_file_list.txt (65 files) |
| Analysis result file: | Bench2_targ_results-2.root |
| Slice selected for the the fakeground: | slice index=130 (-1.012 s), time lag = 0 s |

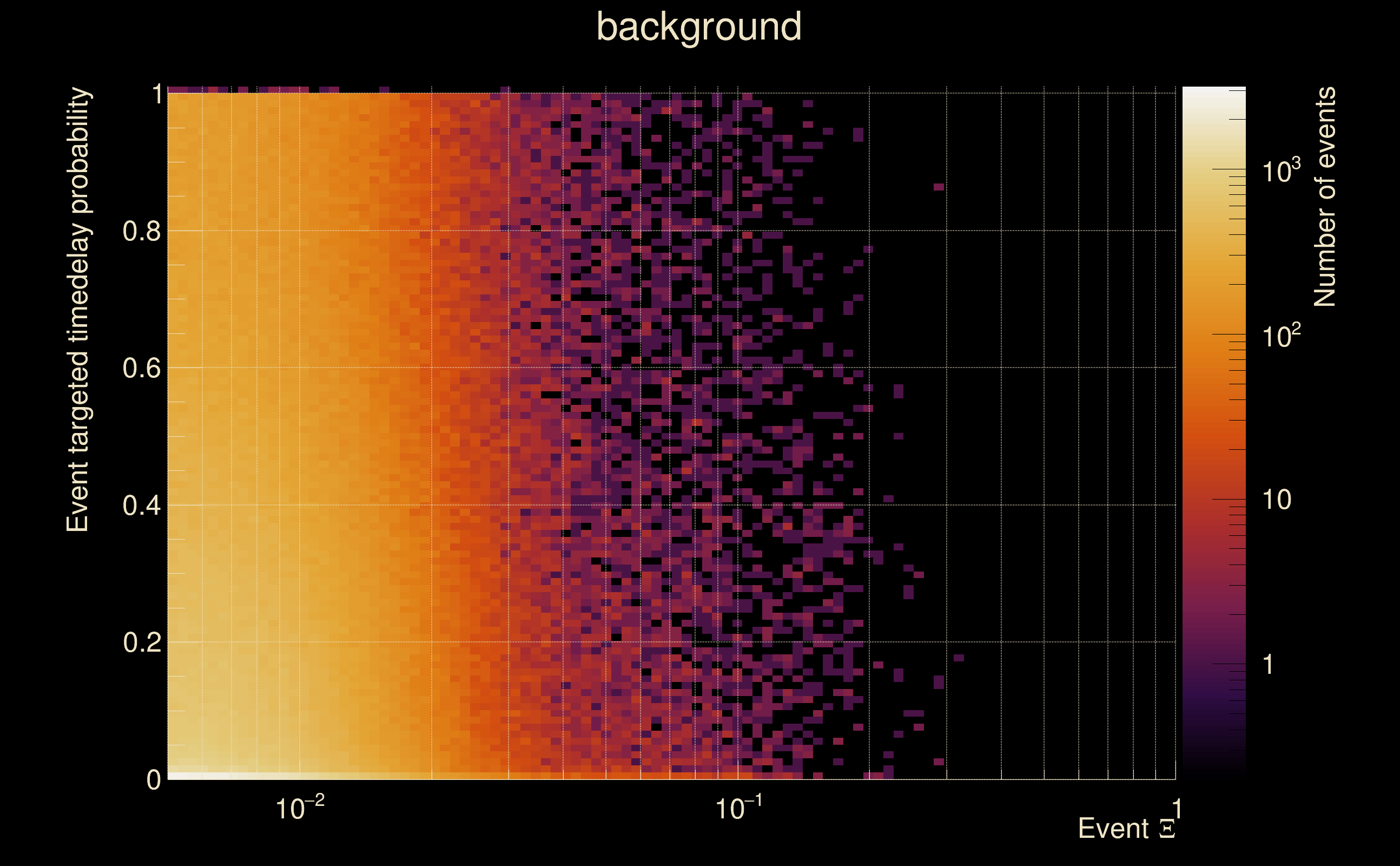

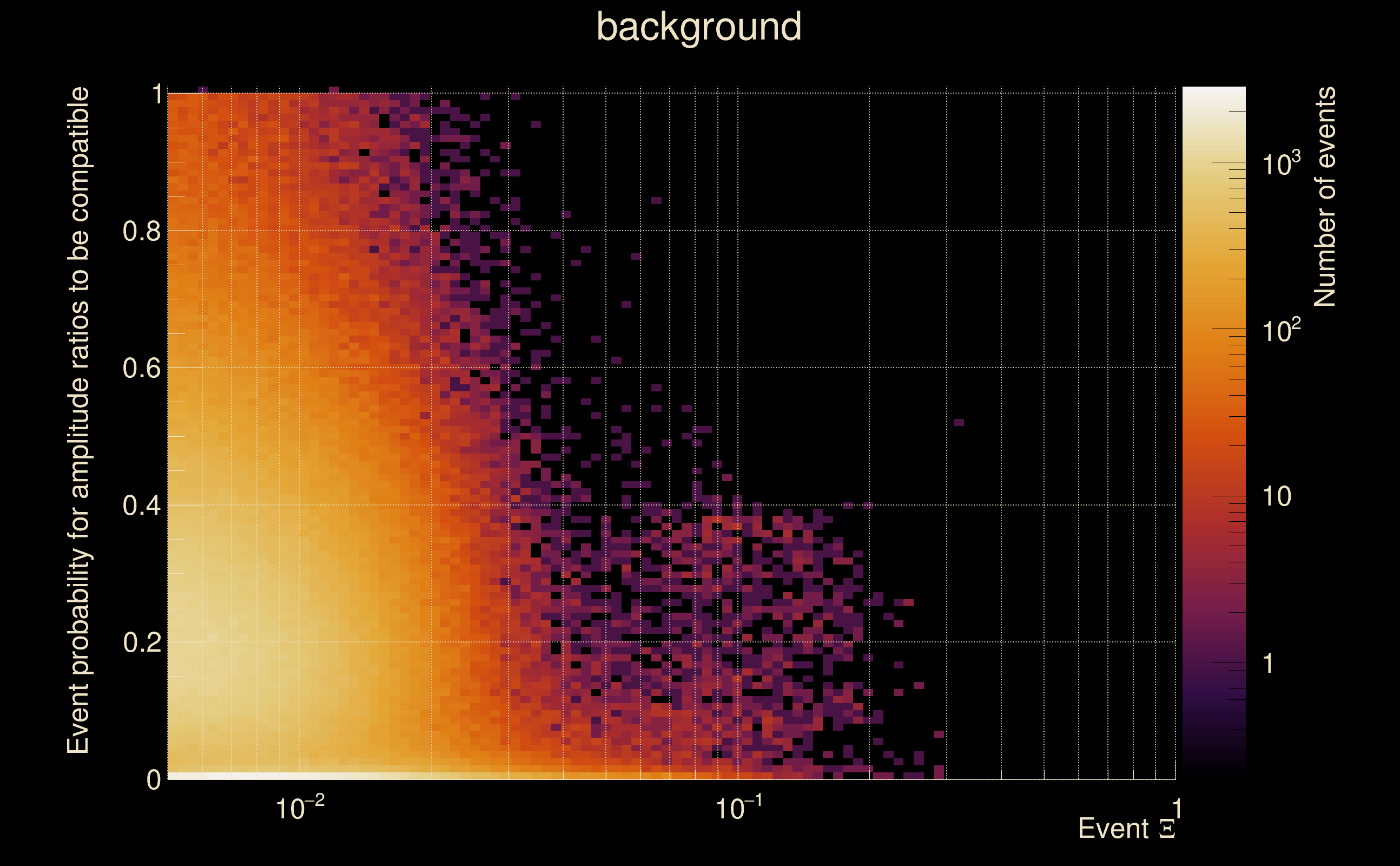

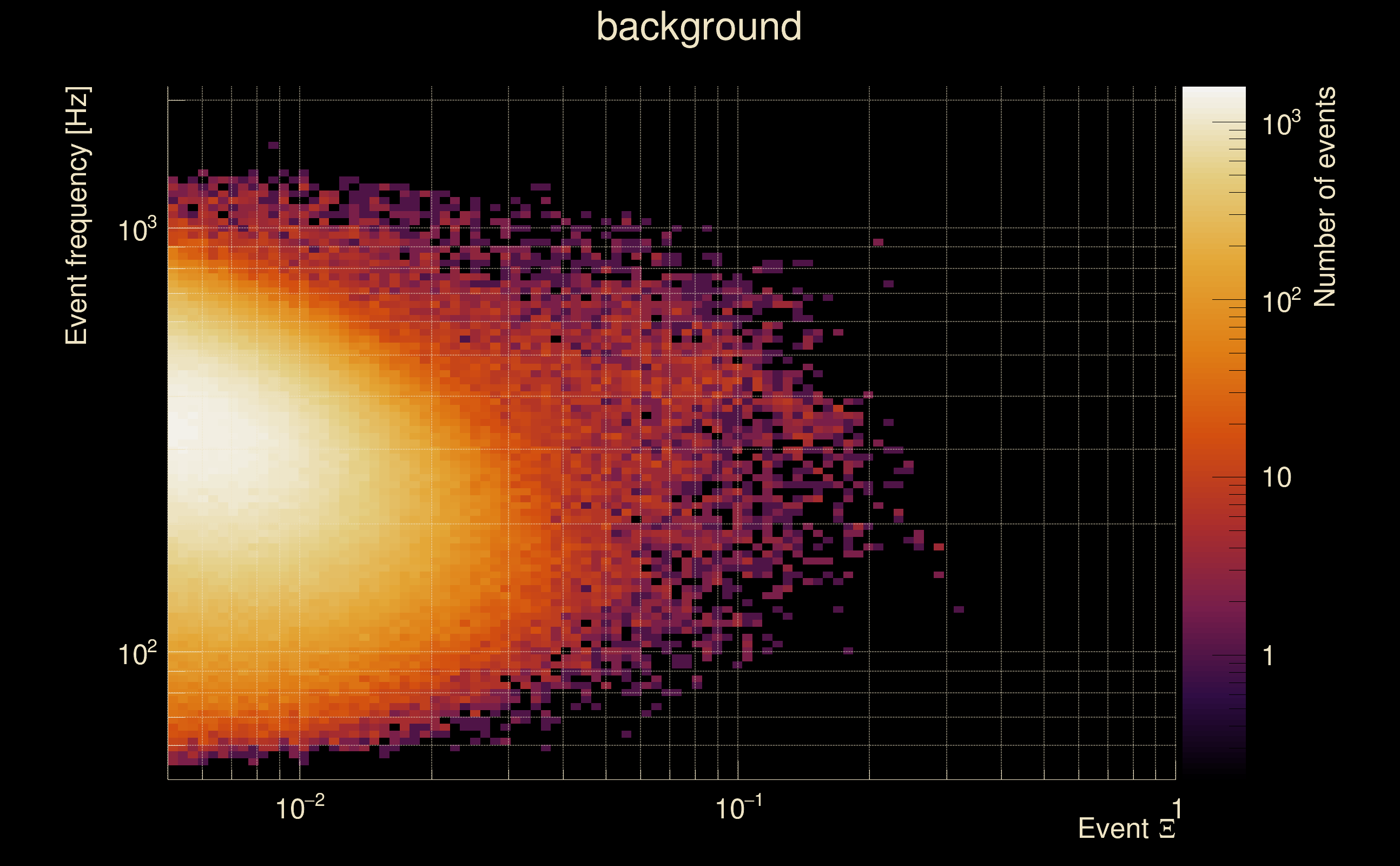

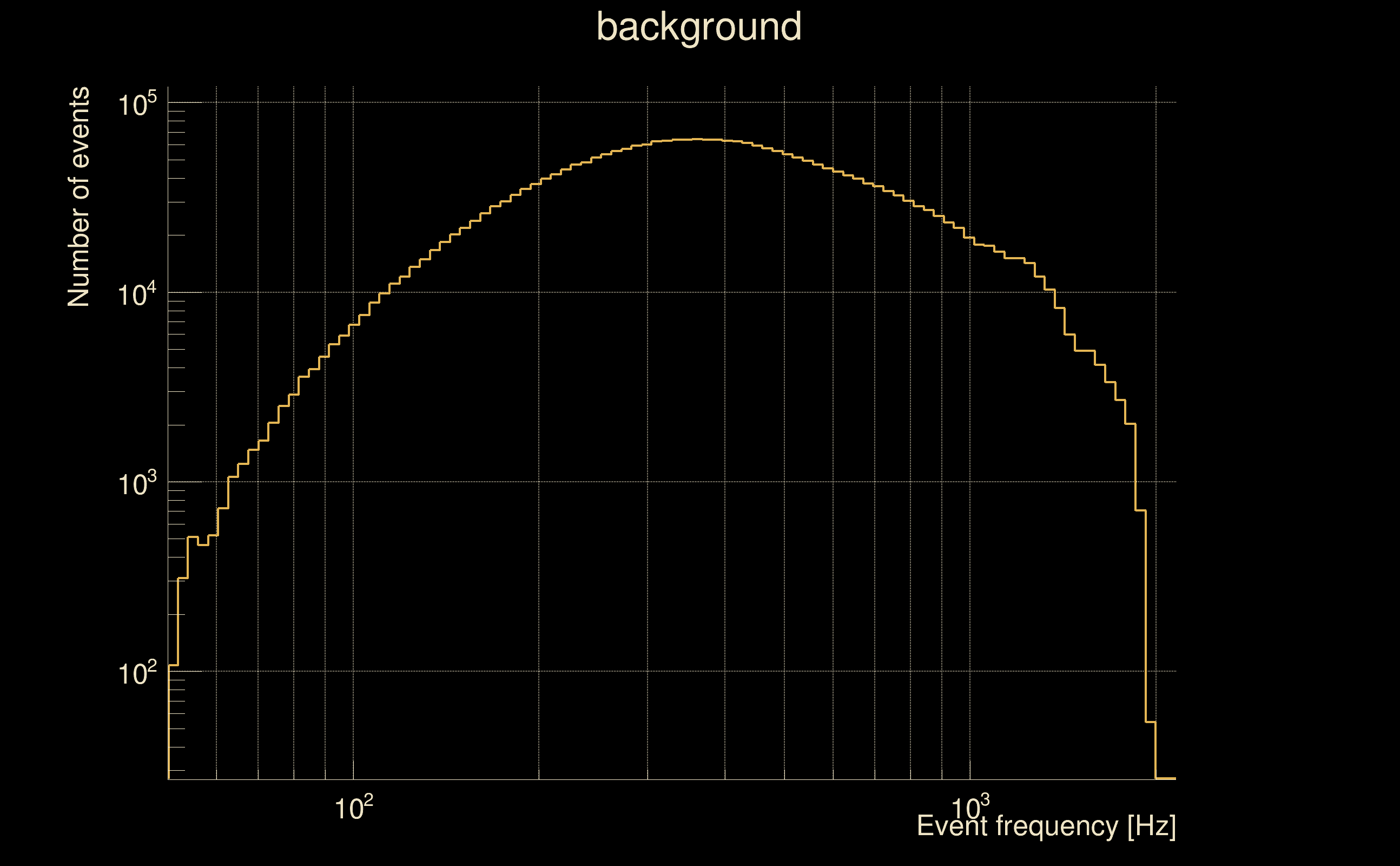

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

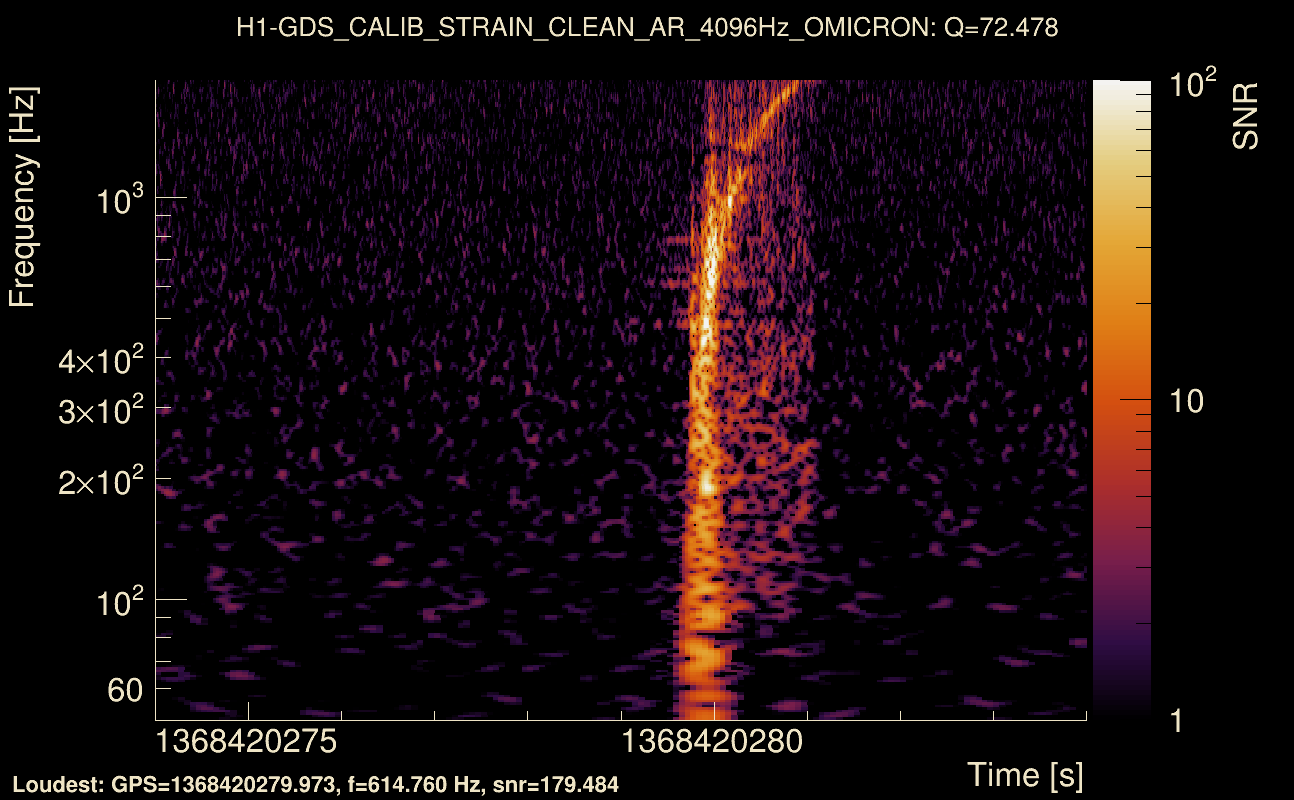

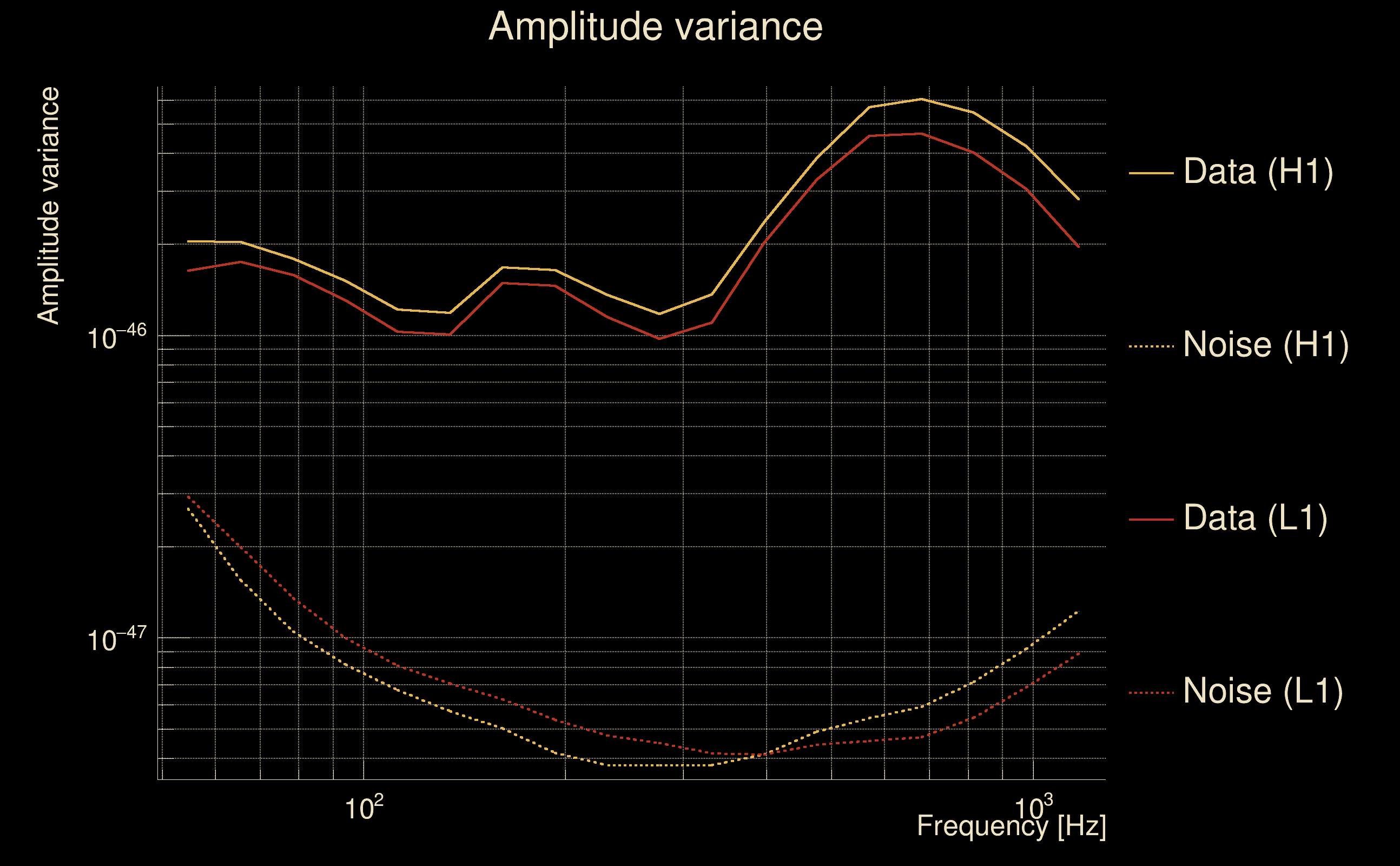

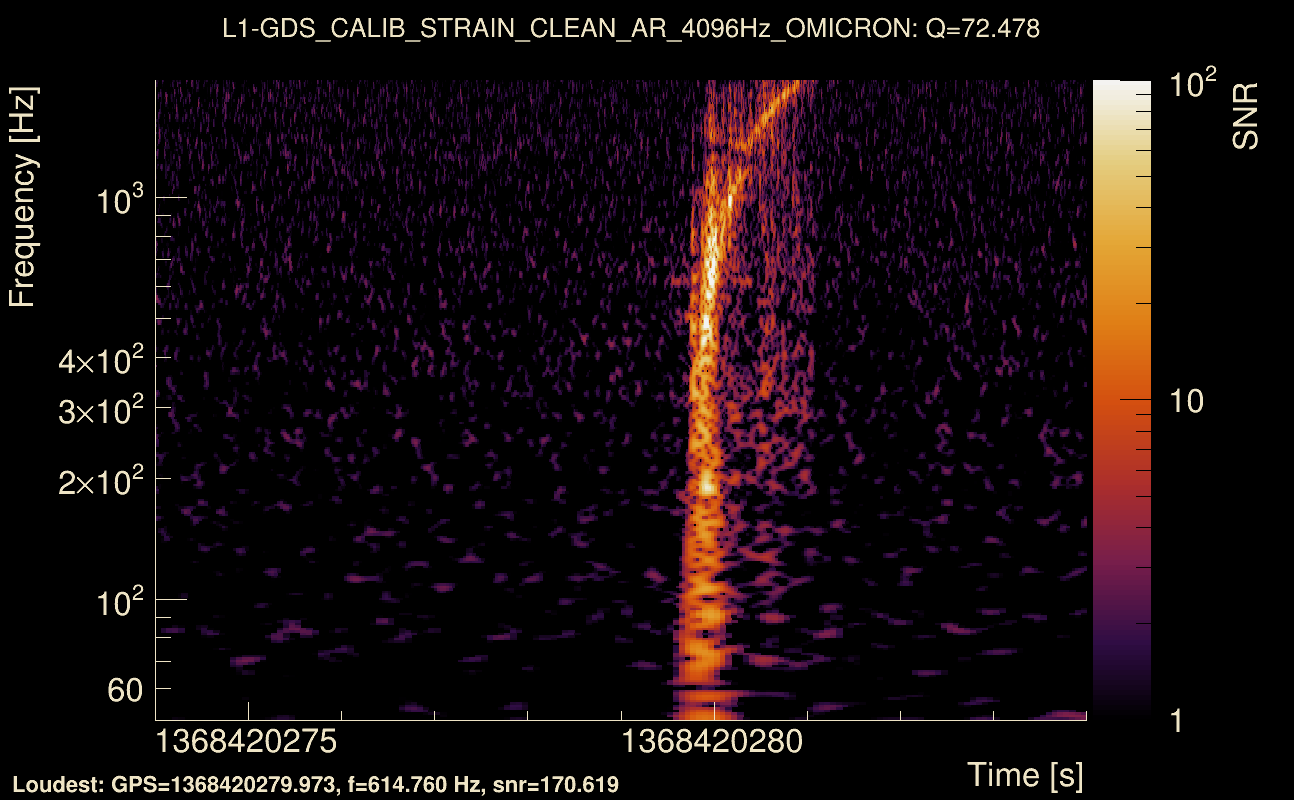

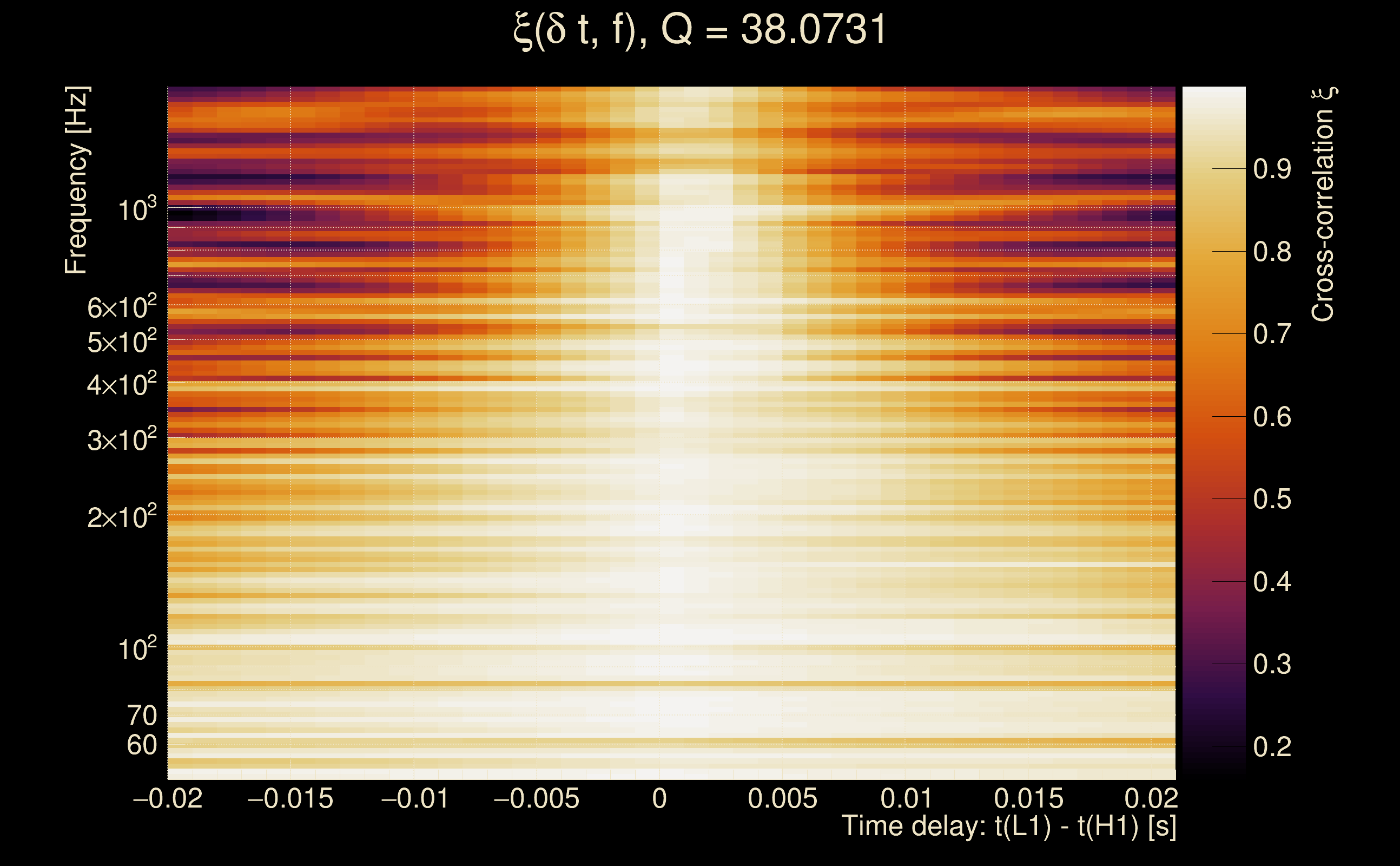

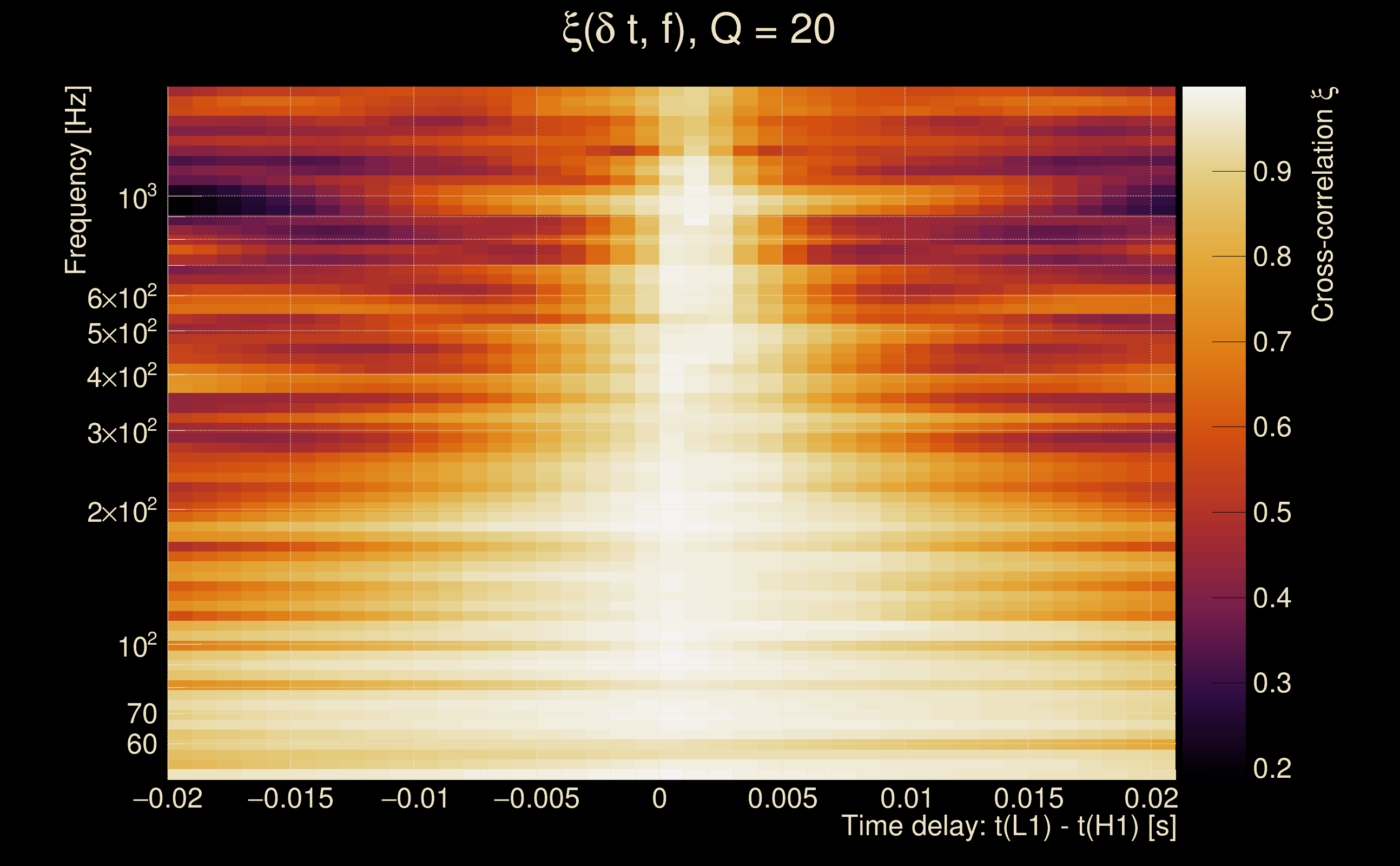

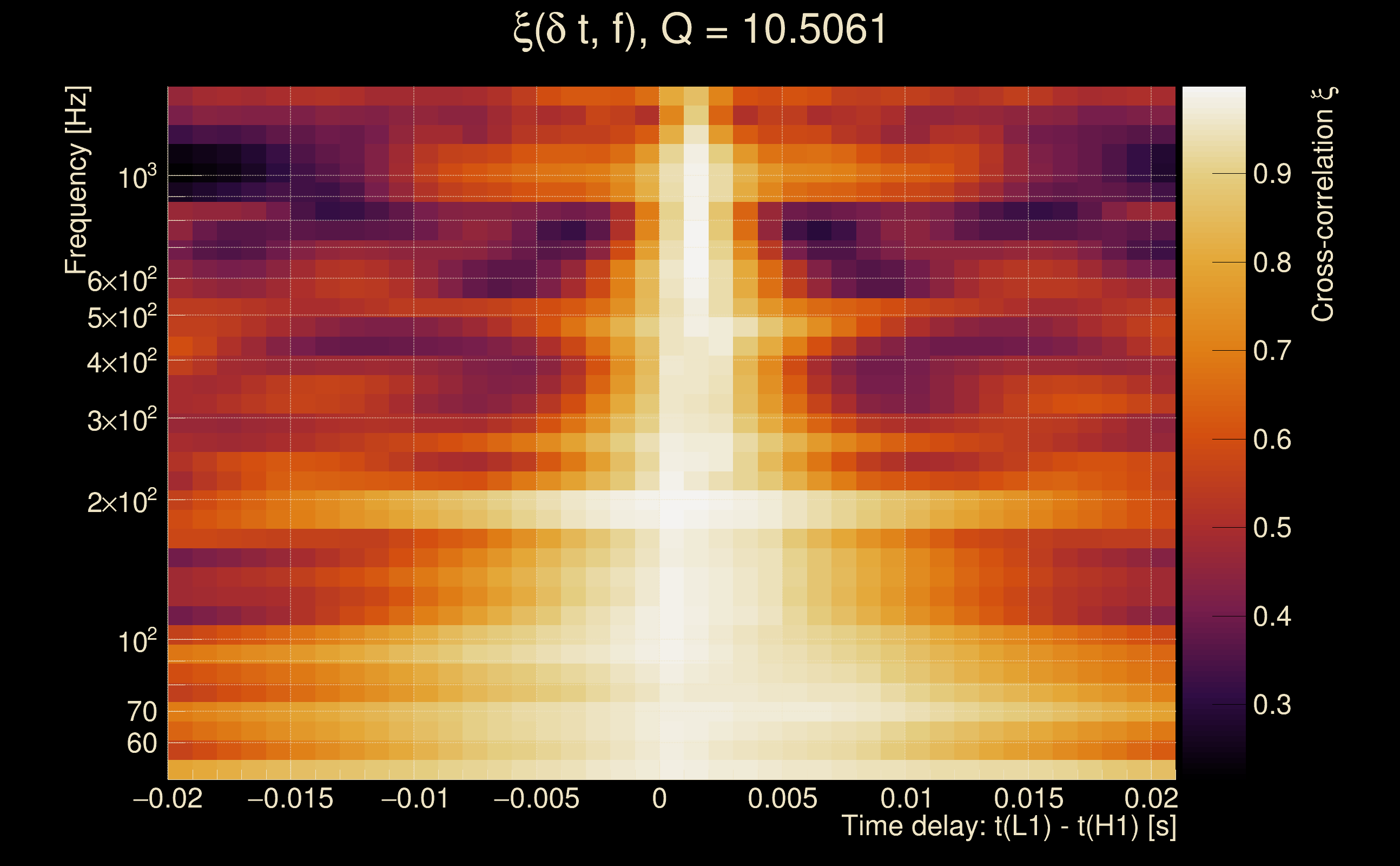

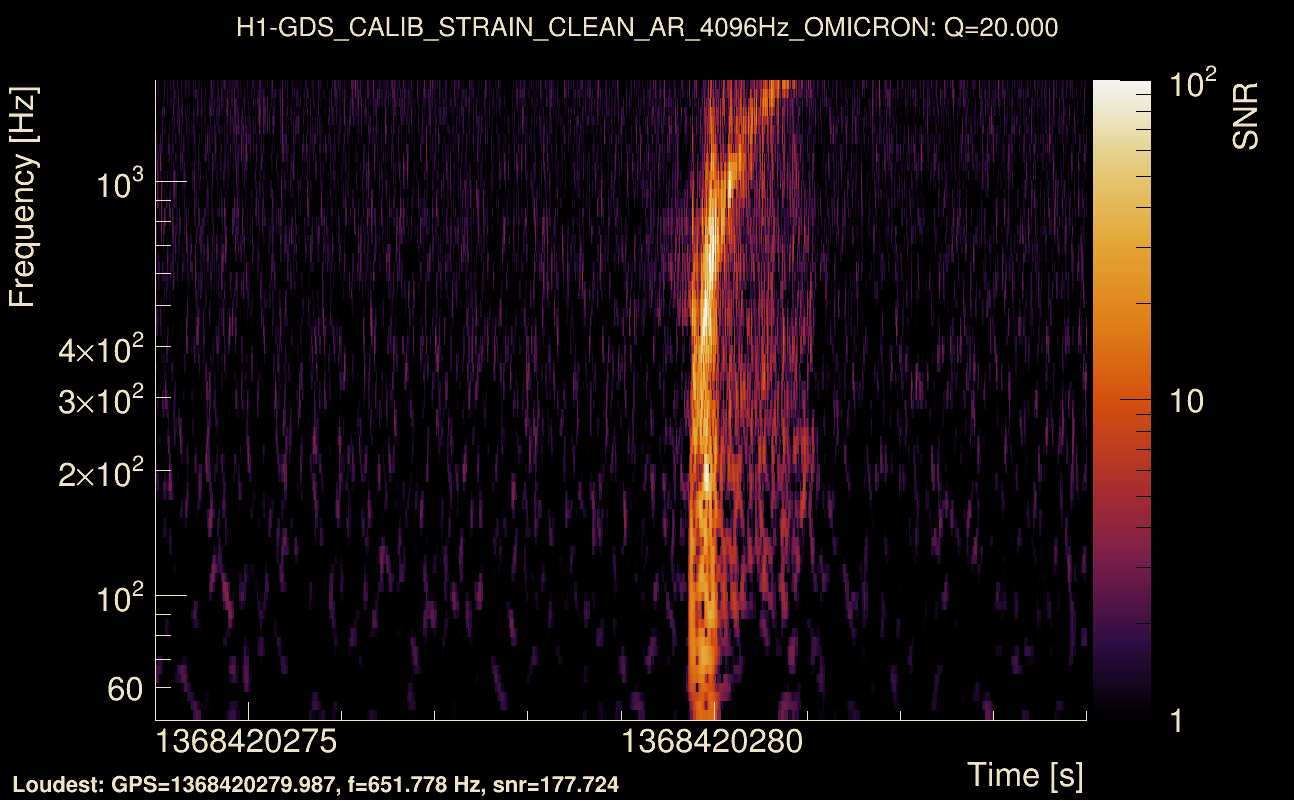

| Event time t(H1): | GPS = 1368420274 (Thu May 18 04:44:16 2023 ) → GPS = 1368420284 (Thu May 18 04:44:26 2023 ) |
| Event time t(L1): | GPS = 1368420274 (Thu May 18 04:44:26 2023 ) → GPS = 1368420284 (Thu May 18 04:44:26 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420271 → GPS = 1368420287 |
| Omicron analysis time window (L1): | GPS = 1368420271 → GPS = 1368420287 |

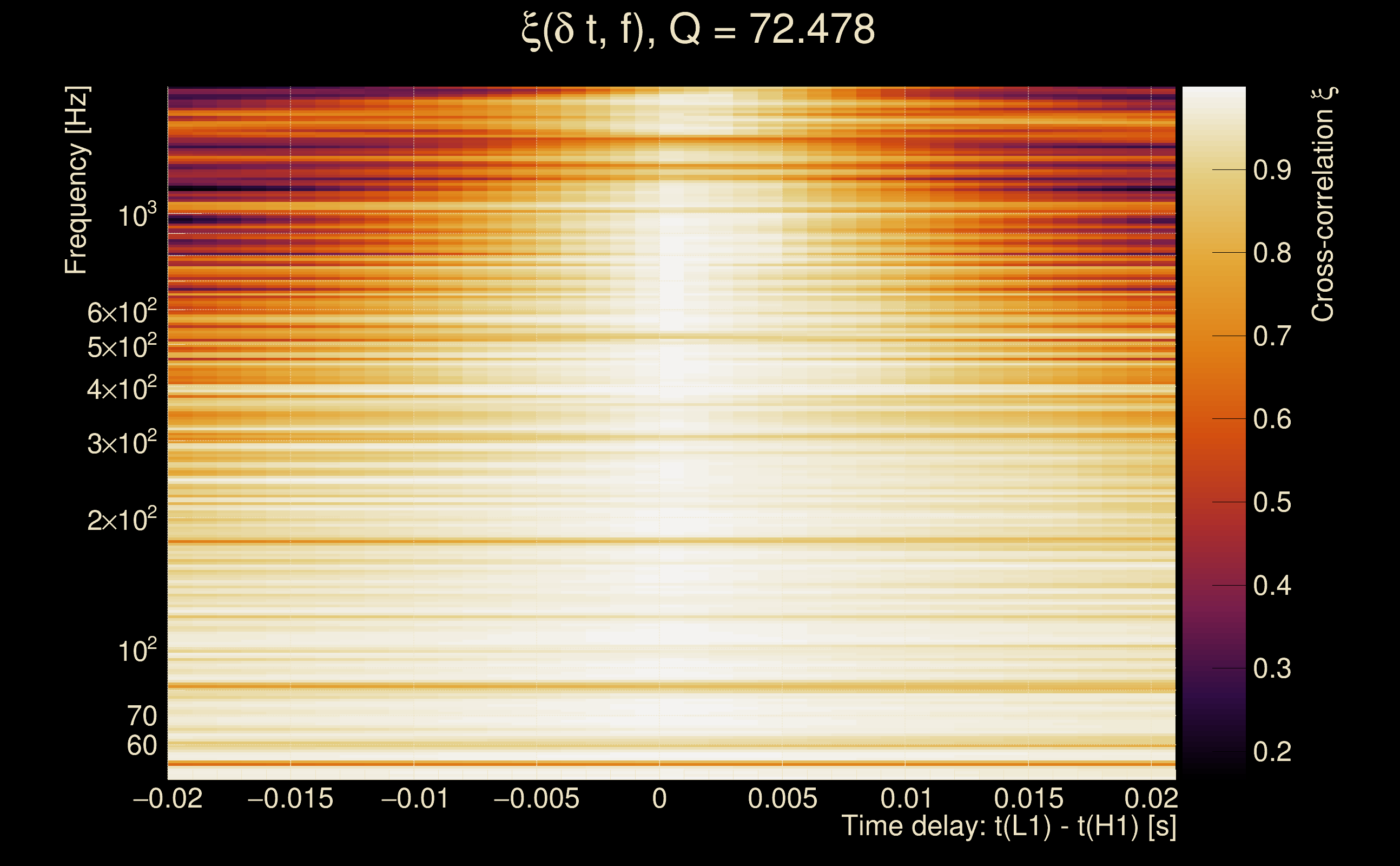

| Time delay between detectors t(L1) - t(H1): | 0.000922728 s (slice index = 108 / 217), δt_gw = 0.000922728 s |
| Time delay standard deviation: | 0.0194311 s |
| [targeted mode] Time delay probability: | 0.991837 (0.0102315 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 289.966 Hz |
| Ξ: | 0.975637 ± 0.00186553 (variance = 3.48021e-06): Q0: 0.981587, Q1: 0.976476, Q2: 0.976635, Q3: 0.978447, Q4: 0.977516 |
| Rank: | R_A = 0.967672 |
| Log of amplitude ratio (L1/H1): | -0.123055, variance = 0.151289 (L1/H1: -0.139579, variance = 0.302404, H1/L1: 0.105544, variance = 0.302232) |
| Amplitude ratio (L1/H1): | 0.884215 ⋇ 1.47544 (L1/H1: 0.869725 ⋇ 1.7331, H1/L1: 1.11132 ⋇ 1.73283) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.965088 |

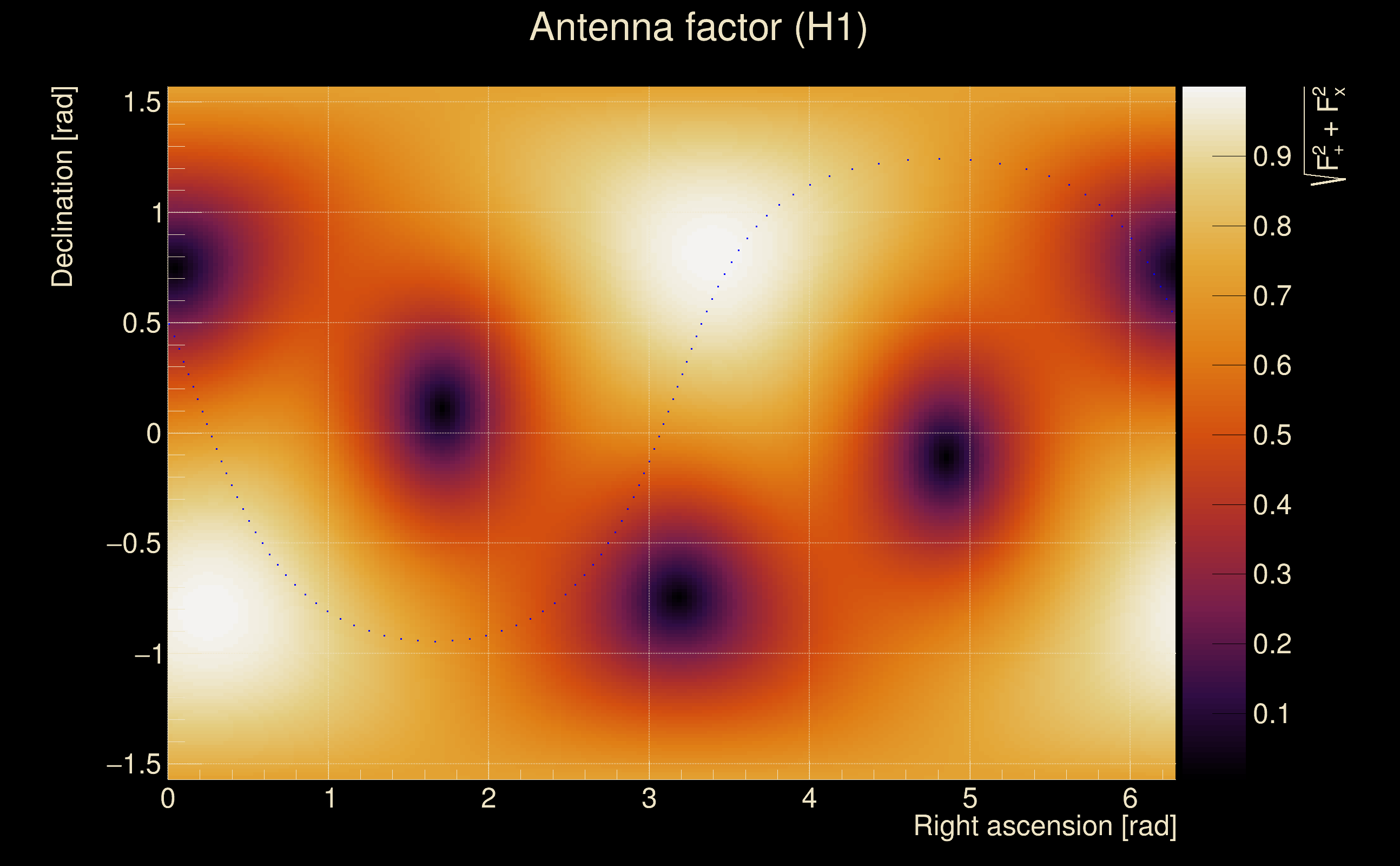

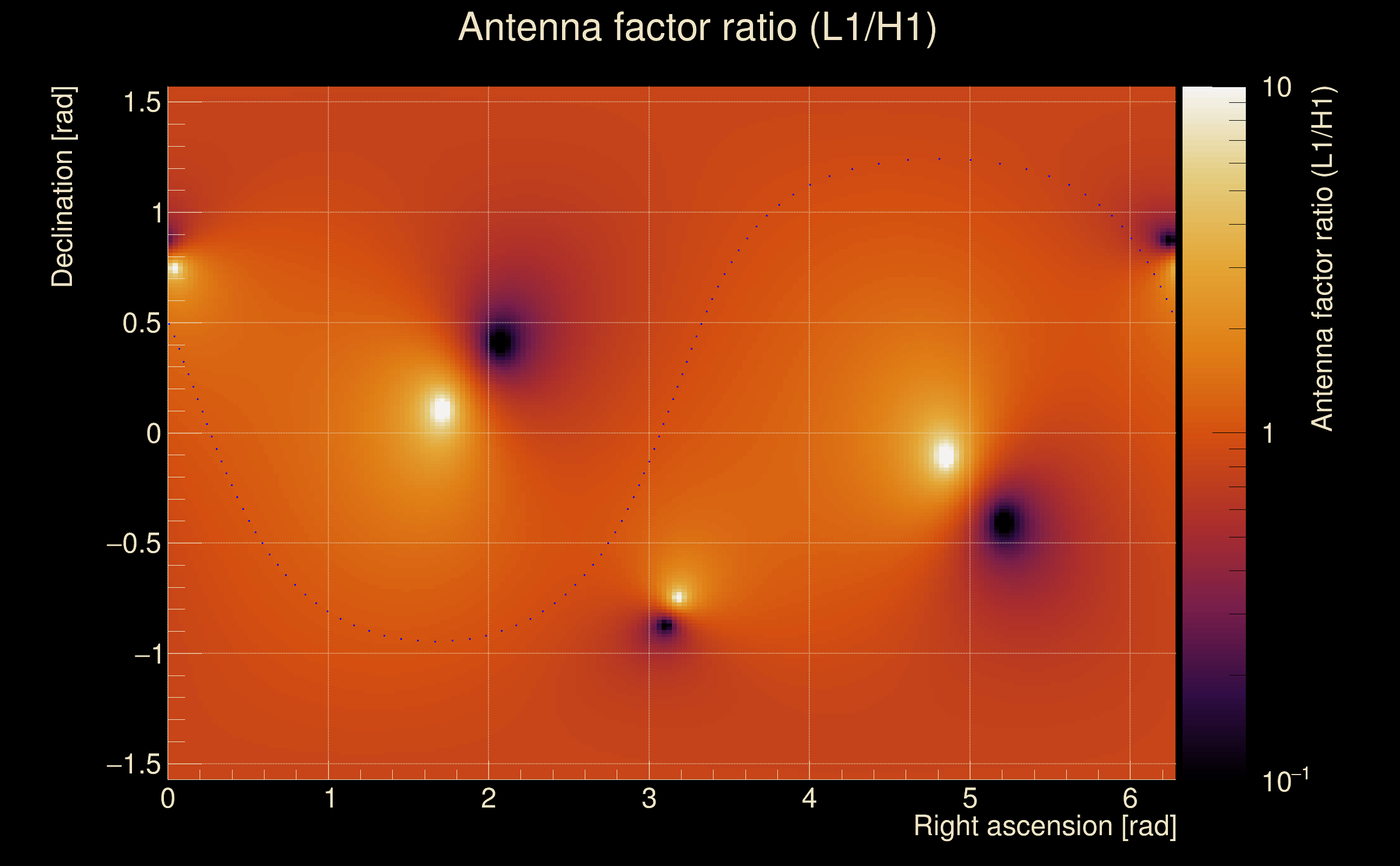

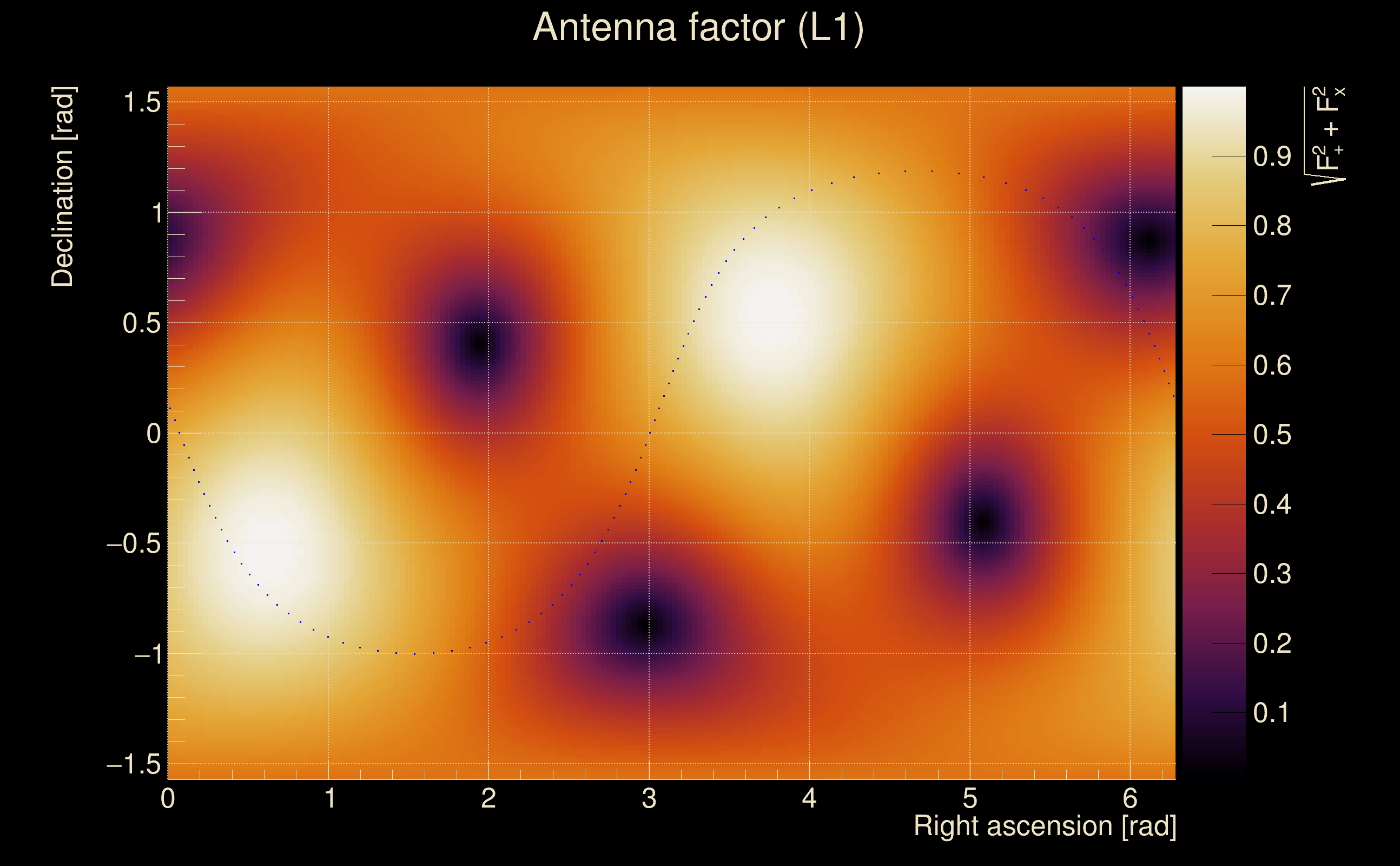

| Antenna factor probability: | 0.839353 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 1 / 70, Q3: 2 / 134, Q4: 6 / 258 |
| Maximum signal-to-noise ratio: | H1: 187.053, L1: 181.704 |

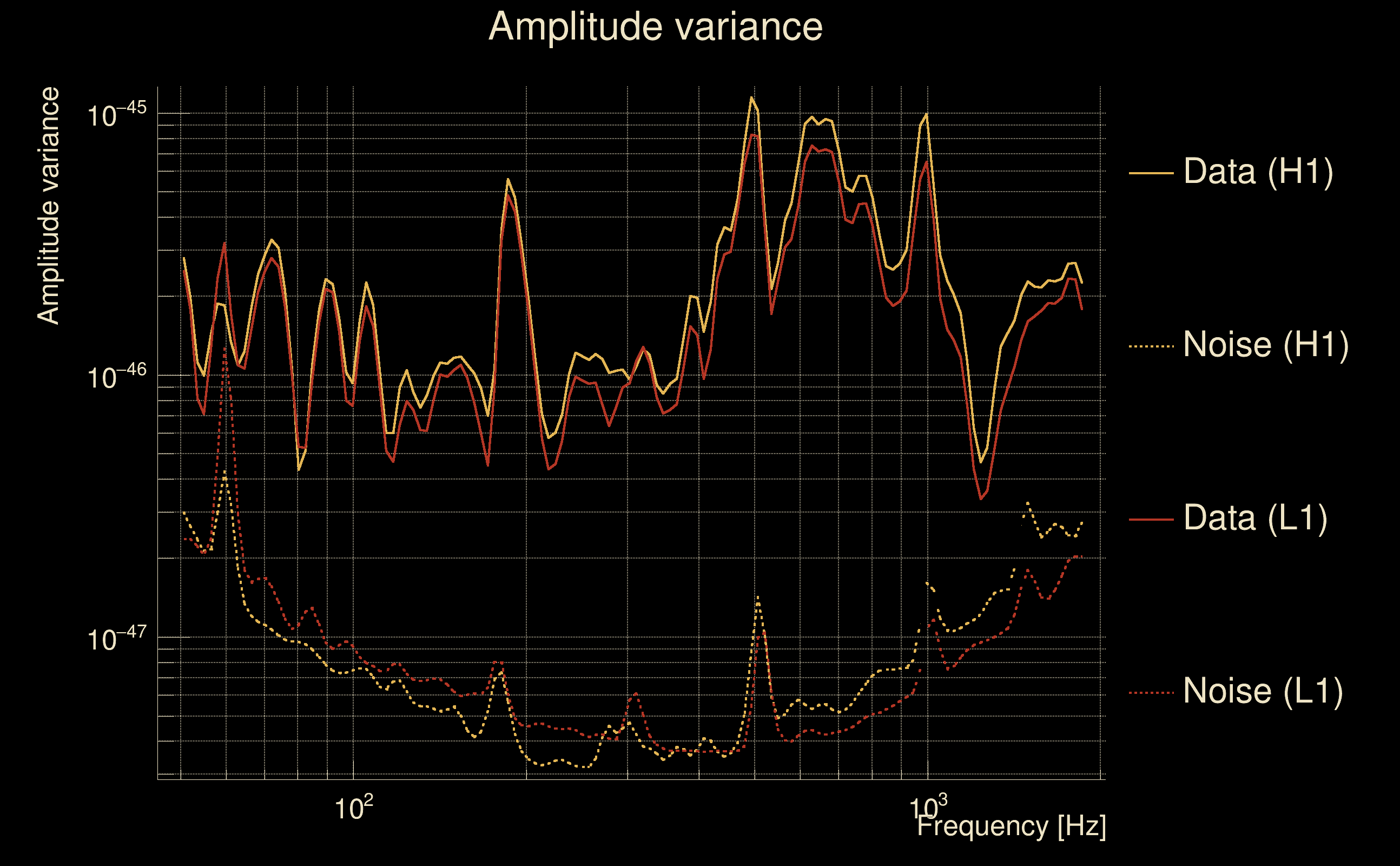

| SNR variance: | H1: 0.557995, L1: 0.549263 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

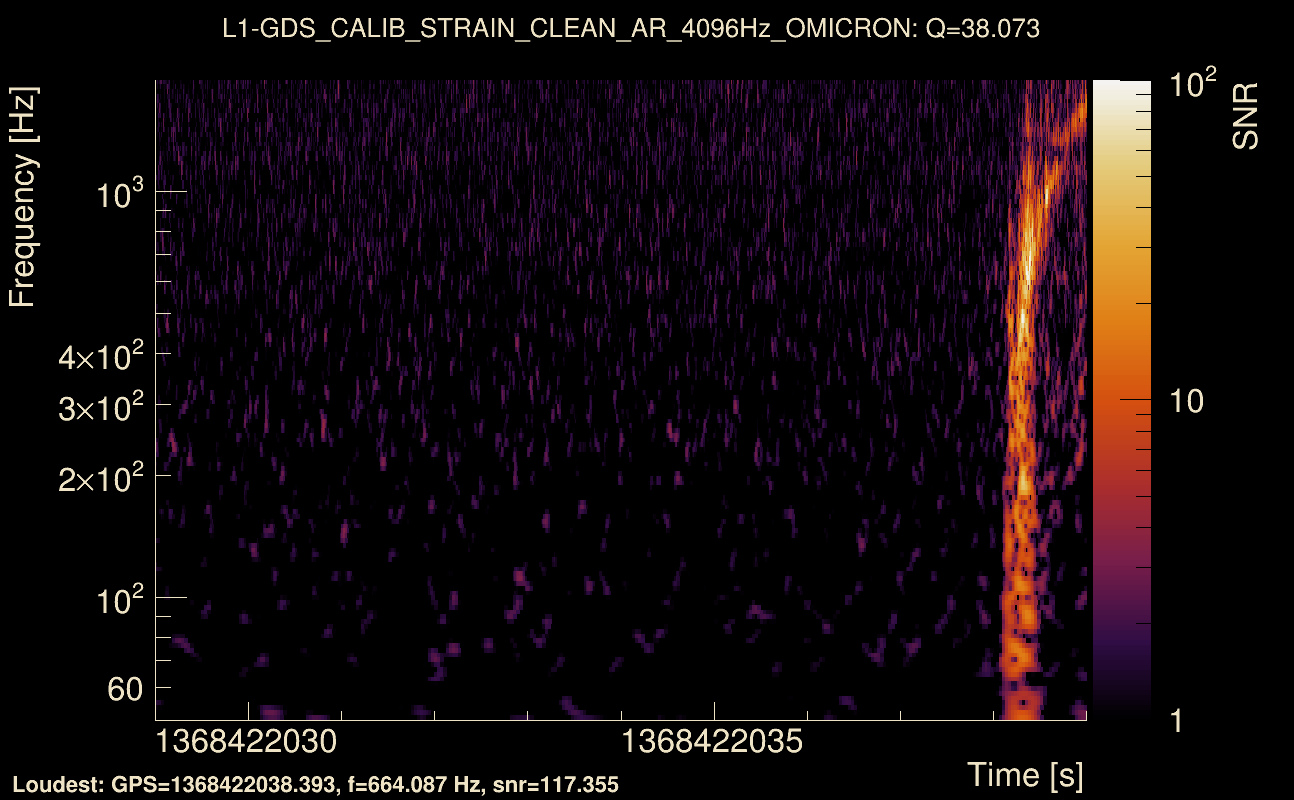

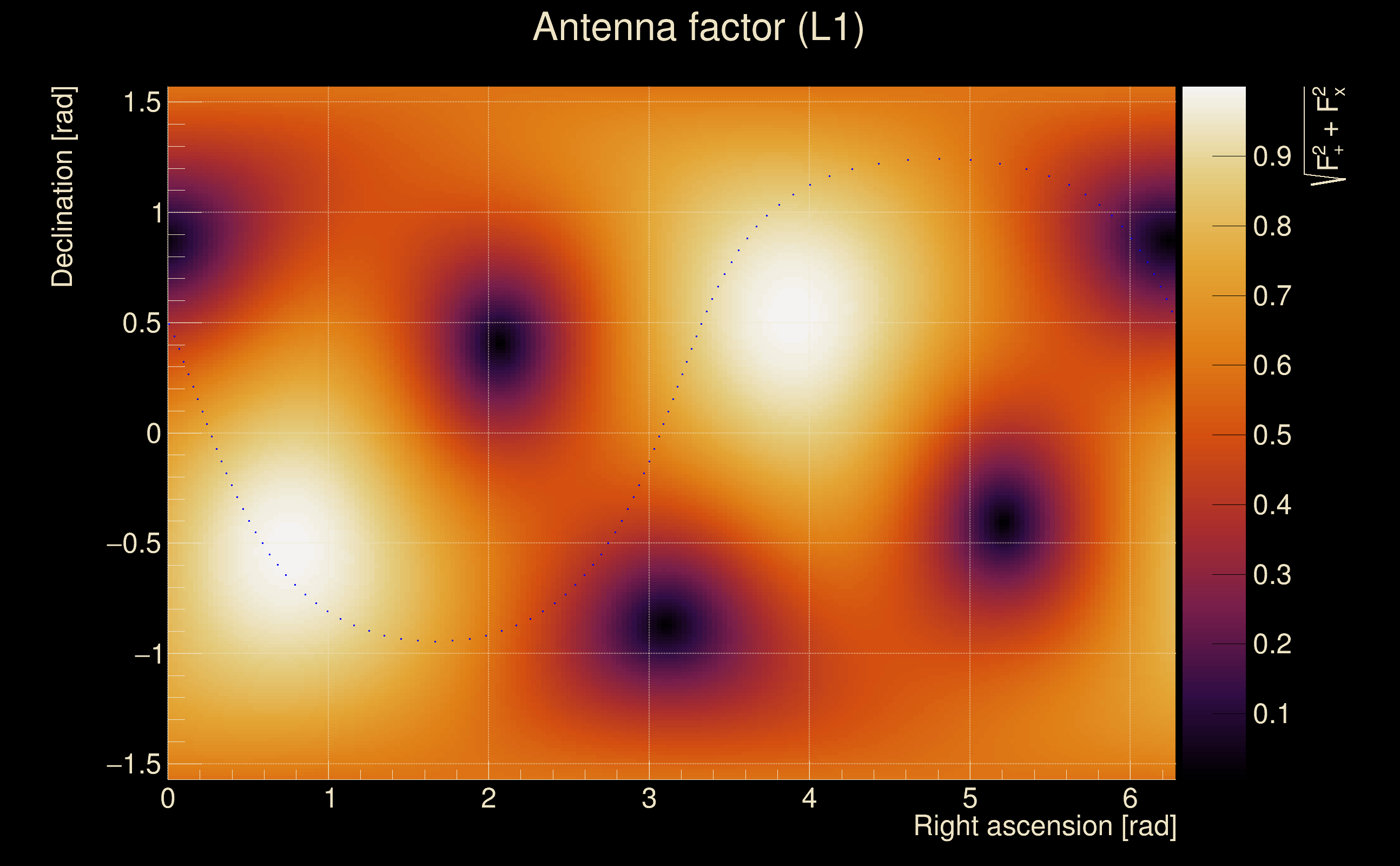

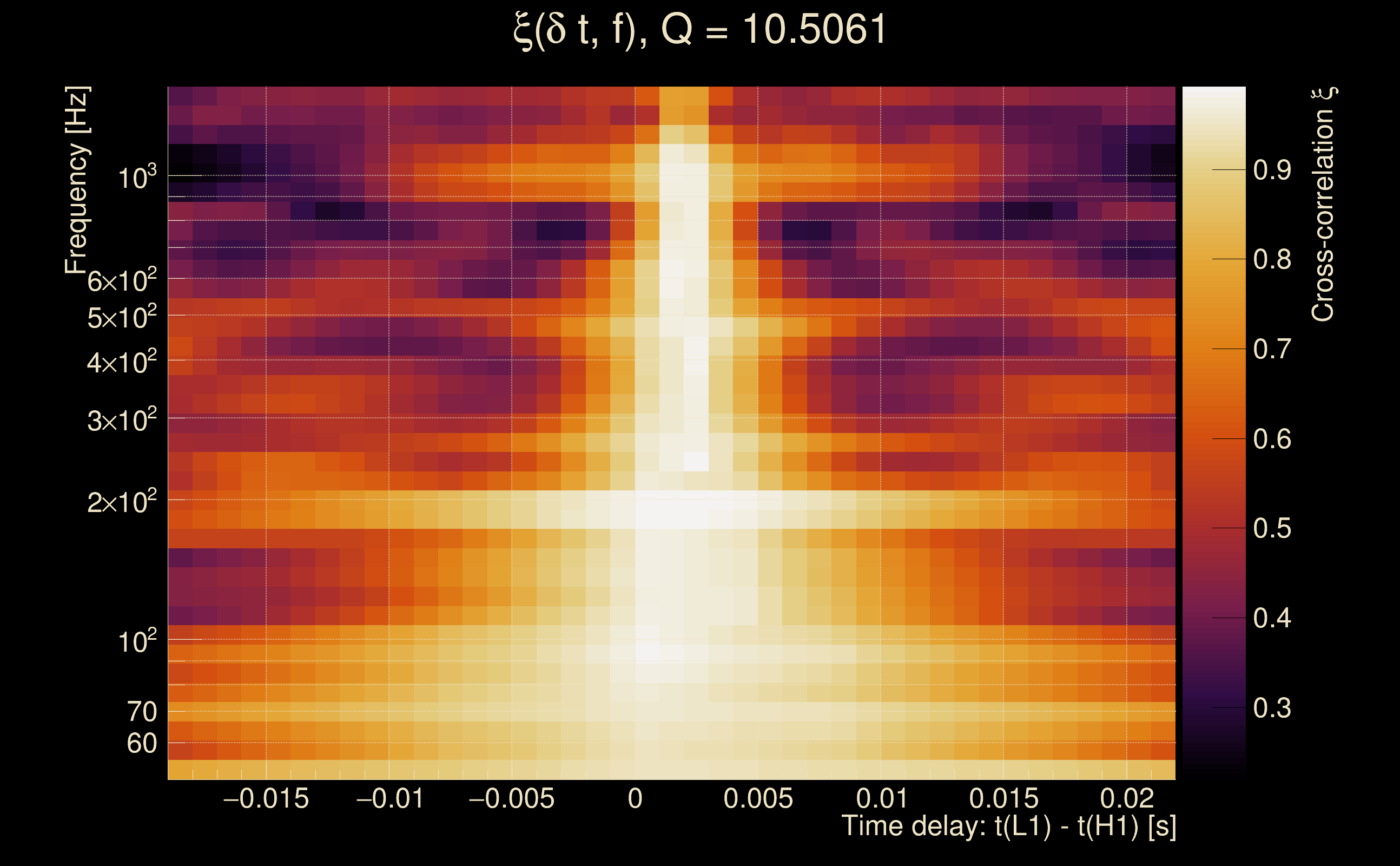

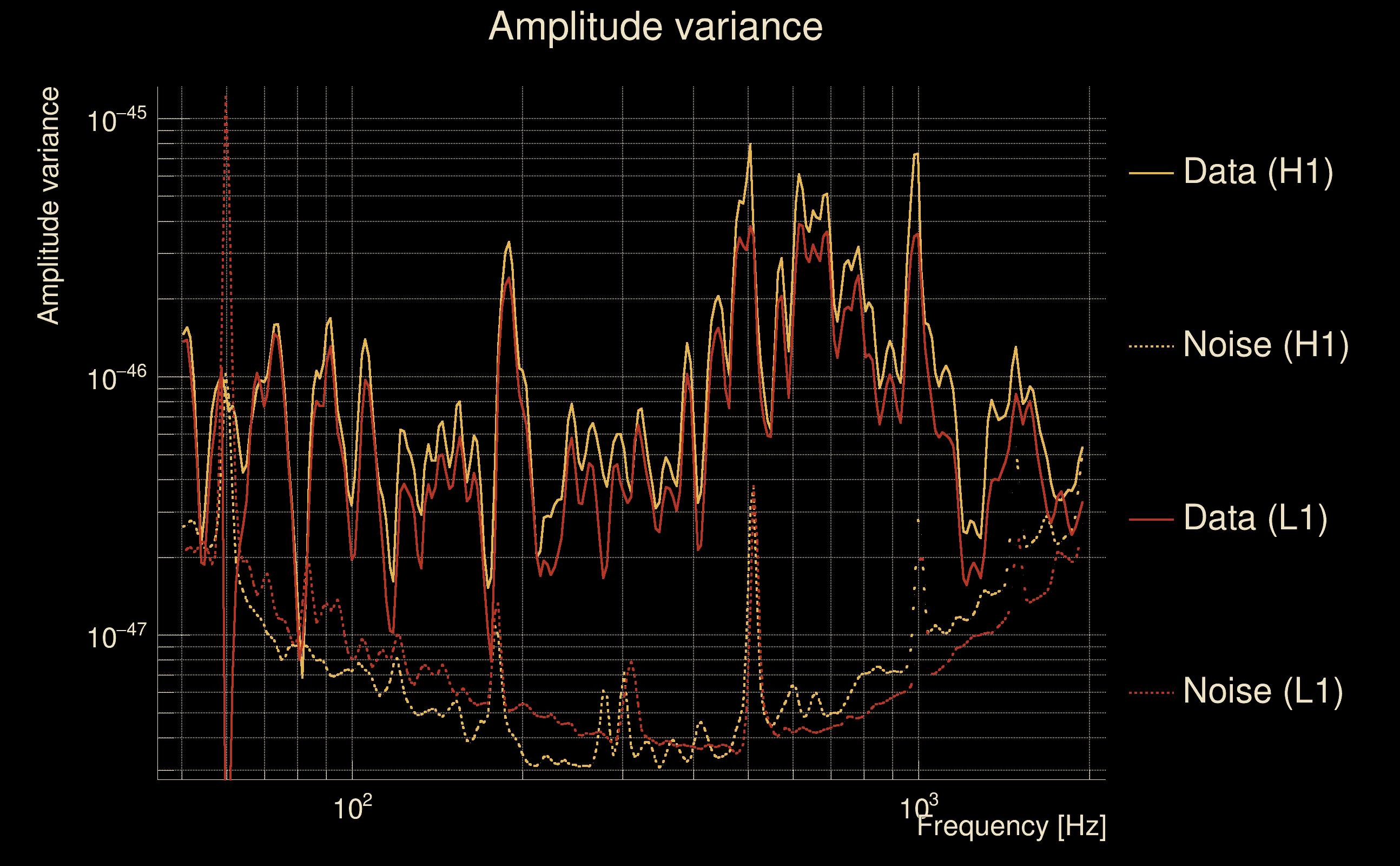

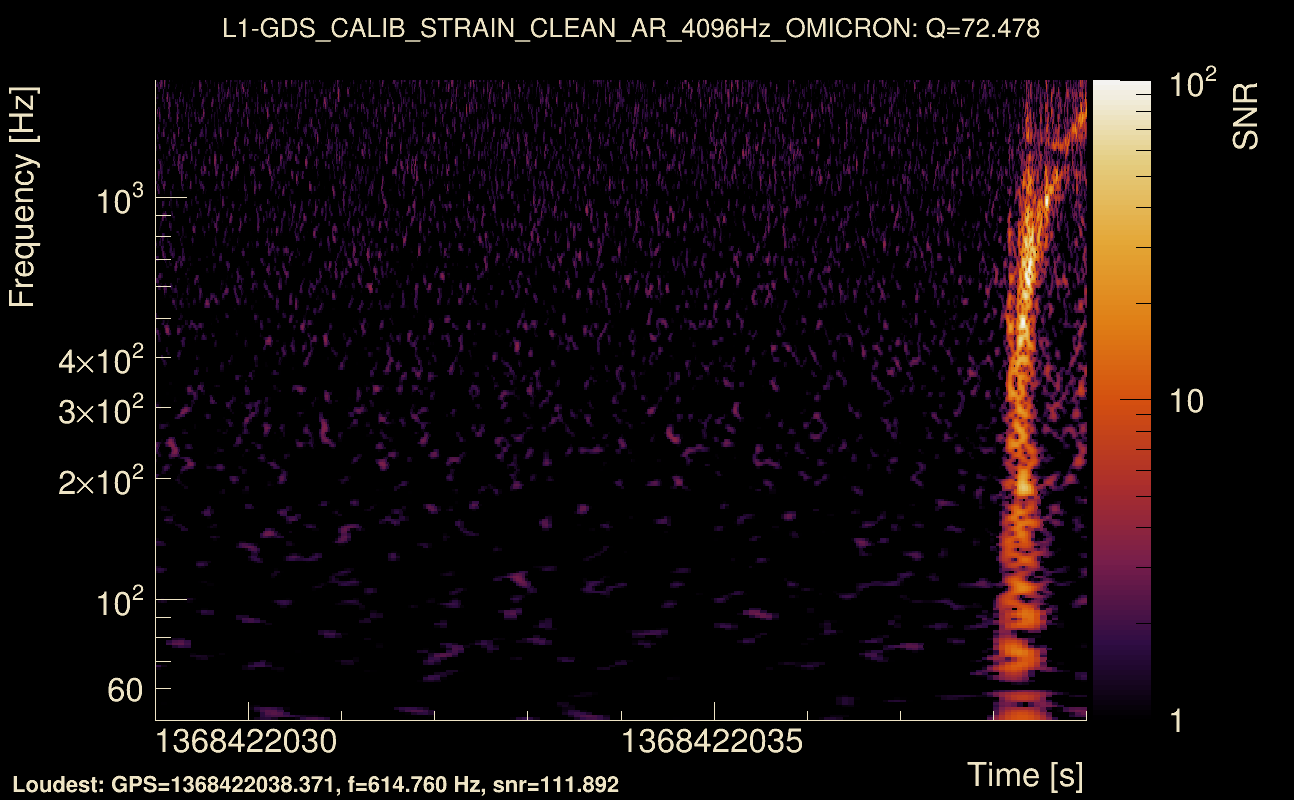

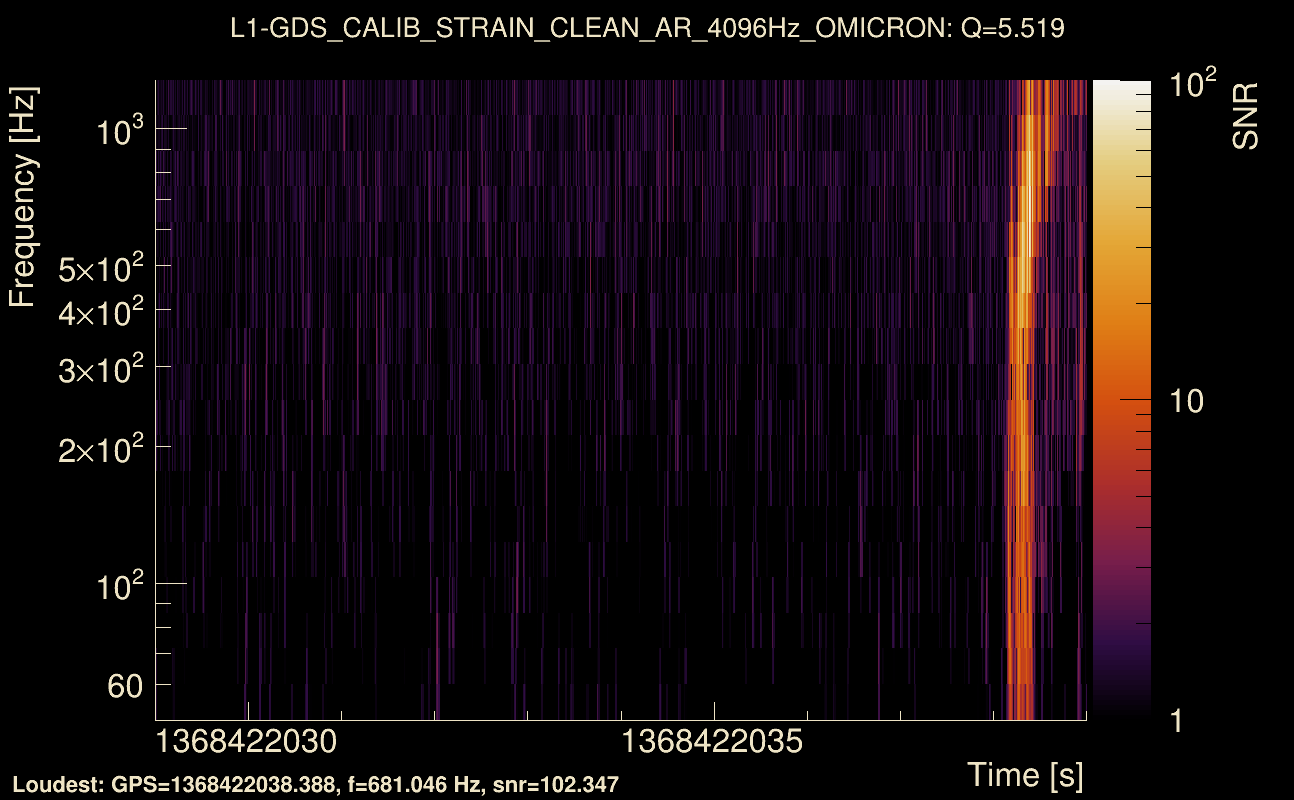

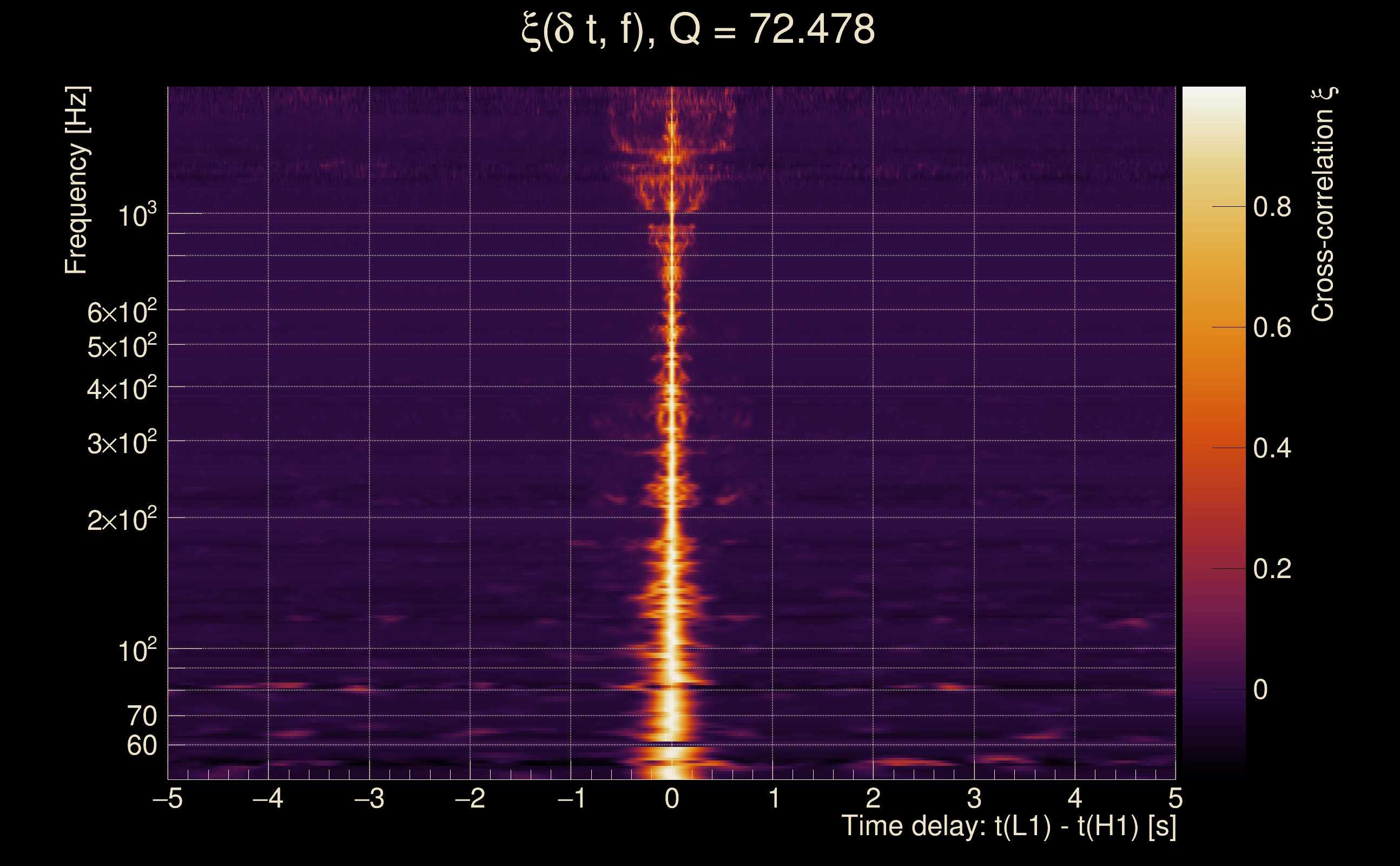

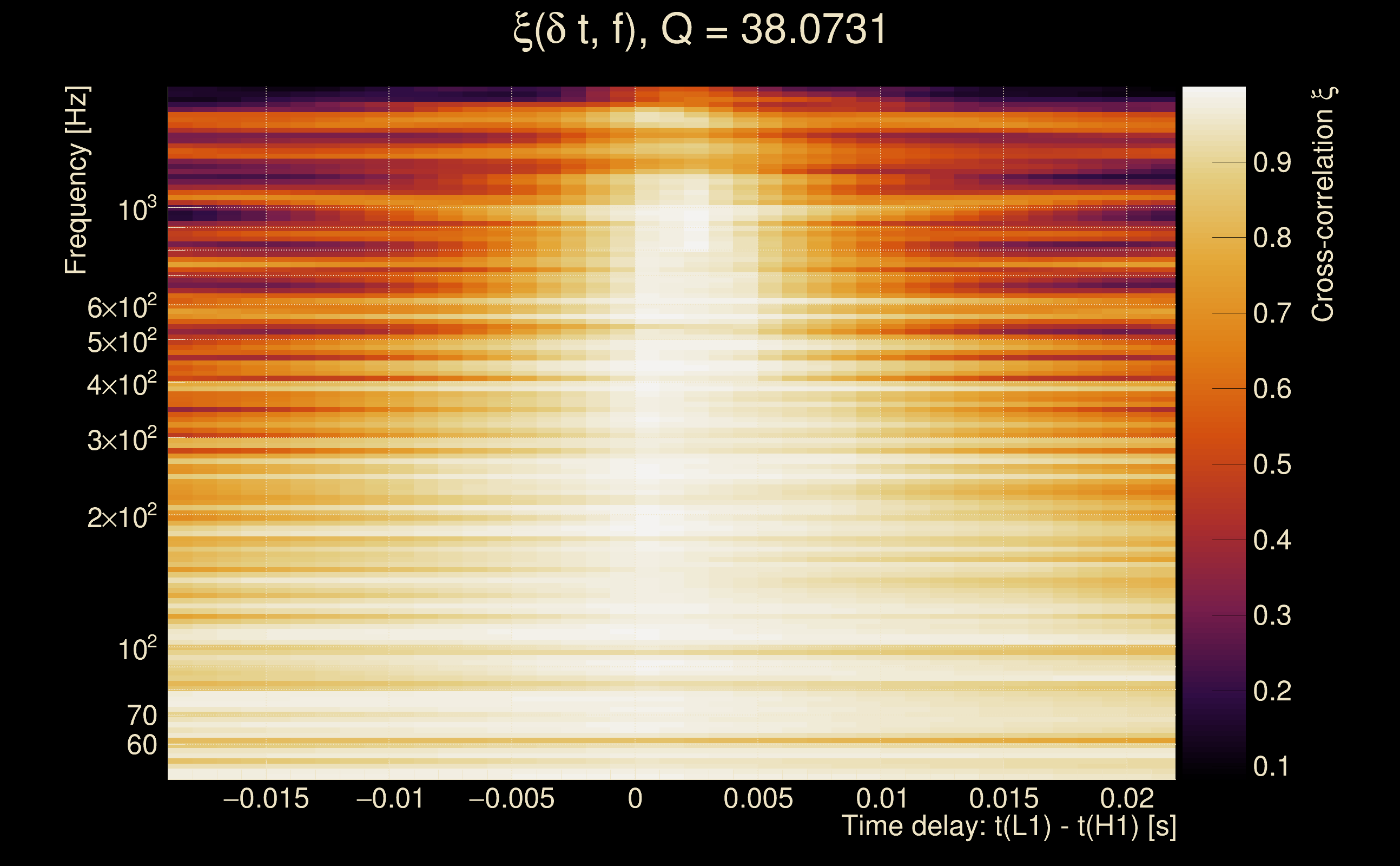

| Event time t(H1): | GPS = 1368422029 (Thu May 18 05:13:31 2023 ) → GPS = 1368422039 (Thu May 18 05:13:41 2023 ) |
| Event time t(L1): | GPS = 1368422029 (Thu May 18 05:13:41 2023 ) → GPS = 1368422039 (Thu May 18 05:13:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368422026 → GPS = 1368422042 |
| Omicron analysis time window (L1): | GPS = 1368422026 → GPS = 1368422042 |
| Time delay between detectors t(L1) - t(H1): | 0.00149416 s (slice index = 108 / 217), δt_gw = 0.00149416 s |
| Time delay standard deviation: | 0.0245848 s |
| [targeted mode] Time delay probability: | 0.993694 (0.00790405 sigmas), δt_target = 0.000918865 s |
| Frequency: | 285.093 Hz |
| Ξ: | 0.961953 ± 0.00298223 (variance = 8.89369e-06): Q0: 0.964885, Q1: 0.96602, Q2: 0.966406, Q3: 0.963112, Q4: 0.958221 |
| Rank: | R_A = 0.955887 |
| Log of amplitude ratio (L1/H1): | -0.173319, variance = 0.151899 (L1/H1: -0.188655, variance = 0.302476, H1/L1: 0.155626, variance = 0.301966) |
| Amplitude ratio (L1/H1): | 0.840869 ⋇ 1.4766 (L1/H1: 0.828072 ⋇ 1.73322, H1/L1: 1.16839 ⋇ 1.73241) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.966113 |
| Antenna factor probability: | 0.792602 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 3 / 134, Q4: 12 / 258 |
| Maximum signal-to-noise ratio: | H1: 125.194, L1: 116.555 |
| SNR variance: | H1: 0.492207, L1: 0.50361 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

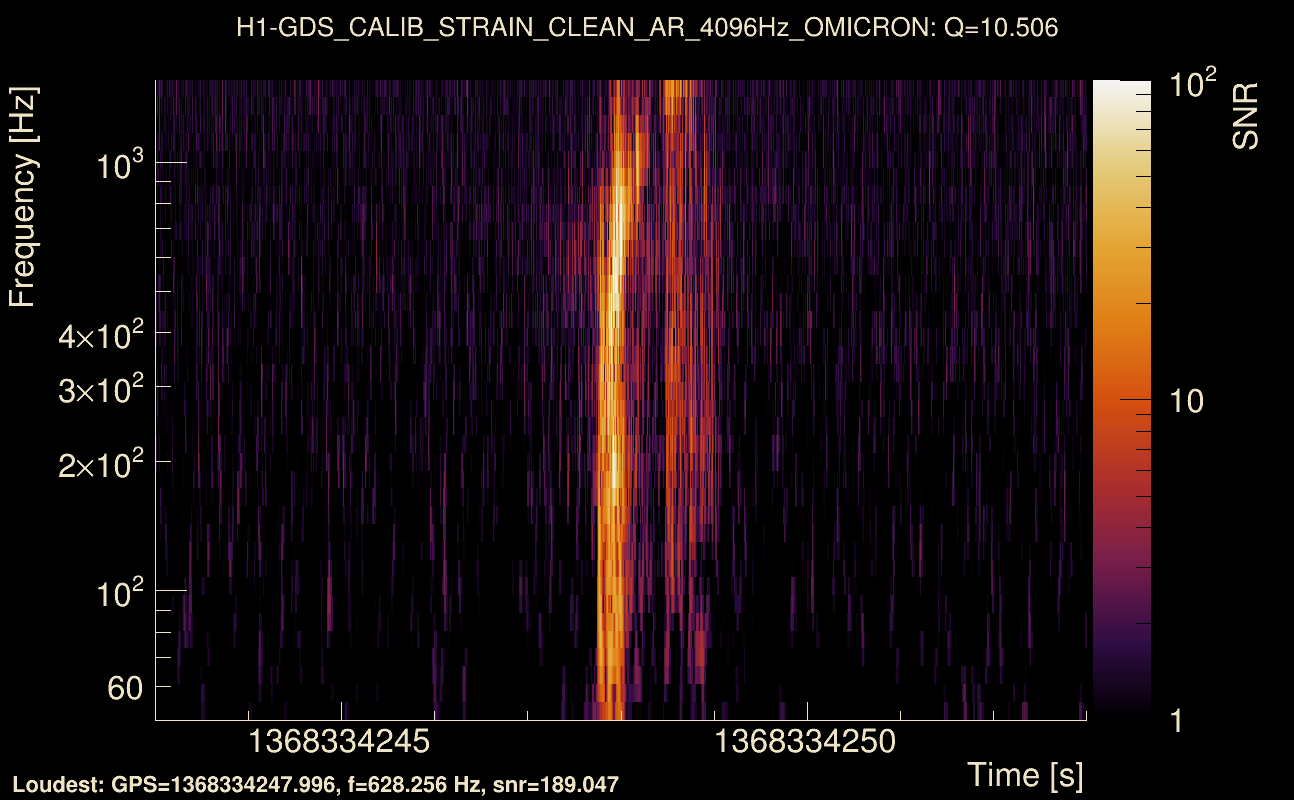

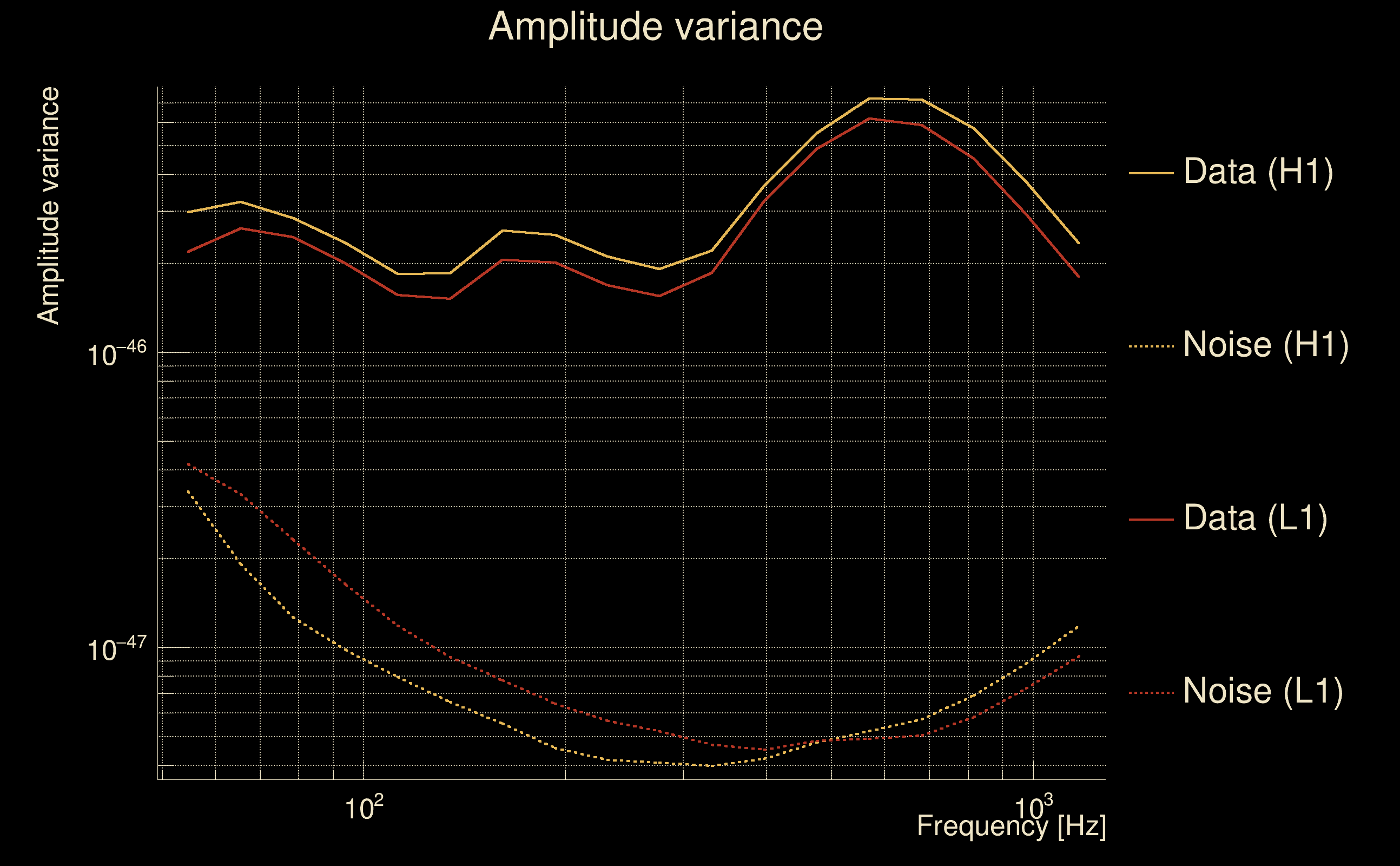

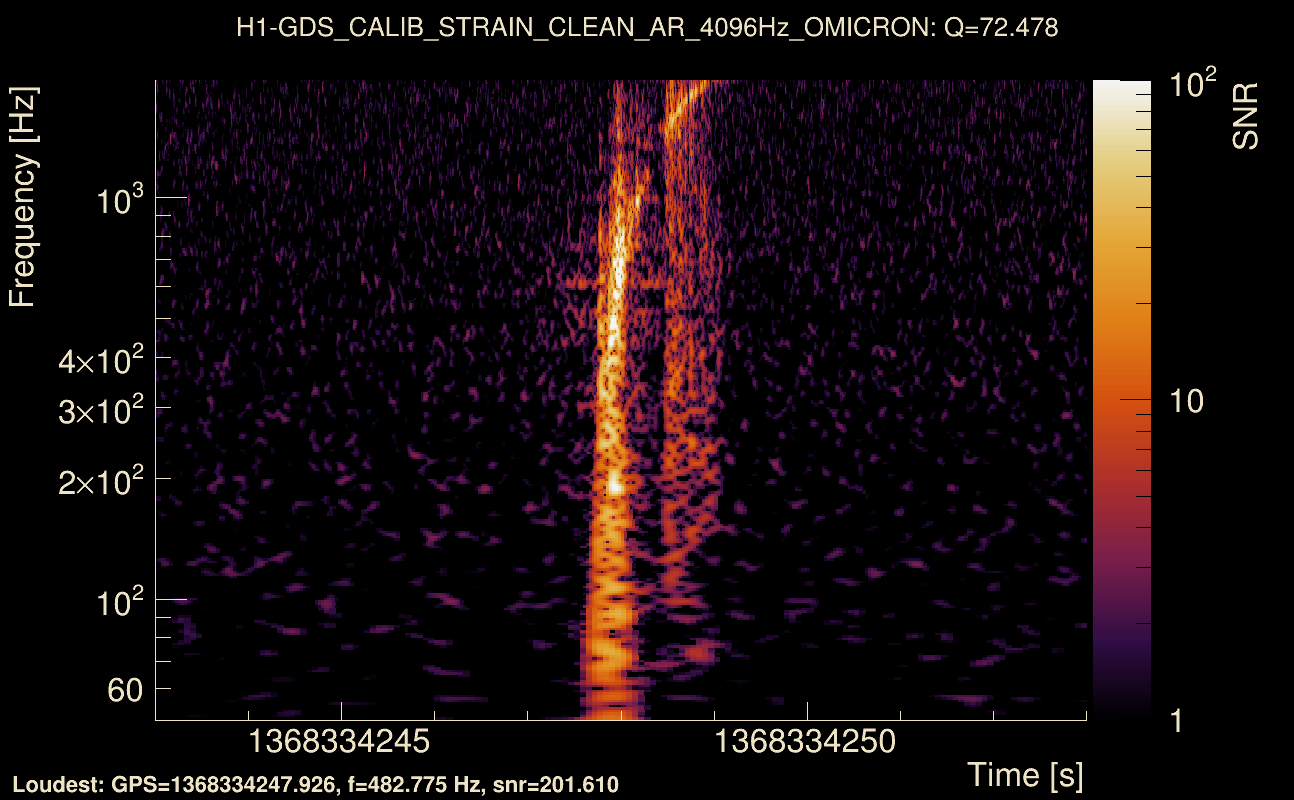

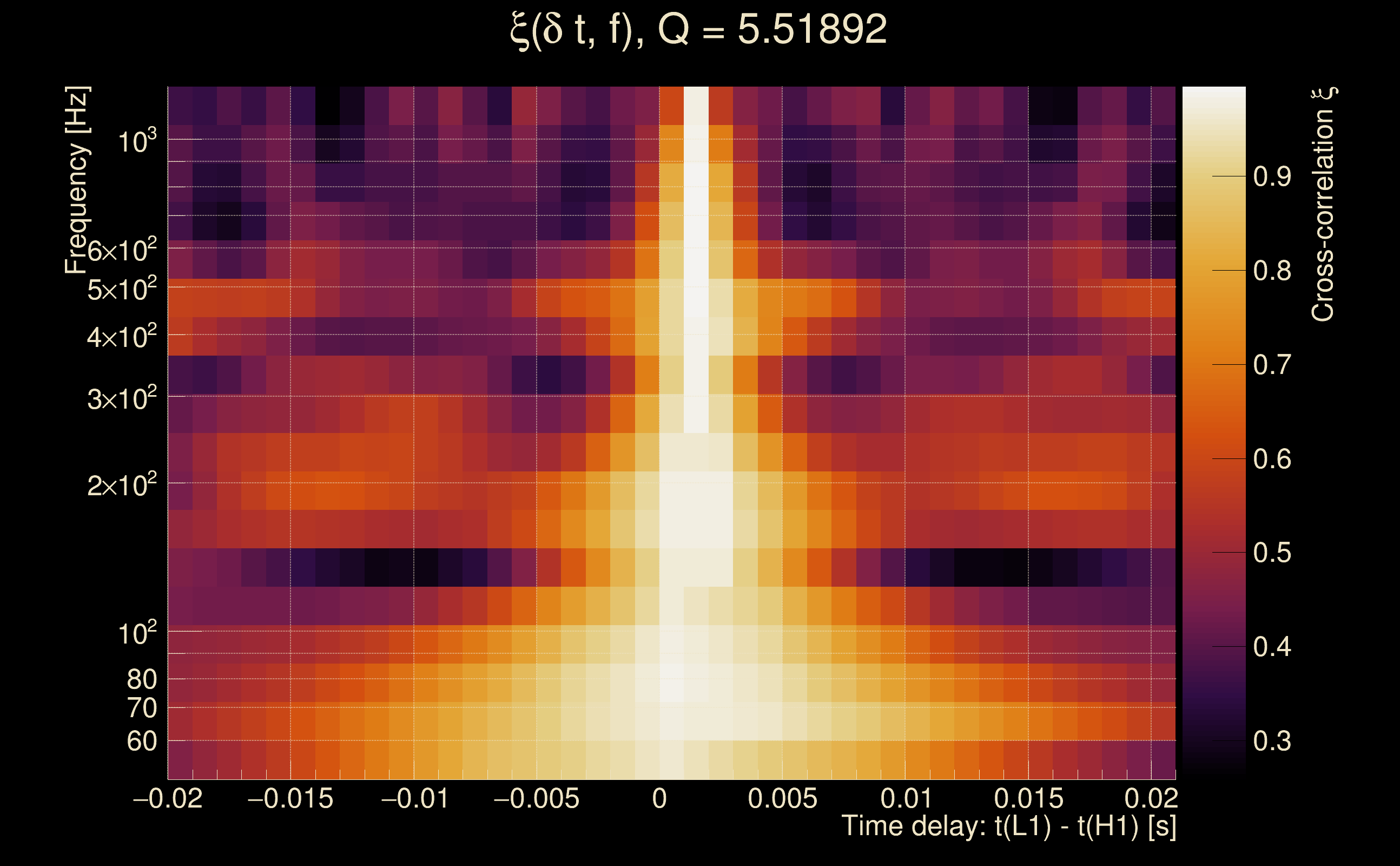

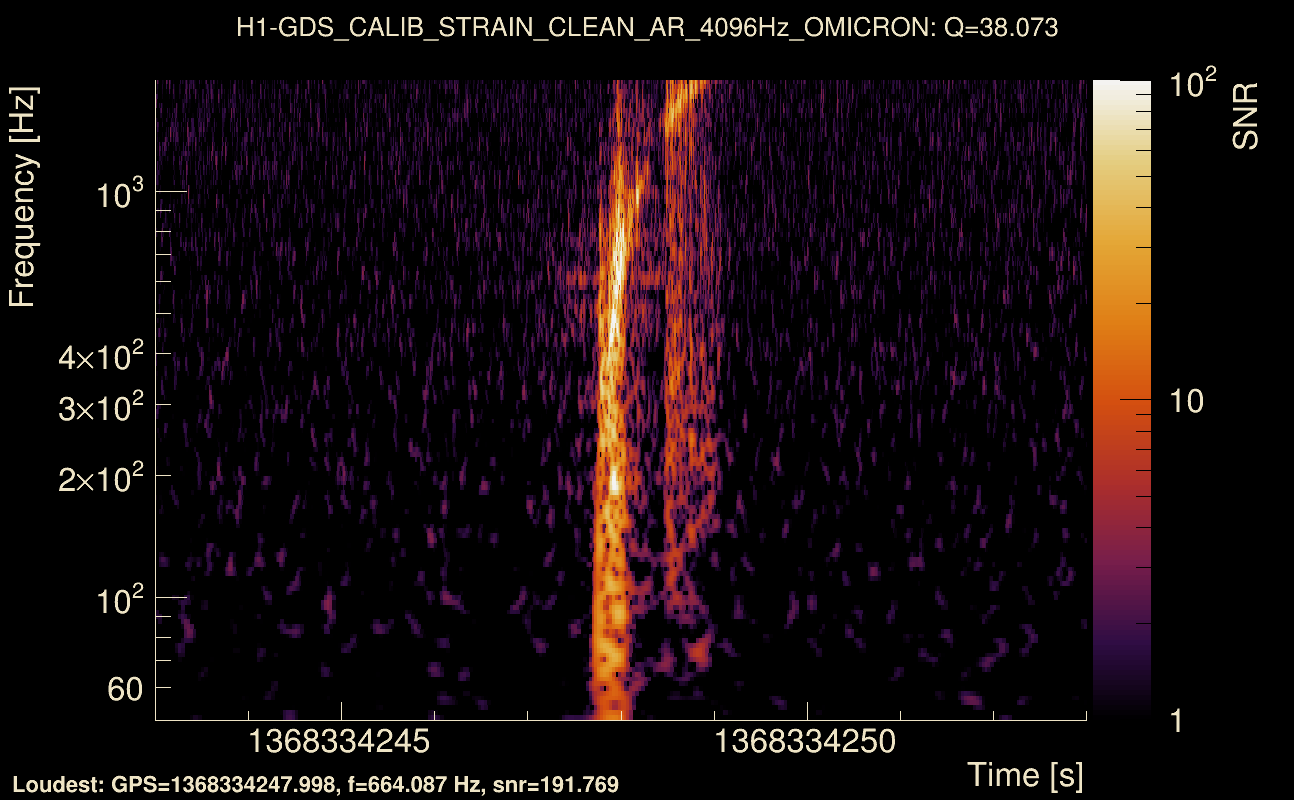

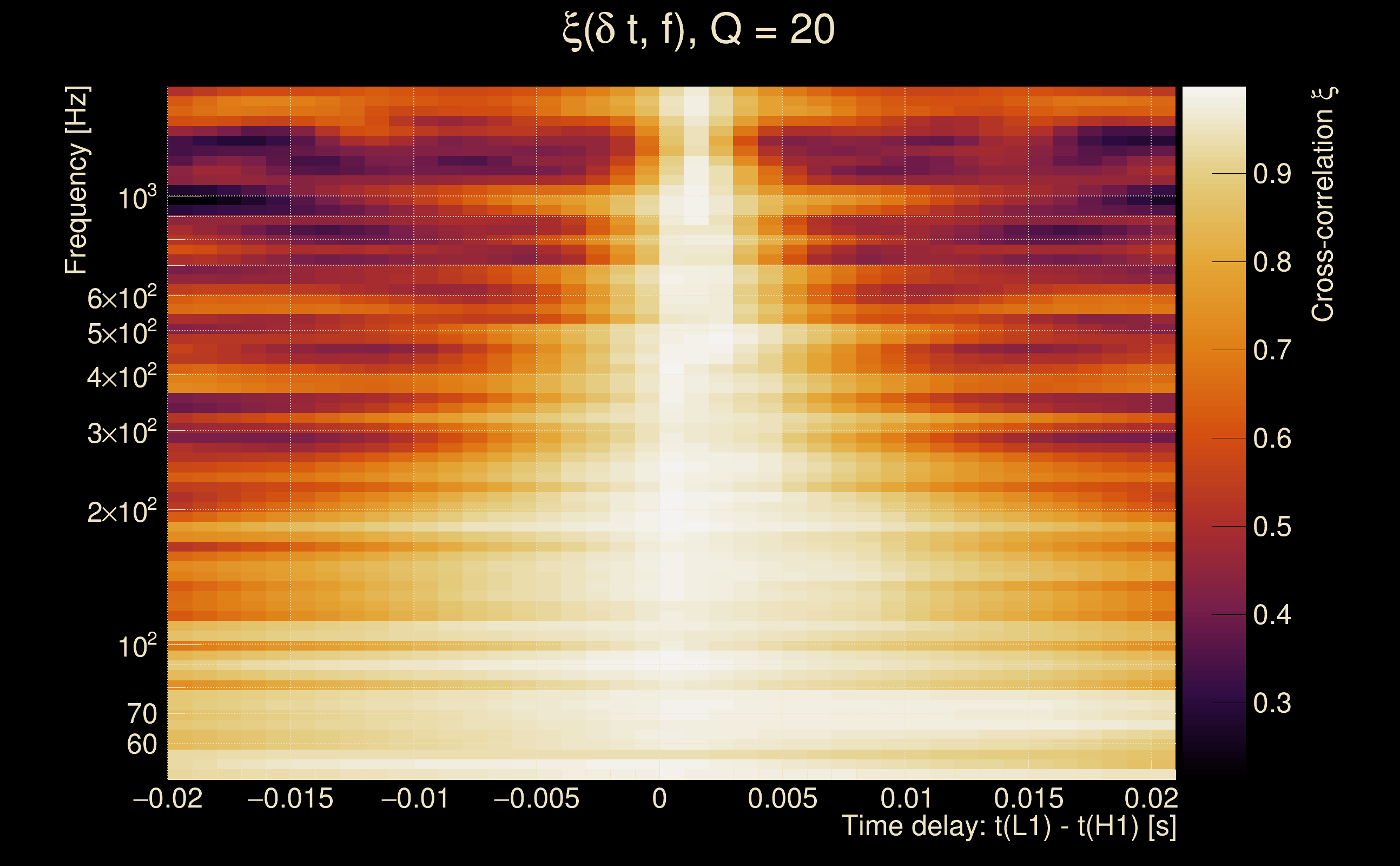

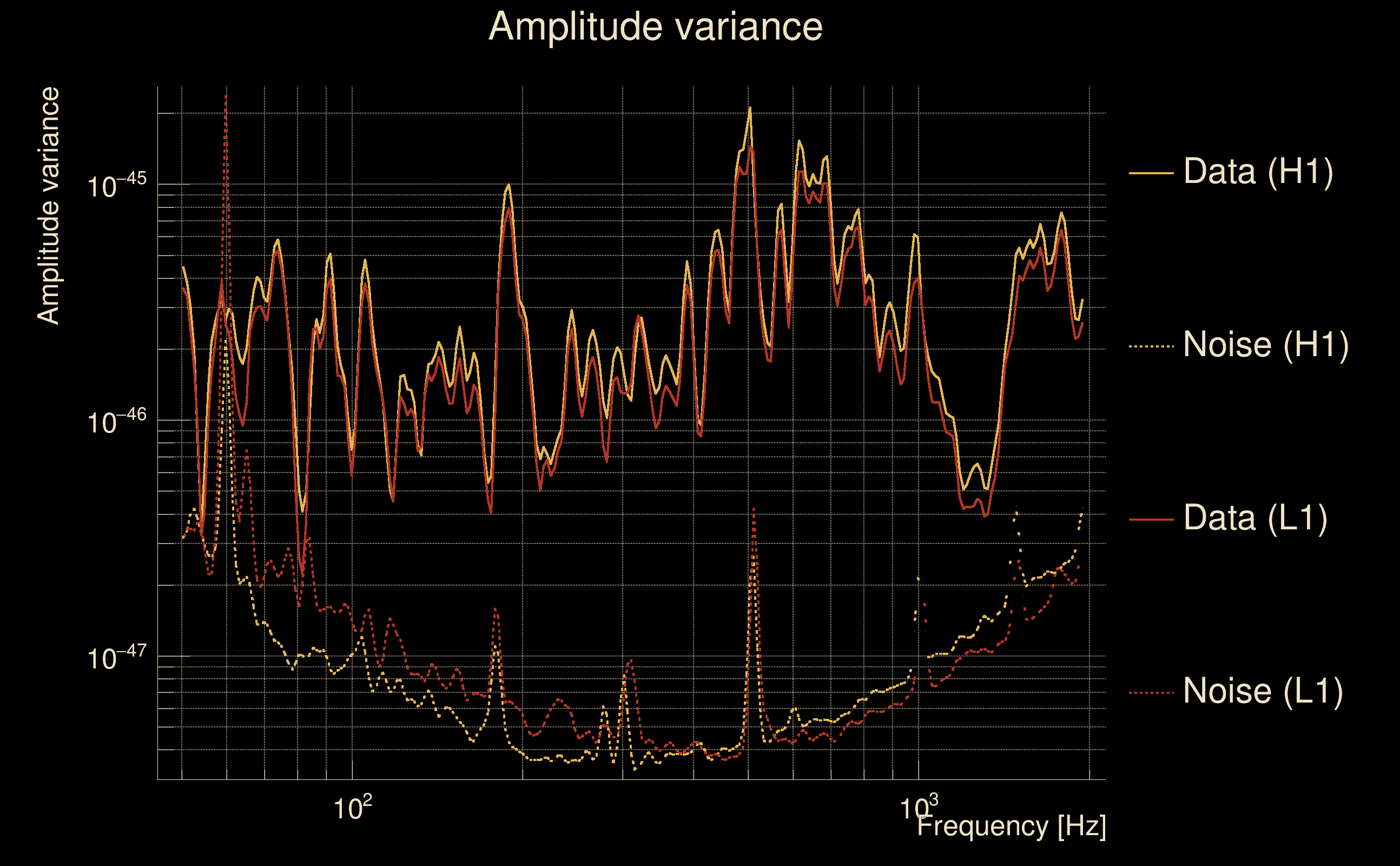

| Event time t(H1): | GPS = 1368334243 (Wed May 17 04:50:25 2023 ) → GPS = 1368334253 (Wed May 17 04:50:35 2023 ) |
| Event time t(L1): | GPS = 1368334243 (Wed May 17 04:50:35 2023 ) → GPS = 1368334253 (Wed May 17 04:50:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368334240 → GPS = 1368334256 |
| Omicron analysis time window (L1): | GPS = 1368334240 → GPS = 1368334256 |
| Time delay between detectors t(L1) - t(H1): | 0.000933108 s (slice index = 108 / 217), δt_gw = 0.000933108 s |
| Time delay standard deviation: | 0.0185524 s |
| [targeted mode] Time delay probability: | 0.93416 (0.0826122 sigmas), δt_target = 0.00149894 s |
| Frequency: | 288.403 Hz |
| Ξ: | 0.986748 ± 0.000630792 (variance = 3.97898e-07): Q0: 0.987697, Q1: 0.987041, Q2: 0.985941, Q3: 0.986155, Q4: 0.986628 |
| Rank: | R_A = 0.92178 |
| Log of amplitude ratio (L1/H1): | -0.0938685, variance = 0.150742 (L1/H1: -0.105857, variance = 0.300864, H1/L1: 0.0829426, variance = 0.300815) |
| Amplitude ratio (L1/H1): | 0.910402 ⋇ 1.47441 (L1/H1: 0.899553 ⋇ 1.73067, H1/L1: 1.08648 ⋇ 1.7306) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.976433 |

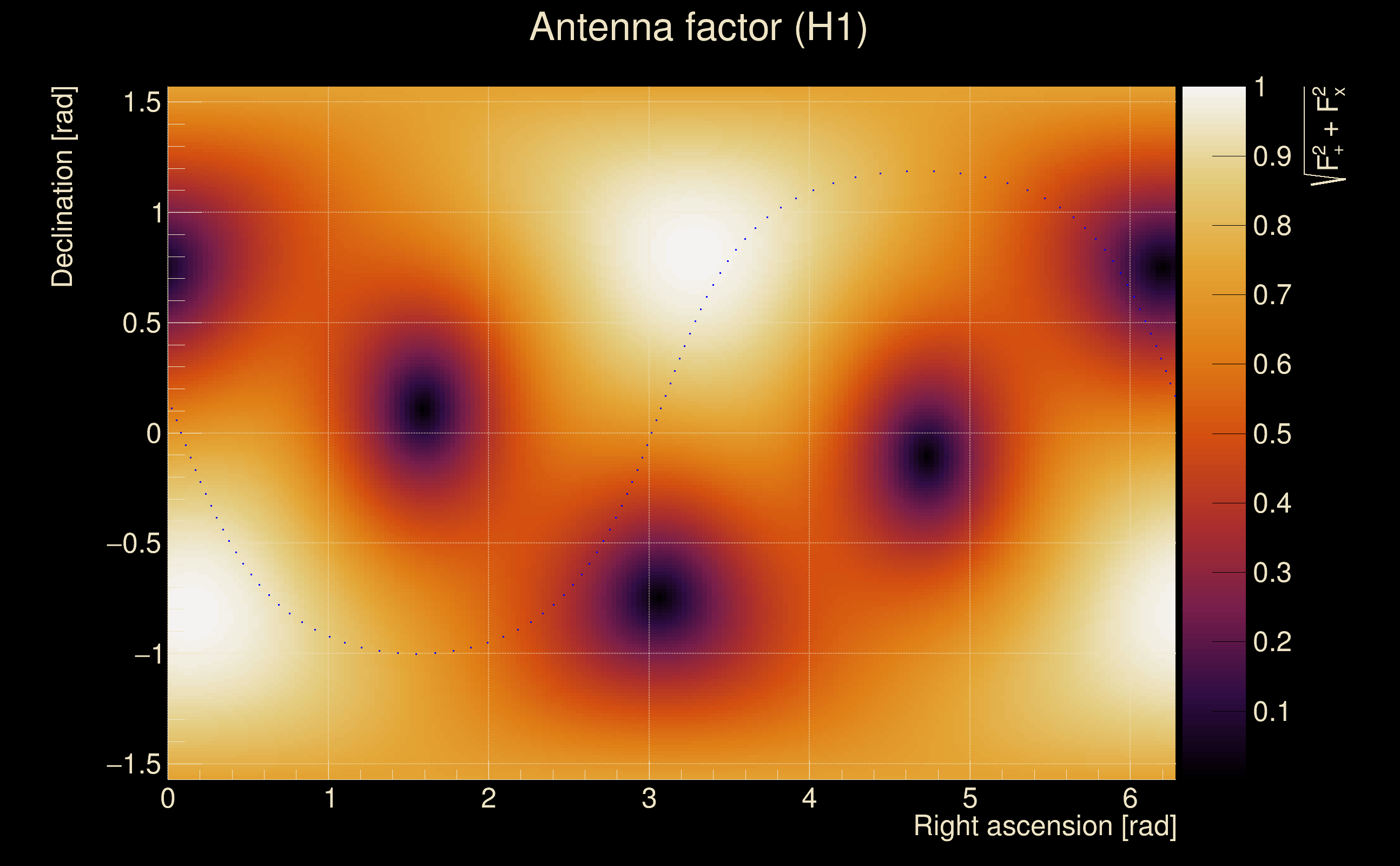

| Antenna factor probability: | 0.902139 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 207.553, L1: 217.41 |

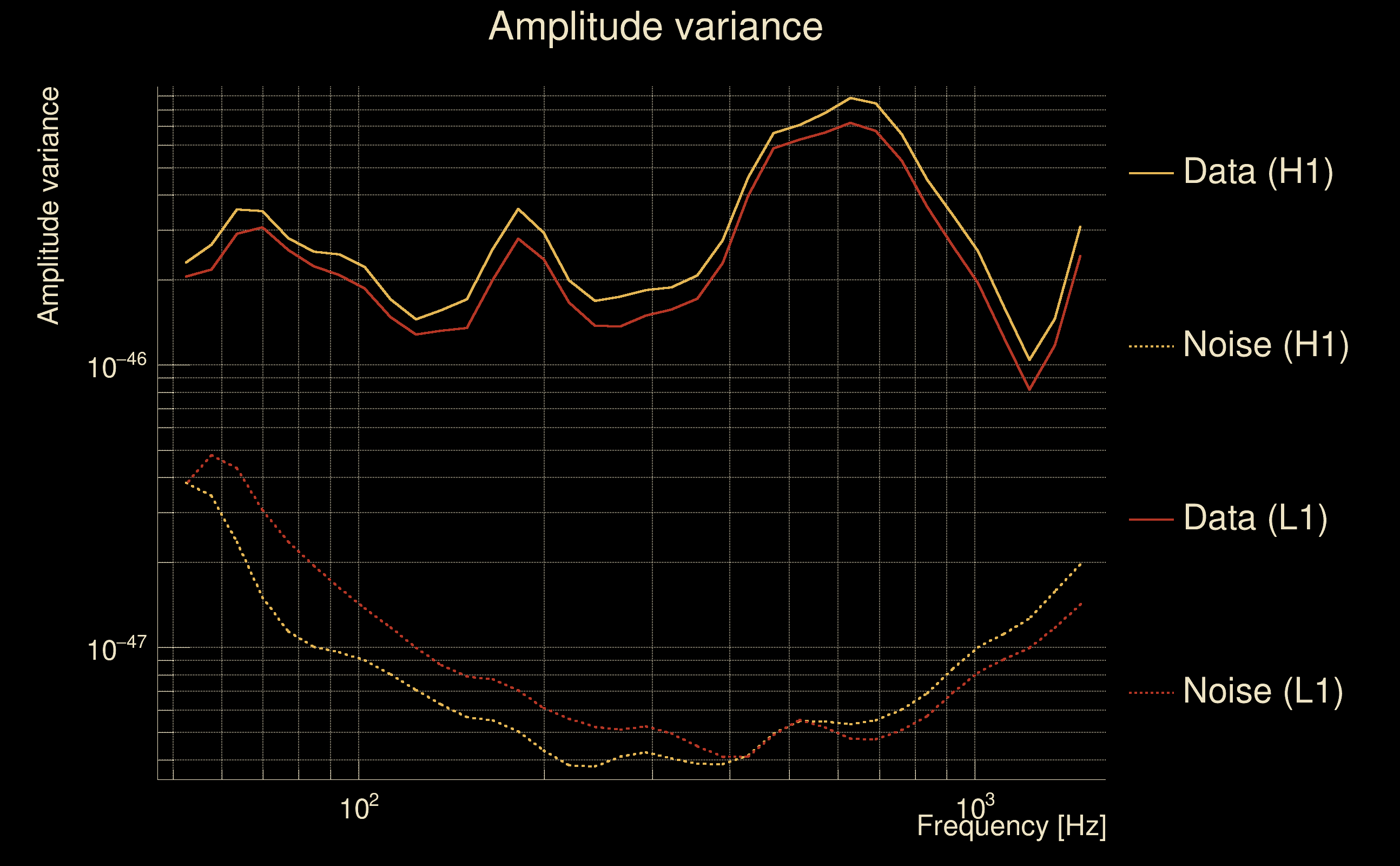

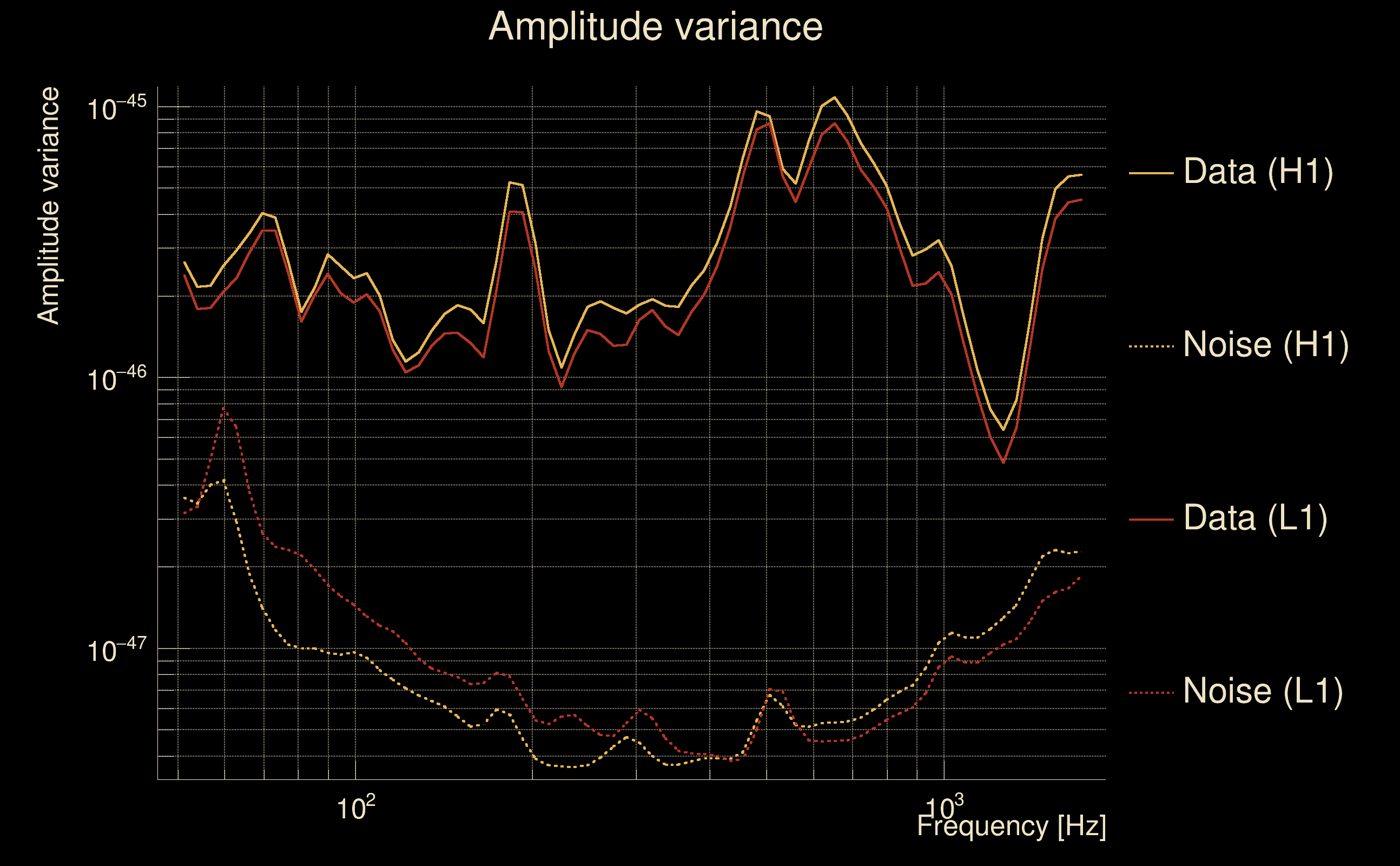

| SNR variance: | H1: 24.3019, L1: 23.7711 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368280453 (Tue May 16 13:53:55 2023 ) → GPS = 1368280463 (Tue May 16 13:54:05 2023 ) |
| Event time t(L1): | GPS = 1368280453 (Tue May 16 13:54:05 2023 ) → GPS = 1368280463 (Tue May 16 13:54:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368280450 → GPS = 1368280466 |
| Omicron analysis time window (L1): | GPS = 1368280450 → GPS = 1368280466 |
| Time delay between detectors t(L1) - t(H1): | -1.00339 s (slice index = 130 / 217), δt_gw = 0.00860563 s |
| Time delay standard deviation: | 0.0715254 s |
| [targeted mode] Time delay probability: | 0.971992 (0.0351103 sigmas), δt_target = 0.000961542 s |
| Frequency: | 122.967 Hz |
| Ξ: | 0.0358875 ± 0.0431374 (variance = 0.00186083): Q0: 0.110537, Q1: 0.154563, Q2: 0.143654, Q3: 0.0332749, Q4: 0.0911523 |
| Rank: | R_A = 0.0348824 |
| Log of amplitude ratio (L1/H1): | -1.14123, variance = 0.779378 (L1/H1: -1.74815, variance = 1.17658, H1/L1: -1.00676, variance = 1.32086) |
| Amplitude ratio (L1/H1): | 0.319427 ⋇ 2.41772 (L1/H1: 0.174095 ⋇ 2.95856, H1/L1: 0.365401 ⋇ 3.15594) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0812895 |
| Antenna factor probability: | 0.278109 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 28 / 36, Q2: 63 / 70, Q3: 129 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 9.51492, L1: 5.05774 |
| SNR variance: | H1: 0.511236, L1: 0.536989 |

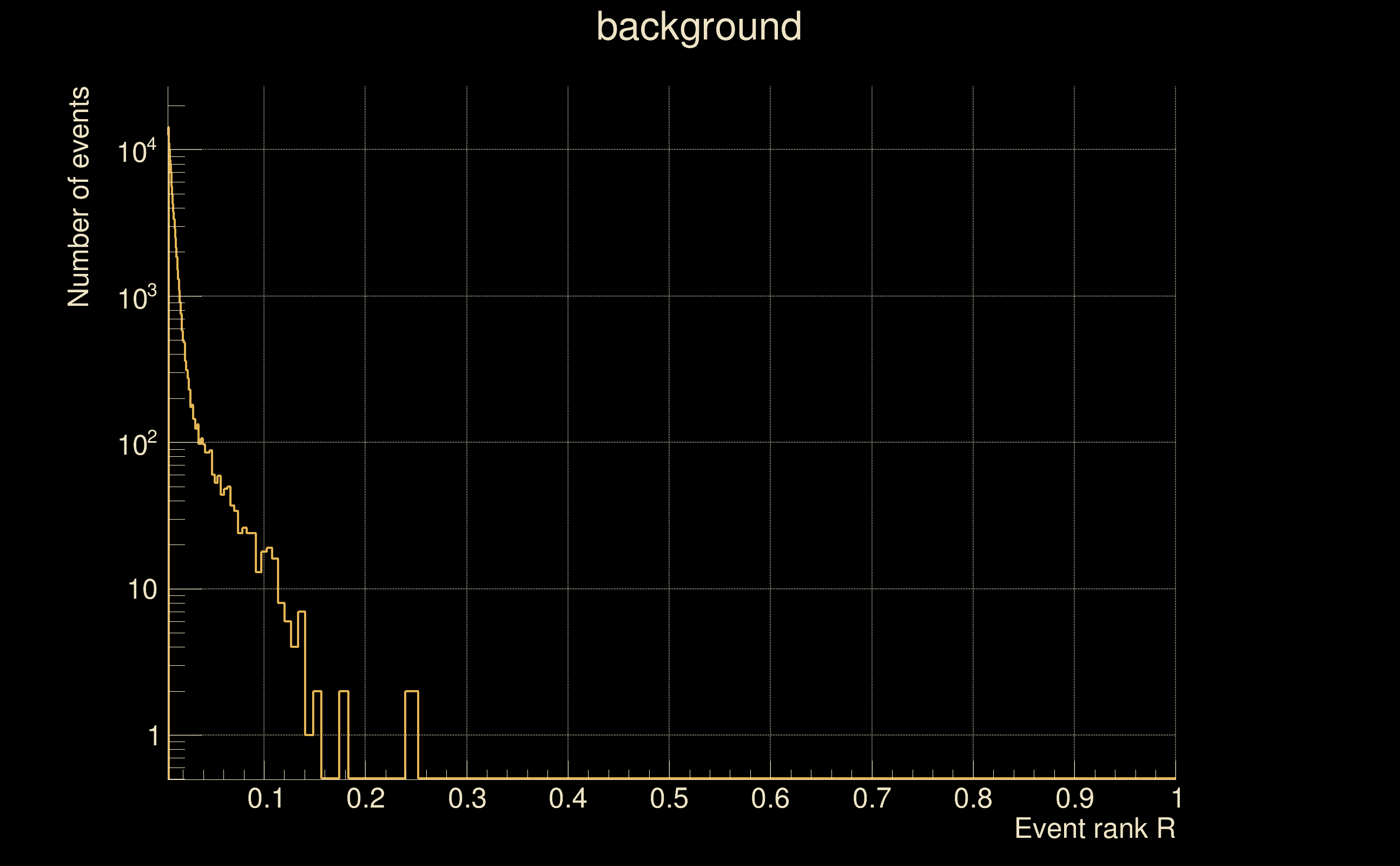

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 7.60553e-08 |
| Alternative threshold at 1/1000 yrs: | R > 0.245685 |
| Alternative threshold at 1/100 yrs: | R > 0.245685 |
| Alternative threshold at 1/10 yrs: | R > 0.245685 |
| Alternative threshold at 1/1 yr: | R > 0.245685 |
| Alternative threshold at 1/1 d: | R > 0.0653684 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

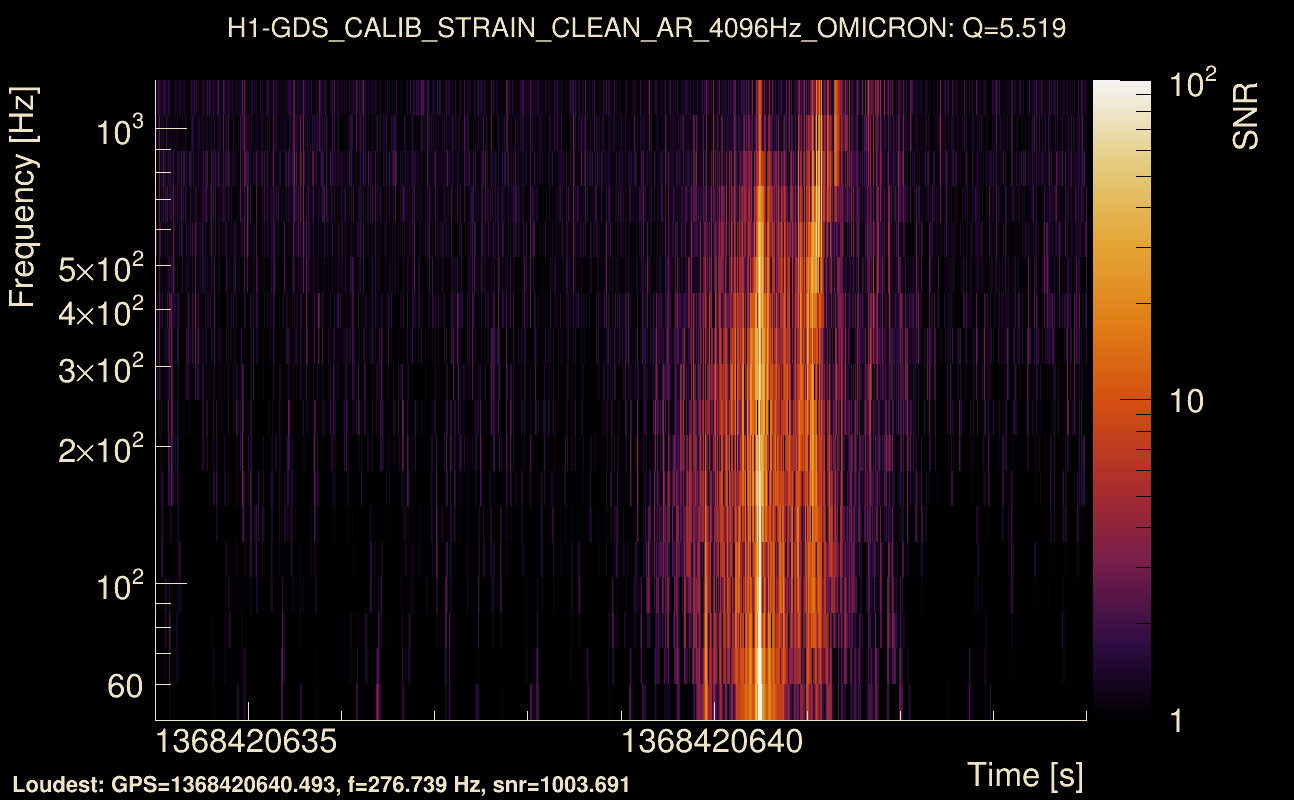

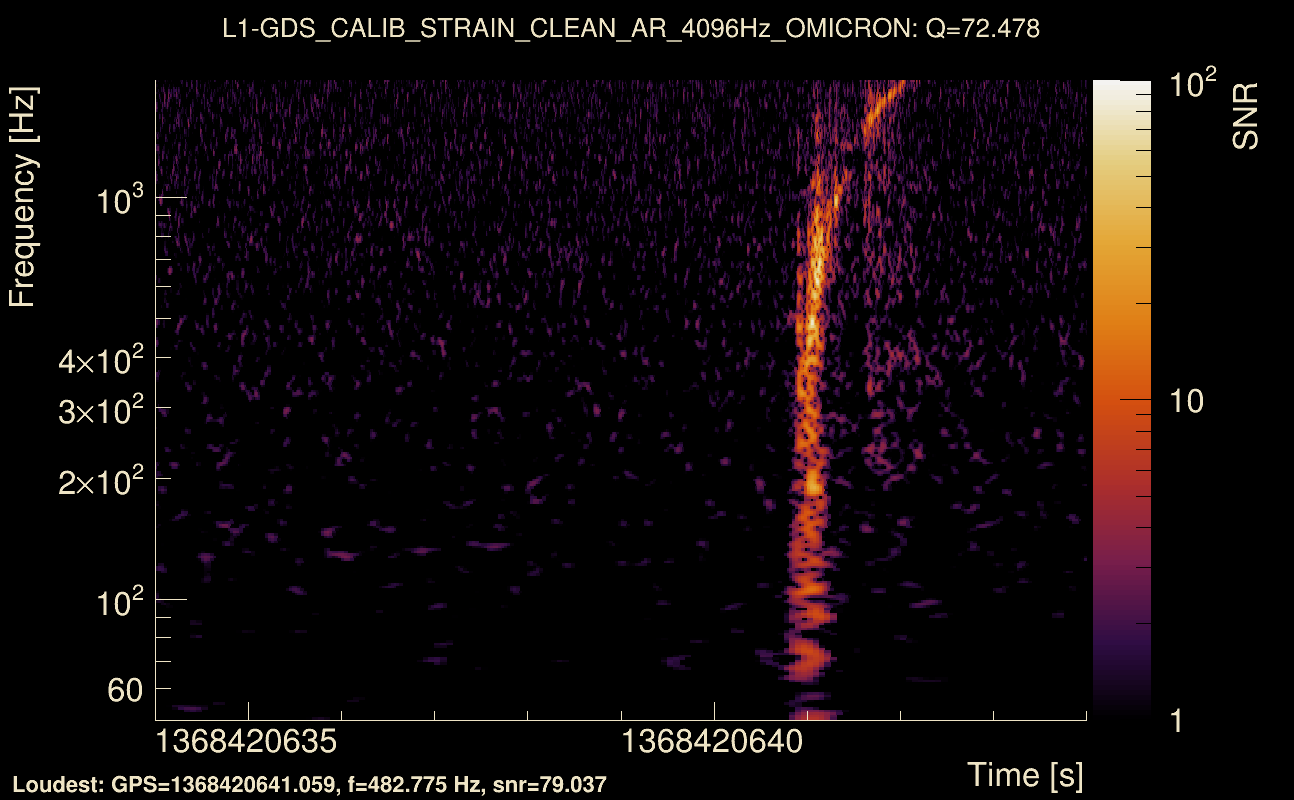

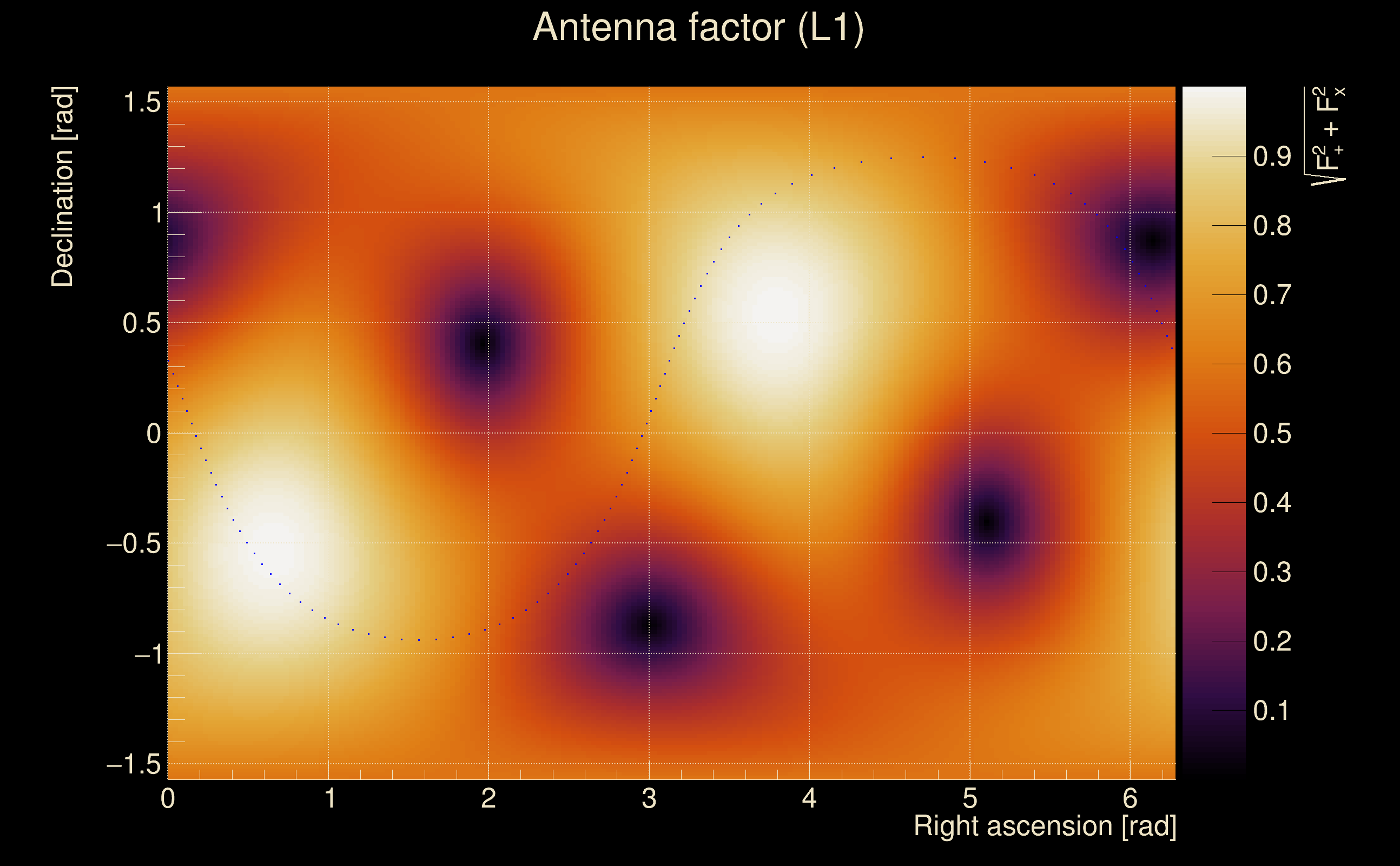

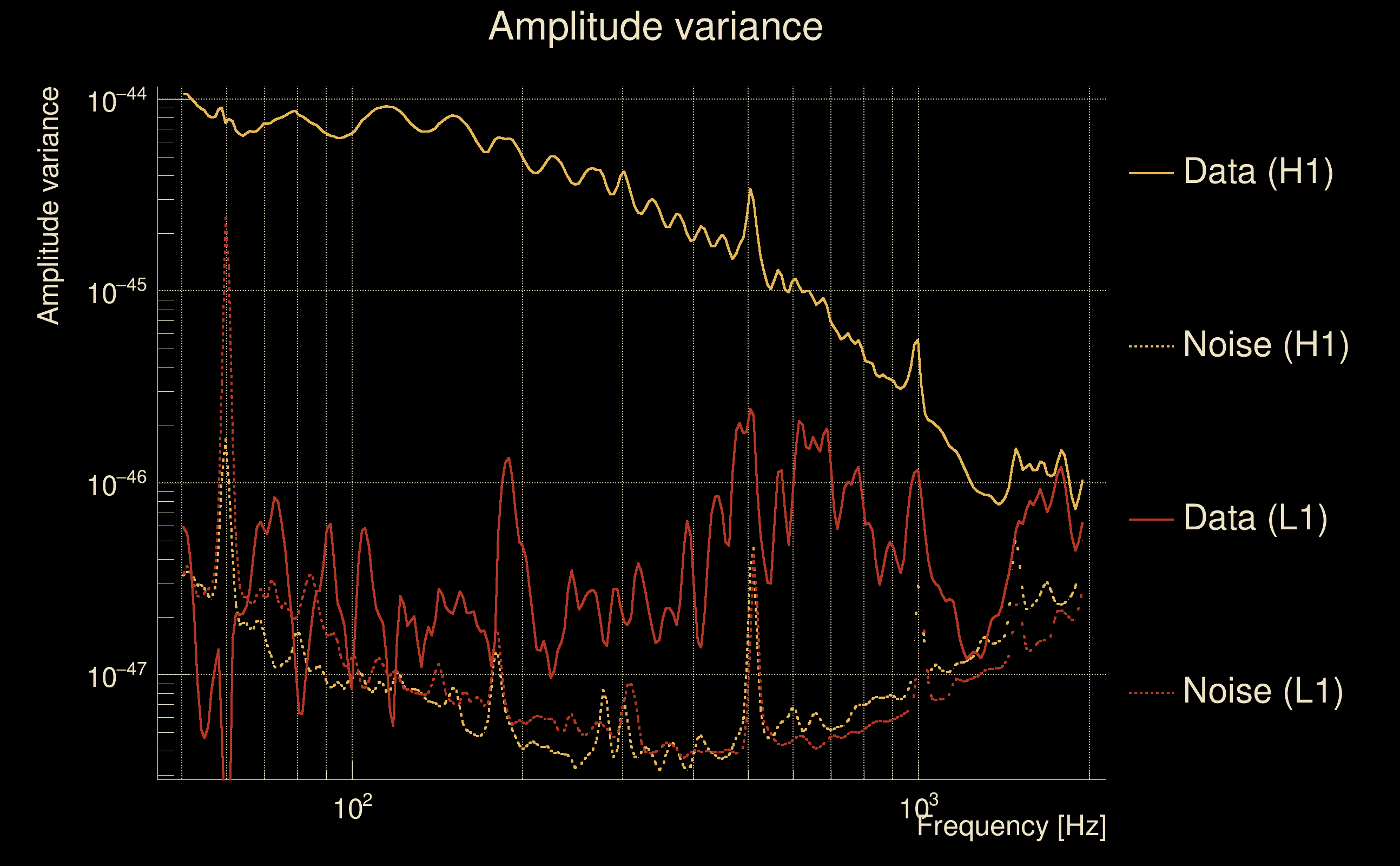

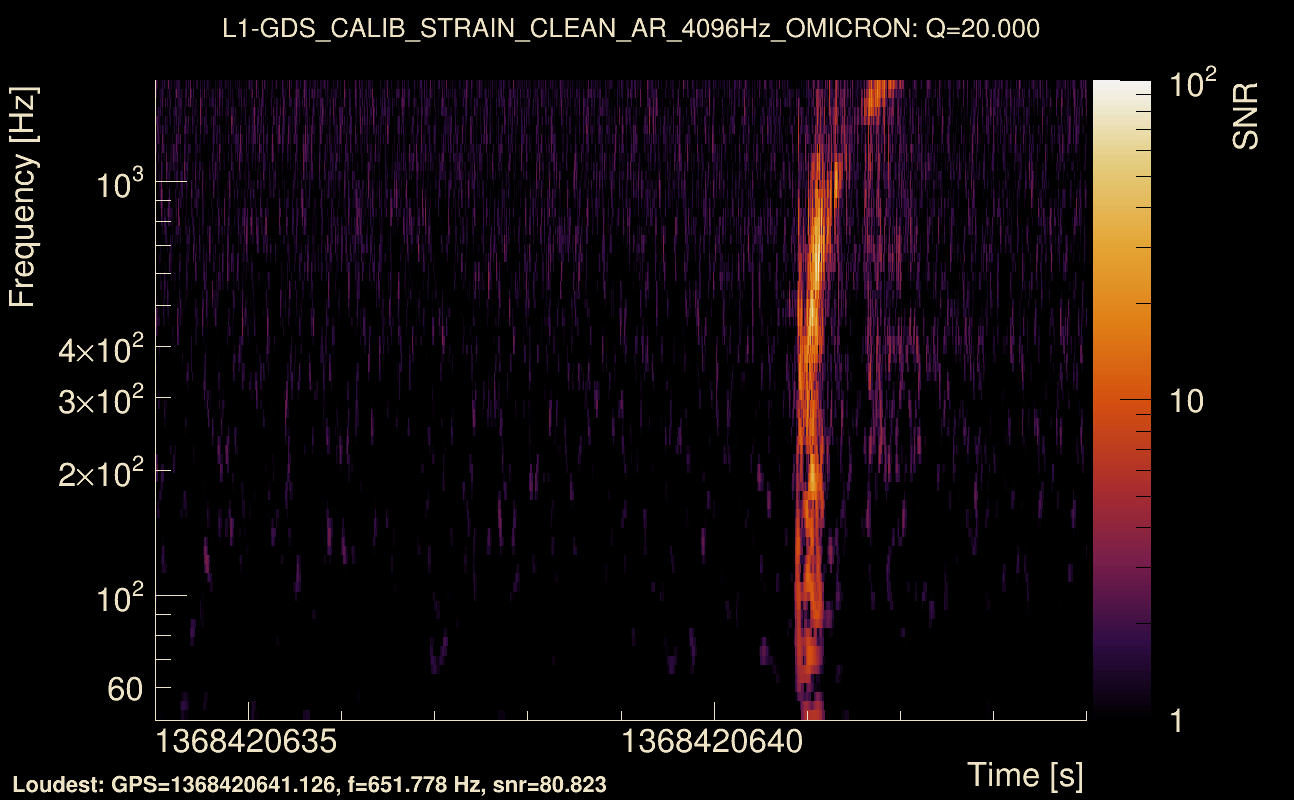

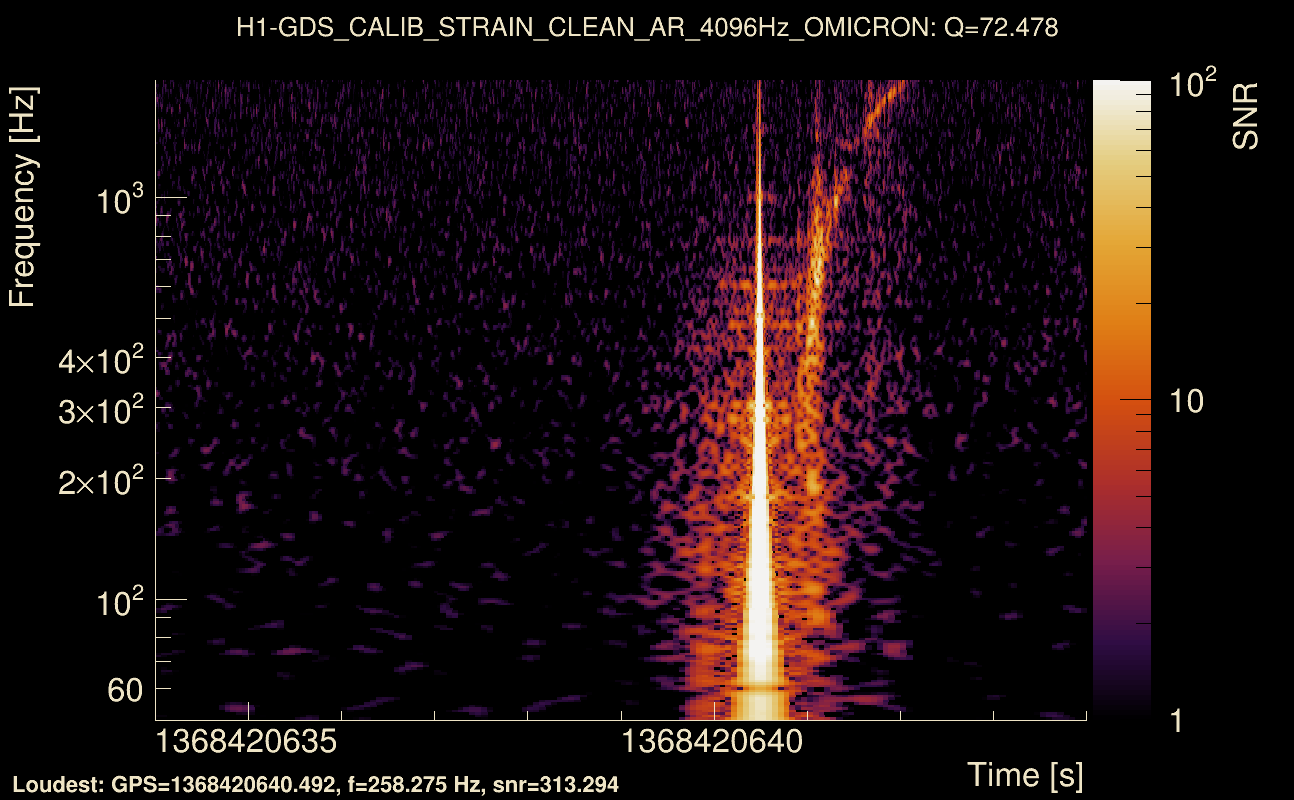

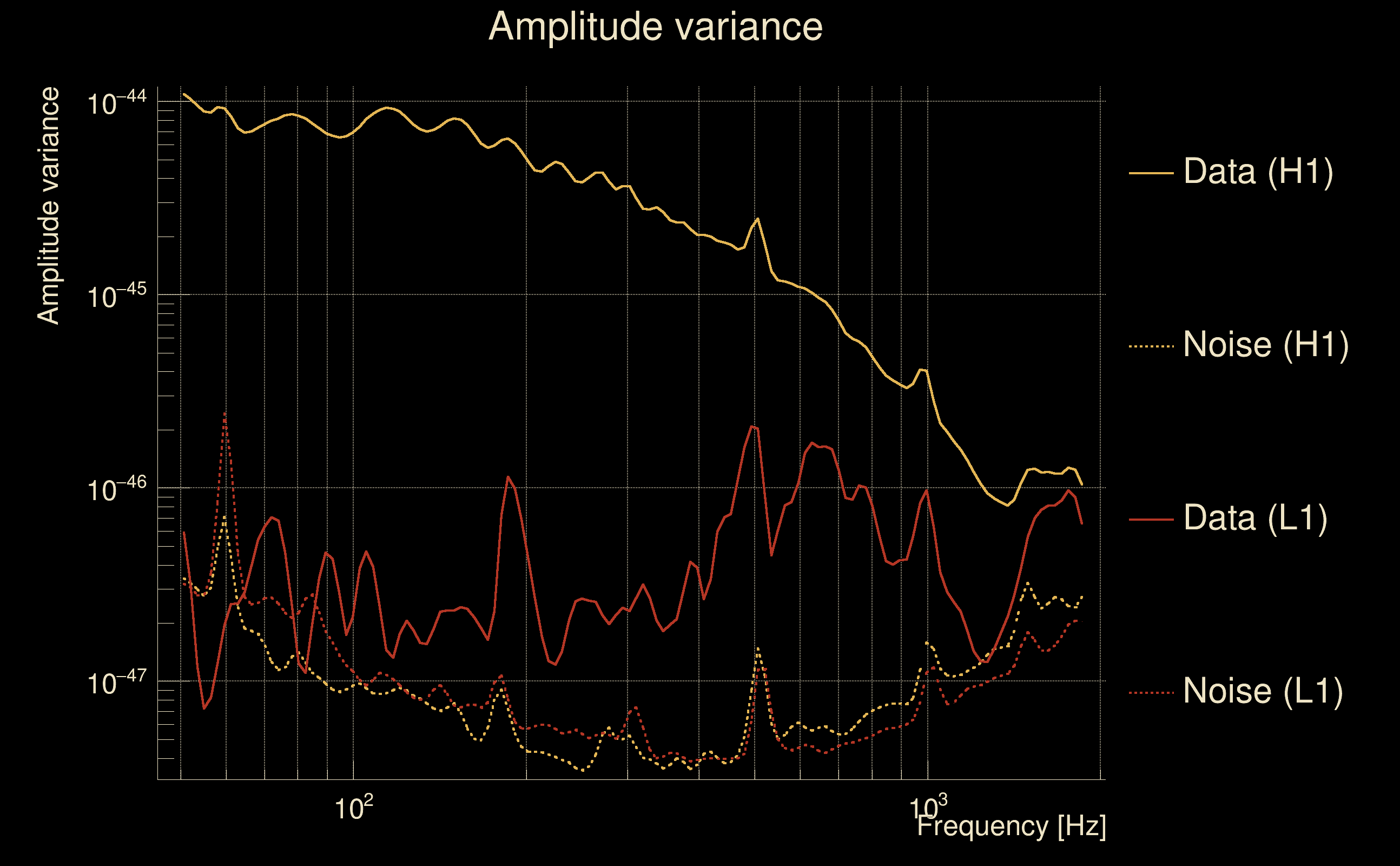

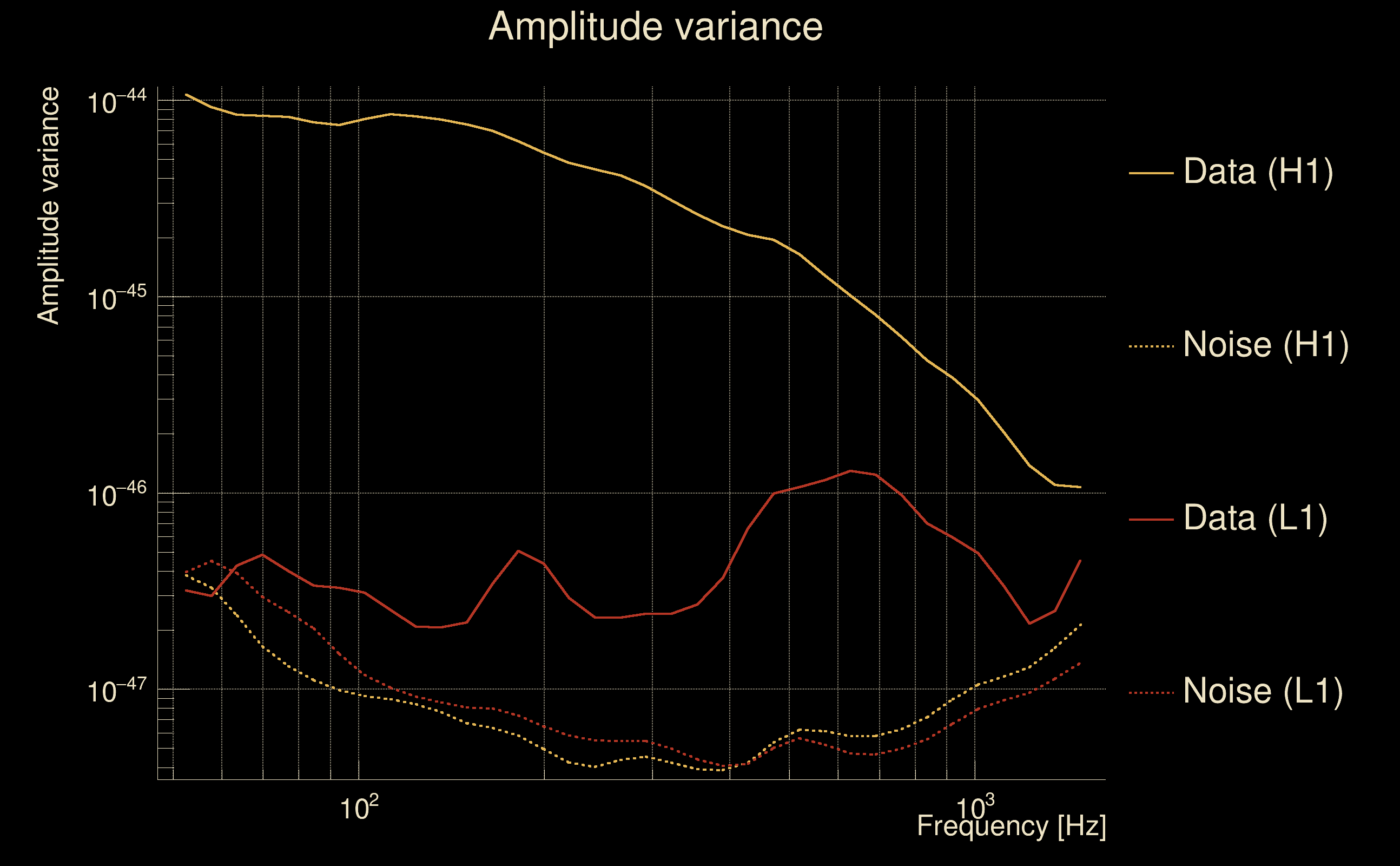

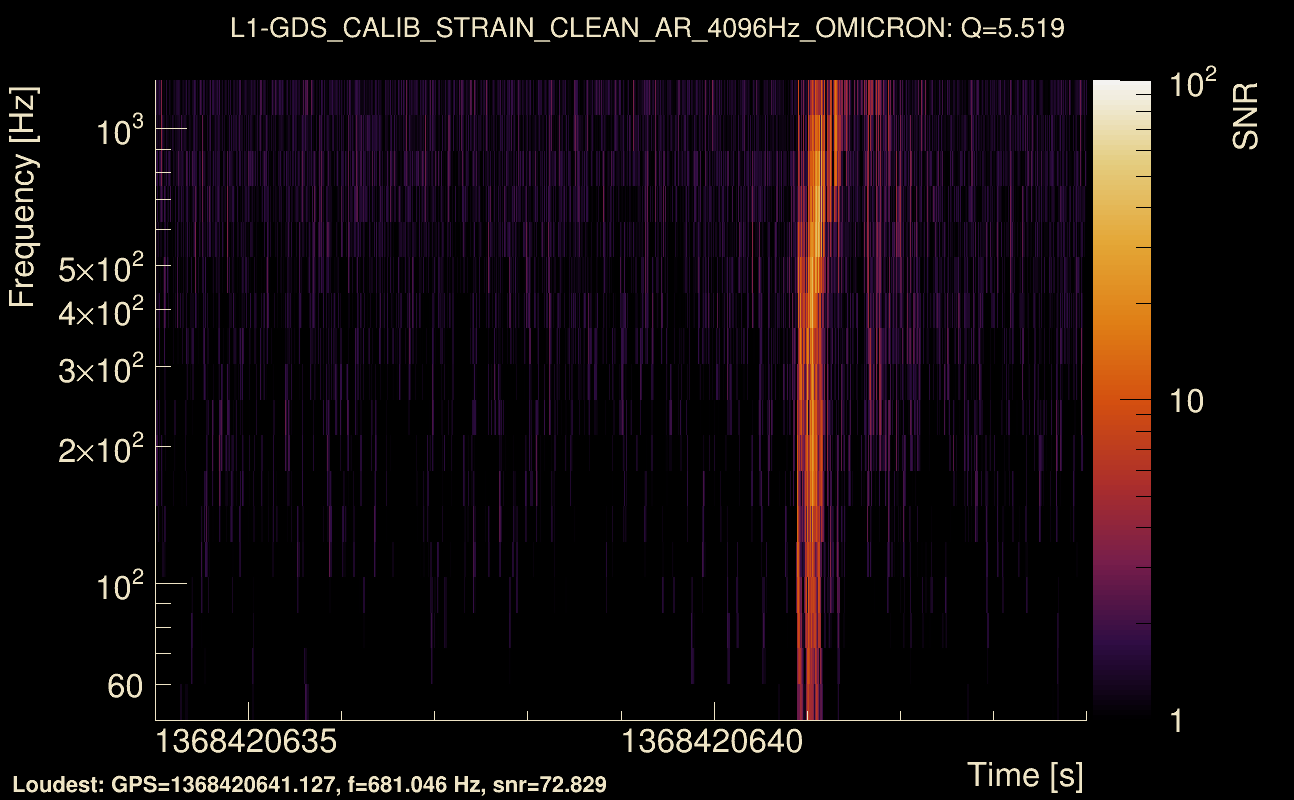

| Event time t(H1): | GPS = 1368420634 (Thu May 18 04:50:16 2023 ) → GPS = 1368420644 (Thu May 18 04:50:26 2023 ) |
| Event time t(L1): | GPS = 1368420634 (Thu May 18 04:50:26 2023 ) → GPS = 1368420644 (Thu May 18 04:50:26 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368420631 → GPS = 1368420647 |
| Omicron analysis time window (L1): | GPS = 1368420631 → GPS = 1368420647 |

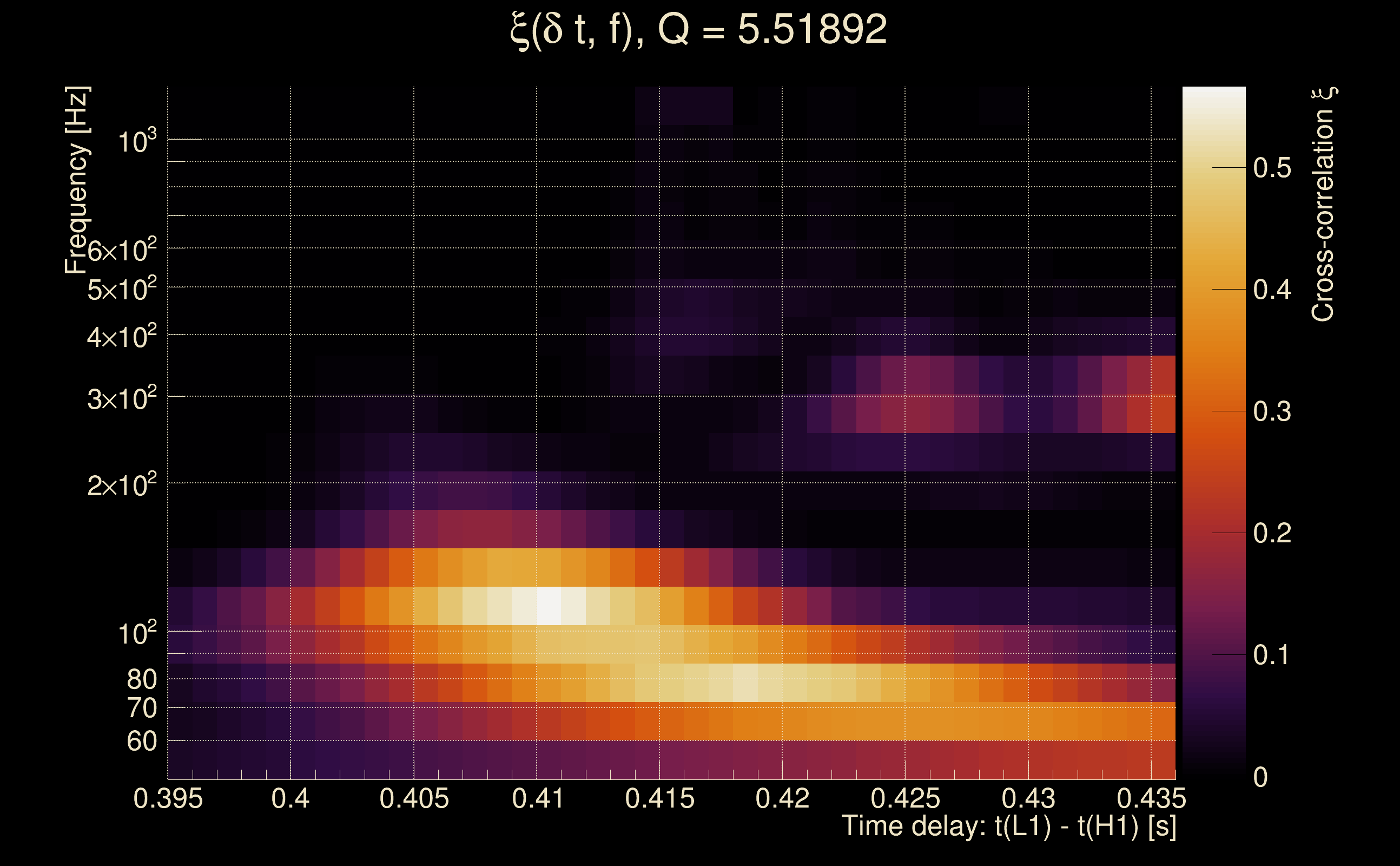

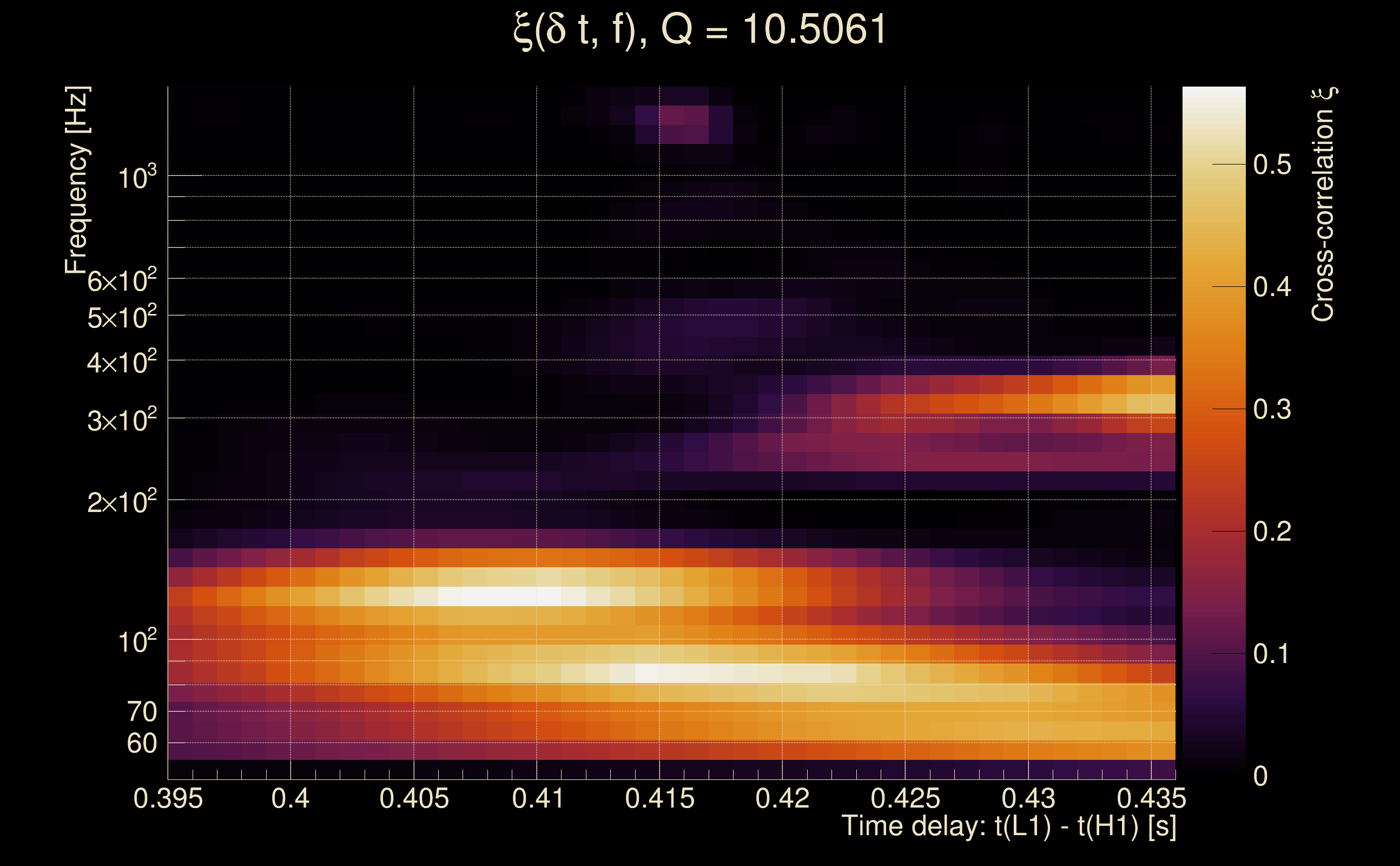

| Time delay between detectors t(L1) - t(H1): | 0.415546 s (slice index = 99 / 217), δt_gw = 0.00154582 s |
| Time delay standard deviation: | 0.0552989 s |
| [targeted mode] Time delay probability: | 0.867206 (0.167209 sigmas), δt_target = 0.000961542 s |
| Frequency: | 150.878 Hz |
| Ξ: | 0.289784 ± 0.0515224 (variance = 0.00265456): Q0: 0.40927, Q1: 0.410925, Q2: 0.368893, Q3: 0.449353, Q4: 0.521601 |
| Rank: | R_A = 0.251302 |
| Log of amplitude ratio (L1/H1): | -3.74462, variance = 0.392158 (L1/H1: -3.76887, variance = 0.396745, H1/L1: -0.360934, variance = 1.71801) |
| Amplitude ratio (L1/H1): | 0.0236447 ⋇ 1.87054 (L1/H1: 0.0230782 ⋇ 1.87738, H1/L1: 0.697025 ⋇ 3.70887) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0045131 |
| Antenna factor probability: | 3.61956e-09 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 11 / 36, Q2: 20 / 70, Q3: 69 / 134, Q4: 185 / 258 |
| Maximum signal-to-noise ratio: | H1: 1121.44, L1: 86.1879 |
| SNR variance: | H1: 0.514145, L1: 0.52032 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

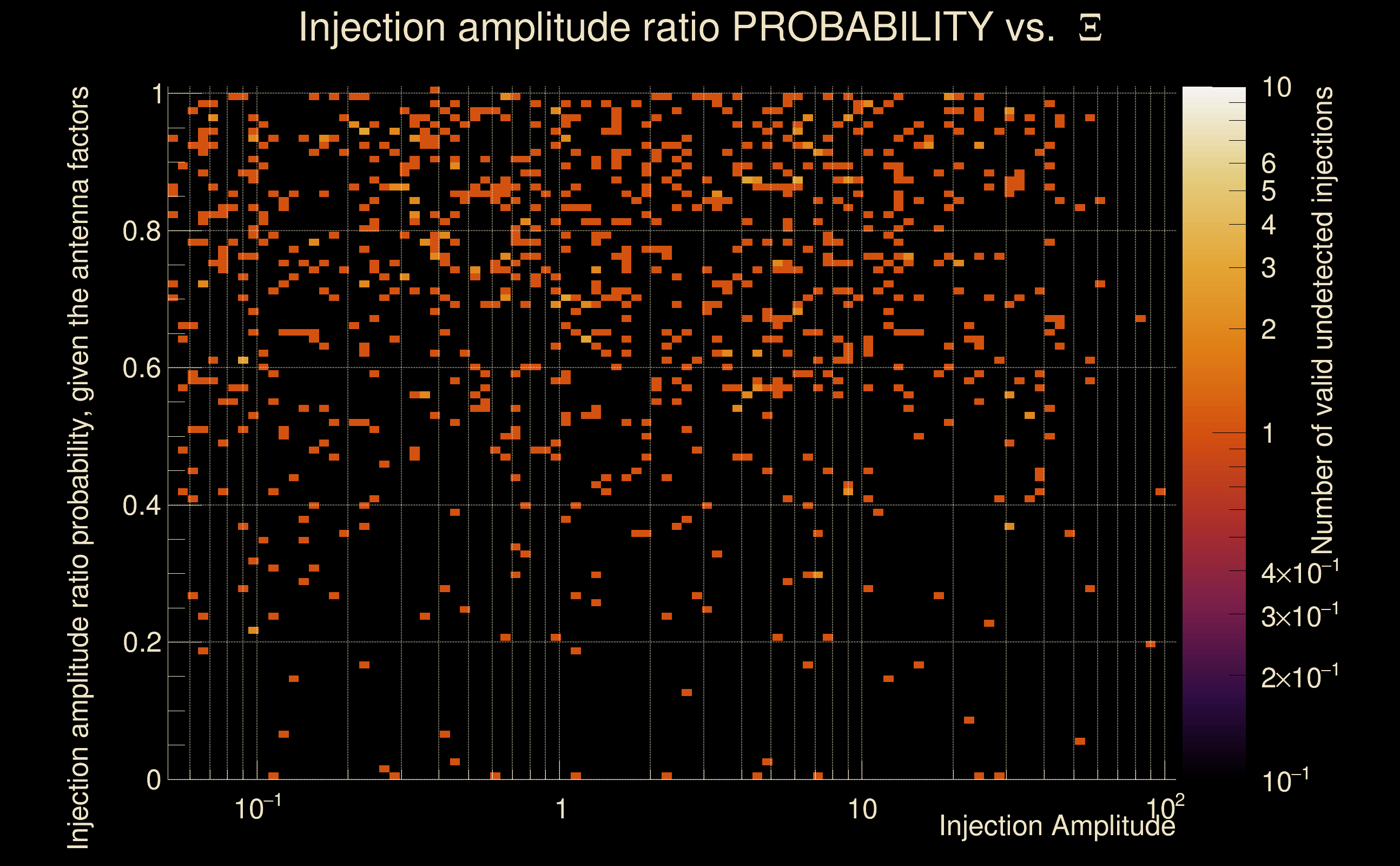

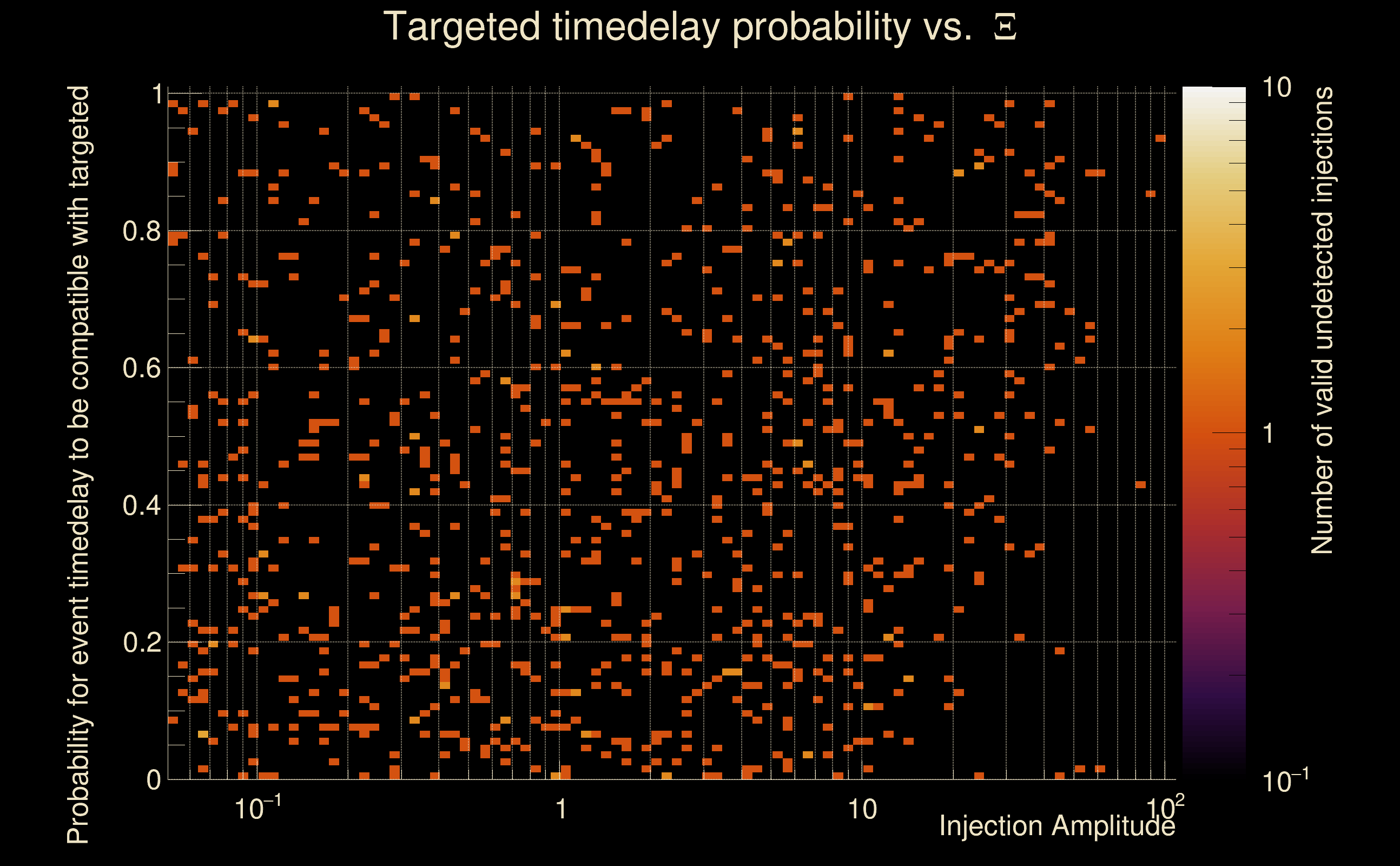

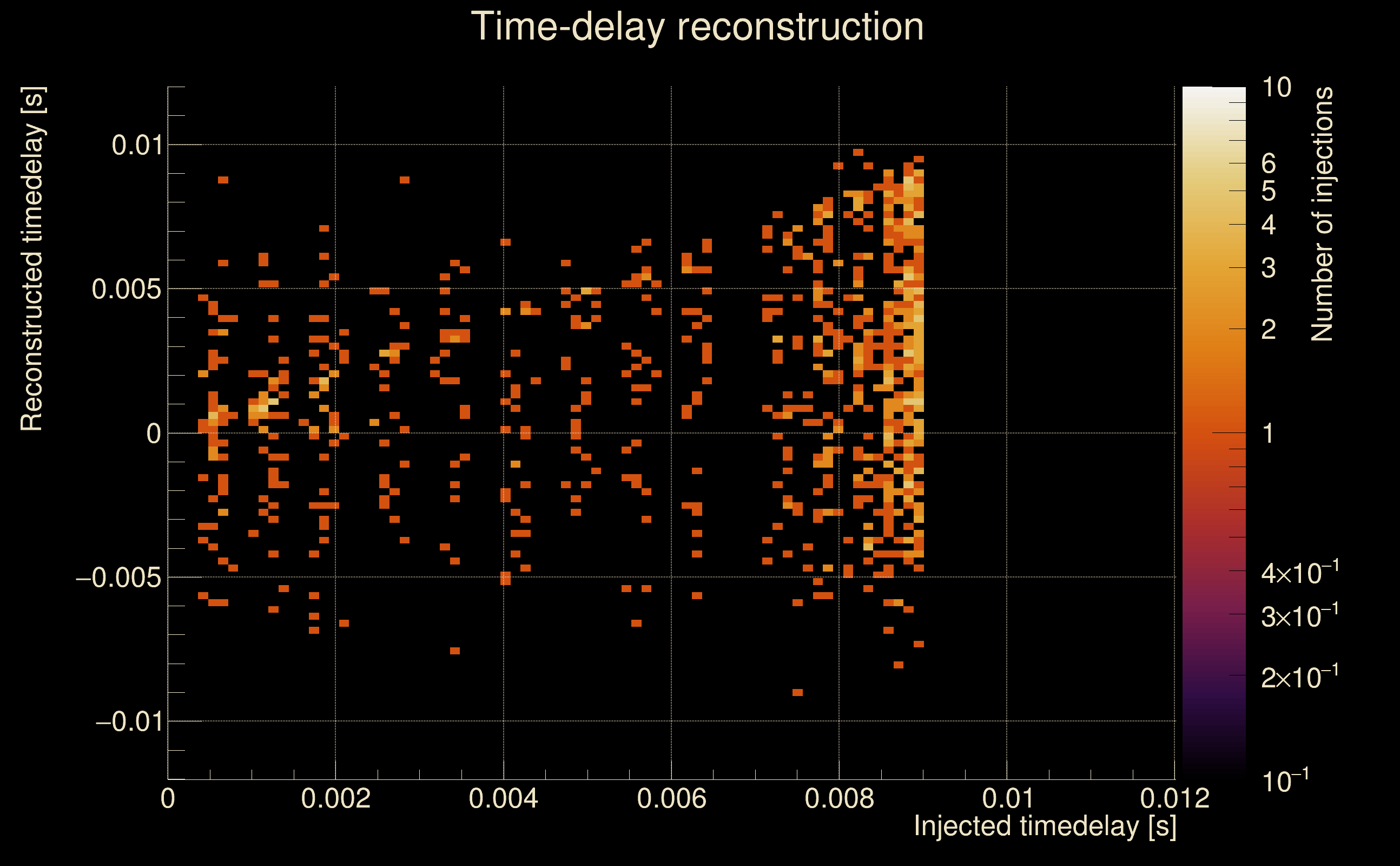

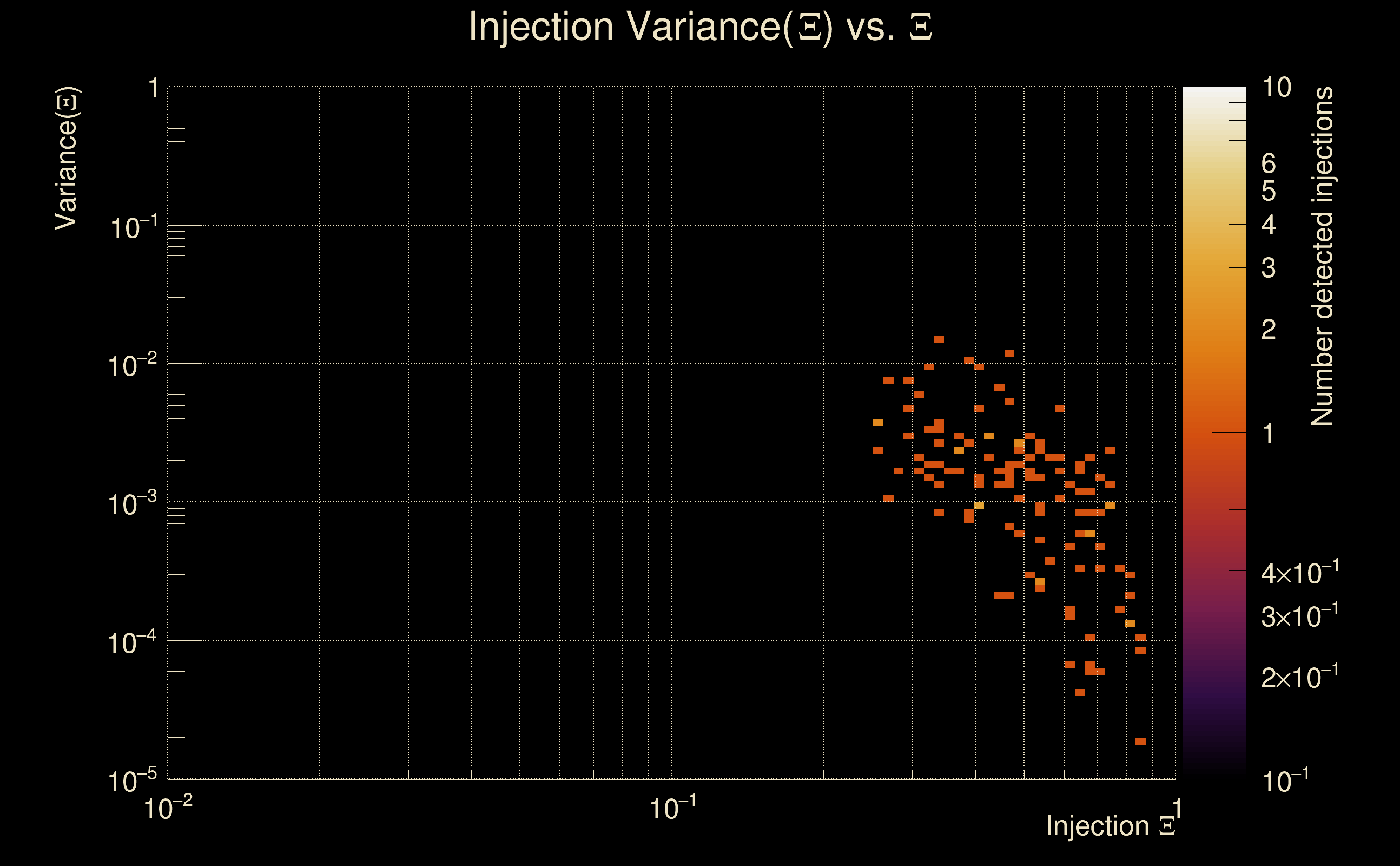

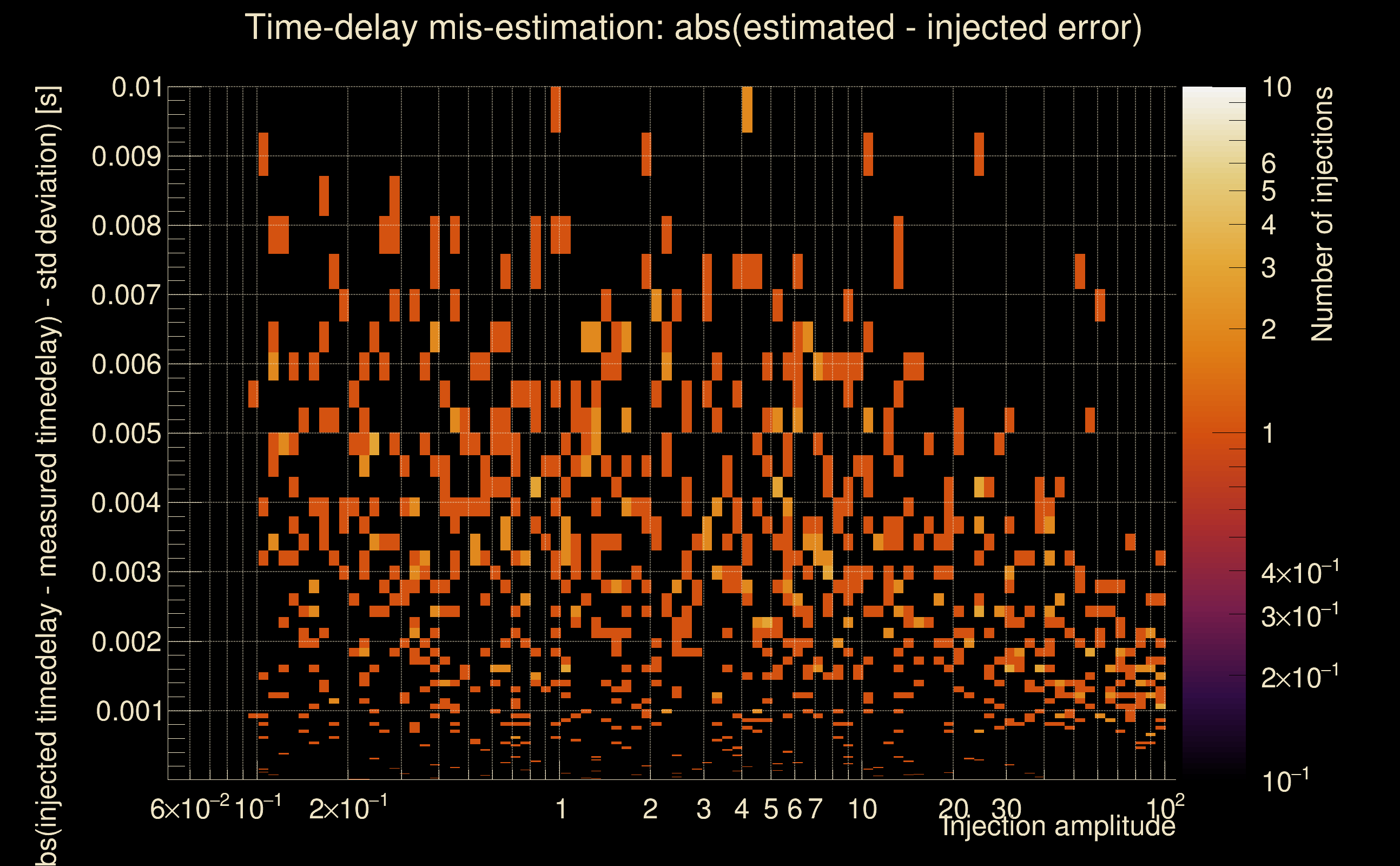

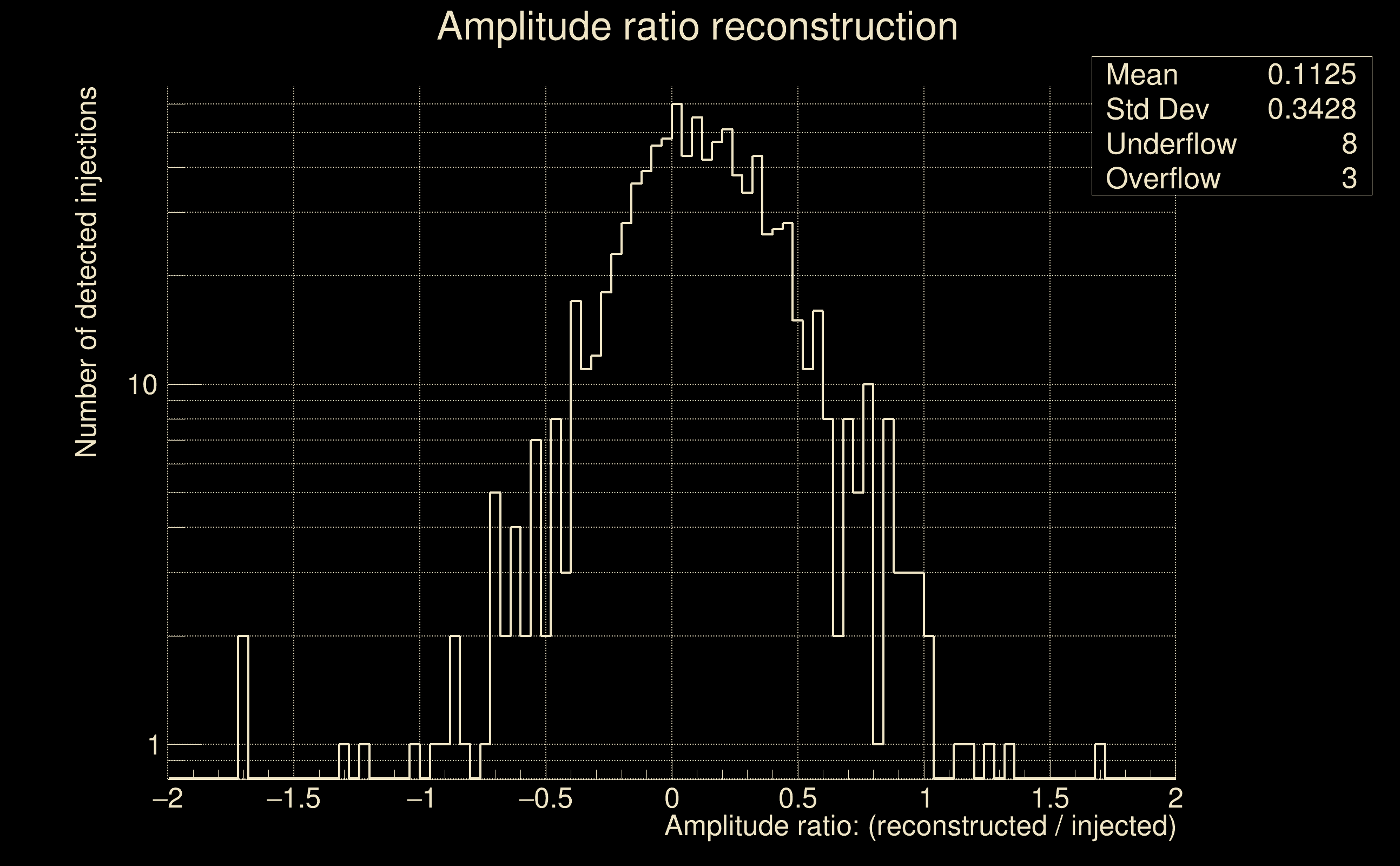

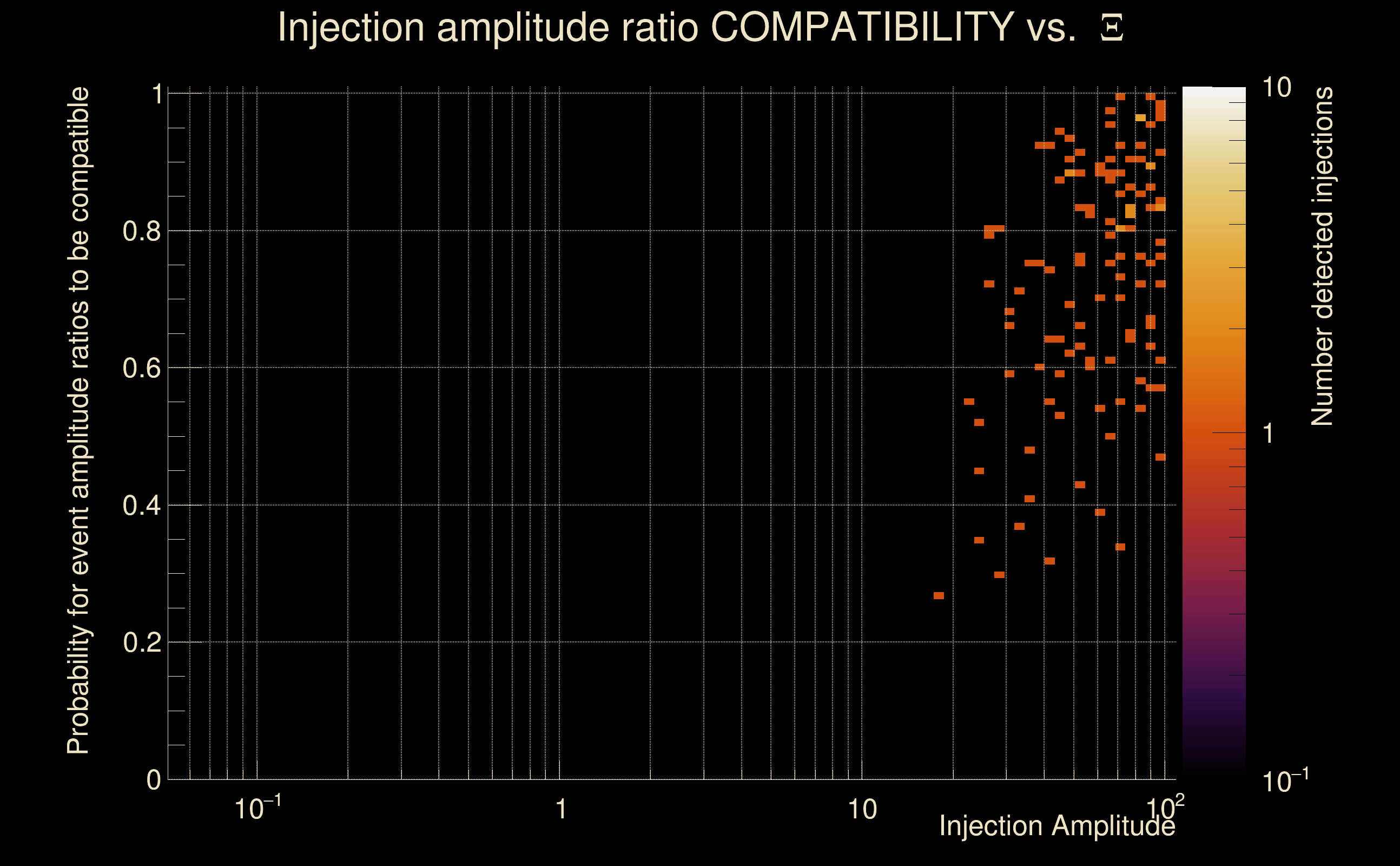

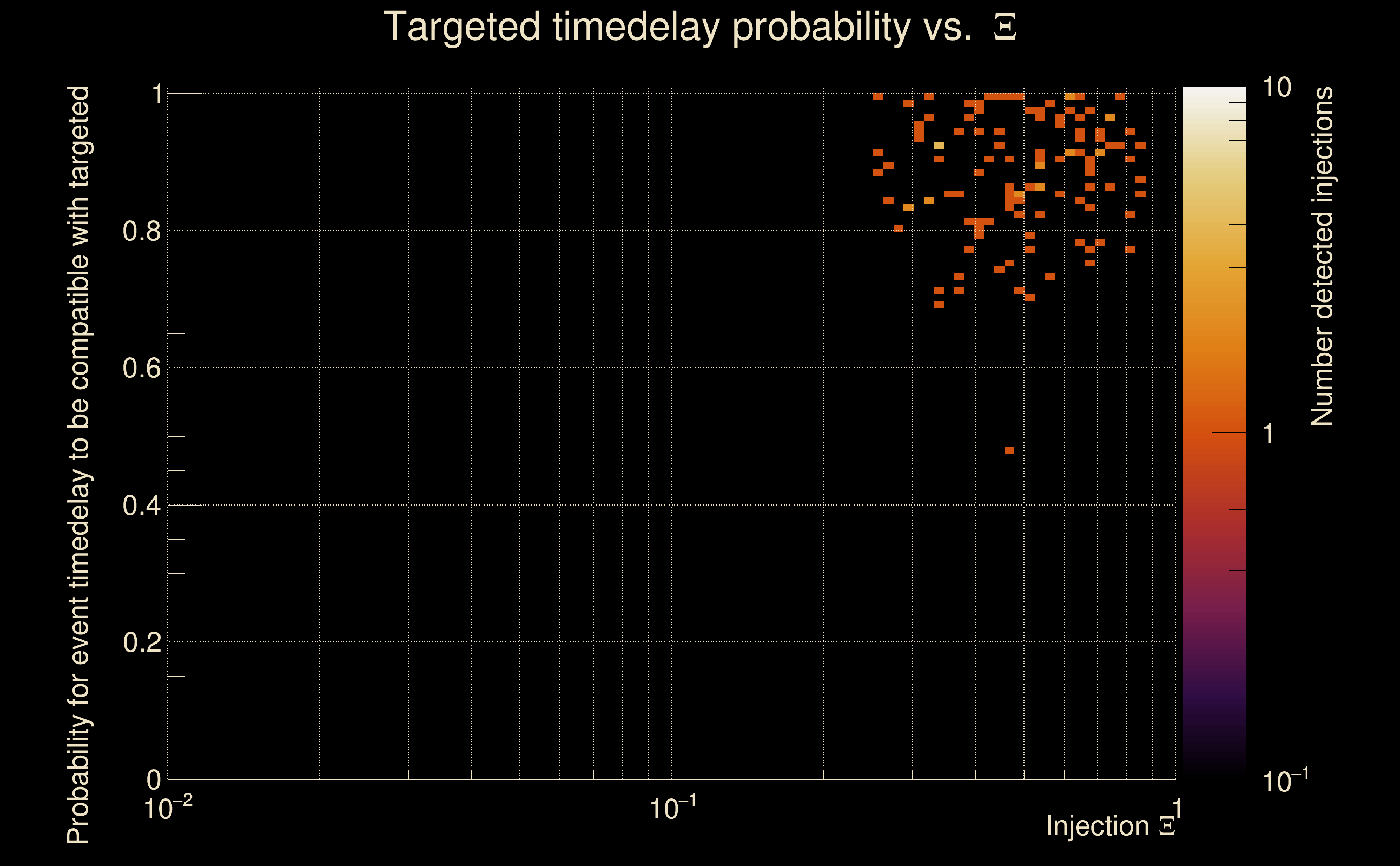

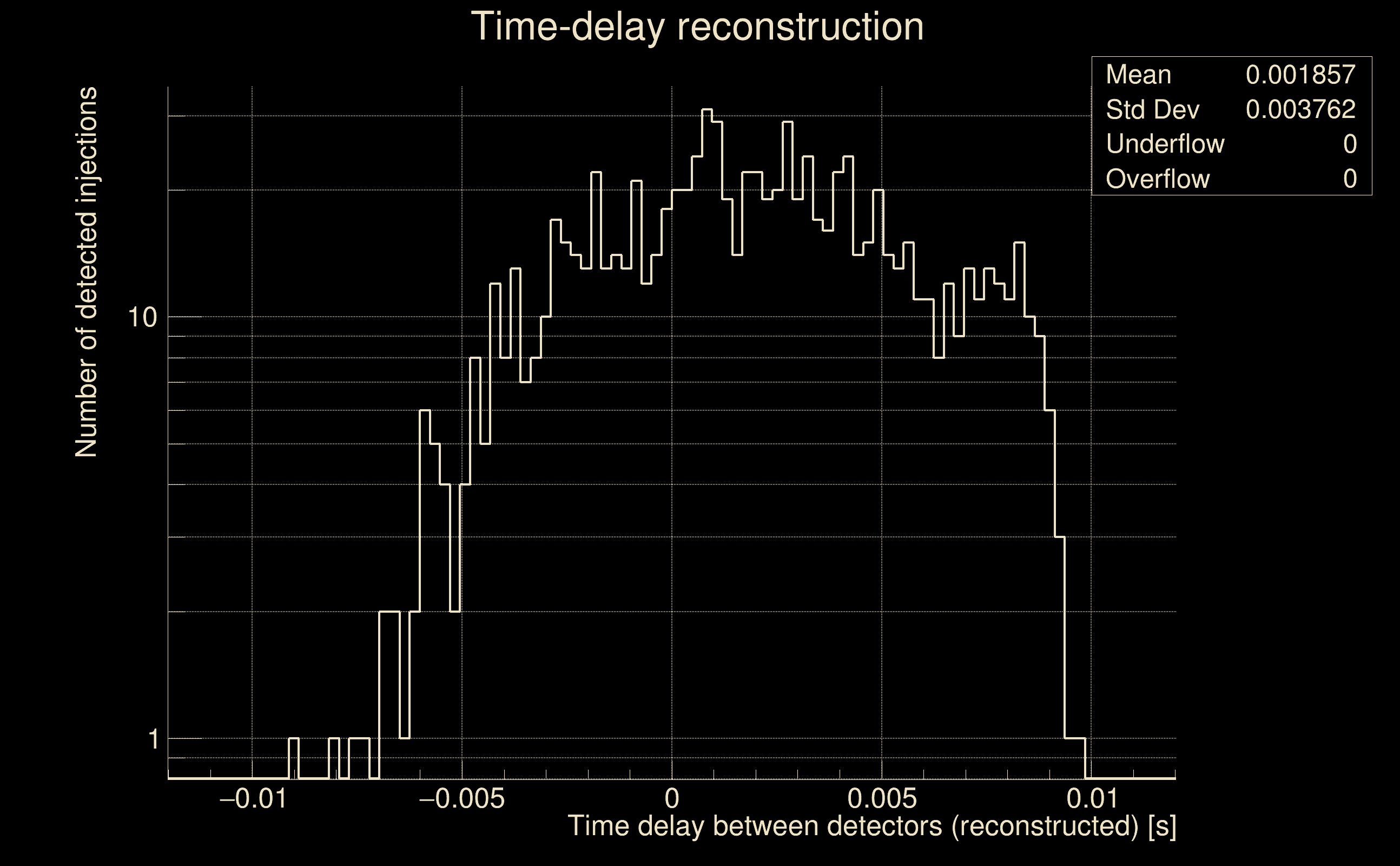

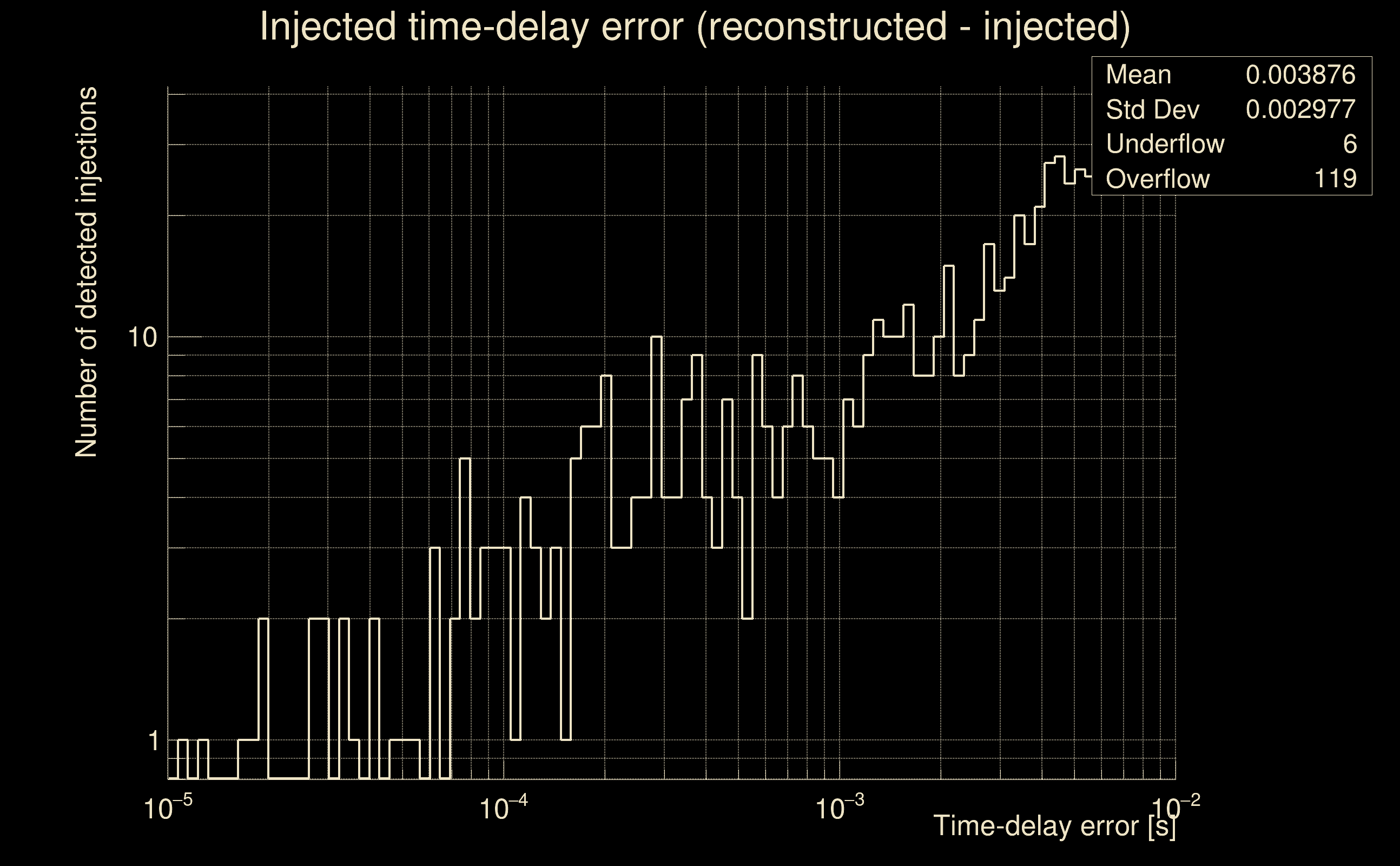

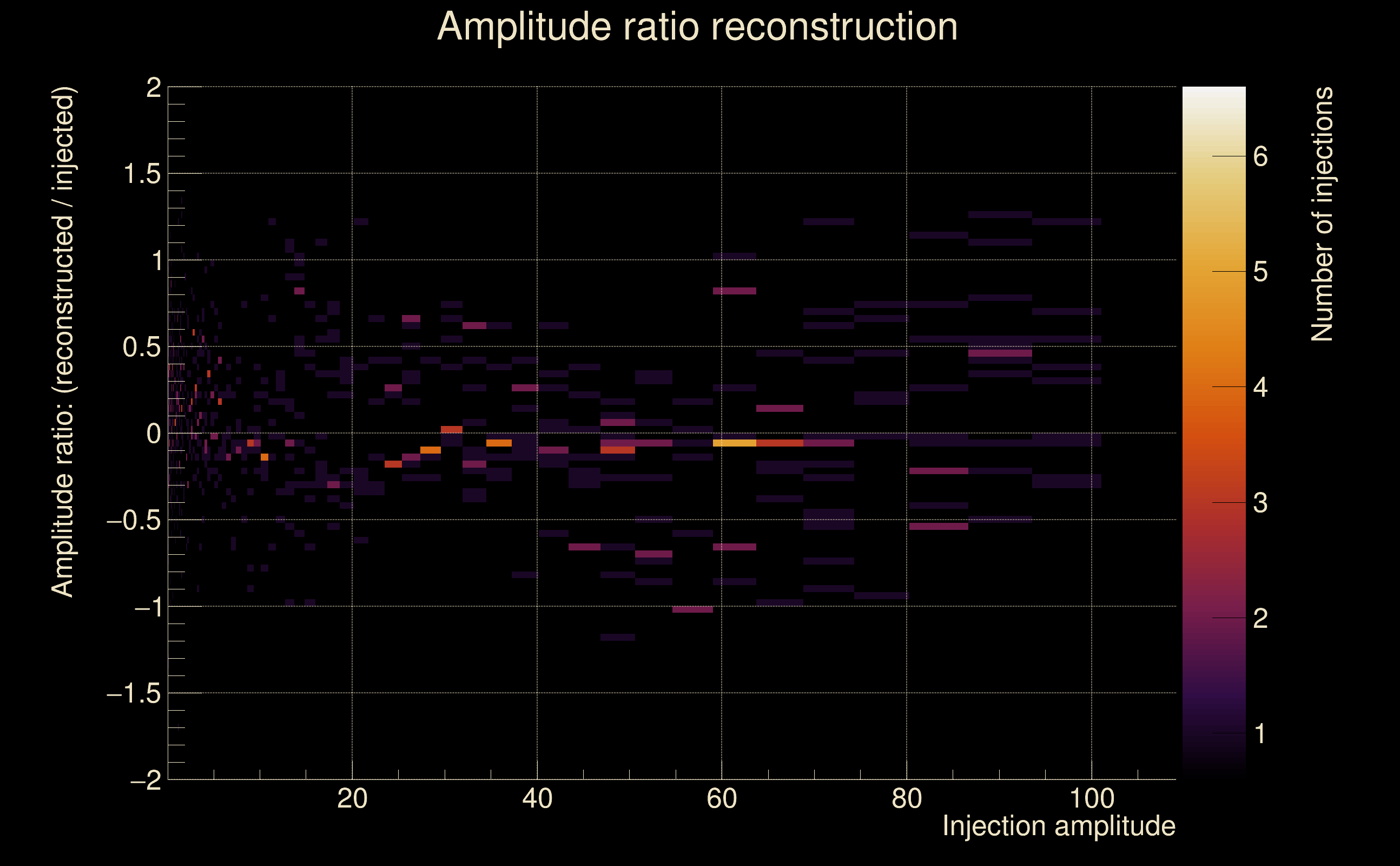

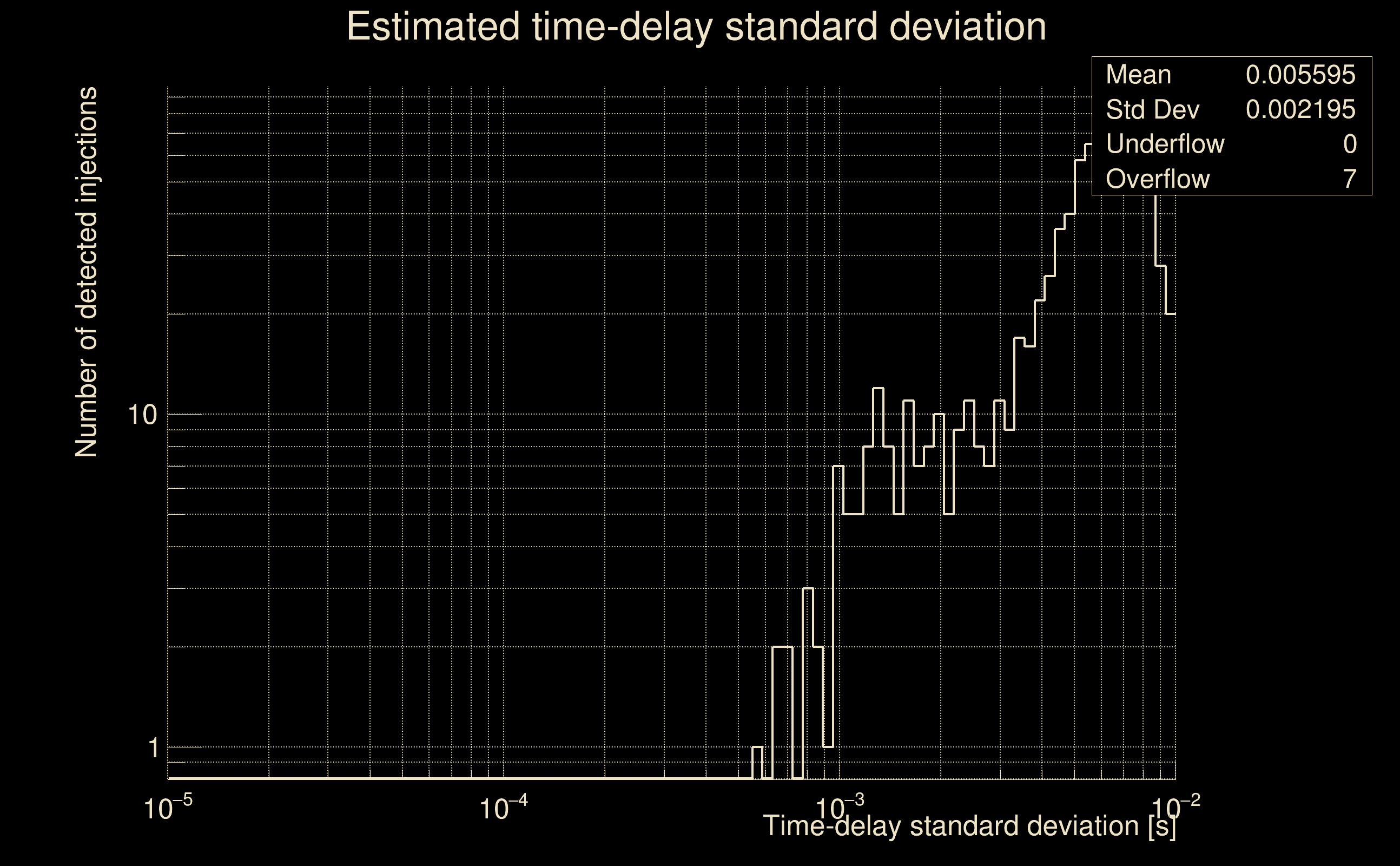

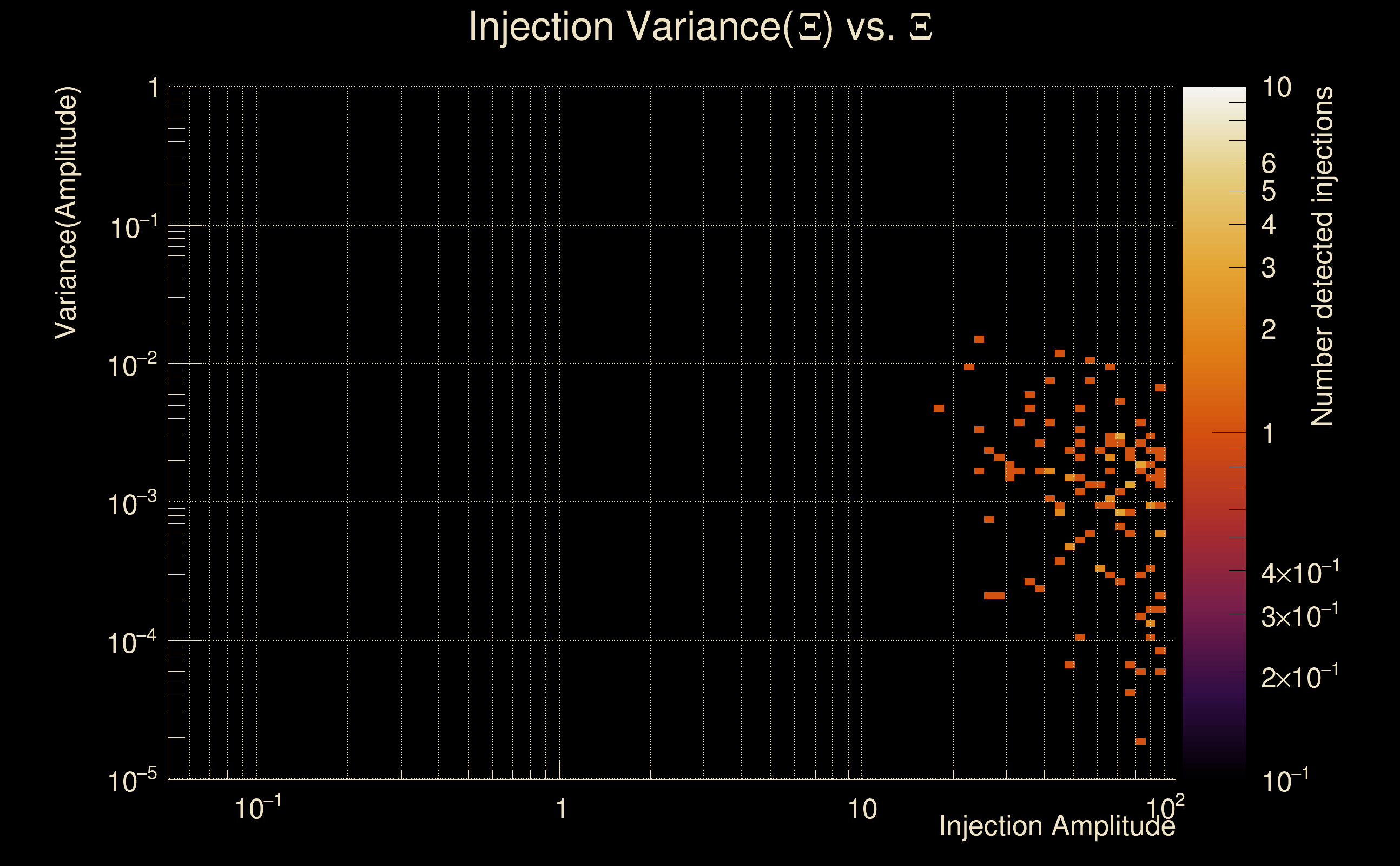

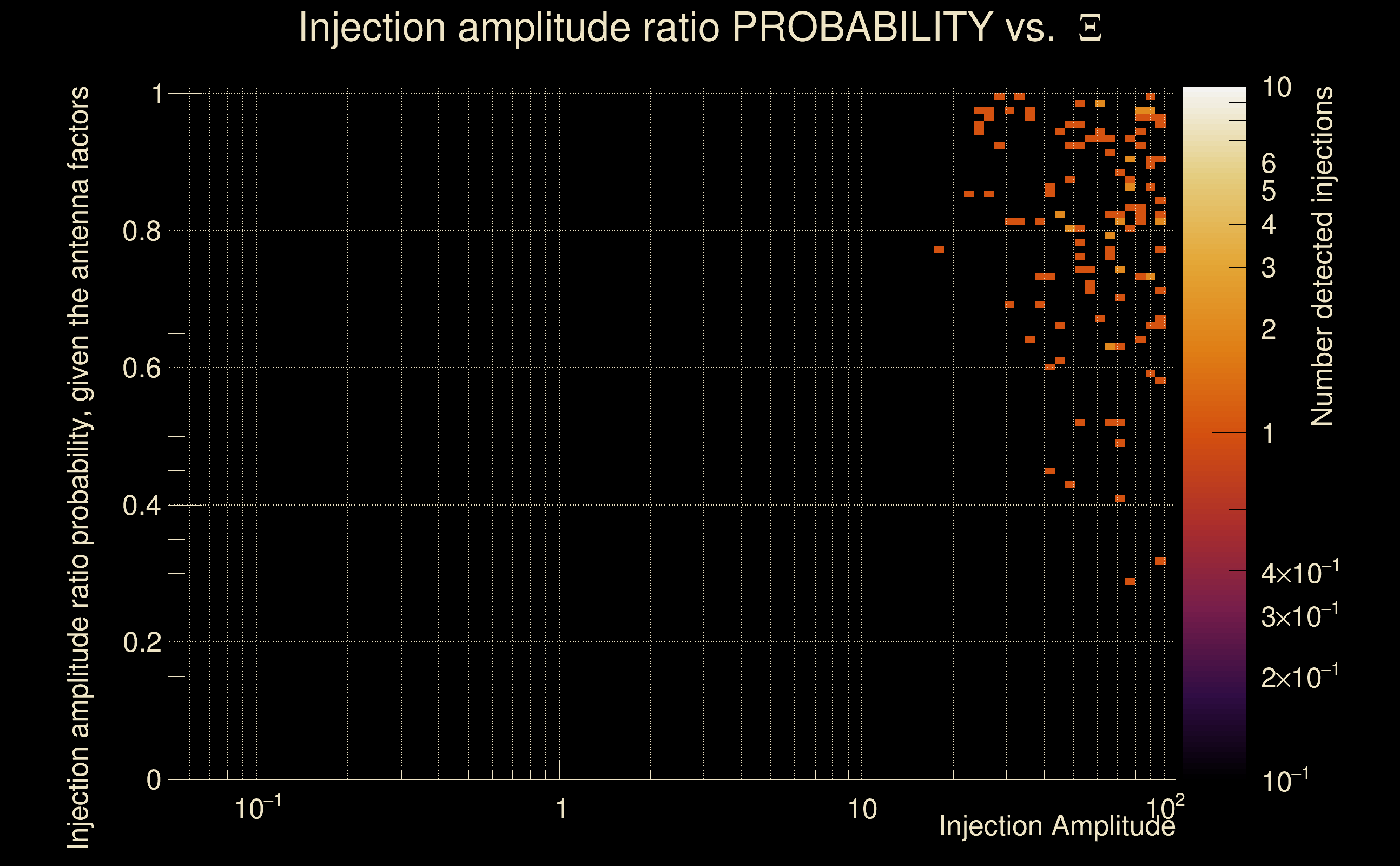

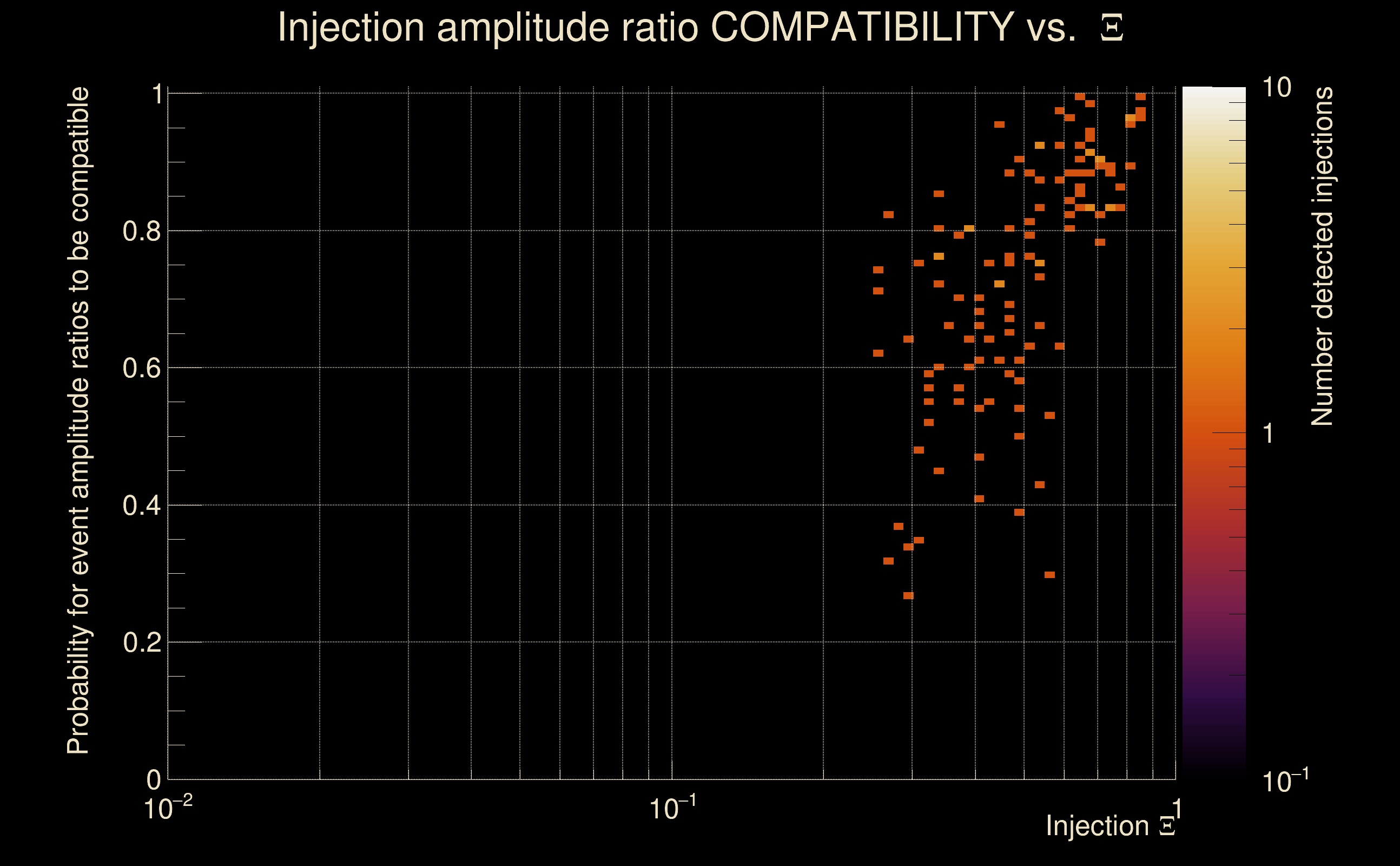

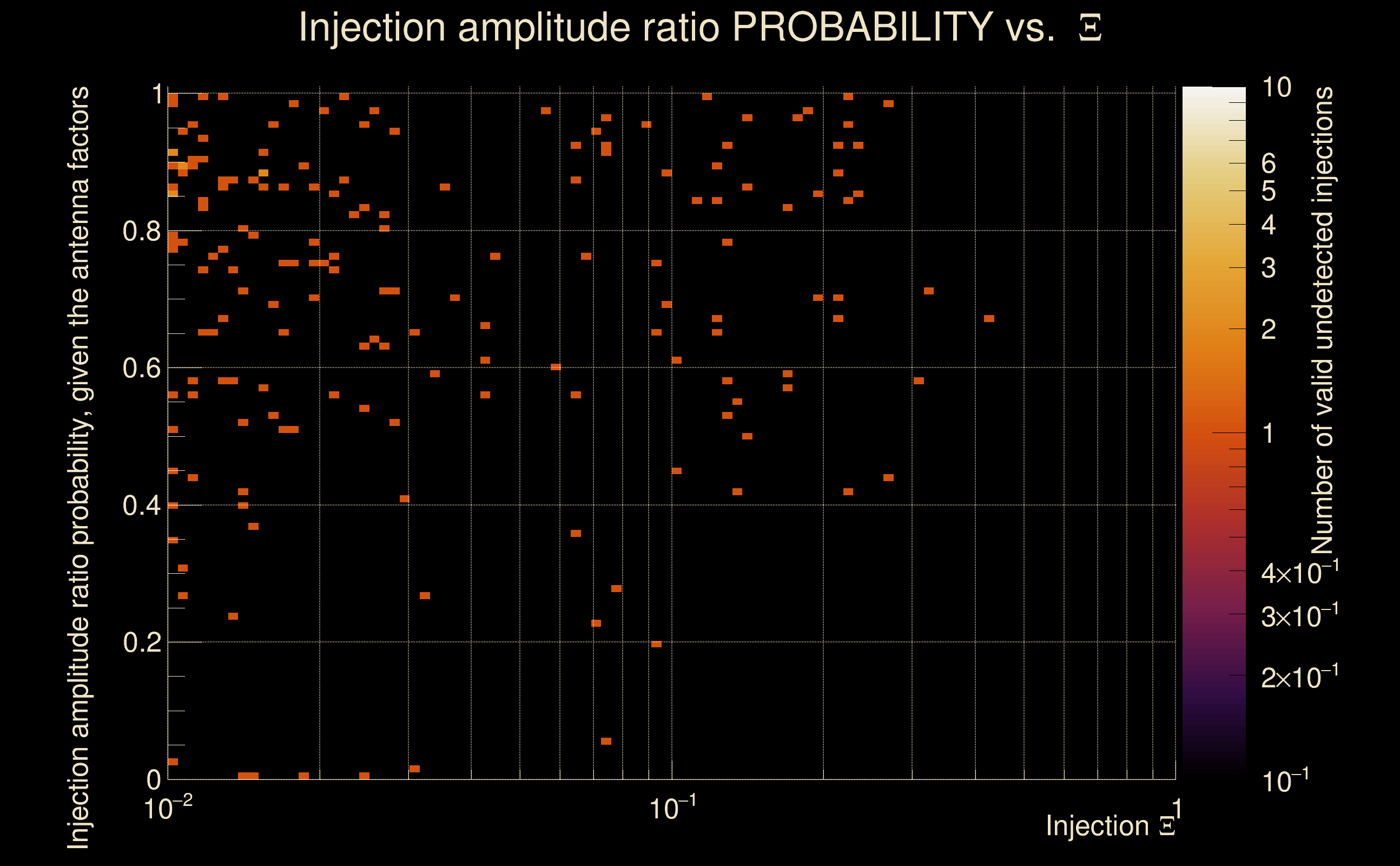

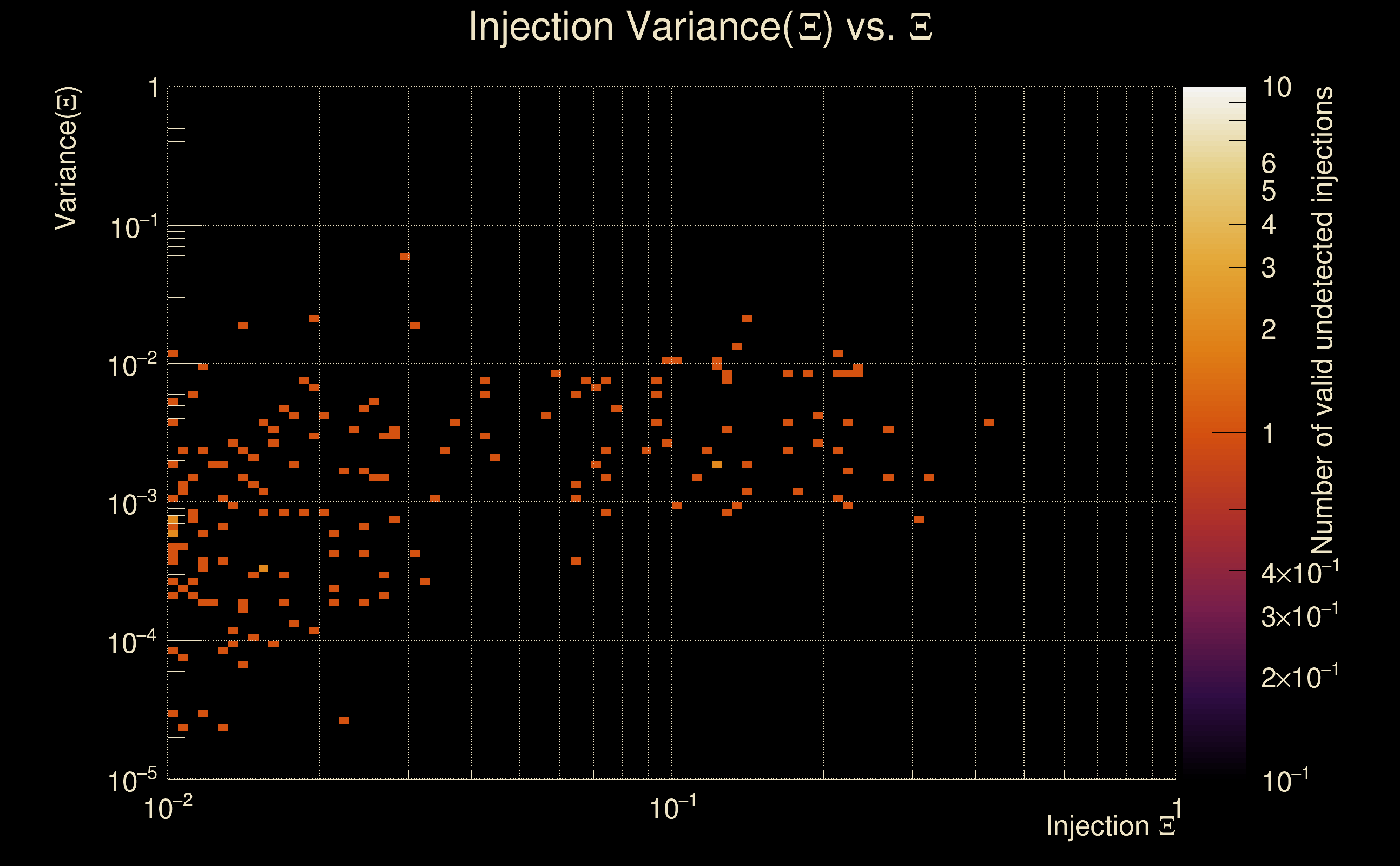

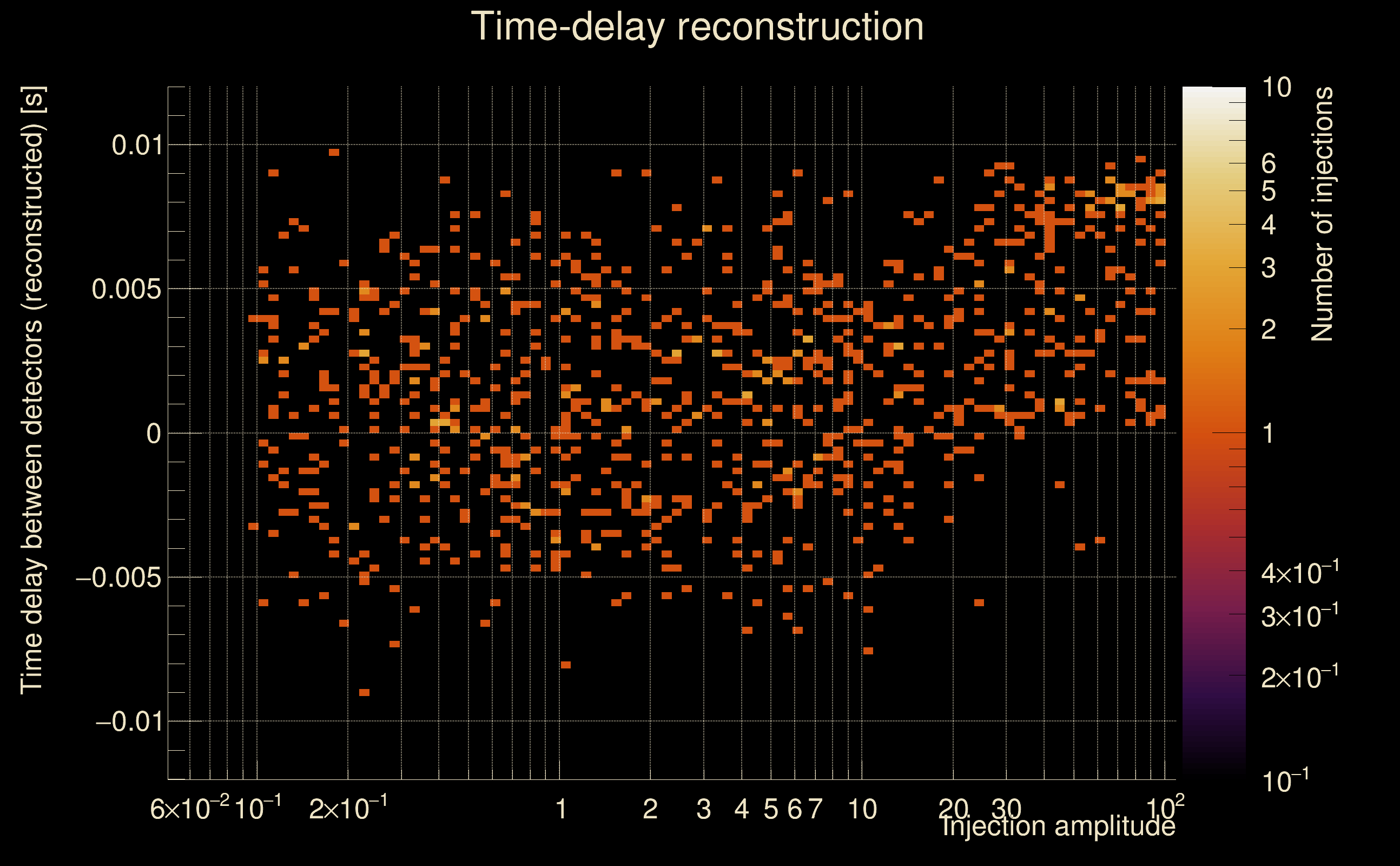

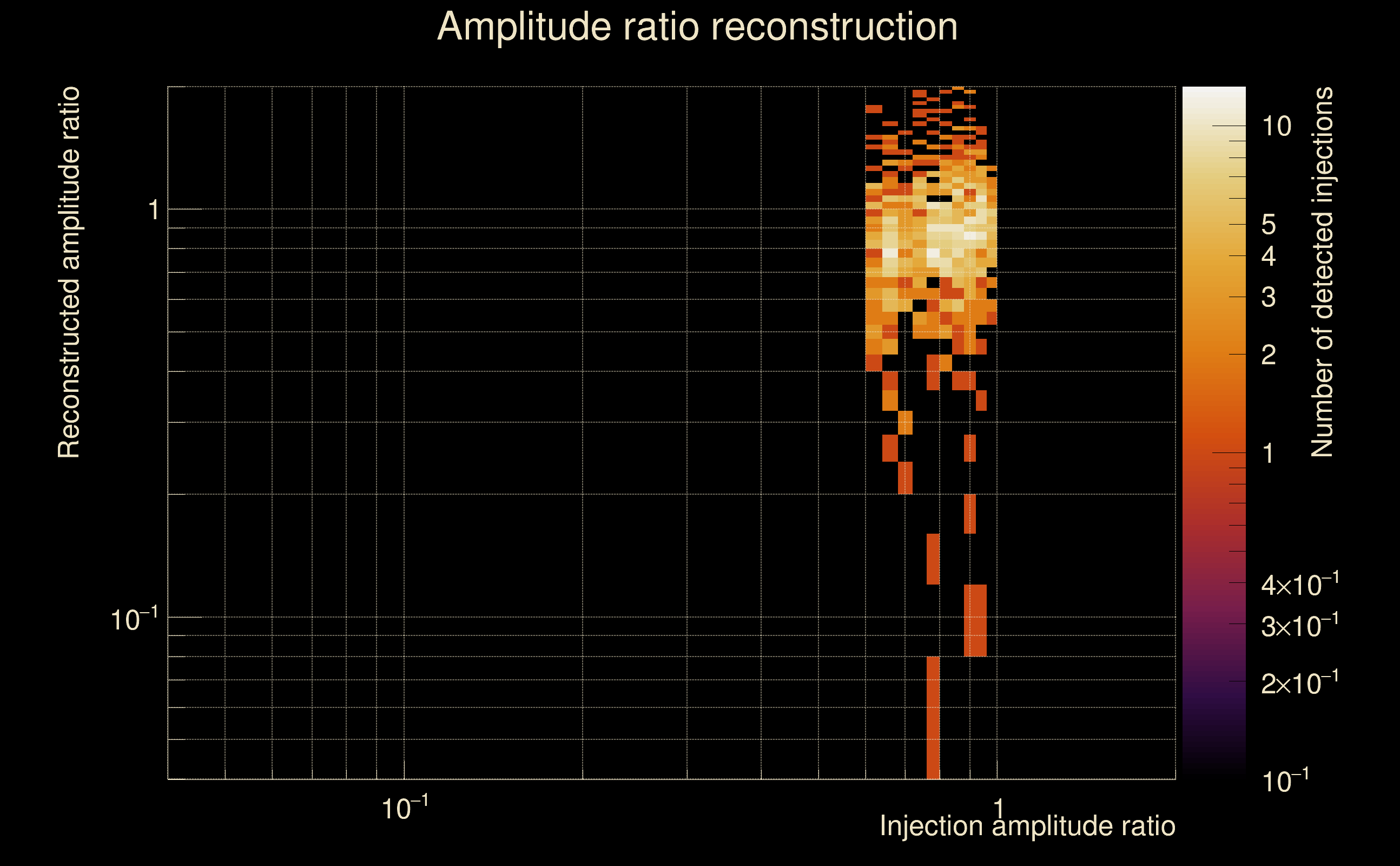

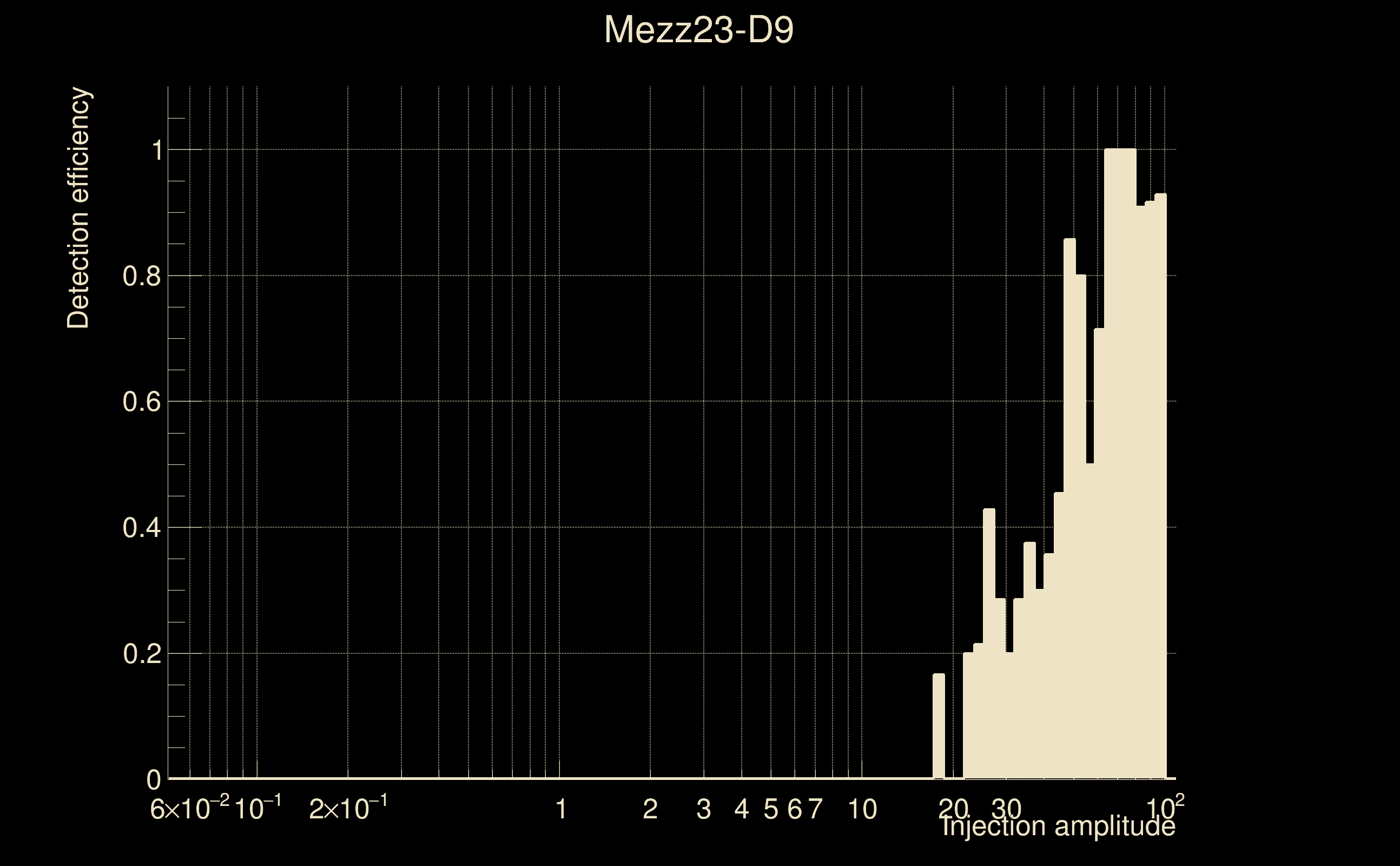

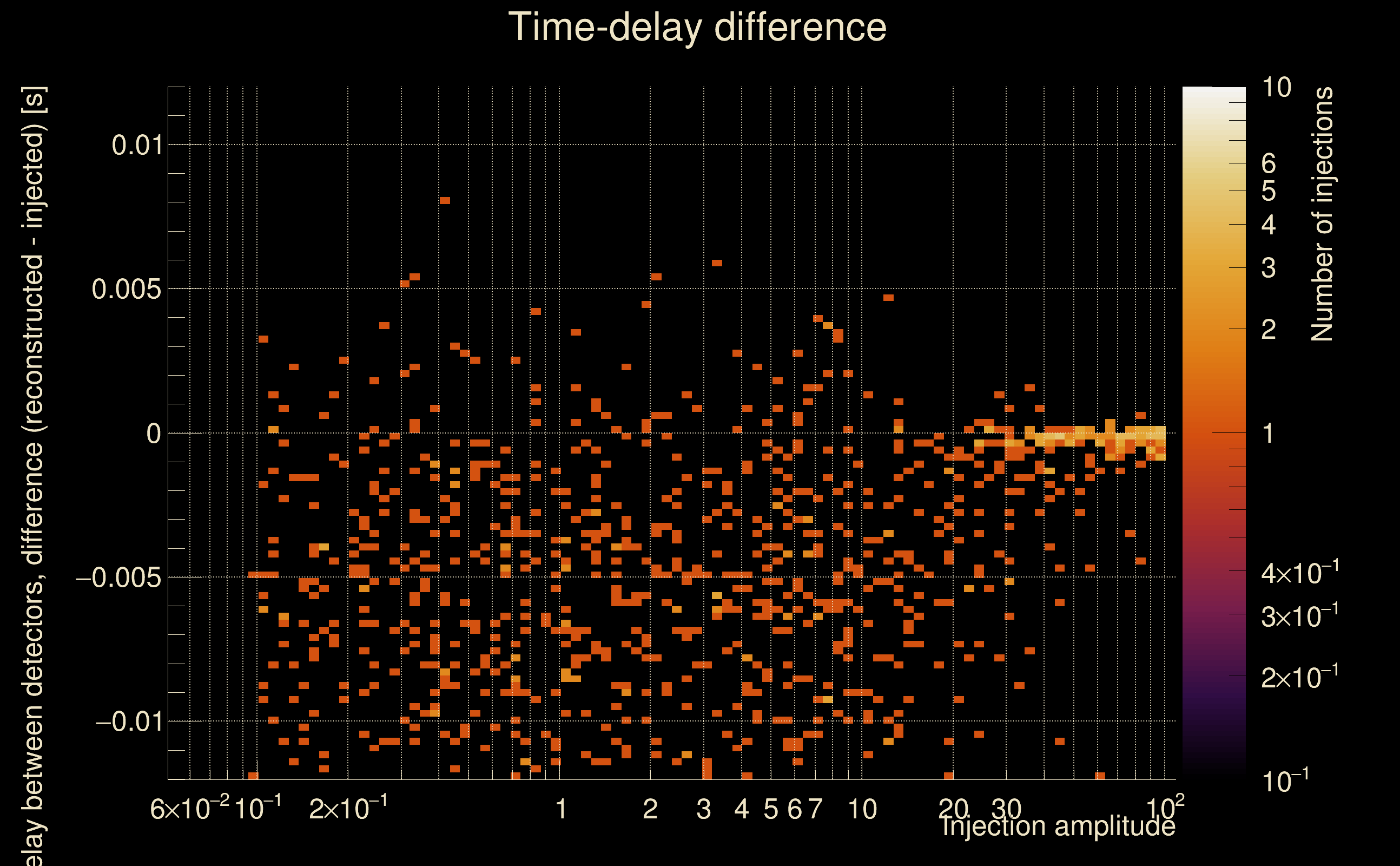

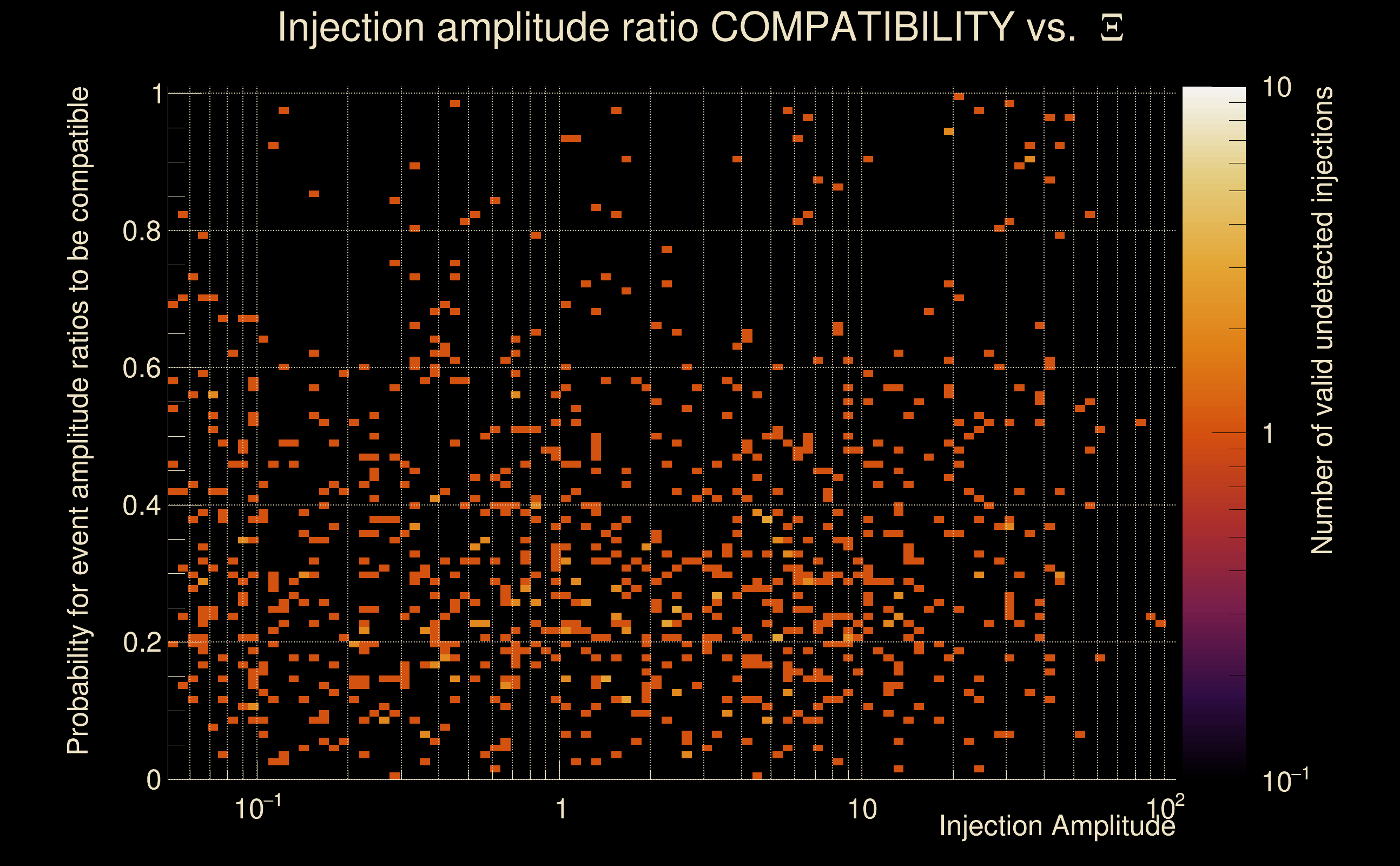

| Number of injections (total/valid/detected): | 1042 / 927 / 118 |
| List of missed injections: | ./Mezz23-D9_missed.txt |
| Injection amplitude at 90% detection efficiency: | 64.3811 |
| Injection amplitude at 50% detection efficiency: | 45.4442 |
| Injection amplitude at 10% detection efficiency: | 21.751 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

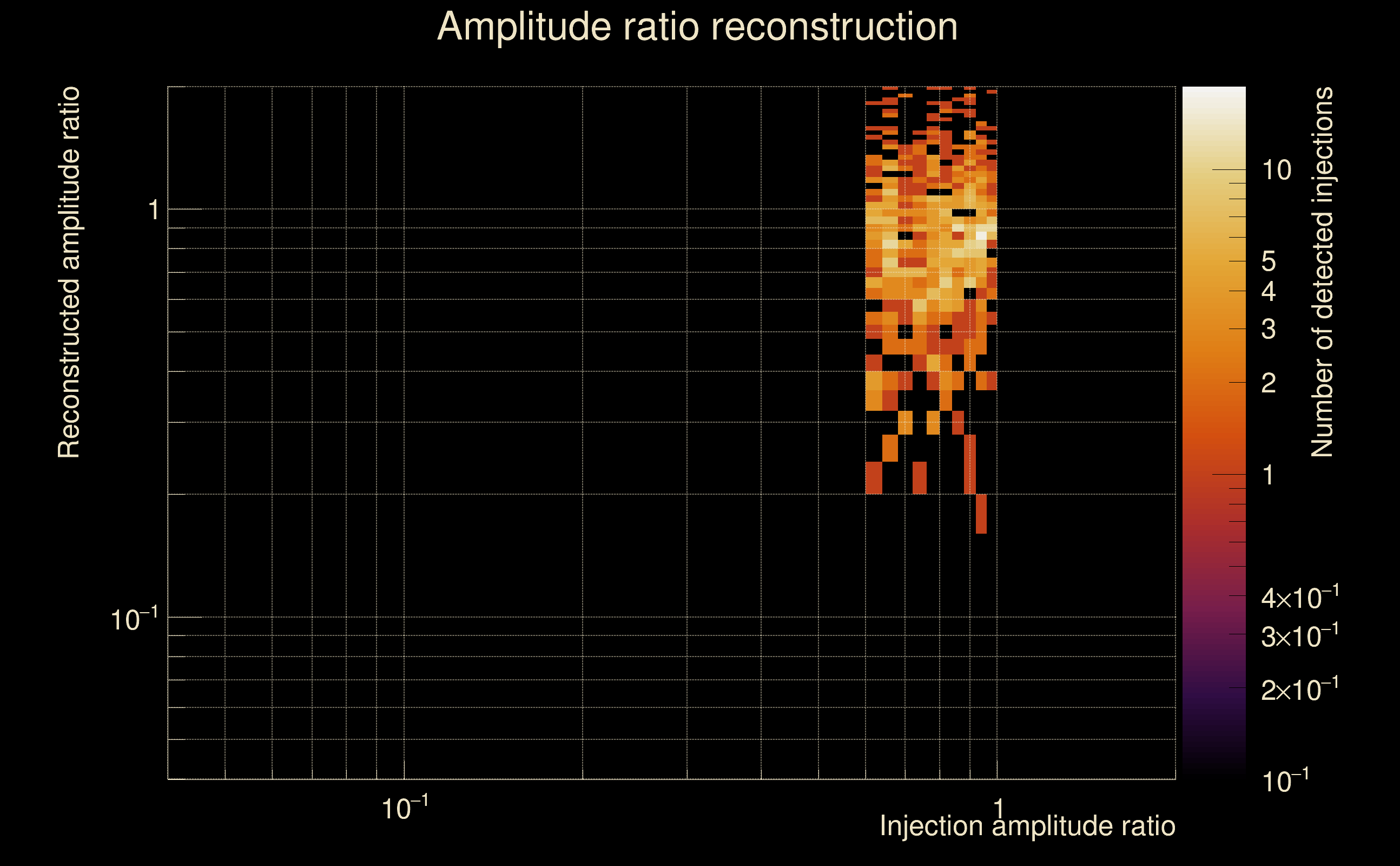

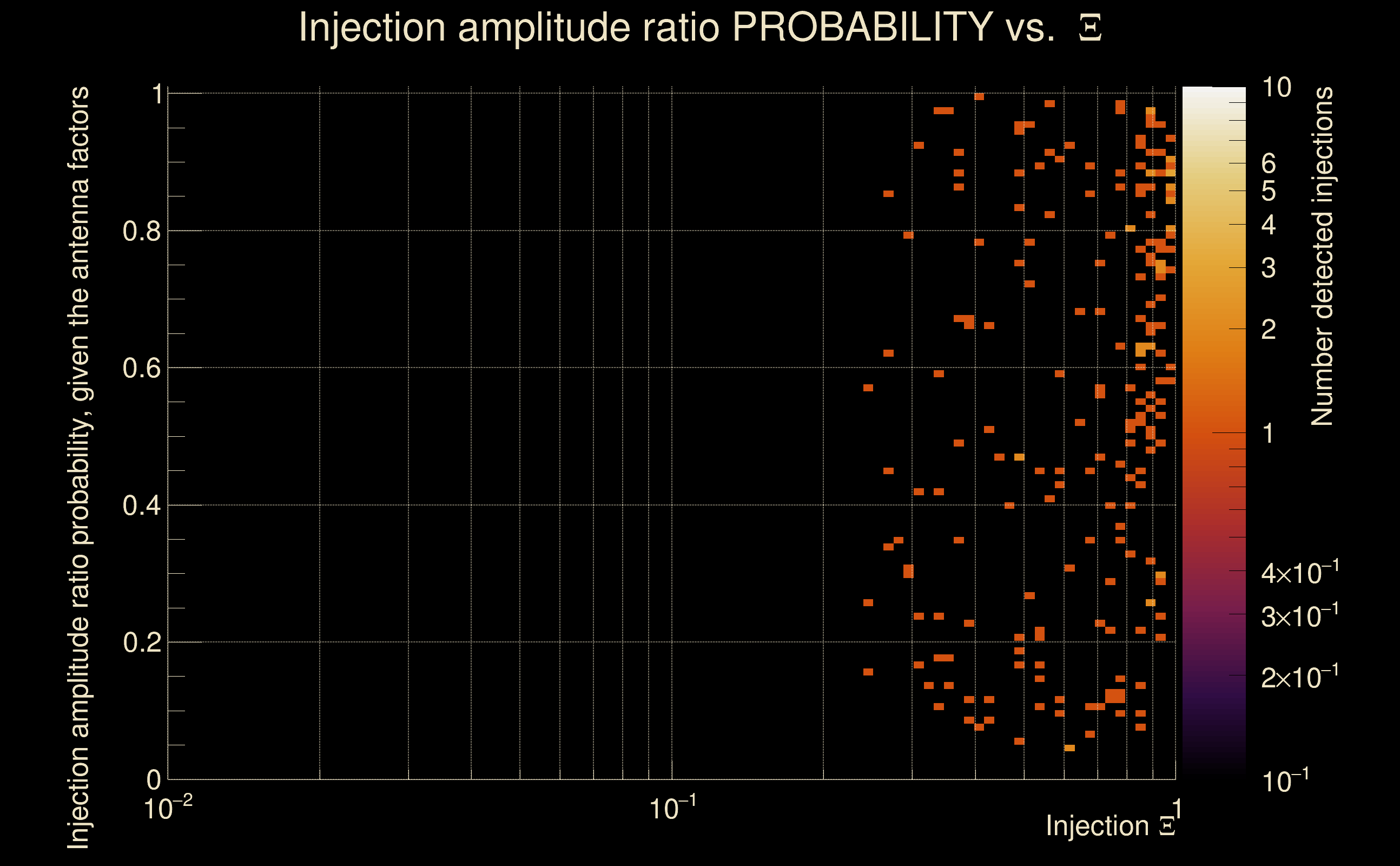

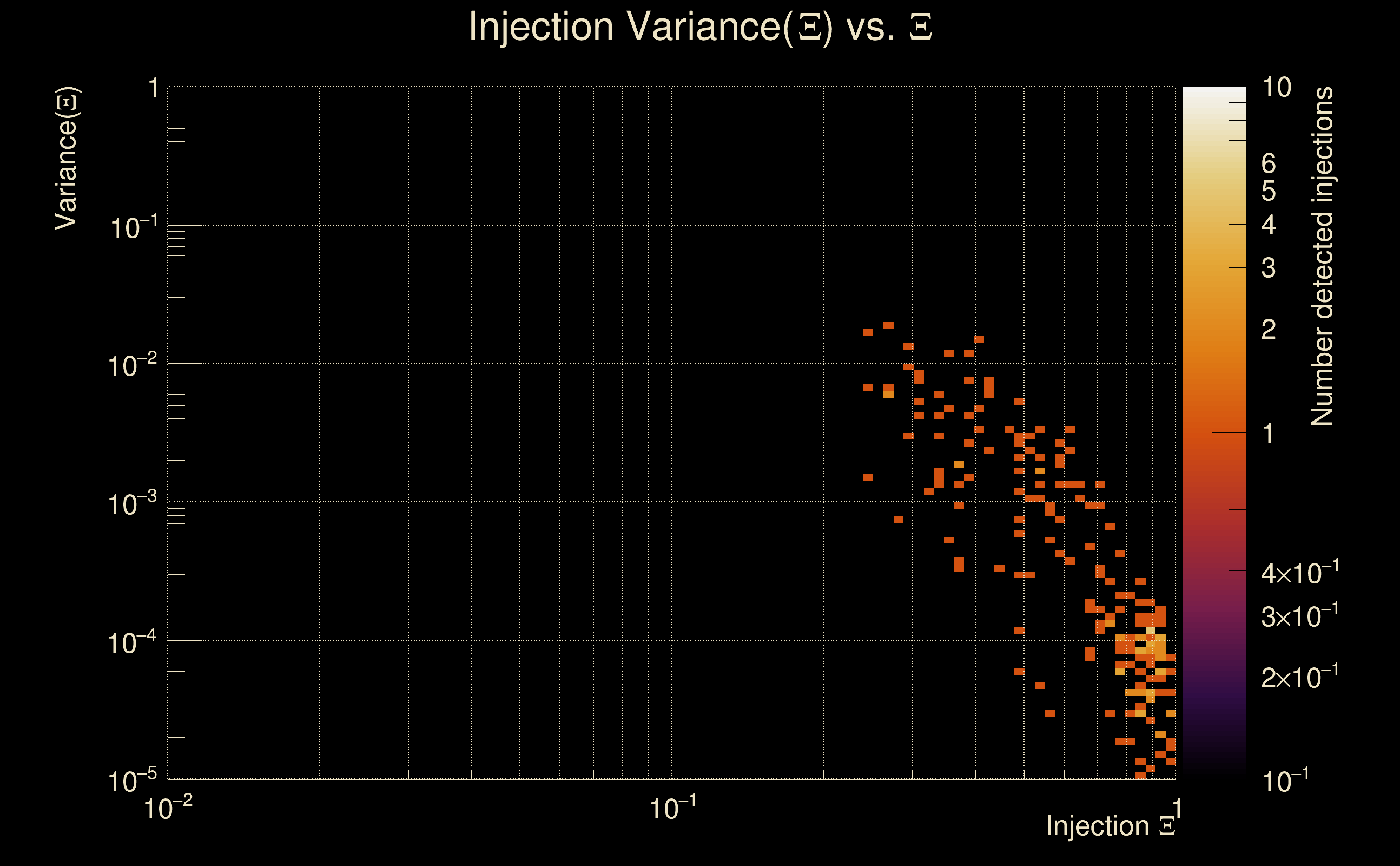

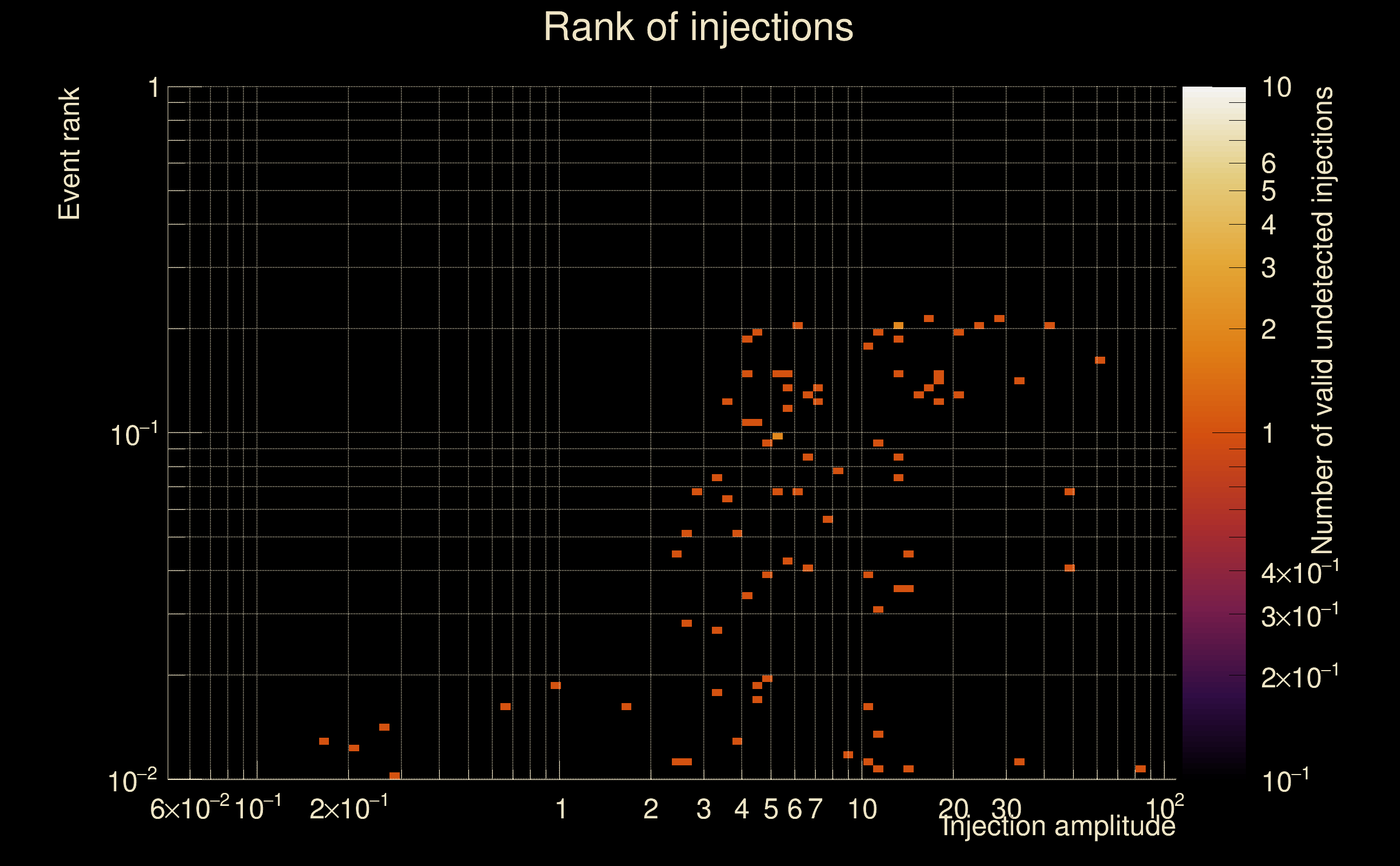

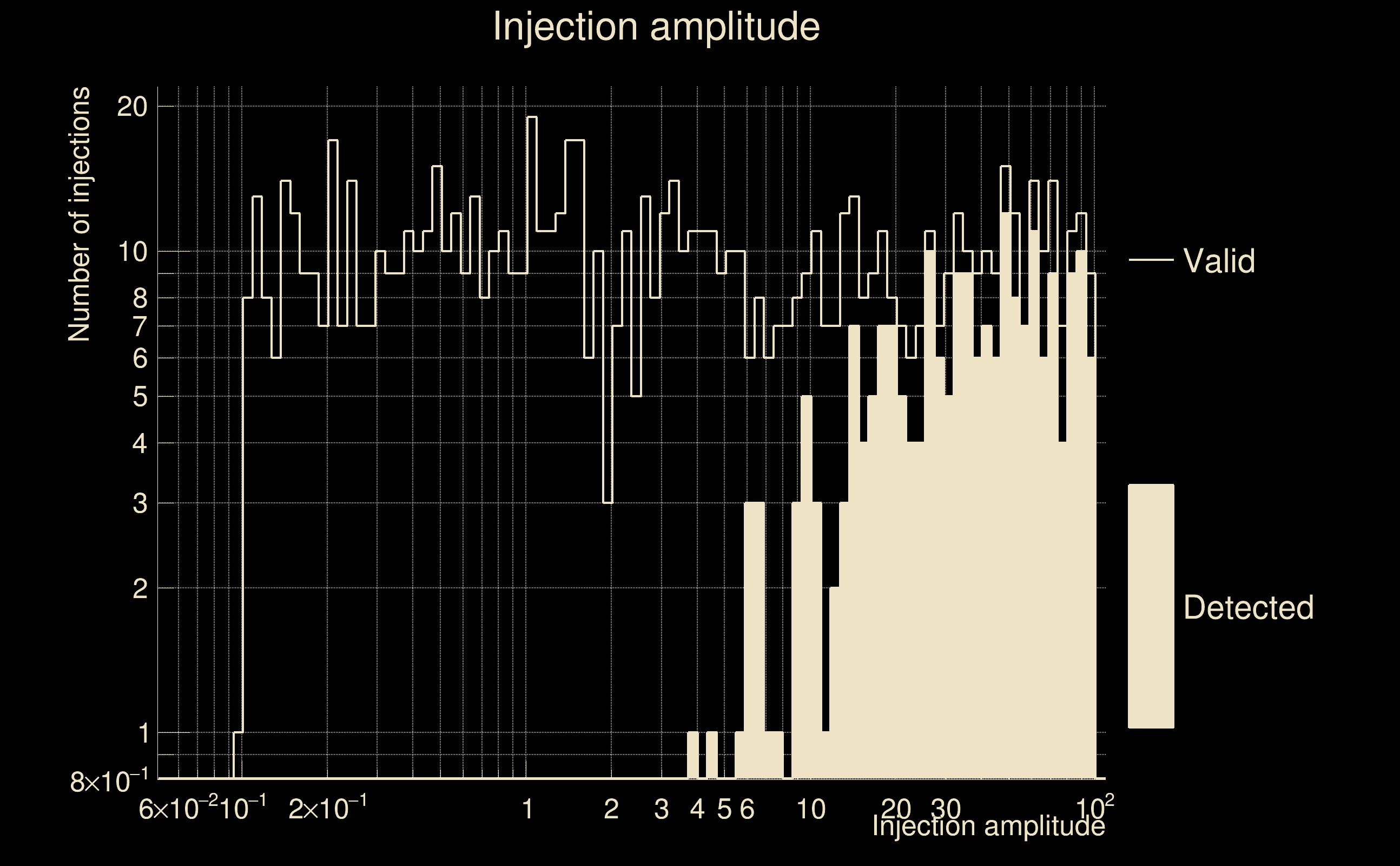

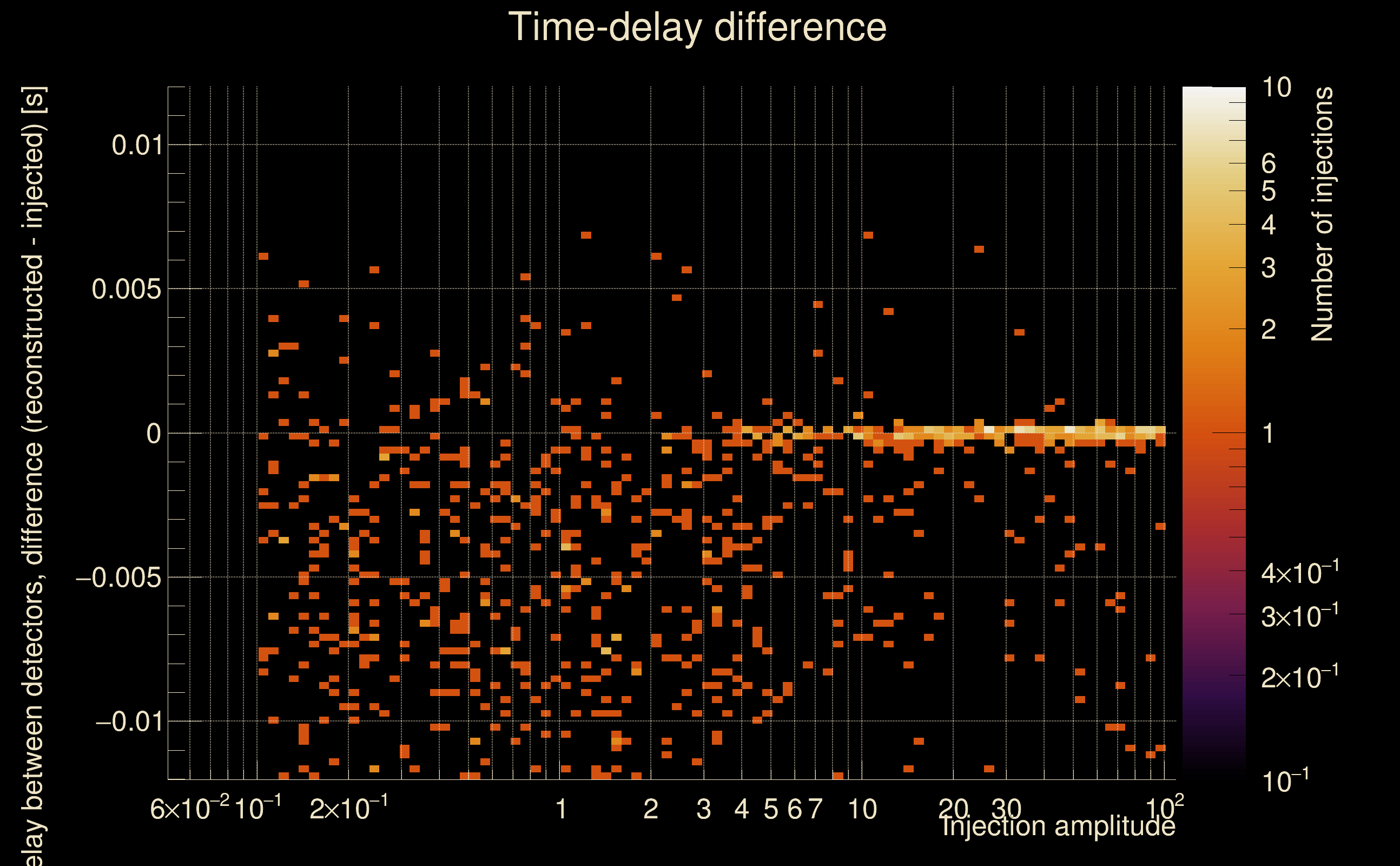

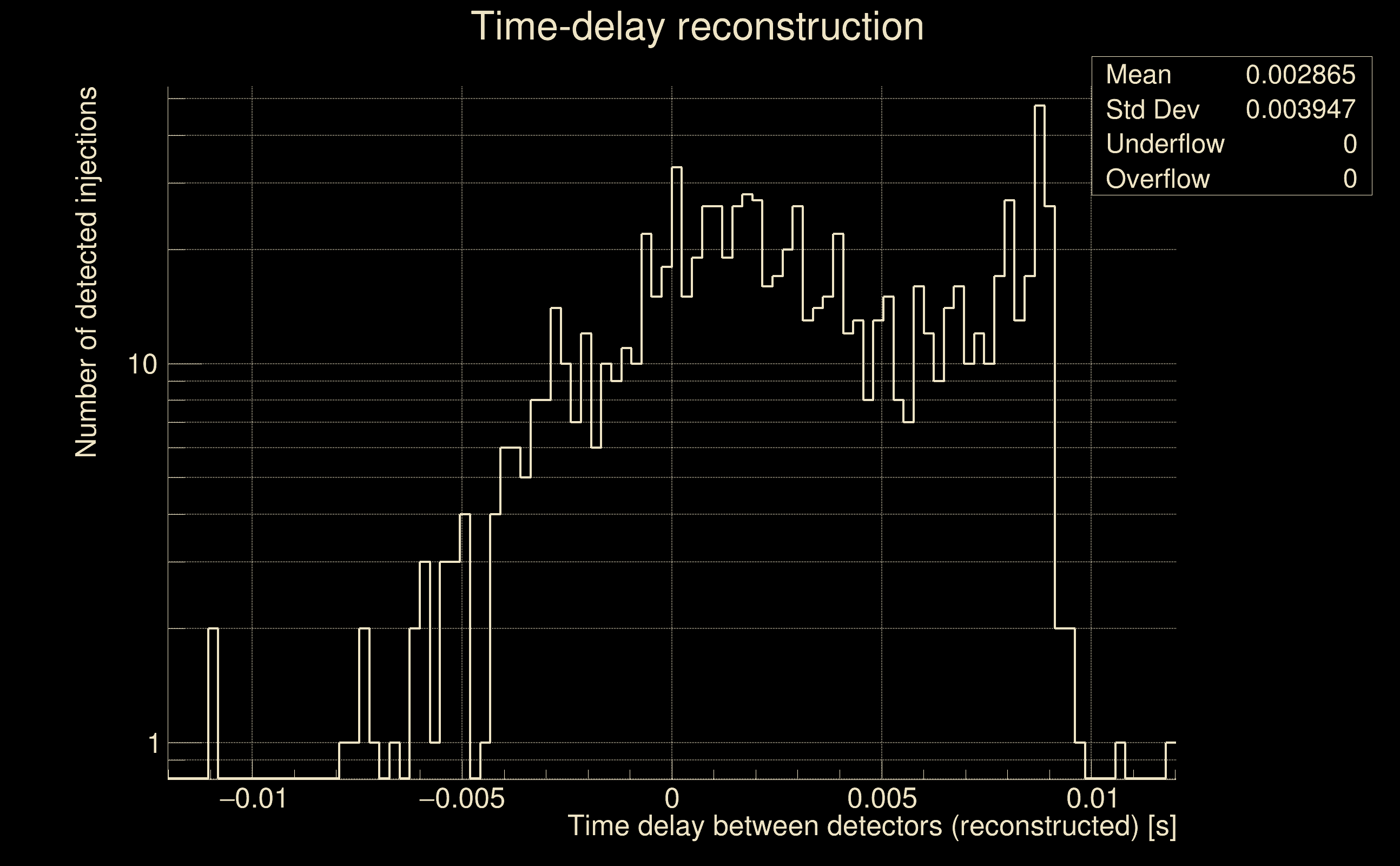

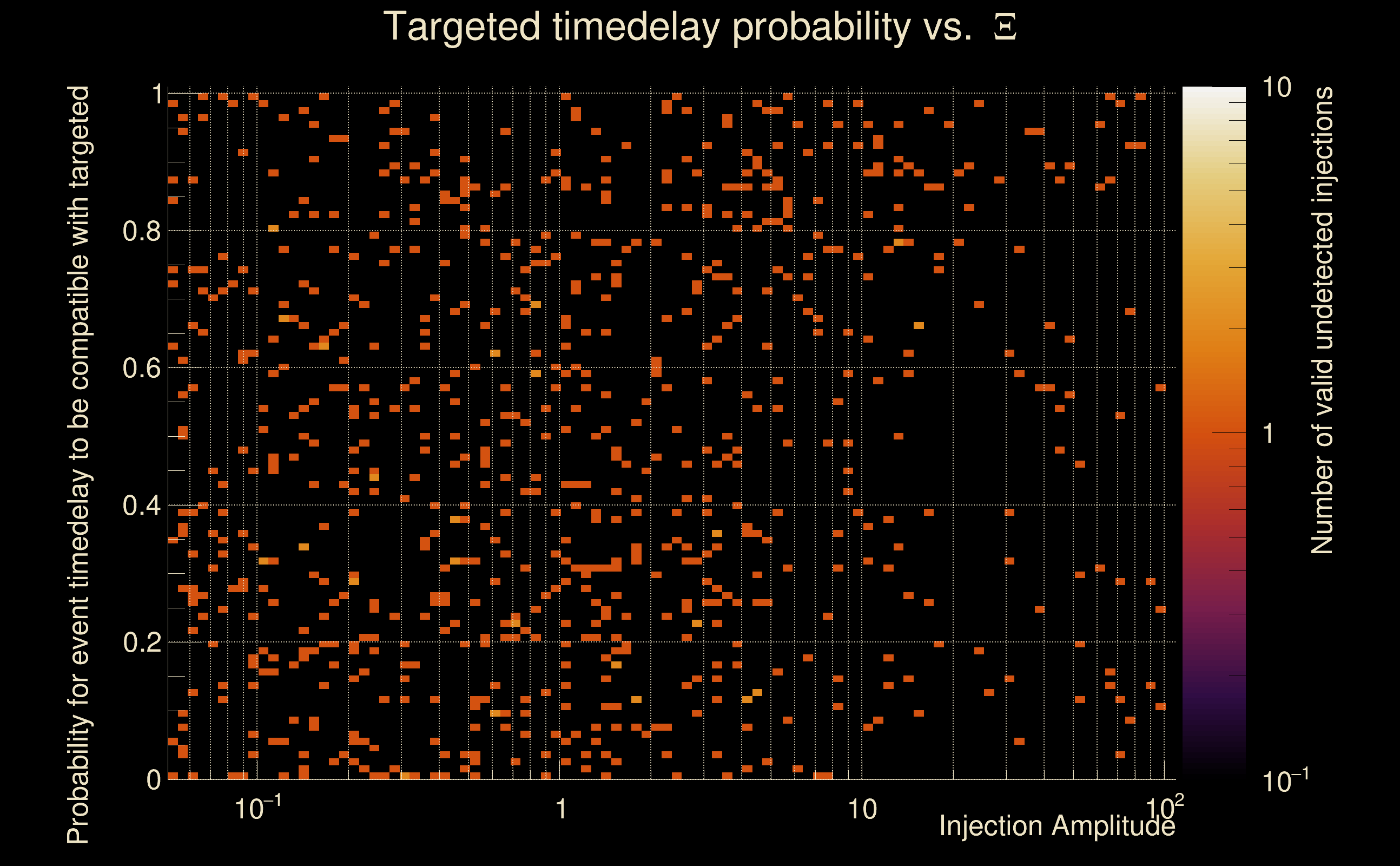

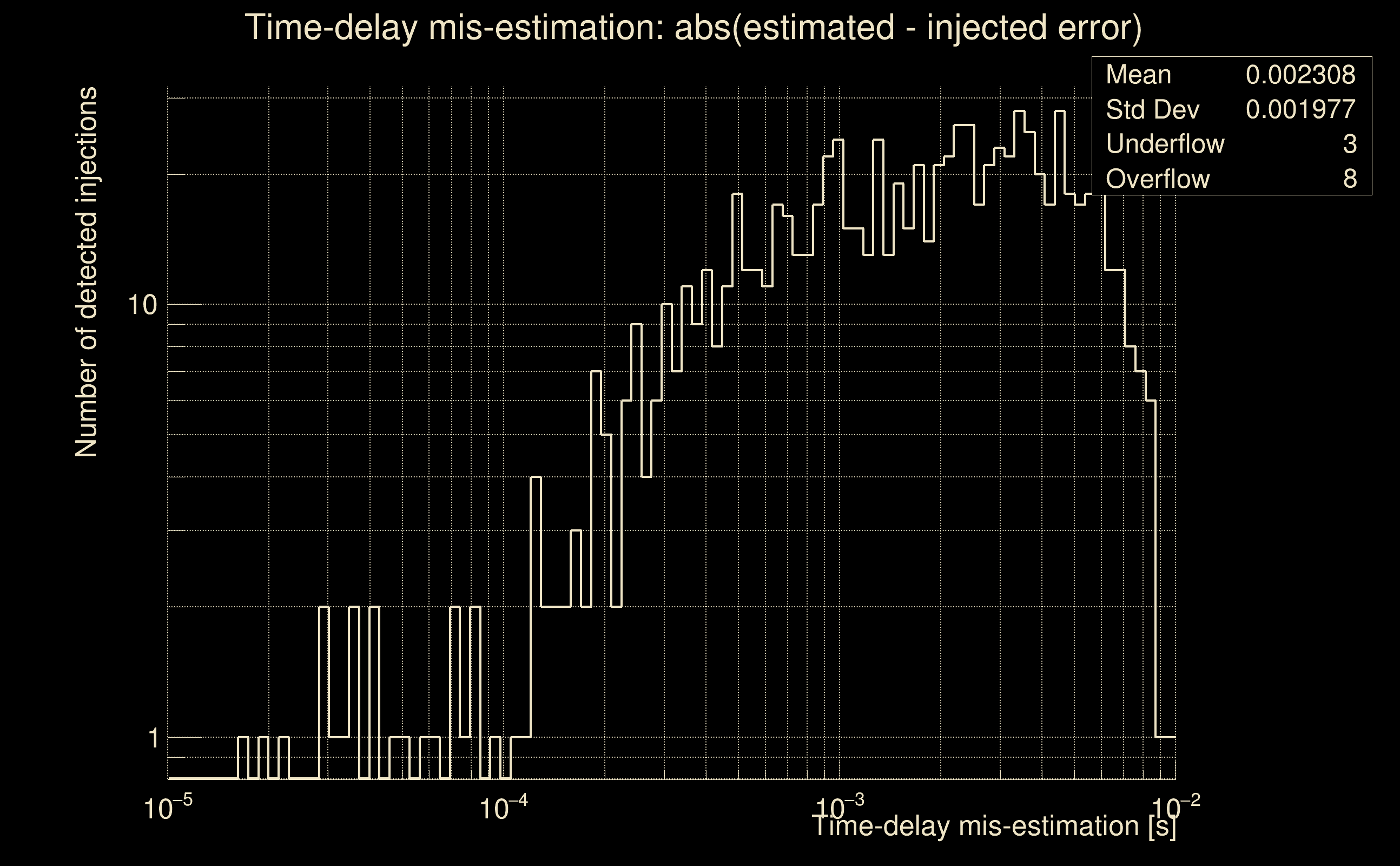

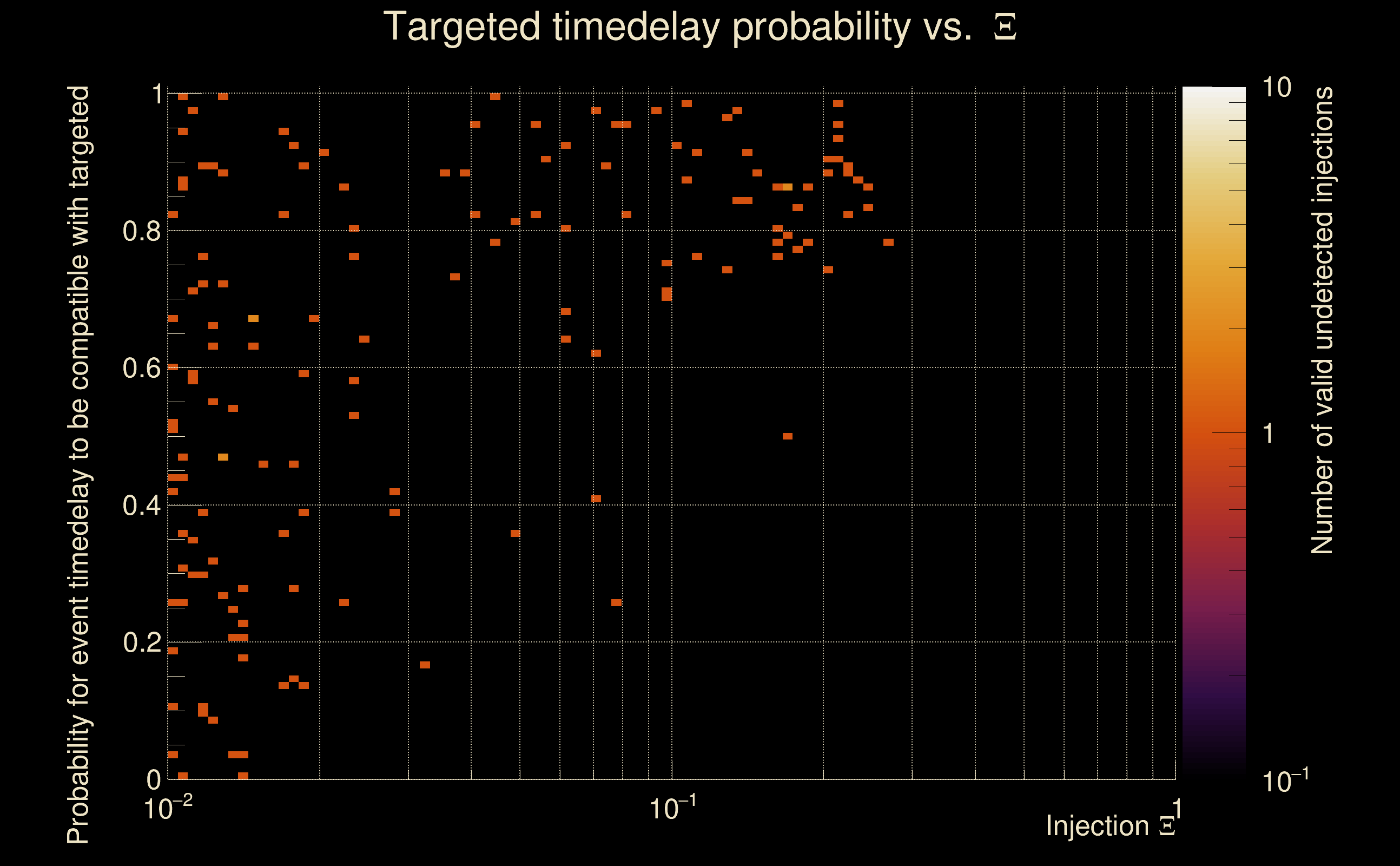

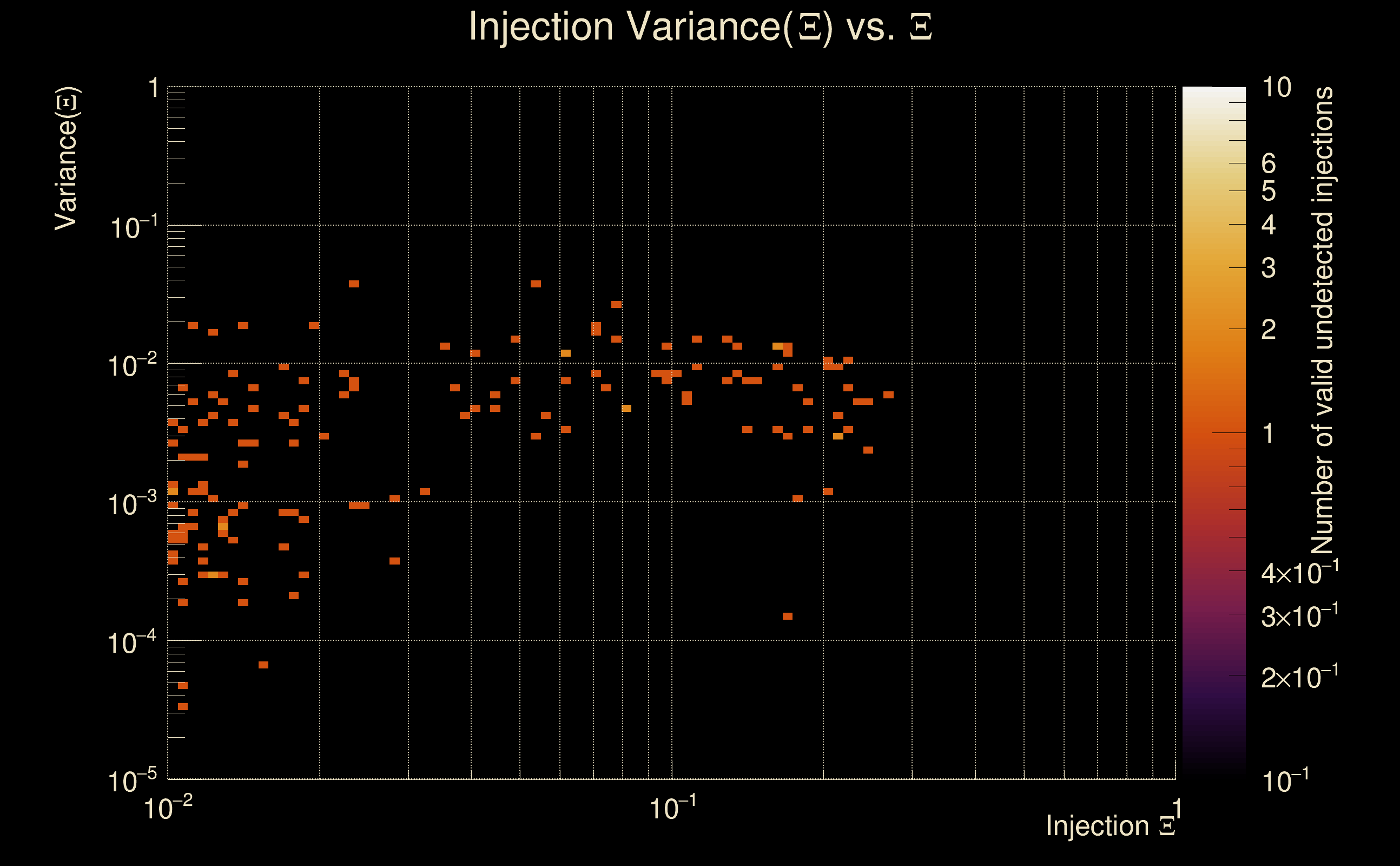

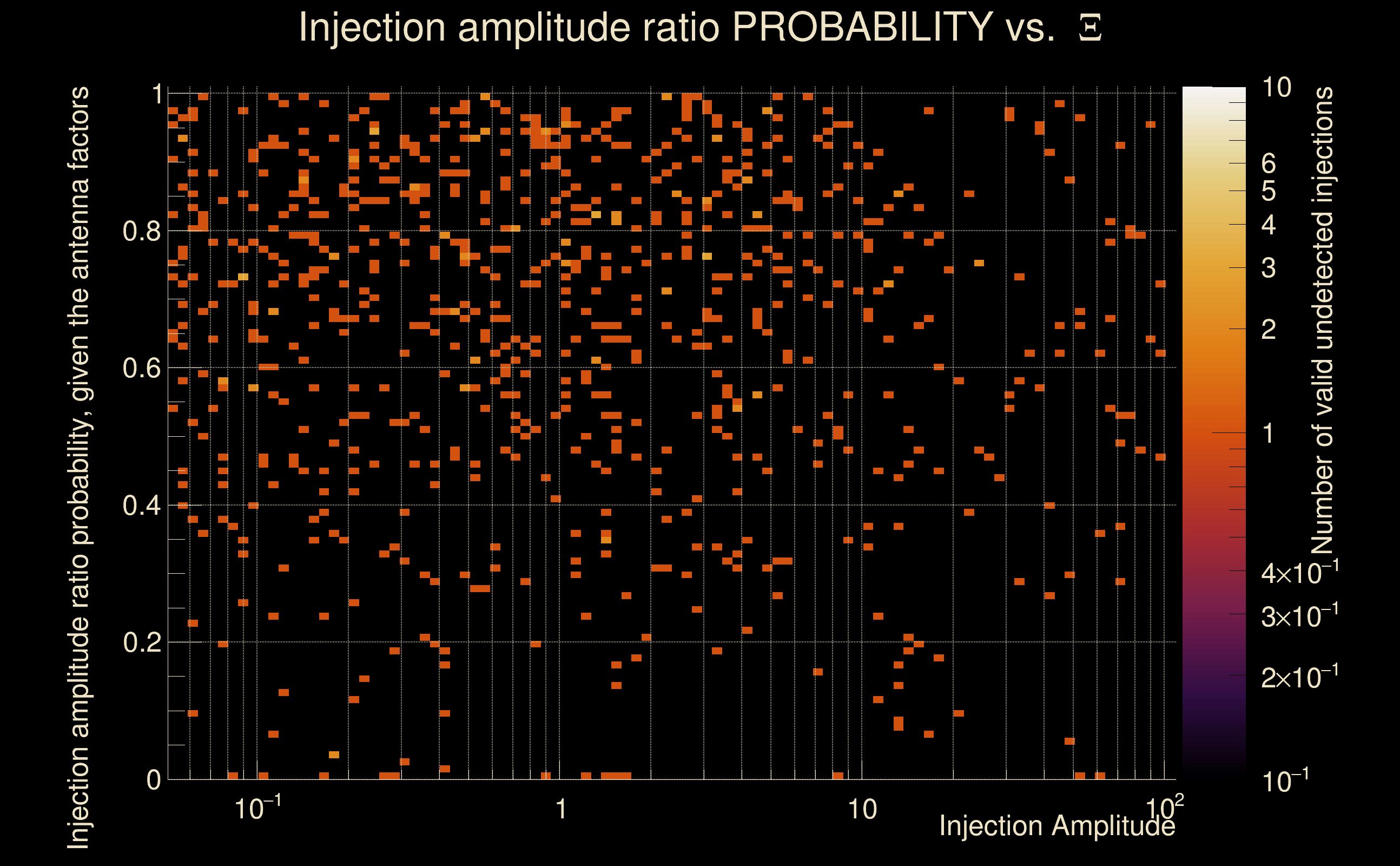

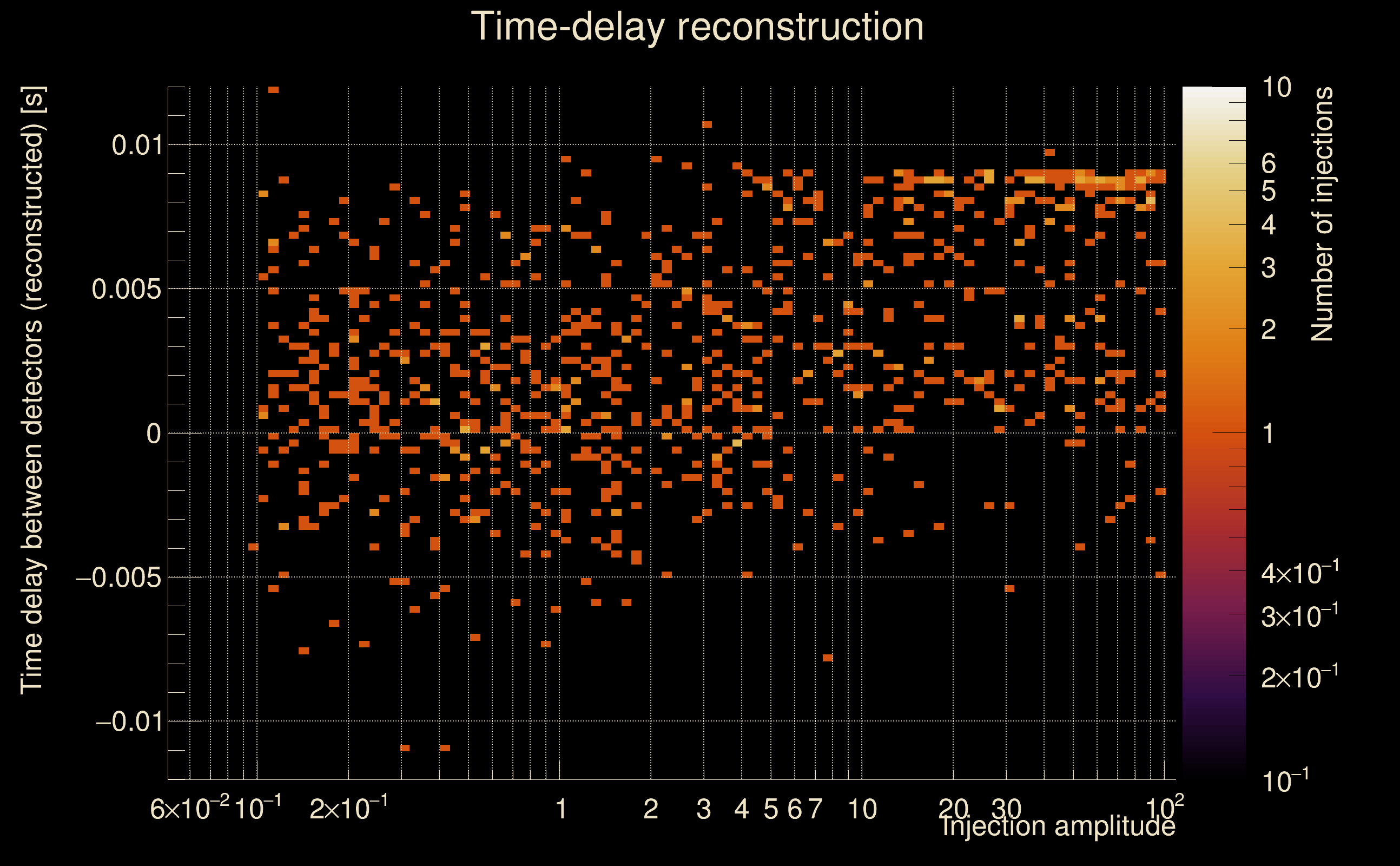

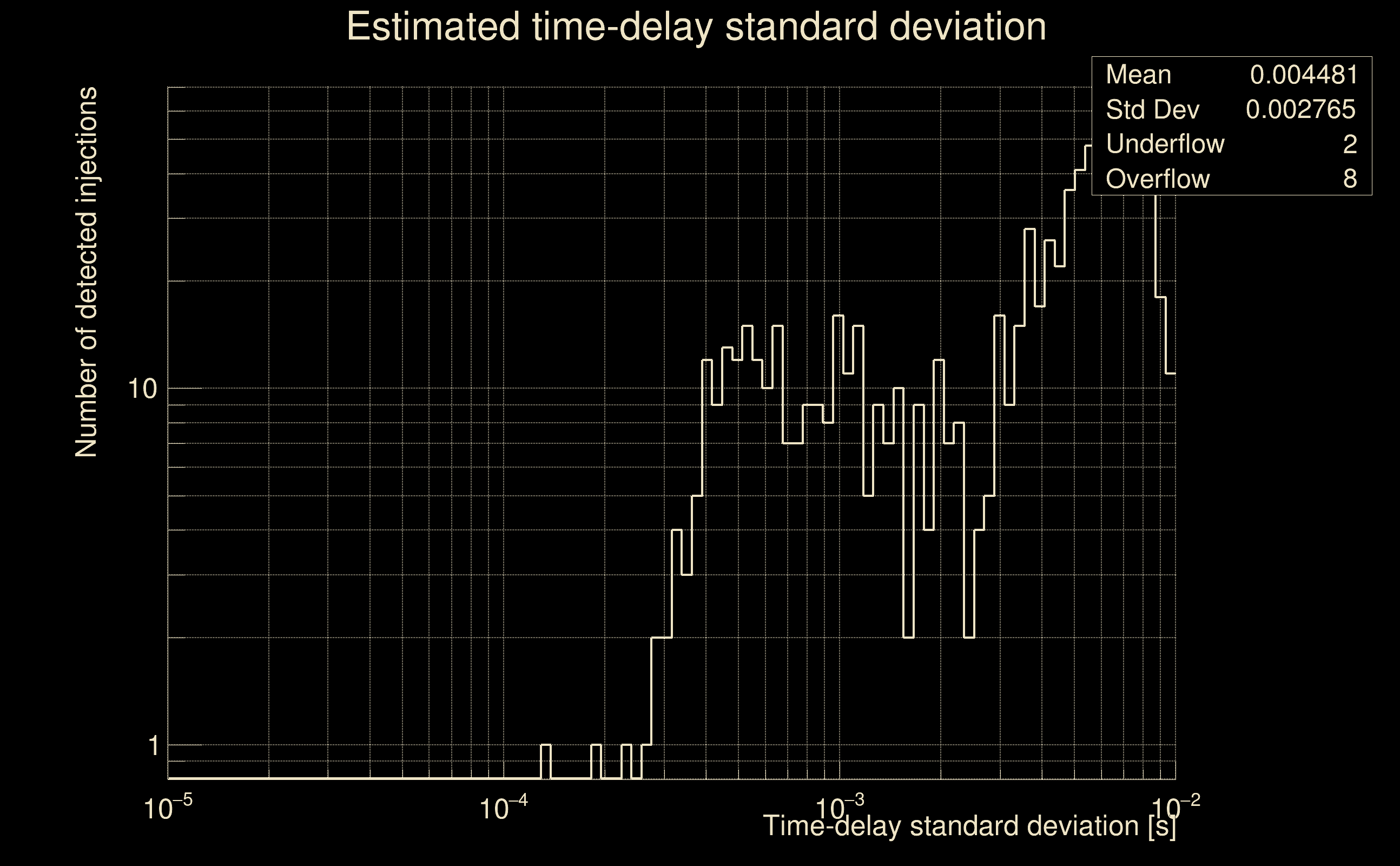

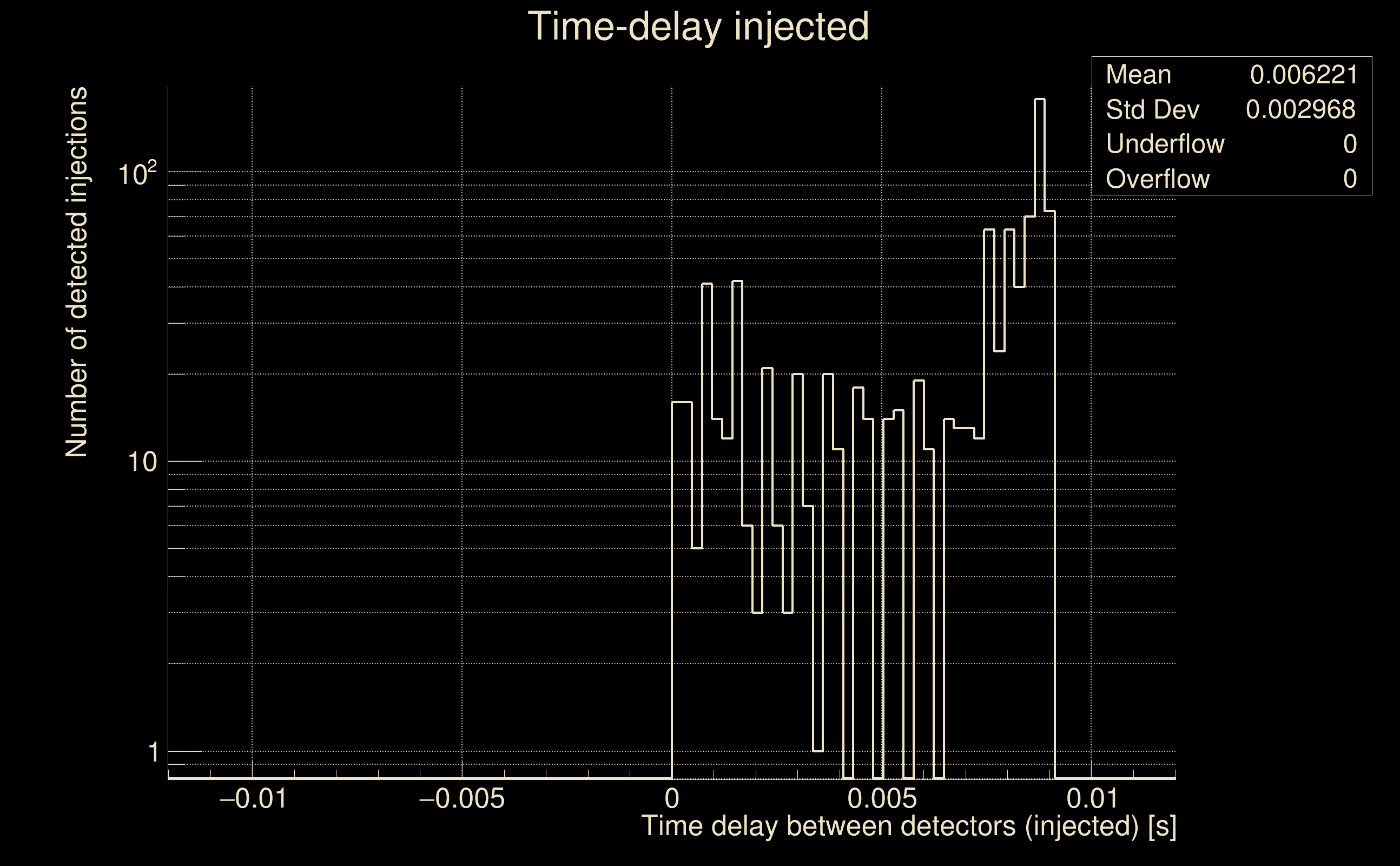

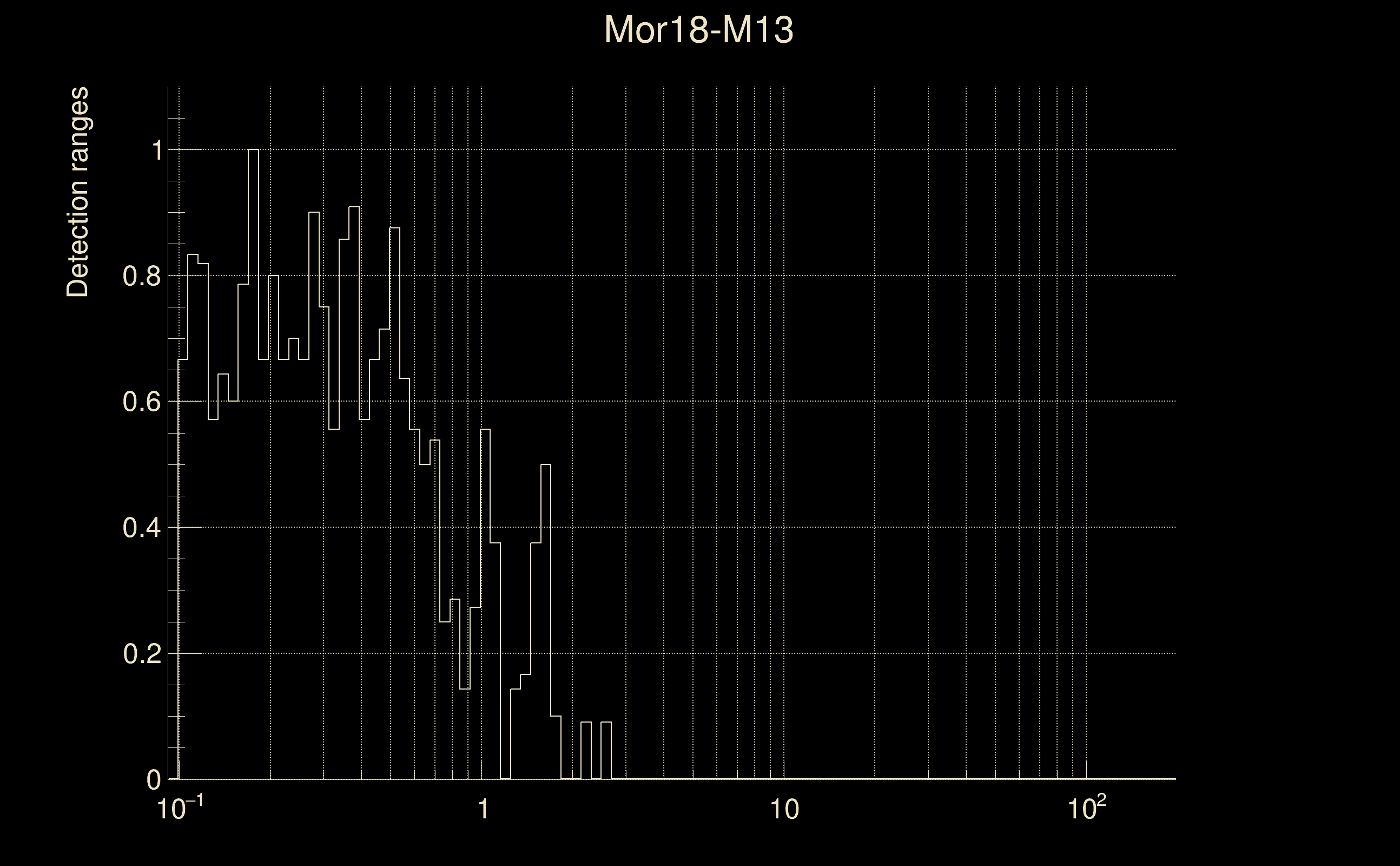

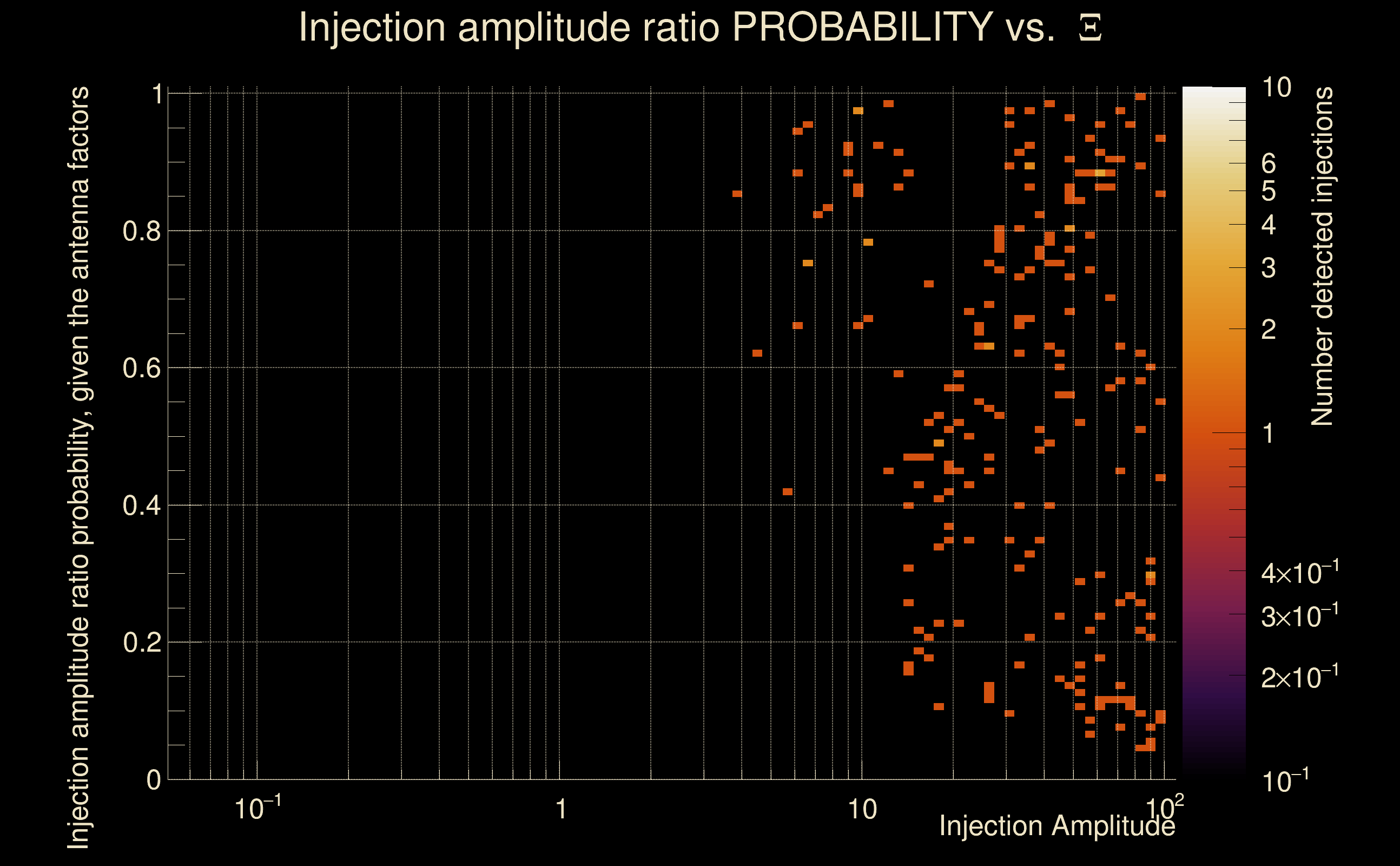

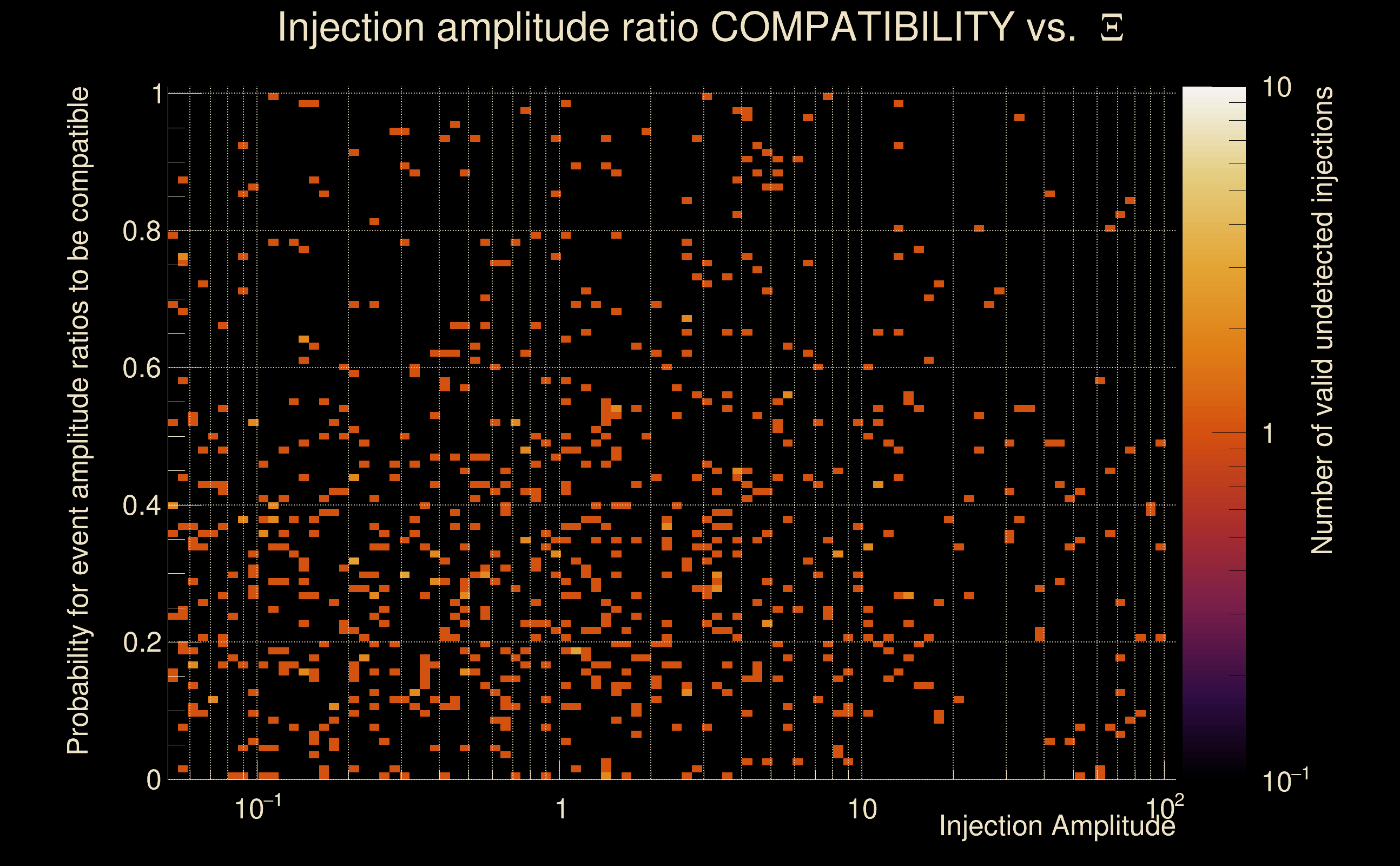

| Number of injections (total/valid/detected): | 1006 / 898 / 211 |
| List of missed injections: | ./Mor18-M13_missed.txt |
| Injection amplitude at 90% detection efficiency: | 55.568 |
| Injection amplitude at 50% detection efficiency: | 14.132 |
| Injection amplitude at 10% detection efficiency: | 8.51711 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
