| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:43:52 2026 UTC |
| Ox option file: | Bench2_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench2_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench2_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=49 (2.714 s), time lag = 0 s |

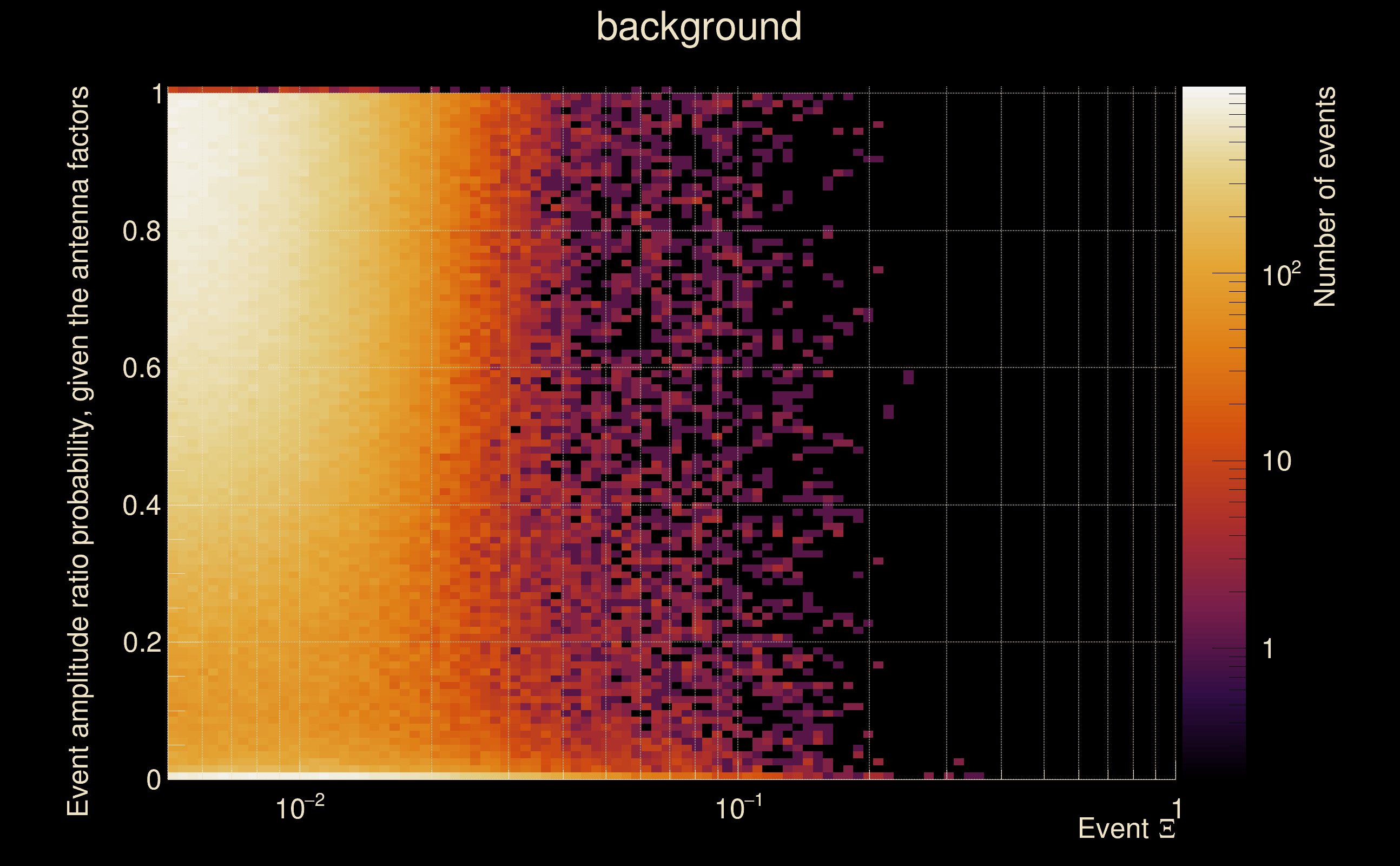

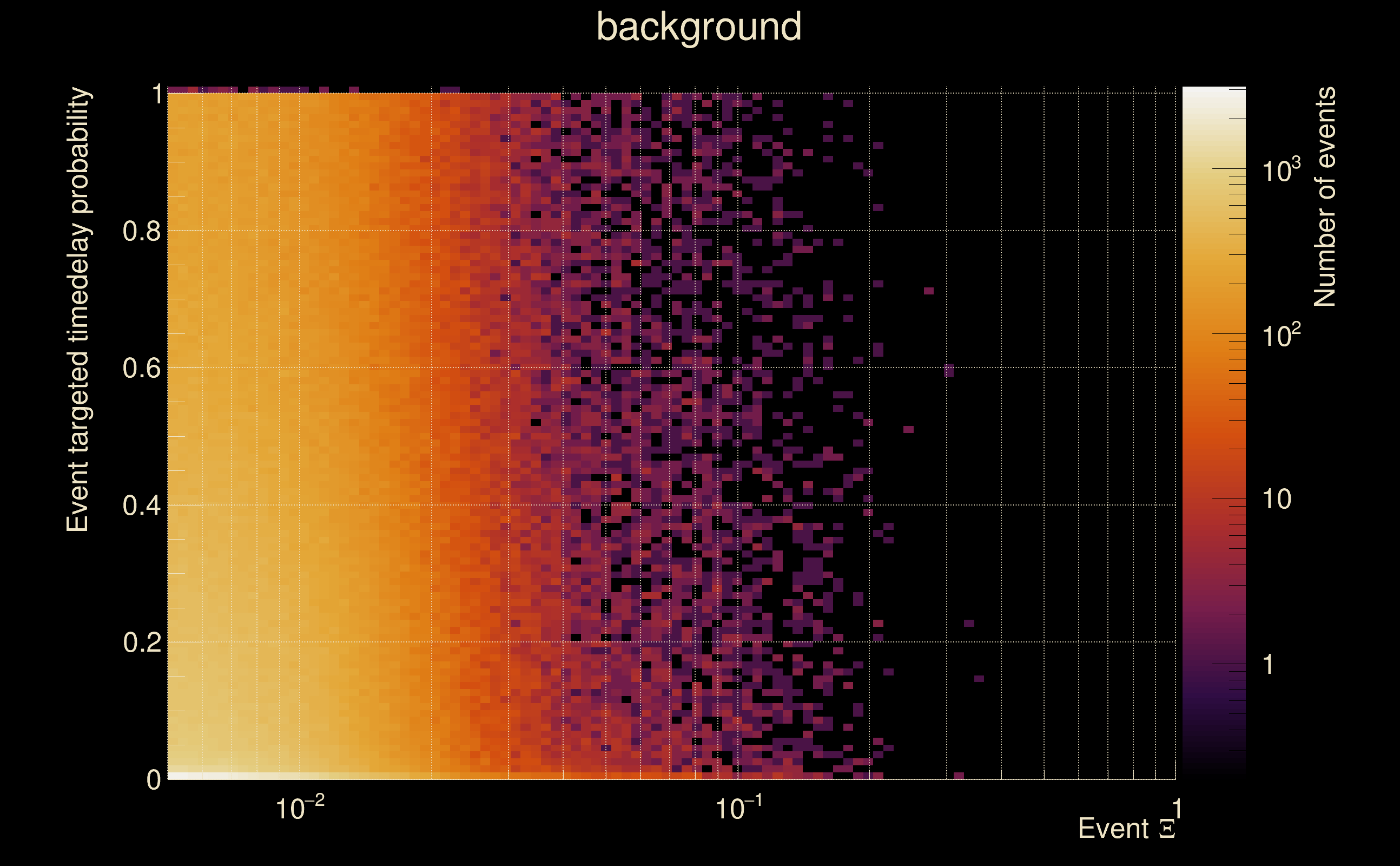

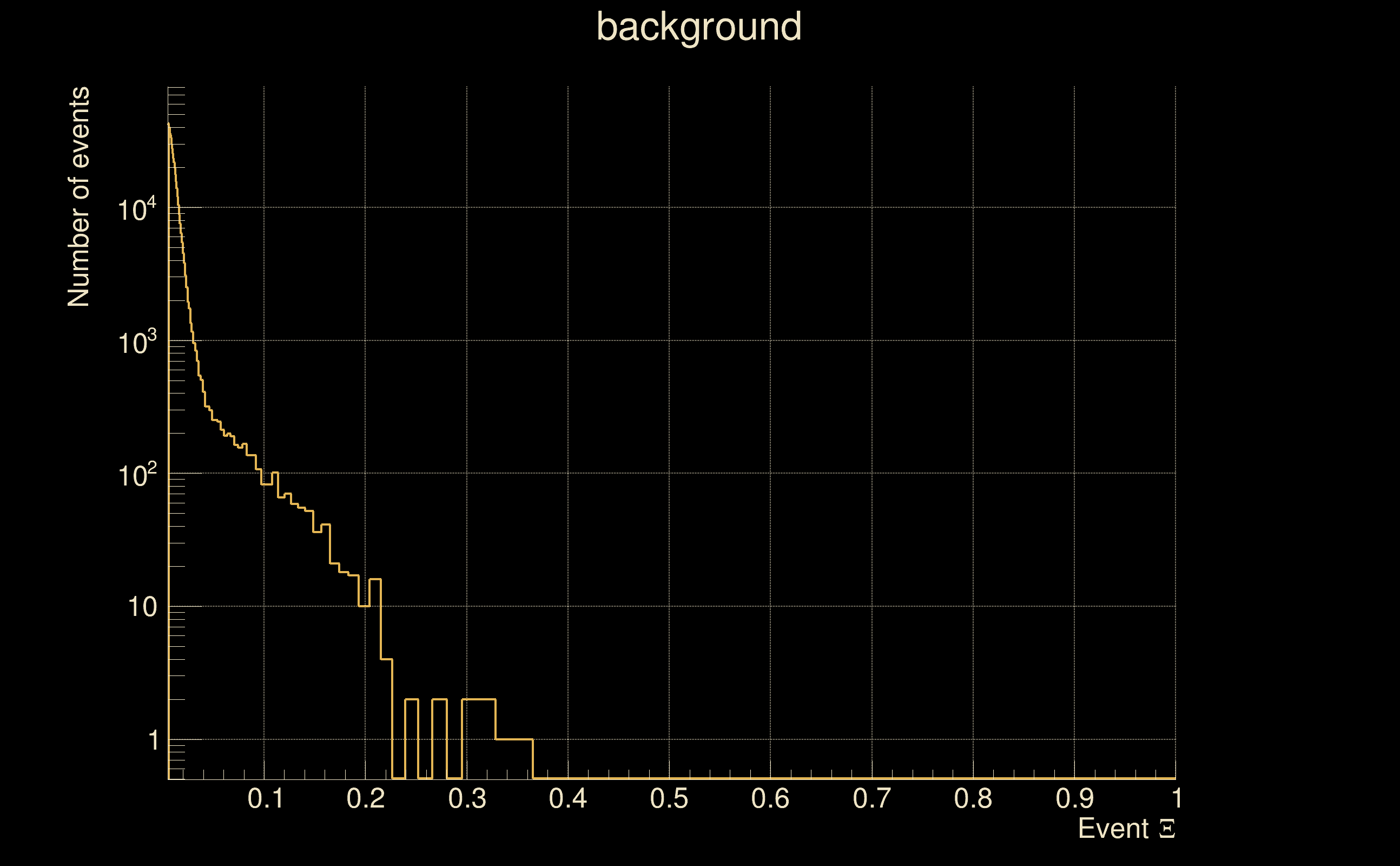

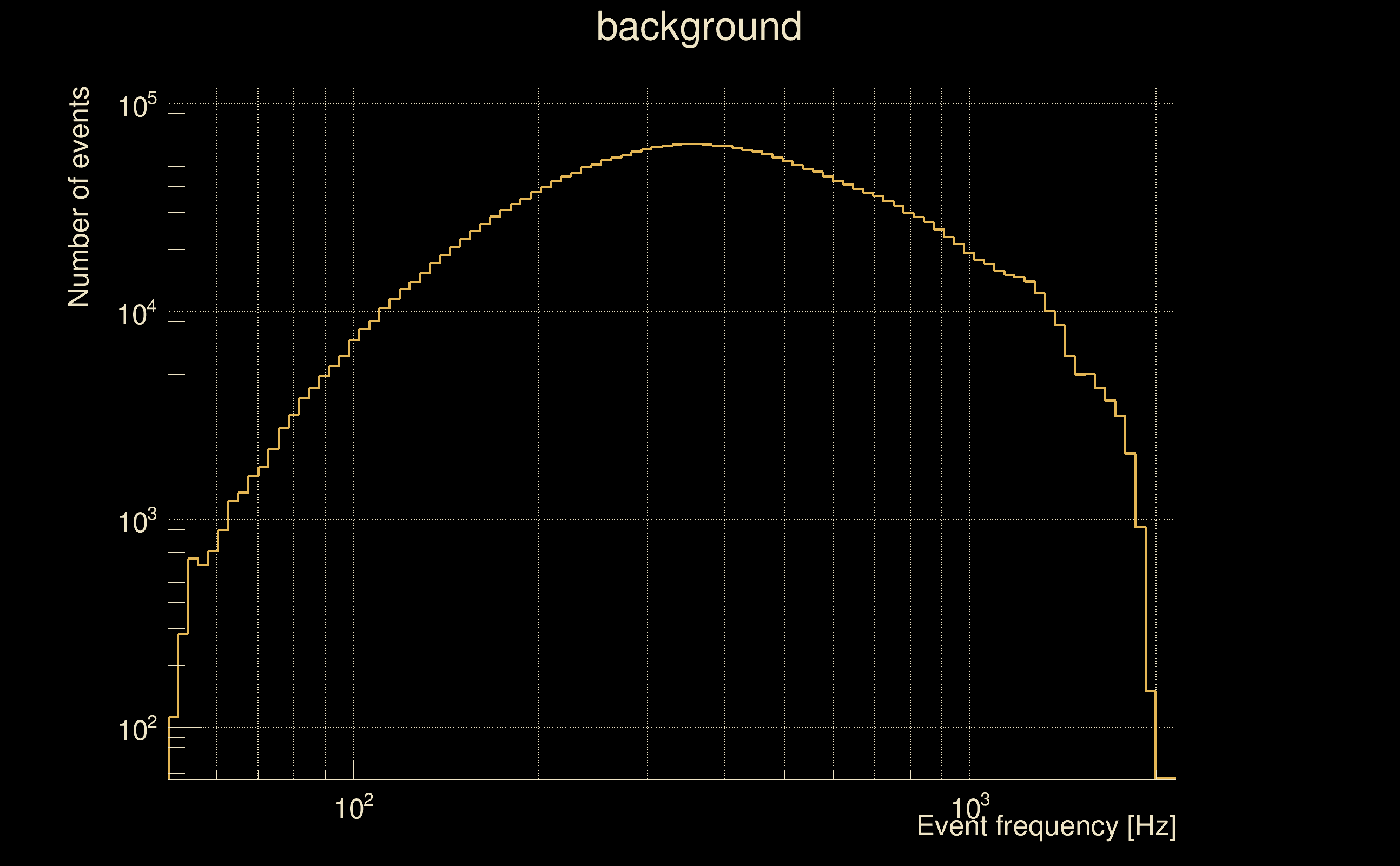

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

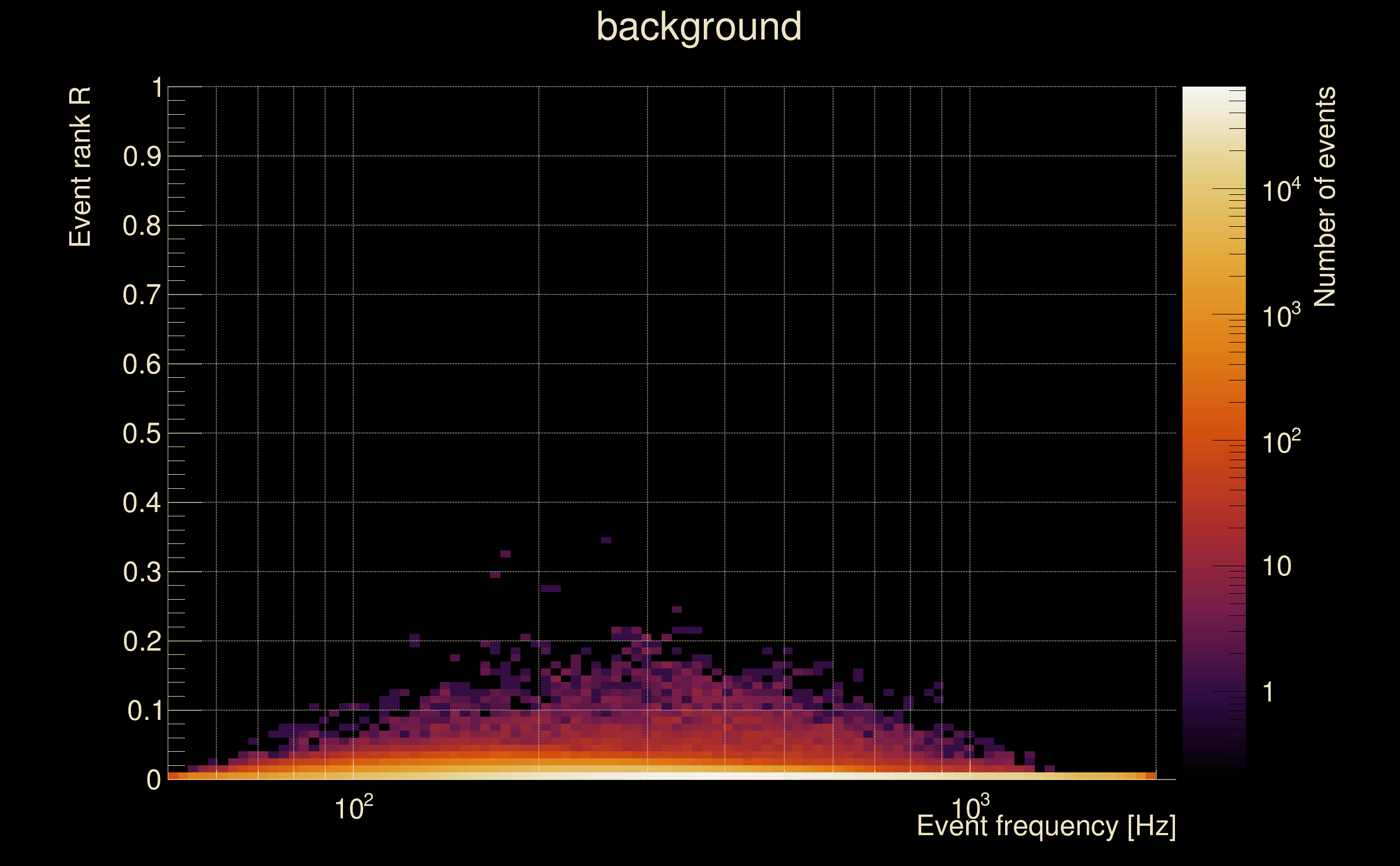

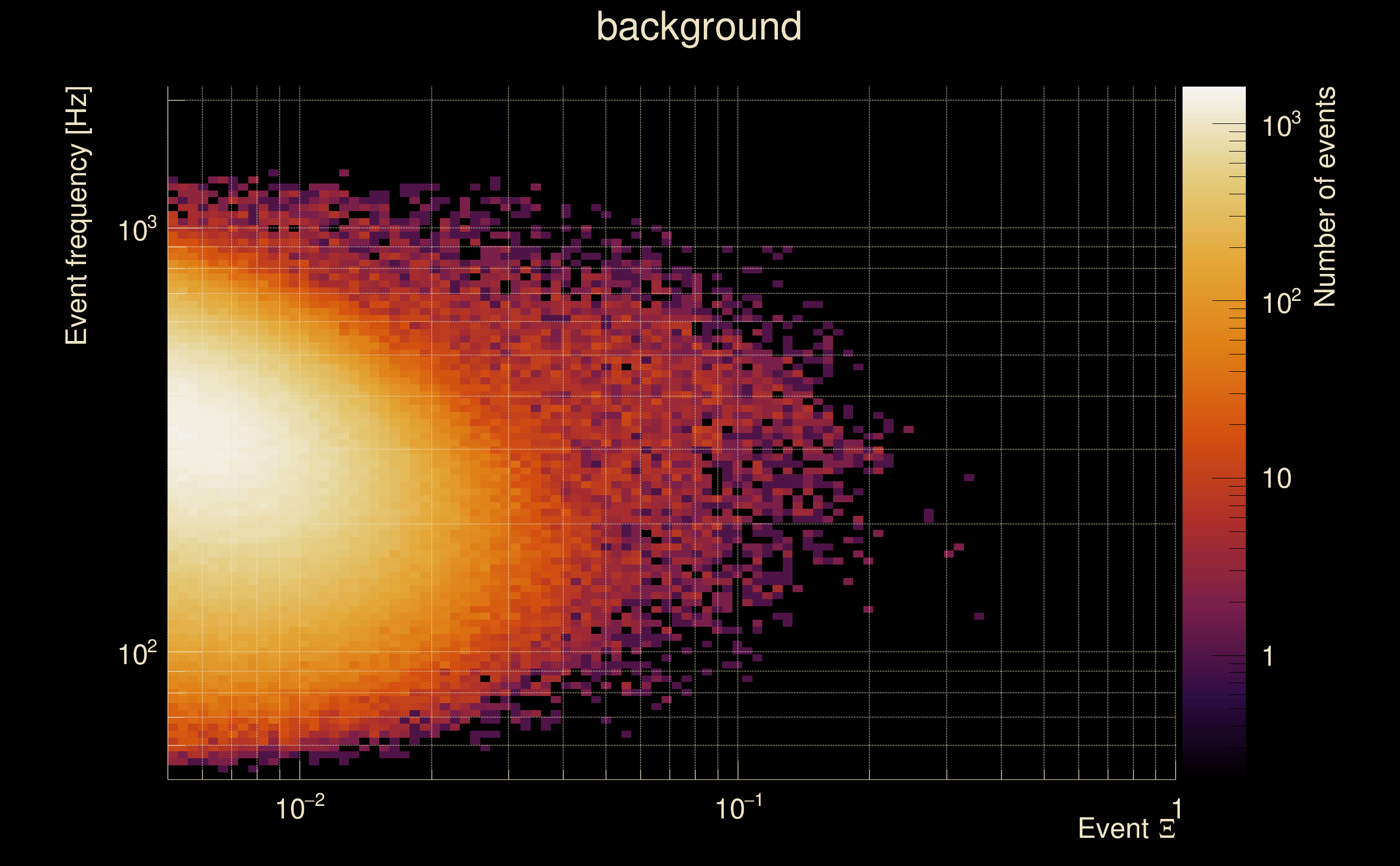

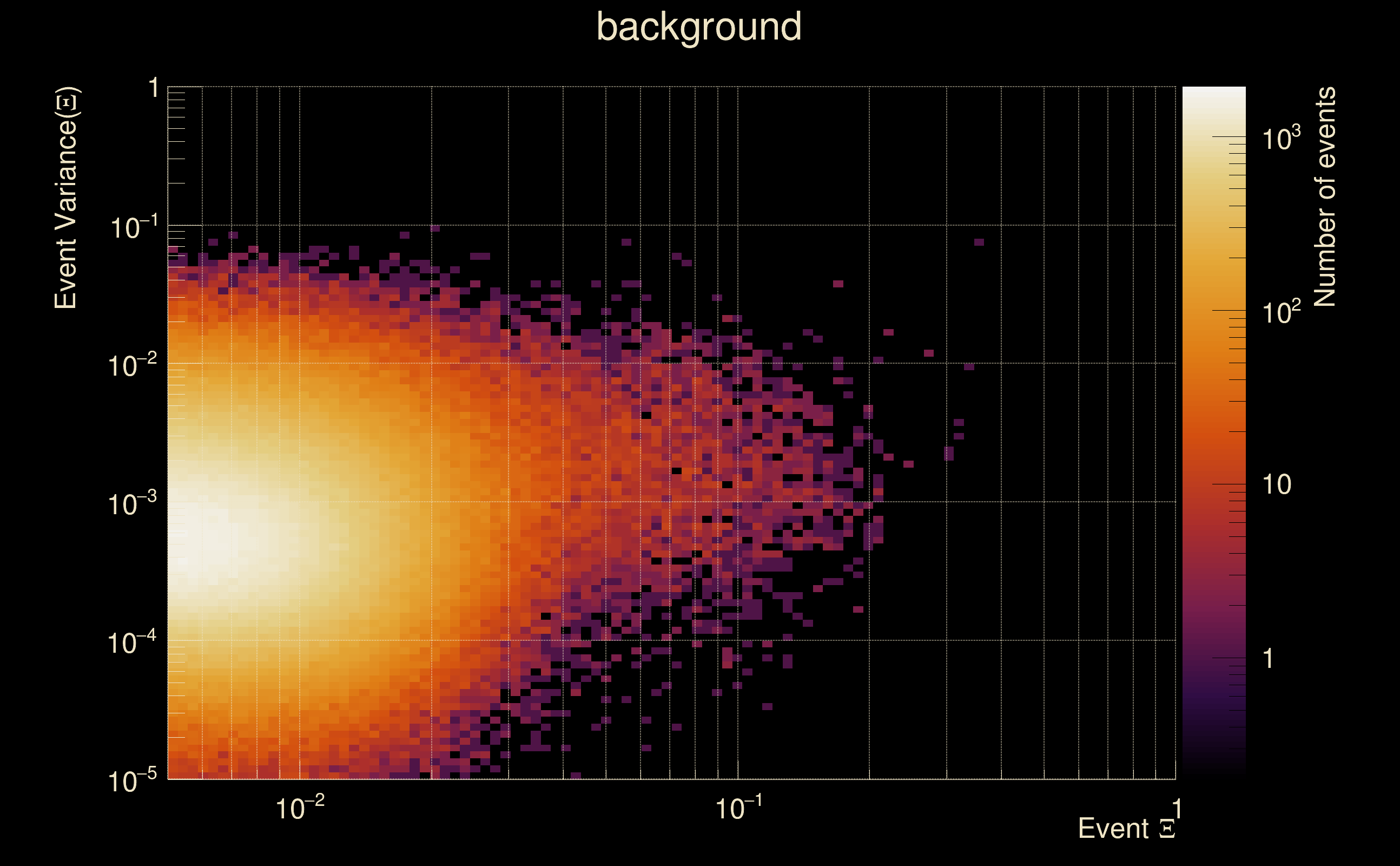

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

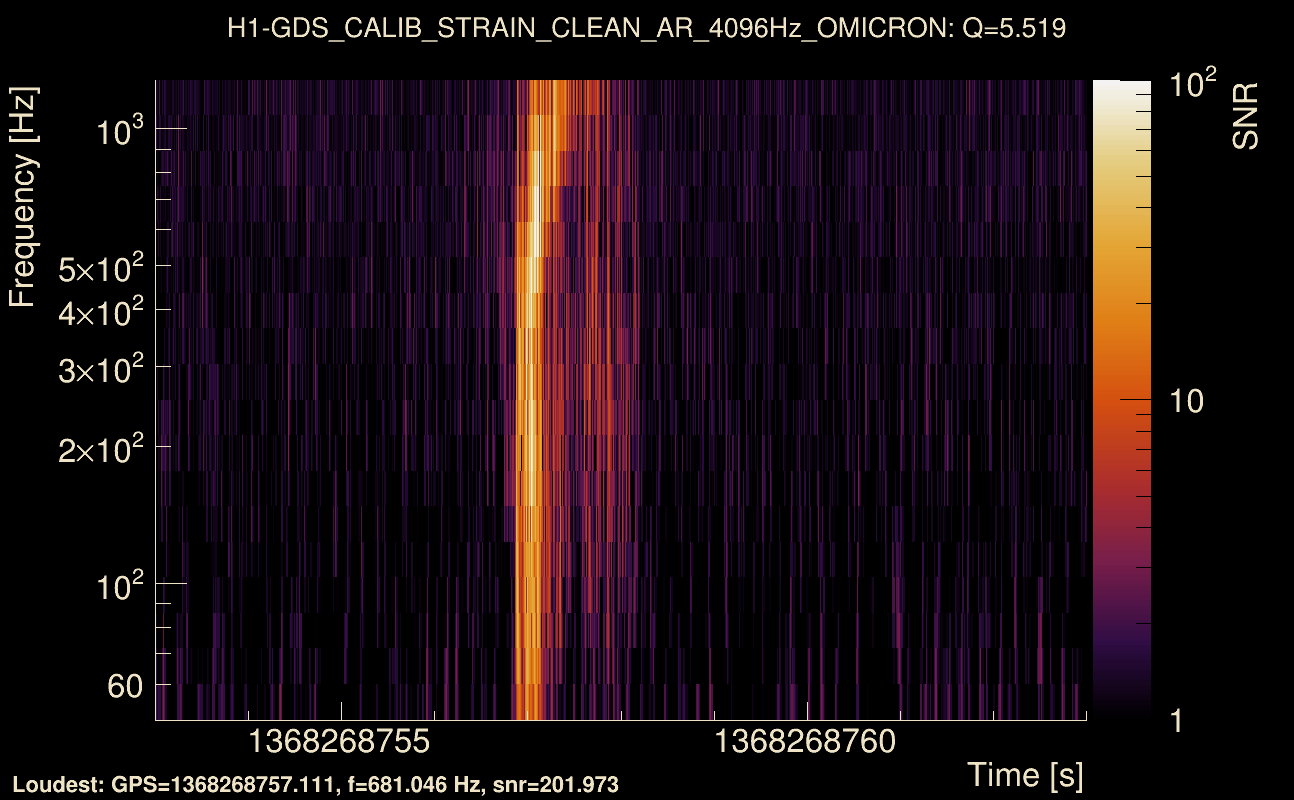

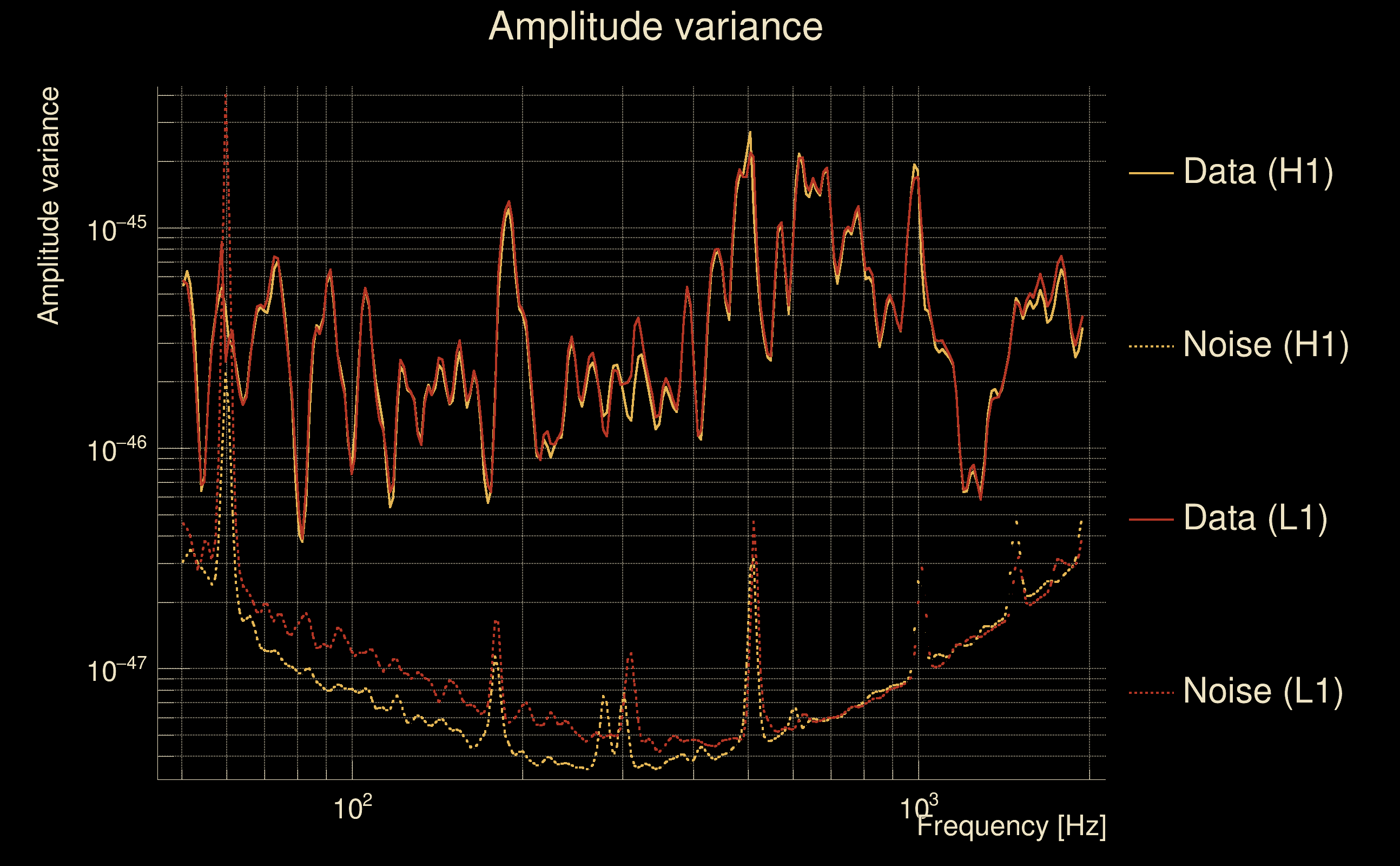

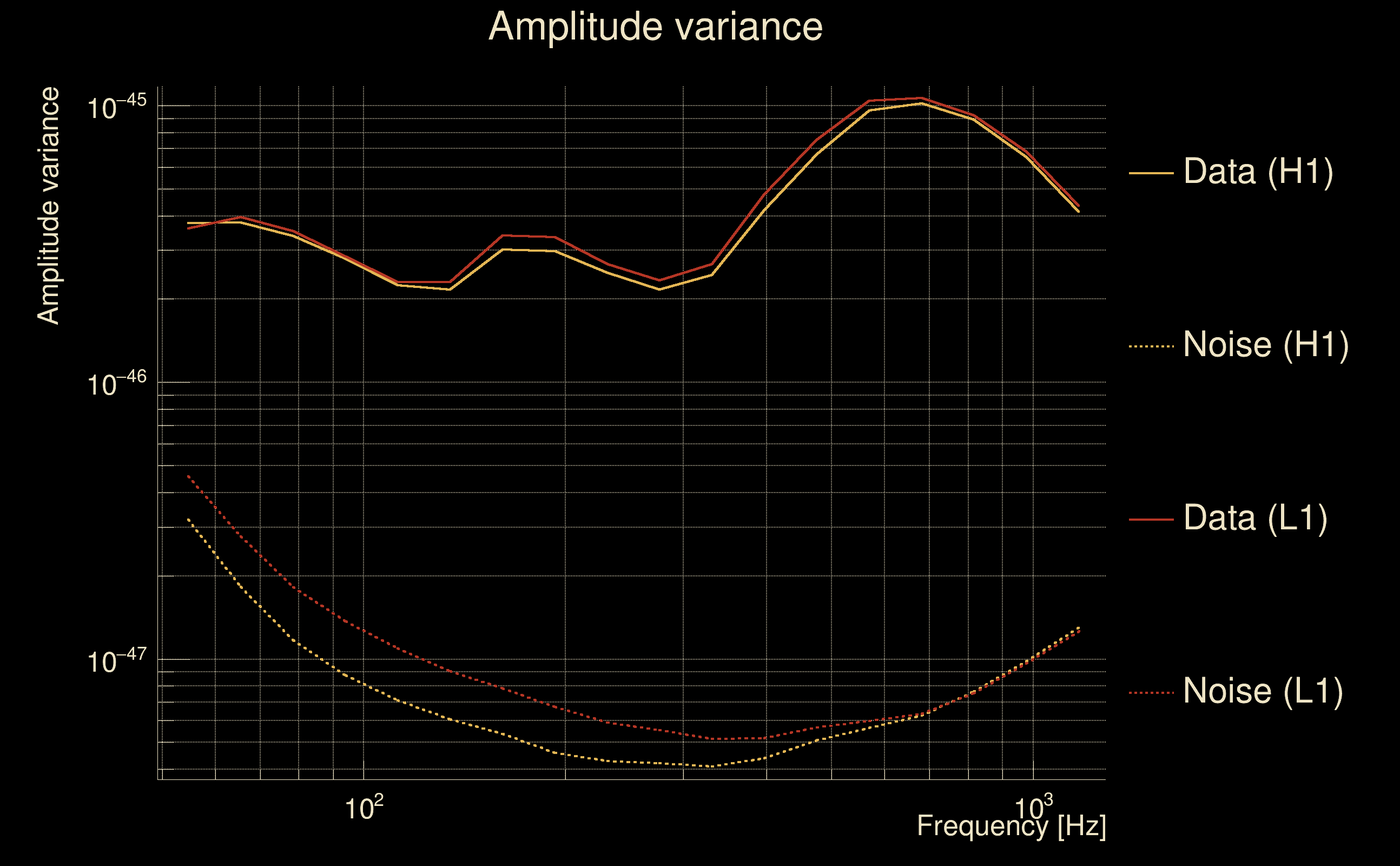

| Event time t(H1): | GPS = 1368268748 (Tue May 16 10:38:50 2023 ) → GPS = 1368268758 (Tue May 16 10:39:00 2023 ) |
| Event time t(L1): | GPS = 1368268748 (Tue May 16 10:39:00 2023 ) → GPS = 1368268758 (Tue May 16 10:39:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368268745 → GPS = 1368268761 |
| Omicron analysis time window (L1): | GPS = 1368268745 → GPS = 1368268761 |

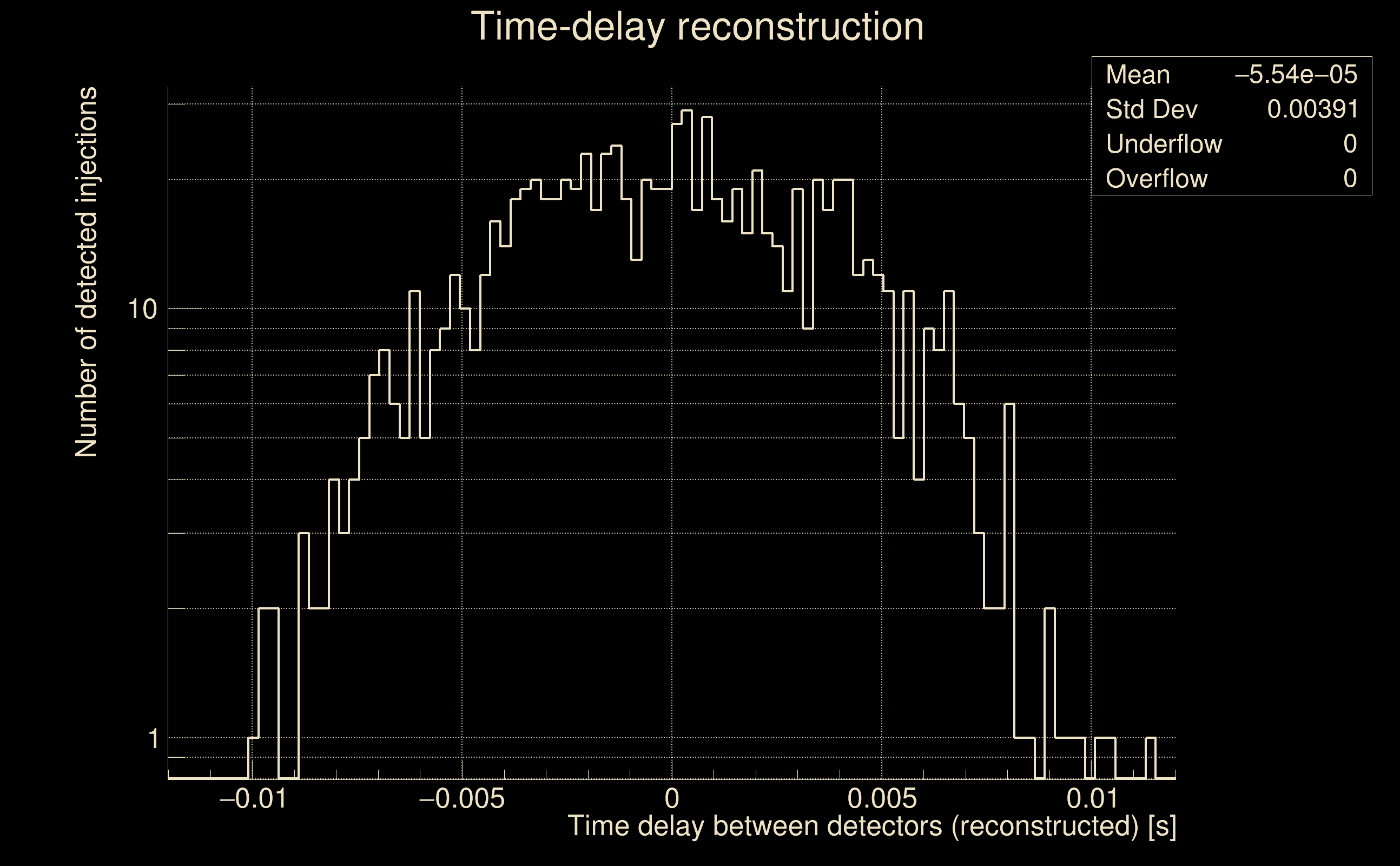

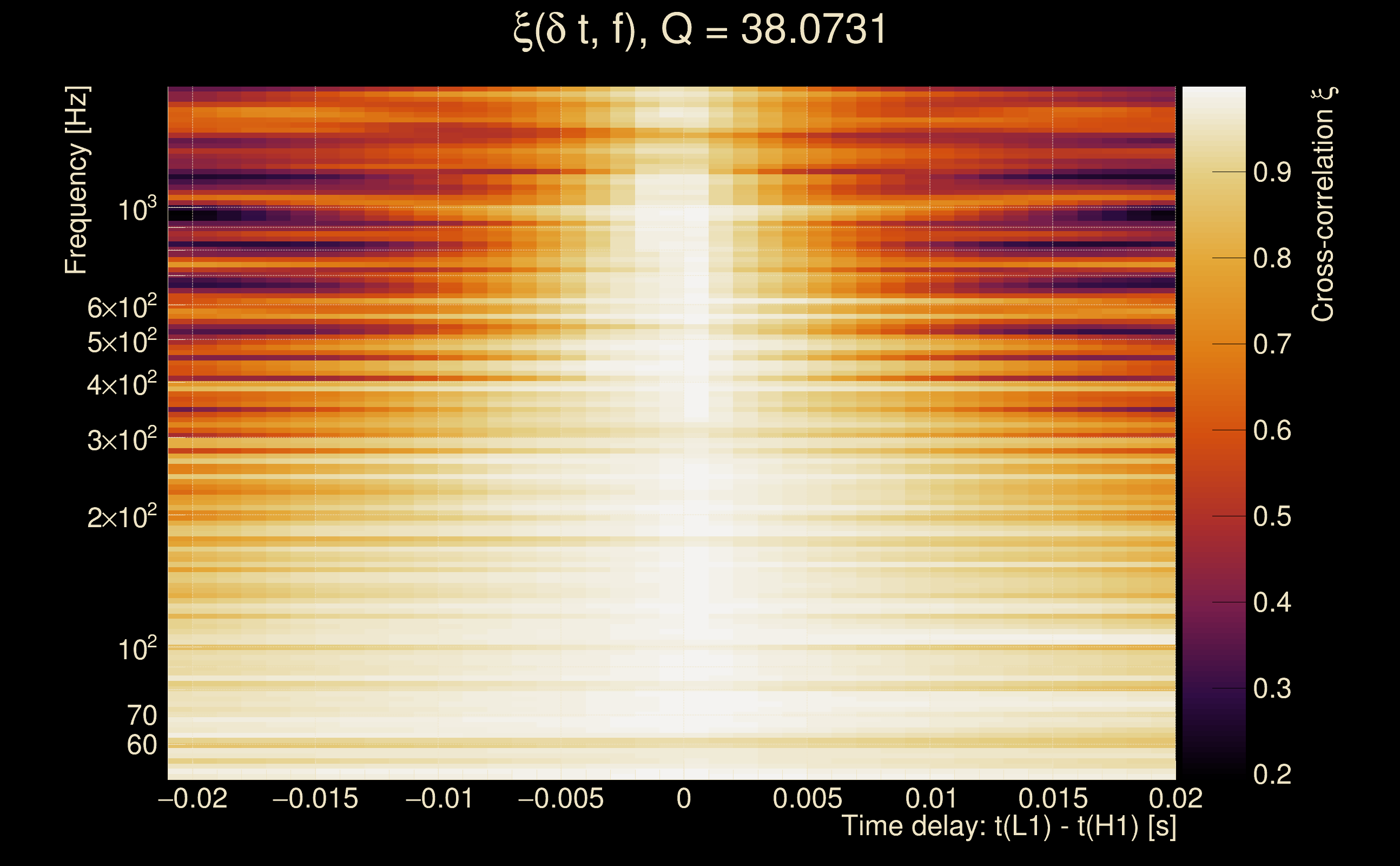

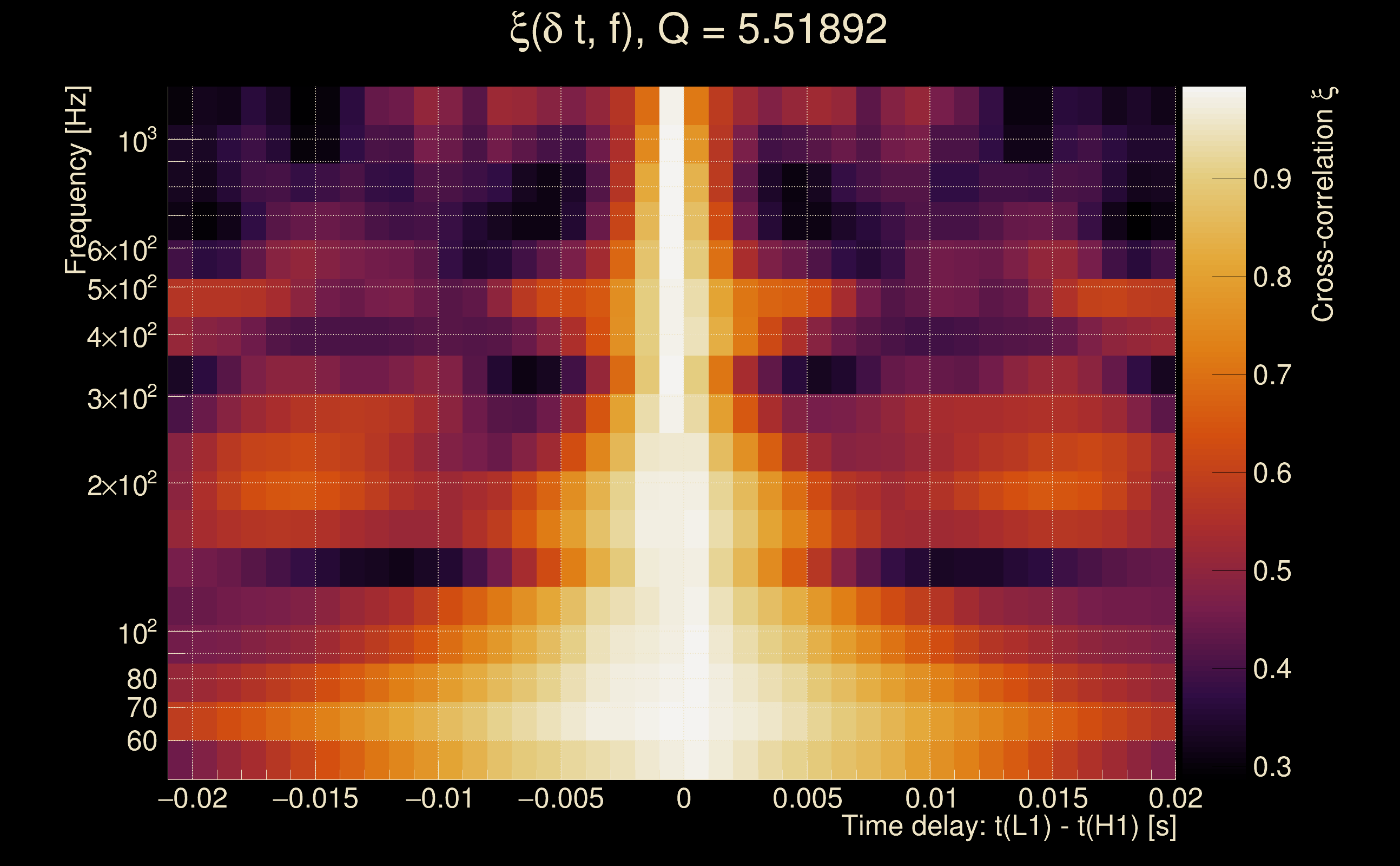

| Time delay between detectors t(L1) - t(H1): | -0.000900843 s (slice index = 108 / 217), δt_gw = -0.000900843 s |
| Time delay standard deviation: | 0.0182793 s |

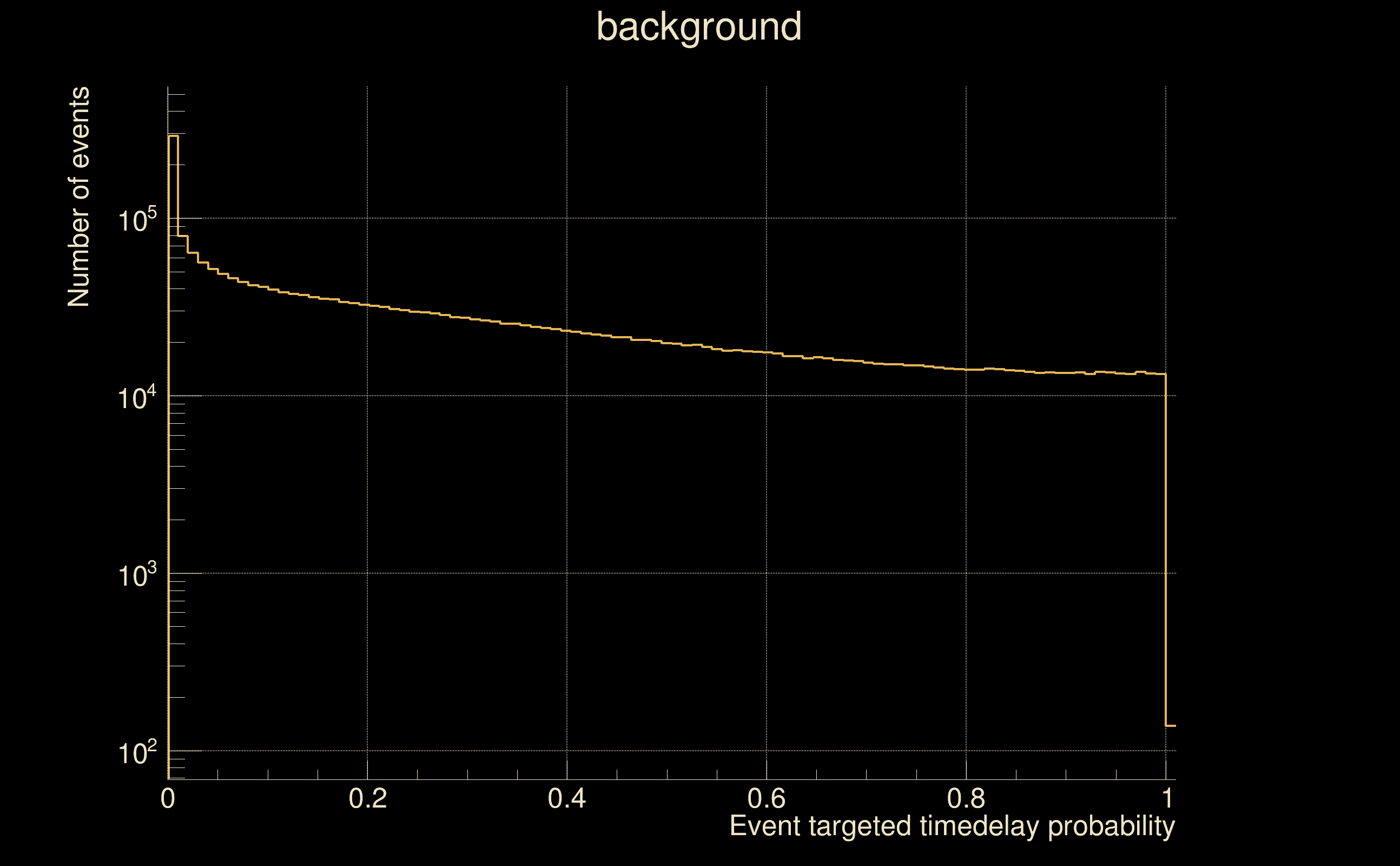

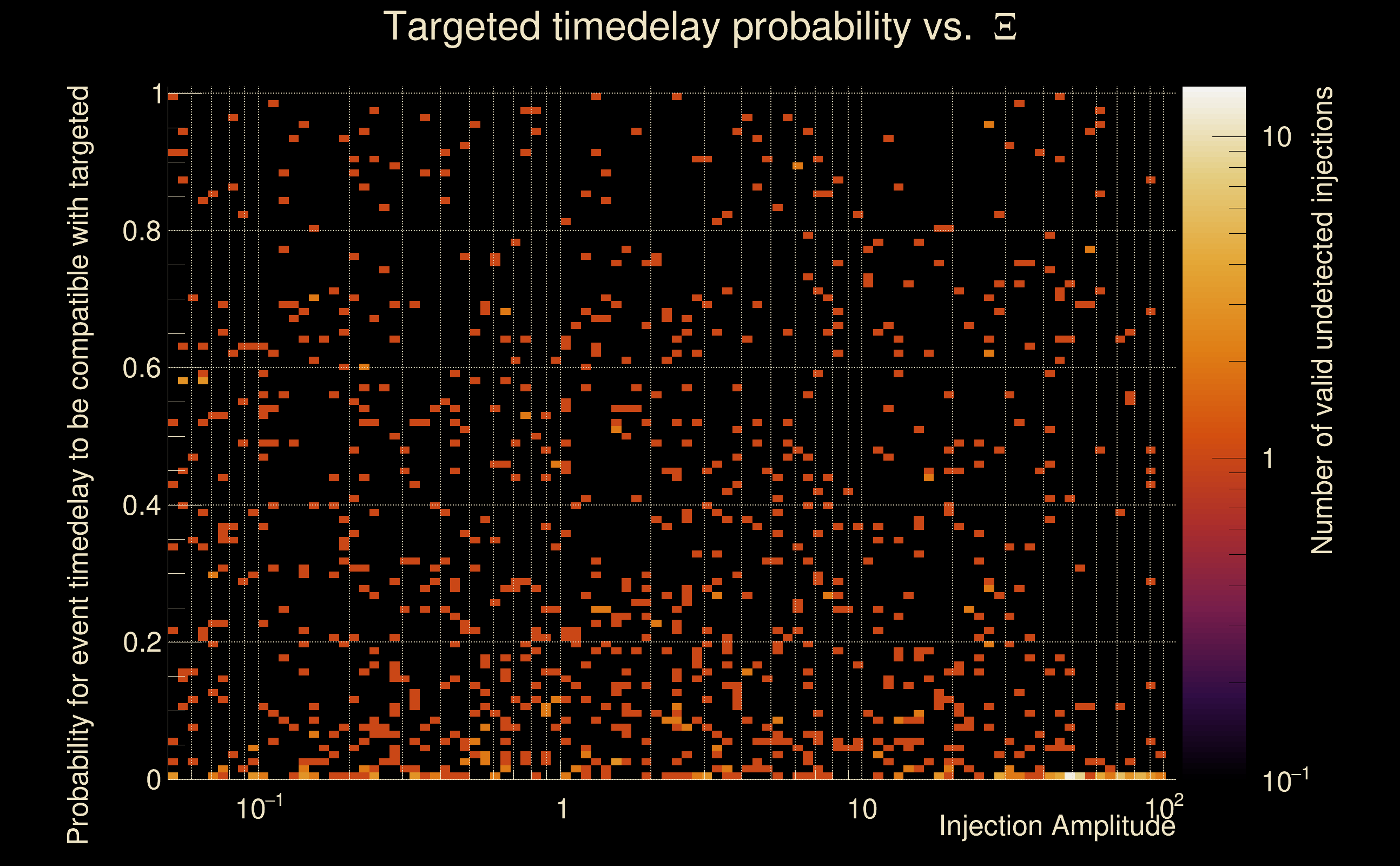

| [targeted mode] Time delay probability: | 3.85859e-154 (26.4479 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 286.962 Hz |
| Ξ: | 0.985537 ± 0.00149593 (variance = 2.23781e-06): Q0: 0.987636, Q1: 0.984583, Q2: 0.98306, Q3: 0.984701, Q4: 0.984479 |
| Rank: | R_A = 0.985537 |
| Log of amplitude ratio (L1/H1): | 0.0208344, variance = 0.150805 (L1/H1: 0.00788141, variance = 0.300792, H1/L1: -0.032548, variance = 0.300898) |
| Amplitude ratio (L1/H1): | 1.02105 ⋇ 1.47453 (L1/H1: 1.00791 ⋇ 1.73056, H1/L1: 0.967976 ⋇ 1.73073) |

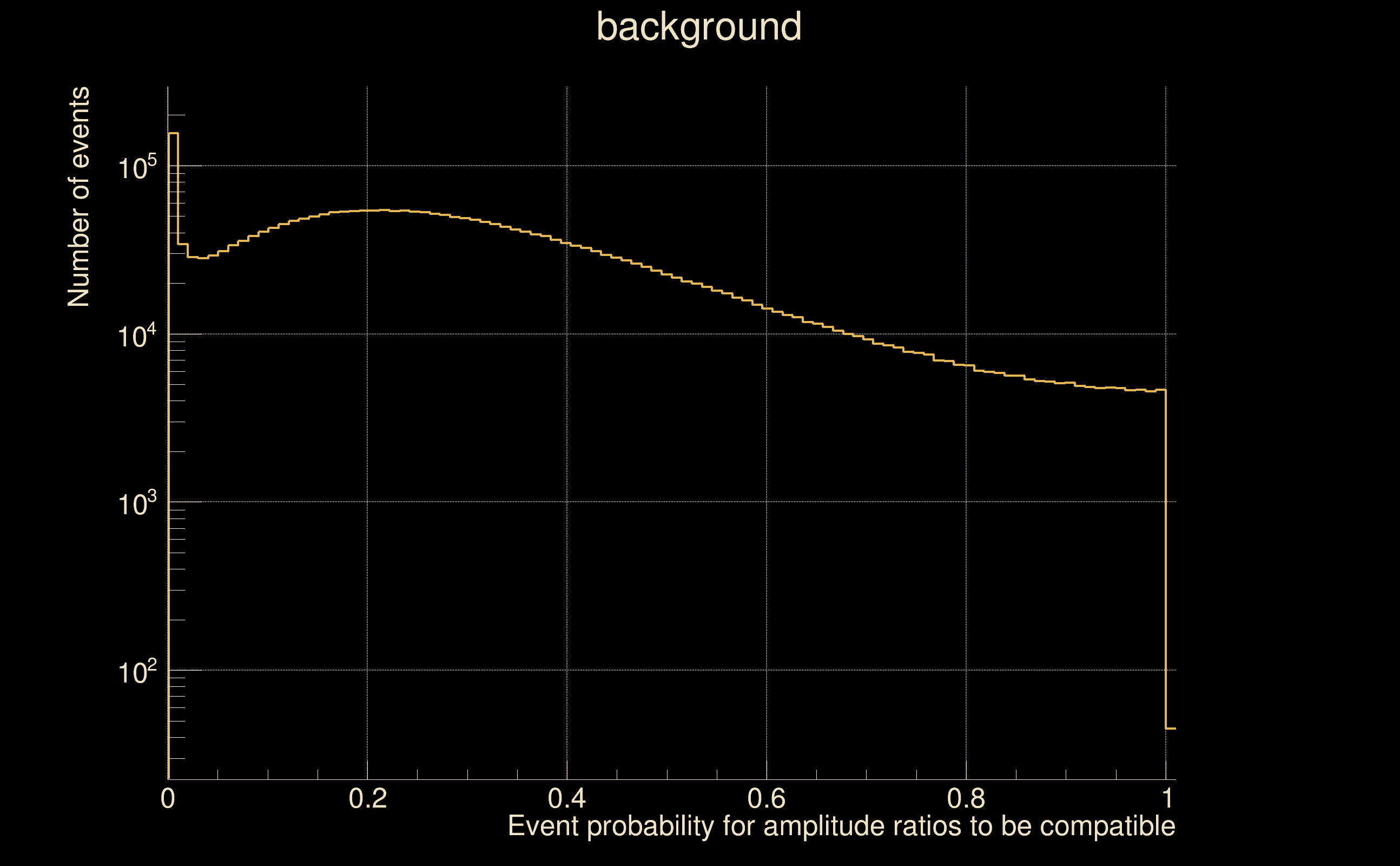

| Amplitude ratio H1|L1 compatibility (probability): | 0.974632 |

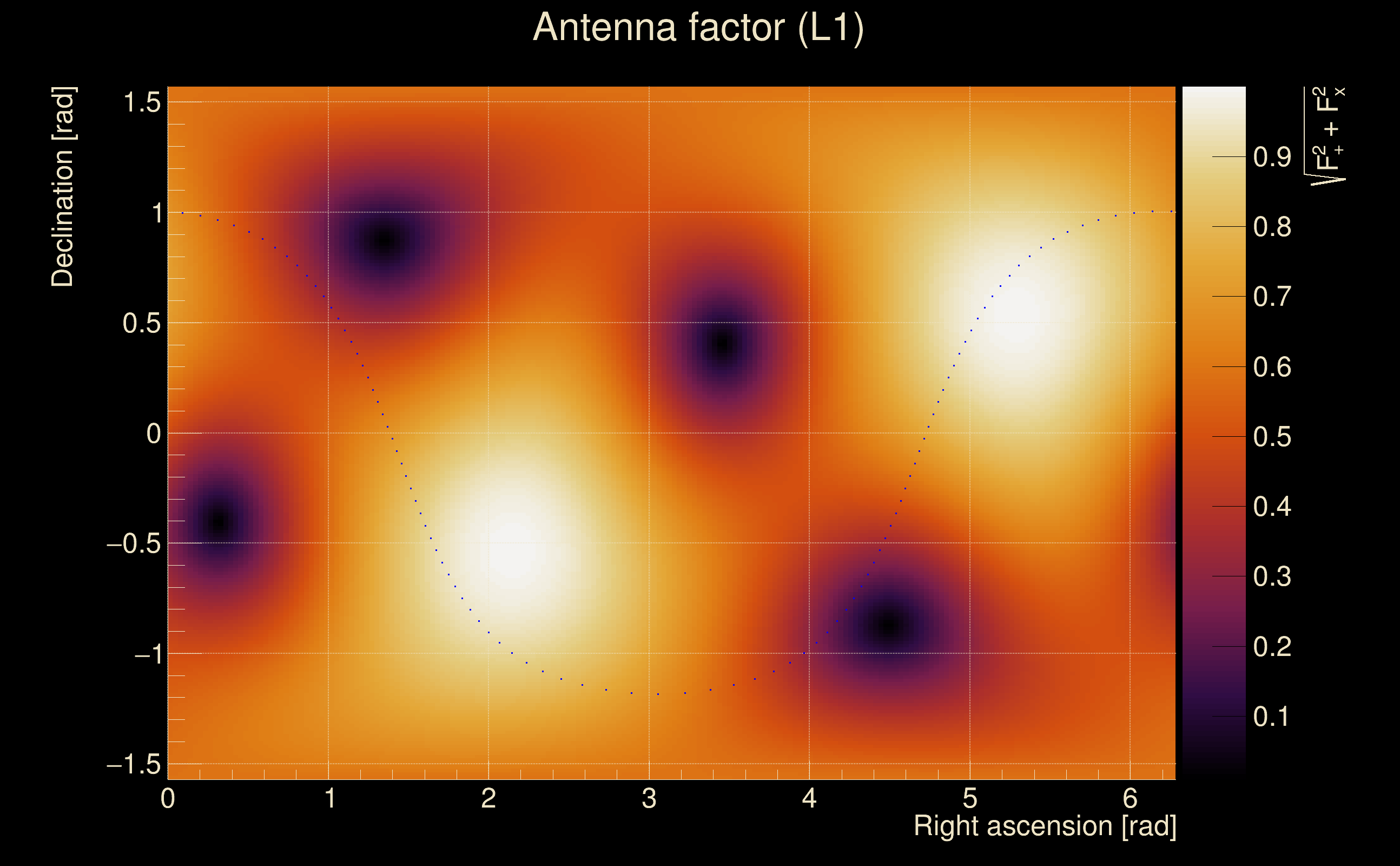

| Antenna factor probability: | 0.223368 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 225.596, L1: 237.231 |

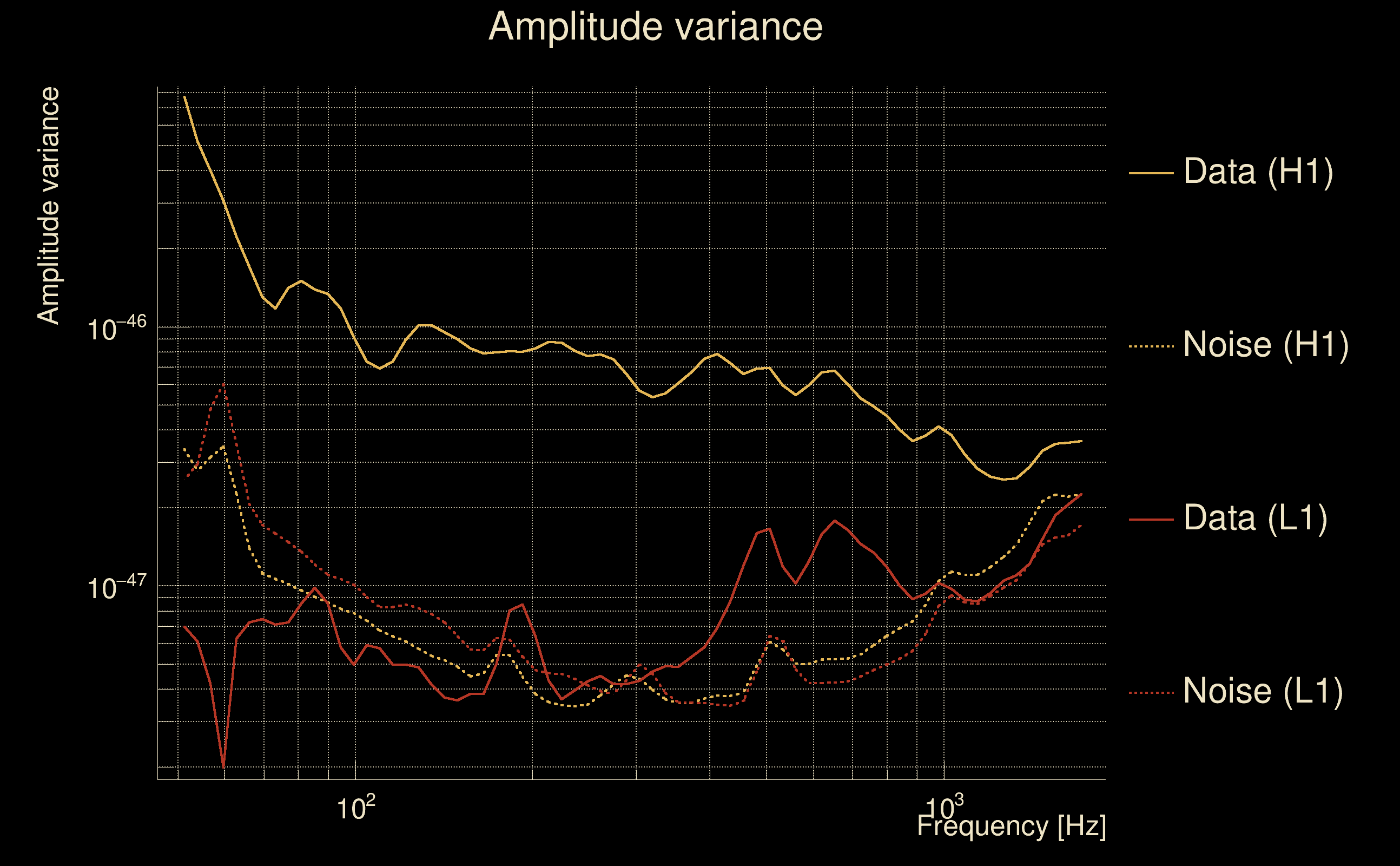

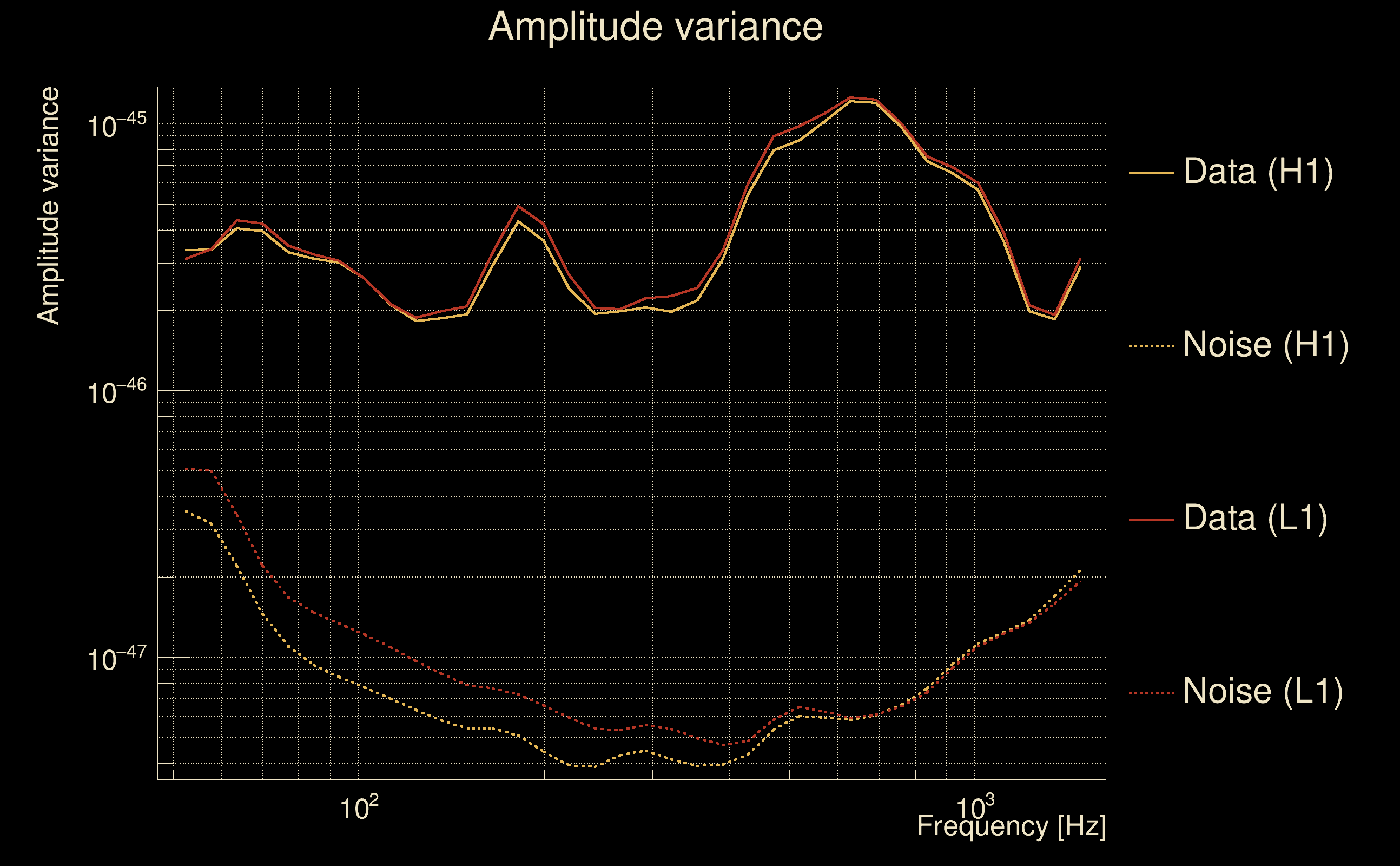

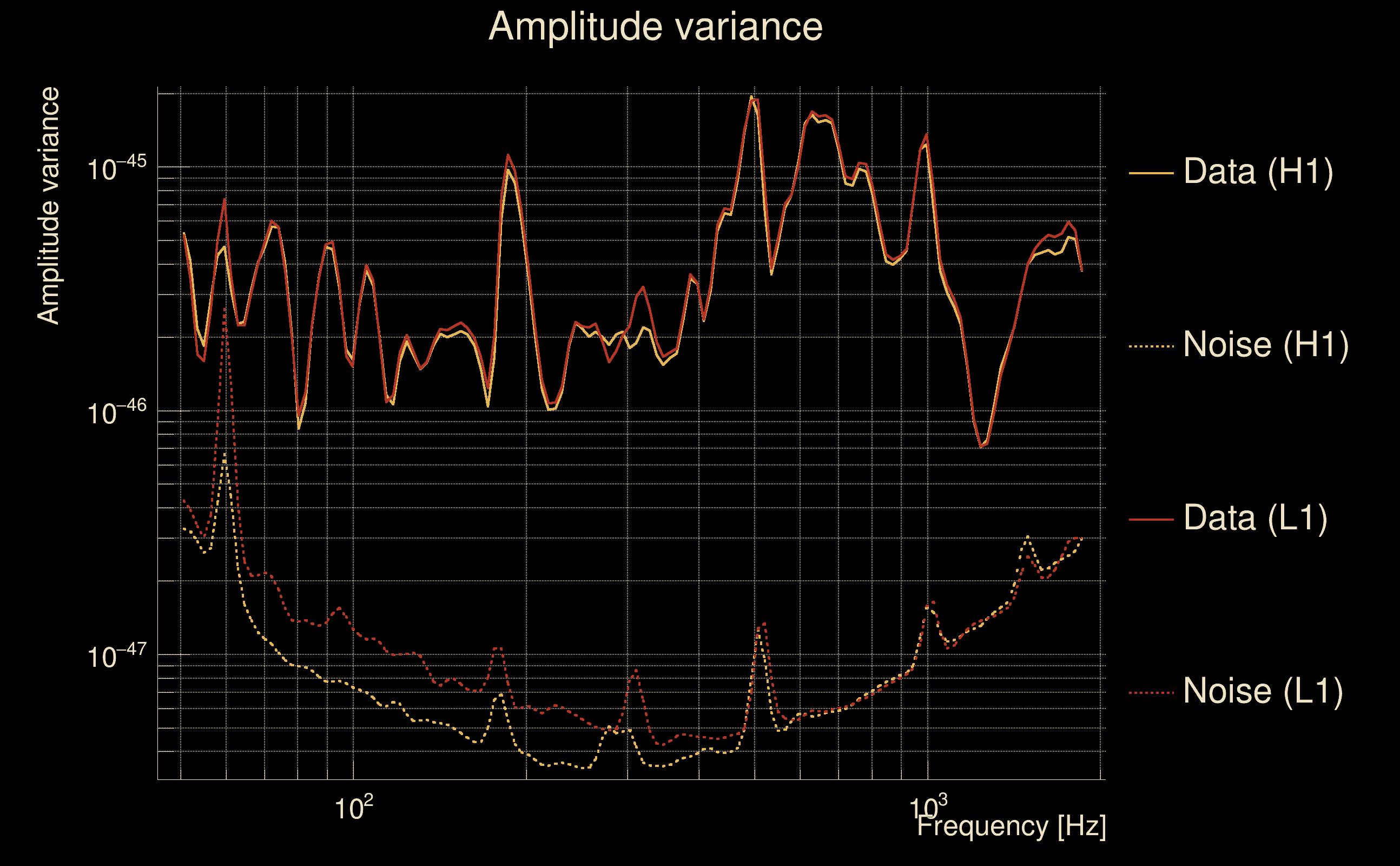

| SNR variance: | H1: 0.543482, L1: 0.521879 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

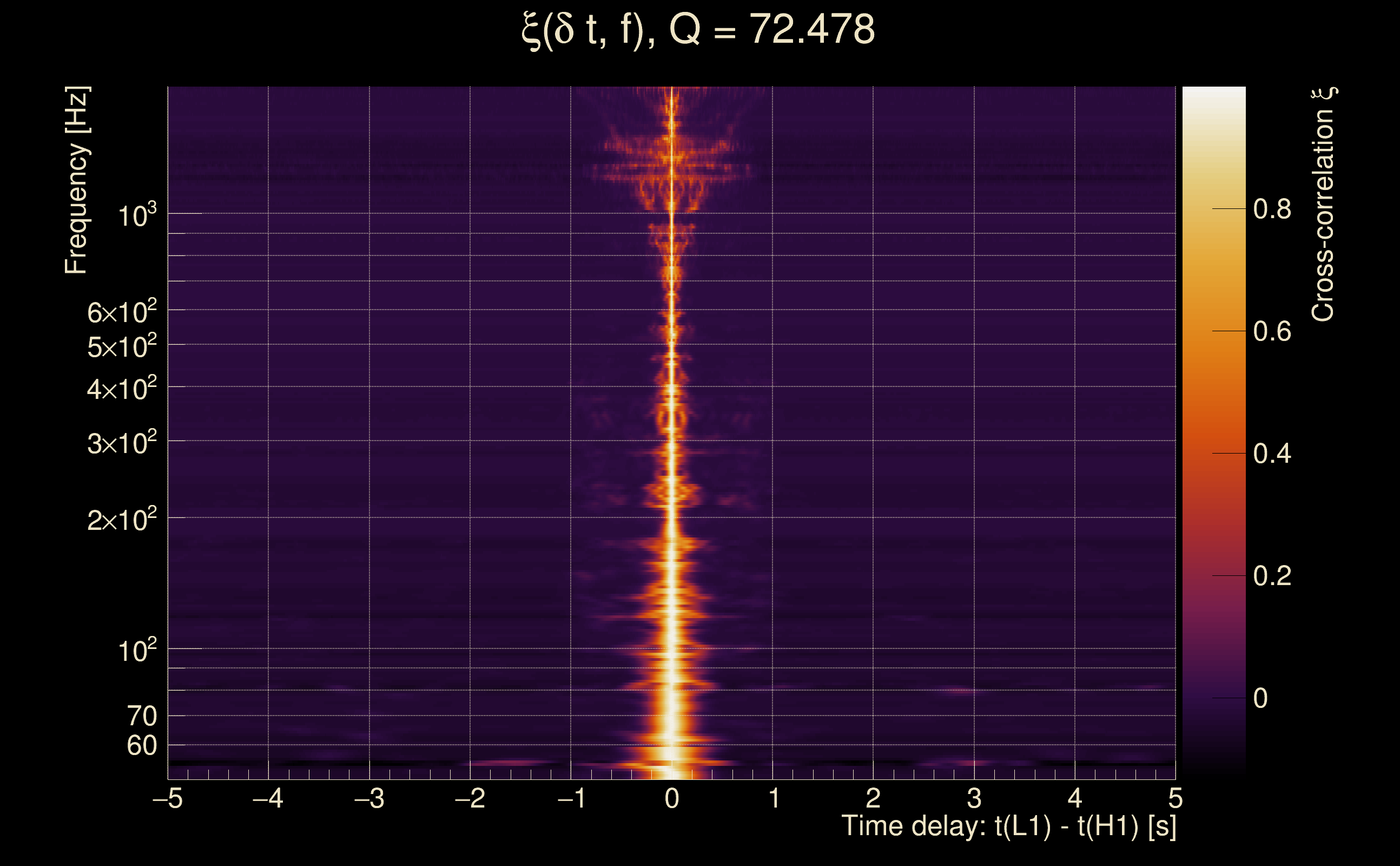

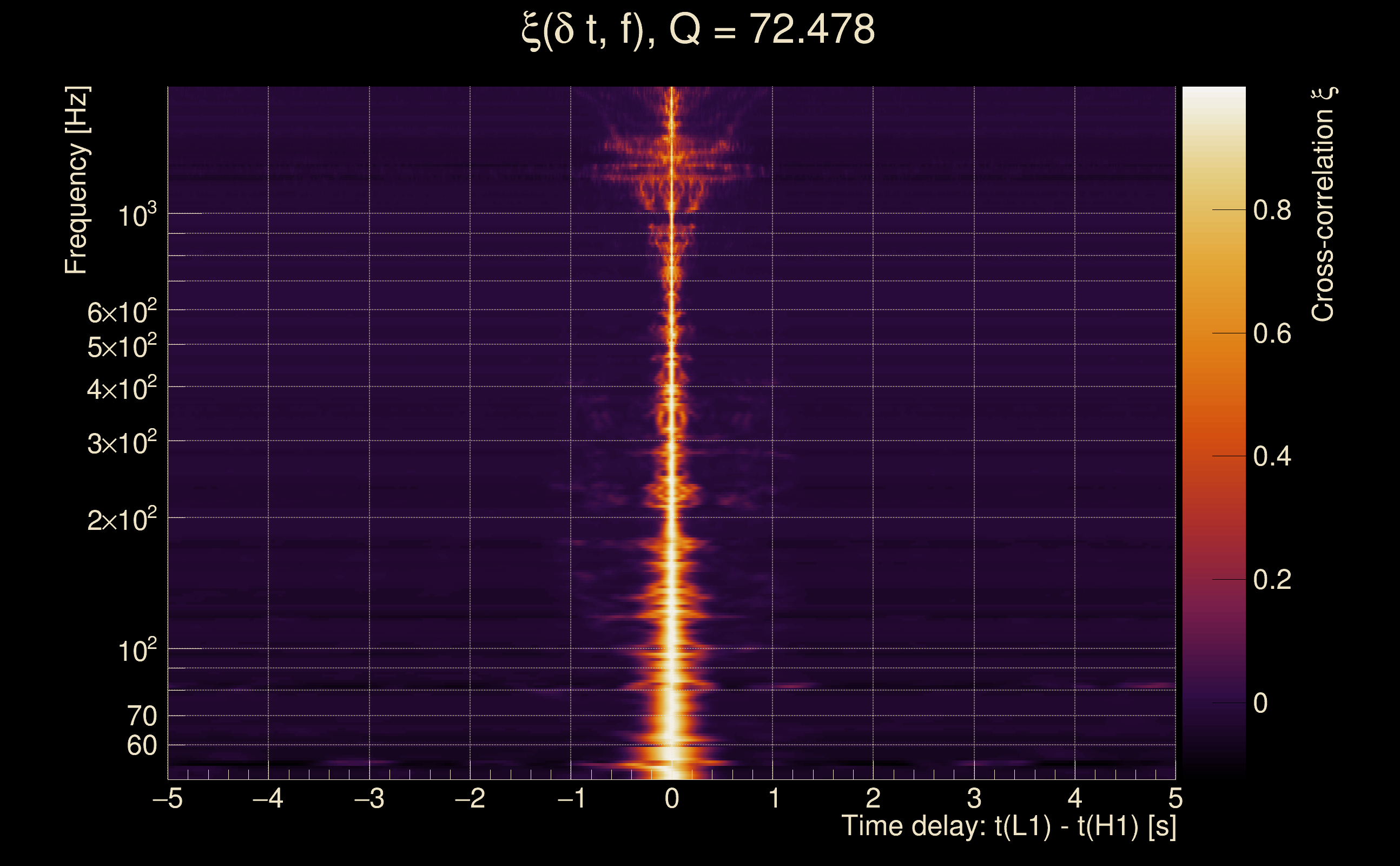

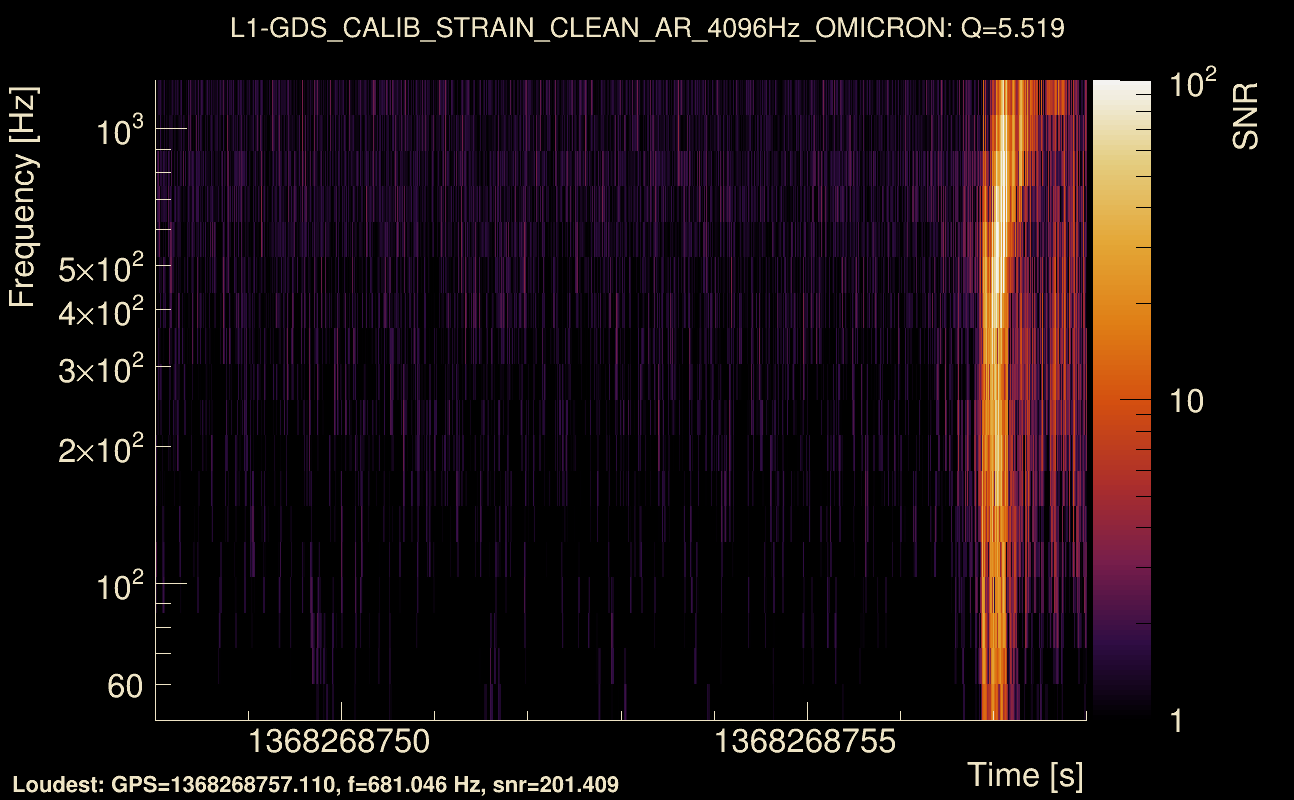

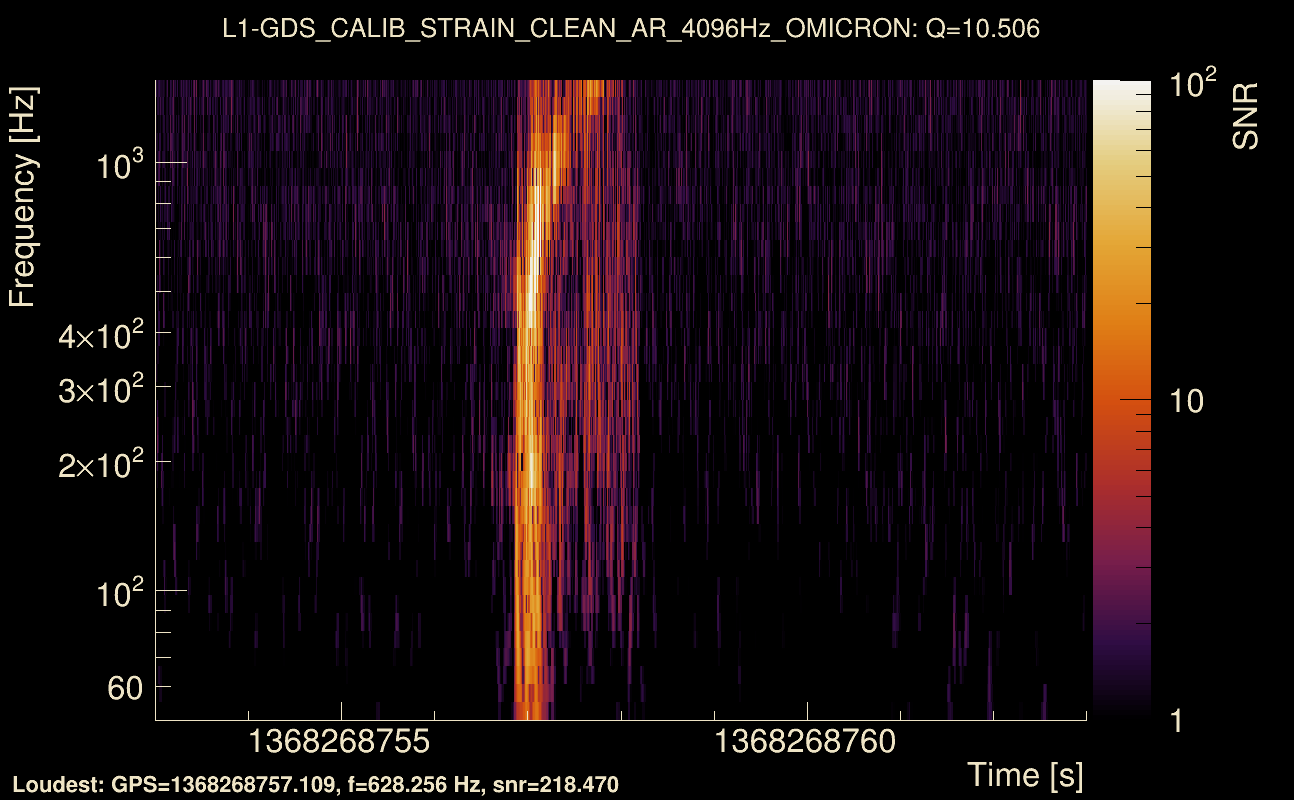

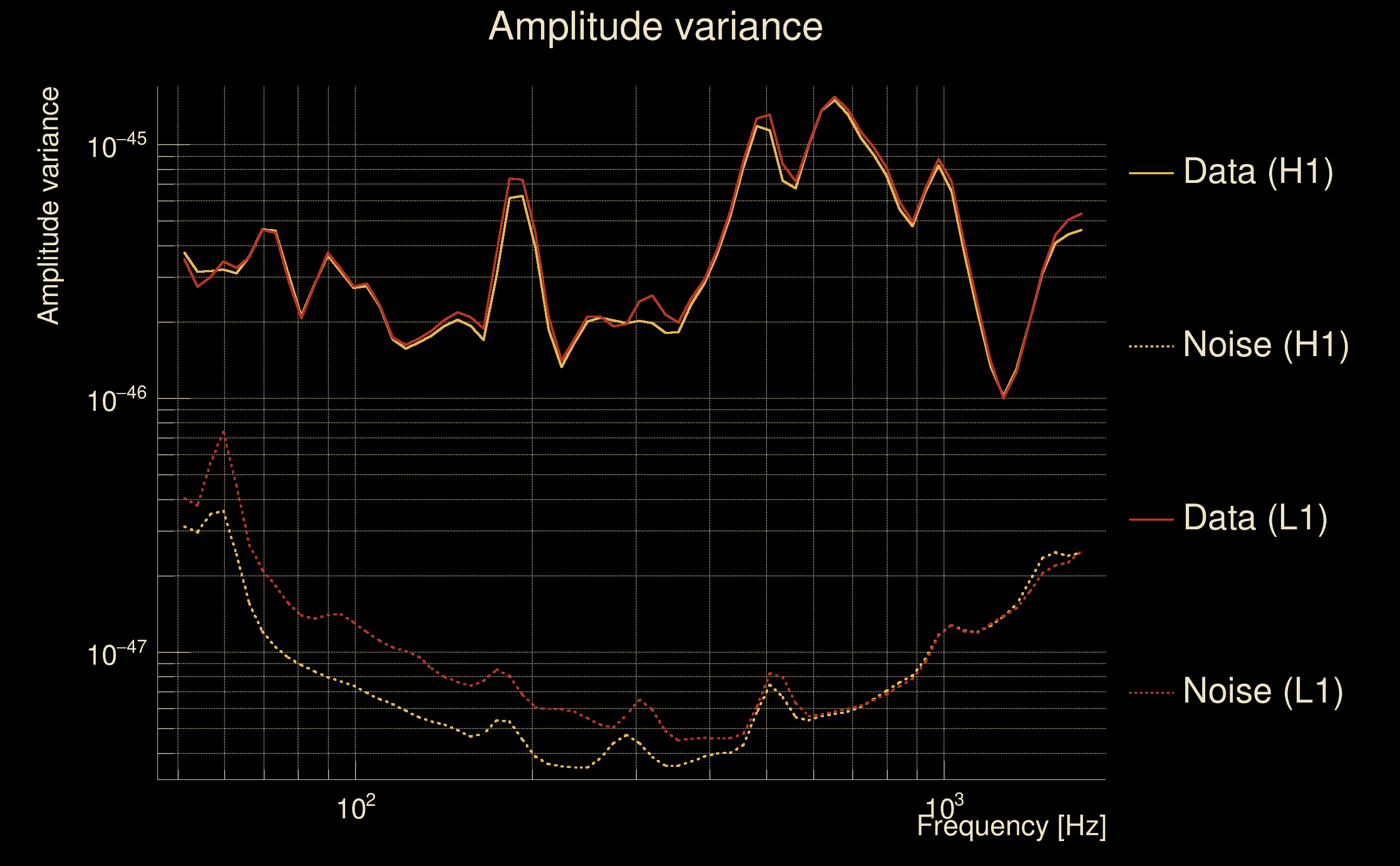

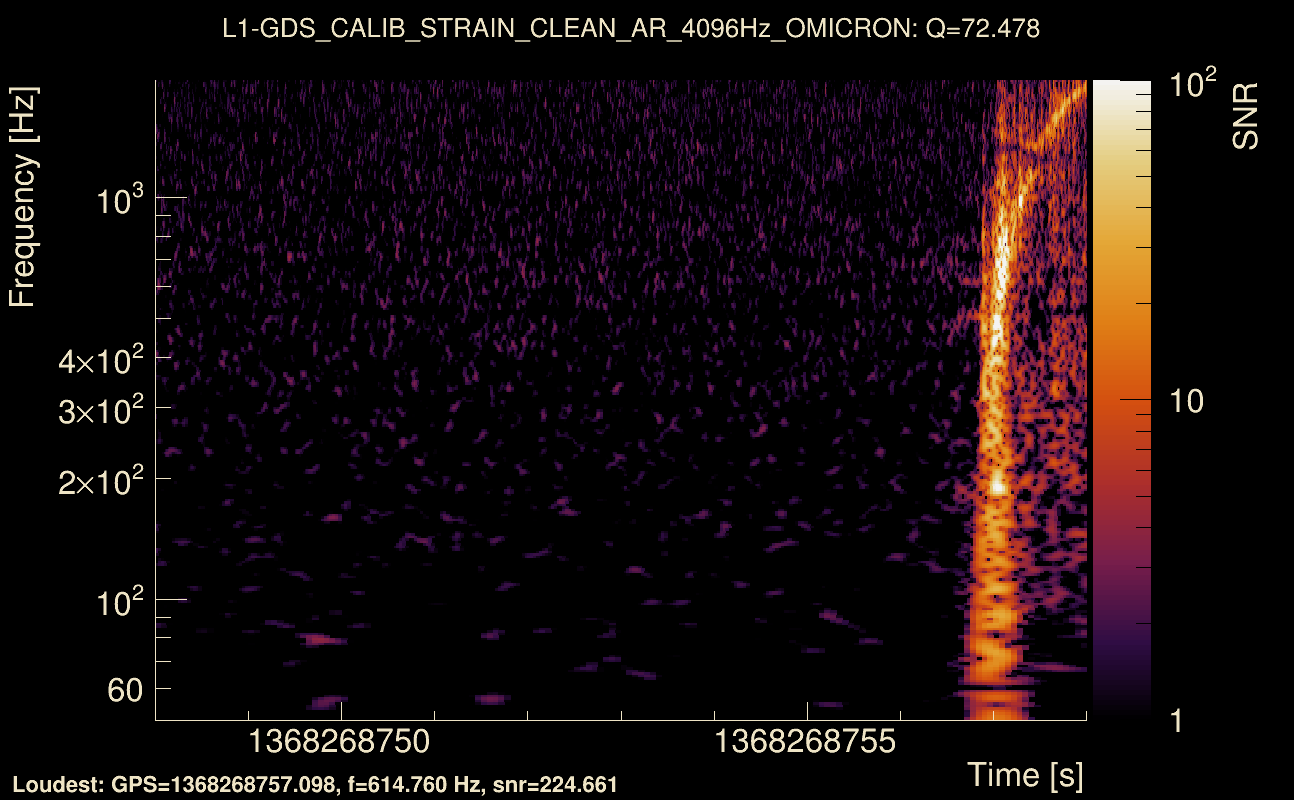

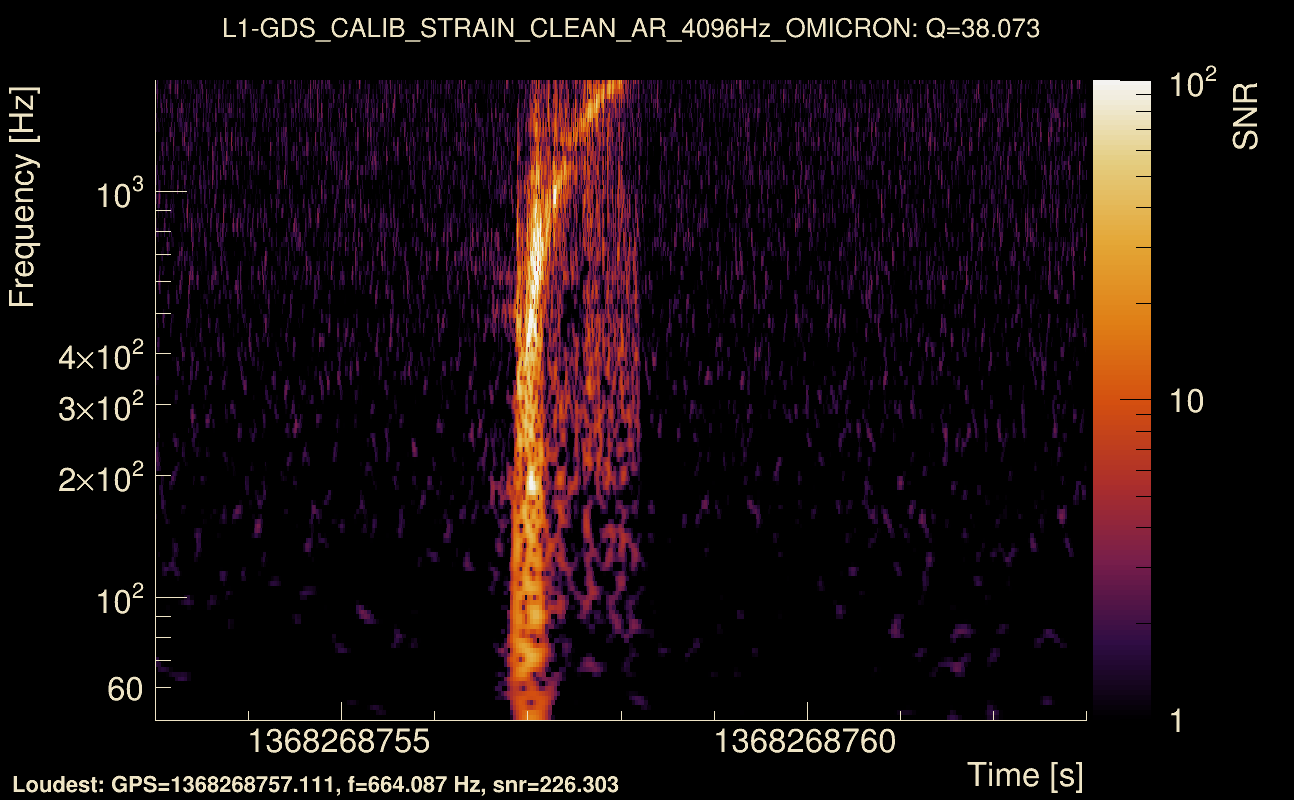

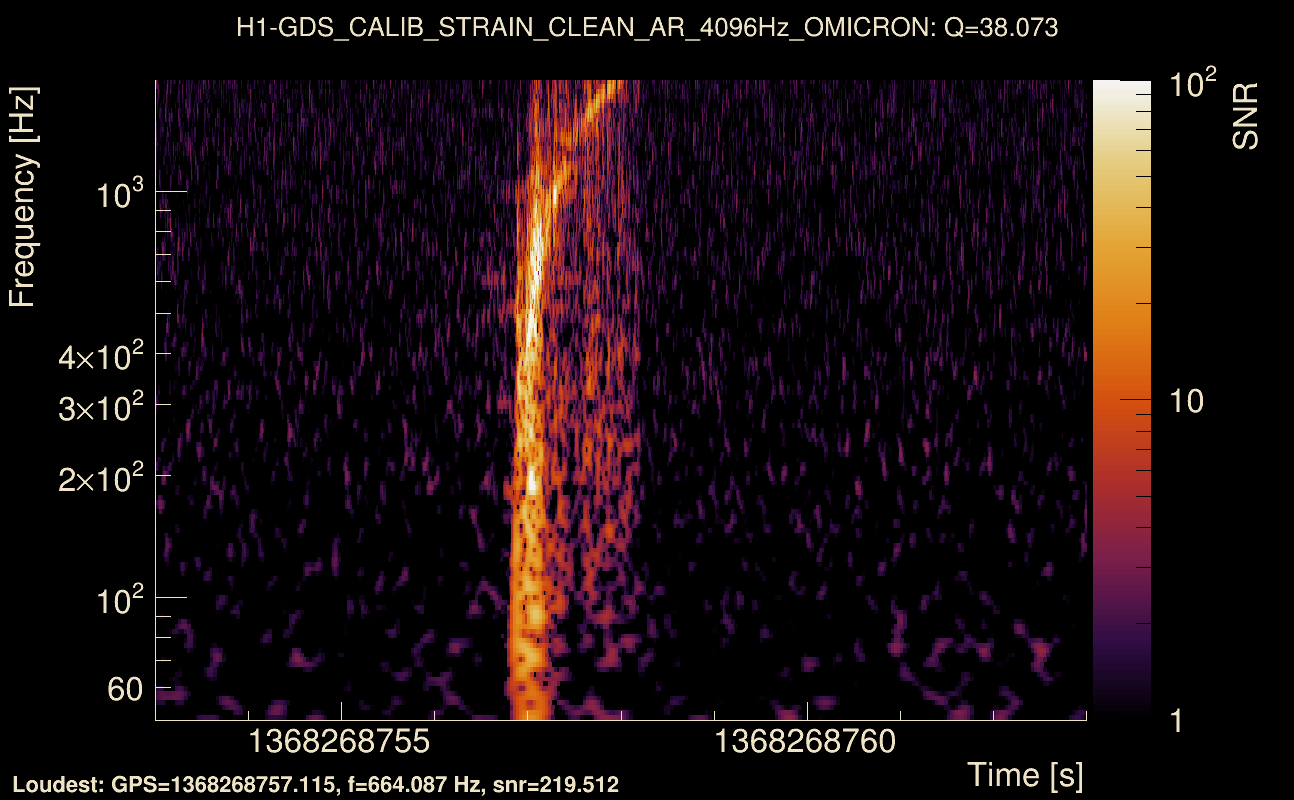

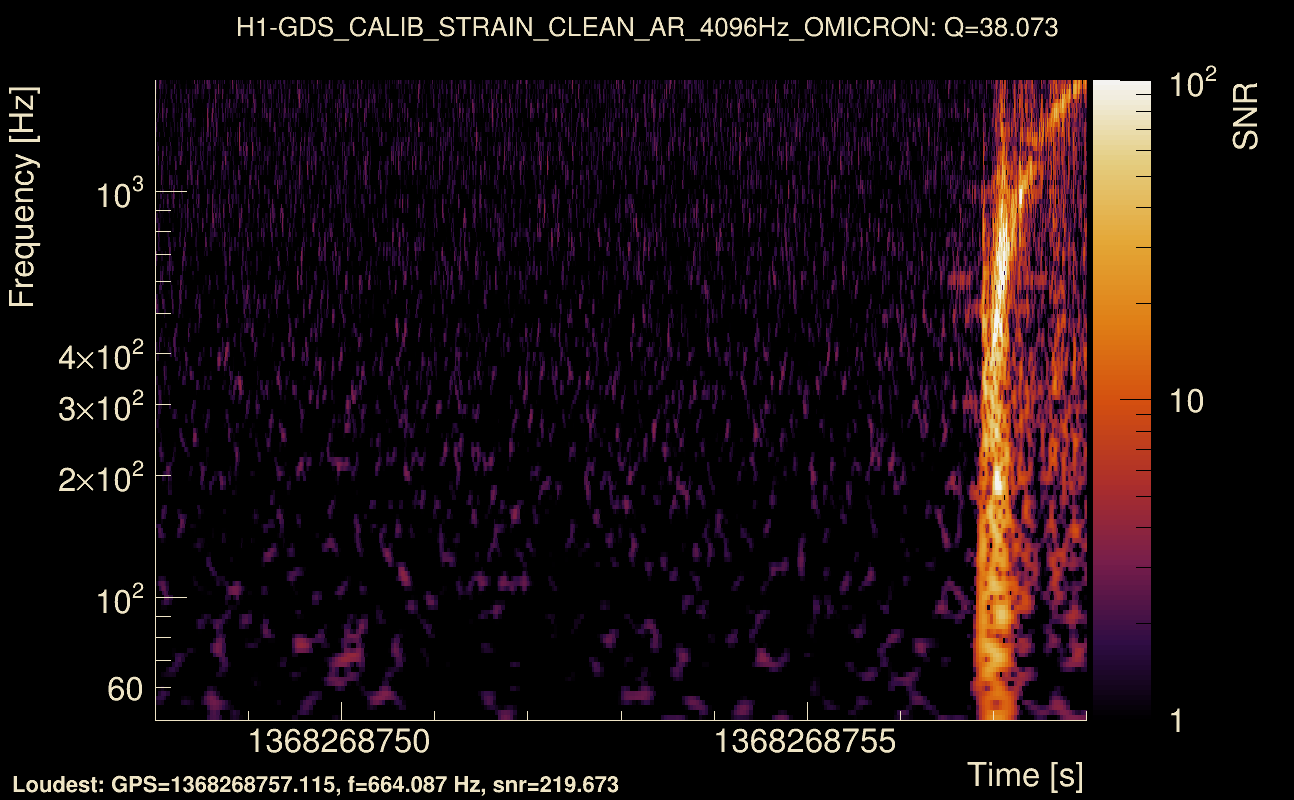

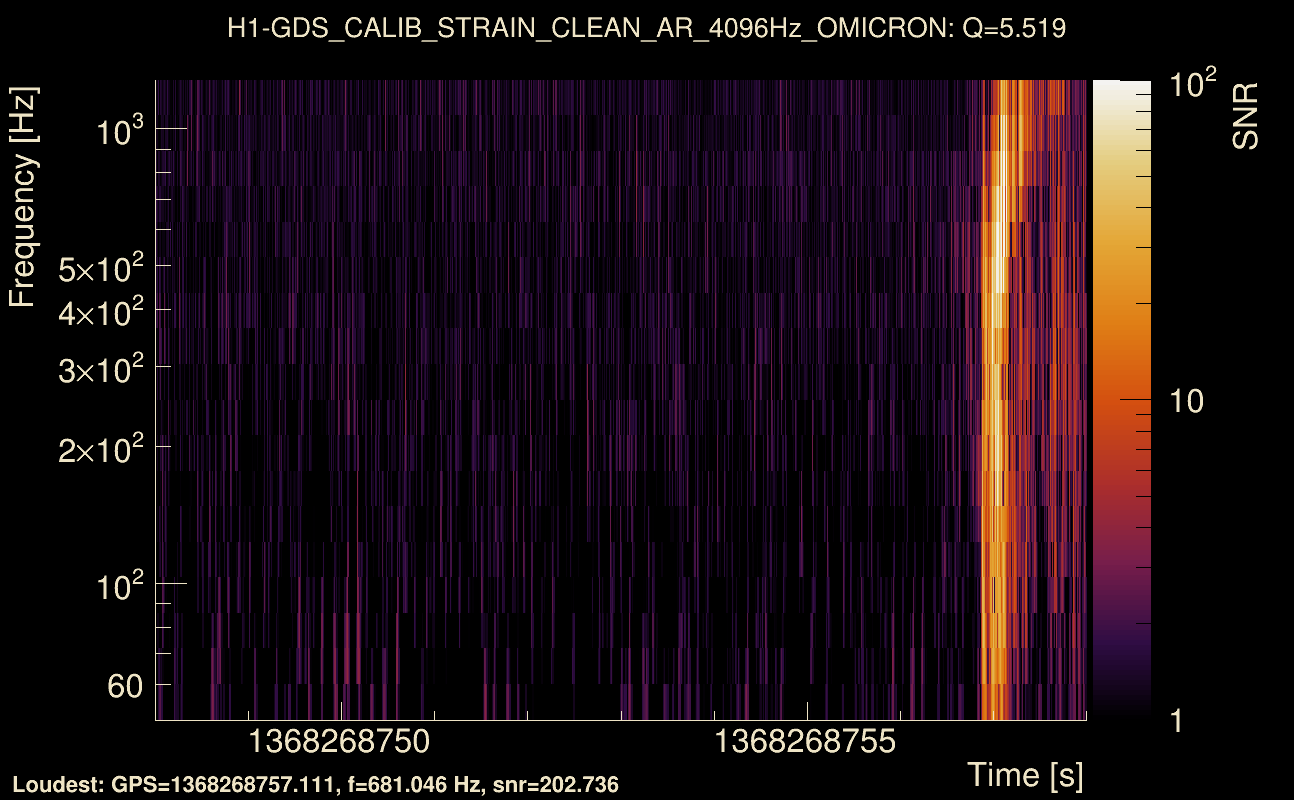

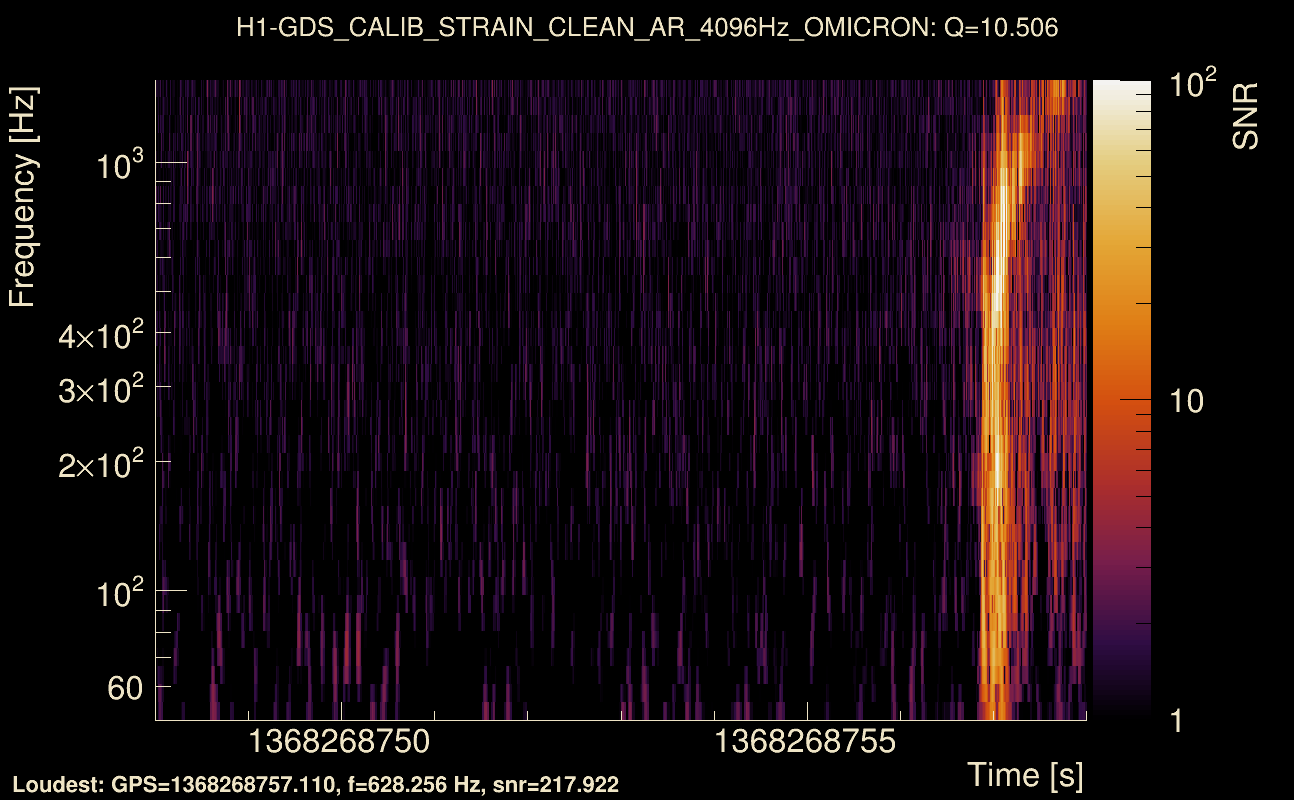

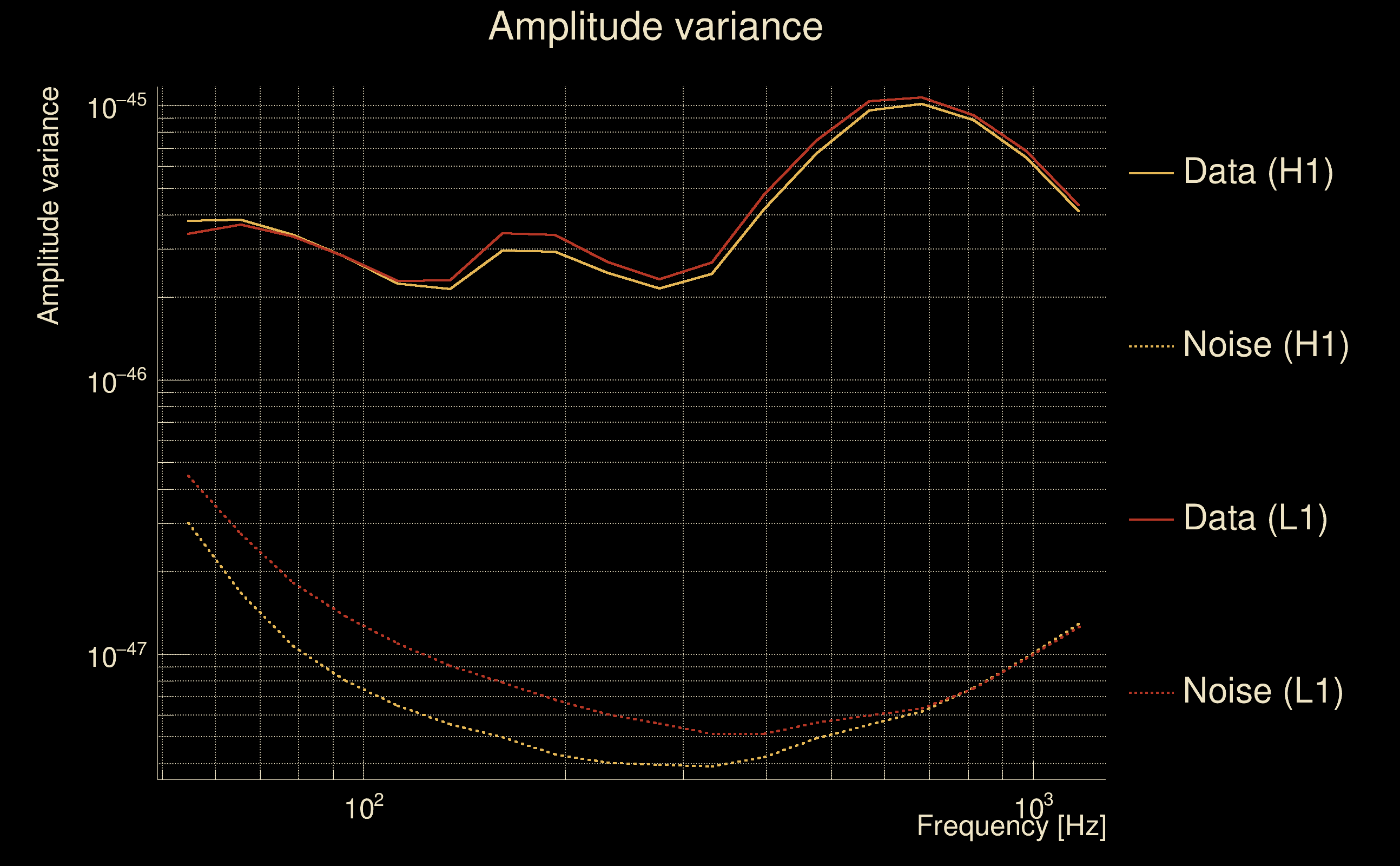

| Event time t(H1): | GPS = 1368268753 (Tue May 16 10:38:55 2023 ) → GPS = 1368268763 (Tue May 16 10:39:05 2023 ) |

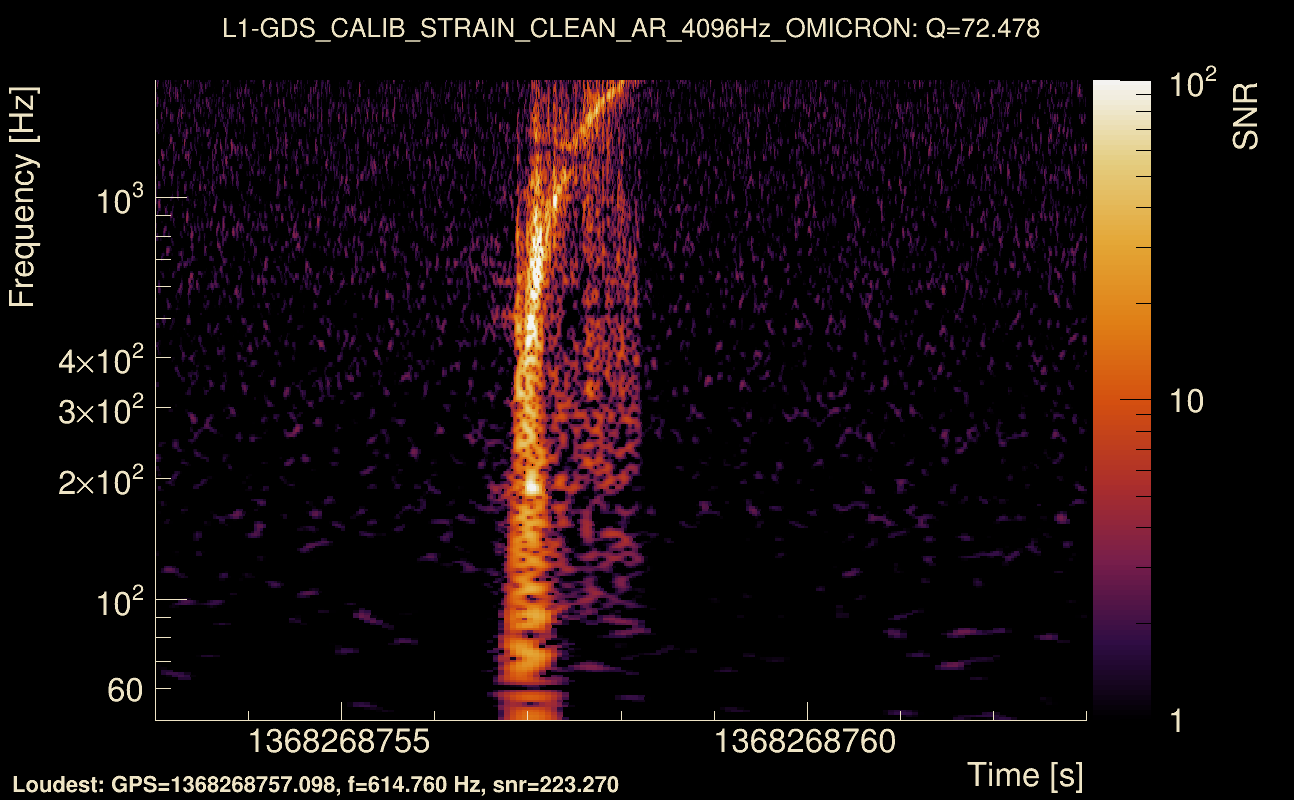

| Event time t(L1): | GPS = 1368268753 (Tue May 16 10:39:05 2023 ) → GPS = 1368268763 (Tue May 16 10:39:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368268750 → GPS = 1368268766 |
| Omicron analysis time window (L1): | GPS = 1368268750 → GPS = 1368268766 |
| Time delay between detectors t(L1) - t(H1): | -0.000902951 s (slice index = 108 / 217), δt_gw = -0.000902951 s |
| Time delay standard deviation: | 0.0183805 s |
| [targeted mode] Time delay probability: | 6.3879e-151 (26.1666 sigmas), δt_target = -0.00838947 s |
| Frequency: | 287.07 Hz |
| Ξ: | 0.985383 ± 0.00144935 (variance = 2.10062e-06): Q0: 0.987413, Q1: 0.984426, Q2: 0.982952, Q3: 0.984566, Q4: 0.985146 |
| Rank: | R_A = 0.985383 |
| Log of amplitude ratio (L1/H1): | 0.0219286, variance = 0.15088 (L1/H1: 0.00790378, variance = 0.300812, H1/L1: -0.0345138, variance = 0.300935) |
| Amplitude ratio (L1/H1): | 1.02217 ⋇ 1.47467 (L1/H1: 1.00794 ⋇ 1.73059, H1/L1: 0.966075 ⋇ 1.73079) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.972635 |

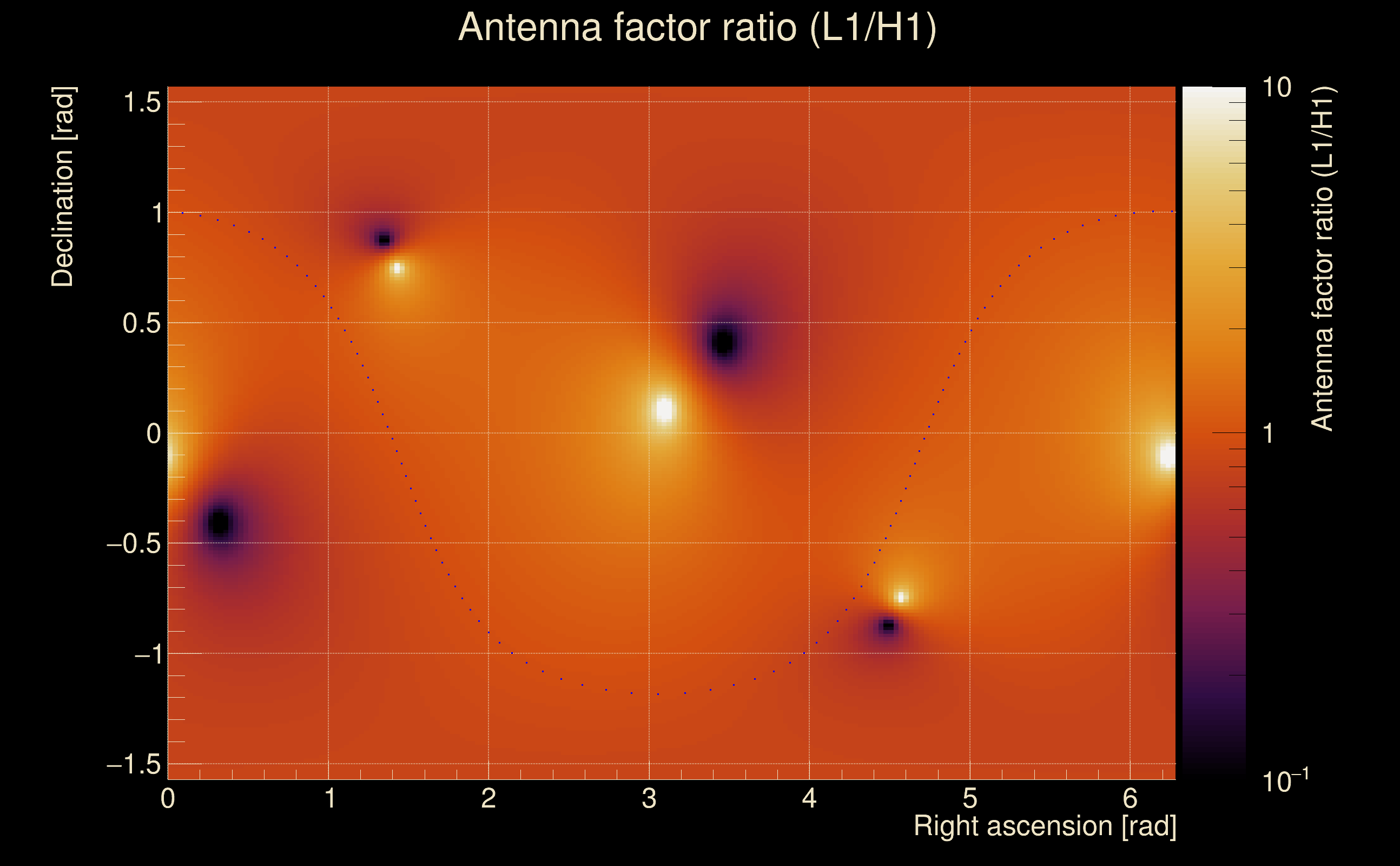

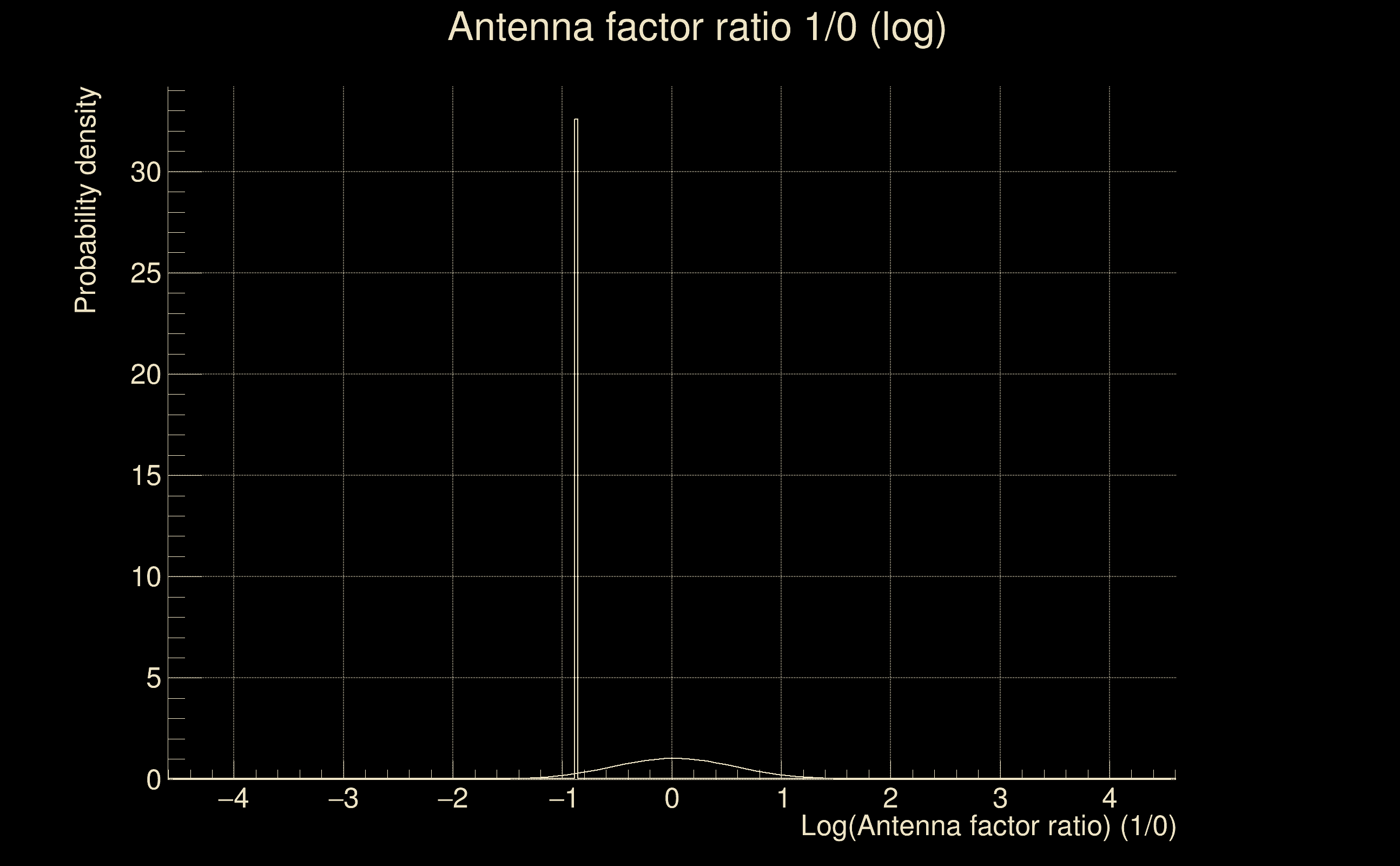

| Antenna factor probability: | 0.222383 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 0 / 134, Q4: 3 / 258 |
| Maximum signal-to-noise ratio: | H1: 224.548, L1: 237.043 |
| SNR variance: | H1: 35.5082, L1: 36.9639 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

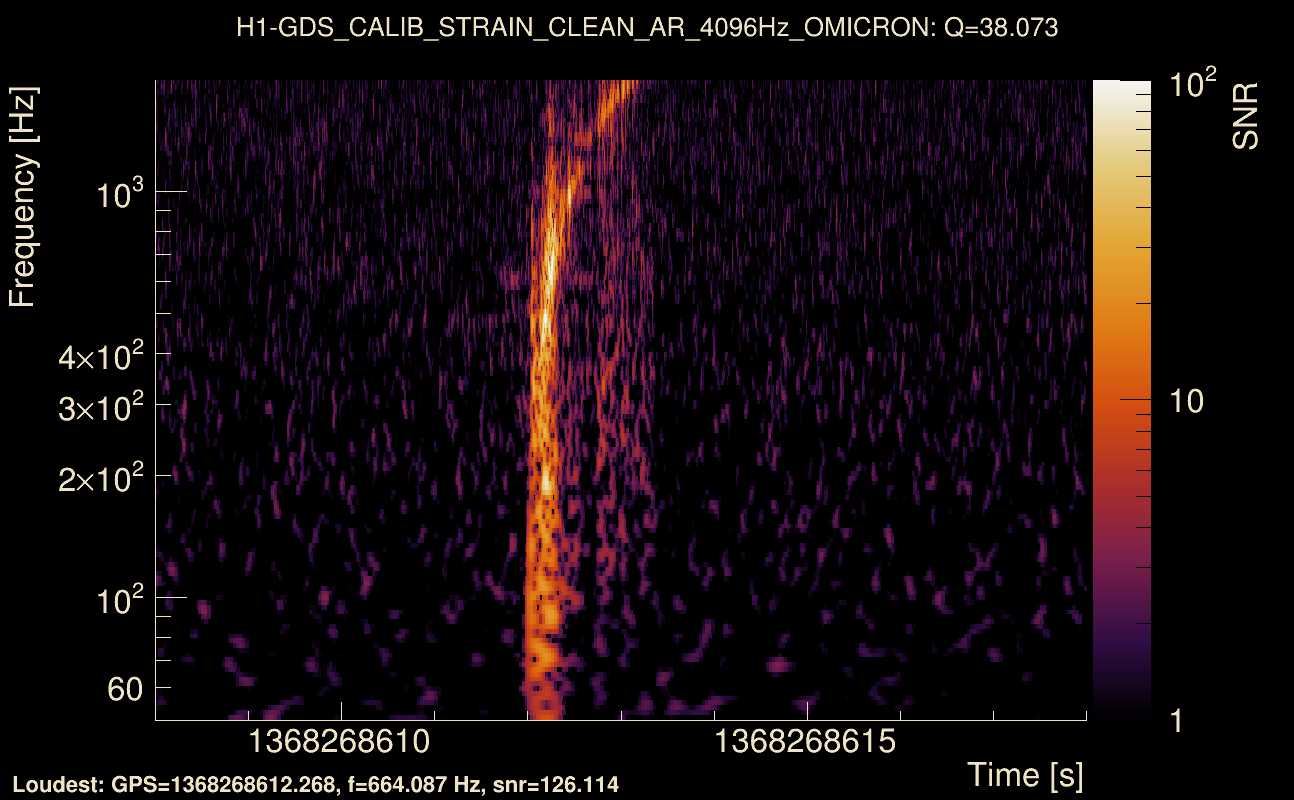

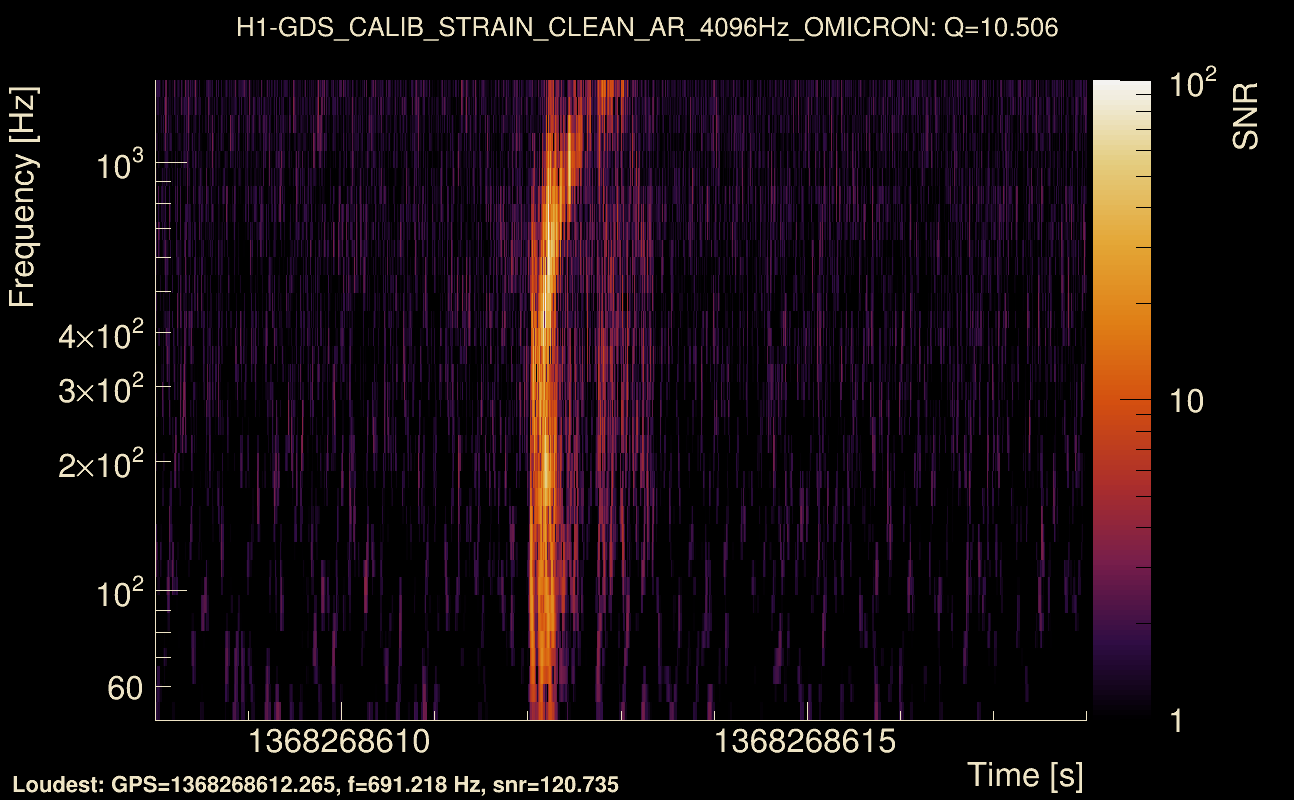

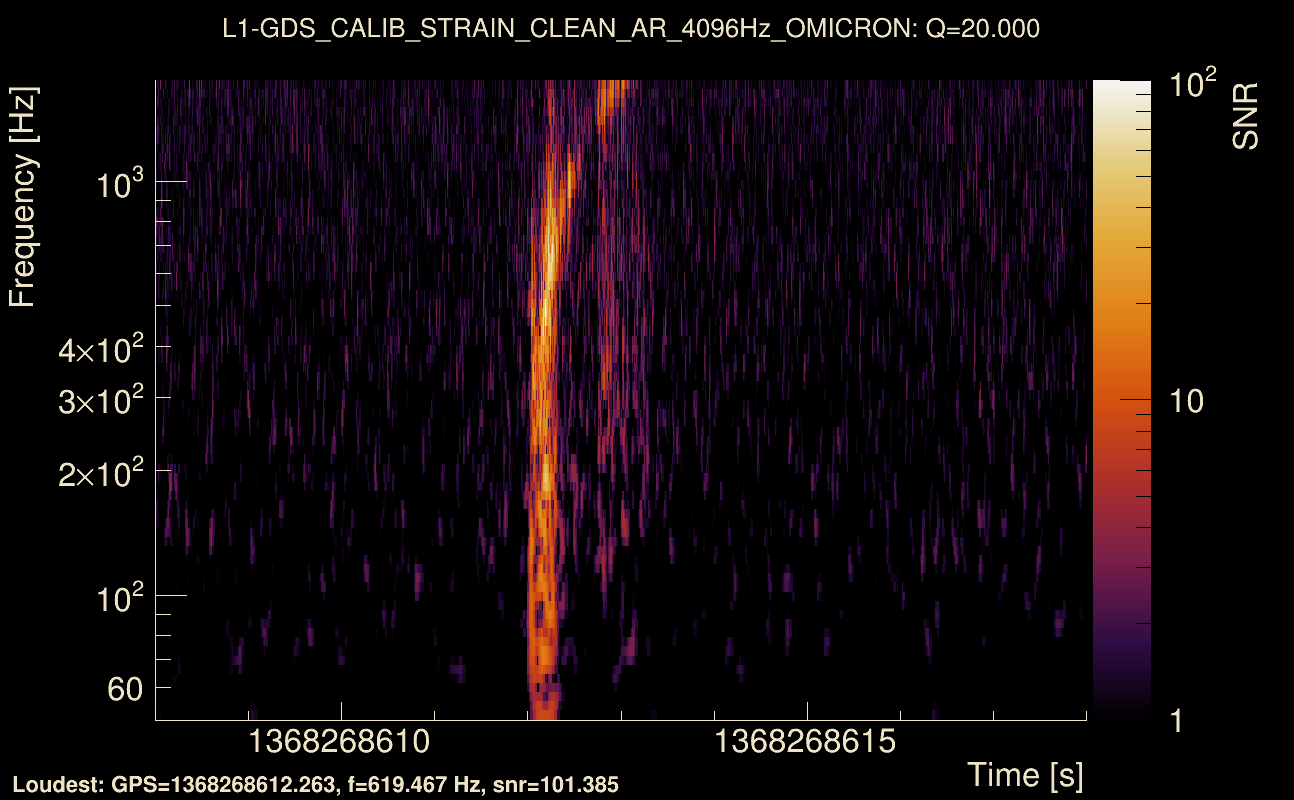

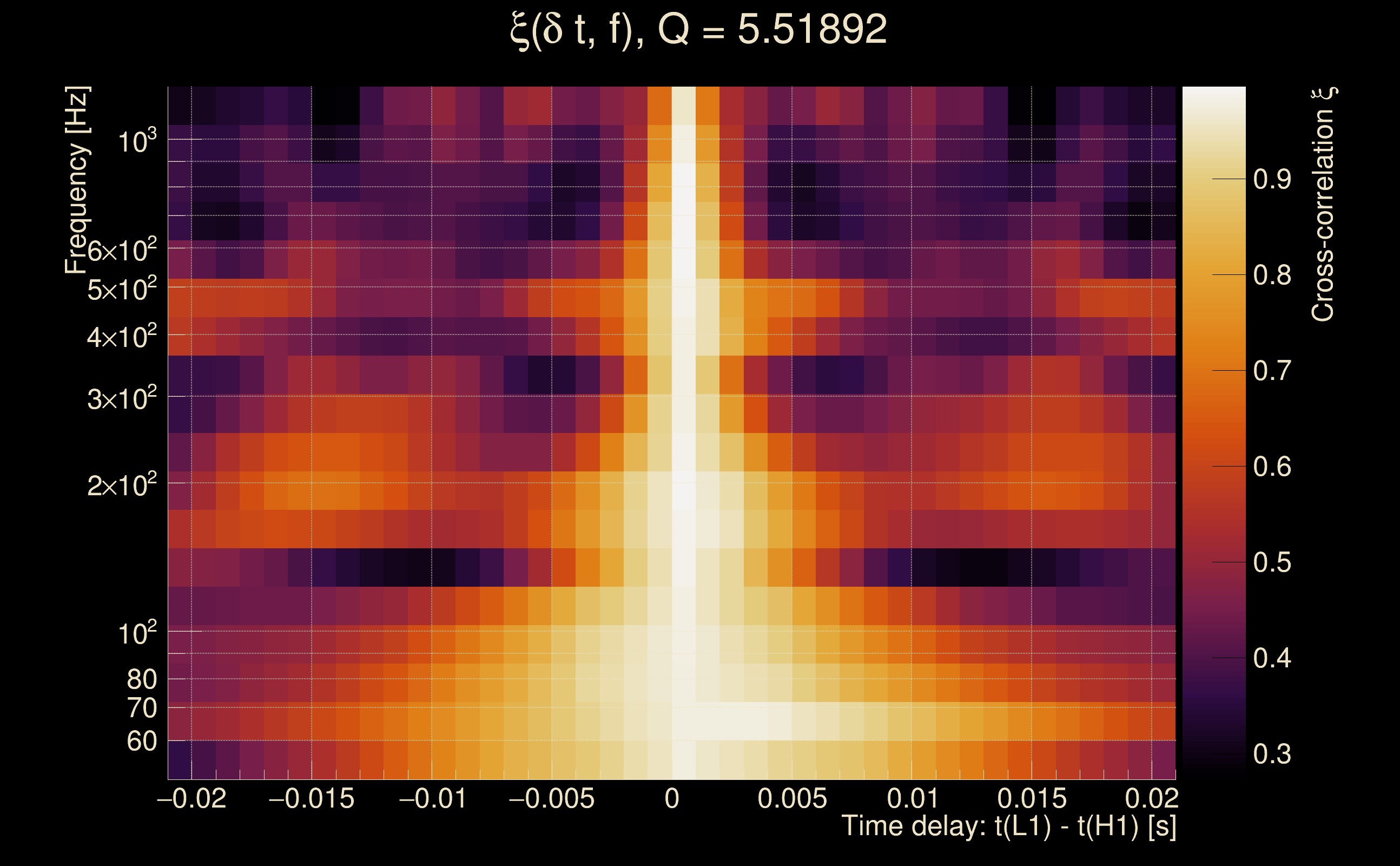

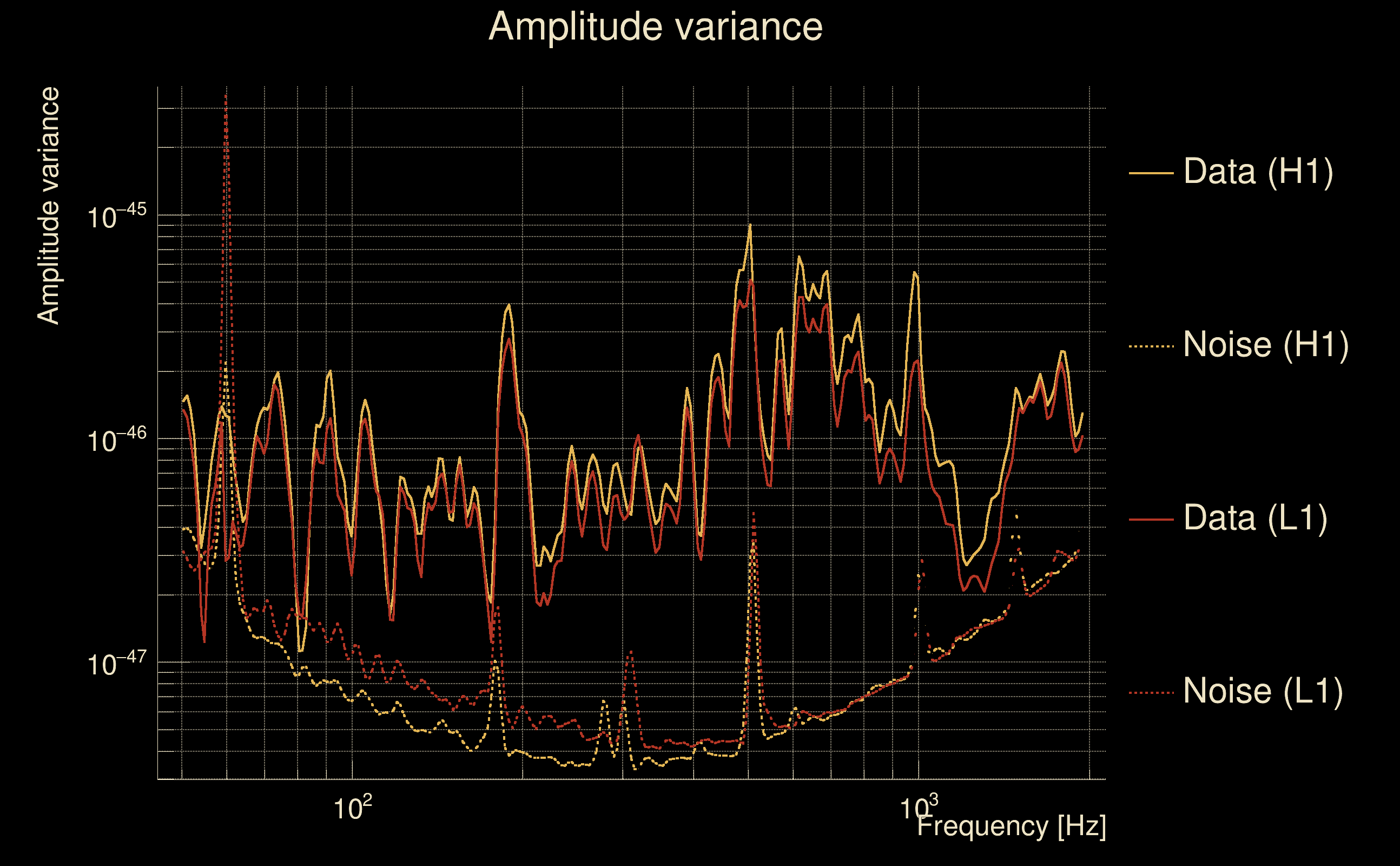

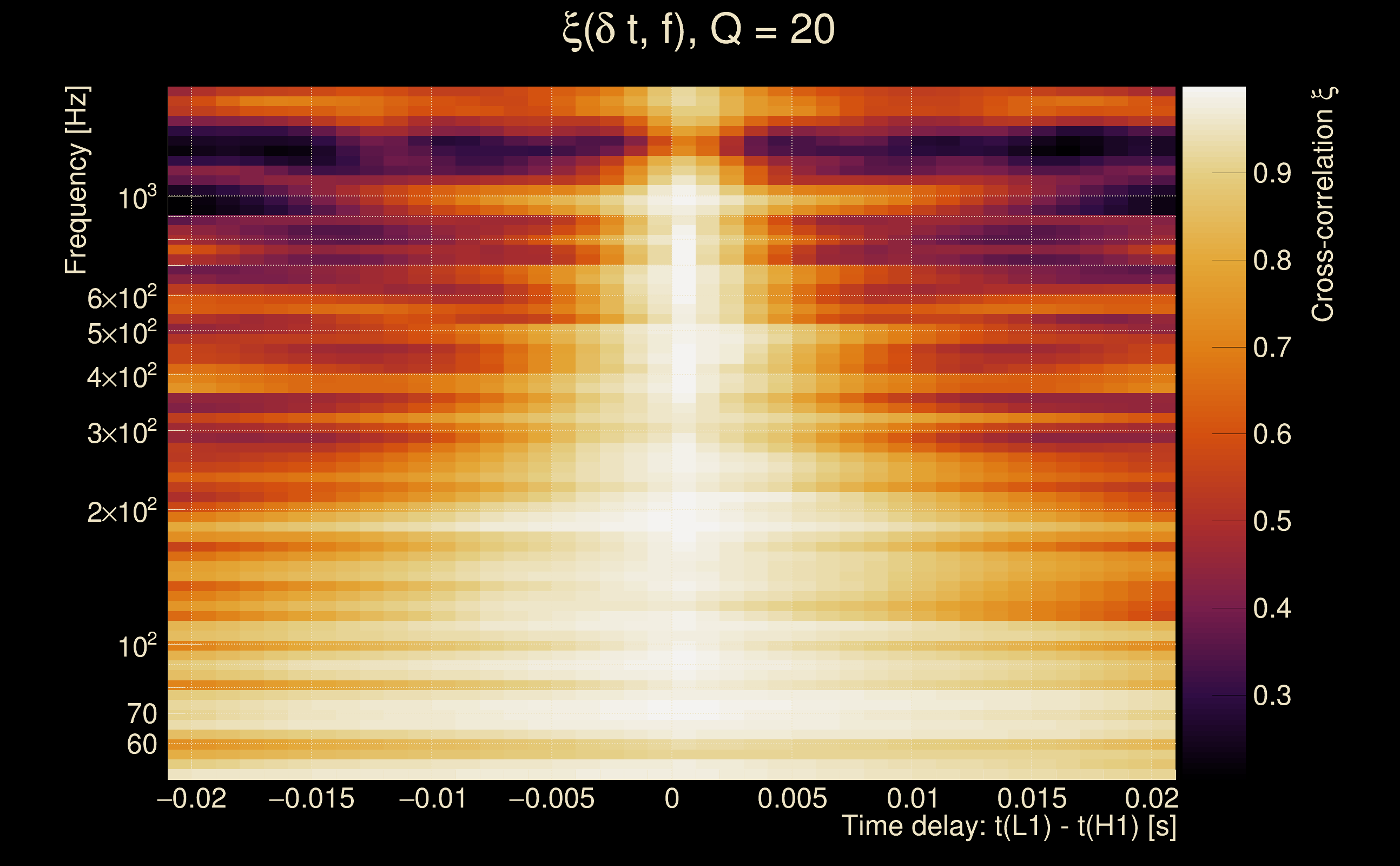

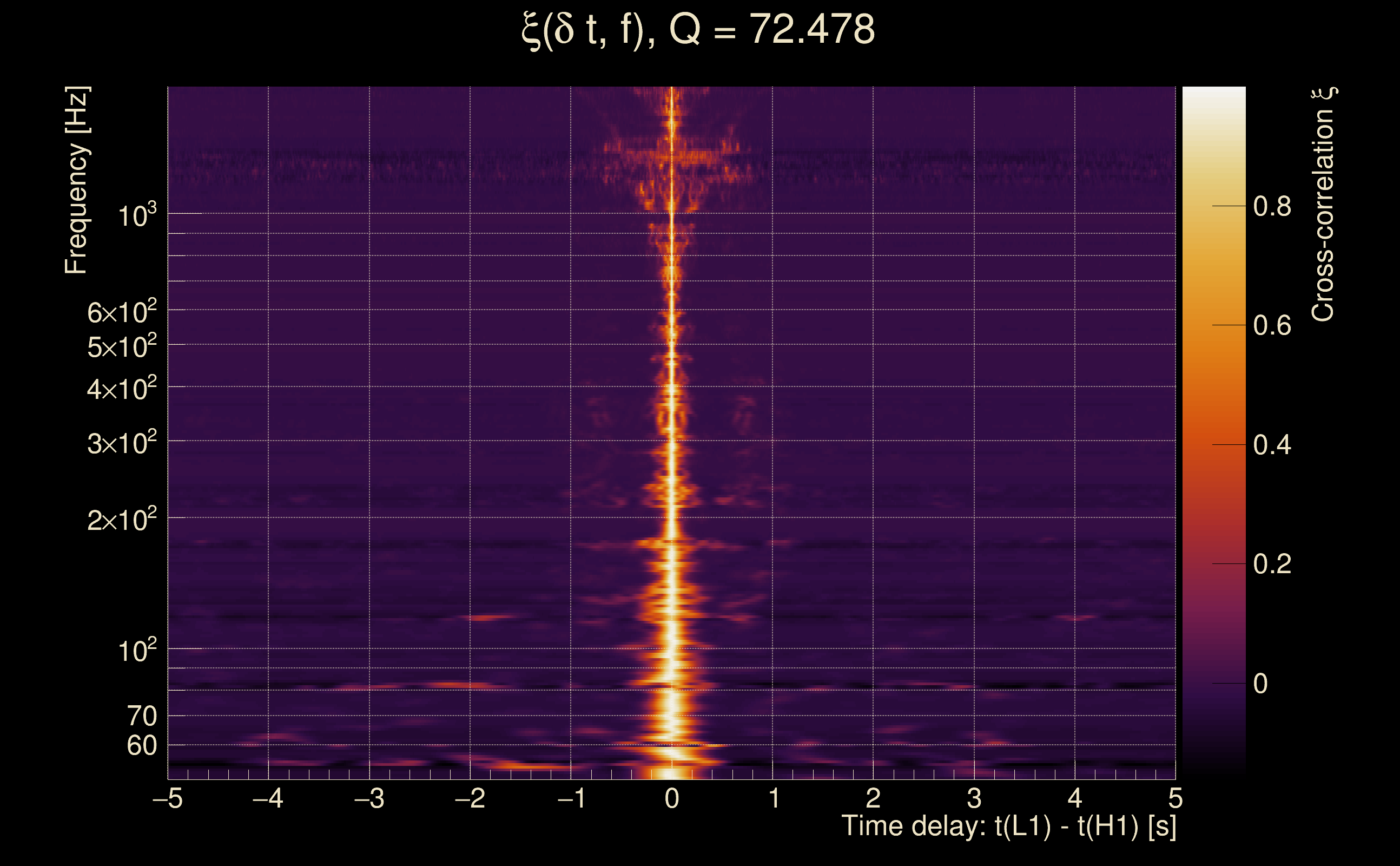

| Event time t(H1): | GPS = 1368268608 (Tue May 16 10:36:30 2023 ) → GPS = 1368268618 (Tue May 16 10:36:40 2023 ) |
| Event time t(L1): | GPS = 1368268608 (Tue May 16 10:36:40 2023 ) → GPS = 1368268618 (Tue May 16 10:36:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368268605 → GPS = 1368268621 |
| Omicron analysis time window (L1): | GPS = 1368268605 → GPS = 1368268621 |

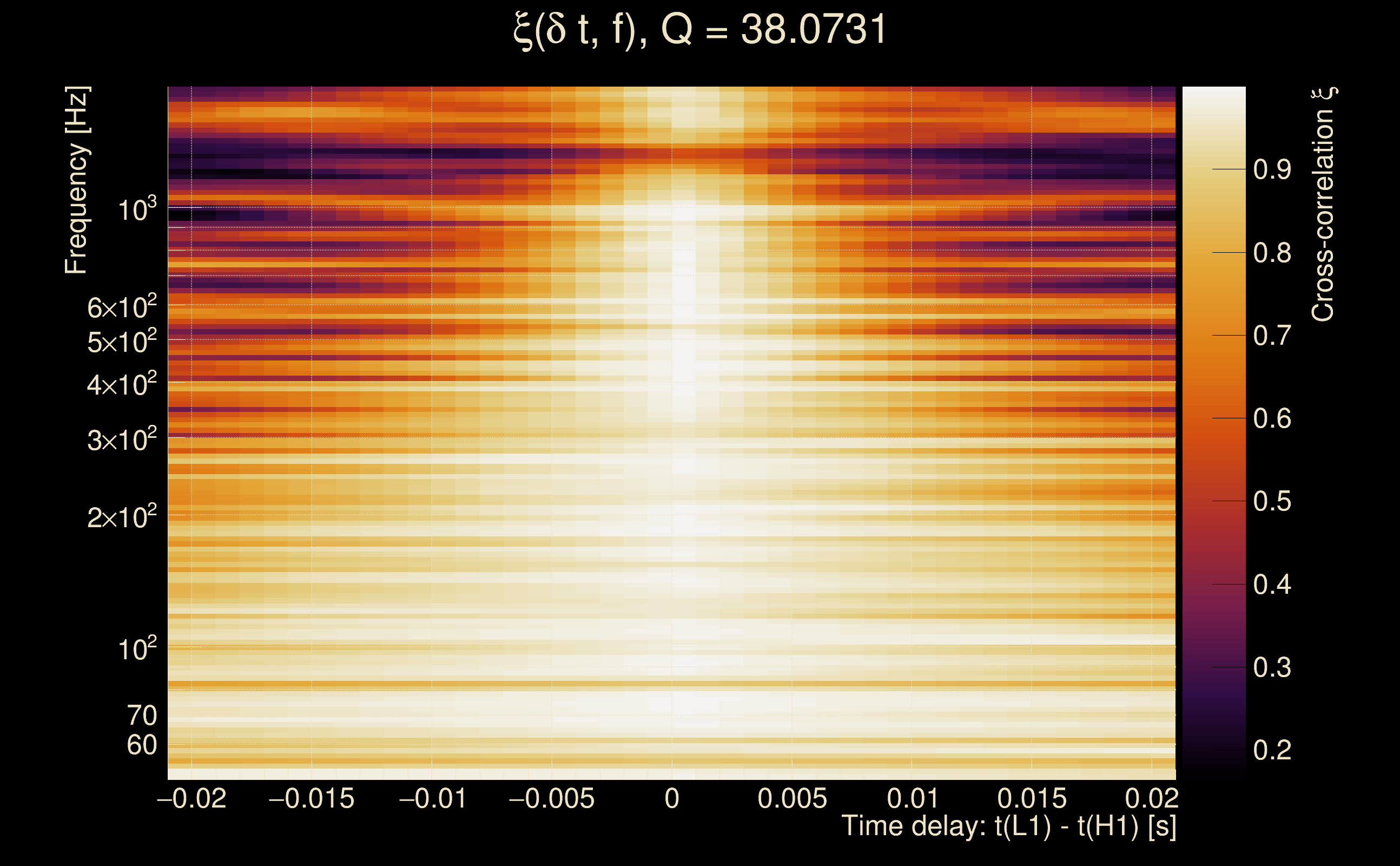

| Time delay between detectors t(L1) - t(H1): | 0 s (slice index = 108 / 217), δt_gw = 0 s |
| Time delay standard deviation: | 0.00665941 s |
| [targeted mode] Time delay probability: | 0 (178.245 sigmas), δt_target = -0.0083909 s |
| Frequency: | 290.945 Hz |
| Ξ: | 0.974693 ± 0.00768699 (variance = 5.90898e-05): Q0: 0.985206, Q1: 0.976891, Q2: 0.971232, Q3: 0.968221, Q4: 0.96273 |
| Rank: | R_A = 0.974693 |
| Log of amplitude ratio (L1/H1): | -0.165544, variance = 0.154659 (L1/H1: -0.173191, variance = 0.304127, H1/L1: 0.155508, variance = 0.303165) |
| Amplitude ratio (L1/H1): | 0.847432 ⋇ 1.48181 (L1/H1: 0.840977 ⋇ 1.73582, H1/L1: 1.16825 ⋇ 1.7343) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.981897 |
| Antenna factor probability: | 0.467827 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 0 / 70, Q3: 5 / 134, Q4: 16 / 258 |
| Maximum signal-to-noise ratio: | H1: 126.605, L1: 110.513 |

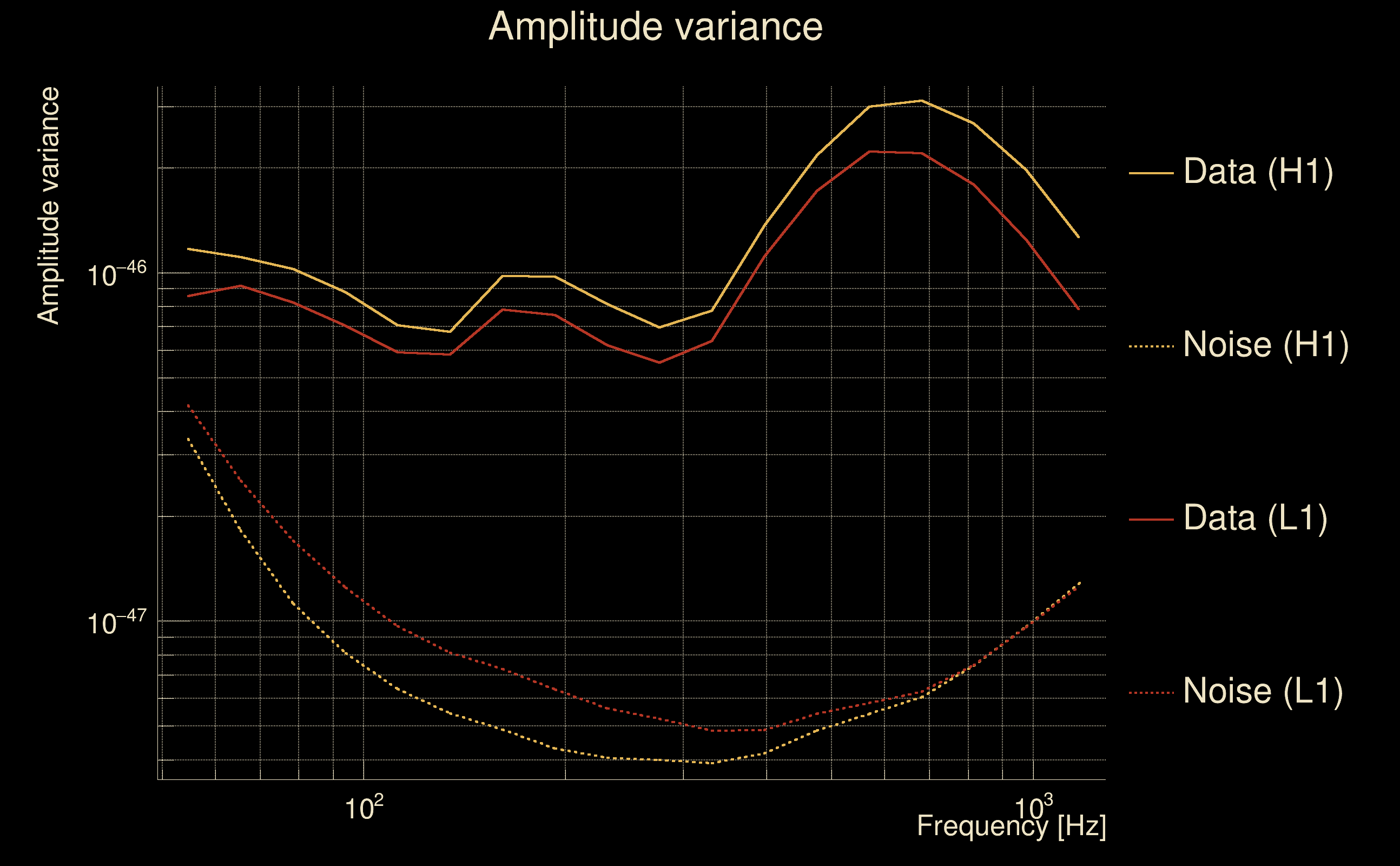

| SNR variance: | H1: 10.8852, L1: 7.68034 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

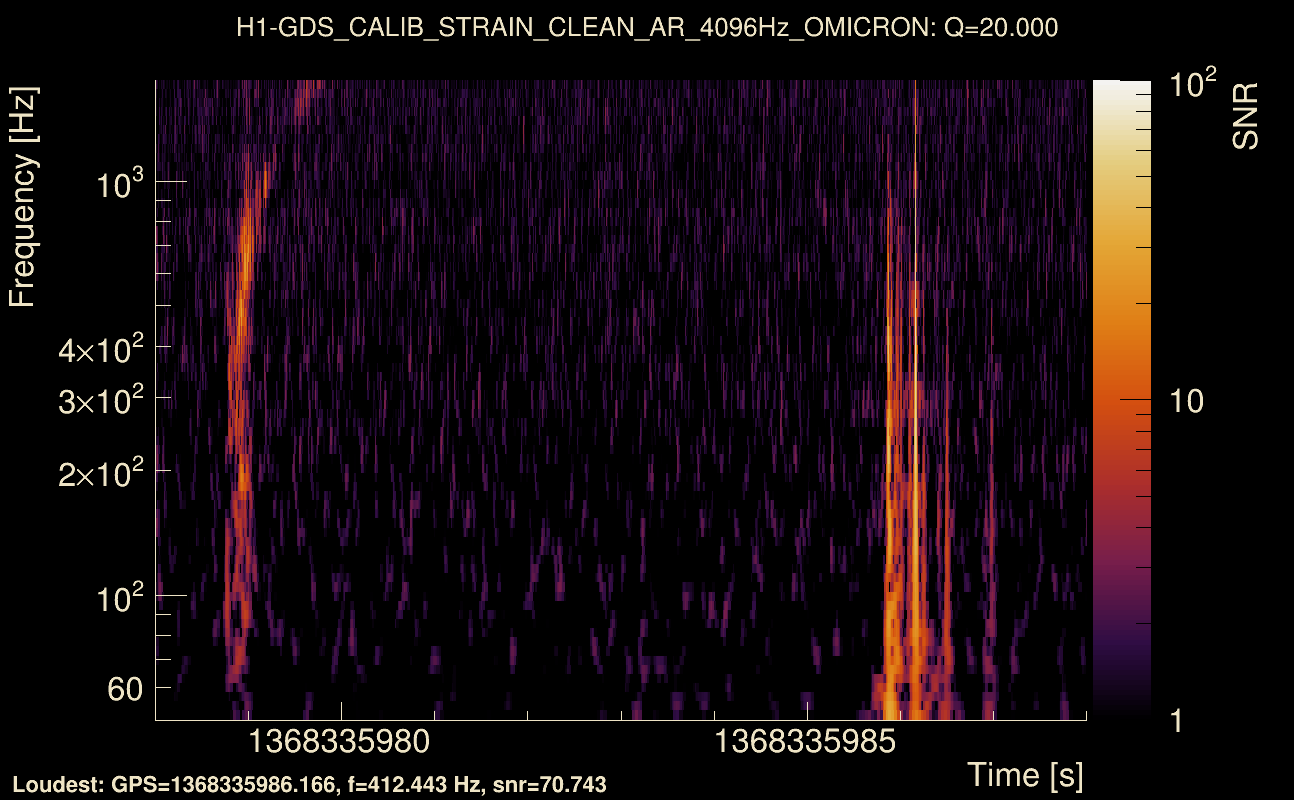

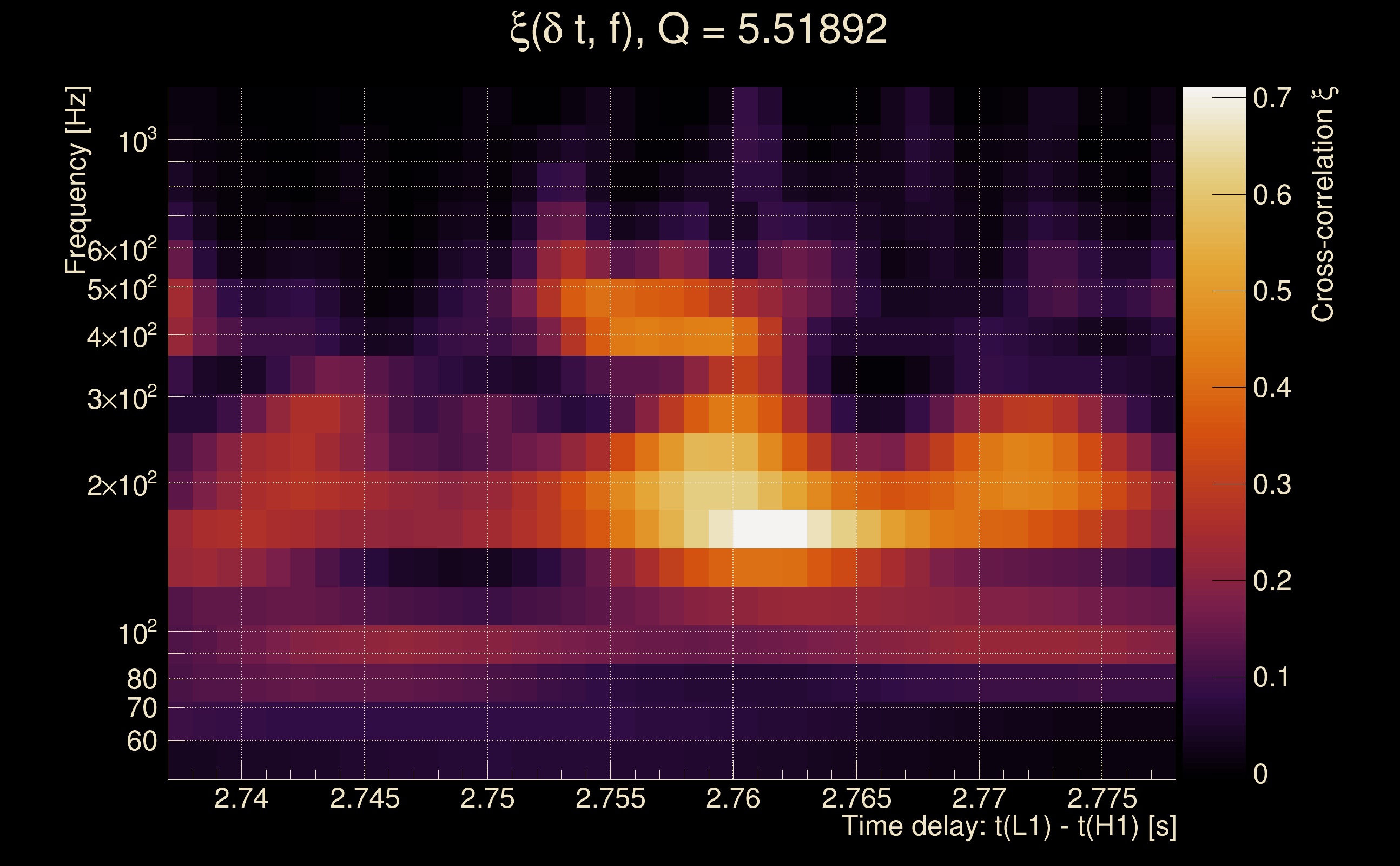

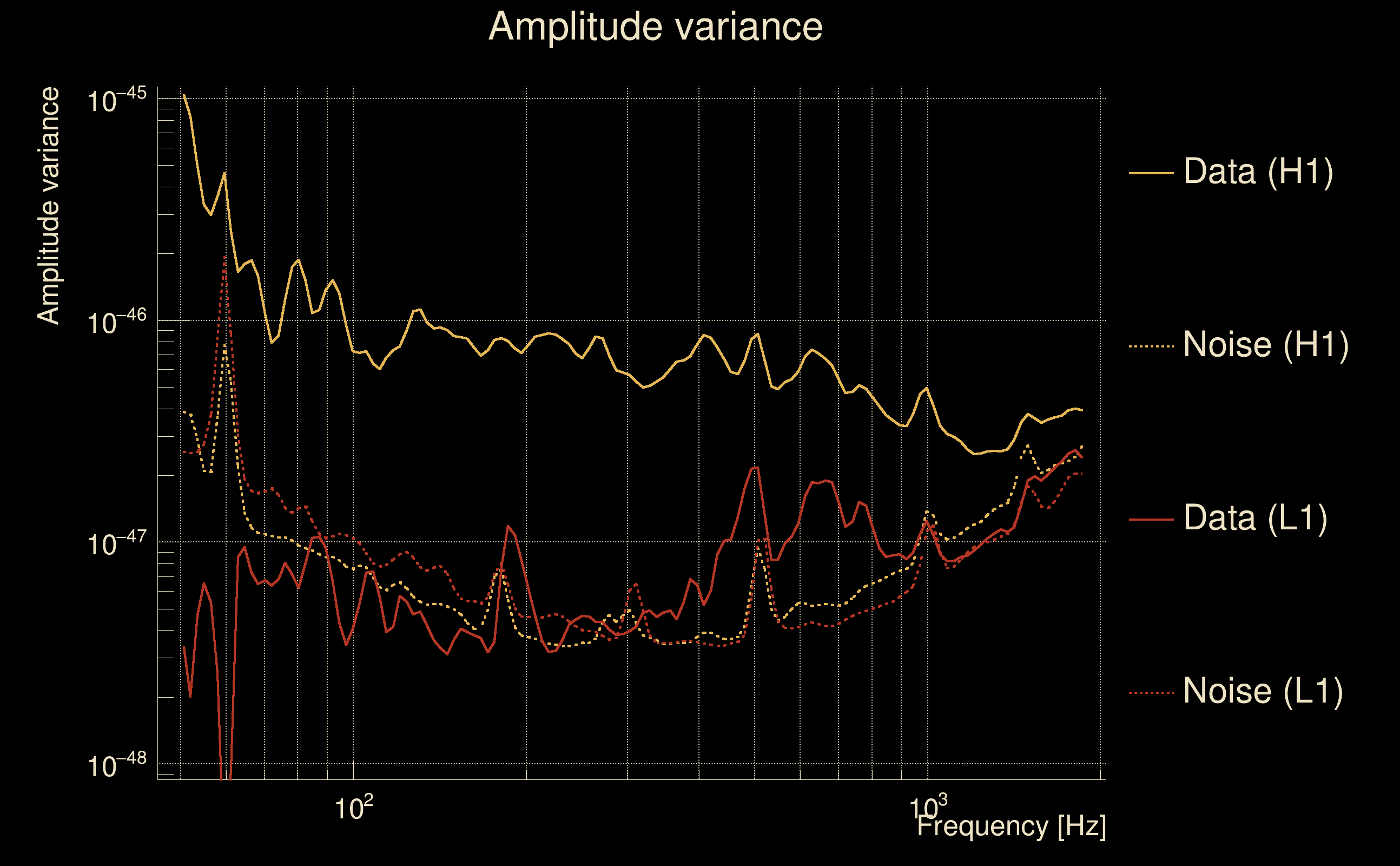

| Event time t(H1): | GPS = 1368335978 (Wed May 17 05:19:20 2023 ) → GPS = 1368335988 (Wed May 17 05:19:30 2023 ) |
| Event time t(L1): | GPS = 1368335978 (Wed May 17 05:19:30 2023 ) → GPS = 1368335988 (Wed May 17 05:19:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368335975 → GPS = 1368335991 |
| Omicron analysis time window (L1): | GPS = 1368335975 → GPS = 1368335991 |

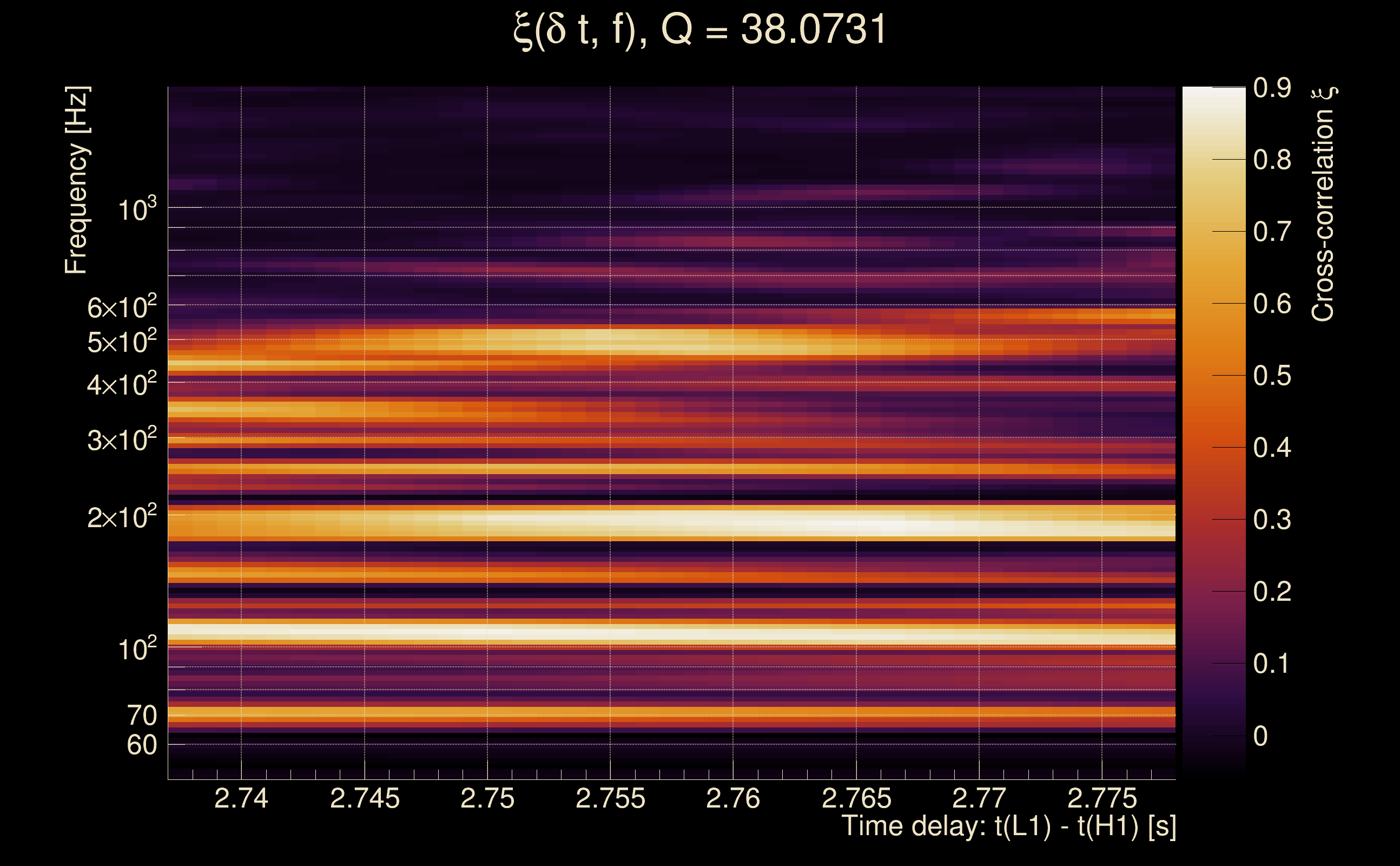

| Time delay between detectors t(L1) - t(H1): | 2.71256 s (slice index = 49 / 217), δt_gw = -0.00144367 s |
| Time delay standard deviation: | 0.0669128 s |
| [targeted mode] Time delay probability: | 0.505472 (0.665905 sigmas), δt_target = -0.00834227 s |
| Frequency: | 198.365 Hz |
| Ξ: | 0.13657 ± 0.131506 (variance = 0.0172939): Q0: 0.243584, Q1: 0.385935, Q2: 0.478077, Q3: 0.552759, Q4: 0.619065 |
| Rank: | R_A = 0.13657 |
| Log of amplitude ratio (L1/H1): | -2.84123, variance = 0.490028 (L1/H1: -2.988, variance = 0.533591, H1/L1: -0.159934, variance = 2.31567) |
| Amplitude ratio (L1/H1): | 0.0583538 ⋇ 2.01379 (L1/H1: 0.050388 ⋇ 2.07606, H1/L1: 0.8522 ⋇ 4.58015) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0621927 |
| Antenna factor probability: | 7.65341e-05 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 23 / 36, Q2: 42 / 70, Q3: 97 / 134, Q4: 218 / 258 |
| Maximum signal-to-noise ratio: | H1: 125.349, L1: 27.7202 |

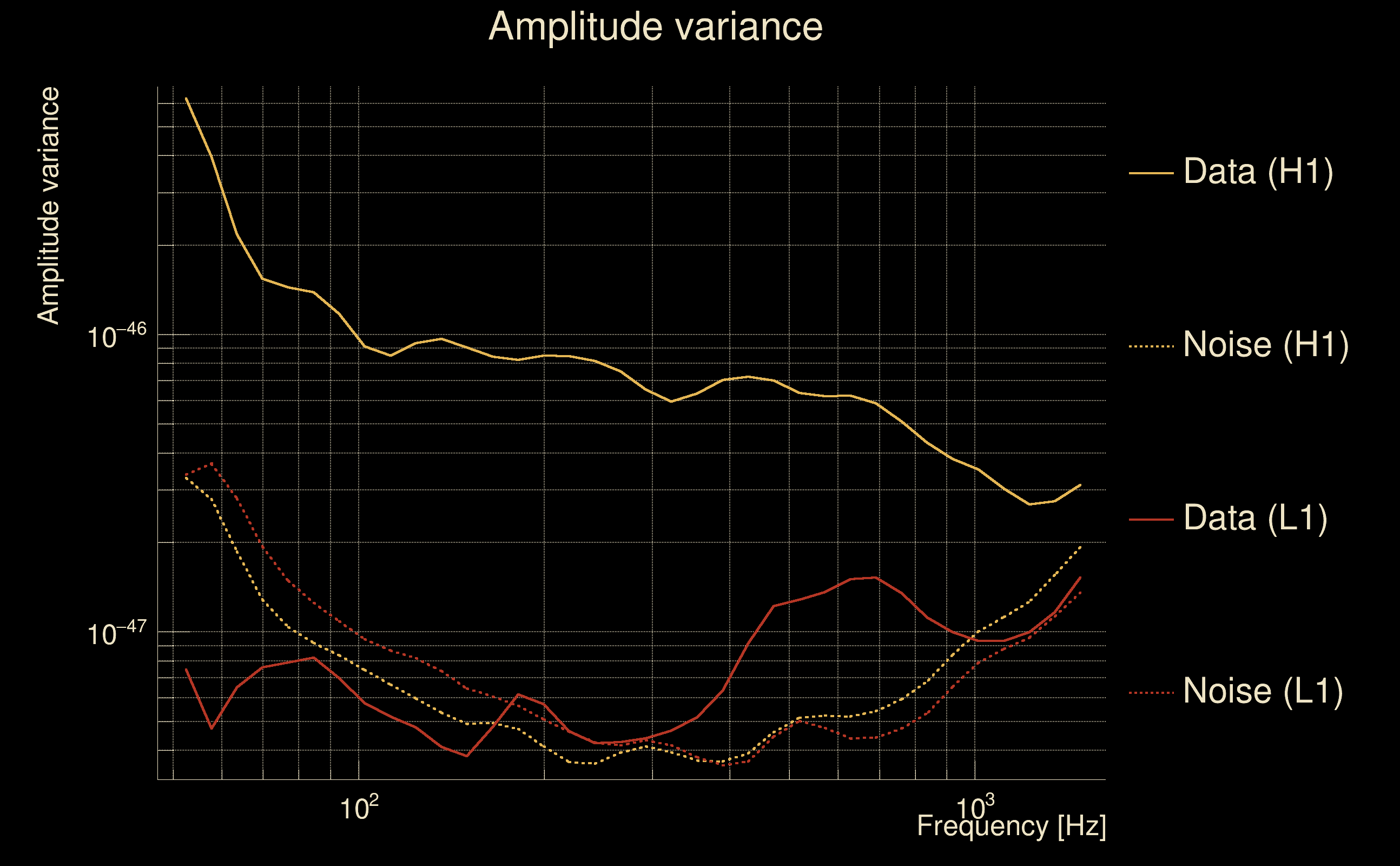

| SNR variance: | H1: 1.21917, L1: 0.904566 |

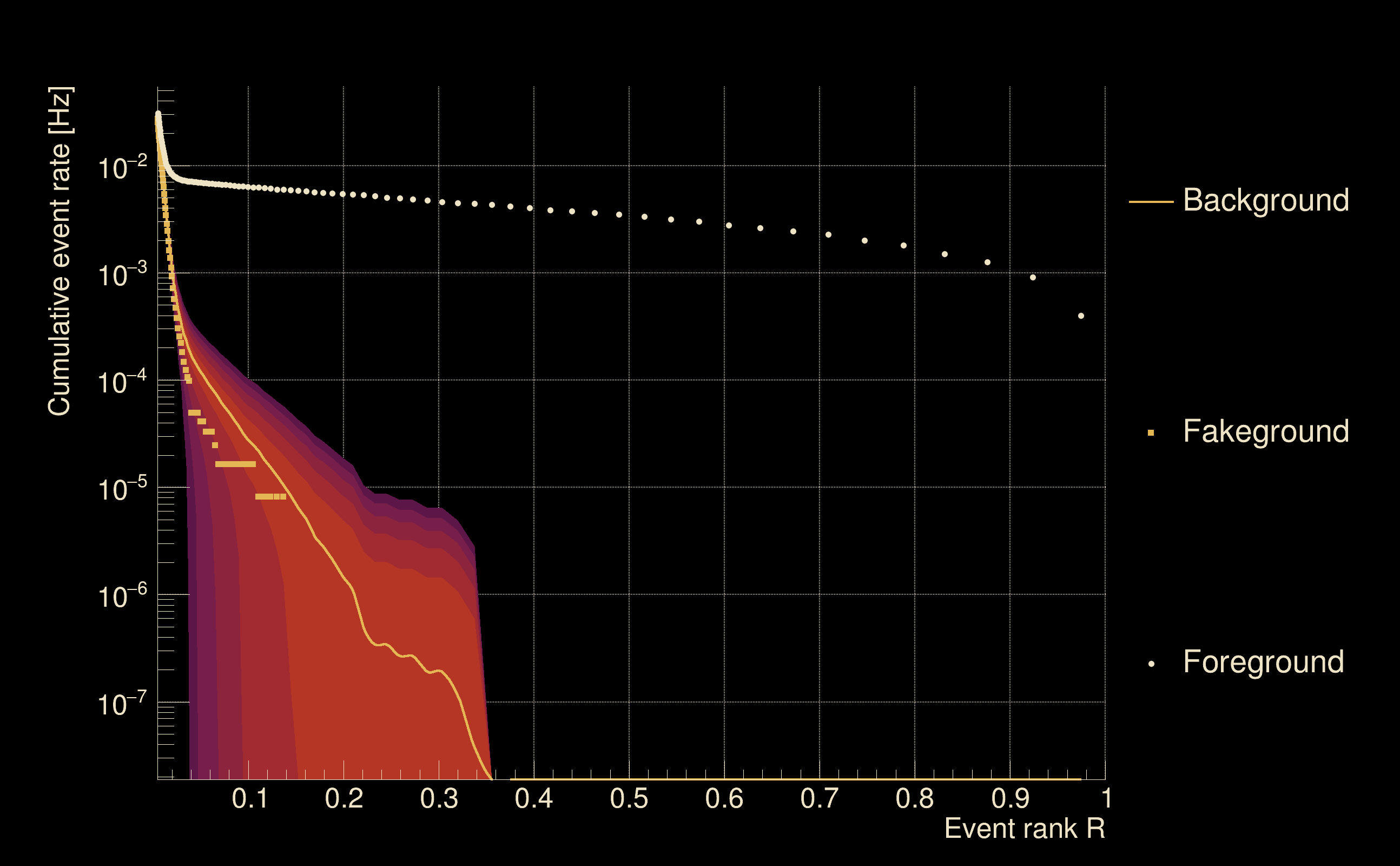

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.33763 |
| Alternative threshold at 1/100 yrs: | R > 0.33763 |
| Alternative threshold at 1/10 yrs: | R > 0.33763 |
| Alternative threshold at 1/1 yr: | R > 0.33763 |
| Alternative threshold at 1/1 d: | R > 0.130265 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

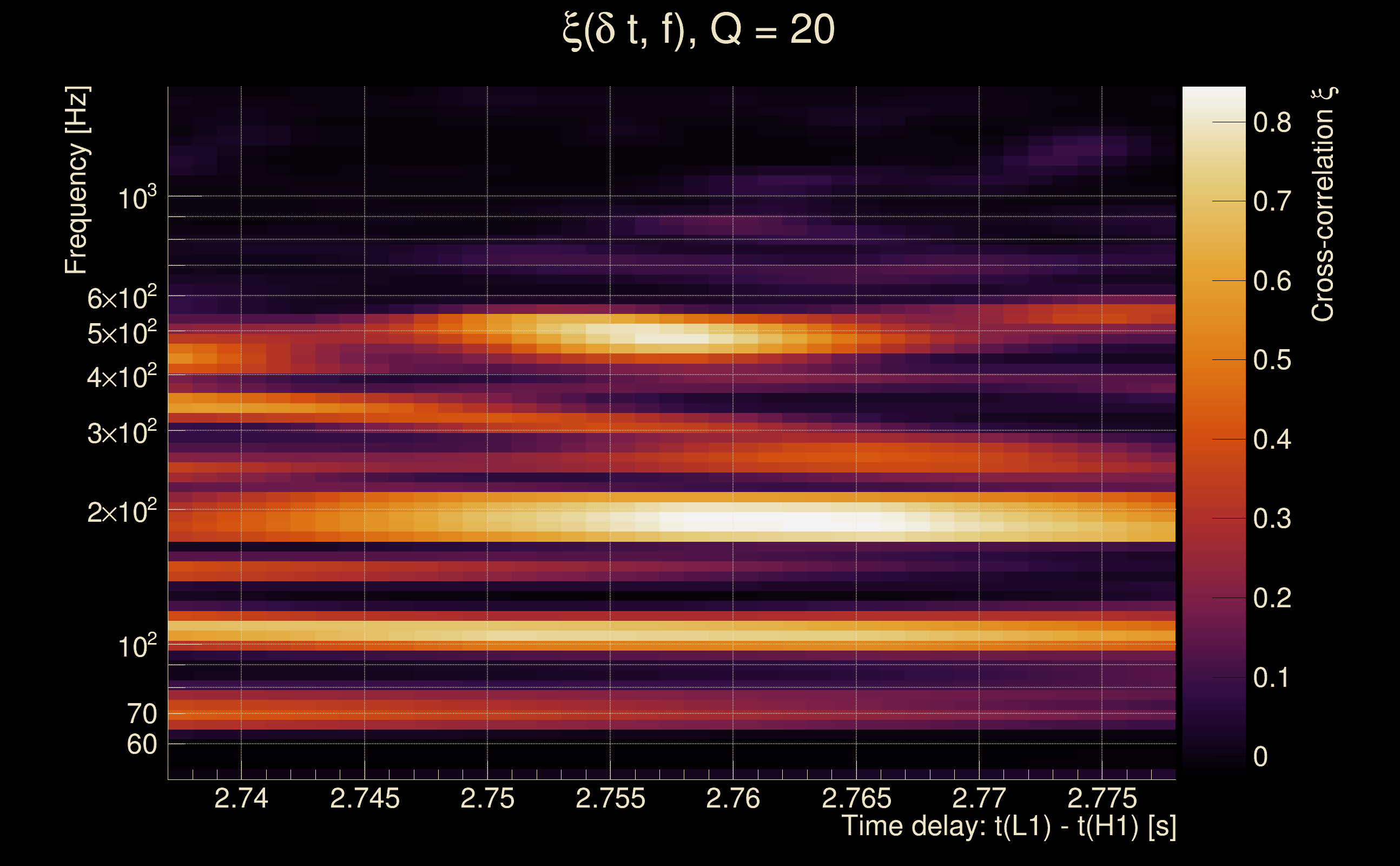

| Event time t(H1): | GPS = 1368335978 (Wed May 17 05:19:20 2023 ) → GPS = 1368335988 (Wed May 17 05:19:30 2023 ) |
| Event time t(L1): | GPS = 1368335978 (Wed May 17 05:19:30 2023 ) → GPS = 1368335988 (Wed May 17 05:19:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368335975 → GPS = 1368335991 |
| Omicron analysis time window (L1): | GPS = 1368335975 → GPS = 1368335991 |

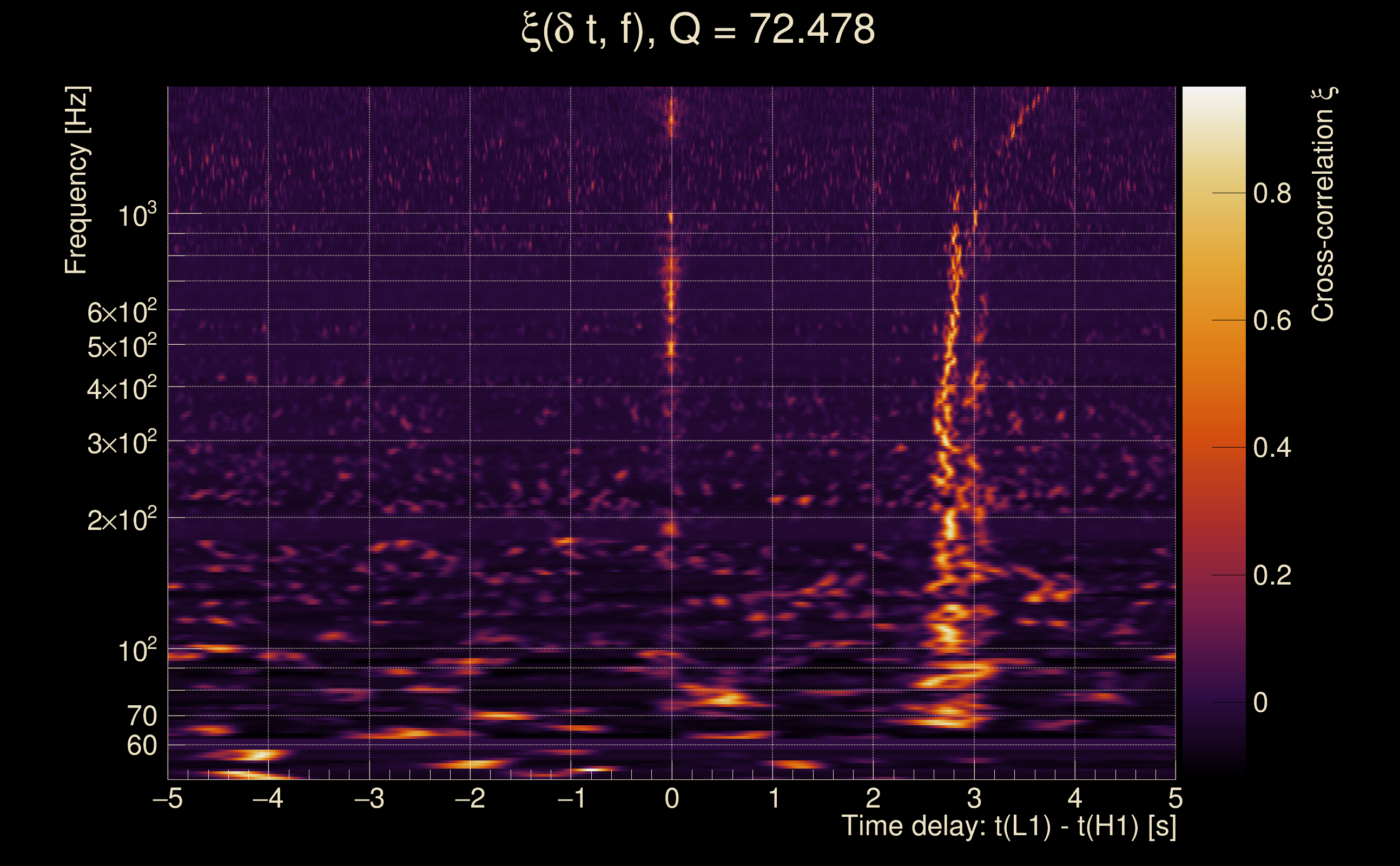

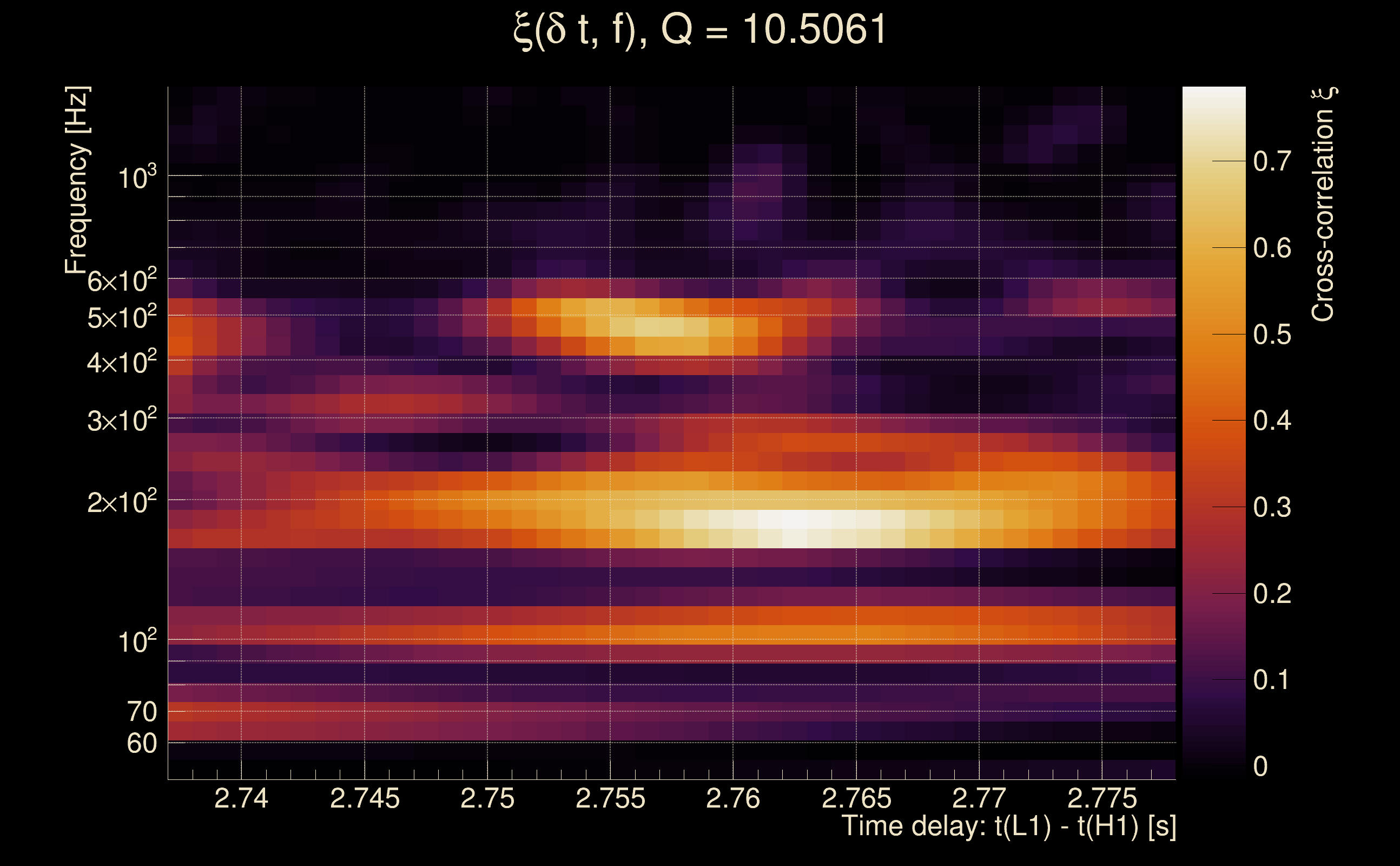

| Time delay between detectors t(L1) - t(H1): | 2.75734 s (slice index = 48 / 217), δt_gw = -0.00266497 s |
| Time delay standard deviation: | 0.0587837 s |
| [targeted mode] Time delay probability: | 0.223891 (1.21625 sigmas), δt_target = -0.00834227 s |
| Frequency: | 260.758 Hz |
| Ξ: | 0.344617 ± 0.0951371 (variance = 0.00905107): Q0: 0.446454, Q1: 0.501162, Q2: 0.619211, Q3: 0.691012, Q4: 0.666379 |
| Rank: | R_A = 0.344617 |
| Log of amplitude ratio (L1/H1): | -2.44128, variance = 0.569902 (L1/H1: -2.55906, variance = 0.623915, H1/L1: 0.0328603, variance = 1.29266) |
| Amplitude ratio (L1/H1): | 0.0870494 ⋇ 2.12744 (L1/H1: 0.0773773 ⋇ 2.20314, H1/L1: 1.03341 ⋇ 3.11725) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0680375 |
| Antenna factor probability: | 0.00170342 |
| Number of rejected frequency rows: | Q0: 2 / 18, Q1: 11 / 36, Q2: 40 / 70, Q3: 96 / 134, Q4: 200 / 258 |
| Maximum signal-to-noise ratio: | H1: 125.349, L1: 27.7202 |

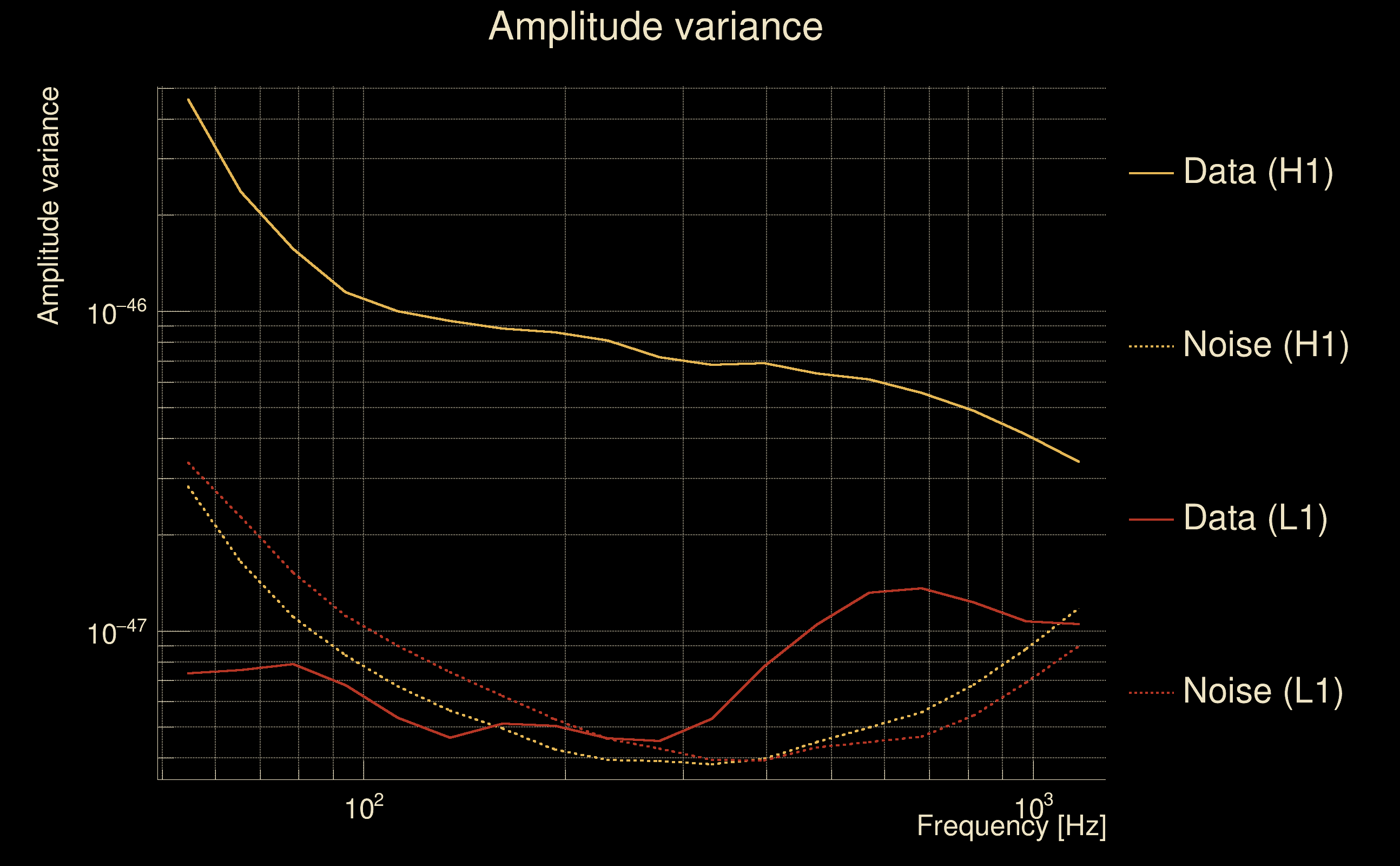

| SNR variance: | H1: 1.21917, L1: 0.904566 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

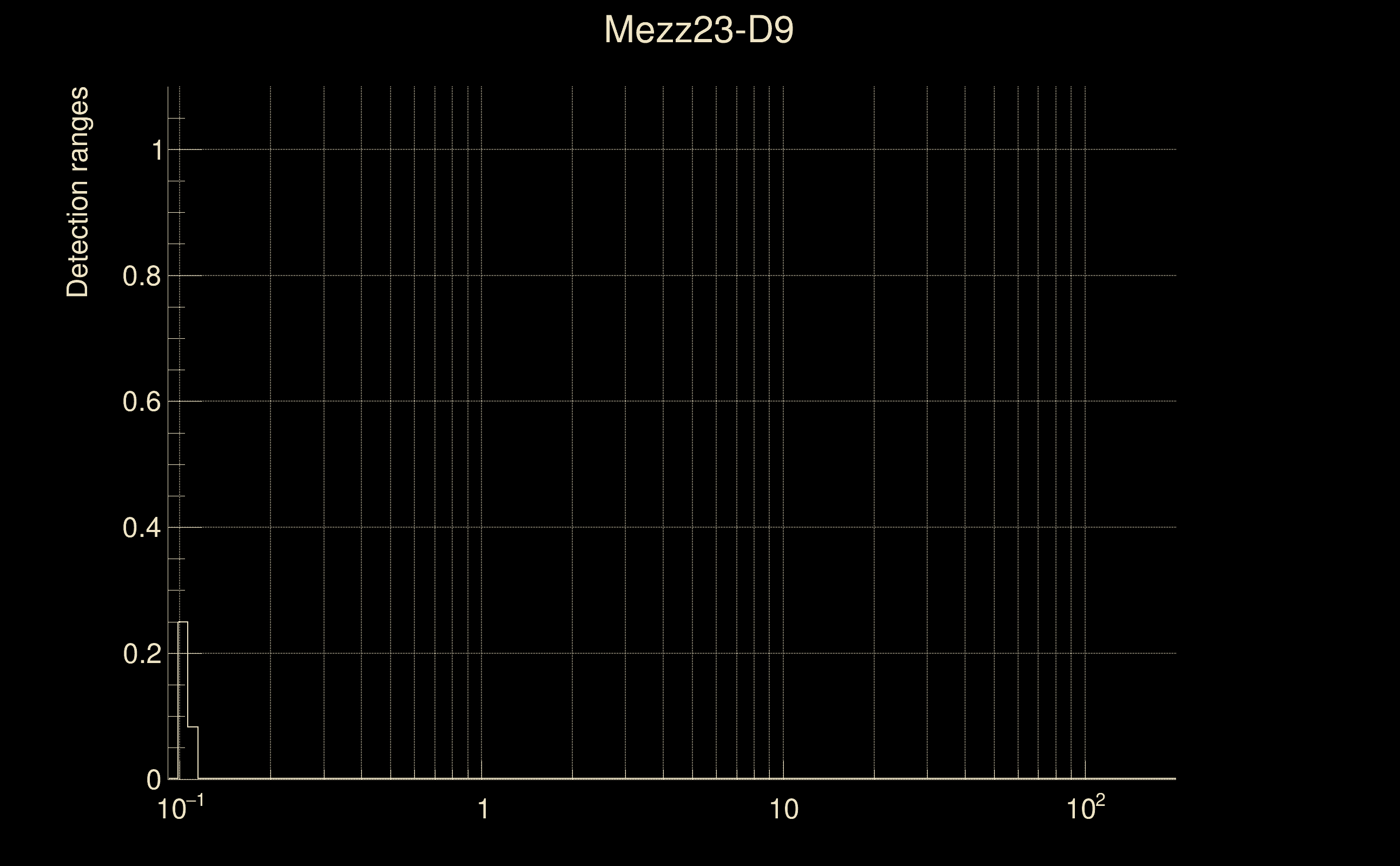

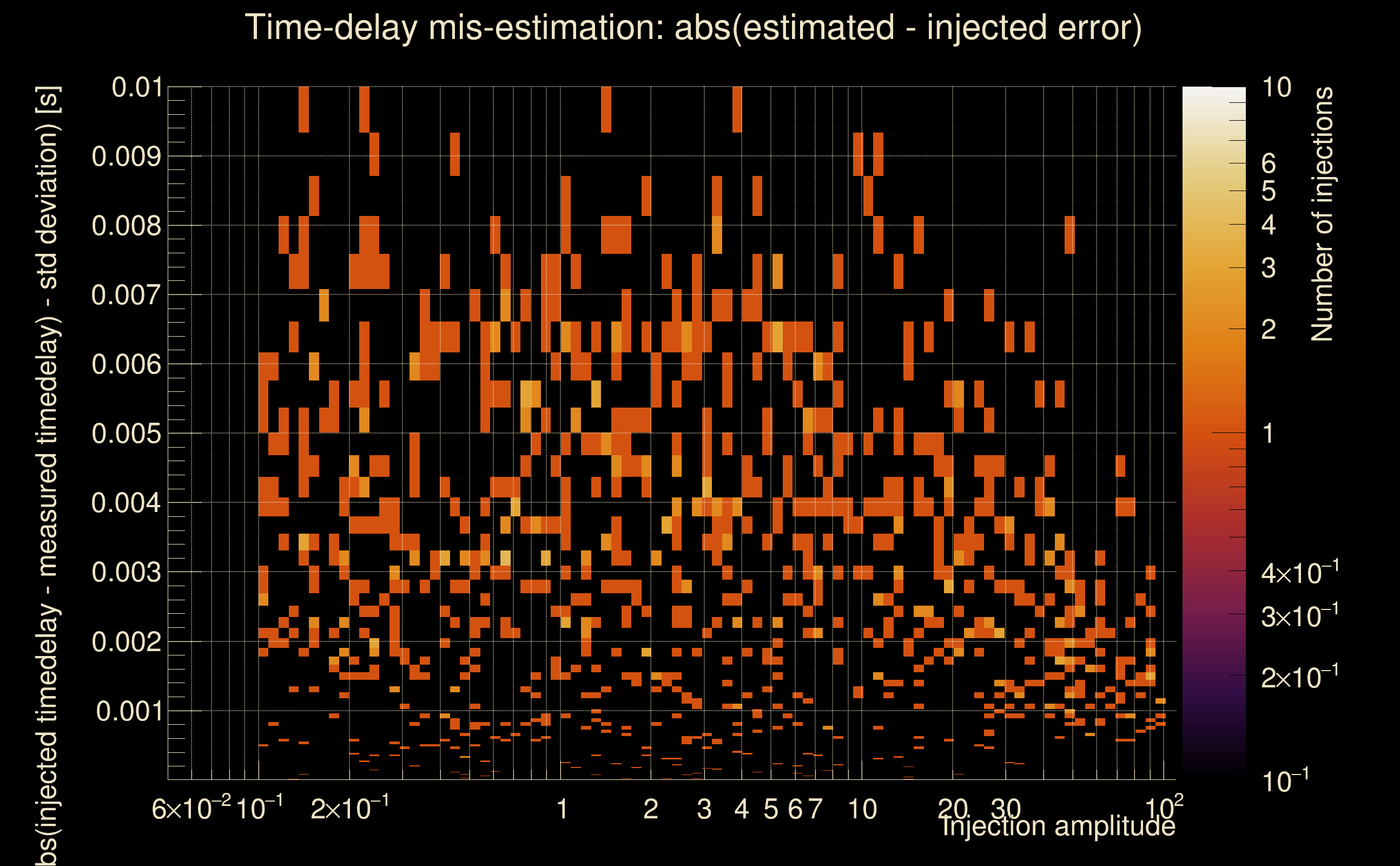

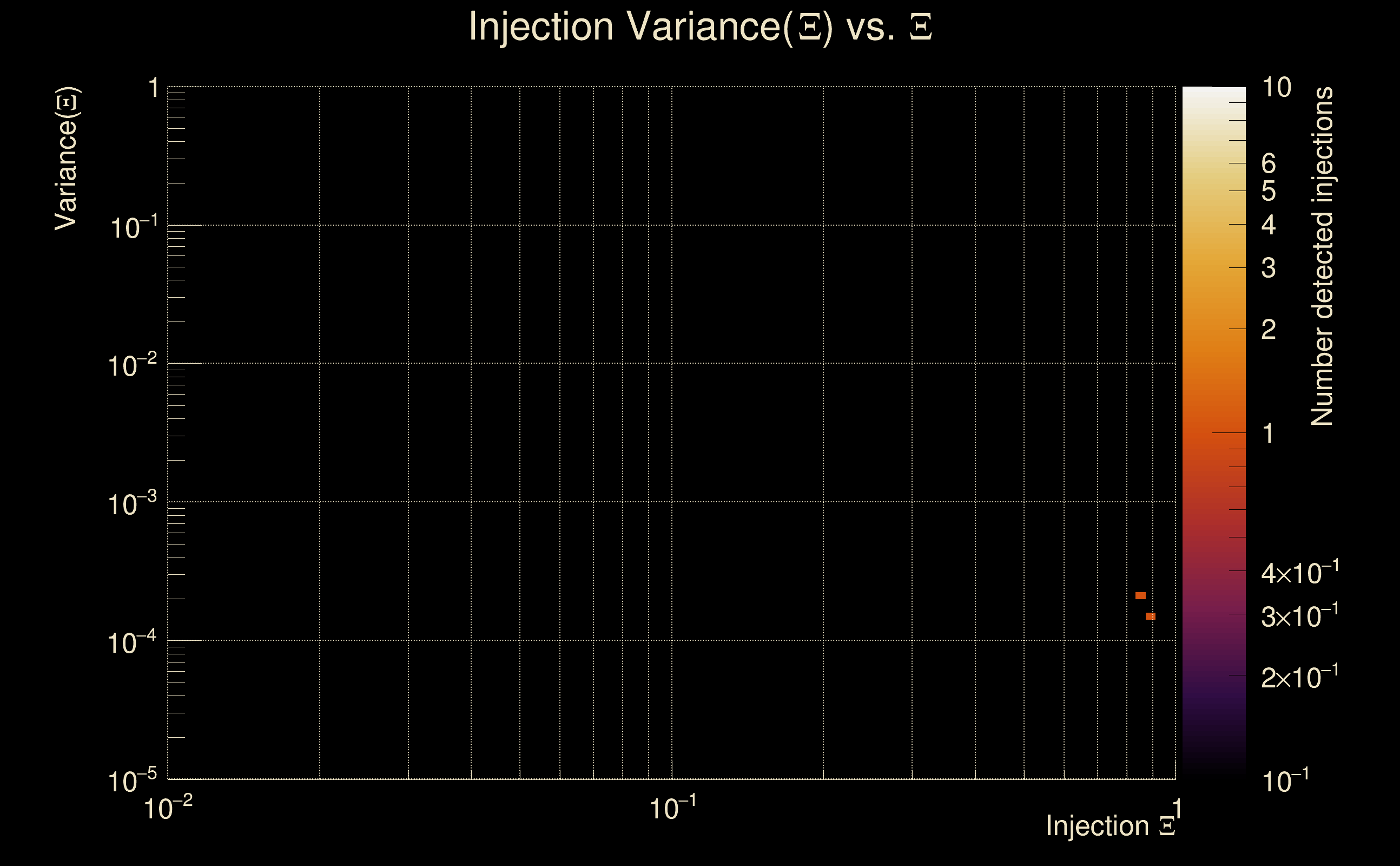

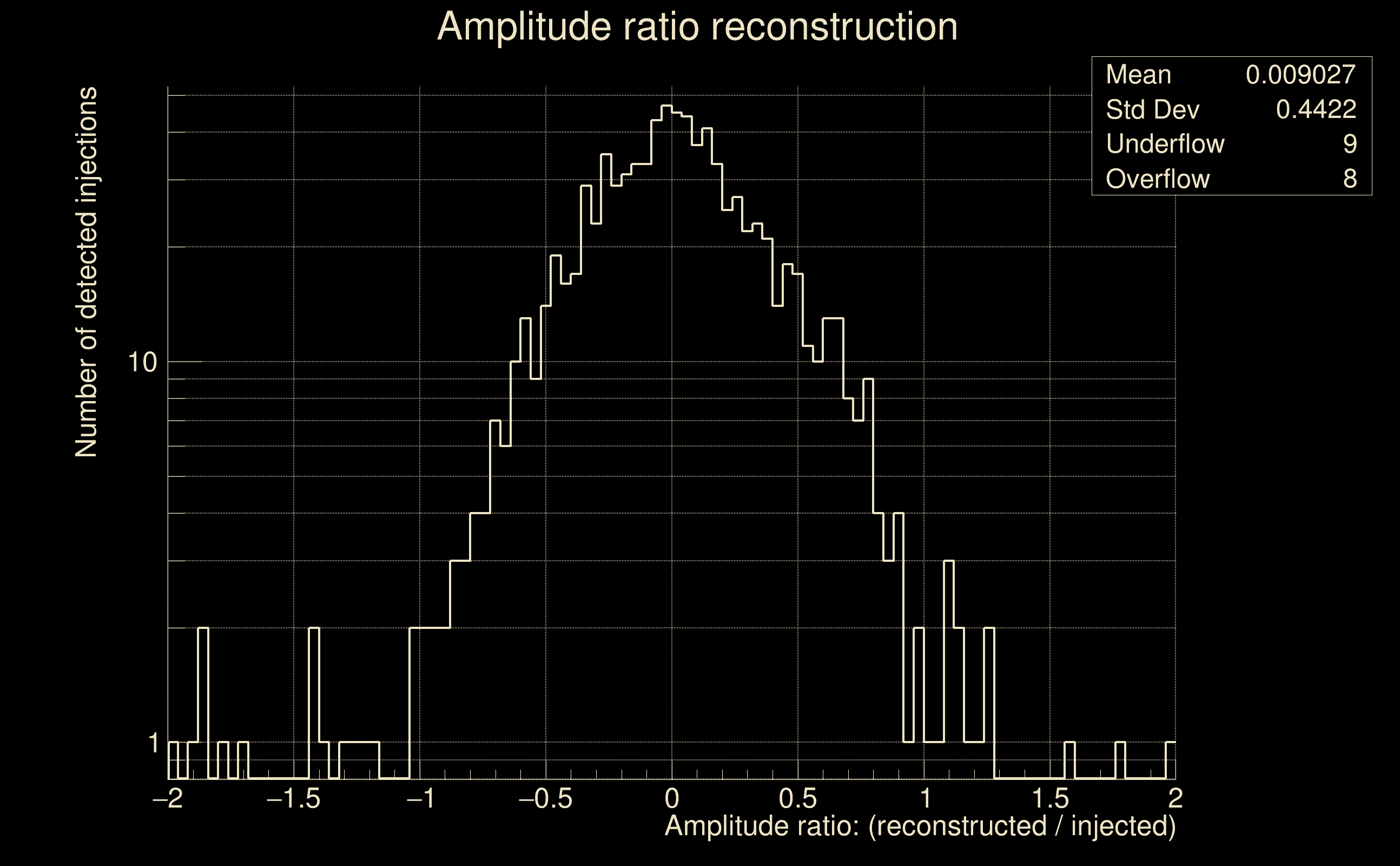

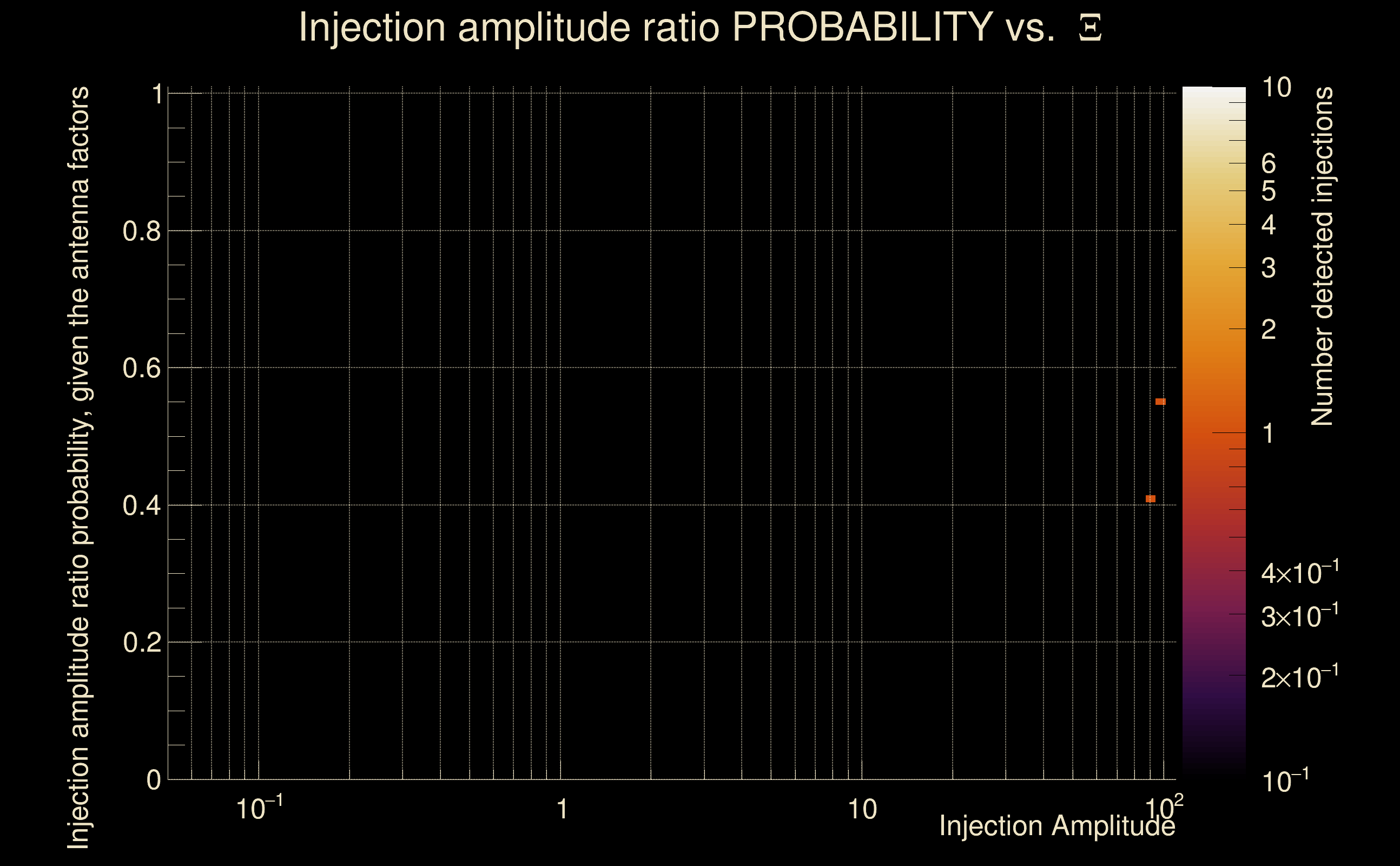

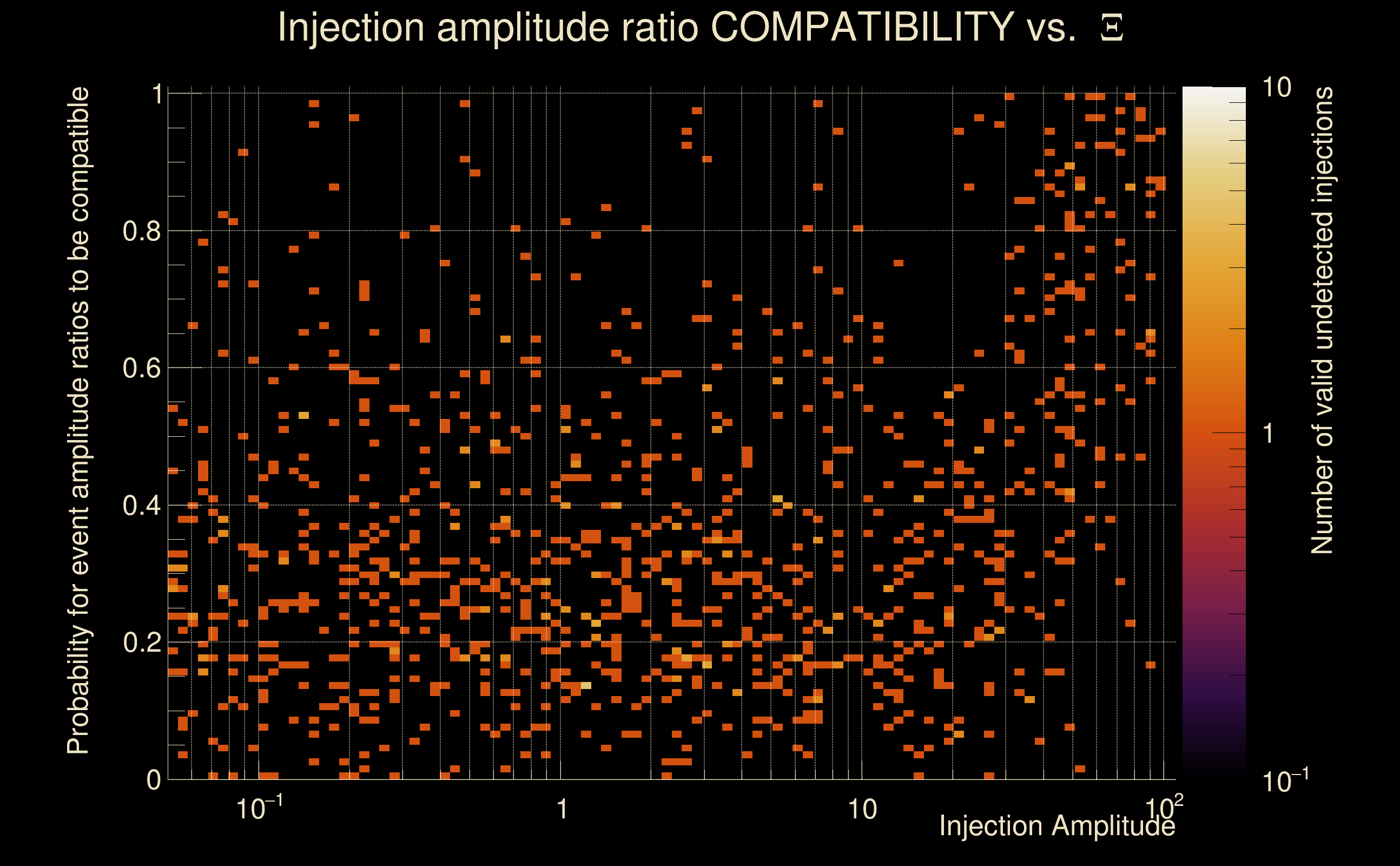

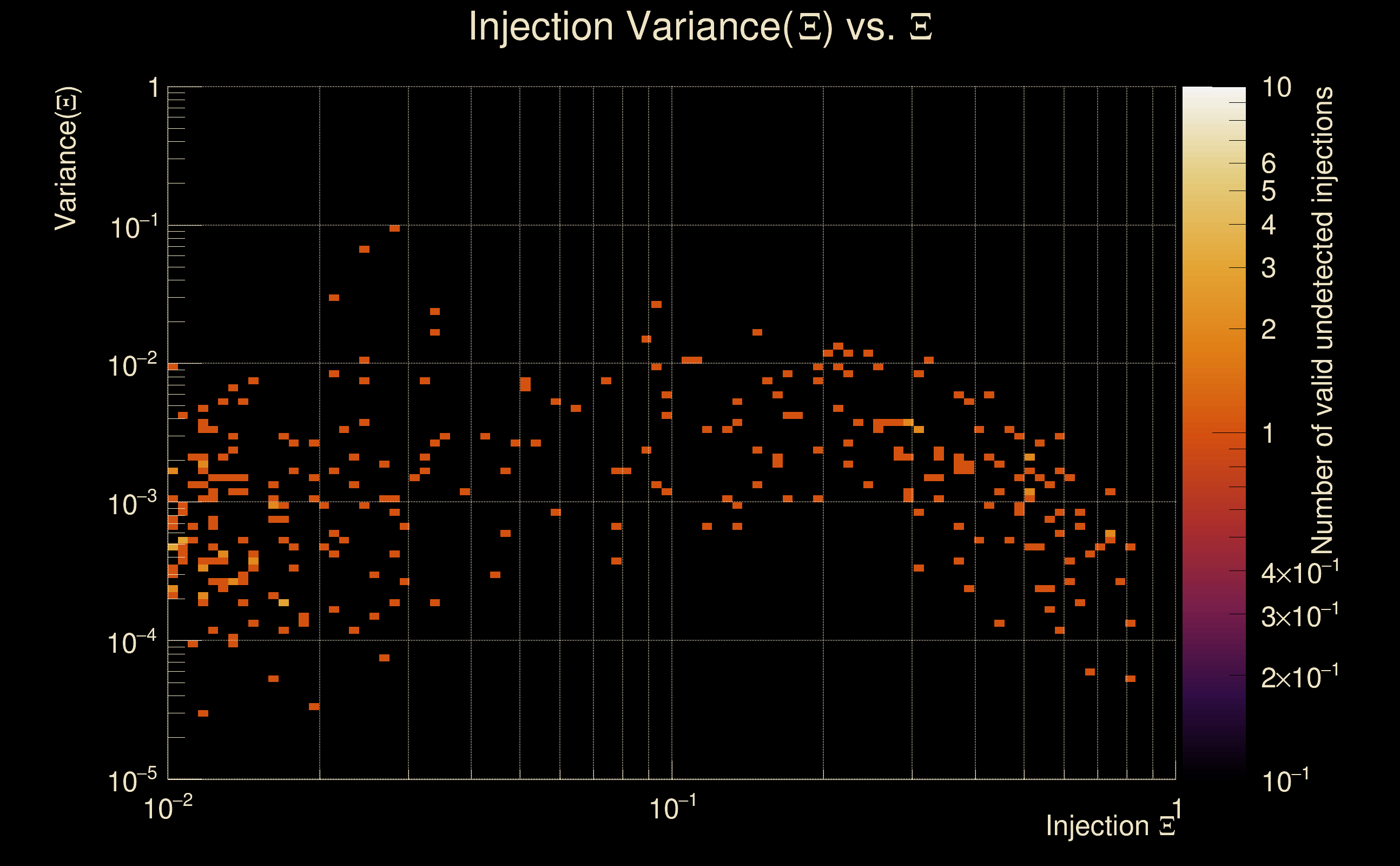

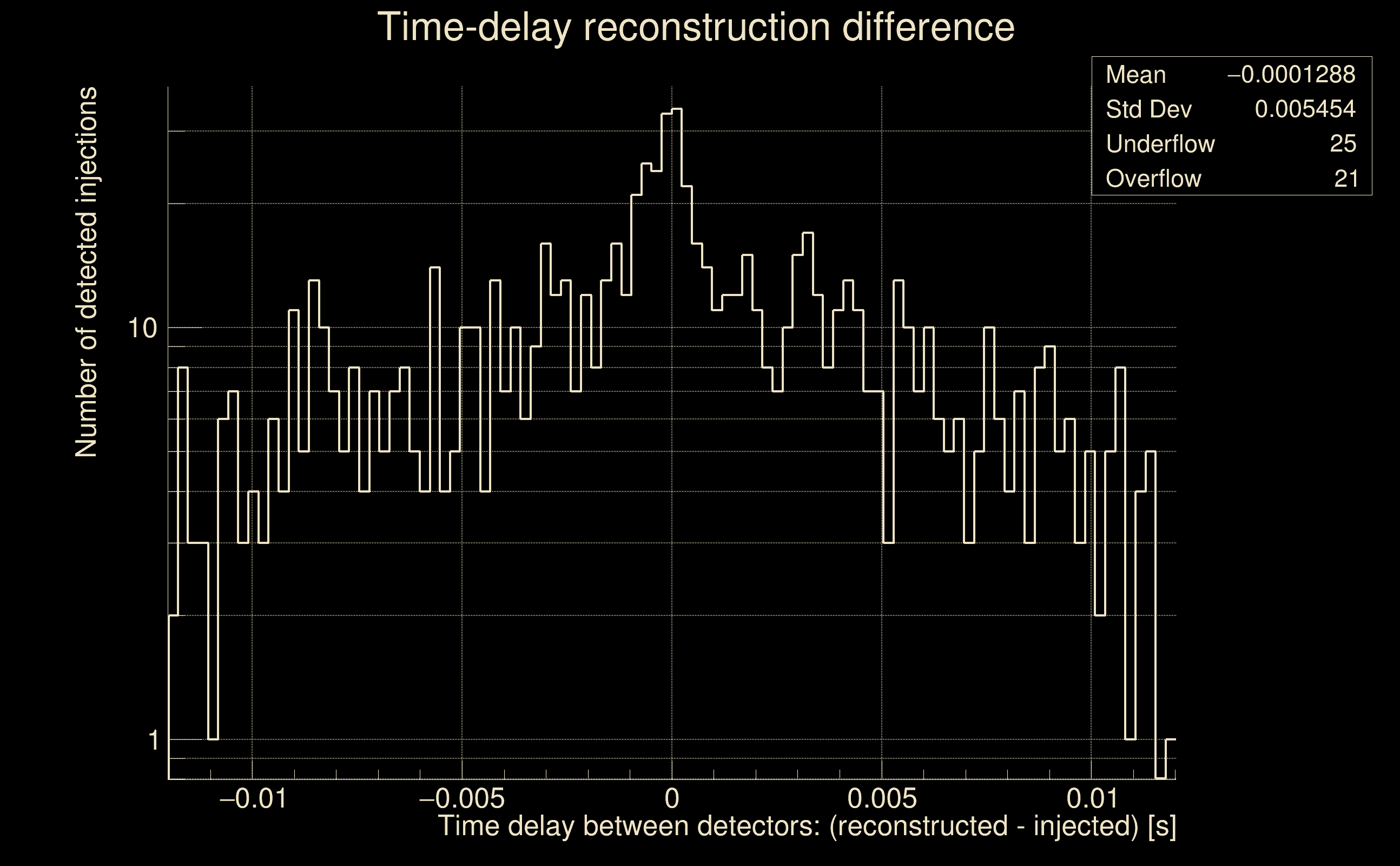

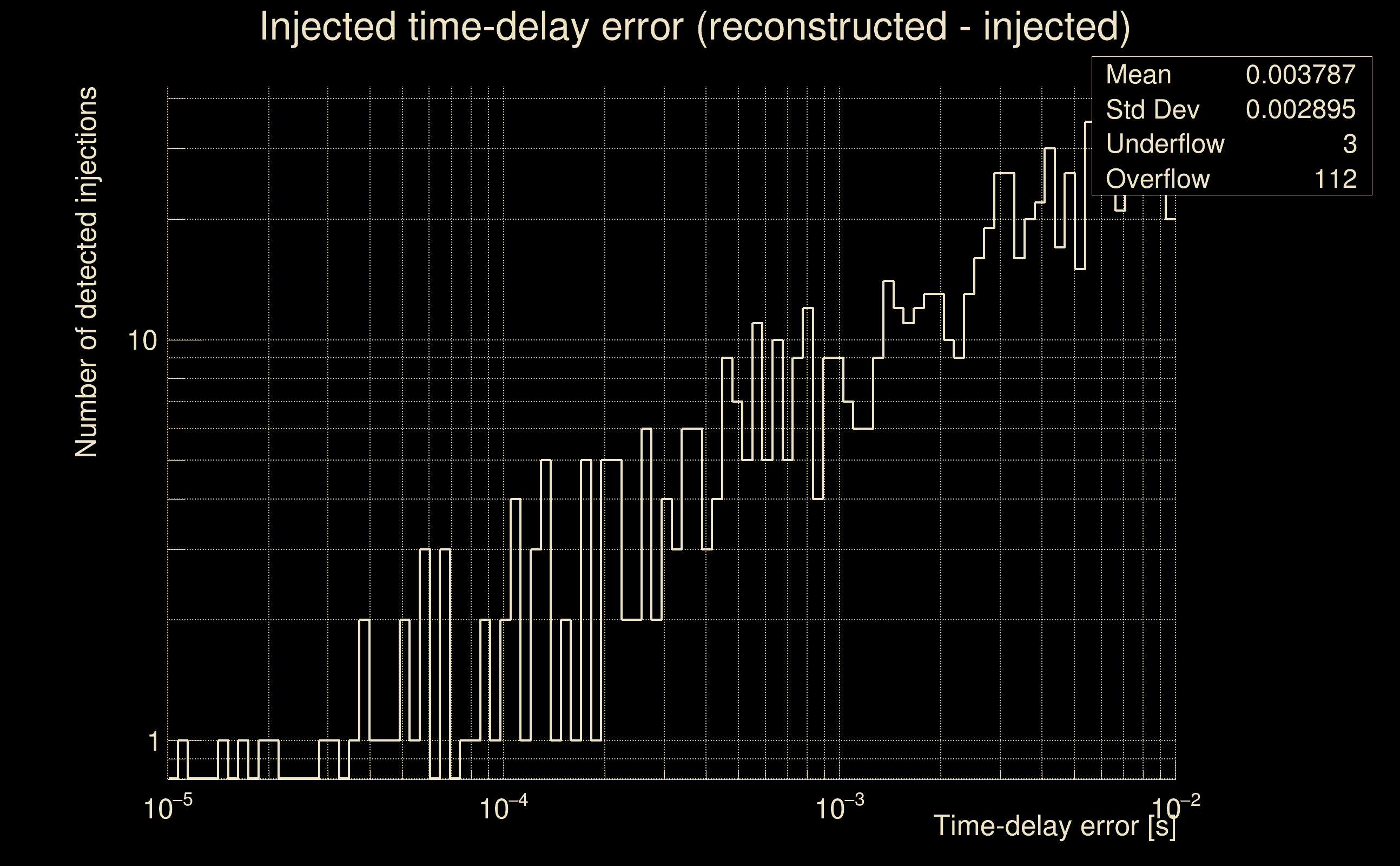

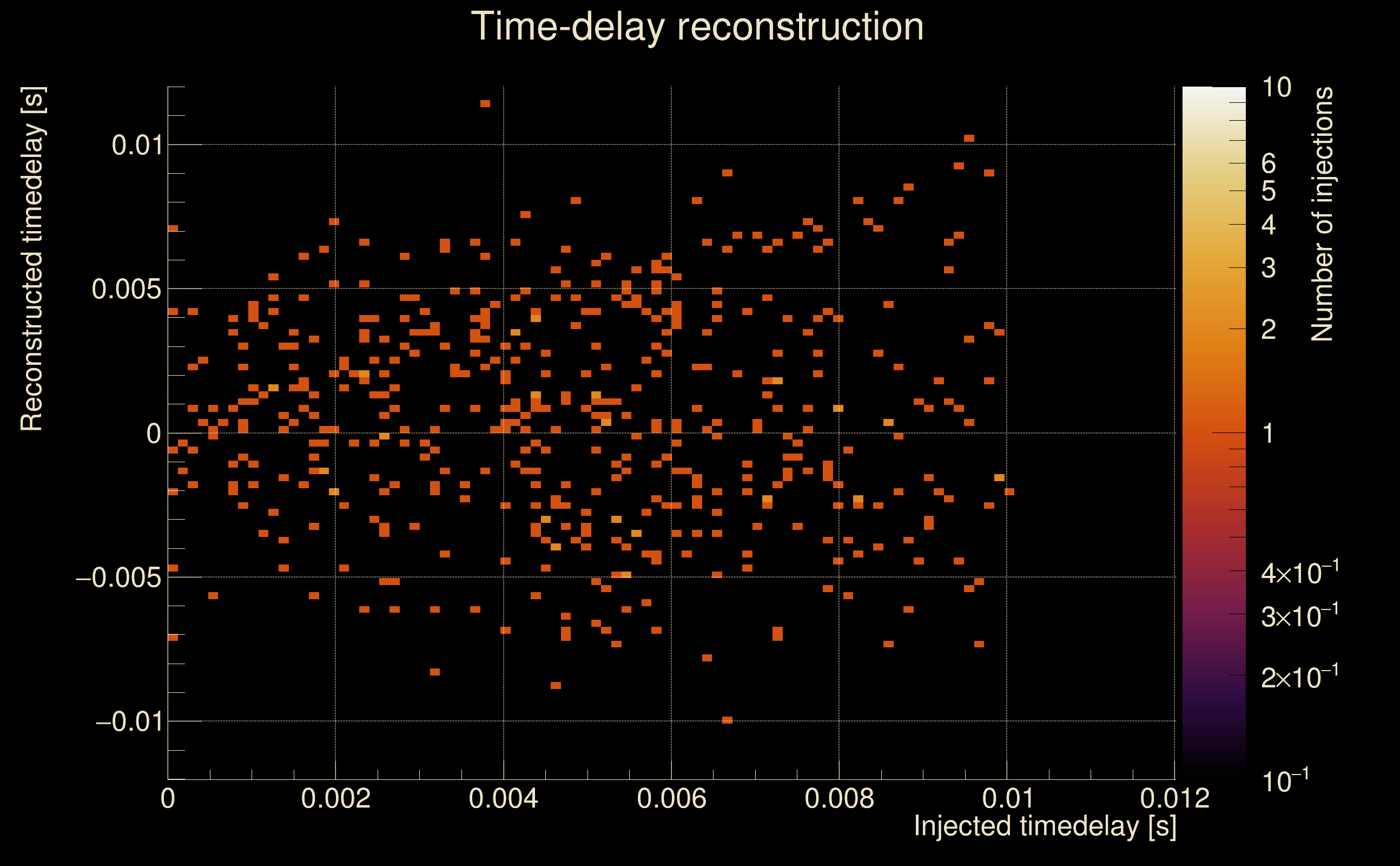

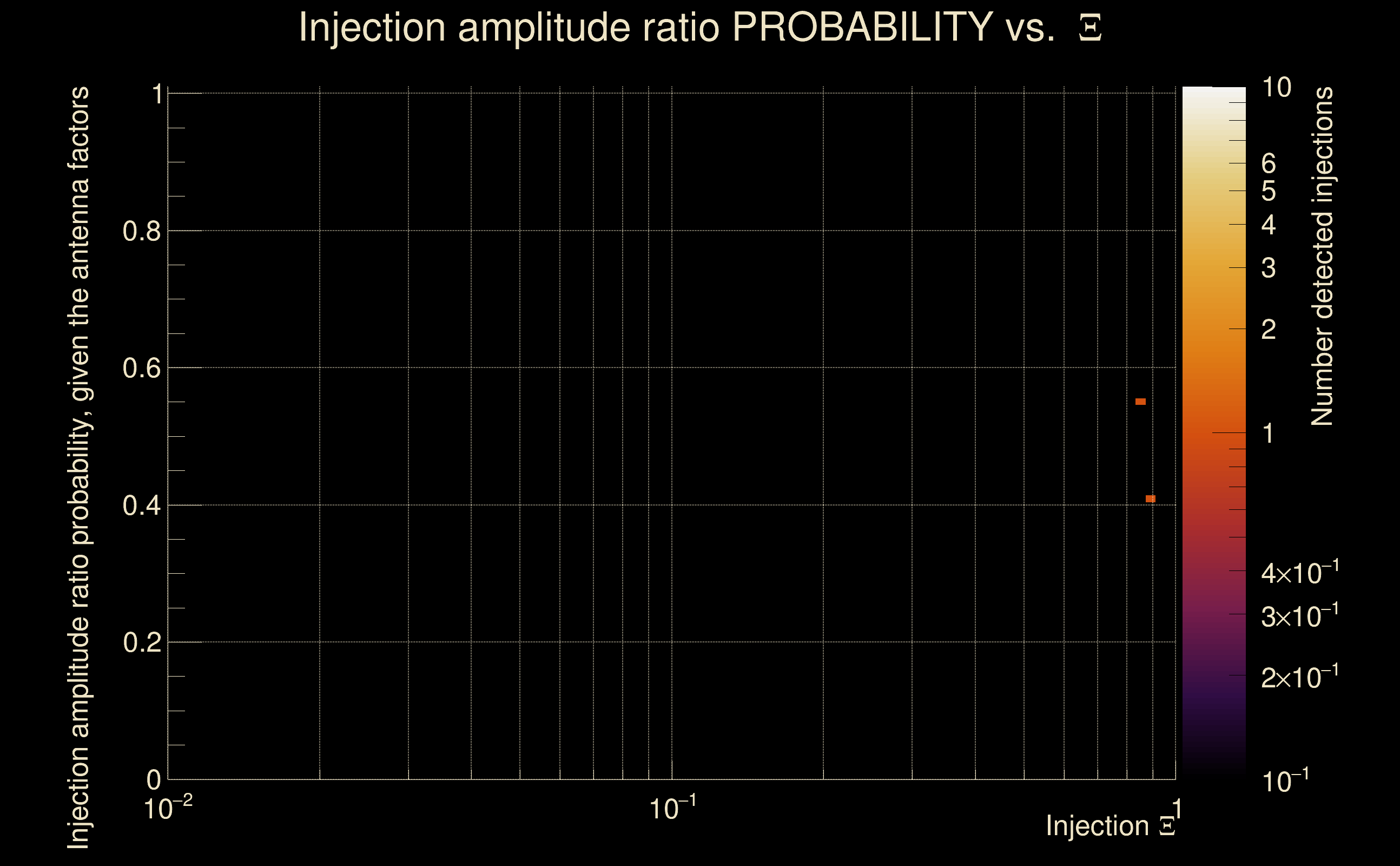

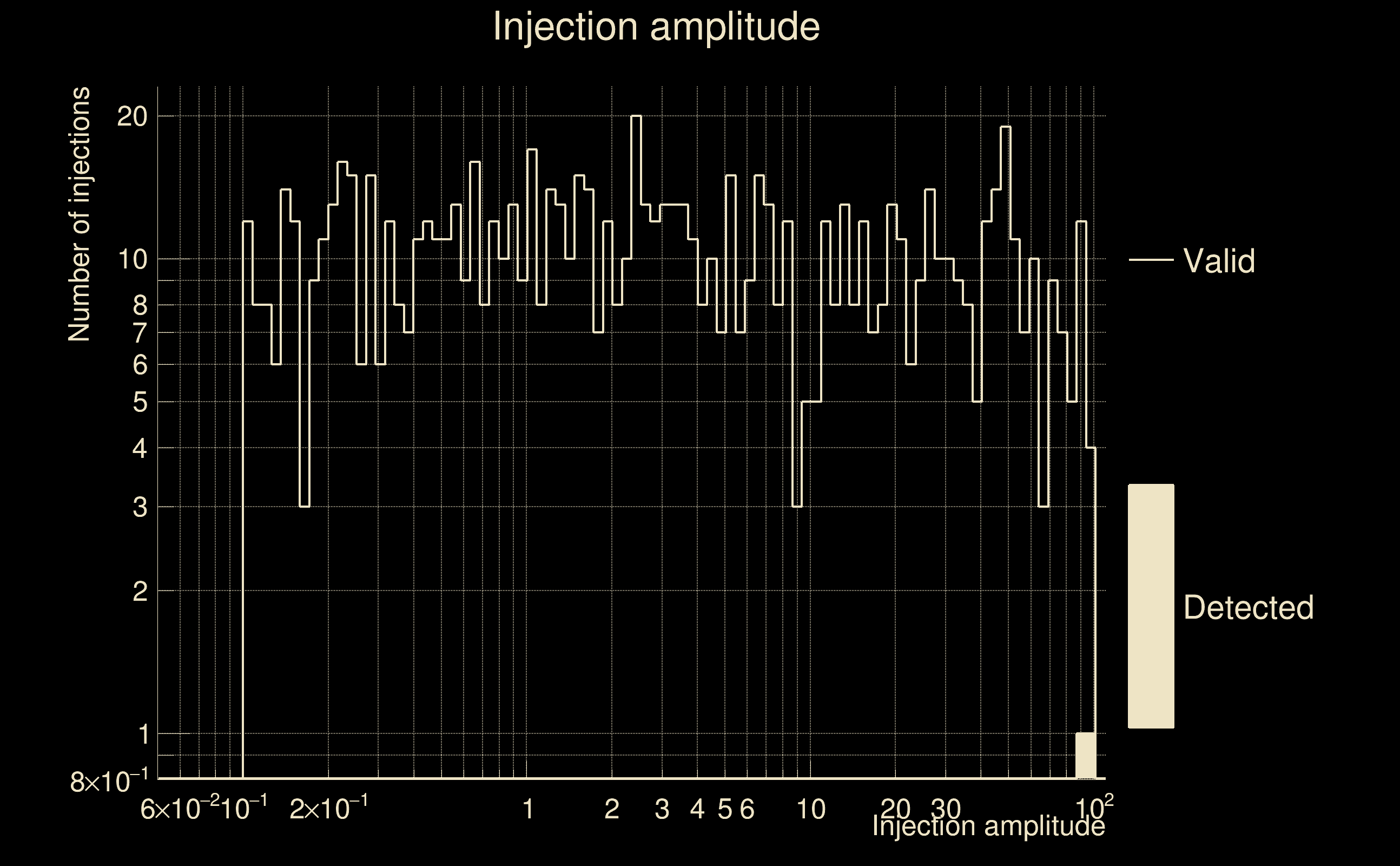

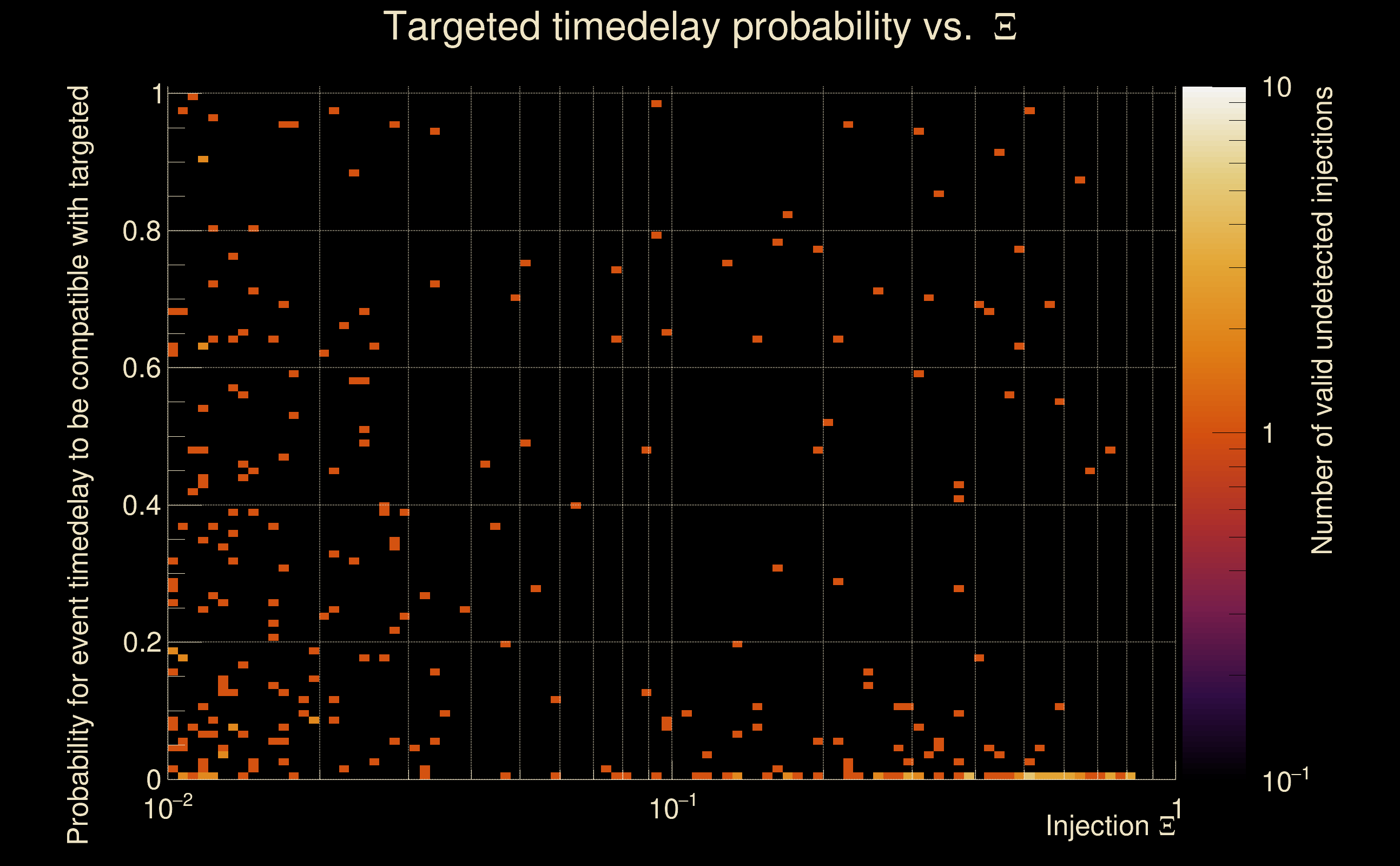

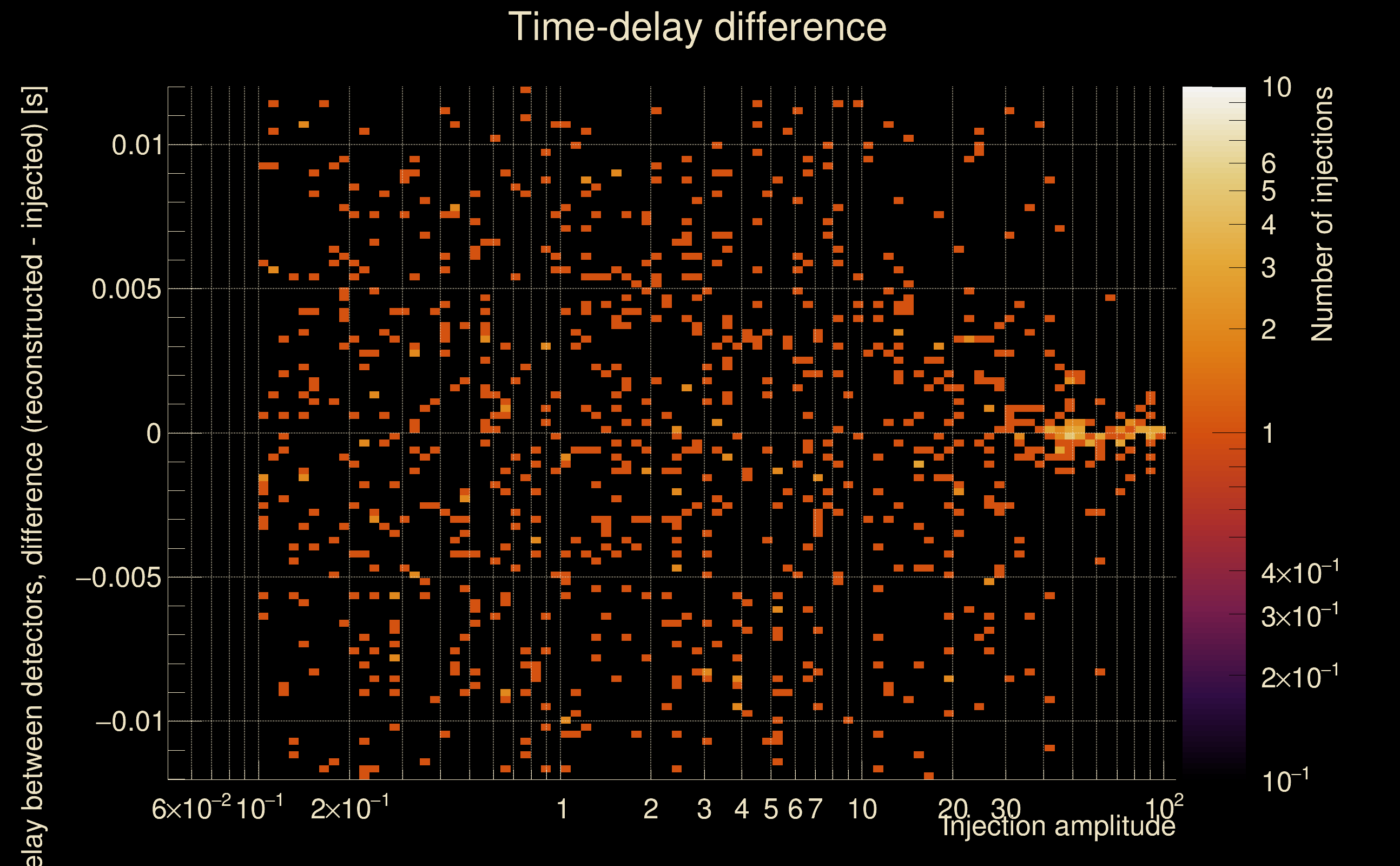

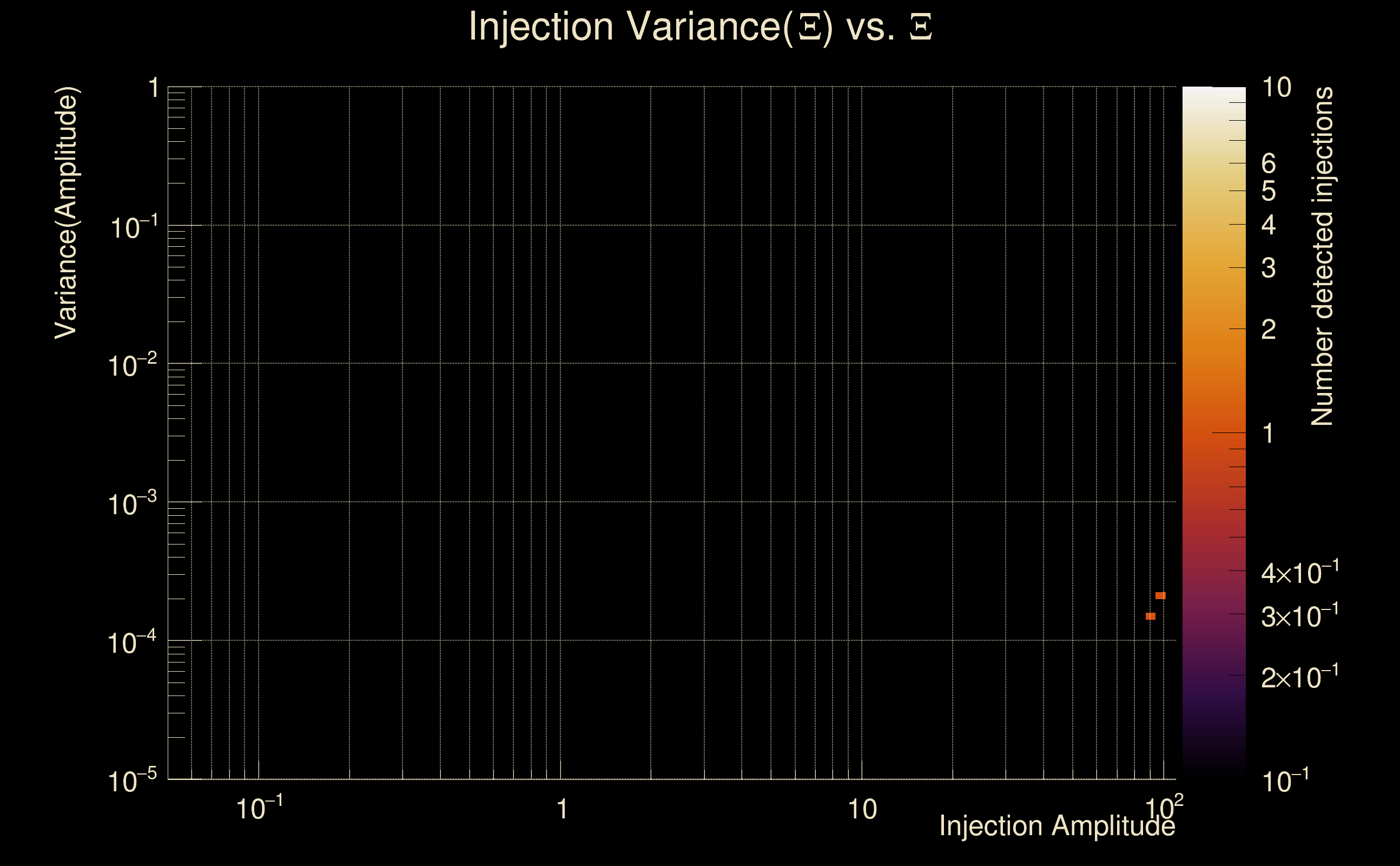

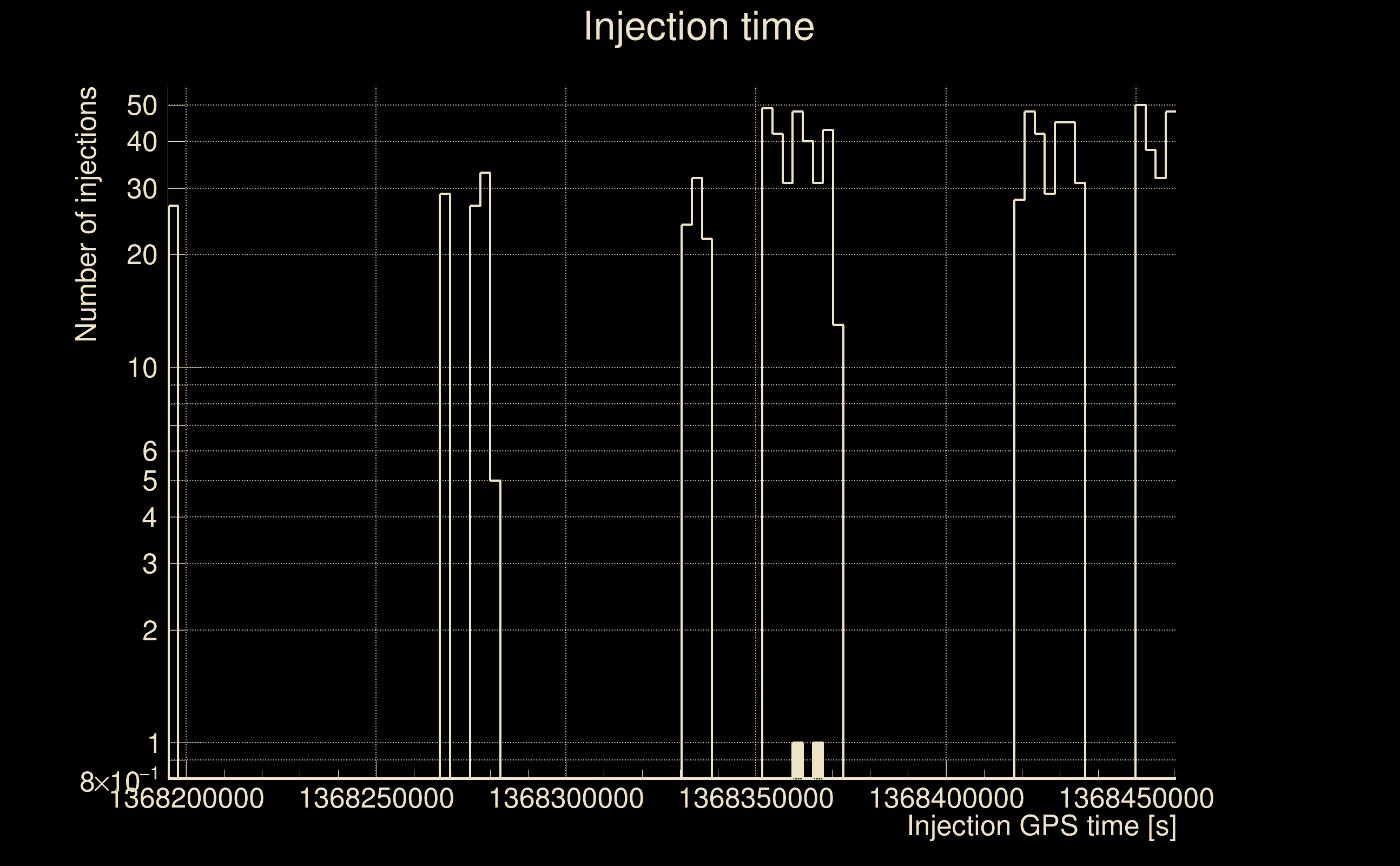

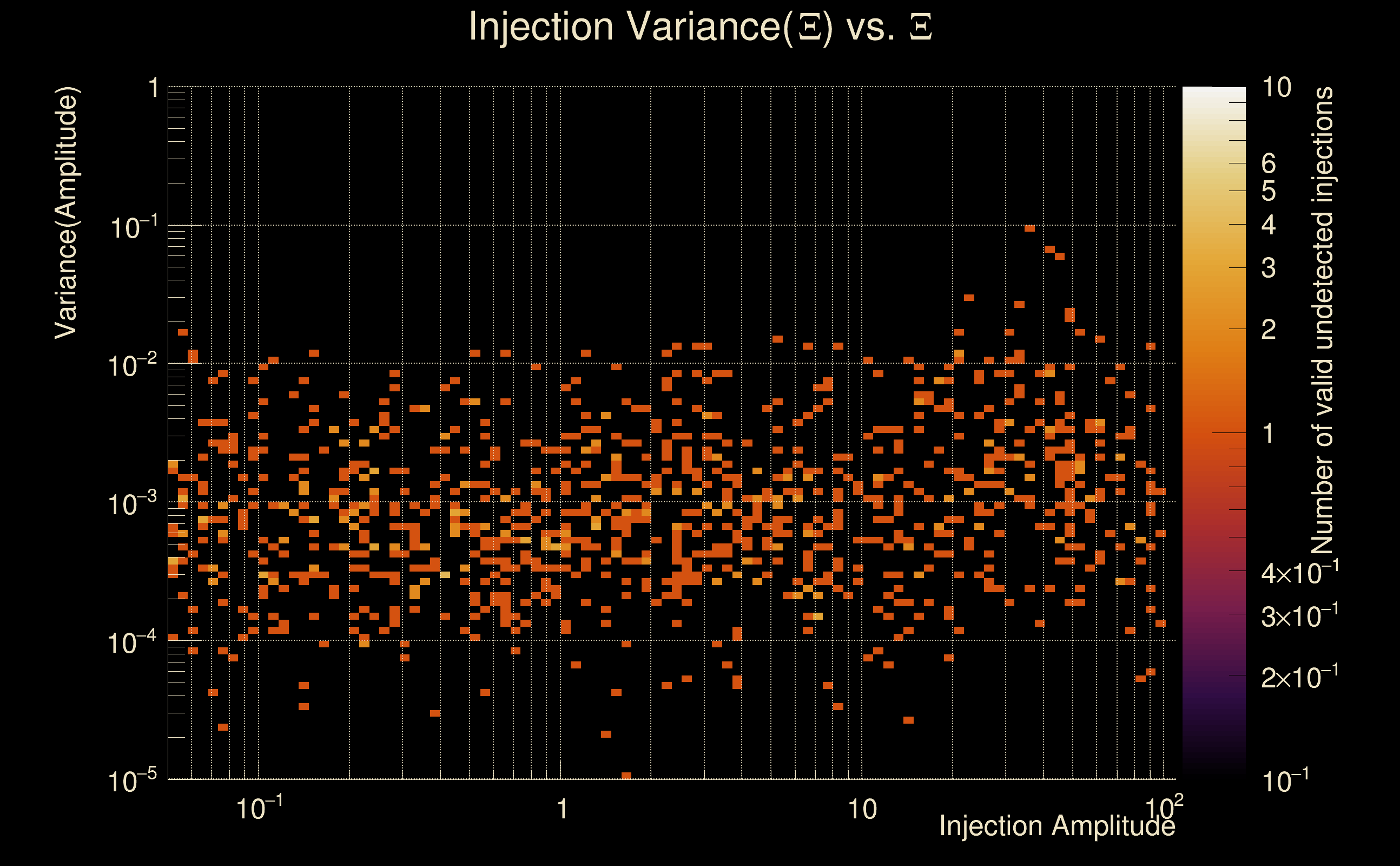

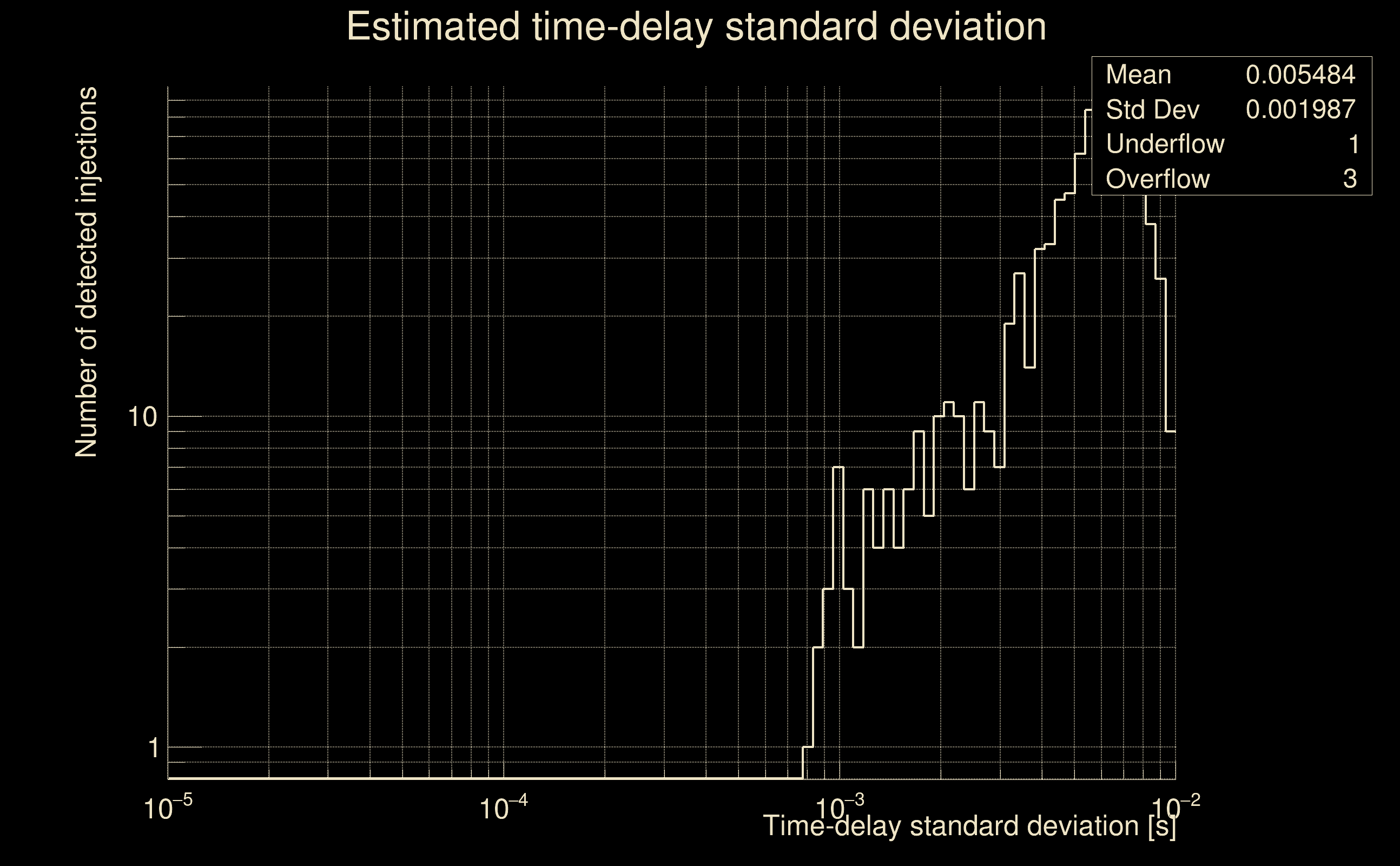

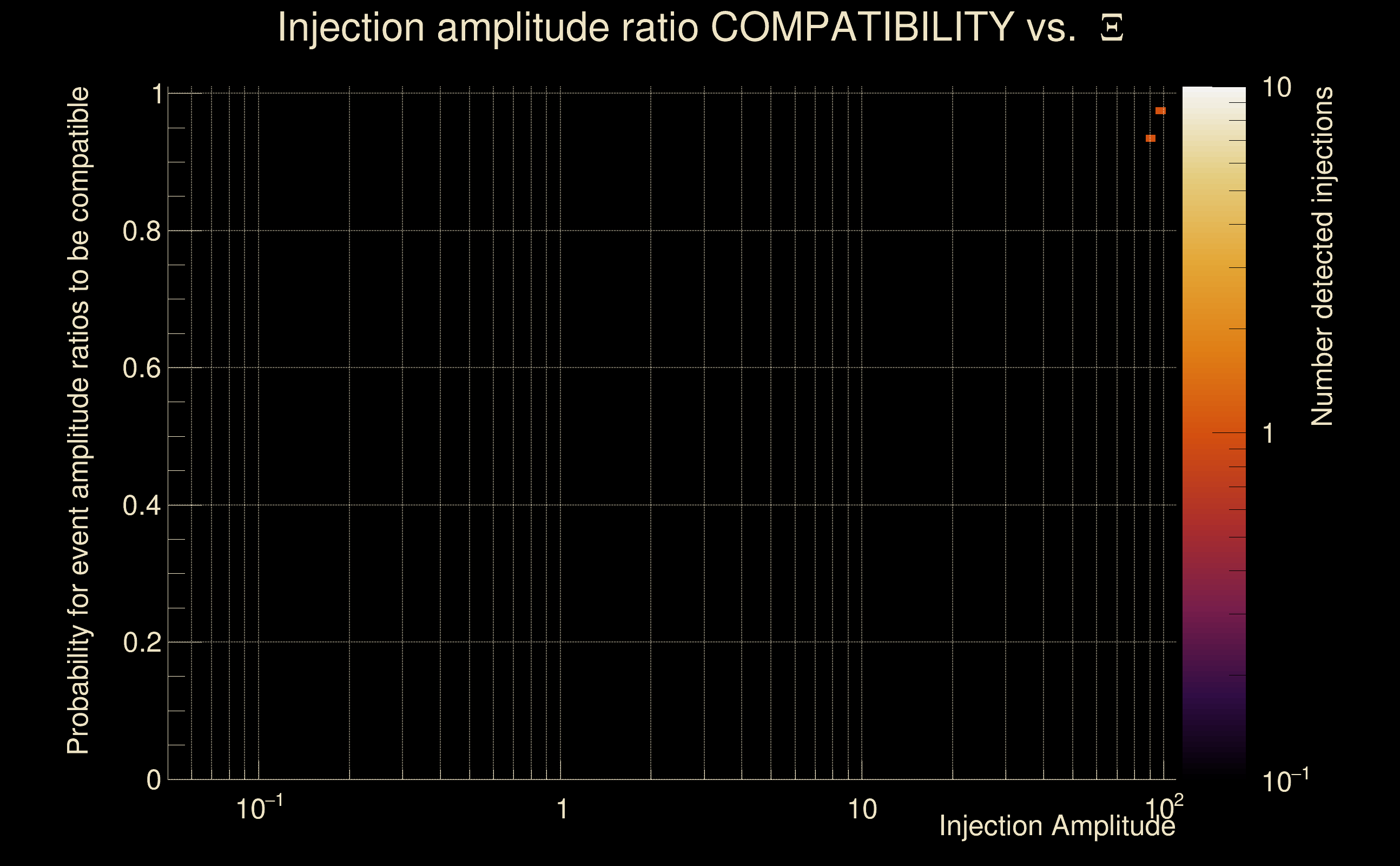

| Number of injections (total/valid/detected): | 1042 / 932 / 2 |
| List of missed injections: | ./Mezz23-D9_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | -1 |
| Injection amplitude at 10% detection efficiency: | 91.2175 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

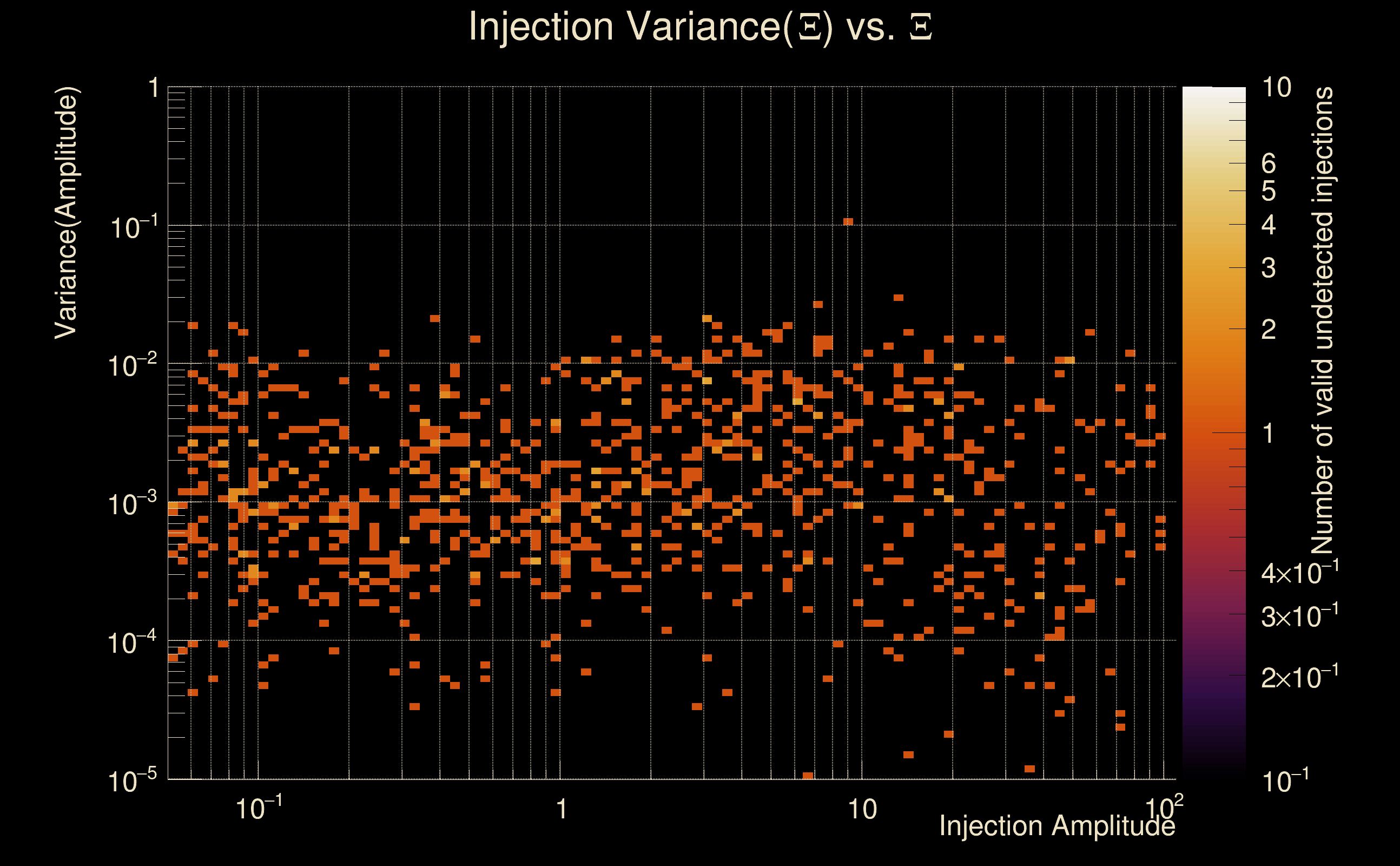

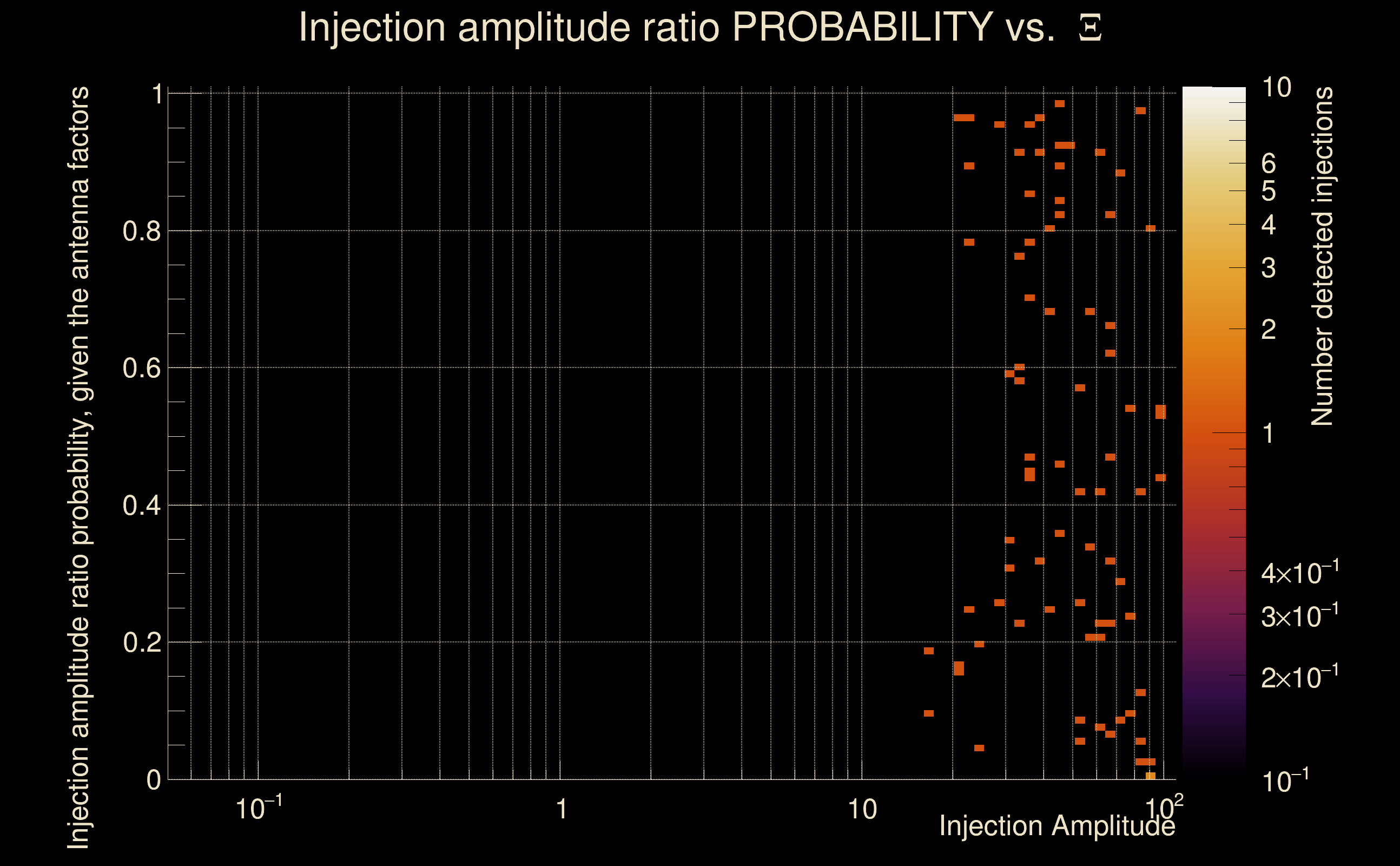

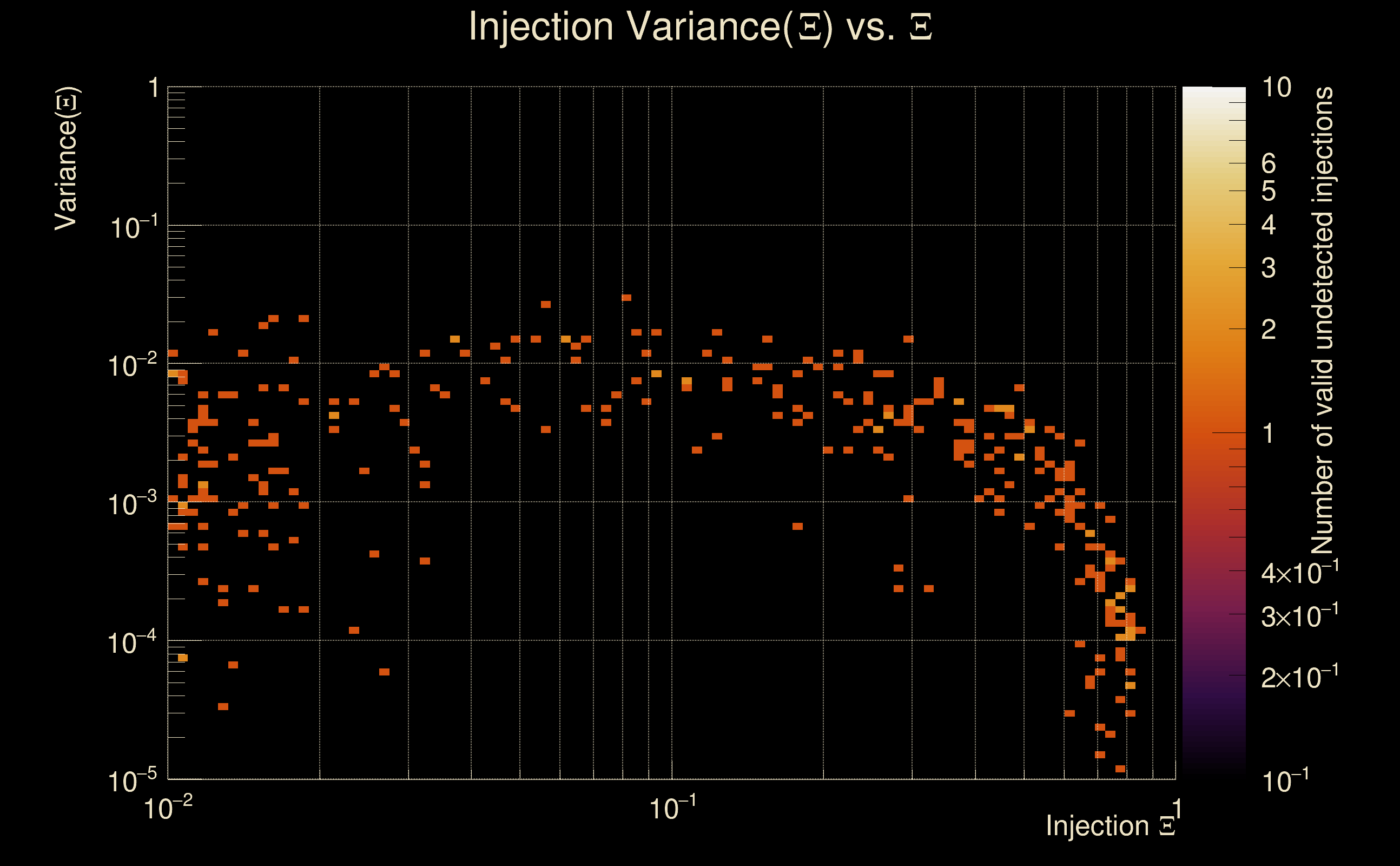

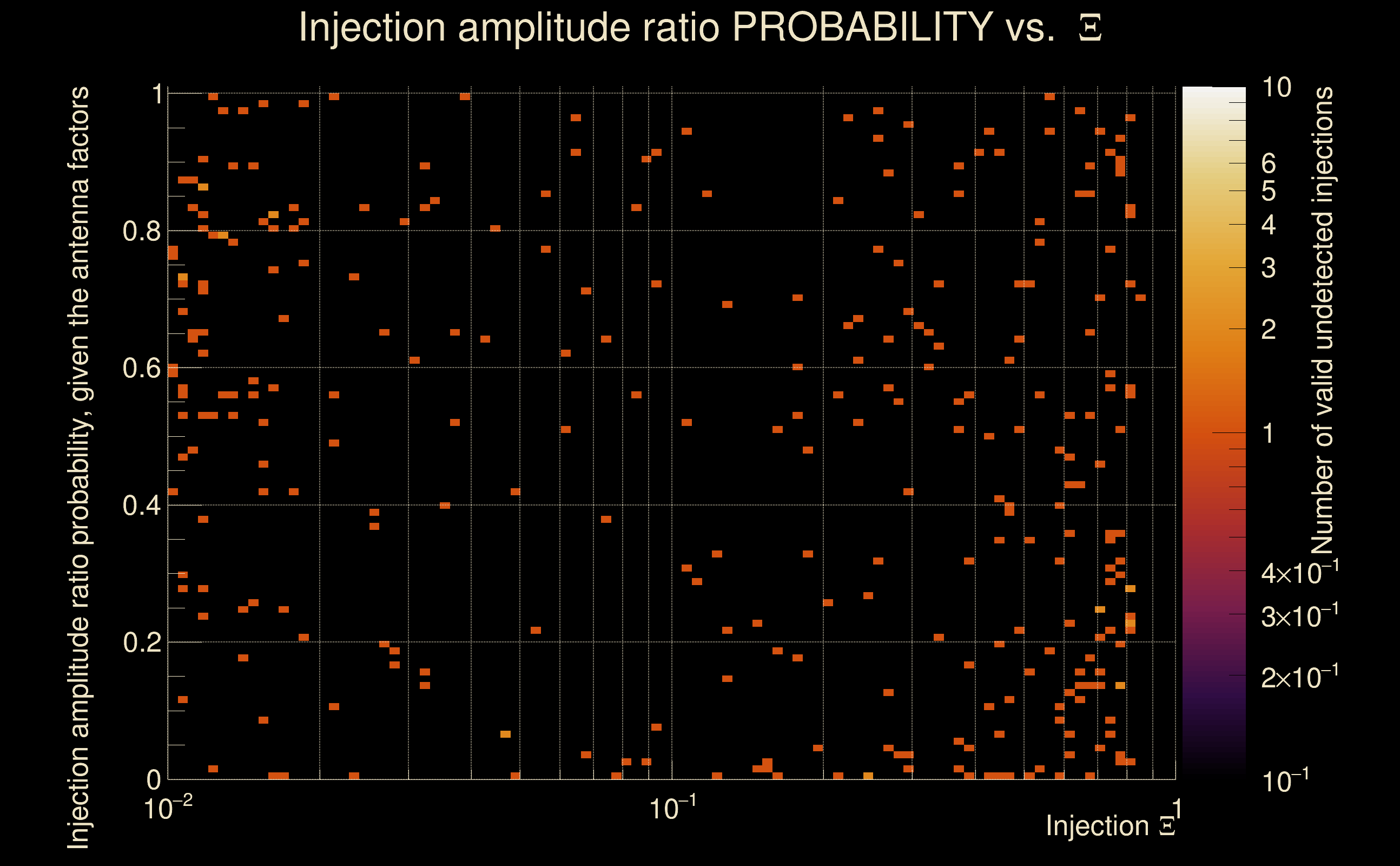

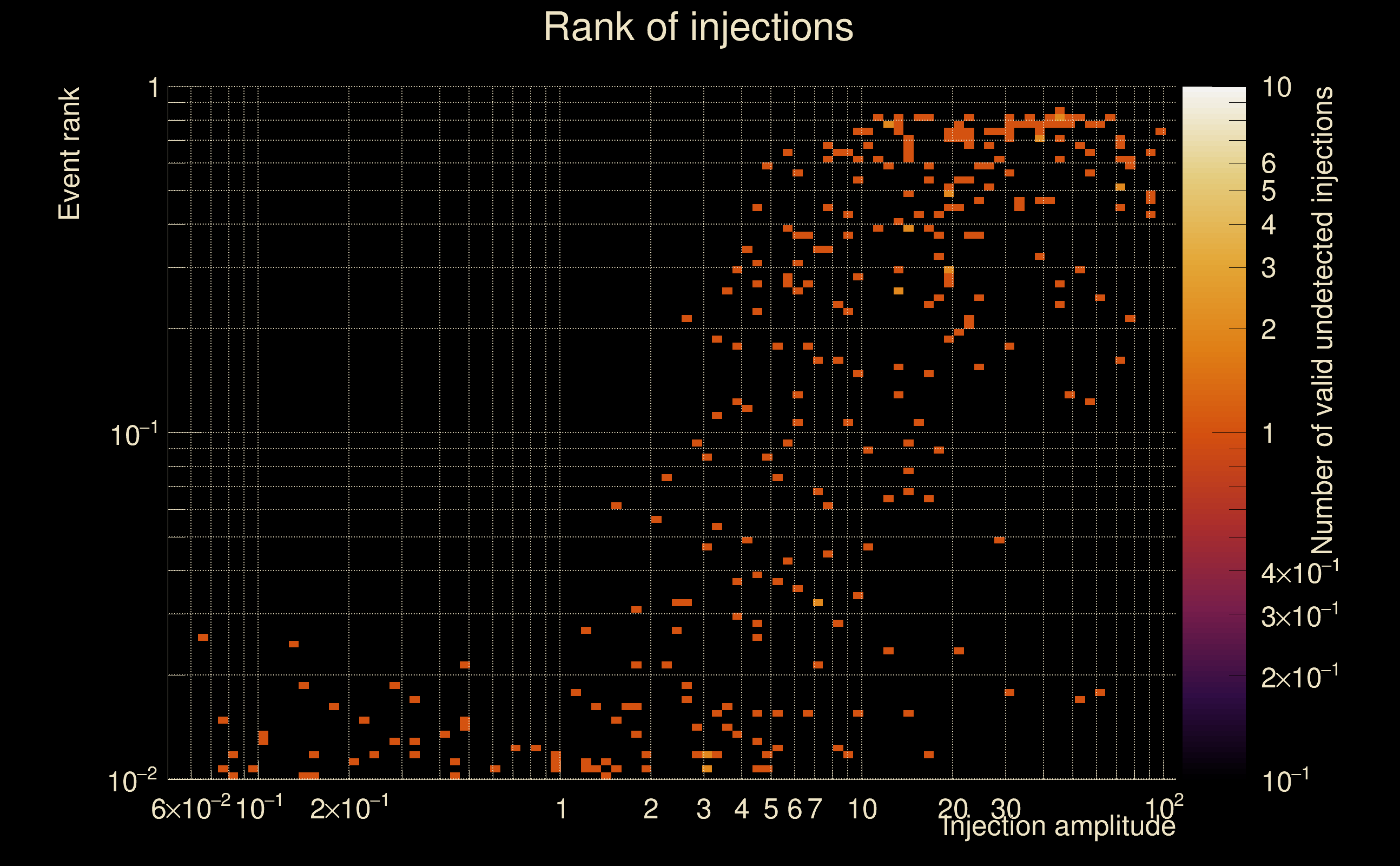

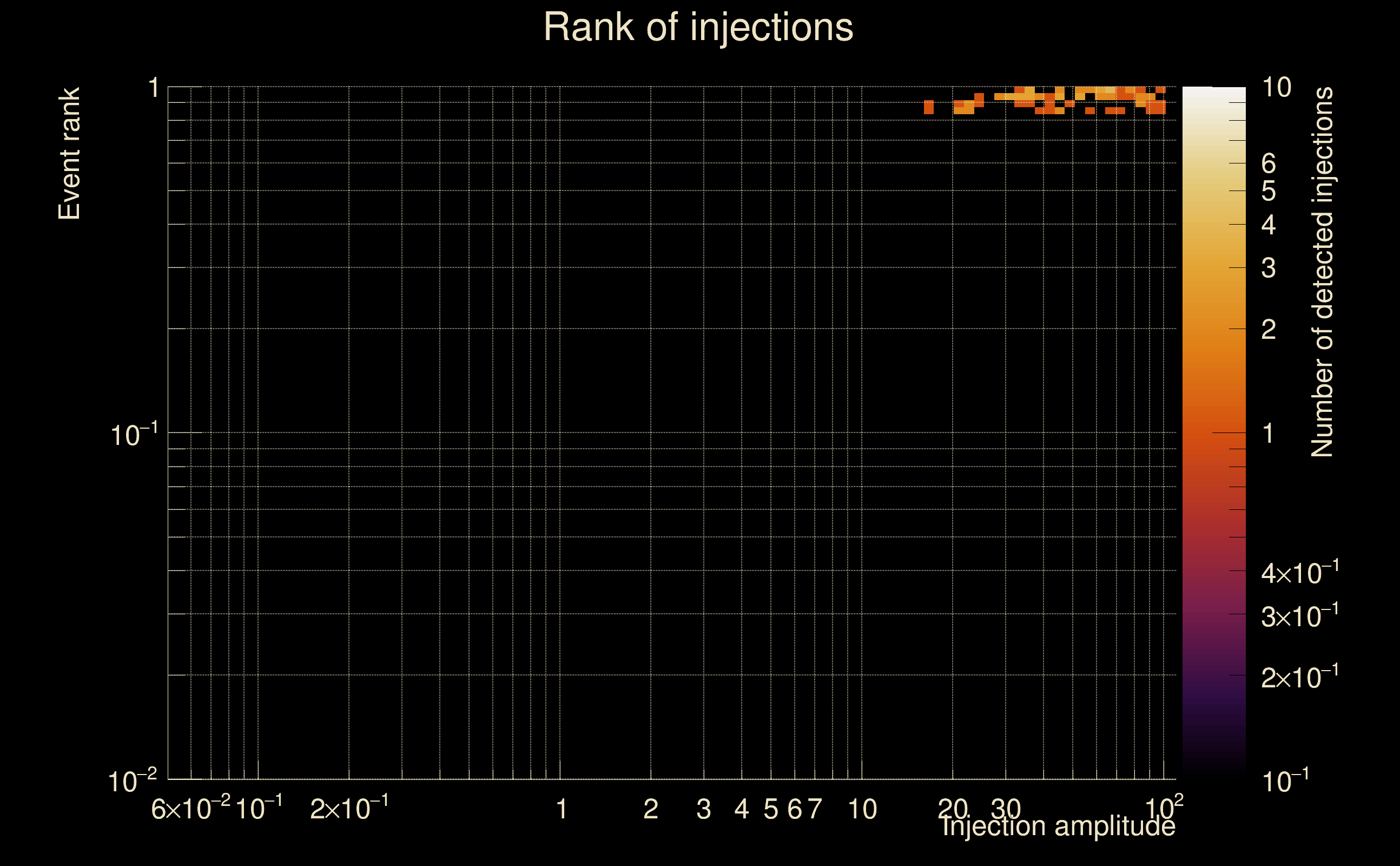

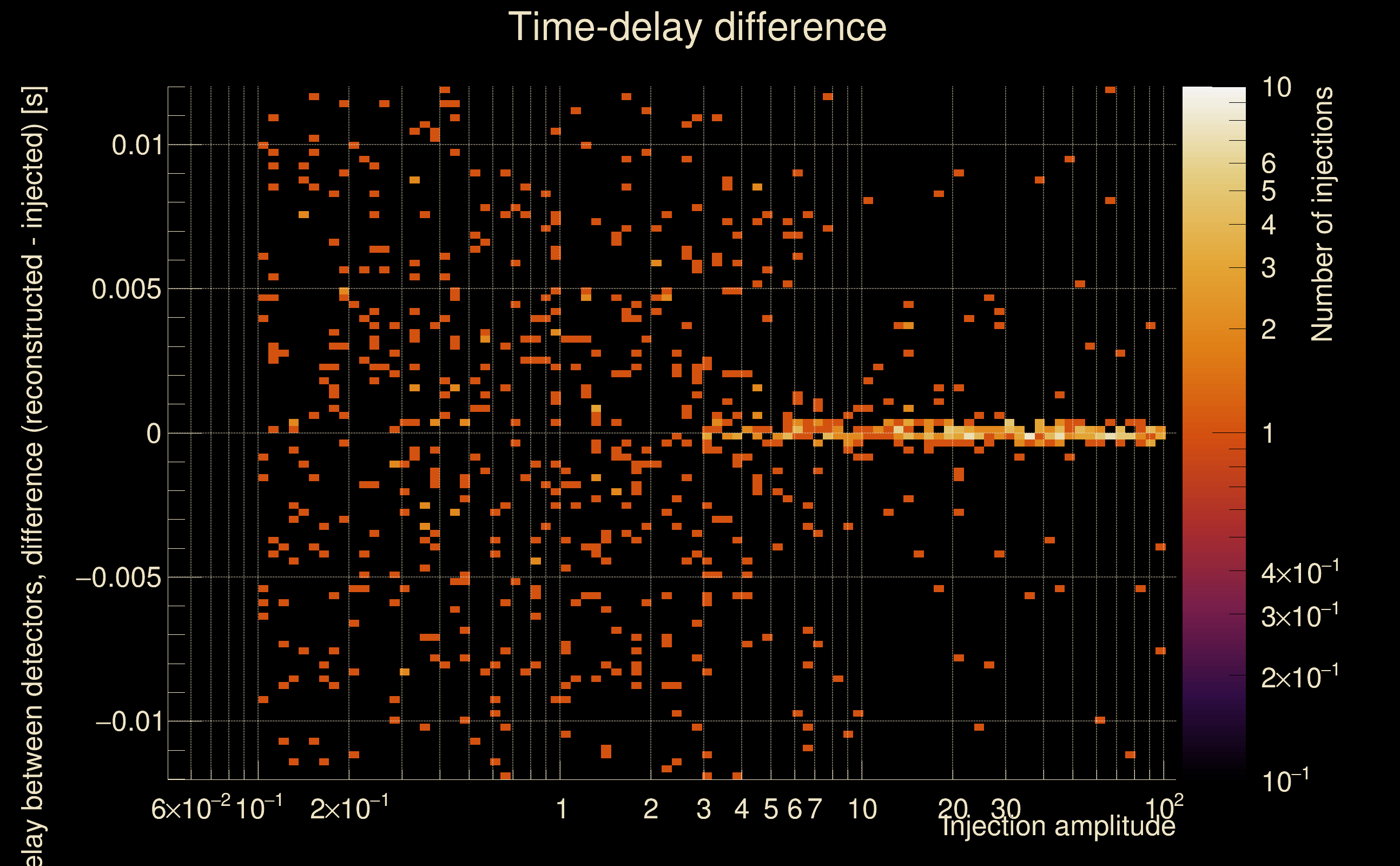

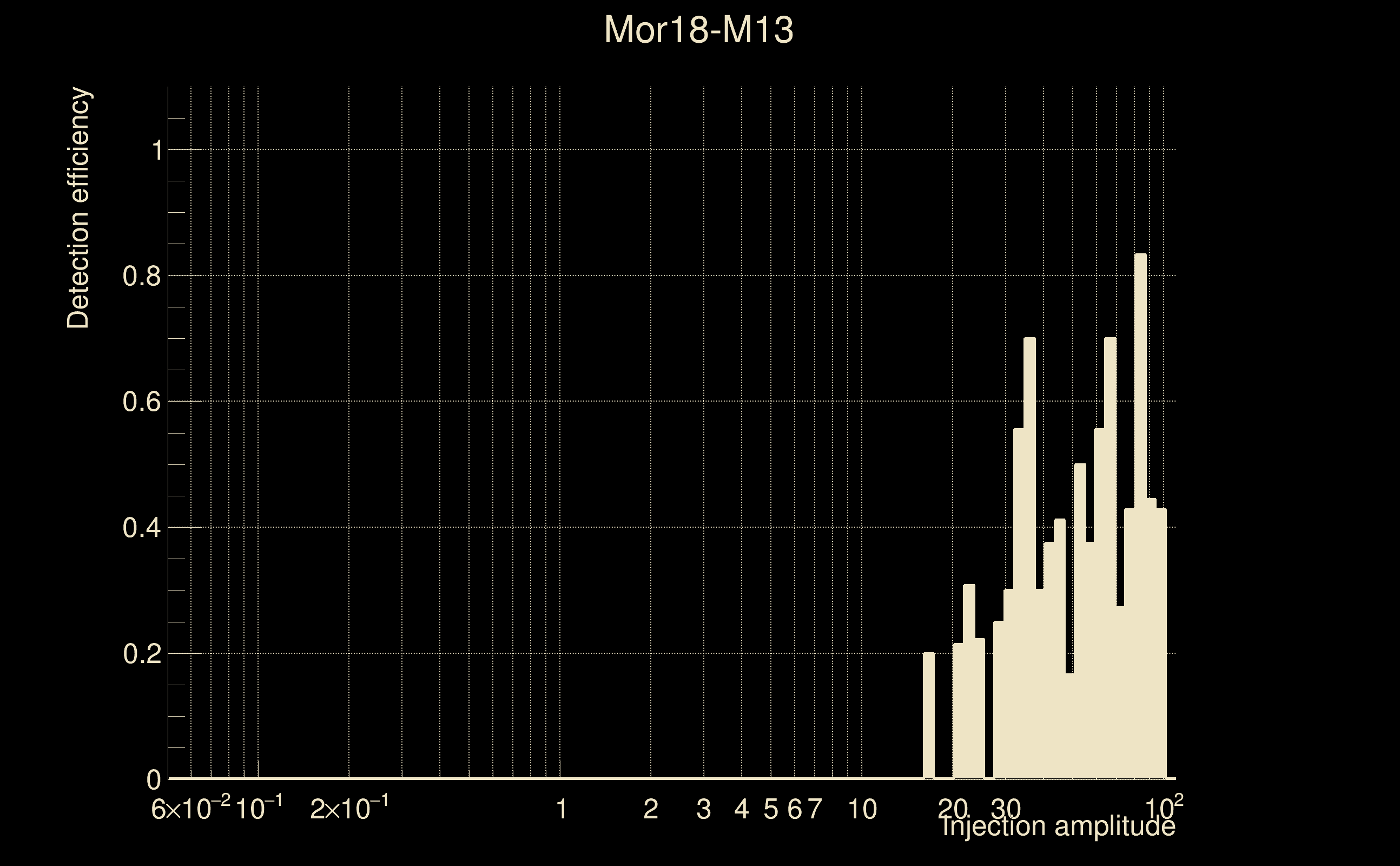

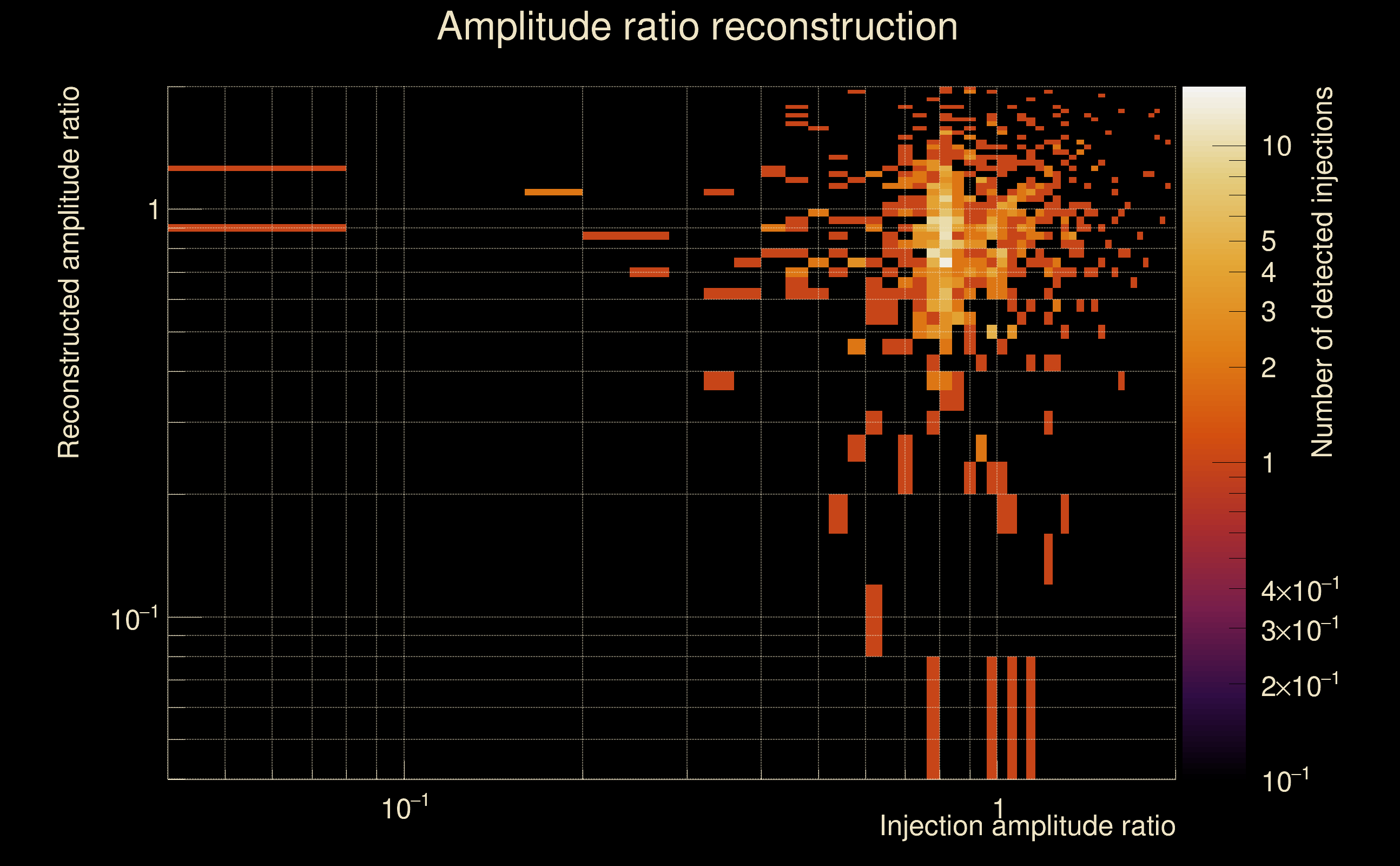

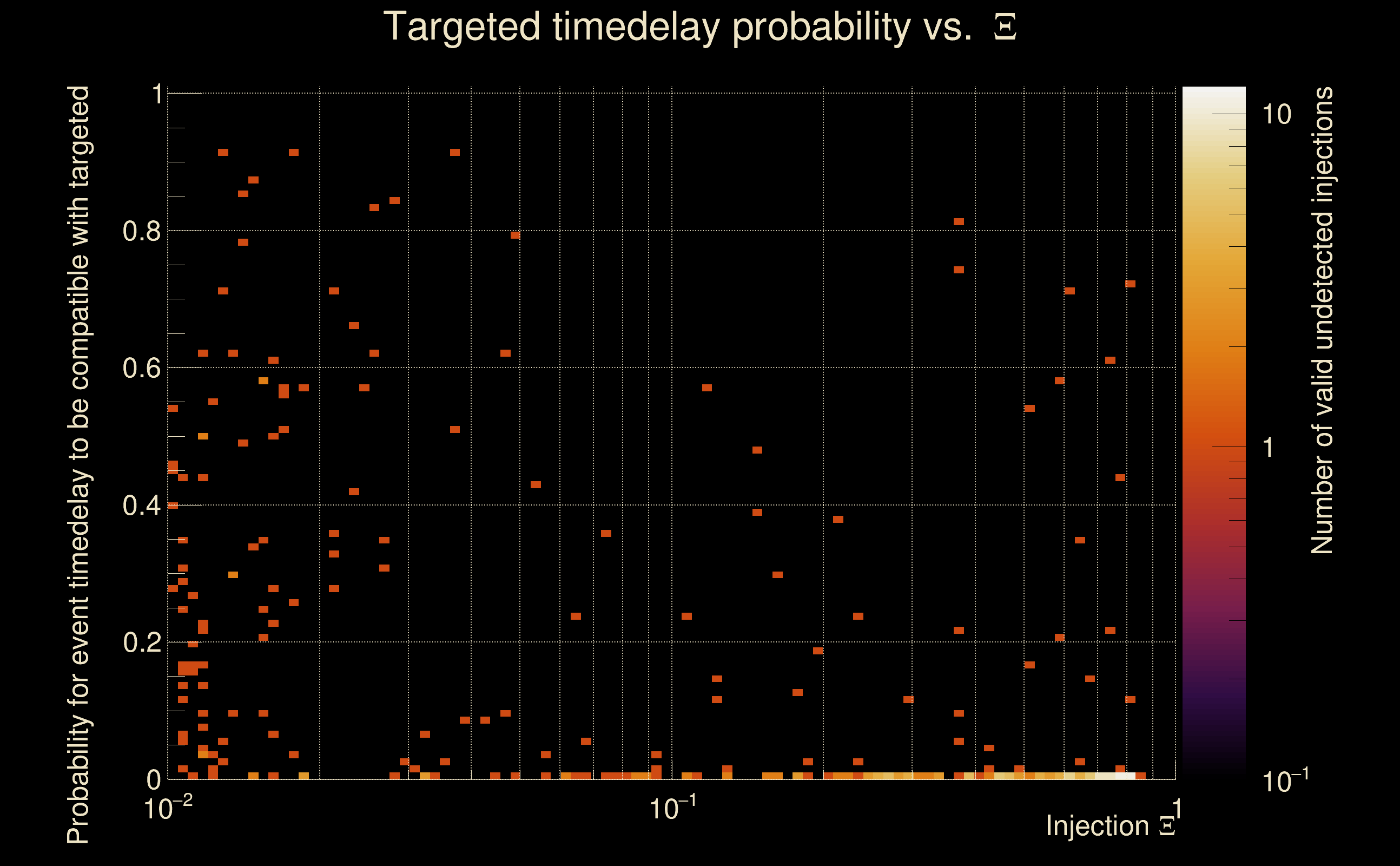

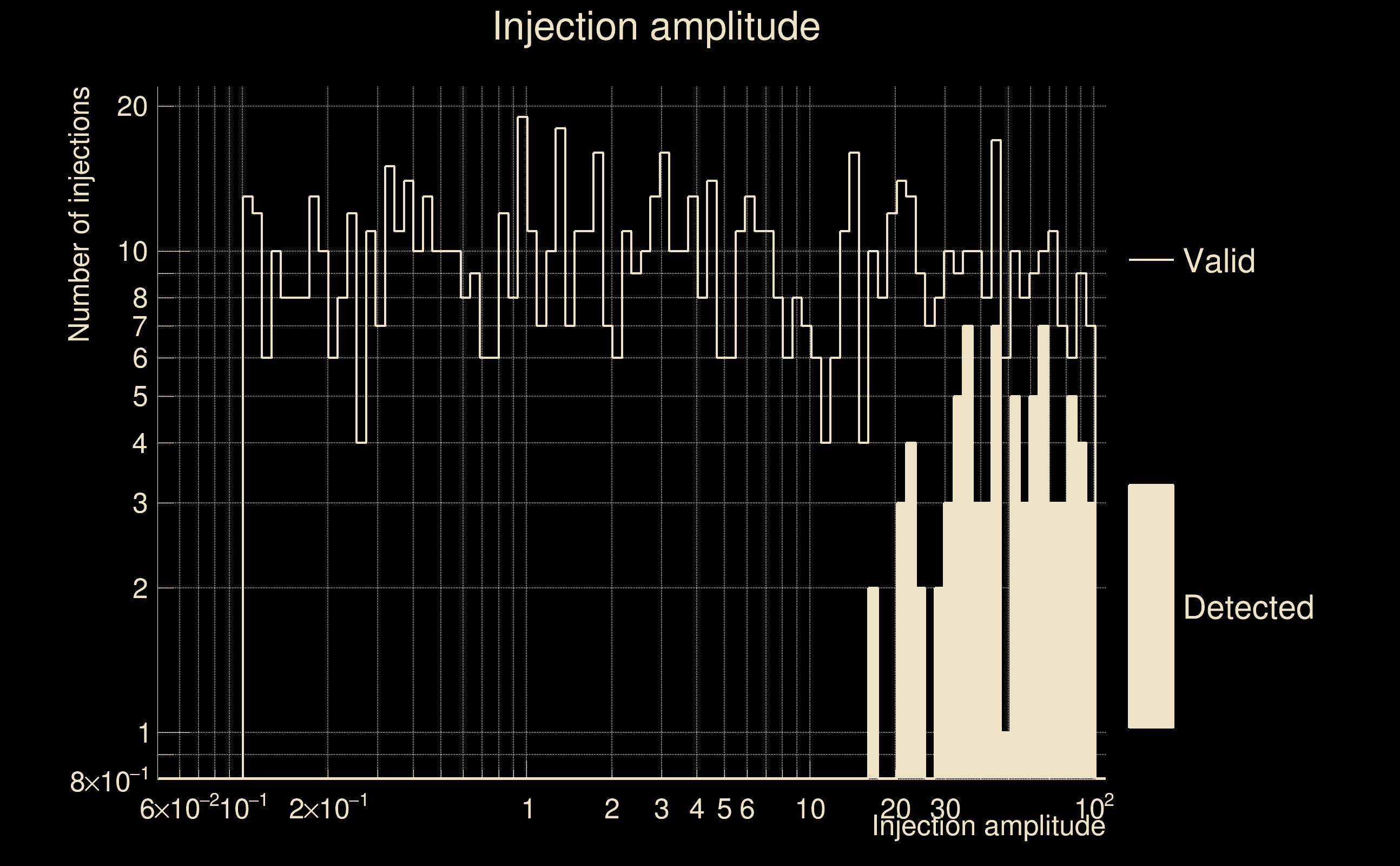

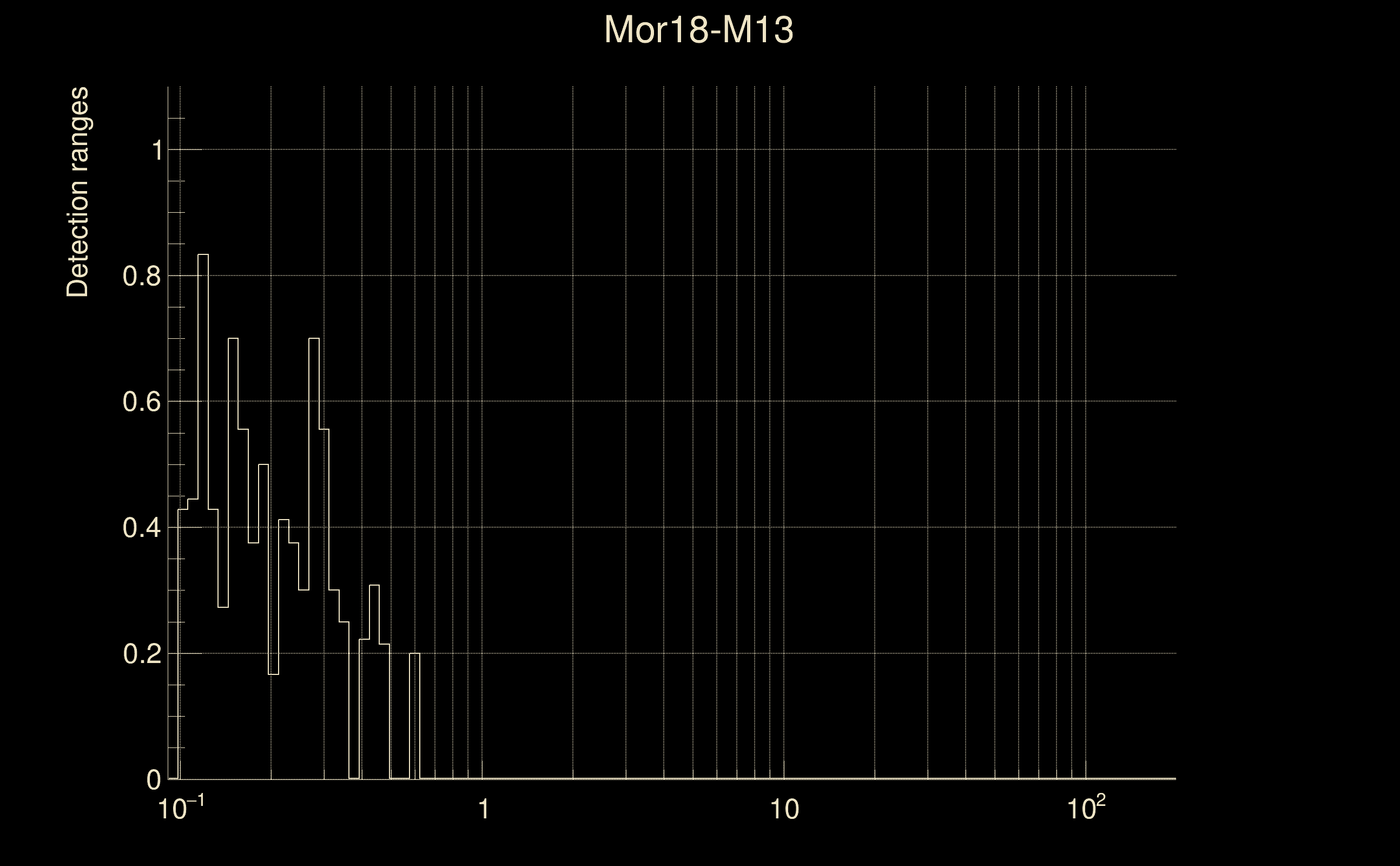

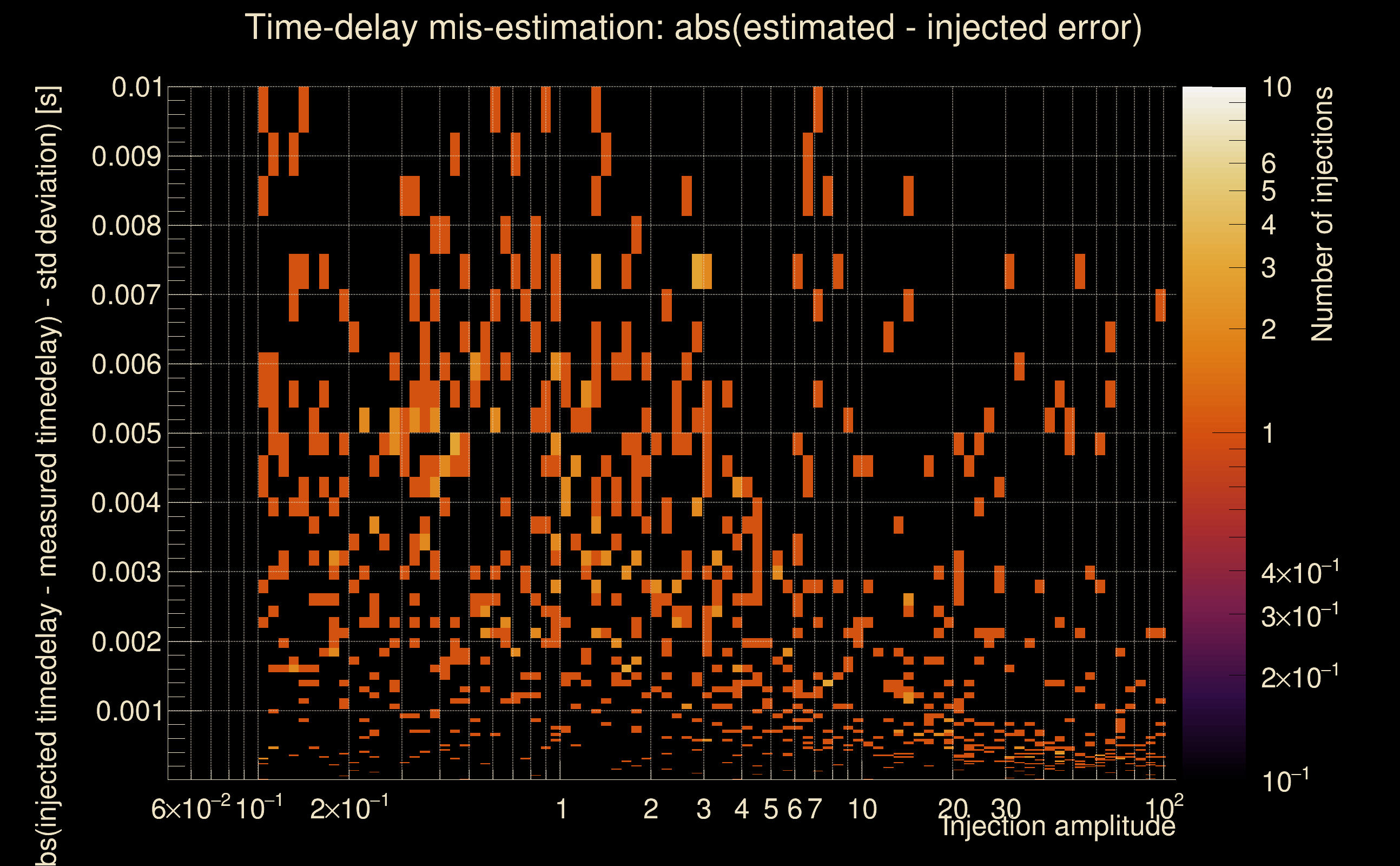

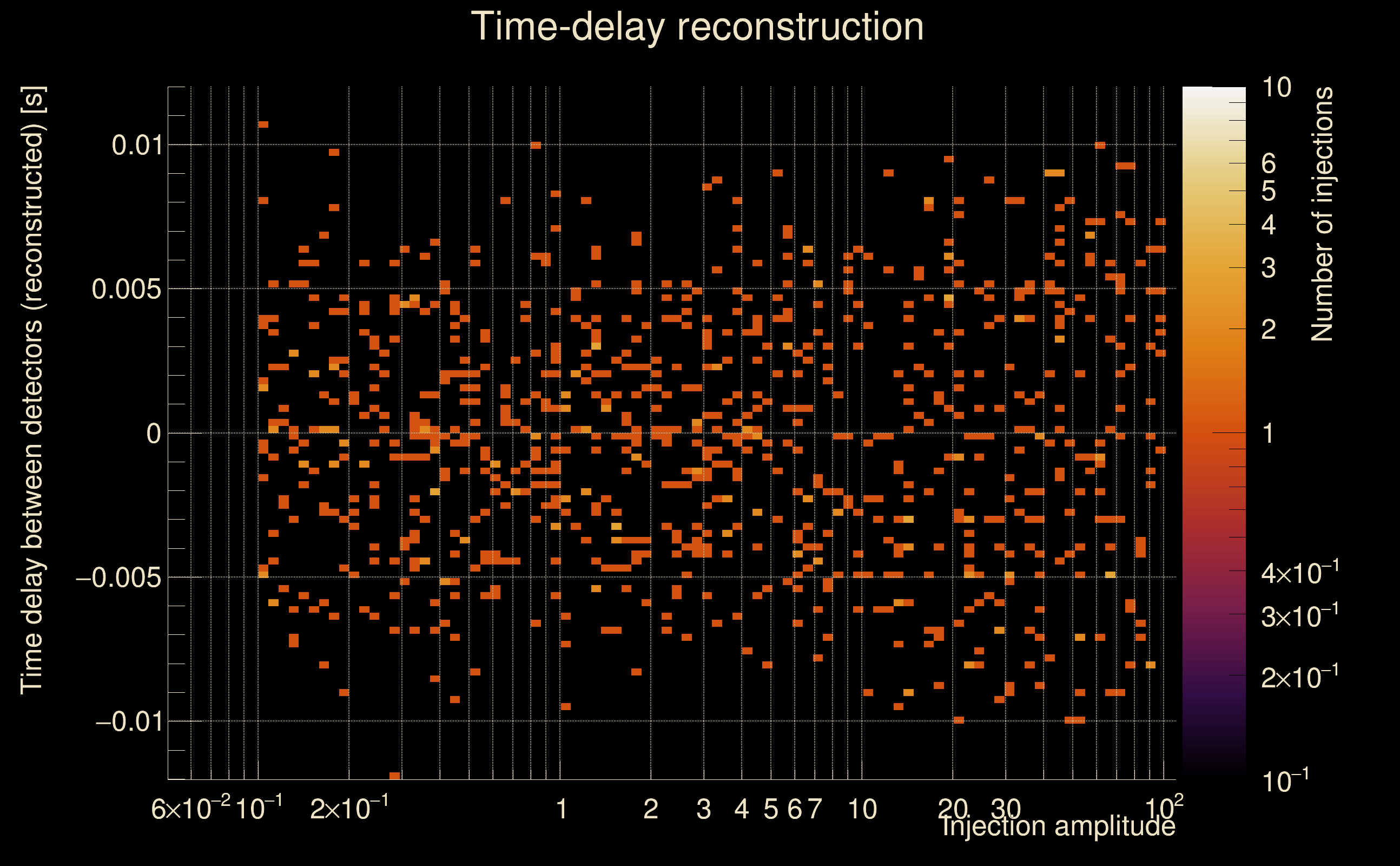

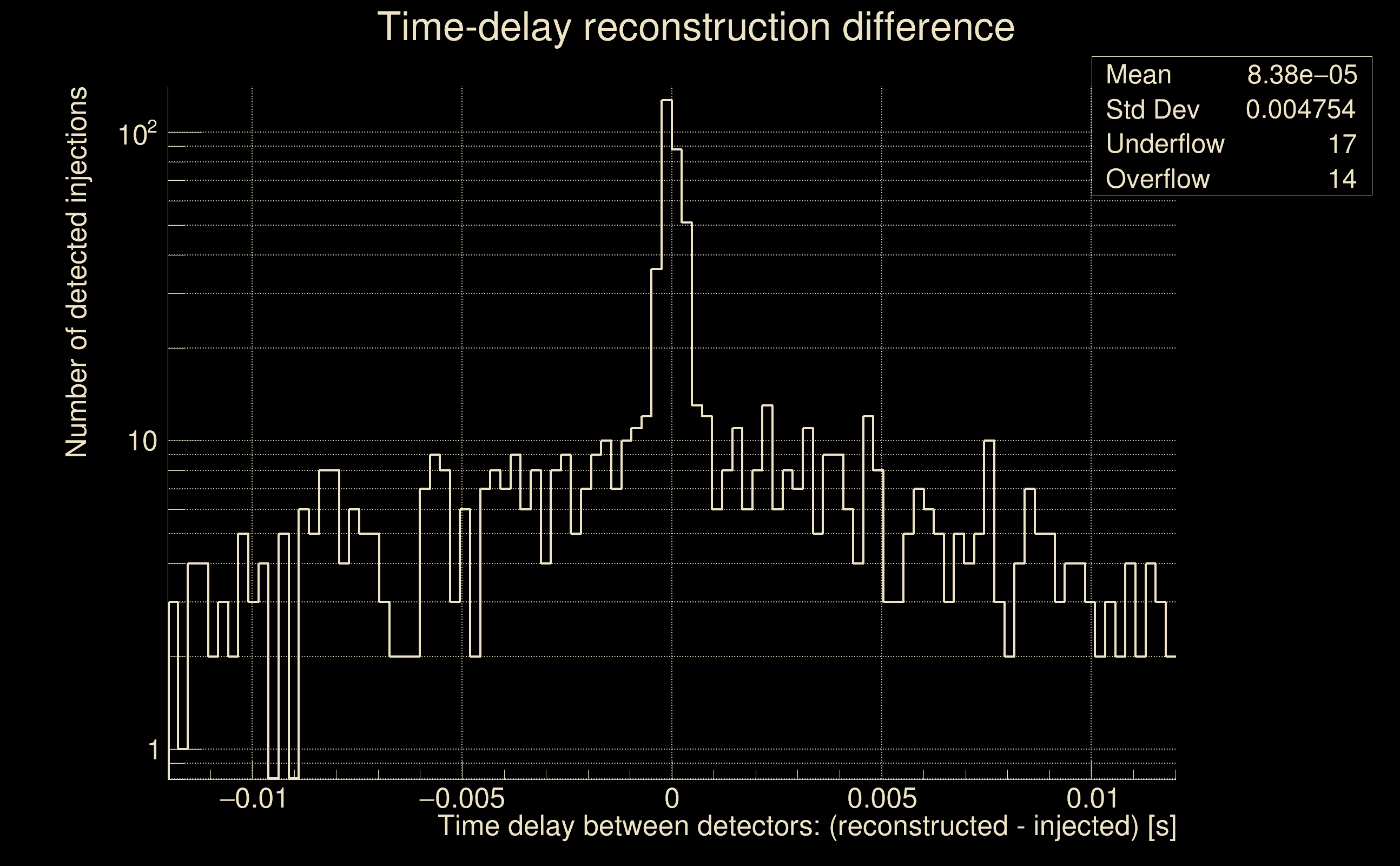

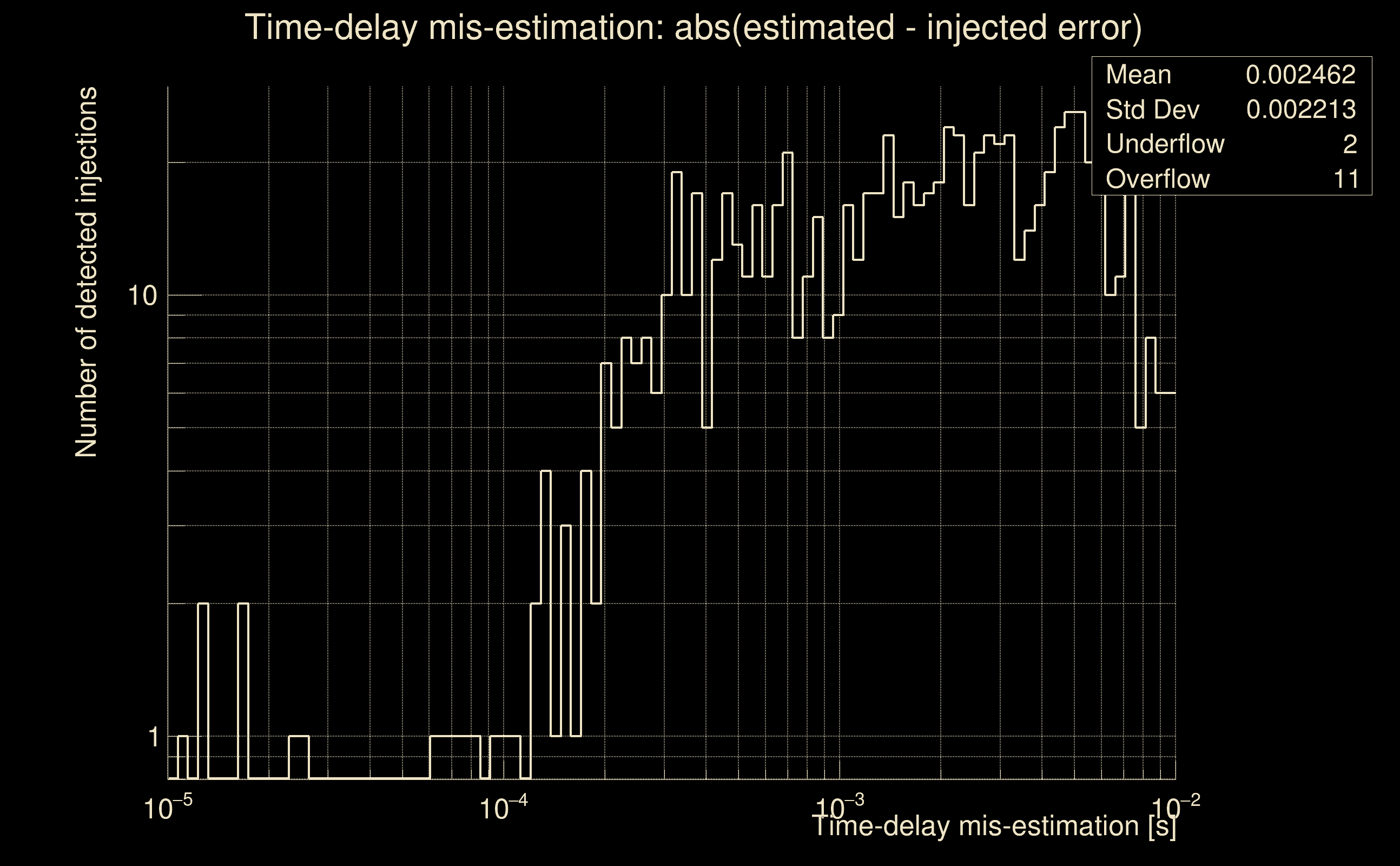

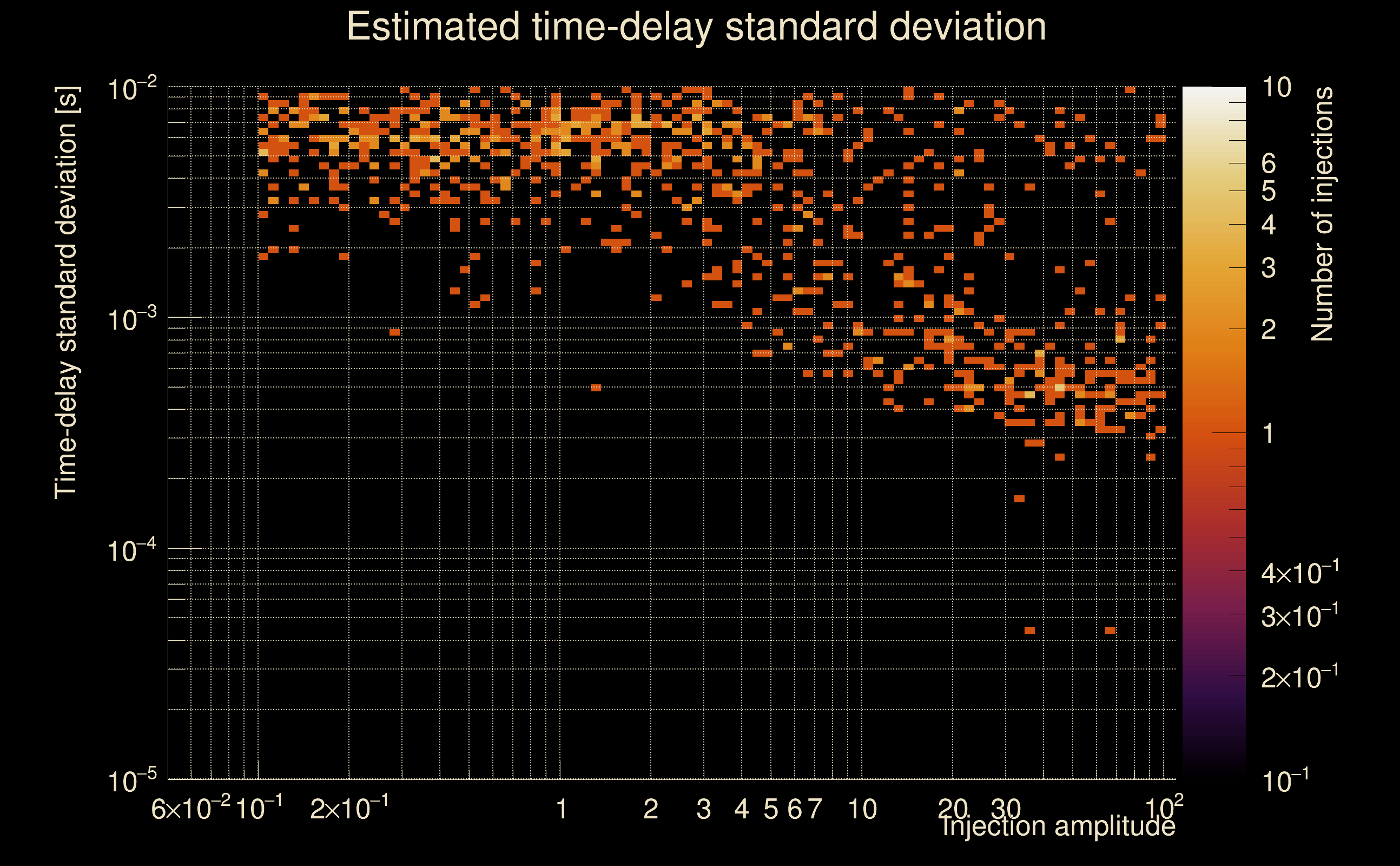

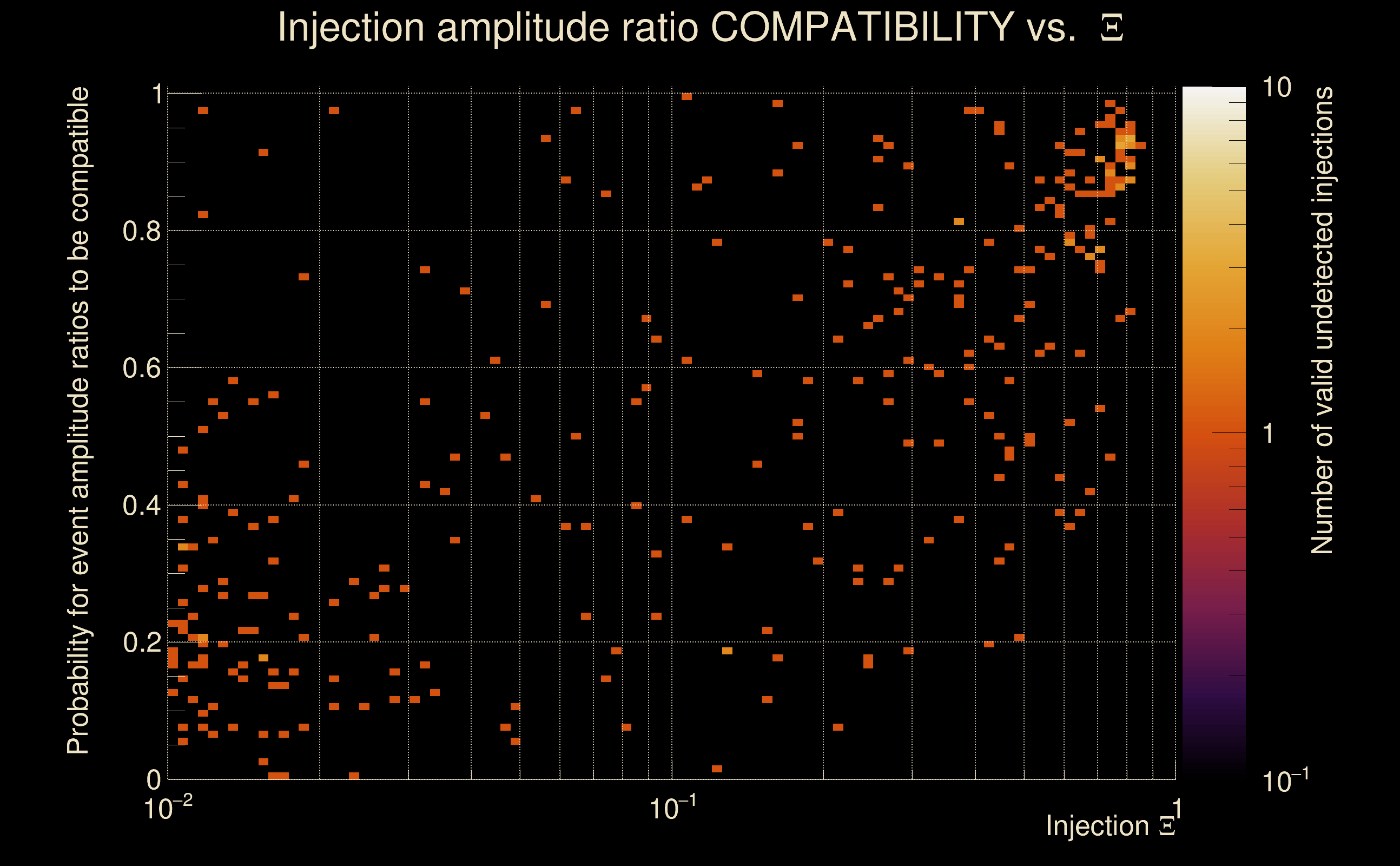

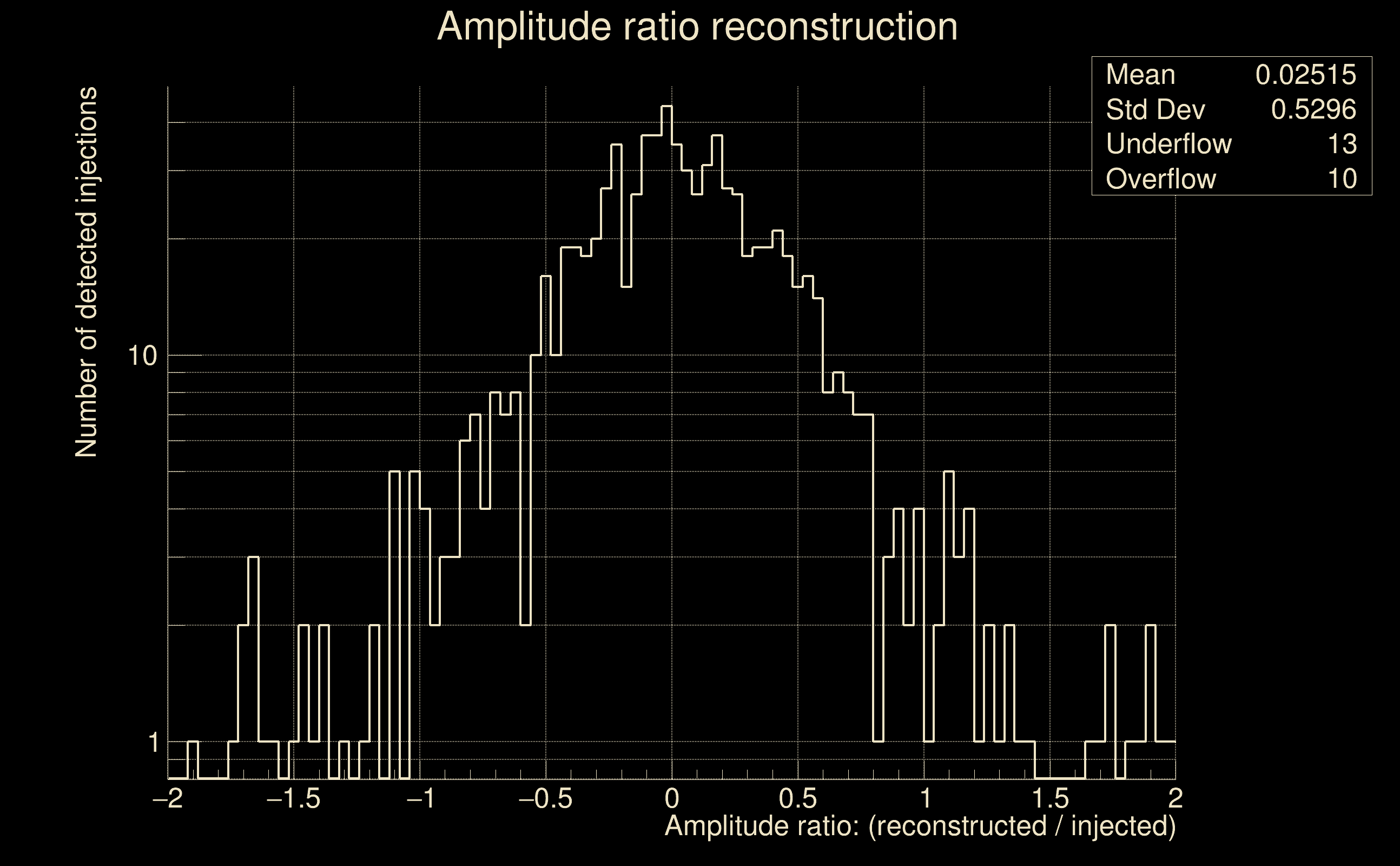

| Number of injections (total/valid/detected): | 1006 / 877 / 80 |
| List of missed injections: | ./Mor18-M13_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | 78.8226 |
| Injection amplitude at 10% detection efficiency: | 27.3322 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
