| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:43:03 2026 UTC |
| Ox option file: | Bench1_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench1_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench1_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=75 (1.518 s), time lag = 0 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

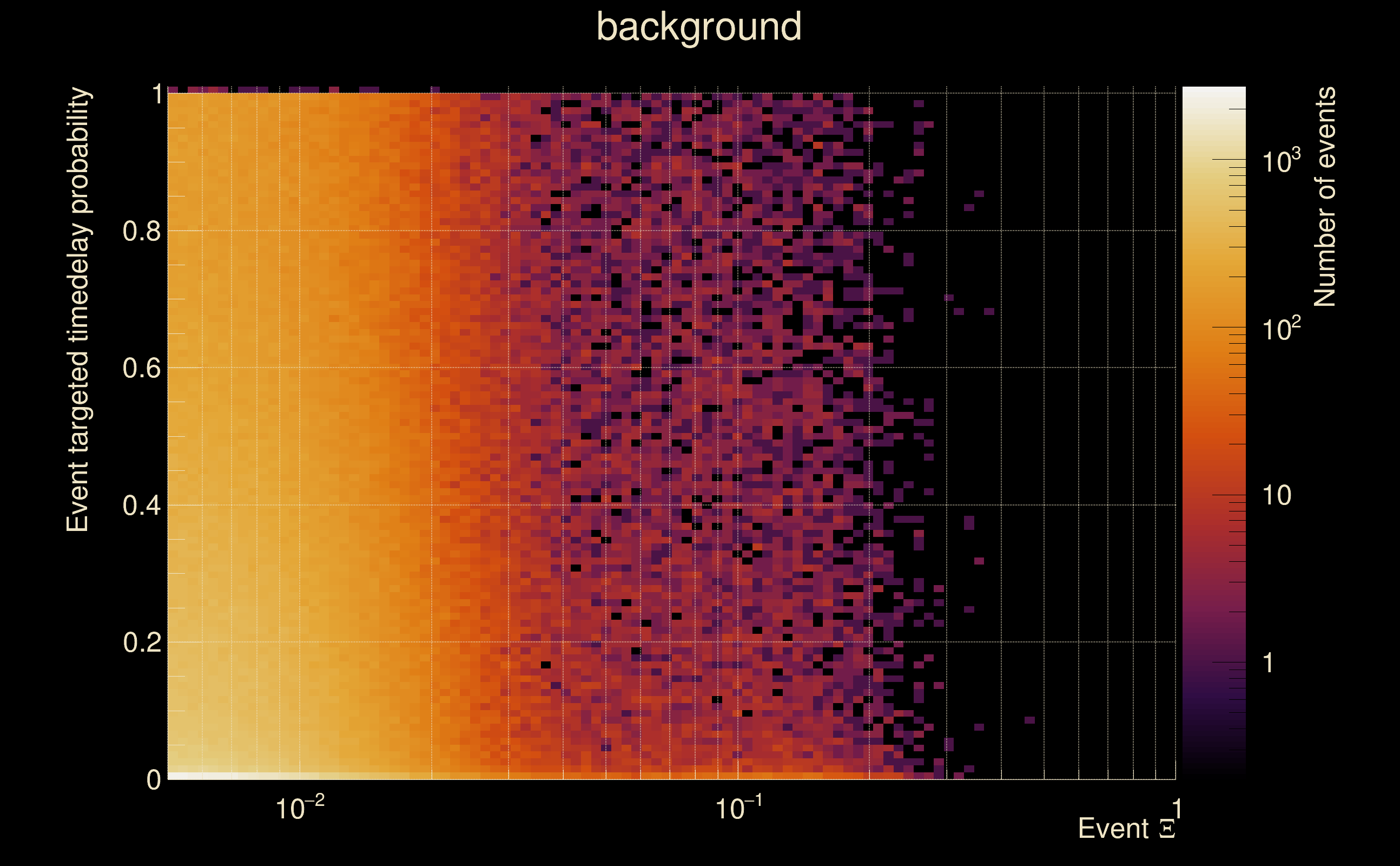

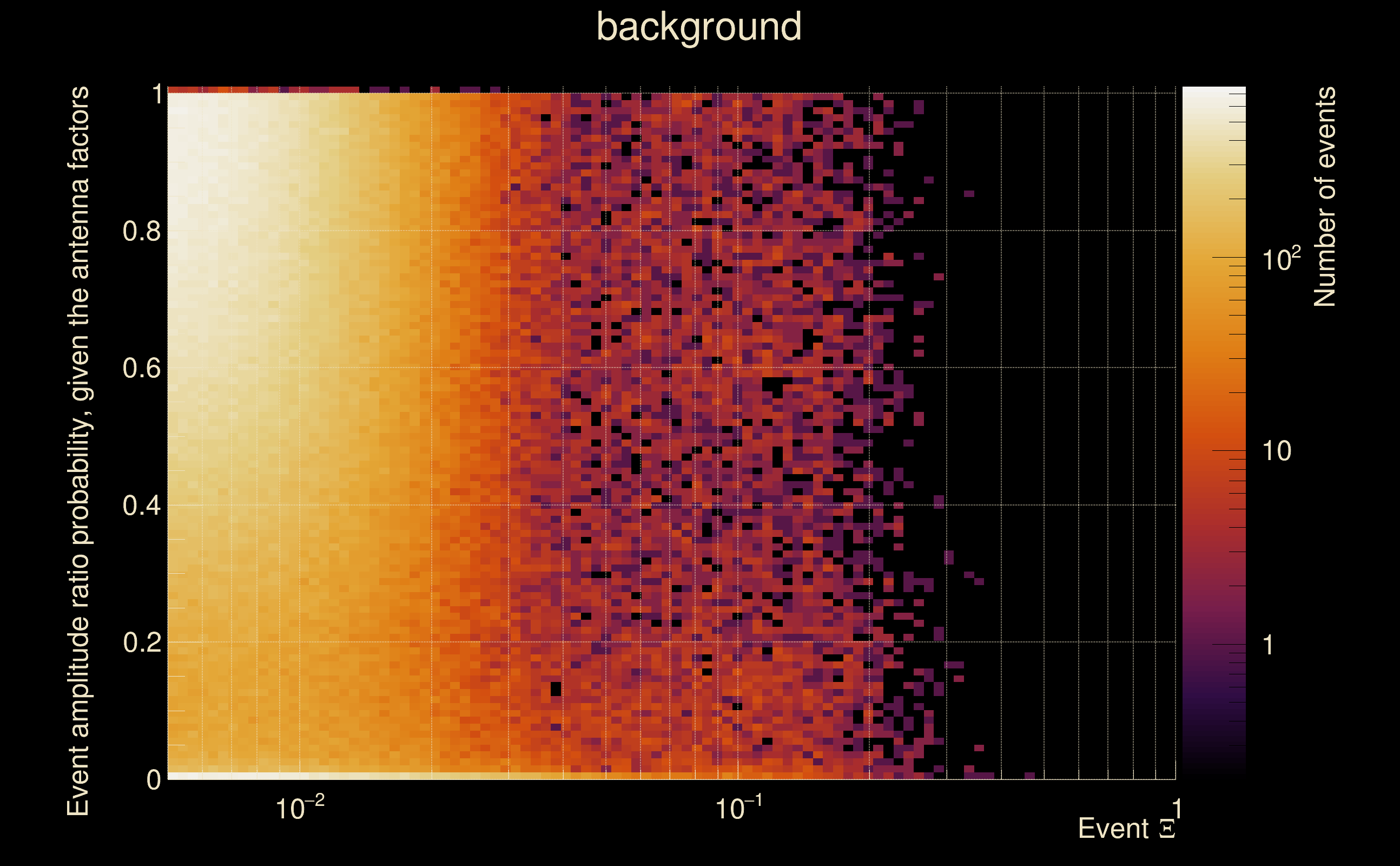

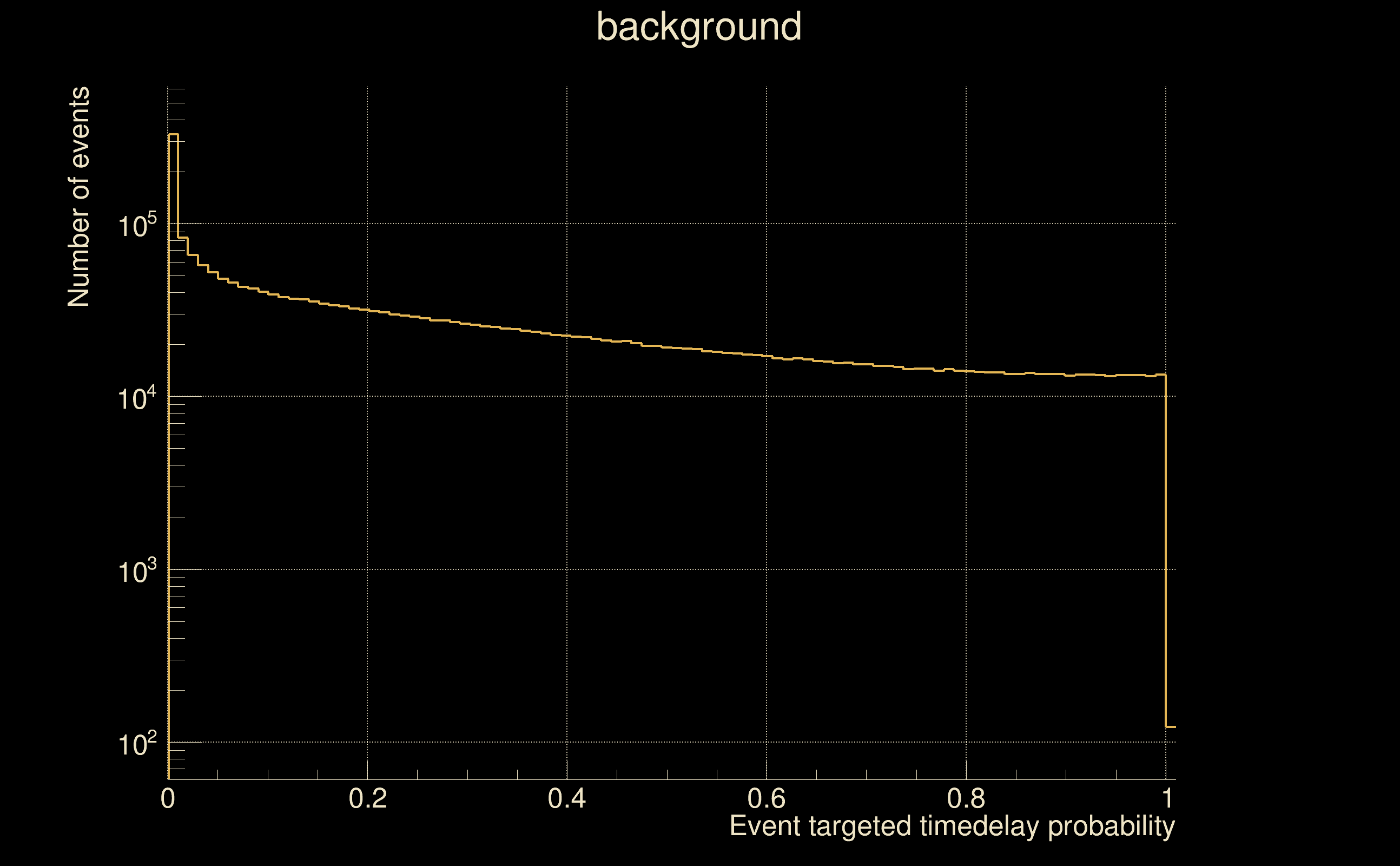

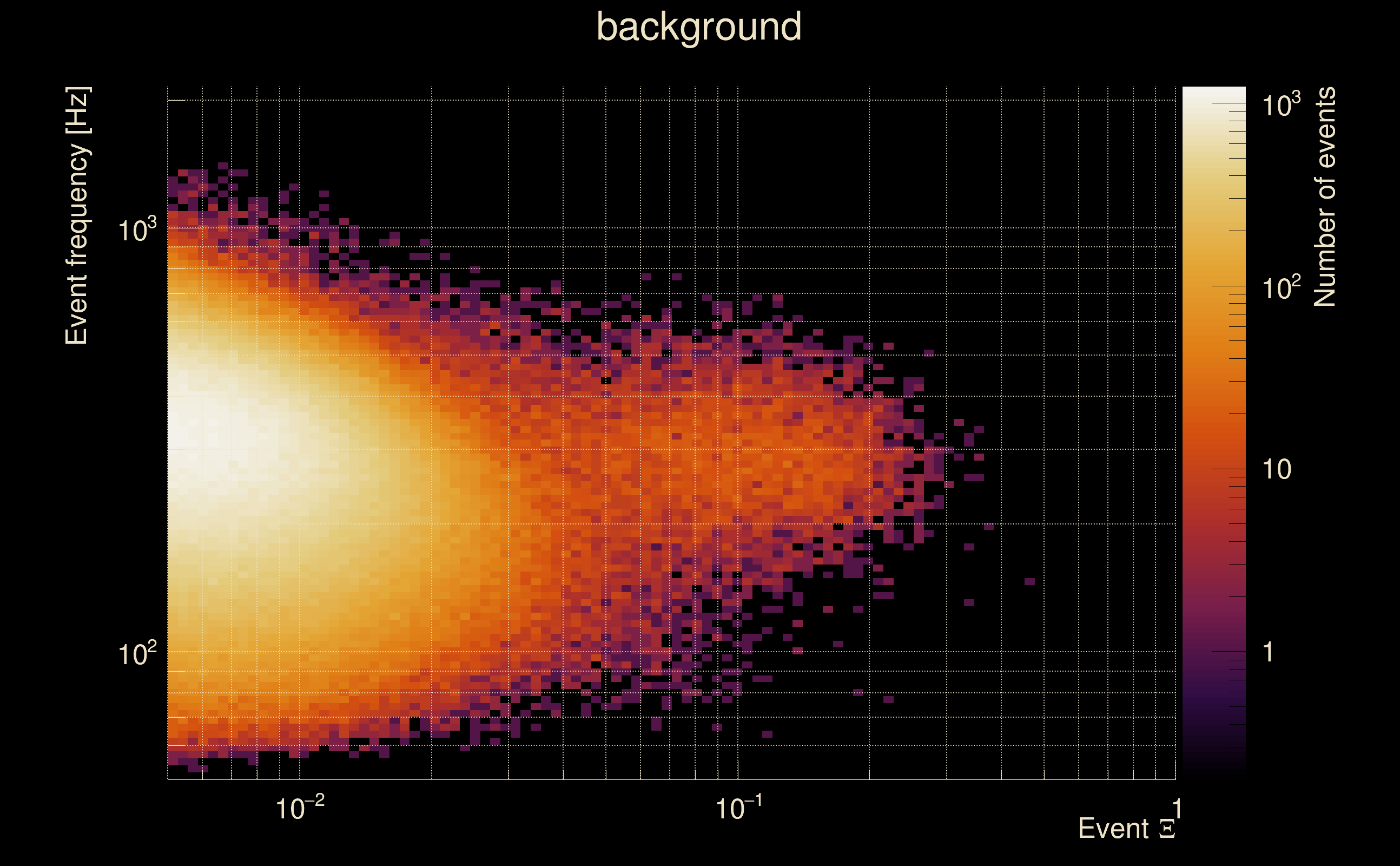

| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

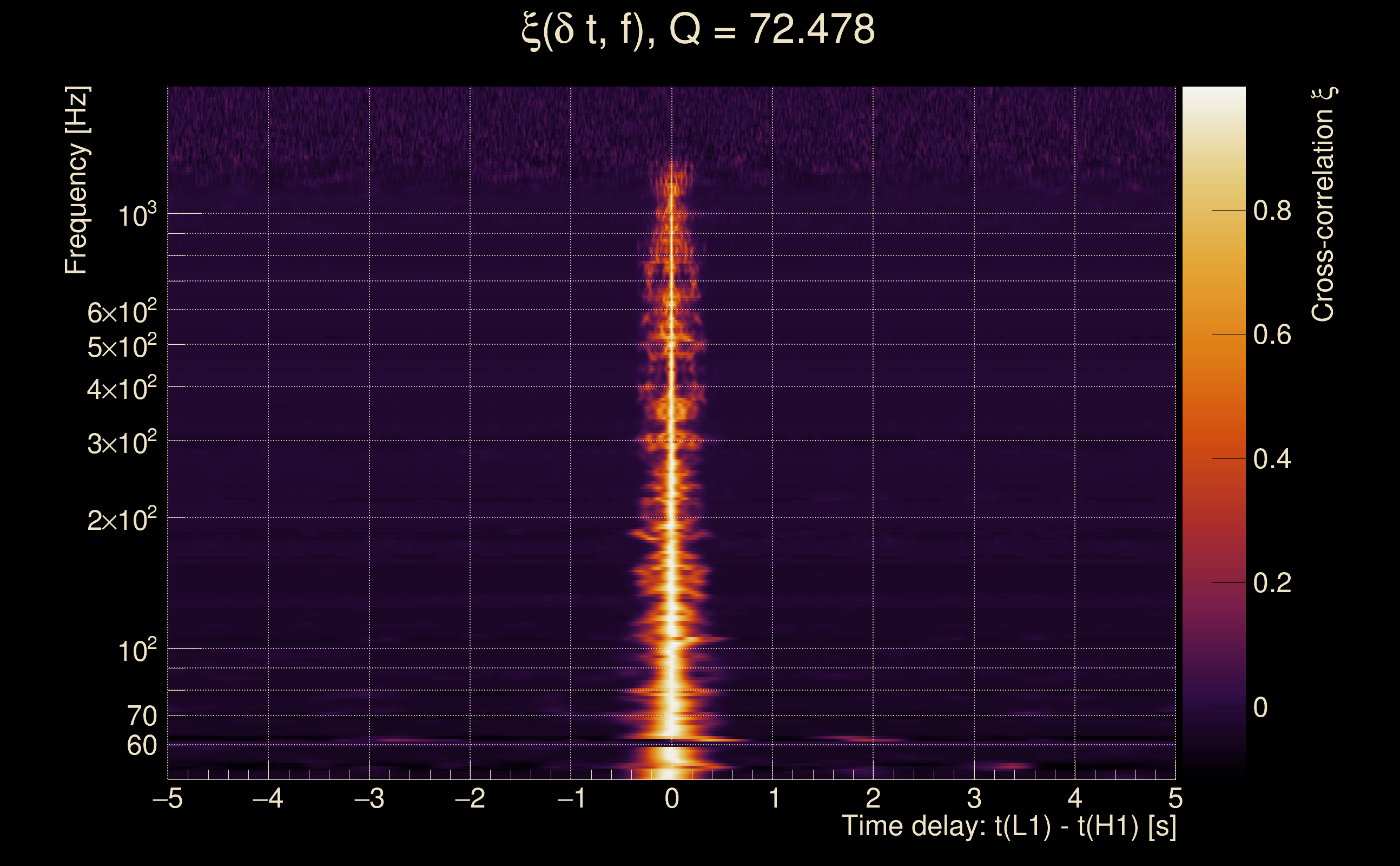

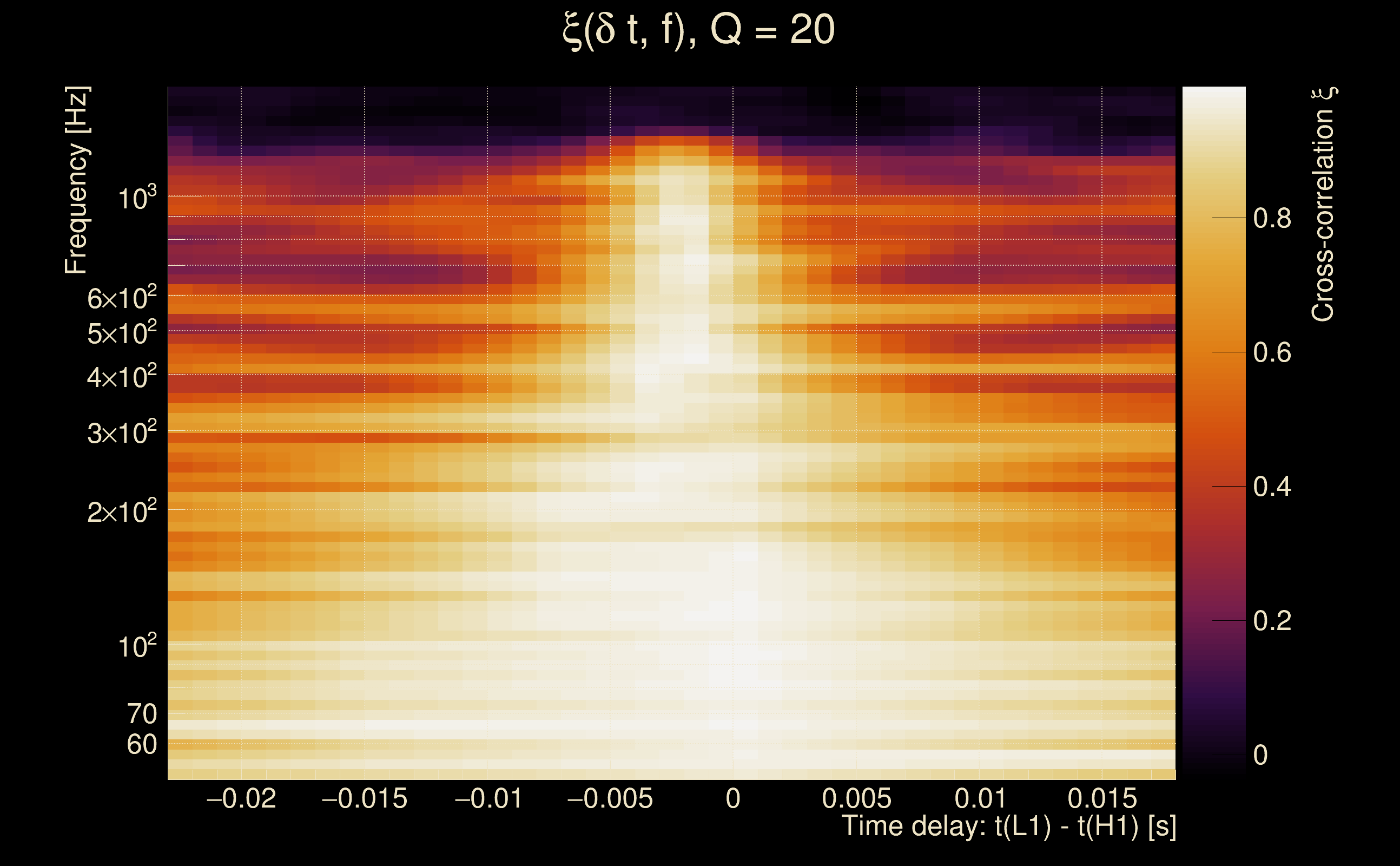

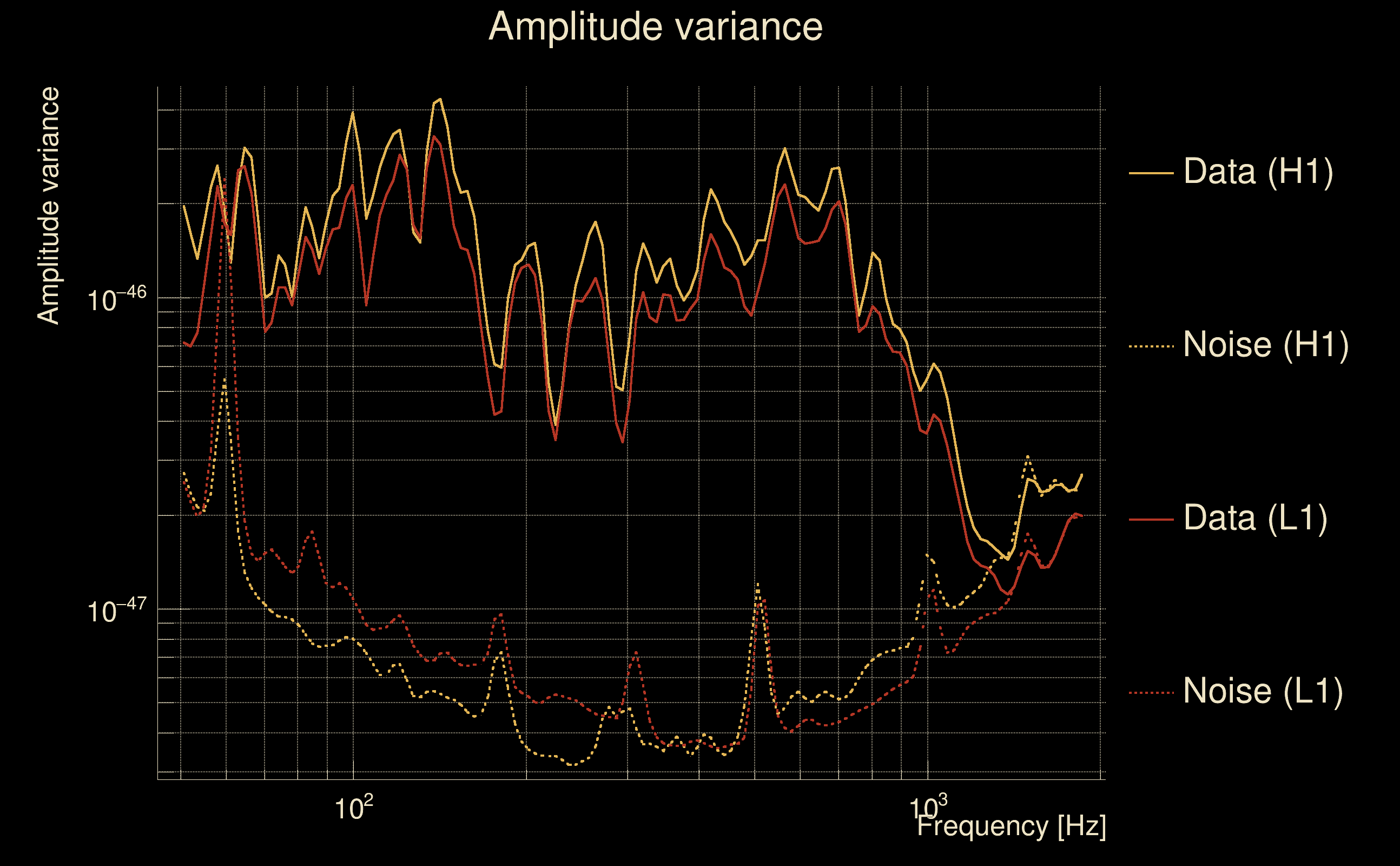

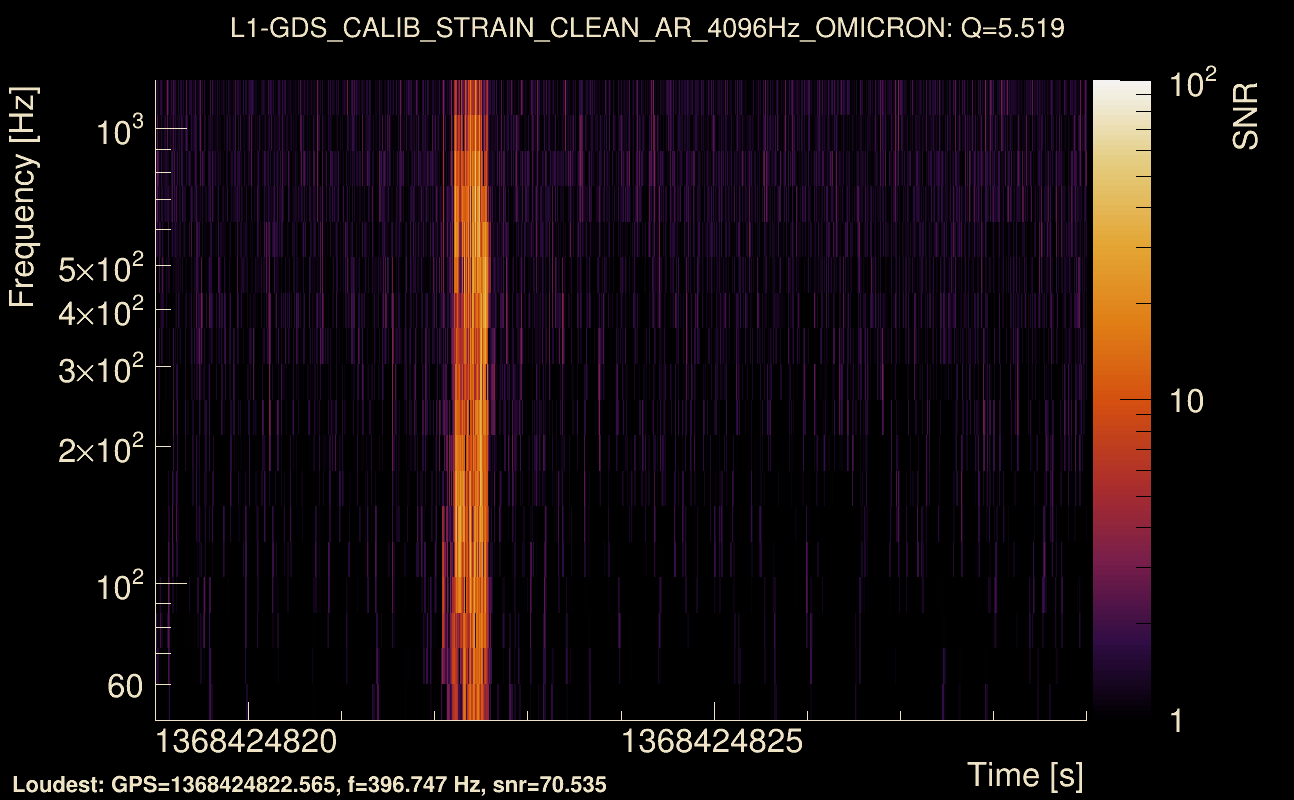

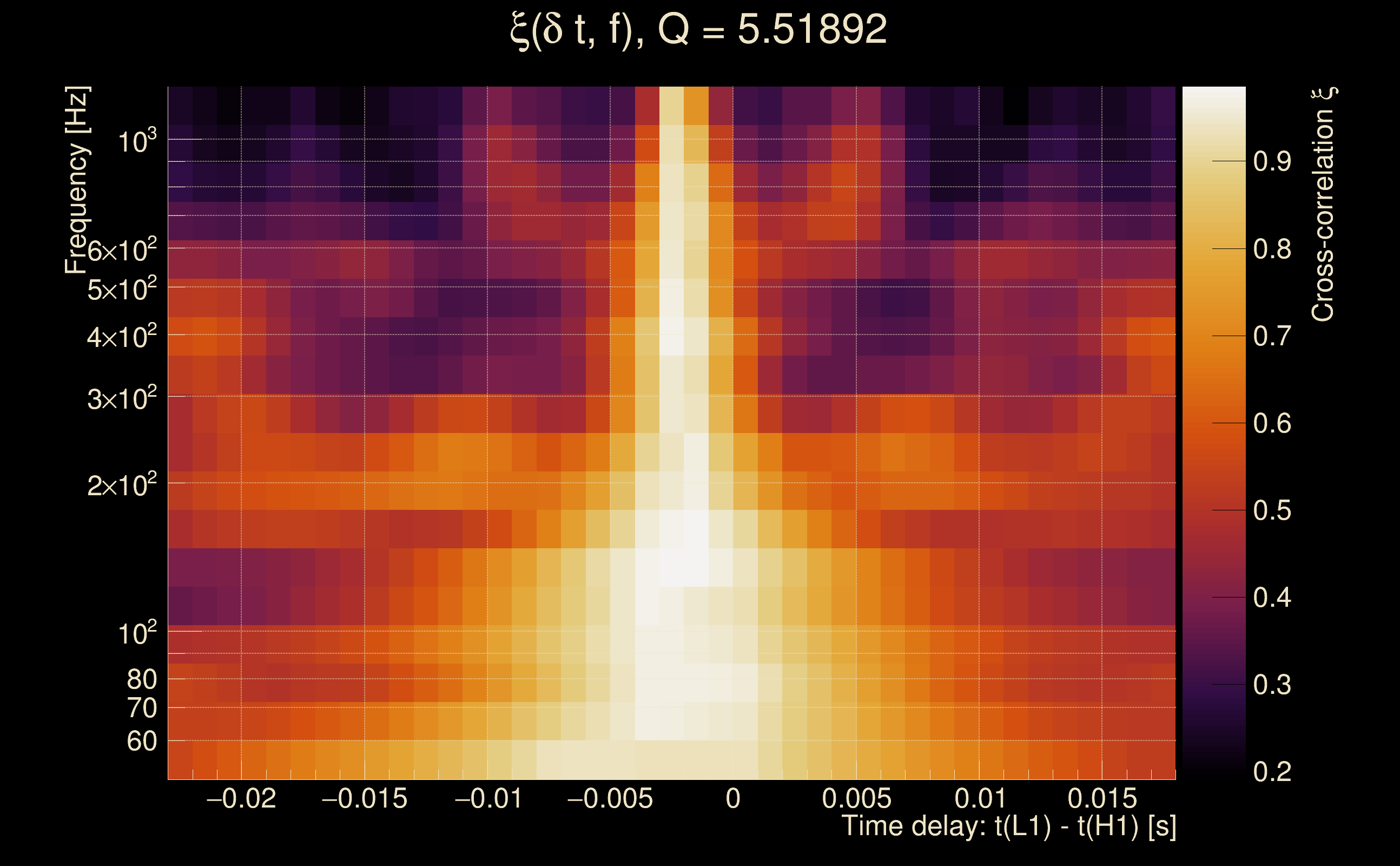

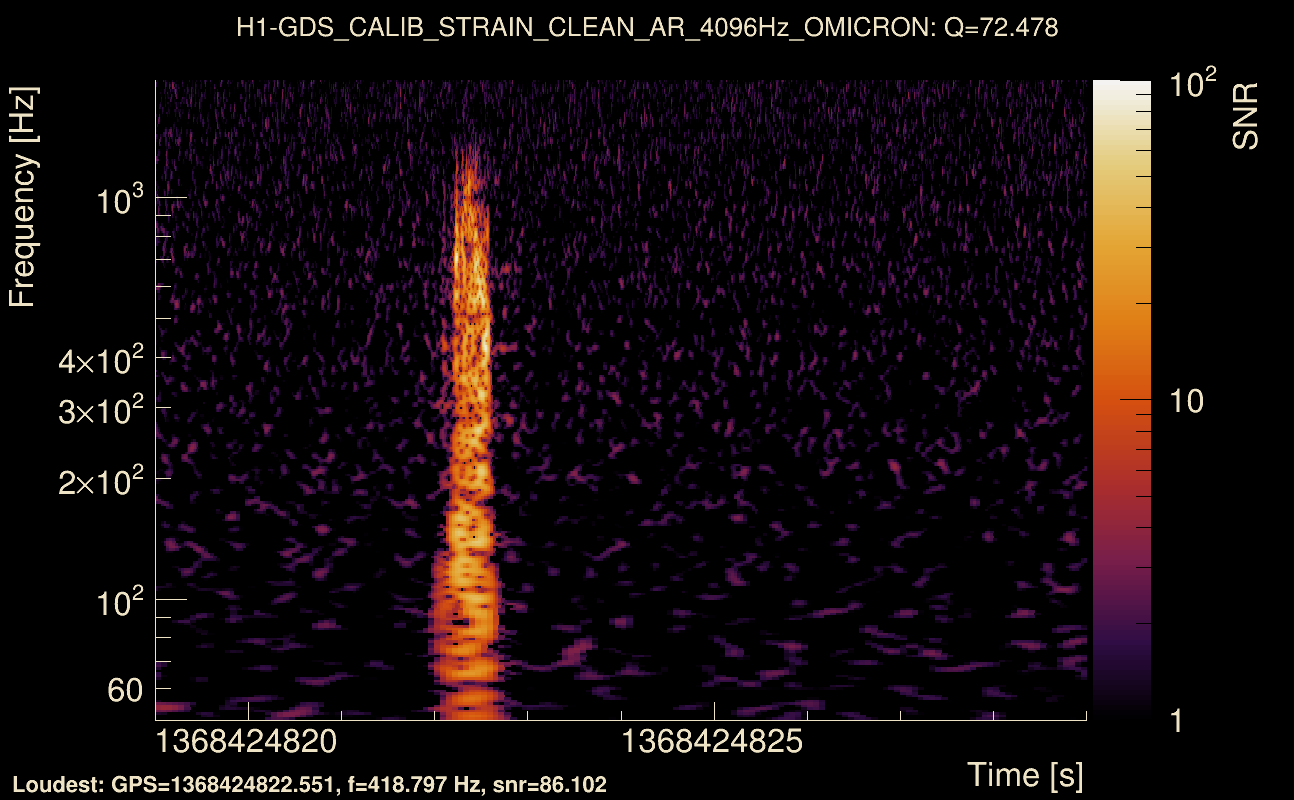

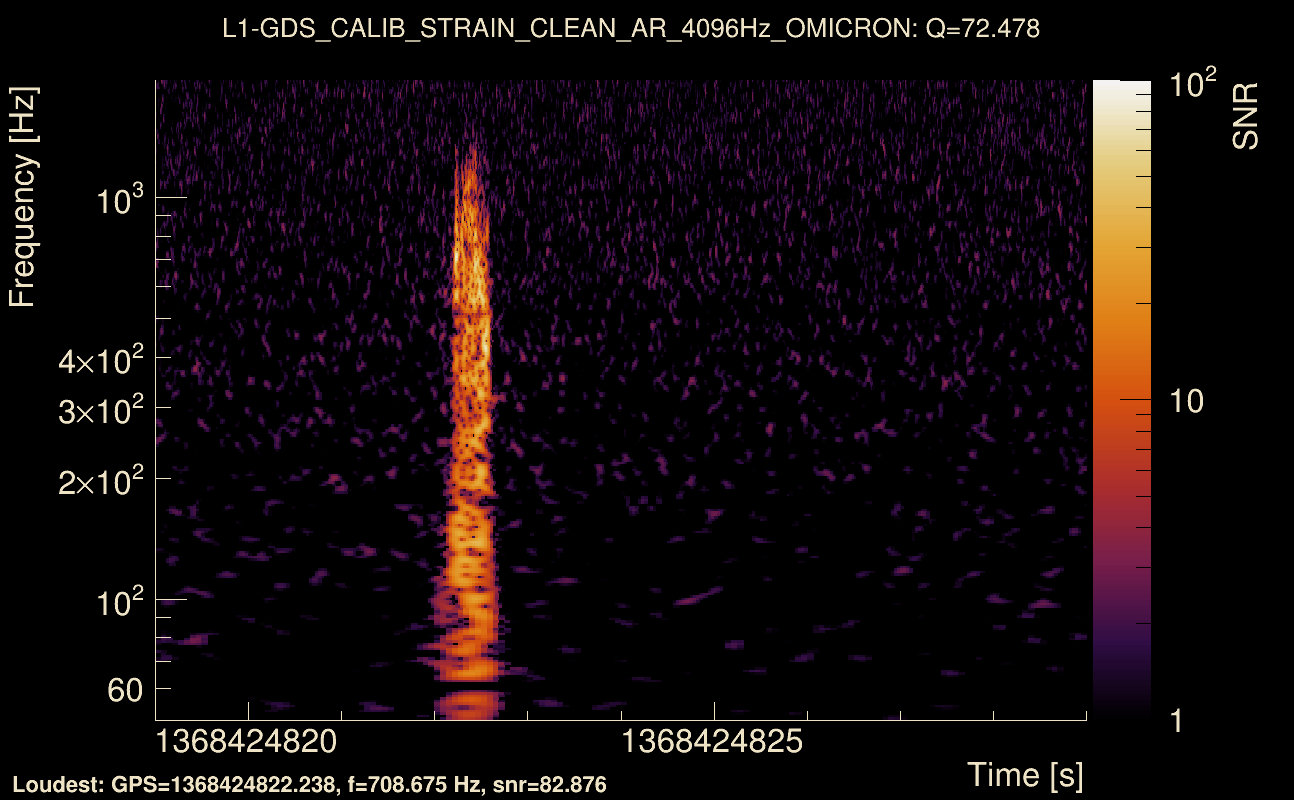

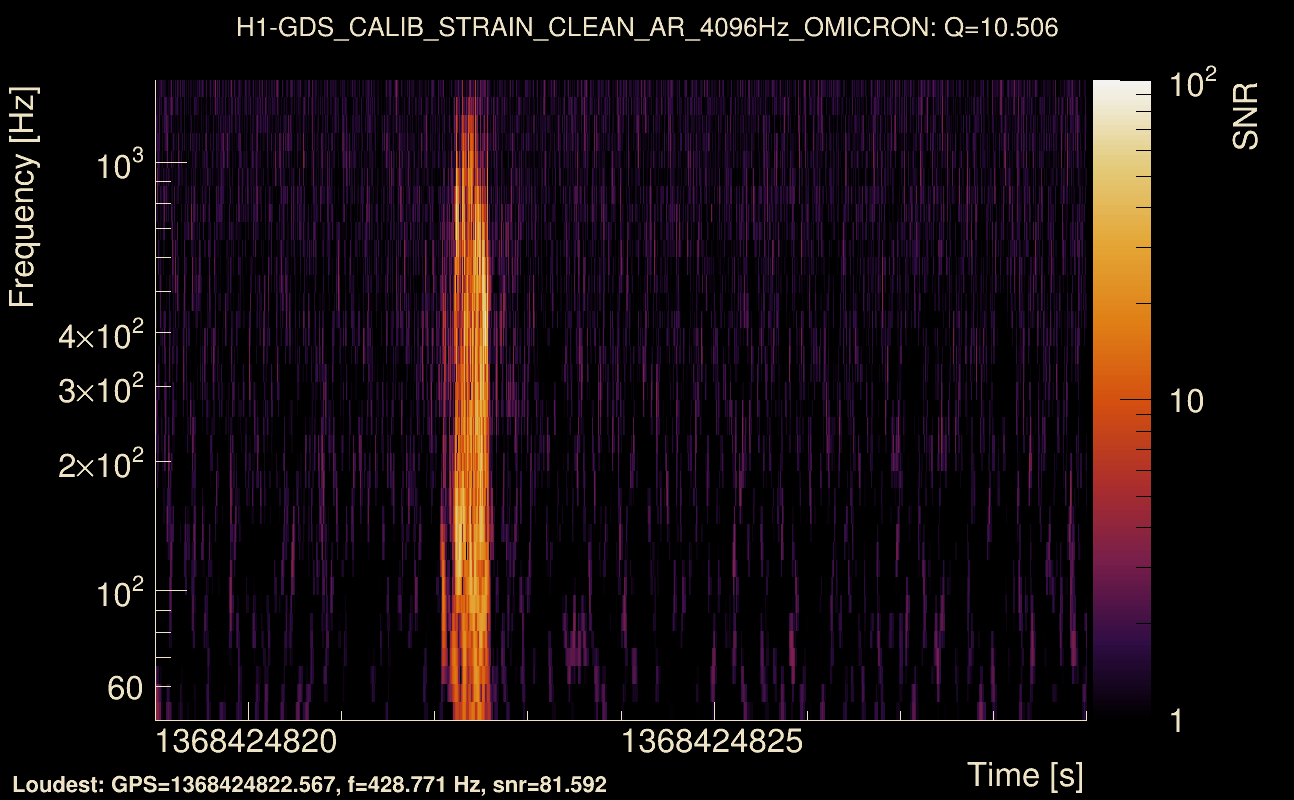

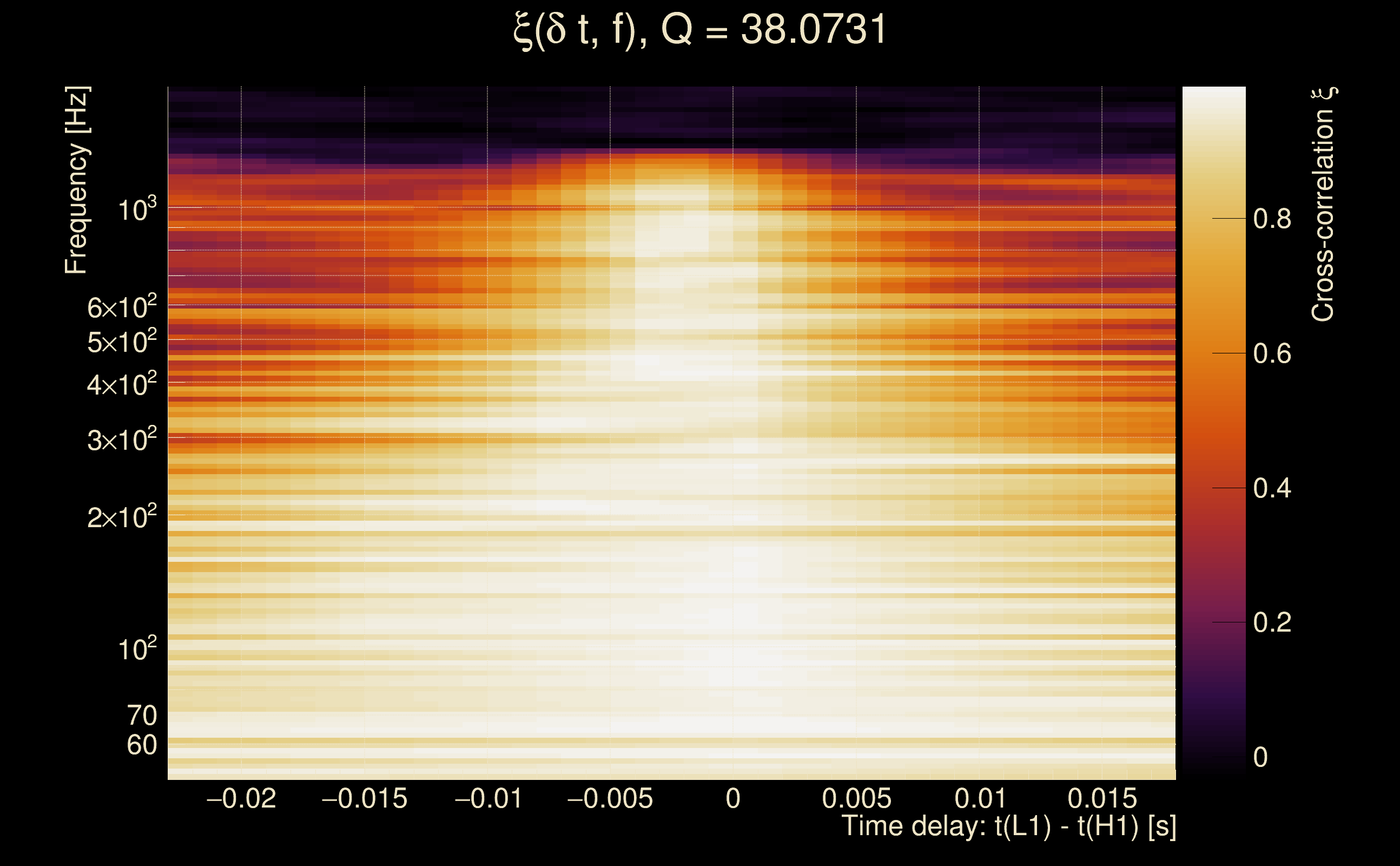

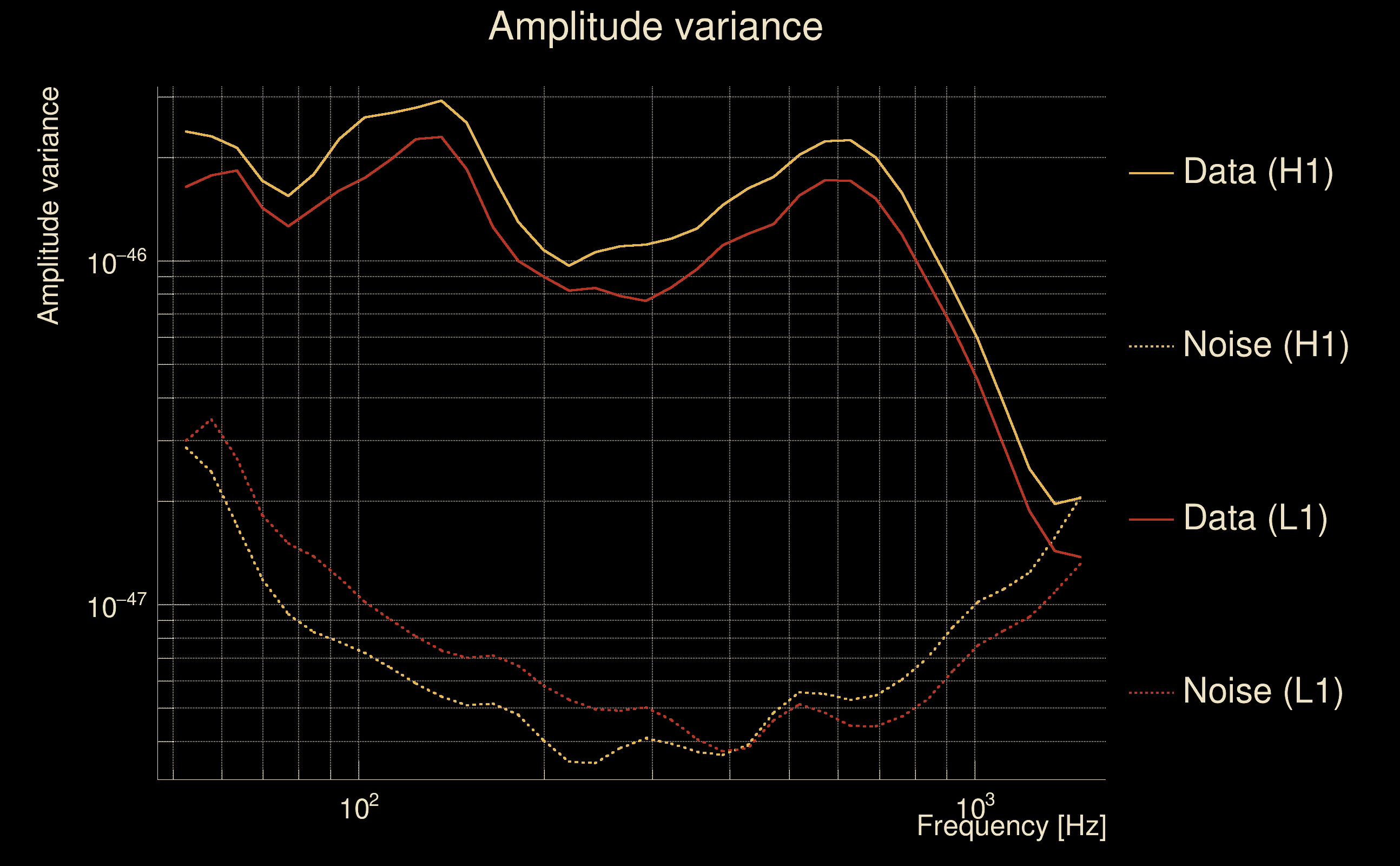

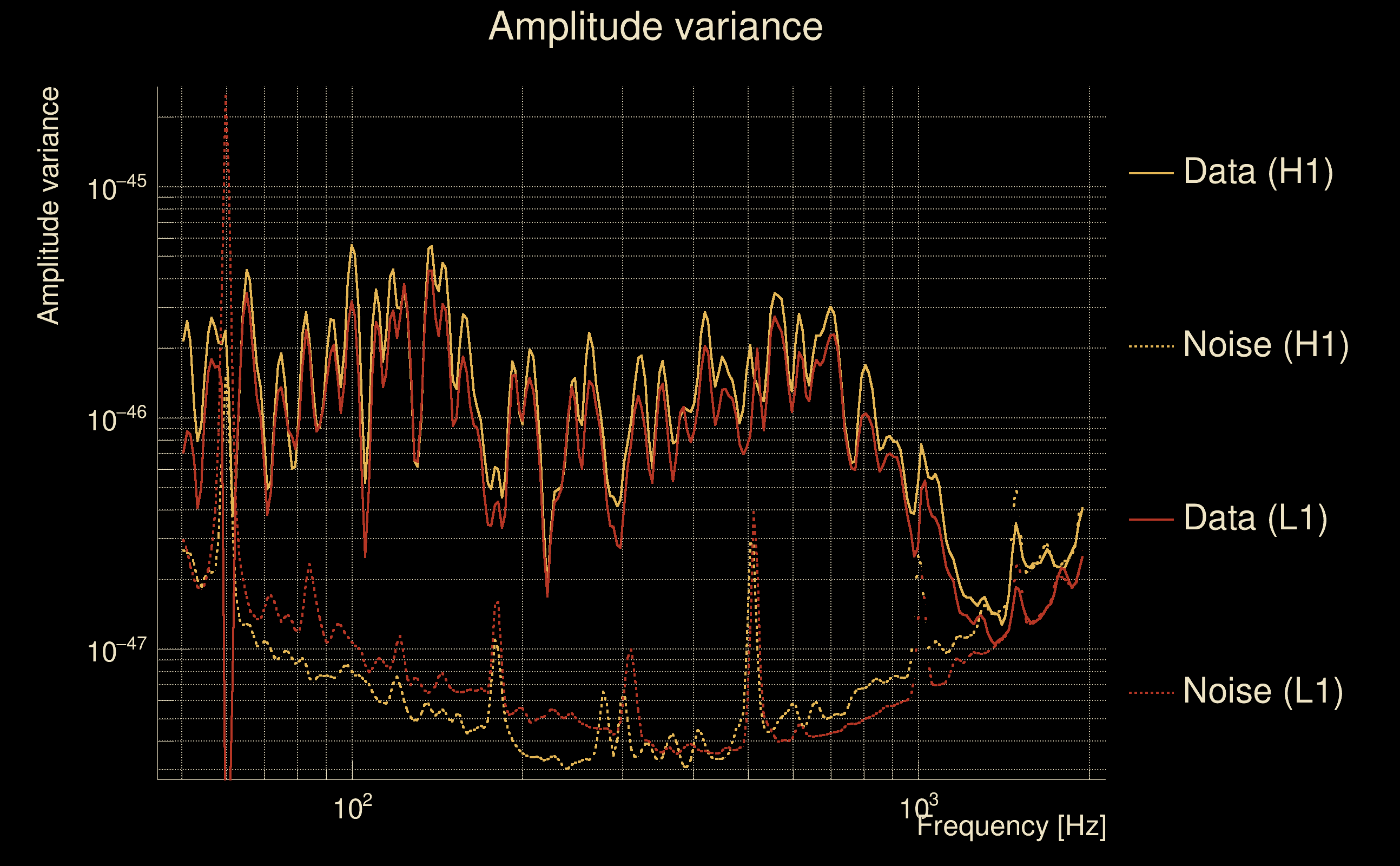

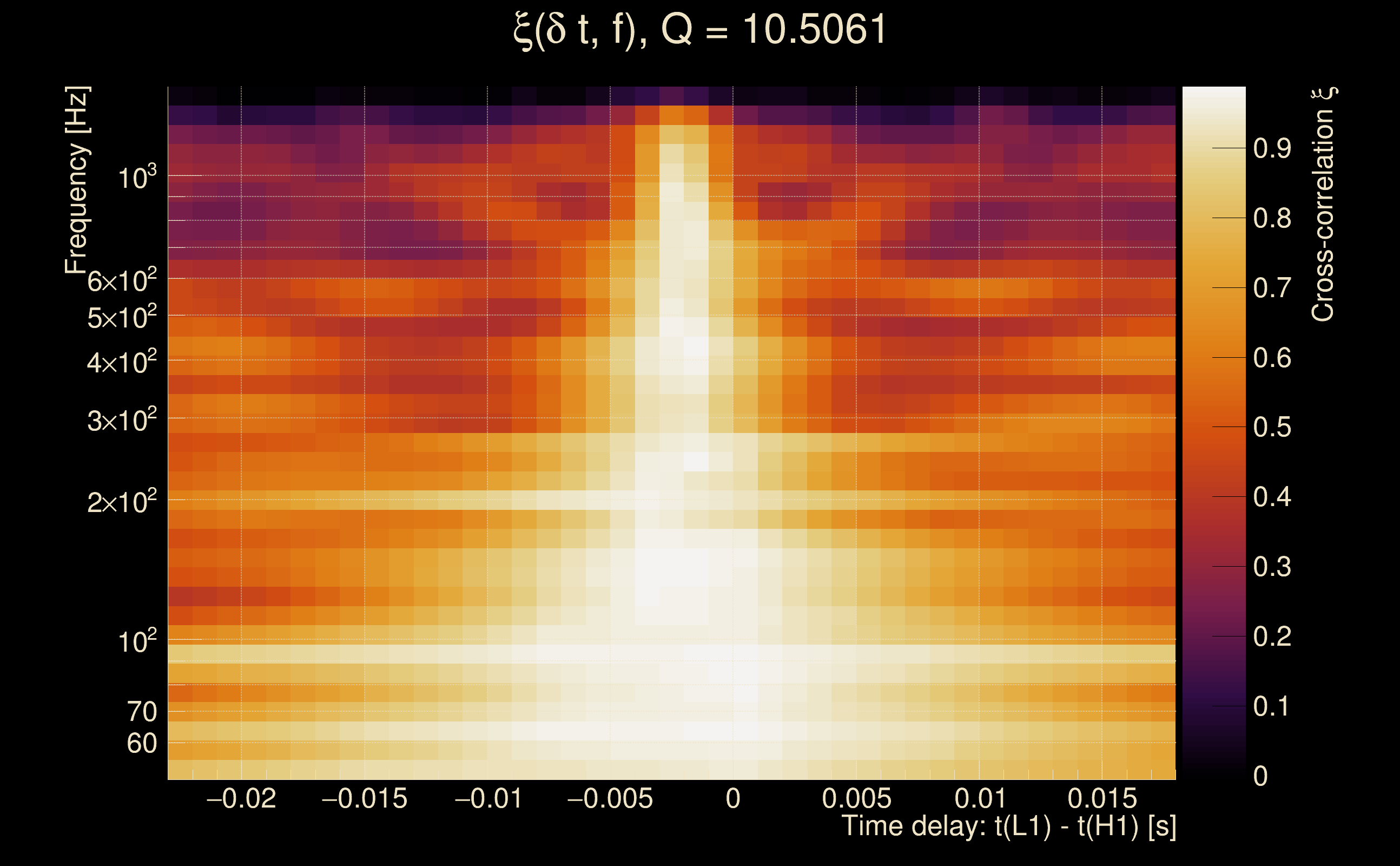

| Event time t(H1): | GPS = 1368424814 (Thu May 18 05:59:56 2023 ) → GPS = 1368424824 (Thu May 18 06:00:06 2023 ) |
| Event time t(L1): | GPS = 1368424814 (Thu May 18 06:00:06 2023 ) → GPS = 1368424824 (Thu May 18 06:00:06 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424811 → GPS = 1368424827 |
| Omicron analysis time window (L1): | GPS = 1368424811 → GPS = 1368424827 |
| Time delay between detectors t(L1) - t(H1): | -0.0028642 s (slice index = 108 / 217), δt_gw = -0.0028642 s |
| Time delay standard deviation: | 0.0240578 s |
| [targeted mode] Time delay probability: | 2.20731e-20 (9.25181 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 257.007 Hz |
| Ξ: | 0.929023 ± 0.0032889 (variance = 1.08169e-05): Q0: 0.957304, Q1: 0.953419, Q2: 0.960956, Q3: 0.960871, Q4: 0.962569 |
| Rank: | R_A = 0.854145 |
| Log of amplitude ratio (L1/H1): | -0.145779, variance = 0.152683 (L1/H1: -0.15751, variance = 0.302746, H1/L1: 0.131711, variance = 0.303074) |
| Amplitude ratio (L1/H1): | 0.864348 ⋇ 1.47808 (L1/H1: 0.854268 ⋇ 1.73364, H1/L1: 1.14078 ⋇ 1.73416) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.973558 |
| Antenna factor probability: | 0.944373 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 5 / 70, Q3: 14 / 134, Q4: 42 / 258 |
| Maximum signal-to-noise ratio: | H1: 91.3113, L1: 83.3828 |

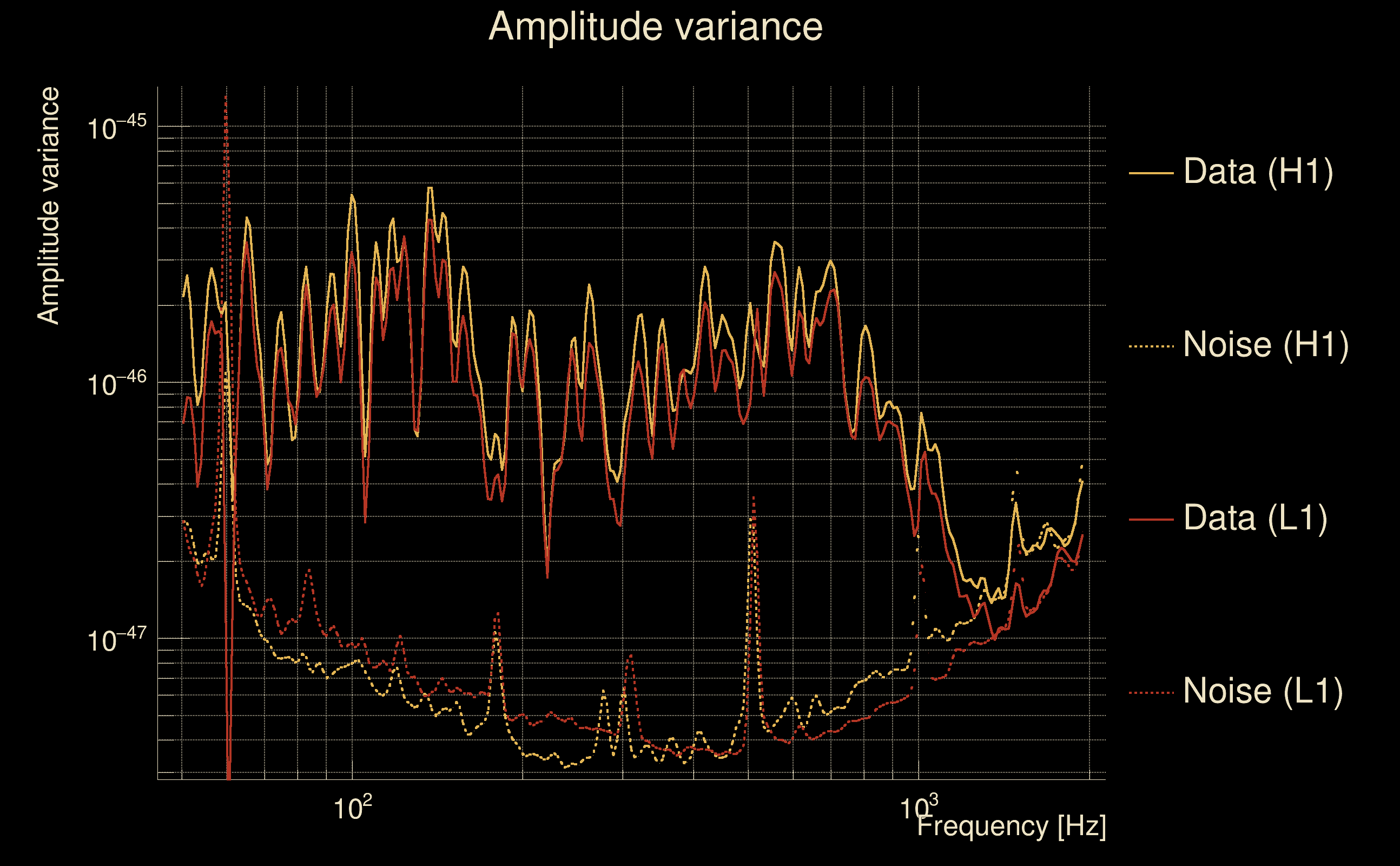

| SNR variance: | H1: 0.472139, L1: 0.377578 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

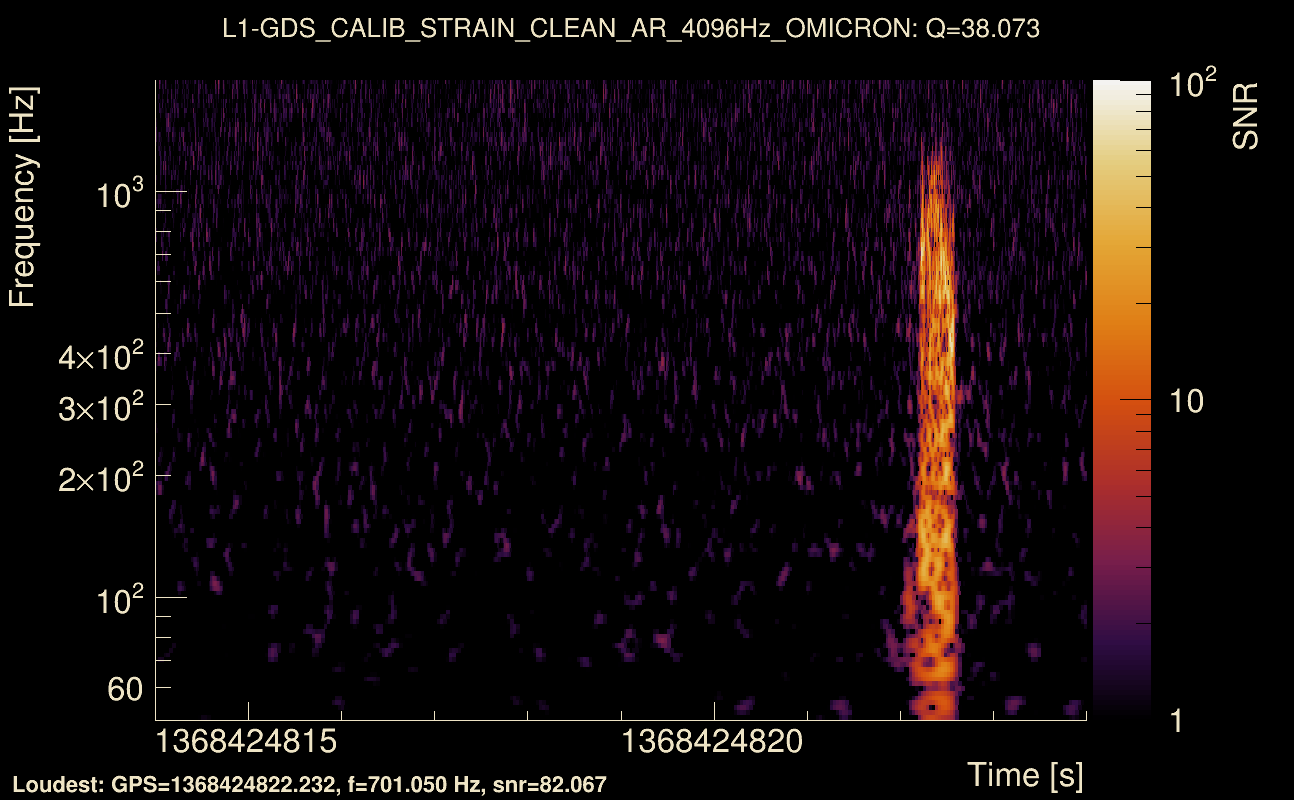

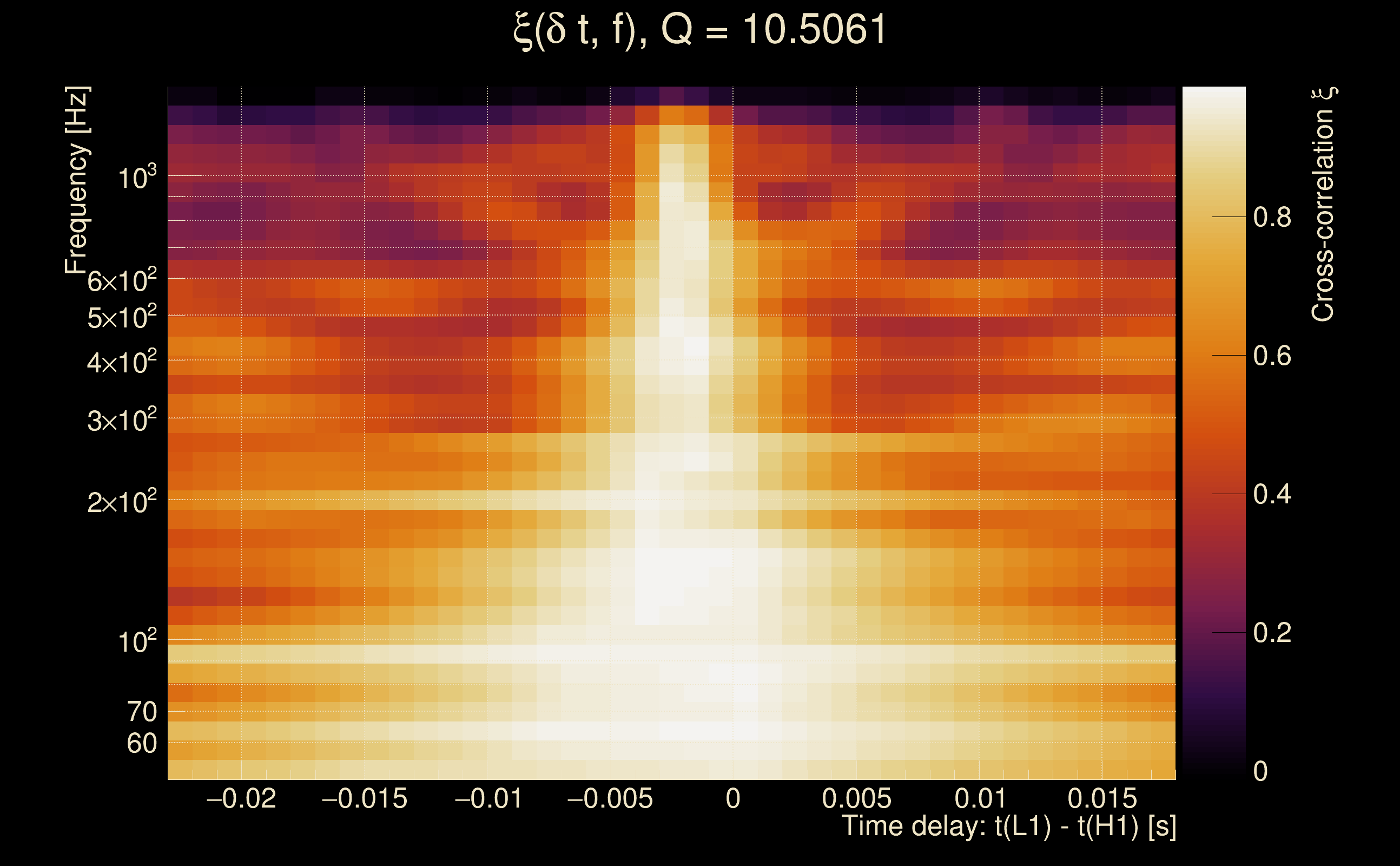

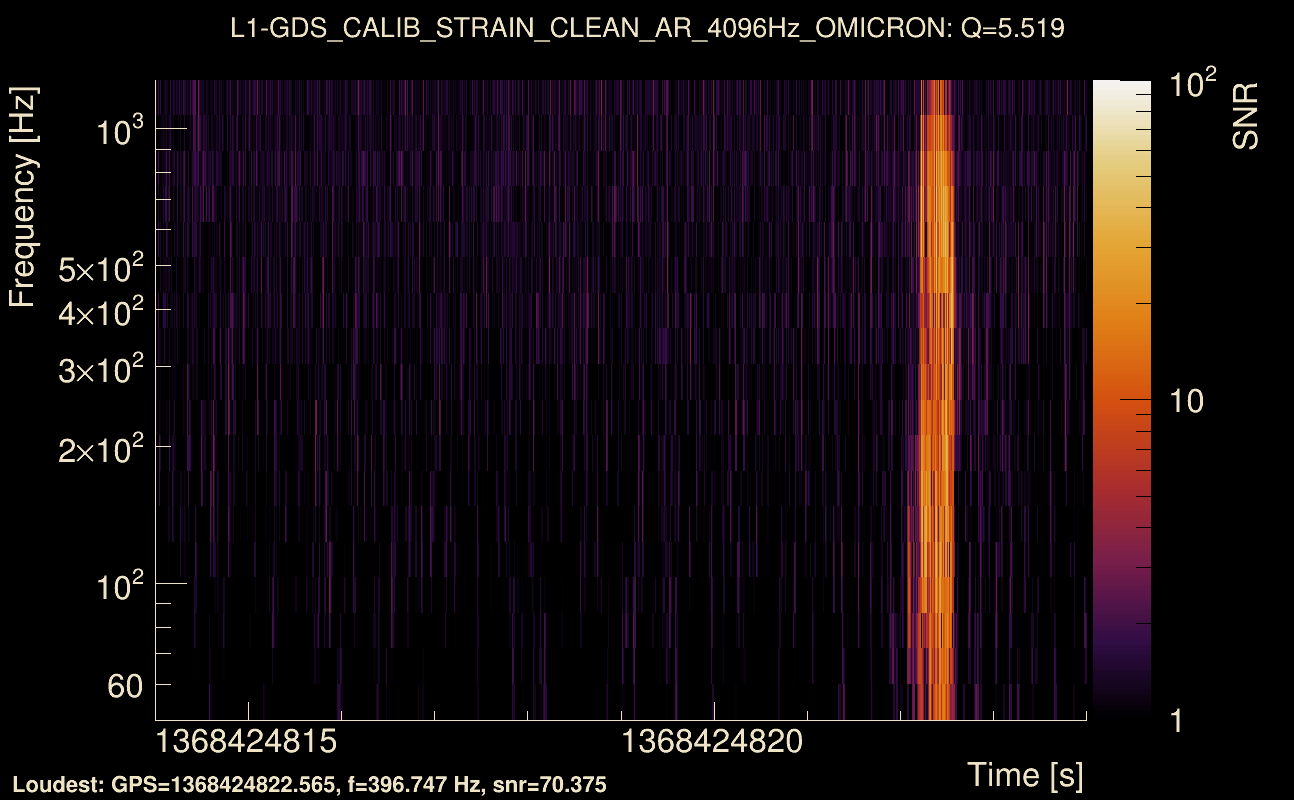

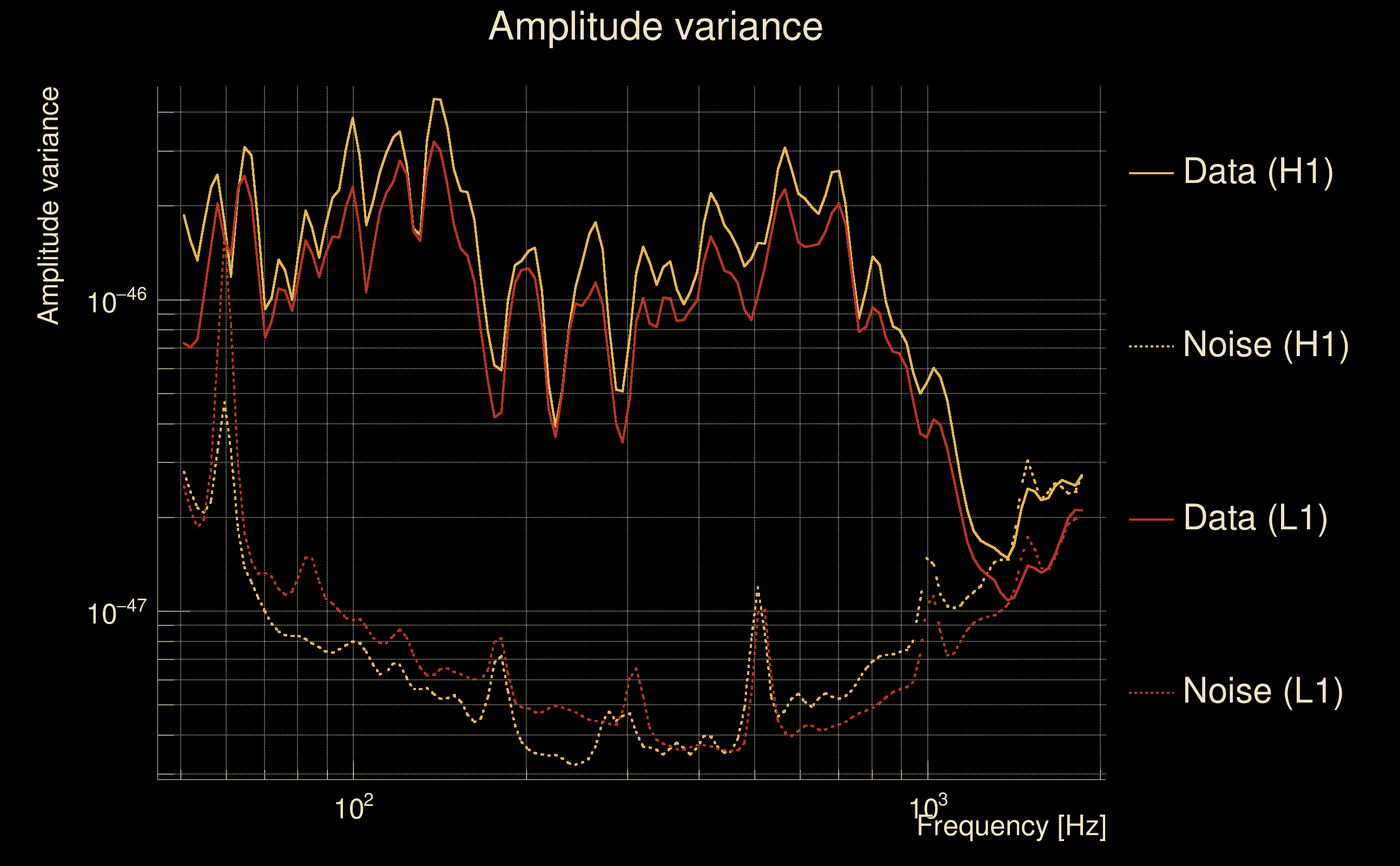

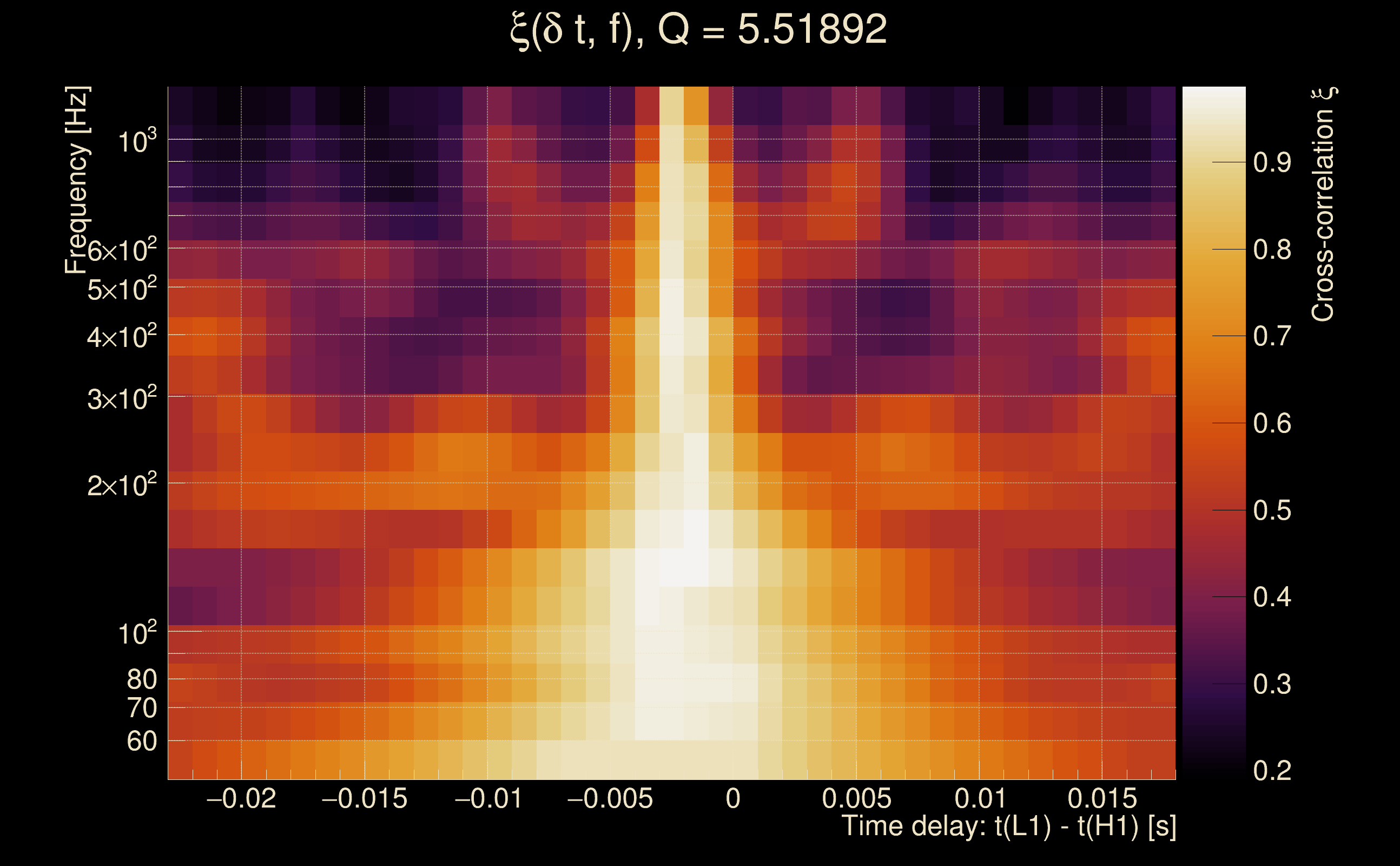

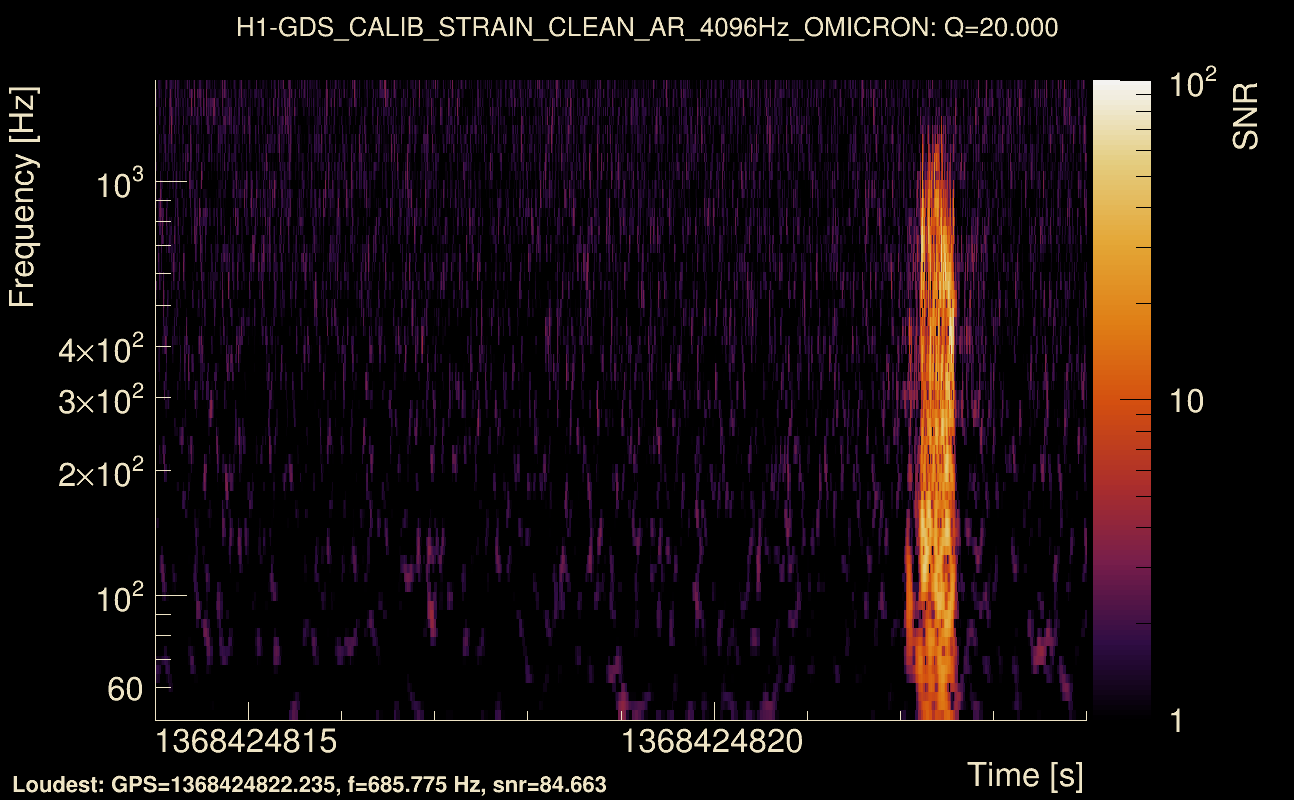

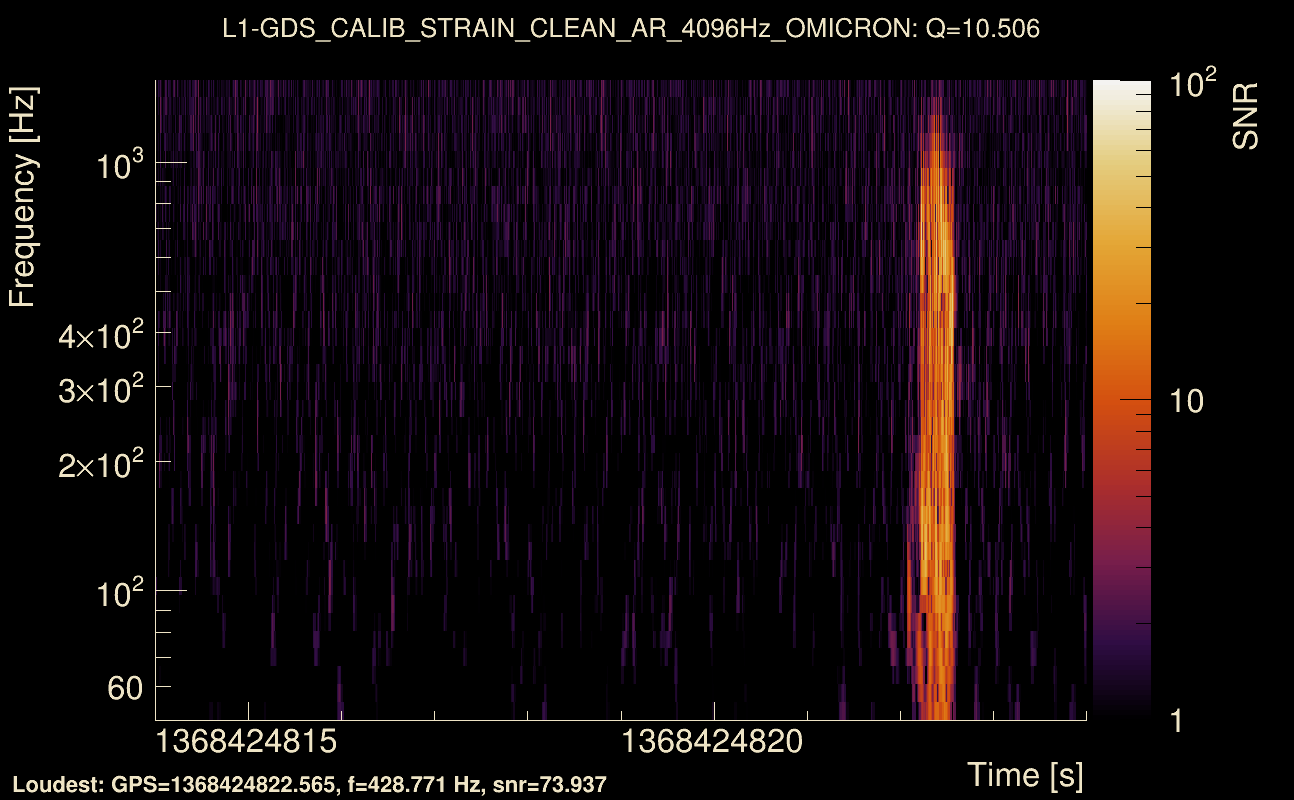

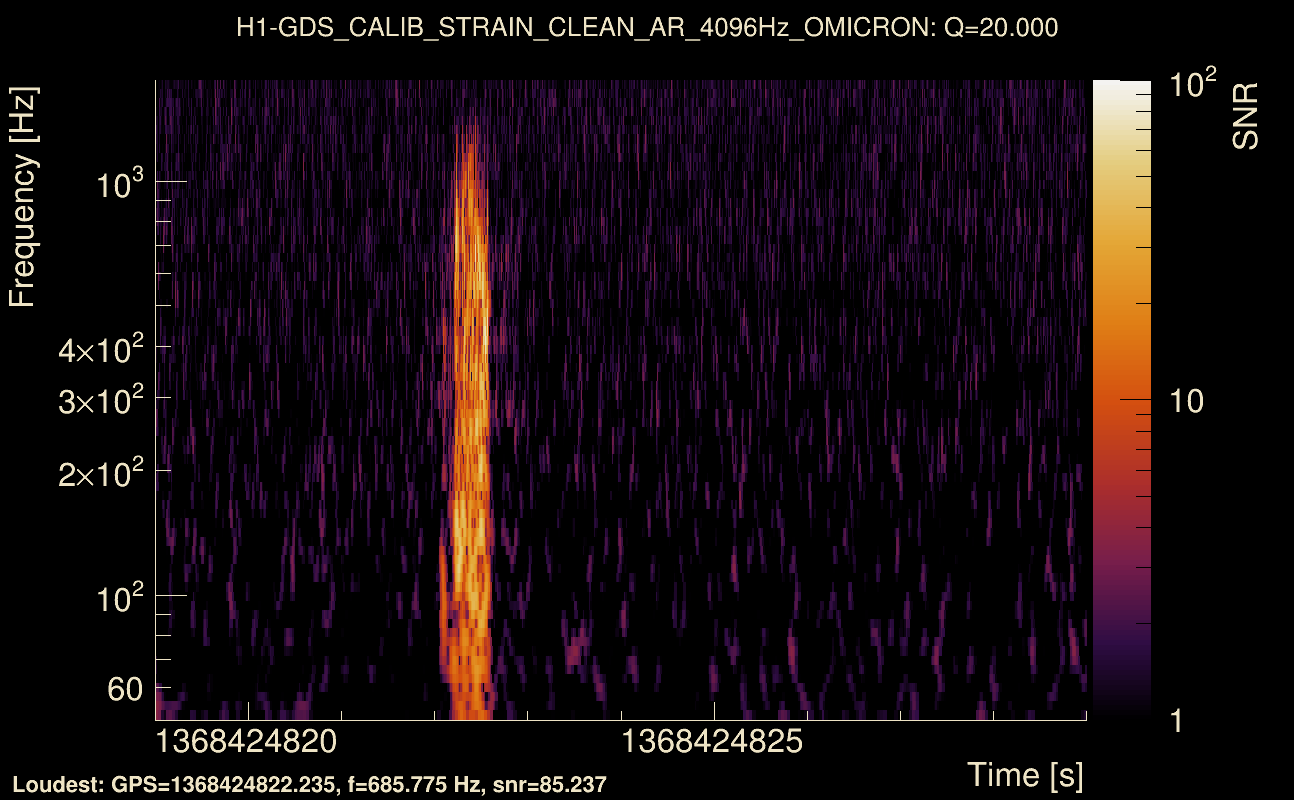

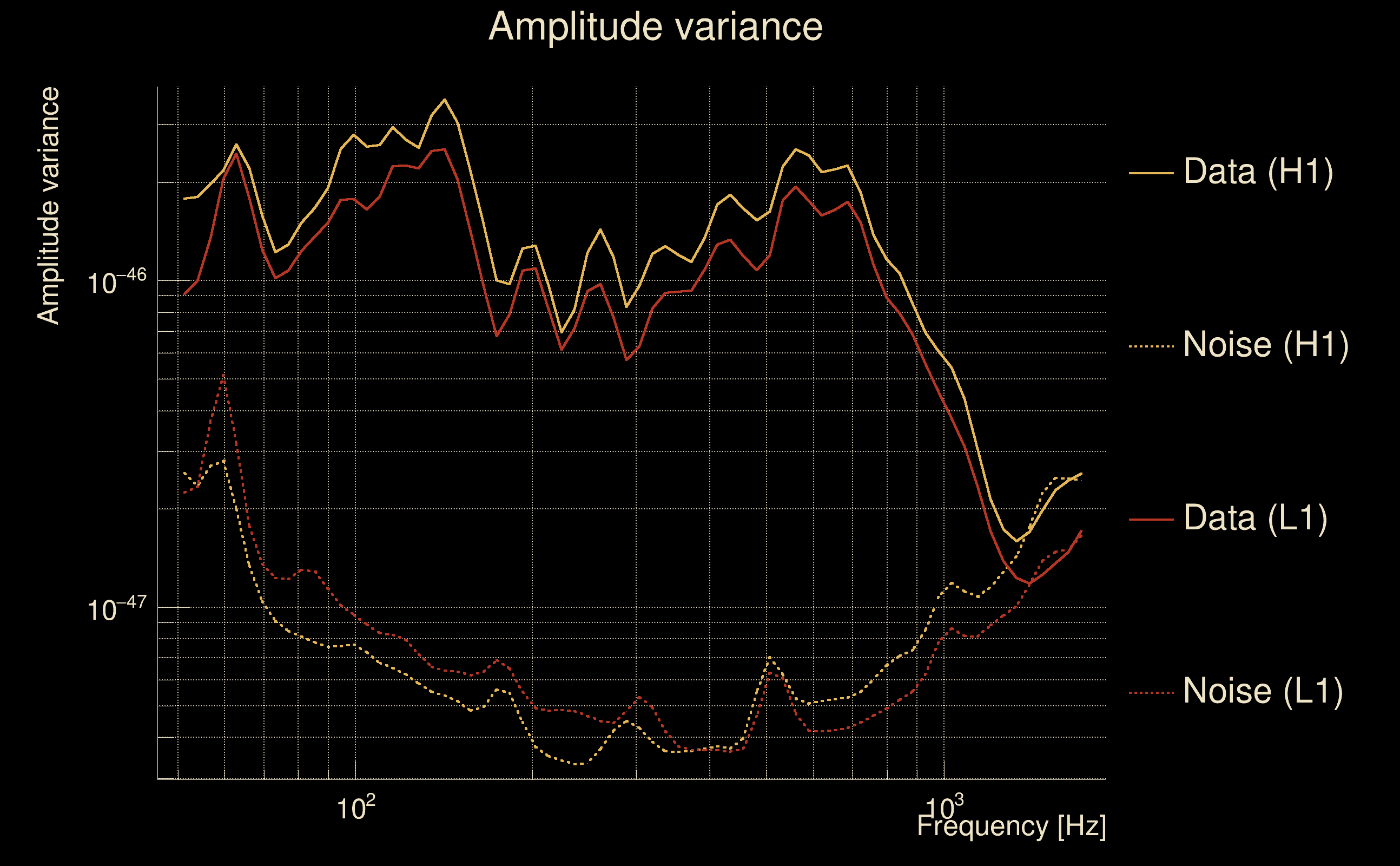

| Event time t(H1): | GPS = 1368424819 (Thu May 18 06:00:01 2023 ) → GPS = 1368424829 (Thu May 18 06:00:11 2023 ) |
| Event time t(L1): | GPS = 1368424819 (Thu May 18 06:00:11 2023 ) → GPS = 1368424829 (Thu May 18 06:00:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424816 → GPS = 1368424832 |
| Omicron analysis time window (L1): | GPS = 1368424816 → GPS = 1368424832 |
| Time delay between detectors t(L1) - t(H1): | -0.00286583 s (slice index = 108 / 217), δt_gw = -0.00286583 s |
| Time delay standard deviation: | 0.0232636 s |
| [targeted mode] Time delay probability: | 4.1293e-23 (9.90081 sigmas), δt_target = -0.000459194 s |
| Frequency: | 257.072 Hz |
| Ξ: | 0.928698 ± 0.00317296 (variance = 1.00677e-05): Q0: 0.957107, Q1: 0.953282, Q2: 0.960971, Q3: 0.961669, Q4: 0.960819 |
| Rank: | R_A = 0.852721 |
| Log of amplitude ratio (L1/H1): | -0.145698, variance = 0.152589 (L1/H1: -0.158184, variance = 0.302709, H1/L1: 0.130798, variance = 0.302991) |
| Amplitude ratio (L1/H1): | 0.864419 ⋇ 1.47791 (L1/H1: 0.853693 ⋇ 1.73358, H1/L1: 1.13974 ⋇ 1.73403) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.97193 |
| Antenna factor probability: | 0.944707 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 1 / 36, Q2: 5 / 70, Q3: 16 / 134, Q4: 36 / 258 |
| Maximum signal-to-noise ratio: | H1: 91.0291, L1: 83.33 |
| SNR variance: | H1: 13.4106, L1: 9.29617 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

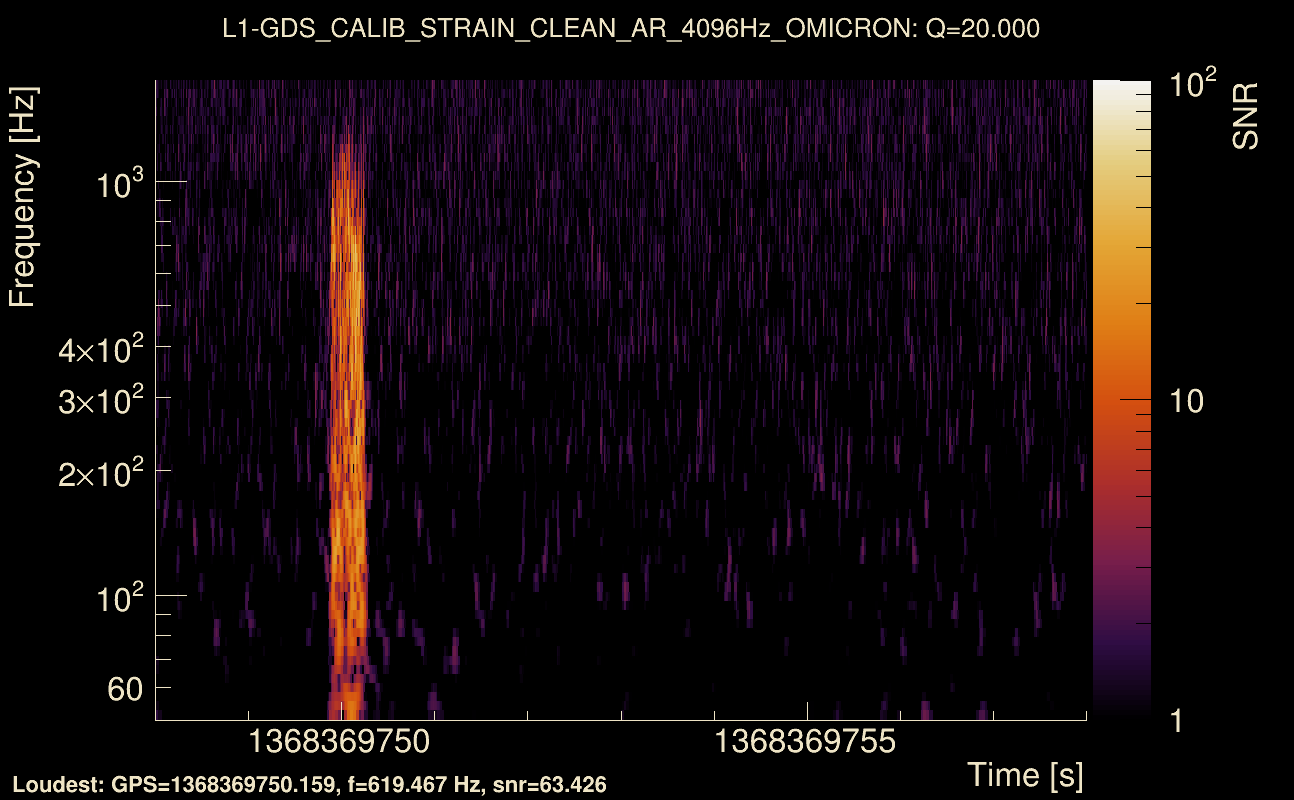

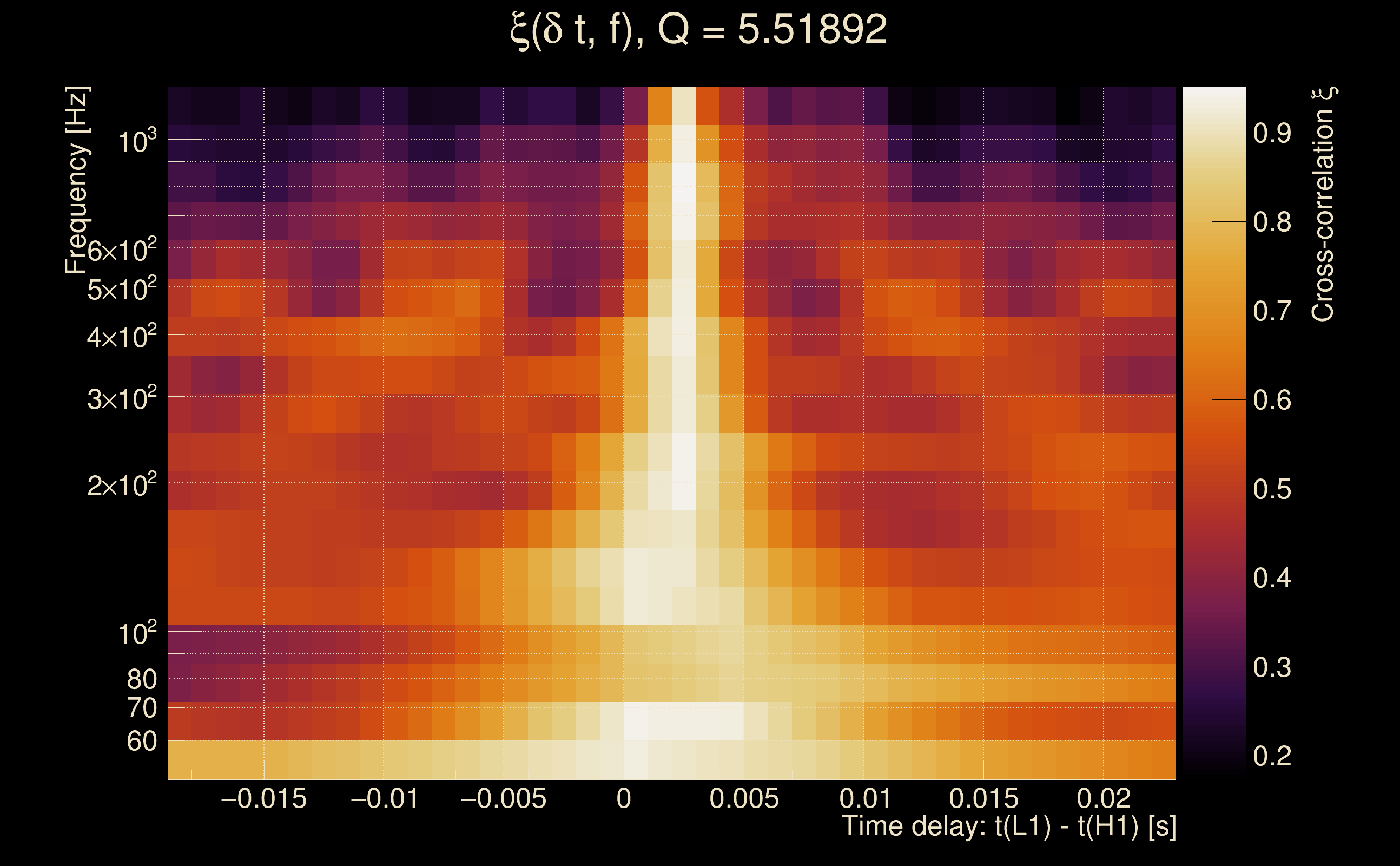

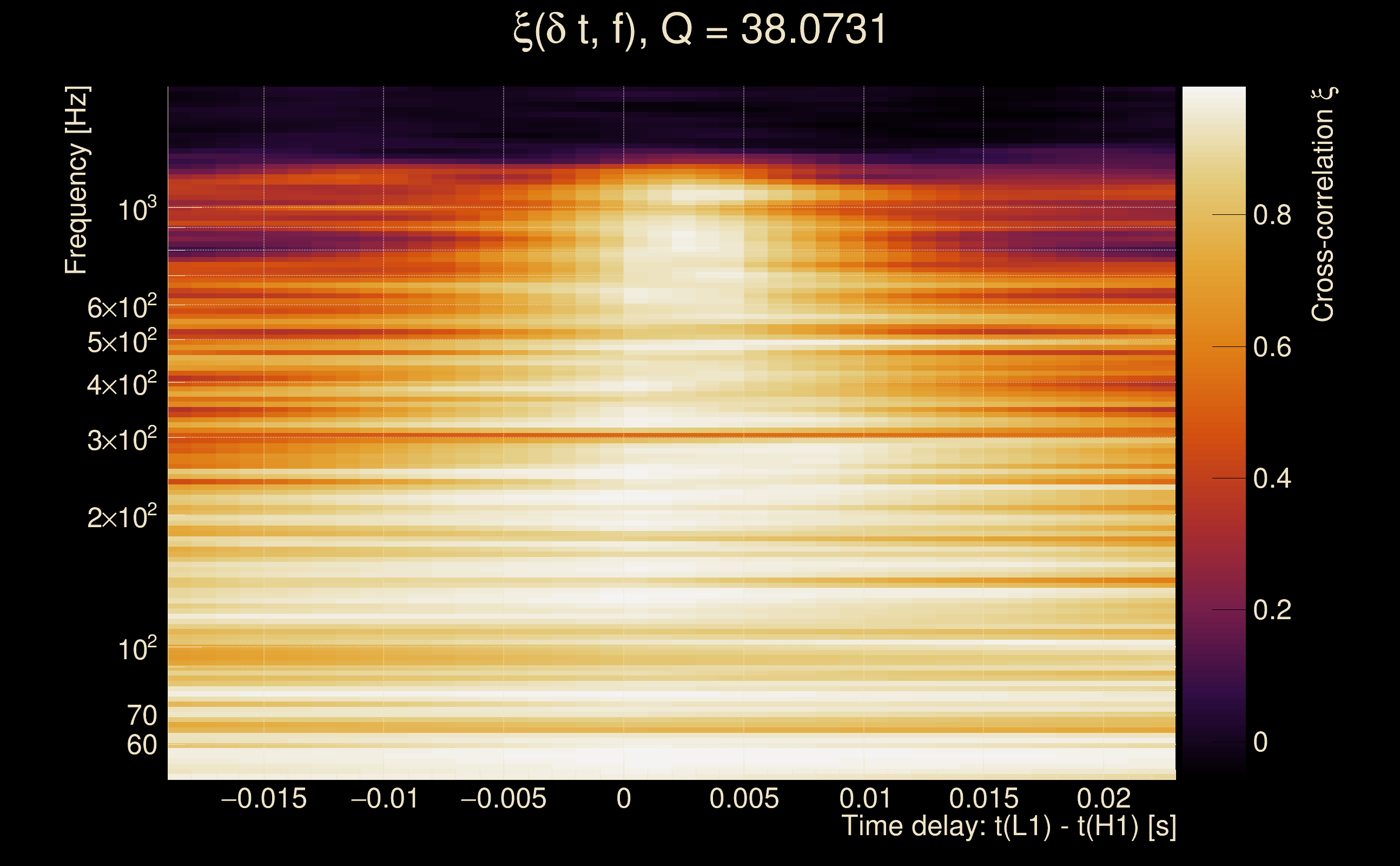

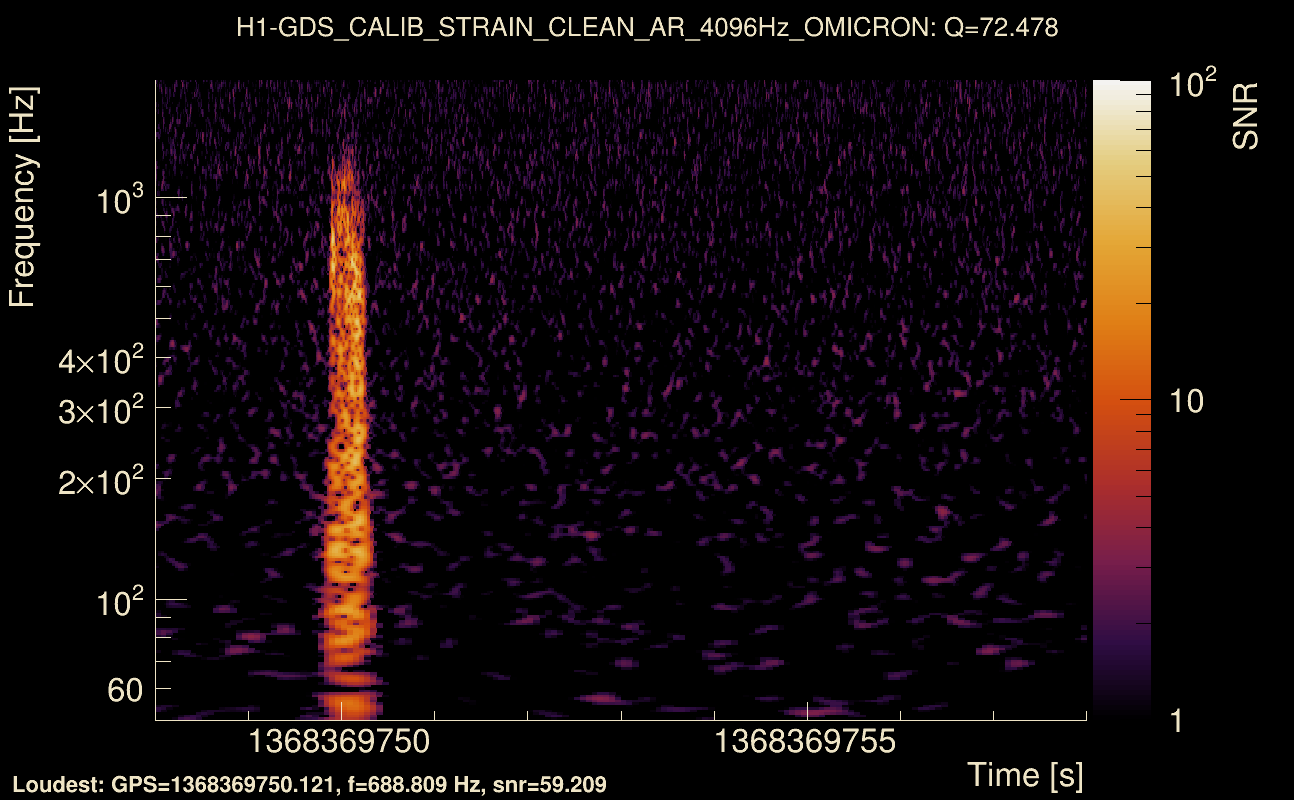

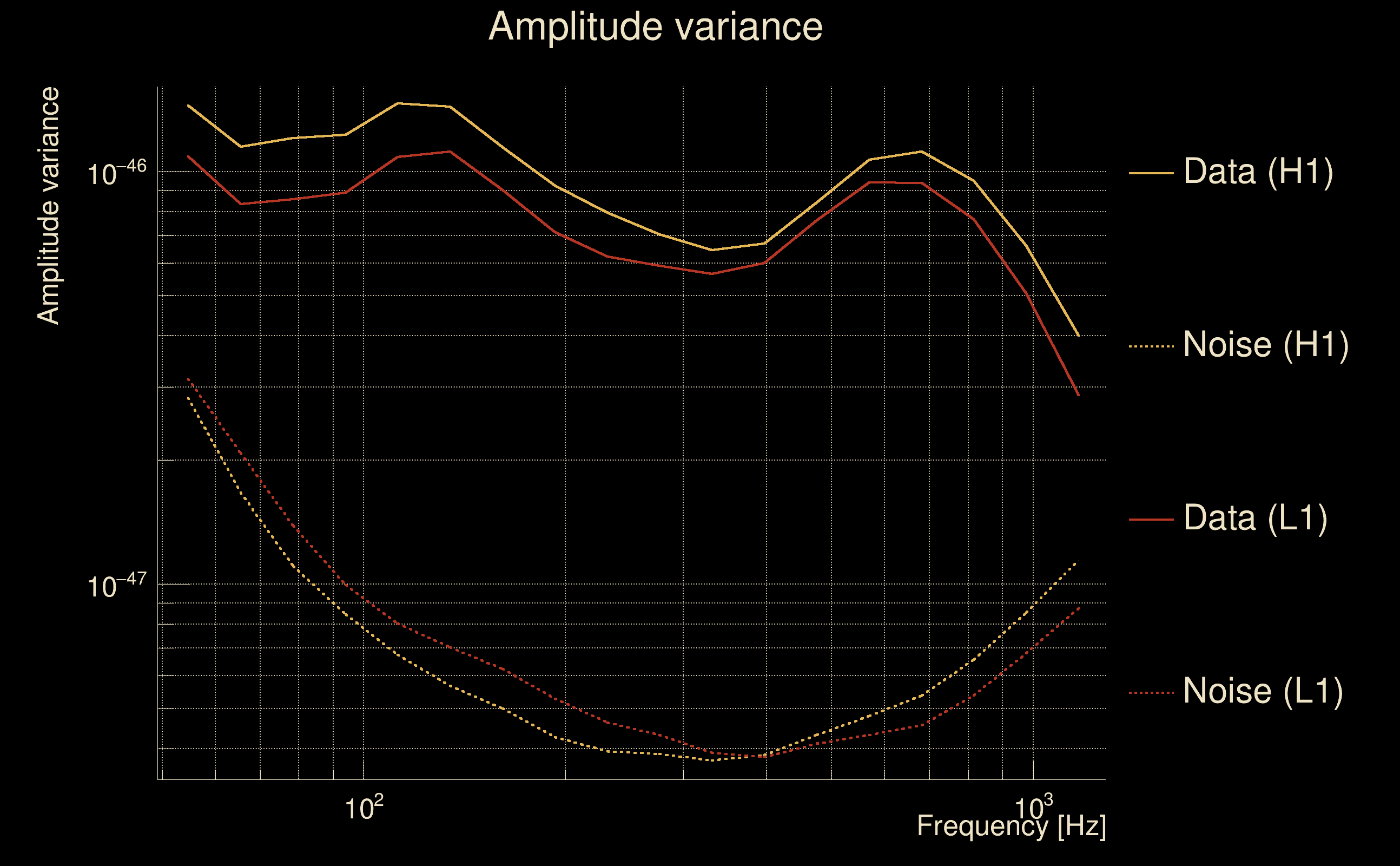

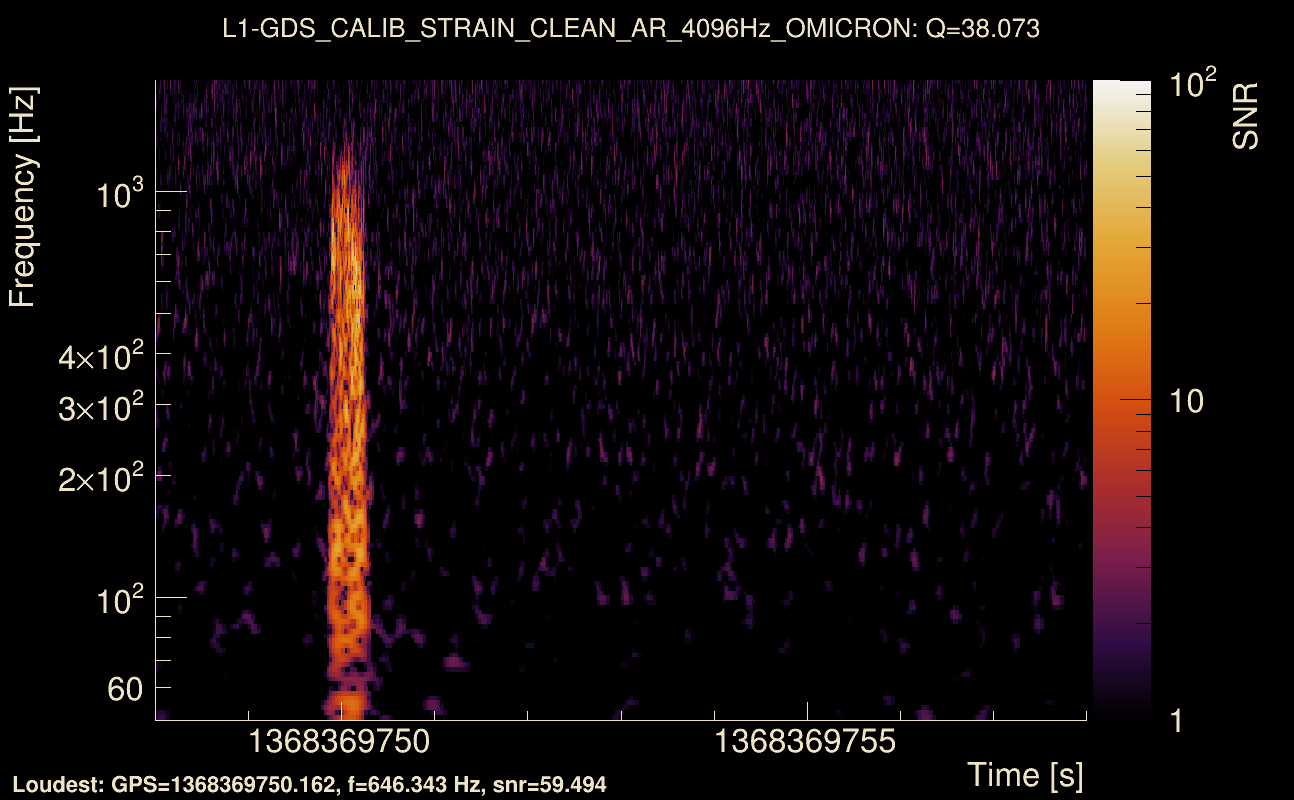

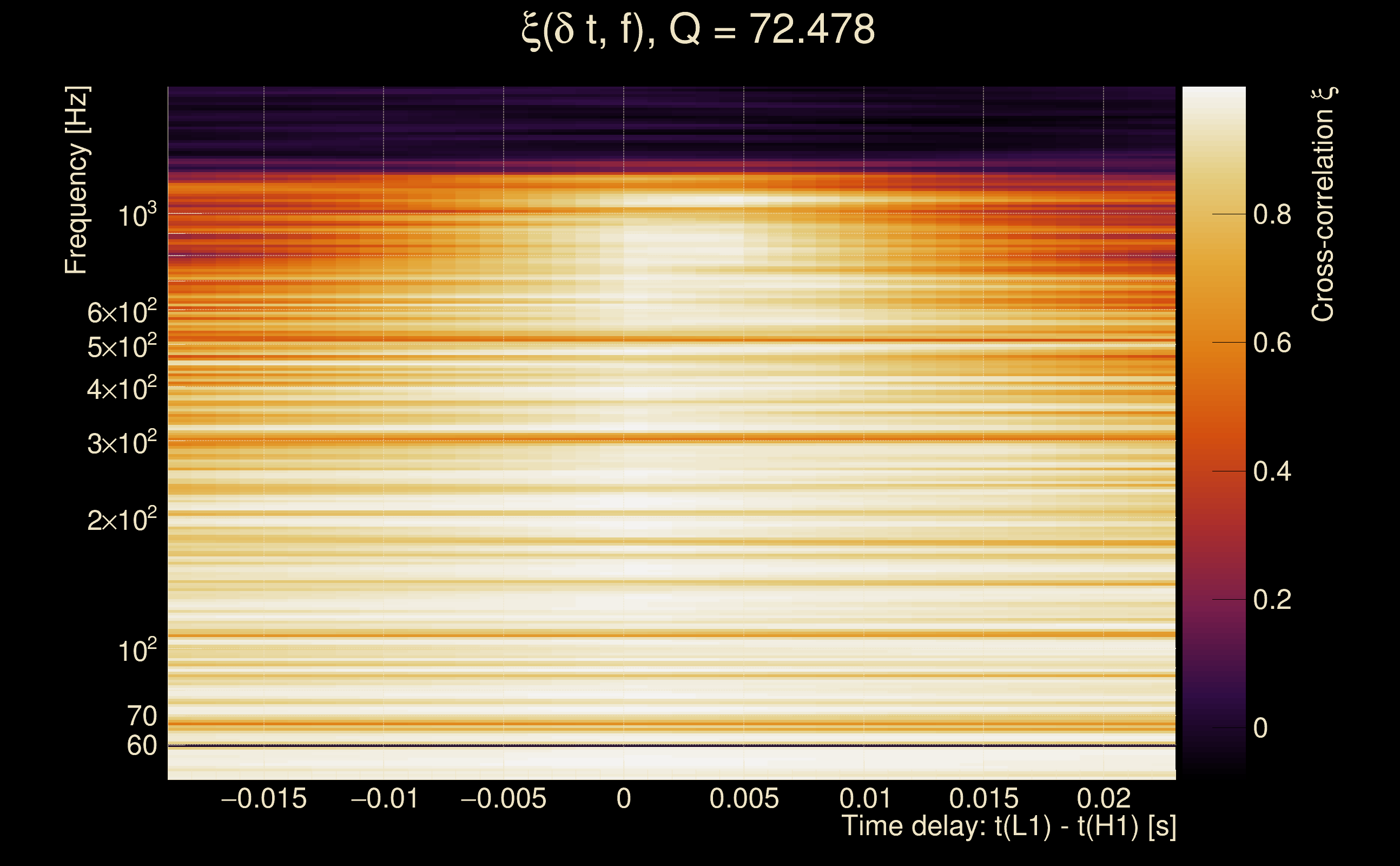

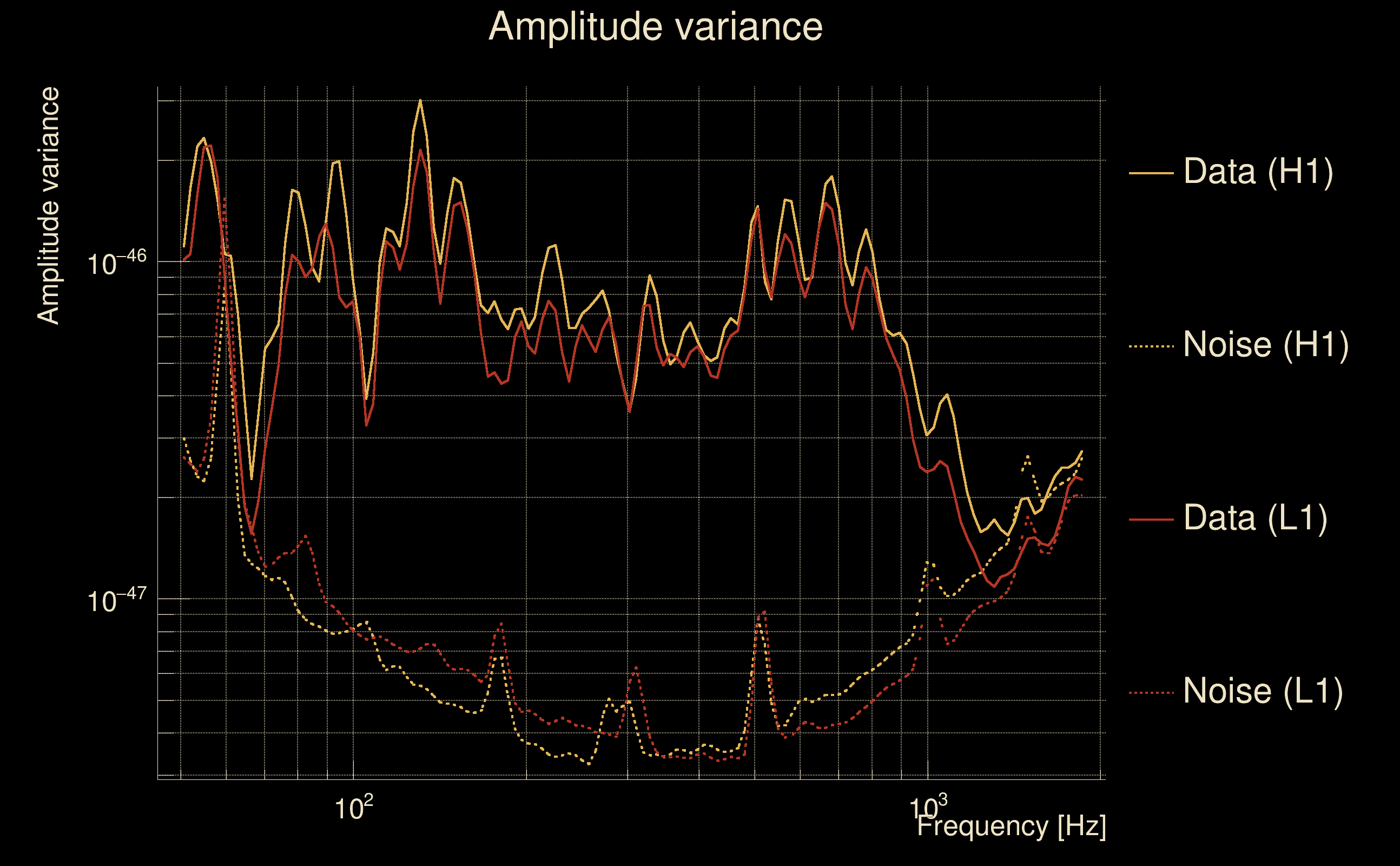

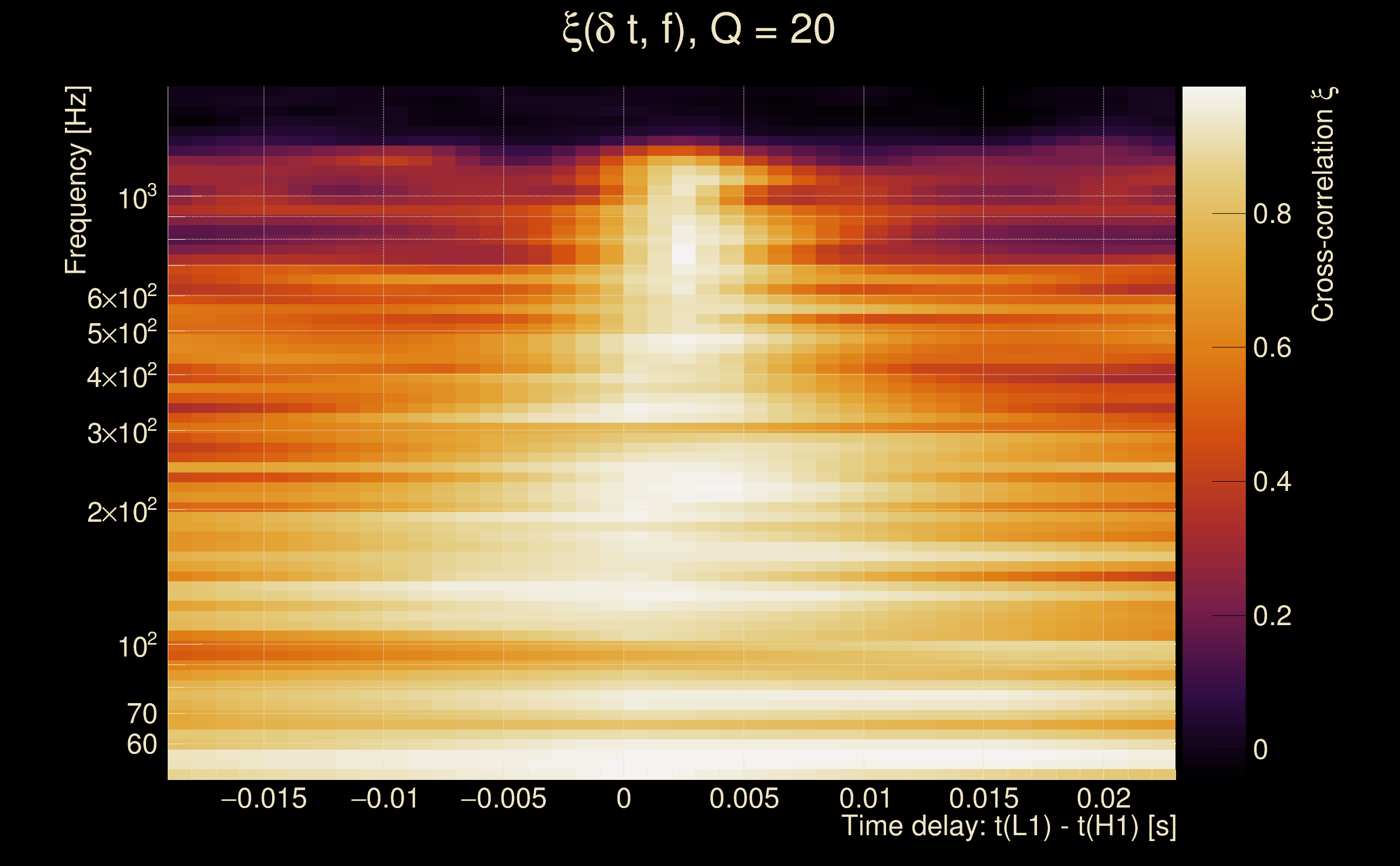

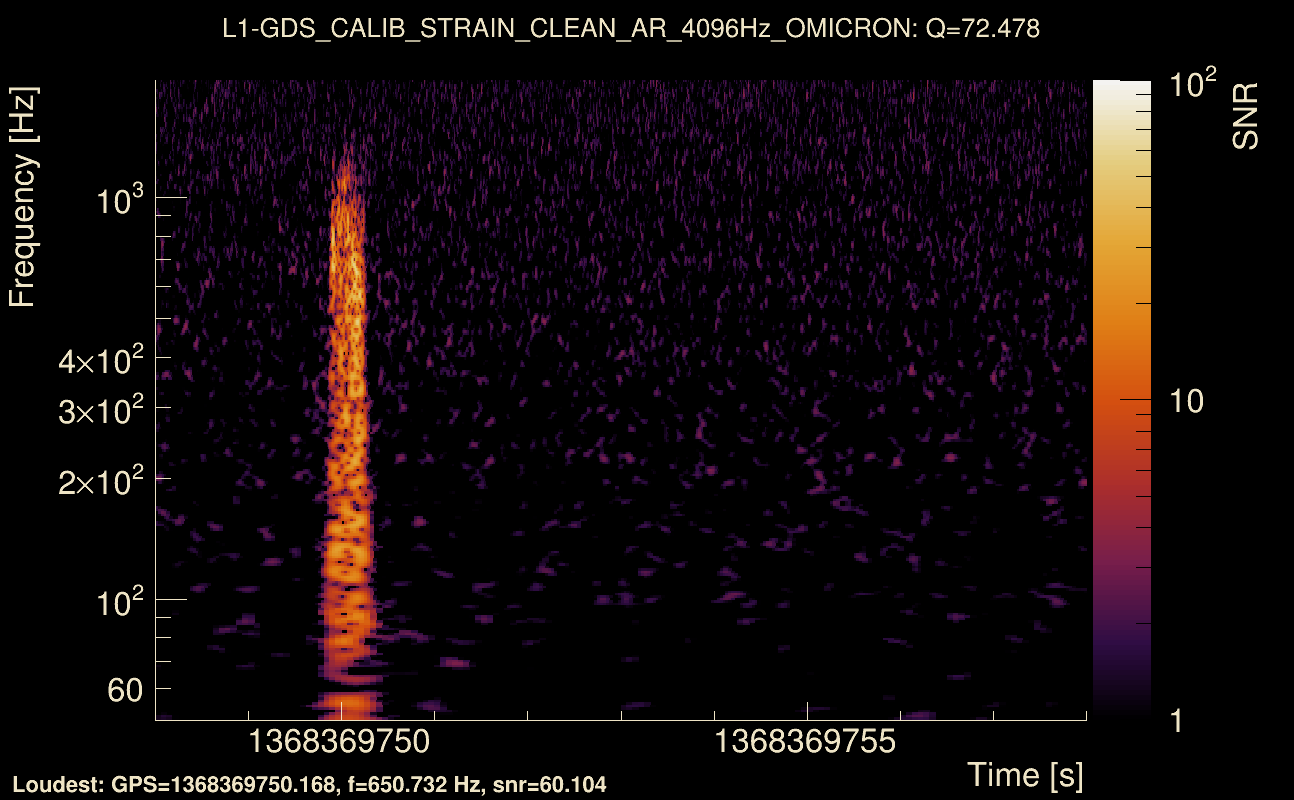

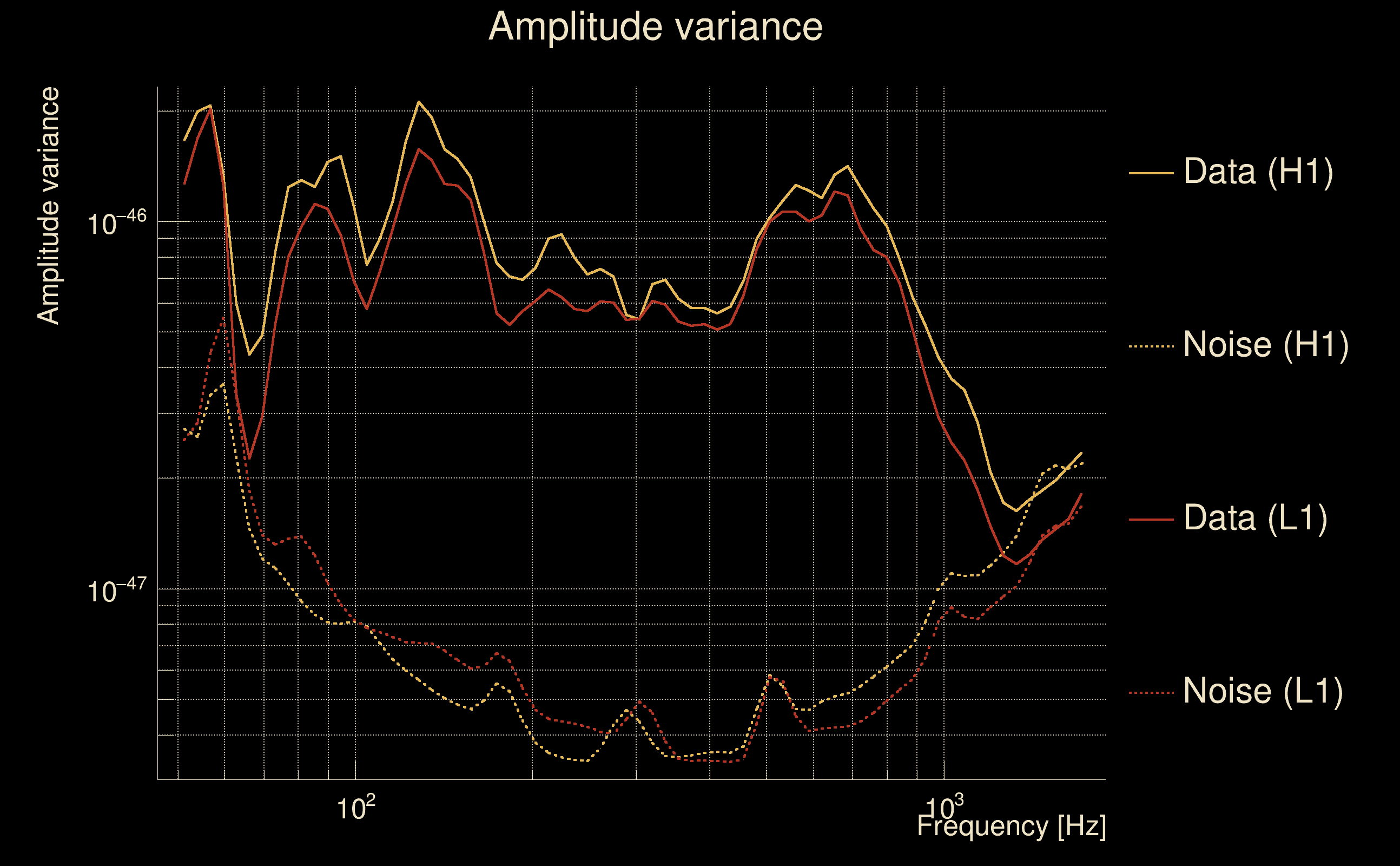

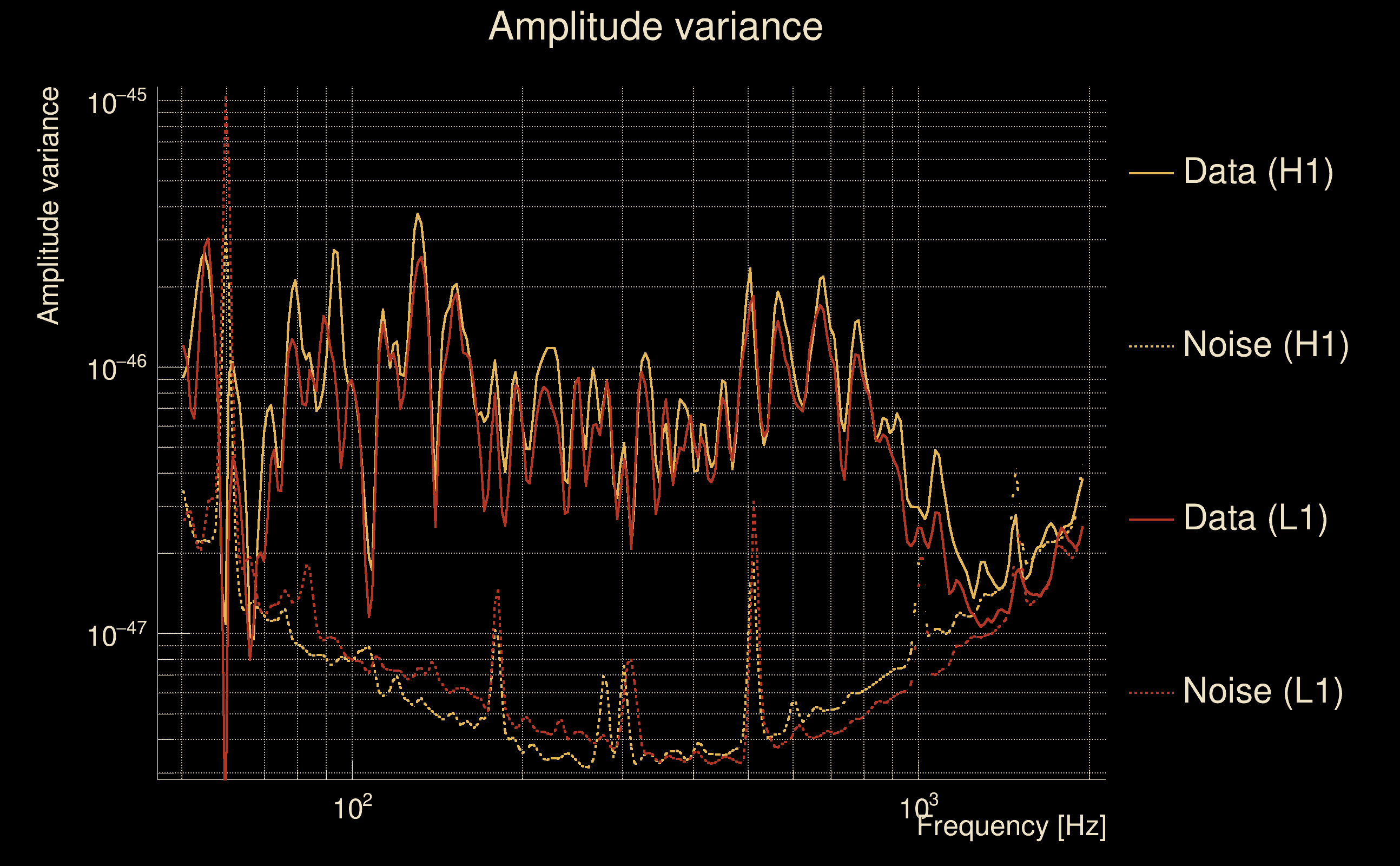

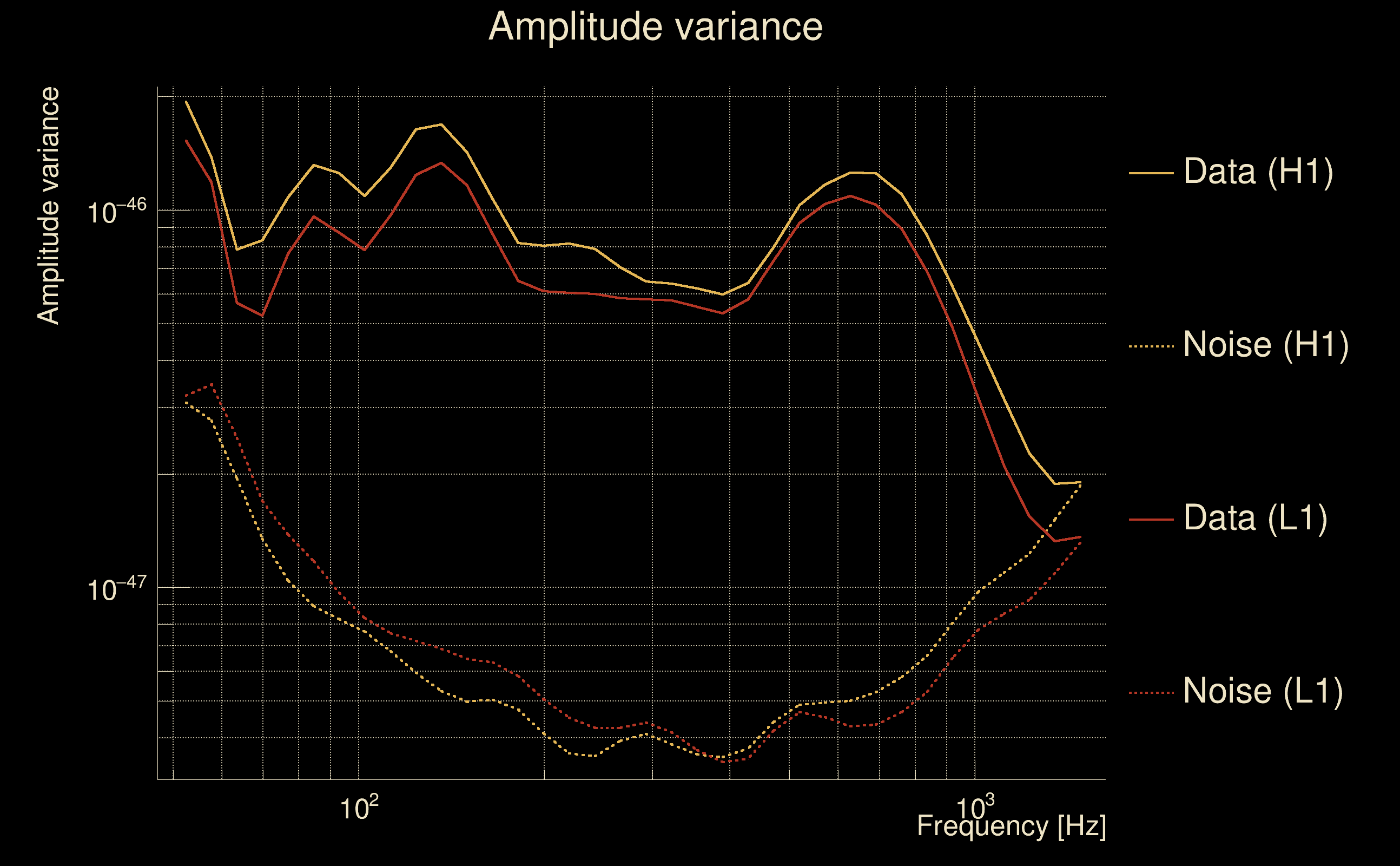

| Event time t(H1): | GPS = 1368369748 (Wed May 17 14:42:10 2023 ) → GPS = 1368369758 (Wed May 17 14:42:20 2023 ) |
| Event time t(L1): | GPS = 1368369748 (Wed May 17 14:42:20 2023 ) → GPS = 1368369758 (Wed May 17 14:42:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368369745 → GPS = 1368369761 |
| Omicron analysis time window (L1): | GPS = 1368369745 → GPS = 1368369761 |
| Time delay between detectors t(L1) - t(H1): | 0.00198275 s (slice index = 108 / 217), δt_gw = 0.00198275 s |
| Time delay standard deviation: | 0.0218243 s |
| [targeted mode] Time delay probability: | 3.11898e-41 (13.449 sigmas), δt_target = -0.000461817 s |
| Frequency: | 269.972 Hz |
| Ξ: | 0.88866 ± 0.00950183 (variance = 9.02848e-05): Q0: 0.922787, Q1: 0.917414, Q2: 0.933782, Q3: 0.937041, Q4: 0.943458 |
| Rank: | R_A = 0.838685 |
| Log of amplitude ratio (L1/H1): | -0.104297, variance = 0.153188 (L1/H1: -0.123388, variance = 0.305539, H1/L1: 0.0850586, variance = 0.307218) |
| Amplitude ratio (L1/H1): | 0.900957 ⋇ 1.47904 (L1/H1: 0.883921 ⋇ 1.73804, H1/L1: 1.08878 ⋇ 1.74067) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.960947 |

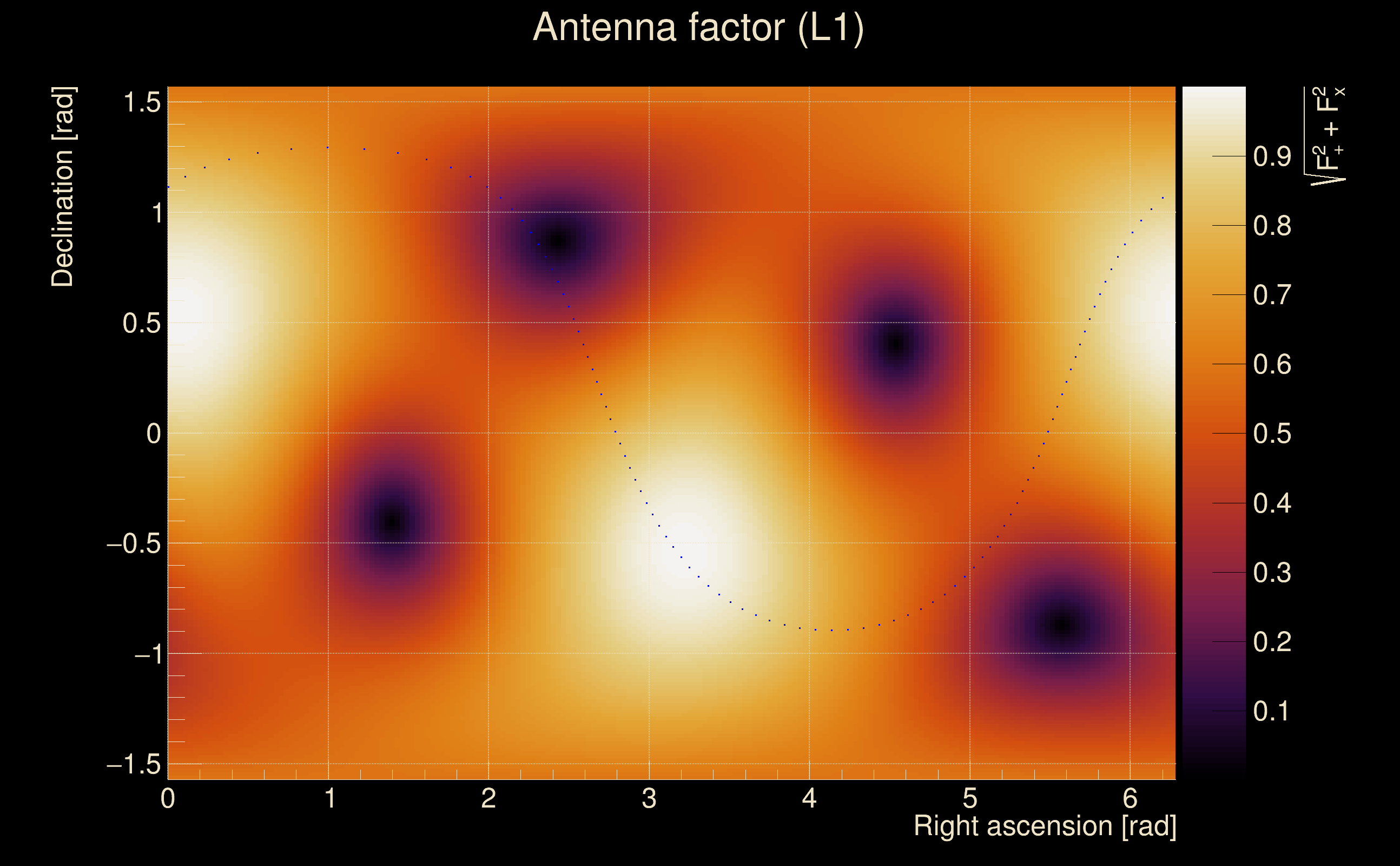

| Antenna factor probability: | 0.982119 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 9 / 70, Q3: 25 / 134, Q4: 63 / 258 |
| Maximum signal-to-noise ratio: | H1: 64.9664, L1: 64.7158 |
| SNR variance: | H1: 7.43842, L1: 6.1047 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368370123 (Wed May 17 14:48:25 2023 ) → GPS = 1368370133 (Wed May 17 14:48:35 2023 ) |
| Event time t(L1): | GPS = 1368370123 (Wed May 17 14:48:35 2023 ) → GPS = 1368370133 (Wed May 17 14:48:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368370120 → GPS = 1368370136 |
| Omicron analysis time window (L1): | GPS = 1368370120 → GPS = 1368370136 |
| Time delay between detectors t(L1) - t(H1): | 1.51639 s (slice index = 75 / 217), δt_gw = -0.00160668 s |
| Time delay standard deviation: | 0.0900428 s |
| [targeted mode] Time delay probability: | 0.220616 (1.22489 sigmas), δt_target = -0.00931334 s |
| Frequency: | 131.587 Hz |
| Ξ: | 0.0337448 ± 0.0336424 (variance = 0.00113181): Q0: 0.0903446, Q1: 0.156564, Q2: 0.0812871, Q3: 0.0600306, Q4: 0.0732544 |
| Rank: | R_A = 0.0209948 |
| Log of amplitude ratio (L1/H1): | -0.0255662, variance = 0.560668 (L1/H1: -0.355554, variance = 0.880698, H1/L1: -0.247332, variance = 1.26913) |
| Amplitude ratio (L1/H1): | 0.974758 ⋇ 2.11441 (L1/H1: 0.700785 ⋇ 2.55603, H1/L1: 0.780882 ⋇ 3.08502) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.68094 |
| Antenna factor probability: | 0.913686 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 26 / 36, Q2: 59 / 70, Q3: 123 / 134, Q4: 241 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.95899, L1: 5.45309 |
| SNR variance: | H1: 0.539934, L1: 0.533764 |

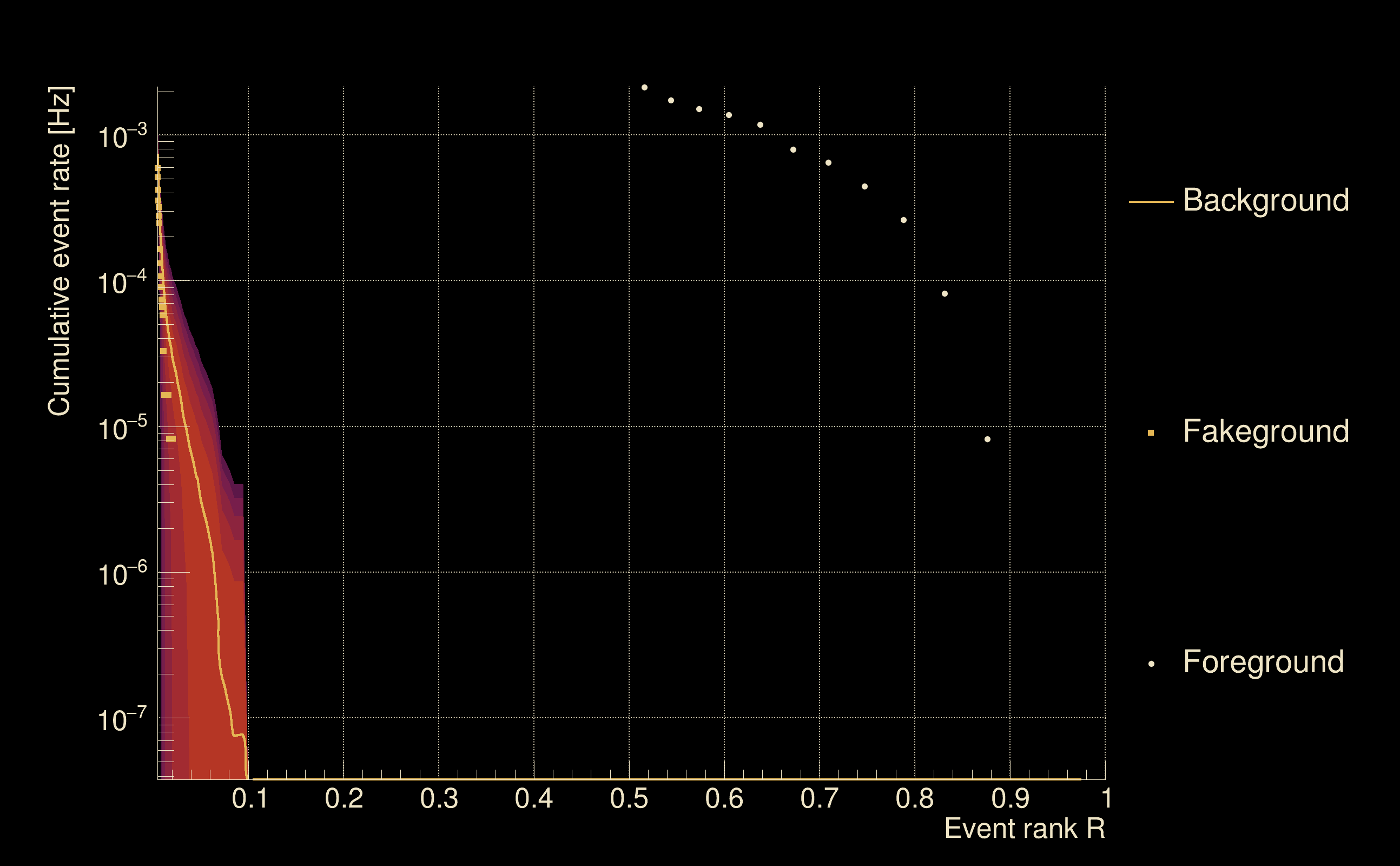

| Detection threshold: | R > 0.0503939 |
| False-alarm rate above that detection threshold: | 2.83656e-06 |
| Alternative threshold at 1/1000 yrs: | R > 0.094666 |
| Alternative threshold at 1/100 yrs: | R > 0.094666 |
| Alternative threshold at 1/10 yrs: | R > 0.094666 |
| Alternative threshold at 1/1 yr: | R > 0.094666 |
| Alternative threshold at 1/1 d: | R > 0.0311686 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

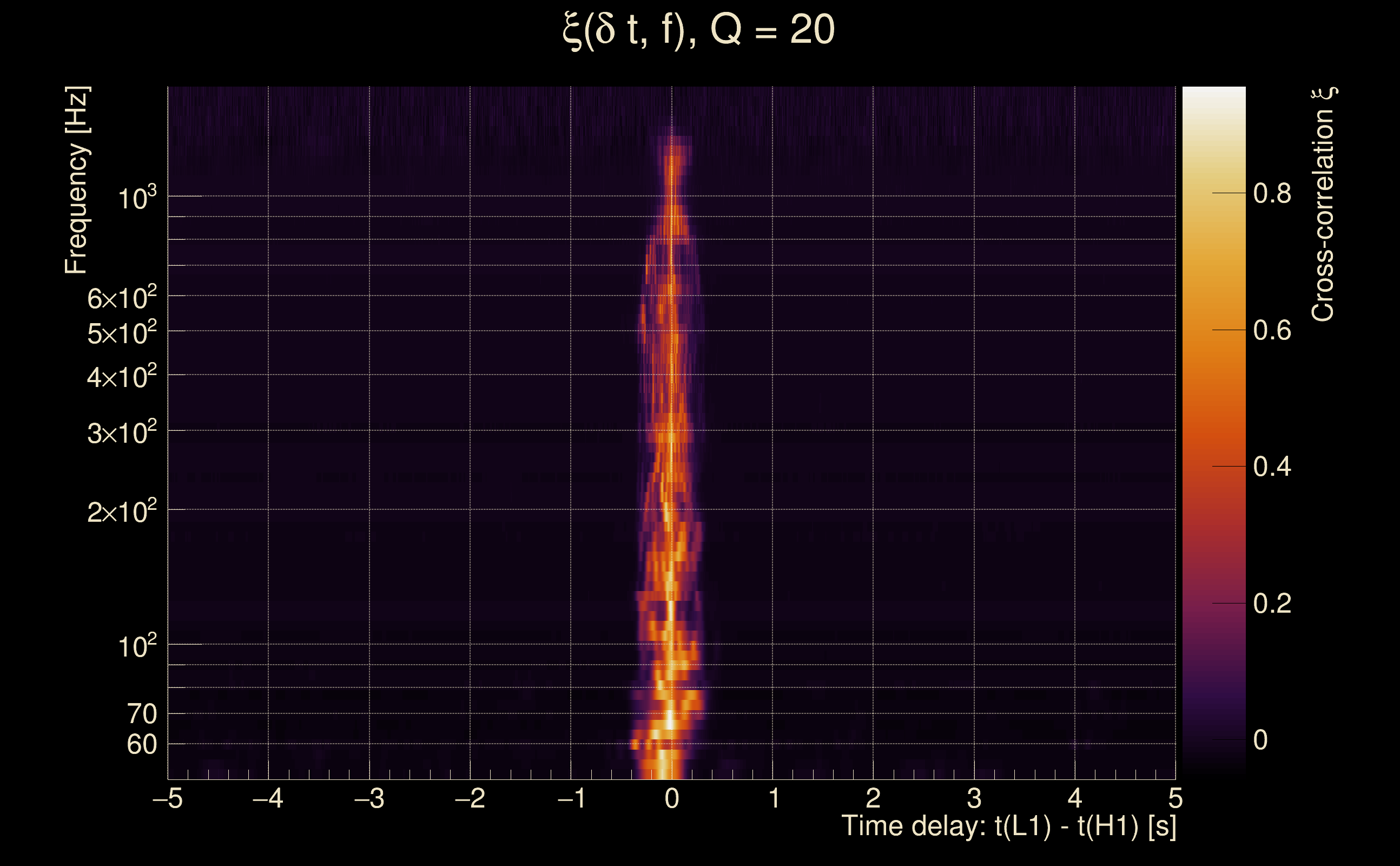

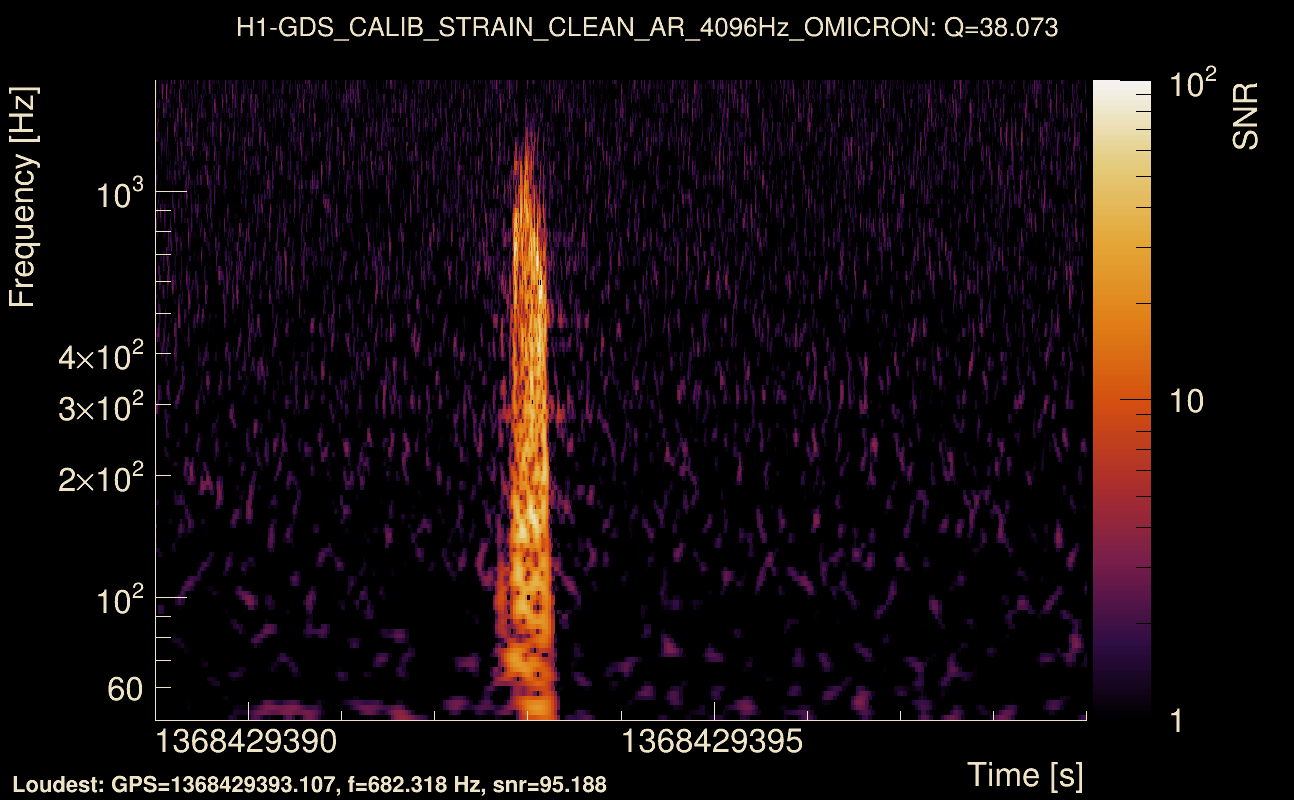

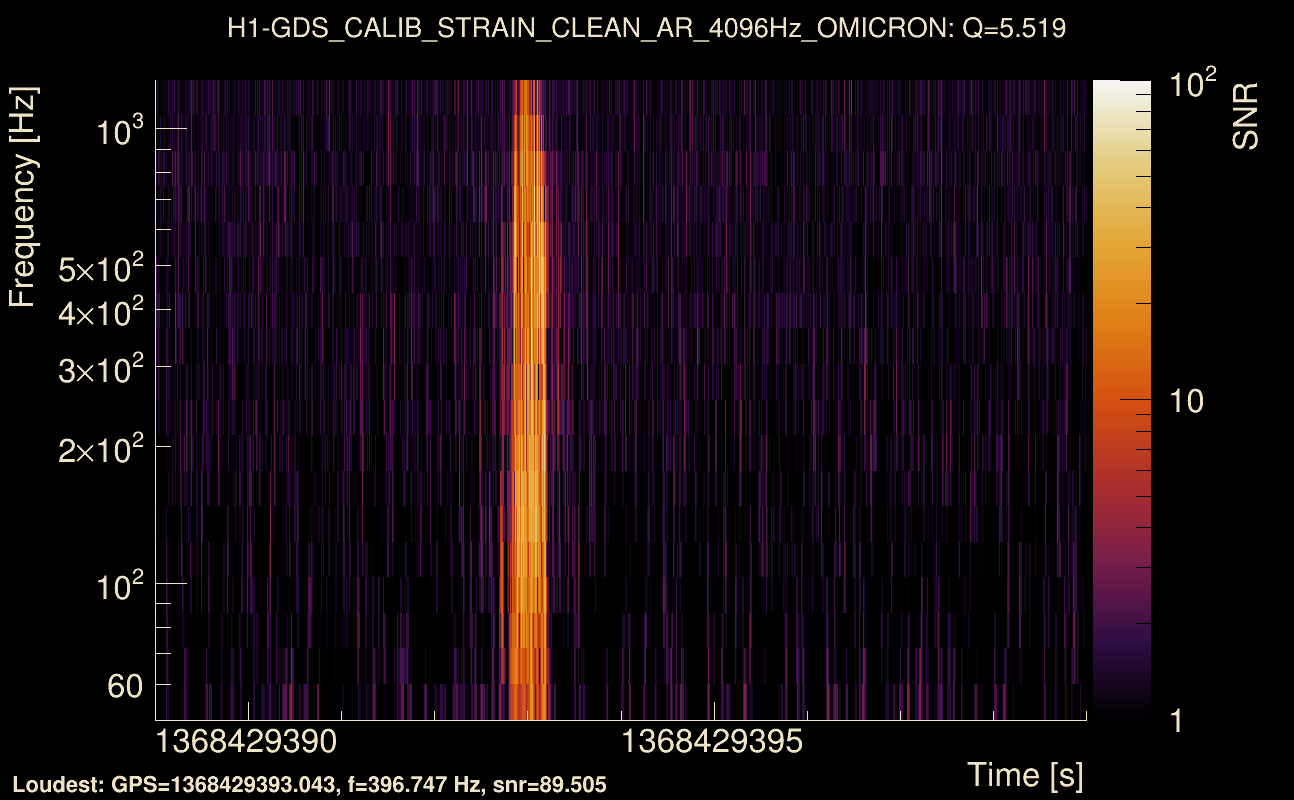

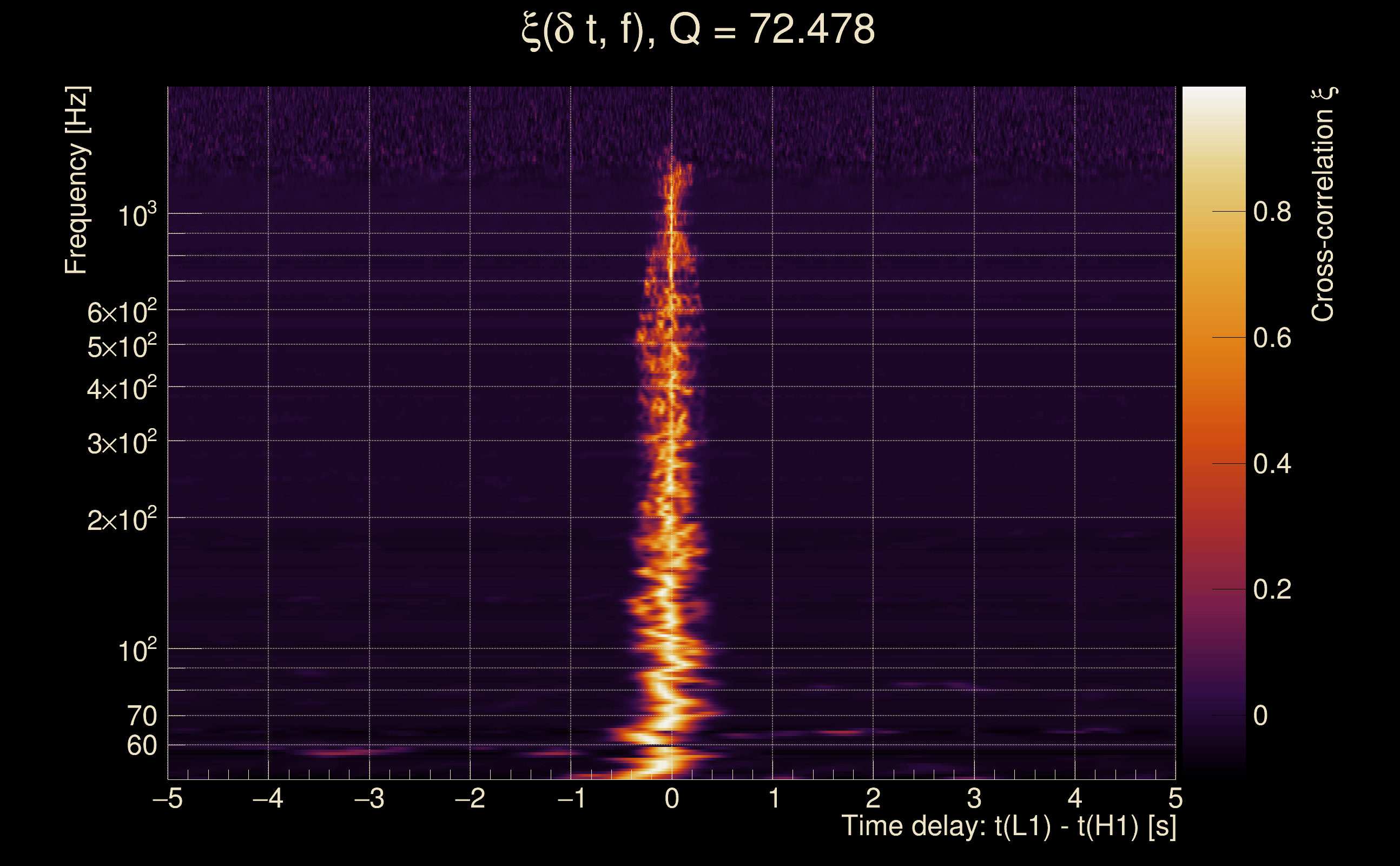

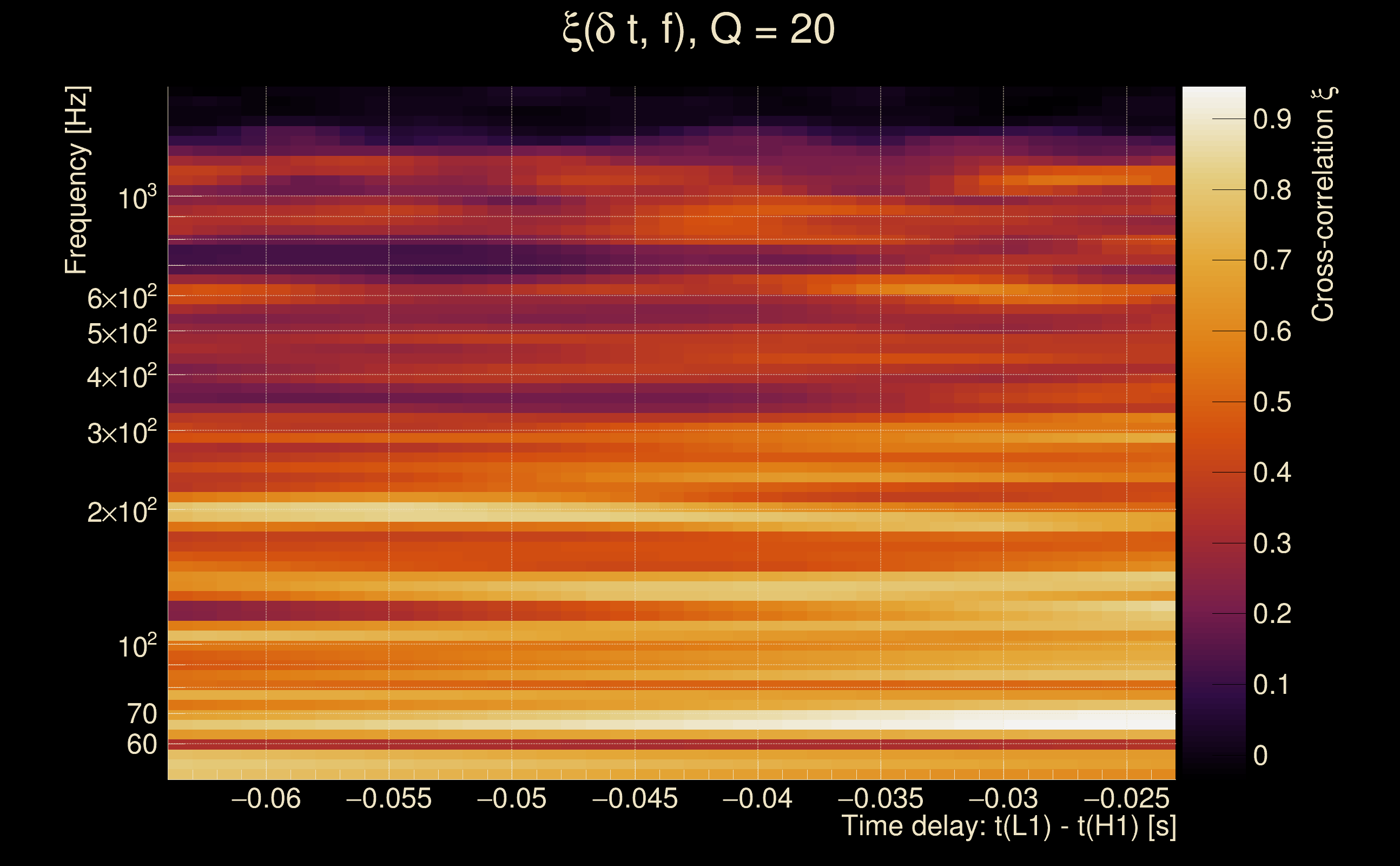

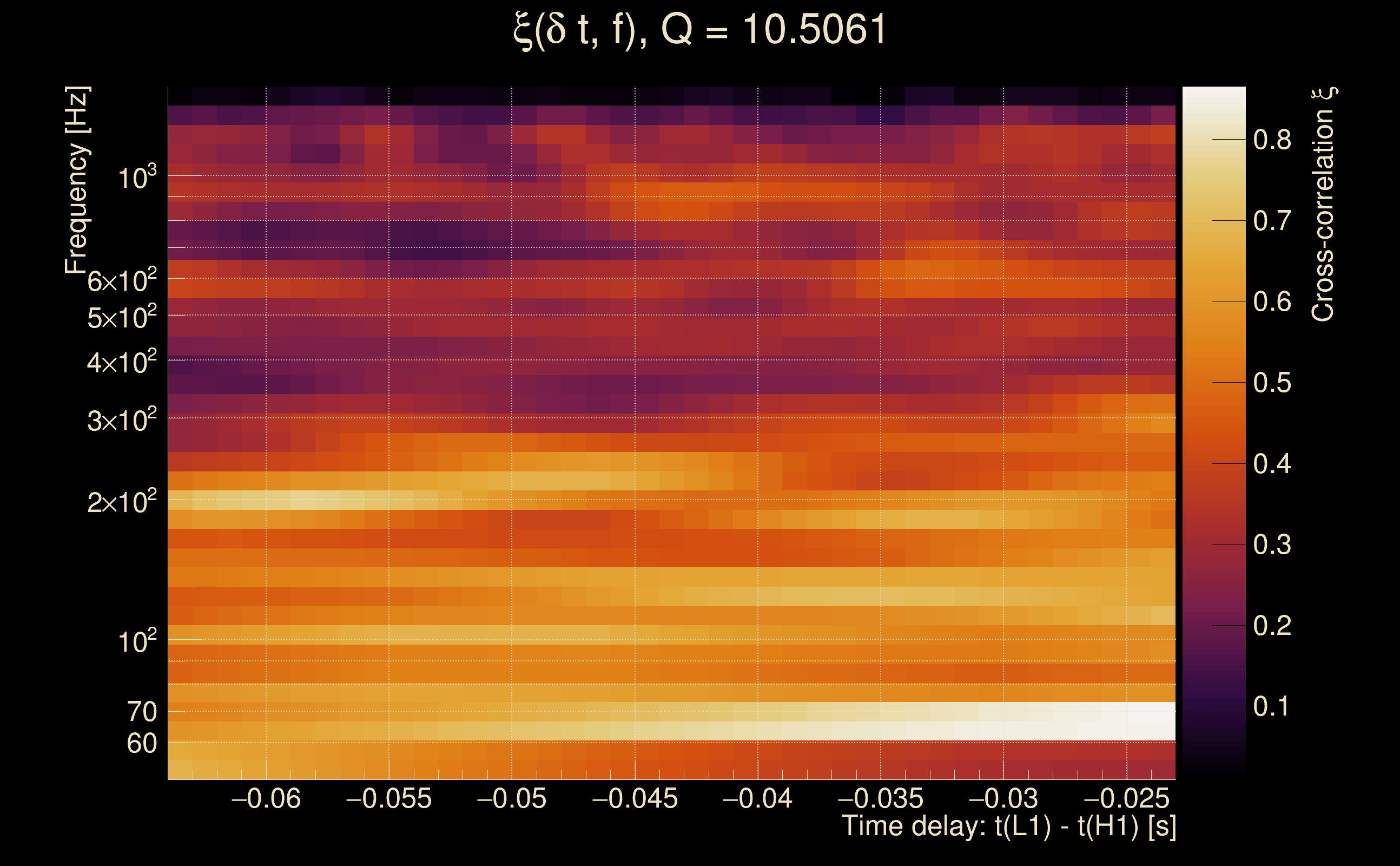

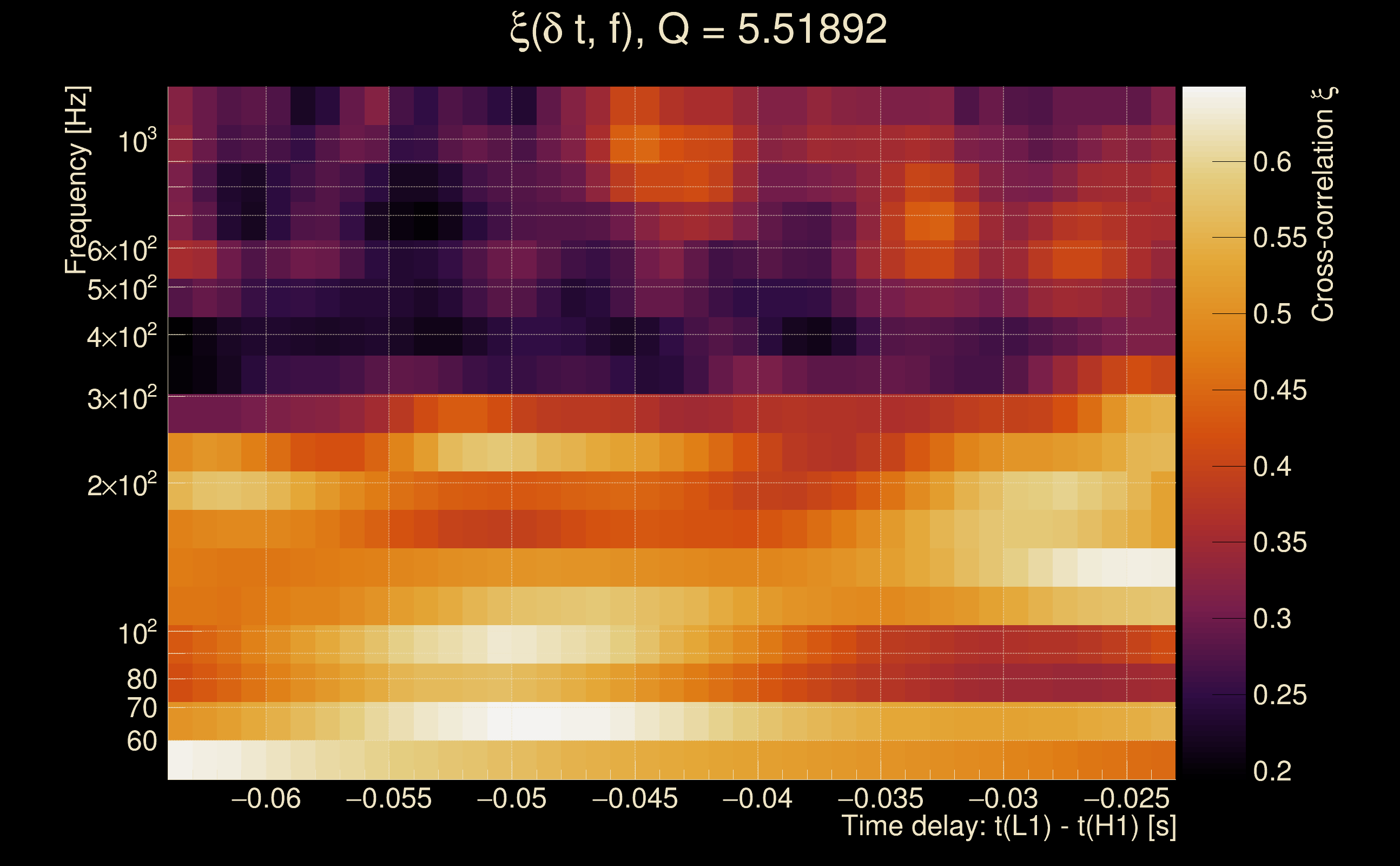

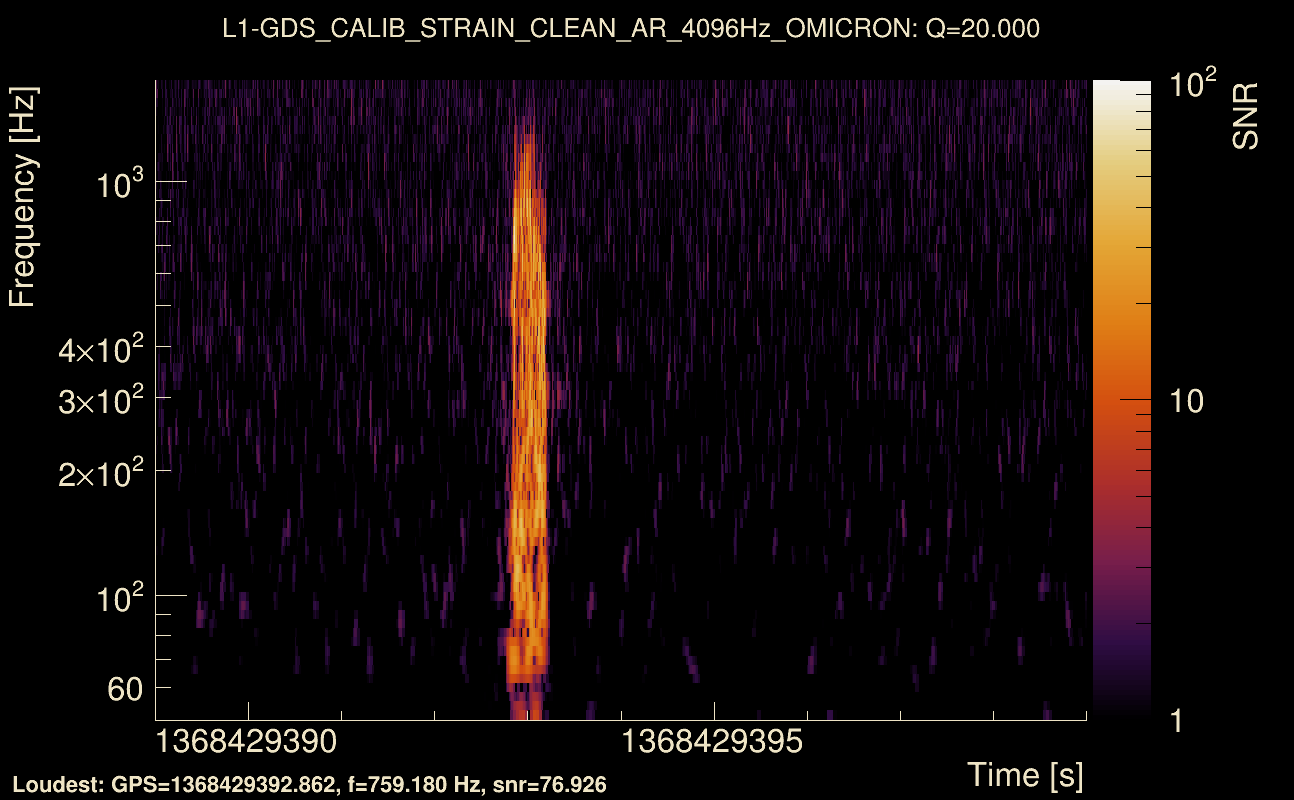

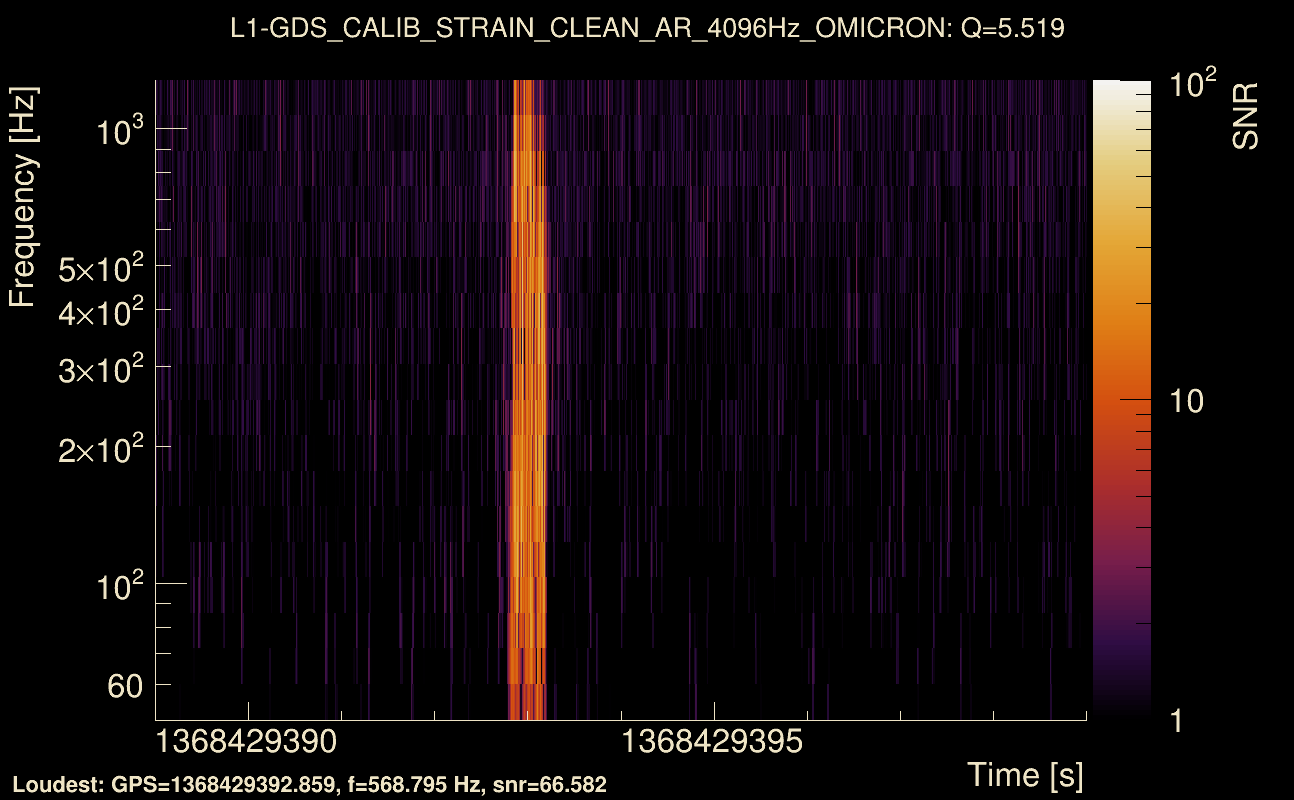

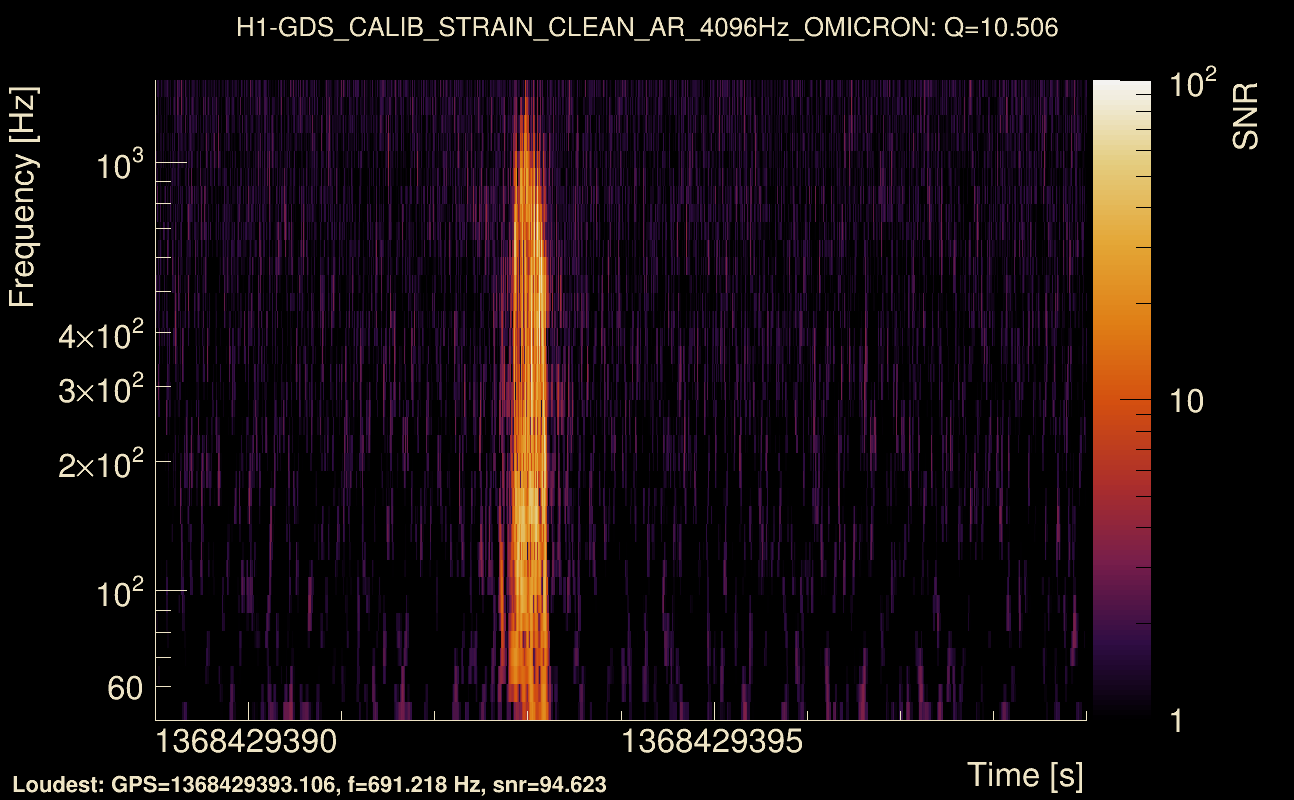

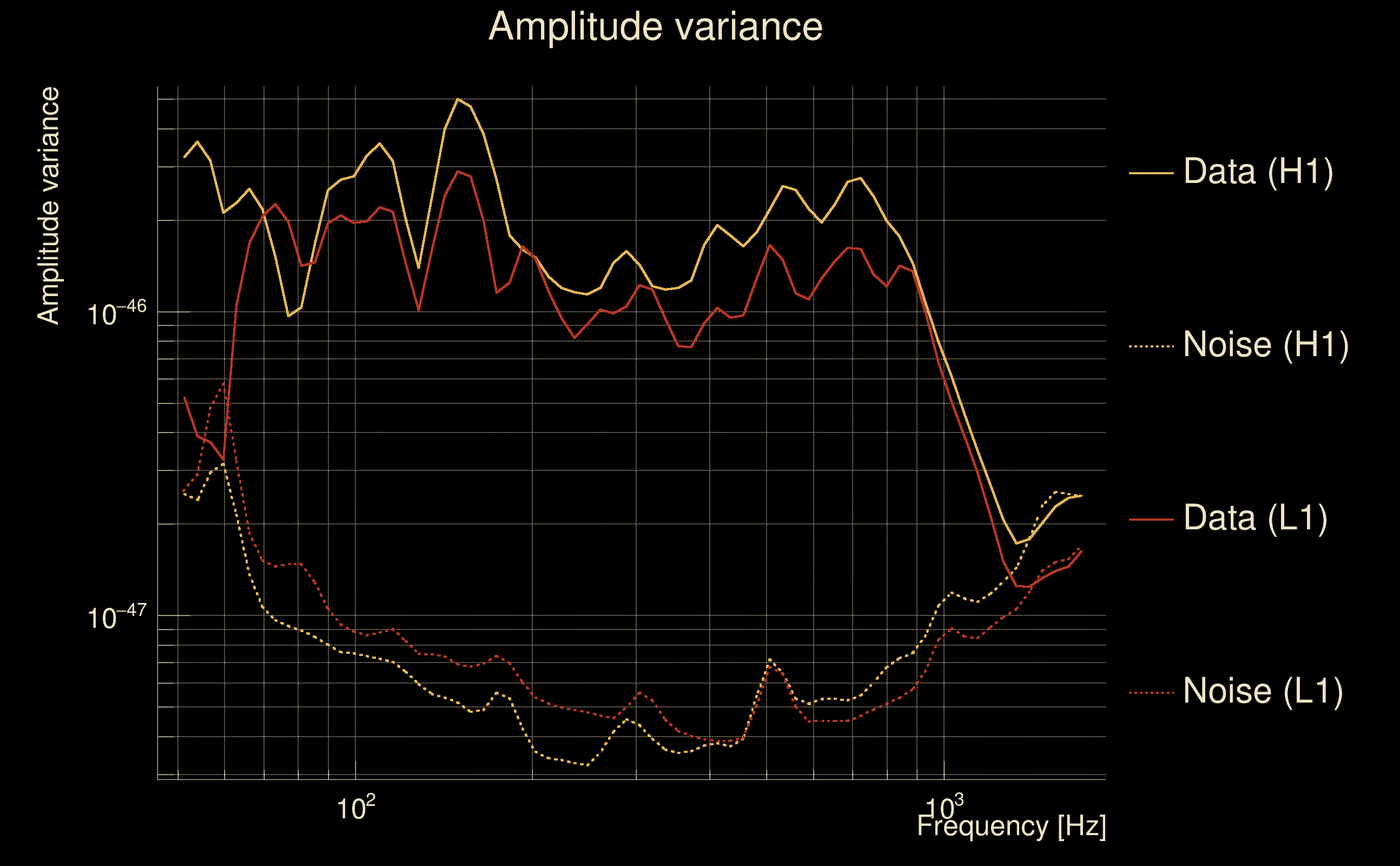

| Event time t(H1): | GPS = 1368429389 (Thu May 18 07:16:11 2023 ) → GPS = 1368429399 (Thu May 18 07:16:21 2023 ) |
| Event time t(L1): | GPS = 1368429389 (Thu May 18 07:16:21 2023 ) → GPS = 1368429399 (Thu May 18 07:16:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368429386 → GPS = 1368429402 |
| Omicron analysis time window (L1): | GPS = 1368429386 → GPS = 1368429402 |

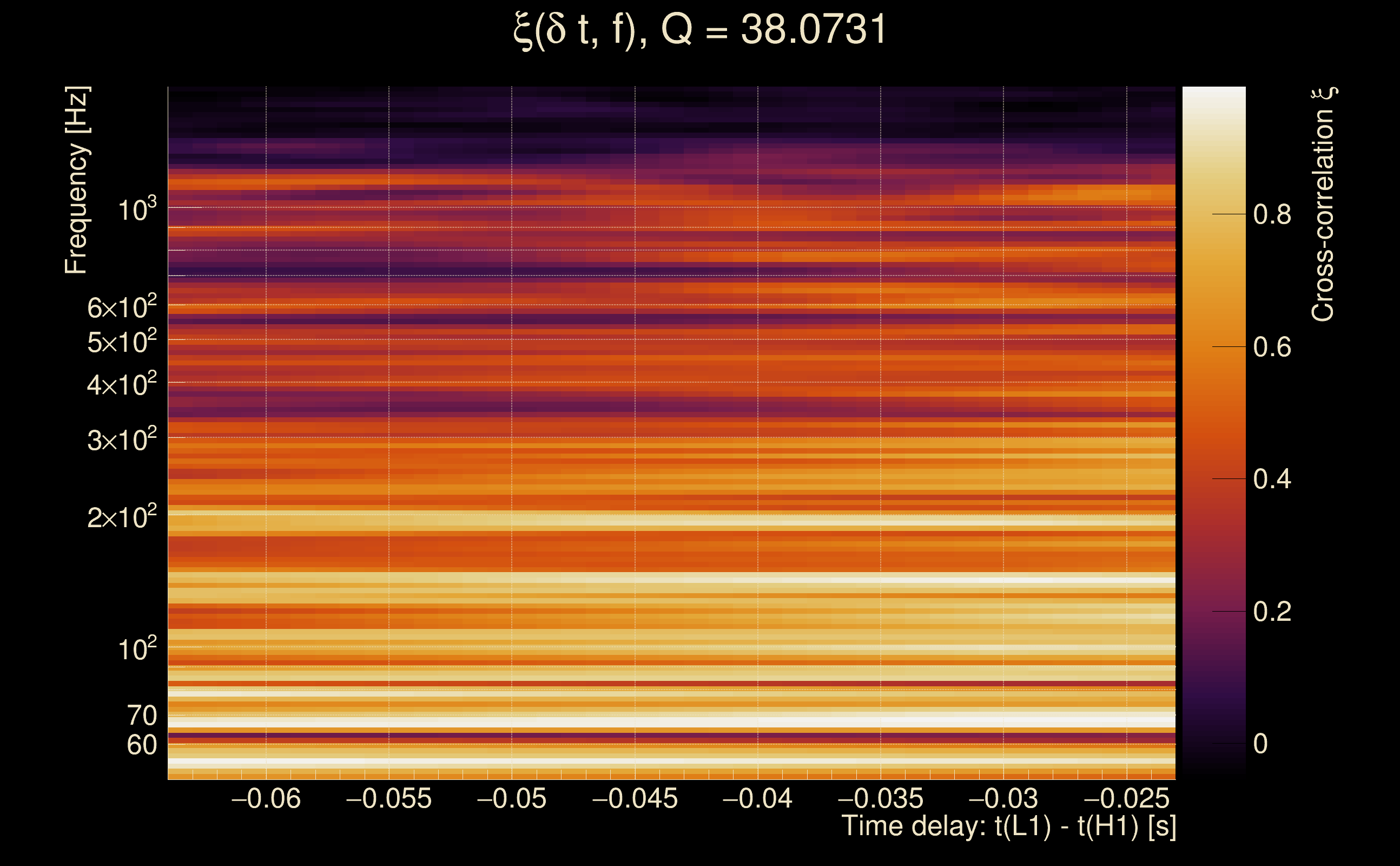

| Time delay between detectors t(L1) - t(H1): | -0.043938 s (slice index = 109 / 217), δt_gw = 0.00206195 s |
| Time delay standard deviation: | 0.0648794 s |
| [targeted mode] Time delay probability: | 0.609878 (0.510247 sigmas), δt_target = -0.00931334 s |
| Frequency: | 282.341 Hz |
| Ξ: | 0.219281 ± 0.023841 (variance = 0.000568395): Q0: 0.553289, Q1: 0.54719, Q2: 0.574733, Q3: 0.552754, Q4: 0.611758 |
| Rank: | R_A = 0.0947838 |
| Log of amplitude ratio (L1/H1): | -0.201994, variance = 0.164717 (L1/H1: -0.467415, variance = 0.327413, H1/L1: -0.15175, variance = 0.314784) |
| Amplitude ratio (L1/H1): | 0.8171 ⋇ 1.50058 (L1/H1: 0.62662 ⋇ 1.77216, H1/L1: 0.859203 ⋇ 1.75252) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.439741 |
| Antenna factor probability: | 0.982961 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 20 / 36, Q2: 48 / 70, Q3: 110 / 134, Q4: 241 / 258 |
| Maximum signal-to-noise ratio: | H1: 104.437, L1: 90.4638 |
| SNR variance: | H1: 17.4882, L1: 12.599 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

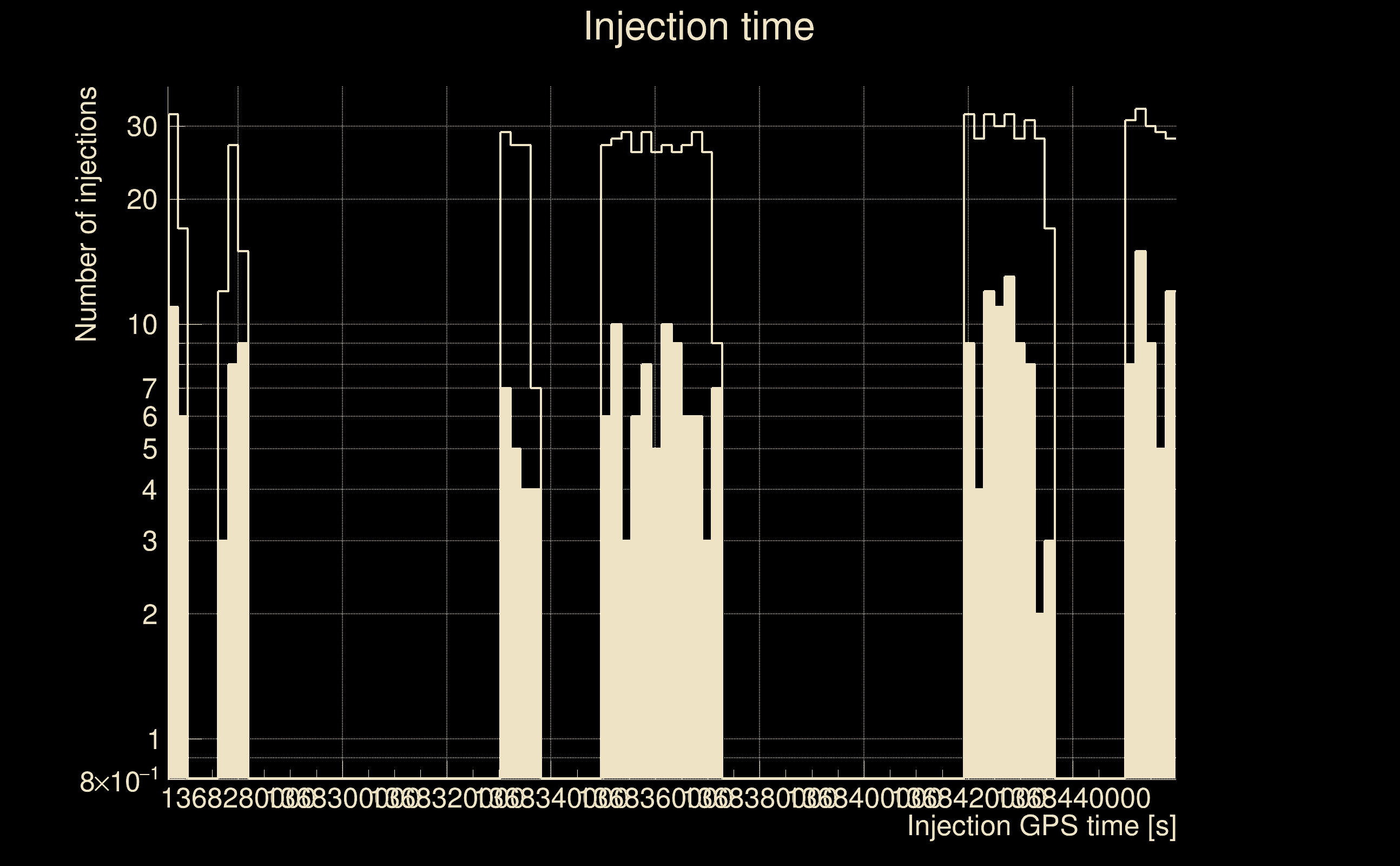

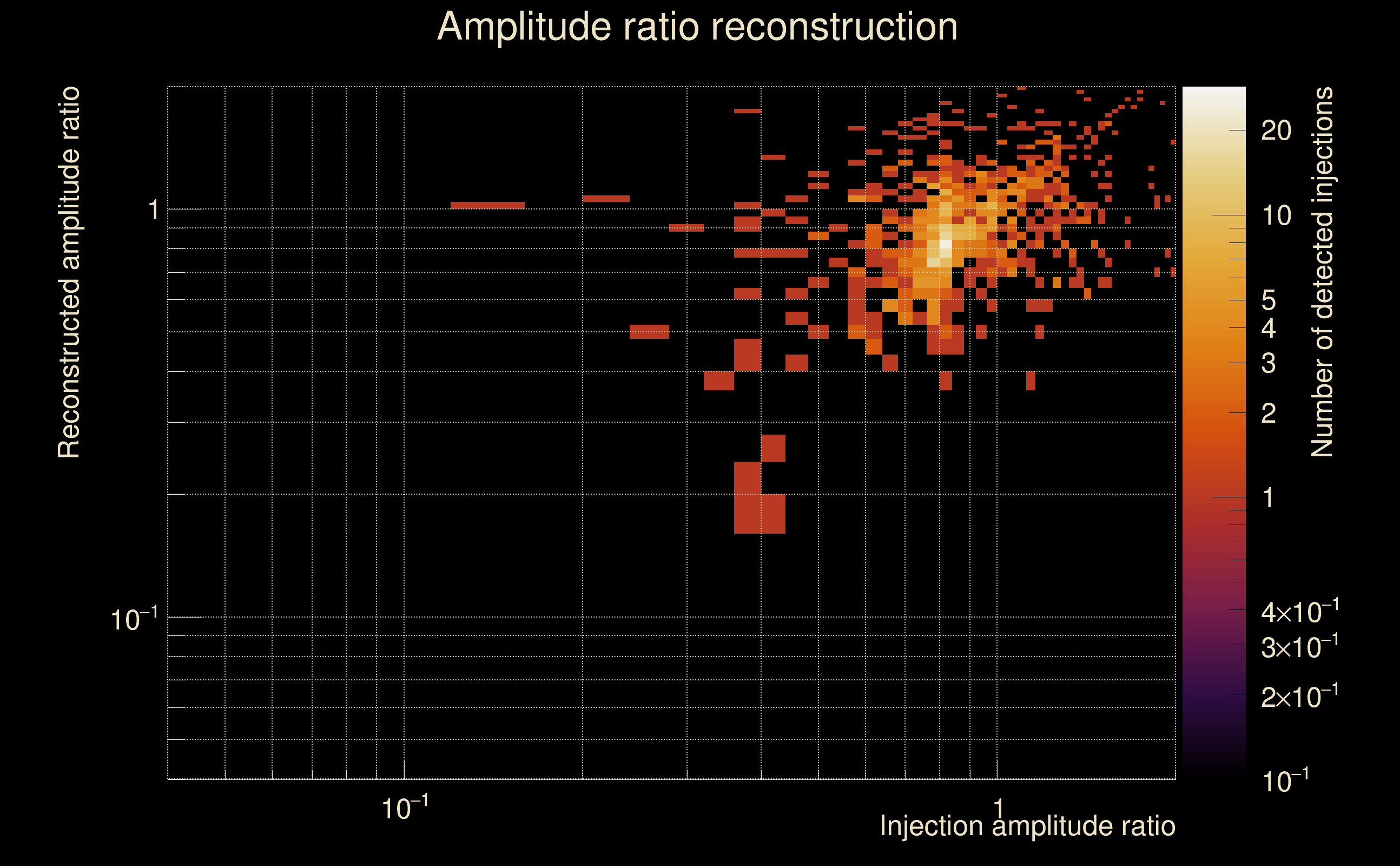

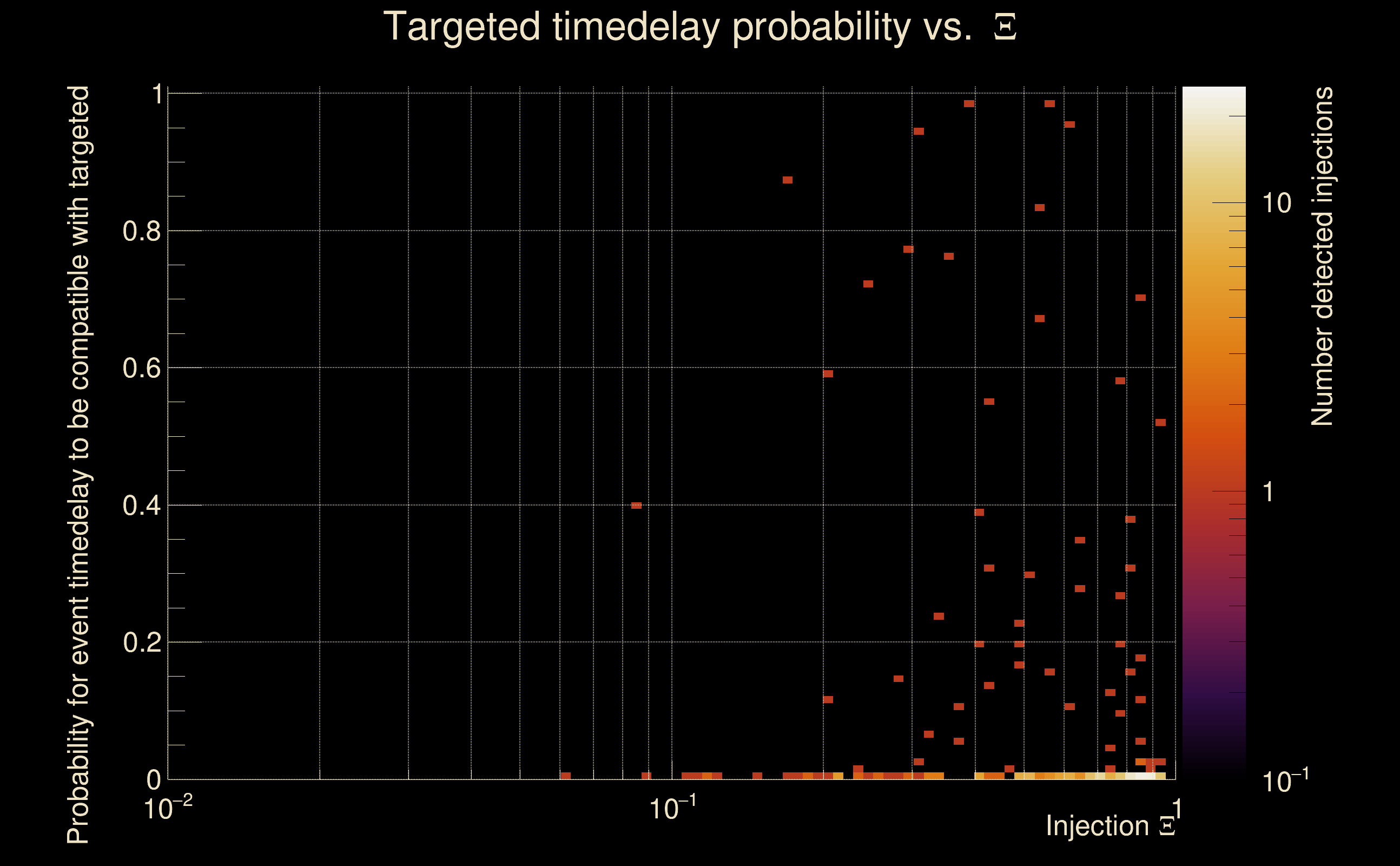

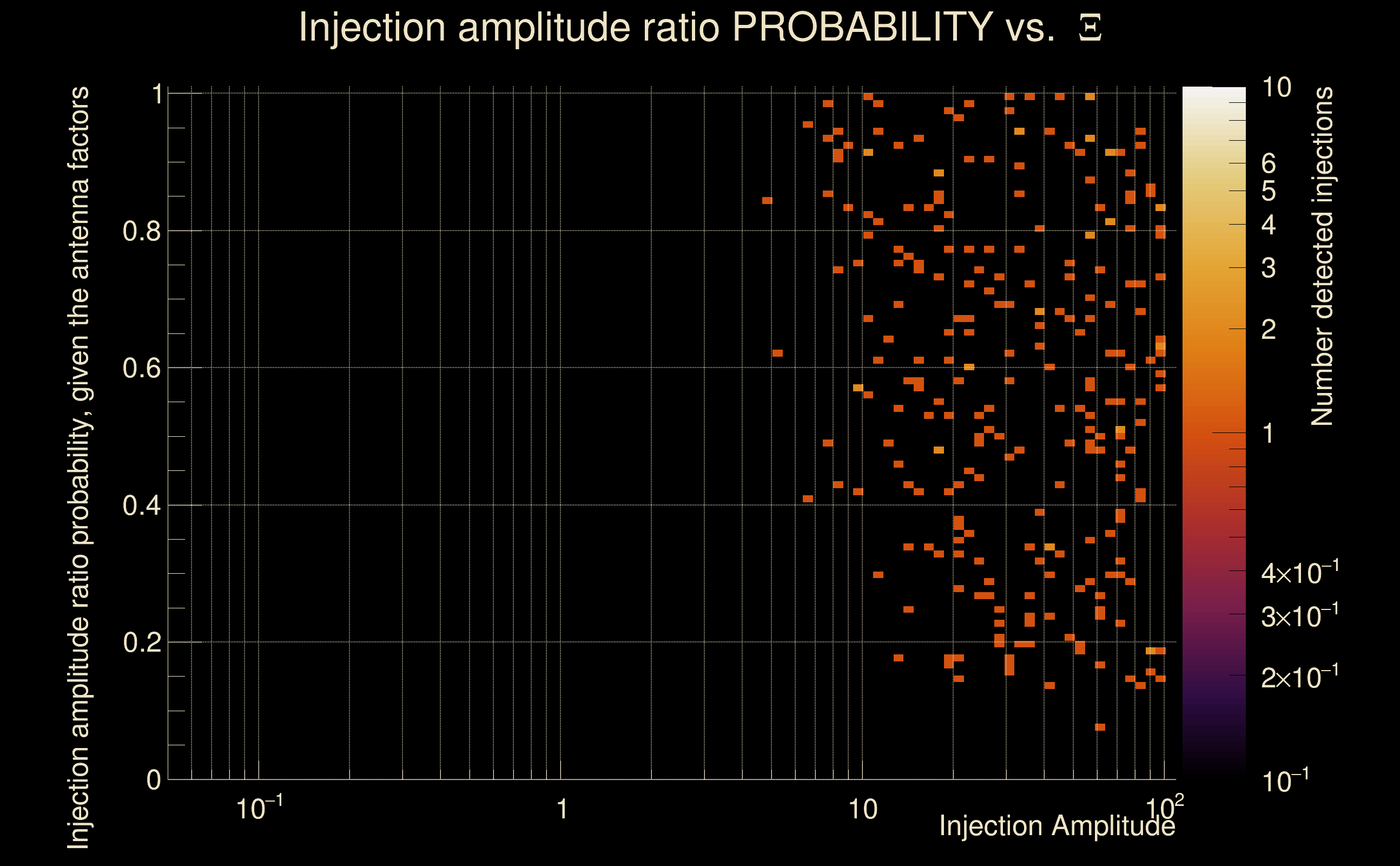

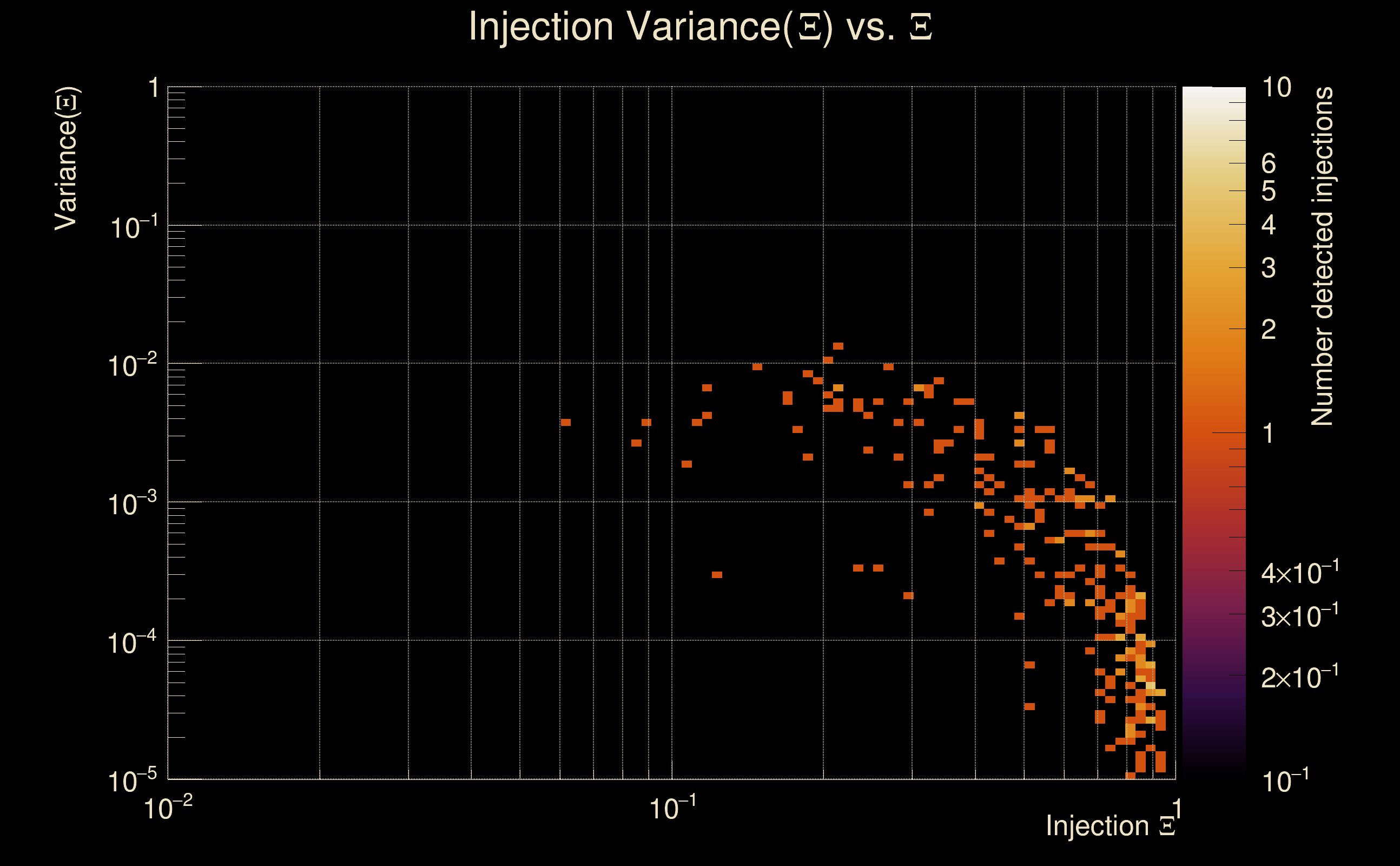

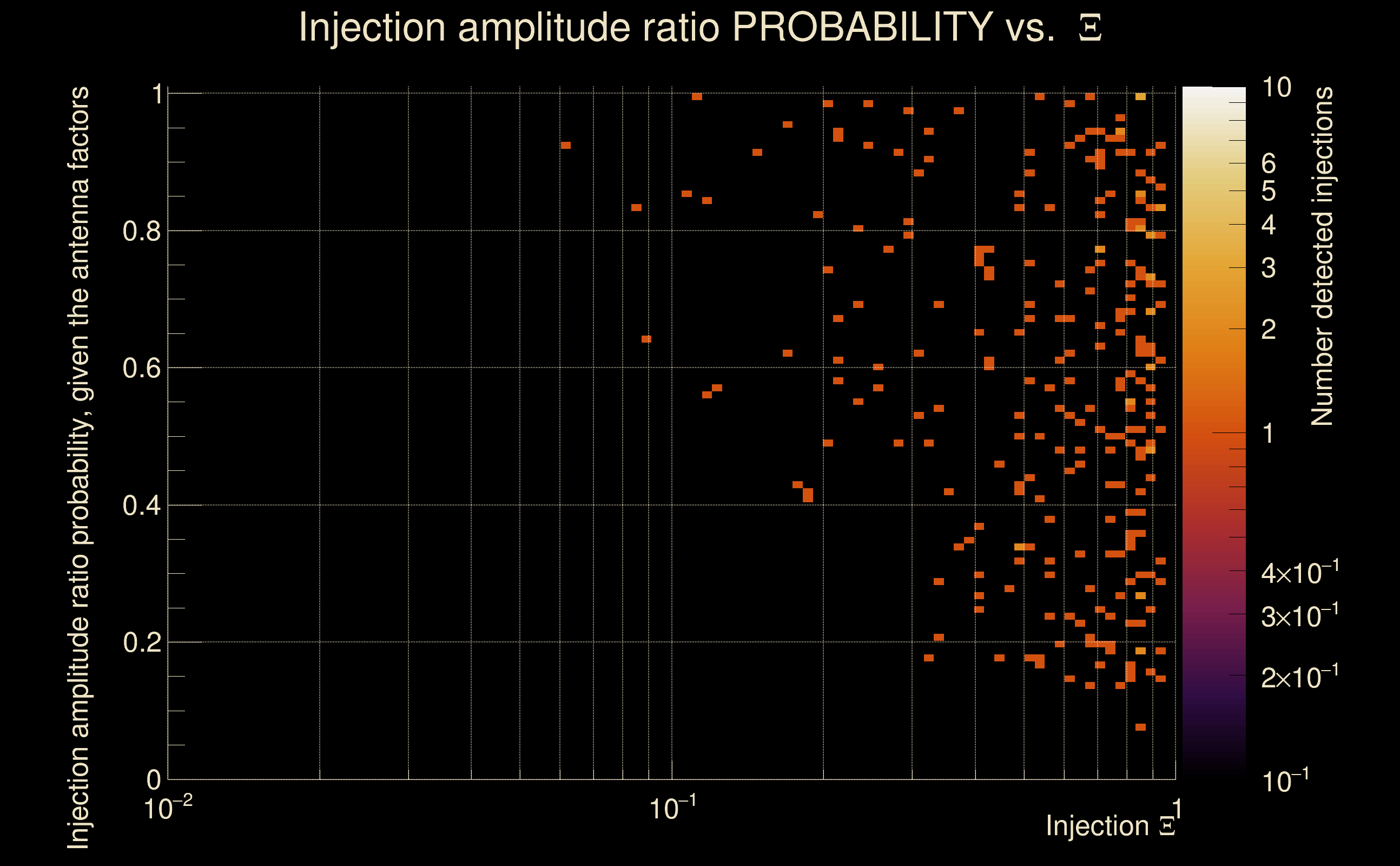

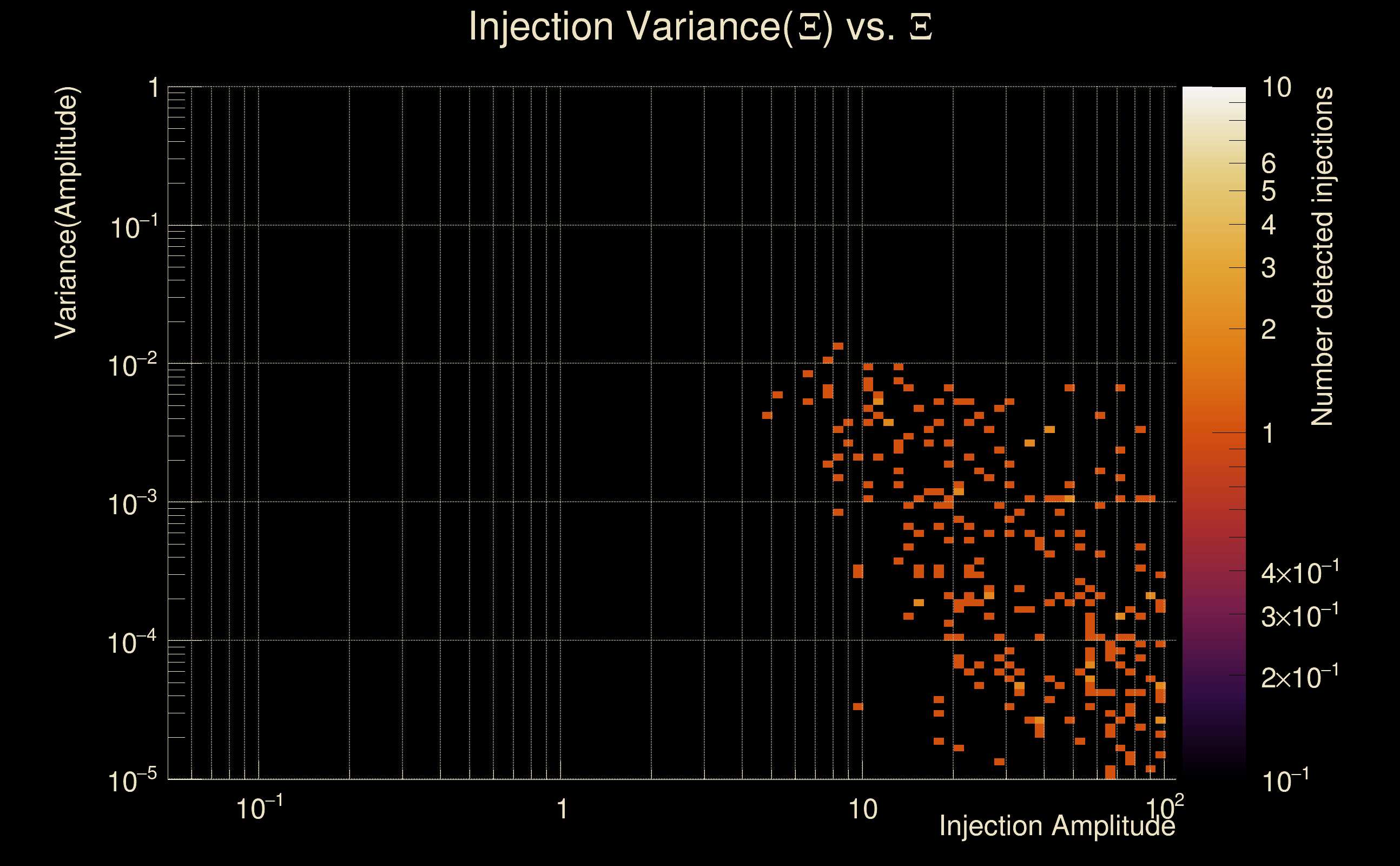

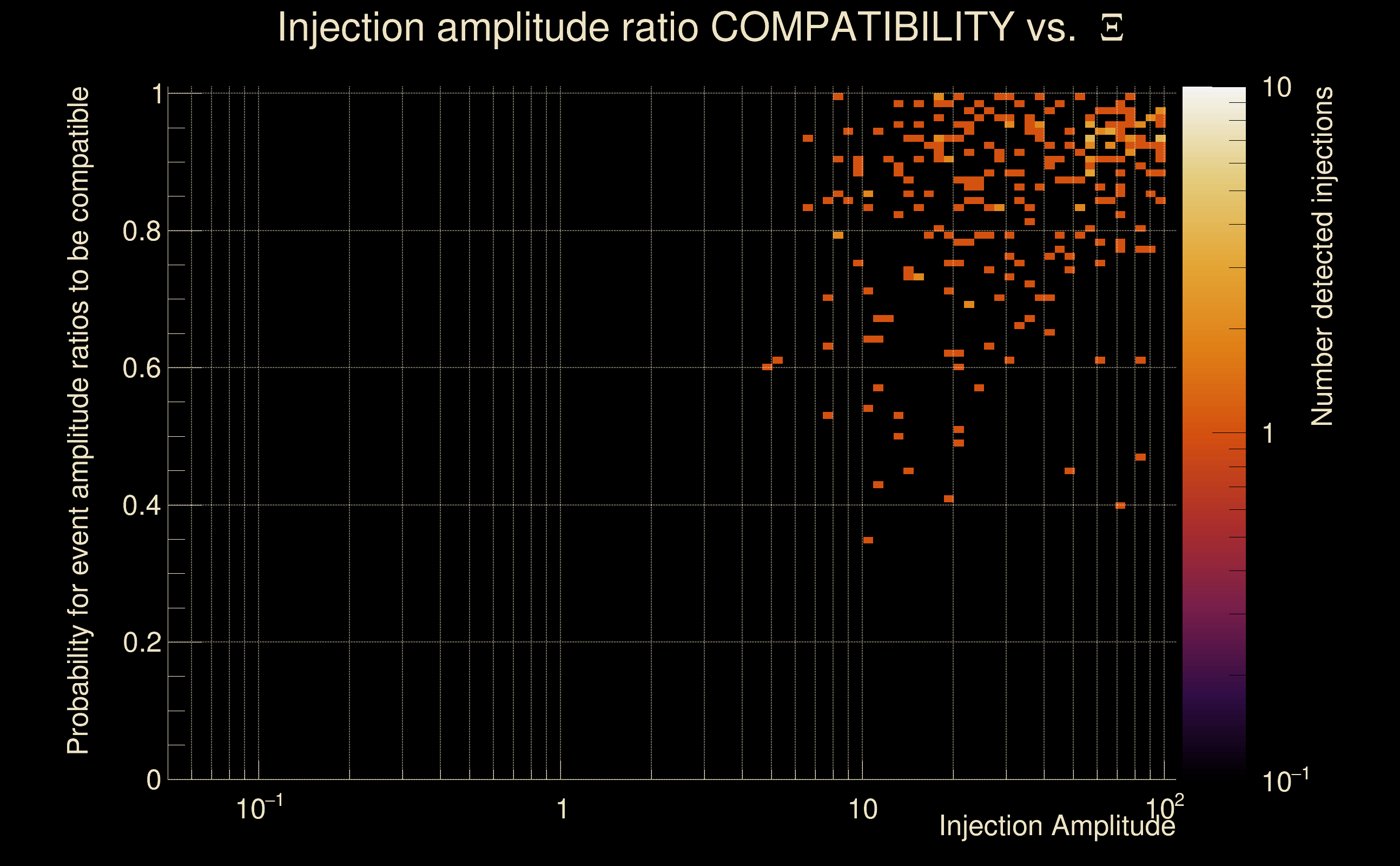

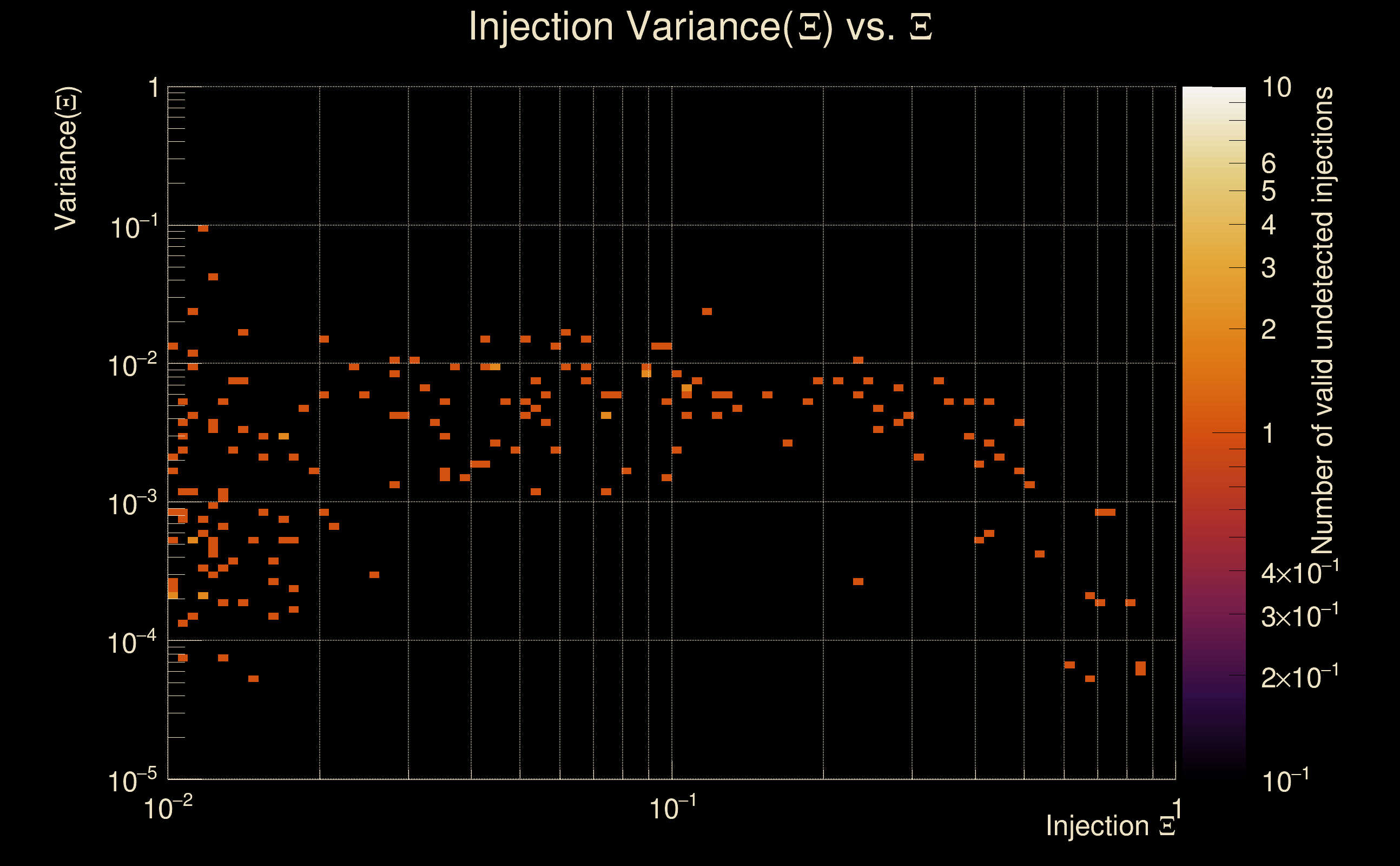

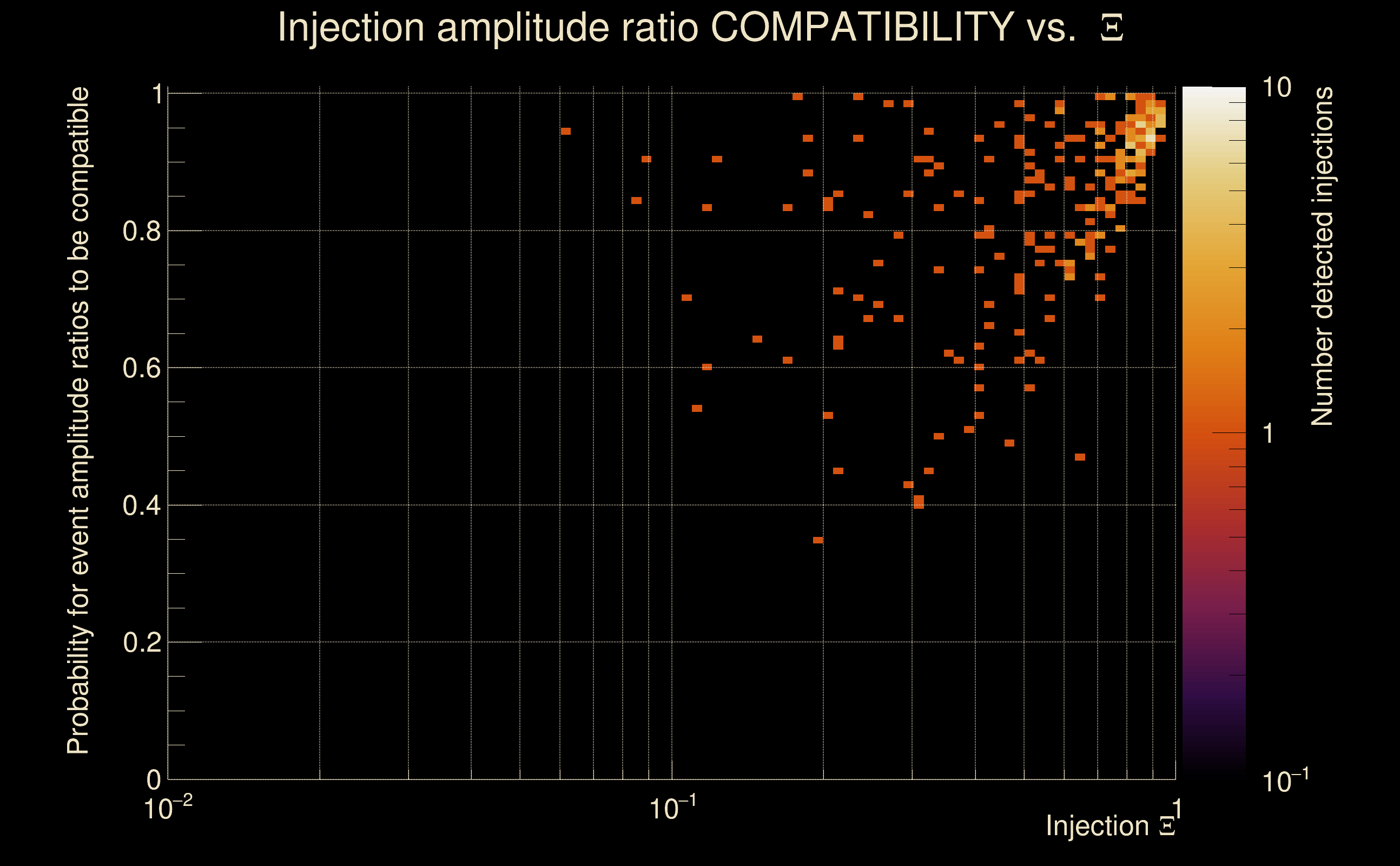

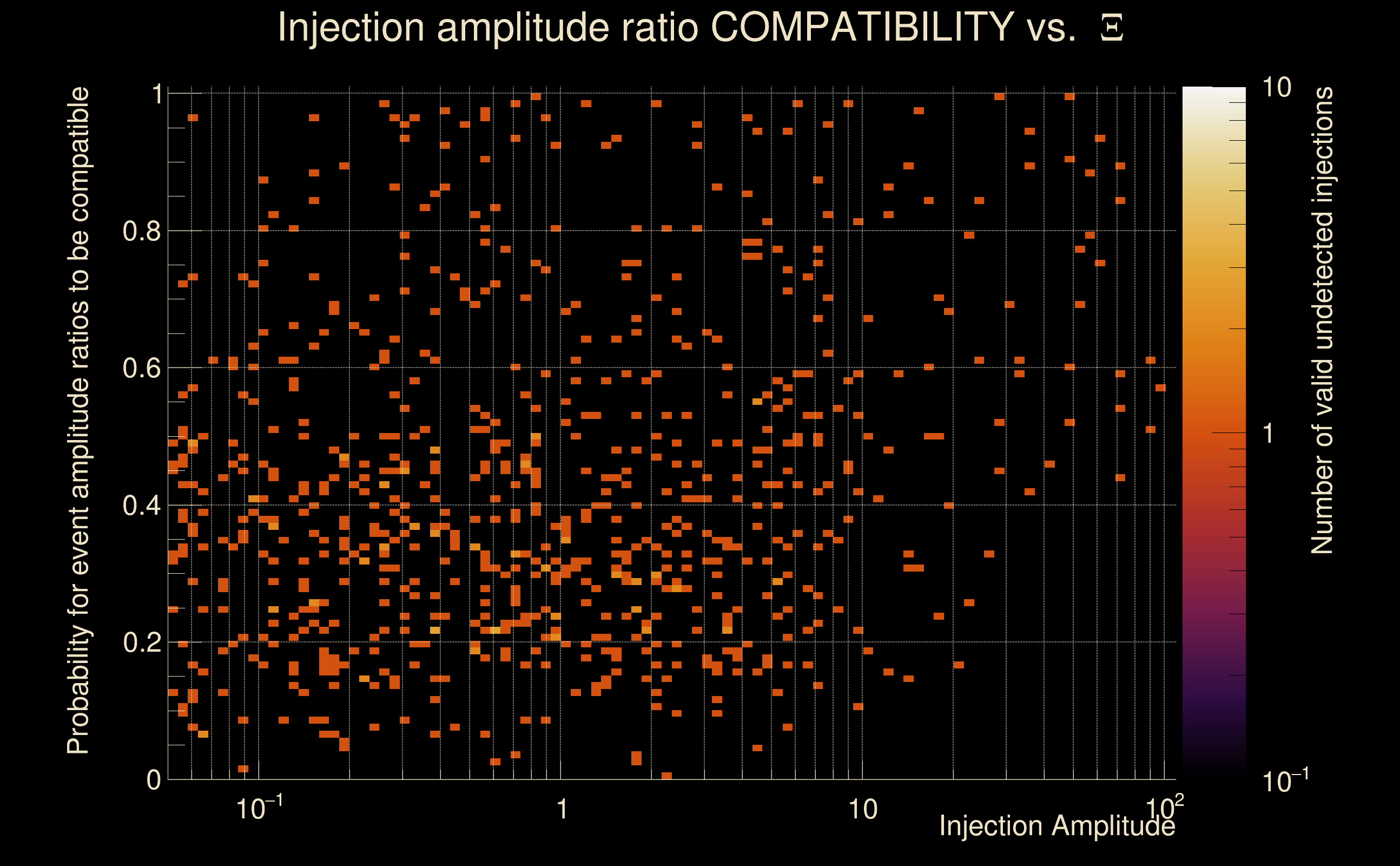

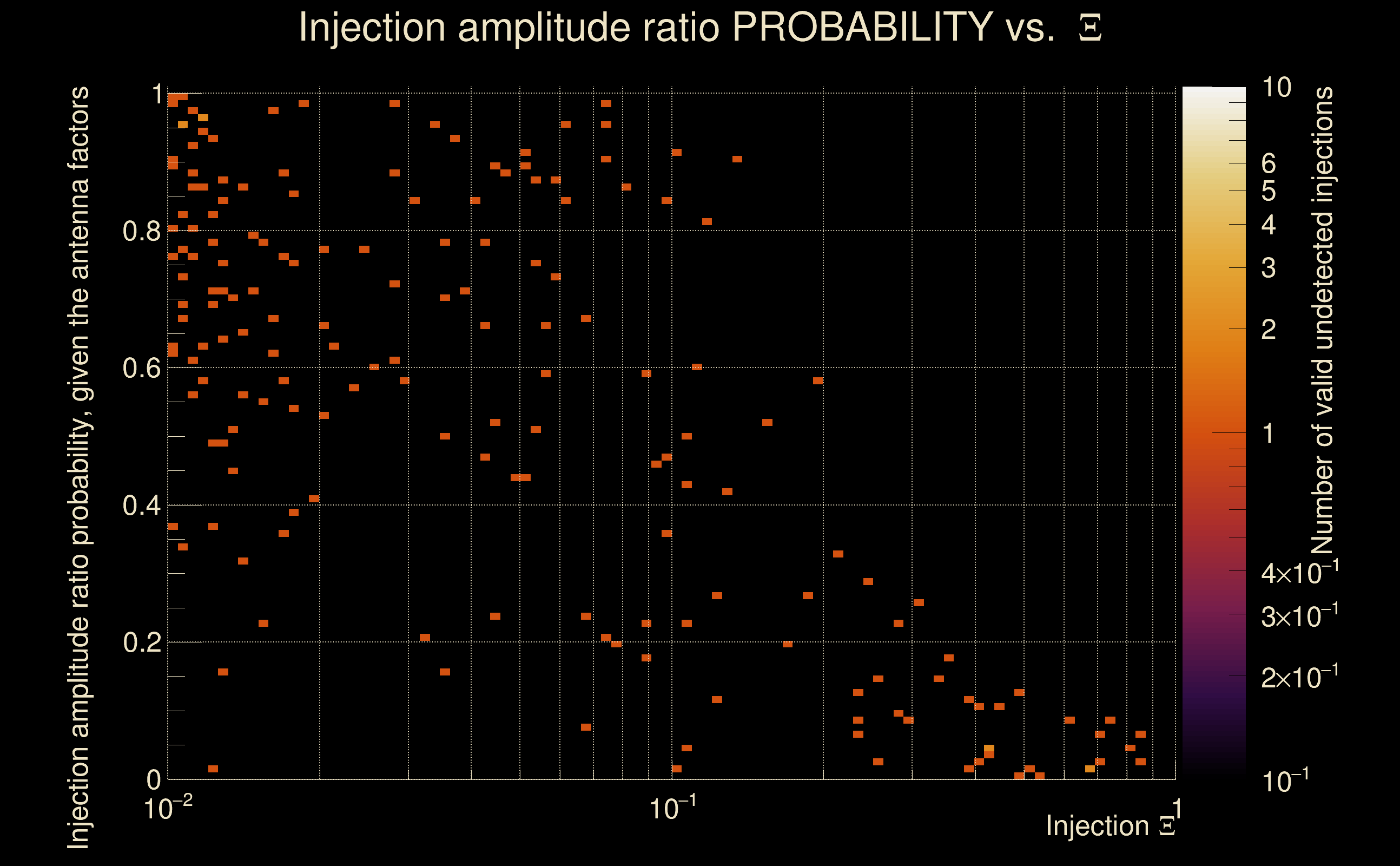

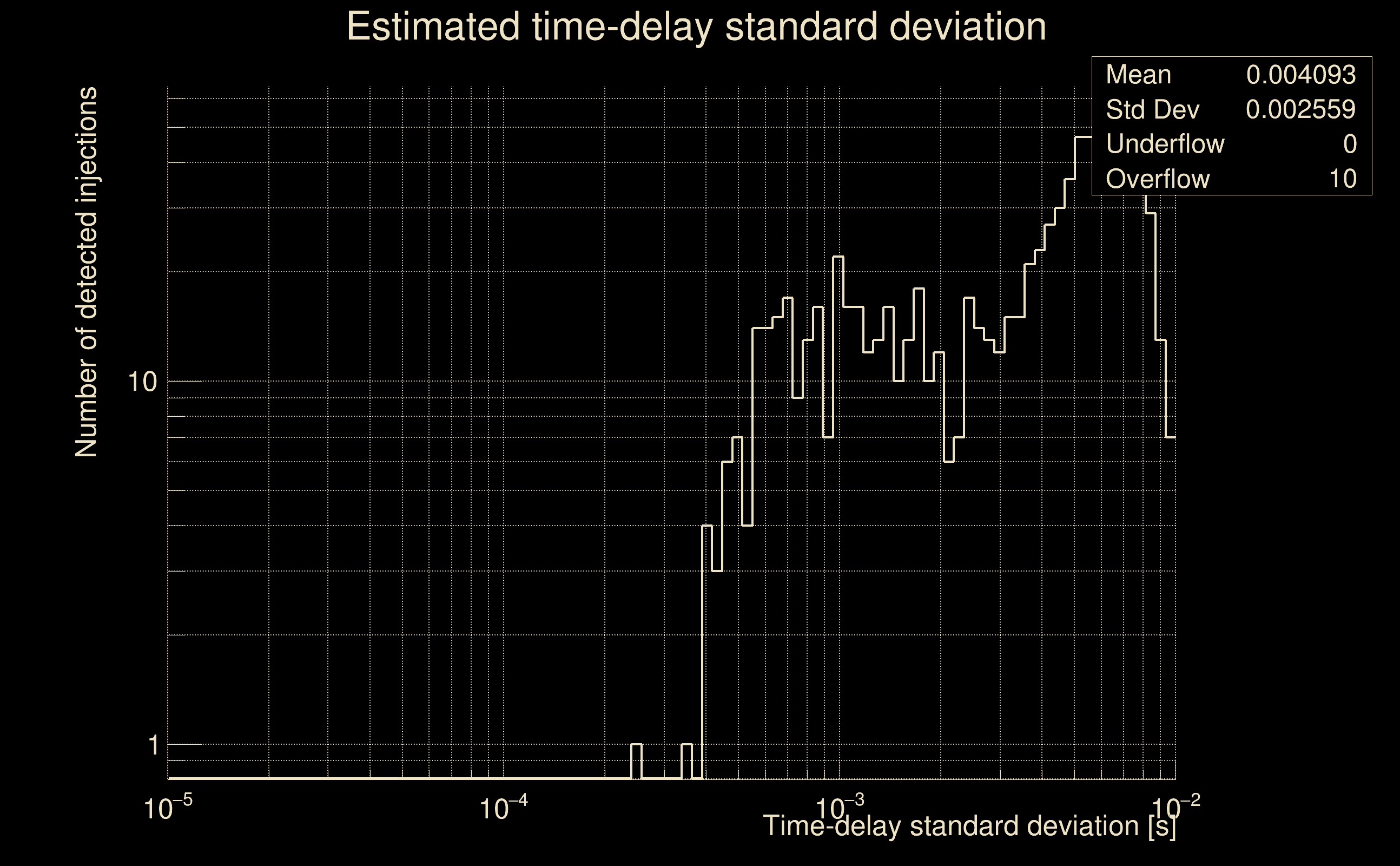

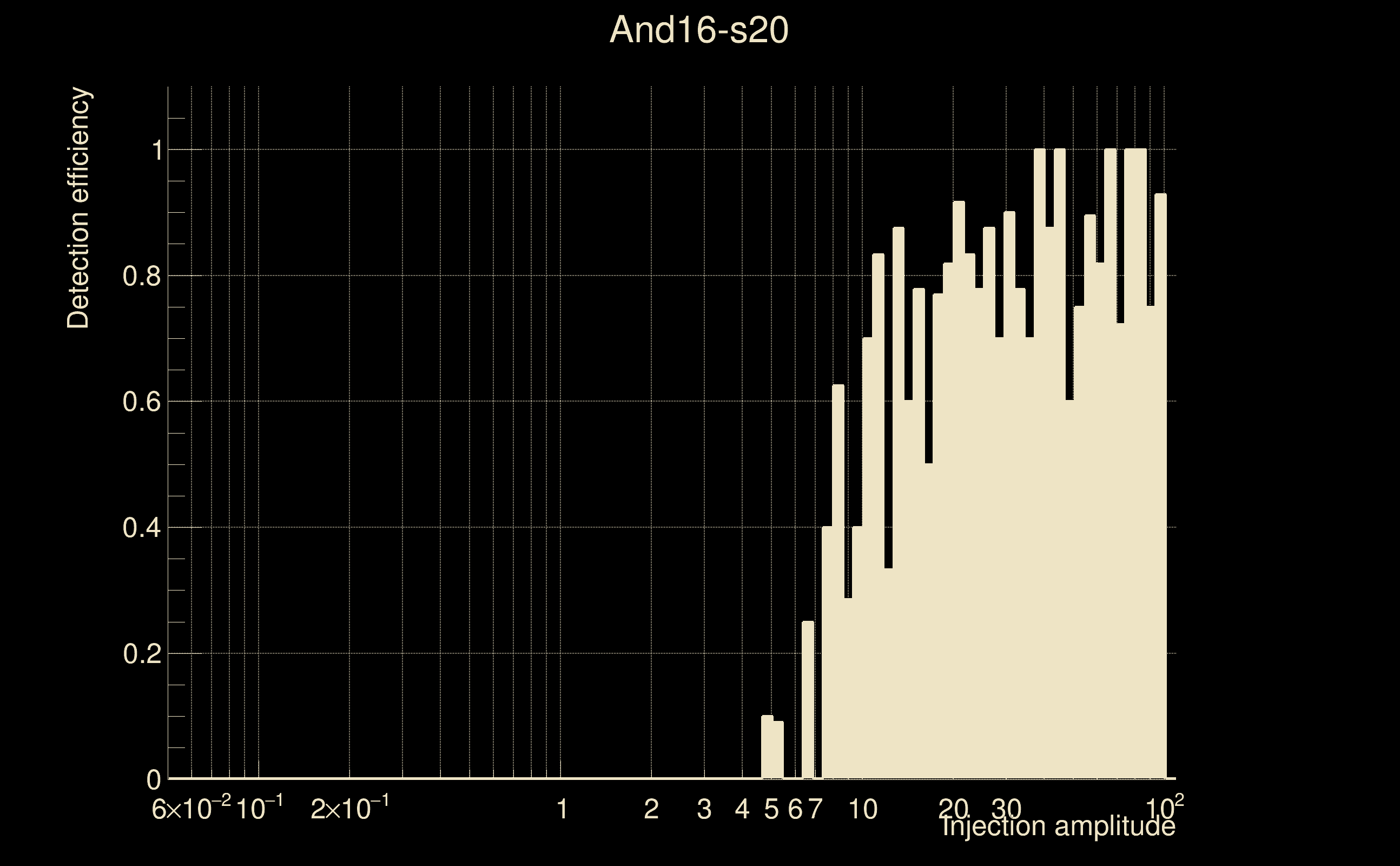

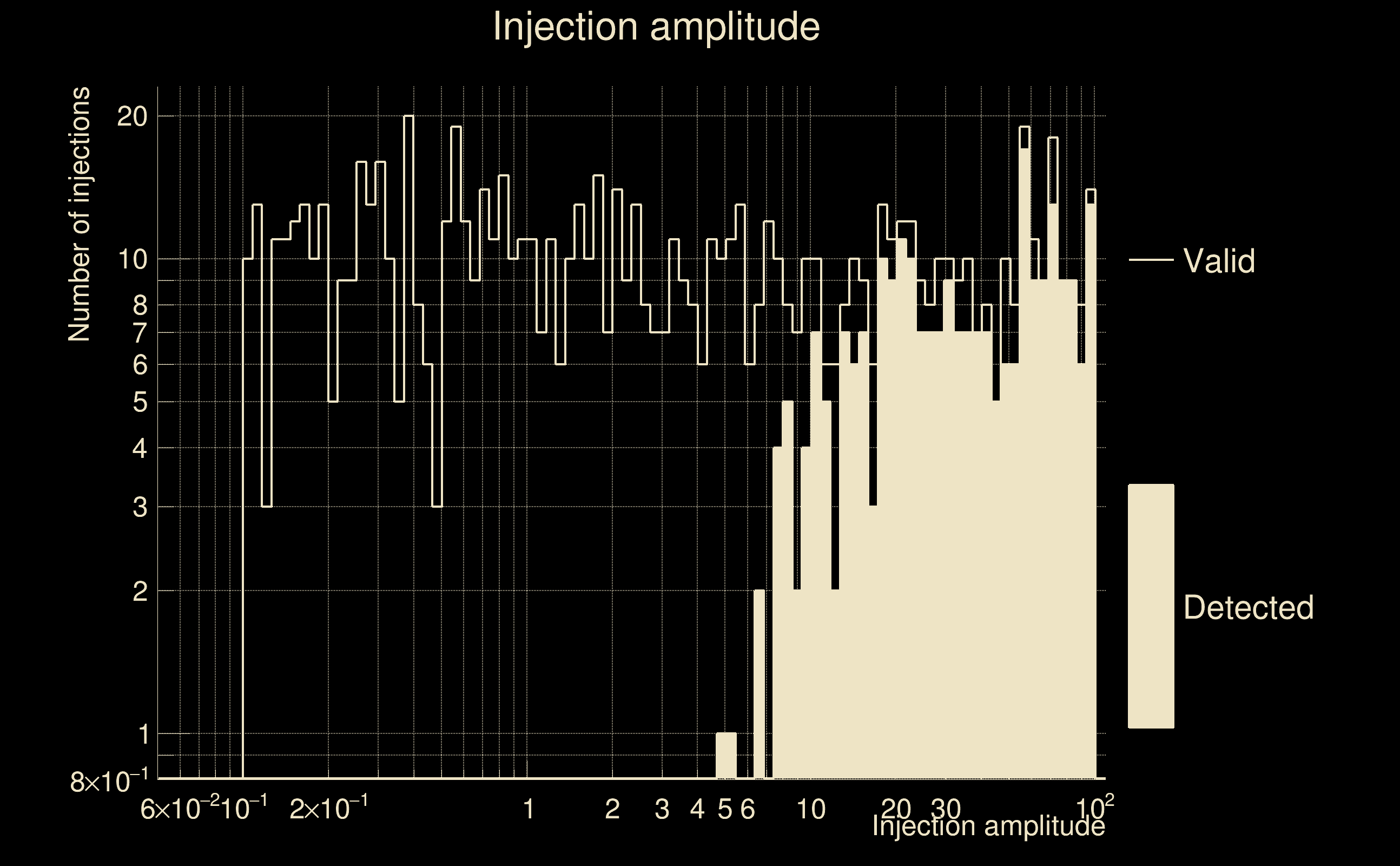

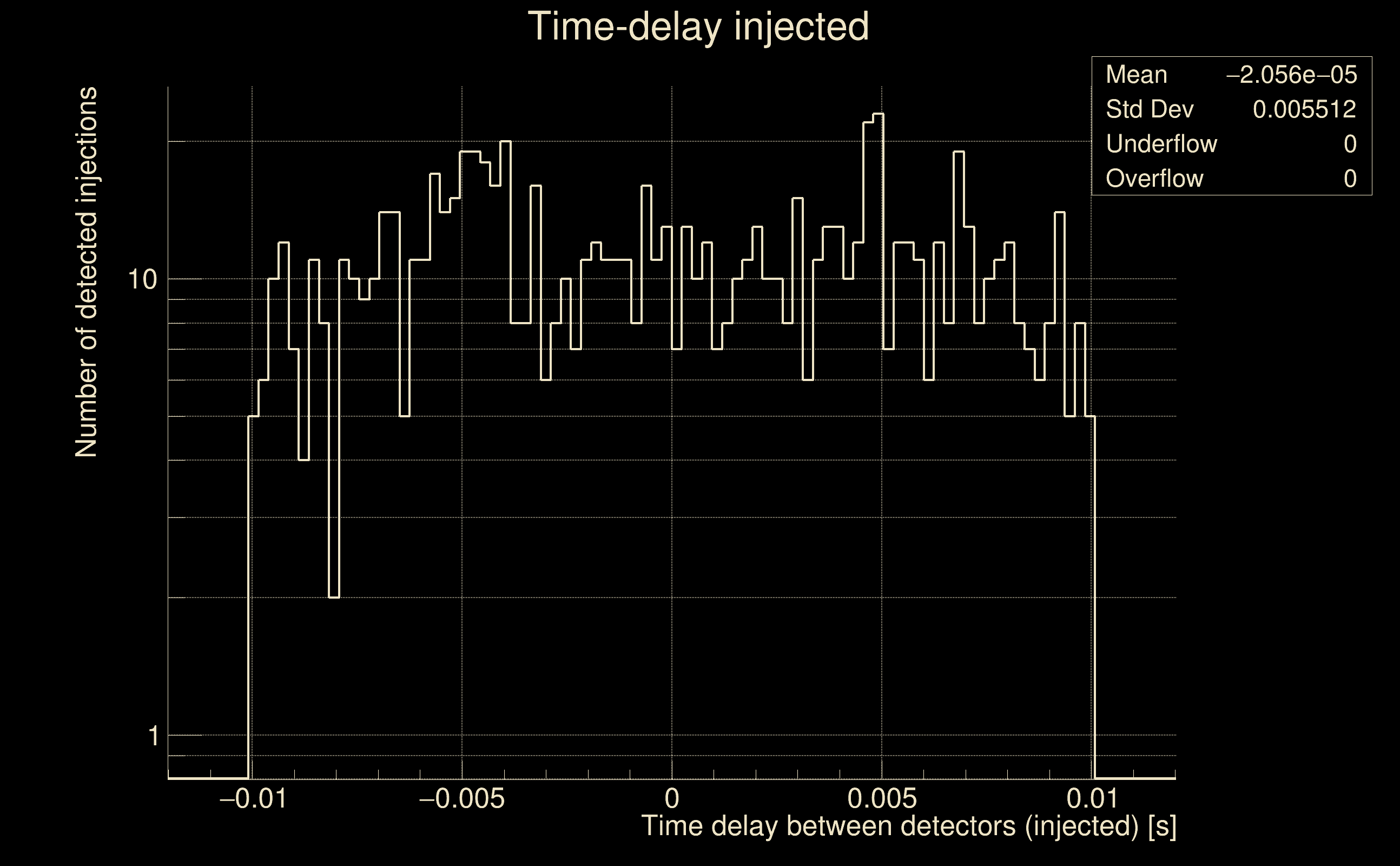

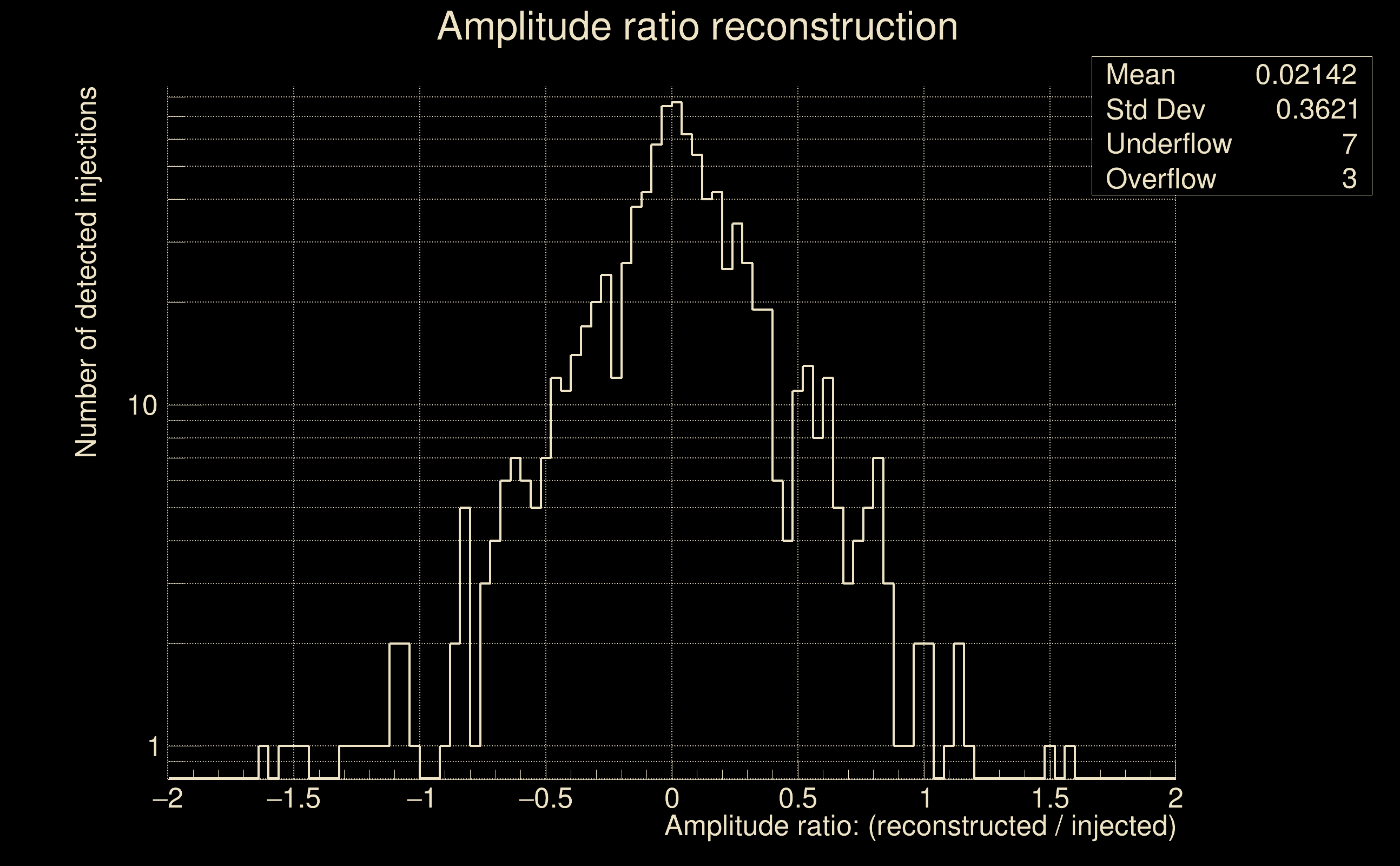

| Number of injections (total/valid/detected): | 1006 / 911 / 256 |
| List of missed injections: | ./And16-s20_missed.txt |

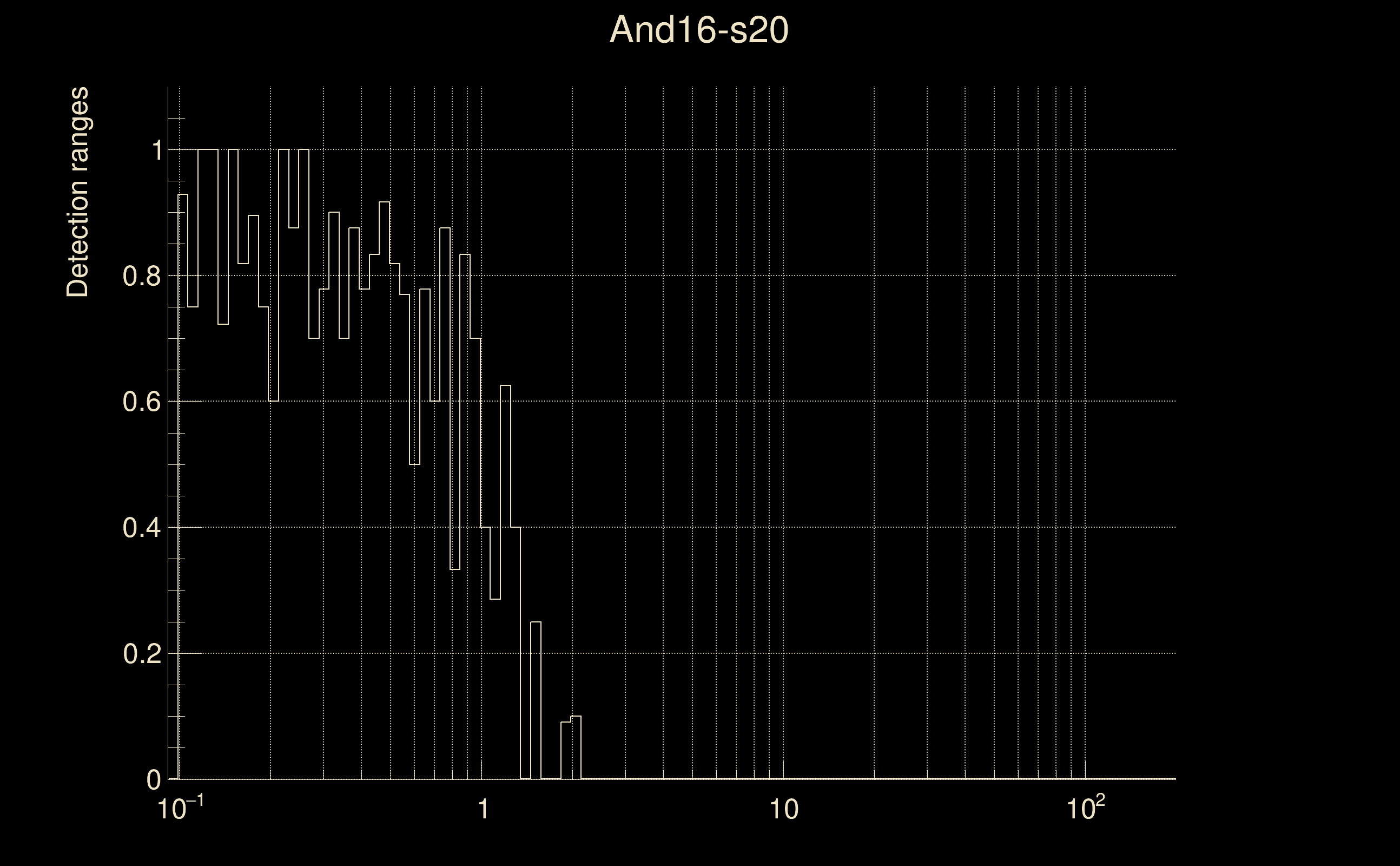

| Injection amplitude at 90% detection efficiency: | 37.7485 |
| Injection amplitude at 50% detection efficiency: | 12.5159 |
| Injection amplitude at 10% detection efficiency: | 7.27414 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

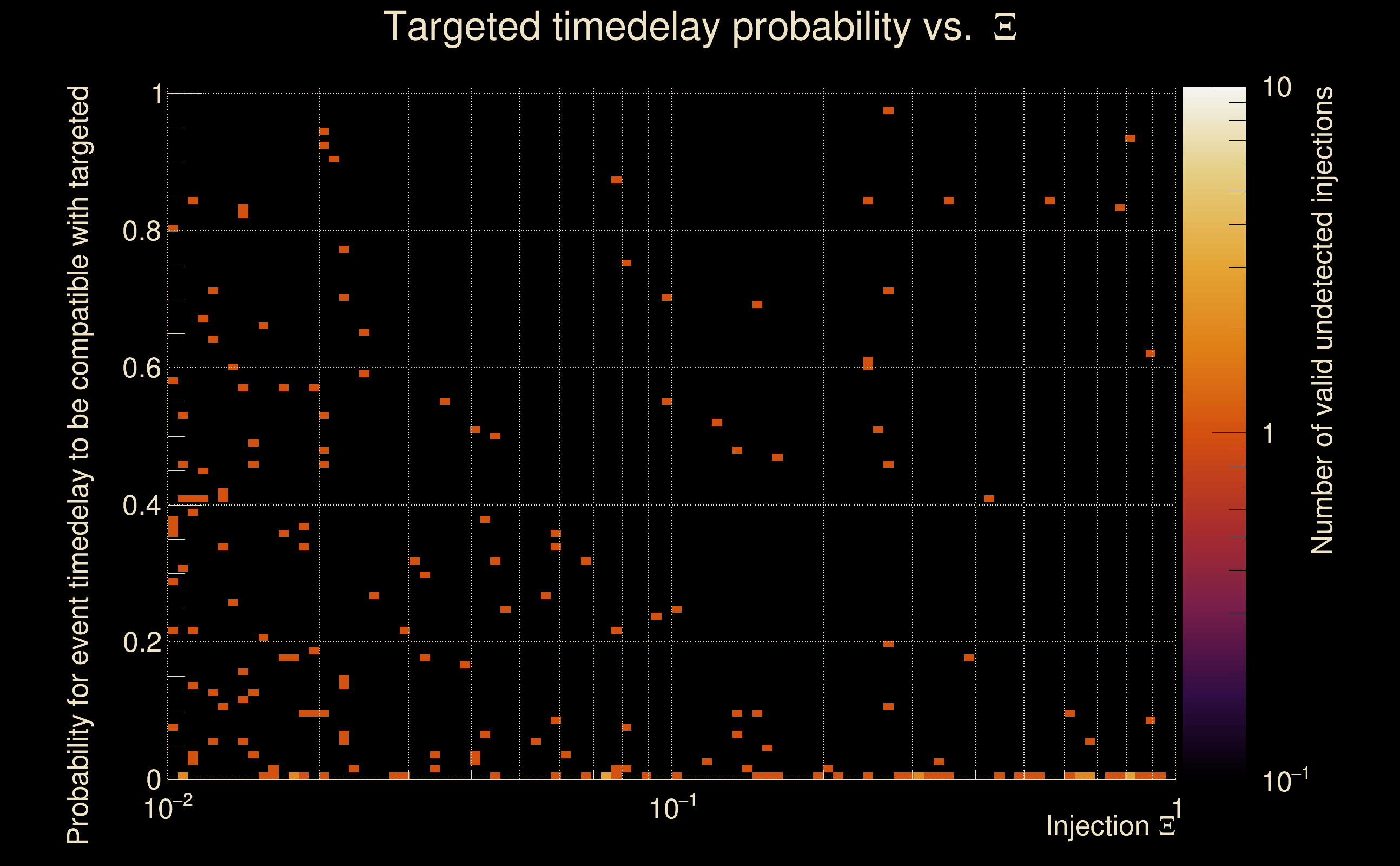

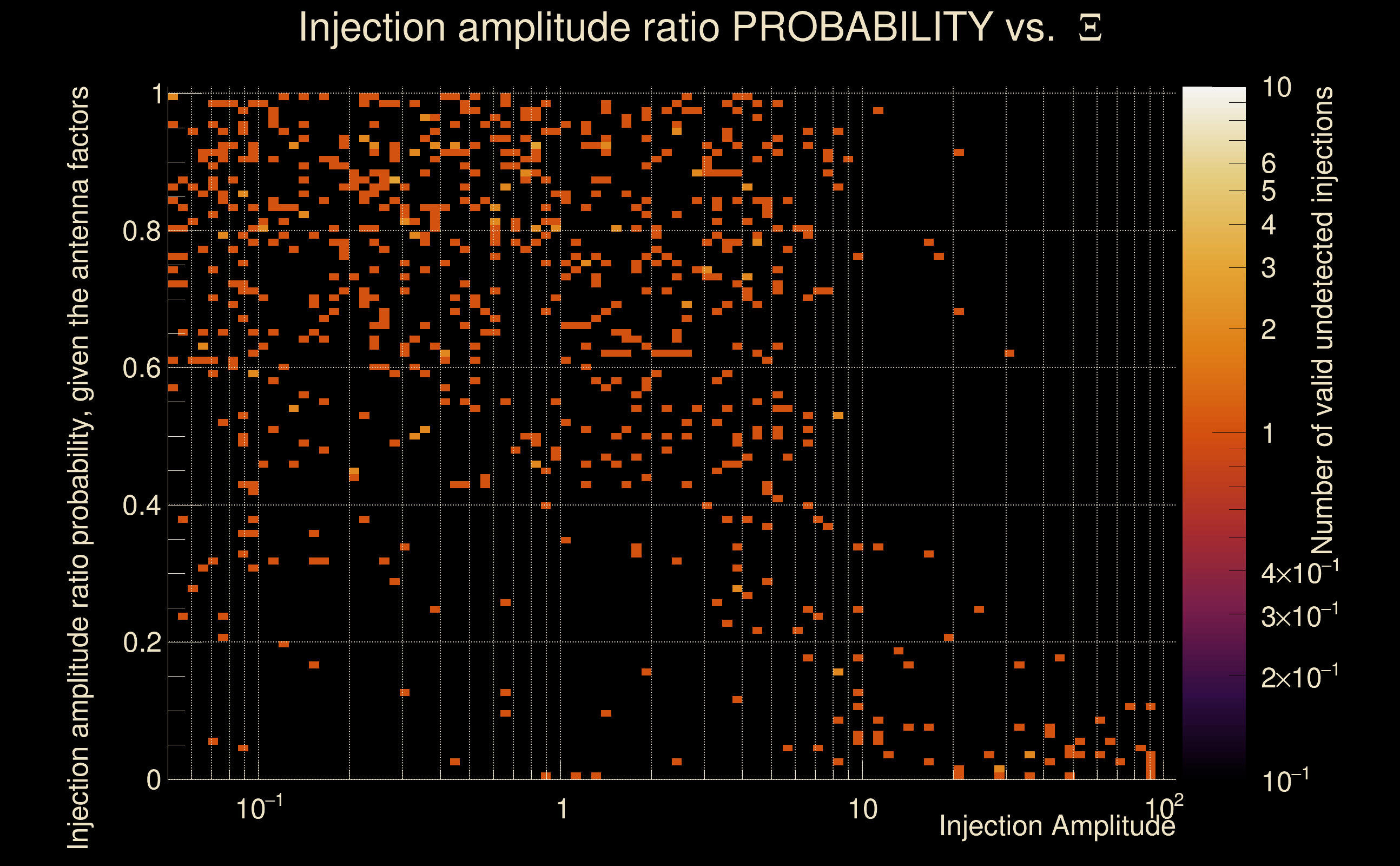

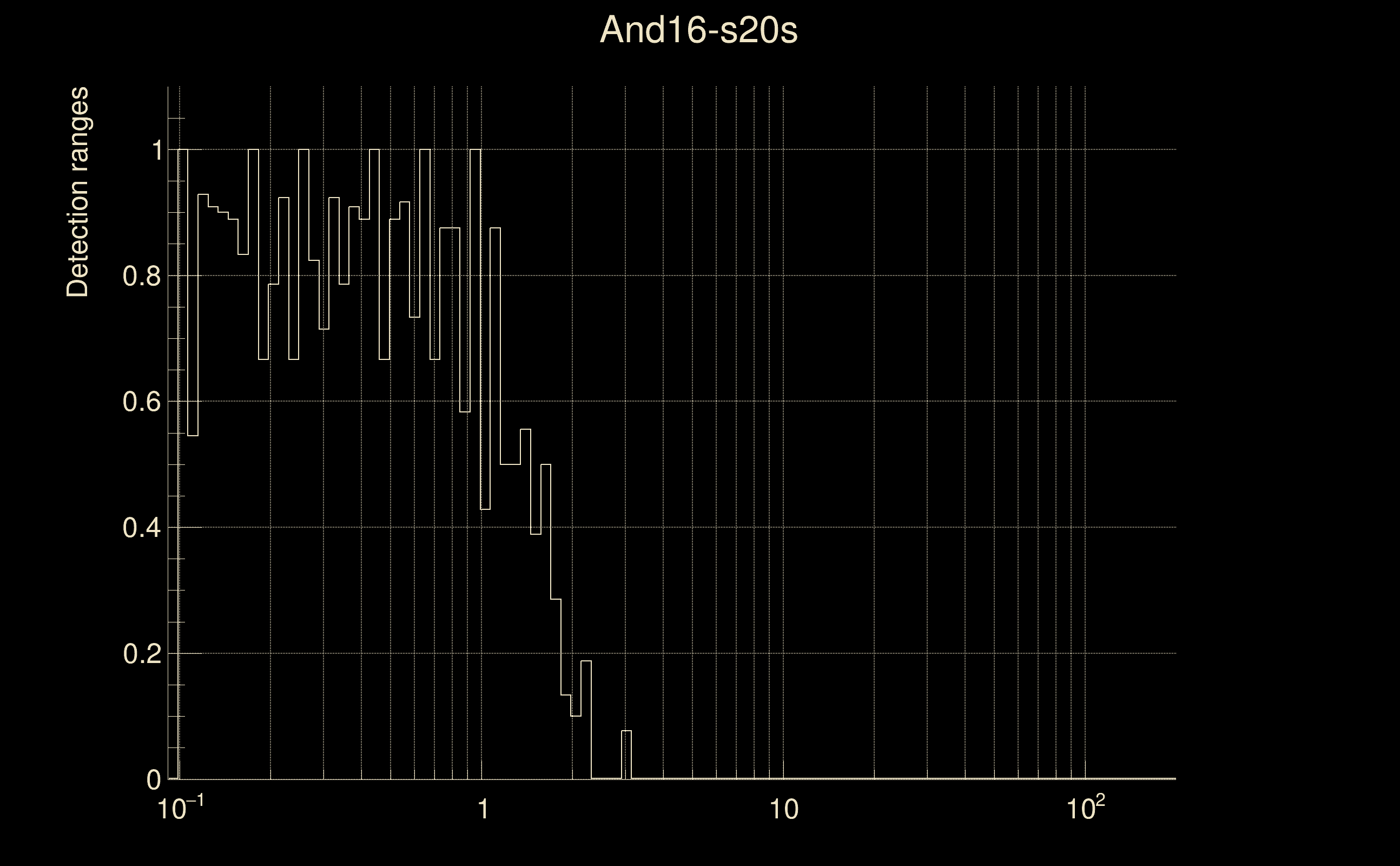

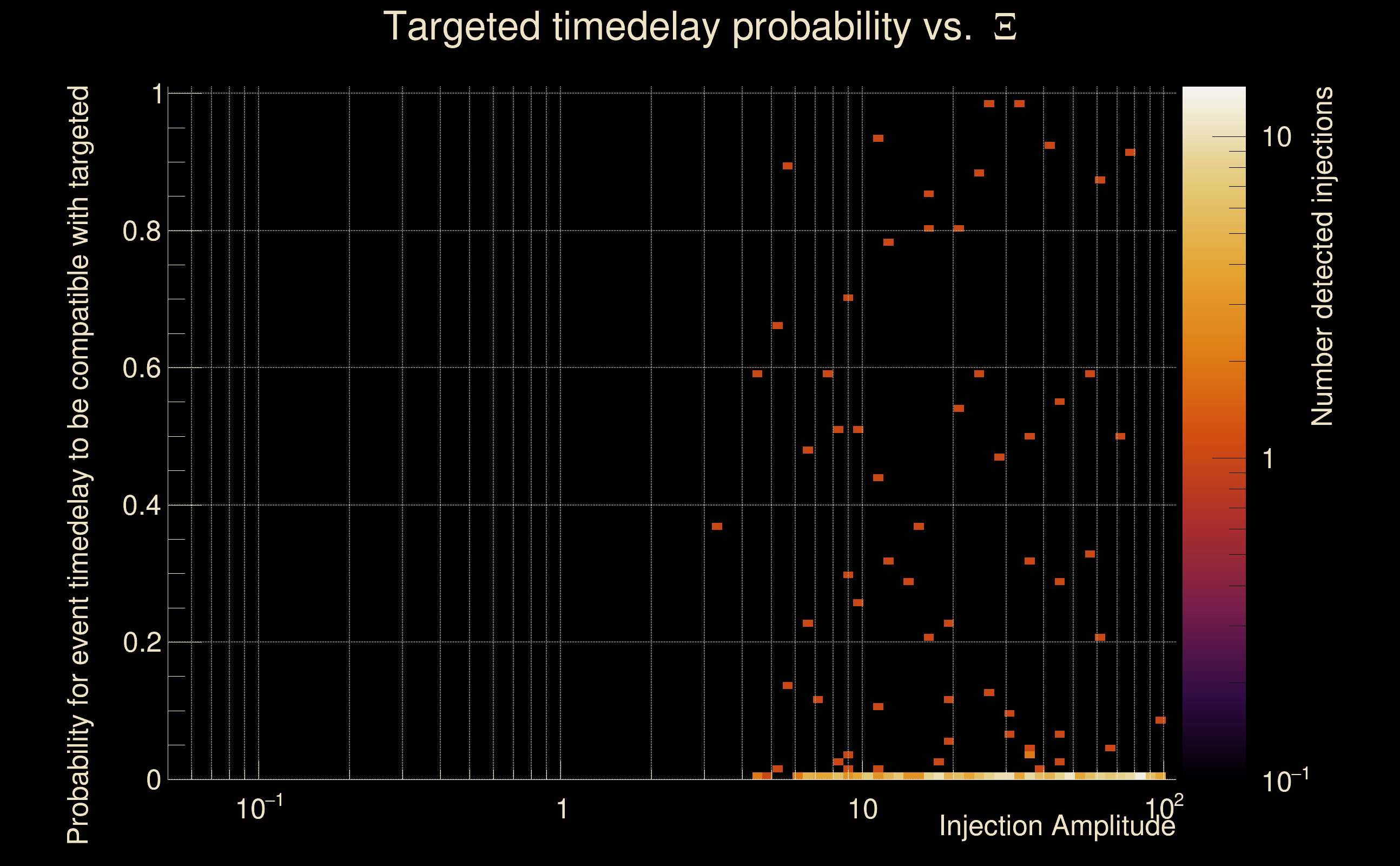

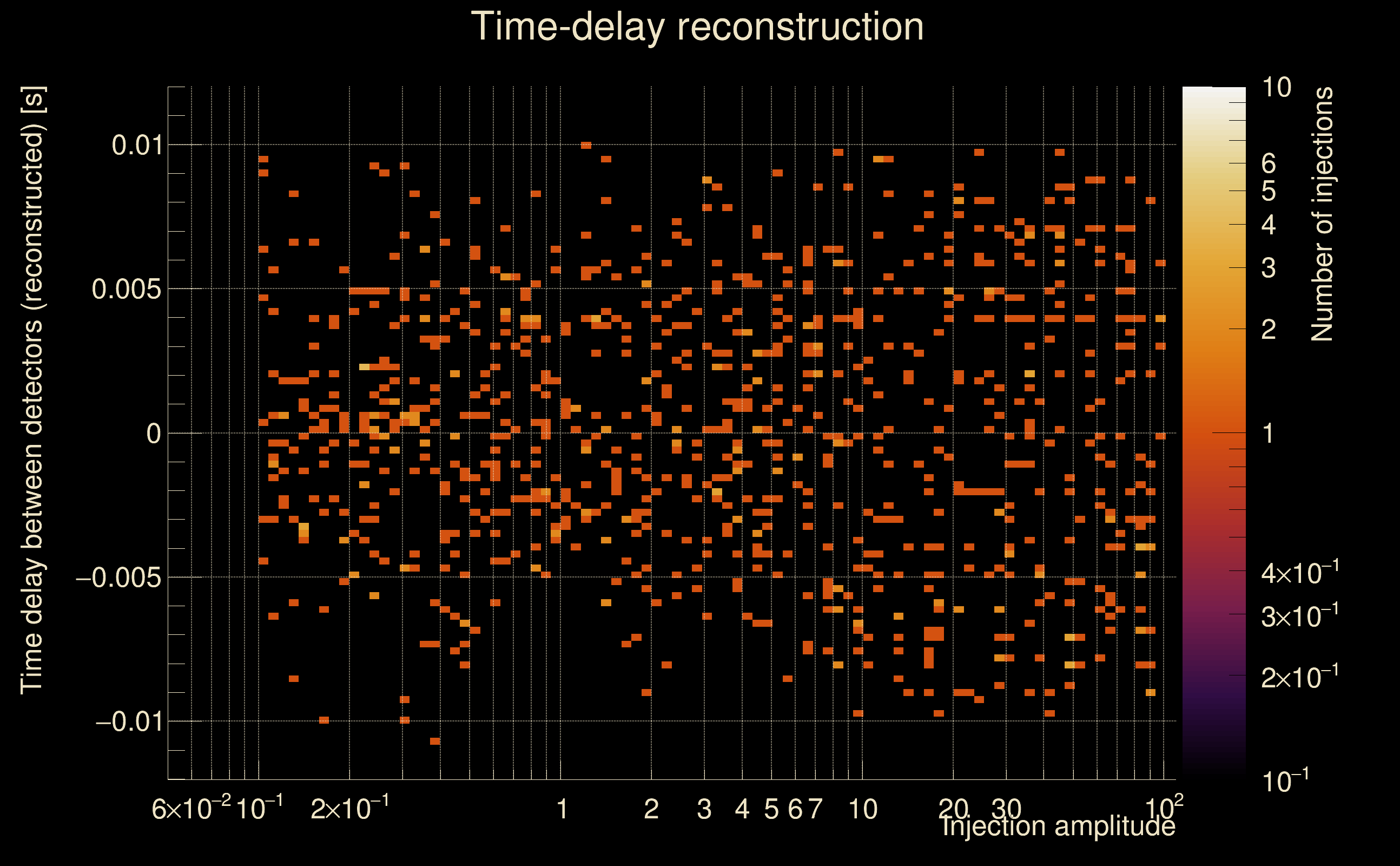

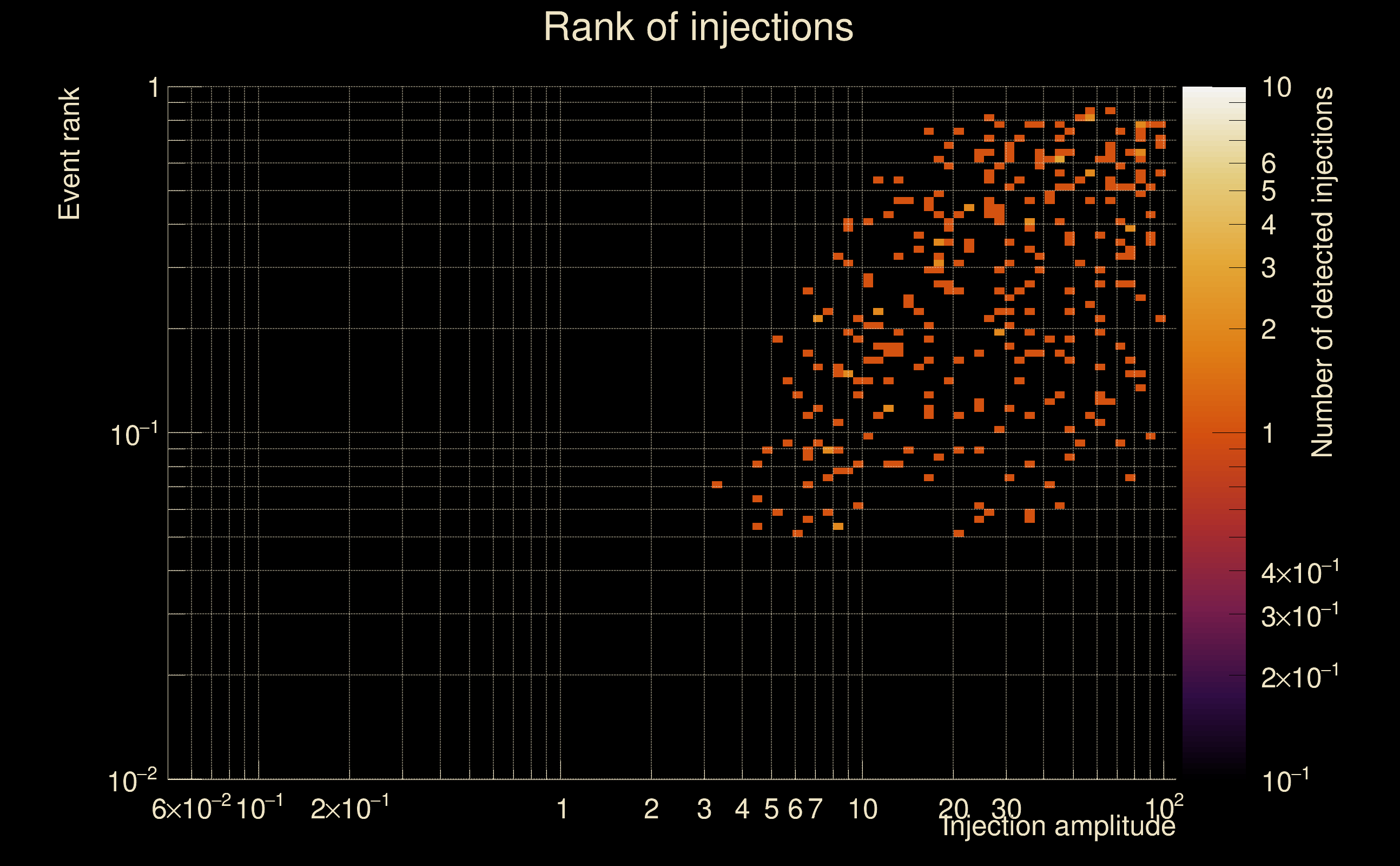

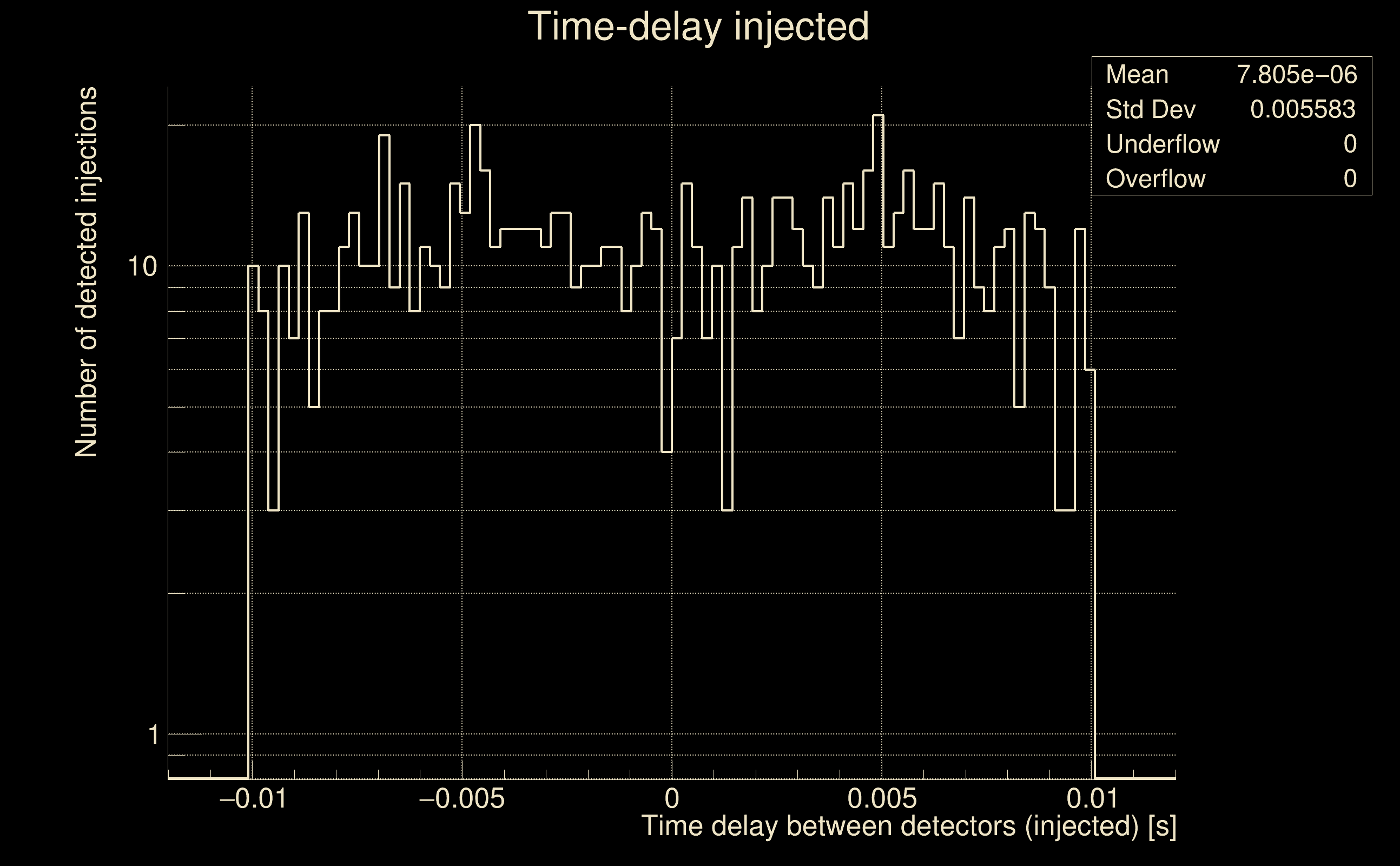

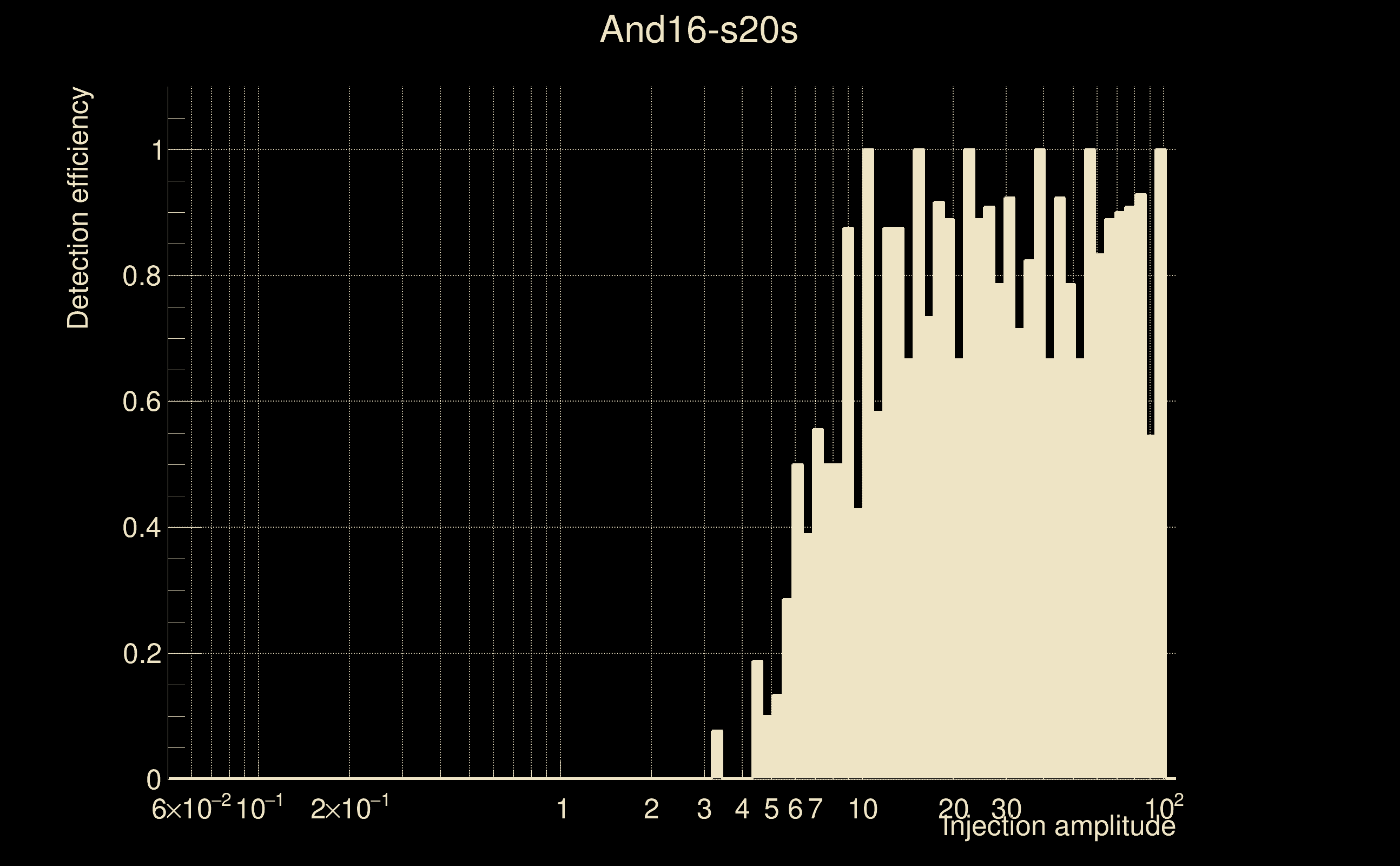

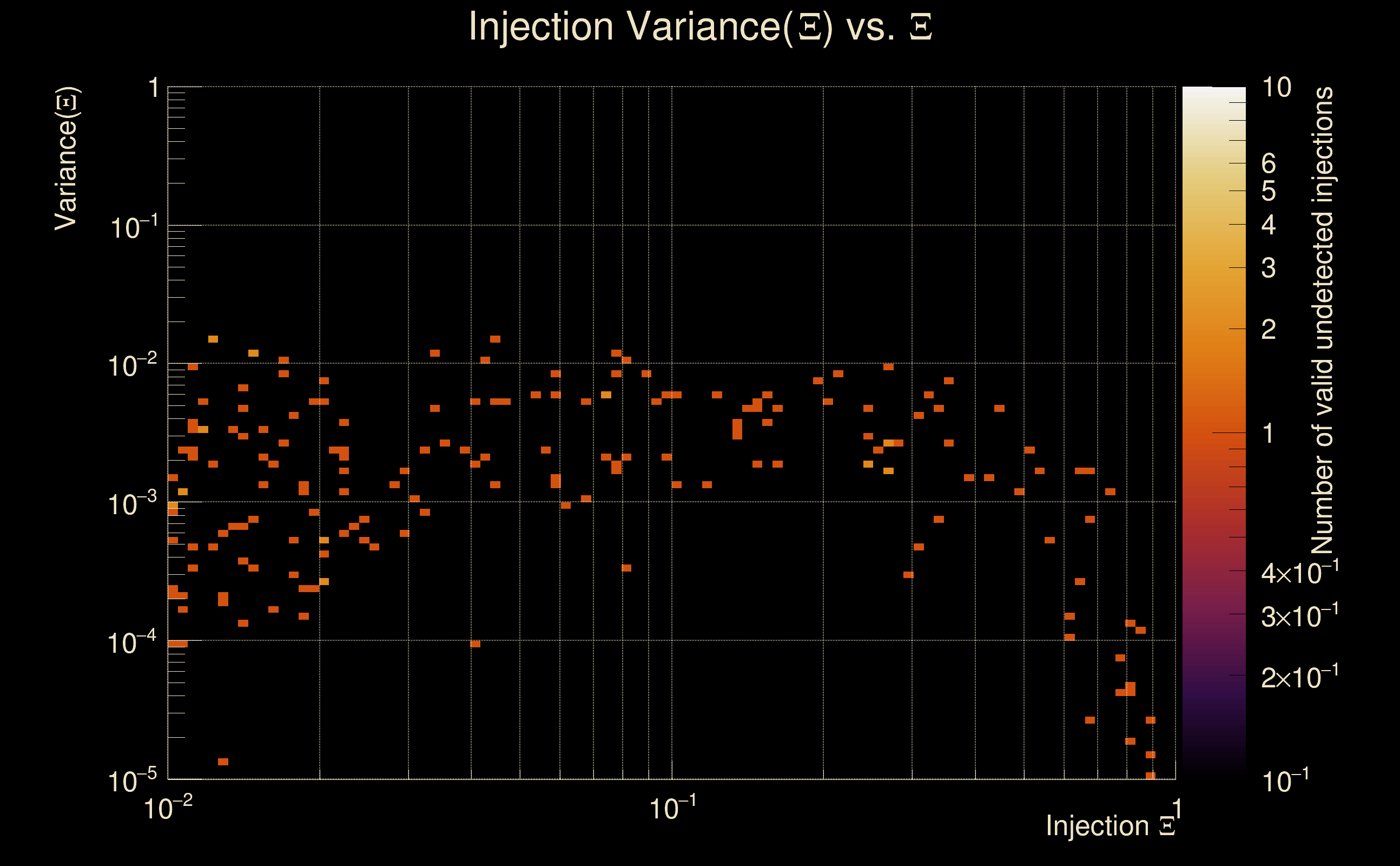

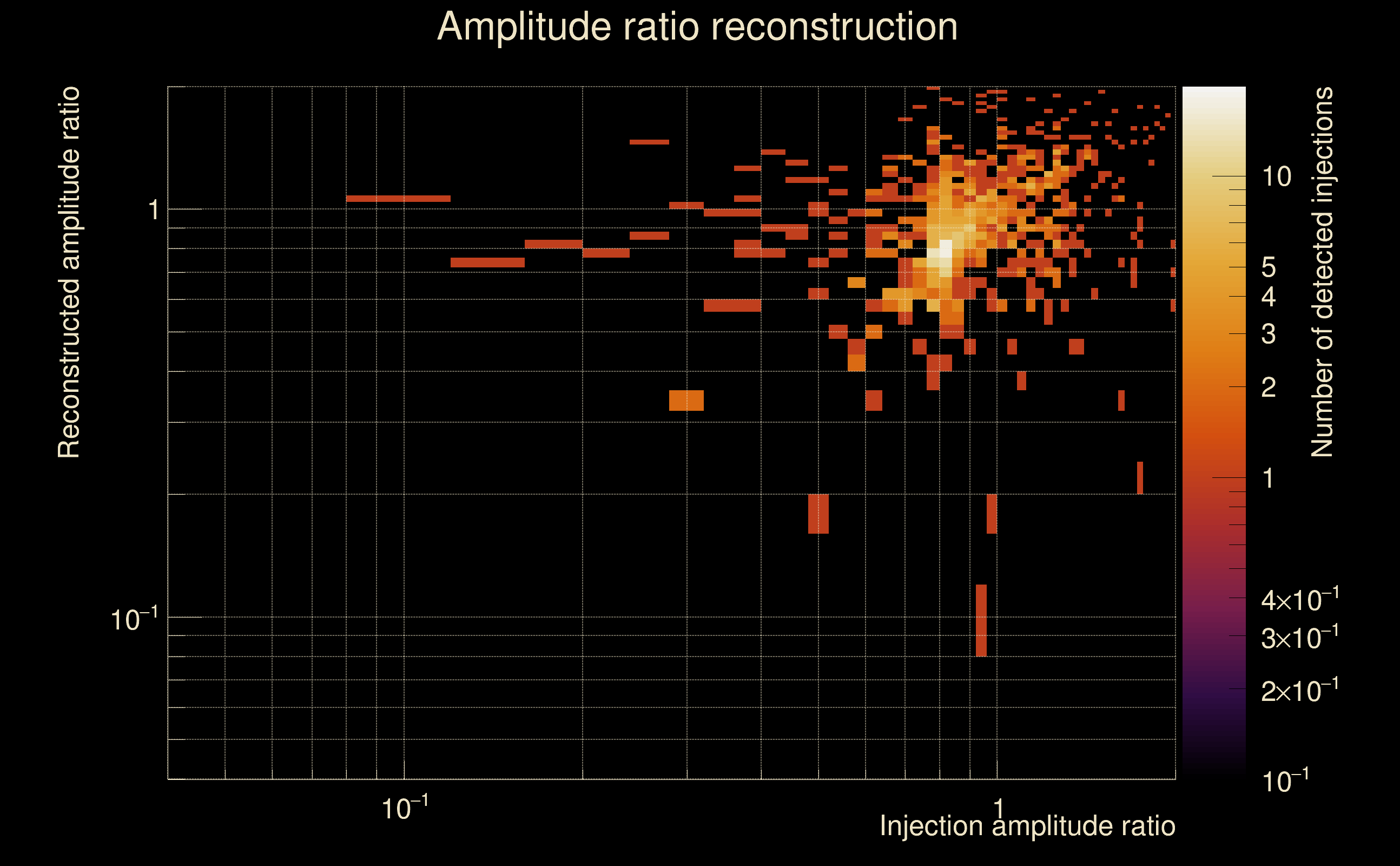

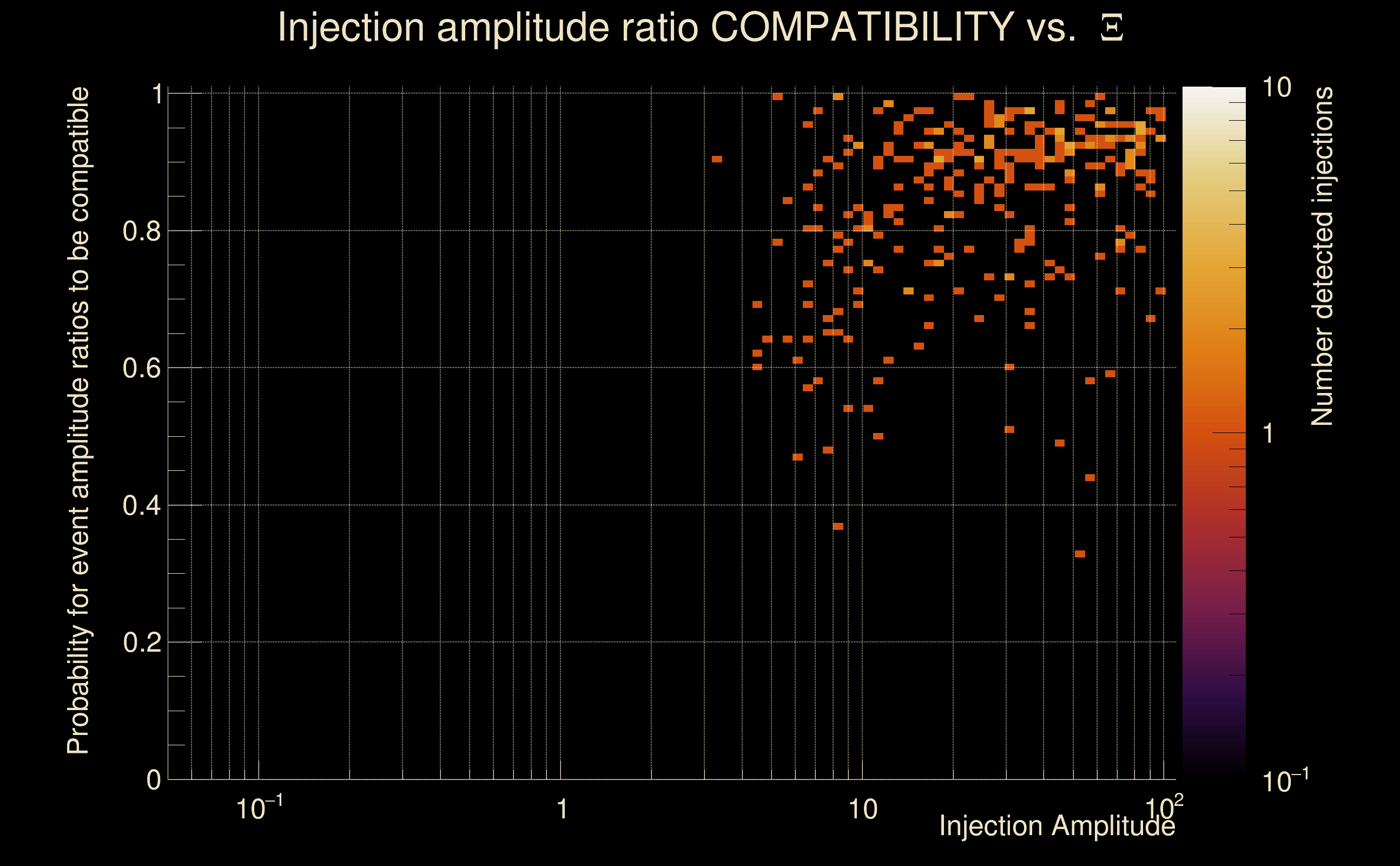

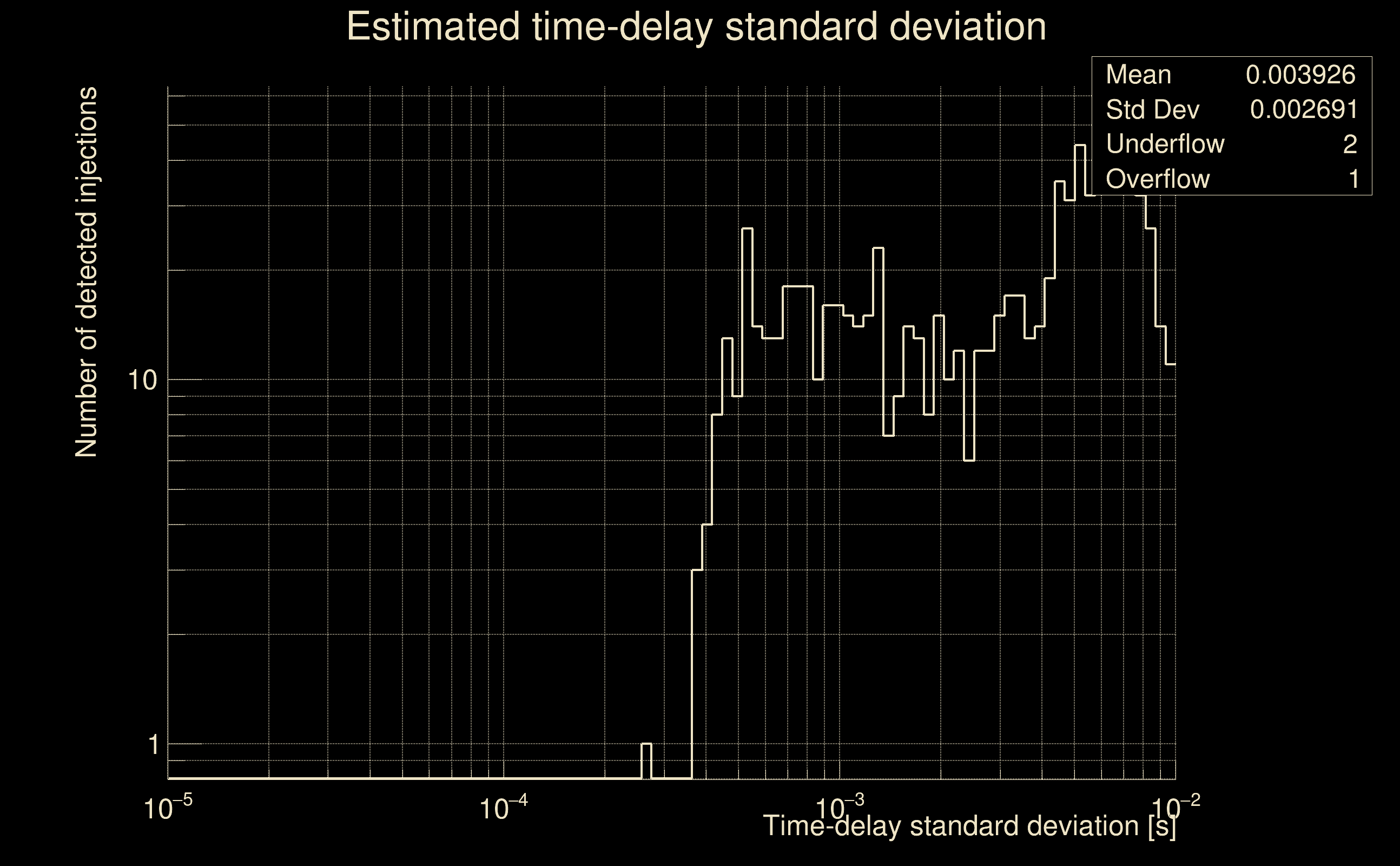

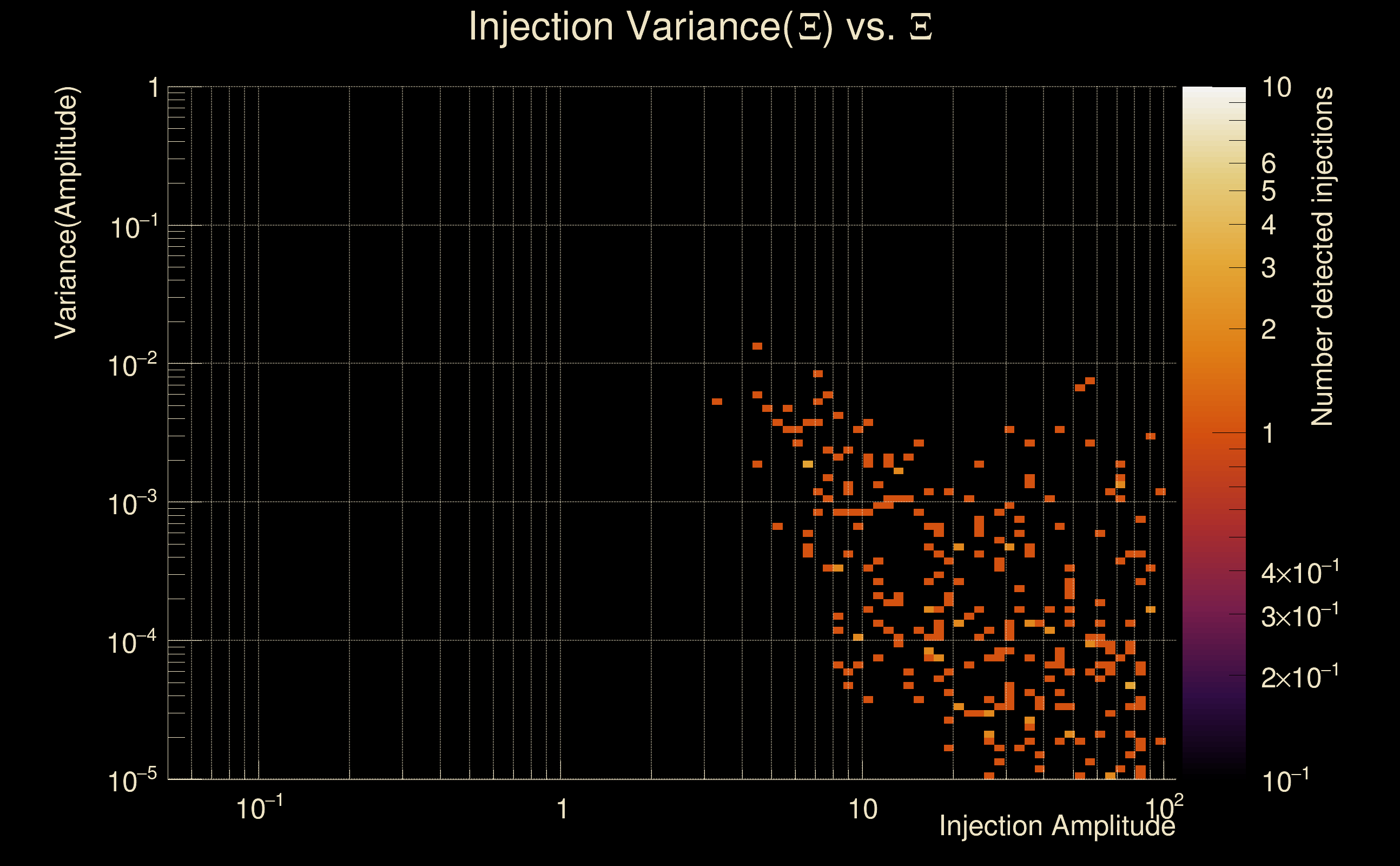

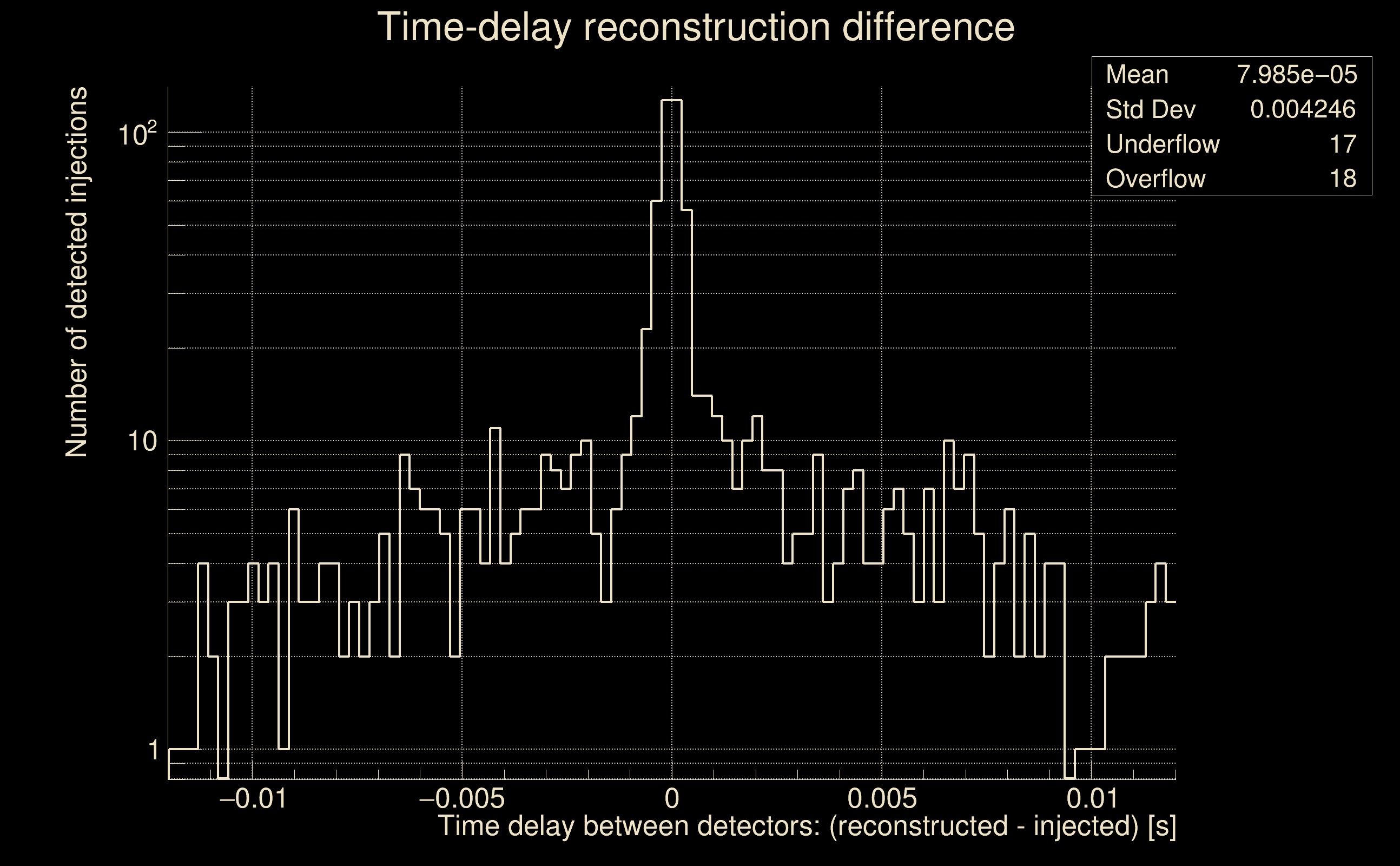

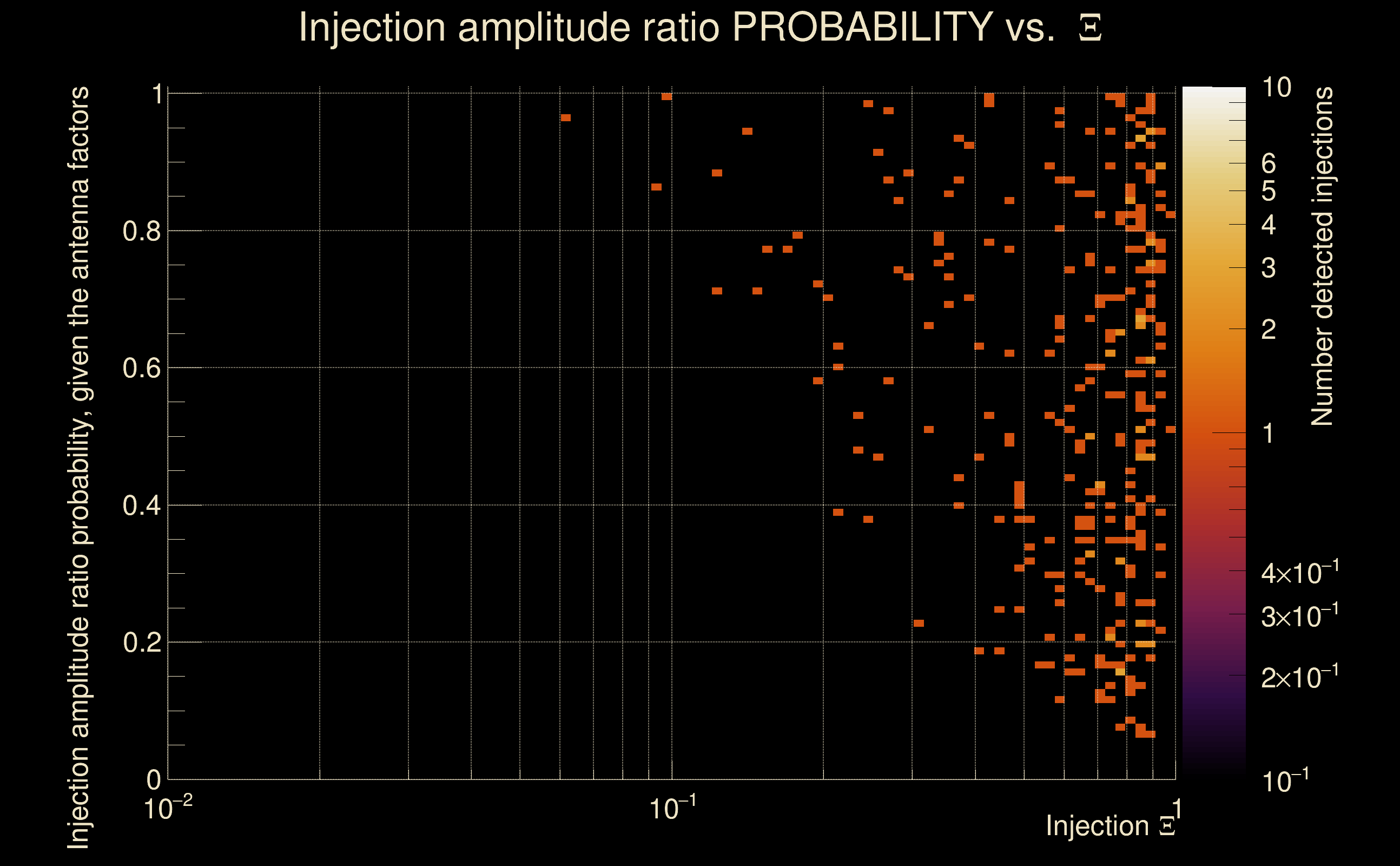

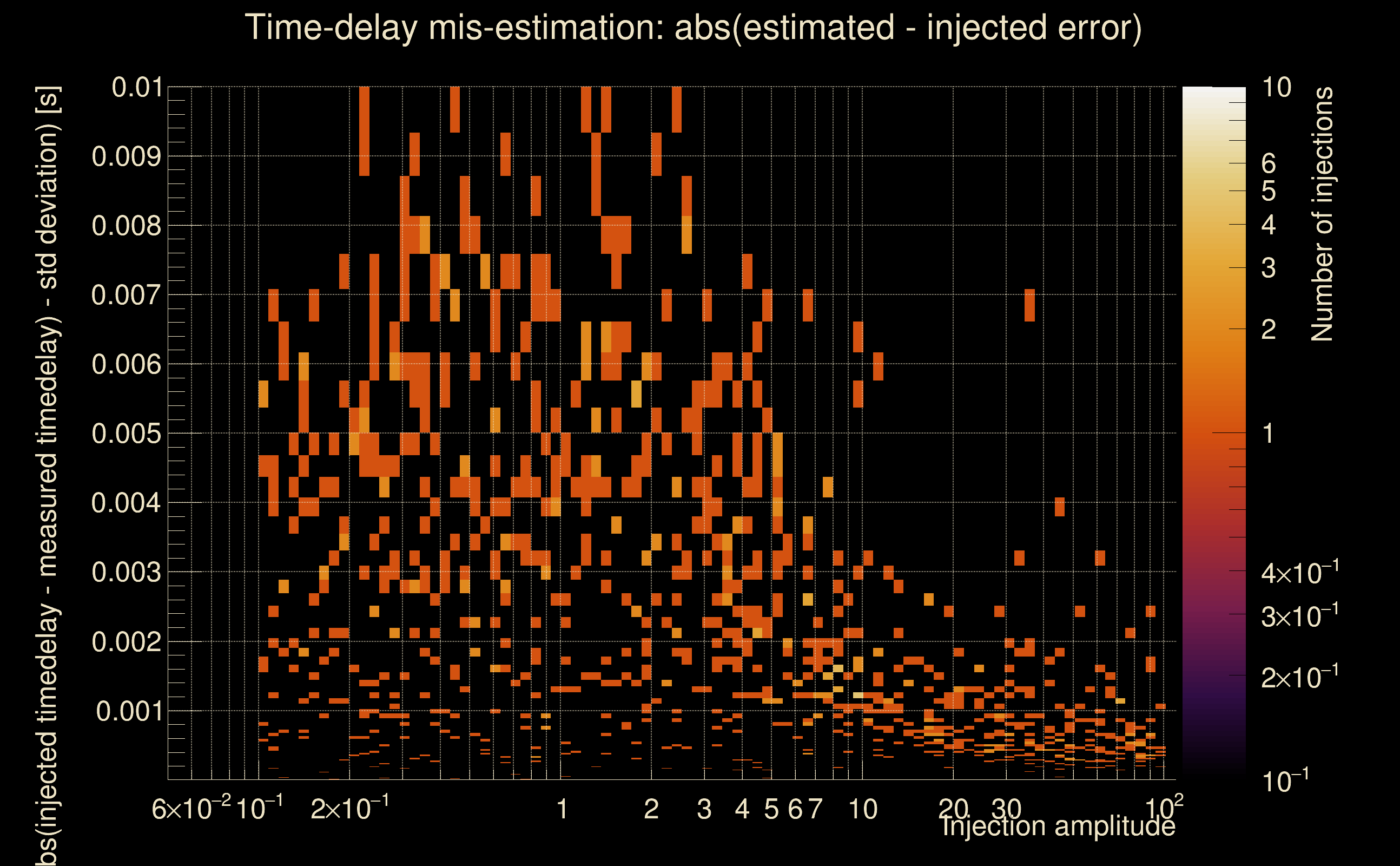

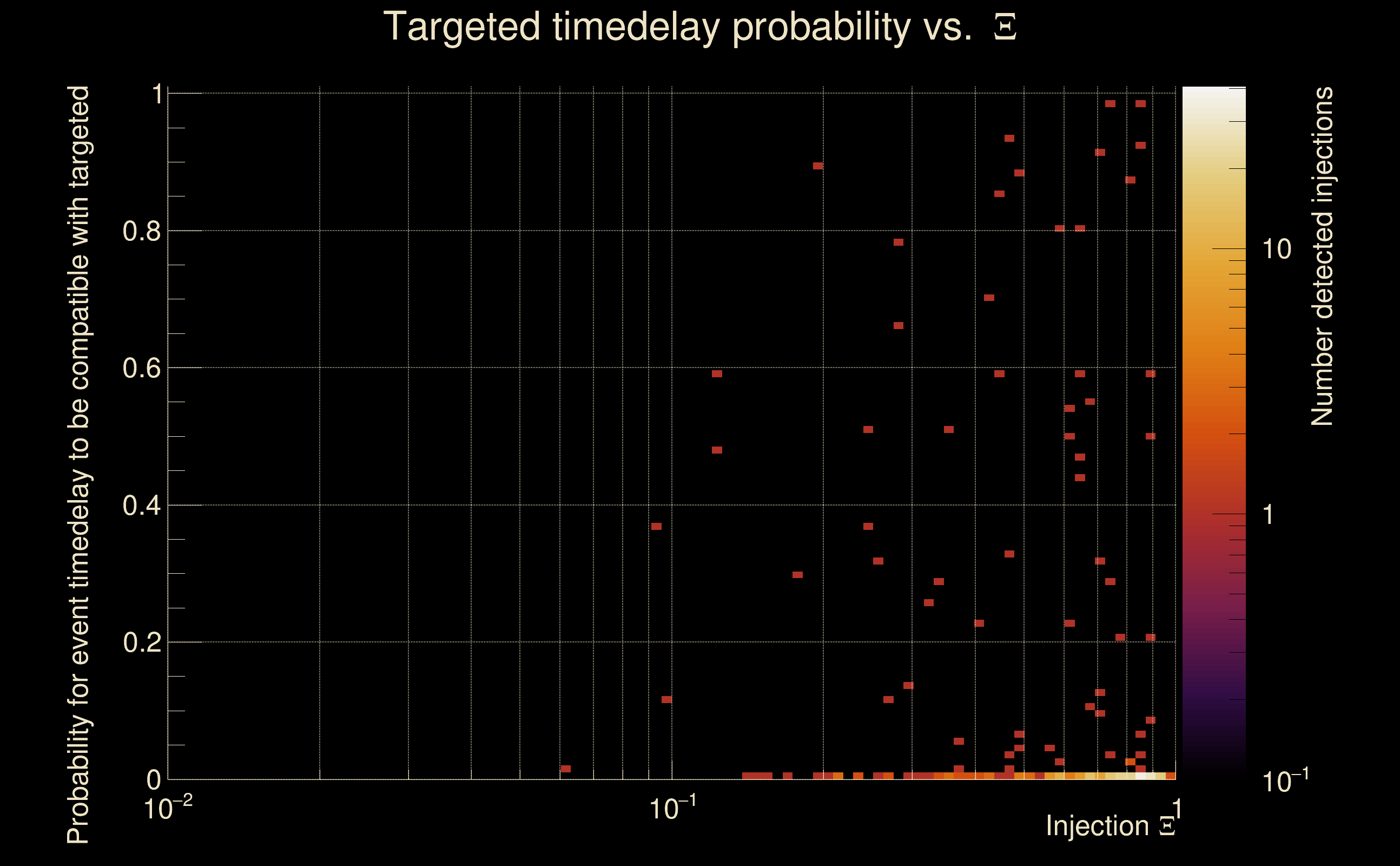

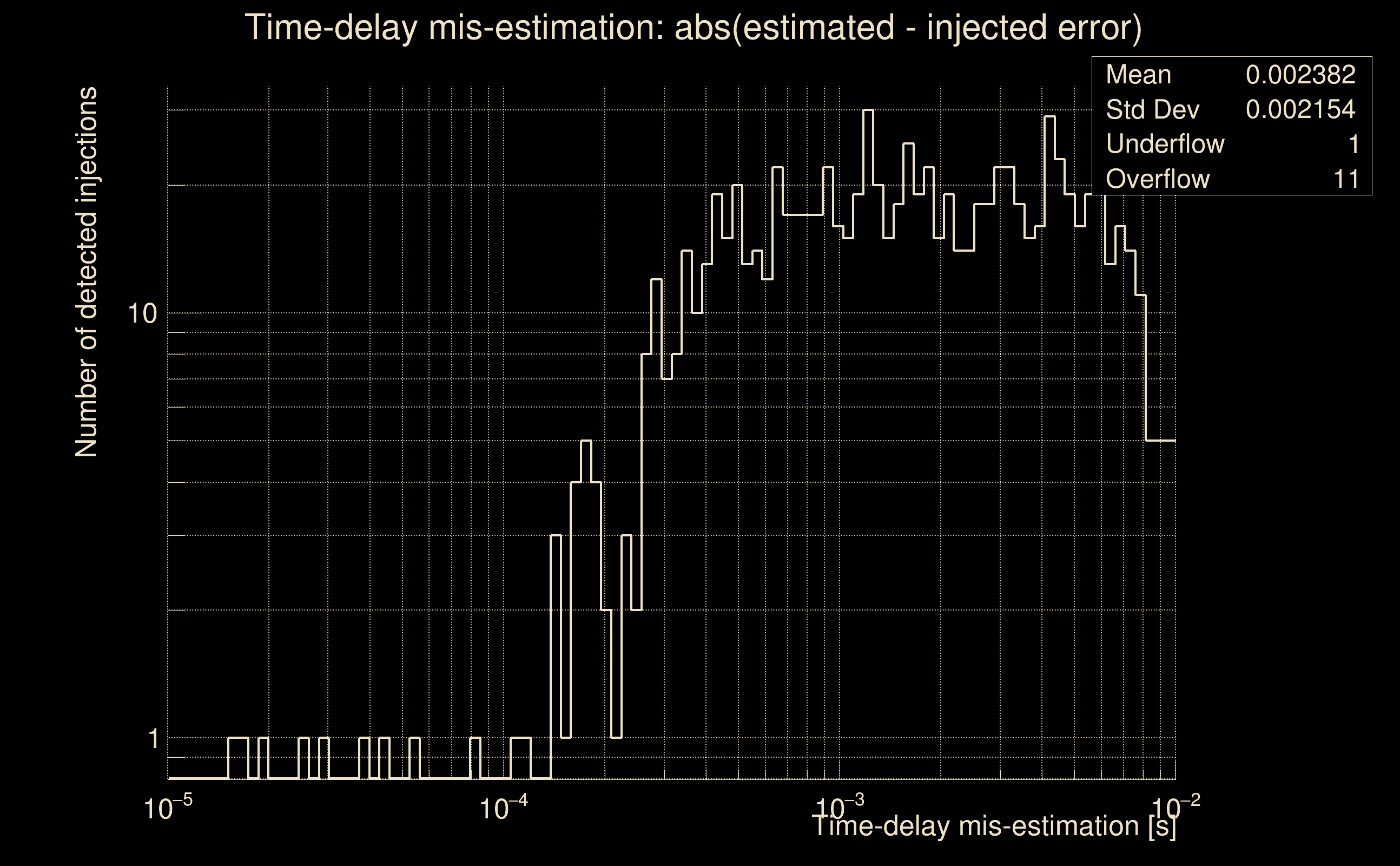

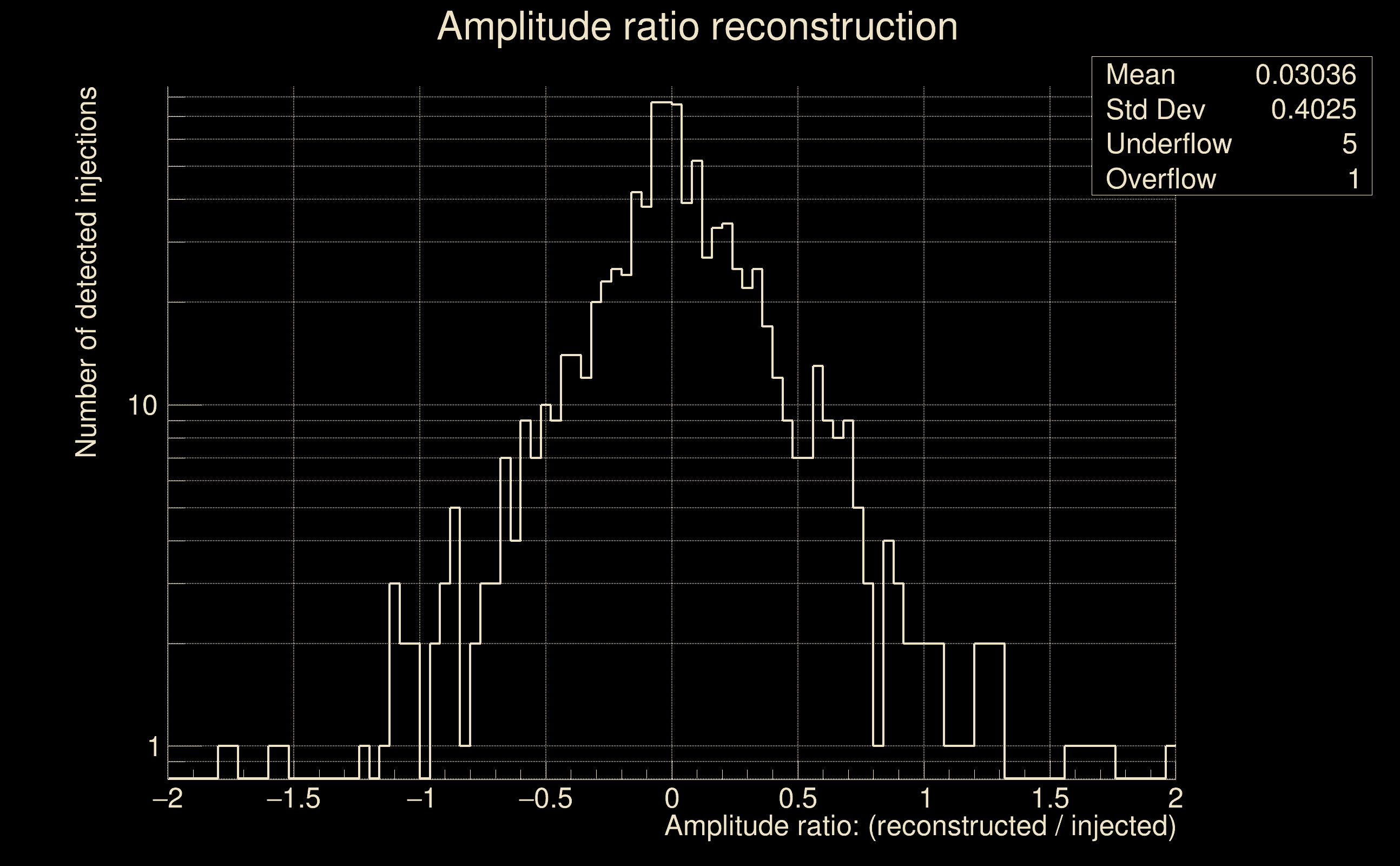

| Number of injections (total/valid/detected): | 1042 / 913 / 296 |
| List of missed injections: | ./And16-s20s_missed.txt |
| Injection amplitude at 90% detection efficiency: | 10.351 |
| Injection amplitude at 50% detection efficiency: | 9.80765 |
| Injection amplitude at 10% detection efficiency: | 4.34502 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
