| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:45:12 2026 UTC |
| Ox option file: | Bench1_targ_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100000 (detector 0), < 100000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 3.68109, Dec: 0.94792 [rad] |
| List of input Ox files: | Bench1_targ_file_list.txt (65 files) |
| Analysis result file: | Bench1_targ_results-1.root |
| Slice selected for the the fakeground: | slice index=96 (0.552 s), time lag = 0 s |

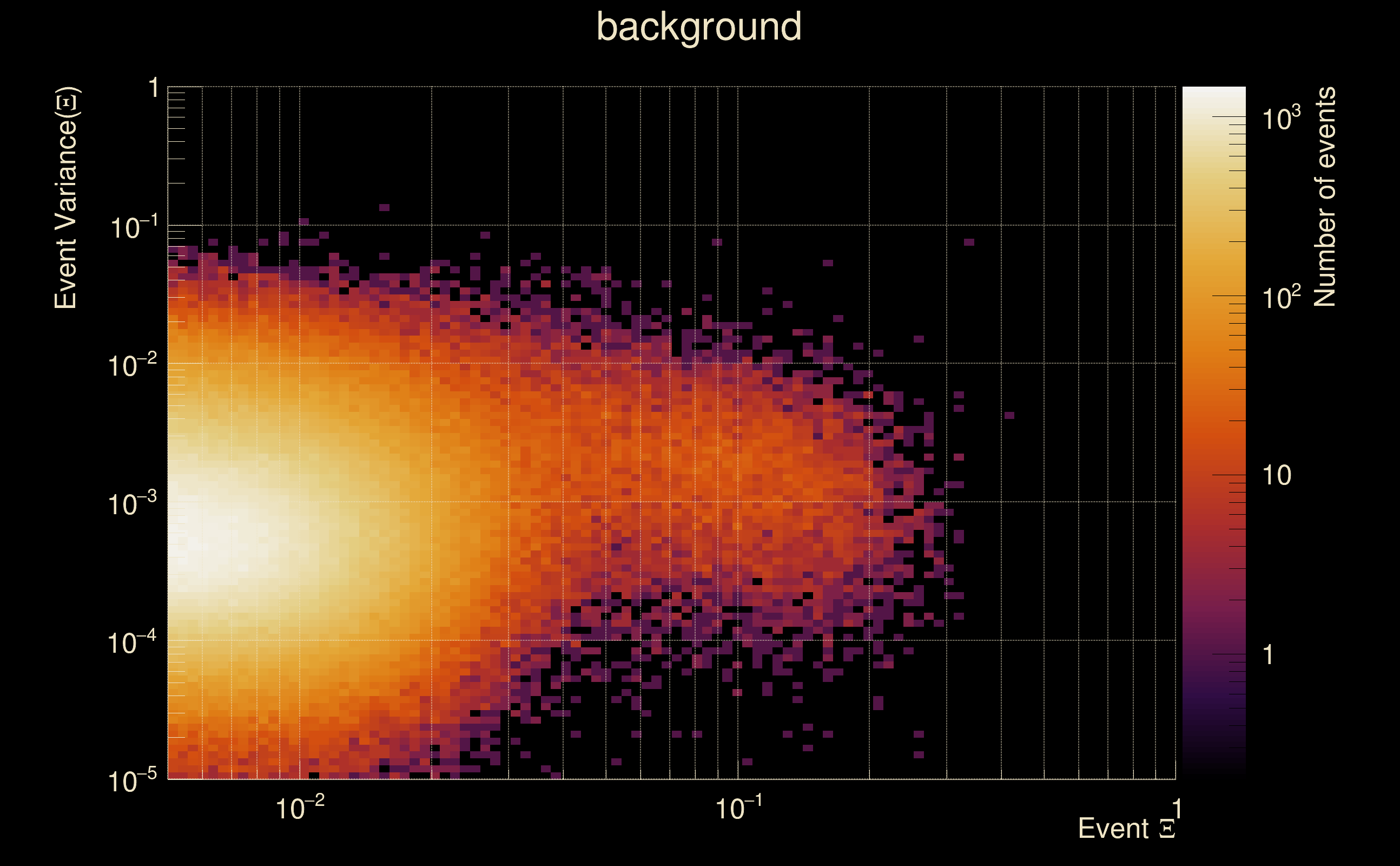

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

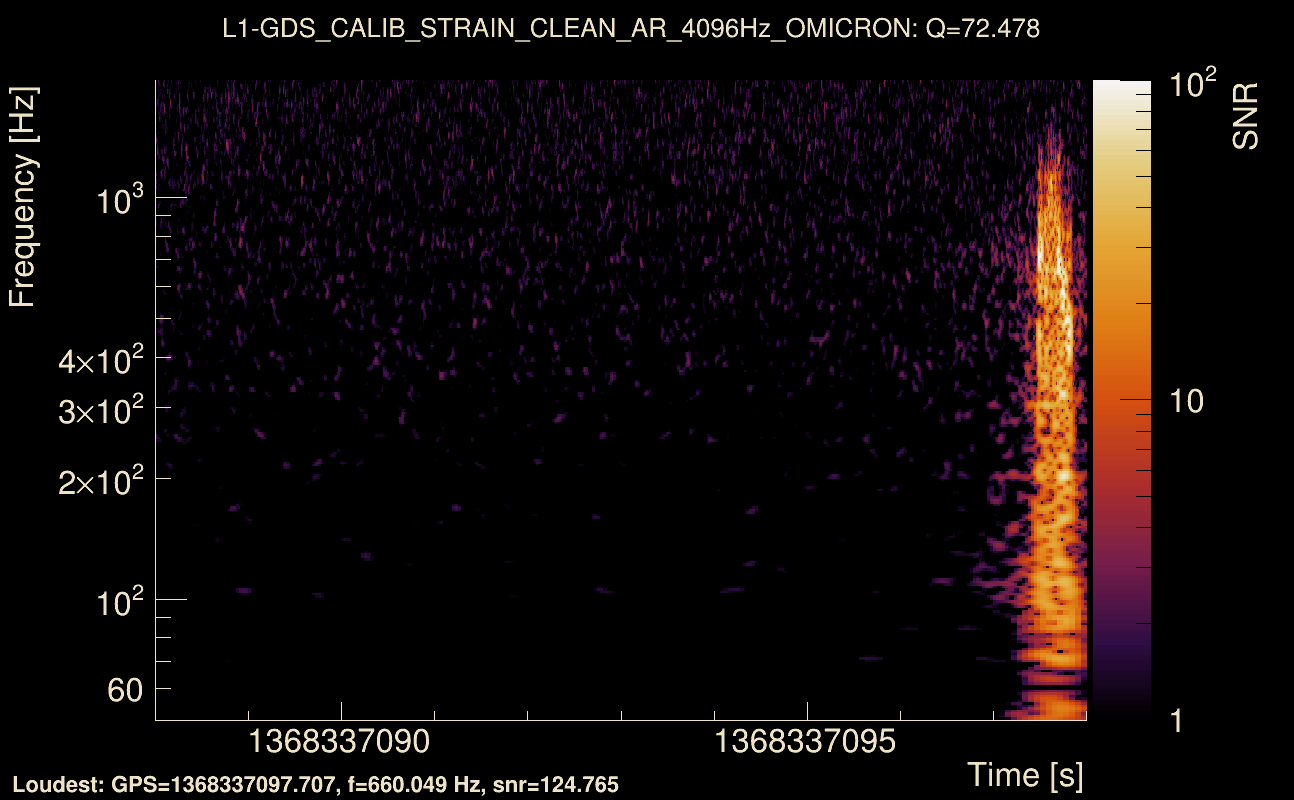

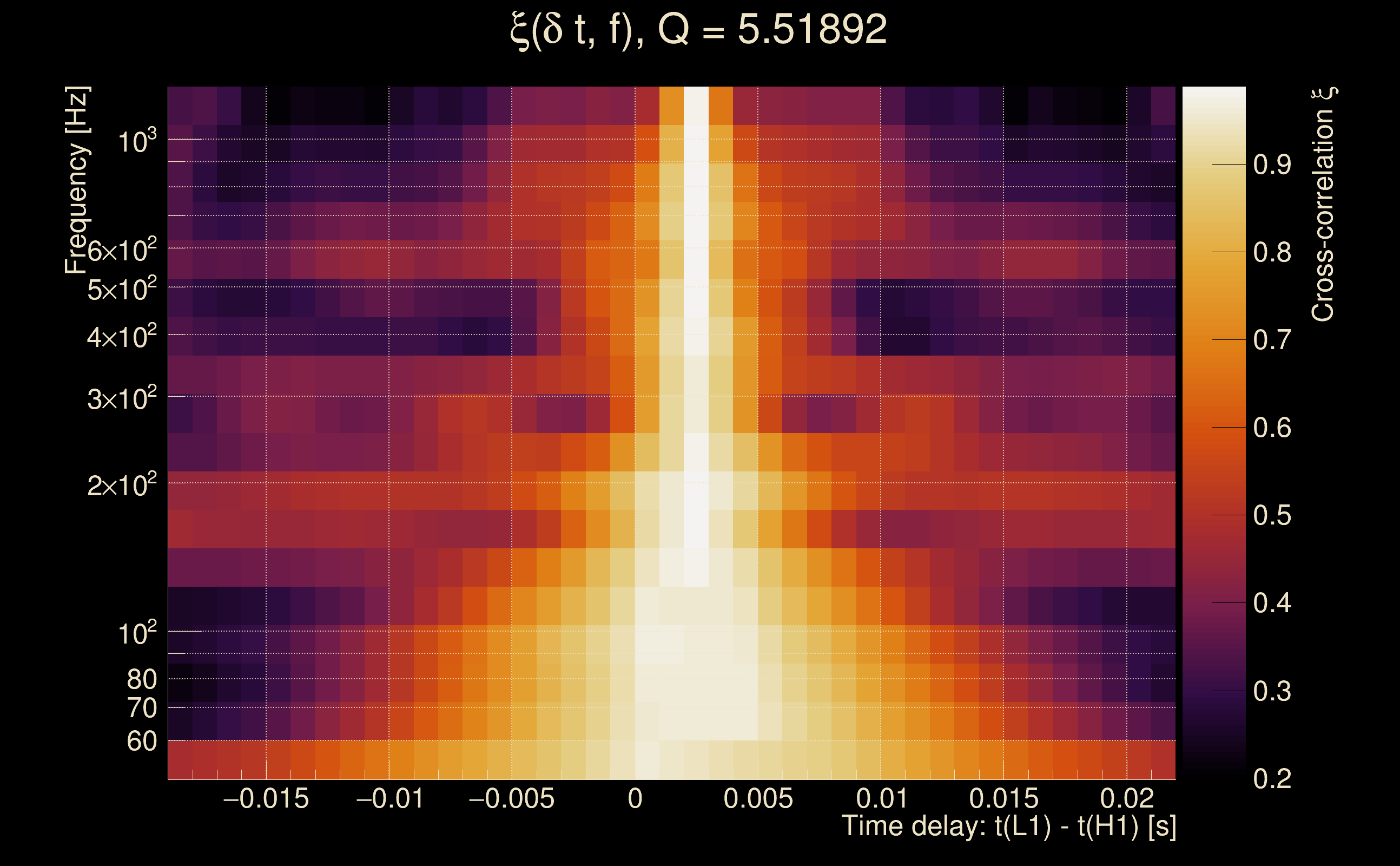

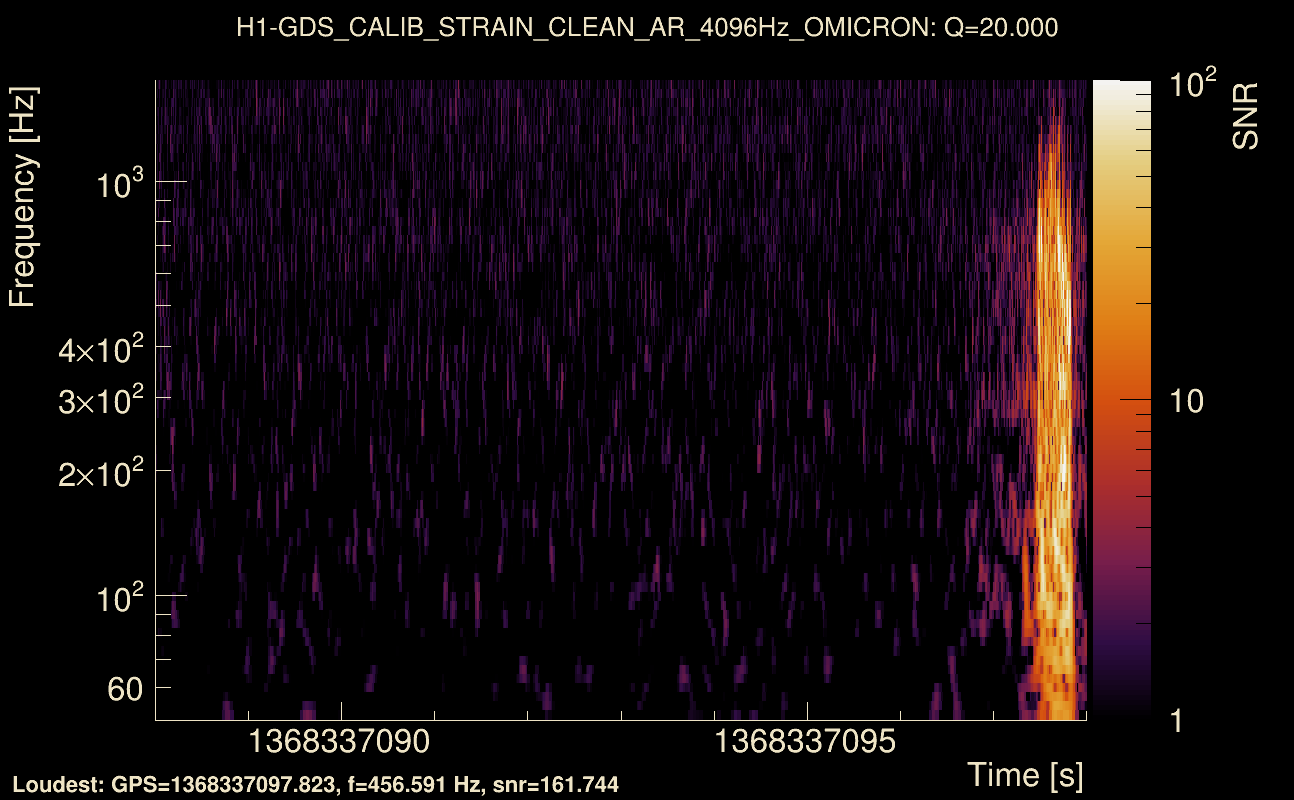

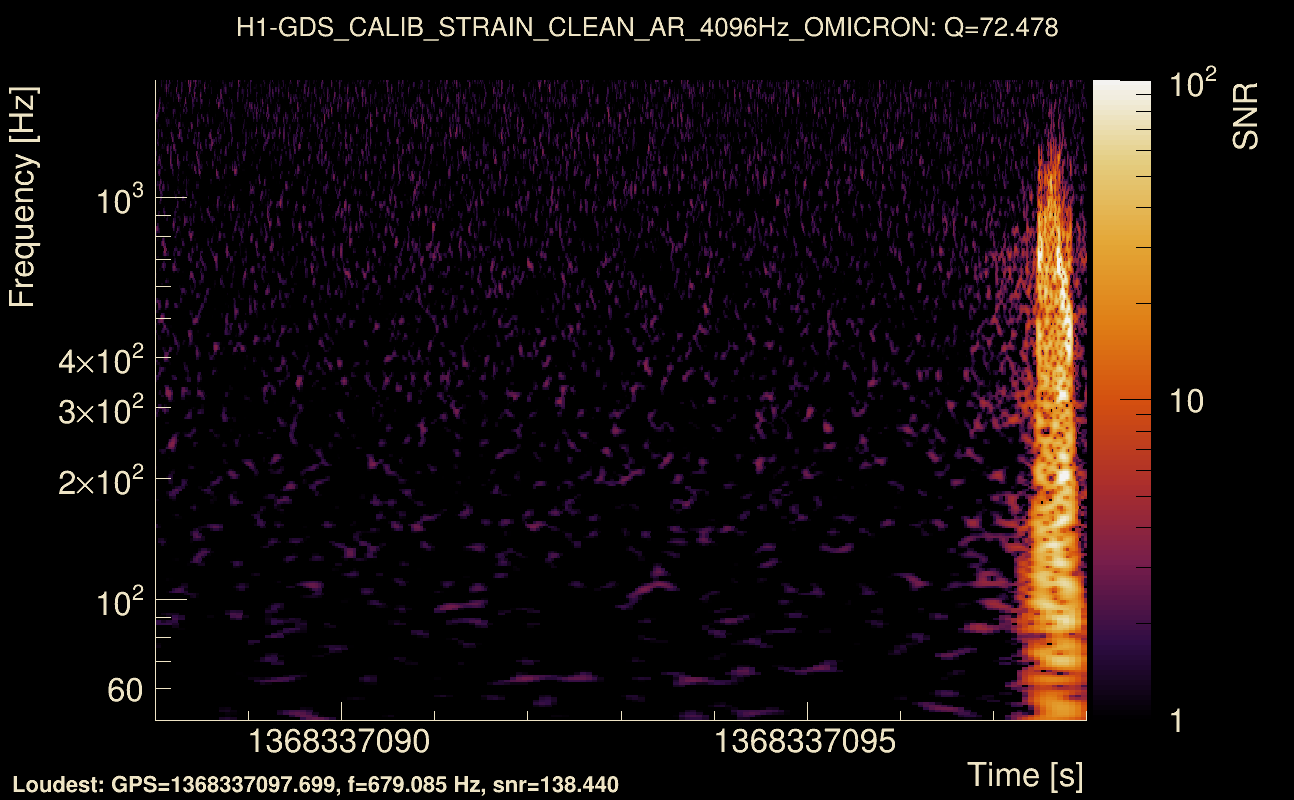

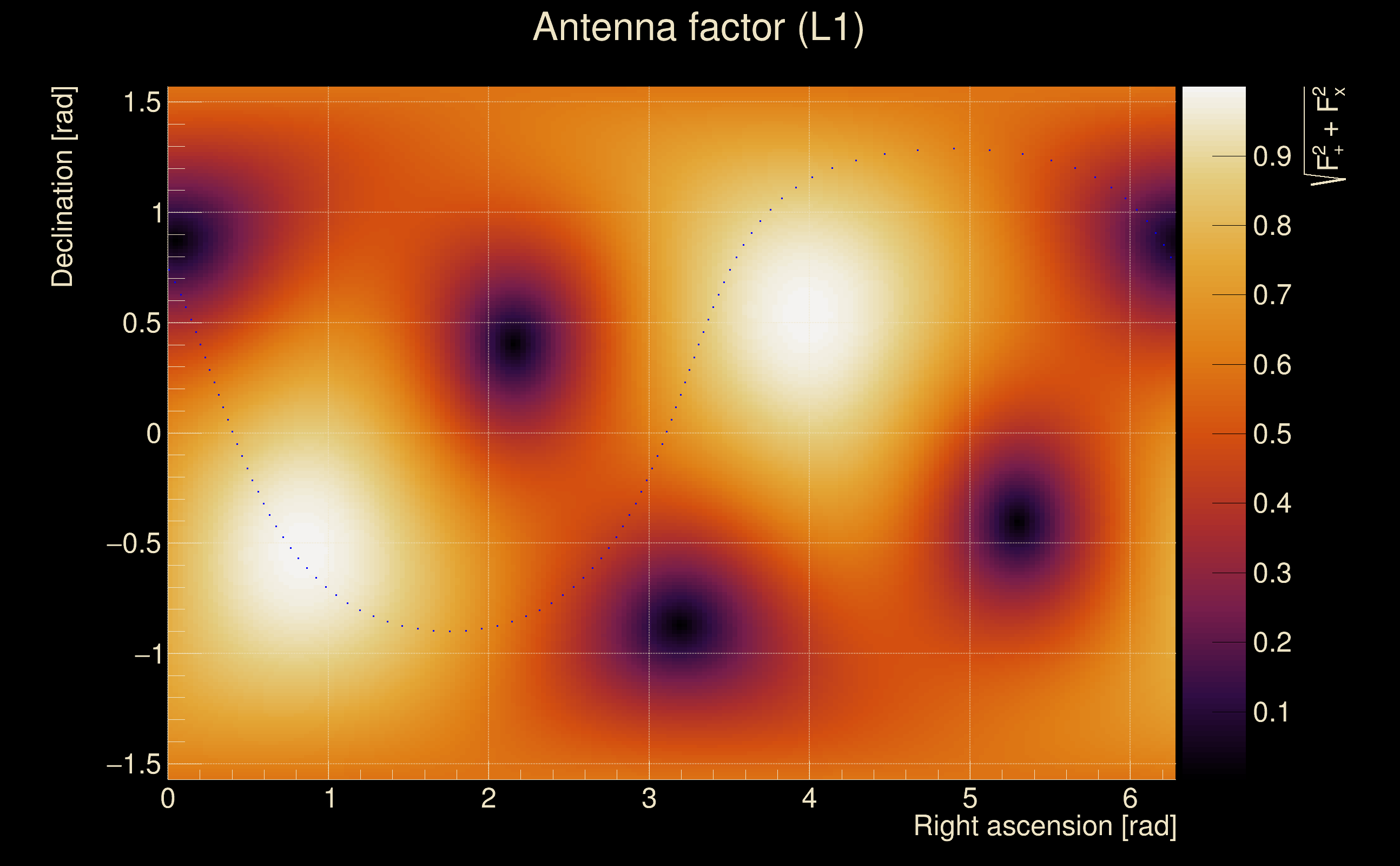

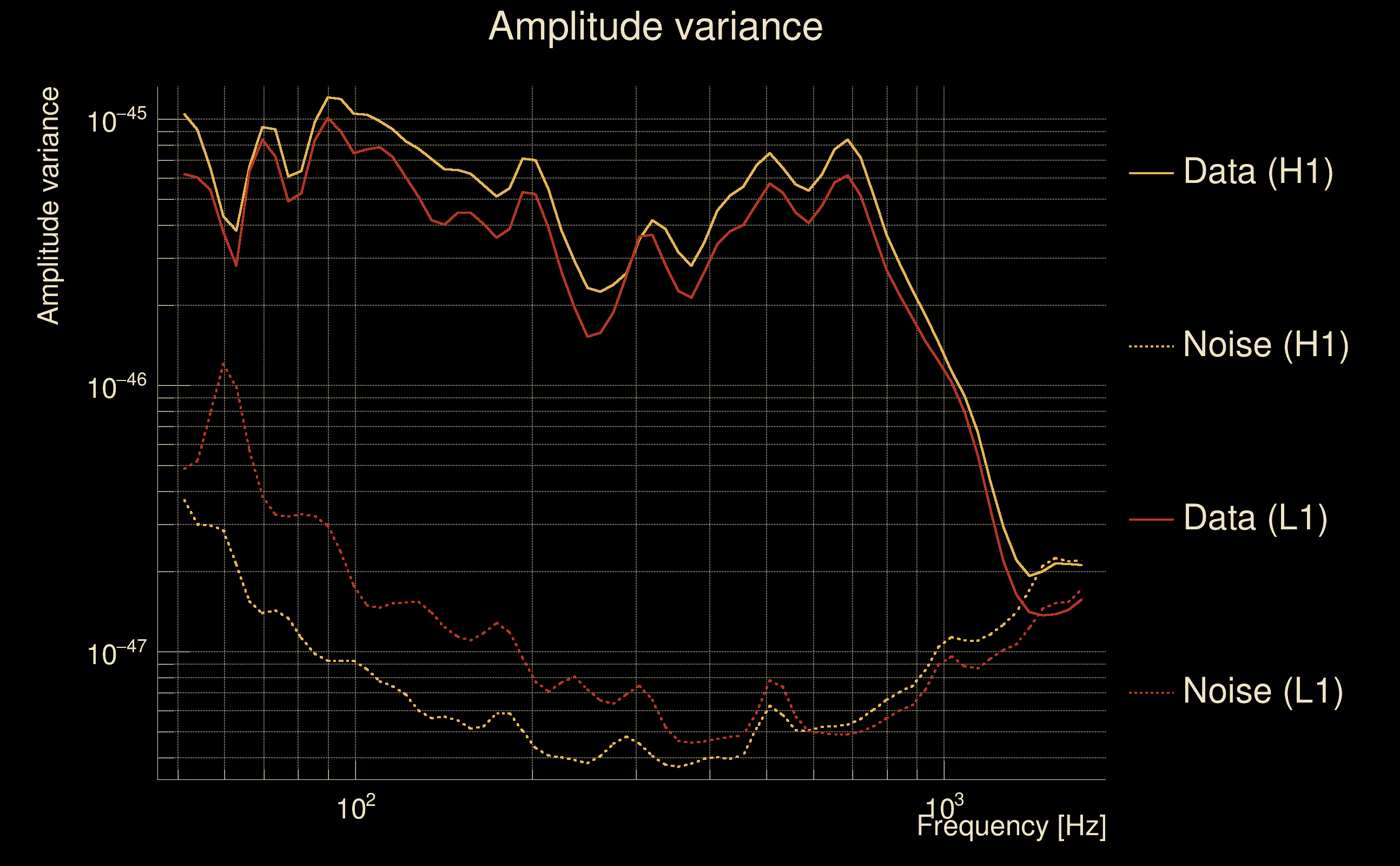

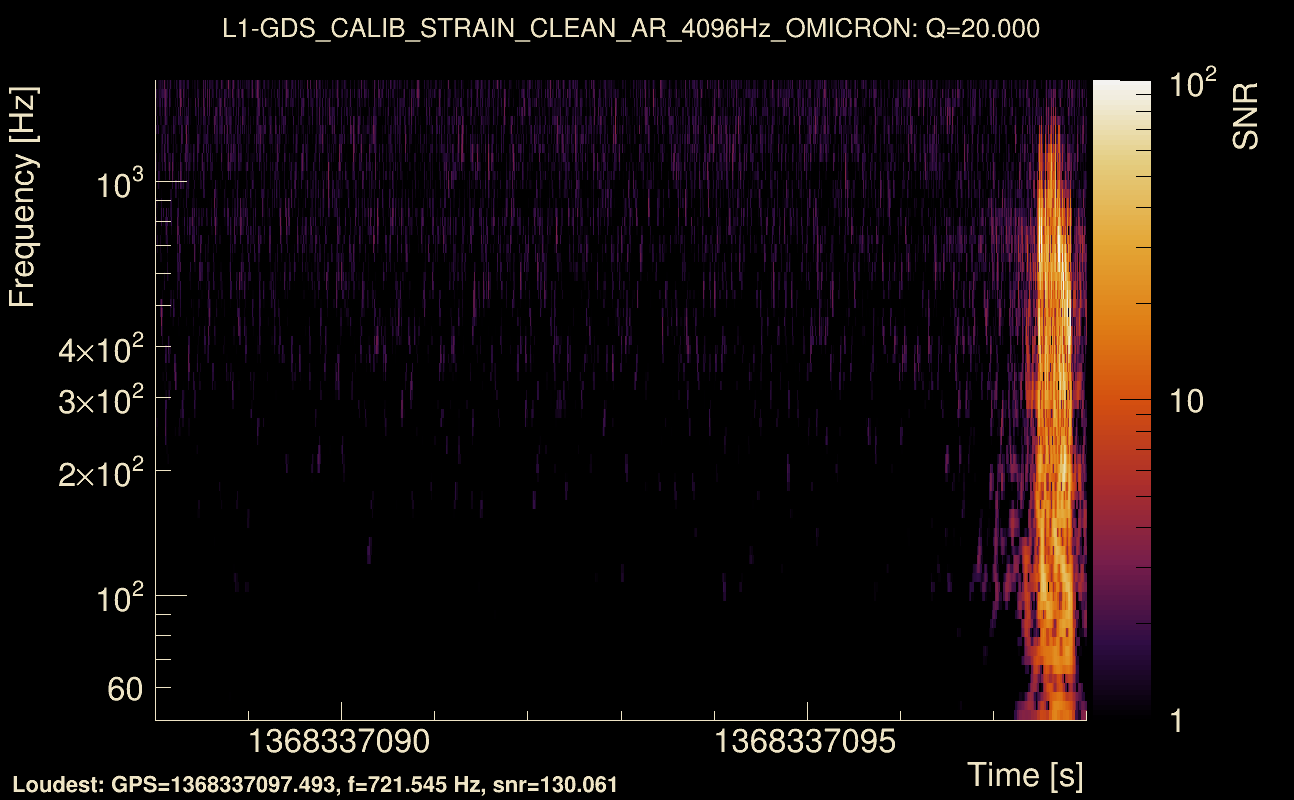

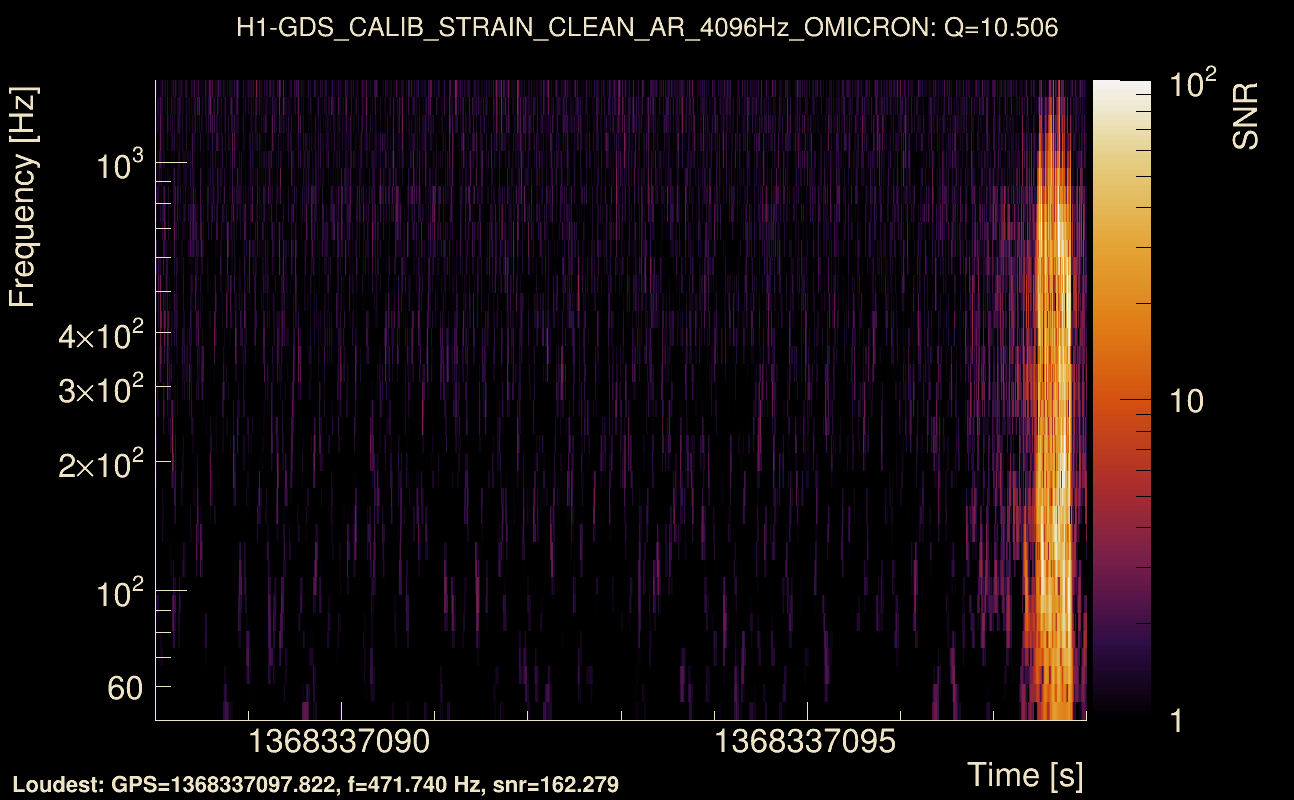

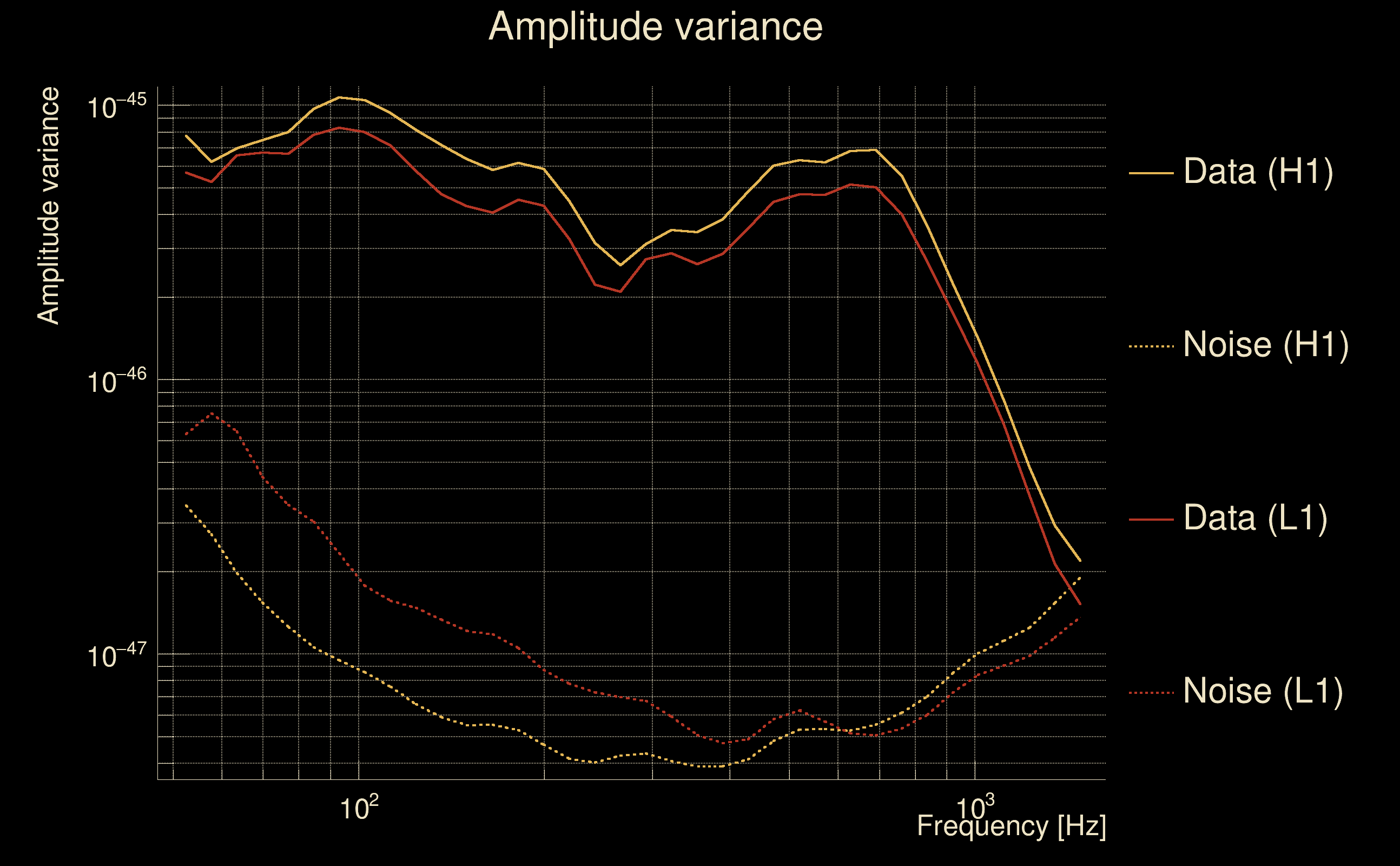

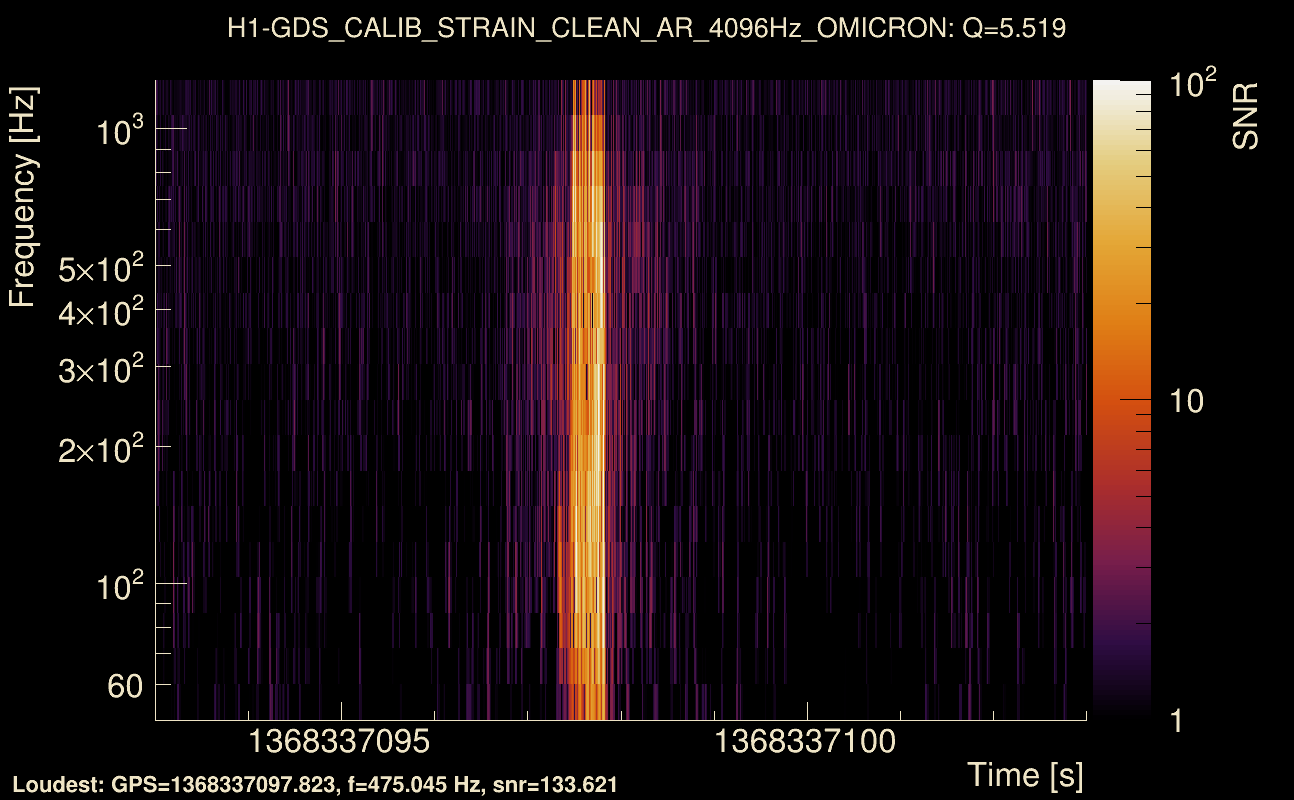

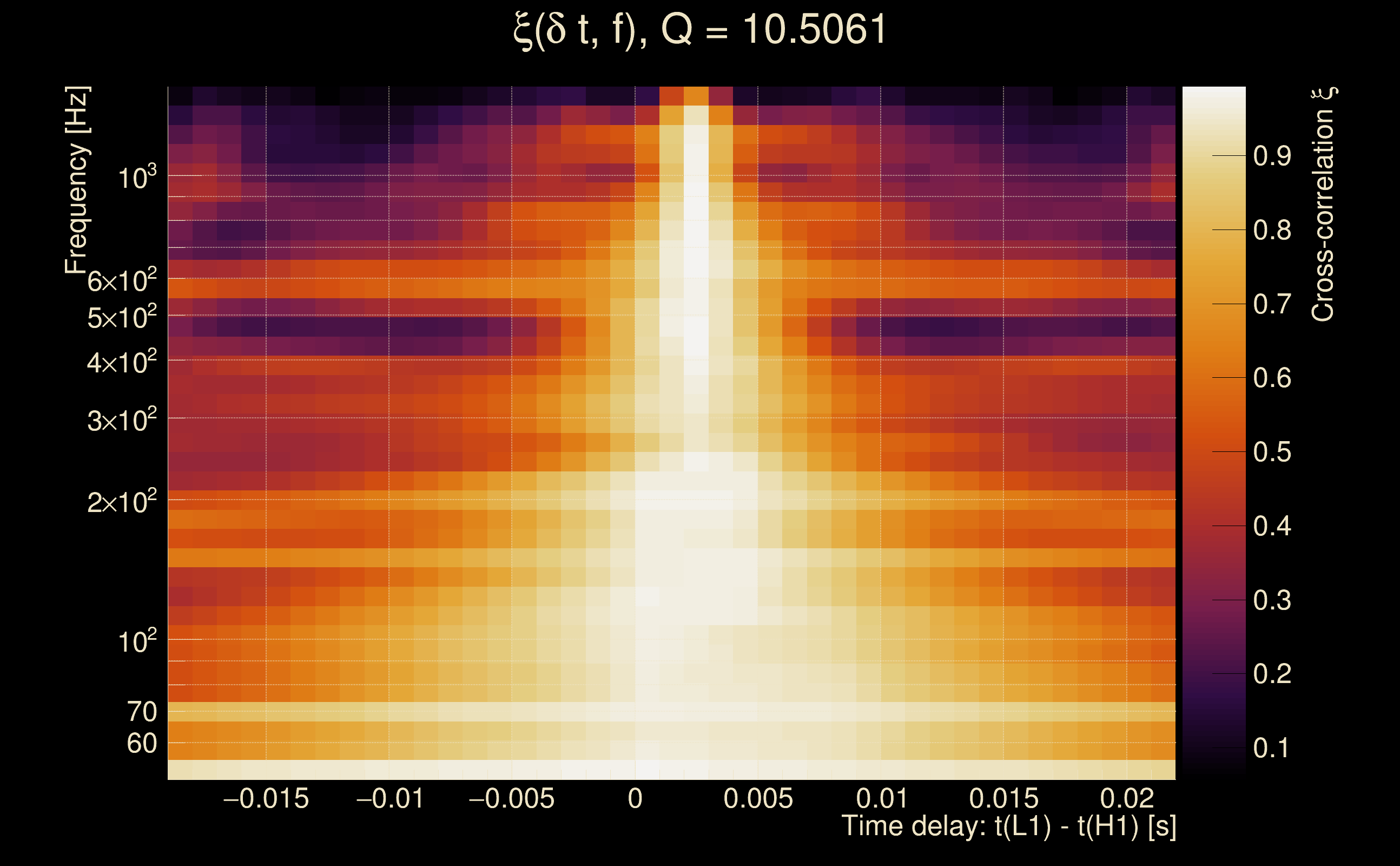

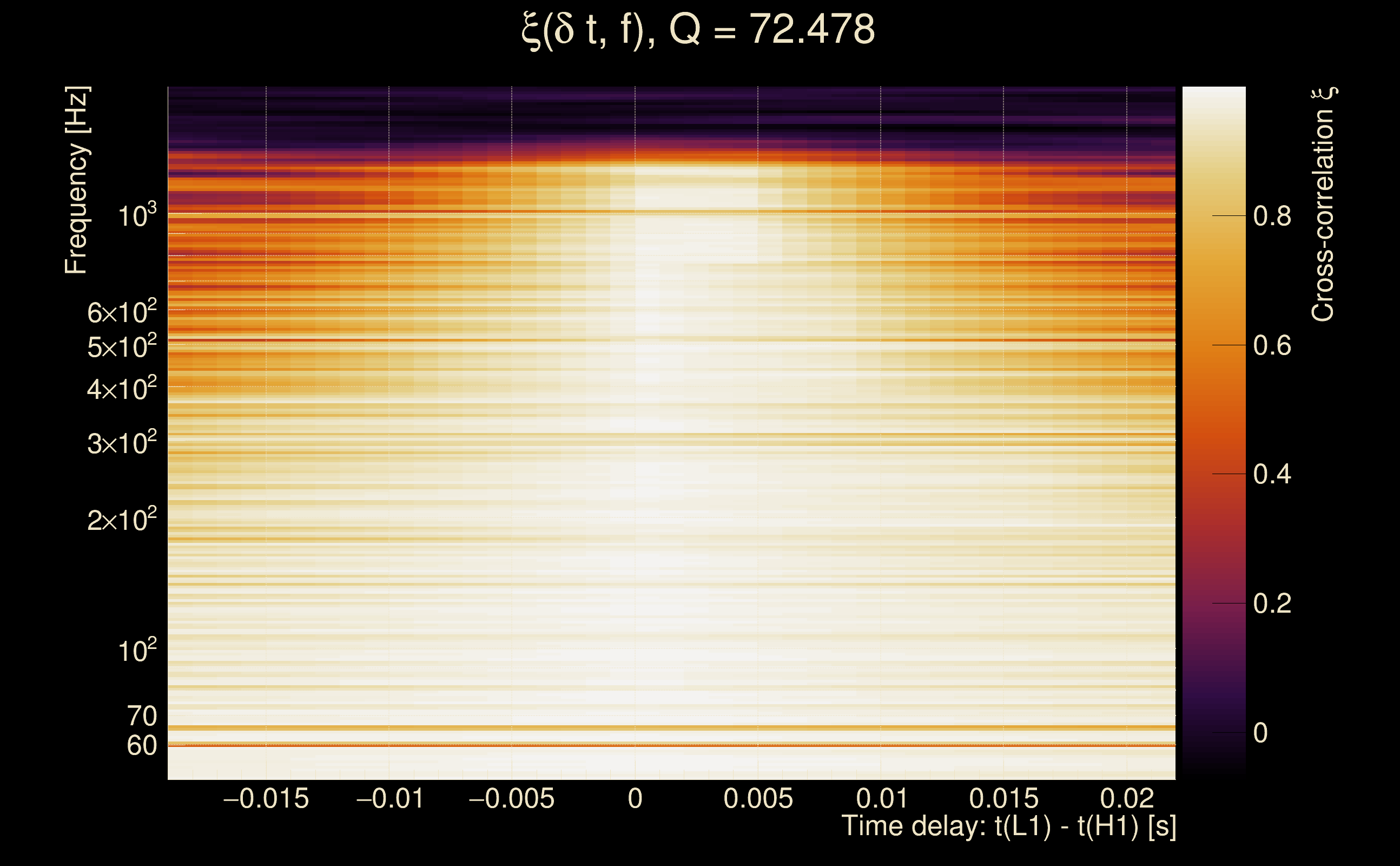

| Event time t(H1): | GPS = 1368337093 (Wed May 17 05:37:55 2023 ) → GPS = 1368337103 (Wed May 17 05:38:05 2023 ) |
| Event time t(L1): | GPS = 1368337093 (Wed May 17 05:38:05 2023 ) → GPS = 1368337103 (Wed May 17 05:38:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368337090 → GPS = 1368337106 |
| Omicron analysis time window (L1): | GPS = 1368337090 → GPS = 1368337106 |
| Time delay between detectors t(L1) - t(H1): | 0.00194329 s (slice index = 108 / 217), δt_gw = 0.00194329 s |
| Time delay standard deviation: | 0.0195068 s |
| [targeted mode] Time delay probability: | 0.966636 (0.0418276 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 262.849 Hz |
| Ξ: | 0.962695 ± 0.00190224 (variance = 3.61851e-06): Q0: 0.981125, Q1: 0.975481, Q2: 0.97913, Q3: 0.979735, Q4: 0.979808 |
| Rank: | R_A = 0.930576 |
| Log of amplitude ratio (L1/H1): | -0.15853, variance = 0.151347 (L1/H1: -0.169143, variance = 0.301286, H1/L1: 0.146607, variance = 0.302166) |
| Amplitude ratio (L1/H1): | 0.853397 ⋇ 1.47555 (L1/H1: 0.844388 ⋇ 1.73134, H1/L1: 1.1579 ⋇ 1.73273) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.976856 |

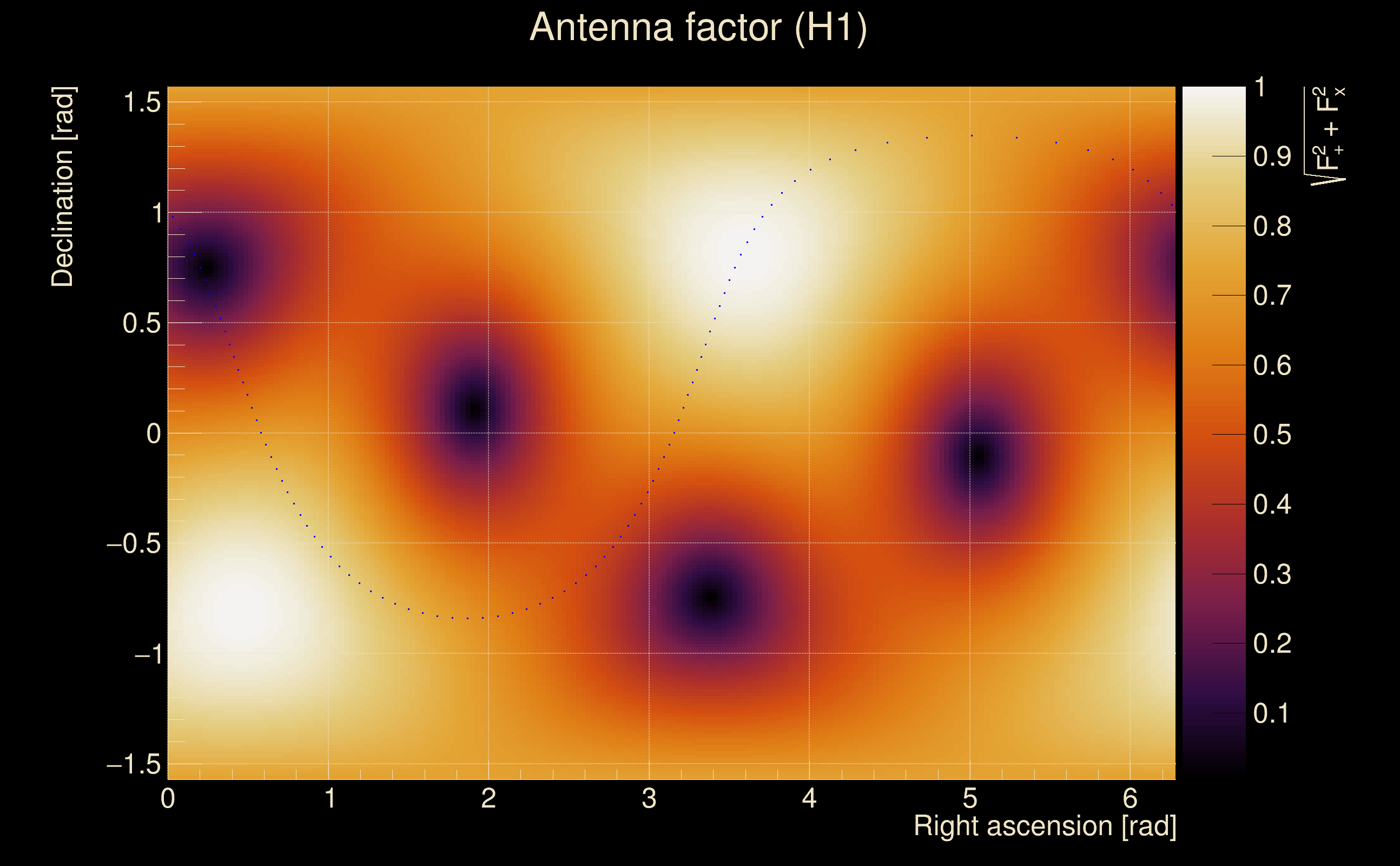

| Antenna factor probability: | 0.862326 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 4 / 70, Q3: 12 / 134, Q4: 24 / 258 |
| Maximum signal-to-noise ratio: | H1: 169.434, L1: 159.854 |

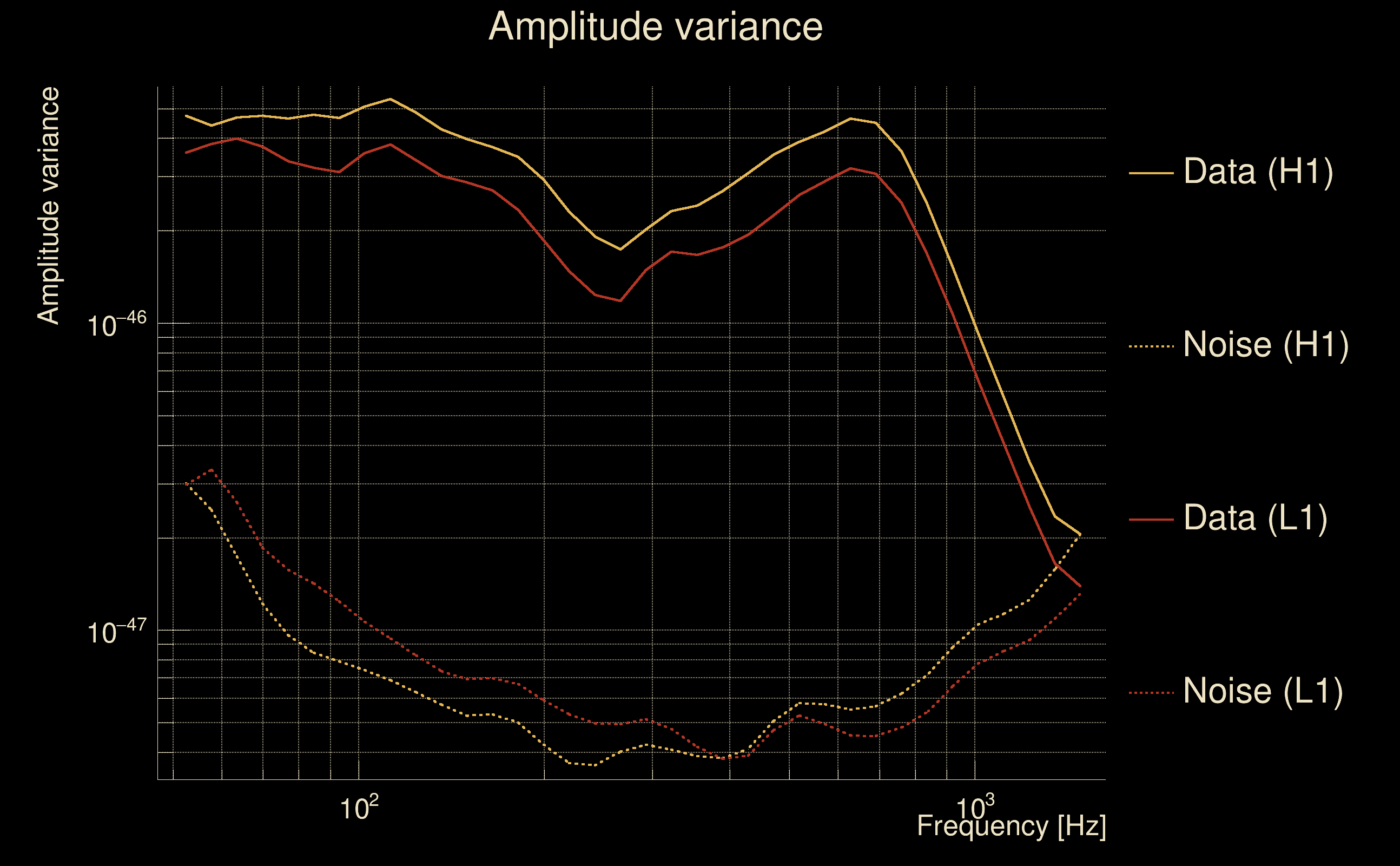

| SNR variance: | H1: 48.1545, L1: 39.6537 |

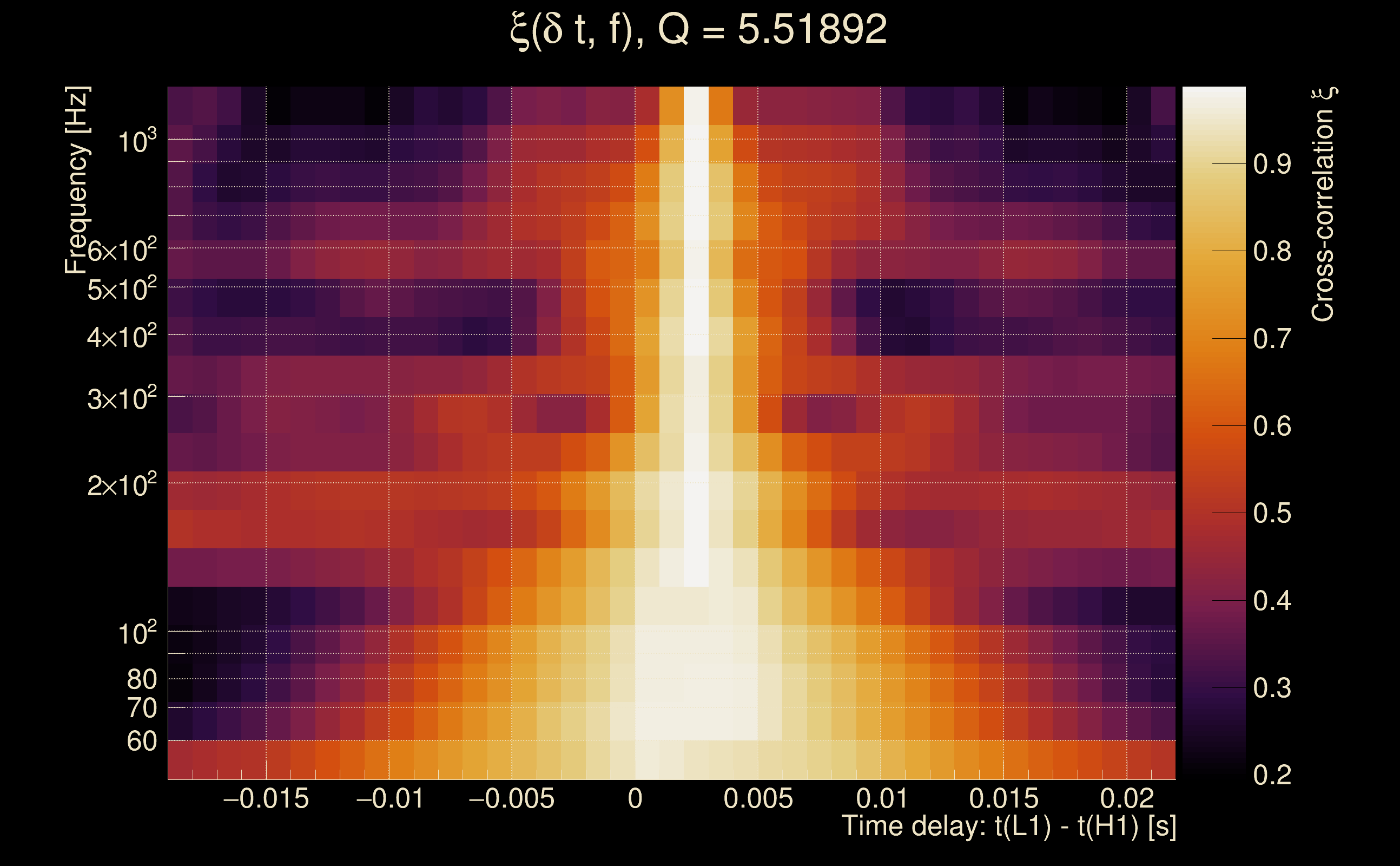

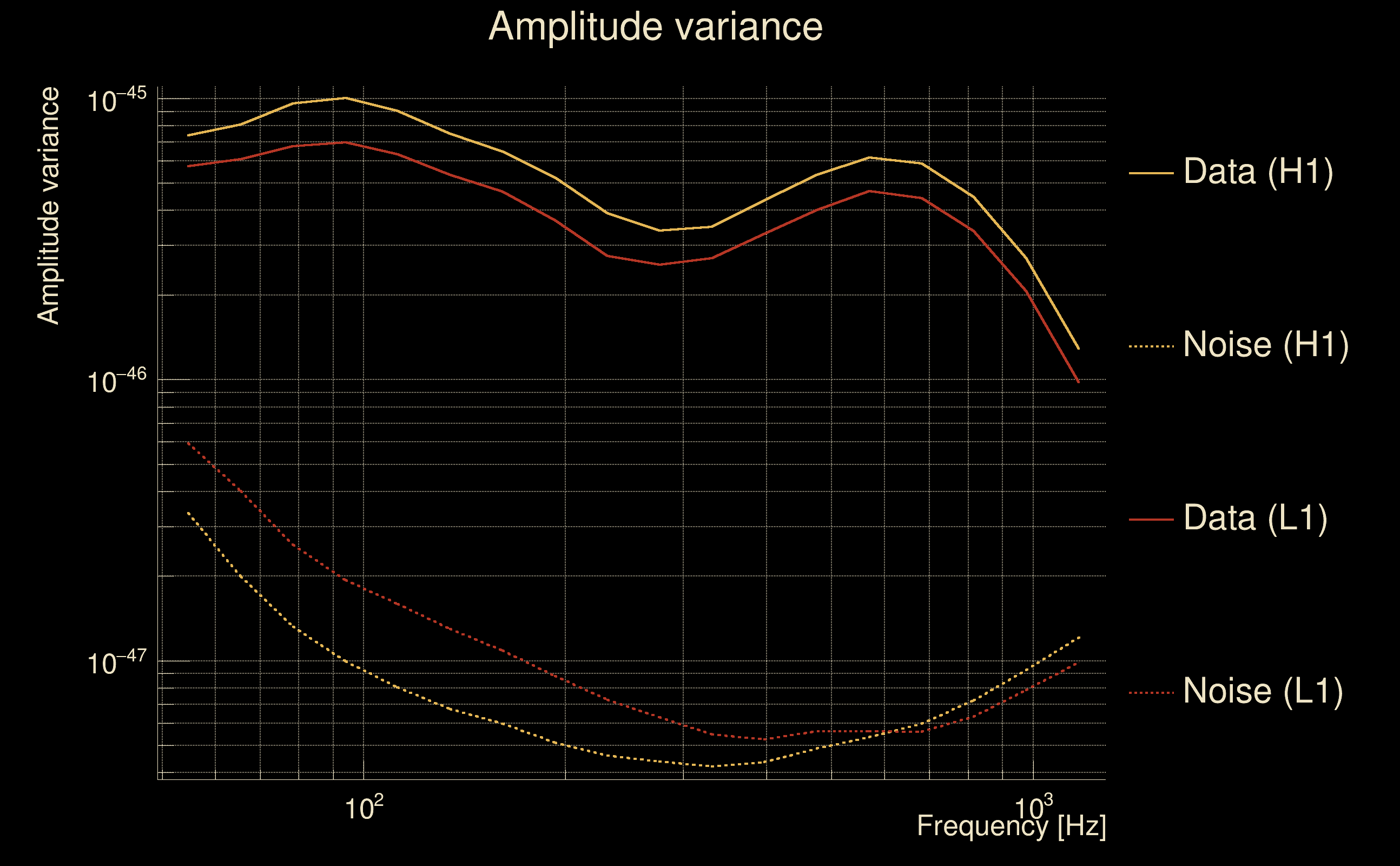

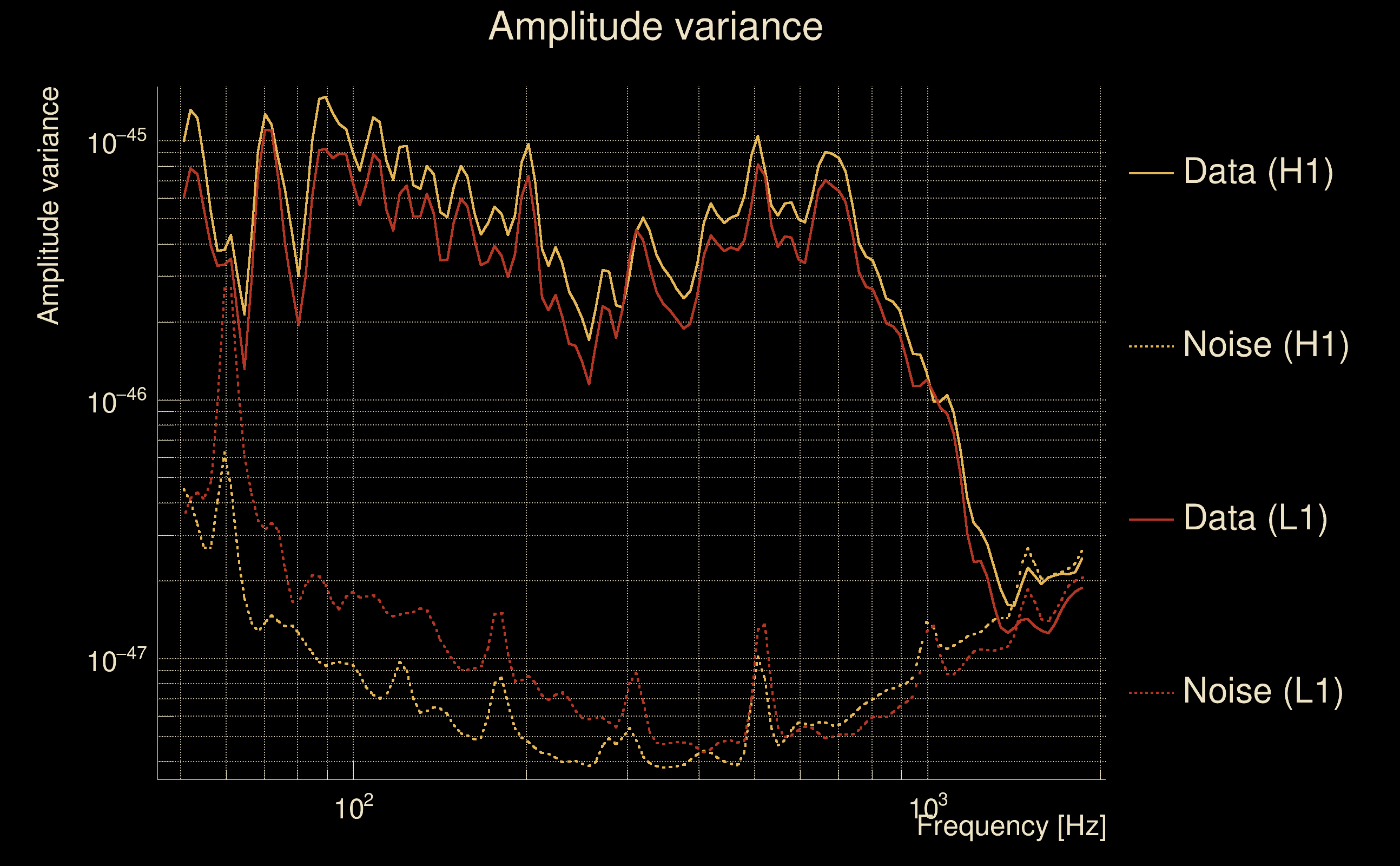

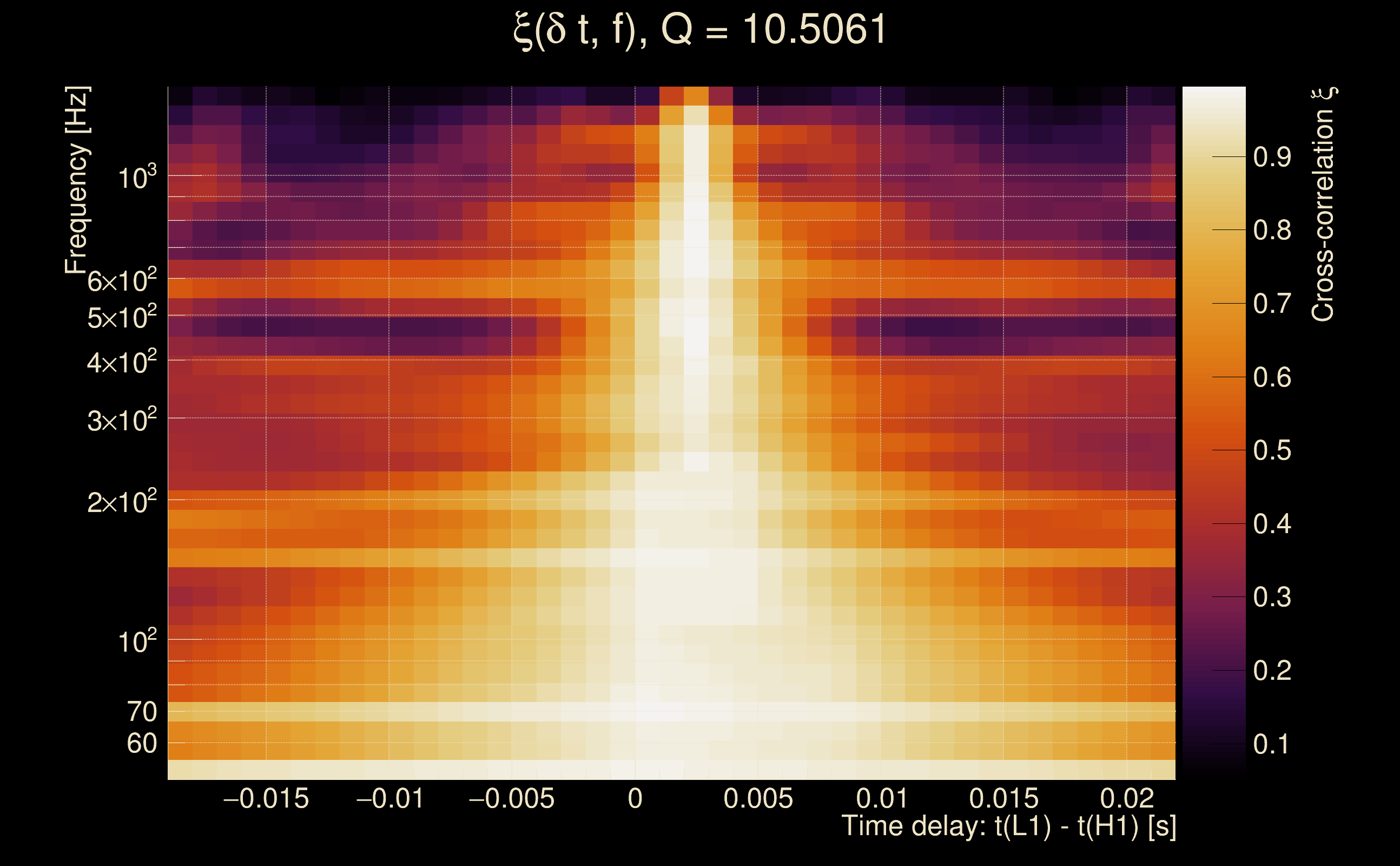

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

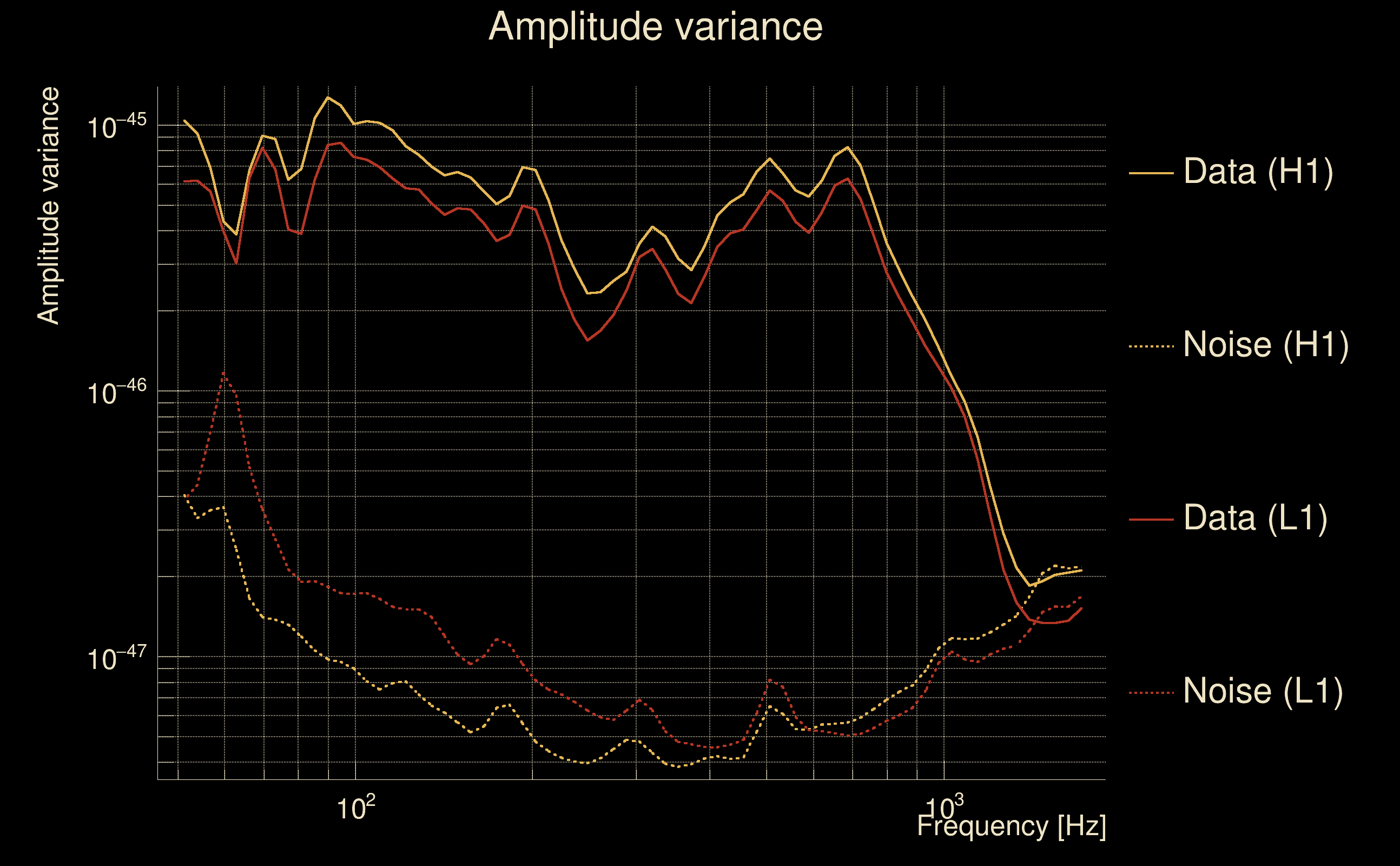

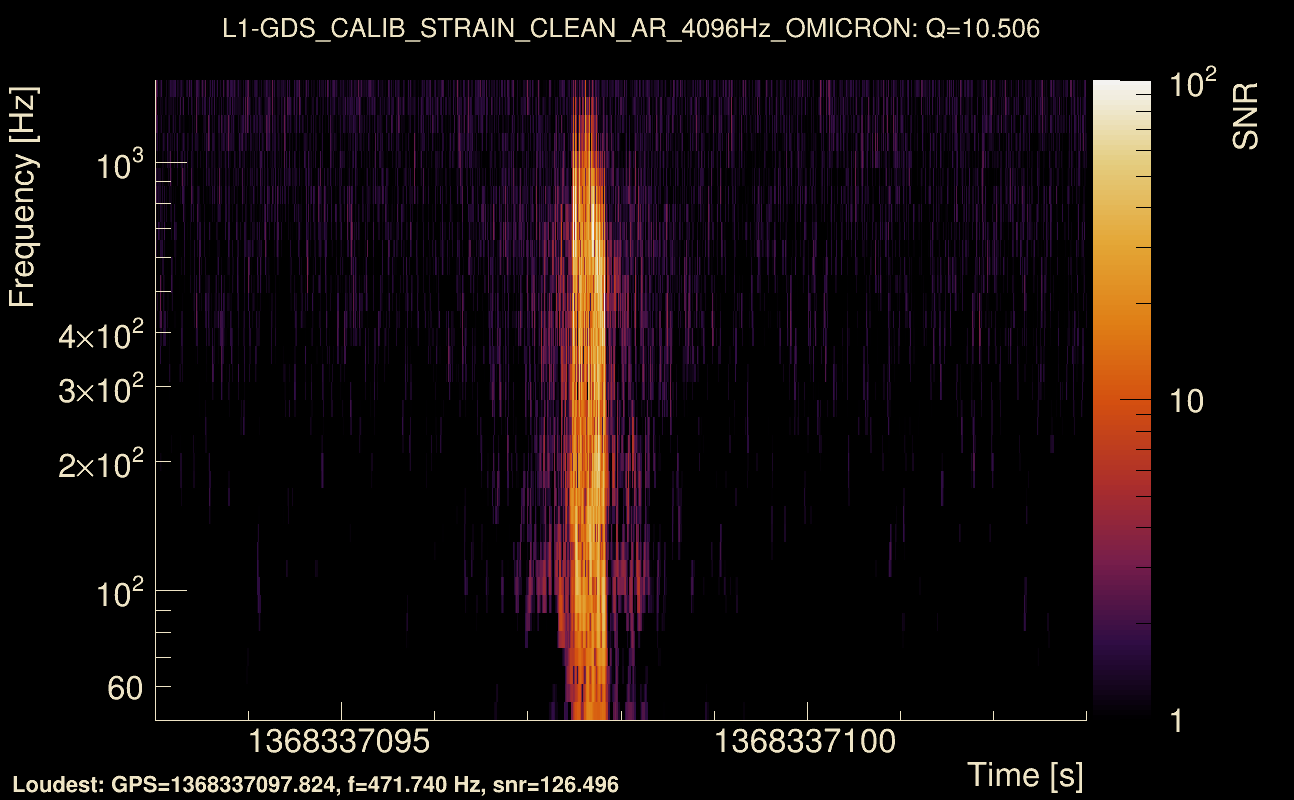

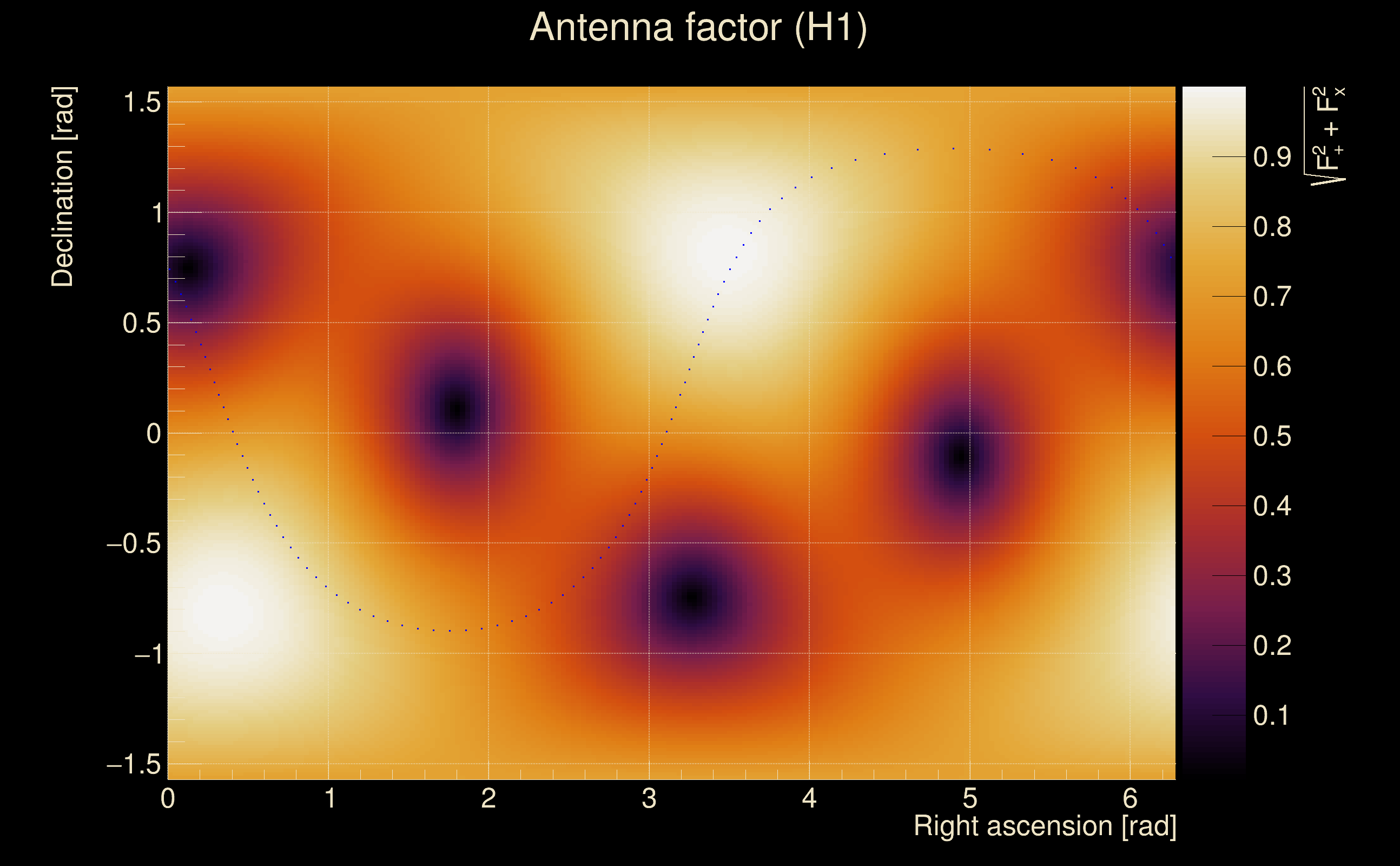

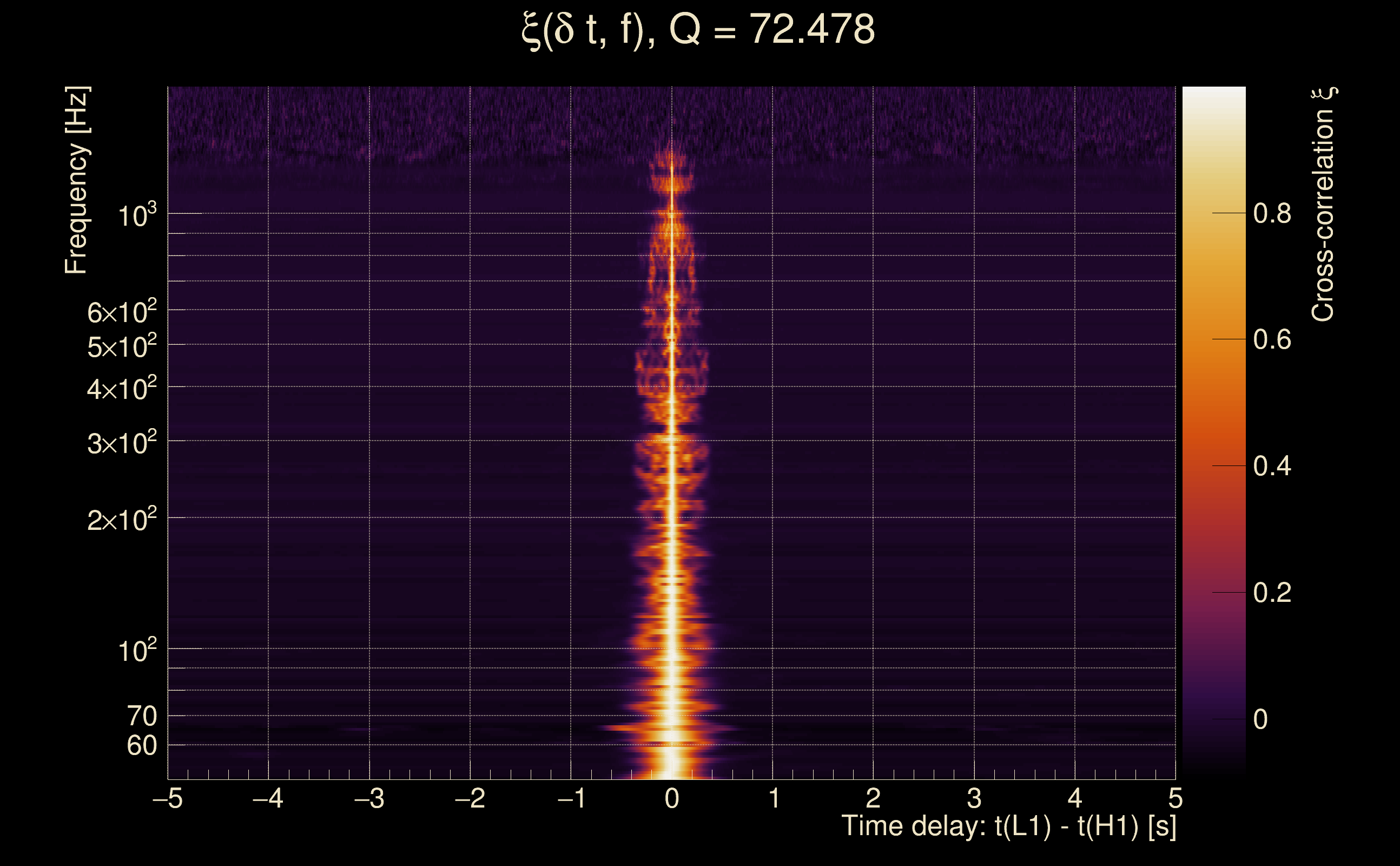

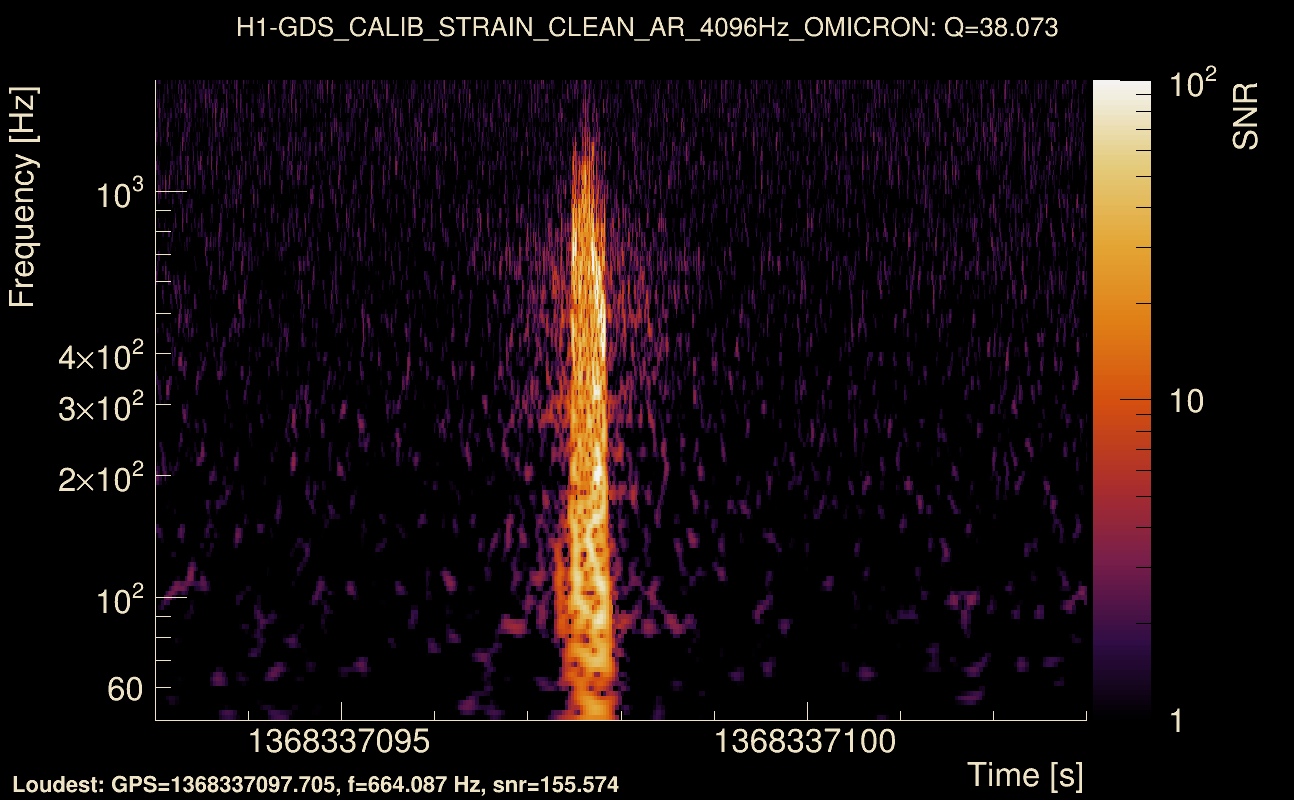

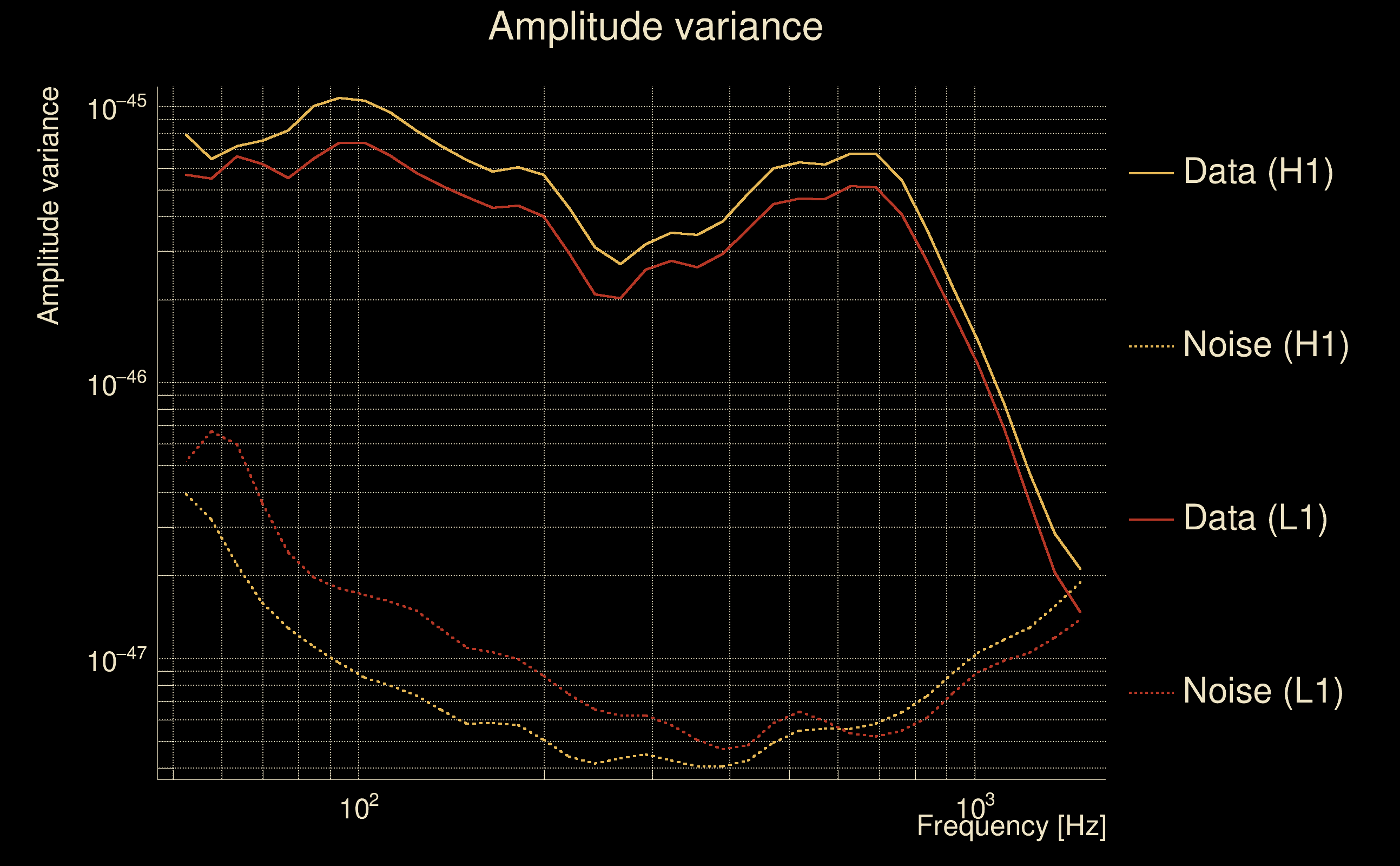

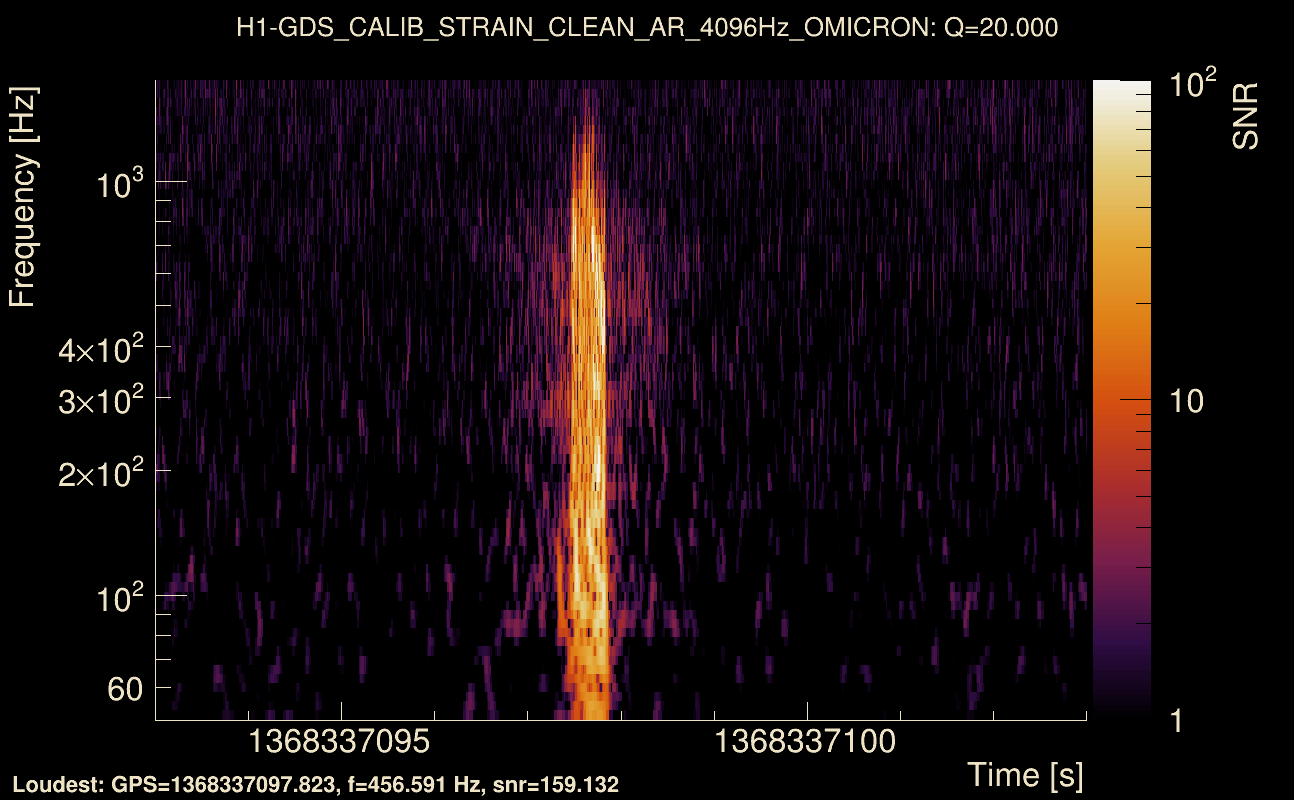

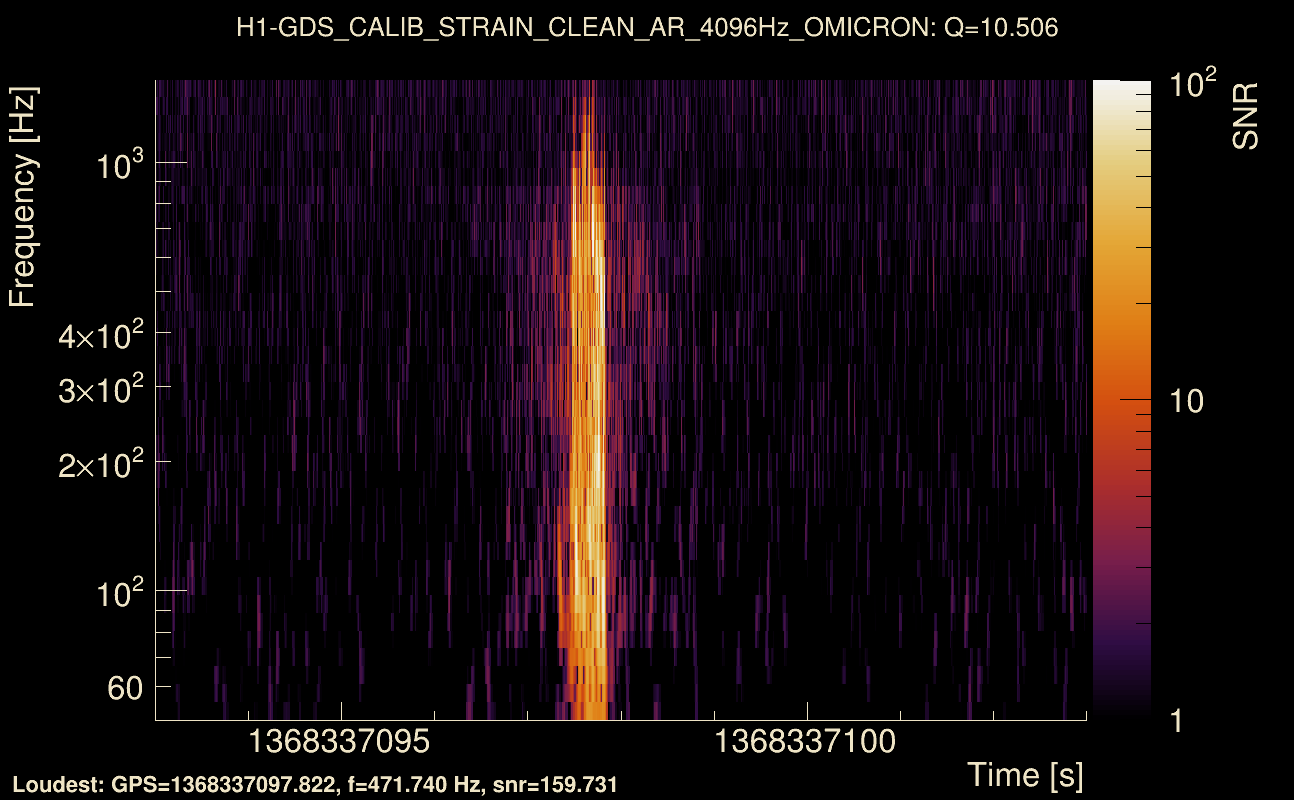

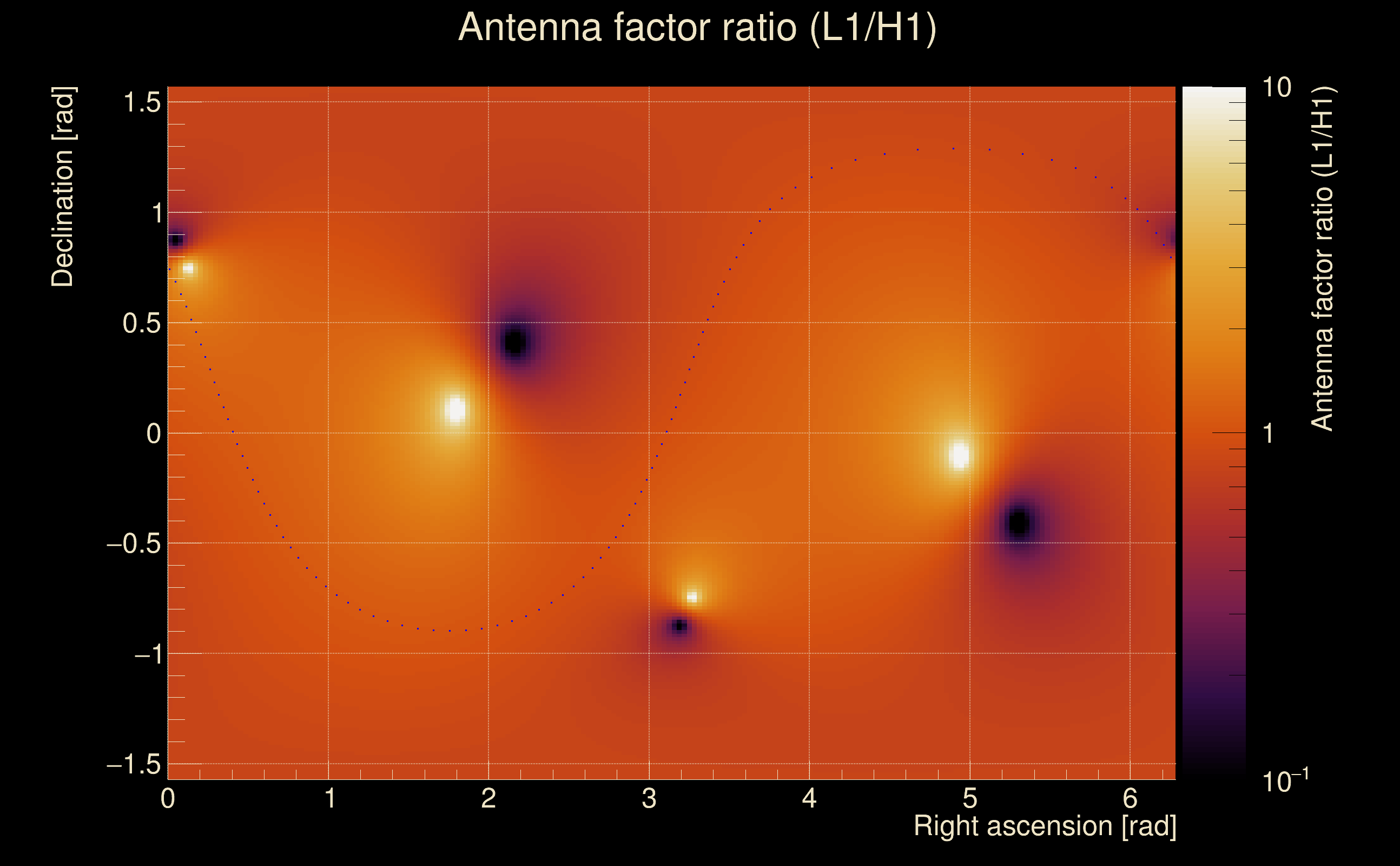

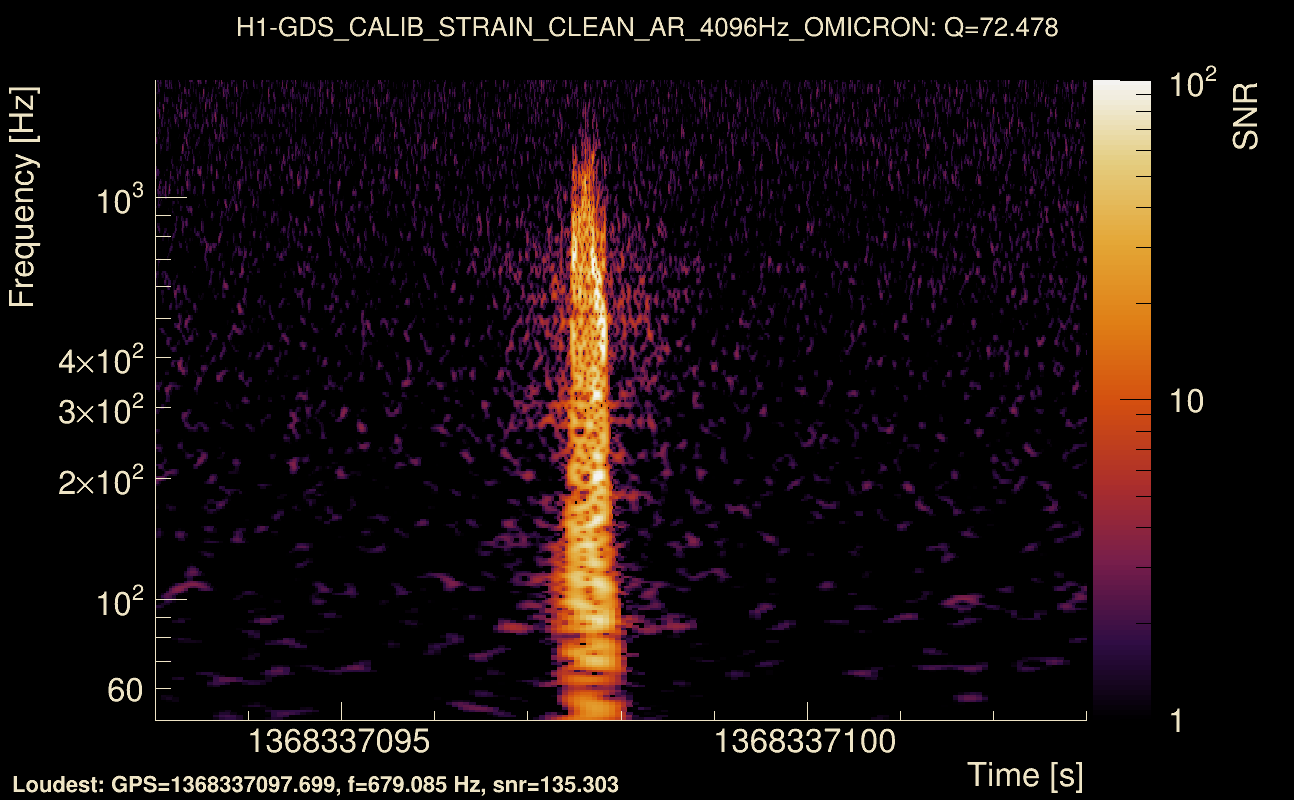

| Event time t(H1): | GPS = 1368337088 (Wed May 17 05:37:50 2023 ) → GPS = 1368337098 (Wed May 17 05:38:00 2023 ) |
| Event time t(L1): | GPS = 1368337088 (Wed May 17 05:38:00 2023 ) → GPS = 1368337098 (Wed May 17 05:38:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368337085 → GPS = 1368337101 |
| Omicron analysis time window (L1): | GPS = 1368337085 → GPS = 1368337101 |

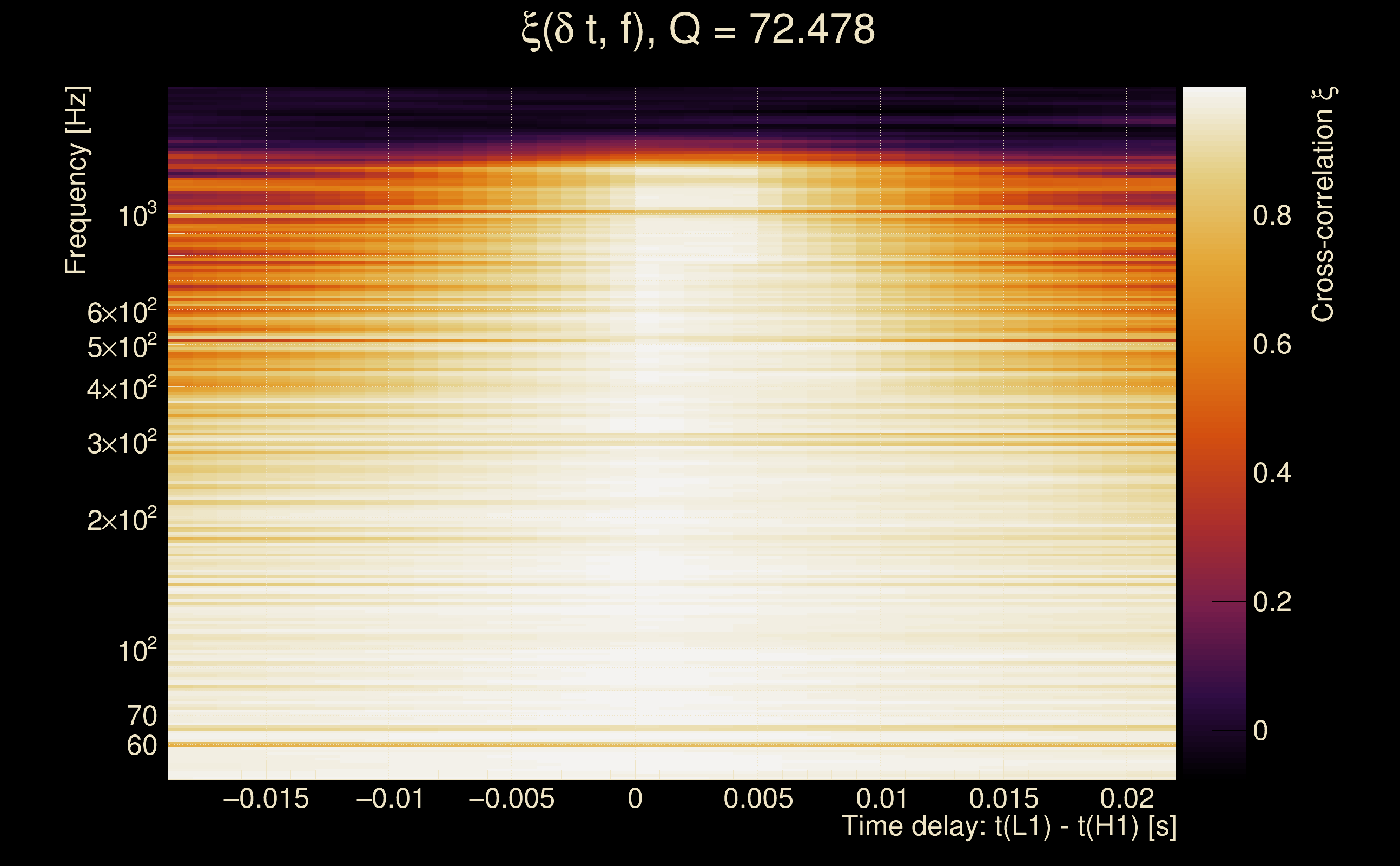

| Time delay between detectors t(L1) - t(H1): | 0.00194703 s (slice index = 108 / 217), δt_gw = 0.00194703 s |
| Time delay standard deviation: | 0.0193826 s |
| [targeted mode] Time delay probability: | 0.954242 (0.0573809 sigmas), δt_target = 0.00192738 s |
| Frequency: | 263.188 Hz |
| Ξ: | 0.964594 ± 0.00211099 (variance = 4.45626e-06): Q0: 0.980865, Q1: 0.975269, Q2: 0.975887, Q3: 0.97812, Q4: 0.979472 |
| Rank: | R_A = 0.920456 |
| Log of amplitude ratio (L1/H1): | -0.158681, variance = 0.151266 (L1/H1: -0.168469, variance = 0.301236, H1/L1: 0.147769, variance = 0.302154) |
| Amplitude ratio (L1/H1): | 0.853269 ⋇ 1.4754 (L1/H1: 0.844957 ⋇ 1.73126, H1/L1: 1.15925 ⋇ 1.73271) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.97874 |
| Antenna factor probability: | 0.861813 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 3 / 70, Q3: 11 / 134, Q4: 22 / 258 |
| Maximum signal-to-noise ratio: | H1: 170.699, L1: 161.679 |
| SNR variance: | H1: 0.502465, L1: 0.501156 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

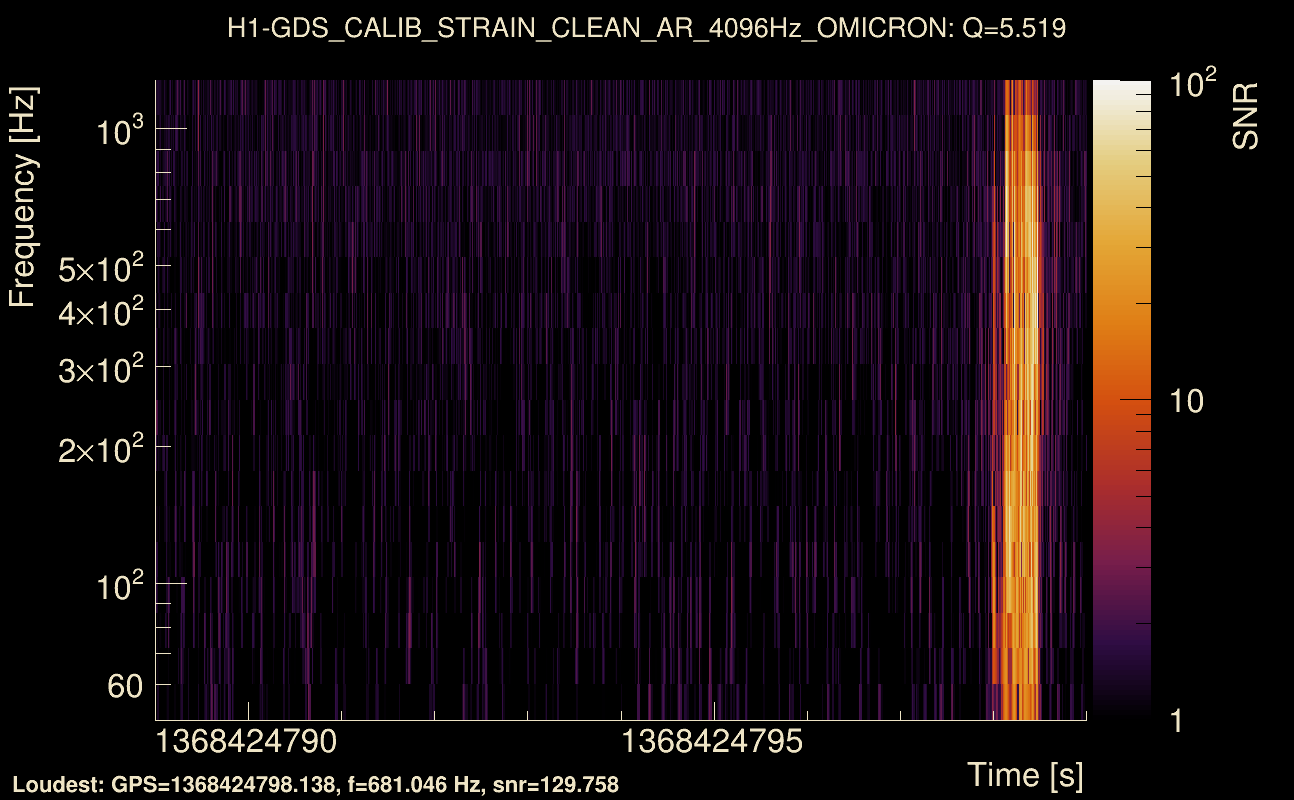

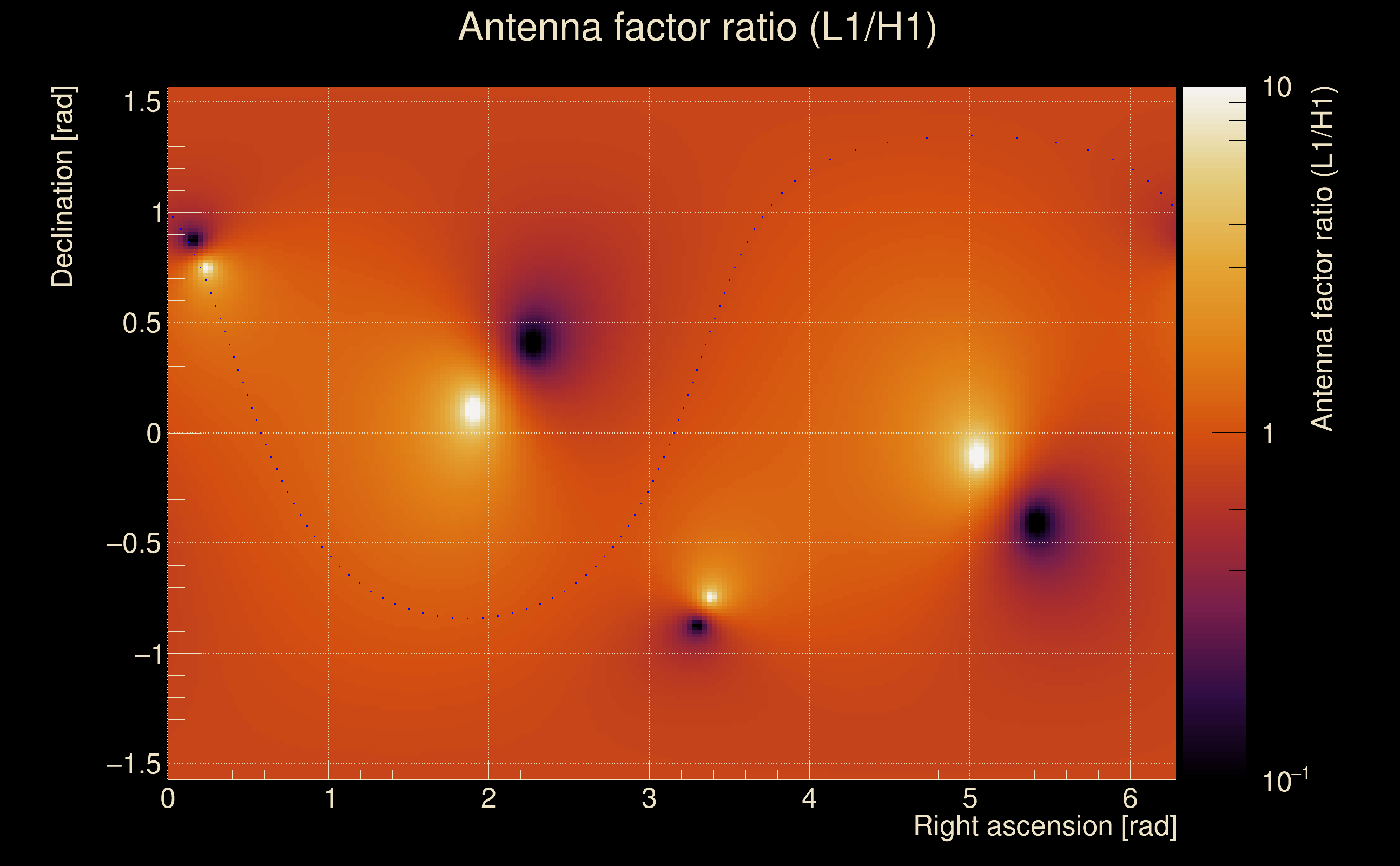

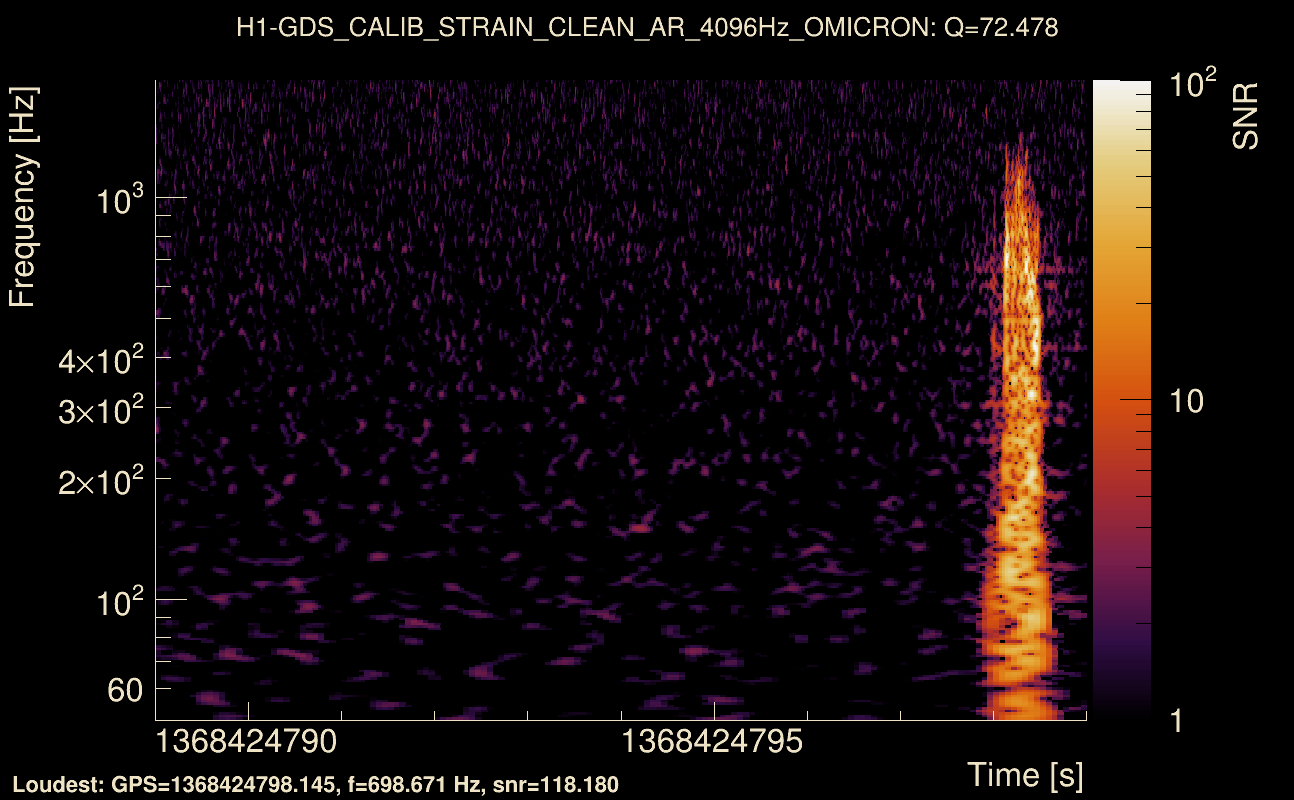

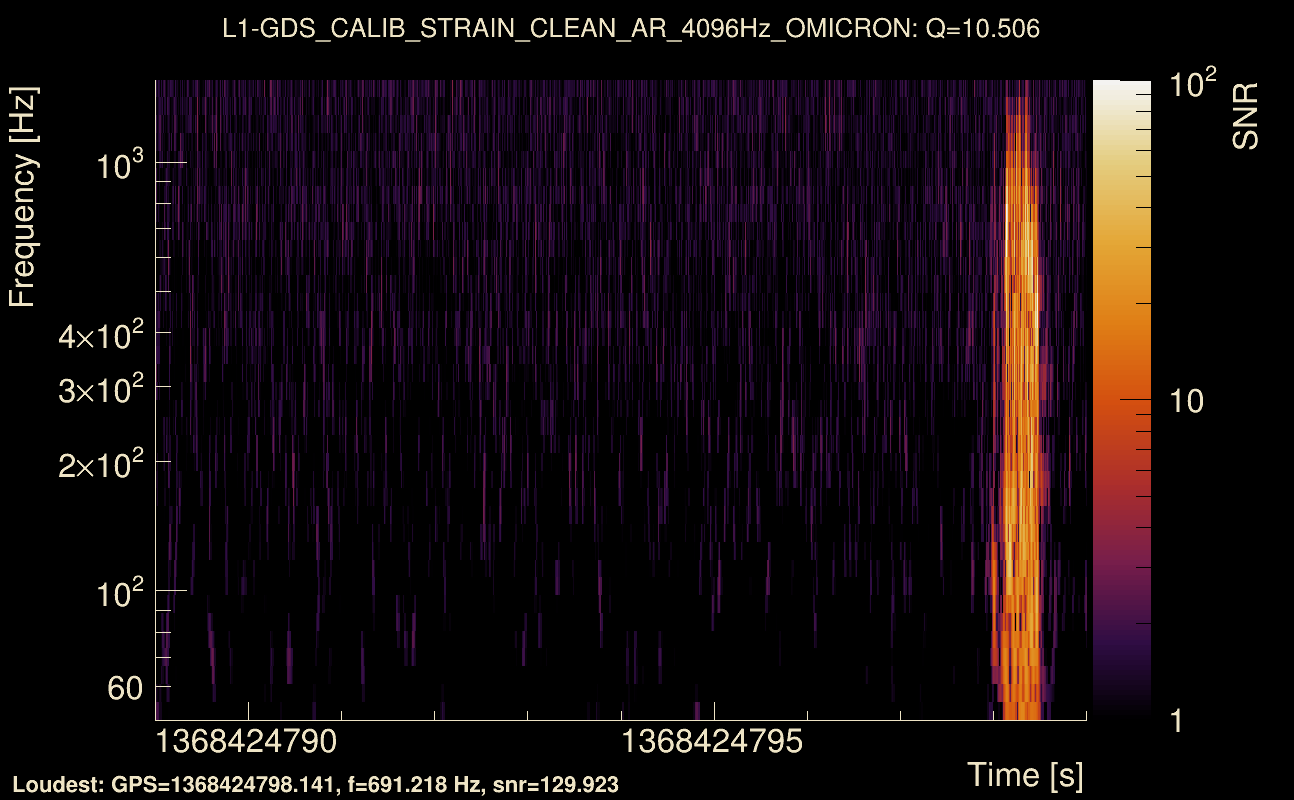

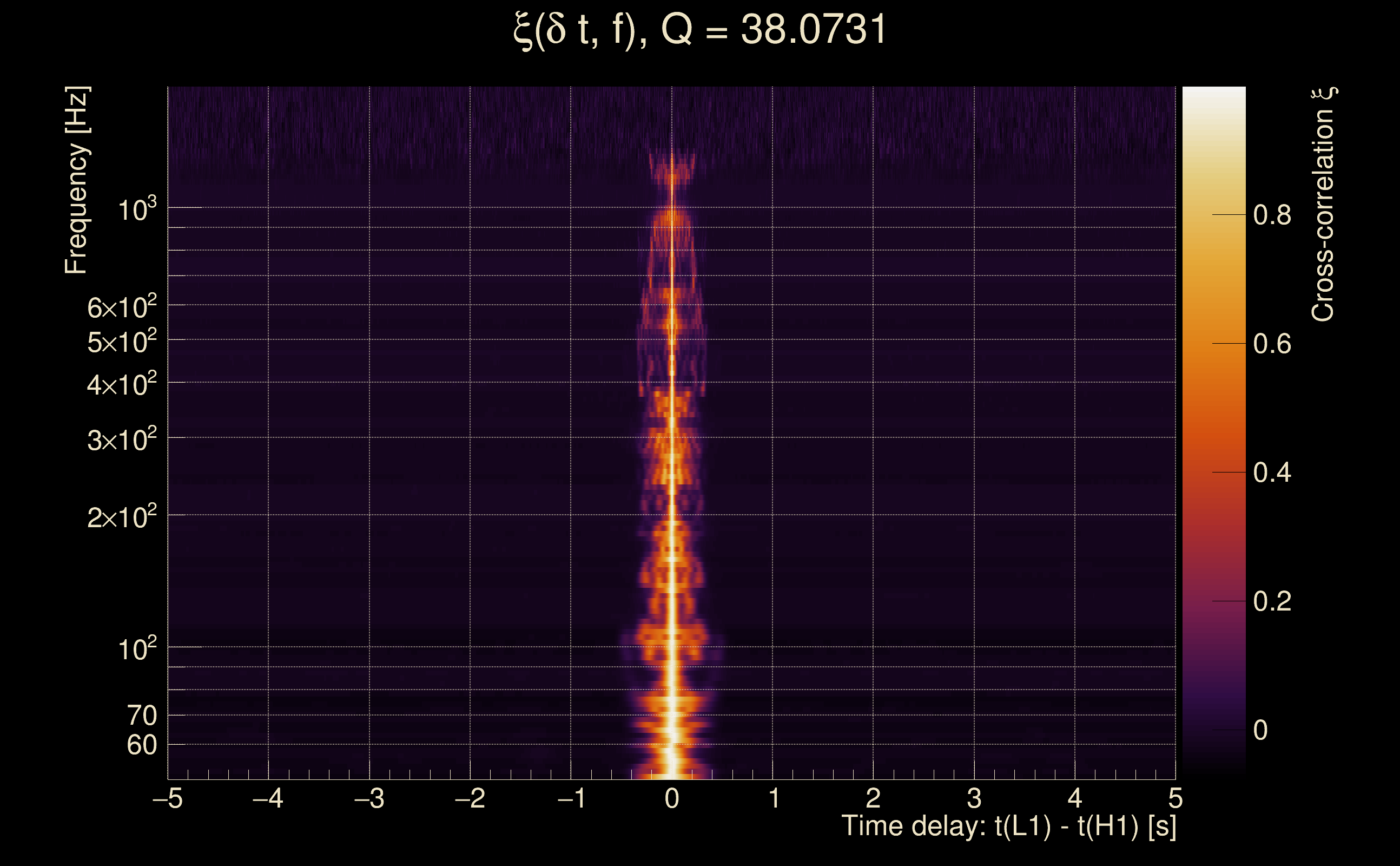

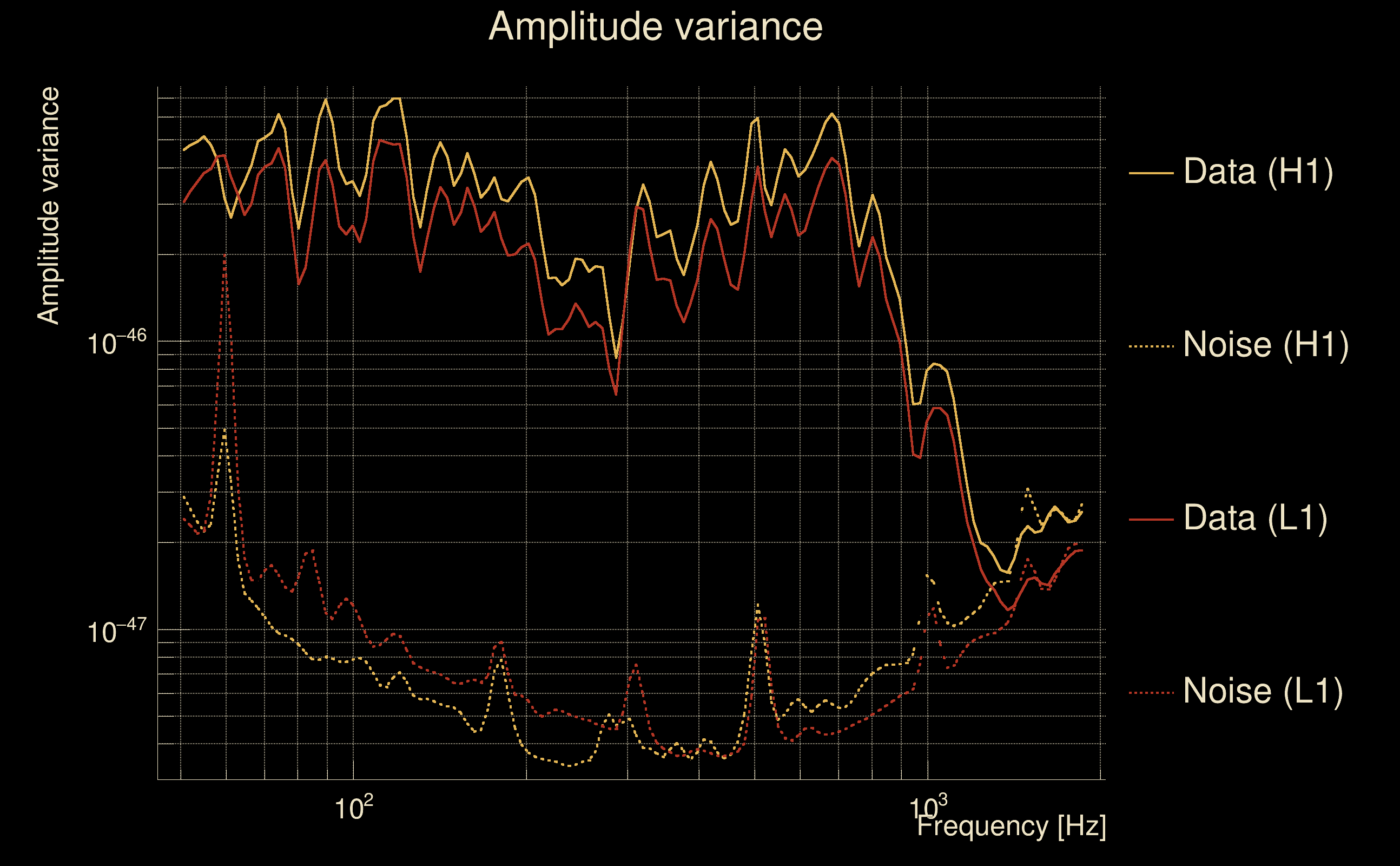

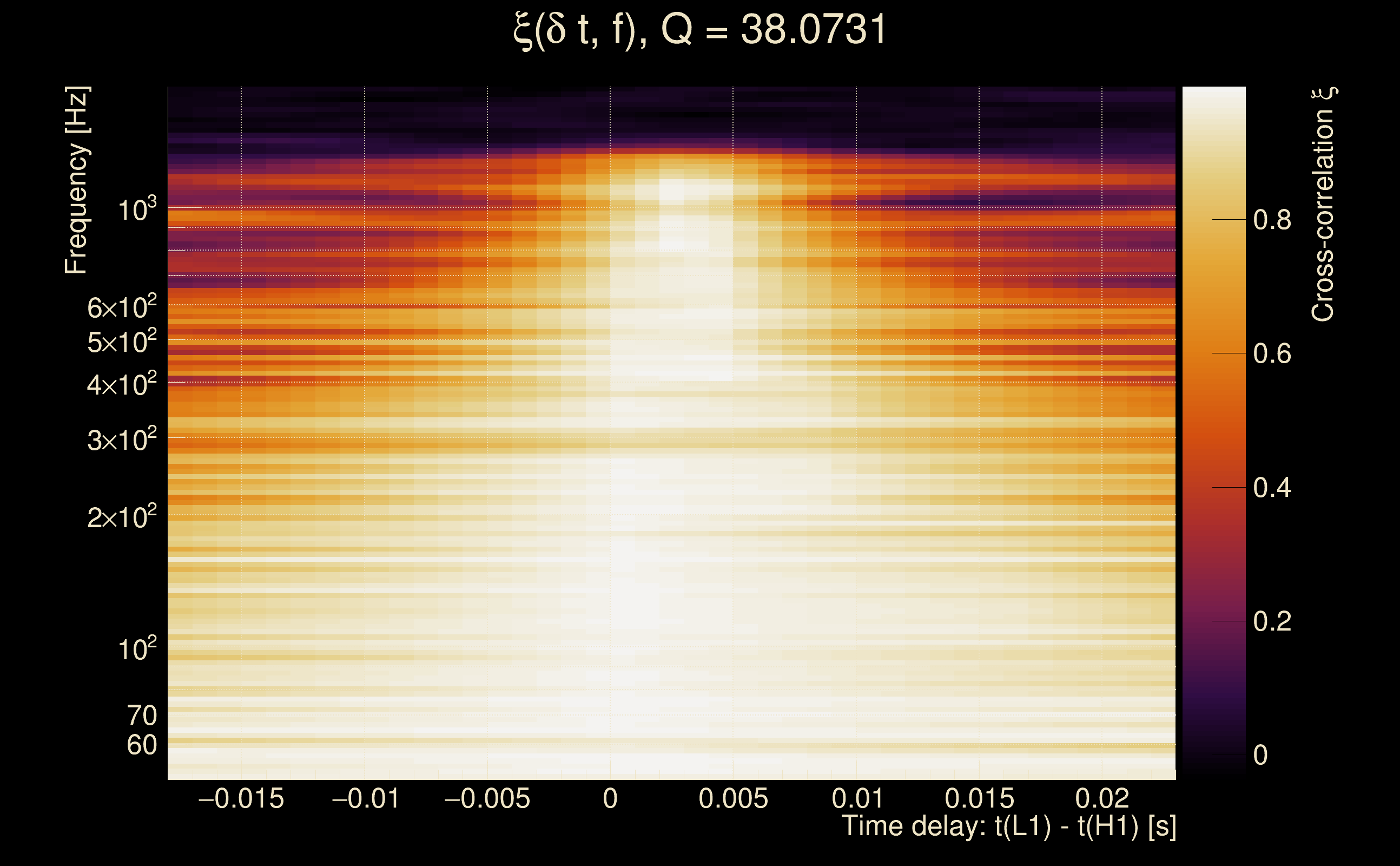

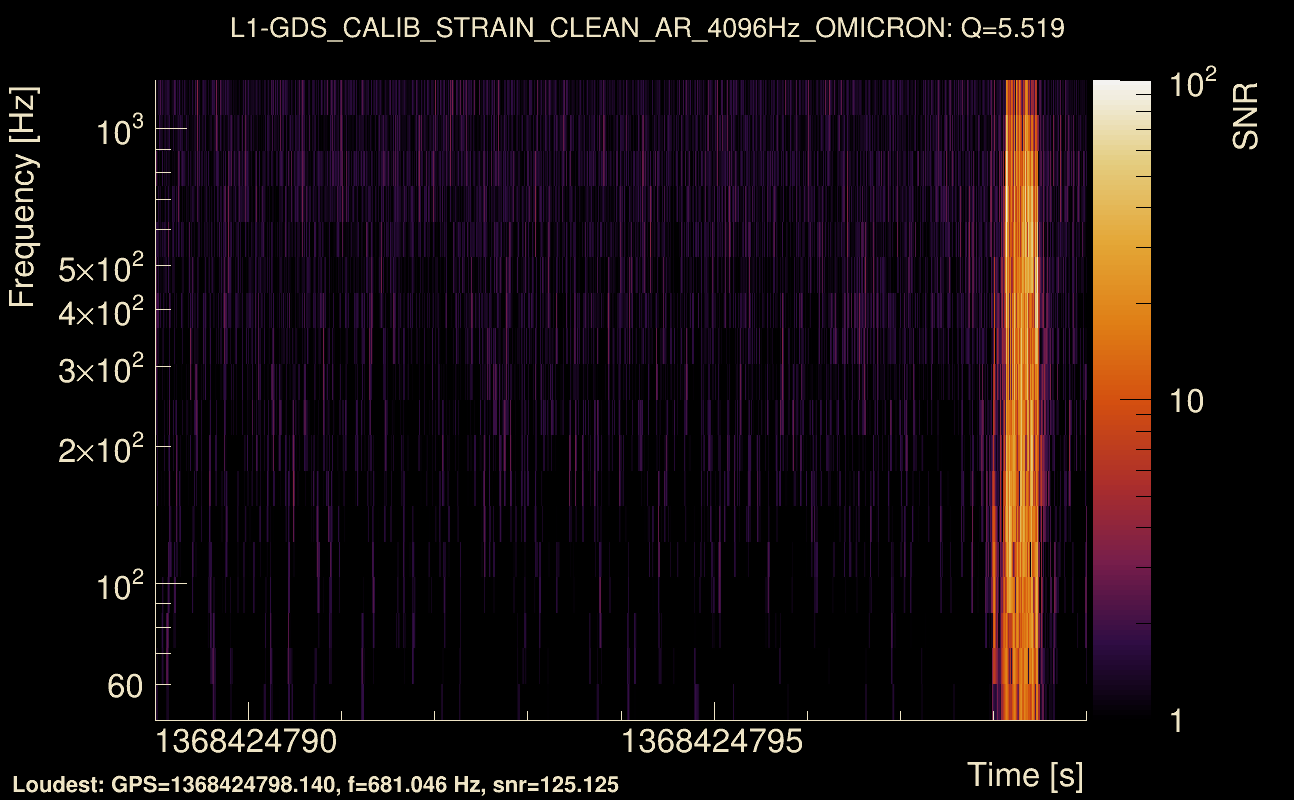

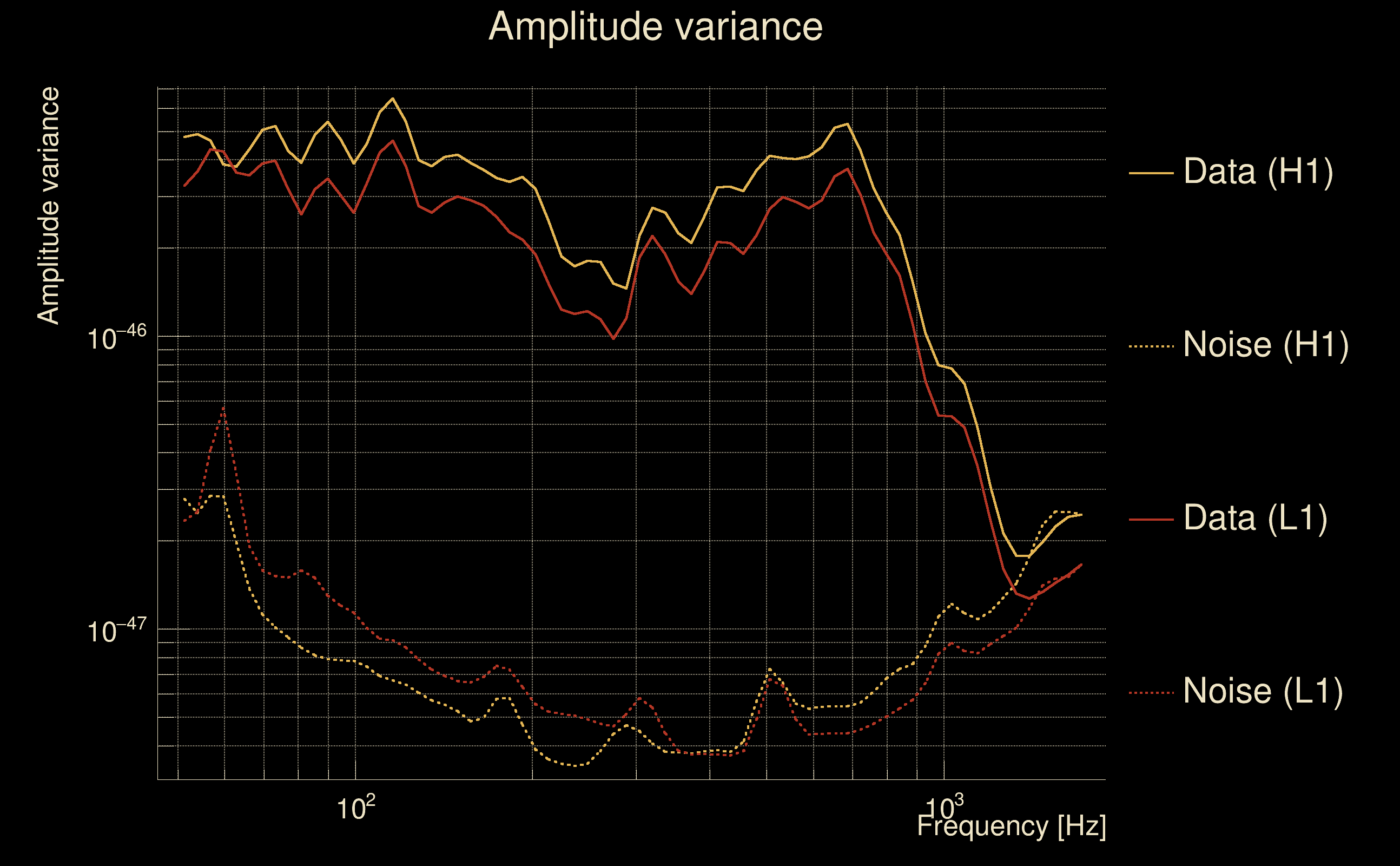

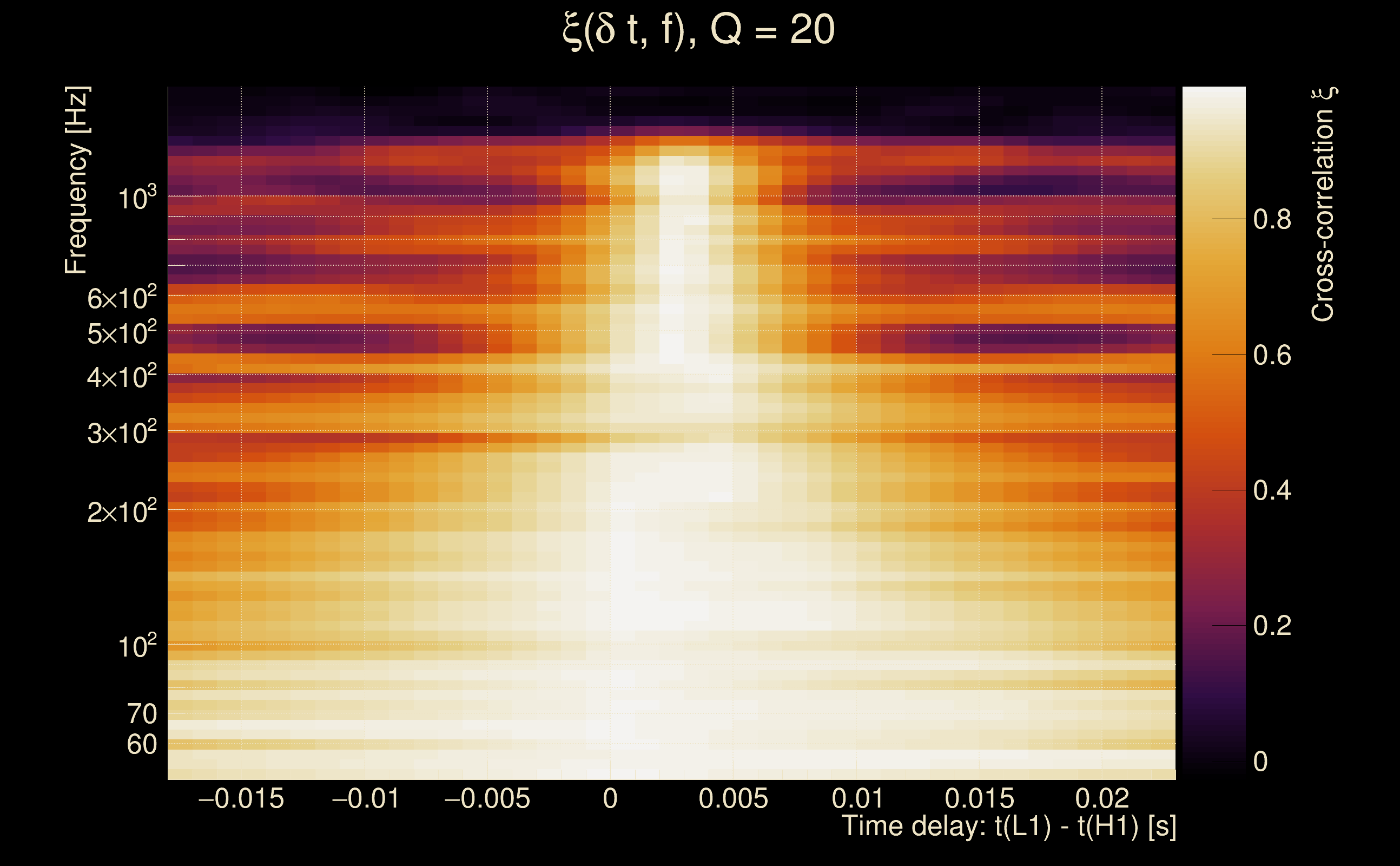

| Event time t(H1): | GPS = 1368424789 (Thu May 18 05:59:31 2023 ) → GPS = 1368424799 (Thu May 18 05:59:41 2023 ) |
| Event time t(L1): | GPS = 1368424789 (Thu May 18 05:59:41 2023 ) → GPS = 1368424799 (Thu May 18 05:59:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368424786 → GPS = 1368424802 |
| Omicron analysis time window (L1): | GPS = 1368424786 → GPS = 1368424802 |
| Time delay between detectors t(L1) - t(H1): | 0.00250598 s (slice index = 108 / 217), δt_gw = 0.00250598 s |
| Time delay standard deviation: | 0.0248658 s |
| [targeted mode] Time delay probability: | 0.968064 (0.0400371 sigmas), δt_target = 0.00192547 s |
| Frequency: | 259.047 Hz |
| Ξ: | 0.950242 ± 0.00489984 (variance = 2.40084e-05): Q0: 0.964108, Q1: 0.966193, Q2: 0.972976, Q3: 0.973478, Q4: 0.977291 |
| Rank: | R_A = 0.919895 |
| Log of amplitude ratio (L1/H1): | -0.188584, variance = 0.1512 (L1/H1: -0.19727, variance = 0.302145, H1/L1: 0.179419, variance = 0.302226) |
| Amplitude ratio (L1/H1): | 0.828131 ⋇ 1.47527 (L1/H1: 0.820969 ⋇ 1.73269, H1/L1: 1.19652 ⋇ 1.73282) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.981681 |
| Antenna factor probability: | 0.856076 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 4 / 70, Q3: 11 / 134, Q4: 29 / 258 |
| Maximum signal-to-noise ratio: | H1: 142.58, L1: 138.811 |
| SNR variance: | H1: 0.442561, L1: 0.381133 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368422244 (Thu May 18 05:17:06 2023 ) → GPS = 1368422254 (Thu May 18 05:17:16 2023 ) |
| Event time t(L1): | GPS = 1368422244 (Thu May 18 05:17:16 2023 ) → GPS = 1368422254 (Thu May 18 05:17:16 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368422241 → GPS = 1368422257 |
| Omicron analysis time window (L1): | GPS = 1368422241 → GPS = 1368422257 |
| Time delay between detectors t(L1) - t(H1): | 0.553591 s (slice index = 96 / 217), δt_gw = 0.00159103 s |
| Time delay standard deviation: | 0.0663015 s |
| [targeted mode] Time delay probability: | 0.996699 (0.00413702 sigmas), δt_target = 0.00248122 s |
| Frequency: | 132.279 Hz |
| Ξ: | 0.0445196 ± 0.0275355 (variance = 0.000758203): Q0: 0.168413, Q1: 0.221439, Q2: 0.168637, Q3: 0.191787, Q4: 0.138826 |
| Rank: | R_A = 0.0443726 |
| Log of amplitude ratio (L1/H1): | -0.0918241, variance = 0.416901 (L1/H1: -1.92851, variance = 0.775558, H1/L1: -1.96124, variance = 0.900791) |
| Amplitude ratio (L1/H1): | 0.912266 ⋇ 1.90728 (L1/H1: 0.145364 ⋇ 2.41249, H1/L1: 0.140684 ⋇ 2.58338) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00266216 |
| Antenna factor probability: | 0.978337 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 29 / 36, Q2: 59 / 70, Q3: 122 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 16.9734, L1: 16.0541 |
| SNR variance: | H1: 0.875174, L1: 0.84624 |

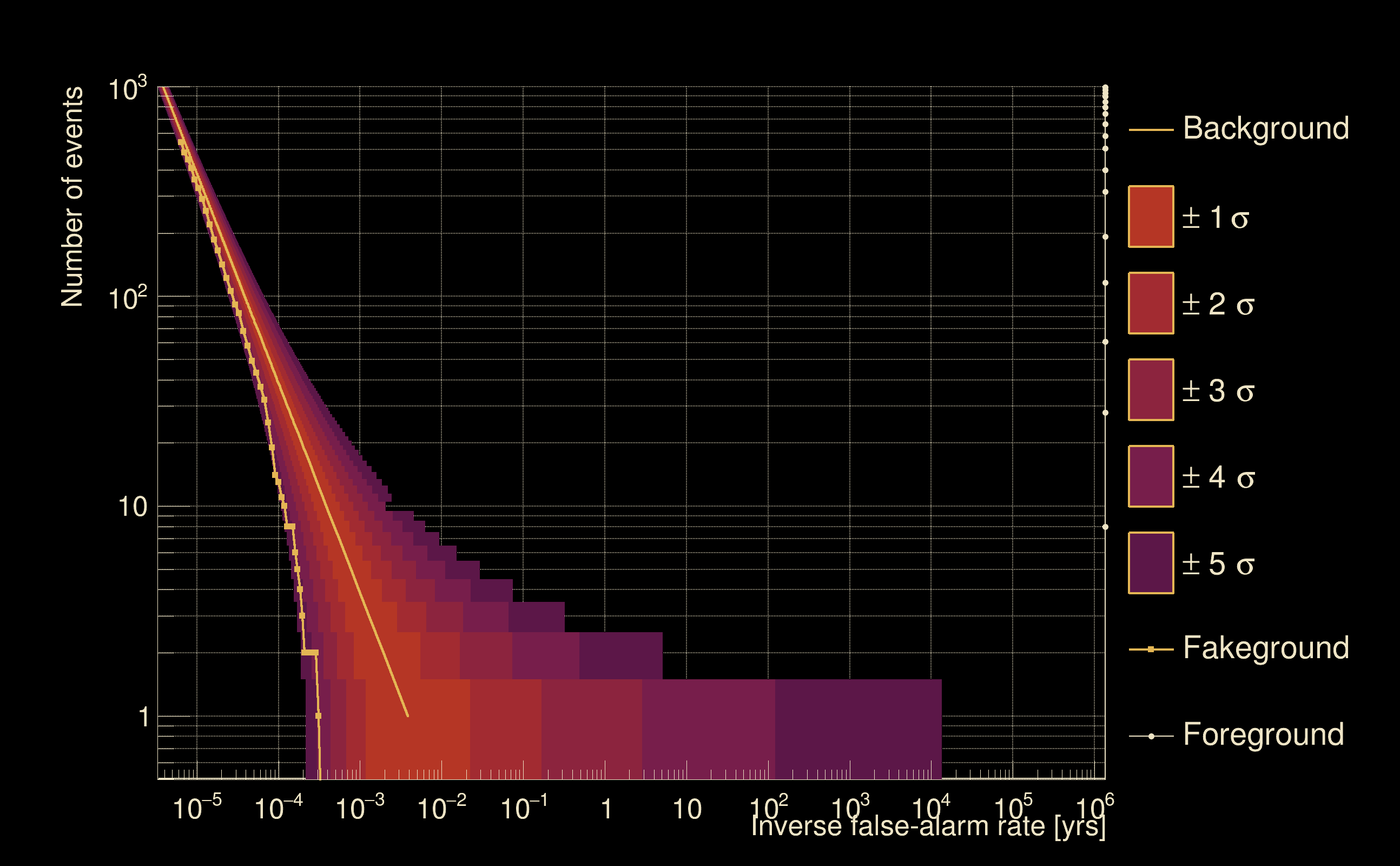

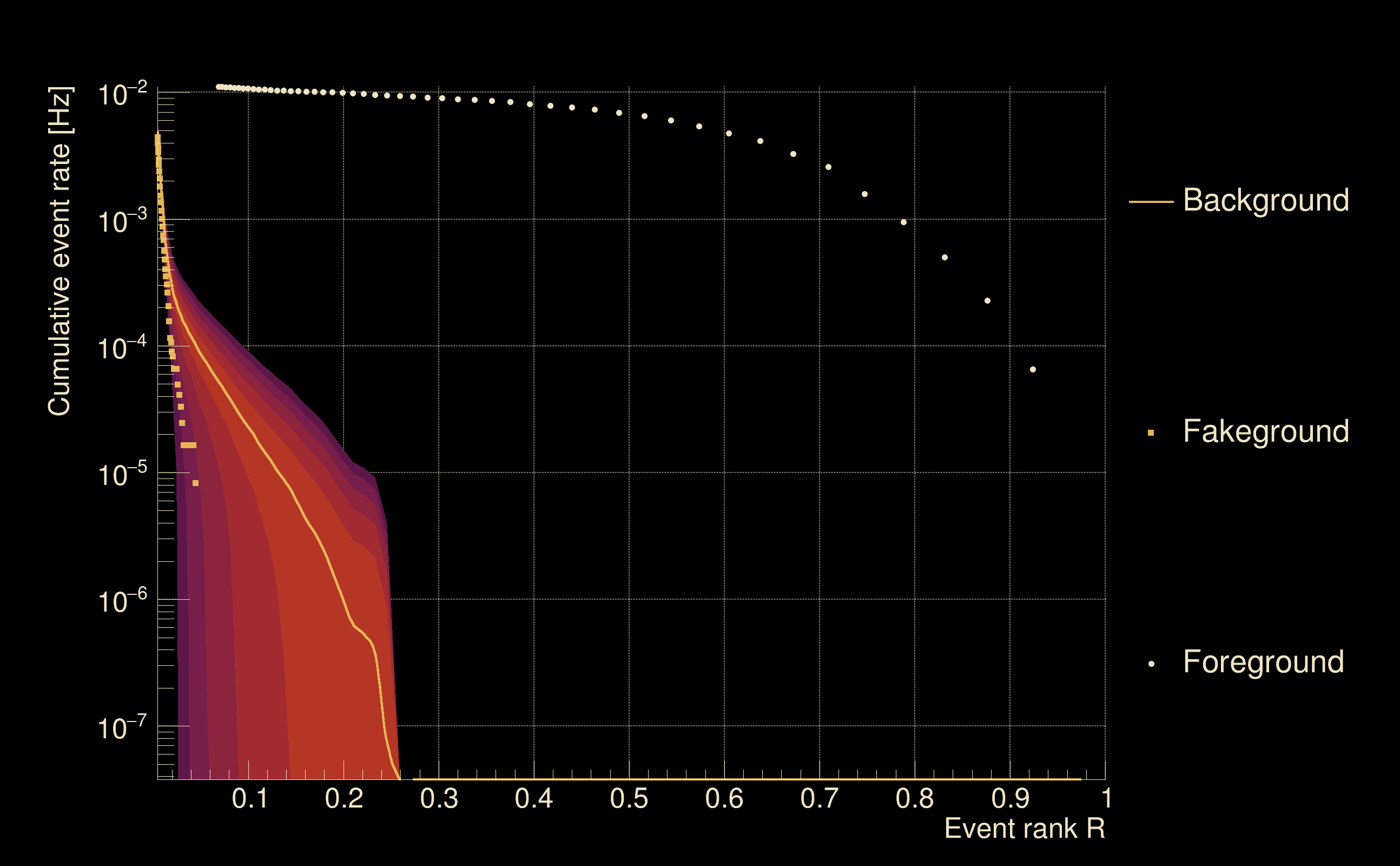

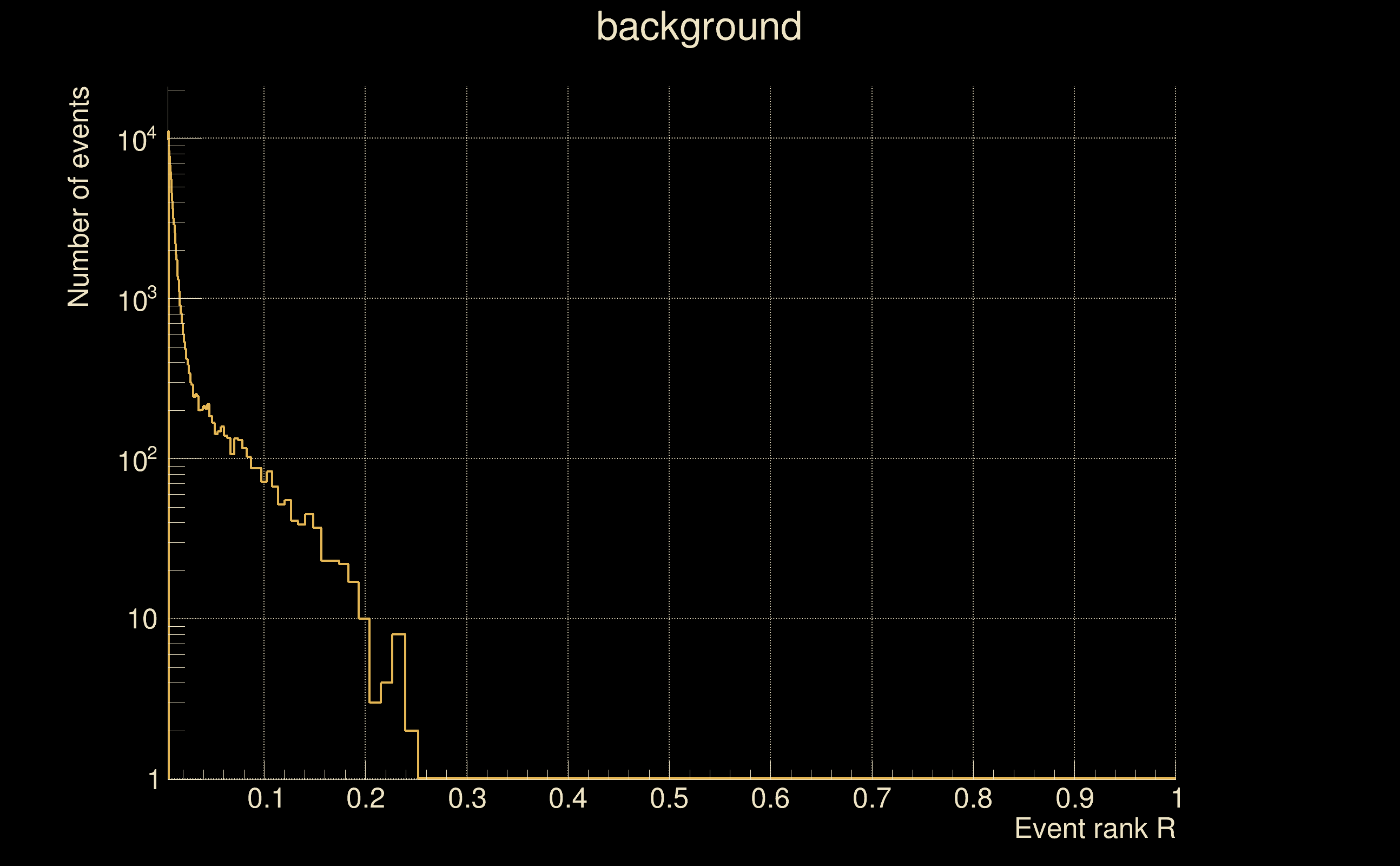

| Detection threshold: | R > 0.213082 |
| False-alarm rate above that detection threshold: | 5.53435e-07 |
| Alternative threshold at 1/1000 yrs: | R > 0.245685 |
| Alternative threshold at 1/100 yrs: | R > 0.245685 |
| Alternative threshold at 1/10 yrs: | R > 0.245685 |
| Alternative threshold at 1/1 yr: | R > 0.245685 |
| Alternative threshold at 1/1 d: | R > 0.123511 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

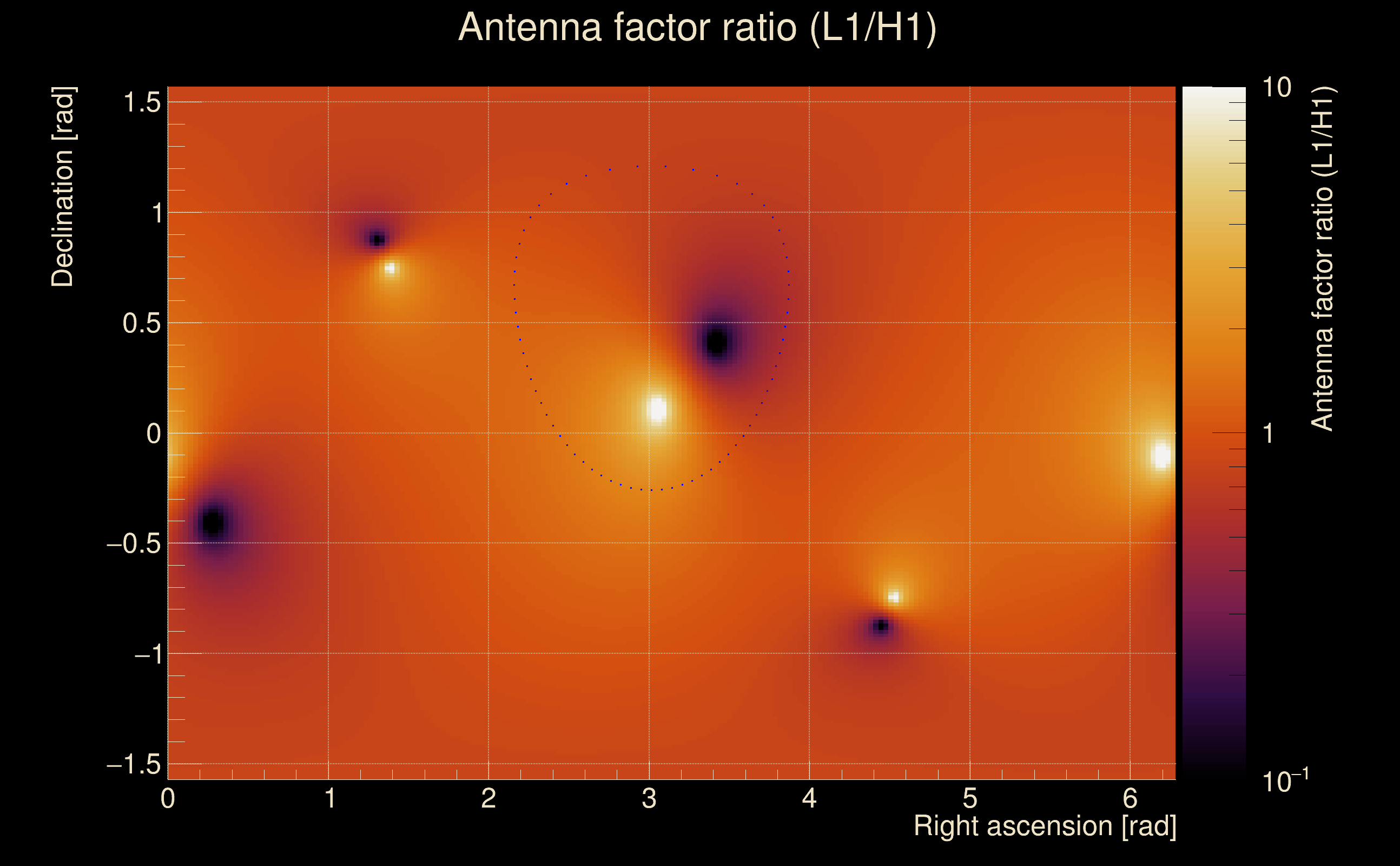

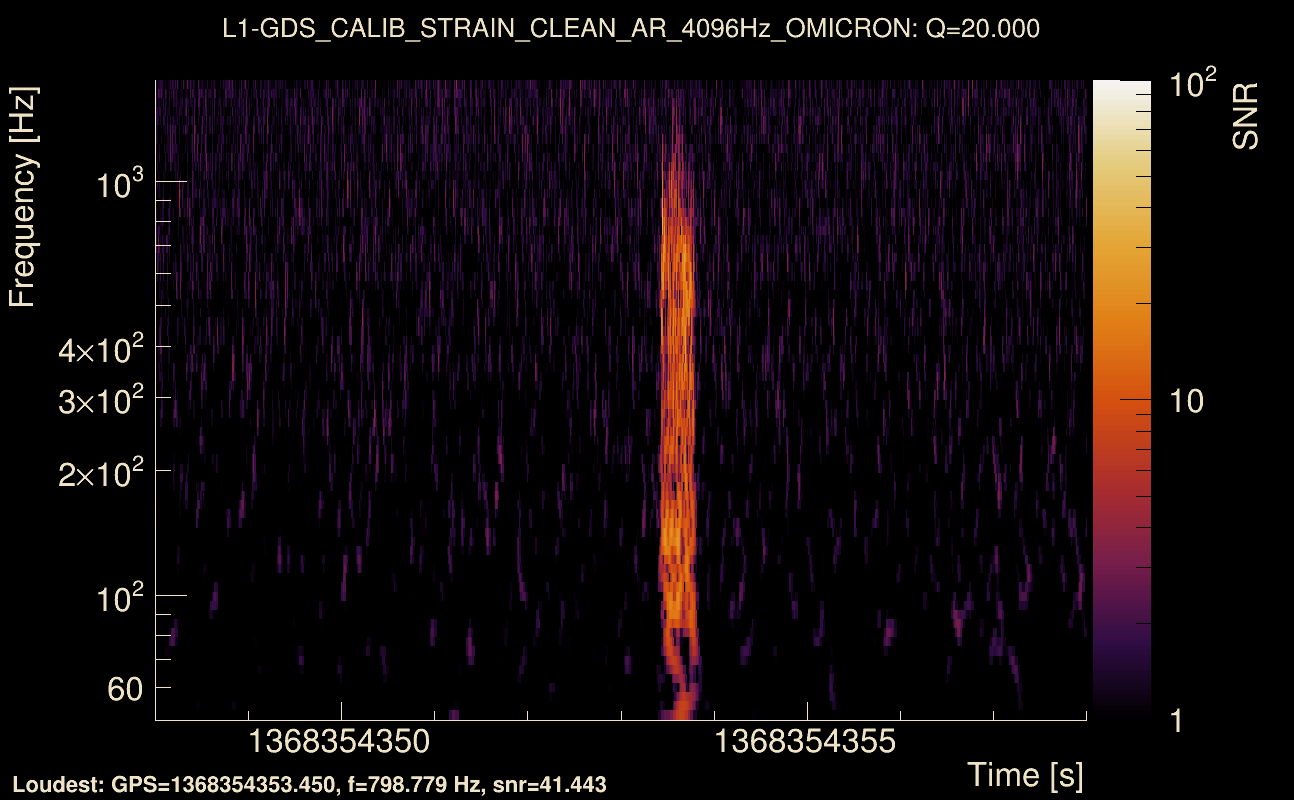

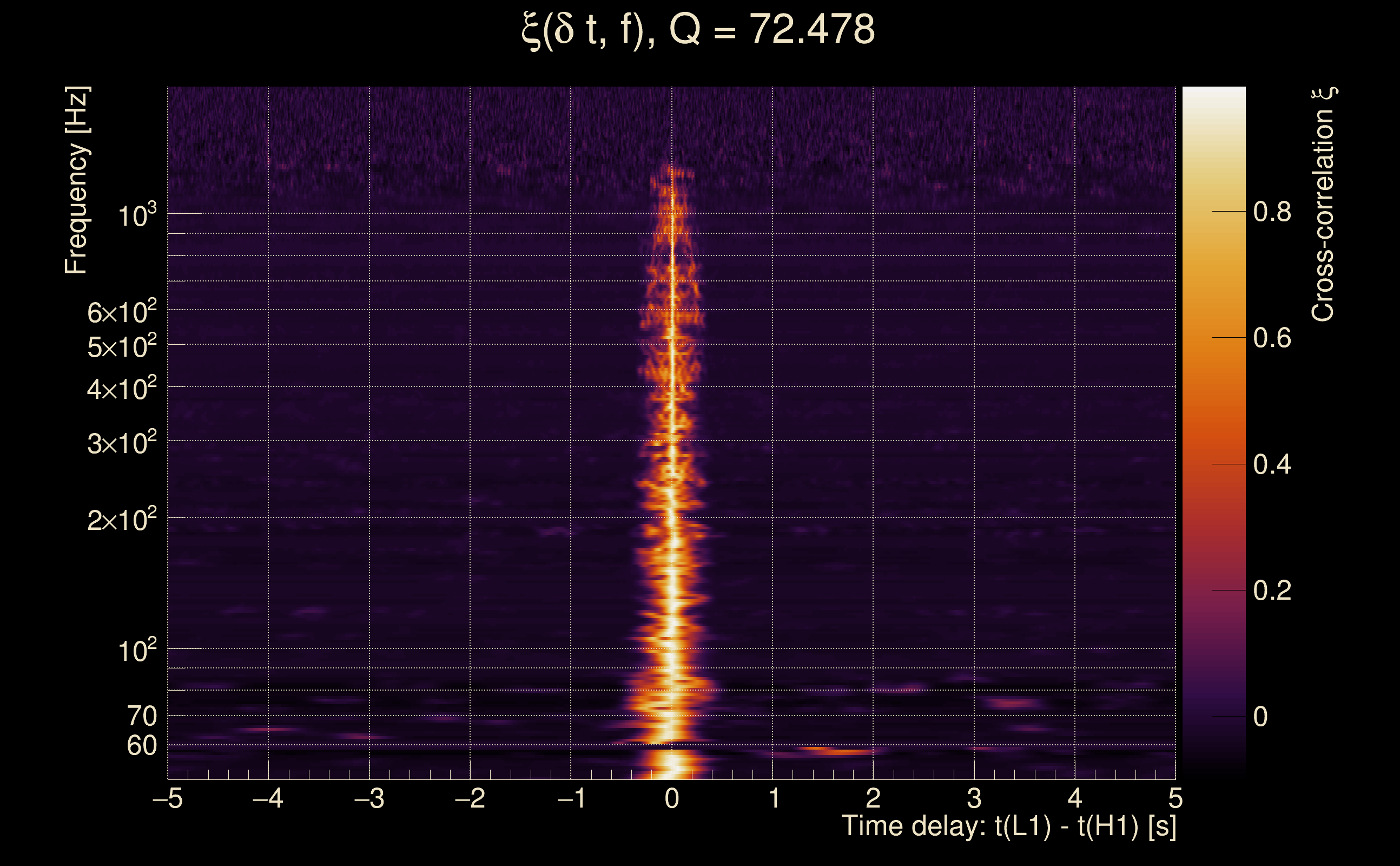

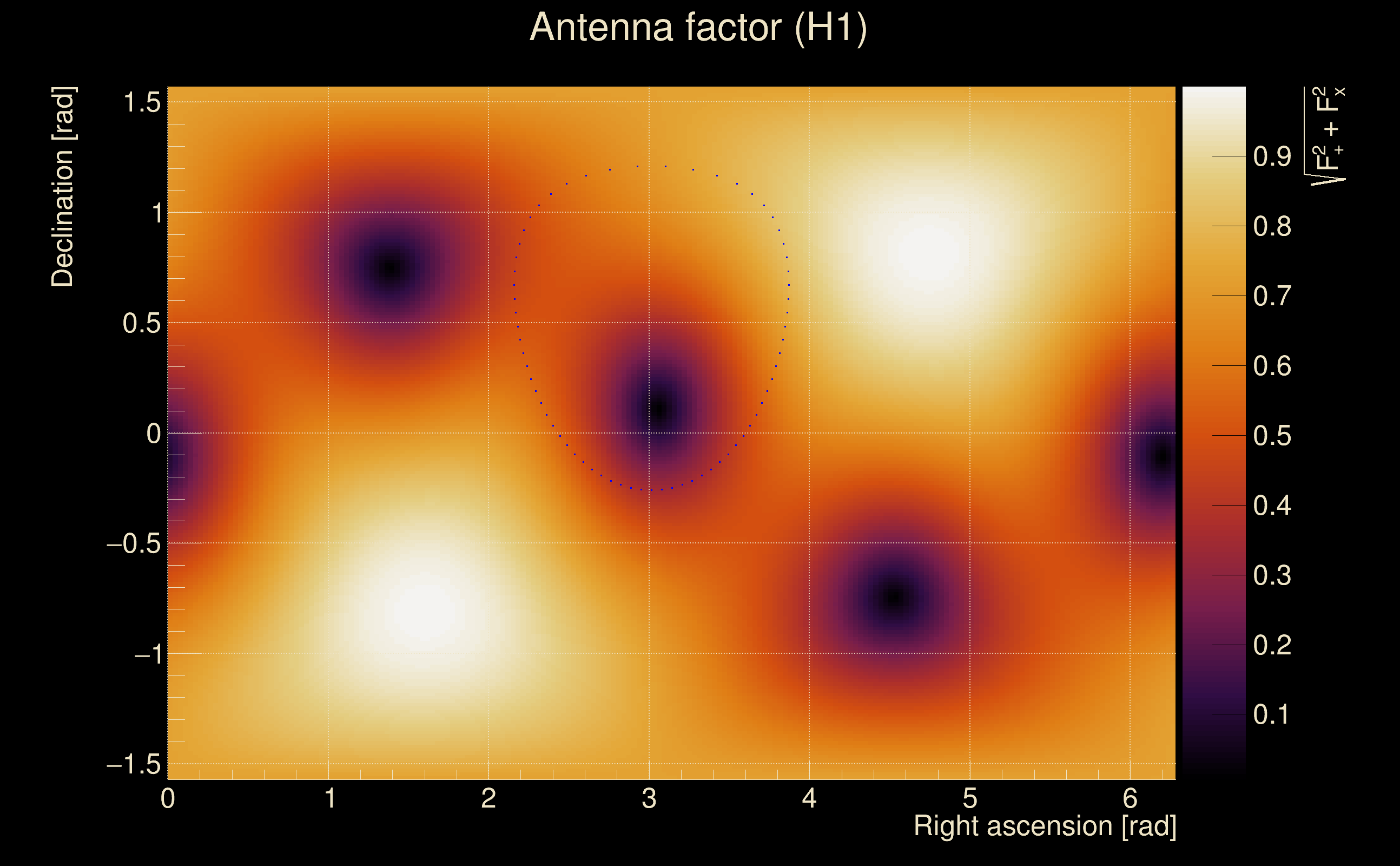

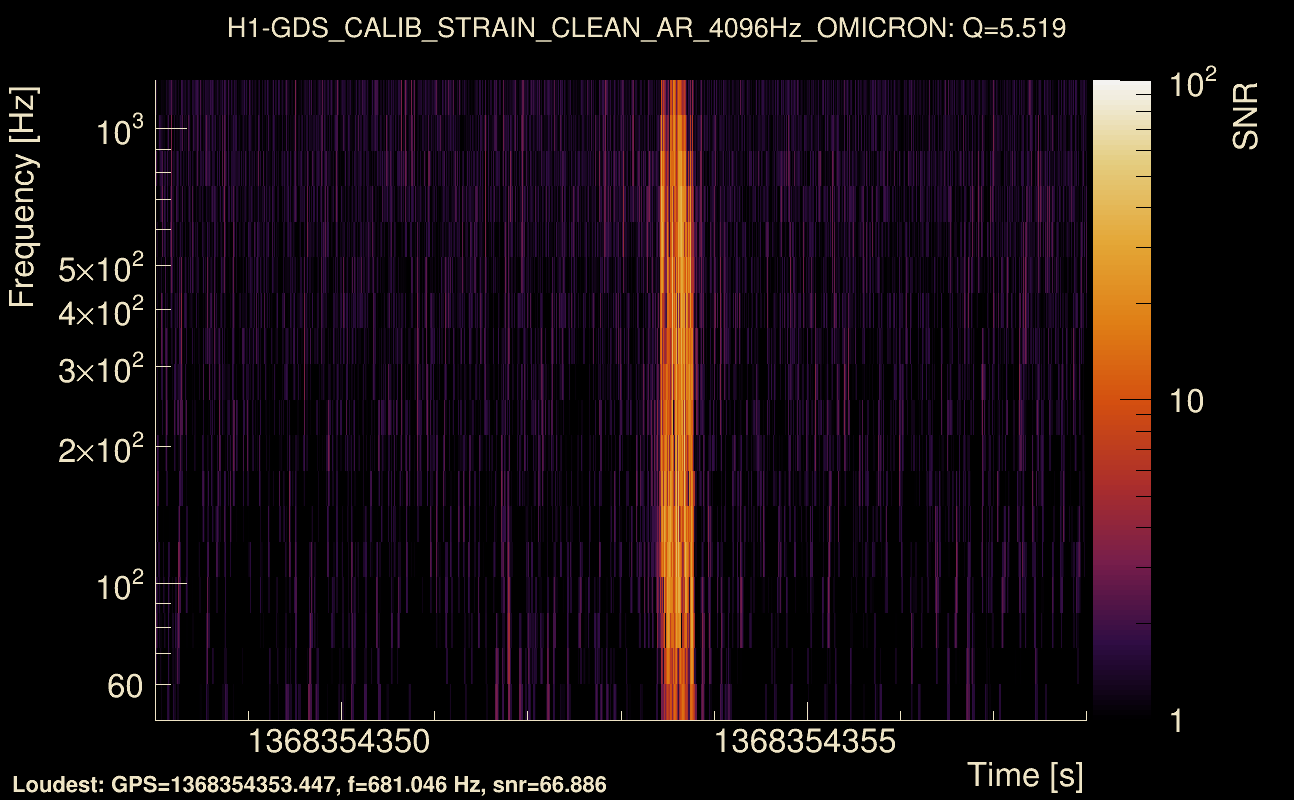

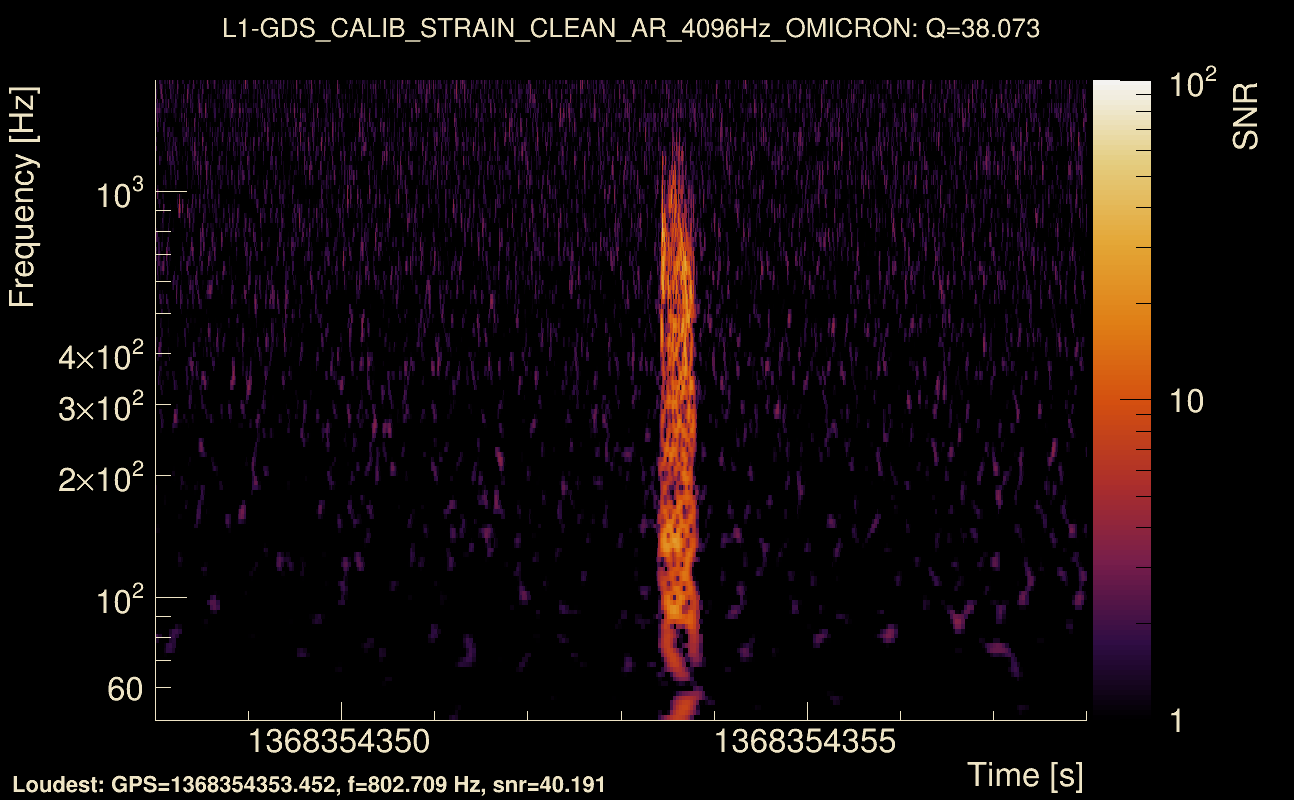

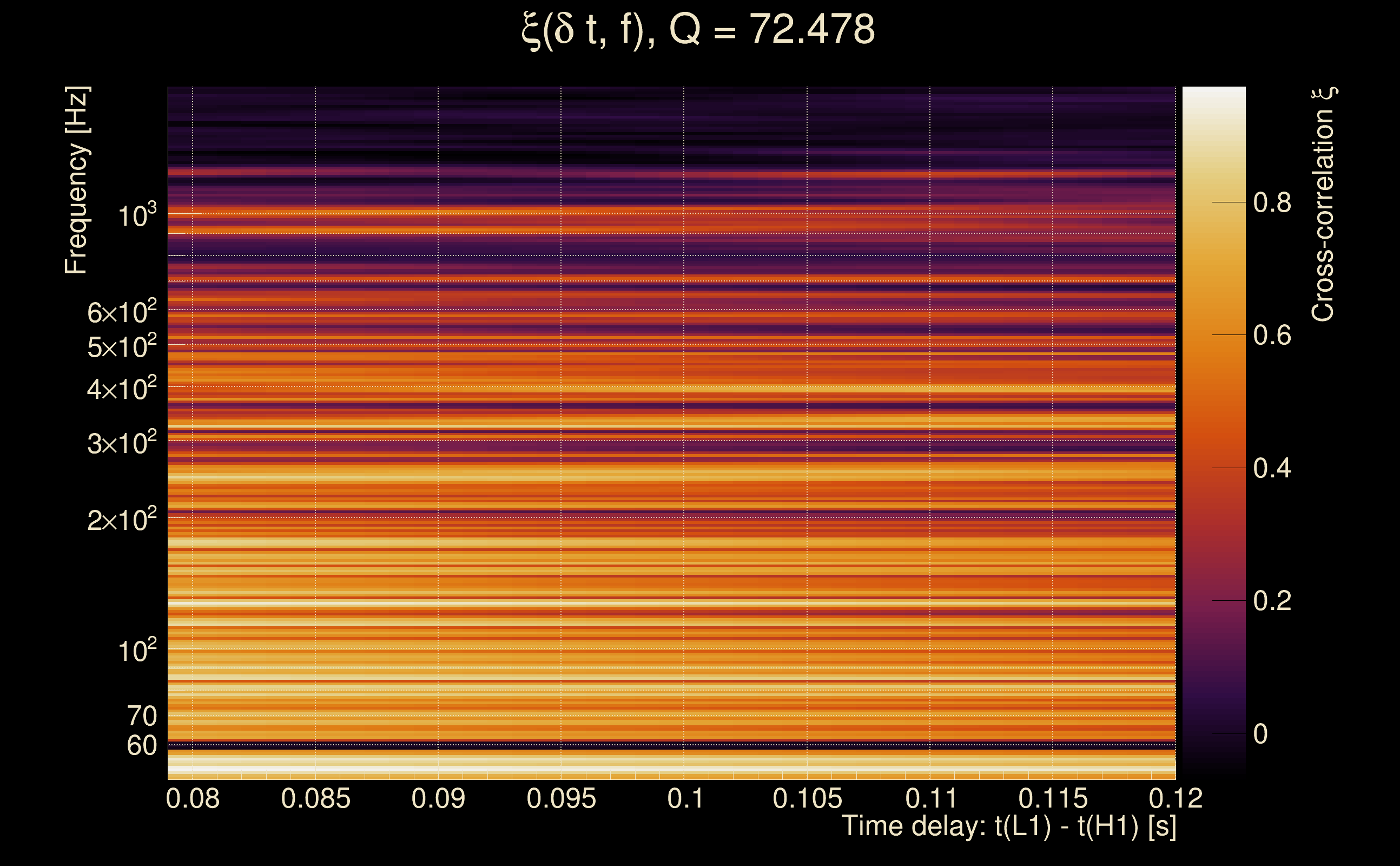

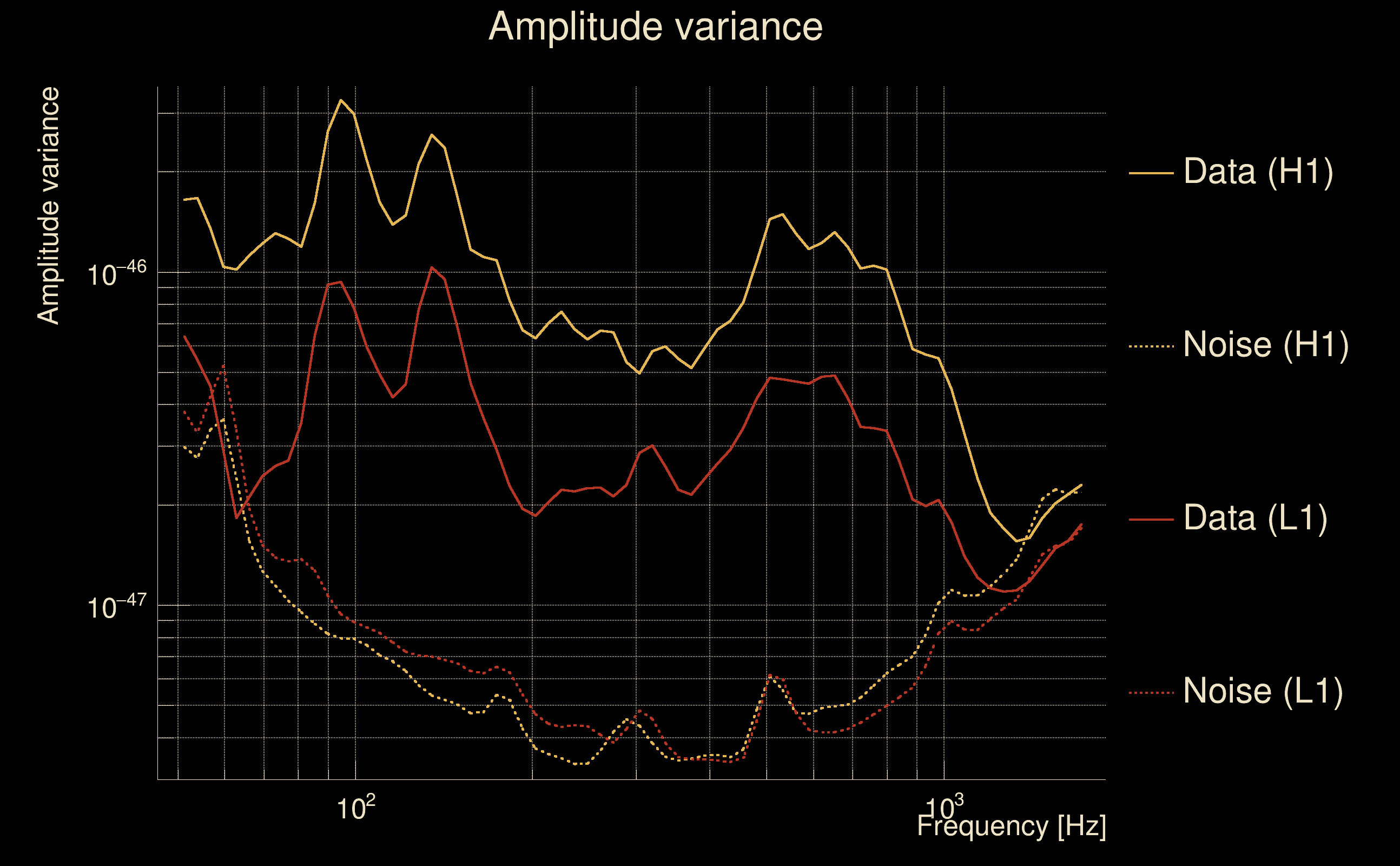

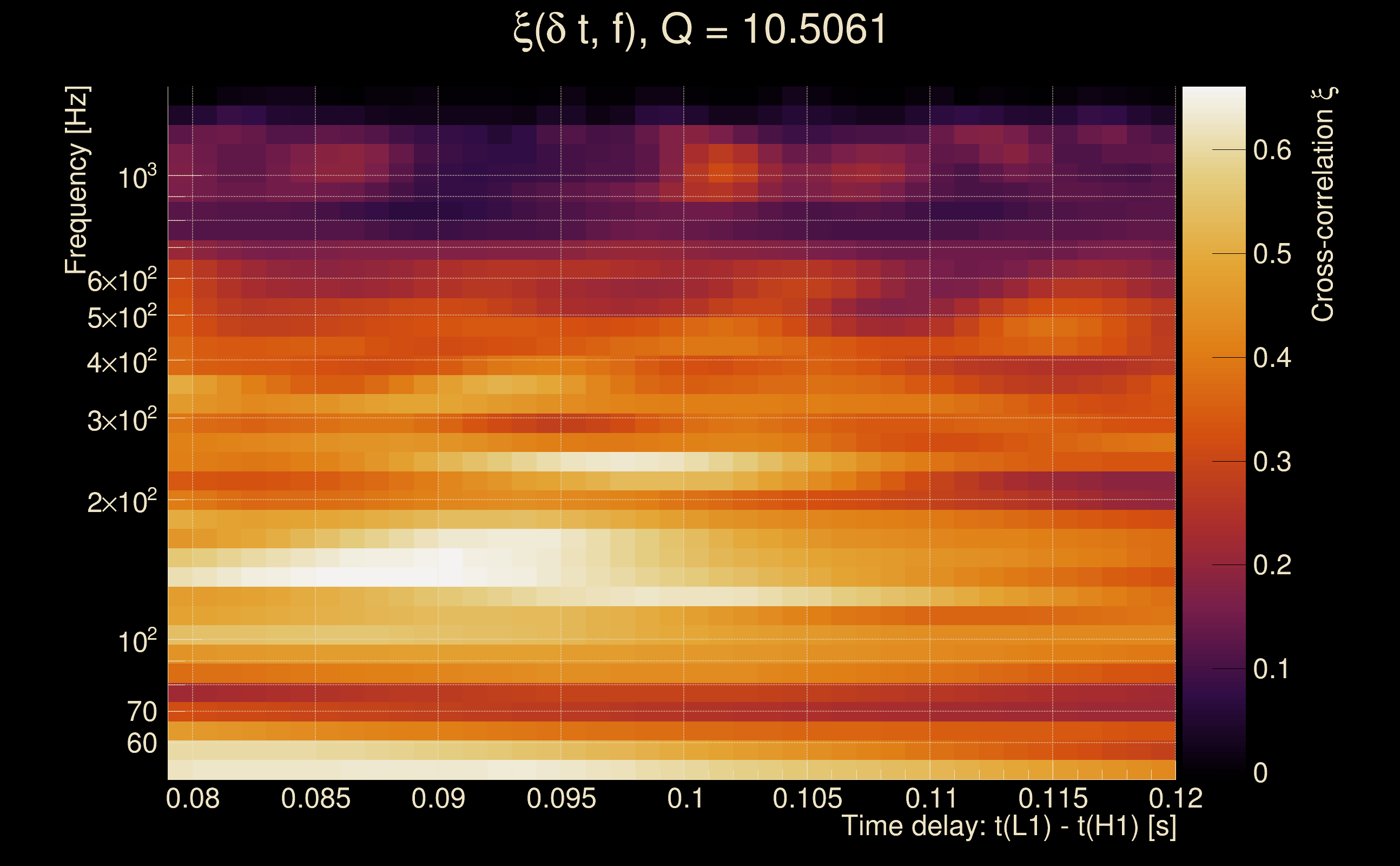

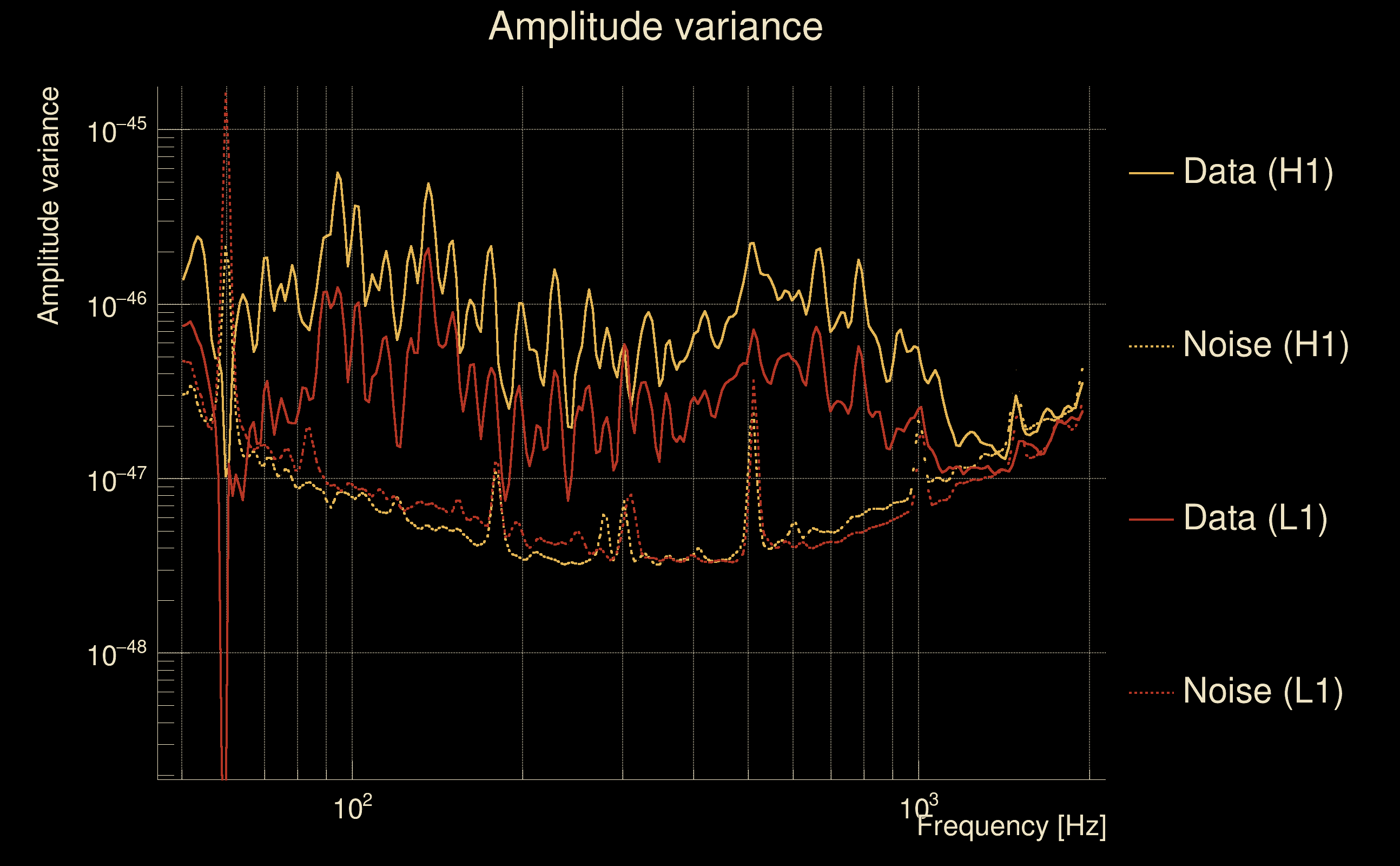

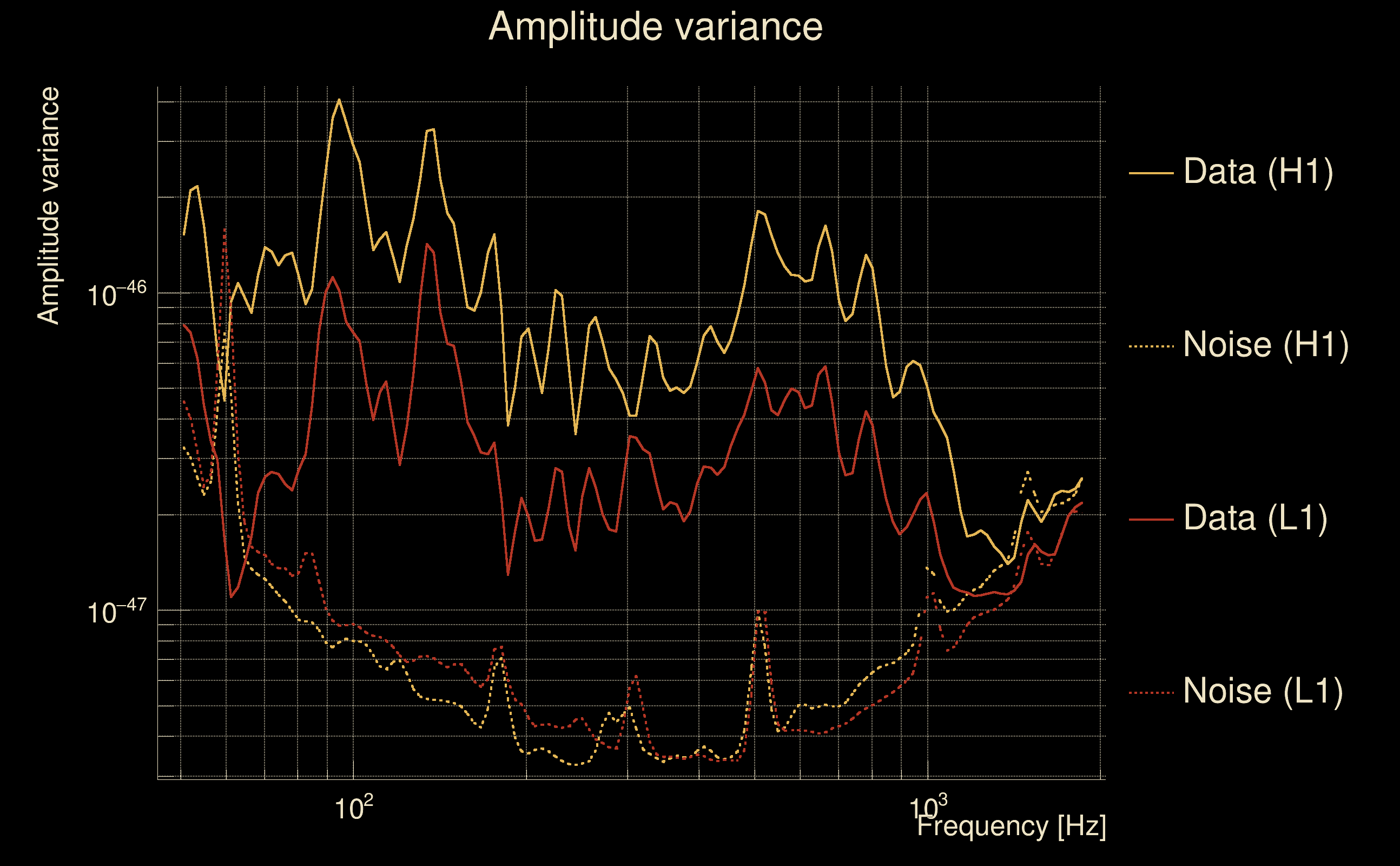

| Event time t(H1): | GPS = 1368354348 (Wed May 17 10:25:30 2023 ) → GPS = 1368354358 (Wed May 17 10:25:40 2023 ) |
| Event time t(L1): | GPS = 1368354348 (Wed May 17 10:25:40 2023 ) → GPS = 1368354358 (Wed May 17 10:25:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368354345 → GPS = 1368354361 |
| Omicron analysis time window (L1): | GPS = 1368354345 → GPS = 1368354361 |
| Time delay between detectors t(L1) - t(H1): | 0.0994321 s (slice index = 106 / 217), δt_gw = 0.00743206 s |
| Time delay standard deviation: | 0.0673497 s |
| [targeted mode] Time delay probability: | 0.934036 (0.0827677 sigmas), δt_target = 0.00248122 s |
| Frequency: | 205.761 Hz |
| Ξ: | 0.257198 ± 0.0296781 (variance = 0.000880791): Q0: 0.470842, Q1: 0.517605, Q2: 0.532359, Q3: 0.558348, Q4: 0.540961 |
| Rank: | R_A = 0.240232 |
| Log of amplitude ratio (L1/H1): | -0.76084, variance = 0.19697 (L1/H1: -0.988802, variance = 0.327543, H1/L1: 0.148266, variance = 0.312698) |
| Amplitude ratio (L1/H1): | 0.467274 ⋇ 1.55864 (L1/H1: 0.372022 ⋇ 1.77236, H1/L1: 1.15982 ⋇ 1.74926) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.293501 |

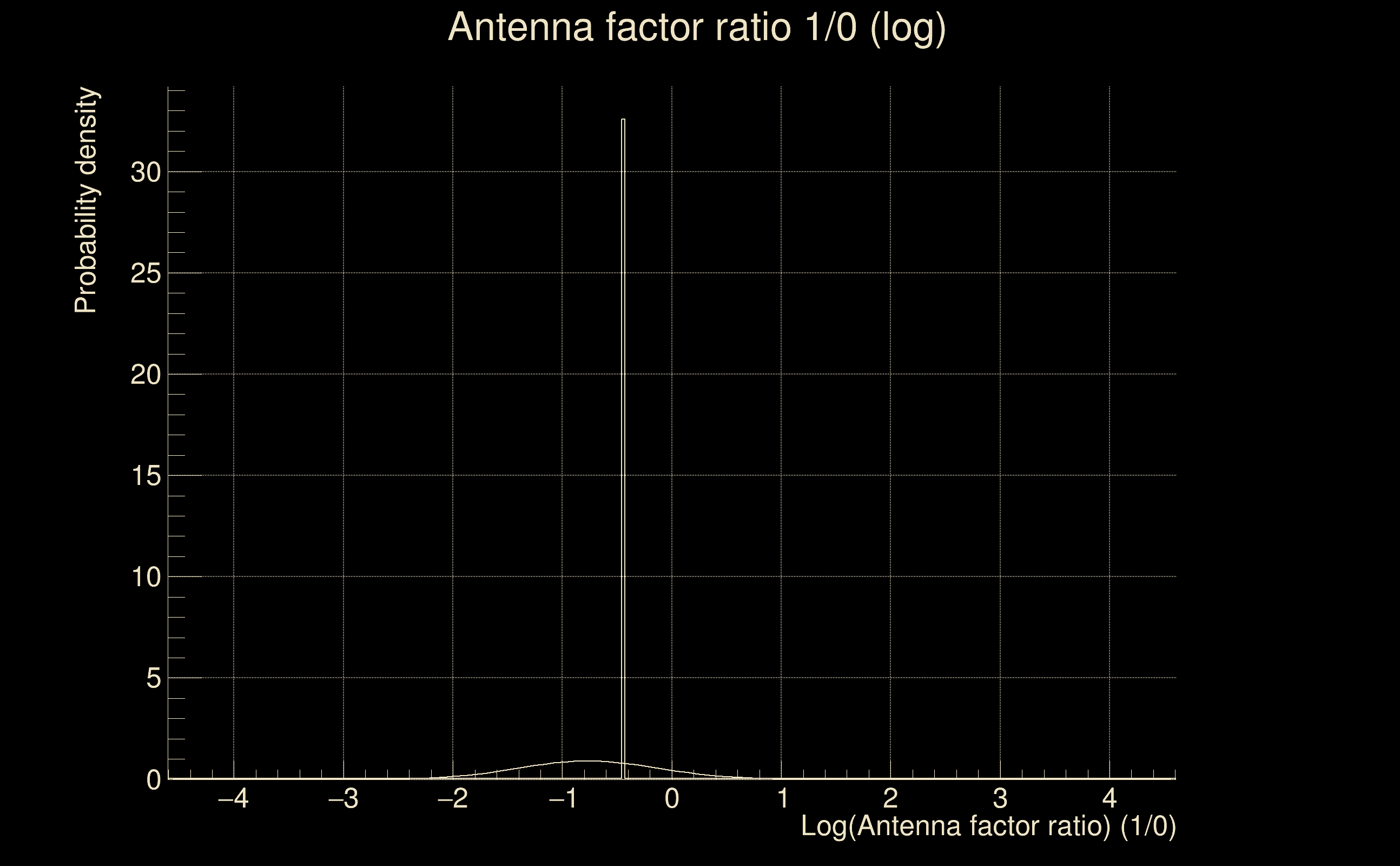

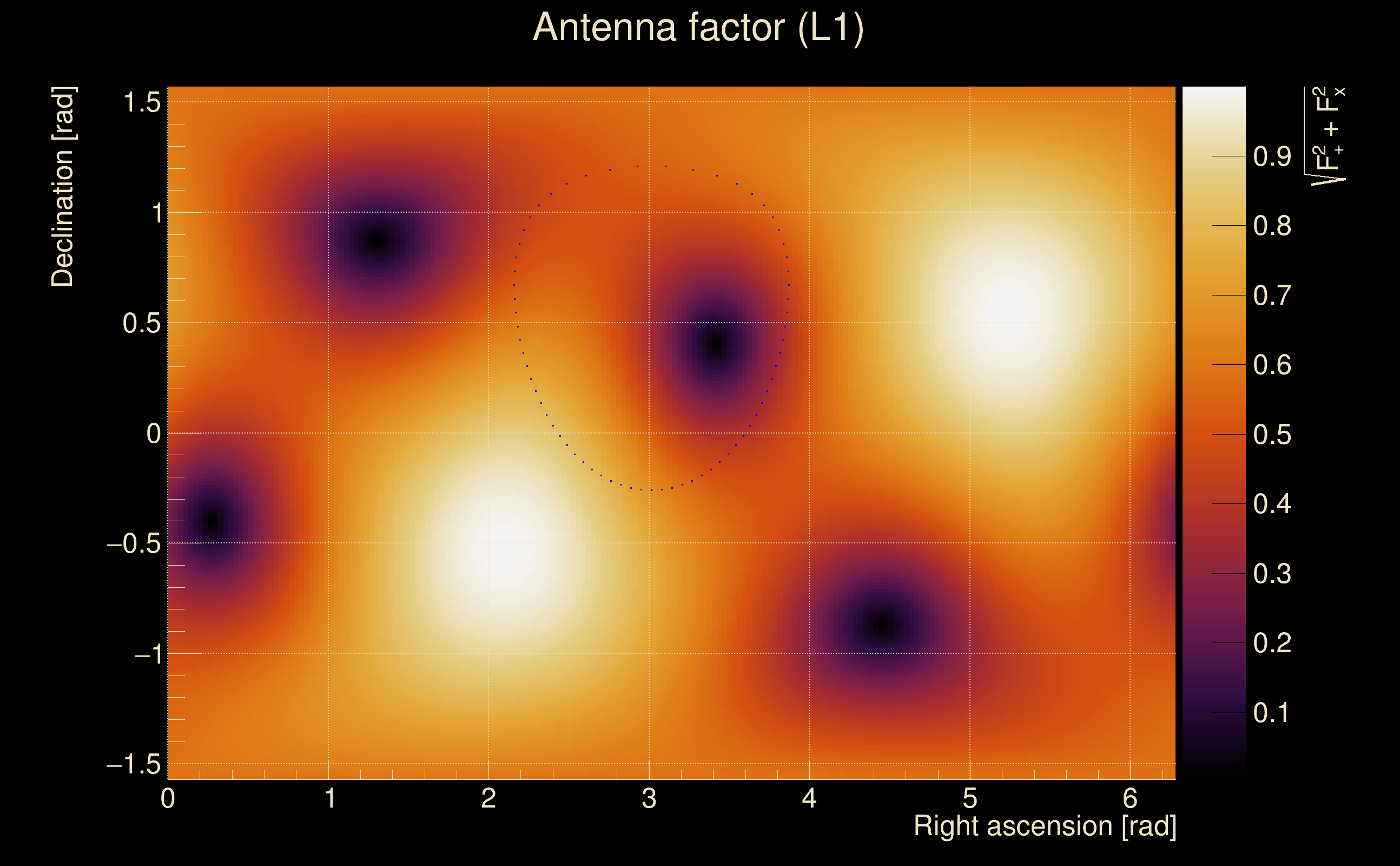

| Antenna factor probability: | 0.480184 |
| Number of rejected frequency rows: | Q0: 7 / 18, Q1: 17 / 36, Q2: 39 / 70, Q3: 106 / 134, Q4: 232 / 258 |
| Maximum signal-to-noise ratio: | H1: 70.3975, L1: 42.9446 |
| SNR variance: | H1: 0.538753, L1: 0.509392 |

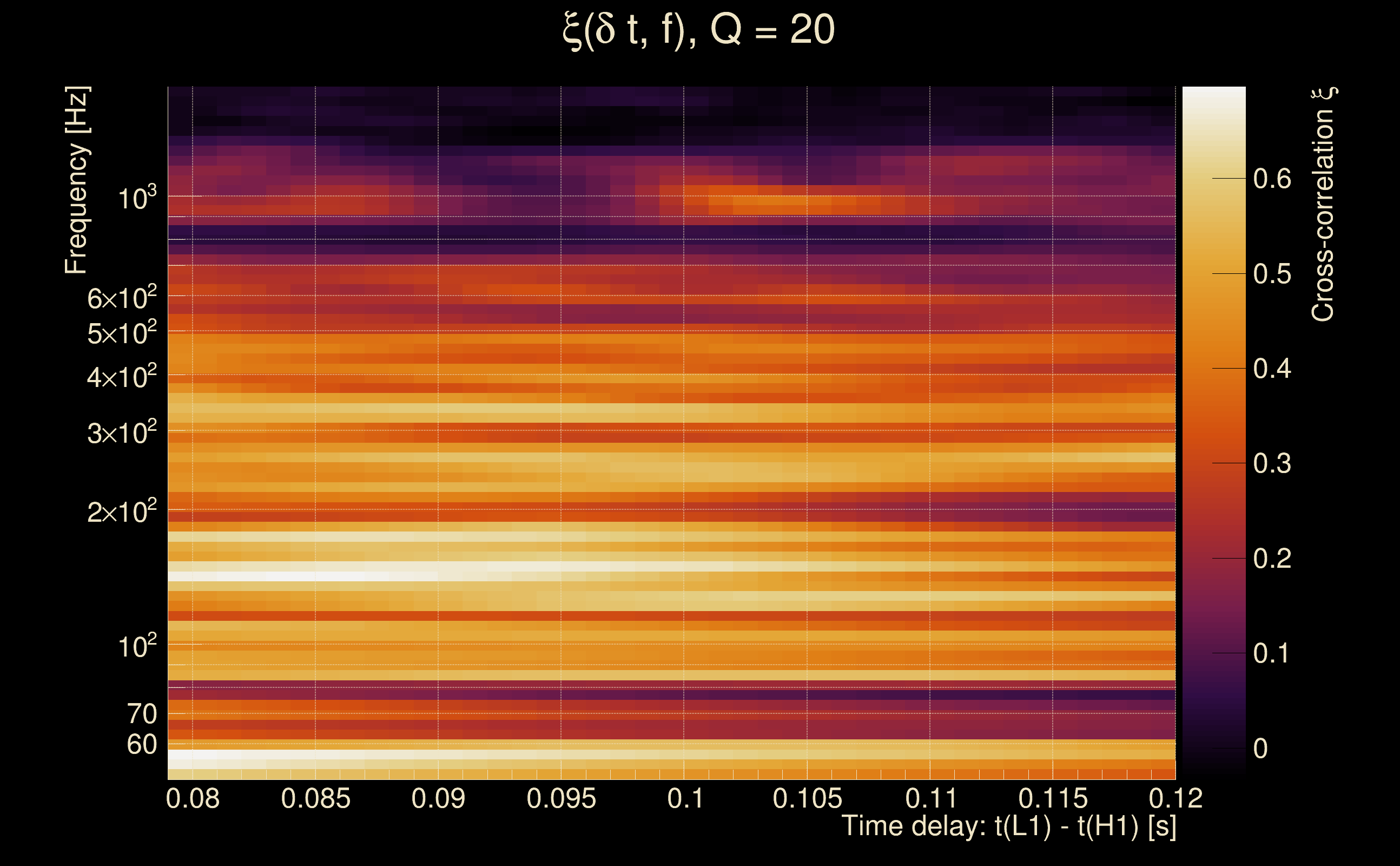

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

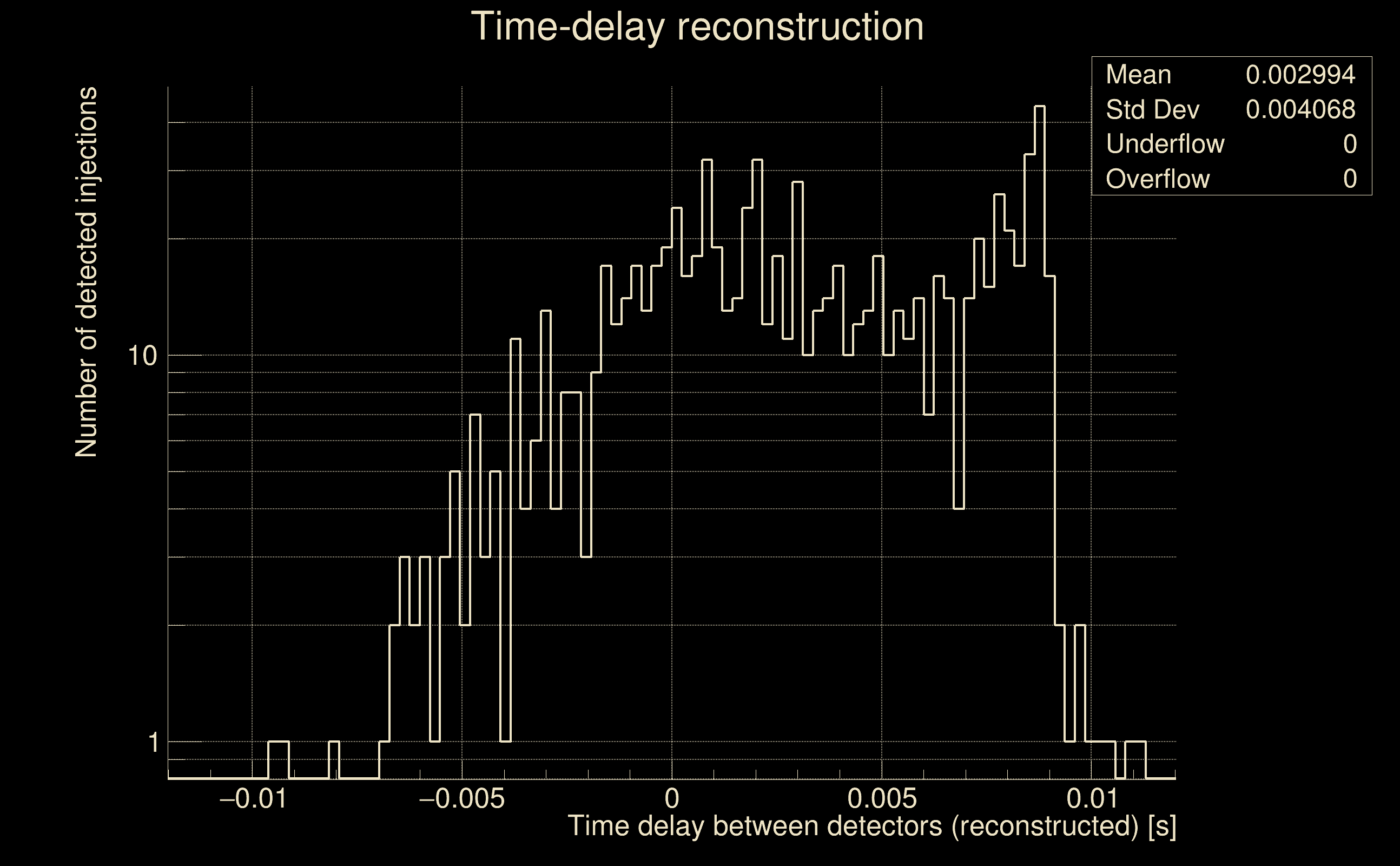

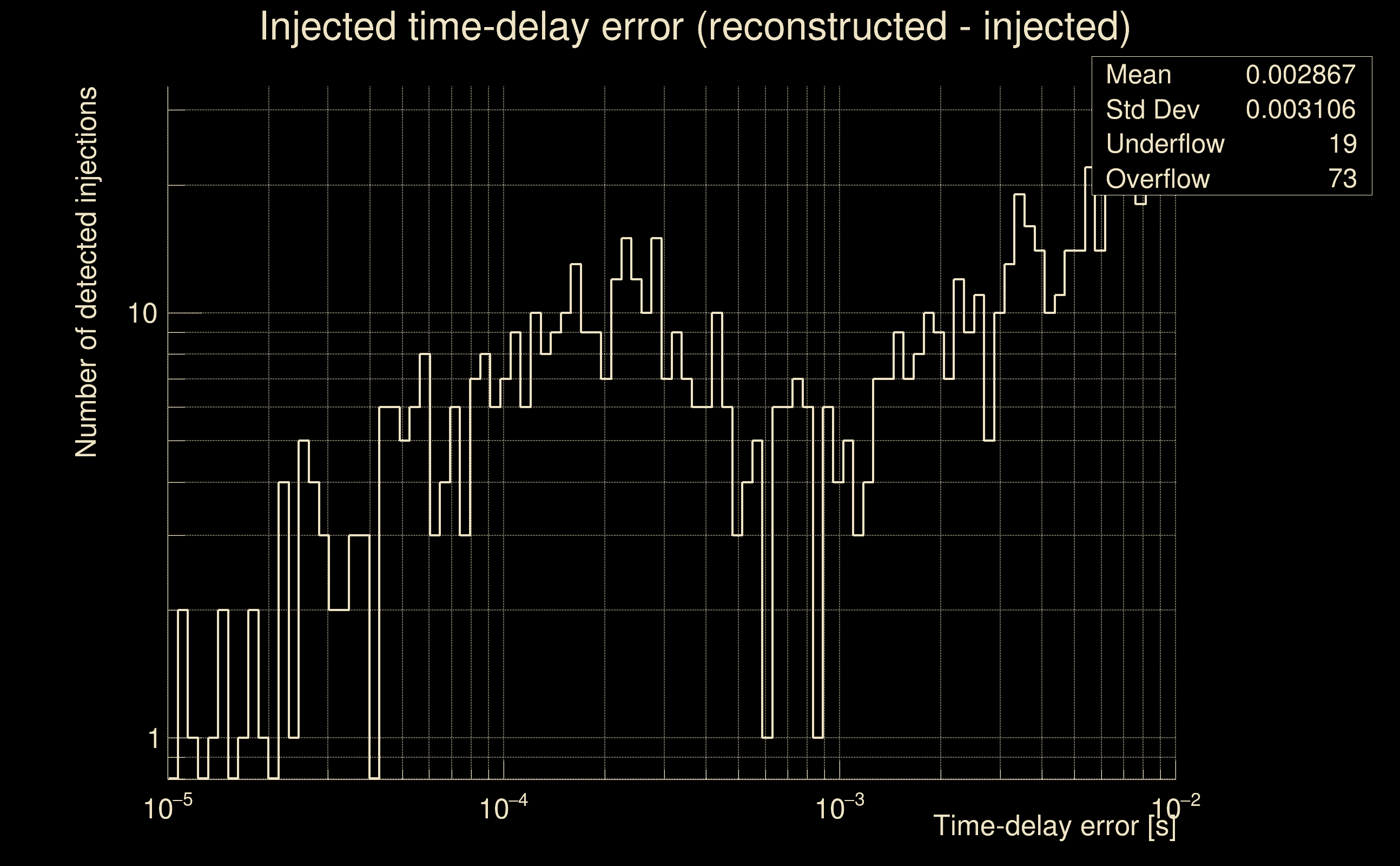

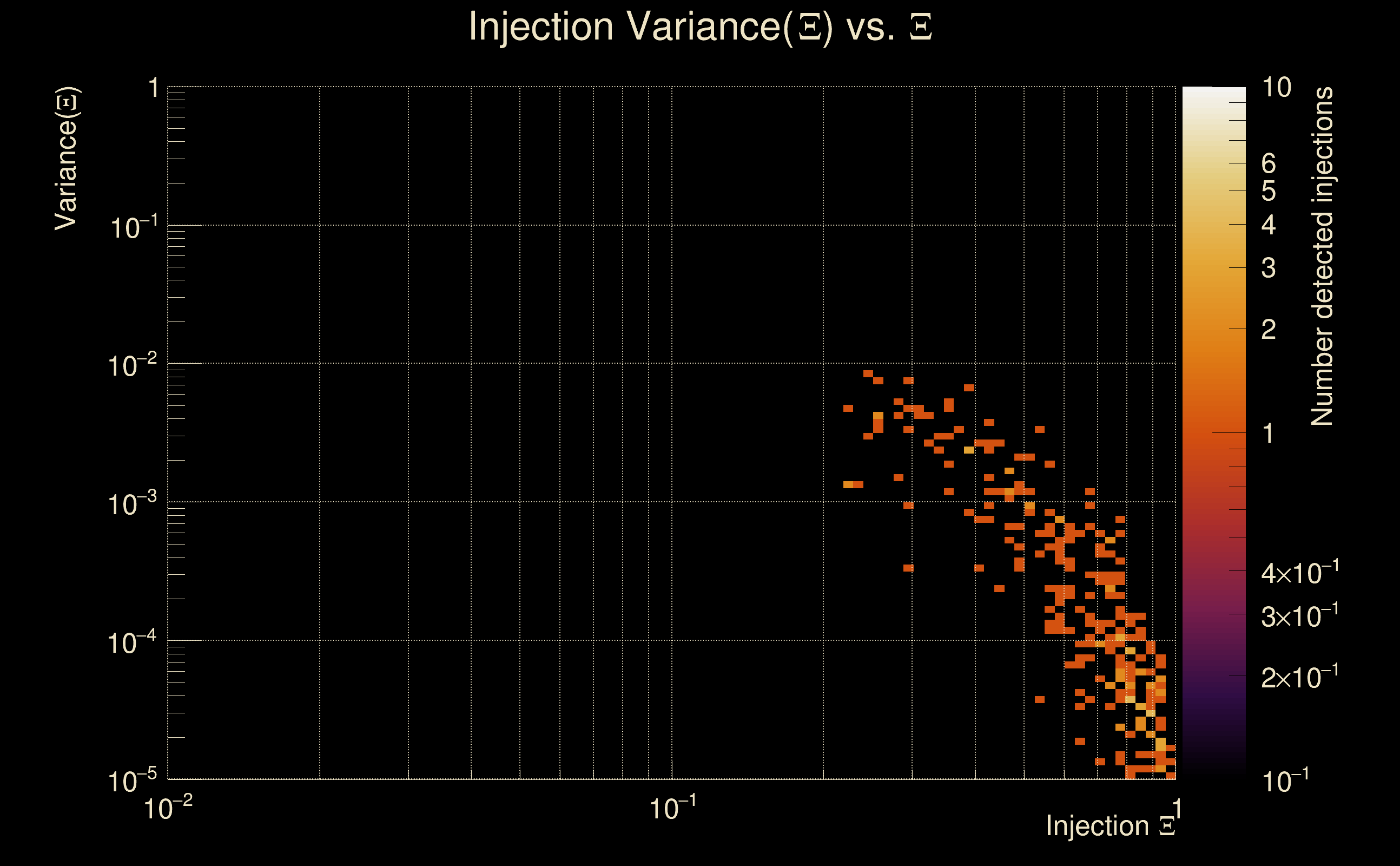

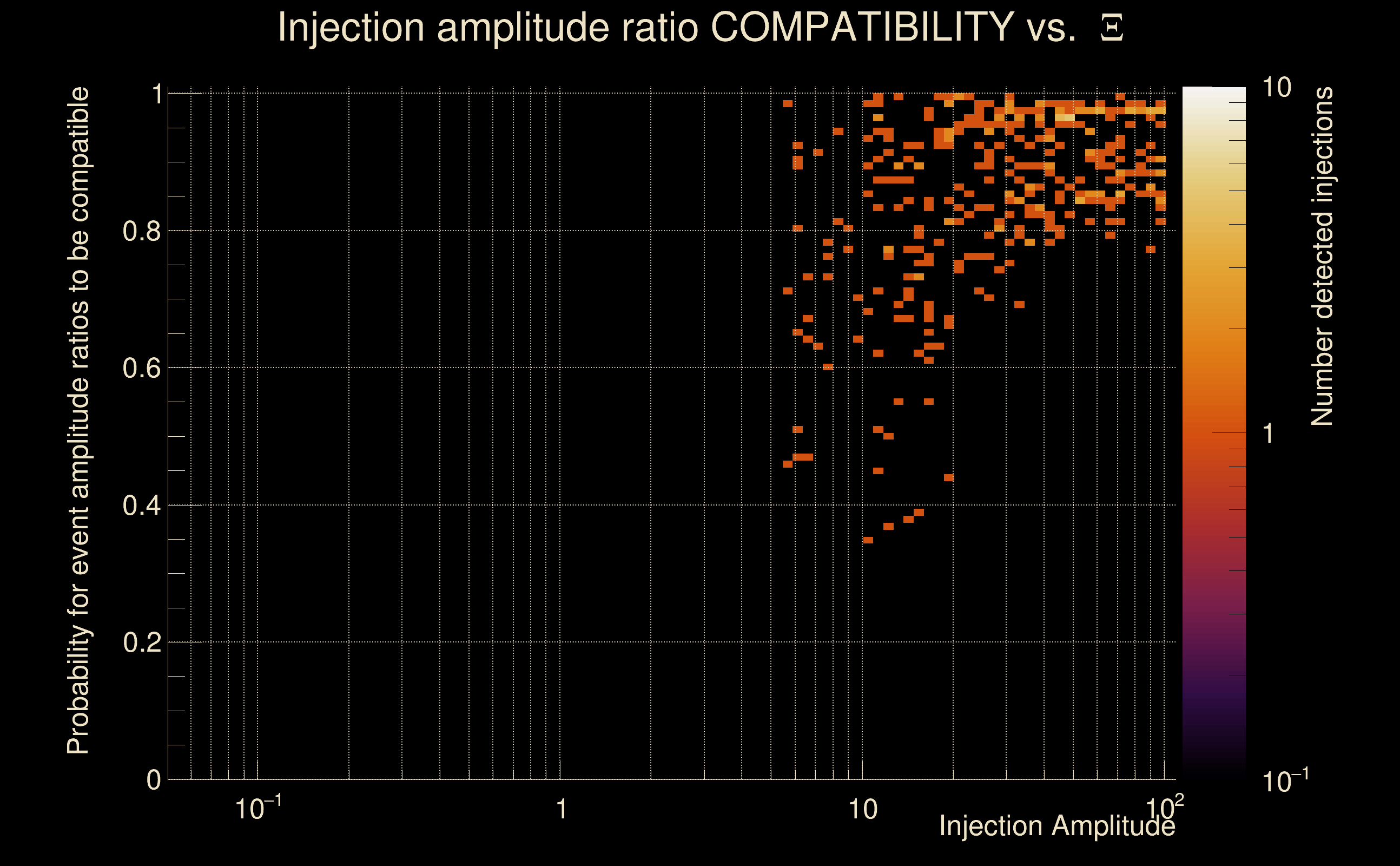

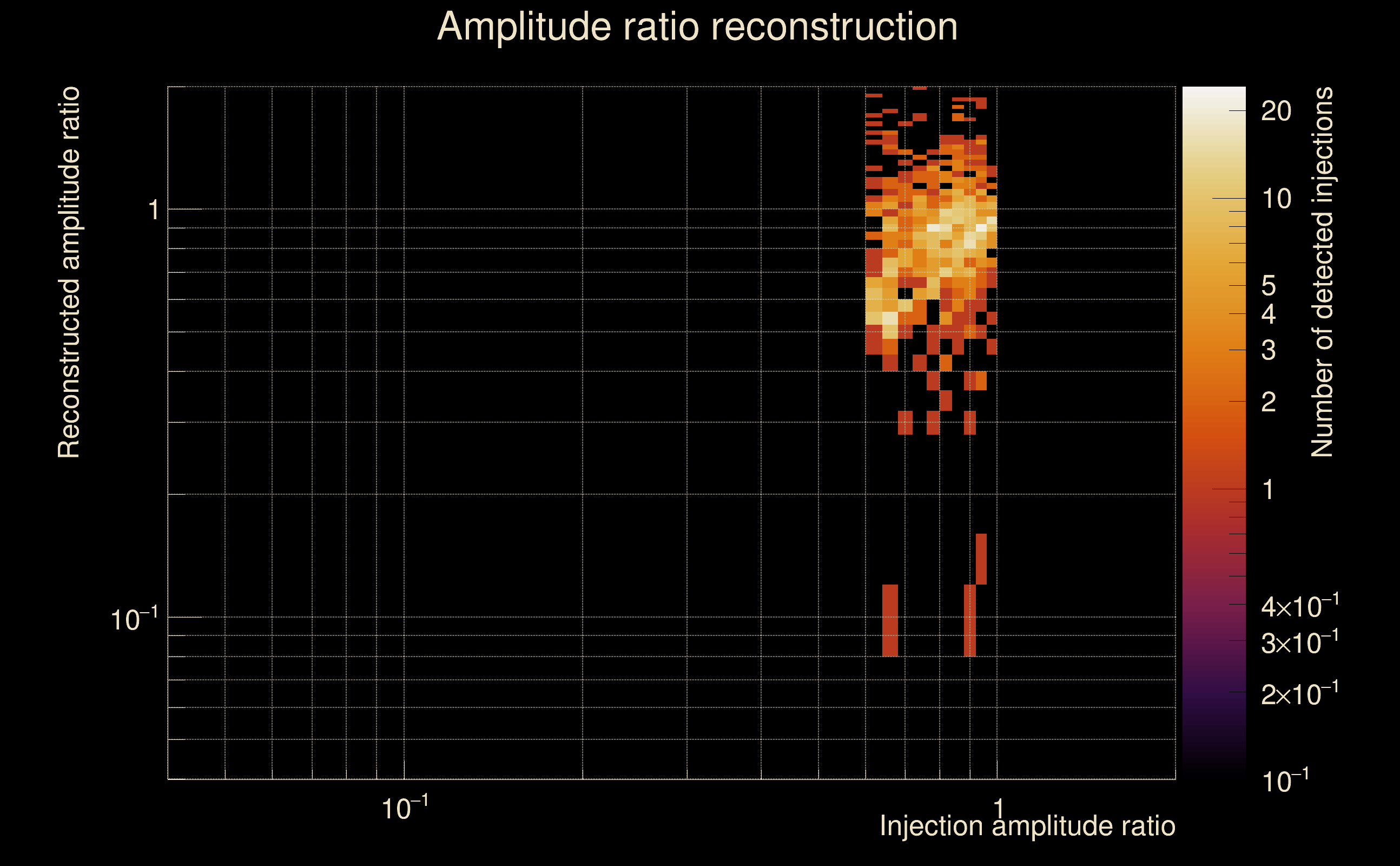

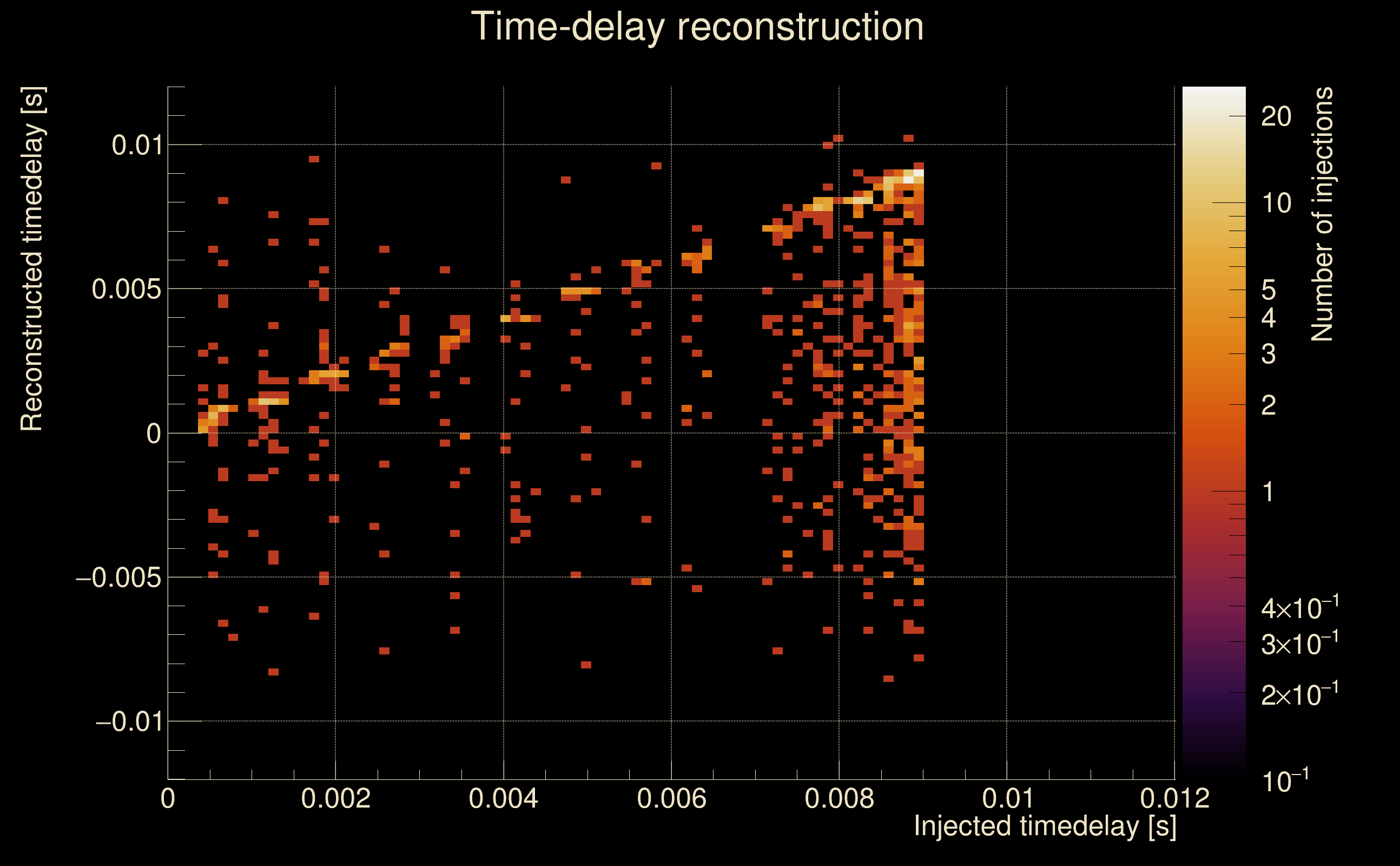

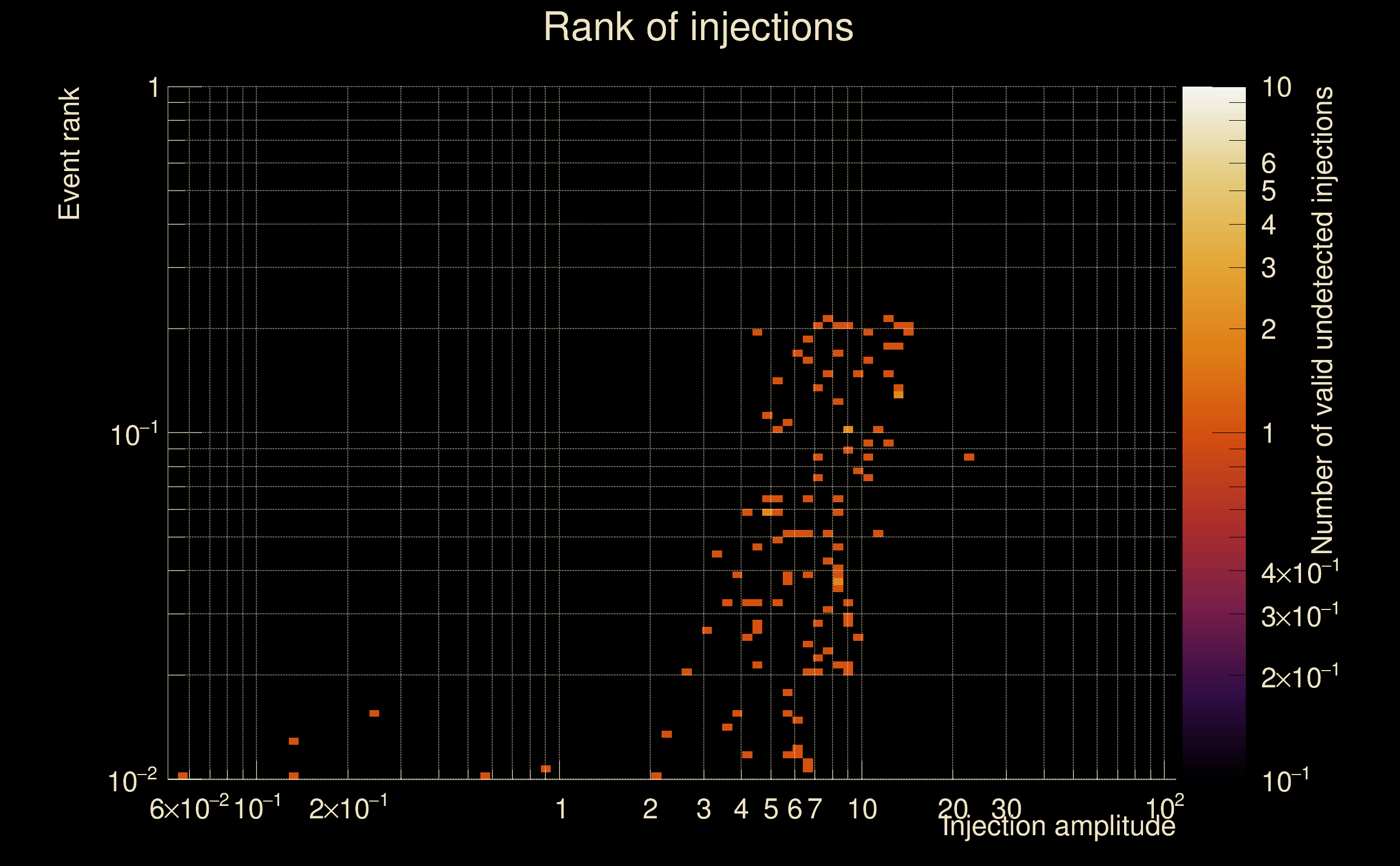

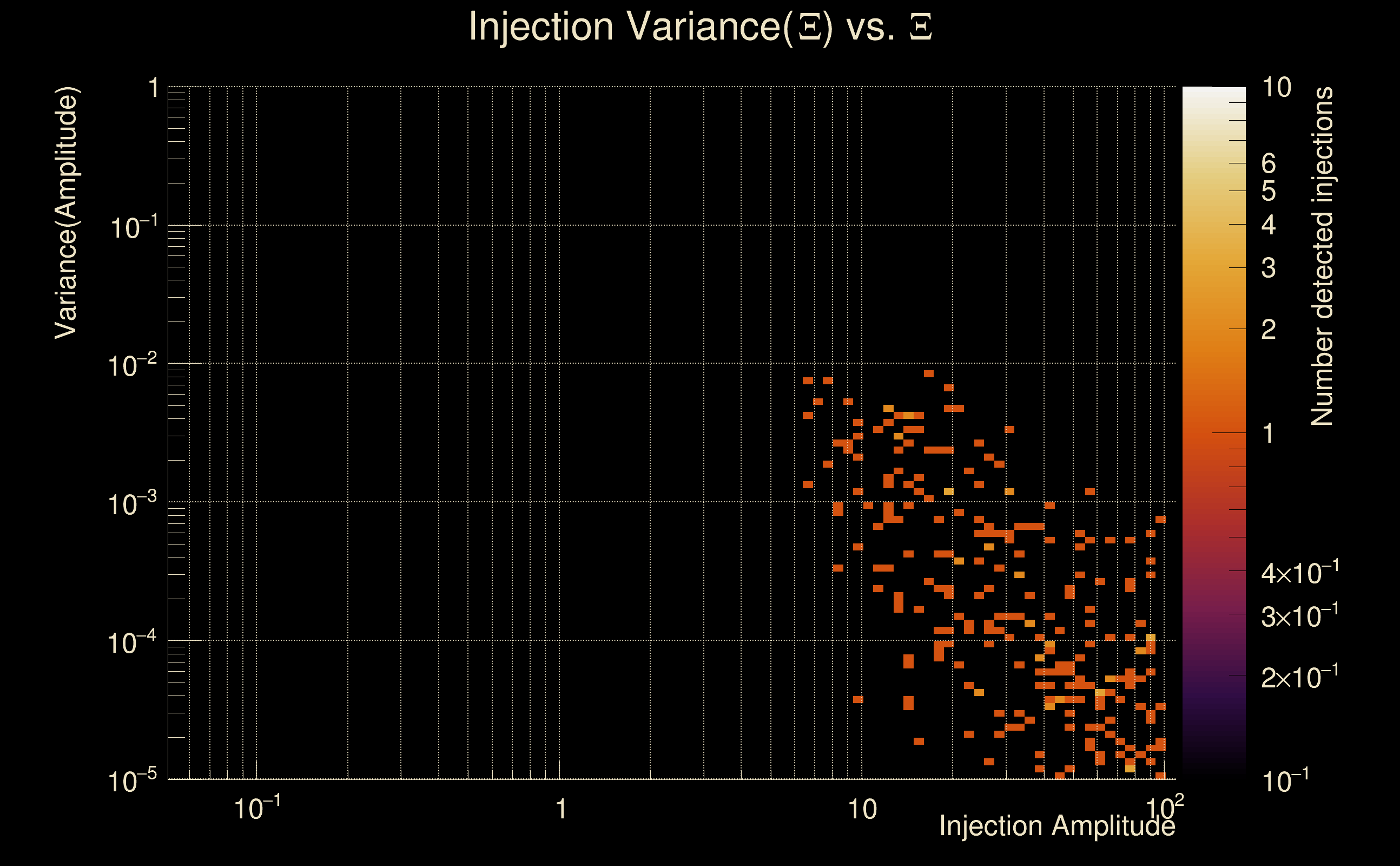

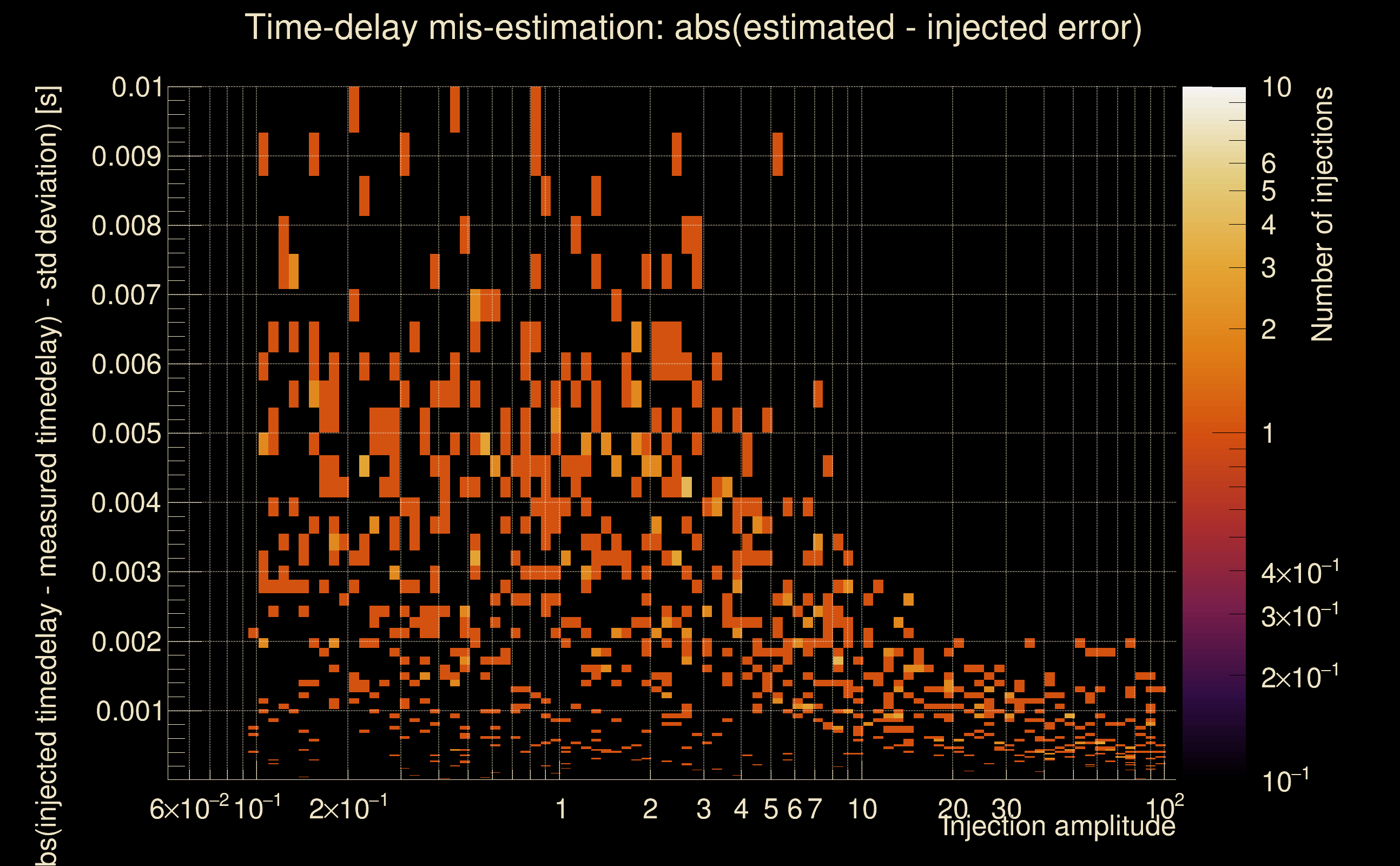

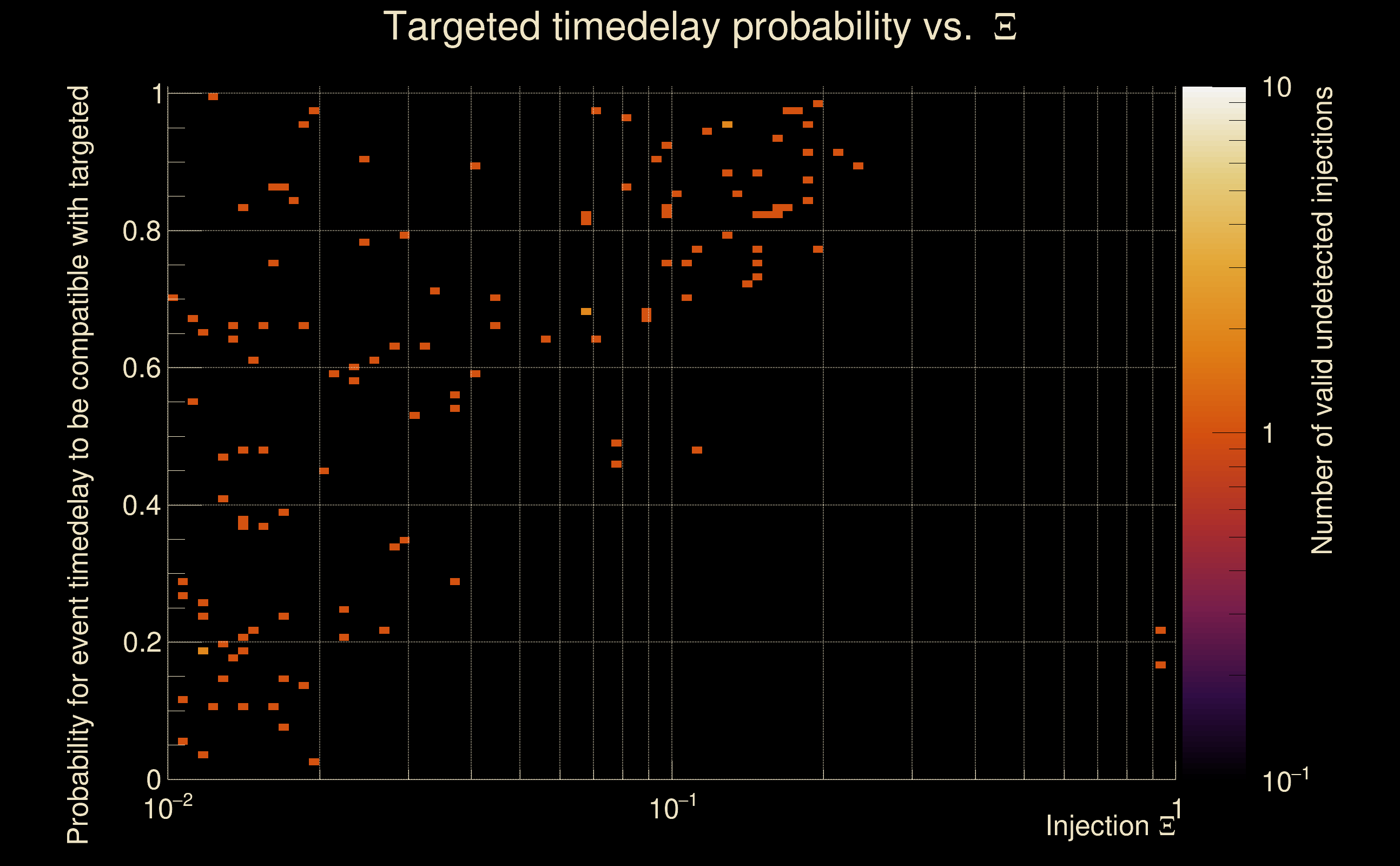

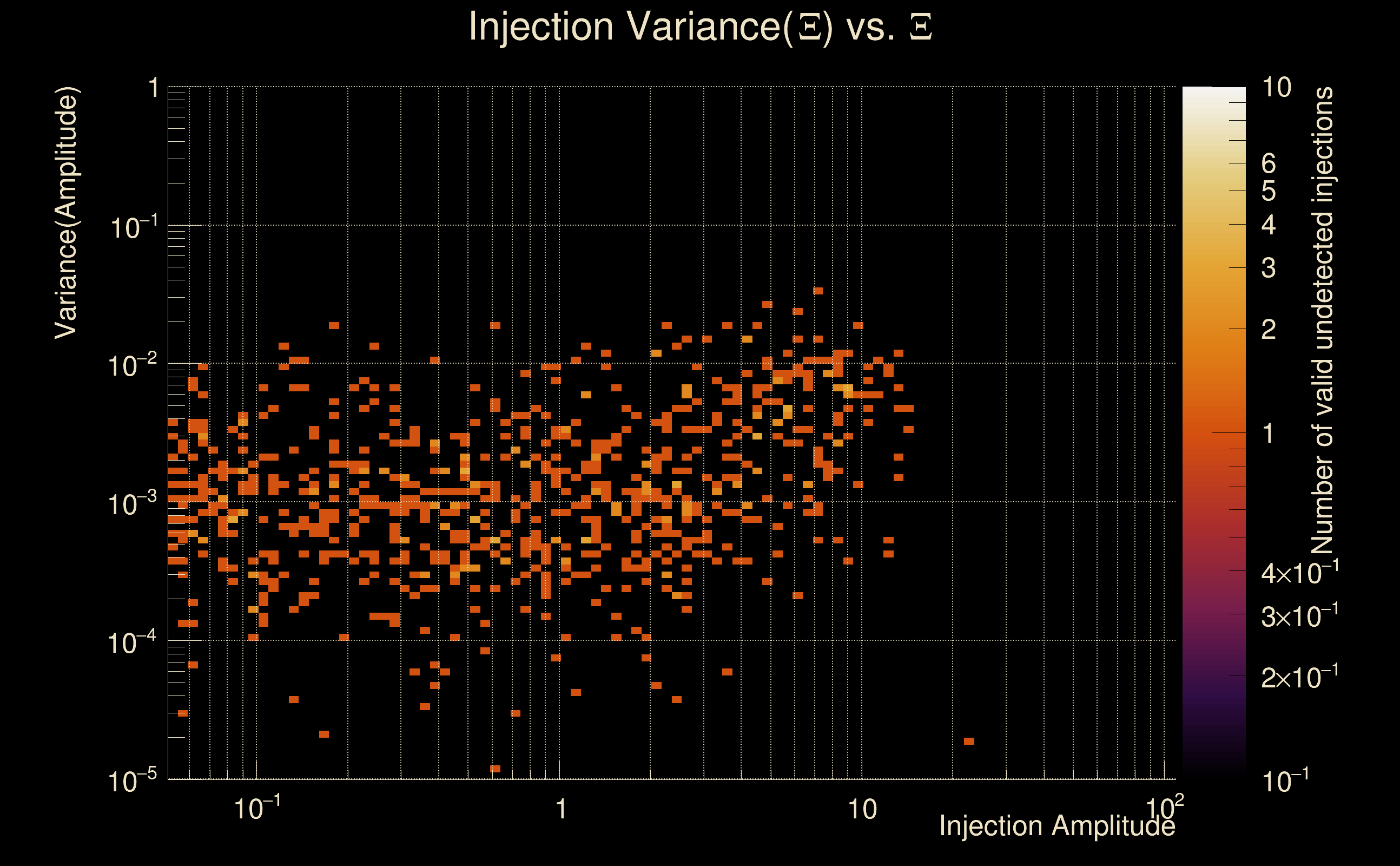

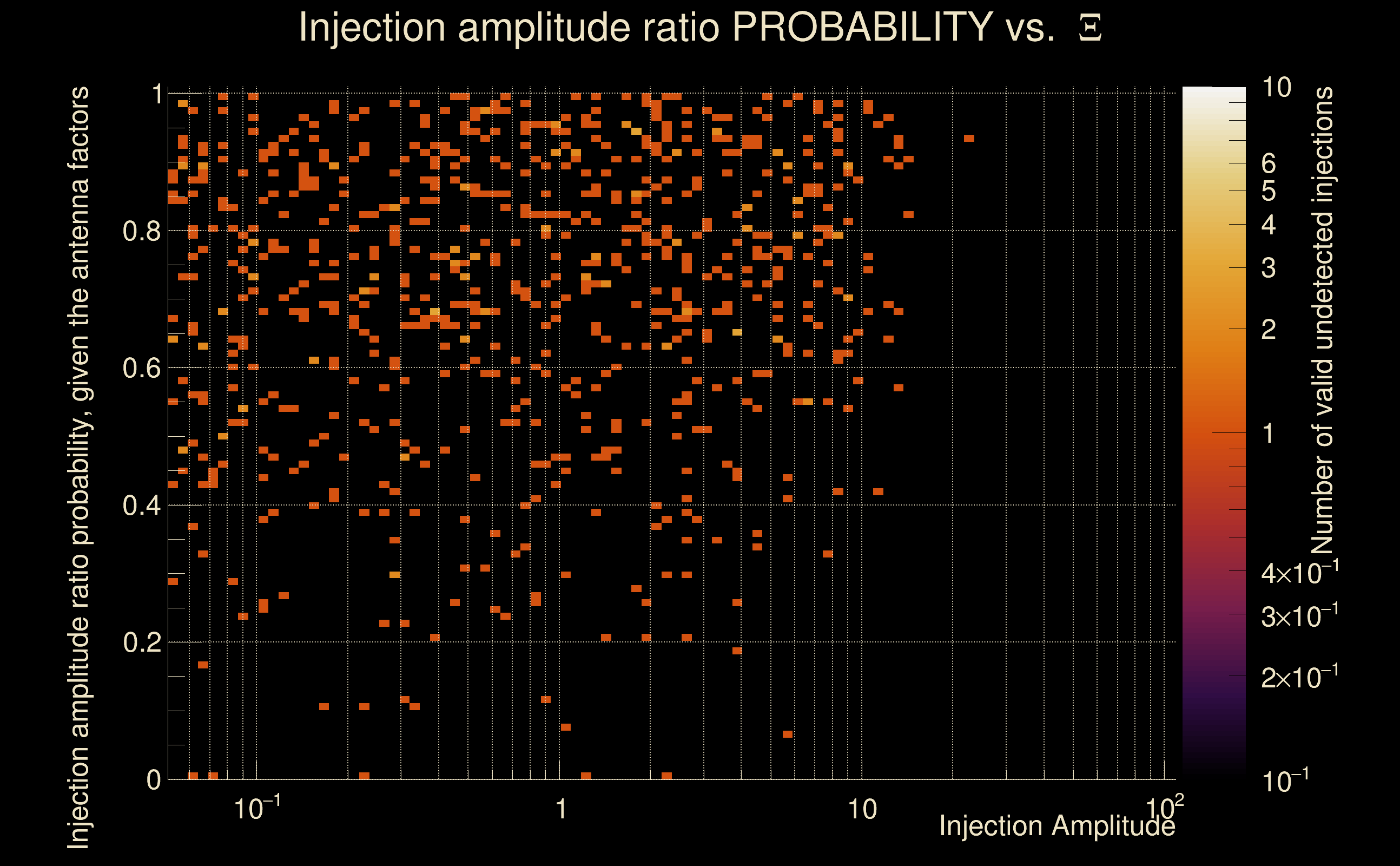

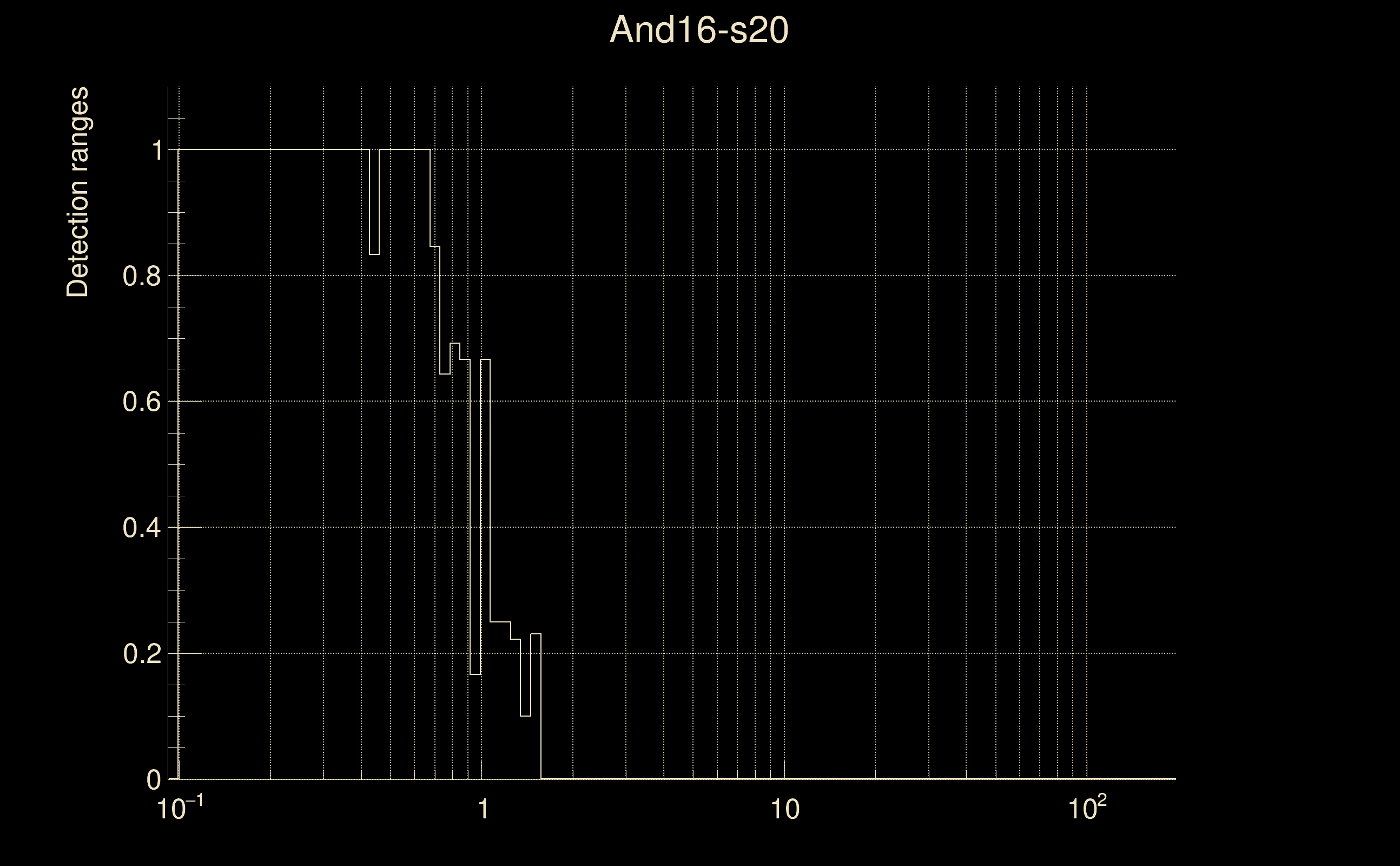

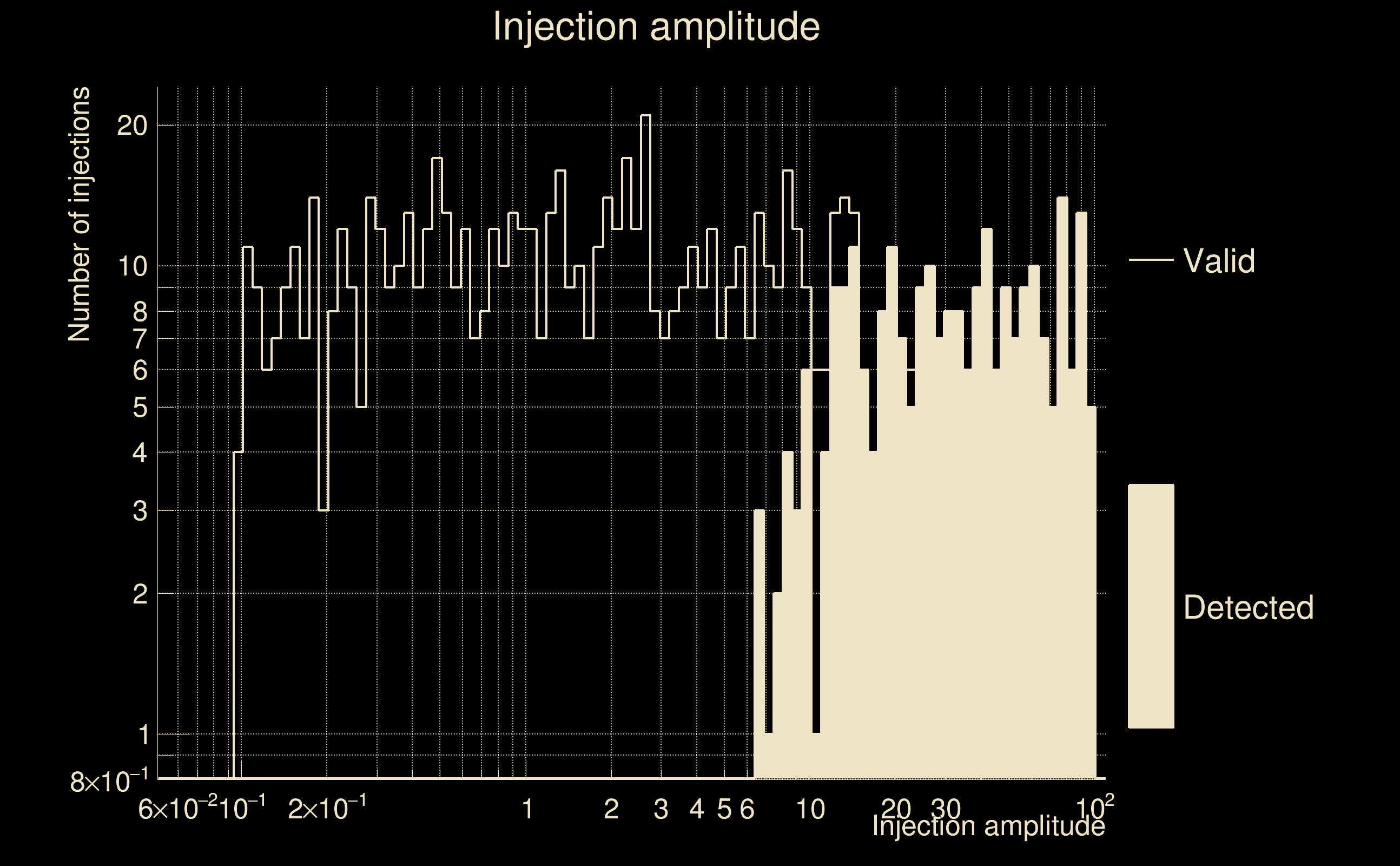

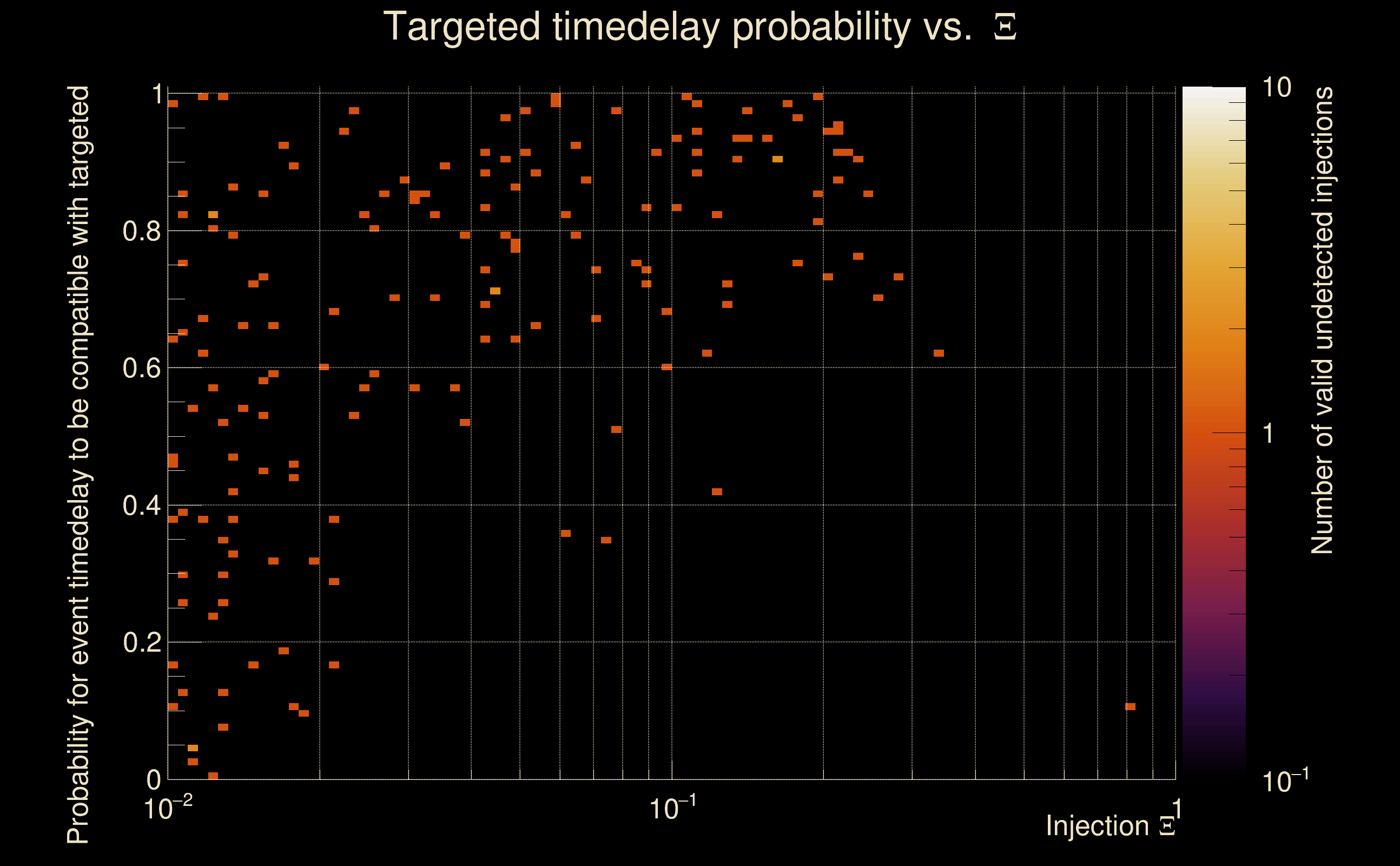

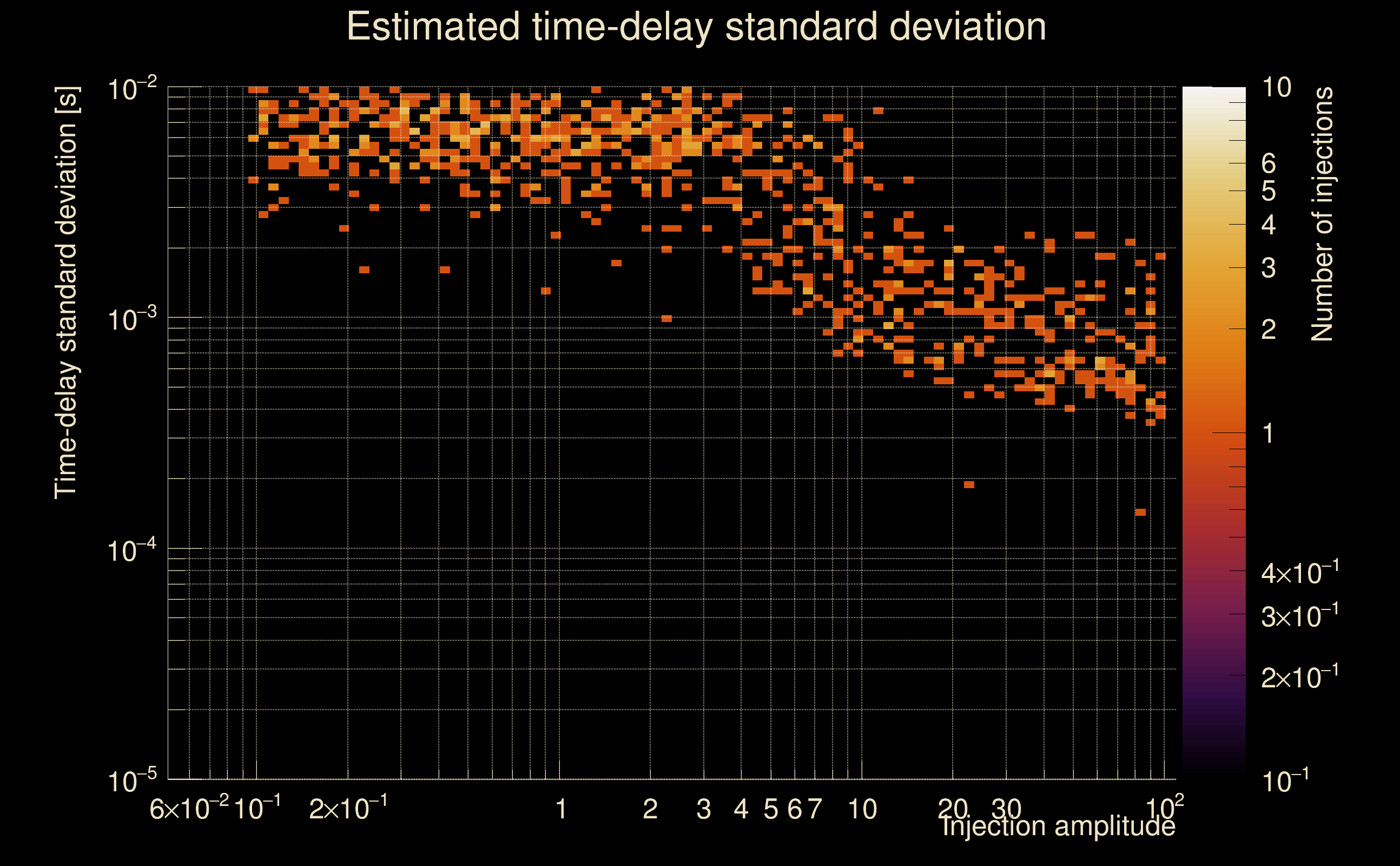

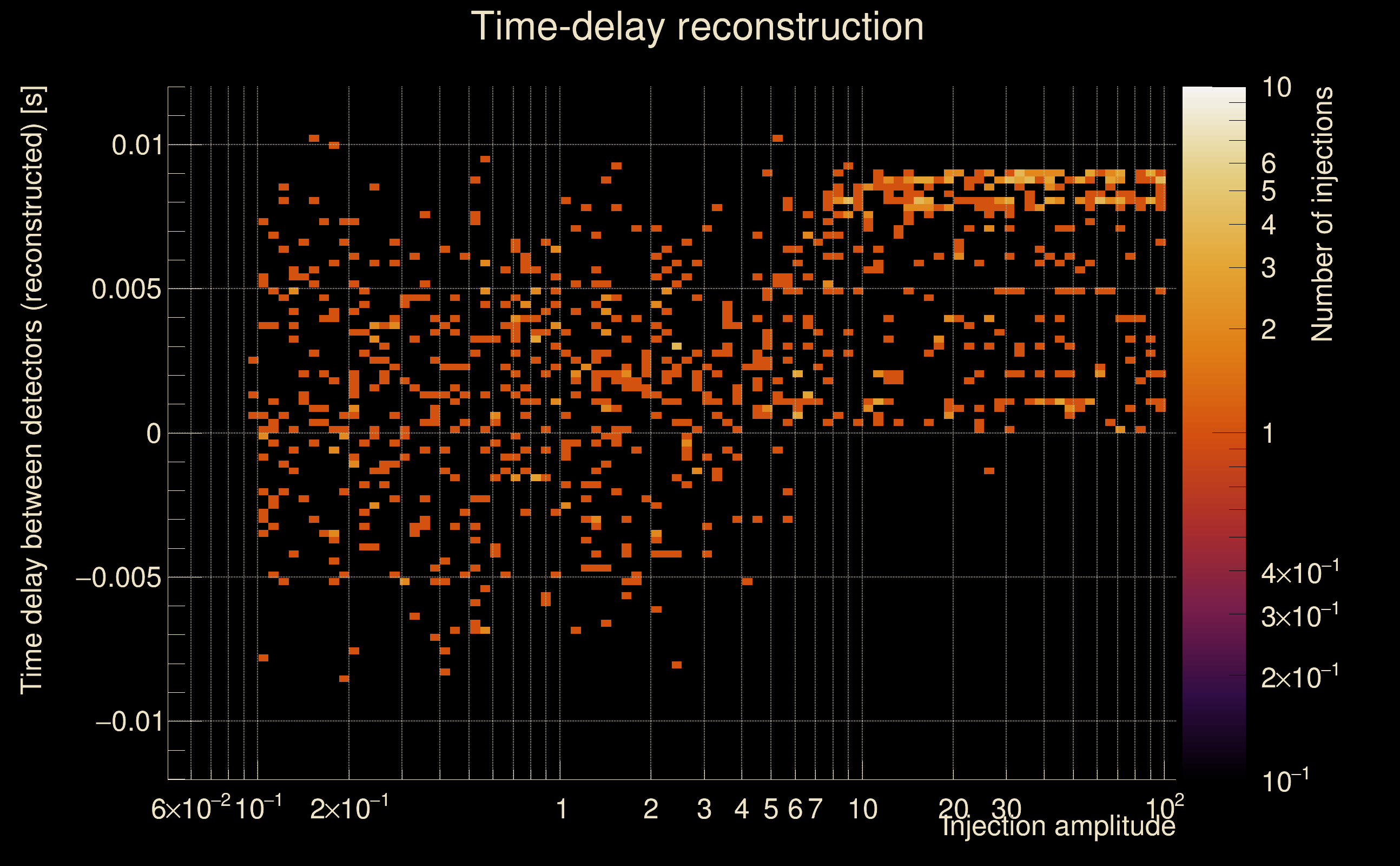

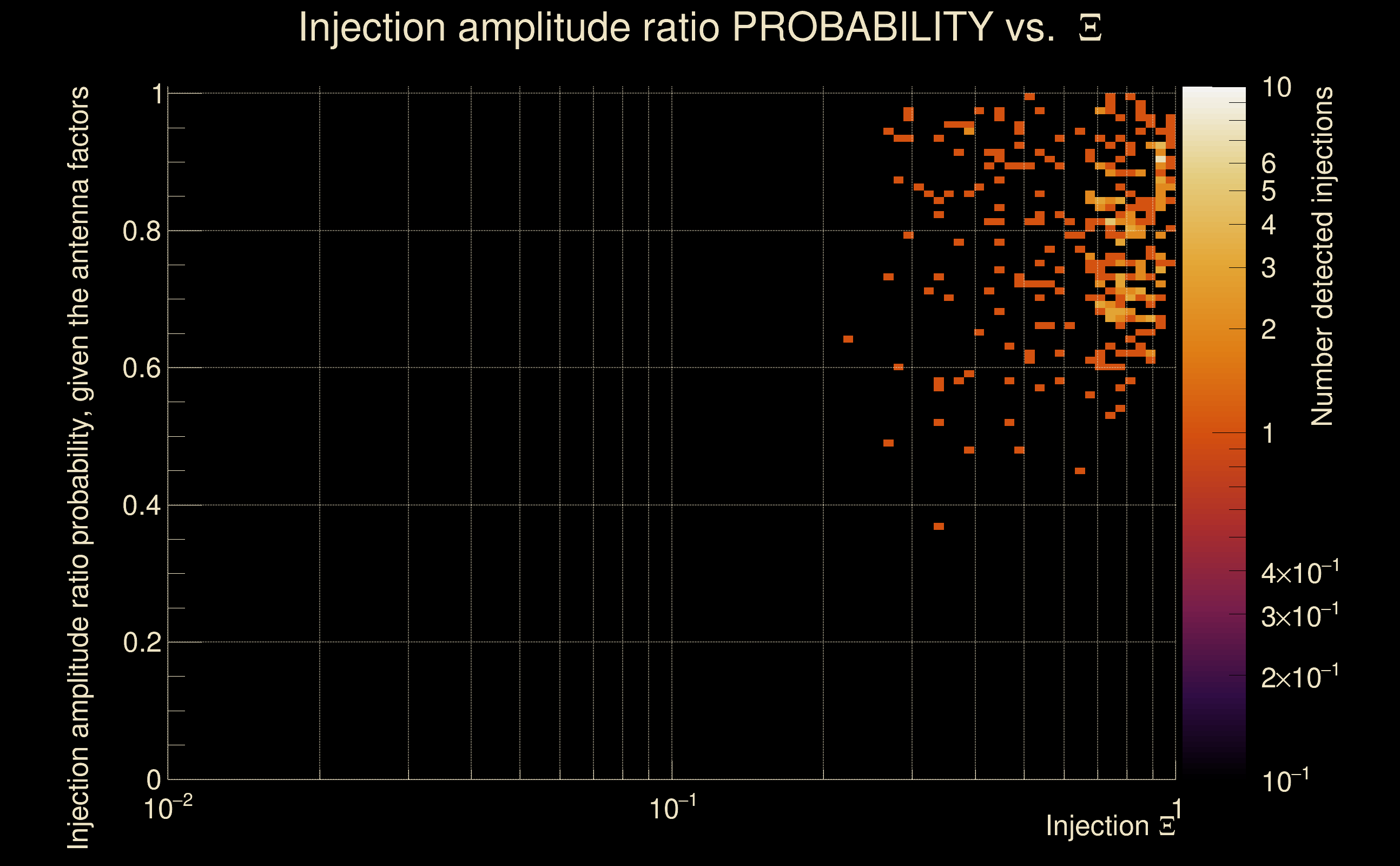

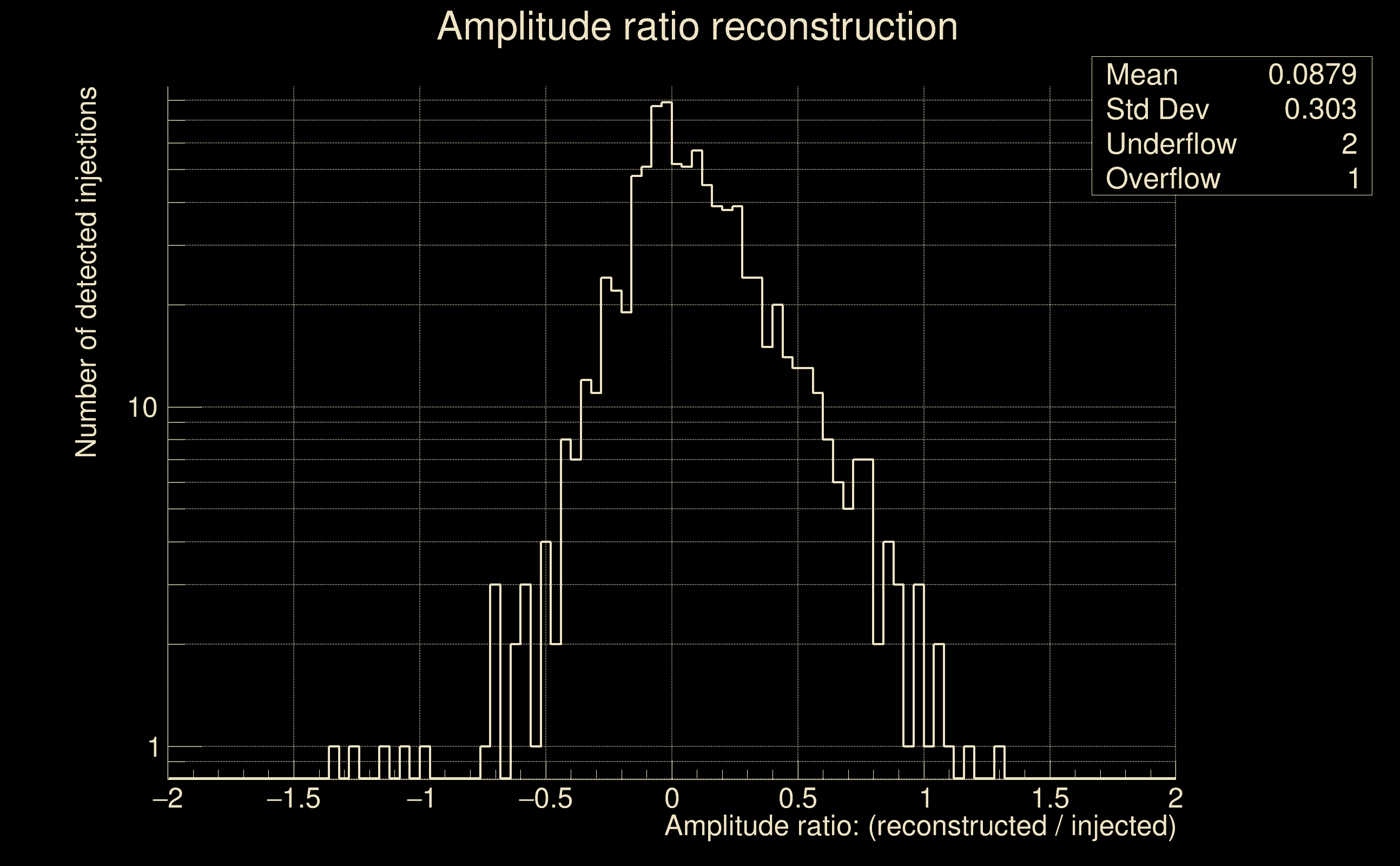

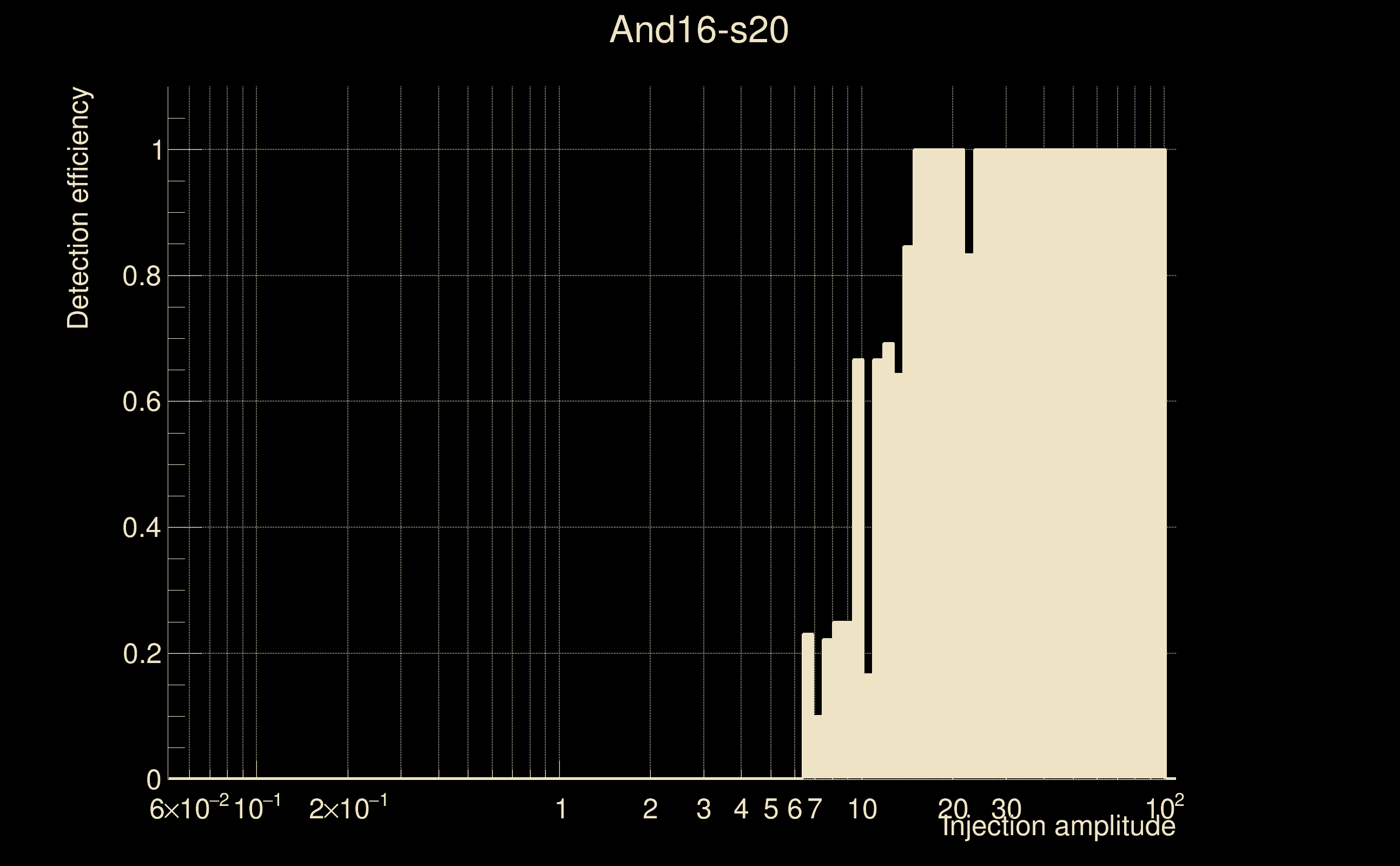

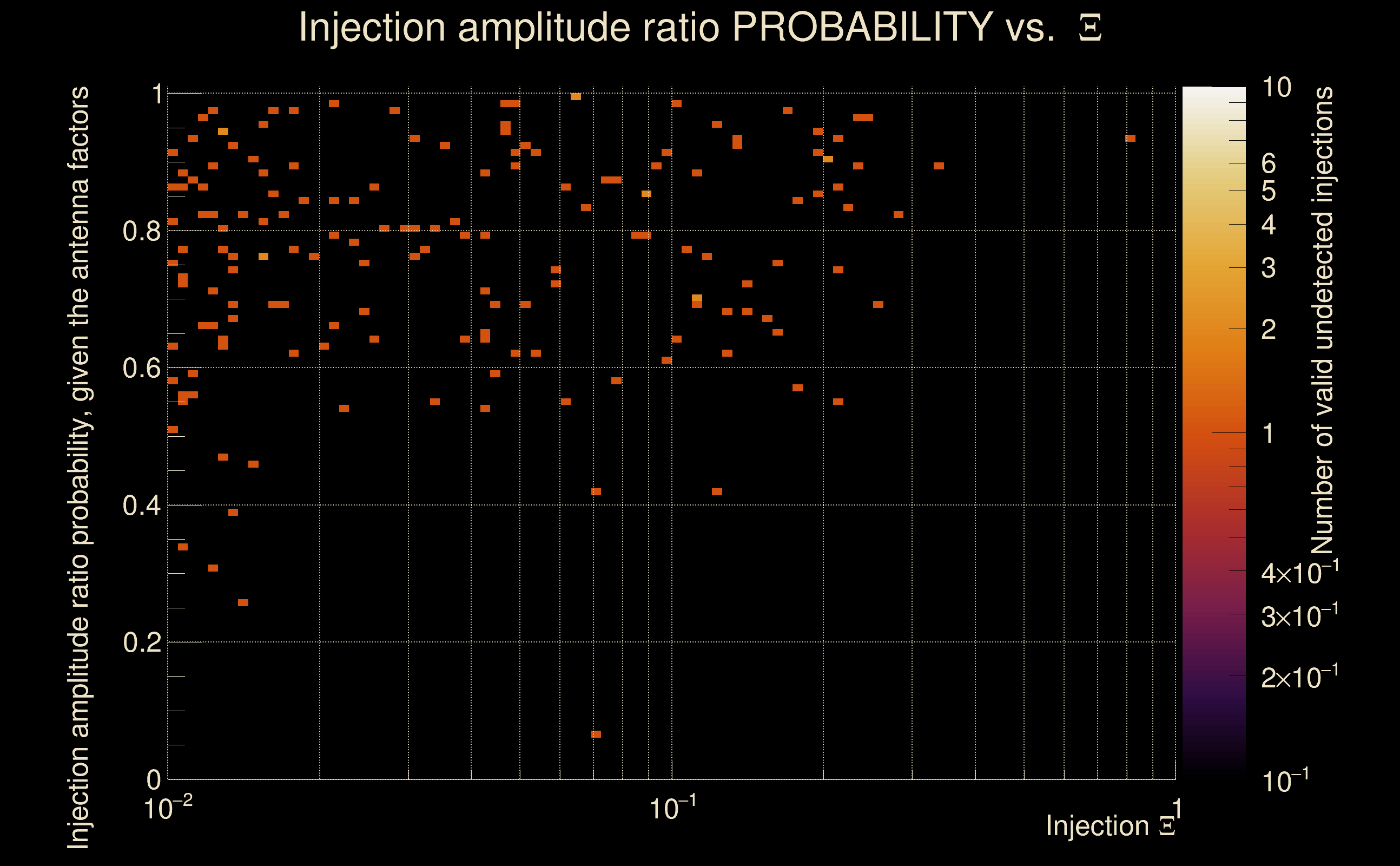

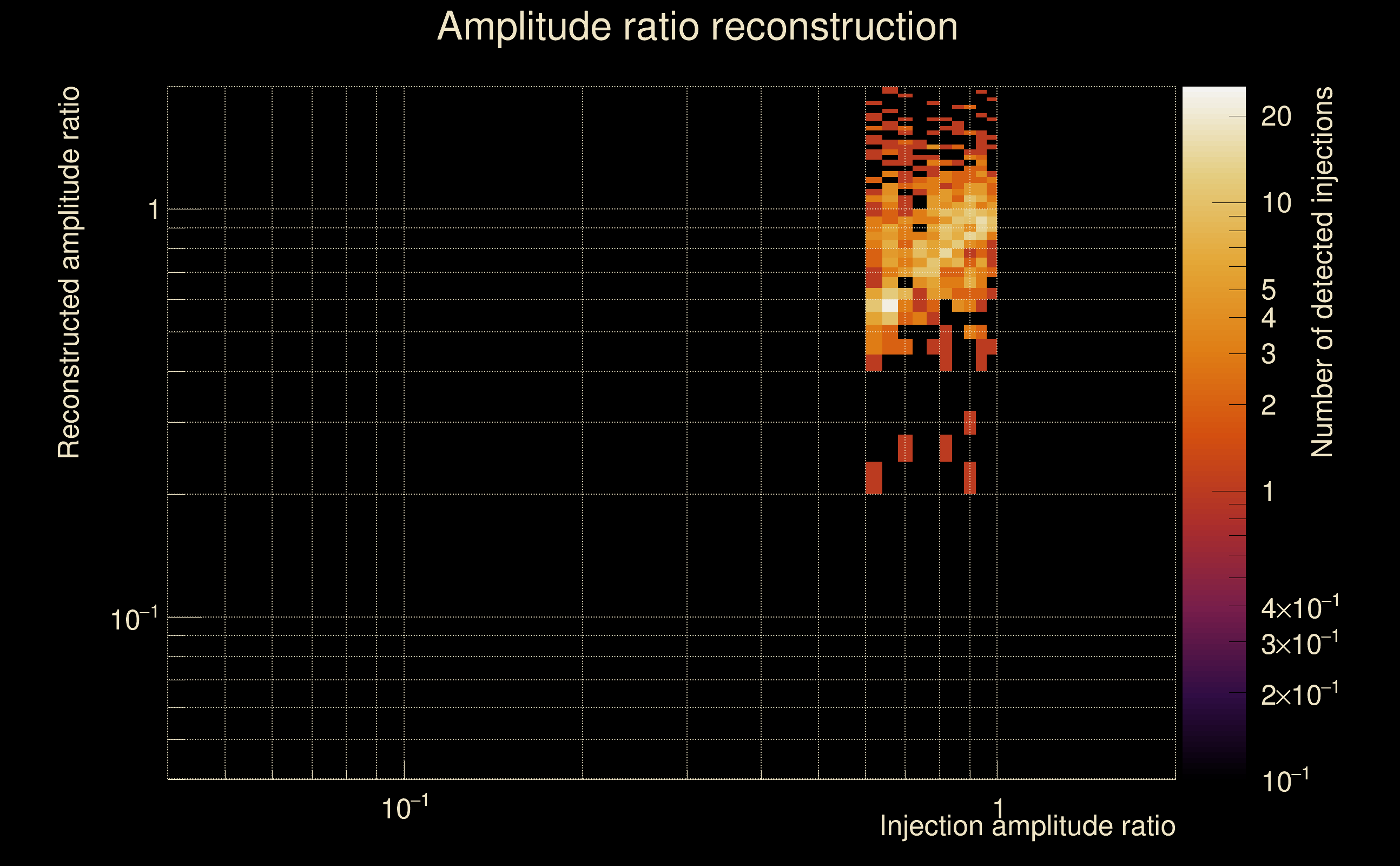

| Number of injections (total/valid/detected): | 1006 / 889 / 254 |
| List of missed injections: | ./And16-s20_missed.txt |
| Injection amplitude at 90% detection efficiency: | 14.6852 |
| Injection amplitude at 50% detection efficiency: | 11.07 |
| Injection amplitude at 10% detection efficiency: | 6.35599 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

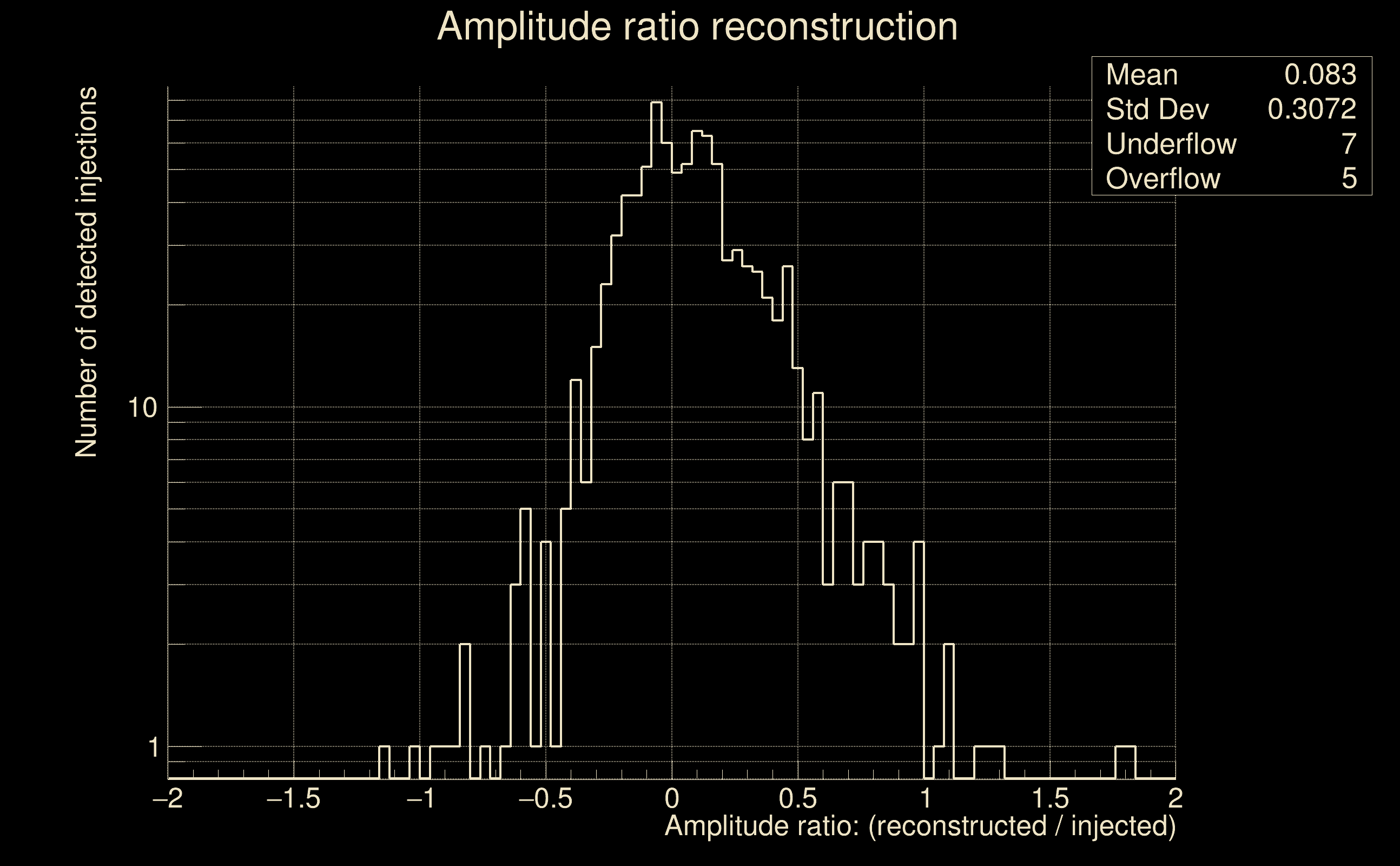

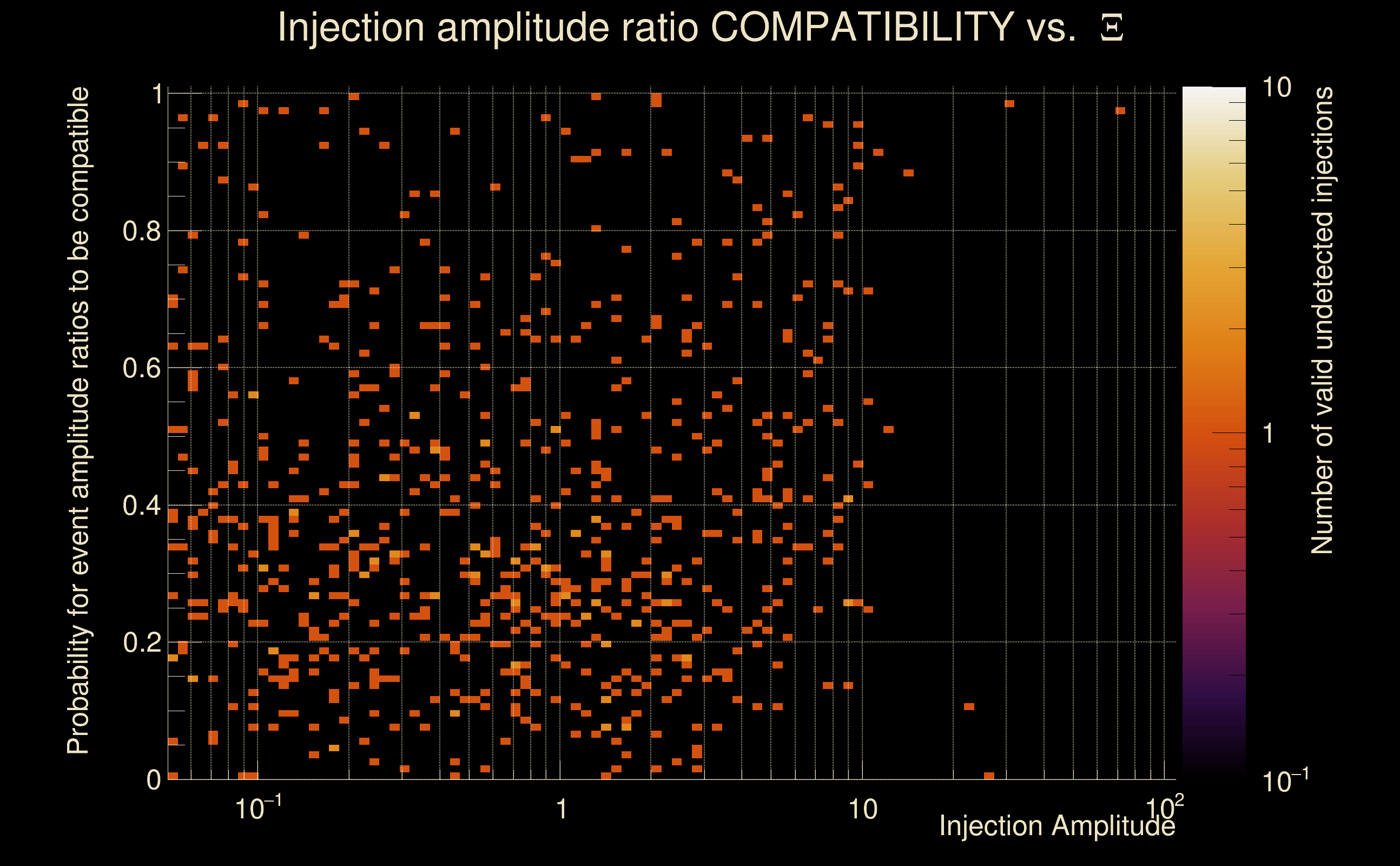

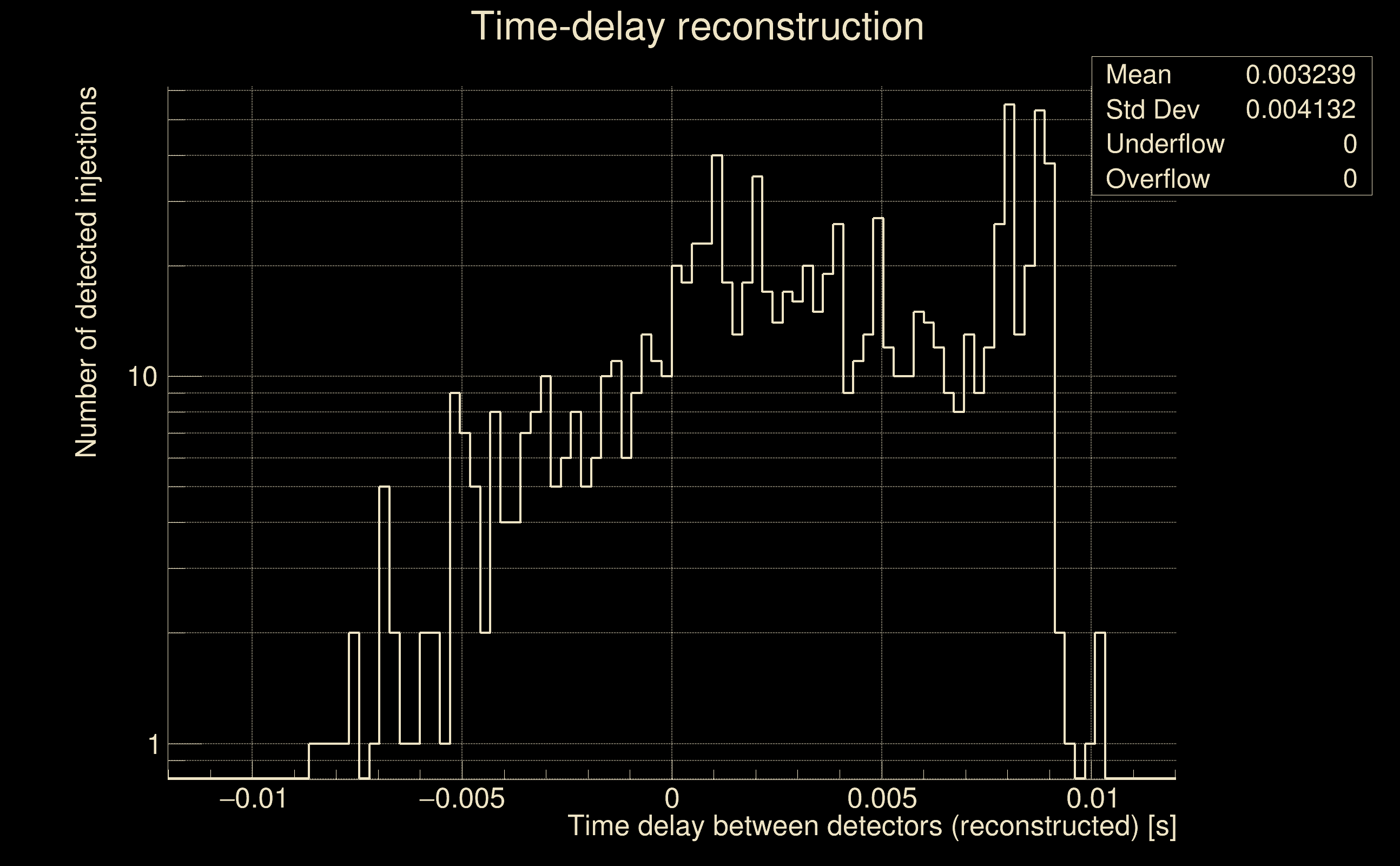

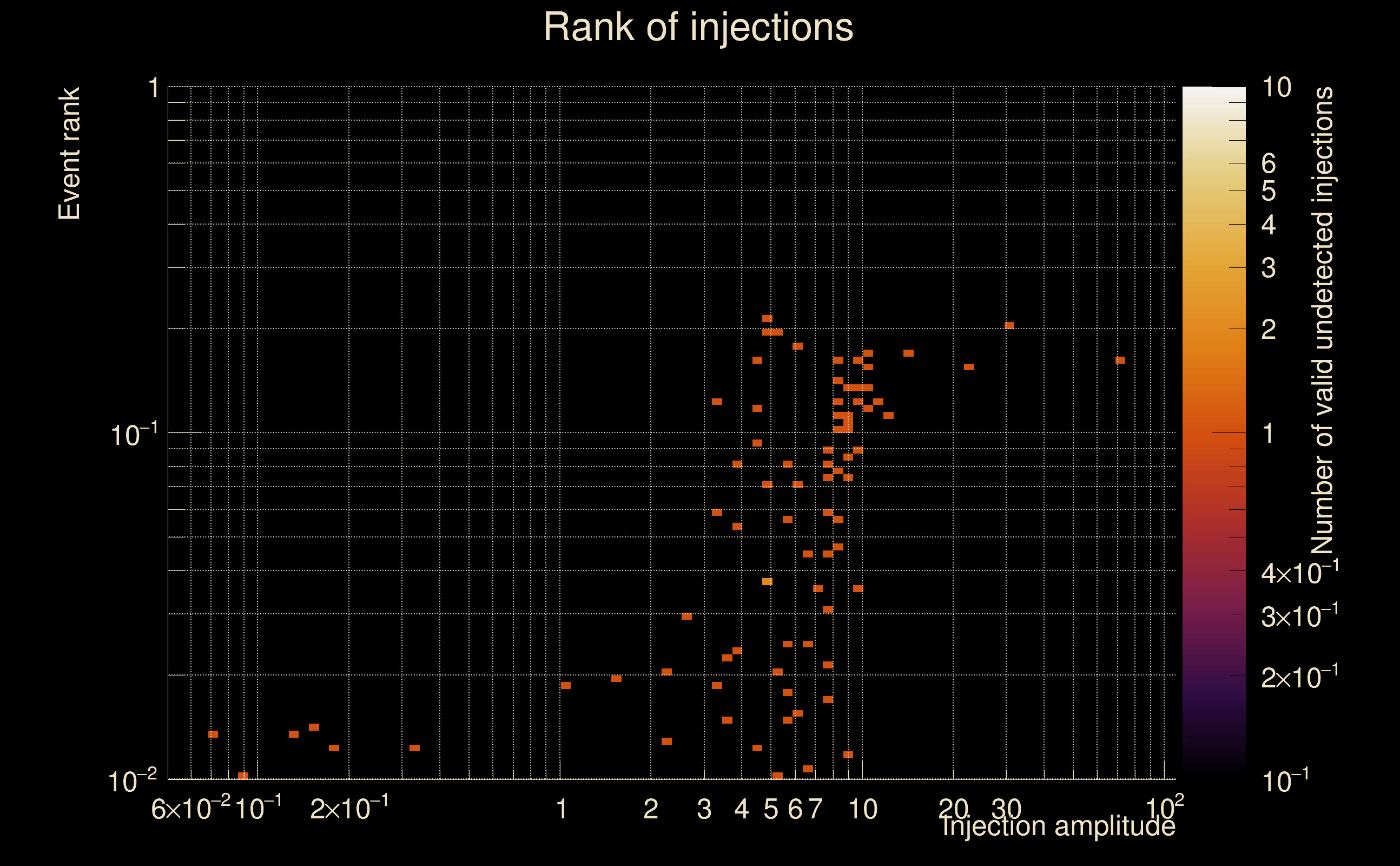

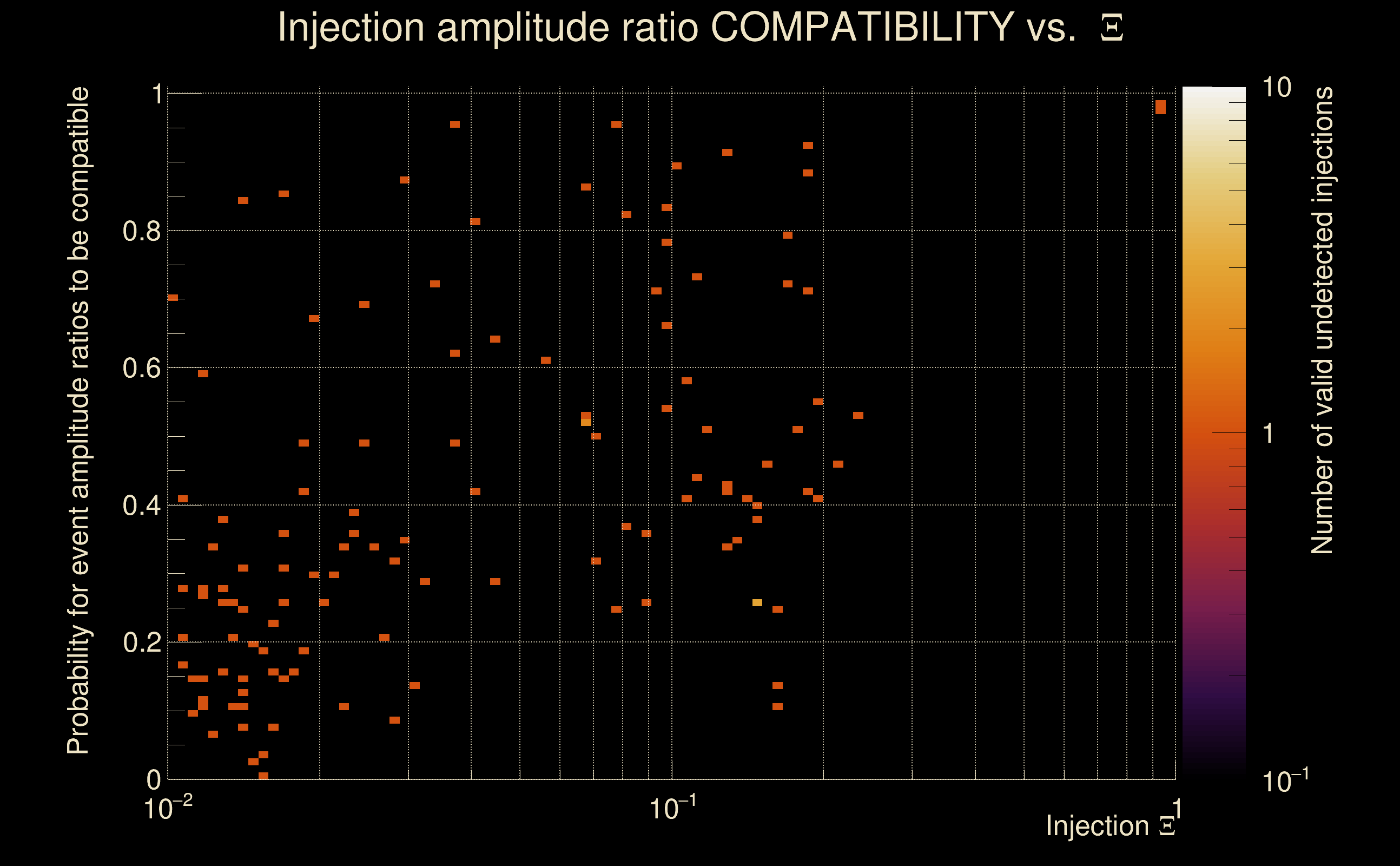

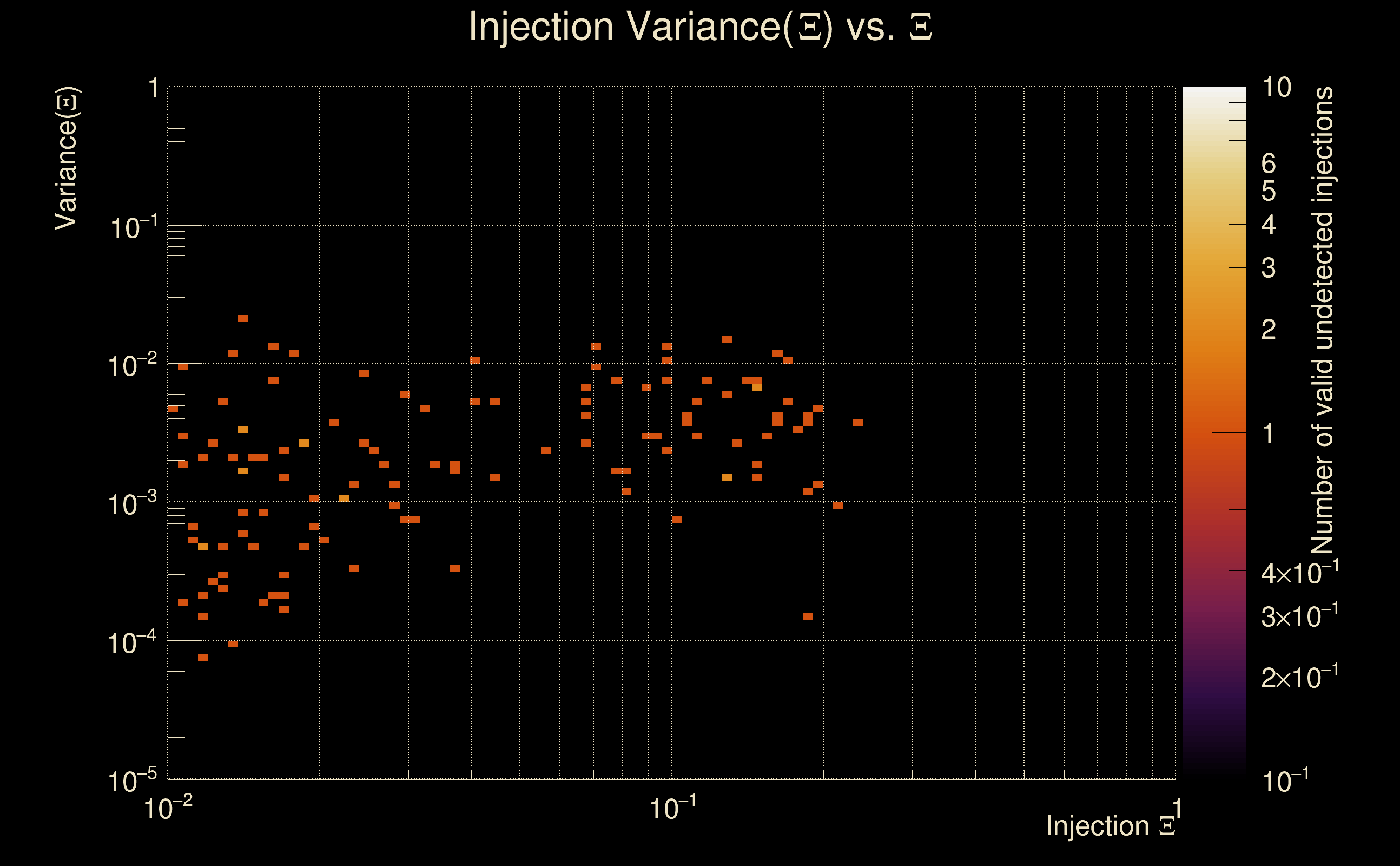

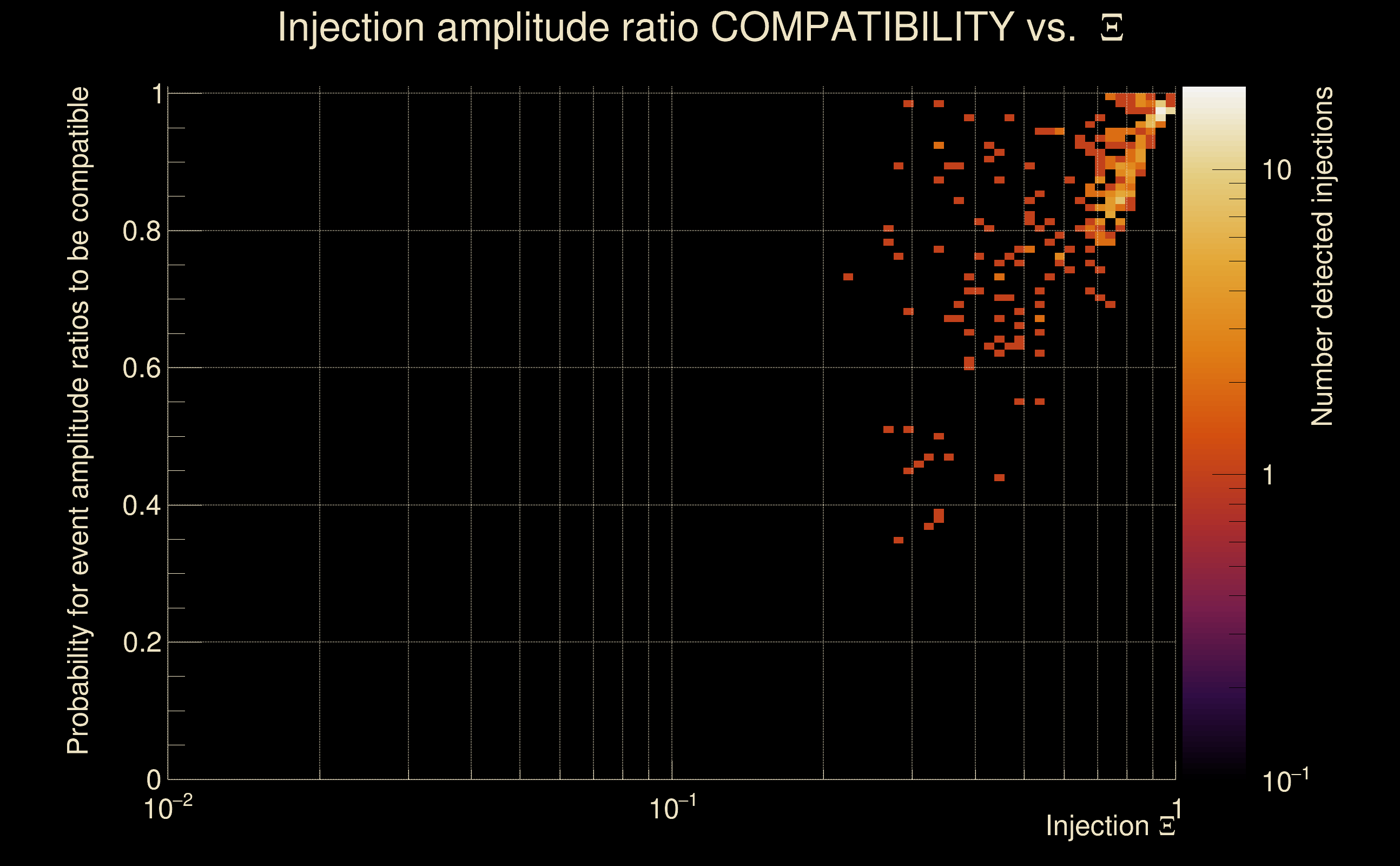

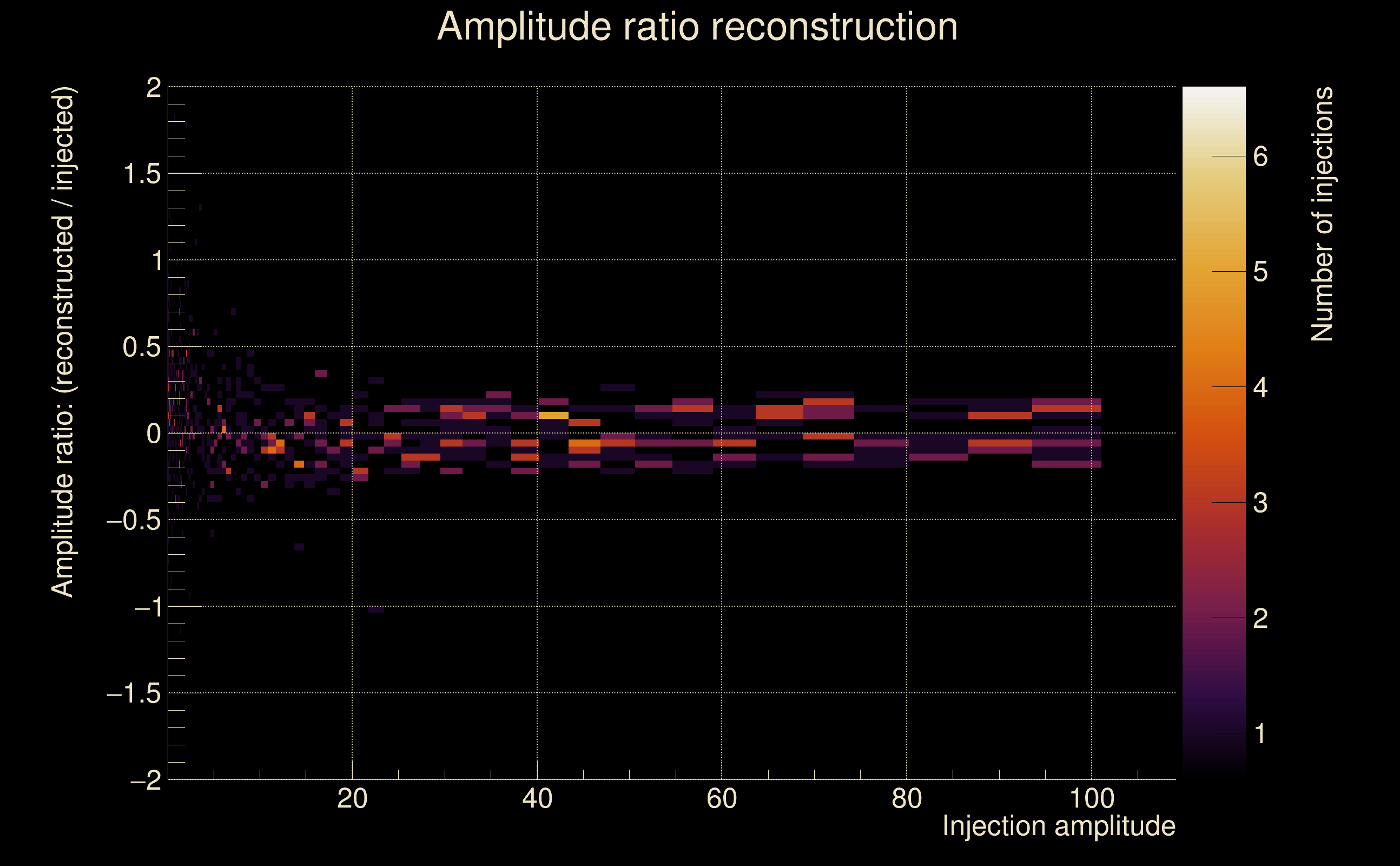

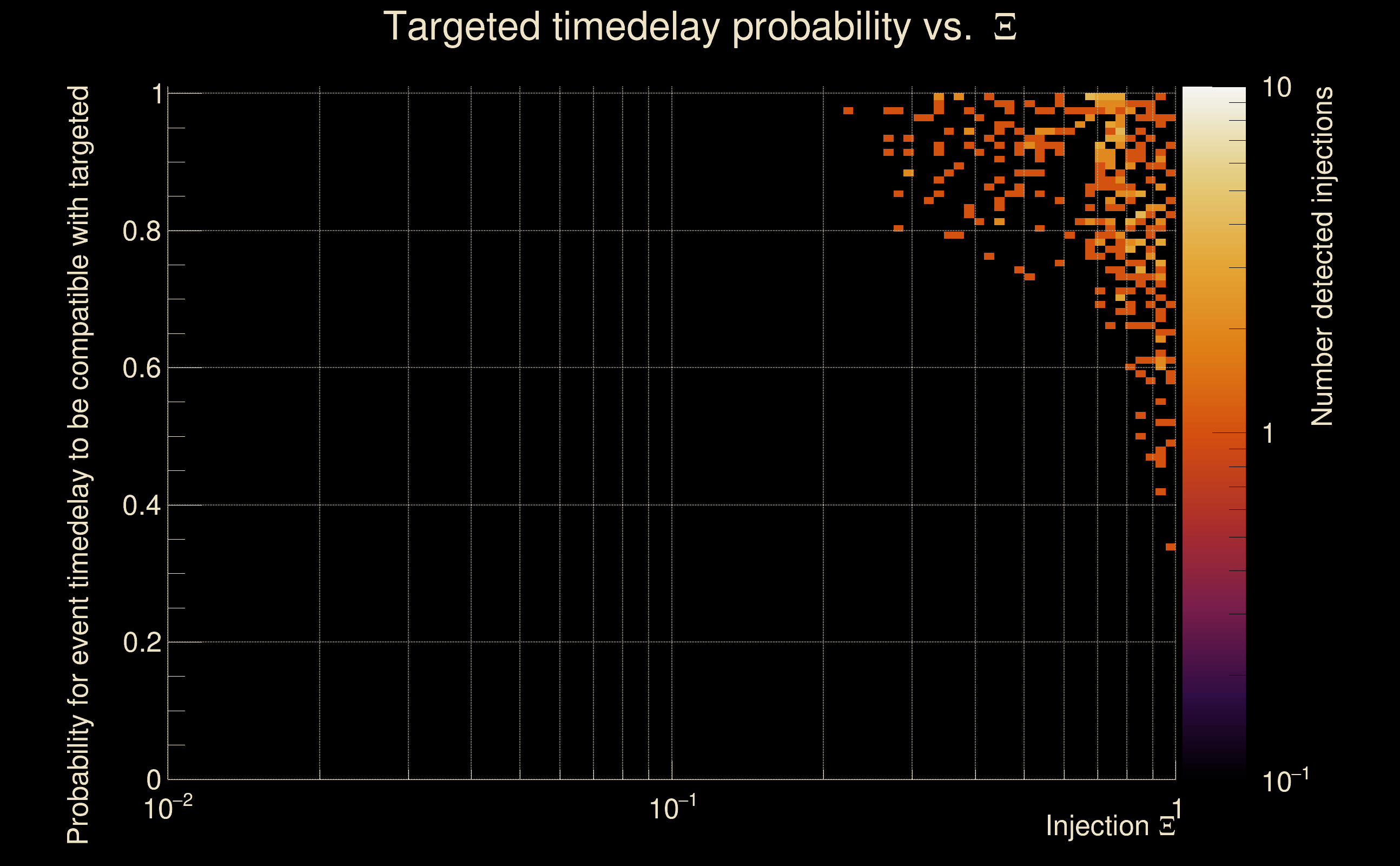

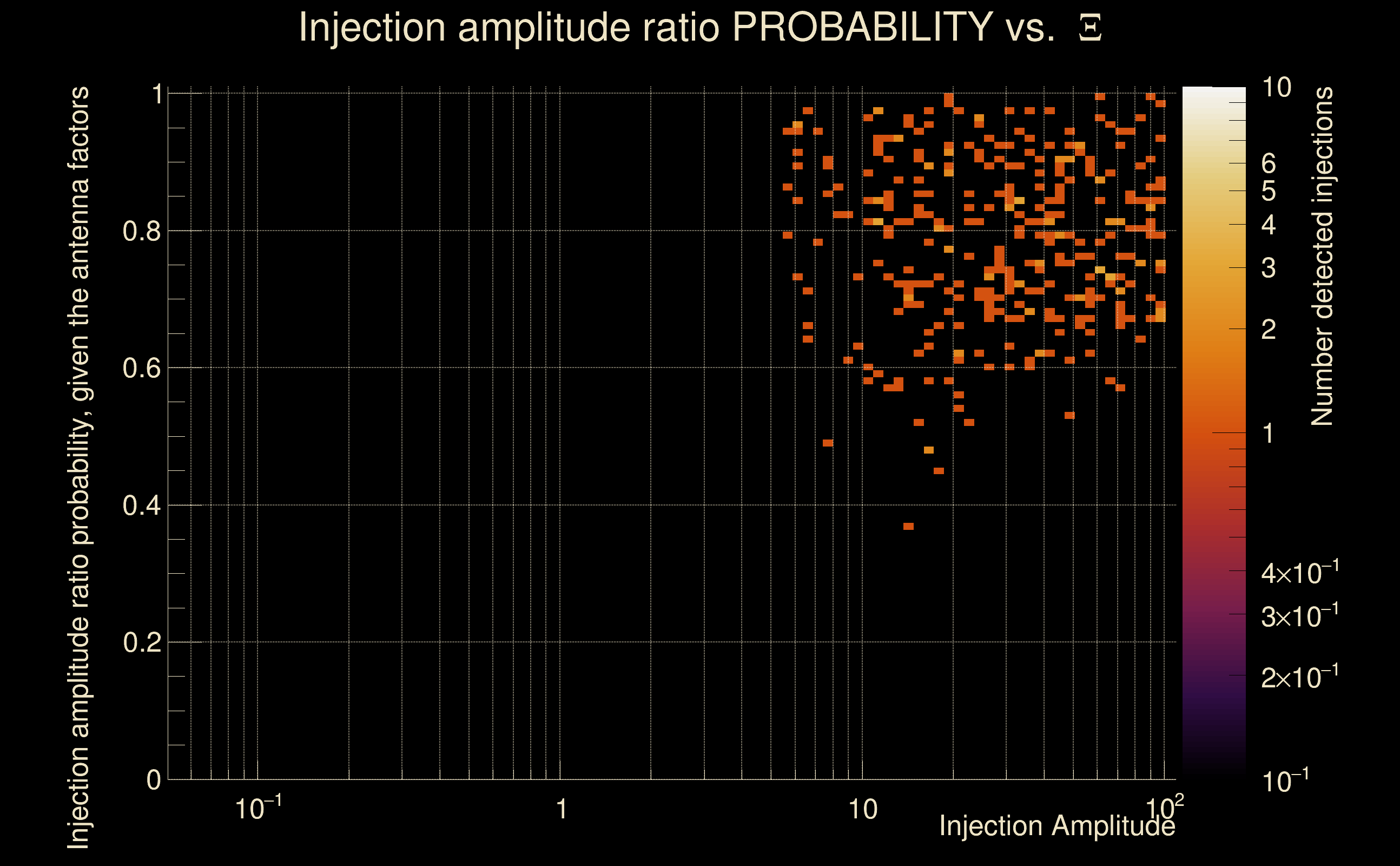

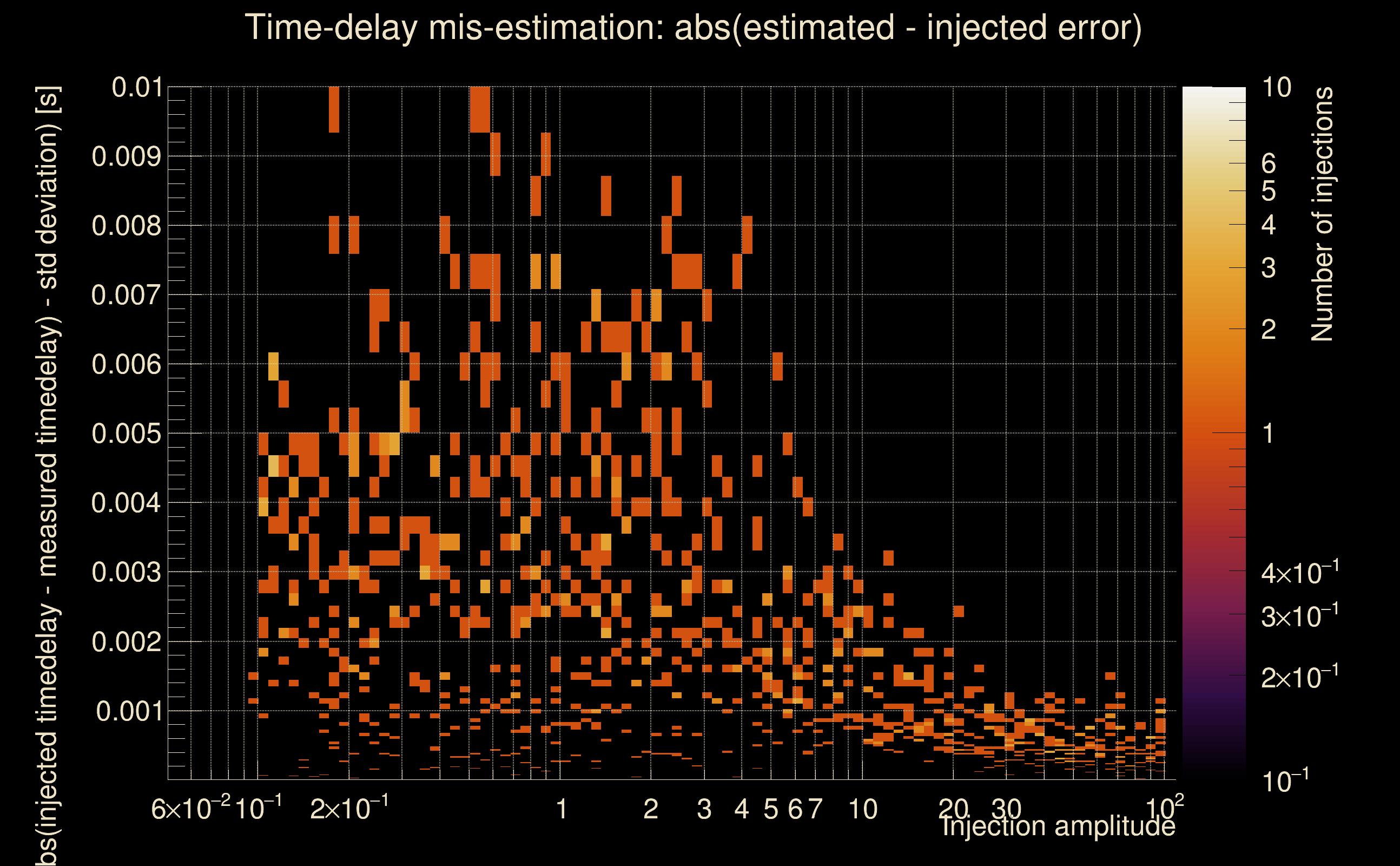

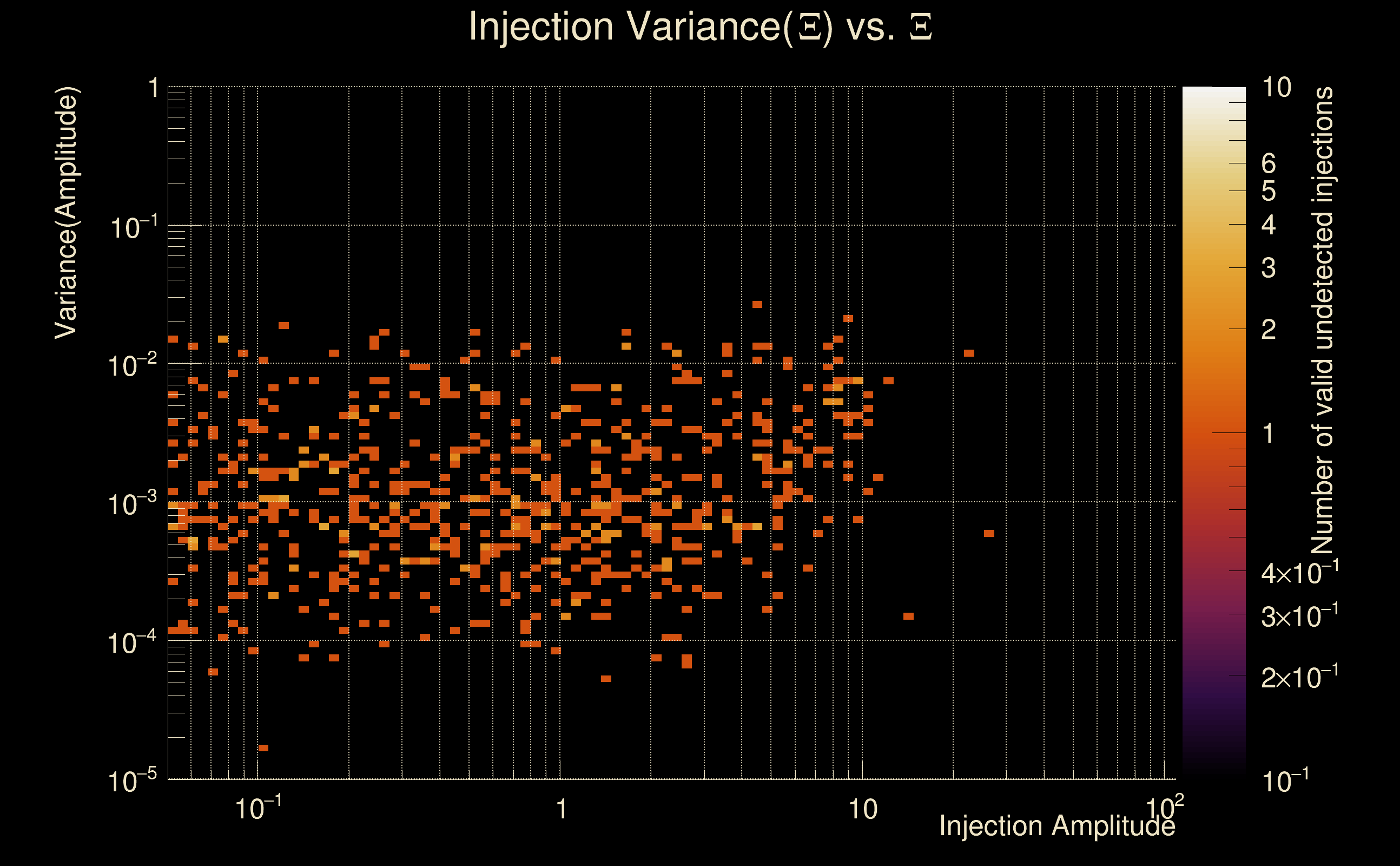

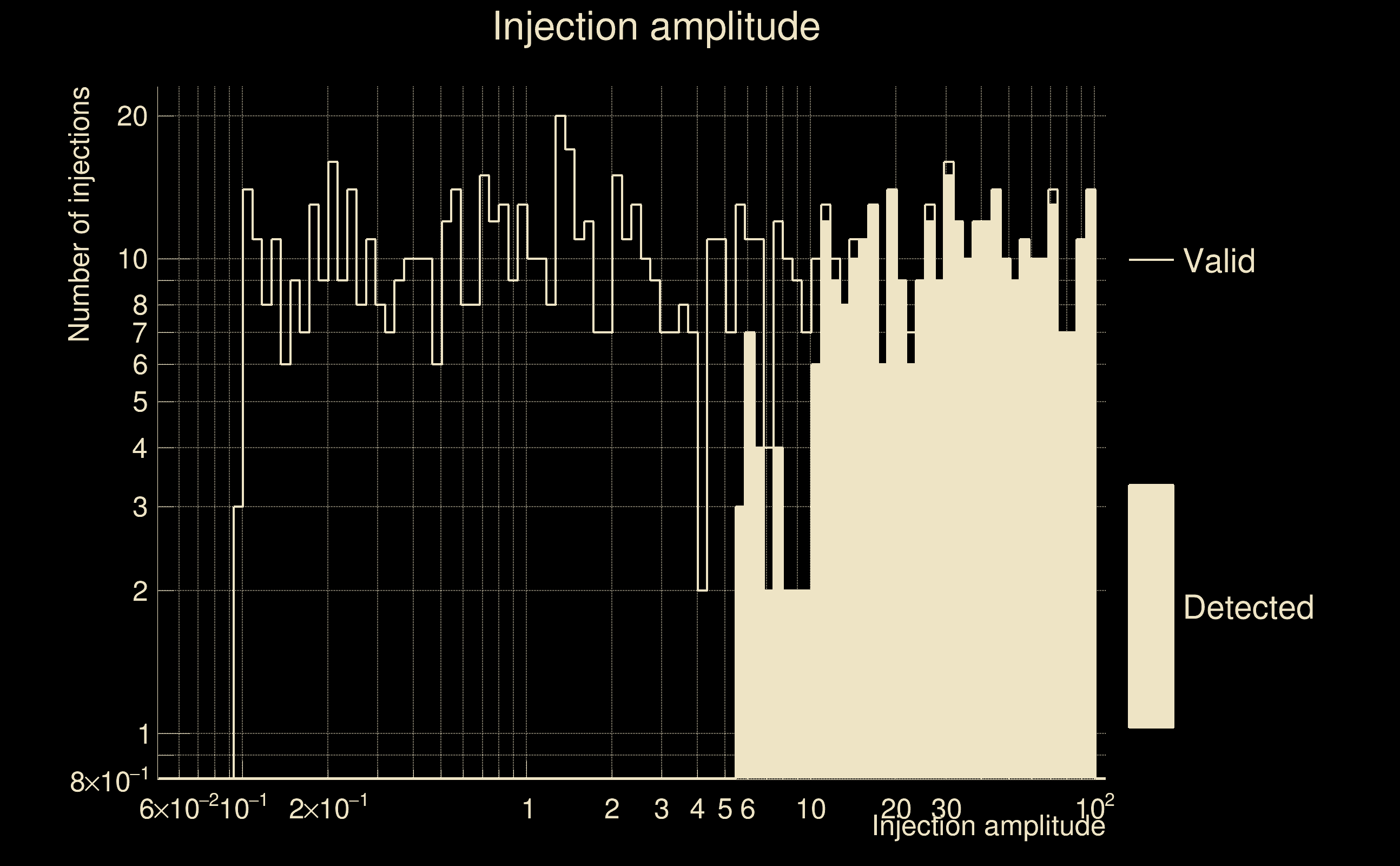

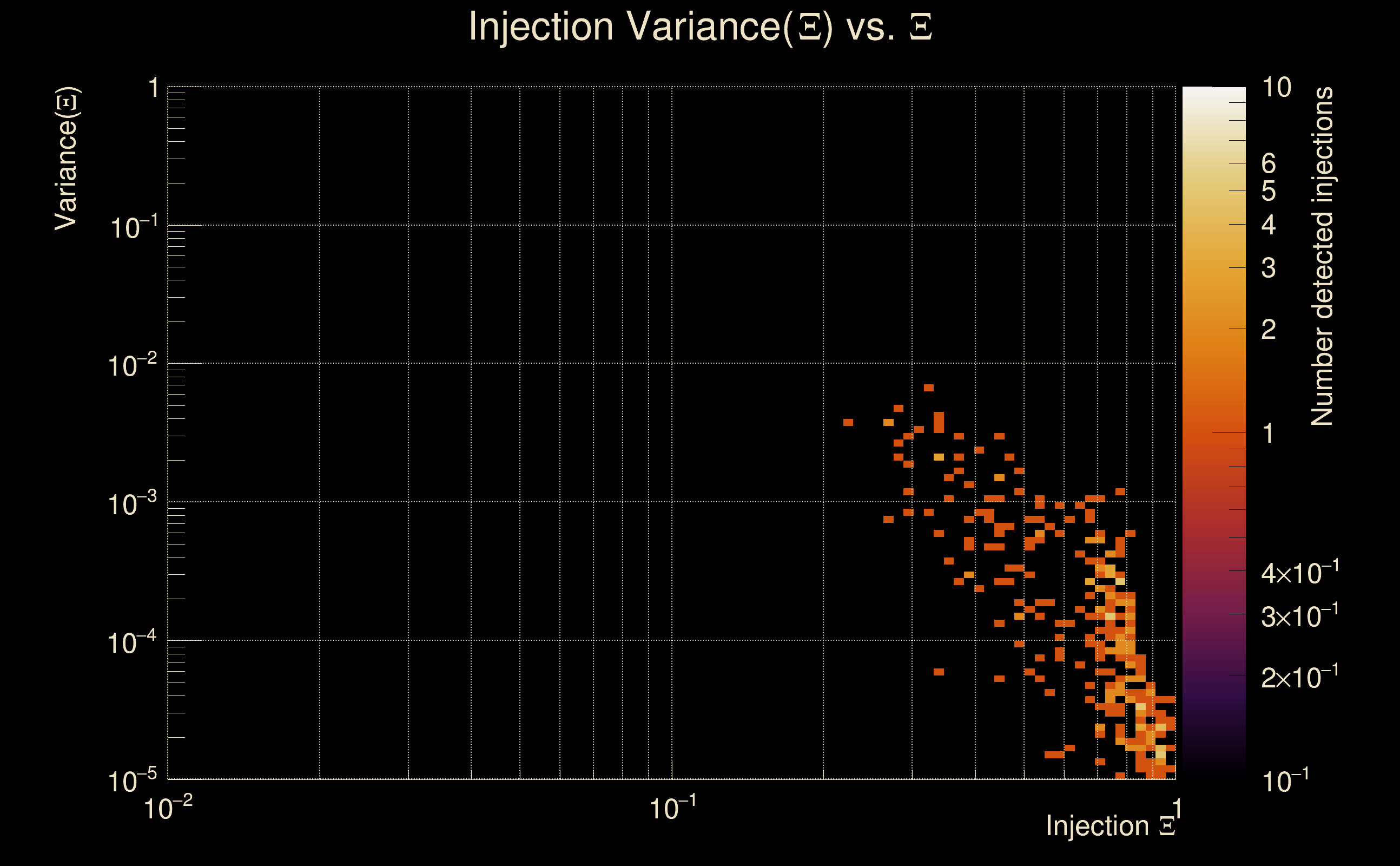

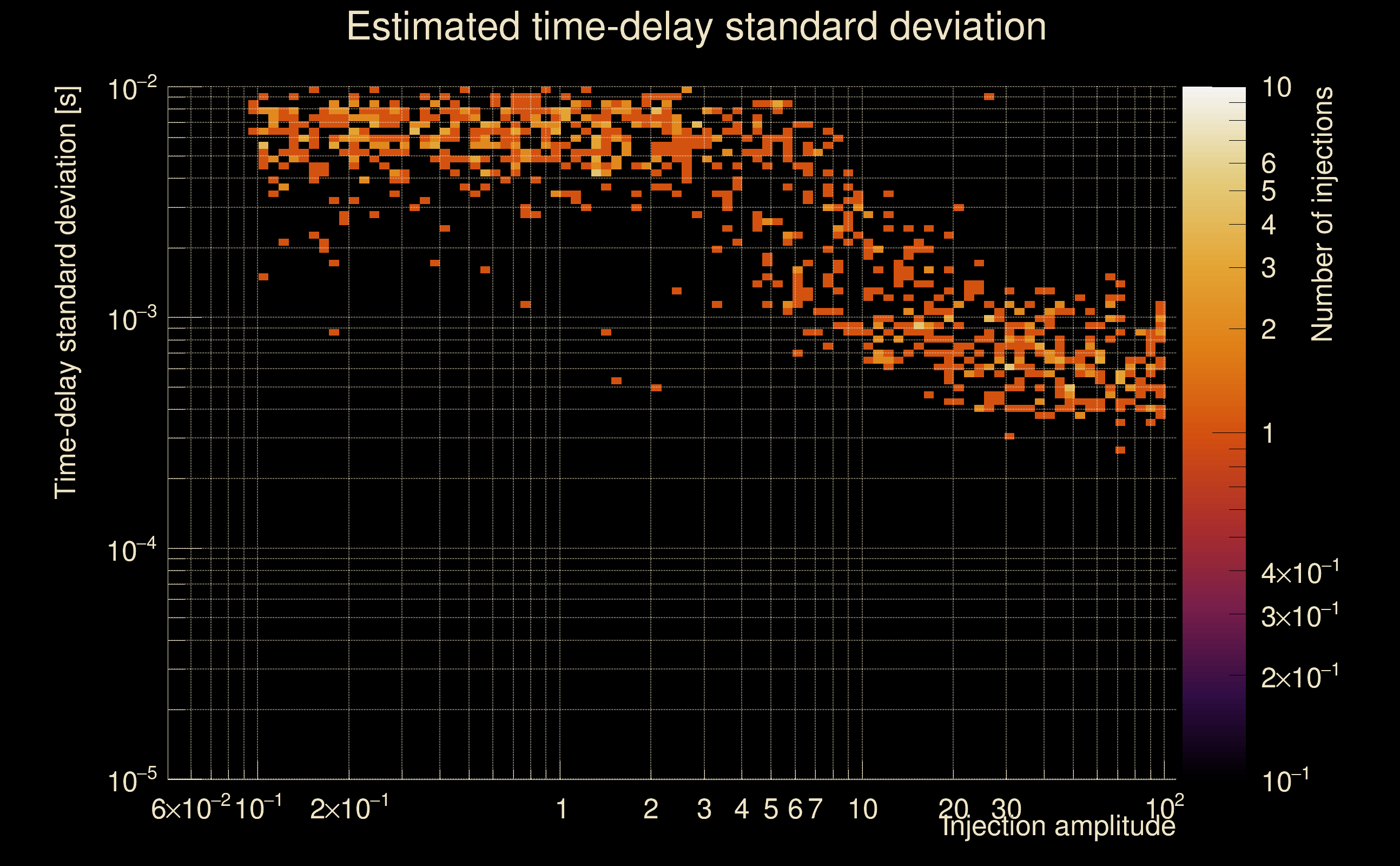

| Number of injections (total/valid/detected): | 1042 / 932 / 337 |
| List of missed injections: | ./And16-s20s_missed.txt |
| Injection amplitude at 90% detection efficiency: | 11.2606 |
| Injection amplitude at 50% detection efficiency: | 10.2368 |
| Injection amplitude at 10% detection efficiency: | 5.43317 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
