| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Sep 21 14:43:08 2026 UTC |
| Ox option file: | Bench1_allsky_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1e+06 (detector 0), < 1e+06 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Bench1_allsky_file_list.txt (65 files) |
| Analysis result file: | Bench1_allsky_results-1.root |
| Slice selected for the the fakeground: | slice index=144 (-1.656 s), time lag = 0 s |

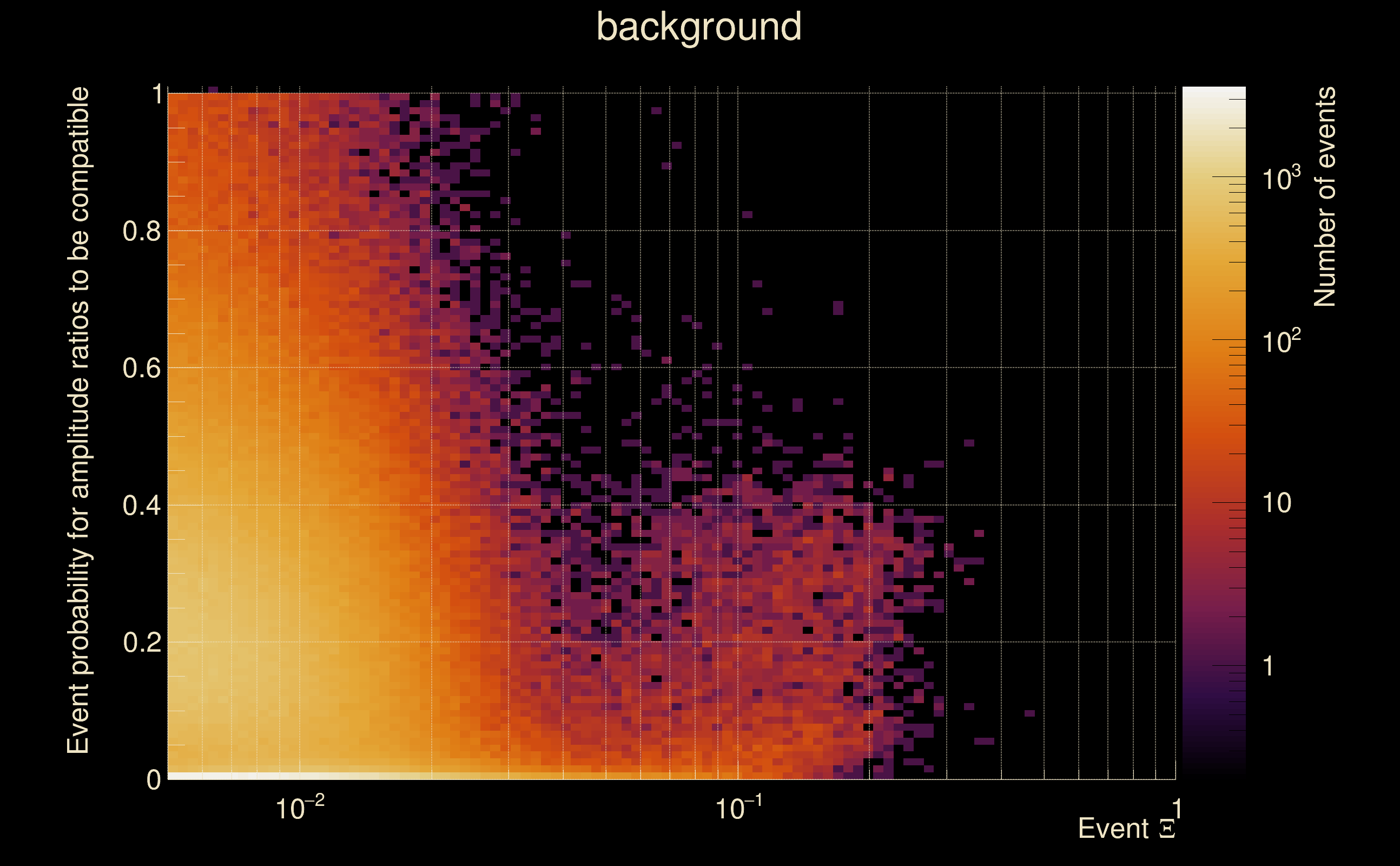

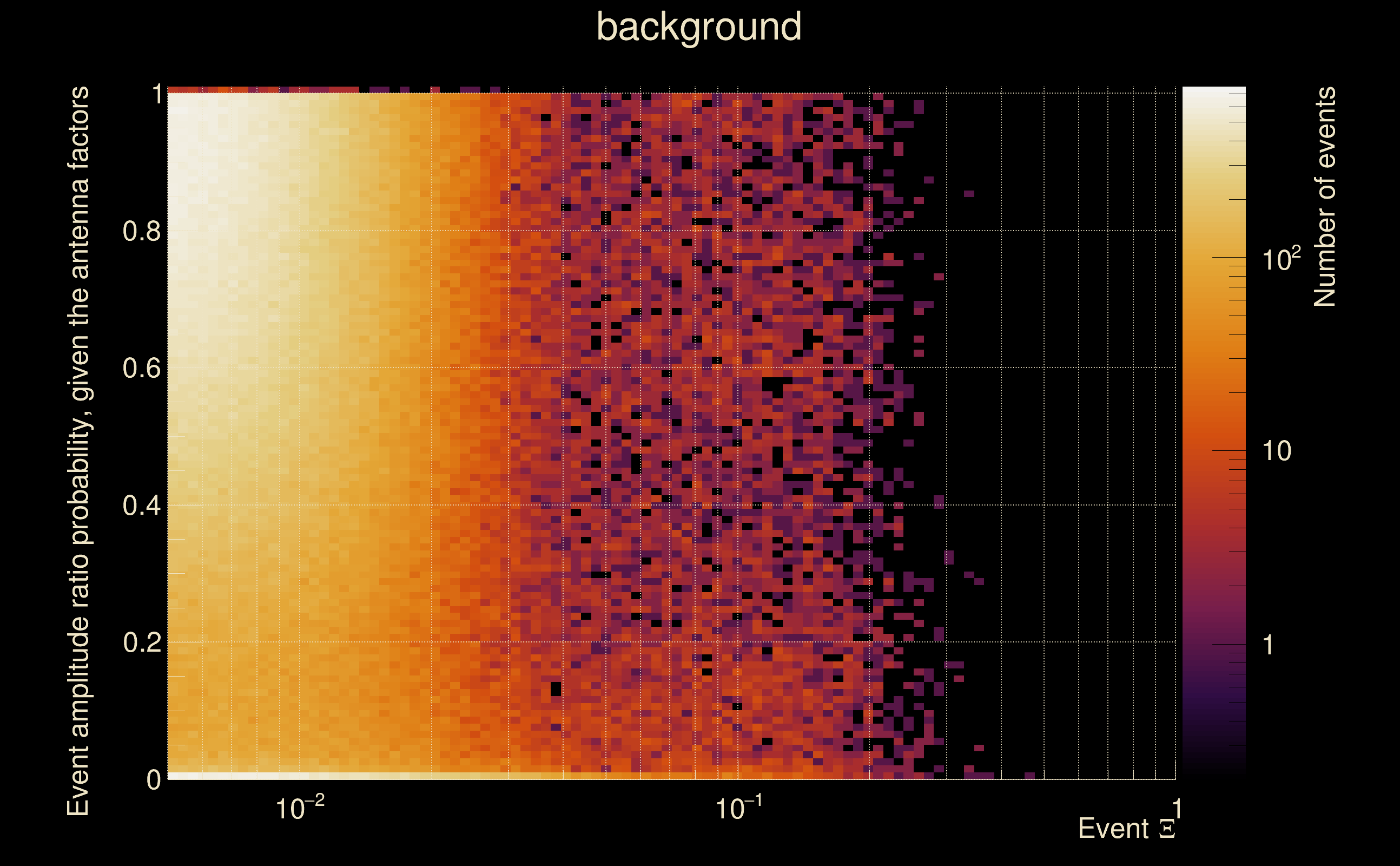

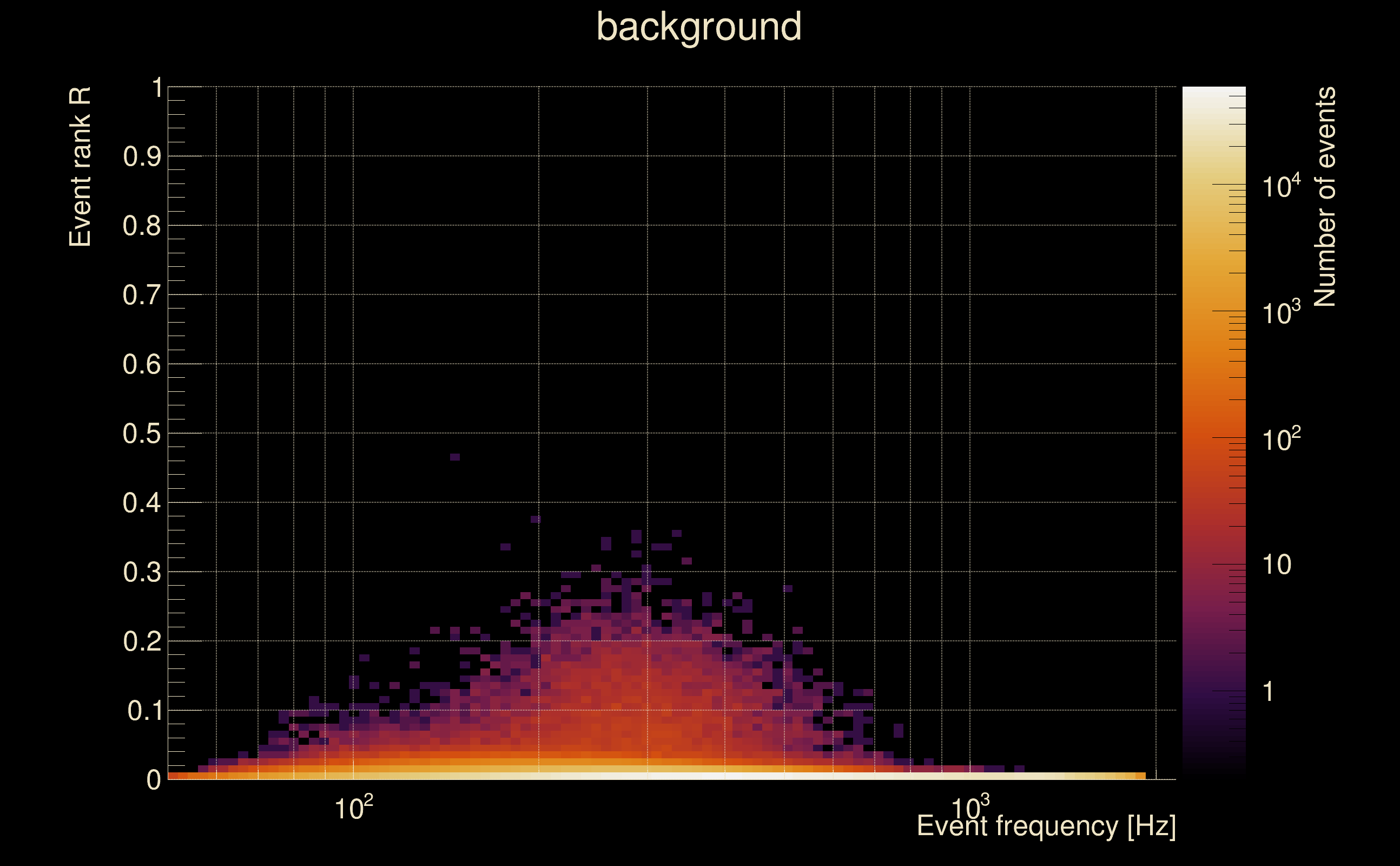

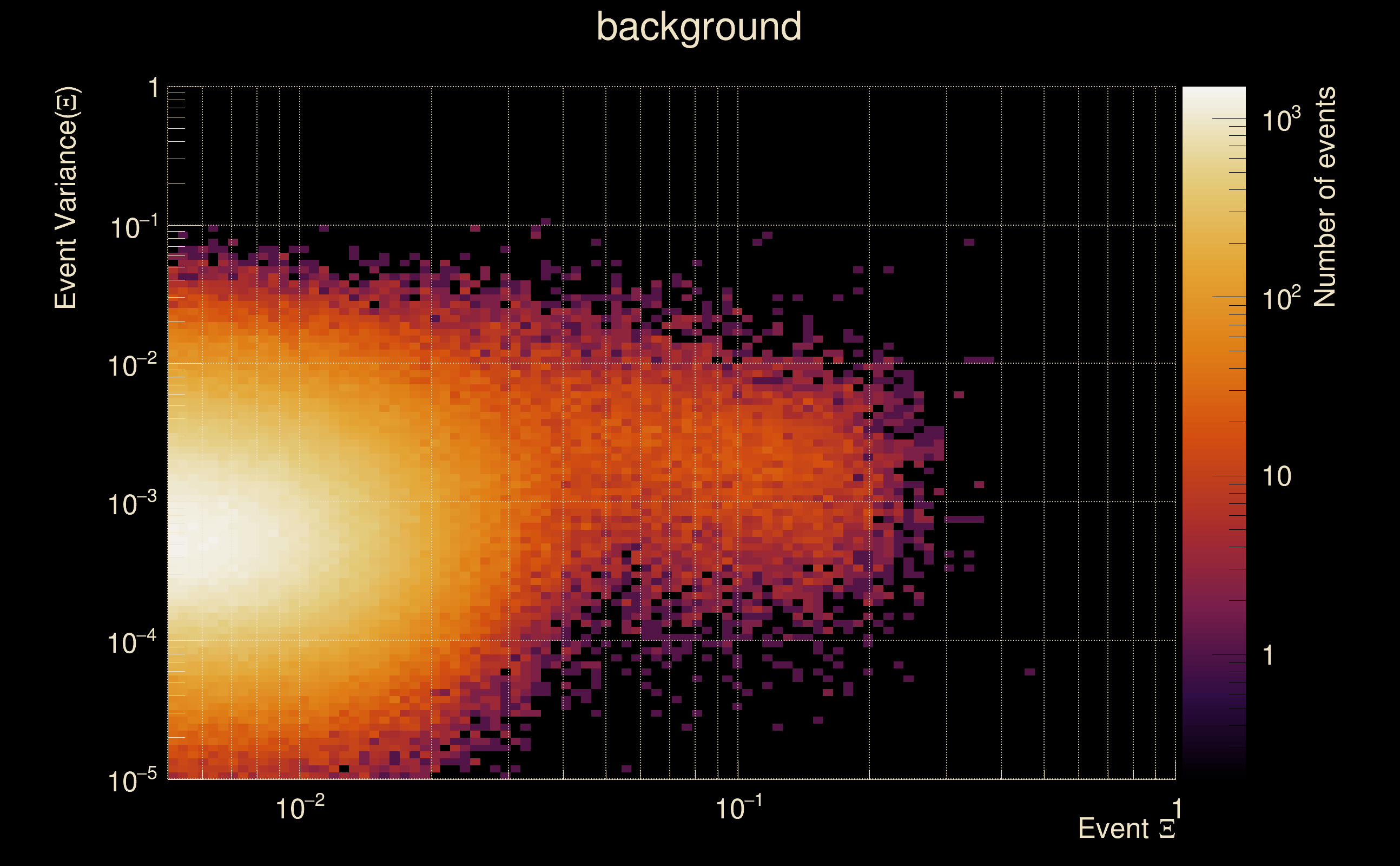

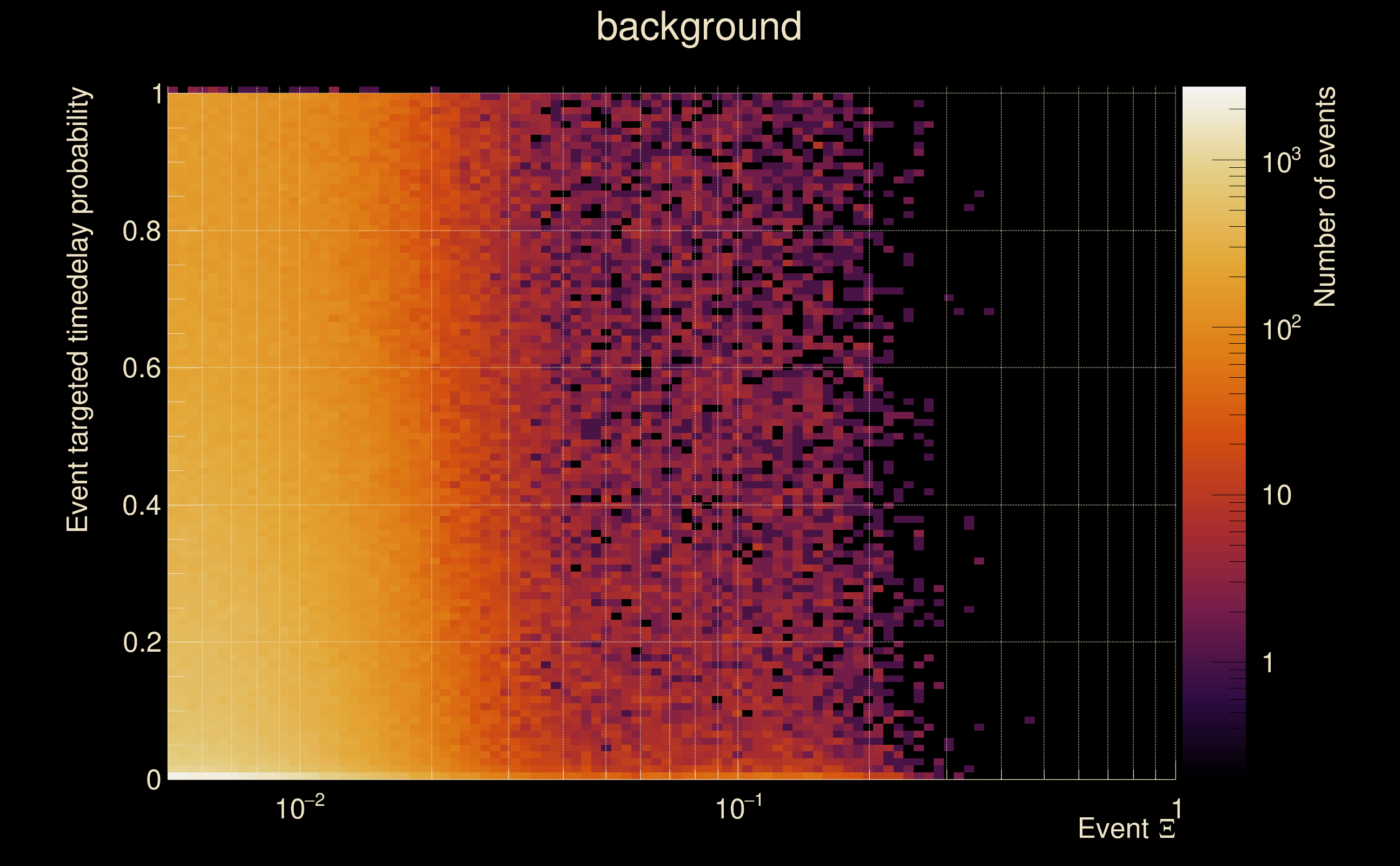

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 12231 | 12231 | 2629665 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 0) | 61480 s | 61480 s | 61480 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | Thu May 18 15:54:40 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368460498 | 1368460498 | 1368460498 | |
| Used livetime (detector 1) | 61480 s | 61480 s | 61480 s | |
| Cumulative livetime | 122310 s | 122310 s | 26296650 s | |
| 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 1 days, 9 hours, 58 min, 30 s | 0 years, 304 days, 8 hours, 37 min, 30 s |
|
|

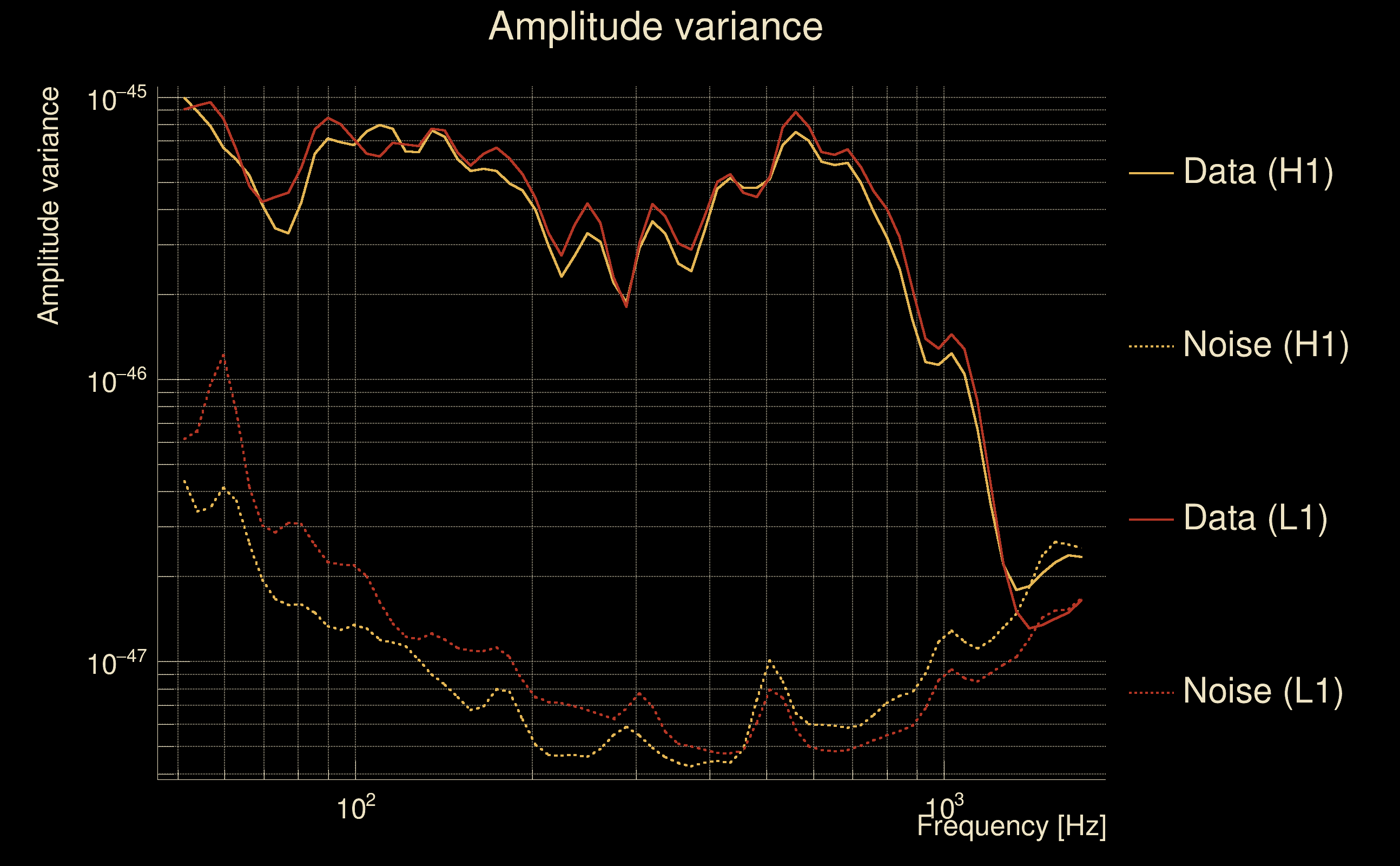

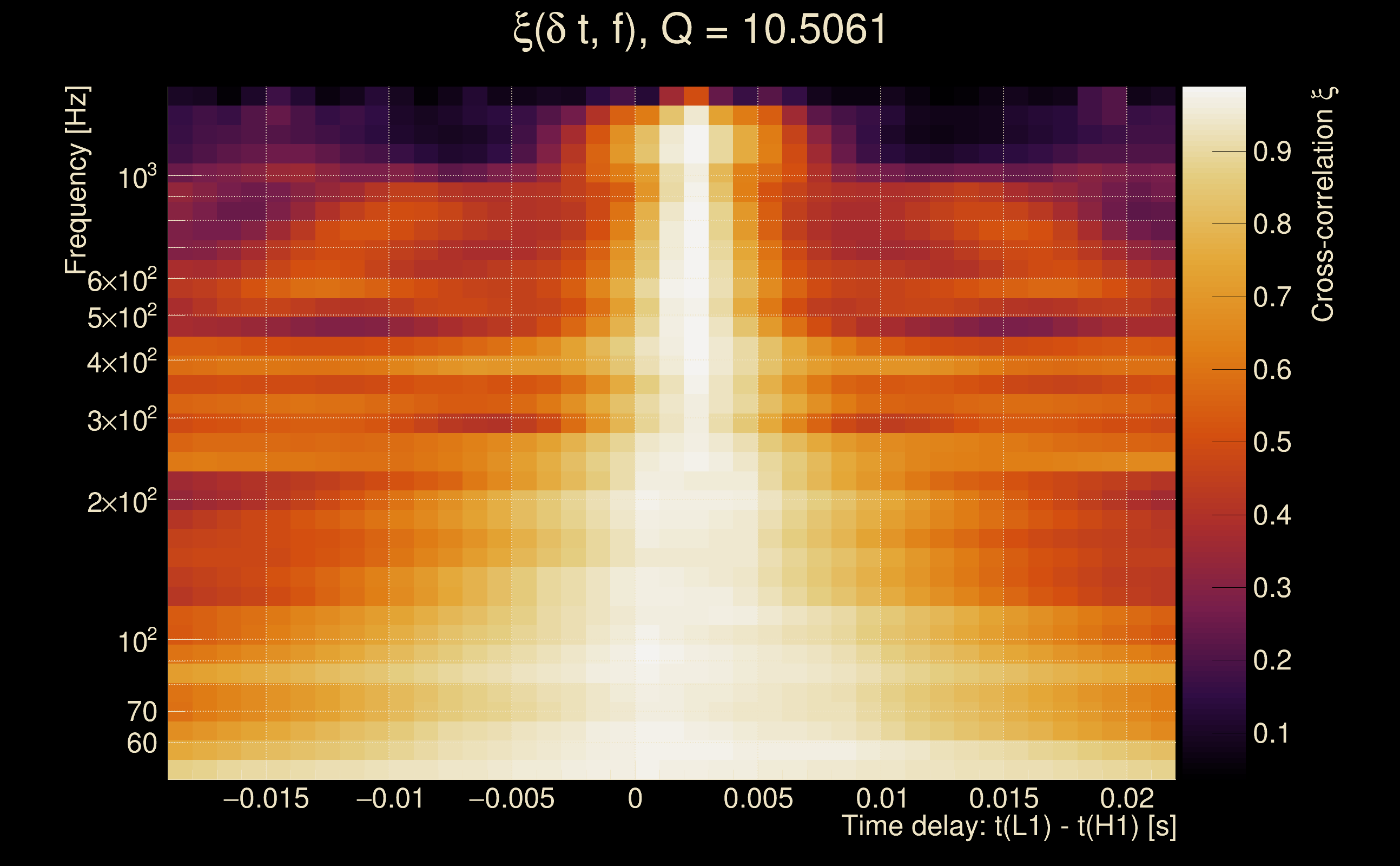

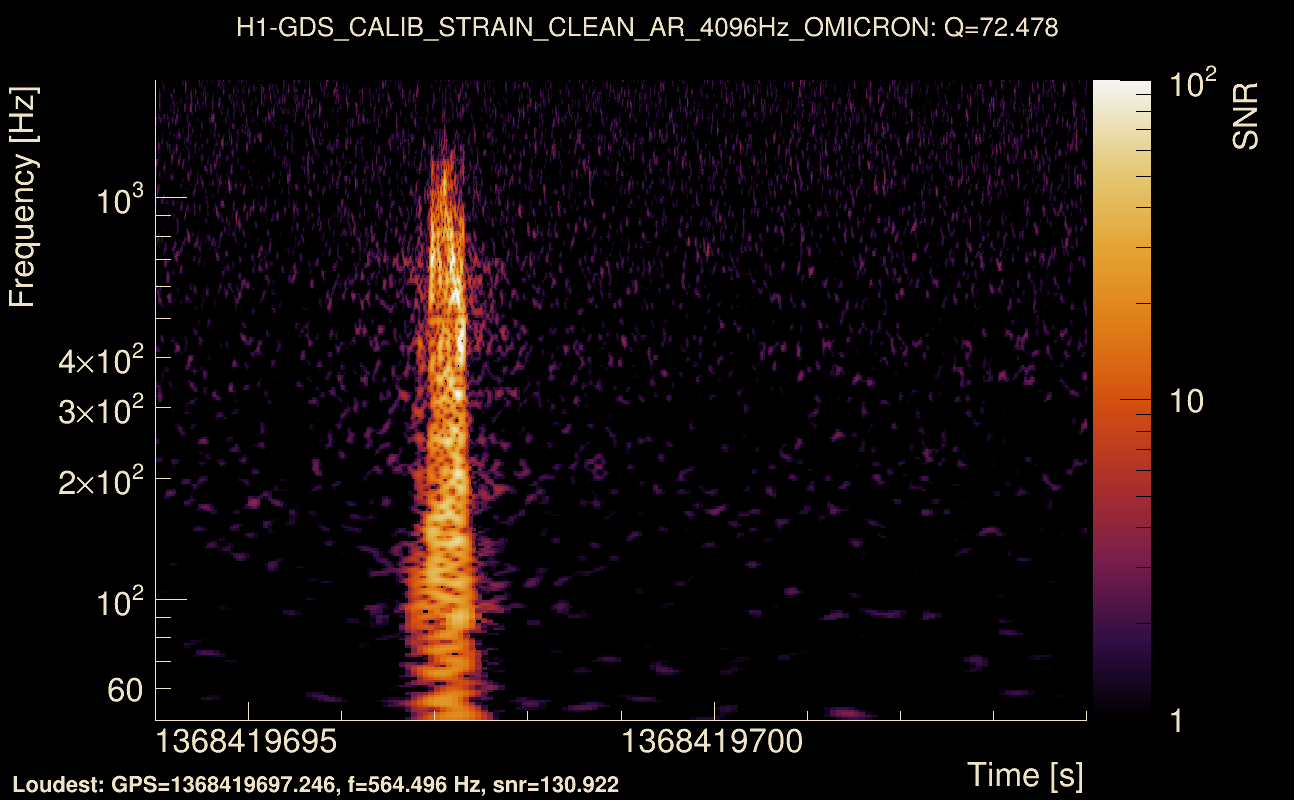

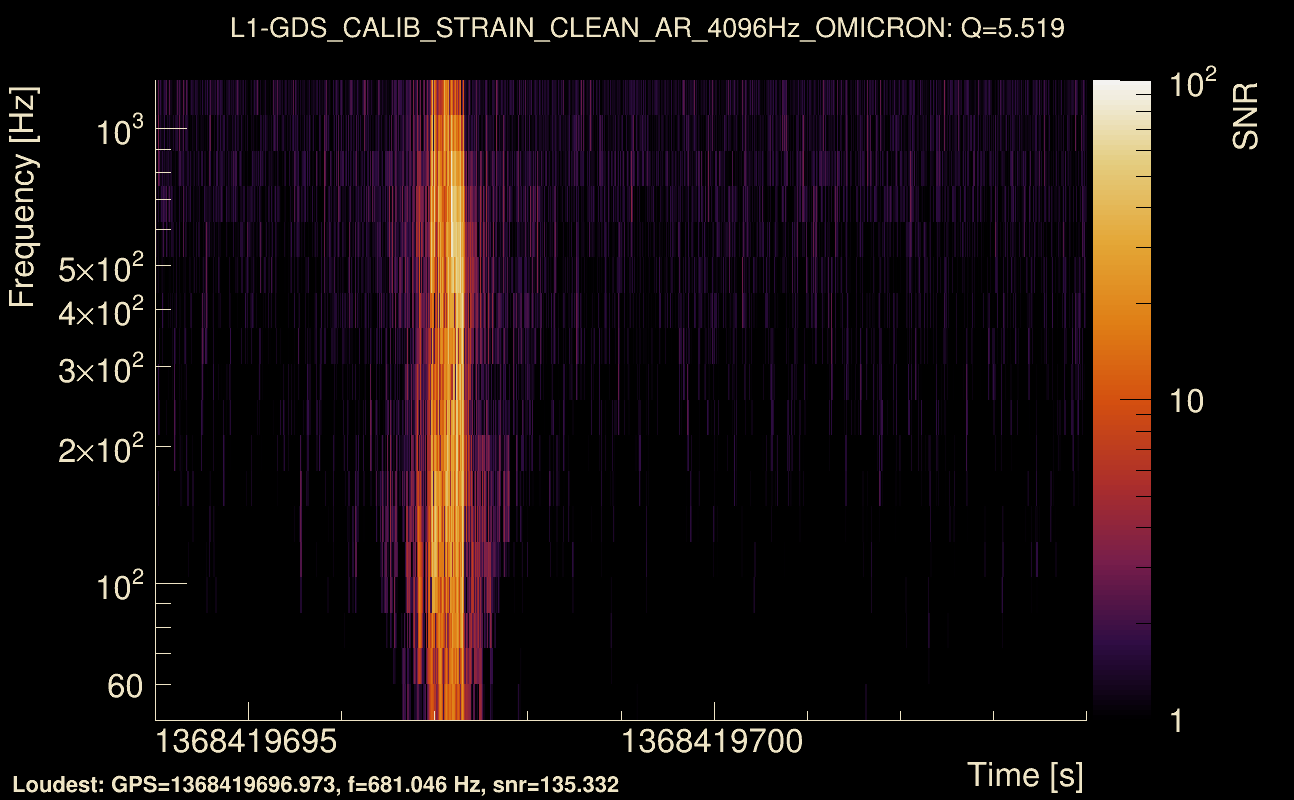

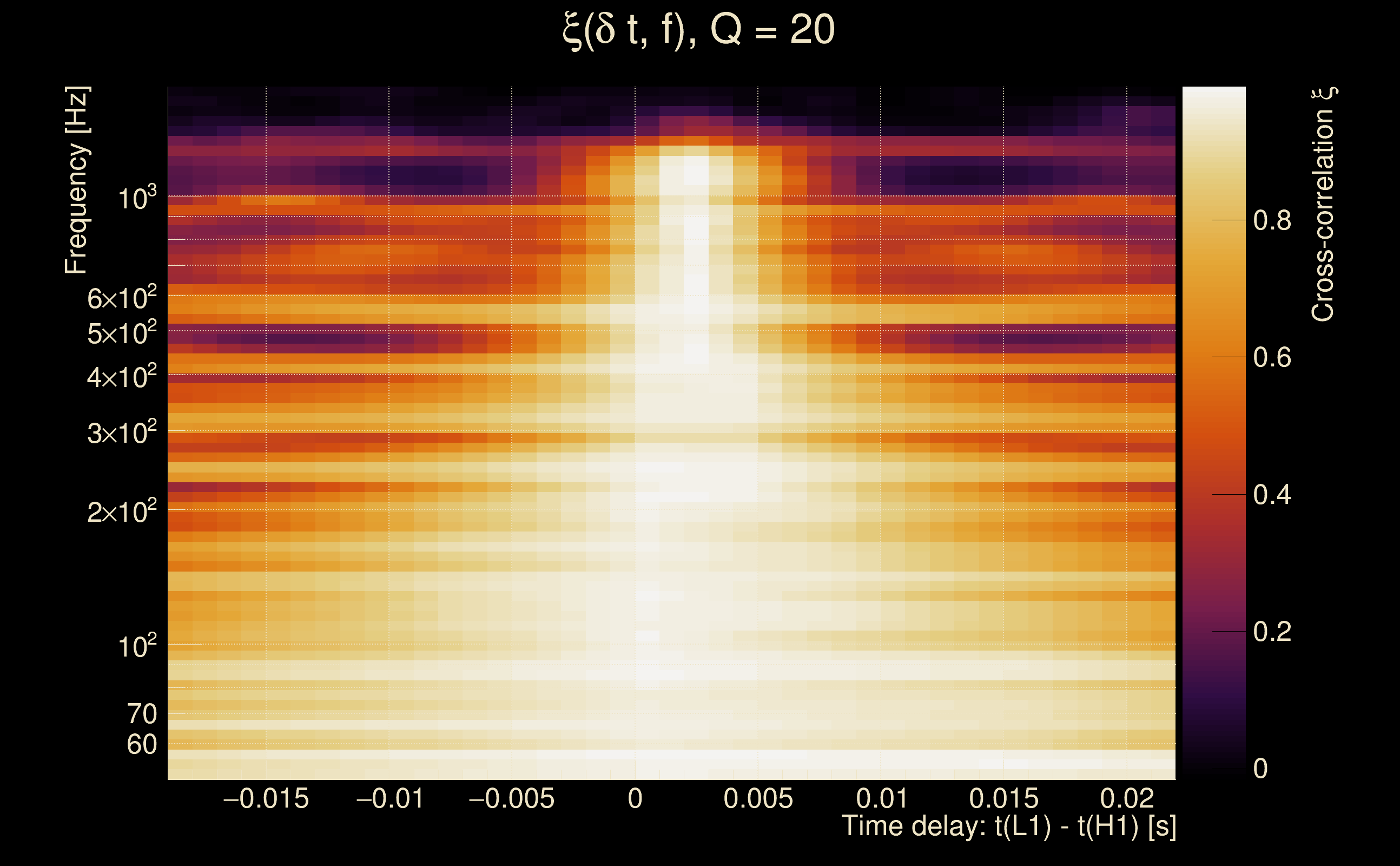

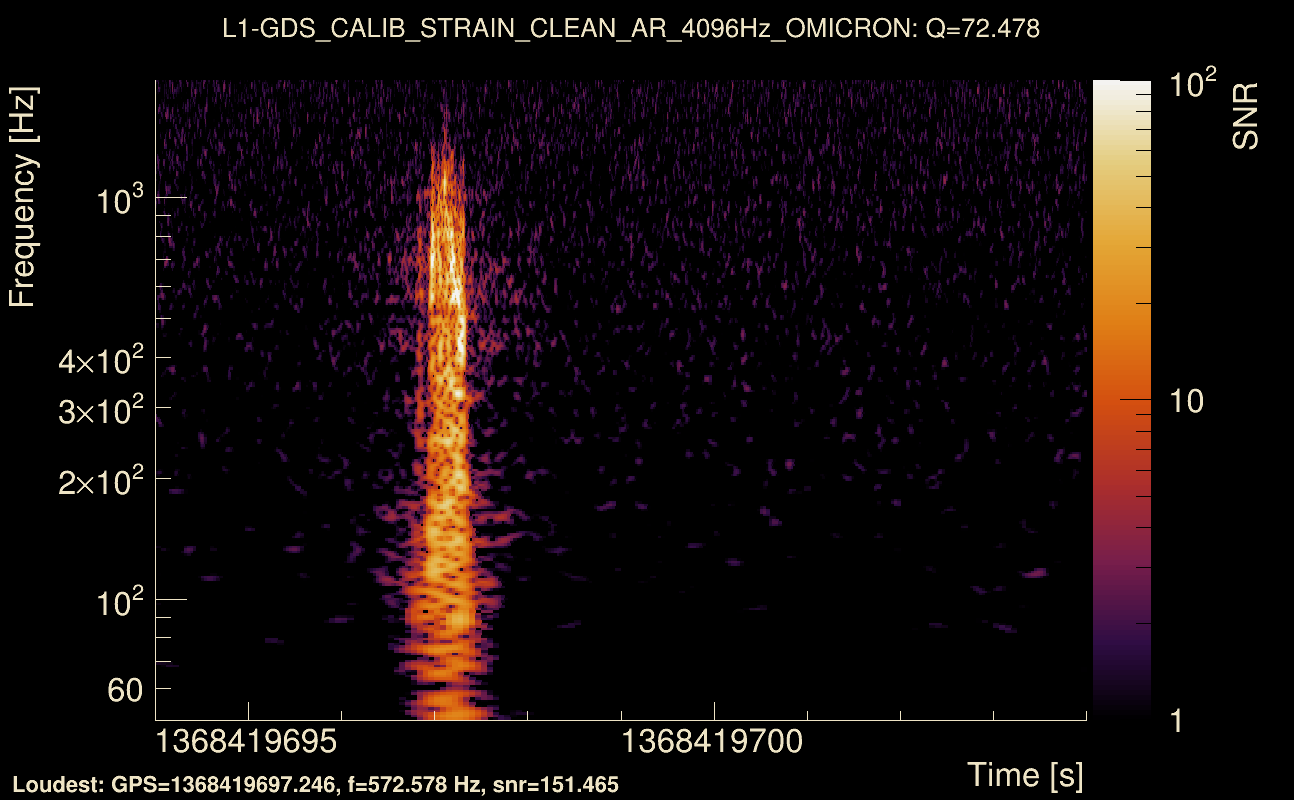

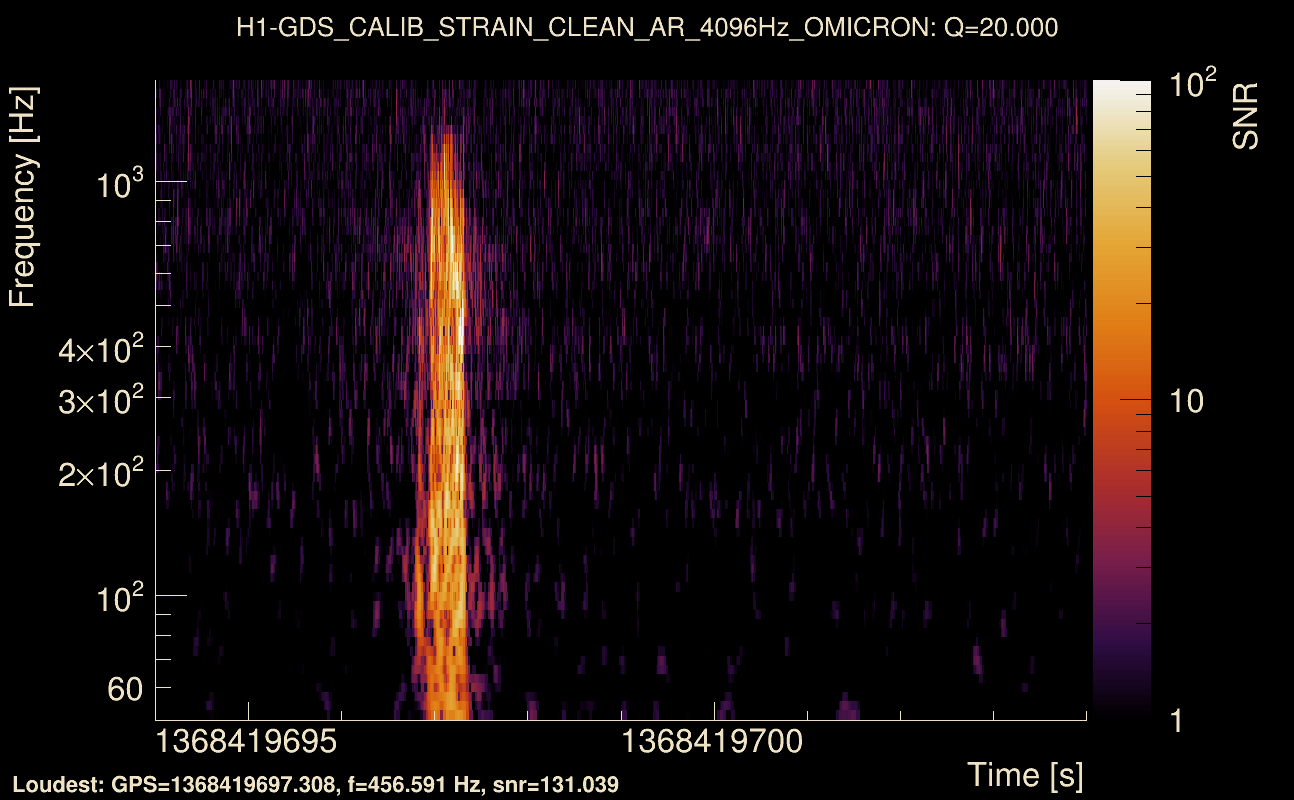

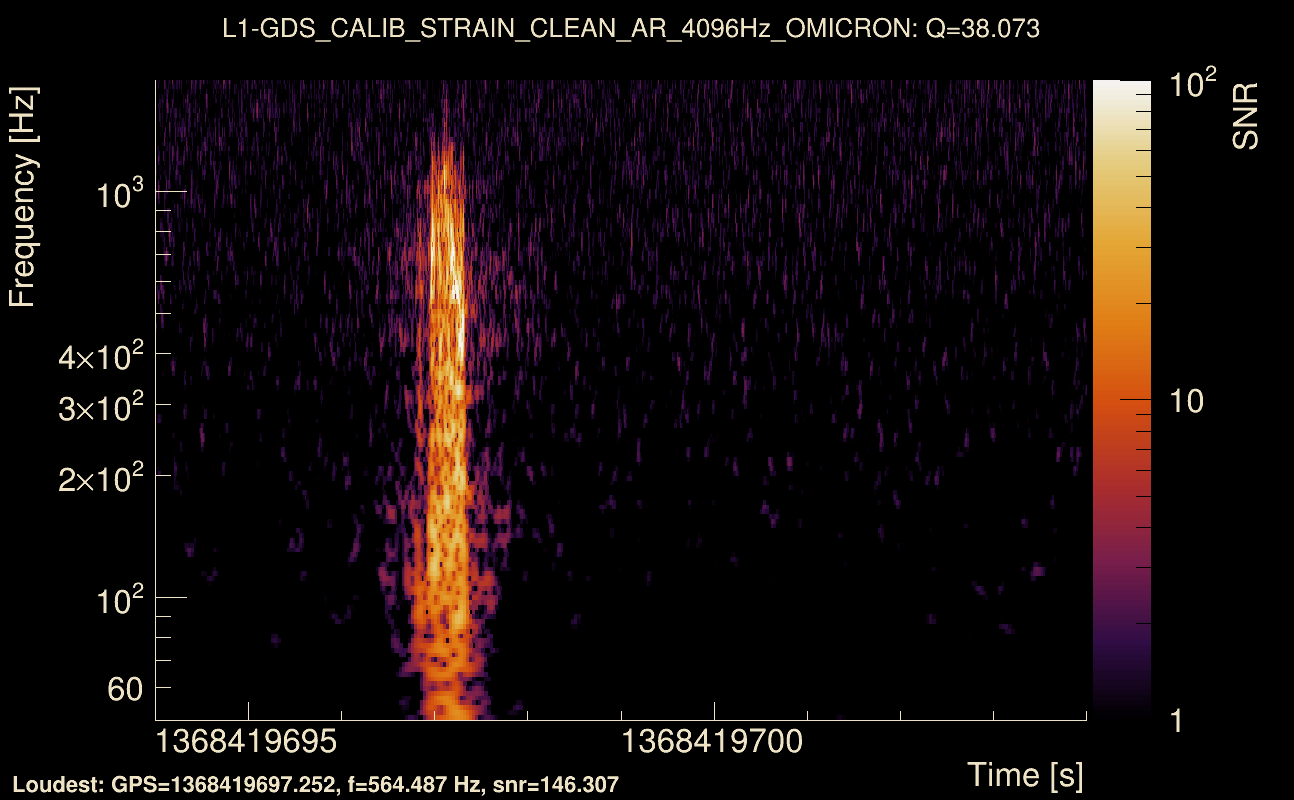

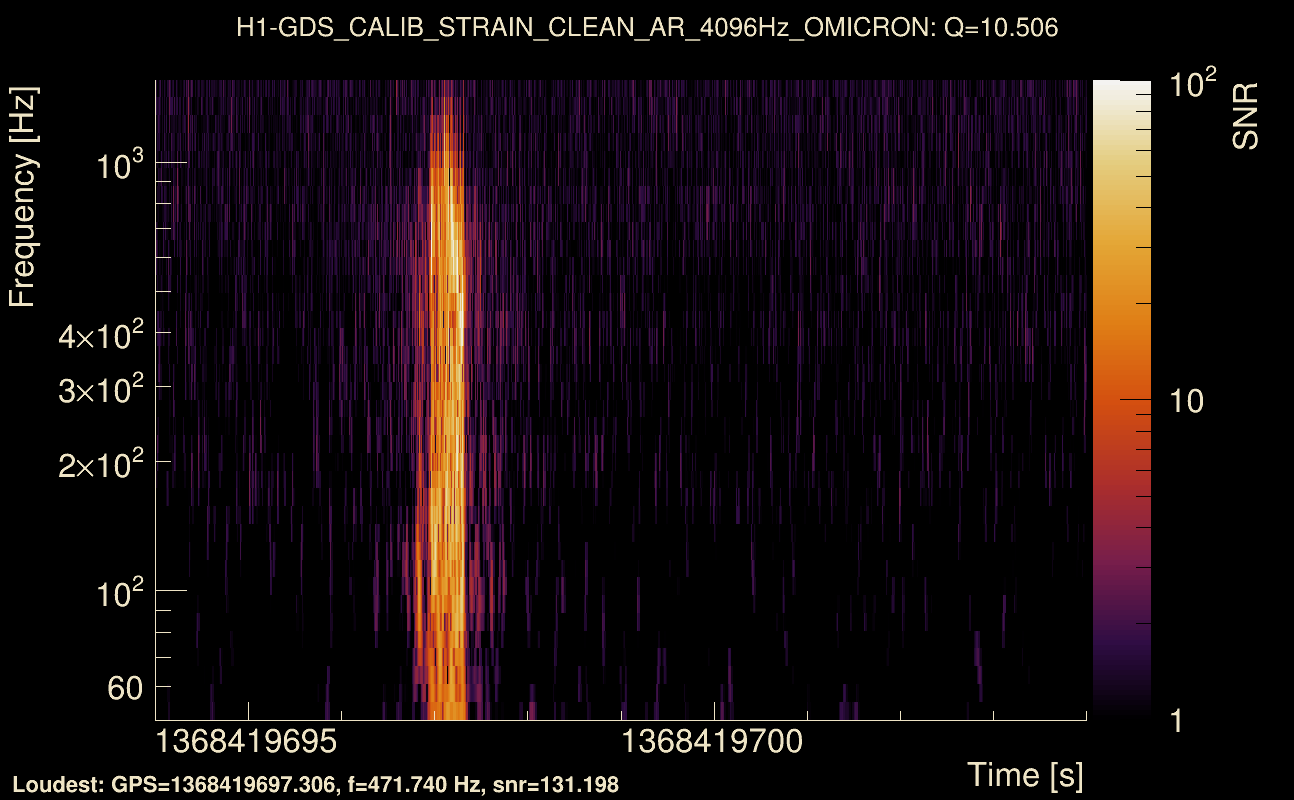

| Event time t(H1): | GPS = 1368419689 (Thu May 18 04:34:31 2023 ) → GPS = 1368419699 (Thu May 18 04:34:41 2023 ) |
| Event time t(L1): | GPS = 1368419689 (Thu May 18 04:34:41 2023 ) → GPS = 1368419699 (Thu May 18 04:34:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368419686 → GPS = 1368419702 |
| Omicron analysis time window (L1): | GPS = 1368419686 → GPS = 1368419702 |

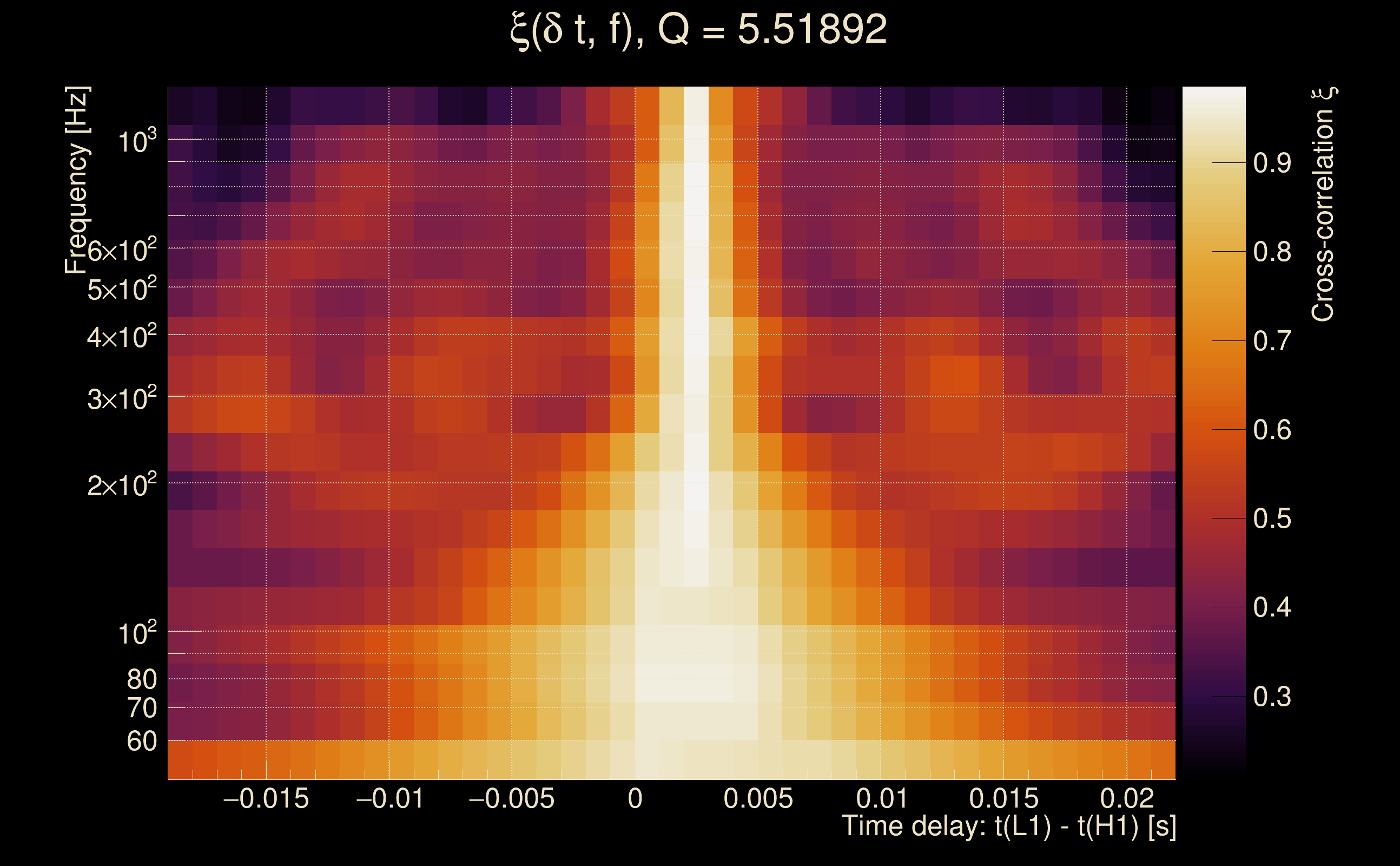

| Time delay between detectors t(L1) - t(H1): | 0.00193018 s (slice index = 108 / 217), δt_gw = 0.00193018 s |
| Time delay standard deviation: | 0.0208308 s |

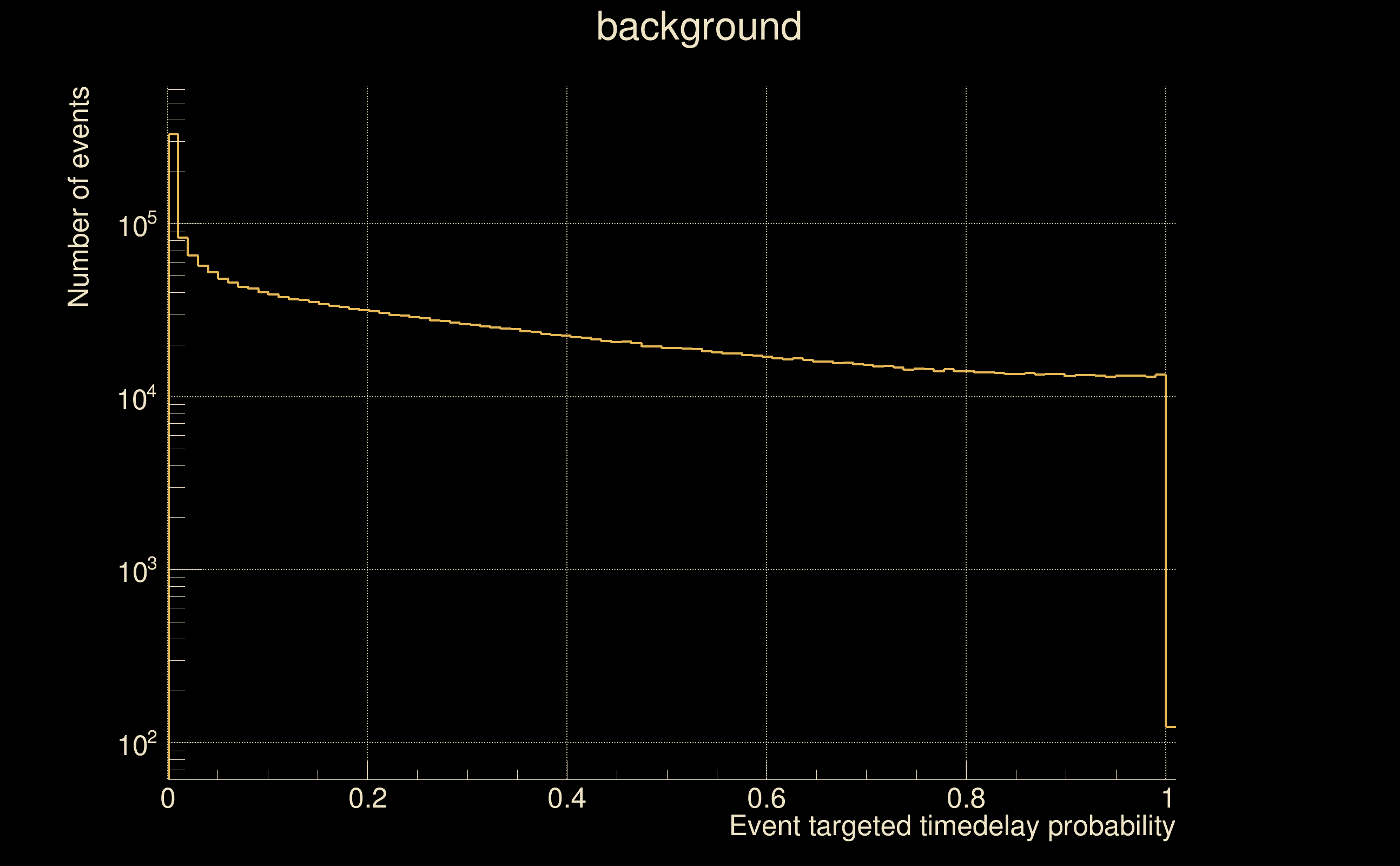

| [targeted mode] Time delay probability: | 0.00589254 (2.7537 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 258.933 Hz |
| Ξ: | 0.96425 ± 0.00163319 (variance = 2.66731e-06): Q0: 0.979951, Q1: 0.975794, Q2: 0.977485, Q3: 0.976003, Q4: 0.979012 |
| Rank: | R_A = 0.96425 |
| Log of amplitude ratio (L1/H1): | 0.0522686, variance = 0.1524 (L1/H1: 0.039055, variance = 0.301181, H1/L1: -0.062868, variance = 0.301162) |
| Amplitude ratio (L1/H1): | 1.05366 ⋇ 1.47755 (L1/H1: 1.03983 ⋇ 1.73117, H1/L1: 0.939067 ⋇ 1.73114) |

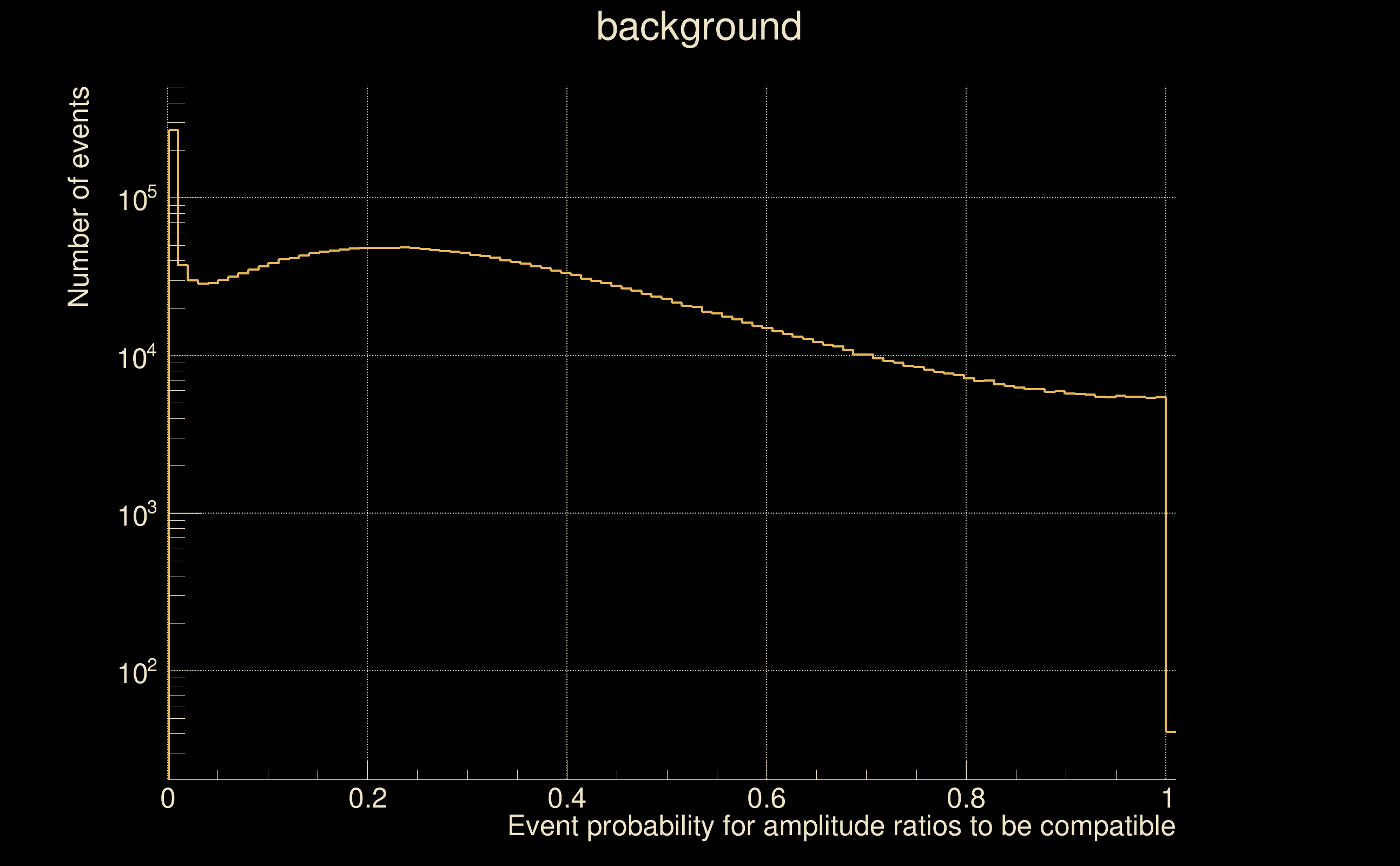

| Amplitude ratio H1|L1 compatibility (probability): | 0.975523 |

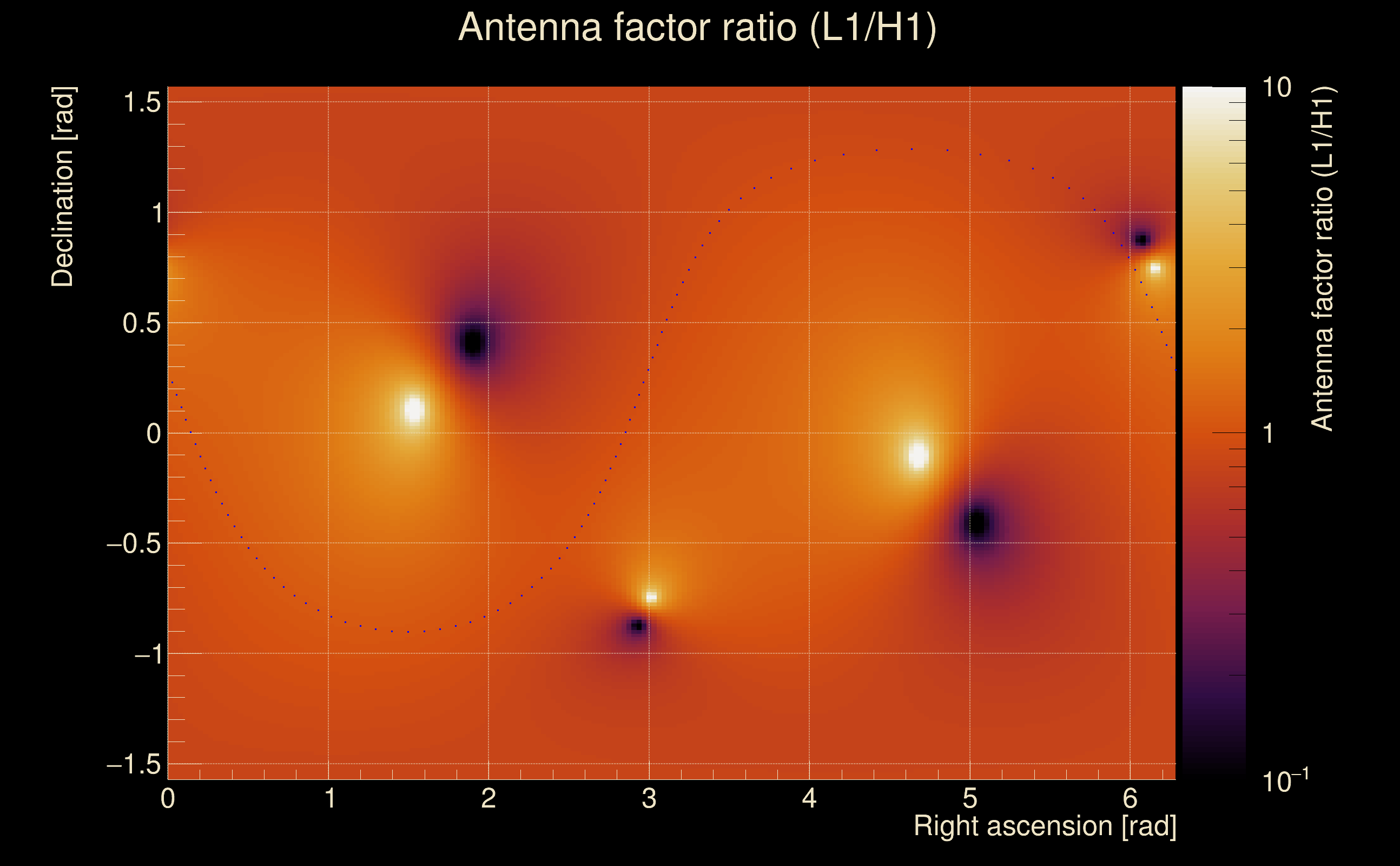

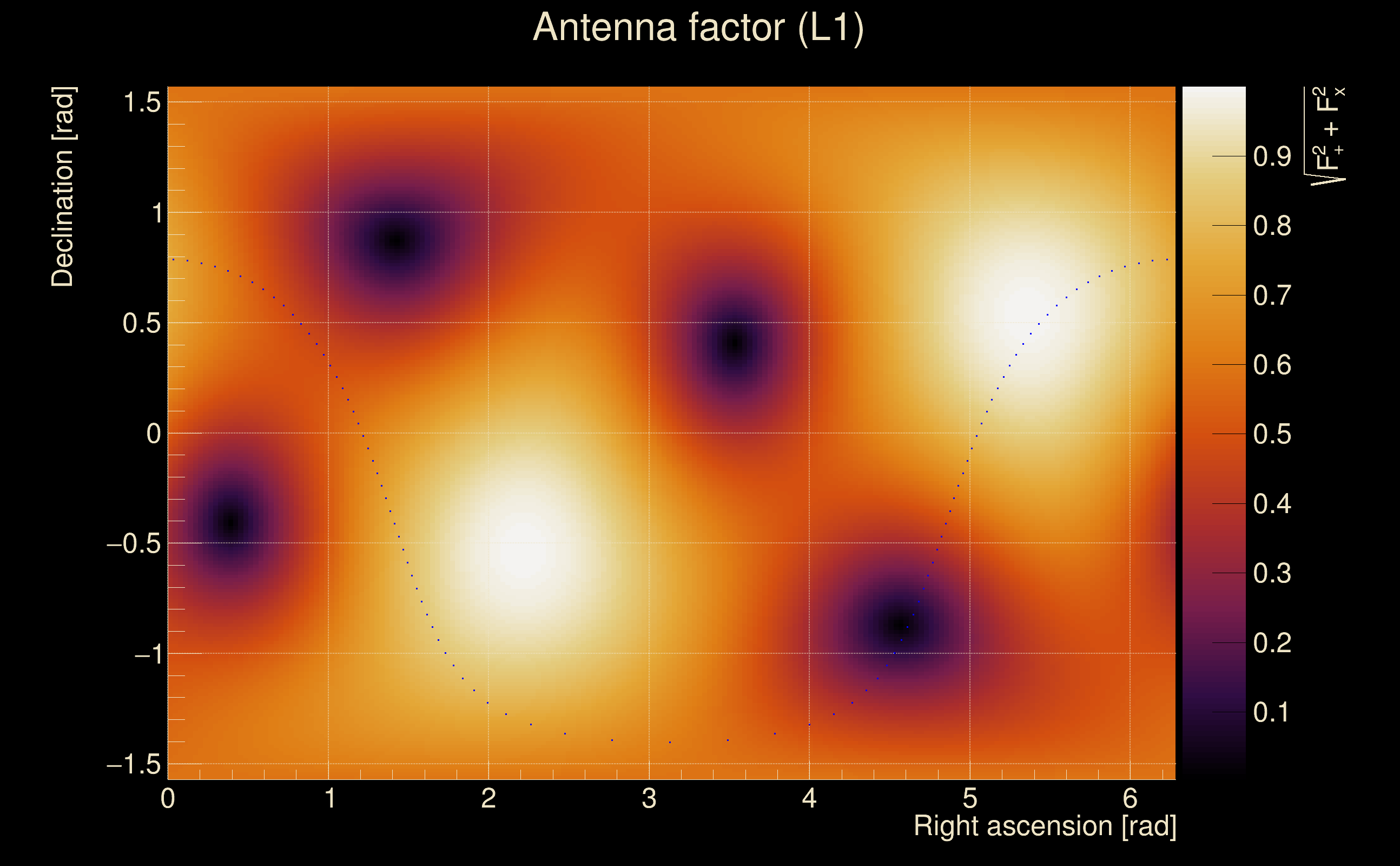

| Antenna factor probability: | 0.82123 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 4 / 70, Q3: 8 / 134, Q4: 20 / 258 |
| Maximum signal-to-noise ratio: | H1: 154.93, L1: 172.984 |

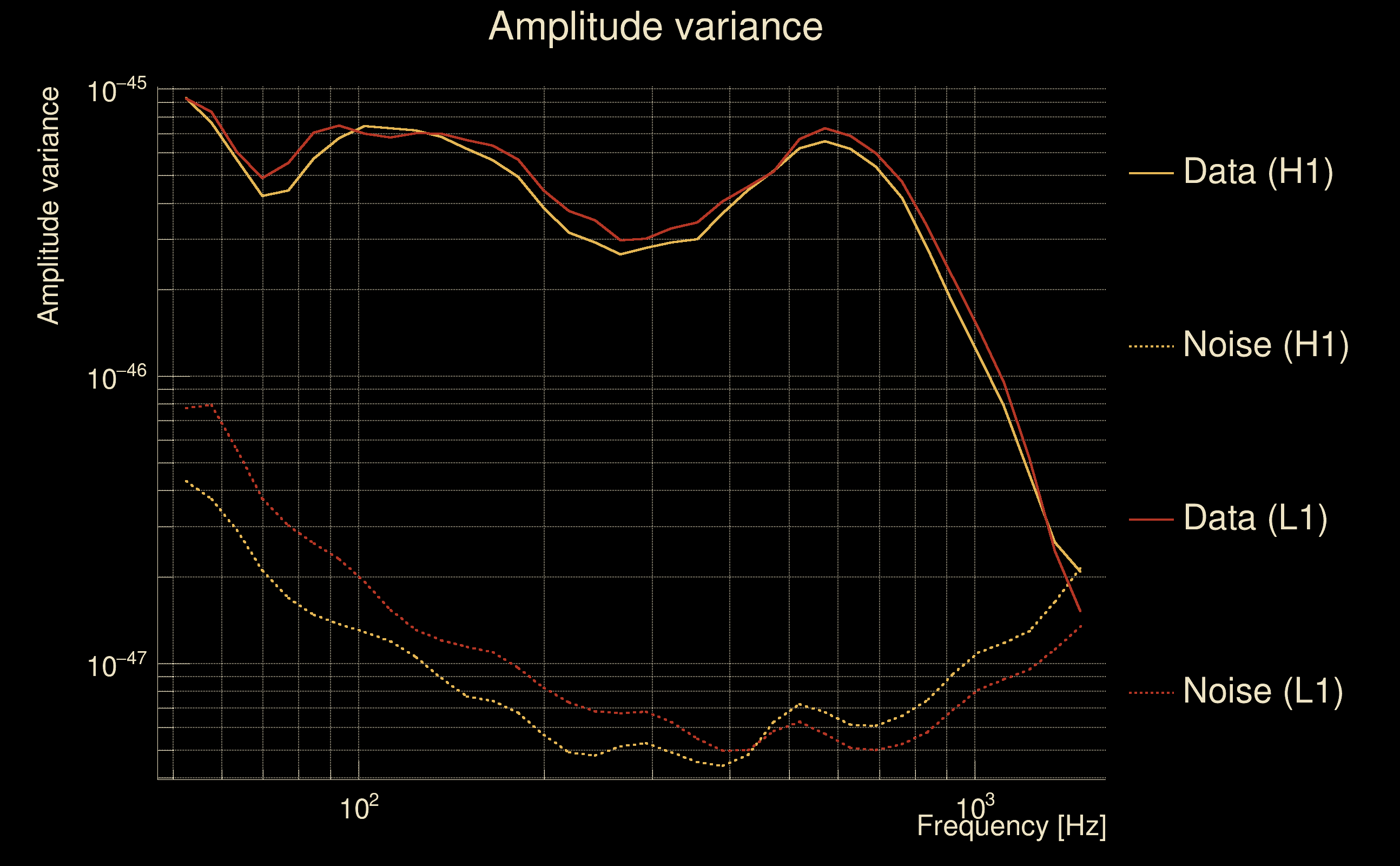

| SNR variance: | H1: 0.510653, L1: 0.490547 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

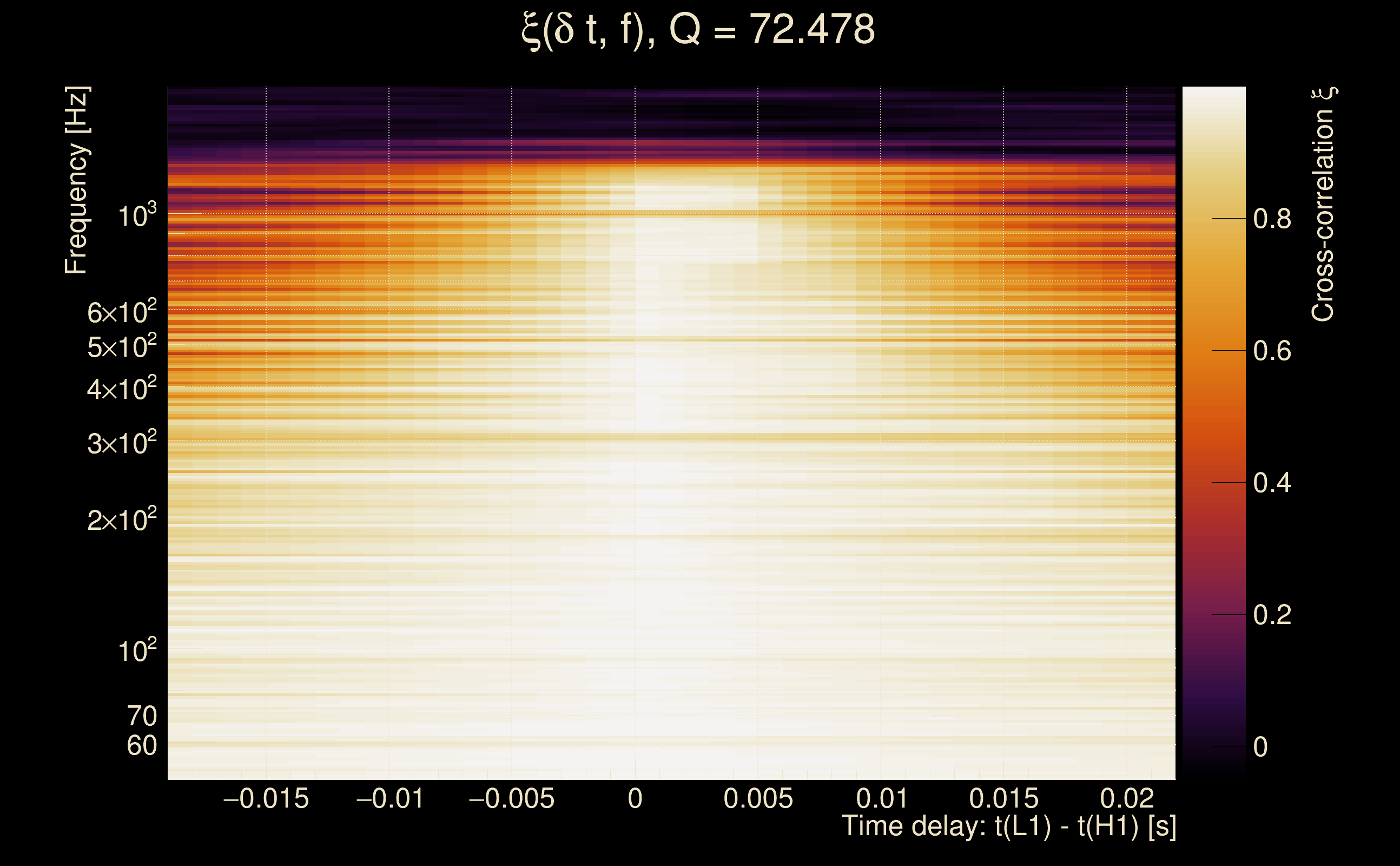

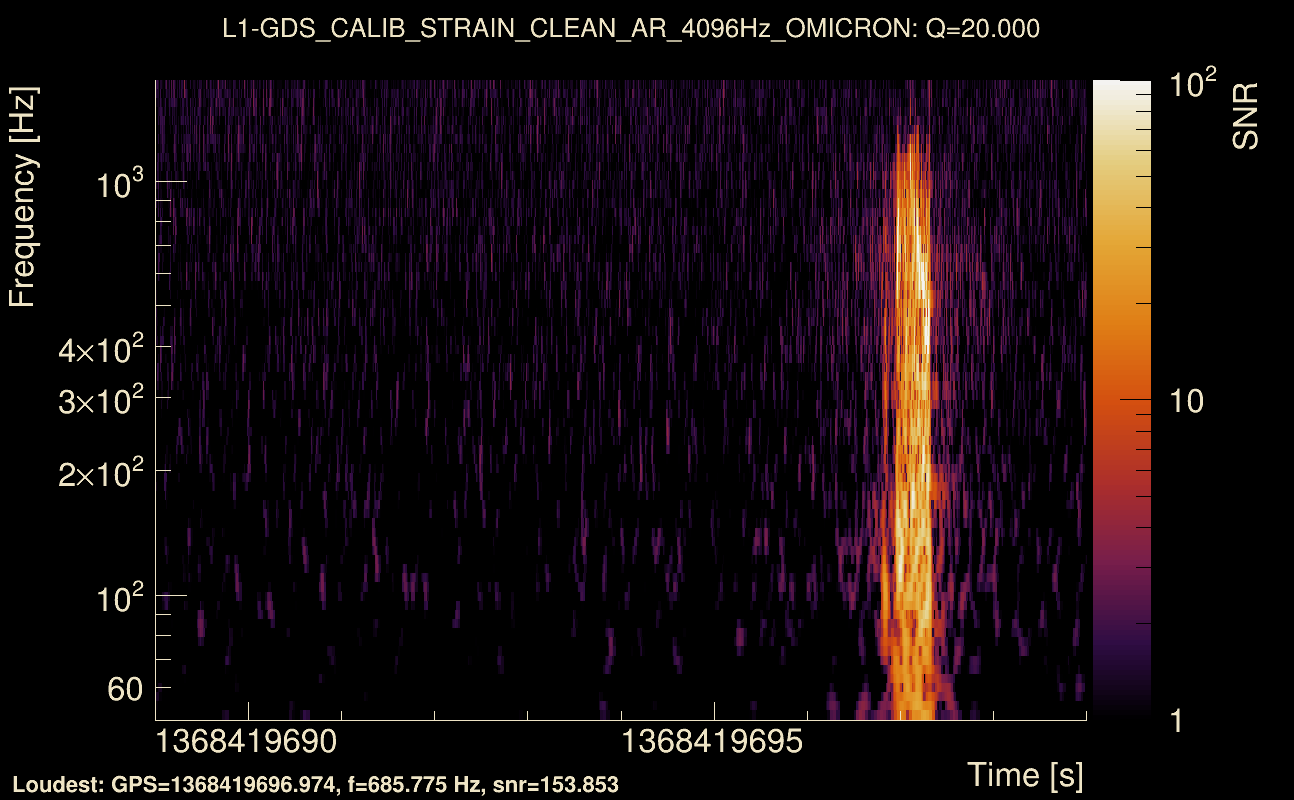

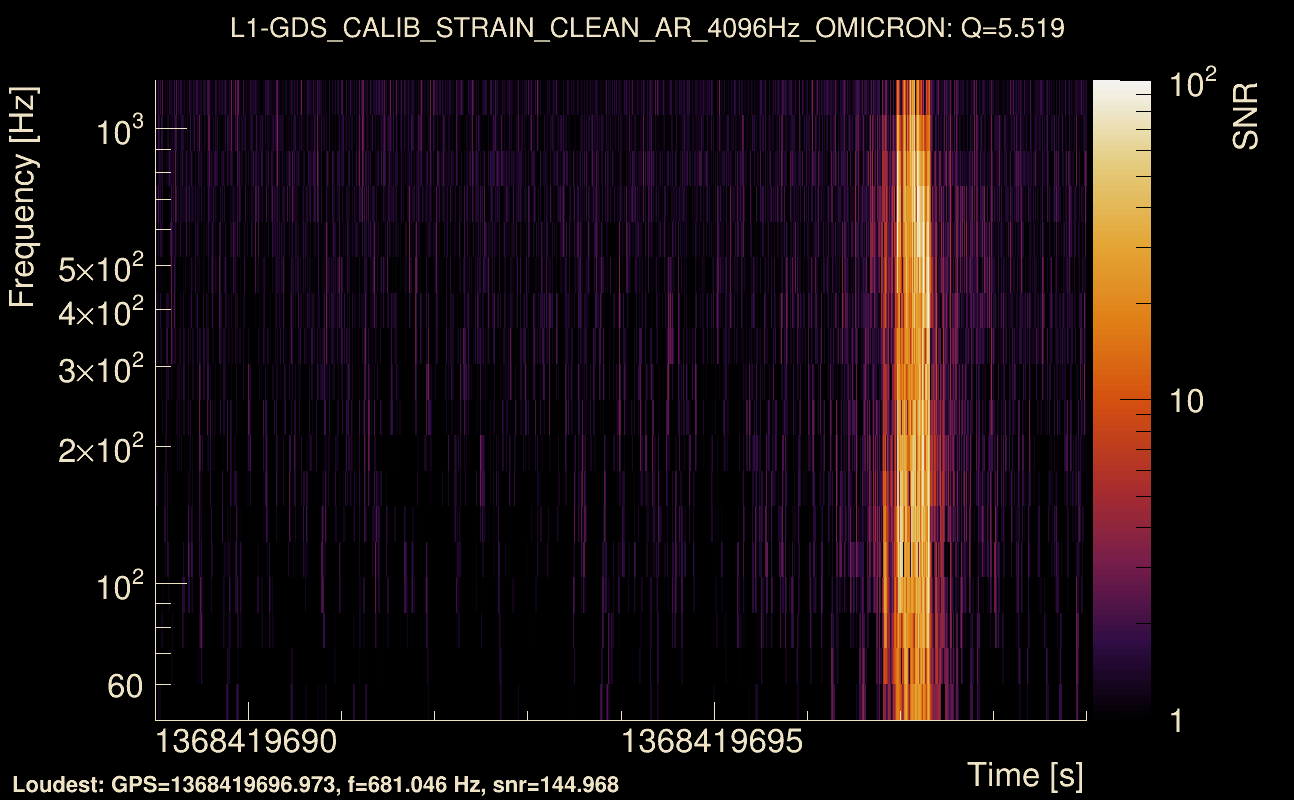

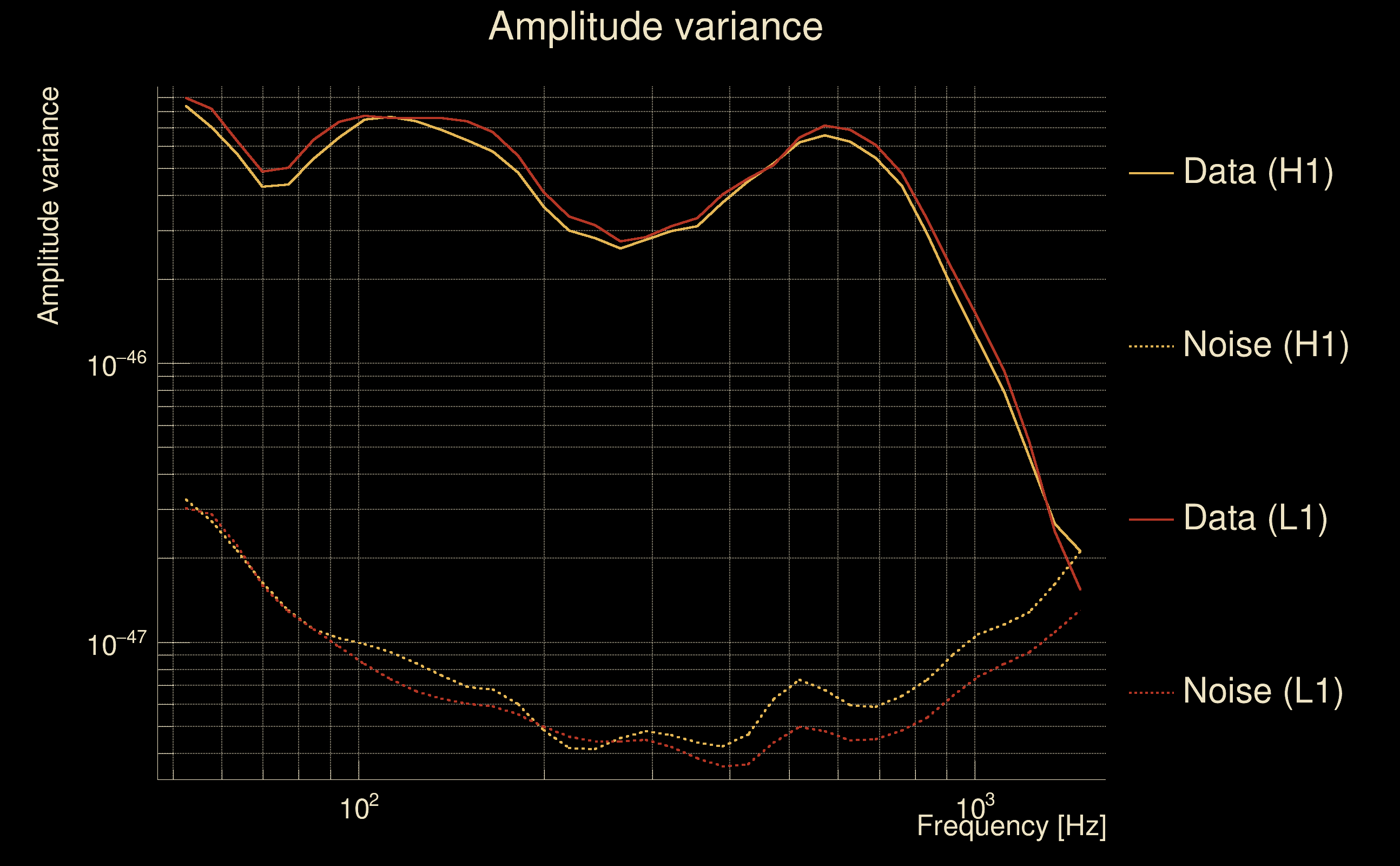

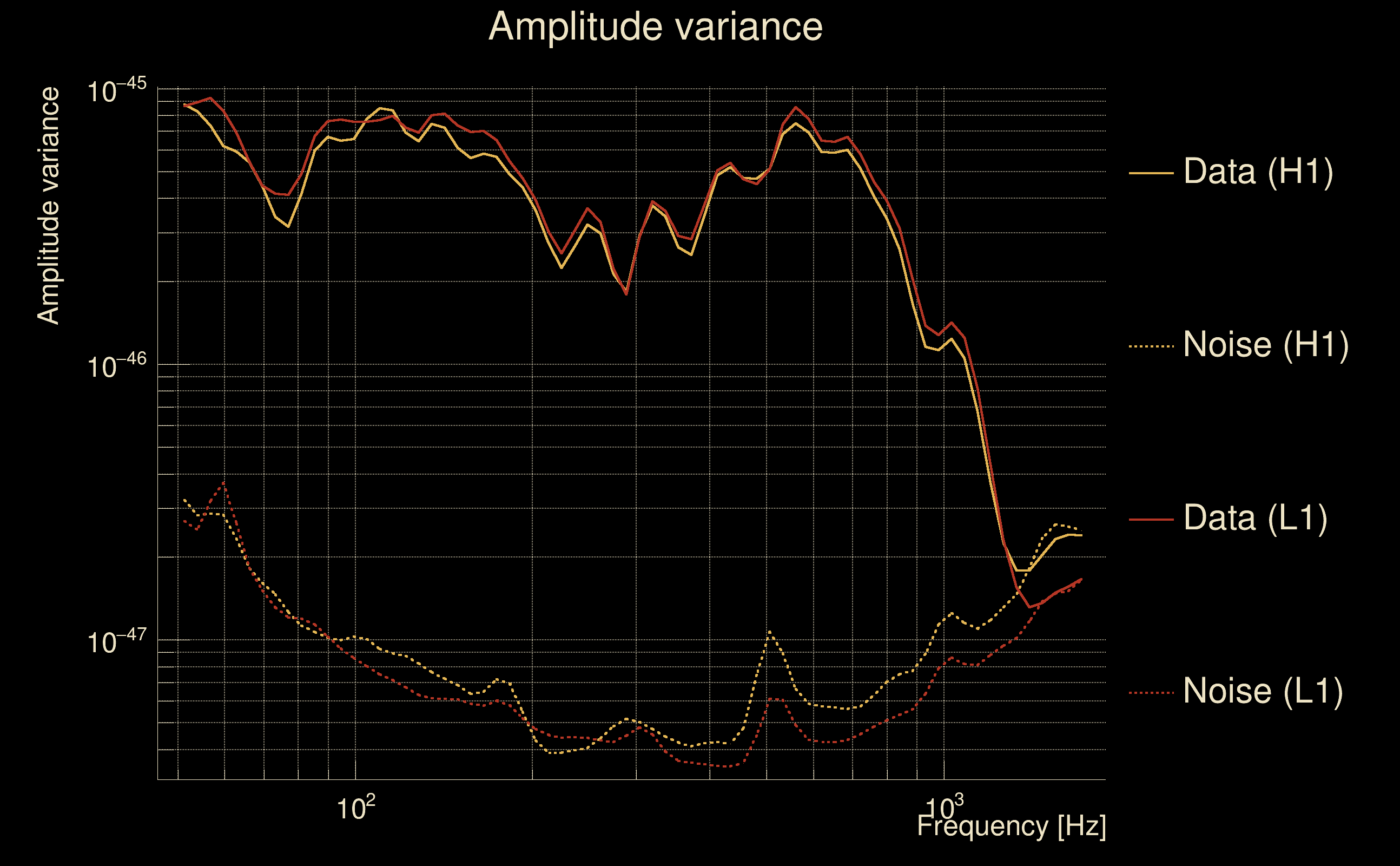

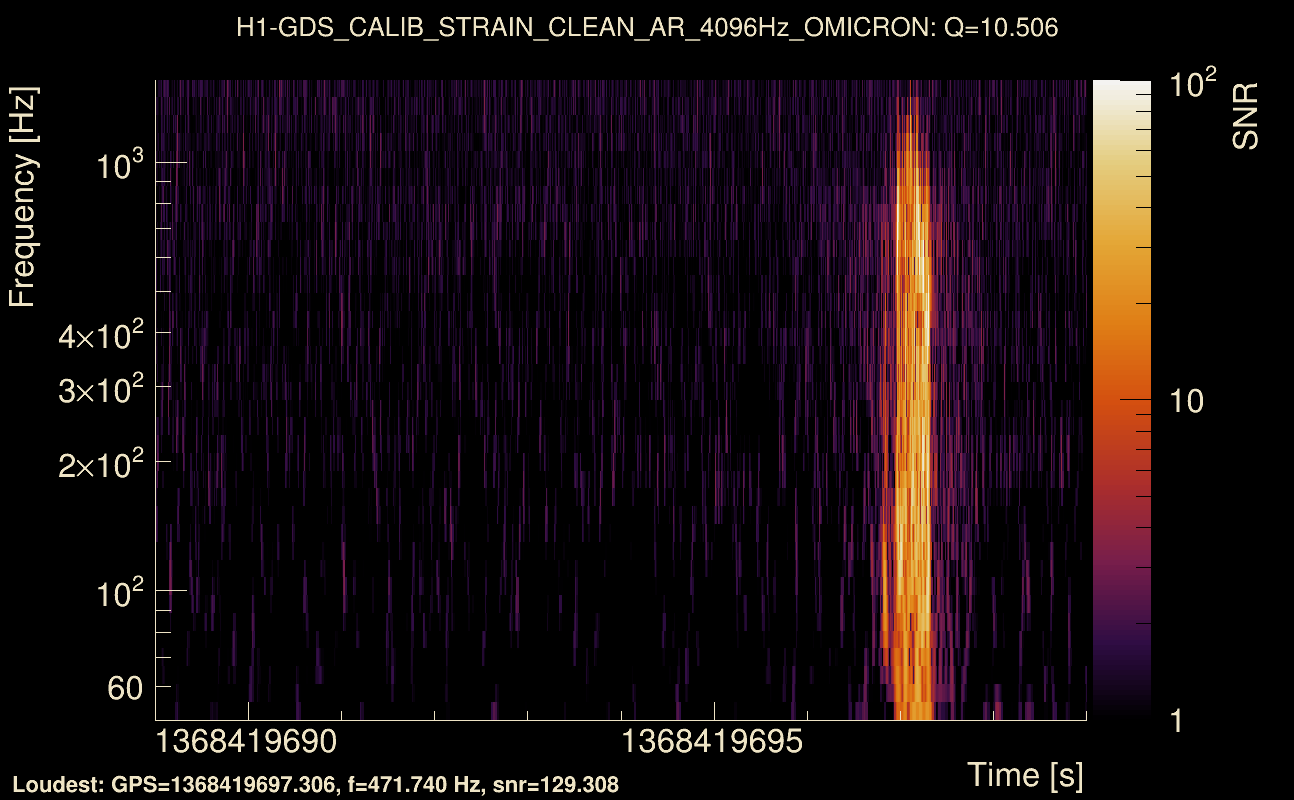

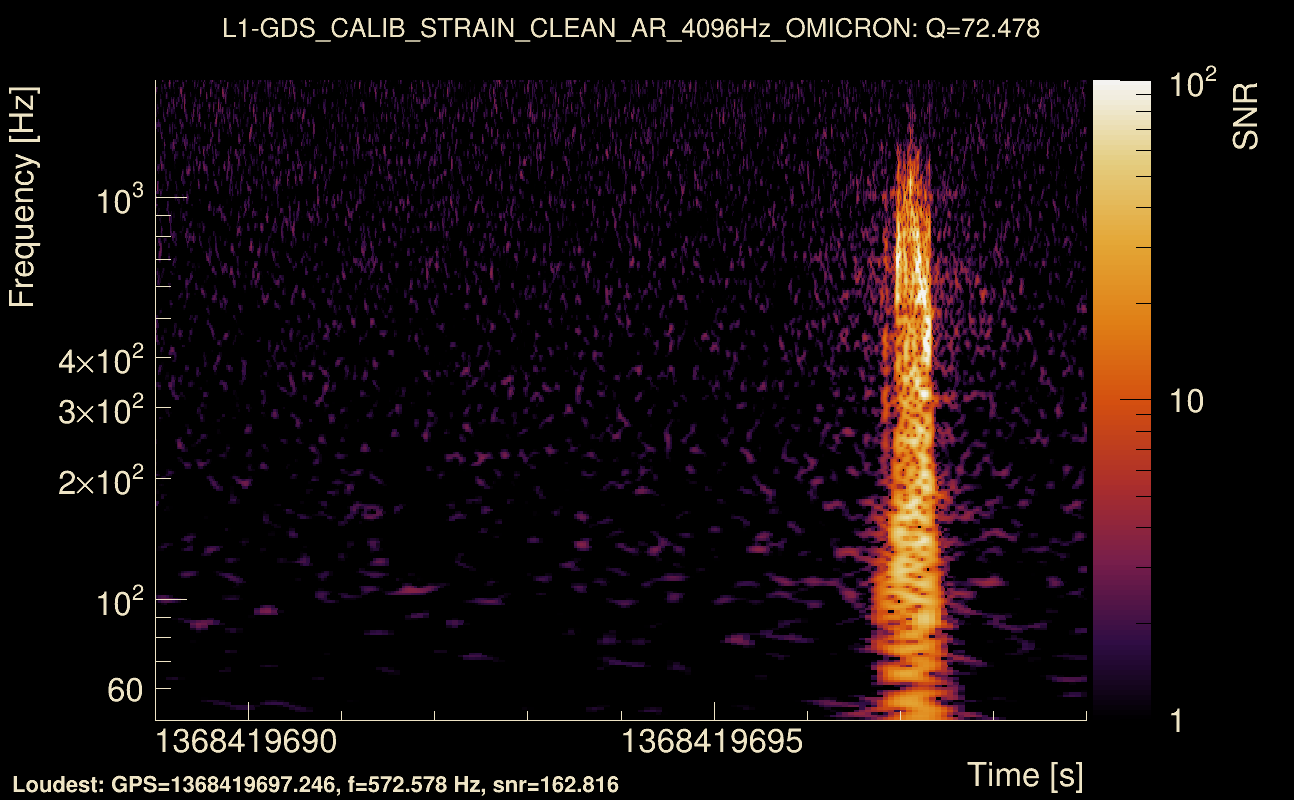

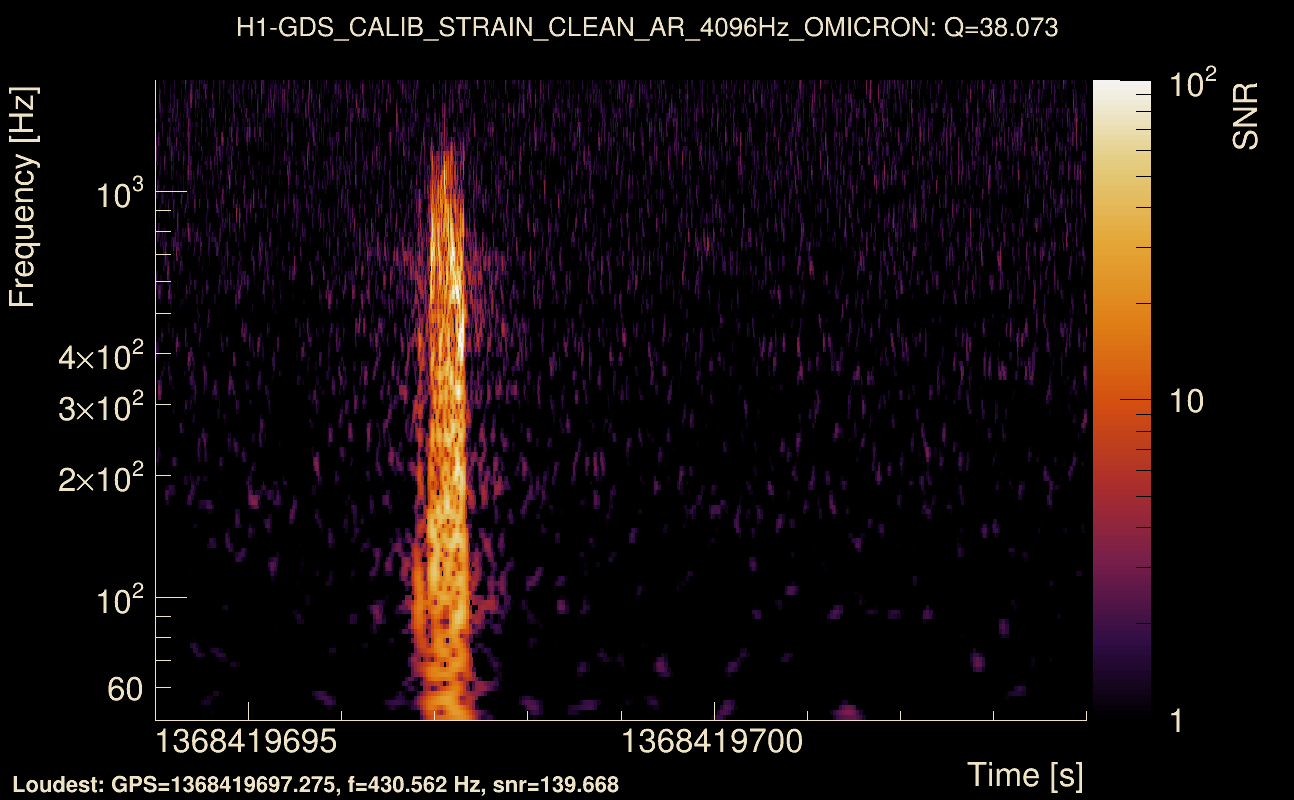

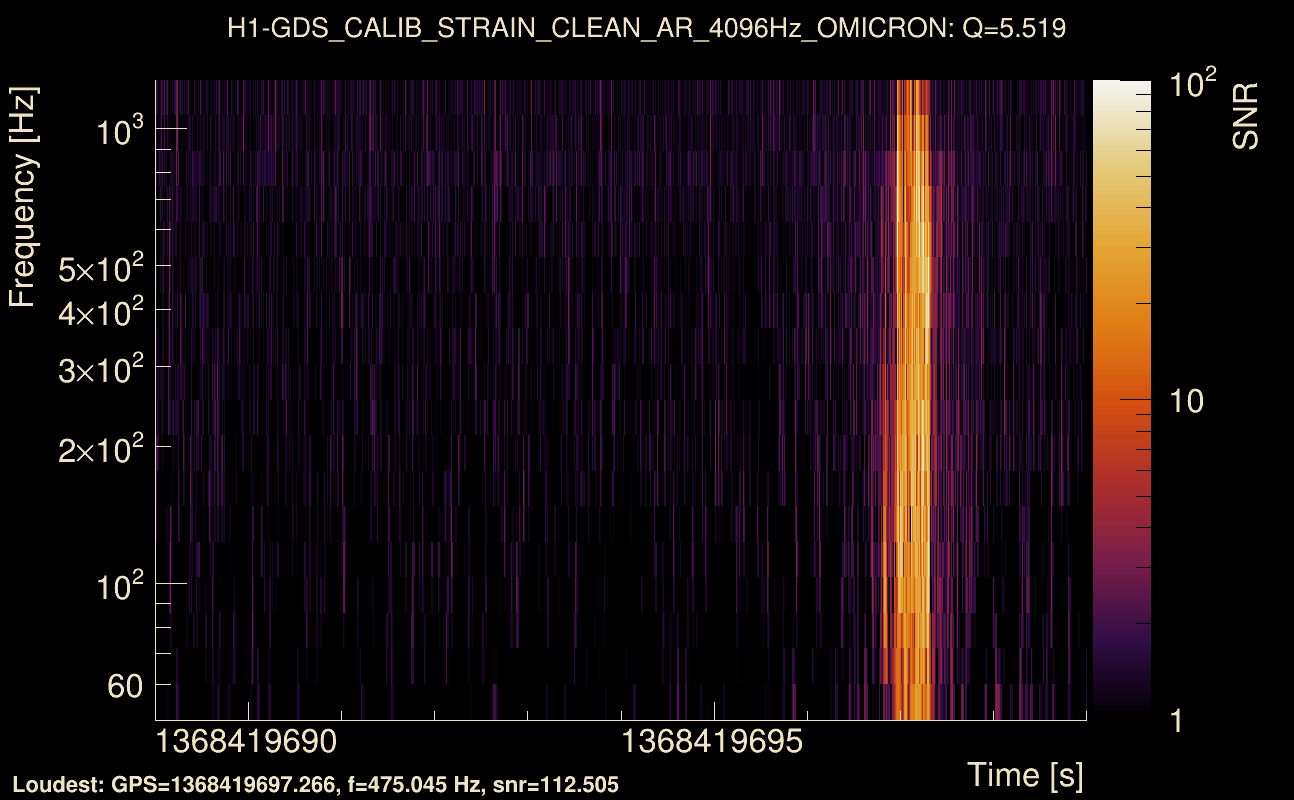

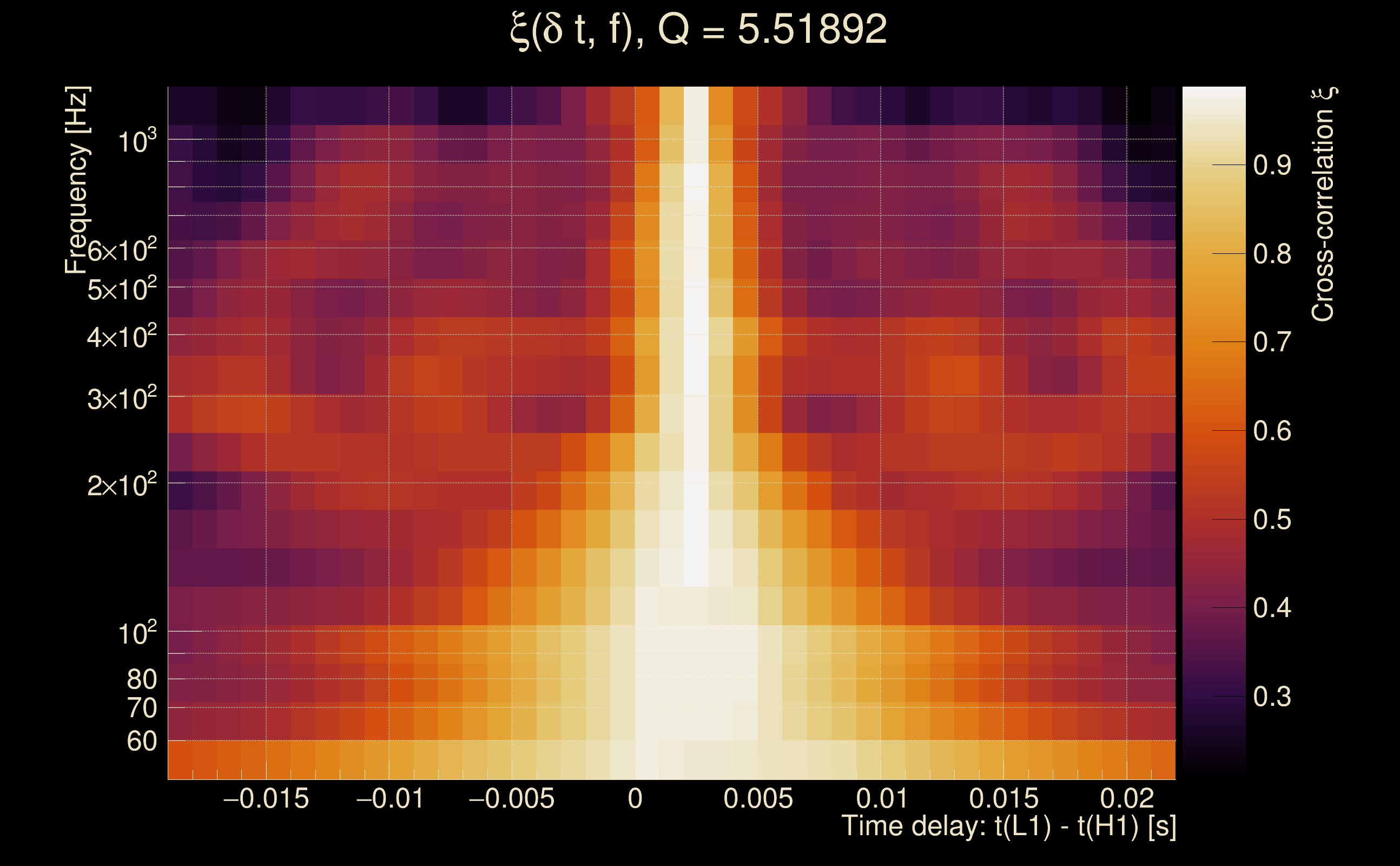

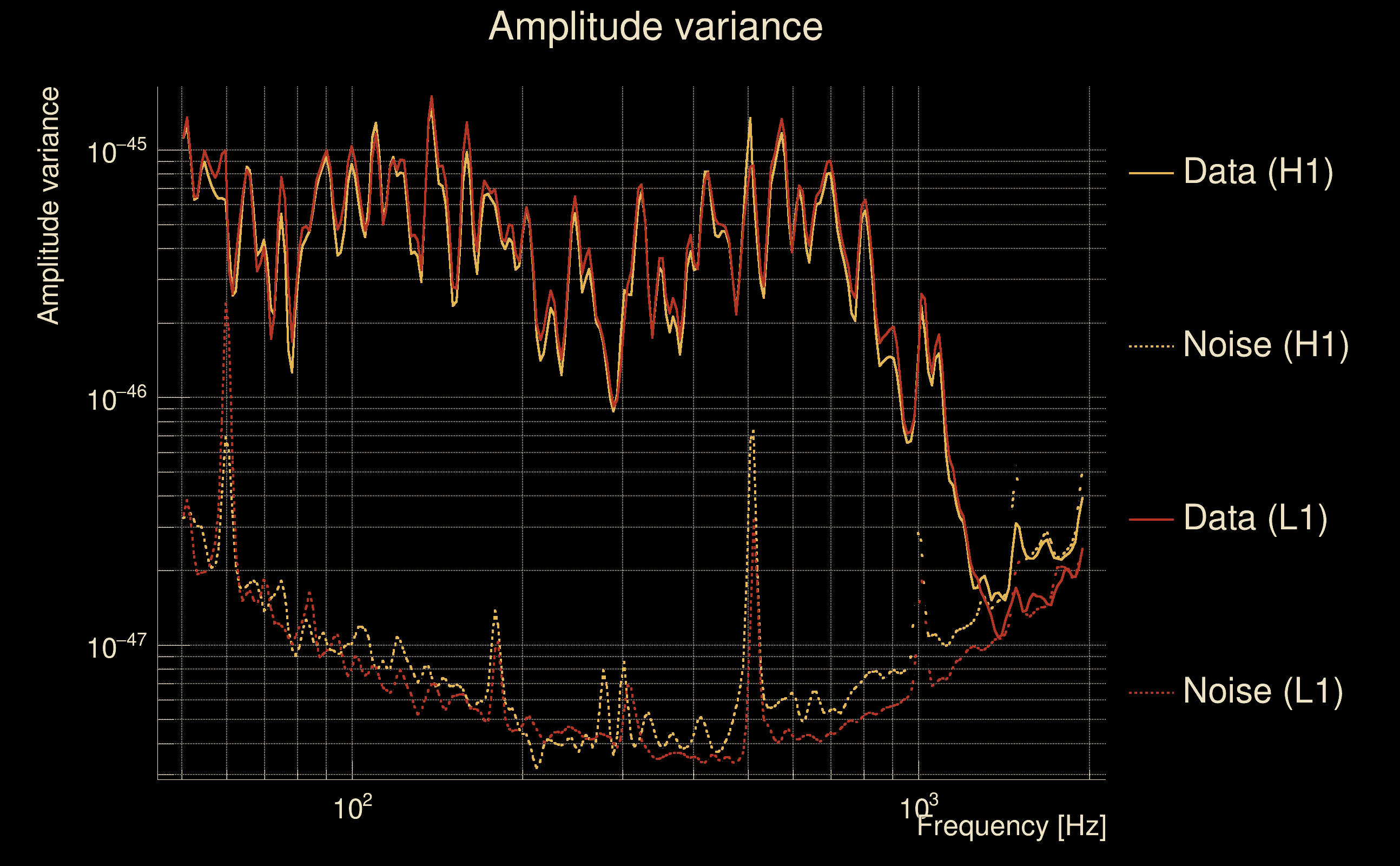

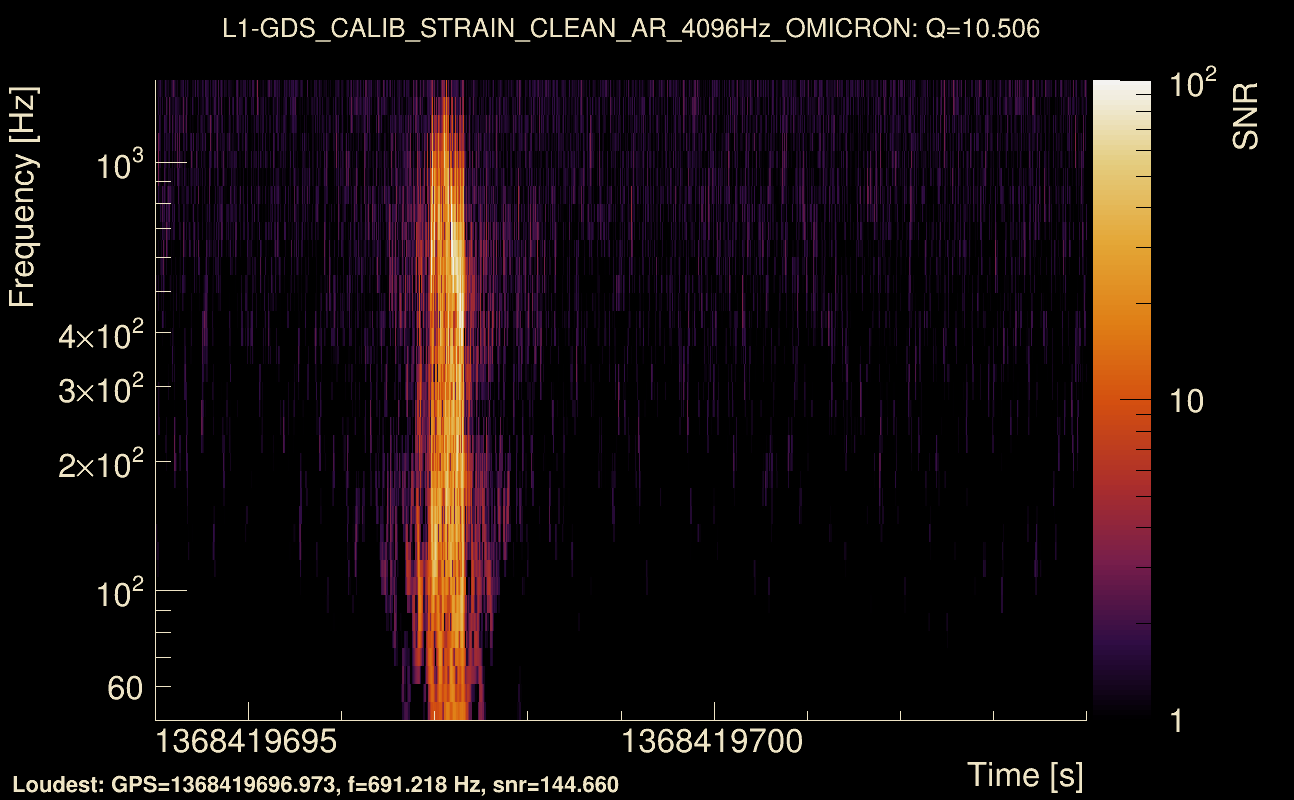

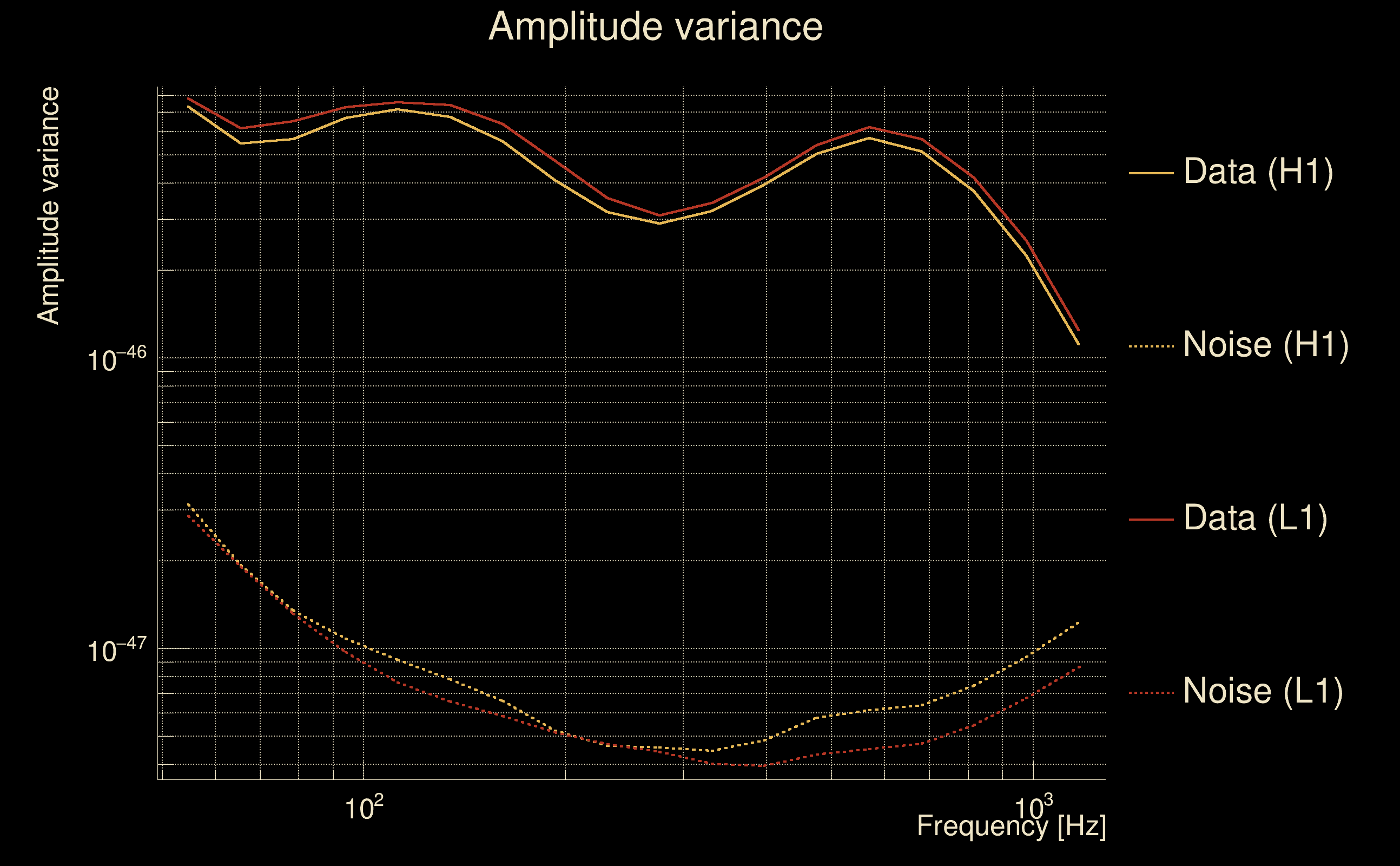

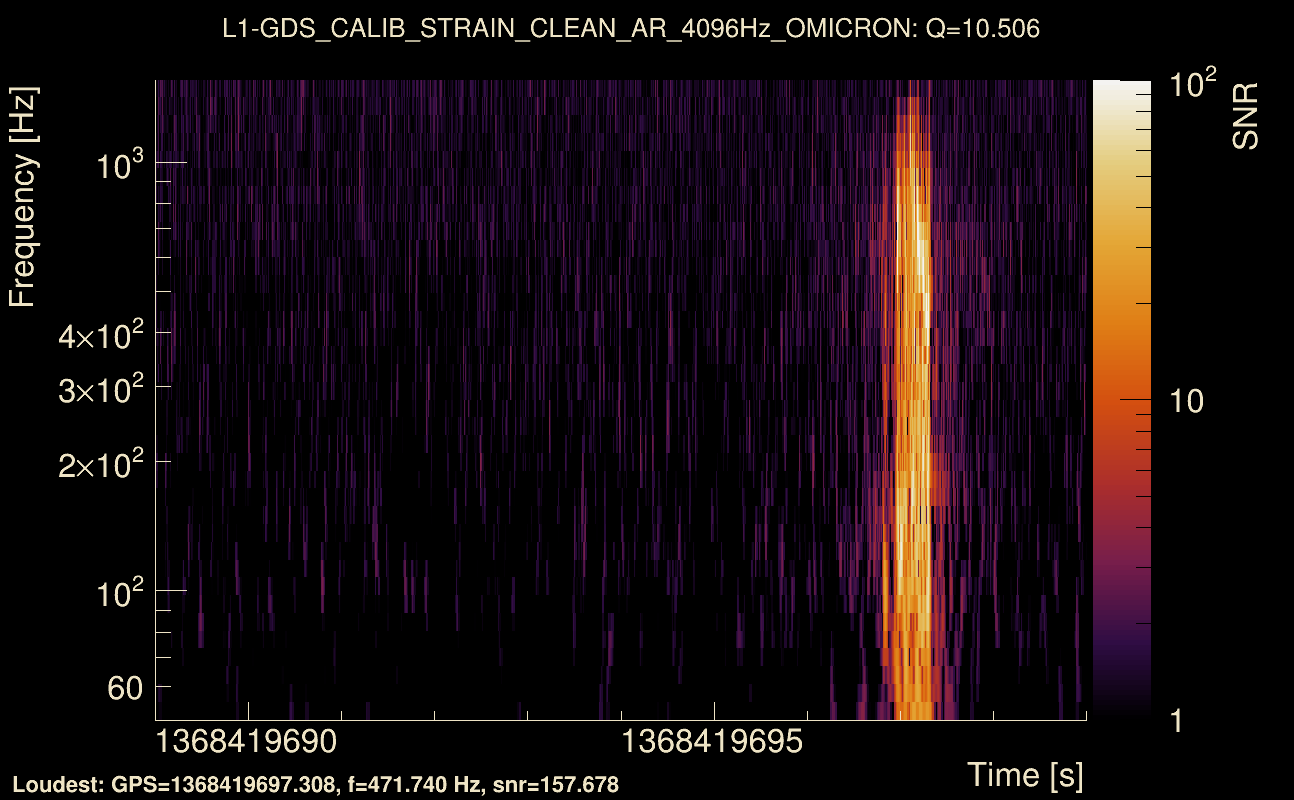

| Event time t(H1): | GPS = 1368419694 (Thu May 18 04:34:36 2023 ) → GPS = 1368419704 (Thu May 18 04:34:46 2023 ) |
| Event time t(L1): | GPS = 1368419694 (Thu May 18 04:34:46 2023 ) → GPS = 1368419704 (Thu May 18 04:34:46 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368419691 → GPS = 1368419707 |
| Omicron analysis time window (L1): | GPS = 1368419691 → GPS = 1368419707 |

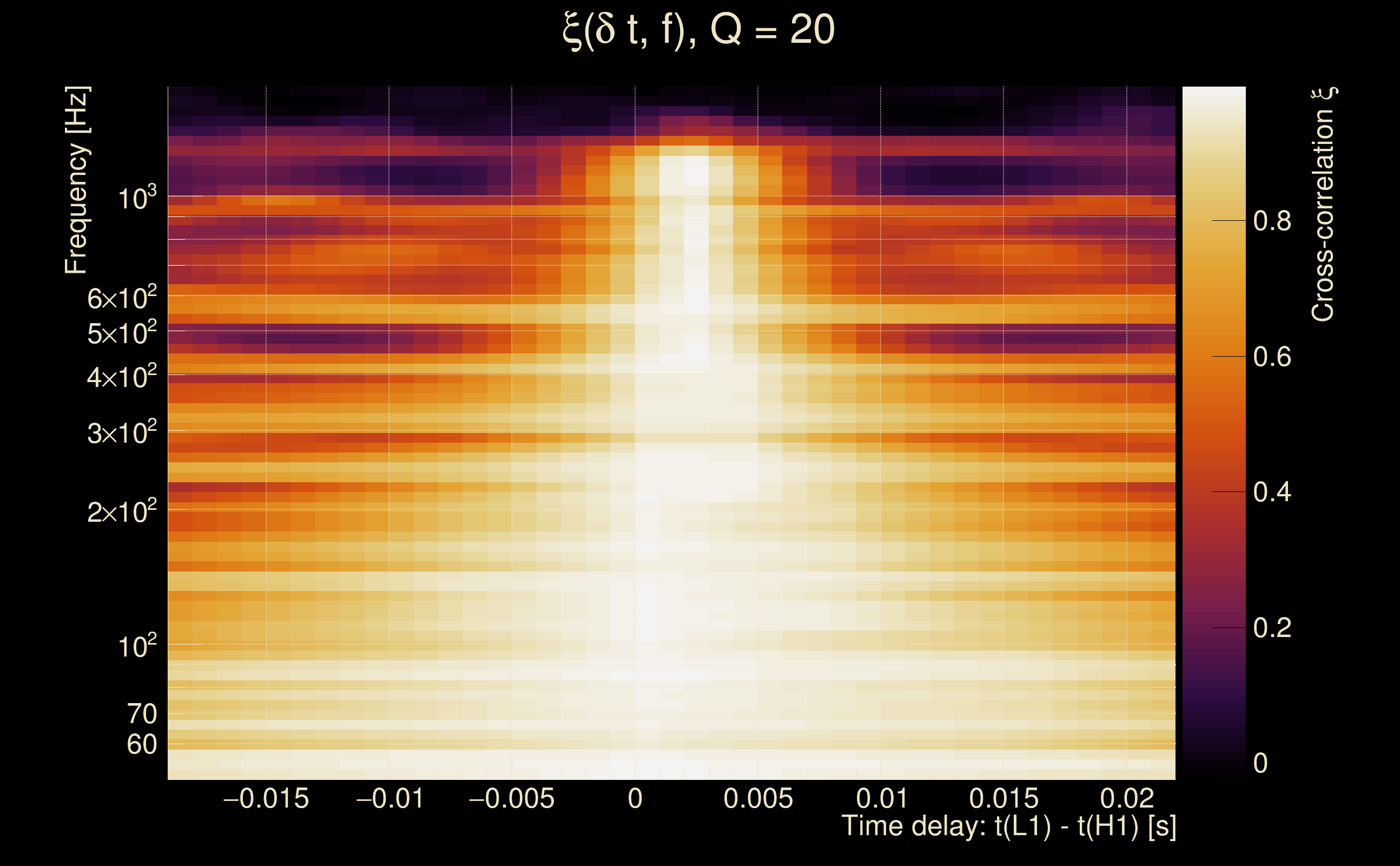

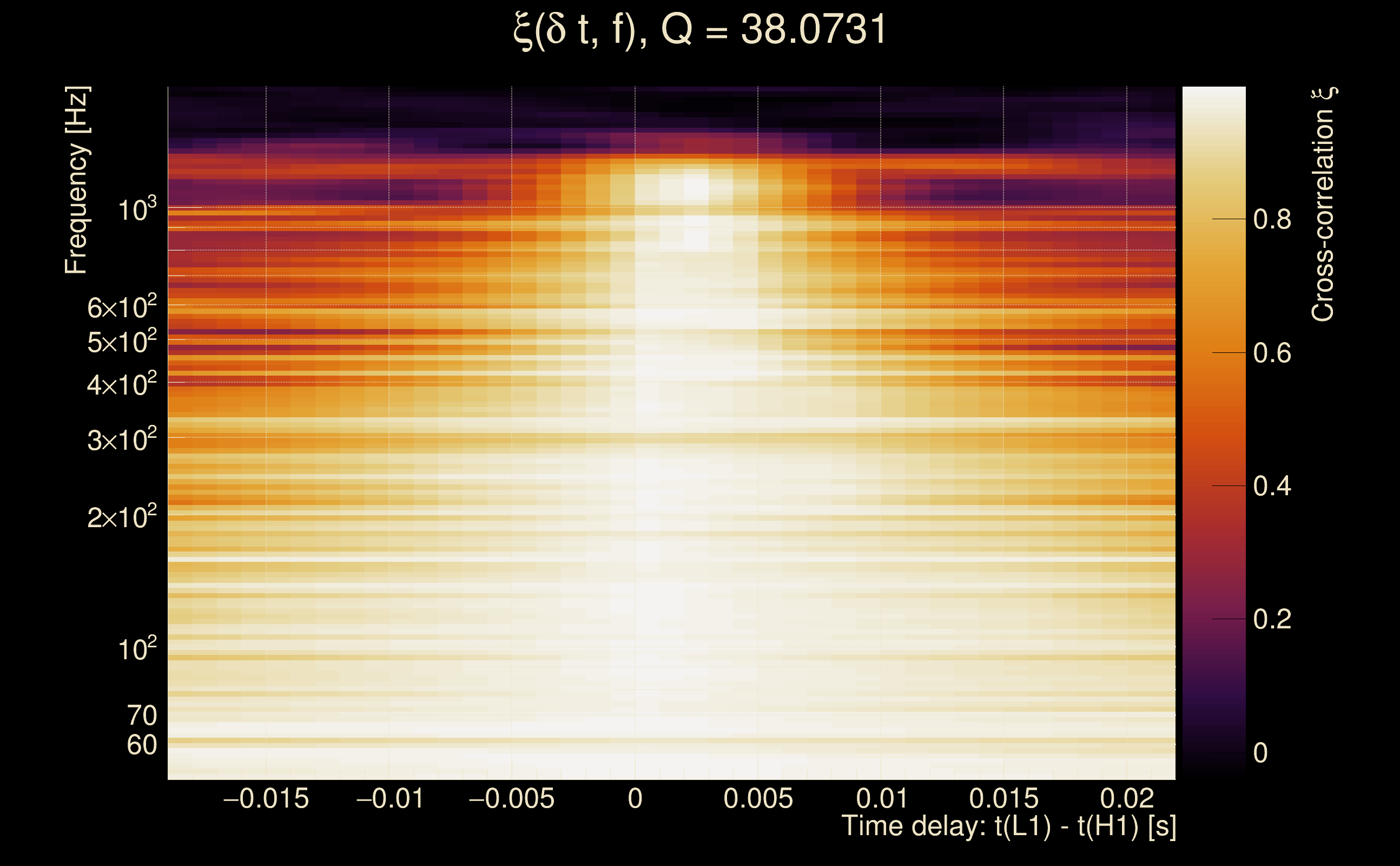

| Time delay between detectors t(L1) - t(H1): | 0.00192582 s (slice index = 108 / 217), δt_gw = 0.00192582 s |
| Time delay standard deviation: | 0.0217763 s |
| [targeted mode] Time delay probability: | 0.012174 (2.50706 sigmas), δt_target = 0.0020225 s |
| Frequency: | 258.919 Hz |
| Ξ: | 0.963557 ± 0.00161022 (variance = 2.59282e-06): Q0: 0.980004, Q1: 0.975829, Q2: 0.977566, Q3: 0.976351, Q4: 0.979236 |
| Rank: | R_A = 0.963557 |
| Log of amplitude ratio (L1/H1): | 0.0532398, variance = 0.152445 (L1/H1: 0.0400033, variance = 0.30118, H1/L1: -0.0638284, variance = 0.301163) |
| Amplitude ratio (L1/H1): | 1.05468 ⋇ 1.47763 (L1/H1: 1.04081 ⋇ 1.73117, H1/L1: 0.938166 ⋇ 1.73115) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.97551 |

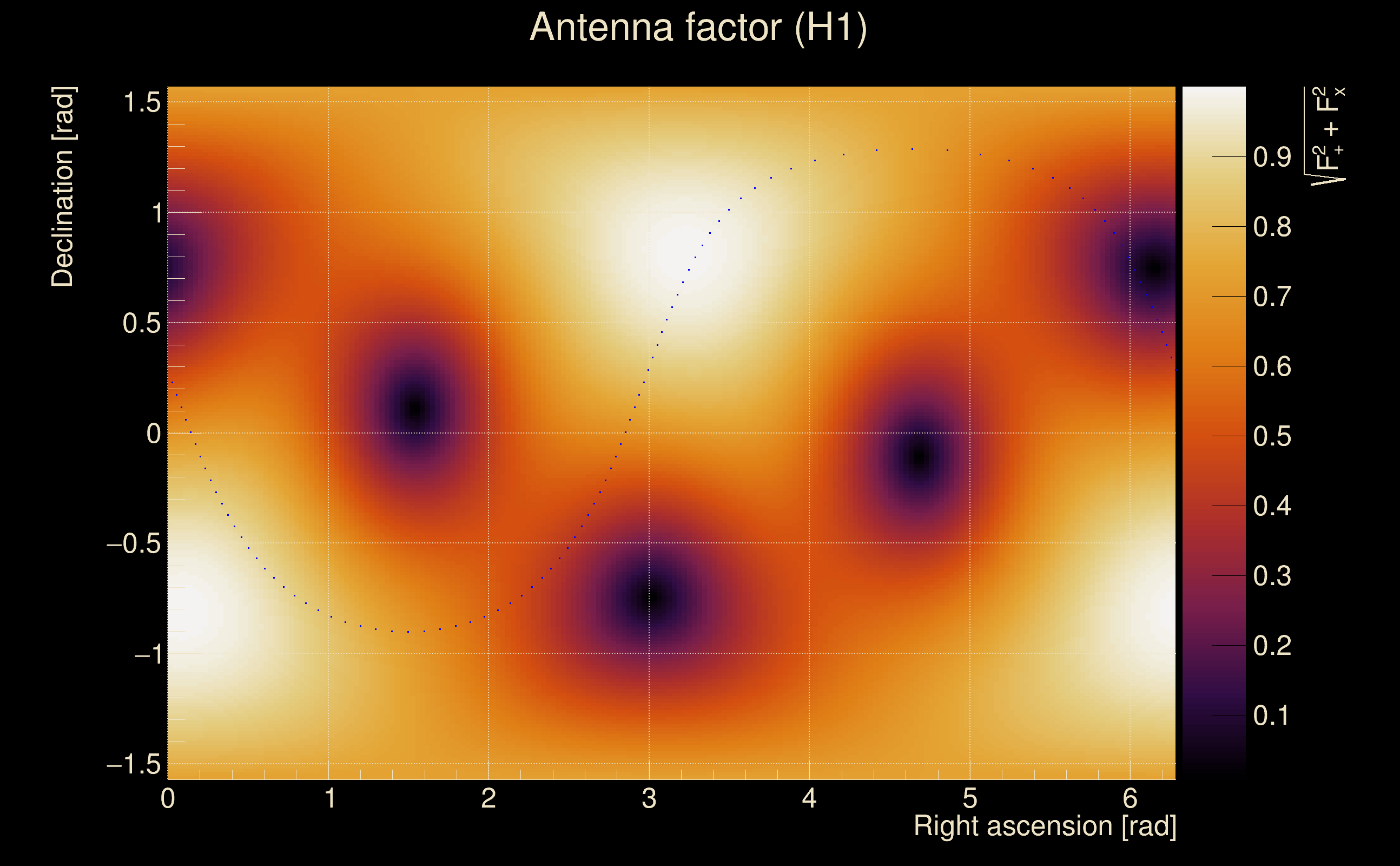

| Antenna factor probability: | 0.819184 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 4 / 70, Q3: 9 / 134, Q4: 22 / 258 |
| Maximum signal-to-noise ratio: | H1: 153.06, L1: 171.131 |
| SNR variance: | H1: 36.7042, L1: 45.194 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

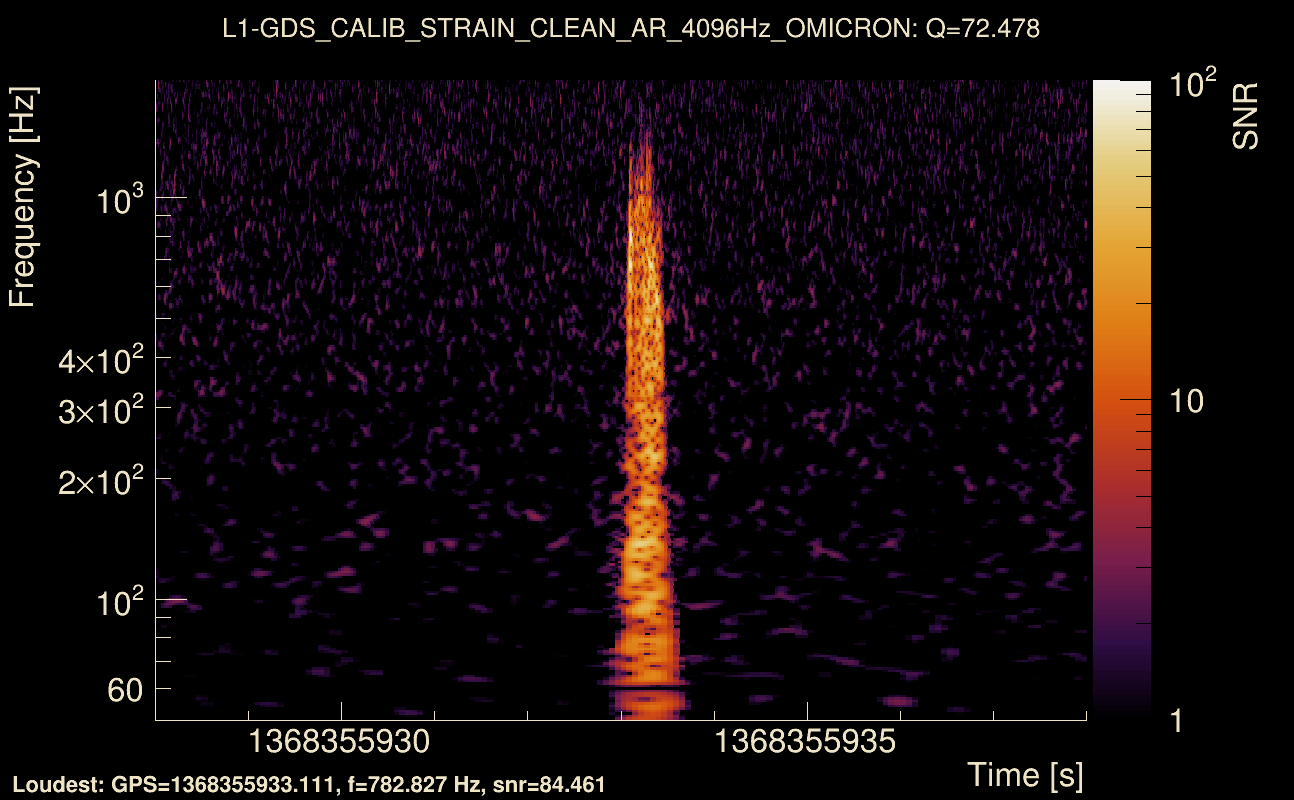

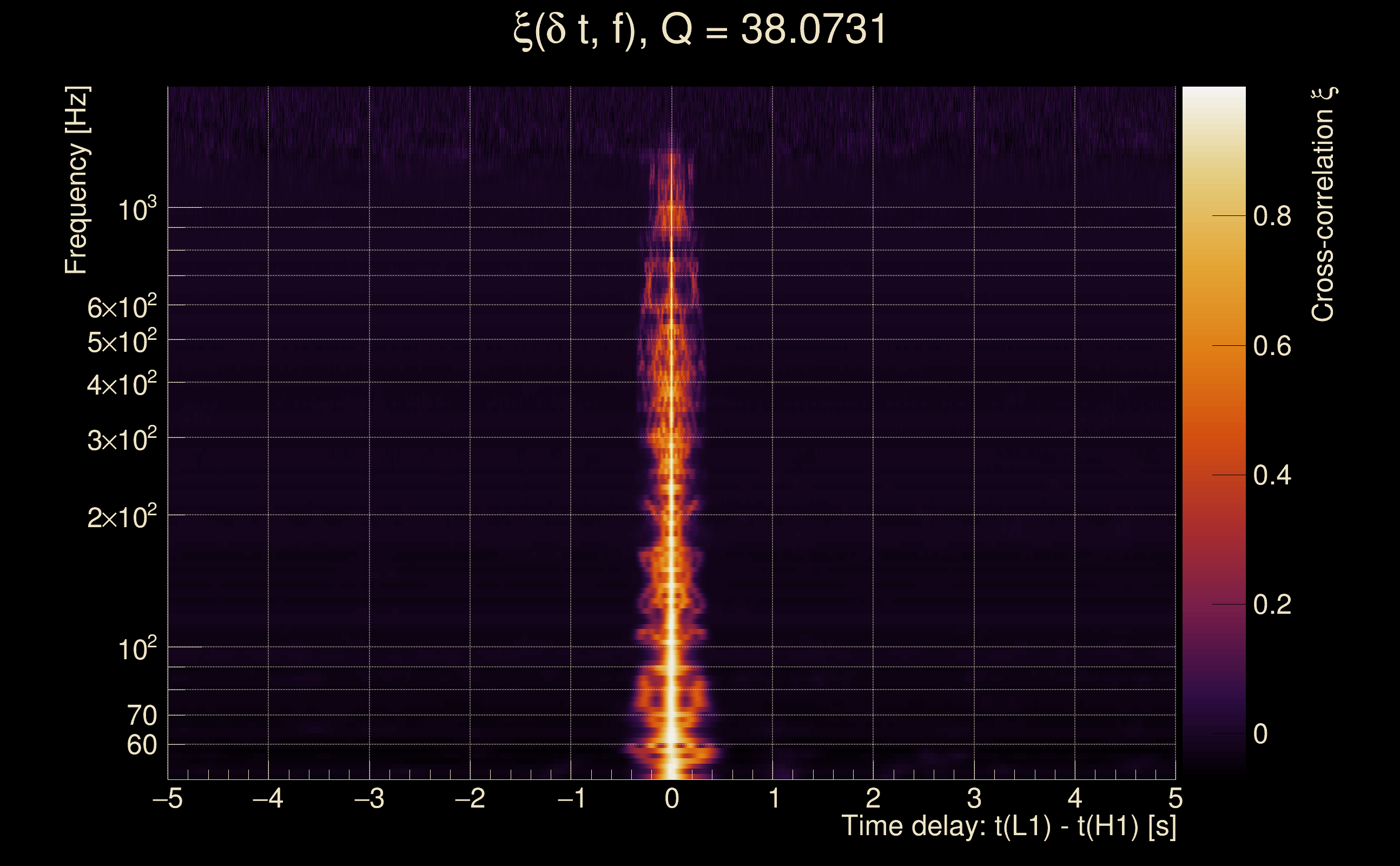

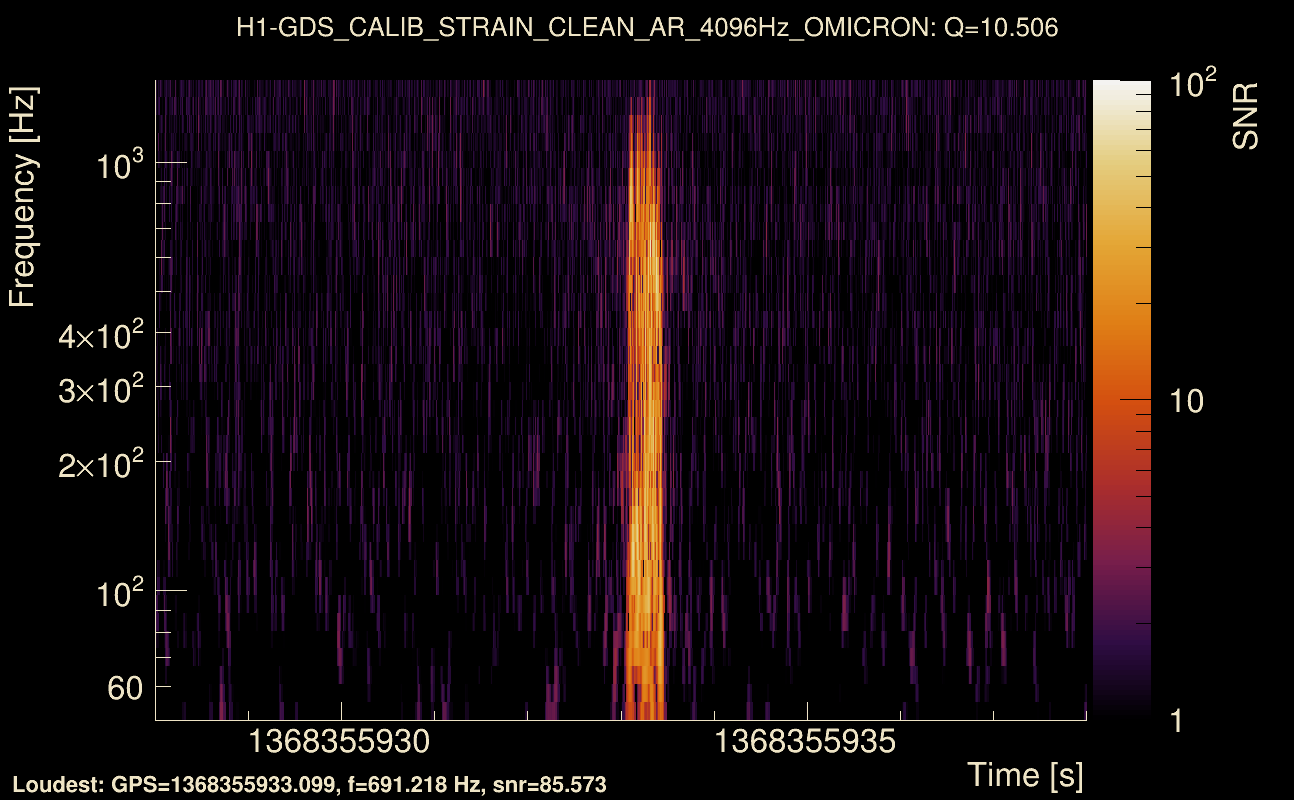

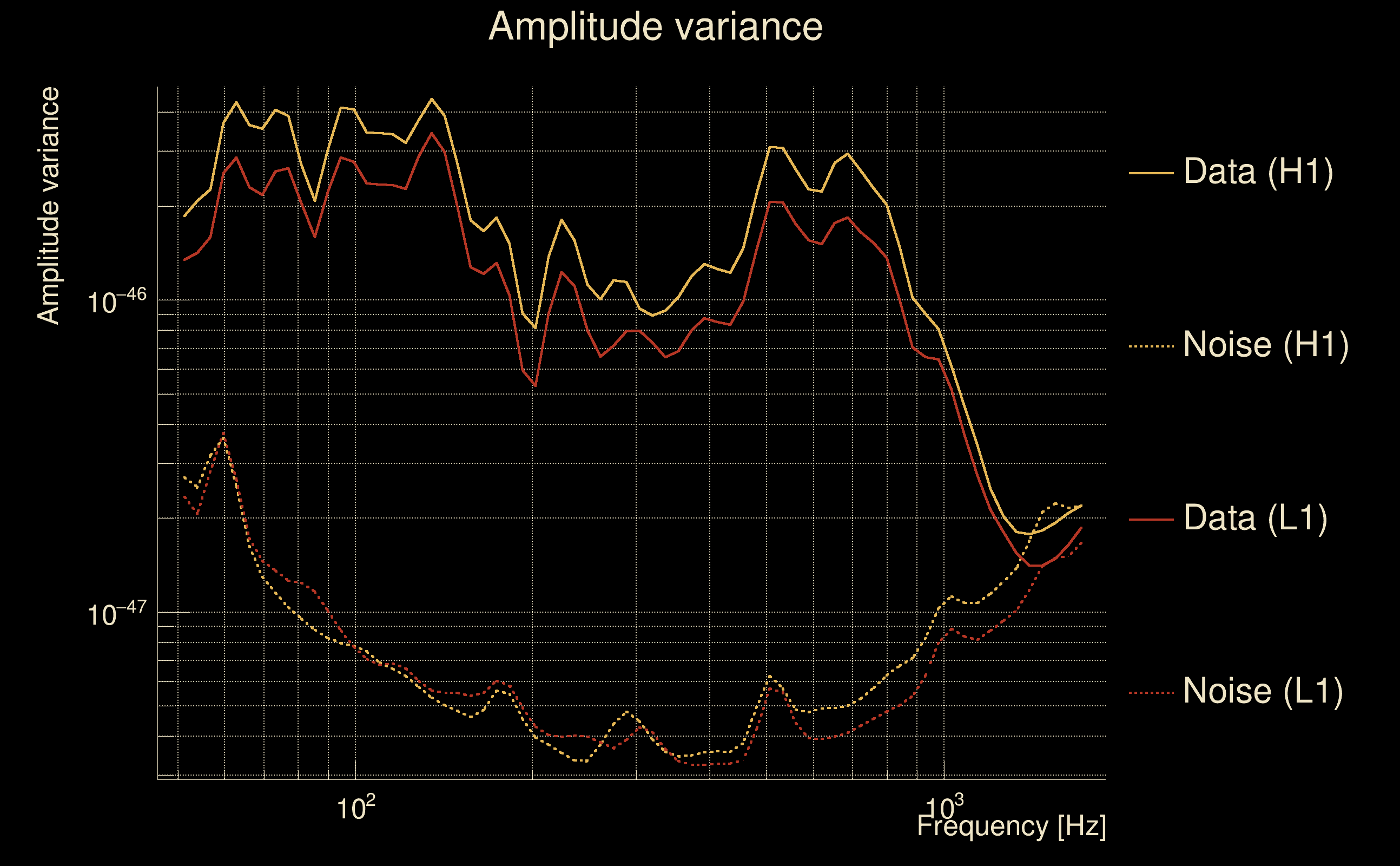

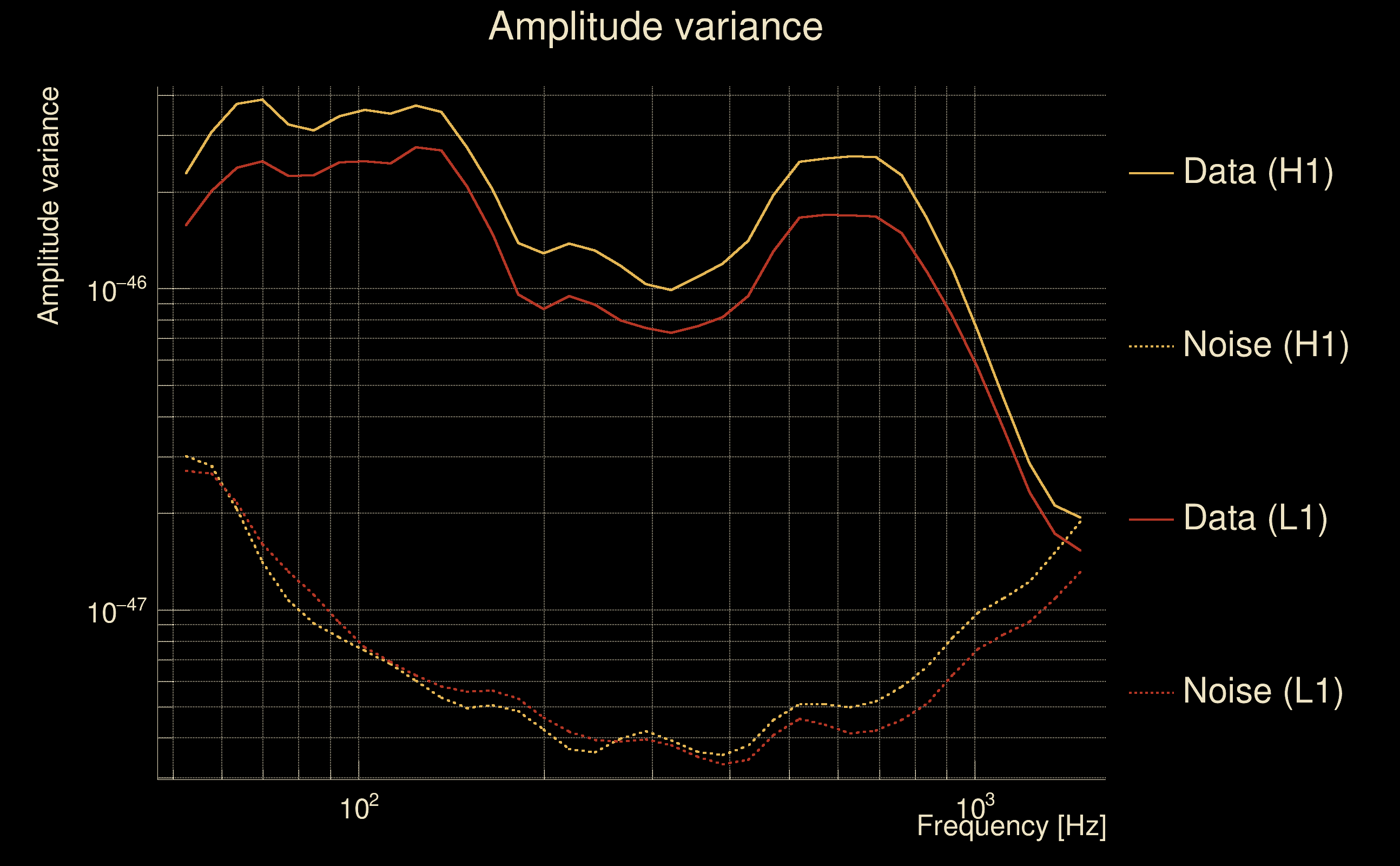

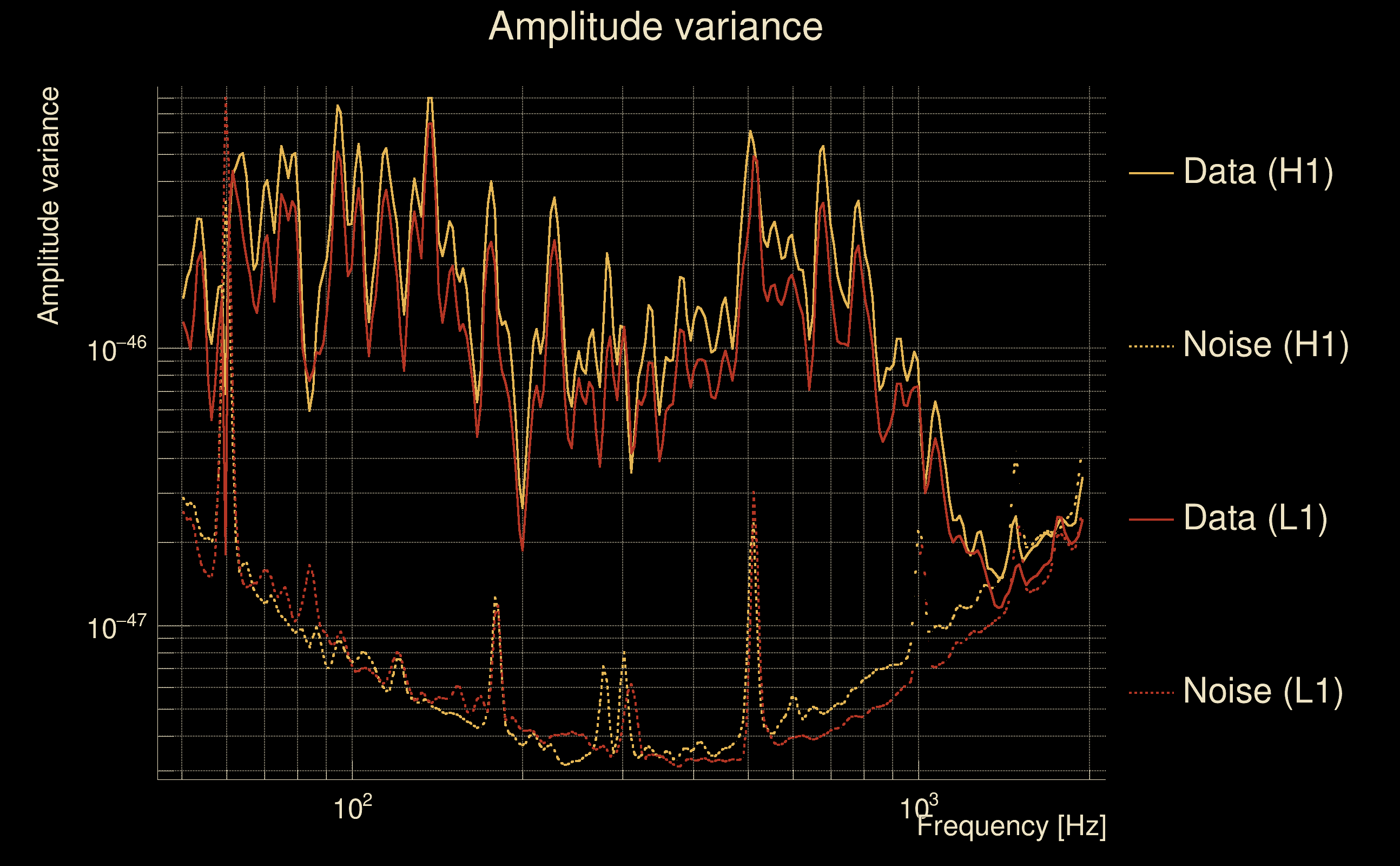

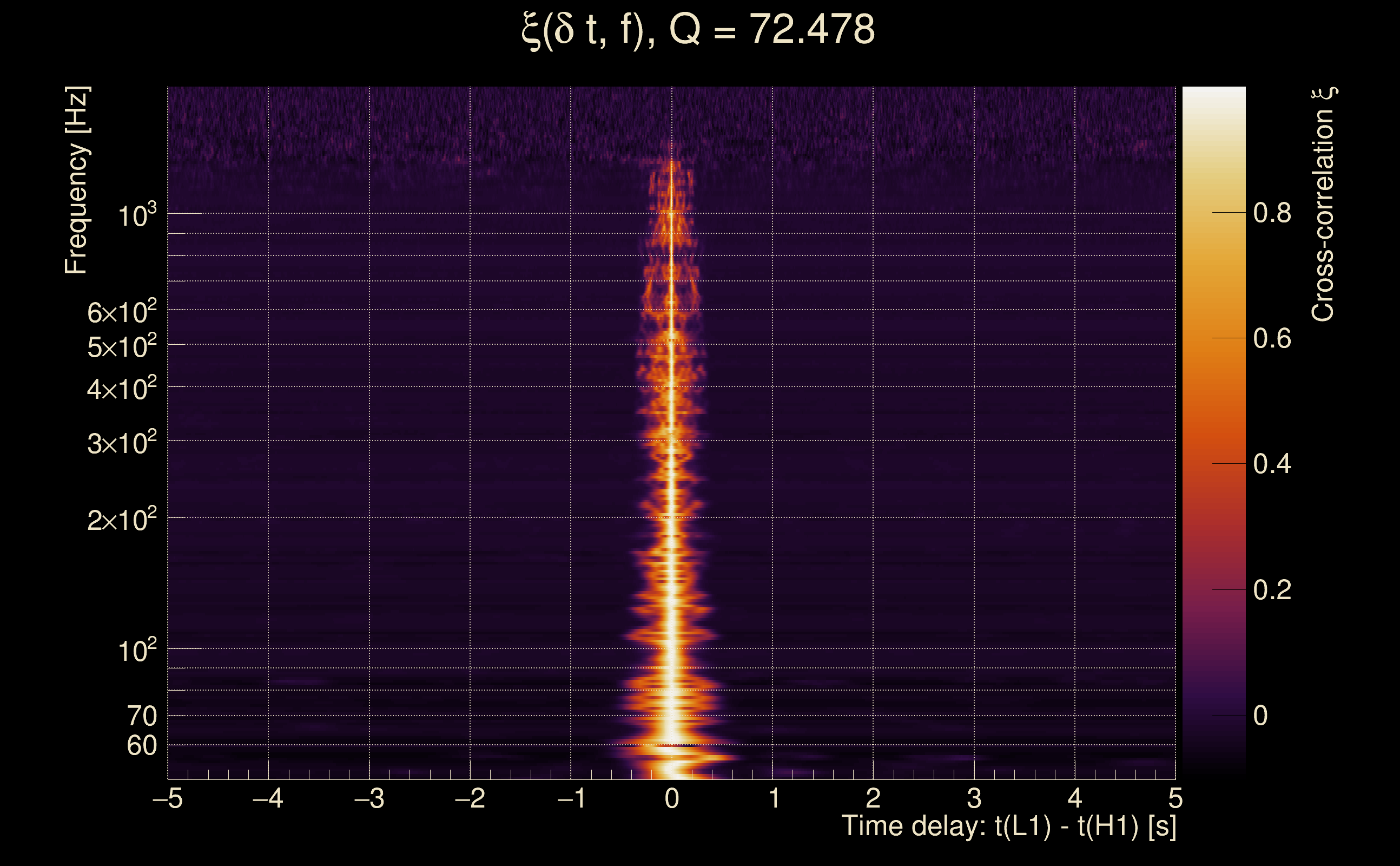

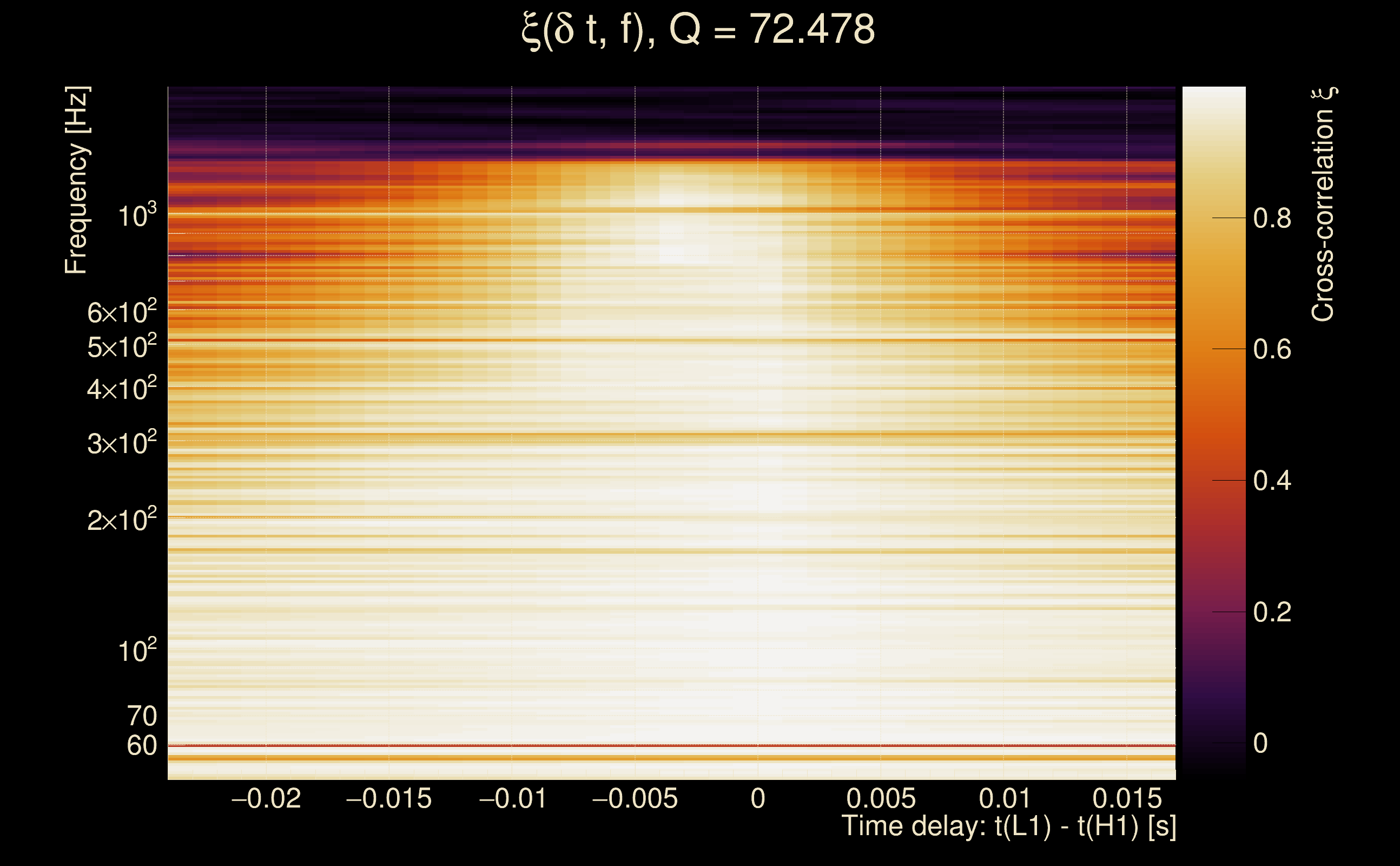

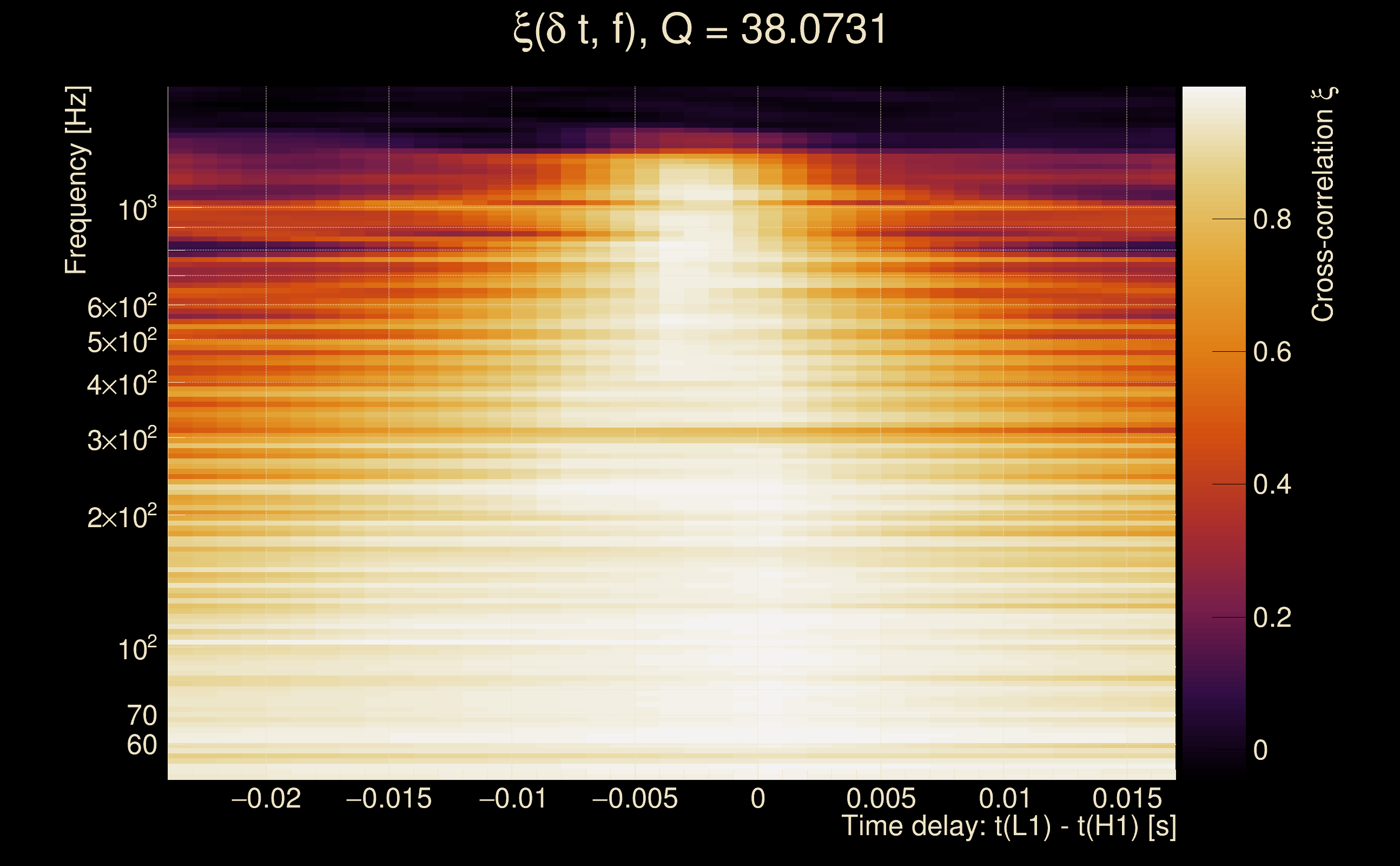

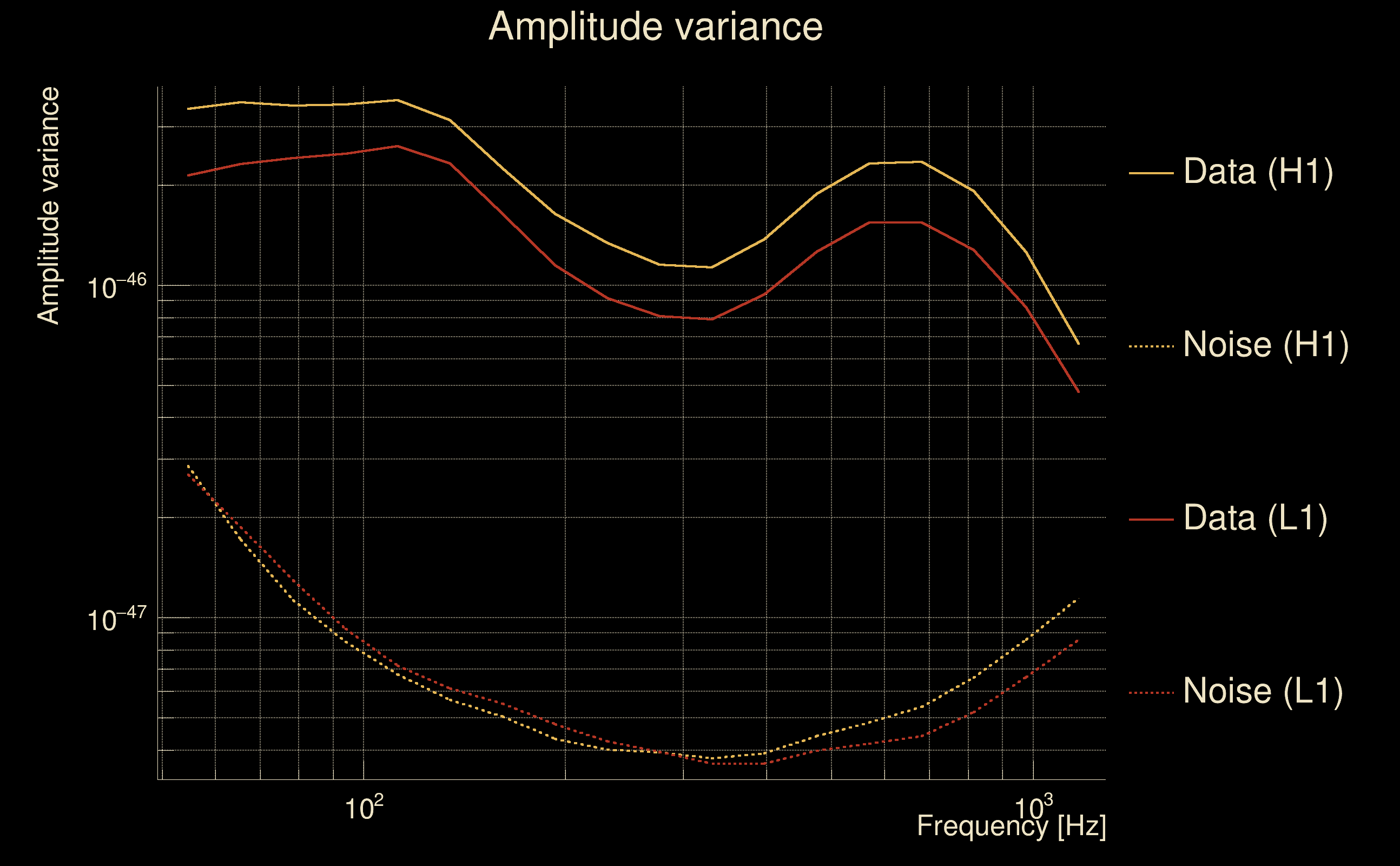

| Event time t(H1): | GPS = 1368355928 (Wed May 17 10:51:50 2023 ) → GPS = 1368355938 (Wed May 17 10:52:00 2023 ) |
| Event time t(L1): | GPS = 1368355928 (Wed May 17 10:52:00 2023 ) → GPS = 1368355938 (Wed May 17 10:52:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368355925 → GPS = 1368355941 |
| Omicron analysis time window (L1): | GPS = 1368355925 → GPS = 1368355941 |

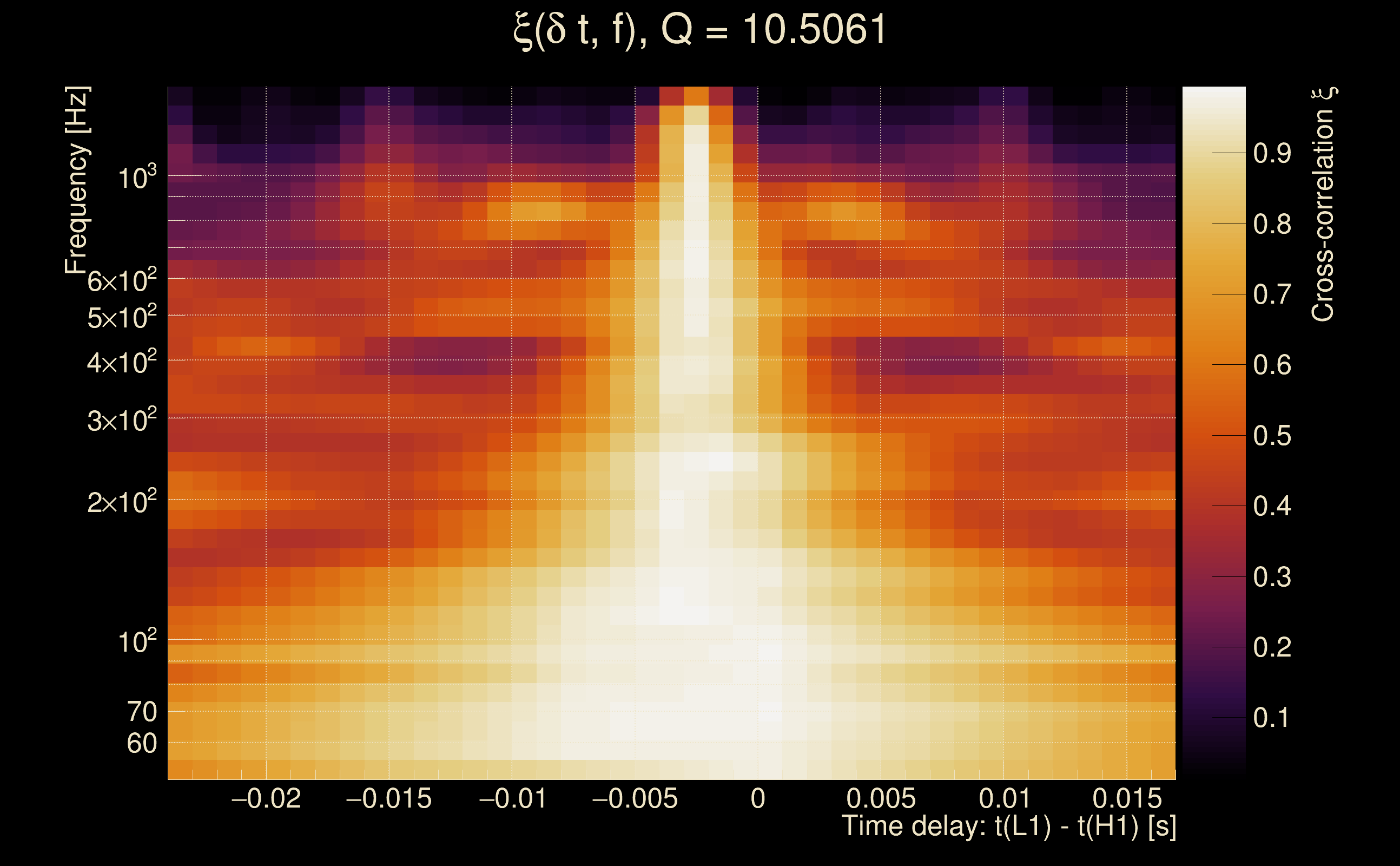

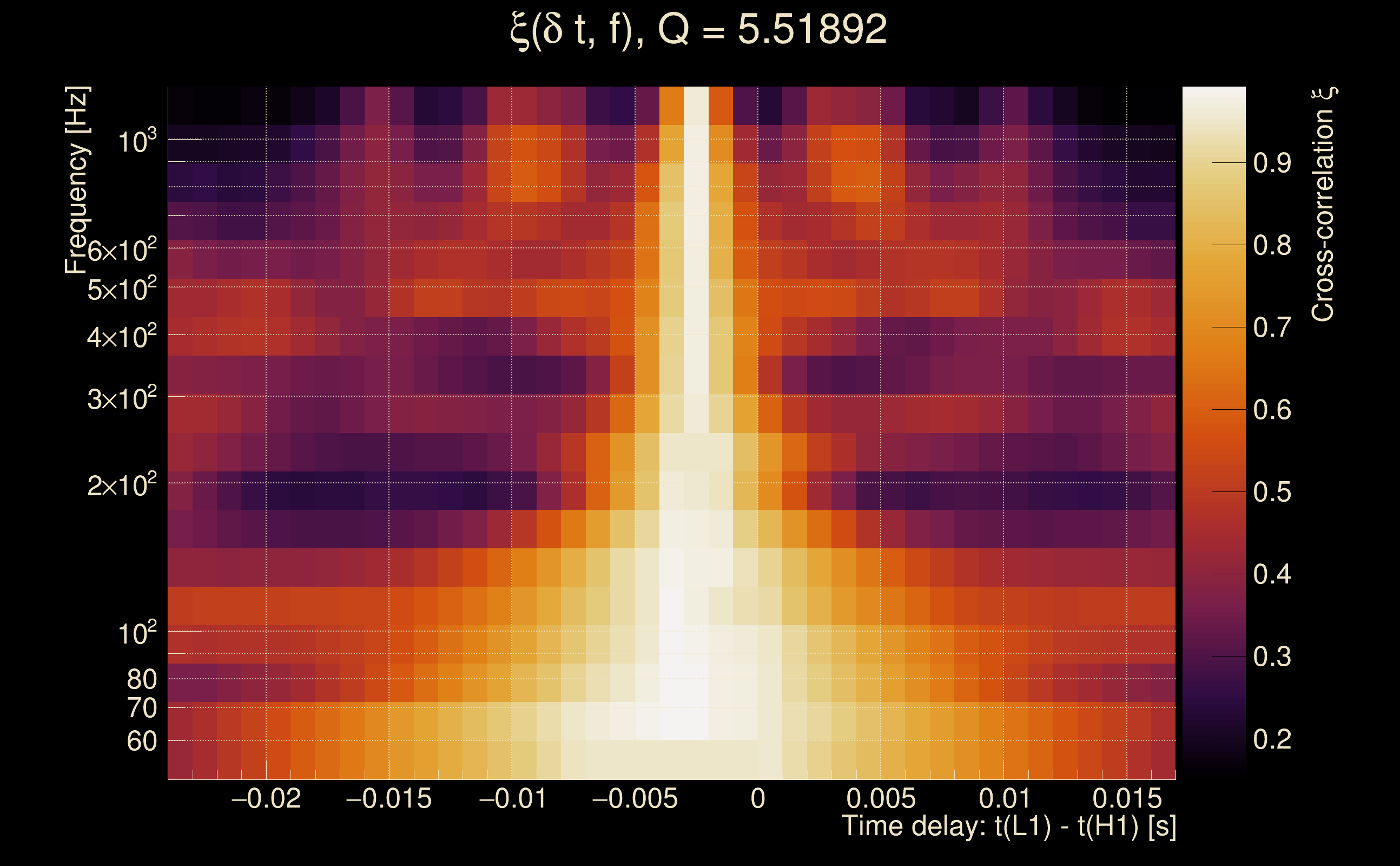

| Time delay between detectors t(L1) - t(H1): | -0.00303281 s (slice index = 108 / 217), δt_gw = -0.00303281 s |
| Time delay standard deviation: | 0.0216761 s |
| [targeted mode] Time delay probability: | 3.35649e-125 (23.7998 sigmas), δt_target = 0.0020206 s |
| Frequency: | 262.649 Hz |
| Ξ: | 0.95624 ± 0.00327995 (variance = 1.07581e-05): Q0: 0.973351, Q1: 0.963956, Q2: 0.966209, Q3: 0.9663, Q4: 0.969661 |
| Rank: | R_A = 0.95624 |
| Log of amplitude ratio (L1/H1): | -0.199627, variance = 0.150824 (L1/H1: -0.213134, variance = 0.301305, H1/L1: 0.185612, variance = 0.301806) |
| Amplitude ratio (L1/H1): | 0.819036 ⋇ 1.47456 (L1/H1: 0.808048 ⋇ 1.73137, H1/L1: 1.20396 ⋇ 1.73216) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.97173 |

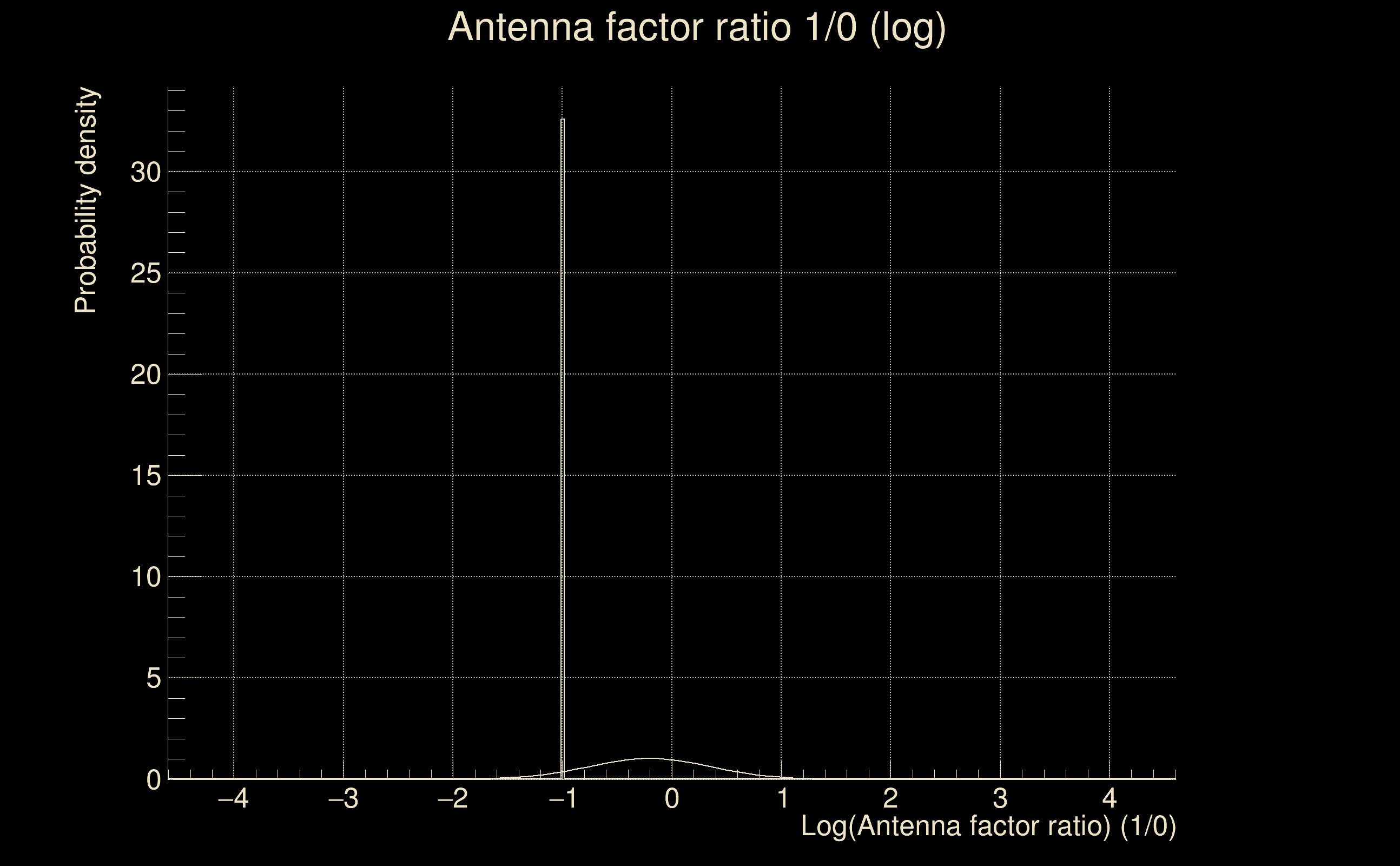

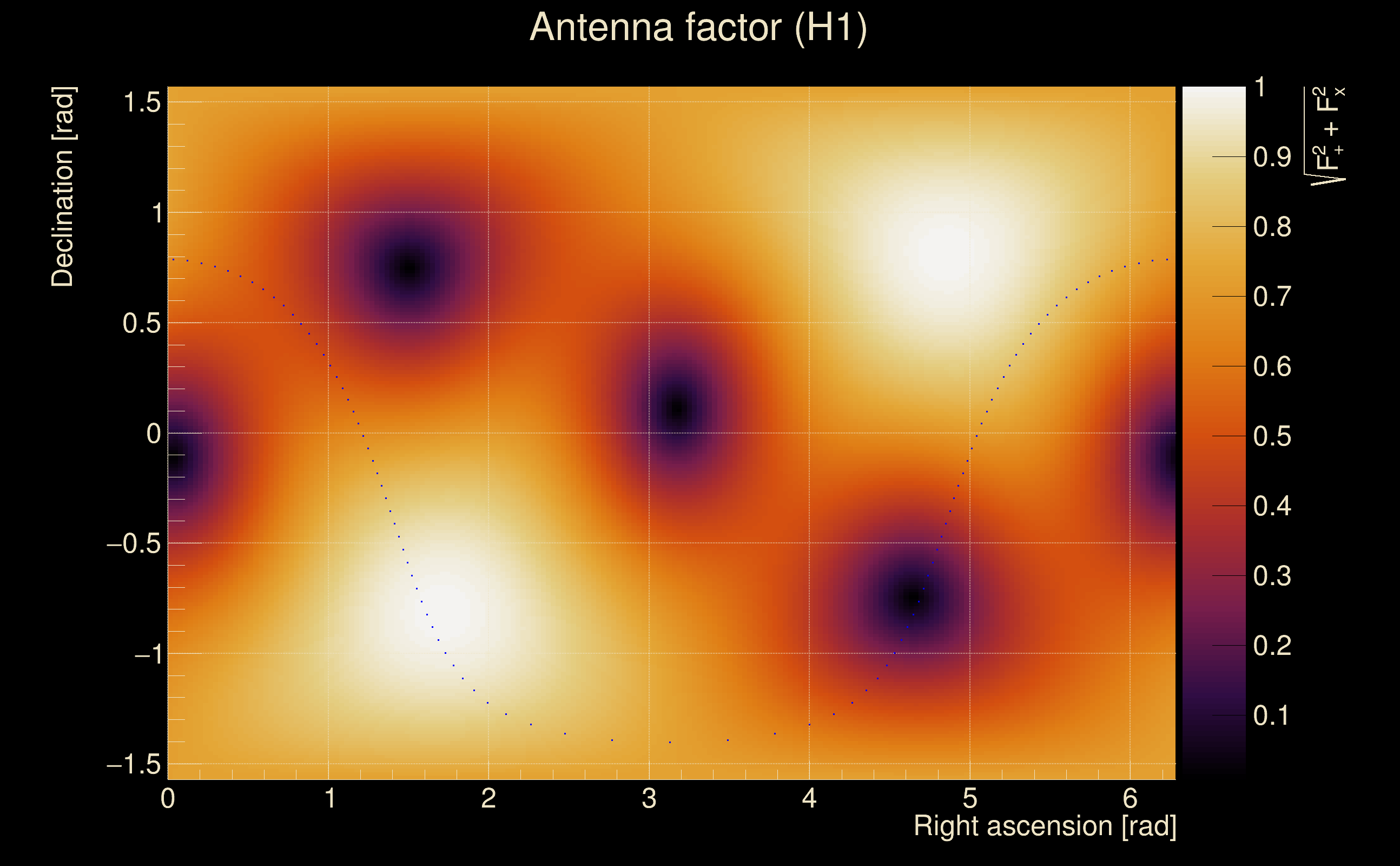

| Antenna factor probability: | 0.510472 |
| Number of rejected frequency rows: | Q0: 0 / 18, Q1: 0 / 36, Q2: 3 / 70, Q3: 7 / 134, Q4: 32 / 258 |
| Maximum signal-to-noise ratio: | H1: 95.9869, L1: 94.232 |
| SNR variance: | H1: 0.610162, L1: 0.554204 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368354013 (Wed May 17 10:19:55 2023 ) → GPS = 1368354023 (Wed May 17 10:20:05 2023 ) |
| Event time t(L1): | GPS = 1368354013 (Wed May 17 10:20:05 2023 ) → GPS = 1368354023 (Wed May 17 10:20:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368354010 → GPS = 1368354026 |
| Omicron analysis time window (L1): | GPS = 1368354010 → GPS = 1368354026 |
| Time delay between detectors t(L1) - t(H1): | -1.65451 s (slice index = 144 / 217), δt_gw = 0.00149422 s |
| Time delay standard deviation: | 0.0729307 s |
| [targeted mode] Time delay probability: | 0.241204 (1.17198 sigmas), δt_target = -0.00871253 s |
| Frequency: | 127.098 Hz |
| Ξ: | 0.0465689 ± 0.023185 (variance = 0.000537546): Q0: 0.13069, Q1: 0.110724, Q2: 0.0847165, Q3: 0.0696572, Q4: 0.0744252 |
| Rank: | R_A = 0.0465689 |
| Log of amplitude ratio (L1/H1): | 0.213936, variance = 0.72982 (L1/H1: -2.76975, variance = 1.50719, H1/L1: -3.01801, variance = 1.415) |
| Amplitude ratio (L1/H1): | 1.23854 ⋇ 2.34972 (L1/H1: 0.0626775 ⋇ 3.41329, H1/L1: 0.0488985 ⋇ 3.28556) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00070981 |
| Antenna factor probability: | 0.44121 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 23 / 36, Q2: 56 / 70, Q3: 116 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.9549, L1: 18.521 |
| SNR variance: | H1: 0.67326, L1: 0.697101 |

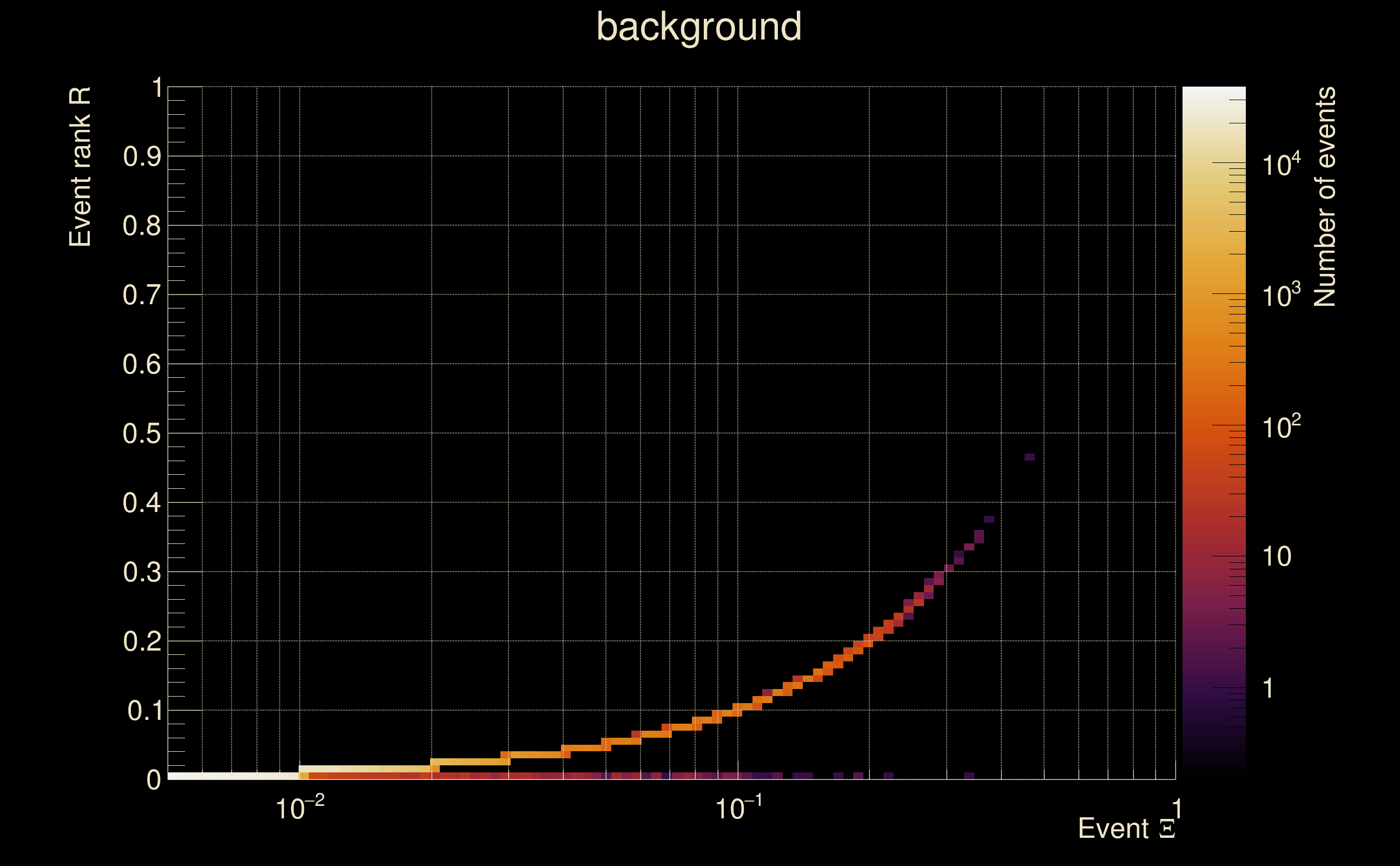

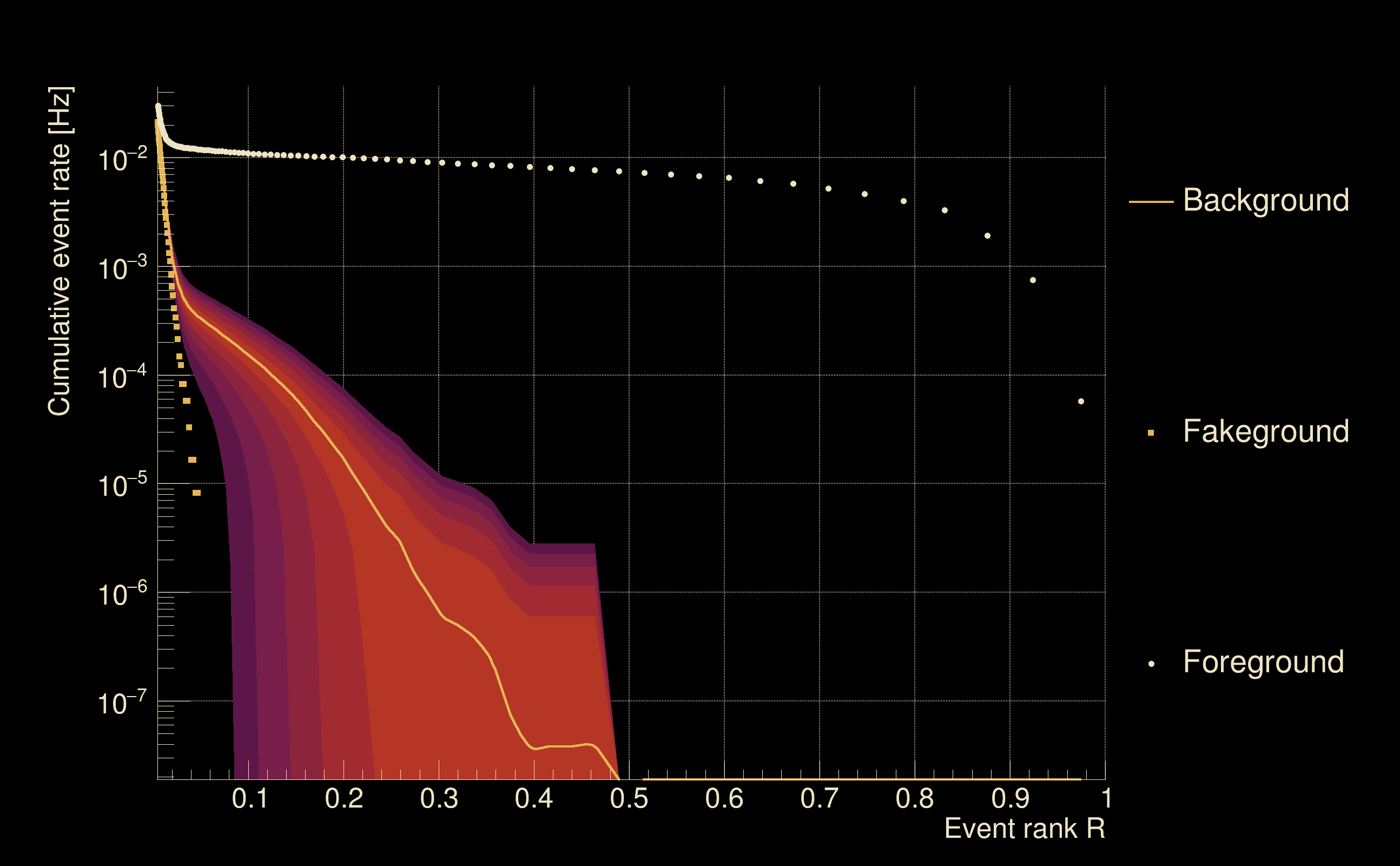

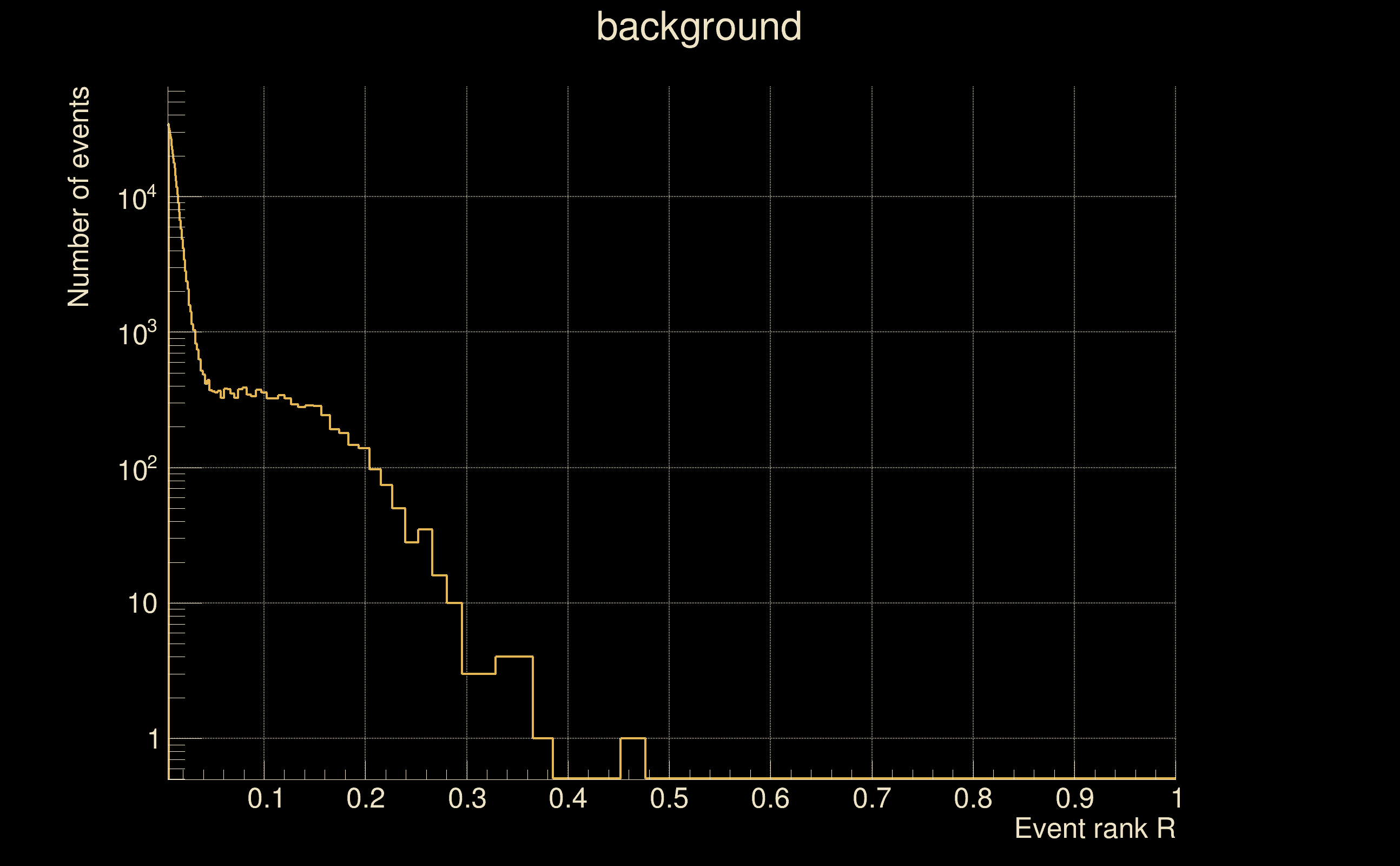

| Detection threshold: | R > 0.840985 |
| False-alarm rate above that detection threshold: | 0 |
| Alternative threshold at 1/1000 yrs: | R > 0.463984 |
| Alternative threshold at 1/100 yrs: | R > 0.463984 |
| Alternative threshold at 1/10 yrs: | R > 0.463984 |
| Alternative threshold at 1/1 yr: | R > 0.463984 |
| Alternative threshold at 1/1 d: | R > 0.209751 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

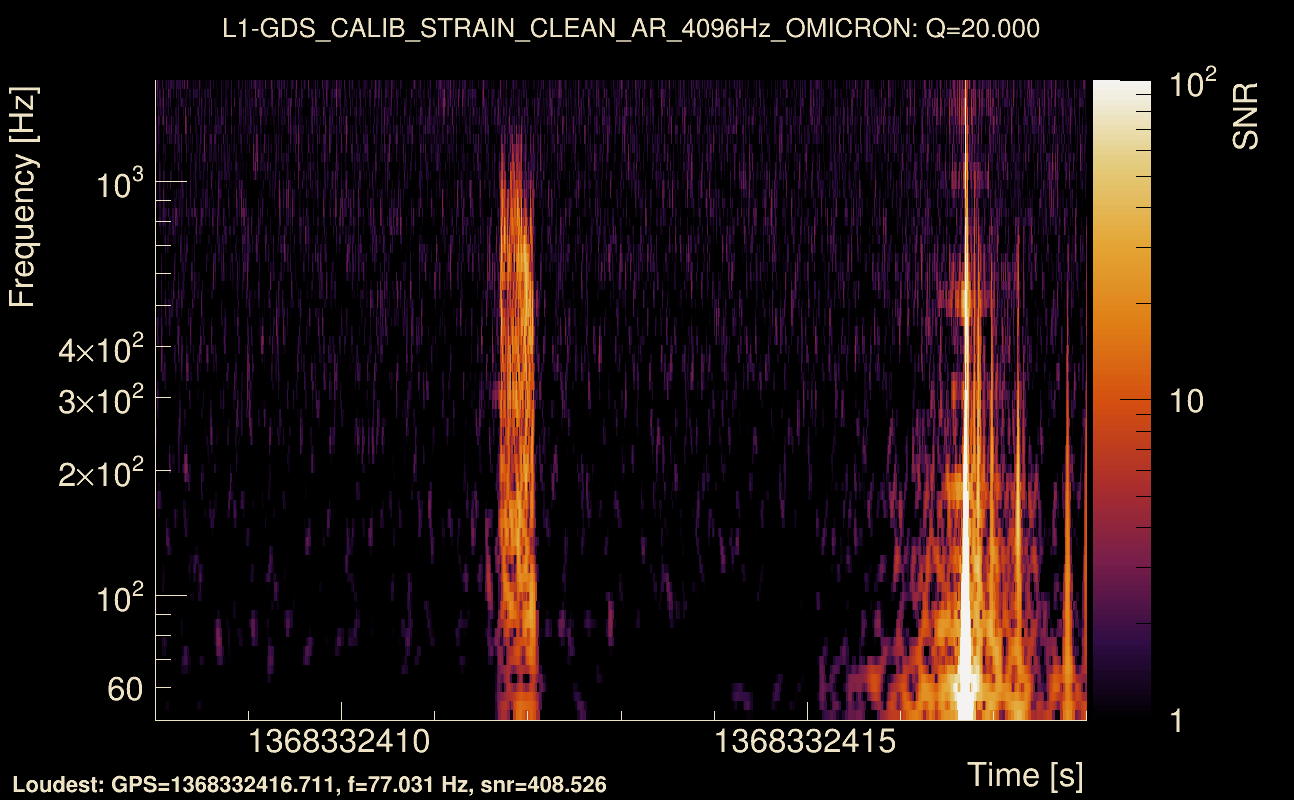

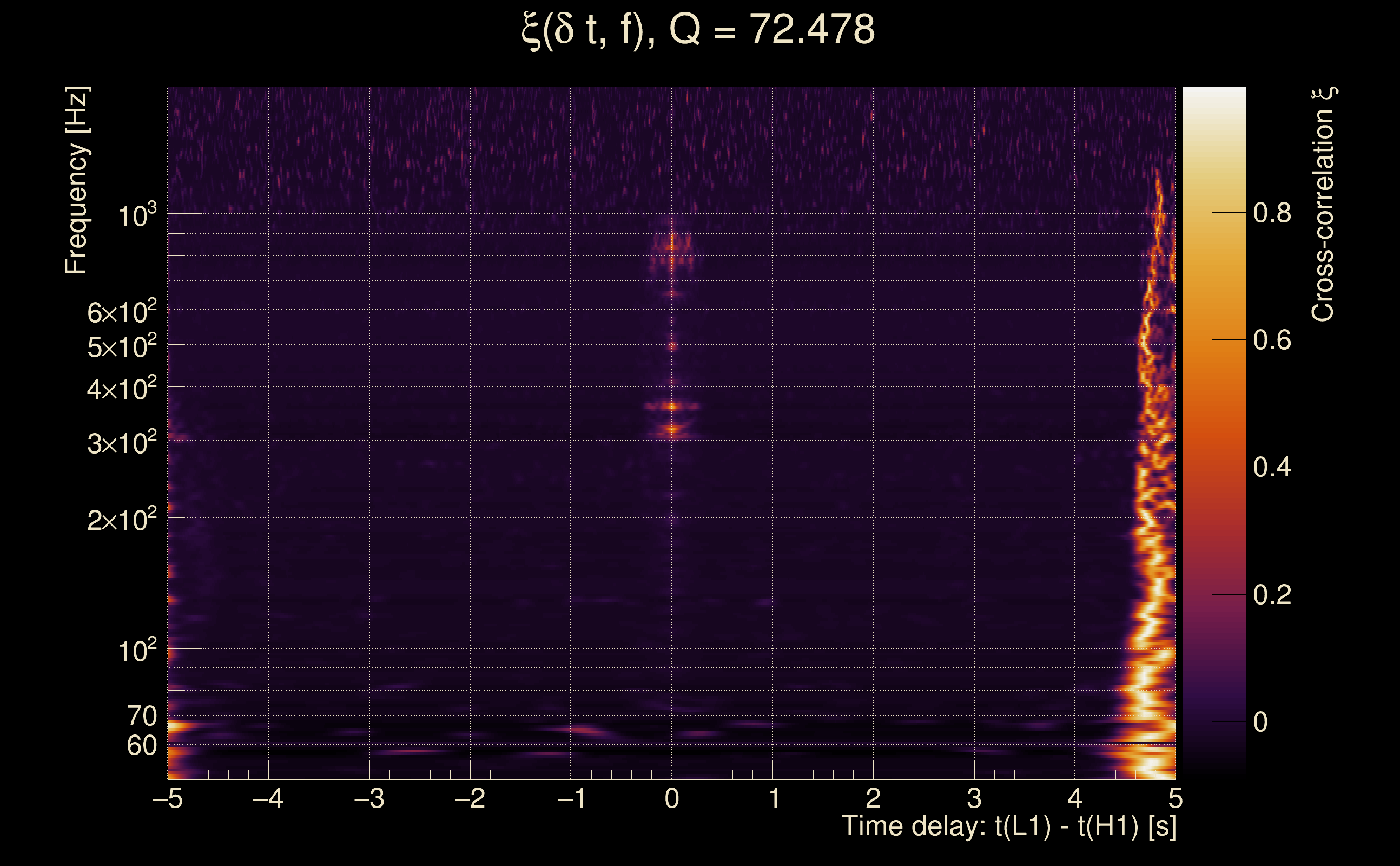

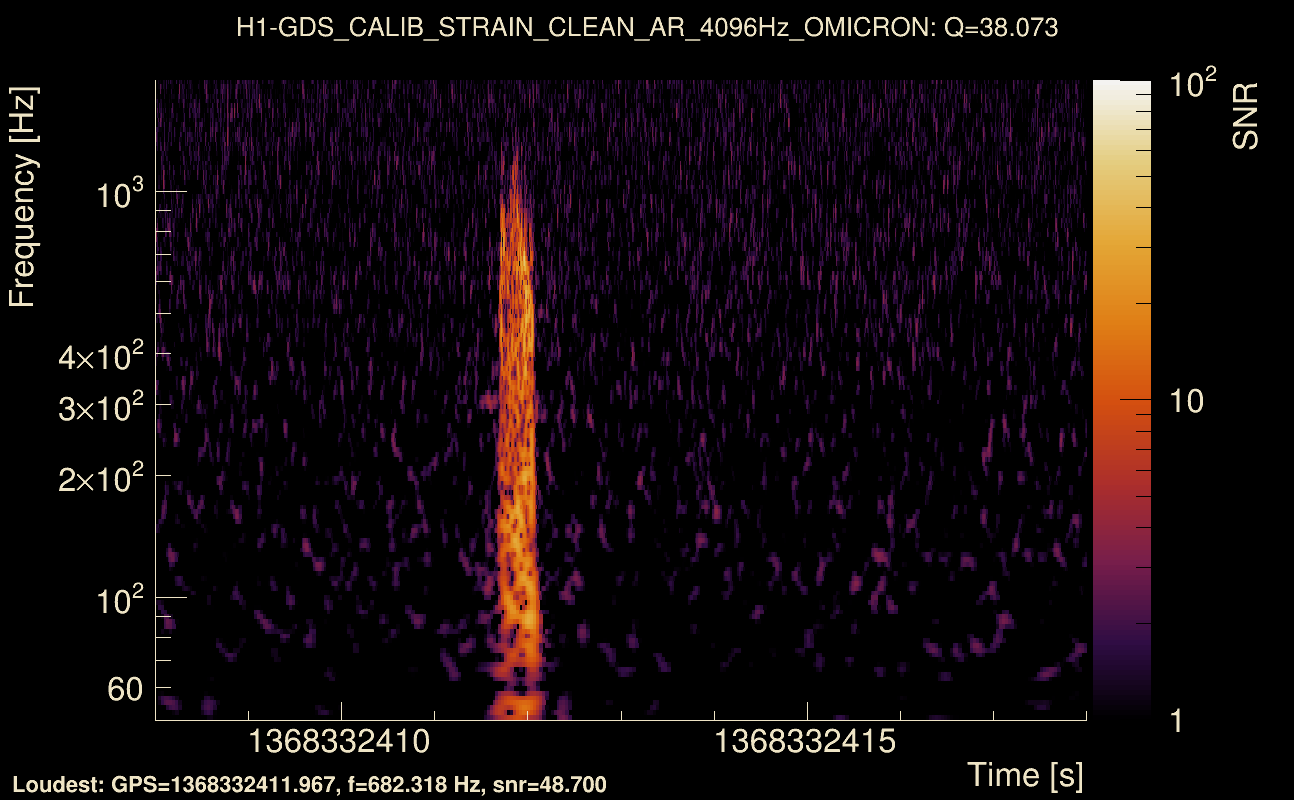

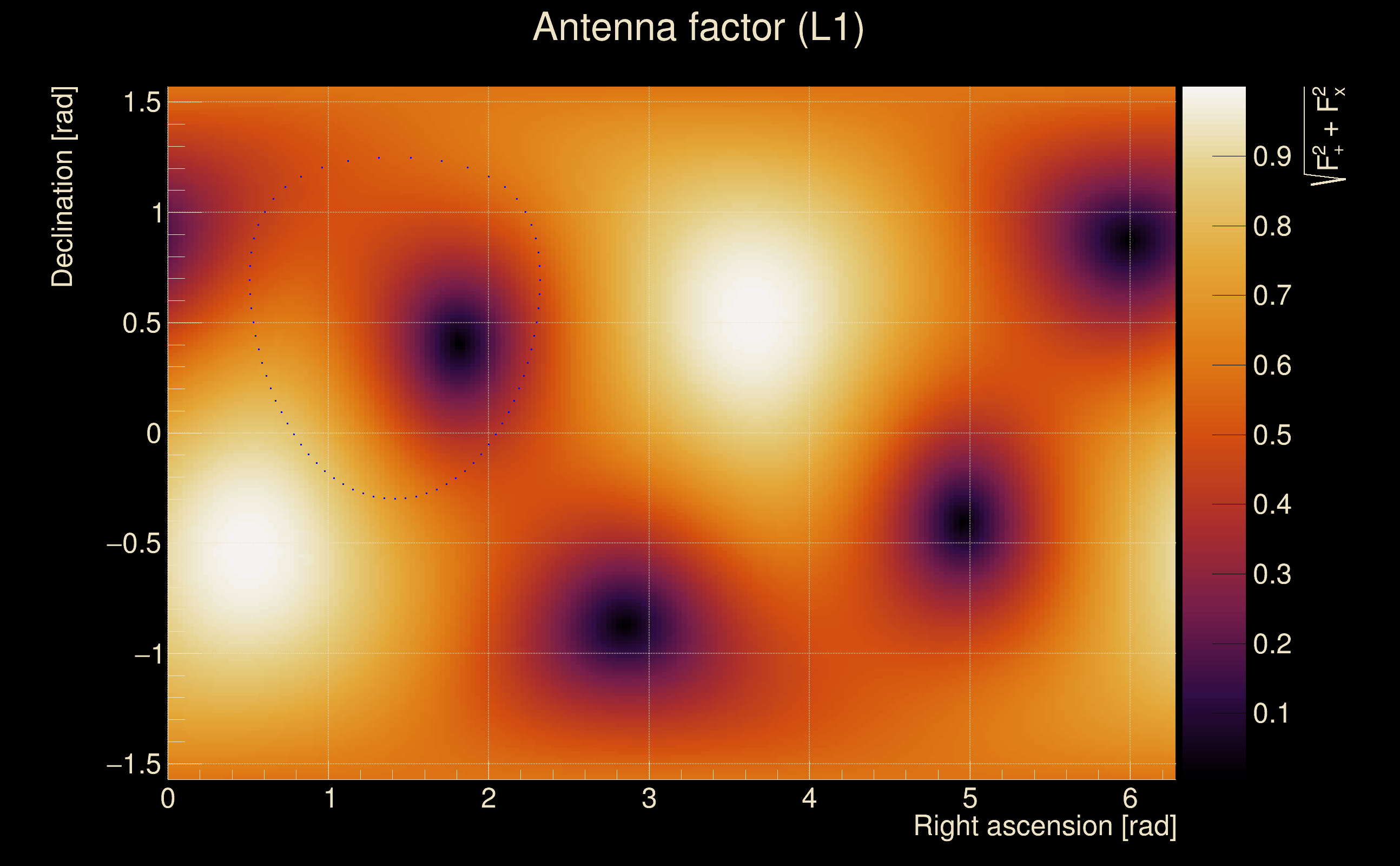

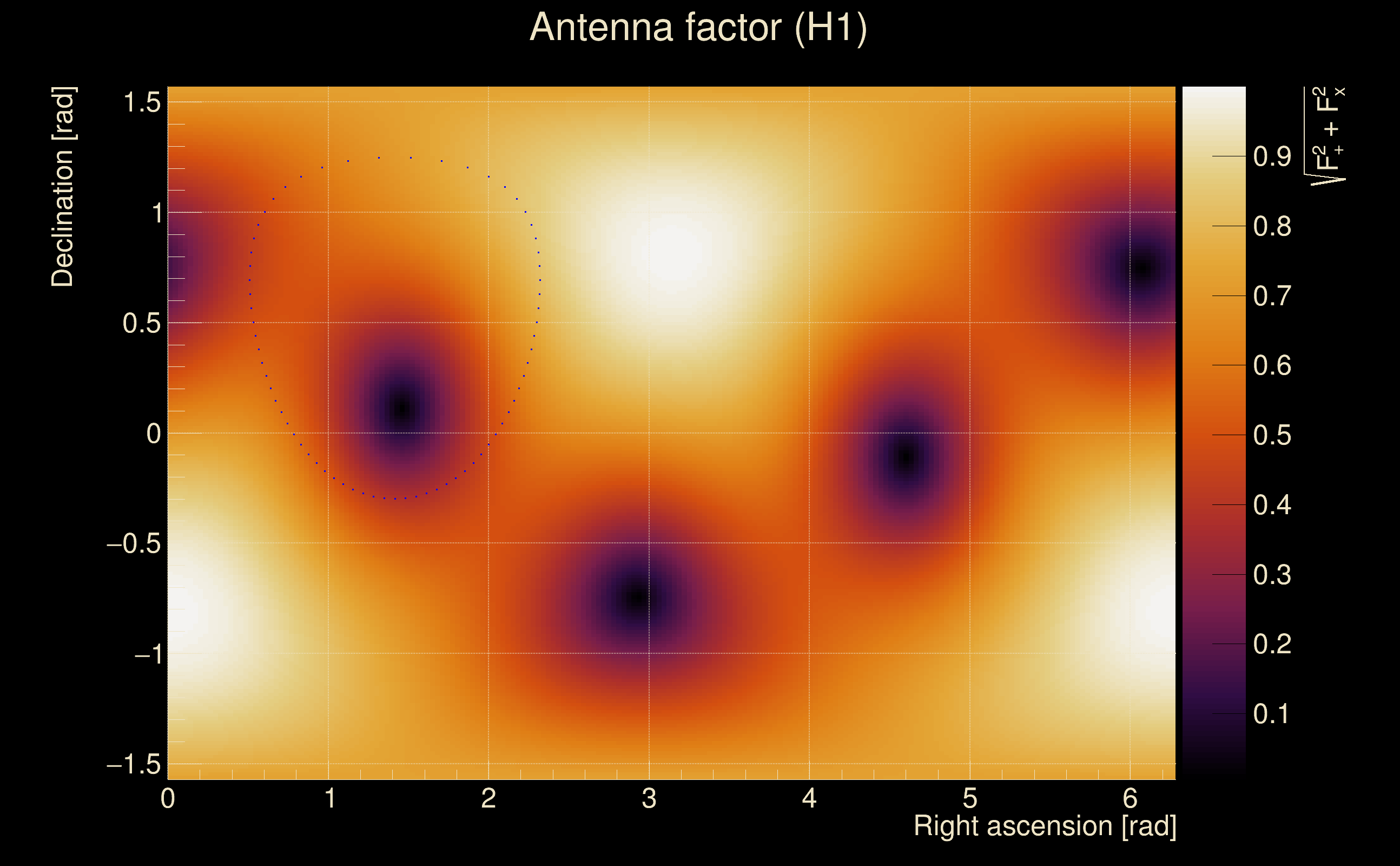

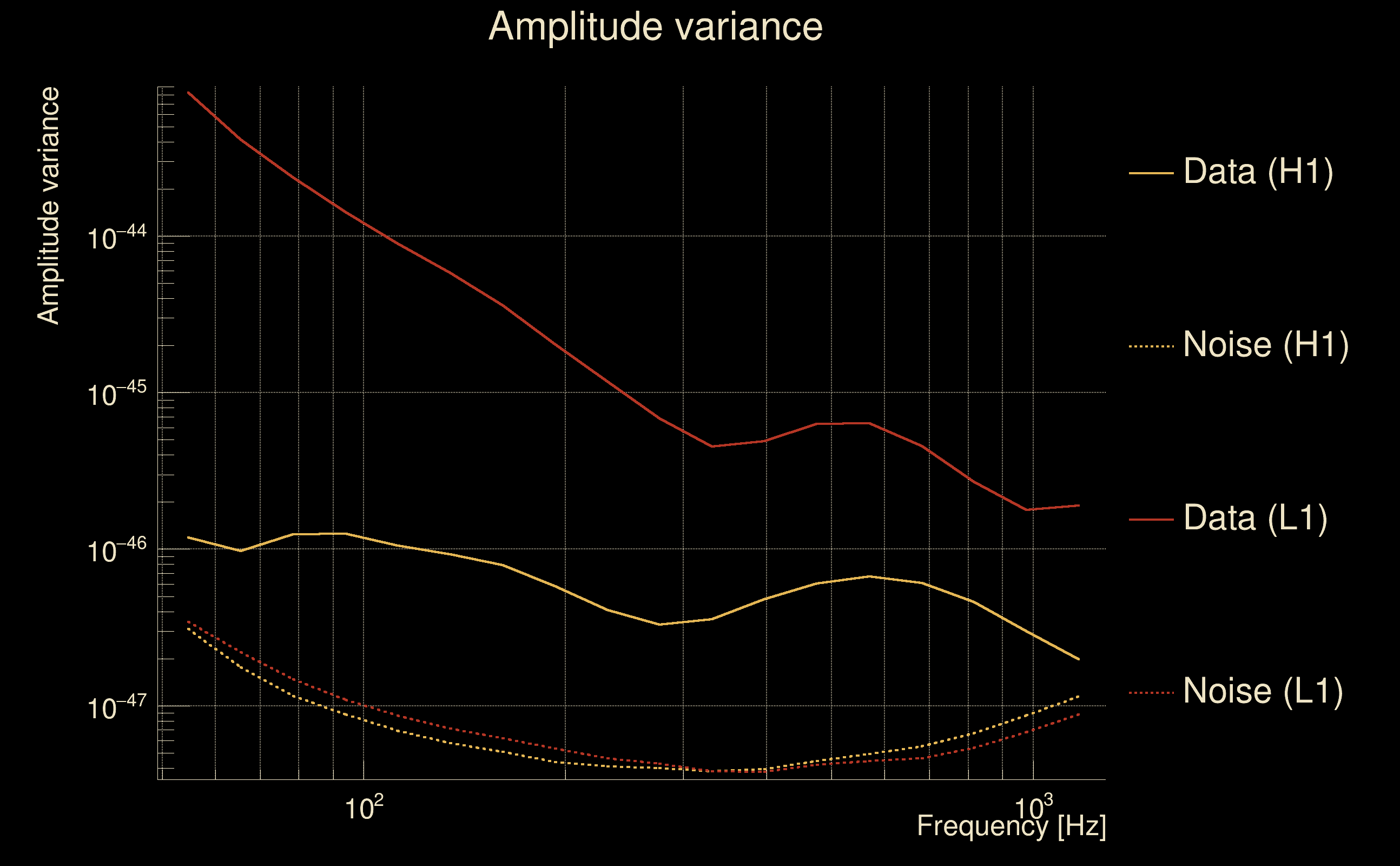

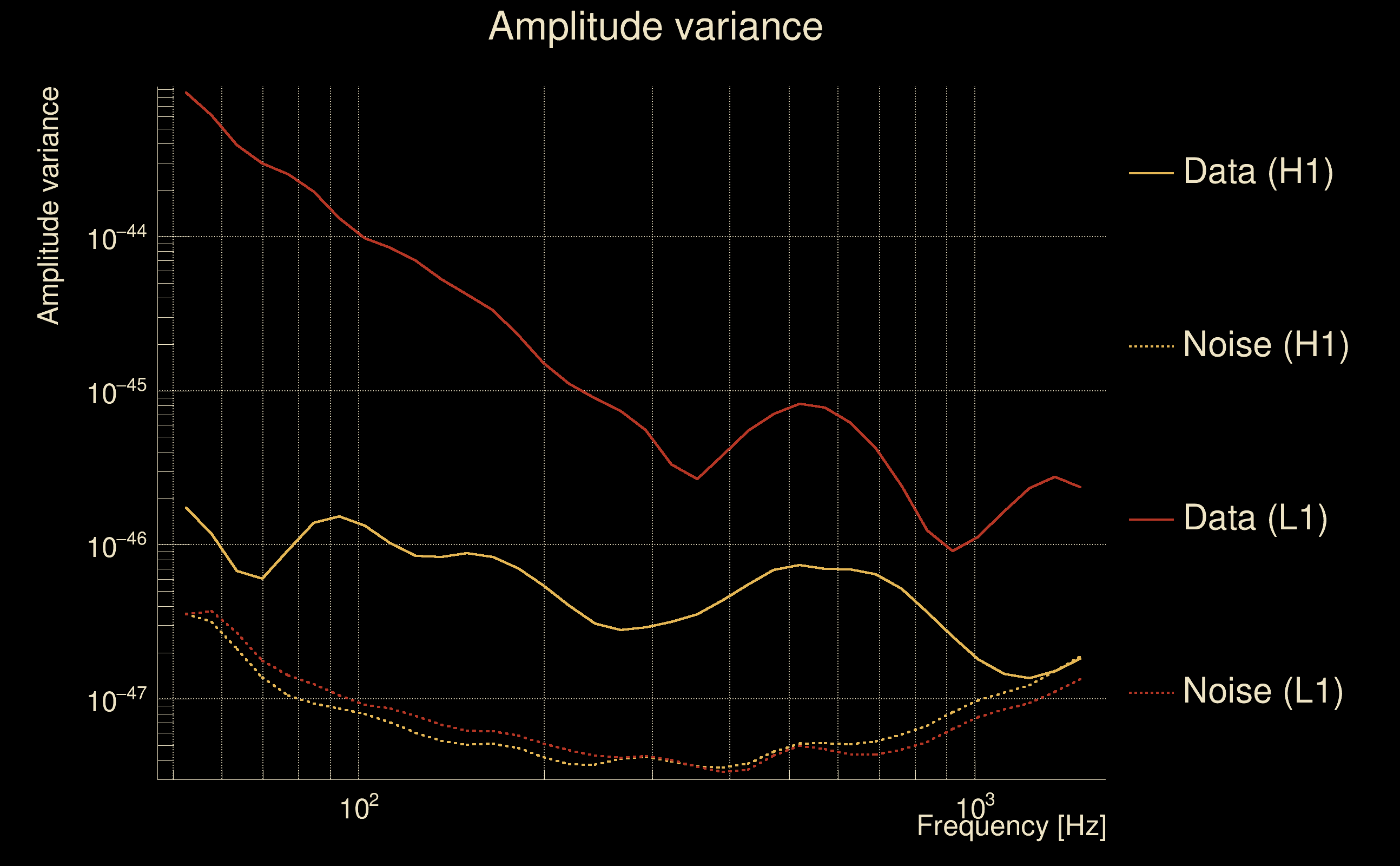

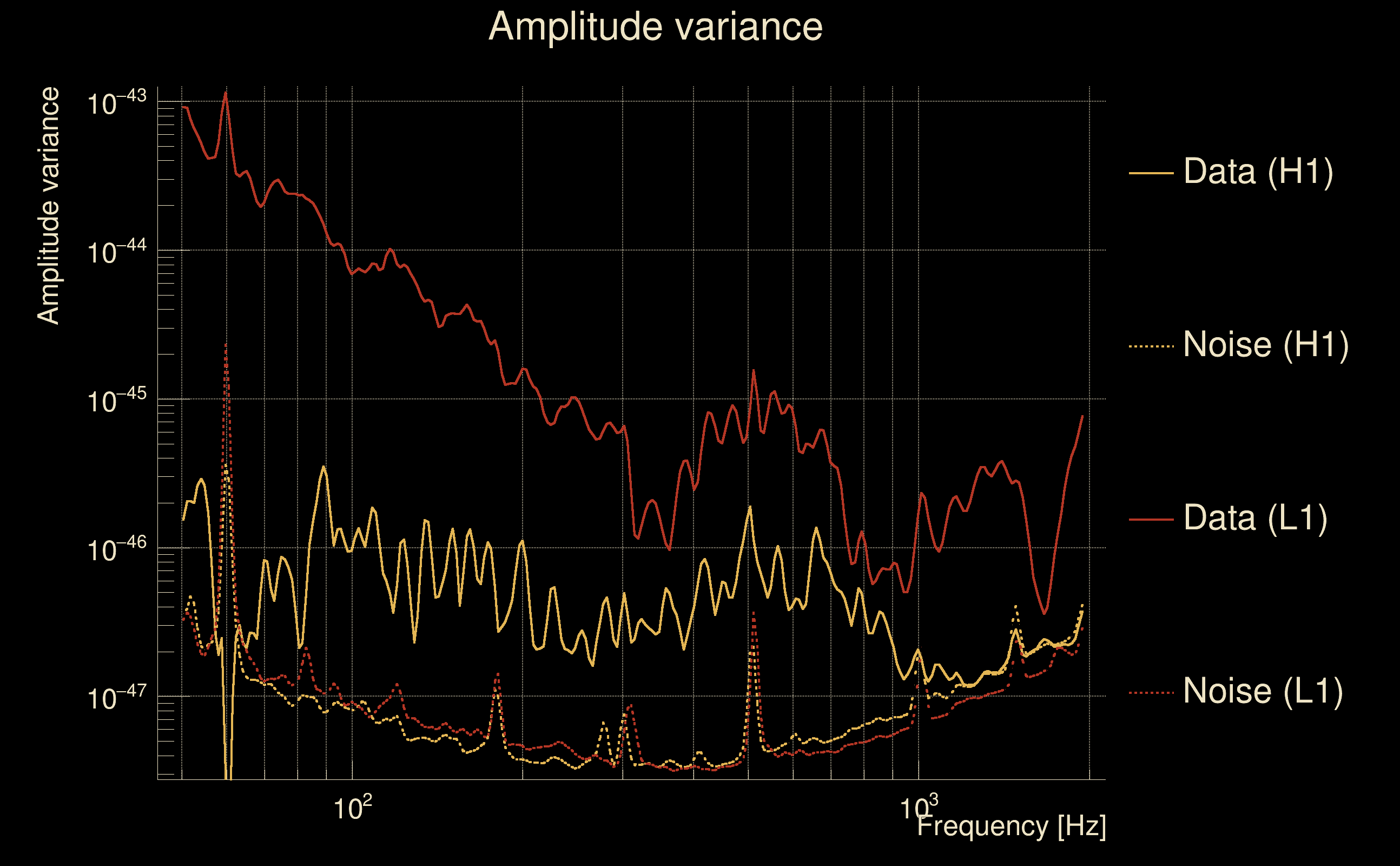

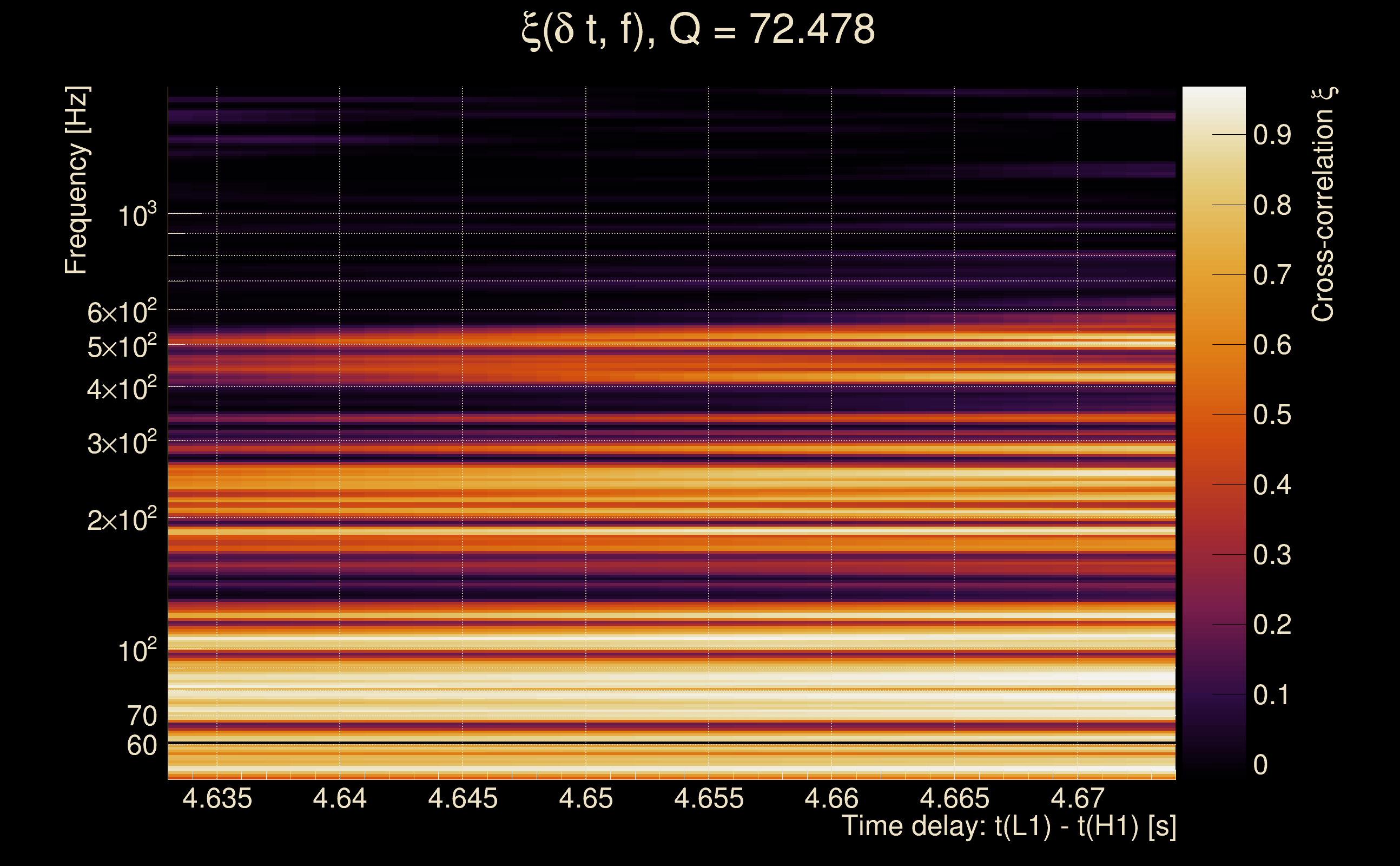

| Event time t(H1): | GPS = 1368332408 (Wed May 17 04:19:50 2023 ) → GPS = 1368332418 (Wed May 17 04:20:00 2023 ) |
| Event time t(L1): | GPS = 1368332408 (Wed May 17 04:20:00 2023 ) → GPS = 1368332418 (Wed May 17 04:20:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368332405 → GPS = 1368332421 |
| Omicron analysis time window (L1): | GPS = 1368332405 → GPS = 1368332421 |

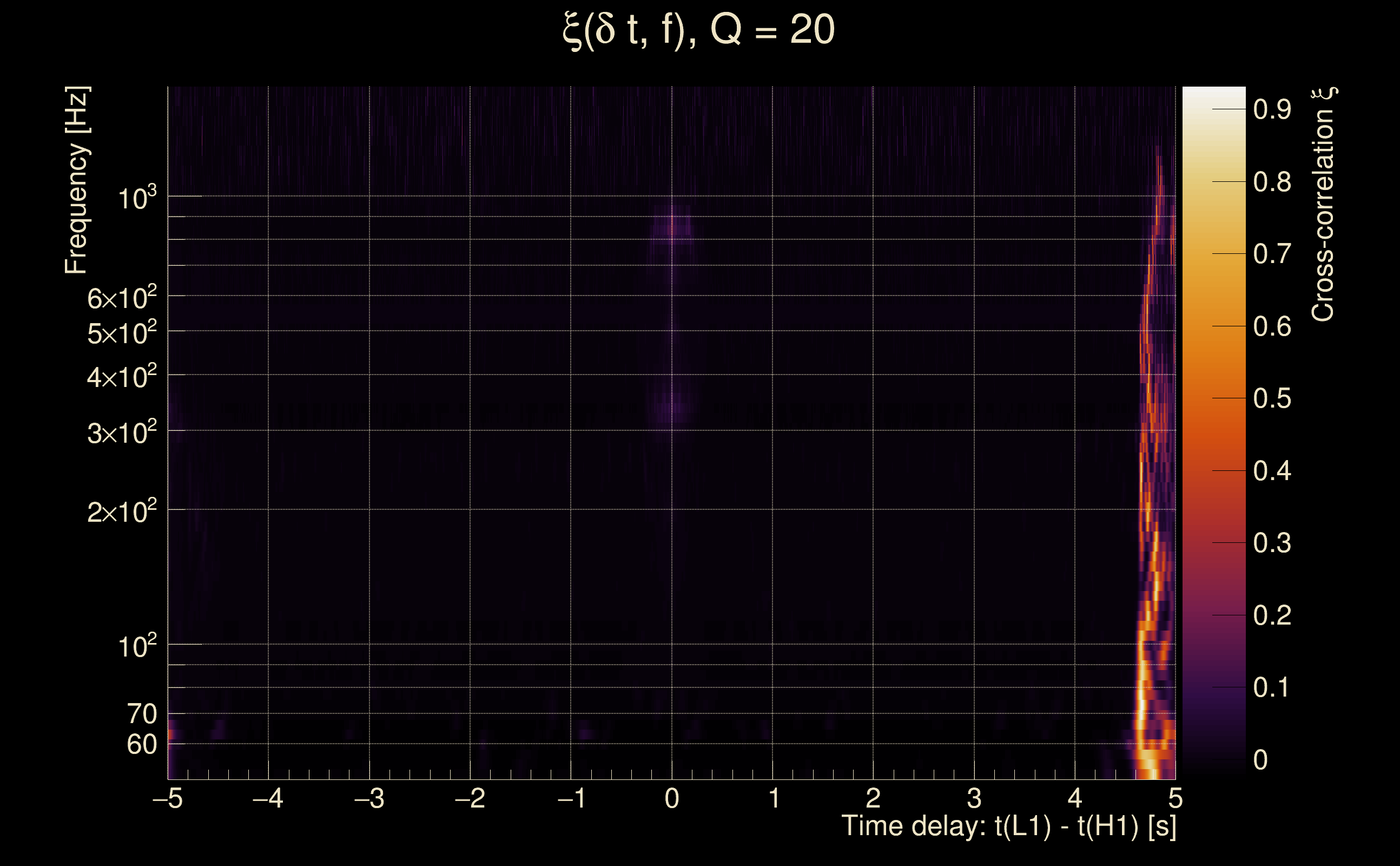

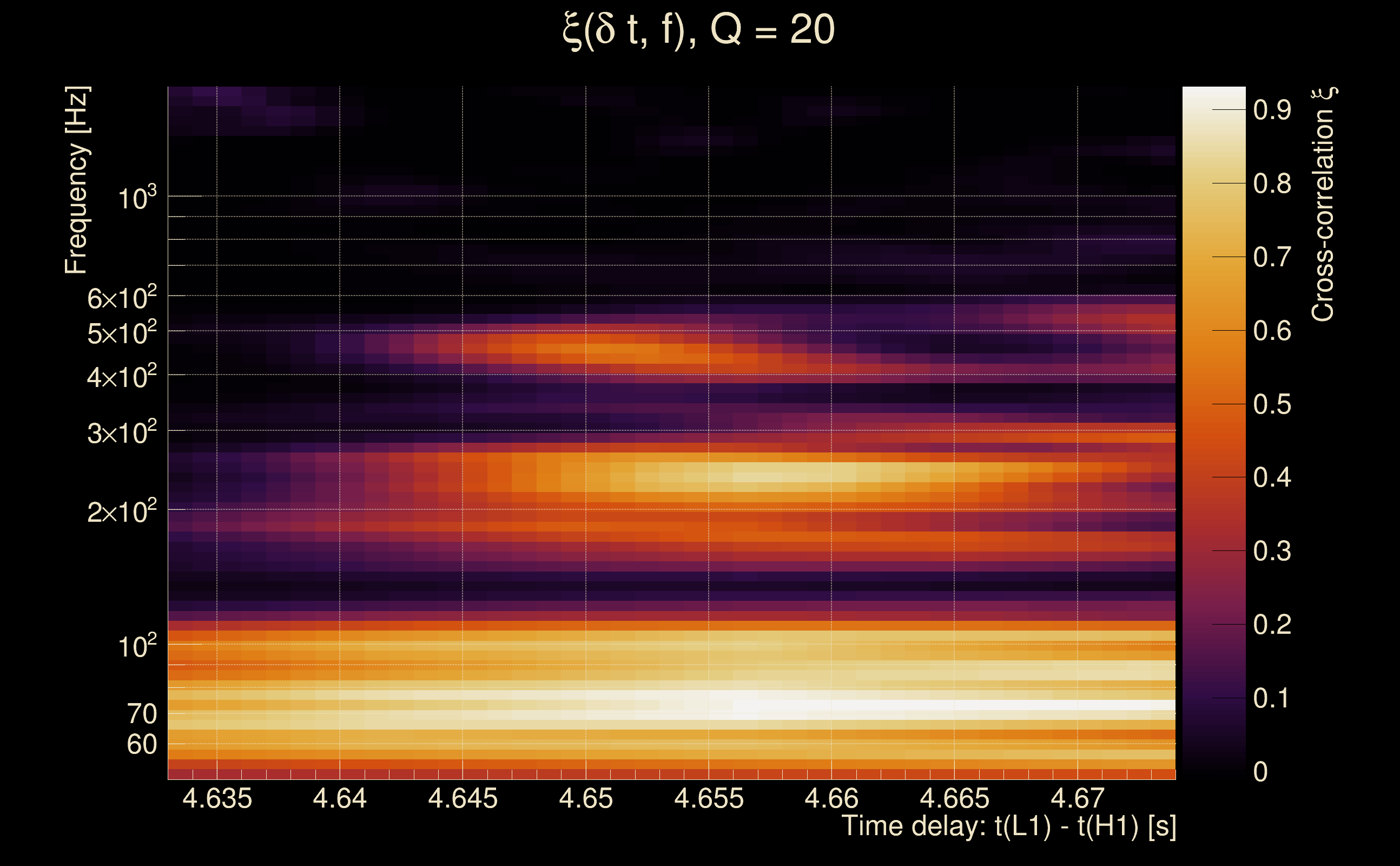

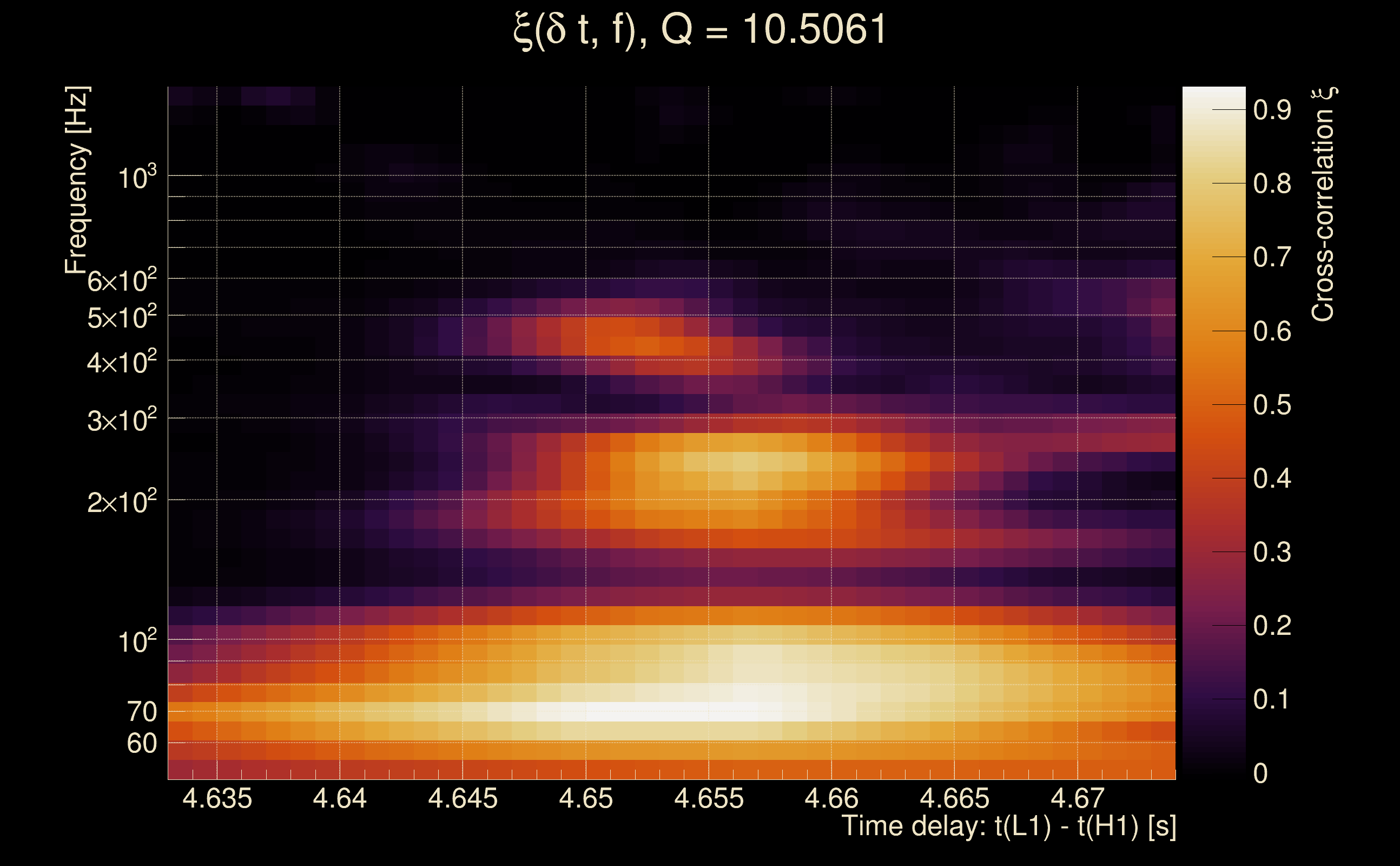

| Time delay between detectors t(L1) - t(H1): | 4.65316 s (slice index = 7 / 217), δt_gw = 0.00715693 s |
| Time delay standard deviation: | 0.062885 s |
| [targeted mode] Time delay probability: | 0.087529 (1.70858 sigmas), δt_target = -0.00871253 s |
| Frequency: | 148.9 Hz |
| Ξ: | 0.468933 ± 0.00761592 (variance = 5.80023e-05): Q0: 0.667163, Q1: 0.670417, Q2: 0.655984, Q3: 0.649481, Q4: 0.658082 |
| Rank: | R_A = 0.468933 |
| Log of amplitude ratio (L1/H1): | 3.1489, variance = 0.534924 (L1/H1: 0.974965, variance = 1.1575, H1/L1: -3.15607, variance = 0.538442) |
| Amplitude ratio (L1/H1): | 23.3105 ⋇ 2.07796 (L1/H1: 2.65108 ⋇ 2.93255, H1/L1: 0.0425929 ⋇ 2.08295) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0939677 |
| Antenna factor probability: | 1.46272e-05 |
| Number of rejected frequency rows: | Q0: 3 / 18, Q1: 10 / 36, Q2: 34 / 70, Q3: 90 / 134, Q4: 223 / 258 |
| Maximum signal-to-noise ratio: | H1: 51.6345, L1: 899.543 |
| SNR variance: | H1: 4.92423, L1: 6.70792 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

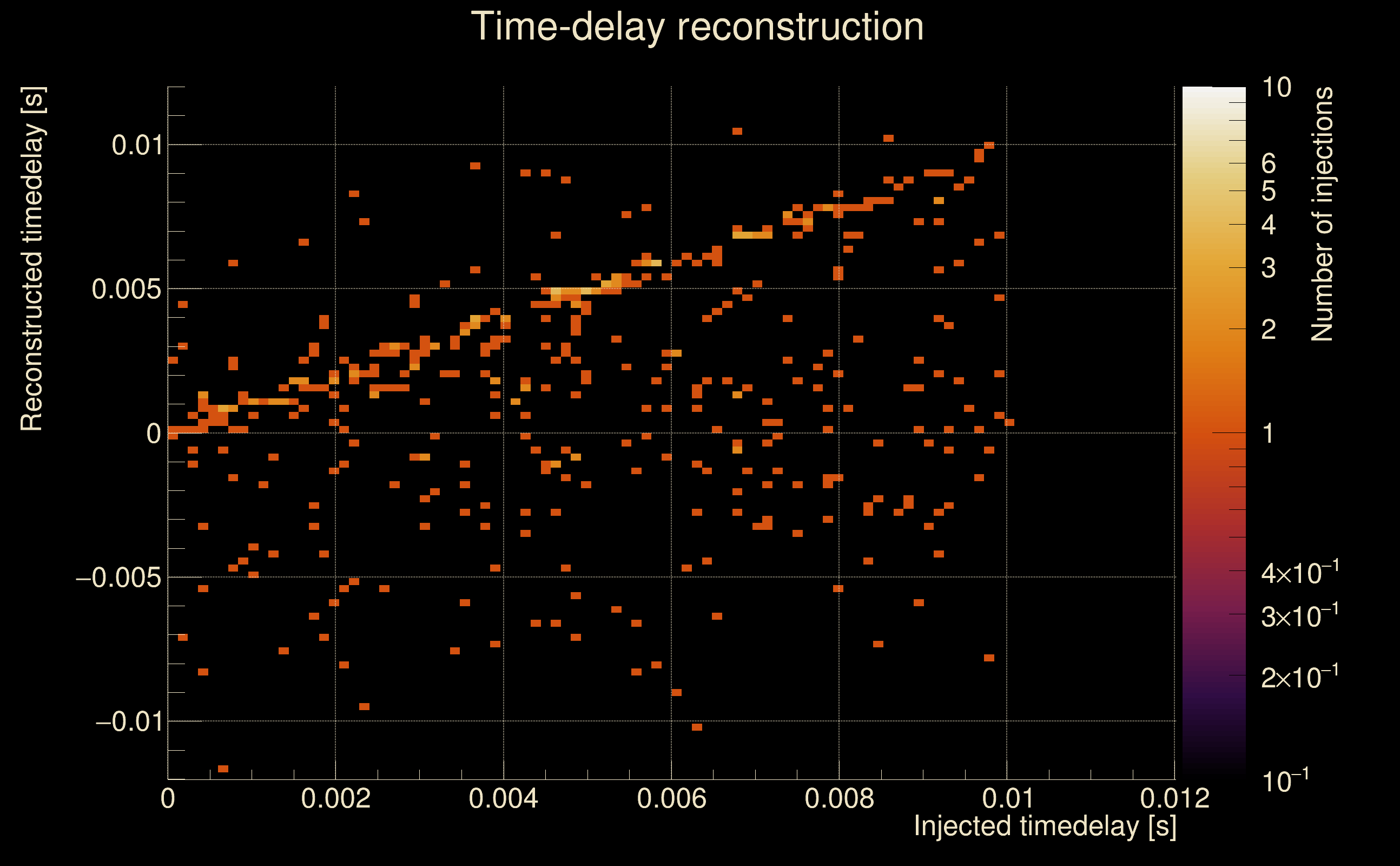

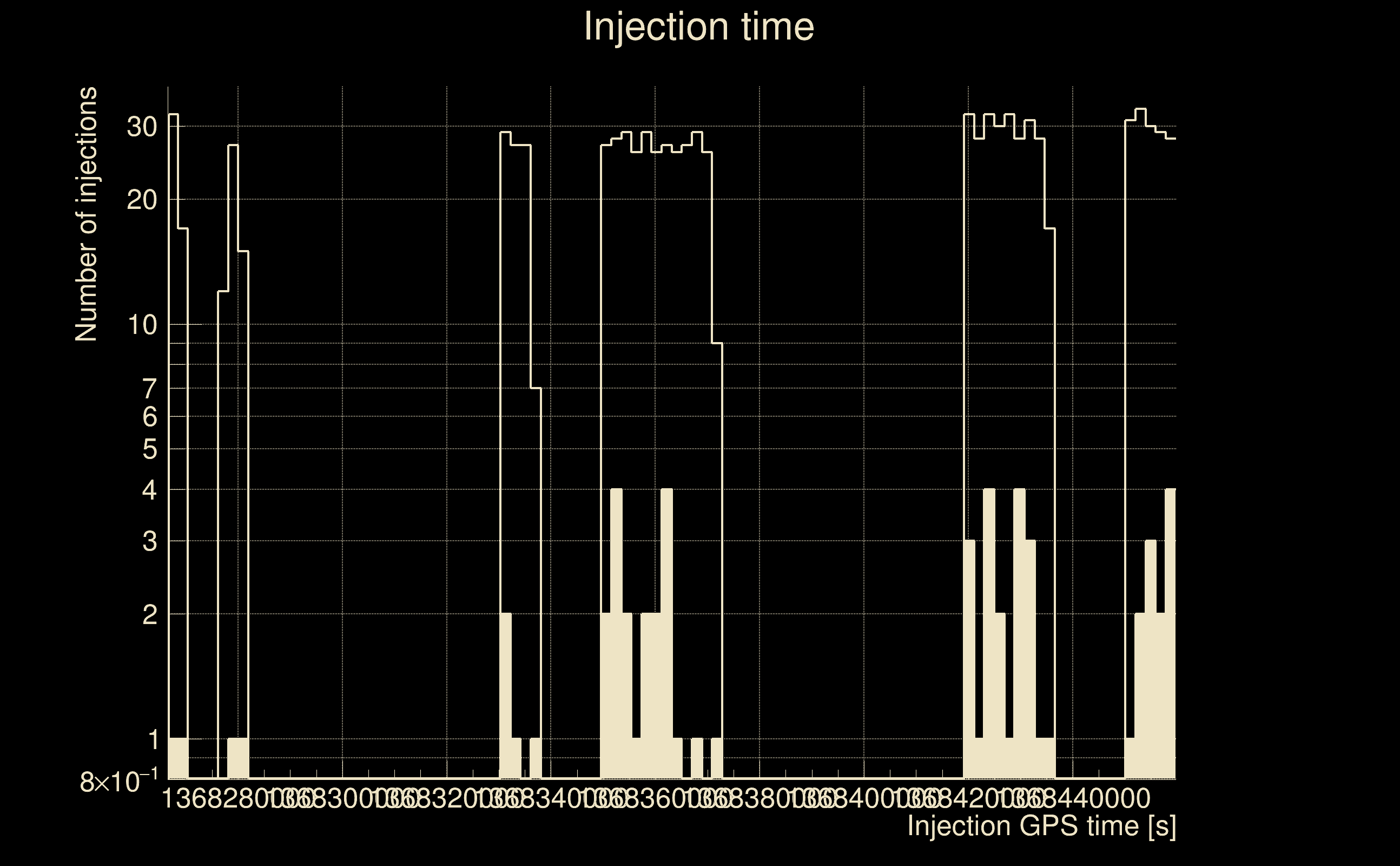

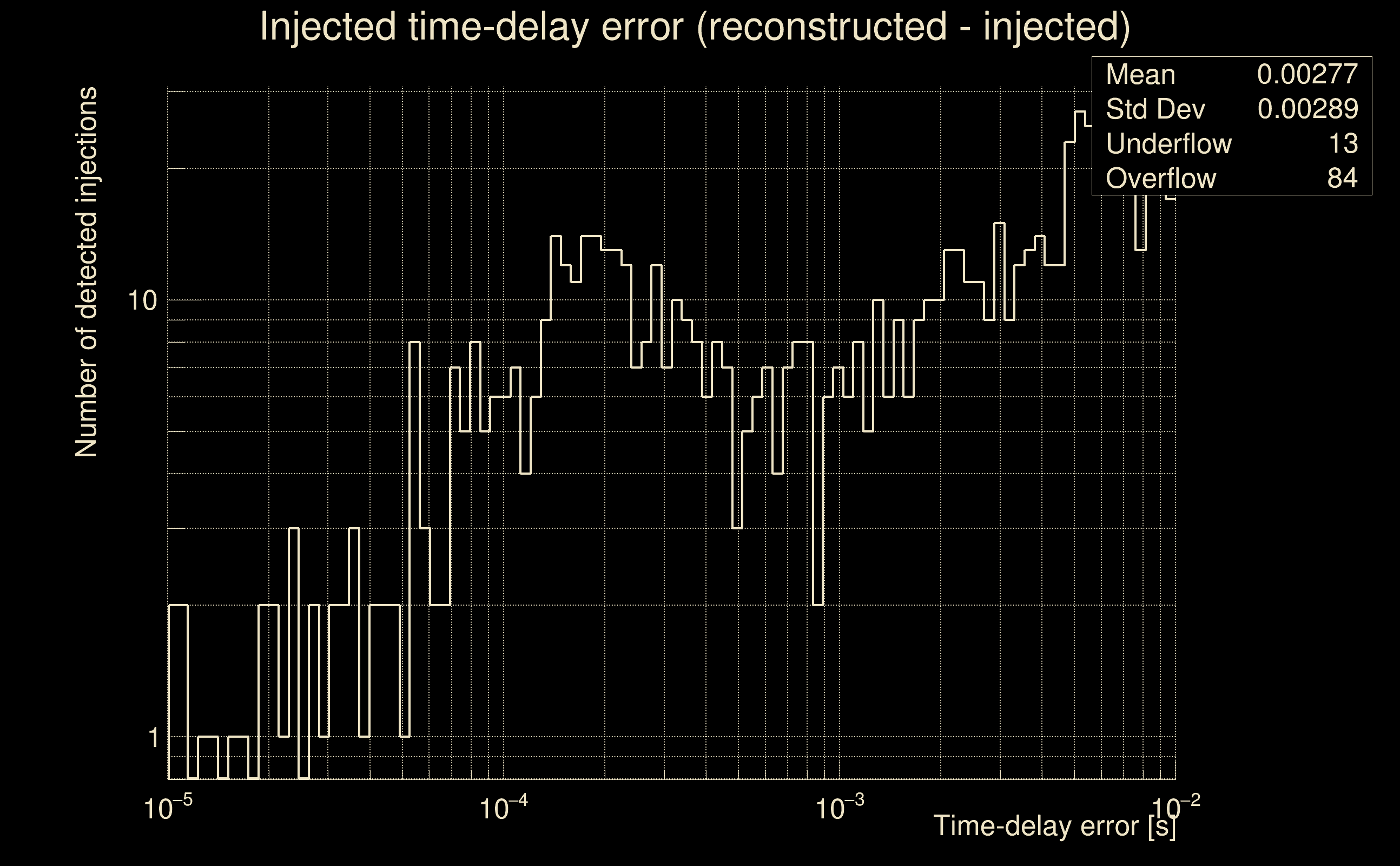

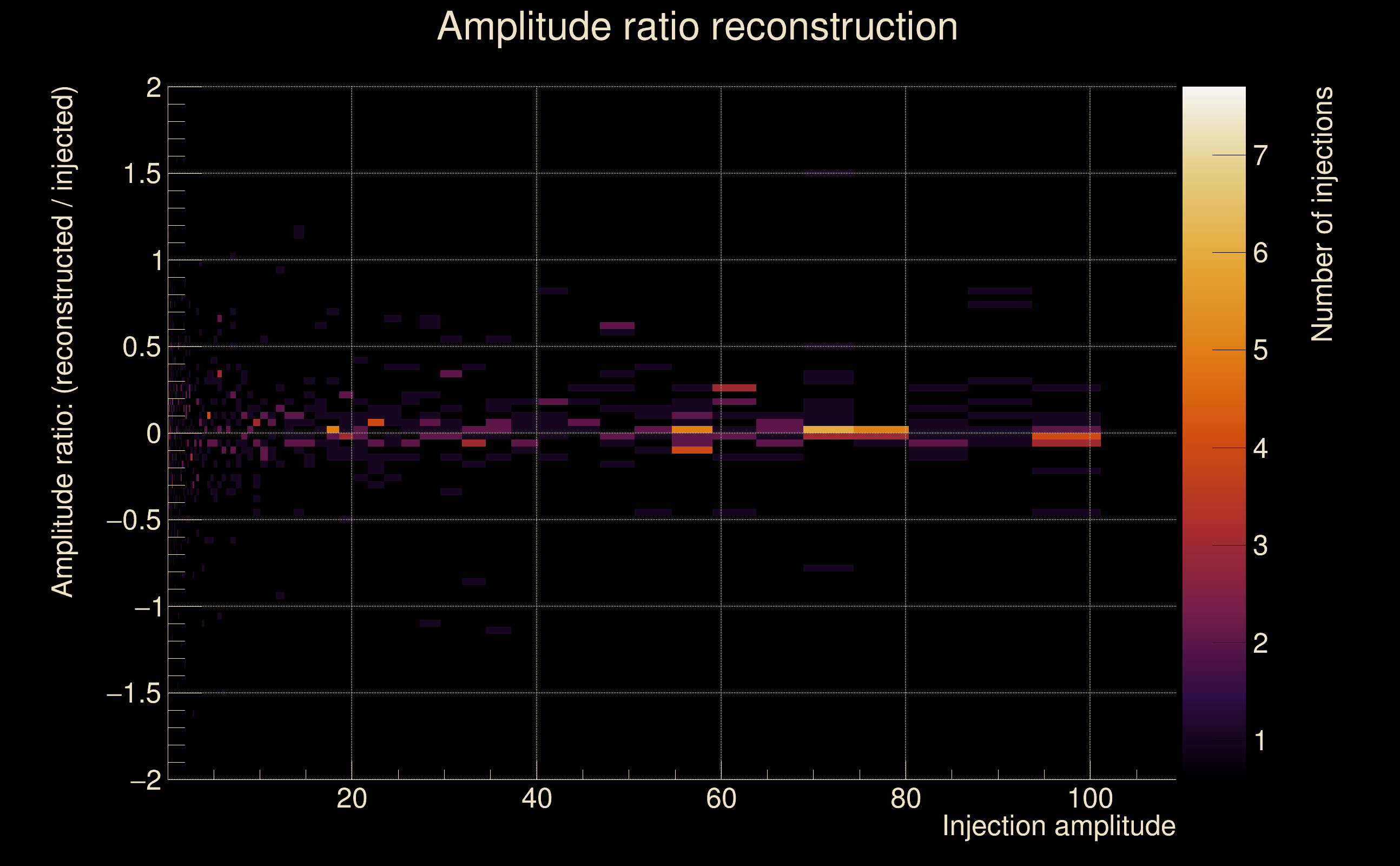

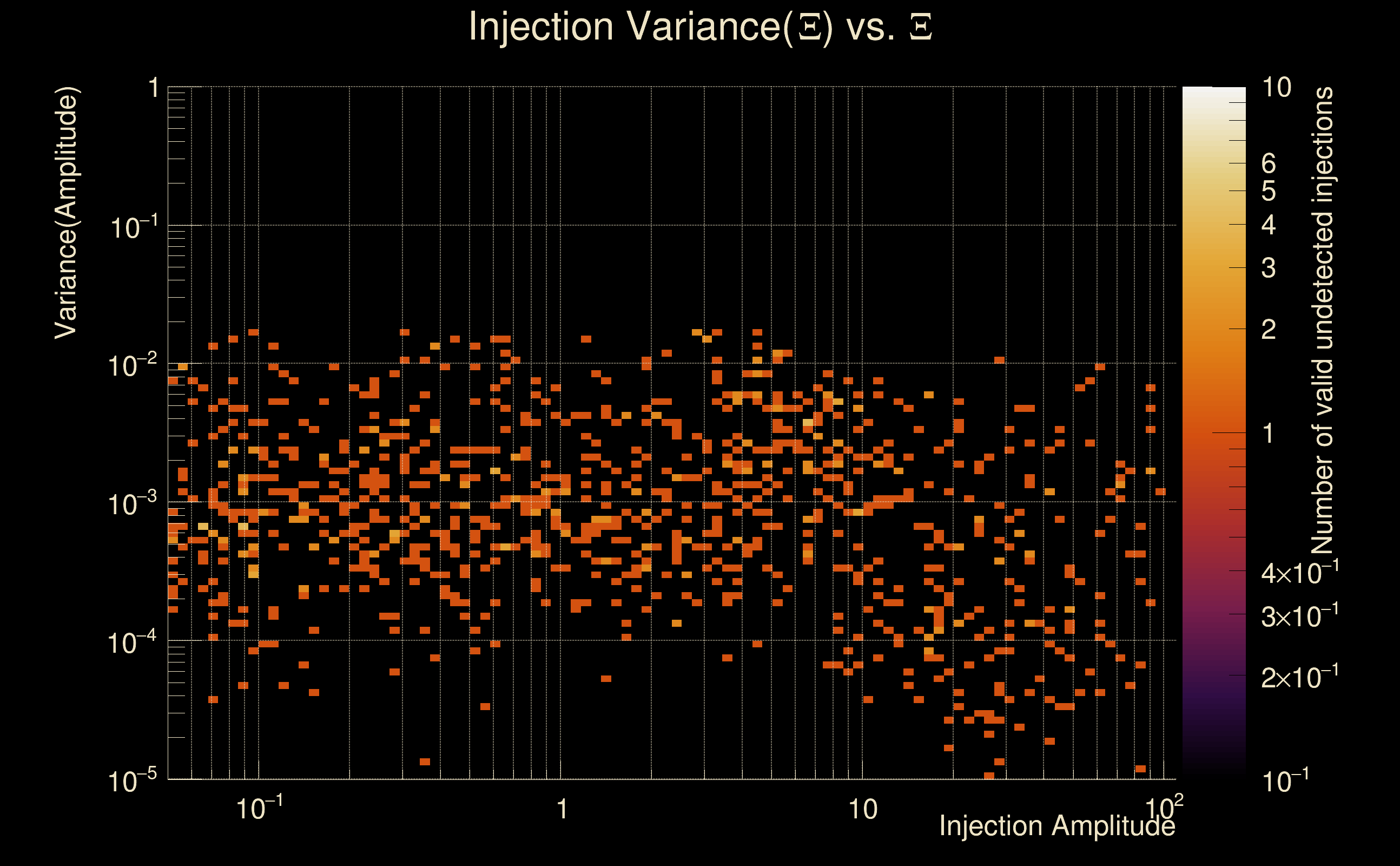

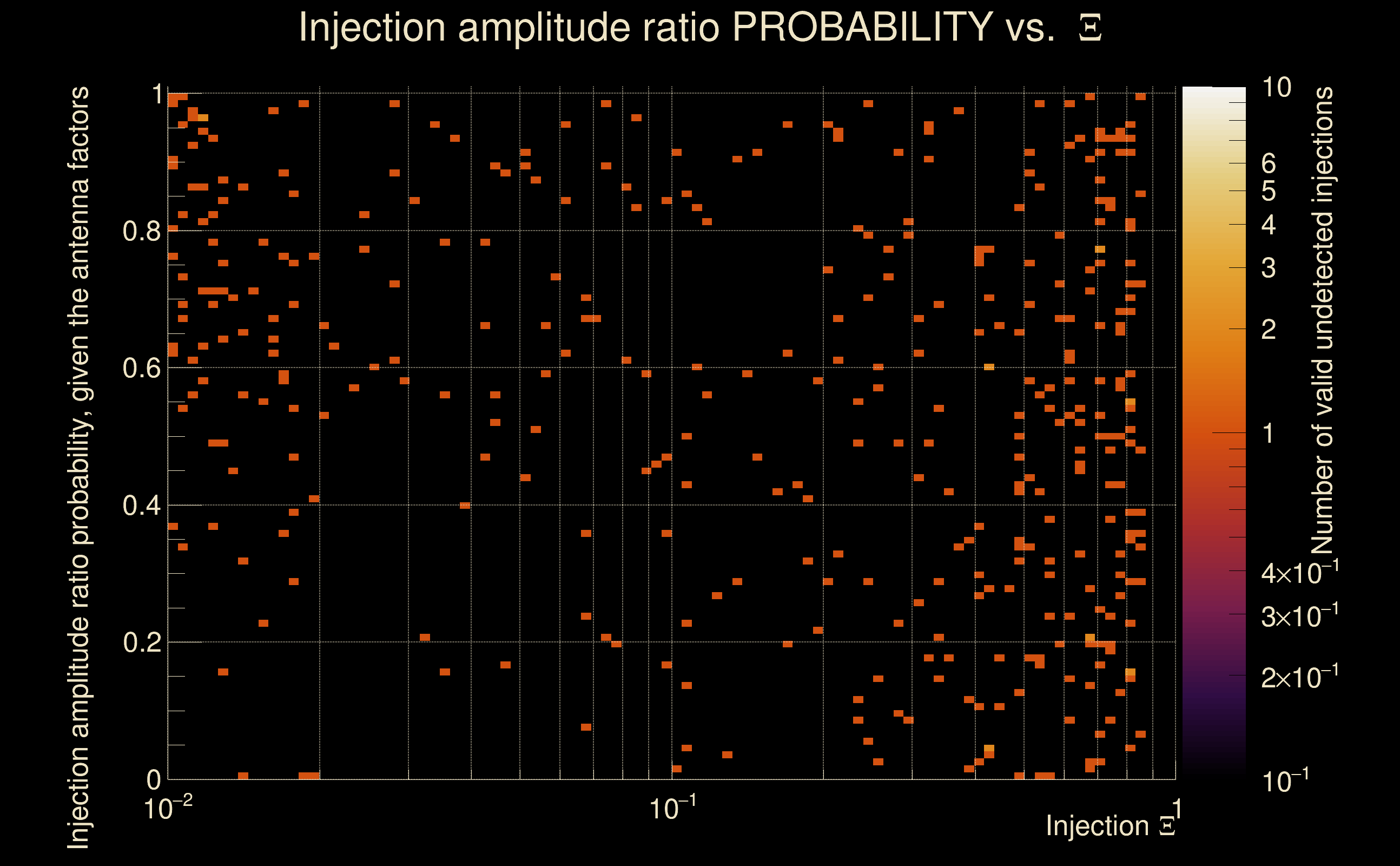

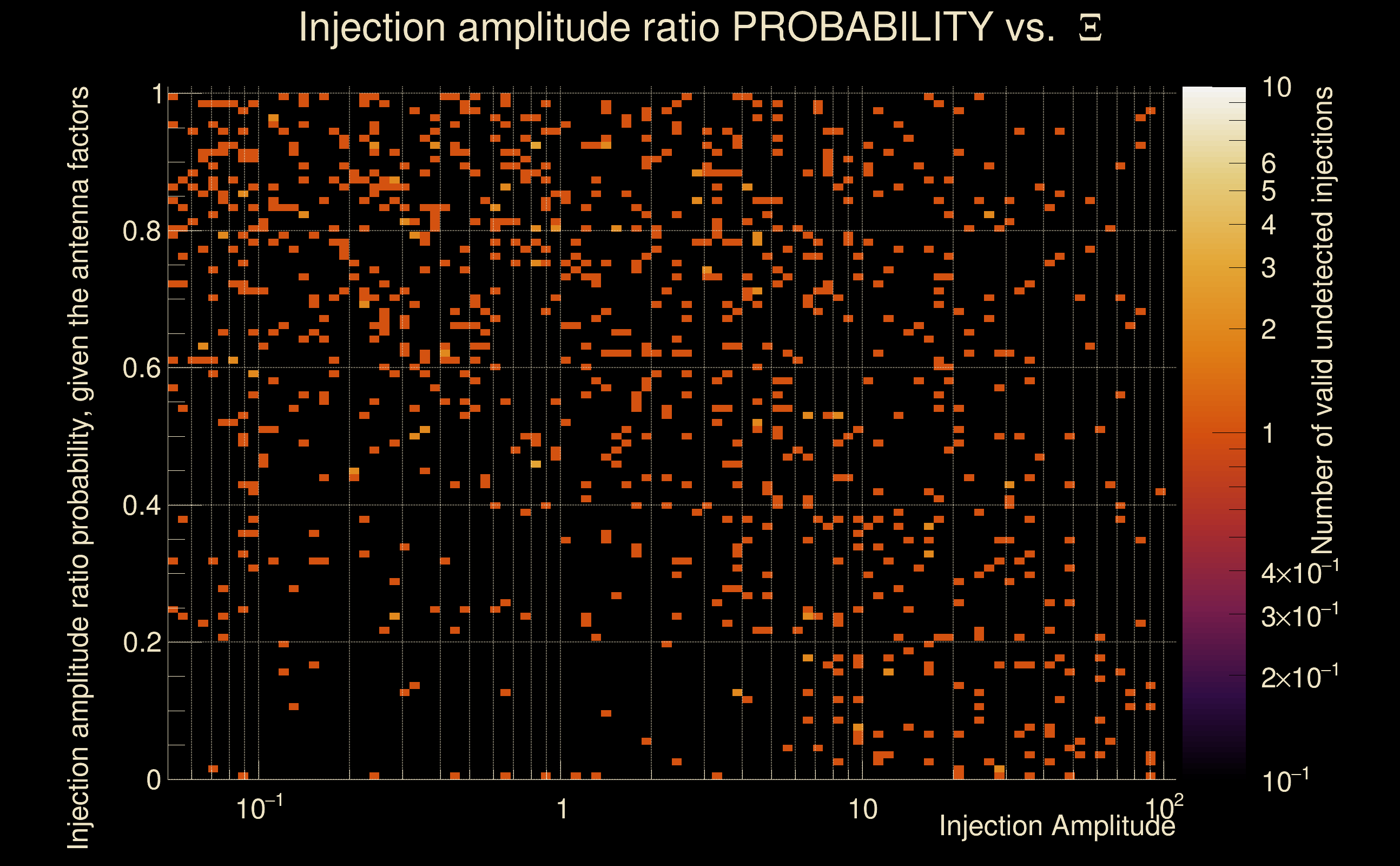

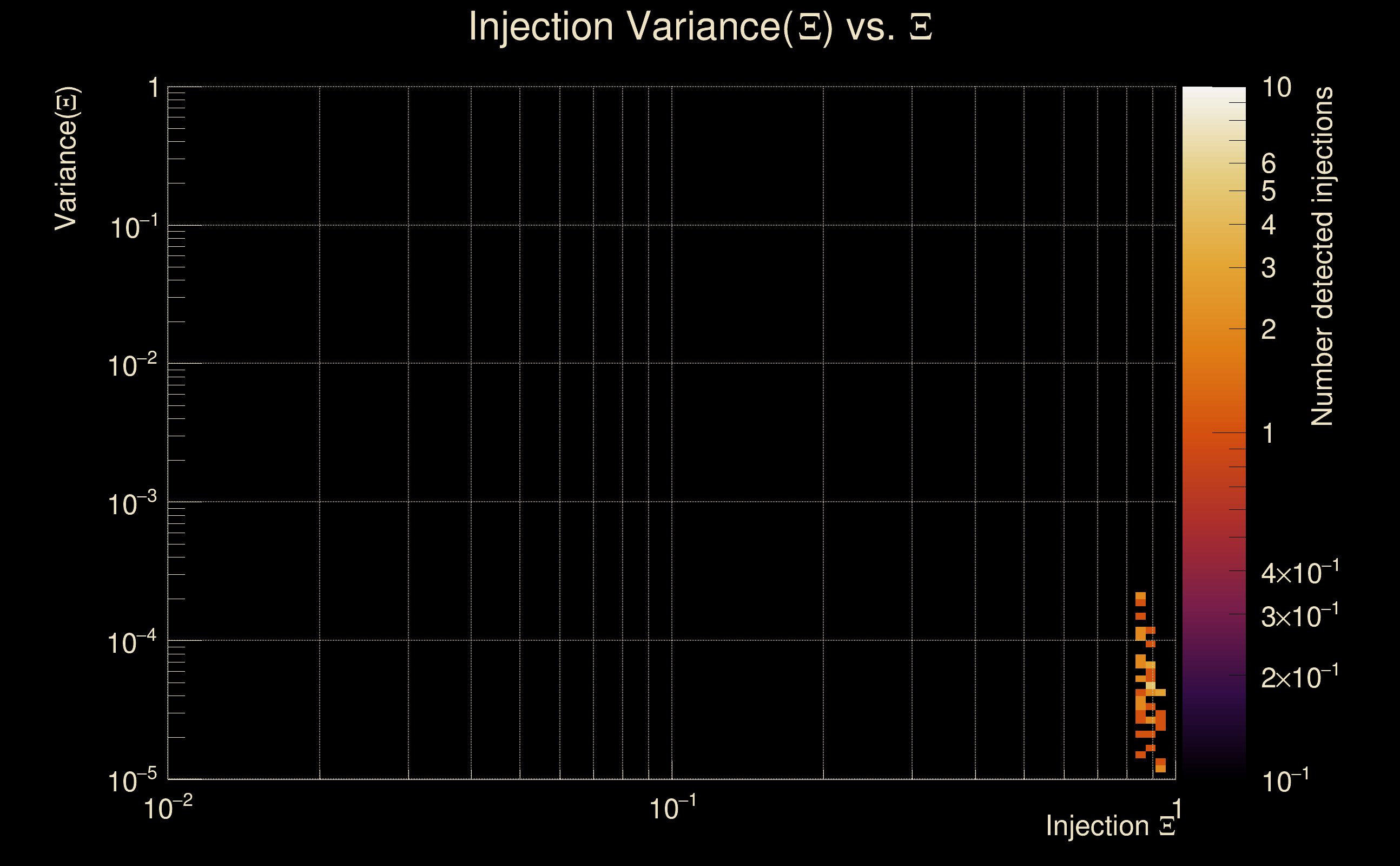

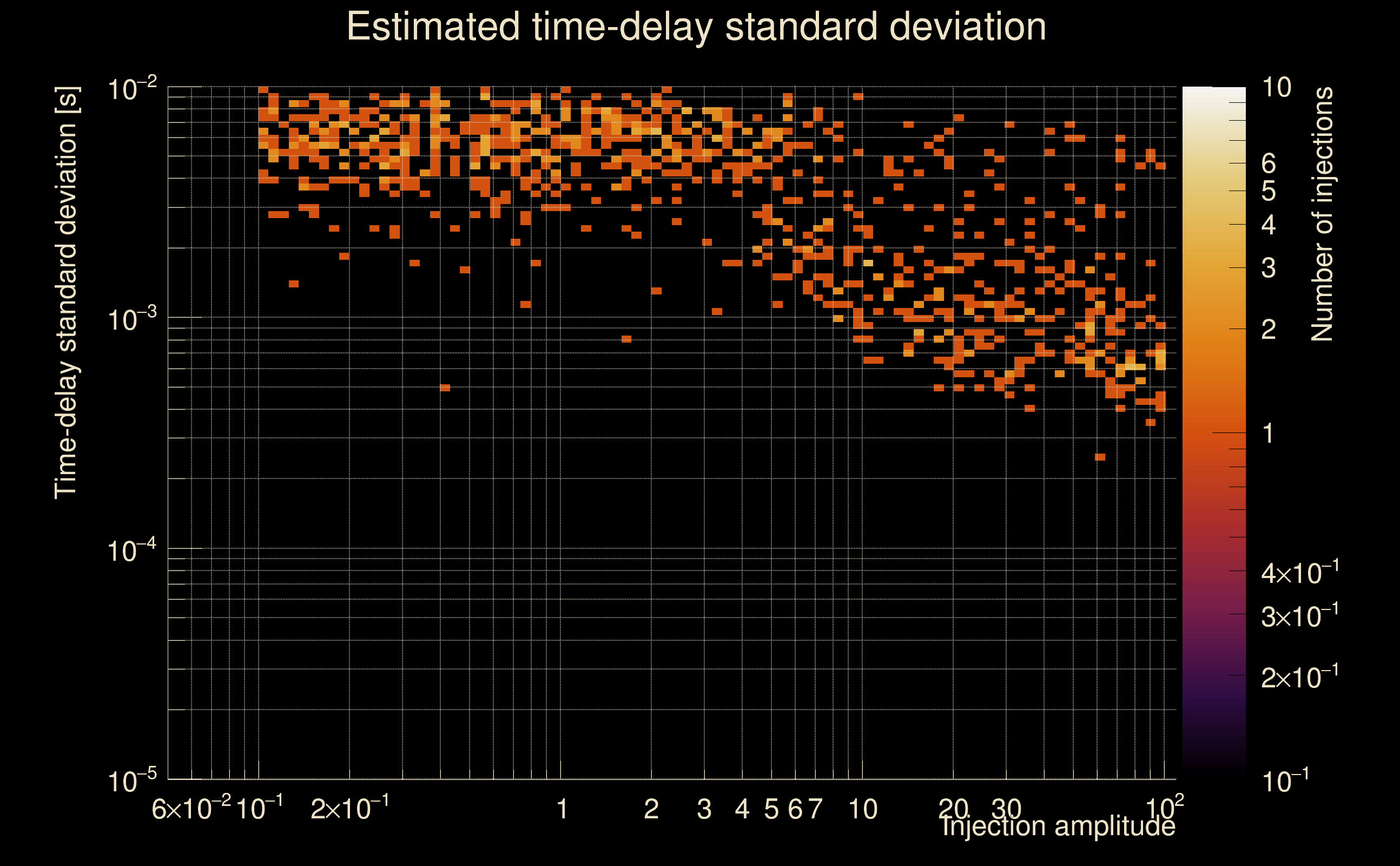

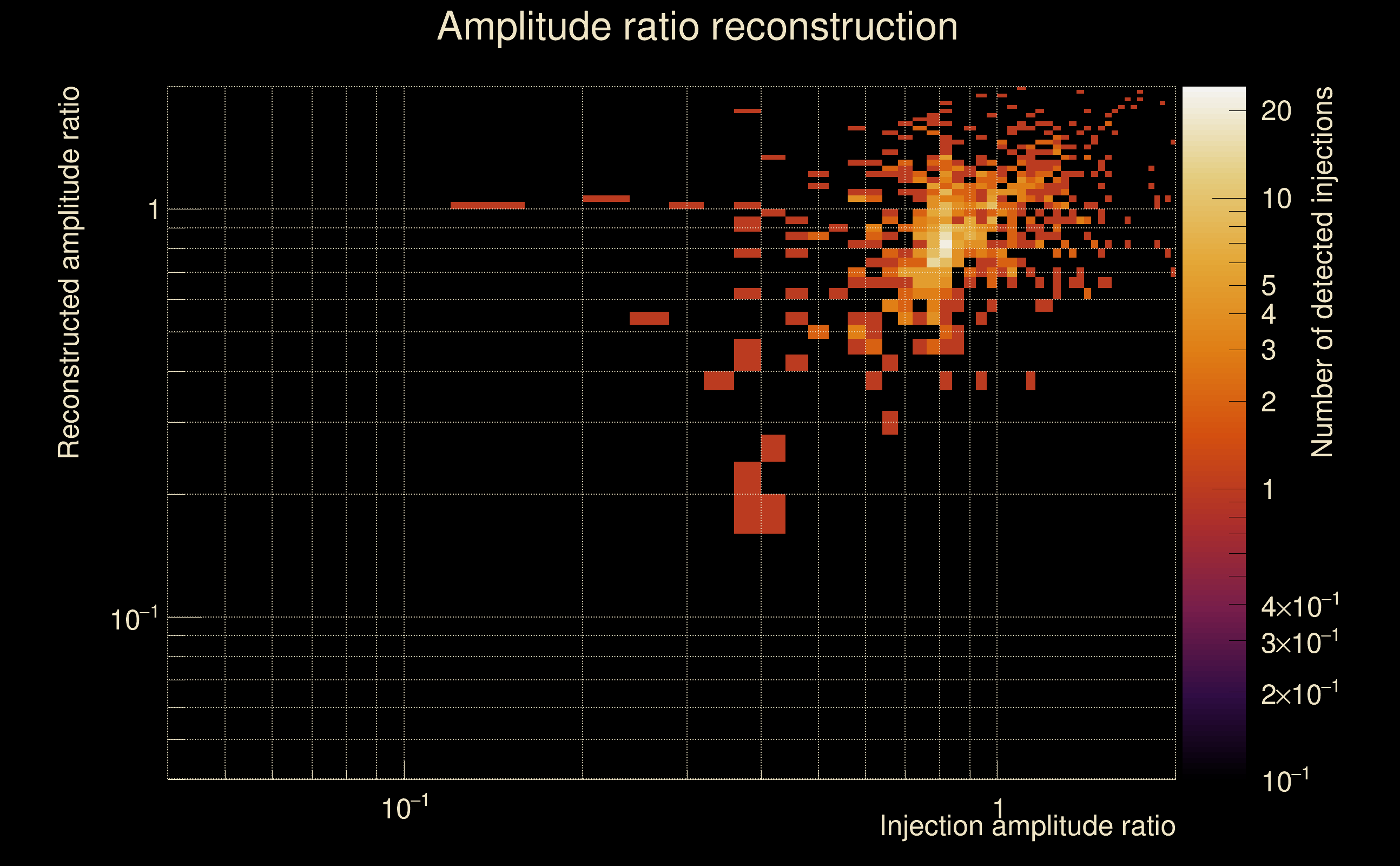

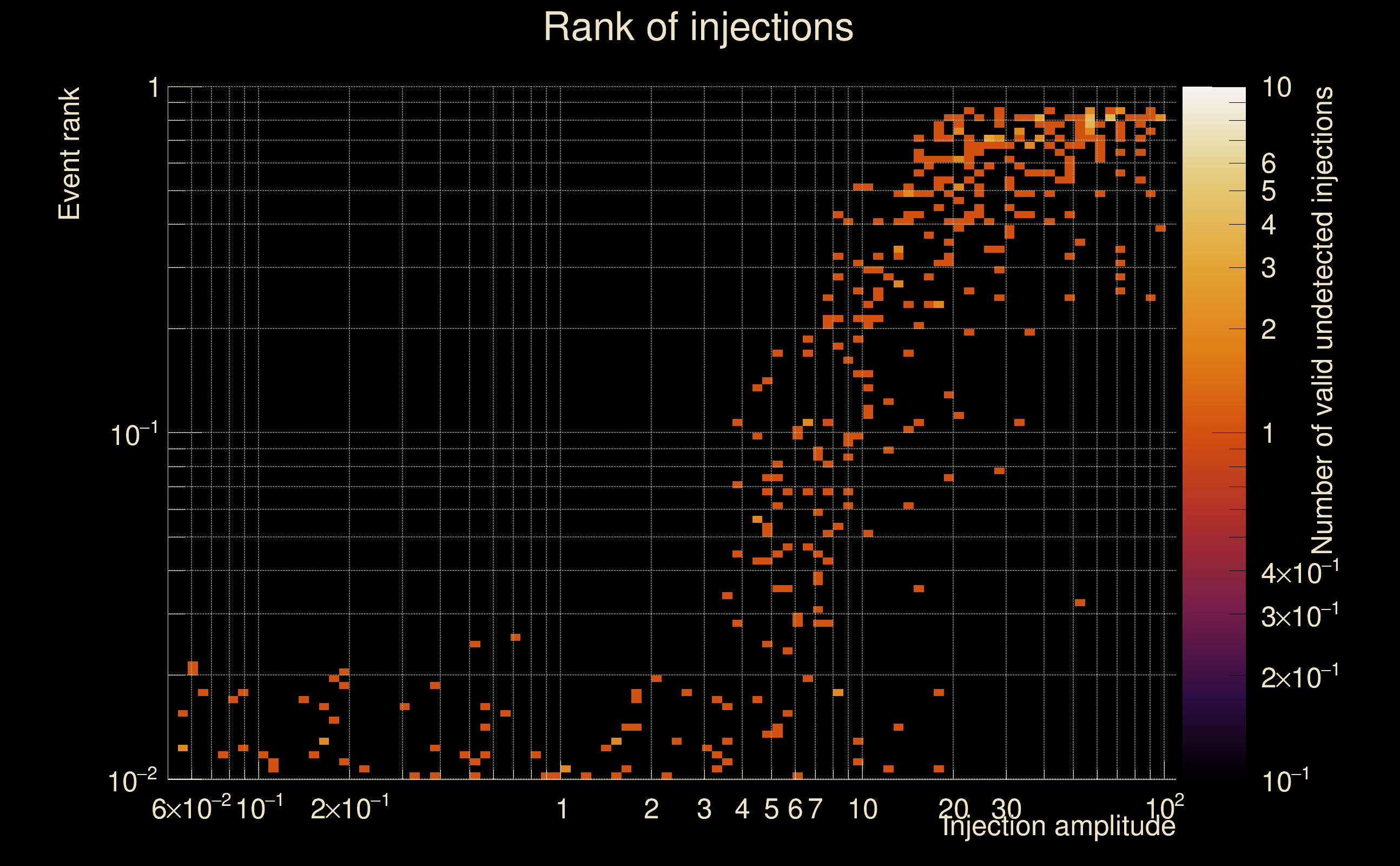

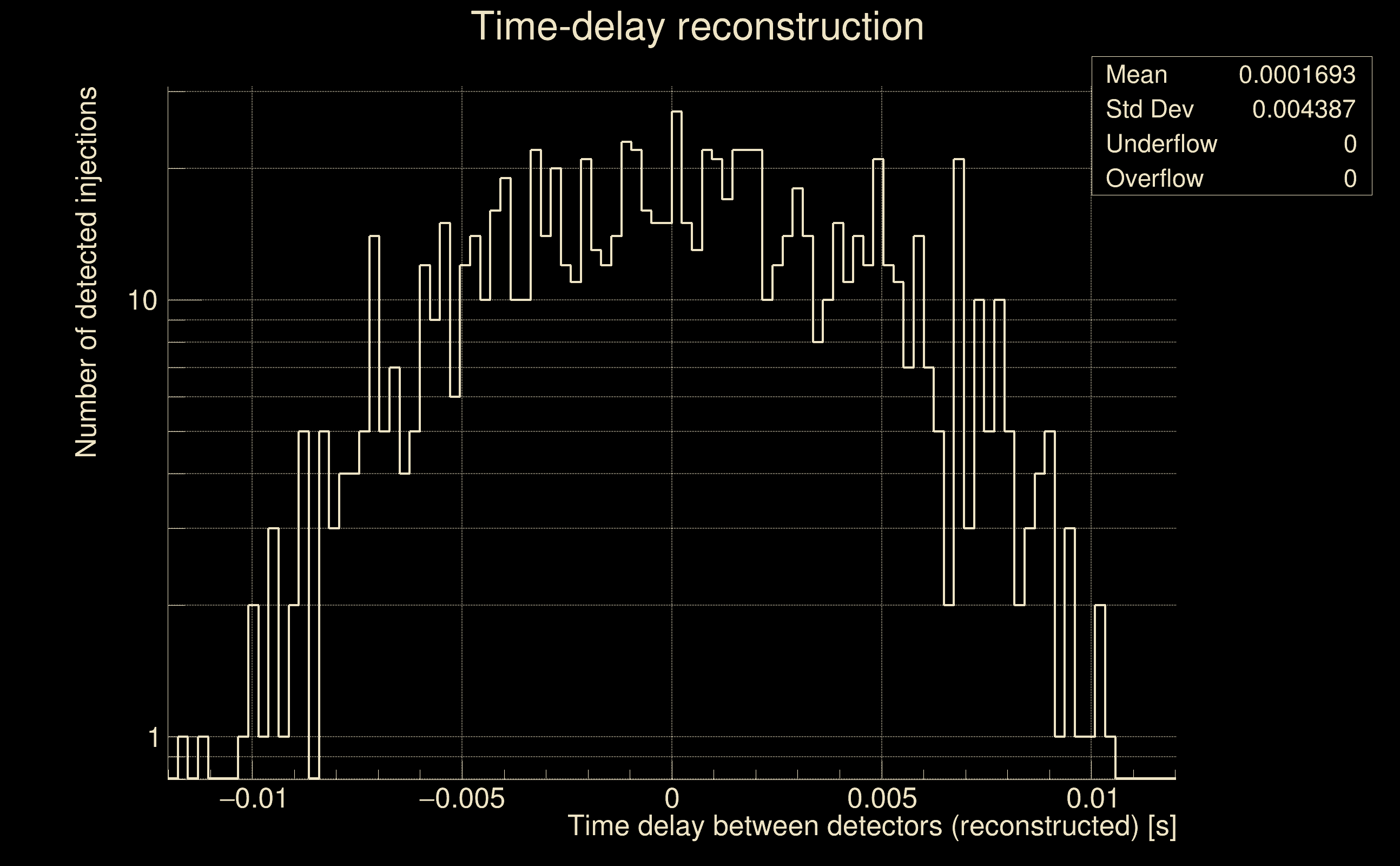

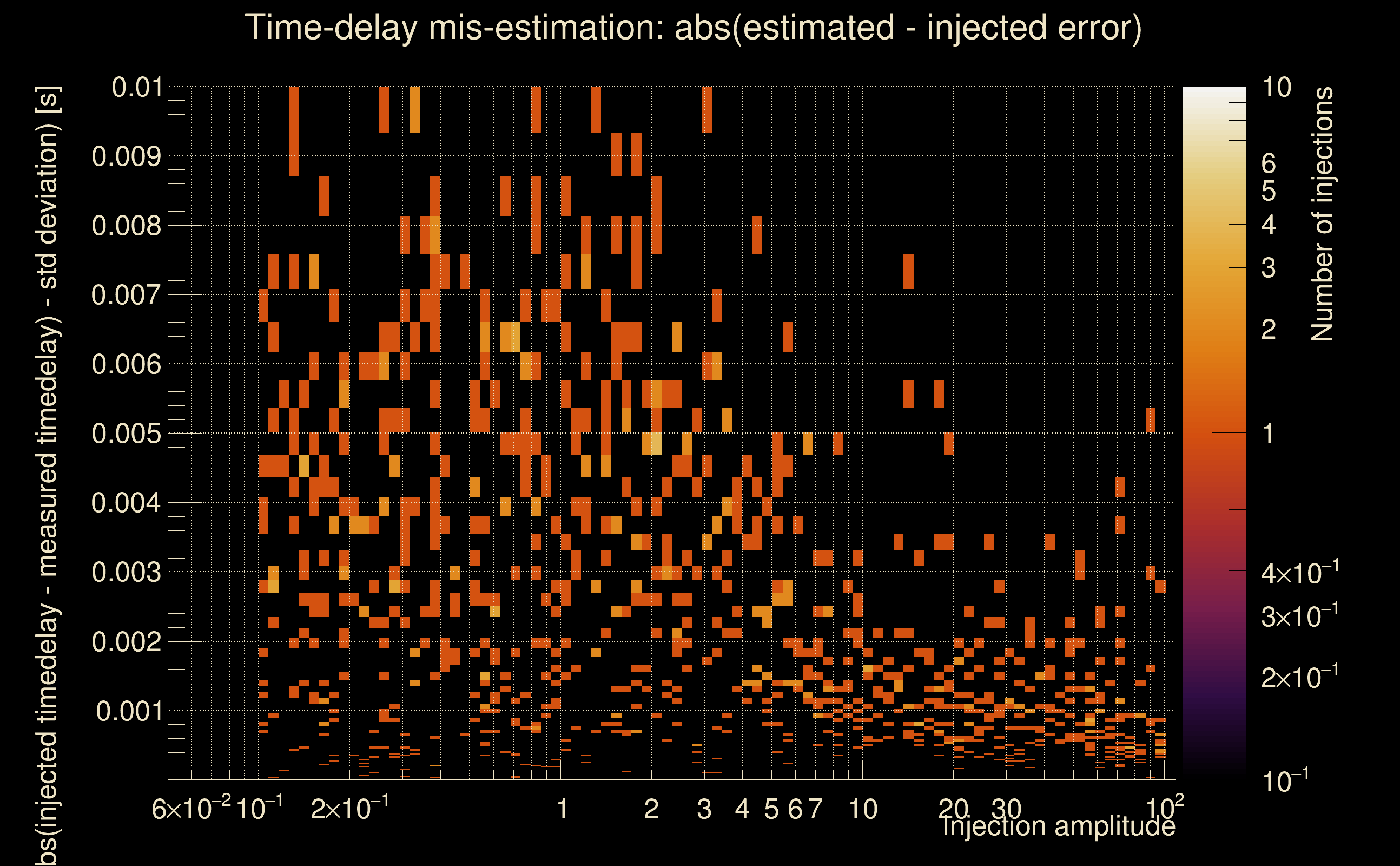

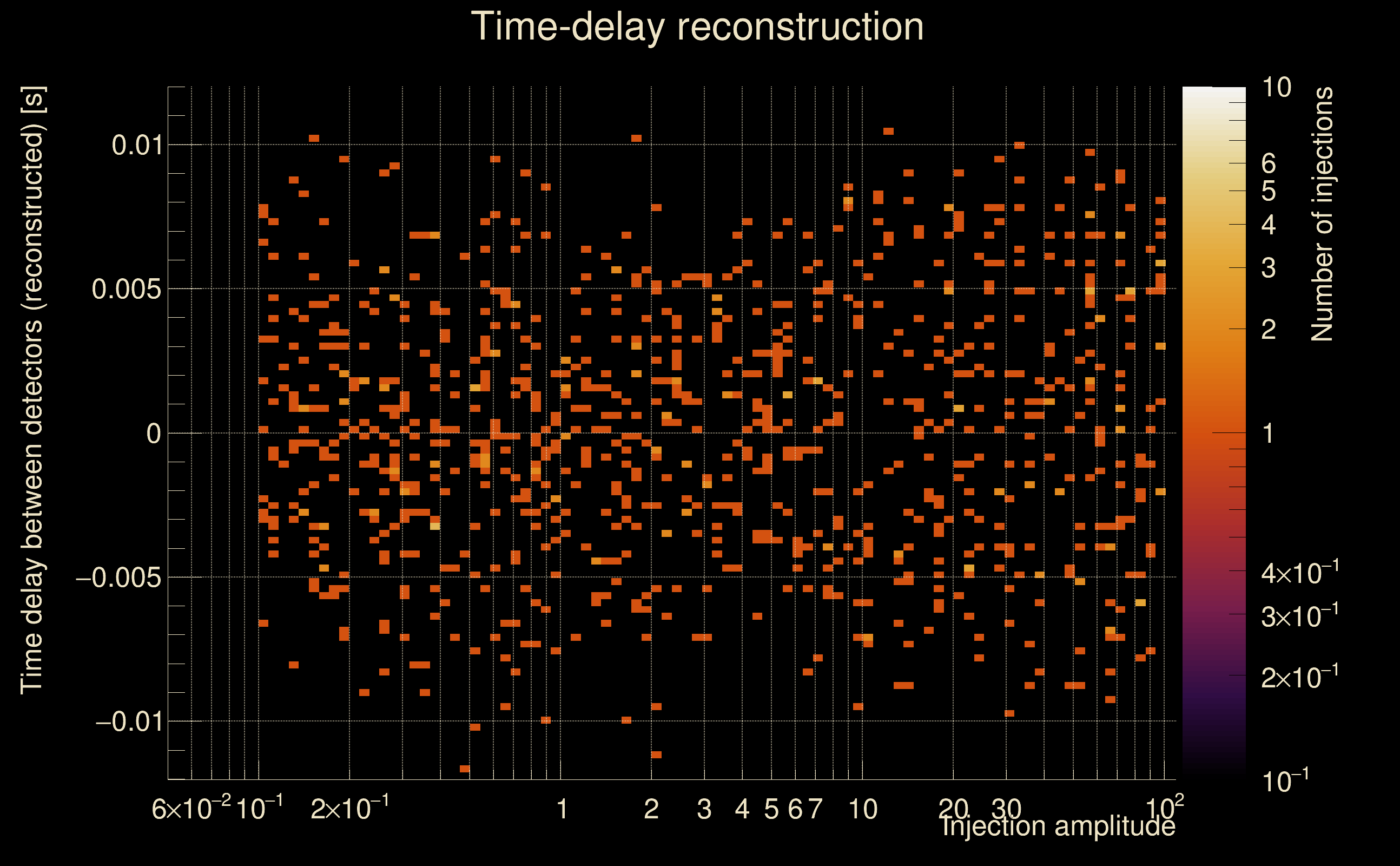

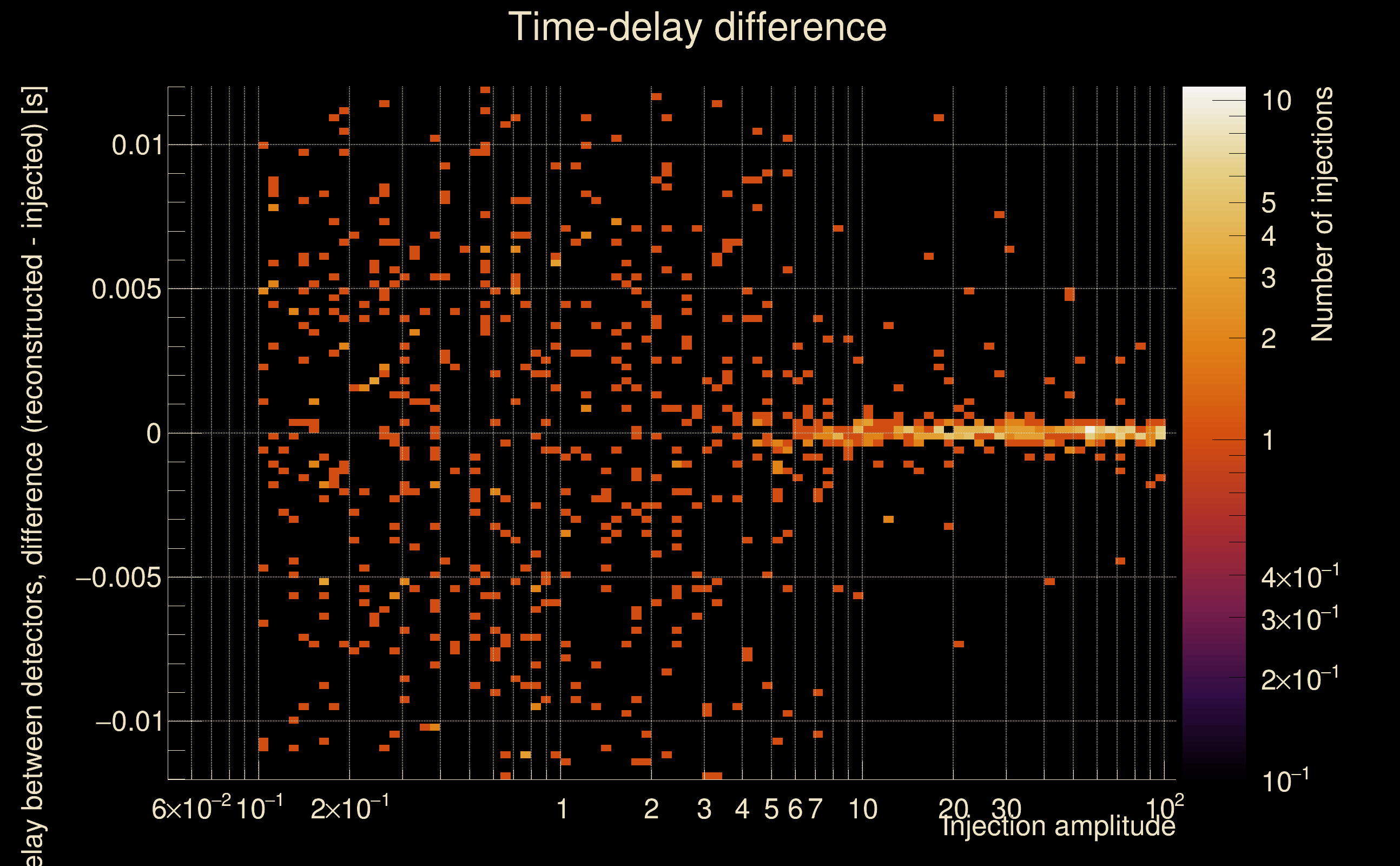

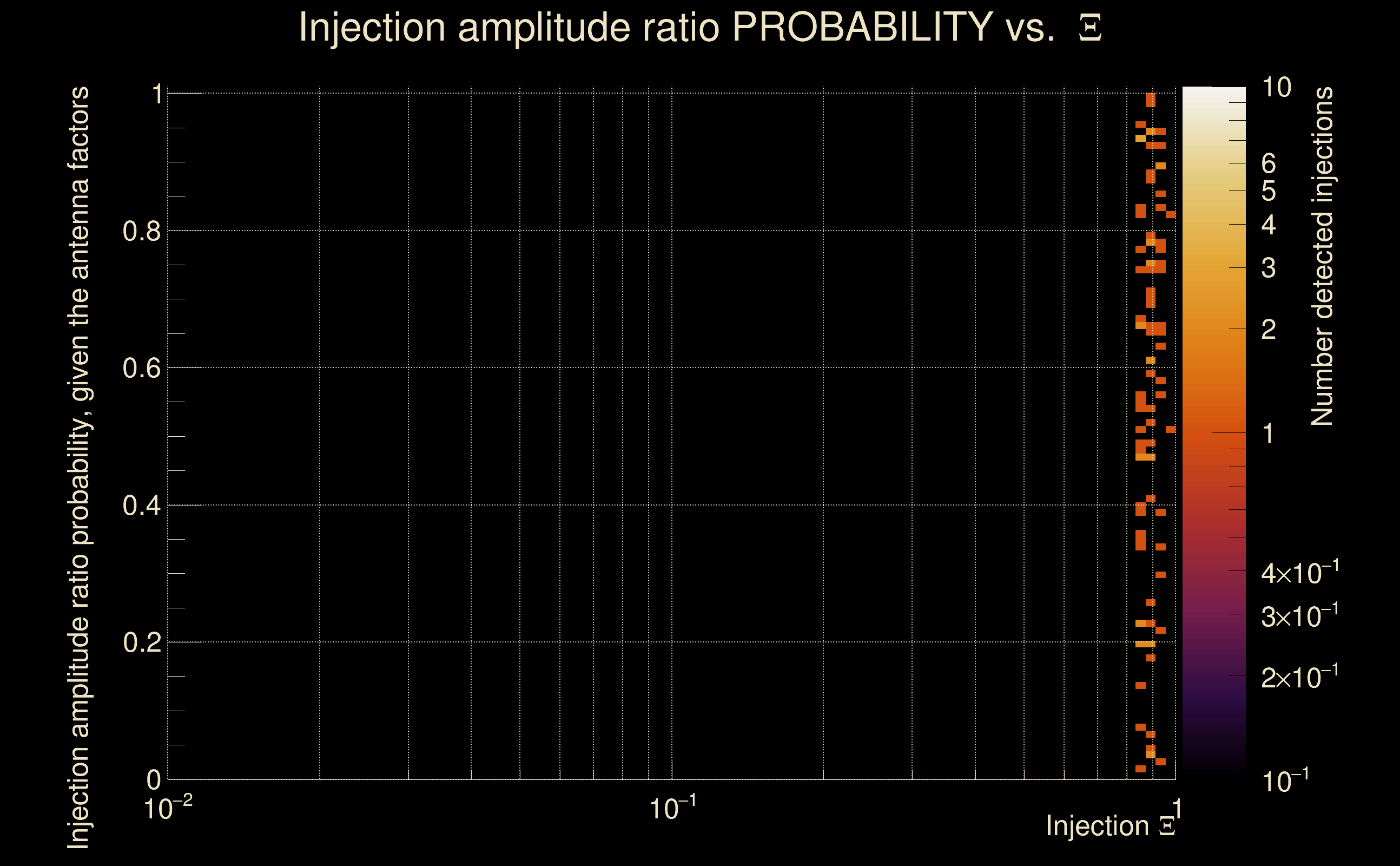

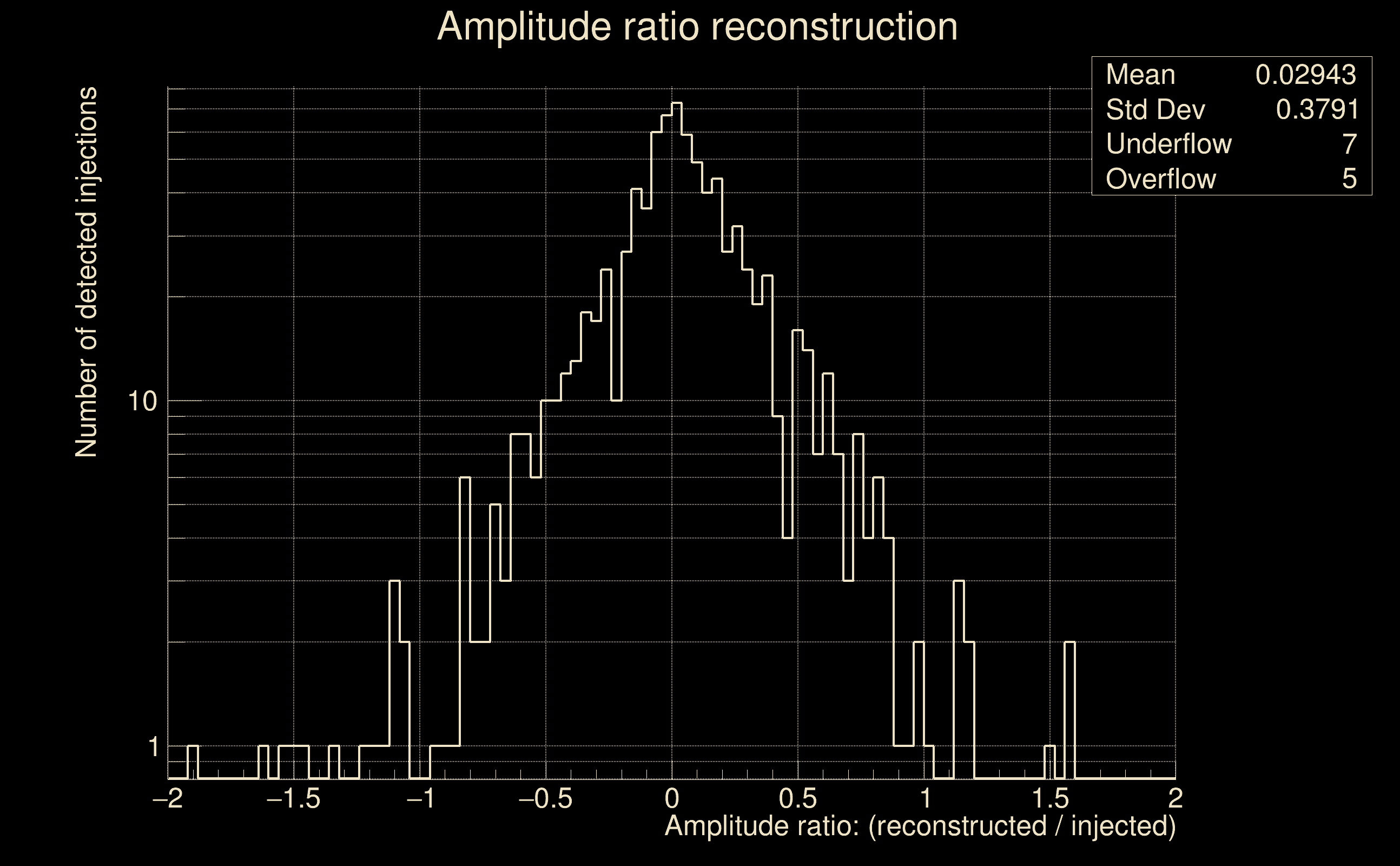

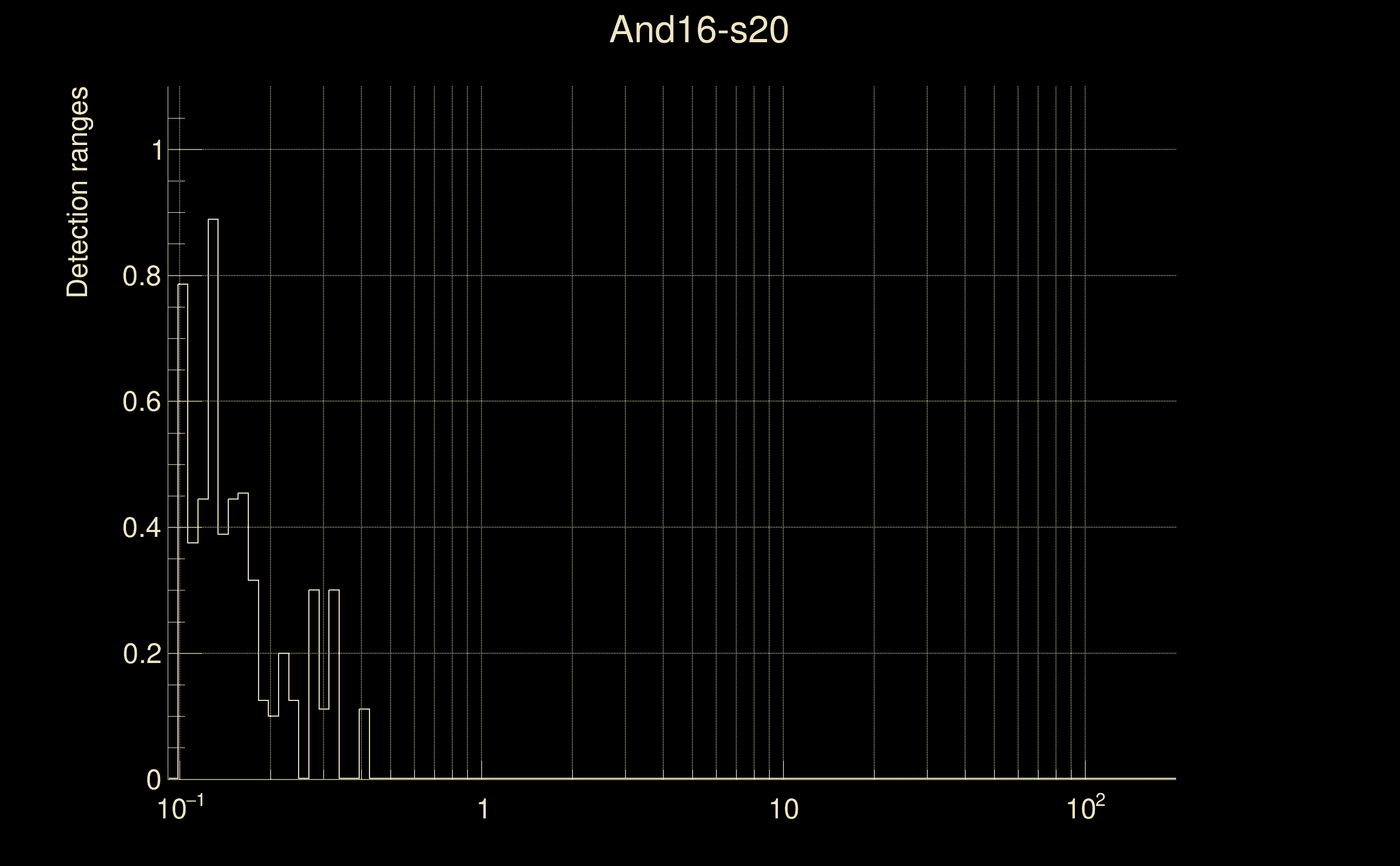

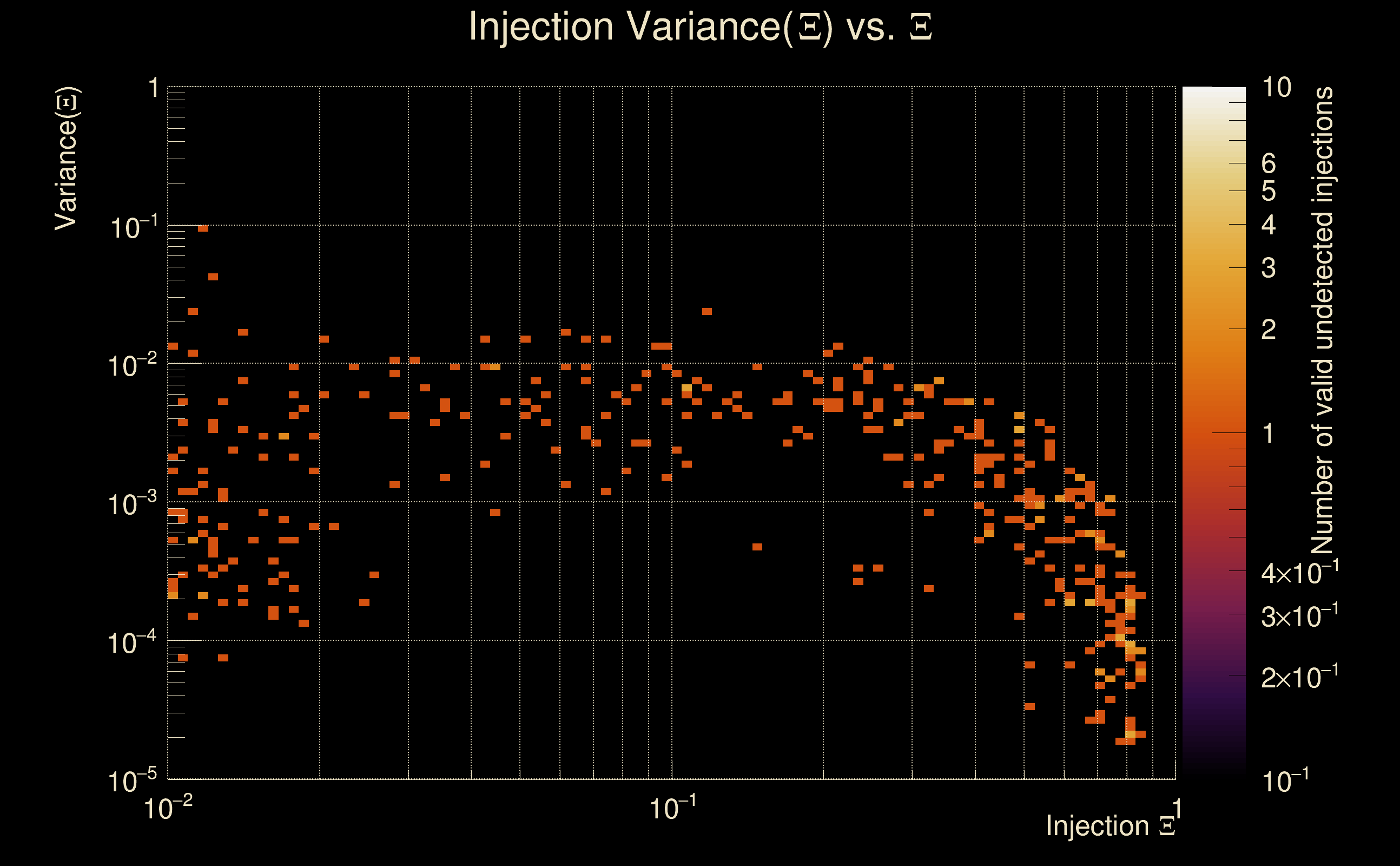

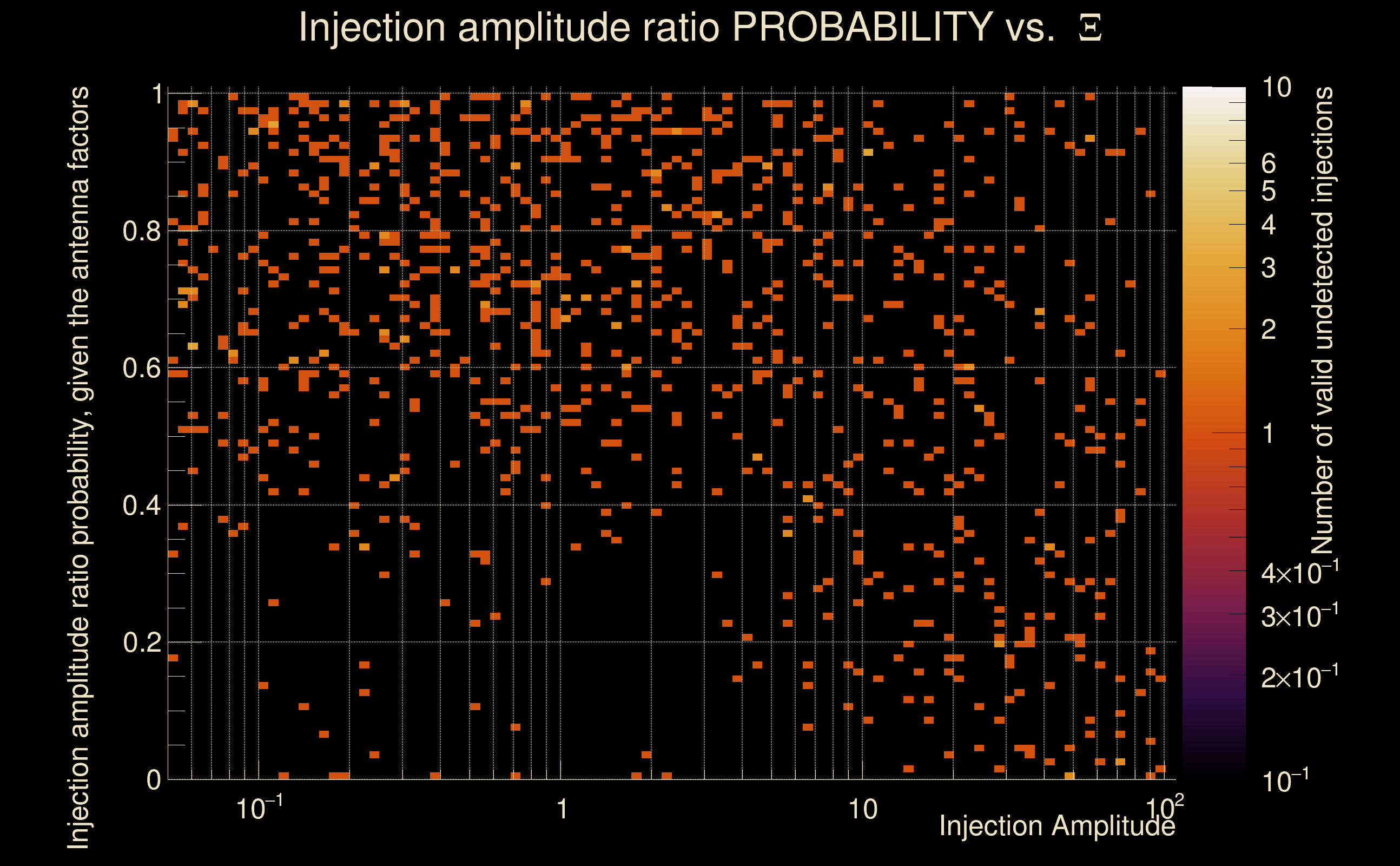

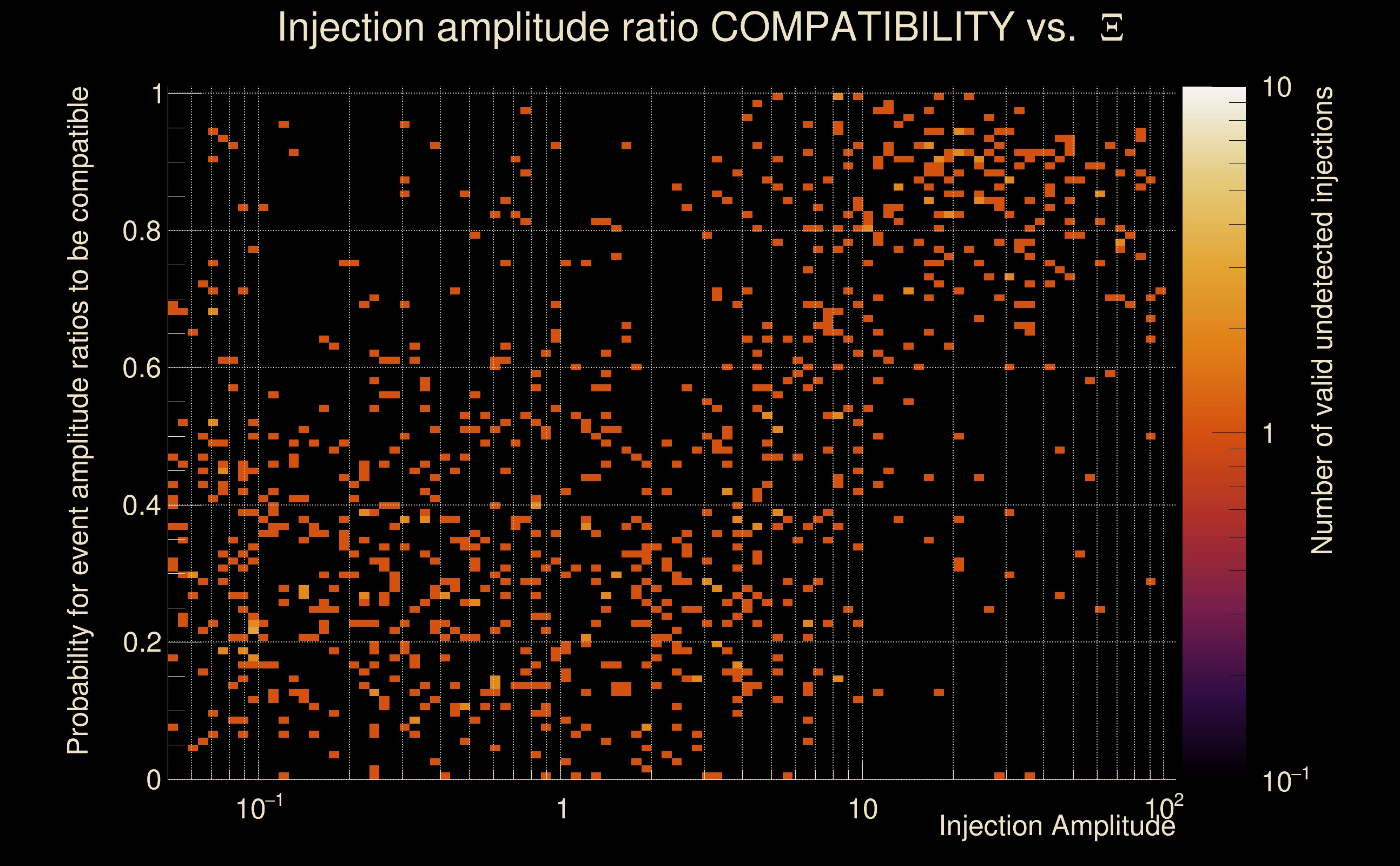

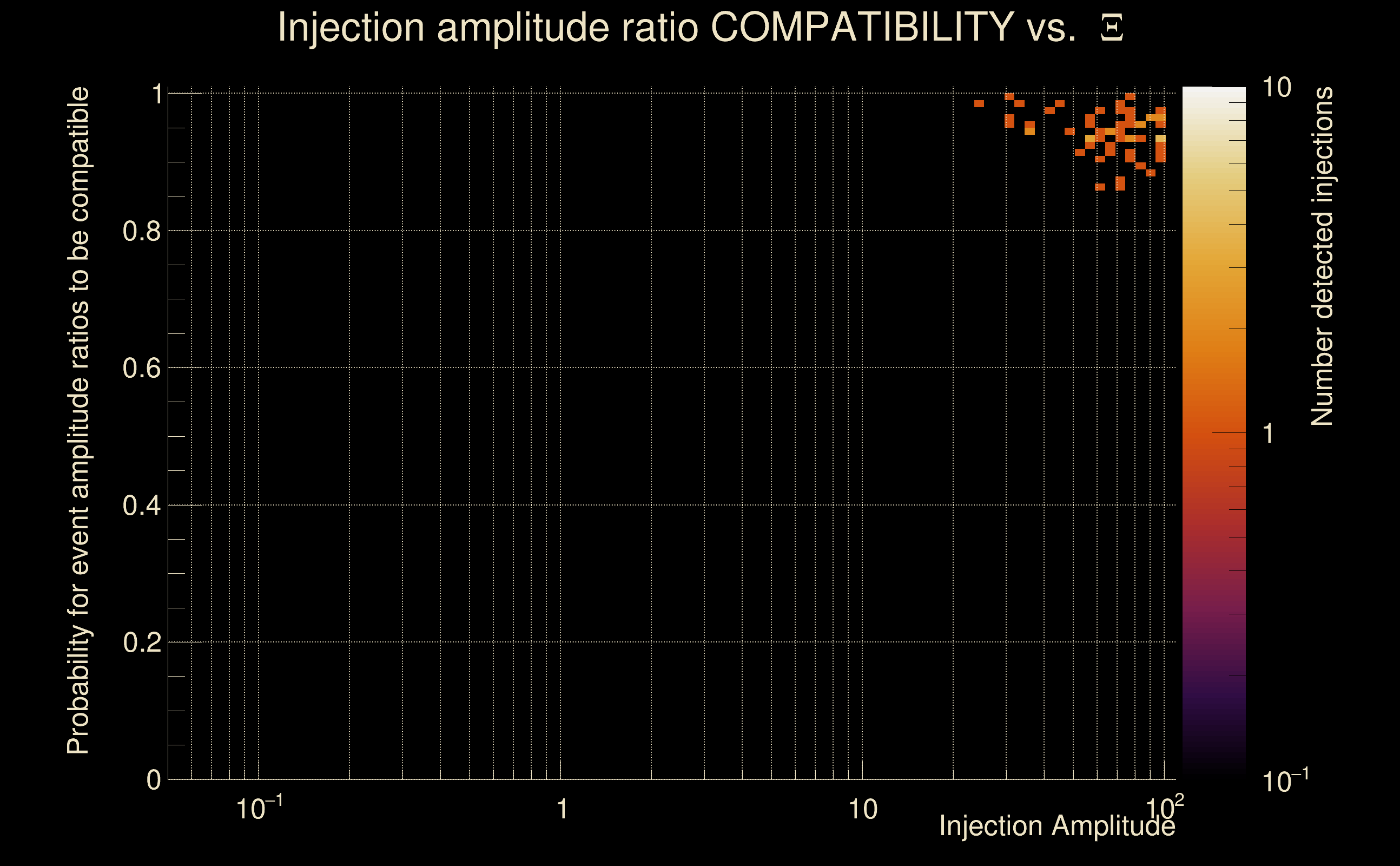

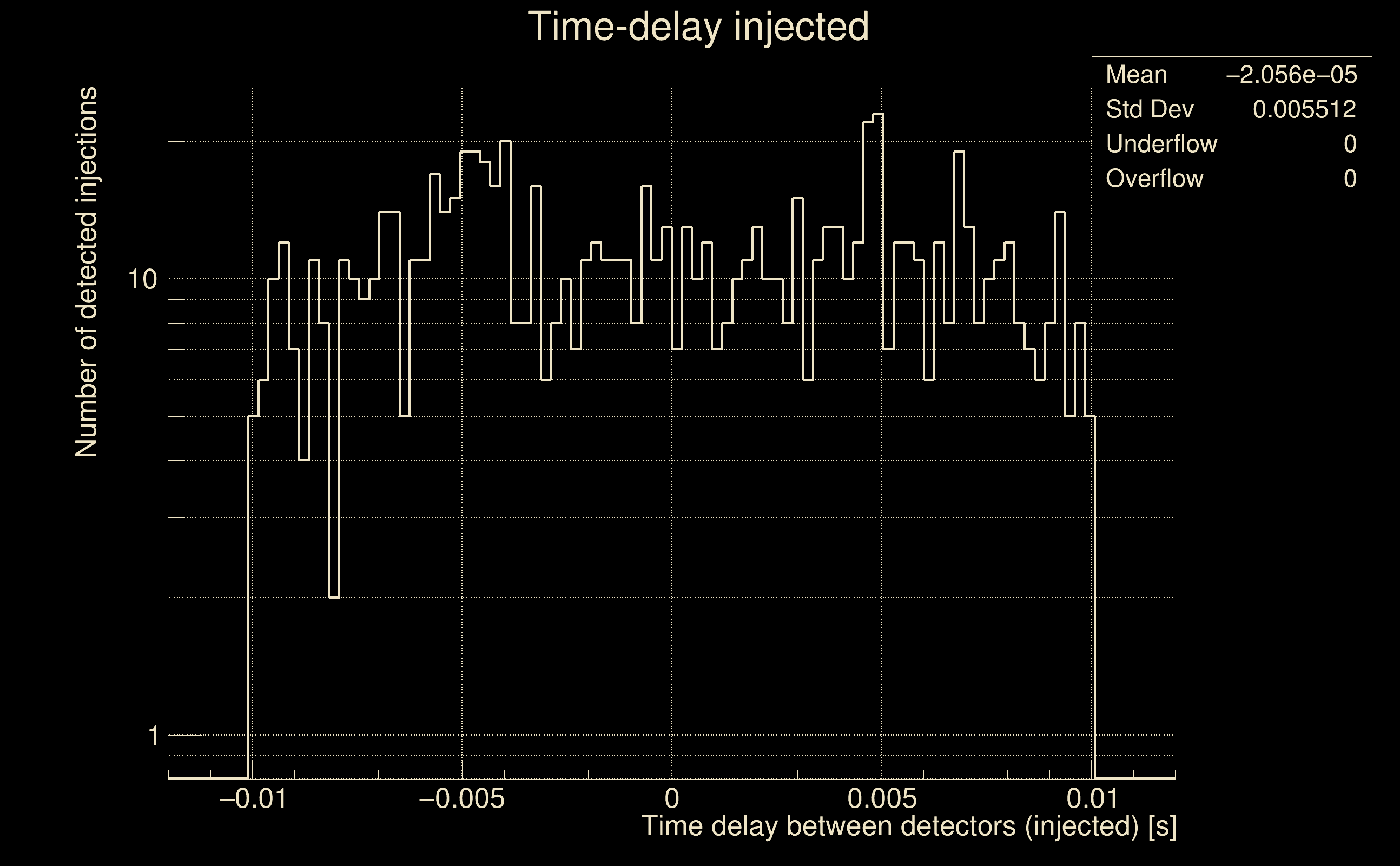

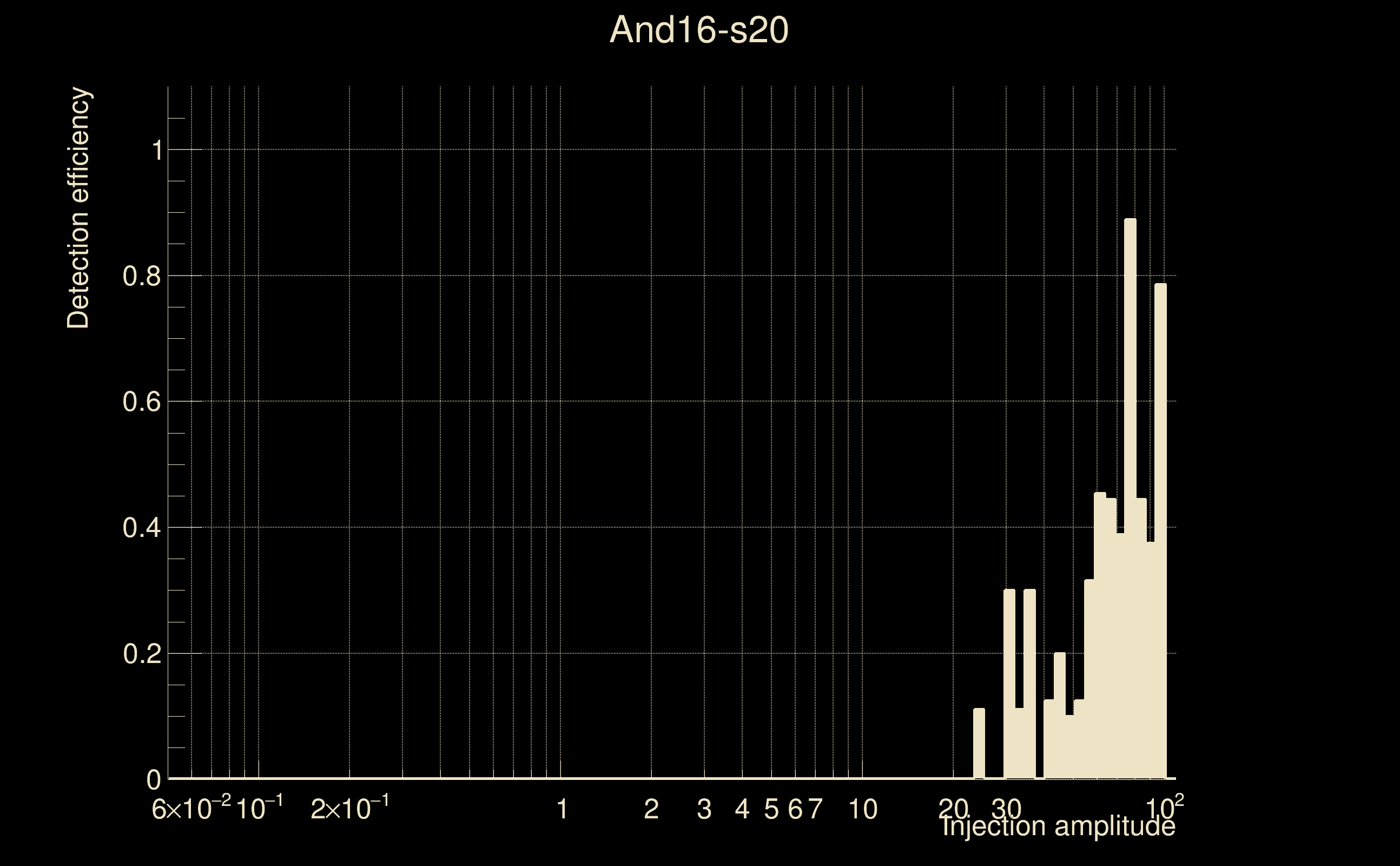

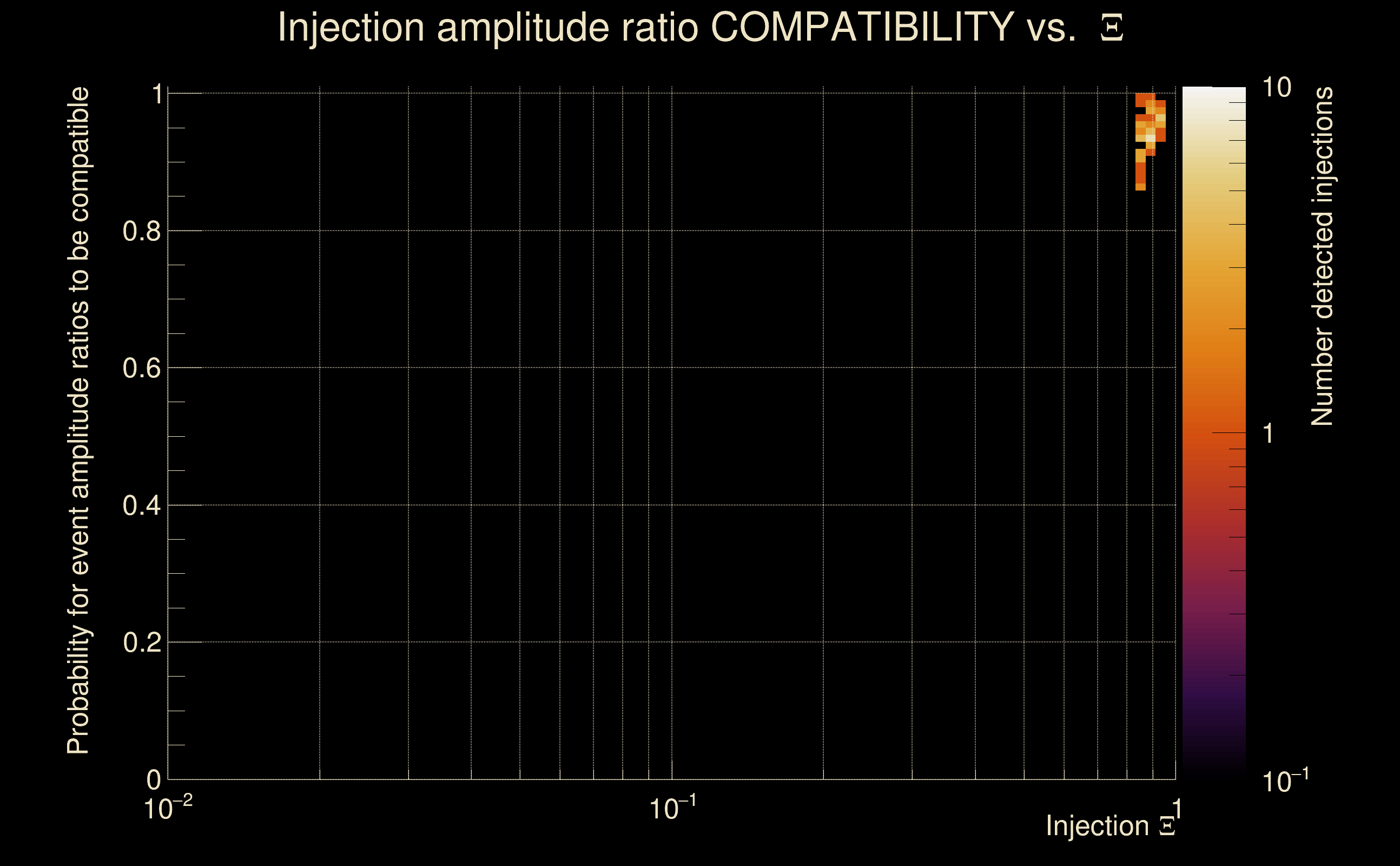

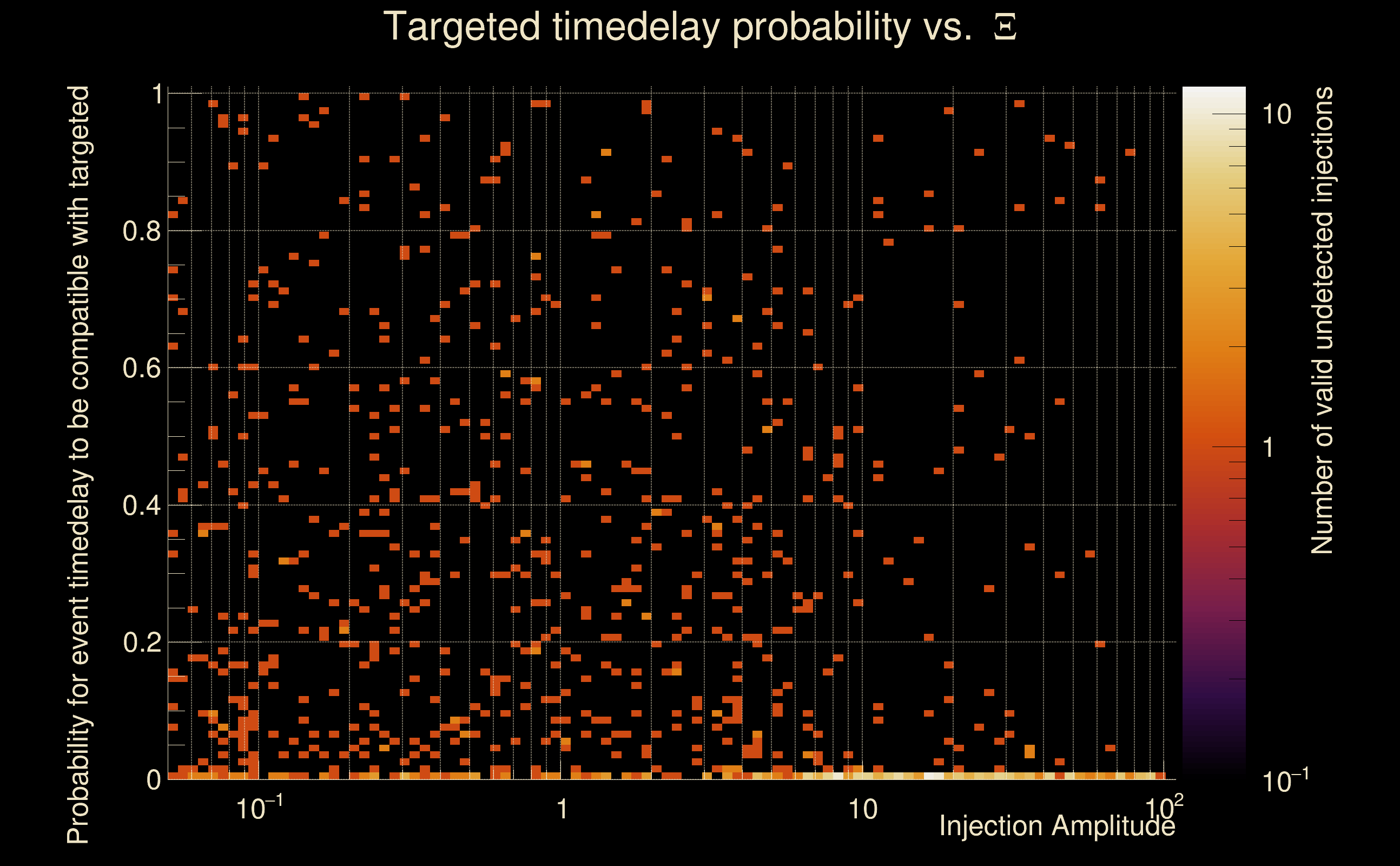

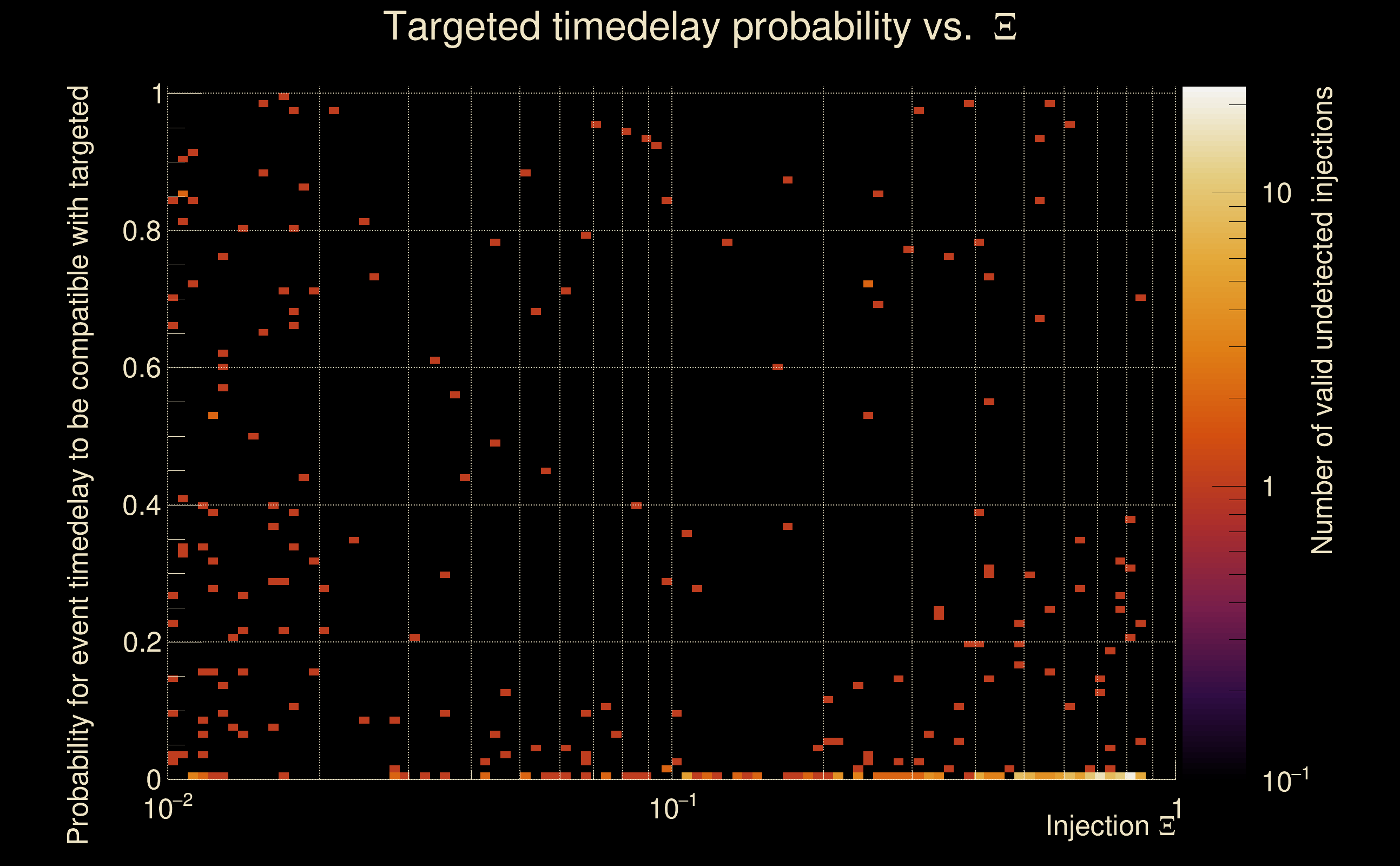

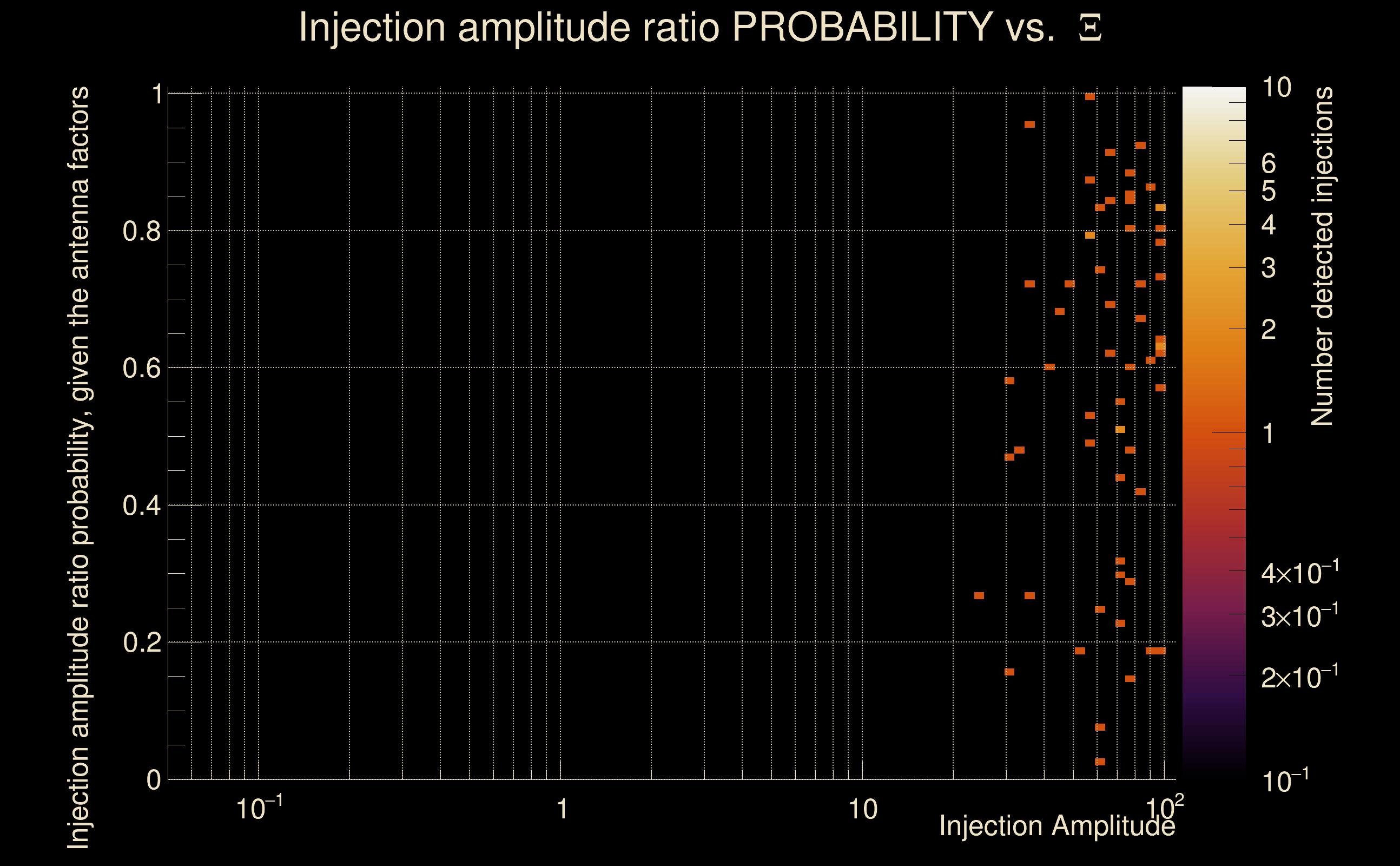

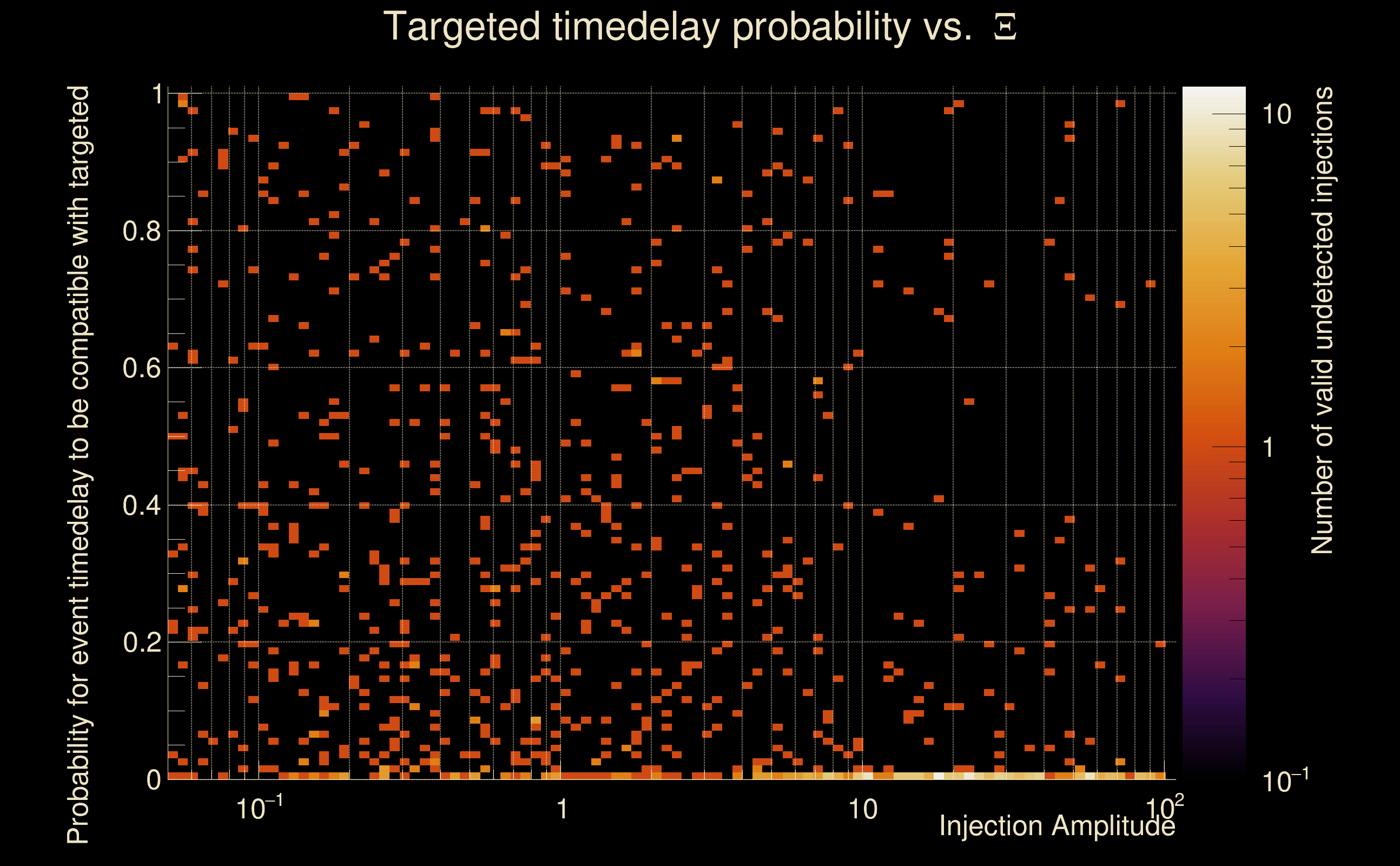

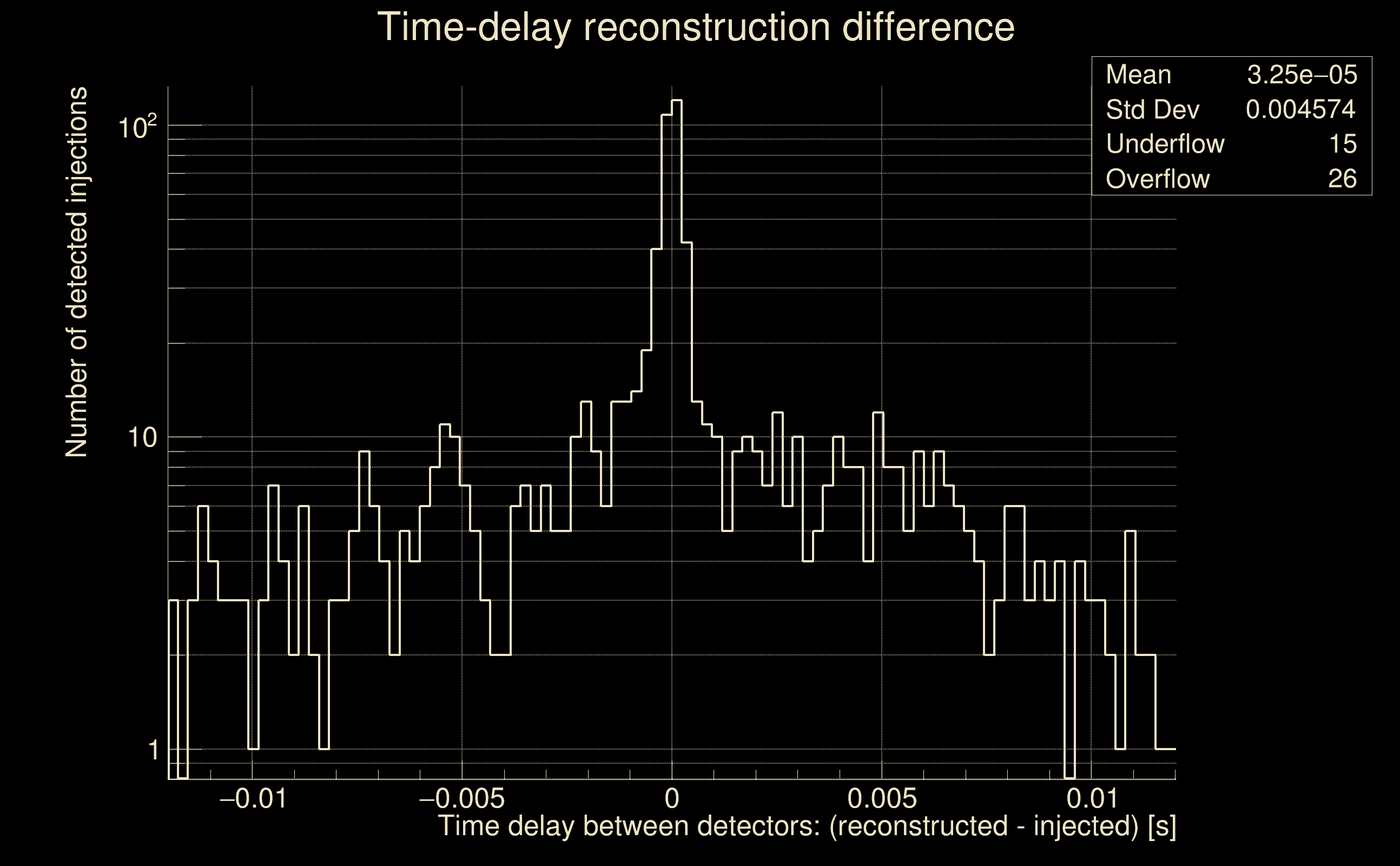

| Number of injections (total/valid/detected): | 1006 / 911 / 60 |
| List of missed injections: | ./And16-s20_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | 72.8623 |
| Injection amplitude at 10% detection efficiency: | 41.1775 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

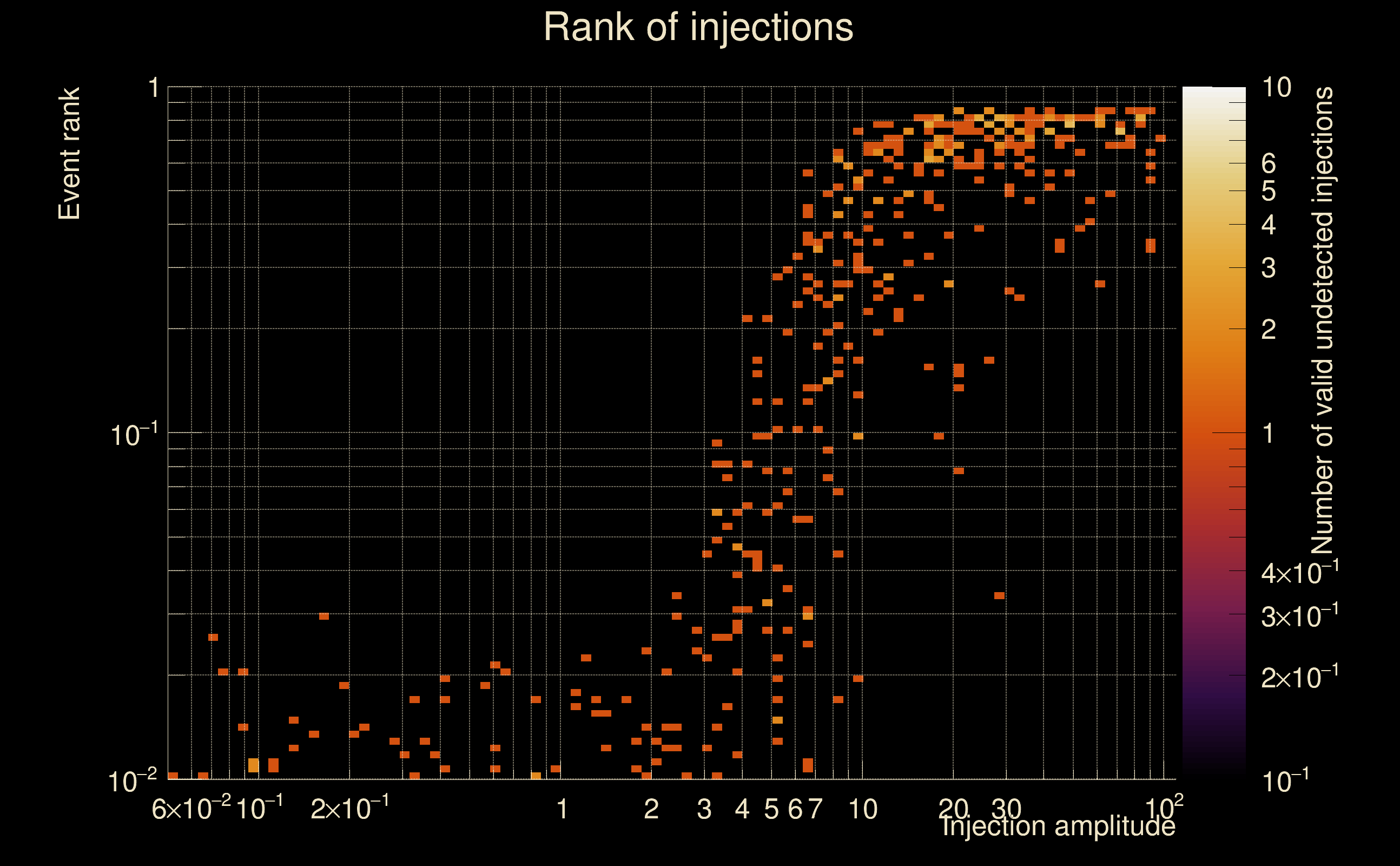

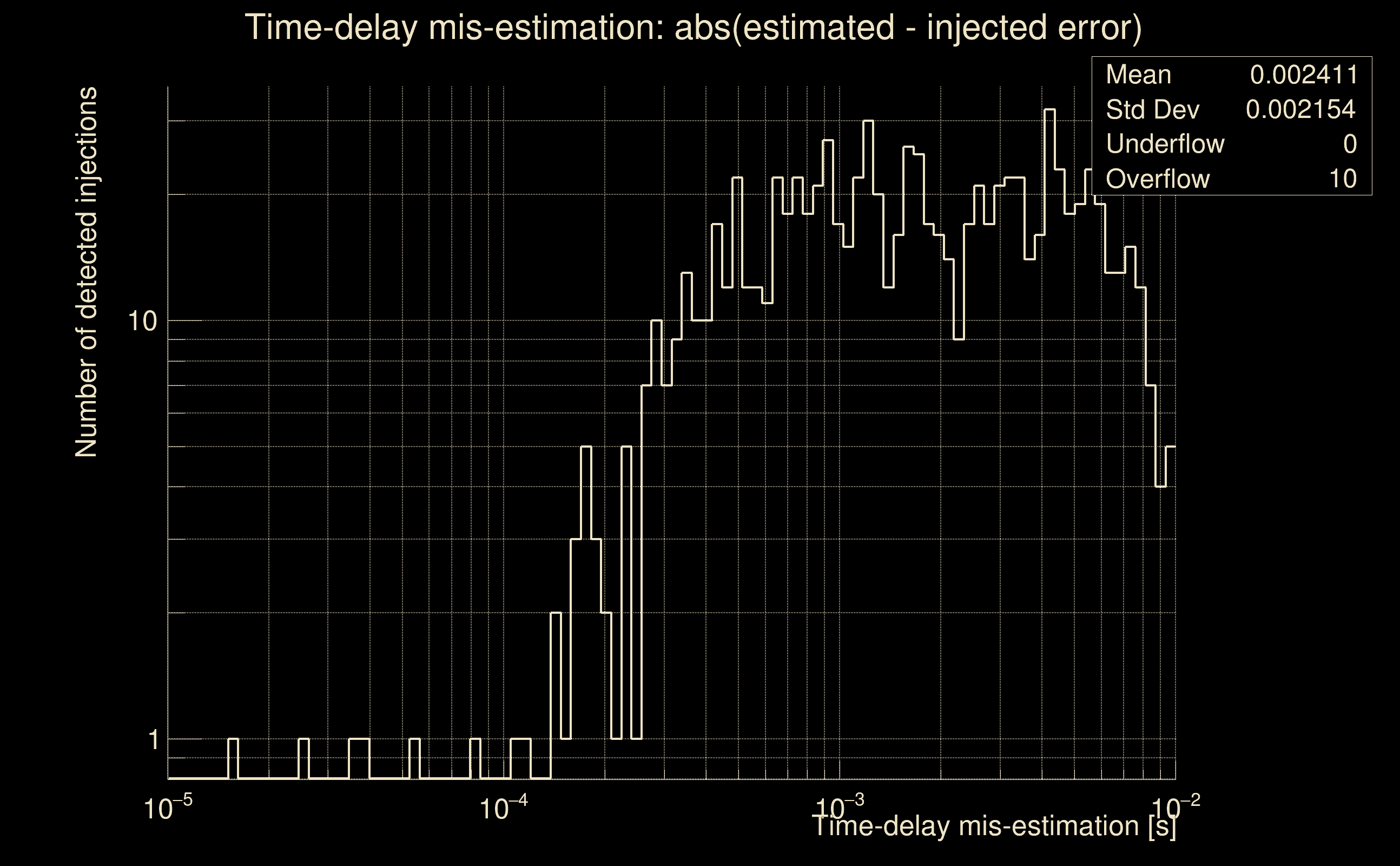

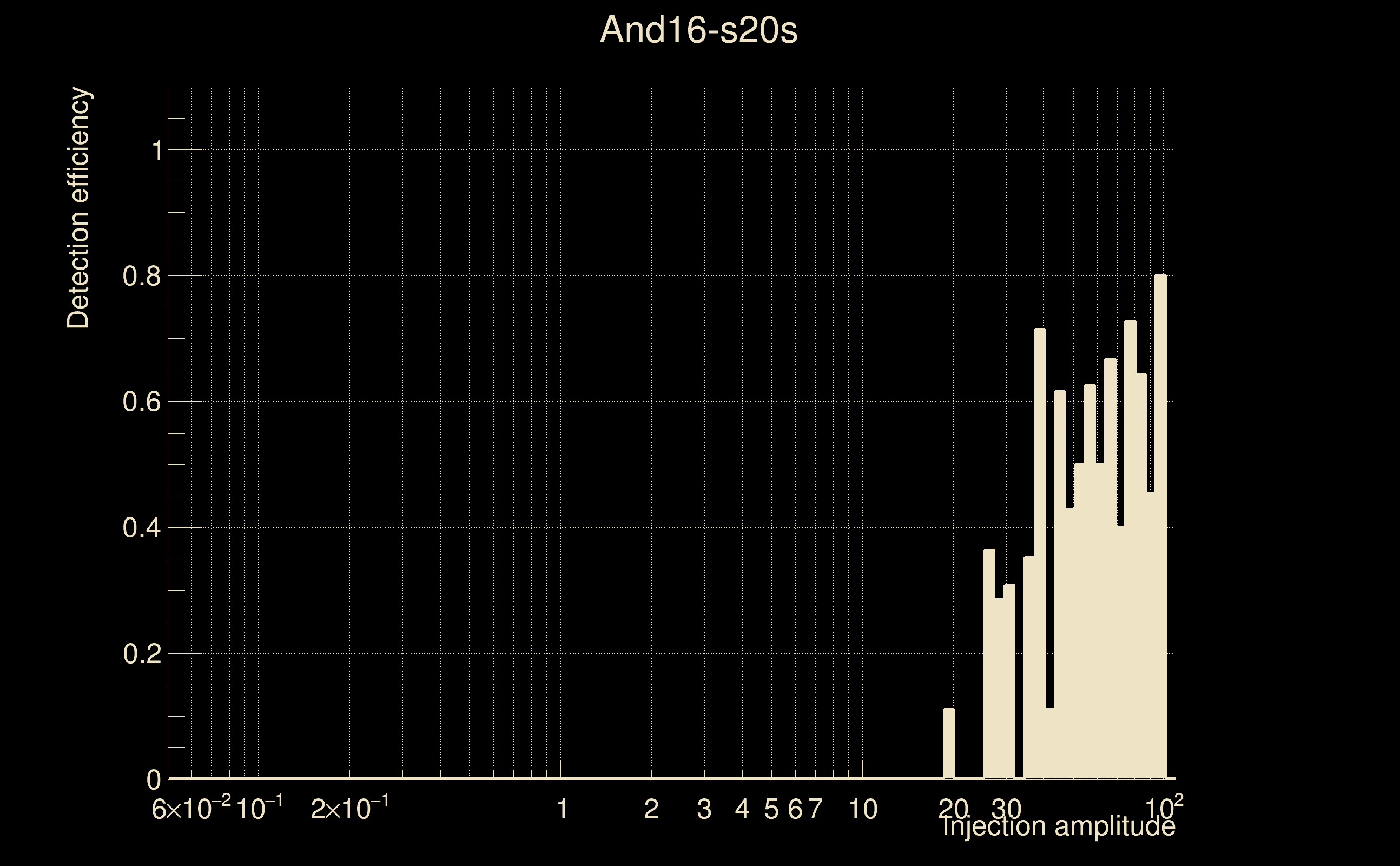

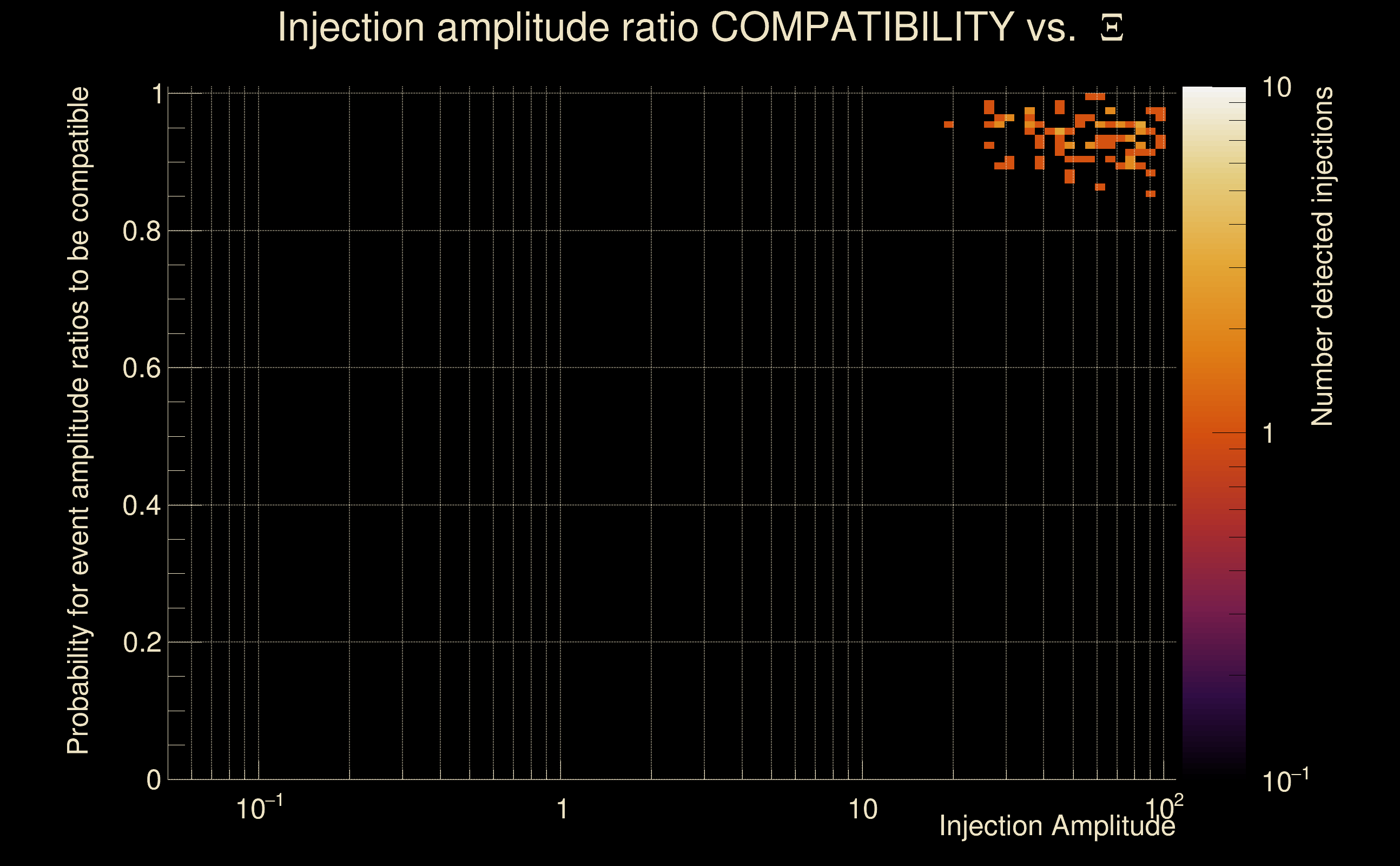

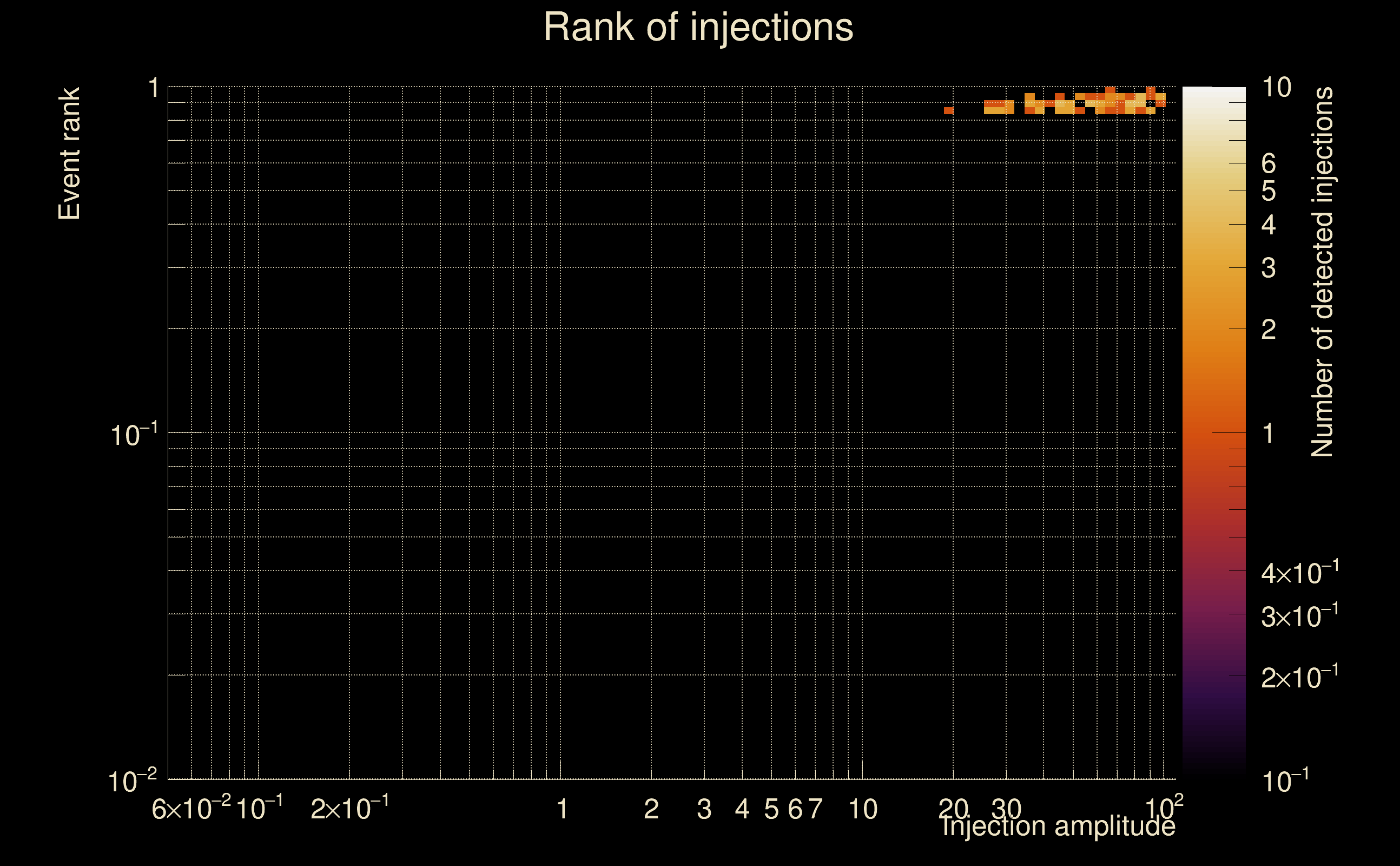

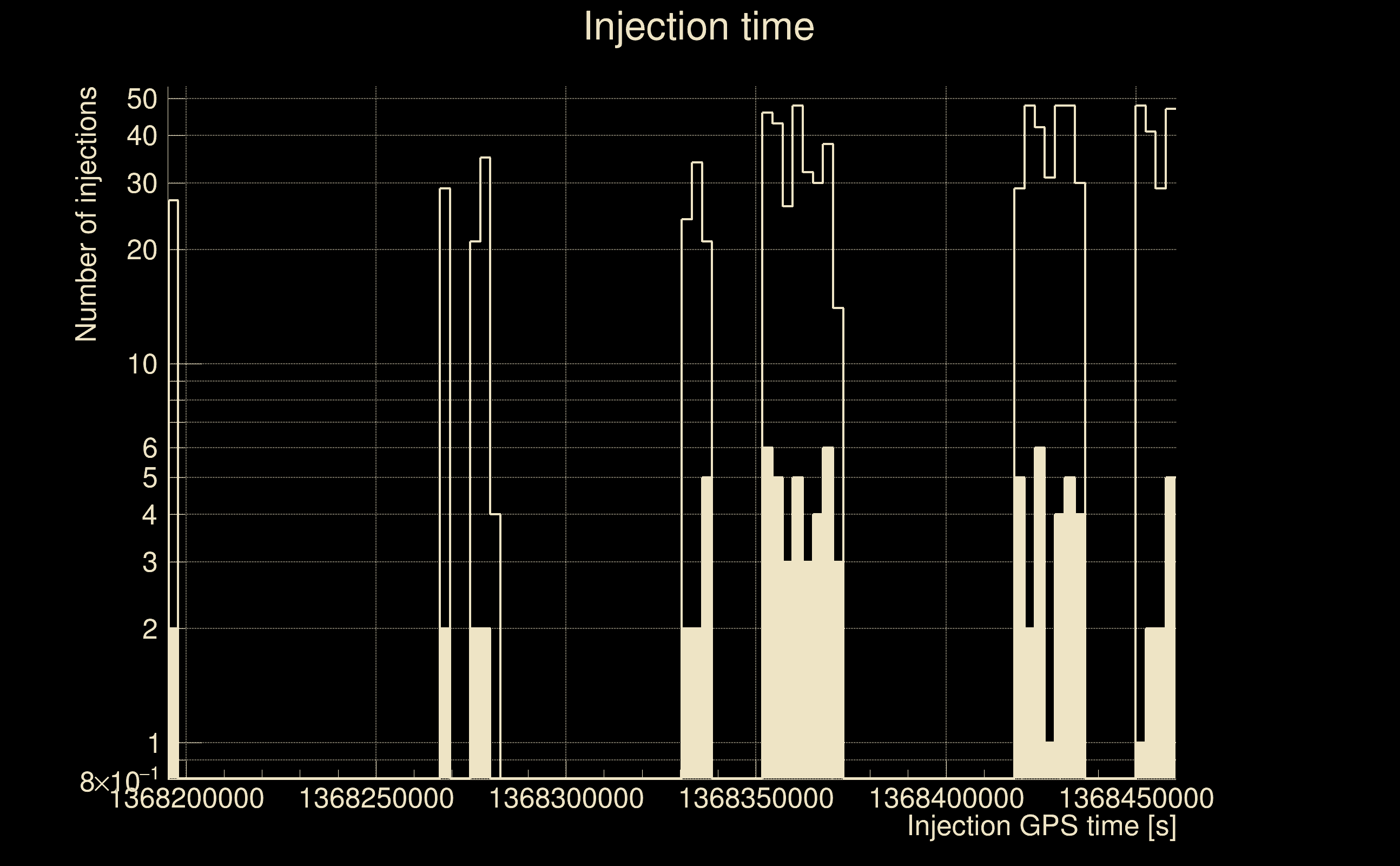

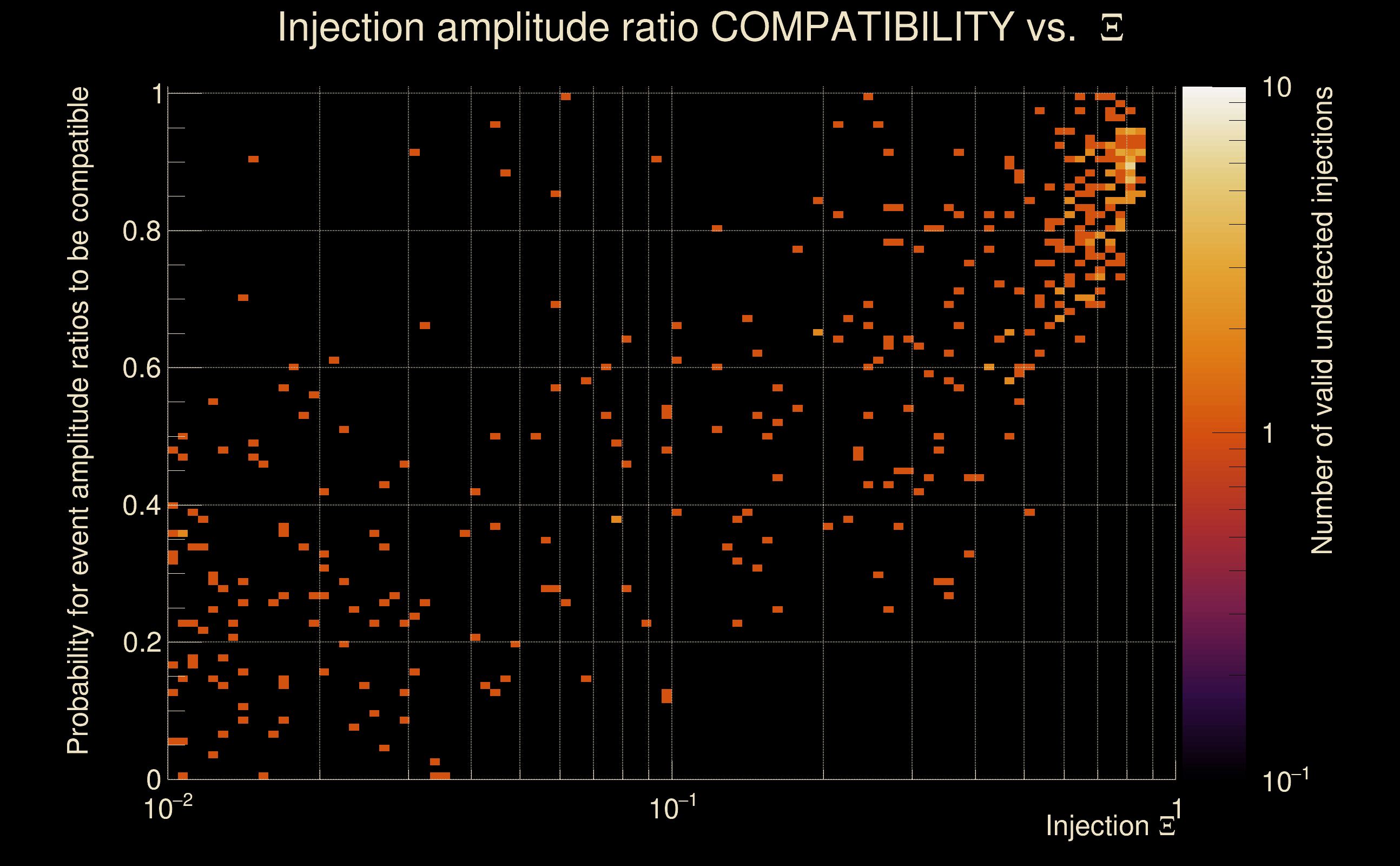

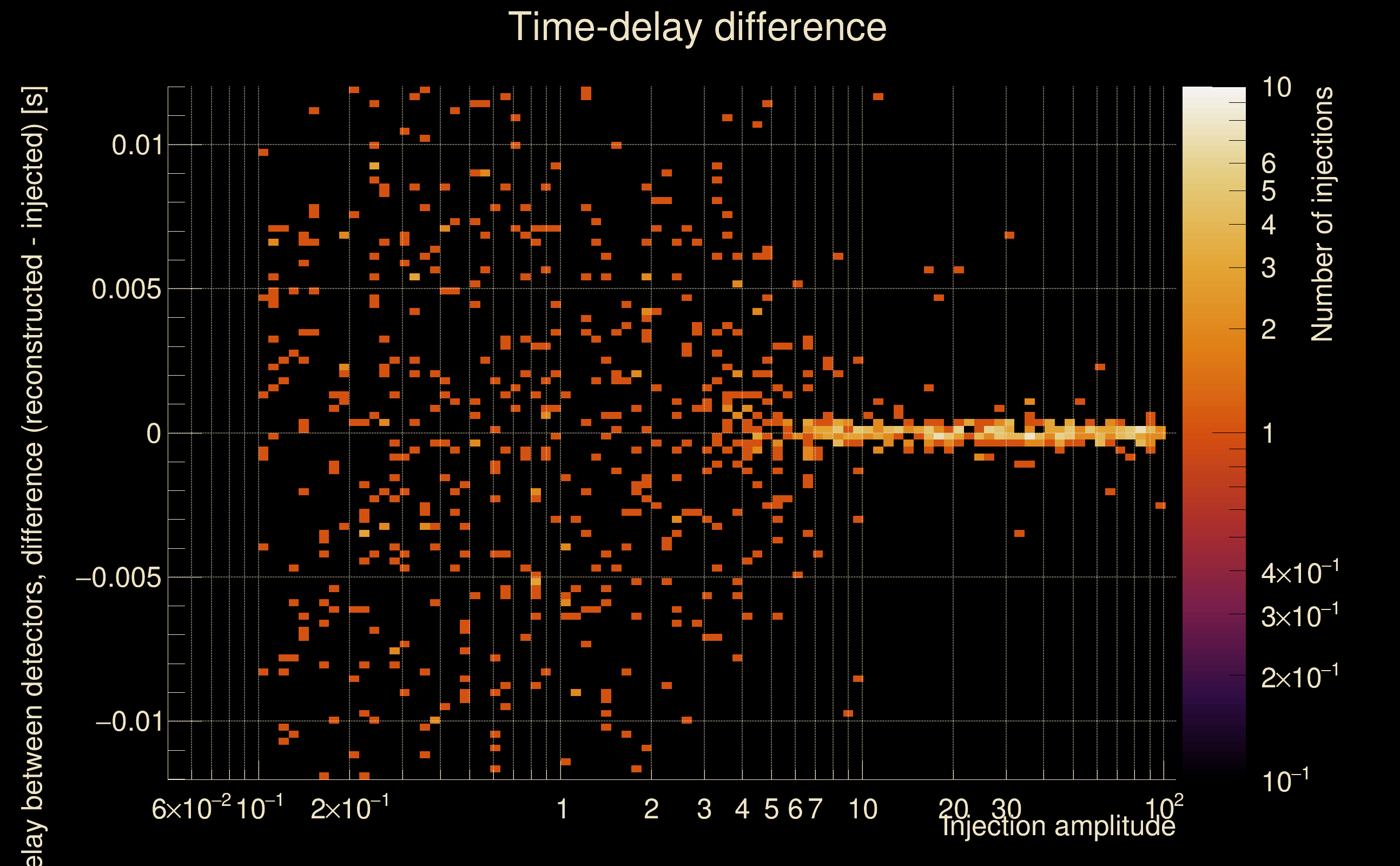

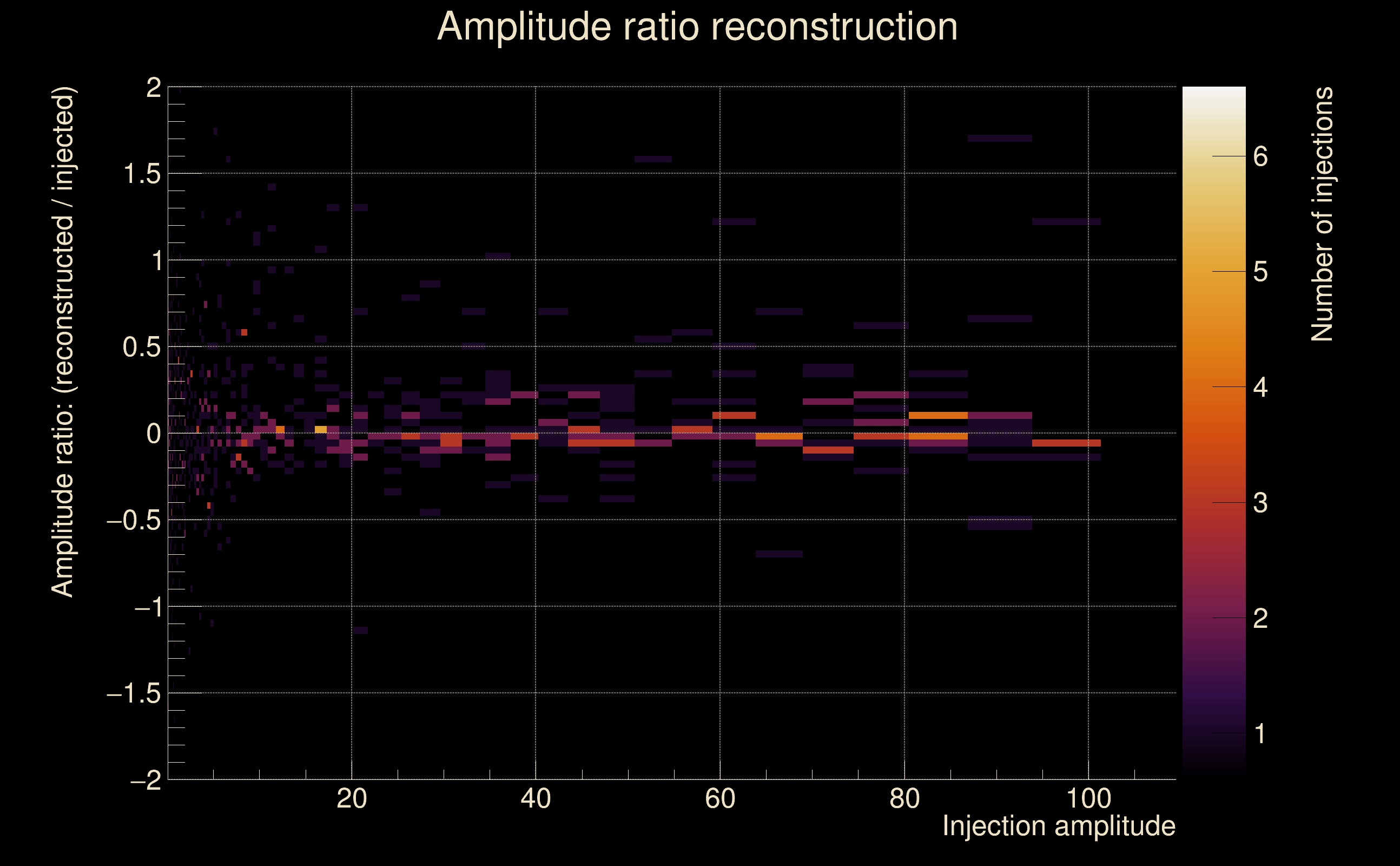

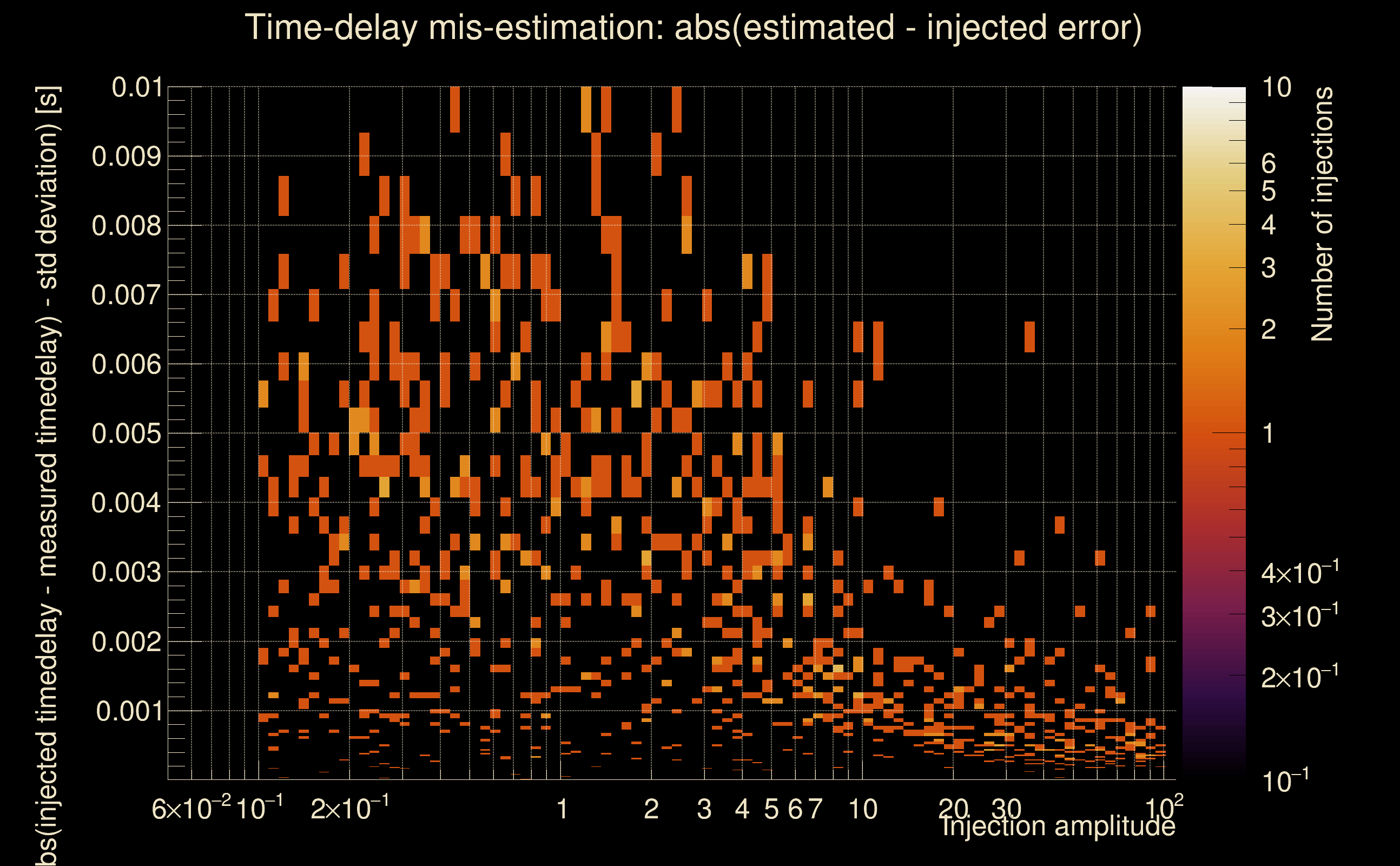

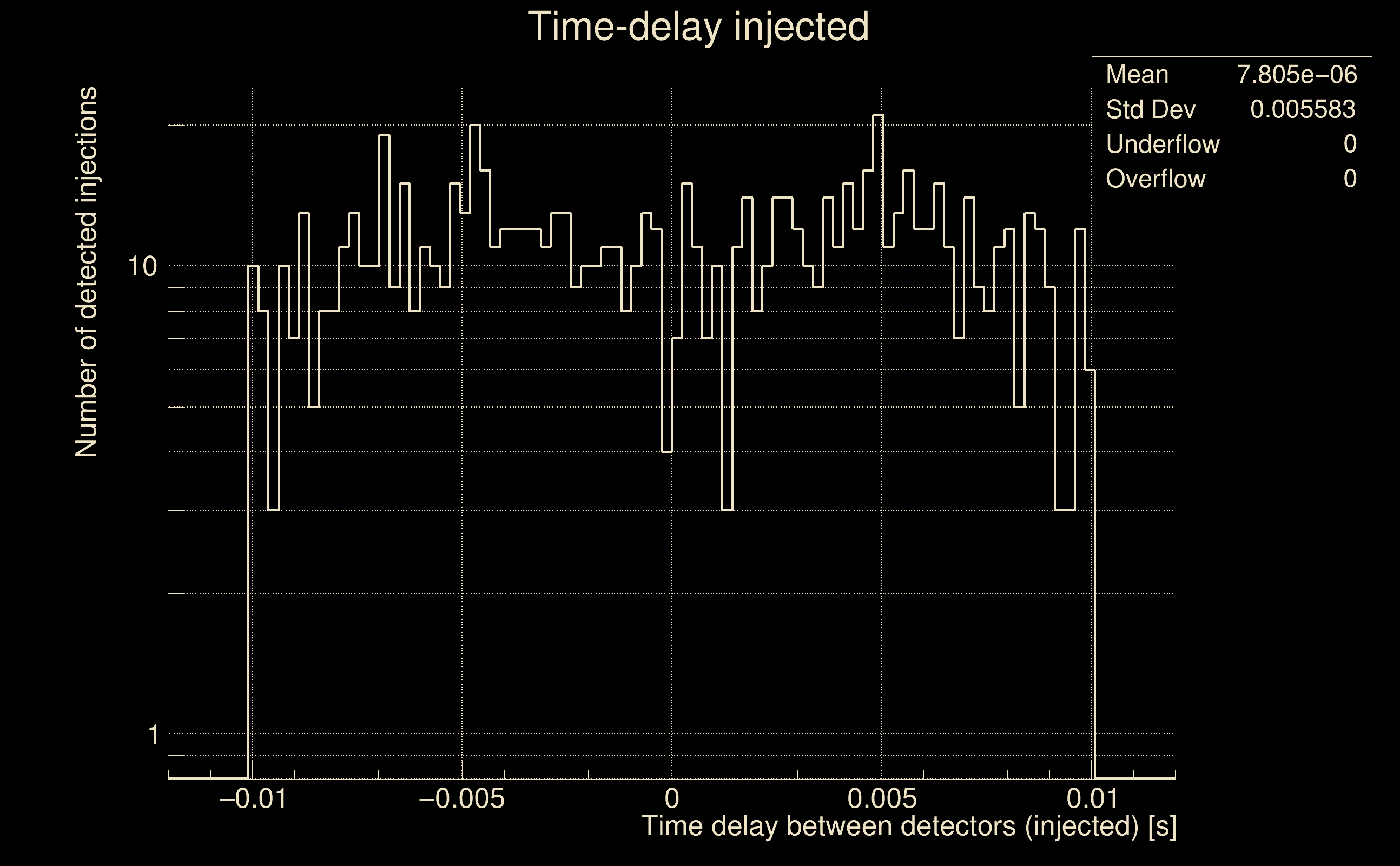

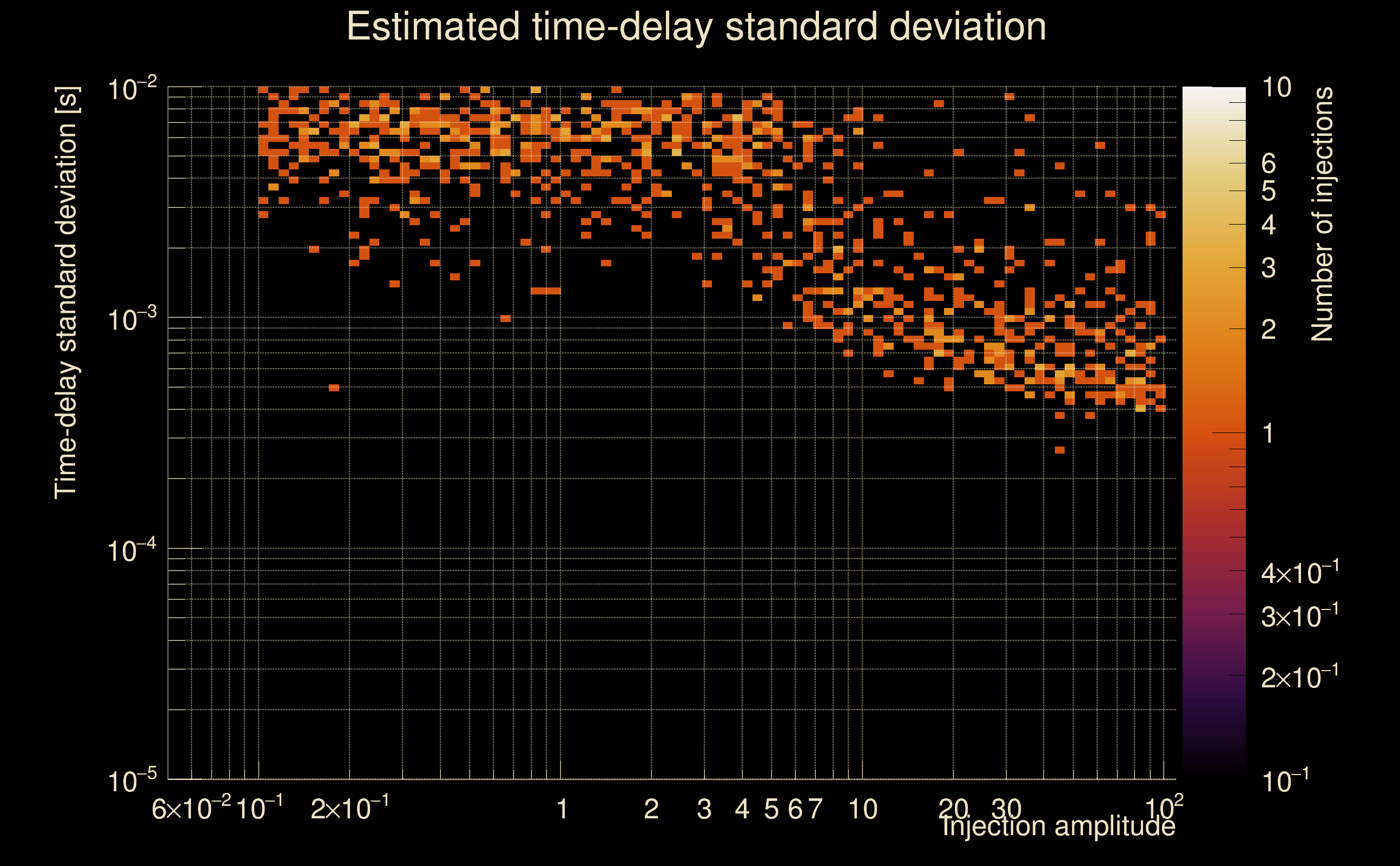

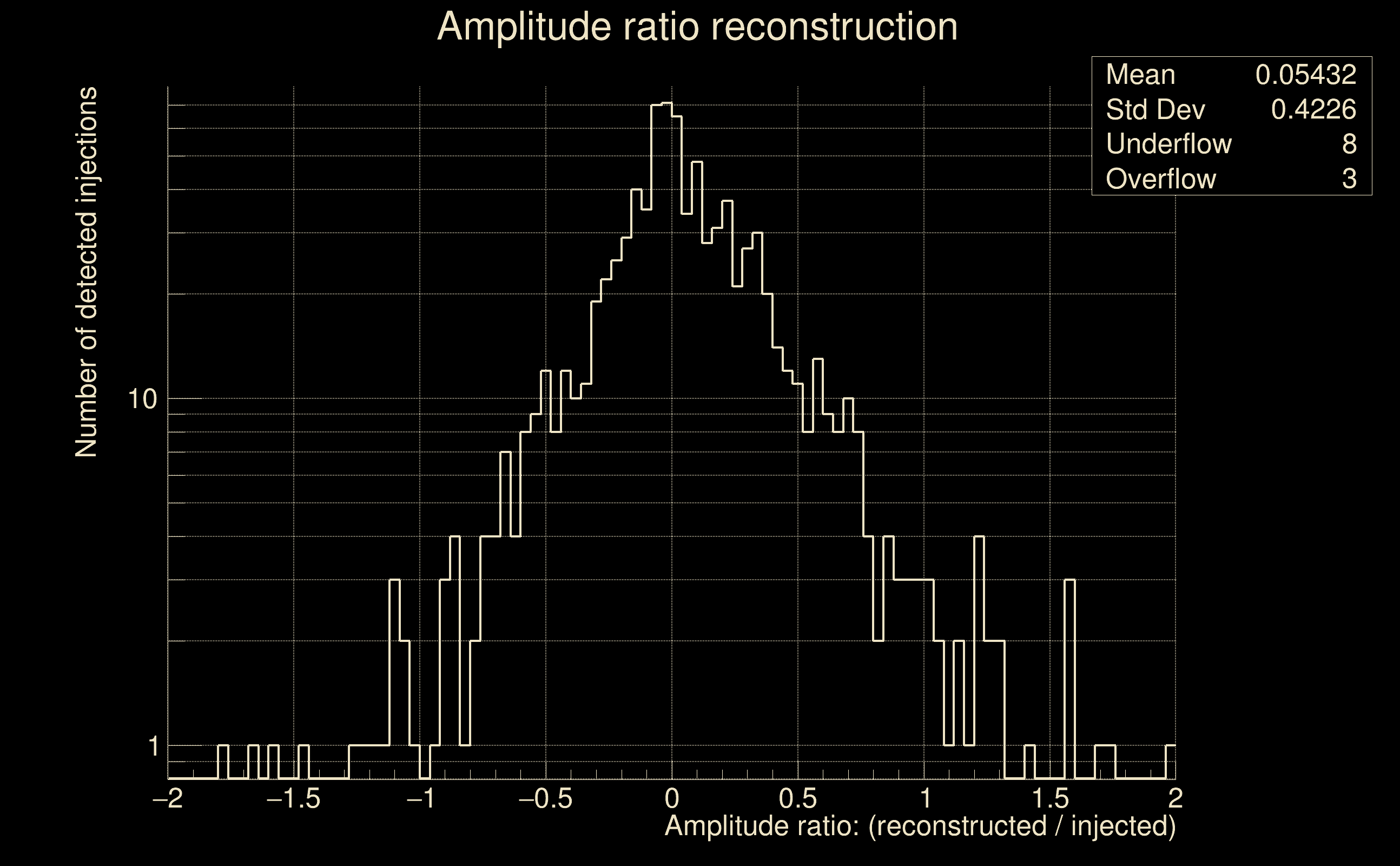

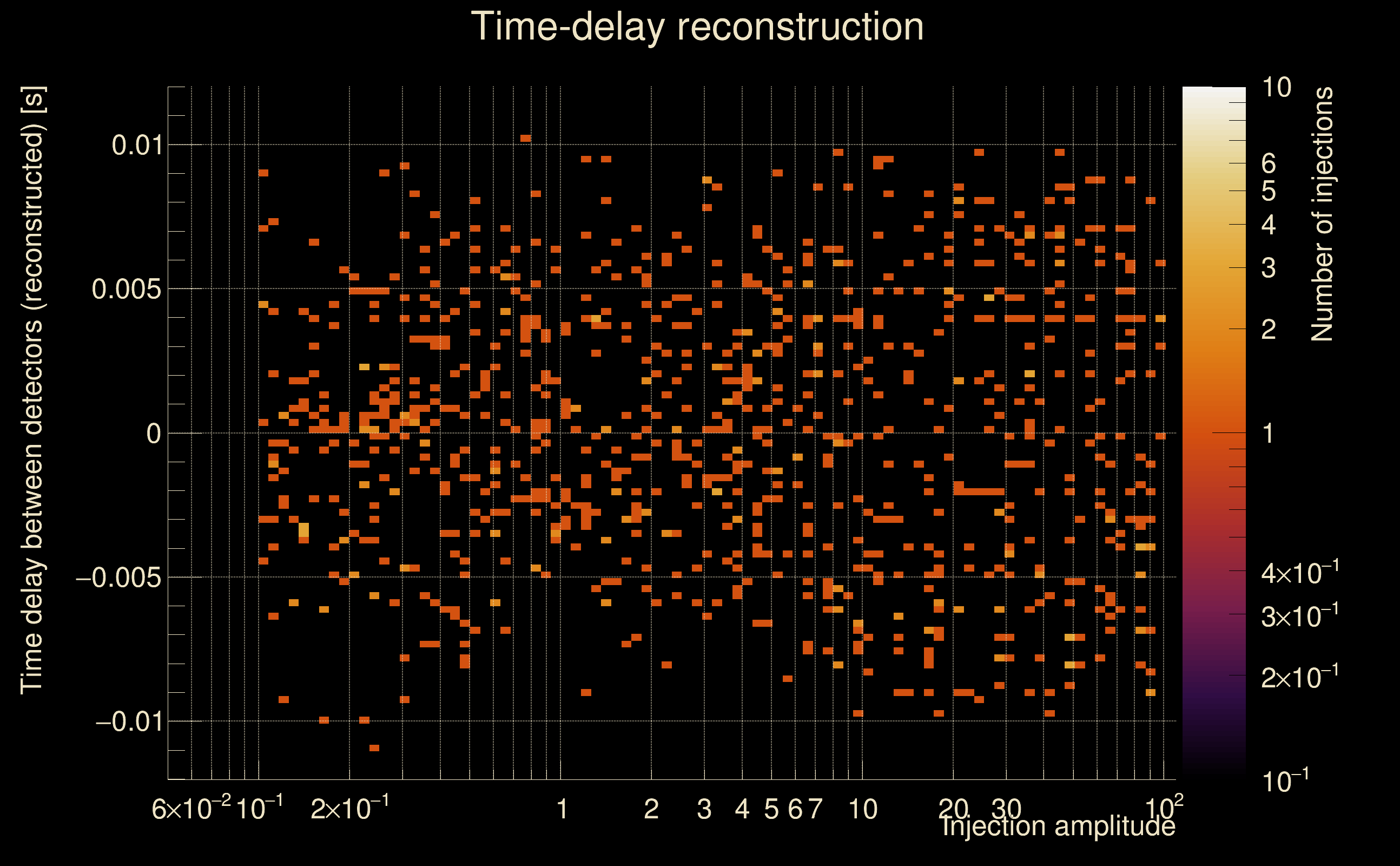

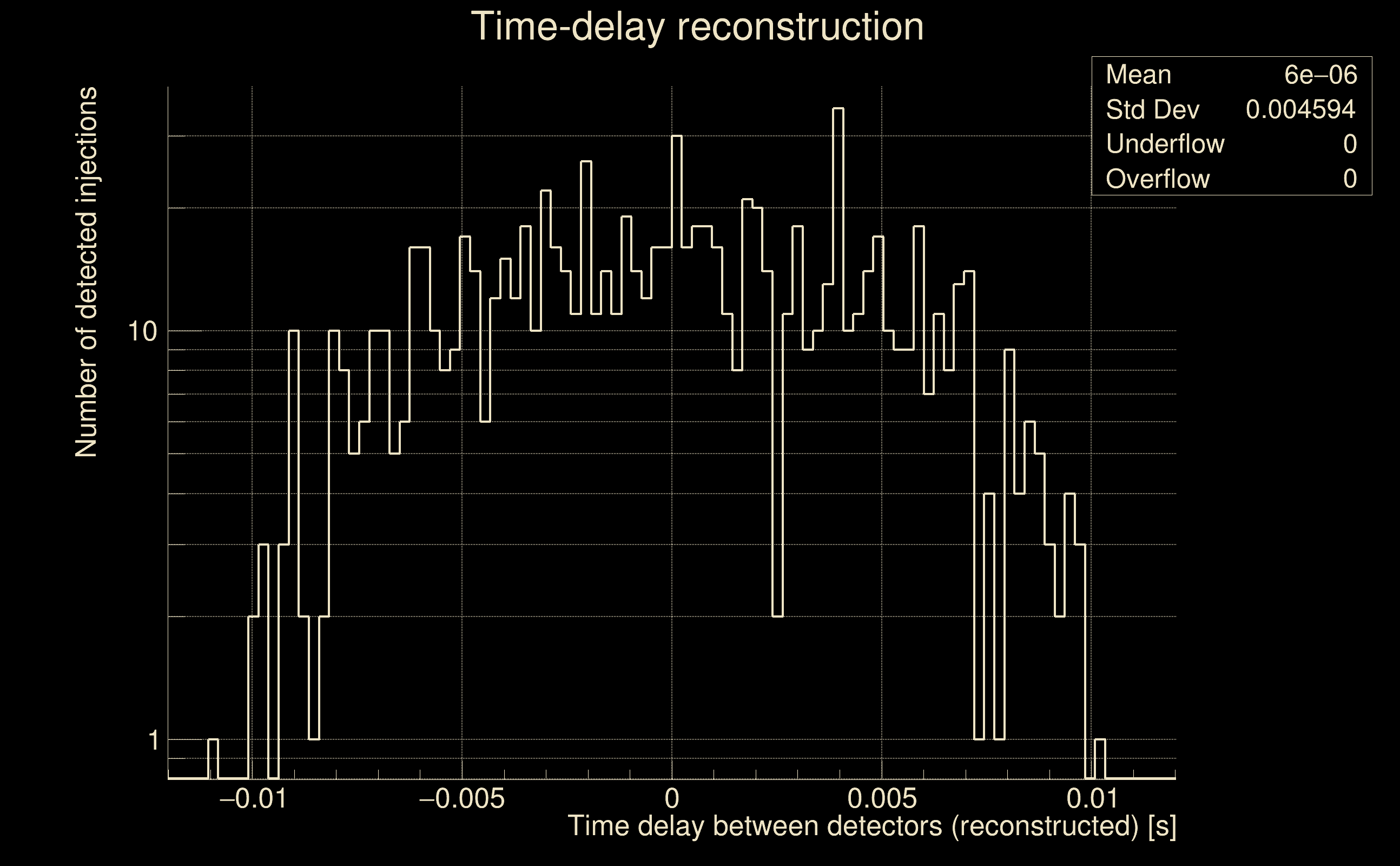

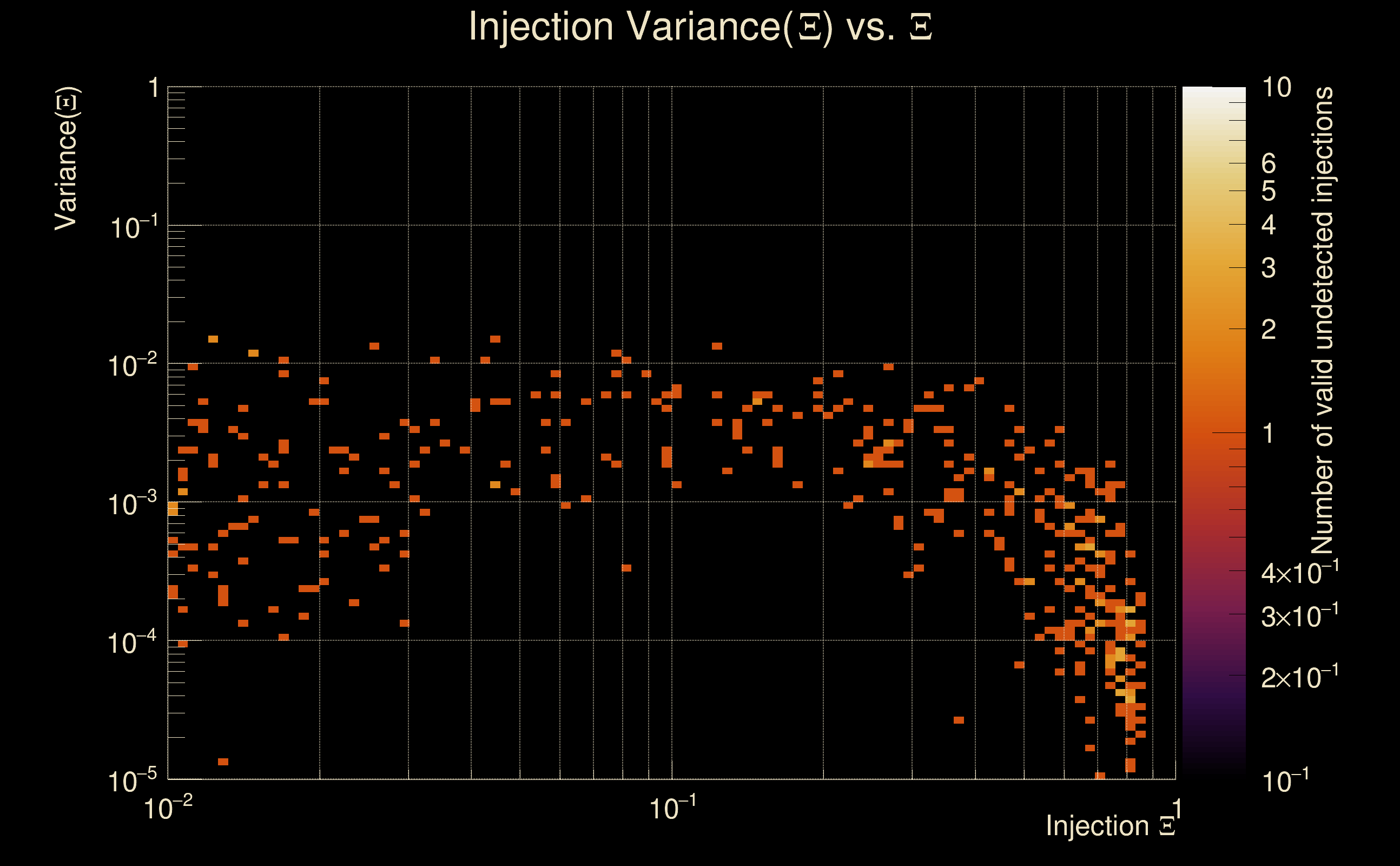

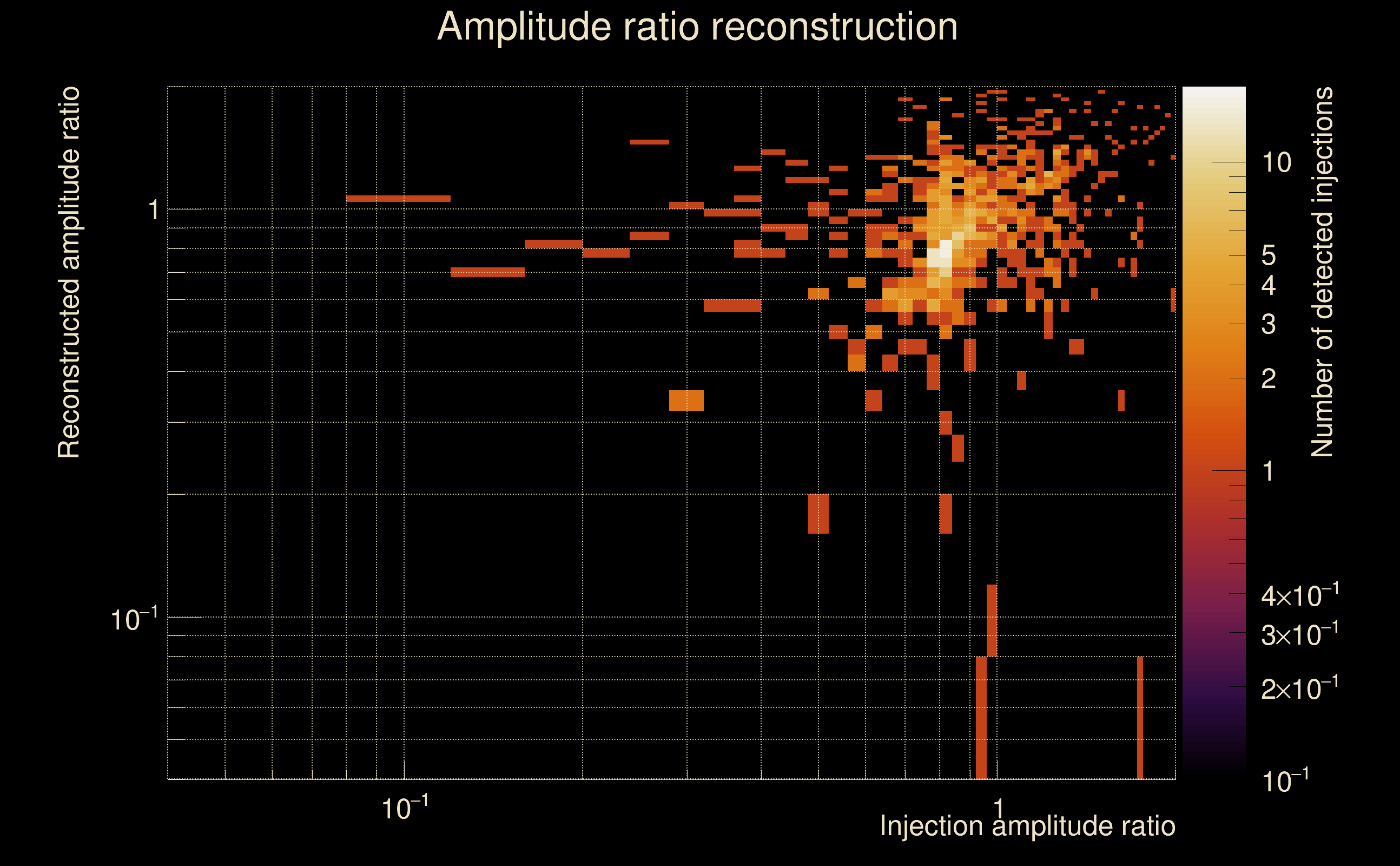

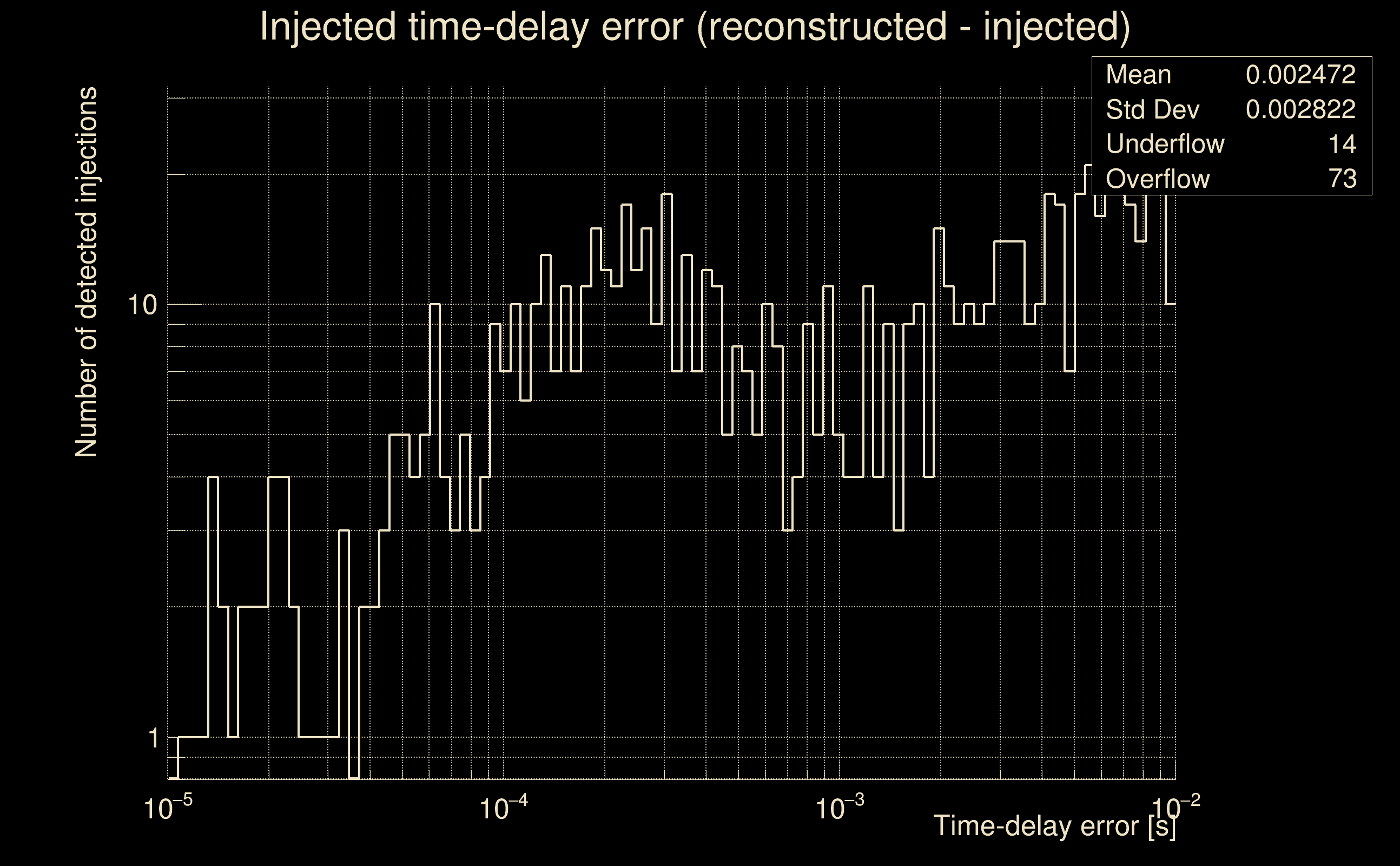

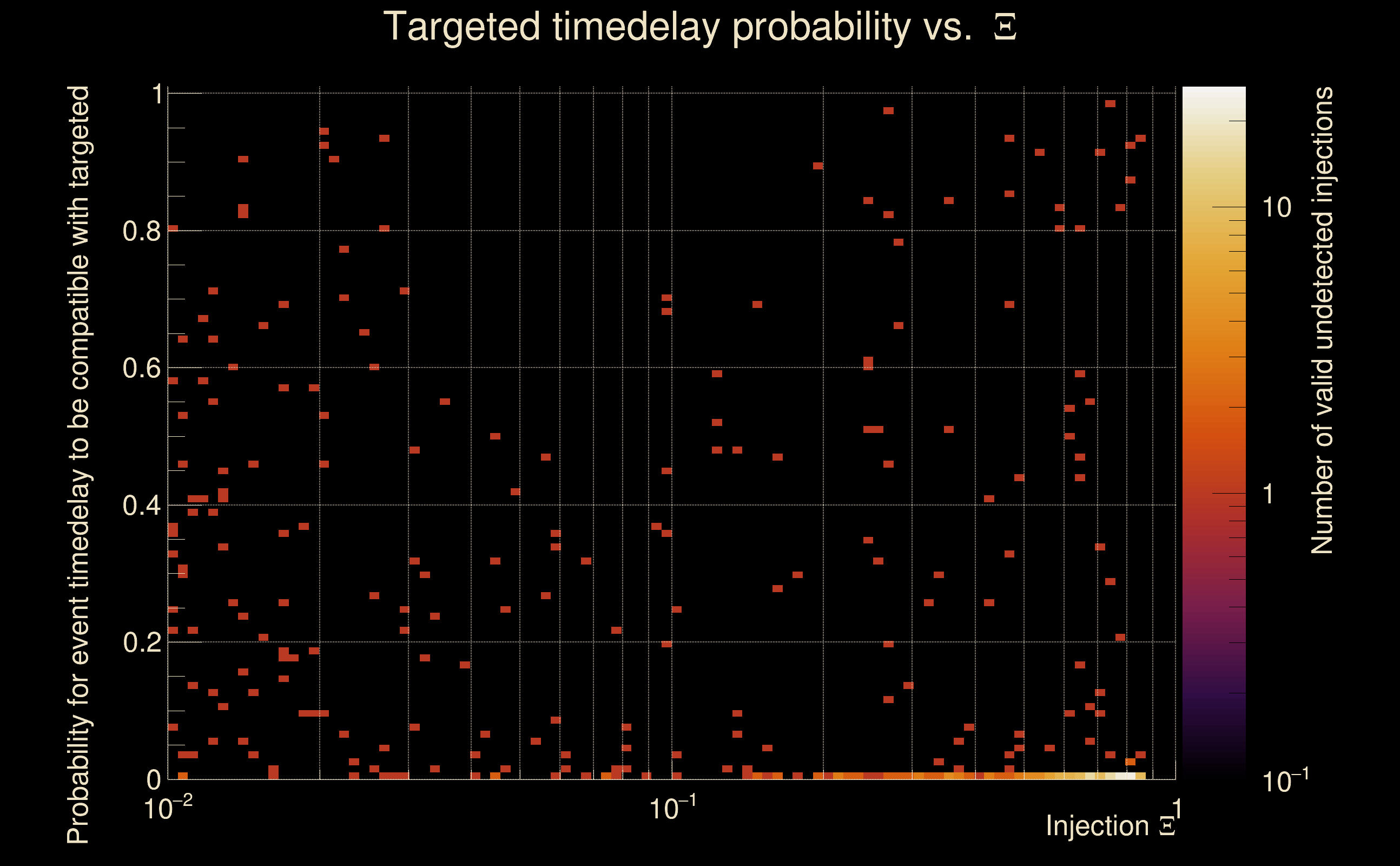

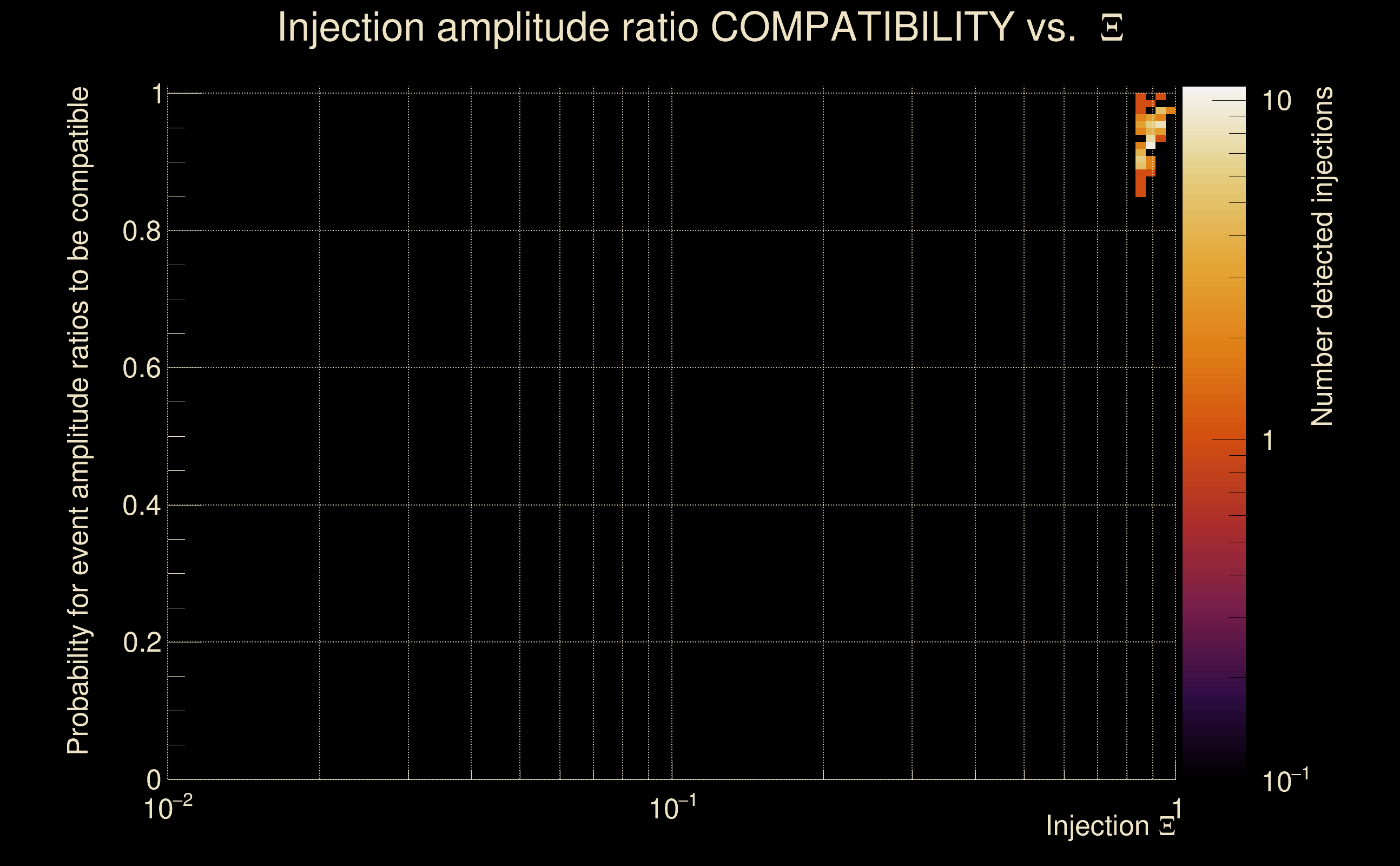

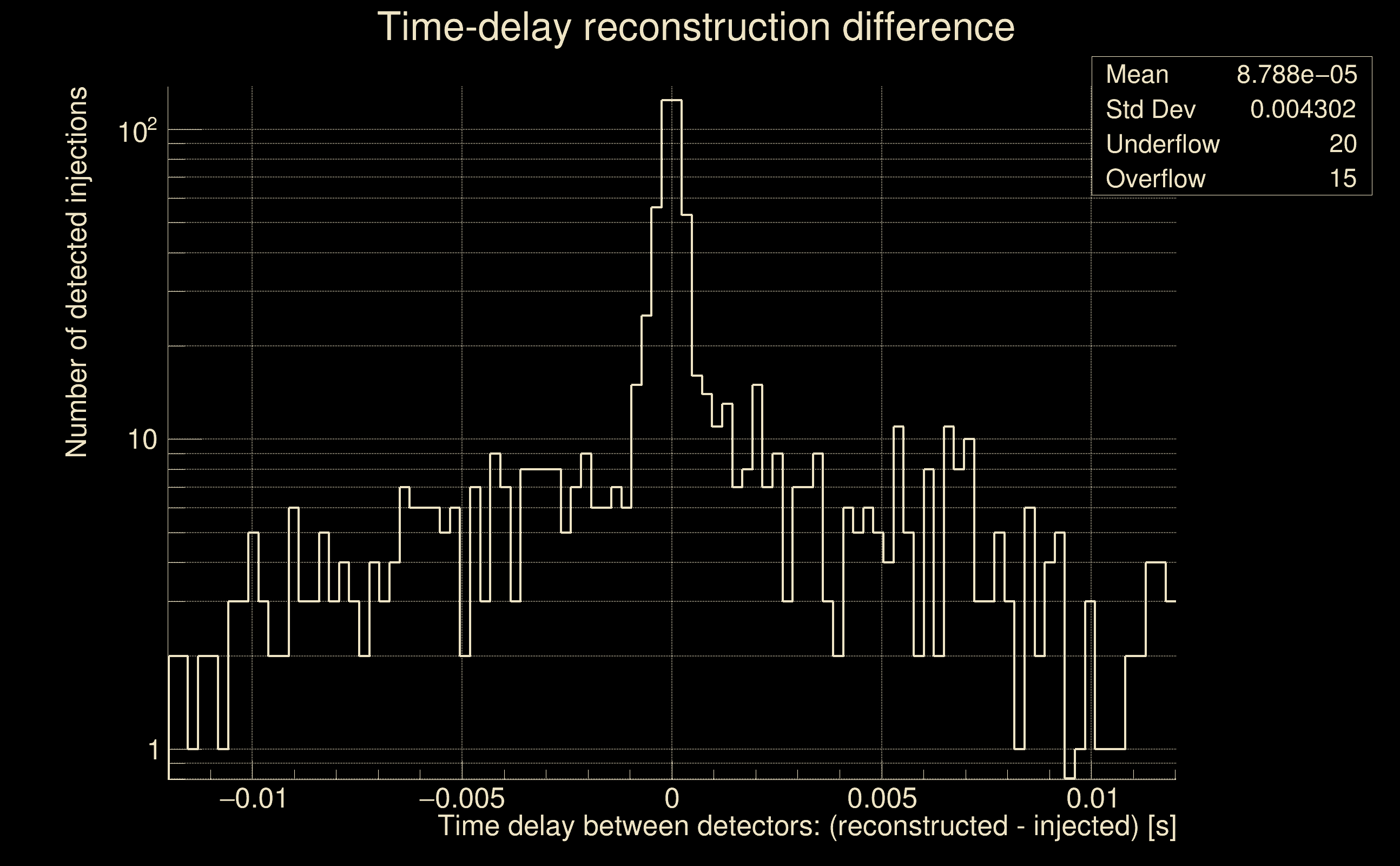

| Number of injections (total/valid/detected): | 1042 / 913 / 89 |
| List of missed injections: | ./And16-s20s_missed.txt |
| Injection amplitude at 90% detection efficiency: | -1 |
| Injection amplitude at 50% detection efficiency: | 91.276 |
| Injection amplitude at 10% detection efficiency: | 33.9903 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
