| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Mon Oct 20 06:39:48 2025 UTC |
| Ox option file: | Targeted_bkg_showoff_131025_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |

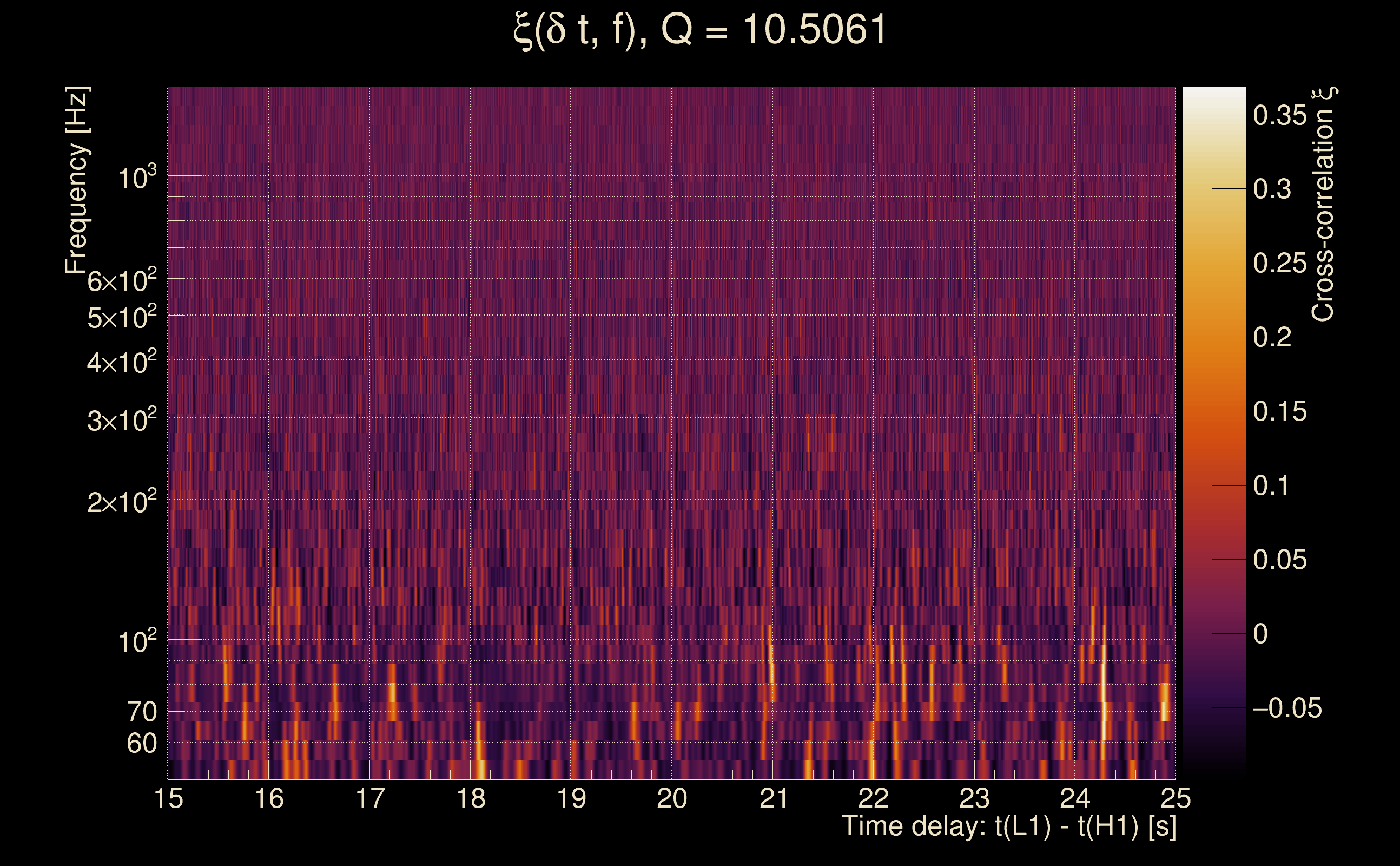

| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| Target sky positon: | Ra: 10, Dec: 10 [rad] |
| List of input Ox files: | Targeted_bkg_showoff_131025_file_list.txt (10385 files) |
| Analysis result file: | Targeted_bkg_showoff_131025_results-0.root |
| Slice selected for the the fakeground: | slice index=175 (36.918 s), time lag = -10 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 176151 | 176155 | 420109498 | |
| Start Date (detector 0) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:04 2023 UTC | Sat Sep 2 04:55:04 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | |
| Start GPS (detector 0) | 1377665712 | 1377665662 | 1377665722 | |
| End GPS (detector 0) | 1378944121 | 1378944121 | 1378944121 | |
| Used livetime (detector 0) | 885490 s | 885510 s | 887695 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:33 2023 UTC | |
| Start GPS (detector 1) | 1377665712 | 1377665712 | 1377665712 | |
| End GPS (detector 1) | 1378944121 | 1378944121 | 1378944111 | |
| Used livetime (detector 1) | 885490 s | 885510 s | 893886 s | |
| Cumulative livetime | 1761510 s | 1761550 s | 4201094980 s | |
| 0 years, 20 days, 9 hours, 18 min, 30 s | 0 years, 20 days, 9 hours, 19 min, 10 s | 133 years, 45 days, 18 hours, 49 min, 40 s |
|
|

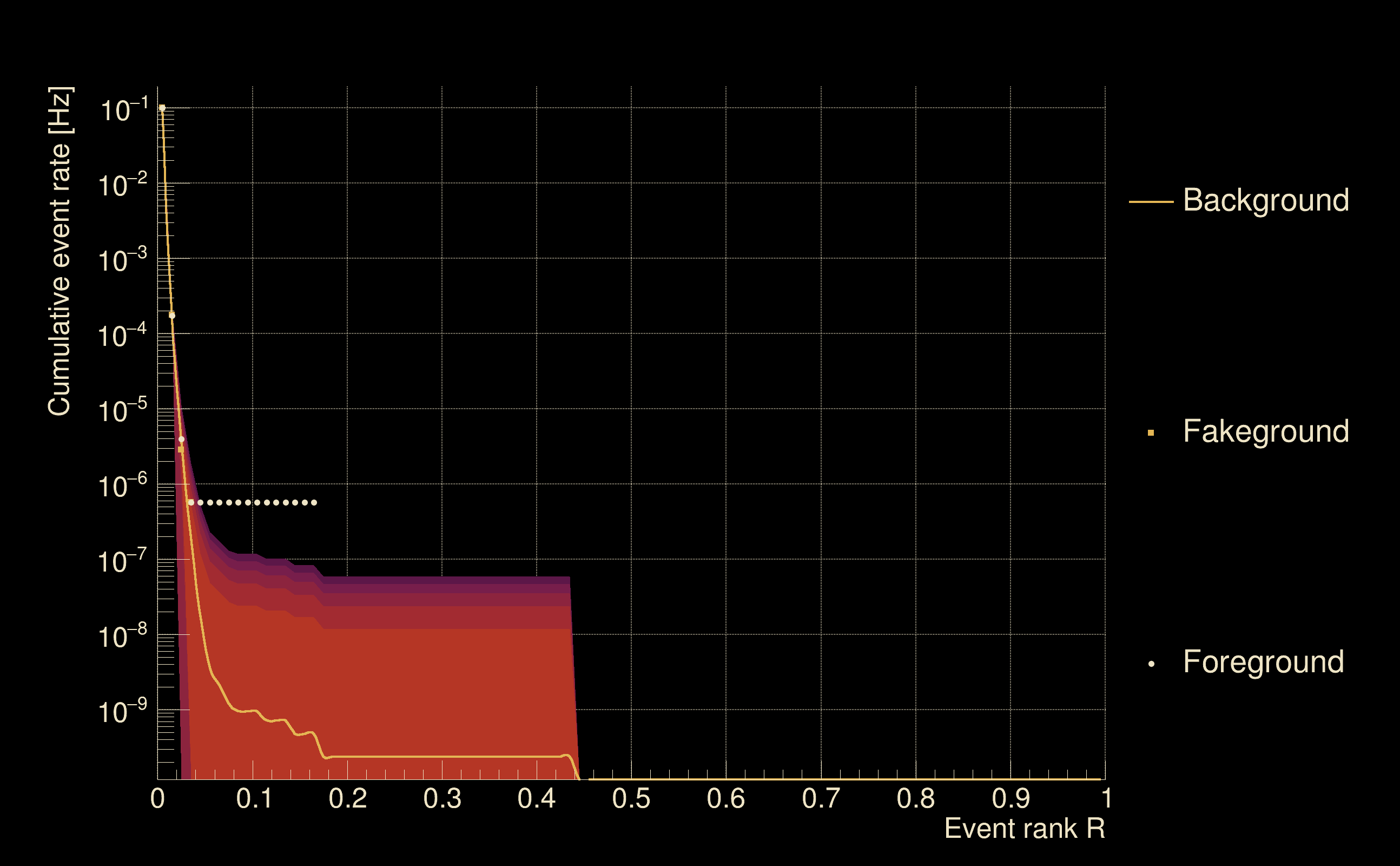

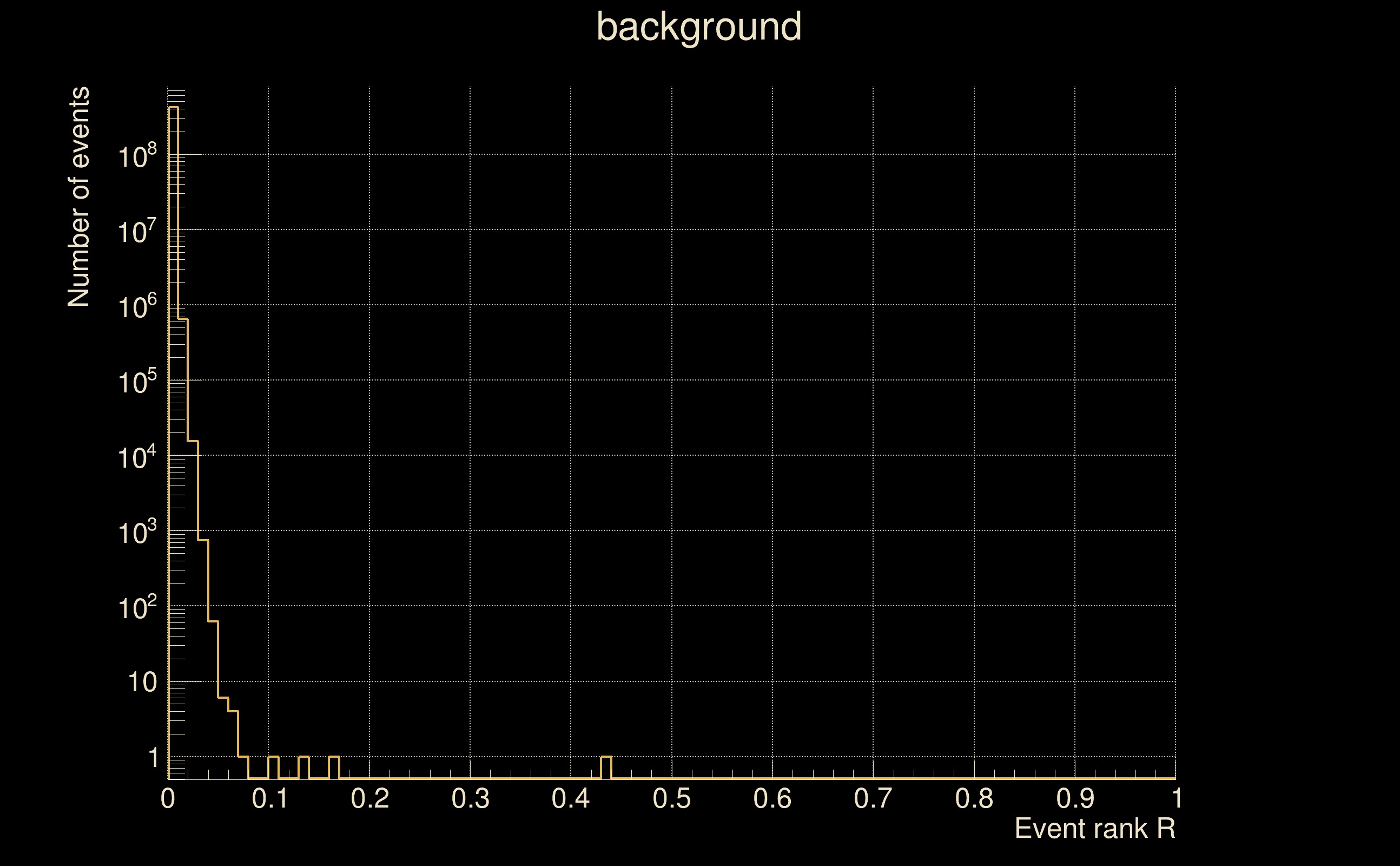

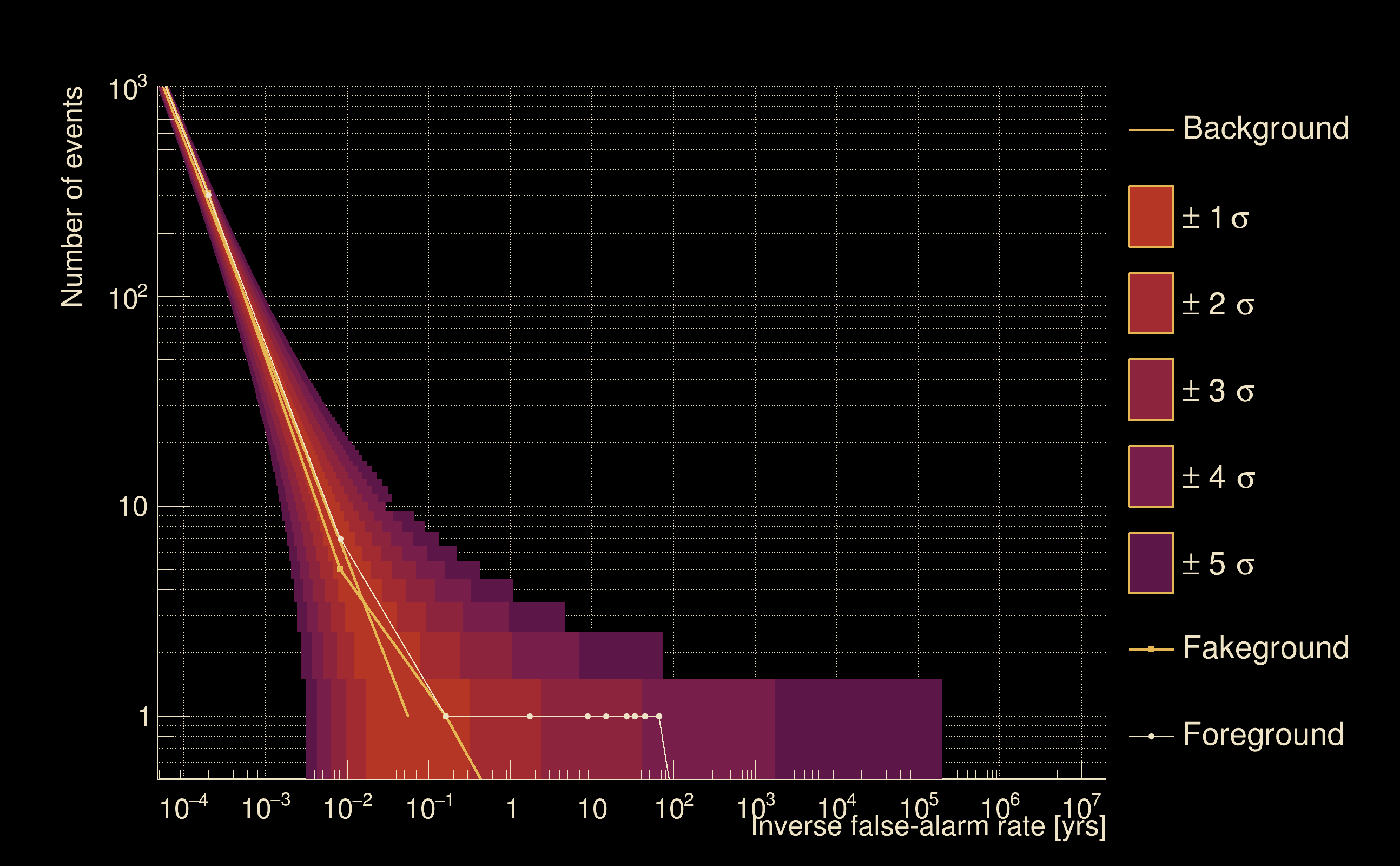

| Detection threshold: | R > 0.055664 |
| False-alarm rate above that detection threshold: | 2.76157e-09 |
| Alternative threshold at 1/1000 yrs: | R > 0.435 |
| Alternative threshold at 1/100 yrs: | R > inf |
| Alternative threshold at 1/10 yrs: | R > 0.0556661 |
| Alternative threshold at 1/1 yr: | R > 0.0377501 |
| Alternative threshold at 1/1 d: | R > 0.0169579 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |

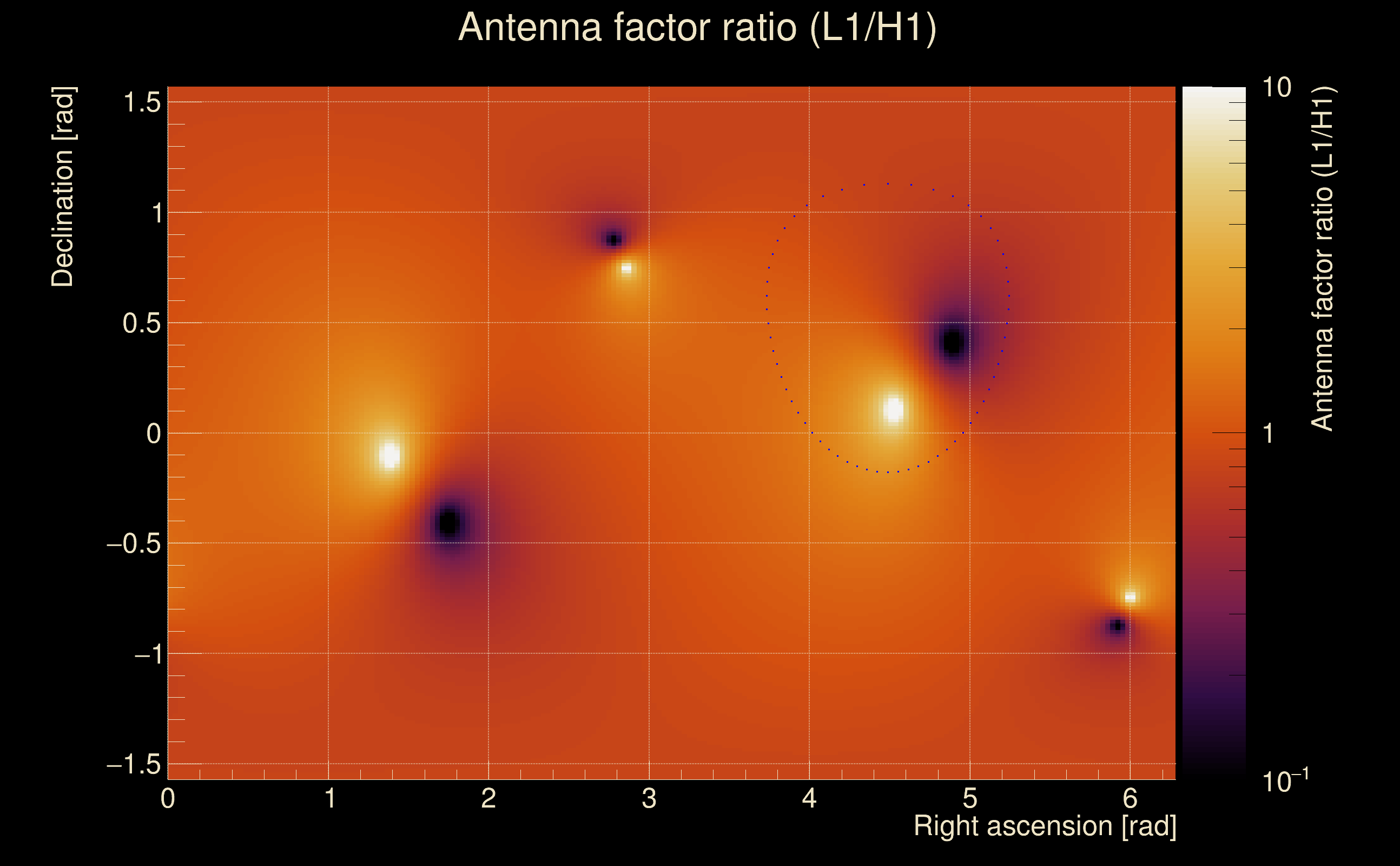

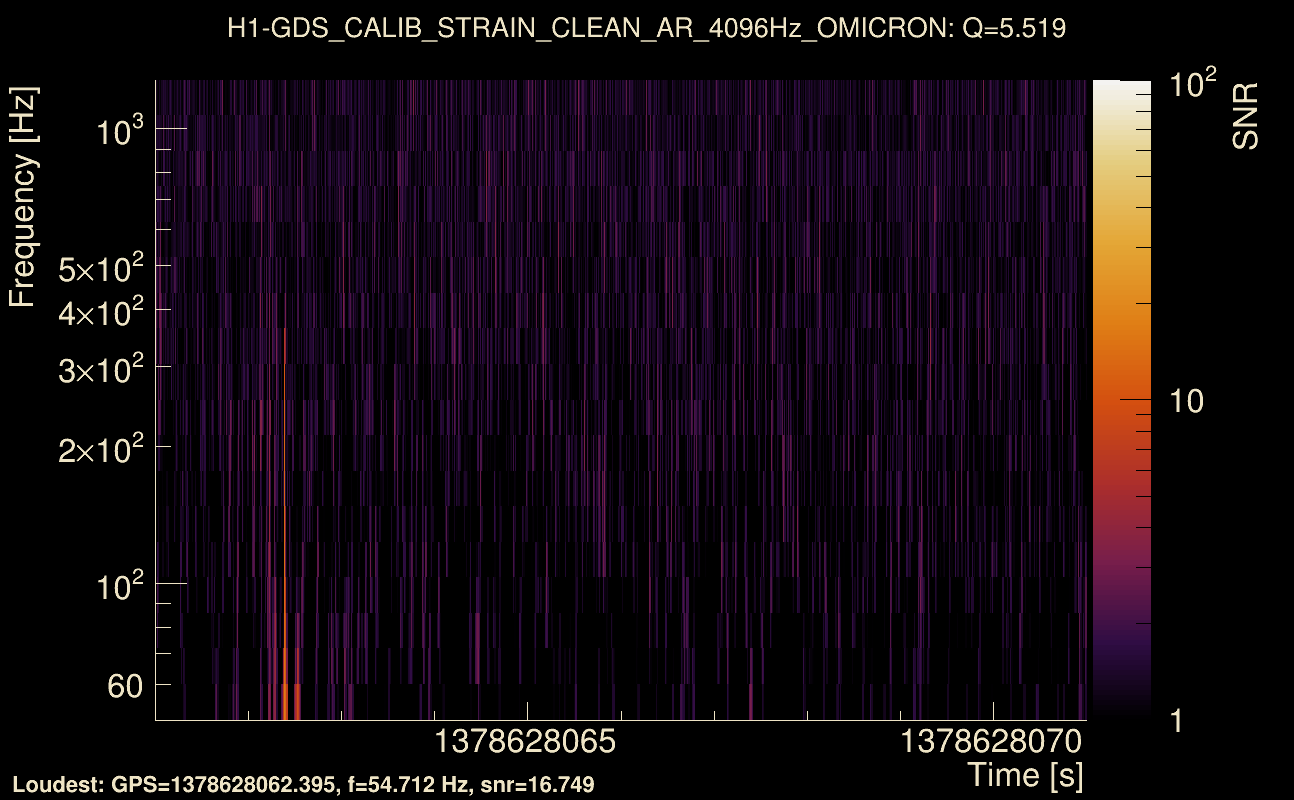

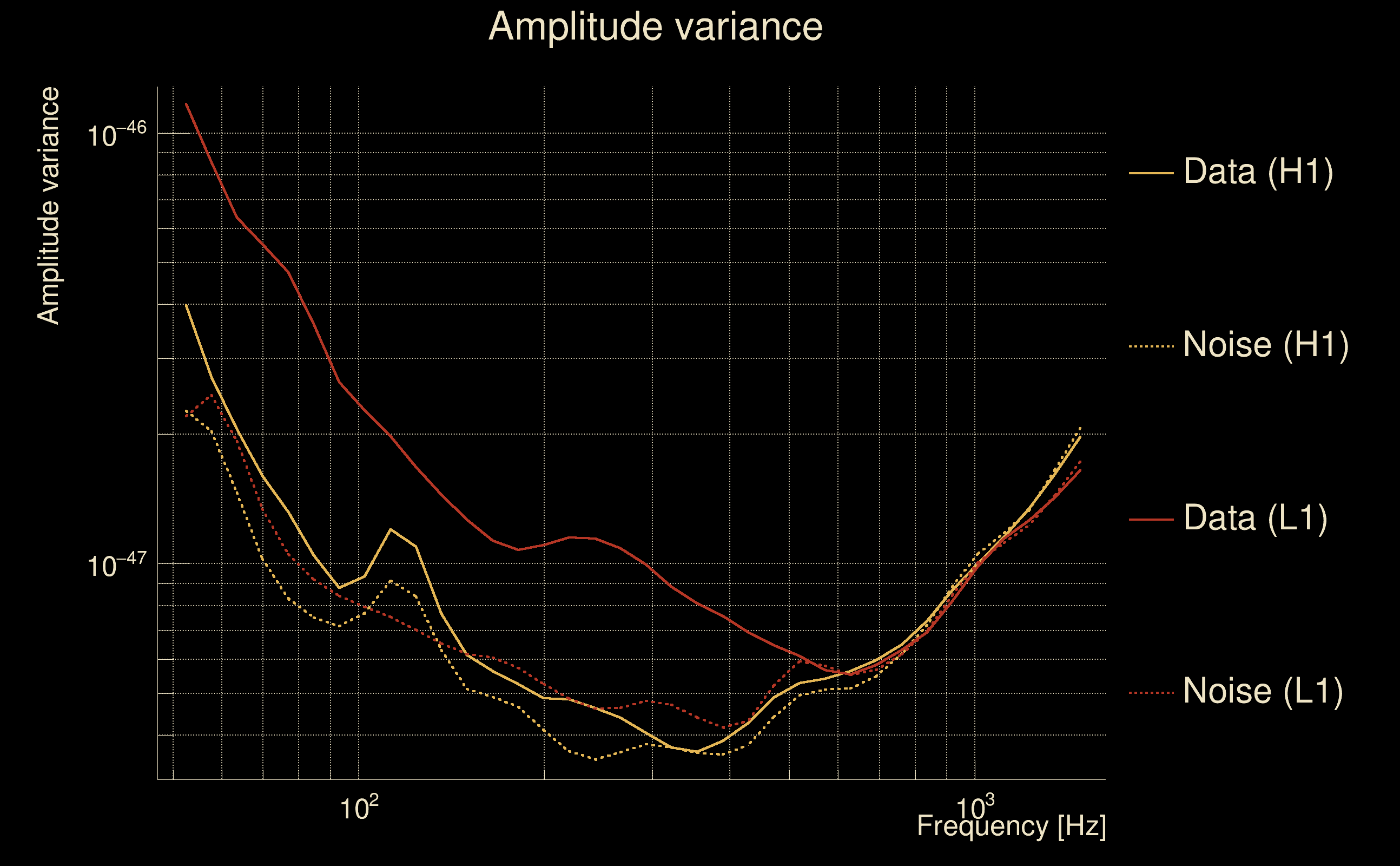

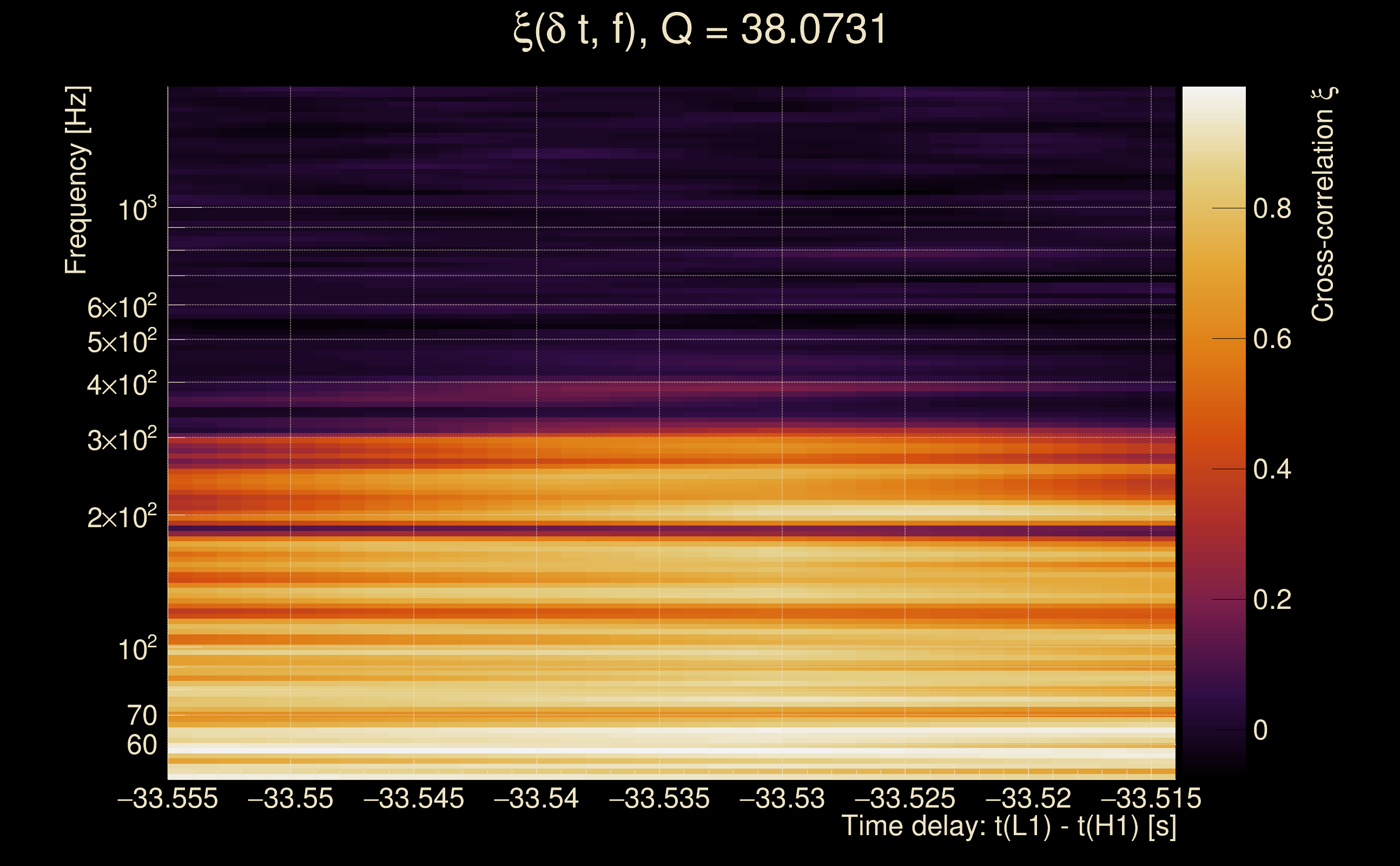

| Event time t(H1): | GPS = 1378628061 (Wed Sep 13 08:14:03 2023 ) → GPS = 1378628071 (Wed Sep 13 08:14:13 2023 ) |
| Event time t(L1): | GPS = 1378628031 (Wed Sep 13 08:14:13 2023 ) → GPS = 1378628041 (Wed Sep 13 08:13:43 2023 ) |

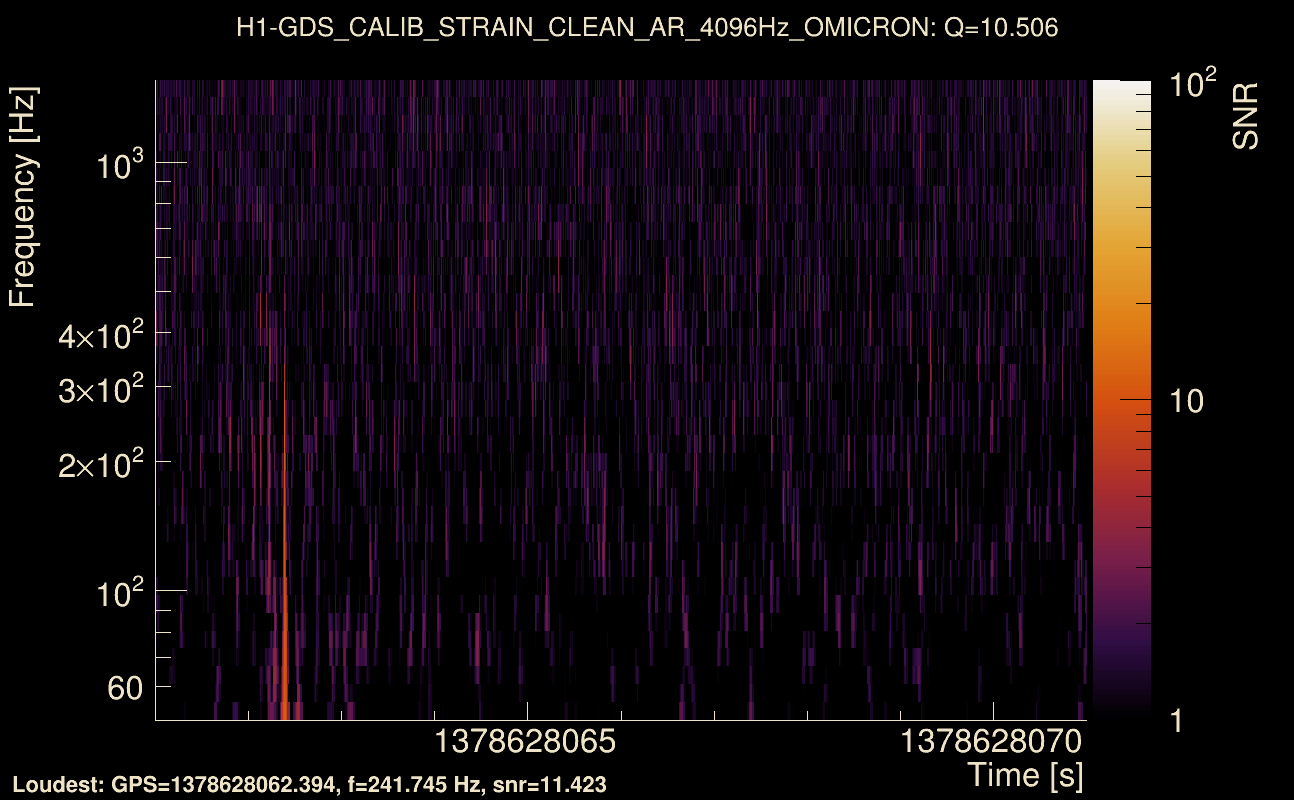

| Omicron analysis time window (H1): | GPS = 1378628058 → GPS = 1378628074 |
| Omicron analysis time window (L1): | GPS = 1378628028 → GPS = 1378628044 |

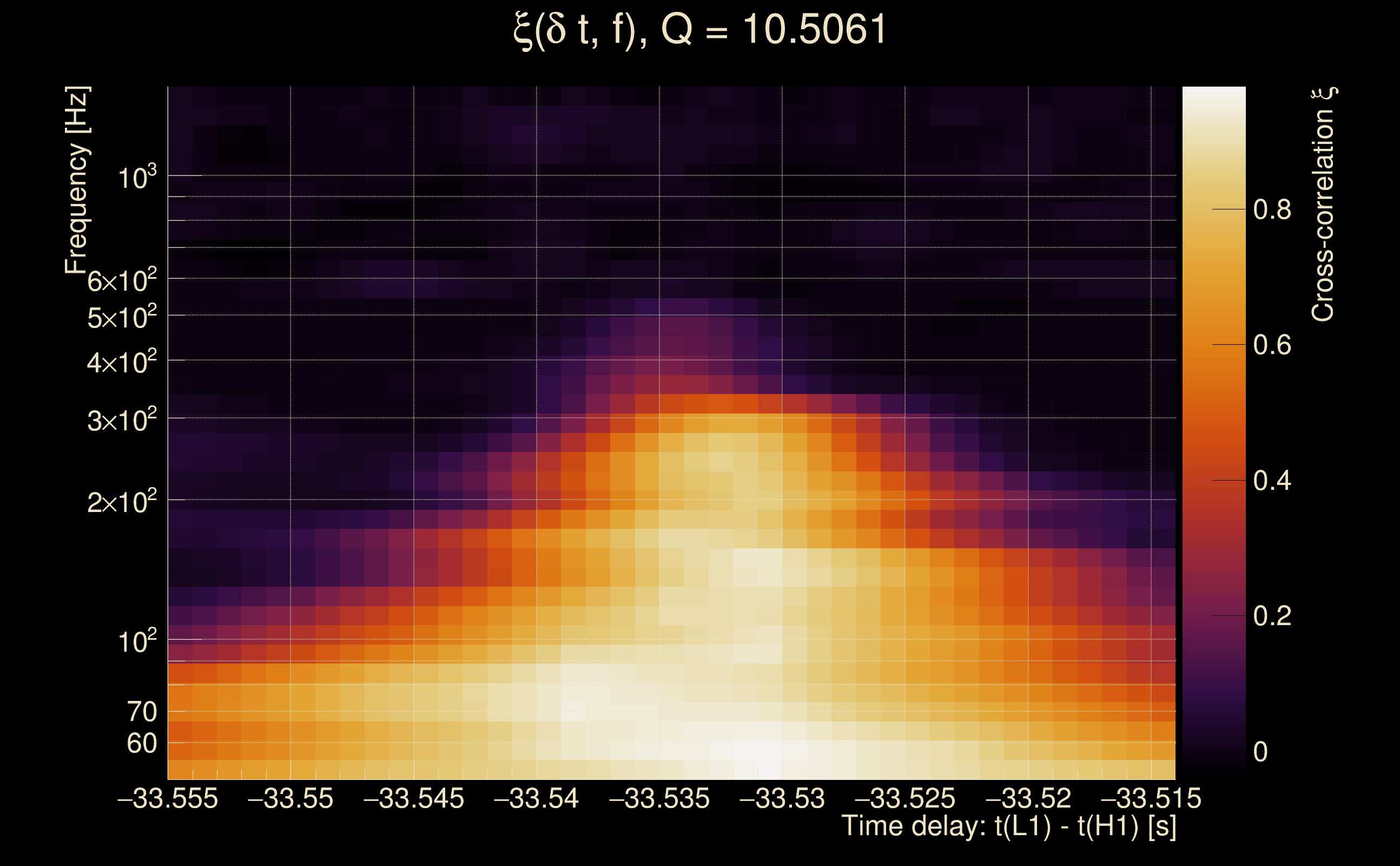

| Time delay between detectors t(L1) - t(H1): | -33.5341 s (slice index = 185 / 217), δt_gw = 0.00794213 s |
| Time delay uncertainty: | 0.00264286 s |
| [targeted mode] Time delay probability: | 0.0228659 (2.27567 sigmas), δt_target = 1.72247e+45 s |
| Frequency: | 137.627 Hz |
| Ξ: | 0.678212 ± 0.0871249 (variance = 0.00759075): Q0: 0.859473, Q1: 0.852136, Q2: 0.822689, Q3: 0.743062, Q4: 0.627513 |
| Rank: | R_A = 0.432974 |
| Log of amplitude ratio (L1/H1): | 0.937249, variance = 0.125293 (L1/H1: 0.640953, variance = 0.415571, H1/L1: -0.998988, variance = 0.164904) |
| Amplitude ratio (L1/H1): | 2.55295 ⋇ 1.42471 (L1/H1: 1.89829 ⋇ 1.90532, H1/L1: 0.368252 ⋇ 1.50093) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.638405 |

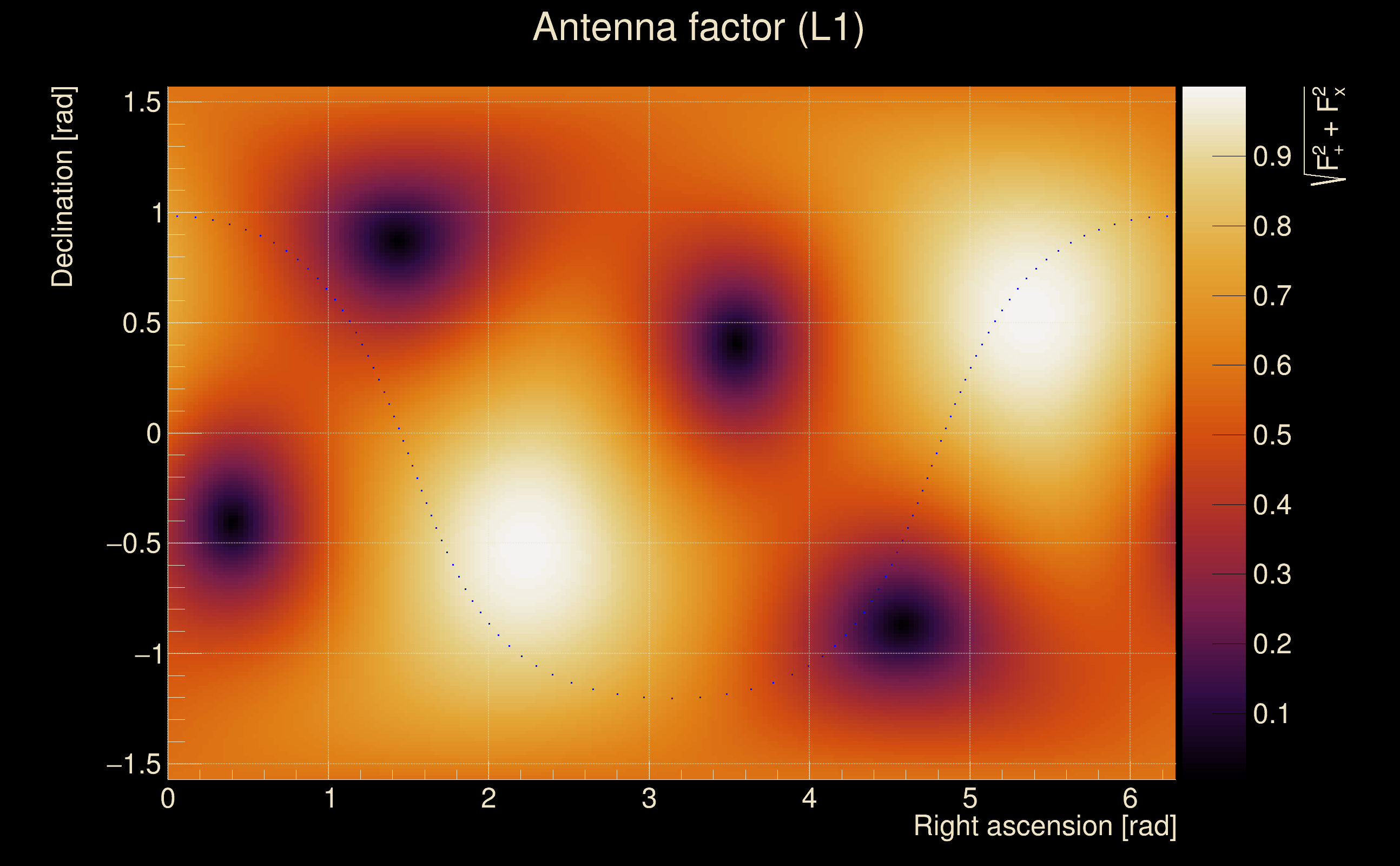

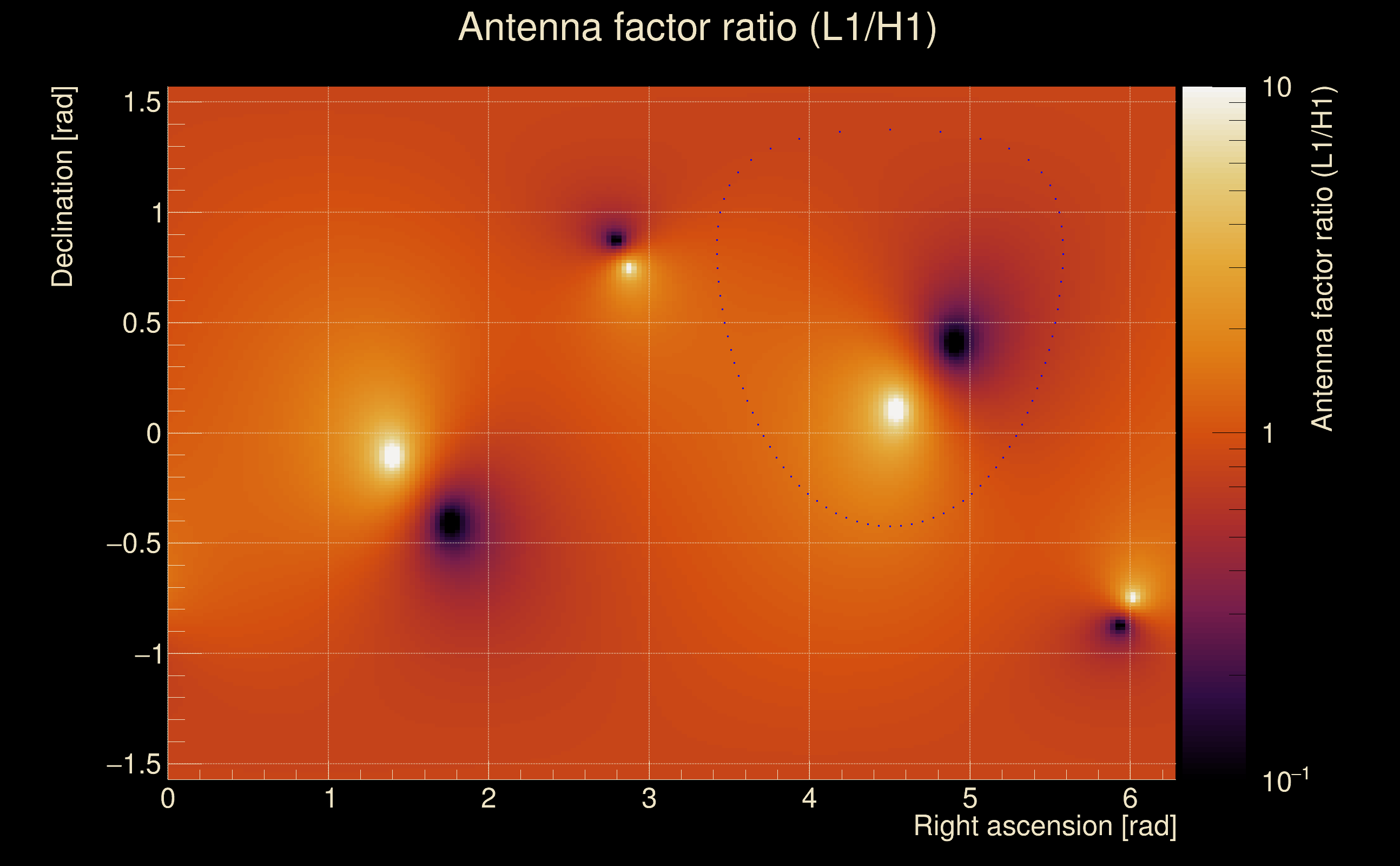

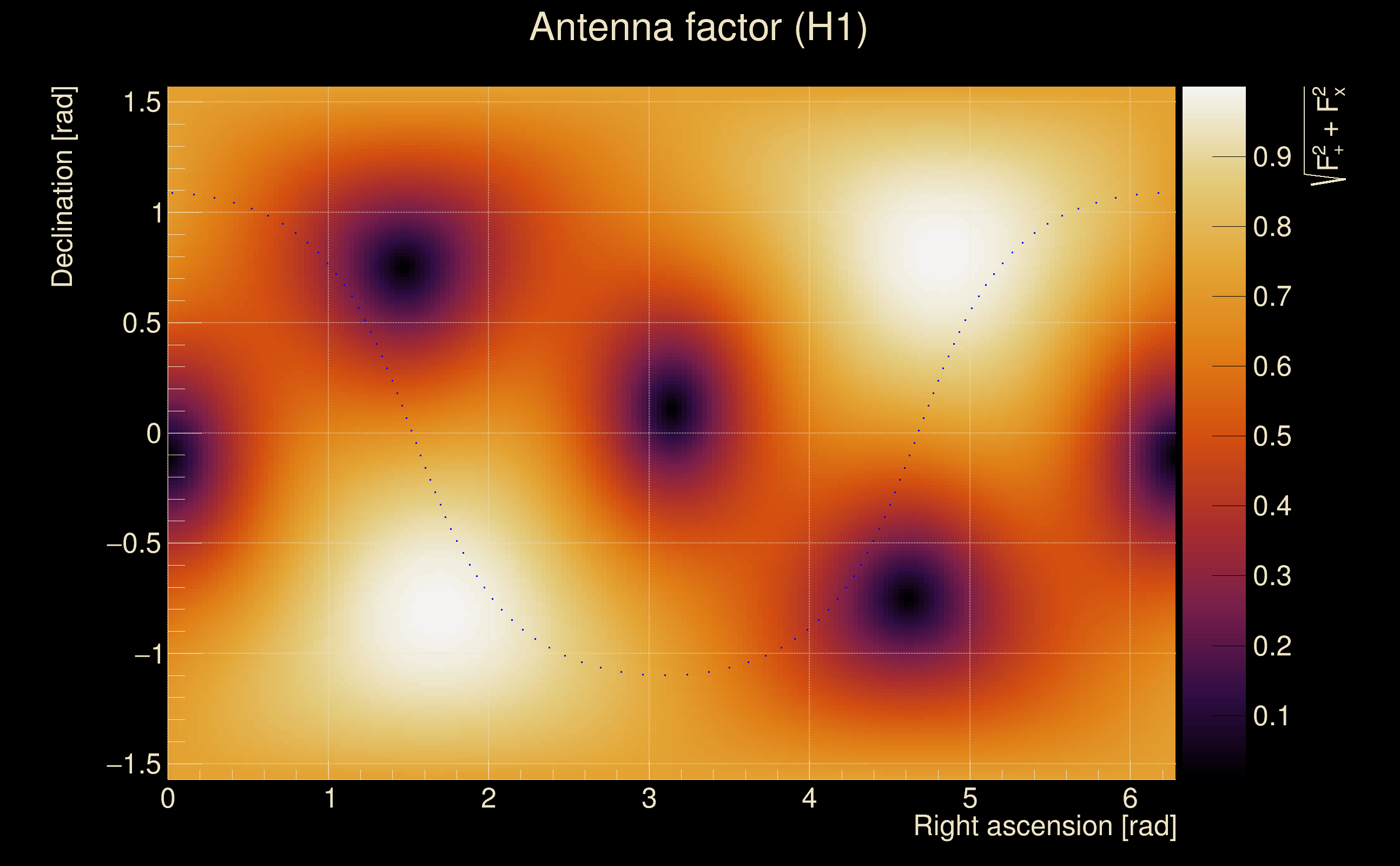

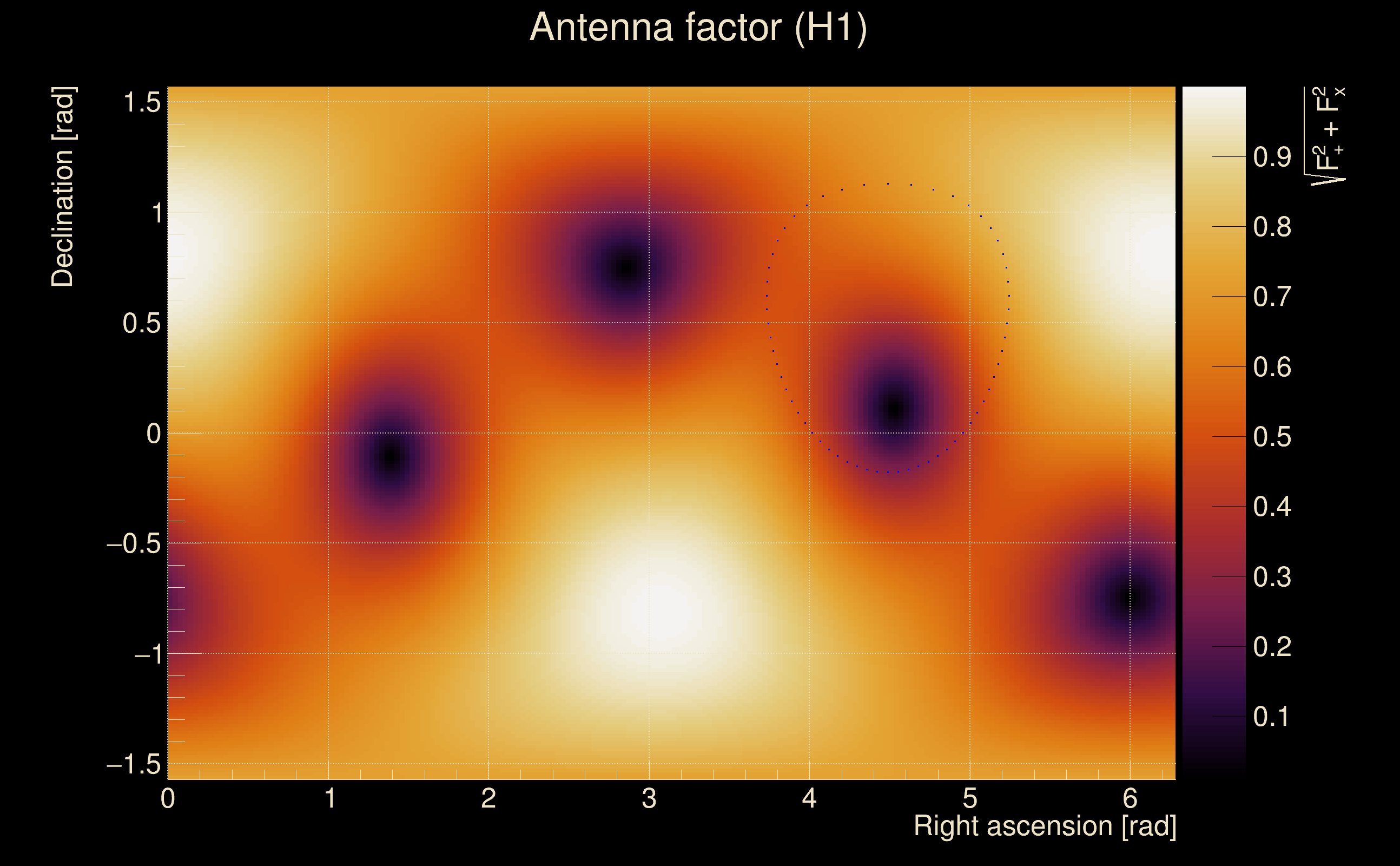

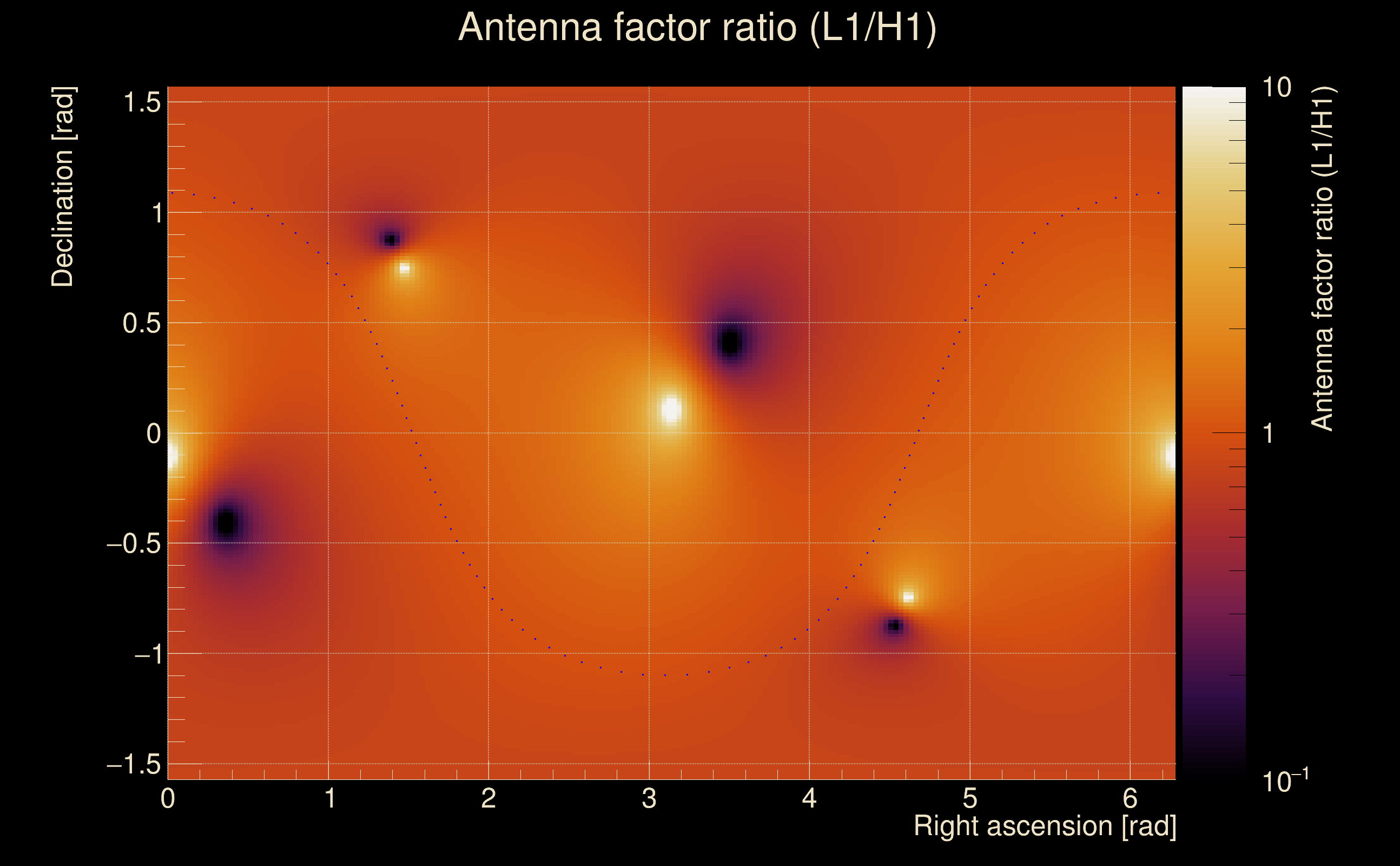

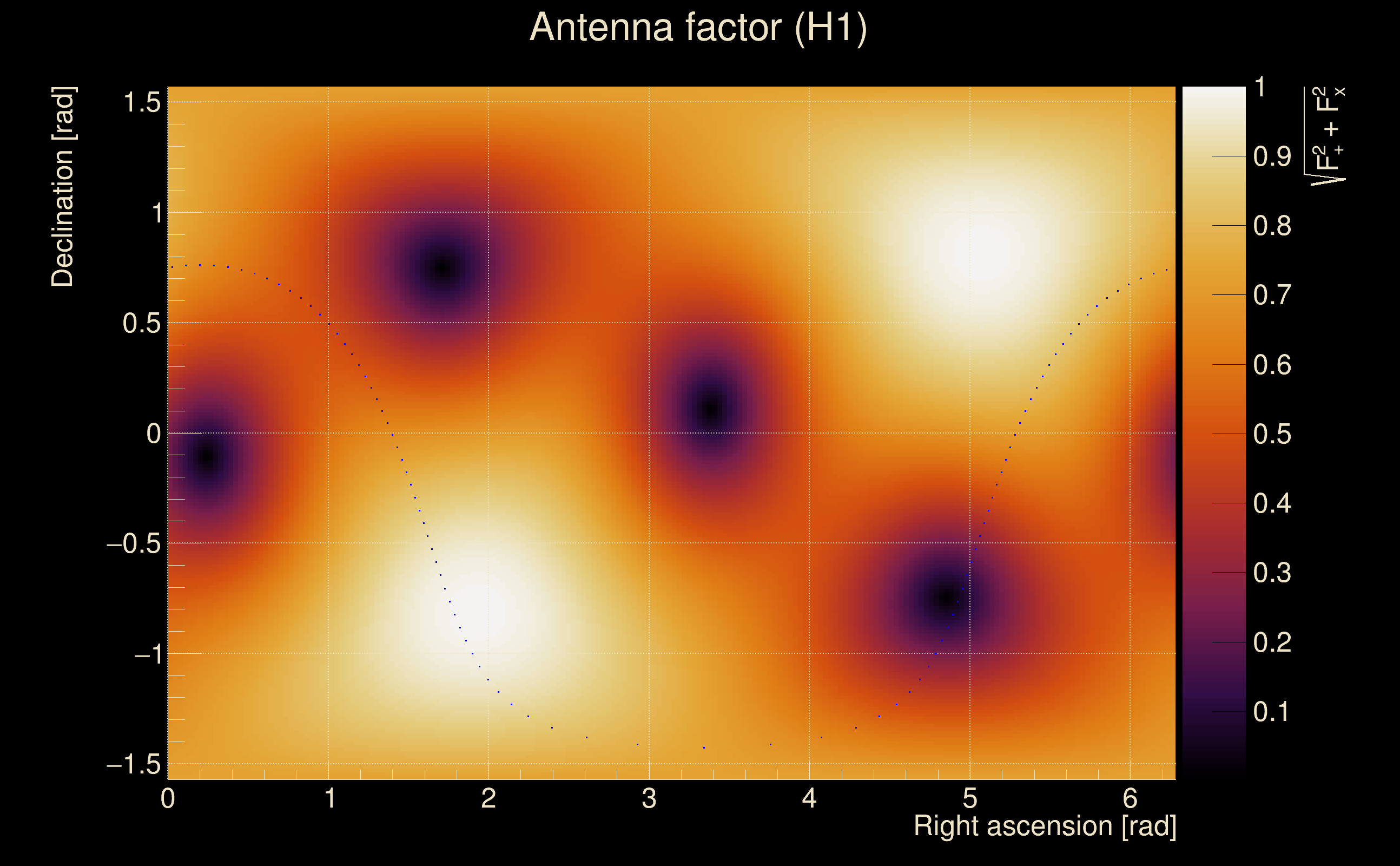

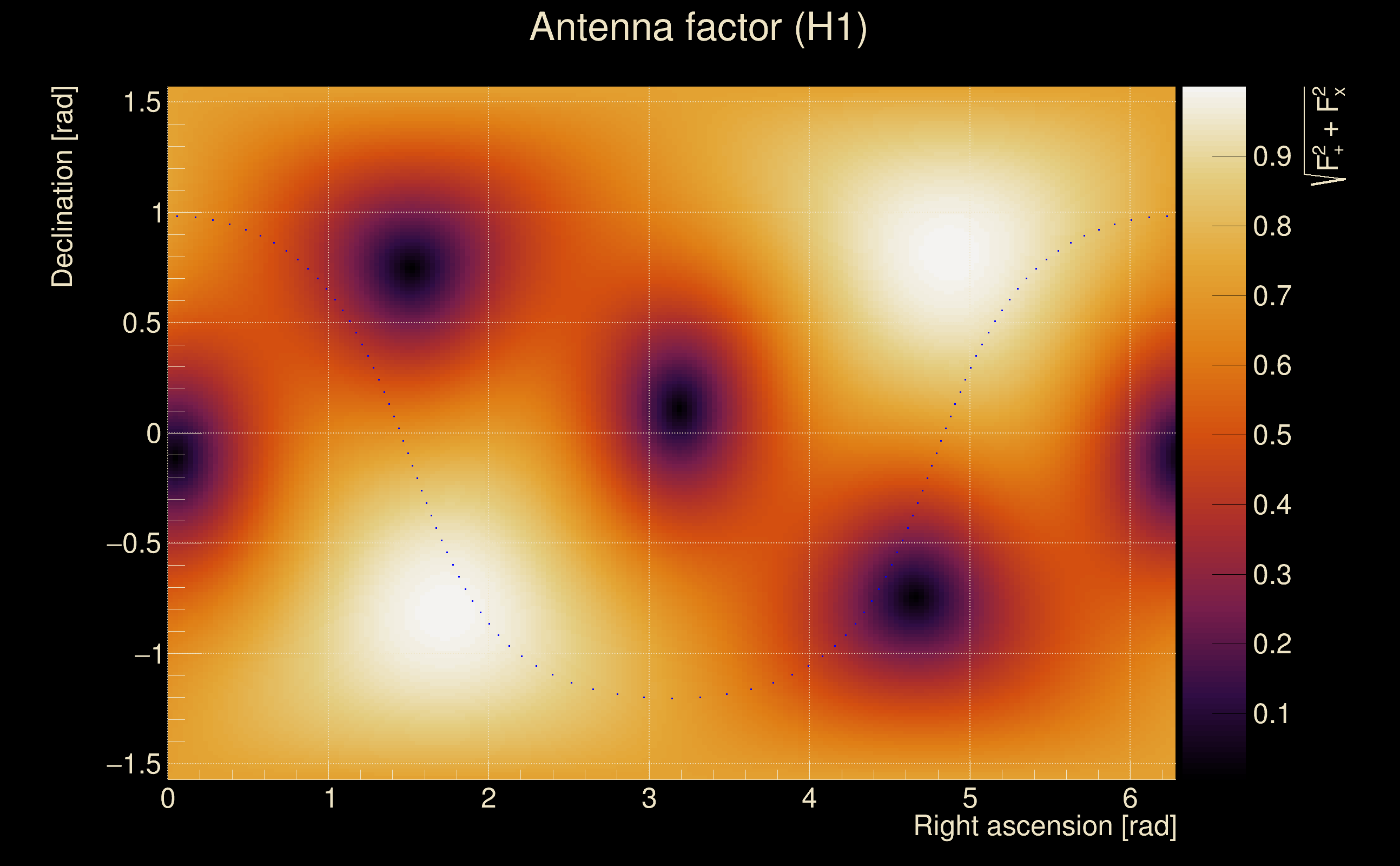

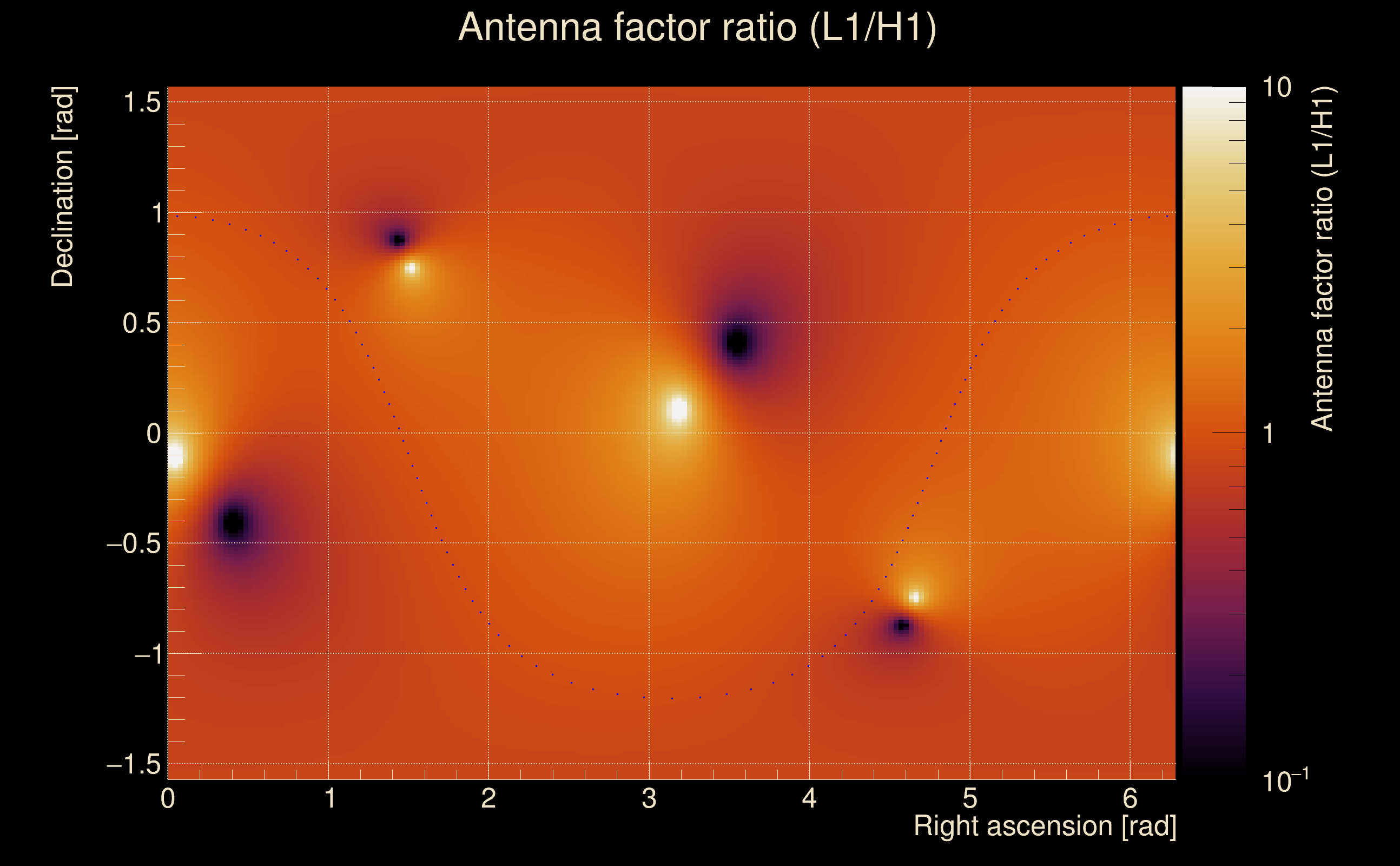

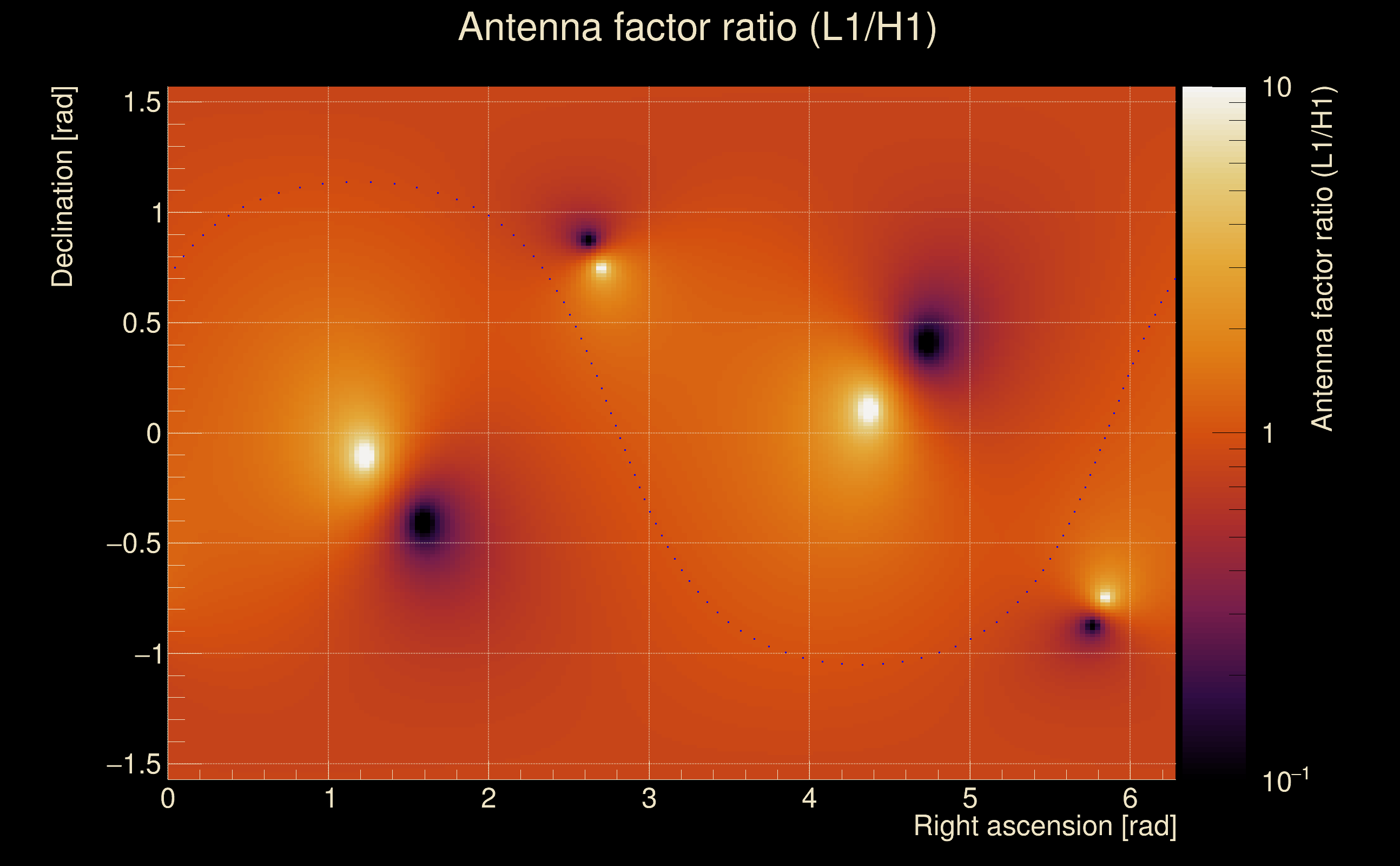

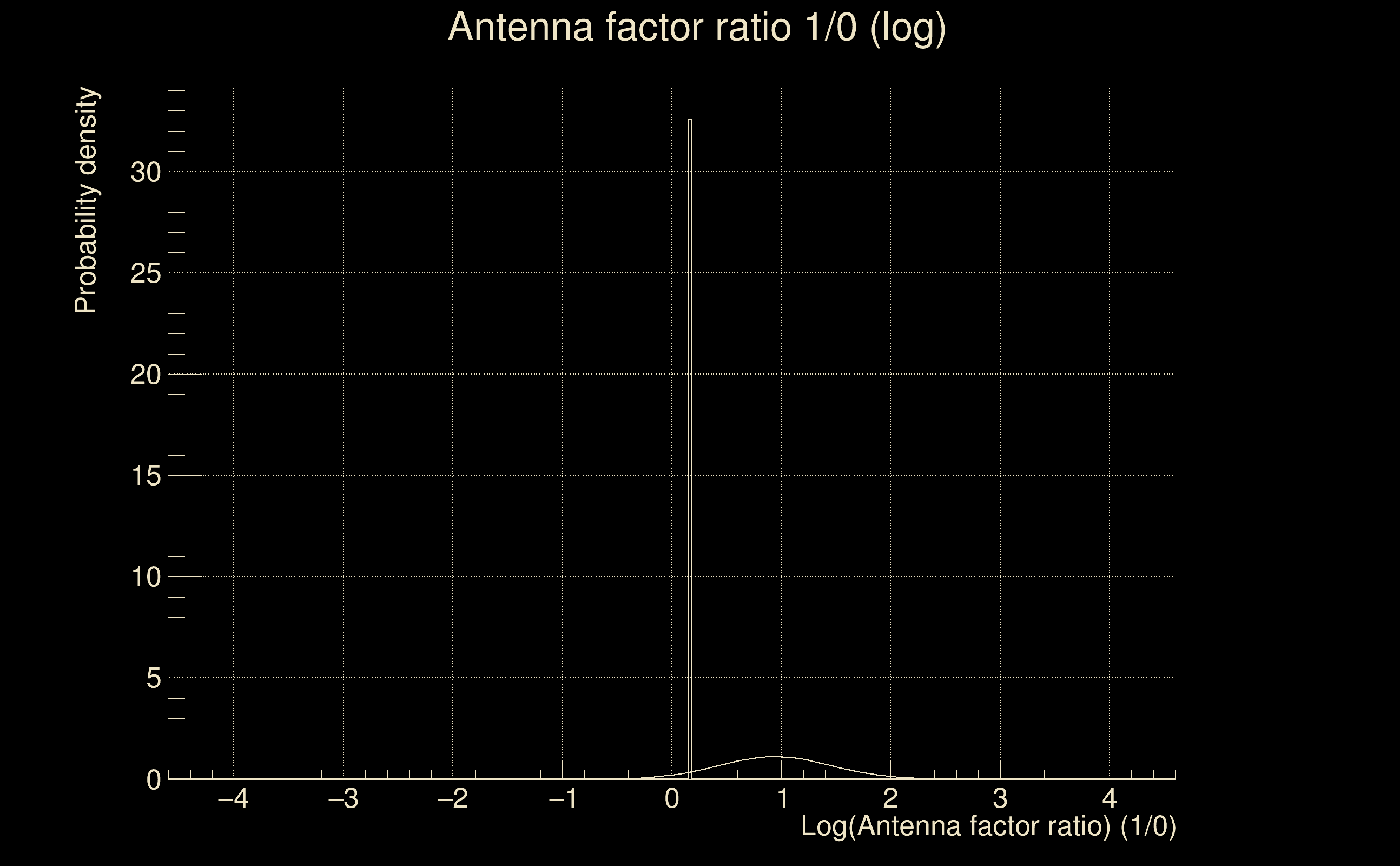

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 2 / 18, Q1: 7 / 36, Q2: 17 / 70, Q3: 65 / 134, Q4: 191 / 258 |
| Maximum signal-to-noise ratio: | H1: 18.7828, L1: 41.1479 |
| SNR variance: | H1: 0.656755, L1: 0.489592 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

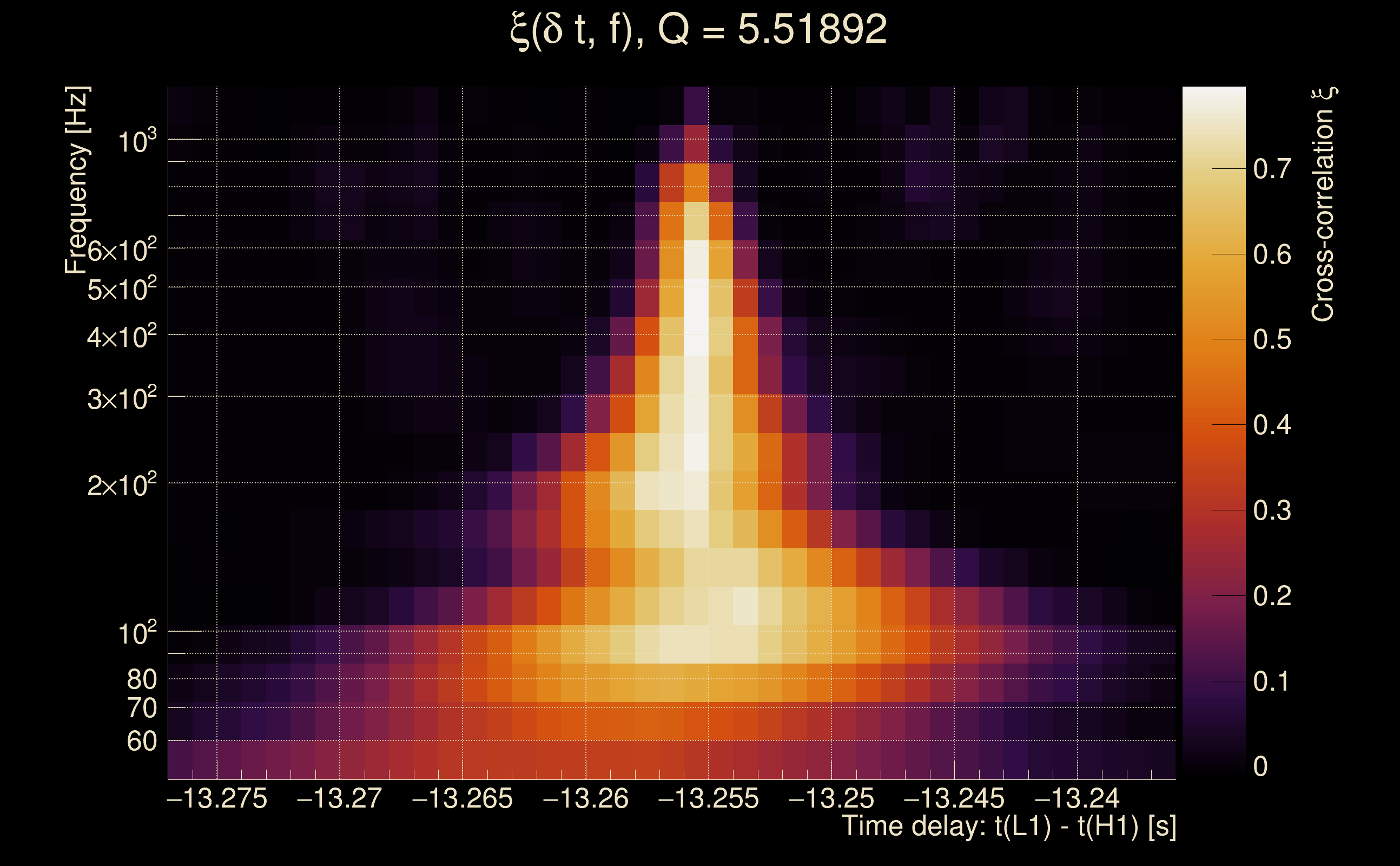

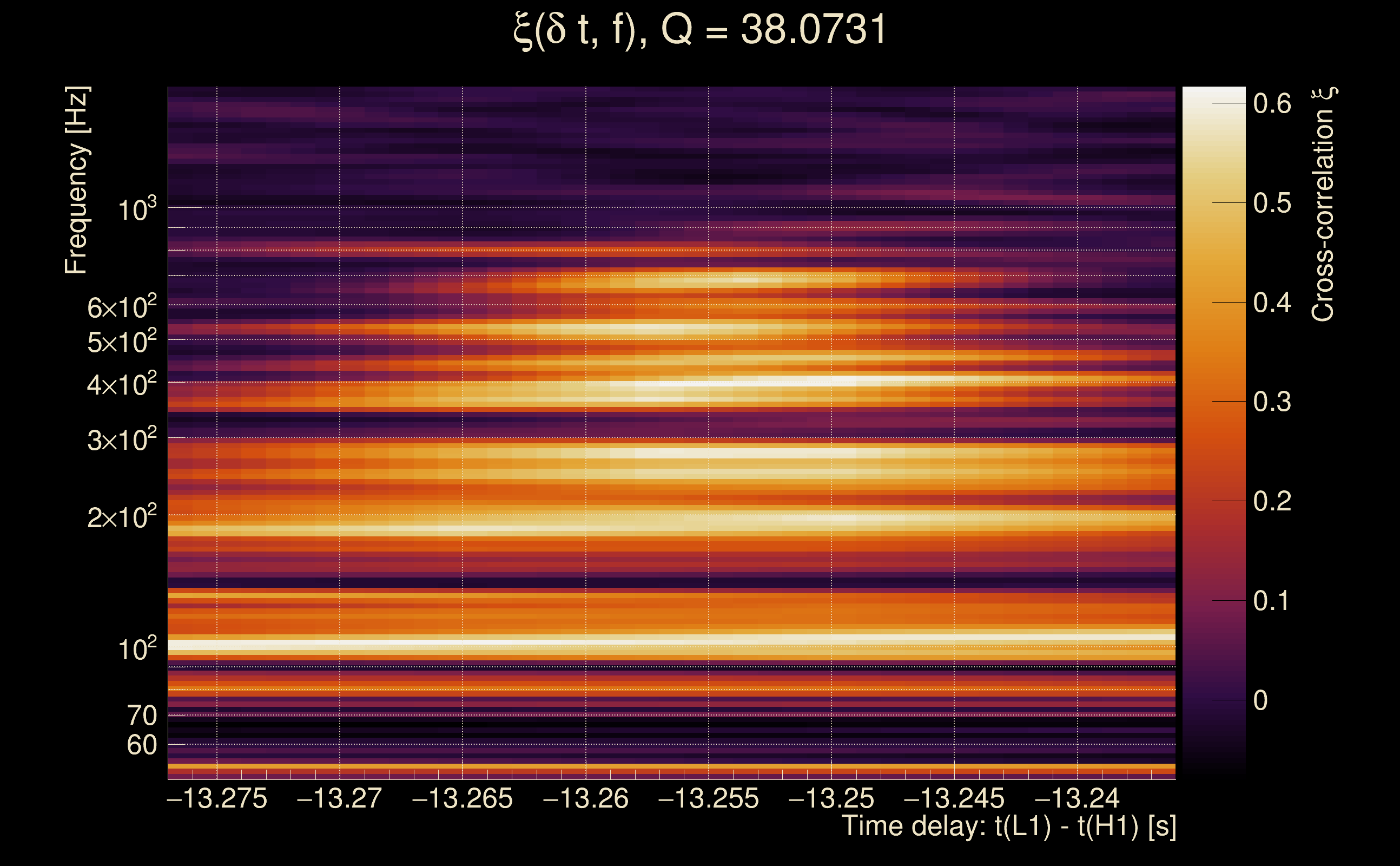

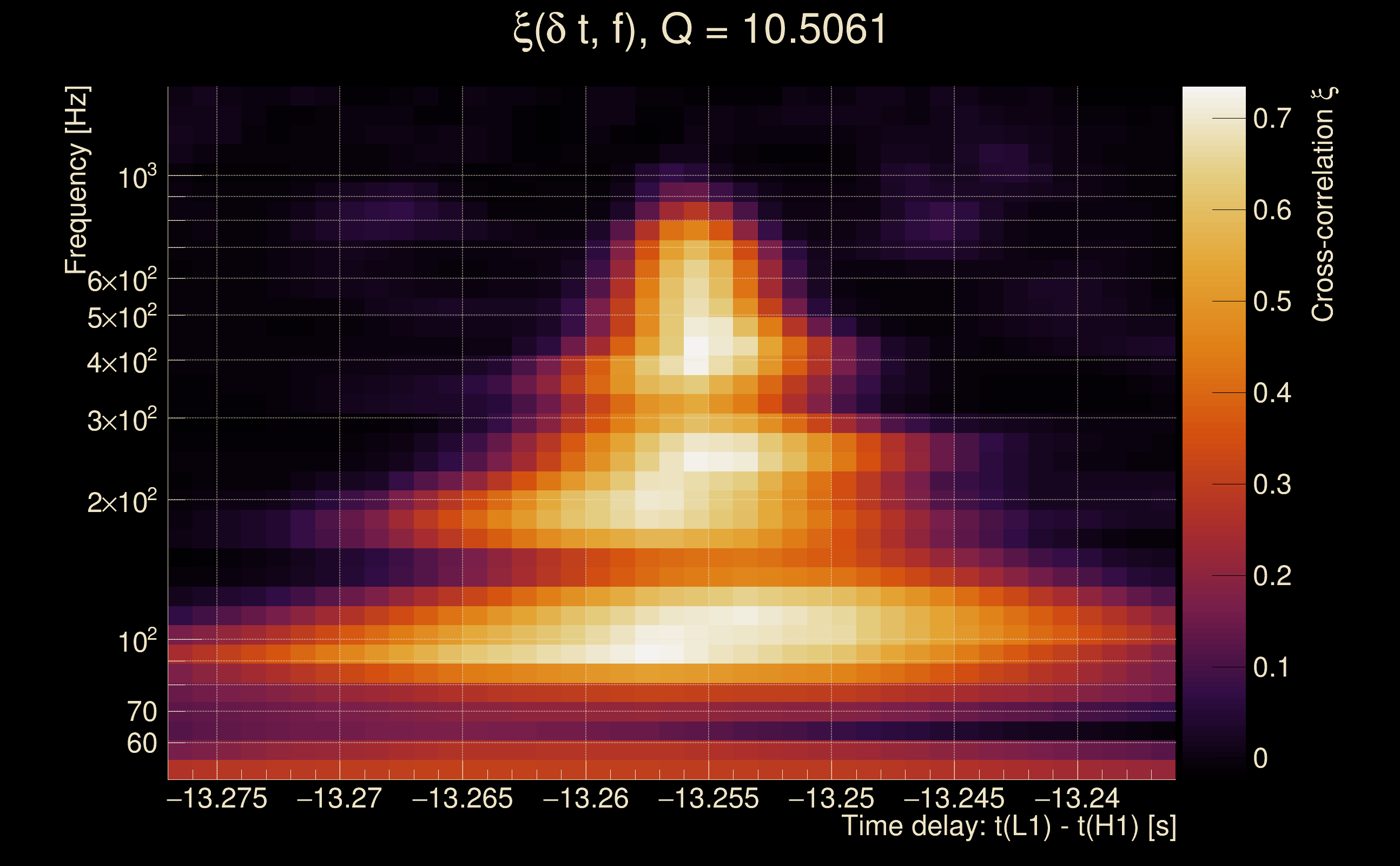

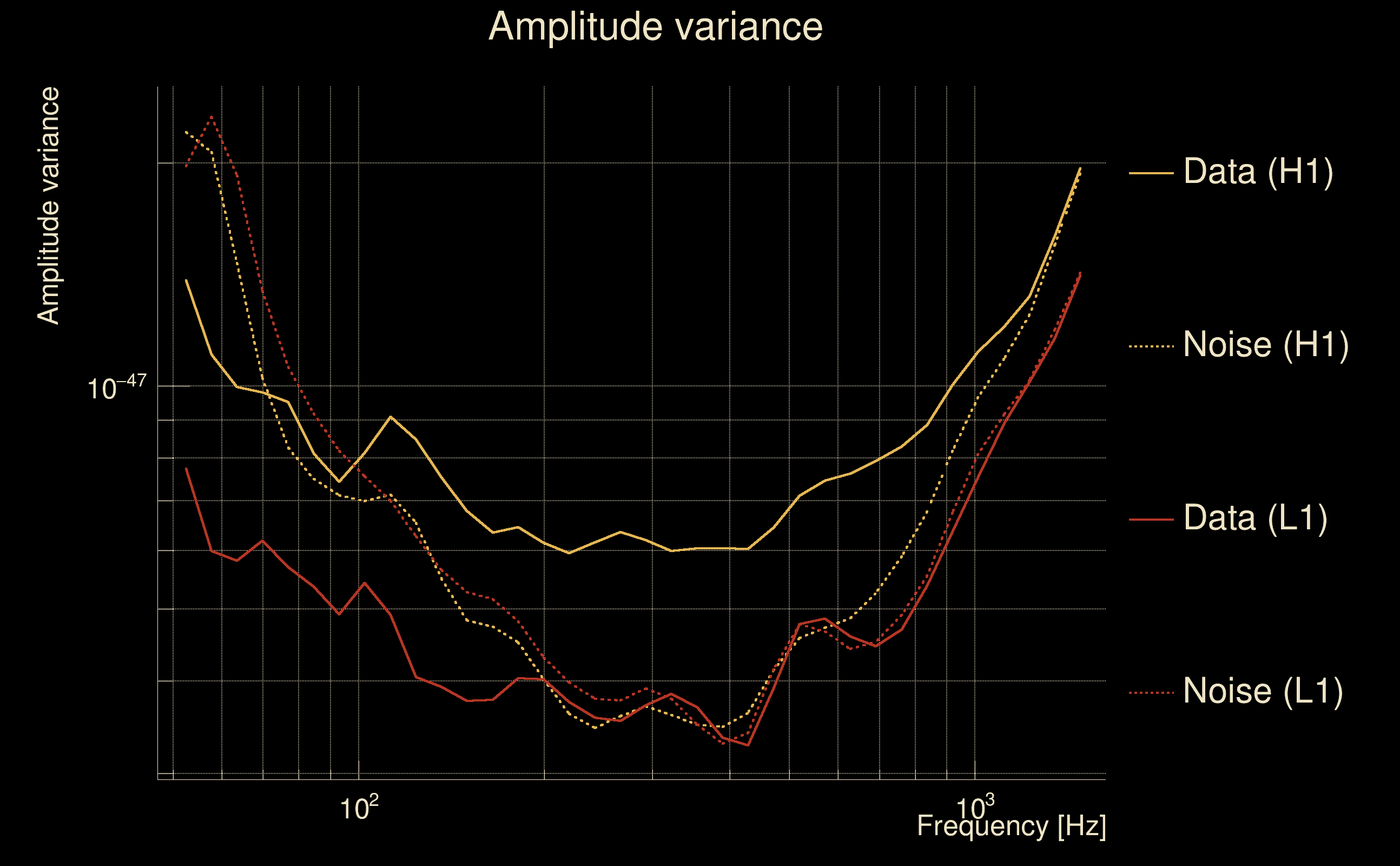

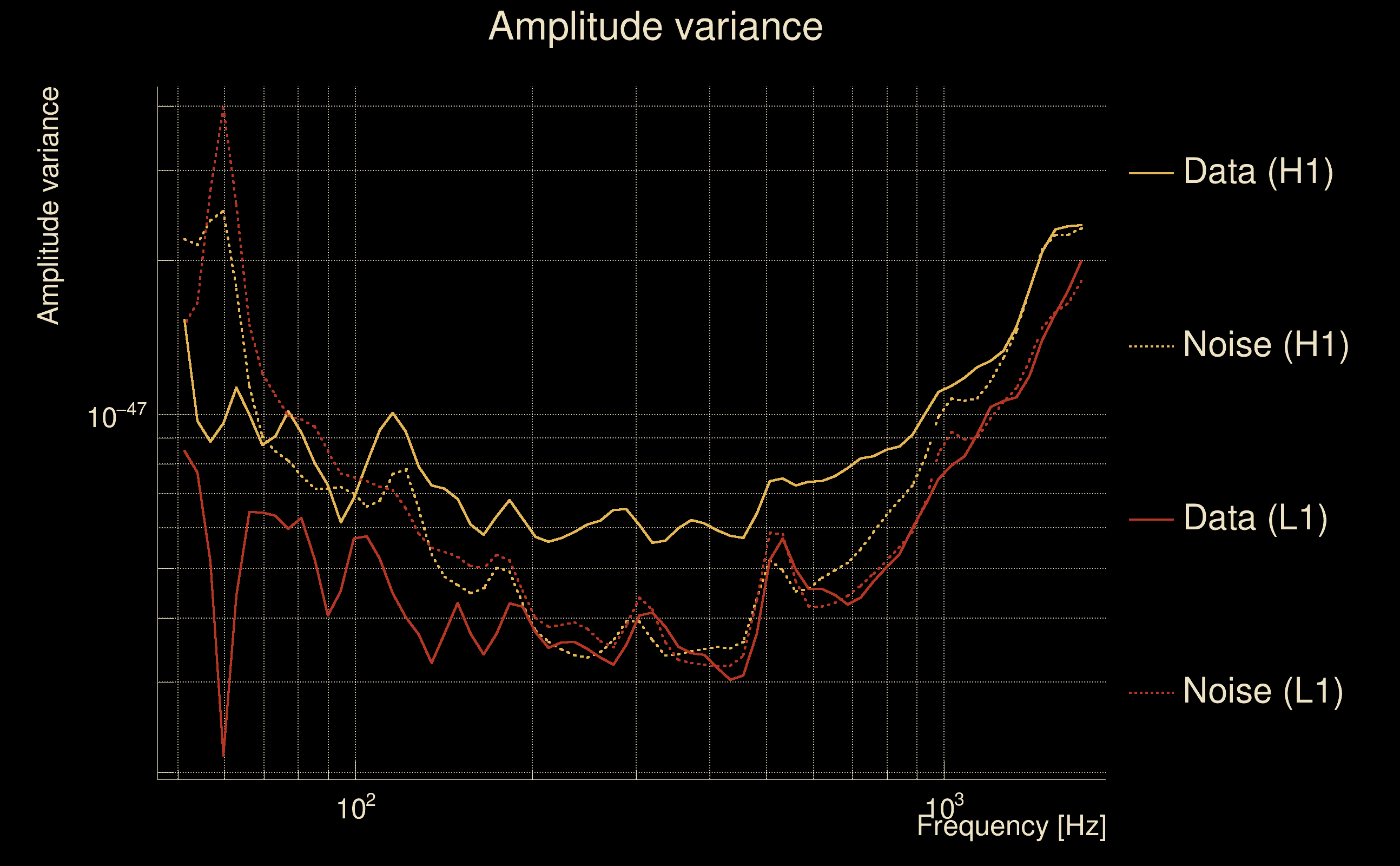

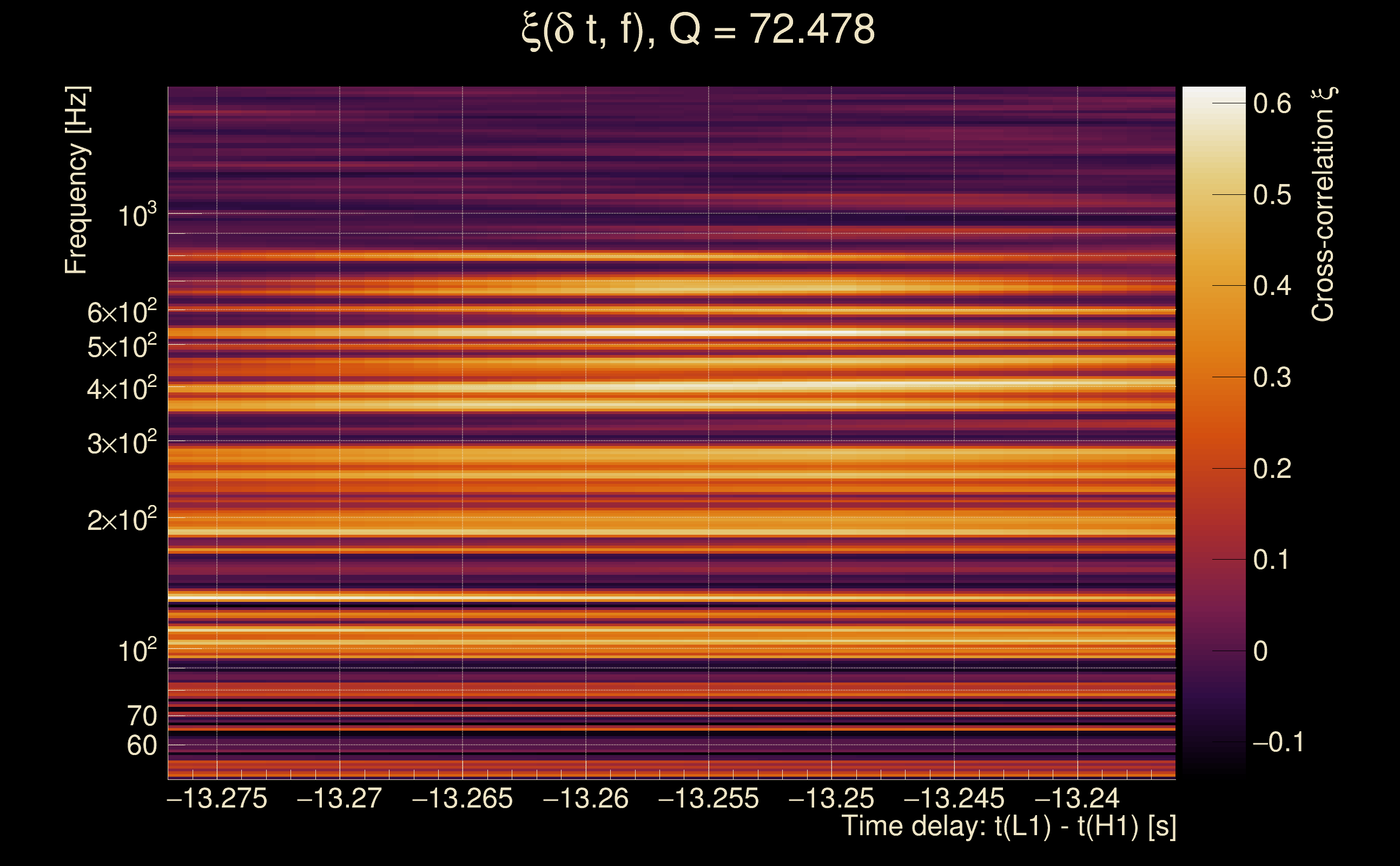

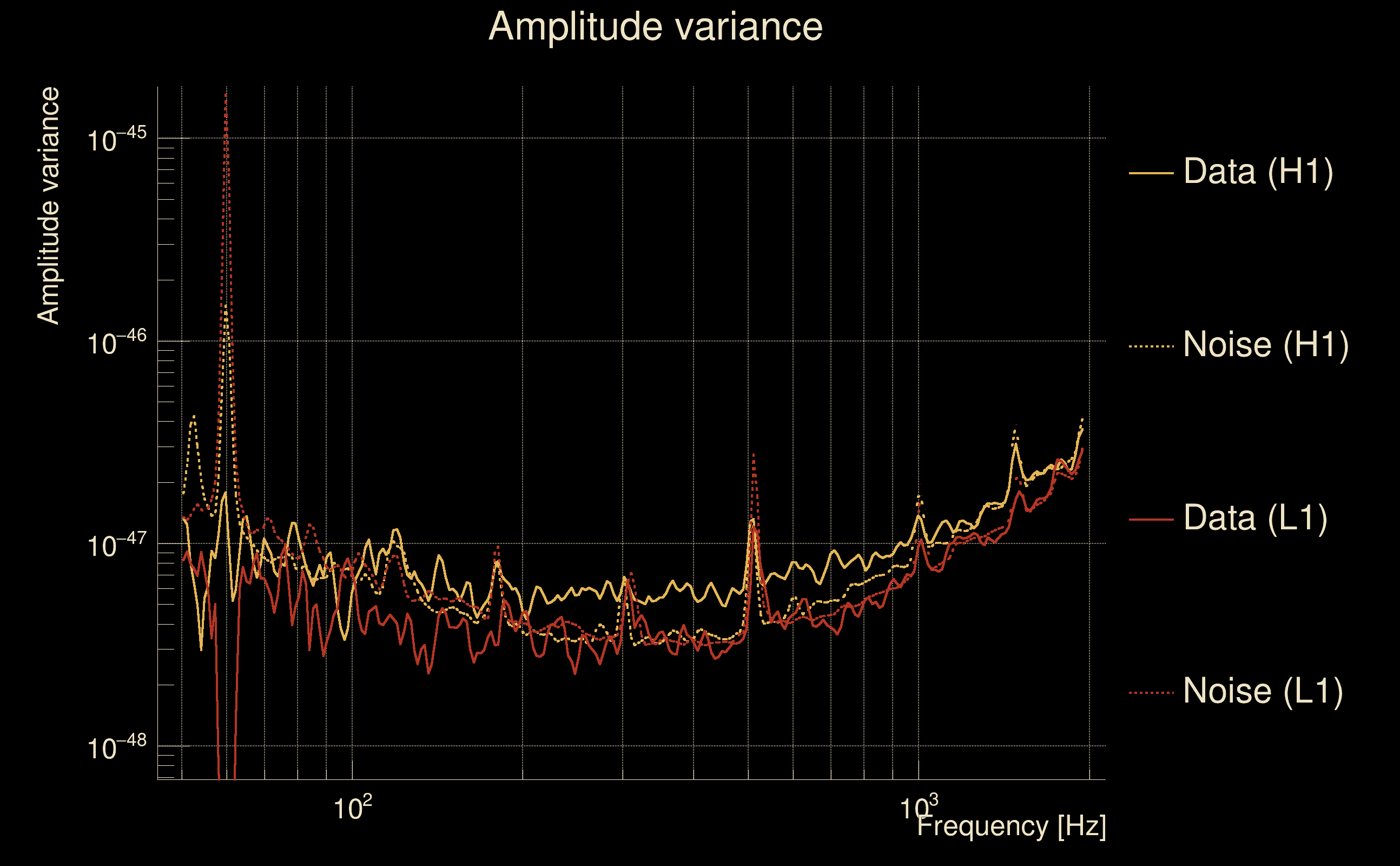

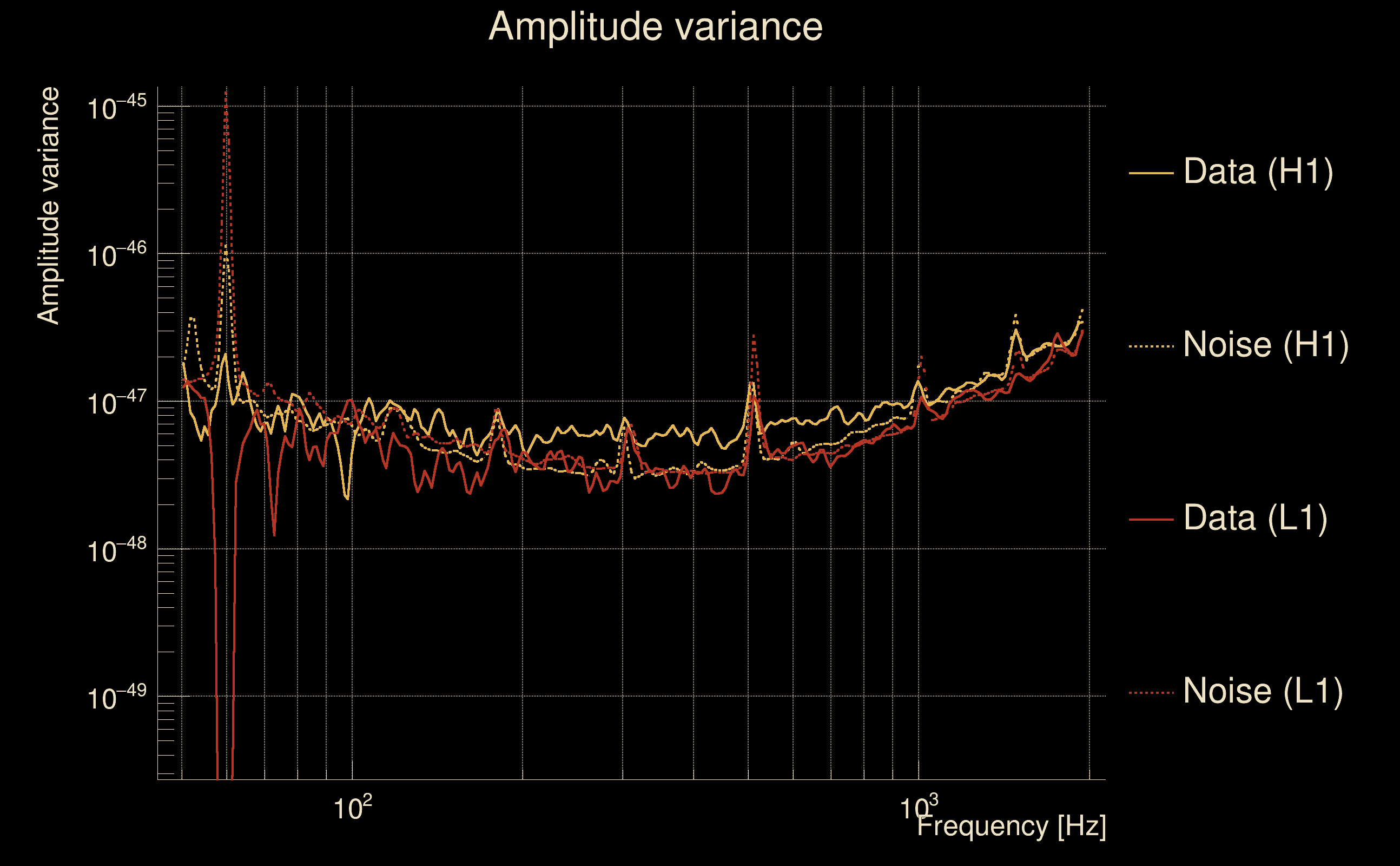

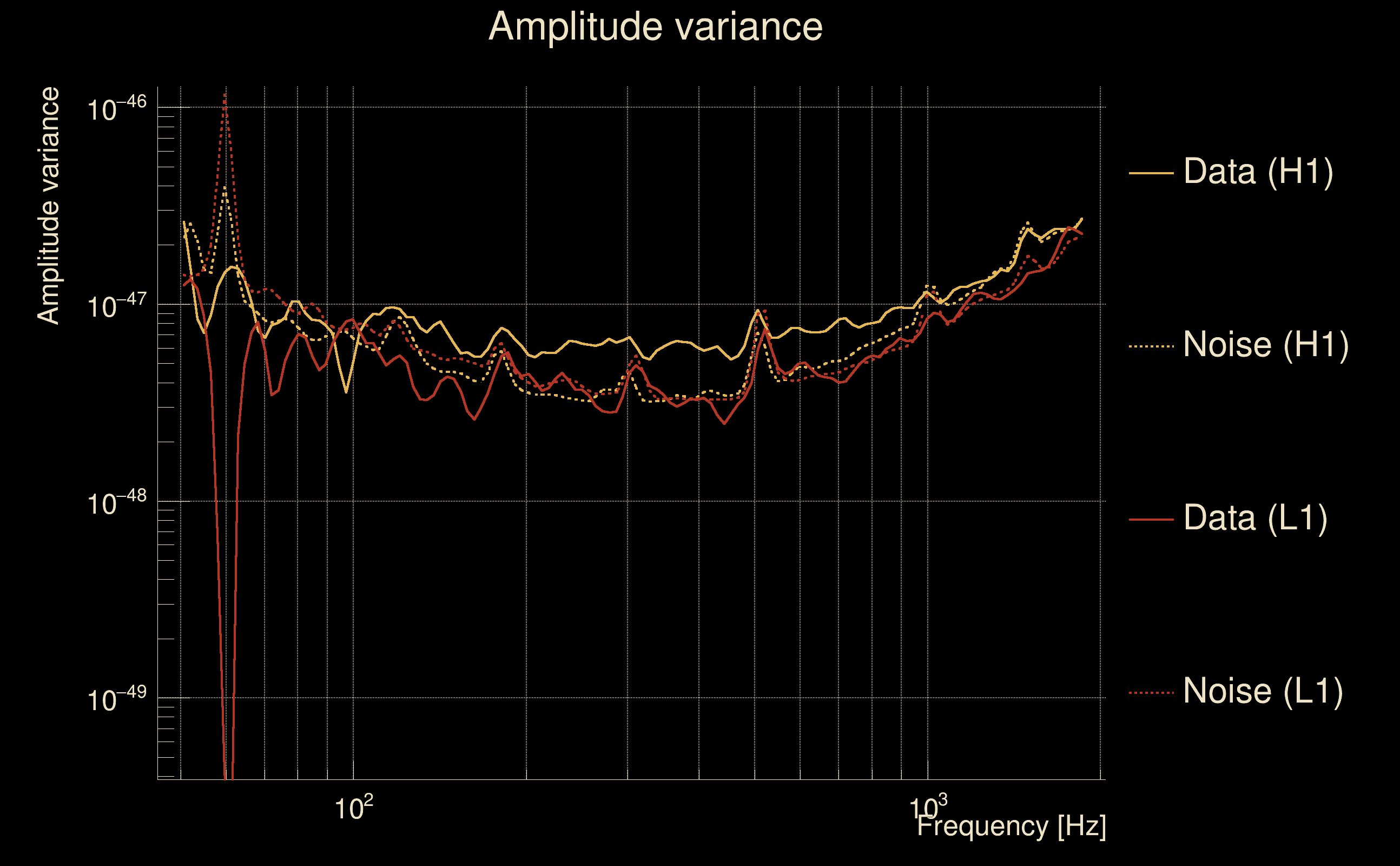

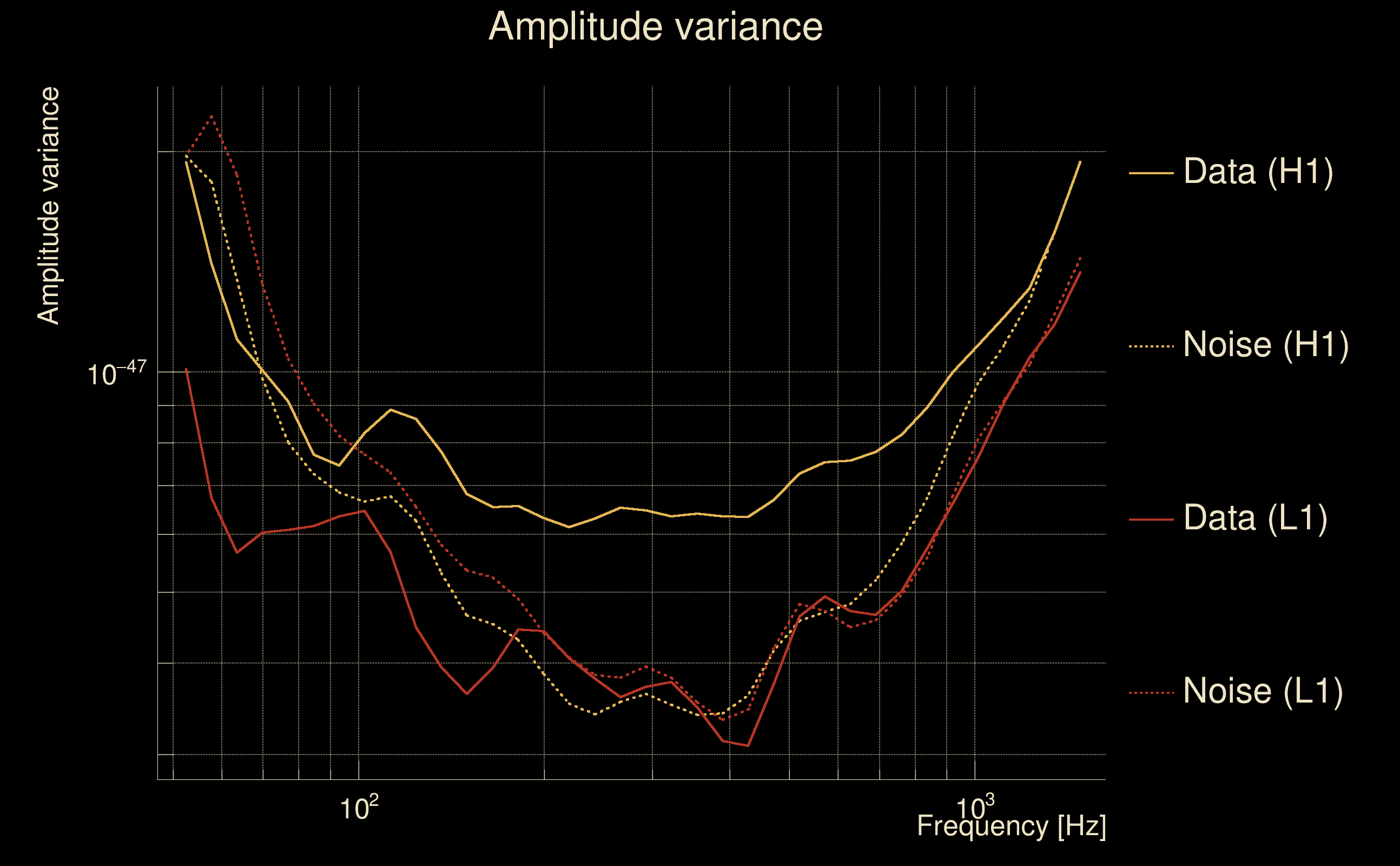

| Event time t(H1): | GPS = 1378551047 (Tue Sep 12 10:50:29 2023 ) → GPS = 1378551057 (Tue Sep 12 10:50:39 2023 ) |
| Event time t(L1): | GPS = 1378551037 (Tue Sep 12 10:50:39 2023 ) → GPS = 1378551047 (Tue Sep 12 10:50:29 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378551044 → GPS = 1378551060 |
| Omicron analysis time window (L1): | GPS = 1378551034 → GPS = 1378551050 |

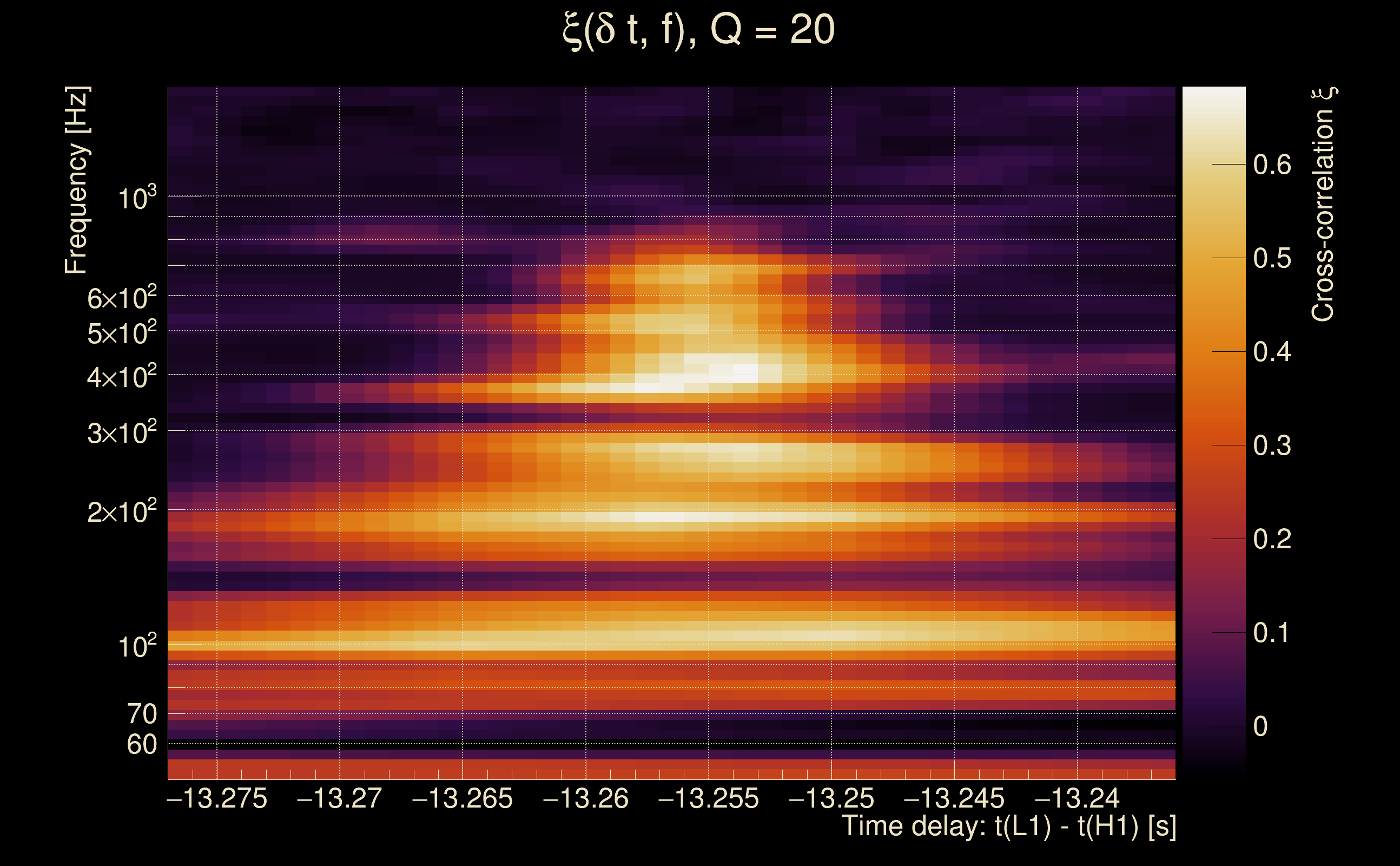

| Time delay between detectors t(L1) - t(H1): | -13.2561 s (slice index = 179 / 217), δt_gw = 0.00993315 s |
| Time delay uncertainty: | 0.000971952 s |
| [targeted mode] Time delay probability: | 0.00274656 (2.99477 sigmas), δt_target = -0.00786042 s |
| Frequency: | 285.709 Hz |
| Ξ: | 0.428897 ± 0.115591 (variance = 0.0133613): Q0: 0.698739, Q1: 0.601764, Q2: 0.50516, Q3: 0.396969, Q4: 0.406712 |
| Rank: | R_A = 0.166653 |
| Log of amplitude ratio (L1/H1): | -1.12487, variance = 0.171668 (L1/H1: -1.20186, variance = 0.203864, H1/L1: 0.420379, variance = 0.617611) |
| Amplitude ratio (L1/H1): | 0.324694 ⋇ 1.51335 (L1/H1: 0.300634 ⋇ 1.57069, H1/L1: 1.52254 ⋇ 2.19434) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.388562 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 3 / 18, Q1: 14 / 36, Q2: 39 / 70, Q3: 100 / 134, Q4: 222 / 258 |
| Maximum signal-to-noise ratio: | H1: 37.7029, L1: 12.4639 |
| SNR variance: | H1: 0.732543, L1: 0.517154 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

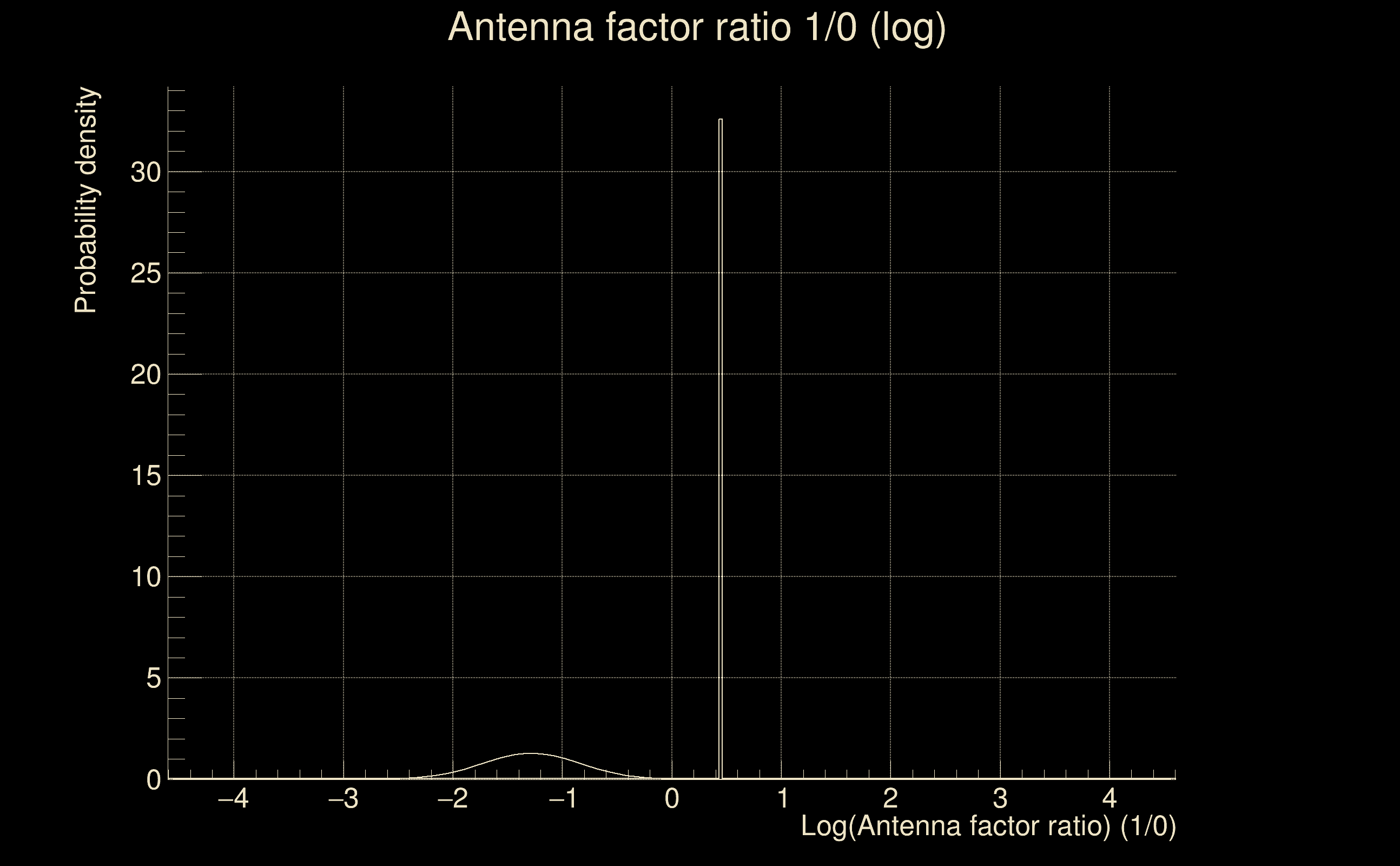

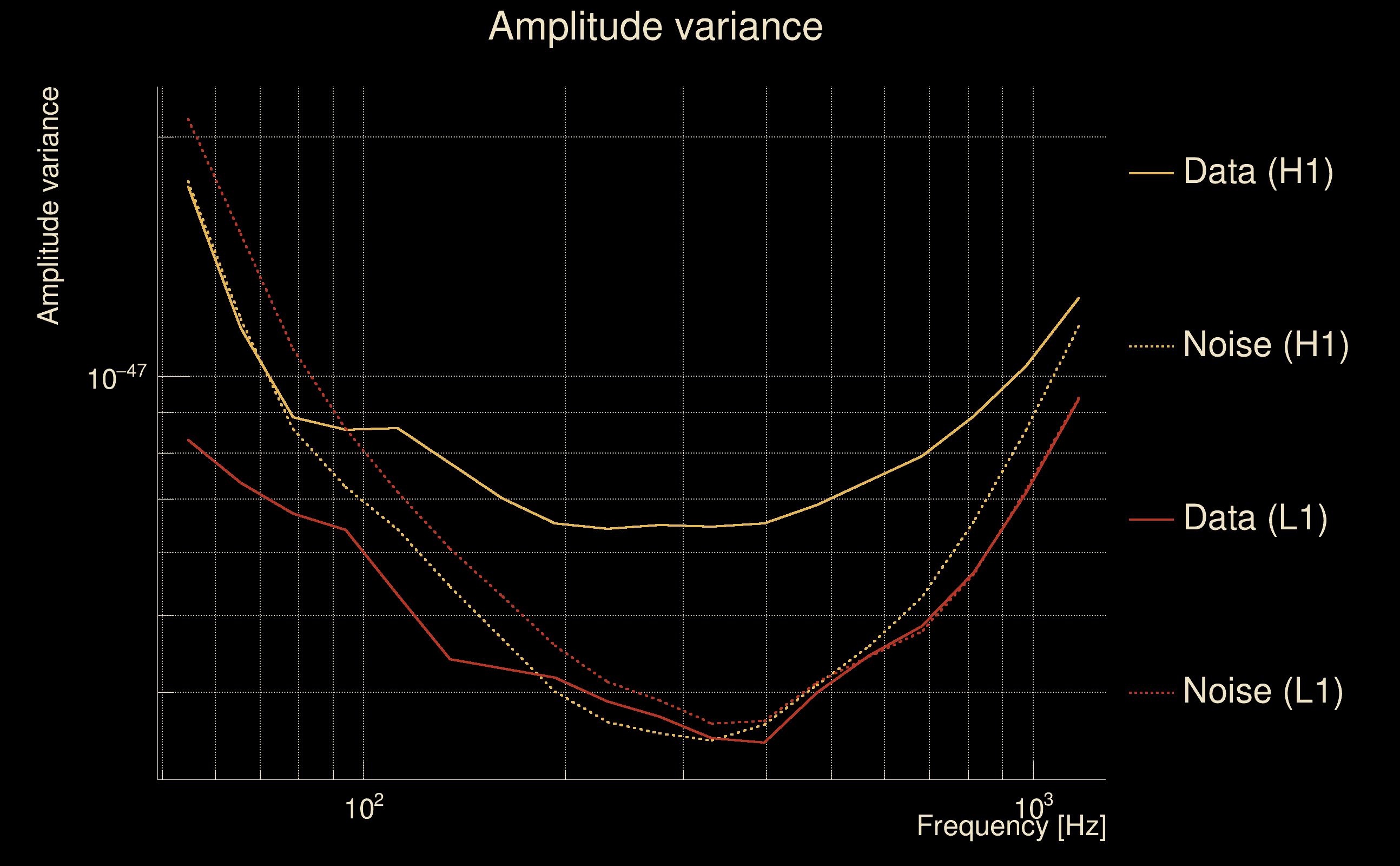

| Event time t(H1): | GPS = 1378551042 (Tue Sep 12 10:50:24 2023 ) → GPS = 1378551052 (Tue Sep 12 10:50:34 2023 ) |
| Event time t(L1): | GPS = 1378551032 (Tue Sep 12 10:50:34 2023 ) → GPS = 1378551042 (Tue Sep 12 10:50:24 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378551039 → GPS = 1378551055 |
| Omicron analysis time window (L1): | GPS = 1378551029 → GPS = 1378551045 |
| Time delay between detectors t(L1) - t(H1): | -13.2563 s (slice index = 179 / 217), δt_gw = 0.00970177 s |
| Time delay uncertainty: | 0.00213978 s |
| [targeted mode] Time delay probability: | 0.210099 (1.25329 sigmas), δt_target = -0.00349522 s |
| Frequency: | 306.603 Hz |
| Ξ: | 0.334094 ± 0.136893 (variance = 0.0187397): Q0: 0.753522, Q1: 0.66712, Q2: 0.548435, Q3: 0.429383, Q4: 0.393898 |
| Rank: | R_A = 0.139735 |
| Log of amplitude ratio (L1/H1): | -1.28238, variance = 0.096986 (L1/H1: -1.34551, variance = 0.113366, H1/L1: 0.708274, variance = 0.506375) |
| Amplitude ratio (L1/H1): | 0.277377 ⋇ 1.36537 (L1/H1: 0.260406 ⋇ 1.40032, H1/L1: 2.03048 ⋇ 2.03725) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.418249 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 19 / 36, Q2: 39 / 70, Q3: 103 / 134, Q4: 227 / 258 |
| Maximum signal-to-noise ratio: | H1: 37.8617, L1: 12.5557 |
| SNR variance: | H1: 0.531408, L1: 0.492488 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

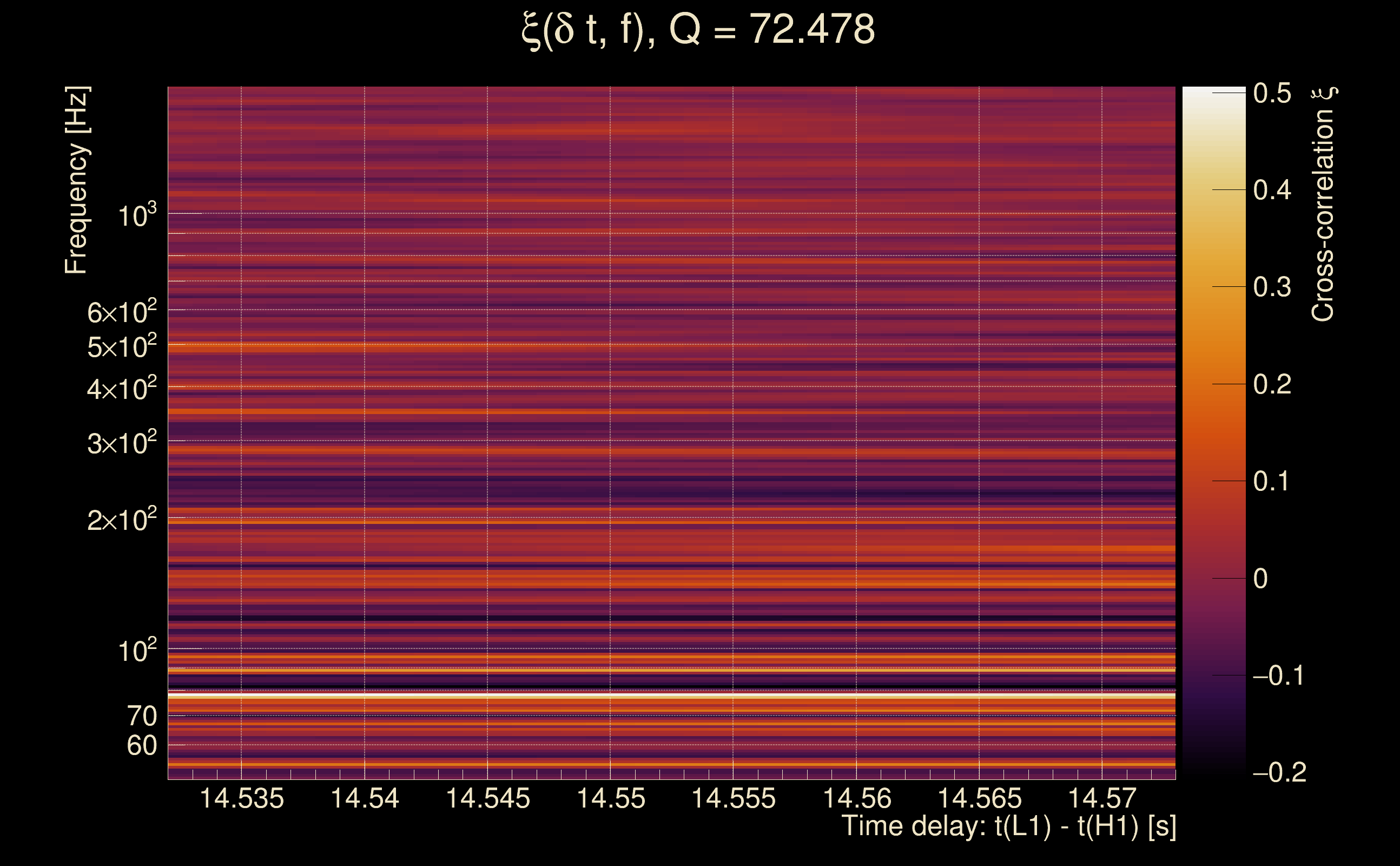

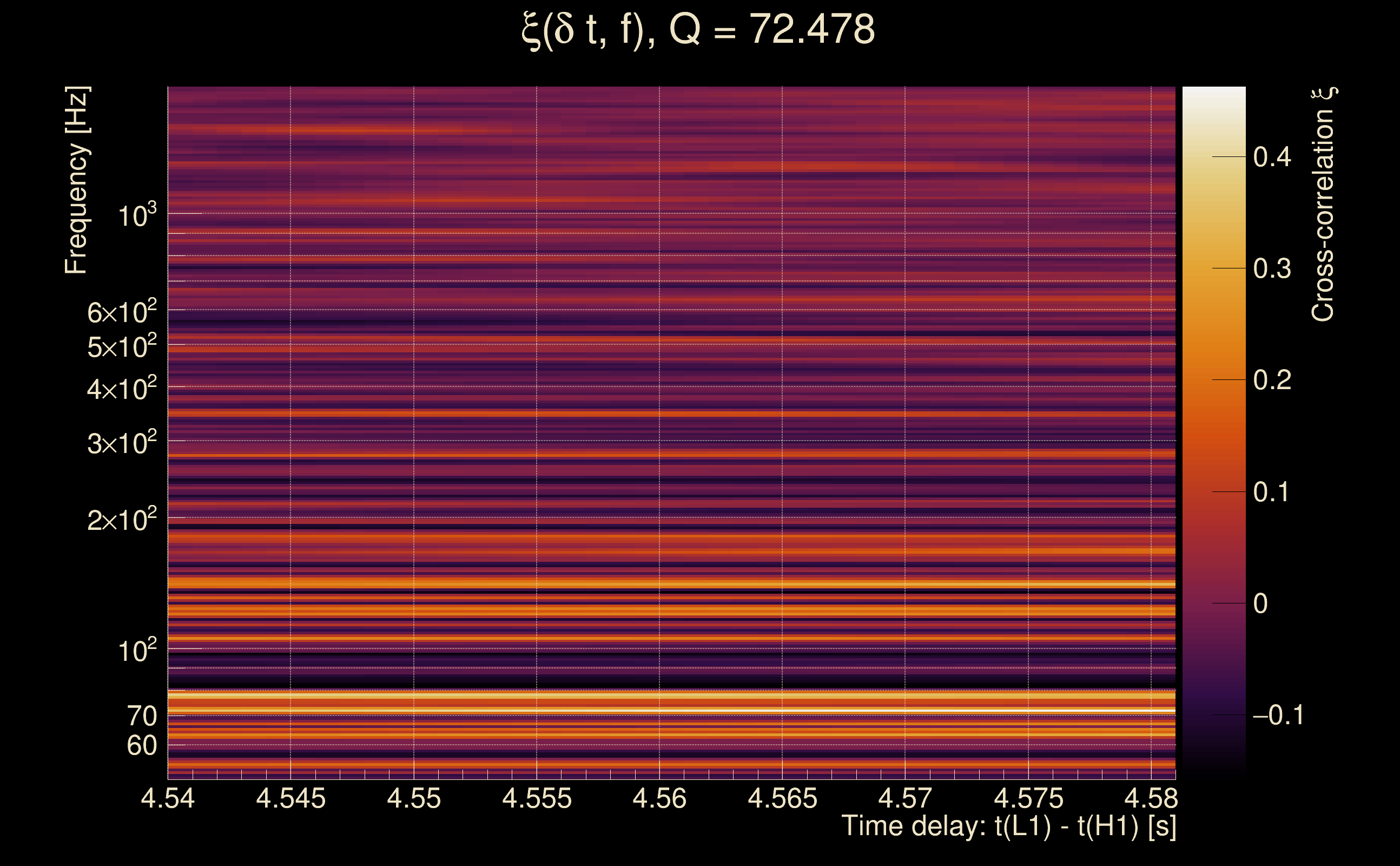

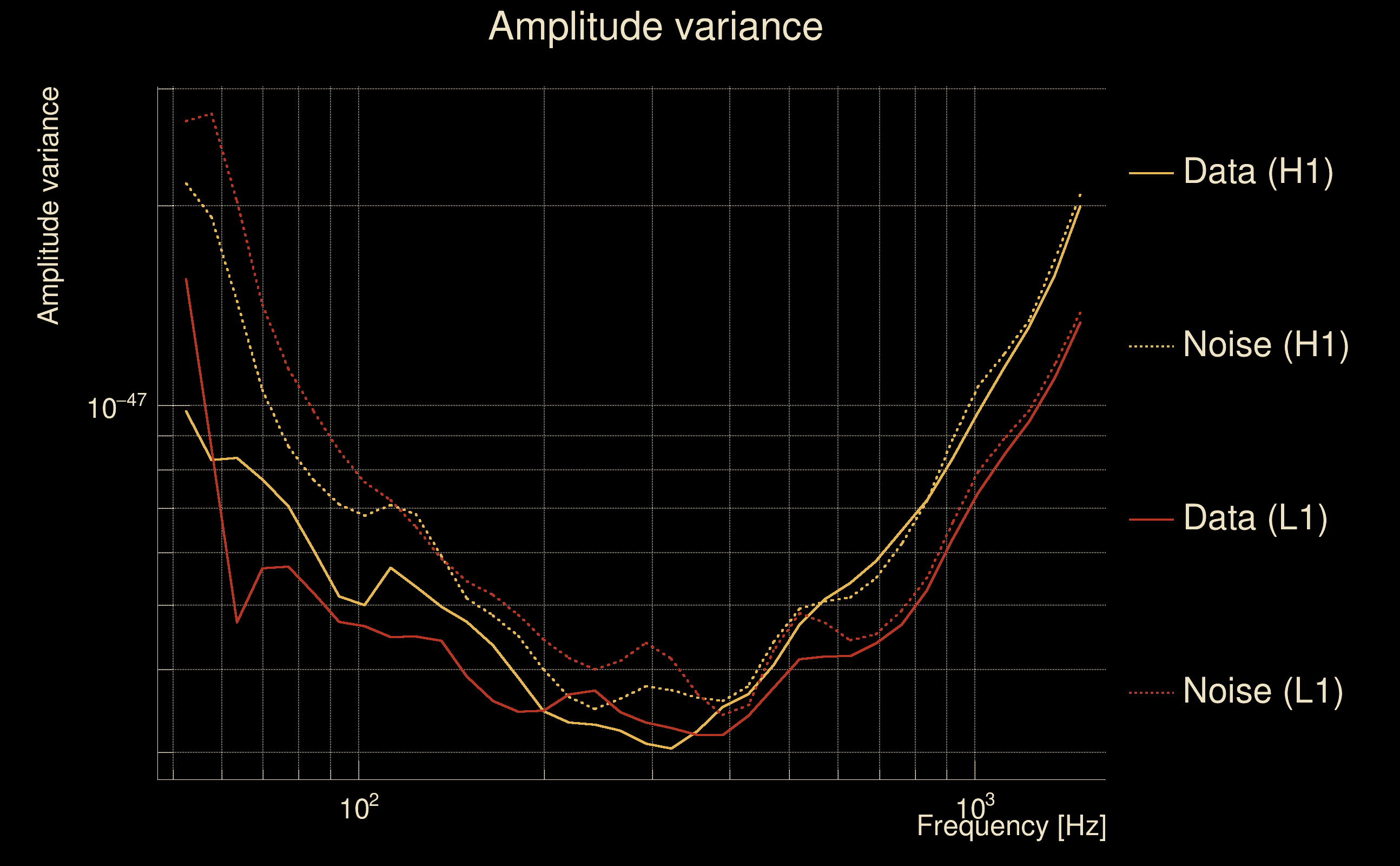

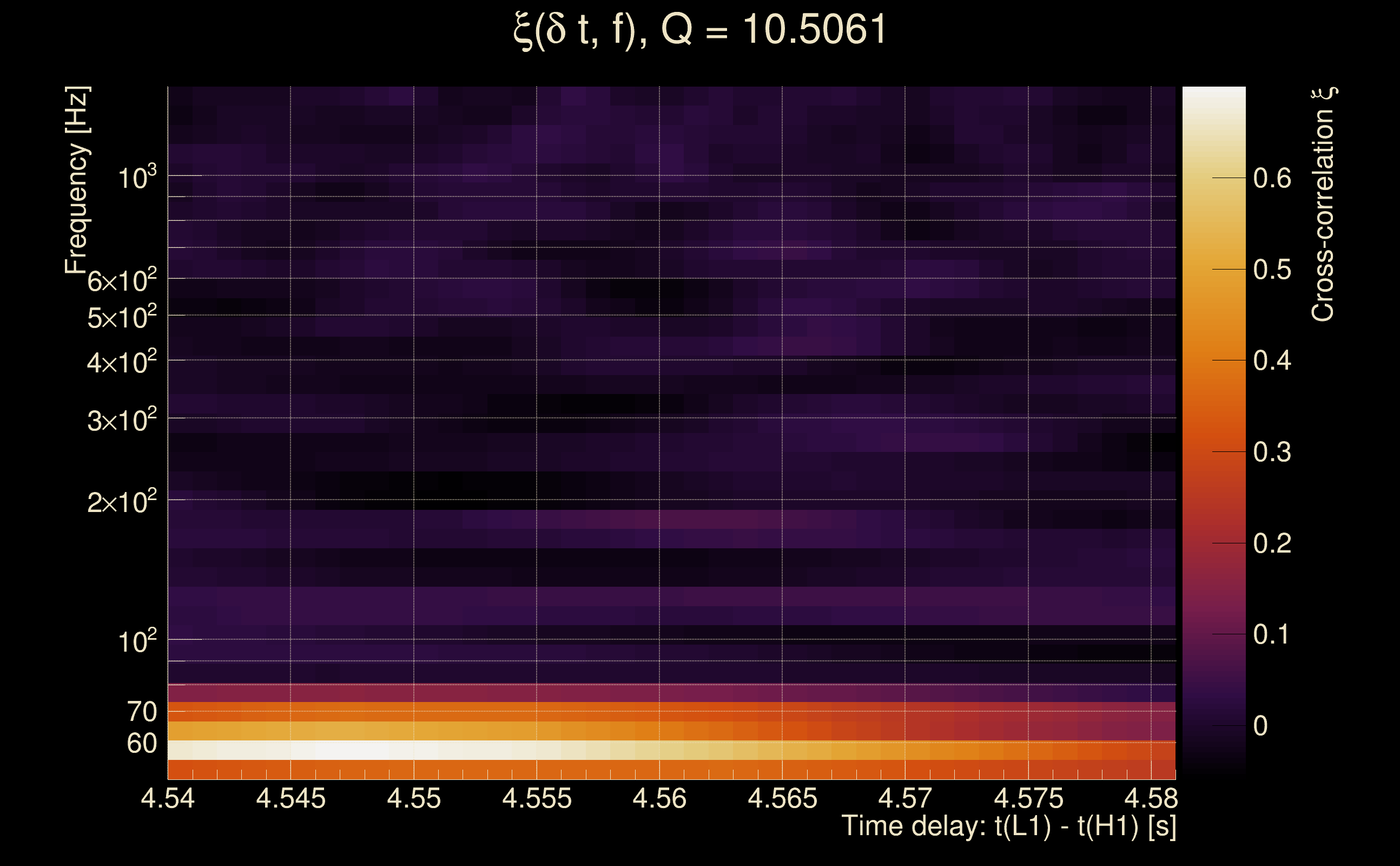

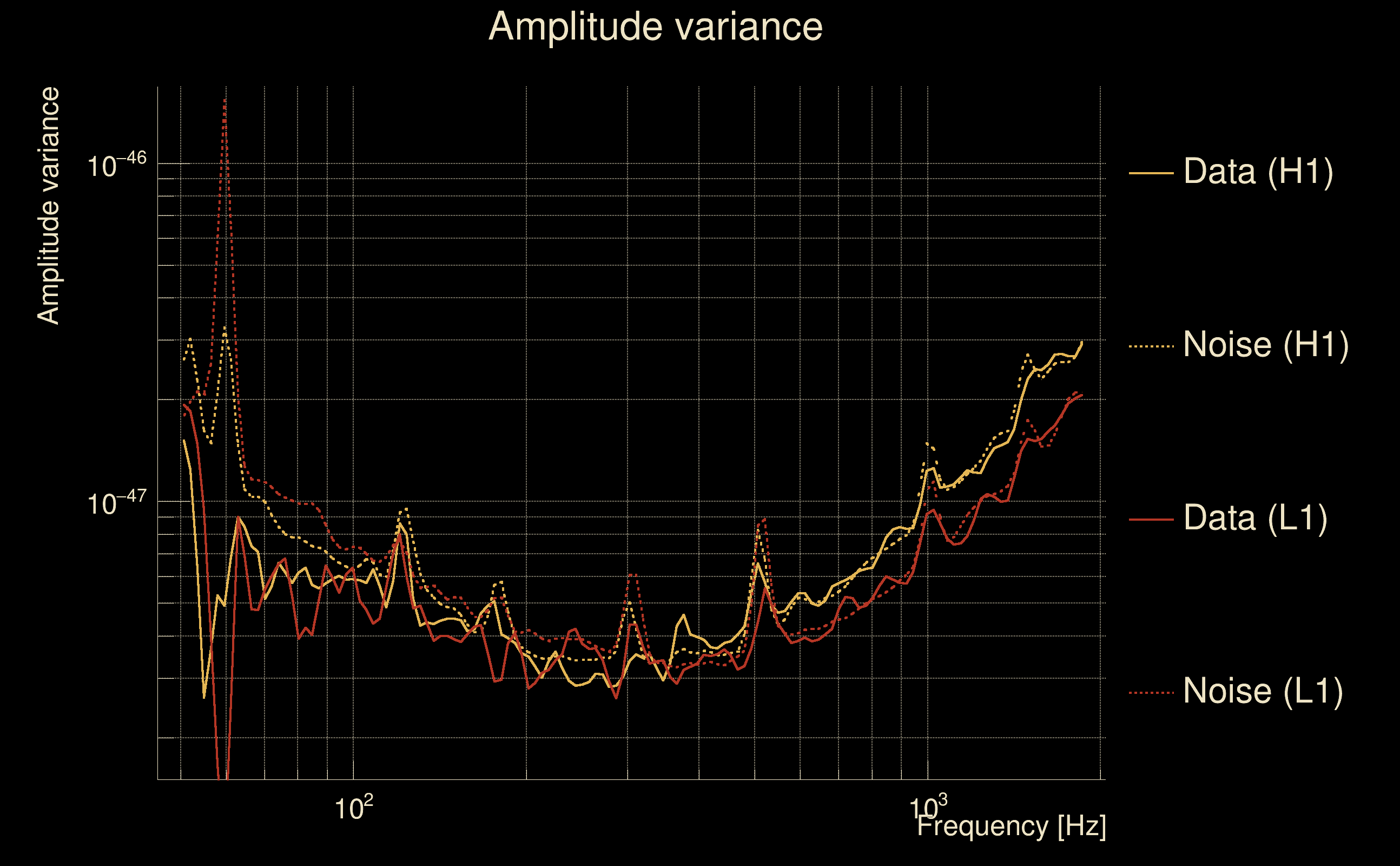

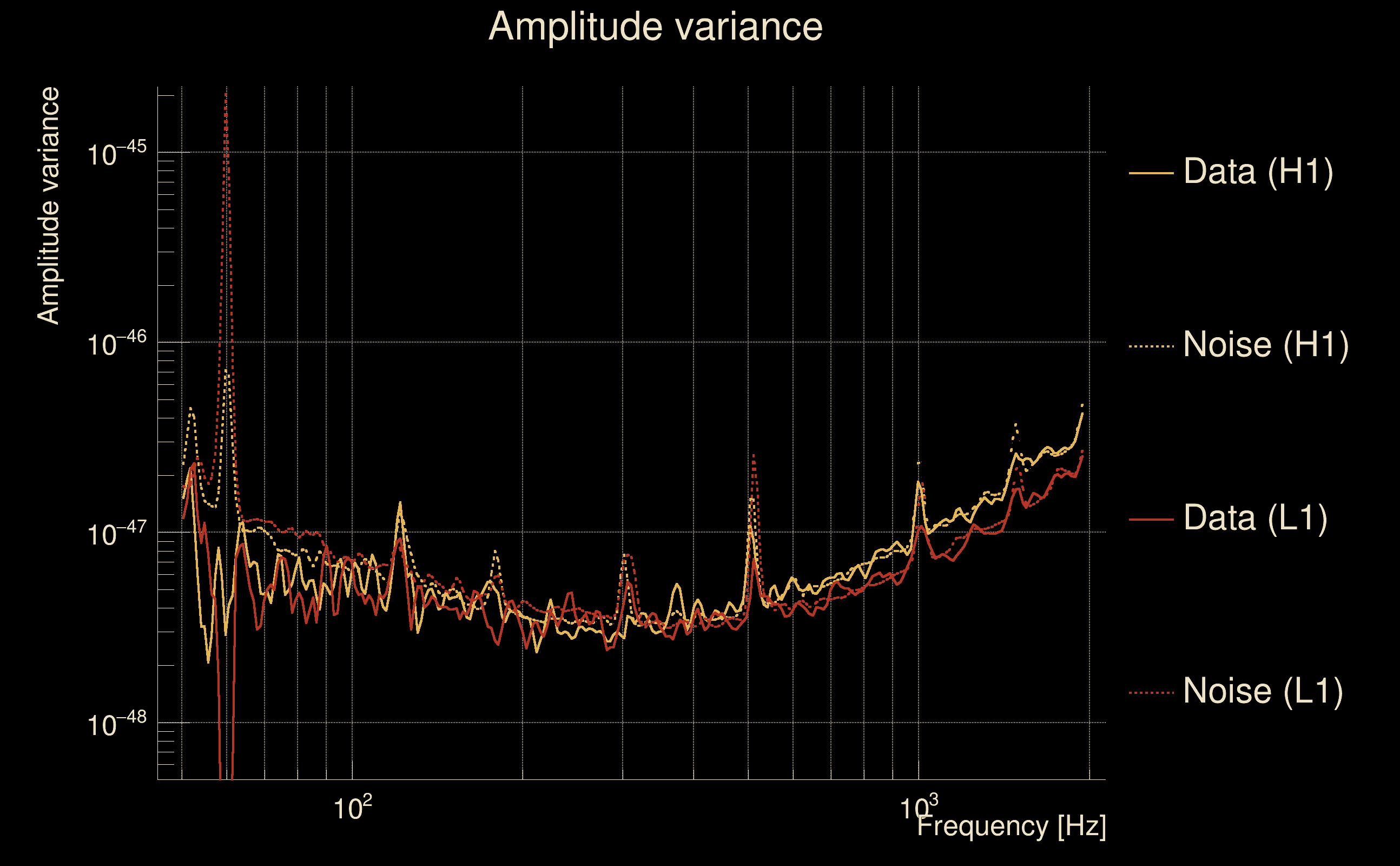

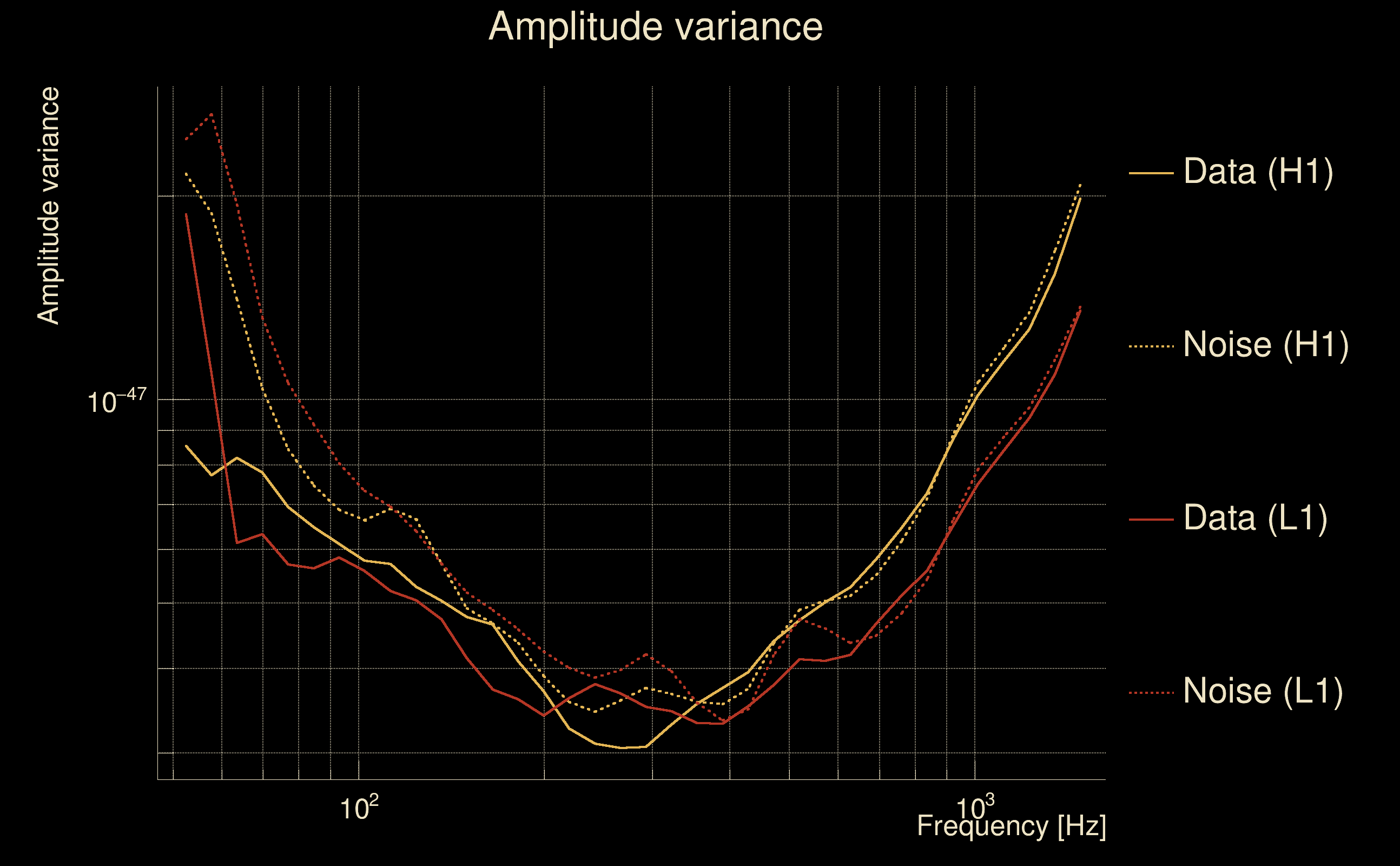

| Event time t(H1): | GPS = 1378017413 (Wed Sep 6 06:36:35 2023 ) → GPS = 1378017423 (Wed Sep 6 06:36:45 2023 ) |
| Event time t(L1): | GPS = 1378017413 (Wed Sep 6 06:36:45 2023 ) → GPS = 1378017423 (Wed Sep 6 06:36:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378017410 → GPS = 1378017426 |
| Omicron analysis time window (L1): | GPS = 1378017410 → GPS = 1378017426 |

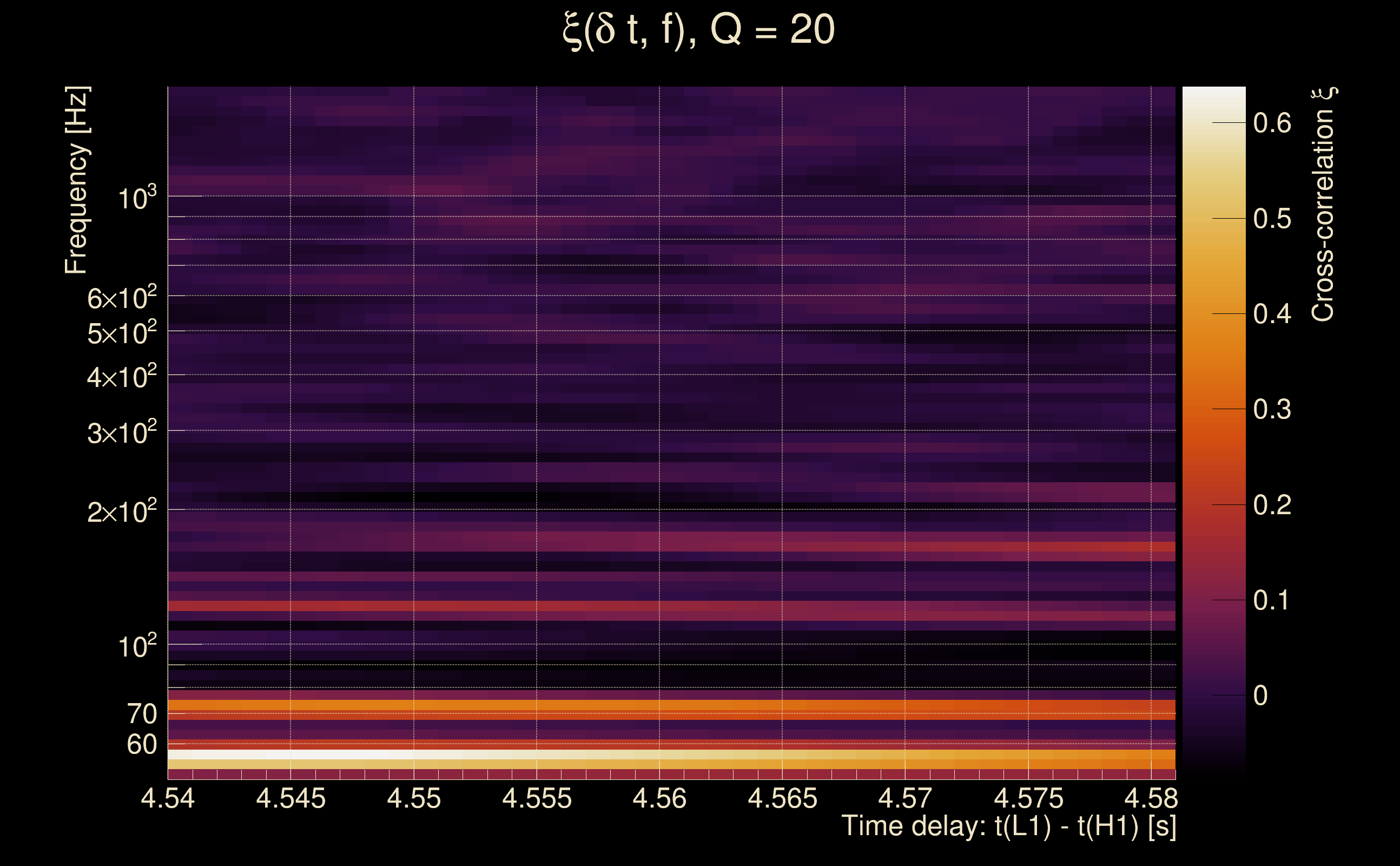

| Time delay between detectors t(L1) - t(H1): | 4.56007 s (slice index = 9 / 217), δt_gw = 0.00606606 s |
| Time delay uncertainty: | 0.00678206 s |
| [targeted mode] Time delay probability: | 0.208051 (1.25894 sigmas), δt_target = -0.00349784 s |
| Frequency: | 97.4435 Hz |
| Ξ: | 0.151397 ± 0.132092 (variance = 0.0174483): Q0: 0.324782, Q1: 0.418638, Q2: 0.202599, Q3: 0.0539856, Q4: 0.12479 |
| Rank: | R_A = 0.106431 |
| Log of amplitude ratio (L1/H1): | 0.195431, variance = 0.379231 (L1/H1: -0.169589, variance = 0.92523, H1/L1: -0.292262, variance = 0.542009) |
| Amplitude ratio (L1/H1): | 1.21583 ⋇ 1.85117 (L1/H1: 0.844011 ⋇ 2.61663, H1/L1: 0.746573 ⋇ 2.08801) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.702991 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 27 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.53854, L1: 10.7534 |
| SNR variance: | H1: 0.528348, L1: 0.520118 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

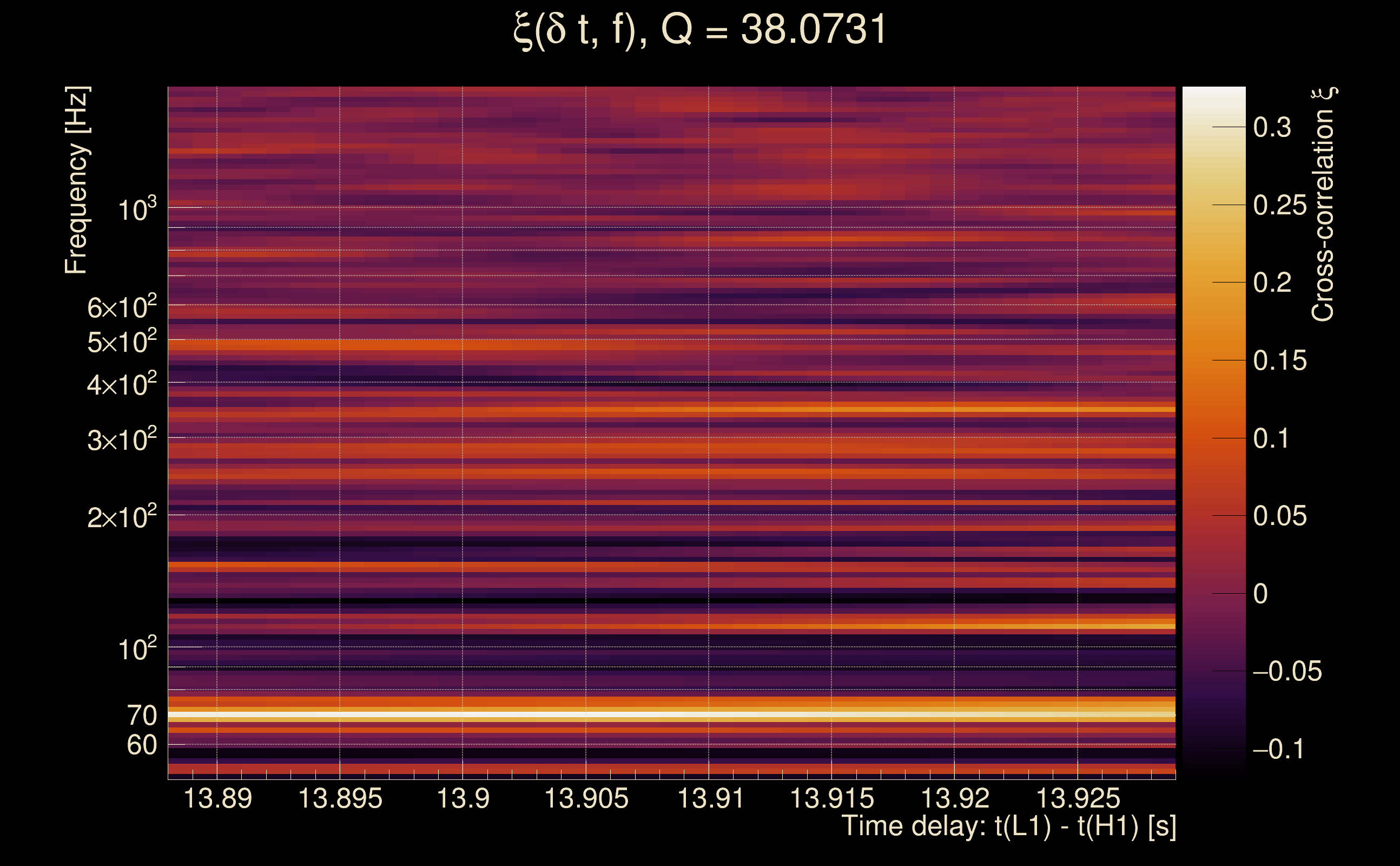

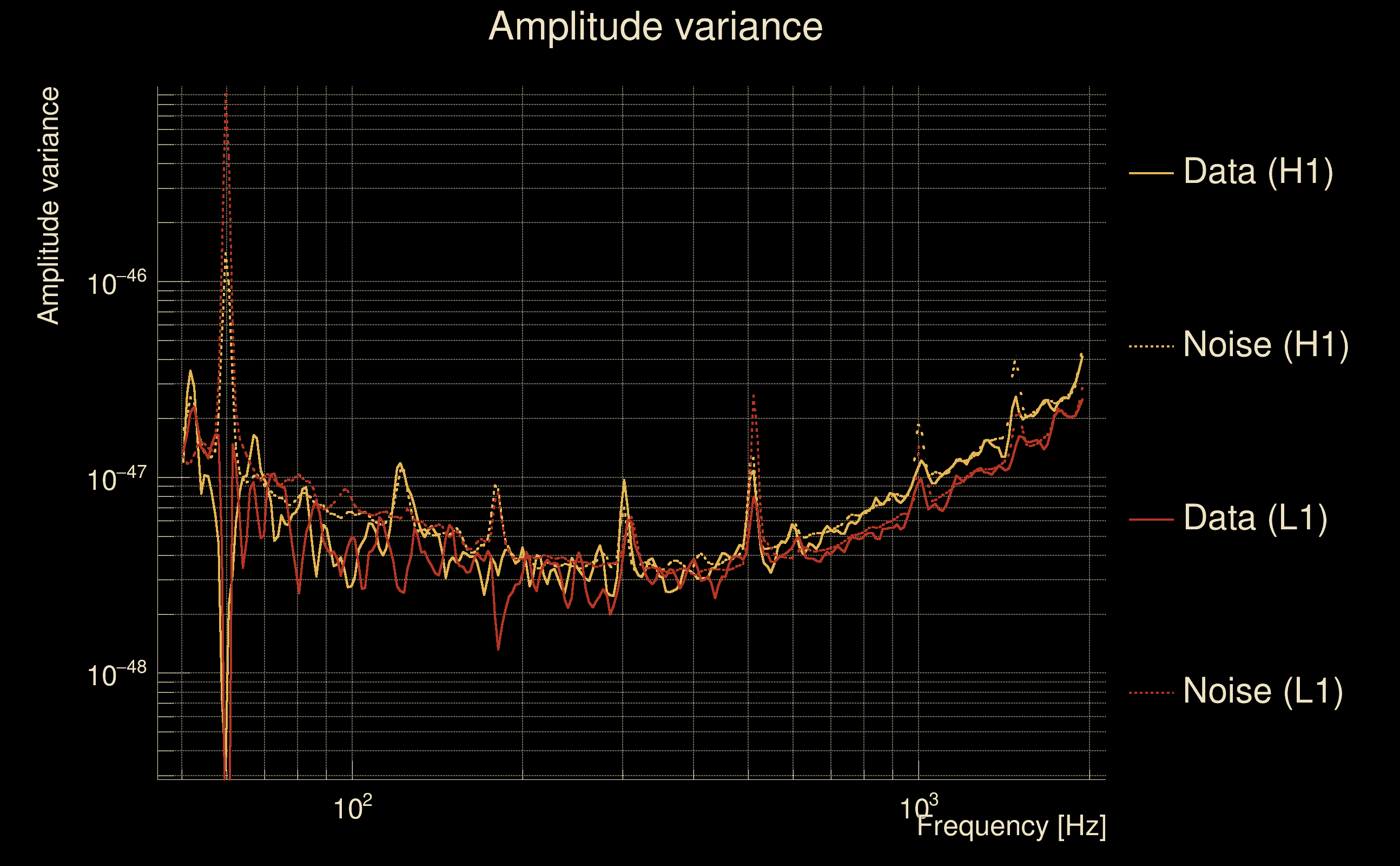

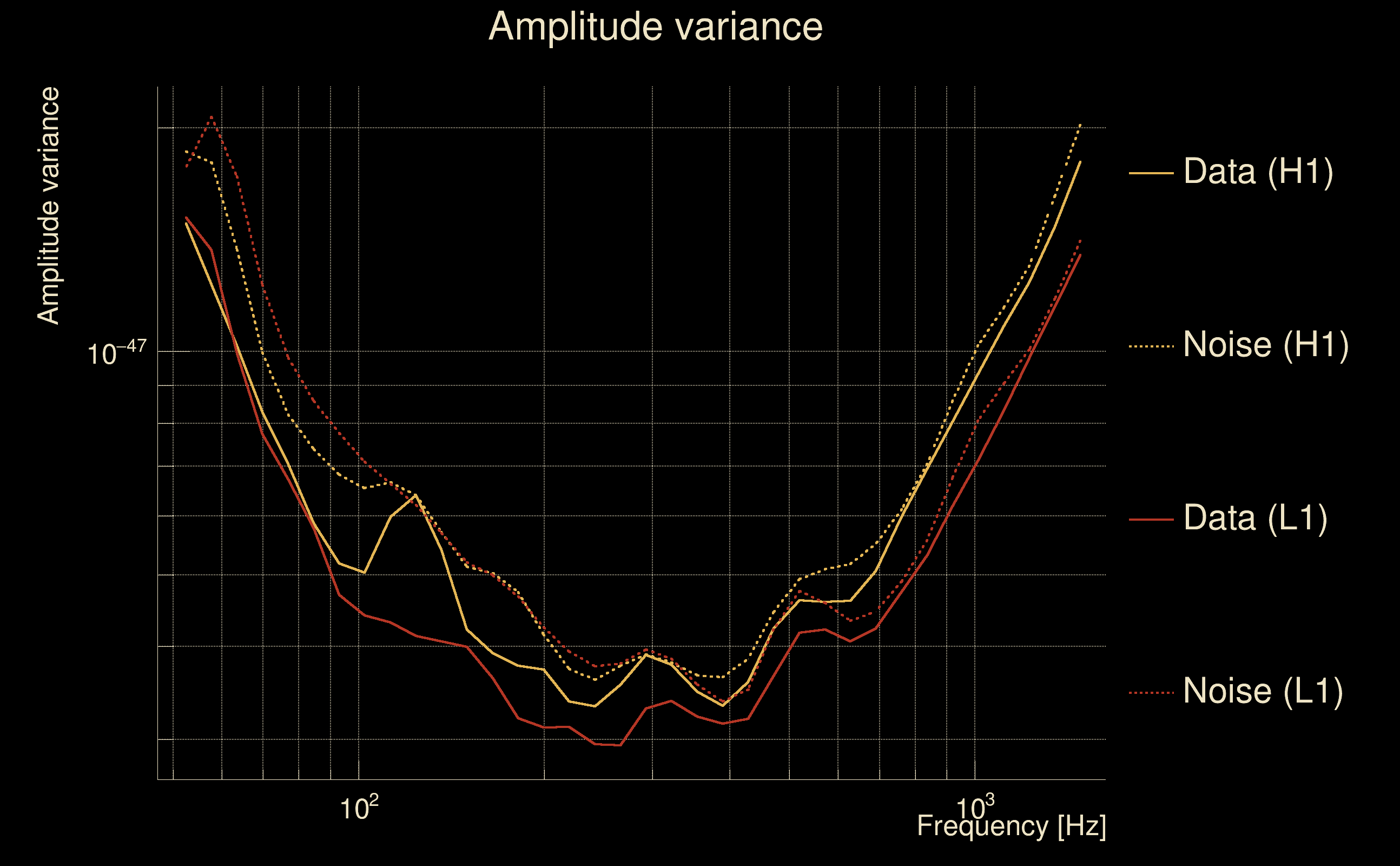

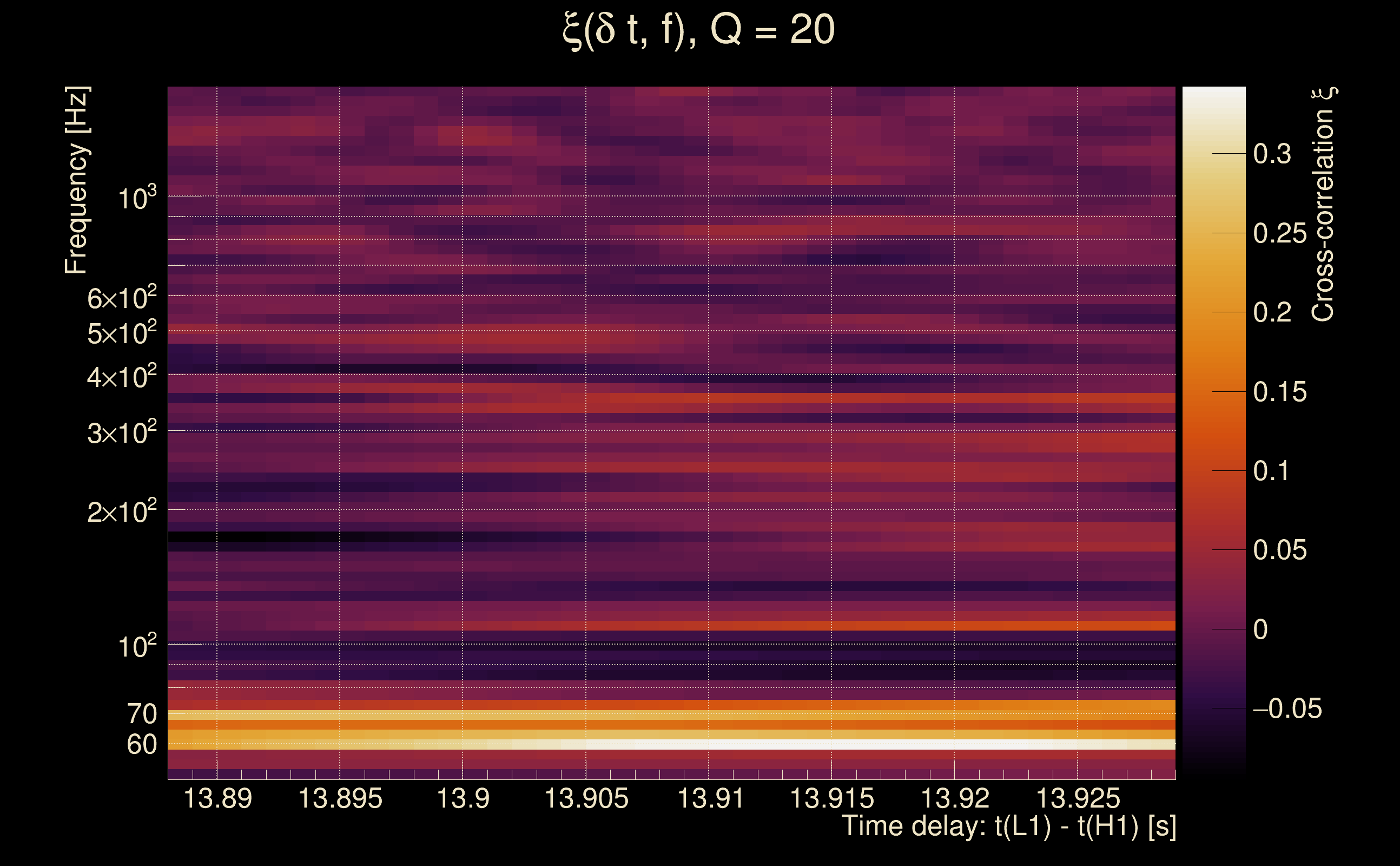

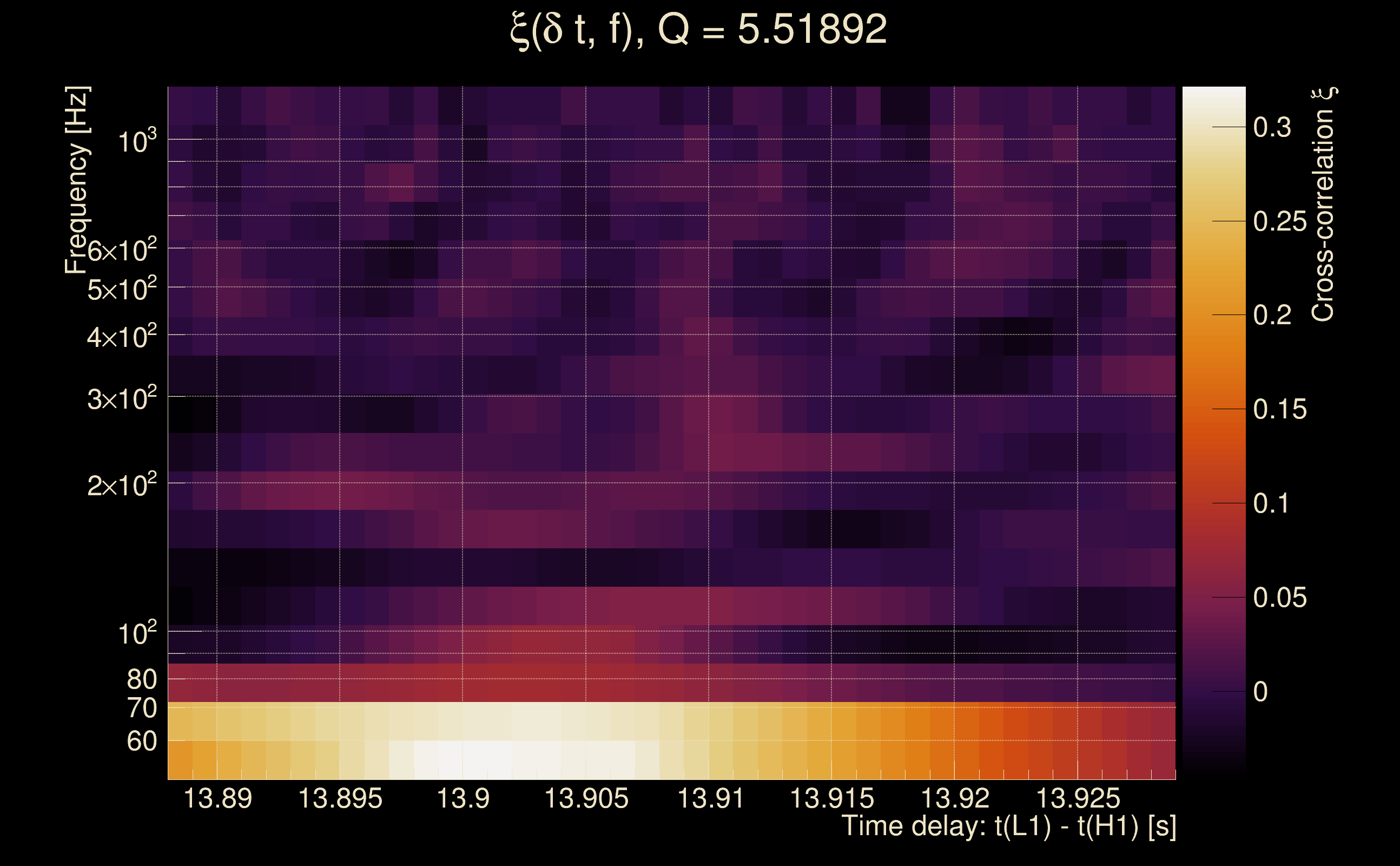

| Event time t(H1): | GPS = 1378417287 (Sun Sep 10 21:41:09 2023 ) → GPS = 1378417297 (Sun Sep 10 21:41:19 2023 ) |
| Event time t(L1): | GPS = 1378417297 (Sun Sep 10 21:41:19 2023 ) → GPS = 1378417307 (Sun Sep 10 21:41:29 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378417284 → GPS = 1378417300 |
| Omicron analysis time window (L1): | GPS = 1378417294 → GPS = 1378417310 |

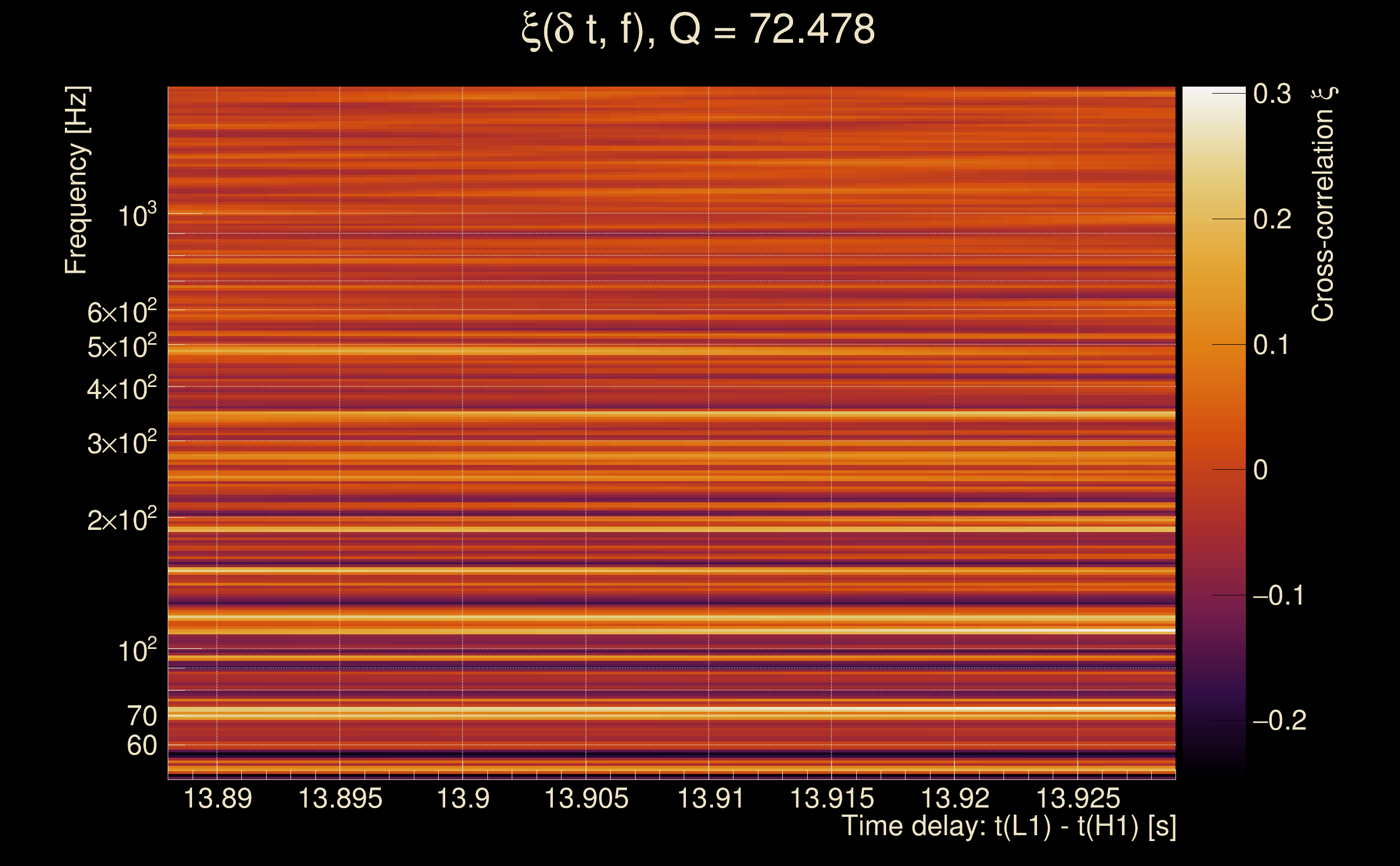

| Time delay between detectors t(L1) - t(H1): | 13.9081 s (slice index = 23 / 217), δt_gw = -0.00186061 s |
| Time delay uncertainty: | 0.00544996 s |
| [targeted mode] Time delay probability: | 0.954998 (0.0564318 sigmas), δt_target = -0.00977945 s |
| Frequency: | 85.5972 Hz |
| Ξ: | 0.0766467 ± 0.108572 (variance = 0.0117879): Q0: 0.287521, Q1: 0.364018, Q2: 0.336723, Q3: 0.134839, Q4: 0.0952462 |
| Rank: | R_A = 0.0753533 |
| Log of amplitude ratio (L1/H1): | -0.125431, variance = 0.351839 (L1/H1: -0.144081, variance = 0.981761, H1/L1: 0.118063, variance = 0.531525) |
| Amplitude ratio (L1/H1): | 0.882116 ⋇ 1.8097 (L1/H1: 0.865817 ⋇ 2.69349, H1/L1: 1.12532 ⋇ 2.07313) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.983126 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 28 / 36, Q2: 61 / 70, Q3: 115 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.82386, L1: 7.67455 |
| SNR variance: | H1: 0.517356, L1: 0.520333 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

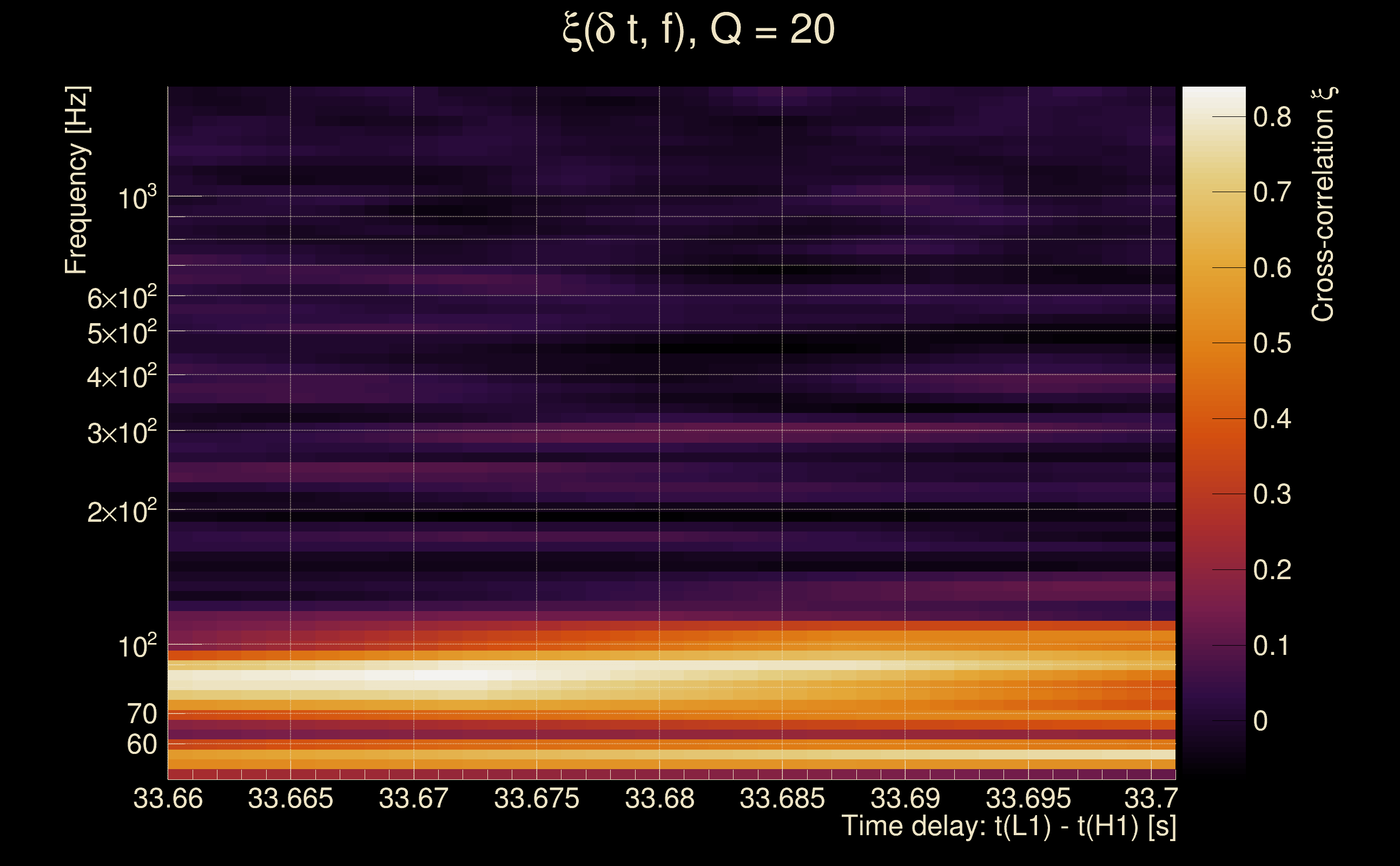

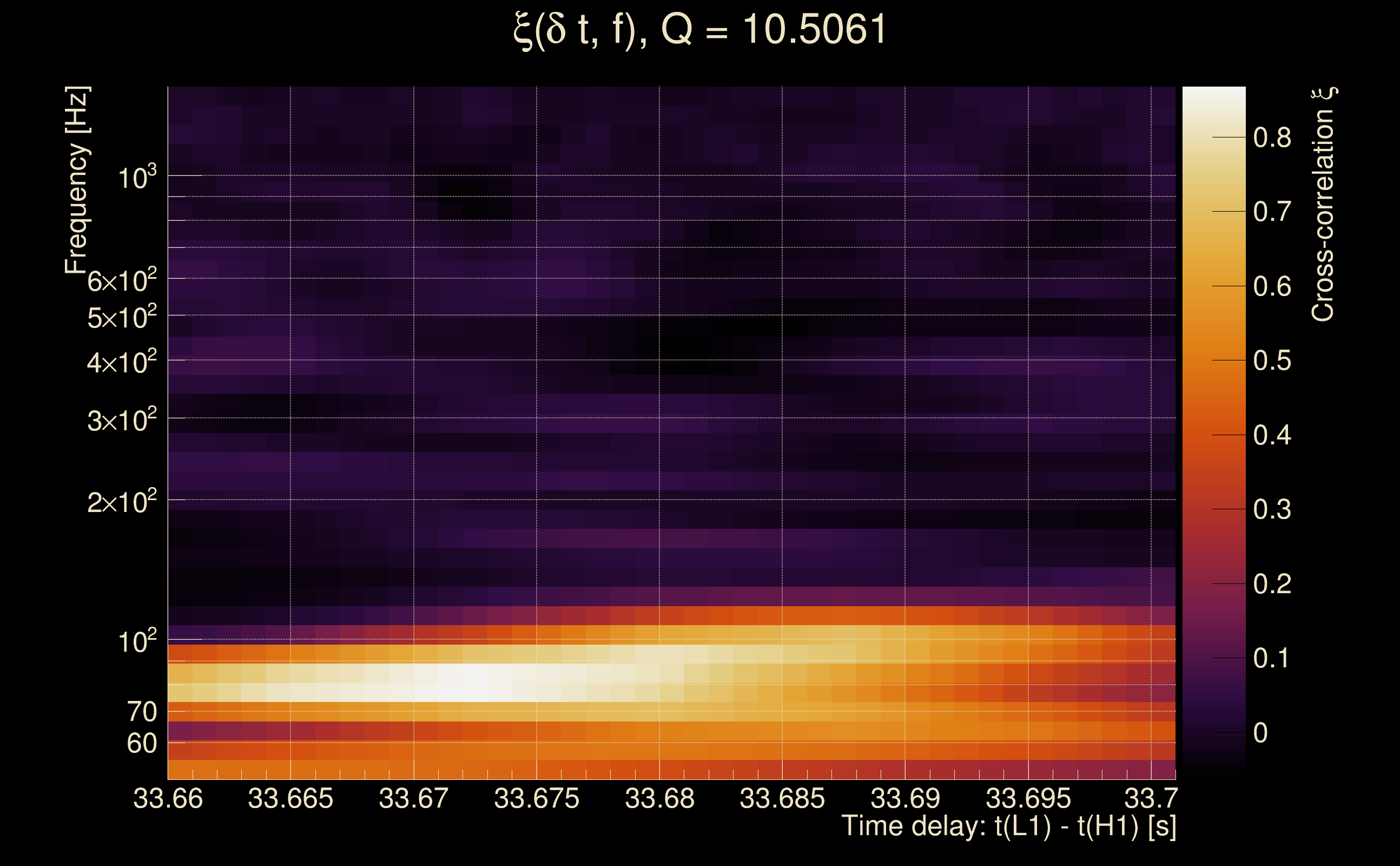

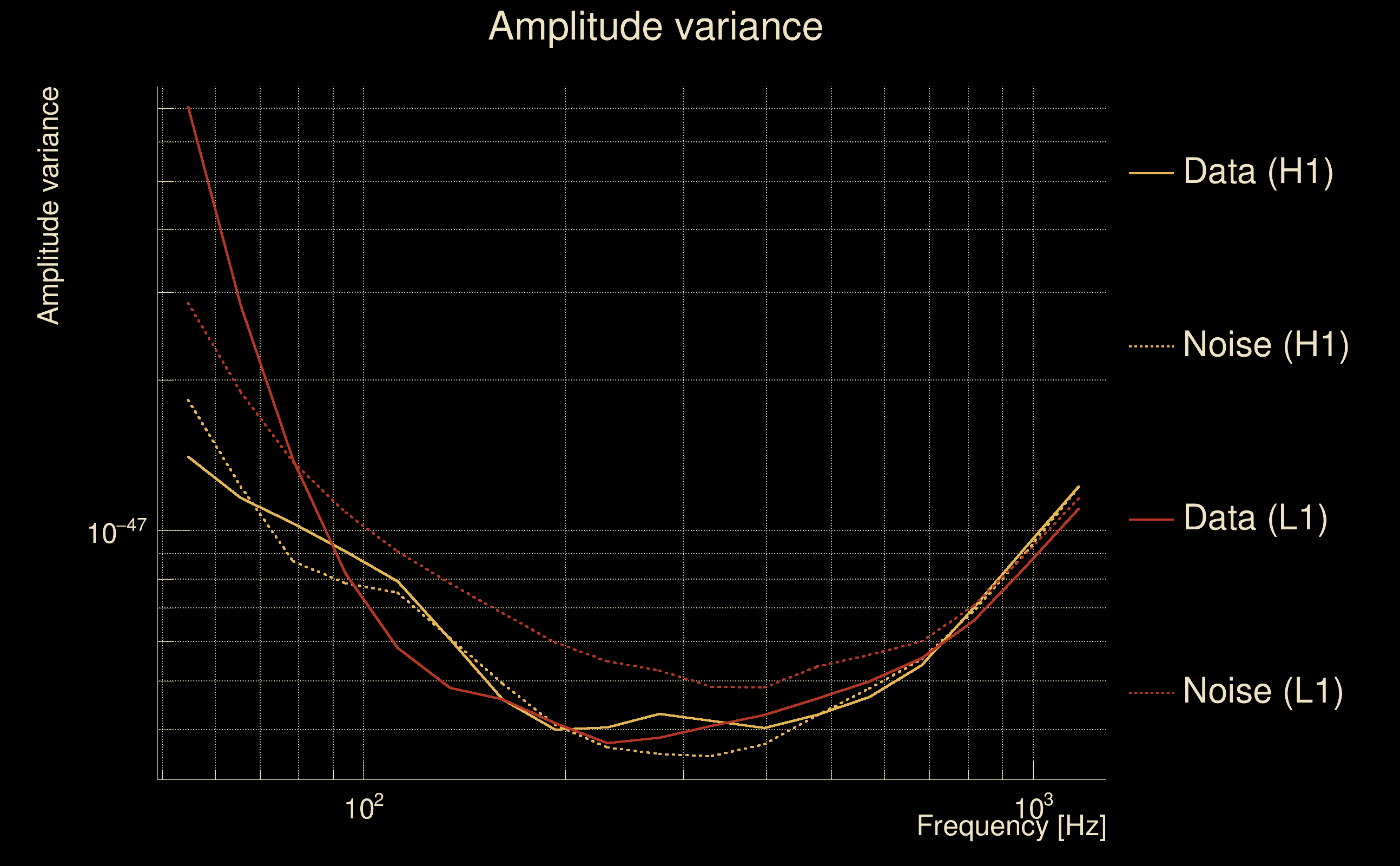

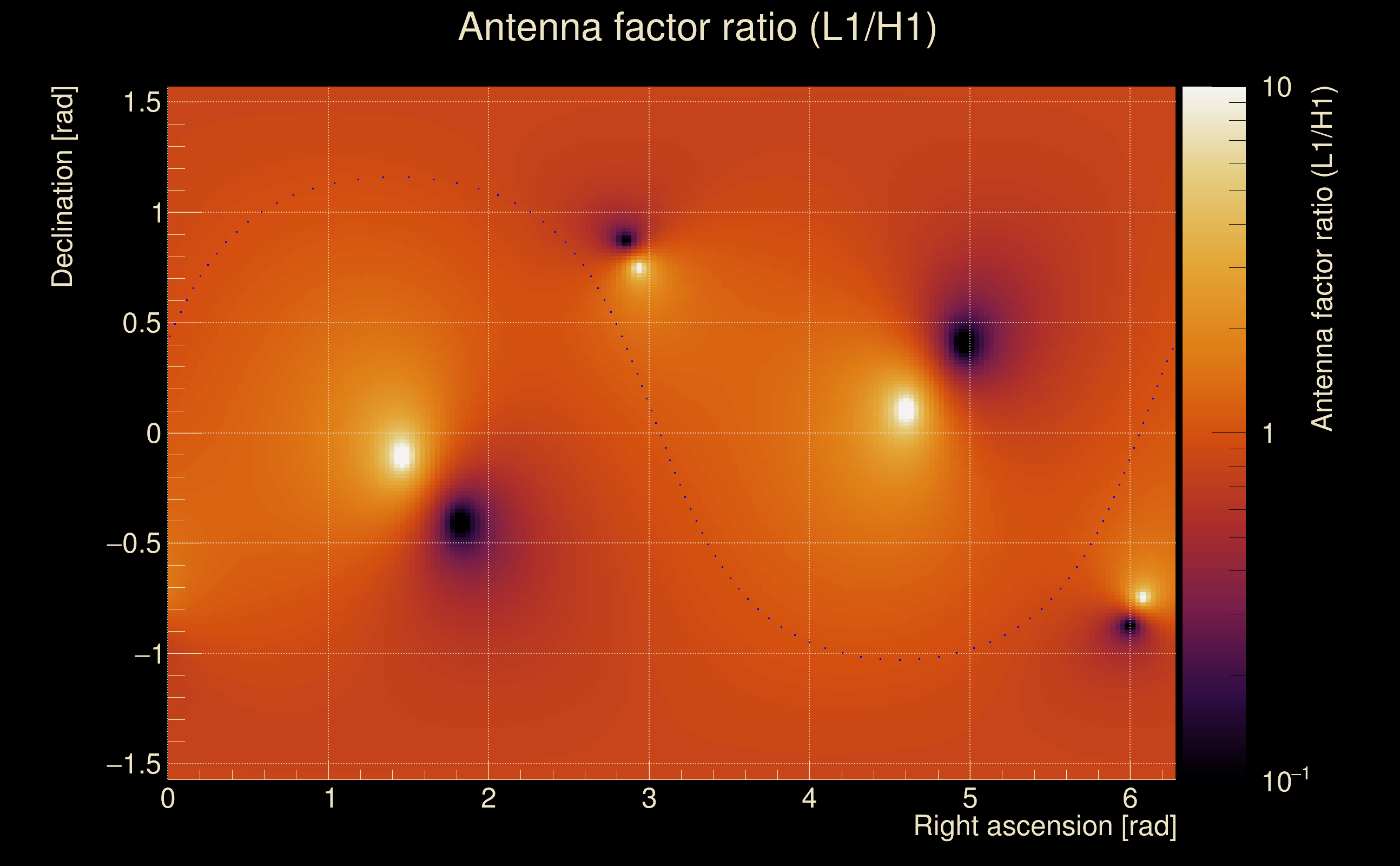

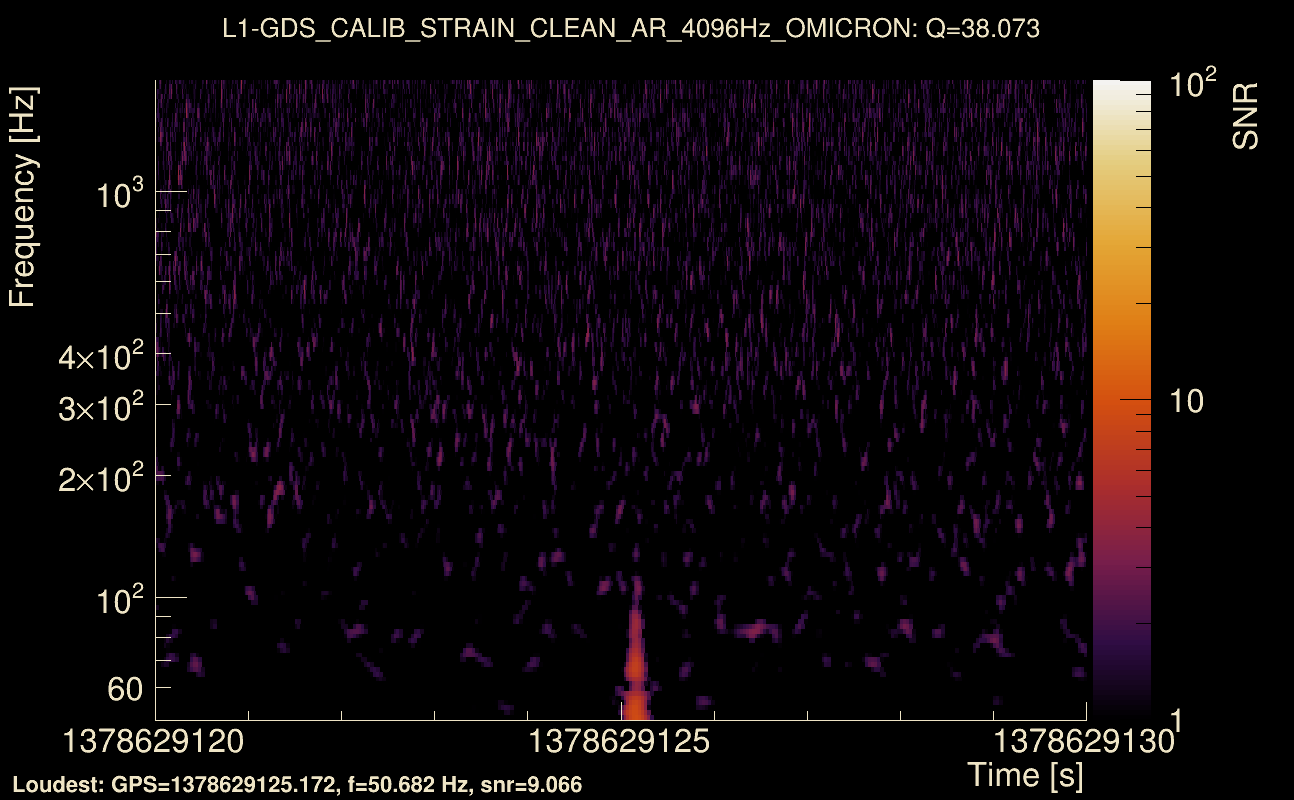

| Event time t(H1): | GPS = 1378629090 (Wed Sep 13 08:31:12 2023 ) → GPS = 1378629100 (Wed Sep 13 08:31:22 2023 ) |

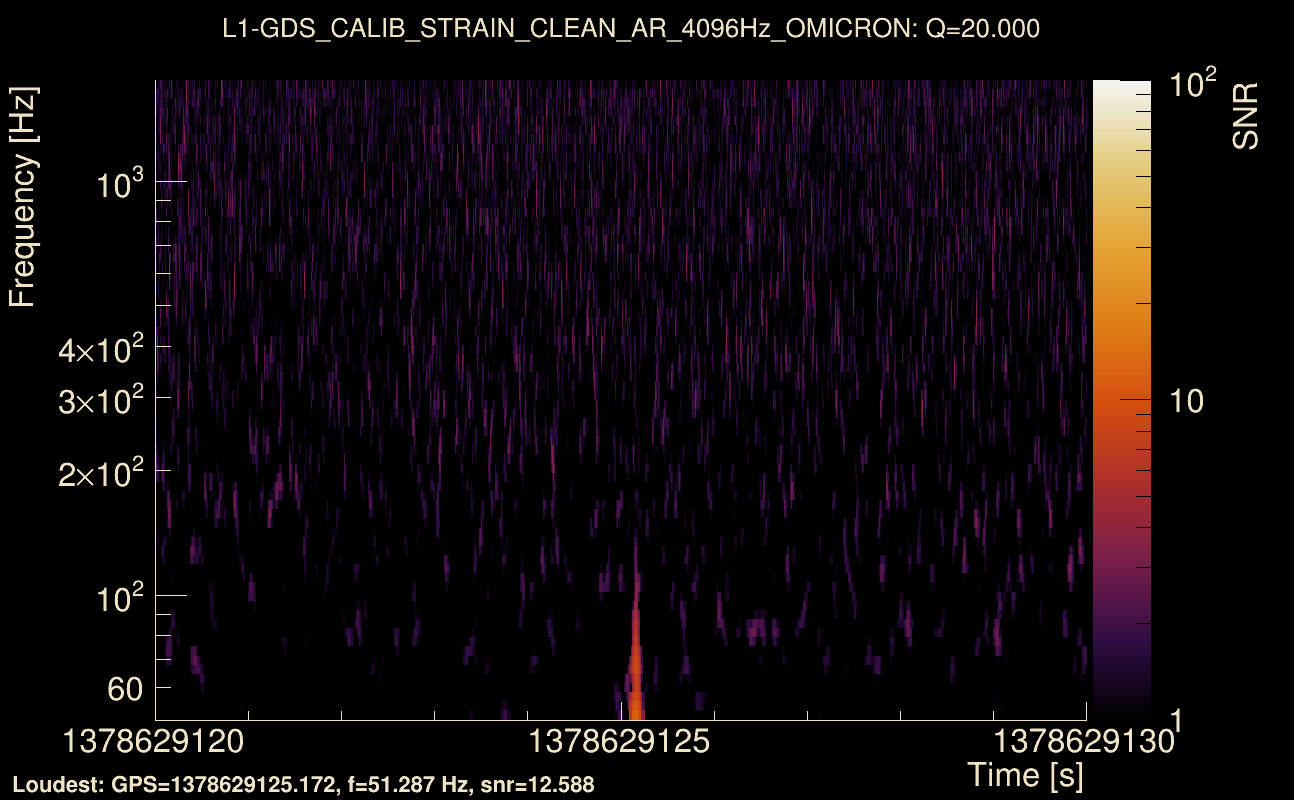

| Event time t(L1): | GPS = 1378629120 (Wed Sep 13 08:31:22 2023 ) → GPS = 1378629130 (Wed Sep 13 08:31:52 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378629087 → GPS = 1378629103 |
| Omicron analysis time window (L1): | GPS = 1378629117 → GPS = 1378629133 |

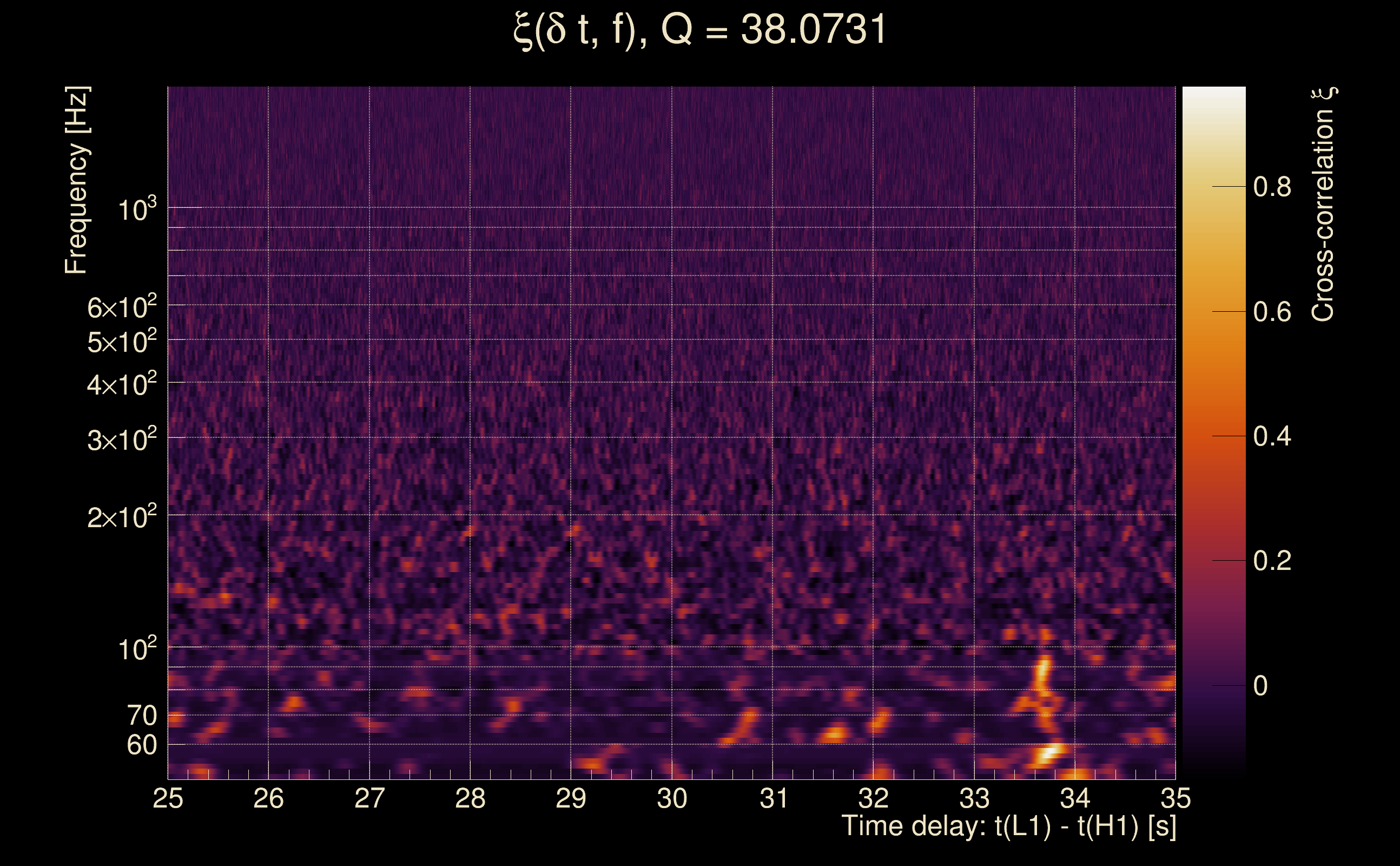

| Time delay between detectors t(L1) - t(H1): | 33.6807 s (slice index = 28 / 217), δt_gw = 0.000654694 s |
| Time delay uncertainty: | 0.0053 s |
| [targeted mode] Time delay probability: | 0.72015 (0.358259 sigmas), δt_target = 0.000839472 s |
| Frequency: | 81.4956 Hz |
| Ξ: | 0.204305 ± 0.0763991 (variance = 0.00583682): Q0: 0.709069, Q1: 0.681918, Q2: 0.664029, Q3: 0.719035, Q4: 0.508828 |
| Rank: | R_A = 0.0626731 |
| Log of amplitude ratio (L1/H1): | 1.31571, variance = 0.272572 (L1/H1: 0.42408, variance = 0.567613, H1/L1: -1.38249, variance = 0.311748) |
| Amplitude ratio (L1/H1): | 3.72739 ⋇ 1.68554 (L1/H1: 1.52818 ⋇ 2.12421, H1/L1: 0.250953 ⋇ 1.74778) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.306762 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 26 / 36, Q2: 60 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 9.50794, L1: 34.7414 |
| SNR variance: | H1: 0.556332, L1: 0.502623 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

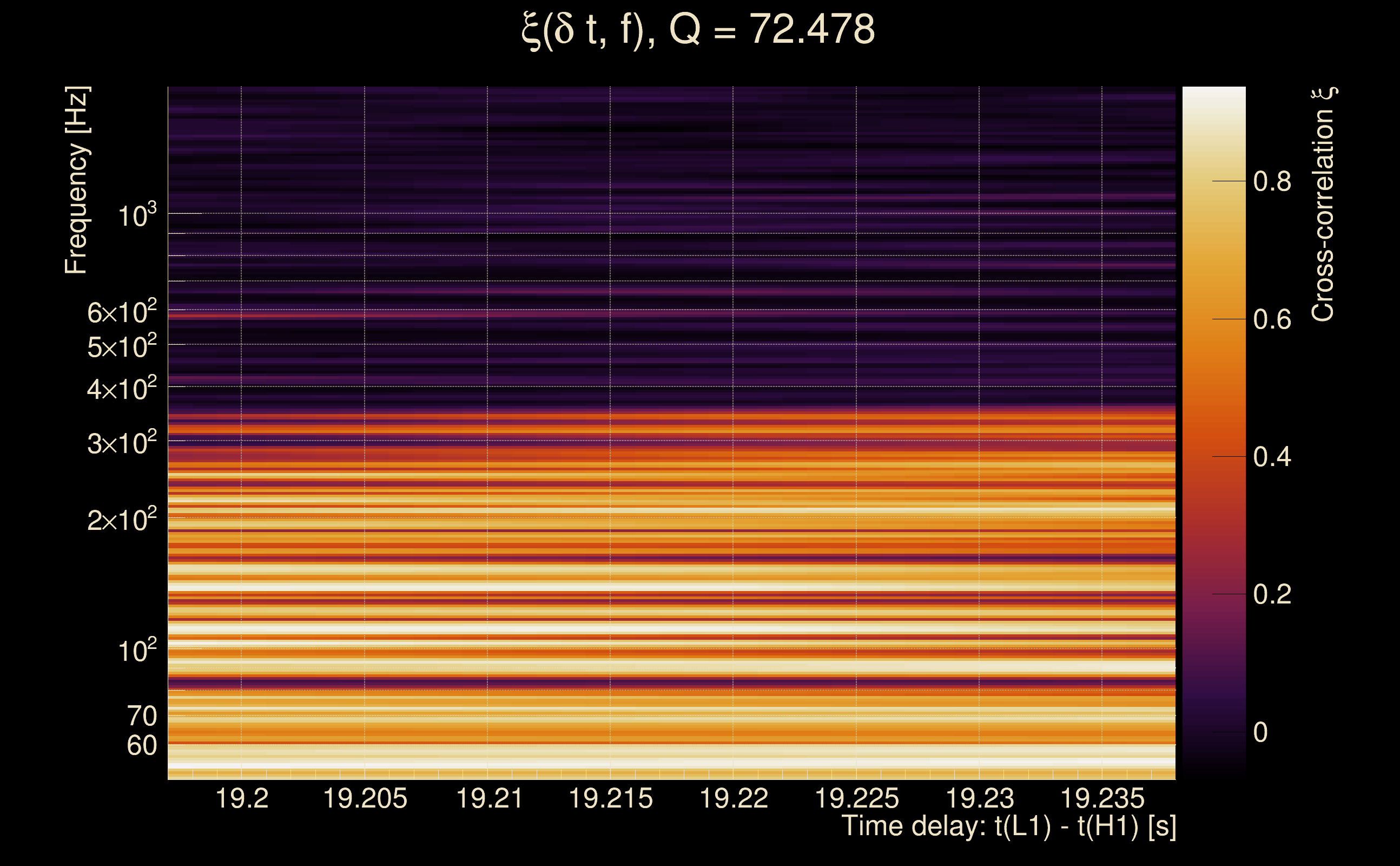

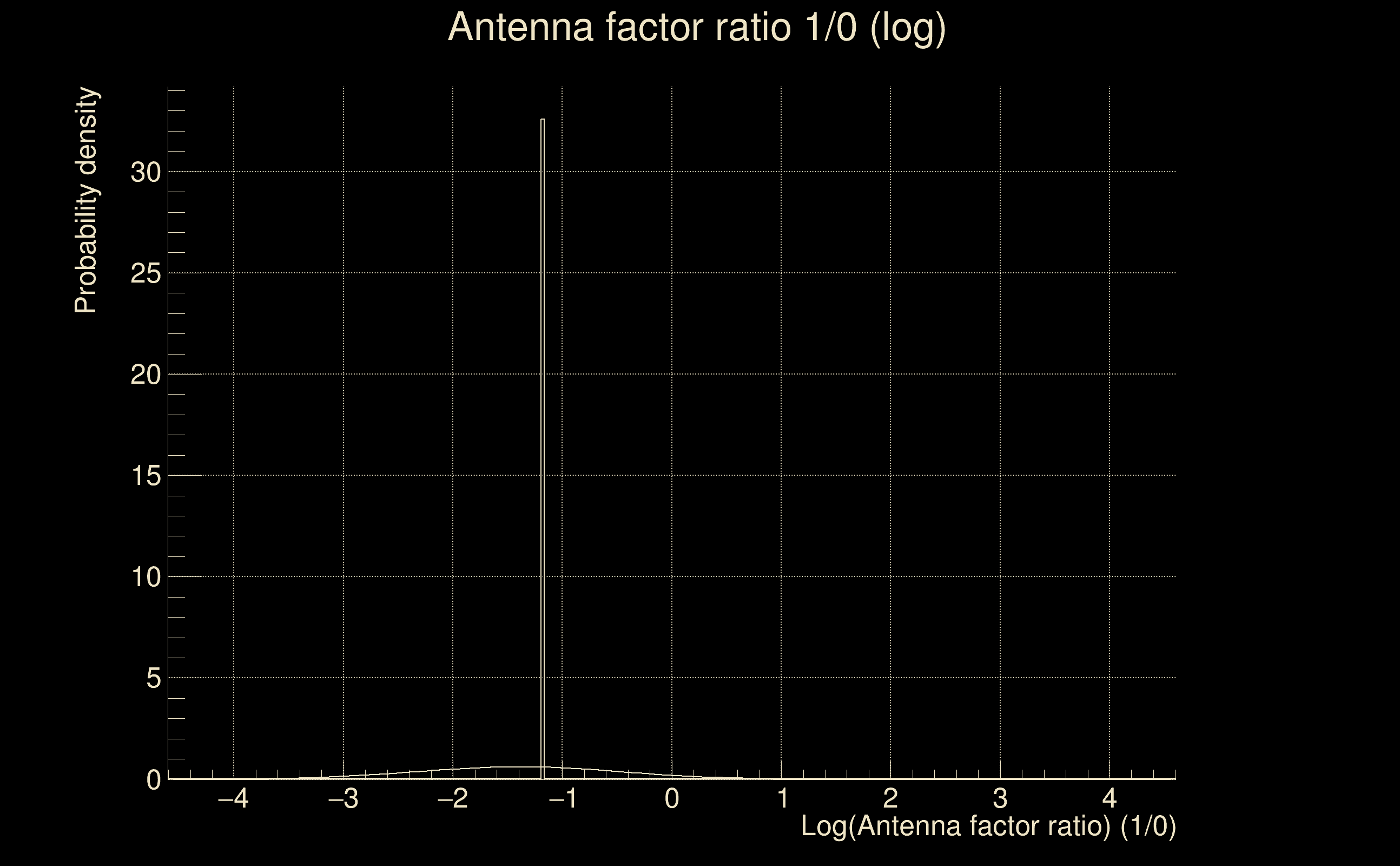

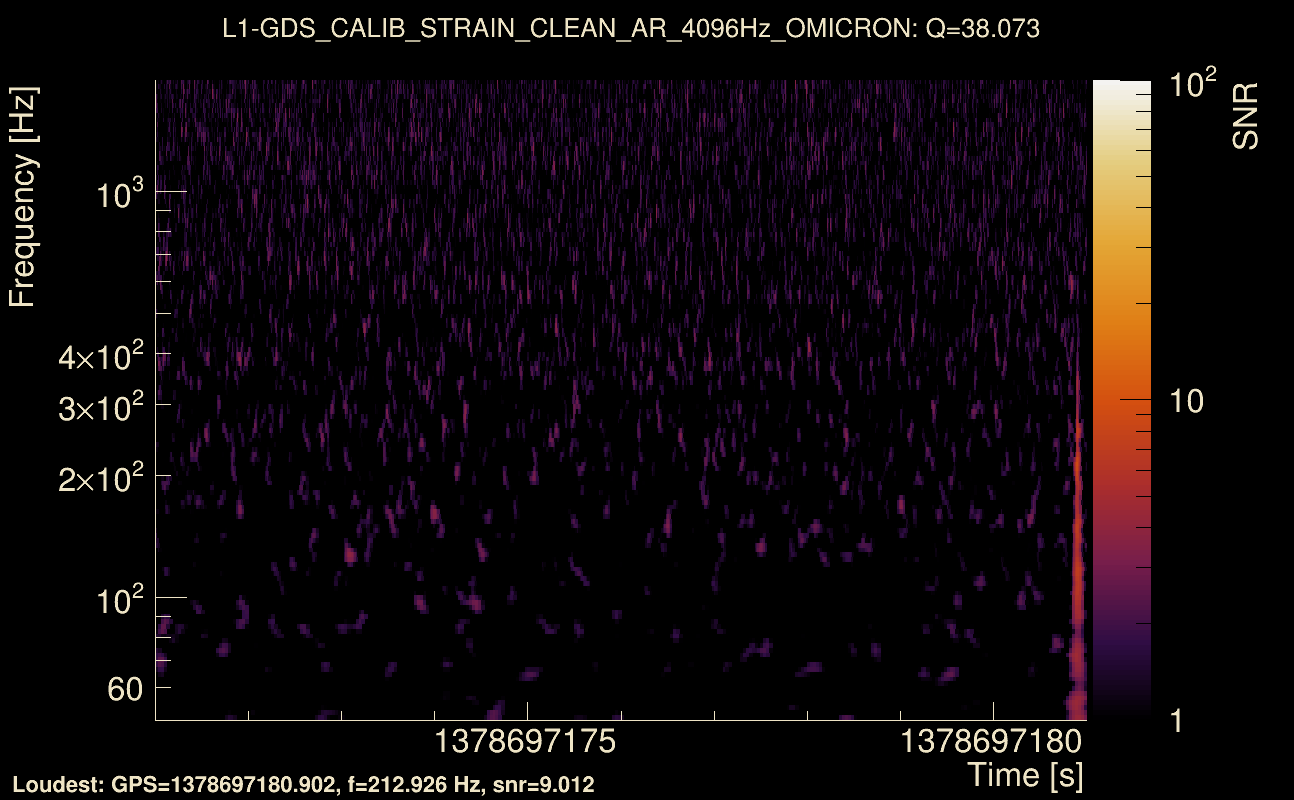

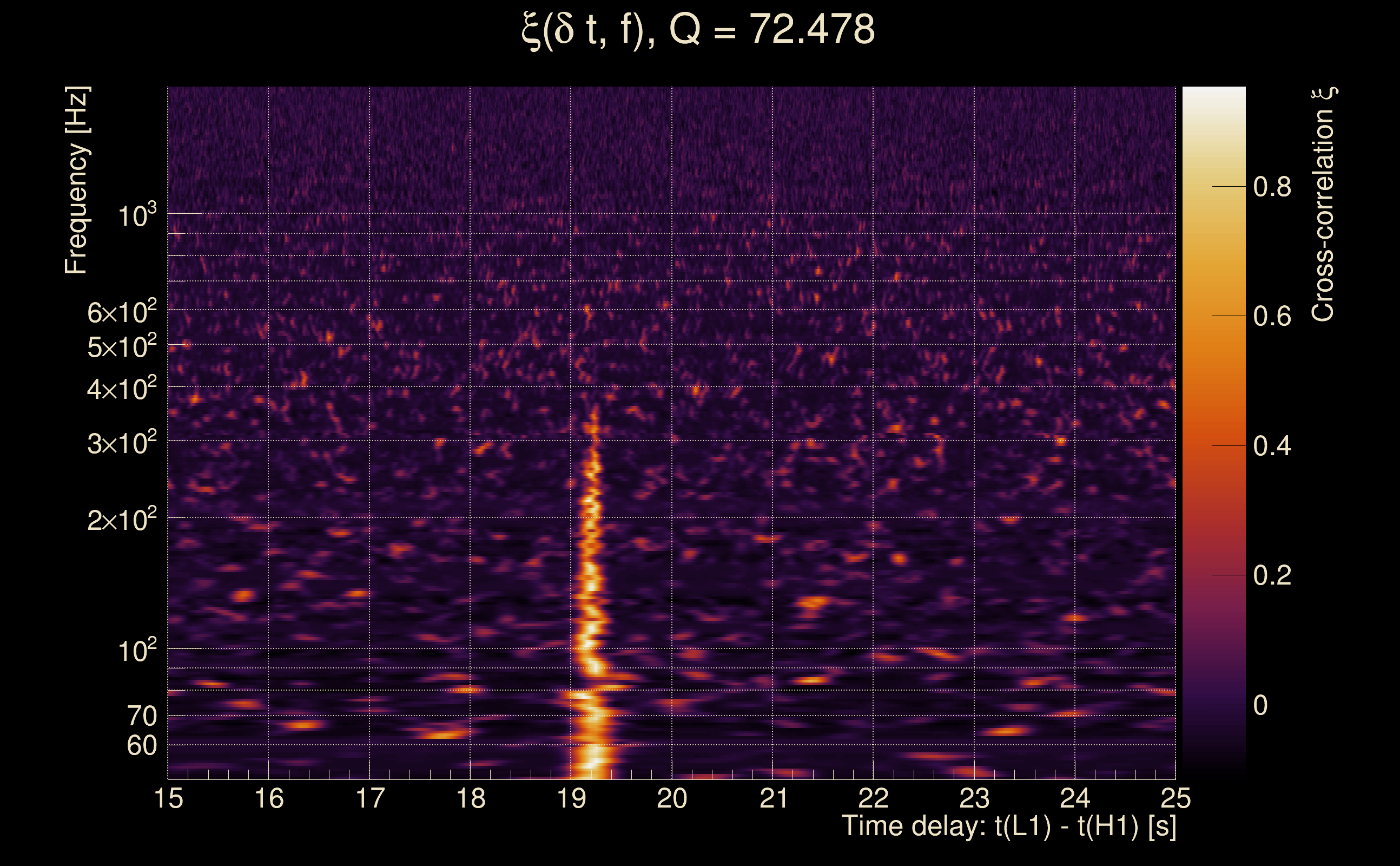

| Event time t(H1): | GPS = 1378697151 (Thu Sep 14 03:25:33 2023 ) → GPS = 1378697161 (Thu Sep 14 03:25:43 2023 ) |
| Event time t(L1): | GPS = 1378697171 (Thu Sep 14 03:25:43 2023 ) → GPS = 1378697181 (Thu Sep 14 03:26:03 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378697148 → GPS = 1378697164 |
| Omicron analysis time window (L1): | GPS = 1378697168 → GPS = 1378697184 |
| Time delay between detectors t(L1) - t(H1): | 19.2177 s (slice index = 125 / 217), δt_gw = -0.000316278 s |
| Time delay uncertainty: | 0.00661514 s |
| [targeted mode] Time delay probability: | 0.370578 (0.895391 sigmas), δt_target = -0.00745583 s |
| Frequency: | 125.879 Hz |
| Ξ: | 0.301299 ± 0.0151268 (variance = 0.000228821): Q0: 0.685895, Q1: 0.659553, Q2: 0.644328, Q3: 0.681609, Q4: 0.664873 |
| Rank: | R_A = 0.0625977 |
| Log of amplitude ratio (L1/H1): | -1.35787, variance = 0.394272 (L1/H1: -1.52057, variance = 0.523886, H1/L1: 0.355298, variance = 0.331743) |
| Amplitude ratio (L1/H1): | 0.257208 ⋇ 1.87369 (L1/H1: 0.218587 ⋇ 2.06225, H1/L1: 1.42661 ⋇ 1.77886) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.207759 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 18 / 36, Q2: 50 / 70, Q3: 93 / 134, Q4: 215 / 258 |
| Maximum signal-to-noise ratio: | H1: 50.5821, L1: 20.3767 |
| SNR variance: | H1: 1.5123, L1: 0.524642 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

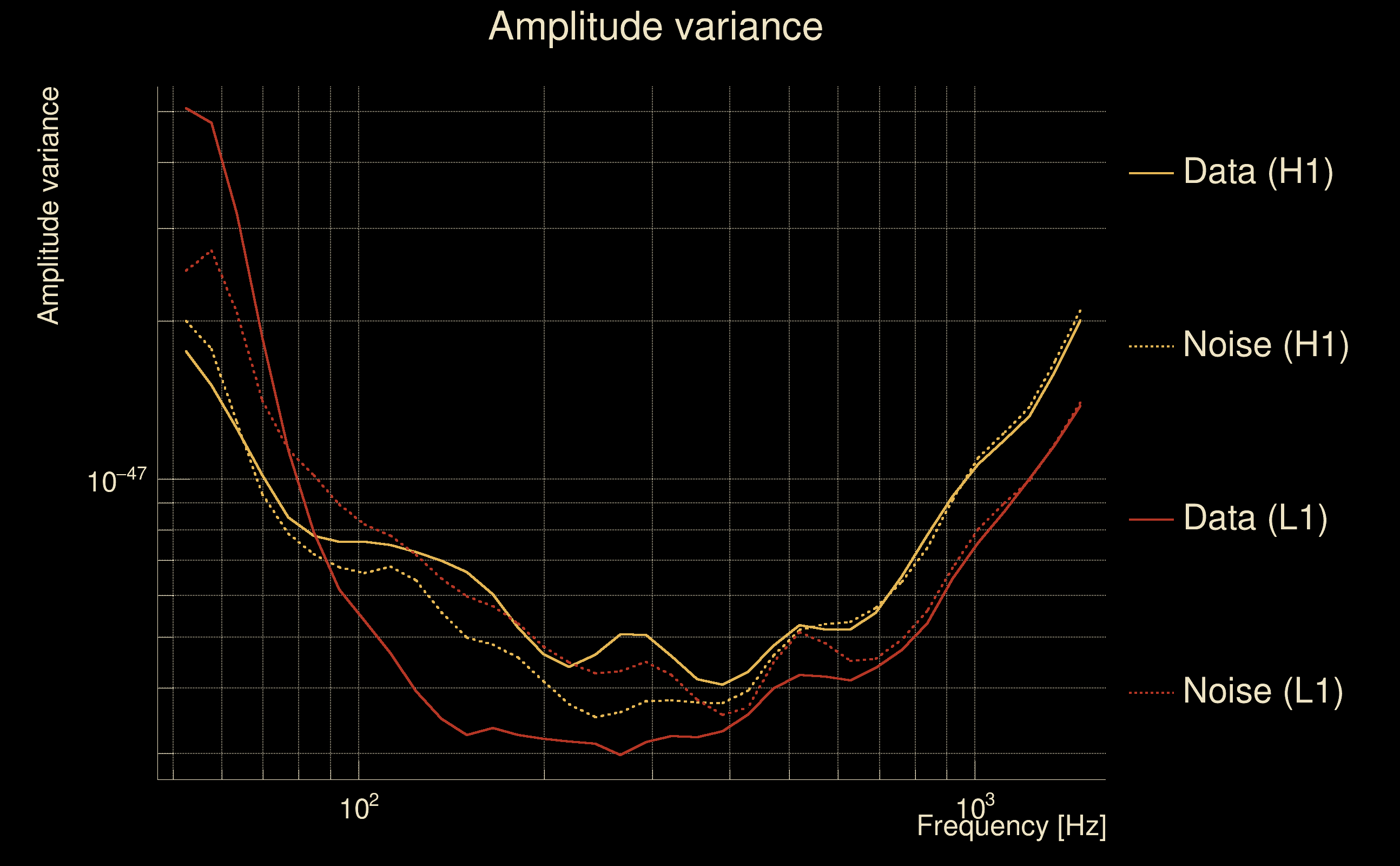

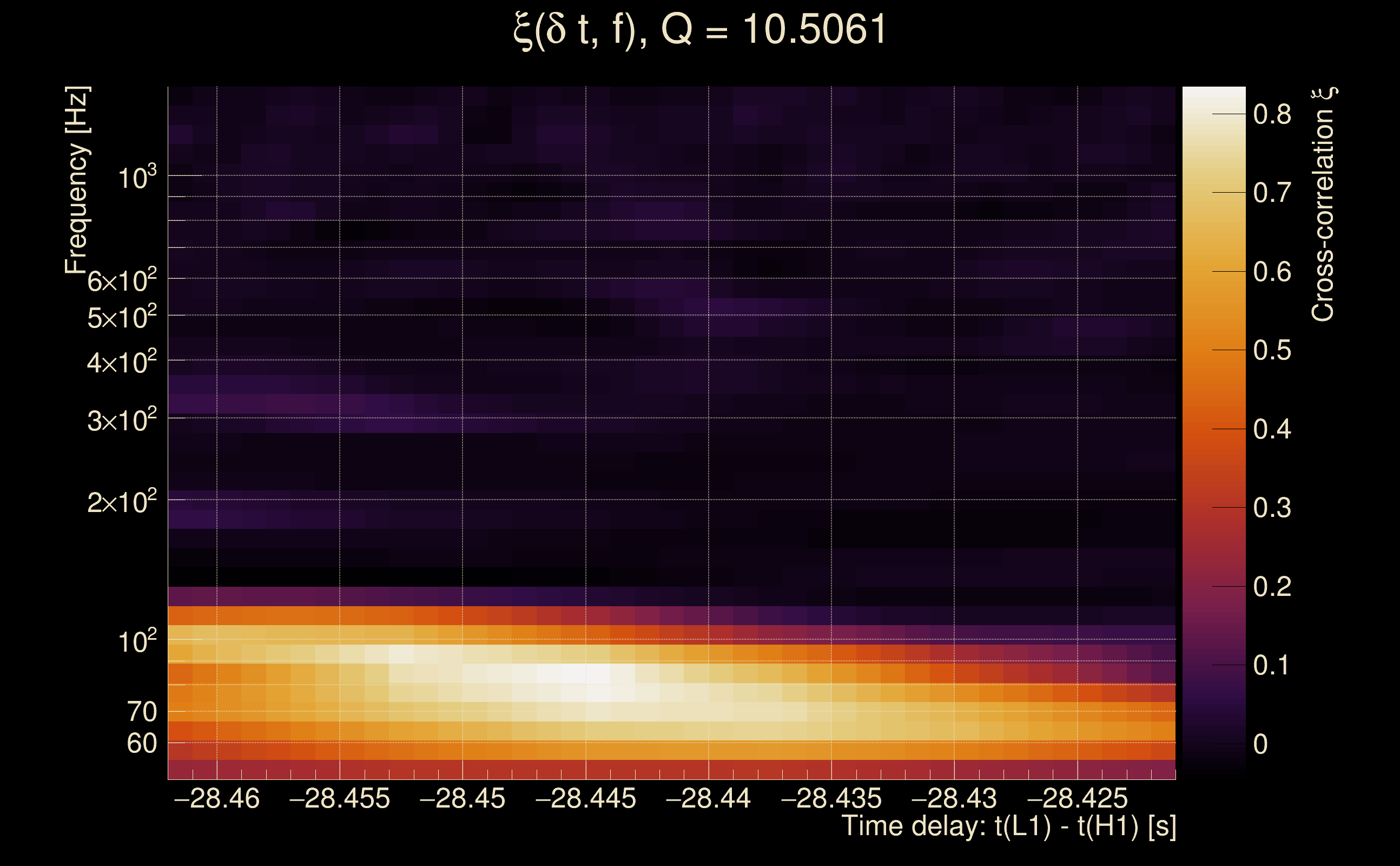

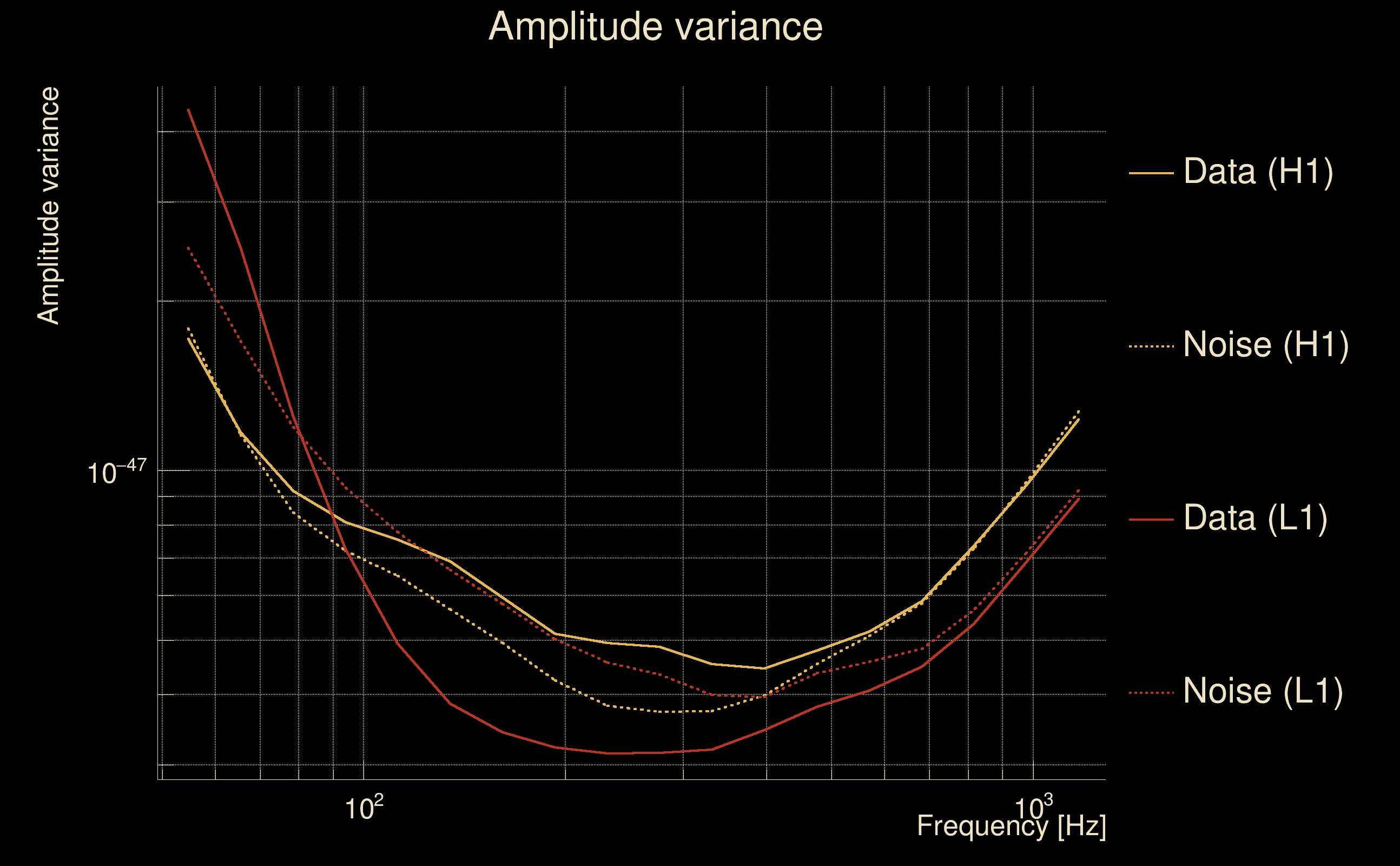

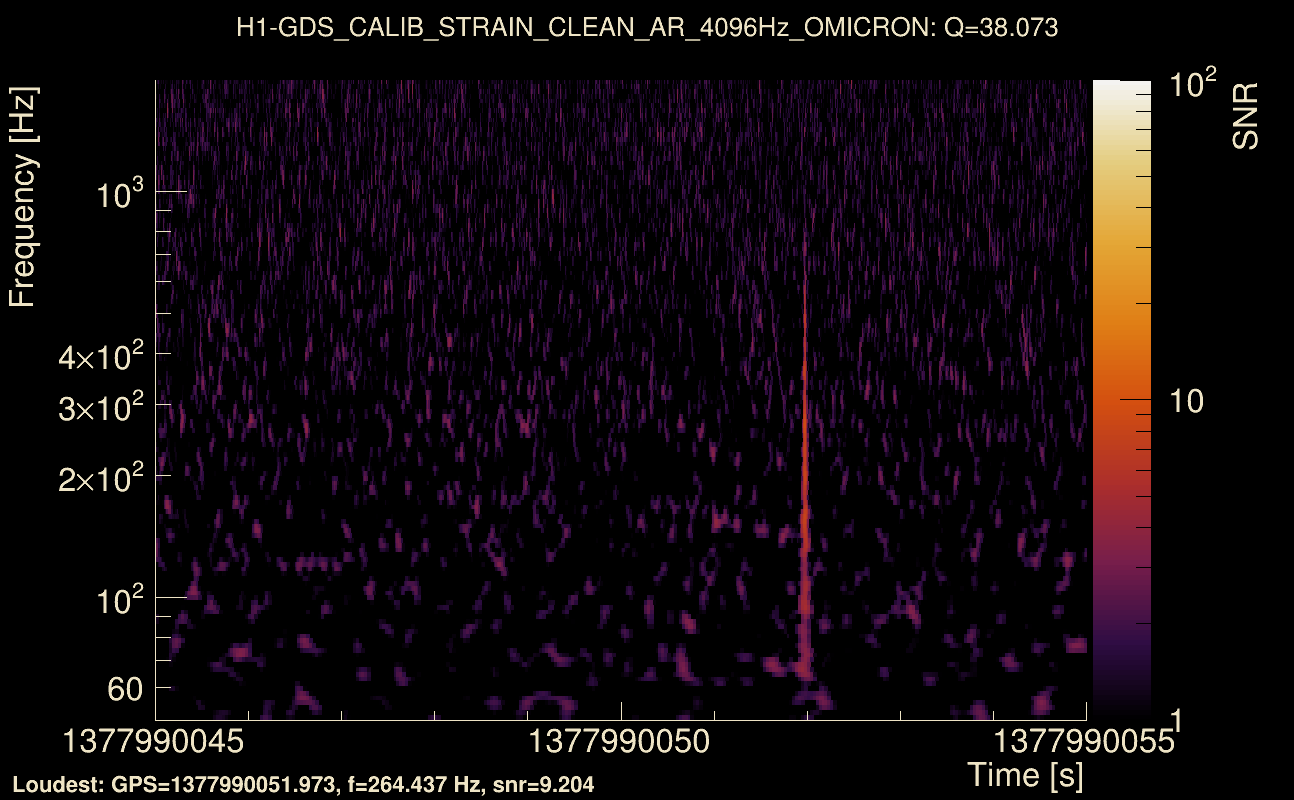

| Event time t(H1): | GPS = 1377990045 (Tue Sep 5 23:00:27 2023 ) → GPS = 1377990055 (Tue Sep 5 23:00:37 2023 ) |
| Event time t(L1): | GPS = 1377990015 (Tue Sep 5 23:00:37 2023 ) → GPS = 1377990025 (Tue Sep 5 23:00:07 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377990042 → GPS = 1377990058 |
| Omicron analysis time window (L1): | GPS = 1377990012 → GPS = 1377990028 |

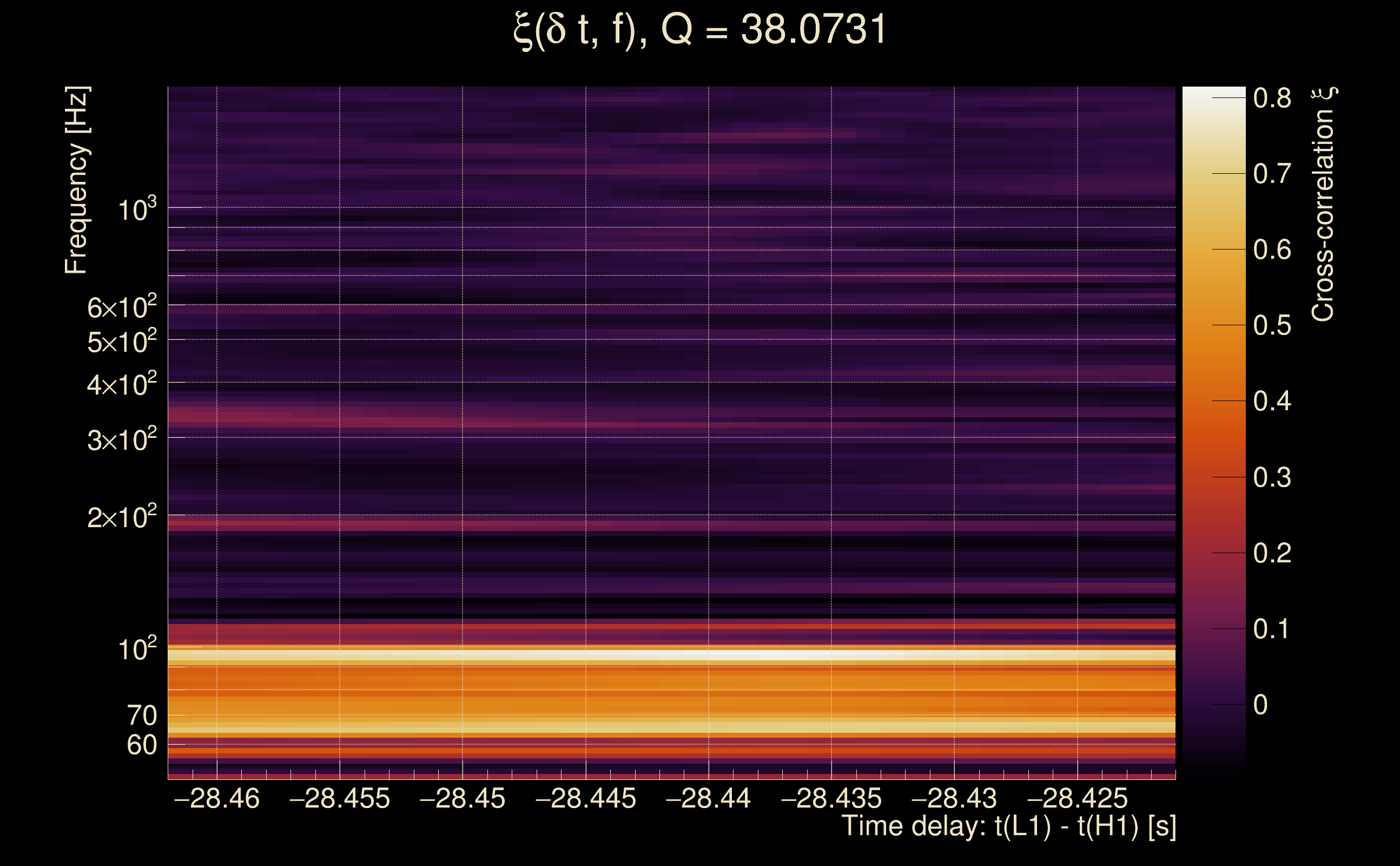

| Time delay between detectors t(L1) - t(H1): | -28.4418 s (slice index = 74 / 217), δt_gw = -0.00583032 s |
| Time delay uncertainty: | 0.0032661 s |
| [targeted mode] Time delay probability: | 0.46629 (0.72853 sigmas), δt_target = -0.00913501 s |
| Frequency: | 72.8739 Hz |
| Ξ: | 0.117986 ± 0.0910496 (variance = 0.00829003): Q0: 0.767576, Q1: 0.709369, Q2: 0.593148, Q3: 0.604894, Q4: 0.509685 |
| Rank: | R_A = 0.0608292 |
| Log of amplitude ratio (L1/H1): | 0.962473, variance = 0.379225 (L1/H1: 0.464586, variance = 1.6452, H1/L1: -1.34901, variance = 0.205022) |
| Amplitude ratio (L1/H1): | 2.61816 ⋇ 1.85116 (L1/H1: 1.59136 ⋇ 3.6062, H1/L1: 0.259498 ⋇ 1.5727) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.515564 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 28 / 36, Q2: 64 / 70, Q3: 119 / 134, Q4: 240 / 258 |
| Maximum signal-to-noise ratio: | H1: 20.2529, L1: 22.9858 |
| SNR variance: | H1: 0.518766, L1: 0.494989 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

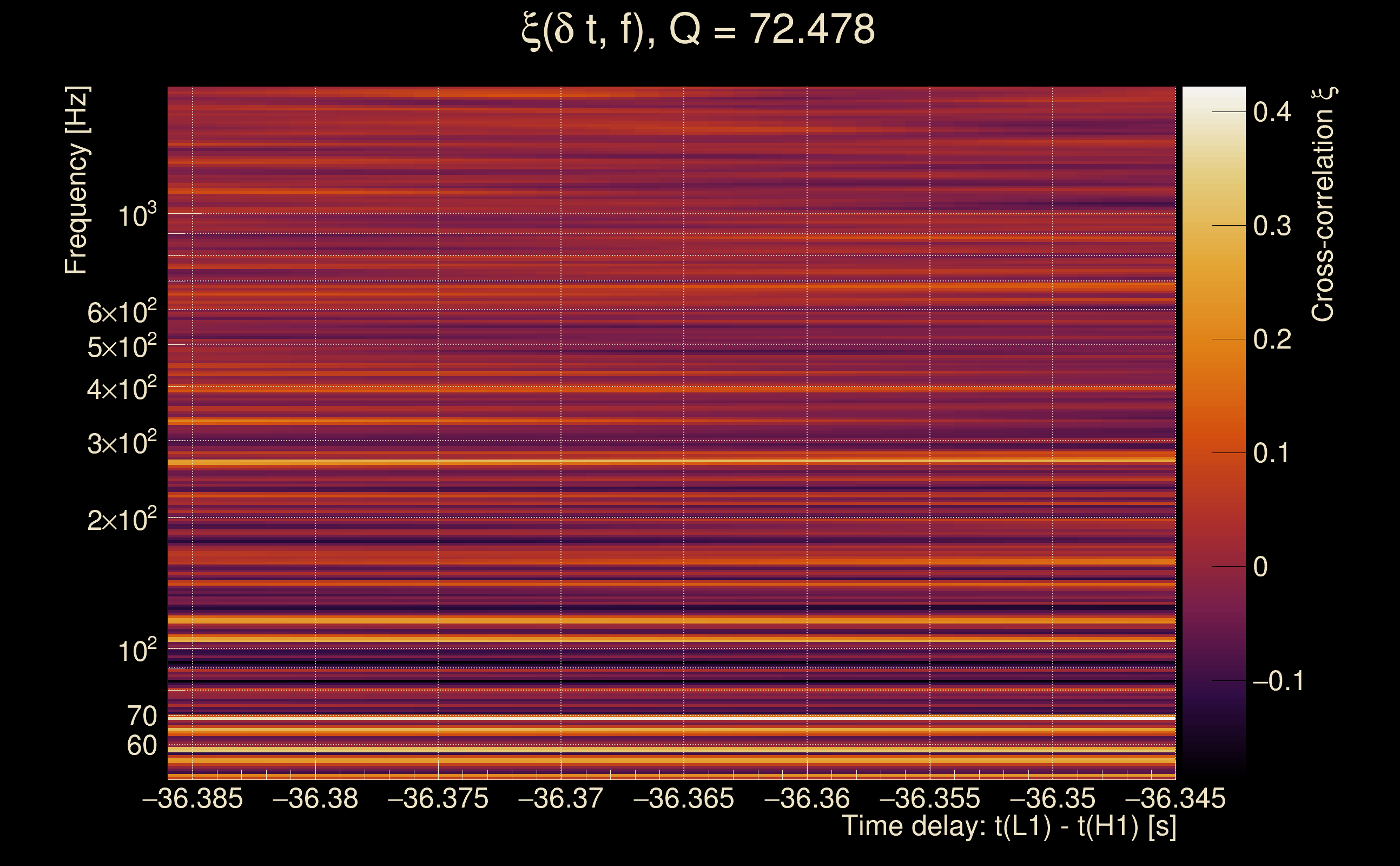

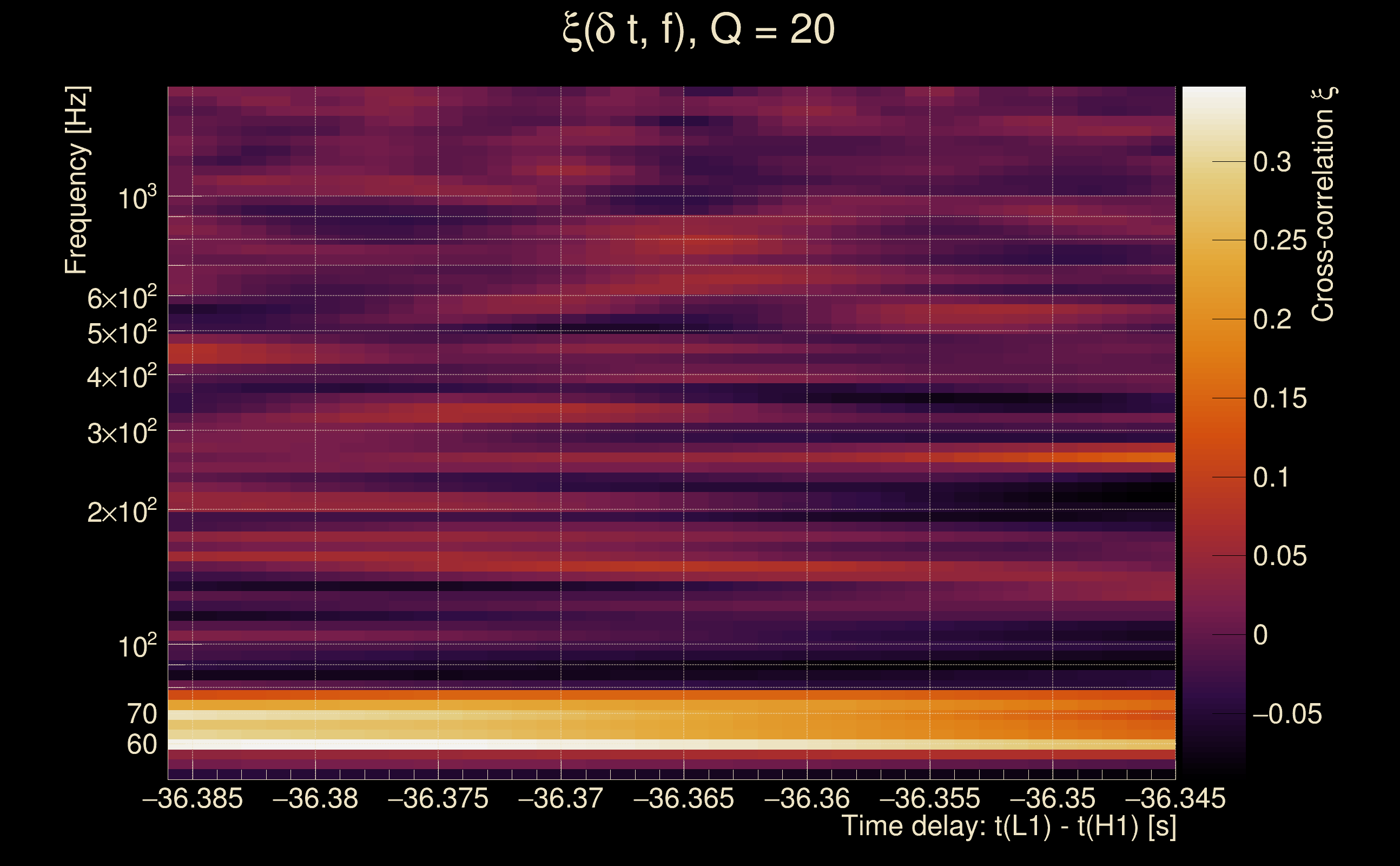

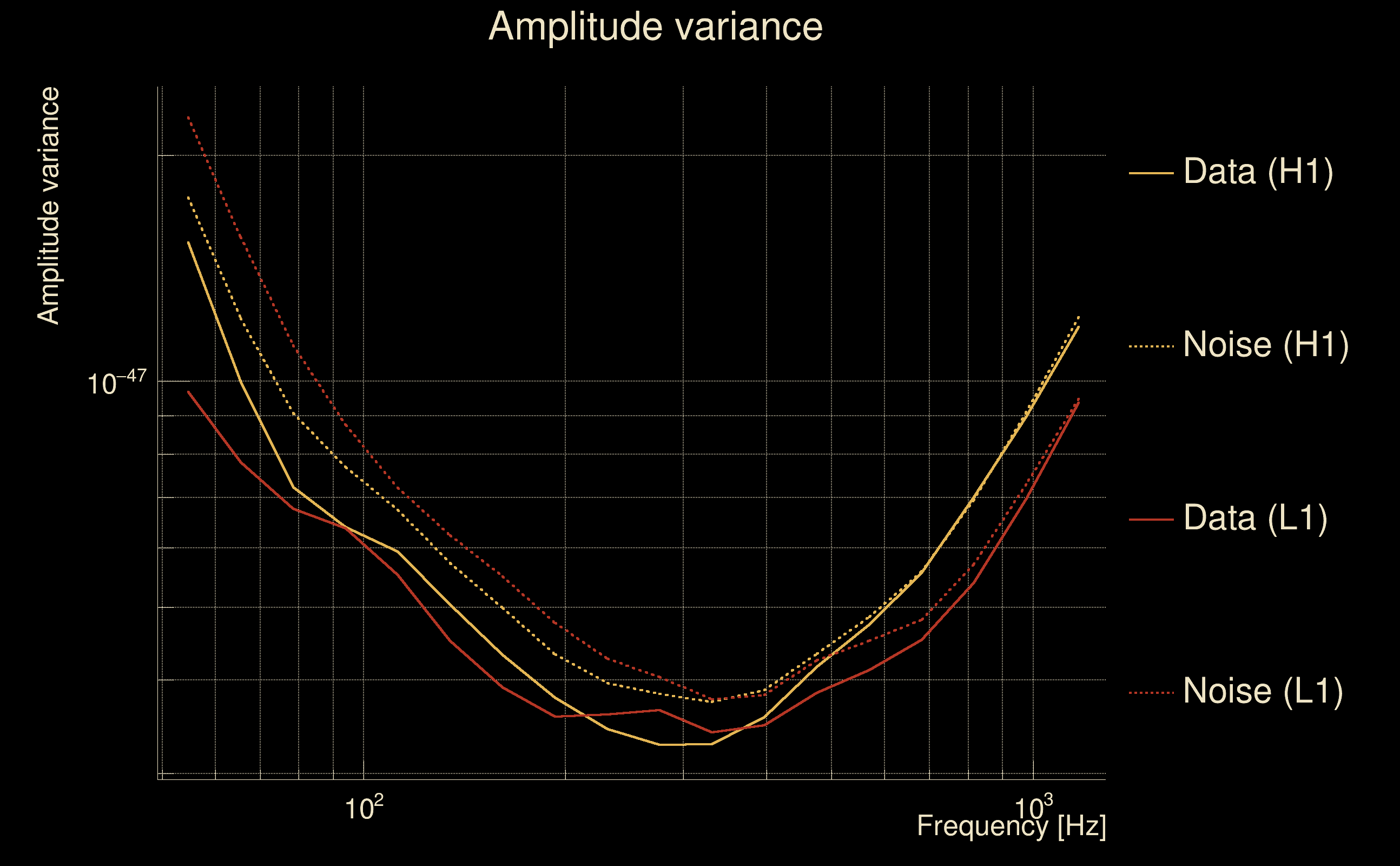

| Event time t(H1): | GPS = 1378543595 (Tue Sep 12 08:46:17 2023 ) → GPS = 1378543605 (Tue Sep 12 08:46:27 2023 ) |
| Event time t(L1): | GPS = 1378543555 (Tue Sep 12 08:46:27 2023 ) → GPS = 1378543565 (Tue Sep 12 08:45:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378543592 → GPS = 1378543608 |
| Omicron analysis time window (L1): | GPS = 1378543552 → GPS = 1378543568 |
| Time delay between detectors t(L1) - t(H1): | -36.366 s (slice index = 29 / 217), δt_gw = 3.90484e-05 s |
| Time delay uncertainty: | 0.00566207 s |
| [targeted mode] Time delay probability: | 0.606265 (0.515412 sigmas), δt_target = -0.000997066 s |
| Frequency: | 83.7122 Hz |
| Ξ: | 0.0791211 ± 0.0958892 (variance = 0.00919473): Q0: 0.312686, Q1: 0.332941, Q2: 0.282325, Q3: 0.0703277, Q4: 0.201629 |
| Rank: | R_A = 0.0605738 |
| Log of amplitude ratio (L1/H1): | 0.0155622, variance = 0.41125 (L1/H1: -0.24131, variance = 1.55224, H1/L1: -0.182139, variance = 0.464809) |
| Amplitude ratio (L1/H1): | 1.01568 ⋇ 1.89893 (L1/H1: 0.785598 ⋇ 3.47602, H1/L1: 0.833485 ⋇ 1.97737) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.765584 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 27 / 36, Q2: 62 / 70, Q3: 124 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.2522, L1: 6.52218 |
| SNR variance: | H1: 0.528332, L1: 0.557762 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

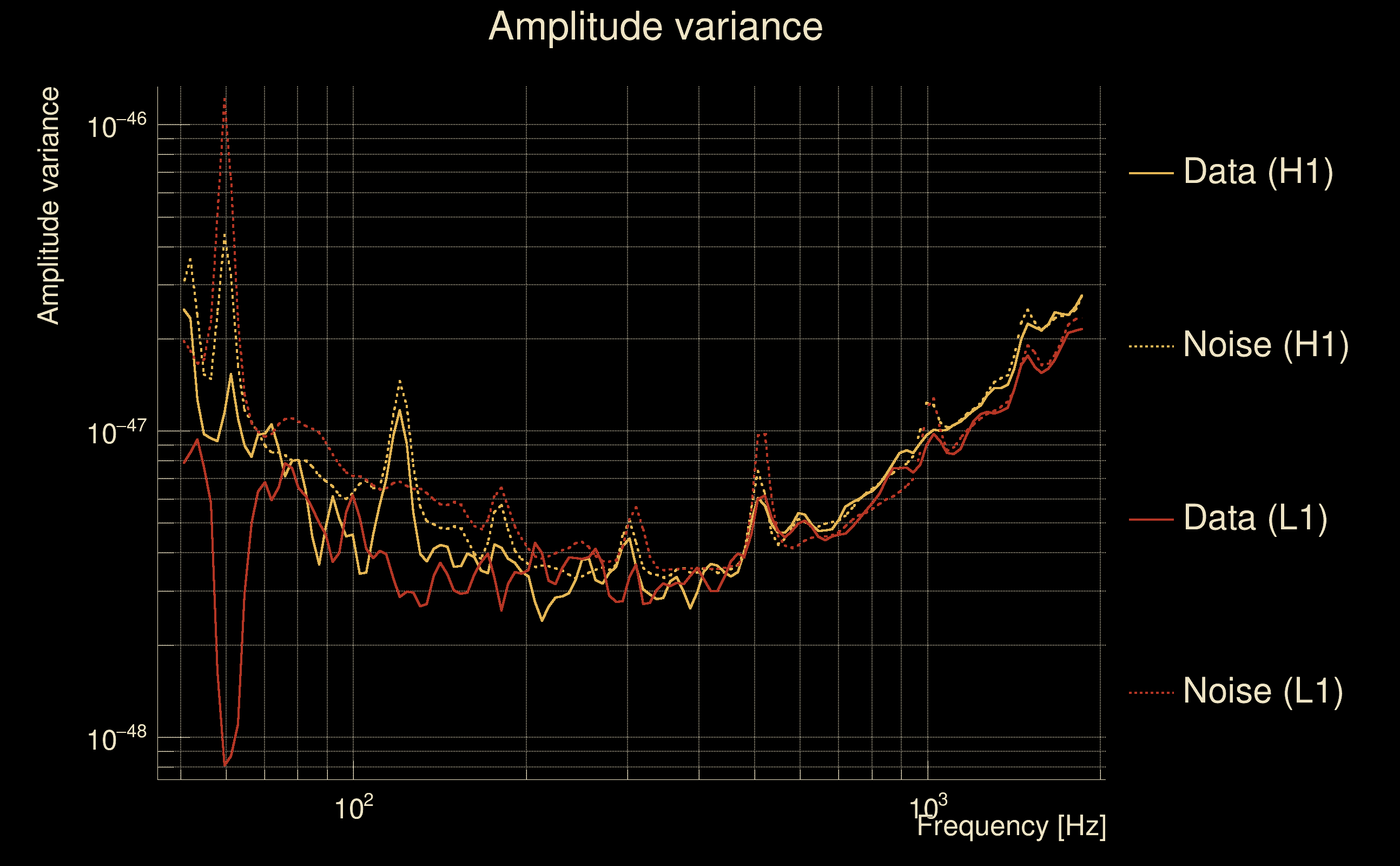

| Event time t(H1): | GPS = 1377812576 (Sun Sep 3 21:42:38 2023 ) → GPS = 1377812586 (Sun Sep 3 21:42:48 2023 ) |
| Event time t(L1): | GPS = 1377812546 (Sun Sep 3 21:42:48 2023 ) → GPS = 1377812556 (Sun Sep 3 21:42:18 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377812573 → GPS = 1377812589 |
| Omicron analysis time window (L1): | GPS = 1377812543 → GPS = 1377812559 |
| Time delay between detectors t(L1) - t(H1): | -34.5088 s (slice index = 206 / 217), δt_gw = -0.00080475 s |
| Time delay uncertainty: | 0.0063101 s |
| [targeted mode] Time delay probability: | 0.980456 (0.0244977 sigmas), δt_target = -0.00717759 s |
| Frequency: | 128.718 Hz |
| Ξ: | 0.064058 ± 0.102669 (variance = 0.0105409): Q0: 0.21425, Q1: 0.315453, Q2: 0.0686127, Q3: 0.0545268, Q4: 0.0754538 |
| Rank: | R_A = 0.0524267 |
| Log of amplitude ratio (L1/H1): | -0.109726, variance = 0.338657 (L1/H1: -0.254559, variance = 0.457081, H1/L1: -0.00181182, variance = 0.790032) |
| Amplitude ratio (L1/H1): | 0.89608 ⋇ 1.78951 (L1/H1: 0.775258 ⋇ 1.96615, H1/L1: 0.99819 ⋇ 2.4323) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.818426 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 27 / 36, Q2: 61 / 70, Q3: 128 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.22897, L1: 5.95853 |
| SNR variance: | H1: 0.540712, L1: 0.515683 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

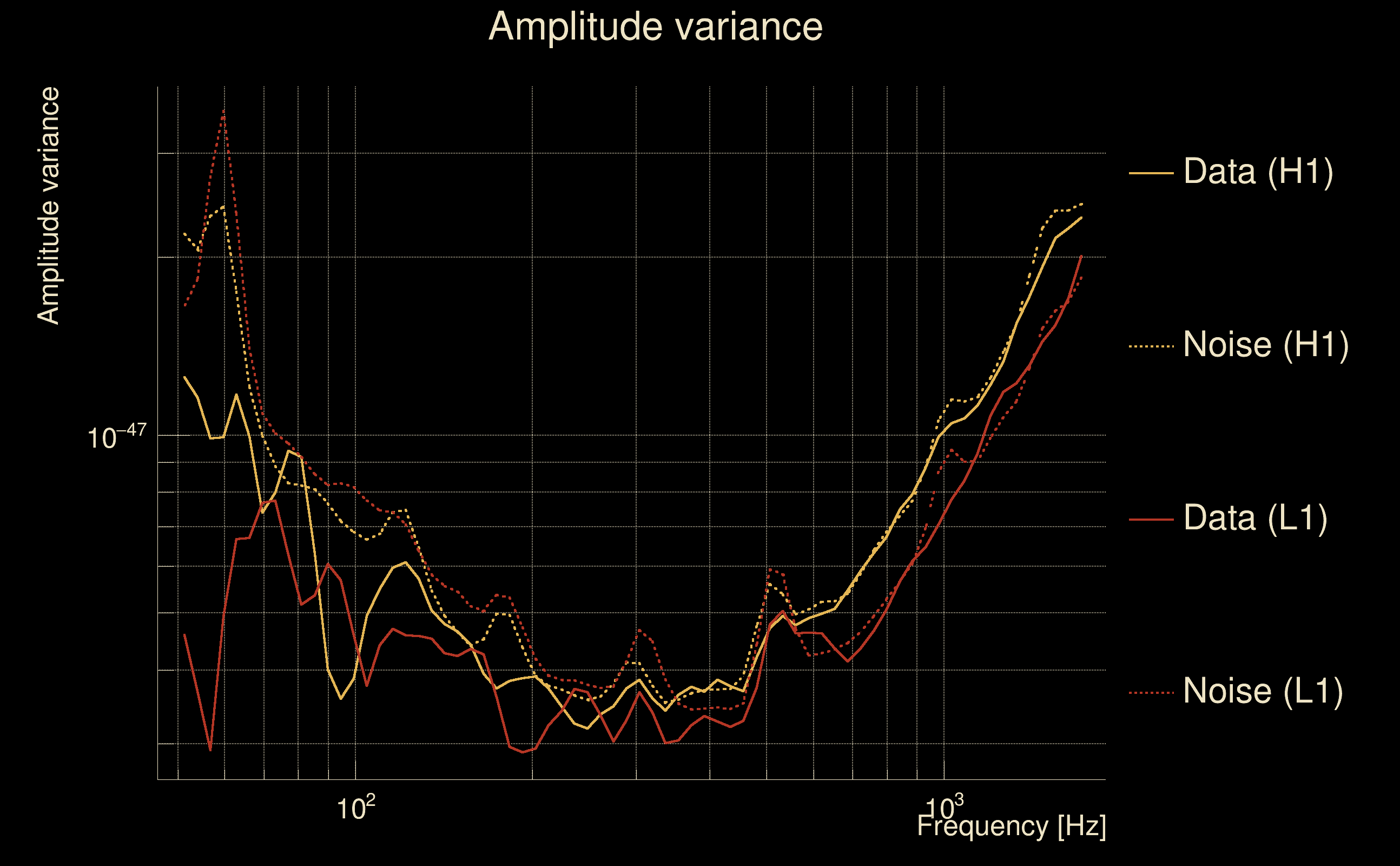

| Event time t(H1): | GPS = 1378539739 (Tue Sep 12 07:42:01 2023 ) → GPS = 1378539749 (Tue Sep 12 07:42:11 2023 ) |
| Event time t(L1): | GPS = 1378539779 (Tue Sep 12 07:42:11 2023 ) → GPS = 1378539789 (Tue Sep 12 07:42:51 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378539736 → GPS = 1378539752 |
| Omicron analysis time window (L1): | GPS = 1378539776 → GPS = 1378539792 |
| Time delay between detectors t(L1) - t(H1): | 38.0224 s (slice index = 151 / 217), δt_gw = 0.000437515 s |
| Time delay uncertainty: | 0.00732403 s |
| [targeted mode] Time delay probability: | 0.980835 (0.0240218 sigmas), δt_target = 0.0015769 s |
| Frequency: | 131.722 Hz |
| Ξ: | 0.0676377 ± 0.0798339 (variance = 0.00637344): Q0: 0.172717, Q1: 0.294428, Q2: 0.270133, Q3: 0.14879, Q4: 0.0778291 |
| Rank: | R_A = 0.0516795 |
| Log of amplitude ratio (L1/H1): | 0.0804956, variance = 0.482902 (L1/H1: -0.125589, variance = 0.985997, H1/L1: -0.291432, variance = 0.944381) |
| Amplitude ratio (L1/H1): | 1.08382 ⋇ 2.00353 (L1/H1: 0.881977 ⋇ 2.69925, H1/L1: 0.747193 ⋇ 2.64268) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.764063 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 25 / 36, Q2: 61 / 70, Q3: 123 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.90612, L1: 5.83781 |
| SNR variance: | H1: 0.517182, L1: 0.527992 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

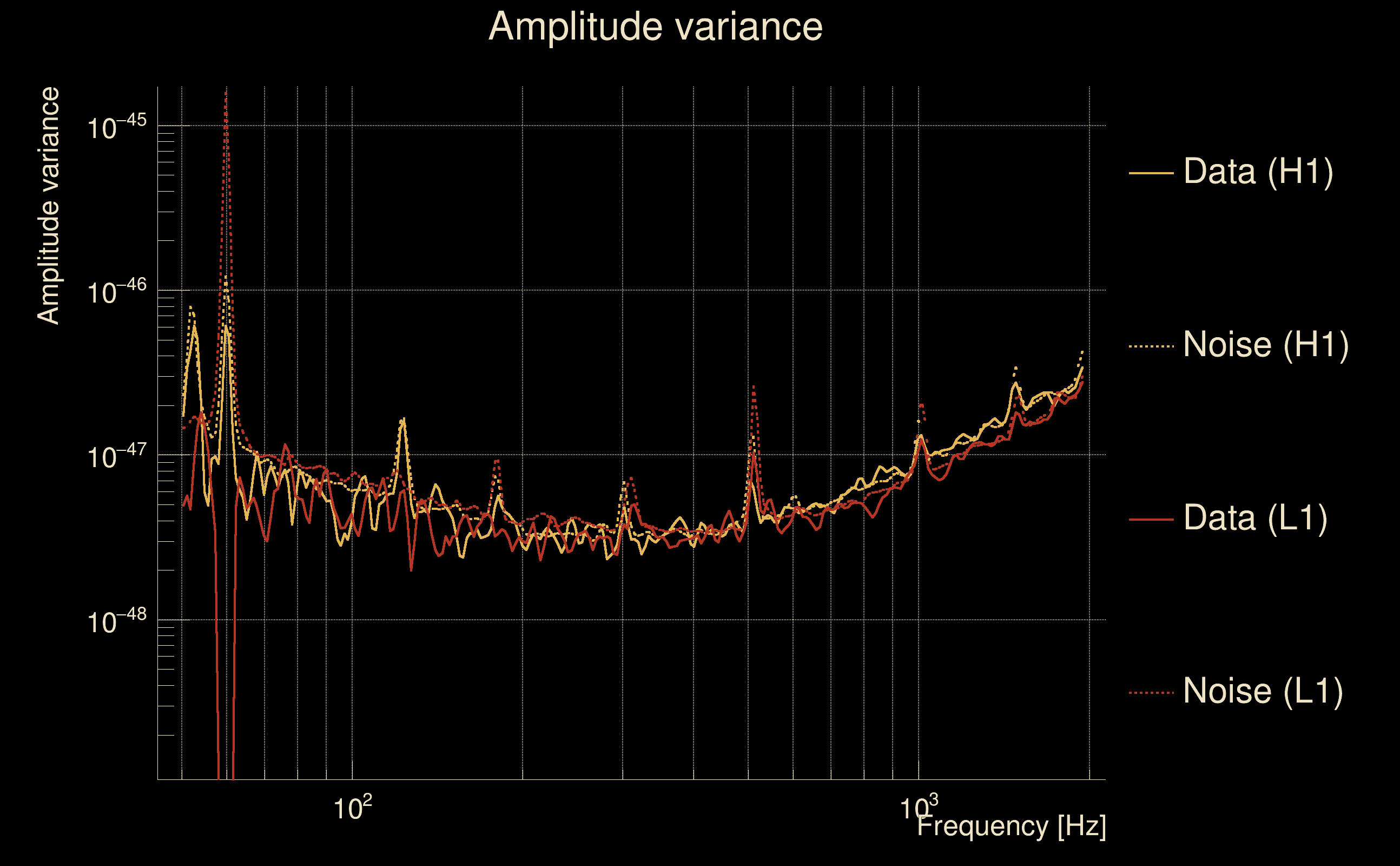

| Event time t(H1): | GPS = 1377838975 (Mon Sep 4 05:02:37 2023 ) → GPS = 1377838985 (Mon Sep 4 05:02:47 2023 ) |
| Event time t(L1): | GPS = 1377838945 (Mon Sep 4 05:02:47 2023 ) → GPS = 1377838955 (Mon Sep 4 05:02:17 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377838972 → GPS = 1377838988 |
| Omicron analysis time window (L1): | GPS = 1377838942 → GPS = 1377838958 |

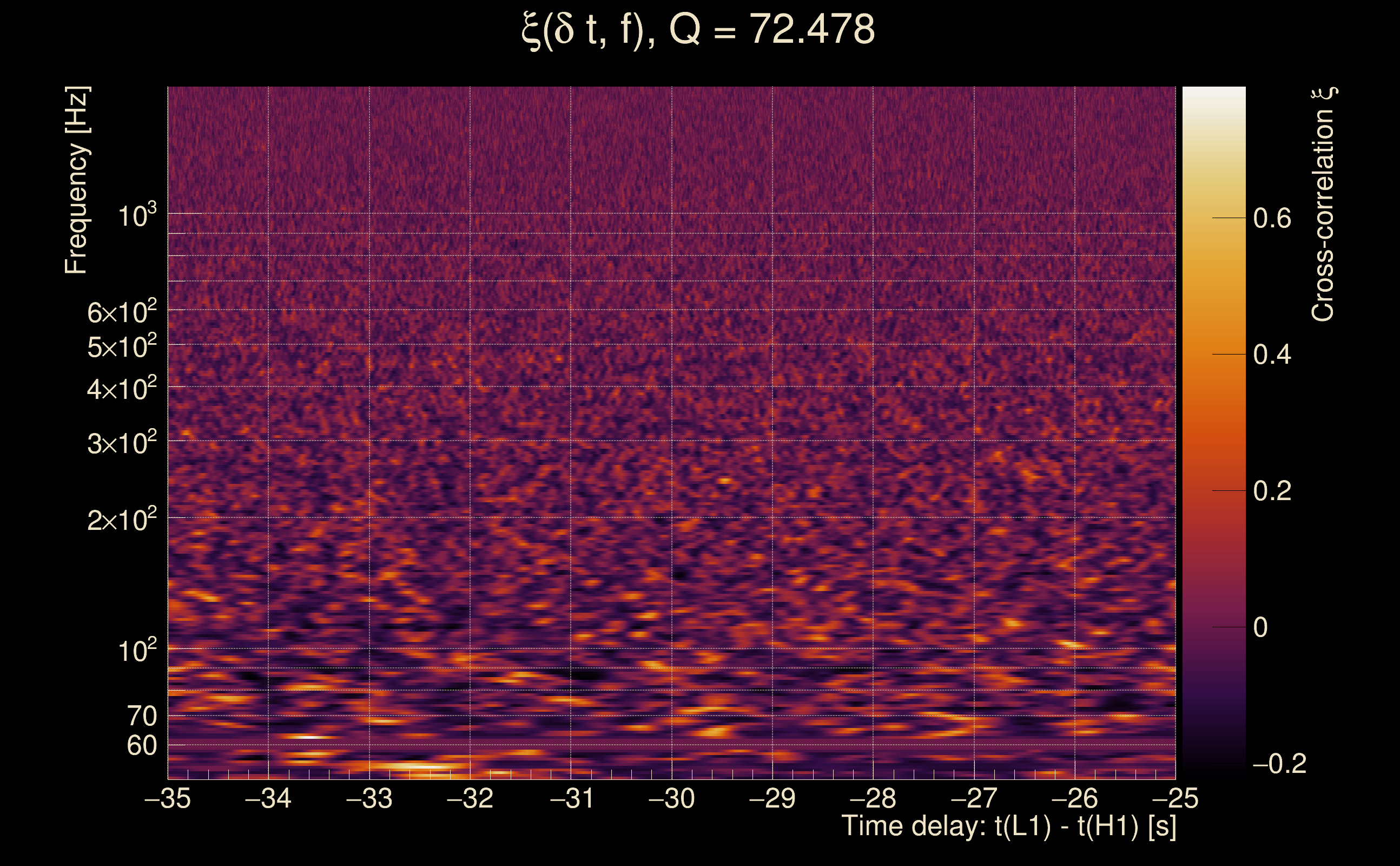

| Time delay between detectors t(L1) - t(H1): | -32.8924 s (slice index = 171 / 217), δt_gw = 0.00555343 s |
| Time delay uncertainty: | 0.00688434 s |
| [targeted mode] Time delay probability: | 0.117029 (1.56737 sigmas), δt_target = -0.0086081 s |
| Frequency: | 104.067 Hz |
| Ξ: | 0.0519083 ± 0.0486872 (variance = 0.00237044): Q0: 0.159181, Q1: 0.194718, Q2: 0.114816, Q3: 0.0785534, Q4: 0.0650468 |
| Rank: | R_A = 0.0514242 |
| Log of amplitude ratio (L1/H1): | -0.277956, variance = 0.401526 (L1/H1: -0.270663, variance = 0.548971, H1/L1: 0.285582, variance = 1.08004) |
| Amplitude ratio (L1/H1): | 0.75733 ⋇ 1.8845 (L1/H1: 0.762874 ⋇ 2.09788, H1/L1: 1.33054 ⋇ 2.82709) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.990674 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 26 / 36, Q2: 62 / 70, Q3: 127 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.00079, L1: 4.89034 |
| SNR variance: | H1: 0.519717, L1: 0.510921 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378478798 (Mon Sep 11 14:46:20 2023 ) → GPS = 1378478808 (Mon Sep 11 14:46:30 2023 ) |
| Event time t(L1): | GPS = 1378478818 (Mon Sep 11 14:46:30 2023 ) → GPS = 1378478828 (Mon Sep 11 14:46:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378478795 → GPS = 1378478811 |
| Omicron analysis time window (L1): | GPS = 1378478815 → GPS = 1378478831 |
| Time delay between detectors t(L1) - t(H1): | 24.2853 s (slice index = 15 / 217), δt_gw = 0.00725341 s |
| Time delay uncertainty: | 0.00519129 s |
| [targeted mode] Time delay probability: | 0.619629 (0.496376 sigmas), δt_target = -0.00977898 s |
| Frequency: | 105.389 Hz |
| Ξ: | 0.063961 ± 0.104248 (variance = 0.0108677): Q0: 0.353488, Q1: 0.329514, Q2: 0.230509, Q3: 0.141072, Q4: 0.0840424 |
| Rank: | R_A = 0.0513799 |
| Log of amplitude ratio (L1/H1): | 0.163631, variance = 0.247497 (L1/H1: 0.413672, variance = 1.29397, H1/L1: -0.0986674, variance = 0.305463) |
| Amplitude ratio (L1/H1): | 1.17778 ⋇ 1.64459 (L1/H1: 1.51236 ⋇ 3.11904, H1/L1: 0.906044 ⋇ 1.73792) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.803301 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 31 / 36, Q2: 67 / 70, Q3: 123 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.78237, L1: 9.38243 |
| SNR variance: | H1: 0.518734, L1: 0.51005 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378523475 (Tue Sep 12 03:10:57 2023 ) → GPS = 1378523485 (Tue Sep 12 03:11:07 2023 ) |
| Event time t(L1): | GPS = 1378523525 (Tue Sep 12 03:11:07 2023 ) → GPS = 1378523535 (Tue Sep 12 03:11:57 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378523472 → GPS = 1378523488 |
| Omicron analysis time window (L1): | GPS = 1378523522 → GPS = 1378523538 |
| Time delay between detectors t(L1) - t(H1): | 46.6869 s (slice index = 180 / 217), δt_gw = -0.00110447 s |
| Time delay uncertainty: | 0.00667967 s |
| [targeted mode] Time delay probability: | 0.419396 (0.80747 sigmas), δt_target = 0.00326061 s |
| Frequency: | 113.907 Hz |
| Ξ: | 0.0621638 ± 0.0801517 (variance = 0.00642429): Q0: 0.201014, Q1: 0.205223, Q2: 0.0302419, Q3: 0.0337613, Q4: 0.0581308 |
| Rank: | R_A = 0.0512121 |
| Log of amplitude ratio (L1/H1): | 0.267246, variance = 0.769152 (L1/H1: 0.0219255, variance = 1.11999, H1/L1: -0.373031, variance = 1.36725) |
| Amplitude ratio (L1/H1): | 1.30636 ⋇ 2.40371 (L1/H1: 1.02217 ⋇ 2.88145, H1/L1: 0.688644 ⋇ 3.21972) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.823825 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 25 / 36, Q2: 64 / 70, Q3: 124 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.57165, L1: 8.48473 |
| SNR variance: | H1: 0.495424, L1: 0.532474 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378338458 (Sat Sep 9 23:47:20 2023 ) → GPS = 1378338468 (Sat Sep 9 23:47:30 2023 ) |
| Event time t(L1): | GPS = 1378338438 (Sat Sep 9 23:47:30 2023 ) → GPS = 1378338448 (Sat Sep 9 23:47:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378338455 → GPS = 1378338471 |
| Omicron analysis time window (L1): | GPS = 1378338435 → GPS = 1378338451 |
| Time delay between detectors t(L1) - t(H1): | -16.7768 s (slice index = 38 / 217), δt_gw = 0.00320465 s |
| Time delay uncertainty: | 0.00645163 s |
| [targeted mode] Time delay probability: | 0.199322 (1.28349 sigmas), δt_target = -0.00876784 s |
| Frequency: | 79.1833 Hz |
| Ξ: | 0.0587663 ± 0.116405 (variance = 0.01355): Q0: 0.399313, Q1: 0.308146, Q2: 0.159961, Q3: 0.182506, Q4: 0.0687181 |
| Rank: | R_A = 0.0507877 |
| Log of amplitude ratio (L1/H1): | -0.148417, variance = 0.491373 (L1/H1: 0.00515816, variance = 0.663776, H1/L1: 0.203076, variance = 0.819305) |
| Amplitude ratio (L1/H1): | 0.862072 ⋇ 2.01573 (L1/H1: 1.00517 ⋇ 2.25855, H1/L1: 1.22517 ⋇ 2.47231) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.864232 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 31 / 36, Q2: 64 / 70, Q3: 126 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.14563, L1: 8.62515 |
| SNR variance: | H1: 0.512665, L1: 0.54581 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378942373 (Sat Sep 16 23:32:35 2023 ) → GPS = 1378942383 (Sat Sep 16 23:32:45 2023 ) |
| Event time t(L1): | GPS = 1378942333 (Sat Sep 16 23:32:45 2023 ) → GPS = 1378942343 (Sat Sep 16 23:32:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378942370 → GPS = 1378942386 |
| Omicron analysis time window (L1): | GPS = 1378942330 → GPS = 1378942346 |

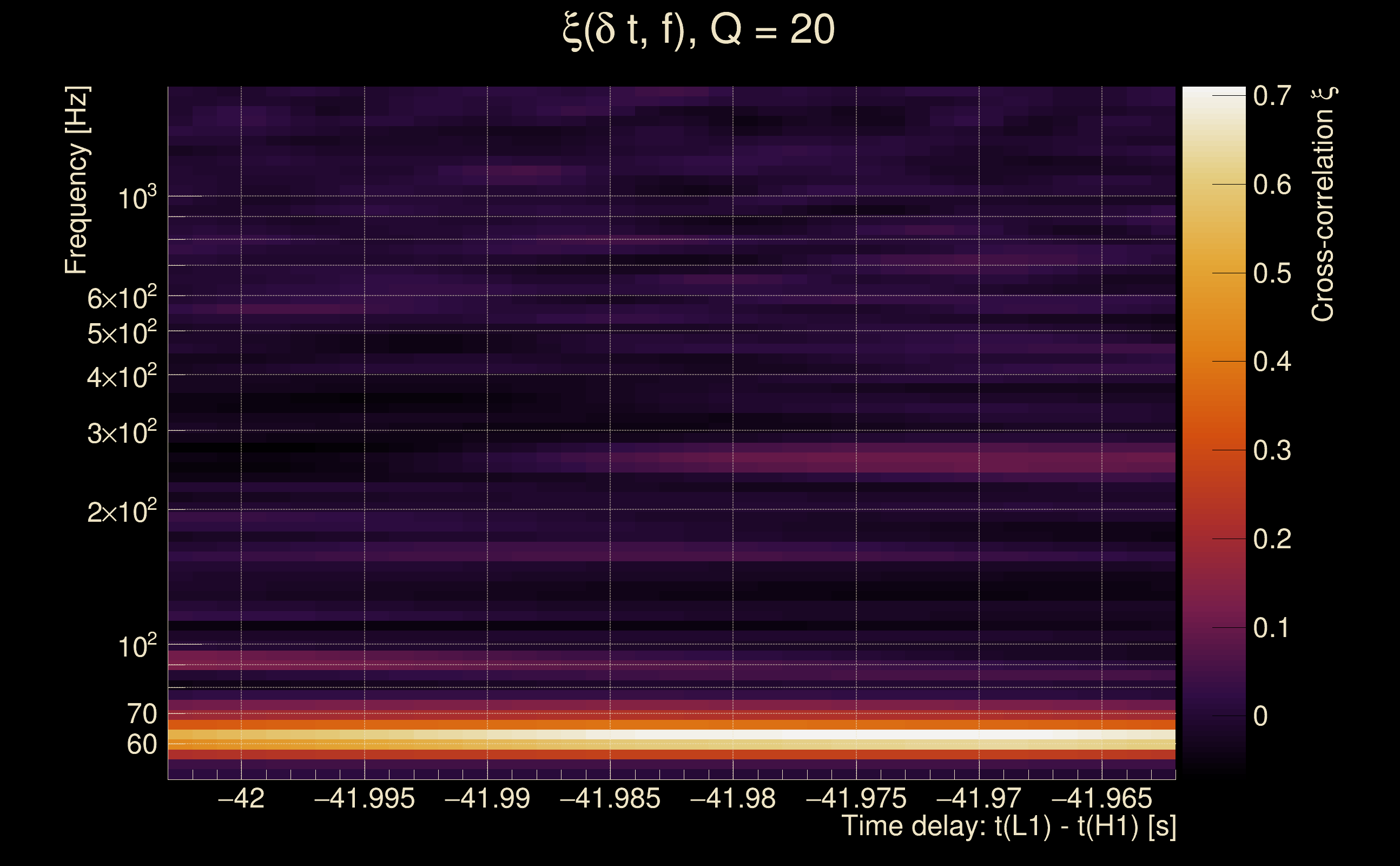

| Time delay between detectors t(L1) - t(H1): | -41.9825 s (slice index = 151 / 217), δt_gw = -0.00449979 s |
| Time delay uncertainty: | 0.00547766 s |
| [targeted mode] Time delay probability: | 0.876636 (0.155235 sigmas), δt_target = -0.00303149 s |
| Frequency: | 76.9022 Hz |
| Ξ: | 0.119019 ± 0.138878 (variance = 0.0192871): Q0: 0.438903, Q1: 0.516632, Q2: 0.491148, Q3: 0.383896, Q4: 0.12969 |
| Rank: | R_A = 0.0495096 |
| Log of amplitude ratio (L1/H1): | 0.828655, variance = 0.602332 (L1/H1: -0.432565, variance = 2.31088, H1/L1: -0.984779, variance = 0.725275) |
| Amplitude ratio (L1/H1): | 2.29024 ⋇ 2.17298 (L1/H1: 0.648843 ⋇ 4.57295, H1/L1: 0.373522 ⋇ 2.34346) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.415979 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 26 / 36, Q2: 52 / 70, Q3: 116 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.19364, L1: 14.7616 |
| SNR variance: | H1: 0.536773, L1: 0.52117 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378017408 (Wed Sep 6 06:36:30 2023 ) → GPS = 1378017418 (Wed Sep 6 06:36:40 2023 ) |
| Event time t(L1): | GPS = 1378017418 (Wed Sep 6 06:36:40 2023 ) → GPS = 1378017428 (Wed Sep 6 06:36:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378017405 → GPS = 1378017421 |
| Omicron analysis time window (L1): | GPS = 1378017415 → GPS = 1378017431 |
| Time delay between detectors t(L1) - t(H1): | 14.5529 s (slice index = 9 / 217), δt_gw = -0.00111794 s |
| Time delay uncertainty: | 0.00558332 s |
| [targeted mode] Time delay probability: | 0.807992 (0.243017 sigmas), δt_target = -0.00344682 s |
| Frequency: | 113.796 Hz |
| Ξ: | 0.0868237 ± 0.0960555 (variance = 0.00922667): Q0: 0.32121, Q1: 0.261942, Q2: 0.0919277, Q3: 0.103368, Q4: 0.103072 |
| Rank: | R_A = 0.0494405 |
| Log of amplitude ratio (L1/H1): | 0.0925291, variance = 0.469328 (L1/H1: -0.585494, variance = 1.64827, H1/L1: -0.274354, variance = 0.636264) |
| Amplitude ratio (L1/H1): | 1.09695 ⋇ 1.98392 (L1/H1: 0.556831 ⋇ 3.61051, H1/L1: 0.760063 ⋇ 2.22034) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.569435 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 25 / 36, Q2: 59 / 70, Q3: 122 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.54775, L1: 10.713 |
| SNR variance: | H1: 0.521179, L1: 0.537615 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

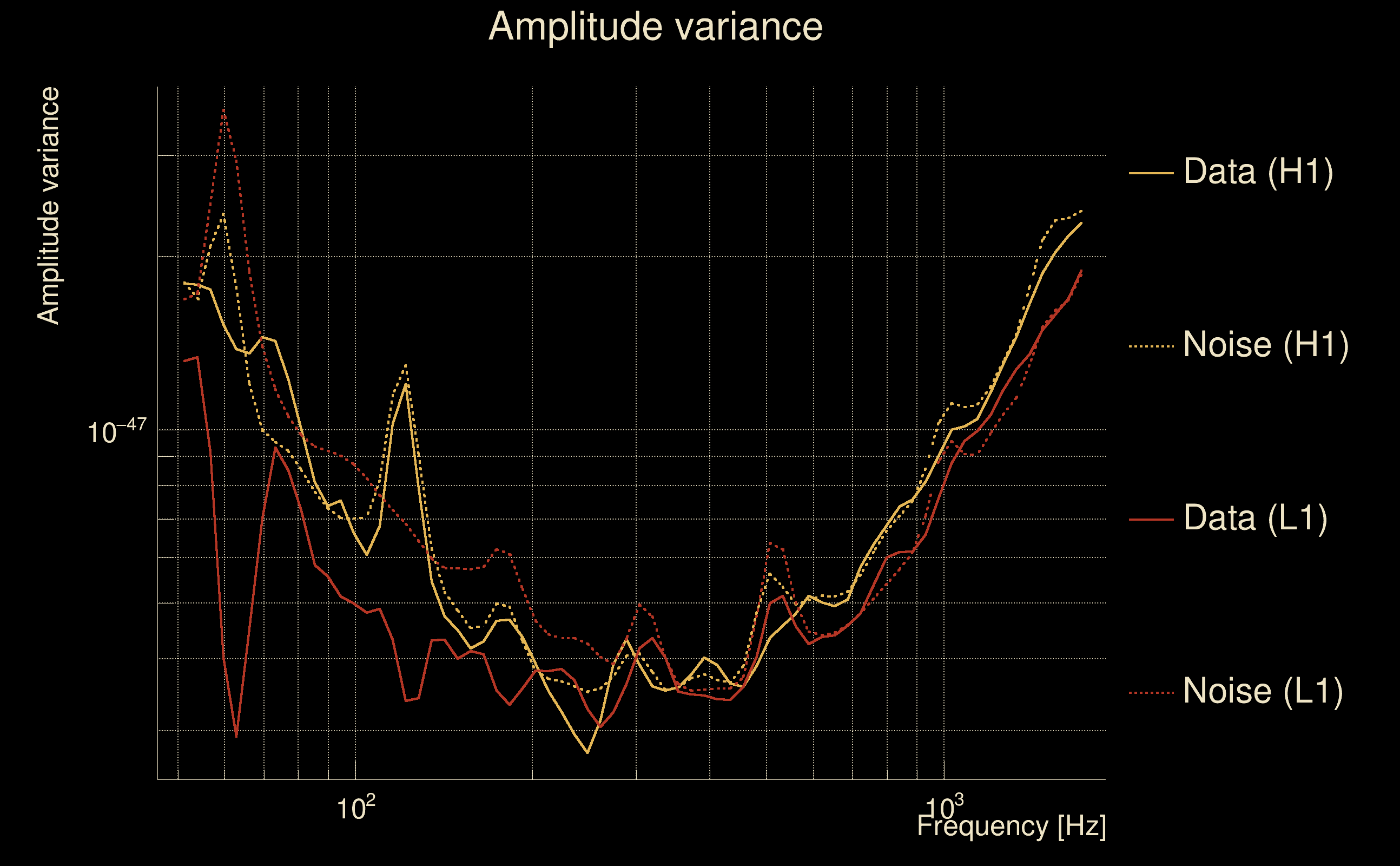

| Event time t(H1): | GPS = 1378714412 (Thu Sep 14 08:13:14 2023 ) → GPS = 1378714422 (Thu Sep 14 08:13:24 2023 ) |
| Event time t(L1): | GPS = 1378714452 (Thu Sep 14 08:13:24 2023 ) → GPS = 1378714462 (Thu Sep 14 08:14:04 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378714409 → GPS = 1378714425 |
| Omicron analysis time window (L1): | GPS = 1378714449 → GPS = 1378714465 |
| Time delay between detectors t(L1) - t(H1): | 38.4882 s (slice index = 141 / 217), δt_gw = 0.00622969 s |
| Time delay uncertainty: | 0.00687023 s |
| [targeted mode] Time delay probability: | 0.542125 (0.609603 sigmas), δt_target = -0.00978017 s |
| Frequency: | 103.544 Hz |
| Ξ: | 0.0681475 ± 0.0930653 (variance = 0.00866115): Q0: 0.245651, Q1: 0.24005, Q2: 0.0339527, Q3: 0.0527724, Q4: 0.0787102 |
| Rank: | R_A = 0.0493475 |
| Log of amplitude ratio (L1/H1): | -0.723867, variance = 0.243595 (L1/H1: -0.795013, variance = 0.288707, H1/L1: 0.315911, variance = 1.55391) |
| Amplitude ratio (L1/H1): | 0.484874 ⋇ 1.63813 (L1/H1: 0.451575 ⋇ 1.71141, H1/L1: 1.37151 ⋇ 3.47836) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.724128 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 25 / 36, Q2: 64 / 70, Q3: 126 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 12.3631, L1: 5.16295 |
| SNR variance: | H1: 0.50182, L1: 0.517905 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377923035 (Tue Sep 5 04:23:37 2023 ) → GPS = 1377923045 (Tue Sep 5 04:23:47 2023 ) |
| Event time t(L1): | GPS = 1377923075 (Tue Sep 5 04:23:47 2023 ) → GPS = 1377923085 (Tue Sep 5 04:24:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377923032 → GPS = 1377923048 |
| Omicron analysis time window (L1): | GPS = 1377923072 → GPS = 1377923088 |
| Time delay between detectors t(L1) - t(H1): | 41.2387 s (slice index = 81 / 217), δt_gw = -0.00325645 s |
| Time delay uncertainty: | 0.00439698 s |
| [targeted mode] Time delay probability: | 0.547419 (0.601633 sigmas), δt_target = -0.0077889 s |
| Frequency: | 86.7 Hz |
| Ξ: | 0.0664278 ± 0.0644019 (variance = 0.0041476): Q0: 0.252969, Q1: 0.334399, Q2: 0.287378, Q3: 0.163416, Q4: 0.179884 |
| Rank: | R_A = 0.0485813 |
| Log of amplitude ratio (L1/H1): | 0.125299, variance = 0.483497 (L1/H1: -0.169061, variance = 0.579764, H1/L1: -0.241529, variance = 0.850313) |
| Amplitude ratio (L1/H1): | 1.13349 ⋇ 2.00439 (L1/H1: 0.844457 ⋇ 2.14132, H1/L1: 0.785426 ⋇ 2.51463) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.73134 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 29 / 36, Q2: 60 / 70, Q3: 122 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.05715, L1: 8.04795 |
| SNR variance: | H1: 0.51226, L1: 0.559931 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378781367 (Fri Sep 15 02:49:09 2023 ) → GPS = 1378781377 (Fri Sep 15 02:49:19 2023 ) |
| Event time t(L1): | GPS = 1378781407 (Fri Sep 15 02:49:19 2023 ) → GPS = 1378781417 (Fri Sep 15 02:49:59 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378781364 → GPS = 1378781380 |
| Omicron analysis time window (L1): | GPS = 1378781404 → GPS = 1378781420 |
| Time delay between detectors t(L1) - t(H1): | 37.792 s (slice index = 156 / 217), δt_gw = -4.24058e-05 s |
| Time delay uncertainty: | 0.007671 s |
| [targeted mode] Time delay probability: | 0.393465 (0.85335 sigmas), δt_target = -0.00944114 s |
| Frequency: | 117.457 Hz |
| Ξ: | 0.0515291 ± 0.0187312 (variance = 0.00035086): Q0: 0.132152, Q1: 0.13479, Q2: 0.152668, Q3: 0.133336, Q4: 0.0953254 |
| Rank: | R_A = 0.0485382 |
| Log of amplitude ratio (L1/H1): | 0.0541617, variance = 0.530383 (L1/H1: -0.0009905, variance = 1.1902, H1/L1: -0.105434, variance = 0.946273) |
| Amplitude ratio (L1/H1): | 1.05566 ⋇ 2.0715 (L1/H1: 0.99901 ⋇ 2.97714, H1/L1: 0.899933 ⋇ 2.64525) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.941957 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 20 / 36, Q2: 65 / 70, Q3: 121 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.08418, L1: 5.27301 |
| SNR variance: | H1: 0.540418, L1: 0.549124 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
