| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Wed Oct 15 05:34:20 2025 UTC |
| Ox option file: | Targeted_bkg_showoff_131025_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |

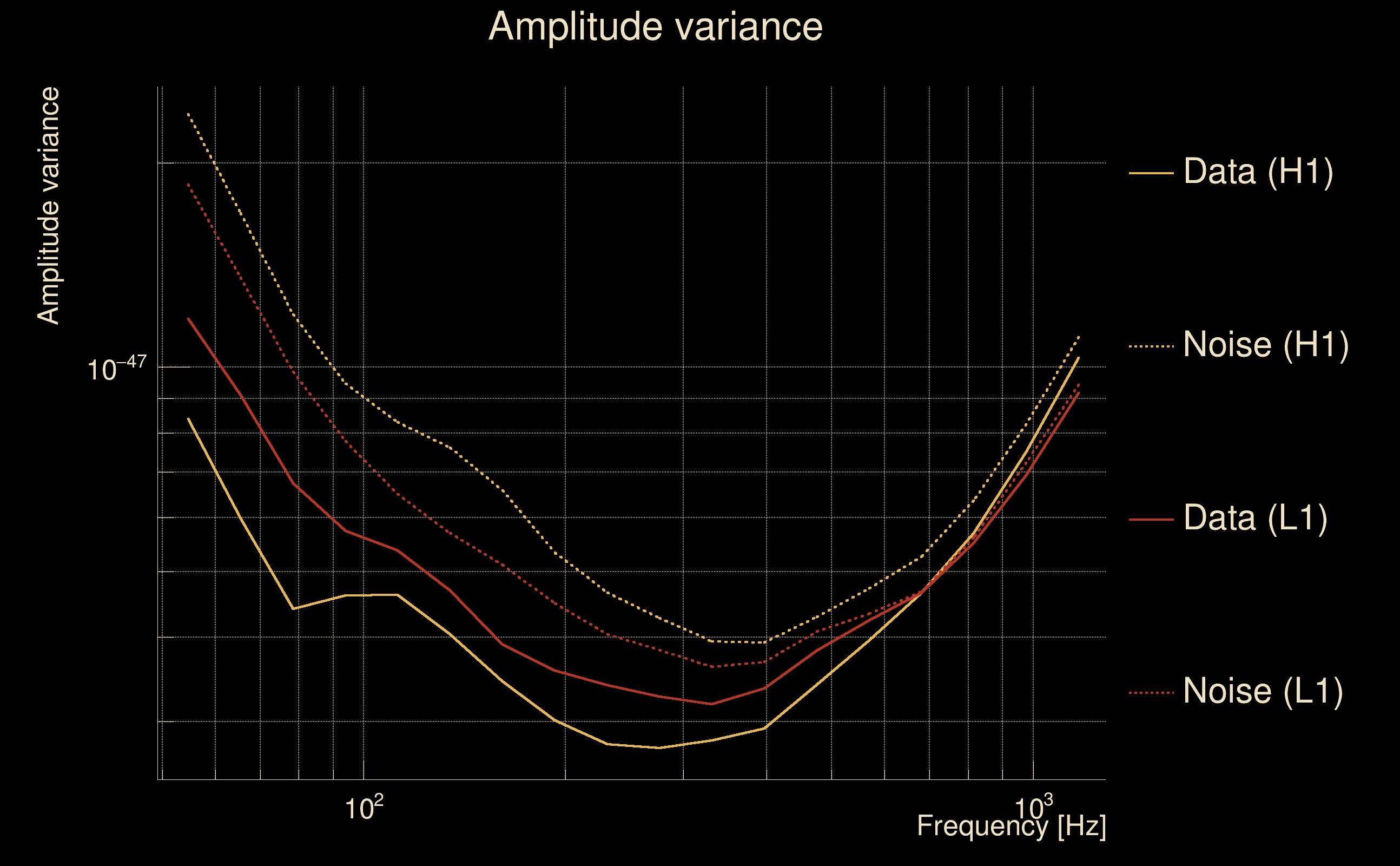

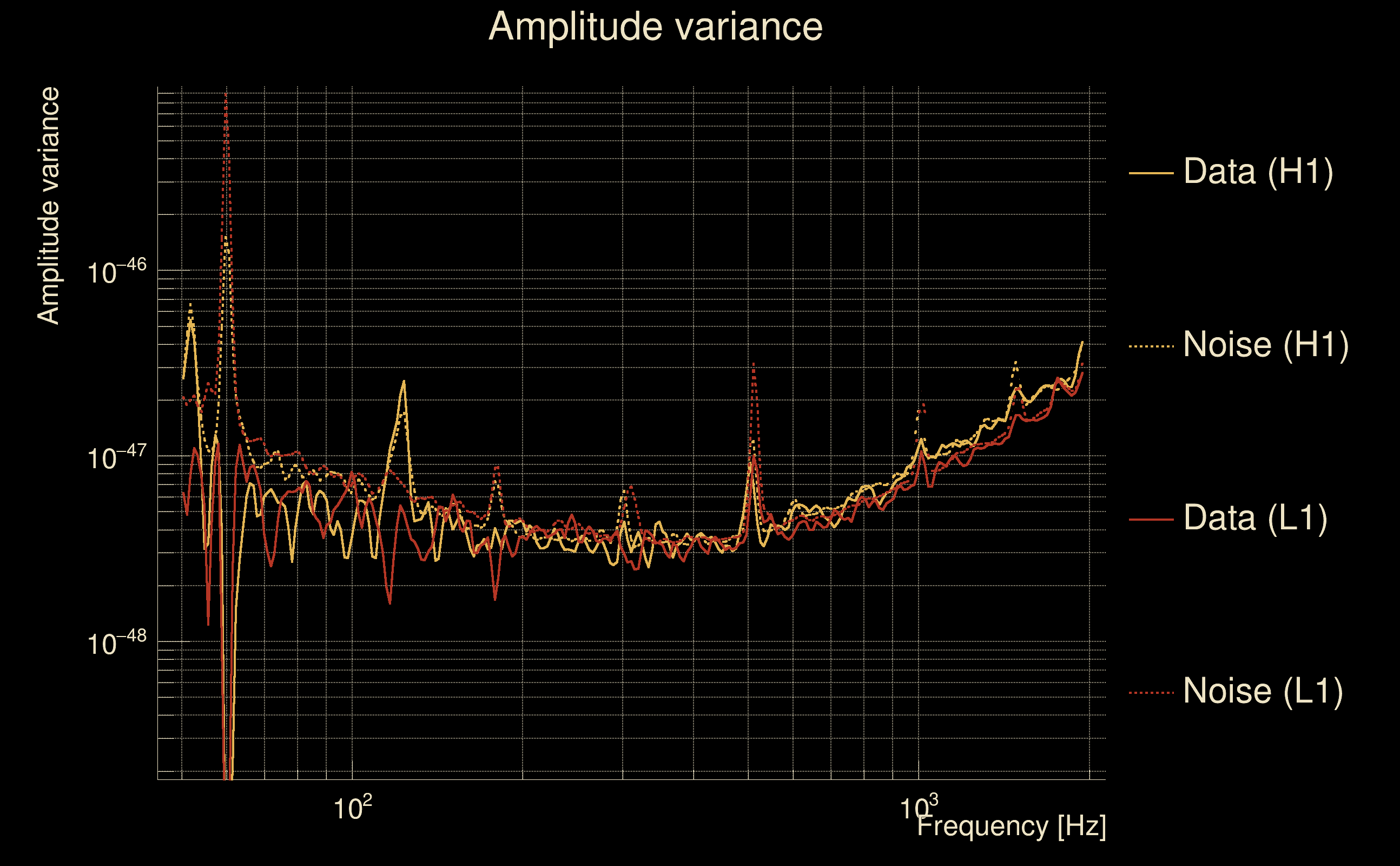

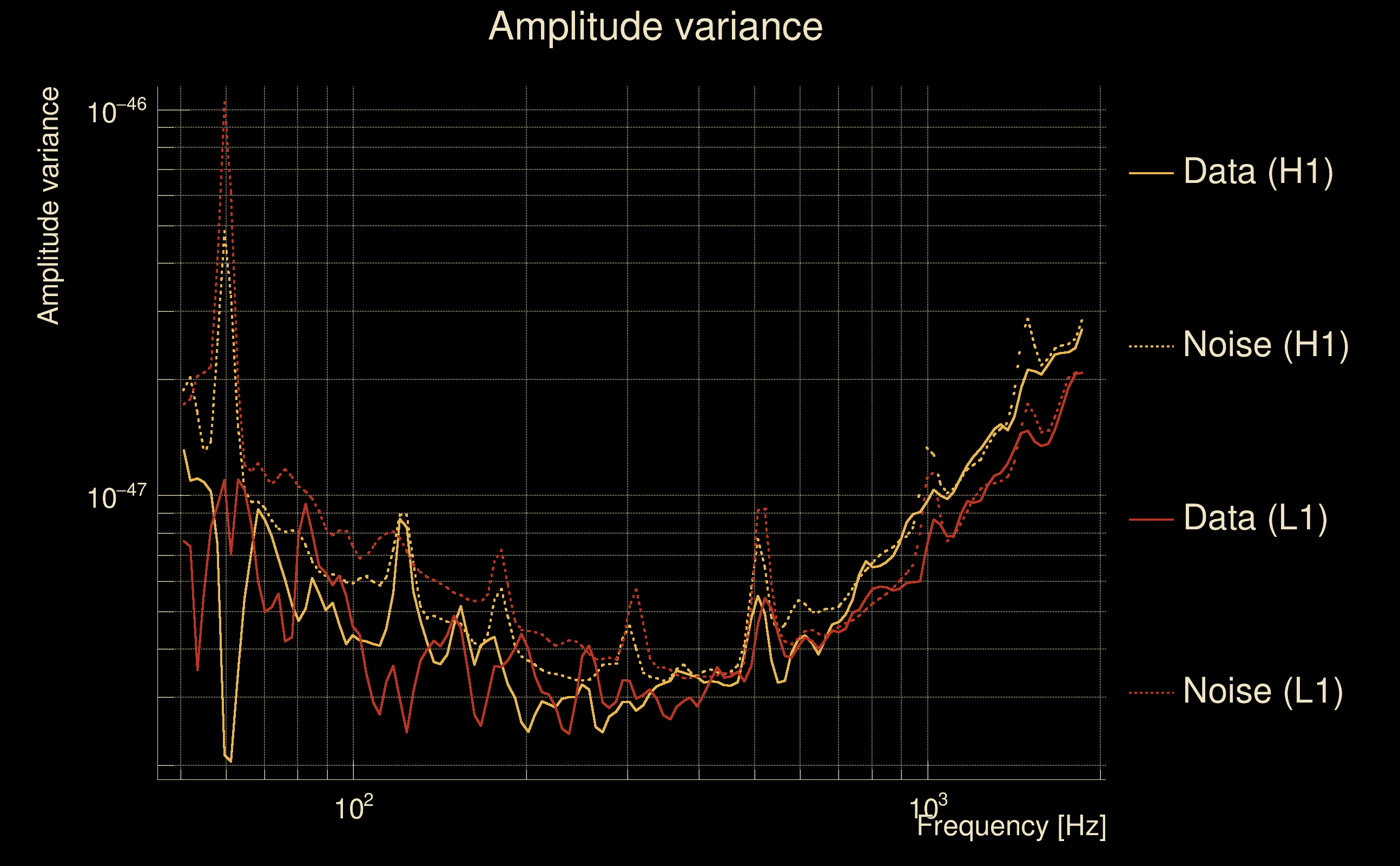

| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |

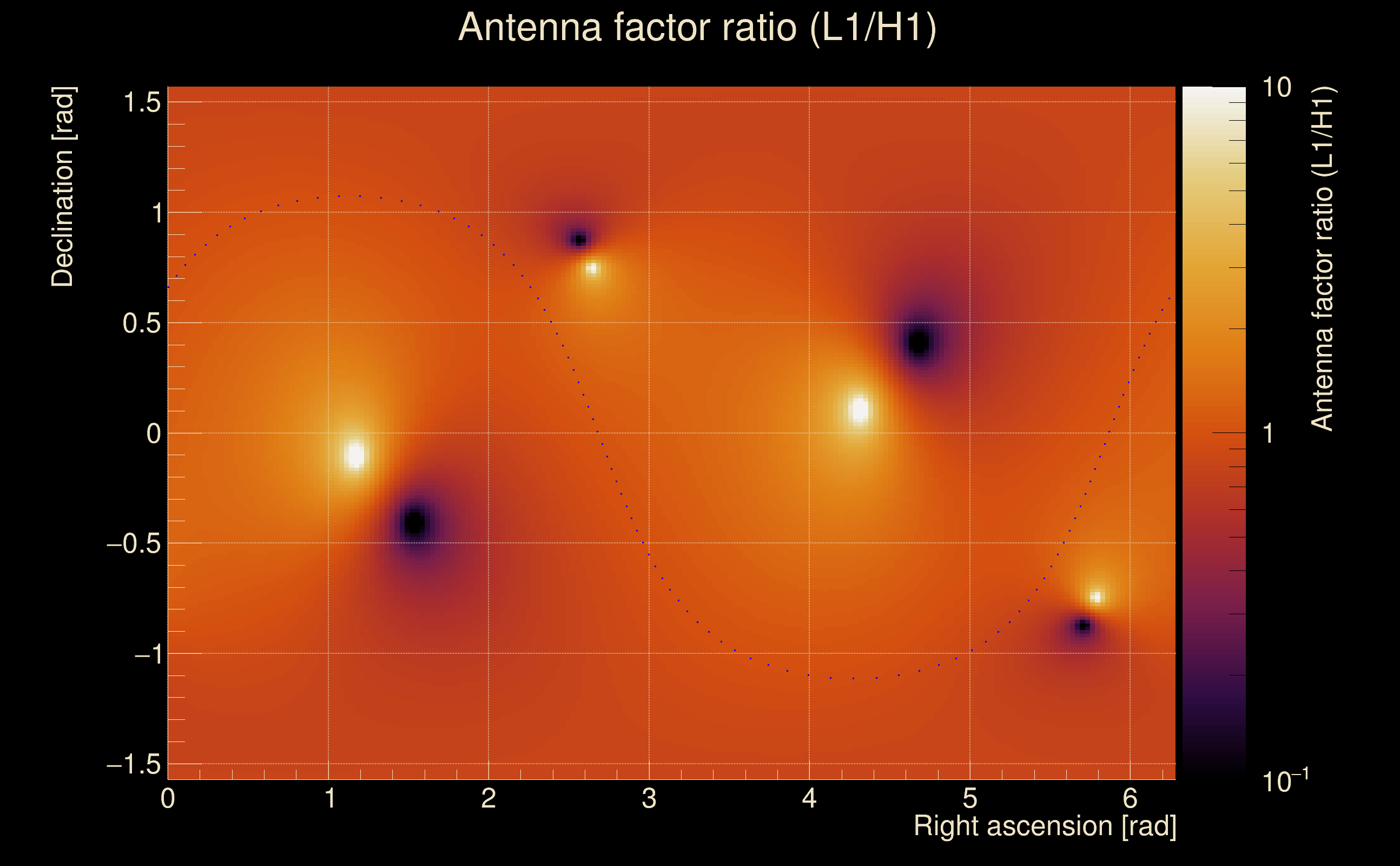

| Target sky positon: | Ra: 6.0135, Dec: 0.3475 [rad] |
| List of input Ox files: | Targeted_bkg_showoff_131025_file_list.txt (10385 files) |
| Analysis result file: | Targeted_bkg_showoff_131025_results-0.root |
| Slice selected for the the fakeground: | slice index=161 (37.562 s), time lag = 10 s |

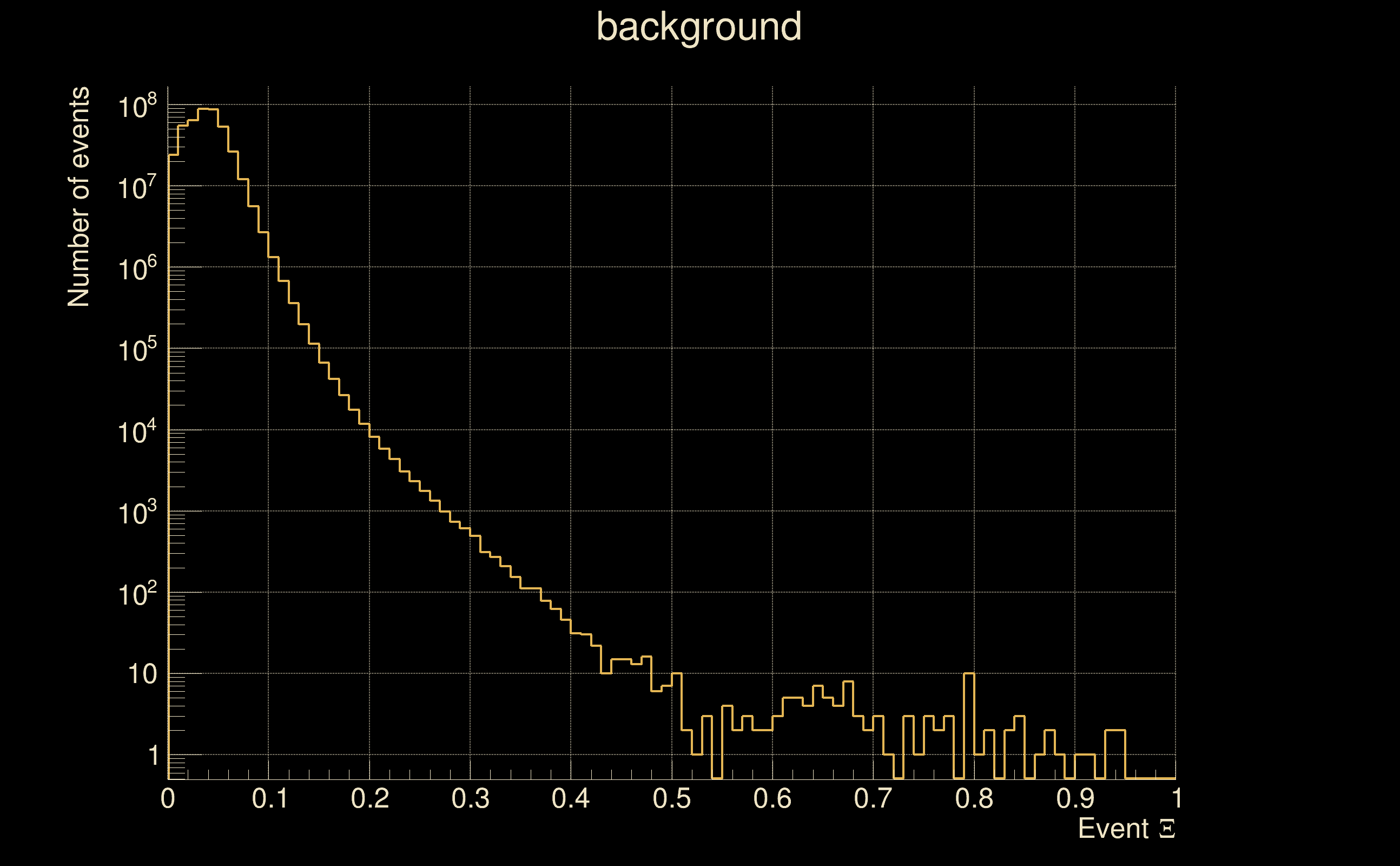

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 176151 | 176144 | 420109509 | |
| Start Date (detector 0) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:04 2023 UTC | Sat Sep 2 04:54:44 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:33 2023 UTC | |
| Start GPS (detector 0) | 1377665712 | 1377665662 | 1377665702 | |
| End GPS (detector 0) | 1378944121 | 1378944121 | 1378944111 | |
| Used livetime (detector 0) | 885490 s | 885460 s | 887695 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | Sun Sep 17 00:01:43 2023 UTC | |
| Start GPS (detector 1) | 1377665712 | 1377665712 | 1377665712 | |
| End GPS (detector 1) | 1378944121 | 1378944121 | 1378944121 | |
| Used livetime (detector 1) | 885490 s | 885460 s | 893886 s | |
| Cumulative livetime | 1761510 s | 1761440 s | 4201095090 s | |
| 0 years, 20 days, 9 hours, 18 min, 30 s | 0 years, 20 days, 9 hours, 17 min, 20 s | 133 years, 45 days, 18 hours, 51 min, 30 s |
|
|

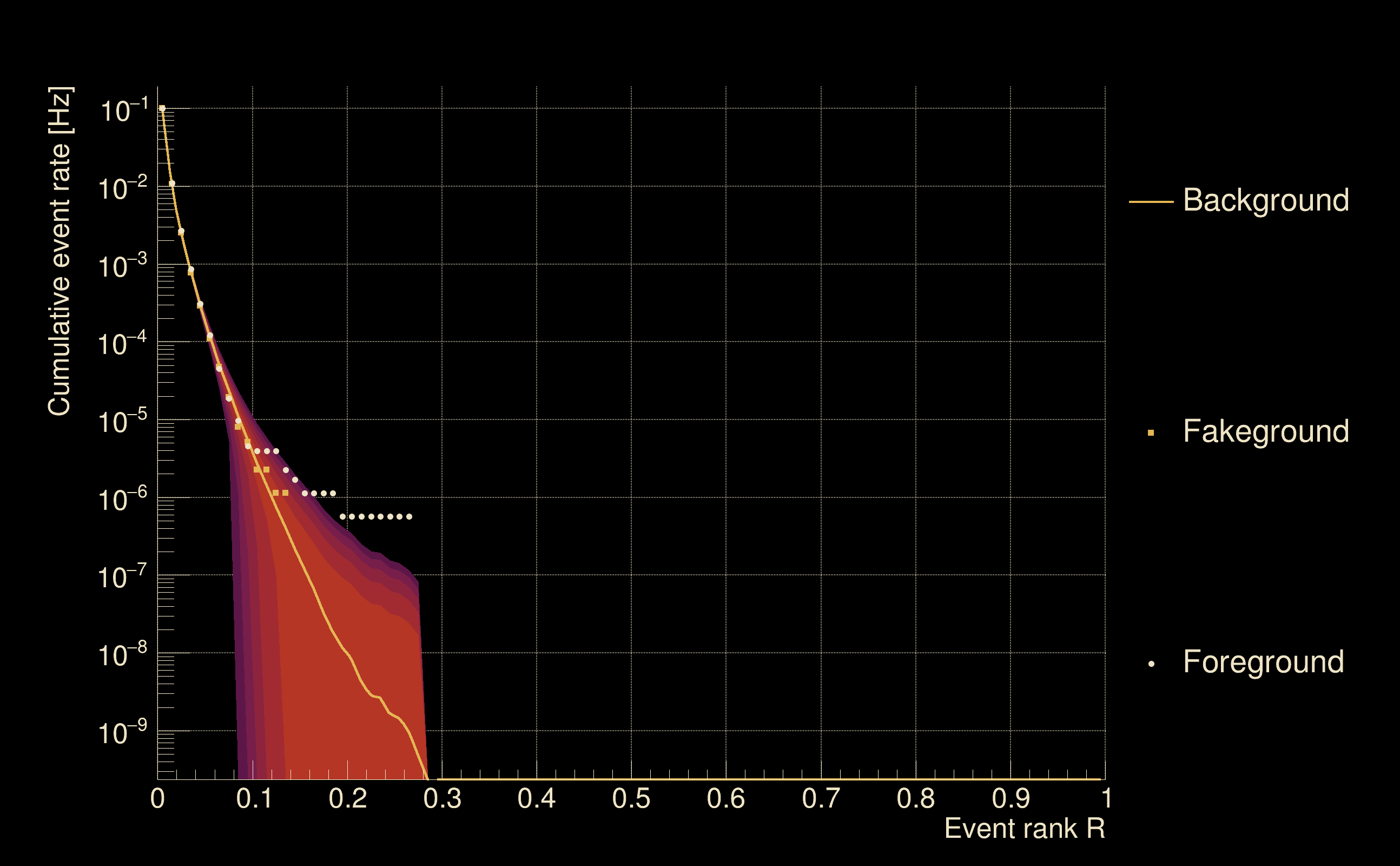

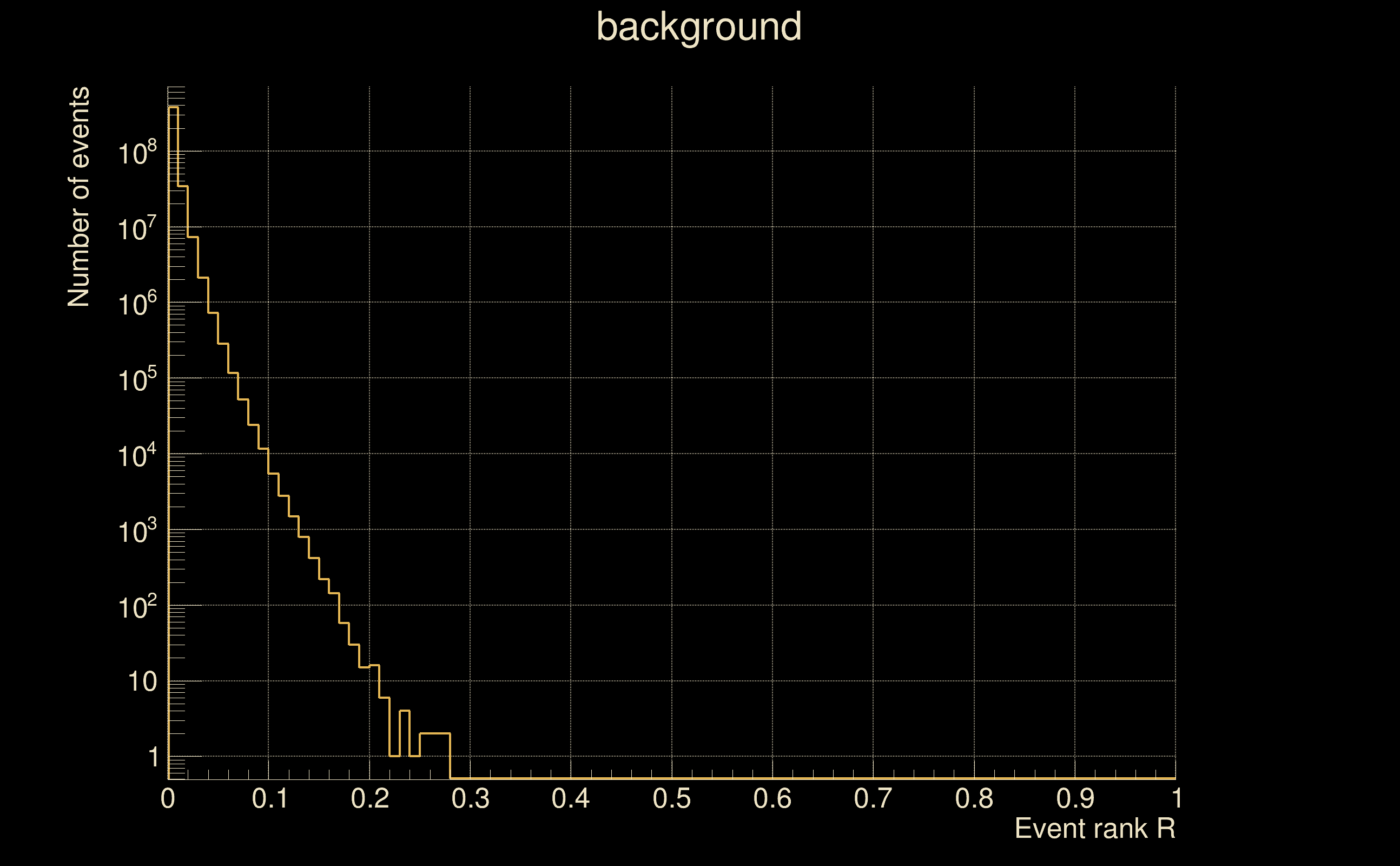

| Detection threshold: | R > 0.216682 |
| False-alarm rate above that detection threshold: | 3.33034e-09 |
| Alternative threshold at 1/1000 yrs: | R > 0.275 |
| Alternative threshold at 1/100 yrs: | R > 0.275 |
| Alternative threshold at 1/10 yrs: | R > 0.216684 |
| Alternative threshold at 1/1 yr: | R > 0.175071 |
| Alternative threshold at 1/1 d: | R > 0.0756565 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |

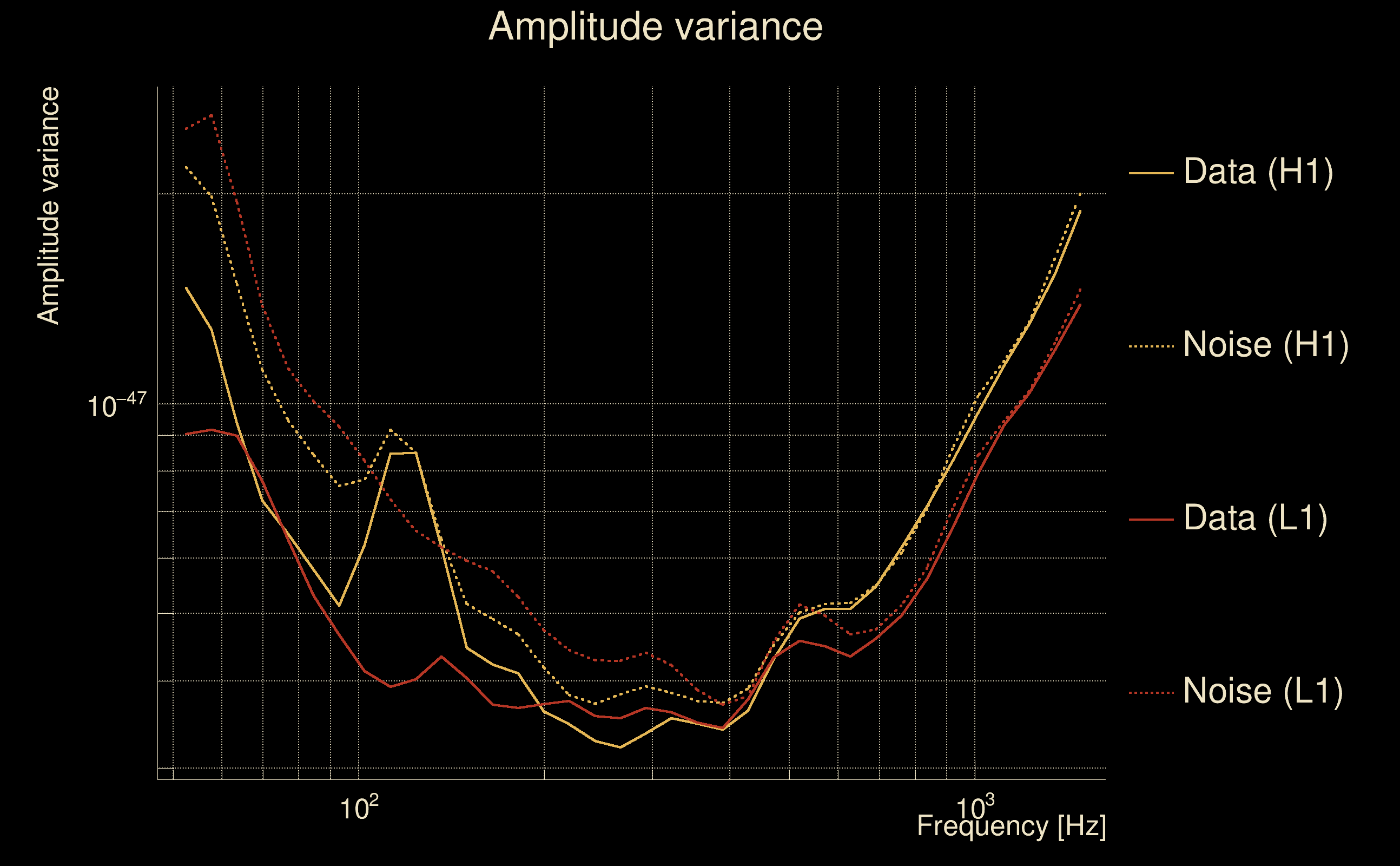

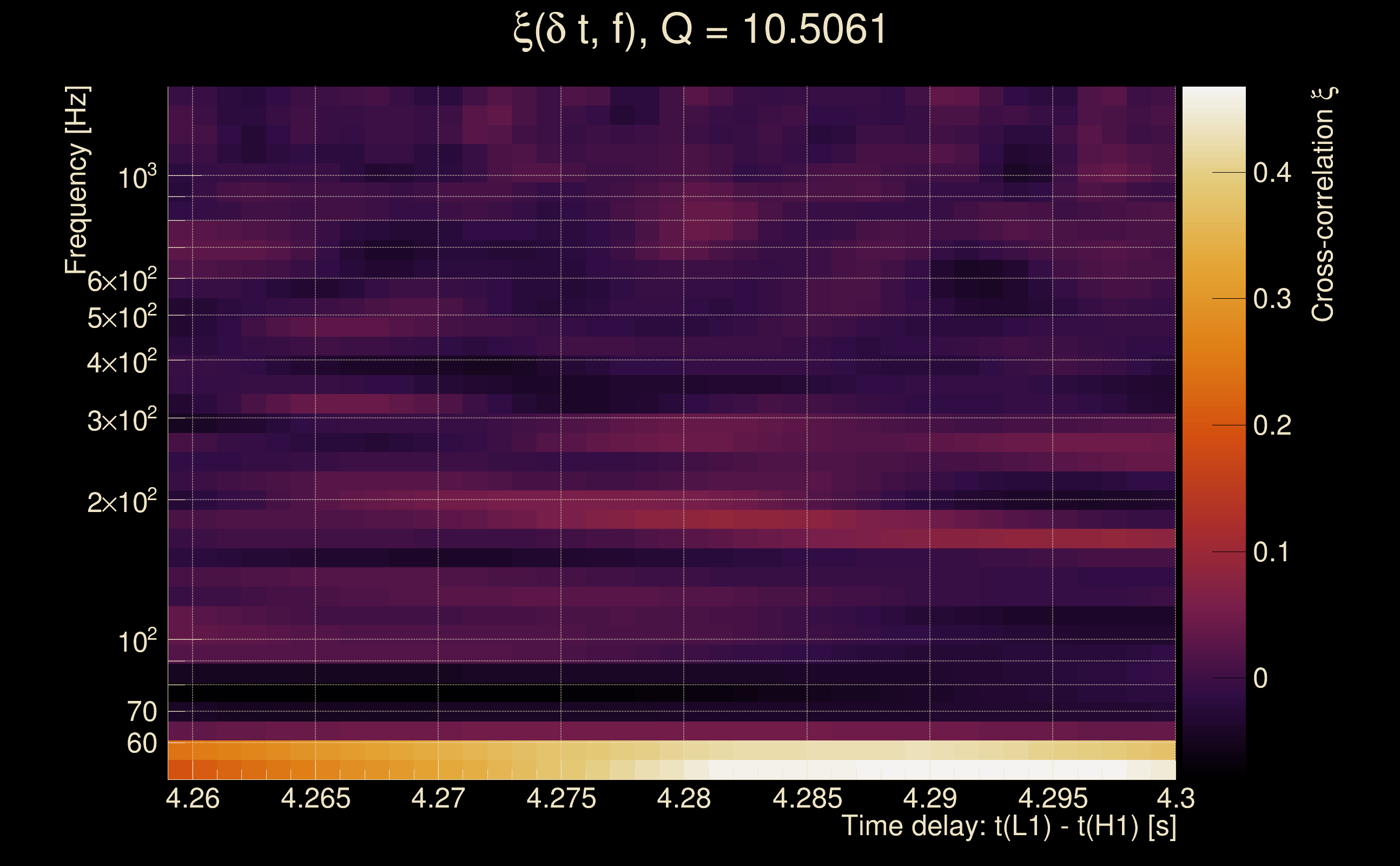

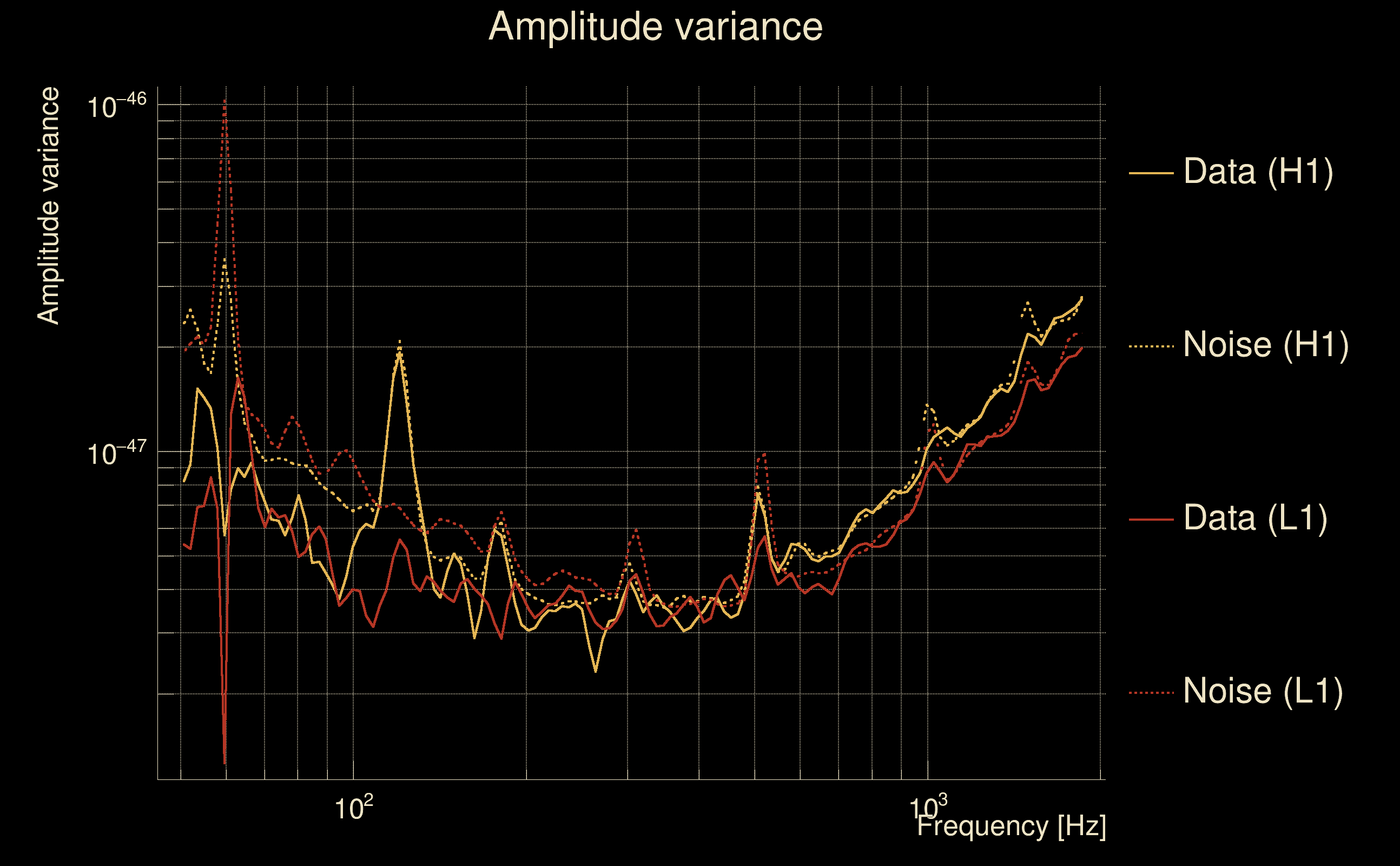

| Event time t(H1): | GPS = 1378713098 (Thu Sep 14 07:51:20 2023 ) → GPS = 1378713108 (Thu Sep 14 07:51:30 2023 ) |
| Event time t(L1): | GPS = 1378713098 (Thu Sep 14 07:51:30 2023 ) → GPS = 1378713108 (Thu Sep 14 07:51:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378713095 → GPS = 1378713111 |
| Omicron analysis time window (L1): | GPS = 1378713095 → GPS = 1378713111 |

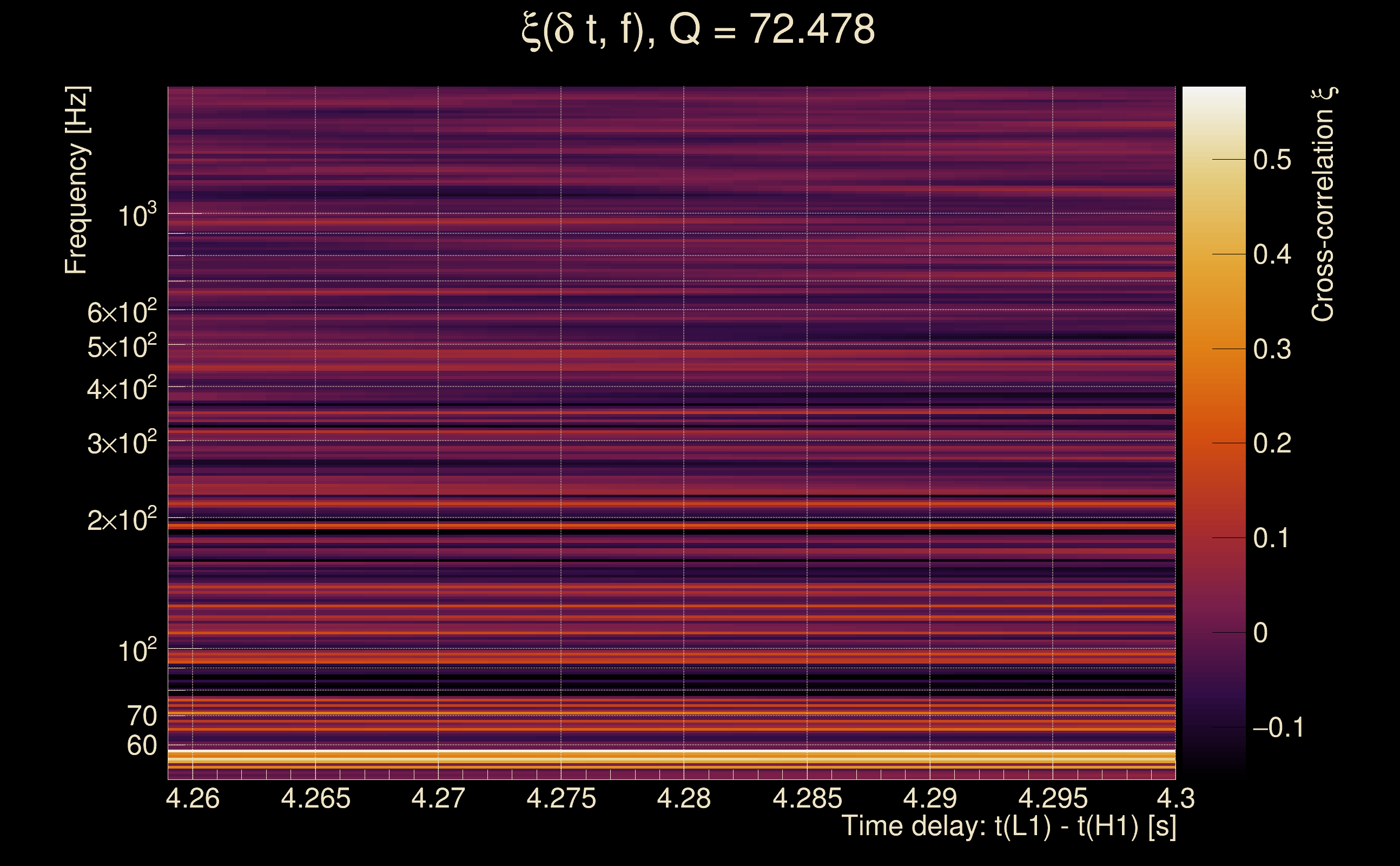

| Time delay between detectors t(L1) - t(H1): | 4.27944 s (slice index = 15 / 217), δt_gw = 0.00144431 s |
| Time delay uncertainty: | 0.0036882 s |
| [targeted mode] Time delay probability: | 0.955929 (0.0552632 sigmas), δt_target = 3.80431e-322 s |
| Frequency: | 85.2275 Hz |

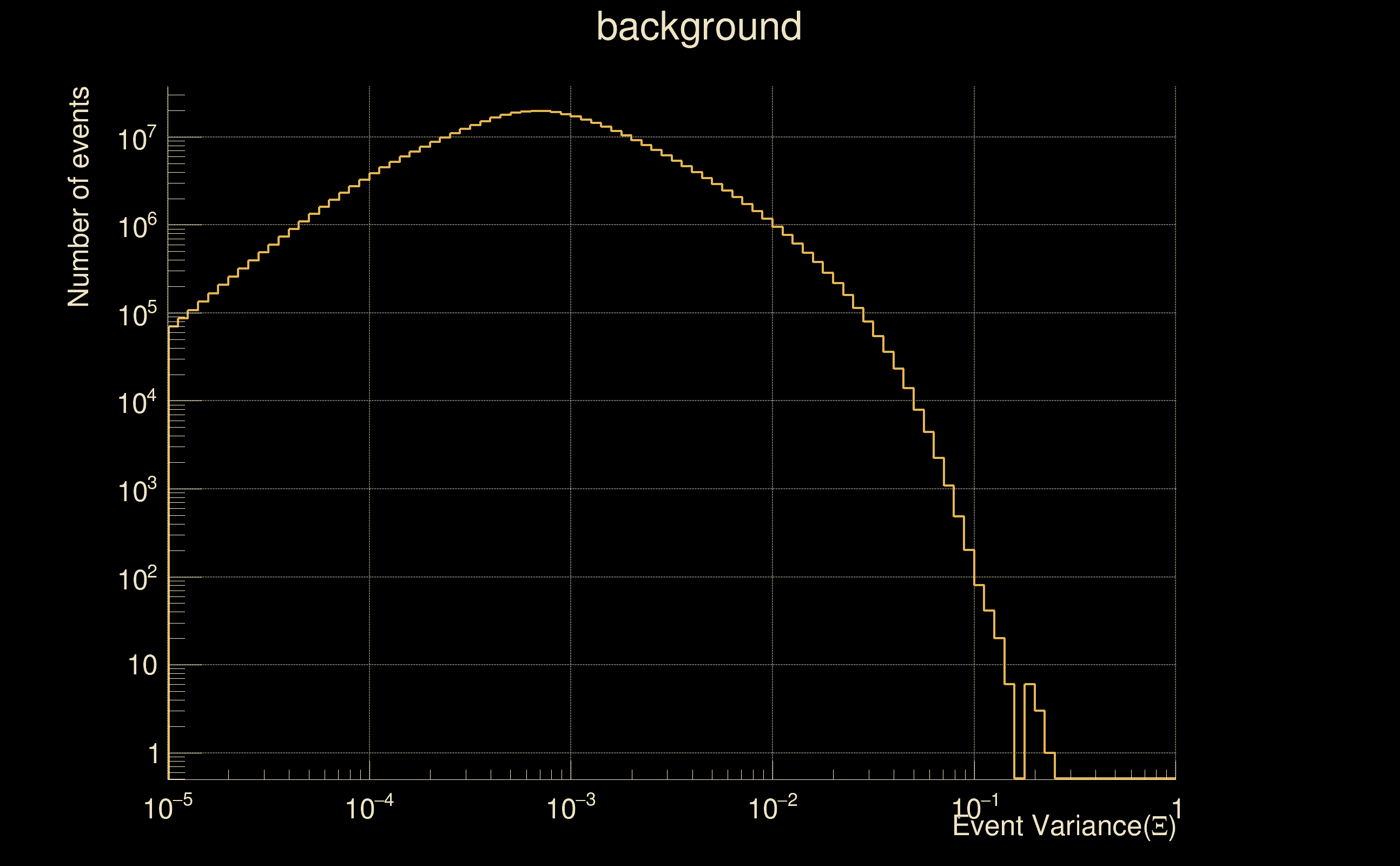

| Ξ: | 0.299238 ± 0.175828 (variance = 0.0309156): Q0: 0.206812, Q1: 0.366548, Q2: 0.474479, Q3: 0.529777, Q4: 0.0518522 |

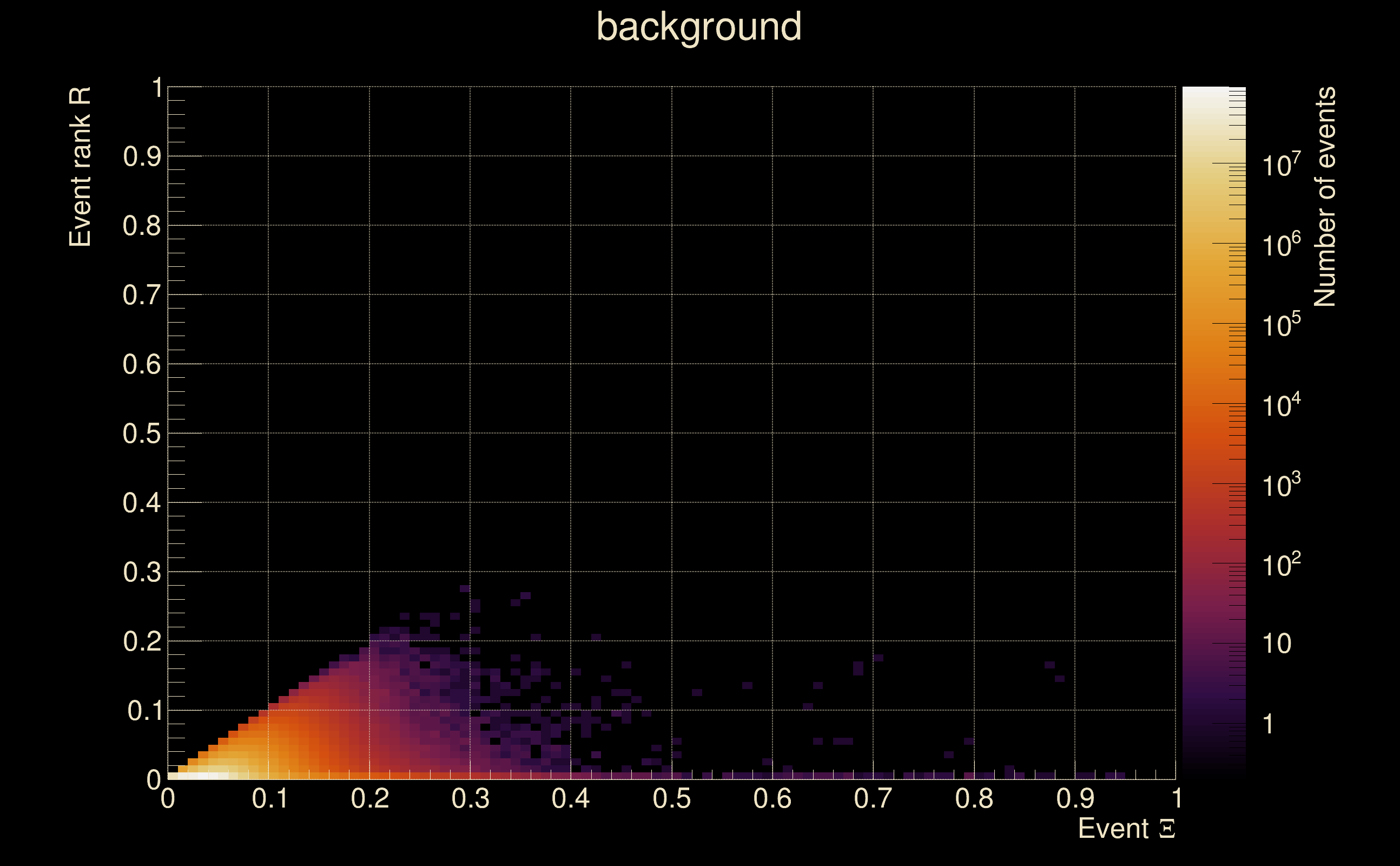

| Rank: | R_A = 0.278956 |
| Log of amplitude ratio (L1/H1): | -0.103114, variance = 0.436336 (L1/H1: -0.0805968, variance = 1.69525, H1/L1: 0.123403, variance = 0.200593) |
| Amplitude ratio (L1/H1): | 0.902024 ⋇ 1.93587 (L1/H1: 0.922566 ⋇ 3.67671, H1/L1: 1.13134 ⋇ 1.56499) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.975199 |

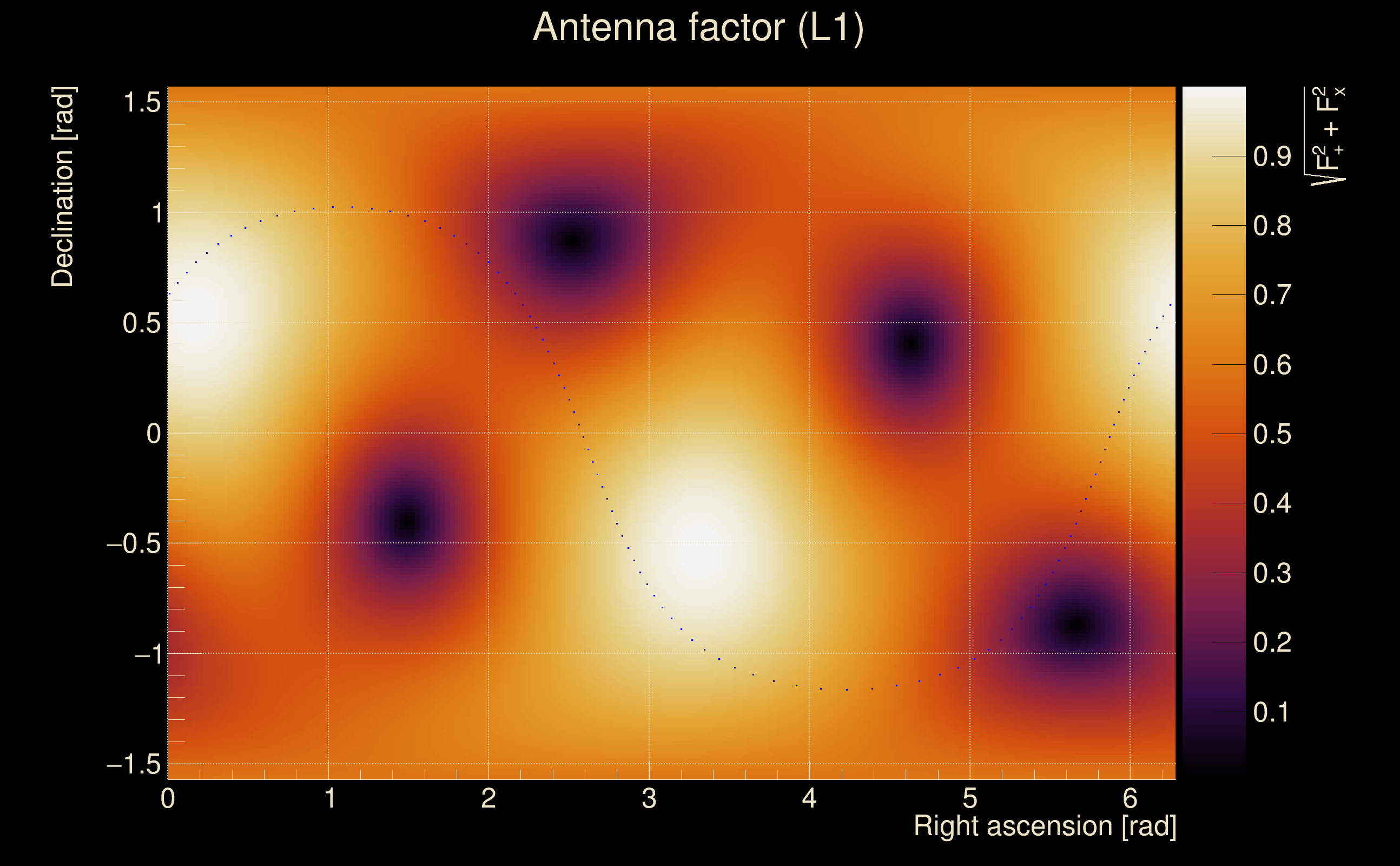

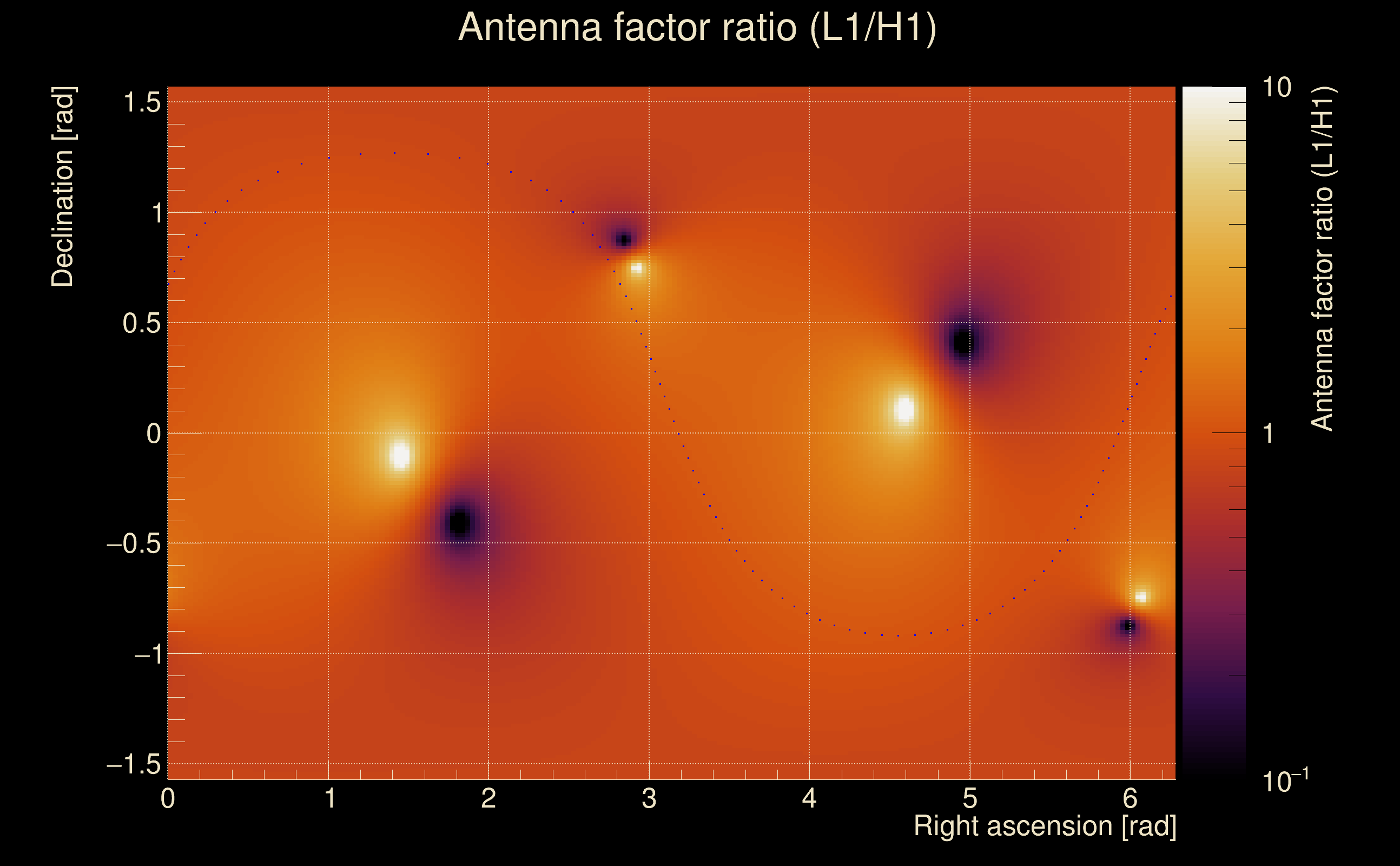

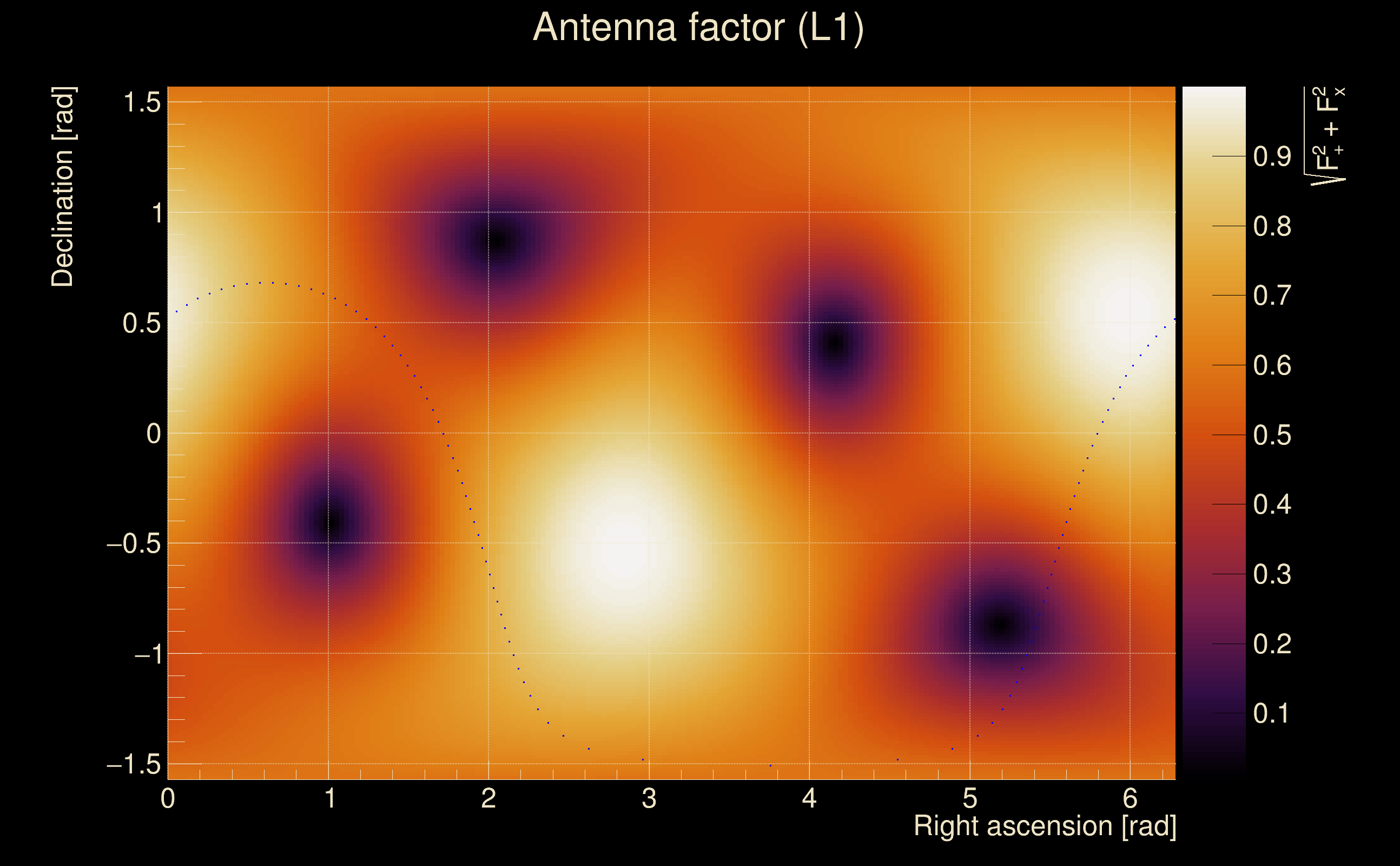

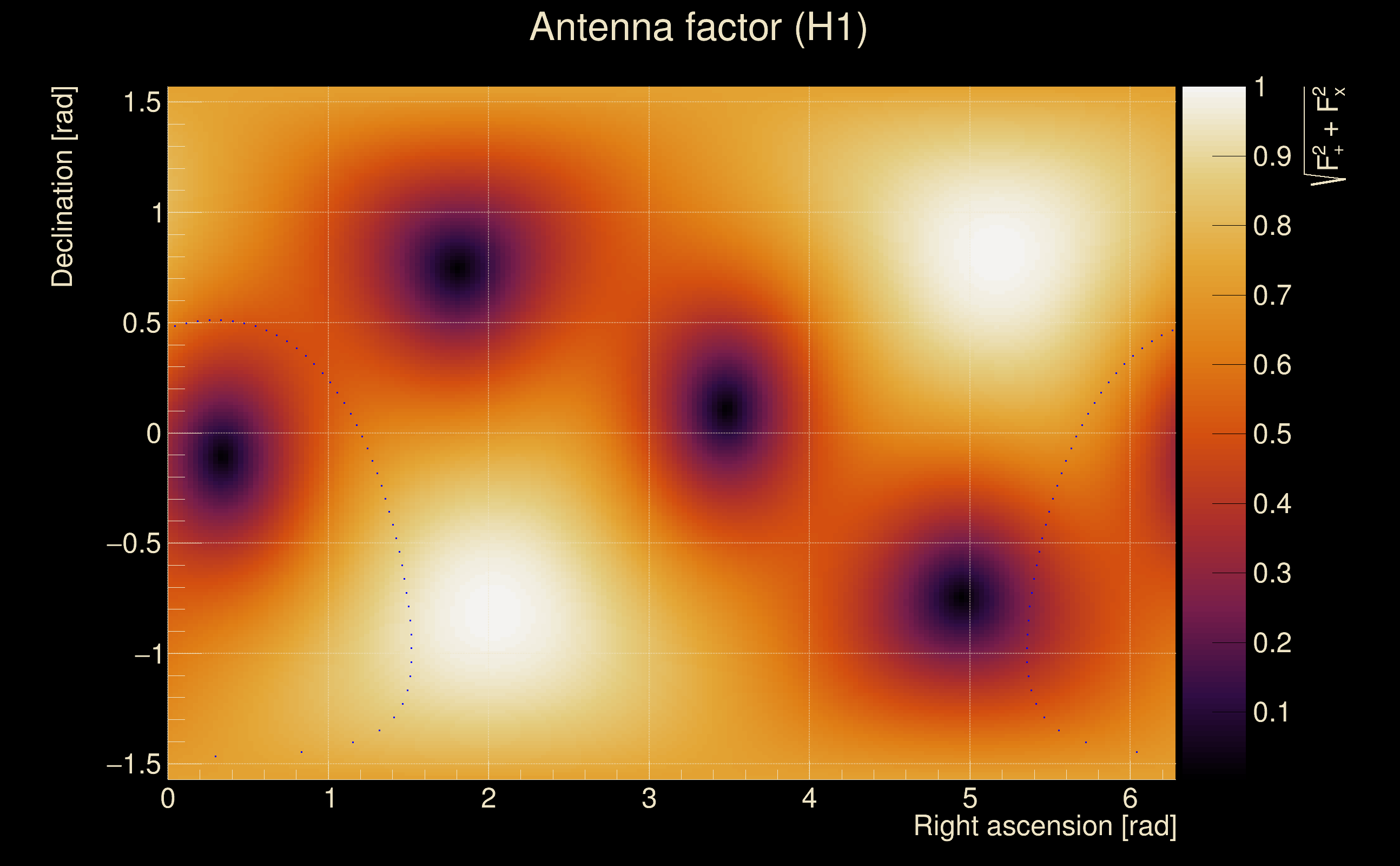

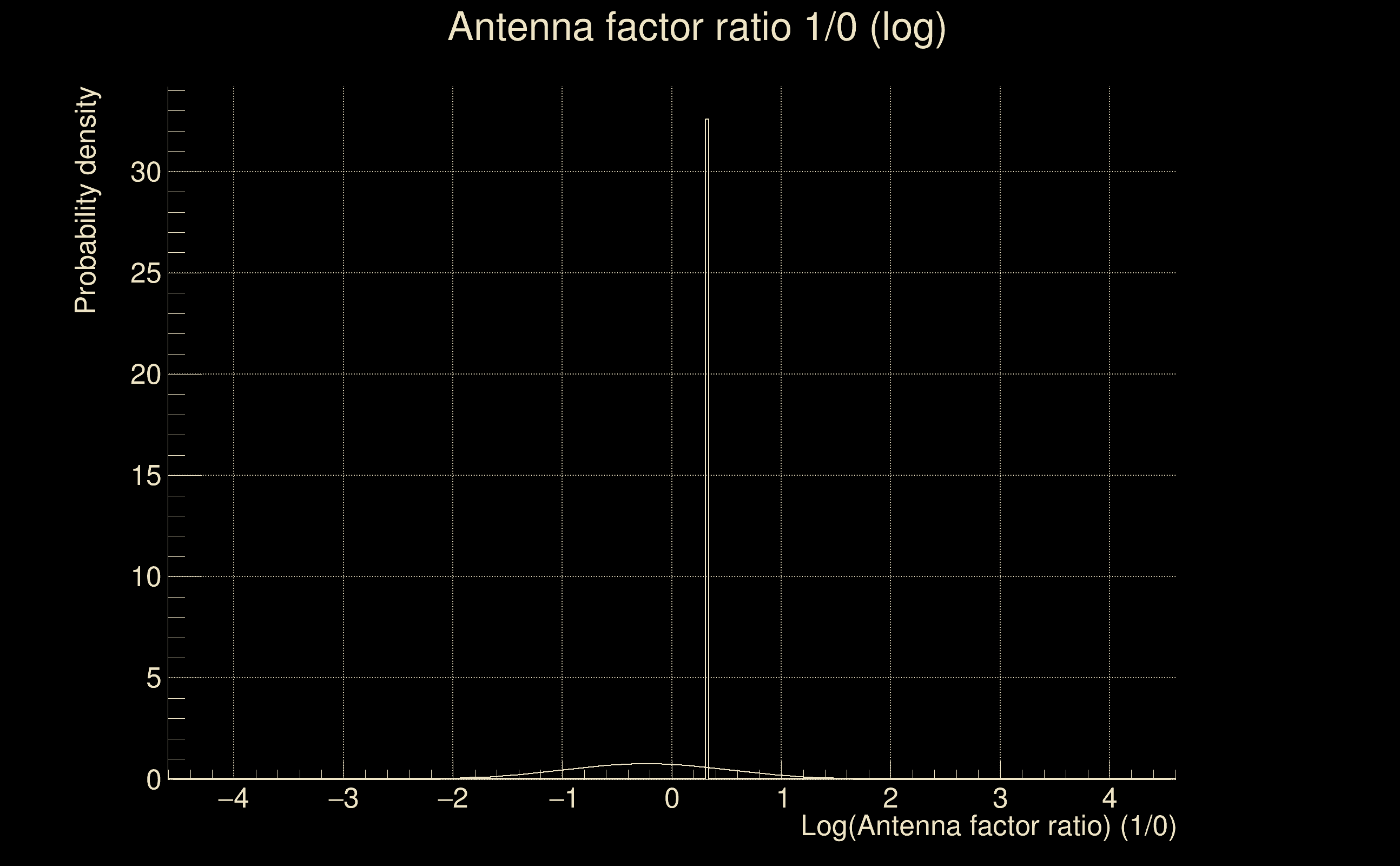

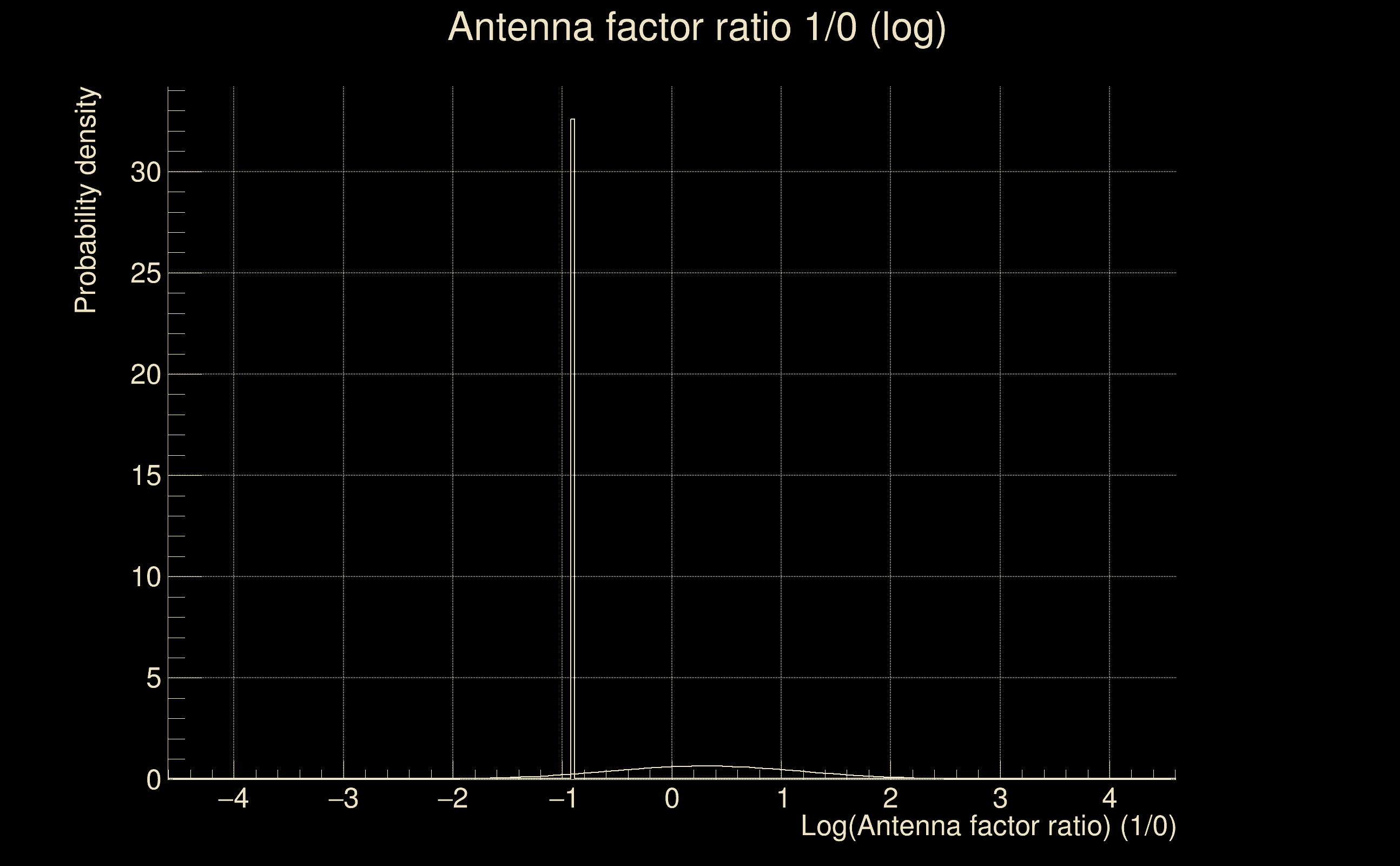

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 31 / 36, Q2: 66 / 70, Q3: 126 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.46123, L1: 5.75338 |

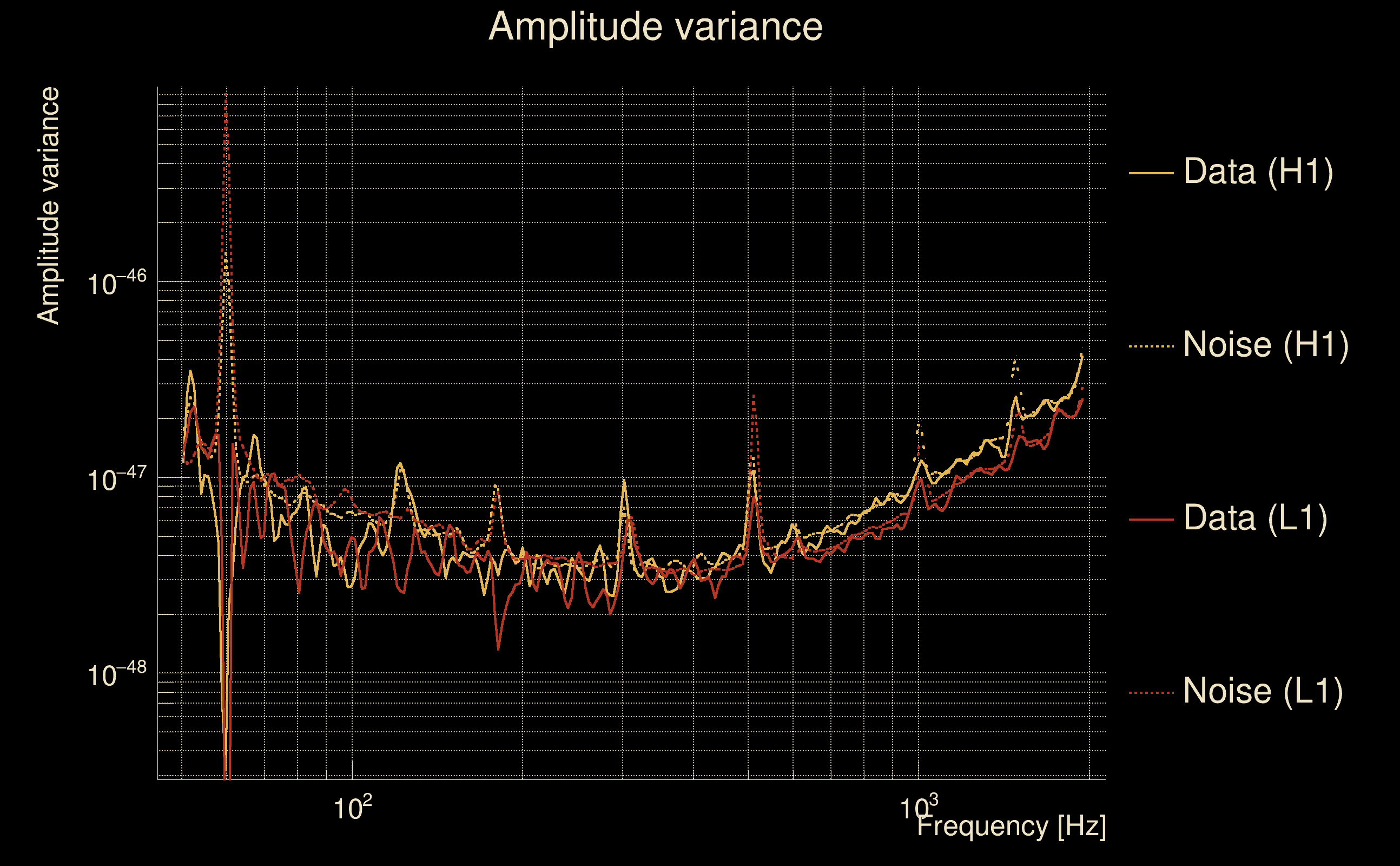

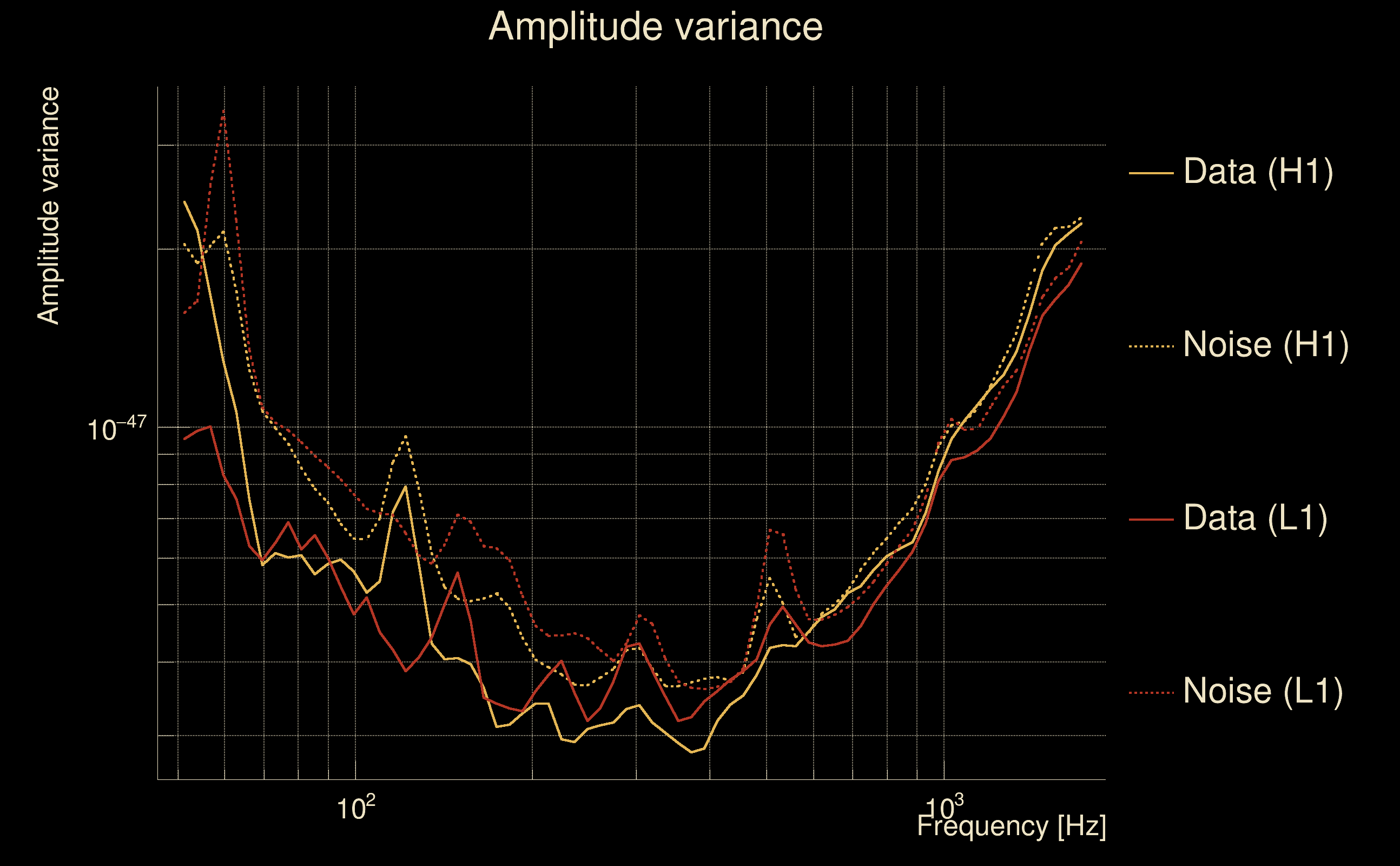

| SNR variance: | H1: 0.523075, L1: 0.504434 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

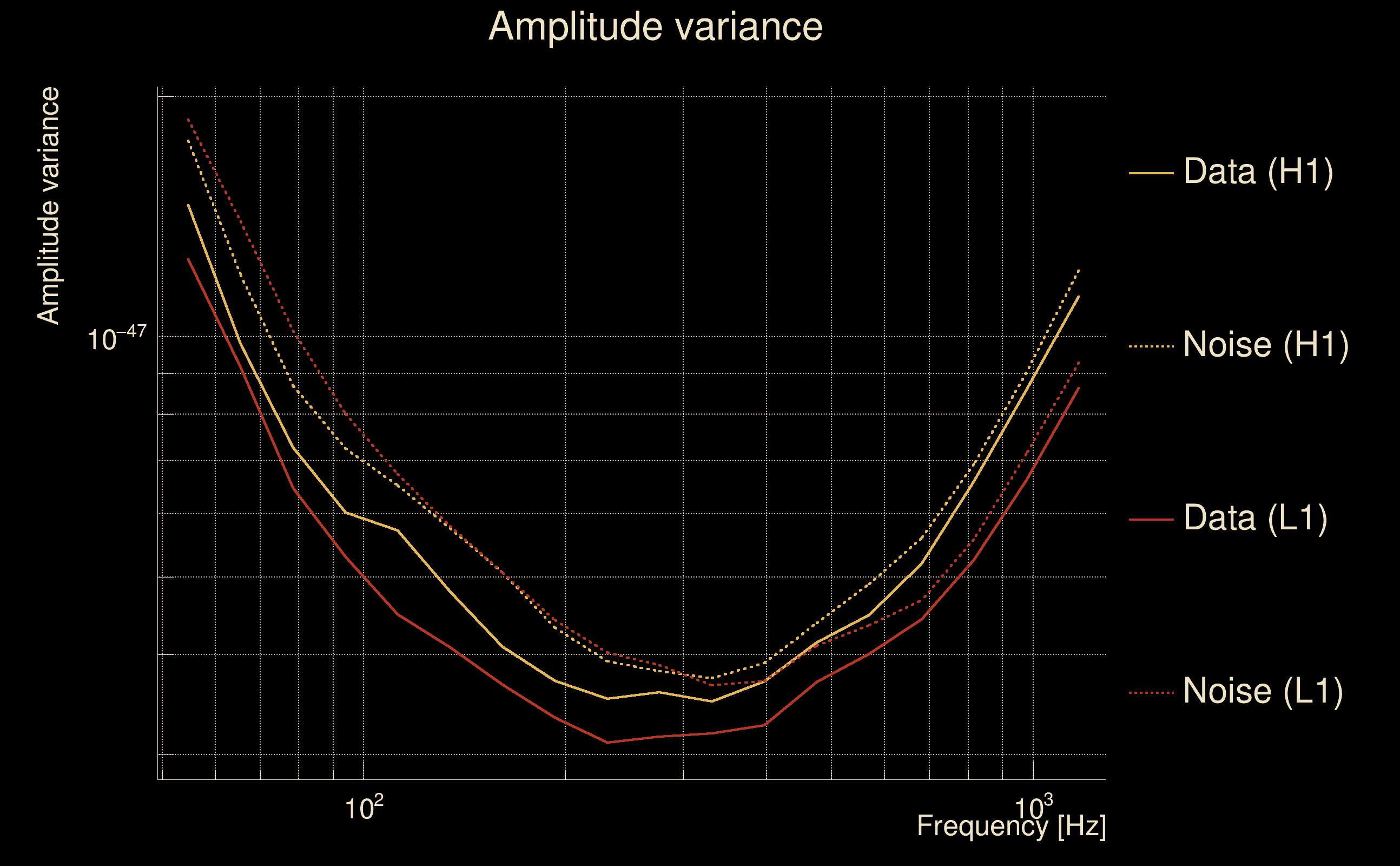

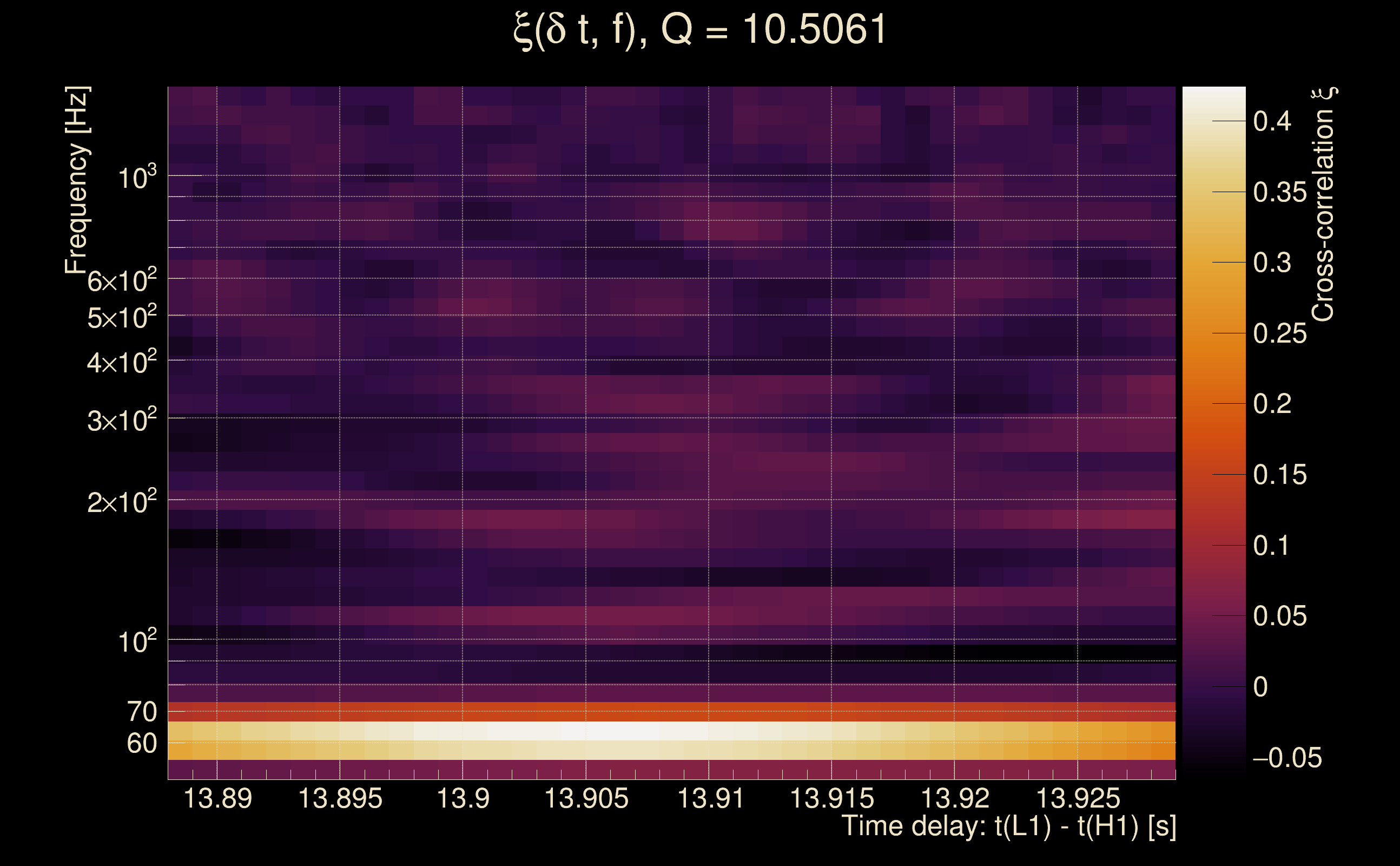

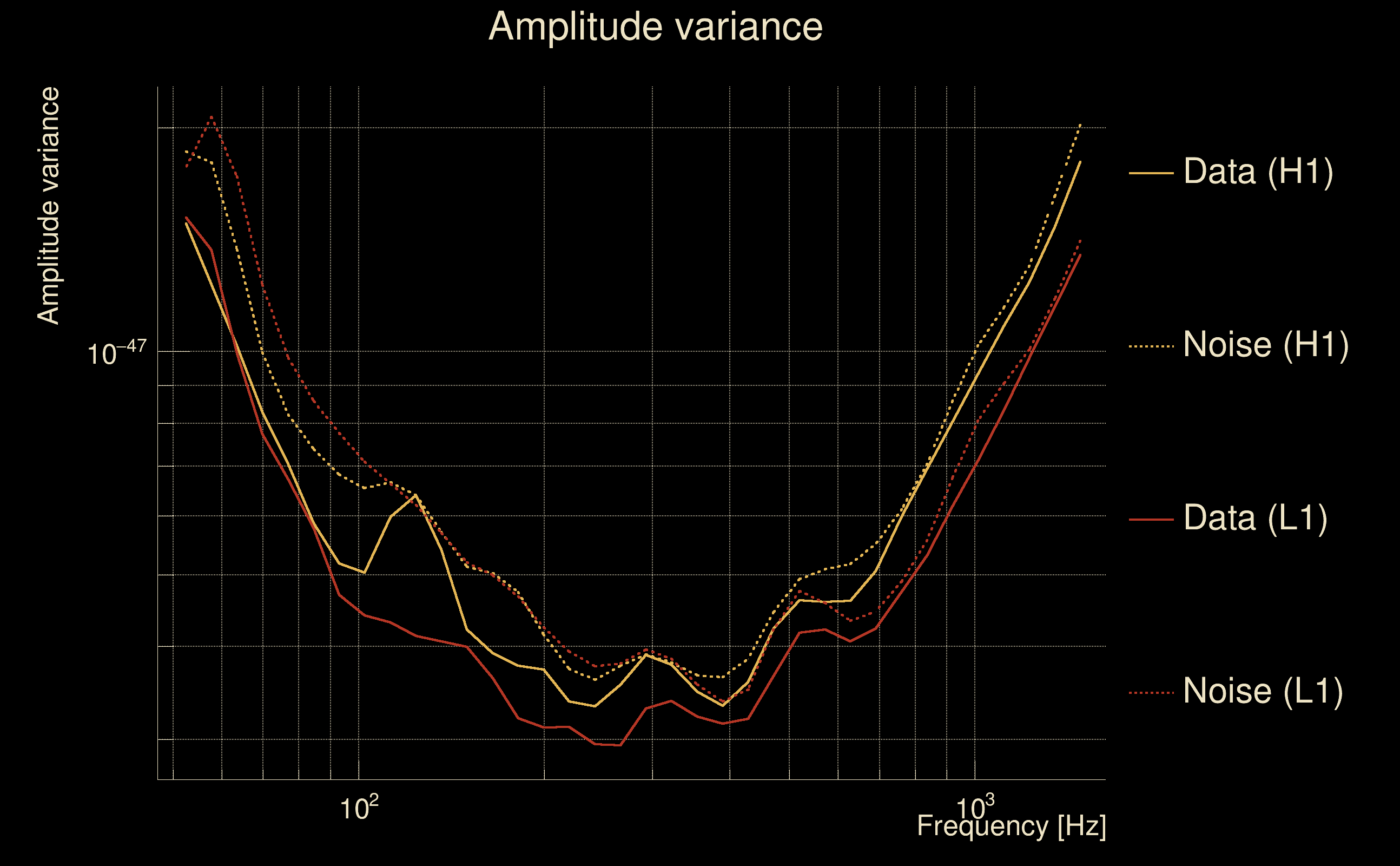

| Event time t(H1): | GPS = 1378417287 (Sun Sep 10 21:41:09 2023 ) → GPS = 1378417297 (Sun Sep 10 21:41:19 2023 ) |
| Event time t(L1): | GPS = 1378417297 (Sun Sep 10 21:41:19 2023 ) → GPS = 1378417307 (Sun Sep 10 21:41:29 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378417284 → GPS = 1378417300 |
| Omicron analysis time window (L1): | GPS = 1378417294 → GPS = 1378417310 |
| Time delay between detectors t(L1) - t(H1): | 13.9081 s (slice index = 23 / 217), δt_gw = -0.00186061 s |
| Time delay uncertainty: | 0.00544996 s |
| [targeted mode] Time delay probability: | 0.954998 (0.0564318 sigmas), δt_target = 0.00124049 s |
| Frequency: | 85.5972 Hz |
| Ξ: | 0.296177 ± 0.108572 (variance = 0.0117879): Q0: 0.287521, Q1: 0.364018, Q2: 0.336723, Q3: 0.134839, Q4: 0.0952462 |
| Rank: | R_A = 0.278076 |
| Log of amplitude ratio (L1/H1): | -0.125431, variance = 0.351839 (L1/H1: -0.144081, variance = 0.981761, H1/L1: 0.118063, variance = 0.531525) |
| Amplitude ratio (L1/H1): | 0.882116 ⋇ 1.8097 (L1/H1: 0.865817 ⋇ 2.69349, H1/L1: 1.12532 ⋇ 2.07313) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.983126 |

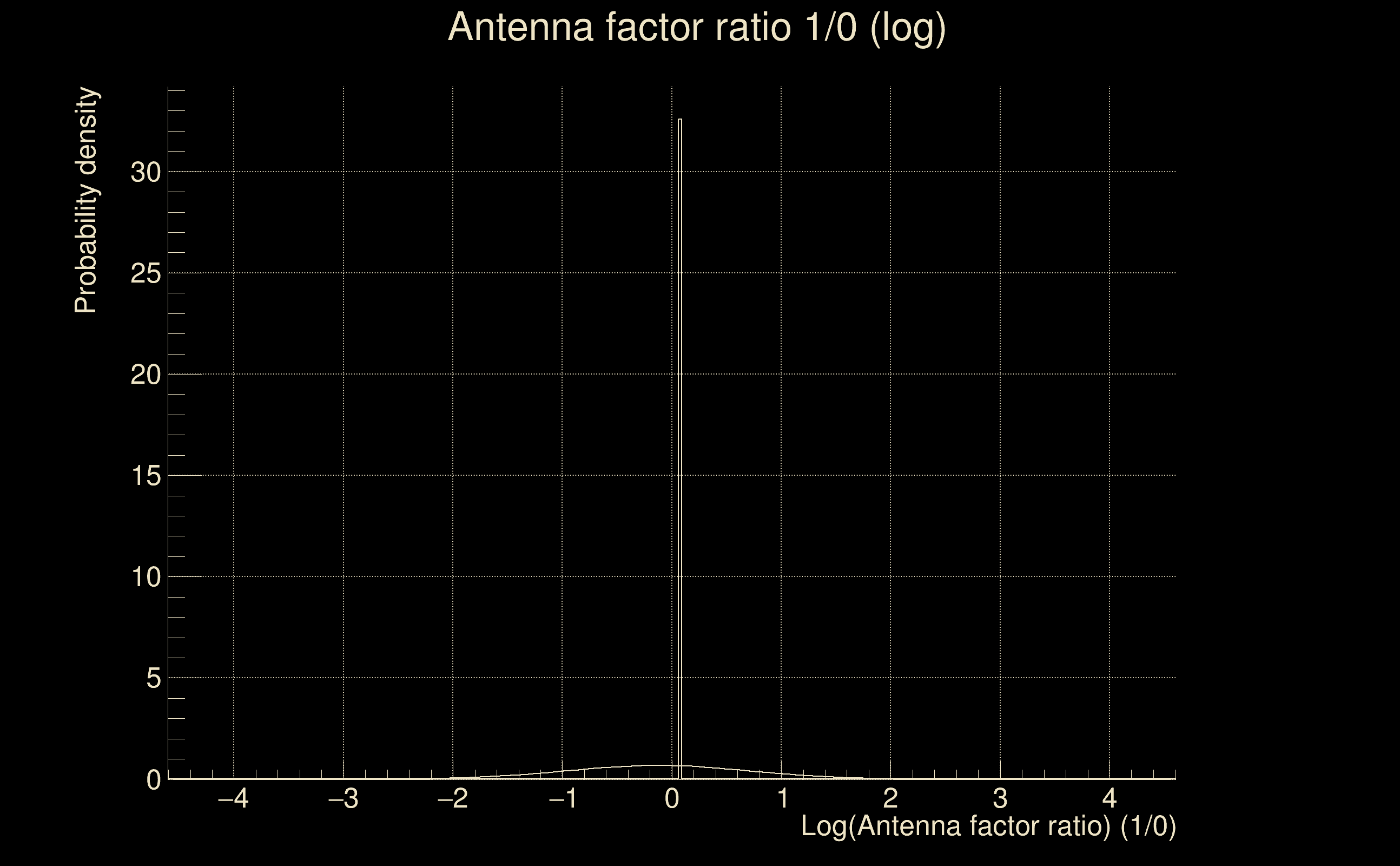

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 28 / 36, Q2: 61 / 70, Q3: 115 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.82386, L1: 7.67455 |
| SNR variance: | H1: 0.517356, L1: 0.520333 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

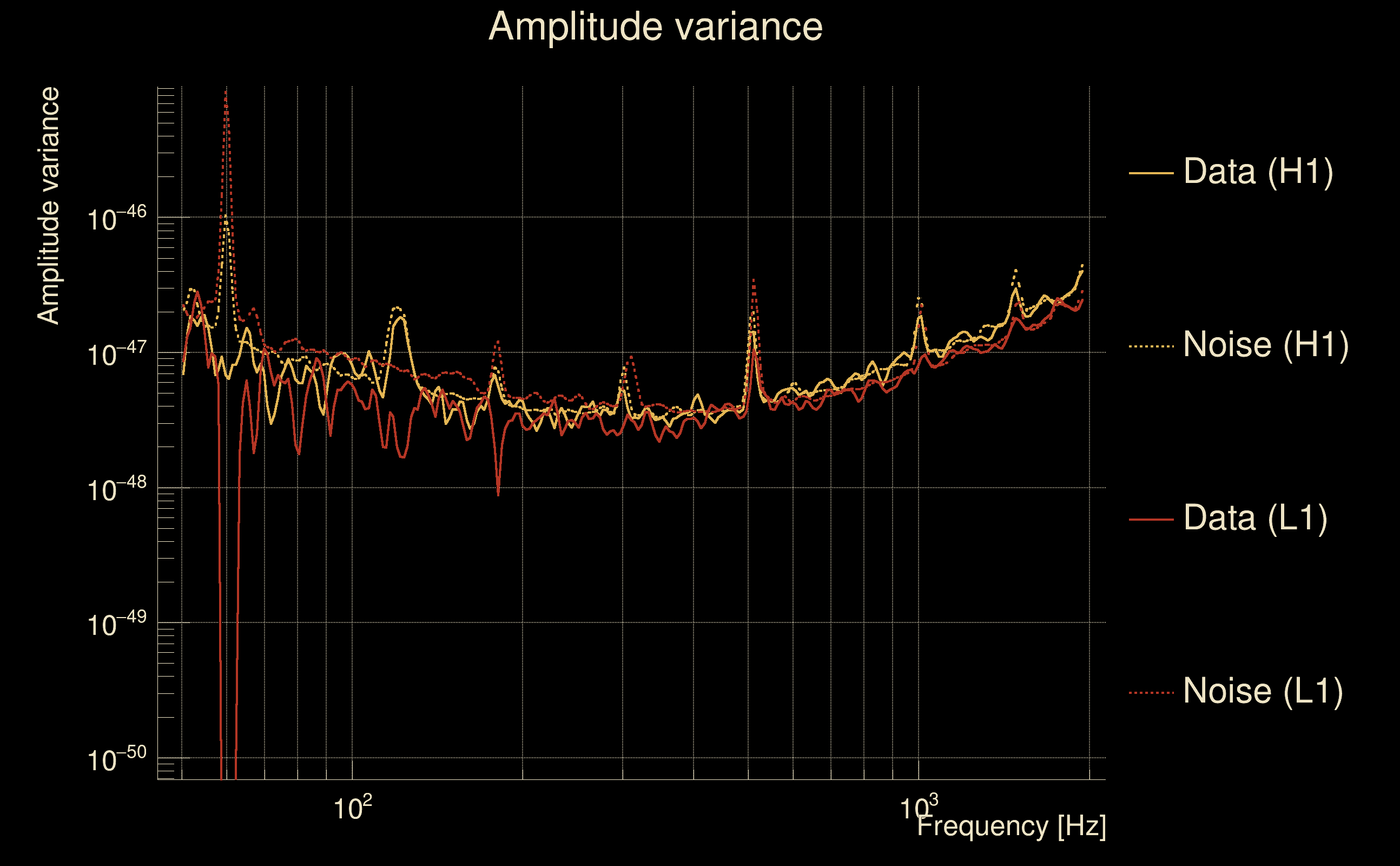

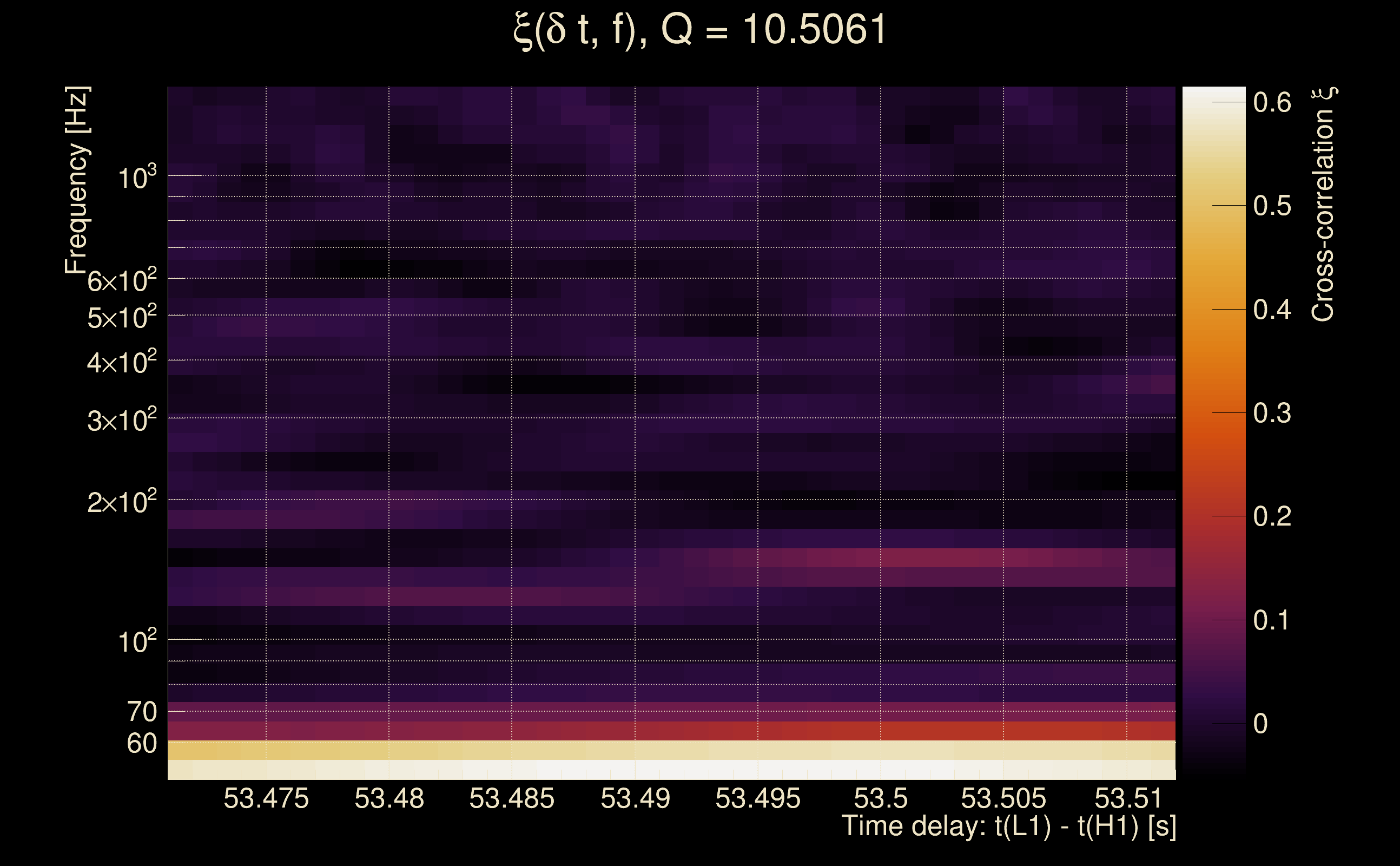

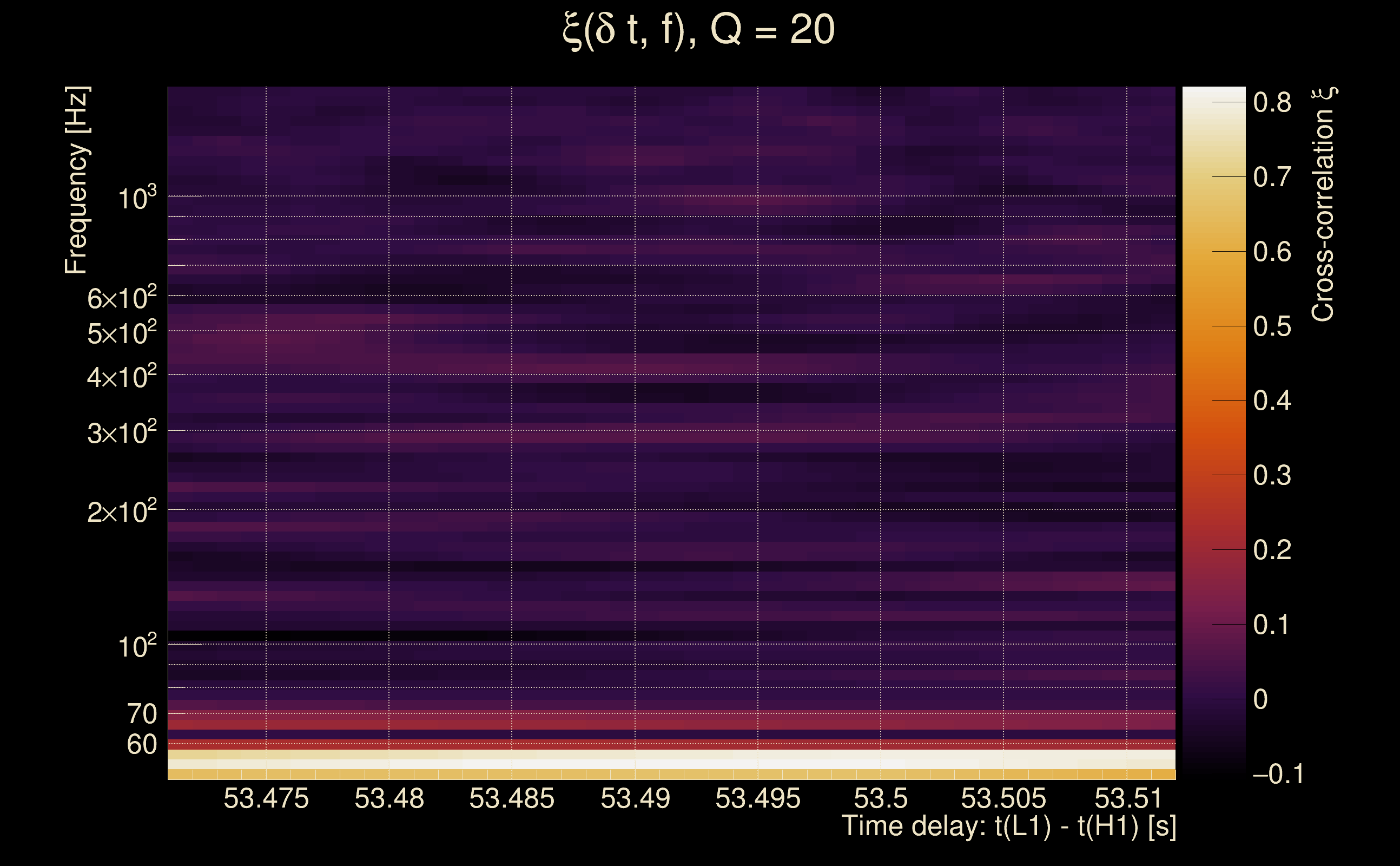

| Event time t(H1): | GPS = 1378706804 (Thu Sep 14 06:06:26 2023 ) → GPS = 1378706814 (Thu Sep 14 06:06:36 2023 ) |
| Event time t(L1): | GPS = 1378706854 (Thu Sep 14 06:06:36 2023 ) → GPS = 1378706864 (Thu Sep 14 06:07:26 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378706801 → GPS = 1378706817 |
| Omicron analysis time window (L1): | GPS = 1378706851 → GPS = 1378706867 |

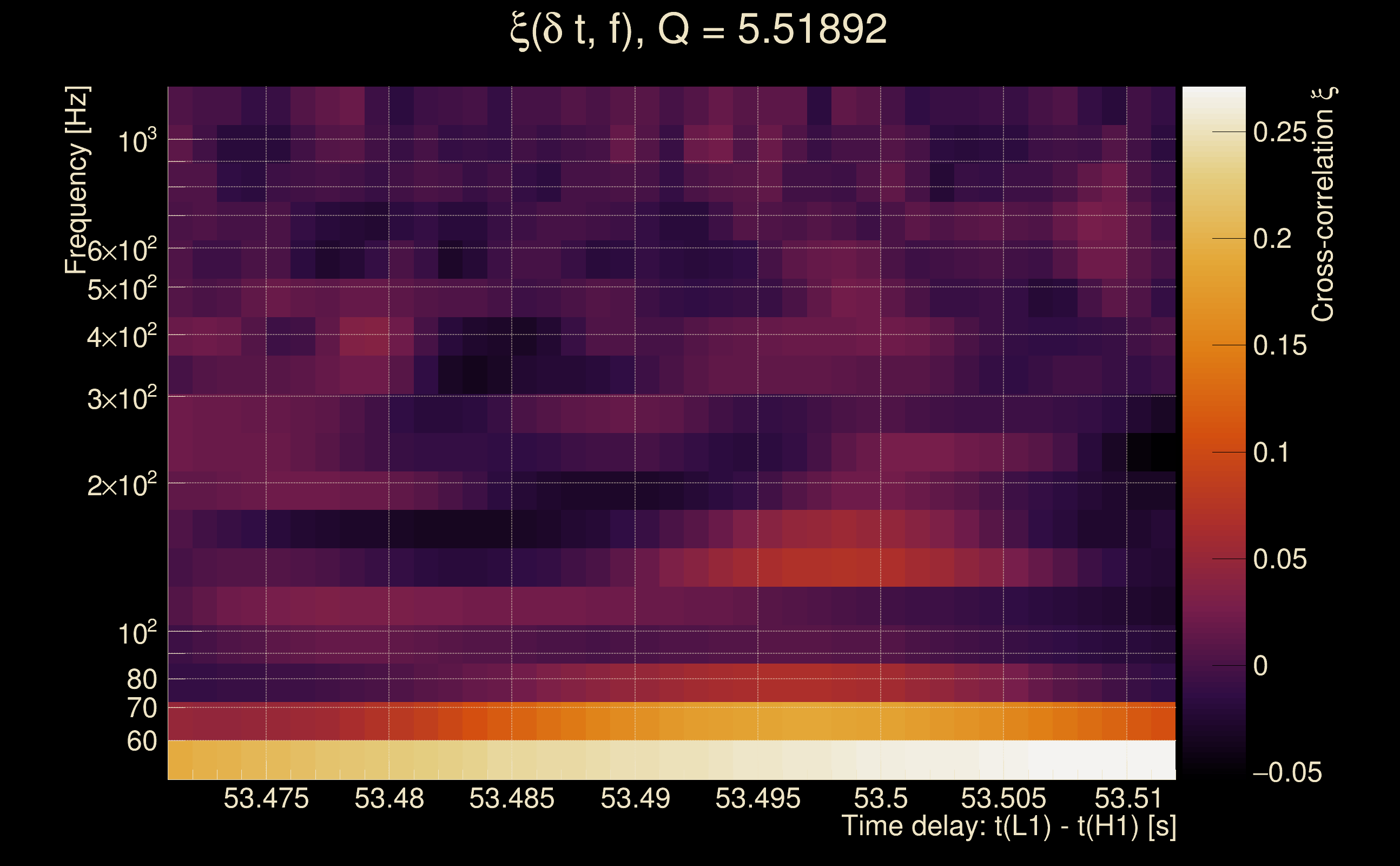

| Time delay between detectors t(L1) - t(H1): | 53.4916 s (slice index = 32 / 217), δt_gw = -0.00442223 s |
| Time delay uncertainty: | 0.00625063 s |
| [targeted mode] Time delay probability: | 0.749959 (0.318693 sigmas), δt_target = -0.00155306 s |
| Frequency: | 71.2901 Hz |
| Ξ: | 0.356776 ± 0.163036 (variance = 0.0265808): Q0: 0.196327, Q1: 0.439201, Q2: 0.618286, Q3: 0.648317, Q4: 0.540675 |
| Rank: | R_A = 0.267142 |
| Log of amplitude ratio (L1/H1): | -0.019217, variance = 0.369124 (L1/H1: -0.0203023, variance = 0.941267, H1/L1: 0.0179477, variance = 0.44998) |
| Amplitude ratio (L1/H1): | 0.980967 ⋇ 1.83594 (L1/H1: 0.979902 ⋇ 2.63844, H1/L1: 1.01811 ⋇ 1.95581) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.998407 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 33 / 36, Q2: 63 / 70, Q3: 125 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.6137, L1: 5.19102 |
| SNR variance: | H1: 0.544587, L1: 0.504152 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

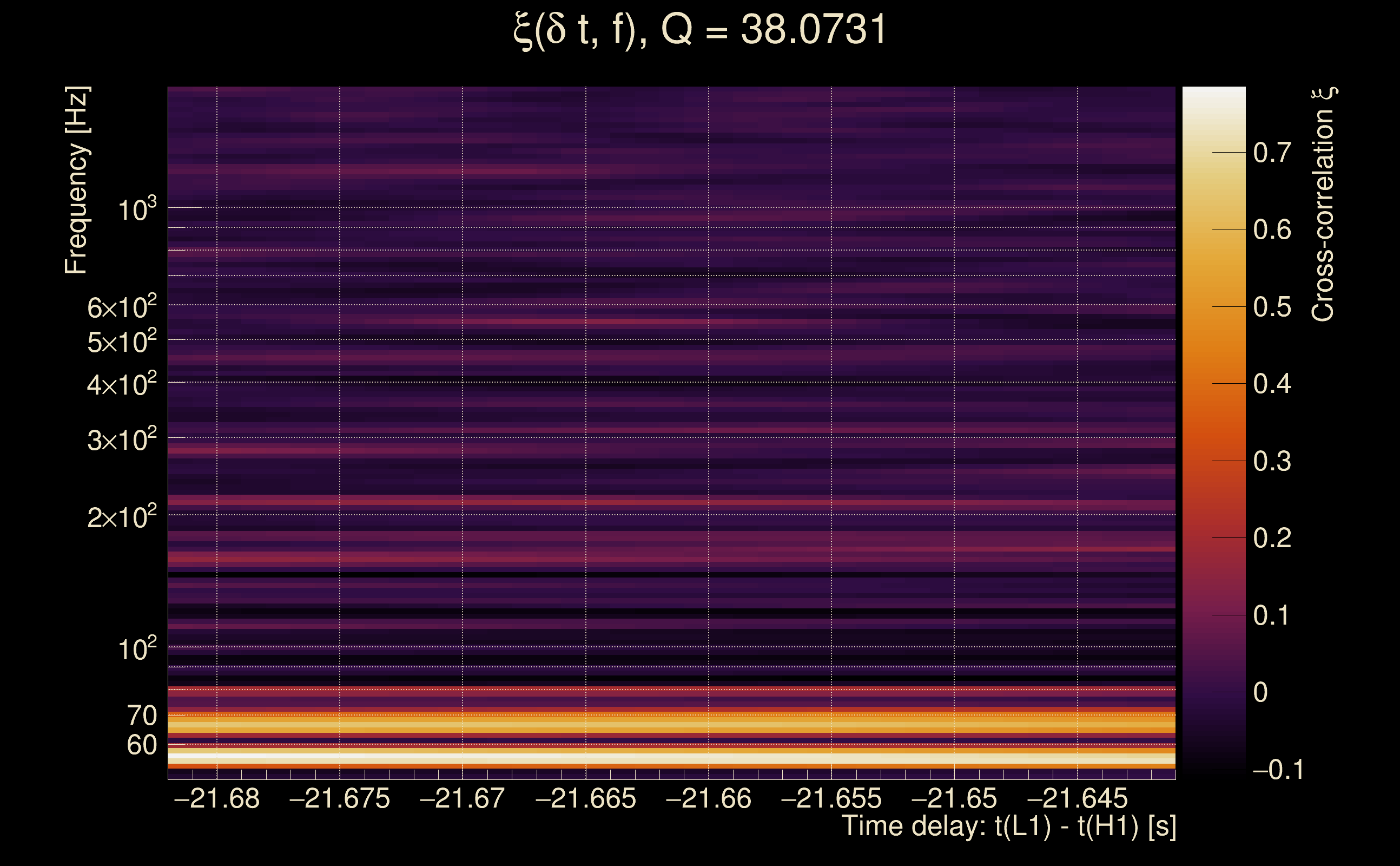

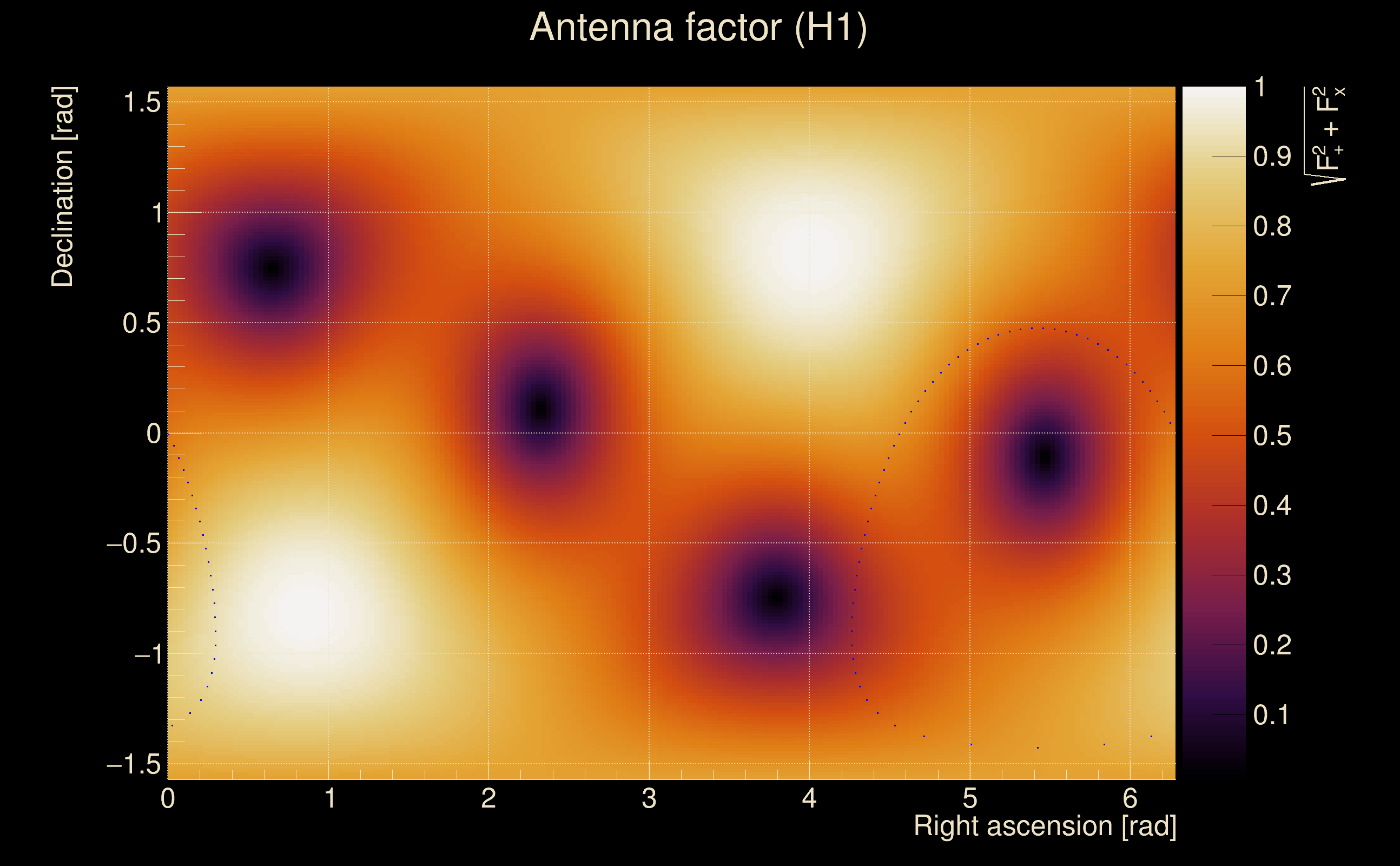

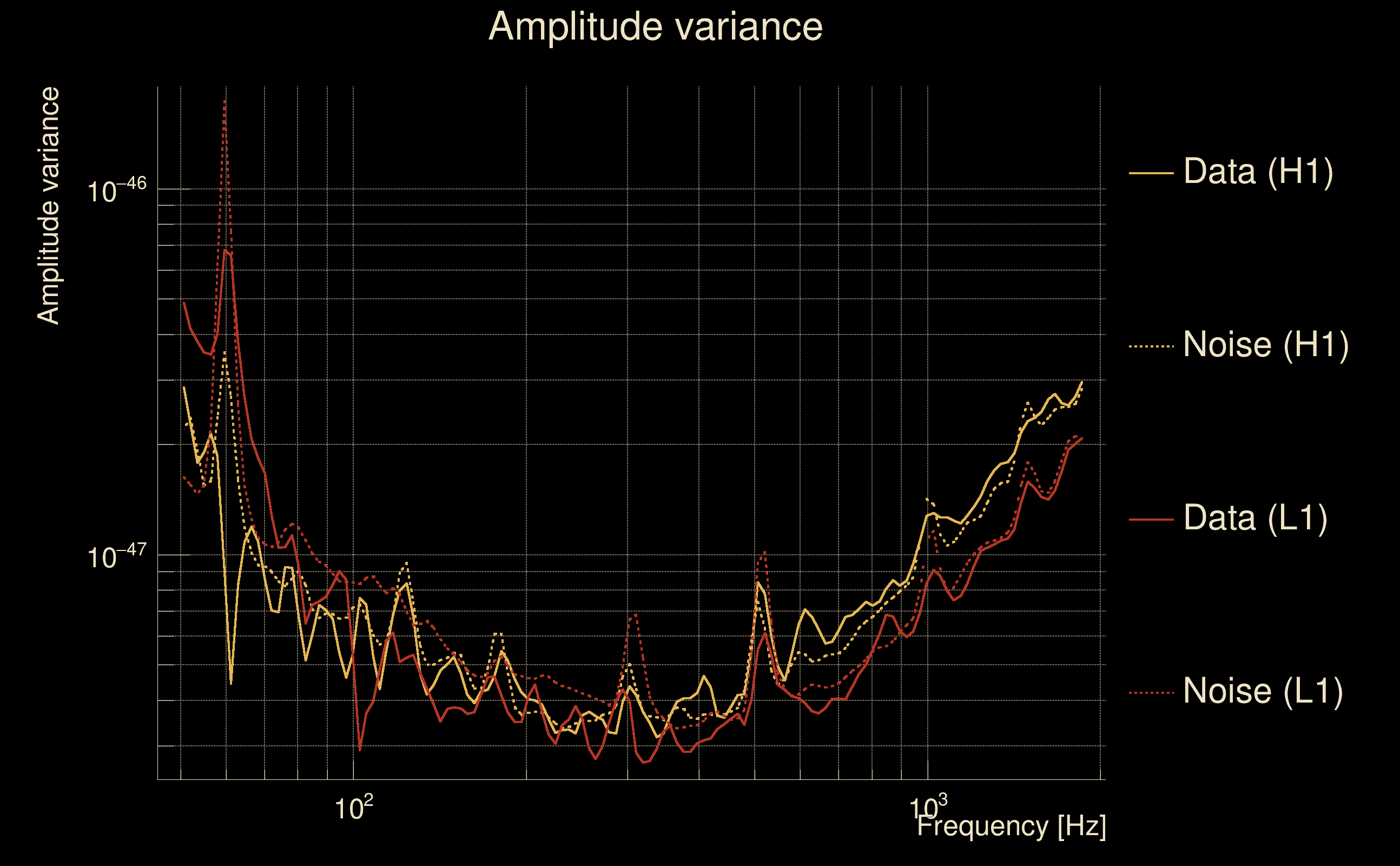

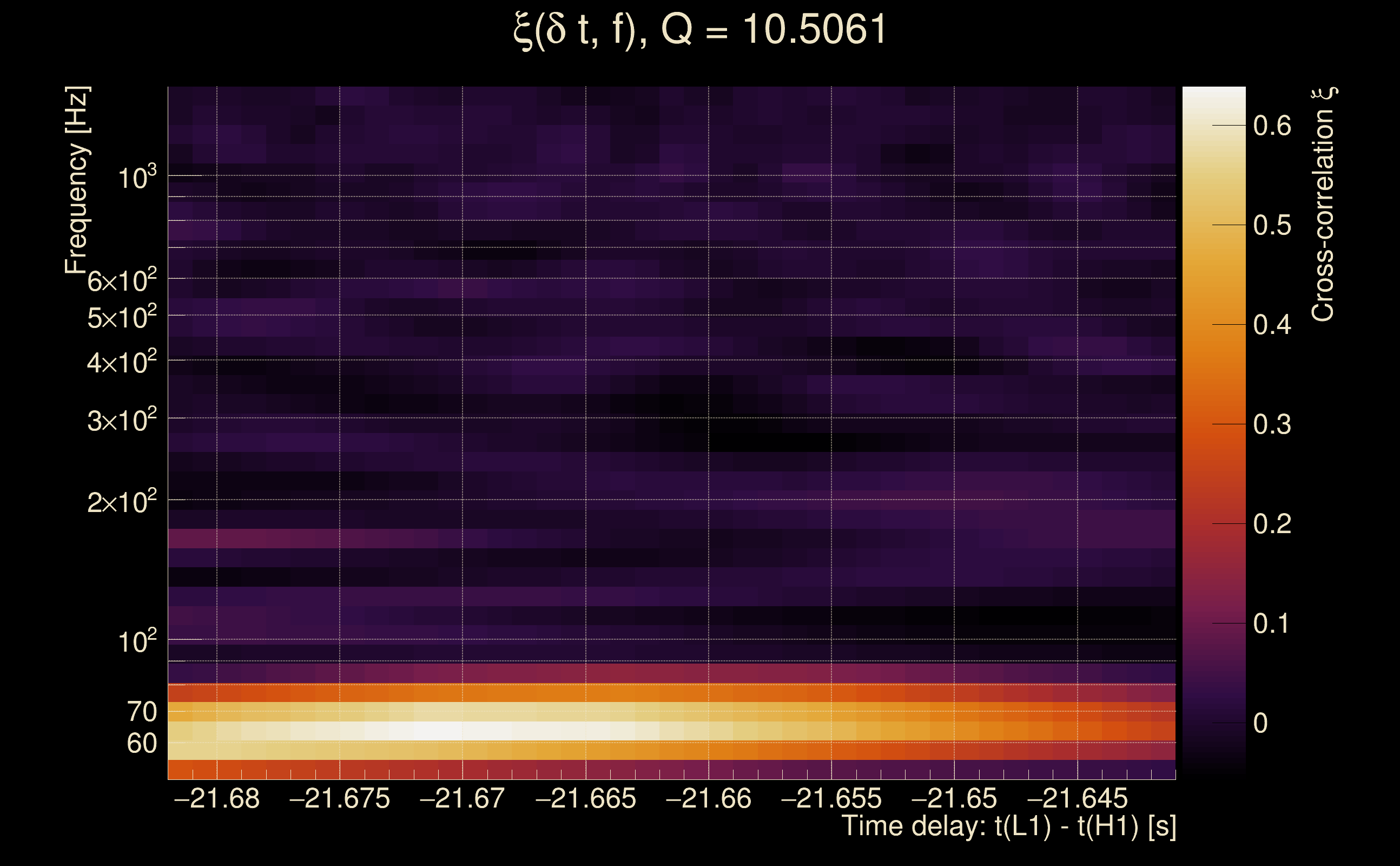

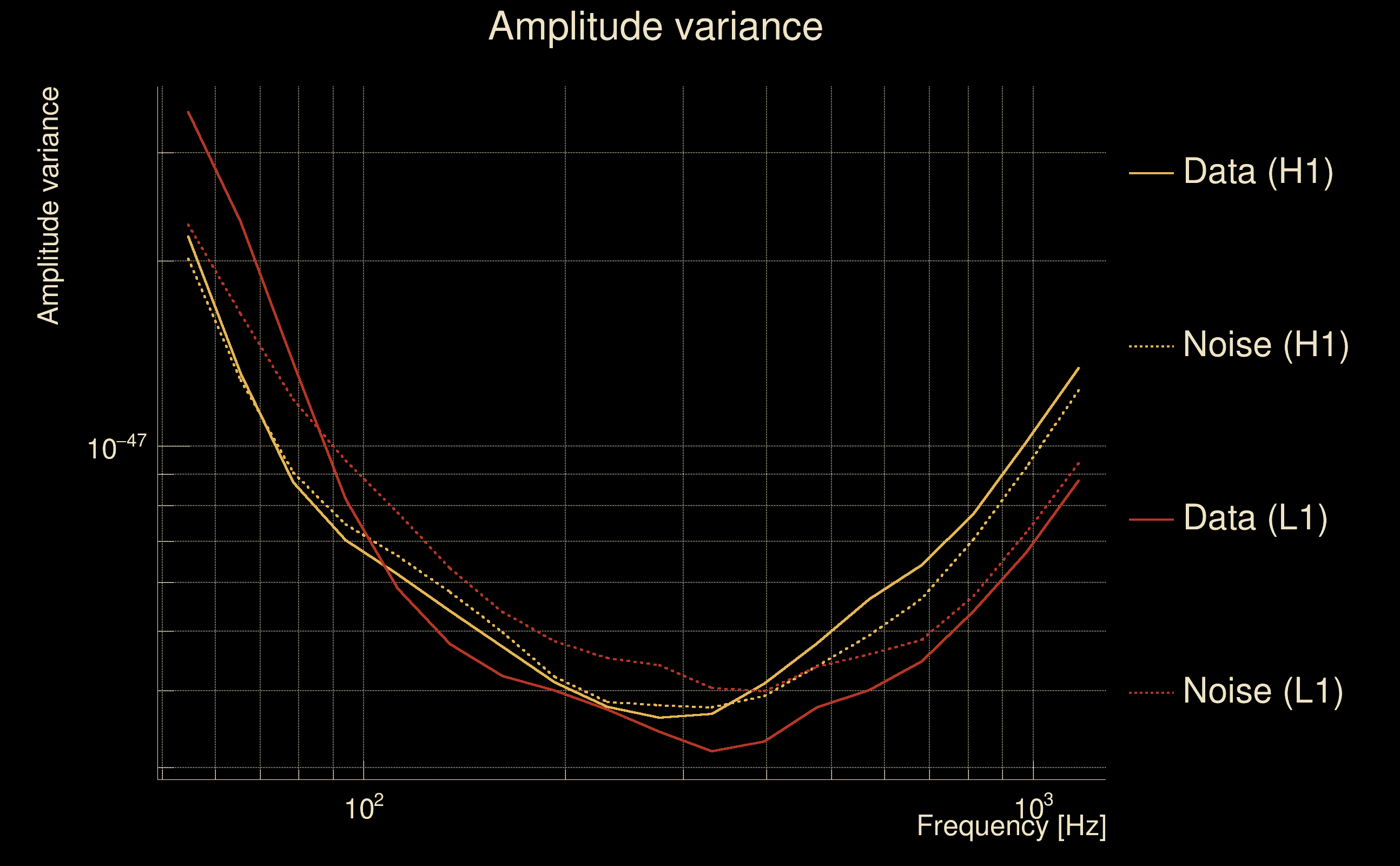

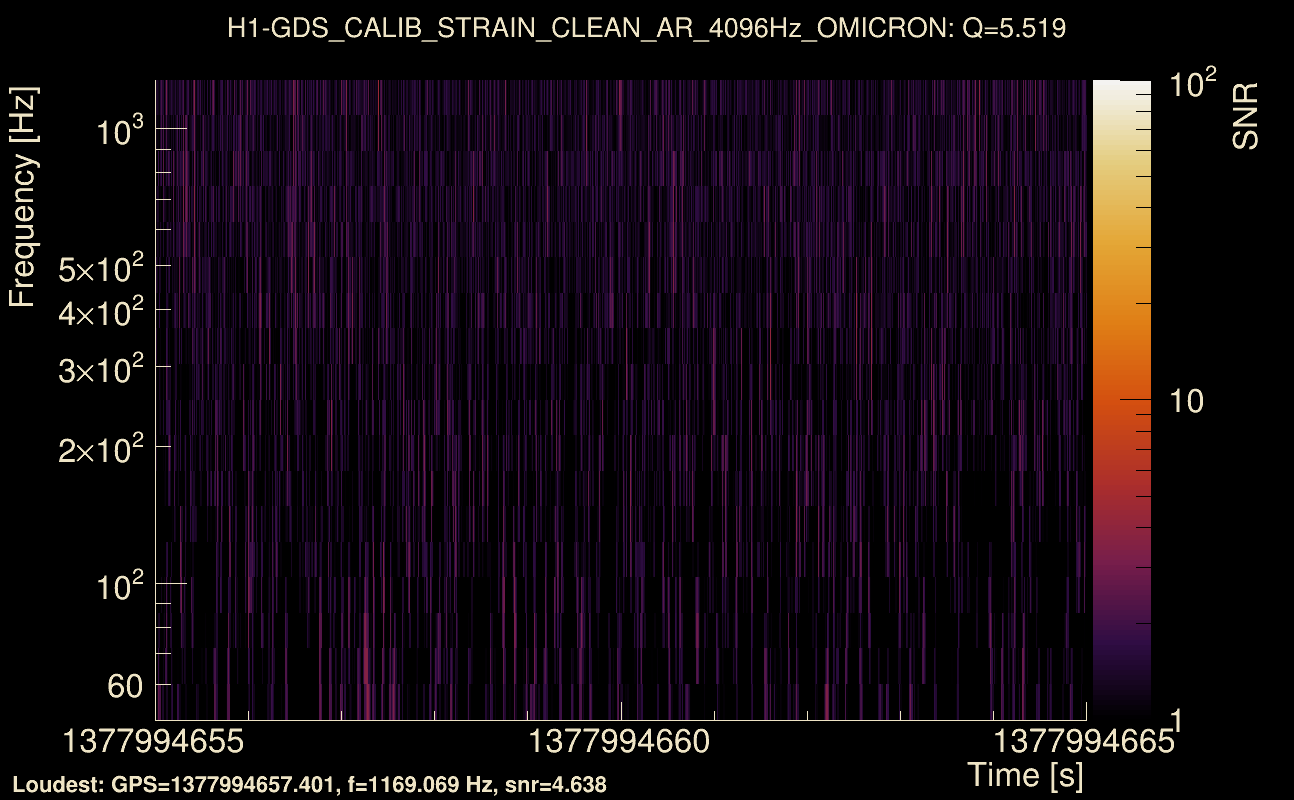

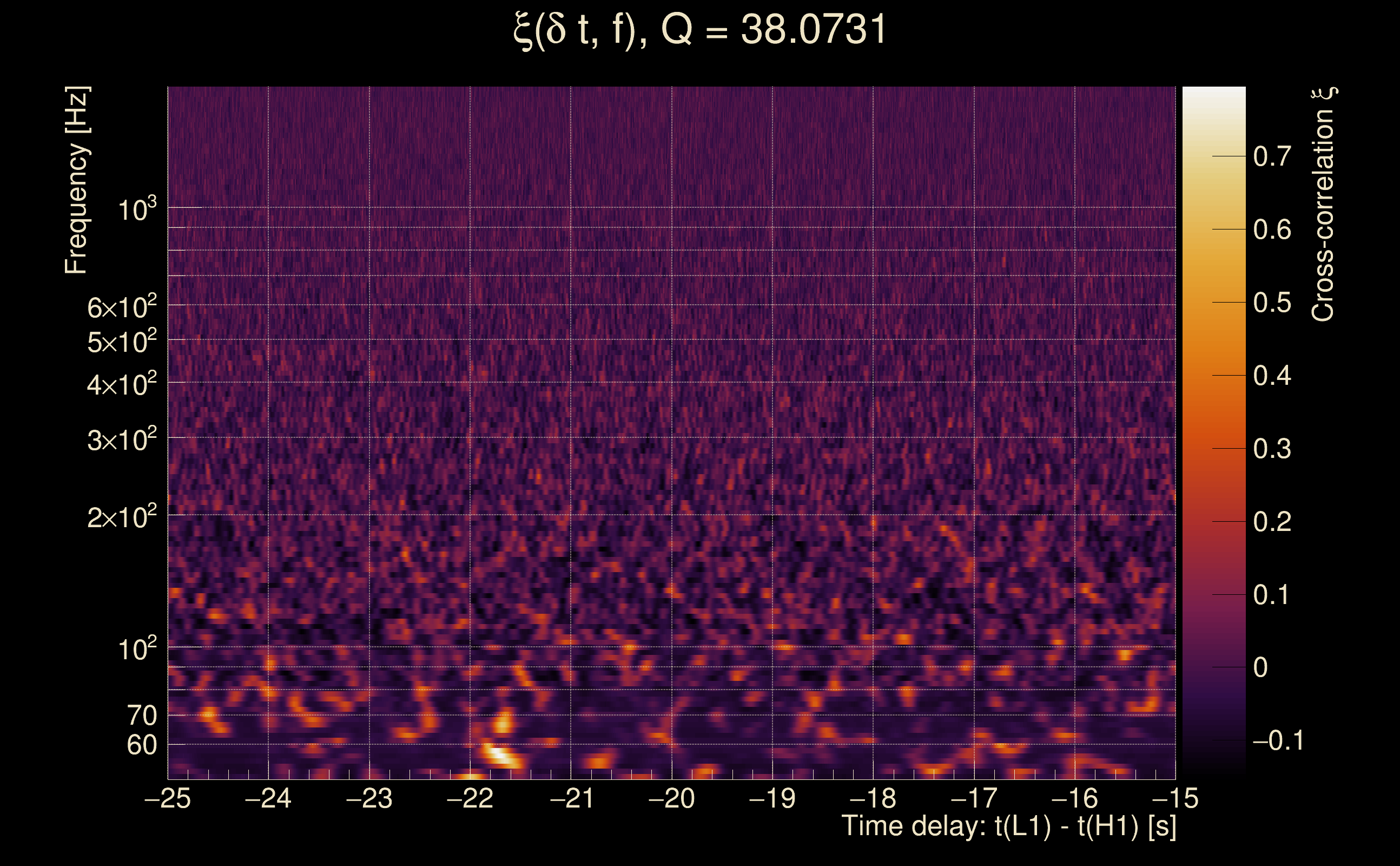

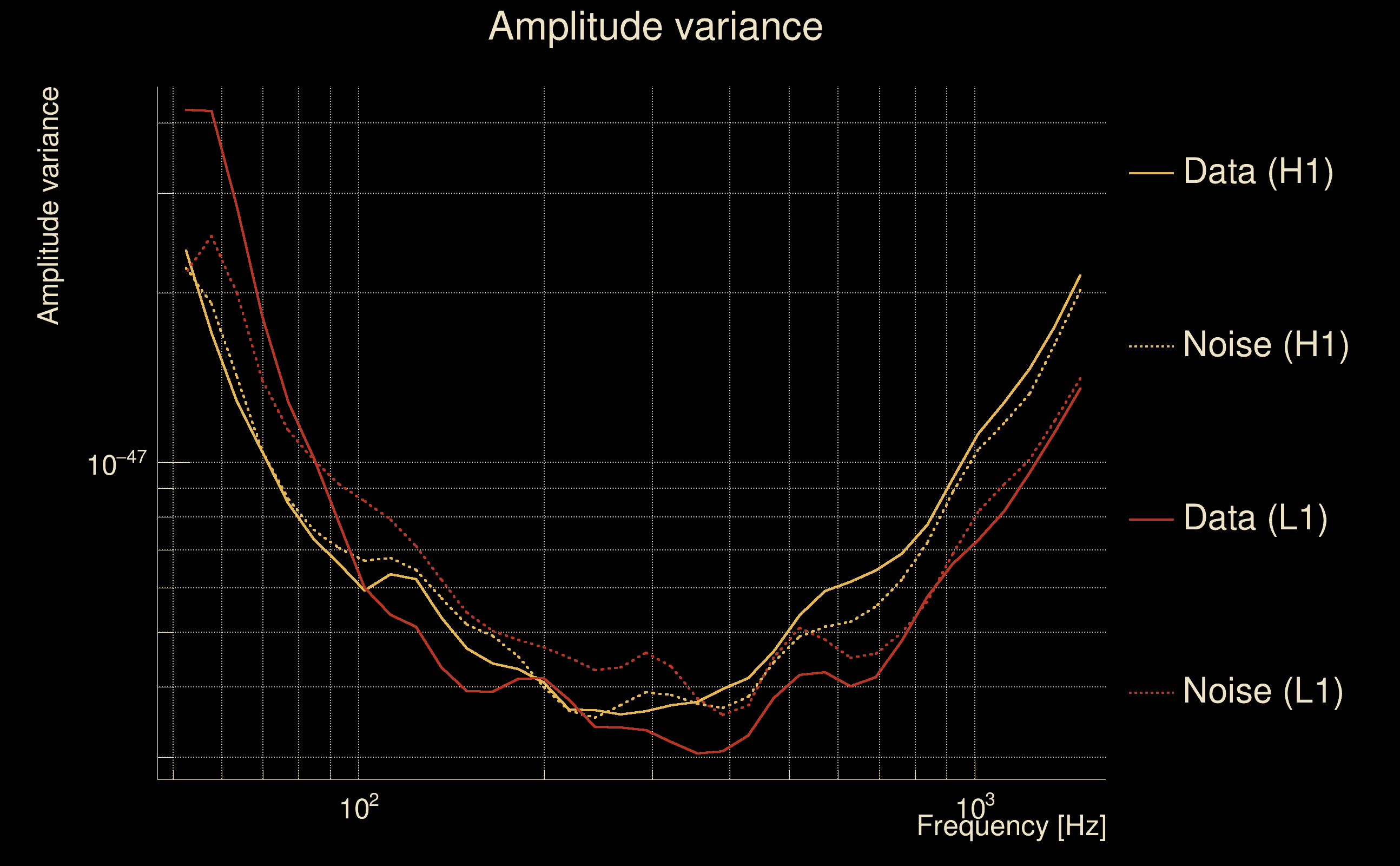

| Event time t(H1): | GPS = 1377994655 (Wed Sep 6 00:17:17 2023 ) → GPS = 1377994665 (Wed Sep 6 00:17:27 2023 ) |
| Event time t(L1): | GPS = 1377994635 (Wed Sep 6 00:17:27 2023 ) → GPS = 1377994645 (Wed Sep 6 00:17:07 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377994652 → GPS = 1377994668 |
| Omicron analysis time window (L1): | GPS = 1377994632 → GPS = 1377994648 |

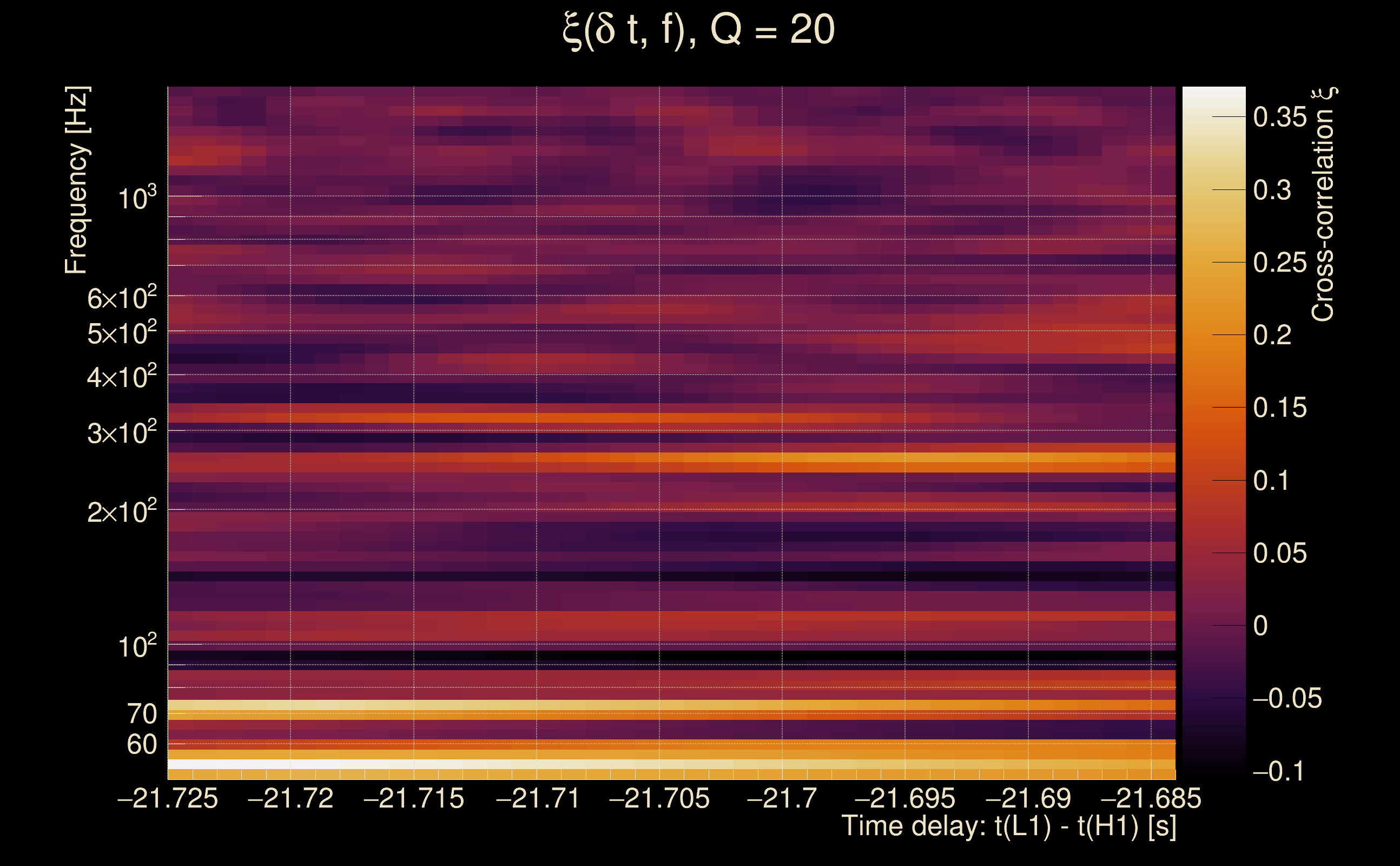

| Time delay between detectors t(L1) - t(H1): | -21.6618 s (slice index = 144 / 217), δt_gw = -0.00581465 s |
| Time delay uncertainty: | 0.00442386 s |
| [targeted mode] Time delay probability: | 0.921675 (0.0983244 sigmas), δt_target = -0.0024302 s |
| Frequency: | 85.1751 Hz |
| Ξ: | 0.351624 ± 0.185468 (variance = 0.0343985): Q0: 0.311634, Q1: 0.307209, Q2: 0.539533, Q3: 0.59651, Q4: 0.0790597 |
| Rank: | R_A = 0.266864 |
| Log of amplitude ratio (L1/H1): | 0.477141, variance = 0.156384 (L1/H1: 0.185248, variance = 1.96971, H1/L1: -0.511475, variance = 0.168085) |
| Amplitude ratio (L1/H1): | 1.61146 ⋇ 1.48506 (L1/H1: 1.20352 ⋇ 4.06927, H1/L1: 0.59961 ⋇ 1.50679) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.823442 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 34 / 36, Q2: 67 / 70, Q3: 128 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.33582, L1: 15.558 |
| SNR variance: | H1: 0.522387, L1: 0.502057 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

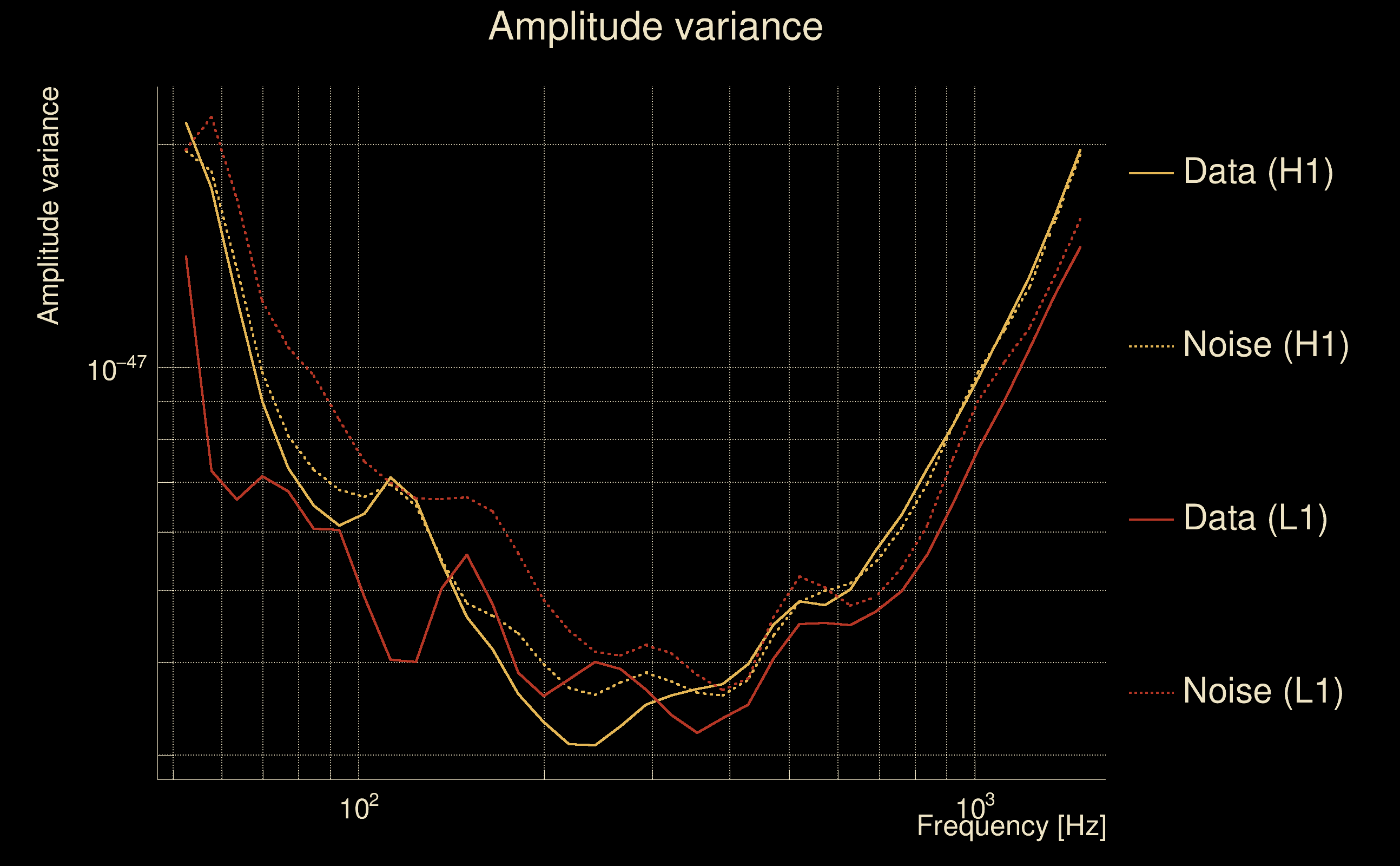

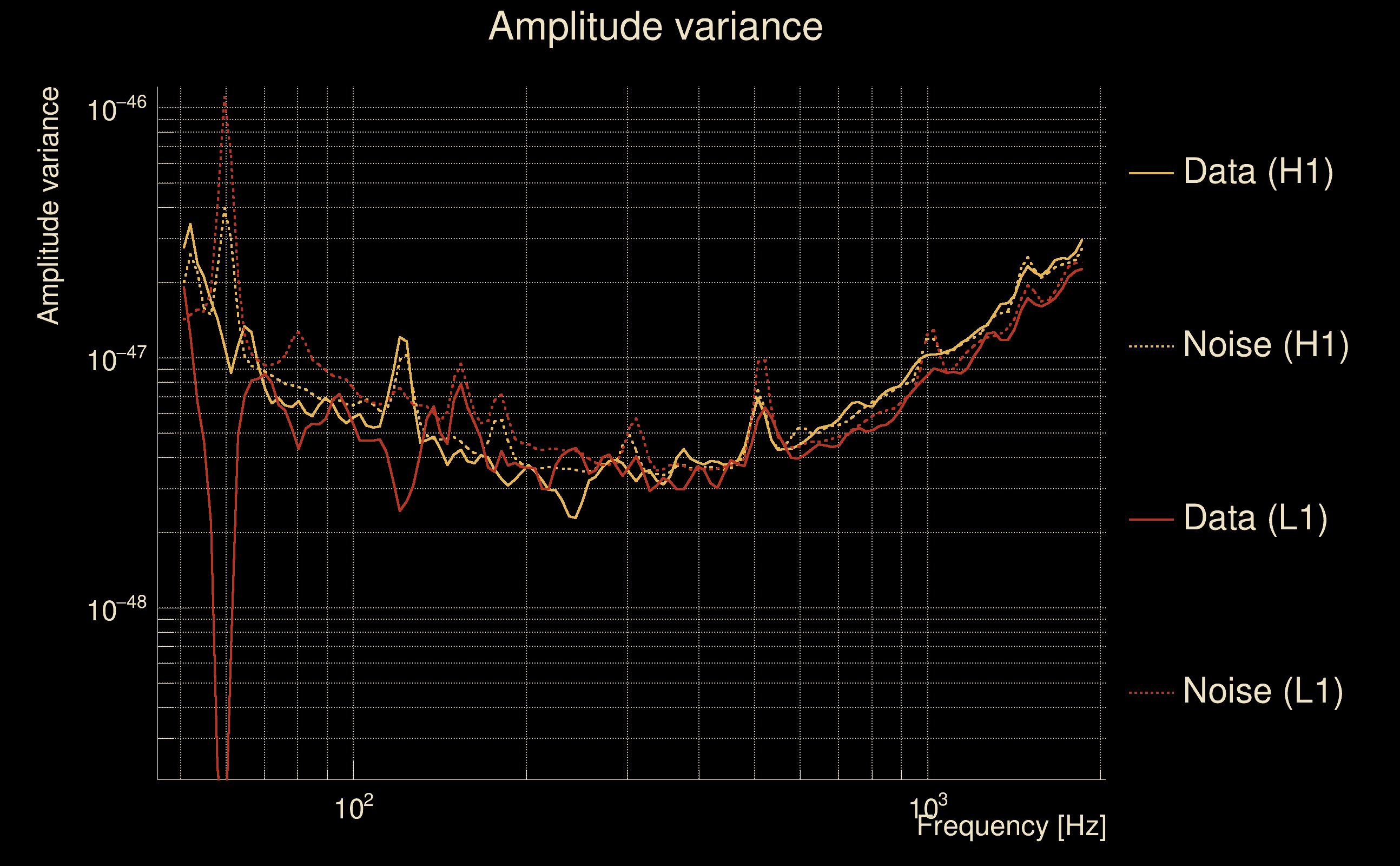

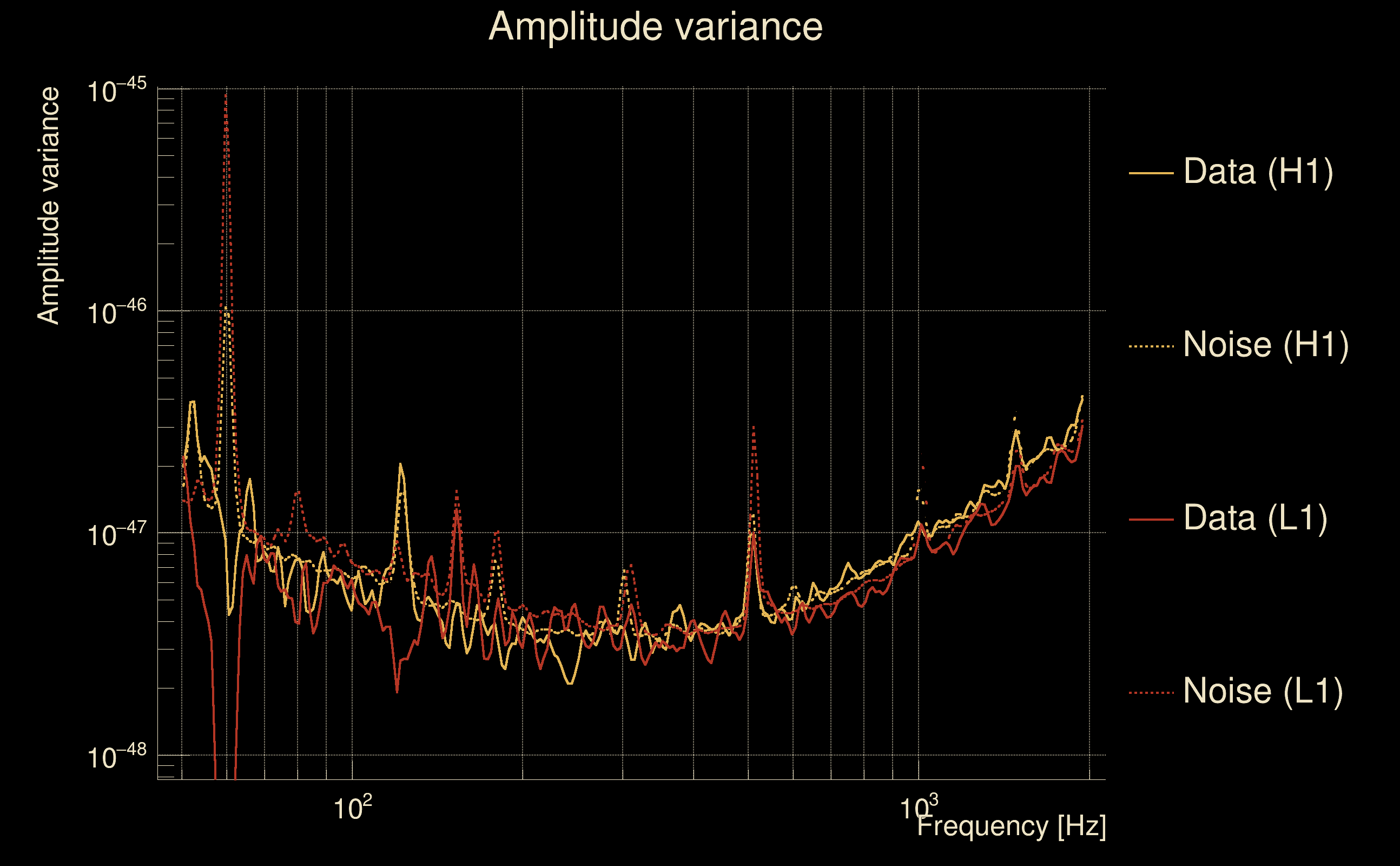

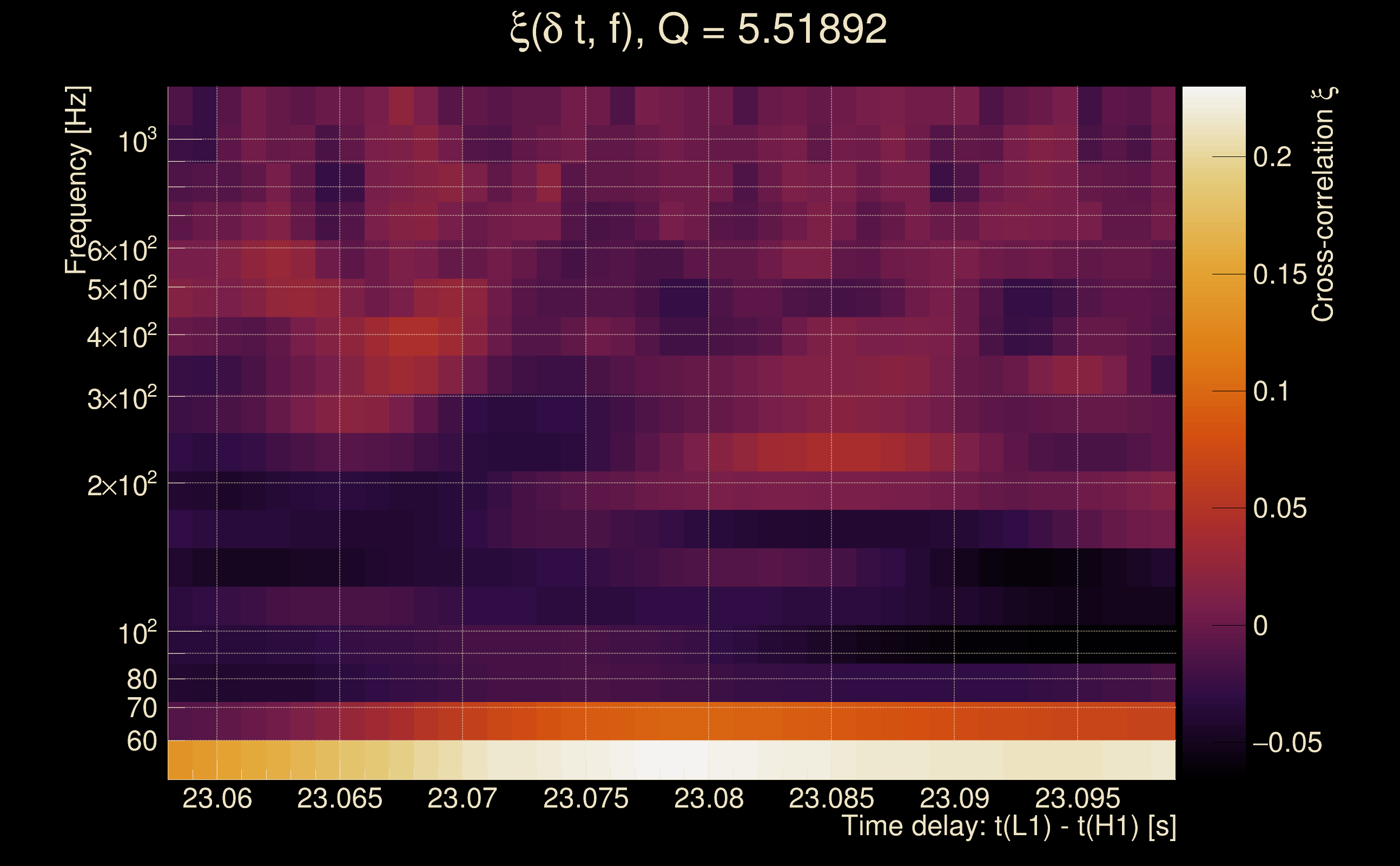

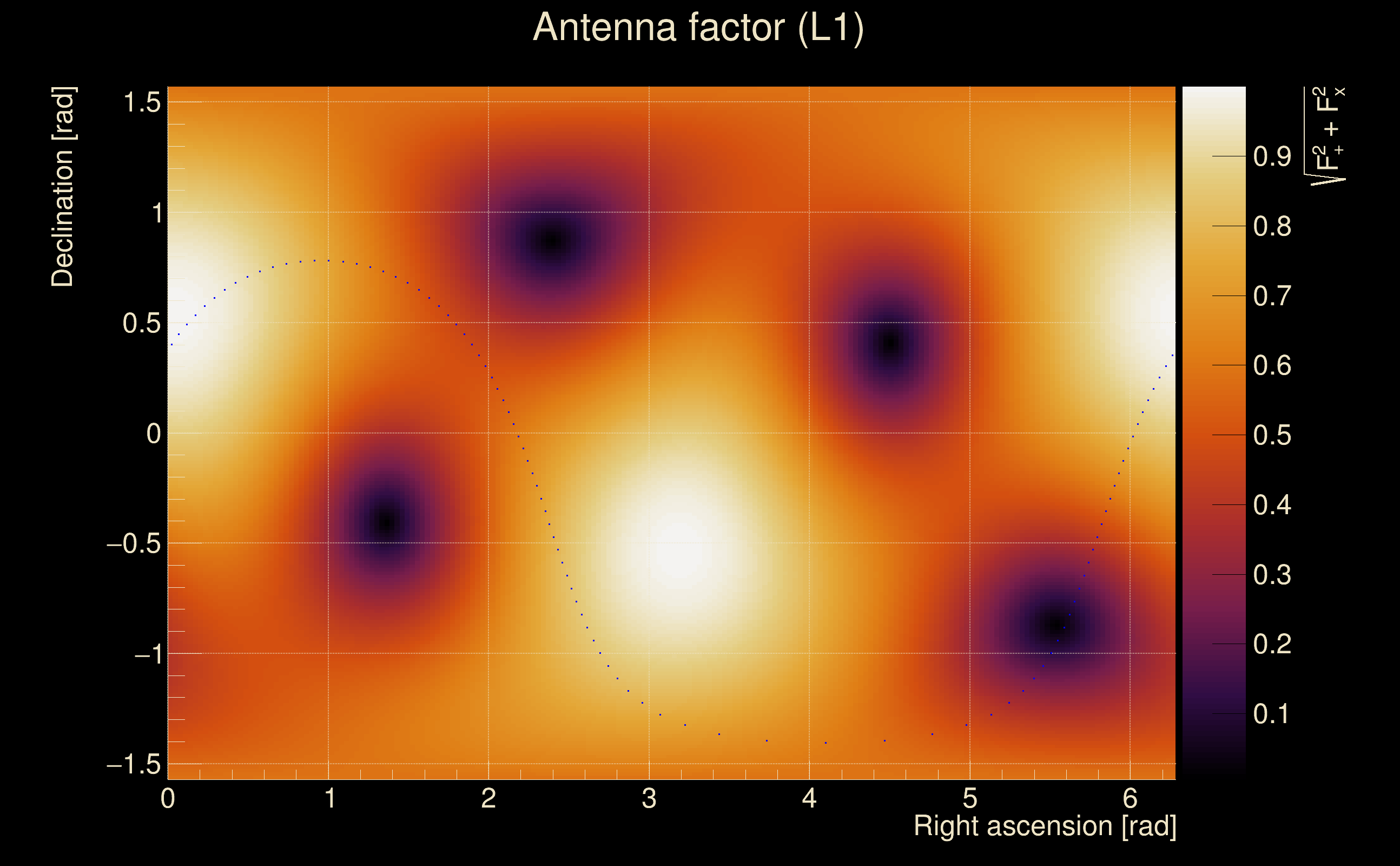

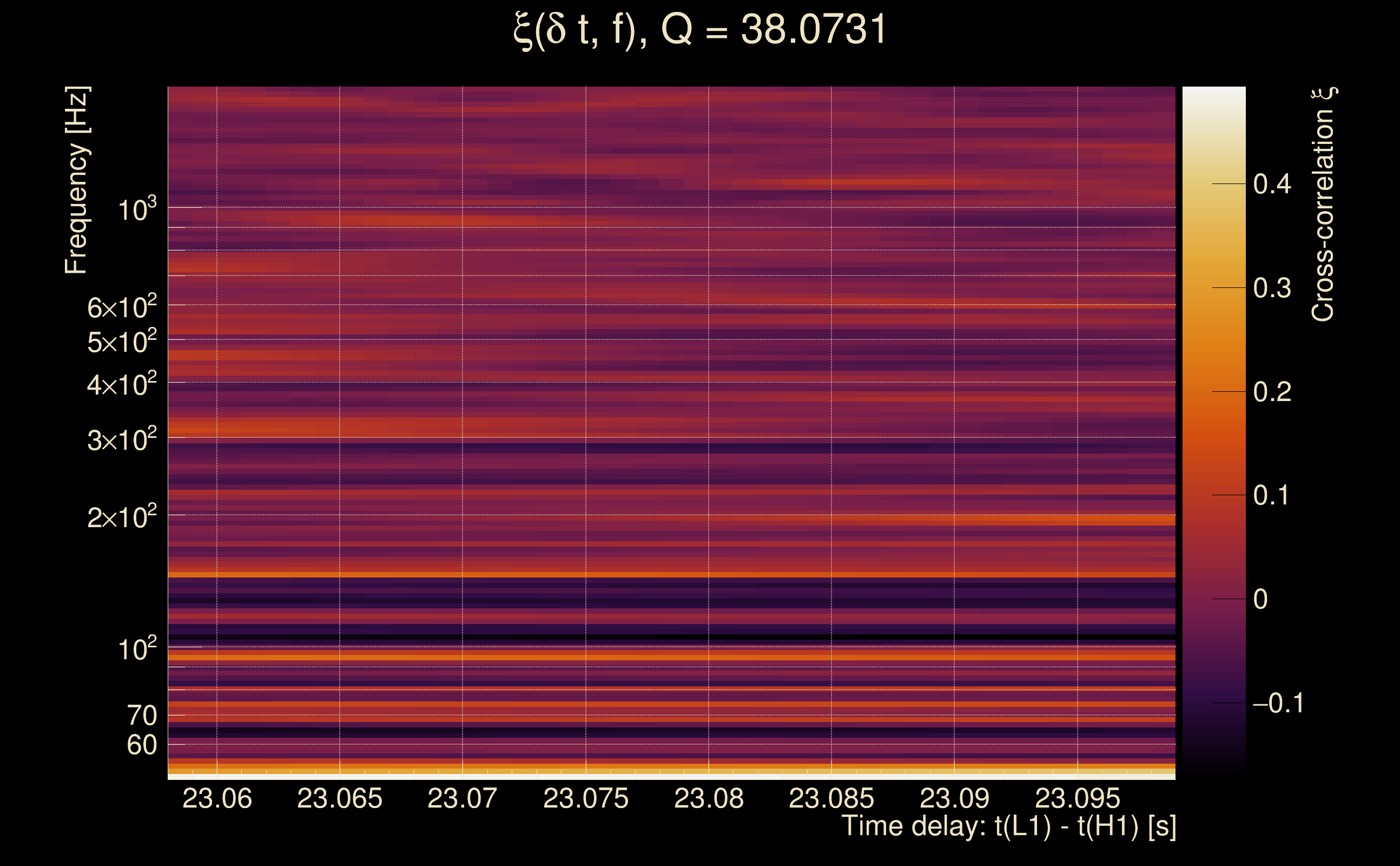

| Event time t(H1): | GPS = 1377674952 (Sat Sep 2 07:28:54 2023 ) → GPS = 1377674962 (Sat Sep 2 07:29:04 2023 ) |
| Event time t(L1): | GPS = 1377674972 (Sat Sep 2 07:29:04 2023 ) → GPS = 1377674982 (Sat Sep 2 07:29:24 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377674949 → GPS = 1377674965 |
| Omicron analysis time window (L1): | GPS = 1377674969 → GPS = 1377674985 |
| Time delay between detectors t(L1) - t(H1): | 23.0789 s (slice index = 41 / 217), δt_gw = -0.00306981 s |
| Time delay uncertainty: | 0.00846445 s |
| [targeted mode] Time delay probability: | 0.829972 (0.214738 sigmas), δt_target = -0.00537968 s |
| Frequency: | 60.6093 Hz |
| Ξ: | 0.344095 ± 0.183204 (variance = 0.0335637): Q0: 0.249018, Q1: 0.53157, Q2: 0.519741, Q3: 0.143685, Q4: 0.101774 |
| Rank: | R_A = 0.254345 |
| Log of amplitude ratio (L1/H1): | 0.169655, variance = 0.469759 (L1/H1: 0.014234, variance = 1.30956, H1/L1: -0.206561, variance = 0.645502) |
| Amplitude ratio (L1/H1): | 1.1849 ⋇ 1.98454 (L1/H1: 1.01434 ⋇ 3.14043, H1/L1: 0.813376 ⋇ 2.23319) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.890596 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 35 / 36, Q2: 68 / 70, Q3: 132 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.89152, L1: 12.0902 |
| SNR variance: | H1: 0.513276, L1: 0.452124 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

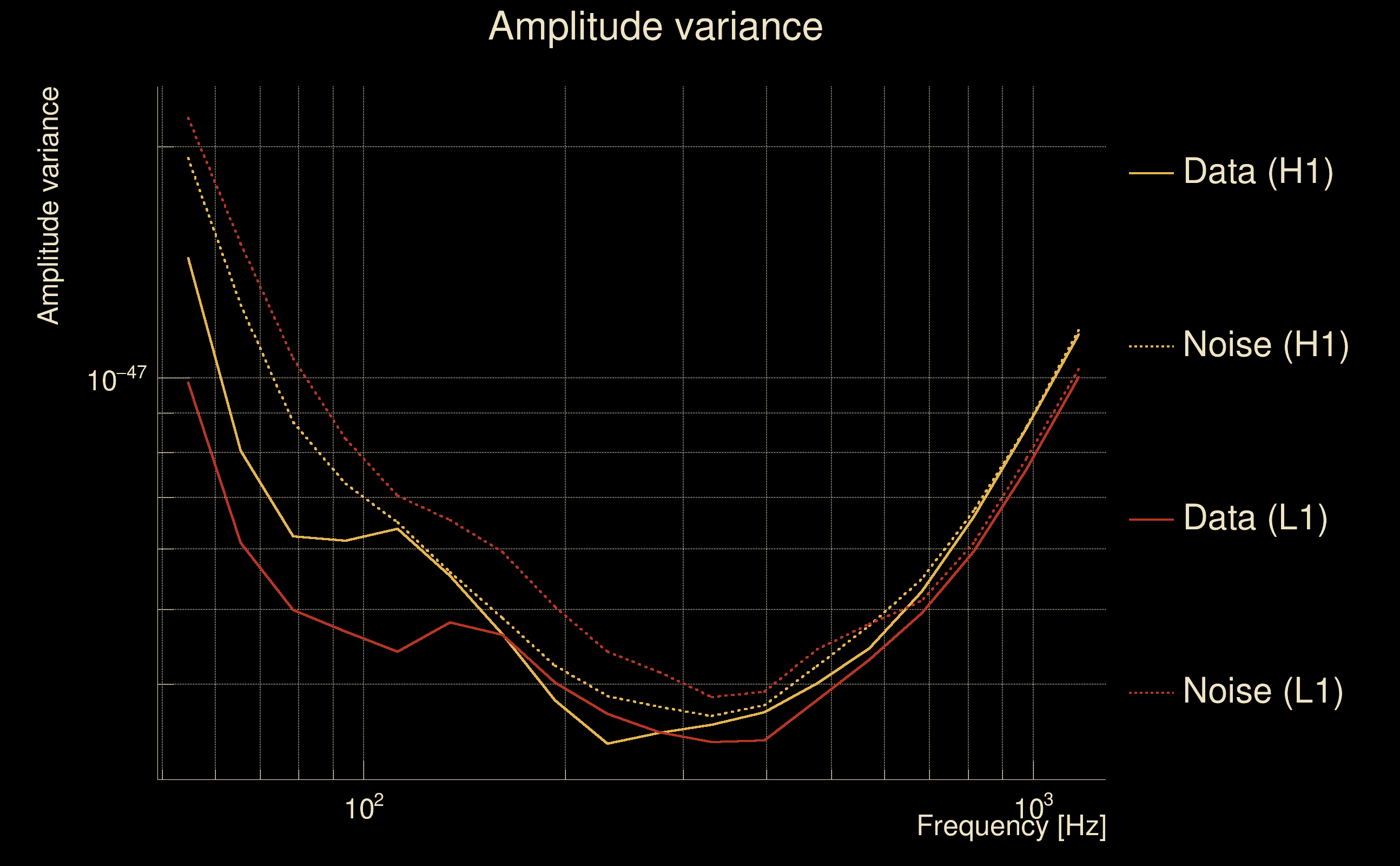

| Event time t(H1): | GPS = 1377681166 (Sat Sep 2 09:12:28 2023 ) → GPS = 1377681176 (Sat Sep 2 09:12:38 2023 ) |
| Event time t(L1): | GPS = 1377681176 (Sat Sep 2 09:12:38 2023 ) → GPS = 1377681186 (Sat Sep 2 09:12:48 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377681163 → GPS = 1377681179 |
| Omicron analysis time window (L1): | GPS = 1377681173 → GPS = 1377681189 |
| Time delay between detectors t(L1) - t(H1): | 5.72376 s (slice index = 201 / 217), δt_gw = 0.00175533 s |
| Time delay uncertainty: | 0.00611705 s |
| [targeted mode] Time delay probability: | 0.905539 (0.118667 sigmas), δt_target = -0.00125217 s |
| Frequency: | 65.9841 Hz |
| Ξ: | 0.300595 ± 0.108148 (variance = 0.011696): Q0: 0.280963, Q1: 0.331462, Q2: 0.37085, Q3: 0.319708, Q4: 0.0650476 |
| Rank: | R_A = 0.251049 |
| Log of amplitude ratio (L1/H1): | -0.334391, variance = 0.235959 (L1/H1: -0.385591, variance = 0.57591, H1/L1: 0.289772, variance = 0.389046) |
| Amplitude ratio (L1/H1): | 0.715774 ⋇ 1.6254 (L1/H1: 0.680049 ⋇ 2.1359, H1/L1: 1.33612 ⋇ 1.86588) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.922295 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 33 / 36, Q2: 63 / 70, Q3: 125 / 134, Q4: 250 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.04947, L1: 5.40908 |

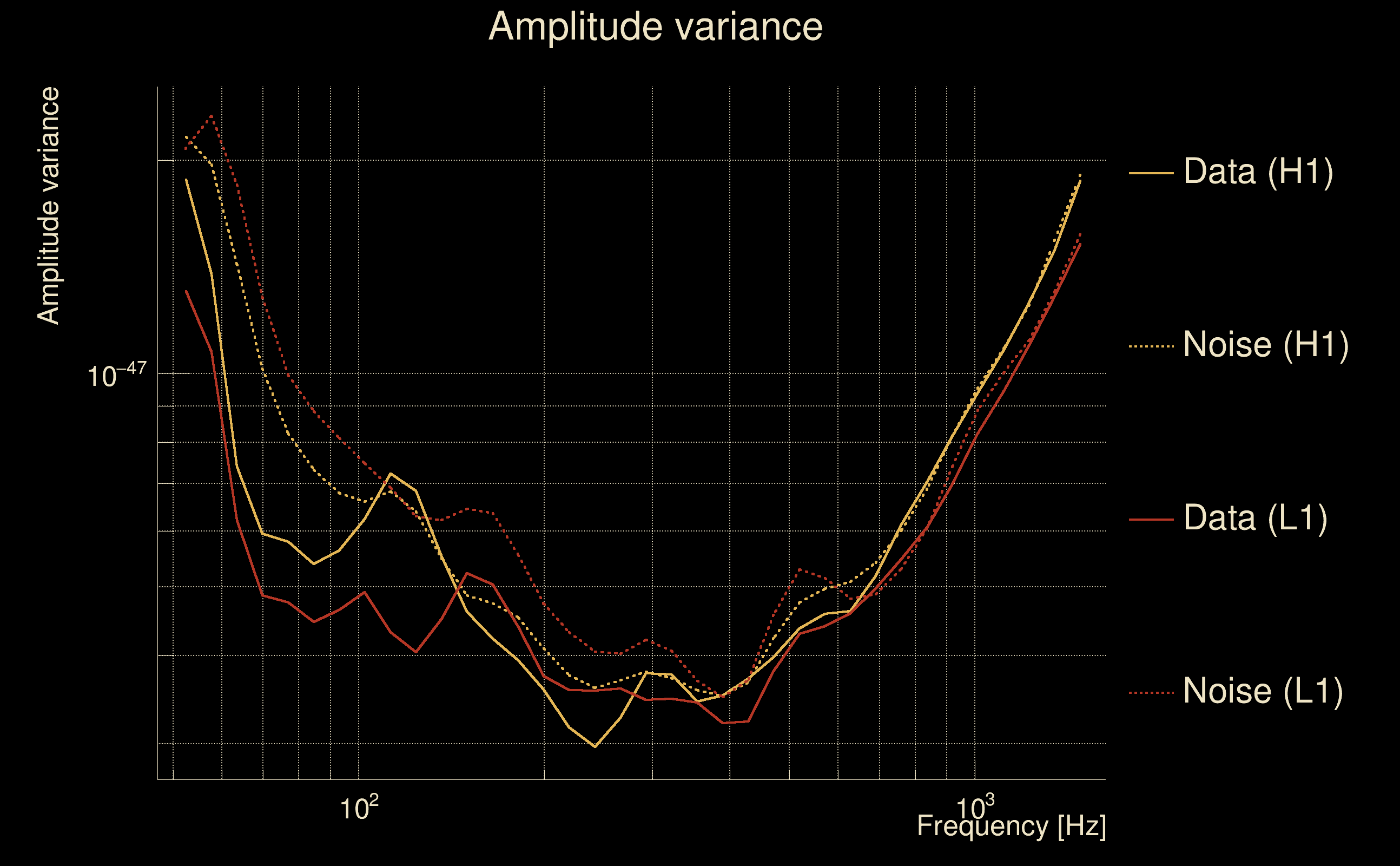

| SNR variance: | H1: 0.523268, L1: 0.506664 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

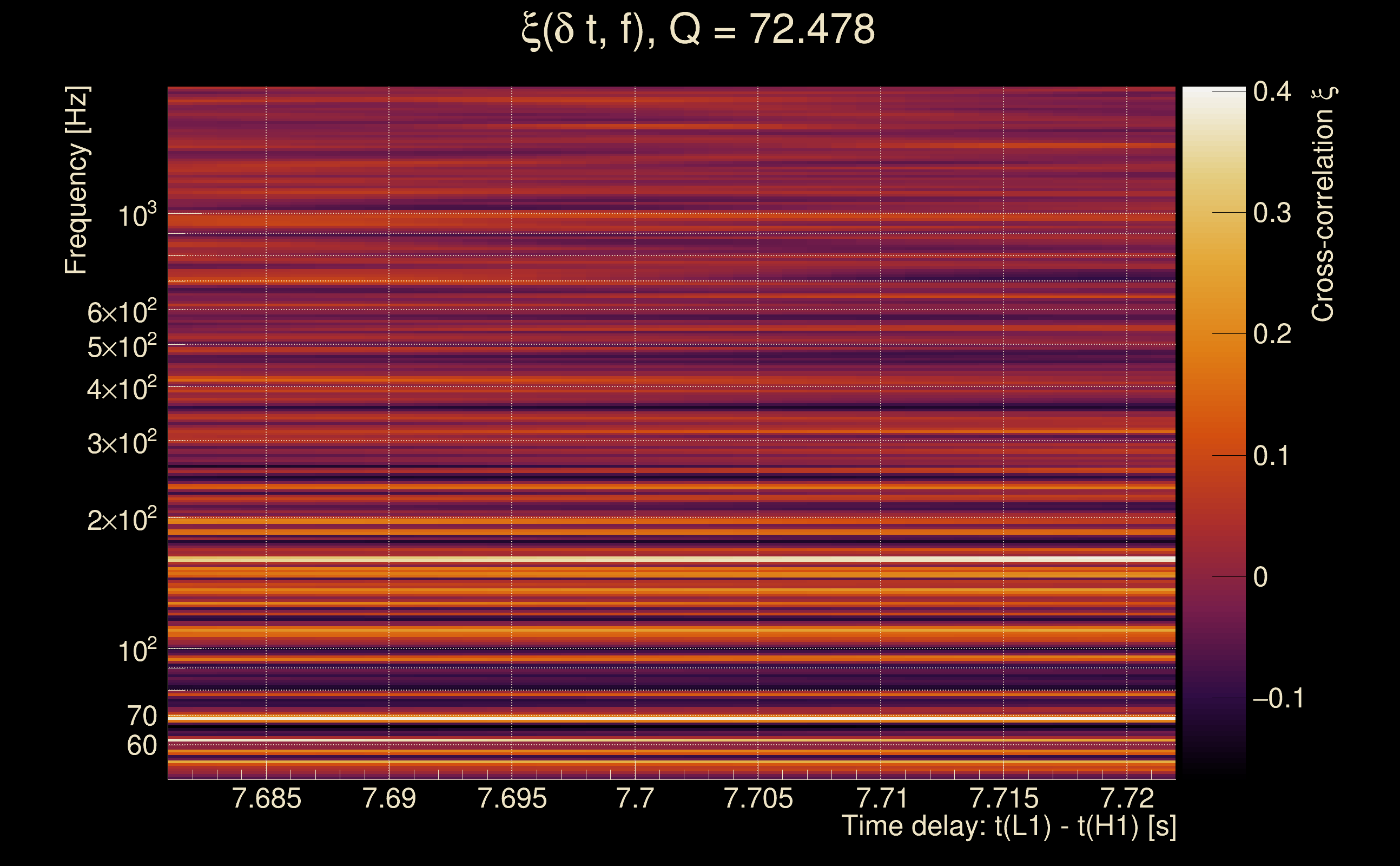

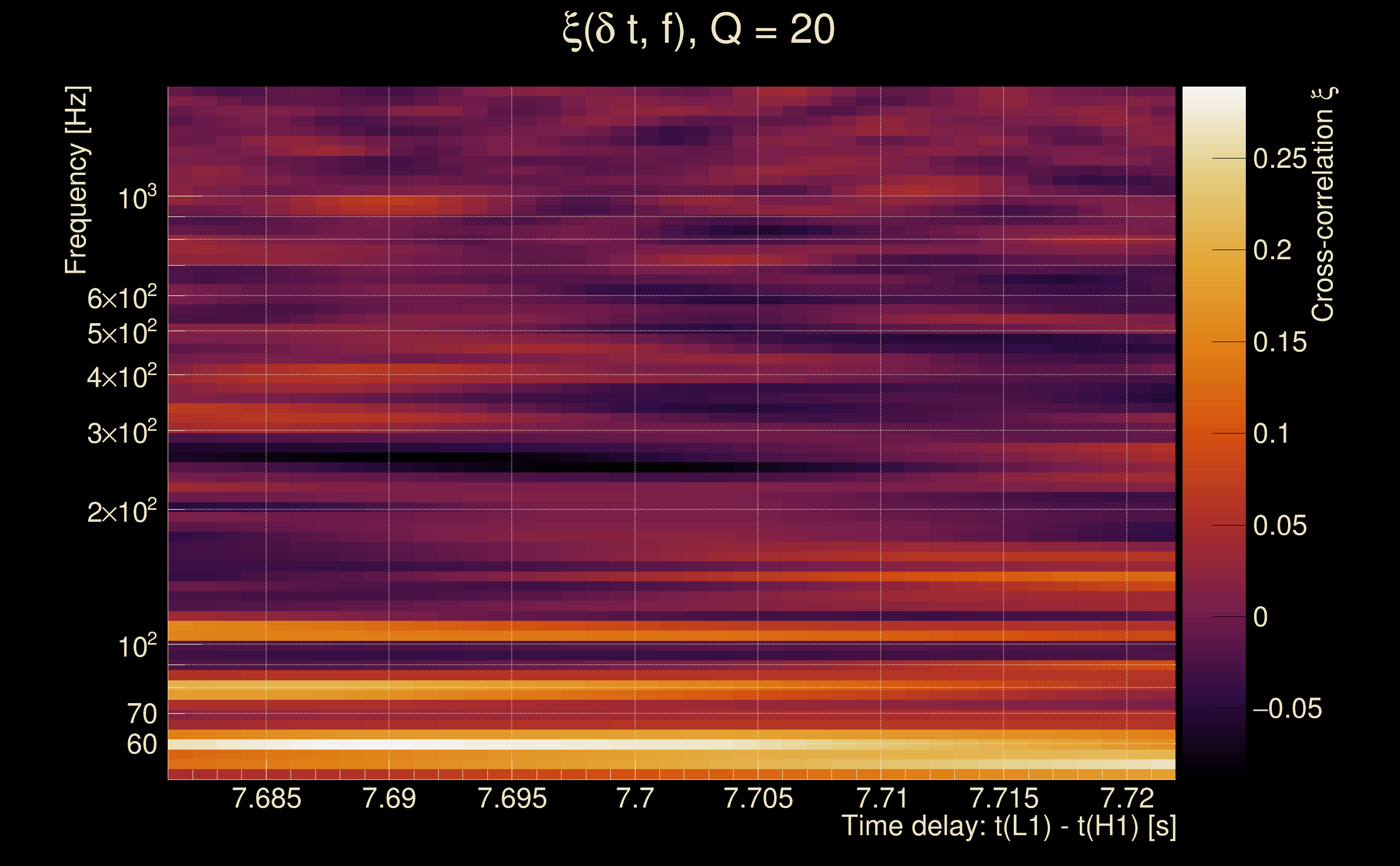

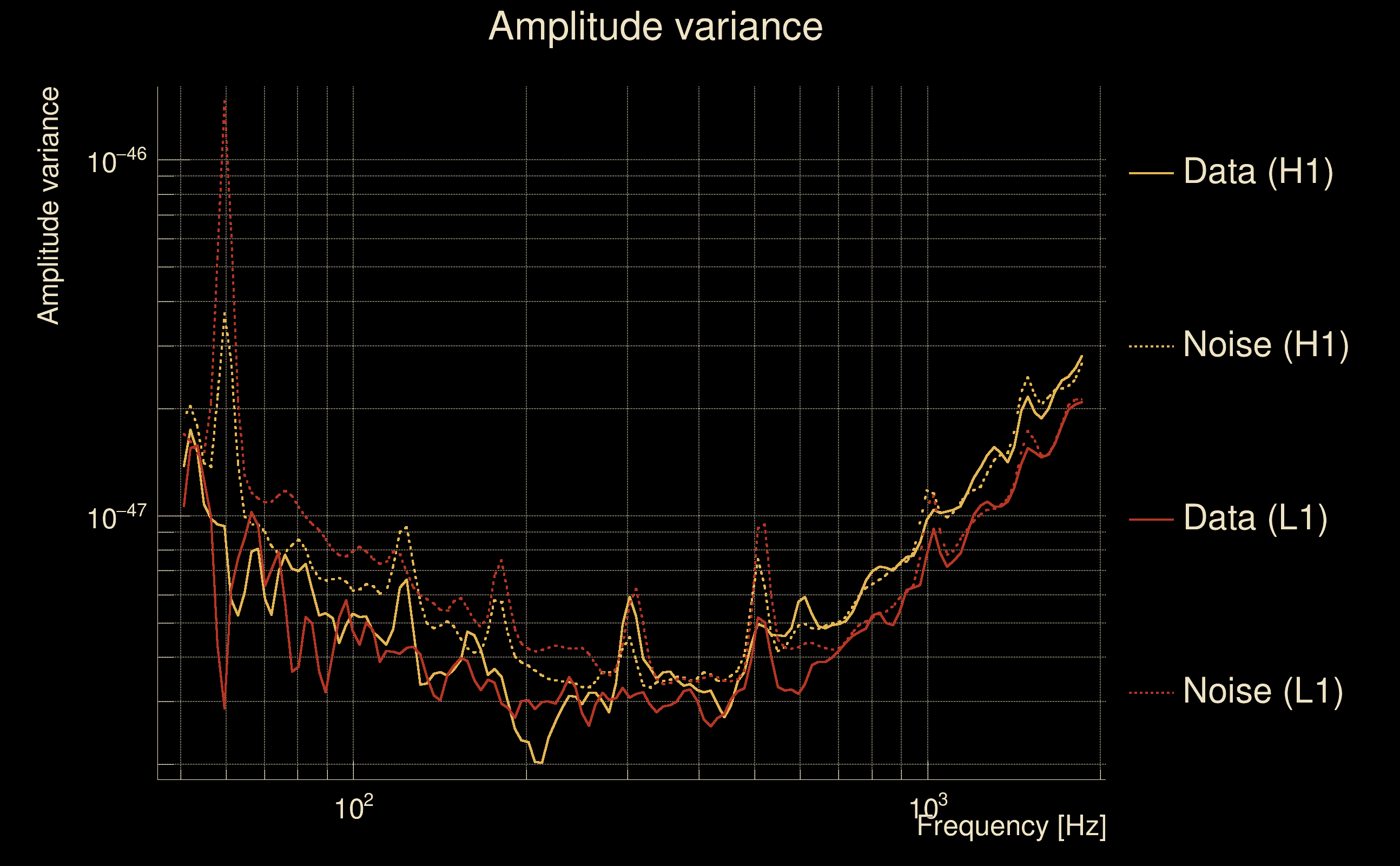

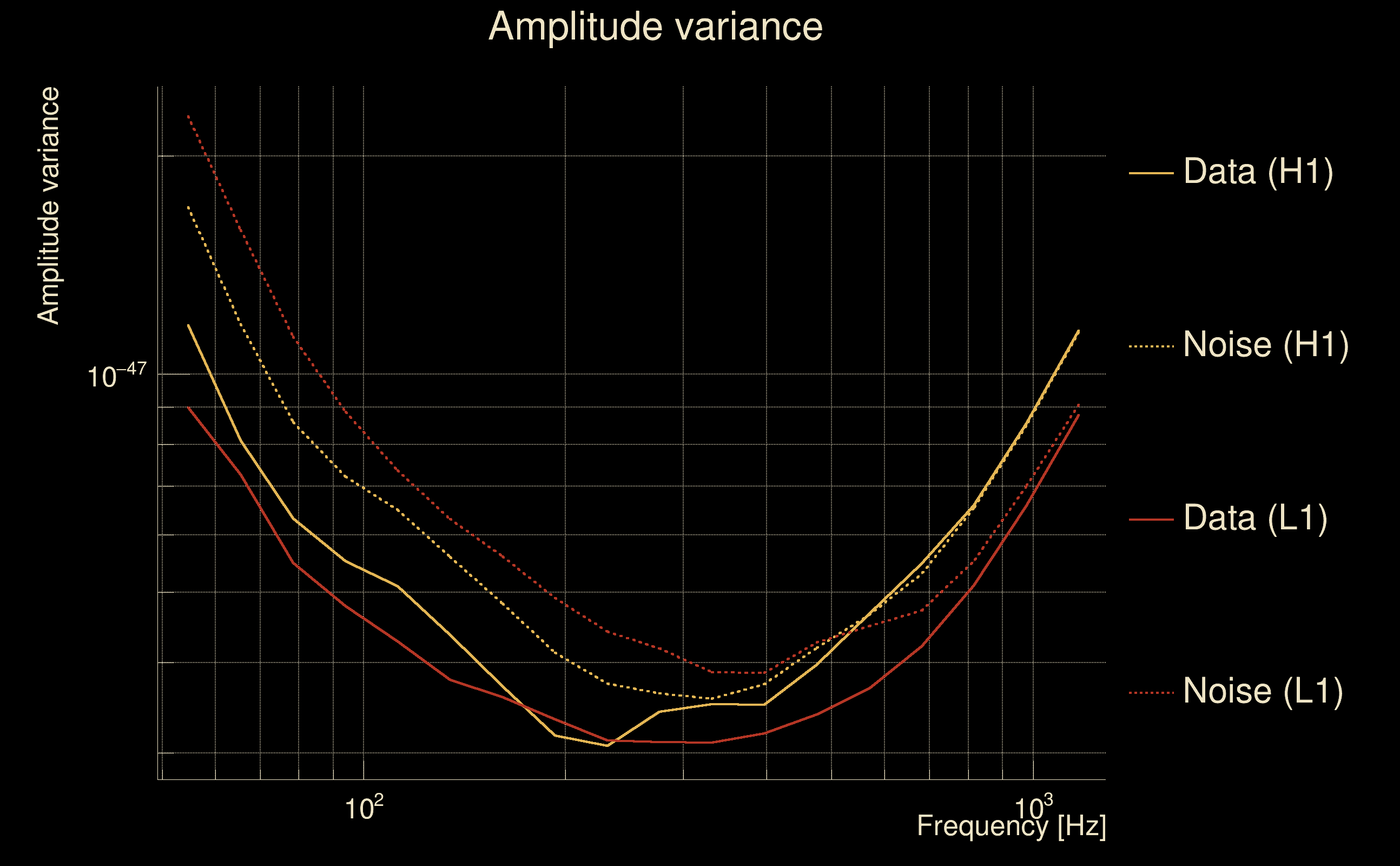

| Event time t(H1): | GPS = 1378198125 (Fri Sep 8 08:48:27 2023 ) → GPS = 1378198135 (Fri Sep 8 08:48:37 2023 ) |
| Event time t(L1): | GPS = 1378198135 (Fri Sep 8 08:48:37 2023 ) → GPS = 1378198145 (Fri Sep 8 08:48:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378198122 → GPS = 1378198138 |
| Omicron analysis time window (L1): | GPS = 1378198132 → GPS = 1378198148 |

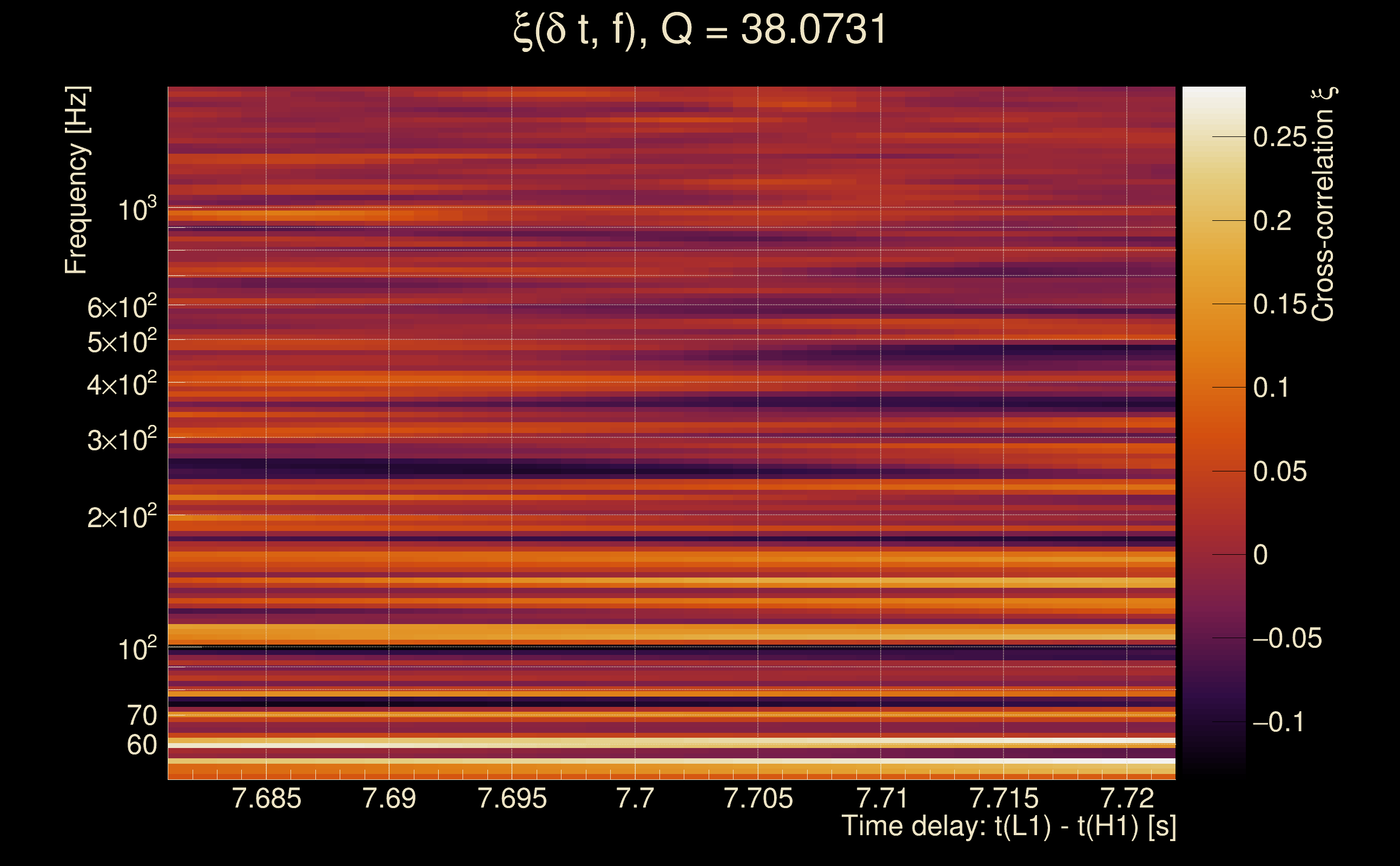

| Time delay between detectors t(L1) - t(H1): | 7.70142 s (slice index = 158 / 217), δt_gw = 0.00142181 s |
| Time delay uncertainty: | 0.00531809 s |
| [targeted mode] Time delay probability: | 0.844379 (0.196295 sigmas), δt_target = 0.00248122 s |
| Frequency: | 73.003 Hz |
| Ξ: | 0.305128 ± 0.147568 (variance = 0.0217764): Q0: 0.325642, Q1: 0.412019, Q2: 0.225192, Q3: 0.0400568, Q4: 0.0500395 |
| Rank: | R_A = 0.247329 |
| Log of amplitude ratio (L1/H1): | -0.0129319, variance = 0.163864 (L1/H1: 0.0192532, variance = 0.960729, H1/L1: 0.0319435, variance = 0.0794053) |
| Amplitude ratio (L1/H1): | 0.987151 ⋇ 1.499 (L1/H1: 1.01944 ⋇ 2.6649, H1/L1: 1.03246 ⋇ 1.3255) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.959964 |

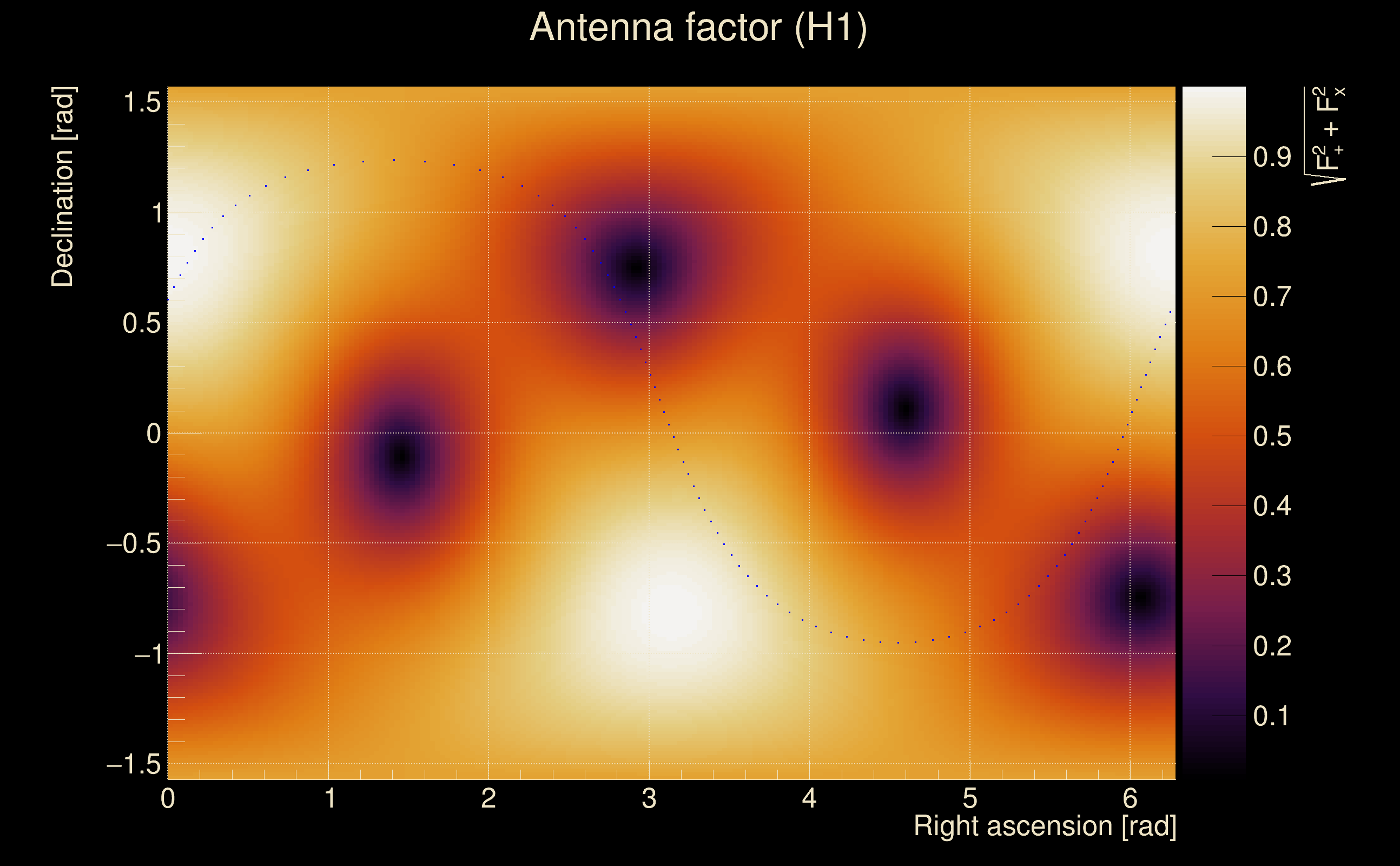

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 34 / 36, Q2: 64 / 70, Q3: 125 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.02774, L1: 6.54169 |
| SNR variance: | H1: 0.504208, L1: 0.531423 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

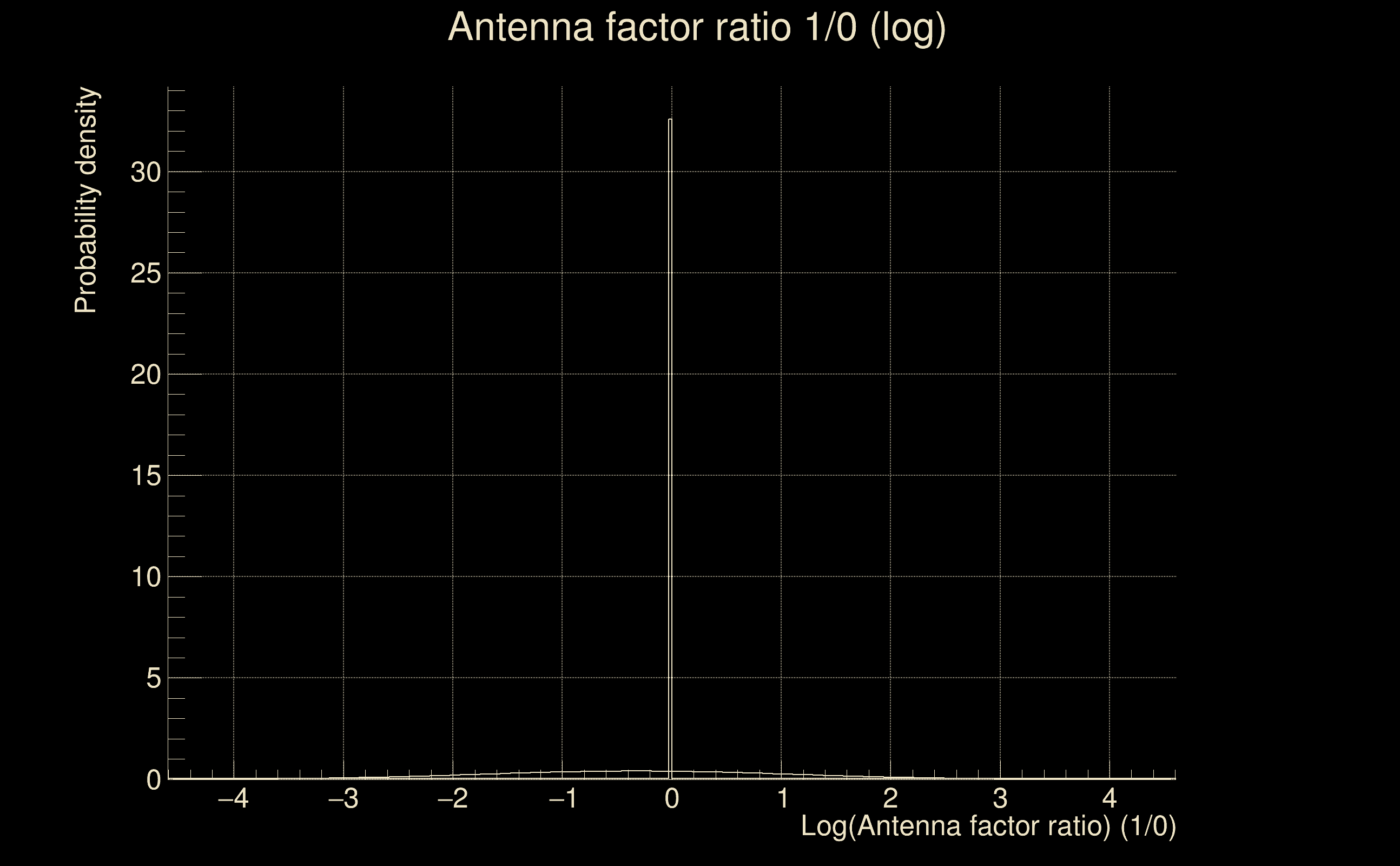

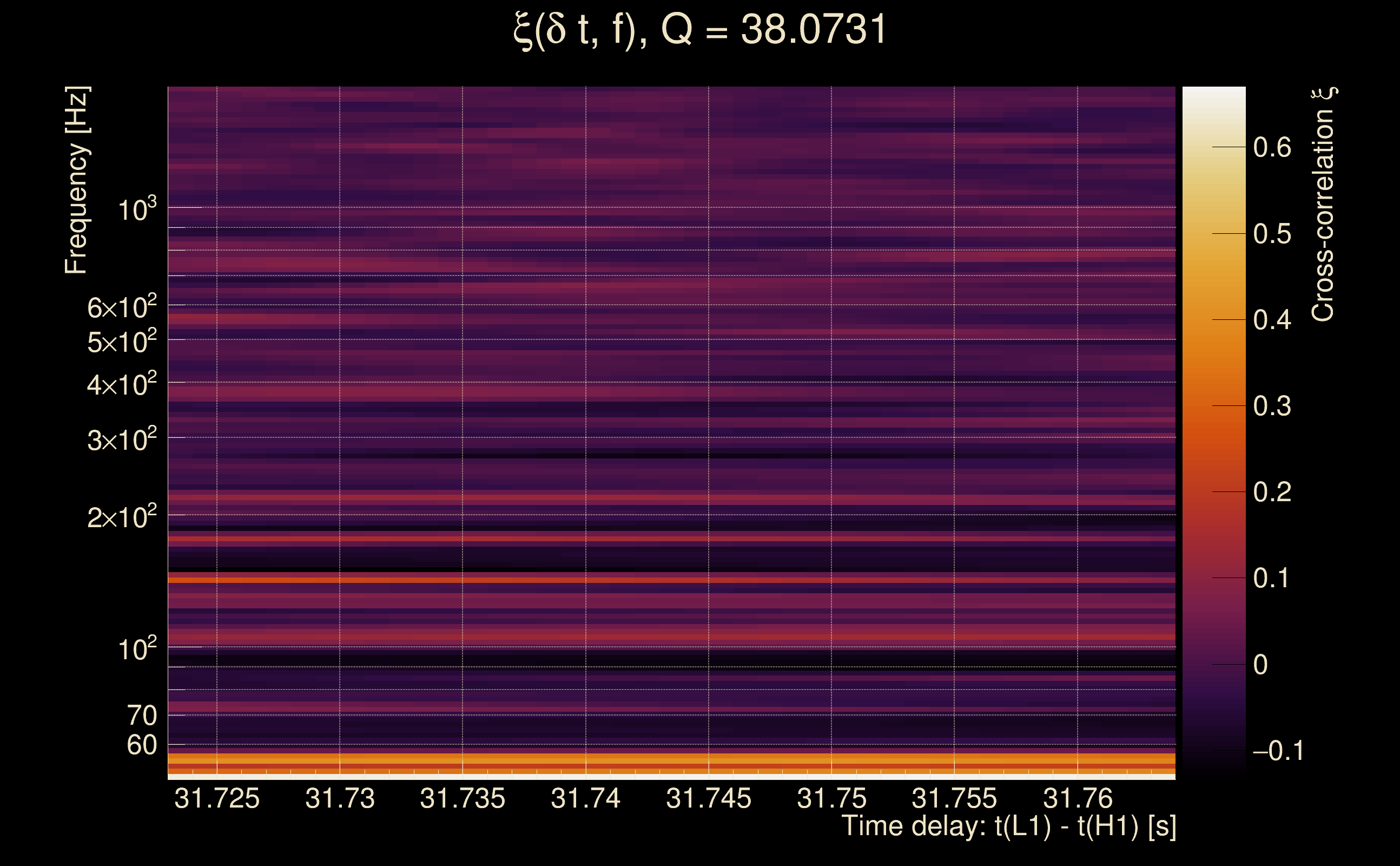

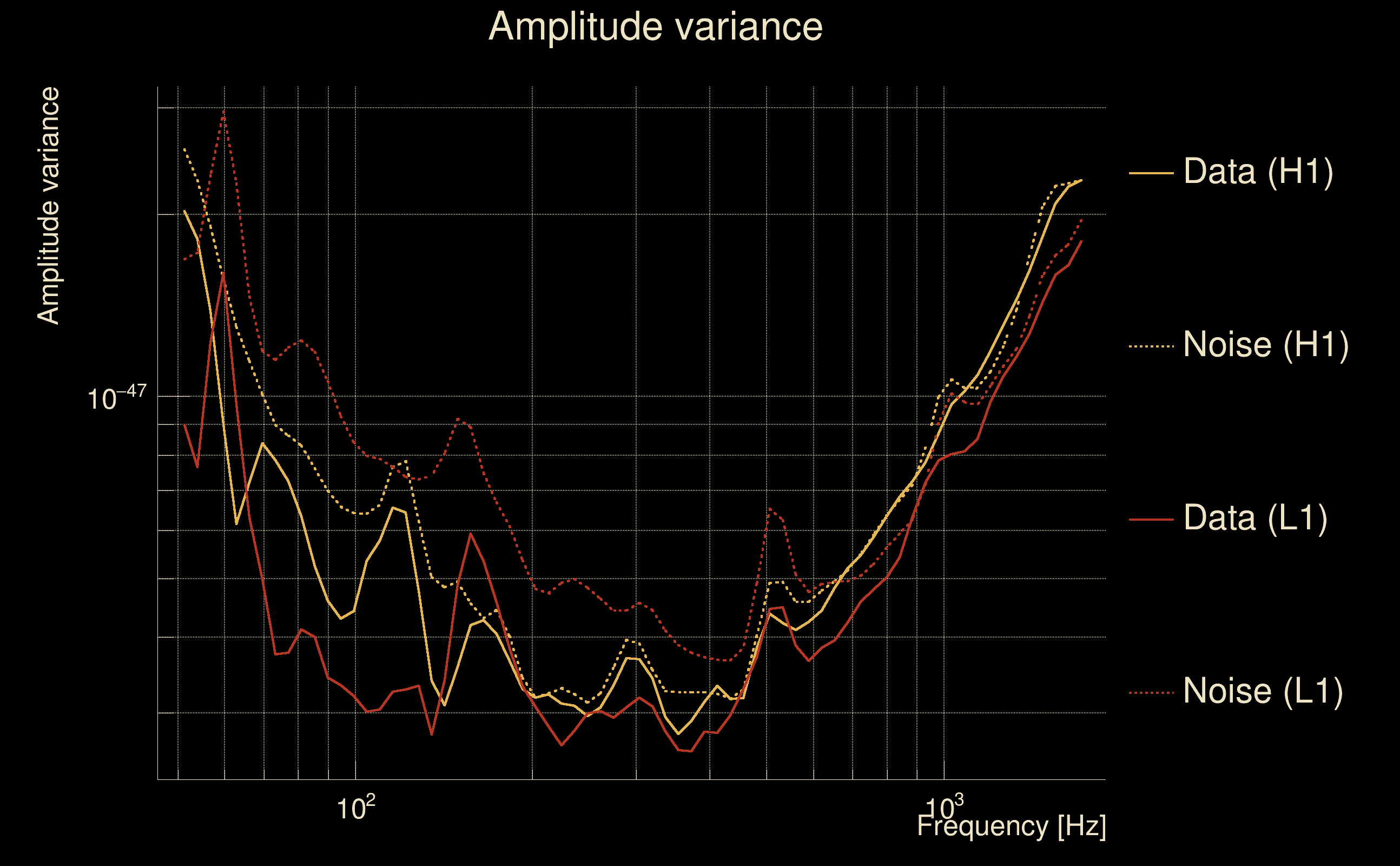

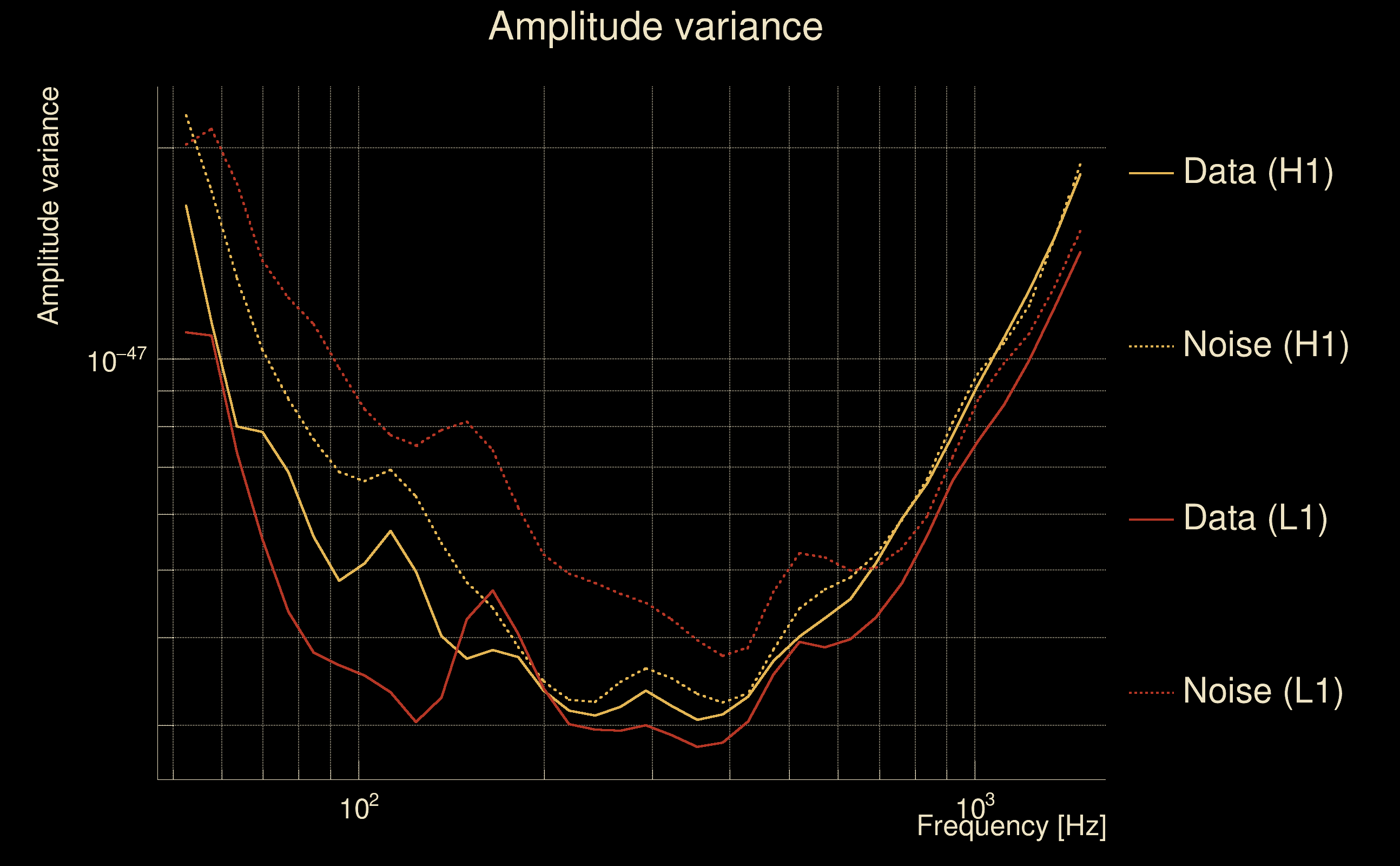

| Event time t(H1): | GPS = 1377733668 (Sat Sep 2 23:47:30 2023 ) → GPS = 1377733678 (Sat Sep 2 23:47:40 2023 ) |
| Event time t(L1): | GPS = 1377733698 (Sat Sep 2 23:47:40 2023 ) → GPS = 1377733708 (Sat Sep 2 23:48:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377733665 → GPS = 1377733681 |
| Omicron analysis time window (L1): | GPS = 1377733695 → GPS = 1377733711 |

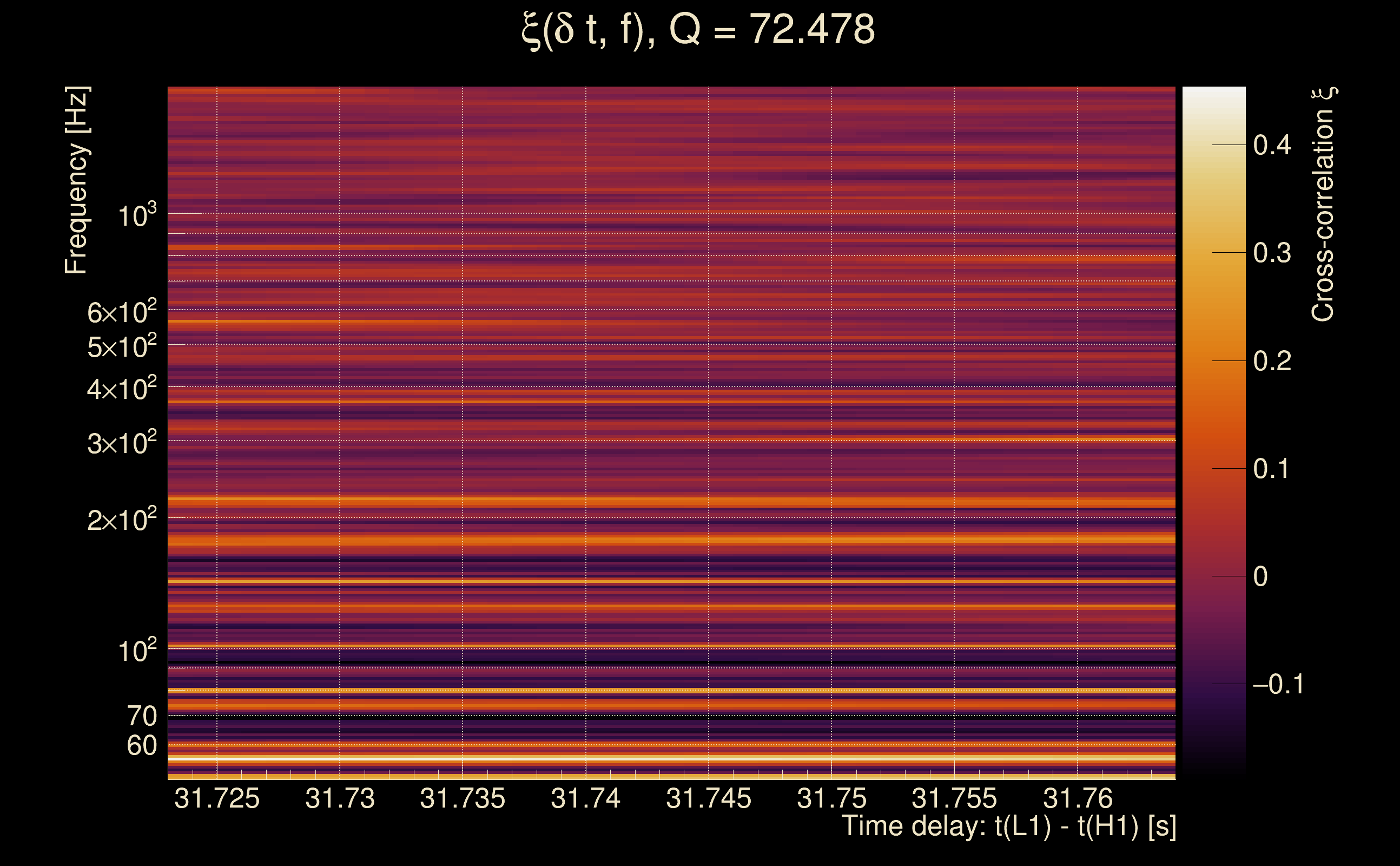

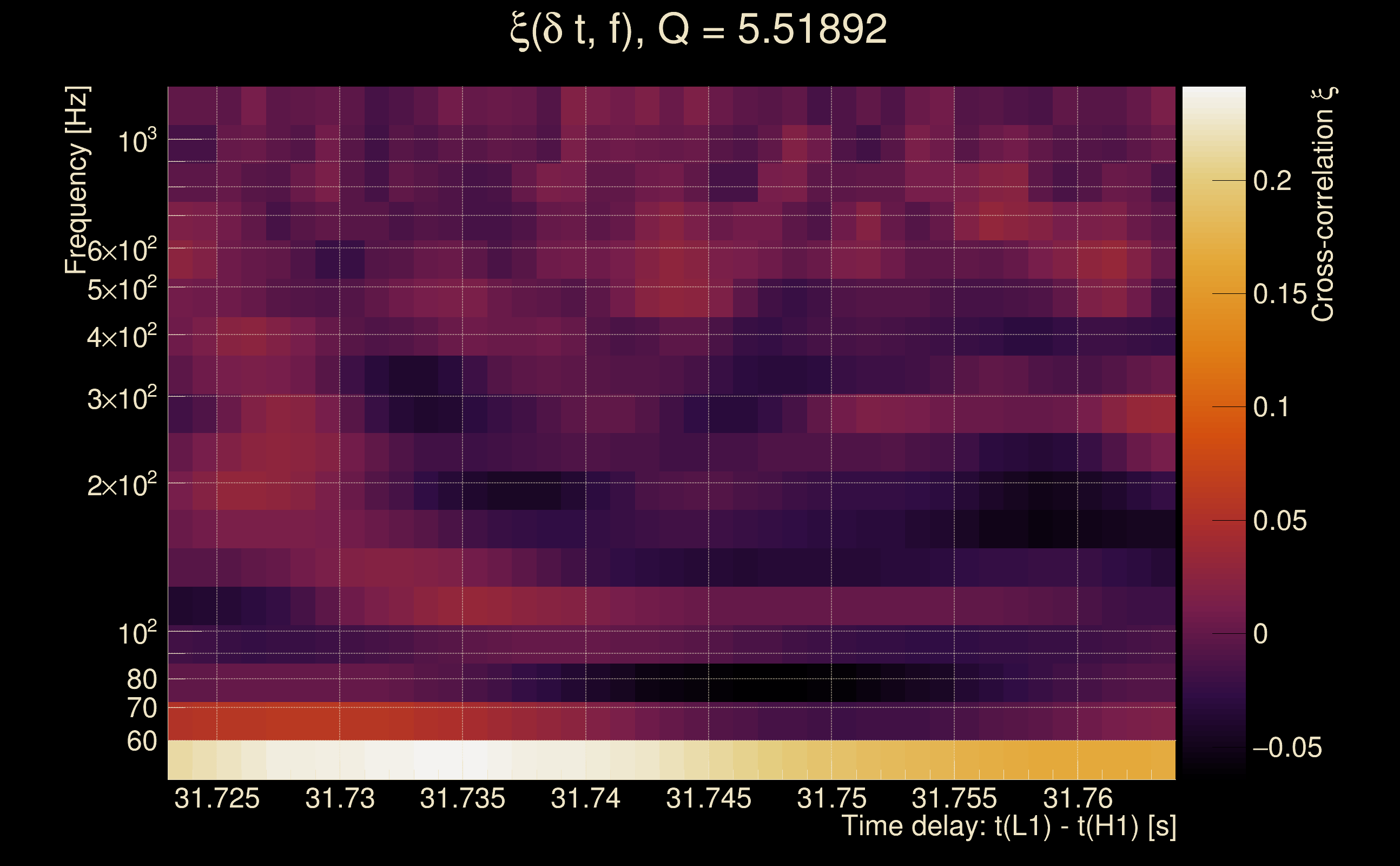

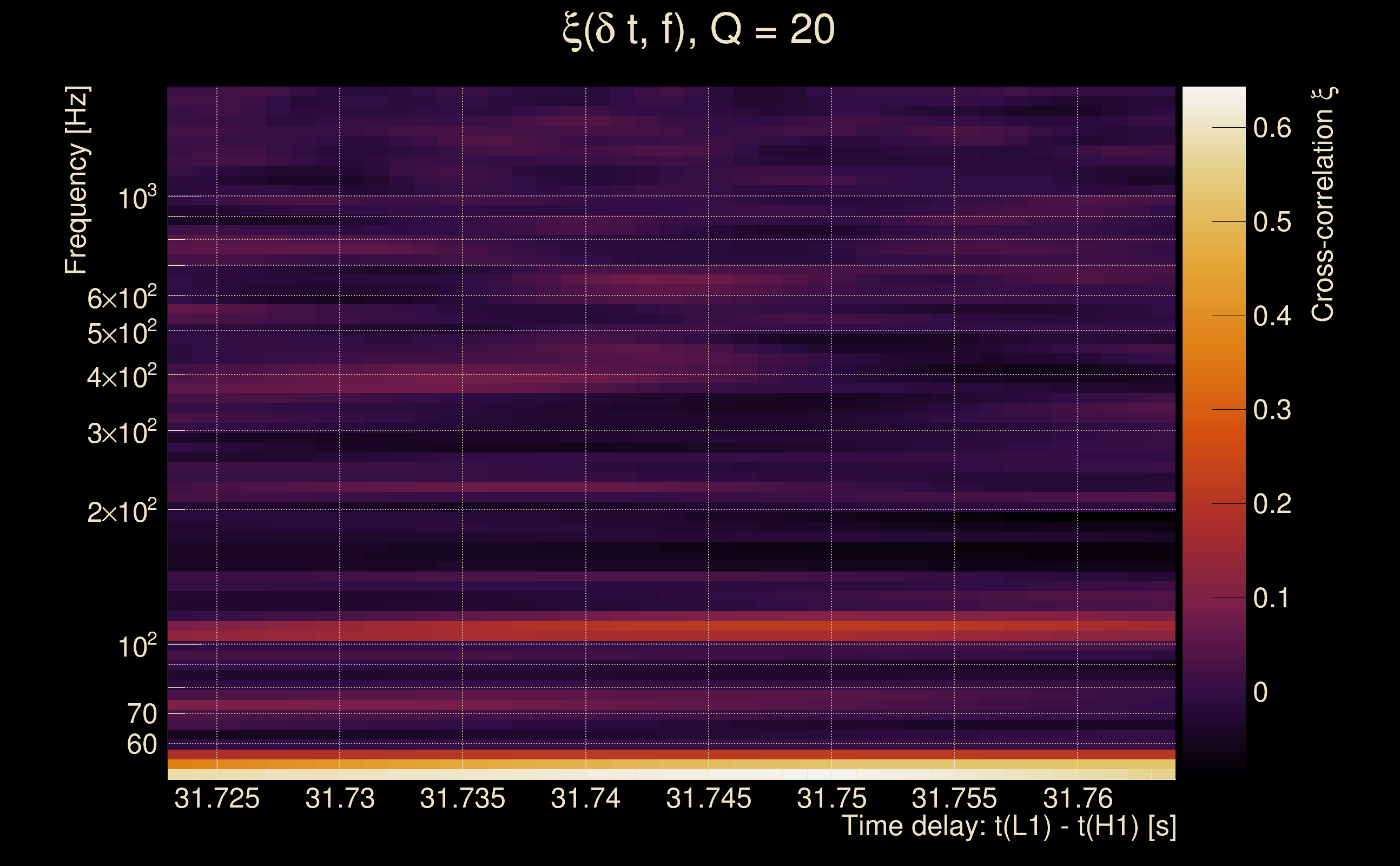

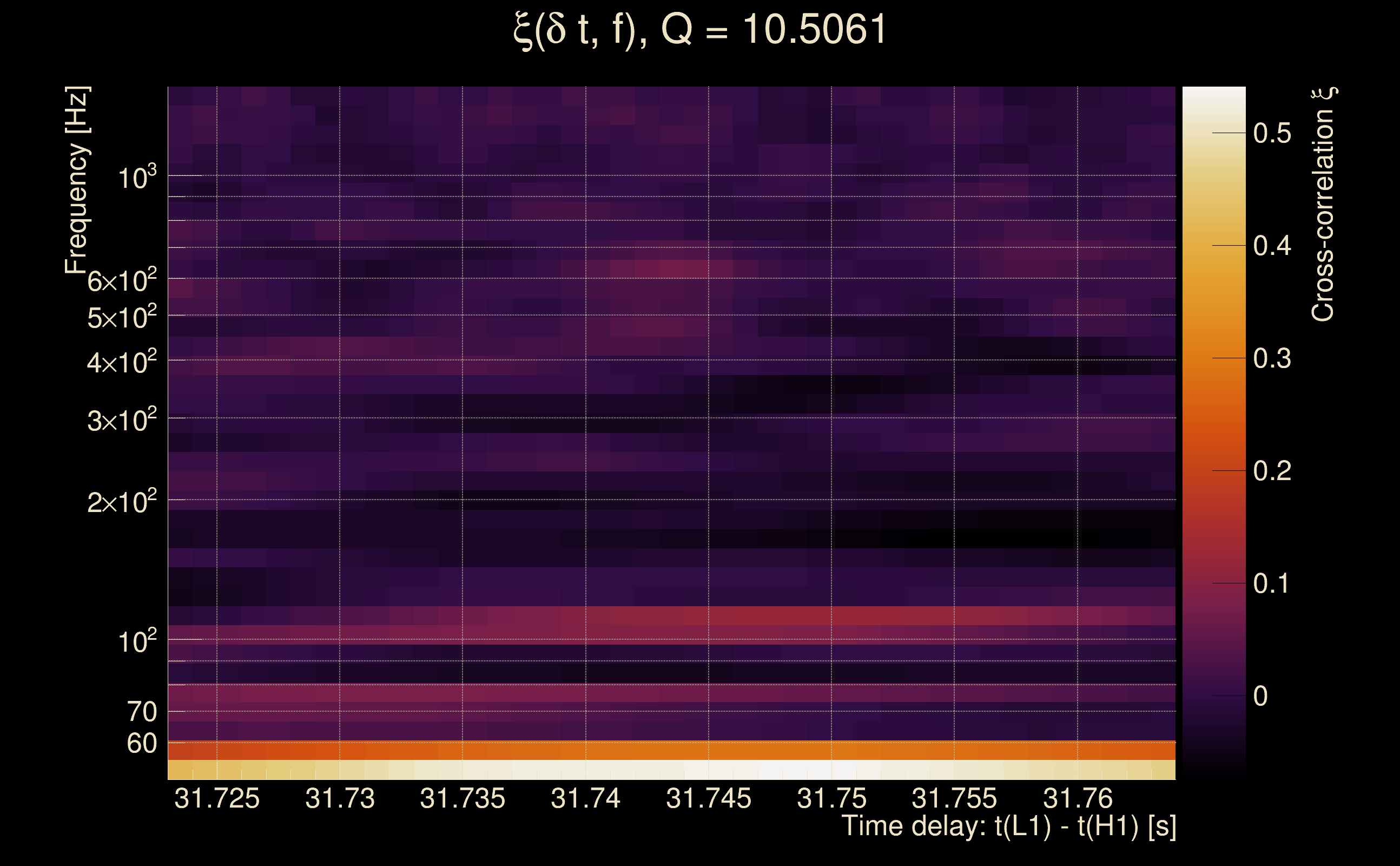

| Time delay between detectors t(L1) - t(H1): | 31.7433 s (slice index = 70 / 217), δt_gw = -0.00472215 s |
| Time delay uncertainty: | 0.0066379 s |
| [targeted mode] Time delay probability: | 0.963756 (0.0454409 sigmas), δt_target = 0.00246572 s |
| Frequency: | 65.0256 Hz |
| Ξ: | 0.287361 ± 0.207546 (variance = 0.0430754): Q0: 0.190056, Q1: 0.443598, Q2: 0.553078, Q3: 0.0462641, Q4: 0.0472154 |
| Rank: | R_A = 0.23944 |
| Log of amplitude ratio (L1/H1): | -0.331589, variance = 0.984864 (L1/H1: -0.16304, variance = 1.68065, H1/L1: 0.501802, variance = 2.26445) |
| Amplitude ratio (L1/H1): | 0.717782 ⋇ 2.69771 (L1/H1: 0.849557 ⋇ 3.65611, H1/L1: 1.6517 ⋇ 4.50329) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.864573 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 33 / 36, Q2: 67 / 70, Q3: 133 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.07511, L1: 5.05022 |
| SNR variance: | H1: 0.521719, L1: 0.499242 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

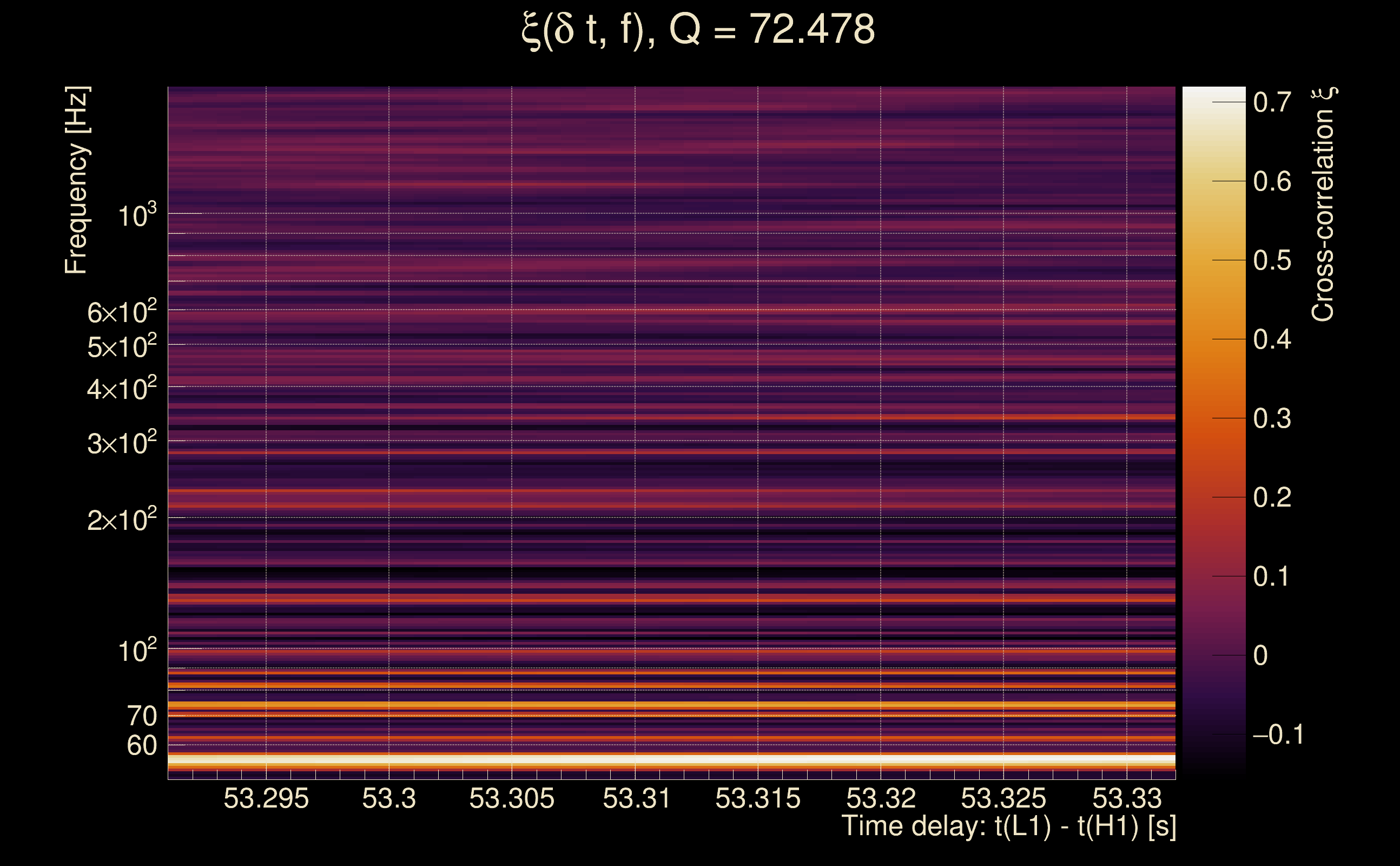

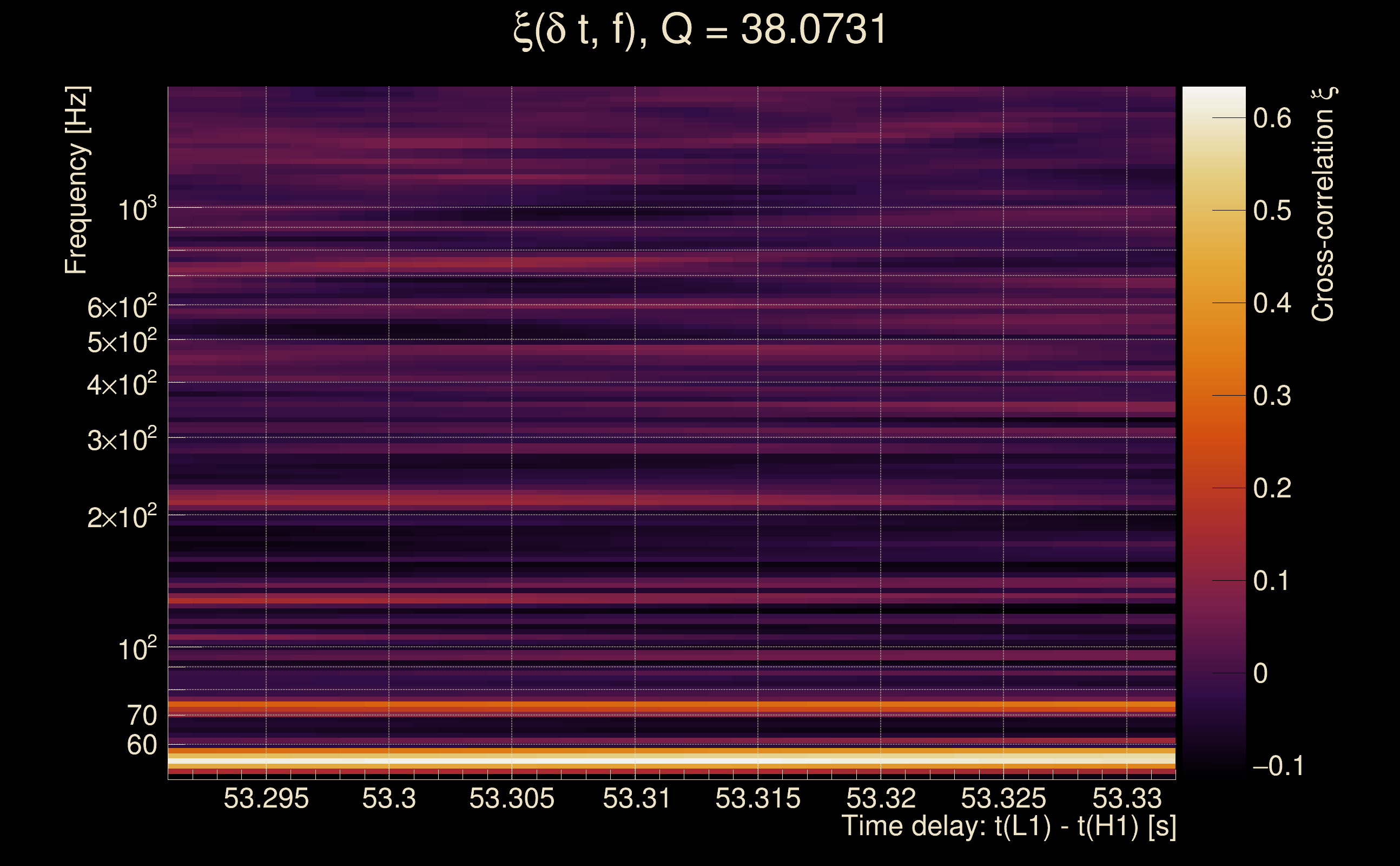

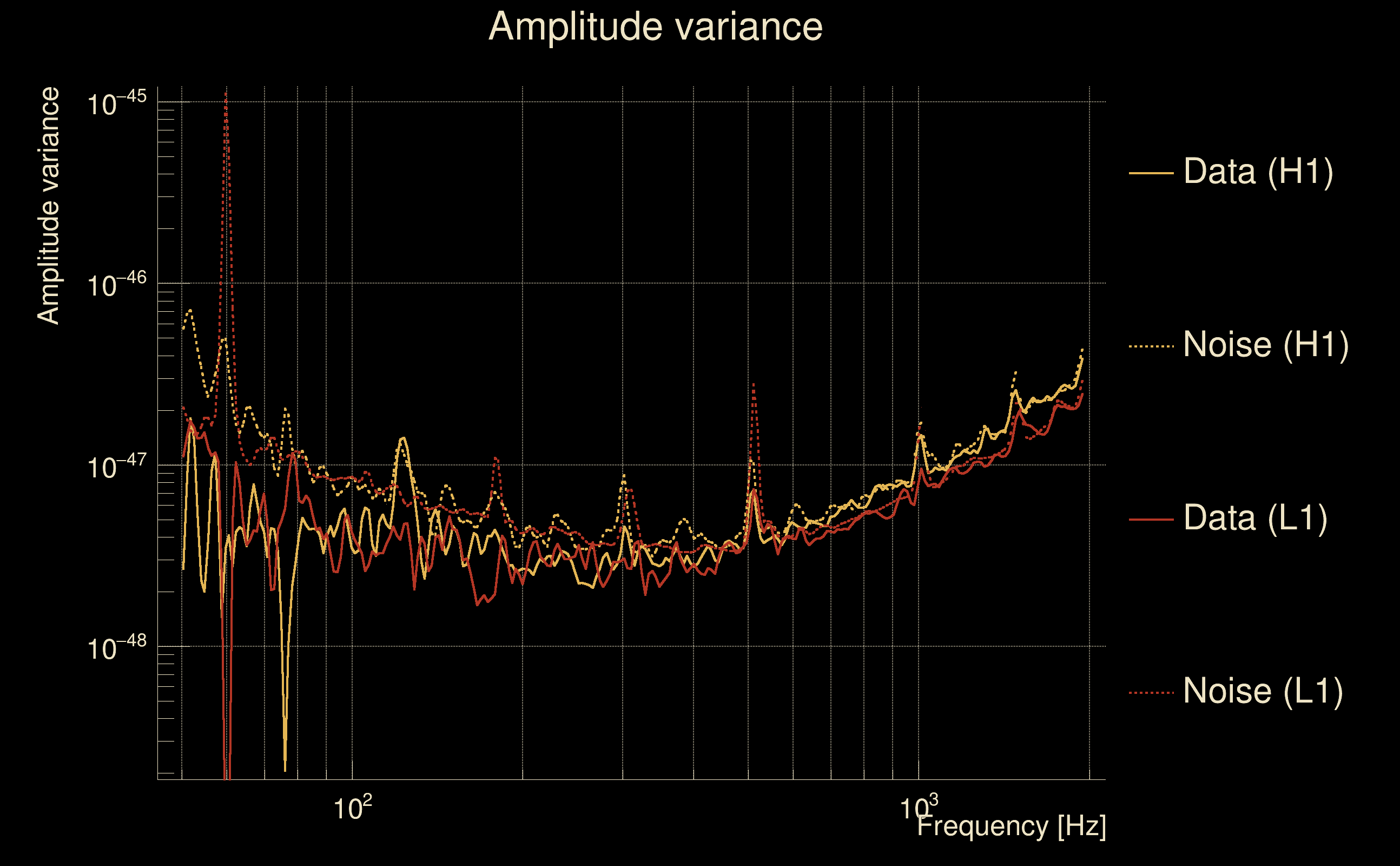

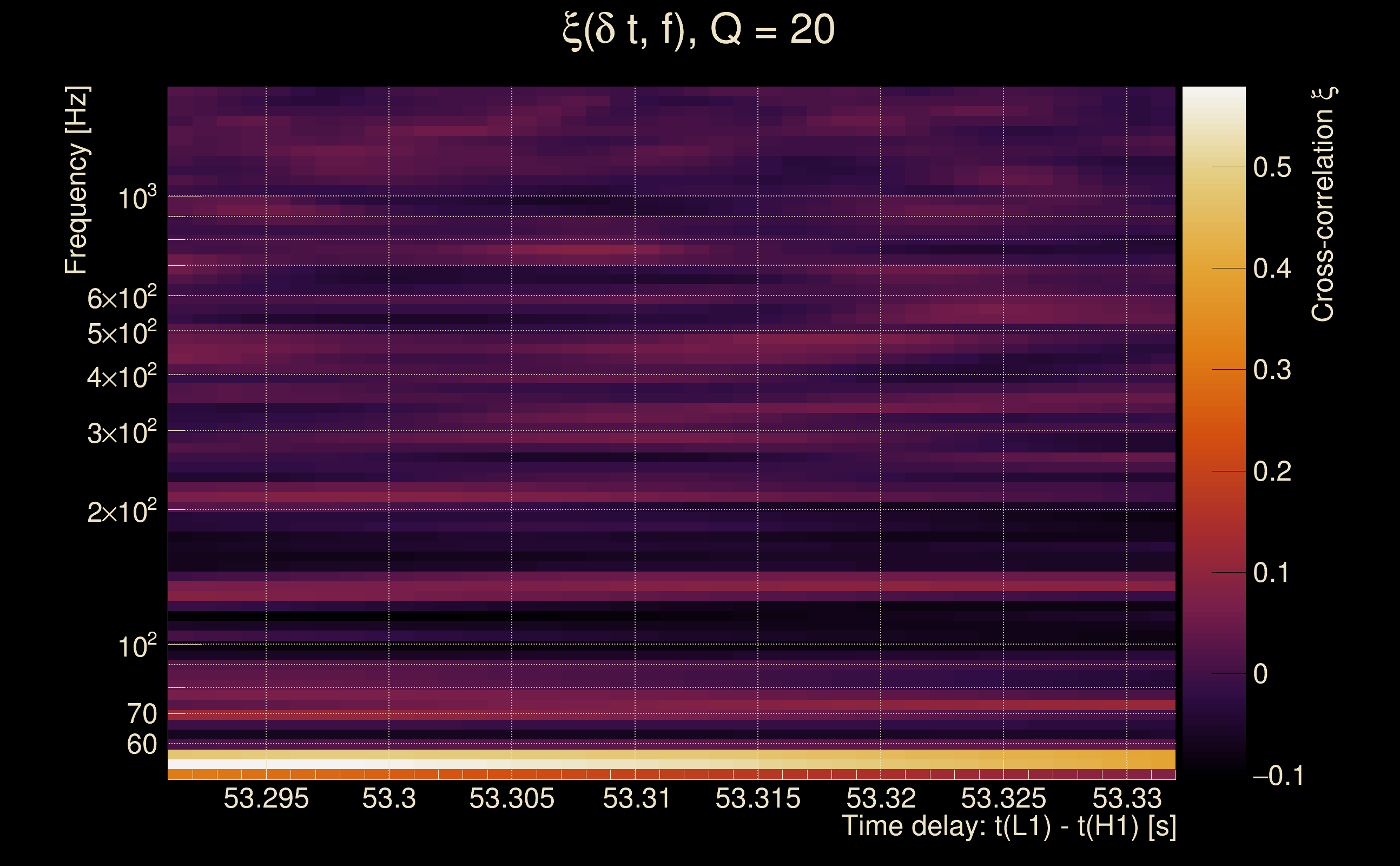

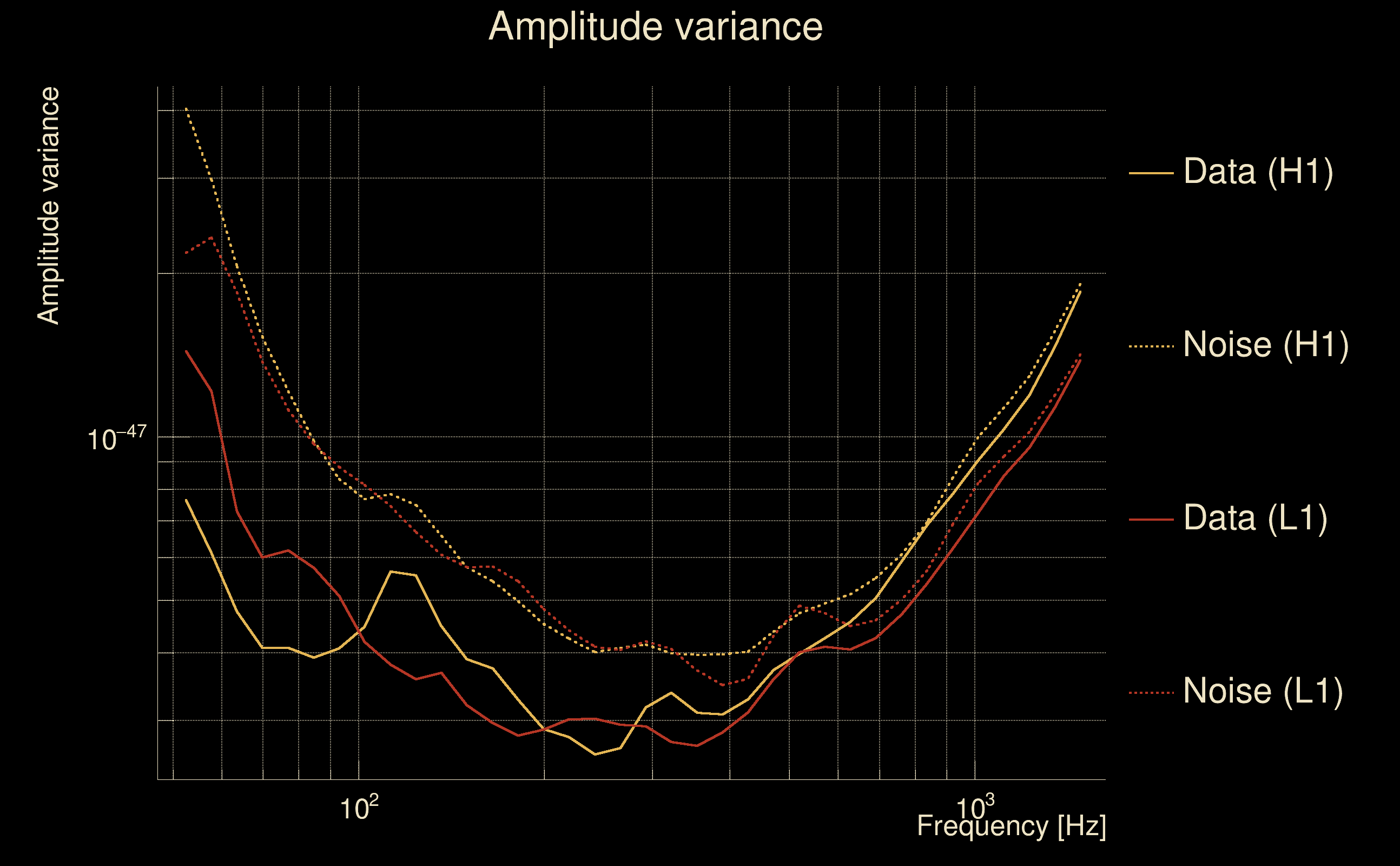

| Event time t(H1): | GPS = 1378156297 (Thu Sep 7 21:11:19 2023 ) → GPS = 1378156307 (Thu Sep 7 21:11:29 2023 ) |

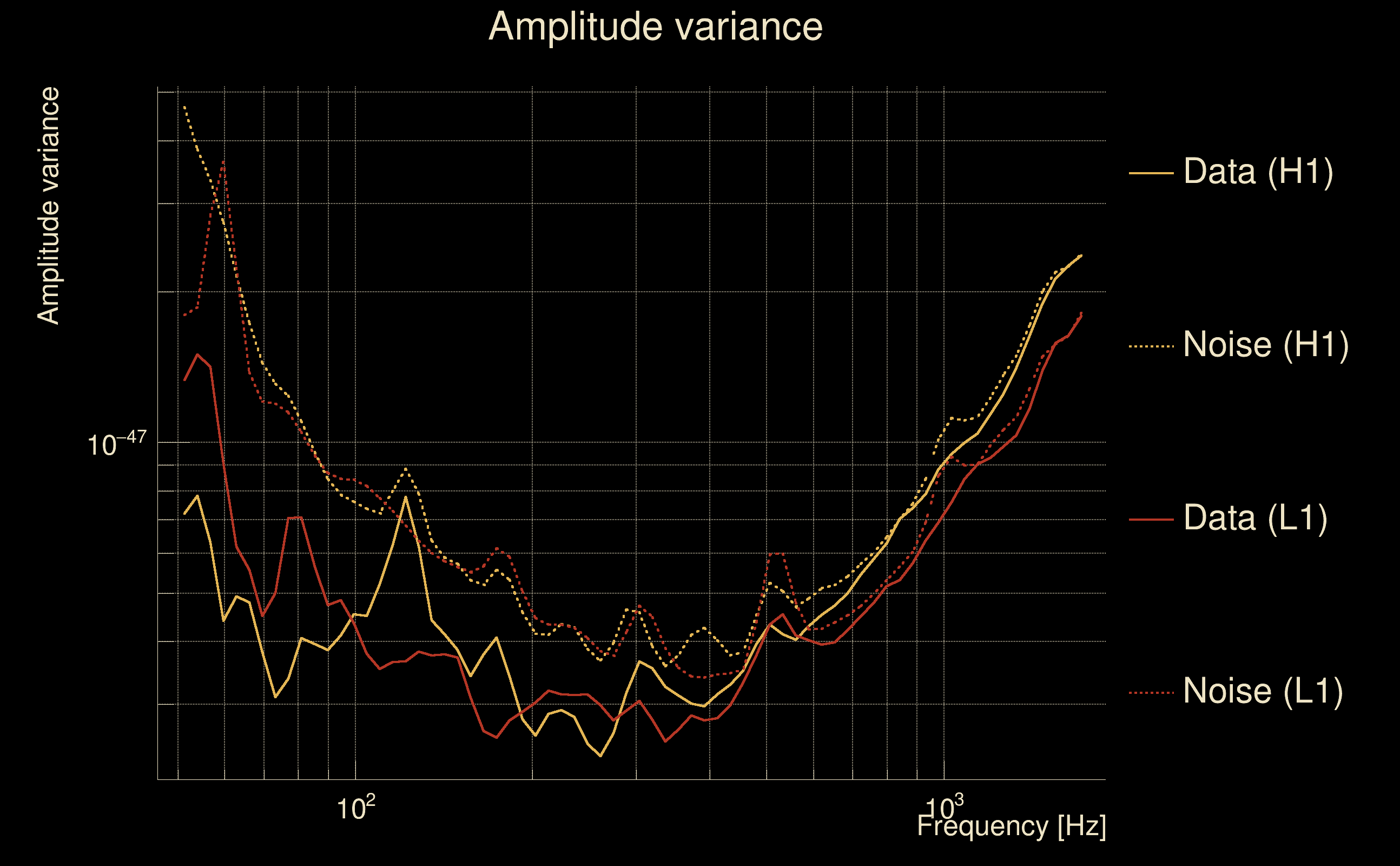

| Event time t(L1): | GPS = 1378156347 (Thu Sep 7 21:11:29 2023 ) → GPS = 1378156357 (Thu Sep 7 21:12:19 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378156294 → GPS = 1378156310 |
| Omicron analysis time window (L1): | GPS = 1378156344 → GPS = 1378156360 |
| Time delay between detectors t(L1) - t(H1): | 53.3119 s (slice index = 36 / 217), δt_gw = -5.2337e-05 s |
| Time delay uncertainty: | 0.00695065 s |
| [targeted mode] Time delay probability: | 0.99506 (0.00619085 sigmas), δt_target = -0.00442052 s |
| Frequency: | 99.1649 Hz |
| Ξ: | 0.262377 ± 0.108665 (variance = 0.011808): Q0: 0.276647, Q1: 0.34751, Q2: 0.192565, Q3: 0.0658087, Q4: 0.0834904 |
| Rank: | R_A = 0.239128 |
| Log of amplitude ratio (L1/H1): | -0.227651, variance = 0.365423 (L1/H1: -0.158664, variance = 0.500617, H1/L1: 0.281536, variance = 0.85379) |
| Amplitude ratio (L1/H1): | 0.796402 ⋇ 1.83034 (L1/H1: 0.853283 ⋇ 2.029, H1/L1: 1.32516 ⋇ 2.51937) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.915916 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 34 / 36, Q2: 60 / 70, Q3: 123 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.91916, L1: 5.56601 |
| SNR variance: | H1: 0.531039, L1: 0.522439 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

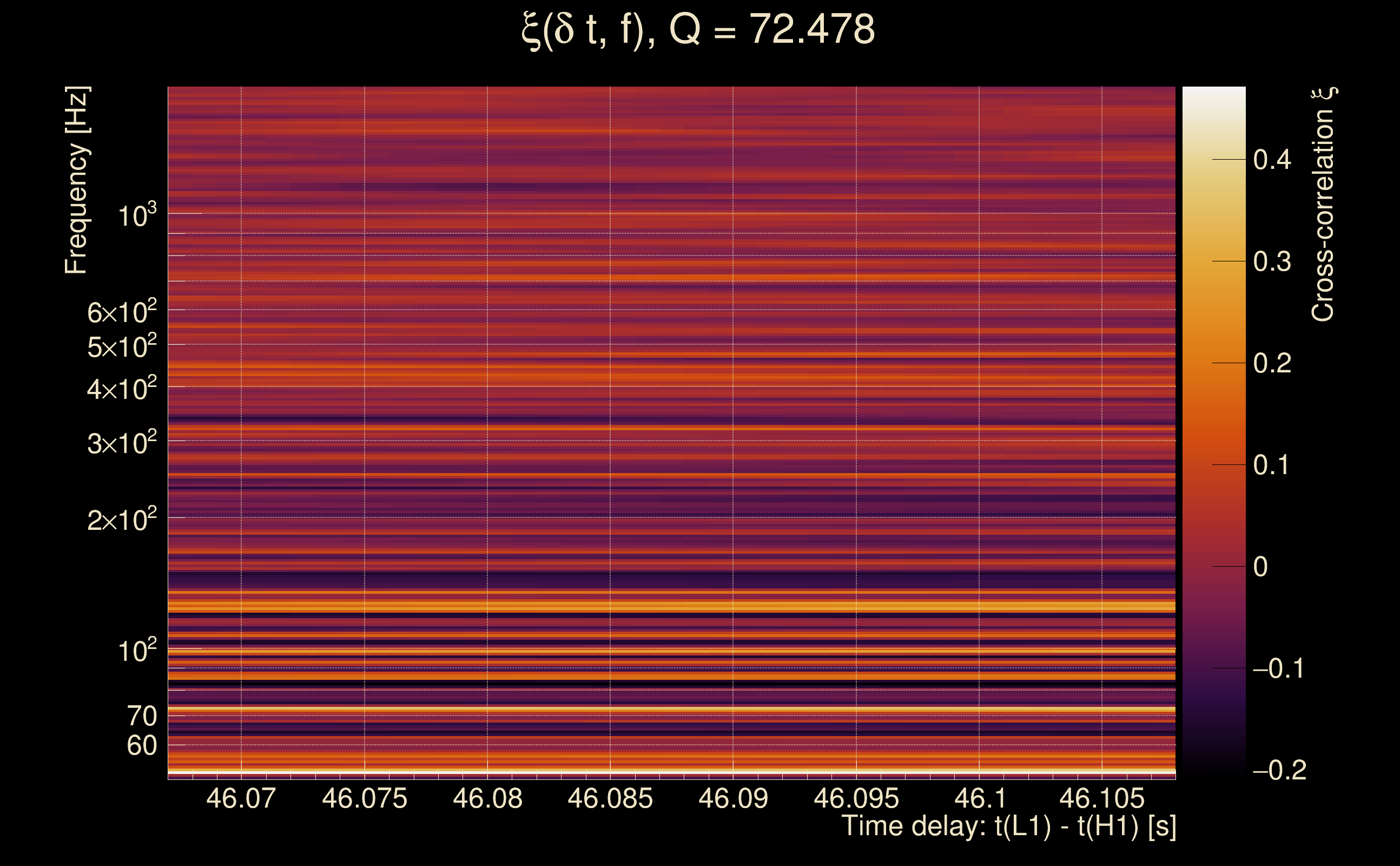

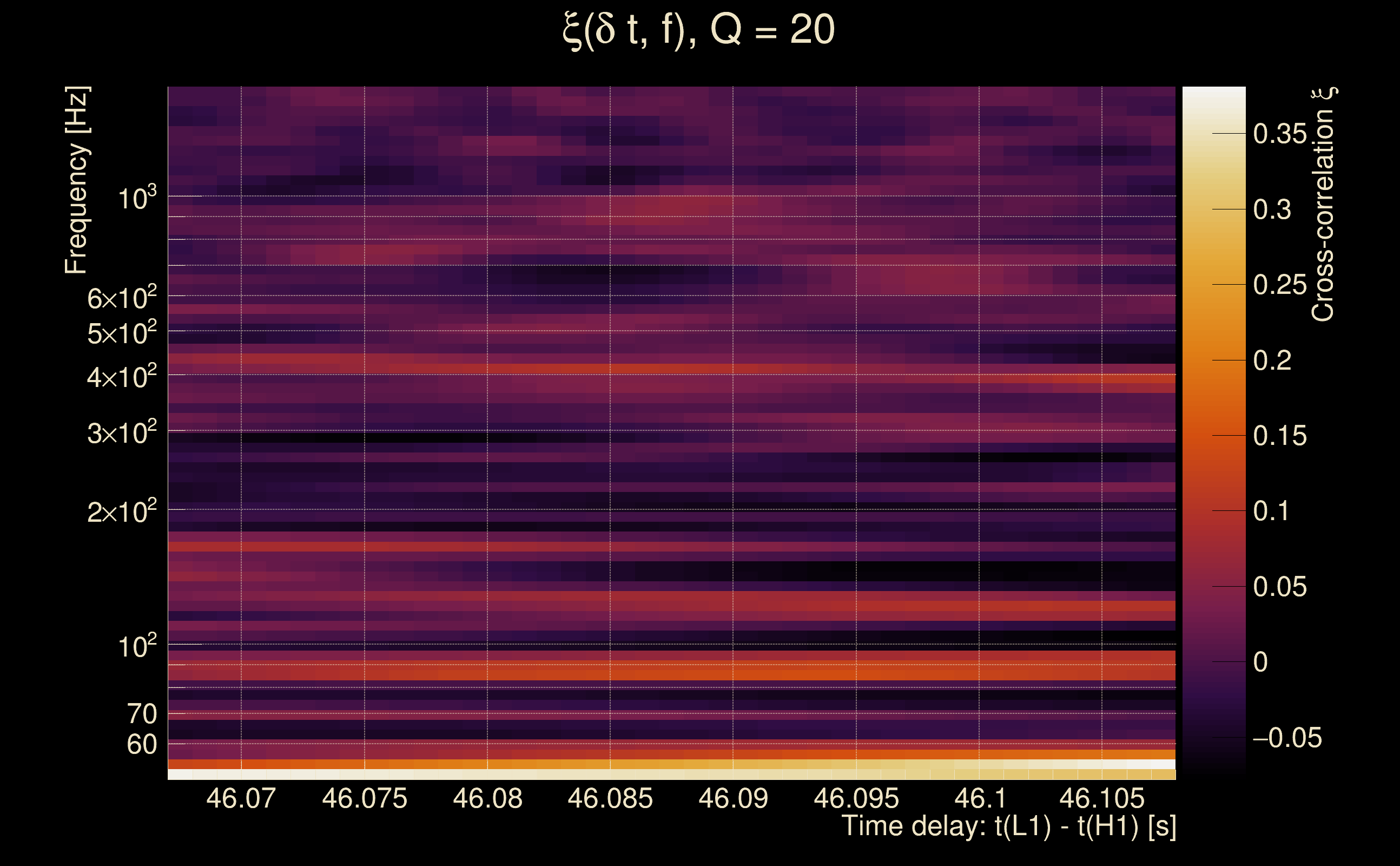

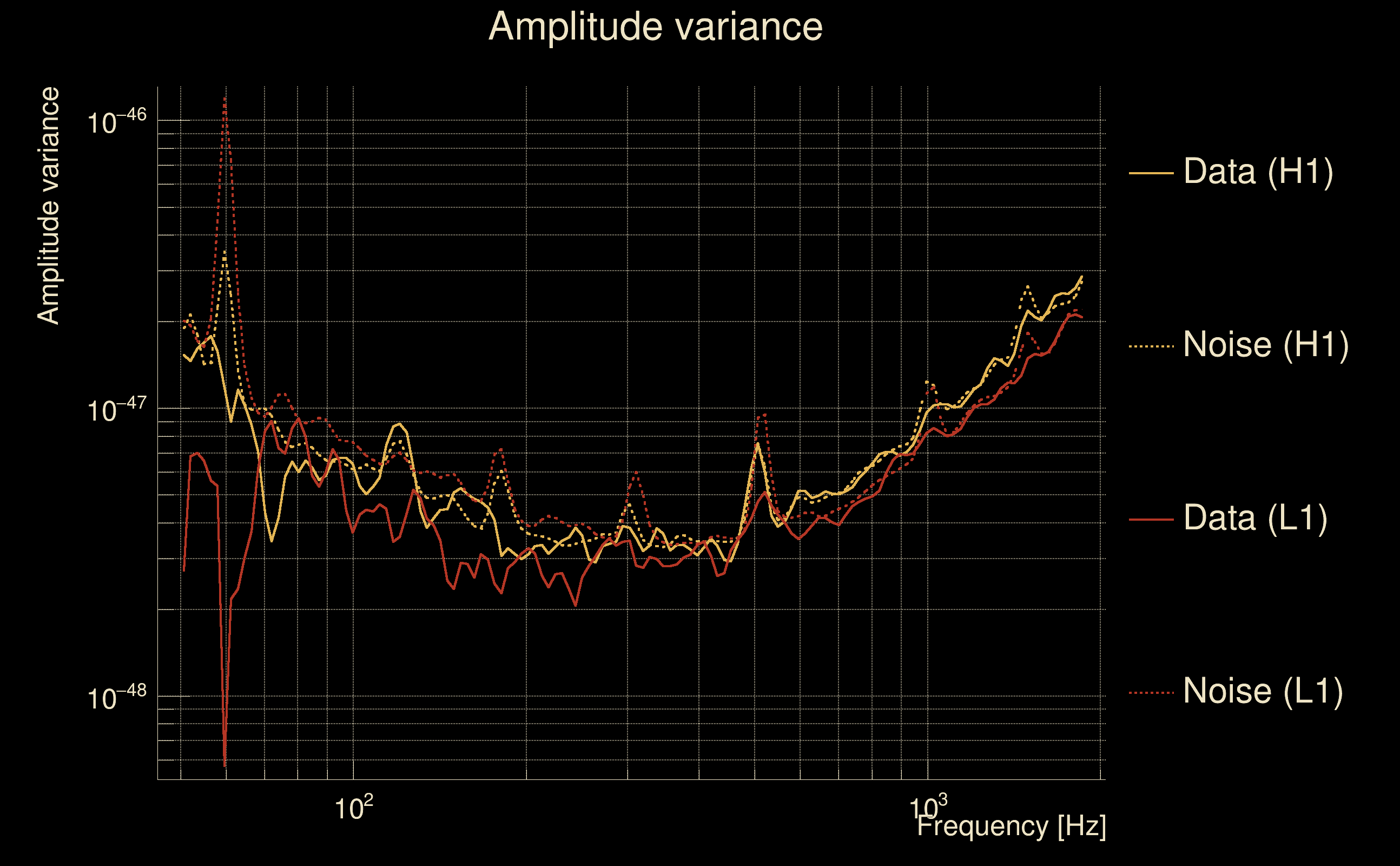

| Event time t(H1): | GPS = 1378534219 (Tue Sep 12 06:10:01 2023 ) → GPS = 1378534229 (Tue Sep 12 06:10:11 2023 ) |
| Event time t(L1): | GPS = 1378534269 (Tue Sep 12 06:10:11 2023 ) → GPS = 1378534279 (Tue Sep 12 06:11:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378534216 → GPS = 1378534232 |
| Omicron analysis time window (L1): | GPS = 1378534266 → GPS = 1378534282 |
| Time delay between detectors t(L1) - t(H1): | 46.0876 s (slice index = 193 / 217), δt_gw = -0.00237536 s |
| Time delay uncertainty: | 0.00755141 s |
| [targeted mode] Time delay probability: | 0.979723 (0.0254166 sigmas), δt_target = -9.53674e-05 s |
| Frequency: | 81.6354 Hz |
| Ξ: | 0.237753 ± 0.0938415 (variance = 0.00880622): Q0: 0.25824, Q1: 0.321117, Q2: 0.0999912, Q3: 0.112198, Q4: 0.0961704 |
| Rank: | R_A = 0.232669 |
| Log of amplitude ratio (L1/H1): | -0.00551006, variance = 0.310866 (L1/H1: -0.0047182, variance = 0.394449, H1/L1: 0.00629228, variance = 0.843471) |
| Amplitude ratio (L1/H1): | 0.994505 ⋇ 1.7464 (L1/H1: 0.995293 ⋇ 1.87396, H1/L1: 1.00631 ⋇ 2.5053) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.998871 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 34 / 36, Q2: 65 / 70, Q3: 126 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.88177, L1: 4.91176 |
| SNR variance: | H1: 0.511462, L1: 0.493863 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

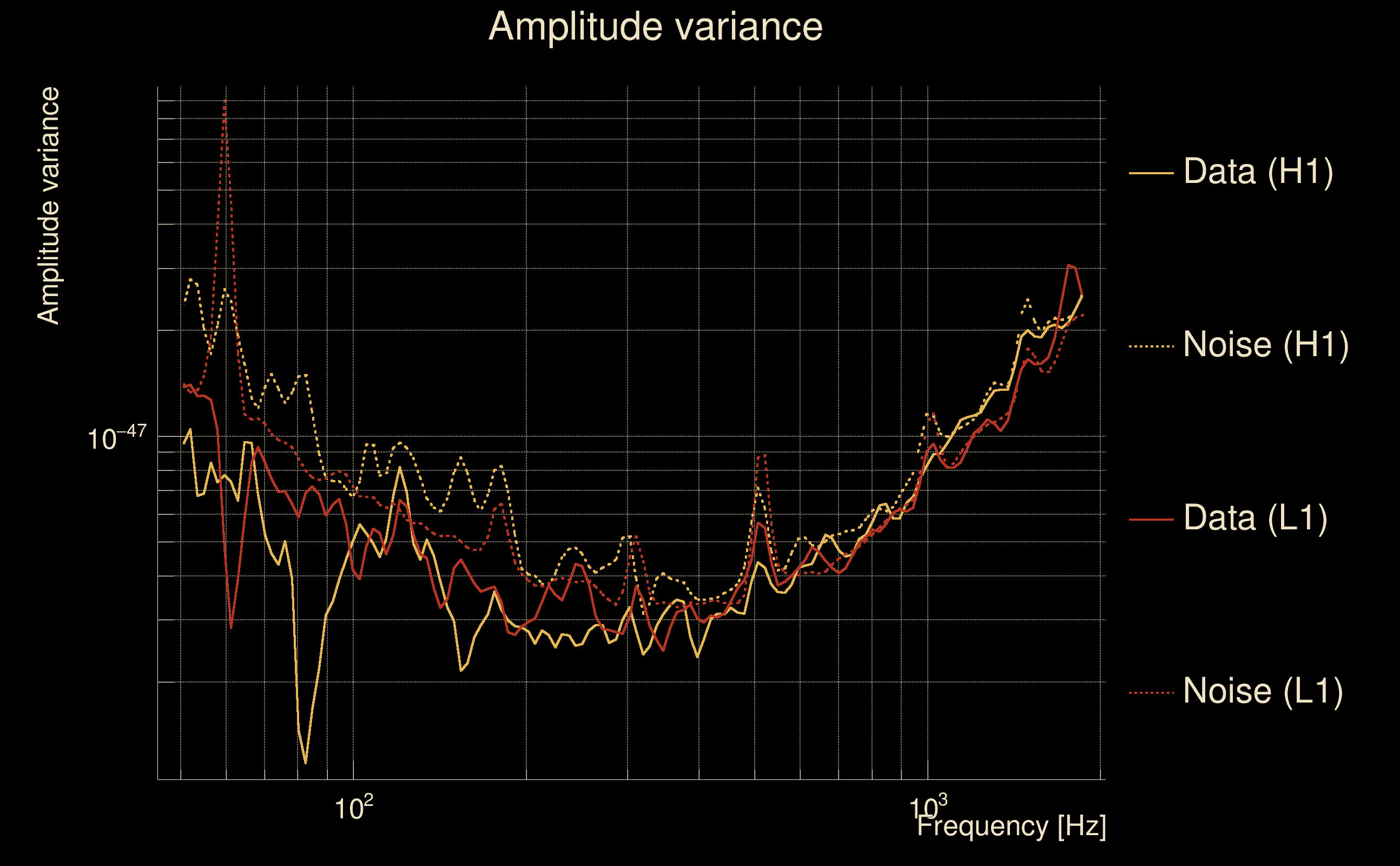

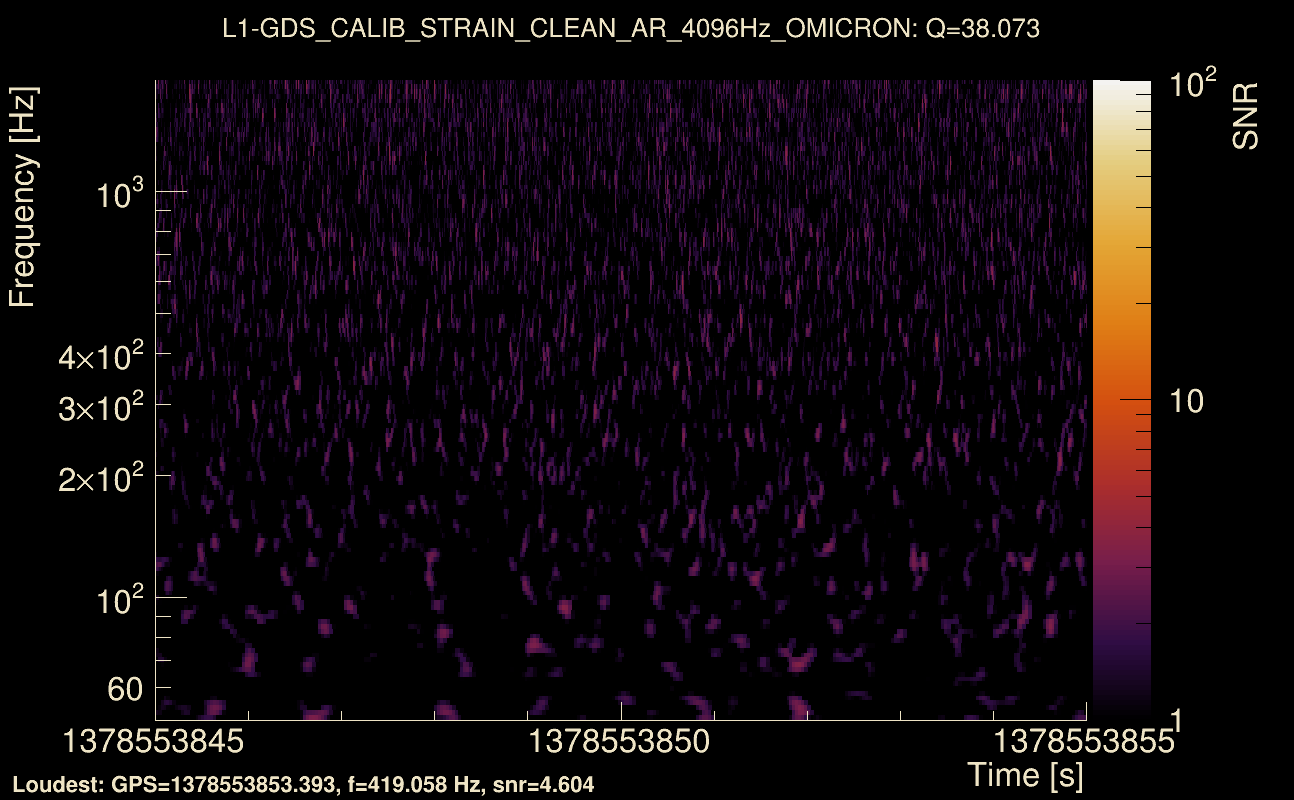

| Event time t(H1): | GPS = 1378553865 (Tue Sep 12 11:37:27 2023 ) → GPS = 1378553875 (Tue Sep 12 11:37:37 2023 ) |
| Event time t(L1): | GPS = 1378553845 (Tue Sep 12 11:37:37 2023 ) → GPS = 1378553855 (Tue Sep 12 11:37:17 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378553862 → GPS = 1378553878 |
| Omicron analysis time window (L1): | GPS = 1378553842 → GPS = 1378553858 |
| Time delay between detectors t(L1) - t(H1): | -21.8327 s (slice index = 148 / 217), δt_gw = 0.0072952 s |
| Time delay uncertainty: | 0.00706703 s |
| [targeted mode] Time delay probability: | 0.897999 (0.12819 sigmas), δt_target = -0.00256729 s |
| Frequency: | 82.2083 Hz |
| Ξ: | 0.257386 ± 0.135789 (variance = 0.0184386): Q0: 0.226183, Q1: 0.242601, Q2: 0.356517, Q3: 0.459811, Q4: 0.0554616 |
| Rank: | R_A = 0.230073 |
| Log of amplitude ratio (L1/H1): | 0.30367, variance = 0.36113 (L1/H1: 0.29916, variance = 0.975632, H1/L1: -0.306309, variance = 0.573354) |
| Amplitude ratio (L1/H1): | 1.35482 ⋇ 1.82383 (L1/H1: 1.34873 ⋇ 2.68516, H1/L1: 0.736159 ⋇ 2.1323) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.995417 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 33 / 36, Q2: 65 / 70, Q3: 126 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.98341, L1: 6.51333 |
| SNR variance: | H1: 0.509153, L1: 0.522739 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

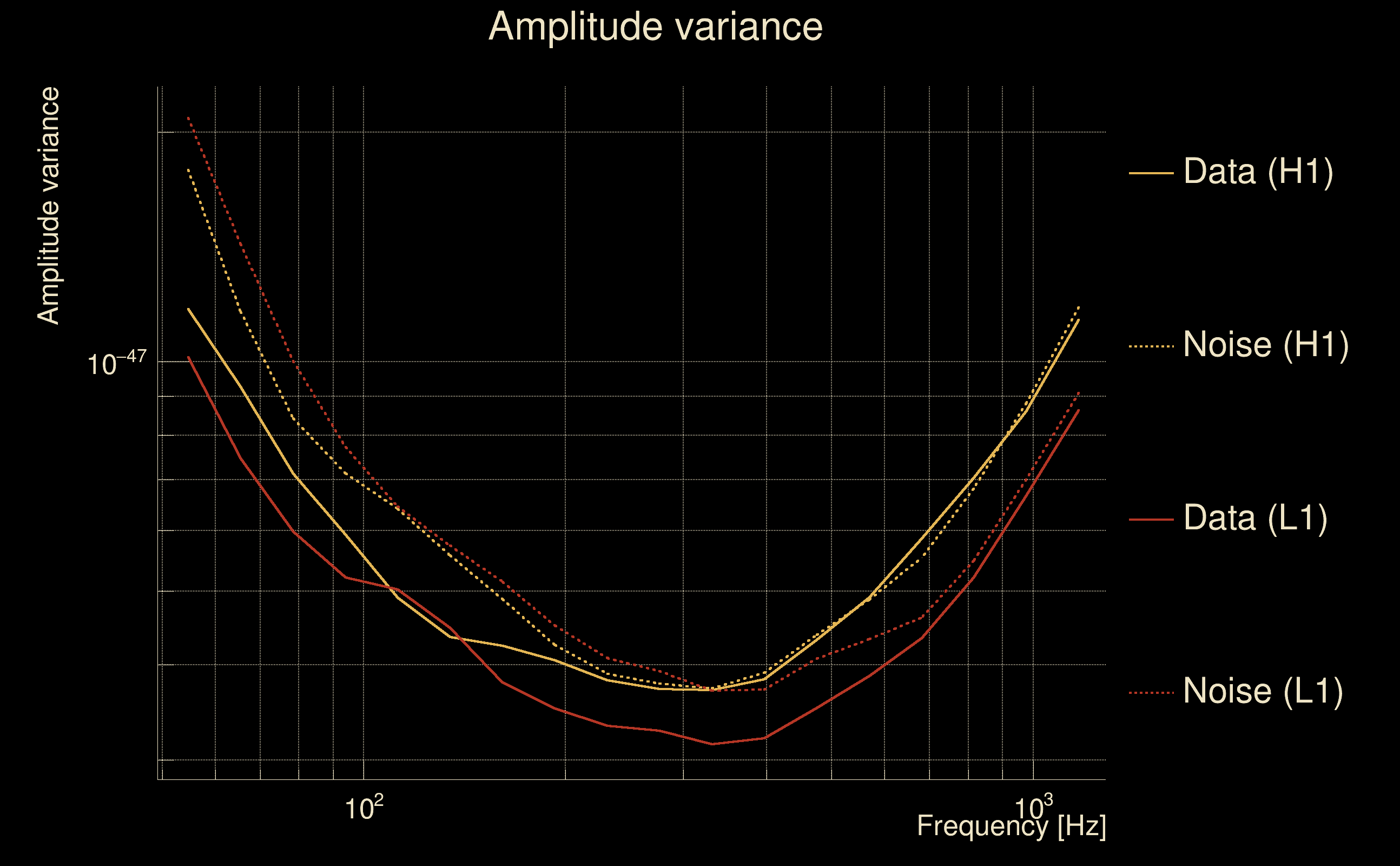

| Event time t(H1): | GPS = 1378107559 (Thu Sep 7 07:39:01 2023 ) → GPS = 1378107569 (Thu Sep 7 07:39:11 2023 ) |
| Event time t(L1): | GPS = 1378107509 (Thu Sep 7 07:39:11 2023 ) → GPS = 1378107519 (Thu Sep 7 07:38:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378107556 → GPS = 1378107572 |
| Omicron analysis time window (L1): | GPS = 1378107506 → GPS = 1378107522 |

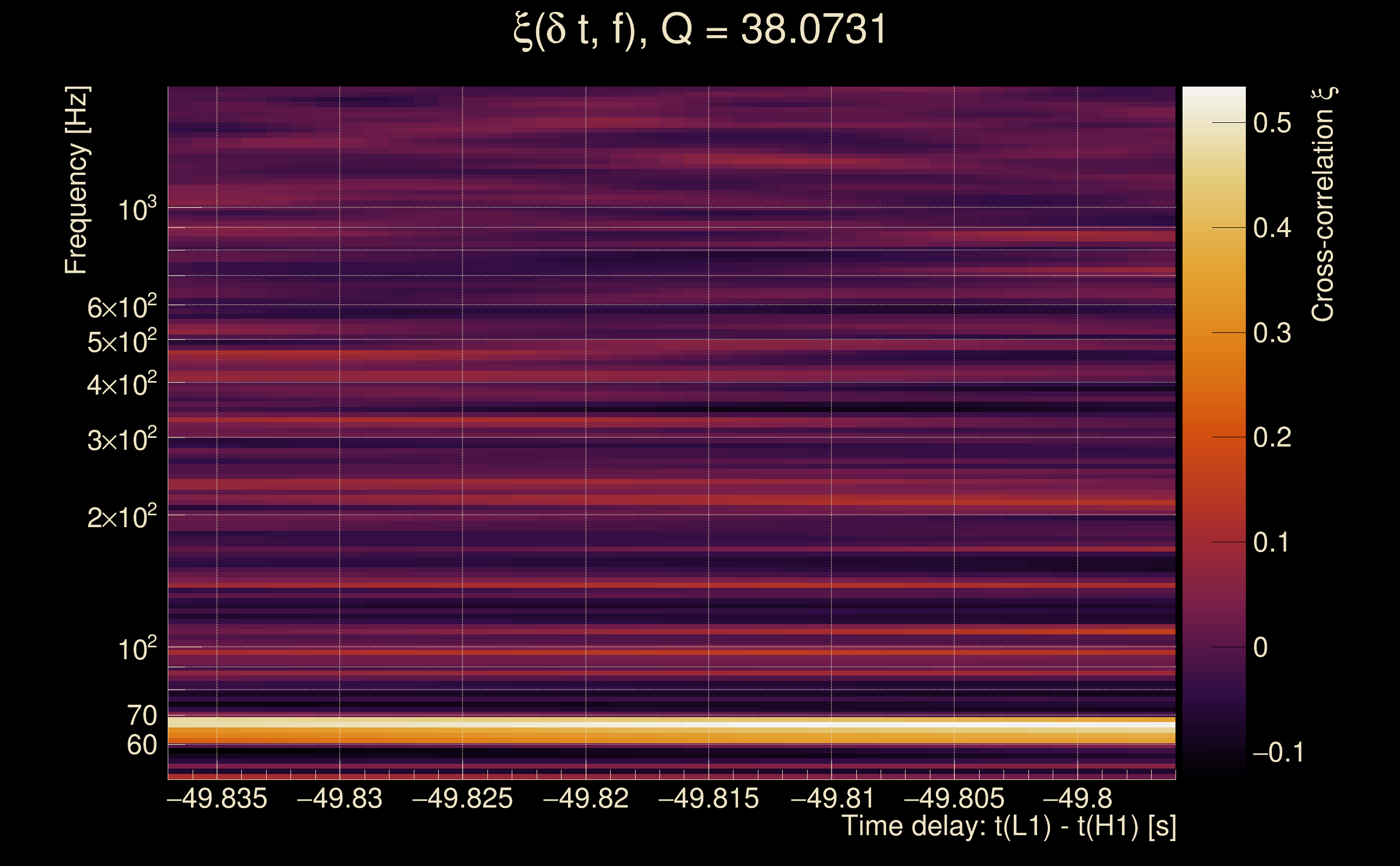

| Time delay between detectors t(L1) - t(H1): | -49.8167 s (slice index = 104 / 217), δt_gw = -0.000691536 s |
| Time delay uncertainty: | 0.0061069 s |
| [targeted mode] Time delay probability: | 0.936474 (0.0797025 sigmas), δt_target = 0.00820112 s |
| Frequency: | 90.3087 Hz |
| Ξ: | 0.26406 ± 0.0634798 (variance = 0.00402969): Q0: 0.189745, Q1: 0.35982, Q2: 0.310044, Q3: 0.320003, Q4: 0.365762 |
| Rank: | R_A = 0.221936 |
| Log of amplitude ratio (L1/H1): | -0.111062, variance = 0.38985 (L1/H1: -0.184958, variance = 0.485501, H1/L1: 0.0159835, variance = 1.23471) |
| Amplitude ratio (L1/H1): | 0.894883 ⋇ 1.86709 (L1/H1: 0.831139 ⋇ 2.00728, H1/L1: 1.01611 ⋇ 3.03793) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.897489 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 32 / 36, Q2: 63 / 70, Q3: 126 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.46803, L1: 4.82057 |
| SNR variance: | H1: 0.514794, L1: 0.522069 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

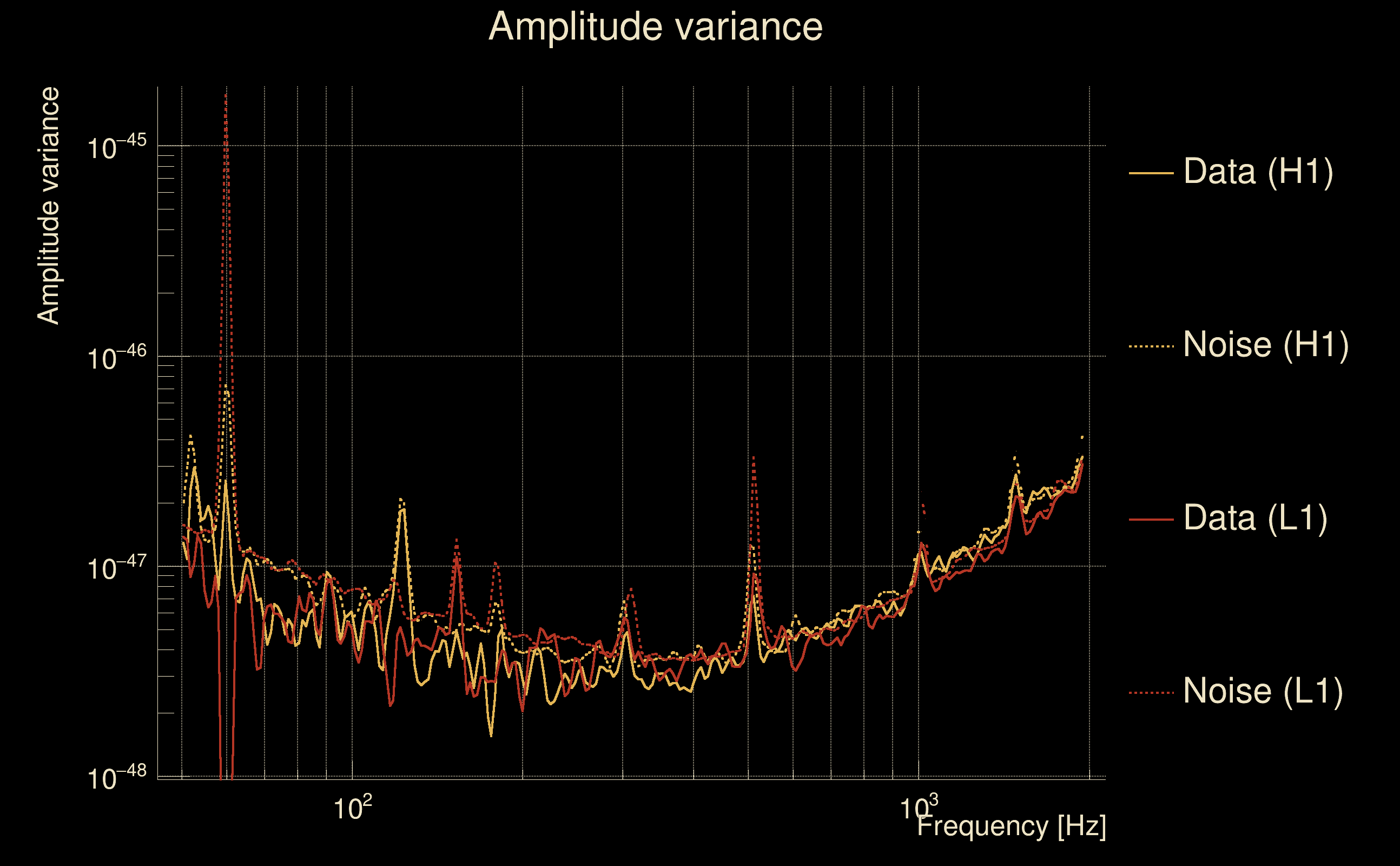

| Event time t(H1): | GPS = 1377665857 (Sat Sep 2 04:57:19 2023 ) → GPS = 1377665867 (Sat Sep 2 04:57:29 2023 ) |
| Event time t(L1): | GPS = 1377665907 (Sat Sep 2 04:57:29 2023 ) → GPS = 1377665917 (Sat Sep 2 04:58:19 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377665854 → GPS = 1377665870 |
| Omicron analysis time window (L1): | GPS = 1377665904 → GPS = 1377665920 |
| Time delay between detectors t(L1) - t(H1): | 46.9585 s (slice index = 174 / 217), δt_gw = -0.00550232 s |
| Time delay uncertainty: | 0.0067677 s |
| [targeted mode] Time delay probability: | 0.999561 (0.000549812 sigmas), δt_target = -0.000204802 s |
| Frequency: | 78.3445 Hz |
| Ξ: | 0.217494 ± 0.0293615 (variance = 0.000862096): Q0: 0.191932, Q1: 0.255454, Q2: 0.258024, Q3: 0.195009, Q4: 0.205755 |
| Rank: | R_A = 0.217062 |
| Log of amplitude ratio (L1/H1): | -0.232642, variance = 0.264888 (L1/H1: -0.233605, variance = 0.401867, H1/L1: 0.231583, variance = 0.681873) |
| Amplitude ratio (L1/H1): | 0.792437 ⋇ 1.67309 (L1/H1: 0.791674 ⋇ 1.885, H1/L1: 1.26059 ⋇ 2.28361) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.99845 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 35 / 36, Q2: 66 / 70, Q3: 130 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.22483, L1: 4.98189 |
| SNR variance: | H1: 0.541343, L1: 0.490715 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377842552 (Mon Sep 4 06:02:14 2023 ) → GPS = 1377842562 (Mon Sep 4 06:02:24 2023 ) |
| Event time t(L1): | GPS = 1377842582 (Mon Sep 4 06:02:24 2023 ) → GPS = 1377842592 (Mon Sep 4 06:02:54 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377842549 → GPS = 1377842565 |
| Omicron analysis time window (L1): | GPS = 1377842579 → GPS = 1377842595 |
| Time delay between detectors t(L1) - t(H1): | 31.238 s (slice index = 81 / 217), δt_gw = -0.00402704 s |
| Time delay uncertainty: | 0.00498496 s |
| [targeted mode] Time delay probability: | 0.95558 (0.0557011 sigmas), δt_target = -0.00550604 s |
| Frequency: | 94.6785 Hz |
| Ξ: | 0.22369 ± 0.0934829 (variance = 0.00873905): Q0: 0.19061, Q1: 0.198884, Q2: 0.281658, Q3: 0.337834, Q4: 0.442176 |
| Rank: | R_A = 0.213532 |
| Log of amplitude ratio (L1/H1): | 0.118786, variance = 0.42538 (L1/H1: 0.119666, variance = 0.644245, H1/L1: -0.117992, variance = 1.01468) |
| Amplitude ratio (L1/H1): | 1.12613 ⋇ 1.91978 (L1/H1: 1.12712 ⋇ 2.23144, H1/L1: 0.888704 ⋇ 2.73824) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.998963 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 29 / 36, Q2: 63 / 70, Q3: 124 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.0132, L1: 5.2786 |
| SNR variance: | H1: 0.511138, L1: 0.520899 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377815778 (Sun Sep 3 22:36:00 2023 ) → GPS = 1377815788 (Sun Sep 3 22:36:10 2023 ) |
| Event time t(L1): | GPS = 1377815728 (Sun Sep 3 22:36:10 2023 ) → GPS = 1377815738 (Sun Sep 3 22:35:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377815775 → GPS = 1377815791 |
| Omicron analysis time window (L1): | GPS = 1377815725 → GPS = 1377815741 |
| Time delay between detectors t(L1) - t(H1): | -50.7849 s (slice index = 125 / 217), δt_gw = -0.00285753 s |
| Time delay uncertainty: | 0.00576441 s |
| [targeted mode] Time delay probability: | 0.944625 (0.0694581 sigmas), δt_target = -0.00374937 s |
| Frequency: | 83.0916 Hz |
| Ξ: | 0.301608 ± 0.101677 (variance = 0.0103381): Q0: 0.285982, Q1: 0.39277, Q2: 0.305258, Q3: 0.174102, Q4: 0.104296 |
| Rank: | R_A = 0.212108 |
| Log of amplitude ratio (L1/H1): | -0.2646, variance = 0.974638 (L1/H1: -0.600979, variance = 0.946507, H1/L1: -0.0130338, variance = 2.60265) |
| Amplitude ratio (L1/H1): | 0.767513 ⋇ 2.68381 (L1/H1: 0.548275 ⋇ 2.64557, H1/L1: 0.987051 ⋇ 5.01922) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.744483 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 35 / 36, Q2: 65 / 70, Q3: 127 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.84918, L1: 5.33761 |
| SNR variance: | H1: 0.52509, L1: 0.516884 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

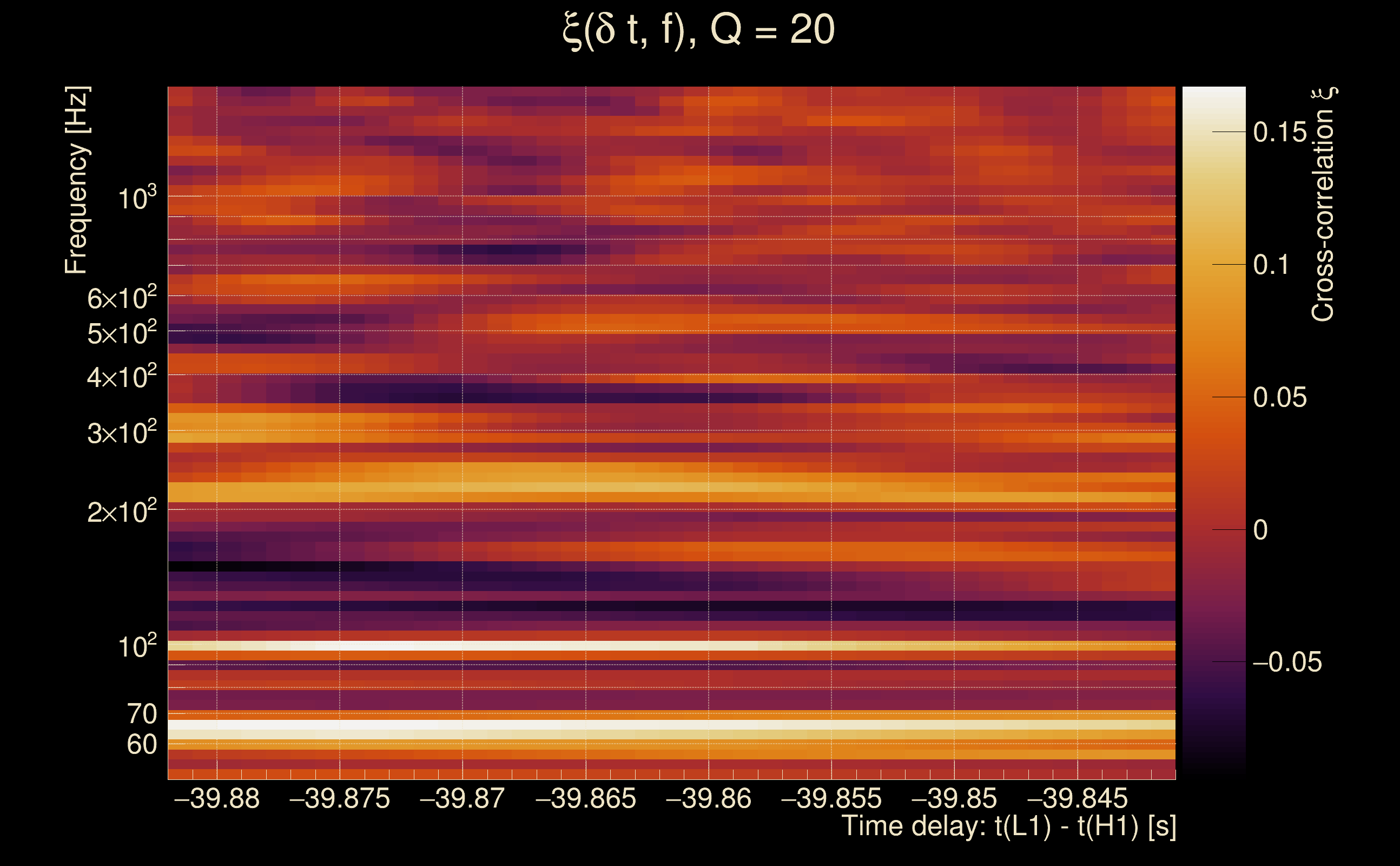

| Event time t(H1): | GPS = 1378328658 (Sat Sep 9 21:04:00 2023 ) → GPS = 1378328668 (Sat Sep 9 21:04:10 2023 ) |
| Event time t(L1): | GPS = 1378328618 (Sat Sep 9 21:04:10 2023 ) → GPS = 1378328628 (Sat Sep 9 21:03:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378328655 → GPS = 1378328671 |
| Omicron analysis time window (L1): | GPS = 1378328615 → GPS = 1378328631 |
| Time delay between detectors t(L1) - t(H1): | -39.8616 s (slice index = 105 / 217), δt_gw = 0.000449372 s |
| Time delay uncertainty: | 0.00538542 s |
| [targeted mode] Time delay probability: | 0.91655 (0.104781 sigmas), δt_target = -0.00245714 s |
| Frequency: | 64.8742 Hz |
| Ξ: | 0.235775 ± 0.101424 (variance = 0.0102867): Q0: 0.244888, Q1: 0.27844, Q2: 0.260084, Q3: 0.0575202, Q4: 0.0530143 |
| Rank: | R_A = 0.211667 |
| Log of amplitude ratio (L1/H1): | -0.137637, variance = 0.319135 (L1/H1: -0.123985, variance = 0.561984, H1/L1: 0.153223, variance = 0.731296) |
| Amplitude ratio (L1/H1): | 0.871415 ⋇ 1.75931 (L1/H1: 0.883393 ⋇ 2.11627, H1/L1: 1.16558 ⋇ 2.35175) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.979489 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 32 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.55417, L1: 5.19822 |
| SNR variance: | H1: 0.503456, L1: 0.524345 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

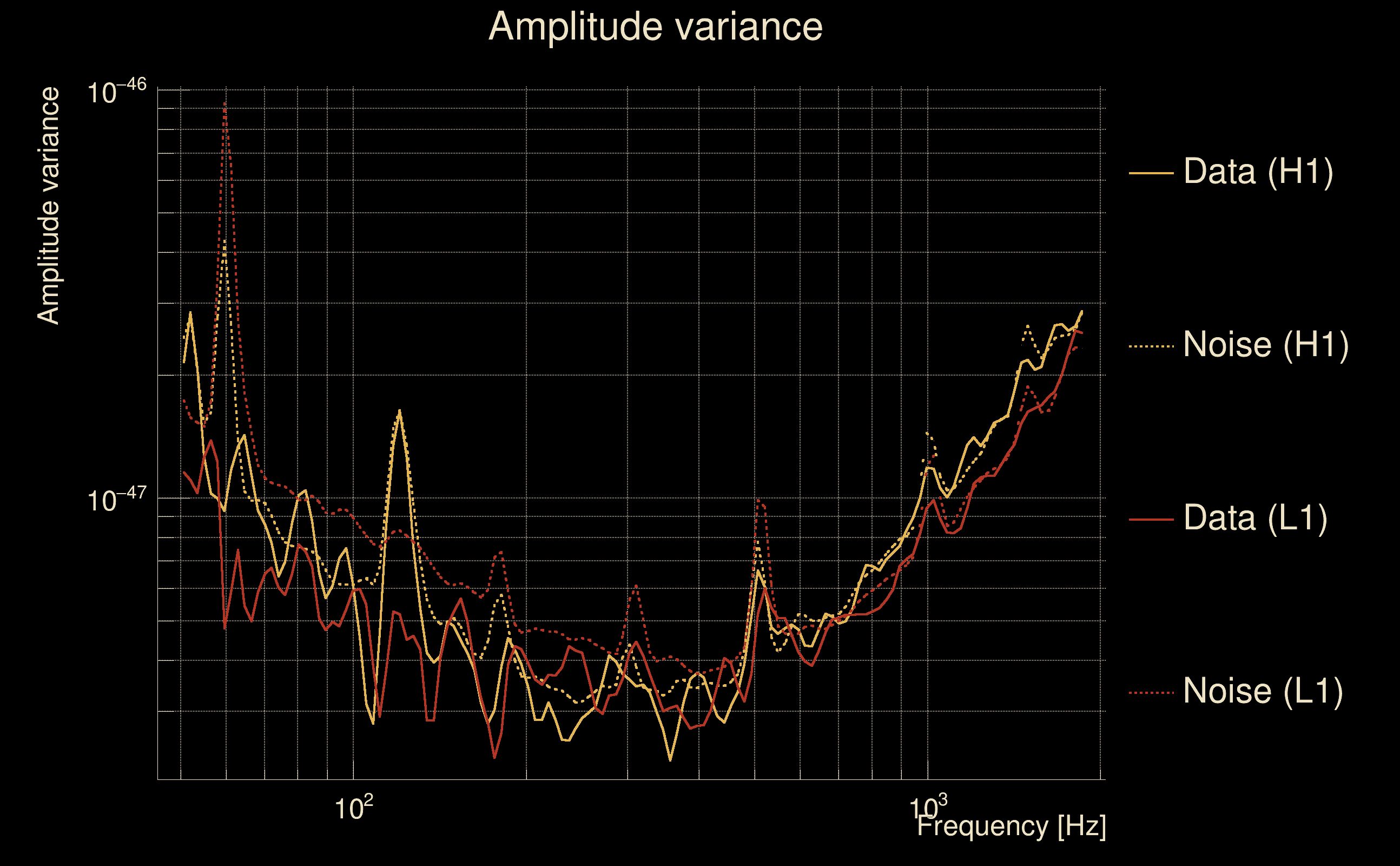

| Event time t(H1): | GPS = 1378850220 (Fri Sep 15 21:56:42 2023 ) → GPS = 1378850230 (Fri Sep 15 21:56:52 2023 ) |
| Event time t(L1): | GPS = 1378850200 (Fri Sep 15 21:56:52 2023 ) → GPS = 1378850210 (Fri Sep 15 21:56:32 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378850217 → GPS = 1378850233 |
| Omicron analysis time window (L1): | GPS = 1378850197 → GPS = 1378850213 |
| Time delay between detectors t(L1) - t(H1): | -21.7042 s (slice index = 145 / 217), δt_gw = -0.00218273 s |
| Time delay uncertainty: | 0.00345895 s |
| [targeted mode] Time delay probability: | 0.879309 (0.151845 sigmas), δt_target = -0.000114918 s |
| Frequency: | 72.9689 Hz |
| Ξ: | 0.255978 ± 0.101696 (variance = 0.010342): Q0: 0.273538, Q1: 0.328026, Q2: 0.193626, Q3: 0.0574061, Q4: 0.10007 |
| Rank: | R_A = 0.211638 |
| Log of amplitude ratio (L1/H1): | -0.0189672, variance = 0.458597 (L1/H1: -0.0730514, variance = 0.714702, H1/L1: -0.0264465, variance = 1.04818) |
| Amplitude ratio (L1/H1): | 0.981212 ⋇ 1.96835 (L1/H1: 0.929553 ⋇ 2.32891, H1/L1: 0.9739 ⋇ 2.78377) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.940264 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 34 / 36, Q2: 68 / 70, Q3: 127 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.10112, L1: 5.56682 |
| SNR variance: | H1: 0.515985, L1: 0.514944 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

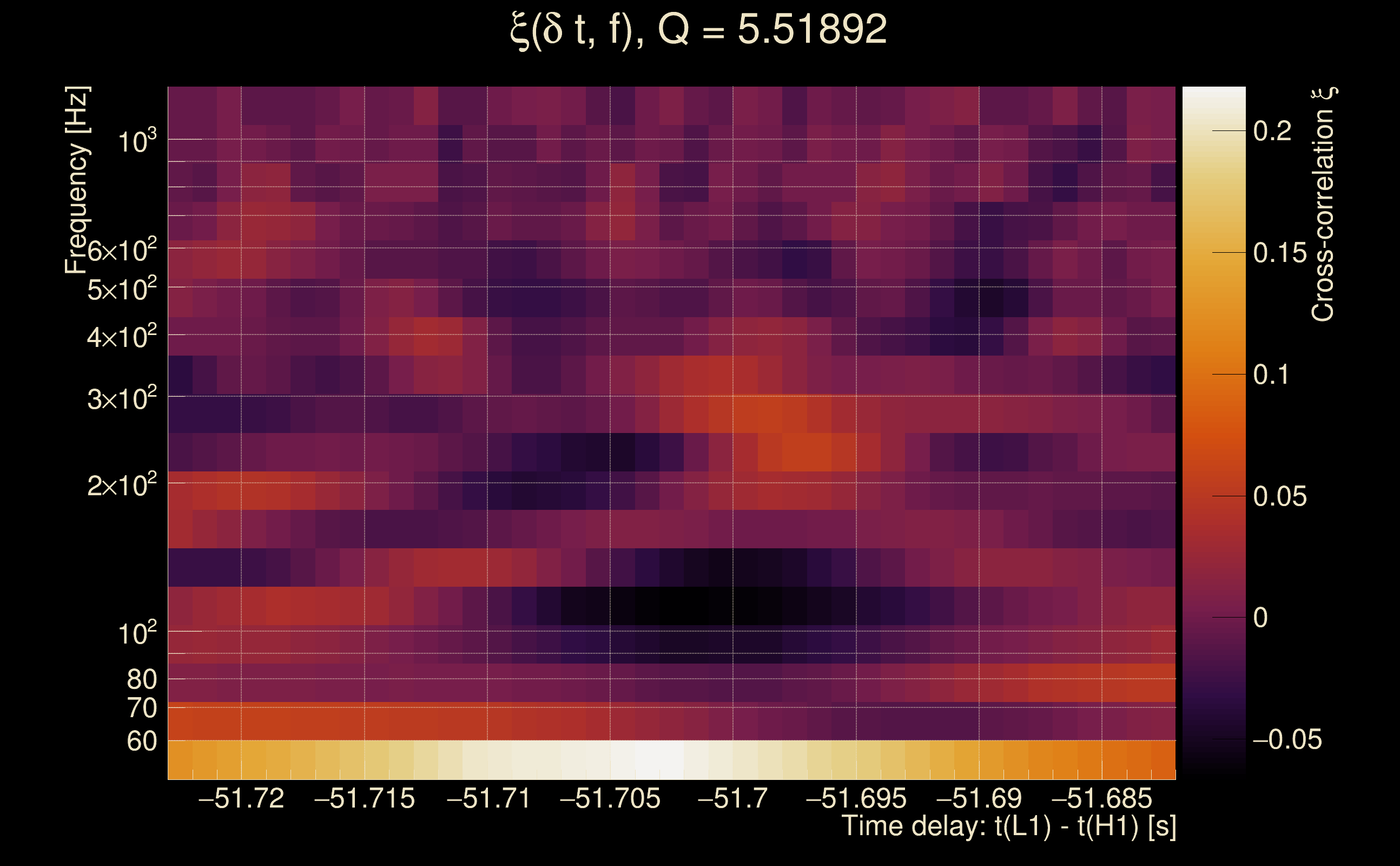

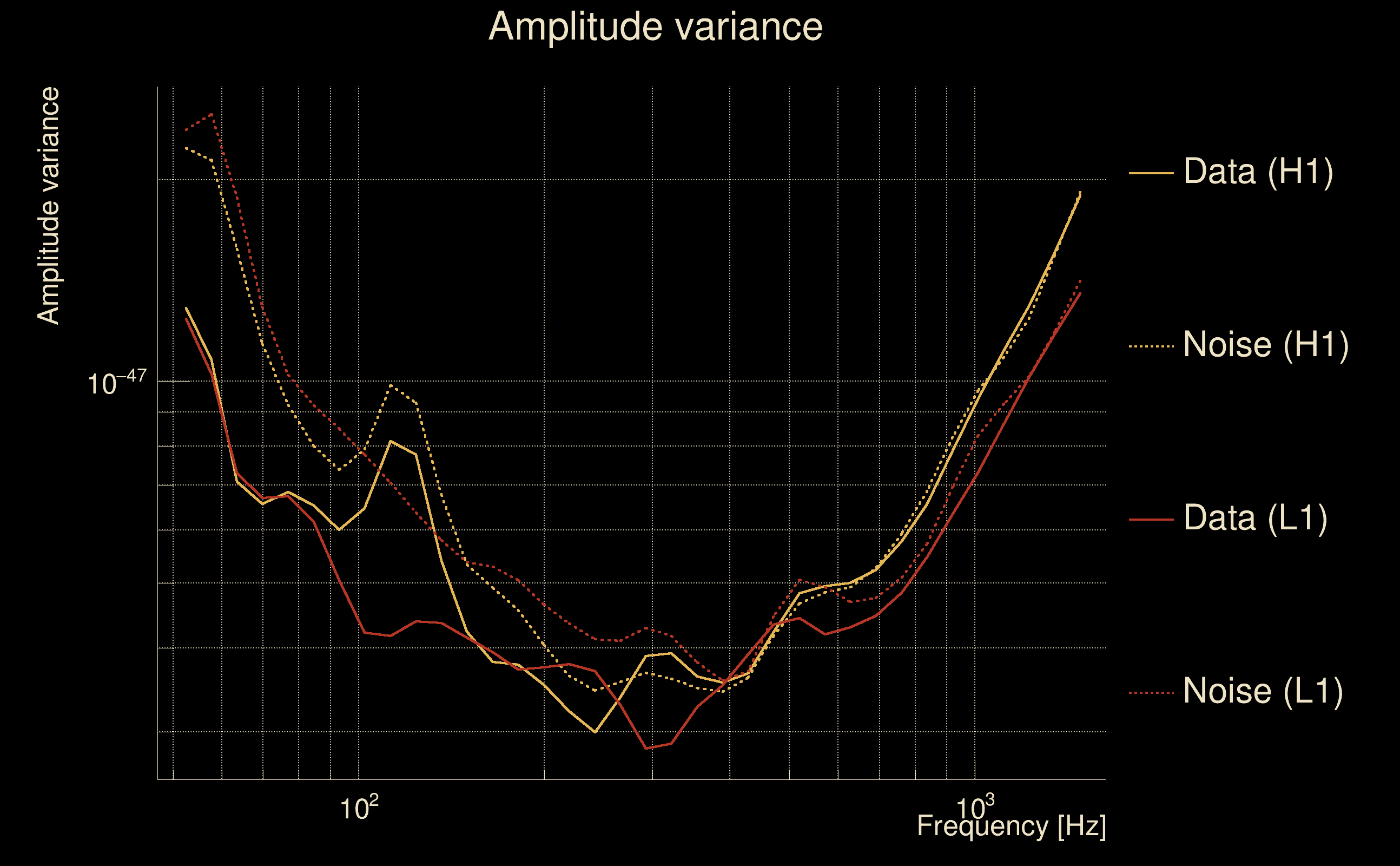

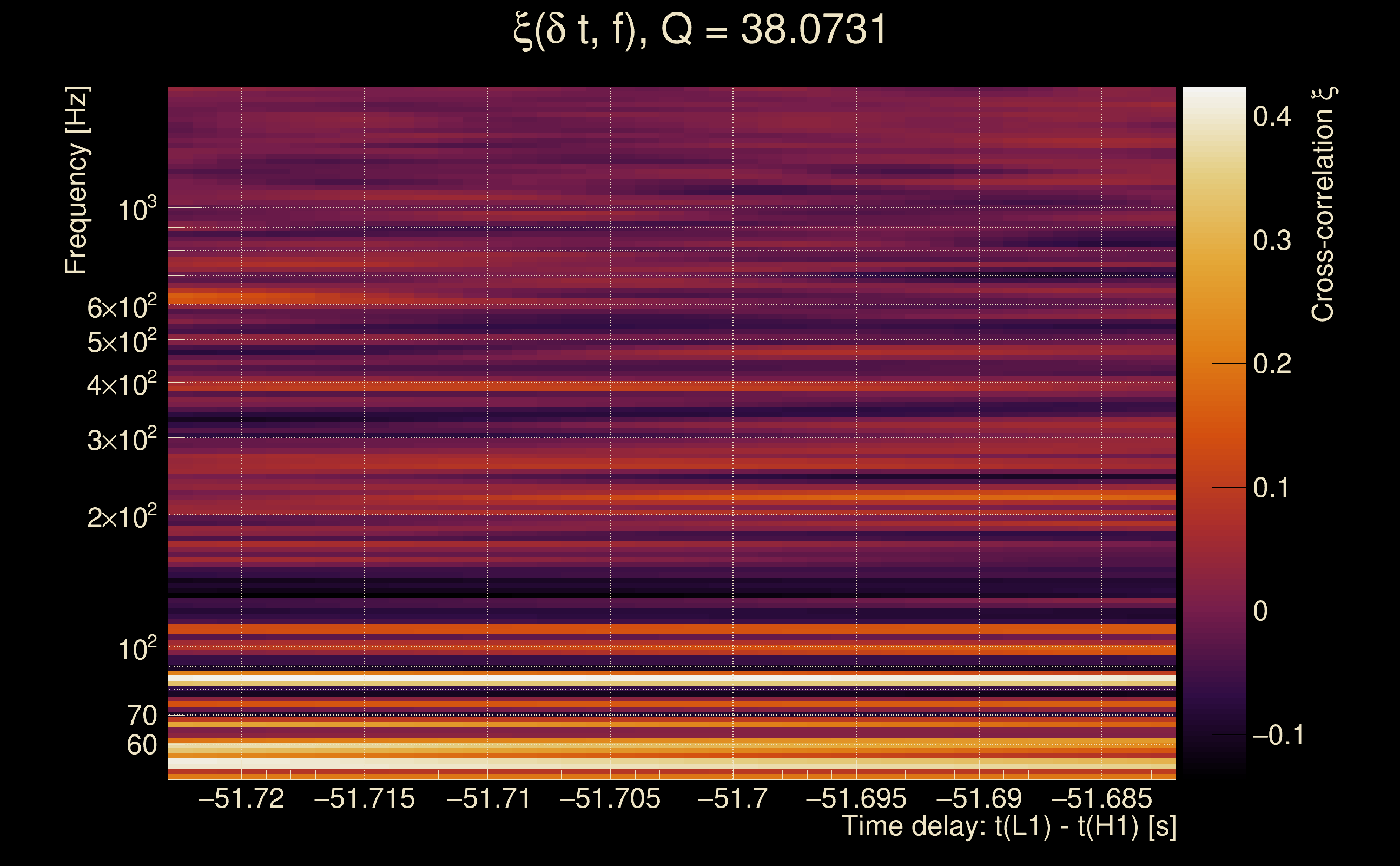

| Event time t(H1): | GPS = 1378758937 (Thu Sep 14 20:35:19 2023 ) → GPS = 1378758947 (Thu Sep 14 20:35:29 2023 ) |
| Event time t(L1): | GPS = 1378758887 (Thu Sep 14 20:35:29 2023 ) → GPS = 1378758897 (Thu Sep 14 20:34:39 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378758934 → GPS = 1378758950 |
| Omicron analysis time window (L1): | GPS = 1378758884 → GPS = 1378758900 |
| Time delay between detectors t(L1) - t(H1): | -51.7022 s (slice index = 145 / 217), δt_gw = -0.000200553 s |
| Time delay uncertainty: | 0.00843353 s |
| [targeted mode] Time delay probability: | 0.961169 (0.0486866 sigmas), δt_target = -0.00270796 s |
| Frequency: | 95.6354 Hz |
| Ξ: | 0.224982 ± 0.0975063 (variance = 0.00950748): Q0: 0.180368, Q1: 0.31402, Q2: 0.324971, Q3: 0.0880225, Q4: 0.121505 |
| Rank: | R_A = 0.211107 |
| Log of amplitude ratio (L1/H1): | 0.413843, variance = 0.130551 (L1/H1: 0.423966, variance = 0.213395, H1/L1: -0.402181, variance = 0.321393) |
| Amplitude ratio (L1/H1): | 1.51262 ⋇ 1.43522 (L1/H1: 1.52801 ⋇ 1.58716, H1/L1: 0.66886 ⋇ 1.76282) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.976235 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 34 / 36, Q2: 65 / 70, Q3: 125 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.05427, L1: 4.70914 |
| SNR variance: | H1: 0.526746, L1: 0.52196 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378883624 (Sat Sep 16 07:13:26 2023 ) → GPS = 1378883634 (Sat Sep 16 07:13:36 2023 ) |
| Event time t(L1): | GPS = 1378883624 (Sat Sep 16 07:13:36 2023 ) → GPS = 1378883634 (Sat Sep 16 07:13:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378883621 → GPS = 1378883637 |
| Omicron analysis time window (L1): | GPS = 1378883621 → GPS = 1378883637 |
| Time delay between detectors t(L1) - t(H1): | -4.55418 s (slice index = 207 / 217), δt_gw = -0.0001822 s |
| Time delay uncertainty: | 0.0050395 s |
| [targeted mode] Time delay probability: | 0.947824 (0.0654393 sigmas), δt_target = 0.000210047 s |
| Frequency: | 118.947 Hz |
| Ξ: | 0.23798 ± 0.115208 (variance = 0.013273): Q0: 0.219932, Q1: 0.293984, Q2: 0.340969, Q3: 0.0490895, Q4: 0.0794027 |
| Rank: | R_A = 0.20866 |
| Log of amplitude ratio (L1/H1): | 0.280948, variance = 0.304385 (L1/H1: 0.177046, variance = 1.46134, H1/L1: -0.304787, variance = 0.383155) |
| Amplitude ratio (L1/H1): | 1.32439 ⋇ 1.73622 (L1/H1: 1.19369 ⋇ 3.34966, H1/L1: 0.737281 ⋇ 1.85706) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.925064 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 32 / 36, Q2: 66 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.08516, L1: 10.6164 |
| SNR variance: | H1: 0.514279, L1: 0.491808 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377859575 (Mon Sep 4 10:45:57 2023 ) → GPS = 1377859585 (Mon Sep 4 10:46:07 2023 ) |
| Event time t(L1): | GPS = 1377859615 (Mon Sep 4 10:46:07 2023 ) → GPS = 1377859625 (Mon Sep 4 10:46:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377859572 → GPS = 1377859588 |
| Omicron analysis time window (L1): | GPS = 1377859612 → GPS = 1377859628 |
| Time delay between detectors t(L1) - t(H1): | 43.3635 s (slice index = 35 / 217), δt_gw = 0.00547299 s |
| Time delay uncertainty: | 0.0075235 s |
| [targeted mode] Time delay probability: | 0.948338 (0.0647938 sigmas), δt_target = 0.000147581 s |
| Frequency: | 76.6851 Hz |
| Ξ: | 0.230045 ± 0.126794 (variance = 0.0160768): Q0: 0.256374, Q1: 0.347116, Q2: 0.0403445, Q3: 0.0499891, Q4: 0.0595029 |
| Rank: | R_A = 0.208367 |
| Log of amplitude ratio (L1/H1): | 0.0630688, variance = 0.491232 (L1/H1: 0.0240813, variance = 0.891045, H1/L1: -0.103082, variance = 1.07842) |
| Amplitude ratio (L1/H1): | 1.0651 ⋇ 2.01552 (L1/H1: 1.02437 ⋇ 2.57012, H1/L1: 0.902053 ⋇ 2.82489) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.955108 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 17 / 18, Q1: 34 / 36, Q2: 68 / 70, Q3: 129 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.86848, L1: 4.80566 |
| SNR variance: | H1: 0.522402, L1: 0.538947 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
