| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Tue Oct 28 12:25:26 2025 UTC |
| Ox option file: | Targeted_O4bw_2min_OLDBASH3_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |

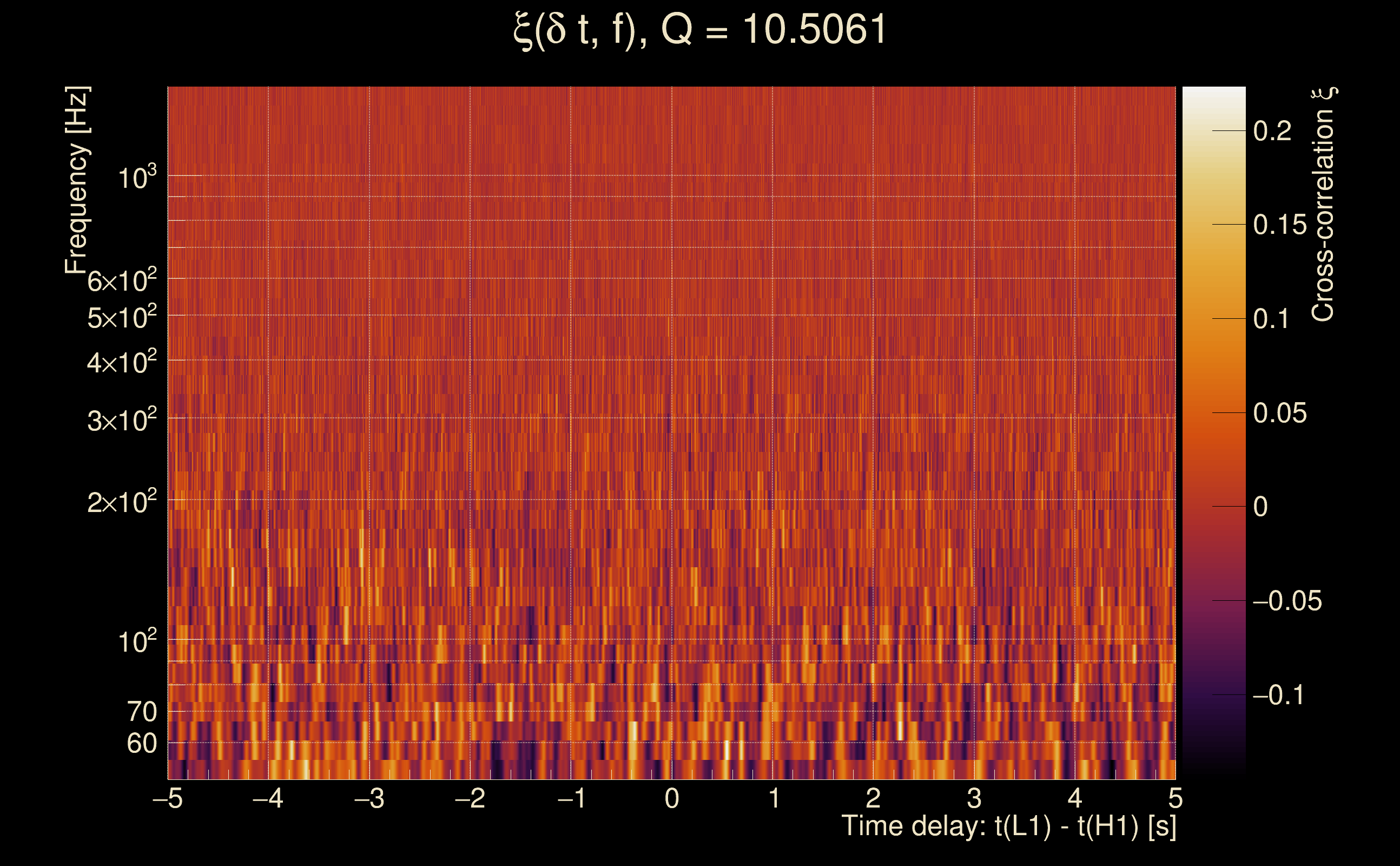

| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |

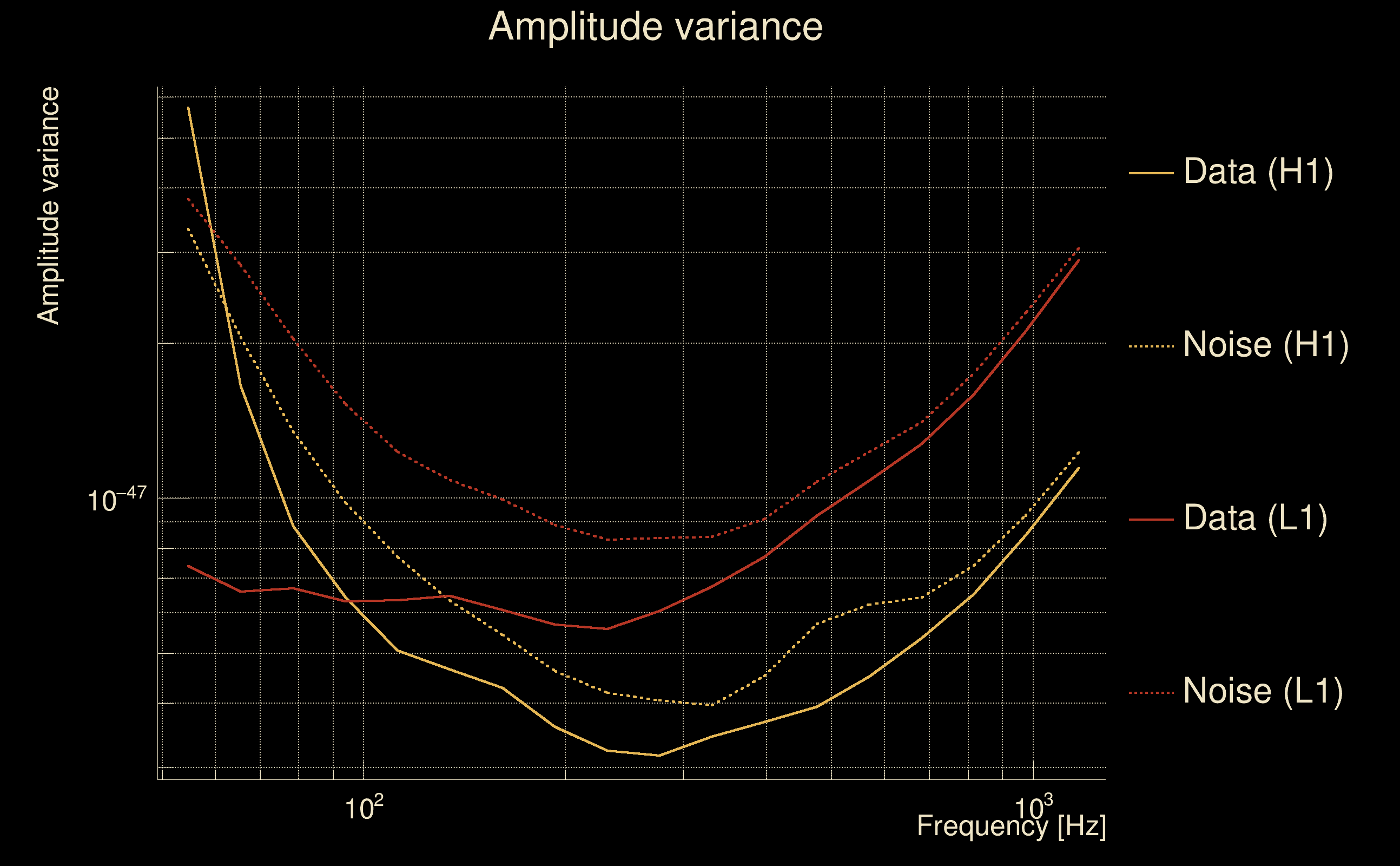

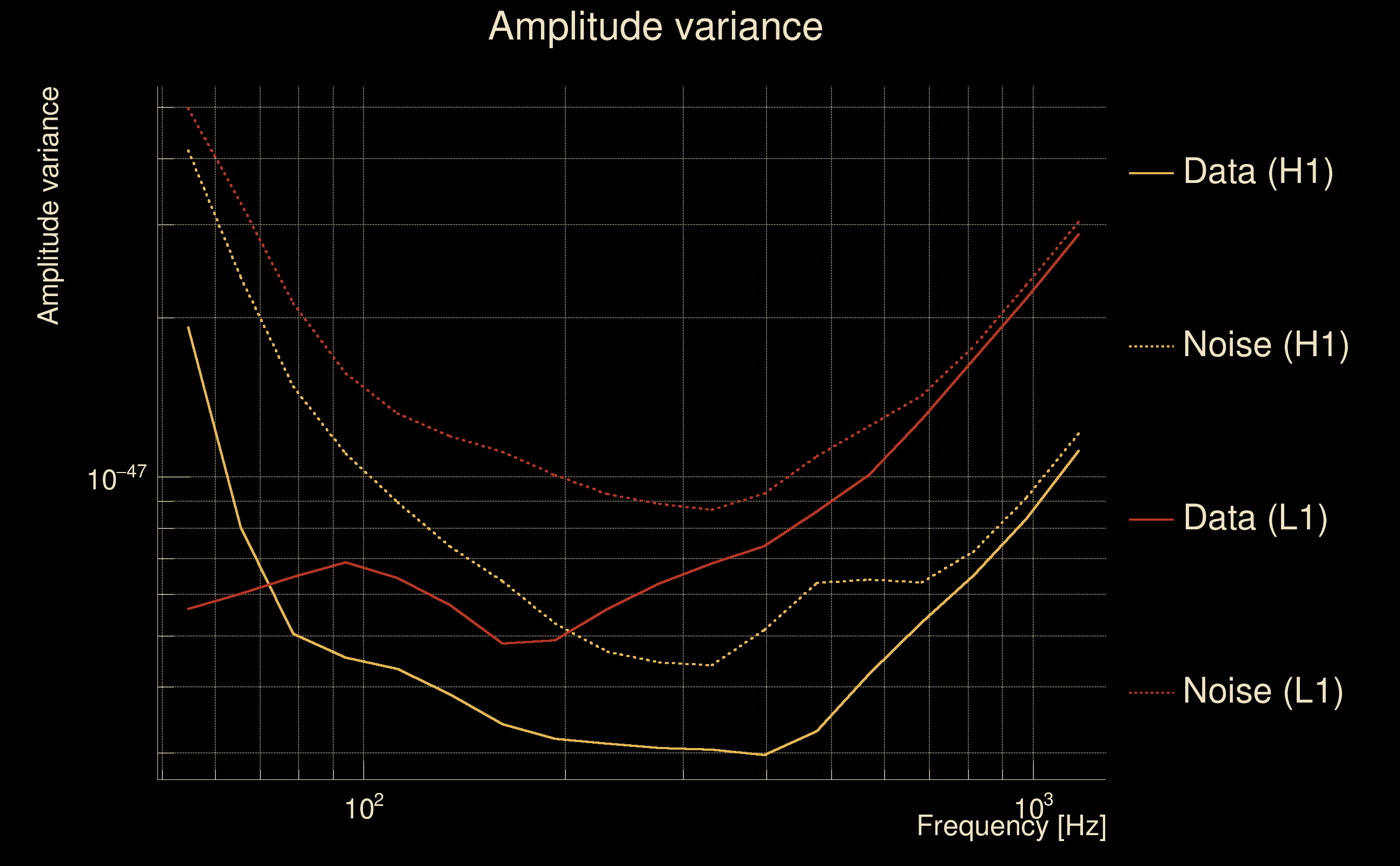

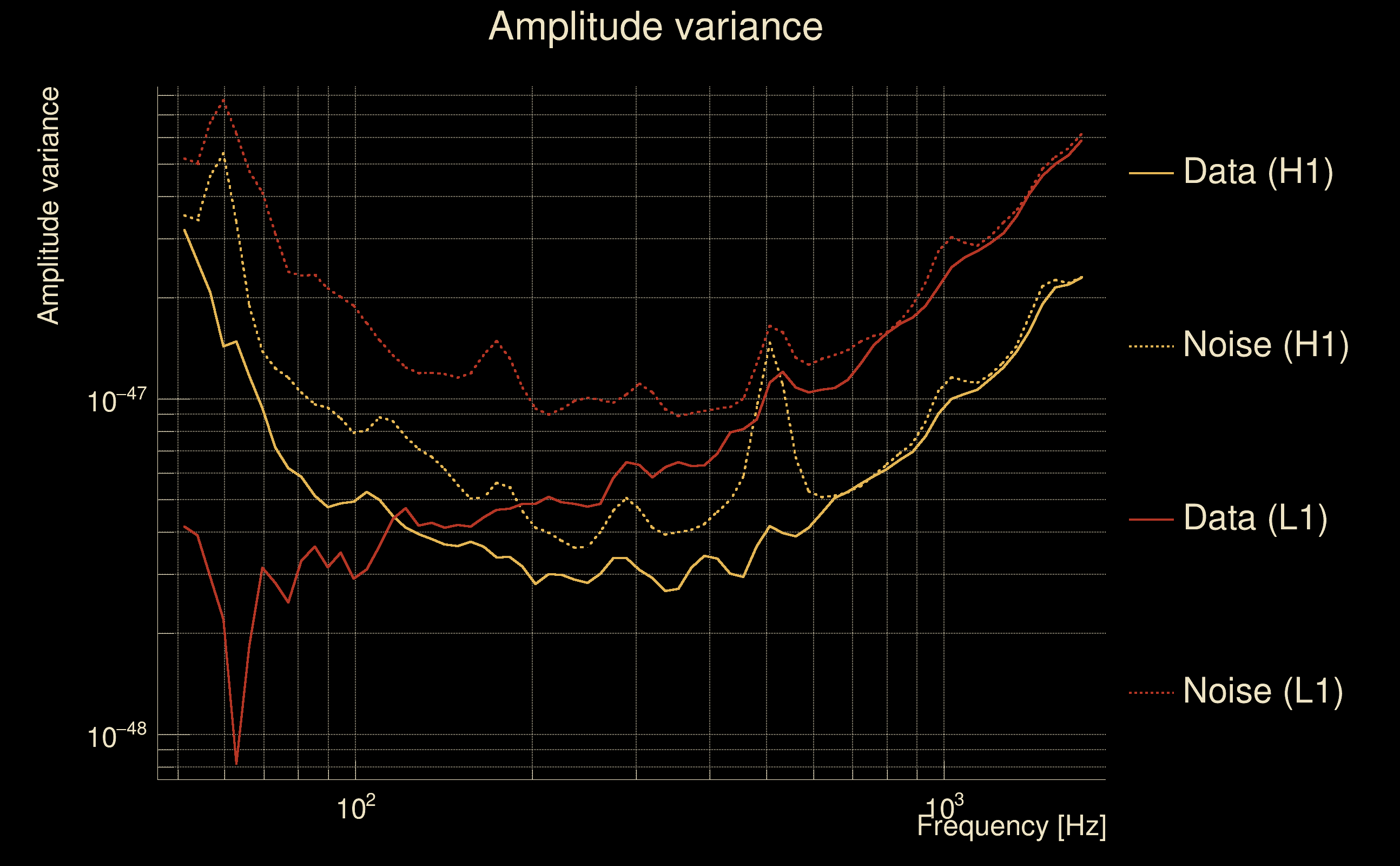

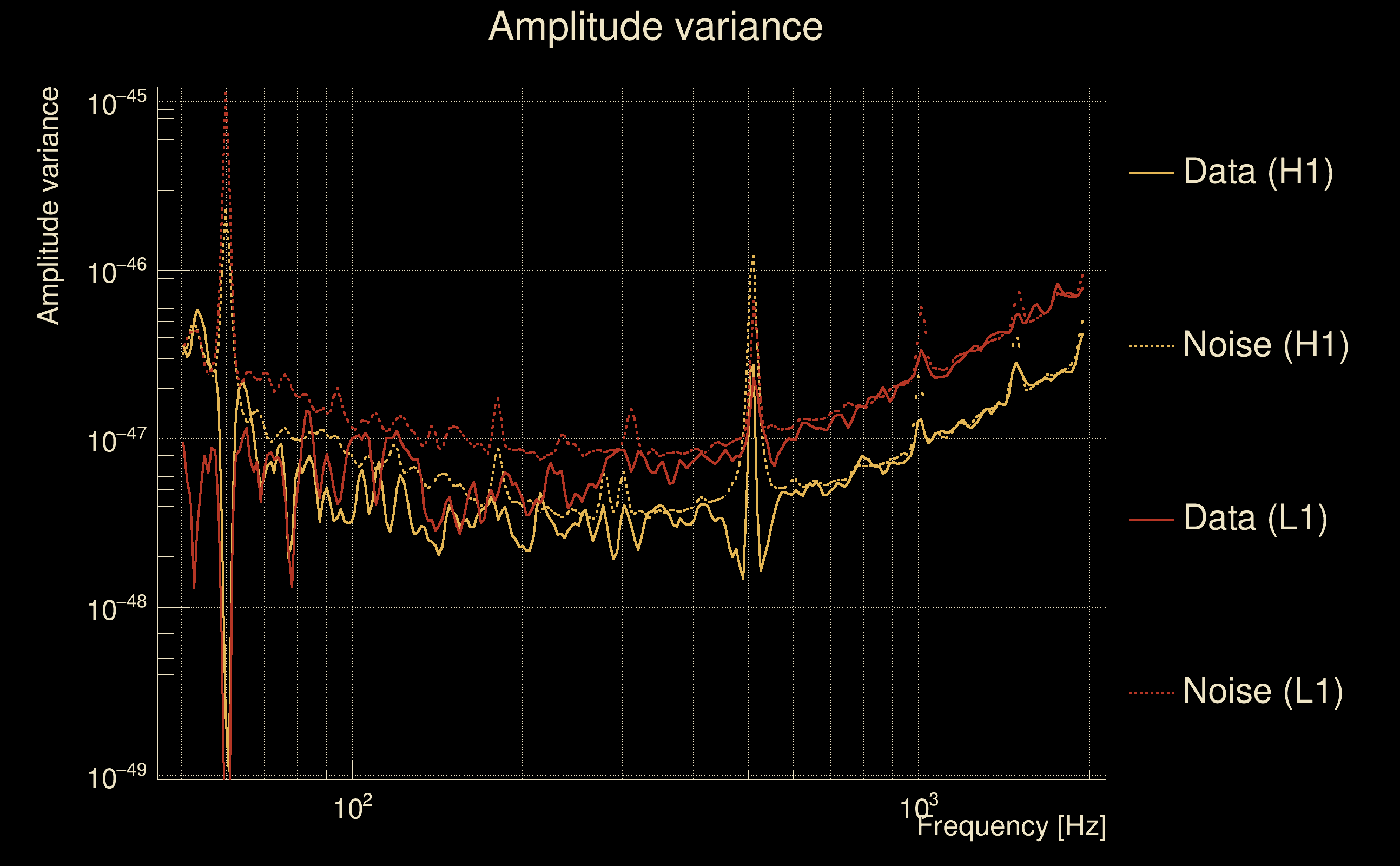

| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| List of input Ox files: | Targeted_O4bw_2min_OLDBASH3_file_list.txt (1 files) |
| Analysis result file: | Targeted_O4bw_2min_OLDBASH3_results-0.root |
| Slice selected for the the fakeground: | slice index=190 (-3.772 s), time lag = 0 s |

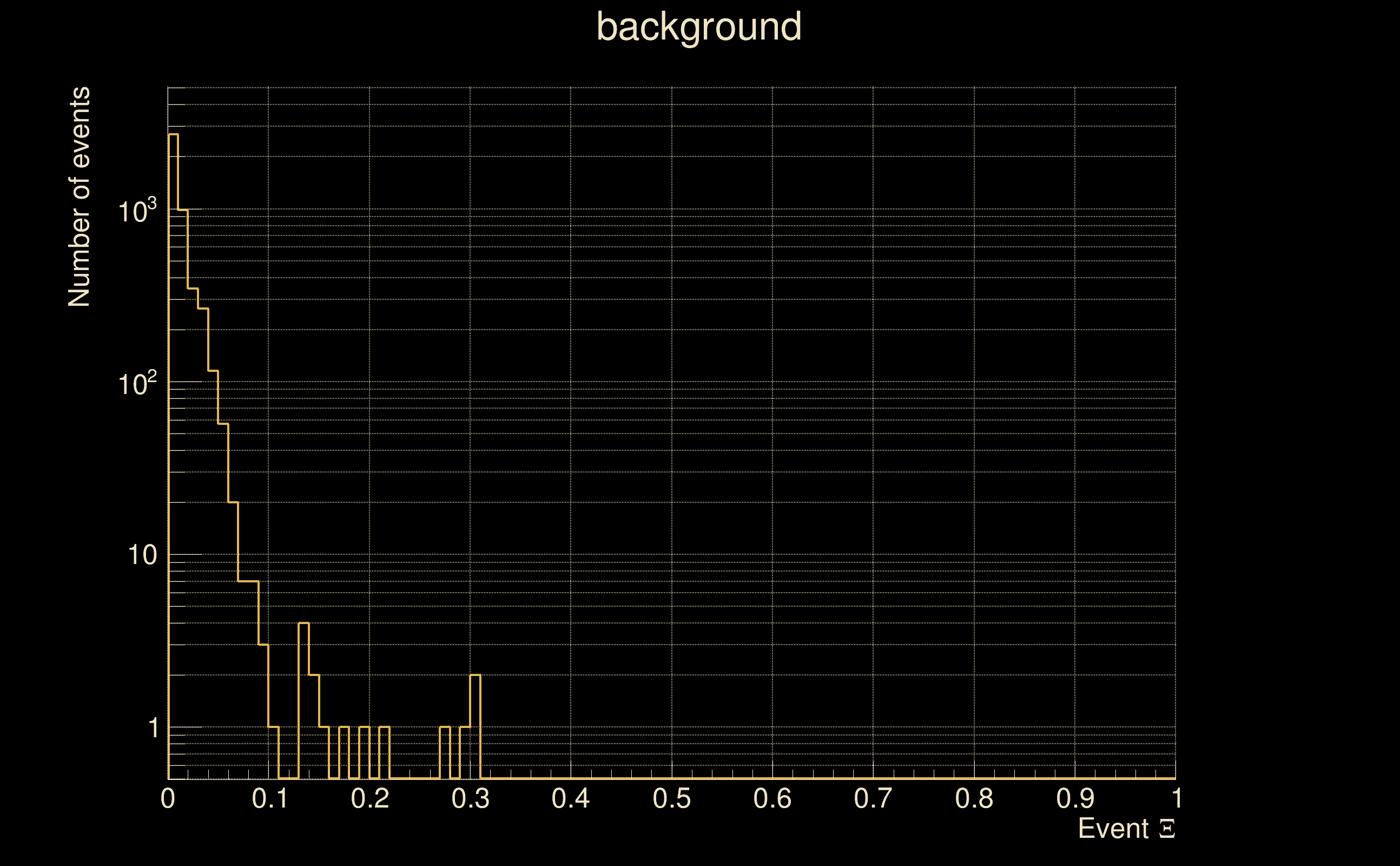

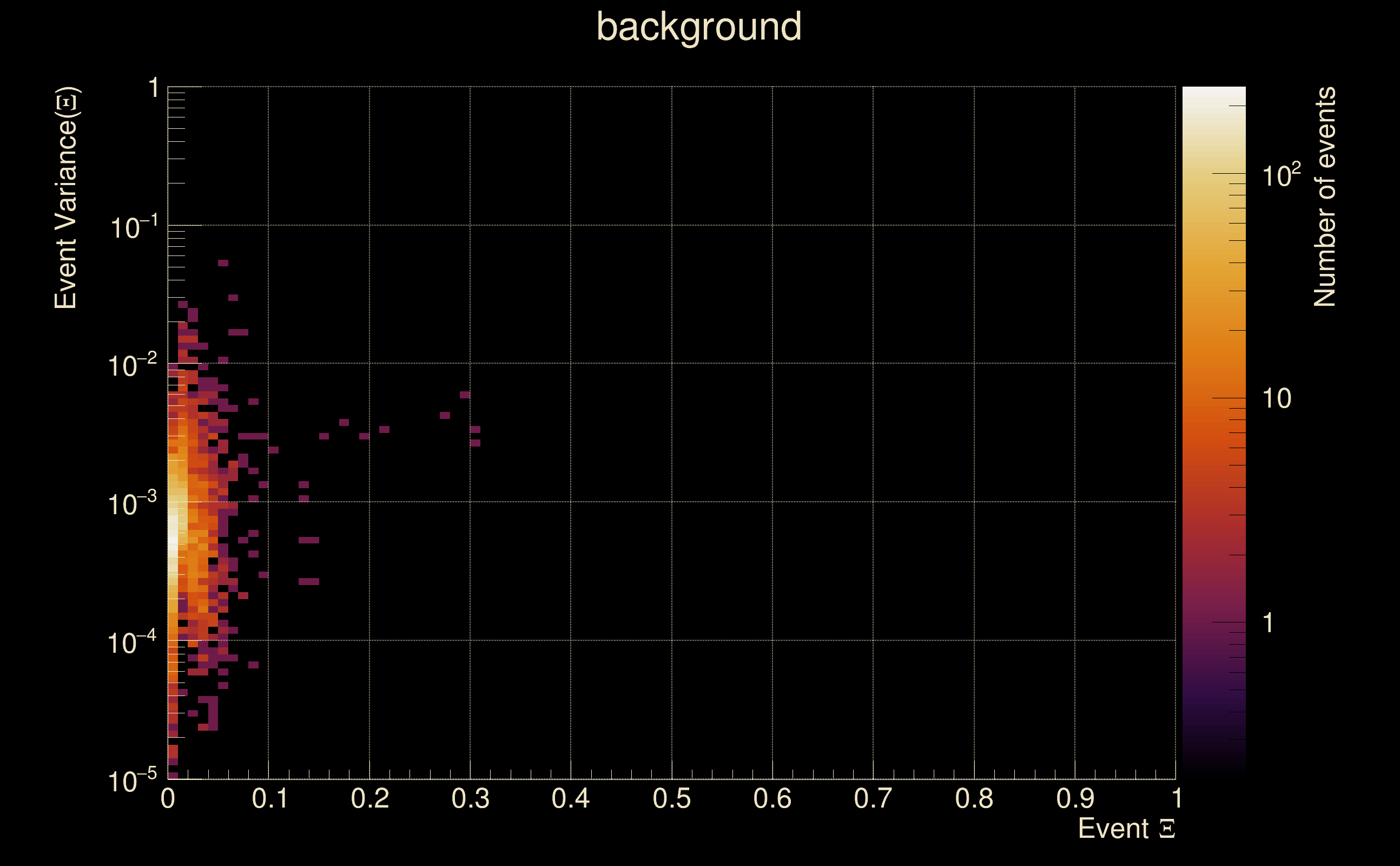

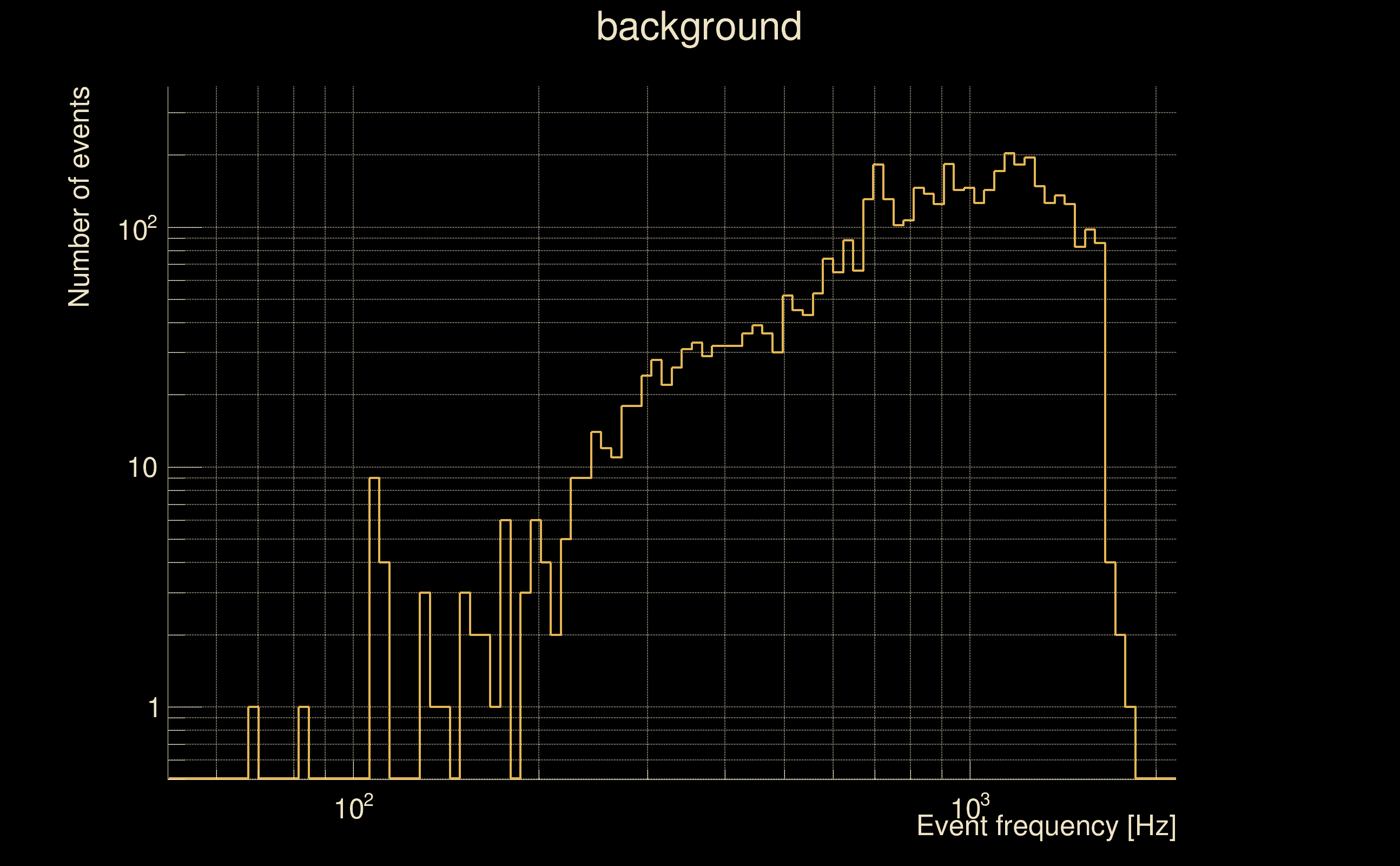

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

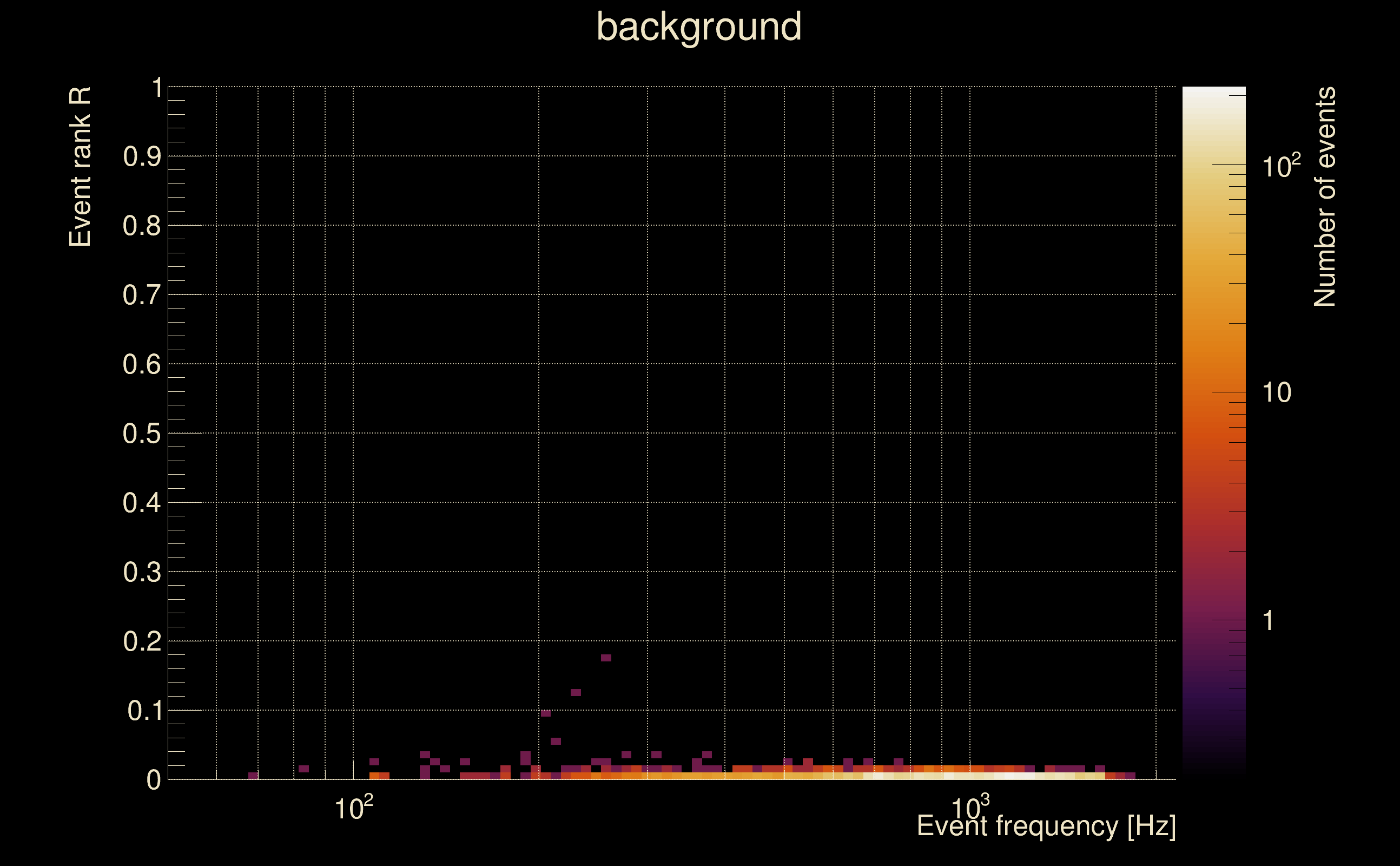

| Number of processed ox events | 21 | 21 | 4515 | |
| Start Date (detector 0) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 0) | Mon May 15 14:15:15 2023 UTC | Mon May 15 14:15:15 2023 UTC | Mon May 15 14:15:15 2023 UTC | |
| Start GPS (detector 0) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 0) | 1368195333 | 1368195333 | 1368195333 | |
| Used livetime (detector 0) | 110 s | 110 s | 110 s | |
| Start Date (detector 1) | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | Mon May 15 14:13:25 2023 UTC | |
| End Date (detector 1) | Mon May 15 14:15:15 2023 UTC | Mon May 15 14:15:15 2023 UTC | Mon May 15 14:15:15 2023 UTC | |
| Start GPS (detector 1) | 1368195223 | 1368195223 | 1368195223 | |
| End GPS (detector 1) | 1368195333 | 1368195333 | 1368195333 | |
| Used livetime (detector 1) | 110 s | 110 s | 110 s | |
| Cumulative livetime | 210 s | 210 s | 45150 s | |
| 0 years, 0 days, 0 hours, 3 min, 30 s | 0 years, 0 days, 0 hours, 3 min, 30 s | 0 years, 0 days, 12 hours, 32 min, 30 s |
|
|
| Event time t(H1): | GPS = 1368195303 (Mon May 15 14:14:45 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Event time t(L1): | GPS = 1368195303 (Mon May 15 14:14:55 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195300 → GPS = 1368195316 |
| Omicron analysis time window (L1): | GPS = 1368195300 → GPS = 1368195316 |
| Time delay between detectors t(L1) - t(H1): | 0.00871245 s (slice index = 108 / 217), δt_gw = 0.00871245 s |
| Time delay uncertainty: | 8.52261e-05 s |
| Frequency: | 300.889 Hz |
| Ξ: | 0.637559 ± 0.0338231 (variance = 0.001144): Q0: 0.610385, Q1: 0.644949, Q2: 0.680063, Q3: 0.705059, Q4: 0.68748 |
| Rank: | R_A = 0.32789 |
| Log of amplitude ratio (L1/H1): | 0.246926, variance = 0.0971927 (L1/H1: 0.339039, variance = 0.197631, H1/L1: -0.098003, variance = 0.148932) |
| Amplitude ratio (L1/H1): | 1.28009 ⋇ 1.36582 (L1/H1: 1.4036 ⋇ 1.5598, H1/L1: 0.906646 ⋇ 1.47096) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.682216 |

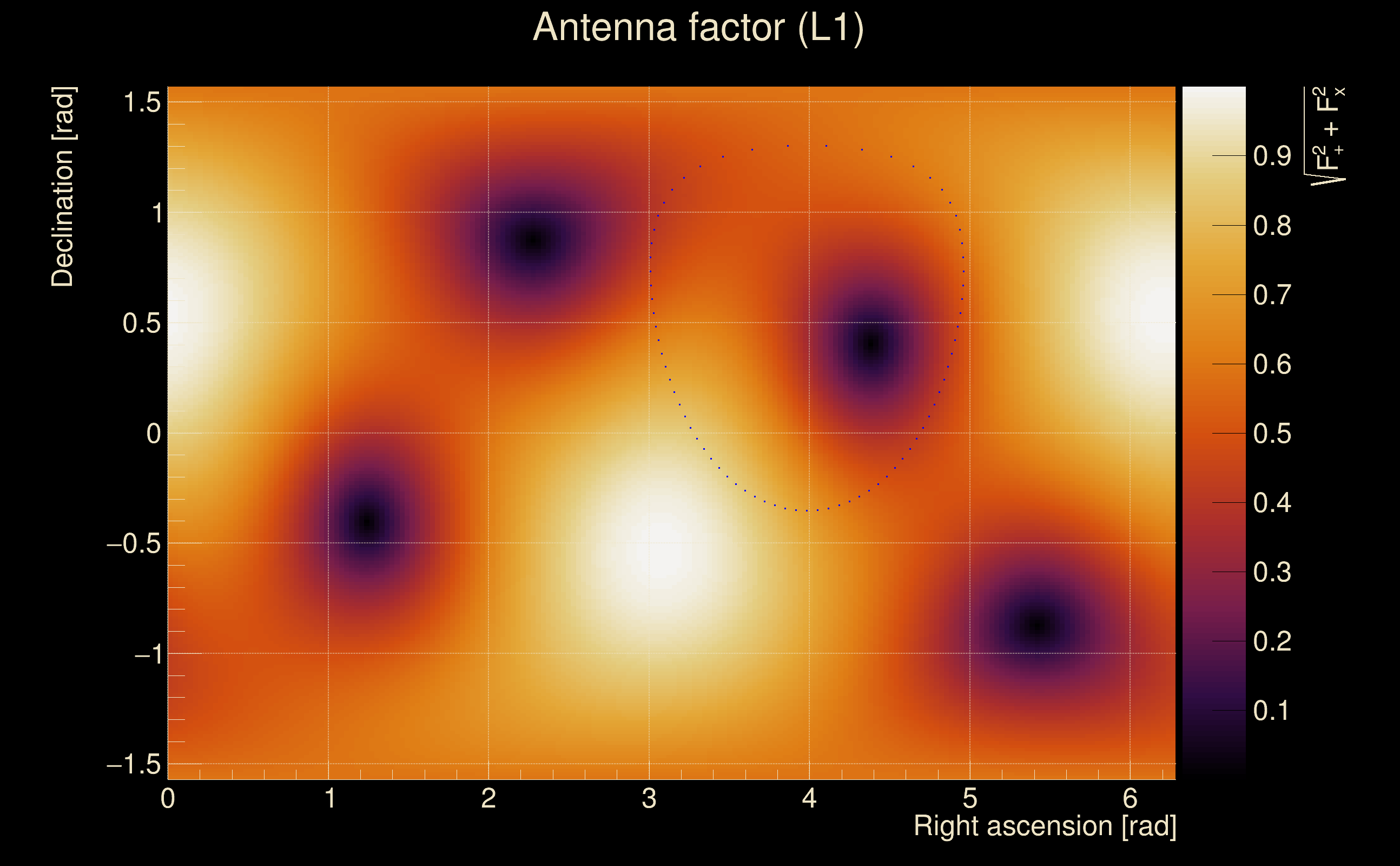

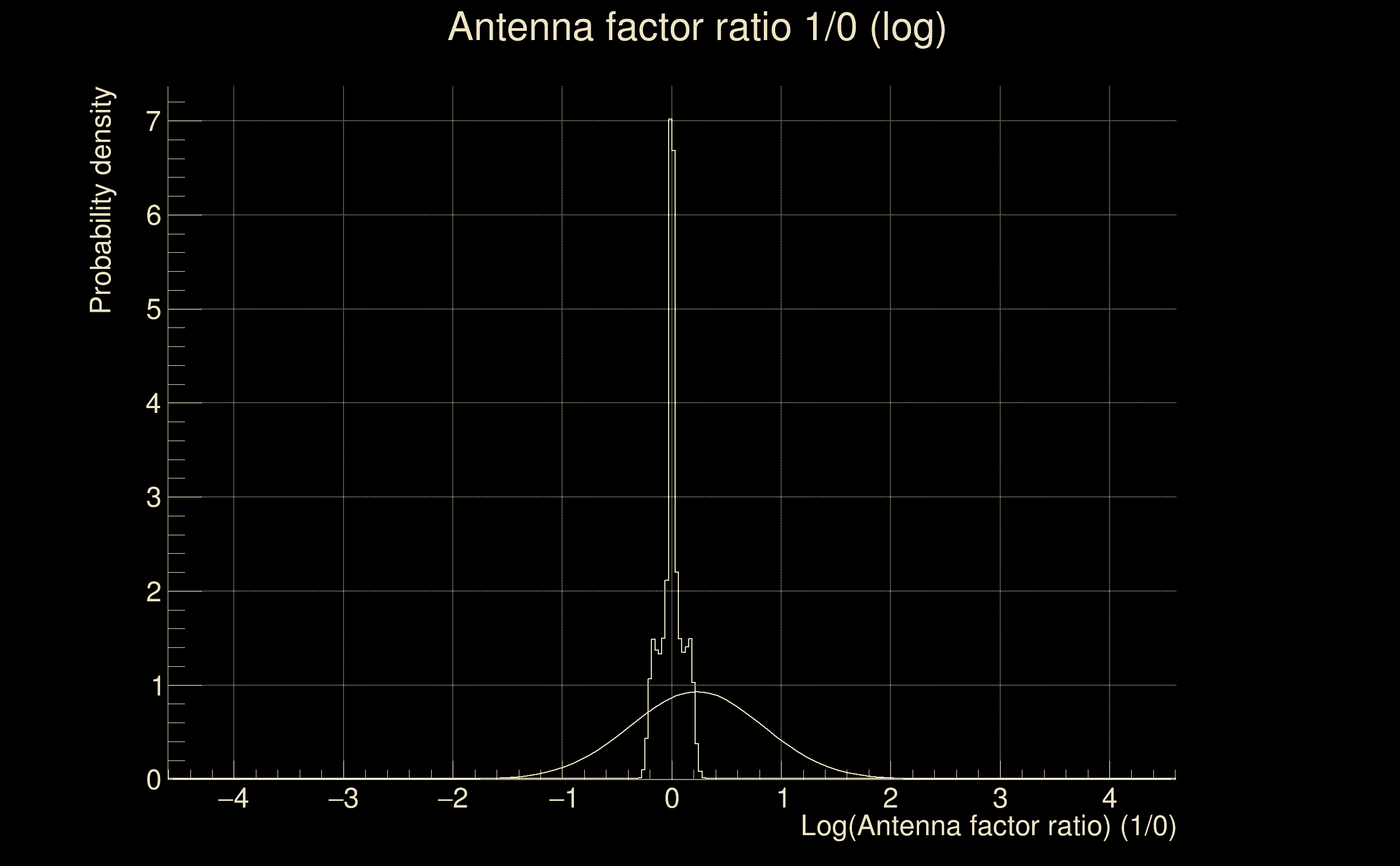

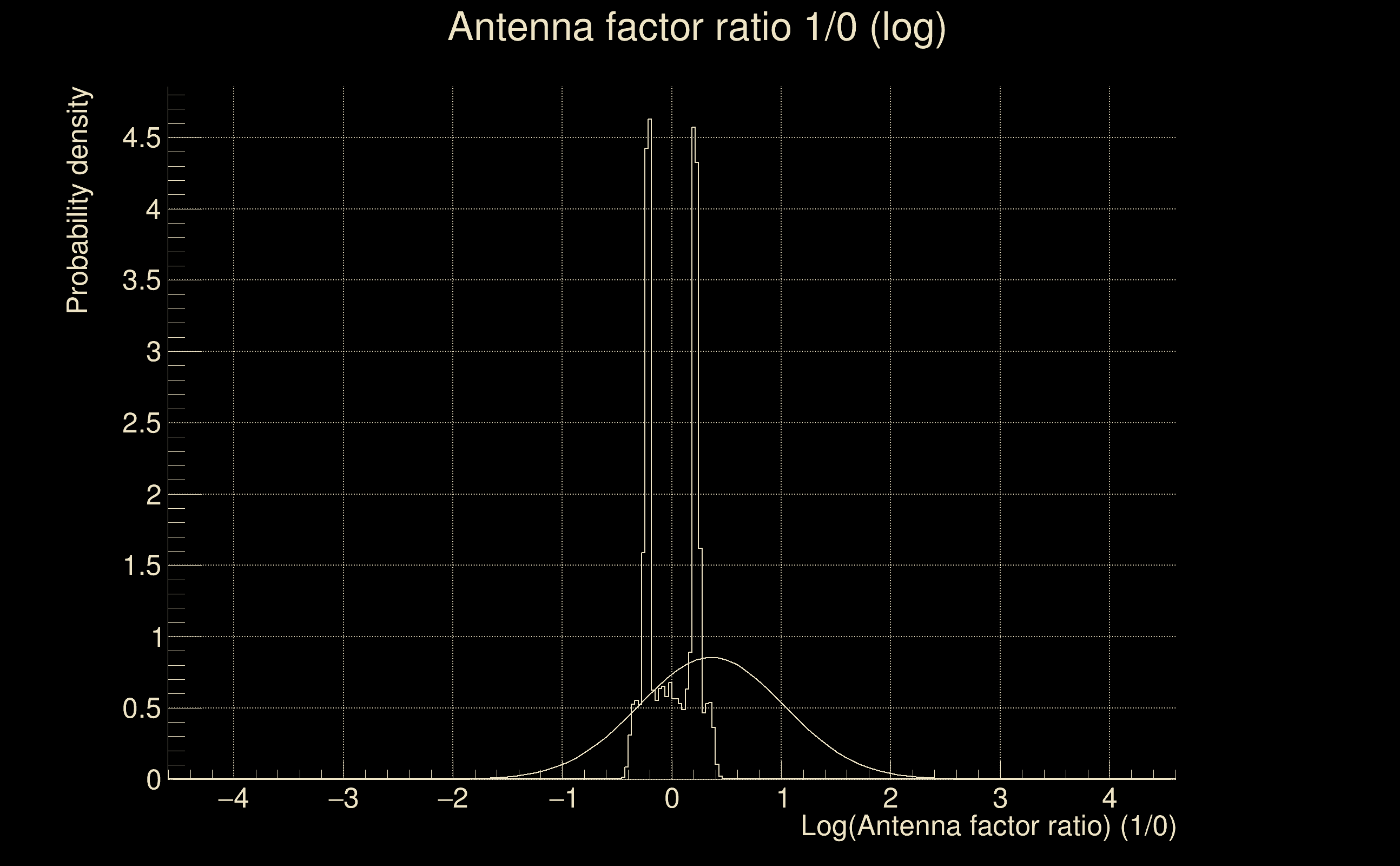

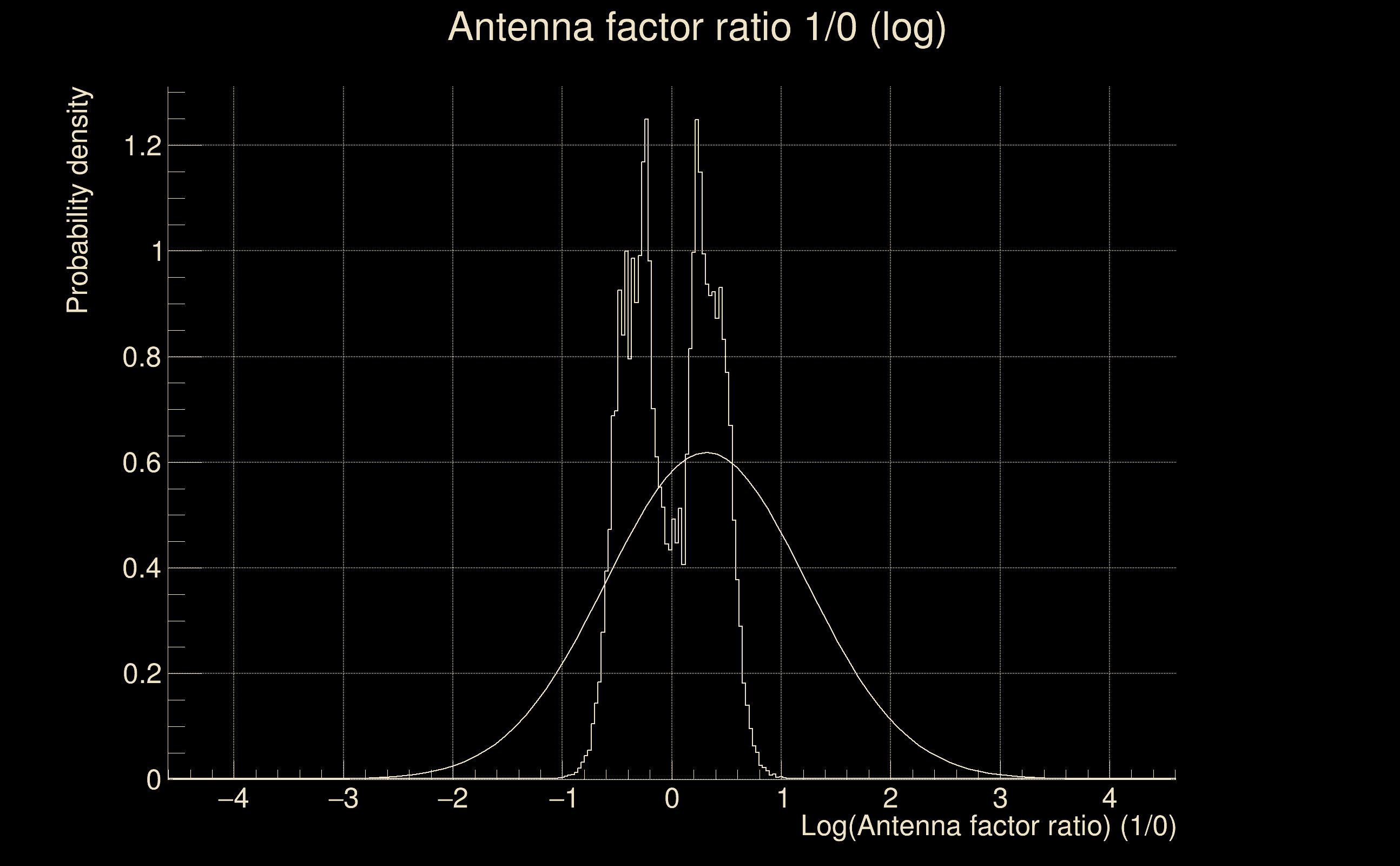

| Antenna factor probability: | 0.753851 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 15 / 36, Q2: 40 / 70, Q3: 96 / 134, Q4: 201 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.8064, L1: 14.0041 |

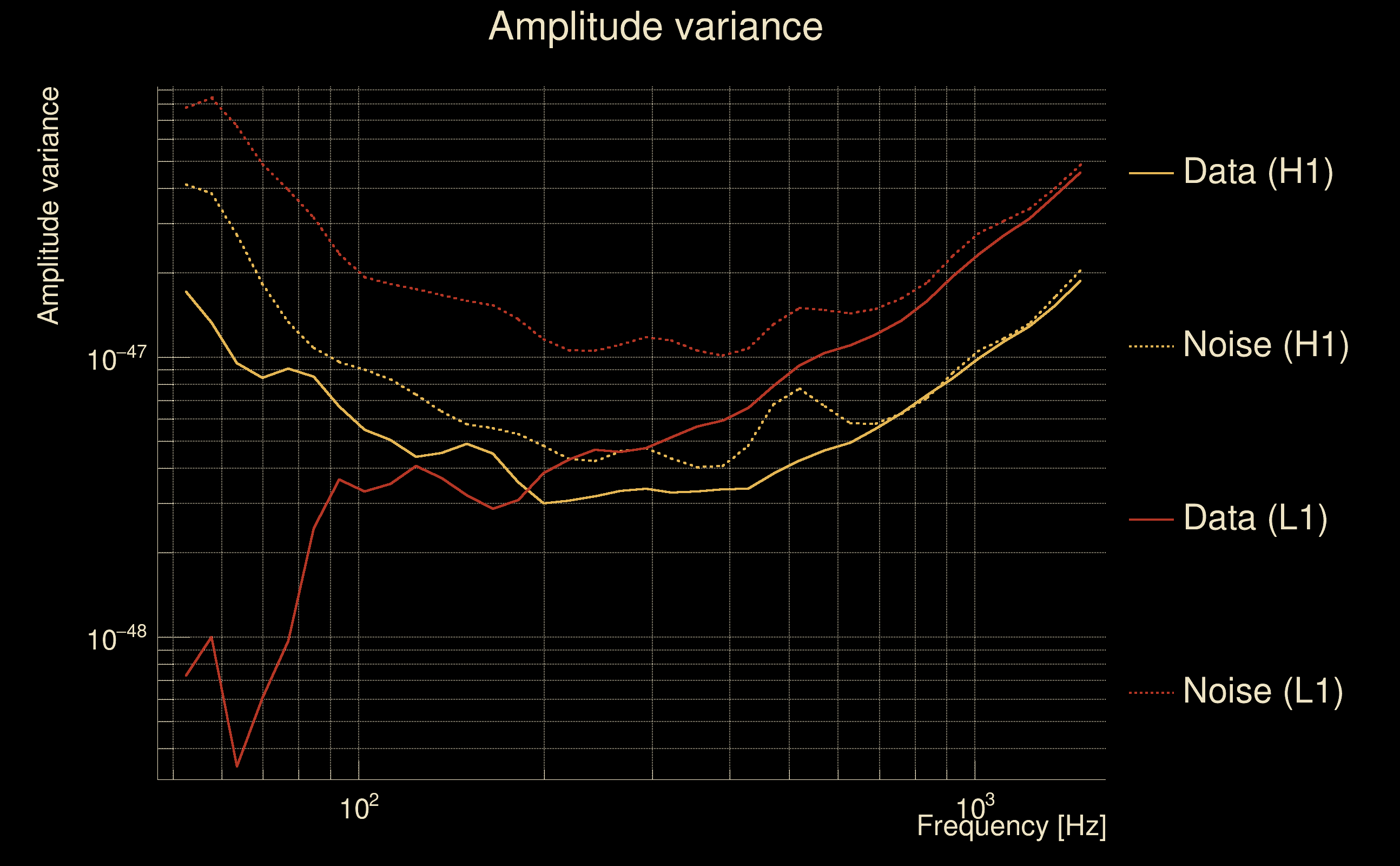

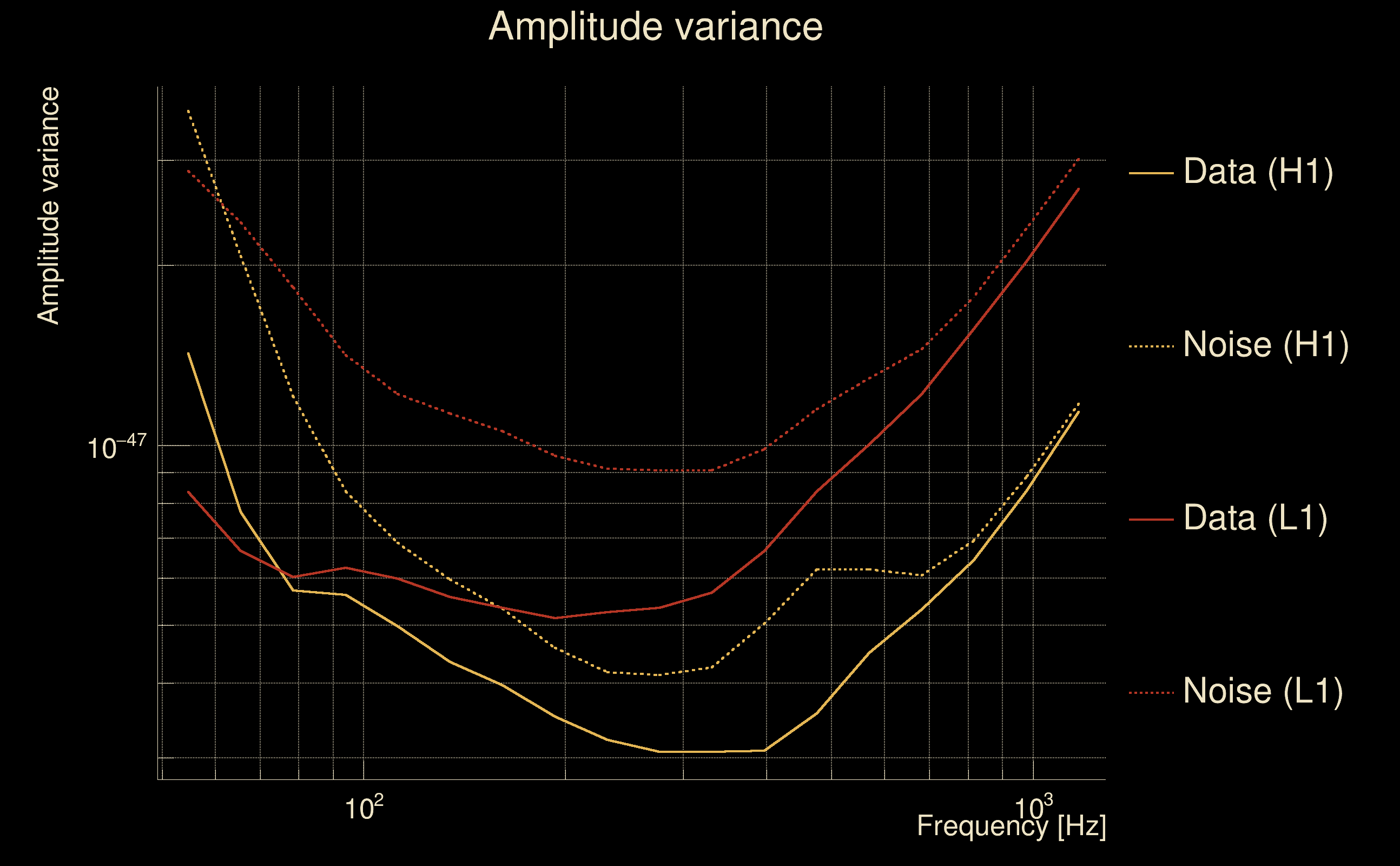

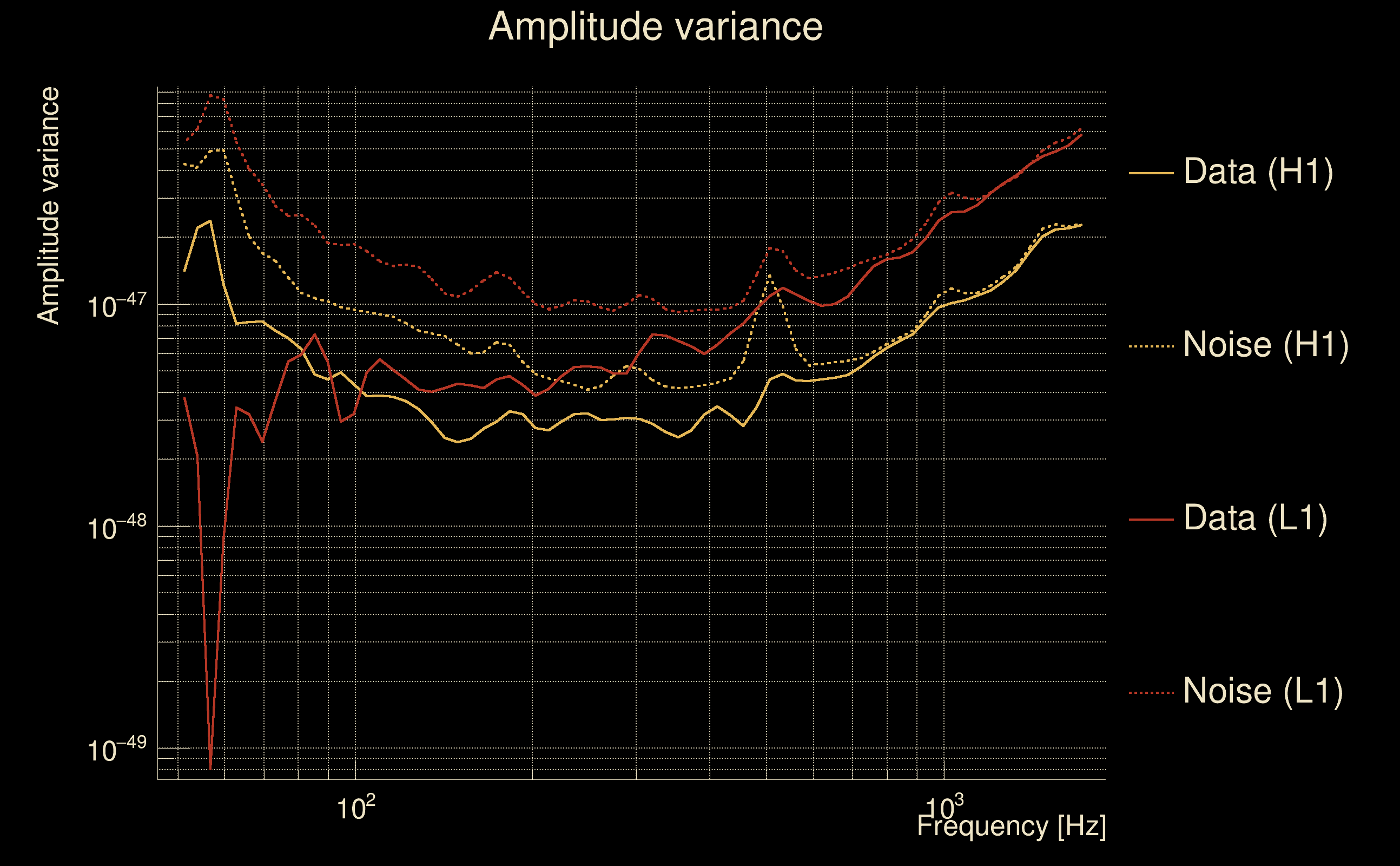

| SNR variance: | H1: 0.450601, L1: 0.485793 |

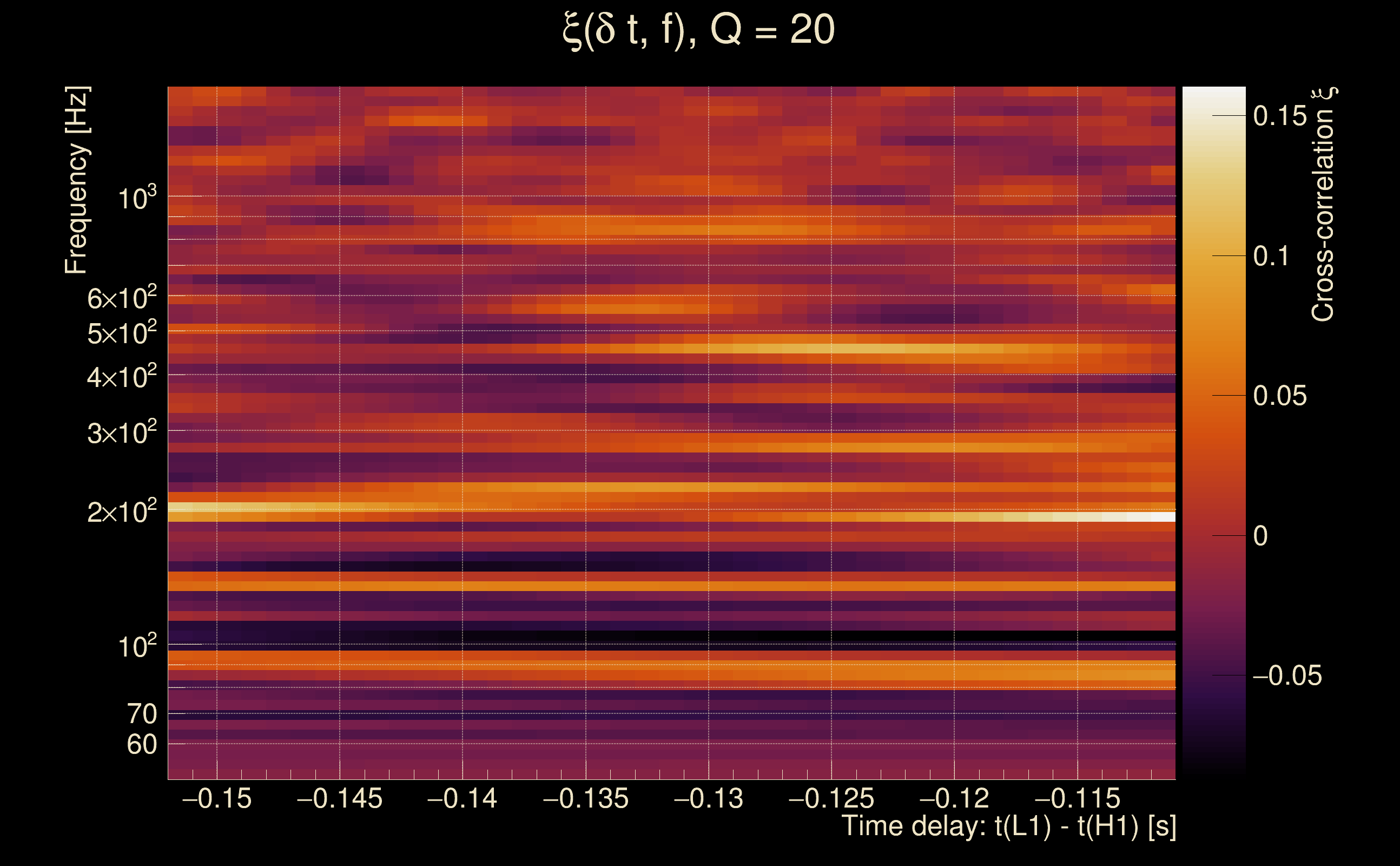

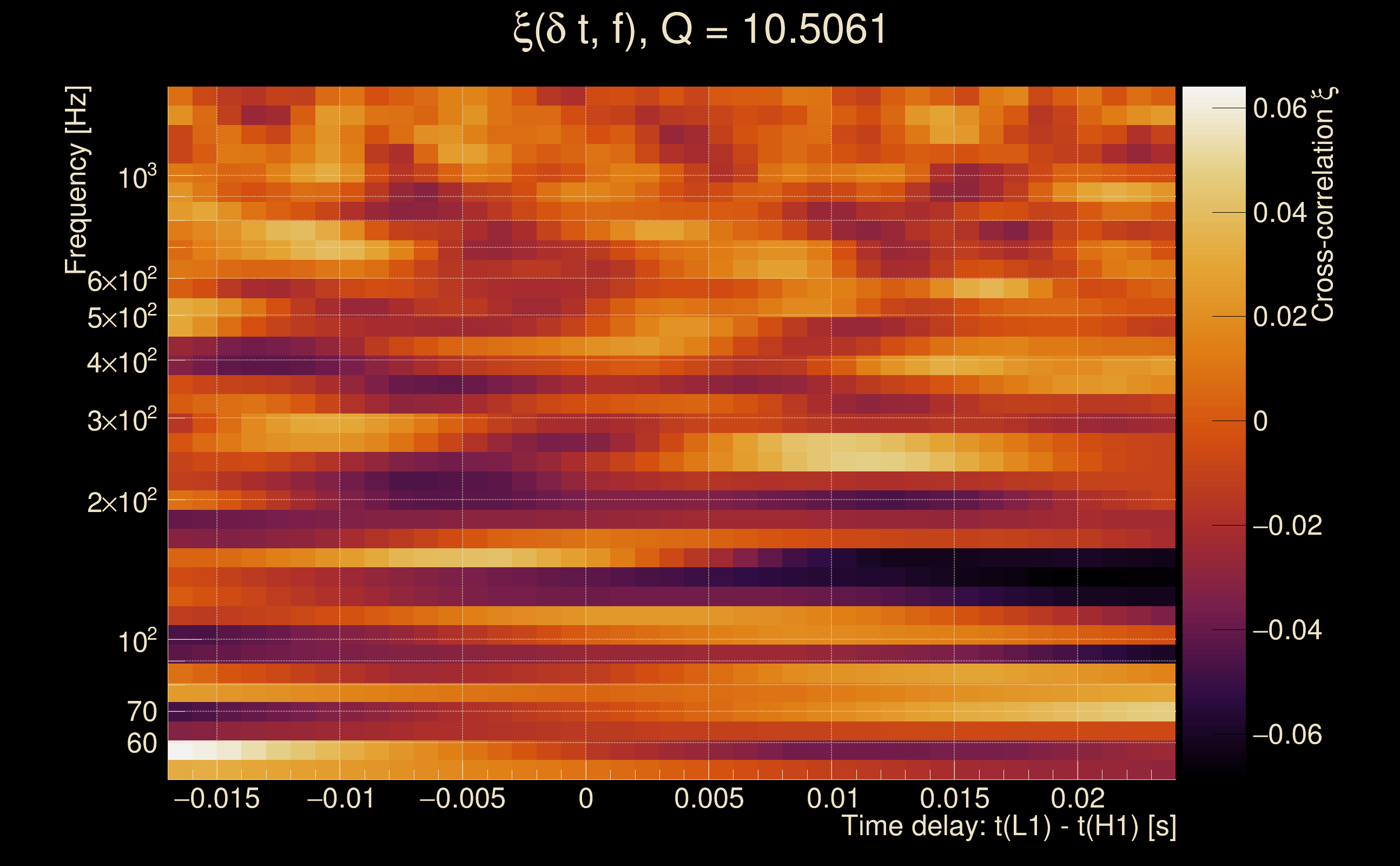

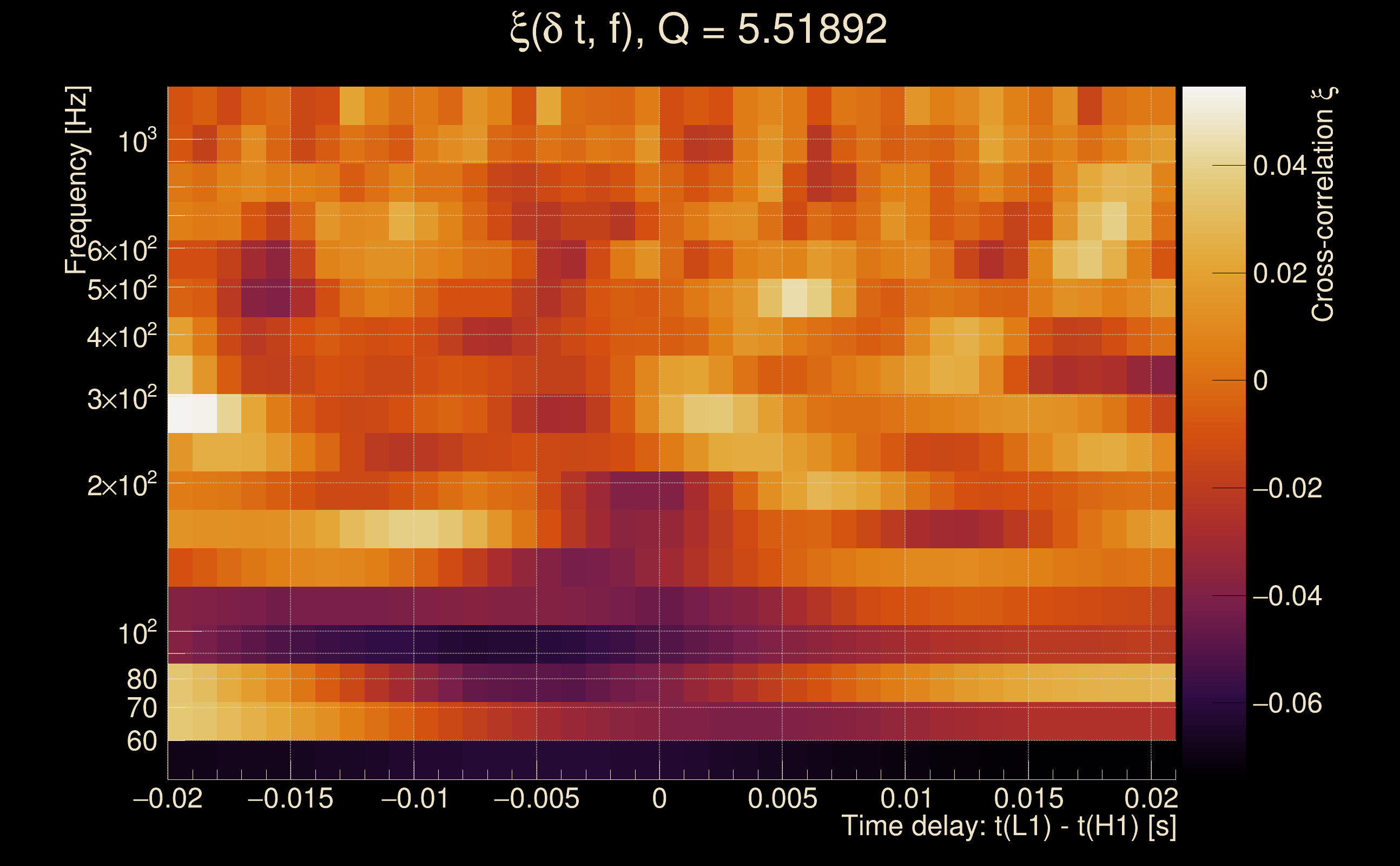

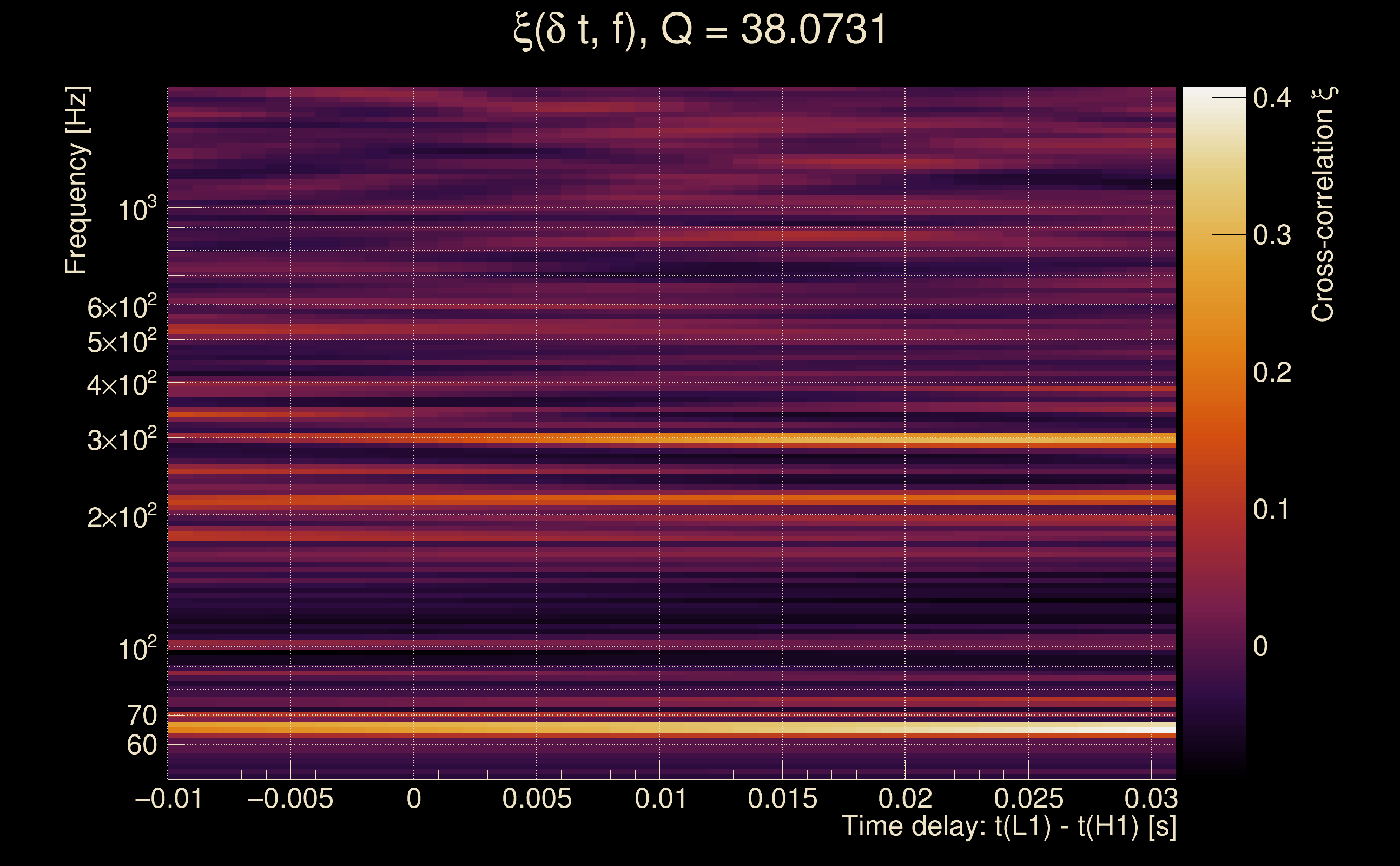

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195308 (Mon May 15 14:14:50 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Event time t(L1): | GPS = 1368195308 (Mon May 15 14:15:00 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195305 → GPS = 1368195321 |
| Omicron analysis time window (L1): | GPS = 1368195305 → GPS = 1368195321 |
| Time delay between detectors t(L1) - t(H1): | 0.00870683 s (slice index = 108 / 217), δt_gw = 0.00870683 s |
| Time delay uncertainty: | 8.45081e-05 s |
| Frequency: | 304.08 Hz |
| Ξ: | 0.626555 ± 0.0460229 (variance = 0.00211811): Q0: 0.602751, Q1: 0.620515, Q2: 0.660235, Q3: 0.720559, Q4: 0.705896 |
| Rank: | R_A = 0.318754 |
| Log of amplitude ratio (L1/H1): | 0.279797, variance = 0.0759956 (L1/H1: 0.347912, variance = 0.143929, H1/L1: -0.169098, variance = 0.143583) |
| Amplitude ratio (L1/H1): | 1.32286 ⋇ 1.31742 (L1/H1: 1.41611 ⋇ 1.46138, H1/L1: 0.844426 ⋇ 1.46071) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.73877 |

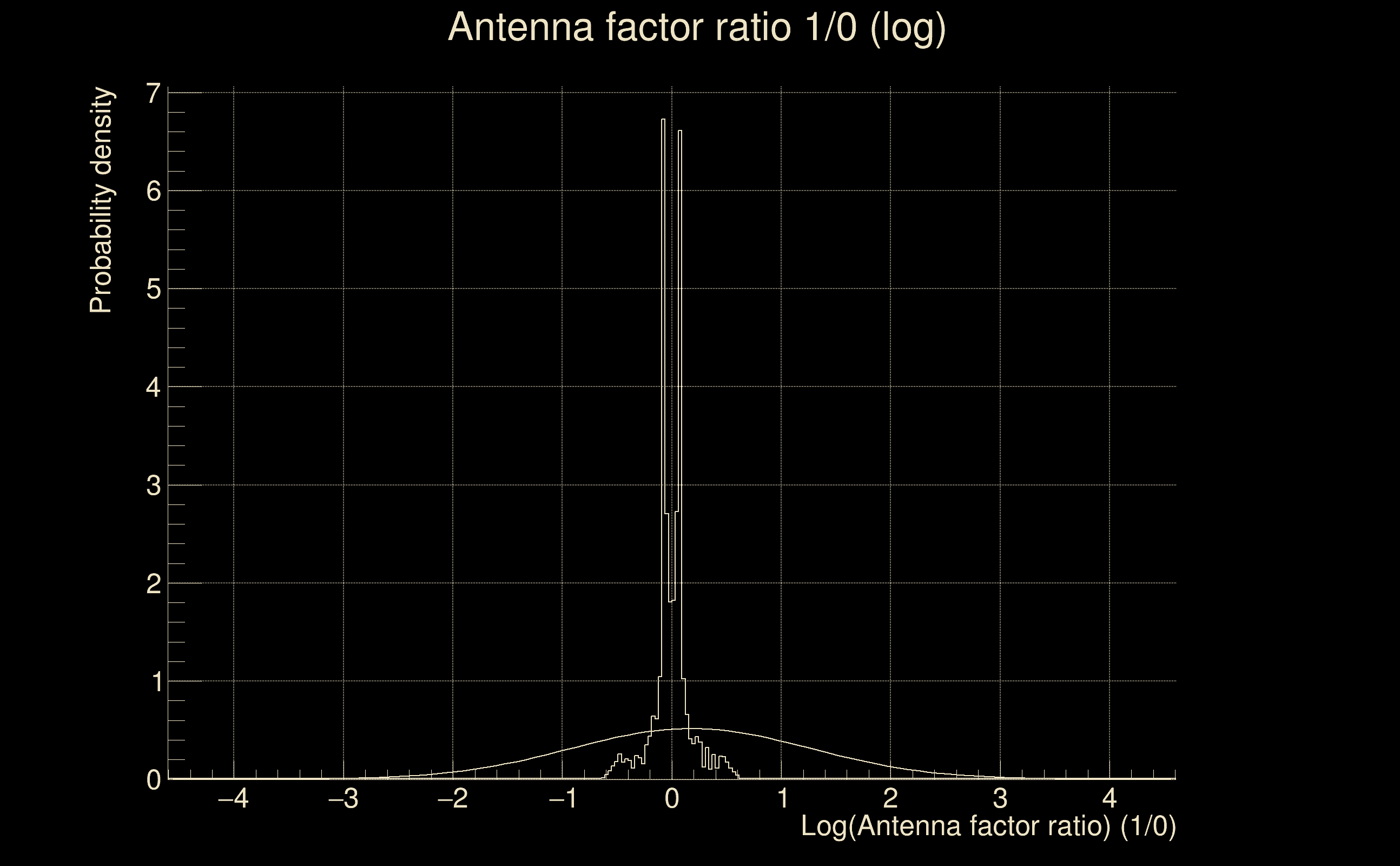

| Antenna factor probability: | 0.688632 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 13 / 36, Q2: 37 / 70, Q3: 99 / 134, Q4: 204 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.782, L1: 13.9486 |
| SNR variance: | H1: 0.580638, L1: 0.575354 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

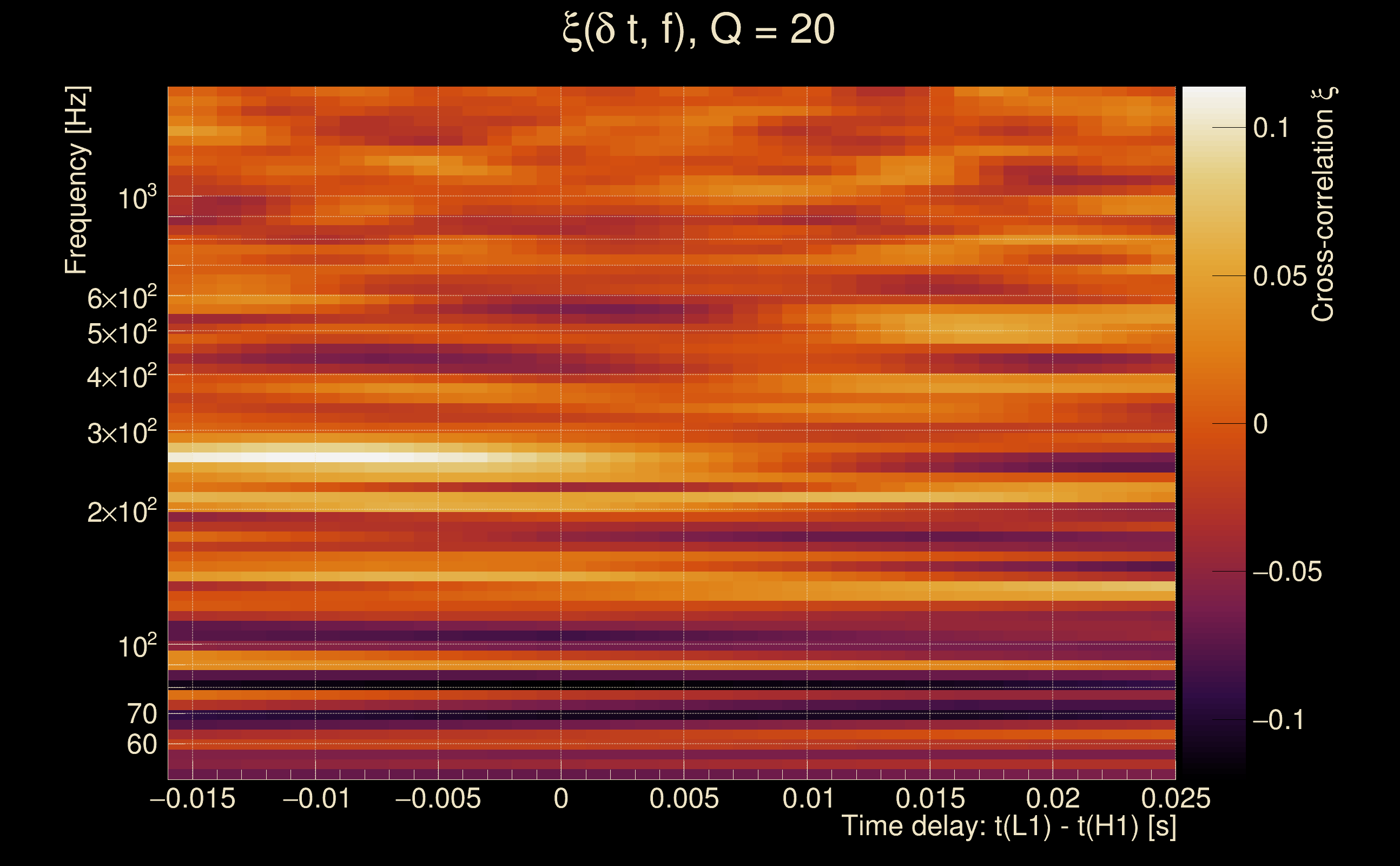

| Event time t(H1): | GPS = 1368195278 (Mon May 15 14:14:20 2023 ) → GPS = 1368195288 (Mon May 15 14:14:30 2023 ) |
| Event time t(L1): | GPS = 1368195278 (Mon May 15 14:14:30 2023 ) → GPS = 1368195288 (Mon May 15 14:14:30 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195275 → GPS = 1368195291 |
| Omicron analysis time window (L1): | GPS = 1368195275 → GPS = 1368195291 |
| Time delay between detectors t(L1) - t(H1): | 0.0087264 s (slice index = 108 / 217), δt_gw = 0.0087264 s |
| Time delay uncertainty: | 0.000103554 s |
| Frequency: | 607.971 Hz |
| Ξ: | 0.455959 ± 0.08453 (variance = 0.00714532): Q0: 0.354329, Q1: 0.561686, Q2: 0.556976, Q3: 0.561772, Q4: 0.578883 |
| Rank: | R_A = 0.282018 |
| Log of amplitude ratio (L1/H1): | 0.800621, variance = 0.124325 (L1/H1: 0.789114, variance = 0.449887, H1/L1: -0.808136, variance = 0.147853) |
| Amplitude ratio (L1/H1): | 2.22692 ⋇ 1.42276 (L1/H1: 2.20145 ⋇ 1.95568, H1/L1: 0.445688 ⋇ 1.4689) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.980371 |
| Antenna factor probability: | 0.6309 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 30 / 36, Q2: 57 / 70, Q3: 104 / 134, Q4: 217 / 258 |
| Maximum signal-to-noise ratio: | H1: 11.7576, L1: 14.5489 |
| SNR variance: | H1: 0.417109, L1: 0.46243 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195283 (Mon May 15 14:14:25 2023 ) → GPS = 1368195293 (Mon May 15 14:14:35 2023 ) |
| Event time t(L1): | GPS = 1368195283 (Mon May 15 14:14:35 2023 ) → GPS = 1368195293 (Mon May 15 14:14:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195280 → GPS = 1368195296 |
| Omicron analysis time window (L1): | GPS = 1368195280 → GPS = 1368195296 |
| Time delay between detectors t(L1) - t(H1): | 0.00888596 s (slice index = 108 / 217), δt_gw = 0.00888596 s |
| Time delay uncertainty: | 0.000103017 s |
| Frequency: | 575.048 Hz |
| Ξ: | 0.436585 ± 0.0830318 (variance = 0.00689428): Q0: 0.34313, Q1: 0.527459, Q2: 0.530915, Q3: 0.537613, Q4: 0.582665 |
| Rank: | R_A = 0.158959 |
| Log of amplitude ratio (L1/H1): | 0.86541, variance = 0.111131 (L1/H1: 0.667807, variance = 0.346658, H1/L1: -0.994122, variance = 0.155976) |
| Amplitude ratio (L1/H1): | 2.37598 ⋇ 1.39565 (L1/H1: 1.94996 ⋇ 1.80178, H1/L1: 0.370048 ⋇ 1.48429) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.645324 |
| Antenna factor probability: | 0.564206 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 29 / 36, Q2: 54 / 70, Q3: 105 / 134, Q4: 212 / 258 |
| Maximum signal-to-noise ratio: | H1: 11.6778, L1: 14.4694 |
| SNR variance: | H1: 0.465087, L1: 0.559554 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195288 (Mon May 15 14:14:30 2023 ) → GPS = 1368195298 (Mon May 15 14:14:40 2023 ) |
| Event time t(L1): | GPS = 1368195288 (Mon May 15 14:14:40 2023 ) → GPS = 1368195298 (Mon May 15 14:14:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195285 → GPS = 1368195301 |
| Omicron analysis time window (L1): | GPS = 1368195285 → GPS = 1368195301 |
| Time delay between detectors t(L1) - t(H1): | -0.00338474 s (slice index = 108 / 217), δt_gw = -0.00338474 s |
| Time delay uncertainty: | 0.000302907 s |
| Frequency: | 602.25 Hz |
| Ξ: | 0.0135088 ± 0.0393658 (variance = 0.00154967): Q0: 0, Q1: 0, Q2: 0.0414805, Q3: 0.0643271, Q4: 0.103007 |
| Rank: | R_A = 0.00720316 |
| Log of amplitude ratio (L1/H1): | 0.868177, variance = 0.304023 (L1/H1: 0.526065, variance = 0.513916, H1/L1: -1.20159, variance = 0.69725) |
| Amplitude ratio (L1/H1): | 2.38256 ⋇ 1.73565 (L1/H1: 1.69226 ⋇ 2.04803, H1/L1: 0.300717 ⋇ 2.30485) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.539338 |
| Antenna factor probability: | 0.988659 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.95524, L1: 5.0195 |
| SNR variance: | H1: 0.480431, L1: 0.569396 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

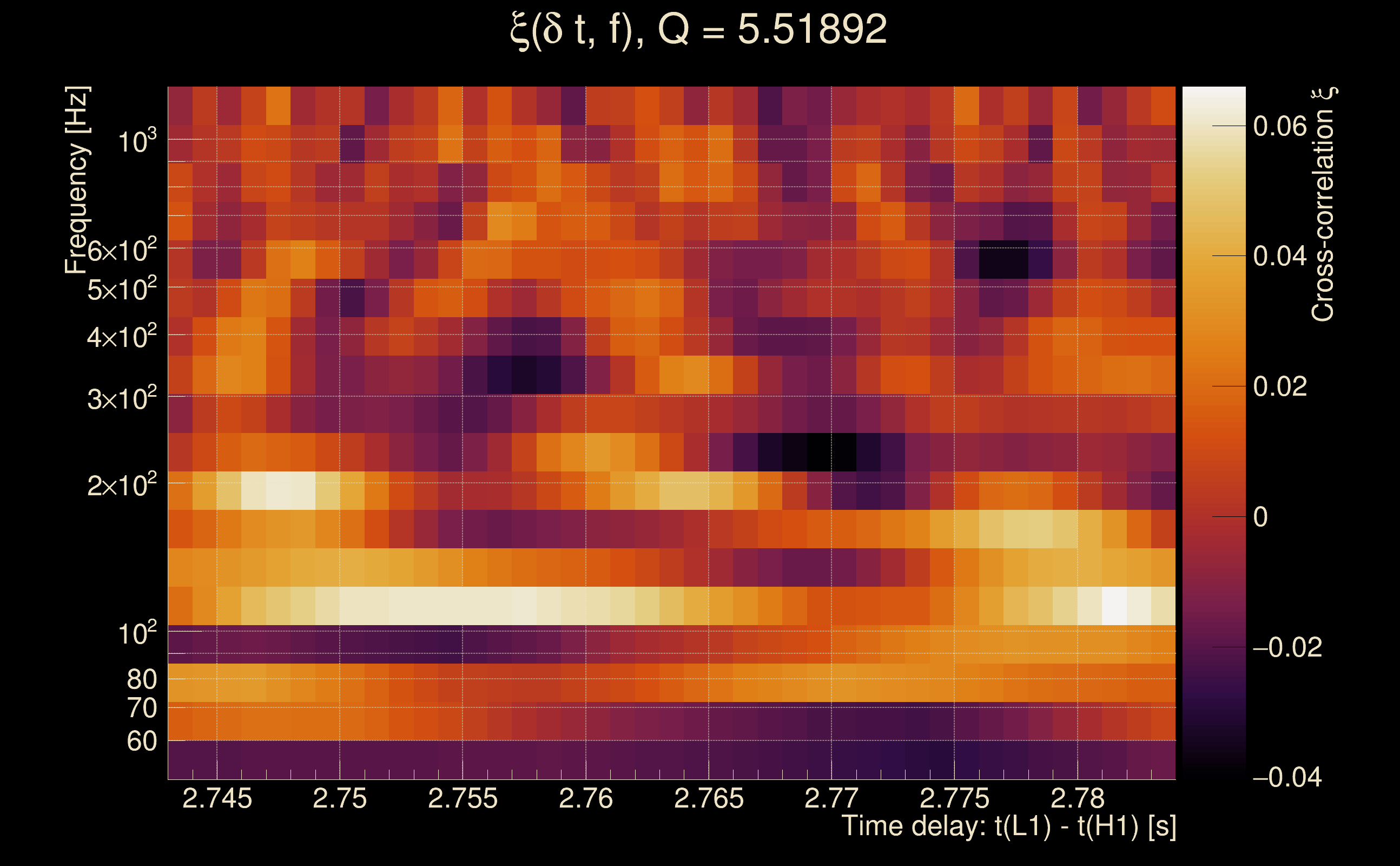

| Event time t(H1): | GPS = 1368195318 (Mon May 15 14:15:00 2023 ) → GPS = 1368195328 (Mon May 15 14:15:10 2023 ) |
| Event time t(L1): | GPS = 1368195318 (Mon May 15 14:15:10 2023 ) → GPS = 1368195328 (Mon May 15 14:15:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195315 → GPS = 1368195331 |
| Omicron analysis time window (L1): | GPS = 1368195315 → GPS = 1368195331 |
| Time delay between detectors t(L1) - t(H1): | 0.00474108 s (slice index = 108 / 217), δt_gw = 0.00474108 s |
| Time delay uncertainty: | 0.000220785 s |
| Frequency: | 913.866 Hz |
| Ξ: | 0.0115631 ± 0.0302918 (variance = 0.000917591): Q0: 0, Q1: 0, Q2: 0.0508403, Q3: 0.0306149, Q4: 0.0787235 |
| Rank: | R_A = 0.00686911 |
| Log of amplitude ratio (L1/H1): | 0.539029, variance = 0.744313 (L1/H1: 0.0721889, variance = 0.791297, H1/L1: -0.979581, variance = 2.10727) |
| Amplitude ratio (L1/H1): | 1.71434 ⋇ 2.36963 (L1/H1: 1.07486 ⋇ 2.43403, H1/L1: 0.375468 ⋇ 4.27013) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.594054 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 67 / 70, Q3: 130 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.88507, L1: 5.0287 |
| SNR variance: | H1: 0.448878, L1: 0.482958 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195223 (Mon May 15 14:13:25 2023 ) → GPS = 1368195233 (Mon May 15 14:13:35 2023 ) |
| Event time t(L1): | GPS = 1368195223 (Mon May 15 14:13:35 2023 ) → GPS = 1368195233 (Mon May 15 14:13:35 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195220 → GPS = 1368195236 |
| Omicron analysis time window (L1): | GPS = 1368195220 → GPS = 1368195236 |
| Time delay between detectors t(L1) - t(H1): | 0.000298043 s (slice index = 108 / 217), δt_gw = 0.000298043 s |
| Time delay uncertainty: | 0.000212771 s |
| Frequency: | 817.211 Hz |
| Ξ: | 0.0129062 ± 0.0310141 (variance = 0.000961876): Q0: 0, Q1: 0, Q2: 0.0425393, Q3: 0.0794999, Q4: 0.0529526 |
| Rank: | R_A = 0.00682984 |
| Log of amplitude ratio (L1/H1): | 0.44797, variance = 0.551679 (L1/H1: -0.103743, variance = 1.88656, H1/L1: -0.885817, variance = 0.586578) |
| Amplitude ratio (L1/H1): | 1.56513 ⋇ 2.10171 (L1/H1: 0.901457 ⋇ 3.94924, H1/L1: 0.412377 ⋇ 2.15089) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.52919 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 66 / 70, Q3: 128 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.76357, L1: 5.34721 |
| SNR variance: | H1: 0, L1: 0 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195253 (Mon May 15 14:13:55 2023 ) → GPS = 1368195263 (Mon May 15 14:14:05 2023 ) |
| Event time t(L1): | GPS = 1368195253 (Mon May 15 14:14:05 2023 ) → GPS = 1368195263 (Mon May 15 14:14:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195250 → GPS = 1368195266 |
| Omicron analysis time window (L1): | GPS = 1368195250 → GPS = 1368195266 |
| Time delay between detectors t(L1) - t(H1): | 0.000949719 s (slice index = 108 / 217), δt_gw = 0.000949719 s |
| Time delay uncertainty: | 0.000369043 s |
| Frequency: | 1058.65 Hz |
| Ξ: | 0.0079167 ± 0.0366273 (variance = 0.00134156): Q0: 0, Q1: 0, Q2: 0.0223034, Q3: 0.0213843, Q4: 0.0991703 |
| Rank: | R_A = 0.00670712 |
| Log of amplitude ratio (L1/H1): | 0.346966, variance = 0.306961 (L1/H1: 0.468266, variance = 0.913513, H1/L1: -0.247285, variance = 0.401857) |
| Amplitude ratio (L1/H1): | 1.41477 ⋇ 1.74027 (L1/H1: 1.59722 ⋇ 2.6007, H1/L1: 0.780918 ⋇ 1.88499) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.847212 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 133 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.86736, L1: 5.36932 |
| SNR variance: | H1: 0.391934, L1: 0.477057 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

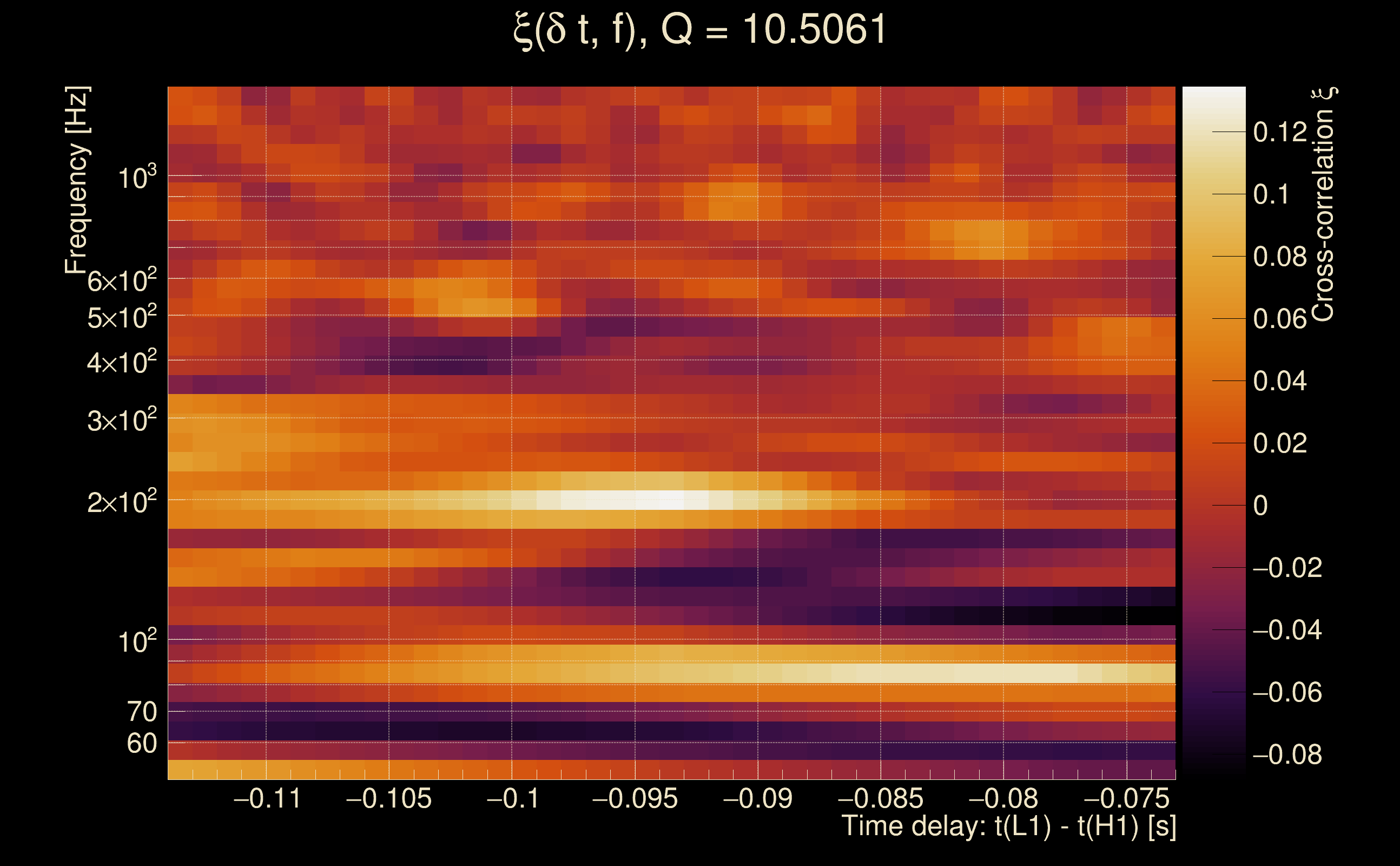

| Event time t(H1): | GPS = 1368195313 (Mon May 15 14:14:55 2023 ) → GPS = 1368195323 (Mon May 15 14:15:05 2023 ) |
| Event time t(L1): | GPS = 1368195313 (Mon May 15 14:15:05 2023 ) → GPS = 1368195323 (Mon May 15 14:15:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195310 → GPS = 1368195326 |
| Omicron analysis time window (L1): | GPS = 1368195310 → GPS = 1368195326 |
| Time delay between detectors t(L1) - t(H1): | -0.00238069 s (slice index = 108 / 217), δt_gw = -0.00238069 s |
| Time delay uncertainty: | 0.000168483 s |
| Frequency: | 715.976 Hz |
| Ξ: | 0.0140438 ± 0.0343625 (variance = 0.00118078): Q0: 0, Q1: 0, Q2: 0.0569725, Q3: 0.0502121, Q4: 0.0881242 |
| Rank: | R_A = 0.00649172 |
| Log of amplitude ratio (L1/H1): | 0.527728, variance = 0.37001 (L1/H1: 0.0759583, variance = 0.772646, H1/L1: -0.965515, variance = 0.709029) |
| Amplitude ratio (L1/H1): | 1.69508 ⋇ 1.83728 (L1/H1: 1.07892 ⋇ 2.4085, H1/L1: 0.380787 ⋇ 2.32109) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.464903 |
| Antenna factor probability: | 0.994292 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 65 / 70, Q3: 128 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.93177, L1: 5.0099 |
| SNR variance: | H1: 0.565351, L1: 0.584756 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195298 (Mon May 15 14:14:40 2023 ) → GPS = 1368195308 (Mon May 15 14:14:50 2023 ) |
| Event time t(L1): | GPS = 1368195298 (Mon May 15 14:14:50 2023 ) → GPS = 1368195308 (Mon May 15 14:14:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195295 → GPS = 1368195311 |
| Omicron analysis time window (L1): | GPS = 1368195295 → GPS = 1368195311 |
| Time delay between detectors t(L1) - t(H1): | 0.00175283 s (slice index = 108 / 217), δt_gw = 0.00175283 s |
| Time delay uncertainty: | 0.000357522 s |
| Frequency: | 840.23 Hz |
| Ξ: | 0.005451 ± 0.0312694 (variance = 0.000977773): Q0: 0, Q1: 0, Q2: 0, Q3: 0.038967, Q4: 0.0782075 |
| Rank: | R_A = 0.0014945 |
| Log of amplitude ratio (L1/H1): | 0.324737, variance = 0.254239 (L1/H1: -0.217936, variance = 0.492239, H1/L1: -0.884982, variance = 0.52552) |
| Amplitude ratio (L1/H1): | 1.38367 ⋇ 1.6557 (L1/H1: 0.804177 ⋇ 2.01697, H1/L1: 0.412722 ⋇ 2.06458) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.274283 |
| Antenna factor probability: | 0.999591 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 132 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.06843, L1: 4.98832 |
| SNR variance: | H1: 0.436123, L1: 0.489629 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195258 (Mon May 15 14:14:00 2023 ) → GPS = 1368195268 (Mon May 15 14:14:10 2023 ) |
| Event time t(L1): | GPS = 1368195258 (Mon May 15 14:14:10 2023 ) → GPS = 1368195268 (Mon May 15 14:14:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195255 → GPS = 1368195271 |
| Omicron analysis time window (L1): | GPS = 1368195255 → GPS = 1368195271 |
| Time delay between detectors t(L1) - t(H1): | 0.00550087 s (slice index = 108 / 217), δt_gw = 0.00550087 s |
| Time delay uncertainty: | 0.000256611 s |
| Frequency: | 1469.14 Hz |
| Ξ: | 0.00727605 ± 0.0164227 (variance = 0.000269706): Q0: 0, Q1: 0, Q2: 0.0291773, Q3: 0.0300972, Q4: 0.0390503 |
| Rank: | R_A = 0.00121191 |
| Log of amplitude ratio (L1/H1): | 0.802539, variance = 0.524209 (L1/H1: -0.366281, variance = 1.35838, H1/L1: -1.68492, variance = 0.840279) |
| Amplitude ratio (L1/H1): | 2.2312 ⋇ 2.06271 (L1/H1: 0.693308 ⋇ 3.20752, H1/L1: 0.18546 ⋇ 2.50094) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.166562 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.90829, L1: 5.64907 |
| SNR variance: | H1: 0.399445, L1: 0.471635 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195268 (Mon May 15 14:14:10 2023 ) → GPS = 1368195278 (Mon May 15 14:14:20 2023 ) |
| Event time t(L1): | GPS = 1368195268 (Mon May 15 14:14:20 2023 ) → GPS = 1368195278 (Mon May 15 14:14:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195265 → GPS = 1368195281 |
| Omicron analysis time window (L1): | GPS = 1368195265 → GPS = 1368195281 |
| Time delay between detectors t(L1) - t(H1): | 0.00933714 s (slice index = 108 / 217), δt_gw = 0.00933714 s |
| Time delay uncertainty: | 0.000398751 s |
| Frequency: | 799.263 Hz |
| Ξ: | 0.006633 ± 0.0250039 (variance = 0.000625194): Q0: 0, Q1: 0, Q2: 0.022884, Q3: 0.0175952, Q4: 0.0682398 |
| Rank: | R_A = 0.00106075 |
| Log of amplitude ratio (L1/H1): | 0.489865, variance = 0.214526 (L1/H1: -0.0675049, variance = 0.523728, H1/L1: -1.12135, variance = 0.303731) |
| Amplitude ratio (L1/H1): | 1.6321 ⋇ 1.5891 (L1/H1: 0.934723 ⋇ 2.06203, H1/L1: 0.325839 ⋇ 1.73519) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.191233 |
| Antenna factor probability: | 0.836255 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 68 / 70, Q3: 133 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.20318, L1: 4.88831 |
| SNR variance: | H1: 0.420925, L1: 0.47082 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195238 (Mon May 15 14:13:40 2023 ) → GPS = 1368195248 (Mon May 15 14:13:50 2023 ) |
| Event time t(L1): | GPS = 1368195238 (Mon May 15 14:13:50 2023 ) → GPS = 1368195248 (Mon May 15 14:13:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195235 → GPS = 1368195251 |
| Omicron analysis time window (L1): | GPS = 1368195235 → GPS = 1368195251 |
| Time delay between detectors t(L1) - t(H1): | -0.00699309 s (slice index = 108 / 217), δt_gw = -0.00699309 s |
| Time delay uncertainty: | 0.000535492 s |
| Frequency: | 1057.8 Hz |
| Ξ: | 0.00324591 ± 0.0226077 (variance = 0.000511109): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0171039, Q4: 0.0583146 |
| Rank: | R_A = 0.000533229 |
| Log of amplitude ratio (L1/H1): | 0.399727, variance = 0.382367 (L1/H1: -0.517822, variance = 1.14841, H1/L1: -1.23652, variance = 0.442656) |
| Amplitude ratio (L1/H1): | 1.49142 ⋇ 1.85588 (L1/H1: 0.595817 ⋇ 2.92017, H1/L1: 0.290392 ⋇ 1.94512) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.16428 |
| Antenna factor probability: | 0.999984 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 133 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.65718, L1: 4.87672 |
| SNR variance: | H1: 0.387844, L1: 0.436718 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195263 (Mon May 15 14:14:05 2023 ) → GPS = 1368195273 (Mon May 15 14:14:15 2023 ) |
| Event time t(L1): | GPS = 1368195263 (Mon May 15 14:14:15 2023 ) → GPS = 1368195273 (Mon May 15 14:14:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195260 → GPS = 1368195276 |
| Omicron analysis time window (L1): | GPS = 1368195260 → GPS = 1368195276 |
| Time delay between detectors t(L1) - t(H1): | 0.0038337 s (slice index = 108 / 217), δt_gw = 0.0038337 s |
| Time delay uncertainty: | 0.000509237 s |
| Frequency: | 1195.36 Hz |
| Ξ: | 0.00853944 ± 0.0215468 (variance = 0.000464263): Q0: 0, Q1: 0, Q2: 0.0321505, Q3: 0.0342564, Q4: 0.055599 |
| Rank: | R_A = 0.000425348 |
| Log of amplitude ratio (L1/H1): | 0.492149, variance = 0.345215 (L1/H1: -0.749239, variance = 0.823535, H1/L1: -1.57701, variance = 0.583285) |
| Amplitude ratio (L1/H1): | 1.63583 ⋇ 1.79957 (L1/H1: 0.472726 ⋇ 2.47809, H1/L1: 0.206591 ⋇ 2.14627) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0498473 |
| Antenna factor probability: | 0.999248 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 132 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.23834, L1: 5.6035 |
| SNR variance: | H1: 0.414644, L1: 0.470707 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195293 (Mon May 15 14:14:35 2023 ) → GPS = 1368195303 (Mon May 15 14:14:45 2023 ) |
| Event time t(L1): | GPS = 1368195293 (Mon May 15 14:14:45 2023 ) → GPS = 1368195303 (Mon May 15 14:14:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195290 → GPS = 1368195306 |
| Omicron analysis time window (L1): | GPS = 1368195290 → GPS = 1368195306 |
| Time delay between detectors t(L1) - t(H1): | 0.00237253 s (slice index = 108 / 217), δt_gw = 0.00237253 s |
| Time delay uncertainty: | 0.000348051 s |
| Frequency: | 835.314 Hz |
| Ξ: | 0.00709597 ± 0.0362754 (variance = 0.0013159): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0595015, Q4: 0.0849128 |
| Rank: | R_A = 0.00038179 |
| Log of amplitude ratio (L1/H1): | 0.615562, variance = 0.24445 (L1/H1: -0.310794, variance = 0.60952, H1/L1: -1.57927, variance = 0.357958) |
| Amplitude ratio (L1/H1): | 1.8507 ⋇ 1.63954 (L1/H1: 0.732864 ⋇ 2.18304, H1/L1: 0.206126 ⋇ 1.81902) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0546604 |
| Antenna factor probability: | 0.984329 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 128 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.1089, L1: 5.00893 |
| SNR variance: | H1: 0.448229, L1: 0.479552 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195323 (Mon May 15 14:15:05 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Event time t(L1): | GPS = 1368195323 (Mon May 15 14:15:15 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195320 → GPS = 1368195336 |
| Omicron analysis time window (L1): | GPS = 1368195320 → GPS = 1368195336 |
| Time delay between detectors t(L1) - t(H1): | -0.000338235 s (slice index = 108 / 217), δt_gw = -0.000338235 s |
| Time delay uncertainty: | 0.000634399 s |
| Frequency: | 540.627 Hz |
| Ξ: | 0.00461769 ± 0.0236434 (variance = 0.000559009): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0386335, Q4: 0.0554246 |
| Rank: | R_A = 0.000356199 |
| Log of amplitude ratio (L1/H1): | 0.592486, variance = 0.161314 (L1/H1: -0.0197064, variance = 0.314503, H1/L1: -1.38996, variance = 0.321641) |
| Amplitude ratio (L1/H1): | 1.80848 ⋇ 1.49427 (L1/H1: 0.980486 ⋇ 1.75208, H1/L1: 0.249084 ⋇ 1.76321) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0771576 |
| Antenna factor probability: | 0.999744 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 130 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.69444, L1: 4.98925 |
| SNR variance: | H1: 0.471542, L1: 0.489338 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195273 (Mon May 15 14:14:15 2023 ) → GPS = 1368195283 (Mon May 15 14:14:25 2023 ) |
| Event time t(L1): | GPS = 1368195273 (Mon May 15 14:14:25 2023 ) → GPS = 1368195283 (Mon May 15 14:14:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195270 → GPS = 1368195286 |
| Omicron analysis time window (L1): | GPS = 1368195270 → GPS = 1368195286 |
| Time delay between detectors t(L1) - t(H1): | 0.00432316 s (slice index = 108 / 217), δt_gw = 0.00432316 s |
| Time delay uncertainty: | 0.000559489 s |
| Frequency: | 1011.39 Hz |
| Ξ: | 0.00209065 ± 0.0137878 (variance = 0.000190104): Q0: 0, Q1: 0, Q2: 0, Q3: 0.012117, Q4: 0.0354408 |
| Rank: | R_A = 8.43875e-05 |
| Log of amplitude ratio (L1/H1): | 0.770714, variance = 0.228383 (L1/H1: -0.184936, variance = 0.362543, H1/L1: -1.78533, variance = 0.562107) |
| Amplitude ratio (L1/H1): | 2.16131 ⋇ 1.61268 (L1/H1: 0.831158 ⋇ 1.82598, H1/L1: 0.167742 ⋇ 2.11644) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.040465 |
| Antenna factor probability: | 0.997509 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 133 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.06511, L1: 4.91573 |
| SNR variance: | H1: 0.410136, L1: 0.458461 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195228 (Mon May 15 14:13:30 2023 ) → GPS = 1368195238 (Mon May 15 14:13:40 2023 ) |
| Event time t(L1): | GPS = 1368195228 (Mon May 15 14:13:40 2023 ) → GPS = 1368195238 (Mon May 15 14:13:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195225 → GPS = 1368195241 |
| Omicron analysis time window (L1): | GPS = 1368195225 → GPS = 1368195241 |
| Time delay between detectors t(L1) - t(H1): | 0.0106503 s (slice index = 108 / 217), δt_gw = 0.0106503 s |
| Time delay uncertainty: | 0.000961128 s |
| Frequency: | 1298.61 Hz |
| Ξ: | 0.00179028 ± 0.0201307 (variance = 0.000405245): Q0: 0, Q1: 0, Q2: 0, Q3: 0, Q4: 0.0503267 |
| Rank: | R_A = 1.0147e-05 |
| Log of amplitude ratio (L1/H1): | 0.614589, variance = 0.22425 (L1/H1: -0.865811, variance = 0.522091, H1/L1: -1.73472, variance = 0.393089) |
| Amplitude ratio (L1/H1): | 1.8489 ⋇ 1.60569 (L1/H1: 0.42071 ⋇ 2.0597, H1/L1: 0.17645 ⋇ 1.87193) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0065604 |
| Antenna factor probability: | 0.863945 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 134 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.69598, L1: 5.3986 |
| SNR variance: | H1: 0.393251, L1: 0.447279 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195248 (Mon May 15 14:13:50 2023 ) → GPS = 1368195258 (Mon May 15 14:14:00 2023 ) |
| Event time t(L1): | GPS = 1368195248 (Mon May 15 14:14:00 2023 ) → GPS = 1368195258 (Mon May 15 14:14:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195245 → GPS = 1368195261 |
| Omicron analysis time window (L1): | GPS = 1368195245 → GPS = 1368195261 |
| Time delay between detectors t(L1) - t(H1): | 0.000938776 s (slice index = 108 / 217), δt_gw = 0.000938776 s |
| Time delay uncertainty: | 0.000945773 s |
| Frequency: | 532.248 Hz |
| Ξ: | 0.00590455 ± 0.0178893 (variance = 0.000320028): Q0: 0, Q1: 0, Q2: 0.0346631, Q3: 0, Q4: 0.0382248 |
| Rank: | R_A = 1.84818e-06 |
| Log of amplitude ratio (L1/H1): | 0.951753, variance = 0.0654661 (L1/H1: 1.67661, variance = 0.0708289, H1/L1: -0.20287, variance = 0.195015) |
| Amplitude ratio (L1/H1): | 2.59025 ⋇ 1.29158 (L1/H1: 5.34738 ⋇ 1.30491, H1/L1: 0.816384 ⋇ 1.5552) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.00425924 |
| Antenna factor probability: | 0.0734895 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 134 / 134, Q4: 256 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.88348, L1: 4.80449 |
| SNR variance: | H1: 0.389659, L1: 0.446242 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195243 (Mon May 15 14:13:45 2023 ) → GPS = 1368195253 (Mon May 15 14:13:55 2023 ) |
| Event time t(L1): | GPS = 1368195243 (Mon May 15 14:13:55 2023 ) → GPS = 1368195253 (Mon May 15 14:13:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195240 → GPS = 1368195256 |
| Omicron analysis time window (L1): | GPS = 1368195240 → GPS = 1368195256 |
| Time delay between detectors t(L1) - t(H1): | 0.00357188 s (slice index = 108 / 217), δt_gw = 0.00357188 s |
| Time delay uncertainty: | 0.00117624 s |
| Frequency: | 1181.79 Hz |
| Ξ: | 0.000756576 ± 0.00850727 (variance = 7.23736e-05): Q0: 0, Q1: 0, Q2: 0, Q3: 0, Q4: 0.0212682 |
| Rank: | R_A = 1.76611e-06 |
| Log of amplitude ratio (L1/H1): | 1.01763, variance = 0.0457675 (L1/H1: 0.64234, variance = 0.157804, H1/L1: -1.41365, variance = 0.0176041) |
| Amplitude ratio (L1/H1): | 2.76663 ⋇ 1.23854 (L1/H1: 1.90092 ⋇ 1.48772, H1/L1: 0.243254 ⋇ 1.14189) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.0655282 |
| Antenna factor probability: | 0.0356234 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 134 / 134, Q4: 255 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.98372, L1: 4.85154 |
| SNR variance: | H1: 0.405935, L1: 0.437485 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195253 (Mon May 15 14:13:55 2023 ) → GPS = 1368195263 (Mon May 15 14:14:05 2023 ) |
| Event time t(L1): | GPS = 1368195253 (Mon May 15 14:14:05 2023 ) → GPS = 1368195263 (Mon May 15 14:14:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195250 → GPS = 1368195266 |
| Omicron analysis time window (L1): | GPS = 1368195250 → GPS = 1368195266 |
| Time delay between detectors t(L1) - t(H1): | -3.77522 s (slice index = 190 / 217), δt_gw = -0.00322192 s |
| Time delay uncertainty: | 0.000448827 s |
| Frequency: | 798.628 Hz |
| Ξ: | 0.0147028 ± 0.0375177 (variance = 0.00140758): Q0: 0, Q1: 0, Q2: 0.0598397, Q3: 0.0491897, Q4: 0.0980504 |
| Rank: | R_A = 0.0126002 |
| Log of amplitude ratio (L1/H1): | 0.0428509, variance = 0.399371 (L1/H1: -0.0802038, variance = 0.915512, H1/L1: -0.143973, variance = 0.7072) |
| Amplitude ratio (L1/H1): | 1.04378 ⋇ 1.88129 (L1/H1: 0.922928 ⋇ 2.60341, H1/L1: 0.865911 ⋇ 2.31857) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.860307 |
| Antenna factor probability: | 0.996149 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 130 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.86736, L1: 5.36932 |
| SNR variance: | H1: 0.391934, L1: 0.477057 |
| Event time t(H1): | GPS = 1368195318 (Mon May 15 14:15:00 2023 ) → GPS = 1368195328 (Mon May 15 14:15:10 2023 ) |
| Event time t(L1): | GPS = 1368195318 (Mon May 15 14:15:10 2023 ) → GPS = 1368195328 (Mon May 15 14:15:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195315 → GPS = 1368195331 |
| Omicron analysis time window (L1): | GPS = 1368195315 → GPS = 1368195331 |
| Time delay between detectors t(L1) - t(H1): | -3.78048 s (slice index = 190 / 217), δt_gw = -0.00848467 s |
| Time delay uncertainty: | 0.000211899 s |
| Frequency: | 744.864 Hz |
| Ξ: | 0.0118216 ± 0.0501478 (variance = 0.0025148): Q0: 0, Q1: 0, Q2: 0.0273279, Q3: 0.0498298, Q4: 0.135654 |
| Rank: | R_A = 0.00706742 |
| Log of amplitude ratio (L1/H1): | 0.330385, variance = 0.577136 (L1/H1: -0.0768683, variance = 0.659463, H1/L1: -0.714705, variance = 1.5931) |
| Amplitude ratio (L1/H1): | 1.3915 ⋇ 2.13762 (L1/H1: 0.926012 ⋇ 2.25257, H1/L1: 0.489336 ⋇ 3.53311) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.597905 |
| Antenna factor probability: | 0.999893 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 68 / 70, Q3: 129 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.88507, L1: 5.0287 |
| SNR variance: | H1: 0.448878, L1: 0.482958 |
| Event time t(H1): | GPS = 1368195313 (Mon May 15 14:14:55 2023 ) → GPS = 1368195323 (Mon May 15 14:15:05 2023 ) |
| Event time t(L1): | GPS = 1368195313 (Mon May 15 14:15:05 2023 ) → GPS = 1368195323 (Mon May 15 14:15:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195310 → GPS = 1368195326 |
| Omicron analysis time window (L1): | GPS = 1368195310 → GPS = 1368195326 |
| Time delay between detectors t(L1) - t(H1): | -3.77228 s (slice index = 190 / 217), δt_gw = -0.00028311 s |
| Time delay uncertainty: | 0.000360175 s |
| Frequency: | 751.716 Hz |
| Ξ: | 0.0128902 ± 0.0285908 (variance = 0.000817434): Q0: 0, Q1: 0, Q2: 0.0595695, Q3: 0.0393121, Q4: 0.0671114 |
| Rank: | R_A = 0.00676426 |
| Log of amplitude ratio (L1/H1): | 0.148942, variance = 0.318479 (L1/H1: -0.216543, variance = 0.746266, H1/L1: -0.503115, variance = 0.534008) |
| Amplitude ratio (L1/H1): | 1.16061 ⋇ 1.75829 (L1/H1: 0.805298 ⋇ 2.37232, H1/L1: 0.604644 ⋇ 2.07665) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.524759 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.93177, L1: 5.0099 |
| SNR variance: | H1: 0.565351, L1: 0.584756 |
| Event time t(H1): | GPS = 1368195243 (Mon May 15 14:13:45 2023 ) → GPS = 1368195253 (Mon May 15 14:13:55 2023 ) |
| Event time t(L1): | GPS = 1368195243 (Mon May 15 14:13:55 2023 ) → GPS = 1368195253 (Mon May 15 14:13:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195240 → GPS = 1368195256 |
| Omicron analysis time window (L1): | GPS = 1368195240 → GPS = 1368195256 |
| Time delay between detectors t(L1) - t(H1): | -3.76902 s (slice index = 190 / 217), δt_gw = 0.00297589 s |
| Time delay uncertainty: | 0.000884993 s |
| Frequency: | 1169.26 Hz |
| Ξ: | 0.00749484 ± 0.050725 (variance = 0.00257303): Q0: 0, Q1: 0, Q2: 0, Q3: 0.0415714, Q4: 0.130648 |
| Rank: | R_A = 0.00453922 |
| Log of amplitude ratio (L1/H1): | 1.02826, variance = 2.09428 (L1/H1: 0.291918, variance = 2.18971, H1/L1: -1.80527, variance = 6.40792) |
| Amplitude ratio (L1/H1): | 2.79619 ⋇ 4.25103 (L1/H1: 1.33899 ⋇ 4.39192, H1/L1: 0.164431 ⋇ 12.5709) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.605772 |
| Antenna factor probability: | 0.999793 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 70 / 70, Q3: 133 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.98372, L1: 4.85154 |
| SNR variance: | H1: 0.405935, L1: 0.437485 |
| Event time t(H1): | GPS = 1368195323 (Mon May 15 14:15:05 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Event time t(L1): | GPS = 1368195323 (Mon May 15 14:15:15 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195320 → GPS = 1368195336 |
| Omicron analysis time window (L1): | GPS = 1368195320 → GPS = 1368195336 |
| Time delay between detectors t(L1) - t(H1): | -3.76789 s (slice index = 190 / 217), δt_gw = 0.00410964 s |
| Time delay uncertainty: | 0.0002747 s |
| Frequency: | 551.457 Hz |
| Ξ: | 0.012424 ± 0.0393514 (variance = 0.00154854): Q0: 0, Q1: 0, Q2: 0.032389, Q3: 0.0667256, Q4: 0.101405 |
| Rank: | R_A = 0.00401585 |
| Log of amplitude ratio (L1/H1): | 0.702784, variance = 0.196658 (L1/H1: 0.309887, variance = 0.290847, H1/L1: -1.21459, variance = 0.549187) |
| Amplitude ratio (L1/H1): | 2.01937 ⋇ 1.55809 (L1/H1: 1.36327 ⋇ 1.71481, H1/L1: 0.29683 ⋇ 2.09818) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.323595 |
| Antenna factor probability: | 0.998878 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 69 / 70, Q3: 131 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.69444, L1: 4.98925 |
| SNR variance: | H1: 0.471542, L1: 0.489338 |
| Detection threshold: | R > 0.175 |
| False-alarm rate above that detection threshold: | 1.10742e-05 |
| Alternative threshold at 1/1000 yrs: | R > 0.175 |
| Alternative threshold at 1/100 yrs: | R > 0.175 |
| Alternative threshold at 1/10 yrs: | R > 0.175 |
| Alternative threshold at 1/1 yr: | R > 0.175 |
| Alternative threshold at 1/1 d: | R > 0.175 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195303 (Mon May 15 14:14:45 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Event time t(L1): | GPS = 1368195303 (Mon May 15 14:14:55 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195300 → GPS = 1368195316 |
| Omicron analysis time window (L1): | GPS = 1368195300 → GPS = 1368195316 |
| Time delay between detectors t(L1) - t(H1): | 0.0416478 s (slice index = 107 / 217), δt_gw = -0.00435222 s |
| Time delay uncertainty: | 0.000117505 s |
| Frequency: | 258.589 Hz |
| Ξ: | 0.305088 ± 0.0580849 (variance = 0.00337385): Q0: 0.264321, Q1: 0.339265, Q2: 0.398043, Q3: 0.339268, Q4: 0.236084 |
| Rank: | R_A = 0.17174 |
| Log of amplitude ratio (L1/H1): | 0.297734, variance = 0.241382 (L1/H1: 0.0908304, variance = 0.481428, H1/L1: -0.632247, variance = 0.394439) |
| Amplitude ratio (L1/H1): | 1.3468 ⋇ 1.63445 (L1/H1: 1.09508 ⋇ 2.00141, H1/L1: 0.531396 ⋇ 1.87394) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.562918 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 30 / 36, Q2: 59 / 70, Q3: 117 / 134, Q4: 241 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.8064, L1: 14.0041 |
| SNR variance: | H1: 0.450601, L1: 0.485793 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195308 (Mon May 15 14:14:50 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Event time t(L1): | GPS = 1368195308 (Mon May 15 14:15:00 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195305 → GPS = 1368195321 |
| Omicron analysis time window (L1): | GPS = 1368195305 → GPS = 1368195321 |
| Time delay between detectors t(L1) - t(H1): | 0.0454075 s (slice index = 107 / 217), δt_gw = -0.00059255 s |
| Time delay uncertainty: | 0.00021863 s |
| Frequency: | 232.24 Hz |
| Ξ: | 0.309042 ± 0.0503071 (variance = 0.00253081): Q0: 0.284726, Q1: 0.307547, Q2: 0.393446, Q3: 0.361704, Q4: 0.255787 |
| Rank: | R_A = 0.123593 |
| Log of amplitude ratio (L1/H1): | 0.214208, variance = 0.139216 (L1/H1: -0.0307224, variance = 0.229064, H1/L1: -0.612261, variance = 0.354414) |
| Amplitude ratio (L1/H1): | 1.23888 ⋇ 1.45225 (L1/H1: 0.969745 ⋇ 1.61382, H1/L1: 0.542124 ⋇ 1.81362) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.399923 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 16 / 18, Q1: 29 / 36, Q2: 58 / 70, Q3: 121 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.782, L1: 13.9486 |
| SNR variance: | H1: 0.580638, L1: 0.575354 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195303 (Mon May 15 14:14:45 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Event time t(L1): | GPS = 1368195303 (Mon May 15 14:14:55 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195300 → GPS = 1368195316 |
| Omicron analysis time window (L1): | GPS = 1368195300 → GPS = 1368195316 |
| Time delay between detectors t(L1) - t(H1): | -0.0460184 s (slice index = 109 / 217), δt_gw = -1.83617e-05 s |
| Time delay uncertainty: | 0.000267543 s |
| Frequency: | 203.691 Hz |
| Ξ: | 0.291563 ± 0.0754047 (variance = 0.00568587): Q0: 0.286104, Q1: 0.277224, Q2: 0.270833, Q3: 0.331393, Q4: 0.472282 |
| Rank: | R_A = 0.0923665 |
| Log of amplitude ratio (L1/H1): | 0.12254, variance = 0.193778 (L1/H1: -0.205853, variance = 0.365574, H1/L1: -0.653472, variance = 0.371304) |
| Amplitude ratio (L1/H1): | 1.13036 ⋇ 1.55302 (L1/H1: 0.813953 ⋇ 1.83057, H1/L1: 0.520237 ⋇ 1.83923) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.316798 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 30 / 36, Q2: 61 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.8064, L1: 14.0041 |
| SNR variance: | H1: 0.450601, L1: 0.485793 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195308 (Mon May 15 14:14:50 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Event time t(L1): | GPS = 1368195308 (Mon May 15 14:15:00 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195305 → GPS = 1368195321 |
| Omicron analysis time window (L1): | GPS = 1368195305 → GPS = 1368195321 |
| Time delay between detectors t(L1) - t(H1): | -0.0456863 s (slice index = 109 / 217), δt_gw = 0.0003137 s |
| Time delay uncertainty: | 0.000172815 s |
| Frequency: | 211.592 Hz |
| Ξ: | 0.276596 ± 0.0638524 (variance = 0.00407713): Q0: 0.255564, Q1: 0.27118, Q2: 0.280346, Q3: 0.373074, Q4: 0.417275 |
| Rank: | R_A = 0.0563409 |
| Log of amplitude ratio (L1/H1): | 0.137495, variance = 0.127284 (L1/H1: -0.214784, variance = 0.211948, H1/L1: -0.710008, variance = 0.317387) |
| Amplitude ratio (L1/H1): | 1.1474 ⋇ 1.42871 (L1/H1: 0.806715 ⋇ 1.58467, H1/L1: 0.49164 ⋇ 1.75658) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.203694 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 29 / 36, Q2: 64 / 70, Q3: 130 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.782, L1: 13.9486 |
| SNR variance: | H1: 0.580638, L1: 0.575354 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195313 (Mon May 15 14:14:55 2023 ) → GPS = 1368195323 (Mon May 15 14:15:05 2023 ) |
| Event time t(L1): | GPS = 1368195313 (Mon May 15 14:15:05 2023 ) → GPS = 1368195323 (Mon May 15 14:15:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195310 → GPS = 1368195326 |
| Omicron analysis time window (L1): | GPS = 1368195310 → GPS = 1368195326 |
| Time delay between detectors t(L1) - t(H1): | 2.76334 s (slice index = 48 / 217), δt_gw = 0.00333543 s |
| Time delay uncertainty: | 0.000181386 s |
| Frequency: | 129.473 Hz |
| Ξ: | 0.0523784 ± 0.231446 (variance = 0.0535674): Q0: 0, Q1: 0, Q2: 0.0395578, Q3: 0.405228, Q4: 0.546399 |
| Rank: | R_A = 0.03398 |
| Log of amplitude ratio (L1/H1): | 0.547786, variance = 0.476597 (L1/H1: 0.864428, variance = 0.444513, H1/L1: -0.240944, variance = 1.43042) |
| Amplitude ratio (L1/H1): | 1.72942 ⋇ 1.99443 (L1/H1: 2.37365 ⋇ 1.94783, H1/L1: 0.785886 ⋇ 3.30686) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.648867 |
| Antenna factor probability: | 0.999808 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 68 / 70, Q3: 126 / 134, Q4: 251 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.93177, L1: 5.0099 |
| SNR variance: | H1: 0.565351, L1: 0.584756 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195323 (Mon May 15 14:15:05 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Event time t(L1): | GPS = 1368195323 (Mon May 15 14:15:15 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195320 → GPS = 1368195336 |
| Omicron analysis time window (L1): | GPS = 1368195320 → GPS = 1368195336 |
| Time delay between detectors t(L1) - t(H1): | -3.58236 s (slice index = 186 / 217), δt_gw = 0.00563542 s |
| Time delay uncertainty: | 0.000162462 s |
| Frequency: | 275.201 Hz |
| Ξ: | 0.0337307 ± 0.056873 (variance = 0.00323453): Q0: 0, Q1: 0.0219739, Q2: 0.165363, Q3: 0.0649757, Q4: 0.0561437 |
| Rank: | R_A = 0.0324904 |
| Log of amplitude ratio (L1/H1): | 0.632079, variance = 0.380609 (L1/H1: 0.607642, variance = 0.757969, H1/L1: -0.663912, variance = 0.731868) |
| Amplitude ratio (L1/H1): | 1.88152 ⋇ 1.85324 (L1/H1: 1.8361 ⋇ 2.38838, H1/L1: 0.514833 ⋇ 2.35253) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.96323 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 66 / 70, Q3: 127 / 134, Q4: 246 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.69444, L1: 4.98925 |
| SNR variance: | H1: 0.471542, L1: 0.489338 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195323 (Mon May 15 14:15:05 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Event time t(L1): | GPS = 1368195323 (Mon May 15 14:15:15 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195320 → GPS = 1368195336 |
| Omicron analysis time window (L1): | GPS = 1368195320 → GPS = 1368195336 |
| Time delay between detectors t(L1) - t(H1): | 1.84142 s (slice index = 68 / 217), δt_gw = 0.0014173 s |
| Time delay uncertainty: | 0.000167867 s |
| Frequency: | 380.278 Hz |
| Ξ: | 0.0319206 ± 0.0433669 (variance = 0.00188068): Q0: 0, Q1: 0.029645, Q2: 0.121664, Q3: 0.0927934, Q4: 0.0577864 |
| Rank: | R_A = 0.0310101 |
| Log of amplitude ratio (L1/H1): | 0.614328, variance = 0.402613 (L1/H1: 0.594636, variance = 0.755418, H1/L1: -0.639981, variance = 0.852868) |
| Amplitude ratio (L1/H1): | 1.84841 ⋇ 1.88611 (L1/H1: 1.81237 ⋇ 2.38488, H1/L1: 0.527303 ⋇ 2.51811) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.971477 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 35 / 36, Q2: 67 / 70, Q3: 128 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.69444, L1: 4.98925 |
| SNR variance: | H1: 0.471542, L1: 0.489338 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195303 (Mon May 15 14:14:45 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Event time t(L1): | GPS = 1368195303 (Mon May 15 14:14:55 2023 ) → GPS = 1368195313 (Mon May 15 14:14:55 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195300 → GPS = 1368195316 |
| Omicron analysis time window (L1): | GPS = 1368195300 → GPS = 1368195316 |
| Time delay between detectors t(L1) - t(H1): | -0.131226 s (slice index = 111 / 217), δt_gw = 0.00677379 s |
| Time delay uncertainty: | 0.00015524 s |
| Frequency: | 191.204 Hz |
| Ξ: | 0.175109 ± 0.0617118 (variance = 0.00380835): Q0: 0.159735, Q1: 0.232772, Q2: 0.199787, Q3: 0.0707736, Q4: 0.092158 |
| Rank: | R_A = 0.0309307 |
| Log of amplitude ratio (L1/H1): | -0.304666, variance = 1.09032 (L1/H1: -1.28296, variance = 2.40185, H1/L1: -1.277, variance = 1.18767) |
| Amplitude ratio (L1/H1): | 0.73737 ⋇ 2.84108 (L1/H1: 0.277216 ⋇ 4.71049, H1/L1: 0.278874 ⋇ 2.97368) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.176637 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 15 / 18, Q1: 29 / 36, Q2: 60 / 70, Q3: 128 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.8064, L1: 14.0041 |
| SNR variance: | H1: 0.450601, L1: 0.485793 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195308 (Mon May 15 14:14:50 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Event time t(L1): | GPS = 1368195308 (Mon May 15 14:15:00 2023 ) → GPS = 1368195318 (Mon May 15 14:15:00 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195305 → GPS = 1368195321 |
| Omicron analysis time window (L1): | GPS = 1368195305 → GPS = 1368195321 |
| Time delay between detectors t(L1) - t(H1): | -0.0935789 s (slice index = 110 / 217), δt_gw = -0.00157887 s |
| Time delay uncertainty: | 0.000123232 s |
| Frequency: | 315.298 Hz |
| Ξ: | 0.137508 ± 0.0373737 (variance = 0.00139679): Q0: 0.150259, Q1: 0.118093, Q2: 0.114178, Q3: 0.189872, Q4: 0.0790377 |
| Rank: | R_A = 0.0308382 |
| Log of amplitude ratio (L1/H1): | 0.00501933, variance = 0.662121 (L1/H1: -0.702944, variance = 1.35526, H1/L1: -1.15558, variance = 0.983538) |
| Amplitude ratio (L1/H1): | 1.00503 ⋇ 2.25626 (L1/H1: 0.495125 ⋇ 3.20322, H1/L1: 0.314876 ⋇ 2.69591) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.224265 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 27 / 36, Q2: 59 / 70, Q3: 118 / 134, Q4: 235 / 258 |
| Maximum signal-to-noise ratio: | H1: 17.782, L1: 13.9486 |
| SNR variance: | H1: 0.580638, L1: 0.575354 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1368195323 (Mon May 15 14:15:05 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Event time t(L1): | GPS = 1368195323 (Mon May 15 14:15:15 2023 ) → GPS = 1368195333 (Mon May 15 14:15:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1368195320 → GPS = 1368195336 |
| Omicron analysis time window (L1): | GPS = 1368195320 → GPS = 1368195336 |
| Time delay between detectors t(L1) - t(H1): | -2.39177 s (slice index = 160 / 217), δt_gw = 0.000227486 s |
| Time delay uncertainty: | 0.00021318 s |
| Frequency: | 189.985 Hz |
| Ξ: | 0.0376896 ± 0.0830037 (variance = 0.00688961): Q0: 0, Q1: 0, Q2: 0.227051, Q3: 0.0803507, Q4: 0.0679447 |
| Rank: | R_A = 0.0262492 |
| Log of amplitude ratio (L1/H1): | 0.744341, variance = 0.526852 (L1/H1: 0.492461, variance = 0.836602, H1/L1: -1.07246, variance = 1.37385) |
| Amplitude ratio (L1/H1): | 2.10505 ⋇ 2.06648 (L1/H1: 1.63634 ⋇ 2.49593, H1/L1: 0.342167 ⋇ 3.22881) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.696458 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 18 / 18, Q1: 36 / 36, Q2: 68 / 70, Q3: 128 / 134, Q4: 254 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.69444, L1: 4.98925 |
| SNR variance: | H1: 0.471542, L1: 0.489338 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
