| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Sat Nov 16 06:28:39 2024 UTC |
| Ox option file: | GlobalRatio_14days_121124_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 16 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| List of input Ox files: | GlobalRatio_14days_121124_file_list.txt (1817 files) |
| Analysis result file: | GlobalRatio_14days_121124_results_0.root |
| Slice selected for the the fakeground: | slice index=136 (-21.288 s), time lag = -20 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 177617 | 177062 | 421814264 | |
| Start Date (detector 0) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:55:14 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:46 2023 UTC | |
| Start GPS (detector 0) | 1377665712 | 1377665712 | 1377665732 | |
| End GPS (detector 0) | 1378944124 | 1378944124 | 1378944124 | |
| Used livetime (detector 0) | 888780 s | 886000 s | 888780 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:26 2023 UTC | |
| Start GPS (detector 1) | 1377665712 | 1377665712 | 1377665712 | |
| End GPS (detector 1) | 1378944124 | 1378944124 | 1378944104 | |
| Used livetime (detector 1) | 888780 s | 886000 s | 888780 s | |
| Cumulative livetime | 1776170 s | 1770620 s | 4218142640 s | |
| 0 years, 20 days, 13 hours, 22 min, 50 s | 0 years, 20 days, 11 hours, 50 min, 20 s | 133 years, 242 days, 2 hours, 17 min, 20 s |
|

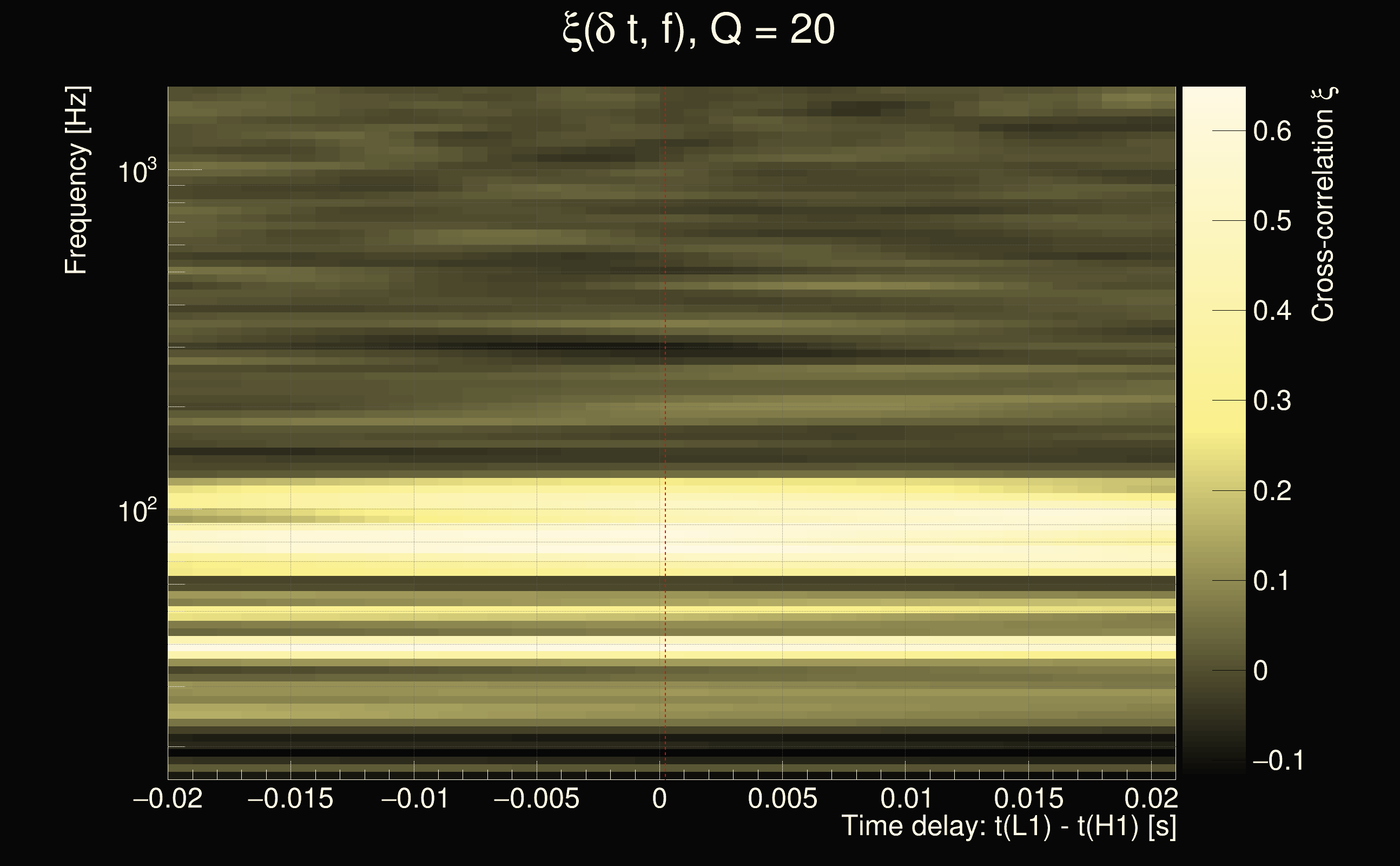

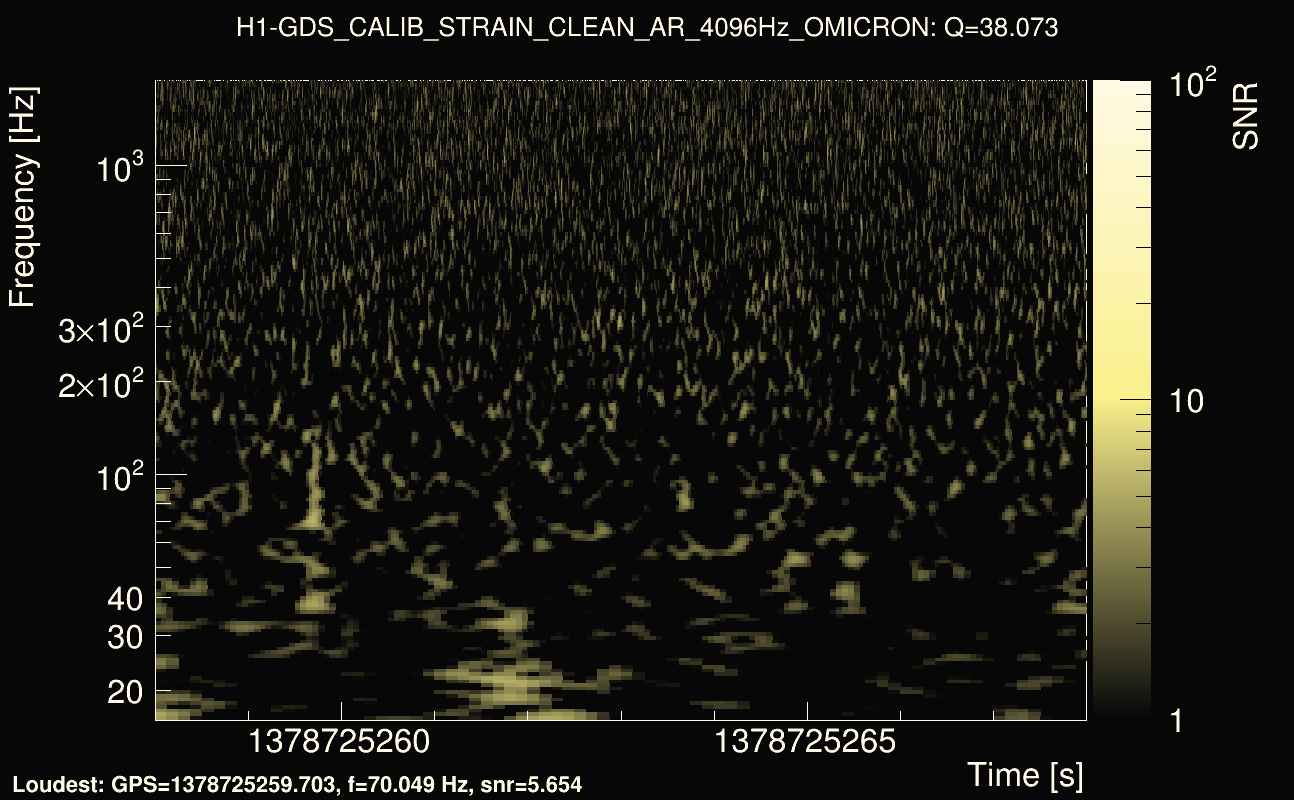

| Event time t(H1): | GPS = 1378725258 (Thu Sep 14 11:14:00 2023 ) → GPS = 1378725268 (Thu Sep 14 11:14:10 2023 ) |
| Event time t(L1): | GPS = 1378725258 (Thu Sep 14 11:14:10 2023 ) → GPS = 1378725268 (Thu Sep 14 11:14:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378725255 → GPS = 1378725271 |
| Omicron analysis time window (L1): | GPS = 1378725255 → GPS = 1378725271 |
| Time delay between detectors t(L1) - t(H1): | 0.000245781 s (slice index = 108 / 217), δt_gw = 0.000245781 s |
| Frequency: | 77.5064 Hz |
| Rank: | R_A = 0.251775 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|

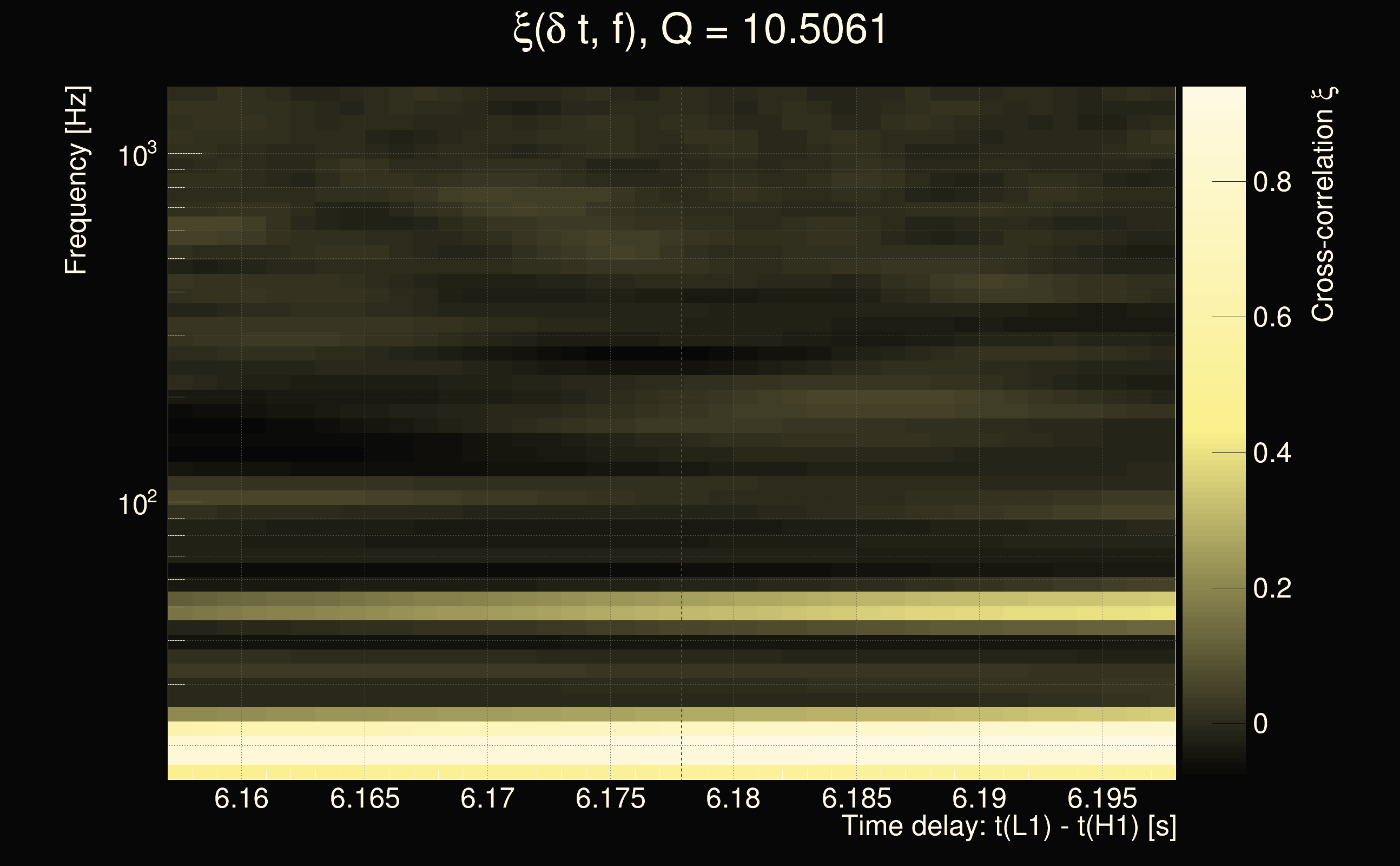

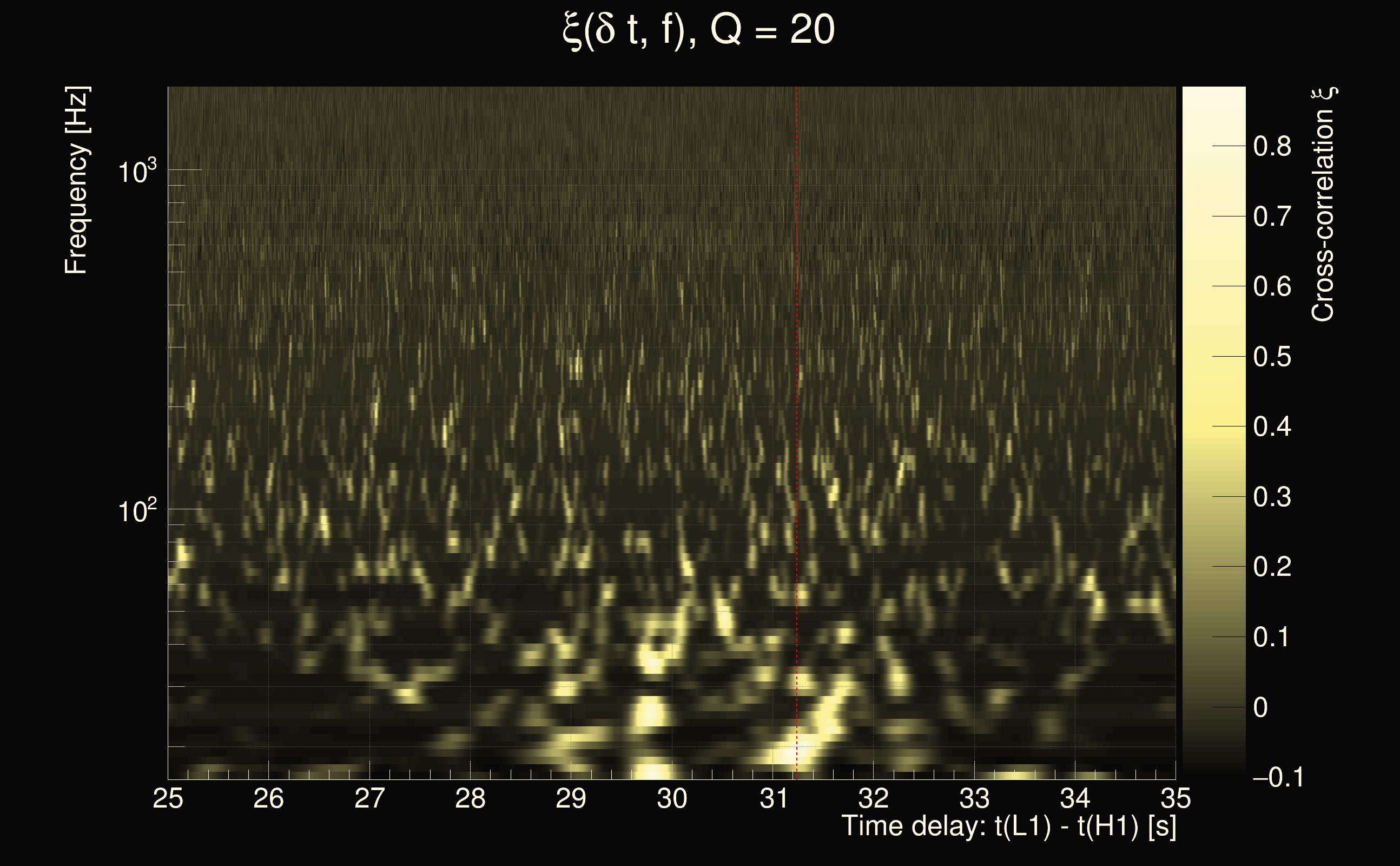

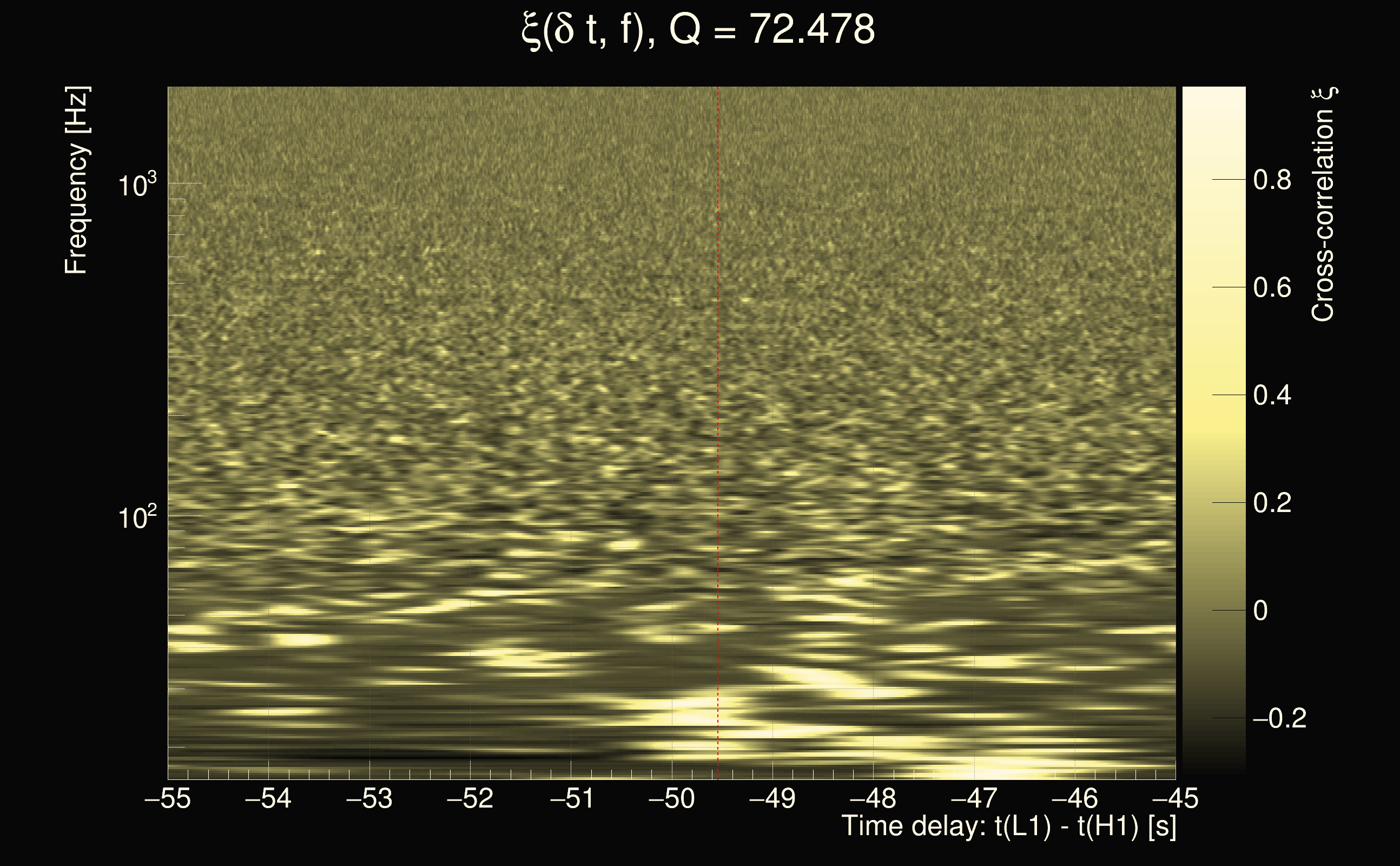

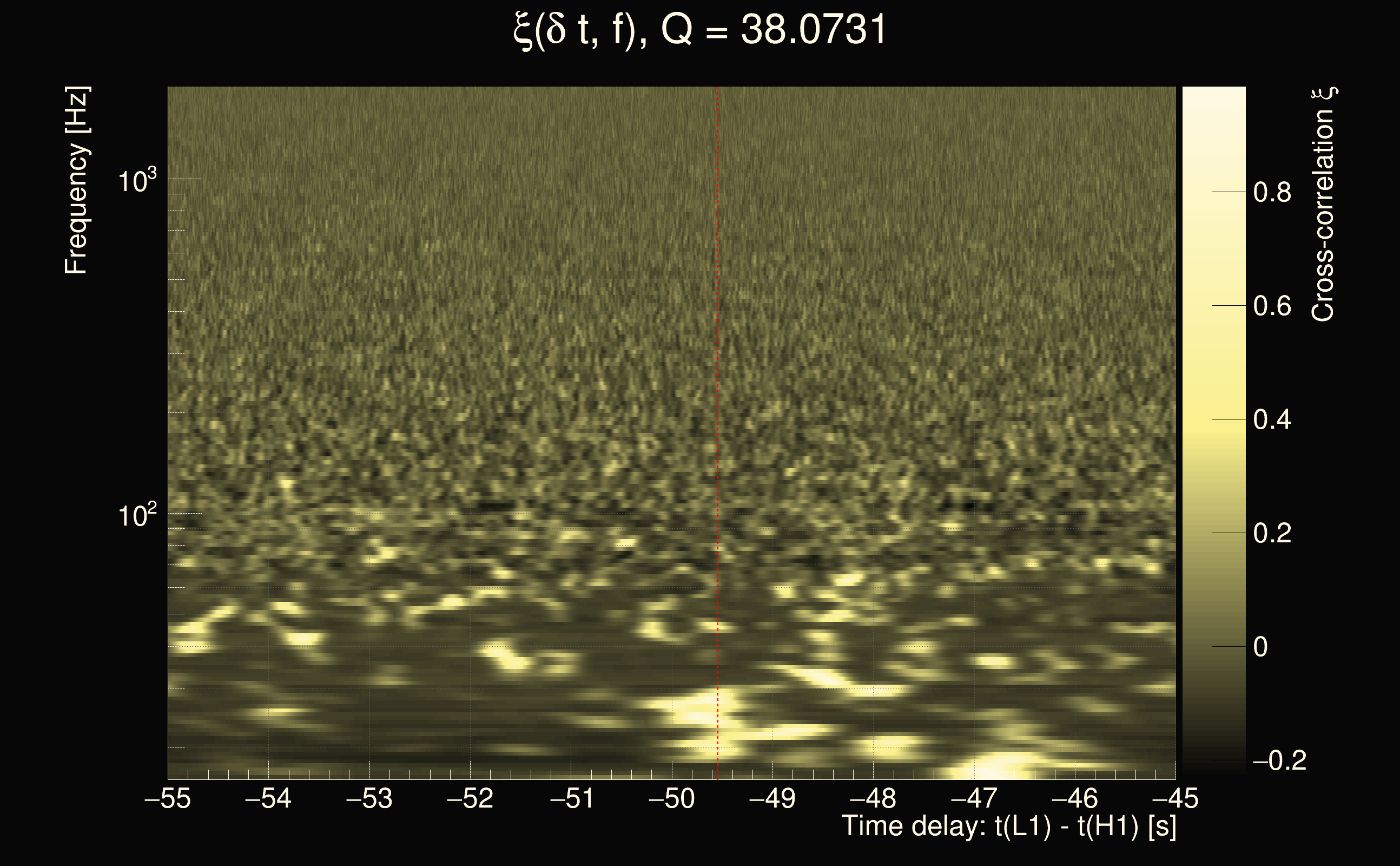

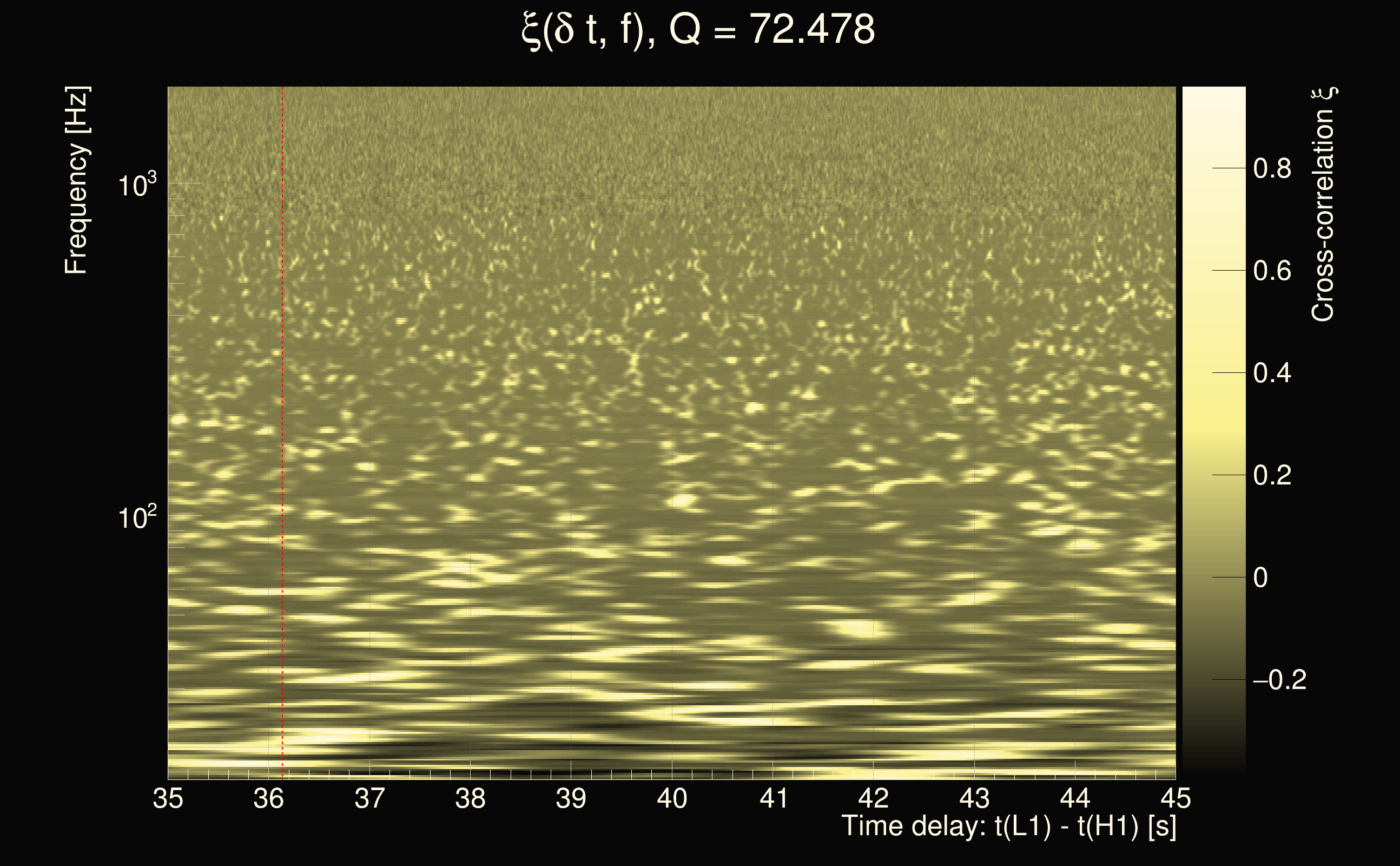

| Integrated cross-correlation Ξ: | 0.50235 | 0.454605 | 0.189459 | 0.112461 | 0.119767 |
| Number of rejected frequency rows (slice veto): | 9 / 26 | 15 / 48 | 55 / 92 | 121 / 176 | 255 / 338 |
| Time delay δt = t(L1) - t(H1): | 0.00331487 s | -0.00132988 s | 6.2592e-05 s | -0.00212689 s | -0.00112056 s |
| Time delay δt_gw = δt - δt_slice: | 0.00331487 s | -0.00132988 s | 6.2592e-05 s | -0.00212689 s | -0.00112056 s |
| Time-delay undertainty: | 0.000341548 s | 0.000225697 s | 0.000267767 s | 0.000272157 s | 0.000334088 s |
| Frequency: | 83.1441 Hz | 96.9023 Hz | 72.4449 Hz | 67.9658 Hz | 67.0746 Hz |
| Amplitude ratio L1/H1: | 0.712857 | 0.80456 | 0.796867 | 0.455627 | -1.74248 |

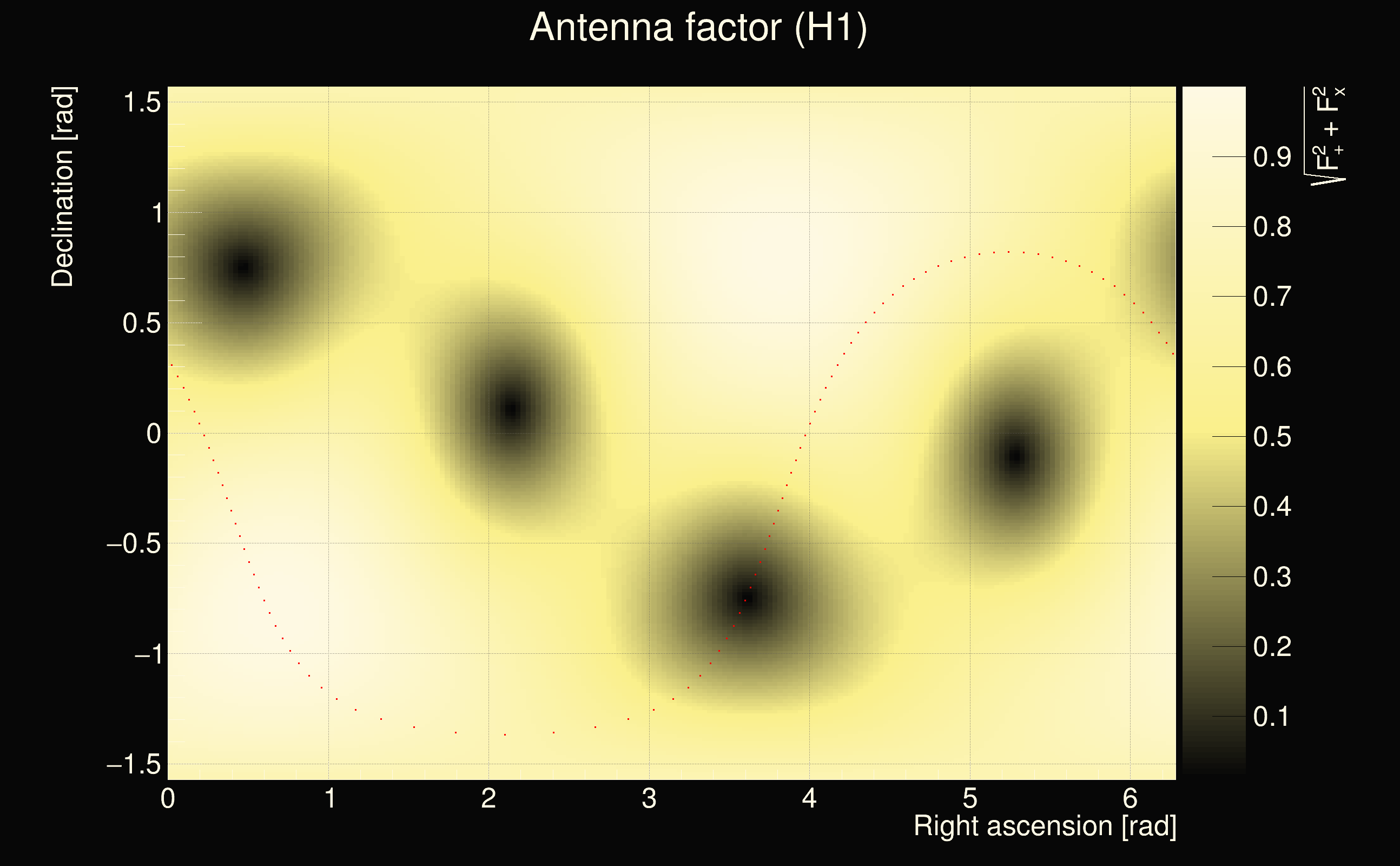

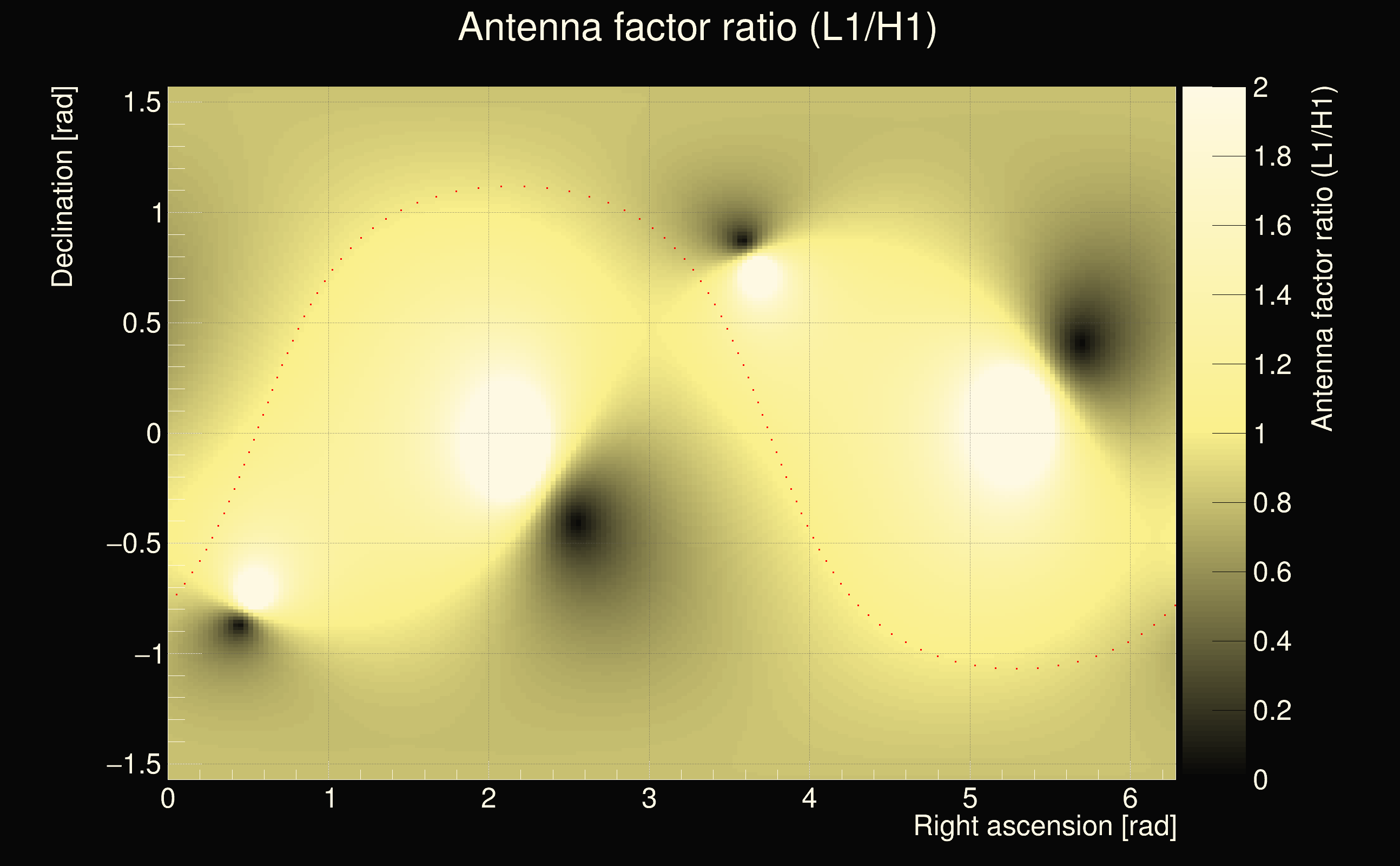

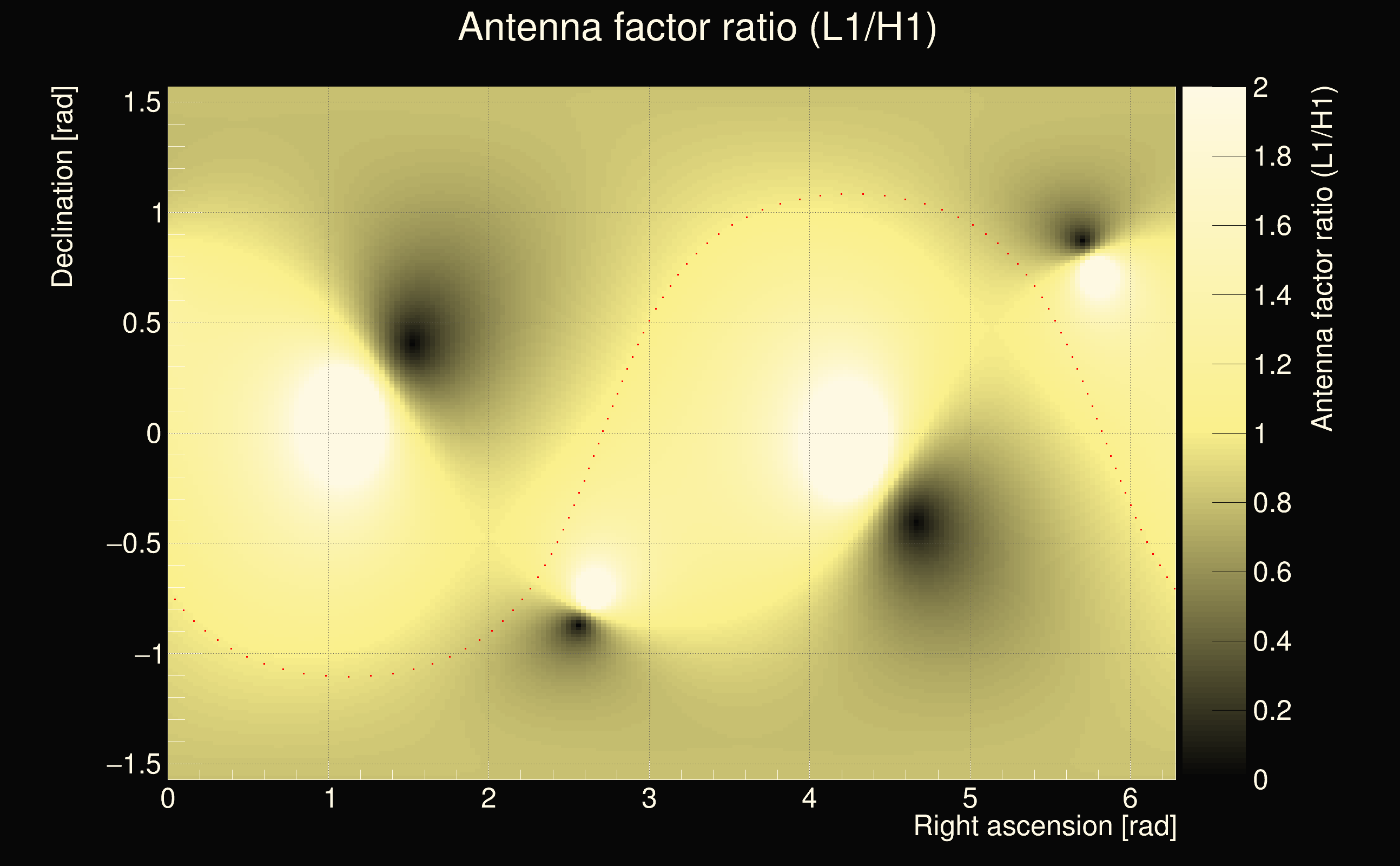

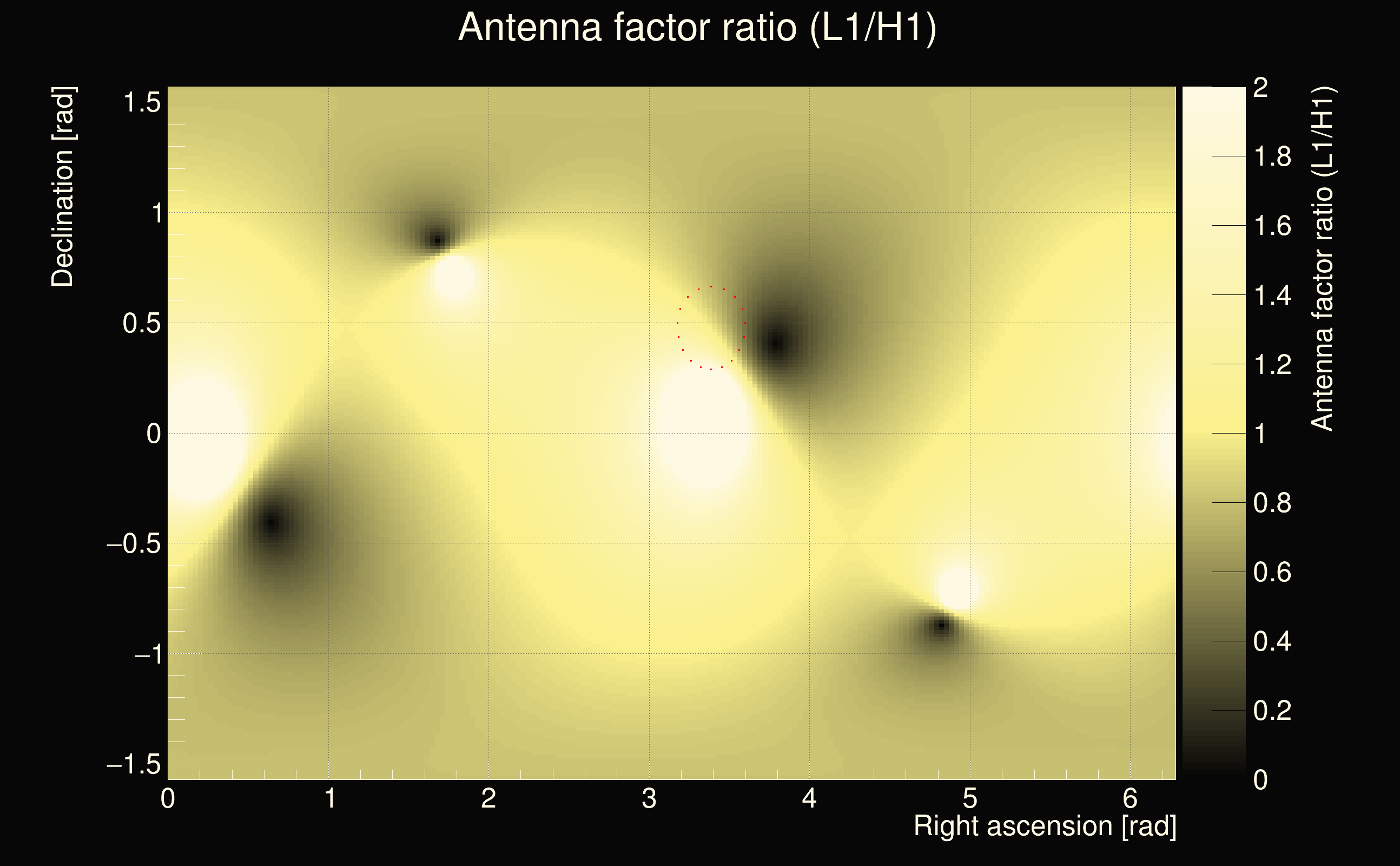

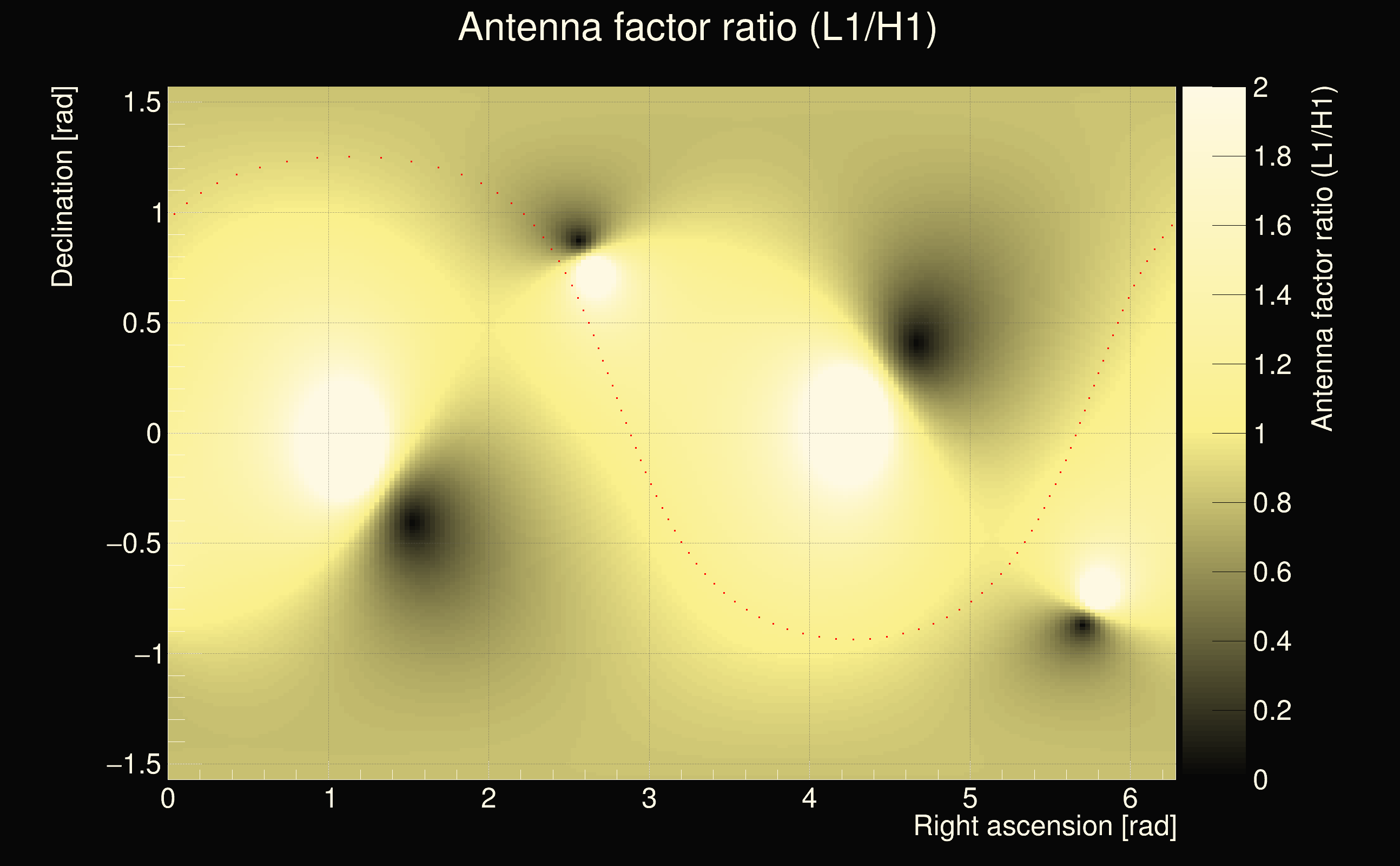

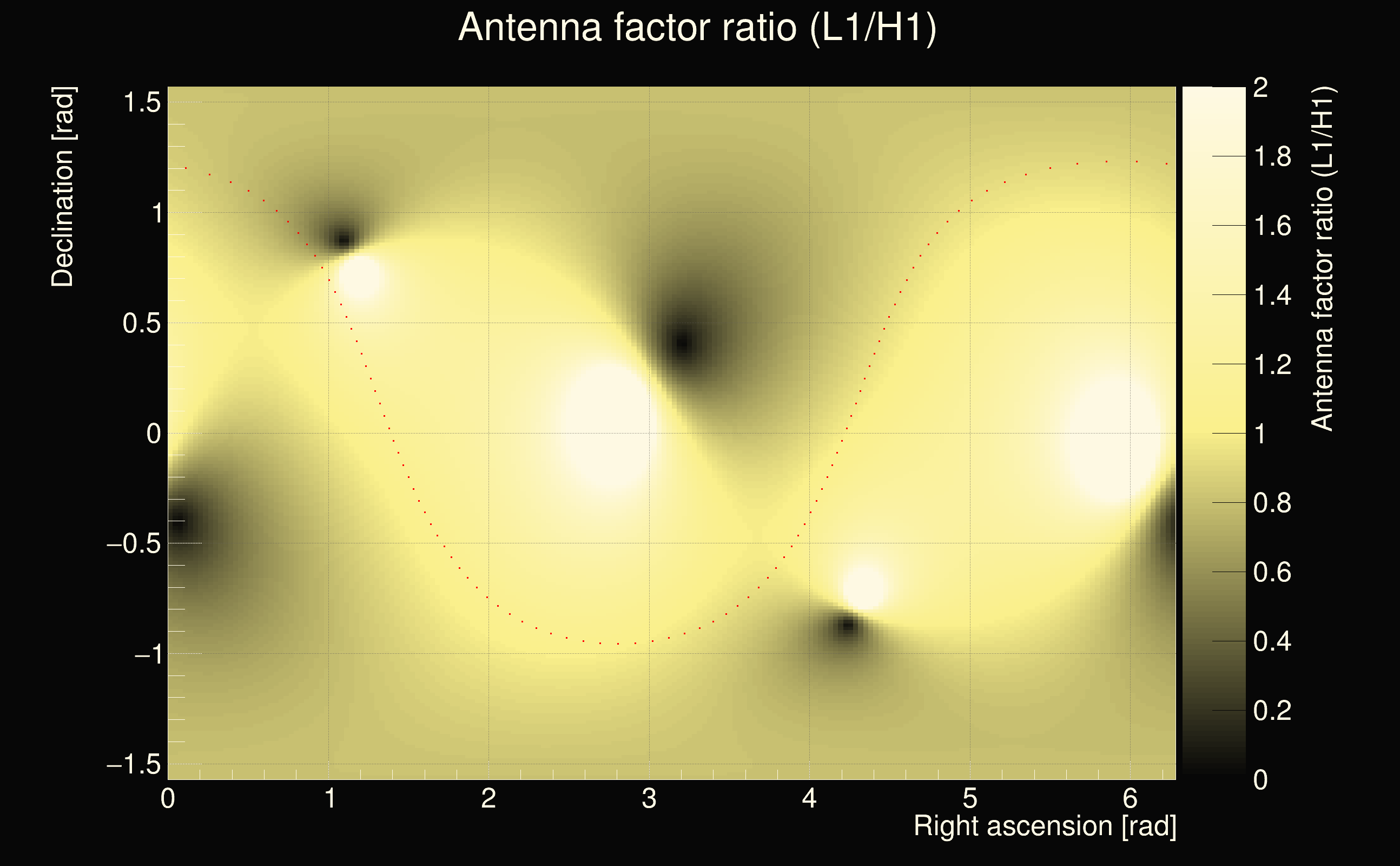

| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.59998 | 0.46591 / 2.17955 | 0.721081 / 1.37993 | 0.0333197 / 16.9696 | 0.406661 / 2.42984 |
| Maximum signal-to-noise ratio (H1): | 8.74381 | 7.36554 | 6.33473 | 5.65351 | 5.39558 |
| Maximum signal-to-noise ratio (L1): | 2.66487e-158 | 0 | 0 | 0 | 0 |

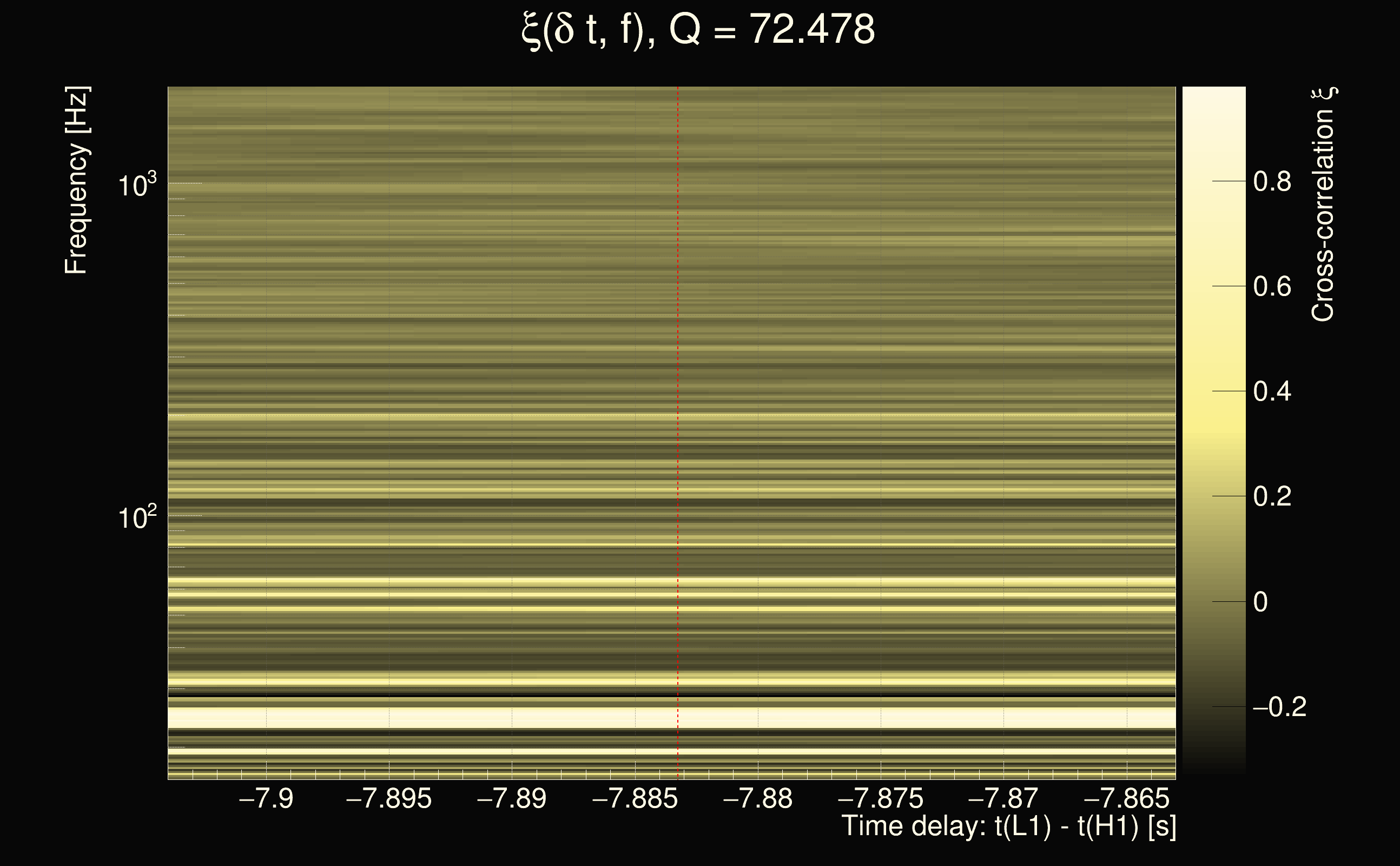

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378725253 (Thu Sep 14 11:13:55 2023 ) → GPS = 1378725263 (Thu Sep 14 11:14:05 2023 ) |
| Event time t(L1): | GPS = 1378725253 (Thu Sep 14 11:14:05 2023 ) → GPS = 1378725263 (Thu Sep 14 11:14:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378725250 → GPS = 1378725266 |
| Omicron analysis time window (L1): | GPS = 1378725250 → GPS = 1378725266 |
| Time delay between detectors t(L1) - t(H1): | 0.00139139 s (slice index = 108 / 217), δt_gw = 0.00139139 s |
| Frequency: | 88.6623 Hz |
| Rank: | R_A = 0.241903 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.473892 | 0.434412 | 0.228062 | 0.0702694 | 0.0731503 |
| Number of rejected frequency rows (slice veto): | 10 / 26 | 15 / 48 | 53 / 92 | 127 / 176 | 239 / 338 |
| Time delay δt = t(L1) - t(H1): | 0.00259156 s | 0.001113 s | 0.00240772 s | -0.000752163 s | -0.00290913 s |
| Time delay δt_gw = δt - δt_slice: | 0.00259156 s | 0.001113 s | 0.00240772 s | -0.000752163 s | -0.00290913 s |
| Time-delay undertainty: | 0.000179215 s | 0.000143397 s | 0.000228413 s | 0.000216112 s | 0.00026792 s |
| Frequency: | 85.7365 Hz | 112.757 Hz | 94.1455 Hz | 66.995 Hz | 83.6771 Hz |
| Amplitude ratio L1/H1: | 0.66805 | 0.987729 | 0.986796 | 2.03317 | 7.10847 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.59998 | 0.598861 / 1.64926 | 0.0333197 / 8.59998 | 0.62972 / 1.57853 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 8.26479 | 6.9734 | 6.07595 | 5.22911 | 5.64617 |
| Maximum signal-to-noise ratio (L1): | 2.66487e-158 | 9.61578 | 7.96047 | 6.72632 | 5.9853 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378154662 (Thu Sep 7 20:44:04 2023 ) → GPS = 1378154672 (Thu Sep 7 20:44:14 2023 ) |
| Event time t(L1): | GPS = 1378154662 (Thu Sep 7 20:44:14 2023 ) → GPS = 1378154672 (Thu Sep 7 20:44:14 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378154659 → GPS = 1378154675 |
| Omicron analysis time window (L1): | GPS = 1378154659 → GPS = 1378154675 |
| Time delay between detectors t(L1) - t(H1): | 0.003931 s (slice index = 108 / 217), δt_gw = 0.003931 s |
| Frequency: | 74.0275 Hz |
| Rank: | R_A = 0.119037 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.0702045 | 0.254096 | 0.270885 | 0.163133 | 0.0478451 |
| Number of rejected frequency rows (slice veto): | 15 / 26 | 33 / 48 | 64 / 92 | 126 / 176 | 232 / 338 |
| Time delay δt = t(L1) - t(H1): | 0.00756918 s | 0.00187353 s | 0.00272935 s | -0.000997743 s | 0.00205116 s |
| Time delay δt_gw = δt - δt_slice: | 0.00756918 s | 0.00187353 s | 0.00272935 s | -0.000997743 s | 0.00205116 s |
| Time-delay undertainty: | 9.50699e-05 s | 0.000133989 s | 0.000158914 s | 0.000263651 s | 0.000238523 s |
| Frequency: | 63.4408 Hz | 56.4208 Hz | 69.8865 Hz | 73.6722 Hz | 106.717 Hz |
| Amplitude ratio L1/H1: | 0.719232 | 1.54295 | 1.42686 | 0.103058 | -4.52215 |
| Antenna factor ratio L1/H1 (min/max): | 0.460951 / 2.16794 | 0.358229 / 2.93685 | 0.0333197 / 8.59998 | 0.541467 / 1.84693 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 5.01172 | 5.43027 | 5.05043 | 4.93874 | 5.34151 |
| Maximum signal-to-noise ratio (L1): | 2.67269e-158 | 9.94173 | 7.58628 | 6.46906 | 7.14278 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377711416 (Sat Sep 2 17:36:38 2023 ) → GPS = 1377711426 (Sat Sep 2 17:36:48 2023 ) |
| Event time t(L1): | GPS = 1377711416 (Sat Sep 2 17:36:48 2023 ) → GPS = 1377711426 (Sat Sep 2 17:36:48 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377711413 → GPS = 1377711429 |
| Omicron analysis time window (L1): | GPS = 1377711413 → GPS = 1377711429 |
| Time delay between detectors t(L1) - t(H1): | 0.000871327 s (slice index = 108 / 217), δt_gw = 0.000871327 s |
| Frequency: | 70.5188 Hz |
| Rank: | R_A = 0.107096 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.014744 | 0.262556 | 0.258182 | 0.128171 | 0.0624327 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 32 / 48 | 58 / 92 | 119 / 176 | 259 / 338 |
| Time delay δt = t(L1) - t(H1): | -0.00203797 s | 0.00290186 s | 0.00243602 s | 0.0013823 s | -0.000495564 s |
| Time delay δt_gw = δt - δt_slice: | -0.00203797 s | 0.00290186 s | 0.00243602 s | 0.0013823 s | -0.000495564 s |
| Time-delay undertainty: | 0.000112897 s | 0.00012499 s | 0.000135758 s | 0.000172842 s | 0.000243827 s |
| Frequency: | 54.3157 Hz | 56.0347 Hz | 78.3475 Hz | 92.299 Hz | 71.5971 Hz |
| Amplitude ratio L1/H1: | 0.630874 | 0.393978 | 0.417487 | 0.184901 | -0.73886 |
| Antenna factor ratio L1/H1 (min/max): | 0.269072 / 3.15594 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.505754 / 1.99477 | 0.663399 / 1.49723 |
| Maximum signal-to-noise ratio (H1): | 4.9743 | 6.08673 | 5.88129 | 5.44807 | 5.28521 |
| Maximum signal-to-noise ratio (L1): | 2.64609e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Event time t(H1): | GPS = 1377752970 (Sun Sep 3 05:09:12 2023 ) → GPS = 1377752980 (Sun Sep 3 05:09:22 2023 ) |
| Event time t(L1): | GPS = 1377752970 (Sun Sep 3 05:09:22 2023 ) → GPS = 1377752980 (Sun Sep 3 05:09:22 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377752967 → GPS = 1377752983 |
| Omicron analysis time window (L1): | GPS = 1377752967 → GPS = 1377752983 |
| Time delay between detectors t(L1) - t(H1): | 0.00228486 s (slice index = 108 / 217), δt_gw = 0.00228486 s |
| Frequency: | 88.2226 Hz |
| Rank: | R_A = 0.106753 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.223993 | 0.149836 | 0.084073 | 0.0758616 | 0.033917 |
| Number of rejected frequency rows (slice veto): | 9 / 26 | 25 / 48 | 50 / 92 | 118 / 176 | 252 / 338 |
| Time delay δt = t(L1) - t(H1): | 0.00170377 s | 0.00324322 s | 0.00263207 s | 0.00312501 s | -0.00124848 s |
| Time delay δt_gw = δt - δt_slice: | 0.00170377 s | 0.00324322 s | 0.00263207 s | 0.00312501 s | -0.00124848 s |
| Time-delay undertainty: | 0.000136226 s | 0.000110515 s | 0.000127158 s | 0.000201491 s | 0.000239566 s |
| Frequency: | 65.8664 Hz | 77.5953 Hz | 103.24 Hz | 92.6098 Hz | 101.801 Hz |
| Amplitude ratio L1/H1: | 0.678081 | 0.705309 | 0.126389 | 0.100483 | 0.16184 |
| Antenna factor ratio L1/H1 (min/max): | 0.415181 / 2.3489 | 0.206259 / 5.21398 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.479501 / 2.09593 |
| Maximum signal-to-noise ratio (H1): | 4.97408 | 5.06509 | 5.72733 | 6.16637 | 5.90815 |
| Maximum signal-to-noise ratio (L1): | 2.7053e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Event time t(H1): | GPS = 1378317134 (Sat Sep 9 17:51:56 2023 ) → GPS = 1378317144 (Sat Sep 9 17:52:06 2023 ) |
| Event time t(L1): | GPS = 1378317114 (Sat Sep 9 17:52:06 2023 ) → GPS = 1378317124 (Sat Sep 9 17:51:46 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378317131 → GPS = 1378317147 |
| Omicron analysis time window (L1): | GPS = 1378317111 → GPS = 1378317127 |
| Time delay between detectors t(L1) - t(H1): | -21.2868 s (slice index = 136 / 217), δt_gw = 0.00116874 s |
| Frequency: | 74.2338 Hz |
| Rank: | R_A = 0.0912977 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.194132 | 0.161211 | 0.101146 | -0.0014407 | -0.00164598 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 31 / 48 | 61 / 92 | 132 / 176 | 271 / 338 |
| Time delay δt = t(L1) - t(H1): | -21.2852 s | -21.2851 s | -21.2898 s | -21.289 s | -21.2884 s |
| Time delay δt_gw = δt - δt_slice: | 0.00279841 s | 0.00290044 s | -0.00179668 s | -0.000987829 s | -0.000389023 s |
| Time-delay undertainty: | 8.53243e-05 s | 0.000127288 s | 0.000138831 s | 0.000173582 s | 0.000284555 s |
| Frequency: | 62.3672 Hz | 71.5504 Hz | 86.1874 Hz | 84.7831 Hz | 66.281 Hz |
| Amplitude ratio L1/H1: | 0.437774 | 0.555114 | 0.467497 | 0.128427 | 0.379392 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.36574 / 2.62121 | 0.60576 / 1.63217 | 0.660436 / 1.50403 |
| Maximum signal-to-noise ratio (H1): | 6.22658 | 5.38938 | 4.93708 | 5.25247 | 5.2975 |
| Maximum signal-to-noise ratio (L1): | 2.62182e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Event time t(H1): | GPS = 1377947839 (Tue Sep 5 11:17:01 2023 ) → GPS = 1377947849 (Tue Sep 5 11:17:11 2023 ) |
| Event time t(L1): | GPS = 1377947819 (Tue Sep 5 11:17:11 2023 ) → GPS = 1377947829 (Tue Sep 5 11:16:51 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377947836 → GPS = 1377947852 |
| Omicron analysis time window (L1): | GPS = 1377947816 → GPS = 1377947832 |
| Time delay between detectors t(L1) - t(H1): | -21.2877 s (slice index = 136 / 217), δt_gw = 0.000314565 s |
| Frequency: | 105.835 Hz |
| Rank: | R_A = 0.079019 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.176854 | 0.143942 | 0.0742993 | 0.00601854 | 0.0121981 |
| Number of rejected frequency rows (slice veto): | 10 / 26 | 23 / 48 | 53 / 92 | 129 / 176 | 273 / 338 |
| Time delay δt = t(L1) - t(H1): | -21.2854 s | -21.2853 s | -21.2905 s | -21.2902 s | -21.2878 s |
| Time delay δt_gw = δt - δt_slice: | 0.00259719 s | 0.00268369 s | -0.0025196 s | -0.00217301 s | 0.000165852 s |
| Time-delay undertainty: | 0.000114474 s | 0.000121902 s | 0.000122582 s | 0.000173674 s | 0.000269917 s |
| Frequency: | 82.2139 Hz | 106.035 Hz | 150.545 Hz | 104.475 Hz | 85.9041 Hz |
| Amplitude ratio L1/H1: | 2.59591 | 1.35718 | 1.74744 | -0.062687 | -1.22308 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.0333197 / 16.9696 | 0.0557709 / 7.6697 | 0.705201 / 1.41134 |
| Maximum signal-to-noise ratio (H1): | 5.37892 | 5.12403 | 5.16444 | 5.2278 | 5.48745 |
| Maximum signal-to-noise ratio (L1): | 2.5858e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Event time t(H1): | GPS = 1378108656 (Thu Sep 7 07:57:18 2023 ) → GPS = 1378108666 (Thu Sep 7 07:57:28 2023 ) |
| Event time t(L1): | GPS = 1378108636 (Thu Sep 7 07:57:28 2023 ) → GPS = 1378108646 (Thu Sep 7 07:57:08 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378108653 → GPS = 1378108669 |
| Omicron analysis time window (L1): | GPS = 1378108633 → GPS = 1378108649 |
| Time delay between detectors t(L1) - t(H1): | -21.2865 s (slice index = 136 / 217), δt_gw = 0.00154706 s |
| Frequency: | 88.0678 Hz |
| Rank: | R_A = 0.0714735 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.152982 | 0.200005 | 0.0242124 | 0.00438065 | 0.00636591 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 28 / 48 | 52 / 92 | 118 / 176 | 261 / 338 |
| Time delay δt = t(L1) - t(H1): | -21.286 s | -21.2859 s | -21.2827 s | -21.2908 s | -21.2876 s |
| Time delay δt_gw = δt - δt_slice: | 0.00198811 s | 0.00209327 s | 0.00533741 s | -0.00282098 s | 0.000410704 s |
| Time-delay undertainty: | 0.000142366 s | 0.000116436 s | 0.000156015 s | 0.000177953 s | 0.000270599 s |
| Frequency: | 50.7243 Hz | 73.1415 Hz | 93.9125 Hz | 119.629 Hz | 102.932 Hz |
| Amplitude ratio L1/H1: | 0.849685 | 0.845701 | 0.617791 | 0.0999892 | -0.0559358 |
| Antenna factor ratio L1/H1 (min/max): | 0.305017 / 4.04908 | 0.300162 / 4.21462 | 0.684025 / 1.4628 | 0.0333197 / 16.9696 | 0.669179 / 1.48854 |
| Maximum signal-to-noise ratio (H1): | 5.21453 | 4.76869 | 5.24641 | 5.71383 | 5.35454 |
| Maximum signal-to-noise ratio (L1): | 2.64845e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Event time t(H1): | GPS = 1378491955 (Mon Sep 11 18:25:37 2023 ) → GPS = 1378491965 (Mon Sep 11 18:25:47 2023 ) |
| Event time t(L1): | GPS = 1378491935 (Mon Sep 11 18:25:47 2023 ) → GPS = 1378491945 (Mon Sep 11 18:25:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378491952 → GPS = 1378491968 |
| Omicron analysis time window (L1): | GPS = 1378491932 → GPS = 1378491948 |
| Time delay between detectors t(L1) - t(H1): | -21.2875 s (slice index = 136 / 217), δt_gw = 0.000527595 s |
| Frequency: | 67.1723 Hz |
| Rank: | R_A = 0.0687804 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.338935 | 0.00727826 | -0.0032518 | 0.00496751 | 0.00456171 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 30 / 48 | 64 / 92 | 132 / 176 | 274 / 338 |
| Time delay δt = t(L1) - t(H1): | -21.2908 s | -21.2849 s | -21.287 s | -21.2872 s | -21.2868 s |
| Time delay δt_gw = δt - δt_slice: | -0.00280612 s | 0.003118 s | 0.000985548 s | 0.00079106 s | 0.00124315 s |
| Time-delay undertainty: | 0.00012329 s | 0.000124319 s | 0.000180292 s | 0.000246952 s | 0.00029353 s |
| Frequency: | 48.7931 Hz | 60.8985 Hz | 65.7233 Hz | 79.9321 Hz | 80.5148 Hz |
| Amplitude ratio L1/H1: | 0.215061 | -0.0972779 | 0.0272025 | 0.69433 | 0.0869244 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 16.9696 | 0.0333197 / 8.59998 | 0.60232 / 1.64066 | 0.60232 / 1.64066 | 0.409463 / 2.39446 |
| Maximum signal-to-noise ratio (H1): | 6.69173 | 6.41552 | 5.72802 | 6.71747 | 6.06052 |
| Maximum signal-to-noise ratio (L1): | 2.75109e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Event time t(H1): | GPS = 1378195417 (Fri Sep 8 08:03:19 2023 ) → GPS = 1378195427 (Fri Sep 8 08:03:29 2023 ) |
| Event time t(L1): | GPS = 1378195397 (Fri Sep 8 08:03:29 2023 ) → GPS = 1378195407 (Fri Sep 8 08:03:09 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378195414 → GPS = 1378195430 |
| Omicron analysis time window (L1): | GPS = 1378195394 → GPS = 1378195410 |
| Time delay between detectors t(L1) - t(H1): | -21.2882 s (slice index = 136 / 217), δt_gw = -0.000236031 s |
| Frequency: | 106.686 Hz |
| Rank: | R_A = 0.0683375 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.00278374 | 0.140505 | 0.198399 | 0.0224795 | -0.000912527 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 22 / 48 | 56 / 92 | 128 / 176 | 265 / 338 |
| Time delay δt = t(L1) - t(H1): | -21.2858 s | -21.2912 s | -21.2907 s | -21.2868 s | -21.2886 s |
| Time delay δt_gw = δt - δt_slice: | 0.0021604 s | -0.00320273 s | -0.00267754 s | 0.00120094 s | -0.00062116 s |
| Time-delay undertainty: | 8.31177e-05 s | 0.000107694 s | 0.000170619 s | 0.000177686 s | 0.000305892 s |
| Frequency: | 107.369 Hz | 130.251 Hz | 120.333 Hz | 102.182 Hz | 73.2945 Hz |
| Amplitude ratio L1/H1: | 0.480504 | 0.268389 | 0.638938 | 14.411 | -0.0334313 |
| Antenna factor ratio L1/H1 (min/max): | 0.309983 / 3.89681 | 0.108712 / 9.09815 | 0.0333197 / 16.9696 | 0.556105 / 1.77601 | 0.598861 / 1.64926 |
| Maximum signal-to-noise ratio (H1): | 5.00492 | 5.06615 | 5.01235 | 4.9348 | 4.92156 |
| Maximum signal-to-noise ratio (L1): | 2.80339e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Detection threshold: | R > 0.165571 |
| False-alarm rate above that detection threshold: | 2.69586e-08 |
 |
 |
 |
| Event time t(H1): | GPS = 1378422100 (Sun Sep 10 23:01:22 2023 ) → GPS = 1378422110 (Sun Sep 10 23:01:32 2023 ) |
| Event time t(L1): | GPS = 1378422130 (Sun Sep 10 23:01:32 2023 ) → GPS = 1378422140 (Sun Sep 10 23:02:02 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378422097 → GPS = 1378422113 |
| Omicron analysis time window (L1): | GPS = 1378422127 → GPS = 1378422143 |
| Time delay between detectors t(L1) - t(H1): | 28.8996 s (slice index = 132 / 217), δt_gw = 0.00362034 s |
| Frequency: | 183.594 Hz |
| Rank: | R_A = 0.56139 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.416544 | 0.628468 | 0.675195 | 0.631945 | 0.454799 |
| Number of rejected frequency rows (slice veto): | 13 / 26 | 13 / 48 | 28 / 92 | 70 / 176 | 179 / 338 |
| Time delay δt = t(L1) - t(H1): | 28.8998 s | 28.8992 s | 28.8991 s | 28.8988 s | 28.8998 s |
| Time delay δt_gw = δt - δt_slice: | 0.00384977 s | 0.003244 s | 0.00314932 s | 0.00281868 s | 0.00376075 s |
| Time-delay undertainty: | 7.58216e-05 s | 0.000127352 s | 0.000210335 s | 0.000297905 s | 0.000416561 s |
| Frequency: | 215.726 Hz | 199.908 Hz | 184.572 Hz | 169.673 Hz | 148.093 Hz |
| Amplitude ratio L1/H1: | 1.33563 | 1.73001 | 1.87381 | 1.04399 | 1.69712 |
| Antenna factor ratio L1/H1 (min/max): | 0.527286 / 1.96331 | 0.193642 / 5.599 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 73.0449 | 55.5162 | 41.0086 | 31.0555 | 23.2227 |
| Maximum signal-to-noise ratio (L1): | 2.78658e-158 | 4.88636 | 5.33948 | 4.98582 | 5.04512 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378422095 (Sun Sep 10 23:01:17 2023 ) → GPS = 1378422105 (Sun Sep 10 23:01:27 2023 ) |
| Event time t(L1): | GPS = 1378422135 (Sun Sep 10 23:01:27 2023 ) → GPS = 1378422145 (Sun Sep 10 23:02:07 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378422092 → GPS = 1378422108 |
| Omicron analysis time window (L1): | GPS = 1378422132 → GPS = 1378422148 |
| Time delay between detectors t(L1) - t(H1): | 38.8996 s (slice index = 132 / 217), δt_gw = 0.0035907 s |
| Frequency: | 179.001 Hz |
| Rank: | R_A = 0.555358 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.408928 | 0.626786 | 0.657926 | 0.630761 | 0.45239 |
| Number of rejected frequency rows (slice veto): | 14 / 26 | 13 / 48 | 30 / 92 | 67 / 176 | 173 / 338 |
| Time delay δt = t(L1) - t(H1): | 38.8998 s | 38.8991 s | 38.8993 s | 38.899 s | 38.8987 s |
| Time delay δt_gw = δt - δt_slice: | 0.00384045 s | 0.00312273 s | 0.00334532 s | 0.00296811 s | 0.00268221 s |
| Time-delay undertainty: | 7.74724e-05 s | 0.000133171 s | 0.000223792 s | 0.000305265 s | 0.000417289 s |
| Frequency: | 209.976 Hz | 193.28 Hz | 176.225 Hz | 168.207 Hz | 147.318 Hz |
| Amplitude ratio L1/H1: | 1.54767 | 1.92579 | 2.05622 | 1.79829 | 1.75095 |
| Antenna factor ratio L1/H1 (min/max): | 0.523504 / 1.98393 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 66.679 | 50.8167 | 37.7979 | 27.6745 | 21.1498 |
| Maximum signal-to-noise ratio (L1): | 2.78658e-158 | 99.8865 | 80.9434 | 62.7949 | 51.7517 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378628053 (Wed Sep 13 08:13:55 2023 ) → GPS = 1378628063 (Wed Sep 13 08:14:05 2023 ) |
| Event time t(L1): | GPS = 1378628033 (Wed Sep 13 08:14:05 2023 ) → GPS = 1378628043 (Wed Sep 13 08:13:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628050 → GPS = 1378628066 |
| Omicron analysis time window (L1): | GPS = 1378628030 → GPS = 1378628046 |
| Time delay between detectors t(L1) - t(H1): | -23.5358 s (slice index = 185 / 217), δt_gw = 0.00623076 s |
| Frequency: | 112.225 Hz |
| Rank: | R_A = 0.511404 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.784424 | 0.738826 | 0.599536 | 0.311249 | 0.122985 |
| Number of rejected frequency rows (slice veto): | 3 / 26 | 9 / 48 | 22 / 92 | 79 / 176 | 216 / 338 |
| Time delay δt = t(L1) - t(H1): | -23.5342 s | -23.5359 s | -23.5386 s | -23.5397 s | -23.5406 s |
| Time delay δt_gw = δt - δt_slice: | 0.00777527 s | 0.00611158 s | 0.00342101 s | 0.00228705 s | 0.00135899 s |
| Time-delay undertainty: | 0.000150735 s | 0.00021161 s | 0.000234216 s | 0.000333671 s | 0.000401676 s |
| Frequency: | 154.042 Hz | 137.076 Hz | 121.165 Hz | 87.8701 Hz | 60.97 Hz |
| Amplitude ratio L1/H1: | 1.54416 | 1.63804 | 1.77085 | 2.33203 | 1.56246 |
| Antenna factor ratio L1/H1 (min/max): | 0.39641 / 2.54089 | 0.601483 / 1.66433 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.148026 / 4.80524 |
| Maximum signal-to-noise ratio (H1): | 36.5515 | 31.0704 | 28.2989 | 23.1161 | 18.3572 |
| Maximum signal-to-noise ratio (L1): | 2.7473e-158 | 89.8013 | 71.5389 | 55.0707 | 43.9623 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378699145 (Thu Sep 14 03:58:47 2023 ) → GPS = 1378699155 (Thu Sep 14 03:58:57 2023 ) |
| Event time t(L1): | GPS = 1378699125 (Thu Sep 14 03:58:57 2023 ) → GPS = 1378699135 (Thu Sep 14 03:58:37 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378699142 → GPS = 1378699158 |
| Omicron analysis time window (L1): | GPS = 1378699122 → GPS = 1378699138 |
| Time delay between detectors t(L1) - t(H1): | -20.8182 s (slice index = 126 / 217), δt_gw = 0.00983625 s |
| Frequency: | 476.246 Hz |
| Rank: | R_A = 0.458181 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.59176 | 0.605044 | 0.588705 | 0.505395 | 0.239617 |
| Number of rejected frequency rows (slice veto): | 3 / 26 | 14 / 48 | 28 / 92 | 90 / 176 | 234 / 338 |
| Time delay δt = t(L1) - t(H1): | -20.8182 s | -20.818 s | -20.8181 s | -20.8182 s | -20.8196 s |
| Time delay δt_gw = δt - δt_slice: | 0.00983897 s | 0.00996093 s | 0.00989205 s | 0.00975327 s | 0.00839572 s |
| Time-delay undertainty: | 6.75636e-05 s | 8.60363e-05 s | 0.000116941 s | 0.000161217 s | 0.000237332 s |
| Frequency: | 476.205 Hz | 552.347 Hz | 543.425 Hz | 488.808 Hz | 320.445 Hz |
| Amplitude ratio L1/H1: | 2.27478 | 2.35761 | 2.36968 | 3.12727 | -54.3757 |
| Antenna factor ratio L1/H1 (min/max): | 0.248384 / 4.08286 | 0.308839 / 3.20699 | 0.152467 / 5.84186 | 0.0285408 / 22.4981 | 0.129774 / 7.84061 |
| Maximum signal-to-noise ratio (H1): | 94.8625 | 72.7991 | 53.1731 | 40.6771 | 31.4456 |
| Maximum signal-to-noise ratio (L1): | 2.68214e-158 | 35.3084 | 26.6101 | 20.4865 | 15.2501 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378699150 (Thu Sep 14 03:58:52 2023 ) → GPS = 1378699160 (Thu Sep 14 03:59:02 2023 ) |
| Event time t(L1): | GPS = 1378699120 (Thu Sep 14 03:59:02 2023 ) → GPS = 1378699130 (Thu Sep 14 03:58:32 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378699147 → GPS = 1378699163 |
| Omicron analysis time window (L1): | GPS = 1378699117 → GPS = 1378699133 |
| Time delay between detectors t(L1) - t(H1): | -30.8182 s (slice index = 126 / 217), δt_gw = 0.009823 s |
| Frequency: | 268.557 Hz |
| Rank: | R_A = 0 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.796941 | 0.686365 | 0.568162 | 0.398811 | 0.205306 |
| Number of rejected frequency rows (slice veto): | 4 / 26 | 13 / 48 | 33 / 92 | 88 / 176 | 232 / 338 |
| Time delay δt = t(L1) - t(H1): | -30.8182 s | -30.818 s | -30.8182 s | -30.8182 s | -30.8195 s |
| Time delay δt_gw = δt - δt_slice: | 0.00982016 s | 0.00995479 s | 0.00984724 s | 0.00975832 s | 0.00854949 s |
| Time-delay undertainty: | 6.70662e-05 s | 8.49642e-05 s | 0.000114323 s | 0.000155977 s | 0.00023282 s |
| Frequency: | 271.303 Hz | 308.826 Hz | 299.189 Hz | 266.642 Hz | 196.823 Hz |
| Amplitude ratio L1/H1: | 2.28851 | 2.38374 | 2.43583 | 2.6141 | 2.70571 |
| Antenna factor ratio L1/H1 (min/max): | 0.235973 / 4.3477 | 0.304676 / 3.24944 | 0.134526 / 6.71074 | 0.0285408 / 22.4981 | 0.054738 / 15.5728 |
| Maximum signal-to-noise ratio (H1): | 104.344 | 80.1563 | 57.8017 | 43.9418 | 34.8974 |
| Maximum signal-to-noise ratio (L1): | 2.68214e-158 | 245.181 | 211.507 | 175.096 | 165.125 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378551049 (Tue Sep 12 10:50:31 2023 ) → GPS = 1378551059 (Tue Sep 12 10:50:41 2023 ) |
| Event time t(L1): | GPS = 1378551029 (Tue Sep 12 10:50:41 2023 ) → GPS = 1378551039 (Tue Sep 12 10:50:21 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378551046 → GPS = 1378551062 |
| Omicron analysis time window (L1): | GPS = 1378551026 → GPS = 1378551042 |
| Time delay between detectors t(L1) - t(H1): | -23.2563 s (slice index = 179 / 217), δt_gw = 0.00972989 s |
| Frequency: | 245.5 Hz |
| Rank: | R_A = 0.128352 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.641761 | 0.550705 | 0.377224 | 0.19052 | 0.0781868 |
| Number of rejected frequency rows (slice veto): | 5 / 26 | 12 / 48 | 39 / 92 | 112 / 176 | 263 / 338 |
| Time delay δt = t(L1) - t(H1): | -23.256 s | -23.2562 s | -23.2568 s | -23.2594 s | -23.2616 s |
| Time delay δt_gw = δt - δt_slice: | 0.0100171 s | 0.00984597 s | 0.00916933 s | 0.00655084 s | 0.00440612 s |
| Time-delay undertainty: | 8.40076e-05 s | 0.000139564 s | 0.000198162 s | 0.000274735 s | 0.000413397 s |
| Frequency: | 309.392 Hz | 296.632 Hz | 273.326 Hz | 209.698 Hz | 138.452 Hz |
| Amplitude ratio L1/H1: | 0.436514 | 0.460152 | 0.433985 | 0.449262 | 0.417791 |
| Antenna factor ratio L1/H1 (min/max): | 0.389197 / 2.60913 | 0.0762583 / 10.9832 | 0.0285408 / 22.4981 | 0.529571 / 1.89035 | 0.343708 / 3.33946 |
| Maximum signal-to-noise ratio (H1): | 36.2349 | 27.1733 | 21.4804 | 16.9195 | 13.2973 |
| Maximum signal-to-noise ratio (L1): | 2.7744e-158 | 182.459 | 145.061 | 134.588 | 179.392 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377799993 (Sun Sep 3 18:12:55 2023 ) → GPS = 1377800003 (Sun Sep 3 18:13:05 2023 ) |
| Event time t(L1): | GPS = 1377800003 (Sun Sep 3 18:13:05 2023 ) → GPS = 1377800013 (Sun Sep 3 18:13:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377799990 → GPS = 1377800006 |
| Omicron analysis time window (L1): | GPS = 1377800000 → GPS = 1377800016 |
| Time delay between detectors t(L1) - t(H1): | 6.92036 s (slice index = 175 / 217), δt_gw = 0.00235816 s |
| Frequency: | 54.4399 Hz |
| Rank: | R_A = 0.320364 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.761682 | 0.62138 | 0.218755 | 0.00293349 | 0.00496531 |
| Number of rejected frequency rows (slice veto): | 10 / 26 | 21 / 48 | 50 / 92 | 131 / 176 | 263 / 338 |
| Time delay δt = t(L1) - t(H1): | 6.92216 s | 6.91914 s | 6.92264 s | 6.91711 s | 6.91726 s |
| Time delay δt_gw = δt - δt_slice: | 0.00415601 s | 0.0011436 s | 0.00463964 s | -0.00089446 s | -0.000739819 s |
| Time-delay undertainty: | 0.000126594 s | 0.000138462 s | 0.000185201 s | 0.000177429 s | 0.000239533 s |
| Frequency: | 47.9547 Hz | 50.635 Hz | 51.0286 Hz | 52.455 Hz | 70.1264 Hz |
| Amplitude ratio L1/H1: | 1.16095 | 1.13882 | 0.762305 | -2.00424 | -0.0401739 |
| Antenna factor ratio L1/H1 (min/max): | 0.573268 / 1.76324 | 0.595384 / 1.658 | 0.645936 / 1.55777 | 0.622672 / 1.59155 | 0.615967 / 1.60744 |
| Maximum signal-to-noise ratio (H1): | 9.85726 | 7.64523 | 6.34959 | 6.18485 | 6.04098 |
| Maximum signal-to-noise ratio (L1): | 2.7311e-158 | 9.27774 | 7.28681 | 6.40676 | 5.3655 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377799988 (Sun Sep 3 18:12:50 2023 ) → GPS = 1377799998 (Sun Sep 3 18:13:00 2023 ) |
| Event time t(L1): | GPS = 1377800008 (Sun Sep 3 18:13:00 2023 ) → GPS = 1377800018 (Sun Sep 3 18:13:20 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377799985 → GPS = 1377800001 |
| Omicron analysis time window (L1): | GPS = 1377800005 → GPS = 1377800021 |
| Time delay between detectors t(L1) - t(H1): | 16.9192 s (slice index = 175 / 217), δt_gw = 0.00117162 s |
| Frequency: | 47.9412 Hz |
| Rank: | R_A = 0.281393 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.782517 | 0.624446 | 0.24254 | -0.00148484 | -5.5808e-07 |
| Number of rejected frequency rows (slice veto): | 8 / 26 | 19 / 48 | 52 / 92 | 127 / 176 | 274 / 338 |
| Time delay δt = t(L1) - t(H1): | 16.9198 s | 16.9205 s | 16.9174 s | 16.9172 s | 16.9159 s |
| Time delay δt_gw = δt - δt_slice: | 0.0018401 s | 0.00250778 s | -0.000615988 s | -0.000798019 s | -0.00212949 s |
| Time-delay undertainty: | 0.000165932 s | 0.000136302 s | 0.000194647 s | 0.000235758 s | 0.000316592 s |
| Frequency: | 43.4449 Hz | 54.8056 Hz | 46.2542 Hz | 42.237 Hz | 52.9643 Hz |
| Amplitude ratio L1/H1: | 1.30912 | 2.04789 | 0.553298 | -0.718611 | -1.41294 |
| Antenna factor ratio L1/H1 (min/max): | 0.330768 / 3.39416 | 0.0333197 / 8.59998 | 0.669265 / 1.48397 | 0.60576 / 1.63217 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 9.08324 | 7.3612 | 5.65923 | 5.28517 | 5.01708 |
| Maximum signal-to-noise ratio (L1): | 2.7311e-158 | 12.8042 | 10.7574 | 8.94893 | 7.30016 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378331613 (Sat Sep 9 21:53:15 2023 ) → GPS = 1378331623 (Sat Sep 9 21:53:25 2023 ) |
| Event time t(L1): | GPS = 1378331663 (Sat Sep 9 21:53:25 2023 ) → GPS = 1378331673 (Sat Sep 9 21:54:15 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378331610 → GPS = 1378331626 |
| Omicron analysis time window (L1): | GPS = 1378331660 → GPS = 1378331676 |
| Time delay between detectors t(L1) - t(H1): | 51.0111 s (slice index = 86 / 217), δt_gw = -0.000873173 s |
| Frequency: | 70.7445 Hz |
| Rank: | R_A = 0.268286 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.314627 | 0.511945 | 0.436598 | 0.392886 | 0.117292 |
| Number of rejected frequency rows (slice veto): | 13 / 26 | 21 / 48 | 51 / 92 | 117 / 176 | 249 / 338 |
| Time delay δt = t(L1) - t(H1): | 51.0073 s | 51.0102 s | 51.0141 s | 51.014 s | 51.0114 s |
| Time delay δt_gw = δt - δt_slice: | -0.00467893 s | -0.00179063 s | 0.00207227 s | 0.00197236 s | -0.000625774 s |
| Time-delay undertainty: | 0.000202374 s | 0.000120009 s | 0.000176763 s | 0.000224019 s | 0.000289368 s |
| Frequency: | 39.8925 Hz | 81.4492 Hz | 89.2796 Hz | 68.9953 Hz | 74.1059 Hz |
| Amplitude ratio L1/H1: | 1.69818 | 2.04735 | 3.11415 | 1.39555 | 1.98293 |
| Antenna factor ratio L1/H1 (min/max): | 0.63711 / 1.57994 | 0.398647 / 2.46577 | 0.116311 / 5.60532 | 0.0850339 / 6.59295 | 0.609182 / 1.62381 |
| Maximum signal-to-noise ratio (H1): | 6.49593 | 7.53517 | 7.78012 | 6.23113 | 5.37516 |
| Maximum signal-to-noise ratio (L1): | 2.88925e-158 | 11.8645 | 9.87706 | 8.49202 | 6.8514 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378699480 (Thu Sep 14 04:04:22 2023 ) → GPS = 1378699490 (Thu Sep 14 04:04:32 2023 ) |
| Event time t(L1): | GPS = 1378699510 (Thu Sep 14 04:04:32 2023 ) → GPS = 1378699520 (Thu Sep 14 04:05:02 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378699477 → GPS = 1378699493 |
| Omicron analysis time window (L1): | GPS = 1378699507 → GPS = 1378699523 |
| Time delay between detectors t(L1) - t(H1): | 33.6784 s (slice index = 28 / 217), δt_gw = -0.00157536 s |
| Frequency: | 73.0302 Hz |
| Rank: | R_A = 0.258115 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.586251 | 0.333123 | 0.371202 | 0.00505898 | 0.0116394 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 22 / 48 | 47 / 92 | 115 / 176 | 244 / 338 |
| Time delay δt = t(L1) - t(H1): | 33.6778 s | 33.6782 s | 33.6792 s | 33.6782 s | 33.68 s |
| Time delay δt_gw = δt - δt_slice: | -0.00220004 s | -0.00182927 s | -0.000803198 s | -0.00177603 s | 1.18965e-06 s |
| Time-delay undertainty: | 0.000100844 s | 0.000124097 s | 0.000138325 s | 0.000197458 s | 0.000273299 s |
| Frequency: | 44.2466 Hz | 55.0229 Hz | 95.483 Hz | 86.0448 Hz | 84.3535 Hz |
| Amplitude ratio L1/H1: | 1.8238 | 1.69106 | 1.28894 | -1.40103 | -9.94263 |
| Antenna factor ratio L1/H1 (min/max): | 0.190087 / 4.0028 | 0.36574 / 2.62121 | 0.666343 / 1.49055 | 0.269072 / 3.15594 | 0.727695 / 1.36728 |
| Maximum signal-to-noise ratio (H1): | 5.85167 | 5.62945 | 5.04043 | 5.45304 | 5.29281 |
| Maximum signal-to-noise ratio (L1): | 2.68214e-158 | 32.9635 | 25.5886 | 20.1894 | 16.439 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377744740 (Sun Sep 3 02:52:02 2023 ) → GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) |
| Event time t(L1): | GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) → GPS = 1377744760 (Sun Sep 3 02:52:22 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744737 → GPS = 1377744753 |
| Omicron analysis time window (L1): | GPS = 1377744747 → GPS = 1377744763 |
| Time delay between detectors t(L1) - t(H1): | 9.13258 s (slice index = 127 / 217), δt_gw = 0.00657538 s |
| Frequency: | 217.777 Hz |
| Rank: | R_A = 0.256052 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.567595 | 0.553062 | 0.482751 | 0.325634 | 0.159603 |
| Number of rejected frequency rows (slice veto): | 8 / 26 | 13 / 48 | 30 / 92 | 76 / 176 | 213 / 338 |
| Time delay δt = t(L1) - t(H1): | 9.13298 s | 9.13233 s | 9.13182 s | 9.13165 s | 9.12779 s |
| Time delay δt_gw = δt - δt_slice: | 0.00698223 s | 0.00632698 s | 0.00581847 s | 0.00564877 s | 0.00179134 s |
| Time-delay undertainty: | 0.000106908 s | 0.000170426 s | 0.000228656 s | 0.000291964 s | 0.000418376 s |
| Frequency: | 235.158 Hz | 234.421 Hz | 241.358 Hz | 227.496 Hz | 150.453 Hz |
| Amplitude ratio L1/H1: | 0.551262 | 0.695639 | 0.0999615 | 0.568249 | 0.604241 |
| Antenna factor ratio L1/H1 (min/max): | 0.539488 / 1.857 | 0.591929 / 1.69065 | 0.62437 / 1.60336 | 0.622922 / 1.6063 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 24.0301 | 17.4997 | 13.6297 | 10.4062 | 8.30453 |
| Maximum signal-to-noise ratio (L1): | 2.7053e-158 | 17.2645 | 14.2311 | 13.8383 | 13.1318 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378547635 (Tue Sep 12 09:53:37 2023 ) → GPS = 1378547645 (Tue Sep 12 09:53:47 2023 ) |
| Event time t(L1): | GPS = 1378547605 (Tue Sep 12 09:53:47 2023 ) → GPS = 1378547615 (Tue Sep 12 09:53:17 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378547632 → GPS = 1378547648 |
| Omicron analysis time window (L1): | GPS = 1378547602 → GPS = 1378547618 |
| Time delay between detectors t(L1) - t(H1): | -29.4921 s (slice index = 97 / 217), δt_gw = 0.00194091 s |
| Frequency: | 57.1489 Hz |
| Rank: | R_A = 0.252326 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.600548 | 0.406079 | 0.255002 | 0.0967063 | 0.205463 |
| Number of rejected frequency rows (slice veto): | 7 / 26 | 17 / 48 | 58 / 92 | 116 / 176 | 253 / 338 |
| Time delay δt = t(L1) - t(H1): | -29.4963 s | -29.4914 s | -29.4888 s | -29.4906 s | -29.4927 s |
| Time delay δt_gw = δt - δt_slice: | -0.00227146 s | 0.00260769 s | 0.00518109 s | 0.00337409 s | 0.00131461 s |
| Time-delay undertainty: | 0.000180047 s | 0.000144946 s | 0.000179667 s | 0.000192804 s | 0.000284525 s |
| Frequency: | 47.1484 Hz | 60.9947 Hz | 53.6104 Hz | 64.6679 Hz | 59.3234 Hz |
| Amplitude ratio L1/H1: | 6.00871 | 5.29617 | 1.14497 | -4.80944 | 5.42991 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 16.9696 | 0.0333197 / 8.59998 | 0.689775 / 1.4501 | 0.182243 / 5.98452 | 0.398015 / 2.4929 |
| Maximum signal-to-noise ratio (H1): | 5.69024 | 6.0329 | 5.3273 | 5.13548 | 5.35141 |
| Maximum signal-to-noise ratio (L1): | 2.75354e-158 | 13.6109 | 11.2942 | 9.01947 | 6.9376 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377781805 (Sun Sep 3 13:09:47 2023 ) → GPS = 1377781815 (Sun Sep 3 13:09:57 2023 ) |
| Event time t(L1): | GPS = 1377781835 (Sun Sep 3 13:09:57 2023 ) → GPS = 1377781845 (Sun Sep 3 13:10:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377781802 → GPS = 1377781818 |
| Omicron analysis time window (L1): | GPS = 1377781832 → GPS = 1377781848 |
| Time delay between detectors t(L1) - t(H1): | 28.1094 s (slice index = 149 / 217), δt_gw = -0.0046495 s |
| Frequency: | 63.8969 Hz |
| Rank: | R_A = 0.189311 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.485305 | 0.283828 | 0.238056 | 0.168656 | 0.0545377 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 30 / 48 | 56 / 92 | 103 / 176 | 259 / 338 |
| Time delay δt = t(L1) - t(H1): | 28.1064 s | 28.1112 s | 28.1109 s | 28.1104 s | 28.1117 s |
| Time delay δt_gw = δt - δt_slice: | -0.0075614 s | -0.00281272 s | -0.00313426 s | -0.00357108 s | -0.00226704 s |
| Time-delay undertainty: | 9.02451e-05 s | 0.000113283 s | 0.000125504 s | 0.000159424 s | 0.000283033 s |
| Frequency: | 47.3216 Hz | 42.9113 Hz | 68.9634 Hz | 87.3662 Hz | 72.9218 Hz |
| Amplitude ratio L1/H1: | 1.43126 | 2.25349 | 0.648391 | 0.372179 | 0.993135 |
| Antenna factor ratio L1/H1 (min/max): | 0.465739 / 2.1461 | 0.0333197 / 16.9696 | 0.0352521 / 16.9696 | 0.266224 / 3.75628 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 6.60164 | 5.94564 | 5.66958 | 5.27591 | 4.9535 |
| Maximum signal-to-noise ratio (L1): | 2.83211e-158 | 100.468 | 74.7891 | 55.5889 | 43.4217 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378588005 (Tue Sep 12 21:06:27 2023 ) → GPS = 1378588015 (Tue Sep 12 21:06:37 2023 ) |
| Event time t(L1): | GPS = 1378587955 (Tue Sep 12 21:06:37 2023 ) → GPS = 1378587965 (Tue Sep 12 21:05:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378588002 → GPS = 1378588018 |
| Omicron analysis time window (L1): | GPS = 1378587952 → GPS = 1378587968 |
| Time delay between detectors t(L1) - t(H1): | -46.3679 s (slice index = 29 / 217), δt_gw = -0.00189225 s |
| Frequency: | 73.5467 Hz |
| Rank: | R_A = 0.239333 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.285116 | 0.384933 | 0.348171 | 0.168808 | 0.00963822 |
| Number of rejected frequency rows (slice veto): | 16 / 26 | 23 / 48 | 46 / 92 | 115 / 176 | 255 / 338 |
| Time delay δt = t(L1) - t(H1): | -46.3693 s | -46.3679 s | -46.3677 s | -46.3689 s | -46.3627 s |
| Time delay δt_gw = δt - δt_slice: | -0.00331337 s | -0.00193831 s | -0.00167404 s | -0.00292555 s | 0.00332864 s |
| Time-delay undertainty: | 0.000142727 s | 0.000106044 s | 0.000160114 s | 0.000179074 s | 0.000289693 s |
| Frequency: | 39.6814 Hz | 84.3468 Hz | 87.4295 Hz | 87.905 Hz | 68.3708 Hz |
| Amplitude ratio L1/H1: | 1.32059 | 1.61036 | 1.57617 | 2.69785 | 2.34398 |
| Antenna factor ratio L1/H1 (min/max): | 0.12025 / 8.26219 | 0.340208 / 2.75096 | 0.390547 / 2.50284 | 0.0333197 / 16.9696 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 5.9865 | 6.22744 | 5.24581 | 5.57118 | 5.36596 |
| Maximum signal-to-noise ratio (L1): | 2.57724e-158 | 12.4166 | 10.3319 | 9.45198 | 8.04431 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377828155 (Mon Sep 4 02:02:17 2023 ) → GPS = 1377828165 (Mon Sep 4 02:02:27 2023 ) |
| Event time t(L1): | GPS = 1377828175 (Mon Sep 4 02:02:27 2023 ) → GPS = 1377828185 (Mon Sep 4 02:02:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377828152 → GPS = 1377828168 |
| Omicron analysis time window (L1): | GPS = 1377828172 → GPS = 1377828188 |
| Time delay between detectors t(L1) - t(H1): | 18.07 s (slice index = 150 / 217), δt_gw = 0.00197054 s |
| Frequency: | 67.8929 Hz |
| Rank: | R_A = 0.236745 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.471479 | 0.350702 | 0.210819 | 0.150726 | -0.000198468 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 22 / 48 | 55 / 92 | 116 / 176 | 257 / 338 |
| Time delay δt = t(L1) - t(H1): | 18.0714 s | 18.0666 s | 18.0723 s | 18.0698 s | 18.069 s |
| Time delay δt_gw = δt - δt_slice: | 0.00339652 s | -0.00144969 s | 0.00434855 s | 0.00179024 s | 0.00102828 s |
| Time-delay undertainty: | 0.000309442 s | 0.000171011 s | 0.000143848 s | 0.000166402 s | 0.000257517 s |
| Frequency: | 41.1025 Hz | 54.6546 Hz | 72.5202 Hz | 94.9497 Hz | 76.2374 Hz |
| Amplitude ratio L1/H1: | 0.707217 | 0.824413 | 1.38694 | 2.06145 | 0.360229 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.59998 | 0.479501 / 2.09593 | 0.605657 / 1.67365 | 0.352643 / 3.01672 | 0.53779 / 1.86608 |
| Maximum signal-to-noise ratio (H1): | 7.39666 | 6.29361 | 6.65166 | 6.71981 | 6.28505 |
| Maximum signal-to-noise ratio (L1): | 2.61753e-158 | 28.487 | 22.7821 | 19.7013 | 17.426 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377920887 (Tue Sep 5 03:47:49 2023 ) → GPS = 1377920897 (Tue Sep 5 03:47:59 2023 ) |
| Event time t(L1): | GPS = 1377920867 (Tue Sep 5 03:47:59 2023 ) → GPS = 1377920877 (Tue Sep 5 03:47:39 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377920884 → GPS = 1377920900 |
| Omicron analysis time window (L1): | GPS = 1377920864 → GPS = 1377920880 |
| Time delay between detectors t(L1) - t(H1): | -16.3665 s (slice index = 29 / 217), δt_gw = -0.000531119 s |
| Frequency: | 56.4691 Hz |
| Rank: | R_A = 0.235889 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.475631 | 0.192908 | 0.30555 | 0.156957 | 0.0483989 |
| Number of rejected frequency rows (slice veto): | 14 / 26 | 32 / 48 | 52 / 92 | 119 / 176 | 271 / 338 |
| Time delay δt = t(L1) - t(H1): | -16.3667 s | -16.3661 s | -16.3669 s | -16.3652 s | -16.3689 s |
| Time delay δt_gw = δt - δt_slice: | -0.00072774 s | -6.97171e-05 s | -0.000850524 s | 0.000818265 s | -0.00285404 s |
| Time-delay undertainty: | 0.000117237 s | 0.0001495 s | 0.000136265 s | 0.00019878 s | 0.00036296 s |
| Frequency: | 40.4254 Hz | 34.0509 Hz | 67.3255 Hz | 74.8408 Hz | 65.7026 Hz |
| Amplitude ratio L1/H1: | 1.22878 | 0.896035 | 1.14052 | 1.0704 | 4.4773 |
| Antenna factor ratio L1/H1 (min/max): | 0.691904 / 1.43499 | 0.767005 / 1.29883 | 0.657453 / 1.51094 | 0.63061 / 1.56893 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 6.76635 | 6.45619 | 5.28602 | 4.63122 | 5.05873 |
| Maximum signal-to-noise ratio (L1): | 2.7956e-158 | 15.8177 | 12.5665 | 9.72989 | 8.14266 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377744735 (Sun Sep 3 02:51:57 2023 ) → GPS = 1377744745 (Sun Sep 3 02:52:07 2023 ) |
| Event time t(L1): | GPS = 1377744755 (Sun Sep 3 02:52:07 2023 ) → GPS = 1377744765 (Sun Sep 3 02:52:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744732 → GPS = 1377744748 |
| Omicron analysis time window (L1): | GPS = 1377744752 → GPS = 1377744768 |
| Time delay between detectors t(L1) - t(H1): | 19.1317 s (slice index = 127 / 217), δt_gw = 0.00567356 s |
| Frequency: | 257.018 Hz |
| Rank: | R_A = 0.235525 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.443398 | 0.451677 | 0.412393 | 0.313556 | 0.104363 |
| Number of rejected frequency rows (slice veto): | 6 / 26 | 12 / 48 | 47 / 92 | 97 / 176 | 221 / 338 |
| Time delay δt = t(L1) - t(H1): | 19.1324 s | 19.132 s | 19.1307 s | 19.1271 s | 19.1256 s |
| Time delay δt_gw = δt - δt_slice: | 0.00638135 s | 0.00604515 s | 0.00471161 s | 0.00106882 s | -0.000368308 s |
| Time-delay undertainty: | 0.000102772 s | 0.000162381 s | 0.000243472 s | 0.000280856 s | 0.000343735 s |
| Frequency: | 333.24 Hz | 305.652 Hz | 272.446 Hz | 241.176 Hz | 132.577 Hz |
| Amplitude ratio L1/H1: | 0.576946 | 0.706515 | 1.05047 | 0.848461 | 2.0519 |
| Antenna factor ratio L1/H1 (min/max): | 0.607203 / 1.64851 | 0.621798 / 1.60921 | 0.620753 / 1.62204 | 0.499307 / 2.01879 | 0.62972 / 1.57853 |
| Maximum signal-to-noise ratio (H1): | 23.7492 | 17.3656 | 13.3021 | 10.3855 | 8.17227 |
| Maximum signal-to-noise ratio (L1): | 2.7053e-158 | 12.9084 | 11.5353 | 14.3952 | 13.0095 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378629088 (Wed Sep 13 08:31:10 2023 ) → GPS = 1378629098 (Wed Sep 13 08:31:20 2023 ) |
| Event time t(L1): | GPS = 1378629118 (Wed Sep 13 08:31:20 2023 ) → GPS = 1378629128 (Wed Sep 13 08:31:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378629085 → GPS = 1378629101 |
| Omicron analysis time window (L1): | GPS = 1378629115 → GPS = 1378629131 |
| Time delay between detectors t(L1) - t(H1): | 33.6789 s (slice index = 28 / 217), δt_gw = -0.00114393 s |
| Frequency: | 67.3761 Hz |
| Rank: | R_A = 0.234718 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.643992 | 0.529597 | 0.411811 | 0.120333 | 0.0574971 |
| Number of rejected frequency rows (slice veto): | 4 / 26 | 19 / 48 | 46 / 92 | 111 / 176 | 236 / 338 |
| Time delay δt = t(L1) - t(H1): | 33.6768 s | 33.6781 s | 33.6807 s | 33.6802 s | 33.6804 s |
| Time delay δt_gw = δt - δt_slice: | -0.00321095 s | -0.00186277 s | 0.0007155 s | 0.000225111 s | 0.000415378 s |
| Time-delay undertainty: | 0.000274699 s | 0.000250715 s | 0.000180828 s | 0.000178009 s | 0.00025654 s |
| Frequency: | 64.7896 Hz | 62.621 Hz | 66.1512 Hz | 68.249 Hz | 75.0696 Hz |
| Amplitude ratio L1/H1: | 2.3419 | 1.89131 | 2.09201 | -2.89008 | 2.05723 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 16.9696 | 0.105794 / 5.91491 | 0.66168 / 1.50574 | 0.736332 / 1.35112 | 0.674127 / 1.47741 |
| Maximum signal-to-noise ratio (H1): | 9.74702 | 8.93589 | 8.31364 | 7.0056 | 5.90594 |
| Maximum signal-to-noise ratio (L1): | 2.7473e-158 | 36.1732 | 28.6761 | 23.3443 | 20.6816 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378604989 (Wed Sep 13 01:49:31 2023 ) → GPS = 1378604999 (Wed Sep 13 01:49:41 2023 ) |
| Event time t(L1): | GPS = 1378604979 (Wed Sep 13 01:49:41 2023 ) → GPS = 1378604989 (Wed Sep 13 01:49:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378604986 → GPS = 1378605002 |
| Omicron analysis time window (L1): | GPS = 1378604976 → GPS = 1378604992 |
| Time delay between detectors t(L1) - t(H1): | -9.40061 s (slice index = 95 / 217), δt_gw = 0.00138742 s |
| Frequency: | 62.1875 Hz |
| Rank: | R_A = 0.233628 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.501539 | 0.455115 | 0.211485 | -0.00290619 | -0.00064076 |
| Number of rejected frequency rows (slice veto): | 9 / 26 | 30 / 48 | 62 / 92 | 135 / 176 | 267 / 338 |
| Time delay δt = t(L1) - t(H1): | -9.40005 s | -9.40074 s | -9.40139 s | -9.40167 s | -9.40081 s |
| Time delay δt_gw = δt - δt_slice: | 0.00194852 s | 0.00126046 s | 0.000614227 s | 0.000334 s | 0.00118631 s |
| Time-delay undertainty: | 9.29255e-05 s | 0.000164523 s | 0.000164547 s | 0.000191693 s | 0.000317876 s |
| Frequency: | 59.4317 Hz | 52.1296 Hz | 60.2691 Hz | 67.0119 Hz | 72.0953 Hz |
| Amplitude ratio L1/H1: | 1.60219 | 0.943408 | 1.07302 | 0.274952 | 6.8333 |
| Antenna factor ratio L1/H1 (min/max): | 0.375174 / 2.72457 | 0.548803 / 1.81039 | 0.68631 / 1.45074 | 0.716607 / 1.38863 | 0.40374 / 2.44241 |
| Maximum signal-to-noise ratio (H1): | 6.25611 | 5.94043 | 4.8248 | 4.85224 | 5.11813 |
| Maximum signal-to-noise ratio (L1): | 2.66453e-158 | 32.3817 | 24.4889 | 18.6465 | 14.2267 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378549424 (Tue Sep 12 10:23:26 2023 ) → GPS = 1378549434 (Tue Sep 12 10:23:36 2023 ) |
| Event time t(L1): | GPS = 1378549454 (Tue Sep 12 10:23:36 2023 ) → GPS = 1378549464 (Tue Sep 12 10:24:06 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378549421 → GPS = 1378549437 |
| Omicron analysis time window (L1): | GPS = 1378549451 → GPS = 1378549467 |
| Time delay between detectors t(L1) - t(H1): | 28.8516 s (slice index = 133 / 217), δt_gw = 0.00164495 s |
| Frequency: | 42.9441 Hz |
| Rank: | R_A = 0.231406 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.592652 | 0.517363 | 0.043984 | 0.00396521 | 0.00303294 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 26 / 48 | 65 / 92 | 130 / 176 | 273 / 338 |
| Time delay δt = t(L1) - t(H1): | 28.852 s | 28.8486 s | 28.8547 s | 28.8523 s | 28.8491 s |
| Time delay δt_gw = δt - δt_slice: | 0.00201828 s | -0.00137223 s | 0.00472069 s | 0.00231352 s | -0.00090254 s |
| Time-delay undertainty: | 0.00015907 s | 0.000197567 s | 0.000162713 s | 0.000177919 s | 0.000278886 s |
| Frequency: | 37.1365 Hz | 39.958 Hz | 36.9981 Hz | 48.6623 Hz | 51.9657 Hz |
| Amplitude ratio L1/H1: | 1.39753 | 1.3589 | 1.00877 | 33.1578 | 0.882456 |
| Antenna factor ratio L1/H1 (min/max): | 0.190087 / 4.21462 | 0.479501 / 2.09593 | 0.668758 / 1.50787 | 0.0333197 / 8.59998 | 0.552458 / 1.79294 |
| Maximum signal-to-noise ratio (H1): | 10.0949 | 8.12534 | 7.324 | 7.56558 | 7.57873 |
| Maximum signal-to-noise ratio (L1): | 2.7744e-158 | 15.115 | 12.6067 | 11.3598 | 10.2652 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378001900 (Wed Sep 6 02:18:02 2023 ) → GPS = 1378001910 (Wed Sep 6 02:18:12 2023 ) |
| Event time t(L1): | GPS = 1378001920 (Wed Sep 6 02:18:12 2023 ) → GPS = 1378001930 (Wed Sep 6 02:18:32 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378001897 → GPS = 1378001913 |
| Omicron analysis time window (L1): | GPS = 1378001917 → GPS = 1378001933 |
| Time delay between detectors t(L1) - t(H1): | 16.1408 s (slice index = 192 / 217), δt_gw = 0.00480493 s |
| Frequency: | 83.3437 Hz |
| Rank: | R_A = 0.228727 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.164097 | 0.311638 | 0.176558 | 0.319381 | 0.171962 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 24 / 48 | 61 / 92 | 110 / 176 | 246 / 338 |
| Time delay δt = t(L1) - t(H1): | 16.1458 s | 16.1383 s | 16.1387 s | 16.138 s | 16.1372 s |
| Time delay δt_gw = δt - δt_slice: | 0.00983269 s | 0.00228697 s | 0.00274535 s | 0.00196821 s | 0.00122621 s |
| Time-delay undertainty: | 0.000116915 s | 0.000164026 s | 0.000170287 s | 0.000186695 s | 0.000305241 s |
| Frequency: | 69.9497 Hz | 77.38 Hz | 72.7882 Hz | 105.871 Hz | 90.729 Hz |
| Amplitude ratio L1/H1: | 2.99179 | 2.35536 | 1.1722 | 2.39898 | 1.31738 |
| Antenna factor ratio L1/H1 (min/max): | 0.119109 / 7.83417 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.169126 / 4.37081 | 0.40374 / 2.44241 |
| Maximum signal-to-noise ratio (H1): | 6.03544 | 5.90138 | 5.92452 | 5.34485 | 5.21826 |
| Maximum signal-to-noise ratio (L1): | 2.77089e-158 | 53.9238 | 40.21 | 30.8748 | 24.4787 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377836664 (Mon Sep 4 04:24:06 2023 ) → GPS = 1377836674 (Mon Sep 4 04:24:16 2023 ) |
| Event time t(L1): | GPS = 1377836684 (Mon Sep 4 04:24:16 2023 ) → GPS = 1377836694 (Mon Sep 4 04:24:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377836661 → GPS = 1377836677 |
| Omicron analysis time window (L1): | GPS = 1377836681 → GPS = 1377836697 |
| Time delay between detectors t(L1) - t(H1): | 21.2345 s (slice index = 81 / 217), δt_gw = -0.0075223 s |
| Frequency: | 43.7903 Hz |
| Rank: | R_A = 0.184572 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.000537819 | 0.219412 | 0.383437 | 0.439509 | 0.482812 |
| Number of rejected frequency rows (slice veto): | 23 / 26 | 34 / 48 | 52 / 92 | 104 / 176 | 193 / 338 |
| Time delay δt = t(L1) - t(H1): | 21.2324 s | 21.2333 s | 21.2379 s | 21.2386 s | 21.2401 s |
| Time delay δt_gw = δt - δt_slice: | -0.00961412 s | -0.00866567 s | -0.0040809 s | -0.00335032 s | -0.00188087 s |
| Time-delay undertainty: | 8.3208e-05 s | 0.000165833 s | 0.000292427 s | 0.000389863 s | 0.000505051 s |
| Frequency: | 10.4541 Hz | 37.2131 Hz | 59.0677 Hz | 55.6986 Hz | 56.5181 Hz |
| Amplitude ratio L1/H1: | 0.469346 | 5.7237 | 4.9916 | 7.59173 | 8.01065 |
| Antenna factor ratio L1/H1 (min/max): | 0.0321693 / 29.2635 | 0.112834 / 9.64056 | 0.374367 / 3.04147 | 0.0333197 / 16.9696 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 30.4203 | 23.7664 | 17.2934 | 13.2136 | 10.3581 |
| Maximum signal-to-noise ratio (L1): | 2.81361e-158 | 110.428 | 84.5336 | 62.5116 | 46.4097 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378528631 (Tue Sep 12 04:36:53 2023 ) → GPS = 1378528641 (Tue Sep 12 04:37:03 2023 ) |
| Event time t(L1): | GPS = 1378528641 (Tue Sep 12 04:37:03 2023 ) → GPS = 1378528651 (Tue Sep 12 04:37:13 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378528628 → GPS = 1378528644 |
| Omicron analysis time window (L1): | GPS = 1378528638 → GPS = 1378528654 |
| Time delay between detectors t(L1) - t(H1): | 13.0385 s (slice index = 42 / 217), δt_gw = 0.0025055 s |
| Frequency: | 95.5324 Hz |
| Rank: | R_A = 0.106069 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.68428 | 0.609047 | 0.430955 | 0.192611 | 0.0993917 |
| Number of rejected frequency rows (slice veto): | 3 / 26 | 9 / 48 | 29 / 92 | 106 / 176 | 256 / 338 |
| Time delay δt = t(L1) - t(H1): | 13.0385 s | 13.0387 s | 13.0386 s | 13.0373 s | 13.0379 s |
| Time delay δt_gw = δt - δt_slice: | 0.00254301 s | 0.00271613 s | 0.00260173 s | 0.00125725 s | 0.00191439 s |
| Time-delay undertainty: | 0.000150102 s | 0.000163959 s | 0.000229605 s | 0.000303764 s | 0.000362733 s |
| Frequency: | 108.491 Hz | 110.833 Hz | 106.14 Hz | 82.4593 Hz | 69.7389 Hz |
| Amplitude ratio L1/H1: | 0.118475 | 0.130178 | 0.128038 | 0.0363756 | 0.132034 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.398015 / 2.4929 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 133.907 | 98.1172 | 74.0951 | 55.8968 | 41.0795 |
| Maximum signal-to-noise ratio (L1): | 2.64428e-158 | 124.955 | 97.0844 | 80.3854 | 63.733 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378049544 (Wed Sep 6 15:32:06 2023 ) → GPS = 1378049554 (Wed Sep 6 15:32:16 2023 ) |
| Event time t(L1): | GPS = 1378049584 (Wed Sep 6 15:32:16 2023 ) → GPS = 1378049594 (Wed Sep 6 15:32:56 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378049541 → GPS = 1378049557 |
| Omicron analysis time window (L1): | GPS = 1378049581 → GPS = 1378049597 |
| Time delay between detectors t(L1) - t(H1): | 38.5723 s (slice index = 139 / 217), δt_gw = -0.00171161 s |
| Frequency: | 65.3774 Hz |
| Rank: | R_A = 0.221758 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.548273 | 0.261121 | 0.282657 | 0.016737 | 0.0038911 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 31 / 48 | 57 / 92 | 126 / 176 | 248 / 338 |
| Time delay δt = t(L1) - t(H1): | 38.5711 s | 38.5701 s | 38.5734 s | 38.572 s | 38.5742 s |
| Time delay δt_gw = δt - δt_slice: | -0.00287657 s | -0.00393029 s | -0.000591425 s | -0.00197035 s | 0.000229686 s |
| Time-delay undertainty: | 0.0001821 s | 0.000262257 s | 0.000190885 s | 0.000190664 s | 0.000236435 s |
| Frequency: | 44.1016 Hz | 36.1731 Hz | 68.1254 Hz | 75.7844 Hz | 102.703 Hz |
| Amplitude ratio L1/H1: | 1.21084 | 1.35226 | 0.808994 | 0.942214 | 0.179885 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 16.9696 | 0.333281 / 3.45443 | 0.675049 / 1.47112 | 0.158589 / 4.57899 | 0.712083 / 1.39755 |
| Maximum signal-to-noise ratio (H1): | 5.97534 | 6.3025 | 5.38422 | 4.78857 | 4.92245 |
| Maximum signal-to-noise ratio (L1): | 2.64832e-158 | 7.53355 | 6.52357 | 5.34319 | 4.9869 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377885599 (Mon Sep 4 17:59:41 2023 ) → GPS = 1377885609 (Mon Sep 4 17:59:51 2023 ) |
| Event time t(L1): | GPS = 1377885609 (Mon Sep 4 17:59:51 2023 ) → GPS = 1377885619 (Mon Sep 4 18:00:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377885596 → GPS = 1377885612 |
| Omicron analysis time window (L1): | GPS = 1377885606 → GPS = 1377885622 |
| Time delay between detectors t(L1) - t(H1): | 7.74654 s (slice index = 157 / 217), δt_gw = 0.000537773 s |
| Frequency: | 63.3028 Hz |
| Rank: | R_A = 0.22104 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.275703 | 0.139147 | 0.234333 | 0.273417 | 0.182598 |
| Number of rejected frequency rows (slice veto): | 19 / 26 | 35 / 48 | 58 / 92 | 106 / 176 | 230 / 338 |
| Time delay δt = t(L1) - t(H1): | 7.73984 s | 7.75025 s | 7.75028 s | 7.74753 s | 7.74867 s |
| Time delay δt_gw = δt - δt_slice: | -0.00615654 s | 0.00425058 s | 0.00427813 s | 0.00153049 s | 0.00267025 s |
| Time-delay undertainty: | 0.000120786 s | 0.000170885 s | 0.000150749 s | 0.000171711 s | 0.000244713 s |
| Frequency: | 29.2319 Hz | 33.7507 Hz | 68.2681 Hz | 97.3625 Hz | 87.9006 Hz |
| Amplitude ratio L1/H1: | 1.19583 | 0.809689 | 0.645071 | 1.29825 | 0.81333 |
| Antenna factor ratio L1/H1 (min/max): | 0.623124 / 1.60573 | 0.558188 / 1.79592 | 0.587876 / 1.73199 | 0.443588 / 2.15197 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 5.31281 | 6.42462 | 6.17902 | 5.46853 | 4.81469 |
| Maximum signal-to-noise ratio (L1): | 2.89308e-158 | 13.7349 | 10.5872 | 9.16602 | 8.49529 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378651908 (Wed Sep 13 14:51:30 2023 ) → GPS = 1378651918 (Wed Sep 13 14:51:40 2023 ) |
| Event time t(L1): | GPS = 1378651858 (Wed Sep 13 14:51:40 2023 ) → GPS = 1378651868 (Wed Sep 13 14:50:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378651905 → GPS = 1378651921 |
| Omicron analysis time window (L1): | GPS = 1378651855 → GPS = 1378651871 |
| Time delay between detectors t(L1) - t(H1): | -52.6194 s (slice index = 165 / 217), δt_gw = 0.00260567 s |
| Frequency: | 34.0015 Hz |
| Rank: | R_A = 0.220903 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.000532075 | 0.158617 | 0.238638 | 0.345159 | 0.362102 |
| Number of rejected frequency rows (slice veto): | 17 / 26 | 32 / 48 | 57 / 92 | 118 / 176 | 233 / 338 |
| Time delay δt = t(L1) - t(H1): | -52.6175 s | -52.6203 s | -52.6217 s | -52.6205 s | -52.6194 s |
| Time delay δt_gw = δt - δt_slice: | 0.00452527 s | 0.00168575 s | 0.000313491 s | 0.0015414 s | 0.00258324 s |
| Time-delay undertainty: | 7.36275e-05 s | 0.000127283 s | 0.000152998 s | 0.000265319 s | 0.000296186 s |
| Frequency: | 29.7356 Hz | 30.0536 Hz | 32.0338 Hz | 32.6717 Hz | 45.5127 Hz |
| Amplitude ratio L1/H1: | 0.0324311 | 0.610461 | 0.864887 | 0.676848 | 0.360494 |
| Antenna factor ratio L1/H1 (min/max): | 0.682413 / 1.47985 | 0.432273 / 2.22491 | 0.734192 / 1.35509 | 0.336153 / 3.28997 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 116.512 | 87.7791 | 66.1448 | 49.7685 | 37.977 |
| Maximum signal-to-noise ratio (L1): | 2.61203e-158 | 16.6725 | 14.8146 | 11.3383 | 8.89263 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378549429 (Tue Sep 12 10:23:31 2023 ) → GPS = 1378549439 (Tue Sep 12 10:23:41 2023 ) |
| Event time t(L1): | GPS = 1378549459 (Tue Sep 12 10:23:41 2023 ) → GPS = 1378549469 (Tue Sep 12 10:24:11 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378549426 → GPS = 1378549442 |
| Omicron analysis time window (L1): | GPS = 1378549456 → GPS = 1378549472 |
| Time delay between detectors t(L1) - t(H1): | 28.8487 s (slice index = 133 / 217), δt_gw = -0.00127127 s |
| Frequency: | 49.1114 Hz |
| Rank: | R_A = 0.220738 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.570023 | 0.520392 | 0.0450762 | 0.00190836 | 0.0132741 |
| Number of rejected frequency rows (slice veto): | 8 / 26 | 24 / 48 | 58 / 92 | 136 / 176 | 264 / 338 |
| Time delay δt = t(L1) - t(H1): | 28.8478 s | 28.8478 s | 28.85 s | 28.8509 s | 28.8505 s |
| Time delay δt_gw = δt - δt_slice: | -0.00216084 s | -0.00215191 s | -1.46138e-05 s | 0.000924582 s | 0.000494243 s |
| Time-delay undertainty: | 9.48414e-05 s | 0.000147786 s | 0.000155732 s | 0.000220589 s | 0.000294557 s |
| Frequency: | 49.2811 Hz | 43.3011 Hz | 45.8363 Hz | 51.5218 Hz | 55.6164 Hz |
| Amplitude ratio L1/H1: | 0.965768 | 1.03583 | 0.0138537 | -0.0204703 | 1.46458 |
| Antenna factor ratio L1/H1 (min/max): | 0.221139 / 3.55131 | 0.126871 / 5.31737 | 0.770516 / 1.29288 | 0.588377 / 1.67584 | 0.641809 / 1.54835 |
| Maximum signal-to-noise ratio (H1): | 10.0489 | 8.50914 | 8.34875 | 6.8387 | 7.34471 |
| Maximum signal-to-noise ratio (L1): | 2.7744e-158 | 27.1121 | 22.4677 | 18.3015 | 14.0132 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378628058 (Wed Sep 13 08:14:00 2023 ) → GPS = 1378628068 (Wed Sep 13 08:14:10 2023 ) |
| Event time t(L1): | GPS = 1378628038 (Wed Sep 13 08:14:10 2023 ) → GPS = 1378628048 (Wed Sep 13 08:13:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628055 → GPS = 1378628071 |
| Omicron analysis time window (L1): | GPS = 1378628035 → GPS = 1378628051 |
| Time delay between detectors t(L1) - t(H1): | -23.5358 s (slice index = 185 / 217), δt_gw = 0.00617513 s |
| Frequency: | 106.151 Hz |
| Rank: | R_A = 0.219525 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.781707 | 0.73201 | 0.604604 | 0.315918 | 0.13551 |
| Number of rejected frequency rows (slice veto): | 4 / 26 | 11 / 48 | 30 / 92 | 84 / 176 | 217 / 338 |
| Time delay δt = t(L1) - t(H1): | -23.5347 s | -23.536 s | -23.5374 s | -23.5386 s | -23.5393 s |
| Time delay δt_gw = δt - δt_slice: | 0.00729015 s | 0.00595368 s | 0.00457178 s | 0.00344887 s | 0.00269923 s |
| Time-delay undertainty: | 0.000165932 s | 0.000223387 s | 0.000301018 s | 0.000298652 s | 0.000348441 s |
| Frequency: | 146.072 Hz | 130 Hz | 108.682 Hz | 83.8575 Hz | 62.145 Hz |
| Amplitude ratio L1/H1: | 1.64468 | 1.78113 | 2.11226 | 6.72728 | -0.0979361 |
| Antenna factor ratio L1/H1 (min/max): | 0.472061 / 2.11877 | 0.612733 / 1.63307 | 0.537363 / 1.90478 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 32.6746 | 25.4147 | 23.8029 | 21.9247 | 18.9058 |
| Maximum signal-to-noise ratio (L1): | 2.7473e-158 | 51.5977 | 38.0129 | 28.8235 | 22.5871 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378094673 (Thu Sep 7 04:04:15 2023 ) → GPS = 1378094683 (Thu Sep 7 04:04:25 2023 ) |
| Event time t(L1): | GPS = 1378094713 (Thu Sep 7 04:04:25 2023 ) → GPS = 1378094723 (Thu Sep 7 04:05:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378094670 → GPS = 1378094686 |
| Omicron analysis time window (L1): | GPS = 1378094710 → GPS = 1378094726 |
| Time delay between detectors t(L1) - t(H1): | 36.1365 s (slice index = 192 / 217), δt_gw = 0.000473005 s |
| Frequency: | 86.0968 Hz |
| Rank: | R_A = 0.217362 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.201953 | 0.368728 | 0.353525 | 0.143862 | 0.0187427 |
| Number of rejected frequency rows (slice veto): | 13 / 26 | 24 / 48 | 57 / 92 | 119 / 176 | 258 / 338 |
| Time delay δt = t(L1) - t(H1): | 36.1377 s | 36.135 s | 36.1374 s | 36.1345 s | 36.1378 s |
| Time delay δt_gw = δt - δt_slice: | 0.00174425 s | -0.000991487 s | 0.00135775 s | -0.00146106 s | 0.00177371 s |
| Time-delay undertainty: | 0.000128708 s | 0.000129178 s | 0.000155643 s | 0.000212218 s | 0.000279077 s |
| Frequency: | 65.7427 Hz | 93.602 Hz | 94.975 Hz | 98.9292 Hz | 77.2352 Hz |
| Amplitude ratio L1/H1: | 0.784614 | 0.72332 | 0.894239 | 1.26493 | 1.34384 |
| Antenna factor ratio L1/H1 (min/max): | 0.409463 / 2.39446 | 0.636016 / 1.56263 | 0.534107 / 1.88584 | 0.422427 / 2.36128 | 0.116311 / 5.60532 |
| Maximum signal-to-noise ratio (H1): | 4.93256 | 5.49116 | 5.51135 | 5.30592 | 5.03559 |
| Maximum signal-to-noise ratio (L1): | 2.65517e-158 | 36.9778 | 28.7743 | 24.2387 | 19.5116 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377703886 (Sat Sep 2 15:31:08 2023 ) → GPS = 1377703896 (Sat Sep 2 15:31:18 2023 ) |
| Event time t(L1): | GPS = 1377703896 (Sat Sep 2 15:31:18 2023 ) → GPS = 1377703906 (Sat Sep 2 15:31:28 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377703883 → GPS = 1377703899 |
| Omicron analysis time window (L1): | GPS = 1377703893 → GPS = 1377703909 |
| Time delay between detectors t(L1) - t(H1): | 6.1779 s (slice index = 191 / 217), δt_gw = -0.00409831 s |
| Frequency: | 55.4044 Hz |
| Rank: | R_A = 0.216284 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.47218 | 0.308252 | 0.27816 | 0.0228307 | 0.00803373 |
| Number of rejected frequency rows (slice veto): | 13 / 26 | 32 / 48 | 55 / 92 | 131 / 176 | 257 / 338 |
| Time delay δt = t(L1) - t(H1): | 6.17503 s | 6.17424 s | 6.18279 s | 6.18414 s | 6.18264 s |
| Time delay δt_gw = δt - δt_slice: | -0.00697169 s | -0.00776403 s | 0.000791418 s | 0.00214028 s | 0.00063849 s |
| Time-delay undertainty: | 8.20461e-05 s | 0.000176806 s | 0.000185909 s | 0.000181091 s | 0.000261042 s |
| Frequency: | 47.9103 Hz | 43.3345 Hz | 55.5506 Hz | 53.5965 Hz | 76.6301 Hz |
| Amplitude ratio L1/H1: | 0.951272 | 0.488676 | 0.952365 | 5.45315 | 0.36655 |
| Antenna factor ratio L1/H1 (min/max): | 0.549703 / 1.821 | 0.379772 / 2.64102 | 0.64547 / 1.54205 | 0.0650953 / 7.31638 | 0.63061 / 1.56893 |
| Maximum signal-to-noise ratio (H1): | 6.40338 | 6.82365 | 5.91883 | 5.82613 | 5.39713 |
| Maximum signal-to-noise ratio (L1): | 2.64609e-158 | 86.7759 | 64.3053 | 47.8127 | 35.7201 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378091243 (Thu Sep 7 03:07:05 2023 ) → GPS = 1378091253 (Thu Sep 7 03:07:15 2023 ) |
| Event time t(L1): | GPS = 1378091233 (Thu Sep 7 03:07:15 2023 ) → GPS = 1378091243 (Thu Sep 7 03:07:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378091240 → GPS = 1378091256 |
| Omicron analysis time window (L1): | GPS = 1378091230 → GPS = 1378091246 |
| Time delay between detectors t(L1) - t(H1): | -7.88326 s (slice index = 62 / 217), δt_gw = 0.000740394 s |
| Frequency: | 72.1703 Hz |
| Rank: | R_A = 0.21404 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.479141 | 0.380732 | 0.353485 | 0.255252 | 0.0807332 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 26 / 48 | 54 / 92 | 119 / 176 | 247 / 338 |
| Time delay δt = t(L1) - t(H1): | -7.87708 s | -7.88833 s | -7.88628 s | -7.88816 s | -7.88641 s |
| Time delay δt_gw = δt - δt_slice: | 0.00691944 s | -0.00432747 s | -0.00227795 s | -0.00416331 s | -0.00241108 s |
| Time-delay undertainty: | 9.97672e-05 s | 0.000183063 s | 0.000154158 s | 0.000187001 s | 0.000244518 s |
| Frequency: | 57.0565 Hz | 56.1544 Hz | 81.7446 Hz | 86.0888 Hz | 79.8073 Hz |
| Amplitude ratio L1/H1: | -1.63818 | 0.719473 | 1.29499 | 0.87267 | 0.626171 |
| Antenna factor ratio L1/H1 (min/max): | 0.549692 / 1.82086 | 0.573268 / 1.76324 | 0.0350923 / 8.47623 | 0.509354 / 1.93178 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 5.06623 | 5.41687 | 6.1447 | 5.88271 | 5.30811 |
| Maximum signal-to-noise ratio (L1): | 2.65517e-158 | 10.139 | 7.79167 | 6.78005 | 6.78749 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377922312 (Tue Sep 5 04:11:34 2023 ) → GPS = 1377922322 (Tue Sep 5 04:11:44 2023 ) |
| Event time t(L1): | GPS = 1377922312 (Tue Sep 5 04:11:44 2023 ) → GPS = 1377922322 (Tue Sep 5 04:11:44 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377922309 → GPS = 1377922325 |
| Omicron analysis time window (L1): | GPS = 1377922309 → GPS = 1377922325 |
| Time delay between detectors t(L1) - t(H1): | -0.369992 s (slice index = 116 / 217), δt_gw = -0.0019921 s |
| Frequency: | 57.8411 Hz |
| Rank: | R_A = 0.213679 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.492595 | 0.285445 | 0.156386 | 0.133967 | 0.0956513 |
| Number of rejected frequency rows (slice veto): | 9 / 26 | 26 / 48 | 62 / 92 | 131 / 176 | 243 / 338 |
| Time delay δt = t(L1) - t(H1): | -0.370727 s | -0.370382 s | -0.367391 s | -0.371128 s | -0.366735 s |
| Time delay δt_gw = δt - δt_slice: | -0.00272734 s | -0.00238192 s | 0.000608502 s | -0.0031276 s | 0.00126541 s |
| Time-delay undertainty: | 8.46248e-05 s | 0.00012091 s | 0.000171962 s | 0.000222783 s | 0.000279418 s |
| Frequency: | 59.7974 Hz | 54.2815 Hz | 51.9613 Hz | 51.7654 Hz | 71.3998 Hz |
| Amplitude ratio L1/H1: | 0.659235 | 0.523885 | 0.81443 | 1.00962 | -1.10737 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 16.9696 | 0.0350923 / 8.47623 | 0.683896 / 1.45594 | 0.0333197 / 16.9696 | 0.42089 / 2.30554 |
| Maximum signal-to-noise ratio (H1): | 6.99615 | 5.94681 | 6.12728 | 5.67454 | 4.92463 |
| Maximum signal-to-noise ratio (L1): | 2.7956e-158 | 19.4471 | 14.7157 | 11.623 | 10.3471 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378421885 (Sun Sep 10 22:57:47 2023 ) → GPS = 1378421895 (Sun Sep 10 22:57:57 2023 ) |
| Event time t(L1): | GPS = 1378421895 (Sun Sep 10 22:57:57 2023 ) → GPS = 1378421905 (Sun Sep 10 22:58:07 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378421882 → GPS = 1378421898 |
| Omicron analysis time window (L1): | GPS = 1378421892 → GPS = 1378421908 |
| Time delay between detectors t(L1) - t(H1): | 8.52813 s (slice index = 140 / 217), δt_gw = 0.000126525 s |
| Frequency: | 86.936 Hz |
| Rank: | R_A = 0.21289 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.513498 | 0.429257 | 0.312959 | 0.121693 | 0.000468982 |
| Number of rejected frequency rows (slice veto): | 9 / 26 | 22 / 48 | 53 / 92 | 118 / 176 | 259 / 338 |
| Time delay δt = t(L1) - t(H1): | 8.52557 s | 8.53028 s | 8.53262 s | 8.52682 s | 8.52847 s |
| Time delay δt_gw = δt - δt_slice: | -0.00243322 s | 0.00227896 s | 0.00462467 s | -0.00118396 s | 0.000471614 s |
| Time-delay undertainty: | 0.000109028 s | 0.000134875 s | 0.000154578 s | 0.000186891 s | 0.000254305 s |
| Frequency: | 80.8546 Hz | 89.754 Hz | 96.5367 Hz | 88.8226 Hz | 78.712 Hz |
| Amplitude ratio L1/H1: | 0.34119 | 0.451185 | 0.0913334 | 0.798231 | 0.211436 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 8.58971 | 0.0650953 / 7.31638 | 0.654577 / 1.53788 | 0.552458 / 1.79294 | 0.666689 / 1.4942 |
| Maximum signal-to-noise ratio (H1): | 28.9437 | 22.1826 | 18.183 | 15.3107 | 13.0904 |
| Maximum signal-to-noise ratio (L1): | 2.78658e-158 | 10.1536 | 7.49183 | 6.04468 | 5.45907 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378875314 (Sat Sep 16 04:54:56 2023 ) → GPS = 1378875324 (Sat Sep 16 04:55:06 2023 ) |
| Event time t(L1): | GPS = 1378875284 (Sat Sep 16 04:55:06 2023 ) → GPS = 1378875294 (Sat Sep 16 04:54:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378875311 → GPS = 1378875327 |
| Omicron analysis time window (L1): | GPS = 1378875281 → GPS = 1378875297 |
| Time delay between detectors t(L1) - t(H1): | -28.2482 s (slice index = 70 / 217), δt_gw = 0.00375764 s |
| Frequency: | 78.8834 Hz |
| Rank: | R_A = 0.212319 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.347687 | 0.30414 | 0.196021 | 0.14465 | 0.0690951 |
| Number of rejected frequency rows (slice veto): | 16 / 26 | 28 / 48 | 53 / 92 | 122 / 176 | 253 / 338 |
| Time delay δt = t(L1) - t(H1): | -28.2454 s | -28.2454 s | -28.249 s | -28.2527 s | -28.2513 s |
| Time delay δt_gw = δt - δt_slice: | 0.00656229 s | 0.00662054 s | 0.0030293 s | -0.000699377 s | 0.000742863 s |
| Time-delay undertainty: | 0.000270402 s | 0.000101875 s | 0.000125383 s | 0.000175975 s | 0.000246895 s |
| Frequency: | 34.199 Hz | 83.6651 Hz | 105.581 Hz | 87.1456 Hz | 83.8263 Hz |
| Amplitude ratio L1/H1: | 0.706348 | 0.676119 | 1.20846 | 1.20728 | 0.642559 |
| Antenna factor ratio L1/H1 (min/max): | 0.530931 / 1.88548 | 0.582202 / 1.71808 | 0.0333197 / 8.59998 | 0.663399 / 1.49723 | 0.612584 / 1.61556 |
| Maximum signal-to-noise ratio (H1): | 5.06193 | 5.64612 | 5.50786 | 6.15574 | 5.50042 |
| Maximum signal-to-noise ratio (L1): | 2.67654e-158 | 6.08479 | 5.28829 | 5.32221 | 5.03147 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378632423 (Wed Sep 13 09:26:45 2023 ) → GPS = 1378632433 (Wed Sep 13 09:26:55 2023 ) |
| Event time t(L1): | GPS = 1378632393 (Wed Sep 13 09:26:55 2023 ) → GPS = 1378632403 (Wed Sep 13 09:26:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378632420 → GPS = 1378632436 |
| Omicron analysis time window (L1): | GPS = 1378632390 → GPS = 1378632406 |
| Time delay between detectors t(L1) - t(H1): | -26.4107 s (slice index = 30 / 217), δt_gw = 0.00133524 s |
| Frequency: | 60.6709 Hz |
| Rank: | R_A = 0.21175 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.712671 | 0.573988 | 0.346079 | 0.00551615 | -0.000298668 |
| Number of rejected frequency rows (slice veto): | 5 / 26 | 13 / 48 | 46 / 92 | 134 / 176 | 261 / 338 |
| Time delay δt = t(L1) - t(H1): | -26.4075 s | -26.4123 s | -26.411 s | -26.4119 s | -26.4106 s |
| Time delay δt_gw = δt - δt_slice: | 0.00445023 s | -0.00030298 s | 0.000989309 s | 8.10072e-05 s | 0.00144355 s |
| Time-delay undertainty: | 0.000293672 s | 0.000160375 s | 0.000147723 s | 0.000214892 s | 0.000244843 s |
| Frequency: | 57.6418 Hz | 63.9482 Hz | 65.695 Hz | 45.9206 Hz | 70.149 Hz |
| Amplitude ratio L1/H1: | 0.734108 | 0.00901451 | 0.979966 | 0.644419 | -0.736233 |
| Antenna factor ratio L1/H1 (min/max): | 0.515936 / 2.02697 | 0.735811 / 1.35444 | 0.622672 / 1.59155 | 0.740572 / 1.34334 | 0.392292 / 2.54614 |
| Maximum signal-to-noise ratio (H1): | 13.4273 | 10.8003 | 8.6551 | 6.90744 | 5.93894 |
| Maximum signal-to-noise ratio (L1): | 2.7473e-158 | 5.38392 | 5.49281 | 5.32214 | 5.04948 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378883598 (Sat Sep 16 07:13:00 2023 ) → GPS = 1378883608 (Sat Sep 16 07:13:10 2023 ) |
| Event time t(L1): | GPS = 1378883638 (Sat Sep 16 07:13:10 2023 ) → GPS = 1378883648 (Sat Sep 16 07:13:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378883595 → GPS = 1378883611 |
| Omicron analysis time window (L1): | GPS = 1378883635 → GPS = 1378883651 |
| Time delay between detectors t(L1) - t(H1): | 44.5556 s (slice index = 9 / 217), δt_gw = 0.00158117 s |
| Frequency: | 67.2906 Hz |
| Rank: | R_A = 0.211335 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.384904 | 0.397348 | 0.251667 | 0.0227584 | 0.00528251 |
| Number of rejected frequency rows (slice veto): | 10 / 26 | 23 / 48 | 57 / 92 | 125 / 176 | 265 / 338 |
| Time delay δt = t(L1) - t(H1): | 44.5579 s | 44.5557 s | 44.5496 s | 44.5513 s | 44.5564 s |
| Time delay δt_gw = δt - δt_slice: | 0.00390773 s | 0.00167419 s | -0.00441109 s | -0.00273821 s | 0.00239275 s |
| Time-delay undertainty: | 9.63805e-05 s | 0.000125854 s | 0.000226238 s | 0.000268614 s | 0.000279015 s |
| Frequency: | 59.2807 Hz | 77.9742 Hz | 60.0657 Hz | 70.3053 Hz | 68.8271 Hz |
| Amplitude ratio L1/H1: | 0.713268 | 0.781001 | 1.60148 | 1.35716 | -0.431478 |
| Antenna factor ratio L1/H1 (min/max): | 0.527286 / 1.96331 | 0.43794 / 2.18737 | 0.558188 / 1.79592 | 0.0333197 / 16.9696 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 5.52013 | 6.00689 | 5.20356 | 5.72203 | 4.99766 |
| Maximum signal-to-noise ratio (L1): | 2.6285e-158 | 8.14108 | 6.49443 | 5.22639 | 5.47368 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378588005 (Tue Sep 12 21:06:27 2023 ) → GPS = 1378588015 (Tue Sep 12 21:06:37 2023 ) |
| Event time t(L1): | GPS = 1378587955 (Tue Sep 12 21:06:37 2023 ) → GPS = 1378587965 (Tue Sep 12 21:05:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378588002 → GPS = 1378588018 |
| Omicron analysis time window (L1): | GPS = 1378587952 → GPS = 1378587968 |
| Time delay between detectors t(L1) - t(H1): | -49.5409 s (slice index = 98 / 217), δt_gw = -0.000916897 s |
| Frequency: | 69.0965 Hz |
| Rank: | R_A = 0.211074 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.470393 | 0.445433 | 0.139542 | 0.0031403 | 0.00156548 |
| Number of rejected frequency rows (slice veto): | 12 / 26 | 22 / 48 | 62 / 92 | 132 / 176 | 266 / 338 |
| Time delay δt = t(L1) - t(H1): | -49.5423 s | -49.5421 s | -49.5381 s | -49.5399 s | -49.5386 s |
| Time delay δt_gw = δt - δt_slice: | -0.00225373 s | -0.00212604 s | 0.00193737 s | 0.000143055 s | 0.00144703 s |
| Time-delay undertainty: | 8.54315e-05 s | 0.000129275 s | 0.000156866 s | 0.000177626 s | 0.00023977 s |
| Frequency: | 55.8875 Hz | 71.7341 Hz | 68.7349 Hz | 69.7138 Hz | 79.4121 Hz |
| Amplitude ratio L1/H1: | 2.06682 | 1.68794 | 3.39007 | 0.0215064 | -0.255678 |
| Antenna factor ratio L1/H1 (min/max): | 0.179628 / 4.17923 | 0.179628 / 4.17923 | 0.309983 / 3.89681 | 0.746833 / 1.33201 | 0.398015 / 2.4929 |
| Maximum signal-to-noise ratio (H1): | 5.9865 | 6.22744 | 5.24581 | 5.57118 | 5.36596 |
| Maximum signal-to-noise ratio (L1): | 2.57724e-158 | 9.50642 | 10.468 | 10.7384 | 9.20077 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
| Event time t(H1): | GPS = 1378853812 (Fri Sep 15 22:56:34 2023 ) → GPS = 1378853822 (Fri Sep 15 22:56:44 2023 ) |
| Event time t(L1): | GPS = 1378853762 (Fri Sep 15 22:56:44 2023 ) → GPS = 1378853772 (Fri Sep 15 22:55:54 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378853809 → GPS = 1378853825 |
| Omicron analysis time window (L1): | GPS = 1378853759 → GPS = 1378853775 |
| Time delay between detectors t(L1) - t(H1): | -47.0587 s (slice index = 44 / 217), δt_gw = -0.00270806 s |
| Frequency: | 71.4944 Hz |
| Rank: | R_A = 0.207498 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.434171 | 0.323971 | 0.279346 | -0.00367843 | -0.00105347 |
| Number of rejected frequency rows (slice veto): | 7 / 26 | 29 / 48 | 61 / 92 | 136 / 176 | 274 / 338 |
| Time delay δt = t(L1) - t(H1): | -47.0597 s | -47.0614 s | -47.0539 s | -47.0549 s | -47.0542 s |
| Time delay δt_gw = δt - δt_slice: | -0.00373121 s | -0.005384 s | 0.00212169 s | 0.00106824 s | 0.00182312 s |
| Time-delay undertainty: | 7.4588e-05 s | 0.000117258 s | 0.00019348 s | 0.000211246 s | 0.000306544 s |
| Frequency: | 76.4598 Hz | 72.5321 Hz | 66.3162 Hz | 75.865 Hz | 66.2991 Hz |
| Amplitude ratio L1/H1: | 0.845086 | 0.805469 | 0.467132 | -1.12789 | 8.91607 |
| Antenna factor ratio L1/H1 (min/max): | 0.47203 / 2.07308 | 0.688846 / 1.45204 | 0.0557709 / 7.6697 | 0.563368 / 1.74365 | 0.0350923 / 8.47623 |
| Maximum signal-to-noise ratio (H1): | 5.28986 | 5.52524 | 5.469 | 4.77051 | 4.94419 |
| Maximum signal-to-noise ratio (L1): | 2.63791e-158 | 28.487 | 22.7821 | 19.7013 | 17.426 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378614468 (Wed Sep 13 04:27:30 2023 ) → GPS = 1378614478 (Wed Sep 13 04:27:40 2023 ) |
| Event time t(L1): | GPS = 1378614438 (Wed Sep 13 04:27:40 2023 ) → GPS = 1378614448 (Wed Sep 13 04:27:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378614465 → GPS = 1378614481 |
| Omicron analysis time window (L1): | GPS = 1378614435 → GPS = 1378614451 |
| Time delay between detectors t(L1) - t(H1): | -26.5066 s (slice index = 32 / 217), δt_gw = -0.00256666 s |
| Frequency: | 71.2573 Hz |
| Rank: | R_A = 0.205712 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.470516 | 0.21789 | 0.129005 | 0.211149 | 0.177216 |
| Number of rejected frequency rows (slice veto): | 3 / 26 | 24 / 48 | 64 / 92 | 114 / 176 | 236 / 338 |
| Time delay δt = t(L1) - t(H1): | -26.5079 s | -26.5102 s | -26.5005 s | -26.5058 s | -26.5014 s |
| Time delay δt_gw = δt - δt_slice: | -0.00392053 s | -0.00620479 s | 0.00347769 s | -0.00183677 s | 0.00260711 s |
| Time-delay undertainty: | 7.91608e-05 s | 0.000114156 s | 0.000143332 s | 0.000184933 s | 0.000257119 s |
| Frequency: | 85.056 Hz | 67.1916 Hz | 59.8717 Hz | 71.6847 Hz | 72.4823 Hz |
| Amplitude ratio L1/H1: | 1.04585 | 0.630532 | 1.00093 | 0.774787 | -0.119242 |
| Antenna factor ratio L1/H1 (min/max): | 0.537363 / 1.84171 | 0.620924 / 1.61143 | 0.258039 / 4.0599 | 0.259932 / 3.21246 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 7.26044 | 6.72408 | 6.88555 | 6.47577 | 6.65518 |
| Maximum signal-to-noise ratio (L1): | 2.58961e-158 | 9.44067 | 11.4406 | 11.7176 | 11.7569 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378297862 (Sat Sep 9 12:30:44 2023 ) → GPS = 1378297872 (Sat Sep 9 12:30:54 2023 ) |
| Event time t(L1): | GPS = 1378297882 (Sat Sep 9 12:30:54 2023 ) → GPS = 1378297892 (Sat Sep 9 12:31:14 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378297859 → GPS = 1378297875 |
| Omicron analysis time window (L1): | GPS = 1378297879 → GPS = 1378297895 |
| Time delay between detectors t(L1) - t(H1): | 21.0592 s (slice index = 85 / 217), δt_gw = 0.00122114 s |
| Frequency: | 67.0323 Hz |
| Rank: | R_A = 0.202408 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.38897 | 0.365713 | 0.257355 | 0.130196 | 0.0279676 |
| Number of rejected frequency rows (slice veto): | 7 / 26 | 22 / 48 | 51 / 92 | 111 / 176 | 263 / 338 |
| Time delay δt = t(L1) - t(H1): | 21.0635 s | 21.0539 s | 21.0566 s | 21.0578 s | 21.0571 s |
| Time delay δt_gw = δt - δt_slice: | 0.00547047 s | -0.00414307 s | -0.00136928 s | -0.000165154 s | -0.000872933 s |
| Time-delay undertainty: | 0.000109584 s | 0.000143557 s | 0.000182891 s | 0.000220038 s | 0.00033399 s |
| Frequency: | 62.1826 Hz | 64.5799 Hz | 58.7931 Hz | 71.3032 Hz | 78.3028 Hz |
| Amplitude ratio L1/H1: | 1.08147 | 1.19258 | 0.937989 | 28.7598 | -6.75978 |
| Antenna factor ratio L1/H1 (min/max): | 0.684025 / 1.4628 | 0.547877 / 1.8185 | 0.499307 / 2.01879 | 0.730064 / 1.36524 | 0.518414 / 1.94905 |
| Maximum signal-to-noise ratio (H1): | 6.90161 | 5.96946 | 4.95249 | 5.32139 | 4.79491 |
| Maximum signal-to-noise ratio (L1): | 2.58846e-158 | 23.8756 | 19.0516 | 15.0804 | 12.4423 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378547575 (Tue Sep 12 09:52:37 2023 ) → GPS = 1378547585 (Tue Sep 12 09:52:47 2023 ) |
| Event time t(L1): | GPS = 1378547605 (Tue Sep 12 09:52:47 2023 ) → GPS = 1378547615 (Tue Sep 12 09:53:17 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378547572 → GPS = 1378547588 |
| Omicron analysis time window (L1): | GPS = 1378547602 → GPS = 1378547618 |
| Time delay between detectors t(L1) - t(H1): | 31.2432 s (slice index = 81 / 217), δt_gw = 0.00121207 s |
| Frequency: | 72.4842 Hz |
| Rank: | R_A = 0.202019 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.344677 | 0.398699 | 0.0262273 | 0.102189 | 0.1383 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 25 / 48 | 70 / 92 | 131 / 176 | 242 / 338 |
| Time delay δt = t(L1) - t(H1): | 31.2457 s | 31.2431 s | 31.2421 s | 31.2397 s | 31.2403 s |
| Time delay δt_gw = δt - δt_slice: | 0.00367793 s | 0.00112167 s | 0.000141552 s | -0.0023101 s | -0.00171296 s |
| Time-delay undertainty: | 9.47882e-05 s | 9.90504e-05 s | 0.000200643 s | 0.000204625 s | 0.000243154 s |
| Frequency: | 59.4005 Hz | 93.6356 Hz | 60.5843 Hz | 69.2037 Hz | 79.5971 Hz |
| Amplitude ratio L1/H1: | 0.857769 | 0.85398 | 0.835633 | 0.519513 | 1.11843 |
| Antenna factor ratio L1/H1 (min/max): | 0.439867 / 2.3129 | 0.63061 / 1.56893 | 0.738458 / 1.34721 | 0.0333197 / 16.9696 | 0.232308 / 3.38865 |
| Maximum signal-to-noise ratio (H1): | 5.63212 | 6.36942 | 6.47208 | 6.71145 | 5.83342 |
| Maximum signal-to-noise ratio (L1): | 2.75354e-158 | 34.0458 | 25.5616 | 19.087 | 14.6217 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
 |
 |
 |
| Event time t(H1): | GPS = 1378331903 (Sat Sep 9 21:58:05 2023 ) → GPS = 1378331913 (Sat Sep 9 21:58:15 2023 ) |
| Event time t(L1): | GPS = 1378331893 (Sat Sep 9 21:58:15 2023 ) → GPS = 1378331903 (Sat Sep 9 21:58:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378331900 → GPS = 1378331916 |
| Omicron analysis time window (L1): | GPS = 1378331890 → GPS = 1378331906 |
| Time delay between detectors t(L1) - t(H1): | -11.0149 s (slice index = 130 / 217), δt_gw = -0.00294544 s |
| Frequency: | 59.7375 Hz |
| Rank: | R_A = 0.171966 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.154845 | 0.147113 | 0.27312 | 0.246237 | 0.185629 |
| Number of rejected frequency rows (slice veto): | 16 / 26 | 32 / 48 | 54 / 92 | 116 / 176 | 221 / 338 |
| Time delay δt = t(L1) - t(H1): | -11.0192 s | -11.0142 s | -11.0144 s | -11.01 s | -11.0116 s |
| Time delay δt_gw = δt - δt_slice: | -0.00715452 s | -0.00218207 s | -0.00242246 s | 0.00203247 s | 0.000370969 s |
| Time-delay undertainty: | 0.000157327 s | 0.000176372 s | 0.000198291 s | 0.000179258 s | 0.000272875 s |
| Frequency: | 47.2455 Hz | 41.1527 Hz | 53.6054 Hz | 64.5189 Hz | 92.1652 Hz |
| Amplitude ratio L1/H1: | 0.829721 | 0.66963 | 0.826766 | 0.961975 | 1.42177 |
| Antenna factor ratio L1/H1 (min/max): | 0.495739 / 2.01874 | 0.0472513 / 7.99521 | 0.0333197 / 16.9696 | 0.137449 / 5.05096 | 0.674127 / 1.47741 |
| Maximum signal-to-noise ratio (H1): | 5.74127 | 6.00373 | 5.14389 | 5.43949 | 5.53896 |
| Maximum signal-to-noise ratio (L1): | 2.88925e-158 | 100.468 | 74.7891 | 55.5889 | 43.4217 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378808942 (Fri Sep 15 10:28:44 2023 ) → GPS = 1378808952 (Fri Sep 15 10:28:54 2023 ) |
| Event time t(L1): | GPS = 1378808982 (Fri Sep 15 10:28:54 2023 ) → GPS = 1378808992 (Fri Sep 15 10:29:34 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378808939 → GPS = 1378808955 |
| Omicron analysis time window (L1): | GPS = 1378808979 → GPS = 1378808995 |
| Time delay between detectors t(L1) - t(H1): | 37.7453 s (slice index = 157 / 217), δt_gw = -0.000701101 s |
| Frequency: | 69.4003 Hz |
| Rank: | R_A = 0.200296 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.383576 | 0.176651 | 0.351284 | 0.0899681 | 0.07935 |
| Number of rejected frequency rows (slice veto): | 13 / 26 | 25 / 48 | 46 / 92 | 114 / 176 | 241 / 338 |
| Time delay δt = t(L1) - t(H1): | 37.7519 s | 37.7439 s | 37.743 s | 37.7437 s | 37.7465 s |
| Time delay δt_gw = δt - δt_slice: | 0.00591726 s | -0.00209405 s | -0.00297542 s | -0.00234161 s | 0.000469553 s |
| Time-delay undertainty: | 0.000191214 s | 0.000137437 s | 0.000135923 s | 0.000172322 s | 0.000250104 s |
| Frequency: | 42.9257 Hz | 54.7059 Hz | 90.7625 Hz | 83.0763 Hz | 75.5313 Hz |
| Amplitude ratio L1/H1: | 1.30106 | 2.08974 | 1.1916 | 1.13706 | -1.40148 |
| Antenna factor ratio L1/H1 (min/max): | 0.625503 / 1.60047 | 0.179628 / 4.17923 | 0.0333197 / 16.9696 | 0.0333197 / 16.9696 | 0.669179 / 1.48854 |
| Maximum signal-to-noise ratio (H1): | 5.91967 | 5.72997 | 6.08451 | 5.90046 | 5.22703 |
| Maximum signal-to-noise ratio (L1): | 2.74547e-158 | 25.4789 | 21.8837 | 17.7249 | 15.1775 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378926615 (Sat Sep 16 19:09:57 2023 ) → GPS = 1378926625 (Sat Sep 16 19:10:07 2023 ) |
| Event time t(L1): | GPS = 1378926575 (Sat Sep 16 19:10:07 2023 ) → GPS = 1378926585 (Sat Sep 16 19:09:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378926612 → GPS = 1378926628 |
| Omicron analysis time window (L1): | GPS = 1378926572 → GPS = 1378926588 |
| Time delay between detectors t(L1) - t(H1): | -43.4961 s (slice index = 184 / 217), δt_gw = -0.000115155 s |
| Frequency: | 92.8975 Hz |
| Rank: | R_A = 0.200163 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.381977 | 0.279906 | 0.232191 | 0.106742 | 0.102814 |
| Number of rejected frequency rows (slice veto): | 8 / 26 | 23 / 48 | 46 / 92 | 111 / 176 | 261 / 338 |
| Time delay δt = t(L1) - t(H1): | -43.5 s | -43.4918 s | -43.4939 s | -43.4981 s | -43.4986 s |
| Time delay δt_gw = δt - δt_slice: | -0.00404948 s | 0.00419948 s | 0.0021357 s | -0.00214897 s | -0.00258268 s |
| Time-delay undertainty: | 9.22711e-05 s | 0.000111452 s | 0.000135217 s | 0.000196519 s | 0.000304248 s |
| Frequency: | 62.9836 Hz | 102.496 Hz | 120.141 Hz | 105.034 Hz | 73.8334 Hz |
| Amplitude ratio L1/H1: | 0.767397 | 0.893945 | 0.394081 | 0.286511 | -10.959 |
| Antenna factor ratio L1/H1 (min/max): | 0.568293 / 1.77397 | 0.598254 / 1.70213 | 0.158589 / 4.57899 | 0.0350923 / 8.47623 | 0.0333197 / 16.9696 |
| Maximum signal-to-noise ratio (H1): | 5.79469 | 6.62211 | 5.88236 | 5.33024 | 5.0484 |
| Maximum signal-to-noise ratio (L1): | 2.72829e-158 | 13.8026 | 10.5485 | 8.40789 | 9.67872 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377889464 (Mon Sep 4 19:04:06 2023 ) → GPS = 1377889474 (Mon Sep 4 19:04:16 2023 ) |
| Event time t(L1): | GPS = 1377889424 (Mon Sep 4 19:04:16 2023 ) → GPS = 1377889434 (Mon Sep 4 19:03:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377889461 → GPS = 1377889477 |
| Omicron analysis time window (L1): | GPS = 1377889421 → GPS = 1377889437 |
| Time delay between detectors t(L1) - t(H1): | -35.4434 s (slice index = 9 / 217), δt_gw = 0.00257036 s |
| Frequency: | 52.2085 Hz |
| Rank: | R_A = 0.199036 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.32161 | 0.328371 | 0.115038 | 0.0982836 | 0.13188 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 23 / 48 | 62 / 92 | 136 / 176 | 253 / 338 |
| Time delay δt = t(L1) - t(H1): | -35.4443 s | -35.4421 s | -35.4427 s | -35.4443 s | -35.4437 s |
| Time delay δt_gw = δt - δt_slice: | 0.00172149 s | 0.00393798 s | 0.00331923 s | 0.00166245 s | 0.00234662 s |
| Time-delay undertainty: | 0.000147609 s | 0.000180252 s | 0.00025242 s | 0.000391126 s | 0.000345199 s |
| Frequency: | 74.0985 Hz | 66.6962 Hz | 41.2103 Hz | 34.3879 Hz | 44.6497 Hz |
| Amplitude ratio L1/H1: | 0.466754 | 0.666102 | 1.07977 | 1.03035 | 1.55915 |
| Antenna factor ratio L1/H1 (min/max): | 0.398015 / 2.4929 | 0.439867 / 2.3129 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 22.7388 | 22.8218 | 24.2396 | 29.6101 | 40.8695 |
| Maximum signal-to-noise ratio (L1): | 2.89308e-158 | 7.97336 | 9.09121 | 9.63656 | 7.78919 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378588010 (Tue Sep 12 21:06:32 2023 ) → GPS = 1378588020 (Tue Sep 12 21:06:42 2023 ) |
| Event time t(L1): | GPS = 1378587960 (Tue Sep 12 21:06:42 2023 ) → GPS = 1378587970 (Tue Sep 12 21:05:52 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378588007 → GPS = 1378588023 |
| Omicron analysis time window (L1): | GPS = 1378587957 → GPS = 1378587973 |
| Time delay between detectors t(L1) - t(H1): | -49.5422 s (slice index = 98 / 217), δt_gw = -0.00222754 s |
| Frequency: | 65.5415 Hz |
| Rank: | R_A = 0.199021 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.424696 | 0.439378 | 0.131029 | 0.00628091 | 0.00107514 |
| Number of rejected frequency rows (slice veto): | 11 / 26 | 20 / 48 | 52 / 92 | 135 / 176 | 266 / 338 |
| Time delay δt = t(L1) - t(H1): | -49.5478 s | -49.54 s | -49.5403 s | -49.5367 s | -49.5388 s |
| Time delay δt_gw = δt - δt_slice: | -0.00778864 s | -1.29176e-05 s | -0.000331713 s | 0.00334637 s | 0.00120953 s |
| Time-delay undertainty: | 0.000116767 s | 0.000221375 s | 0.000162789 s | 0.000185969 s | 0.00027796 s |
| Frequency: | 47.2924 Hz | 65.8028 Hz | 79.5483 Hz | 65.3953 Hz | 69.6687 Hz |
| Amplitude ratio L1/H1: | 1.53039 | 1.23543 | 1.22596 | -0.388126 | 0.316812 |
| Antenna factor ratio L1/H1 (min/max): | 0.410811 / 2.43955 | 0.747092 / 1.33375 | 0.730064 / 1.36524 | 0.0476379 / 8.3174 | 0.443588 / 2.15197 |
| Maximum signal-to-noise ratio (H1): | 6.39981 | 6.63431 | 6.61014 | 5.57798 | 5.25824 |
| Maximum signal-to-noise ratio (L1): | 2.57724e-158 | 46.9507 | 34.715 | 25.5627 | 19.8125 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378287283 (Sat Sep 9 09:34:25 2023 ) → GPS = 1378287293 (Sat Sep 9 09:34:35 2023 ) |
| Event time t(L1): | GPS = 1378287273 (Sat Sep 9 09:34:35 2023 ) → GPS = 1378287283 (Sat Sep 9 09:34:25 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378287280 → GPS = 1378287296 |
| Omicron analysis time window (L1): | GPS = 1378287270 → GPS = 1378287286 |
| Time delay between detectors t(L1) - t(H1): | -12.1135 s (slice index = 154 / 217), δt_gw = 0.00249952 s |
| Frequency: | 56.9914 Hz |
| Rank: | R_A = 0.197294 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.456018 | 0.298639 | 0.231815 | 0.141407 | 0.102424 |
| Number of rejected frequency rows (slice veto): | 4 / 26 | 21 / 48 | 53 / 92 | 120 / 176 | 246 / 338 |
| Time delay δt = t(L1) - t(H1): | -12.1143 s | -12.1096 s | -12.1113 s | -12.1172 s | -12.1167 s |
| Time delay δt_gw = δt - δt_slice: | 0.00165549 s | 0.00636691 s | 0.00468904 s | -0.00116277 s | -0.000738714 s |
| Time-delay undertainty: | 9.45731e-05 s | 0.000141184 s | 0.000203994 s | 0.000196336 s | 0.000267987 s |
| Frequency: | 63.1331 Hz | 54.4385 Hz | 53.11 Hz | 55.6562 Hz | 58.6194 Hz |
| Amplitude ratio L1/H1: | 0.861856 | 1.0081 | 1.01788 | 0.211961 | -0.744598 |
| Antenna factor ratio L1/H1 (min/max): | 0.486181 / 2.06933 | 0.596724 / 1.67734 | 0.642437 / 1.5664 | 0.552458 / 1.79294 | 0.598861 / 1.64926 |
| Maximum signal-to-noise ratio (H1): | 7.35009 | 6.76292 | 7.78984 | 8.66109 | 8.12353 |
| Maximum signal-to-noise ratio (L1): | 2.79428e-158 | 28.8388 | 21.8833 | 17.7147 | 14.7936 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378587960 (Tue Sep 12 21:05:42 2023 ) → GPS = 1378587970 (Tue Sep 12 21:05:52 2023 ) |
| Event time t(L1): | GPS = 1378587960 (Tue Sep 12 21:05:52 2023 ) → GPS = 1378587970 (Tue Sep 12 21:05:52 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378587957 → GPS = 1378587973 |
| Omicron analysis time window (L1): | GPS = 1378587957 → GPS = 1378587973 |
| Time delay between detectors t(L1) - t(H1): | 0.226291 s (slice index = 103 / 217), δt_gw = -0.00370903 s |
| Frequency: | 67.6647 Hz |
| Rank: | R_A = 0.196573 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.500331 | 0.482533 | 0.0039879 | 0.00500609 | 0.00430183 |
| Number of rejected frequency rows (slice veto): | 13 / 26 | 22 / 48 | 63 / 92 | 120 / 176 | 269 / 338 |
| Time delay δt = t(L1) - t(H1): | 0.221752 s | 0.223912 s | 0.229261 s | 0.230054 s | 0.231012 s |
| Time delay δt_gw = δt - δt_slice: | -0.00824772 s | -0.00608785 s | -0.000738556 s | 5.38739e-05 s | 0.00101218 s |
| Time-delay undertainty: | 0.000166619 s | 0.000156944 s | 0.00017431 s | 0.000186183 s | 0.000289986 s |
| Frequency: | 49.8377 Hz | 57.5683 Hz | 60.8978 Hz | 96.6994 Hz | 73.3205 Hz |
| Amplitude ratio L1/H1: | 1.71046 | 1.30638 | 2.66577 | 0.502395 | -0.161765 |
| Antenna factor ratio L1/H1 (min/max): | 0.26427 / 3.76579 | 0.619821 / 1.6143 | 0.657453 / 1.51094 | 0.757009 / 1.31403 | 0.512123 / 1.97153 |
| Maximum signal-to-noise ratio (H1): | 6.07041 | 5.88918 | 5.0636 | 5.08599 | 4.80388 |
| Maximum signal-to-noise ratio (L1): | 2.57724e-158 | 19.7939 | 15.503 | 13.231 | 10.908 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
 |
 |
 |
| Event time t(H1): | GPS = 1378628058 (Wed Sep 13 08:14:00 2023 ) → GPS = 1378628068 (Wed Sep 13 08:14:10 2023 ) |
| Event time t(L1): | GPS = 1378628038 (Wed Sep 13 08:14:10 2023 ) → GPS = 1378628048 (Wed Sep 13 08:13:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628055 → GPS = 1378628071 |
| Omicron analysis time window (L1): | GPS = 1378628035 → GPS = 1378628051 |
| Time delay between detectors t(L1) - t(H1): | -23.6805 s (slice index = 188 / 217), δt_gw = -0.000496273 s |
| Frequency: | 32.8591 Hz |
| Rank: | R_A = 0.19535 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.27614 | 0.302363 | 0.398267 | 0.0805214 | -1.80711e-05 |
| Number of rejected frequency rows (slice veto): | 10 / 26 | 23 / 48 | 40 / 92 | 113 / 176 | 261 / 338 |
| Time delay δt = t(L1) - t(H1): | -23.6816 s | -23.6753 s | -23.6821 s | -23.6822 s | -23.6765 s |
| Time delay δt_gw = δt - δt_slice: | -0.00158927 s | 0.00474929 s | -0.00214522 s | -0.00219571 s | 0.00350068 s |
| Time-delay undertainty: | 0.000101668 s | 0.000218252 s | 0.00013978 s | 0.000186756 s | 0.000288077 s |
| Frequency: | 29.7994 Hz | 26.7396 Hz | 42.6371 Hz | 36.2313 Hz | 28.8879 Hz |
| Amplitude ratio L1/H1: | 0.811013 | 0.793472 | 0.495724 | -0.0301219 | 0.17368 |
| Antenna factor ratio L1/H1 (min/max): | 0.505754 / 1.99477 | 0.648958 / 1.55037 | 0.148026 / 4.80524 | 0.0333197 / 8.58971 | 0.0333197 / 8.59998 |
| Maximum signal-to-noise ratio (H1): | 32.6746 | 25.4147 | 23.8029 | 21.9247 | 18.9058 |
| Maximum signal-to-noise ratio (L1): | 2.7473e-158 | 28.8388 | 21.8833 | 17.7147 | 14.7936 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
| Event time t(H1): | GPS = 1378421890 (Sun Sep 10 22:57:52 2023 ) → GPS = 1378421900 (Sun Sep 10 22:58:02 2023 ) |
| Event time t(L1): | GPS = 1378421900 (Sun Sep 10 22:58:02 2023 ) → GPS = 1378421910 (Sun Sep 10 22:58:12 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378421887 → GPS = 1378421903 |
| Omicron analysis time window (L1): | GPS = 1378421897 → GPS = 1378421913 |
| Time delay between detectors t(L1) - t(H1): | 8.52726 s (slice index = 140 / 217), δt_gw = -0.000735996 s |
| Frequency: | 68.8969 Hz |
| Rank: | R_A = 0.192969 |
| List of Q values: | Q0 = 5.51892 | Q1 = 10.5061 | Q2 = 20 | Q3 = 38.0731 | Q4 = 72.478 |
|---|---|---|---|---|---|
| Integrated cross-correlation Ξ: | 0.514572 | 0.454868 | 0.333439 | 0.116833 | 0.00121885 |
| Number of rejected frequency rows (slice veto): | 17 / 26 | 27 / 48 | 55 / 92 | 130 / 176 | 261 / 338 |
| Time delay δt = t(L1) - t(H1): | 8.5244 s | 8.52677 s | 8.53062 s | 8.52549 s | 8.52726 s |
| Time delay δt_gw = δt - δt_slice: | -0.00360111 s | -0.001232 s | 0.00262387 s | -0.00251257 s | -0.000740217 s |
| Time-delay undertainty: | 0.000959498 s | 0.000210816 s | 0.000214534 s | 0.000217344 s | 0.000254319 s |
| Frequency: | 48.2199 Hz | 70.4149 Hz | 81.3322 Hz | 69.3839 Hz | 75.1334 Hz |
| Amplitude ratio L1/H1: | 0.388269 | 0.337635 | 0.415829 | 0.549629 | 0.121336 |
| Antenna factor ratio L1/H1 (min/max): | 0.0333197 / 16.9696 | 0.518414 / 1.94905 | 0.0333197 / 8.59998 | 0.0333197 / 16.9696 | 0.609182 / 1.62381 |
| Maximum signal-to-noise ratio (H1): | 29.3639 | 22.3004 | 17.8059 | 14.4509 | 13.4973 |
| Maximum signal-to-noise ratio (L1): | 2.78658e-158 | 36.9778 | 28.7743 | 24.2387 | 19.5116 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
