| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Thu Jul 3 10:32:39 2025 UTC |
| Ox option file: | AutoBenchmark_SN_5000_300625_50Hz_POLARVAR0p2_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |

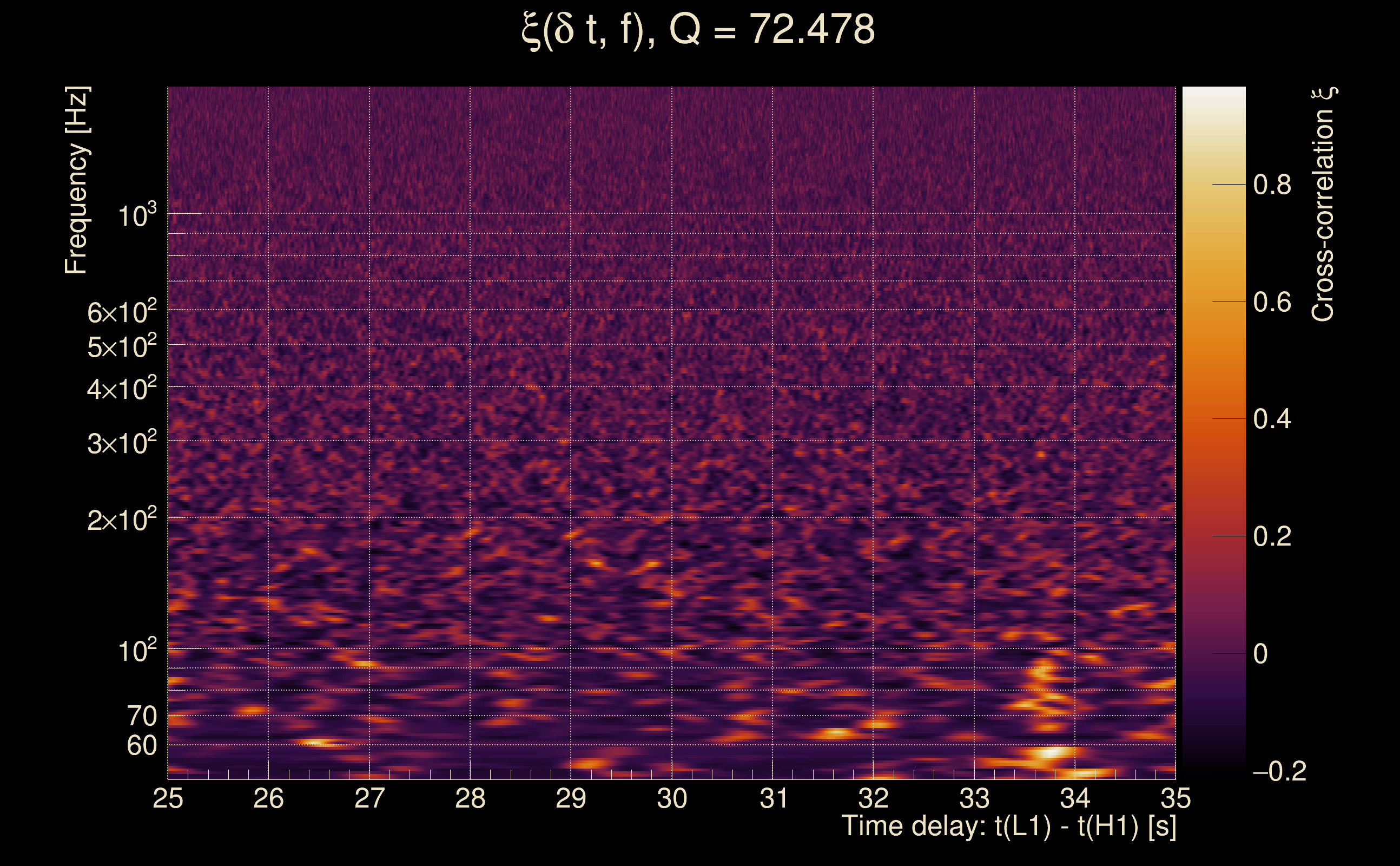

| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |

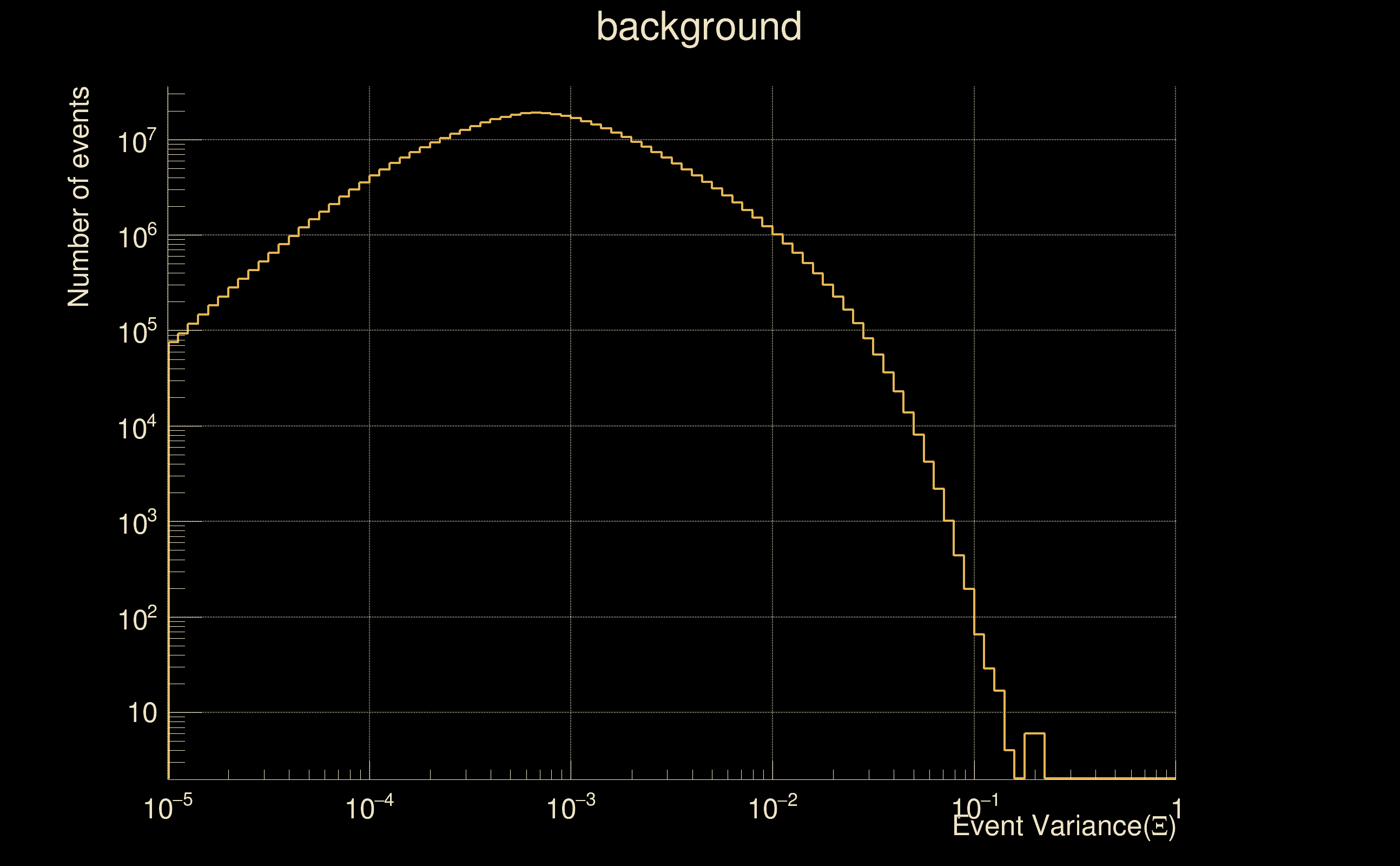

| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| List of input Ox files: | AutoBenchmark_SN_5000_300625_50Hz_POLARVAR0p2_file_list.txt (2519 files) |
| Analysis result file: | AutoBenchmark_SN_5000_300625_50Hz_POLARVAR0p2_results-0.root |
| Slice selected for the the fakeground: | slice index=167 (-2.714 s), time lag = 20 s |

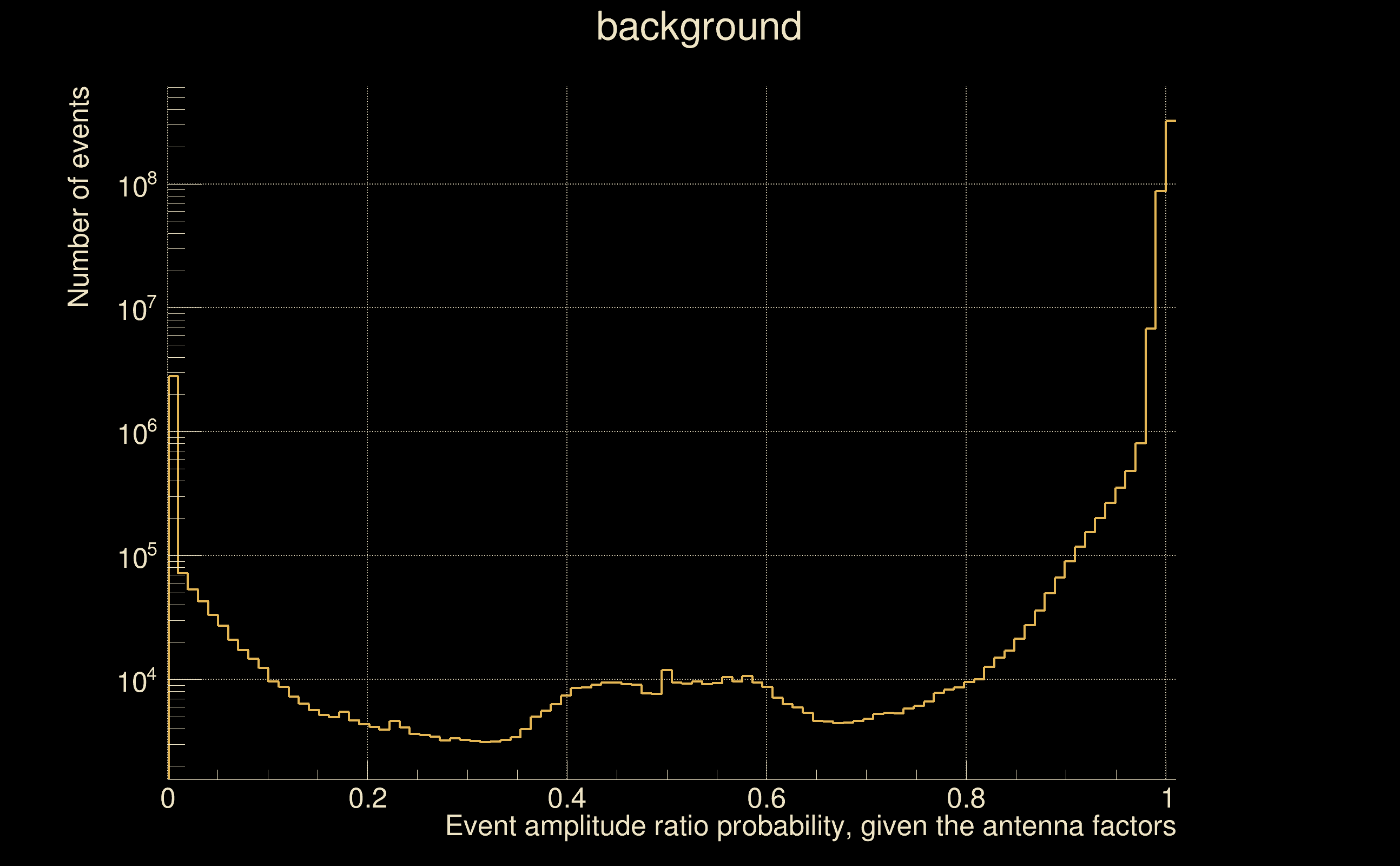

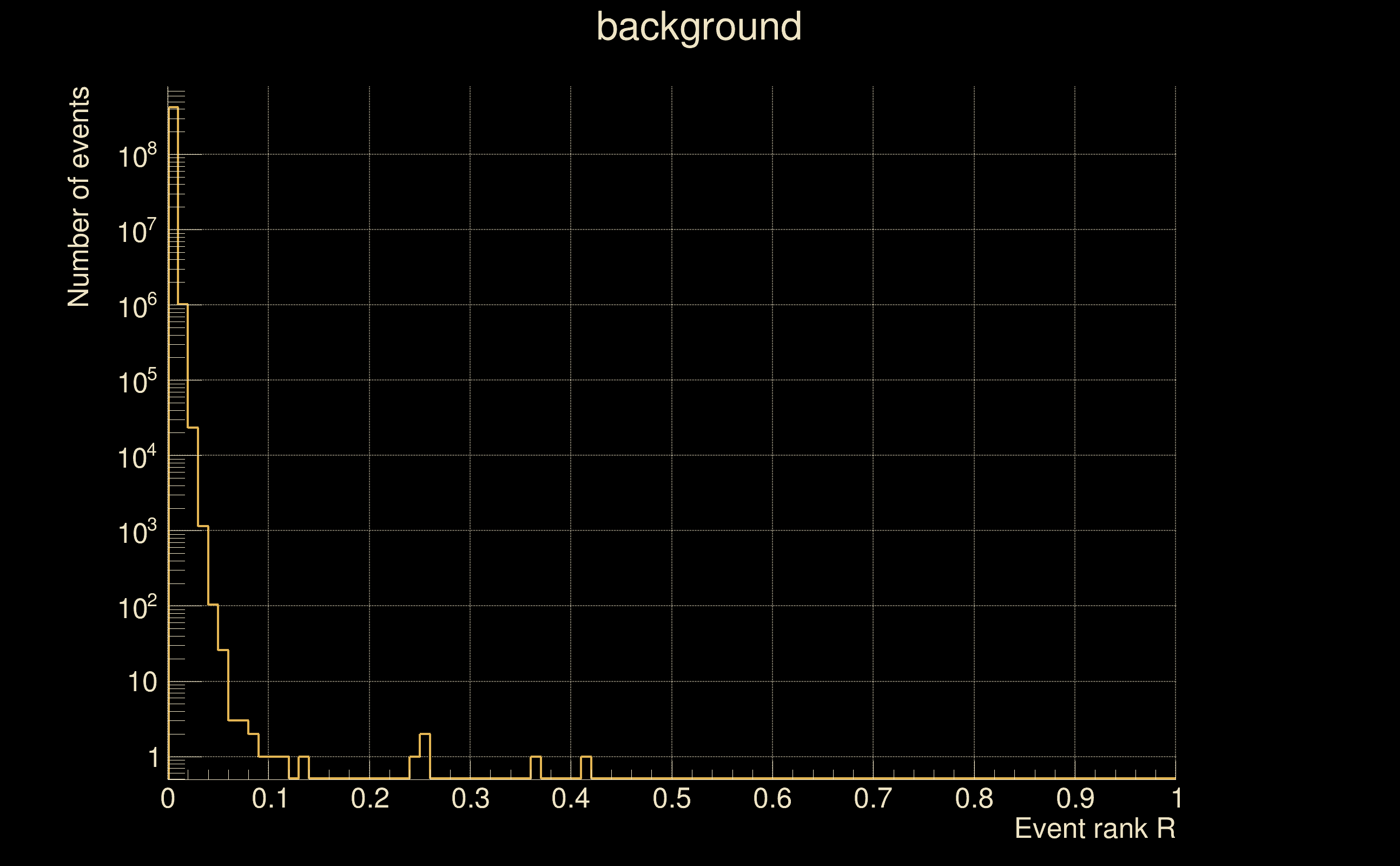

| Foreground | Fakeground | Background | ||
|---|---|---|---|---|
| Number of processed ox events | 177430 | 177418 | 423161231 | |
| Start Date (detector 0) | Sat Sep 2 04:54:58 2023 UTC | Sat Sep 2 04:54:08 2023 UTC | Sat Sep 2 04:54:38 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:24 2023 UTC | |
| Start GPS (detector 0) | 1377665716 | 1377665666 | 1377665696 | |
| End GPS (detector 0) | 1378944122 | 1378944122 | 1378944102 | |
| Used livetime (detector 0) | 888335 s | 888275 s | 890550 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:58 2023 UTC | Sat Sep 2 04:54:58 2023 UTC | Sat Sep 2 04:54:58 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:44 2023 UTC | |
| Start GPS (detector 1) | 1377665716 | 1377665716 | 1377665716 | |
| End GPS (detector 1) | 1378944122 | 1378944122 | 1378944122 | |
| Used livetime (detector 1) | 888335 s | 888275 s | 893883 s | |
| Cumulative livetime | 1774300 s | 1774180 s | 4231612310 s | |
| 0 years, 20 days, 12 hours, 51 min, 40 s | 0 years, 20 days, 12 hours, 49 min, 40 s | 134 years, 33 days, 23 hours, 51 min, 50 s |
|
|
| Detection threshold: | R > 0.0753891 |
| False-alarm rate above that detection threshold: | 2.92637e-09 |
| Alternative threshold at 1/1000 yrs: | R > 0.415 |
| Alternative threshold at 1/100 yrs: | R > inf |
| Alternative threshold at 1/10 yrs: | R > 0.0753925 |
| Alternative threshold at 1/1 yr: | R > 0.0452121 |
| Alternative threshold at 1/1 d: | R > 0.0172129 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |

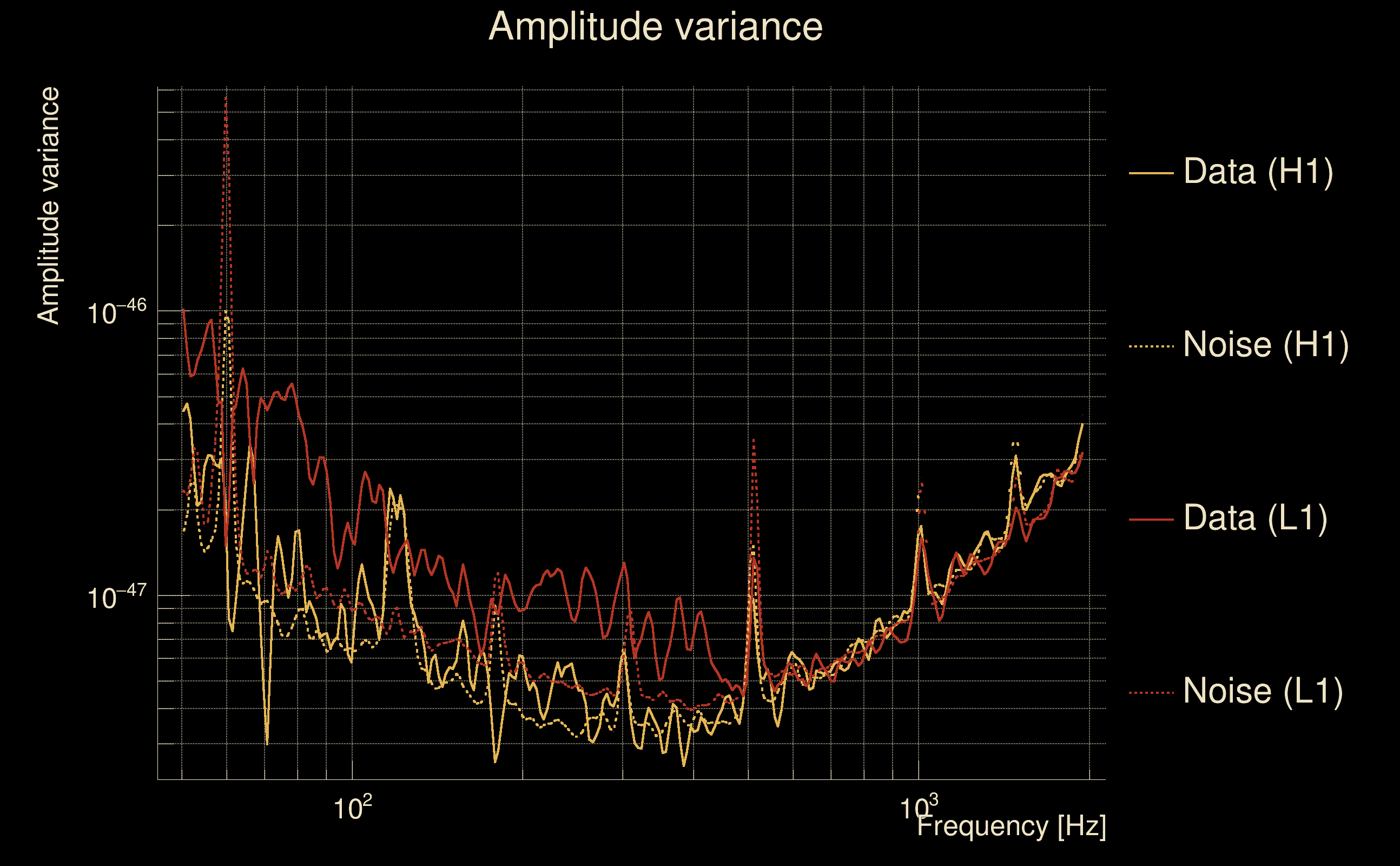

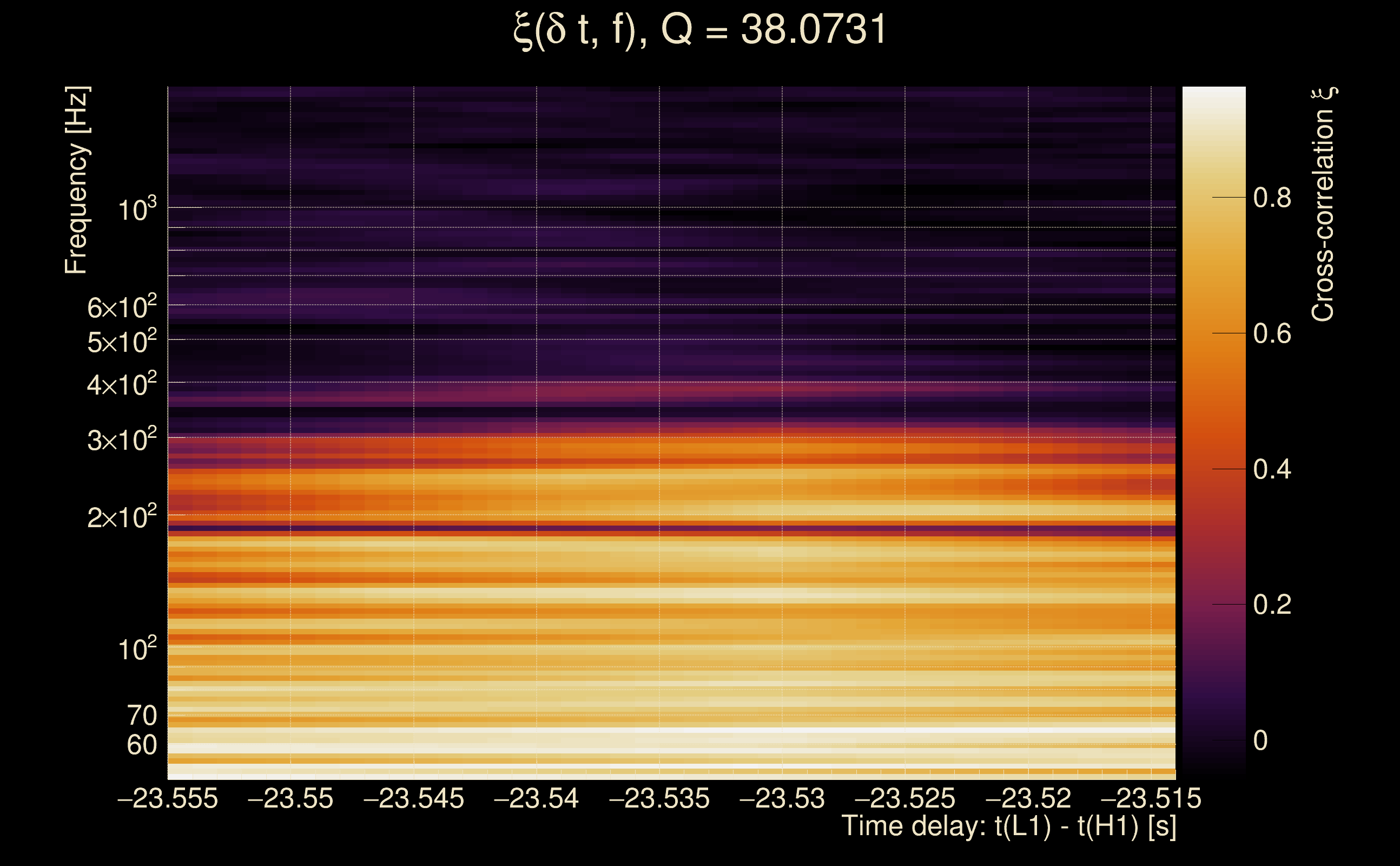

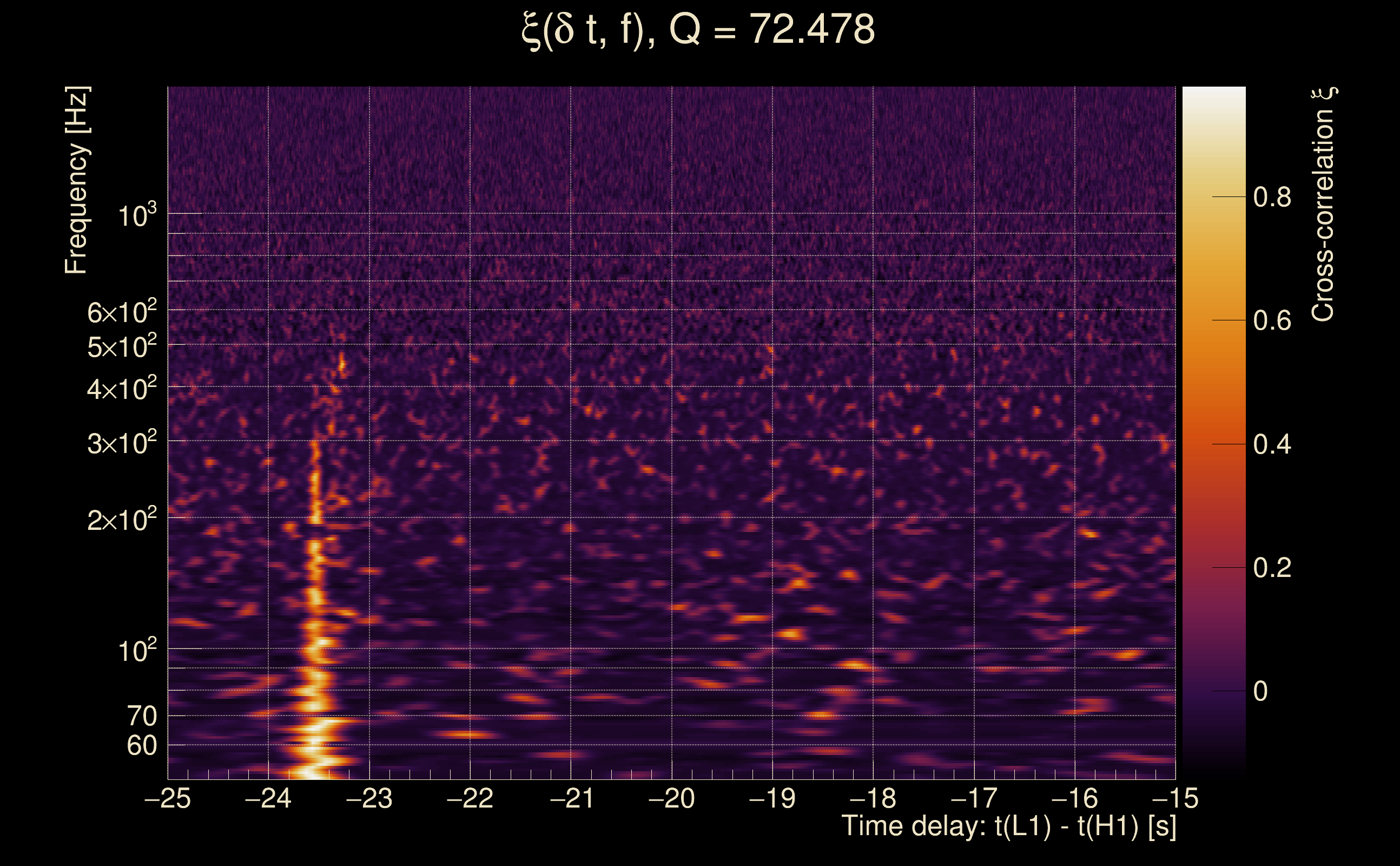

| Event time t(H1): | GPS = 1378628058 (Wed Sep 13 08:14:00 2023 ) → GPS = 1378628068 (Wed Sep 13 08:14:10 2023 ) |
| Event time t(L1): | GPS = 1378628038 (Wed Sep 13 08:14:10 2023 ) → GPS = 1378628048 (Wed Sep 13 08:13:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628055 → GPS = 1378628071 |
| Omicron analysis time window (L1): | GPS = 1378628035 → GPS = 1378628051 |
| Time delay between detectors t(L1) - t(H1): | -23.5346 s (slice index = 185 / 217), δt_gw = 0.00738122 s |
| Time delay uncertainty: | 0.000132009 s |
| Frequency: | 137.179 Hz |
| Ξ: | 0.646432 ± 0.0745027 (variance = 0.00555065): Q0: 0.863215, Q1: 0.848739, Q2: 0.822262, Q3: 0.747489, Q4: 0.663115 |
| Rank: | R_A = 0.410223 |
| Log of amplitude ratio (L1/H1): | 0.920855, variance = 0.25121 (L1/H1: 0.63338, variance = 0.416265, H1/L1: -0.976164, variance = 0.341764) |
| Amplitude ratio (L1/H1): | 2.51144 ⋇ 1.65071 (L1/H1: 1.88397 ⋇ 1.90634, H1/L1: 0.376754 ⋇ 1.79428) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.693794 |

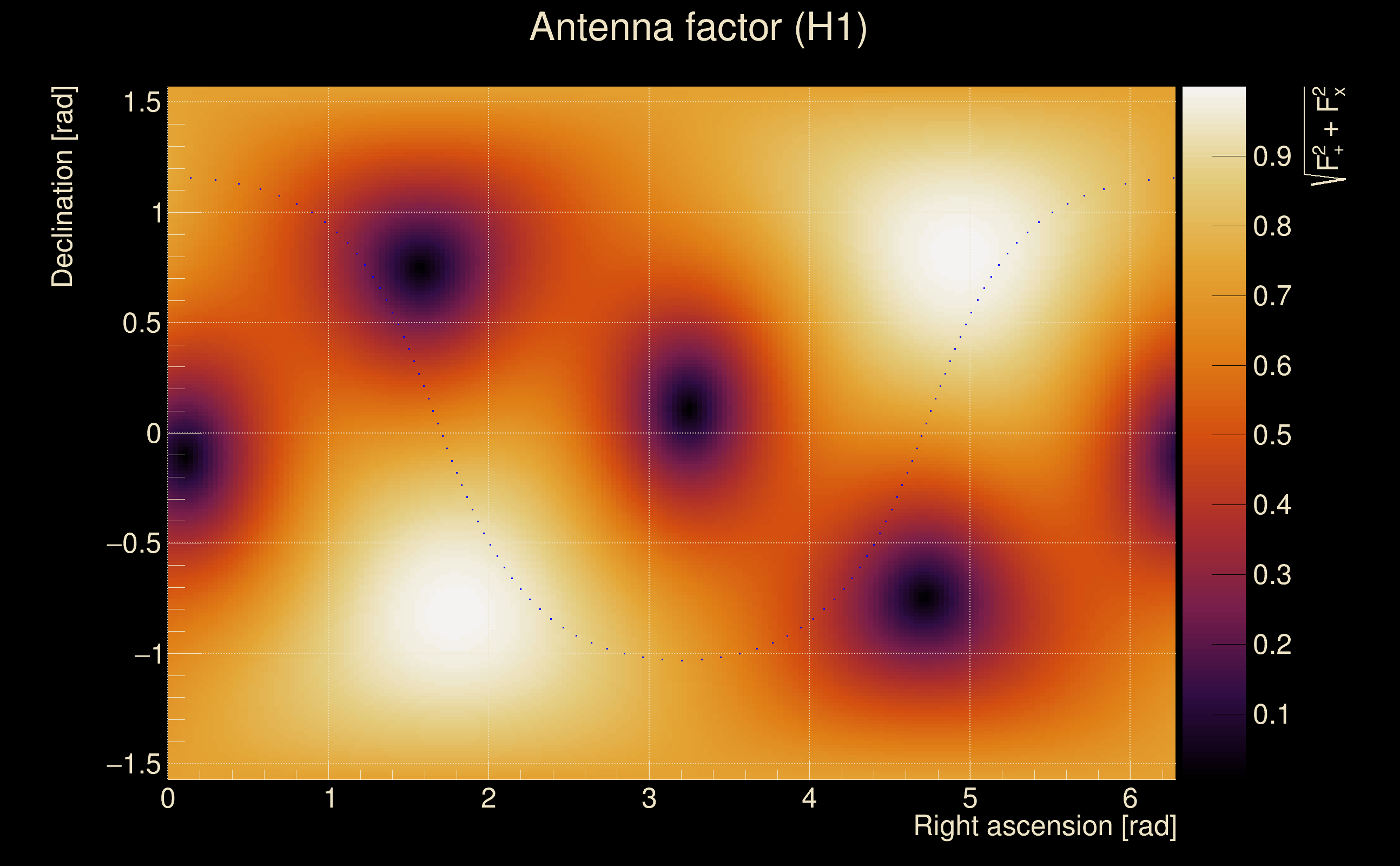

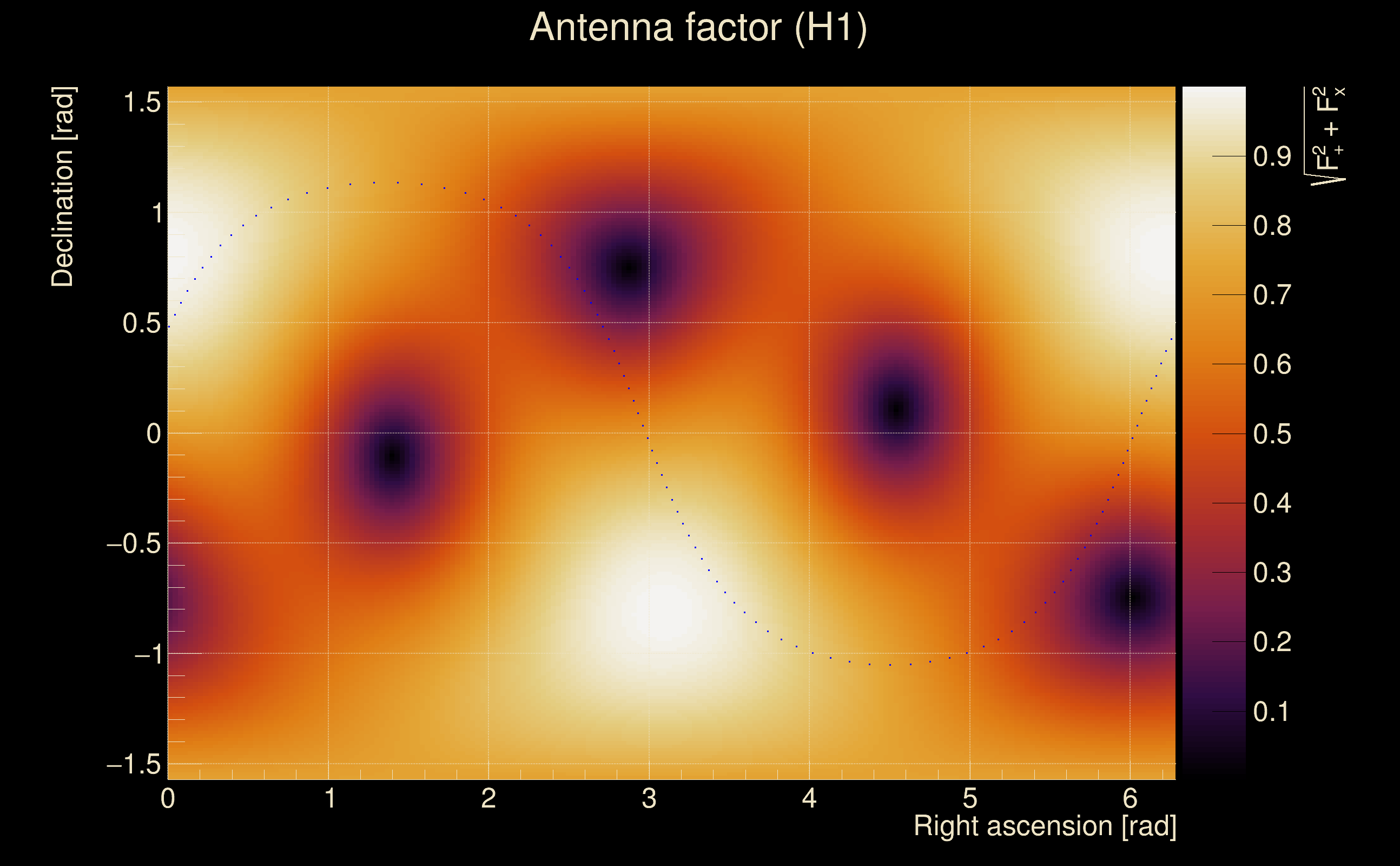

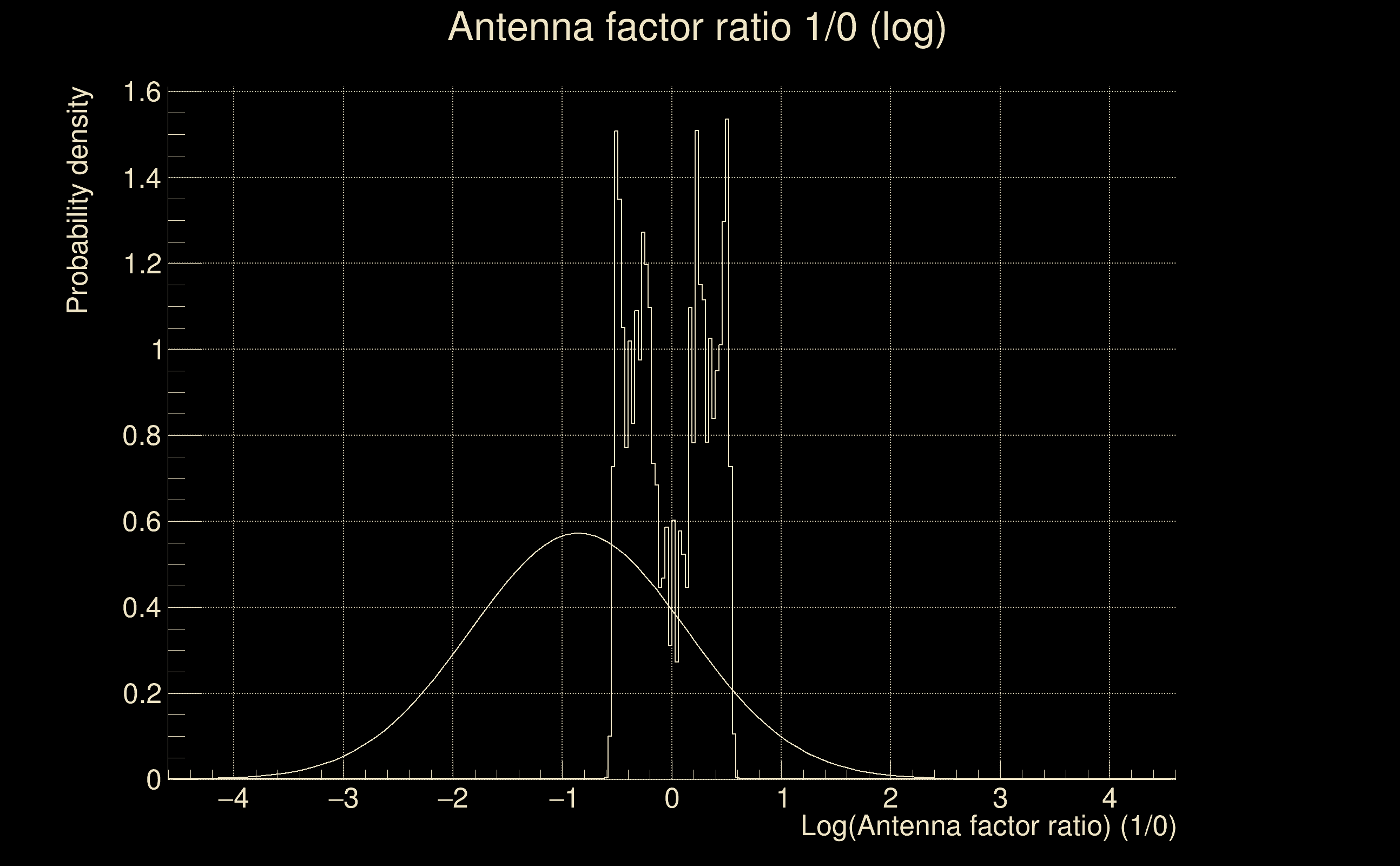

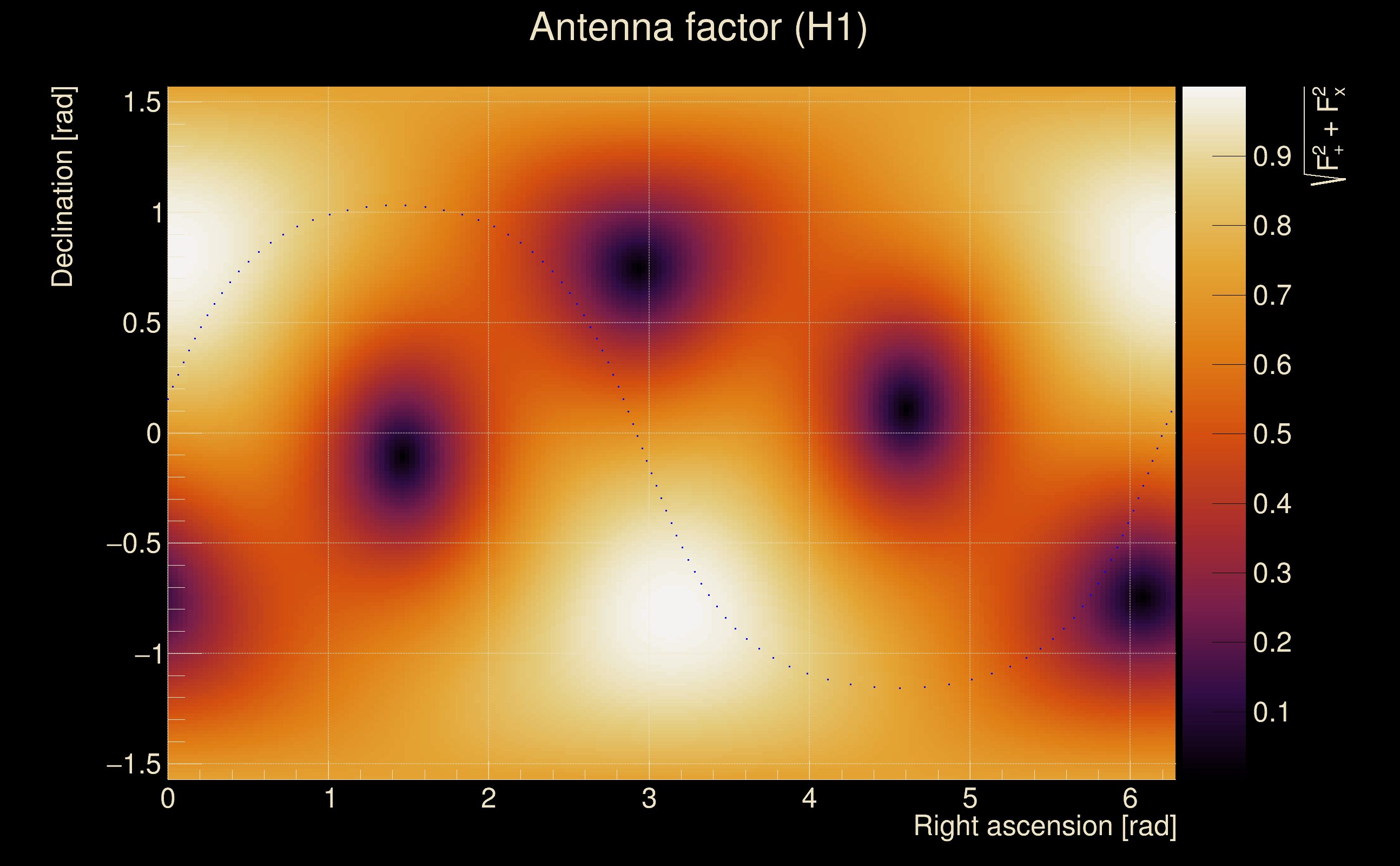

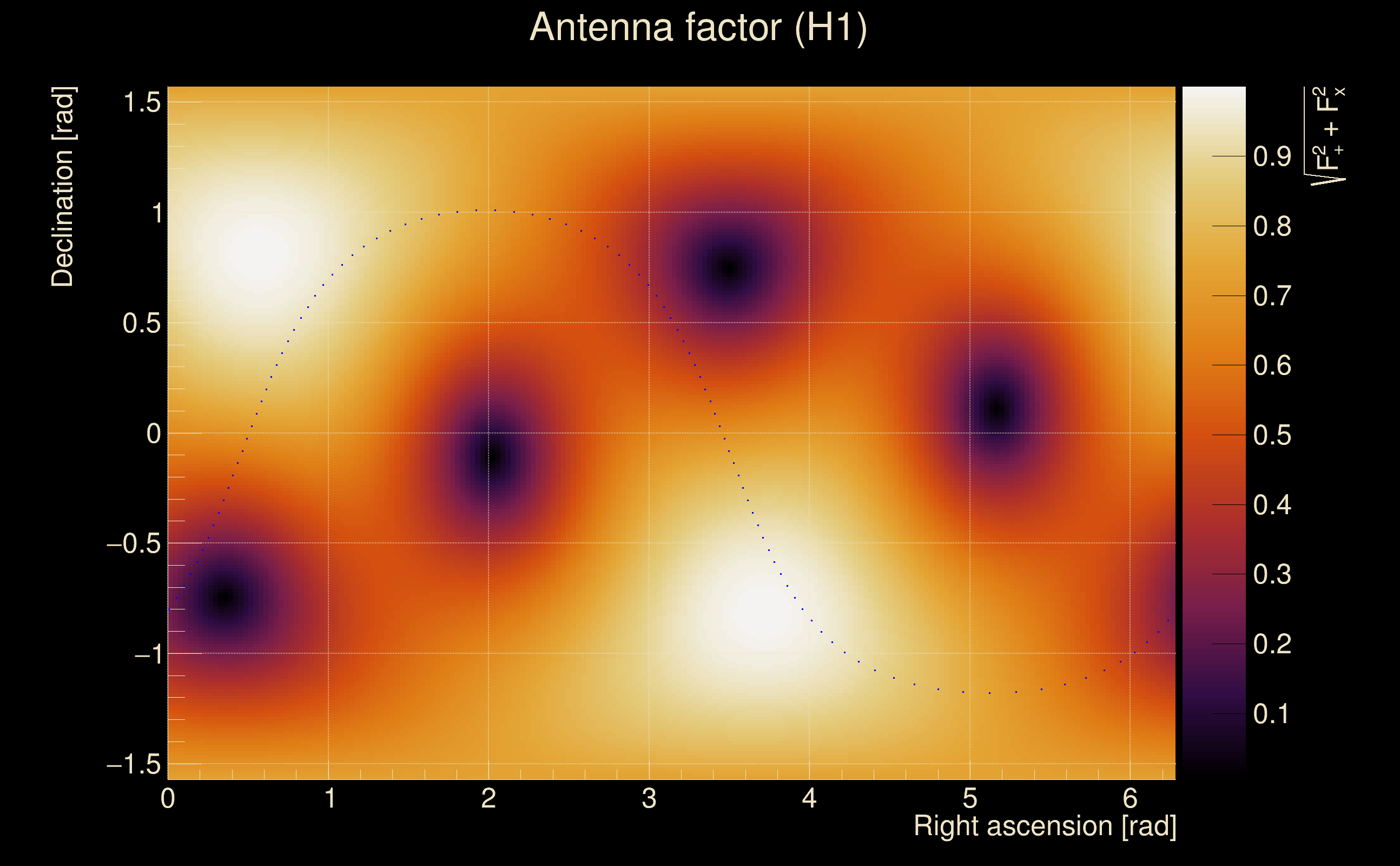

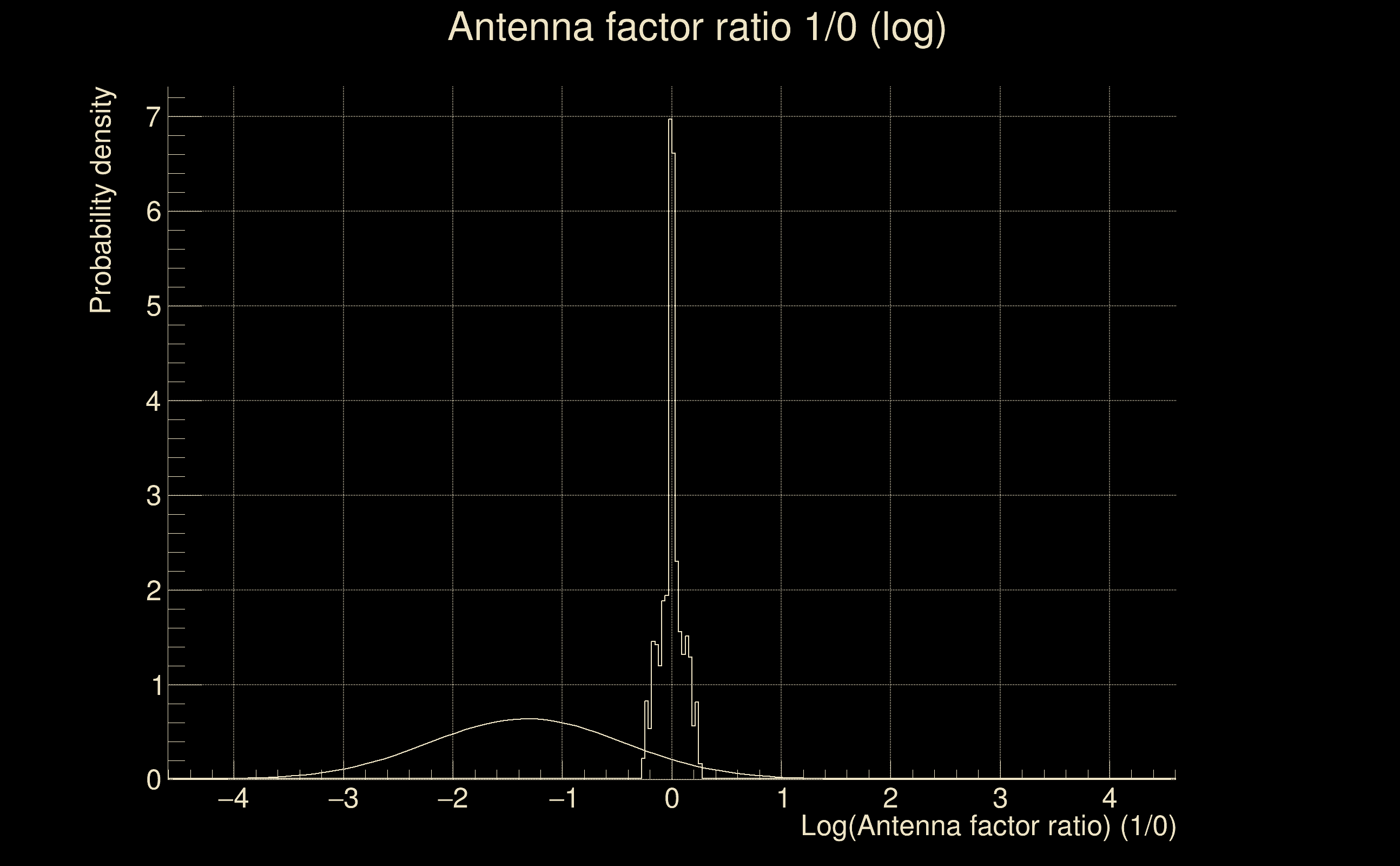

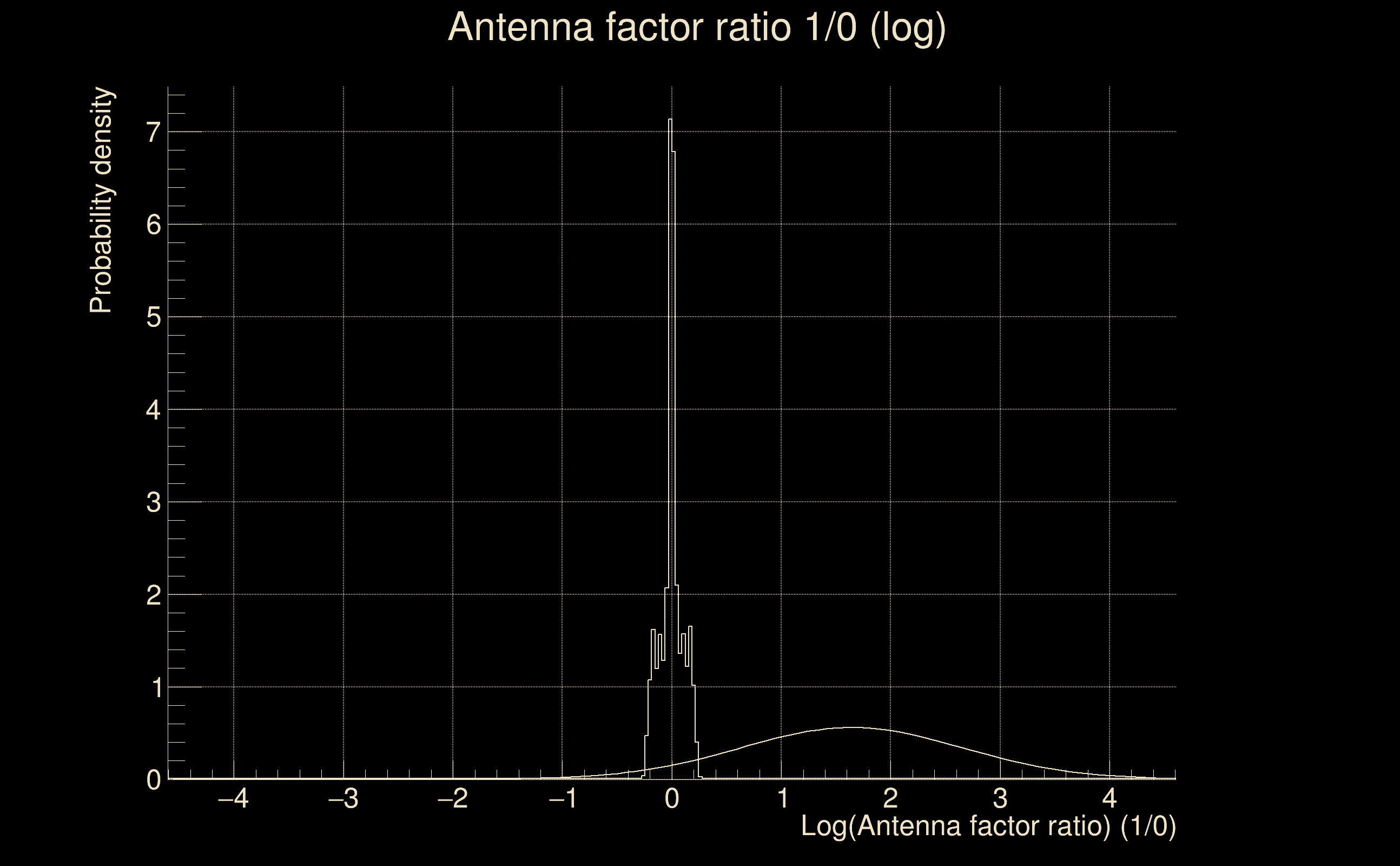

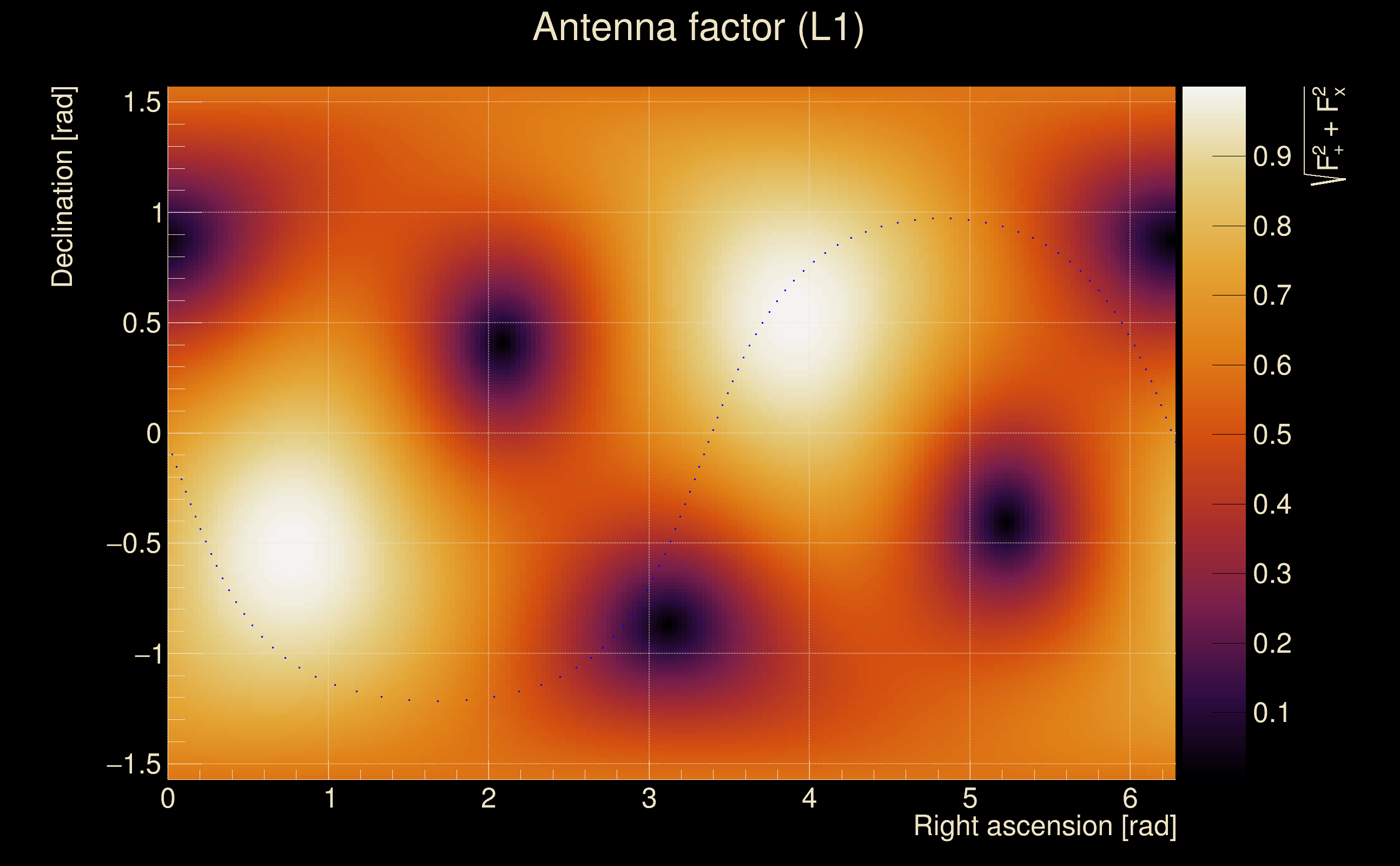

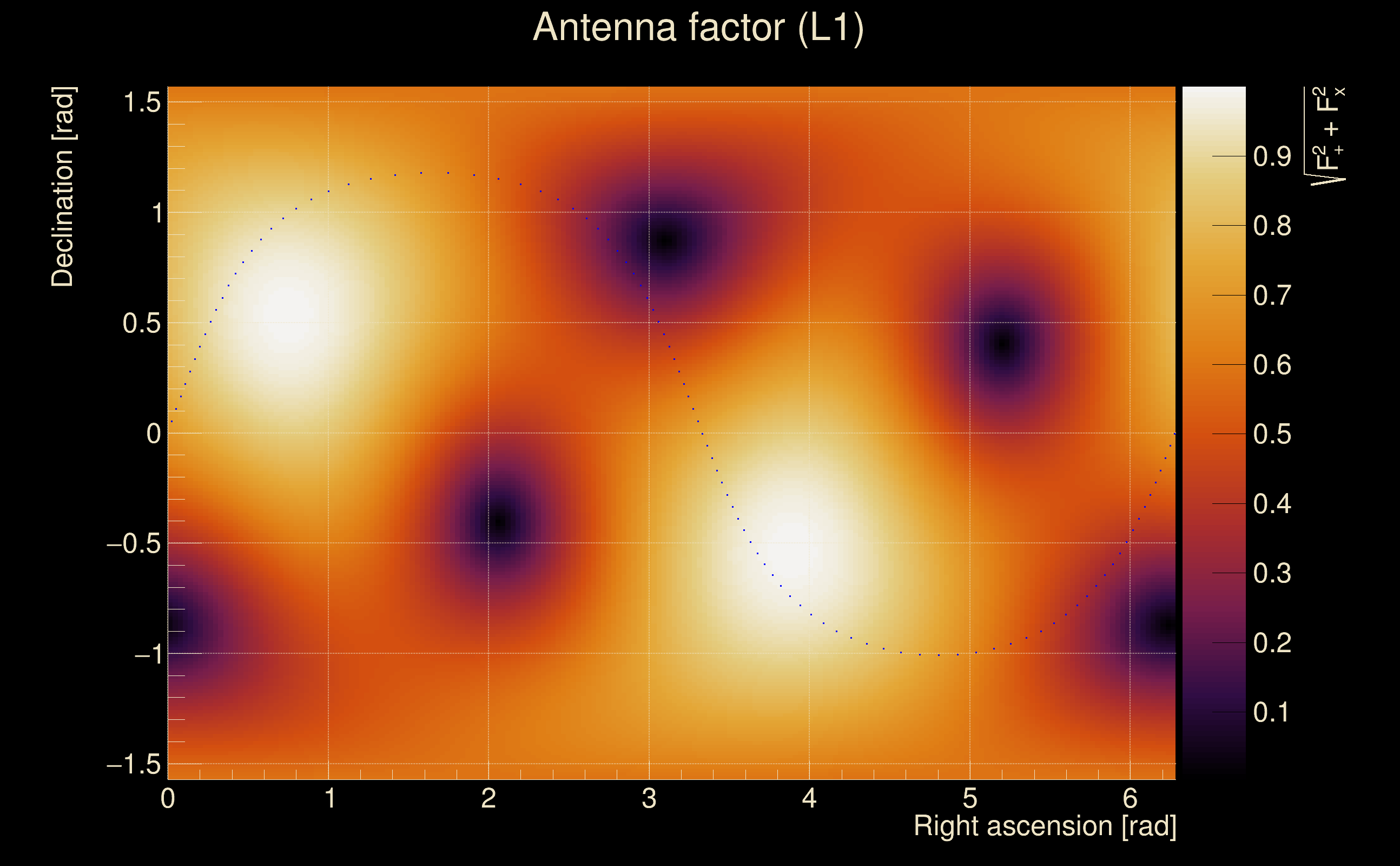

| Antenna factor probability: | 0.914674 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 5 / 36, Q2: 15 / 70, Q3: 63 / 134, Q4: 193 / 258 |
| Maximum signal-to-noise ratio: | H1: 19.5313, L1: 44.528 |

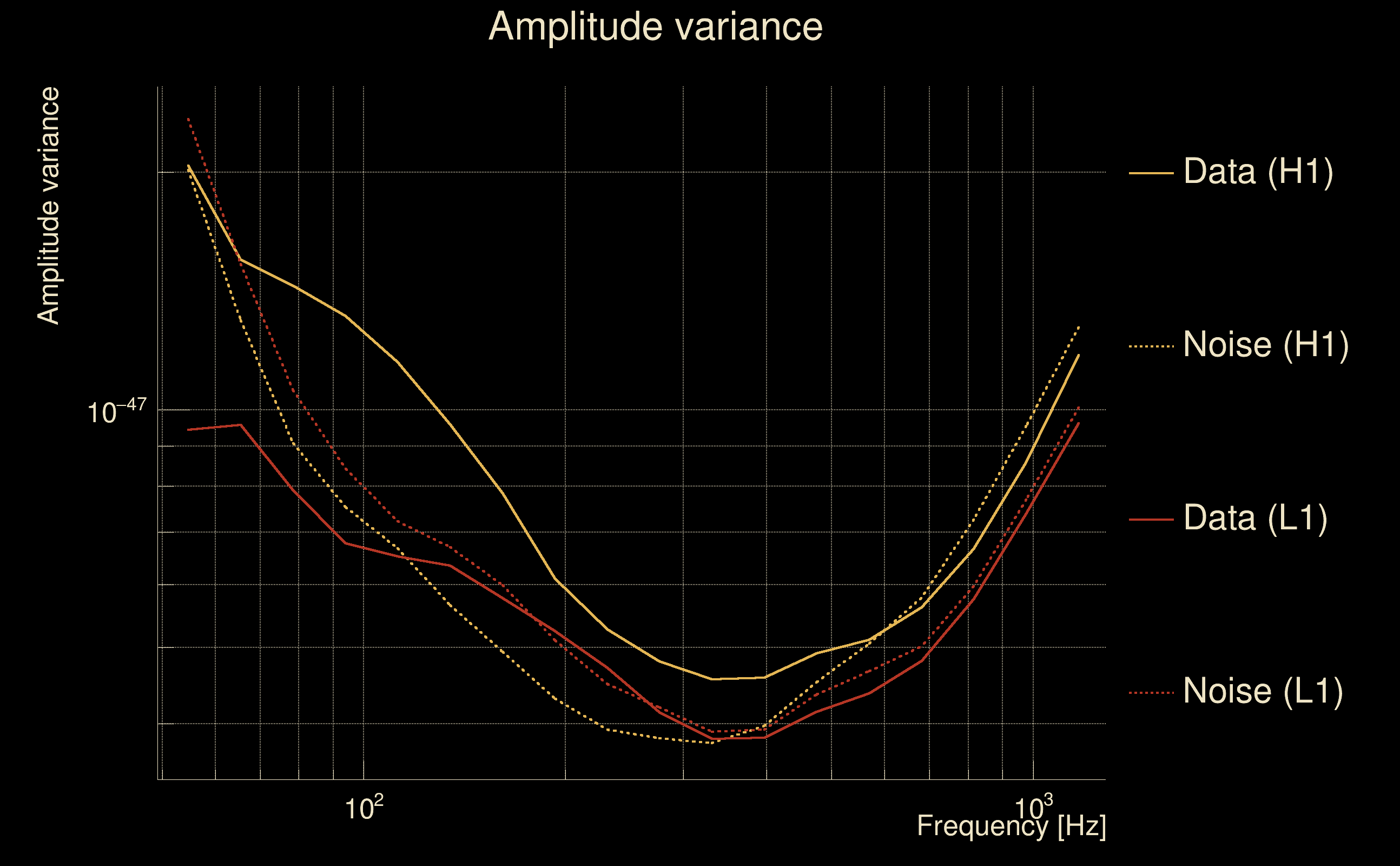

| SNR variance: | H1: 0.67791, L1: 1.27929 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378628053 (Wed Sep 13 08:13:55 2023 ) → GPS = 1378628063 (Wed Sep 13 08:14:05 2023 ) |
| Event time t(L1): | GPS = 1378628033 (Wed Sep 13 08:14:05 2023 ) → GPS = 1378628043 (Wed Sep 13 08:13:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628050 → GPS = 1378628066 |
| Omicron analysis time window (L1): | GPS = 1378628030 → GPS = 1378628046 |
| Time delay between detectors t(L1) - t(H1): | -23.5345 s (slice index = 185 / 217), δt_gw = 0.0075201 s |
| Time delay uncertainty: | 0.000130434 s |
| Frequency: | 136.879 Hz |
| Ξ: | 0.64229 ± 0.0856487 (variance = 0.0073357): Q0: 0.857877, Q1: 0.855333, Q2: 0.828062, Q3: 0.743853, Q4: 0.633736 |
| Rank: | R_A = 0.3606 |
| Log of amplitude ratio (L1/H1): | 0.910587, variance = 0.238225 (L1/H1: 0.605109, variance = 0.300352, H1/L1: -0.968808, variance = 0.326773) |
| Amplitude ratio (L1/H1): | 2.48578 ⋇ 1.62919 (L1/H1: 1.83145 ⋇ 1.72987, H1/L1: 0.379535 ⋇ 1.77117) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.646043 |
| Antenna factor probability: | 0.869028 |
| Number of rejected frequency rows: | Q0: 3 / 18, Q1: 8 / 36, Q2: 21 / 70, Q3: 65 / 134, Q4: 190 / 258 |
| Maximum signal-to-noise ratio: | H1: 19.5358, L1: 44.7491 |
| SNR variance: | H1: 0.523341, L1: 0.51966 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

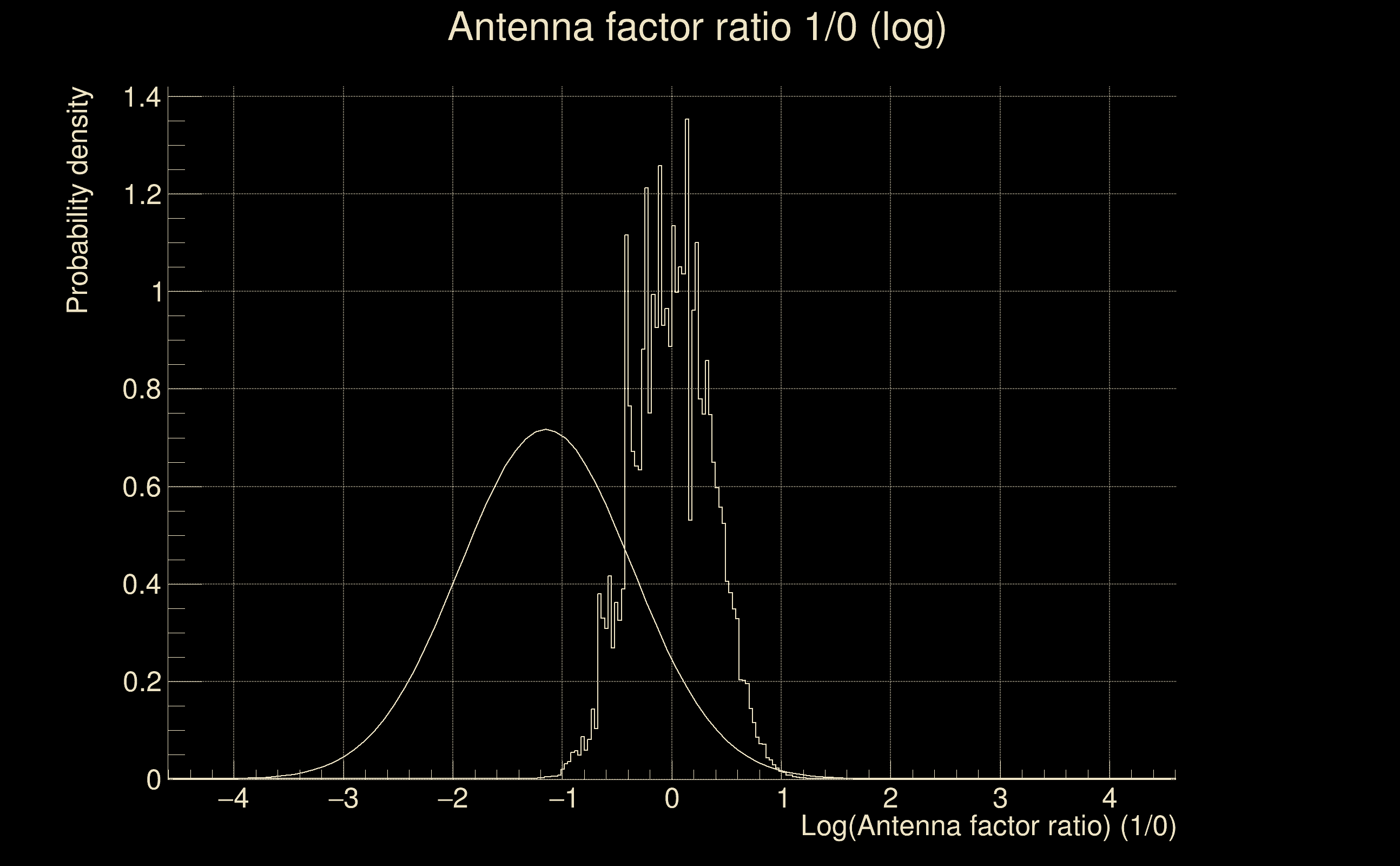

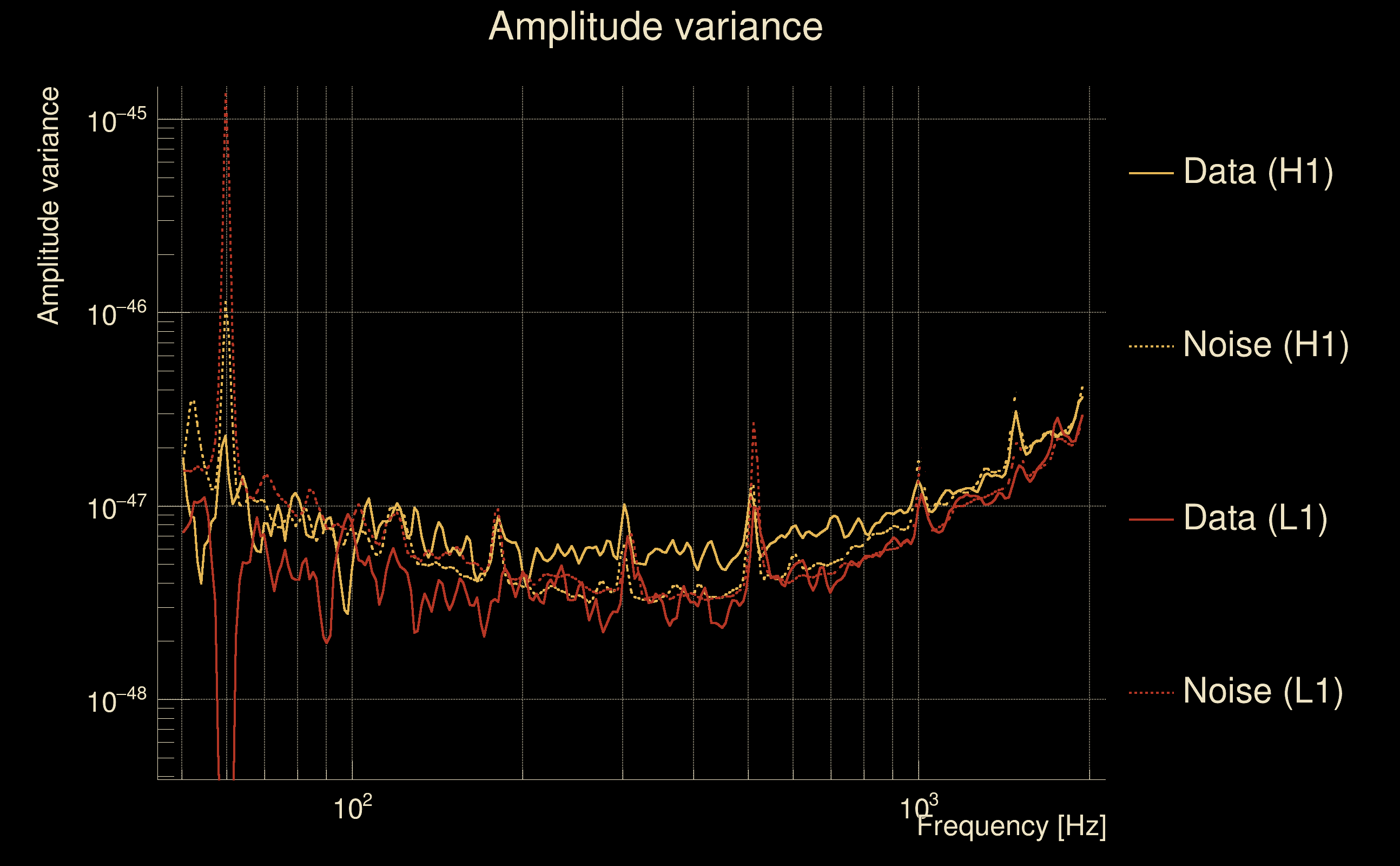

| Event time t(H1): | GPS = 1378551050 (Tue Sep 12 10:50:32 2023 ) → GPS = 1378551060 (Tue Sep 12 10:50:42 2023 ) |
| Event time t(L1): | GPS = 1378551030 (Tue Sep 12 10:50:42 2023 ) → GPS = 1378551040 (Tue Sep 12 10:50:22 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378551047 → GPS = 1378551063 |
| Omicron analysis time window (L1): | GPS = 1378551027 → GPS = 1378551043 |

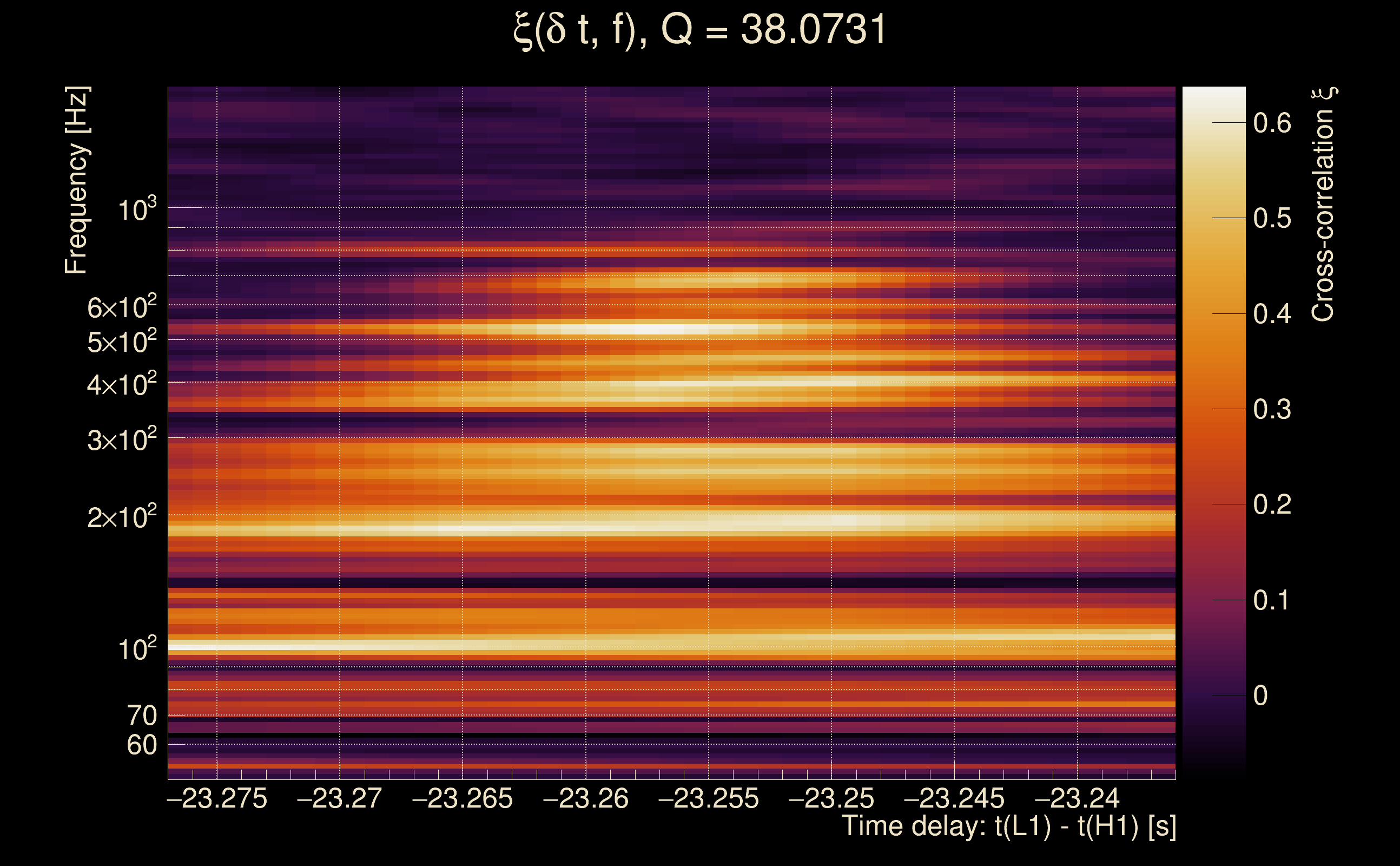

| Time delay between detectors t(L1) - t(H1): | -23.2561 s (slice index = 179 / 217), δt_gw = 0.00994704 s |
| Time delay uncertainty: | 9.33707e-05 s |
| Frequency: | 265.762 Hz |
| Ξ: | 0.427594 ± 0.121787 (variance = 0.0148321): Q0: 0.713801, Q1: 0.655602, Q2: 0.558211, Q3: 0.45282, Q4: 0.386525 |
| Rank: | R_A = 0.257942 |
| Log of amplitude ratio (L1/H1): | -1.147, variance = 0.307148 (L1/H1: -1.19363, variance = 0.373098, H1/L1: 0.740276, variance = 0.647034) |
| Amplitude ratio (L1/H1): | 0.317587 ⋇ 1.74056 (L1/H1: 0.30312 ⋇ 1.84194, H1/L1: 2.09651 ⋇ 2.23532) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.653537 |
| Antenna factor probability: | 0.923038 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 14 / 36, Q2: 39 / 70, Q3: 99 / 134, Q4: 223 / 258 |
| Maximum signal-to-noise ratio: | H1: 37.5366, L1: 12.7087 |
| SNR variance: | H1: 0.732173, L1: 0.524148 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

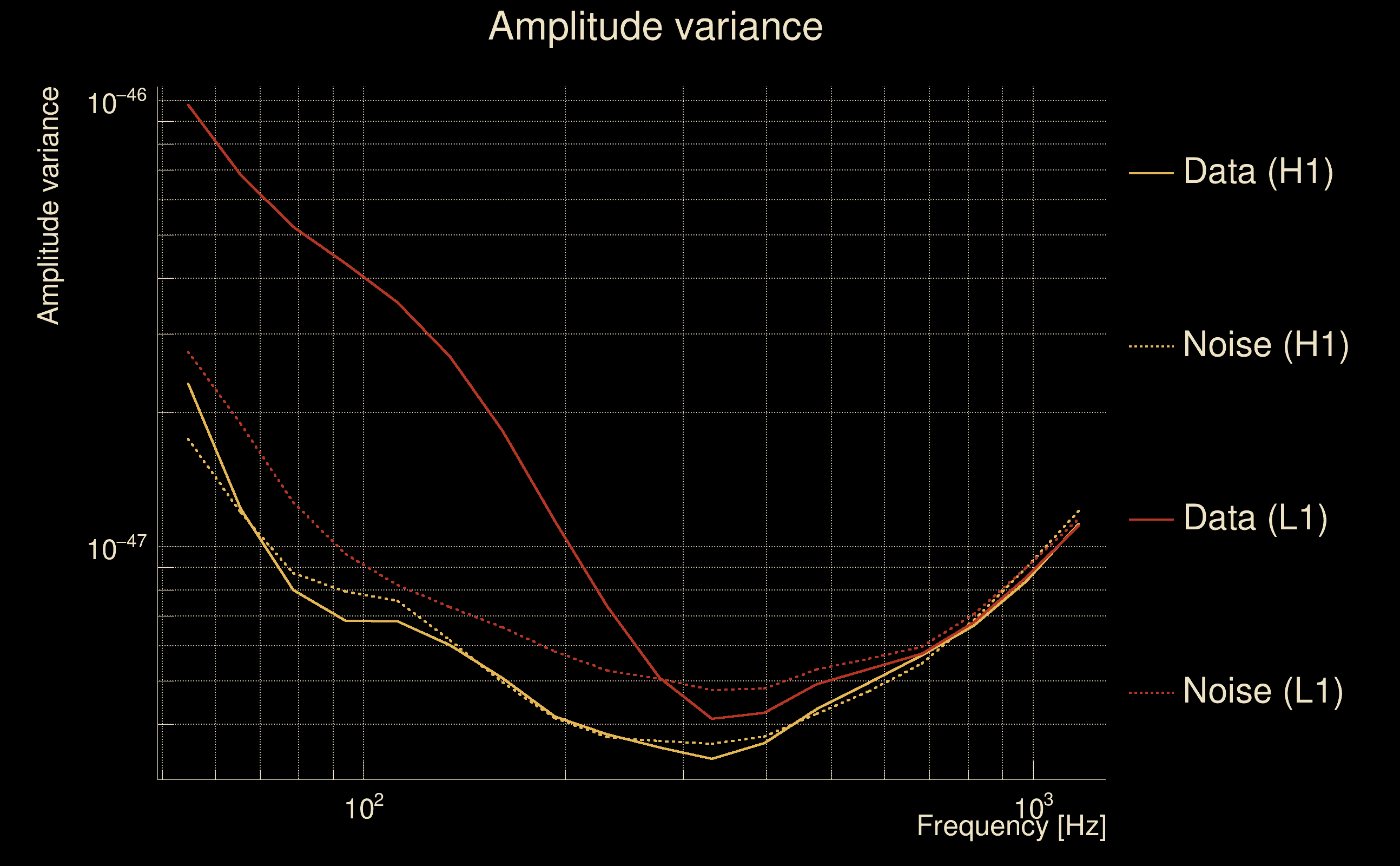

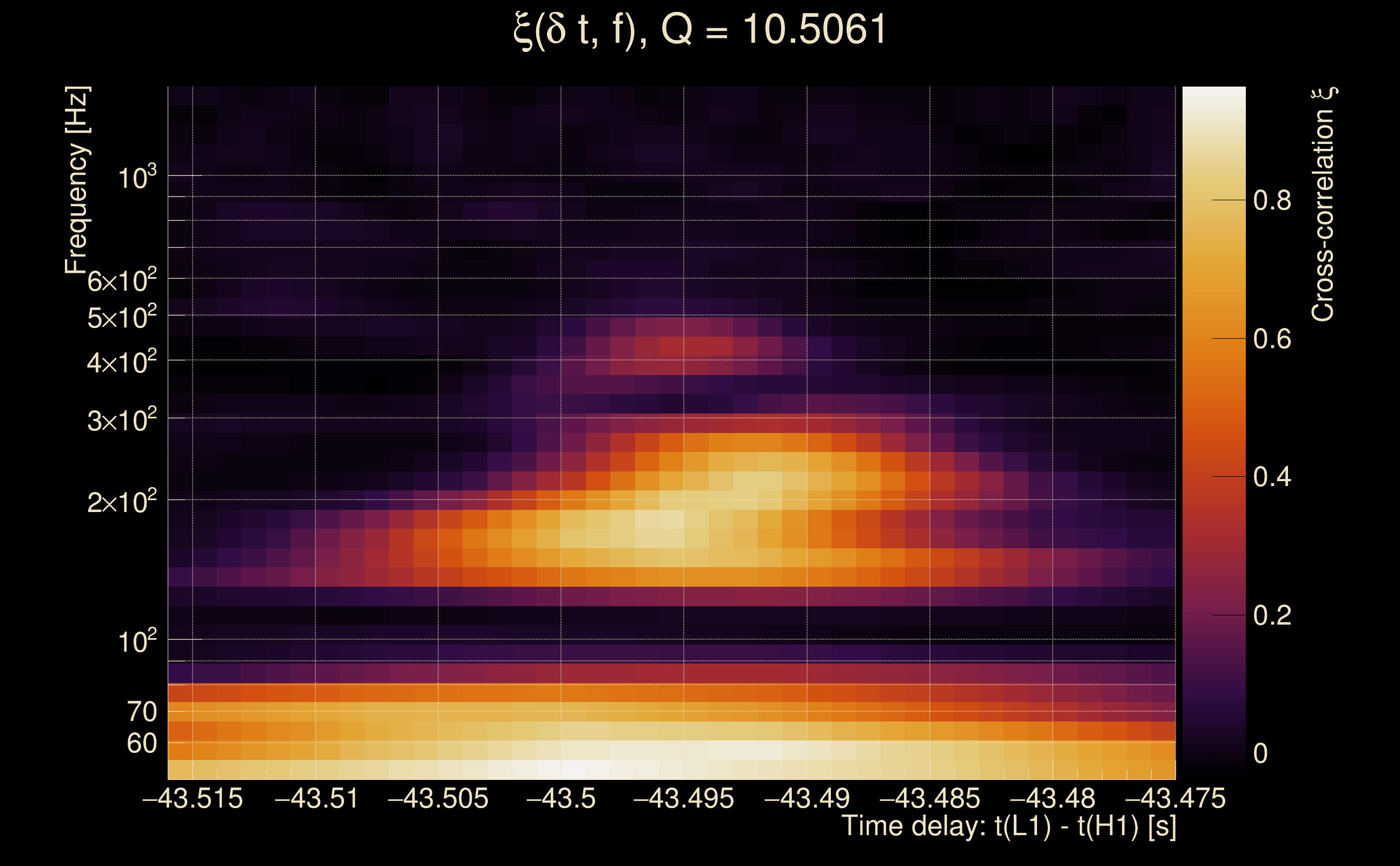

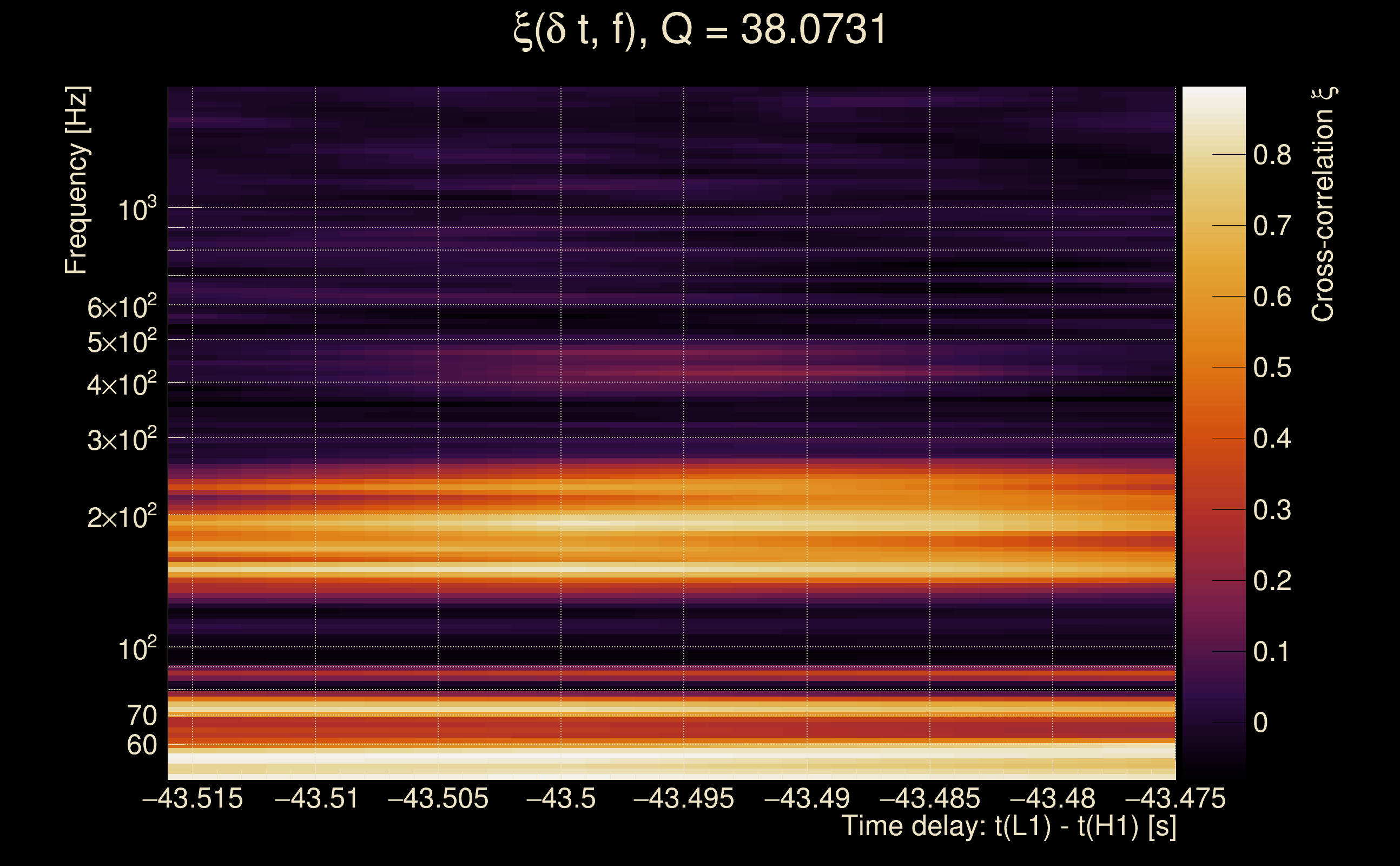

| Event time t(H1): | GPS = 1378632422 (Wed Sep 13 09:26:44 2023 ) → GPS = 1378632432 (Wed Sep 13 09:26:54 2023 ) |
| Event time t(L1): | GPS = 1378632382 (Wed Sep 13 09:26:54 2023 ) → GPS = 1378632392 (Wed Sep 13 09:26:14 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378632419 → GPS = 1378632435 |
| Omicron analysis time window (L1): | GPS = 1378632379 → GPS = 1378632395 |

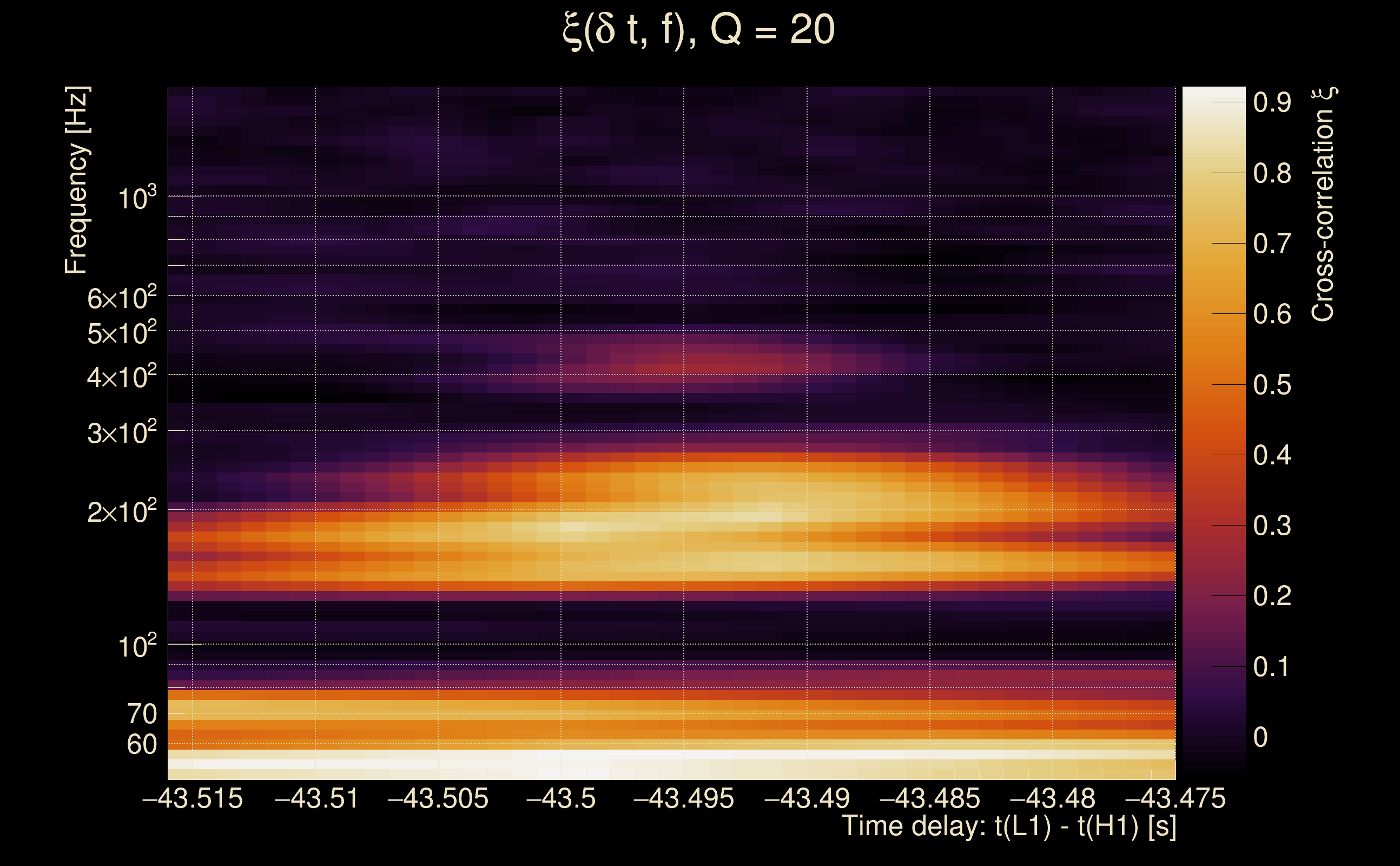

| Time delay between detectors t(L1) - t(H1): | -43.4958 s (slice index = 184 / 217), δt_gw = 0.000180213 s |
| Time delay uncertainty: | 0.000129953 s |
| Frequency: | 137.831 Hz |
| Ξ: | 0.497917 ± 0.0624548 (variance = 0.0039006): Q0: 0.72546, Q1: 0.729174, Q2: 0.722069, Q3: 0.620193, Q4: 0.581167 |
| Rank: | R_A = 0.255083 |
| Log of amplitude ratio (L1/H1): | 1.6465, variance = 0.515501 (L1/H1: 0.971339, variance = 0.633156, H1/L1: -1.69631, variance = 0.590921) |
| Amplitude ratio (L1/H1): | 5.18877 ⋇ 2.0503 (L1/H1: 2.64148 ⋇ 2.21602, H1/L1: 0.18336 ⋇ 2.15699) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.5123 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 2 / 18, Q1: 15 / 36, Q2: 39 / 70, Q3: 89 / 134, Q4: 202 / 258 |
| Maximum signal-to-noise ratio: | H1: 12.6887, L1: 46.716 |
| SNR variance: | H1: 0.564062, L1: 0.525989 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

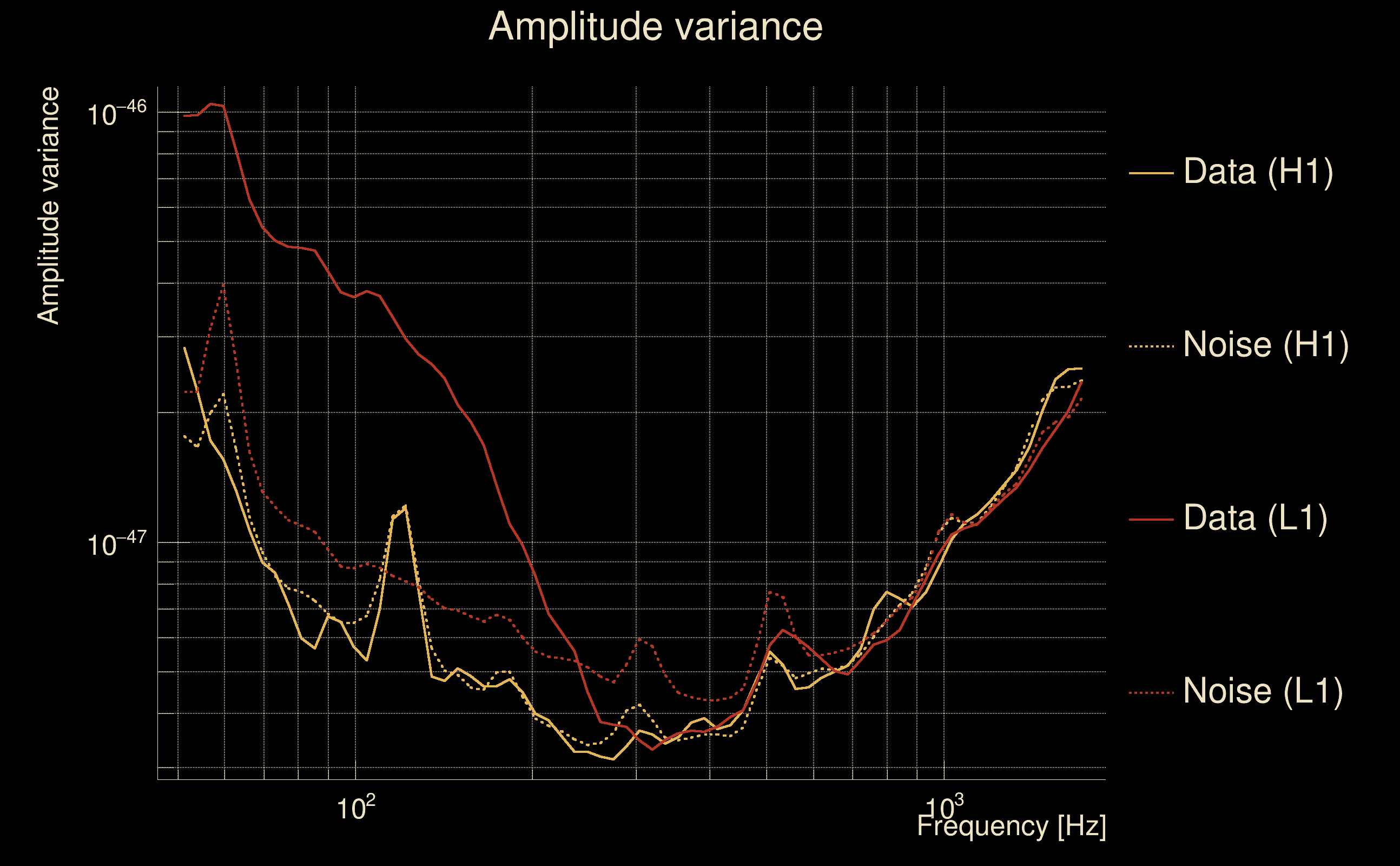

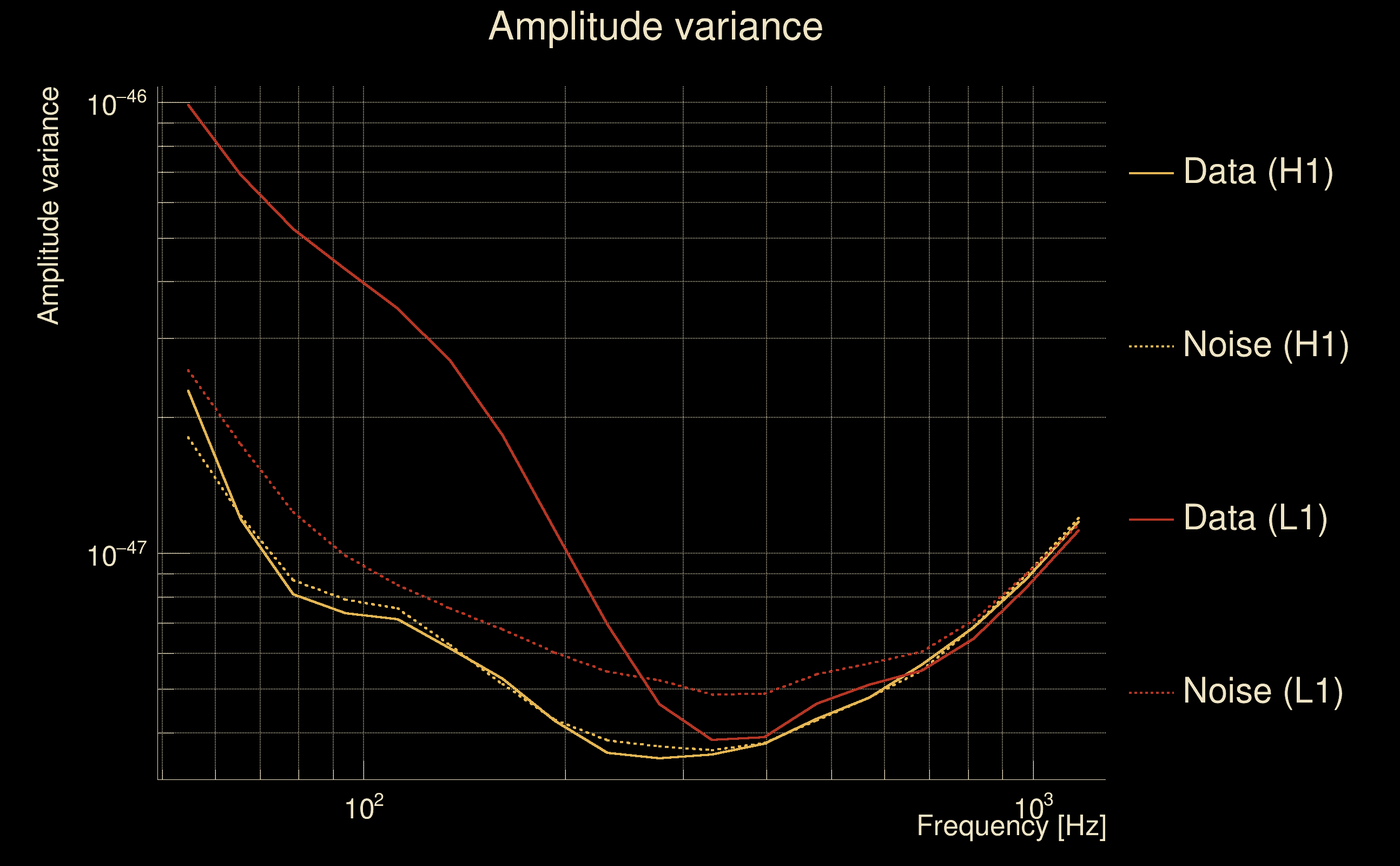

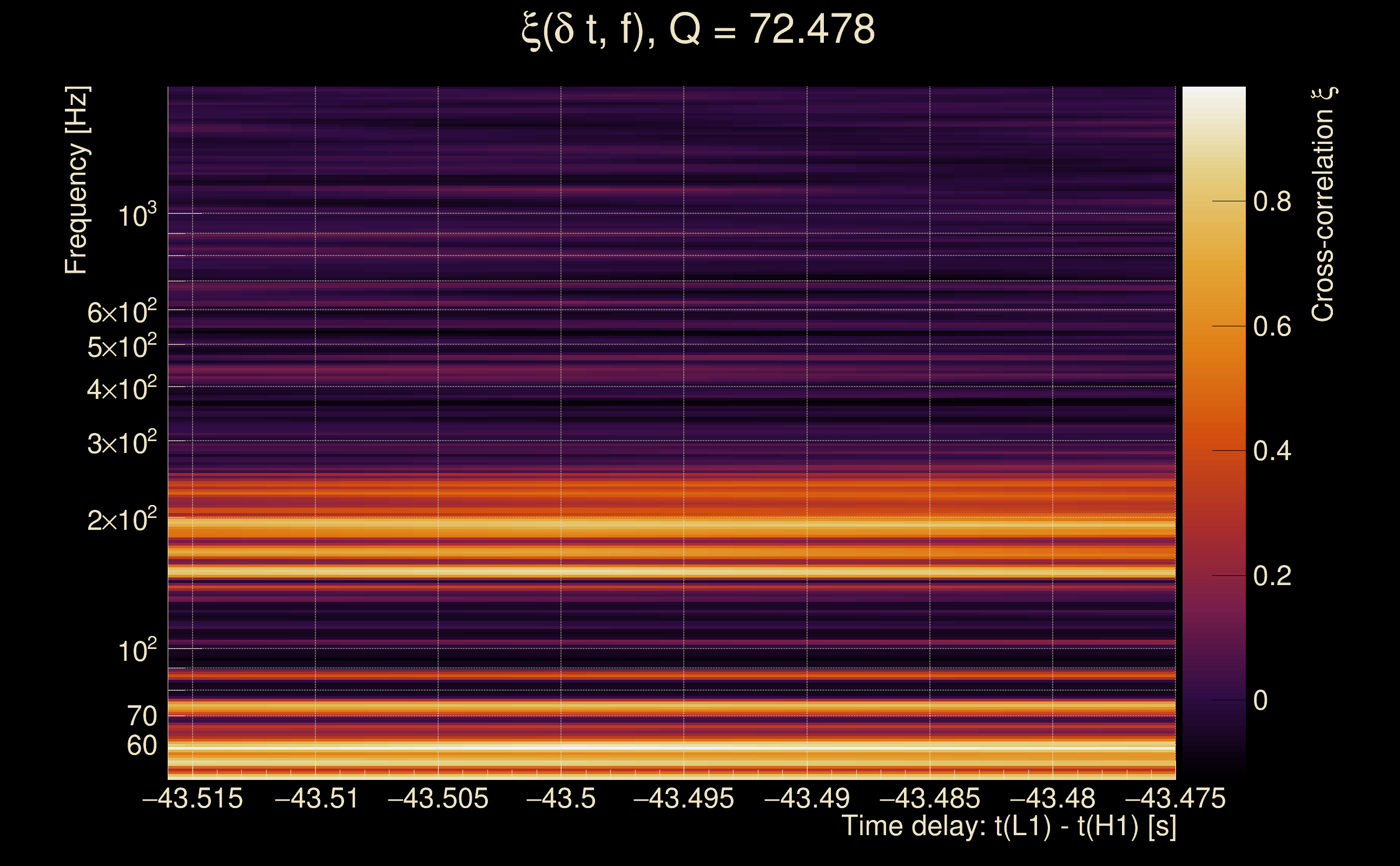

| Event time t(H1): | GPS = 1378632417 (Wed Sep 13 09:26:39 2023 ) → GPS = 1378632427 (Wed Sep 13 09:26:49 2023 ) |
| Event time t(L1): | GPS = 1378632387 (Wed Sep 13 09:26:49 2023 ) → GPS = 1378632397 (Wed Sep 13 09:26:19 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378632414 → GPS = 1378632430 |
| Omicron analysis time window (L1): | GPS = 1378632384 → GPS = 1378632400 |
| Time delay between detectors t(L1) - t(H1): | -33.4951 s (slice index = 184 / 217), δt_gw = 0.00086014 s |
| Time delay uncertainty: | 0.000151057 s |
| Frequency: | 134.446 Hz |
| Ξ: | 0.454996 ± 0.0610677 (variance = 0.00372927): Q0: 0.764274, Q1: 0.735111, Q2: 0.680789, Q3: 0.630275, Q4: 0.602119 |
| Rank: | R_A = 0.247979 |
| Log of amplitude ratio (L1/H1): | 1.55716, variance = 0.423662 (L1/H1: 0.894214, variance = 0.904662, H1/L1: -1.60726, variance = 0.484946) |
| Amplitude ratio (L1/H1): | 4.74532 ⋇ 1.91725 (L1/H1: 2.44541 ⋇ 2.58865, H1/L1: 0.200437 ⋇ 2.00648) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.545258 |
| Antenna factor probability: | 0.999551 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 15 / 36, Q2: 34 / 70, Q3: 90 / 134, Q4: 208 / 258 |
| Maximum signal-to-noise ratio: | H1: 12.6997, L1: 46.1978 |
| SNR variance: | H1: 0.513744, L1: 1.42268 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

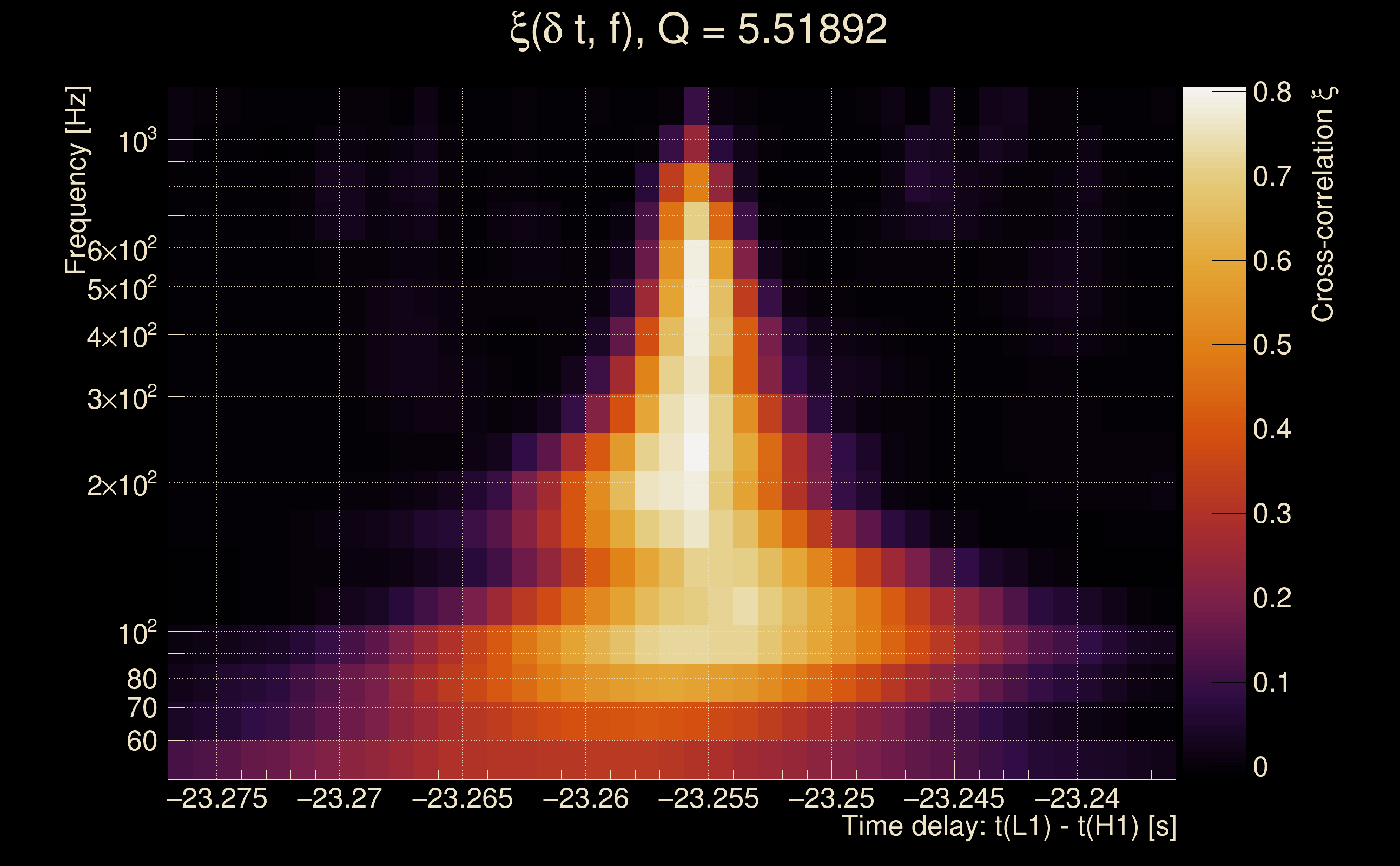

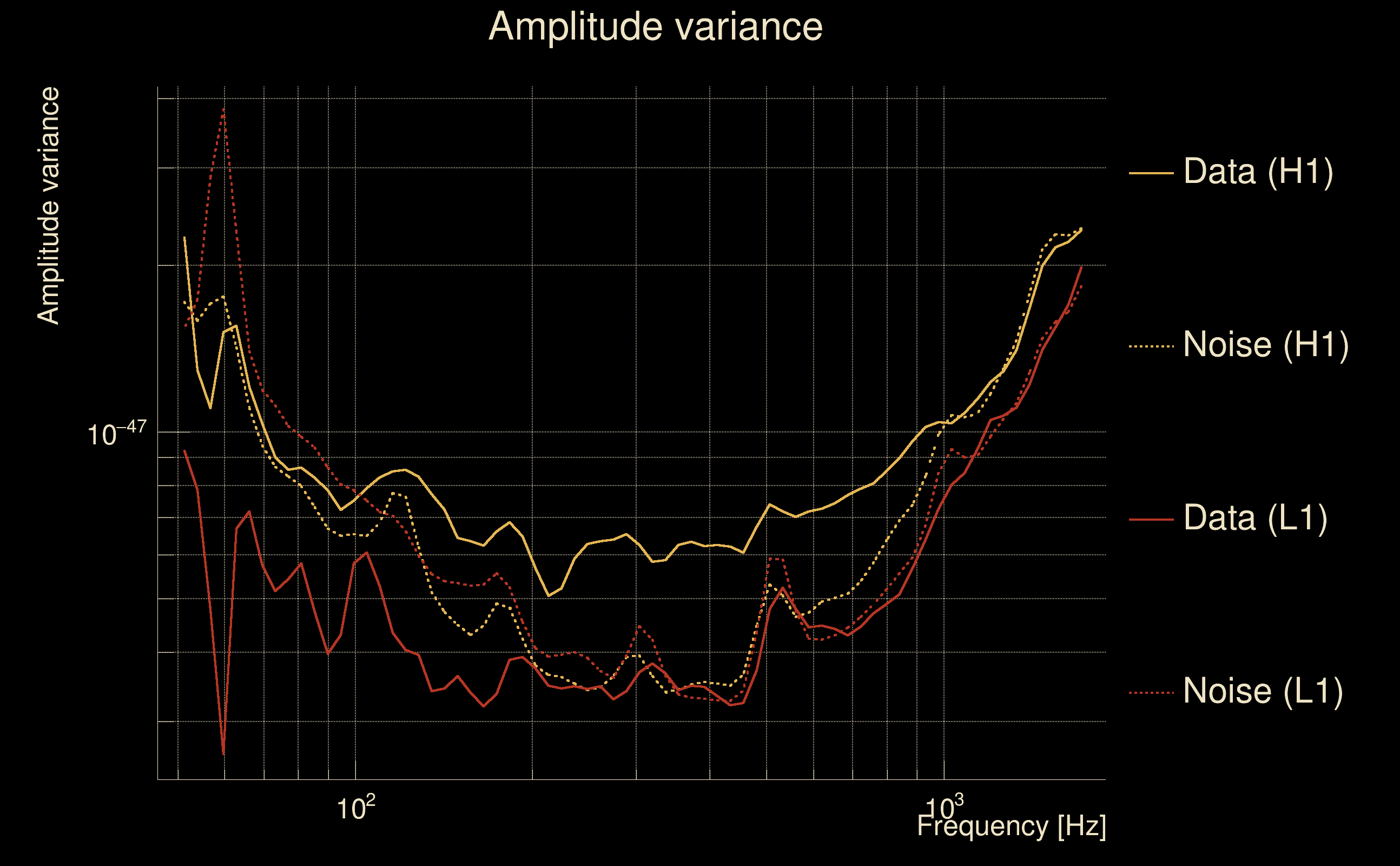

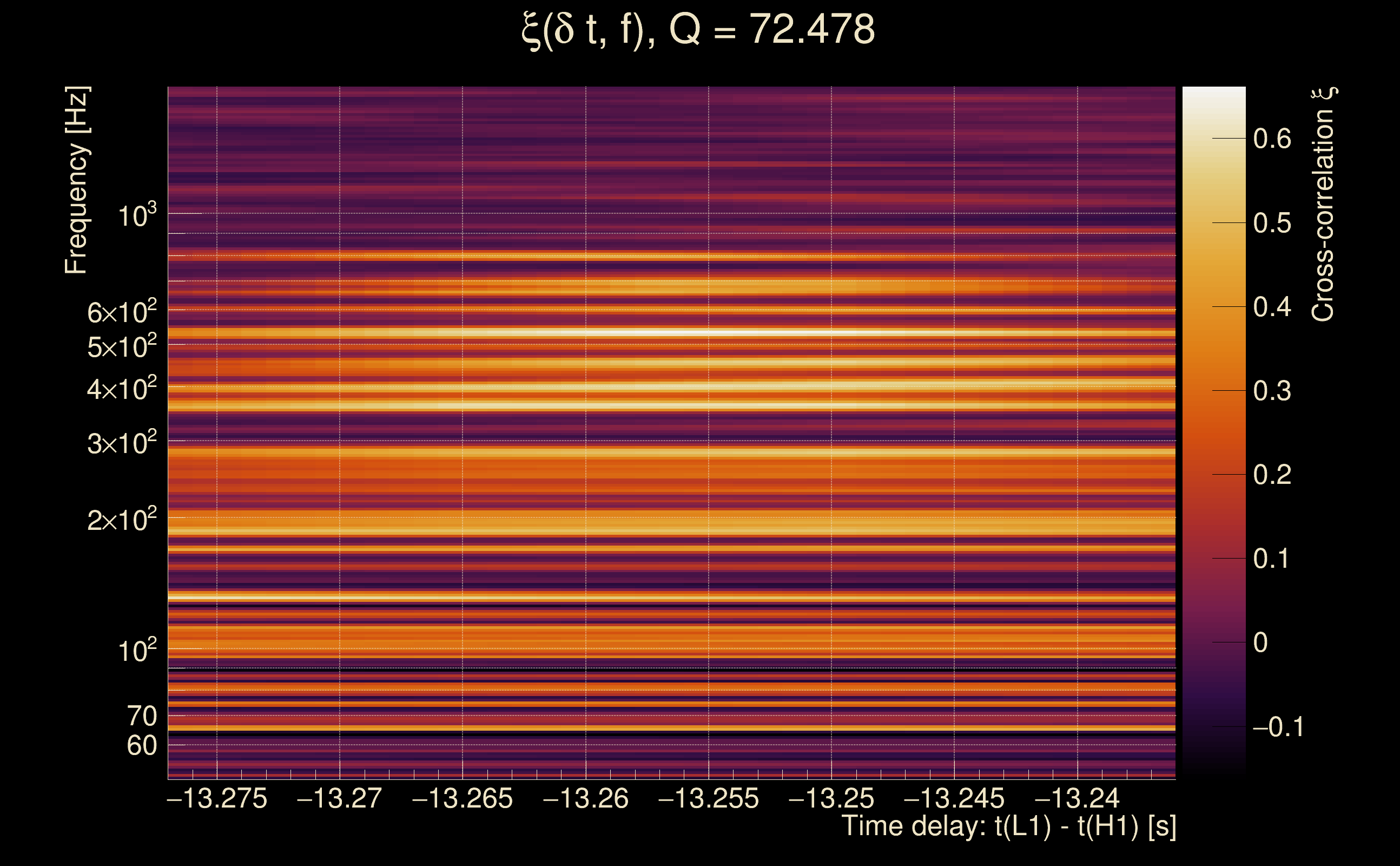

| Event time t(H1): | GPS = 1378551045 (Tue Sep 12 10:50:27 2023 ) → GPS = 1378551055 (Tue Sep 12 10:50:37 2023 ) |
| Event time t(L1): | GPS = 1378551035 (Tue Sep 12 10:50:37 2023 ) → GPS = 1378551045 (Tue Sep 12 10:50:27 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378551042 → GPS = 1378551058 |
| Omicron analysis time window (L1): | GPS = 1378551032 → GPS = 1378551048 |
| Time delay between detectors t(L1) - t(H1): | -13.2563 s (slice index = 179 / 217), δt_gw = 0.00965208 s |
| Time delay uncertainty: | 7.25319e-05 s |
| Frequency: | 281.122 Hz |
| Ξ: | 0.473197 ± 0.117113 (variance = 0.0137154): Q0: 0.680912, Q1: 0.608638, Q2: 0.511483, Q3: 0.403128, Q4: 0.374441 |
| Rank: | R_A = 0.137849 |
| Log of amplitude ratio (L1/H1): | -1.16313, variance = 0.314766 (L1/H1: -1.24954, variance = 0.381397, H1/L1: 0.389304, variance = 0.608461) |
| Amplitude ratio (L1/H1): | 0.312505 ⋇ 1.75249 (L1/H1: 0.286637 ⋇ 1.85442, H1/L1: 1.47595 ⋇ 2.18156) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.387241 |
| Antenna factor probability: | 0.752279 |
| Number of rejected frequency rows: | Q0: 1 / 18, Q1: 13 / 36, Q2: 33 / 70, Q3: 91 / 134, Q4: 222 / 258 |
| Maximum signal-to-noise ratio: | H1: 37.7558, L1: 12.6162 |
| SNR variance: | H1: 0.53665, L1: 0.535628 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

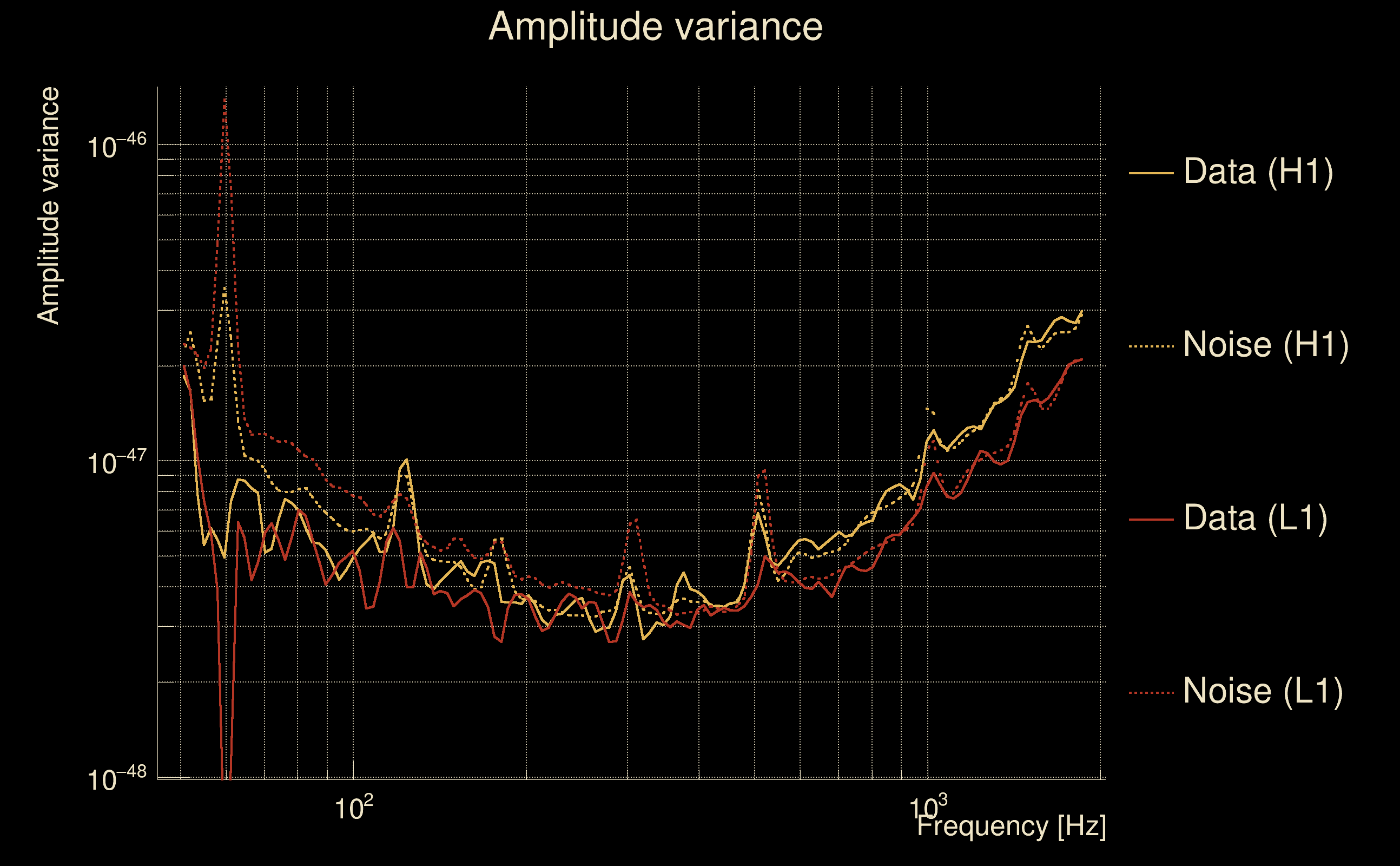

| Event time t(H1): | GPS = 1378017413 (Wed Sep 6 06:36:35 2023 ) → GPS = 1378017423 (Wed Sep 6 06:36:45 2023 ) |
| Event time t(L1): | GPS = 1378017413 (Wed Sep 6 06:36:45 2023 ) → GPS = 1378017423 (Wed Sep 6 06:36:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378017410 → GPS = 1378017426 |
| Omicron analysis time window (L1): | GPS = 1378017410 → GPS = 1378017426 |
| Time delay between detectors t(L1) - t(H1): | 4.56007 s (slice index = 9 / 217), δt_gw = 0.00606606 s |
| Time delay uncertainty: | 0.000122731 s |
| Frequency: | 97.4435 Hz |
| Ξ: | 0.151397 ± 0.132092 (variance = 0.0174483): Q0: 0.324782, Q1: 0.418638, Q2: 0.202599, Q3: 0.0539856, Q4: 0.12479 |
| Rank: | R_A = 0.111333 |
| Log of amplitude ratio (L1/H1): | 0.195431, variance = 0.51295 (L1/H1: -0.169589, variance = 1.12523, H1/L1: -0.292262, variance = 0.742009) |
| Amplitude ratio (L1/H1): | 1.21583 ⋇ 2.04665 (L1/H1: 0.844011 ⋇ 2.88859, H1/L1: 0.746573 ⋇ 2.36647) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.735372 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 27 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.53854, L1: 10.7534 |
| SNR variance: | H1: 0.528348, L1: 0.520118 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

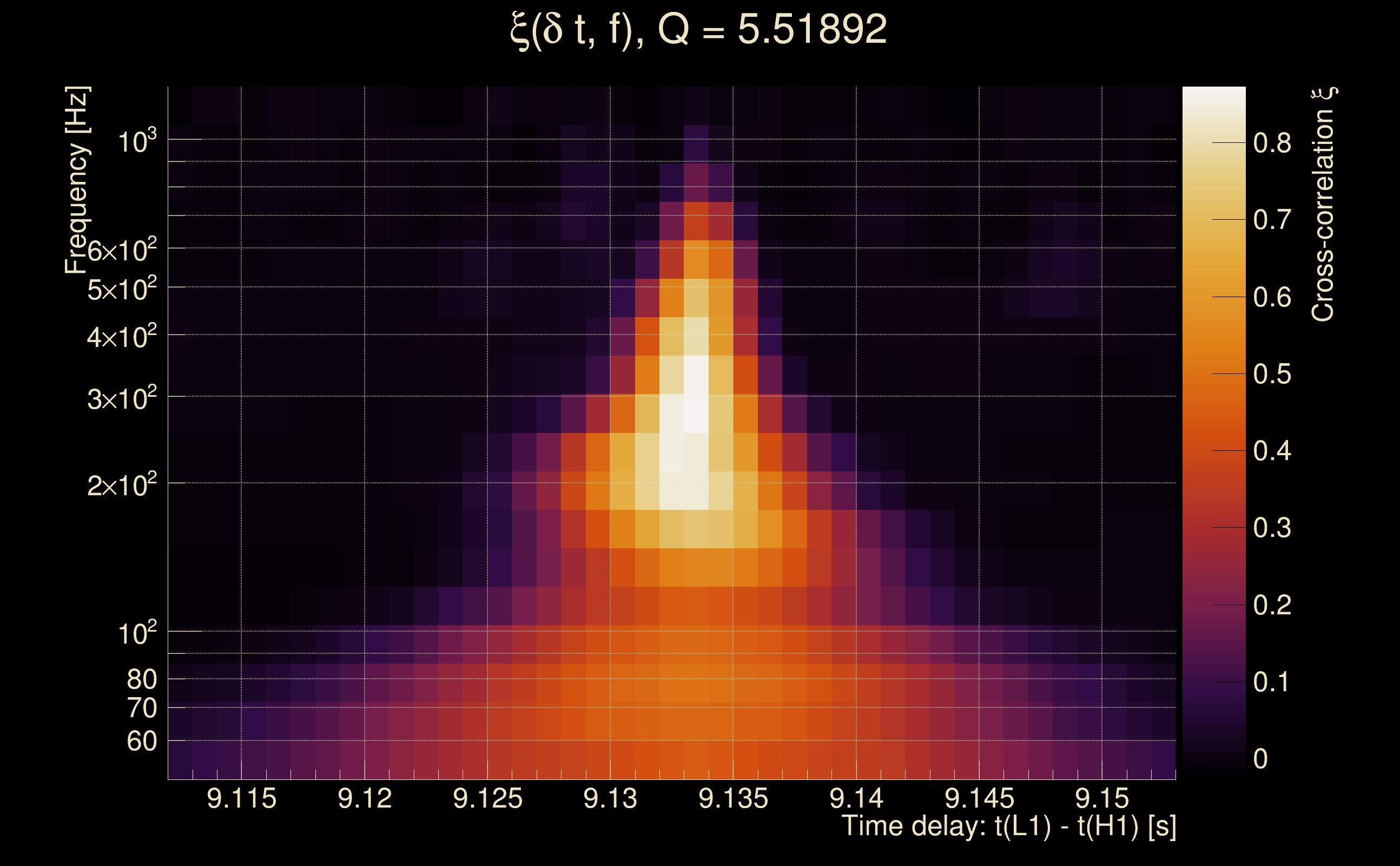

| Event time t(H1): | GPS = 1377744740 (Sun Sep 3 02:52:02 2023 ) → GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) |
| Event time t(L1): | GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) → GPS = 1377744760 (Sun Sep 3 02:52:22 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744737 → GPS = 1377744753 |
| Omicron analysis time window (L1): | GPS = 1377744747 → GPS = 1377744763 |

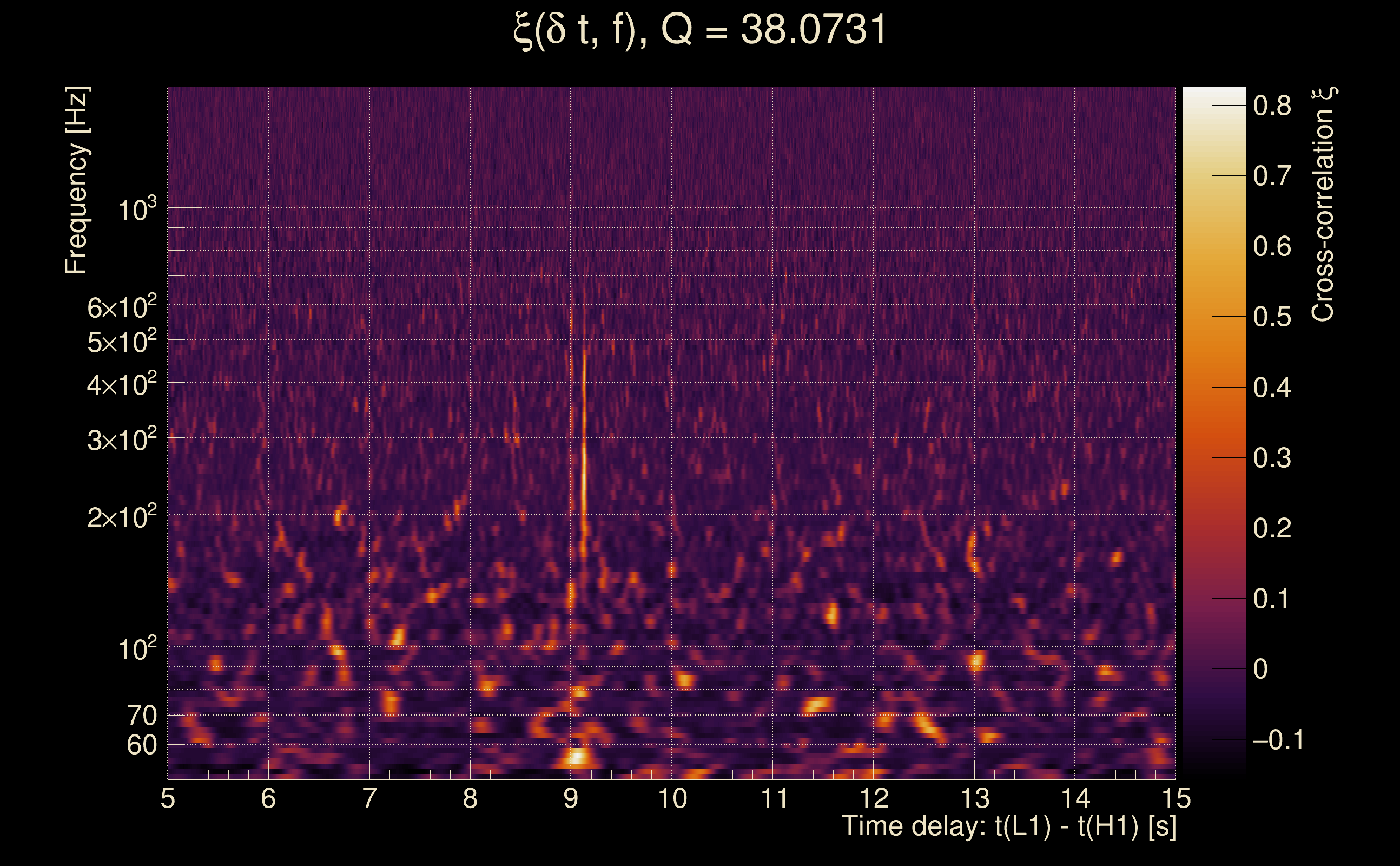

| Time delay between detectors t(L1) - t(H1): | 9.13281 s (slice index = 127 / 217), δt_gw = 0.00680878 s |
| Time delay uncertainty: | 0.000125261 s |
| Frequency: | 214.14 Hz |
| Ξ: | 0.427638 ± 0.0944855 (variance = 0.00892751): Q0: 0.70654, Q1: 0.662127, Q2: 0.611816, Q3: 0.531663, Q4: 0.441752 |
| Rank: | R_A = 0.109411 |
| Log of amplitude ratio (L1/H1): | -0.832028, variance = 0.47755 (L1/H1: -1.24767, variance = 0.815693, H1/L1: -0.189068, variance = 0.78313) |
| Amplitude ratio (L1/H1): | 0.435166 ⋇ 1.99581 (L1/H1: 0.287174 ⋇ 2.46738, H1/L1: 0.82773 ⋇ 2.42285) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.25585 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 13 / 36, Q2: 33 / 70, Q3: 83 / 134, Q4: 203 / 258 |
| Maximum signal-to-noise ratio: | H1: 23.9902, L1: 15.3059 |
| SNR variance: | H1: 0.706333, L1: 0.525125 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378550790 (Tue Sep 12 10:46:12 2023 ) → GPS = 1378550800 (Tue Sep 12 10:46:22 2023 ) |
| Event time t(L1): | GPS = 1378550770 (Tue Sep 12 10:46:22 2023 ) → GPS = 1378550780 (Tue Sep 12 10:46:02 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378550787 → GPS = 1378550803 |
| Omicron analysis time window (L1): | GPS = 1378550767 → GPS = 1378550783 |
| Time delay between detectors t(L1) - t(H1): | -23.216 s (slice index = 178 / 217), δt_gw = 0.00403958 s |
| Time delay uncertainty: | 0.000154371 s |
| Frequency: | 81.1968 Hz |
| Ξ: | 0.128643 ± 0.170129 (variance = 0.0289438): Q0: 0.476281, Q1: 0.553238, Q2: 0.315644, Q3: 0.252682, Q4: 0.0704454 |
| Rank: | R_A = 0.0948181 |
| Log of amplitude ratio (L1/H1): | -0.668506, variance = 0.259624 (L1/H1: -0.755036, variance = 0.333467, H1/L1: 0.343604, variance = 1.16821) |
| Amplitude ratio (L1/H1): | 0.512474 ⋇ 1.66451 (L1/H1: 0.469994 ⋇ 1.78152, H1/L1: 1.41002 ⋇ 2.94715) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.737063 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 32 / 36, Q2: 63 / 70, Q3: 128 / 134, Q4: 245 / 258 |
| Maximum signal-to-noise ratio: | H1: 11.2557, L1: 5.80875 |
| SNR variance: | H1: 0.530566, L1: 0.522551 |

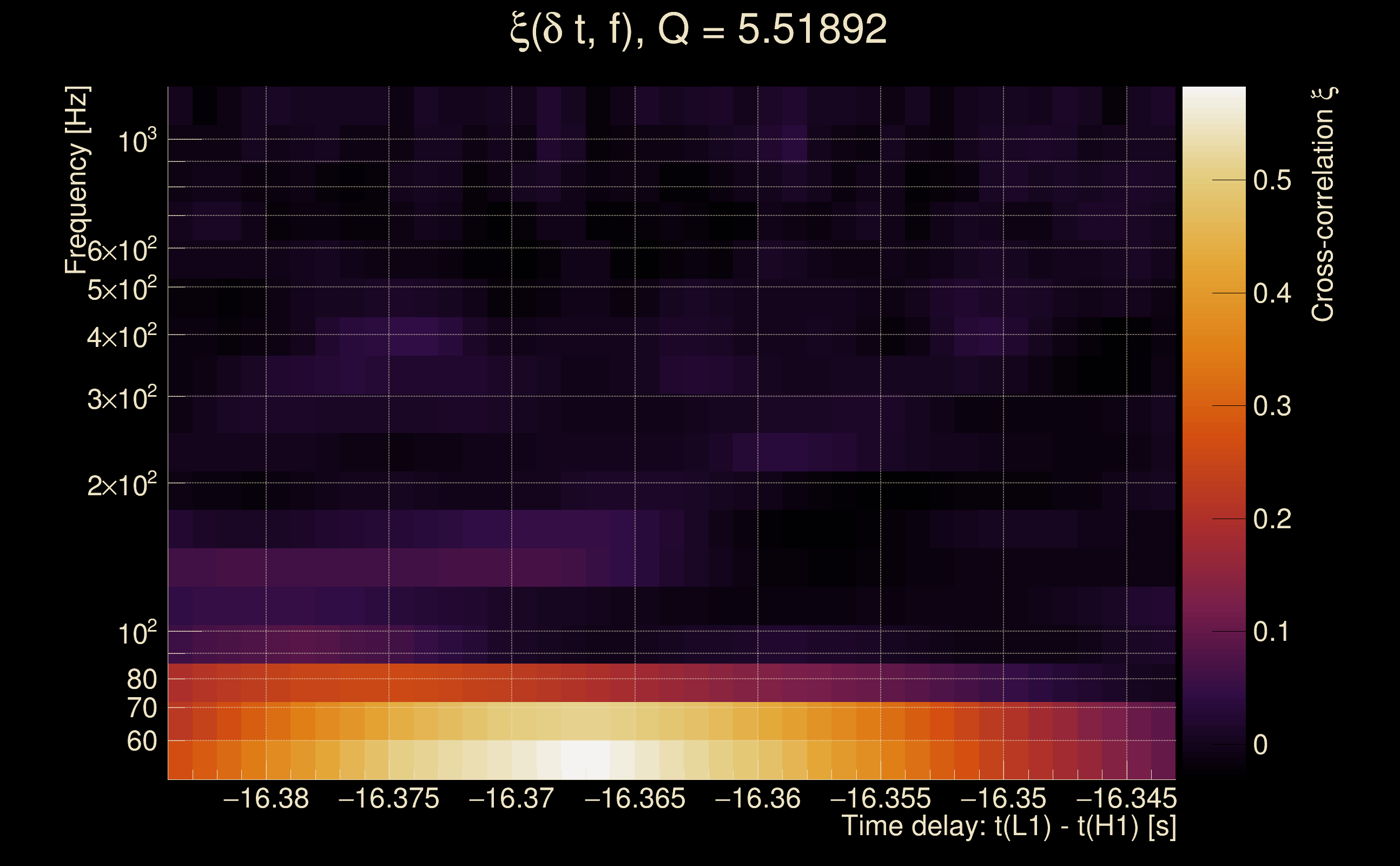

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378326184 (Sat Sep 9 20:22:46 2023 ) → GPS = 1378326194 (Sat Sep 9 20:22:56 2023 ) |
| Event time t(L1): | GPS = 1378326164 (Sat Sep 9 20:22:56 2023 ) → GPS = 1378326174 (Sat Sep 9 20:22:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378326181 → GPS = 1378326197 |
| Omicron analysis time window (L1): | GPS = 1378326161 → GPS = 1378326177 |
| Time delay between detectors t(L1) - t(H1): | -16.3635 s (slice index = 29 / 217), δt_gw = 0.00248475 s |
| Time delay uncertainty: | 0.000301015 s |
| Frequency: | 71.1846 Hz |
| Ξ: | 0.0930544 ± 0.119513 (variance = 0.0142833): Q0: 0.444151, Q1: 0.462819, Q2: 0.38038, Q3: 0.242828, Q4: 0.154367 |
| Rank: | R_A = 0.0803854 |
| Log of amplitude ratio (L1/H1): | 0.127406, variance = 0.312691 (L1/H1: -0.0105555, variance = 0.872286, H1/L1: -0.17926, variance = 0.468693) |
| Amplitude ratio (L1/H1): | 1.13588 ⋇ 1.74925 (L1/H1: 0.9895 ⋇ 2.54457, H1/L1: 0.835888 ⋇ 1.983) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.869797 |
| Antenna factor probability: | 0.993167 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 30 / 36, Q2: 58 / 70, Q3: 121 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.36546, L1: 8.75169 |
| SNR variance: | H1: 0.509813, L1: 0.522083 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378629088 (Wed Sep 13 08:31:10 2023 ) → GPS = 1378629098 (Wed Sep 13 08:31:20 2023 ) |
| Event time t(L1): | GPS = 1378629118 (Wed Sep 13 08:31:20 2023 ) → GPS = 1378629128 (Wed Sep 13 08:31:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378629085 → GPS = 1378629101 |
| Omicron analysis time window (L1): | GPS = 1378629115 → GPS = 1378629131 |
| Time delay between detectors t(L1) - t(H1): | 33.6794 s (slice index = 28 / 217), δt_gw = -0.000632928 s |
| Time delay uncertainty: | 0.00053242 s |
| Frequency: | 83.3505 Hz |
| Ξ: | 0.229189 ± 0.0830953 (variance = 0.00690483): Q0: 0.695908, Q1: 0.6665, Q2: 0.640829, Q3: 0.62624, Q4: 0.458268 |
| Rank: | R_A = 0.0803708 |
| Log of amplitude ratio (L1/H1): | 1.22309, variance = 0.392907 (L1/H1: 0.260247, variance = 0.776302, H1/L1: -1.29257, variance = 0.447613) |
| Amplitude ratio (L1/H1): | 3.39769 ⋇ 1.87165 (L1/H1: 1.29725 ⋇ 2.4135, H1/L1: 0.274564 ⋇ 1.95236) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.350755 |
| Antenna factor probability: | 0.999769 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 25 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 232 / 258 |
| Maximum signal-to-noise ratio: | H1: 9.58063, L1: 35.6661 |
| SNR variance: | H1: 0.568914, L1: 0.521298 |

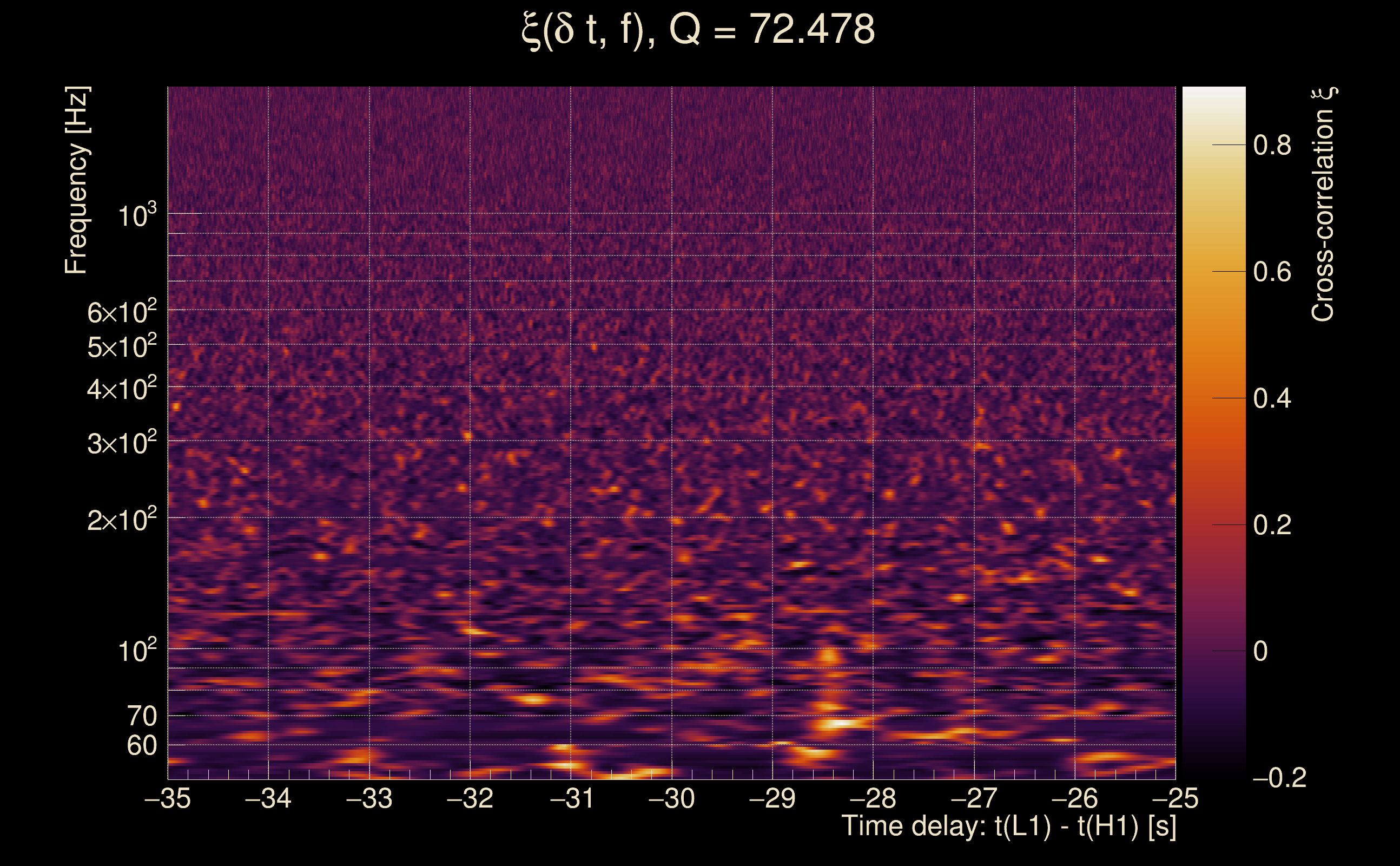

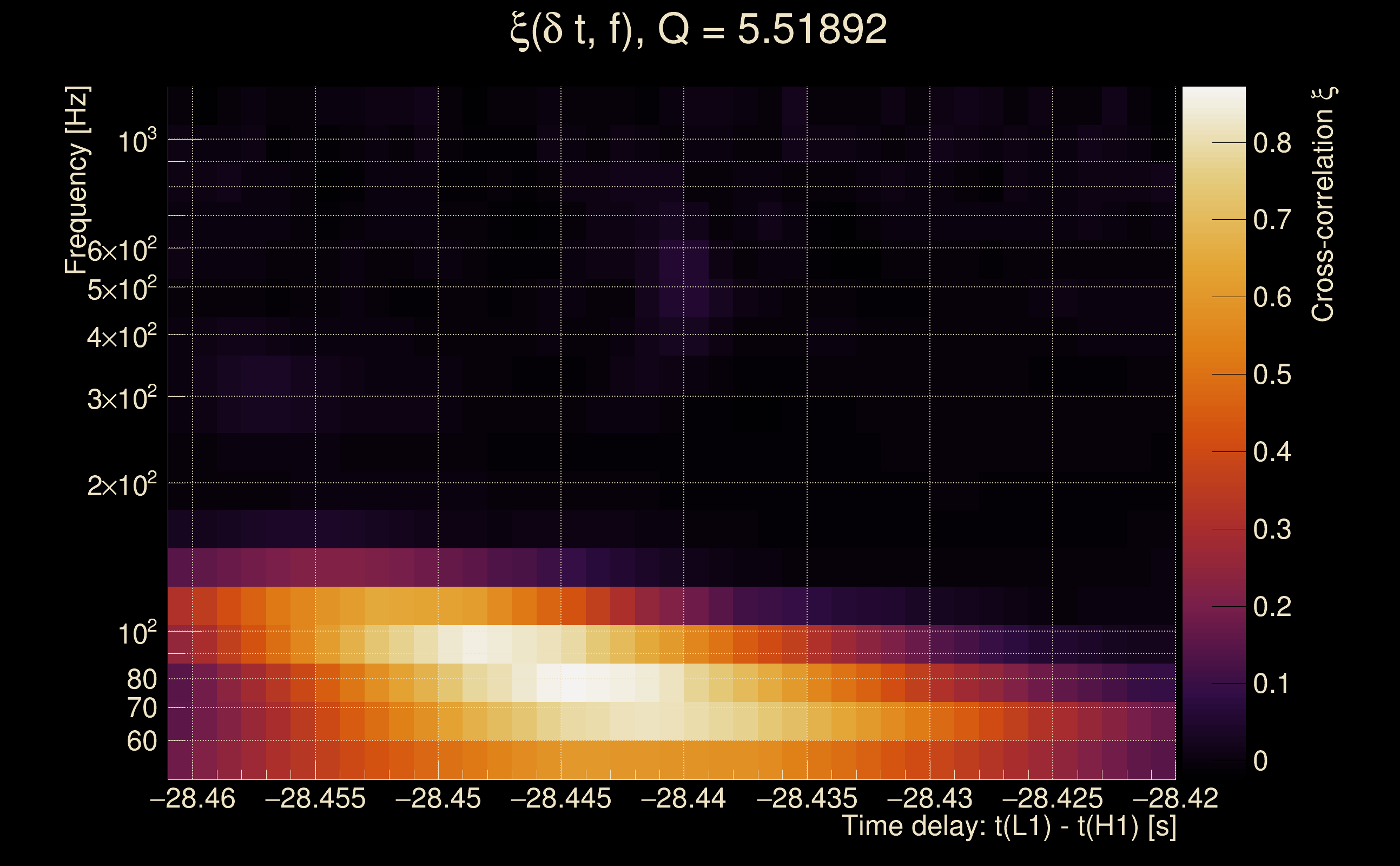

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377990046 (Tue Sep 5 23:00:28 2023 ) → GPS = 1377990056 (Tue Sep 5 23:00:38 2023 ) |
| Event time t(L1): | GPS = 1377990016 (Tue Sep 5 23:00:38 2023 ) → GPS = 1377990026 (Tue Sep 5 23:00:08 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377990043 → GPS = 1377990059 |
| Omicron analysis time window (L1): | GPS = 1377990013 → GPS = 1377990029 |
| Time delay between detectors t(L1) - t(H1): | -28.4403 s (slice index = 74 / 217), δt_gw = -0.00425676 s |
| Time delay uncertainty: | 0.000528793 s |
| Frequency: | 73.8648 Hz |
| Ξ: | 0.13827 ± 0.0895186 (variance = 0.00801358): Q0: 0.75787, Q1: 0.710548, Q2: 0.588061, Q3: 0.601294, Q4: 0.508753 |
| Rank: | R_A = 0.0798121 |
| Log of amplitude ratio (L1/H1): | 0.791416, variance = 0.905914 (L1/H1: 0.137032, variance = 4.02573, H1/L1: -1.30838, variance = 0.390173) |
| Amplitude ratio (L1/H1): | 2.20652 ⋇ 2.59036 (L1/H1: 1.14686 ⋇ 7.43667, H1/L1: 0.270257 ⋇ 1.86757) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.577246 |
| Antenna factor probability: | 0.999952 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 28 / 36, Q2: 63 / 70, Q3: 123 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 20.2183, L1: 22.7474 |
| SNR variance: | H1: 0.516357, L1: 0.489352 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378325899 (Sat Sep 9 20:18:01 2023 ) → GPS = 1378325909 (Sat Sep 9 20:18:11 2023 ) |
| Event time t(L1): | GPS = 1378325889 (Sat Sep 9 20:18:11 2023 ) → GPS = 1378325899 (Sat Sep 9 20:18:01 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378325896 → GPS = 1378325912 |
| Omicron analysis time window (L1): | GPS = 1378325886 → GPS = 1378325902 |
| Time delay between detectors t(L1) - t(H1): | -13.129 s (slice index = 176 / 217), δt_gw = -0.00100905 s |
| Time delay uncertainty: | 0.000177615 s |
| Frequency: | 92.5965 Hz |
| Ξ: | 0.0822983 ± 0.169612 (variance = 0.0287683): Q0: 0.327611, Q1: 0.443827, Q2: 0.0431992, Q3: 0.432172, Q4: 0.533977 |
| Rank: | R_A = 0.0719442 |
| Log of amplitude ratio (L1/H1): | 0.665352, variance = 0.451099 (L1/H1: 0.48589, variance = 1.02545, H1/L1: -0.683884, variance = 0.538136) |
| Amplitude ratio (L1/H1): | 1.94518 ⋇ 1.95744 (L1/H1: 1.62562 ⋇ 2.75287, H1/L1: 0.504653 ⋇ 2.08252) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.874189 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 29 / 36, Q2: 63 / 70, Q3: 122 / 134, Q4: 239 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.95002, L1: 15.4042 |
| SNR variance: | H1: 0.532497, L1: 0.514881 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378697148 (Thu Sep 14 03:25:30 2023 ) → GPS = 1378697158 (Thu Sep 14 03:25:40 2023 ) |
| Event time t(L1): | GPS = 1378697178 (Thu Sep 14 03:25:40 2023 ) → GPS = 1378697188 (Thu Sep 14 03:26:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378697145 → GPS = 1378697161 |
| Omicron analysis time window (L1): | GPS = 1378697175 → GPS = 1378697191 |
| Time delay between detectors t(L1) - t(H1): | 29.2177 s (slice index = 125 / 217), δt_gw = -0.000347025 s |
| Time delay uncertainty: | 9.73106e-05 s |
| Frequency: | 122.366 Hz |
| Ξ: | 0.294297 ± 0.0138804 (variance = 0.000192665): Q0: 0.683134, Q1: 0.658633, Q2: 0.67108, Q3: 0.700519, Q4: 0.675306 |
| Rank: | R_A = 0.0705182 |
| Log of amplitude ratio (L1/H1): | -1.29207, variance = 0.369731 (L1/H1: -1.44716, variance = 0.487241, H1/L1: 0.326858, variance = 0.420367) |
| Amplitude ratio (L1/H1): | 0.274701 ⋇ 1.83686 (L1/H1: 0.235236 ⋇ 2.00978, H1/L1: 1.3866 ⋇ 1.9124) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.239616 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 18 / 36, Q2: 54 / 70, Q3: 99 / 134, Q4: 220 / 258 |
| Maximum signal-to-noise ratio: | H1: 50.4513, L1: 20.2234 |
| SNR variance: | H1: 1.50318, L1: 0.653491 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378156925 (Thu Sep 7 21:21:47 2023 ) → GPS = 1378156935 (Thu Sep 7 21:21:57 2023 ) |
| Event time t(L1): | GPS = 1378156915 (Thu Sep 7 21:21:57 2023 ) → GPS = 1378156925 (Thu Sep 7 21:21:47 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378156922 → GPS = 1378156938 |
| Omicron analysis time window (L1): | GPS = 1378156912 → GPS = 1378156928 |
| Time delay between detectors t(L1) - t(H1): | -13.8147 s (slice index = 191 / 217), δt_gw = 0.00326733 s |
| Time delay uncertainty: | 0.000169689 s |
| Frequency: | 75.7312 Hz |
| Ξ: | 0.0943806 ± 0.136171 (variance = 0.0185426): Q0: 0.417546, Q1: 0.39947, Q2: 0.203478, Q3: 0.0753845, Q4: 0.151785 |
| Rank: | R_A = 0.0697499 |
| Log of amplitude ratio (L1/H1): | -0.202861, variance = 0.507848 (L1/H1: -0.331373, variance = 0.703603, H1/L1: -0.19339, variance = 1.77855) |
| Amplitude ratio (L1/H1): | 0.816392 ⋇ 2.03936 (L1/H1: 0.717937 ⋇ 2.31361, H1/L1: 0.82416 ⋇ 3.79476) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.739073 |
| Antenna factor probability: | 0.99994 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 29 / 36, Q2: 62 / 70, Q3: 127 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 8.93888, L1: 5.09062 |
| SNR variance: | H1: 0.554964, L1: 0.521666 |

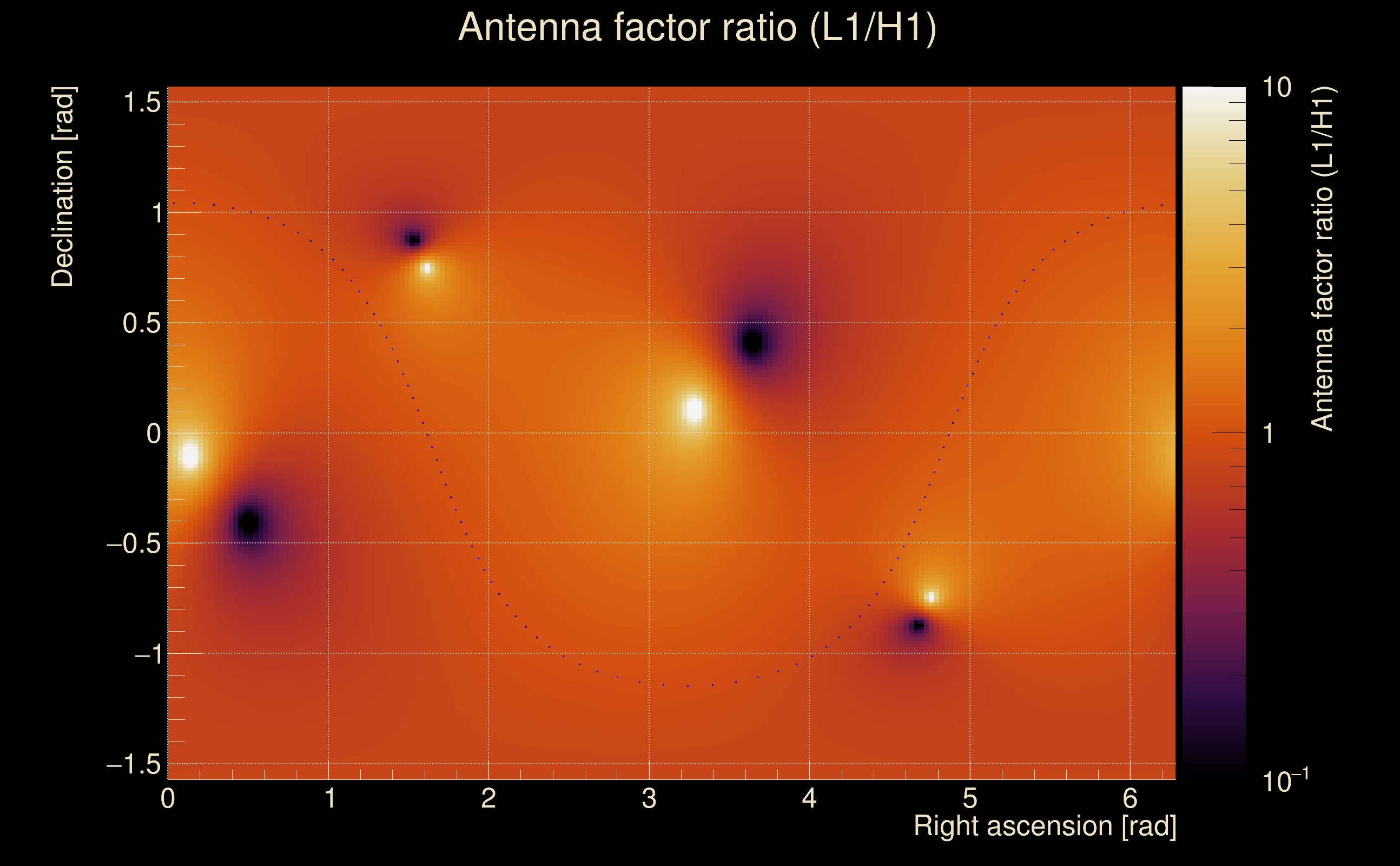

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378697143 (Thu Sep 14 03:25:25 2023 ) → GPS = 1378697153 (Thu Sep 14 03:25:35 2023 ) |
| Event time t(L1): | GPS = 1378697173 (Thu Sep 14 03:25:35 2023 ) → GPS = 1378697183 (Thu Sep 14 03:26:05 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378697140 → GPS = 1378697156 |
| Omicron analysis time window (L1): | GPS = 1378697170 → GPS = 1378697186 |
| Time delay between detectors t(L1) - t(H1): | 29.2175 s (slice index = 125 / 217), δt_gw = -0.000524885 s |
| Time delay uncertainty: | 9.46731e-05 s |
| Frequency: | 124.83 Hz |
| Ξ: | 0.301148 ± 0.0151675 (variance = 0.000230054): Q0: 0.685097, Q1: 0.656873, Q2: 0.651733, Q3: 0.690508, Q4: 0.671565 |
| Rank: | R_A = 0.0669109 |
| Log of amplitude ratio (L1/H1): | -1.33974, variance = 0.384419 (L1/H1: -1.50746, variance = 0.505163, H1/L1: 0.29378, variance = 0.483311) |
| Amplitude ratio (L1/H1): | 0.261915 ⋇ 1.85896 (L1/H1: 0.221472 ⋇ 2.03551, H1/L1: 1.34149 ⋇ 2.00412) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.222186 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 17 / 36, Q2: 52 / 70, Q3: 98 / 134, Q4: 221 / 258 |
| Maximum signal-to-noise ratio: | H1: 50.7325, L1: 20.3154 |
| SNR variance: | H1: 0.540826, L1: 0.521738 |

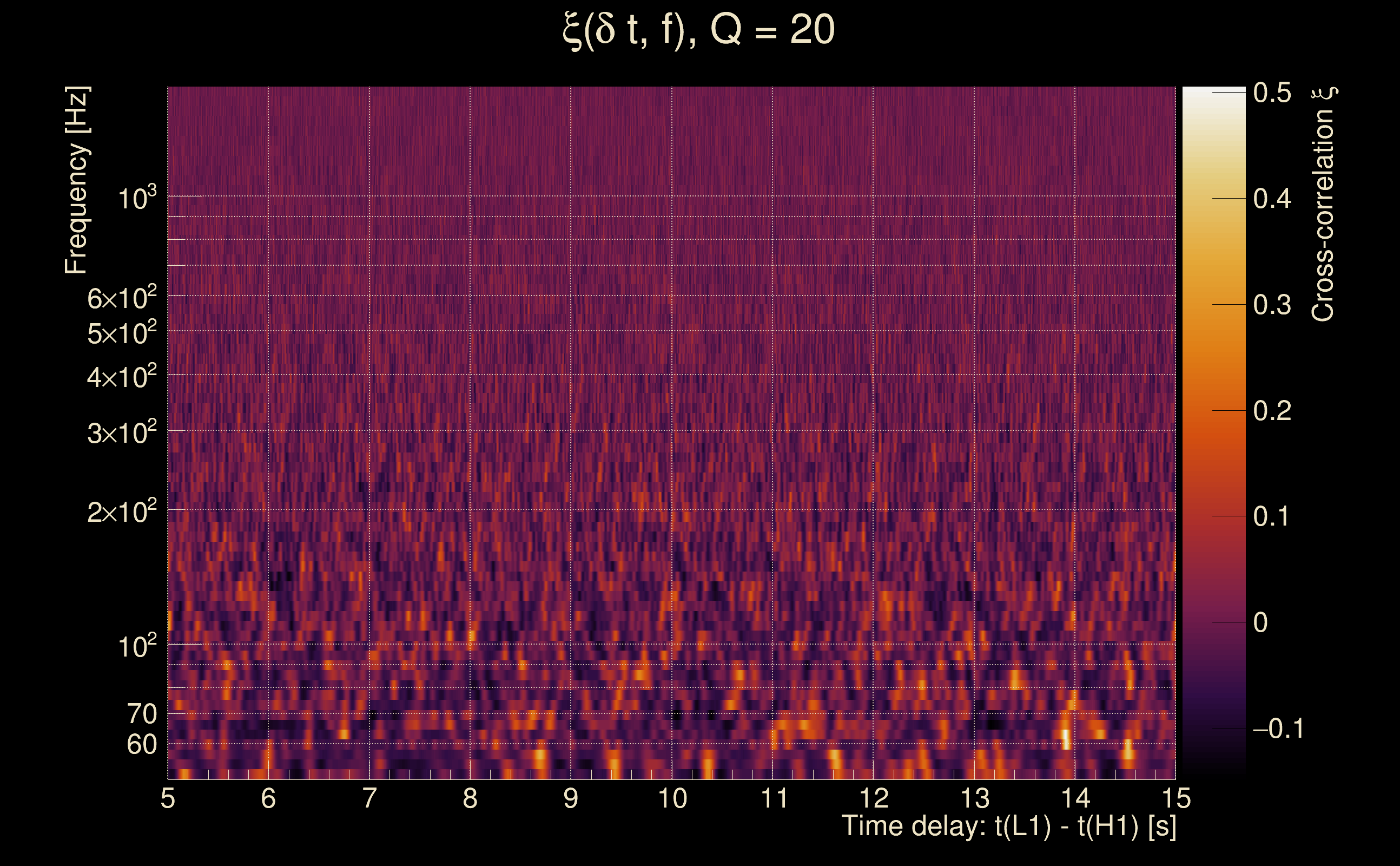

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378417286 (Sun Sep 10 21:41:08 2023 ) → GPS = 1378417296 (Sun Sep 10 21:41:18 2023 ) |
| Event time t(L1): | GPS = 1378417296 (Sun Sep 10 21:41:18 2023 ) → GPS = 1378417306 (Sun Sep 10 21:41:28 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378417283 → GPS = 1378417299 |
| Omicron analysis time window (L1): | GPS = 1378417293 → GPS = 1378417309 |
| Time delay between detectors t(L1) - t(H1): | 13.9088 s (slice index = 23 / 217), δt_gw = -0.0012119 s |
| Time delay uncertainty: | 0.000185466 s |
| Frequency: | 87.5072 Hz |
| Ξ: | 0.0740276 ± 0.125099 (variance = 0.0156498): Q0: 0.297617, Q1: 0.416633, Q2: 0.106792, Q3: 0.139114, Q4: 0.0994707 |
| Rank: | R_A = 0.0635825 |
| Log of amplitude ratio (L1/H1): | 0.0514924, variance = 0.699431 (L1/H1: -0.163733, variance = 1.7787, H1/L1: -0.137106, variance = 1.0851) |
| Amplitude ratio (L1/H1): | 1.05284 ⋇ 2.30786 (L1/H1: 0.848969 ⋇ 3.79498, H1/L1: 0.871878 ⋇ 2.83398) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.858903 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 12 / 18, Q1: 29 / 36, Q2: 60 / 70, Q3: 125 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.84716, L1: 7.68533 |
| SNR variance: | H1: 0.509383, L1: 0.534564 |

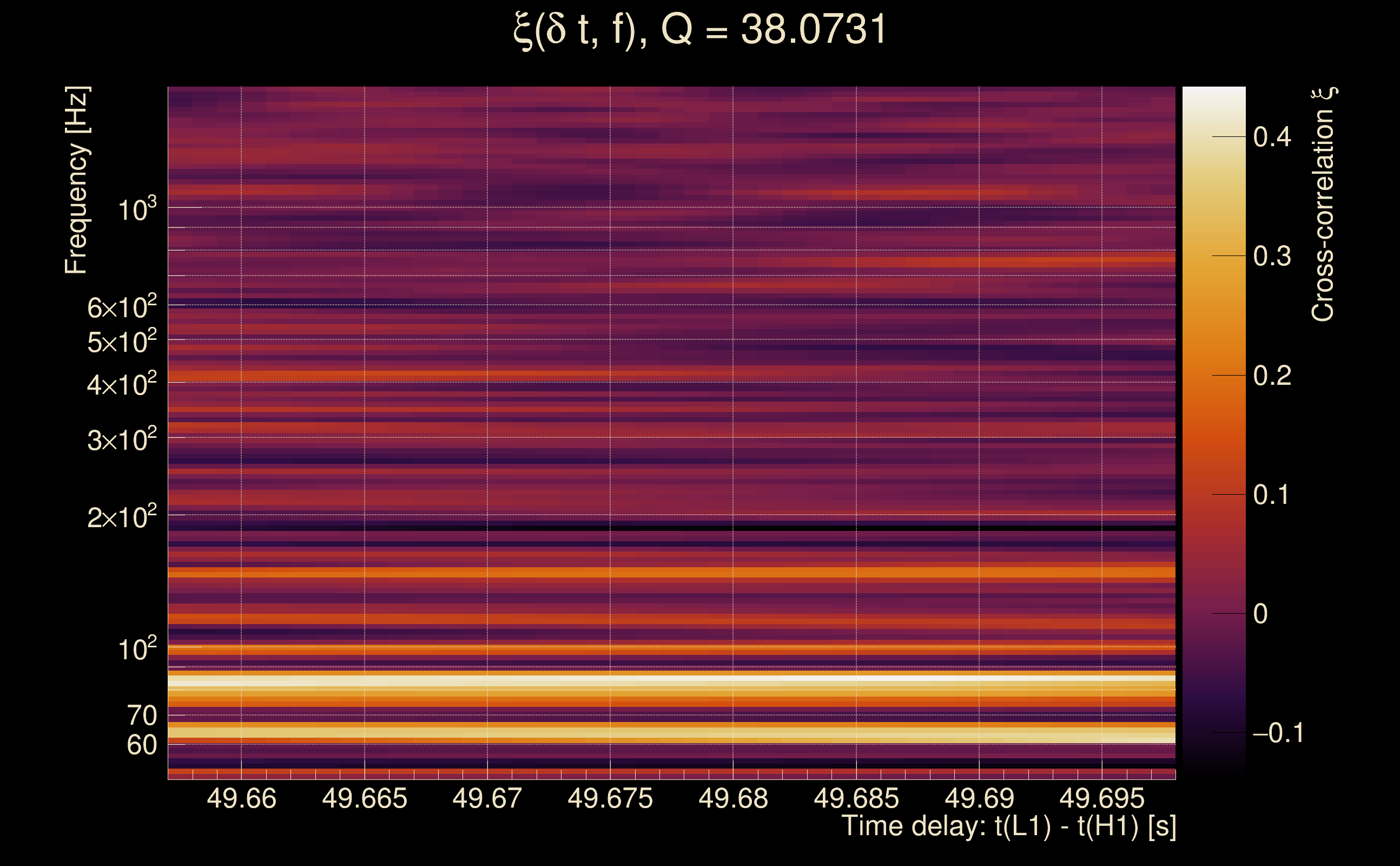

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378895274 (Sat Sep 16 10:27:36 2023 ) → GPS = 1378895284 (Sat Sep 16 10:27:46 2023 ) |
| Event time t(L1): | GPS = 1378895324 (Sat Sep 16 10:27:46 2023 ) → GPS = 1378895334 (Sat Sep 16 10:28:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378895271 → GPS = 1378895287 |
| Omicron analysis time window (L1): | GPS = 1378895321 → GPS = 1378895337 |
| Time delay between detectors t(L1) - t(H1): | 49.6772 s (slice index = 115 / 217), δt_gw = -0.000842682 s |
| Time delay uncertainty: | 6.36656e-05 s |
| Frequency: | 137.286 Hz |
| Ξ: | 0.0753721 ± 0.0721515 (variance = 0.00520584): Q0: 0.134777, Q1: 0.231417, Q2: 0.339447, Q3: 0.262263, Q4: 0.16686 |
| Rank: | R_A = 0.0591692 |
| Log of amplitude ratio (L1/H1): | 0.0722708, variance = 0.318102 (L1/H1: -0.0720144, variance = 0.760133, H1/L1: -0.23187, variance = 0.48099) |
| Amplitude ratio (L1/H1): | 1.07495 ⋇ 1.7577 (L1/H1: 0.930517 ⋇ 2.39134, H1/L1: 0.793049 ⋇ 2.00077) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.785028 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 19 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.45158, L1: 5.18344 |
| SNR variance: | H1: 0.523861, L1: 0.539321 |

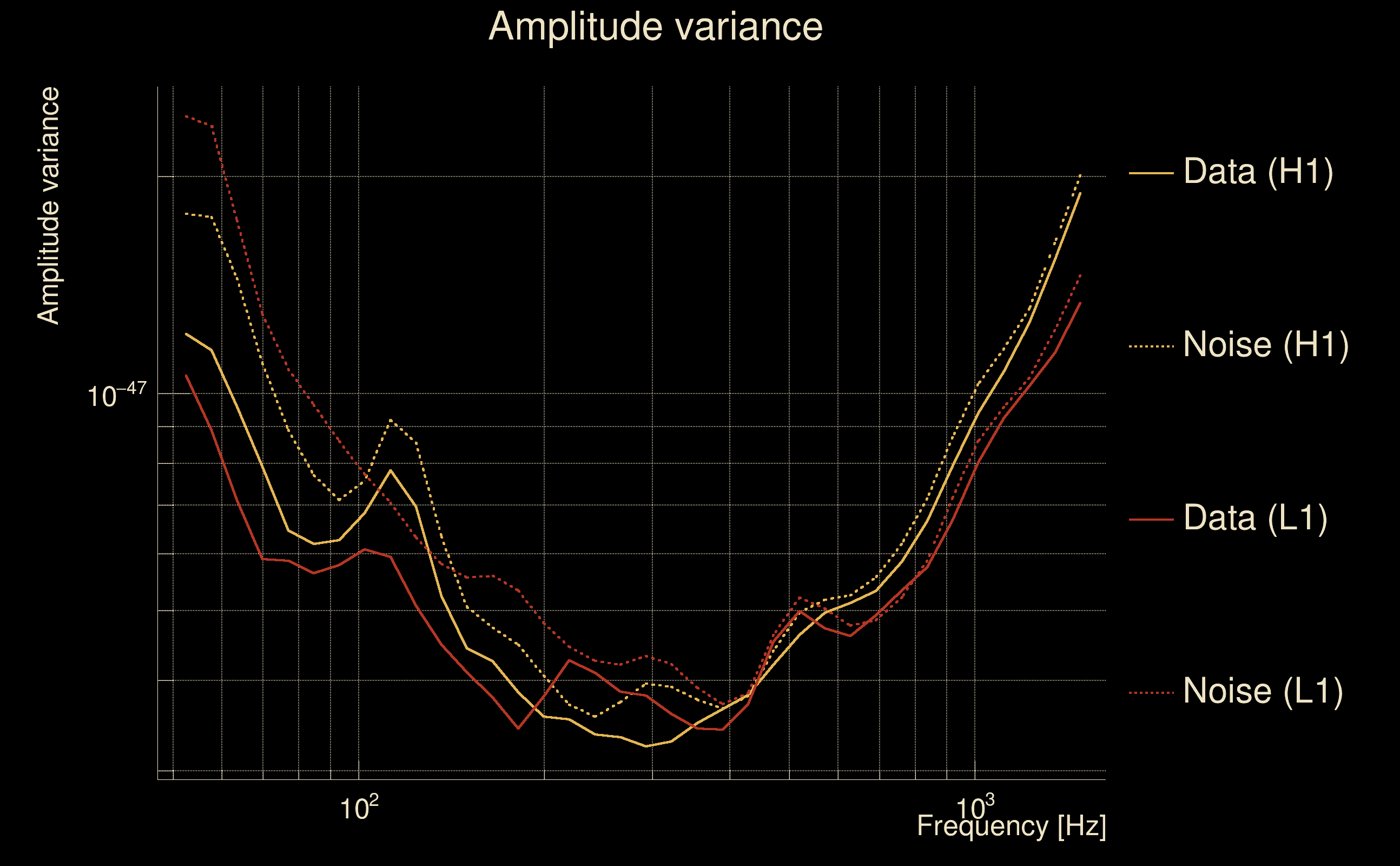

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378696644 (Thu Sep 14 03:17:06 2023 ) → GPS = 1378696654 (Thu Sep 14 03:17:16 2023 ) |
| Event time t(L1): | GPS = 1378696604 (Thu Sep 14 03:17:16 2023 ) → GPS = 1378696614 (Thu Sep 14 03:16:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378696641 → GPS = 1378696657 |
| Omicron analysis time window (L1): | GPS = 1378696601 → GPS = 1378696617 |
| Time delay between detectors t(L1) - t(H1): | -35.3074 s (slice index = 6 / 217), δt_gw = 0.000626956 s |
| Time delay uncertainty: | 0.000114911 s |
| Frequency: | 105.891 Hz |
| Ξ: | 0.0841956 ± 0.0557898 (variance = 0.0031125): Q0: 0.13917, Q1: 0.234434, Q2: 0.170591, Q3: 0.0614242, Q4: 0.159644 |
| Rank: | R_A = 0.0589177 |
| Log of amplitude ratio (L1/H1): | 0.23453, variance = 0.440201 (L1/H1: -0.0343321, variance = 0.762418, H1/L1: -0.472861, variance = 0.967436) |
| Amplitude ratio (L1/H1): | 1.26431 ⋇ 1.94153 (L1/H1: 0.966251 ⋇ 2.39448, H1/L1: 0.623217 ⋇ 2.67402) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.699772 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 21 / 36, Q2: 58 / 70, Q3: 129 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.18532, L1: 5.50745 |
| SNR variance: | H1: 0.512349, L1: 0.54628 |

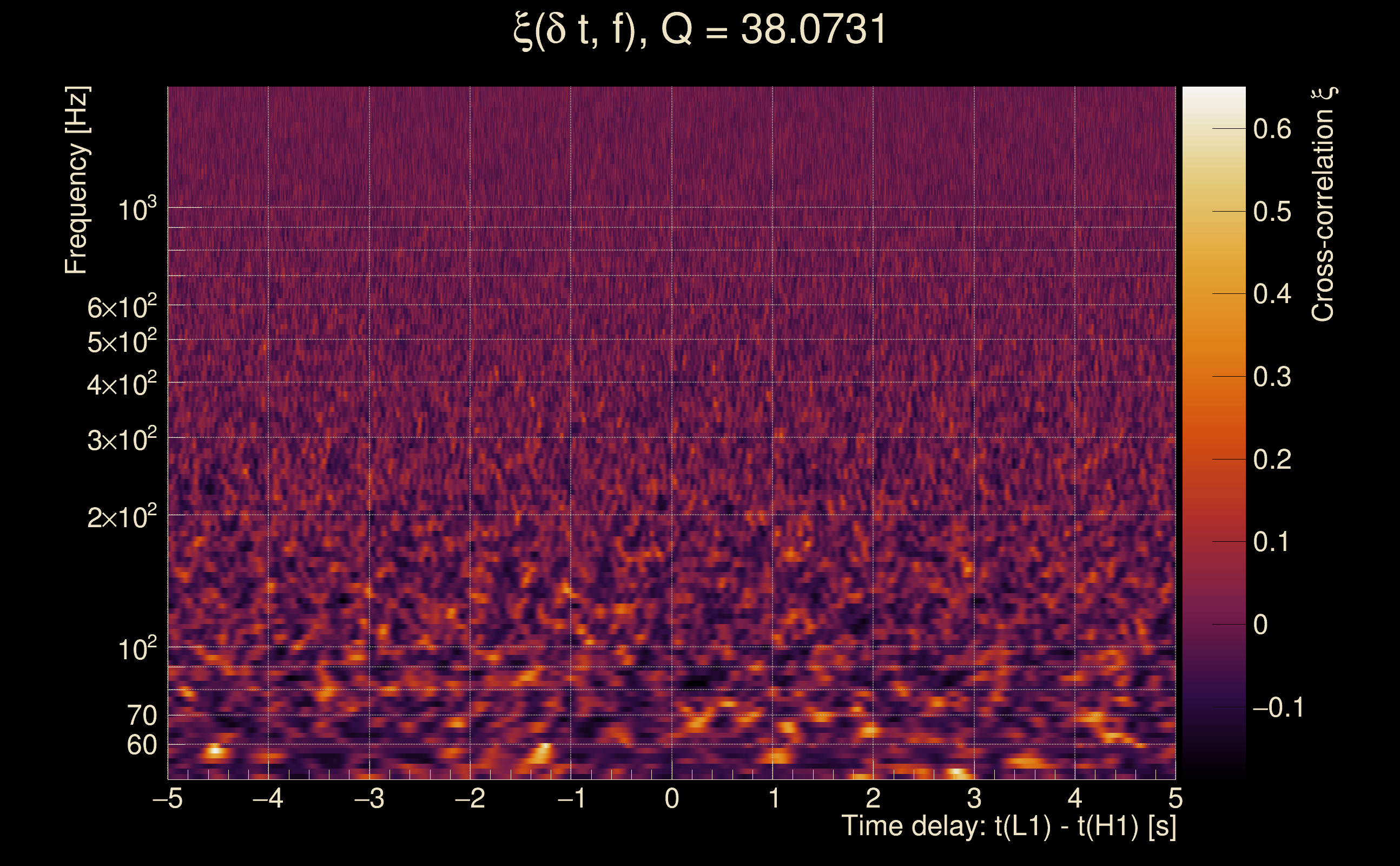

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377852780 (Mon Sep 4 08:52:42 2023 ) → GPS = 1377852790 (Mon Sep 4 08:52:52 2023 ) |
| Event time t(L1): | GPS = 1377852780 (Mon Sep 4 08:52:52 2023 ) → GPS = 1377852790 (Mon Sep 4 08:52:52 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377852777 → GPS = 1377852793 |
| Omicron analysis time window (L1): | GPS = 1377852777 → GPS = 1377852793 |
| Time delay between detectors t(L1) - t(H1): | -1.28757 s (slice index = 136 / 217), δt_gw = 0.000428082 s |
| Time delay uncertainty: | 0.000103631 s |
| Frequency: | 94.1459 Hz |
| Ξ: | 0.0687479 ± 0.0963217 (variance = 0.00927787): Q0: 0.210719, Q1: 0.282215, Q2: 0.245212, Q3: 0.0673374, Q4: 0.0437349 |
| Rank: | R_A = 0.0586269 |
| Log of amplitude ratio (L1/H1): | 0.147305, variance = 0.656048 (L1/H1: -0.0341505, variance = 1.53099, H1/L1: -0.269287, variance = 1.1427) |
| Amplitude ratio (L1/H1): | 1.15871 ⋇ 2.24784 (L1/H1: 0.966426 ⋇ 3.4464, H1/L1: 0.763924 ⋇ 2.91238) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.85278 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 28 / 36, Q2: 60 / 70, Q3: 123 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.30695, L1: 6.47264 |
| SNR variance: | H1: 0.544993, L1: 0.527522 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
