| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Thu Jul 3 10:32:54 2025 UTC |
| Ox option file: | AutoBenchmark_SN_5000_300625_50Hz_POLARVAR0p2_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 50 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |

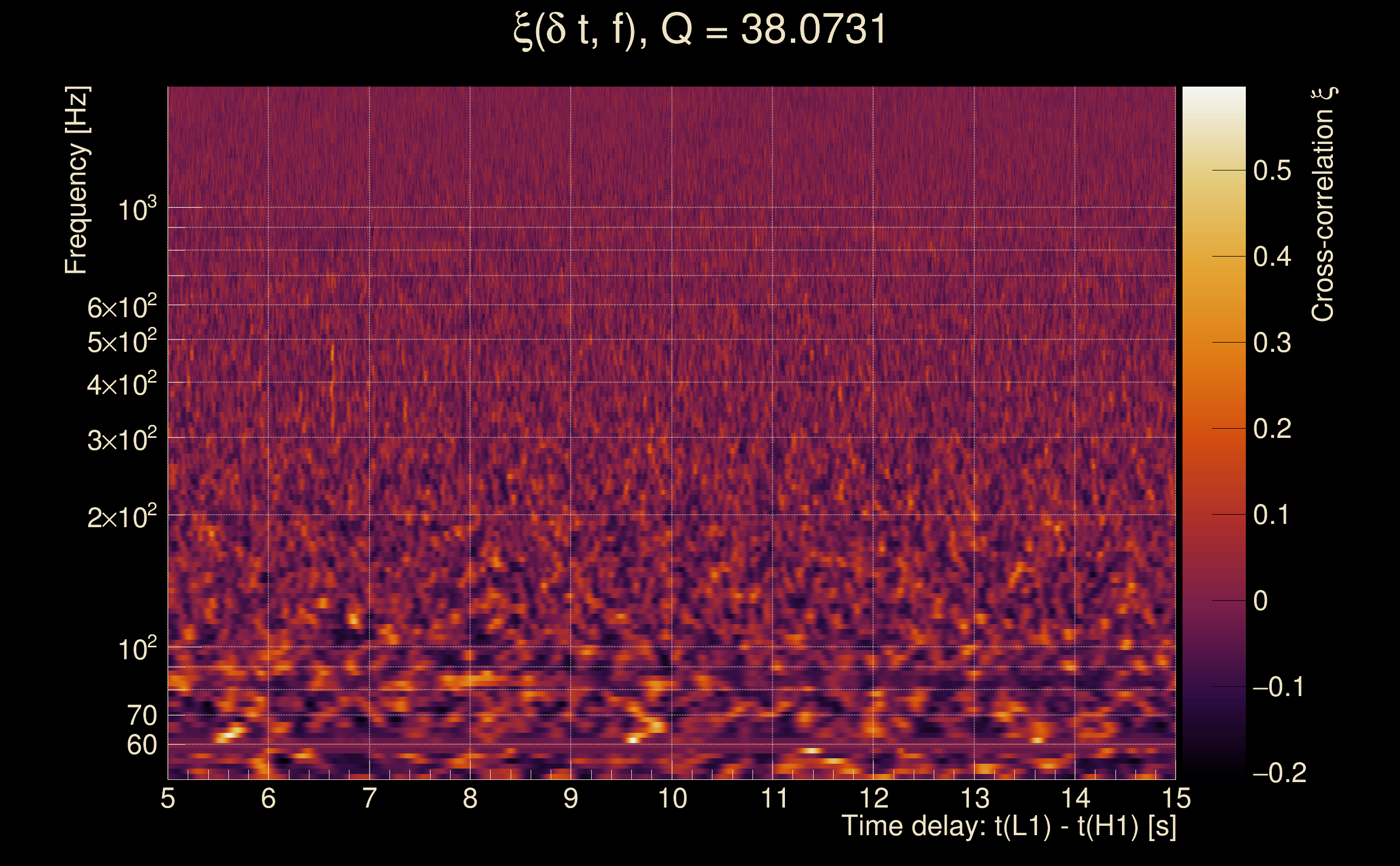

| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 100 (detector 0), < 100 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| Amplitude ratio confidence level: | 3 sigma |
| List of input Ox files: | AutoBenchmark_SN_5000_300625_50Hz_POLARVAR0p2_file_list.txt (2519 files) |
| Analysis result file: | AutoBenchmark_SN_5000_300625_50Hz_POLARVAR0p2_results-0.root |
| Slice selected for the the fakeground: | slice index=9 (4.554 s), time lag = 30 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

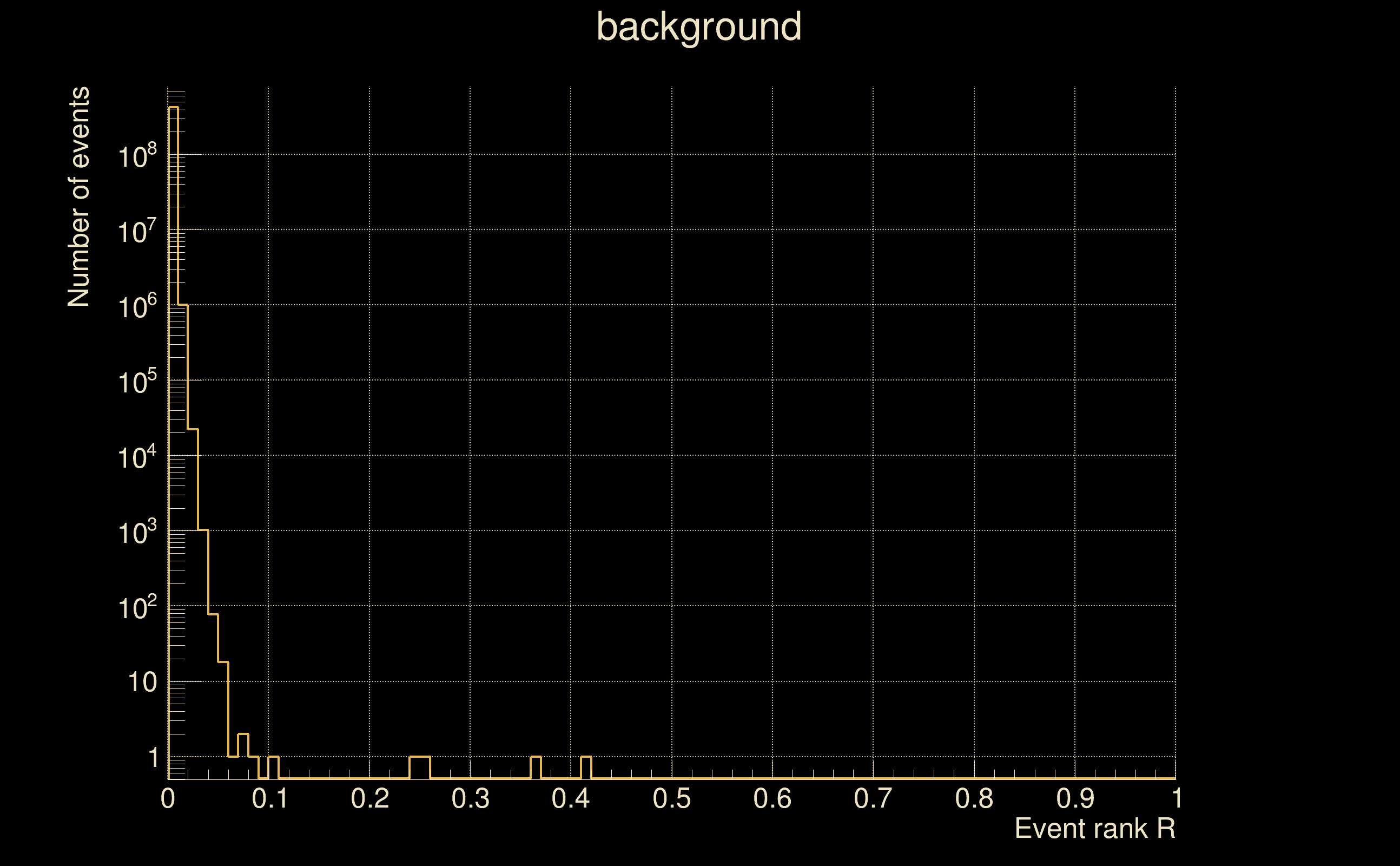

| Number of processed ox events | 177430 | 177411 | 423161238 | |
| Start Date (detector 0) | Sat Sep 2 04:54:58 2023 UTC | Sat Sep 2 04:54:08 2023 UTC | Sat Sep 2 04:54:28 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:14 2023 UTC | |
| Start GPS (detector 0) | 1377665716 | 1377665666 | 1377665686 | |
| End GPS (detector 0) | 1378944122 | 1378944122 | 1378944092 | |
| Used livetime (detector 0) | 888335 s | 888240 s | 890550 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:58 2023 UTC | Sat Sep 2 04:54:58 2023 UTC | Sat Sep 2 04:54:58 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:44 2023 UTC | Sun Sep 17 00:01:44 2023 UTC | |
| Start GPS (detector 1) | 1377665716 | 1377665716 | 1377665716 | |
| End GPS (detector 1) | 1378944122 | 1378944122 | 1378944122 | |
| Used livetime (detector 1) | 888335 s | 888240 s | 893883 s | |
| Cumulative livetime | 1774300 s | 1774110 s | 4231612380 s | |
| 0 years, 20 days, 12 hours, 51 min, 40 s | 0 years, 20 days, 12 hours, 48 min, 30 s | 134 years, 33 days, 23 hours, 53 min, 0 s |
|
|
| Detection threshold: | R > 0.0574202 |
| False-alarm rate above that detection threshold: | 3.22423e-09 |

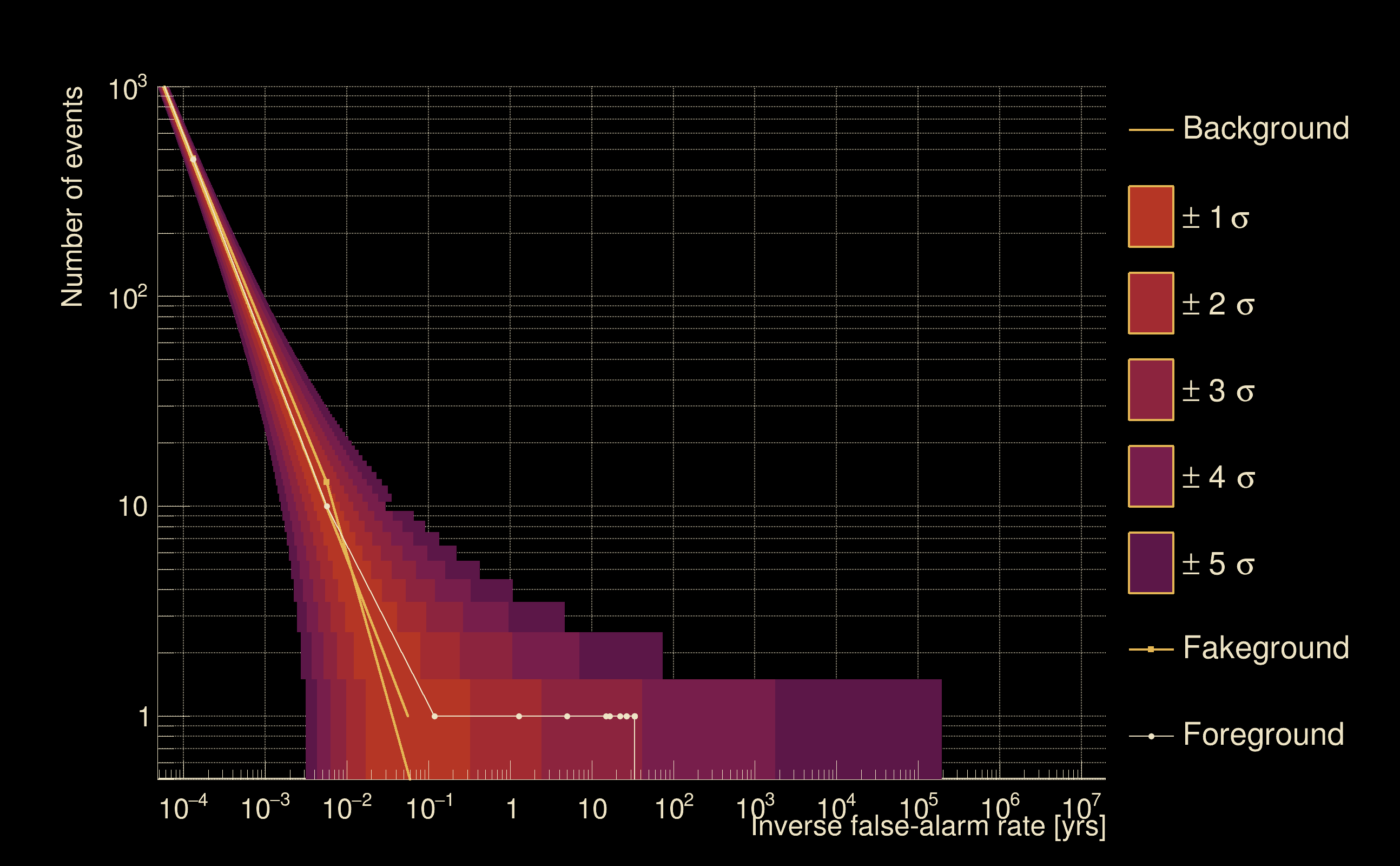

| Alternative threshold at 1/1000 yrs: | R > 0.415 |
| Alternative threshold at 1/100 yrs: | R > inf |
| Alternative threshold at 1/10 yrs: | R > 0.0574215 |
| Alternative threshold at 1/1 yr: | R > 0.0380729 |
| Alternative threshold at 1/1 d: | R > 0.0172031 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |

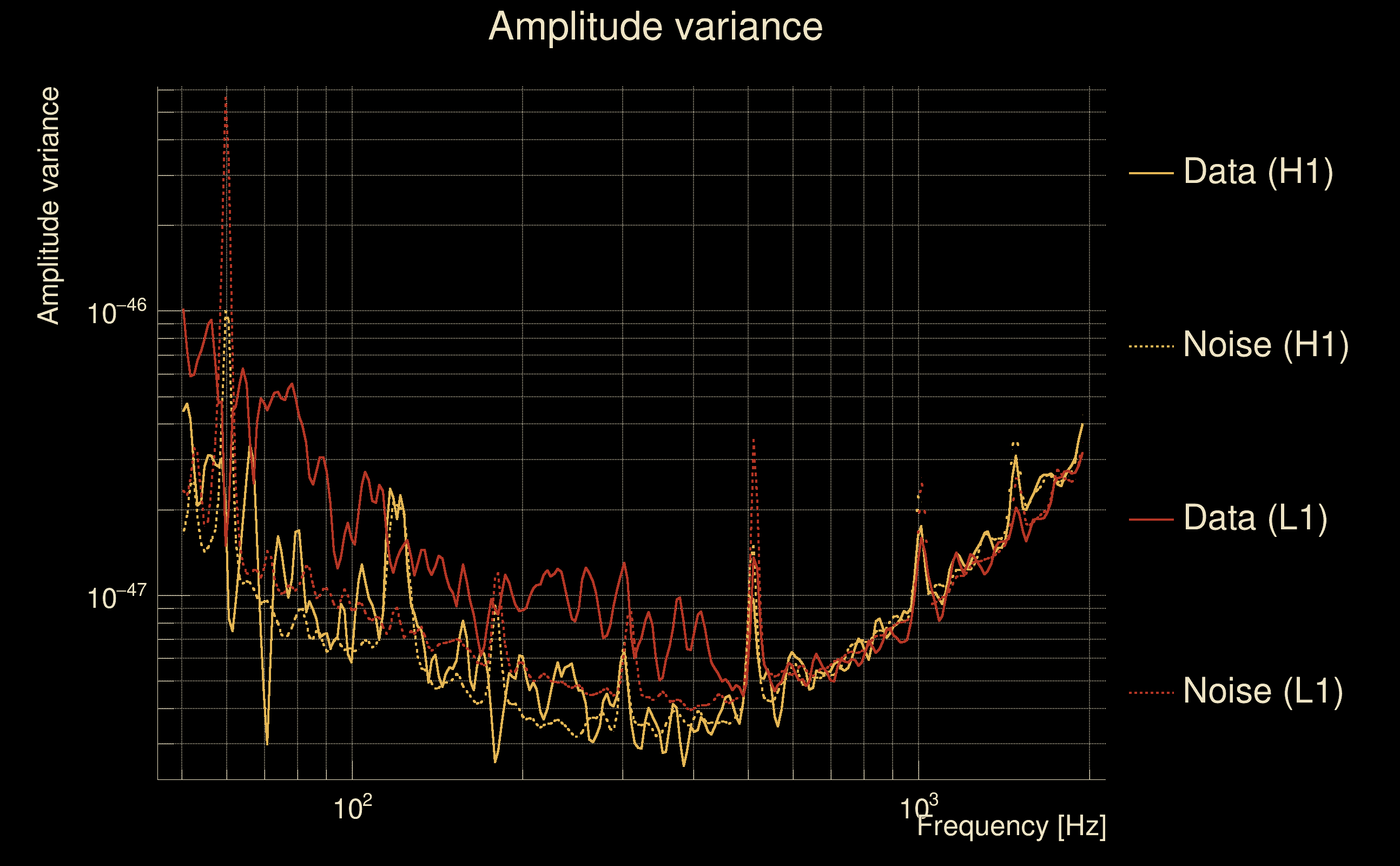

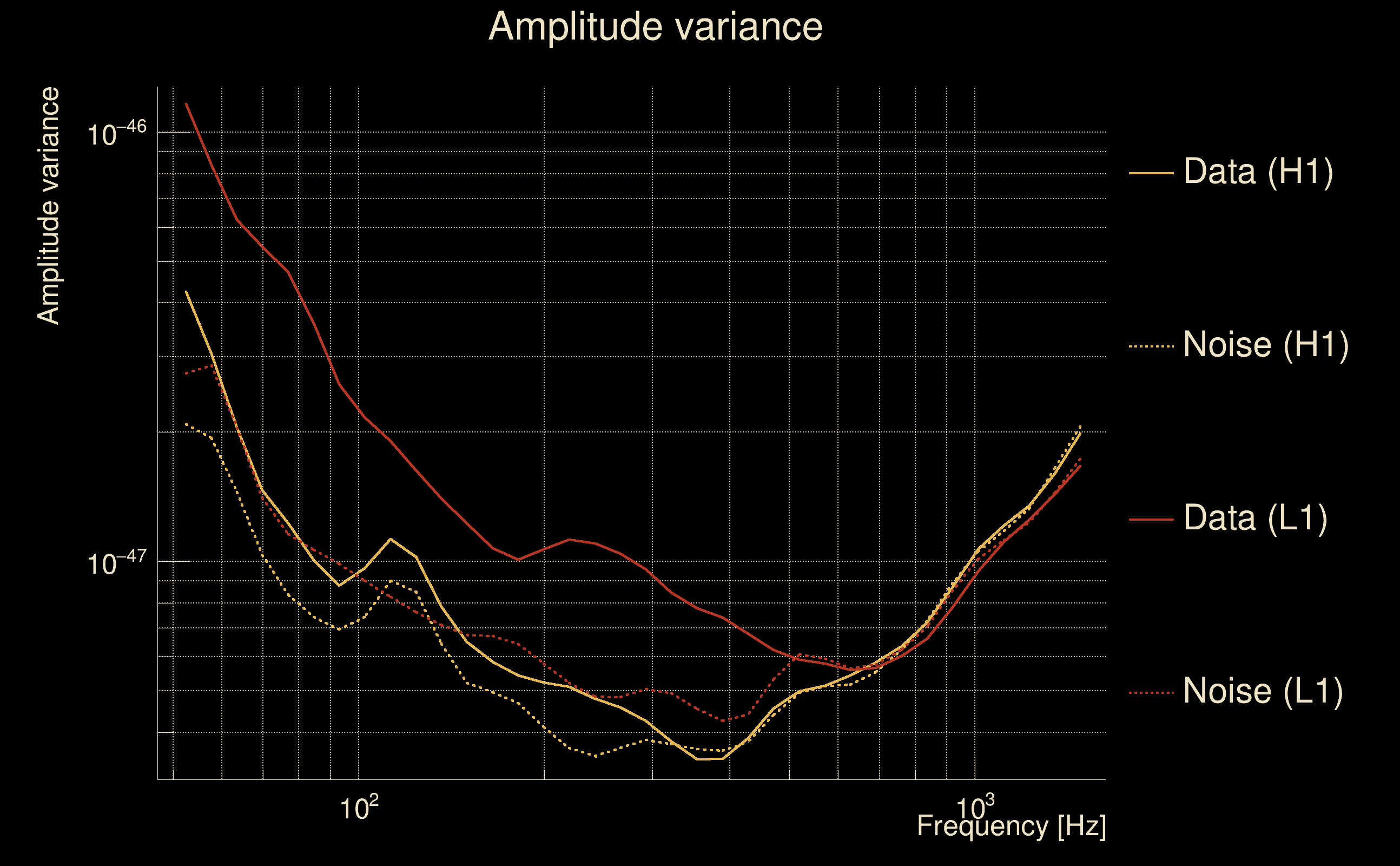

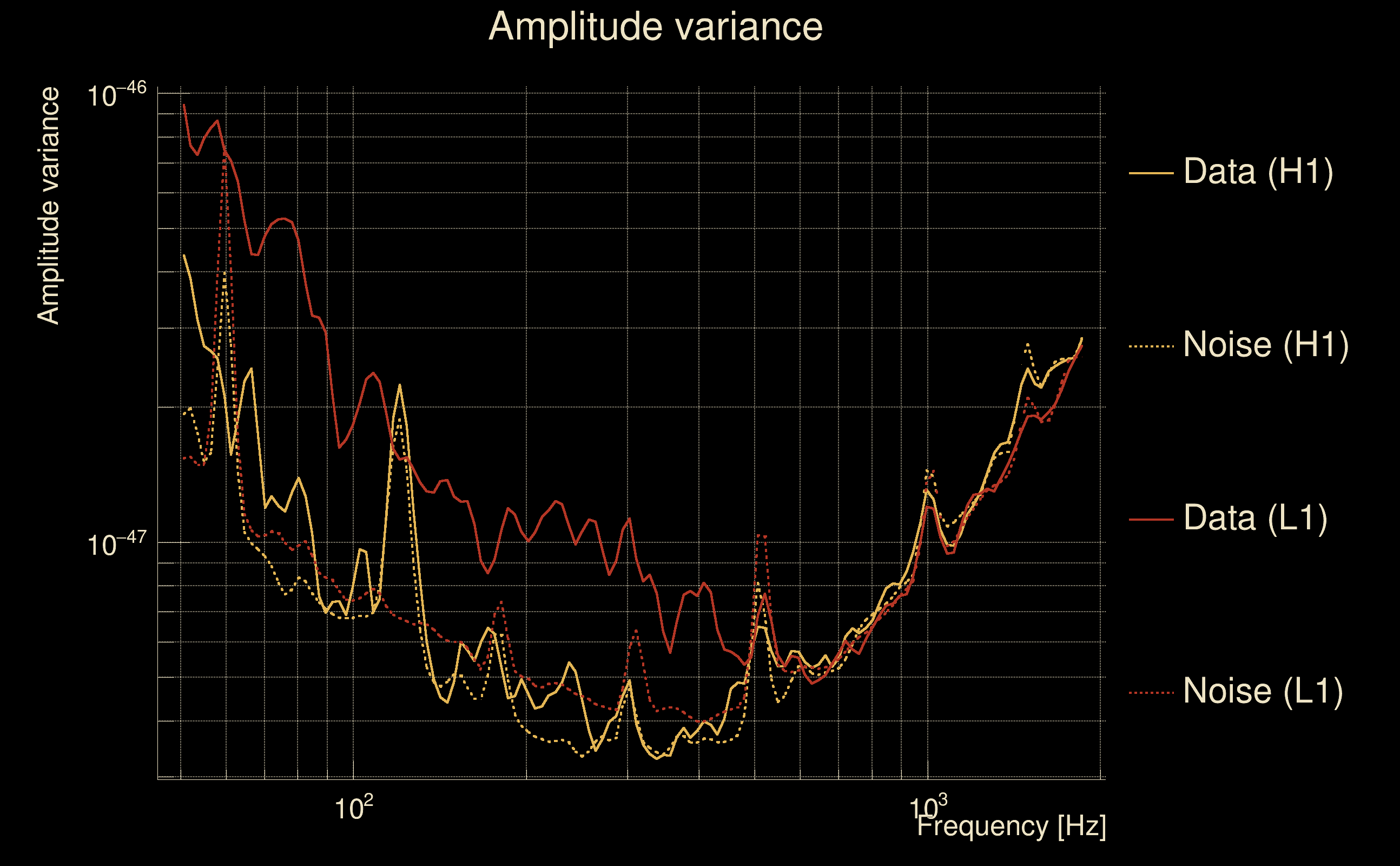

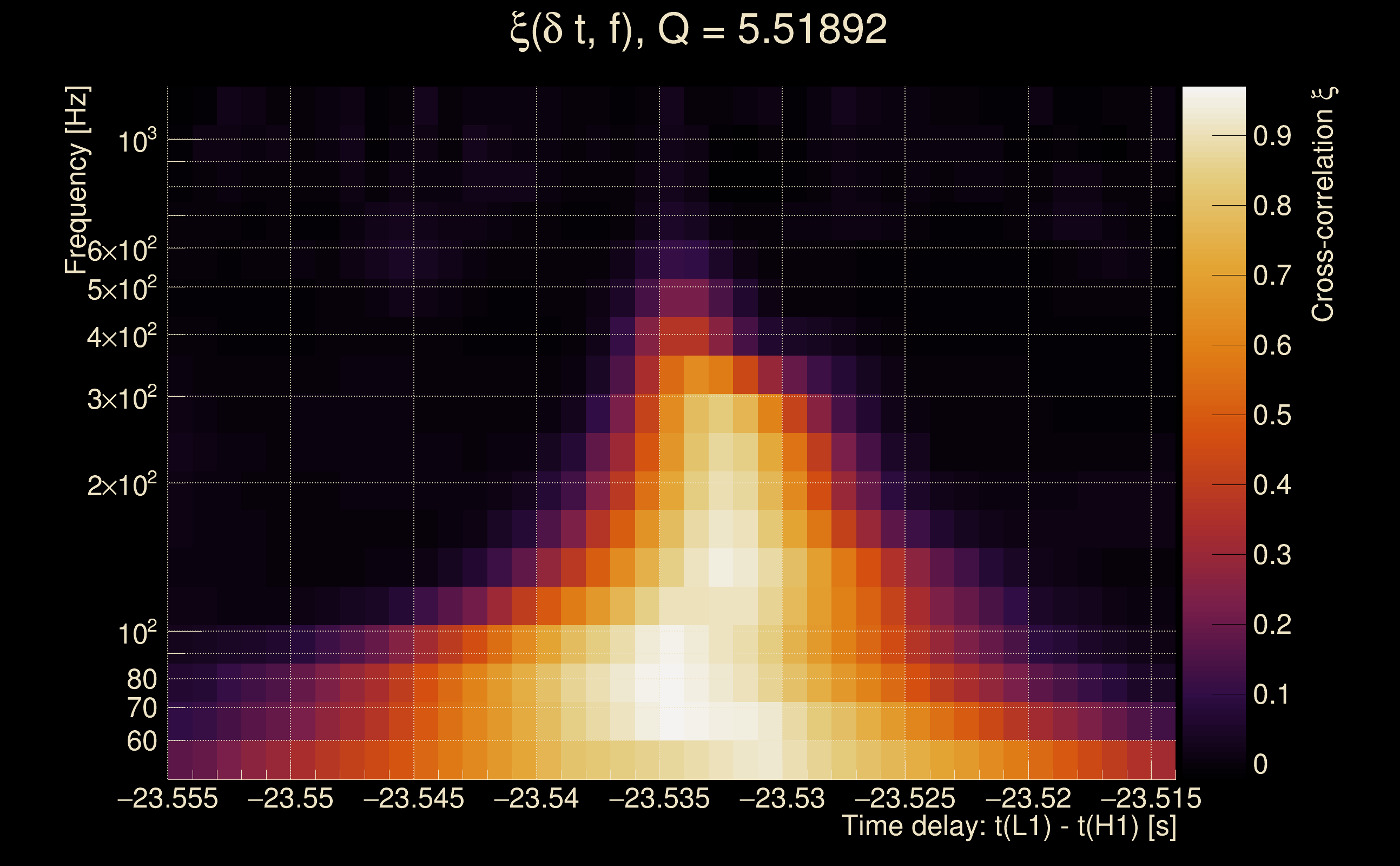

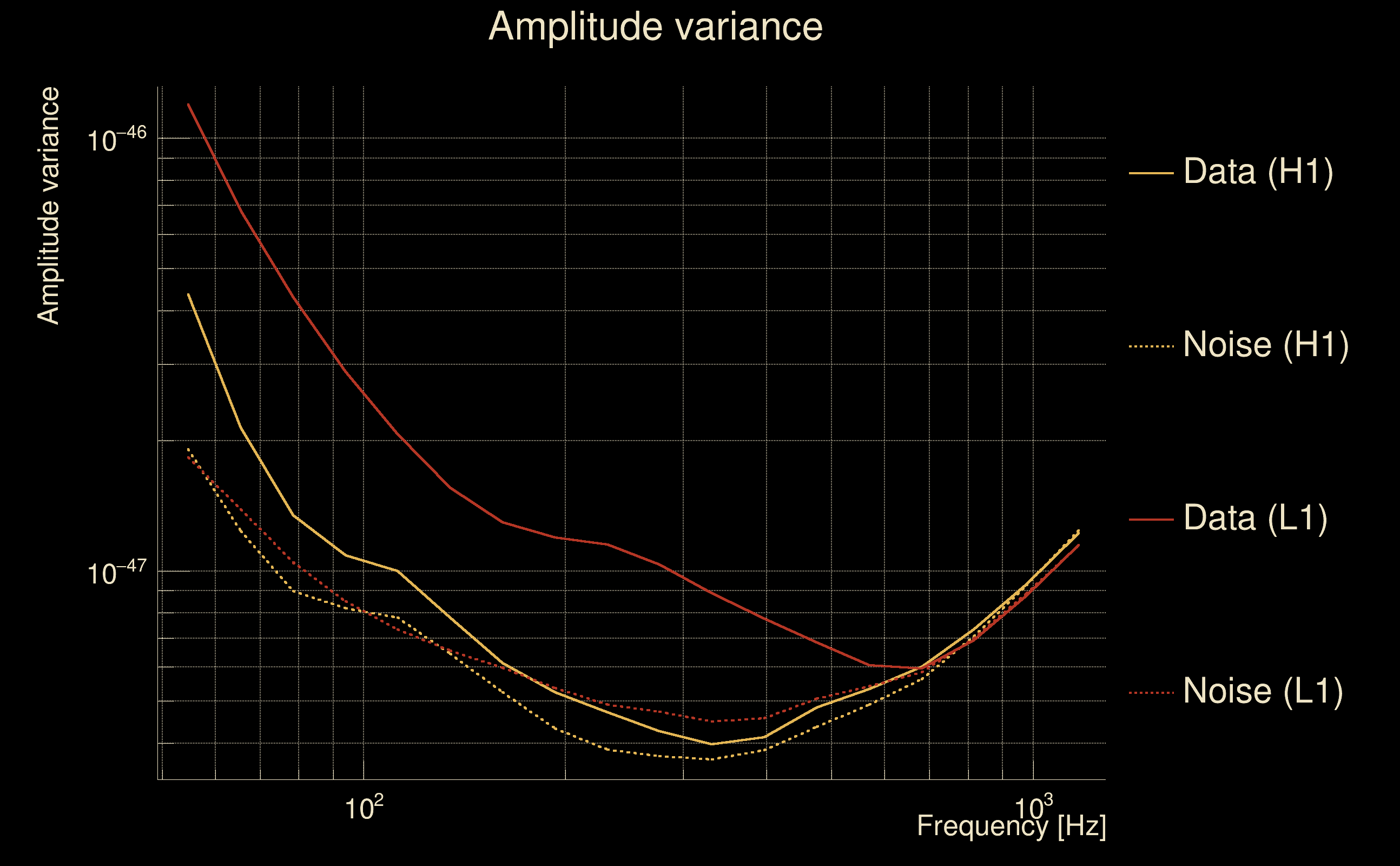

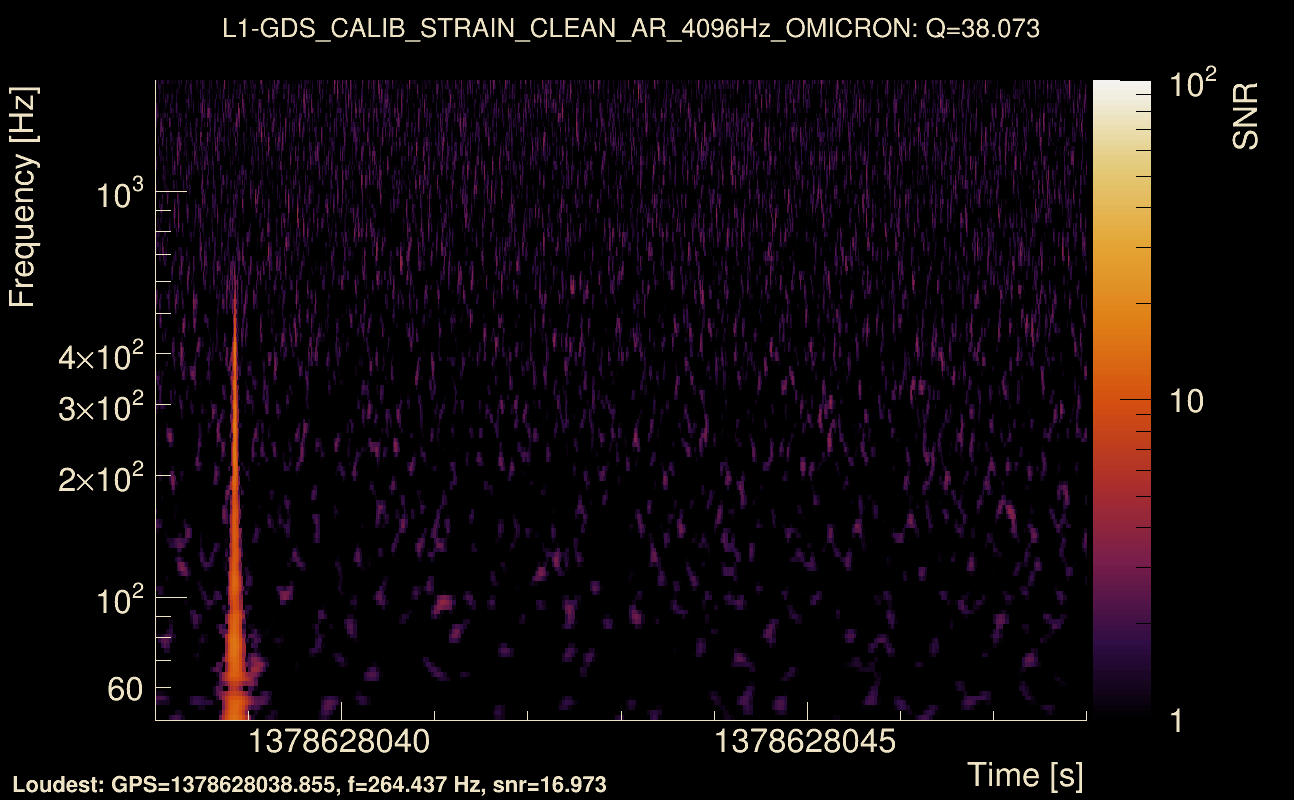

| Event time t(H1): | GPS = 1378628058 (Wed Sep 13 08:14:00 2023 ) → GPS = 1378628068 (Wed Sep 13 08:14:10 2023 ) |
| Event time t(L1): | GPS = 1378628038 (Wed Sep 13 08:14:10 2023 ) → GPS = 1378628048 (Wed Sep 13 08:13:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628055 → GPS = 1378628071 |
| Omicron analysis time window (L1): | GPS = 1378628035 → GPS = 1378628051 |

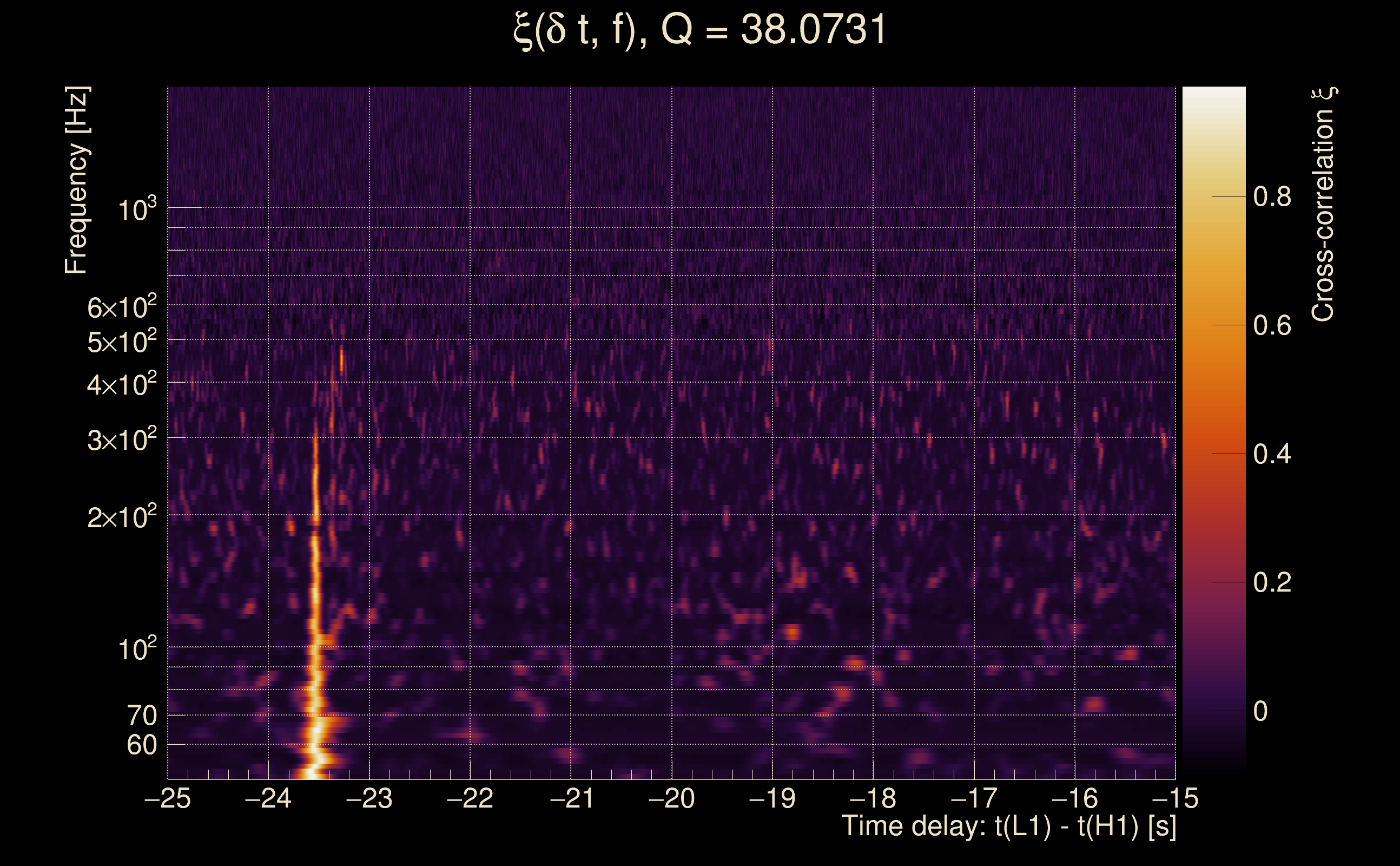

| Time delay between detectors t(L1) - t(H1): | -23.5346 s (slice index = 185 / 217), δt_gw = 0.00738122 s |
| Time delay uncertainty: | 0.000132009 s |
| Frequency: | 137.179 Hz |
| Ξ: | 0.646432 ± 0.0745027 (variance = 0.00555065): Q0: 0.863215, Q1: 0.848739, Q2: 0.822262, Q3: 0.747489, Q4: 0.663115 |
| Rank: | R_A = 0.410223 |
| Log of amplitude ratio (L1/H1): | 0.920855, variance = 0.25121 (L1/H1: 0.63338, variance = 0.416265, H1/L1: -0.976164, variance = 0.341764) |

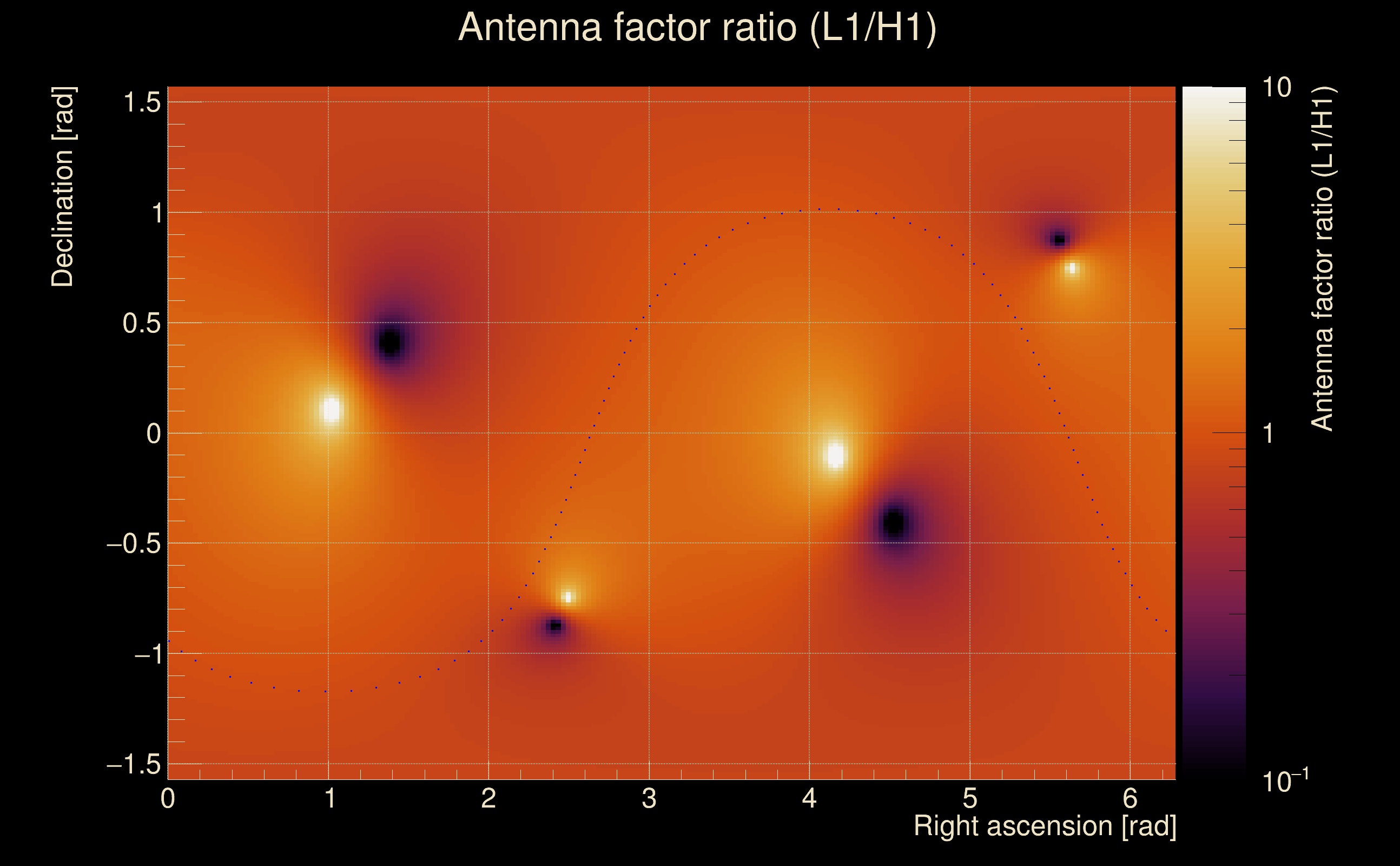

| Amplitude ratio (L1/H1): | 2.51144 ⋇ 1.65071 (L1/H1: 1.88397 ⋇ 1.90634, H1/L1: 0.376754 ⋇ 1.79428) |

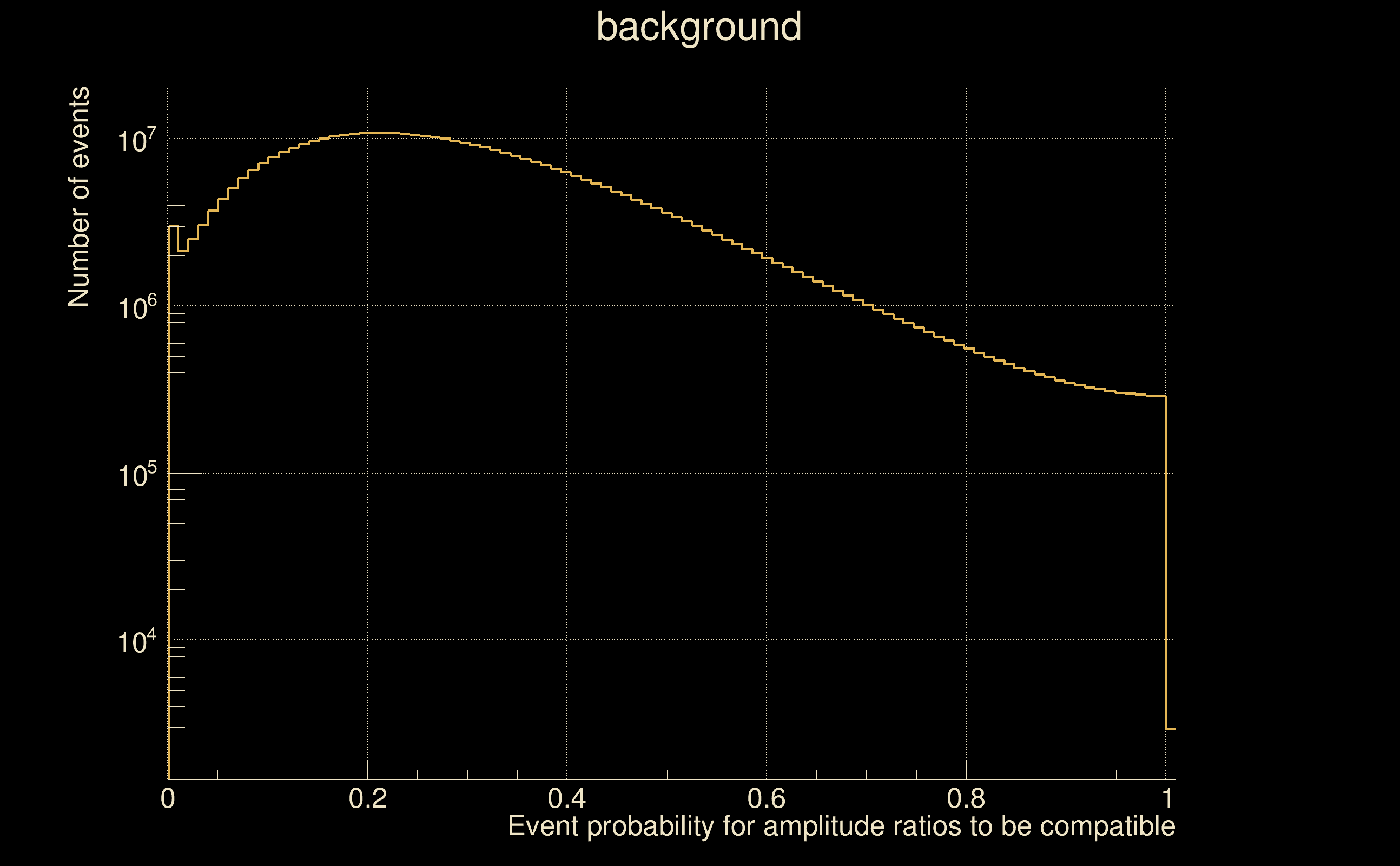

| Amplitude ratio H1|L1 compatibility (probability): | 0.693794 |

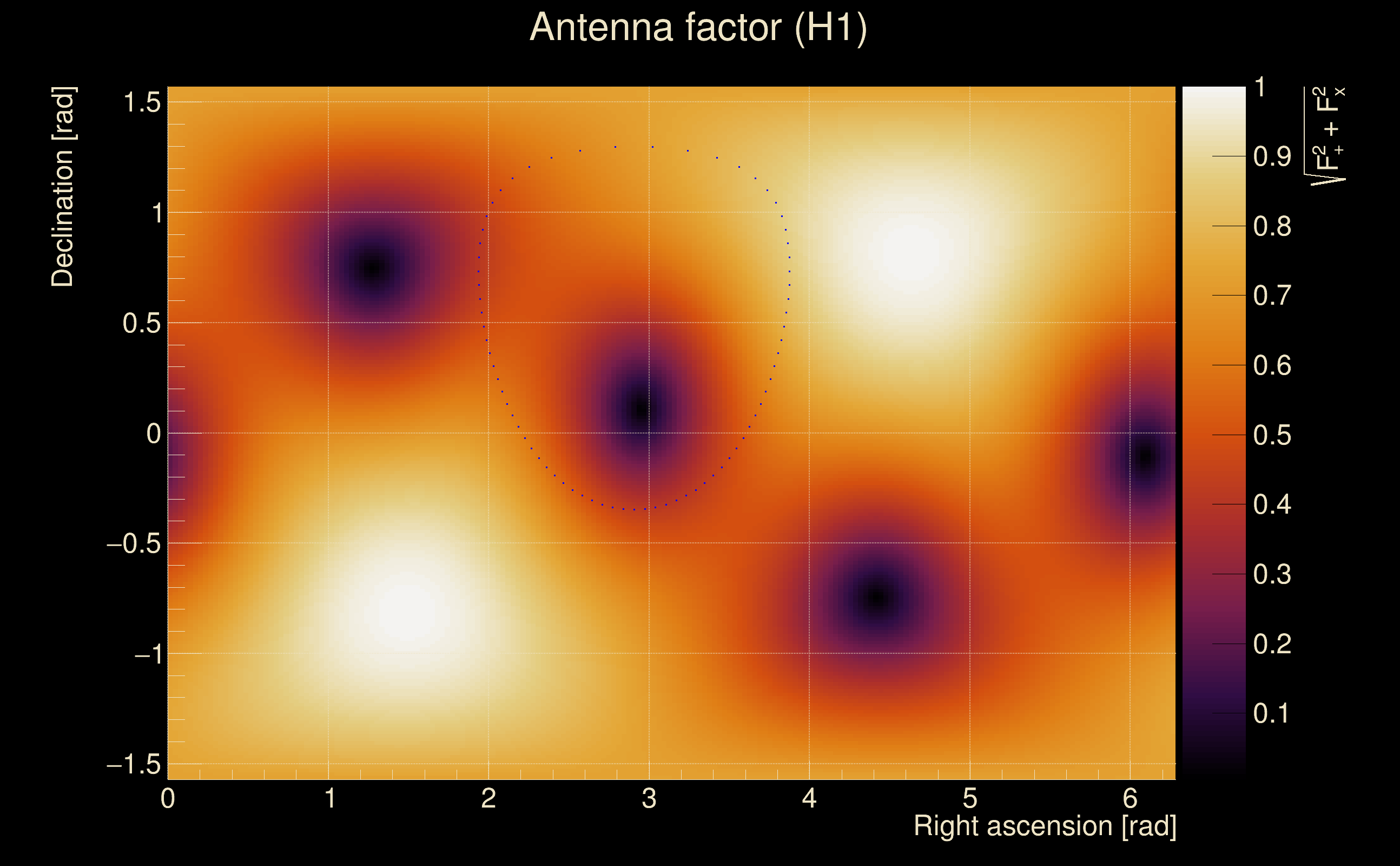

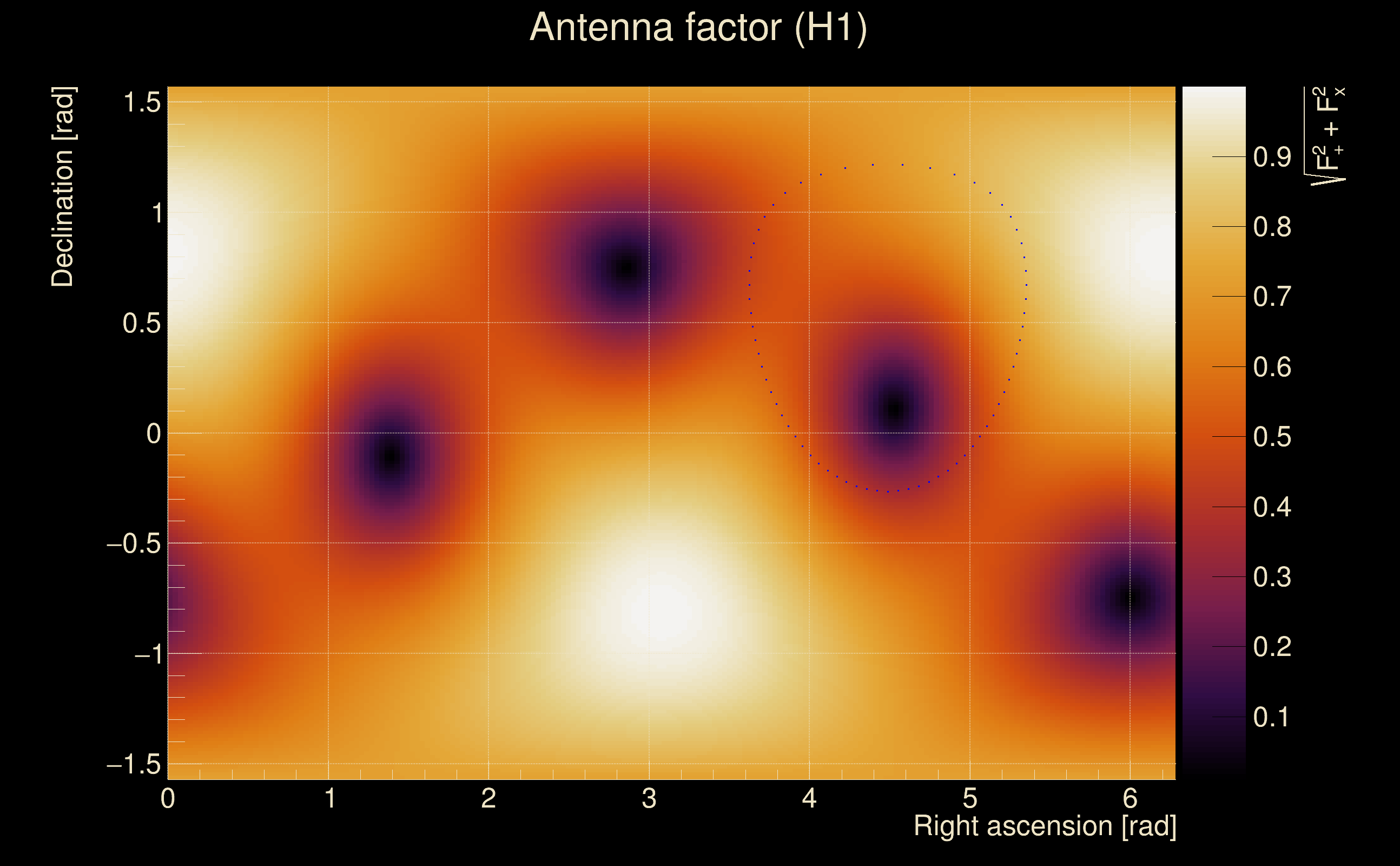

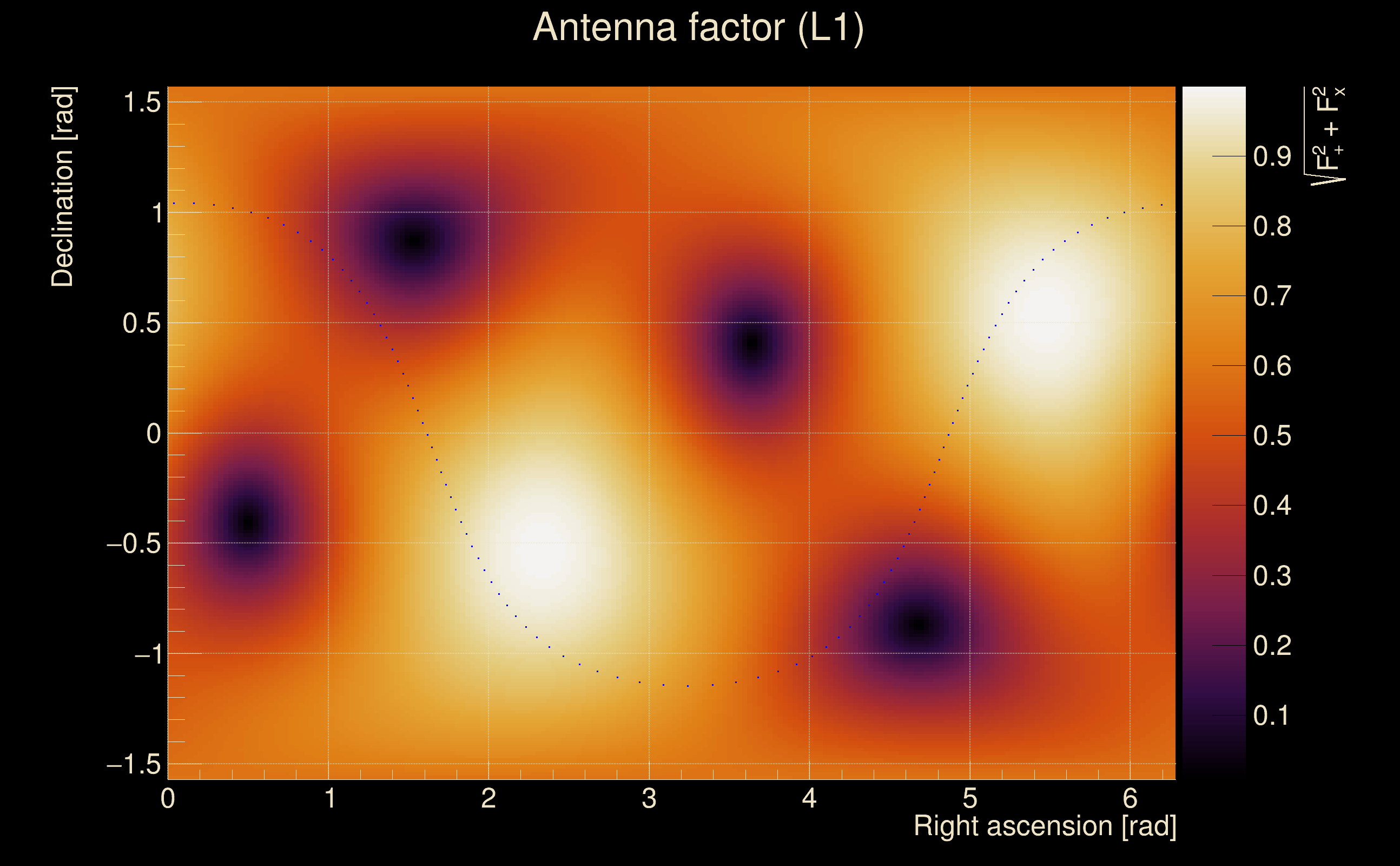

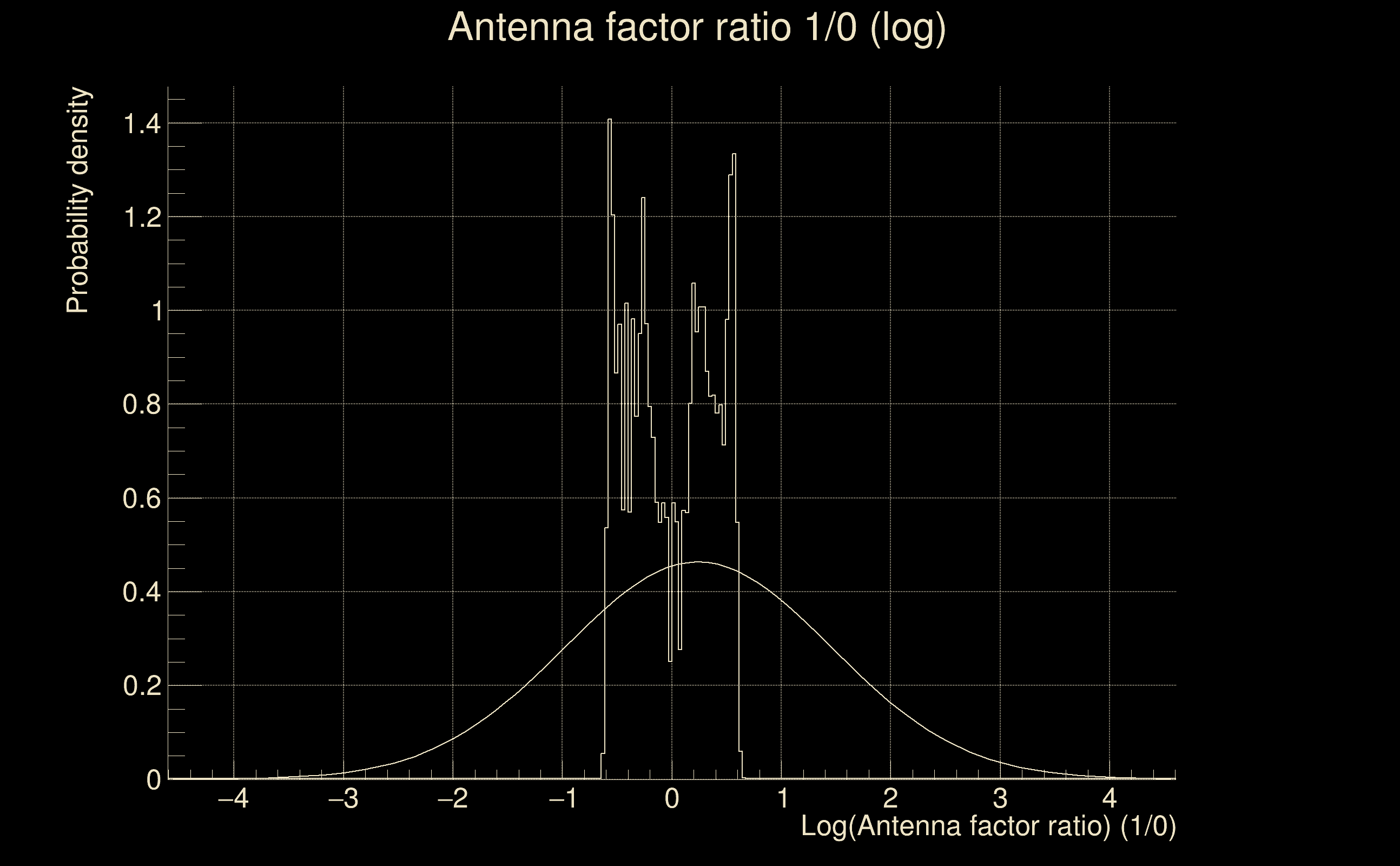

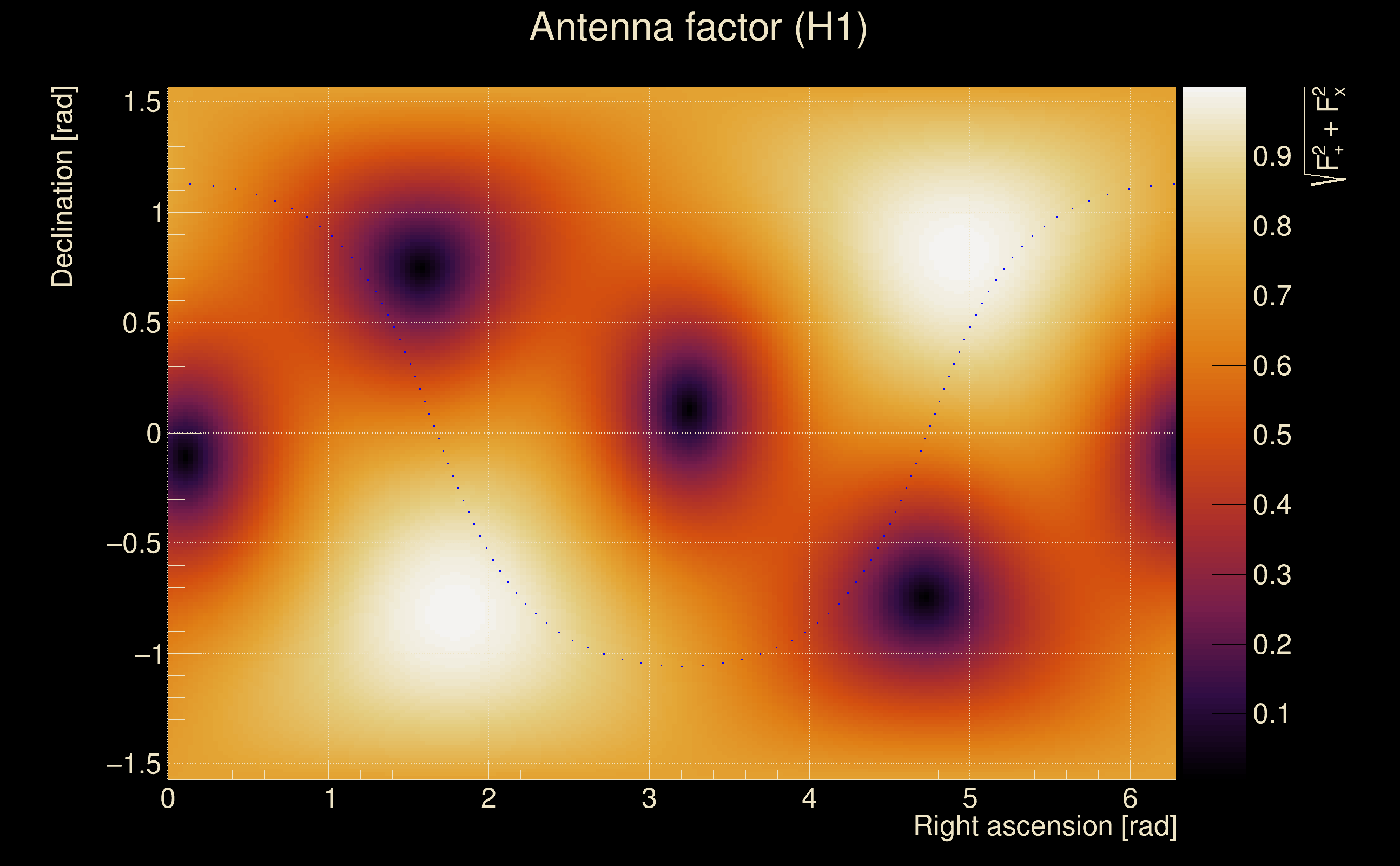

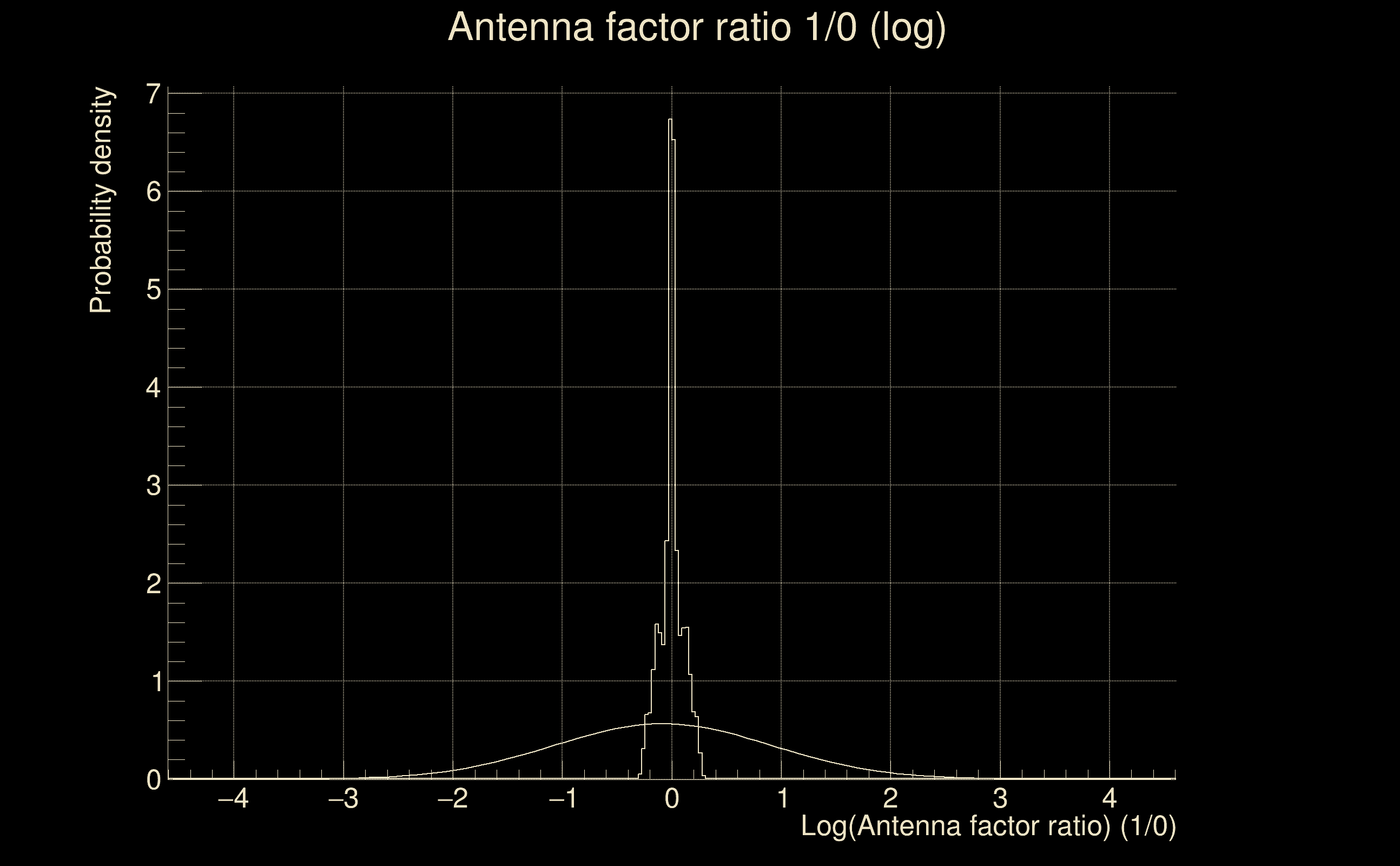

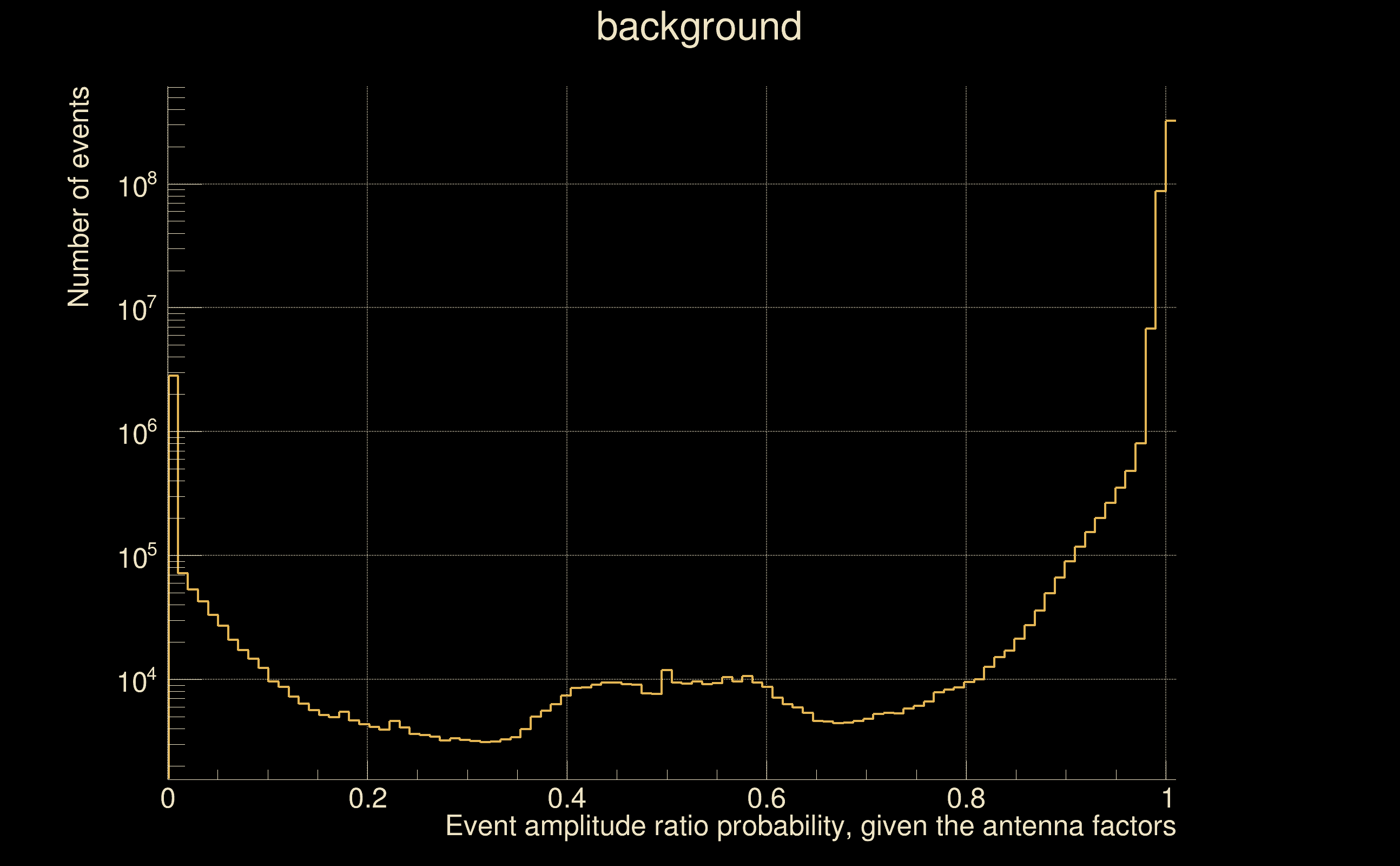

| Antenna factor probability: | 0.914674 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 5 / 36, Q2: 15 / 70, Q3: 63 / 134, Q4: 193 / 258 |
| Maximum signal-to-noise ratio: | H1: 19.5313, L1: 44.528 |

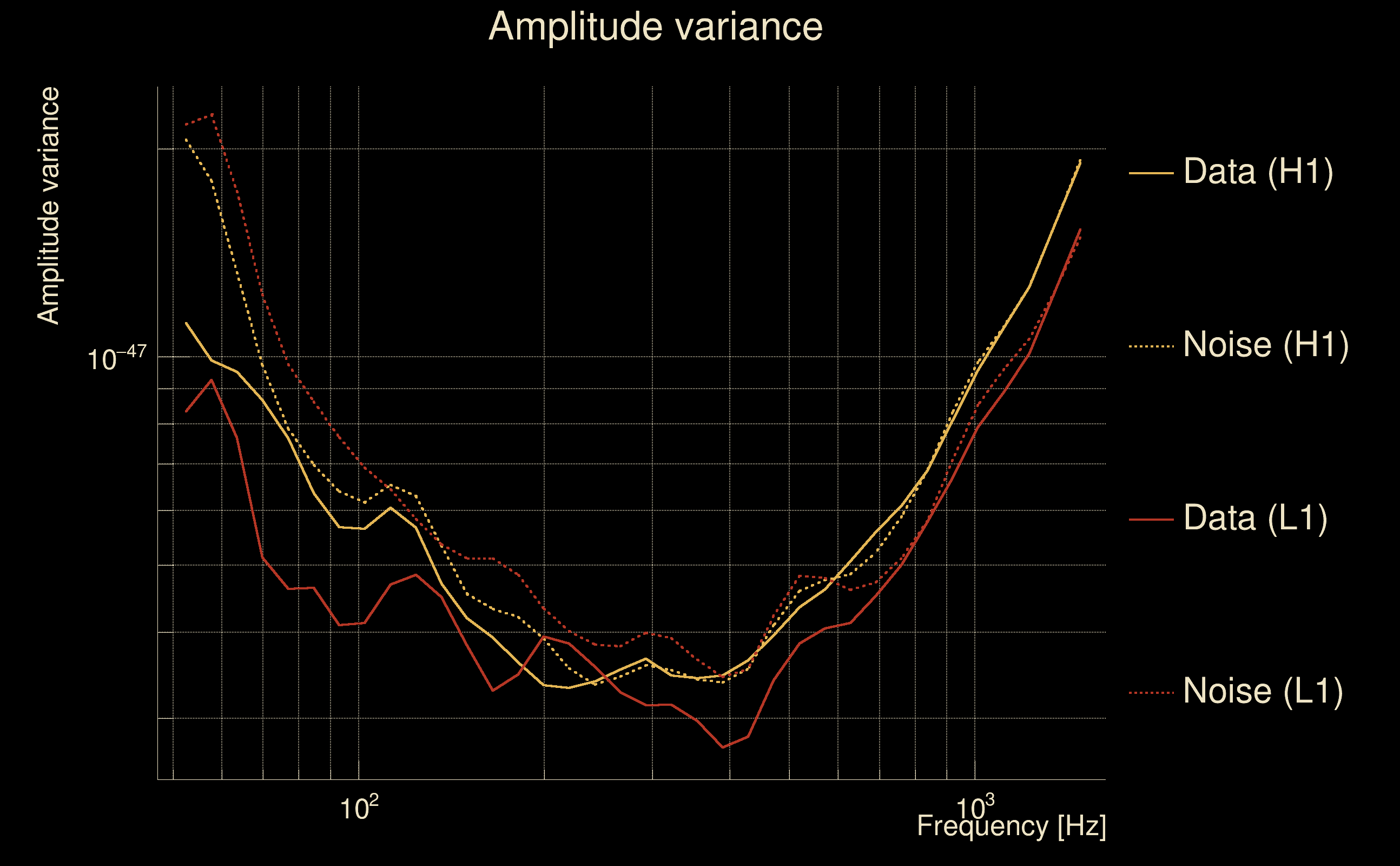

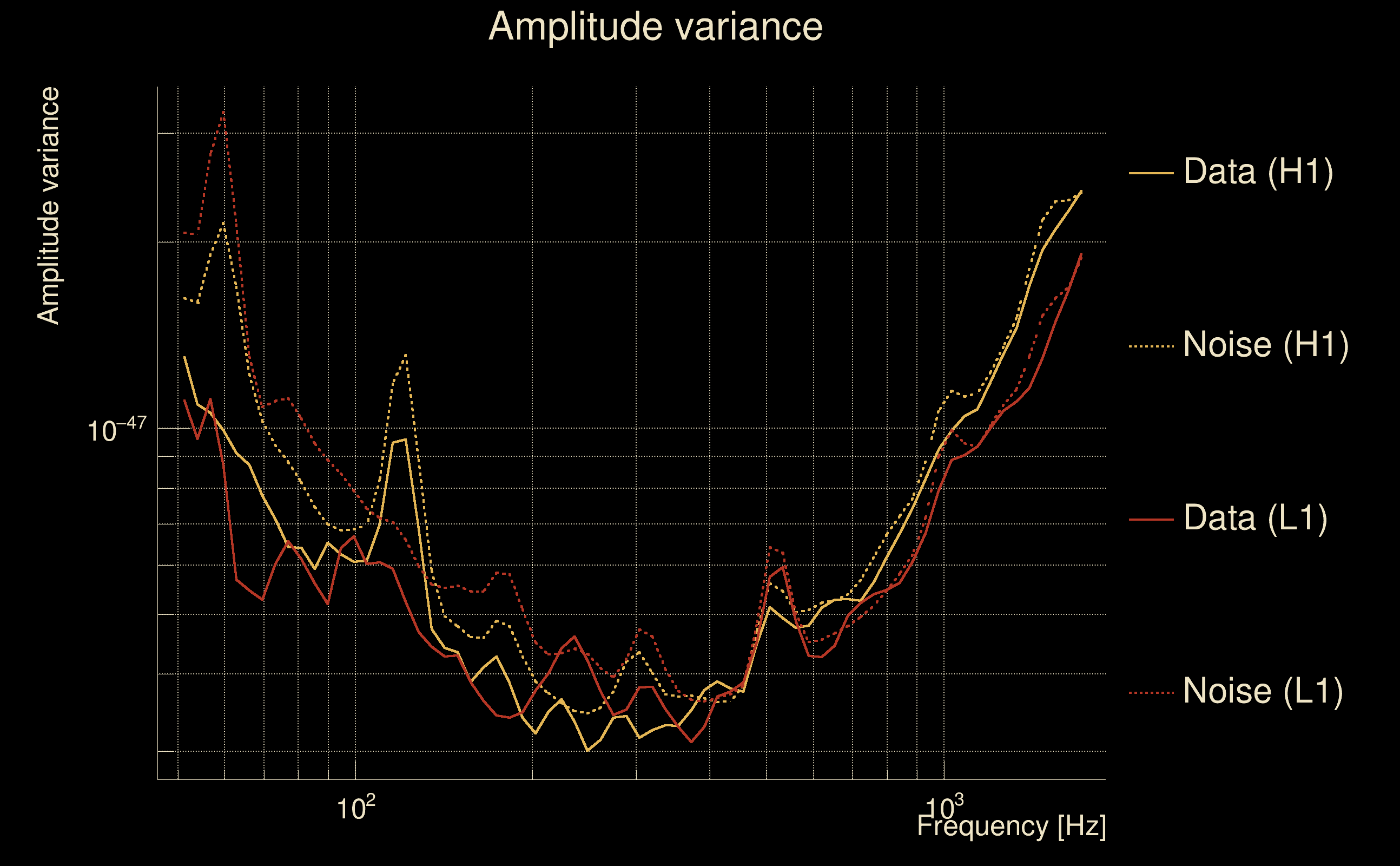

| SNR variance: | H1: 0.67791, L1: 1.27929 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378628053 (Wed Sep 13 08:13:55 2023 ) → GPS = 1378628063 (Wed Sep 13 08:14:05 2023 ) |
| Event time t(L1): | GPS = 1378628033 (Wed Sep 13 08:14:05 2023 ) → GPS = 1378628043 (Wed Sep 13 08:13:45 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378628050 → GPS = 1378628066 |
| Omicron analysis time window (L1): | GPS = 1378628030 → GPS = 1378628046 |
| Time delay between detectors t(L1) - t(H1): | -23.5345 s (slice index = 185 / 217), δt_gw = 0.0075201 s |
| Time delay uncertainty: | 0.000130434 s |
| Frequency: | 136.879 Hz |
| Ξ: | 0.64229 ± 0.0856487 (variance = 0.0073357): Q0: 0.857877, Q1: 0.855333, Q2: 0.828062, Q3: 0.743853, Q4: 0.633736 |
| Rank: | R_A = 0.3606 |
| Log of amplitude ratio (L1/H1): | 0.910587, variance = 0.238225 (L1/H1: 0.605109, variance = 0.300352, H1/L1: -0.968808, variance = 0.326773) |
| Amplitude ratio (L1/H1): | 2.48578 ⋇ 1.62919 (L1/H1: 1.83145 ⋇ 1.72987, H1/L1: 0.379535 ⋇ 1.77117) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.646043 |
| Antenna factor probability: | 0.869028 |
| Number of rejected frequency rows: | Q0: 3 / 18, Q1: 8 / 36, Q2: 21 / 70, Q3: 65 / 134, Q4: 190 / 258 |
| Maximum signal-to-noise ratio: | H1: 19.5358, L1: 44.7491 |
| SNR variance: | H1: 0.523341, L1: 0.51966 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

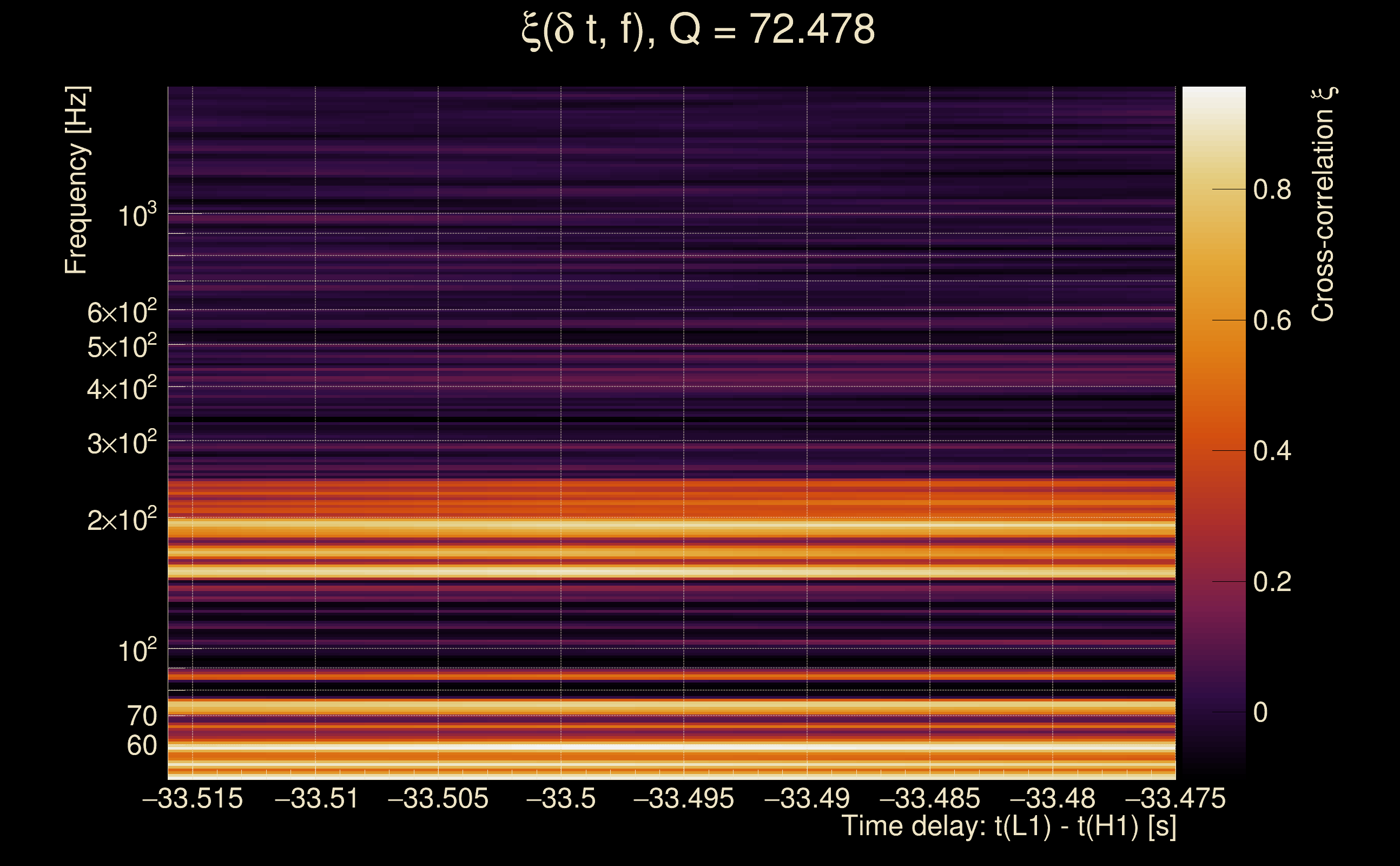

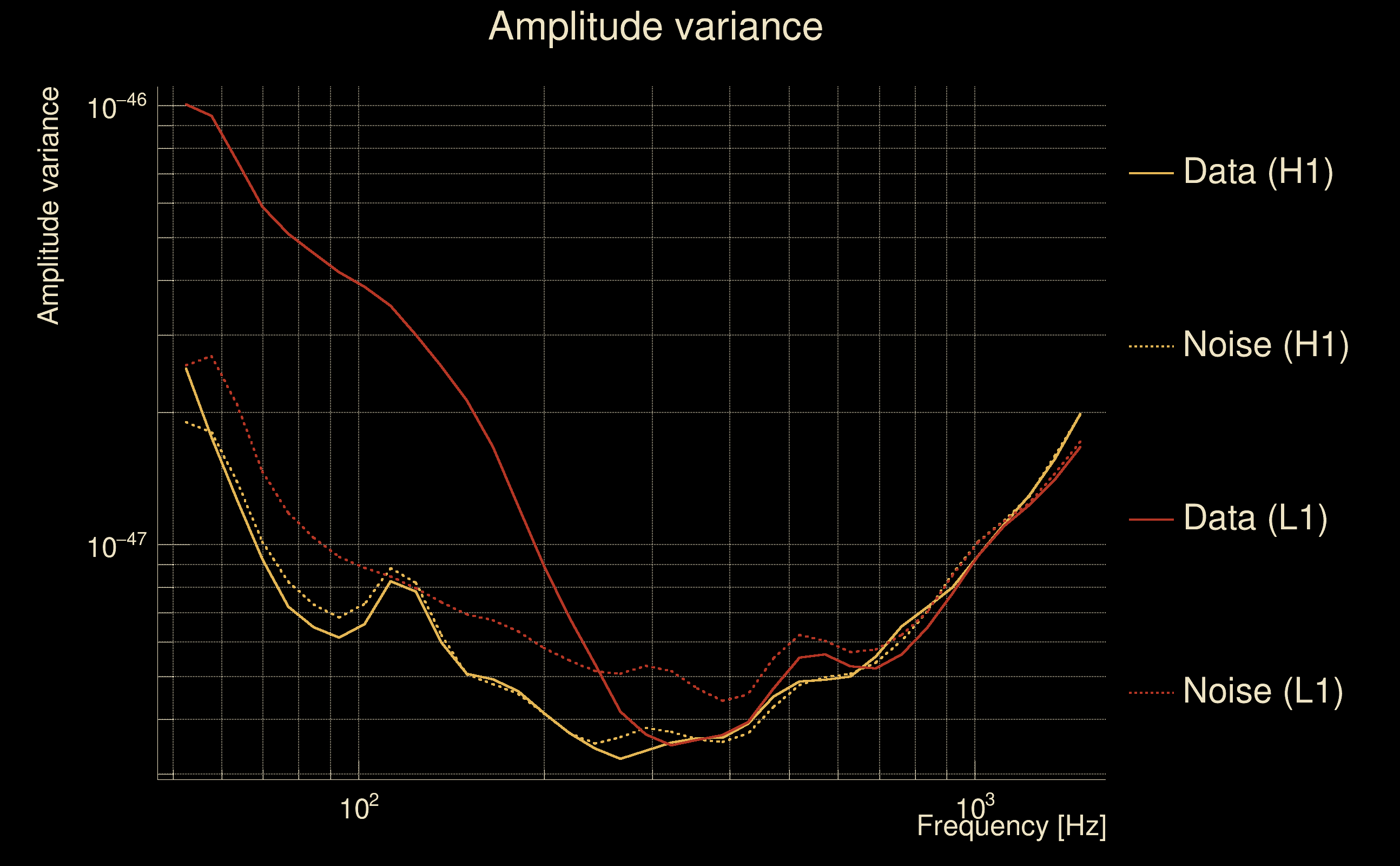

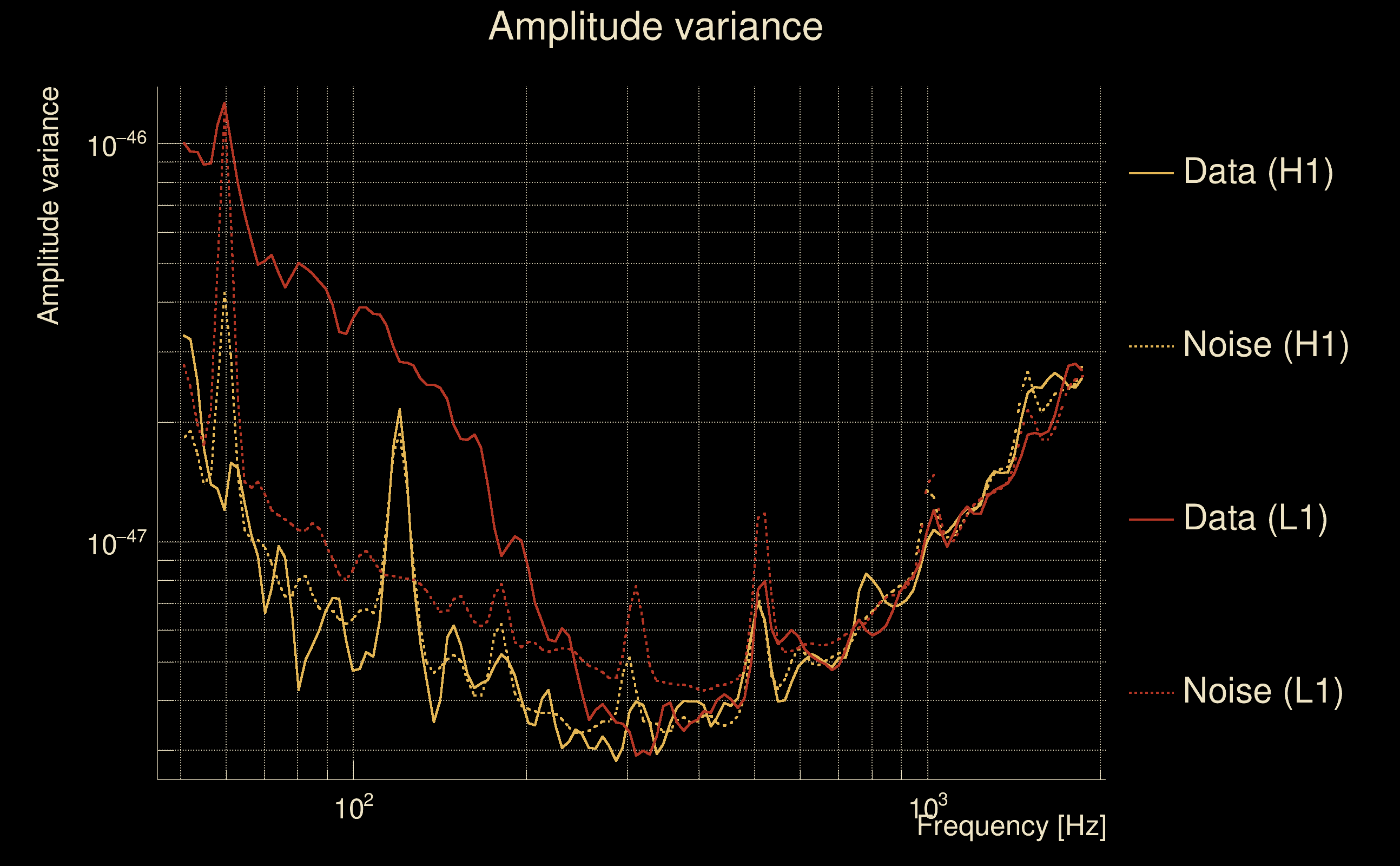

| Event time t(H1): | GPS = 1378632422 (Wed Sep 13 09:26:44 2023 ) → GPS = 1378632432 (Wed Sep 13 09:26:54 2023 ) |
| Event time t(L1): | GPS = 1378632382 (Wed Sep 13 09:26:54 2023 ) → GPS = 1378632392 (Wed Sep 13 09:26:14 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378632419 → GPS = 1378632435 |
| Omicron analysis time window (L1): | GPS = 1378632379 → GPS = 1378632395 |

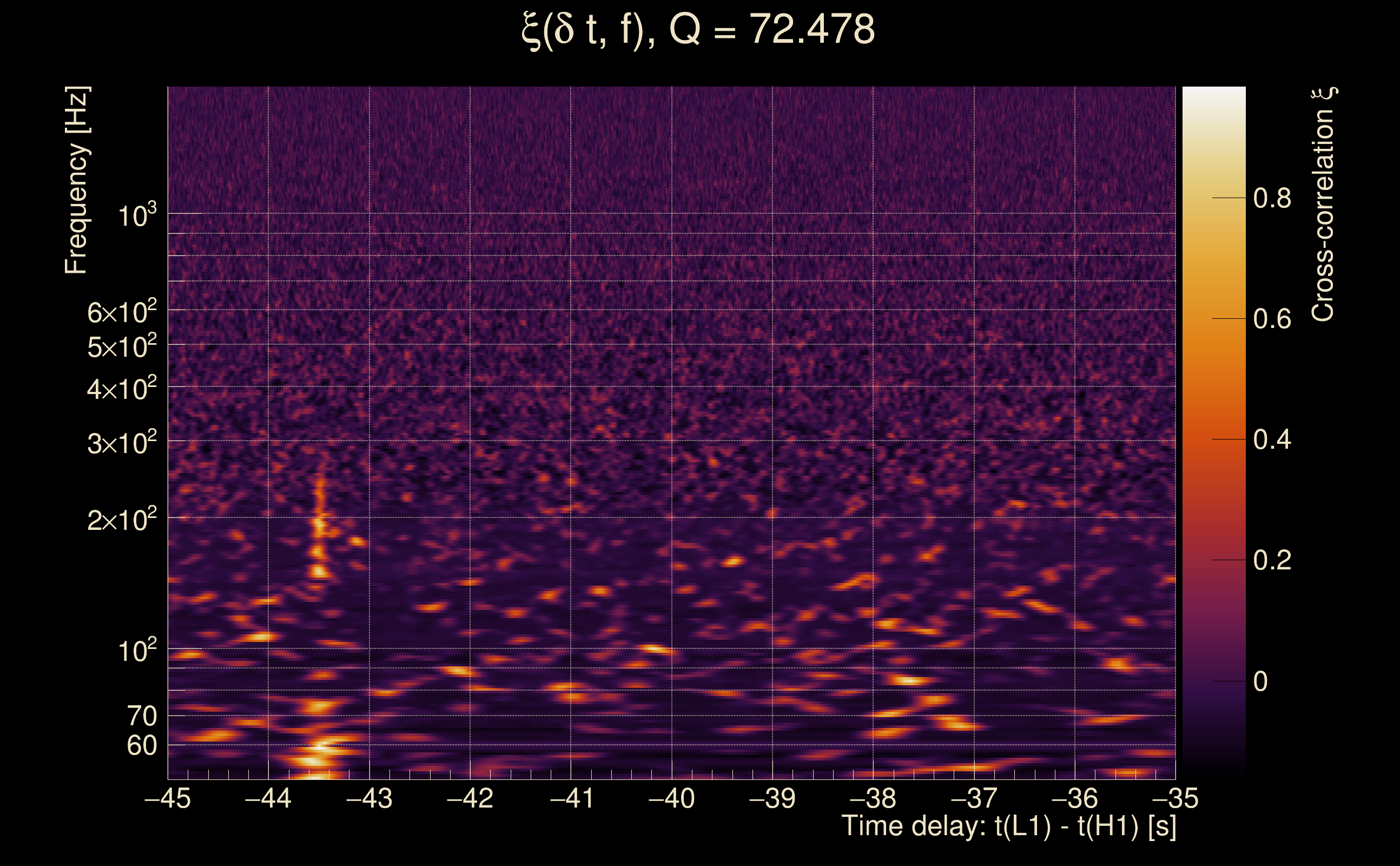

| Time delay between detectors t(L1) - t(H1): | -43.4958 s (slice index = 184 / 217), δt_gw = 0.000180213 s |
| Time delay uncertainty: | 0.000129953 s |
| Frequency: | 137.831 Hz |
| Ξ: | 0.497917 ± 0.0624548 (variance = 0.0039006): Q0: 0.72546, Q1: 0.729174, Q2: 0.722069, Q3: 0.620193, Q4: 0.581167 |
| Rank: | R_A = 0.255083 |
| Log of amplitude ratio (L1/H1): | 1.6465, variance = 0.515501 (L1/H1: 0.971339, variance = 0.633156, H1/L1: -1.69631, variance = 0.590921) |
| Amplitude ratio (L1/H1): | 5.18877 ⋇ 2.0503 (L1/H1: 2.64148 ⋇ 2.21602, H1/L1: 0.18336 ⋇ 2.15699) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.5123 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 2 / 18, Q1: 15 / 36, Q2: 39 / 70, Q3: 89 / 134, Q4: 202 / 258 |
| Maximum signal-to-noise ratio: | H1: 12.6887, L1: 46.716 |
| SNR variance: | H1: 0.564062, L1: 0.525989 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378632417 (Wed Sep 13 09:26:39 2023 ) → GPS = 1378632427 (Wed Sep 13 09:26:49 2023 ) |
| Event time t(L1): | GPS = 1378632387 (Wed Sep 13 09:26:49 2023 ) → GPS = 1378632397 (Wed Sep 13 09:26:19 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378632414 → GPS = 1378632430 |
| Omicron analysis time window (L1): | GPS = 1378632384 → GPS = 1378632400 |
| Time delay between detectors t(L1) - t(H1): | -33.4951 s (slice index = 184 / 217), δt_gw = 0.00086014 s |
| Time delay uncertainty: | 0.000151057 s |
| Frequency: | 134.446 Hz |
| Ξ: | 0.454996 ± 0.0610677 (variance = 0.00372927): Q0: 0.764274, Q1: 0.735111, Q2: 0.680789, Q3: 0.630275, Q4: 0.602119 |
| Rank: | R_A = 0.247979 |
| Log of amplitude ratio (L1/H1): | 1.55716, variance = 0.423662 (L1/H1: 0.894214, variance = 0.904662, H1/L1: -1.60726, variance = 0.484946) |
| Amplitude ratio (L1/H1): | 4.74532 ⋇ 1.91725 (L1/H1: 2.44541 ⋇ 2.58865, H1/L1: 0.200437 ⋇ 2.00648) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.545258 |
| Antenna factor probability: | 0.999551 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 15 / 36, Q2: 34 / 70, Q3: 90 / 134, Q4: 208 / 258 |
| Maximum signal-to-noise ratio: | H1: 12.6997, L1: 46.1978 |
| SNR variance: | H1: 0.513744, L1: 1.42268 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

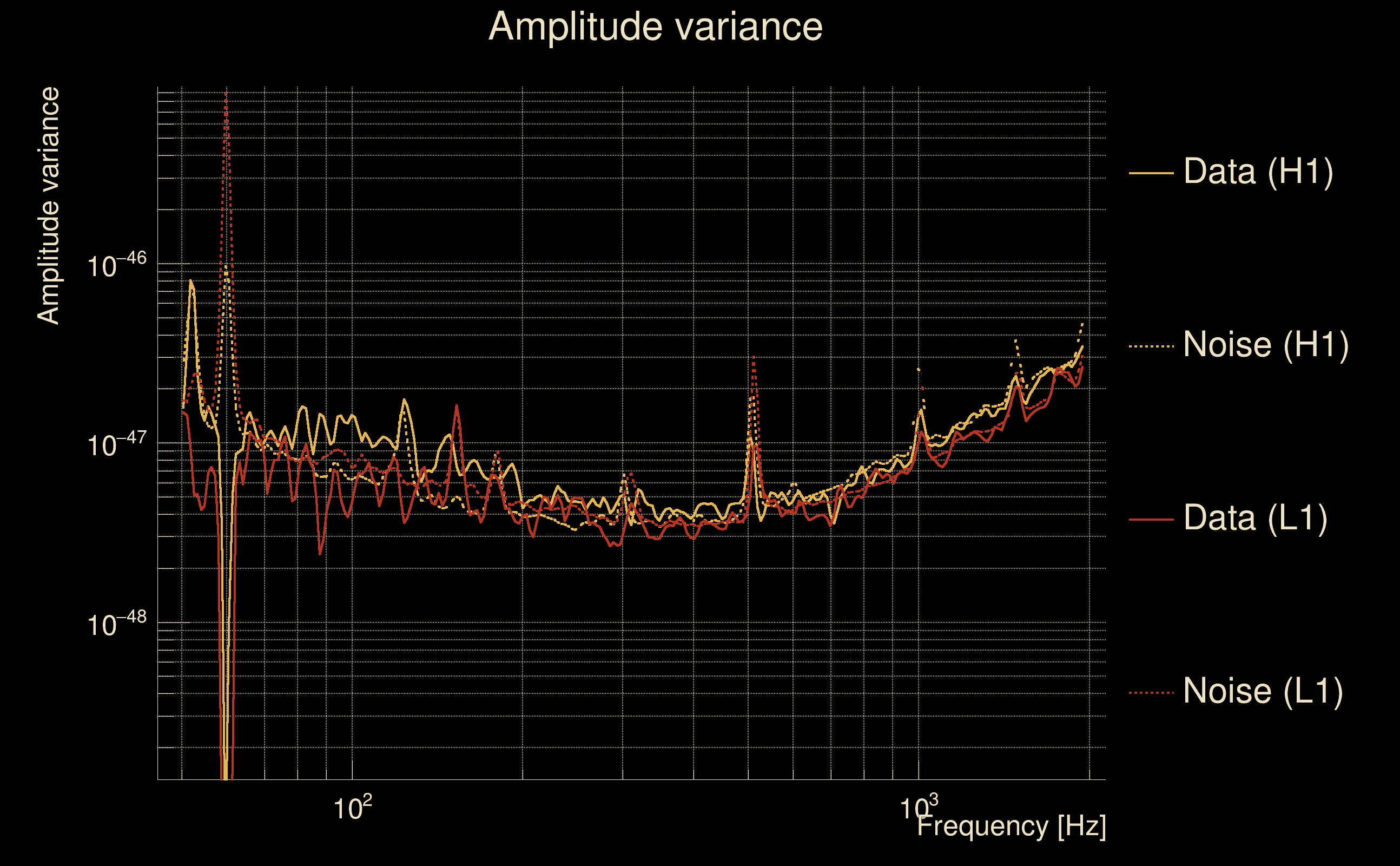

| Event time t(H1): | GPS = 1377744740 (Sun Sep 3 02:52:02 2023 ) → GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) |
| Event time t(L1): | GPS = 1377744750 (Sun Sep 3 02:52:12 2023 ) → GPS = 1377744760 (Sun Sep 3 02:52:22 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377744737 → GPS = 1377744753 |
| Omicron analysis time window (L1): | GPS = 1377744747 → GPS = 1377744763 |

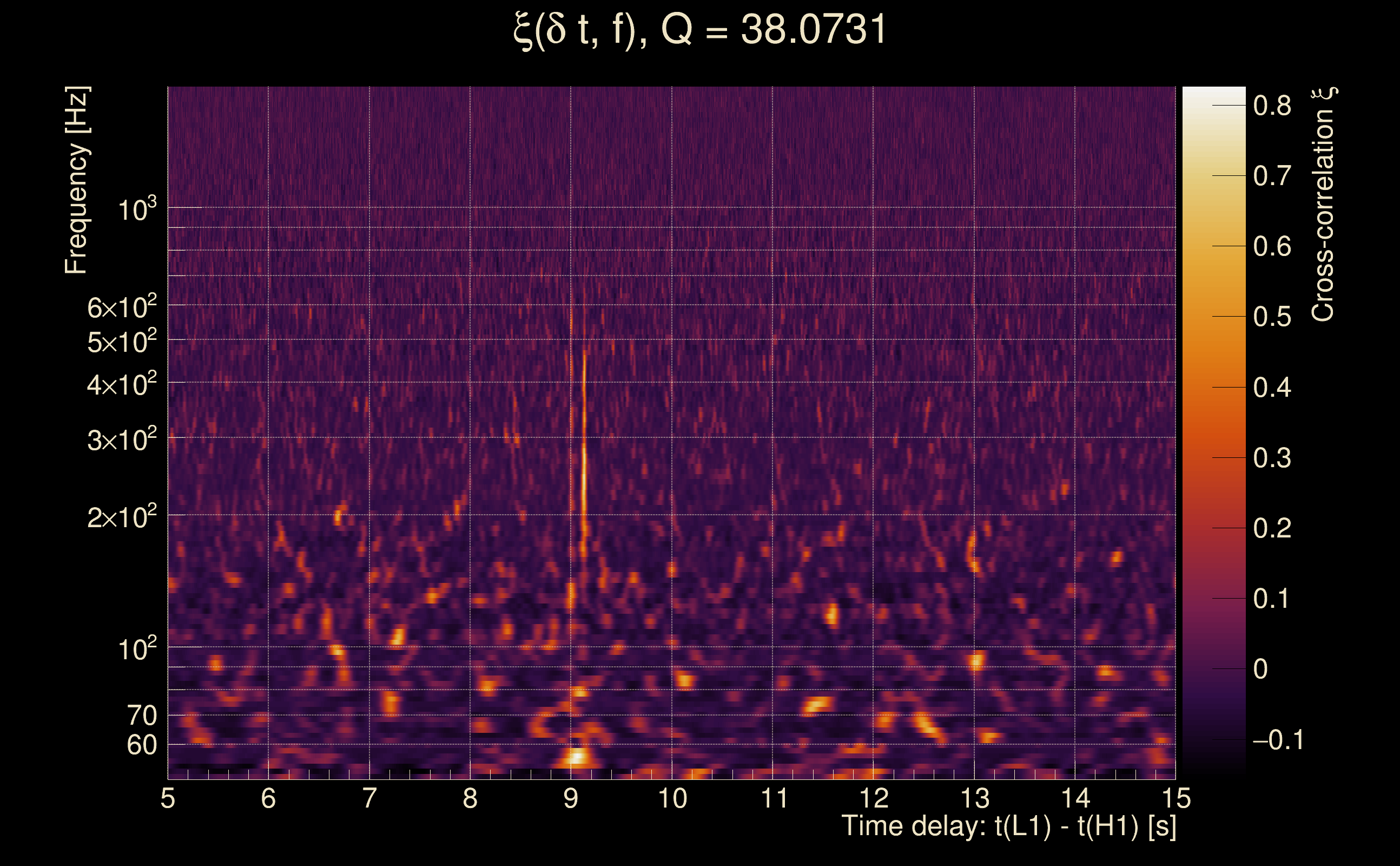

| Time delay between detectors t(L1) - t(H1): | 9.13281 s (slice index = 127 / 217), δt_gw = 0.00680878 s |
| Time delay uncertainty: | 0.000125261 s |
| Frequency: | 214.14 Hz |
| Ξ: | 0.427638 ± 0.0944855 (variance = 0.00892751): Q0: 0.70654, Q1: 0.662127, Q2: 0.611816, Q3: 0.531663, Q4: 0.441752 |
| Rank: | R_A = 0.109411 |
| Log of amplitude ratio (L1/H1): | -0.832028, variance = 0.47755 (L1/H1: -1.24767, variance = 0.815693, H1/L1: -0.189068, variance = 0.78313) |
| Amplitude ratio (L1/H1): | 0.435166 ⋇ 1.99581 (L1/H1: 0.287174 ⋇ 2.46738, H1/L1: 0.82773 ⋇ 2.42285) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.25585 |

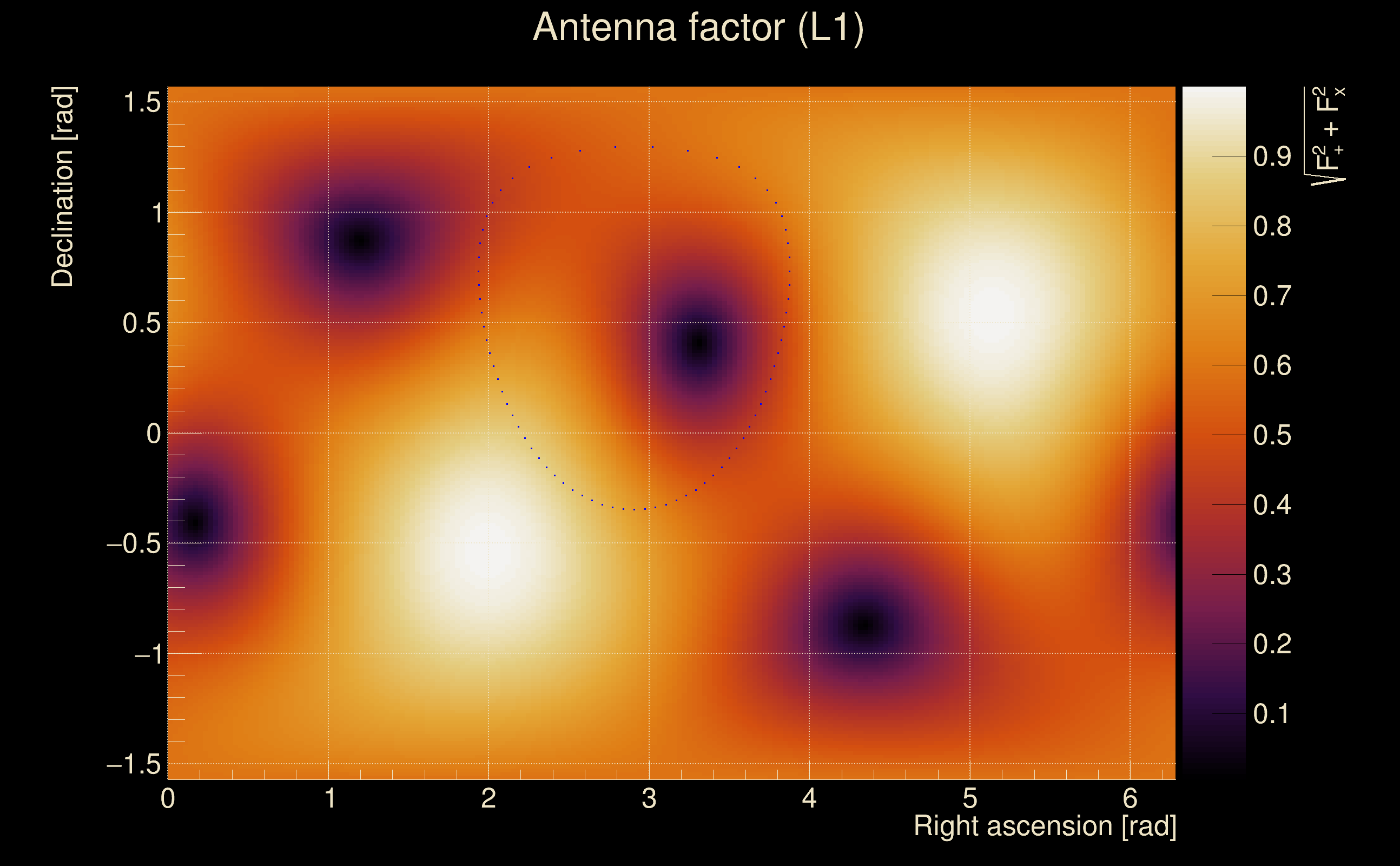

| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 5 / 18, Q1: 13 / 36, Q2: 33 / 70, Q3: 83 / 134, Q4: 203 / 258 |
| Maximum signal-to-noise ratio: | H1: 23.9902, L1: 15.3059 |
| SNR variance: | H1: 0.706333, L1: 0.525125 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

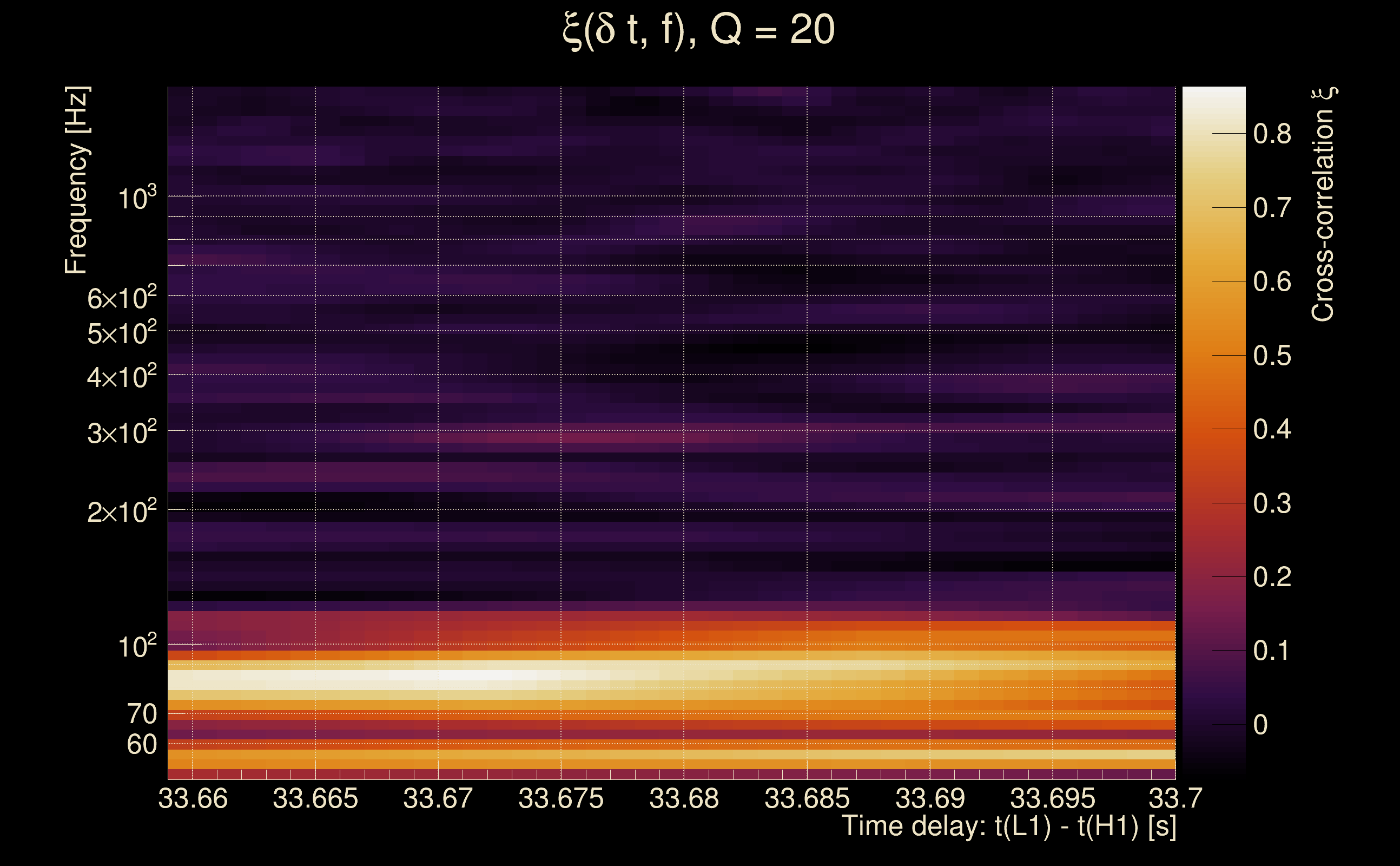

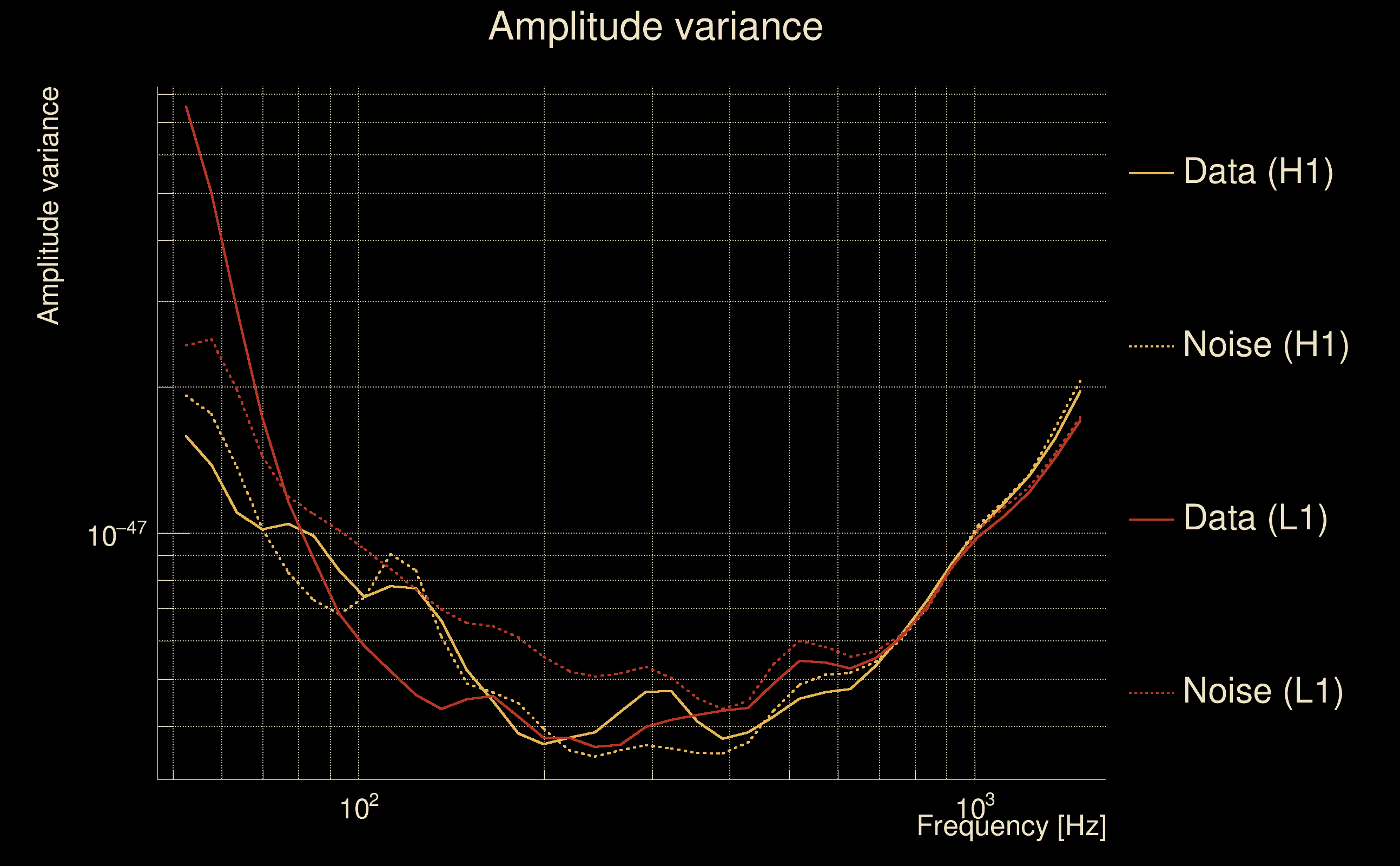

| Event time t(H1): | GPS = 1378629088 (Wed Sep 13 08:31:10 2023 ) → GPS = 1378629098 (Wed Sep 13 08:31:20 2023 ) |
| Event time t(L1): | GPS = 1378629118 (Wed Sep 13 08:31:20 2023 ) → GPS = 1378629128 (Wed Sep 13 08:31:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378629085 → GPS = 1378629101 |
| Omicron analysis time window (L1): | GPS = 1378629115 → GPS = 1378629131 |
| Time delay between detectors t(L1) - t(H1): | 33.6794 s (slice index = 28 / 217), δt_gw = -0.000632928 s |
| Time delay uncertainty: | 0.00053242 s |
| Frequency: | 83.3505 Hz |
| Ξ: | 0.229189 ± 0.0830953 (variance = 0.00690483): Q0: 0.695908, Q1: 0.6665, Q2: 0.640829, Q3: 0.62624, Q4: 0.458268 |
| Rank: | R_A = 0.0803708 |
| Log of amplitude ratio (L1/H1): | 1.22309, variance = 0.392907 (L1/H1: 0.260247, variance = 0.776302, H1/L1: -1.29257, variance = 0.447613) |
| Amplitude ratio (L1/H1): | 3.39769 ⋇ 1.87165 (L1/H1: 1.29725 ⋇ 2.4135, H1/L1: 0.274564 ⋇ 1.95236) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.350755 |
| Antenna factor probability: | 0.999769 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 25 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 232 / 258 |
| Maximum signal-to-noise ratio: | H1: 9.58063, L1: 35.6661 |
| SNR variance: | H1: 0.568914, L1: 0.521298 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

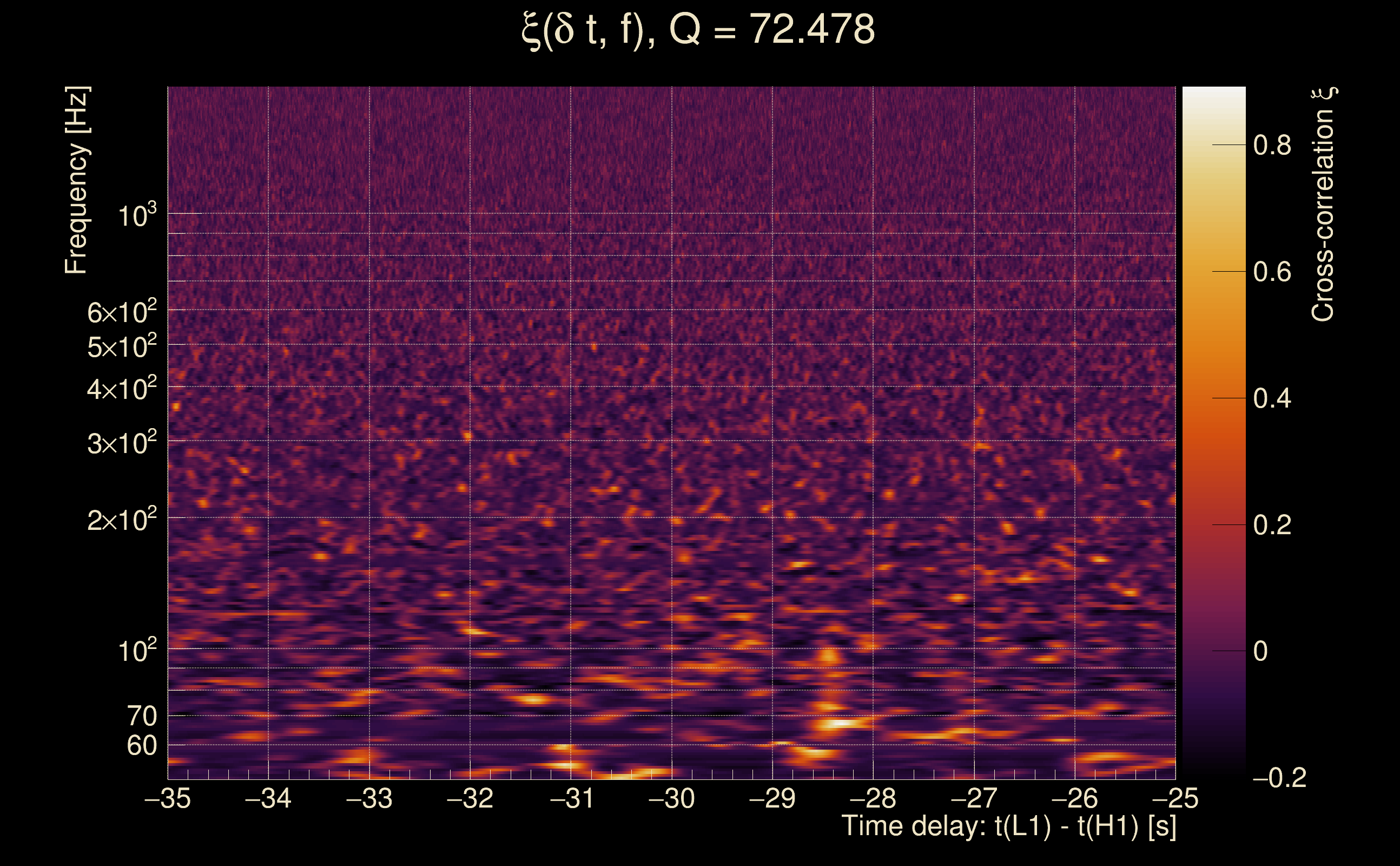

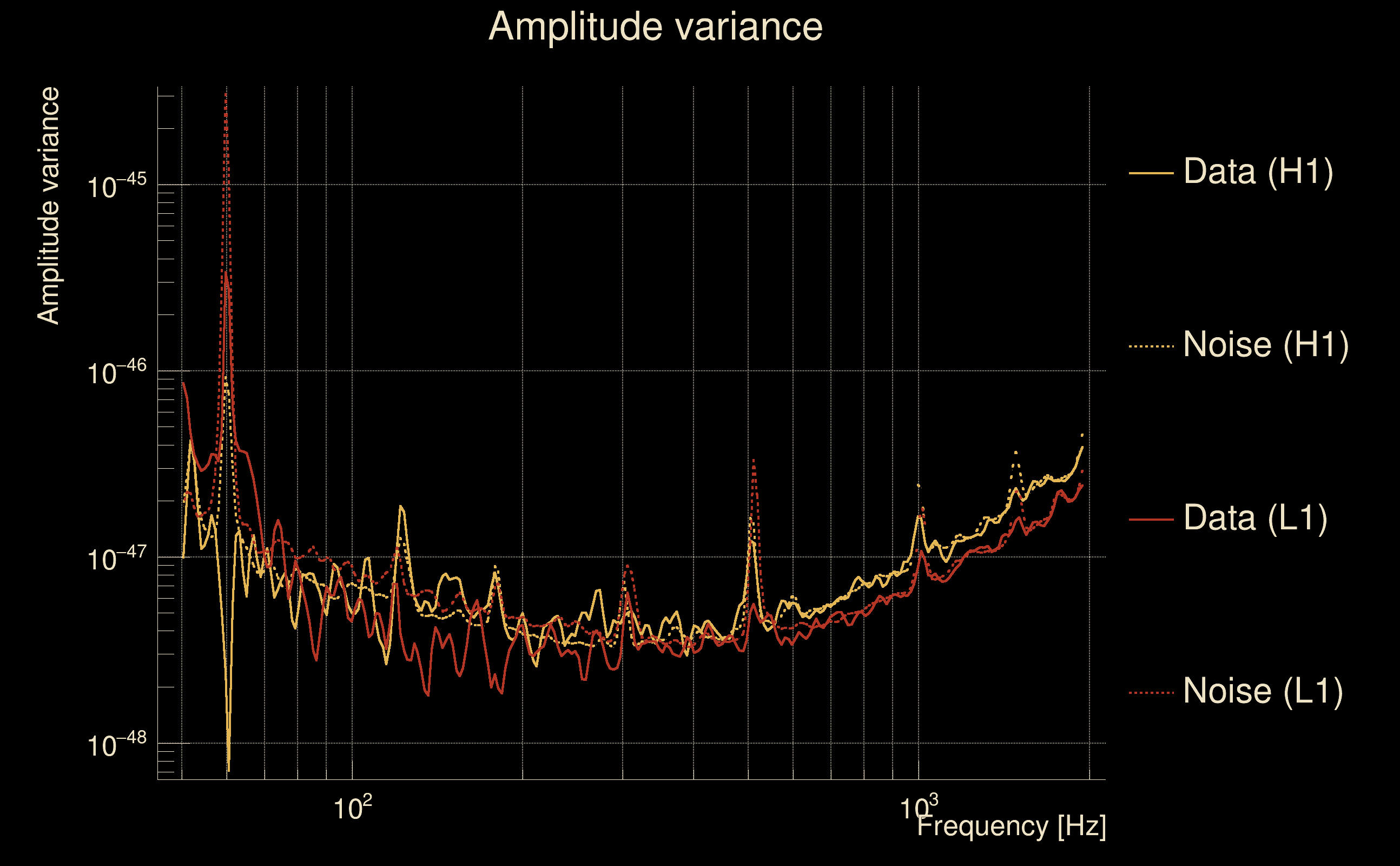

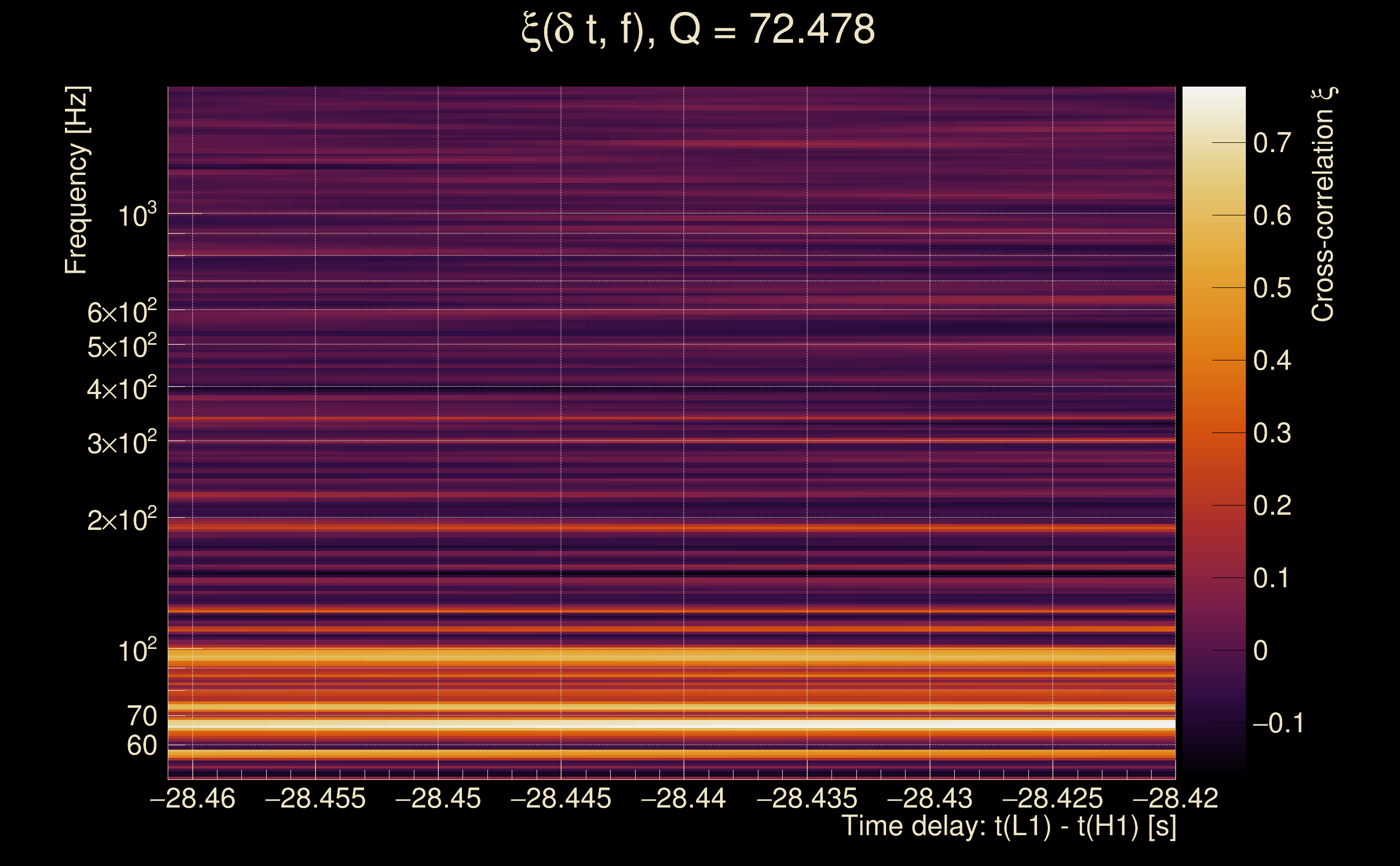

| Event time t(H1): | GPS = 1377990046 (Tue Sep 5 23:00:28 2023 ) → GPS = 1377990056 (Tue Sep 5 23:00:38 2023 ) |
| Event time t(L1): | GPS = 1377990016 (Tue Sep 5 23:00:38 2023 ) → GPS = 1377990026 (Tue Sep 5 23:00:08 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377990043 → GPS = 1377990059 |
| Omicron analysis time window (L1): | GPS = 1377990013 → GPS = 1377990029 |
| Time delay between detectors t(L1) - t(H1): | -28.4403 s (slice index = 74 / 217), δt_gw = -0.00425676 s |
| Time delay uncertainty: | 0.000528793 s |
| Frequency: | 73.8648 Hz |
| Ξ: | 0.13827 ± 0.0895186 (variance = 0.00801358): Q0: 0.75787, Q1: 0.710548, Q2: 0.588061, Q3: 0.601294, Q4: 0.508753 |
| Rank: | R_A = 0.0798121 |
| Log of amplitude ratio (L1/H1): | 0.791416, variance = 0.905914 (L1/H1: 0.137032, variance = 4.02573, H1/L1: -1.30838, variance = 0.390173) |
| Amplitude ratio (L1/H1): | 2.20652 ⋇ 2.59036 (L1/H1: 1.14686 ⋇ 7.43667, H1/L1: 0.270257 ⋇ 1.86757) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.577246 |
| Antenna factor probability: | 0.999952 |
| Number of rejected frequency rows: | Q0: 14 / 18, Q1: 28 / 36, Q2: 63 / 70, Q3: 123 / 134, Q4: 243 / 258 |
| Maximum signal-to-noise ratio: | H1: 20.2183, L1: 22.7474 |
| SNR variance: | H1: 0.516357, L1: 0.489352 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

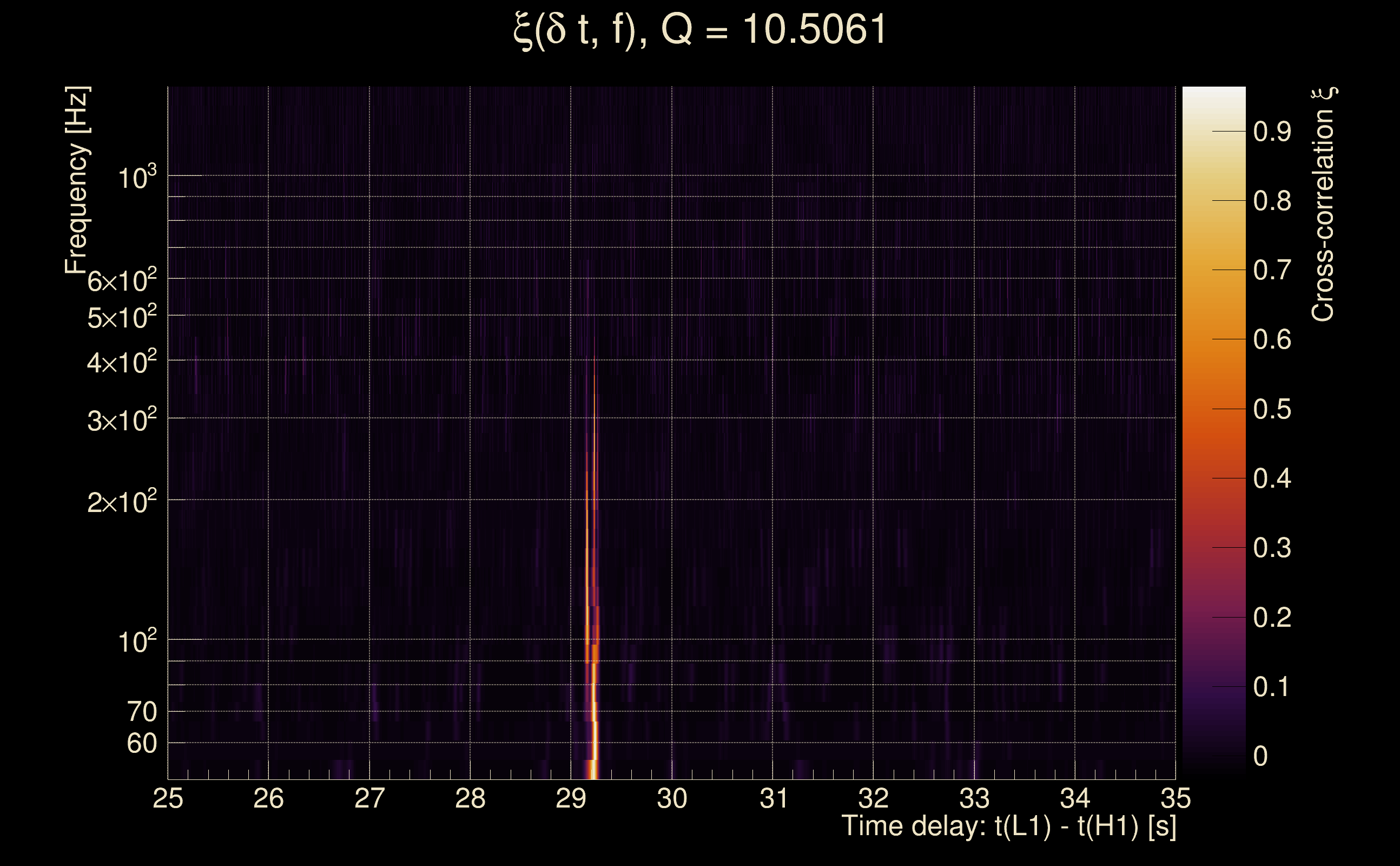

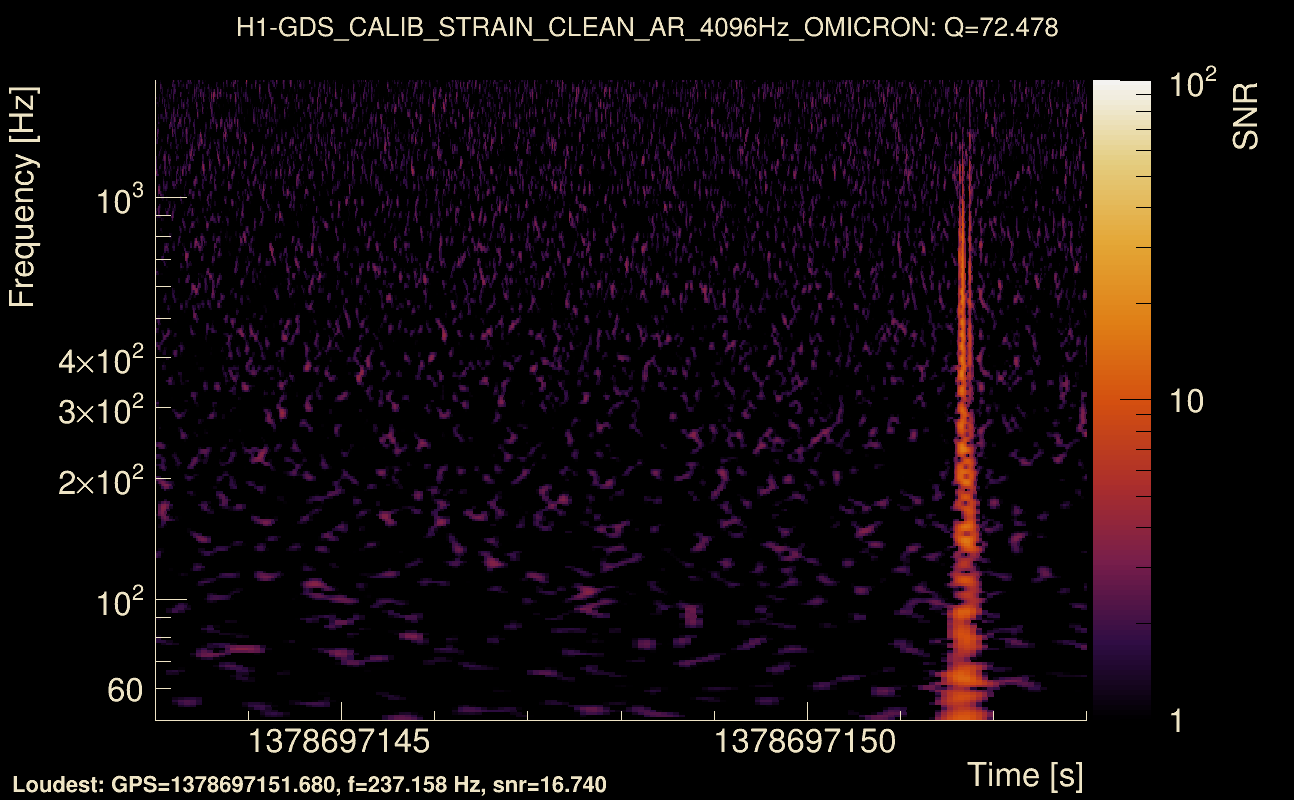

| Event time t(H1): | GPS = 1378697148 (Thu Sep 14 03:25:30 2023 ) → GPS = 1378697158 (Thu Sep 14 03:25:40 2023 ) |
| Event time t(L1): | GPS = 1378697178 (Thu Sep 14 03:25:40 2023 ) → GPS = 1378697188 (Thu Sep 14 03:26:10 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378697145 → GPS = 1378697161 |
| Omicron analysis time window (L1): | GPS = 1378697175 → GPS = 1378697191 |
| Time delay between detectors t(L1) - t(H1): | 29.2177 s (slice index = 125 / 217), δt_gw = -0.000347025 s |
| Time delay uncertainty: | 9.73106e-05 s |
| Frequency: | 122.366 Hz |
| Ξ: | 0.294297 ± 0.0138804 (variance = 0.000192665): Q0: 0.683134, Q1: 0.658633, Q2: 0.67108, Q3: 0.700519, Q4: 0.675306 |
| Rank: | R_A = 0.0705182 |
| Log of amplitude ratio (L1/H1): | -1.29207, variance = 0.369731 (L1/H1: -1.44716, variance = 0.487241, H1/L1: 0.326858, variance = 0.420367) |

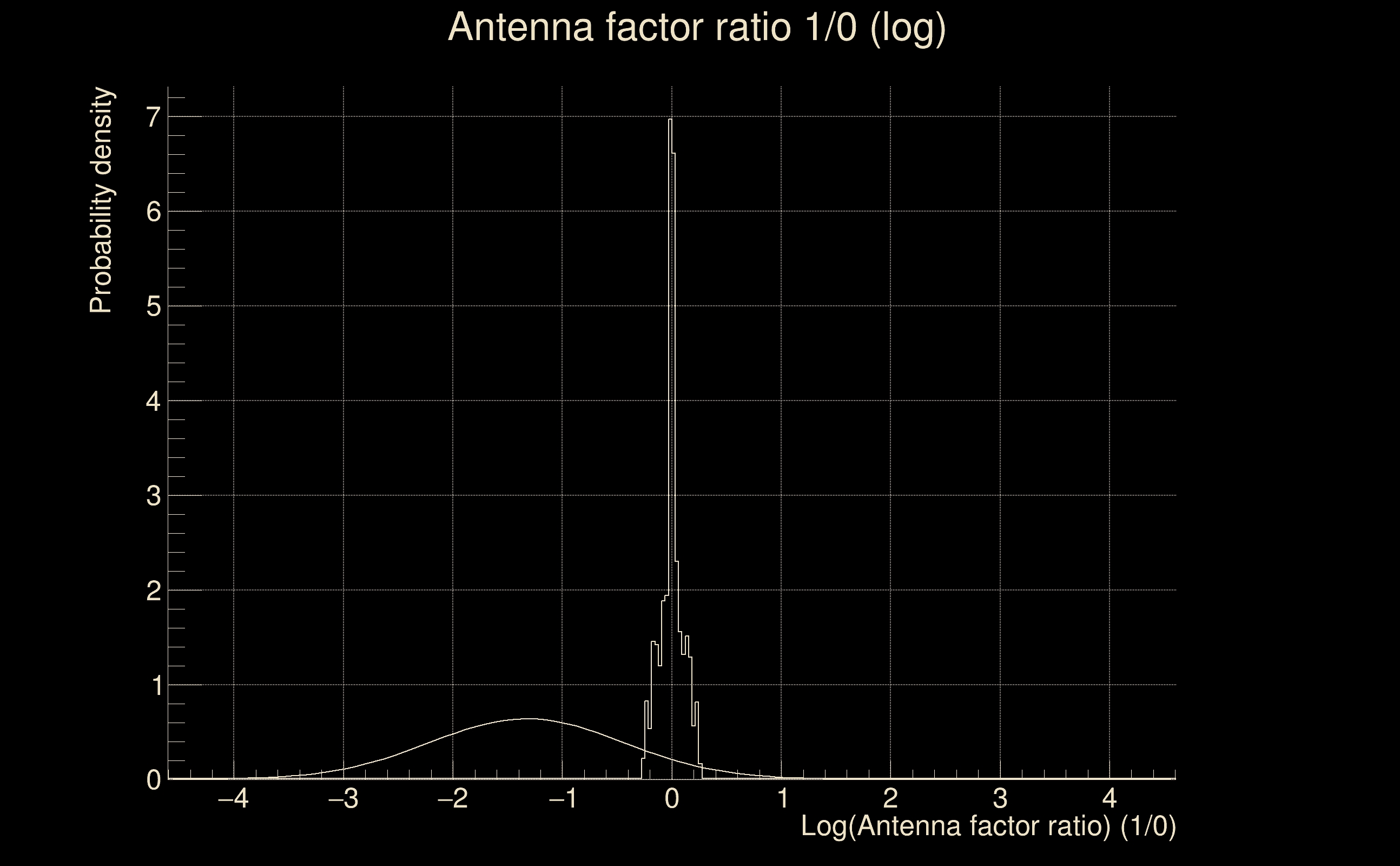

| Amplitude ratio (L1/H1): | 0.274701 ⋇ 1.83686 (L1/H1: 0.235236 ⋇ 2.00978, H1/L1: 1.3866 ⋇ 1.9124) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.239616 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 18 / 36, Q2: 54 / 70, Q3: 99 / 134, Q4: 220 / 258 |
| Maximum signal-to-noise ratio: | H1: 50.4513, L1: 20.2234 |
| SNR variance: | H1: 1.50318, L1: 0.653491 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378697143 (Thu Sep 14 03:25:25 2023 ) → GPS = 1378697153 (Thu Sep 14 03:25:35 2023 ) |
| Event time t(L1): | GPS = 1378697173 (Thu Sep 14 03:25:35 2023 ) → GPS = 1378697183 (Thu Sep 14 03:26:05 2023 ) |

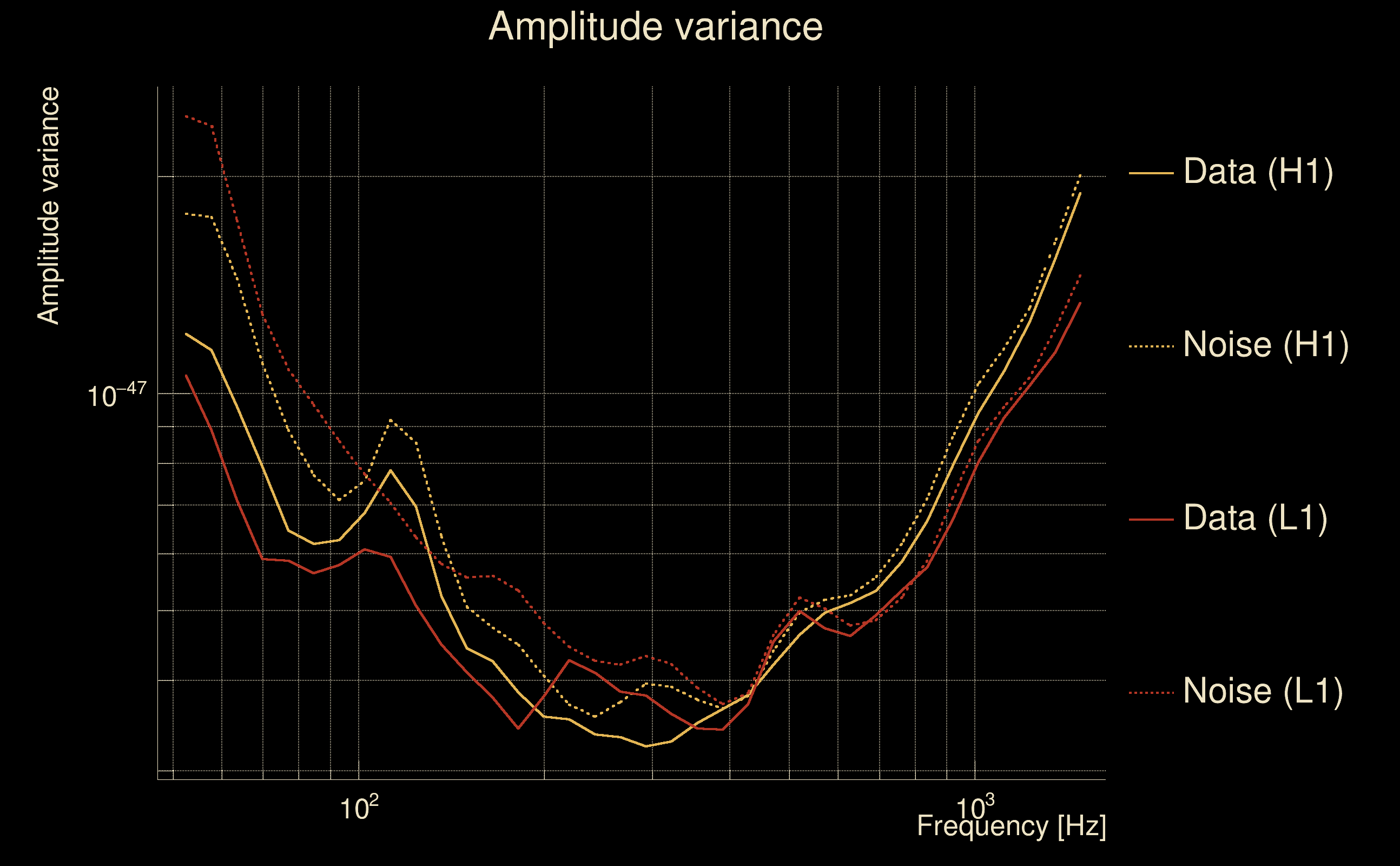

| Omicron analysis time window (H1): | GPS = 1378697140 → GPS = 1378697156 |
| Omicron analysis time window (L1): | GPS = 1378697170 → GPS = 1378697186 |
| Time delay between detectors t(L1) - t(H1): | 29.2175 s (slice index = 125 / 217), δt_gw = -0.000524885 s |
| Time delay uncertainty: | 9.46731e-05 s |
| Frequency: | 124.83 Hz |
| Ξ: | 0.301148 ± 0.0151675 (variance = 0.000230054): Q0: 0.685097, Q1: 0.656873, Q2: 0.651733, Q3: 0.690508, Q4: 0.671565 |
| Rank: | R_A = 0.0669109 |
| Log of amplitude ratio (L1/H1): | -1.33974, variance = 0.384419 (L1/H1: -1.50746, variance = 0.505163, H1/L1: 0.29378, variance = 0.483311) |
| Amplitude ratio (L1/H1): | 0.261915 ⋇ 1.85896 (L1/H1: 0.221472 ⋇ 2.03551, H1/L1: 1.34149 ⋇ 2.00412) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.222186 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 17 / 36, Q2: 52 / 70, Q3: 98 / 134, Q4: 221 / 258 |
| Maximum signal-to-noise ratio: | H1: 50.7325, L1: 20.3154 |
| SNR variance: | H1: 0.540826, L1: 0.521738 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378895274 (Sat Sep 16 10:27:36 2023 ) → GPS = 1378895284 (Sat Sep 16 10:27:46 2023 ) |
| Event time t(L1): | GPS = 1378895324 (Sat Sep 16 10:27:46 2023 ) → GPS = 1378895334 (Sat Sep 16 10:28:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378895271 → GPS = 1378895287 |
| Omicron analysis time window (L1): | GPS = 1378895321 → GPS = 1378895337 |
| Time delay between detectors t(L1) - t(H1): | 49.6772 s (slice index = 115 / 217), δt_gw = -0.000842682 s |
| Time delay uncertainty: | 6.36656e-05 s |
| Frequency: | 137.286 Hz |
| Ξ: | 0.0753721 ± 0.0721515 (variance = 0.00520584): Q0: 0.134777, Q1: 0.231417, Q2: 0.339447, Q3: 0.262263, Q4: 0.16686 |
| Rank: | R_A = 0.0591692 |
| Log of amplitude ratio (L1/H1): | 0.0722708, variance = 0.318102 (L1/H1: -0.0720144, variance = 0.760133, H1/L1: -0.23187, variance = 0.48099) |
| Amplitude ratio (L1/H1): | 1.07495 ⋇ 1.7577 (L1/H1: 0.930517 ⋇ 2.39134, H1/L1: 0.793049 ⋇ 2.00077) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.785028 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 19 / 36, Q2: 58 / 70, Q3: 123 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.45158, L1: 5.18344 |
| SNR variance: | H1: 0.523861, L1: 0.539321 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378696644 (Thu Sep 14 03:17:06 2023 ) → GPS = 1378696654 (Thu Sep 14 03:17:16 2023 ) |
| Event time t(L1): | GPS = 1378696604 (Thu Sep 14 03:17:16 2023 ) → GPS = 1378696614 (Thu Sep 14 03:16:36 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378696641 → GPS = 1378696657 |
| Omicron analysis time window (L1): | GPS = 1378696601 → GPS = 1378696617 |
| Time delay between detectors t(L1) - t(H1): | -35.3074 s (slice index = 6 / 217), δt_gw = 0.000626956 s |
| Time delay uncertainty: | 0.000114911 s |
| Frequency: | 105.891 Hz |
| Ξ: | 0.0841956 ± 0.0557898 (variance = 0.0031125): Q0: 0.13917, Q1: 0.234434, Q2: 0.170591, Q3: 0.0614242, Q4: 0.159644 |
| Rank: | R_A = 0.0589177 |
| Log of amplitude ratio (L1/H1): | 0.23453, variance = 0.440201 (L1/H1: -0.0343321, variance = 0.762418, H1/L1: -0.472861, variance = 0.967436) |
| Amplitude ratio (L1/H1): | 1.26431 ⋇ 1.94153 (L1/H1: 0.966251 ⋇ 2.39448, H1/L1: 0.623217 ⋇ 2.67402) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.699772 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 4 / 18, Q1: 21 / 36, Q2: 58 / 70, Q3: 129 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.18532, L1: 5.50745 |
| SNR variance: | H1: 0.512349, L1: 0.54628 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377852780 (Mon Sep 4 08:52:42 2023 ) → GPS = 1377852790 (Mon Sep 4 08:52:52 2023 ) |
| Event time t(L1): | GPS = 1377852780 (Mon Sep 4 08:52:52 2023 ) → GPS = 1377852790 (Mon Sep 4 08:52:52 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377852777 → GPS = 1377852793 |
| Omicron analysis time window (L1): | GPS = 1377852777 → GPS = 1377852793 |
| Time delay between detectors t(L1) - t(H1): | -1.28757 s (slice index = 136 / 217), δt_gw = 0.000428082 s |
| Time delay uncertainty: | 0.000103631 s |
| Frequency: | 94.1459 Hz |
| Ξ: | 0.0687479 ± 0.0963217 (variance = 0.00927787): Q0: 0.210719, Q1: 0.282215, Q2: 0.245212, Q3: 0.0673374, Q4: 0.0437349 |
| Rank: | R_A = 0.0586269 |
| Log of amplitude ratio (L1/H1): | 0.147305, variance = 0.656048 (L1/H1: -0.0341505, variance = 1.53099, H1/L1: -0.269287, variance = 1.1427) |
| Amplitude ratio (L1/H1): | 1.15871 ⋇ 2.24784 (L1/H1: 0.966426 ⋇ 3.4464, H1/L1: 0.763924 ⋇ 2.91238) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.85278 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 28 / 36, Q2: 60 / 70, Q3: 123 / 134, Q4: 252 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.30695, L1: 6.47264 |
| SNR variance: | H1: 0.544993, L1: 0.527522 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378696649 (Thu Sep 14 03:17:11 2023 ) → GPS = 1378696659 (Thu Sep 14 03:17:21 2023 ) |
| Event time t(L1): | GPS = 1378696659 (Thu Sep 14 03:17:21 2023 ) → GPS = 1378696669 (Thu Sep 14 03:17:31 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378696646 → GPS = 1378696662 |
| Omicron analysis time window (L1): | GPS = 1378696656 → GPS = 1378696672 |
| Time delay between detectors t(L1) - t(H1): | 11.4724 s (slice index = 76 / 217), δt_gw = 0.000365422 s |
| Time delay uncertainty: | 0.000168696 s |
| Frequency: | 93.2278 Hz |
| Ξ: | 0.0839288 ± 0.0921375 (variance = 0.00848933): Q0: 0.292541, Q1: 0.293674, Q2: 0.19622, Q3: 0.11249, Q4: 0.0668541 |
| Rank: | R_A = 0.0585069 |
| Log of amplitude ratio (L1/H1): | -0.00657558, variance = 0.617392 (L1/H1: -0.357092, variance = 0.689147, H1/L1: -0.190221, variance = 1.28804) |
| Amplitude ratio (L1/H1): | 0.993446 ⋇ 2.19404 (L1/H1: 0.699708 ⋇ 2.29366, H1/L1: 0.826777 ⋇ 3.11092) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.697102 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 25 / 36, Q2: 64 / 70, Q3: 121 / 134, Q4: 248 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.15012, L1: 6.87327 |
| SNR variance: | H1: 0.53396, L1: 0.543216 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377708769 (Sat Sep 2 16:52:31 2023 ) → GPS = 1377708779 (Sat Sep 2 16:52:41 2023 ) |
| Event time t(L1): | GPS = 1377708769 (Sat Sep 2 16:52:41 2023 ) → GPS = 1377708779 (Sat Sep 2 16:52:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377708766 → GPS = 1377708782 |
| Omicron analysis time window (L1): | GPS = 1377708766 → GPS = 1377708782 |
| Time delay between detectors t(L1) - t(H1): | 4.92545 s (slice index = 1 / 217), δt_gw = 0.00345473 s |
| Time delay uncertainty: | 0.000268798 s |
| Frequency: | 107.19 Hz |
| Ξ: | 0.0580876 ± 0.0398977 (variance = 0.00159183): Q0: 0.177314, Q1: 0.216583, Q2: 0.198801, Q3: 0.123891, Q4: 0.116749 |
| Rank: | R_A = 0.0575268 |
| Log of amplitude ratio (L1/H1): | 0.28413, variance = 0.498599 (L1/H1: 0.293459, variance = 1.23102, H1/L1: -0.27627, variance = 0.818851) |
| Amplitude ratio (L1/H1): | 1.32861 ⋇ 2.0261 (L1/H1: 1.34106 ⋇ 3.03288, H1/L1: 0.758608 ⋇ 2.47169) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.990421 |
| Antenna factor probability: | 0.999925 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 26 / 36, Q2: 64 / 70, Q3: 130 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.58361, L1: 6.08301 |
| SNR variance: | H1: 0.509736, L1: 0.548832 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378079564 (Wed Sep 6 23:52:26 2023 ) → GPS = 1378079574 (Wed Sep 6 23:52:36 2023 ) |
| Event time t(L1): | GPS = 1378079534 (Wed Sep 6 23:52:36 2023 ) → GPS = 1378079544 (Wed Sep 6 23:52:06 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378079561 → GPS = 1378079577 |
| Omicron analysis time window (L1): | GPS = 1378079531 → GPS = 1378079547 |
| Time delay between detectors t(L1) - t(H1): | -26.0929 s (slice index = 23 / 217), δt_gw = -0.00286945 s |
| Time delay uncertainty: | 0.000155635 s |
| Frequency: | 155.695 Hz |
| Ξ: | 0.0699729 ± 0.0778467 (variance = 0.00606011): Q0: 0.297142, Q1: 0.236013, Q2: 0.274347, Q3: 0.195605, Q4: 0.0763729 |
| Rank: | R_A = 0.0558044 |
| Log of amplitude ratio (L1/H1): | 0.0967899, variance = 0.61646 (L1/H1: -0.181738, variance = 0.995609, H1/L1: -0.160838, variance = 0.879924) |
| Amplitude ratio (L1/H1): | 1.10163 ⋇ 2.19274 (L1/H1: 0.83382 ⋇ 2.71231, H1/L1: 0.85143 ⋇ 2.55498) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.802474 |
| Antenna factor probability: | 0.99382 |
| Number of rejected frequency rows: | Q0: 13 / 18, Q1: 24 / 36, Q2: 59 / 70, Q3: 114 / 134, Q4: 241 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.11975, L1: 10.6765 |
| SNR variance: | H1: 0.52124, L1: 0.512333 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1377754518 (Sun Sep 3 05:35:00 2023 ) → GPS = 1377754528 (Sun Sep 3 05:35:10 2023 ) |
| Event time t(L1): | GPS = 1377754498 (Sun Sep 3 05:35:10 2023 ) → GPS = 1377754508 (Sun Sep 3 05:34:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1377754515 → GPS = 1377754531 |
| Omicron analysis time window (L1): | GPS = 1377754495 → GPS = 1377754511 |
| Time delay between detectors t(L1) - t(H1): | -23.2127 s (slice index = 178 / 217), δt_gw = 0.00734686 s |
| Time delay uncertainty: | 0.000116028 s |
| Frequency: | 99.0253 Hz |
| Ξ: | 0.063941 ± 0.0679092 (variance = 0.00461166): Q0: 0.171542, Q1: 0.20833, Q2: 0.0337577, Q3: 0.0781841, Q4: 0.0573017 |
| Rank: | R_A = 0.0551751 |
| Log of amplitude ratio (L1/H1): | 0.0538047, variance = 0.735961 (L1/H1: 0.210828, variance = 1.86451, H1/L1: 0.0886079, variance = 1.14262) |
| Amplitude ratio (L1/H1): | 1.05528 ⋇ 2.35816 (L1/H1: 1.2347 ⋇ 3.91757, H1/L1: 1.09265 ⋇ 2.91227) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.862908 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 26 / 36, Q2: 65 / 70, Q3: 128 / 134, Q4: 253 / 258 |
| Maximum signal-to-noise ratio: | H1: 4.87417, L1: 5.11809 |
| SNR variance: | H1: 0.547033, L1: 0.515174 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378379438 (Sun Sep 10 11:10:20 2023 ) → GPS = 1378379448 (Sun Sep 10 11:10:30 2023 ) |
| Event time t(L1): | GPS = 1378379448 (Sun Sep 10 11:10:30 2023 ) → GPS = 1378379458 (Sun Sep 10 11:10:40 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378379435 → GPS = 1378379451 |
| Omicron analysis time window (L1): | GPS = 1378379445 → GPS = 1378379461 |
| Time delay between detectors t(L1) - t(H1): | 6.63489 s (slice index = 181 / 217), δt_gw = -0.00711453 s |
| Time delay uncertainty: | 0.000102945 s |
| Frequency: | 398.763 Hz |
| Ξ: | 0.127669 ± 0.0600549 (variance = 0.00360659): Q0: 0.322752, Q1: 0.289716, Q2: 0.220979, Q3: 0.167978, Q4: 0.183335 |
| Rank: | R_A = 0.0528411 |
| Log of amplitude ratio (L1/H1): | 0.237956, variance = 0.740964 (L1/H1: -0.658346, variance = 1.75192, H1/L1: -0.759922, variance = 1.26112) |
| Amplitude ratio (L1/H1): | 1.26865 ⋇ 2.36503 (L1/H1: 0.517707 ⋇ 3.75692, H1/L1: 0.467703 ⋇ 3.07405) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.413892 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 8 / 18, Q1: 23 / 36, Q2: 52 / 70, Q3: 114 / 134, Q4: 242 / 258 |
| Maximum signal-to-noise ratio: | H1: 9.27552, L1: 12.1547 |
| SNR variance: | H1: 0.527465, L1: 0.55579 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378401219 (Sun Sep 10 17:13:21 2023 ) → GPS = 1378401229 (Sun Sep 10 17:13:31 2023 ) |
| Event time t(L1): | GPS = 1378401169 (Sun Sep 10 17:13:31 2023 ) → GPS = 1378401179 (Sun Sep 10 17:12:41 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378401216 → GPS = 1378401232 |
| Omicron analysis time window (L1): | GPS = 1378401166 → GPS = 1378401182 |
| Time delay between detectors t(L1) - t(H1): | -45.2632 s (slice index = 5 / 217), δt_gw = -0.00124025 s |
| Time delay uncertainty: | 0.000164445 s |
| Frequency: | 137.126 Hz |
| Ξ: | 0.0541713 ± 0.0453418 (variance = 0.00205588): Q0: 0.174666, Q1: 0.0835183, Q2: 0.0645548, Q3: 0.0797939, Q4: 0.0417938 |
| Rank: | R_A = 0.0527739 |
| Log of amplitude ratio (L1/H1): | 0.0537317, variance = 0.386921 (L1/H1: 0.0330864, variance = 0.922516, H1/L1: -0.0734695, variance = 0.637201) |
| Amplitude ratio (L1/H1): | 1.0552 ⋇ 1.8627 (L1/H1: 1.03364 ⋇ 2.61294, H1/L1: 0.929164 ⋇ 2.22165) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.974205 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 9 / 18, Q1: 23 / 36, Q2: 59 / 70, Q3: 120 / 134, Q4: 249 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.04416, L1: 5.15881 |
| SNR variance: | H1: 0.541077, L1: 0.529972 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378017408 (Wed Sep 6 06:36:30 2023 ) → GPS = 1378017418 (Wed Sep 6 06:36:40 2023 ) |
| Event time t(L1): | GPS = 1378017418 (Wed Sep 6 06:36:40 2023 ) → GPS = 1378017428 (Wed Sep 6 06:36:50 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378017405 → GPS = 1378017421 |
| Omicron analysis time window (L1): | GPS = 1378017415 → GPS = 1378017431 |
| Time delay between detectors t(L1) - t(H1): | 14.5529 s (slice index = 9 / 217), δt_gw = -0.00111794 s |
| Time delay uncertainty: | 0.000126713 s |
| Frequency: | 113.796 Hz |
| Ξ: | 0.0868237 ± 0.0960555 (variance = 0.00922667): Q0: 0.32121, Q1: 0.261942, Q2: 0.0919277, Q3: 0.103368, Q4: 0.103072 |
| Rank: | R_A = 0.0520705 |
| Log of amplitude ratio (L1/H1): | 0.0925291, variance = 0.60263 (L1/H1: -0.585494, variance = 1.84827, H1/L1: -0.274354, variance = 0.836264) |
| Amplitude ratio (L1/H1): | 1.09695 ⋇ 2.1734 (L1/H1: 0.556831 ⋇ 3.89428, H1/L1: 0.760063 ⋇ 2.49546) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.599727 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 11 / 18, Q1: 25 / 36, Q2: 59 / 70, Q3: 122 / 134, Q4: 244 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.54775, L1: 10.713 |
| SNR variance: | H1: 0.521179, L1: 0.537615 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Event time t(H1): | GPS = 1378149147 (Thu Sep 7 19:12:09 2023 ) → GPS = 1378149157 (Thu Sep 7 19:12:19 2023 ) |
| Event time t(L1): | GPS = 1378149147 (Thu Sep 7 19:12:19 2023 ) → GPS = 1378149157 (Thu Sep 7 19:12:19 2023 ) |
| Omicron analysis time window (H1): | GPS = 1378149144 → GPS = 1378149160 |
| Omicron analysis time window (L1): | GPS = 1378149144 → GPS = 1378149160 |
| Time delay between detectors t(L1) - t(H1): | 4.46121 s (slice index = 11 / 217), δt_gw = -0.000785218 s |
| Time delay uncertainty: | 9.25837e-05 s |
| Frequency: | 108.856 Hz |
| Ξ: | 0.0632274 ± 0.0501279 (variance = 0.00251281): Q0: 0.184434, Q1: 0.256546, Q2: 0.2094, Q3: 0.19639, Q4: 0.102321 |
| Rank: | R_A = 0.0519909 |
| Log of amplitude ratio (L1/H1): | -0.11226, variance = 0.451469 (L1/H1: -0.277059, variance = 0.782142, H1/L1: -0.0195884, variance = 0.96221) |
| Amplitude ratio (L1/H1): | 0.893812 ⋇ 1.95798 (L1/H1: 0.75801 ⋇ 2.4215, H1/L1: 0.980602 ⋇ 2.66692) |
| Amplitude ratio H1|L1 compatibility (probability): | 0.822285 |
| Antenna factor probability: | 1 |
| Number of rejected frequency rows: | Q0: 10 / 18, Q1: 27 / 36, Q2: 60 / 70, Q3: 124 / 134, Q4: 247 / 258 |
| Maximum signal-to-noise ratio: | H1: 5.29672, L1: 5.92172 |
| SNR variance: | H1: 0.521997, L1: 0.536967 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| florent.robinet@ijclab.in2p3.fr |
