| Omicron version: | 4.2.0: documentation gitlab repository |
| Omicron run by: | unknown |
| Report produced on: | Sat Jan 18 22:16:51 2025 UTC |
| Ox option file: | AF30percents_100125_options.txt |
| Omicron option files: | detector 0, detector 1 |
| Detector channel names: | H1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz, L1:GDS-CALIB_STRAIN_CLEAN_AR_4096Hz |
| Omicron analysis time window and overlap: | 16 s, 6 s |
| Number of Q planes: | 5 (Q = 5.51892 → Q = 72.478) |
| Omicron frequency range: | 16 Hz → 1958.38 Hz |
| Light travel time between detectors: | 0.0100128 s |
| Slice extra-time (calibration uncertainty + slice veto): | 0.0129872 s |
| Number of time-delay bins in a cross-correlation map: | 10000 |
| Number of slices in a cross-correlation map: | 217 |
| Number of time-delay bins in a slice: | 46 |
| SNR gating: | < 1000 (detector 0), < 1000 (detector 1) |
| Amplitude spectrograms: | normalization = 1e-22, power index = 2 |
| White noise SNR variance: | 0.523175 (after applying a correction factor = 1) |
| List of input Ox files: | AF30percents_100125_file_list.txt (1797 files) |
| Analysis result file: | AF30percents_100125_results_2.root |
| Slice selected for the the fakeground: | slice index=135 (-51.242 s), time lag = -30 s |
| Foreground | Fakeground | Background | ||
|---|---|---|---|---|

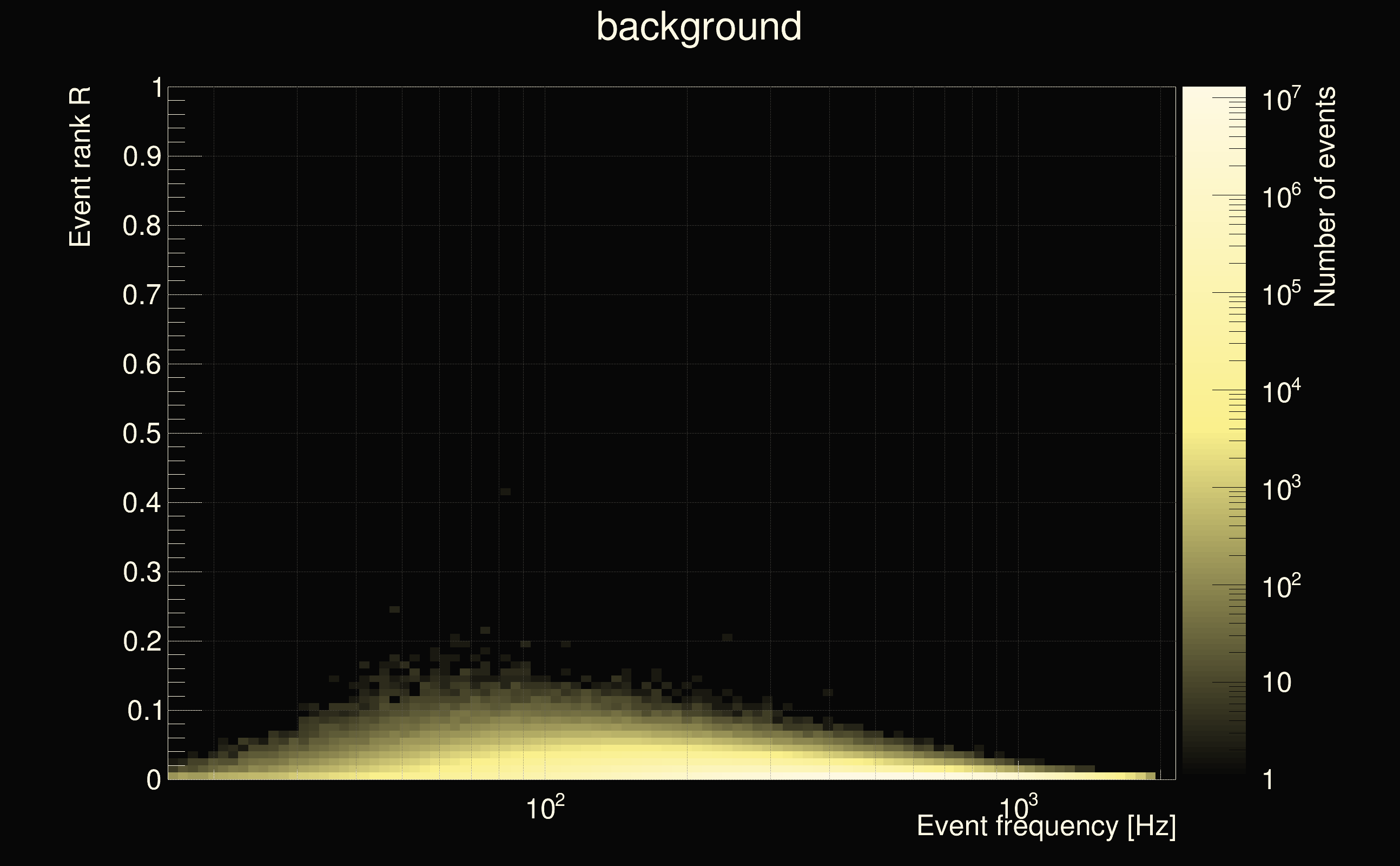

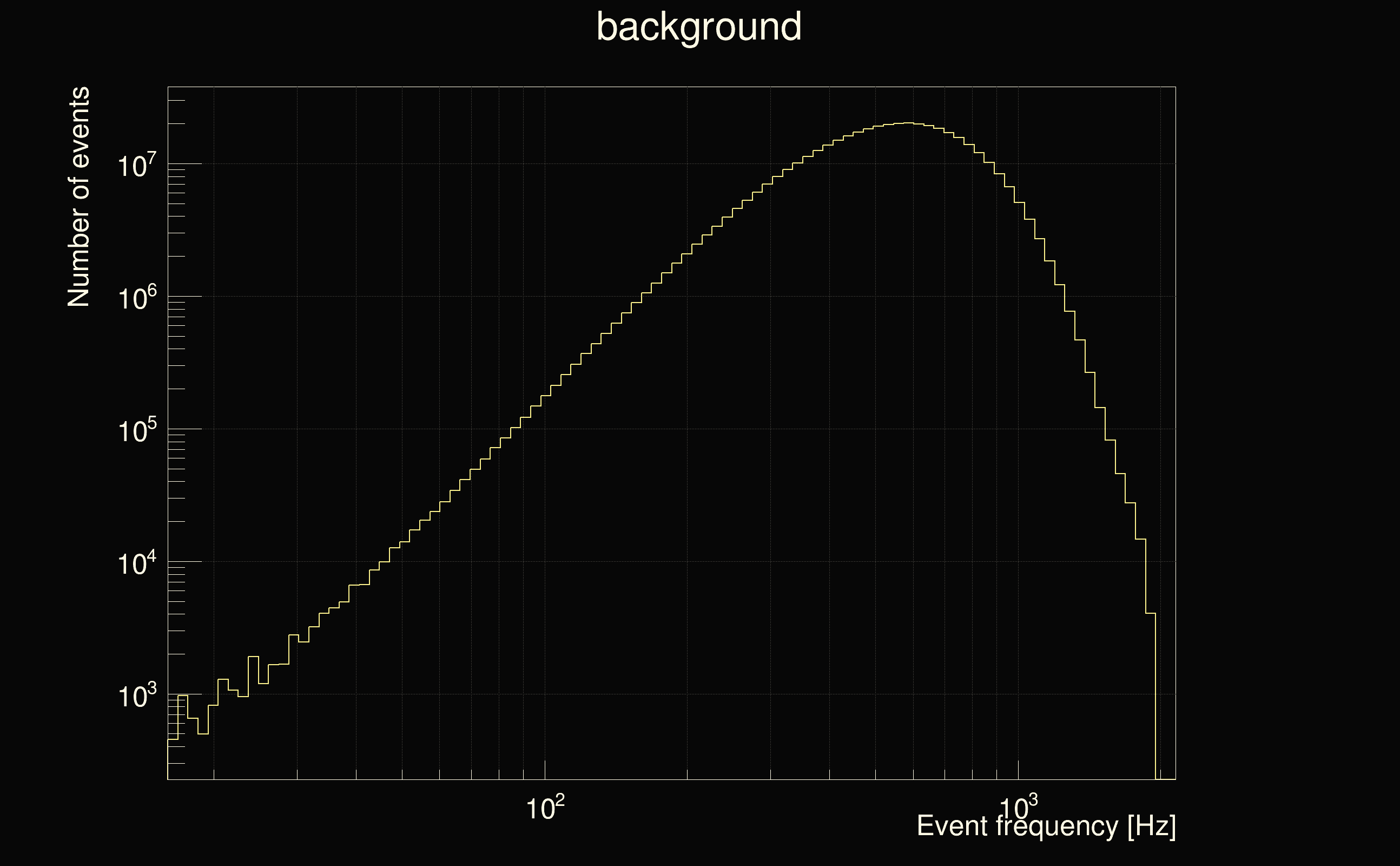

| Number of processed ox events | 175620 | 174795 | 417064709 | |
| Start Date (detector 0) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:55:24 2023 UTC | |
| End Date (detector 0) | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:46 2023 UTC | |
| Start GPS (detector 0) | 1377665712 | 1377665712 | 1377665742 | |
| End GPS (detector 0) | 1378944124 | 1378944124 | 1378944124 | |
| Used livetime (detector 0) | 878790 s | 874660 s | 878790 s | |
| Start Date (detector 1) | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | Sat Sep 2 04:54:54 2023 UTC | |
| End Date (detector 1) | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:46 2023 UTC | Sun Sep 17 00:01:16 2023 UTC | |
| Start GPS (detector 1) | 1377665712 | 1377665712 | 1377665712 | |
| End GPS (detector 1) | 1378944124 | 1378944124 | 1378944094 | |
| Used livetime (detector 1) | 878790 s | 874660 s | 878790 s | |
| Cumulative livetime | 1756200 s | 1747950 s | 4170647090 s | |
| 0 years, 20 days, 7 hours, 50 min, 0 s | 0 years, 20 days, 5 hours, 32 min, 30 s | 132 years, 58 days, 9 hours, 4 min, 50 s |
|

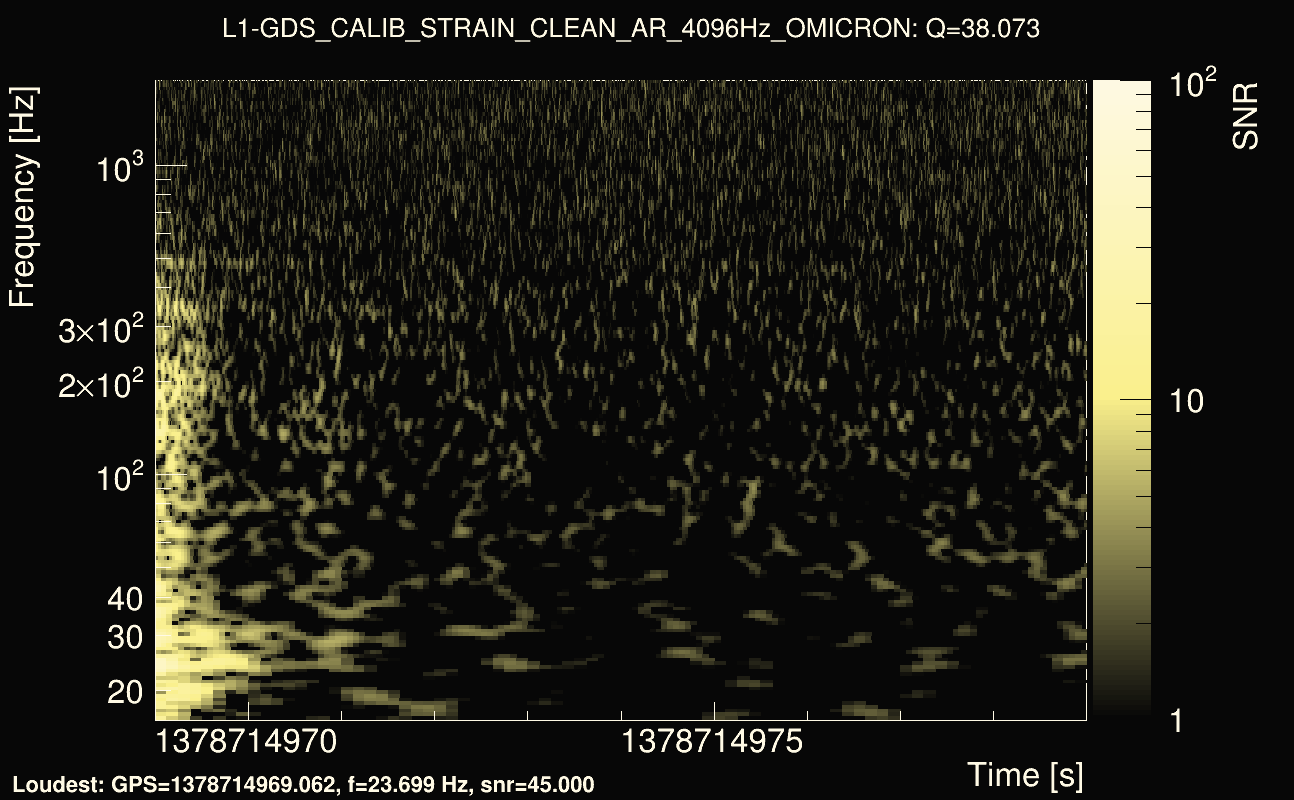

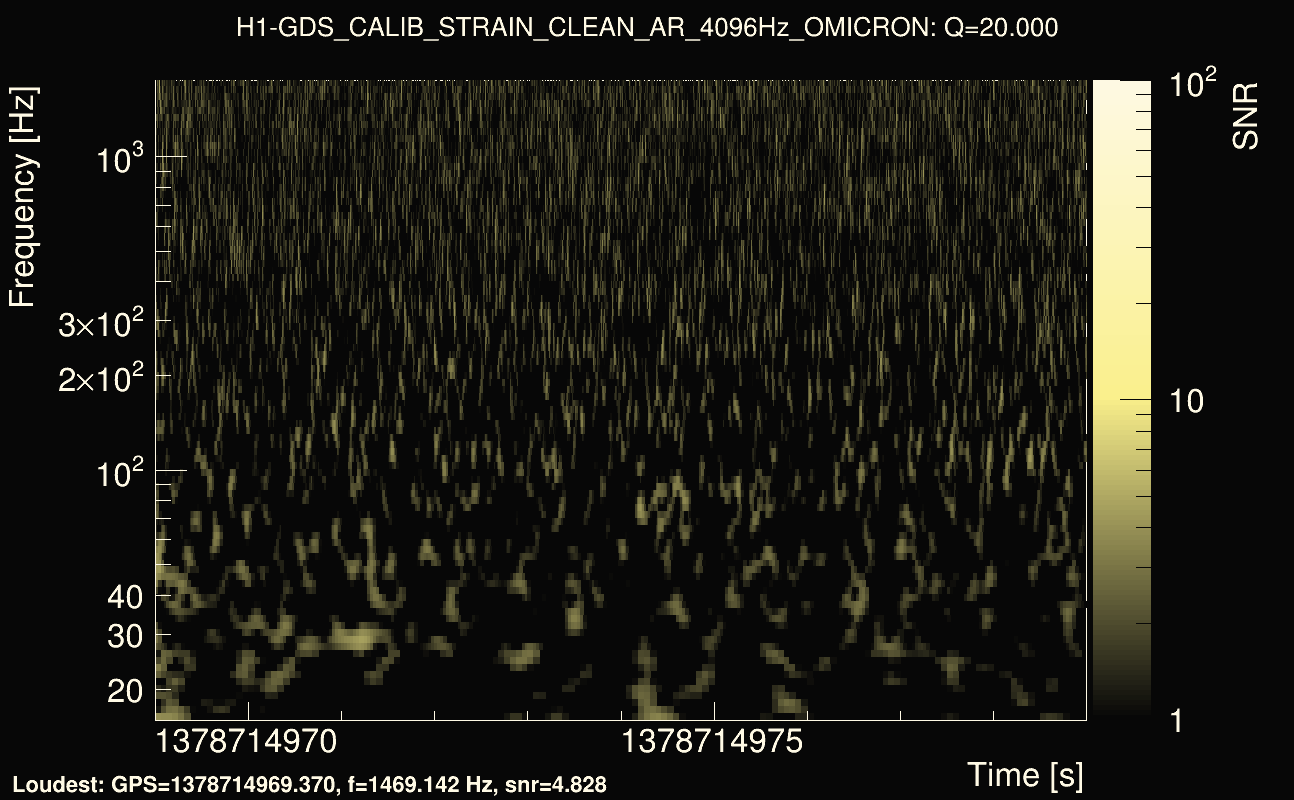

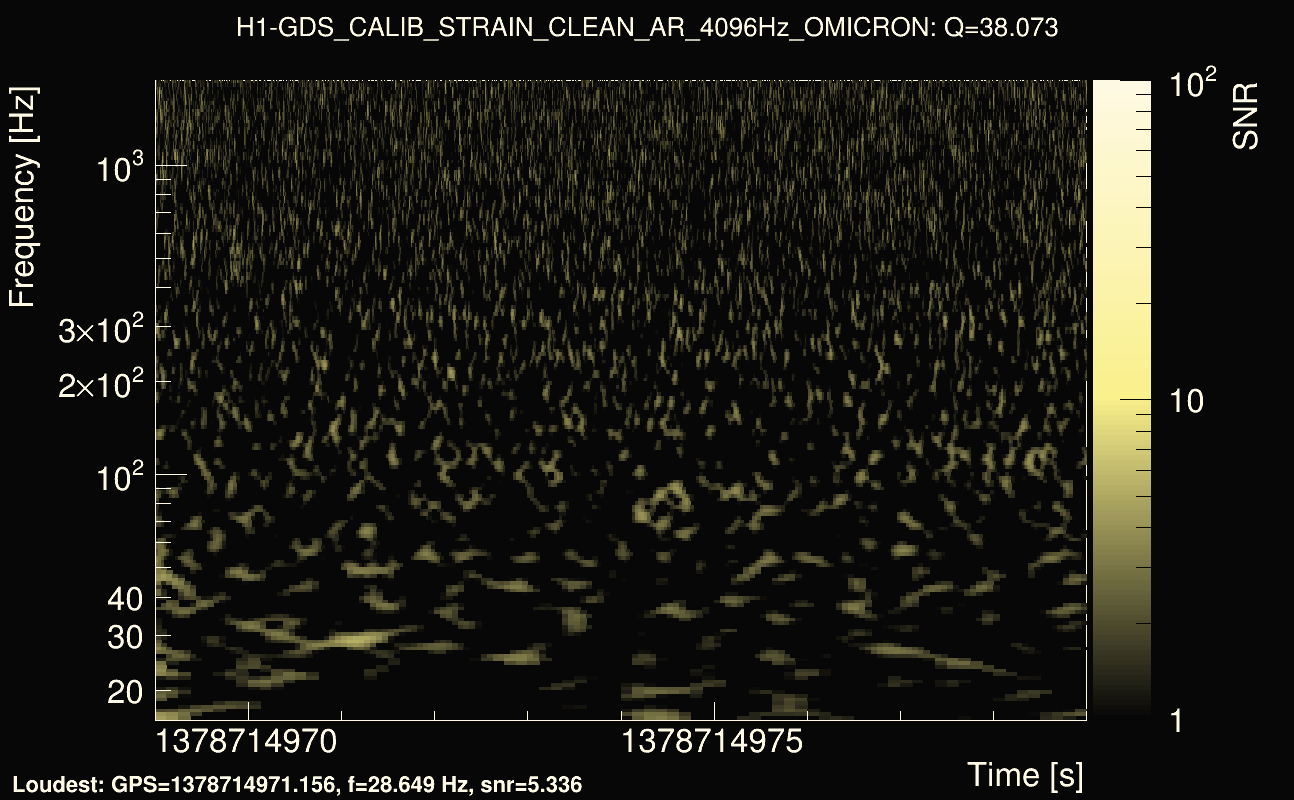

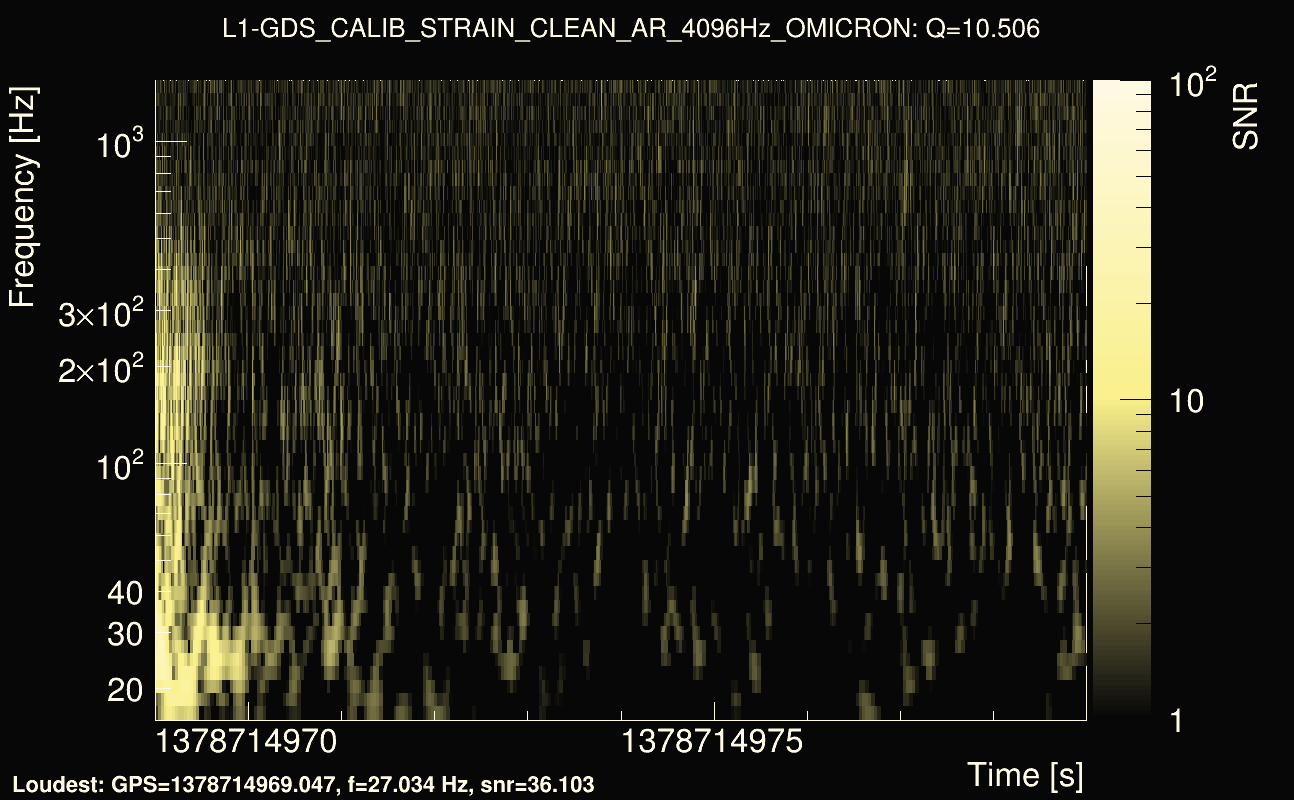

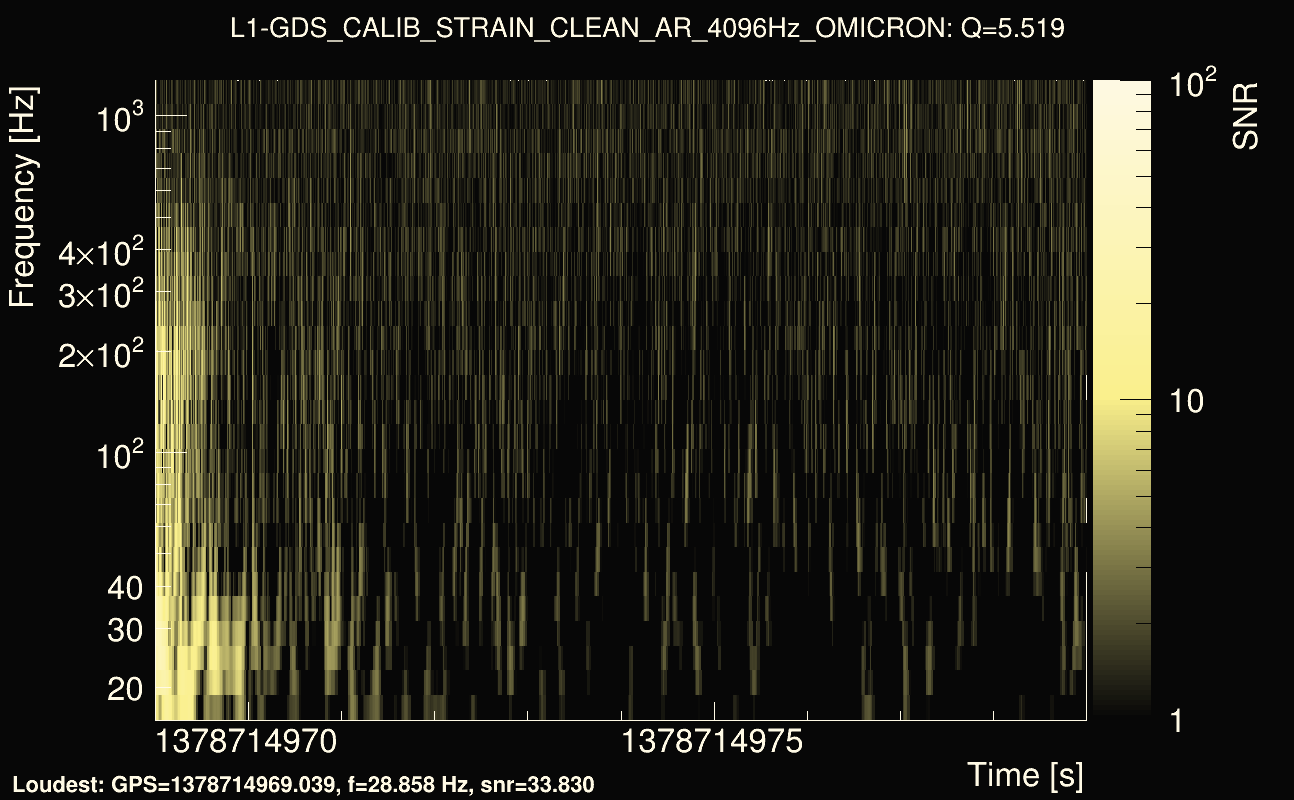

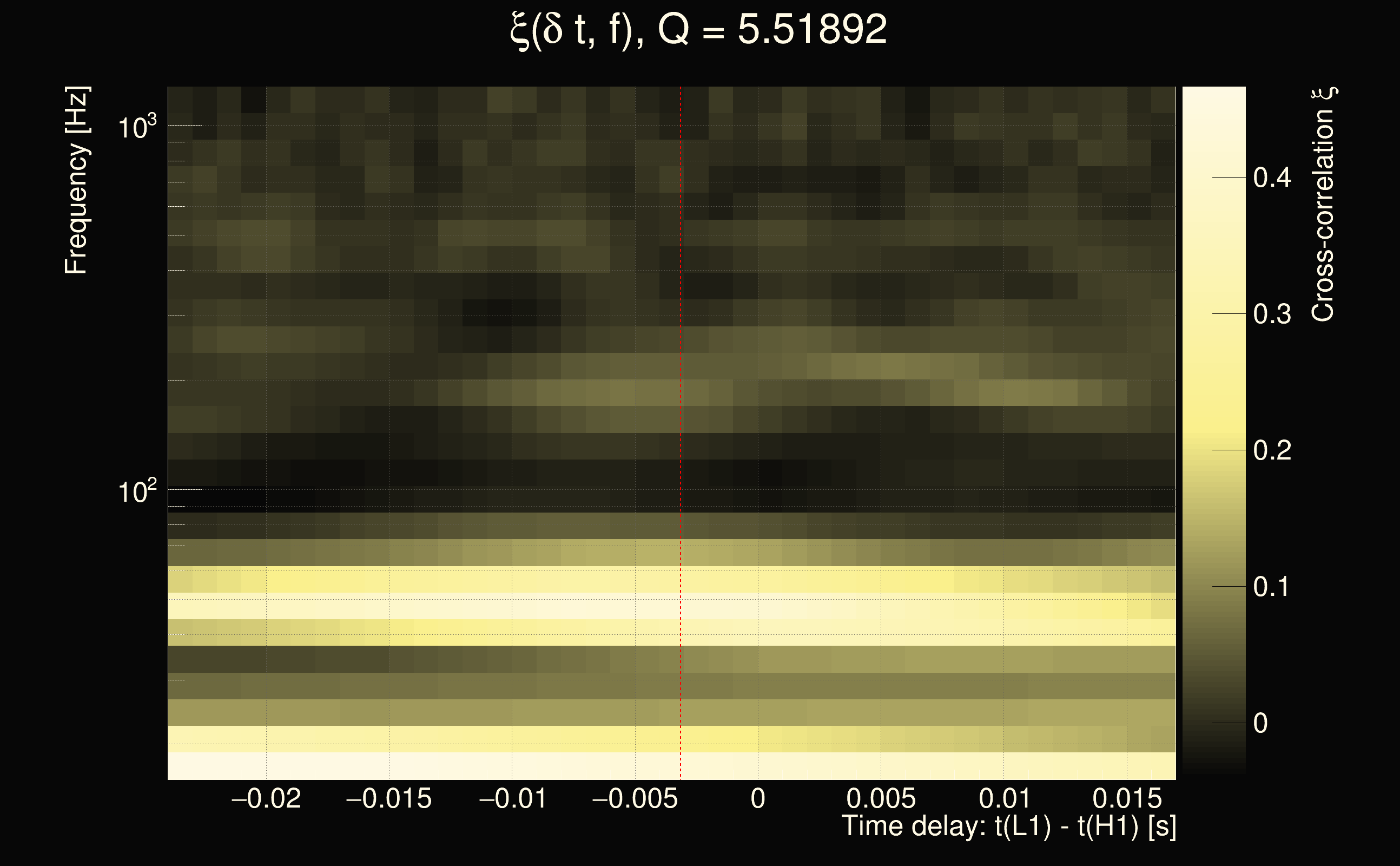

| Event time t(H1): | GPS = 1378714969 (Thu Sep 14 08:22:31 2023 ) → GPS = 1378714979 (Thu Sep 14 08:22:41 2023 ) |
| Event time t(L1): | GPS = 1378714969 (Thu Sep 14 08:22:41 2023 ) → GPS = 1378714979 (Thu Sep 14 08:22:41 2023 ) |

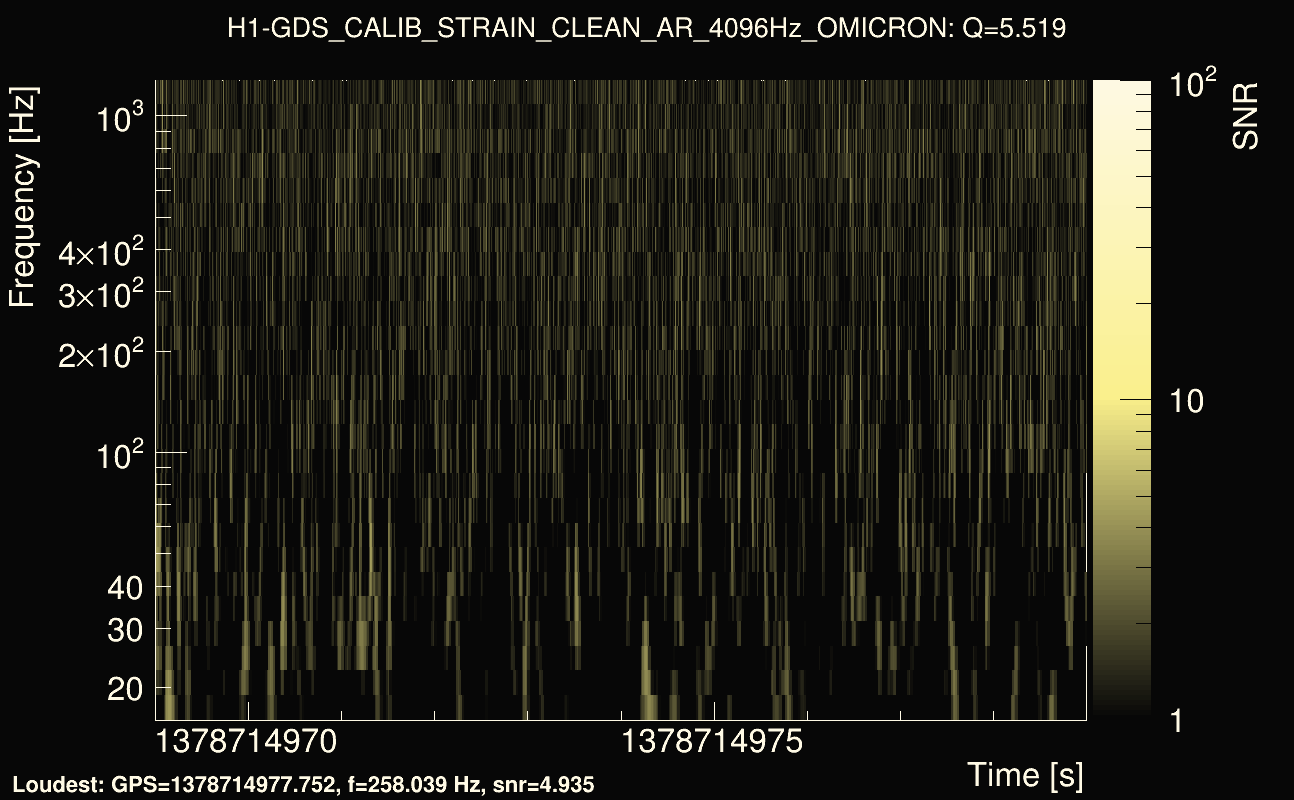

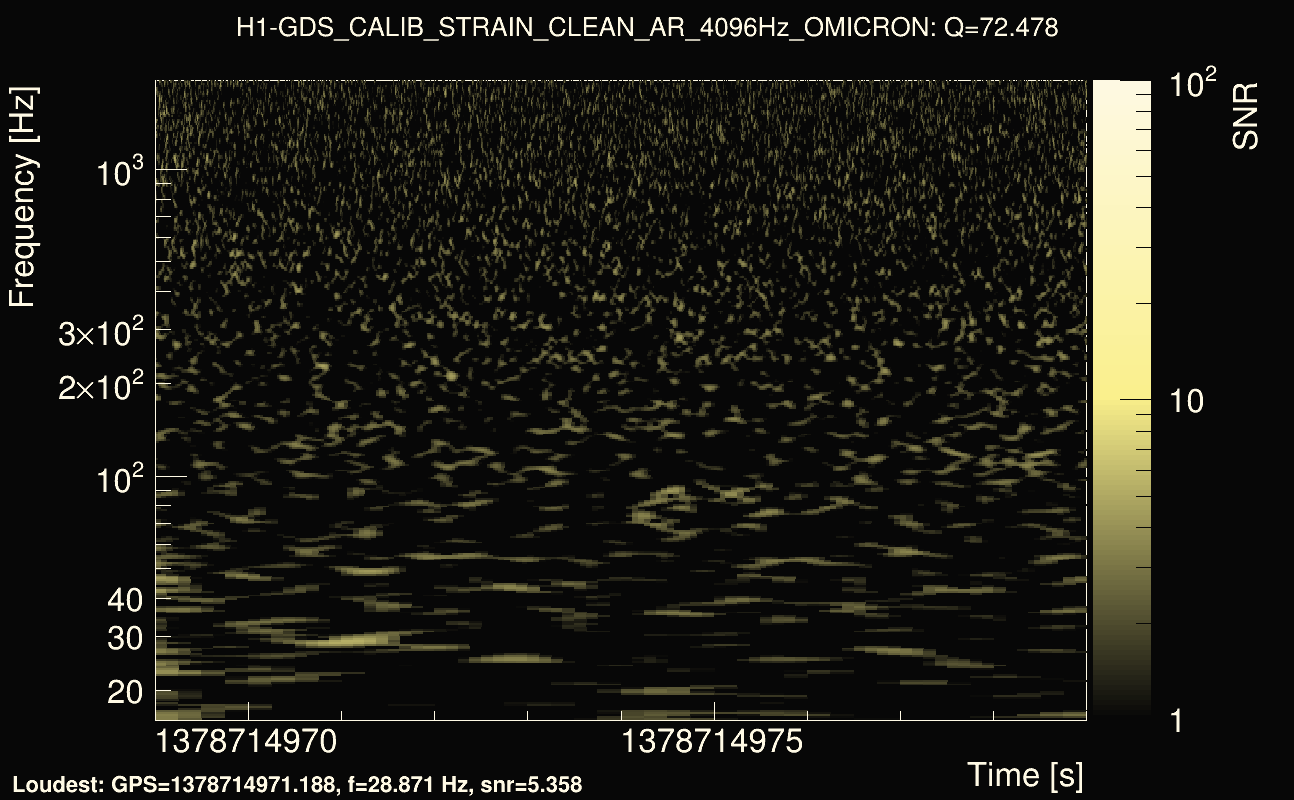

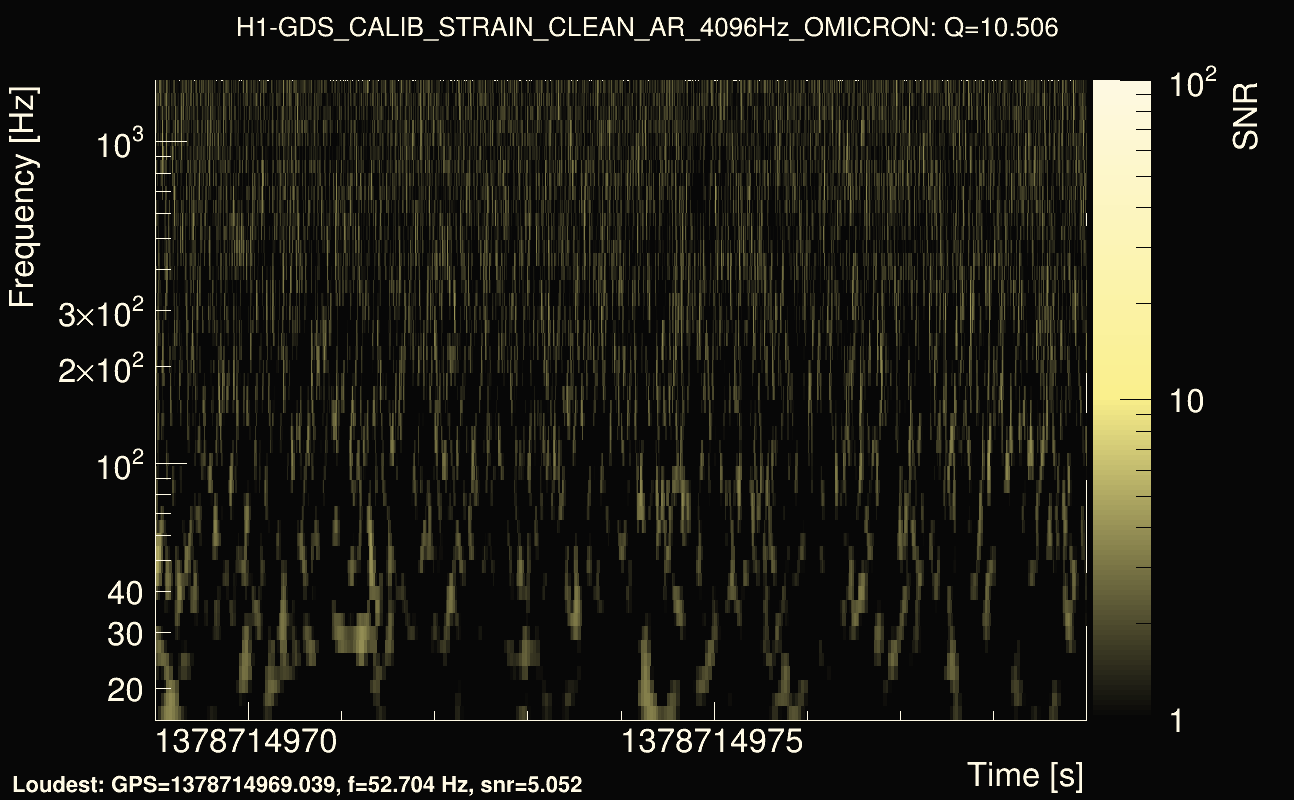

| Omicron analysis time window (H1): | GPS = 1378714966 → GPS = 1378714982 |

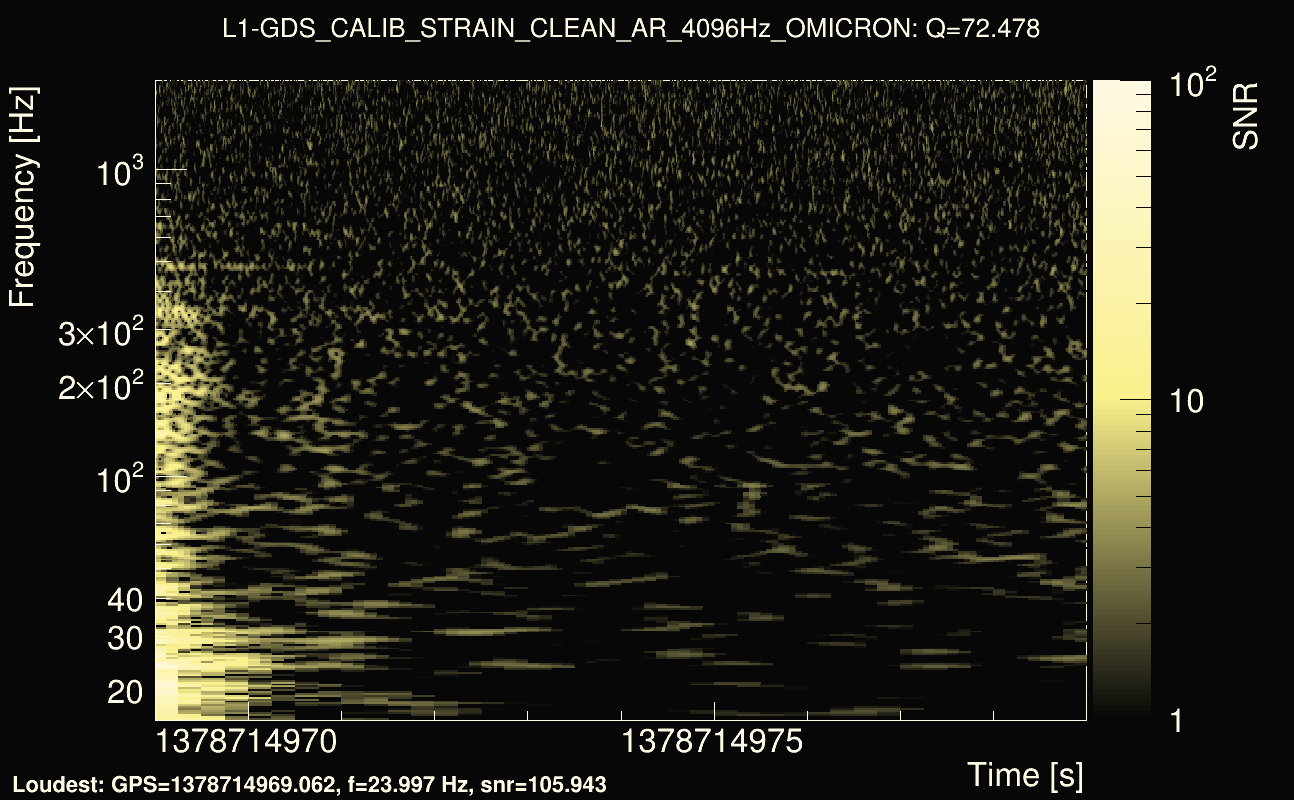

| Omicron analysis time window (L1): | GPS = 1378714966 → GPS = 1378714982 |

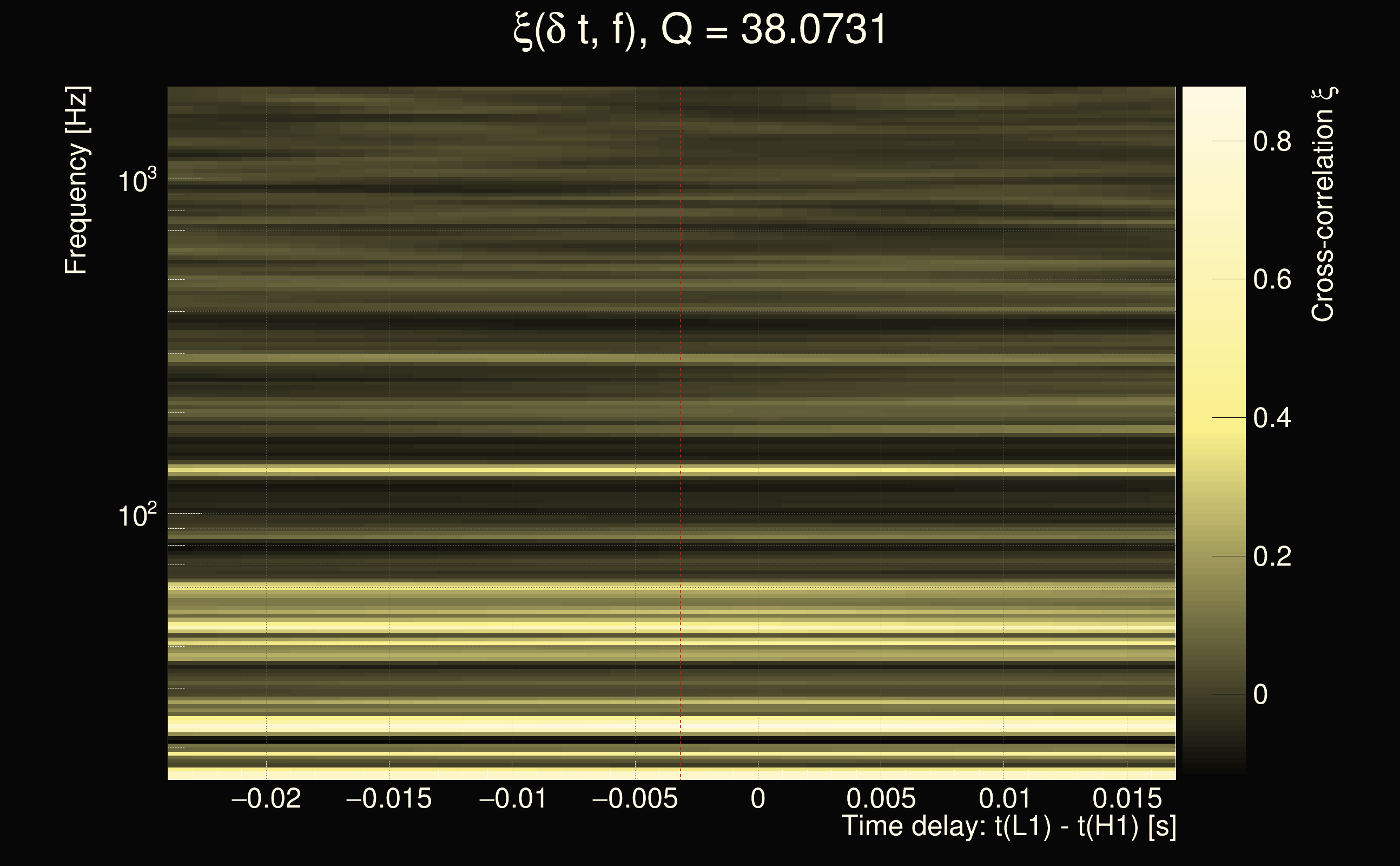

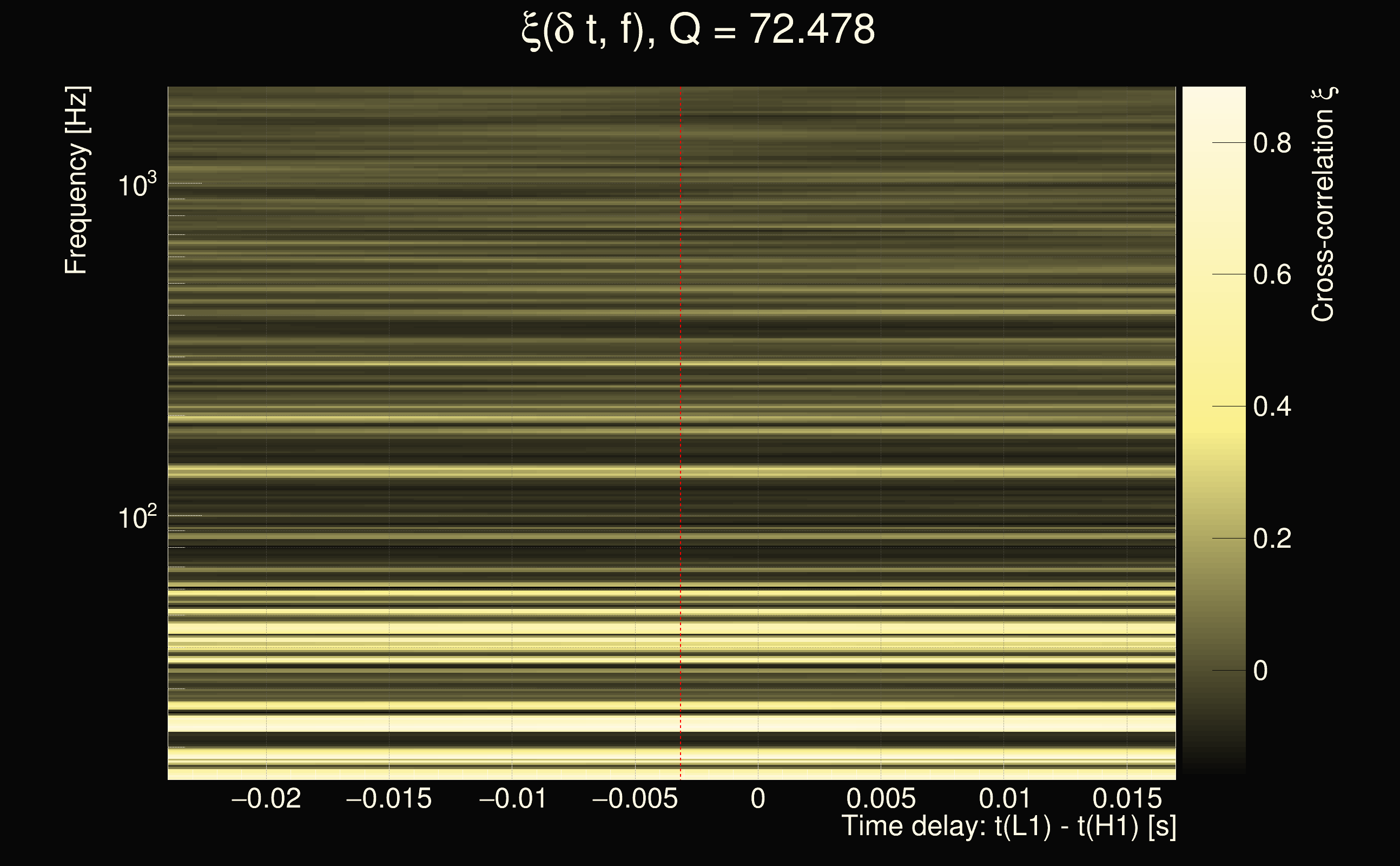

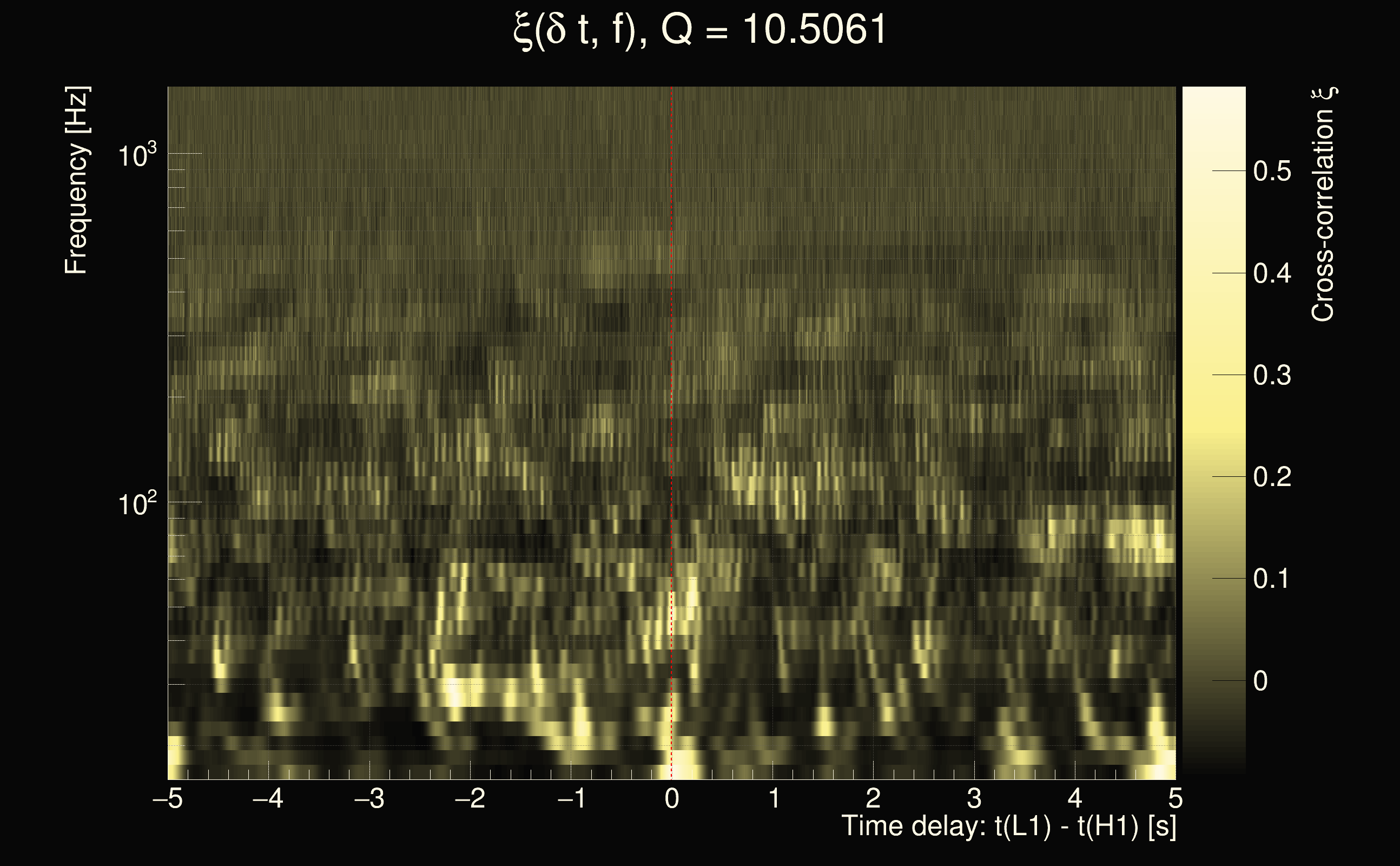

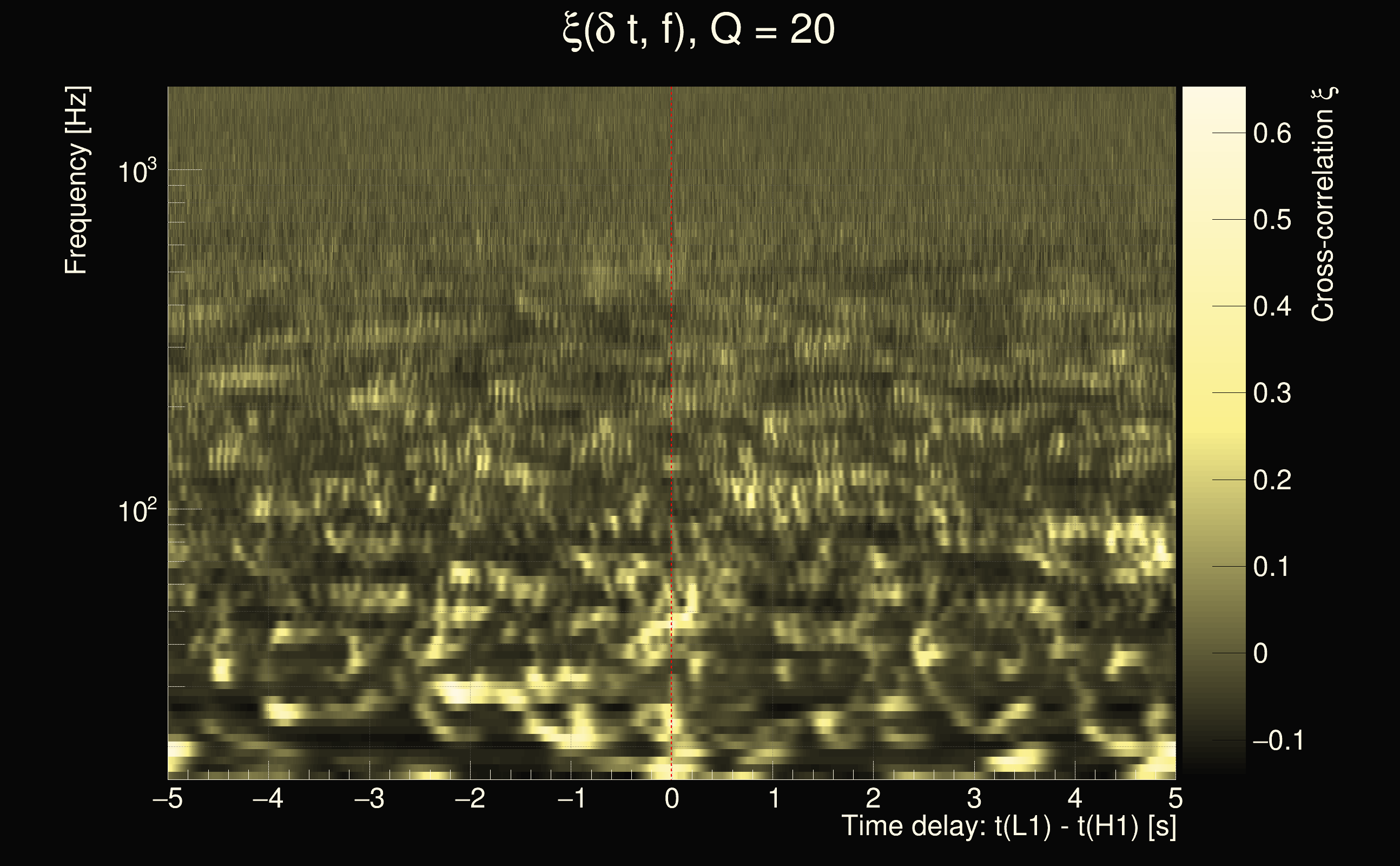

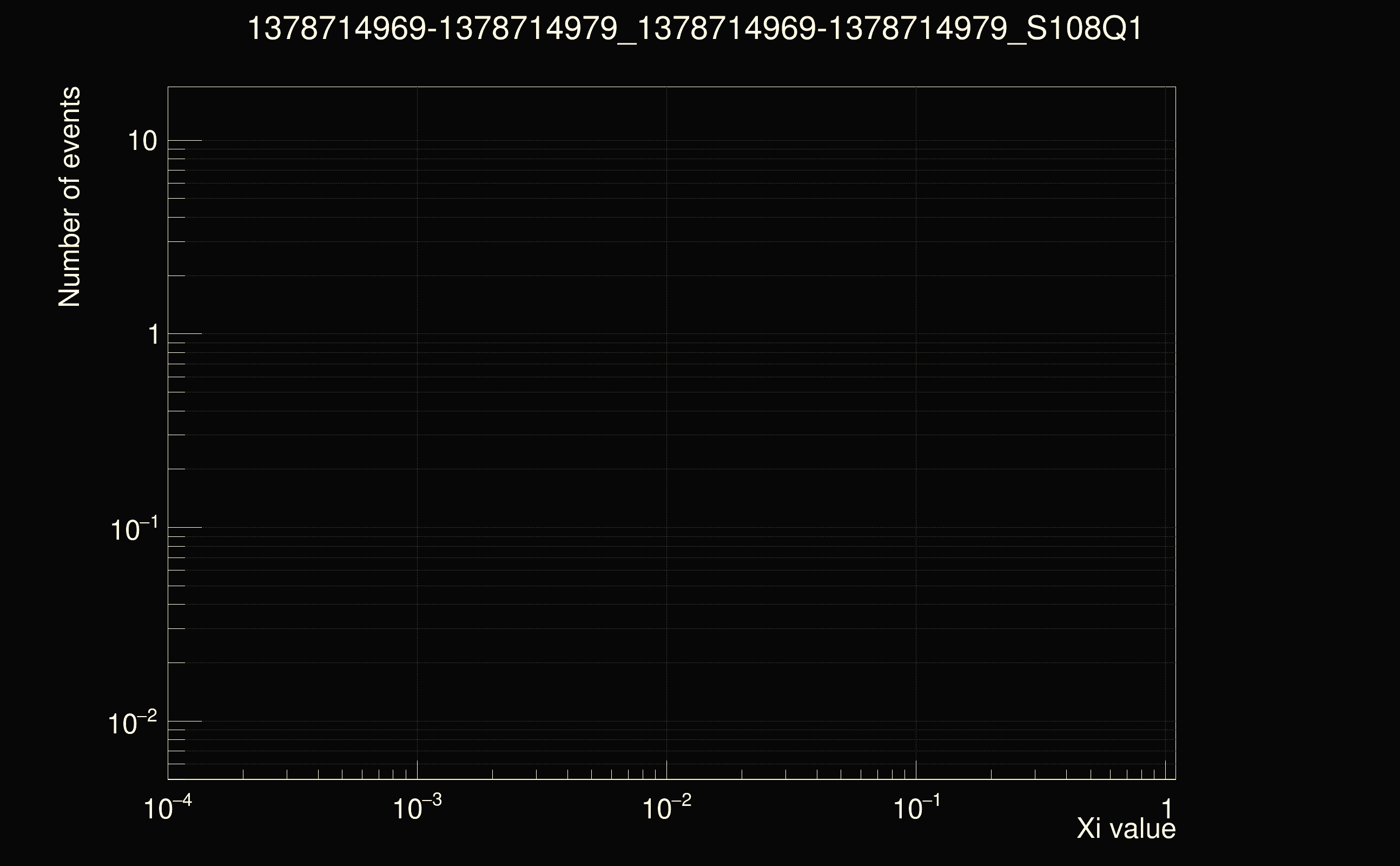

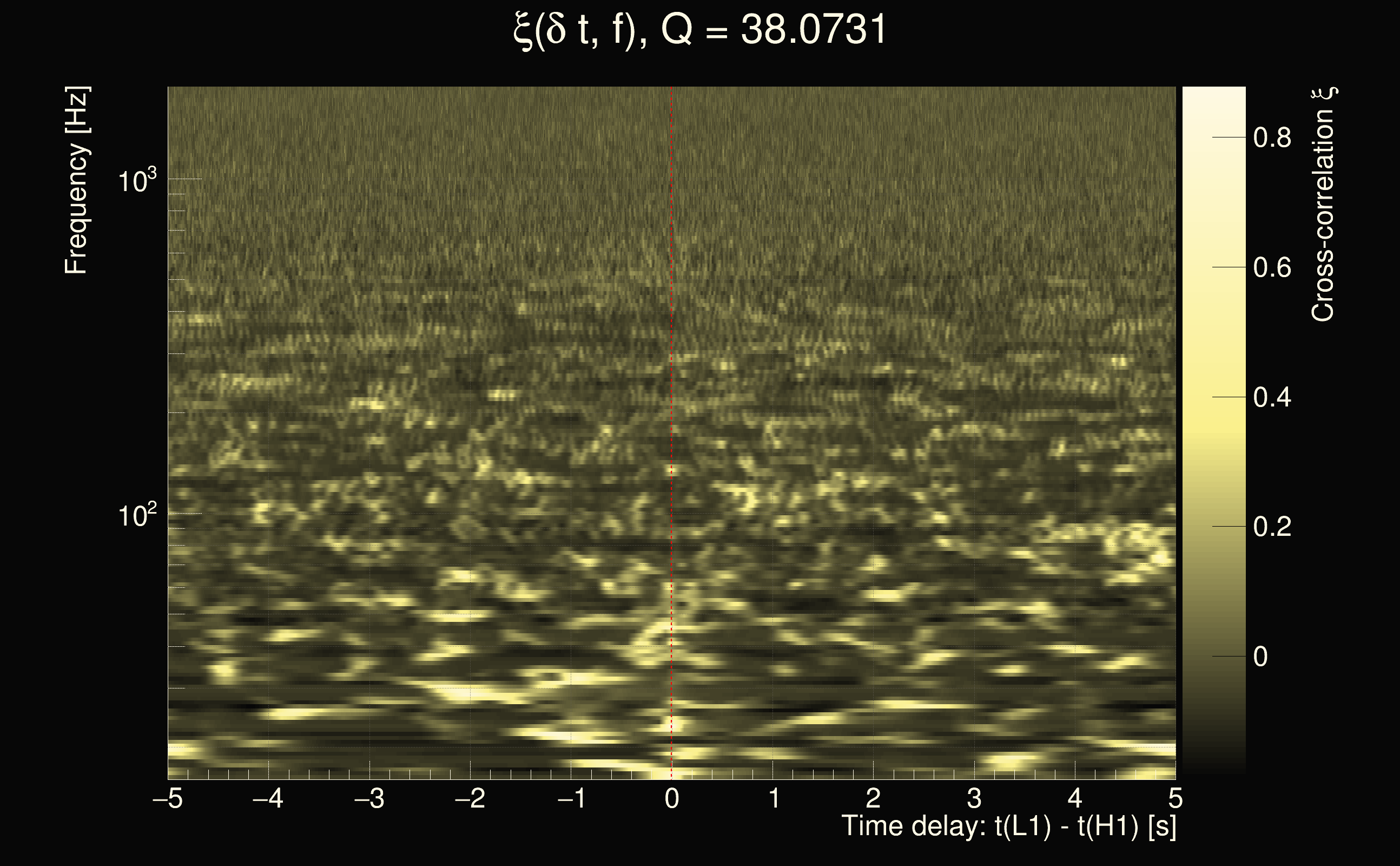

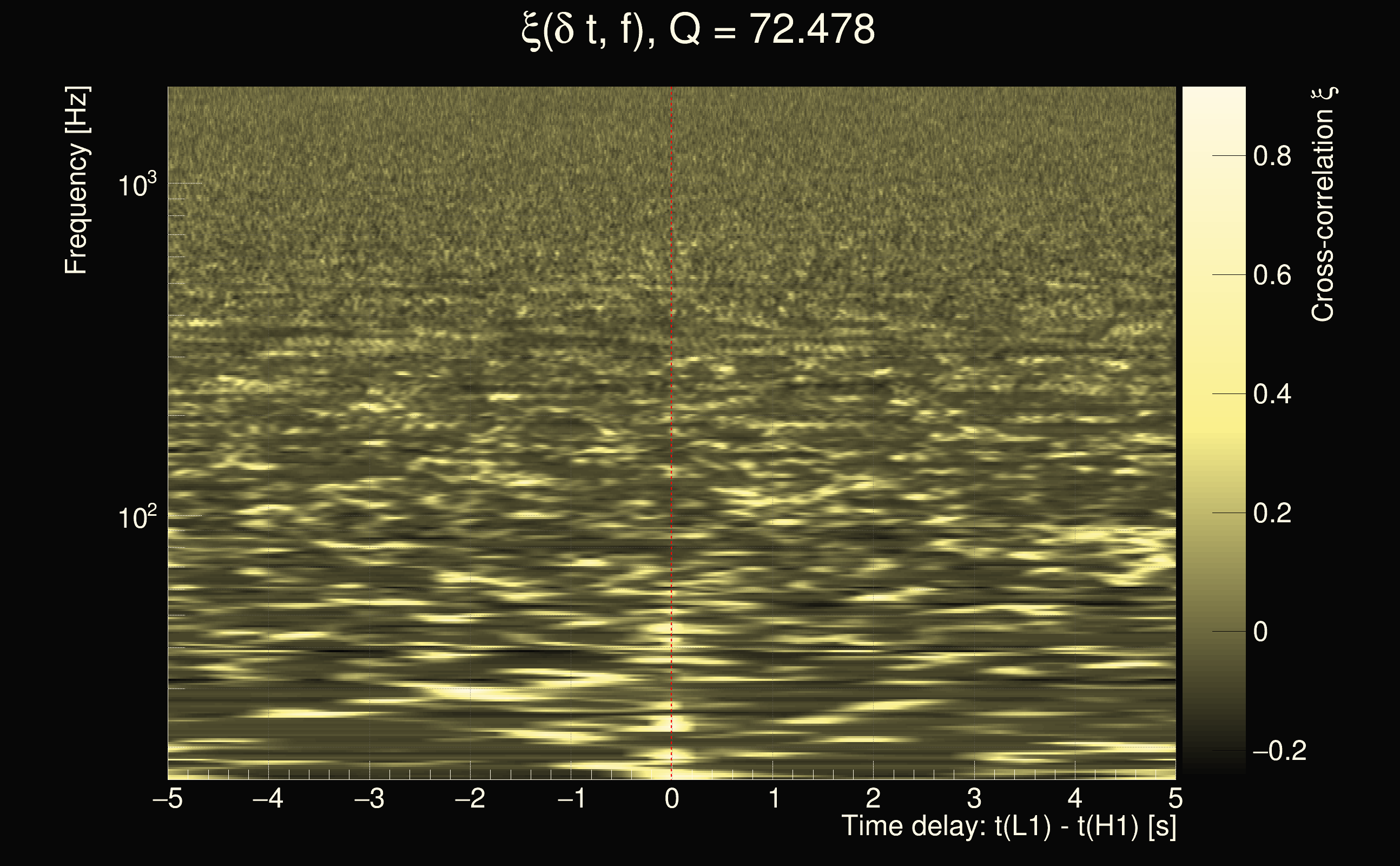

| Time delay between detectors t(L1) - t(H1): | -0.00313304 s (slice index = 108 / 217), δt_gw = -0.00313304 s |
| Time delay uncertainty: | 0.000720187s |
| Frequency: | 56.5207 Hz |
| Ξ: | 0.148424 |
| Rank: | R_X = 0.148424 |
| Amplitude ratio: | 0.786103 |

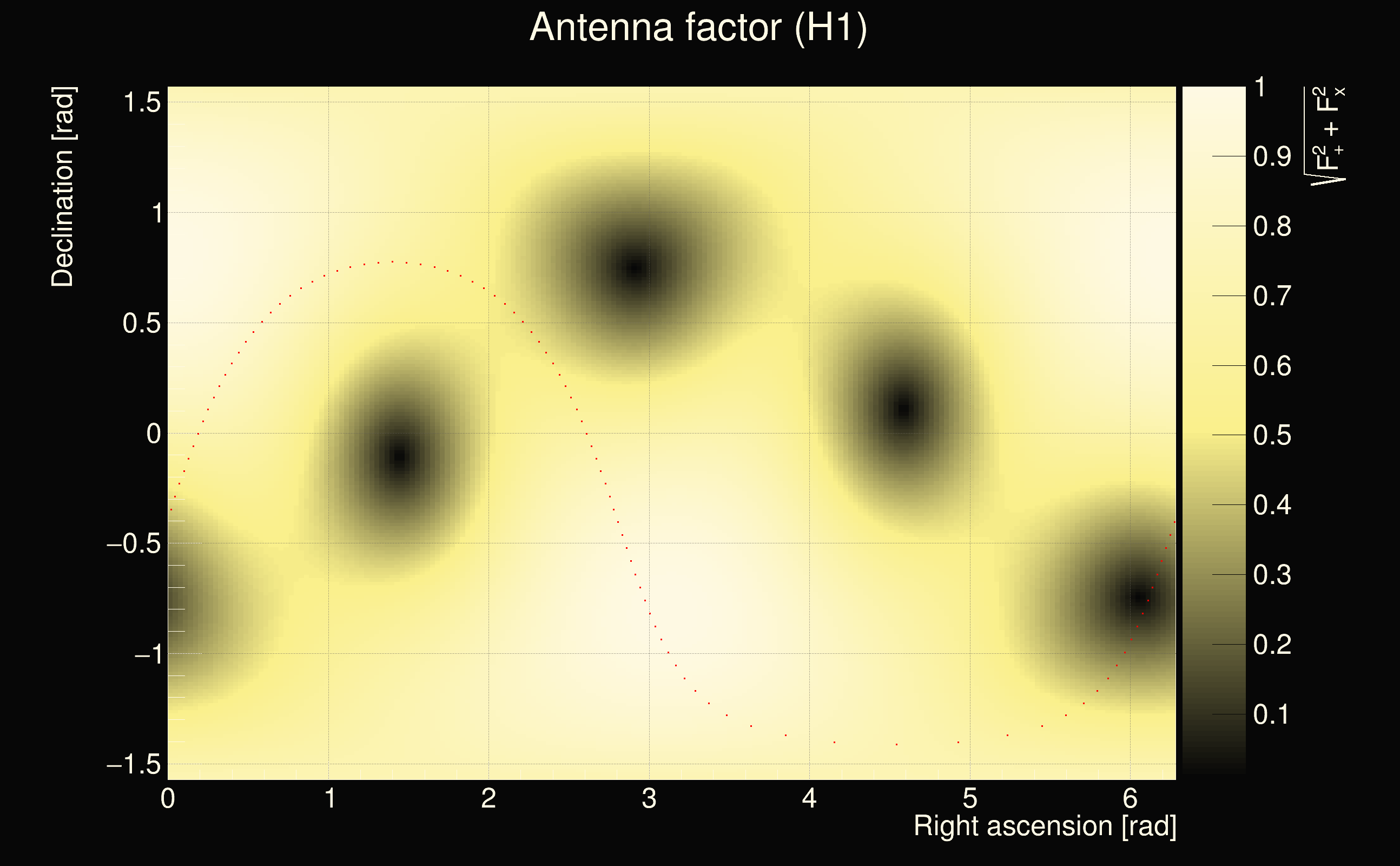

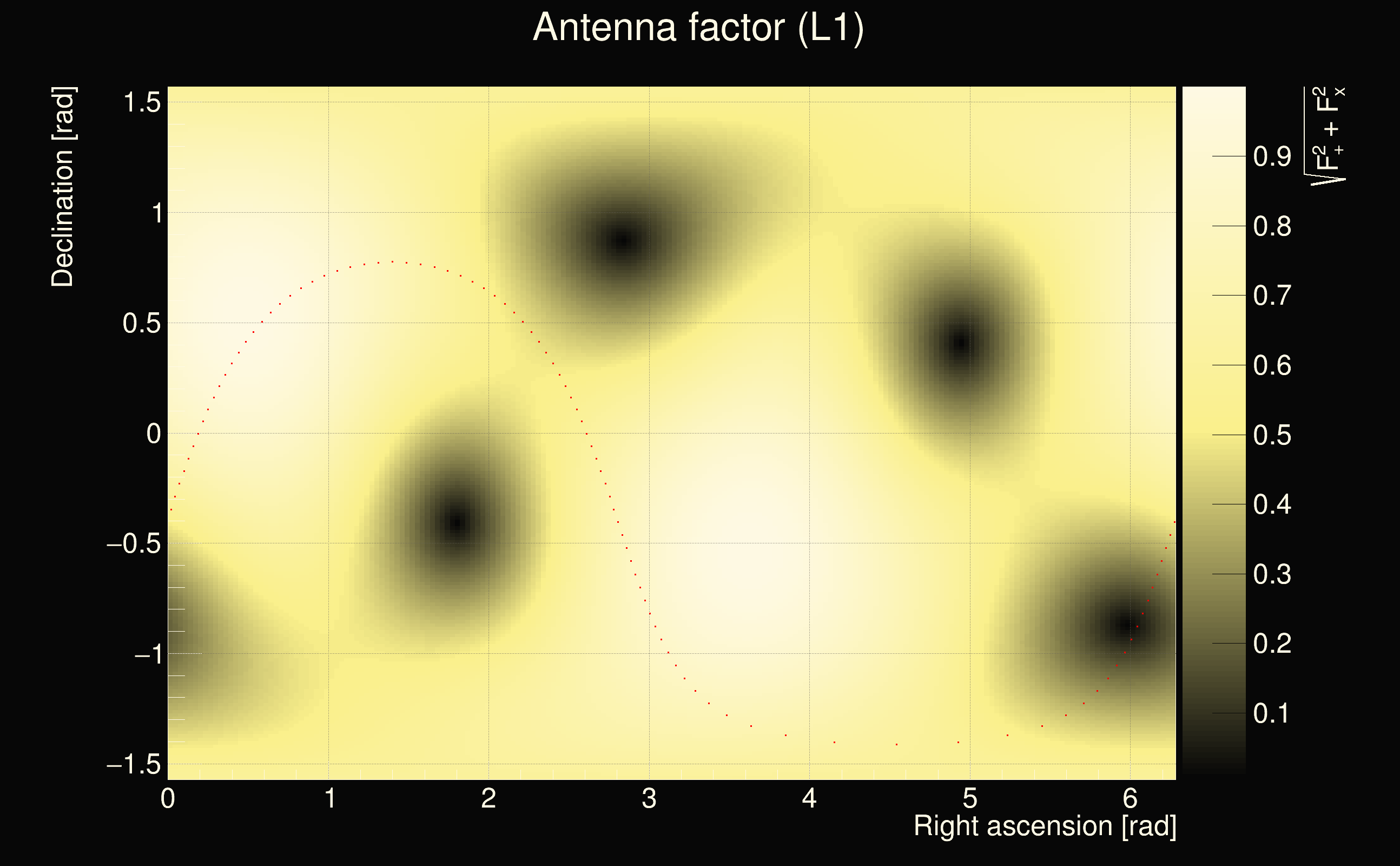

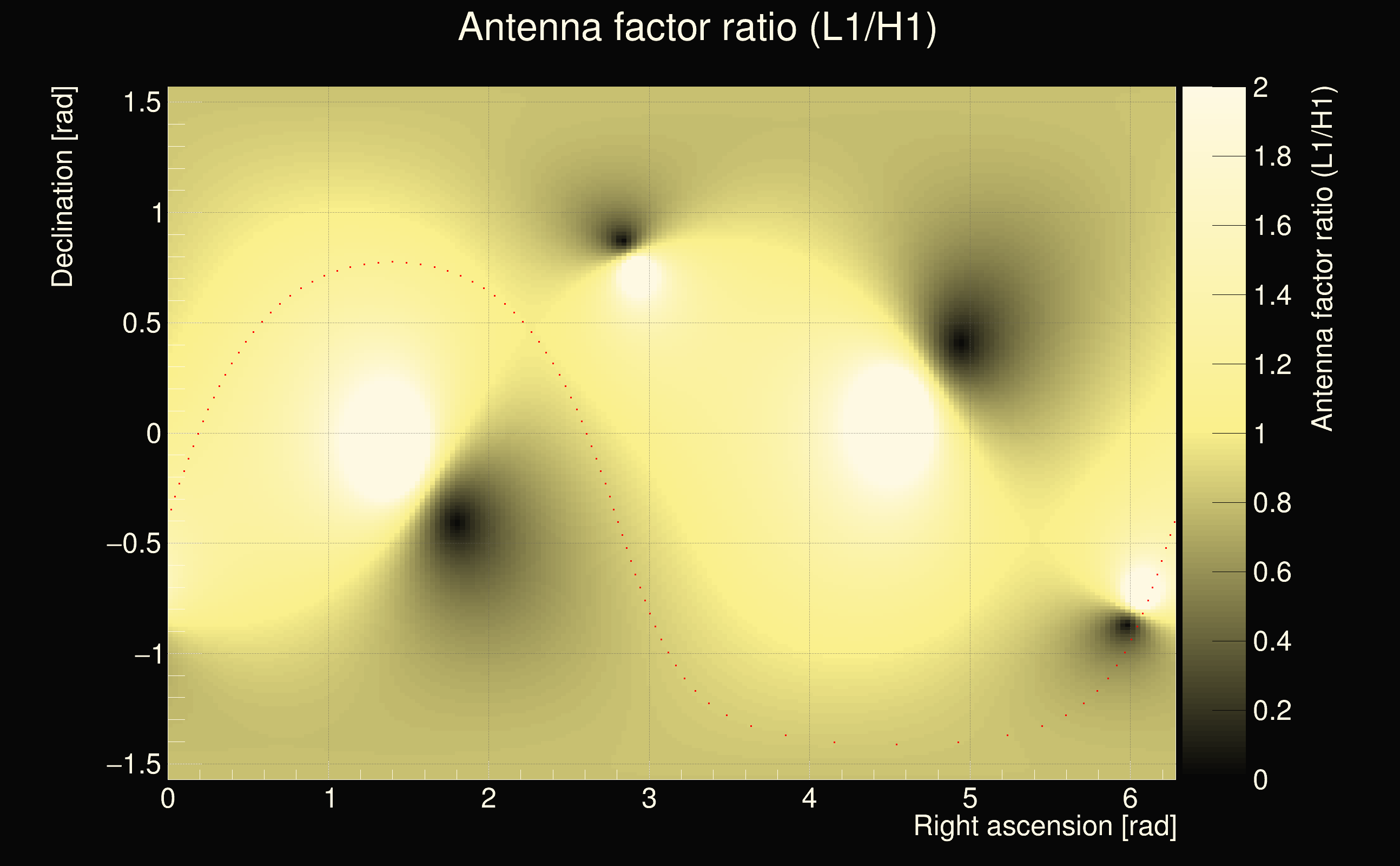

| Antenna factor ratio (min/max): | 0.0333197 / 16.9696 |

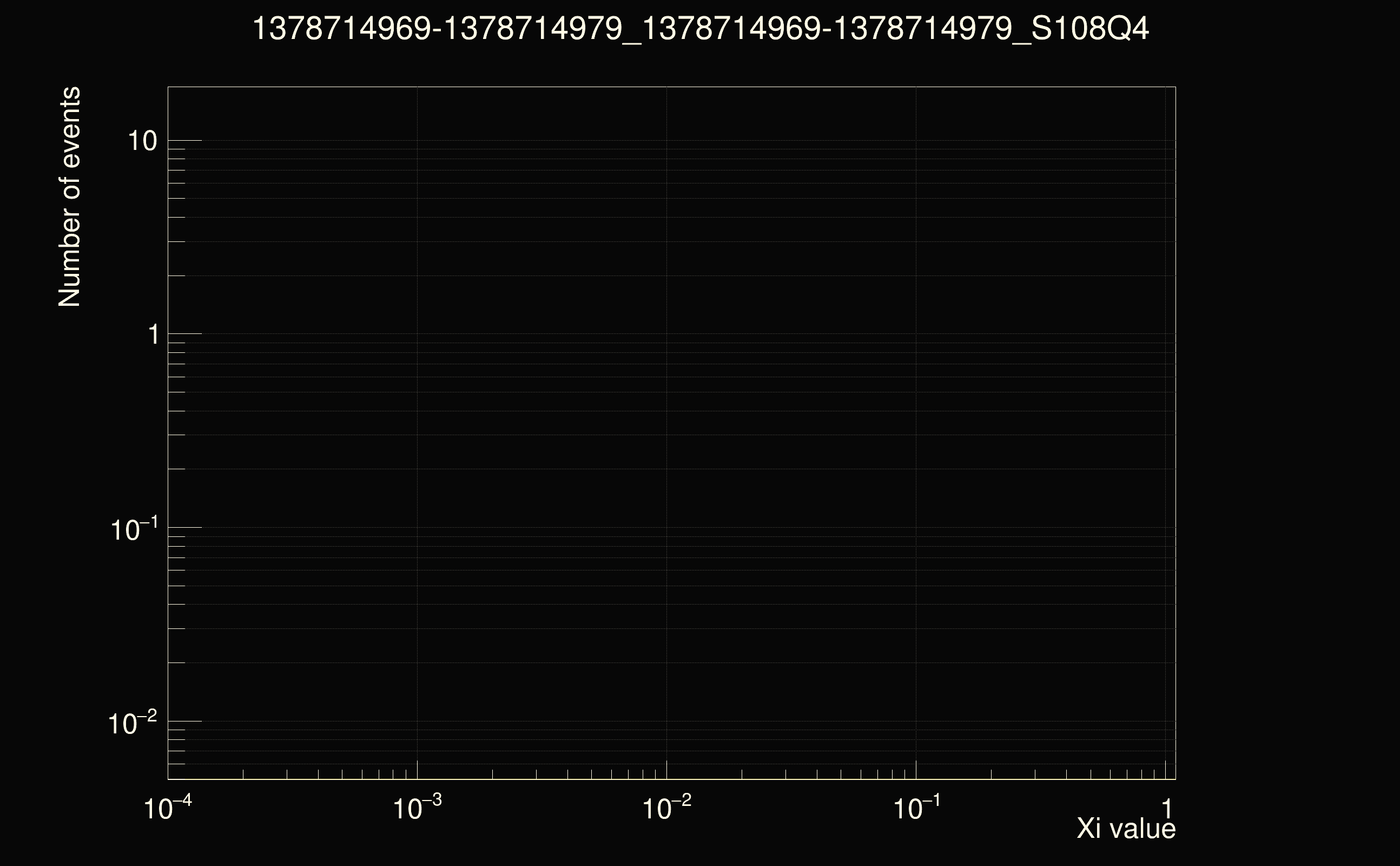

| Number of rejected frequency rows: | Q0: 19 / 26, Q1: 38 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |
| Maximum signal-to-noise ratio (H1): | 7.70591 |

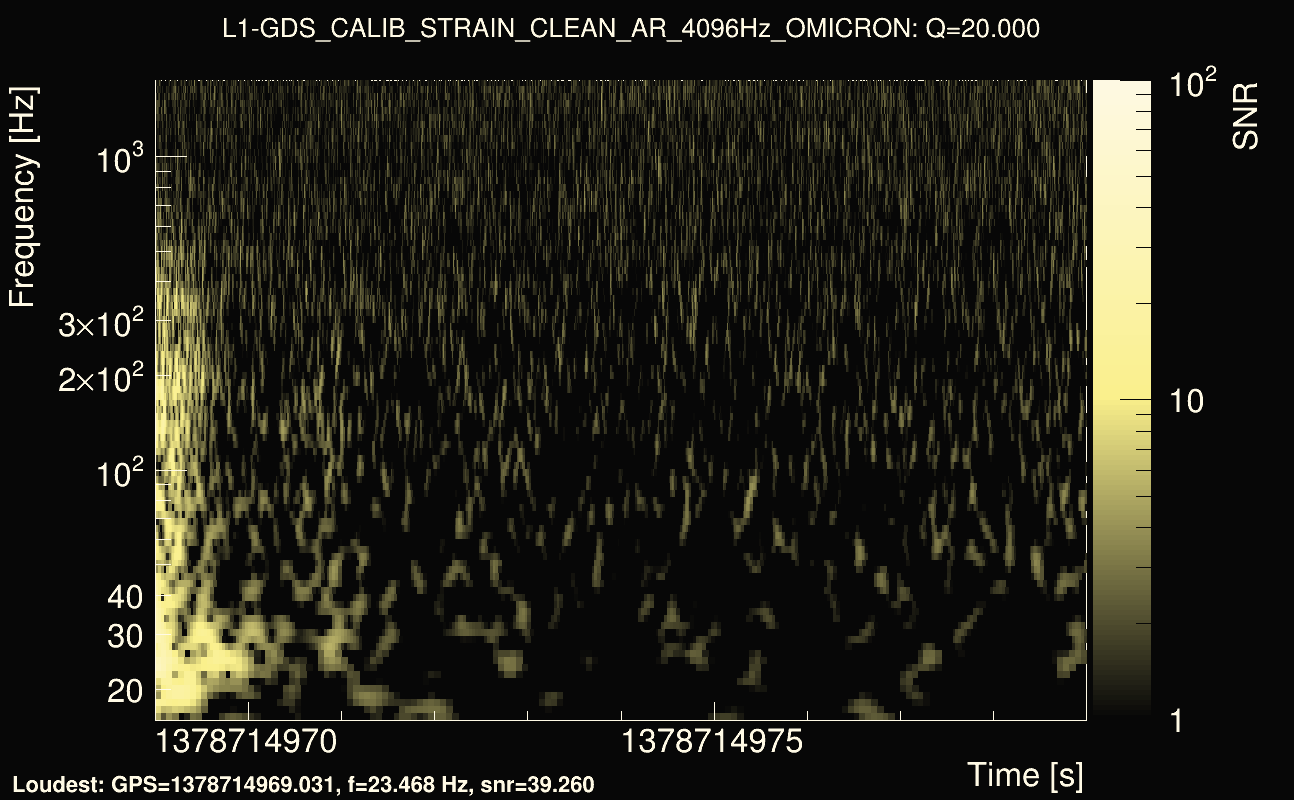

| Maximum signal-to-noise ratio (L1): | 63.2686 |
| SNR variance (H1): | 0.882105 |
| SNR variance (L1): | 3198.4 |

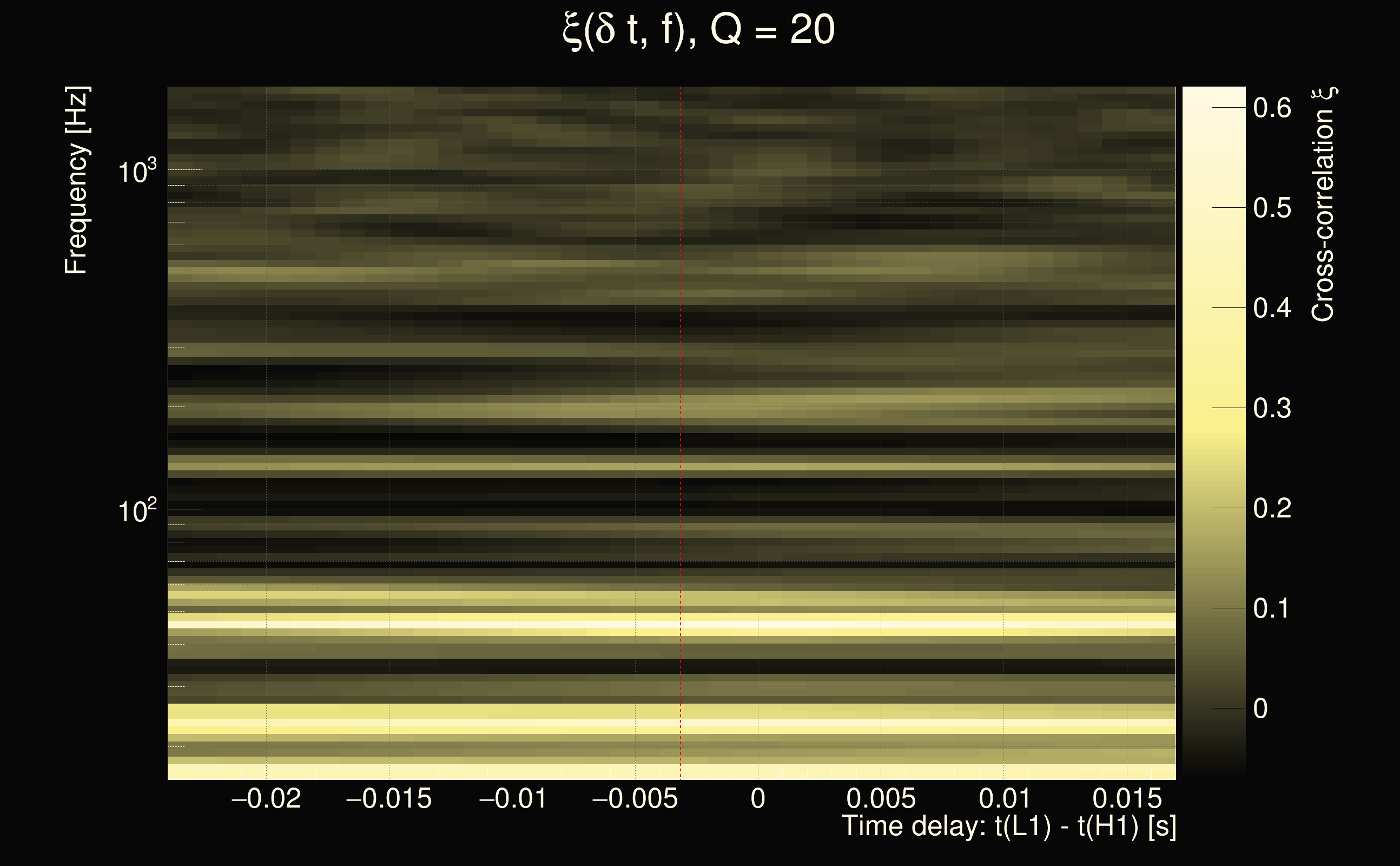

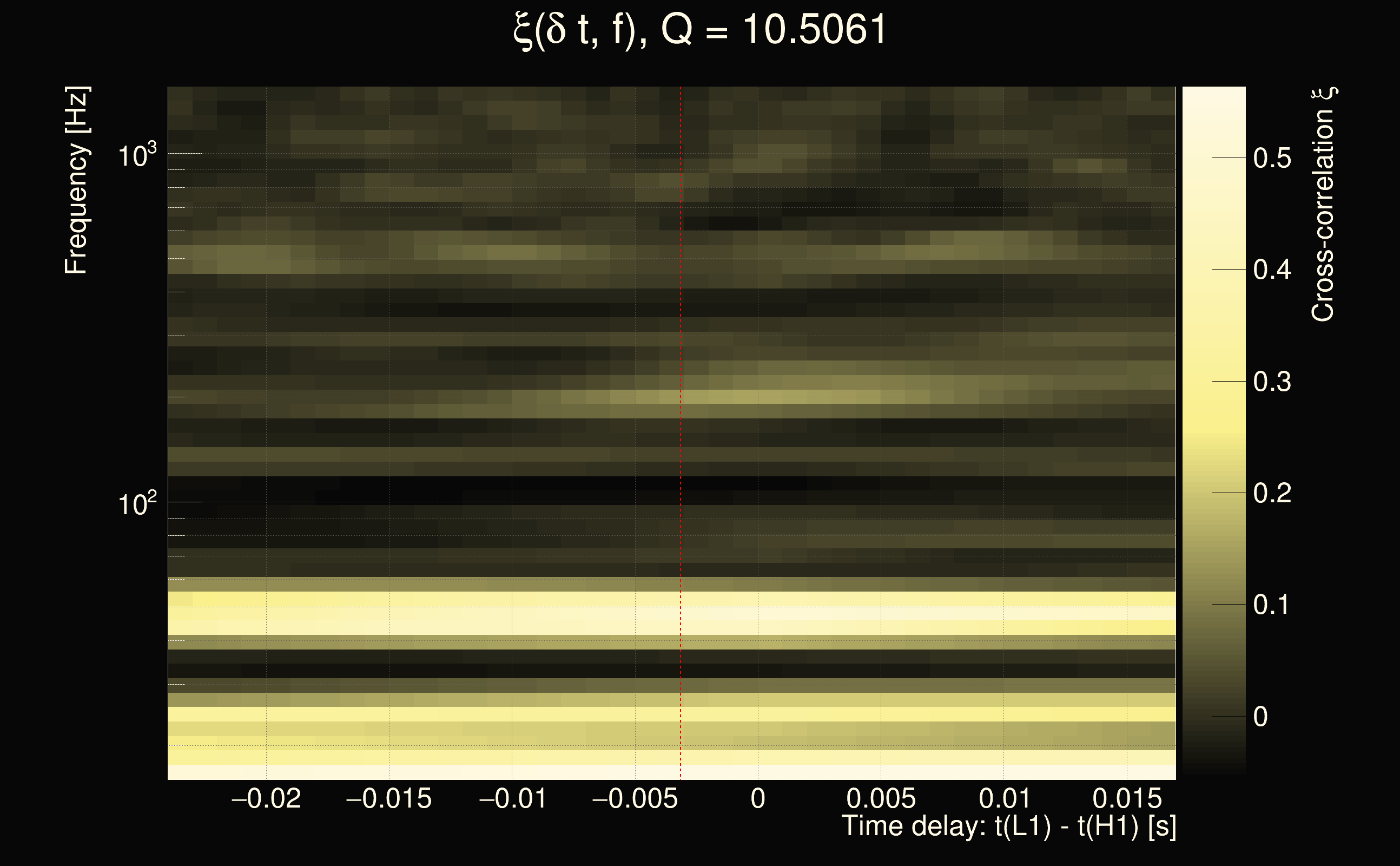

| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

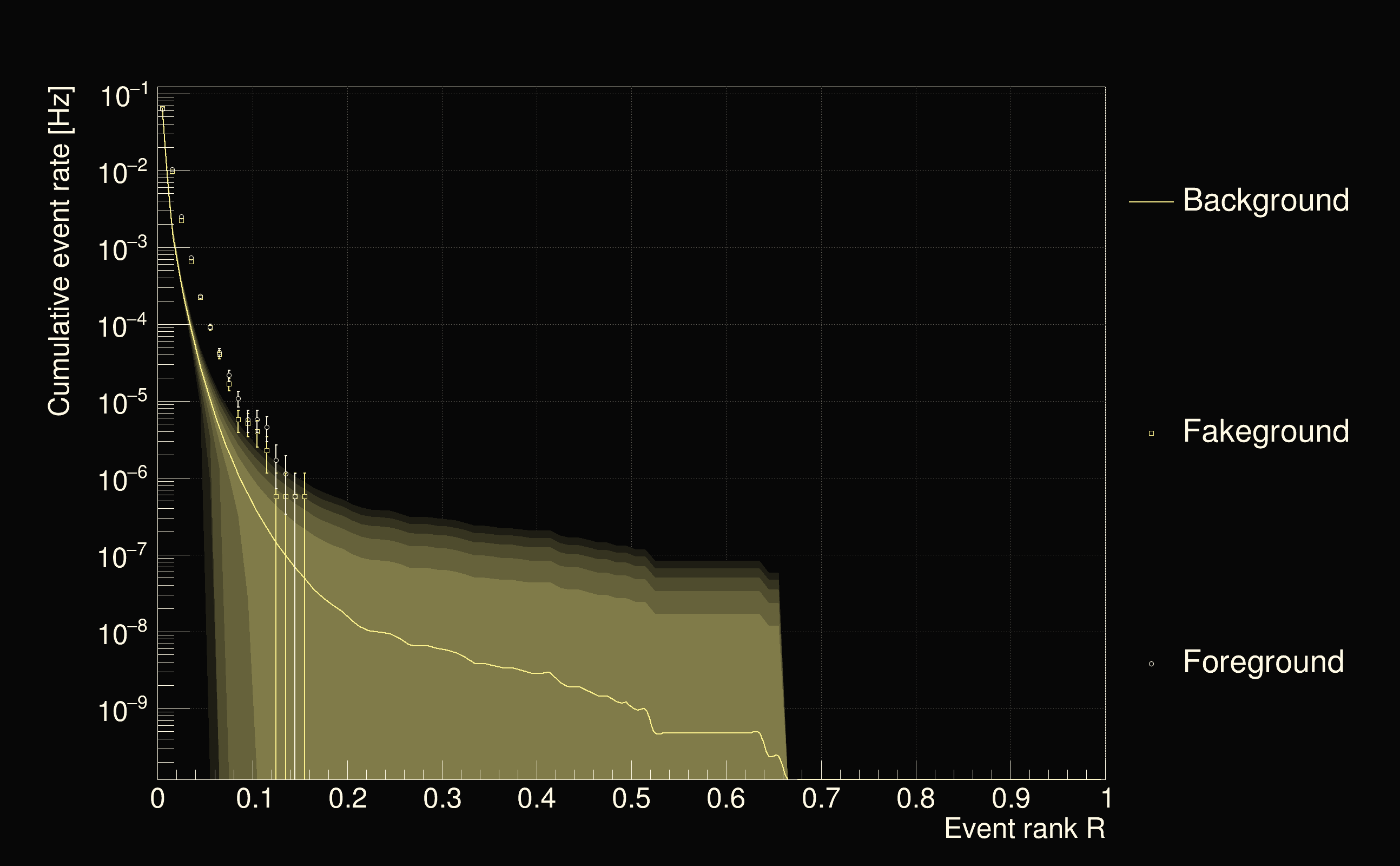

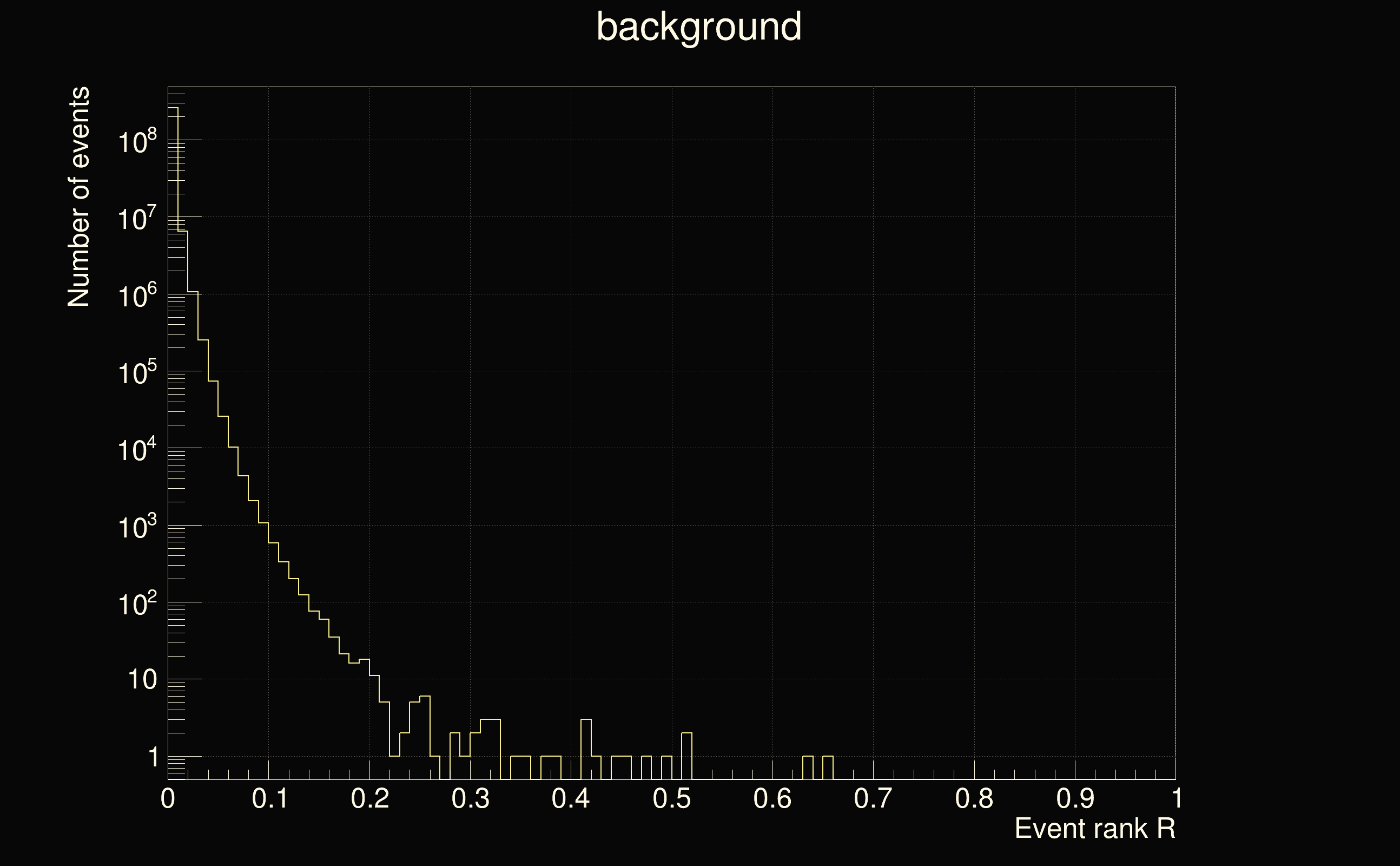

| Detection threshold: | R > 0.169512 |
| False-alarm rate above that detection threshold: | 2.7504e-08 |
 |
 |
 |

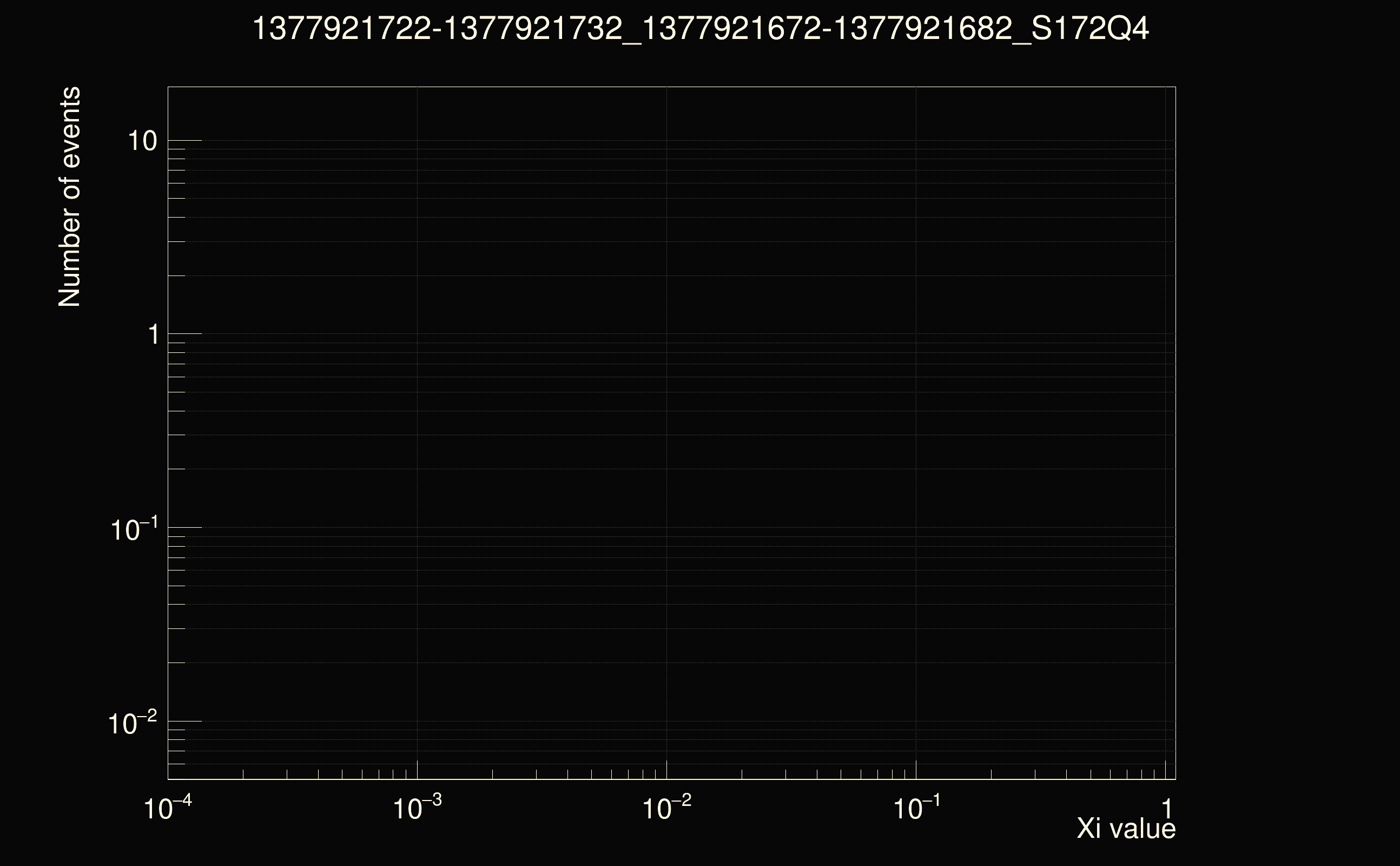

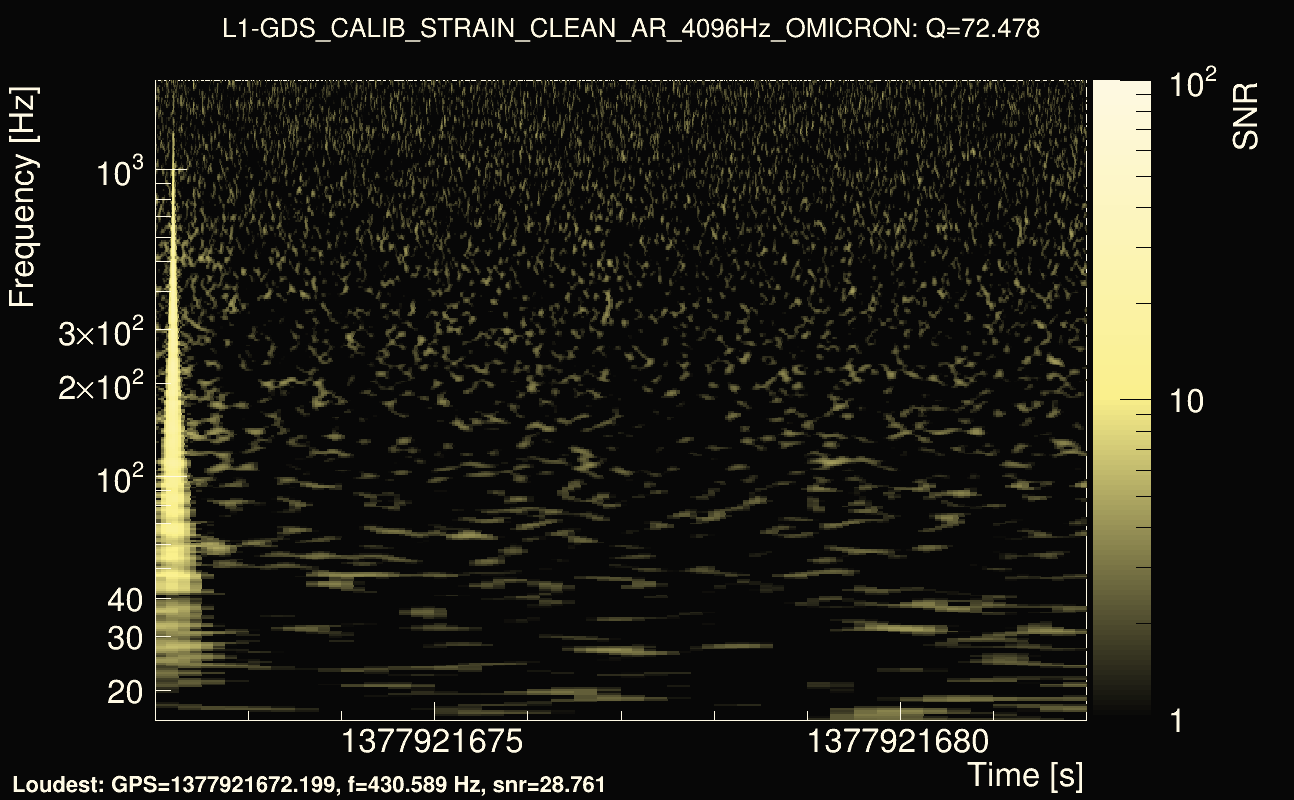

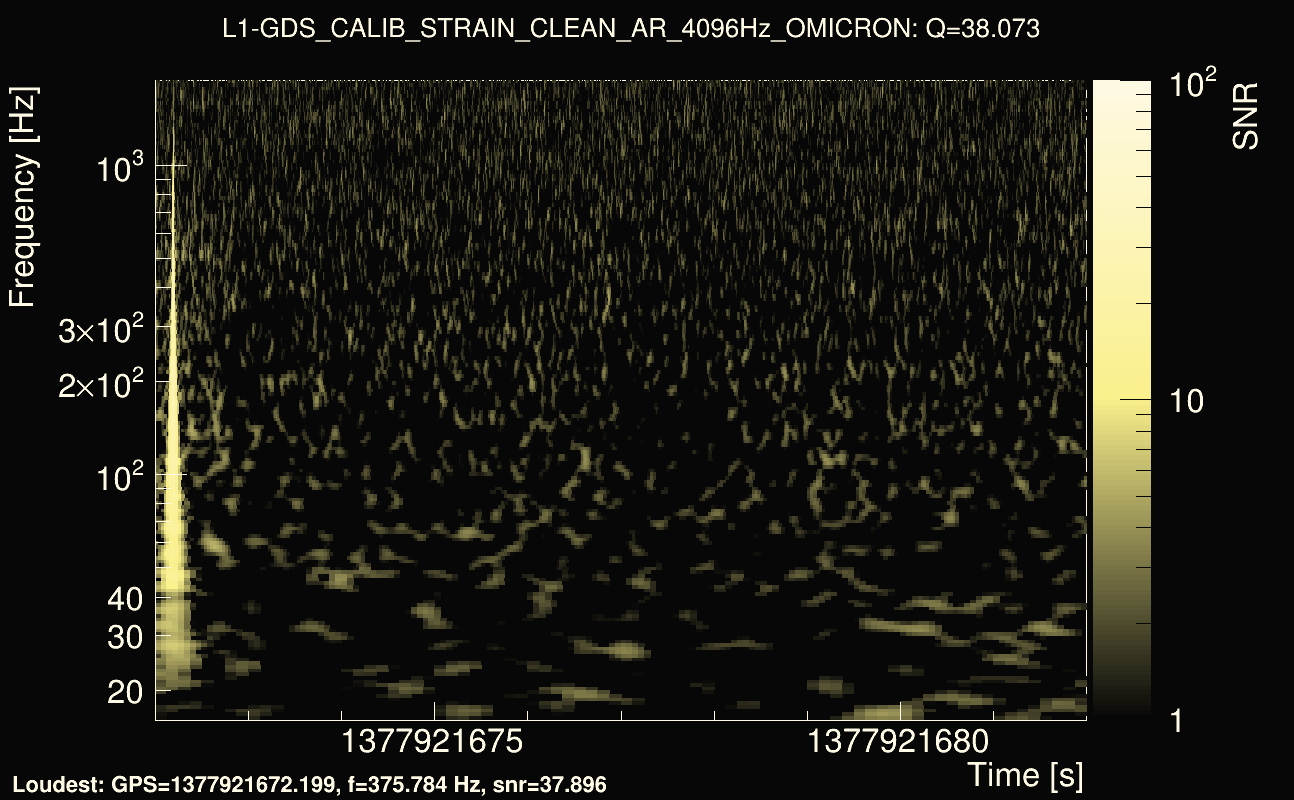

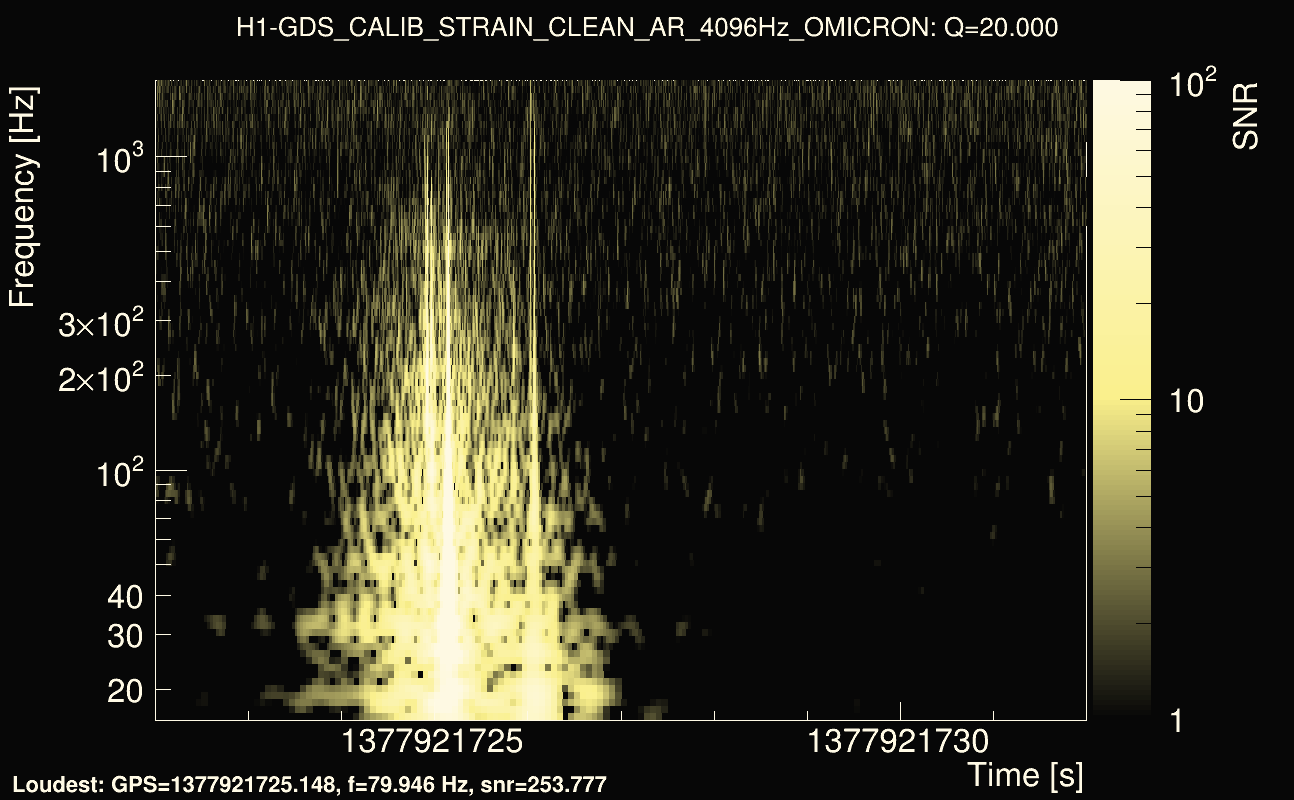

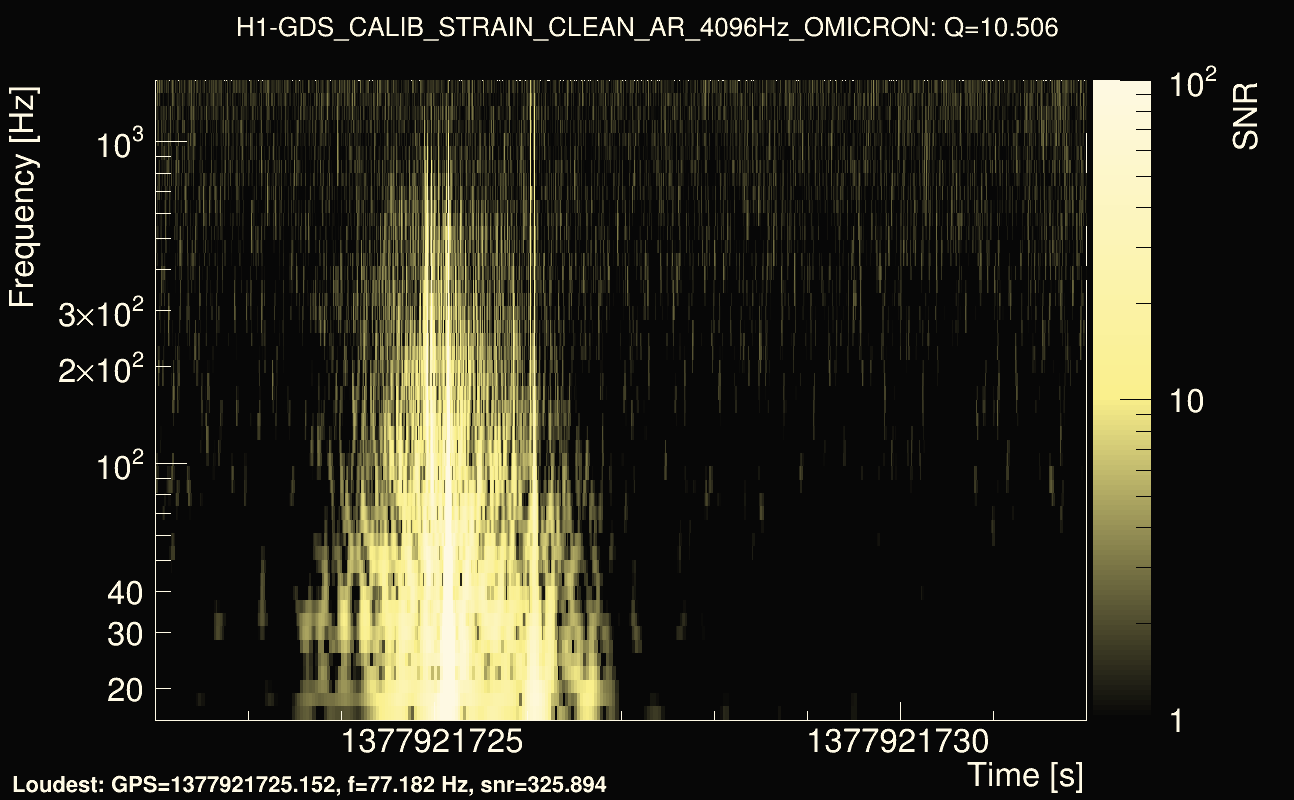

| Event time t(H1): | GPS = 1377921722 (Tue Sep 5 04:01:44 2023 ) → GPS = 1377921732 (Tue Sep 5 04:01:54 2023 ) |

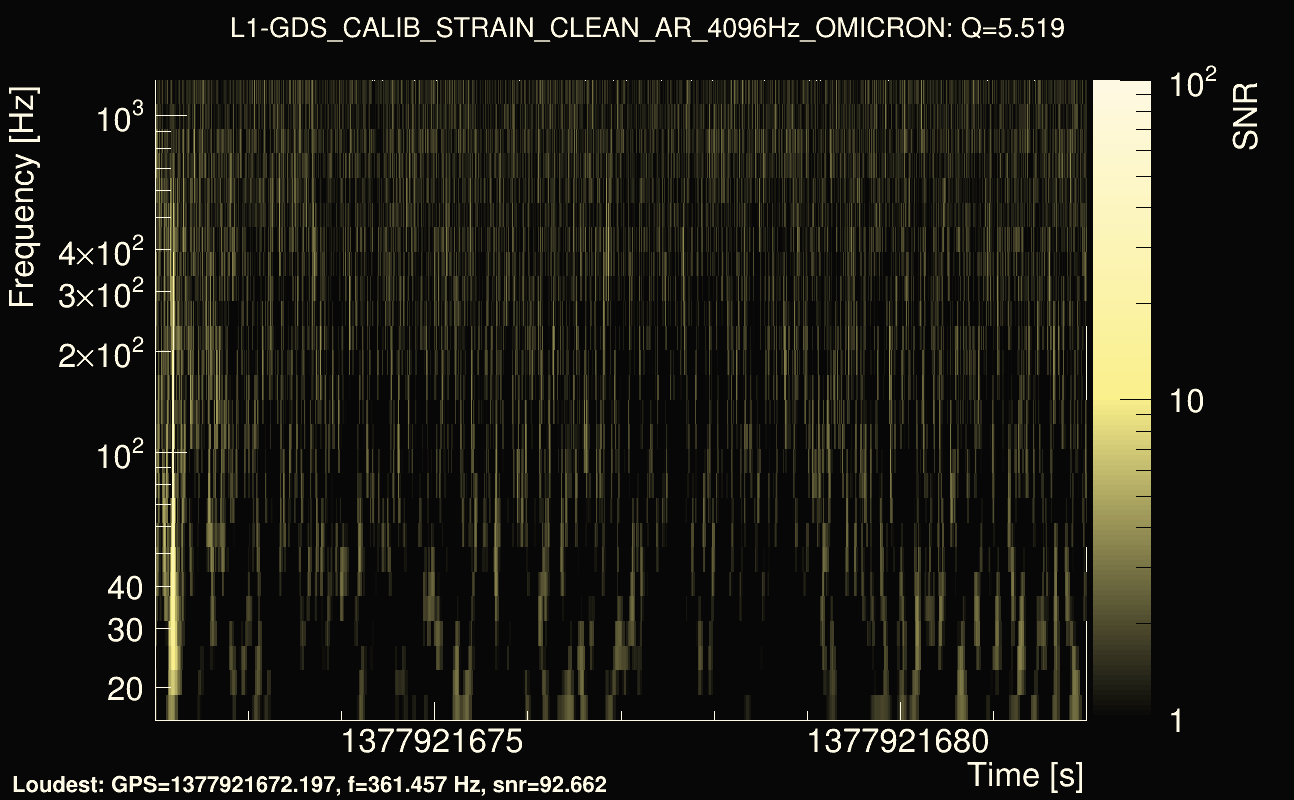

| Event time t(L1): | GPS = 1377921672 (Tue Sep 5 04:01:54 2023 ) → GPS = 1377921682 (Tue Sep 5 04:01:04 2023 ) |

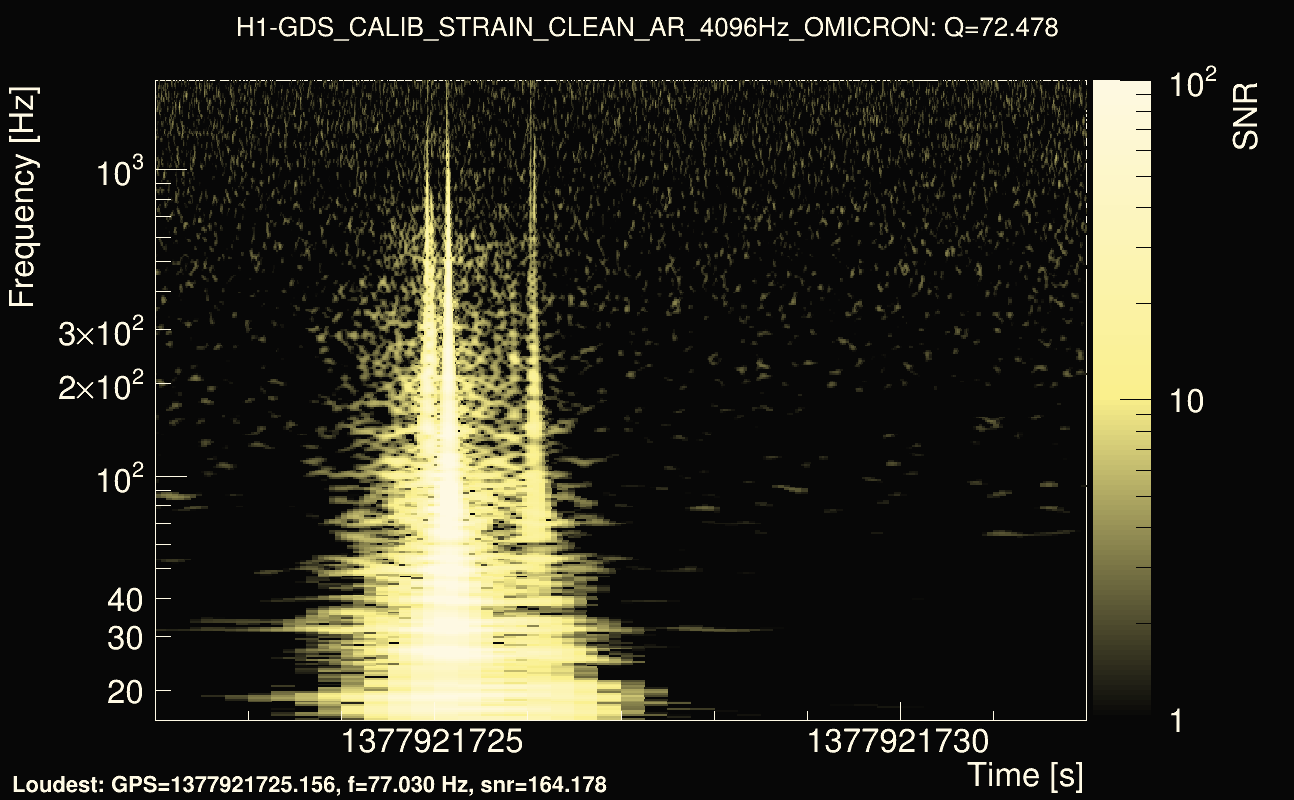

| Omicron analysis time window (H1): | GPS = 1377921719 → GPS = 1377921735 |
| Omicron analysis time window (L1): | GPS = 1377921669 → GPS = 1377921685 |

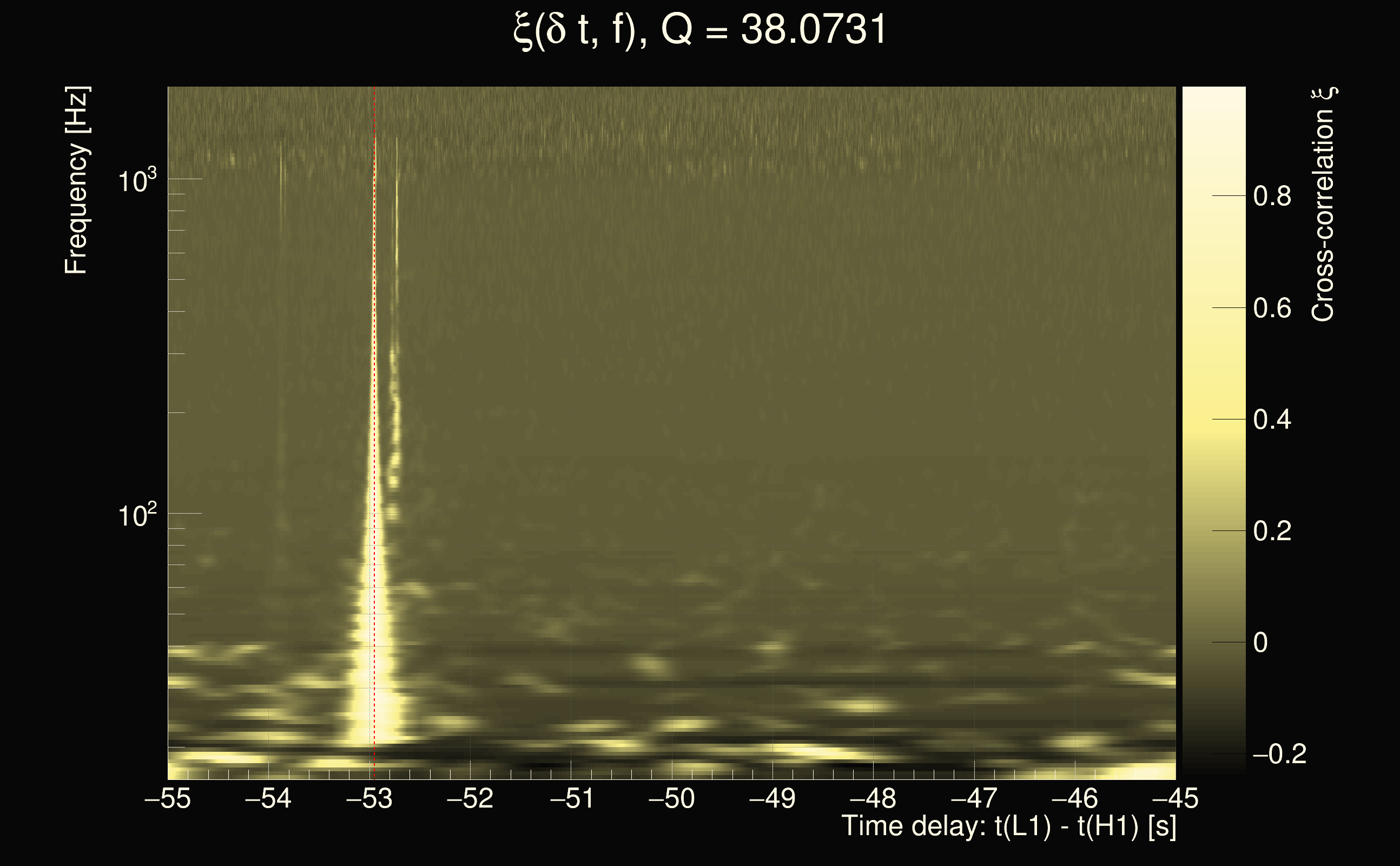

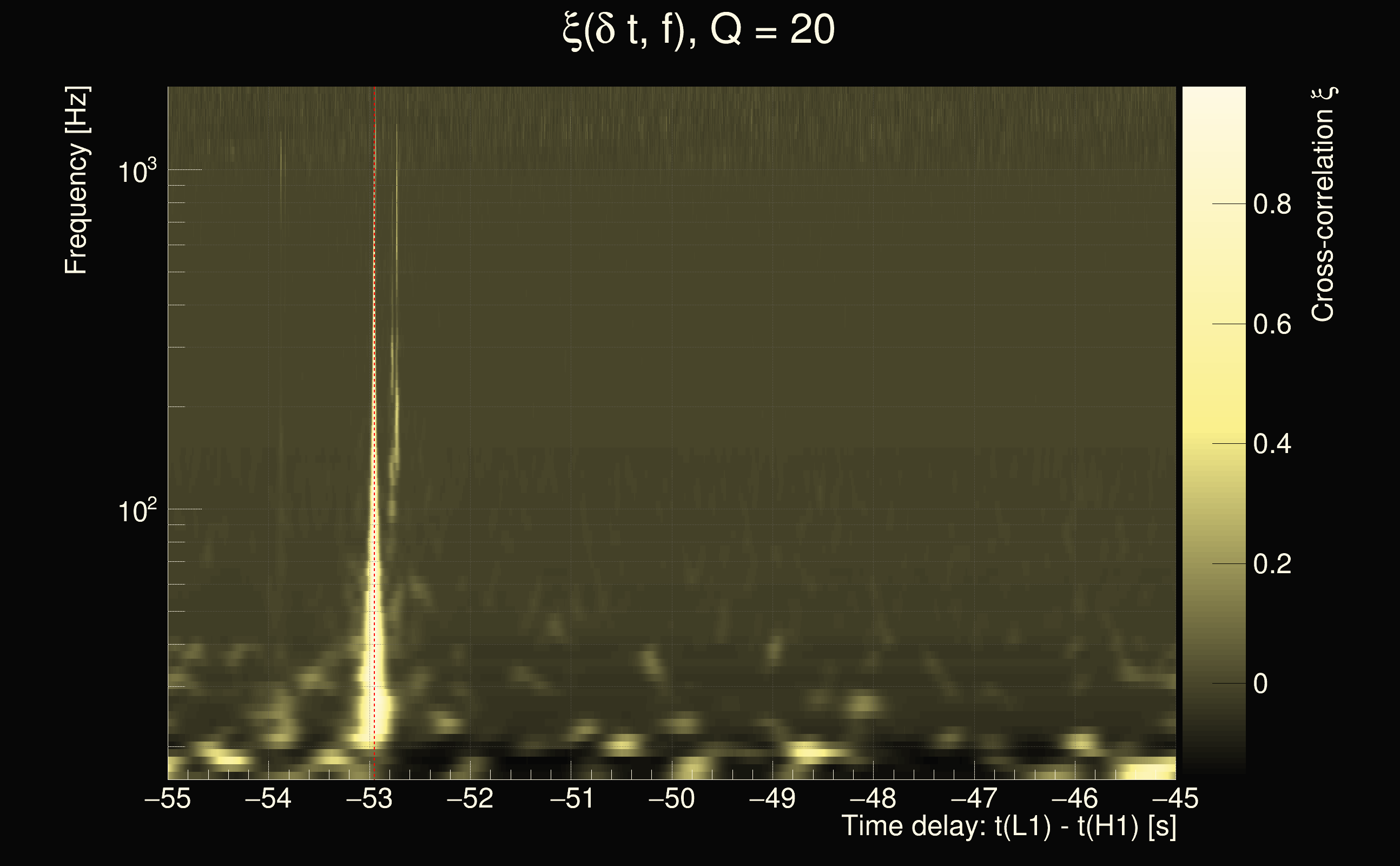

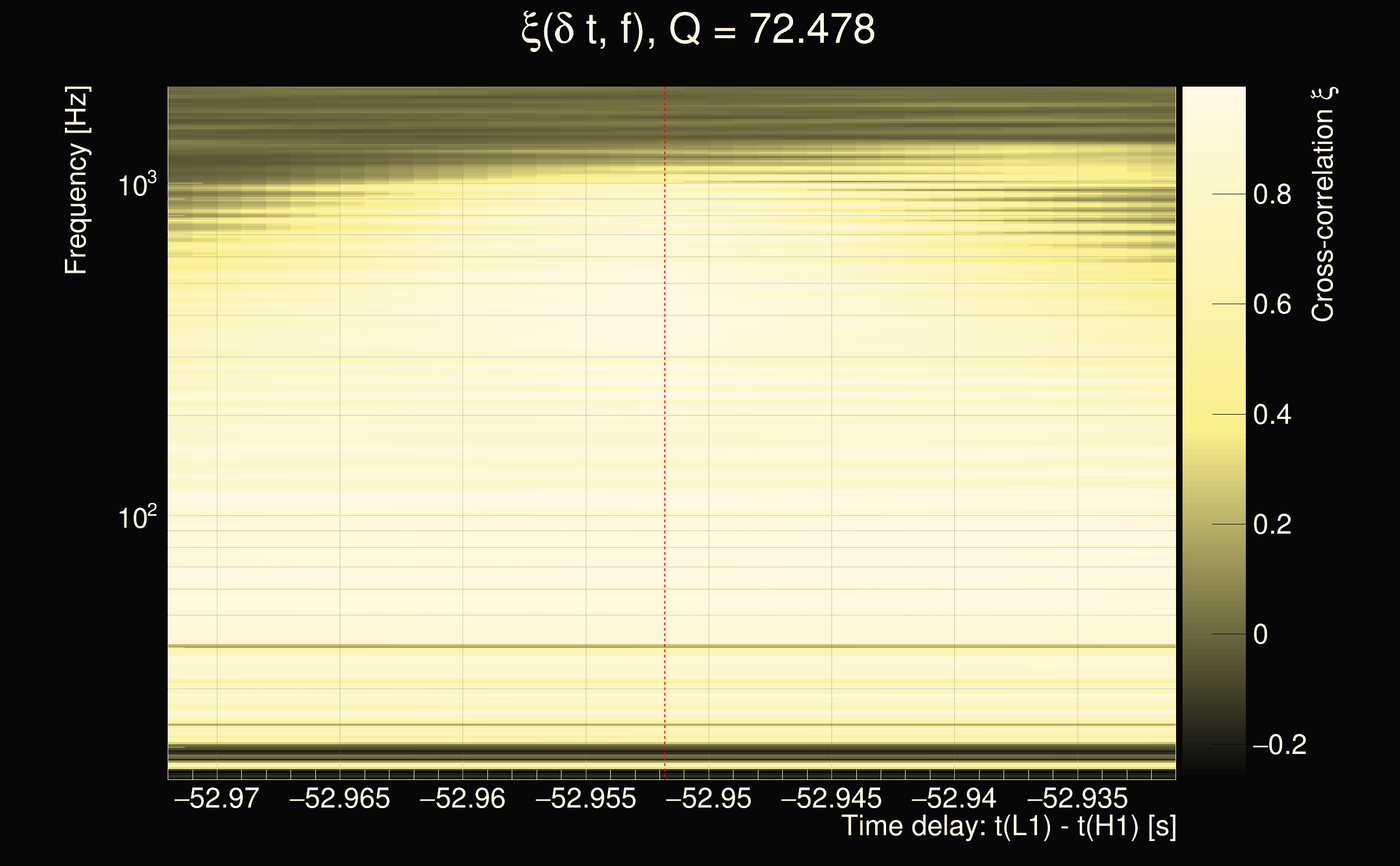

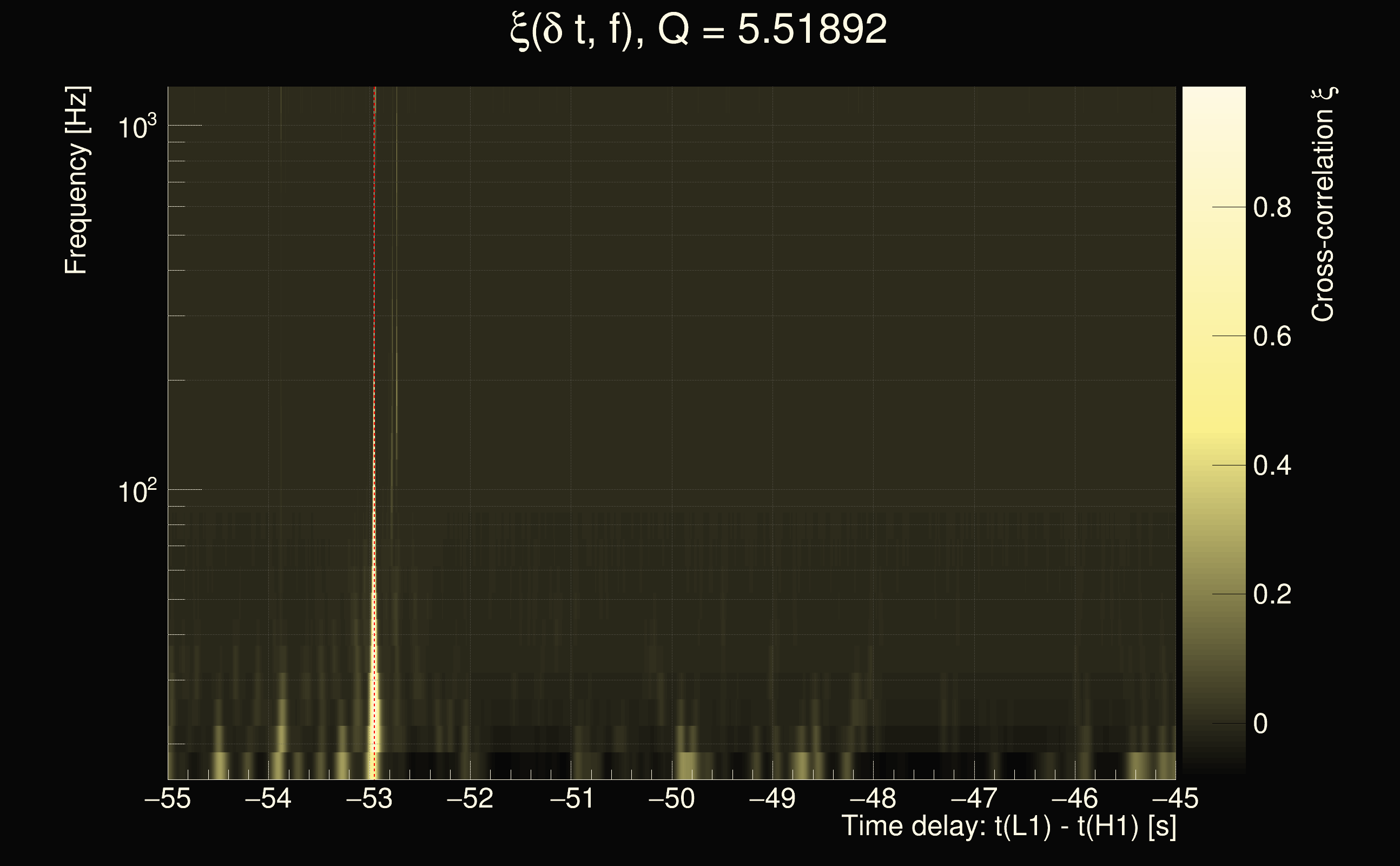

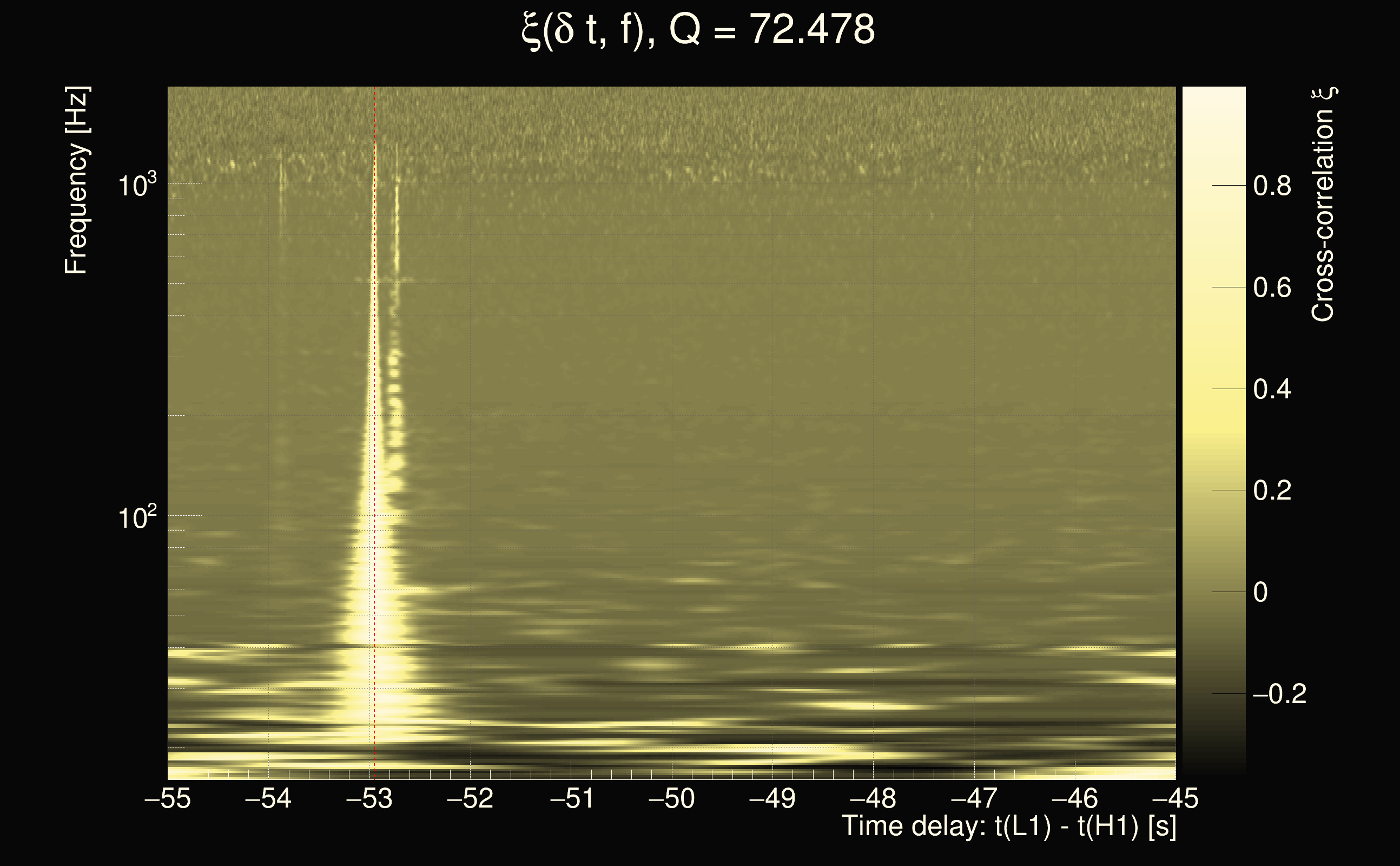

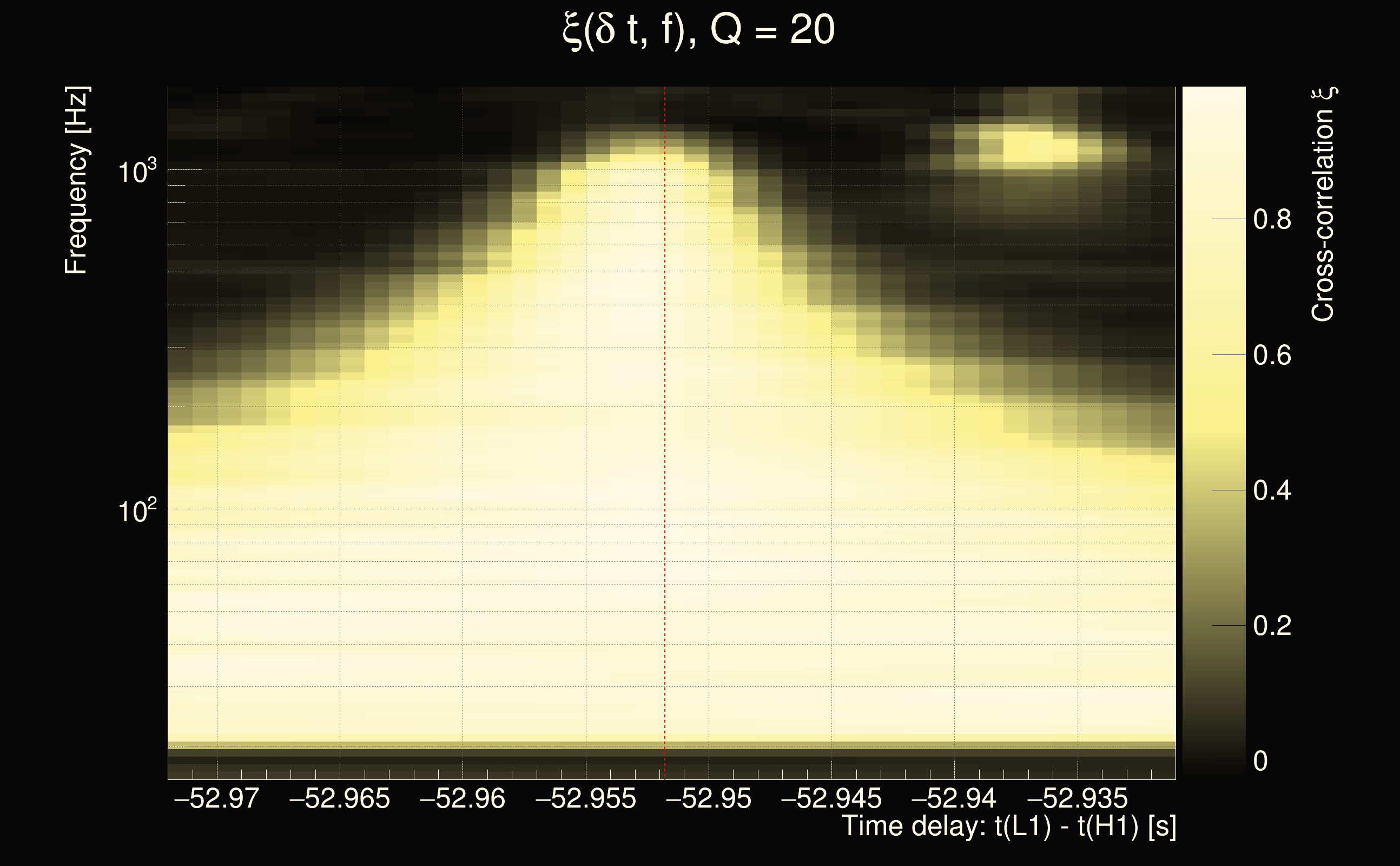

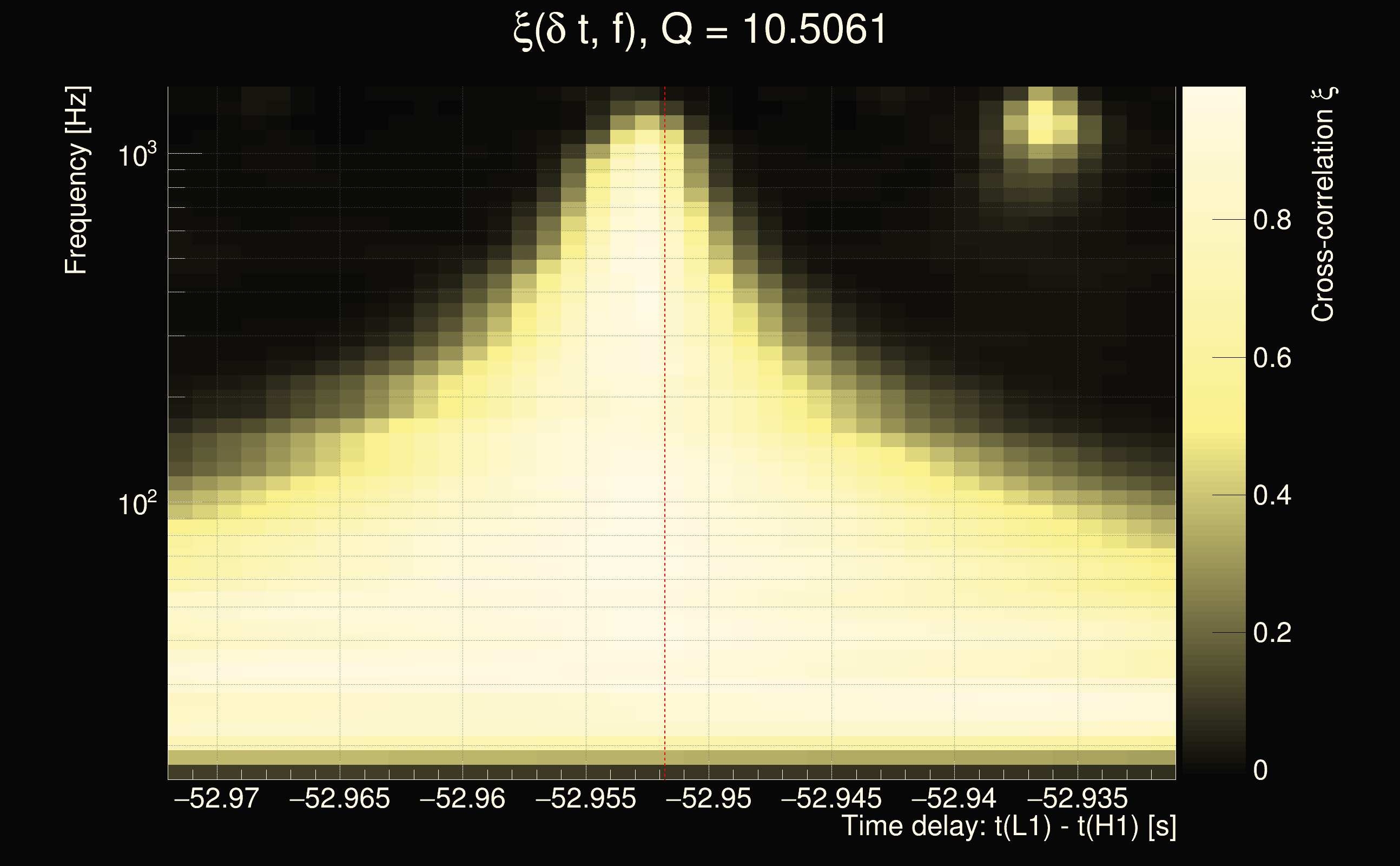

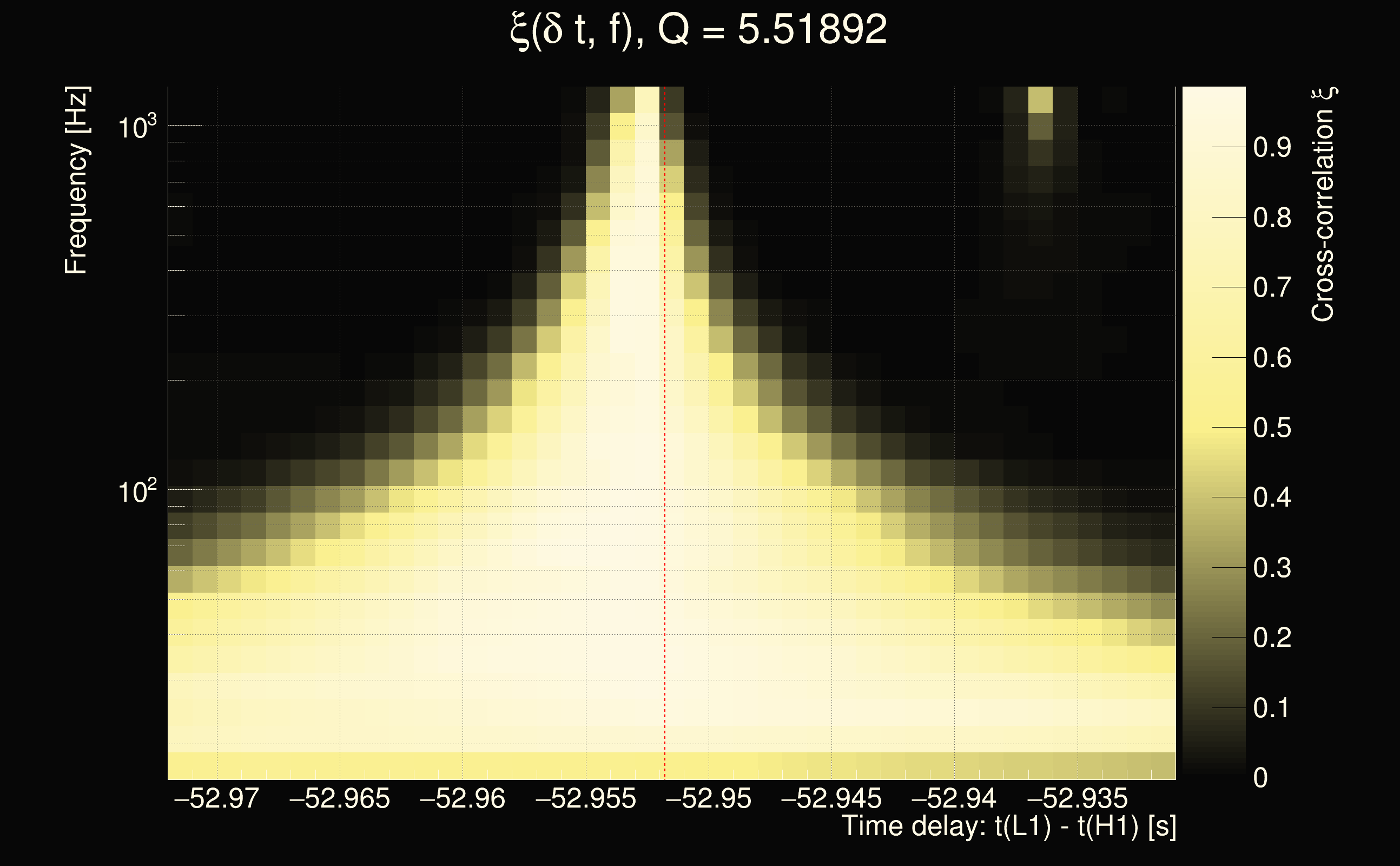

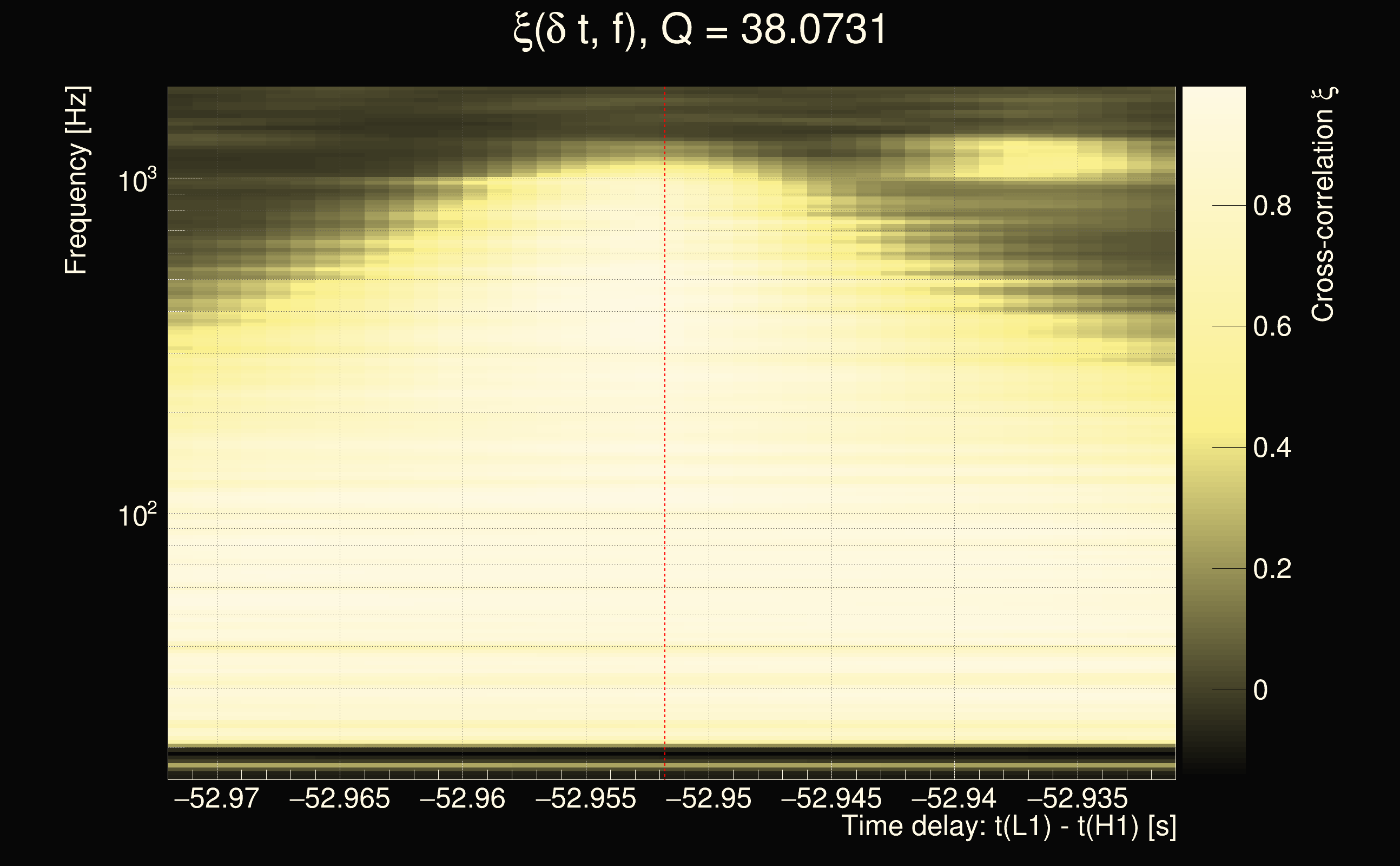

| Time delay between detectors t(L1) - t(H1): | -52.9518 s (slice index = 172 / 217), δt_gw = -0.00777509 s |
| Time delay uncertainty: | 5.34802e-05s |
| Frequency: | 334.831 Hz |
| Ξ: | 0.651334 |
| Rank: | R_X = 0.651334 |
| Amplitude ratio: | 0.0708538 |

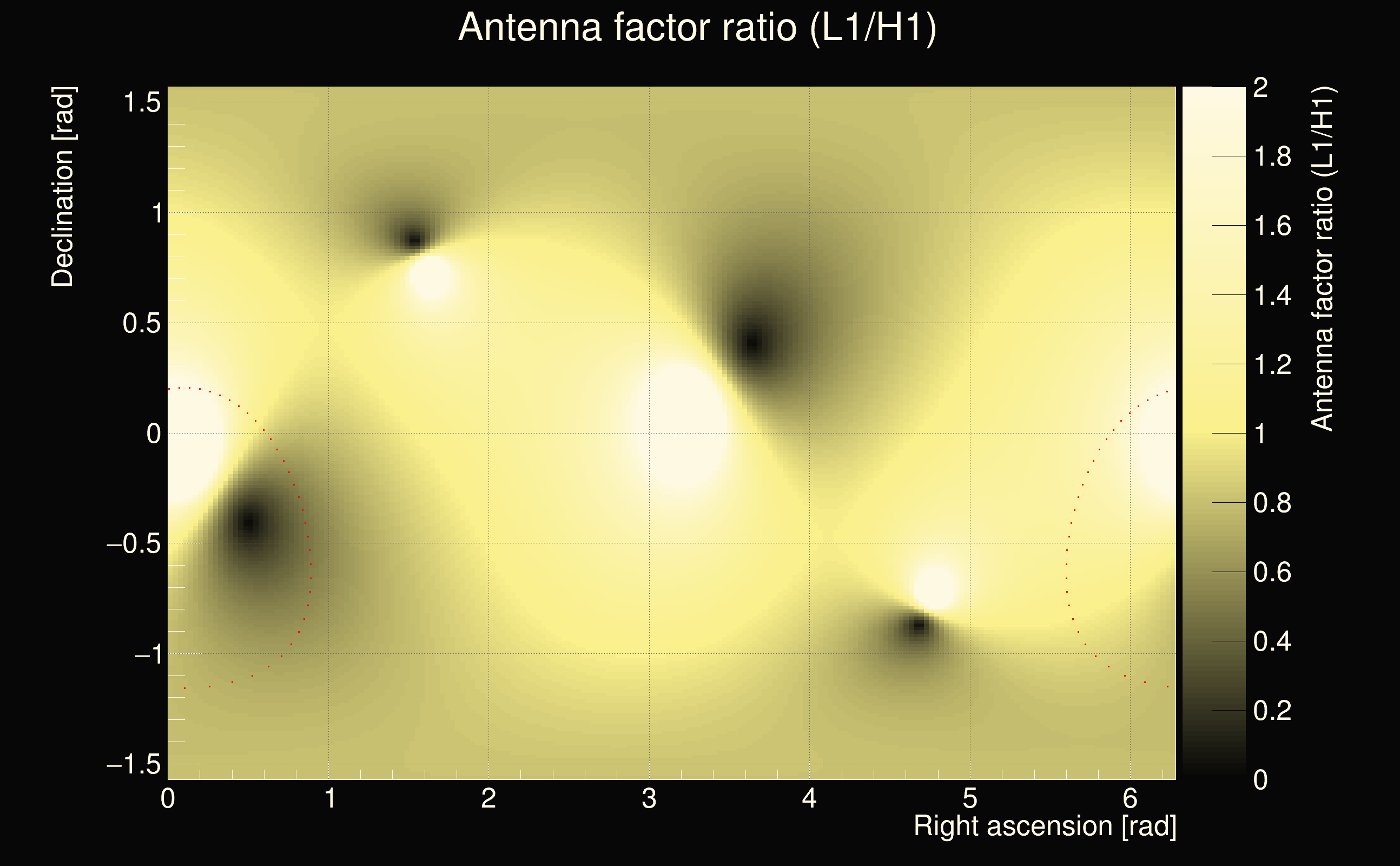

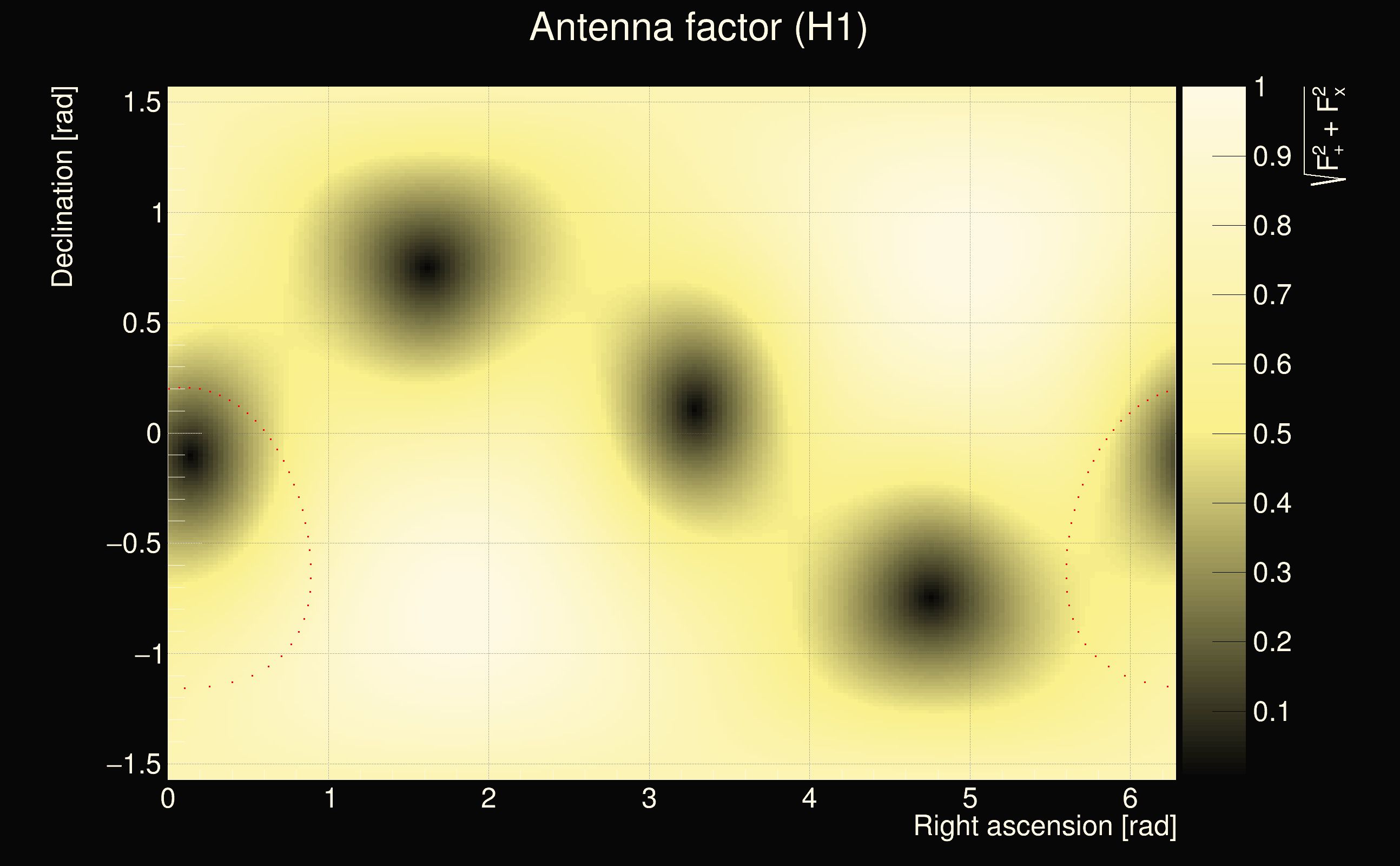

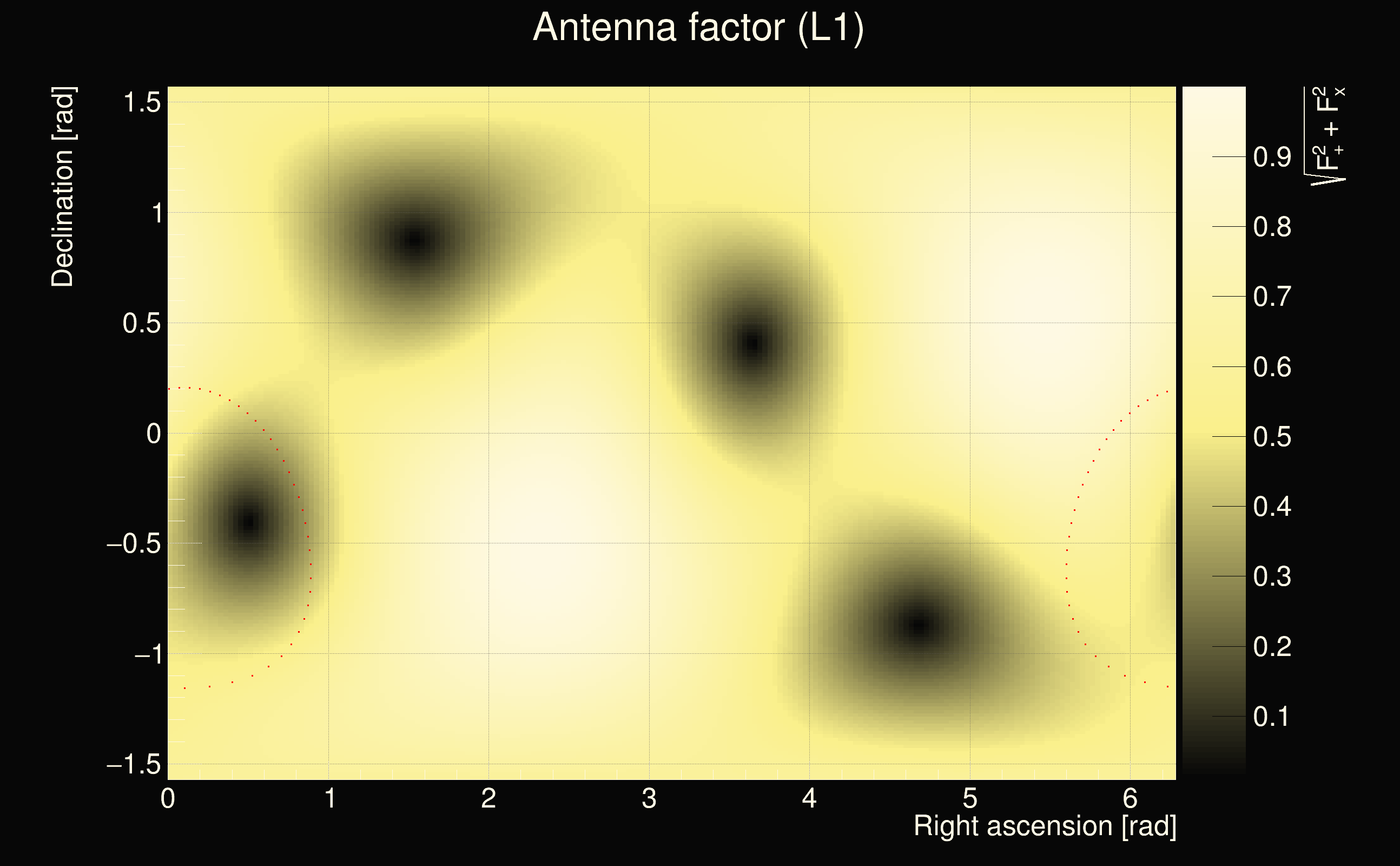

| Antenna factor ratio (min/max): | 0.448621 / 2.23595 |

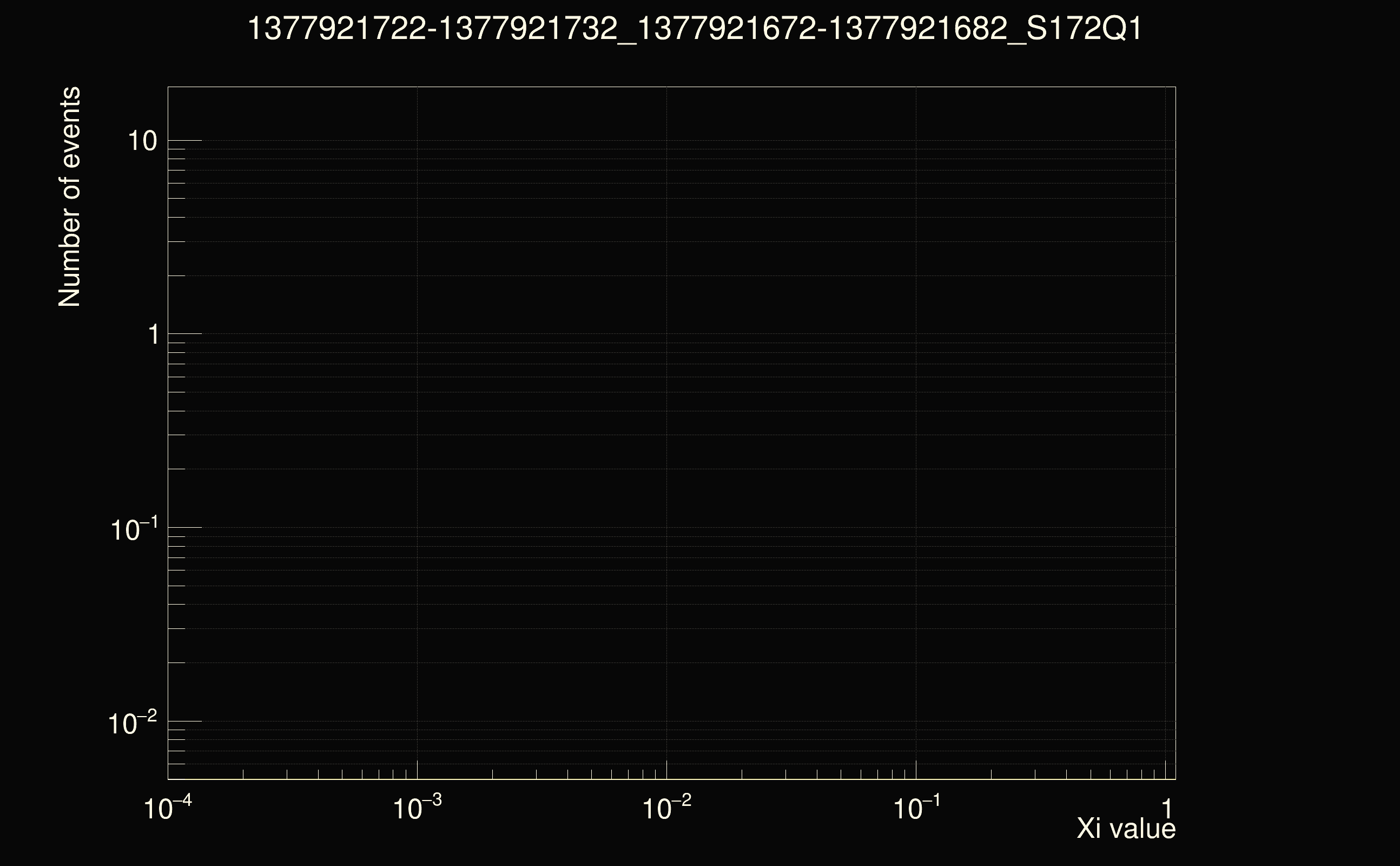

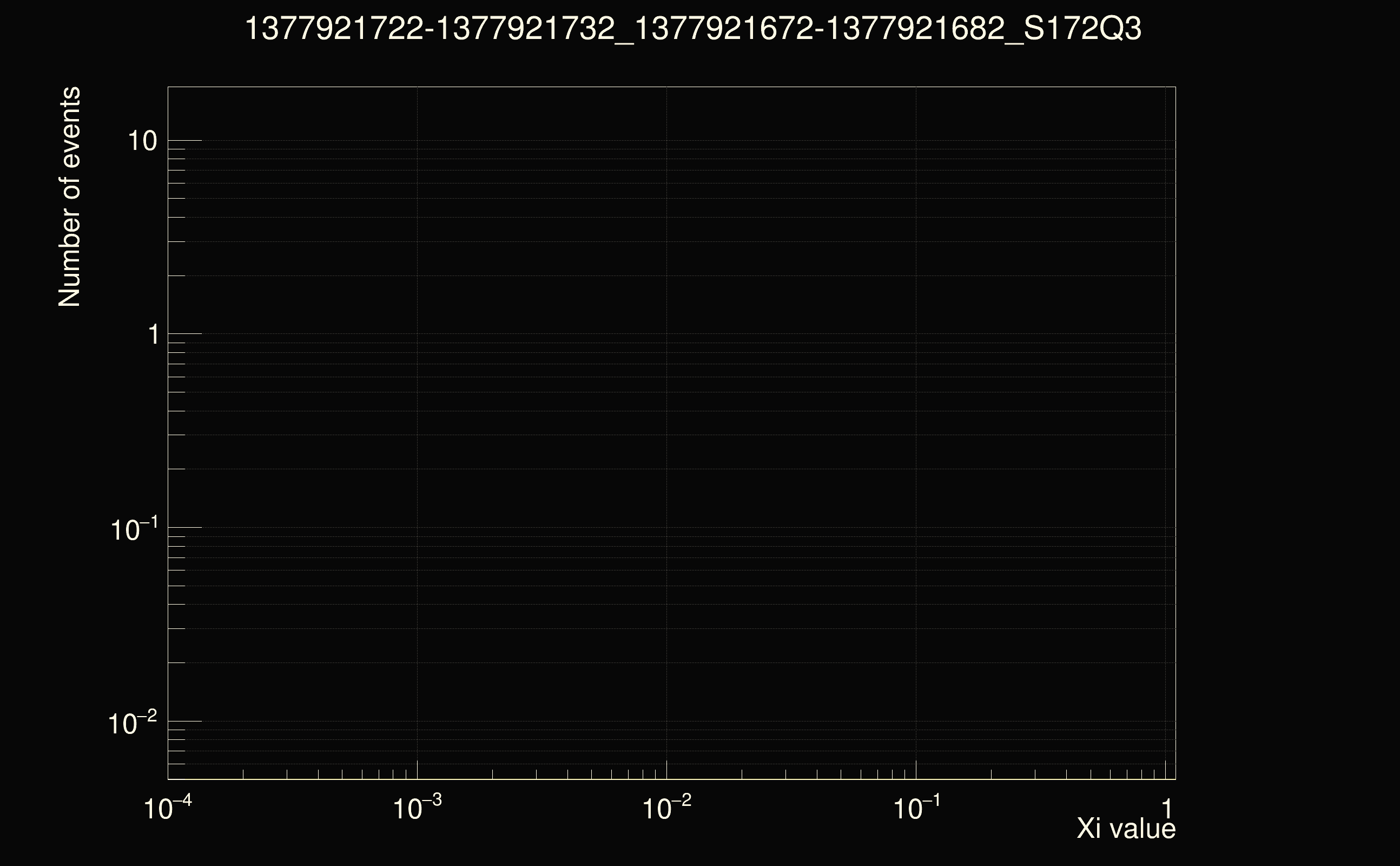

| Number of rejected frequency rows: | Q0: 1 / 26, Q1: 3 / 48, Q2: 91 / 92, Q3: 176 / 176, Q4: 338 / 338 |

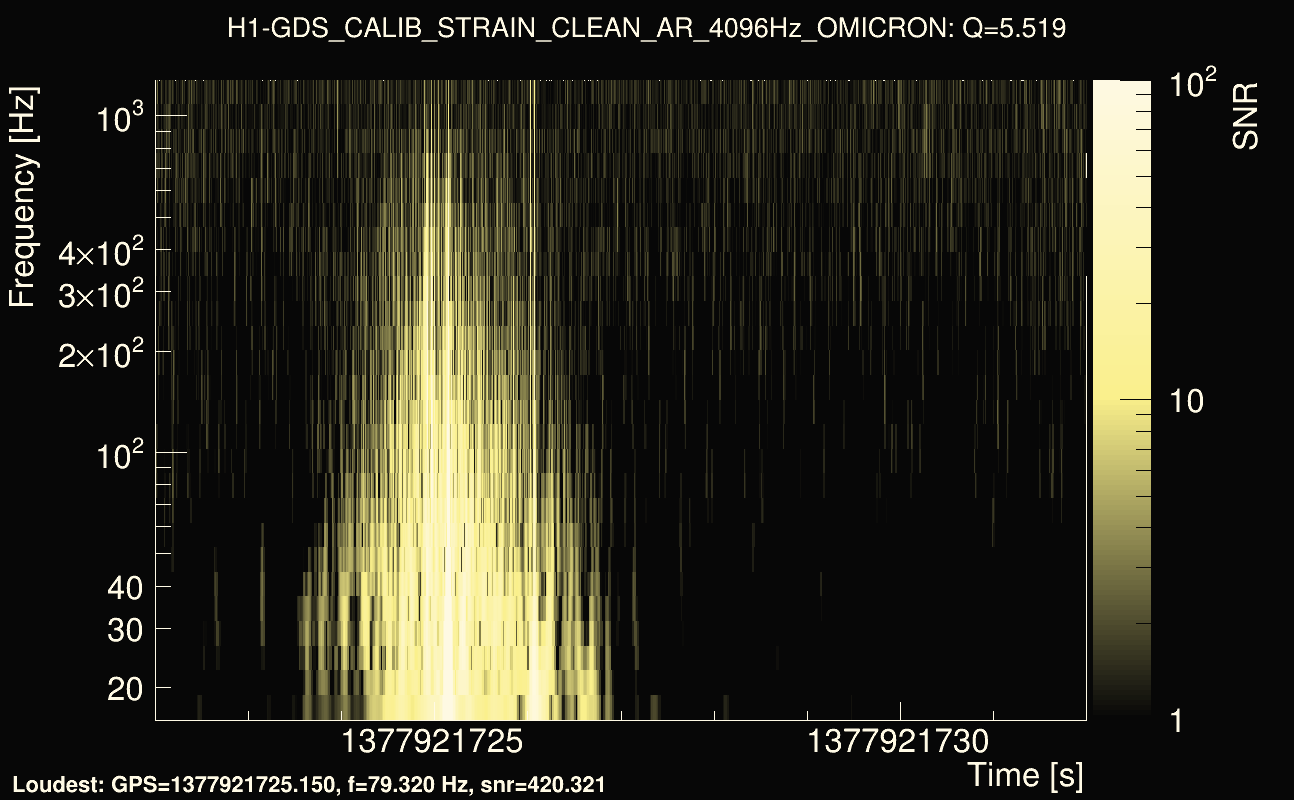

| Maximum signal-to-noise ratio (H1): | 961.687 |

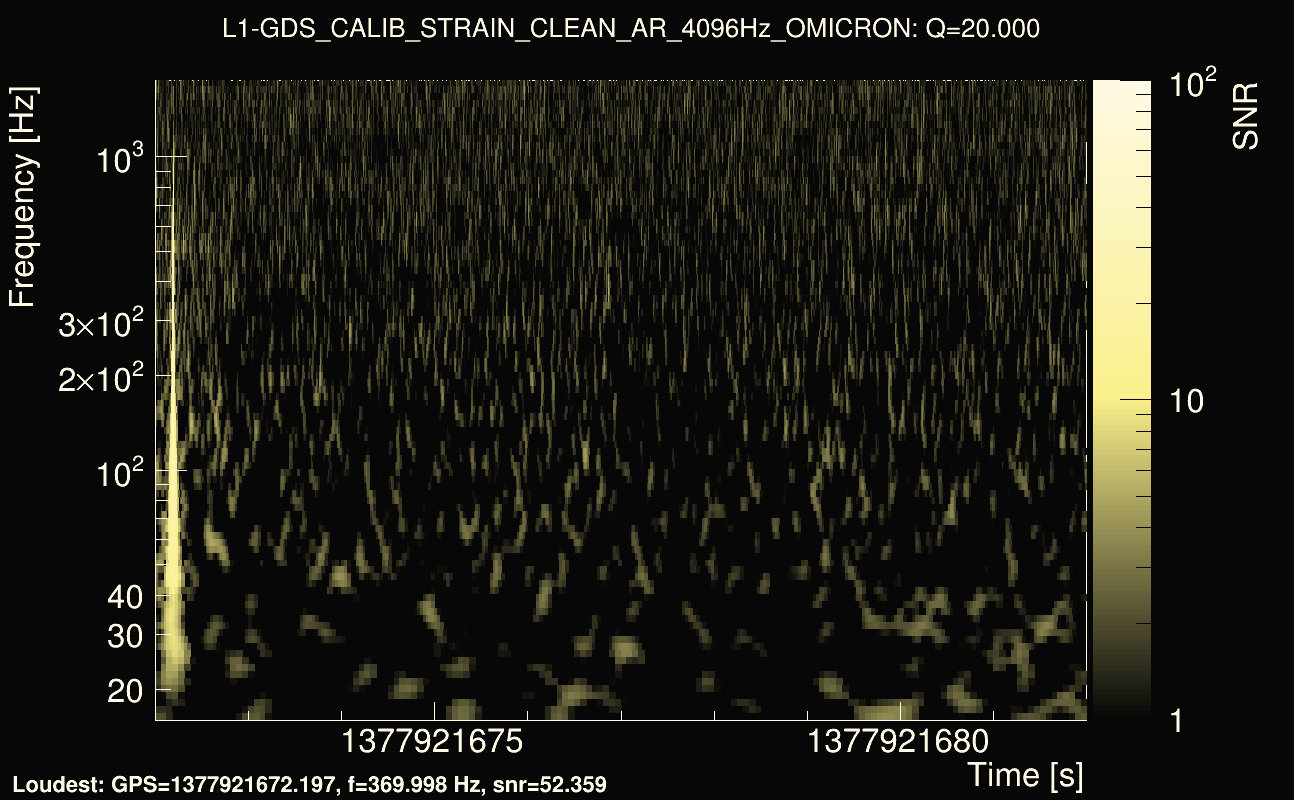

| Maximum signal-to-noise ratio (L1): | 88.8758 |
| SNR variance (H1): | 1010.85 |
| SNR variance (L1): | 0.476091 |
| Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot | Click here for a zoomed plot |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
